Signature Series FZBC Life Fitness Single Station Strength Biceps C Parts Diagram

User Manual: Signature Series FZBC

Open the PDF directly: View PDF .
Page Count: 24

Signature Series Single Station

Biceps Curl

Parts List

FZBC

5/17/2011

FZBC BICEPS CURL

Page 2

CONTENTS

________________________________________

FRAME AND UPHOLSTERY COLORS……………………………………… 3

SHROUD OPTIONS……………………………………………………………….. 4

COMPONENT ASSEMBLY……………………………………………………… 5

COMPONENT ASSEMBLY II………………………………………………….. 6

COMPONENT ASSEMBLY LEGEND…………………………………………. 7

FZ SEAT CARRIAGE ASSEMBLY…………………………………………… 8

FZ SEAT CARRIAGE ASSEMBLY LEGEND………………………………. 9

FZ ADJUSTER HANDLE ASSEMBLY……………………………………….. 10

MID-9 TOWER ASSEMBLY……………………………………………………. 11

PLASTIC TOWER ASSEMBLY………………………………………………… 12

OPTIONAL WRAPPED SHROUDS…………………………………………… 13

MID-9 WEIGHT STACK ASSEMBLY………………………………………. 14

5 LB. INCREMENT WEIGHT ASSEMBLY………………………………… 15

10 LB. INCREMENT WEIGHT ASSEMBLY………………………………. 16

15 LB. INCREMENT WEIGHT ASSEMBLY………………………………. 17

MID-9 WEIGHT STACK ASSEMBLY………………………………………. 18

OPTIONAL LIGHT MID-9 WEIGHT STACK ASSEMBLY…………… 19

OPTIONAL 2.5 LB. INCREMENT WEIGHT ASSEMBLY……………. 20

OPTIONAL 5 LB. INCREMENT WEIGHT ASSEMBLY……………….. 21

OPTIONAL 7.5 LB. INCREMENT WEIGHT ASSEMBLY……………. 22

HEAD PLATE ASSEMBLY………………………………………………………. 22

HEAD PLATE ASSEMBLY LEGEND…………………………………………. 23

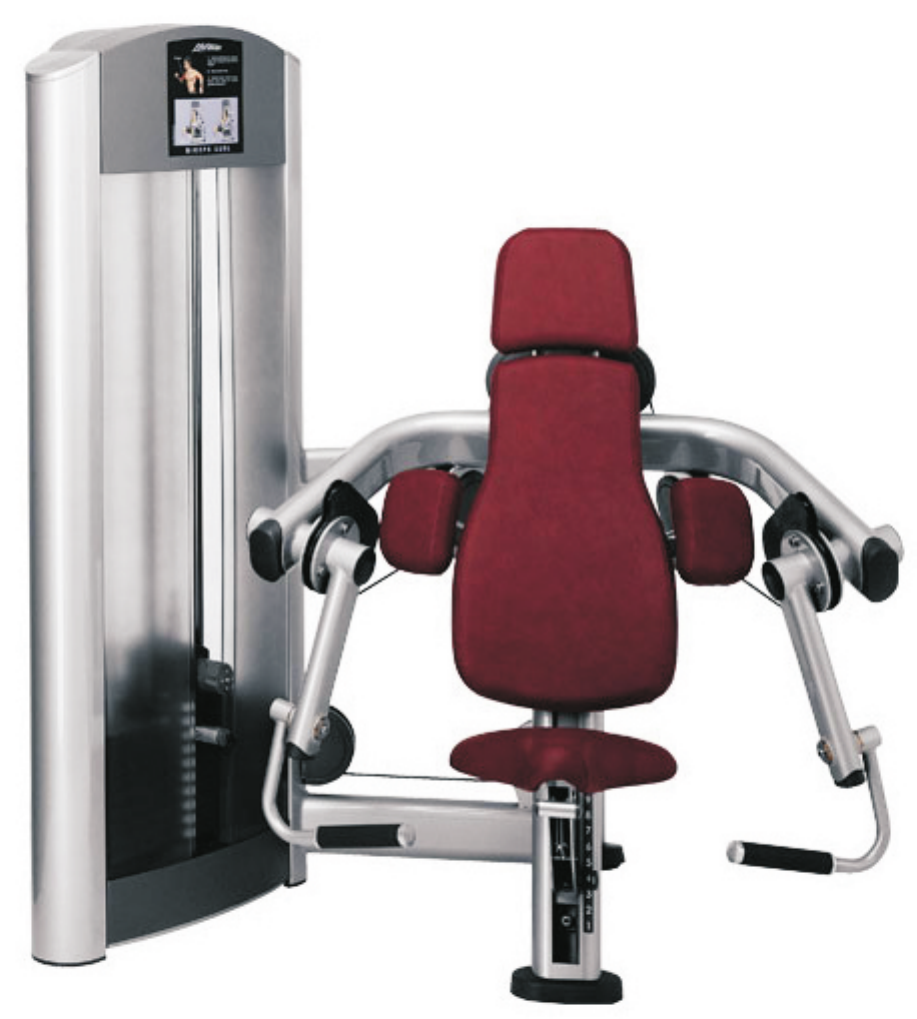

IMAGE………………………………………………………………………………….. 24

FZBC BICEPS CURL

FRAME AND UPHOLSTERY COLORS

________________________________________

Page 2

Strength Frame Colors

American Beauty Red 07 Azure 20 Black 01 Cranberry 04

Graphite 22 Hunter Green 13 Regimental Blue 14 Royal Blue 02

Platinum White Black

Ice Blue Metallic Midnight Metallic Nickel

Slate 03 Wheat 21

Burgundy 29 Candy Apple Red 28 Chestnut 34 Concord 16

Crocus 19 Dove Gray 37 Emerald 27 Grotto 25

Gun Metal 39 Imperial Blue 33 Navy 32

Northwoods Green 05 Paprika 35 Plum 30 Putty 38

Space Blue 06 Suede 08 Terra Cotta 36 Turquoise 17

Strength Upholstery Colors

Jade 26

Blue Red Yellow

Note: Include frame color in pick-slip notes when ordering frame assemblies or weldments.

Note: Replace XX with above color suffix when ordering pads (ie. 74123XX = 7412301 Black)

Use 99 suffix for custom upholstery.

Candy Apple Red

FZBC BICEPS CURL

SHROUD OPTIONS

Page 2

TRANSLUCENT

STANDARD

SHROUD NO WRAP

OPTIONAL StackWraps™

SHROUD + WRAP

CO-BRANDED StackWraps™

SHROUD + WRAP

BAMBOO

(refer to co-branded parts list)

ROSEWOOD

BRONZE

RETRO FITNESS

PLANET FITNESS

SKY STAINLESS

STEEL STEM

________________________________________

________________________________________

________________________________________

Page 4

BLINK FITNESS

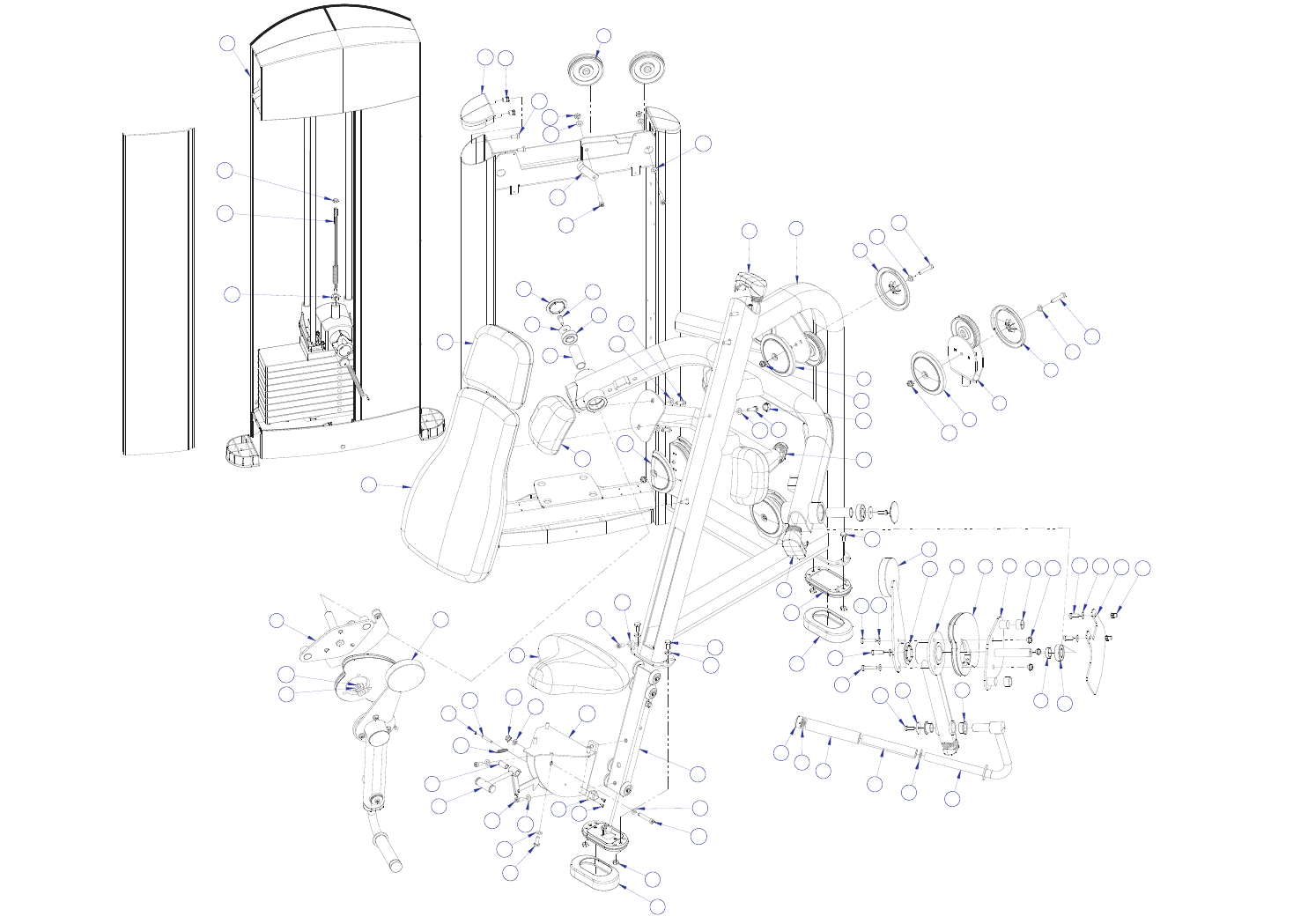

COMPONENT ASSEMBLY

Page 5

________________________________________

FZBC BICEPS CURL

7-1/4"L

49

51

66

33

43

41

42

52

68 31

32

38

25

25

54

53

71

67

68

30

39

28

27

15

14

16

11

64

64

48

47

55

26

46

45

7

1

8

8

8

6

8

56

56

40

40

20

20

20

57

18

73

13

44

32

10

24

21

17

17

2

34

69

70

5

50 29

10

36

34

35

37

12

65

25

25 25

25

25

25

25

44

32

32

32

72

28

41

23

38

38

18

13 46

9

19

18

22

SEE PAGE 7 FOR LEGEND

Page 6

________________________________________

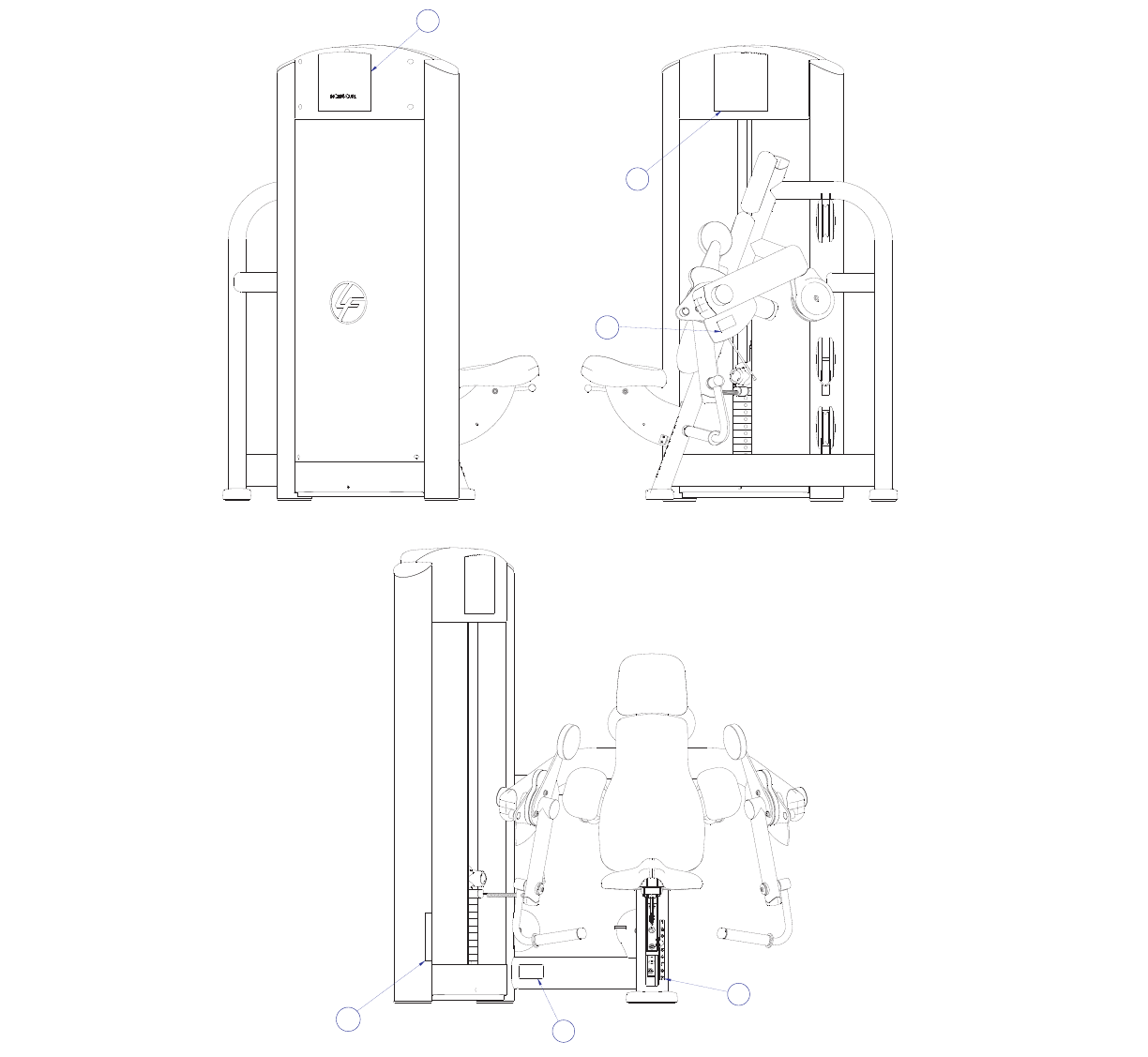

COMPONENT ASSEMBLY II

60

62

58

63

61

59

SEE PAGE 7 FOR LEGEND

FZBC BICEPS CURL

Page 7

________________________________________

COMPONENT ASSEMBLY LEGEND

FZBC BICEPS CURL

ITEM NO. QTY. PART NO. DESCRIPTION 37 2 73933XX PAD, ARM REST

1 1 7400301 WLDMT, FZBC FRAME 38 8 3251202 SCREW, M10 X1.5 X 25MM HEX ZN

2 2 7398101 CAM, FZBC 39 1 7419601 COVER, FOOT-20 DEG.

3 2 7361301 WLDMT, FZBC PIVOT ARM 40 7 3236207 SCREW, M10 X1.5 50MM

4 1 7590501 WLDMT, FZBC PIVOT STOP - LH 41 3 3236801 NUT, M10 HEX NYLOCK SS

5 2 7330001 SPACER, INTERNAL X .403 42 1 7407502 PIN, LINK

6 1 7399601 WLDMT, FZ FLOATING PULLEY 43 2 3232401 RING, RETAINING, EXTERNAL

7 9 3237801 PULLEY, 4.5" OD 44 4 3236701 WASHER, FENDER 3/8" ID X 1.5" OD SS

8 12 8104501 COVER, PULLEY-BOLTED NOTCHED 45 2 7326201 CAP, D-TUBE - TOP

9 1 7590401 WLDMT, FZBC PIVOT STOP - RH 46 8 3238601 M10X1.5 THREADED INSERT (HEX)

10 4 3235601 BEARING, 6205 BALL 47 1 7423606 CABLE, FZBC-1

11 2 7761201 WLDMT, FZBC HANDLE 48 1 3236902 NUT, M16 X 2 HEX JAM SS

12 4 3104903 1.00" ID 1.25" OD BRONZ BUSHING 49 2 7342201 PLATE, CABLE END

13 4 7308701 CAP, BEARING HOUSING 50 4 7690101 BUMPER, SLEEVE - 1 INCH DIA

14 2 3235803 GRIP, 1.25 X .14 X 7.00 51 1 7423804 CABLE, FZBC-2

15 2 7662902 CAP, GRIP 1.50 OD 52 1 3239201 SPRING, EXT, .375 X .049 X 2.00

16 2 7560501 LINER, FZBC HAND GRIP 53 1 7425295 BRKT, SEAT INDICATOR

17 3 7333901 CAP, LARGE FLOV- END 54 2 3239101 SCREW, M5X10 PHL PAN TT ST

18 6 3236206 SCREW, M10 X1.5 45MM 55 1 3236901 NUT, M10 X 1.5 JAM

19 2 3236204 SCREW, M10 X1.5 35MM 56 7 7630101 RETAINER, CM/MJ, PULLEY

20 13 7335401 NUT, M10 X 1.5 SOCKET HEAD 57 1 6757701 CLIP, CABLE 2-7/8 X 1 X 1

21 2 8094101 COVER, PULLEY-BOLTED PARTIAL 58 1 7507701 LABEL, FZBC PLACARD

22 1 7334001 FOOT, 2.50 X 4.49 FLOV 59 1 7524501 LABEL, 1-9 STRAIGHT

23 4 7333801 CAP, SMALL FLOV- END 60 1 7507801 LABEL, FZBC LOGO

24 2 7330003 SPACER, INTERNAL X 3.265 61 1 7422004 LABEL, 2" ASTM WARN

25 31 3236601 WASHER, 3/8 SAE SS 62 1 7422003 LABEL, MOVING PARTS

26 1 7420301 ASSY, MID TOWER-9 63 1 7571301 LABEL, SERIAL NUMBER

27 1 7385203 SPACER, .406 X .750 X .500 64 4 3249501 WASHER, NYLON FLAT - BLK 1.015 X

28 5 3236201 SCREW, M10 X1.5 20MM 65 4 3237403 PLUG, 1" HOLE

29 2 7560101 GUARD, FZBC CAM 66 1 7776501 SHAFT, .625 X .406 X 1.200

30 1 7911101 ASSY, SEAT CARRIAGE 67 1 3236208 SCREW, M10 X1.5 55MM

31 1 7330501 WLDMT, FZ SEAT SUPPORT 68 2 7776401 SPACER, FLANGE .406 X .495 X .81

32 14 3236202 SCREW, M10 X1.5 25MM 69 1 7805301 WLDMT, FZBC CTR WT - L

33 1 7778001 ASSY, FZ ADJUSTER HANDLE 70 1 7805401 WLDMT, FZBC CTR WT - R

34 1 72971XX PAD, SEAT SADDLE 71 4 3254703 NUT, M10 X 1.5 HEX ZINC

35 1 74743XX PAD, HEAD REST 72 4 3251204 SCREW, M10 X1.5 X 35MM HEX ZN

36 1 74741XX PAD, LARGE BACK 73 1 7340201 COVER, FOOT - STRAIGHT

Page 8

________________________________________

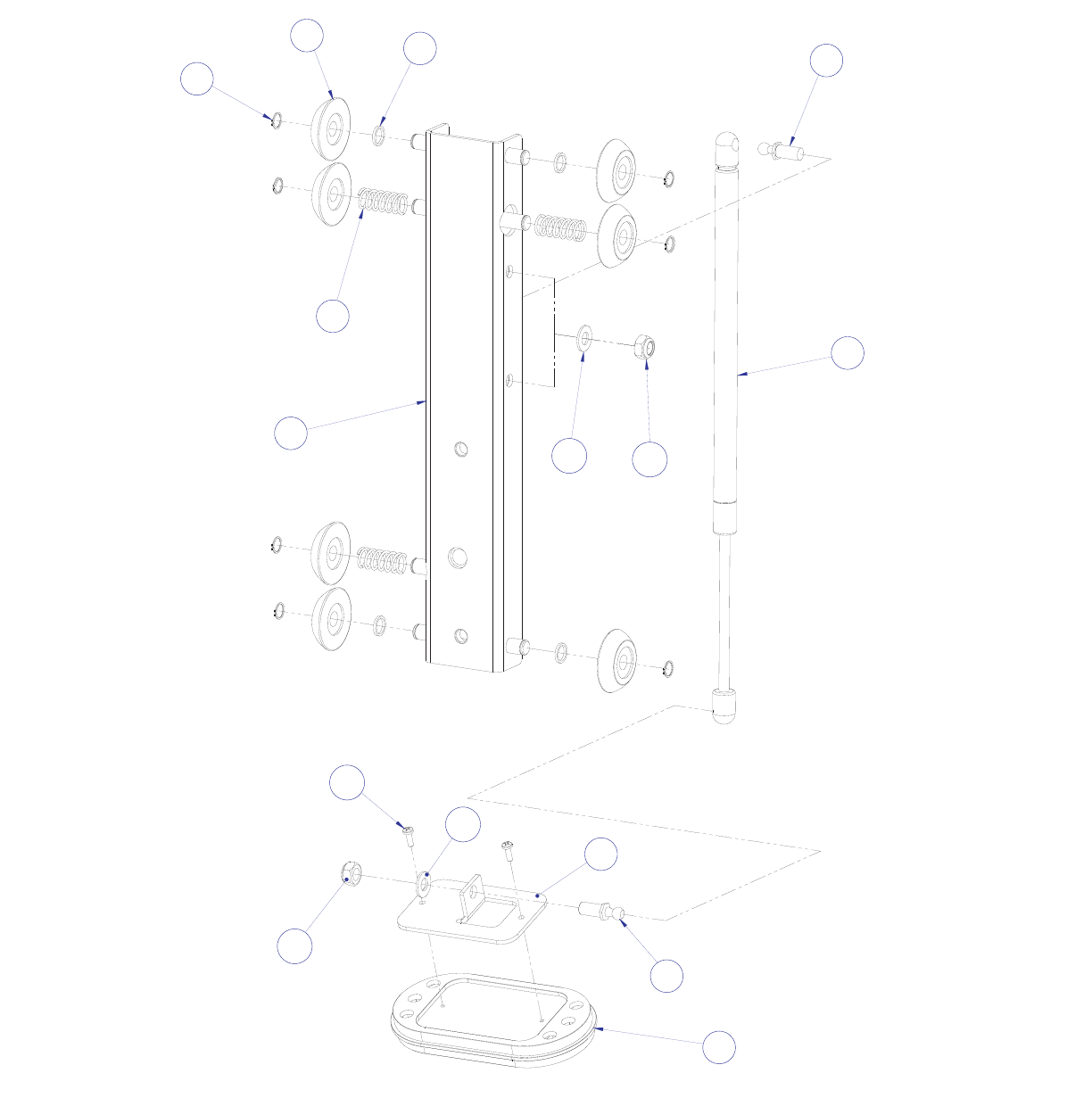

FZ SEAT CARRIAGE ASSEMBLY - 7911101

5

3

2

1

4

6

7

10 11

12

9

8

10

11

7

FZBC BICEPS CURL

SEE PAGE 9 FOR LEGEND

Page 9

________________________________________

FZBC BICEPS CURL

FZ SEAT CARRIAGE ASSEMBLY LEGEND

ITEM NO. QTY. PART NO. DESCRIPTION

1 1 7911295 WLDMT, SEAT CARRIAGE SHDW GRAY

2 7 7889701 ROLLER, SEAT CARRIAGE

3 4 7911901 SPACER, .625 DIA X 16 GA.

4 3 7912001 SPRING, SEAT CARRIAGE

5 7 3232408 RING, BRE .443, 5100-46, ST,PP,B

6 1 3235703 SPRING, GAS 80N

7 2 7414301 STUD, M10 BALL END M10 X 1.5

8 1 7339401 BRACKET, GAS SPRING

9 1 7334001 FOOT, 2.50 X 4.49 FLOV

10 2 3236601 WASHER, 3/8 SAE SS

11 2 3236801 NUT, M10 HEX NYLOCK SS

12 2 3241201 M4 PHL PAN F ST ZN

Page 10

________________________________________

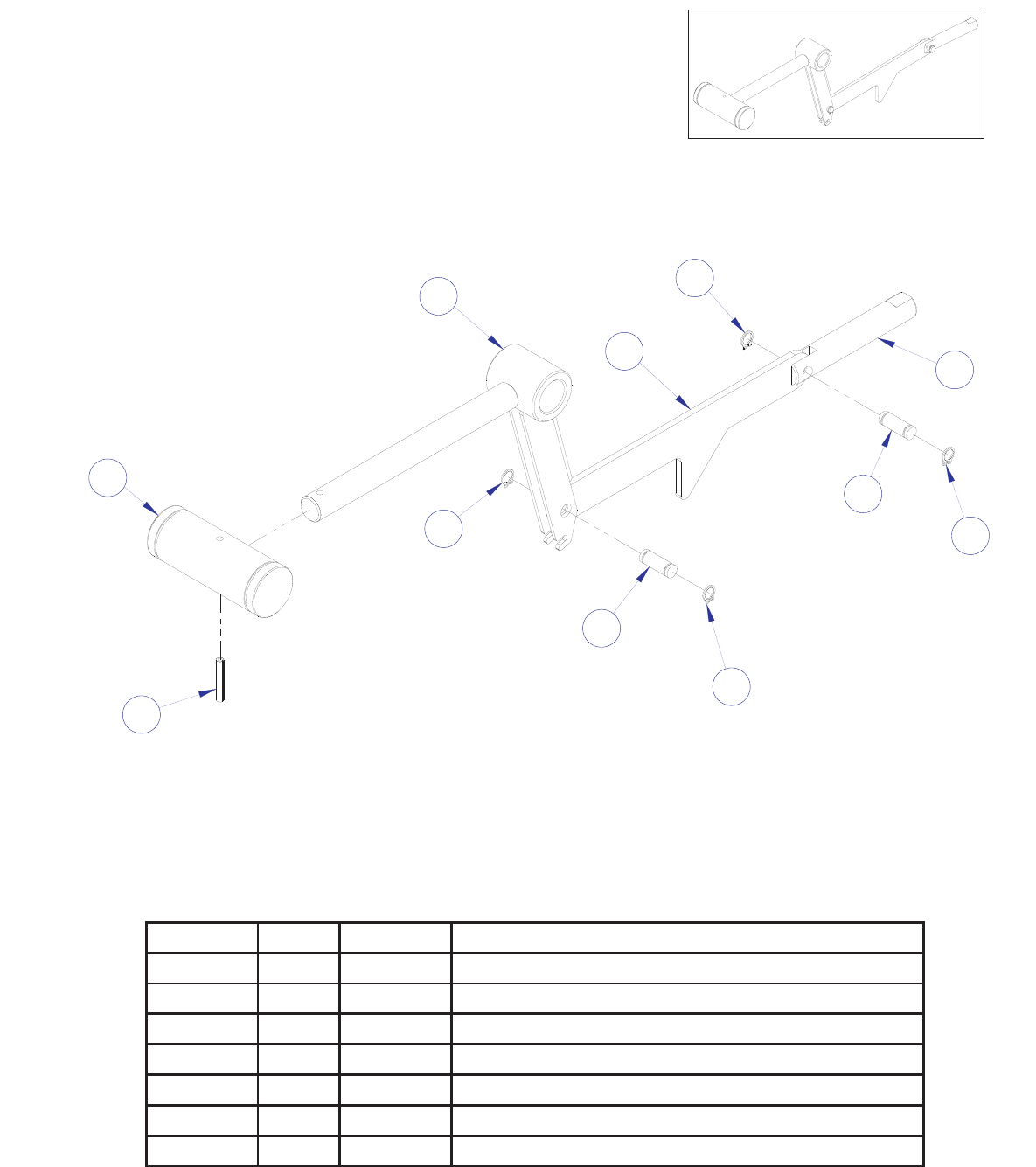

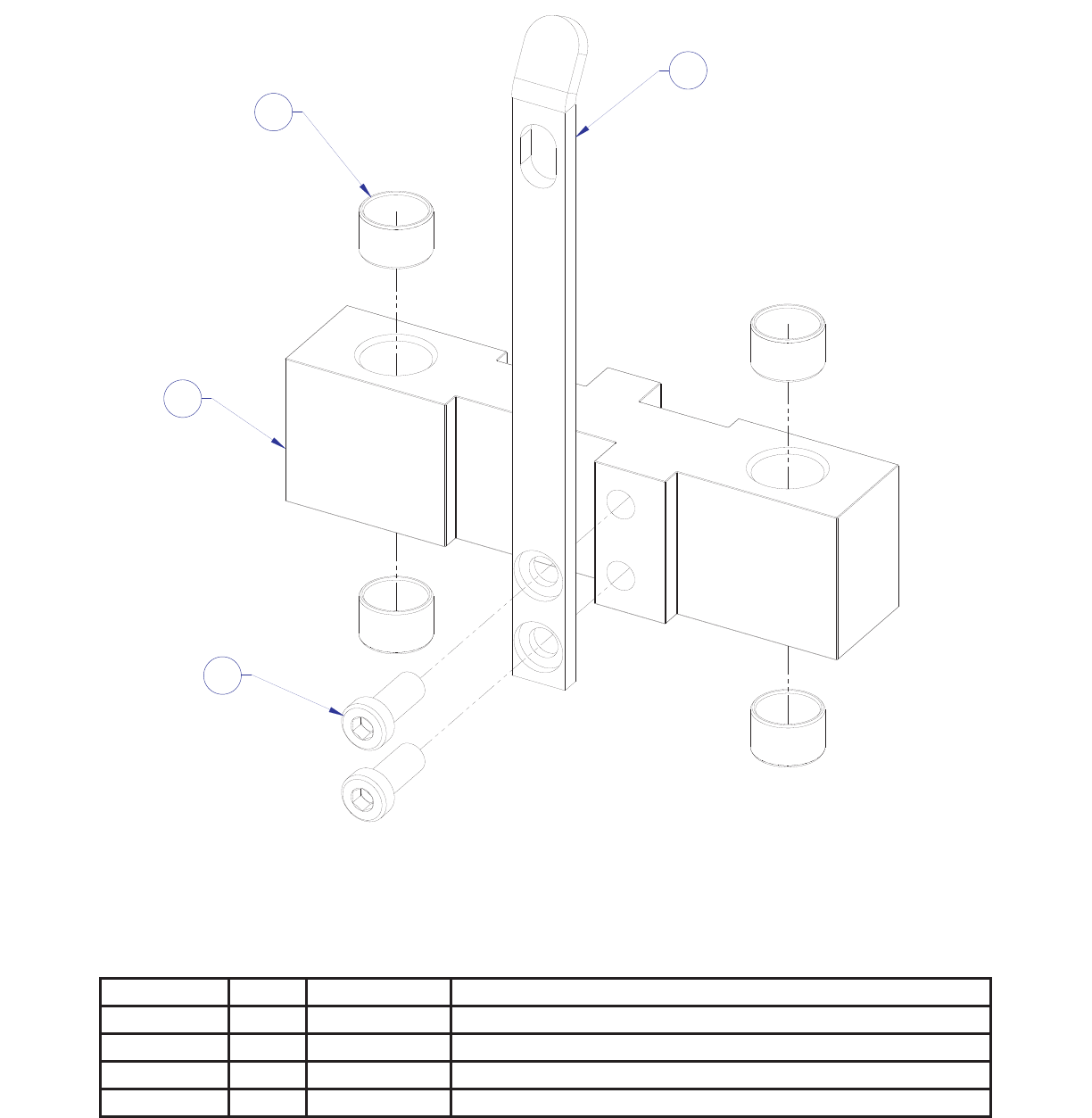

FZ ADJUSTER HANDLE ASSEMBLY - 7778001

FZBC BICEPS CURL

7

6

5

4

1

3

2

4

5

5

5

ITEM NO. QTY. PART NO. DESCRIPTION

1 1 7777595 WLDMT, FZ SEAT ADJ HANDLE SHADOW GRAY

2 1 7331801 LINK, ADJUSTER

3 1 7331601 PIN, INDEX

4 2 7407501 PIN, LINK

5 4 3232401 RING, RETAINING, EXTERNAL

6 1 7287901 HANDLE, ADJUSTER

7 1 3110010 ROLL PIN, 1/8 X 7/8

Page 11

________________________________________

MID-9 TOWER ASSEMBLY - 7420301

FZBC BICEPS CURL

3

2

1

ITEM NO. QTY. PART NO. DESCRIPTION

1 1 7420001 ASSY, WEIGHT STACK MID-9

2 2 7326301 CAP, D-TUBE-BTM

3 1 7419801 ASSY, TOWER PLASTICS-MID

Page 12

________________________________________

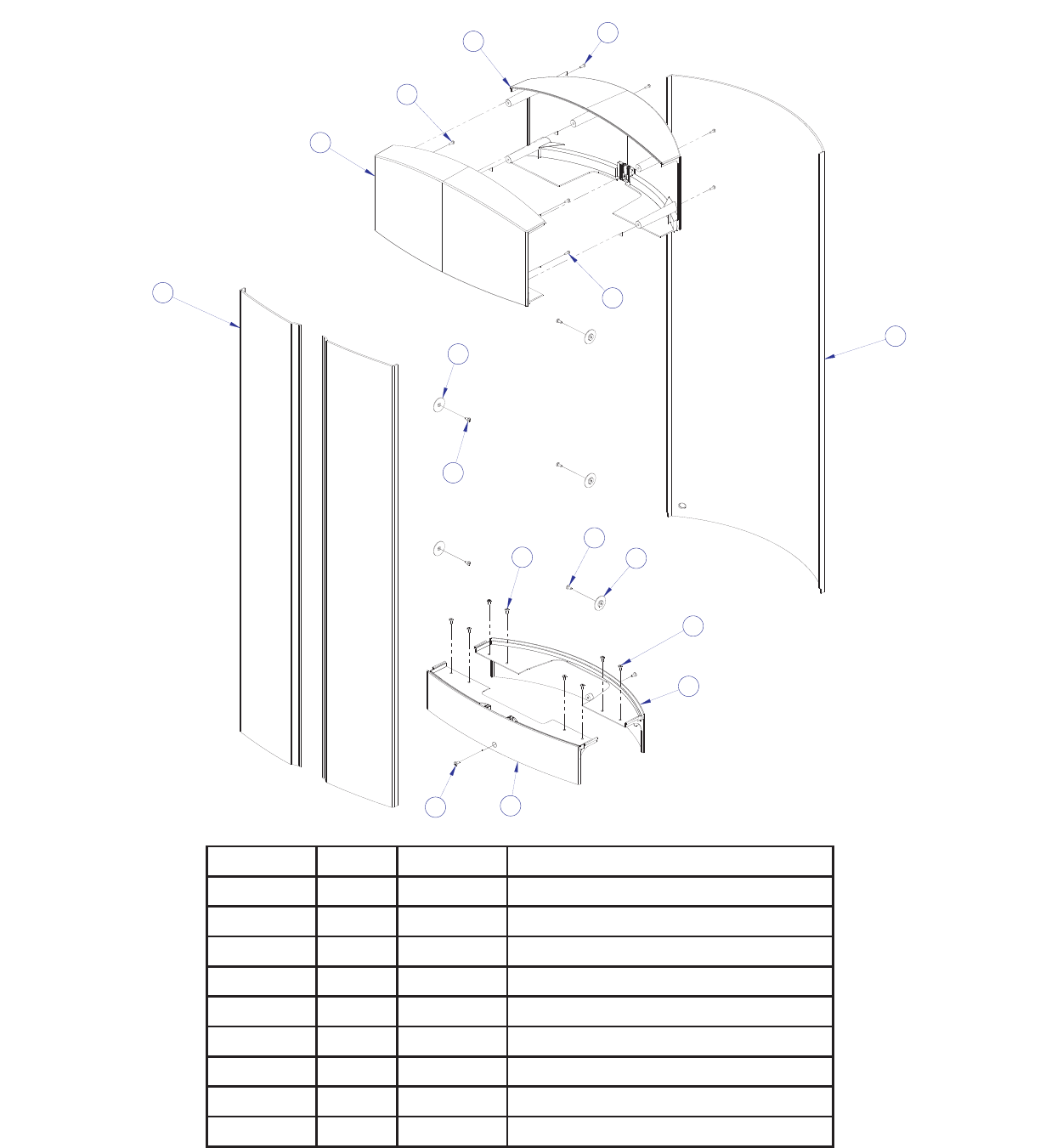

PLASTIC TOWER ASSEMBLY - 7419801

FZBC BICEPS CURL

8

1

9

9

5

5

5

6

6

6

6

6

3

4

7

2

ITEM NO. QTY. PART NO. DESCRIPTION

1 1 7318601 COVER, TOWER- TOP FRONT

2 1 7318701 COVER, TOWER- TOP REAR

3 1 7318801 COVER, TOWER- BOTTOM FRONT

4 1 7318901 COVER, TOWER- BOTTOM REAR

5 9 3236501 M4 X 0.7 PHL PAN MS ST ZN

6 16 3239101 SCREW, M5X10 PHL PAN TT ST

7 1 7765701 SHROUD, TOWER- REAR SHORT

8 2 7765601 SHROUD, TOWER- FRT SHORT RH

9 6 7583501 RETAINER, FZ SHROUD

1

RIGHT

LEFT

REAR

32

Page 13

________________________________________

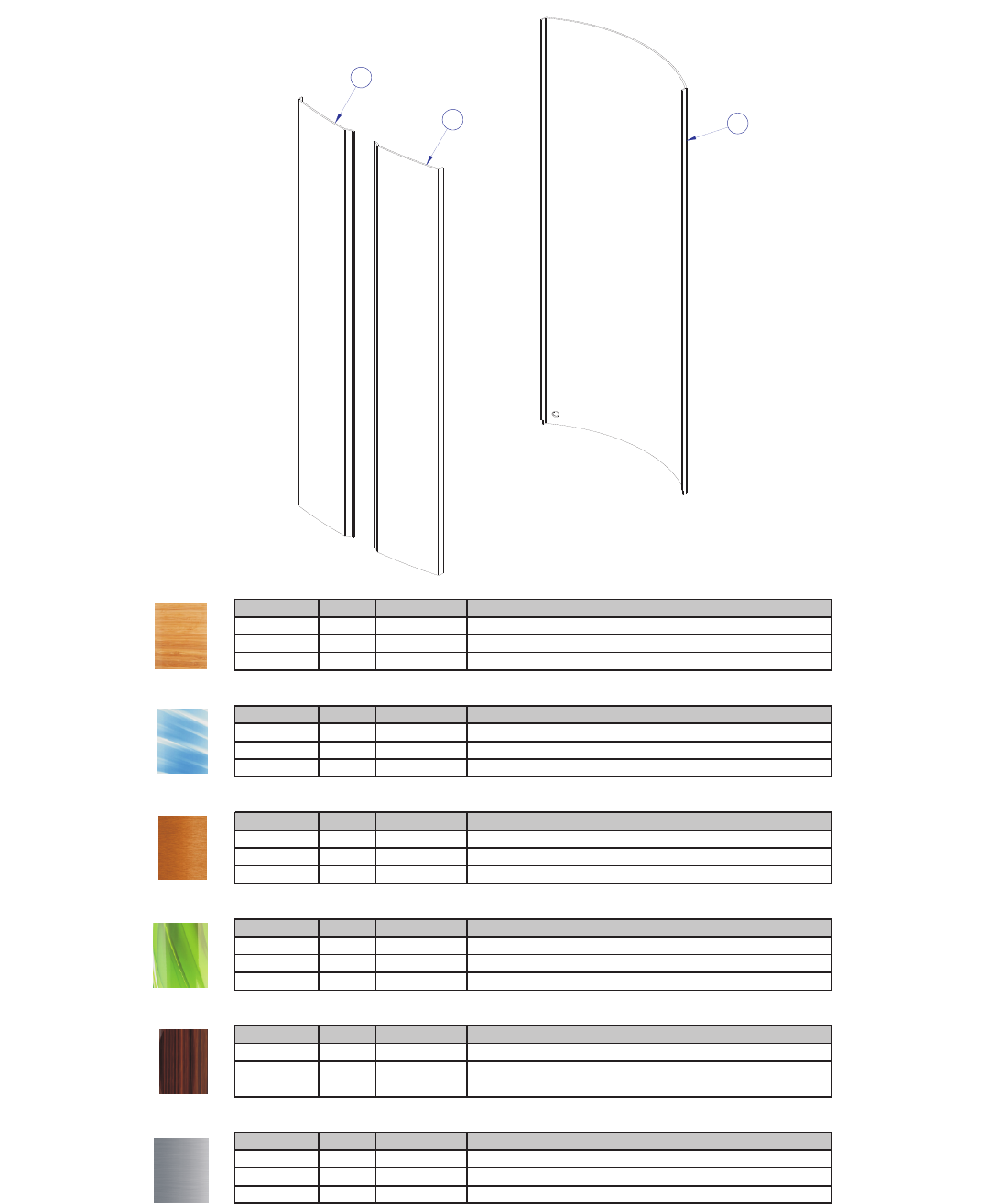

OPTIONAL WRAPPED SHROUDS

FZBC BICEPS CURL

BAMBOO

ROSEWOOD

BRONZE

SKY

STAINLESS

STEEL

STEM

ITEM NO. QTY. PART NO. DESCRIPTION

1 1 8954201 SHROUD, FZ, FNT, SRT, LT -BAMBOO

2 1 8949101 SHROUD, FZ, REAR, SRT -BAMBOO

3 1 8949001 SHROUD, FZ, FNT, SRT, RT -BAMBOO

ITEM NO. QTY. PART NO. DESCRIPTION

1 1 8954301 SHROUD, FZ, FNT, SRT, LT -SKY

2 1 8949301 SHROUD, FZ, REAR, SRT -SKY

3 1 8949201 SHROUD, FZ, FNT, SRT, RT -SKY

ITEM NO. QTY. PART NO. DESCRIPTION

1 1 8954401 SHROUD, FZ, FNT, LT - BRONZE

2 1 8949501 SHROUD, FZ, REAR -BRONZE

3 1 8949401 SHROUD, FZ, FNT, SRT, RT -BRONZE

ITEM NO. QTY. PART NO. DESCRIPTION

1 1 8954501 SHROUD, FZ, FNT, SRT, LT -STEM

2 1 8949701 SHROUD, FZ, REAR, SRT -STEM

3 1 8949601 SHROUD, FZ, FNT, SRT, RT -STEM

ITEM NO. QTY. PART NO. DESCRIPTION

1 1 8954601 SHROUD, FZ, FNT, SRT, LT -ROSEWOOD

2 1 8949901 SHROUD, FZ, REAR, SRT -ROSEWOOD

3 1 8949801 SHROUD, FZ, FNT, SRT, RT -ROSEWOOD

ITEM NO. QTY. PART NO. DESCRIPTION

1 1 8954701 SHROUD, FZ, FNT, SRT, LT -STAINLESS STEEL

2 1 8950101 SHROUD, FZ, REAR, SRT -STAINLESS STEEL

3 1 8950001 SHROUD, FZ, FNT, SRT, RT-STAINLESS STEEL

Page 13

________________________________________

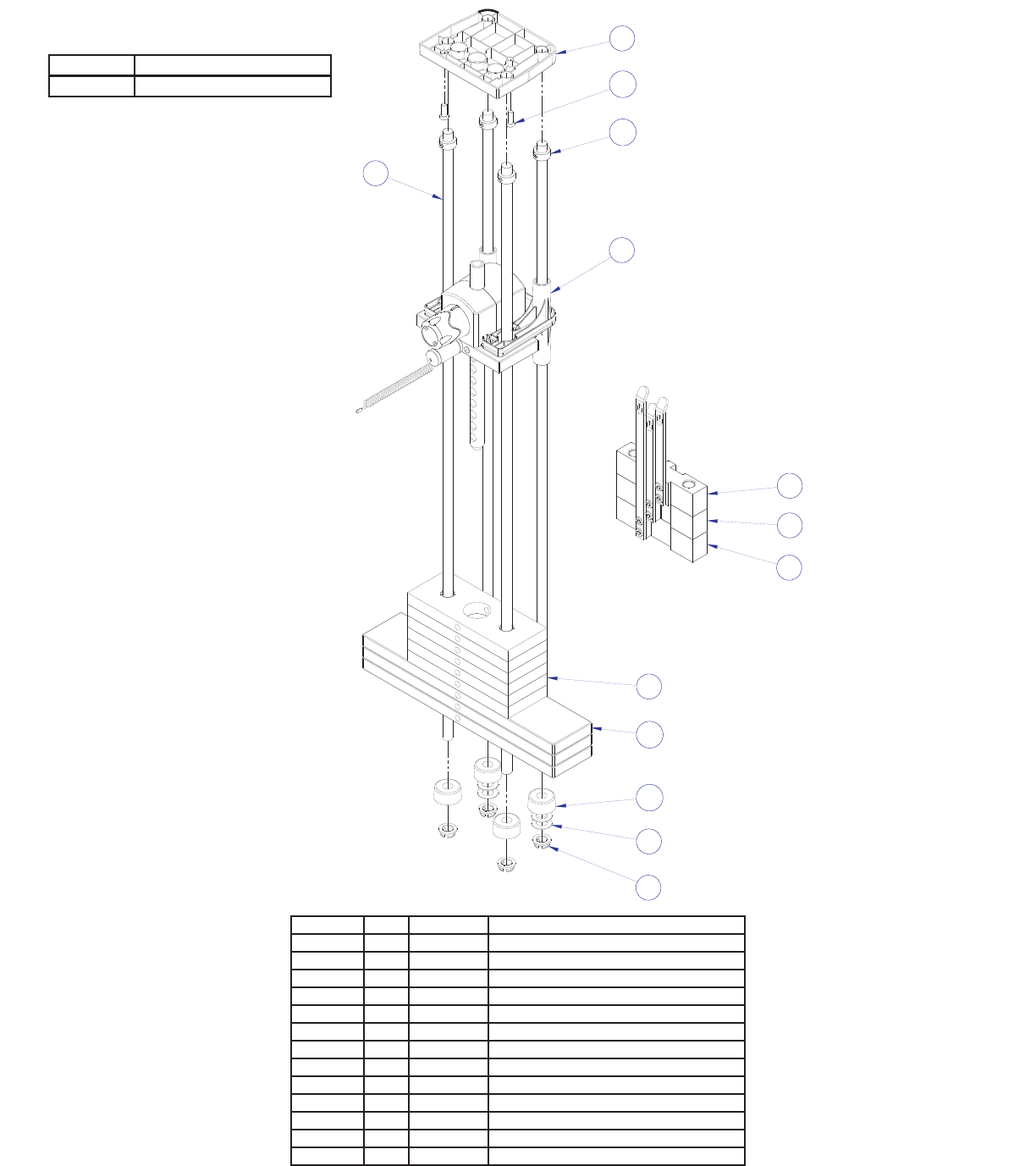

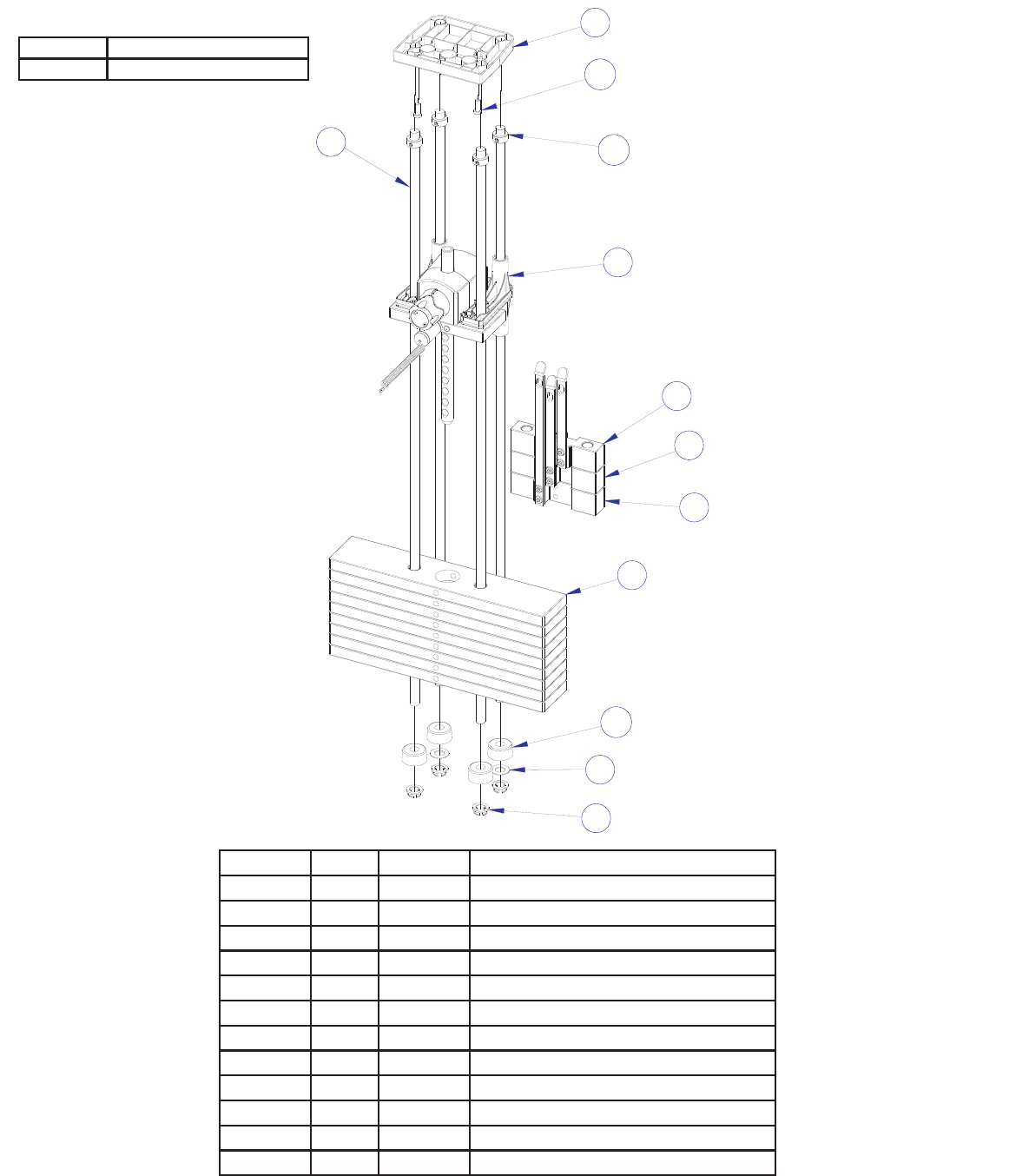

MID-9 WEIGHT STACK ASSEMBLY - 7420001

FZBC BICEPS CURL

9

10

6

4

5

3

2

1

7

811

12

ITEM NO. QTY. PART NO. DESCRIPTION

1 1 7350601 ASSY, HEAD PLATE (9)

2 9 7328401 WEIGHT PLATE, 20 LB

3 1 7327601 ASSY, INCREMENT WT-5LB

4 1 7327701 ASSY, INCREMENT WT-10LB

5 1 7327801 ASSY, INCREMENT WT-15LB

6 2 7351001 SPACER, INC WT STACK

7 1 7621101 RETAINER, GUIDE ROD-TOP

8 4 7328602 GUIDE ROD,.75 OD SOLID X 53.50

9 4 7337901 BUSHING, GUIDE ROD

10 4 7352101 CUSHION, WEIGHT STACK

11 4 3103301 SHAFT COLLAR, 3/4" ID ZINC

12 2 3236202 M10 X 1.5 X 25 HXS SOC CS SS

WEIGHT STACK LABELS

7927201 LABEL, 390 LB STACK

7927301 LABEL, 195 KG STACK

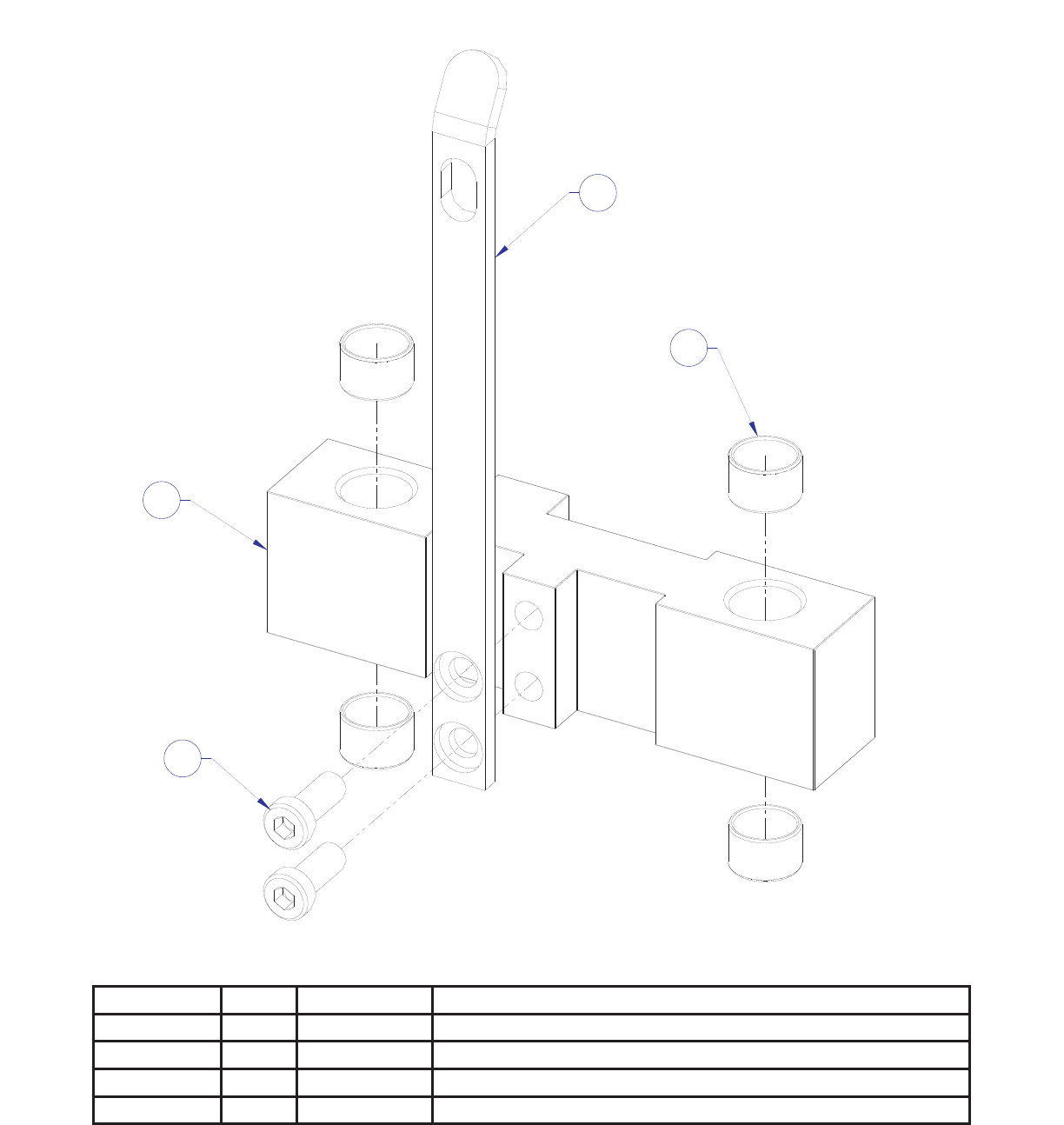

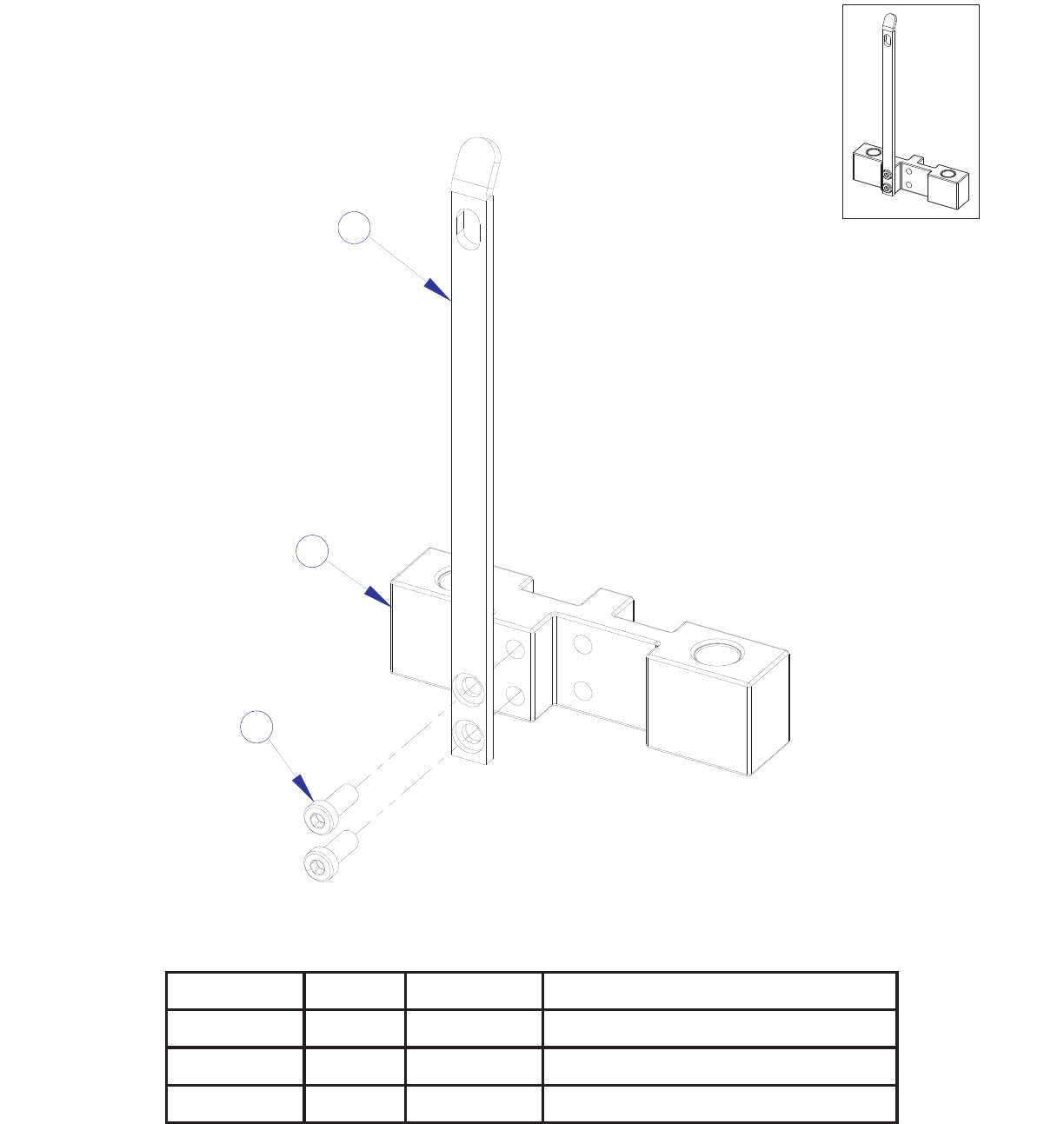

5 LB. INCREMENT WEIGHT ASSEMBLY - 7327601

________________________________________

Page 14

3

2

1

FZBC BICEPS CURL

ITEM NO. QTY. PART NO. DESCRIPTION

1 1 7968501 ASSY, FZ INC WEIGHT 5LB

2 1 7328001 BRKT, INCREMENT WT - 5 LB

3 2 3236202 SCREW, M10 X1.5 25MM

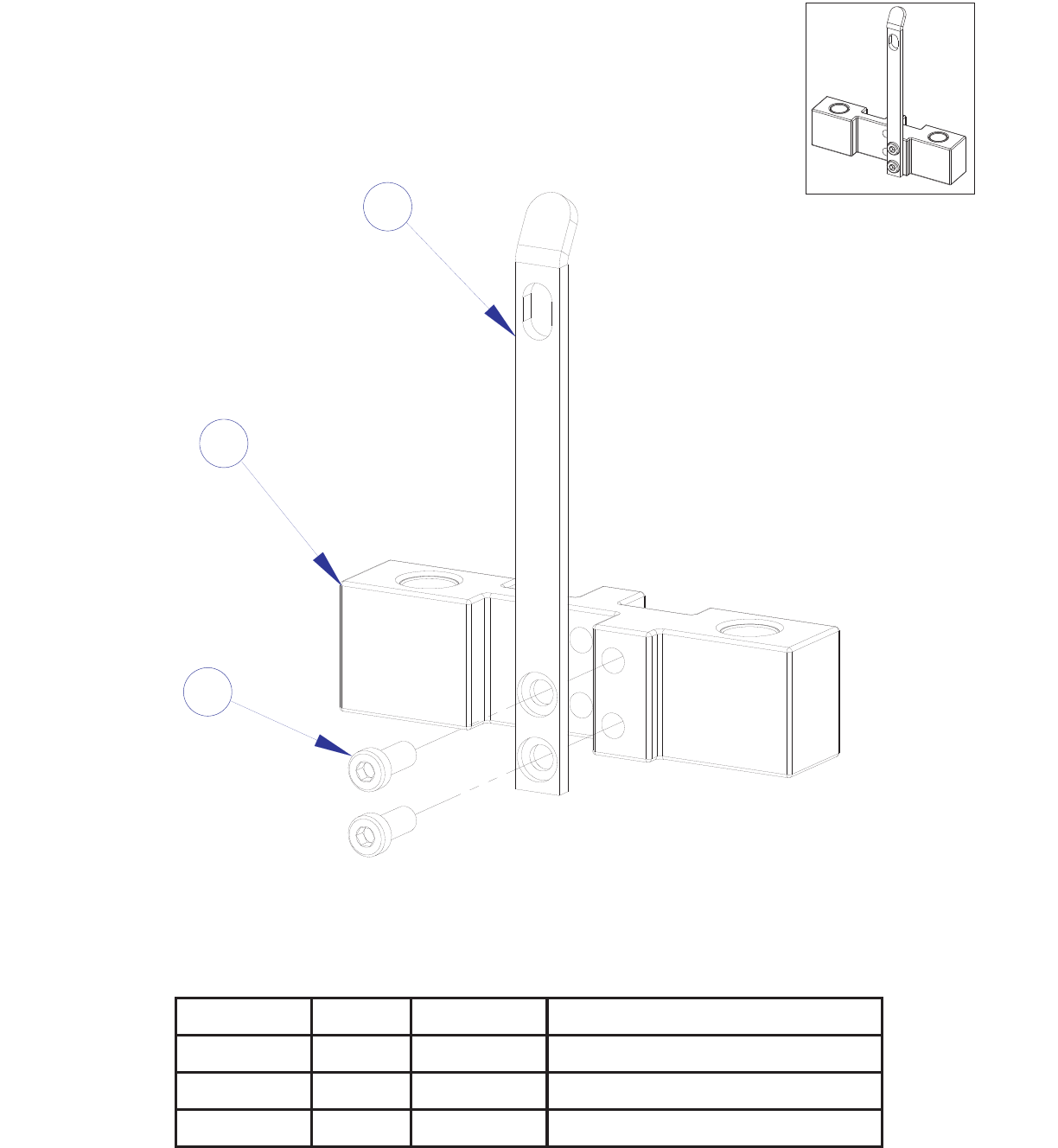

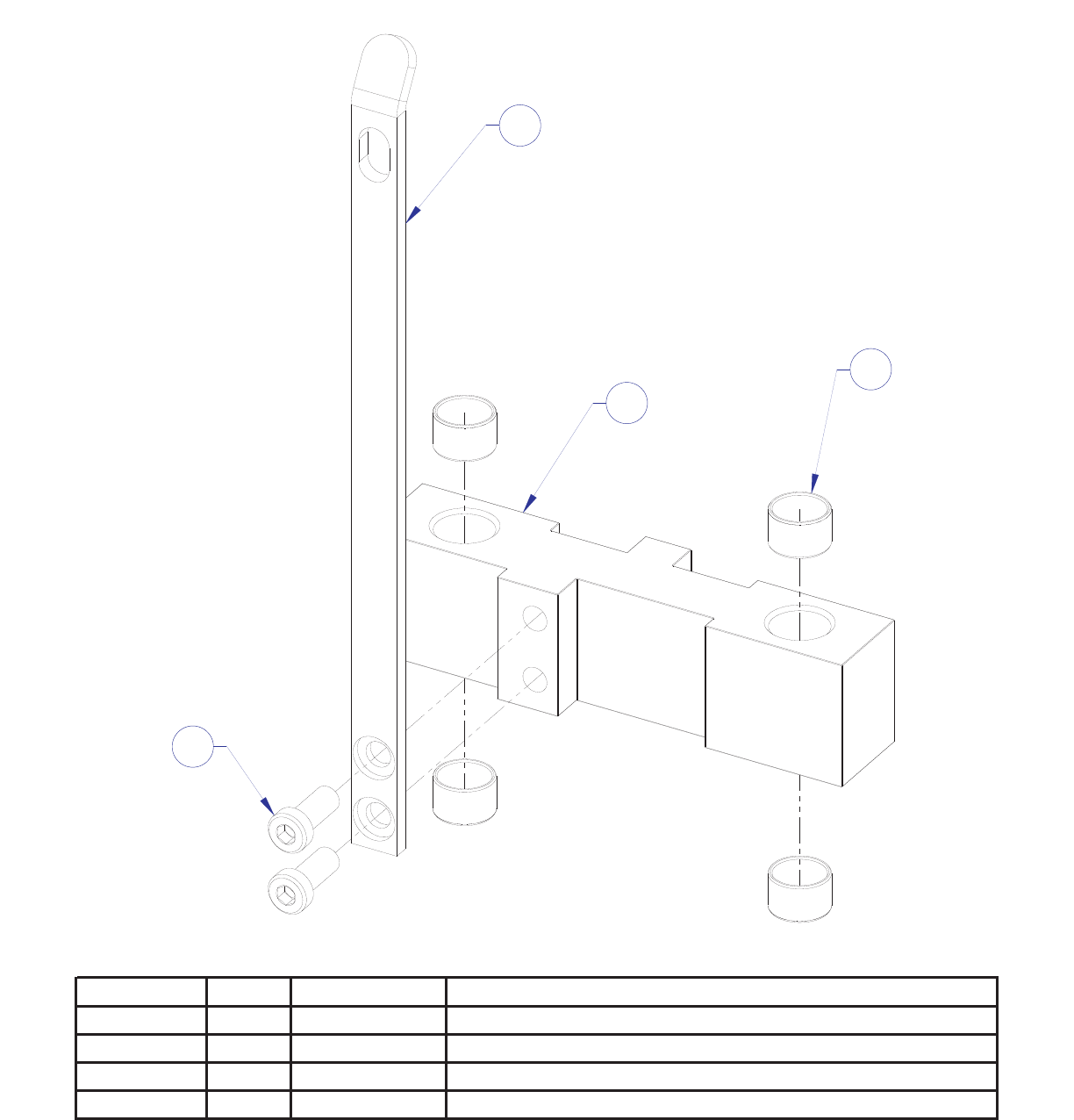

10 LB. INCREMENT WEIGHT ASSEMBLY - 7327701

________________________________________

Page 15

FZBC BICEPS CURL

1

2

3

ITEM NO. QTY. PART NO. DESCRIPTION

1 1 7968501 ASSY, FZ INC WEIGHT 5LB

2 1 7328101 BRKT, INCREMENT WT - 10 LB

3 2 3236202 SCREW, M10 X1.5 25MM

________________________________________

Page 16

FZBC BICEPS CURL

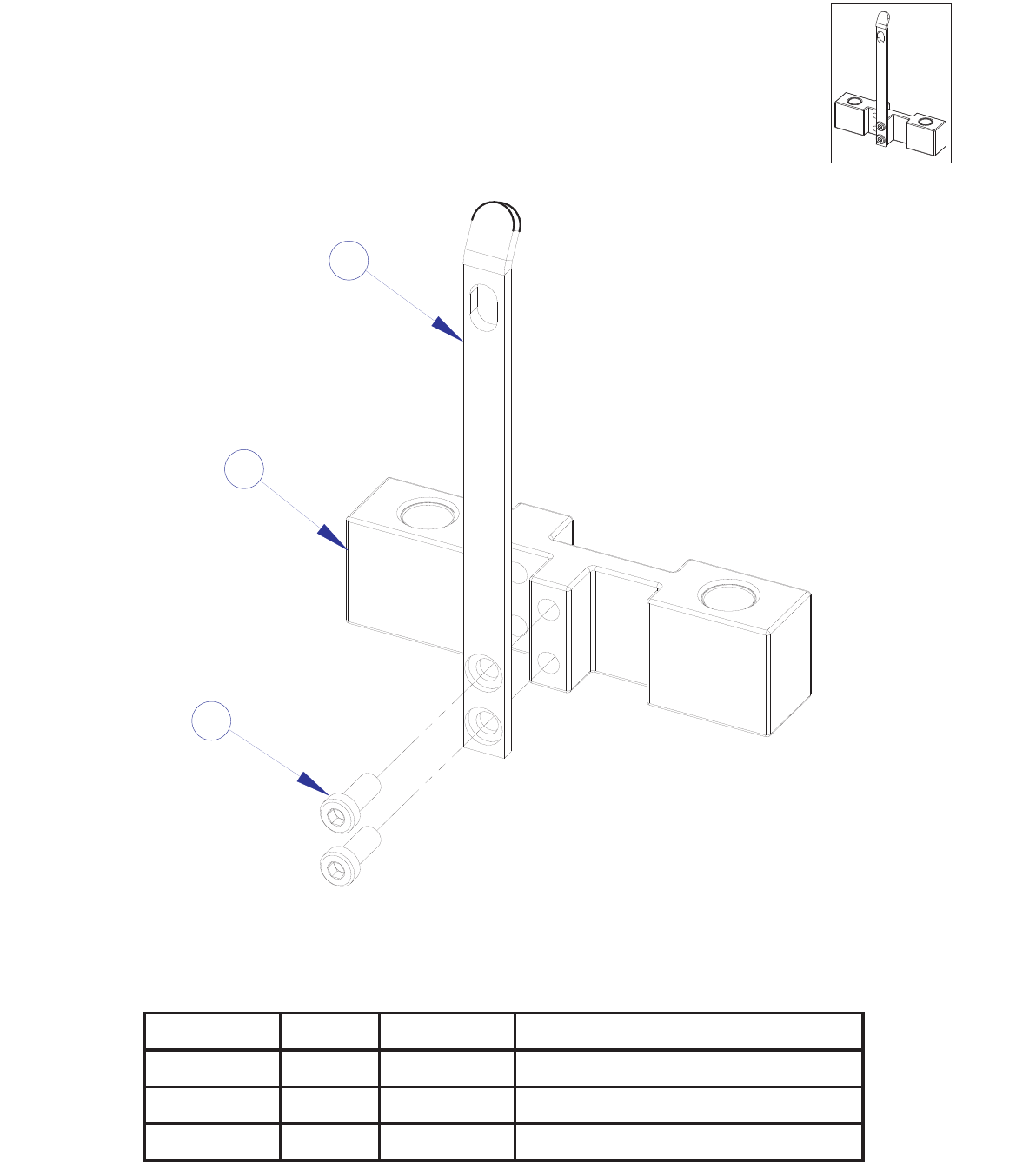

15 LB. INCREMENT WEIGHT ASSEMBLY - 7327801

3

1

2

ITEM NO. QTY. PART NO. DESCRIPTION

1 1 7968501 ASSY, FZ INC WEIGHT 5LB

2 1 7328201 BRKT, INCREMENT WT - 15 LB

3 2 3236202 SCREW, M10 X1.5 25MM

8

7

1

12

11

5

4

3

6

9

10

2

13

________________________________________

OPTIONAL MID LIGHT-9 WEIGHT STACK ASSY. - 8866101

FZBC BICEPS CURL

WEIGHT STACK LABELS

7927201 LABEL, 390 LB STACK

7927301 LABEL, 195 KG STACK

ITEM NO. QTY. PART NO. DESCRIPTION

1 1 7350601 ASSY, HEAD PLATE (9)

2 6 7353701 ASSY, 10 LB PLATE

3 1 8861301 ASSY, FZ INC WEIGHT - 2.5 LB

4 1 8861401 ASSY, FZ INC WEIGHT - 5 LB

5 1 8861501 ASSY, FZ INC WEIGHT - 7.5 LB

6 4 7351001 SPACER, INC WT STACK

7 1 7621101 RETAINER, GUIDE ROD - TOP

8 4 7328602 GUIDE ROD, .75 OD SOLID 53.50

9 4 7337901 BUSHING, GUIDE ROD

10 4 7352101 CUSHION, WEIGHT STACK

11 4 3103301 SHAFT COLLAR, 3/4 I.D. ZINC

12 2 3236202 SCREW, M10 X1.5 25MM

13 3 7328401 WEIGHT PLATE, 20 LB

Page 17

OPTIONAL 2.5 LB. INCREMENT WEIGHT ASSY. - 8861301

________________________________________

FZBC BICEPS CURL

3

4

1

2

ITEM NO. QTY. PART NO. DESCRIPTION

1 1 8861295 INCREMENT WEIGHT, FZ OPTIONAL - SG

2 1 7328001 BRKT, INCREMENT WT - 5 LB

3 2 3236202 SCREW, M10 X1.5 25MM

4 4 3202501 BEARING, SLEEVE 20 ID X 23.00 X 15 MM

Page 18

OPTIONAL 5 LB. INCREMENT WEIGHT ASSY. - 8861401

________________________________________

FZBC BICEPS CURL

4

3

2

1

ITEM NO. QTY. PART NO. DESCRIPTION

1 1 8861295 INCREMENT WEIGHT, FZ OPTIONAL - SG

2 1 7328101 BRKT, INCREMENT WT - 10 LB

3 2 3236202 SCREW, M10 X1.5 25MM

4 4 3202501 BEARING, SLEEVE 20 ID X 23.00 X 15 MM

Page 19

OPTIONAL 7.5 LB. INCREMENT WEIGHT ASSY. - 8861501

________________________________________

FZBC BICEPS CURL

3

4

2

1

ITEM NO. QTY. PART NO. DESCRIPTION

1 1 8861295 INCREMENT WEIGHT, FZ OPTIONAL - SG

2 1 7328201 BRKT, INCREMENT WT - 15 LB

3 2 3236202 SCREW, M10 X1.5 25MM

4 4 3202501 BEARING, SLEEVE 20 ID X 23.00 X 15 MM

Page 20

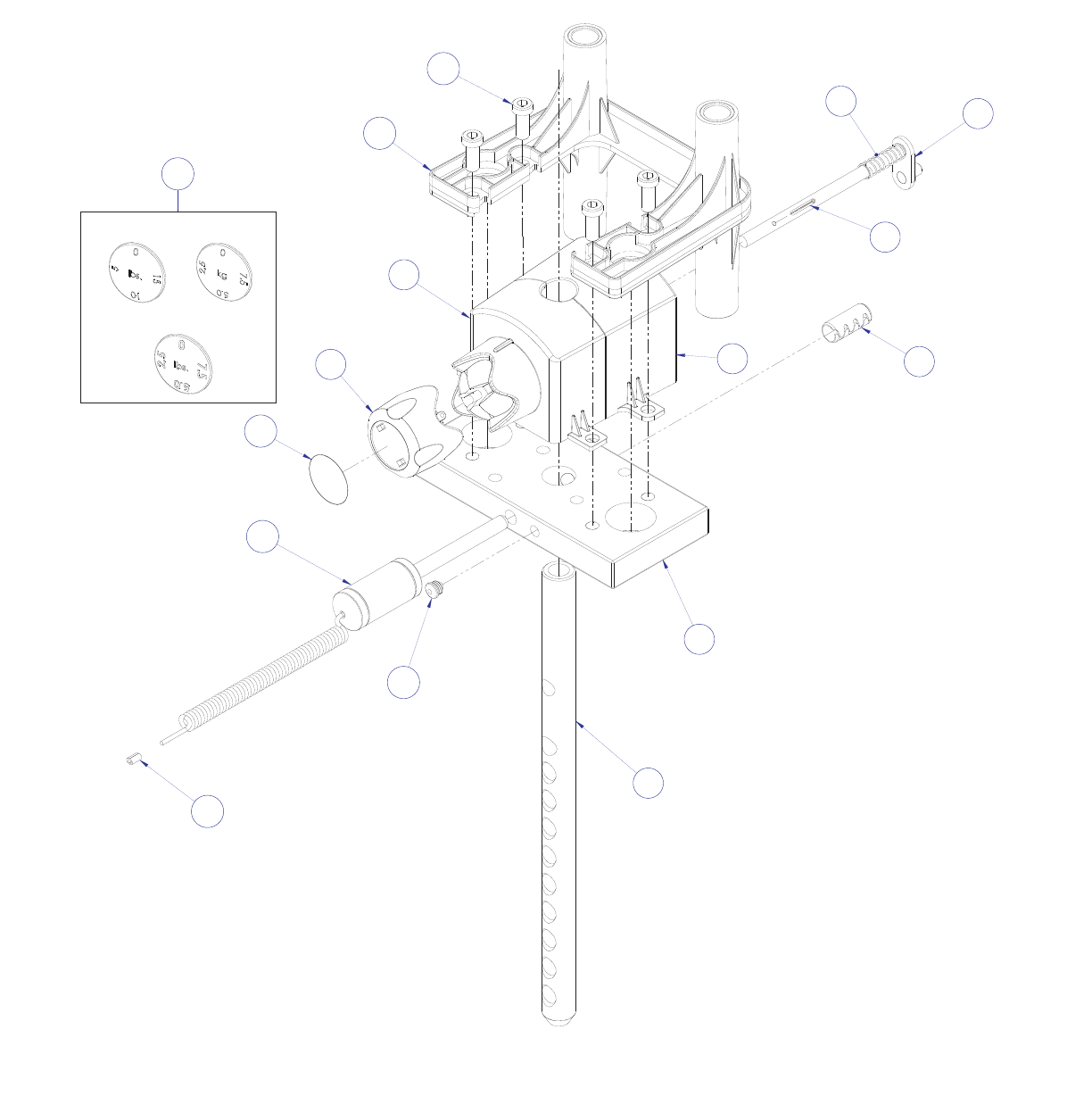

HEAD PLATE ASSEMBLY - 7350601

________________________________________

Page 21

SEE PAGE 22 FOR LEGEND

FZBC BICEPS CURL

REGULAR WEIGHT STACK

LIGHT WEIGHT STACK

1

3

6

4

5

11

14

8

12

10

13

2

9

7

15

15

AB

C

________________________________________

FZBC BICEPS CURL

Page 22

HEAD PLATE ASSEMBLY LEGEND

ITEM NO. QTY. PART NO. DESCRIPTION

1 1 7326701 HEAD PLATE

2 1 7347801 STEM, 9 PLATE

3 1 3236001 BUSHING, SPRING PIN

4 1 7327201 WLDMT, INCREMENT WT PIN

5 1 8024501 SPRING, 1/2 OD X 1-1/2

6 1 7326101 KNOB, INC WT SELECTOR

7* 1 3110008 ROLL PIN, 1/8 X 1-1/4

8* 1 7326401 HOUSING, SELECTOR - FRONT

9* 1 7326501 HOUSING, SELECTOR - REAR

10 1 7356501 PLUG, LANYARD ATTACHMENT

11 4 3236202 SCREW, M10 X1.5 25MM

12 1 7338101 ASSY, WT STACK SELECTOR PIN

13 1 7523601 CRIMP, CABLE

14 1 8867301 ASSY, FZ, STABILIZER WITH BUSHINGS

A) 1 7398601 CAP, SELECTOR KNOB, LBS

15** B) 1 7398701 CAP, SELECTOR KNOB, KG

C) 1 8865801 CAP, FZ SELECTOR KNOB - 2.5 LBS

* kit exists for component set. See bulletin FZ02012701N

** Language specific/Weight stack item. Order separately-not part of assembly.

Page 23


________________________________________

FZBC BICEPS CURL
