Linear Fluorescent Lamp Guide
The energy efficient choice for every application
2
Linear fluorescent.
Efficient and environmentally friendly.
Discover the advantages at a glance:
• Outstanding energy efficiency
• Long life
• Enhanced light quality
• Consistent light output throughout life
• Better light distribution, less shadow than point
source lamps
• Instant on/off switching
• Dimming capability
So many solutions, so much choice:
Perfect for industrial and recreational lighting,
the range covers:
• Linear pendants
• Linear excess wall washers
• Recess wall slots
• Cove lights
• Aisle lights
3
Our linear fluorescent lamps cover every kind of application and excel in long
life, energy savings, low maintenance and colour rendering. Thanks to the
superior quality of light and more vibrant colours, merchandise stands out and
people look more natural. Architects, specifiers and facilities managers can now
deliver better lighting with lower costs.
We look to the future
Our products are designed to comply with current standards, and anticipate
forthcoming regulations.
Our double-coated Linear Fluorescent Lamps (LFLs) comply with all relevant
European standards, including the 2010 ‘ecodesign’ regulations (Commission
Regulation (EC) No 245/2009 – ecodesign requirements applicable from 13 April
2010). Every product with Polylux™ or Starcoat™ coating technology in our
LFL range, whether premium or regular, uses triphosphor elements not only to
satisfy these standards but to exceed them.
As part of the GE commitment to energy efficiency and respect for
the environment, we build efficiency into all aspects of our LFLs from
manufacturing and distribution to day-to-day use. Mercury levels in our linear
fluorescent lamps are below the permitted levels and we continue to push the
boundaries in environmental compliance.
Maximum efficiency.
Maximum compliance.
Maximum benefits.

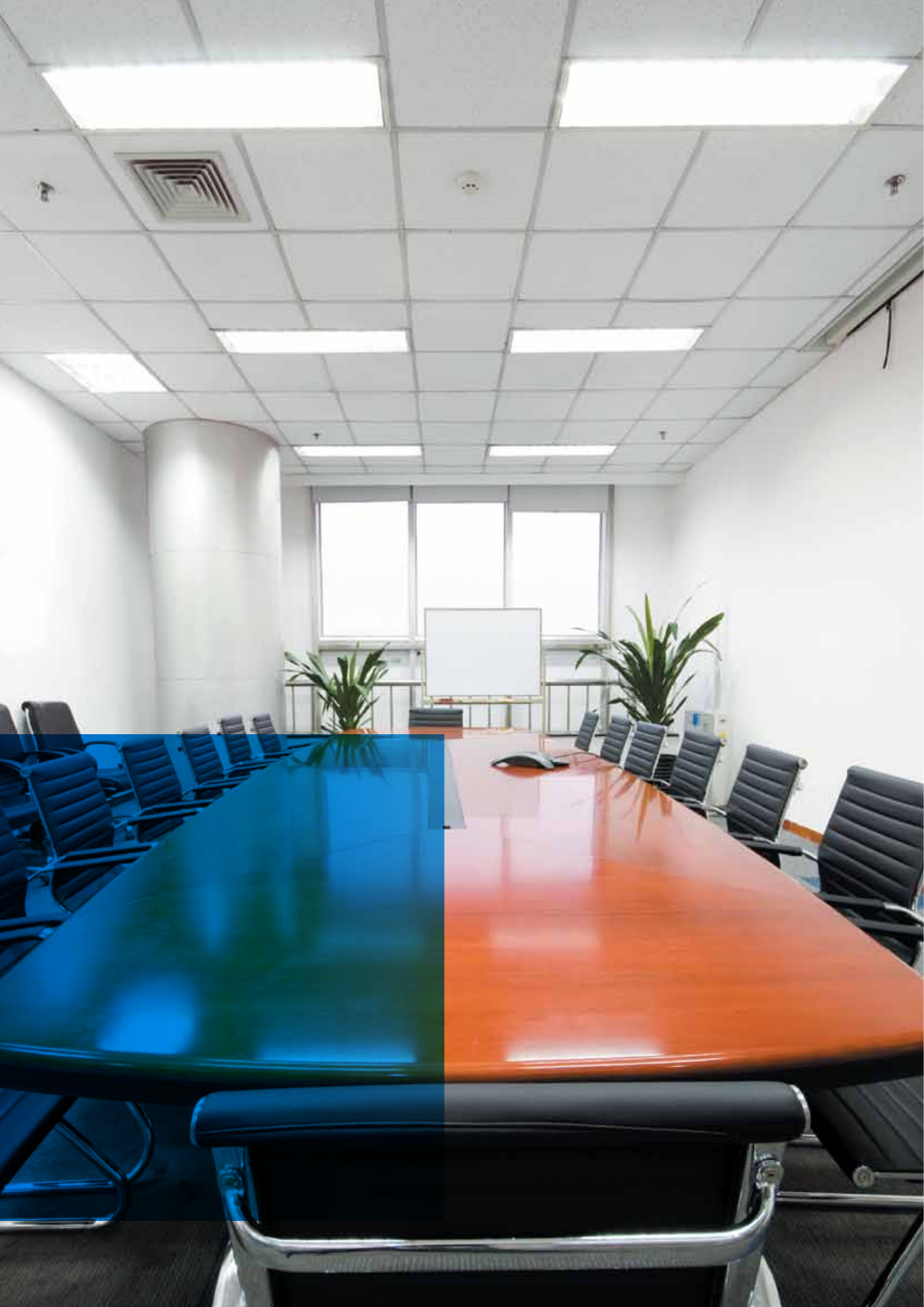

GE T8 Polylux XLRTM
- Better in every way
More lifelike
Colours will be more vibrant, while people,
merchandise and objects will look more natural.
Brighter
Your interiors will appear up to 18% brighter.
Greater sustainability
Our LFLs stay brighter, for longer. New lamps
will match in almost perfectly.
Longer lasting
GE LFLs will last for up to twice as long with
electronic gear, or up to 65% longer with
conventional gear.
Better for the environment
GE LFLs have a low mercury content and
recyclable components.
T8 Standard* T8 Polylux XLR™ – Replacement
Watt CCT [K] Product
Code Description CRI [Ra]
Rated Average
Life on Standard
Ballast (3-hr
cycle) [h]
Initial
Lumen (at
25°C) [lm]
Product
Code Description CRI [Ra]
Rated Average
Life on Electronic
Ballast (3-hr
cycle) [h]
Initial
Lumen (at
25°C) [lm]
15 2940 29527 F15W/29 51 9,000 850 23248 F15W/T8/830/POLYLUX 85 20,000 1000
15 4040 29524 F15W/33 58 9,000 850 23249 F15W/T8/840/POLYLUX 85 20,000 1000
15 3450 29531 F15W/35 54 9,000 850 78133 F15W/T8/835/POLYLUX 85 20,000 1000
15 6400 29534 F15W/54 76 9,000 750 78131 F15W/T8/860/POLYLUX 85 20,000 900
18 2940 29546 F18W/29 51 9,000 1150 93319 F18W/T8/830/POLYLUX 85 20,000 1350
18 4040 35098 F18W/33 58 9,000 1150 93317 F18W/T8/840/POLYLUX 85 20,000 1350
18 3450 37139 F18W/35 54 9,000 1150 93311 F18W/T8/835/POLYLUX 85 20,000 1350
18 6400 34883 F18W/54 76 9,000 1050 12606 F18W/T8/860/POLYLUX 85 20,000 1300
30 2940 18145 F30W/29 51 9,000 2250 18141 F30W/T8/830/POLYLUX 85 20,000 2450
30 4040 18137 F30W/33 58 9,000 2175 18142 F30W/T8/840/POLYLUX 85 20,000 2450
30 3450 18147 F30W/35 54 9,000 2250 78132 F30W/T8/835/POLYLUX 85 20,000 2450
30 6400 18146 F30W/54 76 9,000 1900 12607 F30W/T8/860/POLYLUX 85 20,000 2300
36 2850 29565 F36W/29 51 9,000 2850 18192 F36W/T8/830/POLYLUX 85 20,000 3350
36 4040 35099 F36W/33 58 9,000 2850 16856 F36W/T8/840/POLYLUX 85 20,000 3350
36 4040 92518 F36W-1M/33 58 9,000 2600 23262 F36W-1M/T8/840/POLYLUX 85 20,000 3350
36 3450 37734 F36W/35 54 9,000 2850 19991 F36W/T8/835/POLYLUX 85 20,000 3350
36 6400 34886 F36W/54 76 9,000 2500 12942 F36W/T8/860/POLYLUX 85 20,000 3250
58 2940 29571 F58W/29 51 9,000 4600 93334 F58W/T8/830/POLYLUX 85 20,000 5200
58 4040 29570 F58W/33 58 9,000 4600 93333 F58W/T8/840/POLYLUX 85 20,000 5200
58 3450 37627 F58W/35 54 9,000 4600 93331 F58W/T8/835/POLYLUX 85 20,000 5200
58 6400 29580 F58W/54 76 9,000 4000 12943 F58W/T8/860/POLYLUX 85 20,000 5000
70 4040 40679 F70W/33 58 9,000 5450 42793 F70W/T8/840/POLYLUX 85 20,000 6300
70 3450 40683 F70W/35 54 9,000 5550 42792 F70W/T8/835/POLYLUX 85 20,000 6300
*Phased out in EU
4

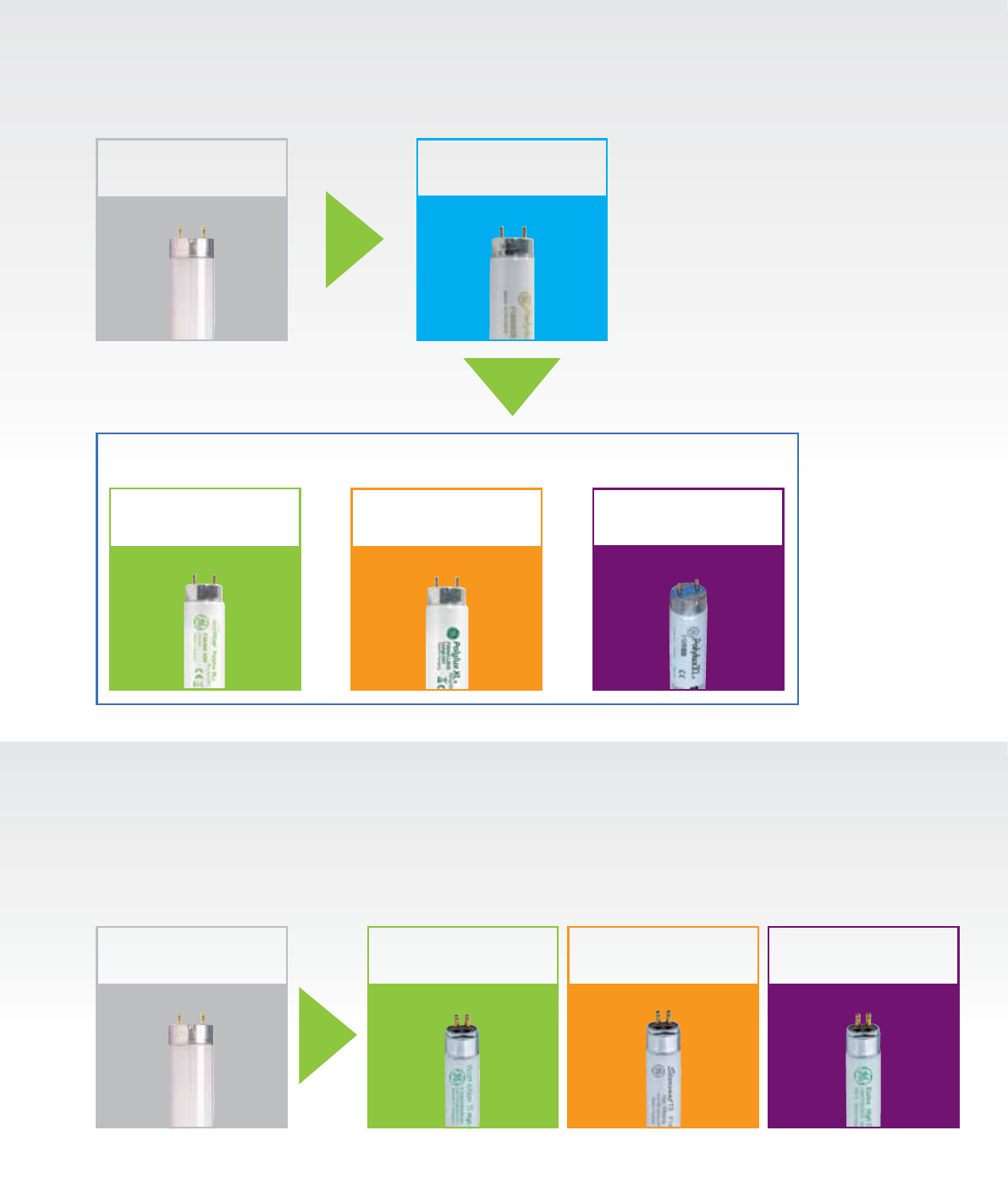

T8 Upgrade options
T8 upgrade = lamp upgrade
• They are direct retrofit replacements, no new ballast or fitting required
T5 Upgrade options
T5 upgrade = system upgrade for the best efficiency (new lamp, ballast and luminaire required)
• T5 are 40% thinner than T8
• When compared to T8 systems, the T5 system (lamp, ballast and luminaire) consumes up to 45% less energy
Upgrading is easy
Further upgrade/Special application
GE T5 Watt-MiserTM
For Energy Saving
GE T5 LongLastTM
For Maintenance
Saving
GE T5 covRguardTM
For Safety
GE T8 covRguardTM
For Safety
GE T8 Watt-MiserTM
For Energy
Saving
GE T8 PolyluxTM XLRTM
For High
Light Quality
GE T8 LongLastTM
For Maintenance
Saving
T8 Halophosphate
Upgrade
or
with
with
Upgrade
T8 Halophosphate
5
Light quality and
quantity for all.
Get it right, whatever the application
GE Lighting offers a comprehensive range of solutions to deliver the quality and
quantity of light that different applications demand. WattMiser™, with its excellent
quality light and low energy costs is ideal for auditoriums and libraries, and for
showing merchandise at its very best. Shatter-resistant covRguard™ provides
peace of mind for restaurants, supermarkets and sports areas. And LongLast™
creates the perfect ambience in restaurants with a long life, low maintenance
option for storage rooms and pools.

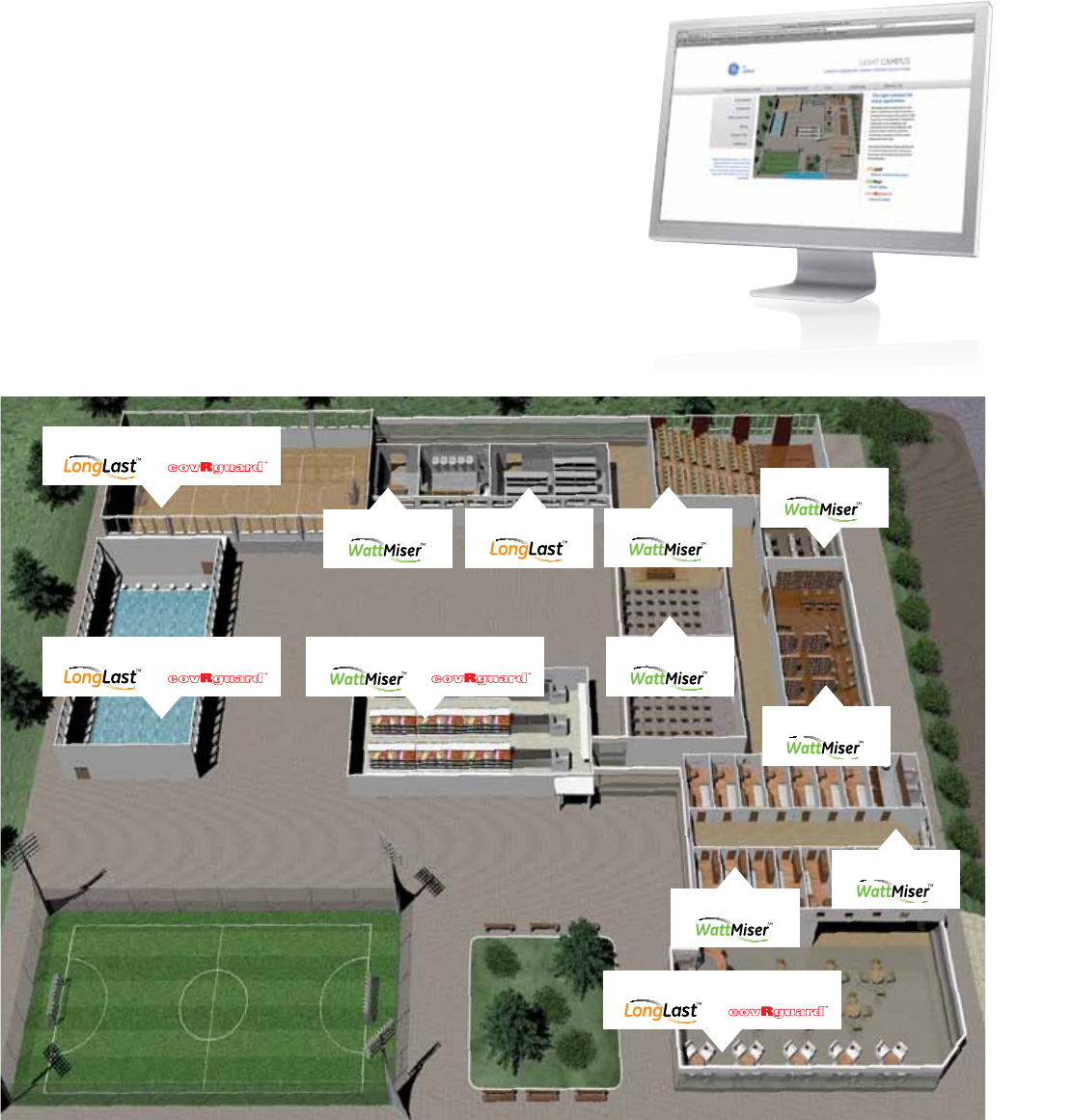

Visit our new microsite at www.gelighting.com/eu/lfl to plan your requirements
and choose the right lamps. It features all this and more:
• Energy saving calculators – discover what the T8 and T5 Watt-Miser™ will save you
• Video: see examples of applications in real use
• Literature: download all the LFL data sheets and brochures you need
Indoor Sports Area
Lavatories Auditiorium
Computer Room
Seminar
Dormitories
Corridor
Library
Storage Room
Swimming Pool
Restaurant and Cafeteria
Supermarket
www.gelighting.com/eu/lfl
6
There’s never been a better
way to save costs and energy.
T8 Watt-Miser™
Save energy costs and cut CO2 emissions with a simple change of tube,
thanks to the T8 Watt-Miser™. It’s ideal for any T8 indoor application from
a single fitting to large-scale installations such as offices, retail outlets,
supermarkets, schools and public buildings.
You could save up to 10% on running costs, with rapid payback times
typically less than a year – that’s faster than many other products on the
market today.
Our commitment is to help save the environment: the T8 Watt-Miser™
also means fewer carbon emissions.
7
Look at the savings and
benefits:
• Consumes up to 10% less energy
than T8 lamps
• Uses existing fittings and control
gear – reduced energy consumption
with current controlled ballasts,
additional light with constant
power ballasts
• Excellent colour quality – Ra 85
• Exceptional lumen maintenance
• Product life 23,000 hours on
12 hour cycle on electronic ballast
• Significantly reduced CO2 emission
(0.5kg/kWh)
• Typical payback in less than a year
T8 Watt-Miser™, G13 Cap
16W 32W 51W
Standard T8 power at 25°C (W/lamp) 18 36 58
T8 Watt-Miser™ power at 25°C (W/lamp) 16 32 51
Standard T8 annual energy (kWh) 72,000 144,000 232,000
T8 Watt-Miser™ annual energy (kWh) 64,000 128,000 204,000
Annual energy saving (kWh/lamp) 8,000 16,000 28,000
Annual energy cost saving (€) 800 1600 2800
Annual replacement cost saving (€) 356 356 356
CO2 saved in a year (tonnes)* 3.4 6.9 12
Energy-saving example: 32W
Annual savings from a typical installation of 1,000 lamps used for
4,000 hours a year with energy costs of 0.1 €/kW
*CO2 emissions per kWh 0.43kg which can vary by country. Best results are achieved with
lamp, ballast and fitting at optimum temperature.
Actual
Wattage
[W]
Nominal
Wattage
[W]
Length
[mm] Colour type CCT
[K]
CRI
[Ra]
Rated Av. life
12hr cycle on
standard
ballast [h]
Rated Av. life
12hr cycle on
electronic
ballast [h]
Initial
lumens
at 30°C
[lm]
EEC Product Description Product
Code
16 18 604 Warm White 2940 85 18,000 23,000 1320 A FT8/16W/830/GE/WM/SL1/25 73605
16 18 604 Cool White 4040 85 18,000 23,000 1320 A FT8/16W/840/GE/WM/SL1/25 73607
16 18 604 Daylight 6400 85 18,000 23,000 1250 A FT8/16W/860/GE/WM/SL1/25 73608
32 36 1,213.6 Warm White 2940 85 18,000 23,000 2925 A FT8/32W/830/GE/WM/SL1/25 96748
32 36 1,213.6 Cool White 4040 85 18,000 23,000 2925 A FT8/32W/840/GE/WM/SL1/25 96750
32 36 1,213.6 Daylight 6400 85 18,000 23,000 2765 A FT8/32W/860/GE/WM/SL1/25 96747
51 58 1,514.2 Warm White 2940 85 18,000 23,000 4600 A FT8/51W/830/GE/WM/SL1/25 73609
51 58 1,514.2 Cool White 4040 85 18,000 23,000 4600 A FT8/51W/840/GE/WM/SL1/25 73611
51 58 1,514.2 Daylight 6400 85 18,000 23,000 4420 A FT8/51W/860/GE/WM/SL1/25 73613
8
Superior energy savings.
Superior lumen performance.
T5 Watt-Miser™
The T5 Watt-Miser™ uses 5% less energy than GE T5 LongLast™,
yet delivers the same lumen output.
Take total system efficiency into account and the energy saving can
be as high as 45% against standard T8 tubes. As electricity costs
account for over 90 percent of total lighting costs – these savings
have a big impact on reducing electricity expenses.
The super-slim T5 design not only reduces CO2 emissions but also
waste disposal.
Now offices, schools, colleges, public buildings, warehouses,
industrial buildings, hypermarkets and supermarkets – in fact,
anywhere with very long lighting cycles – can benefit from significant
energy savings.
9
T5 Watt-Miser™ High Efficiency, G5 Cap
T5 Watt-Miser™ High Output, G5 Cap
24W 49W 54W 80W
T5 power at 35°C (W/lamp) 22.5 49.3 53.8 80.0
T5 Watt-Miser™ power at 35°C (W/lamp) 21.4 46.8 51.1 76.0
T5 annual energy (kWh) 90,000 197,000 215,000 320,000
T5 Watt-Miser™ annual energy (kWh) 86,000 187,000 204,000 304,000
Annual energy savings (kWh) 5,000 10,000 11,000 16,000
Annual energy cost savings (€) € 450 € 986 € 1,076 € 1,600
CO2 saved in a year (tonnes)* 1.9 4.2 4.6 6.9
How much can be saved?
Annual Savings from a typical installation of 1,000 lamps used for 4,000 hours
a year and energy costs of 0.1 €/kWh
*conversion factor 0.42/kWh (Eco-Invent database) UK – could change with region
Look at the savings
and benefits:
• 5% extra energy saving with
existing fittings and control gear
– reduced energy consumption with
current controlled ballasts,
additional light with constant
power ballasts
• Reduced CO2 and other greenhouse
gas emissions
• No loss of light output
• Excellent lumen maintenance
• Low mercury content
• ROHS compliant. Contains
recyclable components
• Typical payback in less than a year
Actual
Wattage
[W]
Nominal
Wattage
[W]
Length
[mm] Colour type CCT
[K]
CRI
[Ra]
Rated Av.
Life at 12-hr
cycle [h]
Initial
lumens at
30°C [lm]
EEC Product Description Product
Code
13 14 549 Warm White 2940 85 30,000 1350 A FT5/14W/830/GE/WM/SL1/30 79418
13 14 549 Cool White 4040 85 30,000 1350 A FT5/14W/840/GE/WM/SL1/30 61080
19.7 21 849 Cool White 4040 85 30,000 2100 A FT5/21W/840/GE/WM/SL1/30 61079
26.4 28 1,149 Cool White 4040 85 30,000 2900 A FT5/28W/840/GE/WM/SL1/30 61078
33 35 1,449 Warm White 2940 85 30,000 3650 A FT5/35W/830/GE/WM/SL1/30 79417
33 35 1,449 Cool White 4040 85 30,000 3650 A FT5/35W/840/GE/WM/SL1/30 61077
Actual
Wattage
[W]
Nominal
Wattage
[W]
Length
[mm] Colour type CCT
[K]
CRI
[Ra]
Rated Av.
Life at 12-hr
cycle [h]
Initial
lumens at
30°C [lm]
EEC Product Description Product
Code
21.4 24 549 Cool White 4040 85 30,000 2000 A FT5/24W/840/GE/WM/SL1/30 61076
36.1 39 849 Cool White 4040 85 30,000 3500 A FT5/39W/840/GE/WM/SL1/30 61075
46.8 49 1,449 Cool White 4040 85 30,000 4900 A FT5/49W/840/GE/WM/SL1/30 61073
51.1 54 1,149 Cool White 4040 85 30,000 4800 A FT5/54W/840/GE/WM/SL1/30 61074
76 80 1,449 Cool White 4040 85 30,000 7000 A FT5/80W/840/GE/WM/SL1/30 61072
10
T8 LongLast™ , G13 Cap
Performance doesn’t get much better than this – T8 LongLast™ LFLs are in
a league of their own with up to 46,000 hours of operating life.
The result? Superior, longer-lasting lighting with extended operating
performance, improved energy efficiency and lower overall maintenance
costs. T8 LongLast™ provide the perfect answer for lamps in hard-to-reach
areas, with longer service intervals yet sustained lumen performance.
Use with existing control gears and fixtures to reduce the total cost of
ownership as well as the environmental footprint of a building. Ideal for
stores, warehouses, factories and other large industrial sites as well as
public buildings and spaces.
Look at the savings and benefits:
• Very long and reliable product life up to 46,000 hours on 12-hour
burning cycle (electronic ballast)
• Superior service life up to 34,000 hours on 12-hour burning cycle
(electronic ballast)
• Ideal for group replacements
• Best of class light output – same as for original T8 Polylux™ XLR™
• Excellent lumen maintenance
• Outstanding colour rendering using advanced Polylux™ XLR™
coating technology
• Environmentally friendly – RoHS compliant.
Contains recyclable components
• Can be used on existing control gears and fixtures – compatible
with both standard and electronic gears
Wattage
[W]
Length
[mm] Colour type CCT
[K]
CRI
[Ra]
Rated Av.
Life on
standard
ballast
12-hr
cycle [h]
Service
Life on
standard
ballast
12-hr
cycle [h]
Rated Av.
Life on
electronic
ballast
12-hr
cycle [h]
Service
Life on
electronic
ballast
12-hr
cycle [h]
Initial
Lumen
at 25°C
[lm]
EEC Product Description Product
Code
18 604 Warm White 2940 85 36,000 26,500 46,000 34,000 1,350 A FT8/18W/830/GE/LL/SL1/25 70980
18 604 Cool White 4040 85 36,000 26,500 46,000 34,000 1,350 A FT8/18W/840/GE/LL/SL1/25 70981
36 1,213.6 Warm White 2940 85 36,000 26,500 46,000 34,000 3,350 A FT8/36W/830/GE/LL/SL1/25 43508
36 1,213.6 Cool White 4040 85 36,000 26,500 46,000 34,000 3,350 A FT8/36W/840/GE/LL/SL1/25 43509
58 1,514.2 Warm White 2940 85 36,000 26,500 46,000 34,000 5,200 A FT8/58W/830/GE/LL/SL1/25 43510
58 1,514.2 Cool White 4040 85 36,000 26,500 46,000 34,000 5,200 A FT8/58W/840/GE/LL/SL1/25 43511
70 1778 Cool White 4040 85 36,000 26,500 46,000 34,000 6,300 A FT8/70W/840/GE/LL/SL1/25 43514
Higher performance and
reliability. Lower costs.
T8 LongLast™
11
T5 LongLast™ High Efficiency, G5 Cap
T5 LongLast™ High Output, G5 Cap
With up to 36,000 hours of operating life, T5 LongLast™ LFLs offer the perfect
way to upgrade current lighting within a tight budget – especially in areas
where re-lamping is difficult or requires special equipment.
The T5 LongLast™ range is the perfect blend of value and performance. It’s
designed to deliver longer life with uncompromised performance versus other
lamps on the market, with sustained output levels and high-quality illumination.
The lamps are suitable for all stores, warehouses, factories and other large
industrial sites as well as public buildings and spaces.
Look at the savings and benefits:
• Cut maintenance requirements: 20% longer life means fewer changes
• Excellent light output – equal to or better than standard T5s
• Excellent lumen maintenance
• Low mercury content
• Environmentally friendly – reduces WEEE costs. RoHS compliant. Contains
recyclable components
Wattage [W] Length
[mm] Colour type CCT [K] CRI [Ra]
Rated Av.
Life 12-hr
cycle [h]
Initial
Lumen at
35°C [lm]
EEC Product Description Product
Code
14 549 Extra Warm White 2700 85 36,000 1350 A FT5/14W/827/GE/SL1/30 61086
14 549 Warm White 3000 85 36,000 1350 A FT5/14W/830/GE/SL1/30 61087
14 549 White 3500 85 36,000 1350 A FT5/14W/835/GE/SL1/30 61090
14 549 Cool White 4000 85 36,000 1350 A FT5/14W/840/GE/SL1/30 61091
14 549 Daylight 6500 85 36,000 1250 A FT5/14W/865/GE/SL1/30 61088
21 849 Extra Warm White 2700 85 36,000 2100 A FT5/21W/827/GE/SL1/30 61089
21 849 Warm White 3000 85 36,000 2100 A FT5/21W/830/GE/SL1/30 61092
21 849 Cool White 4000 85 36,000 2100 A FT5/21W/840/GE/SL1/30 61093
21 849 Daylight 6500 85 36,000 1950 A FT5/21W/865/GE/SL1/30 61094
28 1,149 Extra Warm White 2700 85 36,000 2900 A FT5/28W/827/GE/SL1/30 61095
28 1,149 Warm White 3000 85 36,000 2900 A FT5/28W/830/GE/SL1/30 61096
28 1,149 Cool White 4000 85 36,000 2900 A FT5/28W/840/GE/SL1/30 61102
28 1,149 Daylight 6500 85 36,000 2700 A FT5/28W/865/GE/SL1/30 61098
35 1,449 Extra Warm White 2700 85 36,000 3650 A FT5/35W/827/GE/SL1/30 61099
35 1,449 Warm White 3000 85 36,000 3650 A FT5/35W/830/GE/SL1/30 61100
35 1,449 White 3500 85 36,000 3650 A FT5/35W/835/GE/SL1/30 61101
35 1,449 Cool White 4000 85 36,000 3650 A FT5/35W/840/GE/SL1/30 61103
35 1,449 Daylight 6500 85 36,000 3400 A FT5/35W/865/GE/SL1/30 61104
Wattage [W] Length
[mm] Colour type CCT [K] CRI [Ra]
Rated Av.
Life 12-hr
cycle [h]
Initial
Lumen at
35°C [lm]
EEC Product Description Product
Code
24 549 Warm White 3000 85 36,000 2000 A FT5/24W/830/GE/SL1/30 61105
24 549 White 3500 85 36,000 2000 A FT5/24W/835/GE/SL1/30 61106
24 549 Cool White 4000 85 36,000 2000 A FT5/24W/840/GE/SL1/30 61097
24 549 Daylight 6500 85 36,000 1900 A FT5/24W/865/GE/SL1/30 61107
39 849 Warm White 3000 85 36,000 3500 A FT5/39W/830/GE/SL1/30 61108
39 849 Cool White 4000 85 36,000 3500 A FT5/39W/840/GE/SL1/30 61109
49 1,449 Warm White 3000 85 36,000 4900 A FT5/49W/830/GE/SL1/30 61119
49 1,449 White 3500 85 36,000 4900 A FT5/49W/835/GE/SL1/30 61121
49 1,449 Cool White 4000 85 36,000 4900 A FT5/49W/840/GE/SL1/30 61122
49 1,449 Daylight 6500 85 36,000 4650 A FT5/49W/865/GE/SL1/30 78707
54 1,149 Warm White 3000 85 36,000 5000 A FT5/54W/830/GE/SL1/30 61110
54 1,149 Cool White 4000 85 36,000 5000 A FT5/54W/840/GE/SL1/30 61111
54 1,149 Daylight 6500 85 36,000 4750 A FT5/54W/865/GE/SL1/30 61118
80 1,449 Warm White 3000 85 36,000 7000 A FT5/80W/830/GE/SL1/30 78708
80 1,449 Cool White 4000 85 36,000 7000 A FT5/80W/840/GE/SL1/30 78709
Greater efficiency and output.
Greater value.
T5 LongLast™
12

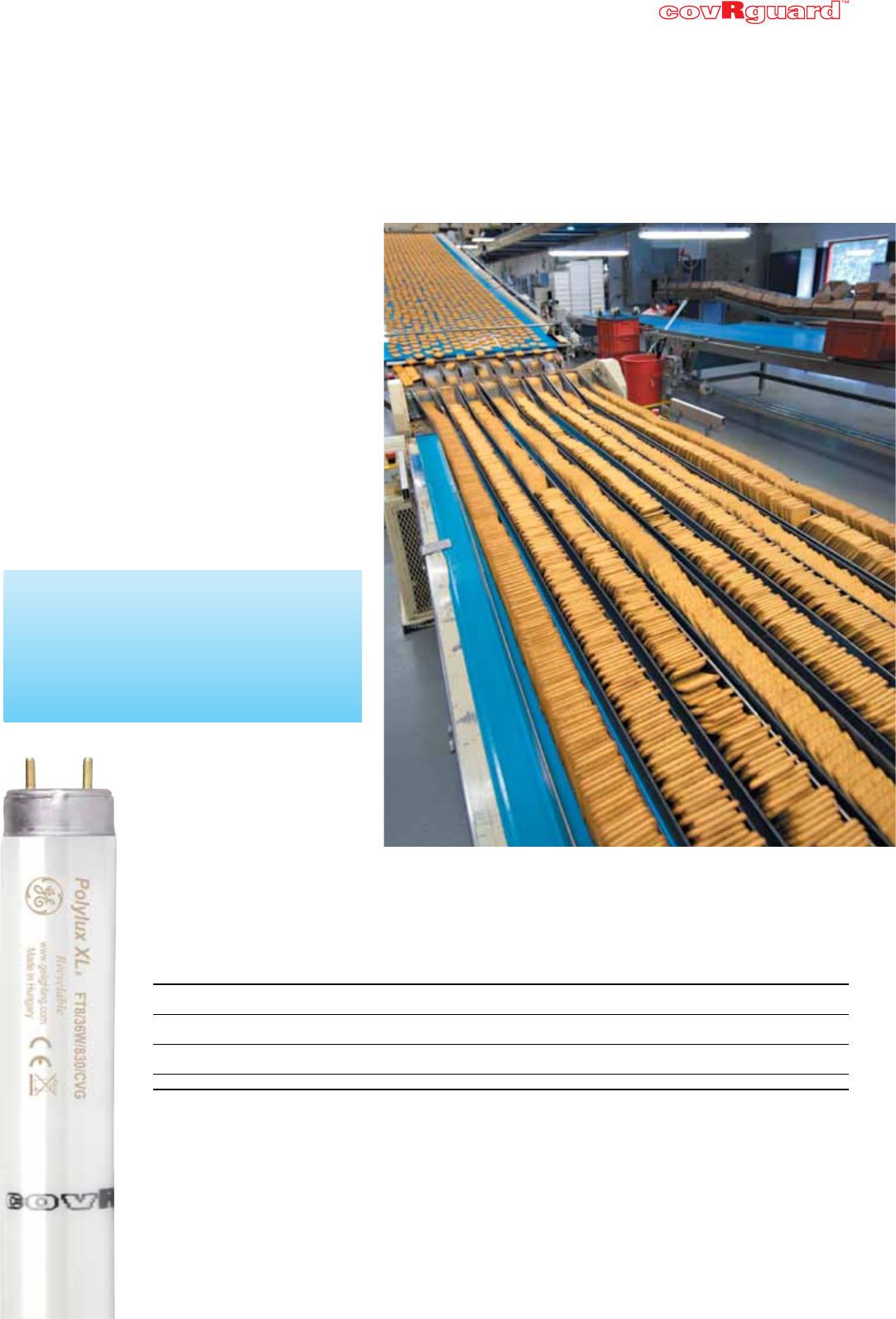

T8 covRguard™
, Cap G13
Imagine the dangers caused by a broken tube in
food preparation areas or interiors with public
access. Shards of glass could cause damage or
injury – and even expose your business to
litigation. Why take risks?
covRguard™ protects both employees and the
public, and helps managers comply with
legislation and due diligence requirements.
It comprises a protective outer sleeve that’s
fitted to our T5* and T8 linear fluorescent lamps,
containing glass and phosphors in the event of
breakage. covRguard™ is UV stable and will not
affect lumen output in normal usage.
*New T5 covRguard range will be introduced soon
Wattage [W] Length
[mm] Colour type CCT [K] CRI [Ra]
Rated Av.
Life 3-hr
cycle [h]
Initial
Lumen at
35°C [lm]
EEC Product Description Product
Code
18 604 White 3400 85 15,000 1300 A FT8/18W/835/GE/CVG 17204
18 604 Cool White 4040 85 15,000 1300 A FT8/18W/840/GE/CVG 17204
36 1,213.6 White 3400 85 15,000 3250 A FT8/36W/835/GE/CVG 17202
36 1,213.6 Cool White 4040 85 15,000 3250 A FT8/36W/840/GE/CVG 17209
58 1,514.2 White 3400 85 15,000 5050 A FT8/58W/835/GE/CVG 12405
58 1,514.2 Cool White 4040 85 15,000 5050 A FT8/58W/840/GE/CVG 12407
70 1778 Cool White 4040 85 15,000 6100 A FT8/70W/840/GE/CVG 12424
Protect your customers
and your reputation.
covRguard™ shatter protection
T8 covRguard™ benefits:
• Safety protection against accidental damage
• Designed for kitchens, pools, gyms,
supermarkets etc.
• 20,000 hrs / 3-hour cycle (with electronic gear)
13

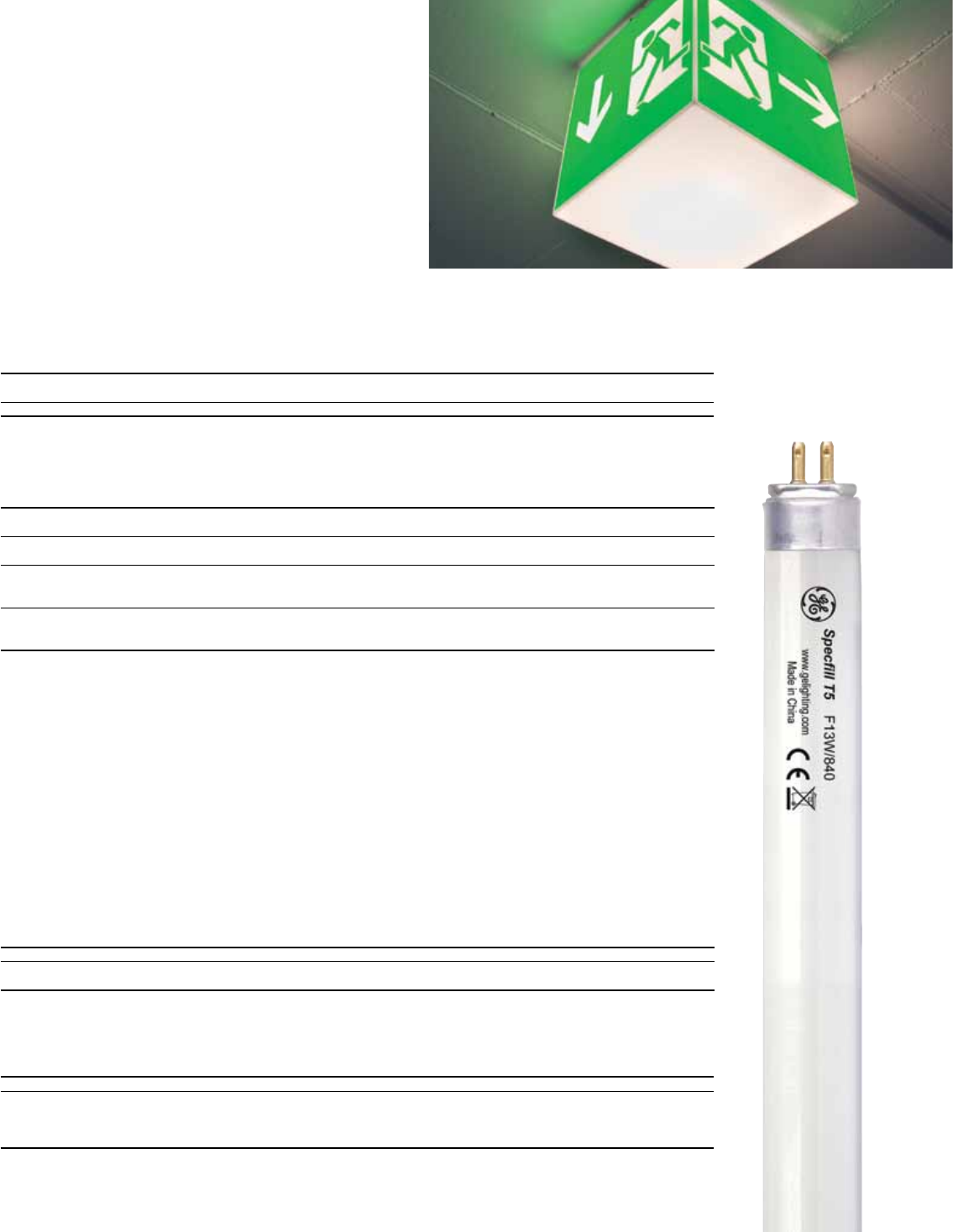

T5 Miniature – Triphosphor, Cap G5
T5 Miniature – Specfill Triphosphor – Emergency Lighting, Cap G5
T5 Miniature – Specfill Standard – Emergency Lighting, Cap G5
T5 Miniature – Standard
T5 Miniature Specfill™
T5 Miniature Lamps
T5 Miniature fluorescent lamps are designed for
confined spaces in household and industrial settings.
These lamps are widely used in different applications
such as furniture cabinets and mobile homes as well
as sign illumination. T5 Miniature lamps are perfectly
suited for use in maintained and non-maintained
emergency modules and escape signs.
GE T5 Miniature Standard lamps offer you an economic
solution for general application areas, while the
Polylux™ types are ideal for all kinds of application
areas where quality of light is an important factor.
GE’s T5 Miniature Specfill™ lamps are specially designed for
emergency operation, and are a perfect fit and premium solution
in any other T5 Miniature application. The robust cathode design of
this lamp ensures very good reliability at low operating power in
emergency mode. It also extends the lifetime in normal operation
to 8,000 hours.
Actual
Wattage [W]
Length
[mm] CCT [K] CRI [Ra] Rated Average Life
(3-hr cycle) [h]
Initial Lumen
(at 25°C) [lm] EEC Product
Description
Product
Code
8 302.5 2700 80+ 5,000 460 B F8W/T5/827/IND 37008
8 302.5 4000 80+ 5,000 460 B F8W/T5/840/IND 37009
13 531.1 2700 80+ 5,000 1000 B F13W/T5/827/SL 39447
Actual
Wattage [W] Length [mm] CCT [K] CRI [Ra] Rated Average Life
(3-hr cycle)[h]
Initial Lumen
(at 25°C) [lm] EEC Product Description Product
Code
6 225 4000 80+ 8,000 300 B F6W/T5/840/SPECFILL/IND 40327
8 302.5 4000 80+ 8,000 460 B F8W/T5/840/SPECFILL/IND 40331
8 302.5 6500 80+ 8,000 430 B F8W/T5/865/SPECFILL/IND 45034
Actual
Wattage [W] Length [mm] CCT [K] CRI [Ra] Rated Average Life
(3-hr cycle)[h]
Initial Lumen
(at 25°C) [lm] EEC Product Description Product
Code
6 225 4040 58 8,000 260 B F6W/T5/33/SPECFILL/IND 40307
8 302.5 3450 54 8,000 395 B F8W/T5/35/SPECFILL/SL 27027
8 302.5 3450 54 8,000 395 B F8W/35/T5/SPECFILL/IND 91451
8 302.5 4040 58 8,000 395 B F8W/T5/33/SPECFILL/SL 27011
8 302.5 4040 58 8,000 395 B F8W/T5/33/SPECFILL/IND 91450
Actual
Wattage [W]
Length
[mm] CCT [K] CRI [Ra] Rated Average Life
(3-hr cycle) [h]
Initial Lumen
(at 25°C) [lm] EEC Product
Description
Product
Code
4 150.1 3450 54 5,000 130 B F4W/T5/35/SL 39446
4 150.1 4040 58 5,000 130 B F4W/T5/33/SL 39441
6 226.3 3450 54 5,000 260 B F6W/T5/35/SL 39442
6 226.3 4040 58 5,000 260 B F6W/T5/33/SL 39445
8 302.5 2940 51 5,000 385 B F8W/T5/29/SL 37754
8 302.5 3450 54 5,000 385 B F8W/T5/35/SL 37756
8 302.5 4040 58 5,000 385 B F8W/T5/33/SL 37755
13 531.1 2940 51 5,000 850 B F13W/T5/29/SL 39437
13 531.1 3450 54 5,000 850 B F13W/T5/35/SL 39439
13 531.1 4040 58 5,000 800 B F13W/T5/33/SL 39440
Mini size. Maxi impact.
14

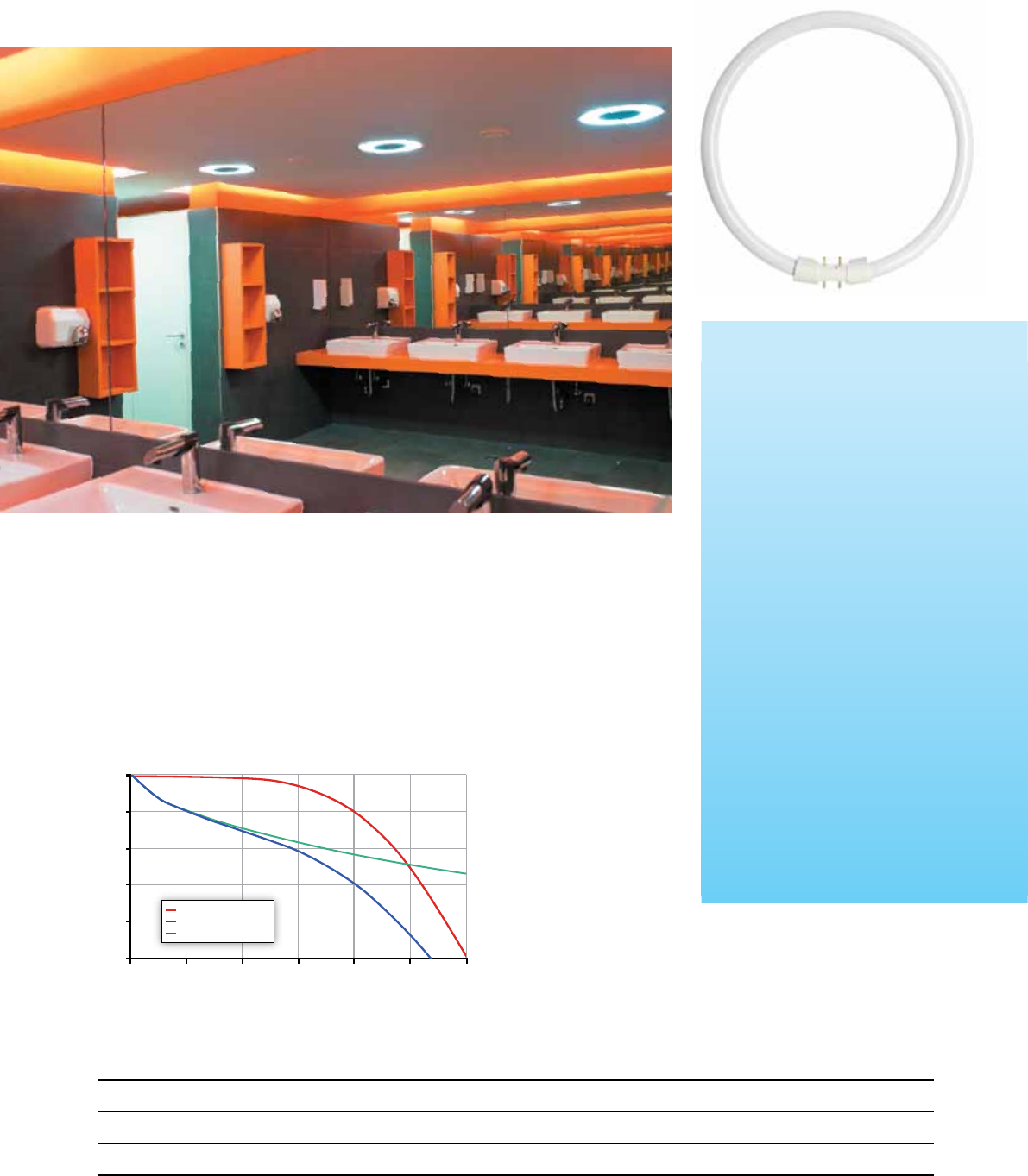

A popular alternative to conventional strip lighting, T5 CircLine circular lamps
are a great complement to our energy-saving range. This ring-shaped
fluorescent lamp enables the use of eye-catching slender and shallow ceiling
and wall-mounted fixtures. Lighting designers love the unique shape of this
product, together with its high efficiency, excellent colour quality and the way
it creates light without shadows.
Ideal for offices, retail, hotels, restaurants and in the home.
Wattage
[W]
Diameter
[mm] Colour Type CCT
[K]
CRI
[Ra]
Rated Average Life
(3 hrs cycle) [h]
Initial Lumen
(at 25°C) [lm] EEC Product Description Product
Code
22 230 Warm White 3000 82 12,000 1900 A OT FC22W/T5/830 HB 1/10 75709
22 230 Cool White 4000 82 12,000 1900 A OT FC22W/T5/840 HB 1/10 75720
40 305 Warm White 3000 82 12,000 3300 A OT FC40W/T5/830 HB 1/10 75712
40 305 Cool White 4000 82 12,000 3300 A OT FC40W/T5/840 HB 1/10 75713
55 305 Warm White 3000 82 12,000 4200 B OT FC55W/T5/830 HB 1/10 75717
55 305 Cool White 4000 82 12,000 4200 B OT FC55W/T5/840 HB 1/10 75718
Discover the advantages at
a glance:
• Circular shape with 16mm bulb
diameter
• 2GX13 base
• Up to 83 lm/W lamp efficiency
• Low mercury content
• Operated with electronic ballasts
• Suitable for recessed, pendant and
wall-mounted fixtures
Look at the savings
and benefits:
• Slim tube, which enables recessed
fixtures to be 45% thinner than T9
CircLine systems
• Three-band phosphor coating provides
excellent colour quality – CRI 82
• Excellent lamp efficiency – up to 87%
more light than T9 CircLine lamps
• Longer life than T9 CircLine Lamps
–12,000hrs rated average life
• Dimmable
0
Operating hours
Survival and lumen maintenance curves
2,000 4,000 6,000 8,000 10,000 12,000
50%
70%
60%
80%
90%
100%
Survival rate
Lumen maintenance
Service Life
The ideal answer for decorative
and architectural lighting.
T5 CircLine
T5 CircLine, Cap 2GX13
15
GE’s environmentally friendly, premium
quality glow switch starters are designed to
reliably ignite fluorescent lamps coupled
with conventional electromagnetic gears.
These starters are also recommended for
use with GE T8 LongLast lamps due to their
improved durability, ensuring safe operation
over an extended period.
Fluorescent Lamp Wattages Product
designation
Product
Code
4/6/8W 10/13W 15/16W 18/20W 22W 30/32W 38W 36/40W 58/65/80W 70W 75W 85W 100/115W 125/140W
Single operation on 220-240V
✓✓✓✓✓✓✓✓ ✓ 155/500 36536
✓ ✓ ✓ ✓ ✓ 155/800 37864
✓ ✓ ✓ ✓ 155/801 37975
Series operation on 220-240V / Single operation on 110-120V
✓ ✓ ✓ ✓ 155/200 36711
Packed in 25/250 boxes, but also available in bulk pack
Look at the savings
and benefits:
• Lead free glass component
• Radioactive free design
• Outstanding reliability
– up to 10,000 switches
• Flame-retardant plastic canister for safety
• Brass pins for good electrical contact
throughout life
• Reliable operation in a wide ambient
temperature range
• ENEC-certified
On and on and on.
Fluorescent starters
Starters
and General Electric are both registered trademarks
of the General Electric Company
www.gelighting.com/eu GE Lighting is constantly developing and improving its products. For this reason, all product descriptions in this brochure are intended as a
general guide, and we may change specifications from time to time in the interest of product development, without prior notification or
public announcement. All descriptions in this publication present only general particulars of the goods to which they refer and shall not form
part of any contract. Data in this guide has been obtained in controlled experimental conditions. However, GE Lighting cannot accept any
liability arising from the reliance on such data to the extent permitted by law.
Linear Fluorescent Lamp Guide brochure – June 2011.

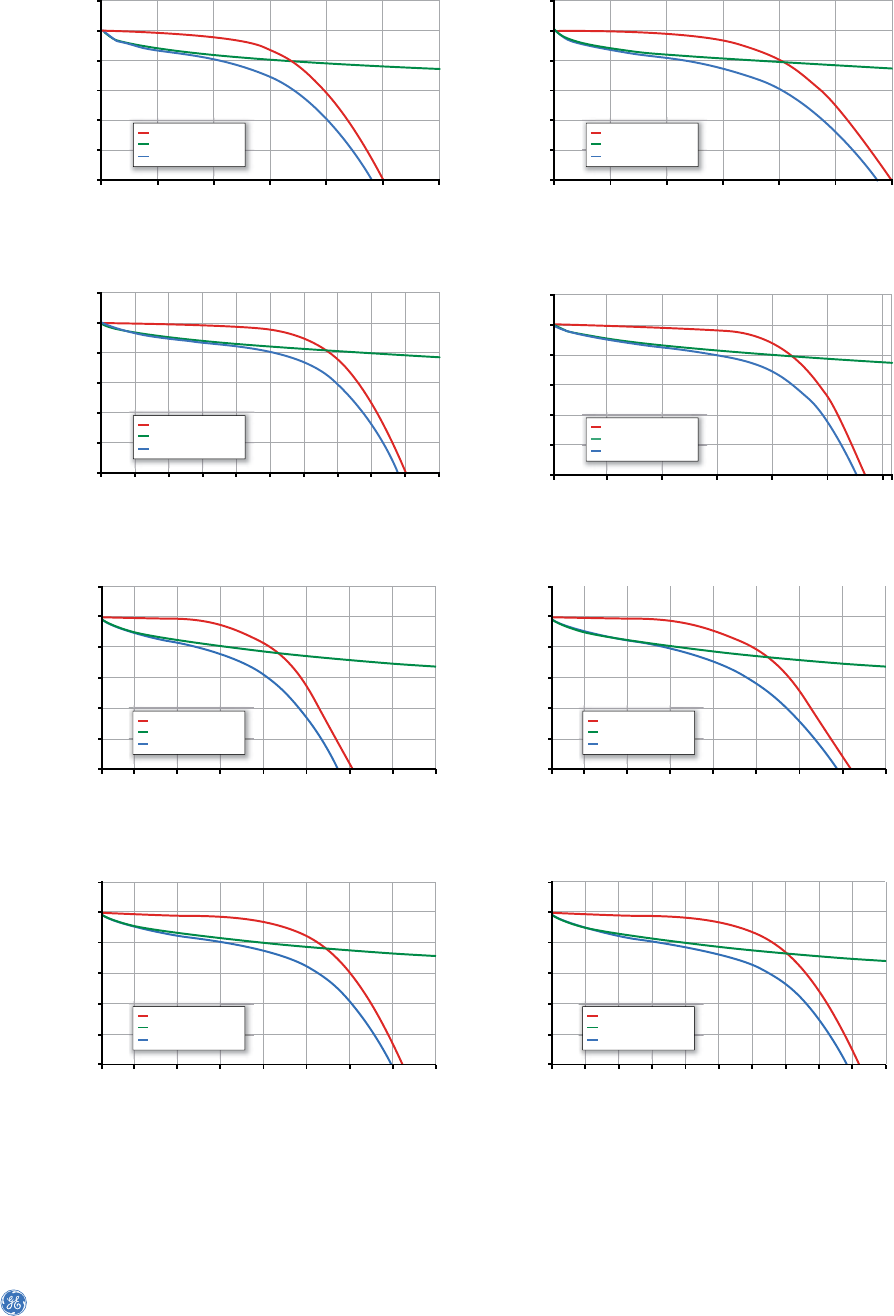

Survival, lumen maintenance
and service life curves for T5 and T8 lamps
0
Operating hours
On 3-hour switching cycle, electronic ballast
5,000 10,000 15,000 20,000 25,000 30,000
50%
70%
60%
80%
90%
110%
100%
On 12-hour switching cycle, electronic ballast
Survival rate
Lumen maintenance
Service life
T5 Watt-Miser™
On 12-hour switching cycle, standard ballast On 12-hour switching cycle, electronic ballast
0
Operating hours
50%
70%
60%
80%
90%
110%
100%
Survival rate
Lumen maintenance
Service life
Survivals in %
T8 Watt-Miser™
On 3-hour switching cycle, electronic ballast On 12-hour switching cycle, electronic ballast
0
Operating hours
5,000 10,000 15,000 20,000 25,000 30,000 35,000 40,000
50%
70%
60%
80%
90%
110%
100%
Survival
Lumen maintenance
Service life
T5 LongLast™
0
Operating hours
5,000 10,000 15,000 20,000 25,000 30,000 35,000 40,000
50%
70%
60%
80%
90%
110%
100%
70%
60%
80%
90%
110%
100%
Survival
Lumen maintenance
Service life
0
Operating hours
5,000 10,000 15,000 20,000 25,000 30,000 35,000 40,000
50%
70%
60%
80%
90%
110%
100%
Survival
Lumen maintenance
Service life
T8 LongLast™
On 12-hour switching cycle, standard ballast
0
Operating hours
On 12-hour switching cycle, electronic ballast
40,000 45,000 50,000
50%
5,000 15,00010,000 20,000 30,00025,000 35,000
Survival
Lumen maintenance
Service life
0
Operating hours
5,000 10,000 15,000 20,000 25,000 30,000
50%
70%
60%
80%
90%
110%
100%
Survival rate
Lumen maintenance
Service life
Survivals in %
Survivals in %
2,000 4,000 6,000 8,000 10,000 12,000 14,000 16,000 18,000 20,000 4,000 8,000 12,000 16,000 20,000 24,000
0
Operating hours
50%
70%
60%
80%
90%
110%
100%
Survival rate
Lumen maintenance
Service life
Survivals in %
Service life curve is defined as the product of the survival rate and the lumen
maintenance. The rated value is at 80%.

Navigation menu
