Developer Guide Lite OS V200R001C10

User Manual:

Open the PDF directly: View PDF .
Page Count: 336 [warning: Documents this large are best viewed by clicking the View PDF Link!]

Contents
1 Preface
2 Overview
3 Basic Kernel
4 Extended Kernel
5 File System
6 Driver Development
7 Maintenance and Testing
- 7.1 Telnet
- 7.2 Shell
8 Debug Guidelines
9 Standard Libraries
10 Configuration Reference
11 Appendix
- 11.1 OS Memory Usage
- 11.2 Kernel Boot Process Introduction

LiteOS

V200R001C10

Developer Guide

Issue 01

Date 2018-04-20

HUAWEI TECHNOLOGIES CO., LTD.

No part of this document may be reproduced or transmitted in any form or by any means without prior written

consent of Huawei Technologies Co., Ltd.

Trademarks and Permissions

and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd.

All other trademarks and trade names mentioned in this document are the property of their respective

holders.

Notice

The purchased products, services and features are stipulated by the contract made between Huawei and the

customer. All or part of the products, services and features described in this document may not be within the

purchase scope or the usage scope. Unless otherwise specified in the contract, all statements, information,

and recommendations in this document are provided "AS IS" without warranties, guarantees or

representations of any kind, either express or implied.

The information in this document is subject to change without notice. Every effort has been made in the

preparation of this document to ensure accuracy of the contents, but all statements, information, and

recommendations in this document do not constitute a warranty of any kind, express or implied.

Huawei Technologies Co., Ltd.

Address: Huawei Industrial Base

Bantian, Longgang

Shenzhen 518129

People's Republic of China

Website: http://www.huawei.com

Email: support@huawei.com

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

Contents

1 Preface..............................................................................................................................................1

2 Overview......................................................................................................................................... 3

2.1 Background Introduction................................................................................................................................................3

2.2 Supported Cores............................................................................................................................................................. 6

2.3 Constraints...................................................................................................................................................................... 6

3 Basic Kernel.................................................................................................................................... 7

3.1 Task.................................................................................................................................................................................7

3.1.1 Overview..................................................................................................................................................................... 7

3.1.2 Development Guidelines........................................................................................................................................... 10

3.1.3 Precautions.................................................................................................................................................................16

3.1.4 Programming Example.............................................................................................................................................. 16

3.2 Memory........................................................................................................................................................................ 19

3.2.1 Overview................................................................................................................................................................... 19

3.2.2 Dynamic Memory......................................................................................................................................................21

3.2.2.1 Development Guidelines........................................................................................................................................ 21

3.2.2.2 Precautions..............................................................................................................................................................24

3.2.2.3 Programming Example........................................................................................................................................... 24

3.2.3 Static Memory........................................................................................................................................................... 25

3.2.3.1 Development Guidelines........................................................................................................................................ 25

3.2.3.2 Precautions..............................................................................................................................................................26

3.2.3.3 Programming Example........................................................................................................................................... 27

3.3 Interrupt........................................................................................................................................................................ 28

3.3.1 Overview................................................................................................................................................................... 28

3.3.2 Development Guidelines........................................................................................................................................... 30

3.3.3 Precautions.................................................................................................................................................................31

3.3.4 Programming Example.............................................................................................................................................. 32

3.4 Queue............................................................................................................................................................................33

3.4.1 Overview................................................................................................................................................................... 33

3.4.2 Development Guidelines........................................................................................................................................... 35

3.4.3 Precautions.................................................................................................................................................................40

3.4.4 Programming Example.............................................................................................................................................. 40

3.5 Event.............................................................................................................................................................................42

LiteOS

Developer Guide Contents

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

3.5.1 Overview................................................................................................................................................................... 42

3.5.2 Development Guidelines........................................................................................................................................... 44

3.5.3 Precautions.................................................................................................................................................................47

3.5.4 Programming Example.............................................................................................................................................. 47

3.6 Mutex............................................................................................................................................................................49

3.6.1 Overview................................................................................................................................................................... 49

3.6.2 Development Guidelines........................................................................................................................................... 50

3.6.3 Precautions.................................................................................................................................................................53

3.6.4 Programming Example.............................................................................................................................................. 53

3.7 Semaphore.................................................................................................................................................................... 56

3.7.1 Overview................................................................................................................................................................... 56

3.7.2 Development Guidelines........................................................................................................................................... 58

3.7.3 Precautions.................................................................................................................................................................60

3.7.4 Programming Example.............................................................................................................................................. 60

3.8 Time Management........................................................................................................................................................ 63

3.8.1 Overview................................................................................................................................................................... 63

3.8.2 Development Guidelines........................................................................................................................................... 64

3.8.3 Precautions.................................................................................................................................................................65

3.8.4 Programming Example.............................................................................................................................................. 65

3.9 Software Timer............................................................................................................................................................. 66

3.9.1 Overview................................................................................................................................................................... 67

3.9.2 Development Guidelines........................................................................................................................................... 68

3.9.3 Precautions.................................................................................................................................................................71

3.9.4 Programming Example.............................................................................................................................................. 71

3.10 Error Handling............................................................................................................................................................73

3.10.1 Overview................................................................................................................................................................. 73

3.10.2 Development Guidelines......................................................................................................................................... 74

3.10.3 Precautions...............................................................................................................................................................74

3.10.4 Programming Example............................................................................................................................................ 75

3.11 Doubly Linked List.....................................................................................................................................................75

3.11.1 Overview..................................................................................................................................................................75

3.11.2 Development Guidelines..........................................................................................................................................76

3.11.3 Precautions...............................................................................................................................................................76

3.11.4 Programming Example............................................................................................................................................ 77

4 Extended Kernel...........................................................................................................................79

4.1 Dynamic Loading......................................................................................................................................................... 79

4.1.1 Overview................................................................................................................................................................... 79

4.1.2 Development Guidelines........................................................................................................................................... 80

4.1.3 Precautions.................................................................................................................................................................87

4.1.4 Programming Example.............................................................................................................................................. 87

4.2 Scatter Loading.............................................................................................................................................................88

4.2.1 Overview................................................................................................................................................................... 88

LiteOS

Developer Guide Contents

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

iii

4.2.2 Development Guidelines........................................................................................................................................... 90

4.2.3 Precautions.................................................................................................................................................................93

4.2.4 FAQs..........................................................................................................................................................................93

4.3 Exception Management................................................................................................................................................ 94

4.3.1 Overview................................................................................................................................................................... 94

4.3.2 Development Guidelines........................................................................................................................................... 96

4.3.3 Precautions.................................................................................................................................................................96

4.3.4 Programming Example.............................................................................................................................................. 96

4.4 CPU Utilization Percentage..........................................................................................................................................97

4.4.1 Overview................................................................................................................................................................... 97

4.4.2 Development Guidelines........................................................................................................................................... 98

4.4.3 Precautions.................................................................................................................................................................99

4.4.4 Programming Example............................................................................................................................................ 100

4.5 Linux Adaption...........................................................................................................................................................101

4.5.1 Completion.............................................................................................................................................................. 101

4.5.1.1 Overview.............................................................................................................................................................. 101

4.5.1.2 Development Guidelines...................................................................................................................................... 102

4.5.1.3 Precautions............................................................................................................................................................103

4.5.1.4 Programming Example......................................................................................................................................... 103

4.5.2 Workqueue...............................................................................................................................................................104

4.5.2.1 Overview.............................................................................................................................................................. 105

4.5.2.2 Development Guidelines...................................................................................................................................... 105

4.5.2.3 Precautions............................................................................................................................................................106

4.5.2.4 Programming Example......................................................................................................................................... 107

4.5.3 Interrupt................................................................................................................................................................... 108

4.5.3.1 Overview.............................................................................................................................................................. 108

4.5.3.2 Development Guidelines...................................................................................................................................... 108

4.5.3.3 Precautions............................................................................................................................................................109

4.5.3.4 Programming Example......................................................................................................................................... 109

4.5.4 High Resolution Timer............................................................................................................................................ 110

4.5.4.1 Overview...............................................................................................................................................................110

4.5.4.2 Development Guidelines.......................................................................................................................................110

4.5.4.3 Precautions............................................................................................................................................................111

4.5.4.4 Programming Example......................................................................................................................................... 112

4.5.5 Linux APIs...............................................................................................................................................................113

4.5.5.1 Linux Adaption APIs............................................................................................................................................ 113

4.5.5.2 Linux APIs Not Supported................................................................................................................................... 126

4.6 C++ Support............................................................................................................................................................... 136

4.6.1 Overview................................................................................................................................................................. 136

4.6.2 Development Guidelines......................................................................................................................................... 136

4.6.3 Precautions...............................................................................................................................................................138

4.6.4 Programming Example............................................................................................................................................ 138

LiteOS

Developer Guide Contents

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

4.7 MMU.......................................................................................................................................................................... 138

4.7.1 Overview................................................................................................................................................................. 138

4.7.2 Development Guidelines......................................................................................................................................... 139

4.7.3 Precautions...............................................................................................................................................................141

4.7.4 Programming Example............................................................................................................................................ 141

4.8 Atomic Operation....................................................................................................................................................... 143

4.8.1 Overview................................................................................................................................................................. 143

4.8.2 Development Guidelines......................................................................................................................................... 144

4.8.3 Precautions...............................................................................................................................................................145

4.8.4 Programming Example............................................................................................................................................ 145

4.9 Run-Stop.....................................................................................................................................................................146

4.9.1 Overview................................................................................................................................................................. 146

4.9.2 Development Guidelines......................................................................................................................................... 147

4.9.3 Precautions...............................................................................................................................................................152

4.9.4 LOS_MakeImage Parameter Configurations.......................................................................................................... 152

5 File System..................................................................................................................................153

5.1 Functions Overview....................................................................................................................................................153

5.2 VFS.............................................................................................................................................................................154

5.2.1 Overview................................................................................................................................................................. 155

5.2.2 Development Guidelines......................................................................................................................................... 156

5.2.3 Precautions...............................................................................................................................................................157

5.2.4 Programming Example............................................................................................................................................ 158

5.3 NFS.............................................................................................................................................................................158

5.3.1 Overview................................................................................................................................................................. 158

5.3.2 Development Guidelines......................................................................................................................................... 159

5.3.3 Precautions...............................................................................................................................................................161

5.3.4 Programming Example............................................................................................................................................ 161

5.4 JFFS2.......................................................................................................................................................................... 161

5.4.1 Overview................................................................................................................................................................. 162

5.4.2 Development Guidelines......................................................................................................................................... 162

5.4.3 Precautions...............................................................................................................................................................164

5.4.4 Programming Example............................................................................................................................................ 165

5.5 FAT............................................................................................................................................................................. 165

5.5.1 Overview................................................................................................................................................................. 165

5.5.2 Development Guidelines......................................................................................................................................... 165

5.5.3 Precautions...............................................................................................................................................................167

5.5.4 Programming Example............................................................................................................................................ 168

5.6 YAFFS2...................................................................................................................................................................... 168

5.6.1 Overview................................................................................................................................................................. 168

5.6.2 Development Guidelines......................................................................................................................................... 168

5.6.3 Precautions...............................................................................................................................................................170

5.6.4 Programming Example............................................................................................................................................ 171

LiteOS

Developer Guide Contents

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

5.7 RAMFS.......................................................................................................................................................................171

5.7.1 Overview................................................................................................................................................................. 171

5.7.2 Development Guidelines......................................................................................................................................... 171

5.7.3 Precautions...............................................................................................................................................................172

5.7.4 Programming Example............................................................................................................................................ 172

5.8 PROC..........................................................................................................................................................................172

5.8.1 Overview................................................................................................................................................................. 173

5.8.2 Development Guidelines......................................................................................................................................... 173

5.8.3 Precautions...............................................................................................................................................................175

5.8.4 Programming Example............................................................................................................................................ 175

6 Driver Development................................................................................................................. 176

6.1 Overview.................................................................................................................................................................... 176

6.2 Development Guidelines............................................................................................................................................ 176

6.3 Precautions..................................................................................................................................................................179

6.4 Programming Example............................................................................................................................................... 179

7 Maintenance and Testing.........................................................................................................180

7.1 Telnet.......................................................................................................................................................................... 180

7.1.1 Overview................................................................................................................................................................. 180

7.1.2 Development Guidelines......................................................................................................................................... 181

7.1.3 Precautions...............................................................................................................................................................181

7.1.4 Programming Example............................................................................................................................................ 182

7.2 Shell............................................................................................................................................................................ 182

7.2.1 Overview................................................................................................................................................................. 182

7.2.2 Development Guidelines......................................................................................................................................... 183

7.2.3 Precautions...............................................................................................................................................................184

7.2.4 Programming Example............................................................................................................................................ 185

7.2.5 Command Reference............................................................................................................................................... 186

7.2.5.1 System Commands............................................................................................................................................... 186

7.2.5.1.1 task.....................................................................................................................................................................186

7.2.5.1.2 sem.....................................................................................................................................................................189

7.2.5.1.3 swtmr................................................................................................................................................................. 190

7.2.5.1.4 hwi..................................................................................................................................................................... 192

7.2.5.1.5 cpup................................................................................................................................................................... 193

7.2.5.1.6 memcheck..........................................................................................................................................................194

7.2.5.1.7 writereg..............................................................................................................................................................195

7.2.5.1.8 readreg............................................................................................................................................................... 196

7.2.5.1.9 free..................................................................................................................................................................... 197

7.2.5.1.10 uname...............................................................................................................................................................198

7.2.5.1.11 systeminfo........................................................................................................................................................199

7.2.5.1.12 help.................................................................................................................................................................. 200

7.2.5.2 File........................................................................................................................................................................ 200

7.2.5.2.1 ls.........................................................................................................................................................................201

LiteOS

Developer Guide Contents

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

7.2.5.2.2 cd....................................................................................................................................................................... 202

7.2.5.2.3 pwd.................................................................................................................................................................... 203

7.2.5.2.4 cp....................................................................................................................................................................... 203

7.2.5.2.5 cat.......................................................................................................................................................................205

7.2.5.2.6 touch.................................................................................................................................................................. 205

7.2.5.2.7 rm.......................................................................................................................................................................206

7.2.5.2.8 sync....................................................................................................................................................................208

7.2.5.2.9 statfs...................................................................................................................................................................208

7.2.5.2.10 format...............................................................................................................................................................209

7.2.5.2.11 mount............................................................................................................................................................... 210

7.2.5.2.12 umount............................................................................................................................................................. 211

7.2.5.2.13 rmdir................................................................................................................................................................ 212

7.2.5.2.14 mkdir................................................................................................................................................................213

7.2.5.2.15 partition............................................................................................................................................................214

7.2.5.2.16 writeproc..........................................................................................................................................................215

7.2.5.2.17 partinfo.............................................................................................................................................................216

7.2.5.3 Network................................................................................................................................................................ 216

7.2.5.3.1 arp...................................................................................................................................................................... 216

7.2.5.3.2 ifconfig...............................................................................................................................................................218

7.2.5.3.3 ping.................................................................................................................................................................... 221

7.2.5.3.4 tftp......................................................................................................................................................................223

7.2.5.3.5 ntpdate............................................................................................................................................................... 225

7.2.5.3.6 dns......................................................................................................................................................................225

7.2.5.3.7 netstat.................................................................................................................................................................226

7.2.5.3.8 telnet.................................................................................................................................................................. 228

7.2.5.3.9 tcpdump............................................................................................................................................................. 229

7.2.5.4 Dynamic Loading................................................................................................................................................. 231

7.2.5.4.1 mopen................................................................................................................................................................ 231

7.2.5.4.2 findsym.............................................................................................................................................................. 231

7.2.5.4.3 call..................................................................................................................................................................... 232

7.2.5.4.4 mclose................................................................................................................................................................233

7.2.5.4.5 lddrop.................................................................................................................................................................234

8 Debug Guidelines..................................................................................................................... 235

8.1 Methods for Locating Illegal Memory Write............................................................................................................. 235

8.1.1 Locating the Exception Based on the Exception Information.................................................................................235

8.1.2 Memory Integrity Check......................................................................................................................................... 236

8.1.3 Check of Usable memset and memcpy Length....................................................................................................... 237

8.1.4 Global Variable Check.............................................................................................................................................238

8.1.5 Task Status Check....................................................................................................................................................239

8.2 Solutions to Illegal Memory Access...........................................................................................................................240

8.2.1 Illegal Memory Access Caused by the Audio Library............................................................................................ 240

8.2.2 Unreadable Audio Task Name.................................................................................................................................241

LiteOS

Developer Guide Contents

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

vii

8.2.3 Illegal Memory Access Caused by a Global Variable............................................................................................. 242

8.3 Method for Locating a Deadlock................................................................................................................................243

9 Standard Libraries..................................................................................................................... 245

9.1 POSIX APIs................................................................................................................................................................245

9.1.1 POSIX Adaption APIs.............................................................................................................................................245

9.1.2 POSIX APIs Not Supported.................................................................................................................................... 263

9.2 Libc/Libm APIs.......................................................................................................................................................... 272

9.2.1 Libc Adaption APIs................................................................................................................................................. 272

9.2.2 Libc Open Source APIs........................................................................................................................................... 276

9.2.3 Libm Open Source APIs..........................................................................................................................................290

9.2.4 Libc/Libm APIs Not Supported...............................................................................................................................303

9.3 C++ Compatibility Specifications.............................................................................................................................. 305

10 Configuration Reference........................................................................................................308

10.1 Configuration Tool Instructions................................................................................................................................308

10.2 Time Management Configuration Parameters..........................................................................................................316

10.3 Memory Management Configuration Parameters.................................................................................................... 317

10.4 Memory Maintenance & Testing Configuration Parameters....................................................................................317

10.5 Task Configuration Parameters.................................................................................................................................318

10.6 Software Timer Configuration Parameters............................................................................................................... 319

10.7 Semaphore Configuration Parameters...................................................................................................................... 320

10.8 Mutex Configuration Parameters..............................................................................................................................320

10.9 Hardware Interrupt Configuration Parameters......................................................................................................... 320

10.10 Queue Configuration Parameters............................................................................................................................321

10.11 Module Compaction Configuration Parameters..................................................................................................... 321

11 Appendix...................................................................................................................................324

11.1 OS Memory Usage....................................................................................................................................................324

11.2 Kernel Boot Process Introduction.............................................................................................................................326

LiteOS

Developer Guide Contents

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

viii

1 Preface

Purpose

This guide describes the structure of Huawei LiteOS Kernel. It also explains how to develop

and debug the Kernel.

Intended Audience

This guide is primarily intended for Huawei LiteOS Kernel developers, and is also

recommended for:

lInternet of Things (IoT) device software engineers

lIoT architects

Symbol Conventions

The symbols that may be found in this guide are defined as follows:

Symbol Description

Indicates a emergency hazardous situation

that, if not avoided, could result in death or

serious injury.

Indicates a potentially hazardous situation

that, if not avoided, could result in death or

serious injury.

Indicates a potentially hazardous situation

that, if not avoided, could result in minor or

moderate injury.

LiteOS

Developer Guide 1 Preface

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

Symbol Description

Indicates a device or environmental safety

alert that, if not avoided, could result in

equipment damage, data loss, performance

deterioration, or unanticipated

consequences.

"Notice" cannot result in injury.

"Note" is not a safety alert, cannot result in

personal, device or environmental injury.

Change History

Document changes are cumulative. The latest document issue contains all the changes made

in earlier issues.

Date Version Description

2015-10-28 1.0 Initial draft

2016-03-26 2.0 Manual optimization

LiteOS

Developer Guide 1 Preface

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

2 Overview

About This Chapter

2.1 Background Introduction

2.2 Supported Cores

2.3 Constraints

2.1 Background Introduction

Huawei LiteOS Kernel is intended for lightweight real-time operating systems designed for

IoT OS Kernel of Huawei.

LiteOS

Developer Guide 2 Overview

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

Figure 2-1 Huawei LiteOS Kernel framework

LiteOS

Developer Guide 2 Overview

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

Huawei LiteOS Basic kernel of Huawei LiteOS is the most tidy code of operating system. It

contains operating system components based task management, time management,

communication mechanism, interrupt management, queue management, event management,

timer, exception management, etc. It can run independently.

Highlights of Huawei LiteOS Kernel

lHighlight real-time and stable

lUltra-small kernel, basic kernel size of less than 10 KB

lLow power consumption

lCapable of dynamic and scatter loading

lCapable of Static function compaction

Modules

Task

Creates, deletes, delays, suspends, and resumes tasks, and can lock or unlock task scheduling.

High priority tasks preempt resources from low priority ones. Tasks of the same priority share

resources in a round robin setup using time slicing.

Task Synchronization

lSemaphore: creates, deletes, pends on, and releases semaphores.

lMutex: creates, deletes, pends on, and releases mutexes.

Hardware Related Functions

Provides the following functions:

lInterrupt: Creates, deletes, enables, and disables interrupts; clears interrupt request flags.

lTimer: Creates, deletes, starts, and stops timers.

Inter-Process Communication (IPC)

Provides the following functions:

lEvent: Reads and writes events

lMessage queue: Creates, deletes, reads from, and writes into message queues

Time Management

lSystem time: generated when an output pulse of a timer/counter triggers an interrupt.

lTick time: the basic time unit used in OS scheduling. The tick length is user

configurable. Typically, it is determined by the system clock speed and represented in the

form of ticks per second.

lSoftware timer: The timer length is measured in ticks. The Timer_Callback function (a

function used to process timer expiry) is called when a soft tick interrupt is generated.

Memory Management

lProvide two algorithms of dynamic memory and static memory. Allocates or frees

memory statically using the Membox algorithm or dynamically using the DLINK

algorithm.

lProvides memory statistics, cross-border detection memory.

LiteOS

Developer Guide 2 Overview

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

Exception Handling

Exception handling means that when the operating system encounters an exception, in order

to save the current OS state or print the information stored in the call stack of the erroneous

function, it switches to the hook function responsible for exception handling.

The printed register information of Huawei LiteOS exception handling includes the erroneous

task ID, stack size, and LR/PC pointer.

Dynamic Loading

Dynamic loading a software loading technology that loads and links only the required module

files at runtime of an executable instead of loading all modules files of the executable.

Two file formats are supported: OBJ and SO.

Scatter Loading

Scatter loading preferentially loads key services by loading images of key services into

memory. This accelerates system boot.

2.2 Supported Cores

Table 2-1 Cores supported by Huawei LiteOS

Core Chip

Cortex-A7 Hi3516A

Cortex-M3 K3V3, K3V3+

Cortex-M4 STMF411, STMF429

Cortex-M7 K3V5

ARM9 Hi3911, Hi3518EV200

2.3 Constraints

lBoth Huawei LiteOS interfaces and POSIX interfaces are supported, but hybrid use of

them may lead to unpredictable results. (For example, a POSIX interface is used for

requesting semaphores while a Huawei LiteOS interface is used for releasing

semaphores.)

lUse only Huawei LiteOS interfaces for driver development. POSIX interfaces are

recommended for app development.

LiteOS

Developer Guide 2 Overview

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

3 Basic Kernel

About This Chapter

3.1 Task

3.2 Memory

3.3 Interrupt

3.4 Queue

3.5 Event

3.6 Mutex

3.7 Semaphore

3.8 Time Management

3.9 Software Timer

3.10 Error Handling

3.11 Doubly Linked List

3.1 Task

3.1.1 Overview

Basic Concept

Task is the minimum running unit of competitive system resources from a system perspective.

It can use or wait for CPU, use memory space, and can run independently of other tasks.

Task modules of Huawei LiteOS provide a lot of tasks to help users manage business process

procedures. It makes switches and communications between tasks come true. Through this,

users can devote more energies to the achievement of business function.

Huawei LiteOS is an operating system supported multi-task. In Huawei LiteOS, a task is same

as a thread.

LiteOS

Developer Guide 3 Basic Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

Task in Huawei LiteOS is preemptive scheduling mechanism, while supporting round-robin

scheduling.

High-priority task can interrupt low-priority task, low-priority task can only be scheduled

when the high-priority task blocked or completed.

A total of 32 priorities are defined, with priority 0 being the highest and 31 being the lowest.

Related Concepts

Task States

A task in Huawei LiteOS switches between different states. After the operating system is

initialized, a created task is allowed to contend for system resources according to the

scheduling procedure regulated by Huawei LiteOS Kernel.

There are usually four task states:

lReady: The task is waiting for execution by a CPU.

lRunning: The task is being executed.

lBlocked: The task is not on the list of ready tasks. For example, the task may be

suspended, delayed, waiting for a semaphore, waiting to read from or write into a queue,

or reading from or writing into a queue.

lDead: The task execution is complete, and resources are waiting to be reclaimed.

Figure 3-1 Task state schematic diagram

The state transition process is as follows:

lReady → Running

A task enters Ready state once created. When a task switch occurs, the task with the highest

priority is selected from ready tasks and enters Running state to be executed. Although the

task is in Running state, it remains on the list of ready tasks.

lRunning → Blocked

When a running task is blocked (for example, it is suspended, delayed, or waiting to read a

semaphore), it will be deleted from the list of ready tasks and enters Blocked state. The state

transition triggers a task switch where the task with the highest priority is selected from ready

tasks.

lBlocked → Ready (Blocked → Running)

After a blocked task is recovered (for example, if the task is resumed, the task successfully

reads a semaphore, or if the delay period or semaphore read period expires), the task will be

LiteOS

Developer Guide 3 Basic Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

added to the list of ready tasks and enters ready state. If the recovered task takes precedence

over the running task, a task switch will occur to send the resumed task into running state.

lReady → Blocked

If a ready task is blocked (suspended), it will be deleted from the list of ready tasks no longer

participated in task scheduling and enter blocked state.

lRunning → Ready

When a task is created or resumed with a higher priority than the running task, the created or

resumed task enters running state and task scheduling will be occurred. Meanwhile, the

original running task enters ready state but it remains on the list of ready tasks.

lRunning → Stopped

When a task running is stopped, the status of it will change from running to stopped. Stopped

status includes normal exit after the task is stopped and impossible status. For example, while

separation property(LOS_TASK_STATUS_DETACHED) is not set, the task will present

impossible status, which is stopped.

lBlocked → Stopped

If calling the delete API when the task is in blocked status, the task status will change from

blocked to stopped.

Task ID

You will receive a task ID after successfully creating a task. You may suspend, resume, or

query a task using its ID.

Task Priority

Tasks are executed based on their priority. In the event of a task switch, the task with the

highest priority will be selected from ready tasks.

Task Entrypoint Function

Each task has a task entrypoint function, which is defined by the task creation structure at the

time of task creation and is executed after the task is scheduled. You can design task

entrypoint functions.

Task Control Block

Each task has a task control block (TCB). A TCB contains task information such as context

stack pointer (SP), state, priority, ID, name, and stack size. TCB can reflect running

conditions of each task.

Task Stack

Each task has a separate task stack. The task stack stores information such as local variables,

registers, function parameters, and function return addresses. When a task switch occurs, the

context information of the task that is replaced is saved to its task stack. When the task is

resumed, its context information will be quickly retrieved from the task stack to help resume

the task from where it was paused.

Task Context

Resources (such as registers) used by a running task are collectively known as task context,

just like registers. After a task is suspended, other running tasks might modify the context of

LiteOS

Developer Guide 3 Basic Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

the suspended task. If the original context of the suspended task is not saved, the suspended

task uses the modified context once resumed, incurring unpredictable errors.

Therefore, Huawei LiteOS will save the task context information of this task in its own task

stack. This function is to resume context information after the task is resumed. There by

continuing to execute the interrupted code when the task is suspended.

Task Switch

A task switch process involves a few activities, including selecting the ready task with the

highest priority, saving the context of the task that will be replaced, and restoring the context

of the task that is newly selected to be executed.

Operation Mechanism

Task management module of Huawei LiteOS provides functions such as task creating,

delaying, suspending, resuming, locking and unlocking task scheduling, querying task ID

according to TCB, querying TCB information according to ID.

Before fulfilling a task creation request, the operating system allocates memory space needed

by the TCB of the task. If insufficient memory space is available, the task fails to be

initialized. After the task is successfully initialized, the operating system initializes the TCB

of the task.

While creating a task, the operating system initializes the task stack and resets the context.

The operating system also places the task entrypoint function in the correct position so that

the function will be executed after the task is booted for the first time.

3.1.2 Development Guidelines

Usage Scenarios

After a task is created, Huawei LiteOS Kernel can perform operations such as unlocking task

scheduling, scheduling/suspending/resuming/delaying a task, or assigning/acquiring a task

priority. If the task state is Detached (LOS_TASK_STATUS_DETACHED) when the task

ends, the task will be detached.

Functions

The task management module provides the following functions:

Function Category API Description

Task creation and deletion LOS_TaskCreateOnly Creates a task and suspends

the task without scheduling

LOS_TaskCreate Creates a task. The task

enters Ready state and is

scheduled

LOS_TaskDelete Deletes a particular task

Task state control LOS_TaskResume Resumes the suspended task

LiteOS

Developer Guide 3 Basic Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

Function Category API Description

LOS_TaskSuspend Suspends a particular task

LOS_TaskDelay Delays the task

LOS_TaskYield Explicits decentralization,

and adjusts the scheduling

order of tasks with a

particular priority

Task scheduling control LOS_TaskLock Locks task scheduling

LOS_TaskUnlock Unlocks task scheduling

Task priority control LOS_CurTaskPriSet Assigns a priority to the

current task

LOS_TaskPriSet Set the priority of a

particular task

LOS_TaskPriGet Gets the priority of a

particular task

Task information acquisition LOS_CurTaskIDGet Gets the ID of the current

task

LOS_TaskInfoGet Gets the information of the

current task

Development Process

Task creation is used as an example to explain the development process.

1. Configure the task management module in the los_config.h file.

LOSCFG_BASE_CORE_TSK_LIMIT: the maximum number of tasks allowed. You can

config according to requirement.

LOSCFG_BASE_CORE_TSK_IDLE_STACK_SIZE IDLE: task stack size. Retain the

default value unless otherwise required. You can config according to requirement.

LOSCFG_BASE_CORE_TSK_DEFAULT_STACK_SIZE: default task stack size.

Specify the parameter value according to actual needs when users create tasks.

LOSCFG_BASE_CORE_TIMESLICE: a switch to enable or disable the Time Slice. Set

it to YES.

LOSCFG_BASE_CORE_TIMESLICE_TIMEOUT: time slice. You can config

according to actual situations.

LOSCFG_BASE_CORE_TSK_MONITOR: a switch to enable or disable the task

monitoring module.

2. Call the LOS_TaskLock API to lock task scheduling. Prohibits high-priority task

scheduling.

3. Call the LOS_TaskCreate API to create a task.

4. Call the LOS_TaskUnlock API to unlock task scheduling. Schedules tasks in order of

priority.

LiteOS

Developer Guide 3 Basic Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

5. Schedules tasks in order of priority. Delays the task.

6. Call the LOS_TaskSuspend API to suspend the task. Suspends the task.

7. Call the LOS_TaskResume API to resume the suspended task. Resumes the suspended

task.

Task State

In Huawei LiteOS, most task states are defined by the kernel. Only Detached state can be

defined by users. Users need to define Detached state during task creation.

No. Definition Value Description

1 LOS_TASK_STATUS_DET

ACHED

0x0080 The task is detached.

When creating a task by calling the LOS_TaskCreate API, set the uwResved field of the

TSK_INIT_PARAM_S parameter of the task to LOS_TASK_STATUS_DETACHED.

Then the task will be detached after its execution is complete.

NOTE

When creating a task by calling the LOS_TaskCreate API, the task state is set to

LOS_TASK_STATUS_DETACHED. by default.

Task Error Codes

An error code is returned when attempting to create, delete, suspend, resume, or delay a task

fails. The error code gives some insights into the possible cause of the failure.

SN Error Code Error ID

Number

Description Recommende

d Solution

1 LOS_ERRNO_

TSK_NO_ME

MORY

0x02000200 Insufficient

memory

Allocate a

larger memory

area

2 LOS_ERRNO_

TSK_PTR_NU

0x02000201 Null task

parameter

Check task

parameters

3 LOS_ERRNO_

TSK_STKSZ_

NOT_ALIGN

0x02000202 Task stack size

not aligned

Align the task

stack size on

the boundary

4 LOS_ERRNO_

TSK_PRIOR_E

RROR

0x02000203 Incorrect task

priority

Check the task

priority

5 LOS_ERRNO_

TSK_ENTRY_

NULL

0x02000204 Null task

entrypoint

function

Define a task

entrypoint

function

LiteOS

Developer Guide 3 Basic Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

SN Error Code Error ID

Number

Description Recommende

d Solution

6 LOS_ERRNO_

TSK_NAME_E

MPTY

0x02000205 Task name

unspecified

Specify the task

name

7 LOS_ERRNO_

TSK_STKSZ_

TOO_SMALL

0x02000206 Too small task

stack

Expand the task

stack

8 LOS_ERRNO_

TSK_ID_INVA

LID

0x02000207 Invalid task ID Check task IDs

9 LOS_ERRNO_

TSK_ALREAD

Y_SUSPENDE

0x02000208 Task already

suspended

Suspend the

task after it is

resumed

10 LOS_ERRNO_

TSK_NOT_SU

SPENDED

0x02000209 Task not

suspended

Suspend the

task

11 LOS_ERRNO_

TSK_NOT_CR

EATED

0x0200020a Task not

created

Create the task

12 LOS_ERRNO_

TSK_DELETE

_LOCKED

0x0200020b Attempt to

delay the task

while task

scheduling is

locked

Delete the task

after task

scheduling is

unlocked

13 LOS_ERRNO_

TSK_MSG_NO

NZERO

0x0200020c Task

information not

zero

Do not use the

error code

14 LOS_ERRNO_

TSK_DELAY_I

N_INT

0x0300020d Attempt to

delay the task

while an

interrupt is

underway

Delay the task

after the

interrupt is

finished

15 LOS_ERRNO_

TSK_DELAY_I

N_LOCK

0x0200020e Attempt to

delay the task

while task

scheduling is

locked

Delay the task

after task

scheduling is

unlocked

16 LOS_ERRNO_

TSK_YIELD_I

NVALID_TAS

0x0200020f Invalid task to

be scheduled

Check the task

LiteOS

Developer Guide 3 Basic Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

SN Error Code Error ID

Number

Description Recommende

d Solution

17 LOS_ERRNO_

TSK_YIELD_

NOT_ENOUG

H_TASK

0x02000210 No task or only

one task

available for

scheduling

Add more tasks

18 LOS_ERRNO_

TSK_TCB_UN

AVAILABLE

0x02000211 No idle TCB Add more

TCBs

19 LOS_ERRNO_

TSK_HOOK_N

OT_MATCH

0x02000212 Task hook

function

mismatch

Do not use the

error code

20 LOS_ERRNO_

TSK_HOOK_I

S_FULL

0x02000213 Maximum

number of task

hook functions

is reached

Do not use the

error code

21 LOS_ERRNO_

TSK_OPERAT

E_IDLE

0x02000214 Idle task Check the task

ID and do not

attempt to

operate the task

with the ID

22 LOS_ERRNO_

TSK_SUSPEN

D_LOCKED

0x03000215 Attempt to

suspend the

task while task

scheduling is

locked

Suspend the

task after task

scheduling is

unlocked

23 LOS_ERRNO_

TSK_FREE_ST

ACK_FAILED

0x02000217 Failed to free

task stack

Do not use the

error code

24 LOS_ERRNO_

TSK_STKARE

A_TOO_SMA

0x02000218 Small task stack

area

Do not use the

error code

25 LOS_ERRNO_

TSK_ACTIVE

_FAILED

0x02000219 Failed to trigger

the task

Create an idle

task and trigger

a task switch

26 LOS_ERRNO_

TSK_CONFIG

_TOO_MANY

0x0200021a Too many task

configuration

options

Do not use the

error code

27 LOS_ERRNO_

TSK_CP_SAV

E_AREA_NOT

_ALIGN

0x0200021b None Do not use the

error code

LiteOS

Developer Guide 3 Basic Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

SN Error Code Error ID

Number

Description Recommende

d Solution

28 LOS_ERRNO_

TSK_MSG_Q_

TOO_MANY

0x0200021d None Do not use the

error code

29 LOS_ERRNO_

TSK_CP_SAV

E_AREA_NUL

0x0200021e None Do not use the

error code

30 LOS_ERRNO_

TSK_SELF_D

ELETE_ERR

0x0200021f None Do not use the

error code

31 LOS_ERRNO_

TSK_STKSZ_

TOO_LARGE

0x02000220 Large task stack Reduce the task

stack size

32 LOS_ERRNO_

TSK_SUSPEN

D_SWTMR_N

OT_ALLOWE

0x02000221 Suspension of a

software timer

task not

allowed

Check the task

ID. Do not

attempt to

suspend a

software timer

task.

Error Code Definition

An error code is 32 bits in length, where:

lBits 31–24: error severity

lBits 23–16: error flag

lBits 15–8: module that encounters the error

lBits 7–0: error ID number

#define LOS_ERRNO_OS_NORMAL(MID,ERRNO) \

(LOS_ERRTYPE_NORMAL | LOS_ERRNO_OS_ID | ((UINT32)(MID) << 8) | (ERRNO))

LOS_ERRTYPE_NORMAL ：Define the error level as critical

LOS_ERRNO_OS_ID ：OS error code flag.

MID：OS_MOUDLE_ID

ERRNO：error ID number

For example:

LOS_ERRNO_TSK_NO_MEMORY LOS_ERRNO_OS_FATAL(OS_MOD_TSK, 0x00)

NOTE

0x03000215 and 0x0300021c error codes are not defined and therefore cannot be used.

Platform Differences

None.

LiteOS

Developer Guide 3 Basic Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

3.1.3 Precautions

lWhile a new task is being created, the task control blocks (TCBs) and task stacks of

previously deleted tasks are reclaimed.

lA task name is a pointer and not allocated memory space. Do not set a task name to the

address of a local variable when you set task name.

lIf the task size is set to 0, the setting does not take effect. Instead, the default task size

defined by the #LOSCFG_BASE_CORE_TSK_DEFAULT_STACK_SIZE parameter is

applied.

lTask stack size is aligned with the base address on the boundary of 8 bytes. Follow the

"nothing more and nothing less" principle while determining the task stack size.

lA running task cannot be suspended while current task scheduling is locked.

lIdle and software timer tasks must not be suspended or deleted.

lIn the interrupt handler function or in the case of the lock task, the operation that calls

the LOS_TaskDelay API will fails.

lLocking task scheduling does not disable interrupts. Tasks can still be interrupted while

task scheduling is locked.

lLocked task scheduling and unlocked task scheduling must be used in coordination.

lTask scheduling may occur while a task priority is being set.

lThe maximum number of tasks (excluding idle tasks) able to be set by operating system

is not equal to the total number of tasks available to users. For example, when a task is

created for software timers, the number of available tasks is decreased by 1.

lDo not change the priority of a software timer task by calling the LOS_CurTaskPriSet

API or the LOS_TaskPriSet API. Otherwise, system problems may occur.

lThe LOS_CurTaskPriSet or LOS_TaskPriSet API must not be used when interrupts are

being processed.

lIf the corresponding task ID that LOS_TaskPriGet interface into the task is not created or

exceed the maximum number of tasks, unified return 0xffff.

lResources such as a mutex or a semaphore allocated to a task must have been released

when the task is being deleted.

3.1.4 Programming Example

Example Description

Two tasks will be created: TaskHi and TaskLo. TaskHi has a higher priority than TaskLo.

There are some examples giving some basic insight into priority-based task scheduling and

use cases of APIs, including create, delay, lock, unlock, suspend, resume, and query (task ID

and information by task ID) a task.

1. Two tasks will be created: TaskHi and TaskLo.

2. TaskHi has a higher priority

3. TaskLo has a lower priority.

Example Code

UINT 32 g_uwTskLoID;

UINT 32 g_uwTskHiID;

LiteOS

Developer Guide 3 Basic Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

#define TSK_PRIOR_HI 4

#define TSK_PRIOR_LO 5

UINT32 Example_TaskHi()

{

UINT32 uwRet;

UINT32 uwCurrentID;

TSK_INFO_S stTaskInfo;

printf("Enter TaskHi Handler.\r\n");

/*Delay TaskHi for 2 ticks. The delayed TaskHi will be suspended. Meanwhile,

TaskLo will rise to the highest priority task among the remaining tasks and be

selected for execution(g_uwTskLoID task).*/

uwRet = LOS_TaskDelay(2);

if (uwRet != LOS_OK)

{

printf("Delay Task Failed.\r\n");

return LOS_NOK;

}

/*Resume the task when 2 ticks elapse.*/

printf("TaskHi LOS_TaskDelay Done.\r\n");

/*Suspend the task.*/

uwRet = LOS_TaskSuspend(g_uwTskHiID);

if (uwRet != LOS_OK)

{

printf("Suspend TaskHi Failed.\r\n");

return LOS_NOK;

}

printf("TaskHi LOS_TaskResume Success.\r\n");

}

/*Task entrypoint function for the TaskLo*/

UINT32 Example_TaskLo()

{

UINT32 uwRet;

UINT32 uwCurrentID;

TSK_INFO_S stTaskInfo;

printf("Enter TaskLo Handler.\r\n");

/*Delay TaskLo for 2 ticks. The delayed TaskLo will be suspended. Meanwhile,

the background task will rise to the highest priority task among the remaining

tasks and be selected for execution.*/

uwRet = LOS_TaskDelay(2);

if (uwRet != LOS_OK)

{

printf("Delay TaskLo Failed.\r\n");

return LOS_NOK;

}

printf("TaskHi LOS_TaskSuspend Success.\r\n");

/*Resume the suspended task g_uwTskHiID.*/

uwRet = LOS_TaskResume(g_uwTskHiID);

if (uwRet != LOS_OK)

{

printf("Resume TaskHi Failed.\r\n");

return LOS_NOK;

}

printf("TaskHi LOS_TaskDelete Success.\r\n");

}

/*Task test entrypoint function. Two tasks with different priorities will be

created.*/

UINT32 Example_TskCaseEntry(VOID)

LiteOS

Developer Guide 3 Basic Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

{

UINT32 uwRet;

TSK_INIT_PARAM_S stInitParam;

/*Lock task scheduling.*/

LOS_TaskLock();

printf("LOS_TaskLock() Success!\r\n");

stInitParam.pfnTaskEntry = (TSK_ENTRY_FUNC)Example_TaskHi;

stInitParam.usTaskPrio = TSK_PRIOR_HI;

stInitParam.pcName = "HIGH_NAME";

stInitParam.uwStackSize = 0x400;

stInitParam.uwResved = LOS_TASK_STATUS_DETACHED;

/*Create a task with a high priority. The task will not be executed

immediately after being created, because task scheduling is locked.*/

uwRet = LOS_TaskCreate(&g_uwTskHiID, &stInitParam);

if (uwRet != LOS_OK)

{

LOS_TaskUnlock();

printf("Example_TaskHi create Failed!\r\n");

return LOS_NOK;

}

printf("Example_TaskHi create Success!\r\n");

stInitParam.pfnTaskEntry = (TSK_ENTRY_FUNC)Example_TaskLo;

stInitParam.usTaskPrio = TSK_PRIOR_LO;

stInitParam.pcName = "LOW_NAME";

stInitParam.uwStackSize = 0x400;

stInitParam.uwResved = LOS_TASK_STATUS_DETACHED;

/*Create a task with a low priority. The task will not be executed

immediately after being created, because task scheduling is locked.*/

uwRet = LOS_TaskCreate(&g_uwTskLoID, &stInitParam);

if (uwRet != LOS_OK)

{

LOS_TaskUnlock();

printf("Example_TaskLo create Failed!\r\n");

return LOS_NOK;

}

printf("Example_TaskLo create Success!\r\n");

/*Unlock task scheduling. Task scheduling will occur, selecting the task with

the highest priority from the list of ready tasks to be executed.*/

LOS_TaskUnlock();

while(1){};

return LOS_OK;

}

Verification

The verification result is as follows:

LiteOS

Developer Guide 3 Basic Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

Complete Code

sample_task.c

3.2 Memory

3.2.1 Overview

Basic Concept

The memory management module is one of the core modules of an operating system. Memory

management primarily involves initializing, allocating, and freeing up memory.

While the operating system is running, the memory management module manages memory

usage of users and the operating system by allocating and freeing up memory. This helps

reduce memory fragments as much as possible.

Memory management is classified into static and dynamic memory management.

lDynamic memory: a memory block of user-defined size

–Advantage: on-demand memory allocation

–Disadvantage: risk of memory fragments

lStatic memory: a memory block whose size is predefined at the time of initialization

–Advantages: no memory fragments; efficient memory allocation and freeing

–Disadvantage: memory cannot be allocated on demand

Dynamic Memory Operation Mechanism

Dynamic memory management means taking a memory block of the required size out of the

large pool of continuous memory whenever a user needs it, and reclaiming the memory block

when the user no longer needs it.

Comparing with static memory, the advantage is to allocated a memory block of the required

size, and the disadvantage is that memory pool prone to fragmentation.

If a user's request for memory is fulfilled, the user will be allocated a memory block of the

requested size. The control header indicates the start address of the allocated memory block.

All control headers are recorded in a linked list and categorized by memory size. From the

linked list, the operating system can quickly find which memory block has the required size.

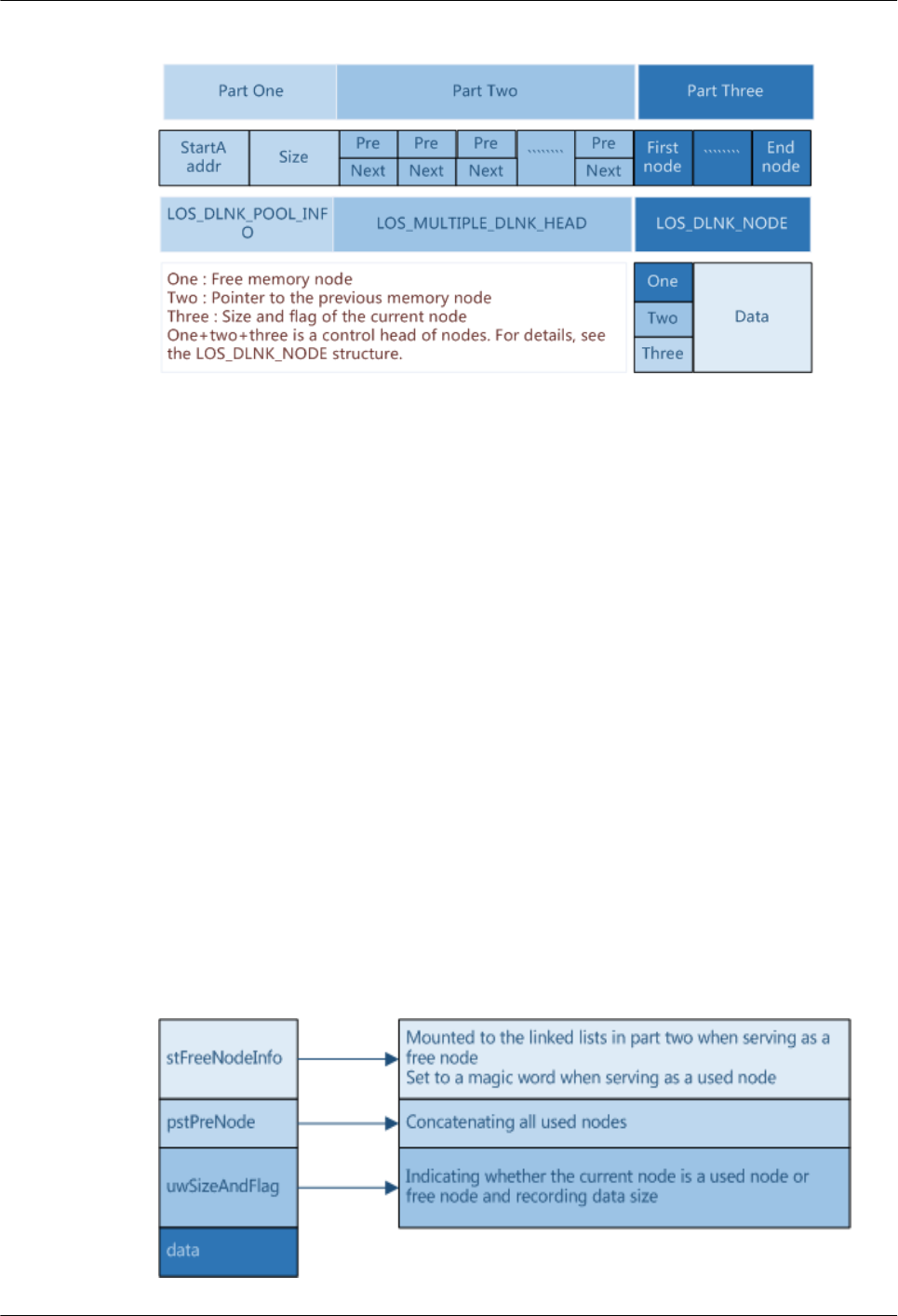

Figure 3-2shows the dynamic memory management structure in Huawei LiteOS:

LiteOS

Developer Guide 3 Basic Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

Figure 3-2

Part one indicates the start address and size of the heap memory (memory pool).

Part two is an array of which each element is a doubly linked list. Control headers of all free

nodes are categorized and mounted to the doubly linked lists in this array.

If the smallest node allowed by the memory is 2min bytes, the first doubly linked list in the

array stores free nodes of the size that is bigger than 2min and smaller than 2min+1. The second

doubly linked list in the array stores free nodes of the size that is bigger than 2min+1 and

smaller than 2min+2. The nth doubly linked list in the array stores free nodes of the size that is

bigger than 2min+n–1 and smaller than 2min+n. When memory is allocated, a free node of

appropriate size (the size of the node being created) is located and memory is allocated to the

free node. When memory is freed up, the freed memory is stored to the array as free nodes for

later use.

Part three uses most space in the memory pool and is the actual area that stores nodes. The

LOS_MEM_DYN_NODE node structure is described as follows:

typedef struct tagLOS_MEM_DYN_NODE

{

LOS_DL_LIST stFreeNodeInfo;

struct tagLOS_MEM_DYN_NODE *pstPreNode;

UINT32 uwSizeAndFlag;

}LOS_MEM_DYN_NODE;

Figure 3-3

LiteOS

Developer Guide 3 Basic Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

Static Memory Operation Mechanism

Static memory is in essence a static array. The size of a static memory block is defined at the

time of initialization and cannot be changed since then.

A static memory pool consists of a control block and several memory blocks of same size.

The control block is placed at the head of the static memory pool to manage memory blocks.

The allocate and free up of memory block according to the size of the blocks.

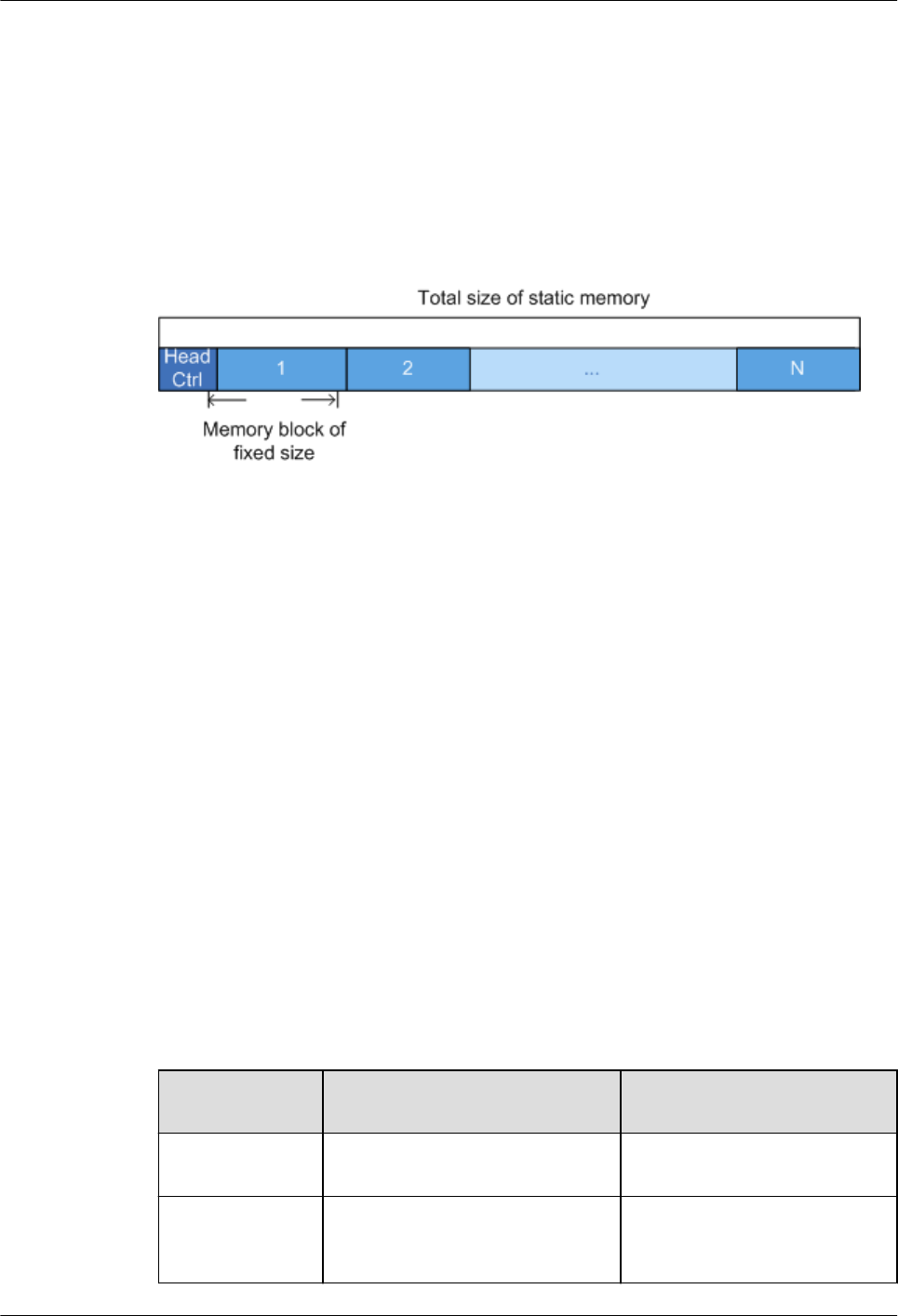

Figure 3-4 Static memory

3.2.2 Dynamic Memory

3.2.2.1 Development Guidelines

Usage Scenarios

The main task of memory management is to dynamically partition and manage user allocated

memory intervals.

Dynamic memory management is used when users have different demands on memory

blocks.

When a user allocates a memory block of specified size, the operating system calls the

LOS_AllocMem API to allocate the requested amount of memory. When the user no longer

needs the memory block, the operating system calls the LOS_FreeMem API to free up the

memory block.

Functions

The memory management module in Huawei LiteOS System provides the following

functions. For details about the APIs, see the API reference.

Function

Category

API Description

Memory

initialization

LOS_MemInit Initializes a specific dynamic

memory pool

Dynamic memory

allocation

LOS_MemAlloc Allocates a specific dynamic

memory pool block of specified

size

LiteOS

Developer Guide 3 Basic Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

Function

Category

API Description

Dynamic memory

free up

LOS_MemFree Frees up the allocated dynamic

memory block

Memory

reallocation

LOS_MemRealloc Reallocates memory block

according to the size, and retains

data in the previously allocated

memory area.

Aligned memory

allocation

LOS_MemAllocAlign Takes the memory block of

requested specific size out of the

specific dynamic memory pool

and aligns the head or tail of the

memory address with a base

address on the predefined

boundary.

Checking

memory size

LOS_MemPoolSizeGet Gets the size of a specific

dynamic memory pool.

Checking

memory usage

LOS_MemTotalUsedGet Gets the usage of a specific

dynamic memory pool.

Checking the

number of

memory blocks

LOS_MemFreeBlksGet Gets the number of free blocks

in a specific dynamic memory

pool.

Checking the

number of

memory blocks

LOS_MemUsedBlksGet Gets the number of used blocks

in a specific dynamic memory

pool.

Checking a task

LOS_MemTaskIdGet Gets the ID of the task to which

specific memory is allocated.

Obtaining node

address

LOS_MemLastUesdGet Obtains the end address of the

last used node in the memory

pool.

Checking

memory structure

information

LOS_MemInfoGet Gets the memory structure

information of a specific

memory pool.

Integrity check LOS_MemIntegrityCheck Checks the integrity of a

specific memory pool.

Checking mode

size

LOS_MemNodeSizeCheck Checks the total size of a node

and the size of part of node that

can be operated.

Setting memory

check level

LOS_MemCheckLevelSet Sets the memory check level.

LiteOS

Developer Guide 3 Basic Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

Function

Category

API Description

Checking

memory check

level

LOS_MemCheckLevelGet Gets the memory check level.

Development Process

1. Configuration:

OS_SYS_MEM_ADDR: start address of the dynamic memory pool. In most cases,

retain the default value.

OS_SYS_MEM_SIZE: size (in bytes) of the dynamic memory pool. By default, the

dynamic memory pool is the memory space that is left unused after DDR is allocated.

LOSCFG_BASE_MEM_NODE_INTEGRITY_CHECK: a switch to enable or disable

memory overwriting check. Default value: disabled. If enabled, the operating system

carries out the memory overwriting check when a dynamic memory block is allocated or

a static memory block is freed.

2. LOS_MemInit initialization

The result of initializing a dynamic memory pool is shown as the figure bellow,

generating a EndNode, and all the memory left signed to be FreeNode. Notice: EndNode

as the last node in memory pool with size 0.

3. LOS_MemAlloc for allocating a dynamic memory block of any sizes

Determines whether the required amount of memory is available. If available, it takes a

dynamic memory block of requested size out of the large continuous memory and returns

the pointer of the dynamic memory block to the user. If unavailable, it returns NULL to

the user.

Call the LOS_MemAlloc API three times to create three nodes. Assumes that there

names are UsedA, UsedB, and UsedC. There sizes are sizeA, sizeB, and sizfeC. Because

there is only one large FreeNode in the memory pool when the pool is just initialized,

these memory blocks cut from the FreeNode.

If malloc occurred when there are many FreeNodes in the memory pool, memory block

will be created with the FreNode that malloced with the most benefited size to reduce

memory fragmentation. If the size of the new one is not equal to the used one, the

redundant memory block will be signed as a new FreeNode after creating a new memory

block.

4. LOS_MemFree for free up dynamic memory

Reclaims the dynamic memory block for using next time.

Suppose that calling the LOS_MemFree to free up memory block UsedB, the memory

block UsedB will be reclaimed and signed as FreeNode.

LiteOS

Developer Guide 3 Basic Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

Platform Differences

None.

3.2.2.2 Precautions

lDynamic memory management consumes the memory of the management control block

structure. Therefore, the memory space available to users is smaller than the

OS_SYS_MEM_SIZE defined in the los_config.h file.

lCalls to the LOS_MemAllocAlign API may consume a certain amount of memory and

result in memory fragments. When the memory used for alignment is freed up, the

resulting memory fragments will be reclaimed.

lDuring memory reallocation to a user by using the LOS_MemRealloc API, the operating

system determines whether sufficient continuous memory is adjacent to the memory area

that has been allocated to the user. If adjacent memory is insufficient, the operating

system frees up the previously allocated memory area and finds a new memory area for

the user. If the reallocation fails, the previously allocated memory remains unchanged,

and NULL will be returned. The use of pPtr = LOS_MemRealloc(pool, pPtr, uwSize) is

not allowed, indicating that using the original pPtr to receive the returned value is

forbidden.

lIf the same memory block is repeatedly freed using the LOS_MemFree API, the first

free-up operation receives an operation succeed message. However, subsequent free-up

attempts lead to invalid operations on the pointer of the memory block and ultimately

unpredictable results.

lThe dynamic memory controller (DMC) structure uses the UINT32 data type, with the

most significant two bits as flags. Therefore, the size of the initial memory pool cannot

exceed 1 GB. Otherwise, unexpected results may occur.

3.2.2.3 Programming Example

Example Description

Memory is a scarce resource. If memory is frequently used while the operating system is

running, program the memory management module to allocate and free up memory

efficiently.

In the programming example, the following steps will be performed:

1. Initialize a dynamic memory pool.

2. Take a memory block out of the initialized memory pool and allocate it to a user.

3. Store data in the memory block.

4. Print the data in the memory block.

5. Free up the memory block.

Example Code

VOID los_memory_test() {

UINT32 *p_num = NULL;

LiteOS

Developer Guide 3 Basic Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

UINT32 uwRet;

uwRet = LOS_MemInit(m_aucSysMem0, 32);

if (LOS_OK == uwRet) {

dprintf("Memory pool initialized successfully!\n");

}

else {

dprintf("Failed to initialized the memory pool!\n");

return;

}

/*Allocate a memory block.*/

p_num = (int*)LOS_MemAlloc(m_aucSysMem0, 4);

if (NULL == p_num) {

dprintf("Failed to allocate the memory block!\n");

return;

}

dprintf("Memory block allocated successfully!\n");

/*Use the memory block.*/

*p_num = 828;

dprintf("*p_num = %d\n", *p_num);

/*Free up the memory block.*/

uwRet = LOS_MemFree(m_aucSysMem0, p_num);

if (LOS_OK == uwRet) {

dprintf("Memory block freed successfully!\n");

}

else {

dprintf("Failed to free up the memory block!\n");

}

return;

}

Verification

The verification result is as follows:

-----Test start-----

using new mem argorithm

*p_num = 828

Complete Code

sample_mem.c

3.2.3 Static Memory

3.2.3.1 Development Guidelines

Usage Scenarios

Static memory management is used when users demand memory of fixed size. When a user

requests memory, the operating system calls the LOS_AllocBox API to allocate a static

memory block. When the user no longer needs the memory, the operating system calls the

LOS_FreeBox API to free up the memory block.

Functions

Static memory management of Huawei LiteOS provides the following functions:

LiteOS

Developer Guide 3 Basic Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

Function Category API Description

Static memory initialization LOS_MemboxInit Initializes a static memory

pool; defines the start

address and total size of the

static memory pool, as well

as the size of each memory

block.

Static memory clearing LOS_MemboxClr Clears data in a memory

block of fixed size.

Static memory allocation LOS_MemboxAlloc Allocates a static memory

block.

Memory free-up LOS_MemboxFree Frees up a static memory

block.

Development Process

This section introduces the development process of static memory in typical scenarios:

1. Allocate continuous memory as a static memory pool.

2. Call the LOS_MemboxInit API

Initializes the static memory pool; divides the memory pool that matches the input

parameters into N memory blocks, where N depends on the total size of static memory

pool and the size of each static memory block); adds all static memory blocks into a

linked list of idle memory blocks; places a control header at the beginning of static

memory pool.

3. Call the LOS_MemboxAlloc API

Takes an idle memory block out of the linked list and returns the user space address of

the memory block.

4. Call the LOS_MemboxFree API

Adds the static memory block that has been freed up to the linked list.

5. Call the LOS_MemboxClr API

Clears data in the static memory block that matches the input parameters.

Platform Differences

None.

3.2.3.2 Precautions

lThe range of static memory pool can be acquired by using either a global variable array

or the LOS_AllocMem API. In the latter case, to avoid memory leaks, free up a static

memory block when the block is no longer in use.

LiteOS

Developer Guide 3 Basic Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

3.2.3.3 Programming Example

Example Description

Memory is a scarce resource. If memory is frequently used while the operating system is

running, program the memory management module to allocate and free up memory

efficiently.

In the programming example, the following steps will be performed:

1. Initialize a static memory pool.

2. Take a static memory block out of the static memory pool.

3. Store data in the memory block.

4. Print the data in the memory block.

5. Clear the data in the memory block.

6. Free up the memory block.

Example Code

VOID los_membox_test(void) {

UINT32 *p_num = NULL;

UINT32 uwBlkSize = 10, uwBoxSize = 100;

UINT32 uwRet;

UINT32 pBoxMem[1000];

uwRet = LOS_MemboxInit(&pBoxMem[0], uwBoxSize, uwBlkSize);

if(uwRet != LOS_OK)

{

dprintf("Failed to initialized the memory pool!\n");

return;

}

else {

dprintf("Memory pool initialized successfully!\n");

}

/*Allocate a memory block.*/

p_num = (int*)LOS_MemboxAlloc(pBoxMem);

if (NULL == p_num) {

dprintf("Failed to allocate the memory block!\n");

return;

}

dprintf("Memory block allocated successfully!\n");

/*Use the memory block.*/

*p_num = 828;

dprintf("*p_num = %d\n", *p_num);

/*Clear data in the memory block.*/

LOS_LOS_MemboxClr(pBoxMem, p_num);

dprintf("Data in the memory block cleared successfully\n p_num = %d\n",

*p_num);

/*Free up the memory block.*/

uwRet = LOS_MemboxFree(pBoxMem, p_num);

if (LOS_OK == uwRet) {

dprintf("Memory block freed successfully!\n");

}

else {

dprintf("Failed to free up the memory block!\n");

}

return;

}

Verification

The verification result is as follows:

LiteOS

Developer Guide 3 Basic Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

dist:1

---Test start---

*p_num = 828

p_num = 0

---Test End---

Complete Code

sample_membox.c

3.3 Interrupt

3.3.1 Overview

Basic Concept

When a condition that needs immediate attention occurs, the CPU suspends current activities

and switches to deal with the condition.

The CPU runs faster than external peripherals. When external peripherals are able to fulfill an

activity alone, the CPU takes care of other activities.

When the CPU must be involved in fulfilling an activity, the interrupt mechanism enables an

external peripheral to emit an interrupt signal to alert the CPU of the high-priority condition

requiring the interruption of current activities. The CPU does not need to keep waiting for

peripheral states, thereby improving CPU efficiency and accelerating system response.

The interrupt mechanism supports:

lInitialize

lCreate

lLock or unlock

lRestore

lEnable

lDisable

The interrupt mechanism of Huawei LiteOS is based on interrupt.

Introduce of Interrupt

The following three types of hardware are involved in the interrupt mechanism:

lDevice: the interrupt source. When a device requests the help of the CPU, it emits an

interrupt signal to the interrupt controller.

lInterrupt controller: a type of peripheral that sends an interrupt request to the CPU after

receiving an interrupt signal from the interrupt pins of other peripherals. On the interrupt

controller, you can prioritize, enable, or disable interrupt sources, as well as specify an

interrupt trigger mode on each interrupt source. Common interrupt controllers include

the Vector Interrupt Controller (VIC) and General Interrupt Controller (GIC, typically

used in ARM Cortex-A7).

lCPU: executes an interrupt handler at the request of an interrupt source.

LiteOS

Developer Guide 3 Basic Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

Terminology Associated With Interrupt

Interrupt ID: a unique identifier contained in all interrupt requests from a particular interrupt

source.

Interrupt request (IRQ): an electrical pulse signal sent to alert the CPU of an urgent condition.

The CPU suspends current activities and deals with the condition that needs immediate

attention.

Interrupt priority: the priority of an interrupt source. Interrupt priority is determined based on

importance and urgency. Priority of all interrupt sources are the same in Huawei LiteOS.

Interrupt nesting or preemption is not supported.

Interrupt handler: When an external peripheral generates an interrupt request, the CPU

executes an interrupt handler to switch from current activities to the event that needs

immediate attention.

Interrupt trigger: set to 1 when an interrupt source emits an interrupt signal.

Interrupt trigger type: the way in which an interrupt signal is sent to the interrupt controller.

Typically, an interrupt signal is either level-triggered or edge-triggered.

Interrupt vector: starting address of interrupt service routine.

Interrupt vector table: a table where interrupt vectors are stored based on interrupt ID.

Interrupt sharing: If only a few external peripherals are present, each external peripheral is

allocated a unique interrupt ID. However, if there are many external peripherals, consider

sharing an interrupt ID among external peripherals. The interrupt handlers of the interrupts

that share the same interrupt ID form a linked list. When an external peripheral generates an

interrupt request, Huawei LiteOS Kernel traverses the linked list to find the interrupt handler

of the interrupt request.

Interrupt top half and bottom half: If an interrupt is long, other interrupts that are more

important may be blocked out. To balance the performance and workload of an interrupt

handler, an interrupt handler is logically divided into two parts. The top half takes care of the

urgent and critical part of the interrupt, and the bottom half deals with work, the longer yet

less important part of the interrupt.

The top half of an interrupt typically reads the interrupt state from a register, clears the

interrupt flag, and places the work in the workqueue.

Operation Mechanism

Interrupt mechanism of Huawei LiteOS supports interrupt sharing:

The implementation of interrupt sharing depends on the linked list. Each interrupt id create a

linked list, the linked list node contains the interrupt handler function and the function input.

When create interrupt for many times to one same interrupt id, the interrupt handler function

and the function input will be added to linked list. So when the hardware is interrupted,

through the interrupt number to find its corresponding structure of the list, the implementation

of the list of the interrupt handler.

Interrupt mechanism of Huawei LiteOS supports Interrupt bottom half:

The implementation of interrupt bottom half depends on workqueue, job is divided into

interrupt top half and bottom half in interrupt handler. Handler int bottom half is associated

with work, and mounted to legal workqueue. System executes bottom half program of work in

workqueque while free.

LiteOS

Developer Guide 3 Basic Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

3.3.2 Development Guidelines

Usage Scenarios

When an interrupt request is generated, the CPU responds by suspending current activities

and calling the user-defined interrupt handler to deal with the condition that needs immediate

attention.

Functions

The interrupt module provides the following functions:

API Description

LOS_HwiCreate Creates a hardware interrupt to register the

corresponding interrupt handler

LOS_IntUnLock Unlocks an interrupt

LOS_IntRestore Restores an interrupt

LOS_IntLock Locks an interrupt

hal_interrupt_mask Disables an interrupt (A register is

configured to prevent the CPU from

responding to this interrupt.)

hal_interrupt_unmask Enables an interrupt (A register is

configured to prevent the CPU from

responding to this interrupt.)

HWI Error Codes

Error codes are returned if errors occur during interrupt creation to facilitate fault locating.

No. Definition Error

Code

Description Solution

1 OS_ERRNO_HWI_N

UM_INVALID

0x0200090

The interrupt ID is

invalid.

Provide a valid

interrupt ID.

2 OS_ERRNO_HWI_P

ROC_FUNC_NULL

0x0200090

The pointer to

interrupt handler is

null.

Pass in a non-null

pointer to the

interrupt handler.

3 OS_ERRNO_HWI_C

B_UNAVAILABLE

0x0200090

Interrupts are

unavailable.

Increase the number

of available

interrupts.

4 OS_ERRNO_HWI_N

O_MEMORY

0x0200090

The memory is

insufficient.

Enlarge the memory

sapce.

LiteOS

Developer Guide 3 Basic Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

No. Definition Error

Code

Description Solution

5 OS_ERRNO_HWI_A

LREADY_CREATED

0x0200090

The interrupt

handler has already

been created.

Check whether the

interrupt handler

corresponding to the

passed-in interrupt

ID has been created.

6 OS_ERRNO_HWI_P

RIO_INVALID

0x0200090

The interrupt

priority is invalid.

Pass in valid

interrupt priority,

which should fall in

[0,31].

7 OS_ERRNO_HWI_M

ODE_INVALID

0x0200090

The interrupt mode

is invalid.

Pass in a valid

interrupt mode,

which should fall in

[0,1].

8 OS_ERRNO_HWI_F

ASTMODE_ALREA

DY_CREATED

0x0200090

The fast mode

interrupt has

already been

created.

Check whether the

interrupt handler

corresponding to the

passed-in interrupt

ID has been created.

9 OS_ERRNO_HWI_I

NTERR

0x0200090

The API is called

when an interrupt is

underway.

Do not call this API

when an interrupt is

underway.

Development Process

1. Configure the following parameters:

–LOSCFG_PLATFORM_HWI: a switch to enable or disable the hardware interrupt

module. Set to YES.

–LOSCFG_PLATFORM_HWI_LIMIT: the maximum allowed number of hardware

interrupts.

2. Call the LosHwiInit API to initialize the interrupt mechanism.

3. Call the LOS_HwiCreate API to create an interrupt.

4. Call the hal_interrupt_unmask API to enable an interrupt.

5. Call the hal_interrupt_mask API to disable an interrupt.

3.3.3 Precautions

lThe register address of the LosHwiInit operation and the maximum allowed number of

interrupts vary depending on hardware specifications.

lInterrupt sharing indicates that one interrupt handler can be mounted repeatedly. An

interrupt request is accepted only when a unique dev parameter is passed in. For

example, if you request an interrupt with a specified interrupt ID for twice, and at the

second time you pass in the same interrupt handler and dev as you those you pass in at

the first time, the interrupt request is rejected. If you pass in the same interrupt handler

and a new dev, the interrupt request is accepted.

LiteOS

Developer Guide 3 Basic Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

lAvoid long-running interrupt handlers because they have negative impact on CPU's

response to interrupts.

lThe function lead to schedule cannot be performed after breading off.

lThe input parameter of the LOS_IntRestore() API must be the CPSR that is saved by the

LOS_IntLock() API before locking the interrupt.

lIn Cortex-A7, interrupts 0–31 are for internal use and it is not advisable to request or

create them.

lThe LOS_HwiCreate() API is not usually used to create an interrupt. Call the Linux

adaption API request_irq to create an interrupt.

3.3.4 Programming Example

Example Description

The programming example will cover the following functions:

1. Disabling an interrupt

2. Creating an interrupt

3. Enabling an interrupt

4. Restoring an interrupt

5. Disabling an interrupt

Example Code

Prerequisite

lThe LOSCFG_PLATFORM_HWI parameter in the los_config.h file is set to YES.

lThe LOSCFG_PLATFORM_HWI_LIMIT parameter in the los_config.h file is set to the

maximum number of hardware interrupts the operating system allows.

The code is as follows:

#include "los_hwi.h"

#include "los_typedef.h"

#define HWI_NUM_INT50 50

void uart_irqhandle(int irq,void *dev)

{

printf("\n int the func uart_irqhandle \n");

}

void hwi_test()

{

int a = 1;

UINTPTR uvIntSave;

uvIntSave = LOS_IntLock();

LOS_HwiCreate(HWI_NUM_INT50, 0,0,uart_irqhandle,NULL);//Create an interrupt

hal_interrupt_unmask(HWI_NUM_INT50);

LOS_IntRestore(uvIntSave);

hal_interrupt_mask(HWI_NUM_INT50);

}

Complete Code

sample_hwi.c

LiteOS

Developer Guide 3 Basic Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

3.4 Queue

3.4.1 Overview

Basic Concept

A queue, also known as message queue, stores messages (also known as data) to be

communicated between tasks. The length of message received by a queue is user defined. A

queue receives messages of user-defined length from tasks or interrupts and determines

whether to store a transferred message based on the interface through which the message is

sent. A task reads messages from a queue. If the queue is empty, the task is suspended. When

a new message is stored in the queue, the suspended task is woken up and processes the

message.

A queue allows for asynchronous processing of messages, through which a message can be

placed in a queue but left not processed immediately, and messages can be buffered.

The following features characterize queues:

lMessages in a queue are processed in the first in first out order. A message can be read

and written asynchronously.

lReading data from a queue and writing data into a queue support the timeout mechanism.

lThe sender and the receiver agree on the type of message to be exchanged. The message

length is variable, but cannot exceed the maximum message unit length.

lA task can choose any queue to send or receive messages.

lMultiple tasks can choose the same queue to send or receive messages.

lIf a queue is allocated a dynamic memory block, the memory block can be reclaimed

using the LOS_FreeMem API when the queue is no longer in use.

Operation Mechanism

Queue Control Block

/**

* @ingroup los_queue

* Queue information block structure

typedef struct tagQueueCB

{

UINT8 *pucQueue; /**< pointer to the queue */

UINT16 usQueueState; /**< queue state */

UINT16 usQueueLen; /**< number of messages in the queue */

UINT16 usQueueSize; /**< message node size */

UINT16 usQueueHead; /**< message head node position (array

subscript)*/

UINT16 usQueueTail; /**< message tail node position (array

superscript)*/

UINT16 usWritableCnt; /**< number of writable messages in the queue*/

UINT16 usReadableCnt; /**< number of readable messages in the queue*/

UINT16 usReserved; /**< reserved*/

LOS_DL_LIST stWriteList; /**< waiting linked list of data writing tasks*/

LOS_DL_LIST stReadList; /**< waiting linked list of data reading tasks*/

LOS_DL_LIST stMemList; /**< MailBox module usage */

} QUEUE_CB_S;

LiteOS

Developer Guide 3 Basic Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

Each queue control block contains the element of queue state that indicates the usage of this

queue:

lOS_QUEUE_UNUSED: The queue is not in use.

lOS_QUEUE_INUSED: The queue is in use.

Working Principles

During queue creation, memory is allocated to the queue based on the queue length and

message node size and the queue ID is returned.

A message head node position (Head) and a message tail node position (Tail) are used in a

queue control block to indicate the message storage in a queue. Head indicates the start

position of an occupied message, and Tail indicates the start position of a vacant message.

When a queue is first created, both Head and Tail point to the start position of the queue.

Data is written into the vacant message unit after the occupied message unit tail. If Tail points

to the queue tail, the data is written into the start of the queue. The usWritableCnt parameter

specifies whether the queue is fully occupied. Data cannot be written to a fully occupied

queue (the usWritableCnt parameter value is 0).

Data is read from the head of the occupied message units. If Head points to the queue tail, the

data that is first written into the start of the queue is read. The usReadableCnt parameter

specifies whether data is available for reading. A task of reading data from a vacant queue

(the usReadableCnt parameter value is 0) will be suspended.

During queue deletion, locate the queue that has a specified ID, set the queue state to be not in

use, free up the memory allocated to the queue, and initialize the queue control head.

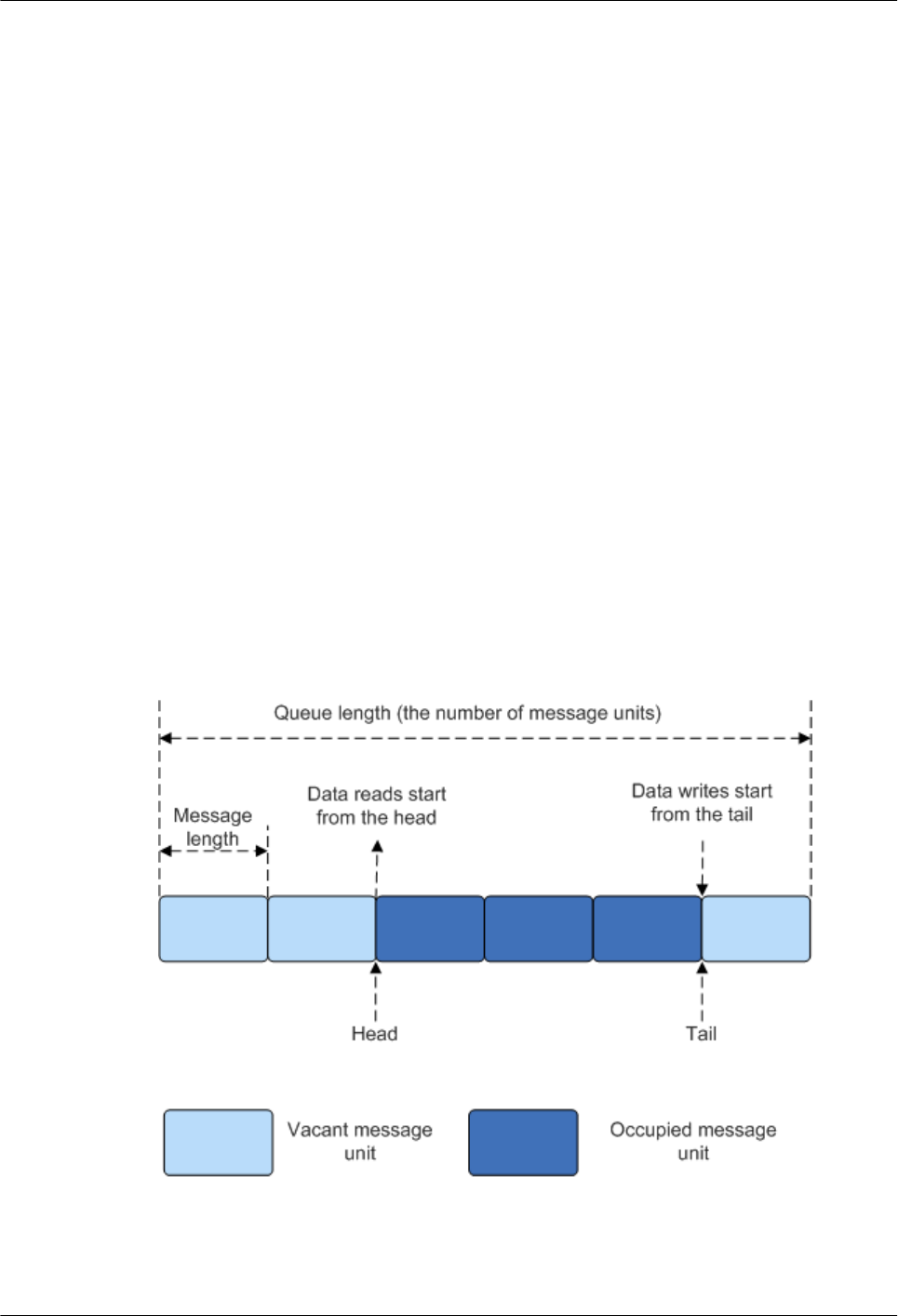

Figure 3-5 Read/write from/into a queue

LiteOS

Developer Guide 3 Basic Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

3.4.2 Development Guidelines

Functions

The message processing module of Huawei LiteOS provides the following functions:

Function Category API Description

Queue creation LOS_QueueCreate Creates a queue.

Queue reading LOS_QueueRead Reads data from a queue;

data copy is not supported.

The buff stores addresses of

message units.

Queue writing LOS_QueueWrite Writes data into a queue;

data copy is not supported.

The data written into a

message unit is the buff

address.

Queue reading LOS_QueueReadCopy Reads data from a particular

queue; data copy is

supported.

The buff stores data

retrieved from message

units.

Queue writing LOS_QueueWriteCopy Writes data into a particular

queue; data copy is

supported.

The data written into a

message unit is the buff

address.

Queue writing LOS_QueueWriteHead Write data into the head of a

particular queue.

Queue deletion LOS_QueueDelete Deletes a queue.

Queue information

acquisition

LOS_QueueInfoGet Gets information about a

queue.

Development Process

The typical process of using the queue module is as follows:

1. Call the LOS_QueueCreate API to create a queue.

Creates a queue and returns a queue ID.

2. Call the LOS_QueueWrite API to write data into a queue.

3. Call the LOS_QueueRead API to read data from a queue.

LiteOS

Developer Guide 3 Basic Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

4. Call the LOS_QueueInfoGet API to get information about the queue.

5. Call the LOS_QueueDelete to delete a queue.

Queue Error Code

Error codes are returned if errors occur during queue operations, such as queue creation and

queue deletion, to facilitate fault locating.

No. Definition Error Code Description Solution

1 LOS_ERRNO_Q

UEUE_MAXNU

M_ZERO

0x02000600 The

maximum

number of

queue

resources is

set to 0.

Set the maximum number of

queue resources to be greater

than 0. If the queue module is

not used, disable the

configuration of the maximum

number of queue resources.

2 LOS_ERRNO_Q

UEUE_NO_ME

MORY

0x02000601 The memory

allocated to

queue block

fails to be

initialized.

Allocate more memory to the

queue block. Alternatively,

decrease the maximum number

of queue resources.

3 LOS_ERRNO_Q

UEUE_CREATE

_NO_MEMORY

0x02000602 Memory fails

to be

allocated to

the queue to

be created.

Allocate more memory to the

queue. Alternatively, decrease

the length of the queue or the

number of nodes in the queue

to be created.

4 LOS_ERRNO_Q

UEUE_SIZE_T

OO_BIG

0x02000603 The size of

the largest

message in

the queue to

be created

exceeds the

upper limit.

Change the size of the largest

message to a size not

exceeding the upper limit.

5 LOS_ERRNO_Q

UEUE_CB_UN

AVAILABLE

0x02000604 The number

of created

queues has

exceeded the

upper limit.

Increase the number of queue

configuration resources.

6 LOS_ERRNO_Q

UEUE_NOT_FO

UND

0x02000605 The queue is

invalid.

Ensure the queue ID is valid.

7 LOS_ERRNO_Q

UEUE_PEND_I

N_LOCK

0x02000606 The task must

not be

blocked on

the queue

when it is

locked.

Unlock the task before the

queue is used.

LiteOS

Developer Guide 3 Basic Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

No. Definition Error Code Description Solution

8 LOS_ERRNO_Q

UEUE_TIMEO

0x02000607 The wait time

for processing

a queue

expires.

Set an appropriate expiry time.

9 LOS_ERRNO_Q

UEUE_IN_TSK

USE

0x02000608 The queue on

which a task

is blocked

must not be

deleted.

Enable the task to acquire

resources rather than make the

task blocked on the queue.

10 LOS_ERRNO_Q

UEUE_WRITE_

IN_INTERRUP

0x02000609 Writing data

into a queue is

not allowed

when an

interrupt is

being

processed.

Set the mode of writing data

into a queue to non-blocking

mode.

11 LOS_ERRNO_Q

UEUE_NOT_C

REATE

0x0200060a The queue is

not created.

Pass in a valid handle.

12 LOS_ERRNO_Q

UEUE_IN_TSK

WRITE

0x0200060b Queue

reading and

writing are

not

synchronous.

Synchronize queue reading

and writing.

13 LOS_ERRNO_Q

UEUE_CREAT_

PTR_NULL

0x0200060c A null pointer

is passed in

during queue

creation.

Pass in a non-null pointer.

14 LOS_ERRNO_Q

UEUE_PARA_I

SZERO

0x0200060d The queue

length or

message node

size passed in

during queue

creation is 0.

Pass in correct queue length

and message node size.

15 LOS_ERRNO_Q

UEUE_READ_I

NVALID

0x0200060e An invalid

queue handle

is passed in

during queue

reading.

Pass in a valid handle.

16 LOS_ERRNO_Q

UEUE_READ_P

TR_NULL

0x0200060f A null pointer

is passed in

during queue

reading.

Pass in a non-null pointer.

LiteOS

Developer Guide 3 Basic Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

No. Definition Error Code Description Solution

17 LOS_ERRNO_Q

UEUE_READSI

ZE_ISZERO

0x02000610 The buffer

size passed in

during queue

reading is 0.

Pass in a correct buffer size.

18 LOS_ERRNO_Q

UEUE_WRITE_

INVALID

0x02000611 An invalid

queue handle

passed in

during queue

writing.

Pass in a valid handle.

19 LOS_ERRNO_Q

UEUE_WRITE_

PTR_NULL

0x02000612 A null pointer

passed in

during queue

writing.

Pass in a non-null pointer.

20 LOS_ERRNO_Q

UEUE_WRITES

IZE_ISZERO

0x02000613 The buffer

size passed in

when data is

being written

into the queue

is 0.

Pass in a correct buffer size.

21 LOS_ERRNO_Q

UEUE_WRITE_

NOT_CREATE

0x02000614 The queue

into which

data is written

is not created.

Pass in a valid queue ID.

22 LOS_ERRNO_Q

UEUE_WRITE_

SIZE_TOO_BIG

0x02000615 The buffer

size passed in

during writing

data into the

queue is

bigger than

the queue

size.

Decrease the buffer size.

Alternatively, increase the

node size.

23 LOS_ERRNO_Q

UEUE_ISFULL

0x02000616 Free nodes

are

unavailable

during queue

writing.

Ensure free nodes are available

before writing data into the

queue.

24 LOS_ERRNO_Q

UEUE_PTR_NU

0x02000617 A null pointer

is passed in

when queue

information is

being

acquired.

Pass in a non-null pointer.

LiteOS

Developer Guide 3 Basic Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

No. Definition Error Code Description Solution

25 LOS_ERRNO_Q

UEUE_READ_I

N_INTERRUPT

0x02000618 Reading data

from a queue

is not allowed

when an

interrupt is

being

processed..

Set the mode of reading data

from a queue to non-blocking

mode.

26 LOS_ERRNO_Q

UEUE_MAIL_H

ANDLE_INVAL

0x02000619 An invalid

queue handle

is passed in

during

releasing the

memory

allocated to

the queue.

Pass in a valid handle.

27 LOS_ERRNO_Q

UEUE_MAIL_P

TR_INVALID

0x0200061a The passed-in

pointer to the

message

memory pool

is null.

Pass in a non-null pointer.

28 LOS_ERRNO_Q

UEUE_MAIL_F

REE_ERROR

0x0200061b Membox fails

to be released.

Pass in a non-null pointer to

membox.

29 LOS_ERRNO_Q

UEUE_READ_

NOT_CREATE

0x0200061c The queue to

be read is not

created.

Pass in a valid queue ID.

30 LOS_ERRNO_Q

UEUE_ISEMPT

0x0200061d The queue is

empty.

Ensure the queue contains

messages when it is being

read.

31 LOS_ERRNO_Q

UEUE_READ_S

IZE_TOO_SMA

0x0200061f The buffer

size passed in

during queue

reading is

much smaller

than the

queue size.

Increase the buffer size.

Alternatively, decrease the

node size.

Platform Differences

On a 3516A platform, the data that is written into a queue does not need to be aligned on the

boundary of 4 bytes. However, on a 3518e platform, the alignment is needed.

LiteOS

Developer Guide 3 Basic Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

3.4.3 Precautions

lThe maximum number of queues is not equal to the total number of queues available to

users. When a queue is allocated to accommodate software timers, the number of

available queues is decreased by 1.

lThe queue name that is passed into the LOS_QueueCreate API is reserved for future use.

lThe input parameter uwTimeOut of queue APIs must be set to relative time.

lThe LOS_QueueReadCopy API must be used together with the LOS_QueueWriteCopy

API, and the LOS_QueueRead and LOS_QueueWrite APIs must be used together.

lThe LOS_QueueWrite and LOS_QueueRead APIs are called to operate data addresses.

Ensure that the memory that is pointed to by the pointer obtained by calling the

LOS_QueueRead API is not modified or released during the queue reading. Otherwise,

unexpected results may be caused.

3.4.4 Programming Example

Example Description

Two tasks are created in the programming example. Task 1 calls the send_Entry API to send

messages. Task 2 calls the recv_Entry API to receive messages.

1. Call the LOS_TaskCreate API to create tasks 1 and 2.

2. Call the LOS_QueueCreate API to create a queue.

3. Call the send_Entry API to enable task 1 to send a message.

4. Call the rev_Entry API to enable task 2 to send a message.

5. Call the LOS_QueueDelete API to delete the queue.

Example Code

#include "los_task.h"

#include "los_queue.h"

static UINT32 g_uwQueue;

CHAR abuf[] = "test is message x";

/*Task 1 sends a message.*/

void *send_Entry(void *arg)

{

UINT32 i = 0,uwRet = 0;

UINT32 uwlen = sizeof(abuf);

while (i <5)

{

abuf[uwlen -2] = '0' + i;

i++;

/*Task 1 writes data from abuf into the queue.*/

uwRet = LOS_QueueWrite(g_uwQueue, abuf, uwlen, 0);

if(uwRet != LOS_OK)

{

dprintf("send message failure,error:%x\n",uwRet);

}

LOS_TaskDelay(5);

}

/*Task 2 receives a message.*/

void *recv_Entry(void *arg)

LiteOS

Developer Guide 3 Basic Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

{

UINT32 uwReadbuf;

UINT32 uwRet = 0;

while (1)

{

/*Task 2 reads data from the queue and stores it in uwReadbuf.*/

uwRet = LOS_QueueRead(g_uwQueue, &uwReadbuf, 50, 0);

if(uwRet != LOS_OK)

{

dprintf("recv message failure,error:%x\n",uwRet);

break;

}

dprintf("recv message:%s\n", (char *)uwReadbuf);

LOS_TaskDelay(5);

}

/*Delete the queue.*/

while (LOS_OK != LOS_QueueDelete(g_uwQueue))

{

LOS_TaskDelay(1);

}

dprintf("queue successfully deleted!\n");

}

int Example_creat_task(void)

{

UINT32 uwRet = 0;

UINT32 uwTask1, uwTask2;

TSK_INIT_PARAM_S stInitParam1;

/*Create task 1.*/

stInitParam1.pfnTaskEntry = send_Entry;

stInitParam1.usTaskPrio = 9;

stInitParam1.uwStackSize = 0x400;

stInitParam1.pcName = "sendQueue";

stInitParam1.uwResved = LOS_TASK_STATUS_DETACHED;

LOS_TaskLock();//Lock task scheduling so that the newly created task will

not be executed even if it has a higher priority than the running task.

uwRet = LOS_TaskCreate(&uwTask1, &stInitParam1);

if(uwRet != LOS_OK)

{

dprintf("create task1 failed!,error:%x\n",uwRet);

return uwRet;

}

/*Create task 2.*/

stInitParam1.pfnTaskEntry = recv_Entry;

uwRet = LOS_TaskCreate(&uwTask2, &stInitParam1);

if(uwRet != LOS_OK)

{

dprintf("create task2 failed!,error:%x\n",uwRet);

return uwRet;

}

/*Create the queue.*/

uwRet = LOS_QueueCreate("queue", 5, &g_uwQueue, 0, 50);

if(uwRet != LOS_OK)

{

dprintf("create queue failure!,error:%x\n",uwRet);

}

dprintf("create the queue success!\n");

LOS_TaskUnlock();//Unlock task scheduling so that task scheduling will

happen after the queue is created.

}

LiteOS

Developer Guide 3 Basic Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

Verification

Complete Code

sample_queue.c

3.5 Event

3.5.1 Overview

Basic Concept

Events are used for synchronization between tasks. A task or interrupt service routine can

trigger an event (a synchronization signal) to another task through an event control block. One

task is able to wait for several events to occur: whether while one event occurring or after

several events occurred, both of these is sure to wake task up to do event handling.

In a multi-task environment, tasks must be synchronized. In the one-to-many synchronization

model, a task waits for multiple events. In the many-to-many synchronization model, multiple

tasks wait for multiple events.

Tasks trigger or wait for events through event control blocks. Events in Huawei LiteOS are

used only for task synchronization, and not for data transport.

Characteristics of events in Huawei LiteOS are as follows:

lEvents are not associated with tasks and are independent from each other. A 32-bit

variable is used to indicate the type of the event in which a task is interested. Each bit

indicates one event type with 0 indicating that the event does not occur and 1 indicating

that the event occurs. There are 31 bits that indicate event types (bit 25 is reserved).

lEvents are used only for task synchronization, and not for data transport.

lSending the same event type to a task for multiple times is equivalent to sending for only

once.

lMultiple tasks are allowed to read or write the same event.

lHuawei LiteOS supports event reading and writing timeout.

Event control block

/**

* @ingroup los_event

* Event control structure

typedef struct tagEvent

{

LiteOS

Developer Guide 3 Basic Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

UINT32 uwEventID; /**bit that indicates an event type*/

LOS_DL_LIST stEventList; /**linked list of event reading tasks*/

} EVENT_CB_S, *PEVENT_CB_S;

uwEventID indicates the type of the event in which a task is interested. Each bit indicates one

event type with 0 indicating that the event does not occur and 1 indicating that the event

occurs. There are 31 bits that indicate event types (bit 25 is reserved).

Event reading mode

An event reading mode can be configured during event reading. Event reading modes are as

follows:

LOS_WAITMODE_AND indicates that event of all event types specified by a mask need to

be read. Event reading succeeds only when all events that are read occur.

LOS_WAITMODE_OR indicates that an event of an event type specified by a mask needs

to be read. Event reading succeeds when the event that is read occurs.

LOS_WAITMODE_CLR indicates that after successful event reading, the event types or

event type that is read is automatically cleared.

Operation Mechanism

During event reading, one type or multiple types specified by uwEventMask are read. After

event reading succeeds, the event type that is read is explicitly cleared if

LOS_WAITMODE_CLR is configured in the event reading mode. The event type that is not

cleared if LOS_WAITMODE_CLR is not configured. You can configure the event reading

mode by passing in LOS_WAITMODE_AND to read all events of the event types specified

by the event mask or by passing in LOS_WAITMODE_OR to read an event of an event type

specified by the event mask.

During event writing, a specified event type is written into an event. Multiple event types can

be written concurrently. Event writing may trigger task scheduling.

During event clearance, the bit that specifies the event type to be cleared is set to 0.

LiteOS

Developer Guide 3 Basic Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

Figure 3-6 Tasks woken up by events

3.5.2 Development Guidelines

Usage Scenarios

Events are applicable in a variety of task synchronization scenarios and are partially similar to

semaphore in purpose.

Functions

The event module provides the following functions:

LiteOS

Developer Guide 3 Basic Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

Function

Category

API Description

Event

initialization

LOS_EventInit Initializes an event control block

Event

reading

LOS_EventRead Reads an event within N ticks

Event writing LOS_EventWrite Writes an event

Event

clearance

LOS_EventClear Clears an event

Event mask

verification

LOS_EventPoll Determines whether an event meets the expectations

based on the passed-in event value, event mask, and

verification mode

Event

destroying

LOS_EventDestr

Destroys a specified event control block

Development Process

The typical process of using the event module is as follows:

1. Call the LOS_EventInit API to initialize an event control block.

2. Call the LOS_EventInit to write an event.

3. Call the LOS_EventRead API to read an event.

4. Call the LOS_EventClear API to clear an event.

Event Error Code

Error codes are returned if errors occur during event operations, such as event initialization,

event destroying, event reading, event writing, and event clearance, to facilitate fault locating.

No. Definition Error Code Description Solution

1 LOS_ERRNO_

EVENT_SETB

IT_INVALID

0x02001c00 Bit 25 of the

event ID must

not be set to 1

because it is

reserved as an

error code.

Set bit 25 of the

event ID to 0.

2 LOS_ERRNO_

EVENT_READ

_TIMEOUT

0x02001c01 Event reading

times out.

Increase the

permitted wait

time.

Alternatively,

re-read the

event.

LiteOS

Developer Guide 3 Basic Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

No. Definition Error Code Description Solution

3 LOS_ERRNO_

EVENT_EVEN

TMASK_INVA

LID

0x02001c02 The passed-in

event ID is

invalid.

Pass in a valid

event ID.

4 LOS_ERRNO_

EVENT_READ

_IN_INTERRU

0x02001c03 The event is

being read

when an

interrupt is

being

processed.

Let a new task

read the event.

5 LOS_ERRNO_

EVENT_FLAG

S_INVALID

0x02001c04 The mode of

event reading is

invalid.

Pass in a valid

mode.

6 LOS_ERRNO_

EVENT_READ

_IN_LOCK

0x02001c05 The task is

locked and fails

to read the

event.

Unlock the task,

and then let the

task read the

event.

7 LOS_ERRNO_

EVENT_PTR_

NULL

0x02001c06 The passed-in

pointer is null.

Pass in a non-

null pointer.

An error code is a 32-bit storage unit. Bit 24 to bit 31 indicate an error level; bit 16 to bit 23

indicate an error code flag; bit 8 to bit 15 indicate the ID of the module that reports the error

code; bit 0 to bit 7 indicate an error code. The following is the example of an error code:

#define LOS_ERRNO_OS_ERROR(MID, ERRNO) \

(LOS_ERRTYPE_ERROR | LOS_ERRNO_OS_ID | ((UINT32)(MID) << 8) | (ERRNO))

LOS_ERRTYPE_ERROR: Define critical OS errors

LOS_ERRNO_OS_ID: OS error code flag

MID: OS_MOUDLE_ID

LOS_MOD_EVENT: Event module ID

ERRNO: error ID number

For example:

#define LOS_ERRNO_EVENT_READ_IN_LOCK

LOS_ERRNO_OS_ERROR(LOS_MOD_EVENT, 0x05)

Platform Differences

None.

LiteOS

Developer Guide 3 Basic Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

3.5.3 Precautions

lDo not make calls to the LOS_EventRead and LOS_EventWrite APIs prior to the

operating system being initialized. Otherwise, the operating system exhibits unexpected

behavior.

lWhile an interrupt is underway, events can be written into an event control block but

event reads are not allowed.

lTask blocking and event reading are not allowed while task scheduling is locked.

lThe input parameter of LOS_EventClear is ~uwEvents (reverse code of event type).

lBit 25 of the event mask is merely used to distinguish whether the LOS_EventRead API

returns an event or error code.

3.5.4 Programming Example

Example Description

In the programming example, the Example_TaskEntry task is executed to create the

Example_Event task. The Example_Event task is blocked from reading events. The

Example_TaskEntry task writes an event in which the Example_Event task shows interest.

1. The Example_TaskEntry task is executed to create the Example_Event task. The

Example_Event task takes a higher priority than the Example_TaskEntry task.

2. The Example_Event task is blocked from reading the event 0x00000001. After the

Example_Event task is blocked, a task switch occurs to execute the task with a lower

priority, namely, the Example_TaskEntry task.

3. The Example_TaskEntry task writes the event 0x00000001 toward the Example_Event

task. The Example_Event task is interested in the event 0x00000001 and is therefore

woken up to process the event.

4. The Example_Event task is executed.

5. The Example_TaskEntry task is executed.

Example Code

The order in which print-out is generated provides some clues into task switches that occur

during event operations.

The code is as follows:

#include "los_event.h"

#include "los_task.h"

/*Task PID*/

UINT32 g_TestTaskID01;

/*Event control structure*/

EVENT_CB_S example_event;

/*Event that the Example_Event task is waiting for*/

#define event_wait 0x00000001

/*Task entrypoint function*/

VOID Example_Event()

{

UINT32 uwRet;

UINT32 uwEvent;

LiteOS

Developer Guide 3 Basic Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

/*Wait for a completion in timeout mode, and the timeout interval is 100

ticks.

If the event is not read within 100 ticks, the read operation expires and the

task is woken up.*/

printf("Example_Event wait event 0x%x \n",event_wait);

uwEvent = LOS_EventRead(&example_event, event_wait, LOS_WAITMODE_AND, 100);

if(uwEvent == event_wait)

{

printf("Example_Event,read event :0x%x\n",uwEvent);

}

else

printf("Example_Event,read event timeout\n");

return;

}

UINT32 Example_TaskEntry()

{

UINT32 uwRet;

TSK_INIT_PARAM_S stTask1;

/*Initialize the event.*/

uwRet = LOS_EventInit(&example_event);

if(uwRet != LOS_OK)

{

printf("init event failed .\n");

return -1;

}

/*Create the task.*/

memset(&stTask1, 0, sizeof(TSK_INIT_PARAM_S));

stTask1.pfnTaskEntry = (TSK_ENTRY_FUNC)Example_Event;

stTask1.pcName = "EventTsk1";

stTask1.uwStackSize = OS_TSK_DEFAULT_STACK_SIZE;

stTask1.usTaskPrio = 5;

uwRet = LOS_TaskCreate(&g_TestTaskID01, &stTask1);

if(uwRet != LOS_OK)

{

printf("Task creation failed .\n");

return LOS_NOK;

}

/*Write the event type for which the task is waiting for.*/

printf("Example_TaskEntry write event .\n");

uwRet = LOS_EventWrite(&example_event, event_wait);

if(uwRet != LOS_OK)

{

printf("Event write failed .\n");

return LOS_NOK;

}

/*Clear the flag.*/

printf("EventMask:%d\n",example_event.uwEventID);

LOS_EventClear(&example_event, ~example_event.uwEventID);

printf("EventMask:%d\n",example_event.uwEventID);

/*Delete the task.*/

uwRet = LOS_TaskDelete(g_TestTaskID01);

if(uwRet != LOS_OK)

{

printf("Task deletion failed .\n");

return LOS_NOK;

}

return LOS_OK;

}

LiteOS

Developer Guide 3 Basic Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

Verification

The verification result is as follows:

Example_Event wait event 0x1

Example_TaskEntry write event .

Example_Event,read event :0x1

EventMask:1

EventMask:0

Complete Code

sample_event.c

3.6 Mutex

3.6.1 Overview

Basic Concept

A mutual exclusion (mutex) is a special binary semaphore designed to grant a task exclusive

use of common resources.

At a given point in time, a mutex is either locked or unlocked. When a task acquires a mutex,

the mutex is locked and the task has exclusive ownership of the mutex. When the task releases

the mutex, the mutex is unlocked and the task loses exclusive ownership of the mutex. While

a task has exclusive ownership of a mutex, other tasks are unable to acquire or release the

mutex.

In a multi-task environment, it is common to see tasks competing for the same common

resource. A mutex can avoid the task conflict problem without the trouble of priority

inversion experienced with semaphores.

Mutex of Huawei LiteOS has characters as below:

lSolve the problem of priority inversion by using inheritance algorithm.

Operation Mechanism

Mutex Operation Principle

In a multi-task environment, multiple tasks may battle for the same common resource. If the

common resource is not shareable, it must be used exclusively by a particular task.

When a task accesses a non-shareable common resource, the mutex is locked. Other tasks are

blocked from accessing the resource until the task releases the mutex. In this way, only one

task accesses the non-shareable common resource at a given point in time, which ensures the

integrity of the non-shareable common resources.

LiteOS

Developer Guide 3 Basic Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

Figure 3-7 Working principle of a mutex

3.6.2 Development Guidelines

Usage Scenarios

A mutex is a good choice for preventing tasks from accessing the same shared resource at the

same time.

Functions

The mutex module provides the following functions:

Function Category API Description

Mutex creation and deletion LOS_MuxCreate Creates a mutex

LOS_MuxDelete Deletes a mutex

Mutex request and release LOS_MuxPend Pends on a mutex

LOS_MuxPost Releases a mutex

Development Process

The typical mutex development process is as follows:

1. Call the LOS_MuxCreate API to create a mutex.

2. Call the LOS_MuxPend API to pend on a mutex.

Takes actions depending on the mutex pend mode.

–Non-blocking mode: If no task has acquired the mutex or the task that has acquired

the mutex is the same as the requesting task, the operating system grants the mutex

to the requesting task.

LiteOS

Developer Guide 3 Basic Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

–Permanent blocking mode: the requesting task waits endlessly for a mutex and

enters Blocked state in the meantime. If the mutex has not been acquired by any

task, the operating system grants the mutex to the requesting task. Otherwise, the

operating system blocks the requesting task until the mutex is released. While the

requesting task is blocked, the operating system selects the task with the highest

priority among ready tasks to be executed.

–Temporary blocking mode: the requesting task waits for a specified period of time

for a mutex and enters Blocked state in the meantime. If the mutex has not been

acquired by any task, the operating system grants the mutex to the requesting task.

Otherwise, the operating system blocks the requesting task until the mutex is

released or the timeout period elapses. It then selects the ready task with the highest

priority to be executed.

3. Call the LOS_MuxPost to release a mutex.

–If there are tasks blocked from acquiring the mutex, the operating system wakes up

the first blocked task. The woken-up task then enters Ready state and is scheduled.

–If there are no tasks blocked from acquiring the mutex, the operating system

releases the mutex.

4. Call the LOS_MuxDelete API to delete a mutex.

Mutex Error Code

Error codes are returned if errors occur during mutex operations, such as mutex creation,

mutex deletion, mutex pending, and mutex posting, to facilitate fault locating.

No. Definition Error Code Description Solution

1 LOS_ERRNO_

MUX_NO_ME

MORY

0x02001d00 The request for

memory is

rejected.

Lower the

upper limit on

the number of

mutexes.

2 LOS_ERRNO_

MUX_INVALI

0x02001d01 The mutex is

not usable.

Pass in a valid

mutex ID.

3 LOS_ERRNO_

MUX_PTR_N

ULL

0x02001d02 The input

parameter is

null.

Pass in a non-

null parameter.

4 LOS_ERRNO_

MUX_ALL_B

USY

0x02001d03 No mutexes are

available.

Raise the upper

limit on the

number of

mutexes.

5 LOS_ERRNO_

MUX_UNAVAI

LABLE

0x02001d04 The mutex fails

to be locked

because it is

locked by

another thread.

Wait for another

thread to

release the

mutex.

Alternatively,

set a timeout

period.

LiteOS

Developer Guide 3 Basic Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

No. Definition Error Code Description Solution

6 LOS_ERRNO_

MUX_PEND_I

NTERR

0x02001d05 Mutex pend

occurs when an

interrupt is

being

processed.

Do not call this

API when an

interrupt is

being

processed.

7 LOS_ERRNO_

MUX_PEND_I

N_LOCK

0x02001d06 Task scheduling

is not enabled,

and the thread

is waiting for

another thread

to release the

mutex.

Set the mutex

pend mode to

the non-

blocking mode.

Alternatively,

enable task

scheduling.

8 LOS_ERRNO_

MUX_TIMEO

0x02001d07 Mutex pend

times out.

Increase the

wait time.

Alternatively,

set the mutex

pend mode to

the permanent

blocking mode.

9 LOS_ERRNO_

MUX_OVERF

LOW

0x02001d08 The error code

is not in use.

N/A

10 LOS_ERRNO_

MUX_PENDE

0x02001d09 The mutex

being deleted is

locked.

Delete the

mutex after it is

released.

11 LOS_ERRNO_

MUX_GET_C

OUNT_ERR

0x02001d0a The error code

is not in use.

N/A

12 LOS_ERRNO_

MUX_REG_E

RROR

0x02001d0b The error code

is not in use.

N/A

An error code is a 32-bit storage unit. Bit 24 to bit 31 indicate an error level; bit 16 to bit 23

indicate an error code flag; bit 8 to bit 15 indicate the ID of the module that reports the error

code; bit 0 to bit 7 indicate an error code. The following is the example of an error code:

#define LOS_ERRNO_OS_ERROR(MID, ERRNO) \

(LOS_ERRTYPE_ERROR | LOS_ERRNO_OS_ID | ((UINT32)(MID) << 8) | (ERRNO))

LOS_ERRTYPE_ERROR: Define critical OS errors

LOS_ERRNO_OS_ID: OS error code flag

LOS_MOD_MUX: Mutex module ID

MID: OS_MOUDLE_ID

LiteOS

Developer Guide 3 Basic Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

ERRNO: error ID number

For example:

LOS_ERRNO_MUX_TIMEOUT LOS_ERRNO_OS_ERROR(LOS_MOD_MUX, 0x07)

Platform Differences

None.

3.6.3 Precautions

lTasks are unable to lock the same mutex. If a task attempts to lock a mutex that has been

locked by another task, the task will be blocked from locking the mutex until the mutex

is unlocked.

lDo not use any mutex for interrupt service routines.

lRelease a mutex immediately when the mutex is no longer in use. Otherwise, tasks will

be blocked for a long time, slowing down task scheduling.

lDo not change the priority of a task by calling APIs such as LOS_TaskPriSet while the

task has full ownership of a mutex.

3.6.4 Programming Example

Example Description

In the programming example, the following activities will happen:

1. The Example_TaskEntry task is executed to create a mutex. Task scheduling is locked.

Two tasks Example_MutexTask1 and Example_MutexTask2 are created, where

Example_MutexTask2 takes a higher priority than Example_MutexTask1. Then, task

scheduling is unlocked.

2. Example_MutexTask2 is scheduled, granted a mutex, and then sent to sleep mode for

100 ticks. While Example_MutexTask2 is suspended, Example_MutexTask1 is woken

up.

3. Example_MutexTask1 pends on the mutex and is willing to wait the mutex for 10 ticks

to become free. At the time when Example_MutexTask1 requests the mutex, the mutex

is held by Example_MutexTask2 and consequently Example_MutexTask1 is suspended.

After the 10-tick wait period elapses, the mutex is still out of the reach of

Example_MutexTask1, and Example_MutexTask1 is woken up, attempting to wait

permanently for the mutex. The wait for the mutex switches Example_MutexTask1 to

suspended state.

4. After 100 ticks, Example_MutexTask2 is woken up and releases the mutex.

Example_MutexTask1 is scheduled, granted the mutex, and finally releases it.

5. 300 ticks after Example_MutexTask1 is finished, Example_TaskEntry is executed to

delete the mutex.

Example Code

Prerequisites

lThe LOSCFG_BASE_IPC_MUX parameter in the los_config.h file is set to YES.

LiteOS

Developer Guide 3 Basic Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

lThe LOSCFG_BASE_IPC_MUX_LIMIT parameter in the los_config.h file is set to the

maximum number of mutexes that the operating system allows.

The code is as follows:

#include "los_mux.h"

#include "los_task.h"

/*Mutex handler ID*/

MUX_HANDLE_T g_Testmux01;

/*Task ID*/

UINT32 g_TestTaskID01;

UINT32 g_TestTaskID02;

VOID Example_MutexTask1()

{

UINT32 uwRet;

printf("task1 try to get mutex, wait 10 Tick.\n");

/*The task pends on a mutex.*/

uwRet=LOS_MuxPend(g_Testmux01, 10);

if(uwRet == LOS_OK)

{

printf("task1 get mutex g_Testmux01.\n");

/*The task releases the mutex.*/

LOS_MuxPost(g_Testmux01);

return;

}

else if(uwRet == LOS_ERRNO_MUX_TIMEOUT )

{

printf("task1 timeout and try to get mutex, wait forever.\n");

/*The task pends on the mutex.*/

uwRet = LOS_MuxPend(g_Testmux01, LOS_WAIT_FOREVER);

if(uwRet == LOS_OK)

{

printf("task1 wait forever,get mutex g_Testmux01.\n");

/*The task releases the mutex.*/

LOS_MuxPost(g_Testmux01);

return;

}

return;

}

VOID Example_MutexTask2()

{

UINT32 uwRet;

printf("task2 try to get mutex, wait forever.\n");

/*The task pends on the mutex.*/

uwRet=LOS_MuxPend(g_Testmux01, LOS_WAIT_FOREVER);

printf("task2 get mutex g_Testmux01 and suspend 100 Tick.\n");

/*Send the task to sleep mode for 100 ticks.*/

LOS_TaskDelay(100);

printf("task2 resumed and post the g_Testmux01\n");

/*The task releases the mutex.*/

LOS_MuxPost(g_Testmux01);

return;

}

UINT32 Example_TaskEntry()

{

UINT32 uwRet;

TSK_INIT_PARAM_S stTask1;

LiteOS

Developer Guide 3 Basic Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

TSK_INIT_PARAM_S stTask2;

/*Create the mutex.*/

LOS_MuxCreate(&g_Testmux01);

/*Lock task scheduling.*/

LOS_TaskLock();

/*Create task 1.*/

memset(&stTask1, 0, sizeof(TSK_INIT_PARAM_S));

stTask1.pfnTaskEntry = (TSK_ENTRY_FUNC)Example_MutexTask1;

stTask1.pcName = "MutexTsk1";

stTask1.uwStackSize = OS_TSK_DEFAULT_STACK_SIZE;

stTask1.usTaskPrio = 5;

uwRet = LOS_TaskCreate(&g_TestTaskID01, &stTask1);

if(uwRet != LOS_OK)

{

printf("task1 create failed .\n");

return LOS_NOK;

}

/*Create task 2.*/

memset(&stTask2, 0, sizeof(TSK_INIT_PARAM_S));

stTask2.pfnTaskEntry = (TSK_ENTRY_FUNC)Example_MutexTask2;

stTask2.pcName = "MutexTsk2";

stTask2.uwStackSize = OS_TSK_DEFAULT_STACK_SIZE;

stTask2.usTaskPrio = 4;

uwRet = LOS_TaskCreate(&g_TestTaskID02, &stTask2);

if(uwRet != LOS_OK)

{

printf("task2 create failed .\n");

return LOS_NOK;

}

/*Unlock task scheduling.*/

LOS_TaskUnlock();

/*Send the task to sleep mode for 300 ticks.*/

LOS_TaskDelay(300);

/*Delete the mutex.*/

LOS_MuxDelete(g_Testmux01);

/*Delete task 1.*/

uwRet = LOS_TaskDelete(g_TestTaskID01);

if(uwRet != LOS_OK)

{

printf("task1 delete failed .\n");

return LOS_NOK;

}

/*Delete task 2.*/

uwRet = LOS_TaskDelete(g_TestTaskID02);

if(uwRet != LOS_OK)

{

printf("task2 delete failed .\n");

return LOS_NOK;

}

return LOS_OK;

}

Verification

The verification result is as follows:

task2 try to get mutex, wait forever.

task2 get mutex g_Testmux01 and suspend 100 ticks.

task1 try to get mutex, wait 10 ticks.

task1 timeout and try to get mutex, wait forever.

LiteOS

Developer Guide 3 Basic Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

task2 resumed and post the g_Testmux01

task1 wait forever,get mutex g_Testmux01.

Complete Code

sample_mutex.c

3.7 Semaphore

3.7.1 Overview

Basic Concept

A semaphore is a mechanism used for communication within a kernel, to achieve

synchronization or mutual exclusion of critical resources between tasks.

In a multi-task system, it is necessary to synchronize one task with another or prevent tasks

battling for critical resources. Semaphores are a good choice to serve that purpose.

Typically, a numerical value of a signal is used to correspond to the number of available

resources. It means mutually exclusive resources remained that could be occupied. The

meaning of its value is divided into two kinds of situations:

l0, it means the post operation that is not accumulated, and it is possible to block tasks on

this signal.

lPositive number, it means there is one or several release operations which are posted.

The differences to use between semaphore for the purpose of synchronization and semaphore

for the purpose of mutex are:

lIf a semaphore is used as a mutex, it is created with a full internal counter. Each time a

task waits on critical resources, it is assigned the semaphore and the counter value is

decreased by 1. When the counter value drops to 0, subsequent tasks are blocked from

getting the semaphore.

lIf a semaphore is used for task synchronization, it is created with an empty counter.

When task 1 attempts to get the semaphore, it is blocked because the counter has reached

the maximum value. Task 1 will enter Ready or Running state after task 2 releases the

semaphore, thereby achieving task synchronization.

Operation Mechanism

Semaphore Control Block

/**

* @ingroup los_sem

* Semaphore control structure.

typedef struct

{

UINT8 usSemStat; /**whether to use flag bit*/

UINT16 uwSemCount; /**semaphore count*/

UINT32 usSemID; /**semaphore quantity index*/

LOS_DL_LIST stSemList; /**suspend the task blocked on the

semaphore*/

}SEM_CB_S;

LiteOS

Developer Guide 3 Basic Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

Semaphore Operation Principle

During semaphore initialization, memory is allocated to N semaphores. N is configurable by

users and limited by memory. For details, see section 10 "Configuration Reference." All

semaphores are initialized and added to the linked list of semaphores that are not in use.

During semaphore creation, a semaphore is obtained from the linked list of semaphores that

are not in use and the initial value of the semaphore is set.

If the internal counter of a semaphore is more than 0 when the semaphore is pended, the

counter value is decreased by 1 and the pending succeeds. If the counter value is 0, tasks are

blocked from getting the semaphore and wait for other tasks to post the semaphore. The

timeout interval of waiting on the semaphore can be configured. If a task is blocked from

getting the semaphore, suspend the task to the tail of the queue of tasks waiting on the

semaphore.

If no tasks are waiting on a semaphore, the counter value is increased by 1 and the semaphore

is posted. Otherwise, wake up the first task in the queue of tasks waiting on the semaphore.

During semaphore deletion, the semaphore that is in use is set to be not in use and is added to

the linked list of semaphores that are not in use.

A semaphore allows multiple tasks to access the same resource at the same time but sets a

limit on the number of the tasks. Tasks are not allowed to access the resource if the maximum

number of the tasks that can access the resource is reached and need to wait for one task to

release the semaphore.

Figure 3-8 Working principle of semaphore

LiteOS

Developer Guide 3 Basic Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

3.7.2 Development Guidelines

Usage Scenarios

Semaphores find their use in locking resources, counting resources, and maintaining

synchronization between threads or between threads and interrupts.

Functions

The semaphore module provides the following functions:

Function Category API Description

Semaphore creation and

deletion

LOS_SemCreate Creates a semaphore

LOS_SemDelete Deletes a semaphore

Semaphore pend and post LOS_SemPend Pends on a semaphore

LOS_SemPost Posts a semaphore

Development Process

The typical semaphore development process is as follows:

1. Call the LOS_SemCreate API to create a semaphore.

2. Call the LOS_SemPend to pend on a semaphore.

Huawei LiteOS takes actions depending on the semaphore pend mode.

–Non-blocking mode: If the maximum number of tasks allowed by the semaphore is

not reached, the request for the semaphore is fulfilled. Otherwise, the request for the

semaphore is rejected.

–Permanent blocking mode: The requesting task waits endlessly for a semaphore and

the task enters Blocked state in the meantime. If the maximum number of tasks

allowed by the semaphore is not reached, the request for the semaphore is fulfilled.

Otherwise, the operating system blocks the requesting task until a task releases the

semaphore. It then selects the ready task with the highest priority to be executed.

If a task enters the Blocked state, this task will be re-executed when either of the

following conditions is met:

nOther tasks release semaphores before the specified period expires.

nThe specified period expires.

–Temporary blocking mode: the requesting task waits for a specified period of time

for a semaphore and enters Blocked state in the meantime. If the maximum number

of tasks allowed by the semaphore is not reached, the request for the semaphore is

fulfilled. Otherwise, the operating system blocks the requesting task until a task

releases the semaphore or the timeout period elapses. It then selects the ready task

with the highest priority to be executed.

3. Call the LOS_SemPost API to post a semaphore.

LiteOS

Developer Guide 3 Basic Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

–If there are tasks blocked from acquiring the semaphore, the operating system

wakes up the first blocked task. The woken-up task then enters Ready state and is

scheduled.

–If there are no tasks blocked from acquiring the semaphore, the operating system

posts the semaphore.

4. Call the LOS_SemDelete API to delete a semaphore.

Semaphore Error Codes

Error codes are returned if errors occur during semaphore operations, such as creating,

pending, posting, and deleting semaphores, to facilitate fault locating.

No. Definition Error

Code

Description Solution

1 LOS_ERRNO_SEM_

NO_MEMORY

0x0200070

The memory space

is insufficient.

Allocate a larger

memory space to the

semaphore.

2 LOS_ERRNO_SEM_

INVALID

0x0200070

The passed-in

parameter is

invalid.

Modify the

parameter to a valid

one.

3 LOS_ERRNO_SEM_

PTR_NULL

0x0200070

The passed-in

pointer is null.

Pass in a non-null

pointer.

4 LOS_ERRNO_SEM_

ALL_BUSY

0x0200070

The semaphore

control block is

unavailable.

Post semaphore

resources.

5 LOS_ERRNO_SEM_

UNAVAILABLE

0x0200070

The scheduled time

is invalid.

Modify the

scheduled time to a

correct one.

6 LOS_ERRNO_SEM_

PEND_INTERR

0x0200070

When the CPU is

processing

interrupts, the

LOS_SemPend API

is called.

Do not call the

LOS_SemPend API

when the CPU is

processing interrupts.

7 LOS_ERRNO_SEM_

PEND_IN_LOCK

0x0200070

The task is locked

and fails to obtain

the semaphore.

Do not call the

LOS_SemPend API

when the task is

locked.

8 LOS_ERRNO_SEM_

TIMEOUT

0x0200070

The time for

obtaining

semaphores

expires.

Set the time to a

proper range.

9 LOS_ERRNO_SEM_

OVERFLOW

0x0200070

The number of

allowed semaphore

pendings exceeds

the maximum

value.

Pass in a valid value.

LiteOS

Developer Guide 3 Basic Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

No. Definition Error

Code

Description Solution

10 LOS_ERRNO_SEM_

PENDED

0x0200070

The task queue

waiting for the

semaphore is not

empty.

Wake up all tasks

that are waiting for

the semaphore, and

then delete the

semaphore.

An error code is a 32-bit storage unit. Bit 24 to bit 31 indicate an error level; bit 16 to bit 23

indicate an error code flag; bit 8 to bit 15 indicate the ID of the module that reports the error

code; bit 0 to bit 7 indicate an error code. The following is the example of an error code:

#define LOS_ERRNO_OS_NORMAL(MID,ERRNO) \

(LOS_ERRTYPE_NORMAL | LOS_ERRNO_OS_ID | ((UINT32)(MID) << 8) | (ERRNO))

LOS_ERRTYPE_NORMAL: Define the error level as critical

LOS_ERRNO_OS_ID: OS error code flag.

MID：OS_MOUDLE_ID

ERRNO：error ID number

For example:

LOS_ERRNO_SEM_NO_MEMORY LOS_ERRNO_OS_ERROR(LOS_MOD_SEM, 0x00))

NOTE

Error code IDs 0x16 and 0x1c are not defined and unavailable for use.

Platform Differences

None.

3.7.3 Precautions

lAs interrupts cannot be blocked, permanent blocking and temporary blocking are not

allowed for interrupts during the request for a semaphore.

3.7.4 Programming Example

Example Description

In the programming example, the following activities will happen:

1. The Example_TaskEntry task is executed to create a semaphore. Task scheduling is

locked. Two tasks Example_SemTask1 and Example_SemTask2 are created, where

Example_SemTask2 takes a higher priority than Example_SemTask1. Then, task

scheduling is unlocked. Example_TaskEntry releases the semaphore.

2. Example_SemTask2 is granted the semaphore, scheduled, and sent to sleep mode for 20

ticks. While Example_SemTask2 is delayed, Example_SemTask1 is woken up.

3. Example_SemTask1 pends on the semaphore and is willing to wait the semaphore for 10

ticks to become free. At the time when Example_SemTask1 requests the semaphore, the

semaphore is held by Example_SemTask2 and consequently Example_SemTask1 is

suspended. After the 10-tick wait period elapses, the semaphore is still out of the reach

of Example_SemTask1, and Example_SemTask1 is woken up, attempting to wait

LiteOS

Developer Guide 3 Basic Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

permanently for the semaphore. The wait for semaphore switches Example_SemTask1 to

suspended state.

4. After 20 ticks, Example_SemTask2 is woken up and releases the semaphore.

Example_SemTask1 is scheduled, granted the semaphore, and finally releases it.

5. 40 ticks after Example_SemTask1 is finished, Example_TaskEntry is woken up, deletes

the semaphore and then the two tasks.

Example Code

Prerequisites

lThe LOSCFG_BASE_IPC_SEM parameter in the los_config.h file is set to YES.

lThe LOSCFG_BASE_IPC_SEM_LIMIT parameter in the los_config.h file is set to

the maximum number (for example, 1024) of semaphores that the operating system

allows.

The code is as follows:

#include "los_sem.h"

/*Task PID*/

static UINT32 g_TestTaskID01,g_TestTaskID02;

/*Task priority*/

#define TASK_PRIO_TEST 5

/*Semaphore structure ID*/

static SEM_HANDLE_T g_usSemID;

VOID Example_SemTask1(void)

{

UINT32 uwRet;

printf("Example_SemTask1 try get sem g_usSemID ,timeout 10 ticks.\n");

/*The task pends on the semaphore in timed blocking mode, with the wait

period being 10 ticks*/

uwRet = LOS_SemPend(g_usSemID, 10);

/*The task is granted the semaphore.*/

if(LOS_OK == uwRet)

{

LOS_SemPost(g_usSemID);

return;

}

/*The task does not get the semaphore within 10 ticks.*/

if(LOS_ERRNO_SEM_TIMEOUT == uwRet)

{

printf("Example_SemTask1 timeout and try get sem g_usSemID wait forever.

\n");

/*The task pends on the semaphore in permanent blocking mode.*/

uwRet = LOS_SemPend(g_usSemID, LOS_WAIT_FOREVER);

printf("Example_SemTask1 wait_forever and get sem g_usSemID .\n");

if(LOS_OK == uwRet)

{

LOS_SemPost(g_usSemID);

return;

}

return;

}

VOID Example_SemTask2(void)

{

UINT32 uwRet;

printf("Example_SemTask2 try get sem g_usSemID wait forever.\n");

LiteOS

Developer Guide 3 Basic Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

/*The task pends on the semaphore in permanent blocking mode.*/

uwRet = LOS_SemPend(g_usSemID, LOS_WAIT_FOREVER);

if(LOS_OK == uwRet)

printf("Example_SemTask2 get sem g_usSemID and then delay 20ticks .\n");

/*Send the task to sleep mode for 20 ticks.*/

LOS_TaskDelay(20);

printf("Example_SemTask2 post sem g_usSemID .\n");

/*The task releases the semaphore.*/

LOS_SemPost(g_usSemID);

return;

}

UINT32 Example_TaskEntry()

{

UINT32 uwRet;

TSK_INIT_PARAM_S stTask1;

TSK_INIT_PARAM_S stTask2;

/*Create the semaphore.*/

LOS_SemCreate(0,&g_usSemID);

/*Lock task scheduling.*/

LOS_TaskLock();

/*Create task 1.*/

memset(&stTask1, 0, sizeof(TSK_INIT_PARAM_S));

stTask1.pfnTaskEntry = (TSK_ENTRY_FUNC)Example_SemTask1;

stTask1.pcName = "MutexTsk1";

stTask1.uwStackSize = OS_TSK_DEFAULT_STACK_SIZE;

stTask1.usTaskPrio = TASK_PRIO_TEST;

uwRet = LOS_TaskCreate(&g_TestTaskID01, &stTask1);

if(uwRet != LOS_OK)

{

printf("task1 create failed .\n");

return LOS_NOK;

}

/*Create task 2.*/

memset(&stTask2, 0, sizeof(TSK_INIT_PARAM_S));

stTask2.pfnTaskEntry = (TSK_ENTRY_FUNC)Example_SemTask2;

stTask2.pcName = "MutexTsk2";

stTask2.uwStackSize = OS_TSK_DEFAULT_STACK_SIZE;

stTask2.usTaskPrio = (TASK_PRIO_TEST - 1);

uwRet = LOS_TaskCreate(&g_TestTaskID02, &stTask2);

if(uwRet != LOS_OK)

{

printf("task2 create failed .\n");

return LOS_NOK;

}

/*Unlock task scheduling.*/

LOS_TaskUnlock();

uwRet = LOS_SemPost(g_usSemID);

/*Send the task to sleep mode for 40 ticks.*/

LOS_TaskDelay(40);

/*Delete the semaphore.*/

LOS_SemDelete(g_usSemID);

/*Delete task 1.*/

uwRet = LOS_TaskDelete(g_TestTaskID01);

if(uwRet != LOS_OK)

{

LiteOS

Developer Guide 3 Basic Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

printf("task1 delete failed .\n");

return LOS_NOK;

}

/*Delete task 2.*/

uwRet = LOS_TaskDelete(g_TestTaskID02);

if(uwRet != LOS_OK)

{

printf("task2 delete failed .\n");

return LOS_NOK;

}

return LOS_OK;

}

Verification

The verification result is as follows:

Example_SemTask2 try get sem g_usSemID wait forever.

Example_SemTask1 try get sem g_usSemID,timeout 10 ticks.

Example_SemTask2 get sem g_usSemID and then delay 20ticks .

Example_SemTask1 timeout and try get sem g_usSemID wait forever.

Example_SemTask2 post sem g_usSemID.

Example_SemTask1 wait_forever and get sem g_usSemID.

Complete Code

sample_sem.c

3.8 Time Management

3.8.1 Overview

Basic Concept

Time management provides time services to applications and uses system time as the

reference time.

System time is generated when an output pulse of a timer/counter triggers an interrupt, it is an

integral number or long integral number of ticks. The interval between consecutive output

pulses is a tick. The tick length is statically configured.

User time is measured in seconds or milliseconds, whereas CPU time is measured in ticks.

When a user initiates an operation to the operating system, such as suspending or delaying a

task, the time management module converts user time between seconds/milliseconds and

ticks.

The rule for conversion between ticks and seconds is user configurable.

The time management module of Huawei LiteOS provides time conversion, measurement,

and deferral to satisfy what users need.

Related Concepts

lCycle

Cycle is the minimal time unit of the operating system. The system clock speed is represented

in the form of cycles per second.

LiteOS

Developer Guide 3 Basic Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

lTick

A tick is the basic time unit used in OS. The tick length is user configurable. Typically, it is

determined by the system clock speed and represented in the form of ticks per second.

3.8.2 Development Guidelines

Usage Scenarios

Read the topic when you want to learn more about system time and conversion between ticks

and seconds/milliseconds.

Functions

The time management module of Huawei LiteOS provides the following functions:

lTime conversion: converts the CPU runtime from ticks to milliseconds or microseconds

lTime measurement: measures the system runtime in ticks

Function Category API Description

Time conversion LOS_MS2Tick Converts milliseconds into

ticks

LOS_Tick2MS Converts ticks into

milliseconds

Time measurement LOS_CyclePerTickGet Counts the number of cycles

per tick

LOS_TickCountGet Measures the runtime in

ticks

Time Management Error Codes

Error codes are returned if errors occur during time conversion to facilitate fault locating.

No. Definition Error

Code

Description Solution

1 LOS_ERRNO_SYS_

PTR_NULL

0x0200001

The passed-in

pointer is null.

Pass in a valid

pointer.

2 LOS_ERRNO_SYS_

CLOCK_INVALID

0x02000011 The system clock

configuration is

invalid.

Configure valid

clock settings in the

los_config.h file.

3 LOS_ERRNO_SYS_

MAXNUMOFCORE

S_IS_INVALID

0x0200001

The error code is

not in-use.

N/A

LiteOS

Developer Guide 3 Basic Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

No. Definition Error

Code

Description Solution

4 LOS_ERRNO_SYS_

PERIERRCOREID_I

S_INVALID

0x0200001

The error code is

not in-use.

N/A

5 LOS_ERRNO_SYS_

HOOK_IS_FULL

0x0200001

The error code is

not in-use.

N/A

Development Process

The typical time management development process is as follows:

1. Set the LOSCFG_BASE_CORE_TICK_HW_TIME parameter in the los_config.h file to

YES.

–Set the LOSCFG_BASE_CORE_TICK_PER_SECOND parameter in the

los_config.h file to a valid number of ticks per second.

2. Call the clock conversion API.

3. Gets the system runtime that is measured in ticks

–Calls the LOS_TickCountGet API to get the global g_ullTickCount.

3.8.3 Precautions

lThe system runtime (measured in ticks) can be acquired only after the system clock is

enabled.

lThe time management module works only after the OS_SYS_CLOCK in los_config.h is

enabled and the LOSCFG_BASE_CORE_TICK_PER_SECOND of the Tick module is

specified.

lWhen measured in ticks, system runtime is not accurate, because it is not measured while

interrupts are disabled.

3.8.4 Programming Example

Example Description

The programming example will cover the following functions:

1. Time conversion: from milliseconds to ticks, or conversely

2. Time measurement and deferral: measures the number of cycles per second, the number

of ticks for which the system is running, and the number of ticks for which the deferral

lasts

Example Code

Prerequisites

lThe LOSCFG_BASE_CORE_TICK_PER_SECOND in the los_config.h file is set to a

valid number of ticks per second.

LiteOS

Developer Guide 3 Basic Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

lThe OS_SYS_CLOCK (unit: Hz) is set.

Time conversion:

VOID Example_TransformTime(VOID)

{

UINT32 uwMs;

UINT32 uwTick;

uwTick = LOS_MS2Tick(10000);//Convert 10000 ms into ticks

printf("uwTick = %d \n",uwTick);

uwMs= LOS_Tick2MS(100);//Convert 100 ticks into ms

printf("uwMs = %d \n",uwMs);

}

Time measurement and deferral:

VOID Example_GetTime(VOID)

{

UINT32 uwcyclePerTick;

UINT64 uwTickCount;

uwcyclePerTick = LOS_CyclePerTickGet();//Number of cycles per tick

if(0 != uwcyclePerTick)

{

dprintf("LOS_CyclePerTickGet = %d \n", uwcyclePerTick);

}

uwTickCount = LOS_TickCountGet();//Get the count of ticks

if(0 != uwTickCount)

{

dprintf("LOS_TickCountGet = %d \n", (UINT32)uwTickCount);

}

LOS_TaskDelay(200);//200-tick deferral

uwTickCount = LOS_TickCountGet();

if(0 != uwTickCount)

{

dprintf("LOS_TickCountGet after delay = %d \n", (UINT32)uwTickCount);

}

Verification

The verification result is as follows:

Time conversion:

tick = 1000

uwMs = 1000

Time measurement and deferral:

LOS_CyclePerTickGet = 495000

LOS_TickCountGet = 1

LOS_TickCountGet after delay = 201

Complete Code

sample_time.c

3.9 Software Timer

LiteOS

Developer Guide 3 Basic Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

3.9.1 Overview

Basic Concept

A software timer is a timer simulated by software, and works based on system tick interrupts.

When a predefined number of ticks elapse, a software timer triggers a user-defined callback

function. The timer length is an integral number of ticks.

Only a limited number of hardware timers can be used due to hardware constraints. Software

timers can fulfill the demand for more timers, allowing you to create more timing services.

The software timer module supports the following functions:

lStatically disable a software timer by macro

lCreate a software timer

lStart a software timer

lStop a software timer

lDelete a software timer

lMeasure the number of ticks that must elapse prior to expiry of a software timer

Operation Mechanism

Software timers are system resources and are allocated continuous memory at the

initialization of the timer module. The maximum number of software timers supported by the

operating system is defined by LOSCFG_BASE_CORE_SWTMR_LIMIT in the los_config.h

file.

Software timers are placed in a queue and a triggered in the first in first out order. The

software timers with a short life cycle are placed at the beginning of queue so that they will be

triggered earlier than those with a longer life cycle.

The software timer length is measured in ticks. When a software timer is actuated, Huawei

LiteOS determines the timer expiry time based on the current system time (in ticks) and timer

length (in ticks) and adds the timer control structure to the global timing list.

When a tick interrupt occurs, the tick interrupt handler scans the global timing list for expired

timers. If such a timer is found, the timer is recorded.

After the tick interrupt handler finishes processing, the software timer task (a task exclusively

used for software timers) is assigned the highest priority and then woken up to call the

Timer_Callback function (callback function that handles software timer expiry) of the expired

timer.

Software Timer States

lOS_SWTMR_STATUS_UNUSED

While the timer module is being initialized, the operating system initializes all timer resources

in the system to OS_SWTMR_STATUS_UNUSED state.

lOS_SWTMR_STATUS_CREATED

If the LOS_SwtmrCreate API is called in OS_SWTMR_STATUS_UNUSED state or if the

LOS_SwtmrStop API is called after timer start-up, the timer switches to

OS_SWTMR_STATUS_CREATED state.

LiteOS

Developer Guide 3 Basic Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

lOS_SWTMR_STATUS_TICKING

If the LOS_SwtmrStart API is called after the timer is created, the timer switches to

OS_SWTMR_STATUS_TICKING state.

Software Timer Modes

Depending on timer mode, software timers are classified into three types:

lOne-shot timer: The timer triggers the timer event only once after it is started. Then, the

timer is automatically deleted.

lPeriodic timer: The timer triggers the timer event periodically until the timer is manually

stopped.

lOne-shot timer: The timer differs from the other type of one-shot timer. It will not be

automatically deleted after it expires. Call the LOS_SwtmrDelete API to delete this type

of one-shot timer.

3.9.2 Development Guidelines

Usage Scenarios

lIf you want to trigger a timer event only once, create a one-shot timer and define a

Timer_Callback function for the timer. When the timer expires, the Timer_Callback

function will be executed.

lIf you want to trigger a timer event periodically, create a periodic timer and define a

Timer_Callback function for the timer. When the timer expires, the Timer_Callback

function will be executed.

Functions

The software timer module provides the following functions. For details about the APIs, see

the API reference.

Function Category API Description

Timer creation and deletion LOS_SwtmrCreate Creates a software timer

LOS_SwtmrDelete Deletes a software timer

Timer start and stop LOS_SwtmrStart Starts a software timer

LOS_SwtmrStop Stops a software timer

Measurement of remaining

ticks prior to timer expiry

LOS_SwtmrTimeGet Measures the number of

ticks that must elapse prior

to expiry of a software timer

Development Process

The typical software timer development process is as follows:

1. Set software timer.

–Set LOSCFG_BASE_CORE_SWTMR and LOSCFG_BASE_IPC_QUEUE to

YES.

LiteOS

Developer Guide 3 Basic Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

–Set LOSCFG_BASE_CORE_SWTMR_LIMIT to the maximum number of

software timers supported by the operating system.

–Set OS_SWTMR_HANDLE_QUEUE_SIZE to the maximum size of the software

timer queue.

2. Call the LOS_SwtmrCreate API to create a software timer.

–Creates a software timer that has a user-defined timer length, Timer_Callback

function, and trigger mode; returns the software timer handler after successful

creation.

–Returns the function execution result (successful or failed).

3. Call the LOS_SwtmrStart API to start a software timer.

4. Call the LOS_SwtmrTimeGet API to get left number of Ticks of software timer.

5. Call the LOS_SwtmrStop API to stop a software timer.

6. Call the LOS_SwtmrDelete API to delete a software timer.

Software Timer Error Codes

Error codes are returned if errors occur during software timer operations, such as creating,

deleting, suspending, or restarting a software timer, to facilitate fault locating.

No. Definition Error

Code

Description Solution

1 LOS_ERRNO_SWT

MR_PTR_NULL

0x0200030

The callback

function of the

software timer is

null.

Define the callback

function of the

software timer.

2 LOS_ERRNO_SWT

MR_INTERVAL_NO

T_SUITED

0x0200030

The timer length of

the software timer

is 0.

Redefine the timer

length.

3 LOS_ERRNO_SWT

MR_MODE_INVALI

0x0200030

The mode of the

software timer is

incorrect.

Modify the mode of

the software timer.

Range: [0, 2].

4 LOS_ERRNO_SWT

MR_RET_PTR_NUL

0x0200030

The passed-in

pointer to the

software timer ID is

null.

Pass in a non-null

pointer.

5 LOS_ERRNO_SWT

MR_MAXSIZE

0x0200030

The number of

software timers

exceeds the

maximum value.

Redefine the

maximum number of

software timers, or

wait until a software

timer releases

resources.

6 LOS_ERRNO_SWT

MR_ID_INVALID

0x0200030

The passed-in

software timer ID is

incorrect.

Pass in a correct

software timer ID.

LiteOS

Developer Guide 3 Basic Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

No. Definition Error

Code

Description Solution

7 LOS_ERRNO_SWT

MR_NOT_CREATE

0x0200030

No software timer

is created.

Create a software

timer.

8 LOS_ERRNO_SWT

MR_NO_MEMORY

0x0200030

The memory space

is insufficient for

creating the linked

list of a software

timer.

Apply for a larger

memory space for the

software timer.

9 LOS_ERRNO_SWT

MR_MAXSIZE_INV

ALID

0x0200030

The maximum

number of software

timers is incorrect.

Redefine the

maximum number of

software timers.

10 LOS_ERRNO_SWT

MR_HWI_ACTIVE

0x0200030

A timer is used

when the CPU is

processing

interrupts.

Modify the source

code to ensure that

no timer is used

when the CPU is

processing interrupts.

11 LOS_ERRNO_SWT

MR_HANDLER_PO

OL_NO_MEM

0x0200030a The memory space

allocated to the

membox is

insufficient.

Expand the memory

space.

12 LOS_ERRNO_SWT

MR_QUEUE_CREA

TE_FAILED

0x0200030

The software timer

queue fails to be

created.

Check whether the

memory space is

sufficient for creating

the queue.

13 LOS_ERRNO_SWT

MR_TASK_CREATE

_FAILED

0x0200030c The software timer

task fails to be

created.

Allocate sufficient

memory space for

creating the software

timer task.

14 LOS_ERRNO_SWT

MR_NOT_STARTED

0x0200030

The software timer

is not started.

Start the software

timer.

15 LOS_ERRNO_SWT

MR_STATUS_INVA

LID

0x0200030e The software timer

status is incorrect.

Check the software

timer status.

16 LOS_ERRNO_SWT

MR_SORTLIST_NU

Null The error code is

not in use.

N/A

17 LOS_ERRNO_SWT

MR_TICK_PTR_NU

0x0200031

The passed-in

pointer used for

obtaining the

number of software

timer timeout ticks

is null.

Pass in a non-null

pointer.

LiteOS

Developer Guide 3 Basic Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

An error code is a 32-bit storage unit. Bit 24 to bit 31 indicate an error level; bit 16 to bit 23

indicate an error code flag; bit 8 to bit 15 indicate the ID of the module that reports the error

code; bit 0 to bit 7 indicate an error code. The following is the example of an error code:

#define LOS_ERRNO_OS_NORMAL(MID,ERRNO) \

(LOS_ERRTYPE_NORMAL | LOS_ERRNO_OS_ID | ((UINT32)(MID) << 8) | (ERRNO))

LOS_ERRTYPE_NORMAL: Define the error level as critical

LOS_ERRNO_OS_ID: OS error code flag.

MID: OS_MOUDLE_ID

ERRNO: error ID number

For example:

#define LOS_ERRNO_SWTMR_PTR_NULL \

LOS_ERRNO_OS_ERROR(LOS_MOD_SWTMR, 0x00)

3.9.3 Precautions

lLimit the number of operations contained in the callback function of a software timer.

Do not use the API or perform any operation that may suspend or block tasks.

lSoftware timers are placed in a queue. A task is used exclusively to convey software

timer information. The priority of a task in a software timer is set to 0, which is not

allowed to be modified.

lThe maximum number of software timer resources is not equal to the total number of

software timer resources available to users. When a software timer occupies a software

timer resource, the number of available software timer resources is decreased by 1.

lAfter the callback function of a one-shot software timer is executed, the software timer is

automatically deleted and the resources allocated to the timer are reclaimed.

lA one-shot software timer that will not be automatically deleted after expiration needs to

be deleted by calling the LOS_SwtmrDelete API. Resources allocated to the timer are

reclaimed to avoid resource leaks.

3.9.4 Programming Example

Example Description

In the programming example, the following steps will be performed:

1. Create, delete, start, stop or restart a software timer.

2. Use a one-shot software timer and a periodical software timer.

Example Code

Prerequisites

lThe LOSCFG_BASE_CORE_SWTMR parameter in the los_config.h file is set to YES.

lThe LOSCFG_BASE_CORE_SWTMR_LIMIT parameter in the los_config.h file is set

to the maximum number of software timers supported by the operating system.

lThe OS_SWTMR_HANDLE_QUEUE_SIZE parameter in the los_config.h file is set to

the maximum size of the software timer queue.

The code is as follows:

LiteOS

Developer Guide 3 Basic Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

void Timer1_Callback(uint32_t arg); // Callback function

void Timer2_Callback(uint32_t arg);

UINT32 g_timercount1 = 0;

UINT32 g_timercount2 = 0;

void Timer1_Callback(uint32_t arg)//Callback function 1

{

unsigned long tick_last1;

g_timercount1++;

tick_last1=(UINT32)LOS_TickCountGet();//Acquire the current number of ticks

dprintf("g_timercount1=%d\n",g_timercount1);

dprintf("tick_last1=%d\n",tick_last1);

}

void Timer2_Callback(uint32_t arg)//Callback function 2

{

unsigned long tick_last2;

tick_last2=(UINT32)LOS_TickCountGet();

g_timercount2 ++;

dprintf("g_timercount2=%d\n",g_timercount2);

dprintf("tick_last2=%d\n",tick_last2);

}

void Timer_example (void)

{

UINT16 id1;

UINT16 id2;// timer id

UINT32 uwTick;

/*Create a one-shot software timer that will execute callback function 1 when

the 1000-tick life cycle expires.*/

LOS_SwtmrCreate (1000, LOS_SWTMR_MODE_ONCE,Timer1_Callback,&id1,1);

/*Create a periodic software timer that will execute callback function 2 at a

regular interval of 100 ticks.*/

LOS_SwtmrCreate(100,LOS_SWTMR_MODE_PERIOD,Timer2_Callback,&id2,1);

dprintf("create Timer1 success\n");

LOS_SwtmrStart (id1); //Start the one-shot software timer.

dprintf("start Timer1 sucess\n");

LOS_TaskDelay(200);//200-tick delay

LOS_SwtmrTimeGet(id1,&uwTick);//Get the number of ticks that must elapse

before expiry of the one-shot software timer.

dprintf("uwTick =%d\n",uwTick);

LOS_SwtmrStop(id1);//Stop the software timer.

dprintf("stop Timer1 sucess\n");

LOS_SwtmrStart(id1);

LOS_TaskDelay(1000);

LOS_SwtmrDelete(id1);//Delete the software timer.

dprintf("delete Timer1 sucess\n");

LOS_SwtmrStart(id2);//Start the periodic software timer.

dprintf("start Timer2\n");

LOS_TaskDelay(1000);

LOS_SwtmrStop(id2);

LOS_SwtmrDelete(id2);

}

Verification

The verification result is as follows:

LiteOS

Developer Guide 3 Basic Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

Complete Code

sample_Timer.c

3.10 Error Handling

3.10.1 Overview

Basic Concept

In the event of code errors, the operating system calls APIs of the error handling module to

report error information and calls user-defined hook functions to handle the errors.

Internal OS error codes cannot be conveyed via APIs. A solution to address this problem is

reporting the error codes to the error handling module and processing them with the aid of

user-defined hook functions. If the OS reports a fatal error, it initiates exception management

to keep a record of what happened at the time of the fatal error.

Through error handling, invalid user input can be reported and controlled to avoid possible

program crashes.

Operation Mechanism

Error handling is a mechanism to control invalid inputs into programs. By error handling, we

can control and prompt illegal input from users to prevent the program from crashing. When a

LiteOS

Developer Guide 3 Basic Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

program runs into a problem, an error code, is displayed and the error handler (if any) is

executed to prevent the program from crashing.

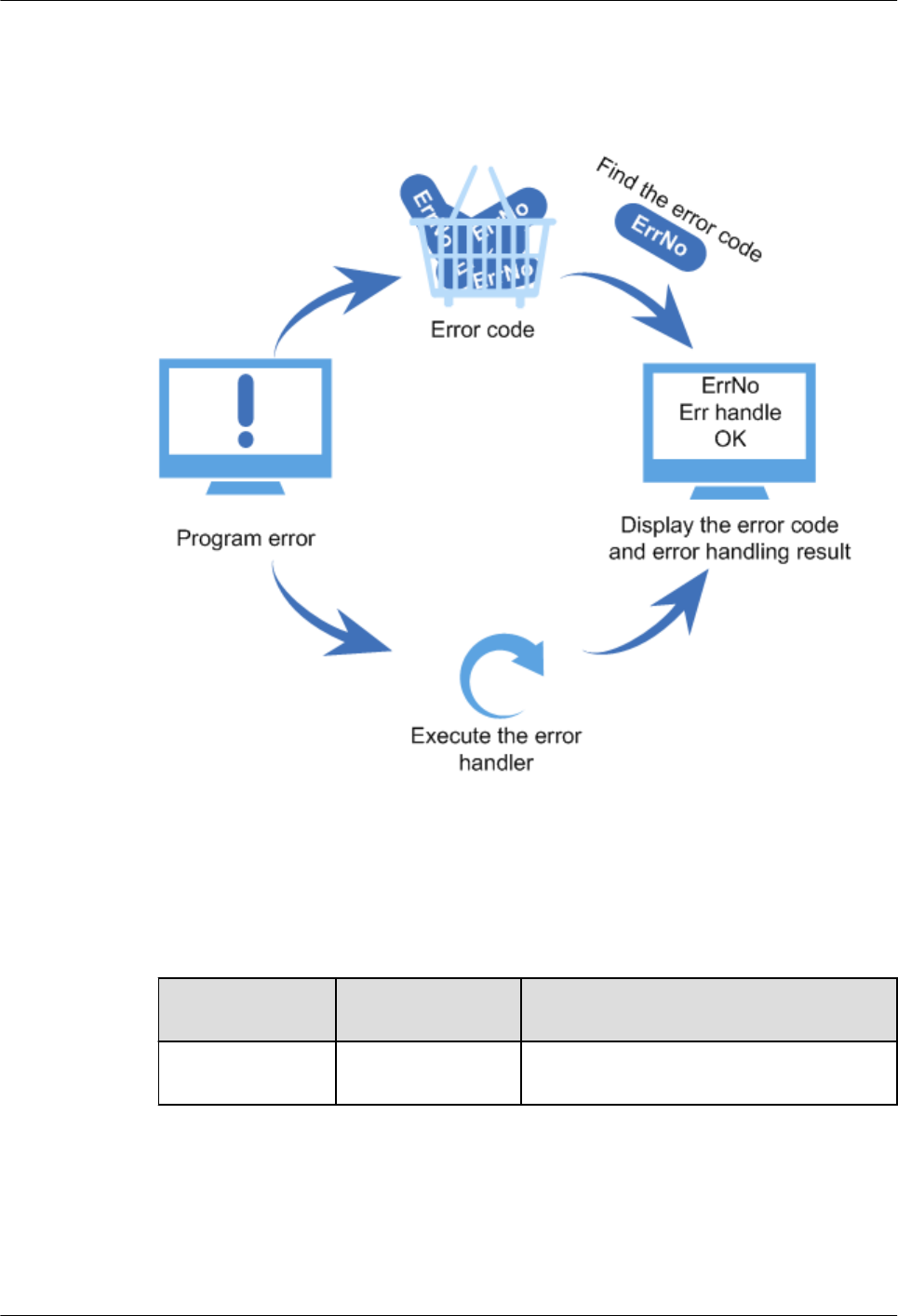

Figure 3-9 Error handling

3.10.2 Development Guidelines

Functions

The error handling module provides the following functions:

Function

Category

API Description

Error handling LOS_ErrHandle Handles the error according to an error

handler

3.10.3 Precautions

None.

LiteOS

Developer Guide 3 Basic Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

3.10.4 Programming Example

Example Description

The programming example will cover the following functions:

1. Executing an error handler

Example Code

The code is as follows:

extern USER_ERR_FUNC_S g_stUserErrFunc;

void *err_handler(CHAR *pcFileName,UINT32 uwLineNo,

UINT32 uwErrorNo,UINT32 uwParaLen,VOID *pPara)

{

printf("err handel ok\n");

}

UINT32 Example_ErrCaseEntry(VOID)

{

/*Execute an error handler.*/

LOS_ErrHandle(NULL, 0,0,0, NULL);

return LOS_OK;

}

Verification

The verification result is as follows:

Complete Code

sample_err.c

3.11 Doubly Linked List

3.11.1 Overview

Basic Concept

A doubly linked list is a linked data structure that consists of a set of sequentially linked

records called nodes. Each node in a doubly linked list contains two pointers that reference to

the previous and to the next node in the sequence of nodes. The head of the doubly linked list

is deterministic and immediately accessible.

Any node of a doubly linked list, once obtained, can be used to begin a new traversal of the

list in either direction (towards the beginning or end) from the given node. This allows a lot of

data to be quickly traversed. Because of the symmetric nature of a doubly linked list, nodes

can easily be inserted into or removed from the list.

LiteOS

Developer Guide 3 Basic Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

3.11.2 Development Guidelines

Functions

The doubly linked list module provides the following functions:

Function

Category

API Description

List

initialization

LOS_InitList Initializes a doubly linked list

Node

insertion

LOS_ListAdd Inserts a node to a doubly linked list

LOS_ListTailInsert Inserts a node to the tail of a doubly linked list

Node

insertion

LOS_ListHeadInsert Inserts a node to the head of a doubly linked list

Node

deletion

LOS_ListDelete Deletes a node from a doubly linked list

List status

determinatio

LOS_ListEmpty Determines whether a doubly linked list is empty

Node

deletion and

list

initialization

LOS_ListDelInit Deletes a node from a doubly linked list

Uses the node to initialize a doubly linked list

Development Process

The doubly linked list development process is as follows:

1. Call the LOS_InitList API to initialize a doubly linked list.

2. Call the LOS_ListAdd API to insert a node into the list.

3. Call the LOS_ListTailInsert API to insert a node into the tail of the list.

4. Call the LOS_ListDelete API to delete a node from the list.

5. Call the LOS_ListEmpty API to determine whether the doubly linked list is empty.

6. Call the LOS_ListDelInit API to delete a node and use the node to initialize the doubly

linked list.

3.11.3 Precautions

lWhile inserting or deleting a node from a doubly linked list, ensure that the direction of

pointers of adjacent nodes is correct.

LiteOS

Developer Guide 3 Basic Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

3.11.4 Programming Example

Example Description

Before using a doubly linked list, ensure that sufficient memory space is available to store the

list. After deleting a node from the list, do not forget to free up the memory occupied by the

node.

In the programming example, the following steps will be performed:

1. Initialize a doubly linked list.

2. Insert a node into the list.

3. Delete a node from the list.

4. Check whether the insertion and deletion was successful.

Example Code

The code is as follows:

#include "stdio.h"

#include "los_list.h"

#ifdef __cplusplus

#if __cplusplus

extern "C" {

#endif /* __cpluscplus */

static UINT32 DLlist_sample(VOID)

{

LOS_DL_LIST DLlist = {NULL,NULL};

LOS_DL_LIST DLlistNode01 = {NULL,NULL};

LOS_DL_LIST DLlistNode02 = {NULL,NULL};

LOS_DL_LIST DLlistNode03 = {NULL,NULL};

PRINTK("Initial head\n");

LOS_ListInit(&DLlist);

LOS_ListAdd(&DLlist,&DLlistNode01);

if (DLlistNode01.pstNext == &DLlist && DLlistNode01.pstPrev == &DLlist)

{

PRINTK("Add DLlistNode01 success \n");

}

LOS_ListTailInsert(&DLlist,&DLlistNode02);

if (DLlistNode02.pstNext == &DLlist && DLlistNode02.pstPrev == &DLlistNode01)

{

PRINTK("Tail insert DLlistNode02 success \n");

}

LOS_ListHeadInsert(&DLlistNode02,&DLlistNode03);

if (DLlistNode03.pstNext == &DLlist && DLlistNode03.pstPrev == &DLlistNode02)

{

PRINTK("Head insert DLlistNode03 success \n");

}

LOS_ListDelInit(&DLlistNode03);

LOS_ListDelete(&DLlistNode01);

LOS_ListDelete(&DLlistNode02);

if (LOS_ListEmpty(&DLlist))

{

PRINTK("Delete success \n");

LiteOS

Developer Guide 3 Basic Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

}

return LOS_OK;

}

#ifdef __cplusplus

#if __cplusplus

}

#endif /* __cpluscplus */

Verification

The verification result is as follows:

Initial head

Add DLlistNode01 success

Tail insert DLlistNode02 success

Head insert DLlistNode03 success

Delete success

LiteOS

Developer Guide 3 Basic Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

4 Extended Kernel

About This Chapter

4.1 Dynamic Loading

4.2 Scatter Loading

4.3 Exception Management

4.4 CPU Utilization Percentage

4.5 Linux Adaption

4.6 C++ Support

4.7 MMU

4.8 Atomic Operation

4.9 Run-Stop

4.1 Dynamic Loading

4.1.1 Overview

Basic Concept

Dynamic loading is a program loading technology.

Static linking is to link all module files of a program into an executable file, so that these files

can be loaded into the memory as a whole. Dynamic loading enables developers to compile

each module of a program into an independent file for dynamic loading into the memory,

instead of linking all modules.

Static linking links all module files of a program together and loads them into memory at one

time, featuring fast code loading. However, when a large program is involved and the modules

in it need to be frequently changed and upgraded, static linking might waste the memory and

disk space and make module upgrade difficult.

LiteOS

Developer Guide 4 Extended Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

Dynamic loading is better than static linking in this scenario. An external module can be

dynamically loaded or unloaded as required, helping share public code and smoothly upgrade

modules.

In Huawei LiteOS, two file formats are supported: OBJ and SO.

SO files (or OBJ files) and the bin system image file required for dynamic loading are used

together.

Related Concept

Symbol Tables

Symbol tables are arrays that record symbol names and the address information of the

symbols in the memory. Symbol tables are loaded to the symbol management structure of the

dynamic loading module when the dynamic linker is initialized. When a symbol needs to be

relocated during module loading, the dynamic linker obtains the symbol address by searching

the symbol management structure.

4.1.2 Development Guidelines

Functions

API Description

LOS_LdDestroy Destroys a dynamic loading module.

LOS_SoLoad Dynamically loads an so module.

LOS_ObjLoad Dynamically loads an obj module.

LOS_FindSymByName Searches for a symbol address in a module

or symbol table.

LOS_ModuleUnload Unloads a module.

LOS_PathAdd Adds a module search path.

LOS_DynParamReg Sets dynamic loading parameters.

Development Process

The implementation of dynamic loading involves the following steps:

LiteOS

Developer Guide 4 Extended Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

1. Preparing the Compilation Environment

2. Preparing the .o and .so Files and Compiling the System Image

3. Applying Dynamic Loading

4. Preparing the System Environment

Preparing the Compilation Environment

Step 1 Add compilation options of the .o module and the .so module.

lAdd -mlong-calls -nostdlib -fno-PIC to the compilation options of .o modules.

lAdd mlong-calls -nostdlib -fPIC -shared to the compilation options of .so modules.

NOTE

Determine whether to use the following compilation option based on your needs.

-z max-page-size=value

This compilation option is used to set loadable program segments to be aligned to value. This

compilation option helps reduce the blank areas required for the alignment of the virtual addresses of

adjacent loadable segments.

If this compilation option is not used, the default alignment is 0x10000.

NOTE

To implement the dynamic loading in an IP camera (IPC), the start addresses of all nodal regions of the

LD_SHT_PROGBITS and LD_SHT_NOBITS types in the module files must be on the boundary of

four bytes. Otherwise, the modules will not be loaded.

The following is an example of adding compilation options of .o and .so modules:

RM = -rm -rf

CC = arm-hisiv500-linux-gcc

SRCS = $(wildcard *.c)

OBJS = $(patsubst %.c,%.o,$(SRCS))

SOS = $(patsubst %.c,%.so,$(SRCS))

all: $(SOS)

$(OBJS): %.o : %.c

@$(CC) -mlong-calls -nostdlib -c $< -o $@

$(SOS): %.so : %.c

@$(CC) -mlong-calls -nostdlib $< -fPIC -shared -o $@

clean:

@$(RM) $(SOS) $(OBJS)

.PHONY: all clean

Step 2 Compile the system image.

The makefile used to compile the bin system image file must include the config.mk file under

the root directory. The LITEOS_CFLAGS or the LITEOS_CXXFLAGS compilation option

in the makefile should be used. The code is similar to the following:

LITEOSTOPDIR ?= ../..

SAMPLE_OUT = .

include $(LITEOSTOPDIR)/config.mk

RM = -rm -rf

LITEOS_LIBDEPS := --start-group $(LITEOS_LIBDEP) --end-group

LiteOS

Developer Guide 4 Extended Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

SRCS = $(wildcard sample.c)

OBJS = $(patsubst %.c,$(SAMPLE_OUT)/%.o,$(SRCS))

all: $(OBJS)

clean:

@$(RM) *.o sample *.bin *.map *.asm

$(OBJS): $(SAMPLE_OUT)/%.o : %.c

$(CC) $(LITEOS_CFLAGS) -c $< -o $@

$(LD) $(LITEOS_LDFLAGS) -uinit_jffspar_param --gc-sections -Map=$(SAMPLE_OUT)/

sample.map -o $(SAMPLE_OUT)/sample ./$@ $(LITEOS_LIBDEPS) $(LITEOS_TABLES_LDFLAGS)

$(OBJCOPY) -O binary $(SAMPLE_OUT)/sample $(SAMPLE_OUT)/sample.bin

$(OBJDUMP) -d $(SAMPLE_OUT)/sample >$(SAMPLE_OUT)/sample.asm

----End

Preparing the .o and .so Files and Compiling the System Image

Perform the following steps to compile the system image:

Step 1 Compile .o modules and .so modules and copy the .o and .so files required for system running

to a directory, such as the following directory:

/home/wmin/customer/out/so

NOTE

lIf a.so needs to call functions in b.so, or a.so uses data in b.so, a.so depends on b.so.

la.so depends on b.so, and b.sob.so needs to be automatically loaded when a.so is being loaded, b.so

should be a compilation parameter during the compilation of a.so. If b.so is not a compilation

parameter during the loading of a.so, load b.so before loading a.so.

Step 2 Access the Huawei_LiteOS/tools/scripts/dynload_tools directory and run the sym.sh script

as follows:

$ ./sym.sh /home/wmin/customer/out/so

NOTE

lPass in the absolute path to the directory that stores the .o and .so files required for system running

to the sym.sh script.

lIf the required .o and .so files are updated, run the sym.sh script again. This script extracts all system

symbols of the .o and .so files to be loaded. The compiler will calculate the addresses of those

symbols when compiling the system image.

lRun this command under the Huawei_LiteOS/tools/scripts/dynload_tools directory.

Step 3 Compile the .bin system image file. For example, if the .bin file is saved in the /home/wmin/

customer/out/bin/ directory, the sample image file and the sample.bin file to be burnt into

the Flash memory are generated in this directory after compilation.

NOTE

If the .o and .so files to be loaded contain undefined external symbols, which are neither defined in the .o

and .so files nor valid external symbols, an error message will be prompted during the compilation of

the .bin system image file. Troubleshoot the error to ensure the correct compilation.

----End

Applying Dynamic Loading

Step 1 Specify the loading policy for SO files.

LiteOS

Developer Guide 4 Extended Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

lIf you are loading OBJ files, ignore this step.

lIn various application scenarios, SO files may be stored in storage media in ZIP or

NOZIP format. Operations of reading and writing into ZIP files differ from those for

NOZIP files. Therefore, the loading policy of SO files needs to be specified before the

initialization of the dynamic loading module.

DYNLOAD_PARAM_S stDynloadParam = {ZIP}; //Specify the ZIP or NOZIP loading policy.

LOS_DynParamReg(&stDynloadParam);

The LOS_DynParamReg() function only specifies the loading policy. The specified loading

policy will be adopted during subsequent loading of SO files.

The ZIP loading policy must be adopted for so files in the ZIP format. Common SO files can

be successfully loaded when either one policy is adopted, and the NOZIP policy is

recommended. If no policy is specified, the NOZIP policy is adopted by default.

NOTE

NOZIP policy: Common so files can be read through multiple calls to lseek() and read(). To read a so

file, the size of the loadable segment is first calculated based on the SegmentHeader of the file. Then

memory of the same size is allocated to the segment, and the segment is loaded into memory. In this

way, a small segment of the file is read each time without wasting memory.

ZIP policy: A ZIP file must be loaded into memory (mem1) as a whole. However, the size of the

loadable segment of the file is unknown during the first reading, indicating that memory (mem2) needs

to be then reallocated to the loadable segment. mem2 also contains all information required for dynamic

loading as mem1 does, and mem1 will not be used for dynamic loading. Therefore, the coexistence of

mem1 and mem2 will cause memory waste and overhigh peak memory usage. To solve these problems,

the ZIP policy is adopted, and the ZIP file are read for twice. At the first time, the size of the memory

required for the loadable segment is calculated, after which the memory allocated to the calculation is

immediately released. At the second time, the loadable segment is loaded into memory. In this way, the

ZIP policy is used to avoid overhigh peak memory usage at the cost of using one more instruction.

Step 2 Load a module.

lThe dynamic loading module of an IP camera (IPC) supports the dynamic loading of .o

modules and .so modules. Call the LOS_ObjLoad API to dynamically load .obj files.

if ((handle = LOS_ObjLoad("/yaffs/bin/dynload/foo.o")) == NULL){

printf("load module ERROR!!!!!!\n");

return 1;

}

lCall the LOS_SoLoad API to dynamically load .so files.

if ((handle = LOS_SoLoad("/yaffs/bin/dynload/foo.so")) == NULL){

printf("load module ERROR!!!!!!\n");

return 1;

}

When module A of an .so file depends on module B, and the dependency is specified

with B.so being a compilation parameter during the compilation of A.so, module B will

be automatically loaded during the loading of module A. If the dependency is not

specifed, ensure that module B has been successfully loaded during the loading of

module A.

Step 3 Obtain the address of a symbol.

lSearch for a symbol in a specified module.

When searching for a symbol in a specified module, call the LOS_FindSymByName API

and set the first argument value to the handle of the module in which the symbol is

searched for.

if ((ptr_magic = LOS_FindSymByName(handle, "os_symbol_table")) == NULL) {

printf("symbol not found\n");

return 1;

}

LiteOS

Developer Guide 4 Extended Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

lSearch for a symbol in the global symbol table.

When searching for a symbol in the global symbol table (OS modules including your

modules and other user modules), call the LOS_FindSymByName API and set the first

argument value to NULL.

if ((pFunTestCase0 = LOS_FindSymByName(NULL, "printf")) == NULL) {

printf("symbol not found\n");

return 1;

}

Step 4 Use the obtained symbol address: LOS_FindSymByName returns a symbol address (VOID

*pointer). You can change the type of the symbol that is located at this address for different

use. The following examples describe the use of two types of symbols:

lInteger symbol (data symbol)

test.c needs to be loaded, and the global variable g_uwTest = 0 is available.

Run the following code to obtain the address of g_uwTest:

const char *g_pscOsOSSymtblFilePath = "/yaffs/bin/dynload/test.so";

UINT32 * g_uwTestPtr = NULL;

INT8 *pPtr = (INT8 *)NULL;

if ((pOSSymtblHandler = LOS_SoLoad(g_pscOsOSSymtblFilePath)) == NULL) {

return LOS_NOK;

}

if ((pPtr = LOS_FindSymByName(pOSSymtblHandler, g_uwTest)) == NULL) {

printf("os_symtbl not found\n");

return LOS_NOK;

}

g_uwTest = (UINT32 *)pPtr;/* Forcibly change the pointer type to a real

pointer type */

lFunction symbol

The test_0 function expecting no arguments and the test_2 function expecting two

arguments are defined in foo.c. foo.o can be generated by compiling foo.c. The following

code shows how to obtain and call the functions in the foo.o module in demo.c.

foo.c：

int test_0(void) { return 0; }

int test_2(int i, int j) { return 0; }

demo.c

typedef unsigned int (* TST_CASE_FUNC)();/* Declaration of the type of the

pointer to a function that expects no parameters */

typedef unsigned int (* TST_CASE_FUNC1)(UINT32); /* Declaration of the type

of the pointer to a function that expects one parameter */

typedef unsigned int (* TST_CASE_FUNC2)(UINT32, UINT32); /* Declaration of

the type of the pointer to a function that expects two parameters */

TST_CASE_FUNC pFunTestCase0 = NULL;/* Definition of a pointer to a function

TST_CASE_FUNC2 pFunTestCase2 = NULL;

handle = LOS_ObjLoad("/yaffs/bin/dynload/foo.o");

pFunTestCase0 = NULL;

pFunTestCase0 = LOS_FindSymByName(handle, "test_0")；

if (pFunTestCase0 == NULL){

printf("can not find the function name\n");

return 1;

}

uwRet = pFunTestCase0();

pFunTestCase2 = NULL;

pFunTestCase2 = LOS_FindSymByName(NULL, "test_2");

if (pFunTestCase2 == NULL){

printf("can not find the function name\n");

return 1;

}

uwRet = pFunTestCase2(42, 57);

LiteOS

Developer Guide 4 Extended Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

Step 5 Unload the module.

Call the LOS_ModuleUnload API to unload a module and use the handle of the module to be

unloaded as the input parameter. Call the LOS_ModuleUnload API to unload an .obj file

handle or an .so file handle that has been loaded.

uwRet = LOS_ModuleUnload(handle);

if (uwRet != LOS_OK) {

printf("unload module failed");

return 1;

}

Step 6 Destroy the dynamic loading module.

Call the LOS_LdDestroy API to destroy the dynamic loading module when it is no longer in

need.

NOTE

All modules that have been loaded will be automatically unloaded when the dynamic loading module is

destroyed.

LOS_LdDestroy();

NOTE

The dynamic loading module should be destroyed when services no longer need it.

Step 7 Use relative paths.

If you want to use relative paths, specifically, if you use mechanisms similar to environment

variables, call the LOS_PathAdd API to add the relative paths.

uwRet = LOS_PathAdd("/yaffs/bin/dynload");

if (uwRet != LOS_OK) {

printf("add relative path failed");

return 1;

}

After the relative paths are added, pass in file names instead of absolute paths when you call

the LOS_SoLoad and LOS_ObjLoad APIs. Then the modules with the passed-in file names

will be automatically located in the added relative paths.

If the passed-in multiple paths contain modules with the same file name, the module in the

first passed-in path will be loaded.

NOTE

lA relative path can be used only after it is added by calling the LOS_PathAdd API.

lYou can add multiple relative paths by calling the LOS_PathAdd API for multiple times.

----End

Preparing the System Environment

SO files (or OBJ files) and the .bin system image file are used together.

The SO files (or OBJ files) must be stored in file systems such as JFFS2, YAFFS, and FAT.

Perform the following steps:

Step 1 Burn the .bin system image file to the Flash. This image does not enable the dynamic loading

function.

LiteOS

Developer Guide 4 Extended Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

Step 2 If the SO files (or OBJ files) are stored on a hot-swappable SD card, update the SO files (or

OBJ files) to a specified path on the SD card.

Step 3 If the SO files (or OBJ files) are stored in JFFS2 or YAFFS, update the SO files (or OBJ files)

in the following ways:

lBurn the file system image.

lAfter Huawei LiteOS is started, run the tftp command similar to the following to

download the SO files (or OBJ files) and the elf_symbol.so file:

tftp -g -l /yaffs0/foo.so -r foo.so 10.67.211.235

Step 4 Enable dynamic loading.

----End

Shell Debugging

Some commands related to dynamic loading are encapsulated in Shell for debugging.

For details on Shell commands, see Command Reference.

lLoading a Module

Shell command: mopen

Huawei LiteOS# mopen /yaffs/bin/dynload/foo.o

module handle: 0x80391928

Huawei LiteOS#

NOTE

The path to the module to be loaded must be an absolute path.

lSearching for a Symbol

Shell command: findsym

Huawei LiteOS# findsym 0 printf

symbol address:0x8004500c

Huawei LiteOS#

Huawei LiteOS# findsym 0x80391928 test_0

symbol address:0x8030f241

Huawei LiteOS#

lCalling a Symbol

Shell command: call

Huawei LiteOS# call 0x8030f241

test_0

Huawei LiteOS#

lUnloading a Module

Shell command: mclose

Huawei LiteOS# mclose 0x80391928

Huawei LiteOS#

lDestroying a Dynamic Loading Module

Shell command: lddrop

Huawei LiteOS# lddrop

Huawei LiteOS#

NOTE

If no errors are returned, the dynamic linker is successfully destroyed.

LiteOS

Developer Guide 4 Extended Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

4.1.3 Precautions

lThe -mlong-calls -nostdlib -fno-PIC option needs to be added to the compilation options

of .o modules.

lThe -mlong-calls -nostdlib -fPIC -shared option needs to be added to the compilation

options of .so modules.

lBefore the compilation of the system image, the required .o and .so files must be

available to ensure that the external symbols used by the files have been integrated into

the system image when the image file is being compiled.

lHuawei LiteOS dynamic loading requires that the start addresses of

LD_SHT_PROGBITS and LD_SHT_NOBITS nodal regions in the module file must be

aligned by four bytes. Otherwise, the module will not be loaded.

lWhile loading a library file, once Huawei LiteOS detects that the external symbols

referenced by this file are repeatly defined in multiple modules that have no dependency

relationships with this file, the relocation of the symbol references will be rejected. Then

the library file fails to be loaded. Ensure that no symbols (variables or functions) that are

repeatly defined exist in the library file to be loaded.

lEnsure that the sources of the files to be loaded are reliable and secure.

lProblematic loaded files will result in problems including but not limited to device

damage, data leakage, and data tampering, for which Huawei assumes no responsibility.

lDo not load files from high-risk media such as SD cards or USB flash drives. If such file

loading is necessary, ensure that the files are reliable. Huawei is not liable for any loss or

problems caused thereby.

4.1.4 Programming Example

Example Description

The test_0 function expecting no parameters and the test_2 function expecting two parameters

are defined in foo.c. foo.o can be generated by compiling foo.c. The following code shows

how to obtain and call the functions in the foo.o module in demo.c.

Example Code

The code is as follows:

foo.c:

int test_0(void) { printf("test_0\n"); return 0; }

int test_2(int i, int j) { printf("test_2: %d %d\n", i, j); return 0; }

demo.c:

typedef int (* TST_CASE_FUNC)(); /* Declaration of the type of the pointer to a

function that expects no parameters */

typedef int (* TST_CASE_FUNC1)(UINT32); /* Declaration of the type of the

pointer to a function that expects one parameter */

typedef int (* TST_CASE_FUNC2)(UINT32, UINT32); /* Declaration of the type of

the pointer to a function that expects two parameters */

unsigned int uwRet;

TST_CASE_FUNC pFunTestCase0 = NULL;/* Definition of a pointer to a function */

TST_CASE_FUNC2 pFunTestCase2 = NULL;

handle = LOS_ObjLoad("/yaffs/bin/dynload/foo.o")；

pFunTestCase0 = NULL;

pFunTestCase0 = LOS_FindSymByName(handle, "test_0");

if (pFunTestCase0 == NULL){

printf("can not find the function name\n");

return 1;

LiteOS

Developer Guide 4 Extended Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

}

uwRet = pFunTestCase0(); /* Call the pointer to this function */

pFunTestCase2 = NULL;

pFunTestCase2 = LOS_FindSymByName(NULL, "test_2");

if (pFunTestCase2 == NULL){

printf("can not find the function name\n");

return 1;

}

uwRet = pFunTestCase2(42, 57); /* Call the pointer to this function */

uwRet = LOS_ModuleUnload(handle);

if (uwRet != LOS_OK) {

printf("unload module failed");

return 1;

}

uwRet = LOS_LD_Destroy();

if (uwRet != LOS_OK) {

printf("destroy dynamic loader failed");

return 1;

}

Verification

The verification result is as follows:

Huawei LiteOS#

*****************************

test_0

test_2:42 57

*****************************

Complete Code

sample_foo.c

sample_Dynamic_loading.c

4.2 Scatter Loading

4.2.1 Overview

Basic Concept

Scatter loading is a technology that achieves fast boot of specified code. It shortens the time

between the boot of an OS and the execution of specified code by preferentially loading

specified code into memory. In this way, scatter loading can be used to fast boot key services.

An embedded OS loads image files on the flash memory into memory through uboot. Image

files are probably large and the speed of flash reading is limited. Therefore, the requirements

on the boot speed of time-sensitive services probably cannot be met if all images are executed

after they are loaded.

Scatter loading enables the fast boot of key services by preferentially loading and executing

some images containing time-sensitive services.

Scatter Loading in Huawei LiteOS

The scatter loading in Huawei LiteOS consists of two phases. Images of key services are

loaded into memory through uboot and executed in the first phase, and the remaining images

LiteOS

Developer Guide 4 Extended Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

are loaded into memory and executed in the second phase. By properly organizing image

loading, loading part of the images containing key services in the first phase is faster than

loading all images, which shortens the time between the boot of an OS and the running of key

services.

On Huawei LiteOS implemented on an IP camera (IPC), it takes 1s from powering on camera

to starting preview, far shorter than the time (3s to 4.5s) taken on Linux because the scatter

loading technology is applied.

Operation Mechanism

Scatter loading is used to preferentially load and execute the time-sensitive services by putting

the data and code segments related to these services at the front-end of image files and

loading the images at the front-end in the first phase of scatter loading, which enables time-

sensitive services to run within the shortest time.

After these services are executed, the scatter loading API is called in the code used in the first

phase to load the rest images and run the services specified by the rest images.

Figure 4-1 Scatter loading process

The internal conceptual diagram of scatter loading is shown in figure 2.

LiteOS

Developer Guide 4 Extended Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

Figure 4-2 Internal conceptual diagram of scatter loading

Scatter loading enables the key services to be loaded and executed first, after which the non-

key services are loaded.

4.2.2 Development Guidelines

Usage Scenarios

The scatter loading is applied in the scenario where fast boot of time-sensitive services is

needed.

On an embedded OS, some services require short boot time. For example, in Huawei LiteOS

on an IPC, the time required from powering on the camera and starting preview needs to be

short, and the scatter loading technique can be adopted to enable fast boot of the recording

service.

Functions

The scatter loading module of Huawei LiteOS provides the following function:

Type API Description

Scatter

loading API

LOS_ScatterLoad This API is called in the last phase of scatter loading

to load the rest non-urgent services from images.

Development Process

The following figure shows the operation process of scatter loading:

LiteOS

Developer Guide 4 Extended Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

Step 1 Call the LOS_ScatterLoad API and write service code.

The code entry is the app_init function contained in the os_adapt.c file. Following the code

for loading urgent services, write the code used to call the LOS_ScatterLoad API for scatter

loading. Enable the MAKE_SCATTER_IMAGE macro to control the compilation of the code

for non-urgent services. The example code is as follows:

void app_init() {

proc_fs_init();

hi_uartdev_init();

system_console_init("/dev/uartdev-0");

LOS_CppSystemInit((unsigned long)&__init_array_start__, (unsigned

long)&__init_array_end__, BEFORE_SCATTER);

LOS_ScatterLoad(0x100000, flash_read, NAND_READ_ALIGN_SIZE);

#ifndef MAKE_SCATTER_IMAGE /* The following are non-urgent services. */

LOS_CppSystemInit((unsigned long)&__init_array_start__, (unsigned

long)&__init_array_end__, AFTER_SCATTER);

extern unsigned int osShellInit(void);

osShellInit();

rdk_fs_init();

SDK_init();

hi_product_driver_init();

char *apszArgv[3]={"vs_server","./higv.bin","-i"};

vs_server(3, apszArgv);

#endif /* MAKE_SCATTER_IMAGE */

}

LiteOS

Developer Guide 4 Extended Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

NOTE

The os_adapt.c file can be found in the platform/bsp/hi3516a/os_adapt directory in the Huawei

LiteOS code package.

Step 2 Configure the SCATTER_SRC variable.

Run the following command to set the SCATTER_SRC variable in Makefile under the root

directory to the source file of the services that call the scatter loading function.

LITEOSTOPDIR represents the root directory of Huawei LiteOS code.

SCATTER_SRC := $(LITEOSTOPDIR)/platform/bsp/$(LITEOS_PLATFORM)/os_adapt/os_adapt.c

Step 3 Run the make scatter command to compile the images of urgent services.

Run the following command under the root directory, and the service code following "#ifndef

MAKE_SCATTER_IMAGE" will not be compiled. Then the compilation system

automatically calls the tool chain to extract the symbol table of the smallest image and the .a

library list of the smallest image.

Huawei_LiteOS$ make scatter

Step 4 Run the make command to compile all images.

lRun the following command under the root directory to compile all service code.

Huawei_LiteOS$ make

After compilation, information about the size of urgent service images will be returned,

which is similar to the following:

lView the image segment allocation. If there are scatter loading segments in the images,

the scatter loading is successfully started. In the directory where system images are

generated, for example, out/hi3516a of the hi3516a platform, run the readelf -S

vs_server command to open the system image file vs_server. Information similar to the

following will be displayed, including segment name, start address, and offset. In the

following figure, .fast_rodata, .fast_text, and .fast_data indicate the read-only segment,

code segment, and data segment of scatter loading respectively.

View the .text segment in the link script of scatter loading. scatter.o(*.text*) is added, as

shown in the following figure, indicating that symbols related to the fast booted code of

scatter loading are placed in the same area.

LiteOS

Developer Guide 4 Extended Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

NOTE

The path to the link script of the scatter loading is Huawei_LiteOS/tools/scripts/ld/scatter.ld.

Step 5 Run the tftp 0x82000000 vs_server.bin;nand erase 0x100000 0x700000;nand write

0x82000000 0x100000 0x700000; command to burn all images into the Flash.

In the serial port tool interface, enter the following command to burn all images into the Flash

at the address of 0x100000.

tftp 0x82000000 vs_server.bin;nand erase 0x100000 0x700000;nand write 0x82000000

0x100000 0x700000;

vs_server.bin in the command is the name of system image file. Burn this file into memory at

the address of 0x82000000. Then burn it into the Flash starting at the the address of

0x100000. The size of file to be burnt is 0x700000, indicating that the size of the burnt image

file must not exceed 7 MB, adjust to actual size.

Step 6 Run the nand read 0x80008000 0x100000 0x4E0000; go 0x80008000; command to read the

urgent service images of 0x4E0000 from the address of 0x100000 in the Flash and load urgent

services to the address of 0x80008000.

nand read 0x80008000 0x100000 0x4E0000; go 0x80008000;

Step 7 Restart Huawei LiteOS, and urgent services will be loaded first, and then non-urgent services

will be automatically loaded. Huawei LiteOS automatically restarts and loads the urgent

service images at the address of 0x80008000.

----End

4.2.3 Precautions

lThe OS will be abnormal if the data copied in the first phase is not sufficient or the offset

addresses are not aligned based on different storage media. Therefore, the size of images

to be loaded by uboot needs to be the size returned when the compilation ends.

lThe library file list to be extracted needs to be the superset that supports the running of

the key services. Otherwise, the code used in the first phase of scatter loading will access

the code or data that will be loaded into memory in the second phase, and the OS will be

abnormal.

lDuring scatter loading, a variable value might be changed after the variable is run in the

first phase, but after the variable is loaded and run in the second phase the value is

changed into an uninitialized value. This problem occurs when the variable is used in the

first phase but it is not put into the fast-booted segment together with other variables

used in the first phase. The solution is to put this variable into the fast-booted segment

and ensure that all data used in the first phase is in the fast-booted segment.

4.2.4 FAQs

This section describes problems encountered during using scatter loading and solutions.

lLacking the .o file.

arm-hisiv300-linux-ld: cannot find libscatter.O

make: *** [vs_server] Error 1

This problem occurs because the .o file is not generated after the link script is modified.

The solution is to generate the .o file and save it in the object directory.

lSome symbols are not defined.

/usr1/xxxxx/gerrit_code/modify-debug/liteos_ipc/out/lib/

libar6003.a(ar6000_drv.o): In function `ar6000_avail_ev':

LiteOS

Developer Guide 4 Extended Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

/usr1/xxxxx/gerrit_code/modify-debug/liteos_ipc/vendor/ar6k3_wifi/AR6003/

host/qca/source/ar6000_drv.c:1553: undefined reference to

`wireless_init_event'

/usr1/xxxxx/gerrit_code/modify-debug/liteos_ipc/out/lib/

libar6003.a(drv_config.o): In function `ar6000_tkip_micerr_event':

/usr1/xxxxx/gerrit_code/modify-debug/liteos_ipc/vendor/ar6k3_wifi/AR6003/

host/qca/source/drv_config.c:1856: undefined reference to

`wireless_send_event'

make: *** [vs_server] Error 1

This problem occurs because some useful .a files are removed when the link script is

modified. Run the grep command to search for undefined variables under the out/lib

directory. Add the .a files that contain these variables and are not in the link script to the

link script.

lInstruction exception.

If the PC position is beyond the range of files that are loaded in the first phase of scatter

loading when the exception occurs, this problem occurs when the library file list used in

the first phase does not cover all files to be loaded, and some symbols are not put into the

code and data segments that are loaded in the first phase. Use the image disassembly file

to locate the name of the function where the abnormal PC is located, find the library

where this function belongs, and add the library to the library file list.

4.3 Exception Management

4.3.1 Overview

Basic Concept

Exception management is a set of actions taken to handle an exception. For example, when

the operating system encounters an exception, it prints information about the CPU condition,

task stacks, and function call stacks.

Exception management is a useful debugging approach. It provides the exception information

required for fault diagnosis. The information includes the exception type and system state at

the time of exception.

When an exception occurs, Huawei LiteOS displays the CPU condition and the task

information including task name, task ID, and stack size.

Operation Mechanism

Stacks Analysis

lR11 is used as a general register or as a frame pointer (FP) register with backtrace stacks

if specified compilation options are enabled.

By default, R11 is used by the GNU Compiler Collection (GCC) as a general register

with store variables and cannot backtrace stacks. To use R11 as an FP register with

analyze call stacks, enable the -fno-omit-frame-pointer compilation option.

lAn FP register can trace the sequence of functions called by a program.

An FP register points to the stack backtracing structure of the current function. The

returned value is the pointer to the stack backtracing structure established by the parent

function that has called the current function. Others may be deduced by analogy. The

calling relationships among functions can be traced using an FP register.

LiteOS

Developer Guide 4 Extended Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

If an exception occurs during the runtime, the operating system prints the contents of an

FP register, helping you to diagnose the exception by backtracing the sequence of

function calls.

The following figure describes the stack analysis process.

Figure 4-3 Stack analysis process

Registers in different colors represent different functions. The FP register backtraces the

parent function of the erroneous function to cast light on the sequence of function calls.

Relationships between Call Stacks

The preceding figure illustrates the working process of stack frame register. The function call

sequence can be deduced by analyzing the stacks step by step. The procedure is as follows:

1. Obtain the value of the current FP register.

2. Subtract the current FP register by 4 bytes to get the current PC value. Check the

execution condition of instructions in the system image by searching the system file

(ELF file) or the image disassembly file (ASM file) based on the PC value.

LiteOS

Developer Guide 4 Extended Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

3. Subtract the FP register by 24 bytes to get the start address of the call stack frame of the

previous function. Subtract the FP register by 16 bytes to get the end SP address of the

previous function. The stack between FP and SP is the call stack frame of the function.

4. The sequence of function calls can be obtained from the PC pointer of the stack frame at

each layer.

4.3.2 Development Guidelines

Exception Types

Exception management provides following exception types:

Exception Name Description Value

OS_EXCEPT_UNDEF_INSTR Undefined instruction exception 1

OS_EXCEPT_SWI Software interrupt exception 2

OS_EXCEPT_PREFETCH_ABORT Instruction pre-fetch exception 3

OS_EXCEPT_DATA_ABORT Data abort exception 4

OS_EXCEPT_FIQ FIQ exception 5

Development Process

In general, exception management fault location process is as follows:

1. Open the .asm file that is generated after compilation.

2. Search the .asm file for the location of PC pointer.

3. Search for a called function by the value of LR.

4. Repeat step 3 to find the abnormal task function.

For details about the fault location process, see Programming Example.

4.3.3 Precautions

lBefore querying information about call stacks, add the compilation option -fno-omit-

frame-pointer. If the option is not added, stack frames are not supported and the FP

4.3.4 Programming Example

Example Description

The panic command triggers a software interrupt exception and the abnormal function is

LOS_Panic. The test_panic code is used to trigger exceptions, and the Huawei LiteOS# panic

code is used to print information about the abnormal call stack.

uwExcType 2 is the software interrupt exception.

The fault location process is as follows:

LiteOS

Developer Guide 4 Extended Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

1. Open the .asm file that is generated by the compiler. Default is vs_server.asm

2. Search the .asm file for the location of PC pointer 80121234.

3. Search for a called function by the value of LR.

4. Determine that g_RunningTask is the task function at the time of exception.

UINT32 test_panic(UINT32 argc, CHAR **args)

{

LOS_Panic("*****Trigger an exception\n");

return;

}

Huawei LiteOS# panic

*****Trigger an exception

uwExcType = 2

puwExcBuffAddr pc = 0x80121234

puwExcBuffAddr lr = 0x80121234

puwExcBuffAddr sp = 0x80e63400

puwExcBuffAddr fp = 0x80e6340c

*******backtrace begin*******

traceback 0 -- lr = 0x80138d04

traceback 0 -- fp = 0x80e635d4

traceback 1 -- lr = 0x80138d88

traceback 1 -- fp = 0x80e635e4

traceback 2 -- lr = 0x801247d4

traceback 2 -- fp = 0x80e635f4

traceback 3 -- lr = 0x801217c4

traceback 3 -- fp = 0x11111111

R0 = 0x1c

R1 = 0x800dba3a

R2 = 0x1b

R3 = 0xfe

R4 = 0x80e634a0

R5 = 0x0

R6 = 0x800cc7f8

R7 = 0x7070707

R8 = 0x8080808

R9 = 0x9090909

R10 = 0x10101010

R11 = 0x80e6340c

R12 = 0x1b

SP = 0x80e63400

LR = 0x80121234

PC = 0x80121234

CPSR = 0x60000013

g_pRunningTask->pcTaskName = shellTask

g_pRunningTask->uwTaskPID = 6

g_pRunningTask->uwStackSize = 12288

4.4 CPU Utilization Percentage

4.4.1 Overview

Basic Concept

CPU usage is classified into system CPU usage and task CPU usage.

System CPU usage refers to the percentage of CPU resources occupied by the operating

system during the measurement period. It is an important way to quantify the workload of the

operating system. System CPU usage ranges from 0% to 100%. The precision is represented

as a percentage and can be adjusted. System CPU usage of 100% indicates the operating

system is fully loaded.

LiteOS

Developer Guide 4 Extended Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

Task CPU usage refers to the ratio of CPU resources occupied by a particular task during the

measurement period. From task CPU usage, you can determine whether the task is busy or

idle. Task CPU usage ranges from 0% to 100%. Task CPU usage of 100% indicates the

operating system keeps the task running throughout the measurement period. Ratios can be

expressed out of various bases, like out of 1,100,1000, etc.

System CPU usage is an important metric to determine whether the operating system is on the

verge of overload.

Query the CPU usage of tasks to determine if they meet the CPU usage requirements you

have laid out during the design phase.

Operation Mechanism

System CPU usage (CPU Percent, CPUP) is broken down into task CPU usage. Each task

switch will generate a record of when the task was started and when it was exited. When the

task is exited, the operating system measures the total runtime of the task.

You can configure the CPU usage control function in the kernel module of menuconfig.

Huawei LiteOS enables you to query the following CPU usage information:

lSystem CPU usage

lTask CPU usage

CPU usage measurement formula:

System CPU usage = runtime of tasks except idle task in the operating system/system total

runtime

Task CPU usage = runtime of a particular task/system total runtime

4.4.2 Development Guidelines

Usage Scenarios

Query system CPU usage regularly to check whether the operating system is on the verge of

overload.

Query thread CPU usage to learn each thread meets the CPU usage requirements you have

laid out during the design phase.

Functions

The CPU usage module of Huawei LiteOS provides the following functions:

Function Category API Description

System CPU usage query LOS_SysCpuUsage Acquires current system

CPU usage

LOS_HistorySysCpuUsage Acquires historical system

CPU usage

Task CPU usage query LOS_TaskCpuUsage Acquires current CPU usage

of a particular task

LiteOS

Developer Guide 4 Extended Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

Function Category API Description

LOS_HistoryTaskCpuUsage Acquires historical CPU

usage of a particular task

LOS_AllTaskCpuUsage Acquires CPU usage of all

tasks

CPU usage reset LOS_CpupReset Reset data of CPU usage

Development Process

The typical CPU usage development process is as follows:

1. Call the LOS_SysCpuUsage API to get CPU usage now.

2. Call the LOS_HistorySysCpuUsage API to get system historical CPU usage.

–Disables interrupts, acquires the task end time, measures the historical CPU usage

of the current task, and restores interrupts.

3. Call the LOS_TaskCpuUsage API to get particular task CPU usage.

–If a particular task is ready, the operating system disables interrupts, acquires the

task end time, and measures the CPU usage of the task.

–If the task has not been created or is not ready, the operating system returns an error

code.

4. Call the LOS_HistoryTaskCpuUsage API to get historical CPU usage of the particular

task.

–If a particular task is ready, the operating system disables interrupts, acquires the

task end time, and measures the historical CPU usage of the task.

–If the task has not been created or is not ready, the operating system returns an error

code.

5. Call the LOS_AllTaskCpuUsage API to get historical CPU usage of all tasks.

–If CPUP is initialized, interrupt will be breaking off. Acquired information

according to different modules, and then interrupt recovery.

–If CPUP is not initialized or it has illegal parameters insert, returning error code.

Platform Differences

None.

4.4.3 Precautions

lOnly product designers need to learn CPU usage of each task. To prevent measurement

of thread CPU usage from adversely impacting system performance, set

LOSCFG_KERNEL_CPUP to NO before releasing your product.

lThe value returned by the interface above is permillage. This value can be divided by

LOS_CPUP_PRECISION_MULT to obtain the corresponding percentage.

LiteOS

Developer Guide 4 Extended Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

4.4.4 Programming Example

Example Description

In the programming example, the following steps will be performed:

1. Create a CPUP test task.

2. Acquire current system CPUP.

3. Acquire historical CPUP of the operating system.

4. Acquire the CPUP of the CPUP test task.

5. Acquire the CPUP of the CPUP test task in different modes.

Example Code

Prerequisite

lThe OS_INCLUDE_CPUP parameter in the los_config.h is set to YES.

The code is as follows:

#include "los_task.h"

#include "los_cpup.h"

#define MODE 4

UINT32 cpupUse;

OS_CPUP_TASK_S pstCpup;

UINT16 pusMaxNum = 0;

UINT32 g_CpuTestTaskID;

VOID Example_cpup()

{

printf("entry cpup test example\n");

while(1) {

usleep(100);

}

UINT32 it_cpup_test()

{

UINT32 uwRet;

TSK_INIT_PARAM_S CpupTestTask;

/*Create a CPUP test task.*/

memset(&CpupTestTask, 0, sizeof(TSK_INIT_PARAM_S));

CpupTestTask.pfnTaskEntry = (TSK_ENTRY_FUNC)Example_cpup;

CpupTestTask.pcName = "TestCpupTsk"; /*Test task name*/

CpupTestTask.uwStackSize = OS_TSK_DEFAULT_STACK_SIZE;

CpupTestTask.usTaskPrio = 5;

CpupTestTask.uwResved = LOS_TASK_STATUS_DETACHED;

uwRet = LOS_TaskCreate(&g_CpuTestTaskID, &CpupTestTask);

if(uwRet != LOS_OK)

{

printf("CpupTestTask create failed .\n");

return LOS_NOK;

}

usleep(100);

/*Acquire current system CPU usage*/

cpupUse = LOS_SysCpuUsage();

printf("the current system cpu usage is: %d\n",cpupUse);

LiteOS

Developer Guide 4 Extended Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

100

/*Acquire historical CPU usage of the operating system within the 1-second

measurement period. There are three types of measurement period: 10s, 1s, and

less than 1s.*/

//cpupUse = LOS_HistorySysCpuUsage(MODE1);

//printf("the history system cpu usage in 10s: %d\n",cpupUse);

//cpupUse = LOS_HistorySysCpuUsage(MODE2);

//printf("the history system cpu usage in 1s: %d\n",cpupUse);

cpupUse = LOS_HistorySysCpuUsage(MODE);

printf("the history system cpu usage in <1s: %d\n",cpupUse);

/*Acquire CPU usage of a particular task (CPUP test task in the programming

example).*/

cpupUse = LOS_TaskCpuUsage(g_CpuTestTaskID);

printf("cpu usage of the CpupTestTask:\n TaskID: %d\n usage: %d

\n",g_CpuTestTaskID,cpupUse);

/*Acquire historical CPU usage of a particular task (CPUP test task in the

programming example) within the measurement period of less than 1 second.*/

cpupUse = LOS_HistoryTaskCpuUsage(g_CpuTestTaskID, MODE);

printf("cpu usage of the CpupTestTask in <1s:\n TaskID: %d\n usage:%d

\n",g_CpuTestTaskID,cpupUse);

return LOS_OK;

}

Verification

The verification result is as follows:

--- Test start---

entry cpup test example

Huawei LiteOS# the current system cpu usage is : 49

the history system cpu usage in <1s: 50

cpu usage of the CpupTestTask:

TaskID:4

usage:17

cpu usage of the CpupTestTask in <1s:

TaskID:4

usage:12

---Test End ---

Complete Code

sample_cpup.c

4.5 Linux Adaption

4.5.1 Completion

4.5.1.1 Overview

Basic Concept

Completion is a supplement to semaphore. It is a lightweight mechanism for task

synchronization. In Linux, up() and down() functions can be executed concurrently in the

same semaphore and in the multi-CPU environment, up() may mistakenly access a semaphore

LiteOS

Developer Guide 4 Extended Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

101

data structure that does not exist. Completion is designed to prevent up() from accessing a

non-existent semaphore data structure.

In the scenario in which task A can be executed only after task B has completed a particular

operation, the completion enables task B to wake up task A at completion of the particular

operation, thereby achieving task synchronization.

In the multi-task environment, tasks need to be synchronized with each other. The completion

mechanism can well serve the purpose.

The realization of the completion mechanism of Huawei LiteOS is similar to the signal

mechanism in system. By calling the kernel function to achieve the function of the completion

mechanism. The completion mechanism of Huawei LiteOS has characters similar to signal

mechanism.

4.5.1.2 Development Guidelines

Usage Scenarios

Use the completion mechanism in the multi-task environment to synchronize one task with

another.

At the core of the completion mechanism is the wait for a completion and task wakeup.

Functions

Function Category API Description

Initialize a completion init_completion Initializes a completion

Wait for a completion wait_for_completion Waits for a completion until

the completion occurs

Wait for a completion in

timeout mode

wait_for_completion_timeo

Waits for a completion for a

specified number of ticks

Wake a completion complete Wakes up the first task

waiting for a completion

Wake a completion complete_all Wakes up all tasks waiting

for a completion

Development Process

The typical development process of the completion mechanism is as follows:

1. Call the init_completion API to initialize a completion structure.

–Create a completion

2. Call the wait_for_completion_timeout API to wait for a completion in timeout mode.

3. Call the wait_for_completion API to wait for a completion until the completion occurs.

4. Call the complite/complite_all API to wake a completion.

–complete: Wakes up a task waiting for the completion

LiteOS

Developer Guide 4 Extended Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

102

–complete_all: Wakes up all tasks waiting for the completion

4.5.1.3 Precautions

lThe completion mechanism is similar to the semaphore mechanism. Permanent blocking

and timed blocking are not allowed while an interrupt is underway, since interrupts

cannot be blocked.

lThe input parameter to the completion APIs must be a valid completion pointer. For

example, a task is not allowed to wait for a completion while an interrupt is underway.

4.5.1.4 Programming Example

Example Description

In the programming example, the Example_TaskEntry task is executed to create the

Example_Completion task. The Example_Completion task is blocked while waiting for a

completion. Then, the Example_TaskEntry task wakes up the completion. Based on the

information printed on the screen, you can learn the task switching that occurs along with the

completion operation.

1. The Example_TaskEntry task is executed to create the Example_Completion task. The

Example_Completion task takes a higher priority than the Example_TaskEntry task.

2. The Example_Completion task is blocked while waiting for the completion. After the

Example_Completion task is blocked, a task switch occurs and the task with a lower

priority, namely, the Example_TaskEntry task will be executed.

3. The Example_TaskEntry task wakes up the completion. Then, a task switch occurs and

the Example_Completion task will be executed.

4. The Example_Completion task is executed.

5. The Example_TaskEntry task is executed.

Example Code

The code is as follows:

##include "linux/completion.h"

#include "los_task.h"

//#include "osTest.h"

/*Task PID*/

UINT32 g_TestTaskID01;

/*Completion*/

struct completion example_completion;

/*Example task entrypoint function*/

VOID Example_Completion()

{

UINT32 uwRet;

/*Wait for a completion in timeout mode, and the timeout interval is 100

ticks*/

printf("Example_Completion wait completion\n");

uwRet = wait_for_completion_timeout(&example_completion,100);

if(uwRet == 0)

{

printf("Example_Completion,wait completion timeout\n");

}

LiteOS

Developer Guide 4 Extended Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

103

else

printf("Example_Completion,wait completion success\n");

return;

}

UINT32 Example_TaskEntry()

{

UINT32 uwRet;

TSK_INIT_PARAM_S stTask1;

/*Initialize completion*/

init_completion(&example_completion);

/*Create a task*/

memset(&stTask1, 0, sizeof(TSK_INIT_PARAM_S));

stTask1.pfnTaskEntry = (TSK_ENTRY_FUNC)Example_Completion;

stTask1.pcName = "EventTsk1";

stTask1.uwStackSize = OS_TSK_DEFAULT_STACK_SIZE;

stTask1.usTaskPrio = 8;

uwRet = LOS_TaskCreate(&g_TestTaskID01, &stTask1);

if(uwRet != LOS_OK)

{

printf("task create failed \n");

return LOS_NOK;

}

/*Wake up completion*/

printf("Example_TaskEntry complete\n");

complete(&example_completion);

printf("Delete Task.\n");

/*Delete a task*/

uwRet = LOS_TaskDelete(g_TestTaskID01);

if(uwRet != LOS_OK)

{

printf("task delete failed \n");

return LOS_NOK;

}

return LOS_OK;

}

Verification

The verification result is as follows:

Example_Completion wait completion

Example_TaskEntry complete

Example_Completion,wait completion success

Delete Task.

Complete Code

sample_completion.c

4.5.2 Workqueue

LiteOS

Developer Guide 4 Extended Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

104

4.5.2.1 Overview

Basic Concept

Any system modules can place works into a workqueue. Works are processed by the

workqueue (a type of tasks) in the first in first out (FIFO) order. The workqueue processing

task can be re-scheduled or sent to sleep mode.

Works in a workqueue can be processed by a single task, freeing you from the cumbersome

burden of repeatedly creating a task for each work. Moreover, the workqueue processing task

can be re-scheduled or sent to sleep mode instead of being kept running, which reduces the

demand for system resources significantly.

The workqueue mechanism can process works using a single task and provides abundant

external APIs for managing a workqueue. When a work is added to a workqueue, the

workqueue processing task is woken up to process the work. After all works in the workqueue

are processed, the workqueue processing task is sent to sleep mode.

4.5.2.2 Development Guidelines

Usage Scenarios

A workqueue is applicable only in delay-tolerant scenarios because works in the workqueue

can be processed only after the workqueue processing task is executed. Many factors are

considered while determining whether the workqueue processing task can be woken up or

scheduled. For example, the workqueue processing task may be blocked because another task

with a higher priority is waiting to be executed or because an interrupt is underway.

Functions

Function Category API Description

Creating a workqueue create_workqueue Creates a workqueue

Destroying a workqueue destroy_workqueue Destroys a workqueue

Initiating a work INIT_WORK Binds a work to the

processing function

Initiating a delayed work INIT_DELAYED_WORK Binds a delayed work to the

processing function

Placing a work in a

workqueue

queue_work Places a work in a specified

workqueue

Placing a delayed work in a

workqueue

queue_delayed_work Places a delayed work in a

specified workqueue

Placing a work in a

workqueue

schedule_work Places a work in the default

workqueue

Placing a delayed work in a

workqueue

schedule_delayed_work Places a delayed work in the

default workqueue

LiteOS

Developer Guide 4 Extended Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

105

Function Category API Description

Querying work status work_busy Queries the current state of a

work

Processing a delayed work flush_delayed_work Takes the work out of delay

and processes it

immediately

Cancelling a delayed work cancel_delayed_work Cancels a delayed work that

is not executed

Processing a work flush_work Executes a work

immediately

Cancelling a work cancel_work_sync Cancels a work after the

work is executed

Development Process

The typical workqueue development process is as follows:

1. Call the create_workqueue API to create the workqueue processing task.

–Huawei LiteOS initializes a semaphore used for waking up the workqueue

processing task or sending it to sleep mode; initializes important structures; builds a

workqueue linked list.

2. Call the queue_work/queue_delayed_work API to place a work (either normal or

delayed work) in a specified workqueue.

–A normal work can be added to the workqueue immediately, whereas a delayed

work has to wait for a period of time specified by a delay parameter before being

added to the workqueue.

3. Call the cancel_delayed_work/cancel_work_sync API to cancel the normal or delayed

work from the workqueue without processing it.

4. Call the flush_work/flush_delayed_work API to process the work in the workqueue

immediately.

5. Call the destroy_workqueue API to delete the workqueue.

–Huawei LiteOS locks resources, deletes the workqueue processing task, releases the

semaphore and memory, and unlocks resources.

4.5.2.3 Precautions

lDo not use a workqueue in delay-sensitive scenarios because there is much uncertainty

in the time when a task can be scheduled to process a work in a workqueue.

lWorkqueues are identified by their names. Therefore, each workqueue must have a

unique name.

lThe schedule_work or schedule_delayed_work API can be used to place a work in the

default workqueue without first creating a workqueue.

LiteOS

Developer Guide 4 Extended Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

106

4.5.2.4 Programming Example

Example Description

The programming example will cover the following functions:

1. Creating a workqueue named wq_test

2. Allocating and initializing the work memory

3. Placing a work in the work queue

4. Processing a work immediately

5. Destroy the workqueue

Example Code

The code is as follows:

#include "los_config.h"

#include "linux/workqueue.h"

static void work_func(struct work_struct *work)

{

int i;

for (i = 0; i < 2; i++)

{

printk("workqueue function is been called!..%d..%d..\n",i,work-

>work_status);

}

UINT32 It_workqueue_1008()

{

struct workqueue_struct *wq;

struct work_struct *work;

UINT32 uwRet = LOS_OK;

wq = create_workqueue("test1008");

dprintf("create the workqueue successfully!\n\n");

work =(struct work_struct *)malloc(sizeof(struct work_struct));

if (!work)

{

uwRet = LOS_FAIL;

}

dprintf("create work ok!\n\n");

INIT_WORK(work, work_func);

dprintf("init the work ok!\n\n");

uwRet = queue_work(wq, work);

dprintf("mount the work into workqueue successfully!\n\n");

uwRet = flush_work(work);

dprintf("flush the work ok!\n\n");

destroy_workqueue(wq);

dprintf("destroy the work ok!\n\n");

return uwRet;

}

Verification

The verification result is as follows:

LiteOS

Developer Guide 4 Extended Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

107

Complete Code

sample_workqueue.c

4.5.3 Interrupt

4.5.3.1 Overview

Basic Concept

Linux kernel has APIs specially used for interrupts. The interrupt mechanism of Huawei

LiteOS adapts to the interrupt-related Linux APIs, making Huawei LiteOS more user-friendly.

Huawei LiteOS has the following interrupt-related functions:

lRequesting an interrupt

lDeleting an interrupt

lEnabling an interrupt

lMasking an interrupt

lInterrupt bottom half (based on workqueues)

4.5.3.2 Development Guidelines

Functions

The following table lists Linux APIs to which the interrupt module in Huawei LiteOS adapts.

API Description

request_irq Requests an interrupt

free_irq Frees an interrupt

enable_irq Enables an interrupt

disable_irq Disables an interrupt

LiteOS

Developer Guide 4 Extended Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

108

API Description

irq_bottom_half Places the work of interrupt bottom half in

the workqueue

Development Process

1. Call the request_irq API to request an interrupt.

Registers the interrupt handler into the linked list of the interrupt ID based on the input

parameter. Each interrupt ID is allowed to register multiple interrupt handlers.

2. Call the irq_bottom_half to place the interrupt bottom half in the workqueue.

Associates the interrupt bottom half with the time-consuming yet less important work

and places the work of interrupt bottom half in the workqueue. The operating system

executes the interrupt bottom half when idle.

3. Call the enable_irq API to enable an interrupt.

4. Call the disable_irq API to disable an interrupt.

5. Call the free_irq to free an interrupt.

4.5.3.3 Precautions

lWhile calling the request_irq() API, ensure that the input parameter of the interrupt

handler is in the (int, void*) format. While calling the LOS_HwiCreate() API, note that

the input parameter of the interrupt handler can be NULL.

lAn interrupt handler is not allowed to call the request_irq() and free_irq() APIs.

lIf an interrupt ID is shared among external peripherals, interrupts with the interrupt ID

cannot be created using the LOS_HwiCreate() API and the input parameter dev pointer

of the request_irq() API must match the interrupt handler instead of being NULL.

Interrupts created using the LOS_HwiCreate() API cannot be deleted using the free_irq()

API.

lThe work_queue pointer input by the irq_bottom_half() function cannot be an invalid

pointer.

lThe input parameter of the interrupt bottom half is a work pointer. The work is

dynamically requested during the call to the irq_bottom_half() and must be freed while

the interrupt bottom half is being executed. Otherwise, a memory leak occurs.

4.5.3.4 Programming Example

Example Description

The programming example will cover the following functions:

1. Requesting an interrupt

2. Freeing an interrupt

Example Code

Prerequisite

LiteOS

Developer Guide 4 Extended Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

109

lThe OS_INCLUDE_HWI parameter in the los_config.h file is set to YES.

lThe OS_HWI_MAX_USED_NUM parameter in the los_config.h file is set to the

maximum number of hardware interrupts the operating system allows.

The code is as follows:

#include "los_hwi.h"

#define HWI_NUM_INT50 50

void uart_irqhandle_1(int irq,void *dev)

{

printf("\nuart0:the function1 \n");

}

void hwi_test()

{

int a = 1;

void *dev = &a;

unsigned long flags = 0;

const char * name = "hwiTest";

request_irq(HWI_NUM_INT50,uart_irqhandle_1,flags,name,dev);//Create an

interrupt

free_irq(HWI_NUM_INT50,dev);//Delete the interrupt

}

Complete Code

sample_irq.c

4.5.4 High Resolution Timer

4.5.4.1 Overview

Basic Concept

Using hardware timer resources and algorithms, high resolution timers satisfy the requirement

for precise time.

A high resolution timer in Huawei LiteOS is designed with a software architecture and

provides microsecond timing resolution, satisfying applications and kernel drivers' urgent

need for precise time.

4.5.4.2 Development Guidelines

Usage Scenarios

The kernel's software timers provide millisecond timing resolution, which is not high and not

able to meet the high resolution time requirements in some scenarios. High resolution timers

provide timing APIs of microsecond resolution to satisfy preceding-mentioned scenarios.

LiteOS

Developer Guide 4 Extended Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

110

Functions

Function Category API Description

High resolution timer

initialization

hrtimer_init Initializes the resources for a

high resolution timer. This

function has been

implemented during kernel

initialization. This API is

only an adapted Linux API

and is not implemented in

Huawei LiteOS.

High resolution timer

creation

hrtimer_create Sets the timing period and

creates the callback

function.

High resolution timer start hrtimer_start Starts a high resolution

timer.

High resolution timer

cancellation

hrtimer_cancel Cancels the high resolution

timers that have not expired.

Timing period change hrtimer_forward Changes the timing periods

of a high resolution timer

that has not expired.

High resolution timer query hrtimer_is_queued Checks whether a high

resolution timer is created.

true: The specified high

resolution timer is created.

false: The high resolution

timer is not created.

Development Process

The typical process of using a high resolution timer is as follows:

1. Declare a hrtimer variable and a ktime variable

2. Set the values of the sec and usec fields for the ktime variable according to the timing

period.

3. Call the hrtimer_create API to set the timing period and create the callback function.

4. Call the hrtimer_start API to start the high resolution timer.

5. The hrtimer_cancel and hrtimer_forward APIs are provided as extended functions. Use

them as required.

6. The hrtimer_is_queued API helps you find out whether a high resolution timer is created

or expires.

4.5.4.3 Precautions

lThe hrtimer variable required by high resolution timer APIs should be provided by users.

The APIs do not request any resources for the variable.

LiteOS

Developer Guide 4 Extended Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

111

lThe hrtimer_init API is not implemented and is only an adapted Linux API. Therefore,

this API does not need to be called when using high resolution timers.

lCurrently, high resolution timers in Huawei LiteOS support one-off timing mode rather

than periodic timing mode. The periodic timing mode can be achieved by recreating a

high resolution timer.

4.5.4.4 Programming Example

Example Description

The programming example will cover the following functions:

1. Users need to request the pstSwtmr0 and time0 variables.

2. The hrtimer_create API is called to set the timing period and create the callback

function.

3. The hrtimer_start API is called to start a high resolution timer.

4. The hrtimer_forward API is called to change the timing period from 80 ms to 40 ms.

5. The LOS_TaskDelay API is called to delay a task for 50 ms.

6. The hrtimer_cancel is called to cancel a timer. Then the timer is found to have expired

and no longer exists.

Example Code

The code is as follows:

#include "hrtimer.h"

static enum hrtimer_restart hrtimer_func(struct hrtimer *arg)

{

dprintf("The hrtimer is timeout!!!\n");

}

static UINT32 testcase(VOID)

{

struct hrtimer pstSwtmr0;

struct ktime time0;

struct ktime interval = {0};

interval.tv.sec = 0;

interval.tv.usec = 40000;

int ret;

dprintf("----->test start<-----\n");

time0.tv.sec =0;

time0.tv.usec = 80000;

ret = hrtimer_create(&pstSwtmr0, time0, hrtimer_func);

if (ret == 0)

dprintf("Hrtimer ctreate successfully!\n");

ret = hrtimer_start(&pstSwtmr0,time0,MODE_ONCE);

if (ret == 0)

dprintf("Hrtimer start successfully!\n");

ret = hrtimer_forward(&pstSwtmr0, interval);

LOS_TaskDelay(5);

ret = hrtimer_cancel(&pstSwtmr0);

if (ret == 0)

dprintf("Hrtimer already timeout!\n");

LiteOS

Developer Guide 4 Extended Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

112

dprintf("----->test end<-----\n");

return LOS_OK;

}

Verification

The verification result is as follows:

----->test start<-----

Hrtimer ctreate successfully!

Hrtimer start successfully!

The hrtimer is timeout!!!

Hrtimer already timeout!

----->test end<-----

Complete Code

sample_hrtimer.c

4.5.5 Linux APIs

4.5.5.1 Linux Adaption APIs

Huawei LiteOS adapts to the following Linux APIs:

NOTE

"Compatible" indicates that the functions of the API are inherited from Linux, but the error code

returned by the API depends on Huawei's actual code. "Partially compatible" indicates that some

functions of the API are inherited from Linux.

Header File API Function Compatibility

Timer.h add_timer Add a timer. Compatible

atomic.h atomic_add Add an integer

to an atomic

variable.

Compatible

atomic.h atomic_add_retur

Add an integer

to an atomic

variable and

return the new

variable value.

Compatible

atomic.h atomic_dec Decrement an

atomic variable

by one.

Compatible

atomic.h atomic_dec_and_

test

Decrement an

atomic variable

by one and test

whether the

result is zero.

Compatible

LiteOS

Developer Guide 4 Extended Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

113

Header File API Function Compatibility

atomic.h atomic_dec_retur

Decrement an

atomic variable

by one and

return the new

variable value.

Compatible

atomic.h atomic_inc Increment an

atomic variable

by one.

Compatible

atomic.h atomic_inc_retur

Increment an

atomic variable

by one and

return the new

variable value.

Compatible

atomic.h atomic_read Read the value

of an atomic

variable.

Compatible

atomic.h atomic_sub Subtract an

integer from an

atomic variable.

Compatible

string.h bzero Set the first n

bytes of a string

to zero,

including \0.

Compatible

Workqueue.h cancel_delayed_

work

Cancel a

pending delayed

work.

Compatible

Workqueue.h cancel_delayed_

work_sync

Cancel a

pending delayed

work and wait

for its execution

to finish.

Compatible

Workqueue.h cancel_work_syn

Cancel a work

and wait for its

execution to

finish.

Compatible

Completion.h complete Wake up a

thread waiting

on a

completion.

Compatible

Completion.h complete_all Wake up all

threads waiting

on a

completion.

Compatible

LiteOS

Developer Guide 4 Extended Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

114

Header File API Function Compatibility

Crc32.h crc32 Calculate crc. Compatible

Crc32.h crc32_accumulat

Calculate crc. Compatible

Workqueue.h create_singlethre

ad_workqueue

Create a

workqueue.

Compatible

Workqueue.h create_workqueu

Create a

workqueue.

Compatible

Timer.h del_timer Delete a timer. Compatible

Timer.h del_timer_sync Delete a timer. Compatible

Workqueue.h destroy_workque

Destroy a

workqueue.

Compatible

Interrupt.h disable_irq Disable an

interrupt.

Compatible

Kernel.h div_s64 Do a division. Compatible

Kernel.h div_s64_rem Do a division. Compatible

dlfcn.h dlclose Close a dynamic

linking library

that has a

specified

handle.

Compatible

dlfcn.h dlopen Open a dynamic

linking library

and return a

handle for the

dynamic

loading library.

Compatible

dlfcn.h dlsym Take the handle

and symbol for

the dynamic

linking library

and return the

address of the

symbol.

Compatible

Kernel.h do_div_imp Do a division. Compatible

Kernel.h do_div_s64_imp Do a division. Compatible

Rwsem.h down_read Hold a

semaphore for

reading.

Compatible

LiteOS

Developer Guide 4 Extended Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

115

Header File API Function Compatibility

Rwsem.h down_read_trylo

Hold a

semaphore for

reading.

Compatible

Rwsem.h down_write Hold a

semaphore for

writing.

Compatible

Rwsem.h down_write_tryl

ock

Hold a

semaphore for

writing.

Compatible

Interrupt.h enable_irq Enable an

interrupt.

Compatible

Kernel.h ERR_PTR Return an error

code.

Compatible

Fs.h fb_alloc_cmap Allocate

memory for a

color map.

Compatible

Fs.h fb_cmap_to_user Copy a

colormap.

Compatible

Fs.h fb_copy_cmap Copy a

colormap.

Compatible

Fs.h fb_dealloc_cmap Deallocate a

color map that

was previously

allocated.

Compatible

Fs.h fb_default_cmap Set the default

colormap.

Compatible

Fs.h fb_pan_display Refresh the

operation

screen.

Compatible

Fs.h fb_set_cmap Set a colormap. Compatible

Fs.h fb_set_user_cma

Set a colormap. Compatible

Fs.h fb_set_var Set the display

mode of fbinfo

and the variadic

arguments.

Compatible

Workqueue.h flush_delayed_w

ork

Wait for a

delayed work to

finish executing.

Compatible

LiteOS

Developer Guide 4 Extended Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

116

Header File API Function Compatibility

Workqueue.h flush_work Wait for a work

to finish

executing.

Compatible

Fs.h framebuffer_allo

Apply to the

kernel for space.

Compatible

Fs.h framebuffer_rele

ase

Release space to

the kernel.

Compatible

Interrupt.h free_irq Free an

interrupt.

Compatible

Kernel.h hi_sched_clock Return time. Compatible

Completion.h init_completion Initialize a

completion.

Compatible

Workqueue.h INIT_DELAYE

D_WORK

Initialize a

delayed work.

Compatible

List.h INIT_LIST_HE

Initialize a

linked list.

Compatible

Timer.h init_timer Initialize a

timer.

Compatible

Wait.h init_waitqueue_h

ead

Initialize an

existing wait

queue head.

Compatible

Workqueue.h INIT_WORK Initialize a

work.

Compatible

Interrupt.h irq_bottom_half Interrupt bottom

half API.

This API is available in Huawei

LiteOS but is unavailable in

Linux.

Kernel.h IS_ERR Test whether a

returned pointer

is an error code.

Compatible

Rtc.h is_leap_year Determine

whether a

specified year is

a leap year.

Compatible

Jiffies.h jiffies_to_msecs Convert the

number of ticks

that have

occurred since

kernel boot to

milliseconds.

Compatible

LiteOS

Developer Guide 4 Extended Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

117

Header File API Function Compatibility

Kernel.h jiffies_to_tick Convert jiffies

to ticks.

Compatible

Slab.h kfree Free memory. Compatible

Slab.h kmalloc Allocate

memory.

Compatible

Slab.h kzalloc Allocate

memory and

initialize the

memory.

Compatible

List.h list_add Add a linked

list.

Compatible

List.h list_add_tail Add a linked

list.

Compatible

List.h list_del Deleting a

linked list.

Compatible

List.h list_entry Return a pointer

to a structure.

Compatible

List.h list_first_entry Acquire the first

element from a

linked list.

Compatible

List.h list_for_each Traverse a

linked list.

Compatible

List.h list_for_each_ent

Traverse a

linked list.

Compatible

List.h list_for_each_ent

ry_reverse

Traverse a

linked list.

Compatible

List.h list_for_each_ent

ry_safe

Traverse a

linked list.

Compatible

List.h list_for_each_saf

Traverse a

linked list.

Compatible

List.h LIST_HEAD Initialize a

linked list.

Compatible

List.h LIST_HEAD_IN

Initialize a

linked list.

Compatible

List.h list_is_last Test whether an

element is the

last element in a

linked list.

Compatible

LiteOS

Developer Guide 4 Extended Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

118

Header File API Function Compatibility

List.h list_move Move an

element from a

linked list to

another linked

list.

Compatible

string.h memchr Search a

memory area for

a character.

Compatible

string.h memcmp Compare the

first n bytes of

two memory

areas.

Compatible

string.h memcpy Copy content

from a memory

area to a

destination

memory area.

The memory

areas must not

overlap.

Compatible

string.h memmove Copy content

from a memory

area to a

destination

memory area.

The memory

areas may

overlap.

Compatible

string.h memset Set the n bytes

of a memory

area to a

specific value.

Compatible

Timer.h mod_timer Add a timer. Compatible

mount.h mount Mount a

specified system

partition to a

folder.

Partially compatible

delay.h msleep Cause a

program sleep

for some

milliseconds.

Compatible

LiteOS

Developer Guide 4 Extended Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

119

Header File API Function Compatibility

prctl.h prctl Specify

operations on a

process. In

Linux, this API

supports

multiple

parameters,

whereas in

Huawei LiteOS,

only

PR_SET_NAM

E can be set to

the thread name.

When creating a

thread by using

the POSIX

interface, you

are advised to

set the thread

name while

entering the

thread.

Partially compatible

Kernel.h PTR_ERR Return an error

code.

Compatible

Workqueue.h queue_delayed_

work

Add a delayed

work to a

specified

workqueue.

Compatible

Workqueue.h queue_work Add a work to a

specified

workqueue.

Compatible

Rbtree.h rb_erase Remove a node. Compatible

Rbtree.h rb_first Return the first

node.

Compatible

Rbtree.h rb_insert_color Color the

inserted node.

Compatible

Rbtree.h rb_next Return the next

node.

Compatible

Rbtree.h rb_prev Return the

previous node.

Compatible

Rbtree.h rb_replace_node Replace a node. Compatible

io.h readb Read one byte

from I/O.

Compatible

LiteOS

Developer Guide 4 Extended Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

120

Header File API Function Compatibility

io.h readl Read four bytes

from I/O.

Compatible

uio.h readv Read the input

data into buffers

following the

input order.

Compatible

io.h readw Read two bytes

from I/O.

Compatible

Fs.h register_framebu

ffer

into the kernel.

Compatible

Interrupt.h request_irq Allocate an

interrupt.

Compatible

Rtc.h rtc_time_to_tm Convert

absolute time to

year, month,

day, hour,

minute, and

second.

Compatible

Rtc.h rtc_tm_to_time Convert year,

month, day,

hour, minute,

and second to

absolute time.

Compatible

Workqueue.h schedule_delaye

d_work

Add a delayed

work to the

default

workqueue.

Compatible

Kernel.h schedule_timeout Schedule a task. Compatible

Kernel.h schedule_timeout

_interruptible

Schedule a task. Compatible

Kernel.h schedule_timeout

_uninterruptible

Schedule a task. Compatible

Workqueue.h schedule_work Add a work to

the default

workqueue.

Compatible

Seq_file.h seq_lseek Deviate the

pointer to a

sequential file.

Compatible

Seq_file.h seq_open Open a

sequential file.

Compatible

LiteOS

Developer Guide 4 Extended Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

121

Header File API Function Compatibility

Seq_file.h seq_printf Write formatted

information to a

sequential file.

Compatible

Seq_file.h seq_read Read a

sequential file.

Compatible

Seq_file.h seq_release Free the

dynamic

memory

allocated by

sequential files.

Compatible

Scatterlist.h sg_init_one Initialize a

scatter list.

Compatible

Scatterlist.h sg_init_table Initialize a

scatter list.

Compatible

Scatterlist.h sg_mark_end Mark the end of

a scatterlist.

Compatible

Scatterlist.h sg_set_buf Set a scatter list. Compatible

Seq_file.h single_open Opens a

sequential file.

Compatible

Seq_file.h single_release Free the

dynamic

memory

allocated by

sequential files.

Compatible

string.h strcasecmp Compare two

strings, ignoring

the case of the

characters.

Compatible

string.h strcasestr Locate the first

occurrence of a

substring in a

string, ignoring

the case of the

strings.

Compatible

string.h strcat Append string A

to string B.

Compatible

string.h strchr Locate the first

occurrence of a

character in a

string.

Compatible

LiteOS

Developer Guide 4 Extended Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

122

Header File API Function Compatibility

string.h strcmp Compare two

strings.

Compatible

string.h strcoll Compare two

strings in a

specific locale.

Compatible

string.h strcpy Copy a string. Compatible

string.h strcspn Return the

number of bytes

in the initial

segment of a

string, which

does not consist

of a specified

character.

Compatible

string.h strdup Copy a string to

a new location.

Compatible

string.h strerror Return

information

about system

errors or user

program errors.

Compatible

string.h strlcpy Copy a string of

specified length.

Compatible

String.h strlcpy Copy a string. Compatible

string.h strlen Calculate the

length of a

string.

Compatible

string.h strncasecmp Compare the

first n bytes of

two strings,

ignoring the

case of the

characters.

Compatible

string.h strncat Append n bytes

from string A to

string B.

Compatible

string.h strncmp Compare the

first n bytes of

two strings.

Compatible

string.h strncpy Copy a string

containing

specified bytes.

Compatible

LiteOS

Developer Guide 4 Extended Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

123

Header File API Function Compatibility

string.h strpbrk Locate the first

occurrence in a

string of any of

the bytes in

another string.

Compatible

string.h strrchr Locate the last

occurrence of a

character in a

string.

Compatible

string.h strsep Separate a string

into a set of

strings.

Compatible

string.h strspn Return the

subscript of the

first character in

a string that is

not contained in

a specified

string.

Compatible

string.h strstr Locate the first

occurrence of a

substring in a

string.

Compatible

string.h strtok Parse a string. Compatible

string.h strtok_r Parse a string. Compatible

string.h strtoul Convert a string

to an unsigned

long integer.

Compatible

string.h strxfrm String

transformation.

Compatible

mount.h umount Unmount a file

system.

Compatible

Fs.h unregister_frame

buffer

Release fbinfo. Compatible

Rwsem.h up_read Release a

semaphore held

for reading.

Compatible

Rwsem.h up_write Release a

semaphore held

for writing.

Compatible

Slab.h vfree Free memory. Compatible

LiteOS

Developer Guide 4 Extended Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

124

Header File API Function Compatibility

Slab.h vmalloc Allocate

memory.

Compatible

Wait.h wait_event Wait for an

event.

Compatible

Wait.h wait_event_interr

uptible

Wait for an

event.

Compatible

Wait.h wait_event_interr

uptible_timeout

Wait for an

event for a

limited period

of time.

Compatible

Completion.h wait_for_comple

tion

Wait for

completion.

Compatible

Completion.h wait_for_comple

tion_timeout

Wait for

completion for a

specified period

of time. If the

time expires, the

waiting ends.

Compatible

Wait.h waitqueue_active Test whether a

wait queue is

empty.

Compatible

Wait.h wake_up Wake up a task. Compatible

Wait.h wake_up_interru

ptible

Wake up a task

that has been

put to

interruptible

sleep.

Compatible

Workqueue.h work_busy Test the status

of a work.

Compatible

io.h writeb Write one byte

to I/O.

Compatible

io.h writel Write four bytes

to I/O.

Compatible

uio.h writev Store data in

multiple non-

contiguous

buffers and

writes out the

data.

Compatible

io.h writew Write two bytes

to I/O.

Compatible

LiteOS

Developer Guide 4 Extended Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

125

Header File API Function Compatibility

Zlib.h zlib_deflate Compress data. Compatible

Zlib.h zlib_deflateEnd Free the

dynamic data

structure

allocated to the

current stream.

Compatible

Zlib.h zlib_deflateInit Initialize the

zlib status.

Compatible

Zlib.h zlib_inflate Decompress

data.

Compatible

Zlib.h zlib_inflateEnd Free the

dynamic data

structure

allocated to the

current stream.

Compatible

Zlib.h zlib_inflateInit Initialize the

internal stream

status for

decompression.

Compatible

Zlib.h zlib_inflateInit2 Decompress

data.

Compatible

4.5.5.2 Linux APIs Not Supported

Some Linux APIs are not supported in Huawei LiteOS. The following table lists the detailed

specifications:

File API Description Supported/Not

Supported

adp.c __assert Assertion. This API

is used to determine

whether program

execution is correct.

Not supported

adp.c __cxa_atexit The process exits. Not supported

adp.c __tls_get_addr Get the address of a

thread-local

variable.

Not supported

wait.h add_wait_queue Add a process to the

tail of a queue.

Not supported

LiteOS

Developer Guide 4 Extended Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

126

File API Description Supported/Not

Supported

adp.c alarm Arrange for a

SIGALRM signal to

be delivered to the

calling process in

seconds seconds. If

seconds is zero, the

previously set alarm

is canceled. This

API returns the

number of seconds

remaining until any

previously

scheduled alarm was

due to be delivered.

Not supported

atomic.h atomic_set Set the value of an

atomic variable.

Not supported

bug.h BUG Provide assertions

and dumps

information.

Not supported

adp.c chroot Change the root

directory to the

directory specified

by path. Only a

superuser is allowed

to change the root

directory. All

children of the

calling process will

inherit the new root

directory.

Not supported

adp.c closelog Close the opened

connection to a

system logger.

Not supported

sched.h cond_resched Schedule a new

process for running.

Not supported

kernel.h copy_from_user Copy data from user

space to kernel

space.

Not supported

kernel.h copy_to_user Copy data from

kernel space to user

space.

Not supported

adp.c daemon Create a daemon. Not supported

LiteOS

Developer Guide 4 Extended Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

127

File API Description Supported/Not

Supported

wait.h DECLARE_WAITQ

UEUE

Define and initialize

a wait queue.

Not supported

semaphore.h down Attempt to acquire a

semaphore. If the

semaphore is not

available, the

process waits on the

semaphore and

cannot be woken up.

Not supported

semaphore.h down_interruptible Attempt to acquire a

semaphore. If the

semaphore is not

available, the

process waits on the

semaphore. When

the semaphore is

freed up, the process

is woken up.

Not supported

semaphore.h down_trylock Attempt to acquire a

semaphore. If the

semaphore is not

available,

down_trylock

immediately returns

with a nonzero

return value, and the

caller will not wait

on the semaphore.

Not supported

adp.c execve Execute a file

specified by

filename. The

second parameter is

an array of character

pointers. The final

parameter is an array

of character pointers

to the new

environment.

Not supported

LiteOS

Developer Guide 4 Extended Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

128

File API Description Supported/Not

Supported

adp.c fchown Change the owner

and group of the file

specified by fd to

owner and group

respectively. If

owner or group is

specified as –1, the

owner or group is

changed. The

parameter fd is an

open file descriptor.

When root calls

fchown() to change

the owner or group

of a file, the

S_ISUID or

S_ISGID permission

bits are cleared.

Not supported

adp.c fork Create a process that

is almost the same

as the calling

process.

Not supported

adp.c fs_fssync File

synchronization.

Not supported

adp.c getdtablesize Return the

maximum number

of open files a

process can have.

Not supported

adp.c gethostname Get the hostname. Not supported

adp.c getpwnam Search for account

names specified by

name and return the

data of each account

as a passwd

structure. For details

on the passwd

structure, see the

description of

getpwent().

Not supported

adp.c getrlimit Get the upper limit

on resources.

Not supported

semaphore.h init_MUTEX Initialize a

semaphore and set

the semaphore's

value to one.

Not supported

LiteOS

Developer Guide 4 Extended Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

129

File API Description Supported/Not

Supported

semaphore.h init_MUTEX_LOC

KED

Initialize a

semaphore and set

the semaphore's

value to zero.

Not supported

adp.c initgroups Read group data

from the group

database /etc/group.

If user is a member

of the group data,

the group parameter

is added to the group

data.

Not supported

kernel.h ioremap_cached Map physical

memory to kernel

virtual address

space.

Not supported

kernel.h ioremap_nocached Map physical

memory to kernel

virtual address

space.

Not supported

kernel.h iounmap Cancel the mapping

made by ioremap.

Not supported

compiler.h likely Conditional

statement that

indicates the value is

likely to be true.

Not supported

adp.c linux_module_init Load a module. Not supported

list.h list_empty Test whether a

linked list is empty.

Not supported

kernel.h misc_deregister Unregister a

miscellaneous

device.

Not supported

kernel.h misc_register Register a

miscellaneous

device.

Not supported

LiteOS

Developer Guide 4 Extended Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

130

File API Description Supported/Not

Supported

adp.c mmap Map files or other

objects into memory.

Accessing the

memory area means

reading and writing

a file. The

start parameter

specifies the start

address of the

memory area where

files or other objects

are mapped, and is

normally set to

NULL, indicating

that the address is

automatically

determined by the

OS. Upon successful

completion, this

address is returned.

The length

parameter specifies

the length of file to

be mapped into

memory.

Not supported

module.h module_put Decrease the

number of times a

module is referenced

by one.

Not supported

LiteOS

Developer Guide 4 Extended Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

131

File API Description Supported/Not

Supported

adp.c munmap Delete the mappings

of files or other

objects in the

memory.

The length

parameter specifies

the size of the

memory to be

deleted. If the

process ends, or

other programs are

executed by using

exec functions, the

mapped memory

will be

automatically

deleted. However,

the mapping will not

be deleted when the

corresponding file

descriptor is closed.

Not supported

adp.c nice Change the

execution priority of

a process. A greater

inc value means a

lower priority. Only

a superuser is

allowed to set a

negative inc value,

in which case a

greater value means

a higher priority.

Not supported

adp.c pipe Create a pipe and

place two file

descriptors, one each

into filedes[0] and

filedes[1]. filedes[0]

refers to the read

end of the pipe, and

filedes[1] the write

end.

Not supported

kernel.h printtime Print the system

time.

Not supported

LiteOS

Developer Guide 4 Extended Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

132

File API Description Supported/Not

Supported

adp.c readlink Place the contents of

the symbolic link

path in the buffer

buf. The returned

content is not

NULL-terminated

but the number of

bytes placed in the

buffer. If the buffer

size bufsiz is

smaller than the size

of the contents of

the symbolic path,

the contents will be

truncated.

Not supported

adp.c recvmsg Receive a message

from a socket

specified by a

remote host. The

s parameter

specifies a

connected socket. If

the user datagram

protocol (UDP) is

used, the socket

does not need to be

connected. The msg

parameter points to

the message

structure to be

connected. The flags

parameter is

normally set to 0.

For details about

flags, see the

description of

send(). For the

definition of the

msghdr structure,

see the description

of sendmsg().

Not supported

LiteOS

Developer Guide 4 Extended Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

133

File API Description Supported/Not

Supported

wait.h remove_wait_queue Remove a wait

queue from the wait

queue linked list

pointed to by the

wait queue head

associated with the

wait queue to be

removed.

Not supported

adp.c setgroups Set the

supplementary

group IDs in the

array specified by

list for the calling

process. The

size parameter

specifies the number

of gid_t in list. The

maximum size value

is NGROUP(32).

Not supported

sched.h signal_pending Test whether the

current process is

processes by a

signal.

Not supported

adp.c sigset Change the

disposition of the

signal specified by

sig to the disposition

specified by disp.

Not supported

string.h simple_strtol Convert a string to

an unsigned long

data.

Not supported

adp.c syscall Invoke a system

call.

Not supported

timer.h timer_pending Test whether a timer

has been activated.

Not supported

module.h try_module_get Increase the number

of modules in use.

Not supported

rwsem.h try_module_get Downgrade writers

to readers.

Not supported

mount.h umount2 Unmount a file

system.

Not supported

LiteOS

Developer Guide 4 Extended Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

134

File API Description Supported/Not

Supported

compiler.h unlikely Conditional

statement that

indicates the value is

likely to be false.

Not supported

semaphore.h up Release a

semaphore, wake up

the first process in

the queue of

processes waiting on

the semaphore.

Not supported

adp.c waitpid Suspend execution

of the calling

process until the

delivery of a signal,

or until a child

process terminates.

If a child process

has terminated at the

time wait() is called,

wait() will

immediately return

the termination

status value of the

child process. The

termination status

value stored in the

status parameter

and the child process

ID are returned. If

the termination

status value is

unnecessary, status

can be set to NULL.

Not supported

wakelock.h wake_lock Activate a lock. Not supported

wakelock.h wake_lock_active Test whether a lock

is active.

Not supported

wakelock.h wake_lock_init Initialize a lock. Not supported

wakelock.h wake_unlock Unlock and

deactivates a lock.

Not supported

watchdog.h watchdog_init Initialize a watch

dog.

Not supported

LiteOS

Developer Guide 4 Extended Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

135

4.6 C++ Support

4.6.1 Overview

Basic Concept

C++ is one of the most widely used programming languages. It is an object-oriented

programming language with features including classes, encapsulation, and reloading.

Operation Mechanism

STL is a collection of some "containers", as well as a collection of algorithms and other

components. The objective is to develop a standardized component that can be used without

developing again, directly using an off the shelf component.

4.6.2 Development Guidelines

Function

Function Category API Description

Initialize C++ constructors LOS_CppSystemInit Initializes C++ constructors

Initializing C++

C++ initialization functions vary depending on whether scatter loading is enabled or disabled.

This is because the use of scatter loading affects program code and the data segment loading

time.

Scatter loading is disabled

Before calling C++ code, call the LOS_CppSystemInit API with the NO_SCATTER

parameter.

LOS_CppSystemInit((unsigned long)&__init_array_start__, (unsigned

long)&__init_array_end__, NO_SCATTER);

Table 4-1 Description

Parameter Description

__init_array_start__ Start array

__init_array_end__ End array

NO_SCATTER Scatter loading is disabled

Scatter loading is enabled

LiteOS

Developer Guide 4 Extended Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

136

lIf C++ code needs to be called at the fast startup phase of scatter loading, first call the

LOS_CppSystemInit API with the BEFORE_SCATTER parameter.

LOS_CppSystemInit((unsigned long)&__init_array_start__, (unsigned

long)&__init_array_end__, BEFORE_SCATTER);

Table 4-2 Description

Parameter Description

__init_array_start__ Start array

__init_array_end__ End array

BEFORE_SCATTER LOS_CppSystemInit is called at the fast

startup phase of scatter loading

Then, at the non-fast startup phase of scatter loading, call the LOS_CppSystemInit API with

the AFTER_SCATTER parameter.

LOS_CppSystemInit((unsigned long)&__init_array_start__, (unsigned

long)&__init_array_end__, AFTER_SCATTER);

Table 4-3 Description

Parameter Description

__init_array_start__ Start array

__init_array_end__ End array

AFTER_SCATTER LOS_CppSystemInit is called at the non-

fast startup phase of scatter loading

lIf C++ code does not need to be called at the fast startup phase of scatter loading, you

can try any of the approaches: (1) call the LOS_CppSystemInit API twice, first at the fast

startup phase of scatter loading and then at the non-fast startup phase; (2) call the

LOS_CppSystemInit API twice at the non-fast startup phase of scatter loading, first with

the BEFORE_SCATTER parameter and then with the AFTER_SCATTER parameter.

LOS_CppSystemInit((unsigned long)&__init_array_start__, (unsigned

long)&__init_array_end__, BEFORE_SCATTER);

LOS_CppSystemInit((unsigned long)&__init_array_start__, (unsigned

long)&__init_array_end__, AFTER_SCATTER);

Or, alternatively, call the LOS_CppSystemInit API once with the NO_SCATTER

parameter.

LOS_CppSystemInit((unsigned long)&__init_array_start__, (unsigned

long)&__init_array_end__, NO_SCATTER);

Call C Language Functions

To call a C language function in C++ language, add the following statement to the function

declaration:

extern "C".

LiteOS

Developer Guide 4 Extended Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

137

4.6.3 Precautions

lC++ does not support operations related to I/O character streams or I/O file streams in

the current Huawei LiteOS.

4.6.4 Programming Example

Example Description

C++ constructors are initialized during code initialization to make C++ features usable. In this

example, scatter loading is to be used, so the LOS_CppSystemInit API needs to be called

twice.

Example Code

void app_init(void)

{

......

/* C++ constructor initialization during the fast boot phase */

LOS_CppSystemInit((UINT32)&__init_array_start__, (UINT32)&__init_array_end__,

BEFORE_SCATTER);

/* scatter loading */

LOS_ScatterLoad(0x100000, flash_read, NAND_READ_ALIGN_SIZE);

/* C++ constructor initialization during the non-fast boot phase */

LOS_CppSystemInit((UINT32)&__init_array_start__, (UINT32)&__init_array_end__,

AFTER_SCATTER);

......

}

4.7 MMU

4.7.1 Overview

Basic Concept

MMU is short for memory management unit.

Operation Mechanism

The table of page table descriptors is created, and the physical address is translated into a

virtual address. The physical memory then can be accessed through the virtual address.

A user creates, modifies, and manages a table of page table descriptors with the format of the

master chip used by the user. A table of page table descriptors is a reference for memory

LiteOS

Developer Guide 4 Extended Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

138

mapping and permission control. The creation of and modification to it take effect after it is

written to the CP15 coprocessor that executes memory management.

Operations on an MMU are performed by modifying a page table descriptor and controlling

the CP15 coprocessor. The operation process is as illustrated in Figure 1 .

Figure 4-4

An MMU in Huawei LiteOS has the following functions:

lProviding an API to control the cache/nocache attribute of hardware

lProviding an API to control the memory access permission of hardware

4.7.2 Development Guidelines

Usage Scenarios

Some memory does not hope to be modified. Unpredictable results will be caused if the

memory is modified. To protect the memory from being modified, an MMU is used to modify

the access permission on the memory. The permission of any access to the memory is

checked. If the permission is not correct, an exception will be triggered.

Cache and buffer status can be controlled through cache+buffer. For example, you can disable

cache, write through, and write back.

Functions

The MMU module of Huawei LiteOS provides the following function:

LiteOS

Developer Guide 4 Extended Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

139

Table 4-4

Function

Category

API Description

Control the access

permission

LOS_MMUParamSet Changes the status of cache, buffer, and

read/write permission of the memory at

the specified address.

Parameters:

typedef struct

{

UINT32 startAddr; // Start memory address

UINT32 endAddr; // End memory address

UINT32 uwFlag; // Memory attributes

// BUFFER_ENABLE/BUFFER_DISABLE

// CACHE_ENABLE/CACHE_DISABLE

// ACCESS_PERM_RW_RW/ACCESS_PERM_RO_RO

SENCOND_PAGE *stPage; // The 2nd-level page table to be operated

}MMU_PARAM;

Example:

void code_protect(void)

{

MMU_PARAM mPara;

mPara.startAddr = (unsigned long)&__text_start;

mPara.endAddr = (unsigned long)&__rodata1_end;

mPara.uwFlag = BUFFER_ENABLE|CACHE_ENABLE|ACCESS_PERM_RO_RO;

mPara.stPage = (SENCOND_PAGE *)&stOsPage; // Mark A

LOS_MMUParamSet(&mPara);

}

Description:

This API is used to set the memory starting from the address specified by __text_start and

ending at the address specified by__rodata1_end to read-only and enable the cache and

buffer of this memory segment. Multiple 2nd-level page tables may be available. Mark A is

used to specify the 2nd-level page table to be operated by the API.

Development Process

typedef struct

{

UINT32 page_addr; // Start address of the memory described by a 2nd-level

page table, which must be aligned on the boundary of 1 MB.

UINT32 page_length; // Length of the memory, which must be aligned on the

boundary of 1 MB.

UINT32 page_descriptor_addr; // Storage address of the 2nd-level page table

entries, which must be aligned on the boundary of 1 KB.

UINT32 page_type; // 2nd-level page table type, including small page table (4

KB) and big page table (64 KB).

}SENCOND_PAGE;

Refer to the preceding structure and perform the following steps to complete the development:

Step 1 Define a 2nd-level page table structure variable, which should be a global variable.

SENCOND_PAGE stOsPage = {0};

Step 2 Configure the 2nd-level page table.

stOsPage.page_addr = test_page_addr;

stOsPage.page_length = test_length;

LiteOS

Developer Guide 4 Extended Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

140

stOsPage.page_descriptor_addr = test_addr;

stOsPage.page_type = MMU_SECOND_LEVEL_SMALL_PAGE_TABLE_ID;

Step 3 Enable the 2nd-level page table.

LOS_SecPageEnable(&stOsPage, BUFFER_ENABLE|CACHE_ENABLE|

ACCESS_PERM_RW_RW);

Step 4 Modify the attributes of the 2nd-level page table.

void test_func(void)

{

MMU_PARAM mPara;

mPara.startAddr = (unsigned long)&__text_start;

mPara.endAddr = (unsigned long)&__rodata1_end;

mPara.uwFlag = CACHE_ENABLE|ACCESS_PERM_RO_RO;

mPara.stPage = (SENCOND_PAGE *)&stOsPage;

LOS_MMUParamSet(&mPara);

}

----End

4.7.3 Precautions

lCompared with the 1st-level page table, the efficiency of memory translation configured

for the 2nd-level page table is lower, and the 2nd-level page table uses more translation

lookaside buffer (TLB) resources. Therefore, you are advised to use the 1st-level page

table to process memory that is frequently accessed.

4.7.4 Programming Example

Example Description

You can call the LOS_MMUParamSet API and perform the following steps to check how the

API functions:

Step 1 Set the access permission on a specified memory segment to read-only.

Step 2 Write data into the memory segment.

An exception occurs, indicating that the access permission setting succeeds.

Step 3 Delete the write operation in step 2 and call the LOS_MMUAPSet API to set the access

permission to read/write.

No exception occurs, indicating that the access permission setting succeeds.

----End

Example Code

UINT32 MMU_Sample()

{

UINT32 *pAlignaddr;

extern SENCOND_PAGE stOsPage;

MMU_PARAM mPara;

mPara.startAddr = (unsigned long)&__text_start;

mPara.endAddr = (unsigned long)&__text_end;

mPara.uwFlag = BUFFER_ENABLE|CACHE_ENABLE|ACCESS_PERM_RO_RO;

mPara.stPage = (SENCOND_PAGE *)&stOsPage;

PRINTK("---- TEST START ----\n");

pAlignaddr = (UINT32 *)(&__text_start);

PRINTK(">>1\n");

LOS_MMUParamSet(&mPara);

LiteOS

Developer Guide 4 Extended Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

141

*pAlignaddr = 0xa; //if done, be exc

PRINTK(">>2\n");

mPara.uwFlag = BUFFER_ENABLE|CACHE_ENABLE|ACCESS_PERM_RW_RW;

LOS_MMUParamSet(&mPara);

*pAlignaddr = 0xb;

PRINTK(">>3\n");

PRINTK("---- TEST END ----\n");

return LOS_OK;

}

Execution Result

The "*pAlignaddr = 0xa" code is not commented out.

LiteOS

Developer Guide 4 Extended Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

142

The "*pAlignaddr = 0xa" code is commented out.

Complete Example Code

sample_MMU.c

4.8 Atomic Operation

4.8.1 Overview

Basic Concept

In a multi-tasking operating system (OS), data reading, modification, and writing are three

essential procedures of modifying the data in a specified memory. However, the data may be

concurrently accessed by multiple tasks. If the data modification is interrupted by other tasks,

unexpected modification result will occur.

Multiple tasks can be successfully executed by enabling and disabling interrupts, but this

method affects OS performance.

The ARMv6 architecture introduces LDREX and STREX command to support non-blocking

synchronization of shared memory, which allows a data modification not to be interrupted and

achieves an atomic operation.

Operation Mechanism

Huawei LiteOS provides atomic operation APIs by encapsulating LDREX and STREX in the

ARMv6 architecture.

lLDREX Rx, [Ry]

The following is the method to read data in the memory and mark the exclusive access to

the memory:

–Read the 4-byte memory data pointed to by the Ry register and store the read

memory data to the Rx register.

–Add a exclusive access flag to the memory segment pointed by Ry.

lSTREX Rf, Rx, [Ry]

Whether memory data will be updated and how STREX functions is described as

follows:

–If the memory has an exclusive access flag, the memory data will be updated.

i. Update the memory data pointed to the Ry register to the value in the Rx

ii. Set the Rf flag register to 0.

–If the memory does not have an exclusive access flag, the memory data should be

updated.

LiteOS

Developer Guide 4 Extended Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

143

i. The memory data pointed to by Ry will not be updated.

ii. Set the Rf flag register to 1.

lFlag register

–If the flag register is 0, the atomic operation ends.

–If the flag register is 1, the atomic operation cycle proceeds and the atomic

operation starts again.

4.8.2 Development Guidelines

Usage Scenarios

When multiple tasks are performing increasing, decreasing, and exchanging operations on the

same memory data, the use of atomic operations will ensure that operation results are

predictable.

Functions

The atomic operation module of Huawei LiteOS provides the following functions:

Table 4-5 Functions

Function Category API Description

Increasing LOS_AtomicAdd Adds a random number to or

subtracts a random number

from memory data

LOS_AtomicInc Adds one to memory data

LOS_AtomicIncRet Adds one to memory data and

return

Decreasing LOS_AtomicDec Subtracts one from memory

data

LOS_AtomicDecRet Subtracts one from memory

data and return

Exchanging LOS_AtomicXchgByte Exchanges 8-bit memory data

LOS_AtomicXchg16bits Exchanges 16-bit memory

data

LOS_AtomicXchg32bits Exchanges 32-bit memory

data

Exchanging after

comparison

LOS_AtomicCmpXchgByte Compares and exchanges 8-

bit memory data

LOS_AtomicCmpXchg16bits Compares and exchanges 16-

bit memory data

LOS_AtomicCmpXchg32bits Compares and exchanges 32-

bit memory data

LiteOS

Developer Guide 4 Extended Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

144

NOTE

The bits of the input data and the result data cannot exceed the maximum bit allowed by the function.

Platform Differences

IDREX and STREX are used in Cortex-A7 and Cortex-A17 to ensure atomic operations.

Enabling and disabling interrupts are used to ensure that operations are atomic in ARM926

because ARM926 does not support IDREX and STREX.

4.8.3 Precautions

lCurrently, atomic operation APIs can only be used for operations on integer data.

4.8.4 Programming Example

Example Description

Perform the following two steps and view the result:

Step 1 Create two tasks

1. Call the LOS_AtomicInc API to increase the global variable by one for 100 times.

2. Call the LOS_AtomicDec API to decrease the global variable by one for 100 times.

Step 2 After the subtasks are finished, print the global variable value in the major task.

----End

Example Code

#include "los_atomic.h"

UINT32 g_TestTaskID01;

UINT32 g_TestTaskID02;

UINT32 g_sum;

UINT32 g_count;

UINT32 It_atomic_001_f01()

{

int i = 0;

for(i = 0; i < 100; ++i)

{

LOS_AtomicInc(&g_sum);

}

++g_count;

return LOS_OK;

}

UINT32 It_atomic_001_f02()

{

int i = 0;

for(i = 0; i < 100; ++i)

{

LOS_AtomicDec(&g_sum);

}

++g_count;

return LOS_OK;

}

UINT32 it_atomic_test()

{

UINT32 uwRet,uwCpupUse;

INTPTR uvIntSave;

LiteOS

Developer Guide 4 Extended Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

145

TSK_INIT_PARAM_S stTask1={0};

stTask1.pfnTaskEntry = (TSK_ENTRY_FUNC)It_atomic_001_f01;

stTask1.pcName = "TestAtomicTsk1";

stTask1.uwStackSize = LOSCFG_BASE_CORE_TSK_DEFAULT_STACK_SIZE;

stTask1.usTaskPrio = 4;

stTask1.uwResved = LOS_TASK_STATUS_DETACHED;

TSK_INIT_PARAM_S stTask2={0};

stTask2.pfnTaskEntry = (TSK_ENTRY_FUNC)It_atomic_001_f02;

stTask2.pcName = "TestAtomicTsk2";

stTask2.uwStackSize = LOSCFG_BASE_CORE_TSK_DEFAULT_STACK_SIZE;

stTask2.usTaskPrio = 4;

stTask2.uwResved = LOS_TASK_STATUS_DETACHED;

LOS_TaskLock();

LOS_TaskCreate(&g_TestTaskID01, &stTask1);

LOS_TaskCreate(&g_TestTaskID02, &stTask2);

LOS_TaskUnlock();

while(g_count != 2);

PRINTK("g_sum = %d\n", g_sum);

return LOS_OK;

}

Verification

g_sum = 0

Complete Example Code

sample_atomic.c

4.9 Run-Stop

4.9.1 Overview

Basic Concept

Run-Stop is used to store the image of Huawei LiteOS encountering an exception and restore

the OS running.

The Run-Stop interface is called to store the CPU threads and memory status snapshot of the

running OS to the Flash. After the OS restarts, the OS running status can be restored from the

snapshot in the Flash.

Run-Stop can be used to wake up the OS after power-off in WiFi service. When the WiFi

service is stable after being initialized, the Run-Stop interface is called to store the snapshot of

OS including the CPU threads and memory in Flash. When the OS is idle, the master core is

powered off to enter the power-saving mode. When there are services for the WiFi service, the

micro control unit (MCU) sends a packet to power on the master core. After the hardware

status is restored, the stored snapshot is restored to ensure the continued running of the WiFi

service.

LiteOS

Developer Guide 4 Extended Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

146

4.9.2 Development Guidelines

Usage Scenarios

You can use the Run-Stop mechanism when you intend to store the snapshot of Huawei

LiteOS on a medium after the OS runs for a period of time, run the OS from the snapshot at

another point of time, and hope that the OS state at the moment you run the OS the second

time is the same as the snapshot.

In an IP camera (IPC) that runs Huawei LiteOS, Run-Stop is used to restore the OS state

when a WiFi service will run. The snapshot of Huawei LiteOS at the moment when a WiFi

service runs stably is stored. When the OS is idle, the master core is powered off to enter the

power-saving mode. When the OS receives a WiFi packet, the memory management unit

(MMU) powers on the master core, and the stored snapshot is restored to ensure the running

of the WiFi service. In this way, the OS state can be quickly restored to ensure stable WiFi

connection in the power-saving mode.

Function

The Run-Stop module of Huawei LiteOS provides the following function:

Table 4-6 Function

API Description

LOS_MakeImage Stores the snapshot of Huawei LiteOS on a

specified medium.

LiteOS

Developer Guide 4 Extended Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

147

Development Process

Figure 4-5 Operation process of Run-Stop

Step 1 Call the LOS_MakeImage API and write the code of the snapshot service.

The entry of the service code is the app_init function contained in the os_adapt.c file.

NOTE

The os_adapt.c file can be found in the platform/bsp/hi3516a/os_adapt directory in the Huawei

LiteOS cede package.

Following the snapshot service code, call the LOS_MakeImage API to store the OS snapshot

on a specified medium. Surround the non-snapshot services following the LOS_MakeImage

API with "#ifndef MAKE_WOW_IMAGE" and "#endif". The example code is as follows:

void wakeup_callback(void)

{

hal_interrupt_unmask(83);

if(!nand_init())

{

PRINT_ERR("nand init failed\n");

}

LiteOS

Developer Guide 4 Extended Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

148

#define NAND_ERASE_ALIGN_SIZE(128 * 1024)

#define NAND_READ_ALIGN_SIZE(2 * 1024)

#define NAND_WRITE_ALIGN_SIZE(2 * 1024)

int flash_read(void *memaddr, unsigned long start, unsigned long size)

{

extern int hinand_read(void *memaddr, unsigned long start, unsigned long size);

return hinand_read(memaddr, start, size);

}

int flash_write(void *memaddr, unsigned long start, unsigned long size)

{

extern int hinand_erase(unsigned long start, unsigned long size);

extern int hinand_write(void *memaddr, unsigned long start, unsigned long size);

(void)hinand_erase(start, size);

return hinand_write(memaddr, start, size);

}

void app_init(void)

{

RUNSTOP_PARAM_S stRunstopParam;

proc_fs_init();

if (hi_uartdev_init() != 0)

{

PRINT_ERR("hi_uartdev_init failed");

}

if (system_console_init(TTY_DEVICE) != 0)

{

PRINT_ERR("system_console_init failed\n");

}

if(nand_init() != 0)

{

PRINT_ERR("nand_init falied\n");

}

memset(&stRunstopParam, 0, sizeof(RUNSTOP_PARAM_S));

/* Parameter configuration */

stRunstopParam.pfFlashReadFunc = flash_read;

stRunstopParam.pfFlashWriteFunc = flash_write;

stRunstopParam.pfImageDoneCallback = NULL;

stRunstopParam.pfIdleWakeupCallback = NULL;

stRunstopParam.pfWakeupCallback = wakeup_callback;

stRunstopParam.uwFlashEraseAlignSize = NAND_ERASE_ALIGN_SIZE;

stRunstopParam.uwFlashWriteAlignSize = NAND_WRITE_ALIGN_SIZE;

stRunstopParam.uwFlashReadAlignSize = NAND_READ_ALIGN_SIZE;

stRunstopParam.uwImageFlashAddr = 0x100000;

stRunstopParam.uwWowFlashAddr = 0x3000000;

LOS_MakeImage(&stRunstopParam);

#ifndef MAKE_WOW_IMAGE

extern UINT32 g_uwWowImgSize;

PRINTK("Image length 0x%x\n", g_uwWowImgSize);

extern unsigned int osShellInit(const char *);

if (osShellInit(TTY_DEVICE) != 0)

{

PRINT_ERR("osShellInit\n");

}

rdk_fs_init();

SDK_init();

vs_server(3, apszArgv);

LiteOS

Developer Guide 4 Extended Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

149

#endif /* MAKE_WOW_IMAGE */

}

Step 2 Configure the WOW_SRC variable.

Run the following command to set the SCATTER_SRC variable in Makefile under the root

directory to the source file of the services that call the LOS_MakeImage API.

LITEOSTOPDIR represents the root directory of Huawei LiteOS code.

WOW_SRC := $(LITEOSTOPDIR)/platform/bsp/$(LITEOS_PLATFORM)/os_adapt.c

Step 3 Run the make wow command to compile the snapshot image.

Run the following command under the root directory, and the service code following "#ifndef

MAKE_WOW_IMAGE" will not be compiled. Then the compilation system automatically

calls the tool chain to extract the symbol table of the snapshot image and the .a library list of

the snapshot image.

Huawei_LiteOS$ make wow

Step 4 Run the make command to compile all images.

1. Run the following command under the root directory to compile all service code.

Huawei_LiteOS$ make

2. Check whether the snapshot image is successfully generated by viewing the image

segment allocation. Access the directory where the vs_server image file is generated.

The directory name is out/platform name. For example, the image of hi3516a is

generated in the out/hi3516a directory. Run the readelf -S vs_server command to open

the vs_server file. Information similar to the following will be displayed:

Figure 4-6 vs_server.bin image file

Information about the segments related to Run-Stop is displayed, including segment

name, start address, and offset. In the preceding figure, .wow_rodata

and .wow_constdata are read-only data segments. .wow_text, .wow_data, and .wow_bss

indicate the code segment, data segment, and bss segment respectively.

3. View the .text segment in the link script of Run-Stop. wow.o(*.text*) is added, as shown

in the following figure, indicating that symbols related to the snapshot code are placed in

the same area.

Figure 4-7 .text segment in the link script

NOTE

The path to the link script of Run-Stop is Huawei_LiteOS/tools/scripts/ld/wow.ld.

Step 5 Run the following command to burn all images into the Flash.

LiteOS

Developer Guide 4 Extended Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

150

tftp 0x82000000 vs_server.bin;nand erase 0x100000 0x700000;nand write 0x82000000

0x100000 0x700000;

In the serial port tool interface, enter the following command to burn all images into the Flash

at the address of 0x100000.

tftp 0x82000000 vs_server.bin;nand erase 0x100000 0x700000;nand write 0x82000000

0x100000 0x700000;

vs_server.bin in the command is the name of system image file. Burn this file into memory at

the address of 0x82000000. Then burn it into the Flash starting at the the address of

0x100000. The size of file to be burnt is 0x700000, indicating that the size of the burnt image

file must not exceed 7 MB. Adjust to size of the to-be-burnt file according to the actual image

file size.

Step 6 Run the following command to load all images.

nand read 0x80008000 0x100000 0x700000; go 0x80008000;

Run the following command to start Huawei LiteOS.

nand read 0x80008000 0x100000 0x700000; go 0x80008000;

Step 7 Run Huawei LiteOS from the snapshot.

The snapshot image size can be printed, as shown in the following figure:

Figure 4-8 Printed information

In the sample shown in the foregoing figure, the snapshot size is 0xc0000, and the snapshot is

written to the address of 0x3000000 on the medium.

Run the nand read 0x80008000 0x3000000 0xc0000; go 0x80008000; command in uboot to

start Huawei LiteOS from the snapshot. Information similar to that shown in the following

figure will be displayed:

Figure 4-9 Printed information

LiteOS

Developer Guide 4 Extended Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

151

Huawei LiteOS is successfully started from the snapshot.

----End

4.9.3 Precautions

lWhen writing Run-Stop services, ensure that all code and data of the snapshot are

specified preceding "#ifndef MAKE_WOW_IMAGE". Otherwise, not all Run-Stop

services will be contained after the OS snapshot is restored.

lThe toolchain of Huawei LiteOS Run-Stop depends on Python 2.7. Therefore, ensure

that Python 2.7 is used in the current development environment.

4.9.4 LOS_MakeImage Parameter Configurations

RUNSTOP_PARAM_S stRunstopParam; // Define a variable for the LOS_MakeImage API:

lSpecify the medium read function:

stRunstopParam.pfFlashReadFunc = flash_read;

lSpecify the medium write function:

stRunstopParam.pfFlashWriteFunc = flash_write;

lSpecify the callback function to be executed after the specified snapshot image is

generated:

stRunstopParam.pfImageDoneCallback = NULL;

lSpecify the callback function to be executed in the idle task after the specified snapshot

is restored:

stRunstopParam.pfIdleWakeupCallback = NULL;

lSpecify the callback function to be executed after the specified snapshot is restored:

stRunstopParam.pfWakeupCallback = wakeup_callback;

lErase alignment parameter of the medium

stRunstopParam.uwFlashEraseAlignSize = NAND_ERASE_ALIGN_SIZE;

lWrite alignment parameter of the medium

stRunstopParam.uwFlashWriteAlignSize = NAND_WRITE_ALIGN_SIZE;

lRead alignment parameter of the medium

stRunstopParam.uwFlashReadAlignSize = NAND_READ_ALIGN_SIZE;

lAddress of all images on the medium (address where all images are burnt on the medium

stRunstopParam.uwImageFlashAddr = 0x100000;

lStart address of the medium that stores the snapshot

stRunstopParam.uwWowFlashAddr = 0x3000000;

LiteOS

Developer Guide 4 Extended Kernel

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

152

5 File System

About This Chapter

5.1 Functions Overview

5.2 VFS

5.3 NFS

5.4 JFFS2

5.5 FAT

5.6 YAFFS2

5.7 RAMFS

5.8 PROC

5.1 Functions Overview

Huawei LiteOS supports the following file systems: virtual file system (VFS), network file

system (NFS), journal flash file system version 2 (JFFS2), file allocation table (FAT), yet

another flash file system version 2 (YAFFS2), RAM file system (RAMFS), and PROC.

Summary of File Systems

Table 5-1 File system functions

File System Function

VFS VFS allows reading and writing data into

file systems on different physical media by

standard Unix system calls, indicating that

operations are performed on different file

systems in a uniform way.

LiteOS

Developer Guide 5 File System

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

153

File System Function

NFS NFS enables various devices and operating

systems to share files with each other

through networks.

JFFS2 JFFS2 manages journaled file systems,

particularly files in NOR flash, on devices.

In Huawei LiteOS, JFFS2 supports multiple

partitions.

FAT FAT is classified into three types: FAT12,

FAT16, and FAT32. FAT is typically used on

removable media storage devices, including

USB flash drives, secure digital memory

cards (SD cards), and removable hard disks,

to maintain good compatibility between

devices and desktop systems such as

Windows and Linux.

YAFFS2 YAFFS2 is an open-source embedded file

system designed for NAND flash. It is used

for large-capacity storage devices and keeps

NAND flash efficient and robust.

Wear leveling and power failure protection

ensures that data will not be corrupted when

a power outage occurs amid file system

modification.

In Huawei LiteOS, YAFFS2 supports

multiple partitions.

RAMFS RAMFS is a file system that exports a

storage medium as a dynamically re-sizable

RAM-based file system.

RAMFS places all files in a RAM. Files are

read and written from and to the RAM,

accelerating the read/write speed and

avoiding frequent access to storage.

RAMFS is a RAM-based cache mechanism

of dynamic file systems.

PROC PROC is a kind of pseudo file system that

exists only in memory and does not use

external storage. It provides an interface for

accessing the data in Huawei LiteOS

Kernel.

5.2 VFS

LiteOS

Developer Guide 5 File System

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

154

5.2.1 Overview

Basic Concept

VFS is a an abstraction layer between lower-layer file systems and upper-layer applications. It

provides a uniform Unix file operation interface.

Multiple types of file systems that require different accessing interfaces need to be accessed in

different modes and through different non-standard interfaces. The VFS layer provides a

uniform file system accessing interface and masks the differences between the lower-layer file

systems, enabling applications to access the file systems regardless of the types of lower-layer

storage media and file systems and improving the developing efficiency.

In Huawei LiteOS, the VFS framework is realized through the tree structure in memory. Each

node of the tree is an inode structure. A node is generated in the tree according to the

directory where a device is registered and mounted. VFS has the following two functions:

1. Searching for nodes

2. Unified invoking (standard)

Operation Mechanism

VFS enables access to different file systems on different media by calling standard Unix file

operation functions (such as open, read, and write).

Types of inode tree nodes in VFS are as follows:

lVirtual node: A virtual node serves as a virtual file of the VFS framework, which keeps

the continuity of the tree. For example, /bin or /bin/vs is a virtual node.

lDevice node: A device node is under the /dev directory and corresponds to a device. For

example, /dev/mmc0 is a device node.

lMounting node: A mounting node, for example, /bin/vs/sd, /ramfs, and /yaffs, is

generated after the mount function is called.

The key elements of an inode are the u field that indicates the pointer to the function structure

and the i_private field that indicates the pointer to data.

LiteOS

Developer Guide 5 File System

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

155

Figure 5-1 VFS frame structure

5.2.2 Development Guidelines

Development Process

It is recommended that driver developers use the VFS framework to register and uninstall

device and use open() and read() operation devices (character devices) to make device files

invoke the driver on the application layer.

1. After Huawei LiteOS calls the los_vfs_init() VFS initialization API, /dev will serve as

the root_inode.

2. The register_driver() and register_blockdriver() APIs are called to generate device

nodes, and the mount() API is called to generate mounting nodes where devices are

mounted.

3. Structure information is added during node generation. Nodes are then added to

appropriate places in the tree according to their names.

4. A device node or mounting node to which the path is specified is searched for in the tree.

5. Corresponding functions can be called by using the pointer to the node that is found.

File Descriptor

In this design, file descriptors are managed by using global arrays.

There are the following two types of file descriptors:

lFile descriptor: A File descriptor is a normal file descriptor, in which 0, 1, and 2 are

reserved to serve as system stdin (standard input), stdout (standard output), and stderr

(standard error) respectively. File descriptors that can be allocated are from 3 to

CONFIG_NFILE_DESCRIPTORS – 1.

LiteOS

Developer Guide 5 File System

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

156

lSocket descriptor: Socket descriptors that can be allocated are from

CONFIG_NFILE_DESCRIPTORS.

The two types of file descriptors correspond to two global arrays respectively and the memory

allocated to them are not contiguous.

File Attributes

The following API is only used in FAT to change the attribute of a file:

int chattr(const char *path, mode_t mode)

path specifies the file of which the attribute is to be changed.

mode specifies the attribute after the attribute change. There are four types of attributes

(F_RDO: read-only; F_HID: hidden; F_SYS: system file; F_ARC: archive file).

NOTE

lCurrently, the API is only used to change the file attribute in FAT. The file attribute in other file

system are configured in other ways.

lIn Huawei LiteOS, The file attribute can be changed to any one of the four types of attributes.

lIn Huawei LiteOS, read-only files and directories must not be deleted.

lIn Huawei LiteOS, read-only files and directories can be renamed.

lRead-only files must not be opened in the O_CREAT and O_TRUNC modes or with read

permissions.

lIn Huawei LiteOS, hidden files are visible. However, hidden files are invisible in Windows when

hidden files are set not to be displayed.

lIf system files are configured with the hidden property in Huawei LiteOS, it can only be found in

Windows by running commands. These files are invisible regardless of whether hidden files are set

to be displayed or not.

5.2.3 Precautions

lVFS is a framework of file systems and allows developers of the application layer to call

file systems in a uniform way.

lThe name length of a directory or a file to be created in a VFS-mounted file system is

allowed to be 255 bytes at most. A directory or a file that has a name length exceeding

255 bytes will fail to be created.

lThe configuration of file access permission is not enabled for underlying file systems

(O_WRONLY|O_CREAT). The file access permission is set to 0666 by default.

lCalling the inode_find() function increases the number of inode connections by 1. Then

the inode_release() function needs to be called to decrease the number of inode

connections by 1. Therefore, the inode_find() function is used together with the

inode_release() function

lDevices are classified into character devices and block devices. Considering the security

of file system data on block devices, VFS temporarily does not support raw read and

write operations on block devices. File system data should be manipulated using file

system interfaces after the file systems are mounted.

lThe los_vfs_init() API can be only called once. File systems will be abnormal if this API

is called for multiple times.

lA mount point must be an empty directory and cannot be used for repeated mounting or

mounted to another mount point.

LiteOS

Developer Guide 5 File System

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

157

lOnly hyphens and underscores are allowed to exist in names of files and directories in all

file systems in Huawei LiteOS. Results of containing other special characters in file and

directory names are unpredictable, and it is recommended that not contain those

characters.

lMultilevel directories can be created recursively in VFS.

lHuawei LiteOS does not allow the operation of directly obtaining directory data by

calling open() on a directory. Instead, call the opendir API or specify that a directory is to

be opened using open(path, flags | O_DIRECTORY).

lPlease mount the file system in strict accordance with the manual, a mount may damage

the equipment and system.

lThe working directory in the Shell is separated from the system directory. Operations

will be performed on the working directory in the Shell by running commands such as cd

and pwd through the Shell. And the system directory will be operated by running

commands such as chdir and getcwd. The two directories are irrelevant to each other.

Exercise caution when the input parameter of a file system operation command is a

relative path.

lDo not mount a file system that does not exist during wakeup or the scatter loading

phase.

lIn VFS, the length of a full path must be no more than 259 bytes. A file or a directory

whose length is more than 259 bytes cannot be created.

lParameters O_RDWR, O_WRONLY, and O_RDONLY are mutually exclusive. Only

one of them can be used to open a file. Do not use more than one of them to open a file.

Otherwise, an unexpected error may occur.

lAll directories and files must be closed before a file system in Huawei LiteOS is

unmounted. Forcible unmount operations will cause problems including but not limited

to damages to file systems and devices, for which Huawei assumes no responsibility.

lAll directories and files must be closed before an SD card is removed. Focibly removing

an SD card will cause problems including but not limited to loss of data on the SD card

and SD card damage, for which Huawei assume no responsibility.

5.2.4 Programming Example

None.

5.3 NFS

5.3.1 Overview

Basic Concept

Network file system (NFS) enables various devices and operating systems to share files with

each other through networks. For this reason, it is sometimes regarded as a file system service

similar to a shared folder in Windows.

An NFS client can mount the directories shared by a remote NFS host to a local device and

run programs and shared files without using resources of the local device, as if directories of

the remote host are disks of the NFS client.

NFS reduces the demand of local workstations for disk space because storage devices

including floppy drives, CD-ROM, and Zip® (A kind of disc driver and disk with high

LiteOS

Developer Guide 5 File System

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

158

memory density) can be used by other networked devices. This in turn reduces the number of

removable media devices.

Operation Mechanism

Figure 1 depicts typical NFS networking.

Figure 5-2 NFS networking

NFS maps the NFS directory (\home\Huawei LiteOS\nfs) on an NFS host to the /nfs directory

on an NFS client, and synchronize one directory with another.

5.3.2 Development Guidelines

Development Process

To use NFS functions, perform the following steps: (Every step resolved for detail)

1. Setting Up the NFS Server

2. Setting a Board as an NFS Client

3. Using NFS to Share Files

Setting Up the NFS Server

NOTE

The procedure of setting up an NFS server will be described with Ubuntu OS as an example.

Step 1 Install NFS server software.

Specify the Ubuntu download source and run the following command when network

connectivity is good:

sudo apt-get install nfs-kernel-server

Step 2 Set and start the NFS server.

Add the following line to the /etc/exports NFS configuration file:

/home/yourusername *(rw,no_root_squash,async)。

/home/yourusername is the root directory for NFS sharing.

Run the following command to start the NFS server:

sudo /etc/init.d/nfs-kernel-server start

LiteOS

Developer Guide 5 File System

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

159

Run the following command to restart the NFS server:

sudo /etc/init.d/nfs-kernel-server restart

----End

Setting a Board as an NFS Client

The NFS client in this guide refers to a device that runs Huawei LiteOS. Typically, such a

device is an IPC board.

Step 1 Configure hardware connectivity.

Connect the NFS client to the network serving the NFS server. Allocate an IP addresses to the

NFS client and NFS server. Be sure that the two IP addresses fall within the same address

range. If the first three octets in an IP address is the same as those in another IP address, the

two IP addresses are considered to fall within the same address range. For example,

10.67.212.178 and 10.67.212.3 are within the same address range.

To query the IP address of the IPC board running Huawei LiteOS, run the ifconfig command.

Step 2 Activate the network to establish good network connectivity between the NFS client and the

NFS server.

Activate the Ethernet or another type of network, and run the ping command to check whether

the server is pingable.

Huawei LiteOS # ping 10.67.212.178

ping 4 packets start.

[0]Reply from 10.67.212.178: time=1ms TTL=63

[1]Reply from 10.67.212.178: time=0ms TTL=63

[2]Reply from 10.67.212.178: time=1ms TTL=63

[3]Reply from 10.67.212.178: time=1ms TTL=63

Step 3 Initialize the NFS client.

Run the following command:

Huawei LiteOS# mount 10.67.212.178:/home/sqbin/nfs /nfs nfs 1011 1000

If information similar to the following is displayed, the NFS client is successfully initialized.

Huawei LiteOS# mount 10.67.212.178:/home/sqbin/nfs /nfs nfs 1011 1000

Mount nfs on 10.67.212.178:/home/sqbin/nfs

Mount nfs finished.

The mount command mounts the /home/sqbin/nfs directory on the server with the IP address

10.67.212.178 to the /nfs directory on the NFS client.

Syntax of the mount command:

mount [SERVER_IP:SERVER_PATH] [CLIENT_PATH] nfs <uid gid>

SERVER_PATH indicates the path to the NFS shared directory on the NFS server.

SERVER_IP indicates the IP address of the NFS server. CLIENT_PATH indicates the NFS

path on the NFS client and can be set only to /nfs.

uid indicates the Linux user ID, and gid indicates the Linux group user ID. uid and gid are

used to obtain the permission to access the directory on the NFS server. To query uid and gid,

run the id Linux command. If NFS access control is not required, set the permission on the

NFS root directory to 777.

chmod -R 777 /home/sqbin/nfs

LiteOS

Developer Guide 5 File System

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

160

The setting of the NFS client is completed, and the NFS is successfully mounted to the NFS

client.

----End

Using NFS to Share Files

Create a dir directory and save it on the NFS server. Run the ls command in Huawei LiteOS.

Huawei LiteOS# ls /nfs

Information similar to the following is displayed:

Huawei LiteOS#

Huawei LiteOS# ls /nfs

Directory /nfs:

. <DIR>

dir <DIR>

The command output indicates that the dir directory on the NFS server has been synchronized

to the /nfs directory on the client (Huawei LiteOS).

Likewise, files and directories on the NFS client can be accessed from the NFS server.

Platform Differences

Currently, NFS clients only meet parts of NFS v3 specifications and therefore cannot be fully

compatible with NFS servers that also meet parts of NFS v3 specifications. During

development and tests, you are advised to use the NFS servers for Linux that meet all

specifications of NFS v3.

5.3.3 Precautions

lNFS files do not support permission control. When creating NFS directories and files,

please set the directory and file permission to 777.

lNo tasks can be blocked from reading or writing NFS files.

lNFS files do not support signal functions.

lNFS files do not support fcntl, ioctl, utime and chattr operations.

lCurrently, NFS support UDP and TCP based socket communications. Defaults to TCP.

lThe content of a file can be cleared only when you pass in the O_TRUNC parameter

during the call to the open API and have the write permission on the file.

lNFS is a test function, the default configuration is closed, the official product is

prohibited to use the function.

lDisclaimer: Huawei is not responsible for any risks brought by using the Telnet function

in official Huawei LiteOS.

5.3.4 Programming Example

None.

5.4 JFFS2

LiteOS

Developer Guide 5 File System

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

161

5.4.1 Overview

Basic Concept

Journal flash file system version 2 (JFFS2) manages journaled file systems on devices. JFFS2

is mainly used for NOR flash. It is readable and writable and supports data compression. In

addition, it offers protection against panic and power failures, and is capable of write

balancing.

Flash memory differs greatly from disks. Running a disk file system on flash memory might

compromise system performance and security. With JFFS2, this problem will no longer be

seen.

JFFS2 in Huawei LiteOS mainly manages files in NOR flash and supports multiple partitions.

5.4.2 Development Guidelines

Development Process

To use the functions of JFFS2, perform the following operations: (Every step resolve for

detail)

1. Adding JFFS2 Partitions

2. Mounting JFFS2

3. Unmounting JFFS2

4. Deleting JFFS2 Partitions

Adding JFFS2 Partitions

Call the add_mtd_partition function to add JFFS2 partitions. This function automatically

names device nodes. The naming rule for JFFS2 is /dev/spinorblk + partition number.

The add_mtd_partition function expects four parameters. The first parameter indicates the

medium type (nand or spinor). nand is used for YAFFS2, and spinor is used for JFFS2

partitions.

The second parameter indicates the start address of a partition. The third parameter indicates

the partition size. Both parameters are in hexadecimal format.

The fourth parameter indicates the partition number (0–19).

After the partitions are successfully added, you can run the partition jffs command in Shell to

query information of the jffs block.

if(uwRet = add_mtd_partition("spinor", 0x100000, 0x800000, 0) != 0)

dprintf("add jffs partition failed, return %d\n", uwRet);

else

{

dprintf("Mount jffs2 on nand.\n");

uwRet = mount("/dev/spinorblk0", "/jffs0", "jffs", 0, NULL);

if(uwRet)

dprintf("mount jffs err %d\n",uwRet);

dprintf("Mount jffs2 on nor finished.\n");

}

if(uwRet = add_mtd_partition("spinor", 0x900000, 0x200000, 1) != 0)

dprintf("add jffs partition failed, return %d\n", uwRet);

Huawei LiteOS# partition jffs

jffs partition num:0, dev name:/dev/spinorblk0, mountpt:/jffs0, startaddr:

LiteOS

Developer Guide 5 File System

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

162

0x0100000,length:0x0800000

jffs partition num:1, dev name:/dev/spinorblk1, mountpt:(null), startaddr:

0x0900000,length:0x0200000

Mounting JFFS2

Call the mount() function to mount a device node to the mount point.

This function expects five parameters. The first parameter indicates the device node and the

second parameter indicates the mount point. Both parameters must be the same as the

parameters used in the add_mtd_partition() function.

The third parameter indicates the file type.

The fourth parameter indicates the mount flag (default: 0), and the fifth parameter indicates

the mount data (default: NULL). Alternatively, JFFS2 can be mounted by running the mount

command in Shell, and you do not need to pass in the last two parameters.

Command for calling the mount() function:

Huawei LiteOS# mount /dev/spinorblk1 /jffs1 jffs

If information similar to the following is displayed, JFFS2 is successfully mounted:

Huawei LiteOS# ls

Directory /:

bin <DIR>

dev <DIR>

jffs0 <DIR>

ramfs <DIR>

yaffs0 <DIR>

Huawei LiteOS# mount /dev/spinorblk1 /jffs1 jffs

Huawei LiteOS# ls

Directory /:

bin <DIR>

dev <DIR>

jffs0 <DIR>

jffs1 <DIR>

ramfs <DIR>

yaffs0 <DIR>

Now you can read from and write to NOR flash.

Unmounting JFFS2

Call the umount() function to unmount JFFS2 partitions. Only the input parameter mount

point needs to be specified.

Command for calling the umount() function:

Huawei LiteOS# umount /jffs1

If information similar to the following is displayed, JFFS2 is successfully unmounted:

Huawei LiteOS# ls

Directory /:

bin <DIR>

dev <DIR>

jffs0 <DIR>

jffs1 <DIR>

ramfs <DIR>

yaffs0 <DIR>

Huawei LiteOS# umount /jffs1

umount ok

LiteOS

Developer Guide 5 File System

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

163

Deleting JFFS2 Partitions

Call the delete_mtd_partition function to delete the unmounted JFFS2 partitions.

This function expects two parameters. The first parameter indicates the partition number, and

the second parameter indicates the medium type. Both parameters must be the same as the

parameters used in the add_mtd_partition() function.

uwRet =delete_mtd_partition(1,"spinor");

if(uwRet != 0)

printf("delte jffs error\n");

else

printf("delete jffs ok\n");

Huawei LiteOS# partition jffs

jffs partition num:0, dev name:/dev/spinorblk0, mountpt:/jffs0, startaddr:

0x0100000,length:0x0800000

Creating a JFFS2 Image

Use mkfs.jffs2 to create a JFFS2 image. The following is the default command for creating a

JFFS2 image:

./mkfs.jffs2 -s 0x1000 -e 0x10000 -p 0x100000 -d rootfs/ -o rootfs_64k.jffs2

(The command is added to a script and will be automatically executed during image creation.)

Table 5-2 Command description

Command Description

-s Page size

-e eraseblock size

-p Image size

-d Source directory of the file system image to

be created

-o Name of the image to be created

The parameters in the default command are merely illustrative. You can change the

parameters when necessary.

5.4.3 Precautions

lJFFS2 manages files in NOR flash and calls the NOR flash drive interface. Before using

JFFS2, ensure that NOR flash is present on hardware and the drive is successfully

initialized (the value returned by spinor_init() is 0).

lThe start address and the partition size are automatically aligned n the boundary

according to the size of block. The valid partition number ranges from 0 to 19.

lJFFS2 images can be created by using mkfs.jffs2 commands in the fsimage/

MakeVersion.sh file. Change parameter values in the commands when necessary. To

query other commands, run the mkfs.jffs2 command.

lWhen you open a file by calling the open API and pass in the O_TRUNC parameter, the

content of the file will be cleared.

LiteOS

Developer Guide 5 File System

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

164

lCurrently, JFFS2 does not support the ioctl, sync, dup, dup2, utime, and chattr functions.

5.4.4 Programming Example

None.

5.5 FAT

5.5.1 Overview

Basic Concept

File allocation table (FAT) is classified into four types: FAT12, FAT16, FAT32 and exFAT.

FAT divides a disk into five sectors: master boot record (MBR), dos boot record (DBR), FAT,

DIR, and DATA.

FAT can be implemented on diverse media, especially on removable media storage devices

including USB flash drives, secure digital memory cards (SD cards), and removable hard

disks. It maintains good compatibility between embedded devices and desktop systems such

as Windows and Linux, which is convenient for developers to manage operation files.

FAT in Huawei LiteOS has small amount of code and use less resources. It is tailorable and

supports multiple types of physical media. In addition, it is compatible with operating systems

including Windows and Linux and supports multiple devices and the identification of multiple

partitions.

FAT in Huawei LiteOS supports disk partitioning. File operations can be performed on the

primary partition and logical partitions. Huawei LiteOS is able to identify other types of file

systems (such as NTFS) on the hard disk. Currently, only the master boot record (MBR)

partition style is supported.

5.5.2 Development Guidelines

Development Process

To use the functions of FAT, perform the following operations: (Every step resolve for detail)

1. Identifying Devices

2. Mounting FAT

3. Mounting FAT

LiteOS

Developer Guide 5 File System

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

165

Identifying Devices

lConfigure _MULTI_PARTITION to 1 in the ffconf.h file to enable the identification of

multiple partitions.

lConfigure _VOLUMES to a value greater than 2 to enable the identification of multiple

devices.

Now the OS is able to automatically identify the inserted SD cards. The automatically

registered device nodes are listed in the figure above. mmcblk0 and mmcblk1 specify card 0

and card 1 respectively, which are independent master devices. mmcblk0p0, mmcblk0p1

specify two partitions of card 0 and serve as partition devices. When partition devices are

available, the first partition device will be automatically invoked when the master device is

used.

The information about the identified partitions can be queried by running the partinfo

command.

Huawei LiteOS # partinfo /dev/sdap0

part info :

disk id : 3

part_id in system: 0

part no in disk : 0

part no in mbr : 1

part filesystem : 0C

part dev name : sdap0

part sec start : 2048

part sec count : 167794688

Mounting FAT

Run the following command:

Huawei LiteOS# mount /dev/mmcblk0 /bin/vs/sd vfat

LiteOS

Developer Guide 5 File System

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

166

If information similar to the following is displayed, FAT is successfully mounted:

Huawei LiteOS# mount /dev/mmcblk0 /bin/vs/sd vfat

mount ok

Huawei LiteOS# ls

Directory /:

bin <DIR>

dev <DIR>

ramfs <DIR>

yaffs0 <DIR>

Unmounting FAT

Run the following command:

Huawei LiteOS# umount /bin/vs/sd

If information similar to the following is displayed, FAT is successfully unmounted:

Huawei LiteOS# umount /bin/vs/sd

umount ok

5.5.3 Precautions

lThe default configurations can be used directly, and you can tailor the configurations

based on your needs.

lThe configuration items of FAT are in the ffconf.h file.

lIf _FS_READONLY is set to 0, the read/write permission on FAT is read/write. If

_FS_READONLY is set to 1, the read/write permission on FAT is read-only.

lIf _USE_MKFS is set to 1 and _FS_READONLY is set to 1, the formatting function is

enabled.

lIf _FS_NORTC is set to 1, no real-time clocks exist, and the file creation time will be a

fixed time point.

l_FS_LOCK specifies the number of files (folders) that can be opened concurrently.

lIf a file is opened in read/write mode, it will fail to be opened if it is not closed and

opened again in read/write mode. It can only be opened again in read-only mode. If a file

is opened for a long time and is not closed, data of the file will be lost. The data can be

saved only when the file is closed.

lThe size of a file cannot be greater than 4 GB except exFAT.

lThe total length of file names and path names must not exceed 252 bytes.

lIf two SD card slots are available, the SD card that is inserted first is card 0; the one

inserted later is card 1.

lWhen the double-card and multi-partitioning function is enabled and multiple partitions

exist, the /dev/mmcblk0 master device node registered by card 0 and the /dev/

mmcblk0p0 slave device node registered by card 0 control the same device. Operations

are forbidden to be performed on the master device node.

lWhen the double-card and multi-partitioning functions are enabled, and multiple

partitions do not exist, the /dev/mmcblk0 and /dev/mmcblk0p0 device nodes control the

same device, and only one of the device nodes can be mounted.

lFAT does not support opening a directory using open() + O_DIRECTORY. Use opendir()

to open a directory.

LiteOS

Developer Guide 5 File System

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

167

lThe read pointer and write pointer are not separated. Therefore, after a file is opened in

O_APPEND mode, the read pointer is positioned at the end of the file. Manually put the

read pointer to the start of the file before reading a file.

lCalling the stat or lstat functions on FAT will return the modification time of a file.

Currently, the file creation time and last access time are not returned. The Microsoft FAT

protocol supports only time after A.D. 1980.

lWhen you open a file by calling the open API and pass in the O_TRUNC parameter, the

content of the file will be cleared.

lFAT does not support the ioctl(), dup() and dup2() functions.

lTo avoid memory leaks, FAT automatically closes opened files and directories during

card removing, and then FAT is unmounted. The memory allocated by calling opendir()

must be freed up by calling closedir().

5.5.4 Programming Example

None.

5.6 YAFFS2

5.6.1 Overview

Basic Concept

Yet another flash file system version 2 (YAFFS2) is an open-source embedded file system

designed for NAND flash. In YAFFS, the minimum storage unit is page.

Two versions of YAFFS are available in current YAFFS file system: YAFFS and YAFFS2.

The major difference between them is that YAFFS2 supports NAND flash chips with 2 KB

pages, far larger than the chips with 512-byte pages supported by YAFFS. Another difference

lies in the fact that YAFFS2 has a 64-byte spare area to store bad block information and carry

out error checking and correction (ECC).

lYAFFS2 is suitable for large-capacity storage devices. It is specially designed for NAND

flash to keep the latter efficient and robust.

lYAFFS2 supports chips with 2 KB pages. Moreover, it uses less memory, and allows

faster read/write and junk data reclamation.

lWear leveling and power failure protection ensures that data will not be corrupted when

a power outage occurs amid file system modification.

YAFFS2 in Huawei LiteOS supports multiple partitions.

5.6.2 Development Guidelines

Development Process

In Huawei LiteOS, ulti-partitioning of YAFFS2 is realized using a doubly linked list. To use

the functions of YAFFS2, perform the following steps: (Every step resolve for detail)

1. Calling add_mtd_partition to Create Partitions

LiteOS

Developer Guide 5 File System

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

168

2. Calling mount to Mount Partitions

3. Calling umount to Unmount Partitions

4. Calling delete_mtd_partition to Delete Partitions

Specific examples can be see in part programming examples.

Calling add_mtd_partition to Create Partitions

The add_mtd_partition function automatically names device nodes. The naming rule for

YAFFS2 is /dev/nandblk + partition number.

The add_mtd_partition function expects four parameters. The first parameter indicates the

media (nand or spinor). nand is used for YAFFS2 partitions, and spinor is used for JFFS2.

The second parameter indicates the start address of a partition. The third parameter indicates

the partition size. Both parameters are in hexadecimal format.

The fourth parameter indicates the partition number (0–19).

After the partitions are successfully created, you can run the yaffspar command in Shell to

query information of the partitions.

Command for creating partitions:

if(uwRet = add_mtd_partition("nand", 0x900000, 0x200000, 0) < 0)

dprintf("add yaffs partition failed, return %d\n", uwRet);

}

if(uwRet = add_mtd_partition("nand", 0xb00000, 0x200000, 1) < 0)

dprintf("add yaffs partition failed, return %d\n", uwRet);

Calling mount to Mount Partitions

Call the mount() function to mount a device node to the mount point.

This function expects five parameters. The first parameter indicates the device node and the

second parameter indicates the mount point. Both parameters must be the same as the

parameters used in the add_mtd_partition() function.

The third parameter indicates the file type (yaffs or jffs).

The fourth parameter indicates the mount flag (default: 0), and the fifth parameter indicates

the private data (default: NULL).

Alternatively, partitions can be mounted by running the mount command in Shell, and you do

not need to pass in the last two parameters.

Command for calling the mount() function:

Huawei LiteOS# mount /dev/nandblk1 /yaffs1 yaffs

If information similar to the following is displayed, partitions are successfully mounted:

Huawei LiteOS# mount /dev/nandblk1 /yaffs1 yaffs

start-blk:24, end-blk:39

Huawei LiteOS# partition yaffs

yaffs partition num:0, dev name:/dev/nandblk0, mountpt:/yaffs0, startaddr:

0x0900000,length:0x0200000

yaffs partition num:1, dev name:/dev/nandblk1, mountpt:/yaffs1, startaddr:

0x0b00000,length:0x0200000

LiteOS

Developer Guide 5 File System

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

169

Calling umount to Unmount Partitions

Call the umount() function to unmount YAFFS2 partitions. Only the input parameter mount

point needs to be specified. Alternatively, partitions can be unmounted by running the umount

command in Shell.

Command for calling the umount() function:

Huawei LiteOS# umount /yaffs1

If information similar to the following is displayed, partitions are successfully unmounted:

Huawei LiteOS# umount /yaffs1

umount ok

Huawei LiteOS# umount /yaffs0

umount ok

Huawei LiteOS# partition yaffs

yaffs partition num:0, dev name:/dev/nandblk0, mountpt:(null), startaddr:

0x0900000,length:0x0200000

yaffs partition num:1, dev name:/dev/nandblk1, mountpt:(null), startaddr:

0x0b00000,length:0x0200000

Calling delete_mtd_partition to Delete Partitions

Partitions must be unmounted before they are deleted.

The delete_mtd_partition function expects two parameters. The first parameter indicates the

partition number, and the second parameter indicates the medium type. Both parameters must

be the same as the parameters used in the add_mtd_partition() function.

uwRet = umount("/yaffs1");

if(uwRet != 0)

printf("umount error:%d\n", uwRet);

else

printf("umount ok\n");

uwRet =delete_mtd_partition(1, "nand");

if(uwRet != 0)

printf("delte yaffs error\n");

else

printf("delete yaffs ok\n");

If information similar to the following is displayed, partitions are successfully deleted:

Mount yaffs2 on nand

start-blk:24,end-blk:39

umount ok

delete yaffs ok

5.6.3 Precautions

lYAFFS2 in Huawei LiteOS supports multiple partitions. You can allocate the flash

memory according to actual needs. The start address of partitions can be flexibly

configured, which means that partitions can be created anywhere in the flash memory

provided that you know where the start address is. A mechanism is in place to check for

partition overlapping. However, it is beyond the scope of Huawei LiteOS to check for

address overlapping due to the concurrent use of multi-partitioning and other features.

lThe minimum partition for adding is one size of block, but the minimum partition for

mounting is 9 block size (decided by characters of YAFFS2). Divide these two concepts.

lYAFFS2 in Huawei LiteOS automatically aligns addresses and partitions on the

boundary according to the size of block. The valid partition number ranges from 0 to 19.

LiteOS

Developer Guide 5 File System

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

170

lBefore using a partition, you are advised to erase data in the partition.

lYAFFS2 in Huawei LiteOS only allows you to continuously open 20 directories.

lThe content of a file can be cleared only when you pass in the O_TRUNC parameter

during the call to the open API and have the write permission on the file.

lYAFFS2 does not support the ioctl(), utime() and chattr() functions.

5.6.4 Programming Example

None.

5.7 RAMFS

5.7.1 Overview

Basic Concept

RAM file system (RAMFS) is a file system as a dynamically re-sizable RAM-based file

system. RAMFS does not have backup storage resources. When files are written into

RAMFS, directory entries and page caches will be allocated, but data is not written to any

other storage media. Data will be lost when the power is off.

RAMFS places all files in a RAM. Files are read from and written into the RAM. RAMFS

can be used to store temporary data or data that needs to be frequently modified, for example,

the /tmp and the /var directories, to accelerate the read/write speed and avoid frequent access

to storage.

RAMFS in Huawei LiteOS is a simple file system. It functions as a RAM-based cache

mechanism of dynamic file systems.

RAMFS in Huawei LiteOS is based on VFS, can not be formatted.

5.7.2 Development Guidelines

Procedure

To use the functions of RAMFS, perform the following operations:

1. Initializing RAMFS

2. Mounting RAMFS

3. Unmounting RAMFS

Initializing RAMFS

void ram_fs_init(void)

{

int swRet=0;

swRet = mount(NULL, RAMFS_DIR, "ramfs", 0, NULL);

if (swRet) {

dprintf("mount ramfs err %d\n", swRet);

return;

}

dprintf("Mount ramfs finished.\n");

}

LiteOS

Developer Guide 5 File System

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

171

Call the initial function. If information similar to the following is displayed while Huawei

LiteOS is being started, RAMFS is successfully initialized:

Mount ramfs finished

Mounting RAMFS

Run the following command:

Huawei LiteOS# mount 0 /ramfs ramfs

If information similar to the following is displayed, RAMFS is successfully mounted:

Huawei LiteOS# mount 0 /ramfs ramfs

Unmounting RAMFS

Run the following command:

Huawei LiteOS# umount /ramfs

If information similar to the following is displayed, RAMFS is successfully unmounted:

Huawei LiteOS# umount /ramfs

umount ok

5.7.3 Precautions

lRead and write pointers are not separated in RAMFS file system, so while opening the

file by using O_APPEND(read added) method, the read pointer is also at the end of the

file. Users need to set position manually before reading files.

lBecause of the fixed memory space used in RAMFS, RAMFS is able to be mounted only

one time for avoid stepping on memory. After successfully mounting one time, followers

can not continue being mounted on other directories.

lIn RAMFS, filename length and directory name length must not exceed the length

specified by RAMFS_NAME_MAX.

lWhen you open a file by calling the open API and pass in the O_TRUNC parameter, the

content of the file will be cleared.

lRAMFS is a test function, the default configuration is closed, the official product is

prohibited to use the function.

lDisclaimer: Huawei is not responsible for any risks brought by using the Telnet function

in official Huawei LiteOS.

5.7.4 Programming Example

None.

5.8 PROC

LiteOS

Developer Guide 5 File System

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

172

5.8.1 Overview

Basic Concept

PROC is a pseudo file system that exists only in memory and does not use external storage. It

provides an interface for accessing the data in Huawei LiteOS Kernel.

PROC in Huawei LiteOS is a virtual file system and does not support multi-threaded

operations.

5.8.2 Development Guidelines

Development Process

To use the functions of PROC, perform the following operations:

1. Initializing PROC

2. Querying and Modifying PROC Node Information

Initializing PROC

void proc_fs_init(void)

{

int swRet=0;

swRet = mount(NULL, PROCFS_DIR, "procfs", 0, NULL);

if (swRet) {

dprintf("mount procfs err %d\n", swRet);

return;

}

dprintf("Mount procfs finished.\n");

}

Call the initial API. If information similar to the following is displayed while Huawei LiteOS

is being started, PROC is successfully initialized:

Mount procfs finished

Creating a PROC Node

Call the create_proc_entry function to create a file node. The first parameter specifies the

name of the node to be created. The second parameter specifies the file mode, including the

file type and permission. The third parameter specifies the parent node of the node to be

created. If NULL is passed in as the value of the third parameter, the parent node is /proc by

default. This function will return the created PROC file node.

struct proc_dir_entry *pHandle;

pHandle = create_proc_entry("mounts", 0, NULL);

if (pHandle == NULL) {

dprintf("creat mounts error!\n");

return;

}

Call an operation function to perform a specific operation on the created node.

pHandle->proc_fops = &mounts_proc_fops;

Call the default operation function proc_file_default_operations if other operation functions

are unavailable.

LiteOS

Developer Guide 5 File System

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

173

Call the proc_mkdir function to create a directory node. The first parameter specifies the

name of the node to be created. The second parameter specifies the parent node of the node to

be created. If NULL is passed in as the value of the second parameter, the parent node is /proc

by default. This function will return the created PROC directory node.

struct proc_dir_entry *pHandle;

pHandle = proc_mkdir("test", NULL);

if (pHandle == NULL) {

dprintf("creat test error!\n");

return;

}

Querying and Modifying PROC Node Information

Run the cat command to query information of a PROC node. For example:

Huawei LiteOS # cat /proc/umap/logmpp

If information similar to the following is displayed, the query is successful:

Huawei LiteOS # cat /proc/umap/logmpp

Huawei LiteOS # -----LOG BUFFER STATE---------------------------------

MaxLen ReadPos WritePos ButtPos

64(KB) 0 113 65536

-----CURRENT LOG LEVEL-----------------------------------------------

vb : 3

sys : 3

region : 3

chnl : 3

vpss : 3

venc : 3

vda : 3

h264e : 3

jpege : 3

vou : 3

viu : 3

rc : 3

aio : 3

ai : 3

ao : 3

aenc : 3

adec : 3

isp : 3

ive : 3

tde : 3

vgs : 3

h265e : 3

Run the writeproc command to modify information of a PROC node. For example:

Huawei LiteOS # writeproc 'sys=2' >> /proc/umap/logmpp

After the sys level is changed, information similar to following is displayed:

sys=2 >> /proc/umap/logmpp

Run the cat command again to query node information. From the displayed node information,

you will see that the sys level has been changed.

Huawei LiteOS # cat /proc/umap/logmpp

Huawei LiteOS # -----LOG BUFFER STATE---------------------------------

MaxLen ReadPos WritePos ButtPos

64(KB) 0 0 65536

-----CURRENT LOG LEVEL-----------------------------------------------

vb : 3

LiteOS

Developer Guide 5 File System

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

174

sys : 2

region : 3

chnl : 3

vpss : 3

venc : 3

vda : 3

h264e : 3

jpege : 3

vou : 3

viu : 3

rc : 3

aio : 3

ai : 3

ao : 3

aenc : 3

adec : 3

isp : 3

ive : 3

tde : 3

vgs : 3

h265e : 3

5.8.3 Precautions

lIn the open command that is used to open files in PROC, only read and write properties

take effect.

lIn the fseek function, SEEK_END does not take effect, indicating that the offset started

from the end of a file is not supported.

lIf the ls command is run to query files in PROC after PROC is initialized, the size of

each file is displayed as zero. The file size can be correctly displayed only after the cat

command is run to retrieve real-time kernel information.

lPROC in Huawei LiteOS cannot be unmounted and does not support creating and

deleting files or directories.

lIn PROC, a file name or a directory name contains a maximum of 32 characters.

lPROC in Huawei LiteOS does not support the ioctl, sync, dup, dup2, utime, chattr, and

rename functions.

lPROC, as a debugging function, is disabled by default, and do not use it in commercial

products.

lDisclaimer: Huawei does not take the liability for the risks caused by using PROC in

commercial products.

5.8.4 Programming Example

None.

LiteOS

Developer Guide 5 File System

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

175

6 Driver Development

About This Chapter

6.1 Overview

6.2 Development Guidelines

6.3 Precautions

6.4 Programming Example

6.1 Overview

Basic Concept

Driver development means implementing and abstracting functions of hardware based on OS

specifications and then provides them to application developers to call.

While transplanting system on a new chip, driver development must be carried out based on

peripheral equipment supported by this chip specifications.

The driver initialization function for Huawei LiteOS is mainly used to create a driver structure

of devices and generate the control node that registers drivers for the upper platform.

6.2 Development Guidelines

Development Process

Driver development is related to following two steps:

1. Driver Initialization

2. Driver Node and Using

Driver Initialization

The first step of driver development is to compile a driver initialization function. In Huawei

LiteOS, the driver initialization function is used to initialize a driver structure of devices and

generate the driver control node.

LiteOS

Developer Guide 6 Driver Development

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

176

After the driver initialization function is compiled, you need to boot the device initialization

function in a right place.

The codes in sample_hi3516a.c file under the /sample directory is used as a simple boot. You

can call the compiled device initialization function in the app_init function to boot device

initialization.

The driver initialization function must be used together with the device driver registration

function that is used to register and generate a driver node.

register_driver(FAR const char *path, FAR const struct file_operations_vfs

*fops,mode_t mode, FAR void *priv)

register_blockdriver(FAR const char *path,FAR const struct block_operations

*bops,mode_t mode, FAR void *priv)

Table 1 describes the parameters expected by the device driver registration function.

Table 6-1 Parameter description

Parameter Description

*path Path of the driver node. Application

programs will access driver node through

this path, and then access operation API

supported by device driver.

*fops/*bops Driver operation structure that provides

application programs with an operation

function set. fops indicates a character

device, and bops indicates a block device.

mode Application's permission configuration to

read from or write into the driver node. This

parameter is not supported now.

*priv Parameter to be passed in during driver

node registration.

After the driver is compiled, it must be initialized when the initialization function of Huawei

LiteOS to generate a driver node accessible to applications.

After the driver is initialized, a device driver node will be generated in a specified path, and

application programs can use the control operation API of the driver through this node.

Driver Node and Using

The device driver node generated after driver initialization provides an interface for

applications to access and operate devices. The call relationship between application

programs and driver operation functions are described with the i2c device driver as an

example.

1. Operation Function Set

The driver operation function set is essential to the call relationship between application

programs and driver operation functions. During driver compilation, the operation

function set needs to implement various mechanisms of a hardware device and register

LiteOS

Developer Guide 6 Driver Development

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

177

the mechanisms during device registration. The operation function set meets all

requirements on application functions.

Table 6-2 Operation function set for the i2c device driver

Operation Function Set Application Layer Interface

i2cdev_open open

i2cdev_release close

i2cdev_read read

i2c_write write

i2c_ioctl ioctl

2. open Operation

When an application program opens a node file, Huawei LiteOS will call the open

function in the driver operation function set used when the driver node is initialized.

The open function instantiates and initializes the driver structure.

3. read/write Operation

After an application program opens a node file, the file descriptor of the driver node will

be got. The program can then access the driver that has the file descriptor.

The read/write operation is a common way for applications to access the driver. The

functions of the read/write operation vary depending on the type of devices and drivers.

For an i2c device, the read/write operation is used to read from or write into i2c

peripherals.

i2cdev_read(struct file * filep, char __user *buf, size_t count)

i2cdev_write(struct file * filep , const char __user *buf, size_t count)

Table 3 describes the parameters expected by the read/write function.

Table 6-3 Parameter description

Parameter Description

*filep Pointer to the file description structure.

*buf Buffer that stores the read or written data.

count Length of the read or written data.

4. ioctl Operation

An ioctl operation provides driver configuration management functions, particularly,

defines or accesses device attributes in the device driver by running specific commands.

For an i2c device, the I2C_16BIT_REG command is used to define the bit width of a

transmission register, the I2C_16BIT_DATA command is used to define the bit width of

transmitted data, and the I2C_TIMEOUT command is used to define the command

expiry time.

i2cdev_ioctl(struct file * filep, int cmd, unsigned long arg)

Table 4 describes the parameters expected by the ioctl function.

LiteOS

Developer Guide 6 Driver Development

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

178

Table 6-4 Parameter description

Parameter Description

*filep Pointer to the file description structure.

cmd Command for an operation

arg Additional parameter

5. close Operation

The close operation uses the release function in the operation function set to release

resources of a driver.

6.3 Precautions

None.

6.4 Programming Example

None.

LiteOS

Developer Guide 6 Driver Development

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

179

7 Maintenance and Testing

About This Chapter

7.1 Telnet

7.2 Shell

7.1 Telnet

7.1.1 Overview

Basic Concept

Telnet, as part of TCP/IP protocol, is the standard protocol and major method for remote

Internet login. Telnet enables you to operate a remote server on a local computer. Telnet

program connects the local computer to the server. Telnet enables you to input commands just

like direct input by using the server console.

Huawei LiteOS Telnet

Telnet uses commands to debug a development board. To achieve network connection by

using Telnet, users must configure the IP address and gateway (which must be in the same

network segment as the development board) for the local computer and run cmd.exe in

Windows to execute Telnet IP (IP address of the development board). In other words, Telnet is

another debugging mode by using serial ports.

Huawei LiteOS Telnet adopts a simple Telnet protocol, which connects the computers to the

development board without authentication on the user name and password. Huawei LiteOS

Telnet is used to:

lRead the input characters and transmit them to the development board through TCP.

lSend back the processed data to terminals.

LiteOS

Developer Guide 7 Maintenance and Testing

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

180

7.1.2 Development Guidelines

Development Process

1. Run telnet on to start telnet server in Huawei LiteOS Shell.

2. In a Windows-based OS that has Telnet client installed, run cmd.exe and enter telnet + IP

address of the development board to connect the computer to the board, as shown in the

following figure.

3. Press Enter. If Huawei LiteOS# (the prompt of Huawei LiteOS Shell) is displayed, it

indicates that the computer is connected to the board successfully and you can run the

shell commands. For example, you can run the task command to view the status of all

tasks.

4. Run telnet off to stop telnet server in Huawei LiteOS Shell.

7.1.3 Precautions

lIf telnet is not recognized as an internal or external command is returned after the

input of telnet + IP in a Windows-based OS, the Telnet is not enabled. Choose Control

Panel > Programs > Programs and Features > Turn Windows features on or off and

select the Telnet Server and Telnet Client.

lEnsure that the Ethernet driver of the board is initialized and opened before starting

Telnet.

lEnsure that lwip started normally before starting Telnet. Register safety function and

initialize tcpip are needed while using lwip.

lCurrently, only one client can be connected to a development board using telnet and an

IP address at one time.

LiteOS

Developer Guide 7 Maintenance and Testing

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

181

lTelnet only support commands supported by Shell.

lTelnet is a debug function and is disabled by default. It is must not be included in formal

Huawei LiteOS.

lDisclaimer: Huawei is not responsible for any risks brought by using the Telnet function

in official Huawei LiteOS.

7.1.4 Programming Example

None.

7.2 Shell

7.2.1 Overview

Basic Concept

Shell is the software (command parser) that provides user APIs. It is similar to the command

in DOS and the cmd.exe. Shell receives commands and invokes the corresponding programs.

Shell is also a programming language. As a command language, shell interactively interprets

and executes commands or automatically interprets and executes the series of commands

preset by users. As a programming language, shell defines variables and parameters and

provides the control structure, such as the loop and branch, that is available only in high-level

languages.

Shell manages the interaction between you and the operating system (OS): waiting for your

input, interpreting the input to the OS, and processing diverse outputs of OSs.

Shell builds a bridge for communication between users and OSs. The communication is

interactive (you enter through the keyboard and receive instant response) or non-interactive

(by shell script). A shell script contains a string of shell commands and OS commands, which

can be reused. Essentially, a shell script is a file combining commands.

Shell of Huawei LiteOS helps debug common commands and query system information.

Huawei LiteOS Shell

Shell of Huawei LiteOS provides the basic function used for debugging, including commands

for Huawei LiteOS, filesystem, network and scatter loading. In addition, shell of Huawei

LiteOS allows command customization.

lCommands for Huawei LiteOS are used for checking system tasks, kernel semaphore,

CPU usage, and current interrupts.

lCommands for files include ls, cd, and sync. The sync command synchronizes the cache

data (data in the file system) to an SD card or flash memory.

lCommands for network are used to view the IP address of the local computer and other

devices that connect to the development board, test the network connection, and set the

AP and station mode of development board.

lCommands for dynamic loading are used to obtain the .obj file from a specified path and

call related functions by searching for the addresses of functions that have loaded

the .obj file. A user can unload the .obj file that has been loaded to a specific path.

For details of adding commands, see Guidelines and Programming Example.

LiteOS

Developer Guide 7 Maintenance and Testing

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

182

7.2.2 Development Guidelines

Usage Scenarios

Shell commands can be input through serial ports or Telnet. Customized commands can be

executed only after their links are recompiled.

Functions

Shell of Huawei LiteOS contains the following commands:

lCommands for Huawei LiteOS, such as task, sem, swtmr, hwi, and cpup.

lCommands for PROC file system, such as writeproc.

lCommands for files, such as ls, cd, uname, cat, touch, rm, and rmdir.

lCommands for network, such as arp, ifconfig, ping, starthapd, and stophapd.

For details of commands, see 7.2.5 Command Reference. For details of adding commands,

see 7.2.4 Programming Example.

Development Process

1. Adding Commands to Shell

#include "shell.h"

#include "shcmd.h"

2. Registering the ls command.

The command can be registered statically and dynamically when the OS is running.

a. Static registration

SHELLCMD_ENTRY(ls_shellcmd, CMD_TYPE_EX, "ls", XARGS,

(CMD_CBK_FUNC)osShellCmdLs);

b. Dynamic registration

osCmdReg(CMD_TYPE_EX, "ls", XARGS, (CMD_CBK_FUNC)osShellCmdLs)

–ls_shellcmd: structure variable name that needs to be passed in during static

registration. The command to be registered is a field contained in the structure.

–Command types

nCMD_TYPE_EX: CMD_TYPE_EX indicates that the input of standard

command parameters is not allowed. When the command type is set to

CMD_TYPE_EX, command keywords entered by users will be masked. For

example, when ls /ramfs is entered, only /ramfs is passed into the registry

function.

nCMD_TYPE_STD: CMD_TYPE_STD indicates that the input of standard

command parameters is allowed. All entered characters will be passed into the

registry function after being parsed by the command.

–"ls": command keyword that is accessed by the registry function in Shell.

–XARGS: the number of input parameters of the execution function that is called.

–(CMD_CBK_FUNC)osShellCmdLs: execution function.

This macro encapsulates and registers a command that can be called in Shell.

LiteOS

Developer Guide 7 Maintenance and Testing

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

183

NOTE

lNormally, static registration is applicable to common system commands, and dynamic

registration is applicable user commands.

lDuring static registration, -uls_shellcmd should be added to LITEOS_TABLES_LDFLAGS

in build/mk/liteos_tables_ldflags.mk.

lThe command key word must be unique, indicating that multiple commands must not share the

same command keyword. Otherwise, only the first command listed in the commands displayed

by running the help command will be executed.

3. Prototype of added built-in command function.

–UINT32 cmdHook(UINT32 argc, CHAR **argv)

Parameters of this function are similar to those of the main prototype of parameter

main in C programming language.

NOTE

largc: number of parameters in the shell commands.

largv: pointer array. Each element points to a string. You can select the command type to

determine whether to transfer the keyword to register function or not.

4. Entering a Shell Command

A Shell command can be entered in the following two ways:

–Entering the Shell command in the serial port tool

–Entering the Shell command in the telnet tool

7.2.3 Precautions

lEnglish input is allowed in the default mode. If you enter Chinese characters in the UTF8

format, you can delete them only by pressing the backspace key for three times.

lThe working directory in the Shell is separated from the system directory. Operations

will be performed on the working directory in the Shell by running commands such as cd

and pwd through the Shell. And the system directory will be operated by running

commands such as chdir and getcwd. The two directories are irrelevant to each other.

Exercise caution when the input parameter of a file system operation command is a

relative path.

lShell commands take effect after tcpip_init is initialized. Huawei LiteOS does not

initialize tcpip_init by default.

lBefore shell commands related to dynamic loading are executed, a dynamic loading

module must be initialized. For details on the initialization of a dynamic loading module,

see 4.1 Dynamic Loading.

lManipulating device files under the /dev directory using Shell commands is not

recommended because it may cause unpredictable results.

lShell is a test function, the default configuration is closed, the official product is

prohibited including the function.

lDisclaimer: Huawei is not responsible for any risks brought by using the Telnet function

in official Huawei LiteOS.

LiteOS

Developer Guide 7 Maintenance and Testing

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

184

7.2.4 Programming Example

Example Description

The following examples are used to describe how to statically and dynamically register the

test command.

Static Registration

1. Define the executive function cmd_test that will be used to add the new command.

2. Call the SHELLCMD_ENTRY function to add the new command.

3. Add the parameter of the new command to the link option liteos_tables_ldflags.mk.

4. Recompile code and run Huawei LiteOS.

Example Code

Define the cmd_test function.

#include "shell.h"

#include "shcmd.h"

int cmd_test(void)

{

printf("hello everybody!\n");

return 0;

}

Add the new command.

SHELLCMD_ENTRY(test_shellcmd, CMD_TYPE_STD, "test", 0, (CMD_CBK_FUNC)cmd_test);

Add the command parameter to the linker options.

Add -utest_shellcmd to LITEOS_TABLES_LDFLAGS in build/mk/

liteos_tables_ldflags.mk.

Recompile the commands.

make clean;make

Dynamic Registration

1. Call the osCmdReg function to add the new command.

2. Recompile code and run Huawei LiteOS.

Example Code

Call the osCmdReg function in the app_init function to dynamically register the command.

#include "shell.h"

#include "shcmd.h"

int cmd_test(void)

{

printf("hello everybody!\n");

return 0;

}

LiteOS

Developer Guide 7 Maintenance and Testing

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

185

void app_init(void)

{

....

osCmdReg(CMD_TYPE_EX, "test", 0,(CMD_CBK_FUNC)cmd_test);

....

}

Recompile the code.

make clean;make

Run the help command to view all registered commands.

If the test command is displayed, as shown in the following figure, the test command is

successfully registered.

7.2.5 Command Reference

7.2.5.1 System Commands

7.2.5.1.1 task

Function

The task command is used to query the information about tasks in Huawei LiteOS.

Format

task [ID]

Parameter Description

Table 7-1 Parameter description

Parameter Description Value Range

ID Task ID [0, 0xFFFFFFFF]

User Guide

lIf the parameter is left unspecified, all task information will be printed by default.

lAn ID is added after task, the task name, task PID, and the call stacks will be displayed.

A maximum of 16 call stacks are supported.

LiteOS

Developer Guide 7 Maintenance and Testing

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

186

Example

For example: enter task 6

Output

Figure 7-1 Information of the task with ID 6

Figure 7-2 Information of all tasks

Description of initial system tasks in Huawei LiteOS

Task Description

Swt_Task Software timer task, which is used to process the timeout

callback function for software timers

IdleCore000 Task that is executed when Huawei LiteOS is idle

system_wq Default workqueue processing task

cmdParesTask Reads user input from the lower-layer buf and preliminarily

parses a command, such as arrow keys and command

completion by pressing Tab

shellTask Further parses the command sent by cmdParesTask and calls

the registration function that matches the command

Description of task status

Parameter Description

Ready Tasks in ready status

Pend Tasks in pending status

LiteOS

Developer Guide 7 Maintenance and Testing

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

187

Parameter Description

PendTimeOut Tasks in timeout pending status

QueuePend Tasks in queue pending status

Running Tasks running in operating system (OS)

Delay Tasks in delay waiting status

NOTE

If the task status in the task command is impossible, ensure that one of the following operations has

been performed when the pthread_create function is creating functions. If none of the following

operations is not performed, the resources cannot be correctly recycled.

lIf you want to choose the block mode, call the pthread_join() function.

lIf you want to choose the detach mode, call the pthread_detach() function.

lIf you do not want to call either of the preceding functions, set the status of pthread_attr_t to

PTHREAD_STATE_DETACHED and transfer the attr parameter to the pthread_create function.

The result of this operation is the same as that of calling the pthread_detach() function, that is, the

detach mode is chosen.

lThe PID parameter value can be represented either in decimal format or in hexadecimal format.

lWhen the PID parameter value falls in the range [0,64], the status of the task specified by the ID is

returned. (A prompt will be displayed if the task specified by the ID is not created.) A prompt

indicating a parameter error will be displayed if the parameter value is outside the range [0,64].

Parameter description:

Parameter Description

Name Task name

PID Task ID

Priority Priority of a task

Status Status of current task

StackSize Size of a task stack

WaterLine Peak usage of a task stack

StackPoint Start address of a stack

Top0fStack Address of stack top

EventMask Event mask of current task, default even

mask of task that is not used is 0. (If there

are many events used in task, the recently

used one will be displayed)

LiteOS

Developer Guide 7 Maintenance and Testing

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

188

Parameter Description

SemId Semaphore ID that current task owned,

default semaphore ID that is not used is

0xFFFF. (If there are many semaphores

used in task, the recently used one will be

displayed)

CPUUSE CPU usage since startup

CPUUSE10s CPU usage in previous 10 second

CPUUSE1s CPU usage in previous 1 second

MEMUSE Size of memory that is allocated till now,

with unit byte.

NOTE

The value of MEMUSE can be positive or negative.

If memory is allocated to tasks, the MEMUSE value increases. If tasks release memory, the MEMUSE

value decreases.

If no memory is allocated to tasks, or the allocated memory equals the released memory, the MEMUSE

value is 0.

If the MEMUSE value is positive, some memory is not released by the task.

If the MEMUSE value is negative, the released memory is larger than the allocated memory.

The conuting of MEMUSE refers to system memory pool. The memory used by operations that take

place during an interrupt and any memory processed before task scheduling starts will not be counted.

7.2.5.1.2 sem

Function

The sem command is used to query the information about semaphores of Huawei LiteOS

Kernel.

Format

sem [ID]

Parameter Description

Table 7-2 Parameter description

Parameter Description Value Range

ID Semaphore ID [0, 0xFFFFFFFF]

LiteOS

Developer Guide 7 Maintenance and Testing

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

189

User Guide

lParameter displays the usage number and total number of semaphore.

lIf an ID is added, the usage number of the specified semaphore will be displayed.

Example

Examples: sem 12

Output

Figure 7-3 Information of the semaphore

Table 7-3 Parameter description

Parameter Description

SemID Semaphore ID

Count Semaphore usage count

NOTE

lThe SemID parameter value can be represented either in decimal format or in hexadecimal format.

lWhen the SemID parameter value falls in the range [0,1023], the status of the semaphore specified

by the ID is returned. (A prompt will be displayed if the semaphore specified by the ID is not in

use.) A prompt indicating a parameter error will be displayed if the parameter value is outside the

range [0,1023].

7.2.5.1.3 swtmr

Function

The swtmr command is used to query the information about system software timers.

Format

swtmr [ID]

LiteOS

Developer Guide 7 Maintenance and Testing

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

190

Parameter Description

Table 7-4 Parameter description

Parameter Description Value Range

ID ID of a software timer [0，0xFFFFFFF]

User Guide

lIf the parameter is left unspecified, information about all software timers will be

displayed.

lIf an ID is added after the swtmr command, the information about the specified software

timer will be displayed.

Example

For example: enter swtmr and swtmr 5

Output

Figure 7-4 Information of software timers

Figure 7-5 Information of the software timer with specified ID

Table 7-5 Parameter description

Parameter Description

SwTmrID ID of a software timer

State State of a software timer

Mode Mode of a software timer

Interval Number of ticks used by a software timer

LiteOS

Developer Guide 7 Maintenance and Testing

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

191

Parameter Description

Count Number of remaining ticks

Arg Number of input parameters

pfnHandlerAddr Address of a callback function

NOTE

lThe SwTmrID parameter value can be represented either in decimal format or in hexadecimal

format.

lWhen the SwTmrID parameter value falls in the range [0,current number of software timers –1], the

status of the software timer specified by the ID is returned. A prompt indicating a parameter error

will be displayed if the parameter value is outside the range [0,current number of software timers –

1].

7.2.5.1.4 hwi

Function

The hwi command is used to query the information about current interrupts.

Format

hwi

Parameter Description

Table 7-6 Parameter description

Parameter Description Value Range

N/A N/A N/A

User Guide

lThis command does not need parameter.

lEnter hwi to display the number and count of the current interrupts.

Example

For example: enter hwi

LiteOS

Developer Guide 7 Maintenance and Testing

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

192

Output

Figure 7-6 Information of interrupts

7.2.5.1.5 cpup

Function

The cpup command is used to query the CPU usage of Huawei LiteOS.

Format

cpup [mode] [taskID]

Parameter Description

Table 7-7 Parameter description

Parameter Description Value Range

mode lDefault: display the CPU

usage in previous 10

seconds.

l0: display the CPU usage

in previous 10 second.

l1: display the CPU usage

in previous 1 second.

lOther value: display the

CPU usage in previous

time (less than 1 second).

[0,0xFFFF]

or 0xFFFFFFFF

taskID Task ID [0,0xFFFF]

or 0xFFFFFFFF

User Guide

lIf parameter is default, the CPU usage percent of system 10s ago will be displayed.

lIf parameter is only one, and the parameter is mode, the CPU usage percent of system

corresponding time ago will be displayed.

LiteOS

Developer Guide 7 Maintenance and Testing

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

193

lIf two parameters are passed in, and the first one is mode, the second one is taskID. The

CPU usage percent of system with the specific taskID corresponding time ago will be

displayed.

Example

For example: cpup 1 1

Output

Figure 7-7 Information of CPU usage

7.2.5.1.6 memcheck

Function

The memcheck command is used to check whether the dynamically applied memory is

complete and whether memory leak occurs causing node destroyed.

Format

memcheck

Parameter Description

Table 7-8 Parameter description

Parameter Description Value Range

N/A N/A N/A

User Guide

lIf memory leak does not occur, the output of memcheck is "memcheck over, all passed! "

lIf nodes are not completed memory pool, the output is the information about the memory

of the node that destroyed.

Example

For example: enter memcheck

Output

Figure 7-8 Memory leak does not occur

LiteOS

Developer Guide 7 Maintenance and Testing

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

194

Figure 7-9 Memory leak occurs

7.2.5.1.7 writereg

Function

The writeReg command is used to write data to a specified address.

Format

writereg [address] [value]

Parameter Description

Table 7-9 Parameter description

Parameter Description Value Range

address The address to which data

will be written.

[0,0xFFFFFFFF]

value The data to be written. [0,0xFFFFFFFF]

NOTE

The values of the address and value parameters must fall in the valid value range. Otherwise, system

exceptions will result.

User Guide

lThe writeReg command is used to write data to a specified address.

lIf data is written successfully, the address and data will be printed on the screen.

lThe address is aligned to the largest multiple of 4 that is smaller than the original

address. Note that address is hexadecimal.

NOTE

Arbitrary write will cause system crashes.

Example

For example:

LiteOS

Developer Guide 7 Maintenance and Testing

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

195

Enter writereg 0x86412351 0x32.

Output

Figure 7-10 When data is written to an address, the address is aligned at 0x86412350

7.2.5.1.8 readreg

Function

The readreg command is used to search for data stored in registers.

Format

readreg [address] [length]

Parameter Description

Table 7-10 Parameter description

Parameter Description Value Range

address Start register address to be

checked.

(0x0, 0xFFFFFFFF)

length Length to be checked. The address must be within

the permitted range.

NOTE

The values of the address and length parameters must fall in the valid value range.Otherwise, system

exceptions will result.

User Guide

lThe readreg command is used to search for data stored in registers.

lThe register address is displayed in hexadecimal format. The address is aligned to 4

bytes that is smaller than the original address. Huawei LiteOS searches for the aligned

value. The value to be searched is included in the aligned address. The length will be

aligned with the 4 bytes that is larger than the original length and printed in hexadecimal

format.

NOTE

Arbitrary address query will cause system crashes.

LiteOS

Developer Guide 7 Maintenance and Testing

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

196

Example

For example:

Enter readreg 0x86412351 0x32.

Output

Figure 7-11 When data is read from an address that is not aligned, the address is aligned at

0x86412350

7.2.5.1.9 free

Function

The free command displays the usage of memory in Huawei LiteOS and the sizes of the text

segment, data segment, rodata segment, and bss segment.

Format

free [-k | -m]

Parameter Description

Table 7-11 Parameter description

Parameter Description Value Range

No parameters In the unit of byte N/A

-k In the unit of KB N/A

-m In the unit of MB N/A

User Guide

lEnter free to display the total amount of the dynamic memory pool of Huawei LiteOS.

used indicates the total amount of used memory, text indicates the size of code segment,

data indicates the size of data segment, rodata indicates the size of read-only data

segment, and bss indicates the size of the memory used by the uninitialized global

variables.

lThe free command can be used to display the memory usage in three units: byte, KB,

and MB.

LiteOS

Developer Guide 7 Maintenance and Testing

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

197

Example

For example: enter free, free -k, and free -m.

Output

Figure 7-12 Display the memory usage in three units

7.2.5.1.10 uname

Function

The uname command is used to display the current OS name, time of data creation, name,

and version of Huawei LiteOS.

Format

uname[-a | -s | -t |-v | --help]

Parameter Description

-a Display all information.

-t Creation time of data.

-s OS name

-v Version

--help Prompt of uname command format

LiteOS

Developer Guide 7 Maintenance and Testing

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

198

User Guide

lThe uname command displays the name of current OS. uname -a / -t/ -s/ -v indicates that

the uname command is writing the current OS name into standard output. The

parameters cannot be used together.

Example

For example: enter uname -a

Output

Figure 7-13 View system information of Huawei LiteOS

7.2.5.1.11 systeminfo

Function

The systeminfo command is used to view the usage of resources including tasks, semaphores,

mutexes, queues, and timers in Huawei LiteOS.

Format

systeminfo

Parameter Description

Parameter Description Value Range

N/A N/A N/A

User Guide

lThe systeminfo command is used to view resource usage in Huawei LiteOS.

Example

For example, enter systeminfo.

Output

Figure 7-14 Resource usage in Huawei LiteOS

LiteOS

Developer Guide 7 Maintenance and Testing

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

199

Parameter description

Parameter Description

Module Module name

Used Number of used resources

Total Maximum number of usable resources

Enabled Whether to enable a module

7.2.5.1.12 help

Function

The help command is used to view all commands in Huawei LiteOS.

Format

help

Parameter Description

N/A N/A

User Guide

lThe help command is used to view all commands in Huawei LiteOS.

Example

For example, enter help.

Output

Figure 7-15 All commands in Huawei LiteOS

7.2.5.2 File

LiteOS

Developer Guide 7 Maintenance and Testing

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

200

7.2.5.2.1 ls

Function

The ls command is used to display the contents of the current directory.

Format

ls [path]

Parameter Description

Table 7-12 Parameter description

Parameter Description Value Range

path If the path parameter is null,

the current contents will be

displayed.

If the value of the path

parameter is a invalid file

name, no content will be

displayed. "No such

directory" will be prompted.

If the value of the path

parameter is a valid

directory, content under the

directory will be displayed.

1. Null

2. Valid directory

User Guide

lThe ls command displays the contents of the current directory.

lThe ls command displays the size of files.

lThe ls command can not count the size of files in proc, displaying 0.

Example

For example: enter ls

Output

Figure 7-16 Check the contents under the current directory. The displayed content is as

follows:

LiteOS

Developer Guide 7 Maintenance and Testing

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

201

7.2.5.2.2 cd

Function

The cd command is used to change the current directory.

Format

cd [path]

Parameter Description

Table 7-13 Parameter description

Parameter Description Value Range

path File path You must have the execution

(search) permission of the

specified directory.

User Guide

lIf the directory parameter is not configured, the cd command will jump to the root

directory.

lIf a complete file path is configured, it will jump to the file path.

lA complete file path starts with a slash (/), which indicates the root directory.

lOne point (.) indicates the current directory.

lTwo points (..) indicates the parent directory.

Example

For example: cd..

Output

Figure 7-17 Displayed information

LiteOS

Developer Guide 7 Maintenance and Testing

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

202

7.2.5.2.3 pwd

Function

The pwd command is used to display the current path.

Format

pwd

Parameter Description

Table 7-14 Parameter description

Parameter Description Value Range

N/A N/A N/A

User Guide

lThe pwd command writes the full path name (from root directory) of the current

directory to the standard output. All directories are separated by slash (/). The first slash

indicates the root directory and the last indicates the current directory.

Example

For example: enter pwd

Output

Figure 7-18 View current path

7.2.5.2.4 cp

Function

The cp command is used to copy files.

Format

cp [source path] [dest path]

LiteOS

Developer Guide 7 Maintenance and Testing

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

203

Parameter Description

Table 7-15 Parameter description

Parameter Description Value Range

source path Path to the source file File name

dest path Path to the destination file File name or directory

name

User Guide

lThe name of the source file cannot be the same as that of the destination file in the same

path.

lThe source file must exist. Currently, directories cannot be copied.

lIf the destination path is a directory, the directory must exist, and the name of the

destination file is the same as that of the source file.

lIf the destination path is a file, the directory that contains the file must exist, and the

name of the destination file is different from that of the source file.

lCurrently, multiple files (more than two files) cannot be copied concurrently. If there are

more than two source path parameters, files specified by the first two parameters are

copied.

lIf the destination file does not exist, a destination file will be created. If the destination

file already exist, it will be overwritten after the copy operation.

NOTE

Copying important system resources will cause unknown serious problems such as crashes. For

example, copying the /dev/uartdev-0 file by running the cp command will casue system crashes.

Example

For example, cp 100HSCAM/FILE0087.MP4.

Output

Figure 7-19 Command output

LiteOS

Developer Guide 7 Maintenance and Testing

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

204

7.2.5.2.5 cat

Function

The cat command is used to display content of text files.

Format

cat [pathname]

Parameter Description

Table 7-16 Parameter description

Parameter Description Value Range

path name File path Existed files

User Guide

lThe cat command displays content of text files.

Example

For example: cat w //w is a file name.

Output

Figure 7-20 View information about the w file

7.2.5.2.6 touch

Function

lThe touch command is used to create a nonexistent file in the current directory.

lIf the touch command is used to create an existing file, no file will be created and the

timestamp will not be updated.

Format

touch [filename]

LiteOS

Developer Guide 7 Maintenance and Testing

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

205

Parameter Description

Table 7-17 Parameter description

Parameter Description Value Range

filename Name of the file to be

created.

N/A

User Guide

lThe touch command creates a readable and writable empty file.

lThe touch command creates only one file each time.

NOTE

Creating a file by running the touch command in an important system resource path will cause unknown

problems such as crashes. For example, running the touch uartdev-0 command in the /dev path will

casue system crashes.

Example

For example: enter touch file.c.

Output

Figure 7-21 Create a file named file.c

7.2.5.2.7 rm

Function

The rm command is used to delete a file.

Format

rm [-r] [dirname/filename]

LiteOS

Developer Guide 7 Maintenance and Testing

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

206

Parameter Description

Table 7-18 Parameter description

Parameter Description Value Range

-r The parameter is optional.

The parameter is necessary

to delete directories.

N/A

dirname/filename Name of the file to be

deleted, which can be a path

name.

N/A

User Guide

lThe rm command deletes only one file each time.

lThe rm -r command deletes a non-empty directory.

NOTE

Deleting important system resources such as /dev by running the rm command will cause unknown

problems such as crashes.

Example

For example:

1. Enter rm 1.c

2. Enter rm -r dir

Output

Figure 7-22 The rm command deletes the 1.c file.

Figure 7-23 Delete the dir directory by using the rm -r command

LiteOS

Developer Guide 7 Maintenance and Testing

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

207

7.2.5.2.8 sync

Function

The sync command is used to synchronize the cache data (data in the file system) to an sd

card or nandflash.

Format

sync

Parameter Description

Table 7-19 Parameter description

Parameter Description Value Range

N/A N/A N/A

User Guide

lThe sync command refreshes the new cache. When there is no SD card, no operation

will be done.

lWhen there is an SD card, cache data will be synchronized to the SD card or NAND

flash memory and no information will be printed.

Example

For example: after sync is input, the synchronization will succeed if there is an SD card and

no operation will be done if there is not.

Output

None.

7.2.5.2.9 statfs

Function

The statfs command is used to print the information about a file system, such as type, total

size, and available size.

Format

statfs [directory]

LiteOS

Developer Guide 7 Maintenance and Testing

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

208

Parameter Description

Parameter Description Value Range

directory Type of the file system. The existing file system that

supports the statfs command

User Guide

The printed information differs with different systems.

Example

Example of printing the information about the YAFFS file system:

statfs yaffs0

Output

Output of the statfs yaffs0 command

statfs got:

f_type = 1497497427

cluster_size = 2048

total_clusters = 704

free_clusters = 640

avail_clusters = 640

f_namelen = 255

7.2.5.2.10 format

Function

The format command is used to format disks.

Format

format [dev_inodename] [sectors][label]

Parameter Description

dev_inodename Name of a device

LiteOS

Developer Guide 7 Maintenance and Testing

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

209

Parameter Description

sectors Size of the allocated unit memory or sector.

If the value of this parameter is set to 0, the

parameter is null. (The value must be a

power of 0 or 2. The maximum value is 128.

When this parameter is set to 0, the size of

the allocated unit memory or sector, which

varies with the partition size, is

automatically specified. An incorrect size

will lead to a formatting failure.)

label (Optional) Volume label name. The value of

this parameter is a string. When the value is

set to null, the volume label name set earlier

is cleared.

User Guide

lThe format command formats disks. The device name can be searched for under the dev

directory. A storage card must be installed before formatting.

lThe format command can only be used to format SD cards and MMC cards and is not

valid to the NAND flash or NOR flash memory.

lThe sectors parameter value must be valid. Otherwise, errors may occur.

Example

For example: enter format/dev/mmcblk0 0

Output

Figure 7-24 Displayed contents

7.2.5.2.11 mount

Function

The mount command is used to mount a device to a specified directory.

Format

mount [device] [path] [name]

LiteOS

Developer Guide 7 Maintenance and Testing

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

210

Parameter Description

Table 7-20 Parameter description

Parameter Description Value Range

device The device to be mounted

(the format is the path of the

device).

Devices of Huawei LiteOS.

path Specified directory.

You must have the execution

(search) permission of the

specified directory.

N/A

name Type of the file system. vfat, yaffs, jffs, ramfs, nfs

User Guide

lAdd device information, the specified directory, and type of the file system to mount the

file system to a specified directory.

Example

For example: mount /dev/mmc0 /bin/vs/sd vfat.

Output

Figure 7-25 Mount /dev/mmc0 to the /bin/vs/sd directory

7.2.5.2.12 umount

Function

The umount command is used to uninstall a specified file system.

Format

umount [dir]

LiteOS

Developer Guide 7 Maintenance and Testing

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

211

Parameter Description

Table 7-21 Parameter description

Parameter Description Value Range

dir Directory of the file system

need to be uninstalled.

Directory of the mounted

file system

User Guide

lAdd the directory to be uninstalled (of the specified directory) to the end of the umount

command.

Example

For example: umount /bin/vs/sd.

Output

Figure 7-26 Uninstall the file system that is mounted to /bin/vs/sd

7.2.5.2.13 rmdir

Function

The rmdir command is used to delete a directory.

Format

rmdir[dir]

Parameter Description

Table 7-22 Parameter description

Parameter Description Value Range

dir Name of the directory to be

deleted. The directory must

be empty and the name can

be a file path.

N/A

User Guide

lThe rmdir command only deletes a directory.

LiteOS

Developer Guide 7 Maintenance and Testing

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

212

lThe rmdir command deletes only one directory each time.

lThe rmdir command deletes only empty directory.

Example

For example: enter rmdir dir

Output

Figure 7-27 Delete the dir directory

7.2.5.2.14 mkdir

Function

The mkdir command is used to create a directory.

Format

mkdir [directory]

Parameter Description

Table 7-23 Parameter description

Parameter Description Value Range

directory Directory to be created N/A

User Guide

lAdd a directory name to the end of the mkdir command to create a directory.

lAdd a path name and a directory name to the end of the mkdir command to create a

directory under the specified directory.

Example

For example: mkdir share

LiteOS

Developer Guide 7 Maintenance and Testing

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

213

Output

Figure 7-28 Create the share directory

7.2.5.2.15 partition

Function

The partition command is used to query the information about partitions.

Format

partition [jffs | yaffs]

Parameter Description

Table 7-24 Parameter description

Parameter Description Value Range

jffs Display partition

information of jffs file

system

N/A

yaffs Display partition

information of yaffs file

system

N/A

User Guide

lEnter the partition command to display the information about partitions.

lThe command only supports yaffs and jffs file systems.

Example

For example: enter partition yaffs

Output

Figure 7-29 Information of partition

LiteOS

Developer Guide 7 Maintenance and Testing

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

214

7.2.5.2.16 writeproc

Function

The writeproc command is used to write data to a specified proc file system.

Format

writeproc [pcval] [operational mark] [pcPath]

Parameter Description

Table 7-25 Parameter description

Parameter Description Value Range

pcval Data to be written to the file. A string.

operational mark If the operational mark is

>>, data is written to an

existing file.

Only >> is valid.

pcPath Path of the file to which data

will be written.

Absolute path.

User Guide

lThe writeproc command writes data to a file.

lIf the operational mark is >> and the file to which the data is written exists, the data is

written to the file.

lAs for several files non user created in file system, writeproc is able to make functions

such as modifying system information recorded come true.

Example

Enter writeproc 'sys=2' >> /proc/umap/logmpp

Output

Figure 7-30 Modify the level of sys in logmpp

LiteOS

Developer Guide 7 Maintenance and Testing

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

215

7.2.5.2.17 partinfo

Function

The information about the identified partitions of hard disk and SD card can be queried by

running the partinfo command.

Format

partinfo <dev_inodename>

Parameter Description

Table 7-26 Parameter description

Parameter Description Value Range

dev_inodename The name of the partition to check. Legal partition name.

User Guide

None.

Example

partinfo /dev/sdap0

Output

Huawei LiteOS # partinfo /dev/sdap0

part info :

disk id : 3

part_id in system: 0

part no in disk : 0

part no in mbr : 1

part filesystem : 0C

part dev name : sdap0

part sec start : 2048

part sec count : 167794688

7.2.5.3 Network

7.2.5.3.1 arp

Function

In Ethernet, hosts communicate with each other by using a MAC address. If a host that uses

the IP protocol wants to communicate in LAN (Ethernet), the IP address of the host needs to

be transformed into a MAC address. Therefore, the ARP cache, a mapping of IP addresses

and MAC addresses, is stored in a host. A host obtains the MAC address from the ARP cache

table to send IP packets to a destination IP address in LAN. The ARP cache is maintained by

TCP/IP protocol stack. You can view or modify the ARP table by using ARP commands.

LiteOS

Developer Guide 7 Maintenance and Testing

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

216

Format

arp

arp [-i IF] -s IPADDR HWADDR

arp [-i IF] -d IPADDR

Parameter Description

Table 7-27 Parameter description

Parameter Description Value Range

None. Print the contents of the

whole ARP cache.

N/A

-i IF Specify a network API

(optional).

N/A

-s IPADDR HWADDR Add an ARP entry. The

parameters next to the

command are the IP address

and MAC address of another

host in LAN.

N/A

-d IPADDR Delete an ARP entry. N/A

User Guide

lThe arp command queries and modifies the ARP cache table of TCP/IP protocol stack.

It is meaningless to add the ARP entry in non-LAN networks, and protocol stack will

return fail.

lUse the command after TCP/IP protocol takes effect.

Example

For example:

1. Enter arp

2. Enter arp -s 192.168.1.1 00:11:22:33:44:55

Output

Figure 7-31 Print the whole ARP cache table

LiteOS

Developer Guide 7 Maintenance and Testing

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

217

Table 7-28 Parameter description

Parameter Description

Address The IP address of the network device that

connects to the board.

HWaddress The MAC address of the network device

that connects to the board.

Iface Name of the API used by ARP entry.

7.2.5.3.2 ifconfig

Function

The ifconfig command is used to query and configure the parameters such as IP address,

network mask, gateway, and the MAC address. The command also enables or disables the

data processing function of the NIC.

Format

ifconfig

[-a]

<interface> <address> [netmask <address>] [gateway <address>]

[hw ether <address>]

[up|down]

Parameter Description

Table 7-29 Parameter description

Parameter Description Value Range

No parameter Print the information about

all NICs, such as IP address,

network mask, gateway,

MAC address, MTU, and

running status.

N/A

-a Print the sending and

receiving statistics of

protocol stack data.

N/A

interface Name of specified NIC, for

example, en0.

N/A

LiteOS

Developer Guide 7 Maintenance and Testing

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

218

Parameter Description Value Range

address Configure the IP address,

for example 192.168.1.10.

Name of specified NIC card

needs to be specified.

N/A

netmask Configure the mask of

subnet. Next to the

command is the mask

parameter, for example,

255.255.255.0.

N/A

gateway Configure the gateway. Next

to the command is the

gateway parameter, for

example, 192.168.1.1.

N/A

hw ether Configure the MAC address.

Next to the command is the

MAC address, for example,

00:11:22:33:44:55. Only

support ether hard type

currently.

N/A

mtu Configure the size of mtu.

Next to the command is the

mtu size, for example, 1000.

[68,1500]

up Enable the data processing

function of NIC. The NIC

name needs to be specified.

N/A

down Disable the data processing

function of NIC. The NIC

name is needed.

N/A

User Guide

lThe ifconfig command queries and configures the parameters such as network mode

(Wi-Fi or Ethernet), IP address, network mask, gateway, and MAC address.

lUse the command after TCP/IP protocol takes effect.

lBecause the IP address collision detection requires response time, IP address

configuration by using the ifconfig command each time has a delay of about 2 seconds.

Example

1. Enter ifconfig eth0 192.168.100.31 netmask 255.255.255.0 gateway 192.168.100.1 hw

ether 00:49:cb:6c:a1:31

Set the IP address of the development board to 192.168.100.31, the mask to

255.255.255.0, the gateway to 192.168.100.1, and the MAC address to 00:49:cb:

6c:a1:31.

LiteOS

Developer Guide 7 Maintenance and Testing

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

219

2. Run the ifconfig -a command to obtain protocol stack statistics.

Output

1. Set network parameters.

Huawei LiteOS # ifconfig

eth0 ip:192.168.1.2 netmask:255.255.255.0 gateway:192.168.1.1

HWaddr d2:ba:f4:0d:fb:89 MTU:1500 Runing Default Link UP

lo ip:127.0.0.1 netmask:255.0.0.0 gateway:127.0.0.1

HWaddr 00 MTU:0 Runing Link Down

Huawei LiteOS # ifconfig eth0 192.168.100.31 netmask 255.255.255.0 gateway

192.168.100.1 hw ether 00:49:cb:6c:a1:31

Huawei LiteOS # ifconfig

eth0 ip:192.168.100.31 netmask:255.255.255.0 gateway:192.168.100.1

HWaddr 00:49:cb:6c:a1:31 MTU:1500 Runing Default Link UP

lo ip:127.0.0.1 netmask:255.0.0.0 gateway:127.0.0.1

HWaddr 00 MTU:0 Runing Link Down

The following table lists the output parameters.

Table 7-30 Parameter description

Parameter Description

ip IP address of the board

netmask Network mask

gateway Gateway

HWaddr MAC address of the board

MTU Maximum transmission units of network

Running/Stop Whether NIC is running

Default Explain connecting to the default gateway

Link UP/Down Connect status to NIC

2. Obtain protocol stack statistics.

Huawei LiteOS # ifconfig -a

RX packets:23128 error:0 dropped:0 overrun:0 bytes:10390(10.1KB)

TX packets:40921 error:0 dropped:0 overrun:0 bytes:64008(62.5KB)

The following table lists the output parameters.

Table 7-31 Parameter description

Parameter Description

RX packets The number of normal packets that the IP layer has

received.

RX error The number of packets with errors that the IP layer has

received. The error types include length error, verification

error, IP option error, and error of the protocol field in an IP

header.

LiteOS

Developer Guide 7 Maintenance and Testing

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

220

Parameter Description

RX dropped The number of packets that the IP layer has dropped. The

packets are dropped because the packets have errors, the

packets cannot be forwarded, or the local NIC that receives

the packets is disabled.

RX overrun The number of packets that the MAC layer fails to deliver

to the upper-layer protocol stack. The main failure cause is

that the protocol stack resources are insufficient.

RX bytes The total number of bytes in all normal packets that the IP

layer has received, excluding the bytes in the fragments that

have not been completely reassembled.

TX packets The number of packets that the IP layer has successfully

sent or forwarded.

TX error The number of packets that the IP layer fails to send. The

packets fail to be sent because the packets cannot be routed,

or the packets fail to be processed in the protocol stack.

TX dropped The number of packets that the MAC layer drops due to

failure to send the packets. The packets fail to be sent

because the network adapter driver fails to process the

packets.

TX overrun Not in use.

TX bytes The total number of bytes in the packets that the IP layer

has successfully sent or forwarded.

7.2.5.3.3 ping

Function

The ping command is used to check the network connectivity.

Format

ping [-n cnt] [-w interval] [-l data_len] <IP>

ping [-t] [-w interval] <IP>

ping -k

LiteOS

Developer Guide 7 Maintenance and Testing

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

221

Parameter Description

Table 7-32 Parameter description

Parameter Description Value Range

IP IP address of the network to

be tested.

-n cnt Times of execution. The

default value is 4.

1~65535

-w interval Interval between sending

each ping packet. (Unit: ms)

-l data_len Data length of each ping

packet (ICMP ECHO

request packet) excluding

the ICMP packet header.

0~65500

-t Pings the target until the

ping thread is killed using

ping -k.

-k Kills the ping thread.

User Guide

lThe ping command tests the connectivity of the target IP network. The parameter is the

destination IP address.

lIf displaying sends an error, it explains the destination IP route is not reachable.

lUse the command after TCP/IP protocol takes effect.

Example

For example: enter ping 192.168.0.2

Output

Figure 7-32 Semaphore information about Huawei LiteOS

Huawei LiteOS # ping 192.168.1.3

[0]Reply from 192.168.1.3: time=2ms TTL=128

[1]Reply from 192.168.1.3: time=1ms TTL=128

[2]Reply from 192.168.1.3: time<1ms TTL=128

[3]Reply from 192.168.1.3: time=1ms TTL=128

--- 192.168.1.3 ping statistics ---

4 packets transmitted, 4 received, 0 loss

LiteOS

Developer Guide 7 Maintenance and Testing

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

222

7.2.5.3.4 tftp

Function

Trivial File Transfer Protocol (TFTP), one protocol of TCP/IP, provides simple file

transmission service between the client and server. The port number is 69.

Format

tftp <-g/-p> -l [FullPathLocalFile] -r [RemoteFile] [Host]

Parameter Description

Table 7-33 Parameter description

Parameter Description Value Range

-g Obtain files from the server Choose one from -g and -p

-p Upload files to the server Choose one from -g and -p

-l Name of a local file (full

path should be opened in

Huawei LiteOS)

-r Name of a file on the server

Host Server IP

User Guide

1. Set up NFS TFTP server. Firstly, you need to ensure that the server has been installed

TFTP client, and then configure it according to following figures.

LiteOS

Developer Guide 7 Maintenance and Testing

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

223

Click Setting to set the TFTP server.

Set Base Directory to the TFTP directory and then click OK to exit.

2. Huawei LiteOS board uses the tftp command to upload or download files.

3. The size of a file that is transmitted must not be greater than 32 MB.

4. tftp is a test function, the default configuration is closed, the official product is prohibited

to use the function.

5. Disclaimer: Huawei is not responsible for any risks brought by using the Telnet function

in official Huawei LiteOS.

Example

For example: download the vs_server.bin file from the server

Output

Huawei LiteOS # tftp -g -l /nfs/vs_server.bin -r vs_server.bin 192.168.1.2

TFTP transfer finish

If the transfer succeeds, the message TFTP transfer finish will be displayed. If the transfer

fails, other printed information will be displayed to help locate the problem.

LiteOS

Developer Guide 7 Maintenance and Testing

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

224

7.2.5.3.5 ntpdate

Function

The ntpdate command is used to synchronize the system time from the server.

Format

Obtain the system time from NTP server.

ntpdate [SERVER_IP1] [SERVER_IP2]...

Parameter Description

Table 7-34 Parameter description

Parameter Description Value Range

SERVER_IP IP of NTP server

User Guide

Run ntpdate [SERVER_IP1] [SERVER_IP2]...

The time of the first valid server IP will be obtained and displayed by running the ntpdate

command.

Example

For example:

Use the ntpdate command to update the time of system.

Output

Use the ntpdate command to update the time of system.

Huawei LiteOS # ntpdate 192.168.1.3

time server 192.168.1.3: Mon Jun 13 09:24:25 2016

The displayed time in the board may be different from the server time in several hours due to

different time zones.

7.2.5.3.6 dns

Function

The dns command is used to configure the DNS server address of the board.

Format

dns <1-2> <IP>

dns -a

LiteOS

Developer Guide 7 Maintenance and Testing

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

225

Parameter Description

Table 7-35 Parameter description

Parameter Description Value Range

<1-2> Choose to configure the first

or second DNS server.

1~2

<IP> IP address of the server.

-a Display the current

configuration state.

User Guide

Enter the netstat command

Example

For example:

1. View the configuration information about the current DNS.

2. Configure the IP of the second DNS.

3. Check whether the configuration of DNS is successful.

Output

1. View the configuration information about the current DNS.

Huawei LiteOS # dns -a

dns1: 208.67.222.222

dns2: 0.0.0.0

2. Configure the IP of the second DNS.

Huawei LiteOS # dns 2 192.168.1.2

3. Check whether the configuration of DNS is successful.

Huawei LiteOS # dns -a

dns1: 208.67.222.222

dns2: 192.168.1.2

7.2.5.3.7 netstat

Function

The netstat, a console command, is used to view the actual network connectivity and the state

of each network API device for TCP/IP network monitoring. The netstat command displays

the statistics of TCP and UDP protocols to check the connectivity of all APIs of the board.

Format

netstat

LiteOS

Developer Guide 7 Maintenance and Testing

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

226

Parameter Description

Table 7-36 Parameter description

Parameter Description Value Range

N/A N/A N/A

User Guide

Enter the netstat command

Example

For example: enter netstat

Output

Figure 7-33 Information printed using netstat

Table 7-37 Parameter description

Parameter Description

Proto Protocol type

Recv-Q Amount of data that is not read by the user.

Send-Q When TCP is used, the parameter specifies

the amount of data that is sent and not

acknowledged.

When UDP is used, the parameter specifies

the amount of data that is cached because IP

address parsing is not complete.

Local Address Local address and port

LiteOS

Developer Guide 7 Maintenance and Testing

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

227

Parameter Description

Foreign Address Remote address and port

State Connectivity of TCP (the parameter is

meaningless to UDP)

Type Raw socket type

raw indicates the AF_INET type of raw

socket.

pkt-raw indicates the PF_PACKET type of

raw socket.

Protocol For an AF_INET raw socket, protocol

indicates the type of the protocol in the IP

header. For a PF_PACKET raw socket,

protocol indicates the type of the protocol

in the Ethernet header.

HDRINCL Whether the user has enabled the

IP_HDRINCL socket option on the

AF_INET raw socket.

1 indicates that the user has enabled this

option. 0 indicates that the user has not

enabled this option.

netif NIC that is bound to the PF_PACKET raw

socket

None indicates that no NIC is bound to the

raw socket.

NOTE

"========== total sockets 32 ====== unused sockets 22 ========== "

The preceding printed information indicates that there are 32 sockets in total, and 22 out of them are not

in use.

7.2.5.3.8 telnet

Function

telnet is used to access servers through networks from computers of terminal users.

Format

telnet [on | off]

LiteOS

Developer Guide 7 Maintenance and Testing

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

228

Parameter Description

Table 7-38 Parameter description

Parameter Description Value Range

on Turning on a server N/A

off Turning off a server N/A

User Guide

ltelnet is used to access servers through networks from computers of terminal users.

lTo enable telnet, ethernet drivers must be initialized, and ethernet drivers of boards must

be started.

lCurrently, only one client can be connected to a development board using telnet and an

IP address at one time.

Example

For example, enter telnet on.

Output

Figure 7-34 Entering telnet on

7.2.5.3.9 tcpdump

Function

The tcpdump command is used to capture network packets. It does not support protocol

analysis on the device. Captured network packets are used to generate a PCAP file which is

analyzed using Wireshark.

Format

tcpdump -i ifname -w "path" [-c "package-count"] ["filter expression"]

tcpdump stop

LiteOS

Developer Guide 7 Maintenance and Testing

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

229

Parameter Description

Table 7-39 Parameter description

Parameter Description Value Range

ifname NIC name This parameter can be

set to a NIC name

only.

path Absolute path of a PCAP file This parameter must

be set to a valid path.

package-count Number of network packets to be captured

(This parameter is optional. If it is unspecified

or set to 0, the number of network packets to

be captured is unlimited.)

Range: 0 to

4294967295

filter expression Packet filtering expression See the PCAP

filtering rule.

User Guide

lThis command can be used only after the network and file system are initialized.

lOnly a single NIC can be used to capture packets.

lThe direction of the data packets cannot be configured. Currently, the direction is

bidirectional.

Example

Enter tcpdump -i eth0 -w /ramfs/cap.pcap -c 15 "arp or ip" to start capturing ARP and IP

packets. The number of packets to be captured is 15.

Enter tcpdump -i eth0 -w /ramfs/cap.pcap to start capturing packets. The number and type

of packets are not limited.

Enter tcpdump stop to stop capturing packets.

Output

Figure 7-35 Output of tcpdump -i eth0 -w /ramfs/cap.pcap -c 15 "arp or ip"

Huawei LiteOS # interface: eth0

filename: /ramfs/cap.pcap

count: 15

filter: arp or ip

Huawei LiteOS # tcpdump file saved.

Figure 7-36 Output of tcpdump stop

Huawei LiteOS # tcpdump stop

Huawei LiteOS # tcpdump stoped.

LiteOS

Developer Guide 7 Maintenance and Testing

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

230

7.2.5.4 Dynamic Loading

7.2.5.4.1 mopen

Function

The mopen command is used to load a user module.

Format

mopen module_path

Parameter Description

Table 7-40 Parameter description

Parameter Description

module_path Path of the user module

User Guide

lmodule_path can be set to a .o file or a .so file.

Example

For example: load /yaffs/bin/dynload/foo.o

Output

Huawei LiteOS# mopen /yaffs/bin/dynload/foo.o

module handle: 0x80391928

Huawei LiteOS#

Module handle will be returned if the loading succeeds. The returned module handle in this

example is 0x80391928.

7.2.5.4.2 findsym

Function

The findsym command is used to query the symbol address.

Format

findsym handle symbol_name

LiteOS

Developer Guide 7 Maintenance and Testing

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

231

Parameter Description

Table 7-41 Parameter description

Parameter Description

handle Module handle

symbol_name Name of the symbol to be searched.

User Guide

lIf the handle is 0, the command searches the symbol address in the global symbol table.

(The global symbol table contains the kernel symbol and other symbols provided by user

module).

lIf the handle is not 0 and is valid, the command searches the symbol in the module

specified by the handle.

Example

For example: search global symbol table for printf symbol and search user module (handle:

0x80391928) opened in mopen for the address of test_0 symbol.

Output

Huawei LiteOS# findsym 0 printf

symbol address:0x8004500c

Huawei LiteOS#

Huawei LiteOS# findsym 0x80391928 test_0

symbli address:0x8030f241

Huawei LiteOS#

7.2.5.4.3 call

Function

The call command is used to call a function with no parameters.

Format

call func_address

Parameter Description

Table 7-42 Parameter description

Parameter Description

func_address Memory address of the function

LiteOS

Developer Guide 7 Maintenance and Testing

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

232

User Guide

lCall the function after the memory address of a function symbol has been searched in

findsym.

NOTE

Arbitrary memory operations by running the call command will cause system crashes.

Example

For example: call test_0 function (address: 0x8030f241) that is searched in findsym.

Output

Huawei LiteOS# call 0x8030f241

test_0

Huawei LiteOS#

7.2.5.4.4 mclose

Function

The mclose command is used to uninstall a module.

Format

mclose module_handle

Parameter Description

Table 7-43 Parameter description

Parameter Description

module_handle The handle value returned by the module

that is opened in mopen.

User Guide

lIf a module with specified handle is uninstalled, it cannot be searched for symbols.

Example

For example: uninstall the user module whose handle is 0x80391928.

Output

Huawei LiteOS# mclose 0x80391928

Huawei LiteOS#

If no error information is displayed, the uninstallation is successful.

LiteOS

Developer Guide 7 Maintenance and Testing

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

233

7.2.5.4.5 lddrop

Function

The lddrop command is used to uninstall the dynamic loading module.

Format

lddrop

Parameter Description

Table 7-44 Parameter description

Parameter Description Value Range

N/A N/A N/A

User Guide

lThe dynamic loading function is not available if the dynamic loading module is

uninstalled. To use this function, reinitialize the dynamic loading module.

Example

For example: uninstall the dynamic loading module.

Output

Huawei LiteOS# lddrop

Huawei LiteOS#

If no error information is displayed, the uninstallation is successful.

LiteOS

Developer Guide 7 Maintenance and Testing

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

234

8 Debug Guidelines

8.1 Methods for Locating Illegal Memory Write

8.2 Solutions to Illegal Memory Access

8.3 Method for Locating a Deadlock

8.1 Methods for Locating Illegal Memory Write

8.1.1 Locating the Exception Based on the Exception Information

Information about some key registers can be viewed in the serial port after the exception of

illegal memory write occurs.

Figure 8-1

To locate the exception, debugging personnel need to view the vs_serve file under the

Huawei_LiteOS\out\<platform> directory and find the current operation that is specified by

the pc pointer. The operation causes the exception.

Figure 8-2

LiteOS

Developer Guide 8 Debug Guidelines

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

235

The information about the 0x80041a50 pc pointer shows that the (str r8,[r6,r7] instruction is

being executed when the exception occurs. The reason why the exception occurs can be

concluded by analyzing this instruction.

8.1.2 Memory Integrity Check

The causes of illegal memory access sometimes cannot be determined by referring to the

exception information as described in the previous topic. In addition, register information are

often incorrect, which causes locating failure. If you suspect that memory overwriting causes

the exception, whether memory overwriting causes the exception can be checked by calling

the osShellCmdMemcheck memory integrity check function.

After the osShellCmdMemcheck function is called, all nodes in the dynamic memory pool are

checked. When all nodes are normal, a log containing "memcheck over, all passed!" is

printed. If not all nodes are normal, error information is printed.

A memory integrity check example is described as follows:

VOID sampleFunc(VOID *p)

{

memset(p, 0, 0x110);//memset that involves length excess; setting the scenario of

illegal memory write

}

#include "los_dlinkmem.h"

UINT32 test(UINT32 argc, CHAR **args)

{

void *p1,*p2;

p1 = LOS_MemAlloc((void*)OS_SYS_MEM_ADDR,0x100);

p2 = LOS_MemAlloc((void*)OS_SYS_MEM_ADDR,0x100);

dprintf("p1 = %p, p2 = %p \n", p1, p2);

osShellCmdMemcheck(0,NULL); //memory integrity check

sampleFunc(p1); // assuming that the memory is illegally written here

osShellCmdMemcheck(0,NULL); //memory integrity check

LOS_MemFree(OS_SYS_MEM_ADDR, (void *)p1);

LOS_MemFree(OS_SYS_MEM_ADDR, (void *)p2);

return 0;

}

Check procedure:

Step 1 Run the task command to print the task status.

Step 2 Run the test command and execute the preceding example program.

----End

Information contained in the log that is printed after the check is described as follows:

lInformation of "memcheck over, all passed!" is printed after the the first time when

osShellCmdMemcheck function is called, indicating that no memory is illegally

accessed.

lAfter the second time when osShellCmdMemcheck function is called, error information

is printed, indicating that operations performed between two function calling cause

illegal data write. Figure 1 shows the log information. "ur node: 0x81ff0078" highlighted

by mark 3 indicates that memory of the current node is illegally written. As shown in

figure 1, "p2= 0x81ff0188". After subtracting 0x10 which is the size of control head.

That is "p2-0x10=cur node". (The prerequisite is that p1 and p2 must be connected,

LiteOS

Developer Guide 8 Debug Guidelines

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

236

which is able to verify by comparing with the address printed by p1 and p2. p2-

p1=0x110. The 0x110 express size of it, 0x10 is the size of the control head.)

lInformation of "pre node was allocated by task:shellTask" highlighted by mark 4

indicates that illegal memory write occurs in shellTask.

Figure 8-3

8.1.3 Check of Usable memset and memcpy Length

To accelerate the exception locating, a check of memset and memcpy length is added because

memset and memcpy are most likely to cause memory overwriting. If the length to be

operated exceeds the length that can be used by the operated node, a log will be printed to

prompt the length excess, and the memset and memcpy operations will be canceled (a

complete log cannot be viewed if the operations are not canceled). The following describes an

example of a memory integrity check in which a memset and memcpy length check is

enabled:

VOID sampleFunc(VOID *p)

{

memset(p, 0, 0x110);//memset that involves length excess; set the scenario of

illegal memory write

}

#include "los_dlinkmem.h"

UINT32 test(UINT32 argc, CHAR **args)

{

void *p1,*p2;

p1 = LOS_MemAlloc((void*)OS_SYS_MEM_ADDR,0x100);

p2 = LOS_MemAlloc((void*)OS_SYS_MEM_ADDR,0x100);

dprintf("p1 = %p, p2 = %p \n", p1, p2);

LOS_MemCheckLevelSet(LOS_MEM_CHECK_LEVEL_HIGH); //enabling the memset and memcpy

length check

osShellCmdMemcheck(0,NULL); //memory integrity check

sampleFunc(p1); // assuming that the memory is illegally written here

osShellCmdMemcheck(0,NULL); //memory integrity check

LiteOS

Developer Guide 8 Debug Guidelines

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

237

LOS_MemCheckLevelSet(LOS_MEM_CHECK_LEVEL_DISABLE);//disabling the memset and

memcpy length check

LOS_MemFree(OS_SYS_MEM_ADDR, (void *)p1);

LOS_MemFree(OS_SYS_MEM_ADDR, (void *)p2);

return 0;

}

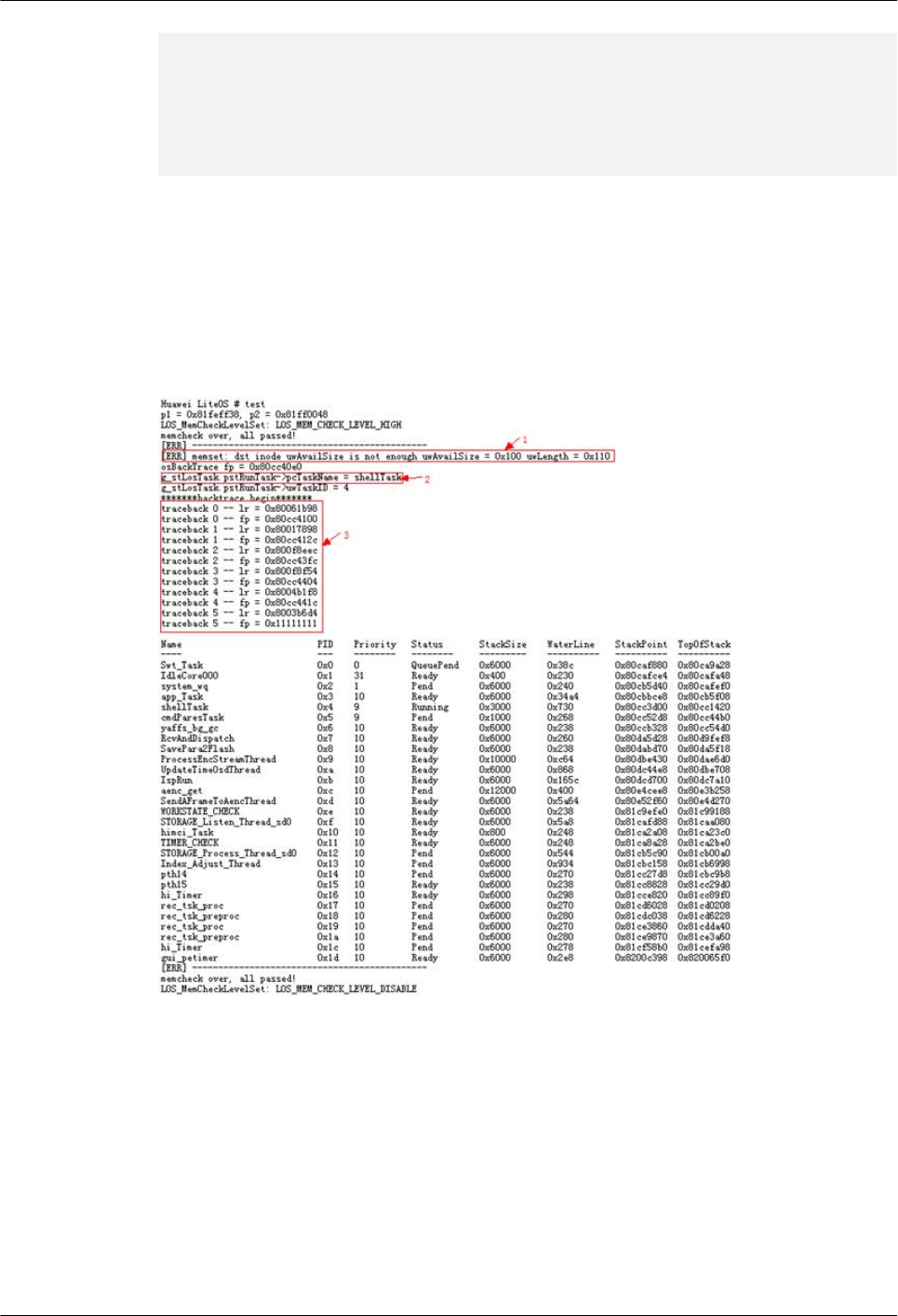

Figure 1 shows the result of running the preceding code. The complete log is printed because

the memset and memcpy length check is enabled and illegal memset operations can be

canceled. Mark 1 indicates that memset and memcpy length excess occurs. Mark 2 indicates

that the illegal operation occurs in shellTask. Mark 3 highlights lr and fp information. You can

open the vs_server file under the Huawei_LiteOS\out\<platform> directory and check the

recursive function calling by referring to lr values.

Figure 8-4

8.1.4 Global Variable Check

If the memory of a global variable is illegally accessed, you can find the address of the global

variable in the vs_server file under the Huawei_LiteOS\build\<platform> directory and pay

attention to the nearest variable before the address because it is possible that memory

overwriting occurs when this variable is being used and memory allocated to the global

variable is illegally accessed. An example of global variable check is described as follows:

Two global variables are defined in the erase file and are initialized.

/*----------------------------------------------------------------------*/

LiteOS

Developer Guide 8 Debug Guidelines

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

238

UINT32 g_uwEraseMap[16] = {0};

UINT32 g_uwEraseCount = 0;

/*----------------------------------------------------------------------*/

Figure 8-5

Then find the locations of the two global variables in the bss segment in the vs_server file. If

memory allocated to g_uwEraseMap is illegally accessed, analyze the usage of

g_uwEraseCount to check whether memory overwriting occurs.

8.1.5 Task Status Check

After Huawei LiteOS runs normally, run the task command to view status of all tasks. Values

of stackSize, WaterLine, StackPoint, and Top0fStack can be used to determine whether a

task stack causes illegal memory access.

Figure 8-6

The status of a task is described as follows by taking the task name shellTask as an example:

StackSize = 0x3000 (size of the stack allocated to the task when the task is created)

WaterLine = 0x2810 (size of the used memory of the stack)

StackPoint = 0x80d10084 (stack pointer that points to the address of the task)

Top0fStack = 0x80d0d768 (top of the stack)

MaxStackPoint = Top0fStack + StackSize = 0x80d10768 (maximum range of accessible

stack)

Compare the WaterLine value with the StackSize value. If the WaterLine value is greater

than the StackSize value, the task causes illegal memory access.

Check the StackPoint value, which should range from the TopOfStack value to the

MaxStackPoint value. If the StackPoint value is not in this range, the task stack causes

illegal memory access.

LiteOS

Developer Guide 8 Debug Guidelines

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

239

8.2 Solutions to Illegal Memory Access

8.2.1 Illegal Memory Access Caused by the Audio Library

Basic Information

Table 8-1

Applicable Scope Description

Operating system Huawei LiteOS

Symptom

In the version of Huawei LiteOS that BVT provided for Hangzhou Xiongmai Technology

Co.,Ltd, Huawei LiteOS sometimes breaks down.

Cause Analysis

Processing of the AEC algorithm needs a buffer that is aligned on the boundary of 8 bytes.

However, the alignment of the buffer is incorrectly processed ((state->pAEC_buffer) &

0xFFFFFFF8)) when Huawei LiteOS was encapsulated by HiSilicon. If the buffer that is

allocated is not aligned on the boundary of 8 bytes, the buffer address will be rolled back by 8

bytes after the processing of the AEC algorithm, resulting in memory overwriting. This

problem was not found in Linux because the memory allocated by the malloc function is

aligned, or because the overwritten memory is not used.

Solution and Summary

Call the malloc function to allocate a buffer that is aligned on the boundary of 8 bytes.

state->pAEC_buffer = malloc(s32AecSize + 8);

if(HI_NULL == state->pAEC_buffer)

{

…;

}

/*pAEC_buffer should be 8 byte alignment*/

if((state->pAEC_buffer - (HI_VOID*)HI_NULL) & 0x7)

{

s32AlignNum = 8 - ((state->pAEC_buffer - (HI_VOID*)HI_NULL) & 0x7);

}

else

LiteOS

Developer Guide 8 Debug Guidelines

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

240

{

s32AlignNum = 0;

}

…

(void *)((HI_U8 *)(state->pAEC_buffer) + s32AlignNum)

Suggestion and Summary

Be careful to avoid memory overwriting in operations on memory, especially on pointers.

8.2.2 Unreadable Audio Task Name

Basic Information

Table 8-2

Applicable Scope Description

Operating system Huawei LiteOS

Symptom

An unreadable audio task name appears after the task command is typed in the shell of

Huawei LiteOS.

Cause Analysis

The possible causes are as follows:

1. Memory overwriting

2. Use of a wild pointer

If memory is overwritten, and the task name overflows, it is likely that large-scale memory

overwriting causes the task name being unreadable. However, after the task command is run,

the printed information apart from the task name is normal, and the task name is passed in by

a pointer, indicating that the use of a wild pointer is more likely to cause the problem. In

addition, the memory check performed by typing the memcheck command in shell is passed

whether the task name is readable or not. Therefore, memory overwriting does not cause the

problem.

The task name stored in the task control block is a character string pointer, indicating that the

pointer only stores the address of the character string that contains the task name. A local

variable of a function can be found in the startup thread of the task. After the function is

executed, the local variable exits, and the function stack is released, which means the memory

of the released stack can be accessed and used by other operations. If the memory of the

LiteOS

Developer Guide 8 Debug Guidelines

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

241

released stack is accessed and used, the address of the character string containing the task

name may be overwritten when the task status is checked by running the task command (if the

address happens to be not overwritten, the displayed task name is normal, but the released

function stack is still operated, which is illegal).

Solution

Pass in the character string that contains the task name rather than passing in a pointer that

points to the character string.

Suggestion and Summary

None.

8.2.3 Illegal Memory Access Caused by a Global Variable

Basic Information

Table 8-3

Applicable Scope Description

Operating system Huawei LiteOS

Symptom

During the debug of Huawei LiteOS, a global variable should be set to 0. However, the value

changes into a nonzero value when the global variable is used.

Cause Analysis

That the global variable is illegally accessed is likely to be the cause. Memory overwriting

occurs when the memcpy and memset operations are performed on the variable before the

global variable, and the global variable is illegally written.

Solution

View the map file and check whether the variable before the global variable is incorrectly

operated, which causes illegal memory write.

Suggestion and Summary

This solution can effectively locate the variable that causes the illegal memory write.

LiteOS

Developer Guide 8 Debug Guidelines

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

242

8.3 Method for Locating a Deadlock

Basic Information

Table 8-4

Applicable Scope Description

Operating system Huawei LiteOS

Symptom

Two tasks are deadlocked but the shell function is available.

Cause Analysis

A deadlock occurs when both the following conditions are met:

lTask A holds mutex X and waits forever for mutex Y.

lTask B holds mutex Y and waits forever for mutex X.

In this case, task A and task B are deadlocked.

Solution

Step 1 Enter task in the shell CLI of LiteOS.

The system displays the status and information of all running tasks.

Figure 8-7 Status and information of running tasks in the system

Step 2 Filter the task that may be deadlocked, record its task ID, and enter task plus the task ID in

the shell CLI to view the call stack information of the task.

Figure 8-8 Call stack information of a specified task

LiteOS

Developer Guide 8 Debug Guidelines

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

243

Step 3 Record the lr value (for example, 0x80070b3c) of traceback 0. Locate the lr value in the

vs_server.asm disassembly file, as shown in the following figure. Locate the pending location

(for example, task_f01) and called API of the mutex.

Figure 8-9 Pending location in the disassembly file

Step 4 Locate the call locations of traceback 1 and traceback 2, and check whether a deadlock occurs

based on the context.

----End

Suggestion and Summary

None.

LiteOS

Developer Guide 8 Debug Guidelines

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

244

9 Standard Libraries

About This Chapter

9.1 POSIX APIs

9.2 Libc/Libm APIs

9.3 C++ Compatibility Specifications

9.1 POSIX APIs

9.1.1 POSIX Adaption APIs

Huawei LiteOS provides a set of POSIX adaption APIs. The following table lists

specifications of POSIX adaption APIs.

Header File API Type Description Remark

sys/socket.h accept Function Accept a

connection on a

socket.

For details on

this API, see the

lwip_accept API

in Huawei

LiteOS LwIP

API Reference.

The

implementation

of these two

APIs is the

same.

LiteOS

Developer Guide 9 Standard Libraries

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

245

Header File API Type Description Remark

sys/socket.h bind Function Locate a

socket.

For details on

this API, see the

lwip_bind API

in Huawei

LiteOS LwIP

API Reference.

The

implementation

of these two

APIs is the

same.

time.h clock Function Return the time

that the

processor

spends on

calling a

process or a

function.

time.h clock_getres Function Get the

resolution of a

specified clock.

time.h clock_gettime Function Retrieve the

time of a

specified clock.

time.h clock_settime Function Set the time of

a specified

clock.

sys/socket.h connect Function Make a

connection on a

socket.

For details on

this API, see the

lwip_connect

API in Huawei

LiteOS LwIP

API Reference.

The

implementation

of these two

APIs is the

same.

time.h difftime Function Calculate the

time elapsed

between two

times.

LiteOS

Developer Guide 9 Standard Libraries

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

246

Header File API Type Description Remark

dlfcn.h dlclose Macro Unload an

opened

dynamic link

library.

The

implementation

of this API is the

same as that of

the

LOS_ModuleUn

load API.

LiteOS

Developer Guide 9 Standard Libraries

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

247

Header File API Type Description Remark

dlfcn.h dlopen Macro Open a

dynamic link

library file in a

specified mode.

Standard: The

second

parameter of

dlopen specifies

the symbol

resolution mode.

RTLD_LAZY:

Undefined

symbols in the

dynamic link

library are not

resolved before

dlopen returns.

RTLD_NOW:

All undefined

symbols in the

dynamic link

library should be

resolved before

dlopen returns.

If they are not

resolved, dlopen

will return

NULL. Huawei

LiteOS: The

symbol

resolution mode

parameter is not

supported when

the dynamic link

library is

opened. The

symbol

resolution

behavior is the

same as that of

in standard

RTLD_NOW

mode.

The

implementation

of this API is the

same as that of

the

LOS_SoLoad

API.

LiteOS

Developer Guide 9 Standard Libraries

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

248

Header File API Type Description Remark

dlfcn.h dlsym Macro Take a handle

of a dynamic

link library and

a symbol name,

and return an

address of a

function or a

variable.

The

implementation

of this API is the

same as that of

the

LOS_FindSymB

yName API.

sys/socket.h getpeername Function Get the peer

address of a

socket

For details on

this API, see the

lwip_getpeerna

me API in

Huawei LiteOS

LwIP API

Reference. The

implementation

of these two

APIs is the

same.

unistd.h getpid Function Get the ID of a

process.

The return type

differs from that

in Huawei

LiteOS.

sys/socket.h getsockname Function Get the name of

a socket.

For details on

this API, see the

lwip_getsockna

me API in

Huawei LiteOS

LwIP API

Reference. The

implementation

of these two

APIs is the

same.

sys/socket.h getsockopt Function Get the socket

options.

For details on

this API, see the

lwip_getsockopt

API in Huawei

LiteOS LwIP

API Reference.

The

implementation

of these two

APIs is the

same.

sys/time.h gettimeofday Function Get the current

time.

LiteOS

Developer Guide 9 Standard Libraries

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

249

Header File API Type Description Remark

in.h htonl Function Convert an

unsigned long

integer from

host byte order

to network byte

order.

The

implementation

of this API is the

same as that of

the lwip_htonl

API.

in.h htons Function Convert an

unsigned short

integer from

host byte order

to network byte

order.

The

implementation

of this API is the

same as that of

the lwip_htons

API.

arpa/inet.h inet_aton Function Convert a string

in the Internet

standard dot

notation to a

network

address.

For details on

this API, see the

inet_aton API in

Huawei LiteOS

LwIP API

Reference.

arpa/inet.h inet_addr Function Convert an

address

expressed in the

standard

dotted-decimal

notation to

in_addr.

For details on

this API, see the

in_addr API in

Huawei LiteOS

LwIP API

Reference.

mqueue.h mq_open Function Open a

message queue.

mqueue.h mq_receive Function Receive a

message from a

message queue.

mqueue.h mq_send Function Send a message

to a message

queue.

mqueue.h mq_setattr Function Set the attribute

of a message

queue.

mqueue.h mq_timedrecei

Function Receive

messages at a

scheduled time.

LiteOS

Developer Guide 9 Standard Libraries

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

250

Header File API Type Description Remark

mqueue.h mq_timedsend Function Send messages

at a scheduled

time.

Standard: A

deadline for the

send time must

be specified.

You are allowed

to enter a

deadline earlier

than the current

time, but the

operating system

considers the

deadline invalid.

Huawei LiteOS:

The time

interval between

consecutive

receipts must be

specified. It is

not allowed to

enter a negative

value while

specifying the

length of time

interval.

mqueue.h mq_unlink Function Remove a

message queue.

LiteOS

Developer Guide 9 Standard Libraries

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

251

Header File API Type Description Remark

time.h nanosleep Function High-resolution

(nanosecond

precision)

sleep.

Standard:

nanosleep

achieves sleep

for nanoseconds.

If the call is

interrupted by a

signal, the

remaining sleep

time is written

into the second

parameter.

Huawei LiteOS:

Currently,

nanosleep

achieves sleep

for the time

interval of tick

(10 ms)

precision, and

the second

parameter is not

supported.

The passed-in

number of

seconds must

not be greater

than 4292

seconds.

in.h ntohl Function Convert an

unsigned long

integer from

network byte

order to host

byte order.

The

implementation

of this API is the

same as that of

the lwip_ntohl

API.

in.h ntohs Function Convert an

unsigned short

integer from

network byte

order to host

byte order.

The

implementation

of this API is the

same as that of

the lwip_ntohs

API.

pthread.h pthread_attr_ge

tinheritsched

Function Get the

scheduling

mode of a task.

pthread.h pthread_attr_ge

tschedparam

Function Get task

scheduling

priority.

LiteOS

Developer Guide 9 Standard Libraries

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

252

Header File API Type Description Remark

pthread.h pthread_attr_ge

tschedpolicy

Function Get the task

scheduling

policy attribute.

Standard: The

scheduling

policy can be

SCHED_OTHE

SCHED_FIFO,

or SCHED_RR.

Huawei LiteOS:

The scheduling

policy must be

SCHED_RR.

pthread.h pthread_attr_ge

tscope

Function Get the task

scope attribute.

Standard: The

task scope can

be either

PTHREAD_SC

OPE_SYSTEM

PTHREAD_SC

OPE_PROCESS

Huawei LiteOS:

The task scope

must be

PTHREAD_SC

OPE_SYSTEM.

pthread.h pthread_attr_ge

tstacksize

Function Get the size of

task attribute

stack.

pthread.h pthread_attr_ini

Function Initialize task

attributes.

pthread.h pthread_attr_set

detachstate

Function Set the detach

state of task

attributes.

pthread.h pthread_attr_set

inheritsched

Function Set the

scheduling

mode of a task.

LiteOS

Developer Guide 9 Standard Libraries

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

253

Header File API Type Description Remark

pthread.h pthread_attr_set

schedparam

Function Set task

scheduling

priority.

Standard: A

larger value

indicates a

higher priority.

Huawei LiteOS:

A larger value

indicates a lower

priority.

Note: The

inheritsched

field of the

pthread_attr_t

task attribute

needs to be set

PTHREAD_EX

PLICIT_SCHE

D, otherwise the

task scheduling

priority

configuration

will not take

effect. The

default value is

PTHREAD_IN

HERIT_SCHE

pthread.h pthread_attr_set

schedpolicy

Function Set the task

scheduling

policy attribute.

Standard: The

scheduling

policy can be

SCHED_OTHE

SCHED_FIFO,

or SCHED_RR.

Huawei LiteOS:

The scheduling

policy must be

SCHED_RR.

LiteOS

Developer Guide 9 Standard Libraries

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

254

Header File API Type Description Remark

pthread.h pthread_attr_set

scope

Function Set the task

scope.

Standard: The

task scope can

be either

PTHREAD_SC

OPE_SYSTEM

PTHREAD_SC

OPE_PROCESS

Huawei LiteOS:

The task scope

must be

PTHREAD_SC

OPE_SYSTEM.

pthread.h pthread_attr_set

stacksize

Function Set the size of

task attribute

stack.

pthread.h pthread_cancel Function Cancel a task. A task can be

canceled at a

blocking point.

Huawei LiteOS:

The

PTHREAD_CA

NCEL_ASNCH

RONOUS status

must be set

before calling

pthread_cancel

to cancel a task.

pthread.h pthread_cond_b

roadcast

Function Unblock all

threads blocked

on a condition

variable.

pthread_cond.h pthread_cond_d

estroy

Function Destroy a

condition

variable.

pthread.h pthread_cond_i

nit

Function Initialize a

condition

variable.

pthread.h pthread_cond_s

ignal

Function Unblock

threads blocked

on a condition

variable.

LiteOS

Developer Guide 9 Standard Libraries

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

255

Header File API Type Description Remark

pthread.h pthread_cond_t

imedwait

Function Wait on a

condition

variable within

a timeout

interval.

Standard: A

deadline for the

wait period must

be specified.

You are allowed

to enter a

deadline earlier

than the current

time, but the

operating system

considers the

deadline invalid.

Huawei LiteOS:

The time

interval between

consecutive

receipts must be

specified. It is

not allowed to

enter a negative

value while

specifying the

length of time

interval.

pthread.h pthread_cond_

wait

Function Wait on a

condition

variable.

pthread.h pthread_condatt

r_getpshared

Function Get the

attributes of a

condition

variable.

Standard: The

attribute can be

either

PTHREAD_PR

OCESS_PRIVA

TE or

PTHREAD_PR

OCESS_SHAR

ED.

Huawei LiteOS:

The attribute

must be

PTHREAD_PR

OCESS_PRIVA

TE.

LiteOS

Developer Guide 9 Standard Libraries

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

256

Header File API Type Description Remark

pthread.h pthread_condatt

r_setpshared

Function Set the

attributes of a

condition

variable.

Standard: The

attribute can be

either

PTHREAD_PR

OCESS_PRIVA

TE or

PTHREAD_PR

OCESS_SHAR

ED.

Huawei LiteOS:

The attribute

must be

PTHREAD_PR

OCESS_PRIVA

TE.

pthread.h pthread_create Function Create a task.

pthread.h pthread_detach Function Detach a task.

pthread.h pthread_equal Function Determine

whether the

threads are the

same.

pthread.h pthread_exit Function Terminate a

task.

pthread.h pthread_getsch

edparam

Function Get the task

priority and

task scheduling

policy.

Standard: The

scheduling

policy can be

SCHED_OTHE

SCHED_FIFO,

or SCHED_RR.

Huawei LiteOS:

The scheduling

policy must be

SCHED_RR.

pthread.h pthread_join Function Block a task.

pthread.h pthread_mutex

_destroy

Function Destroy a

mutex.

pthread.h pthread_mutex

_getprioceiling

Function Get the upper

limit of the

mutex priority.

pthread.h pthread_mutex

_init

Function Initialize a

mutex.

LiteOS

Developer Guide 9 Standard Libraries

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

257

Header File API Type Description Remark

pthread.h pthread_mutex

_lock

Function Lock a mutex.

pthread.h pthread_mutex

_setprioceiling

Function Set the upper

limit of the

mutex priority.

pthread.h pthread_mutex

_trylock

Function Attempt to lock

a mutex.

pthread.h pthread_mutex

_unlock

Function Unlock a

mutex.

pthread.h pthread_mutexa

ttr_destroy

Function Destroy the

mutex

attributes.

pthread.h pthread_mutexa

ttr_getprioceilin

Function Get the priority

ceiling attribute

of a mutex.

pthread.h pthread_mutexa

ttr_getprotocol

Function Get the

protocol in the

mutex attribute.

pthread.h pthread_mutexa

ttr_gettype

Function Get the type in

the mutex

attribute.

pthread.h pthread_mutexa

ttr_init

Function Initialize the

mutex

attributes.

pthread.h pthread_mutexa

ttr_setprioceilin

Function Set the priority

ceiling attribute

of a mutex.

pthread.h pthread_mutexa

ttr_setprotocol

Function Set the protocol

in the mutex

attribute.

pthread.h pthread_mutexa

ttr_settype

Function Set the type in

the mutex

attribute.

pthread.h pthread_once Function Operate the

task once.

pthread.h pthread_self Function Get the task ID.

pthread.h pthread_setcanc

elstate

Function Set the

cancelability

state.

LiteOS

Developer Guide 9 Standard Libraries

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

258

Header File API Type Description Remark

pthread.h pthread_setcanc

eltype

Function Set the

cancelability

type.

pthread.h pthread_setsche

dparam

Function Set the priority

and the

scheduling

policy of a task.

Standard: The

scheduling

policy can be

SCHED_OTHE

SCHED_FIFO,

or SCHED_RR.

Huawei LiteOS:

The scheduling

policy must be

SCHED_RR.

pthread.h pthread_testcan

cel

Function Cancel a task.

sys/socket.h recv Function Receive data

from a socket.

For details on

this API, see the

lwip_recv API

in Huawei

LiteOS LwIP

API Reference.

The

implementation

of these two

APIs is the

same.

sys/socket.h recvfrom Function Receive data

from a socket.

For details on

this API, see the

lwip_recvfrom

API in Huawei

LiteOS LwIP

API Reference.

The

implementation

of these two

APIs is the

same.

sched.h sched_get_prior

ity_max

Function Get the

supported

maximum

priority value.

sched.h sched_get_prior

ity_min

Function Get the

supported

minimum

priority value.

LiteOS

Developer Guide 9 Standard Libraries

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

259

Header File API Type Description Remark

sched.h sched_yield Function Cause the

running thread

to relinquish

the processor.

semaphore.h sem_destroy Function Destroy an

unnamed

semaphore.

semaphore.h sem_getvalue Function Get the value of

a specified

semaphore.

semaphore.h sem_init Function Initialize an

unnamed

semaphore.

semaphore.h sem_post Function Release a

specified

unnamed

semaphore.

semaphore.h sem_timedwait Function Wait for an

unnamed

semaphore

within a

timeout

interval.

Standard: The

timeout time is

absolute time

and the previous

timeout

semaphores can

be processed.

Huawei LiteOS:

The time

interval between

consecutive

receipts must be

specified. It is

not allowed to

enter a negative

value while

specifying the

length of time

interval.

semaphore.h sem_trywait Function Attempt to wait

for an unnamed

semaphore.

semaphore.h sem_wait Function Wait for an

unnamed

semaphore.

LiteOS

Developer Guide 9 Standard Libraries

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

260

Header File API Type Description Remark

sys/socket.h send Function Send data

through a

socket.

For details on

this API, see the

lwip_send API

in Huawei

LiteOS LwIP

API Reference.

The

implementation

of these two

APIs is the

same.

sys/socket.h sendto Function Send data

through a

socket.

For details on

this API, see the

lwip_sendto API

in Huawei

LiteOS LwIP

API Reference.

The

implementation

of these two

APIs is the

same.

sys/socket.h setsockopt Function Set the status of

a socket.

For details on

this API, see the

lwip_setscokopt

API in Huawei

LiteOS LwIP

API Reference.

The

implementation

of these two

APIs is the

same.

sys/socket.h socket Function Create socket

communication

For details on

this API, see the

lwip_socket API

in Huawei

LiteOS LwIP

API Reference.

The

implementation

of these two

APIs is the

same.

LiteOS

Developer Guide 9 Standard Libraries

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

261

Header File API Type Description Remark

time.h timer_create Function Create a timer

and specify the

timer expiry

notification

mechanism.

time.h timer_delete Function Delete a timer. Standard: A one-

off software

timer will not be

automatically

deleted after it is

run. Huawei

LiteOS: A one-

off software

timer will be

automatically

deleted after it is

run. This API

can be used to

create a periodic

timer.

time.h timer_getoverru

Function Get the number

of lost timer

notifications.

Standard: This

API can be used

to get the timer

expiration

overrun count.

Huawei LiteOS:

The return value

shall be the

number of

execution

periods of a

periodic timer.

time.h timer_gettime Function Get the time

remaining on a

POSIX.1b

interval timer.

time.h timer_settime Function Start or stop a

timer.

sys/utsname.h uname Function Get the name

and other

information of

the current

kernel.

In Huawei

LiteOS, the

header file is

utsname.h.

stdarg.h va_arg Macro Return variadic

arguments.

LiteOS

Developer Guide 9 Standard Libraries

Issue 01 (2018-04-20) Huawei Proprietary and Confidential

262

Header File API Type Description Remark

stdarg.h va_copy Macro Copy the

initialized

va_list to the

target argument

list.

stdarg.h va_end Macro Put the

acquisition of

variadic

arguments to an

end.

stdarg.h va_start Macro Initialize the

variable

arg_ptr.

9.1.2 POSIX APIs Not Supported

Some POSIX APIs are not supported in Huawei LiteOS. The following table lists the detailed

specifications:

File API Type Description Supported/No

t Supported

dirent.h fdopendir Function Convert a file

descriptor to a

pointer to the
