Load Cell Amplifier HX711 Breakout Hookup Guide
SHOP LEARN BLOG SUPPORT
CONTRIBUTORS: SARAH AL-MUTLAQ, ALEX THE GIANT
FAVORITE 4
Introduction

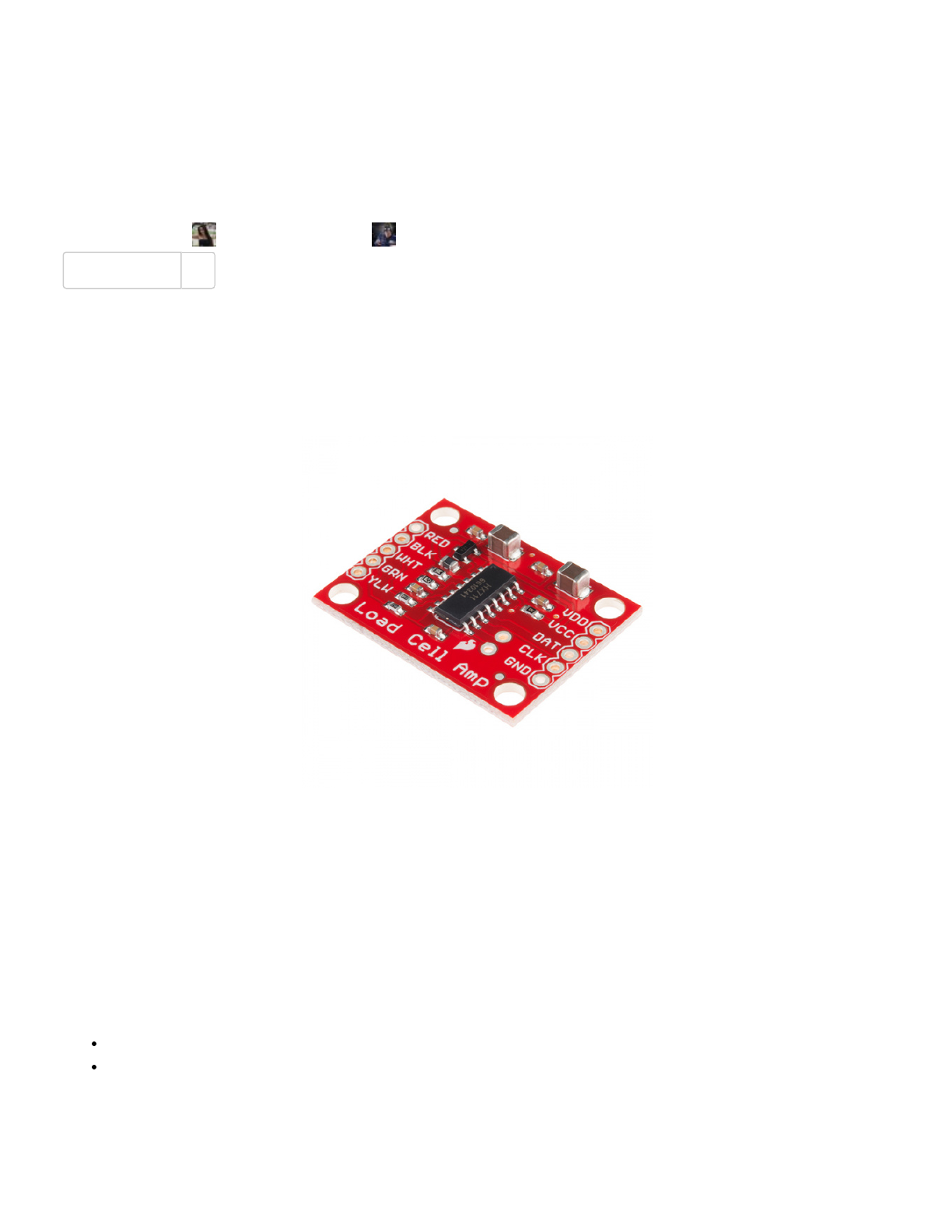

The HX711 load cell amplifier is used to get measurable data out from a load cell and strain gauge. This Hookup
Guide will show you how to get started with this amplifier using some of the various load cells we carry at
SparkFun.
Required Materials
For this simple hook up guide we will just be hooking up a load cell with the HX711 amplifier, and showing how you
would hook up four load sensors with a combinator board and the HX711 amplifier. To follow along, you’ll need:
SparkFun Load Cell Amplifier - HX711
Any Strain Gauge Based Load Cell:
SparkFun Load Cell Amplifier - HX711
SEN-13879
$9.95
27
YOUR ACCOUNT
LOG IN
REGISTER
7/27/2018 Load Cell Amplifier HX711 Breakout Hookup Guide - learn.sparkfun.com
https://learn.sparkfun.com/tutorials/load-cell-amplifier-hx711-breakout-hookup-guide#hardware-hookup- 2/15
If you are planning on using load sensors you will need to obtain or purchase four units. We recommend our
Combinator Board to make it easy to turn the four strain gauges into a wheatstone bridge type load cell. (Single
strain gauge load cells only have three wires instead of four.)
Suggested Reading
If you aren’t familiar with the following concepts, we recommend reviewing them before beginning to work with the
HX711 Load Cell Amplifier Board.
Load Cell - 10kg, Straight Bar (TAL220)
SEN-13329
$6.95
3
Load Cell - 200kg, Disc (TAS606)
SEN-13332
$56.95
4
Load Cell - 50kg, Disc (TAS606)
SEN-13331
$56.95
Mini Load Cell - 500g, Straight Bar (TAL221)
SEN-14728
$9.95
1
How to Solder: Through-Hole Soldering
This tutorial covers everything you need to know about
through-hole soldering.
Battery Technologies
The basics behind the batteries used in portable
electronic devices: LiPo, NiMH, coin cells, and alkaline.
7/27/2018 Load Cell Amplifier HX711 Breakout Hookup Guide - learn.sparkfun.com
https://learn.sparkfun.com/tutorials/load-cell-amplifier-hx711-breakout-hookup-guide#hardware-hookup- 3/15
Load Cell Set Up

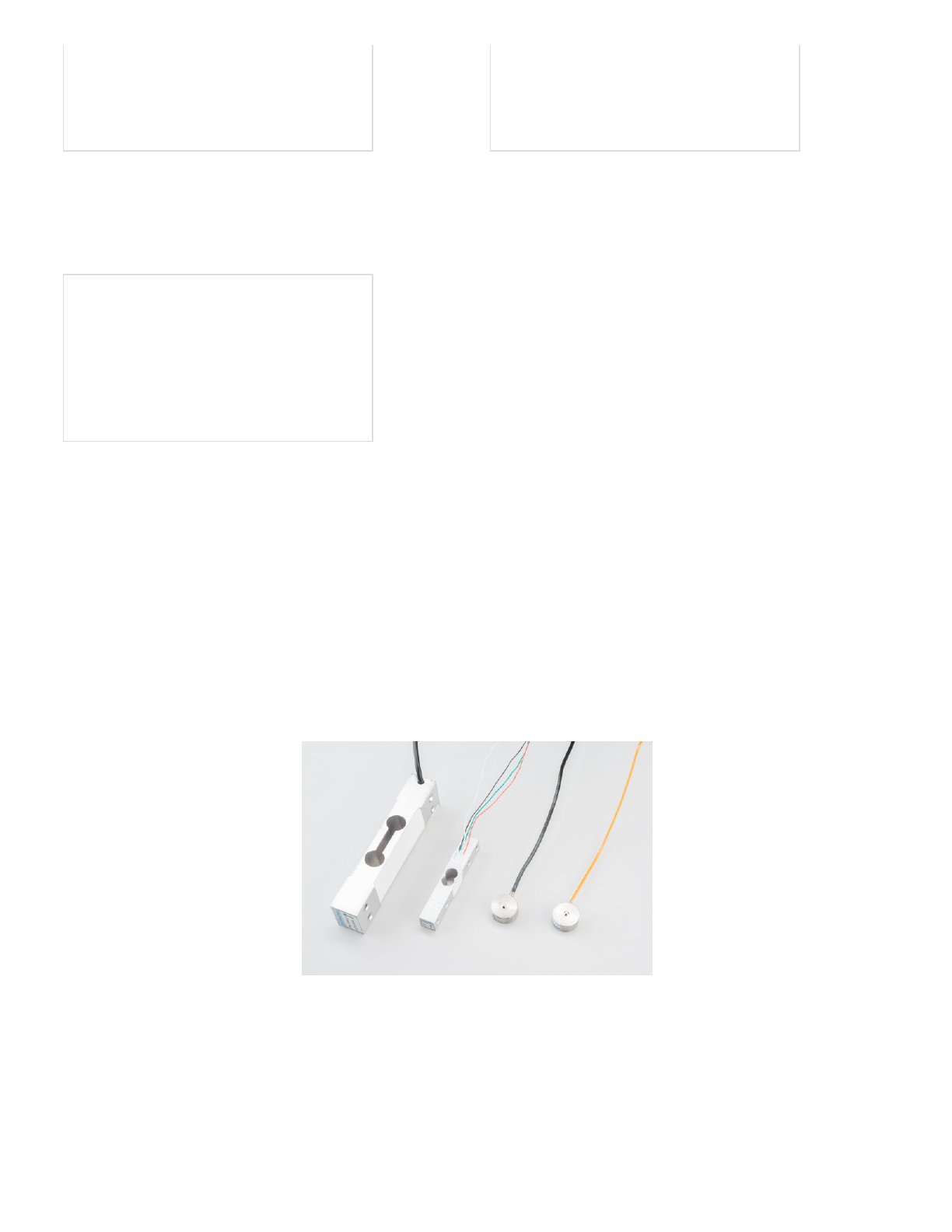

A selection of different load cells
Depending on the type of load cell you are using, the configuration of how it should be hooked up to plates or
surfaces will change. Below are a few different types of setups.
How to Power a Project
A tutorial to help figure out the power requirements of
your project.
Installing Arduino IDE
A step-by-step guide to installing and testing the
Arduino software on Windows, Mac, and Linux.
Getting Started with Load Cells
A tutorial defining what a load cell is and how to use
one.
1. [Strain gauges are two wired organized metal foil or wires that are set up in such a way that the resistance changes when it is compressed or
stretched. When a strain gauge is placed on something (usually metallic in nature) its resistance changes based on the stress experienced by that
something. When a single strain gauge is hooked up to a metallic cell, we are calling that a load sensors, which have three output wires. Load cells
usually has four strain gauges hooked up in a wheatstone bridge formation, which have four output wires. For more information on load cells, strain
gauges, and wheatstone bridges see our tutorial.]↩
7/27/2018 Load Cell Amplifier HX711 Breakout Hookup Guide - learn.sparkfun.com
https://learn.sparkfun.com/tutorials/load-cell-amplifier-hx711-breakout-hookup-guide#hardware-hookup- 4/15

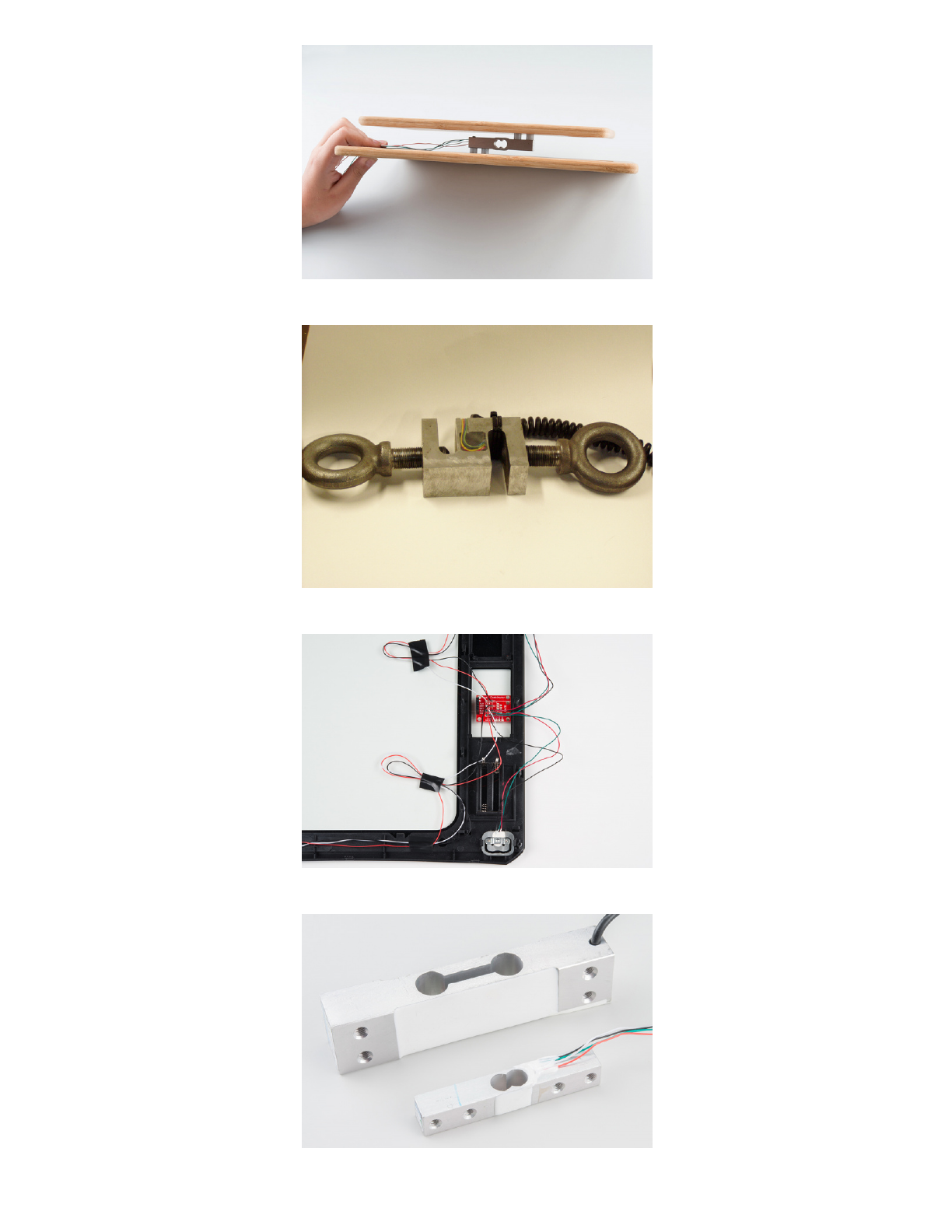

Bar load cell between a two plate configuration
S load cell configuration
Possible four disc load cell configuration in something like a bathroom scale
Bar strain gauge based load cells
7/27/2018 Load Cell Amplifier HX711 Breakout Hookup Guide - learn.sparkfun.com
https://learn.sparkfun.com/tutorials/load-cell-amplifier-hx711-breakout-hookup-guide#hardware-hookup- 5/15
Usually with larger, non-push button bar load cells you will want to hook up the load cell between two plates in a
“Z” shape, with fitting screws and spacers so that the strain can be correctly measured as shown below:
Note that only one side of the load cell is screwed into each board. This provides a moment of force, or torque, on
the strain gauge rather than just compression force, which is easier to measure and much more accurate.

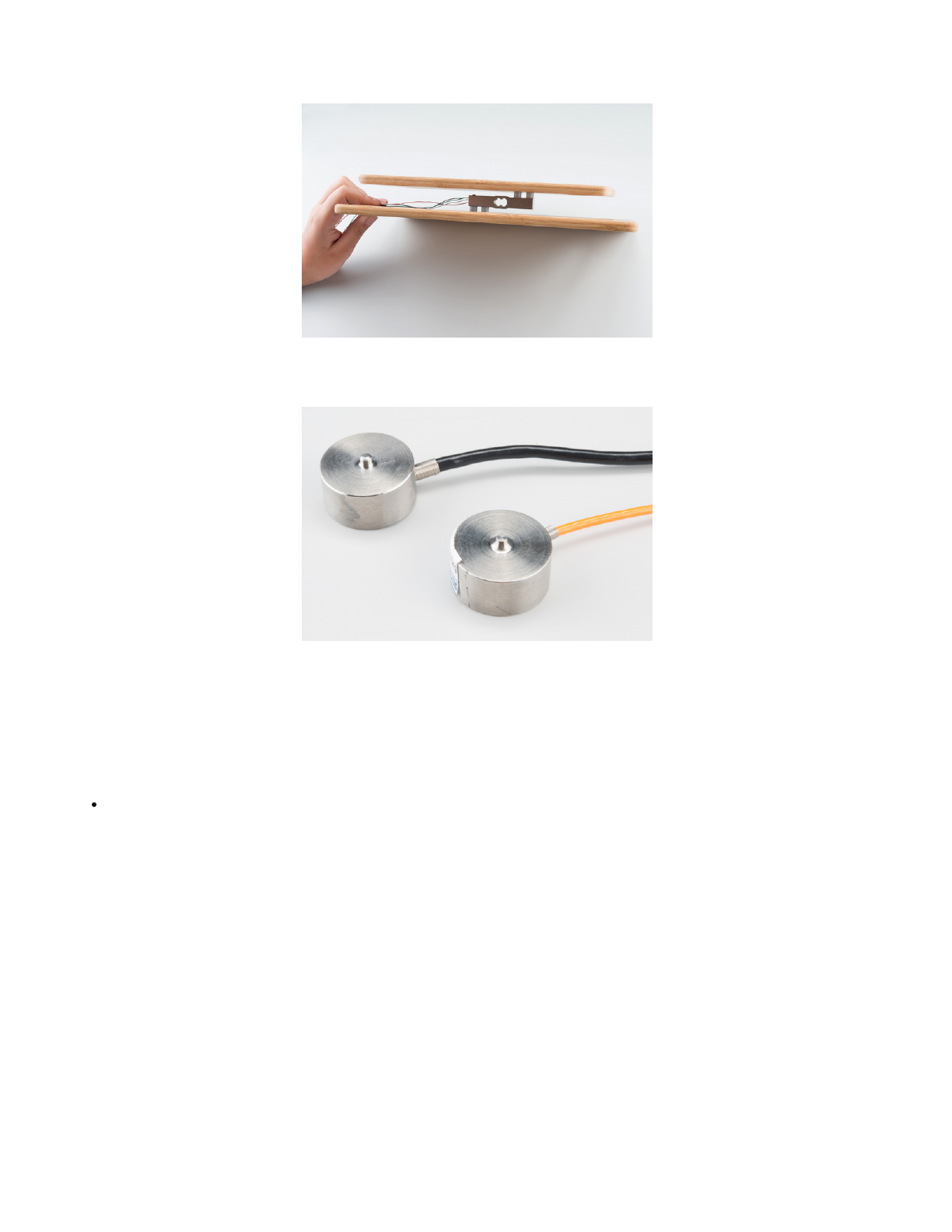

For smaller, push-button or disc load cells, you will want to make sure to screw in the disc to a bottom plate (or
surface you are measuring force against), and center the beam, plate, or whatever else you are wishing to
measure the force of onto the “button” on the top. Usually another plate with a hole is used to make sure whatever
you are measuring is hitting the same spot on the load cell each time, but it is not necessary.
Make sure to read the datasheet for the load cell you are using and get the correct screws to fit into it.
Note: If you are hooking together four of the SparkFun Load Sensors using the Combinator board, you
should position the four load sensors equidistant from each other, just like the bathroom scales shown in
this tutorial.
Load cell measurements can be off by +/- 5% due to a range of things including temperature, creep, vibration, drift,
and other electrical and mechanical interferences. Before you install your scale, take a moment and design your
system to allow for easy calibration or be able to adjust the code parameters to account for these variations.
Hardware Hookup
7/27/2018 Load Cell Amplifier HX711 Breakout Hookup Guide - learn.sparkfun.com
https://learn.sparkfun.com/tutorials/load-cell-amplifier-hx711-breakout-hookup-guide#hardware-hookup- 6/15

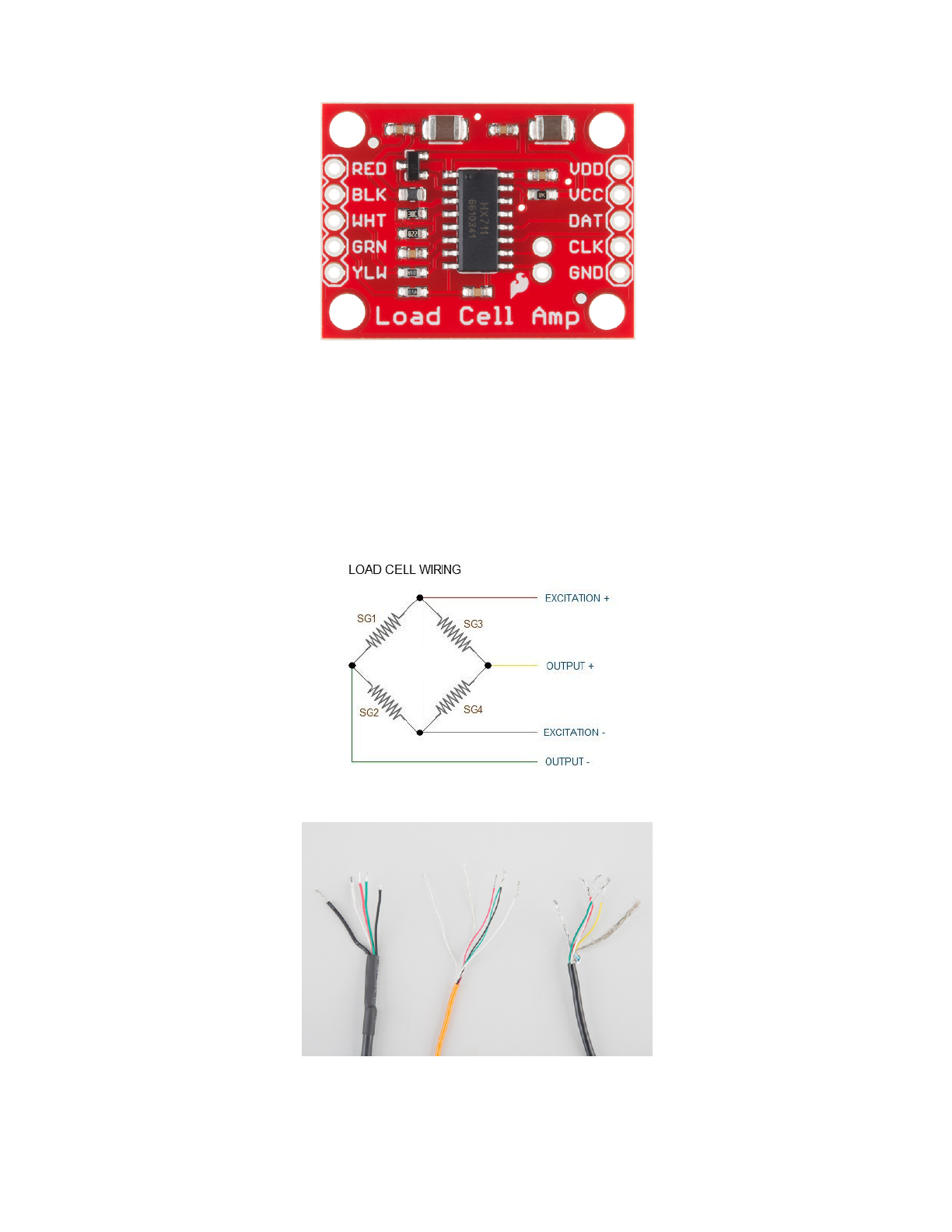

The HX711 Load Cell Amplifier accepts five wires from the load cell. These pins are labeled with colors; RED,
BLK, WHT, GRN, and YLW. These colors correspond to the conventional color coding of load cells, where red,
black, green and white wires come from the strain gauge on the load cell and yellow is an optional ground wire that
is not hooked up to the strain gauge but is there to ground any small outside EMI (electromagnetic interference).
Sometimes instead of a yellow wire there is a larger black wire, foil, or loose wires to shield the signal wires to
lessen EMI.
Four strain gauges (SG1 through 4) hooked up in a wheatstone bridge formation
Here we have a large black wire, some loose wires, and foil and loose wires respectively as EMI buffers
In General, each load cell has four strain gauges that are hooked up in a wheatstone bridge formation as shown
above.
The four wires coming out from the wheatstone bridge on the load cell are usually:
7/27/2018 Load Cell Amplifier HX711 Breakout Hookup Guide - learn.sparkfun.com
https://learn.sparkfun.com/tutorials/load-cell-amplifier-hx711-breakout-hookup-guide#hardware-hookup- 7/15
Excitation+ (E+) or VCC is red
Excitation- (E-) or ground is black.
Output+ (O+), Signal+ (S+)+ or Amplifier+ (A+) is white
O-, S-, or A- is green or blue
Some load cells might have slight variations in color coding such as blue instead of green or yellow instead of
black or white if there are only four wires (meaning no wire used as an EMI buffer). You might have to infer a little
from the colors that you have, but in general you will usually see these colors.
If the readings from the HX711 are opposite of what you are expect (for example the values decrease as you
increase weight) simply reverse the O+/O- wires.
Once the load cell is is hooked up to the amplifier, you can hook up VDD, VCC, DAT, CLK, and GND to a
microcontroller such as a RedBoard or Arduino board.
Note VCC is the analog voltage to power the load cell. VDD is the digital supply voltage used to set the logic level.
PRO TIP: In many cases, you can just short VCC and VDD together. If your microcontroller uses 3.3V logic
however, you'll want to connect VCC to 5V and VDD to 3.3V.

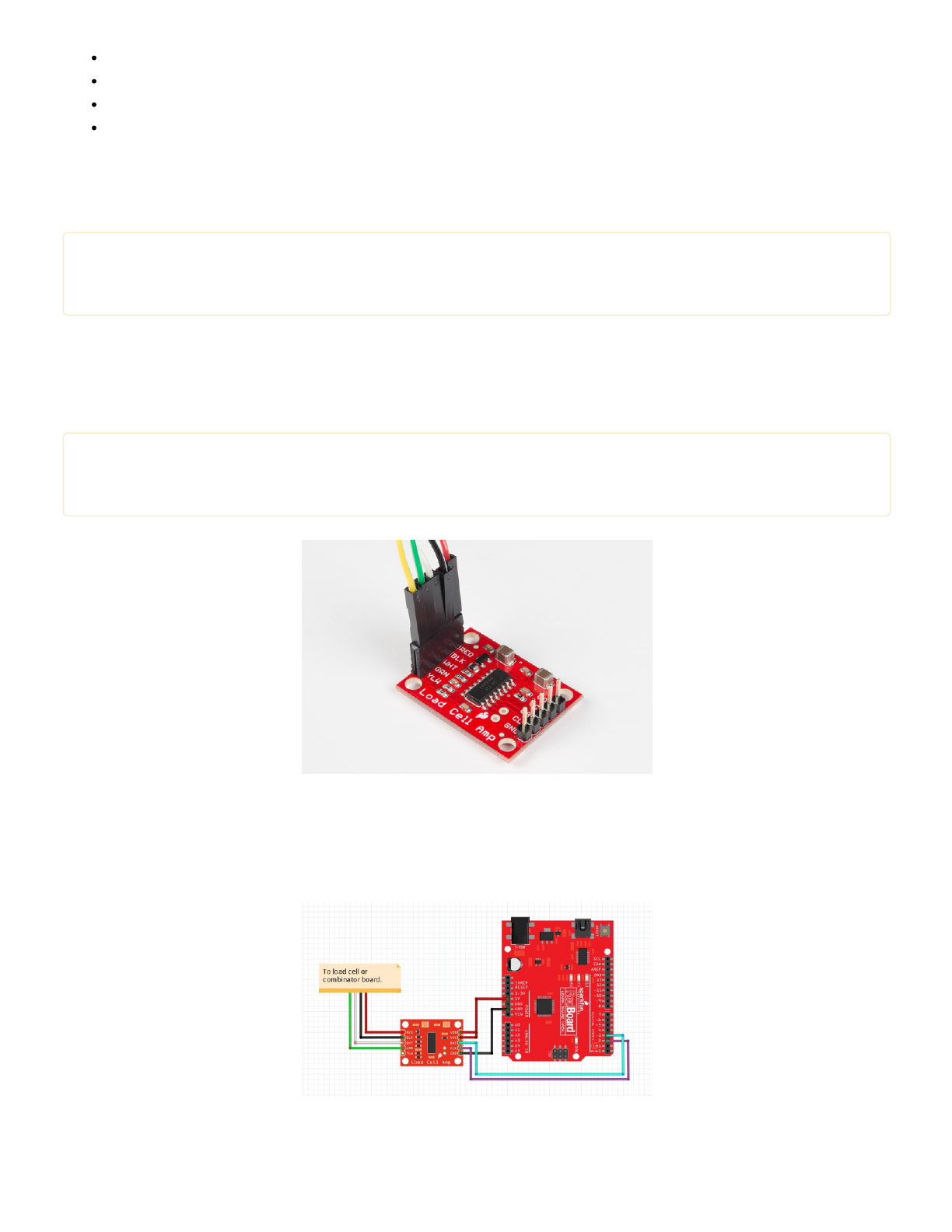

Load cell wires hooked up to the HX711 Amplifier board
The example code has DAT and CLK hooked up to pin 3 and 2 respectively, but this is easily changed in the
code. Any GPIO pin will work for either. Then VCC and VDD just need to be hooked up to 2.7-5V and GND to
ground on your microcontroller.
Fritzing diagram of HX711 amplifier connected to a RedBoard
7/27/2018 Load Cell Amplifier HX711 Breakout Hookup Guide - learn.sparkfun.com
https://learn.sparkfun.com/tutorials/load-cell-amplifier-hx711-breakout-hookup-guide#hardware-hookup- 8/15

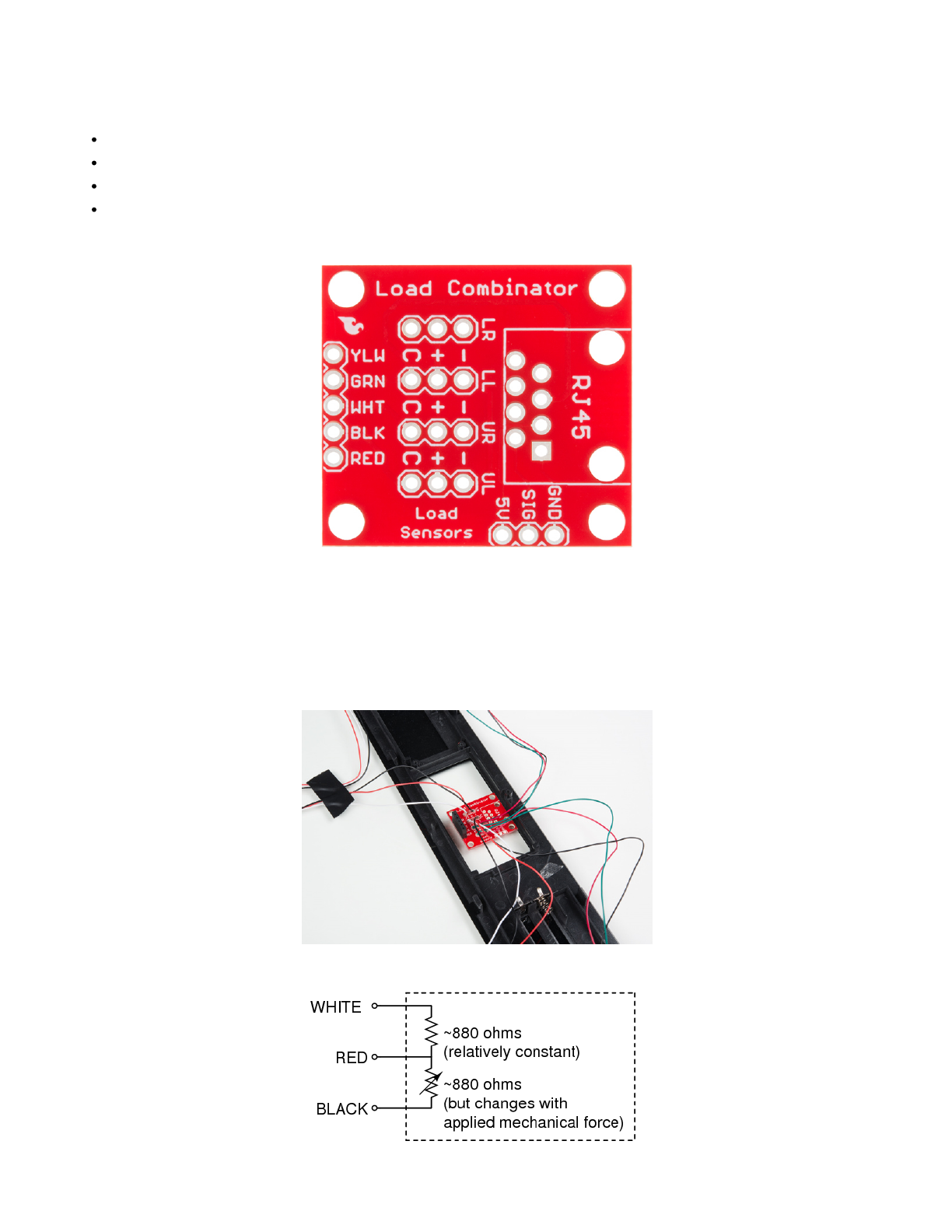

Now, if you would like to set up four single load sensors with our combinator board and amplifier, connect the five
pins labeled RED, BLK, WHT, GRN, YLW on the combinator to the matching pins on the amplifier. Next, connect
each of the four load sensors to the following pins:
Load Sensor → Load Combinator Board
Red → C
Black → -
White → +
The combinator board also has room for an 8 pin RJ45 socket, which can be used to connect your project via
Ethernet cables for long distance applications.
Another nice thing about our combinator board is that most home scales use four single strain gauge load sensors,
so this is a handy board for hacking your own scales at home!

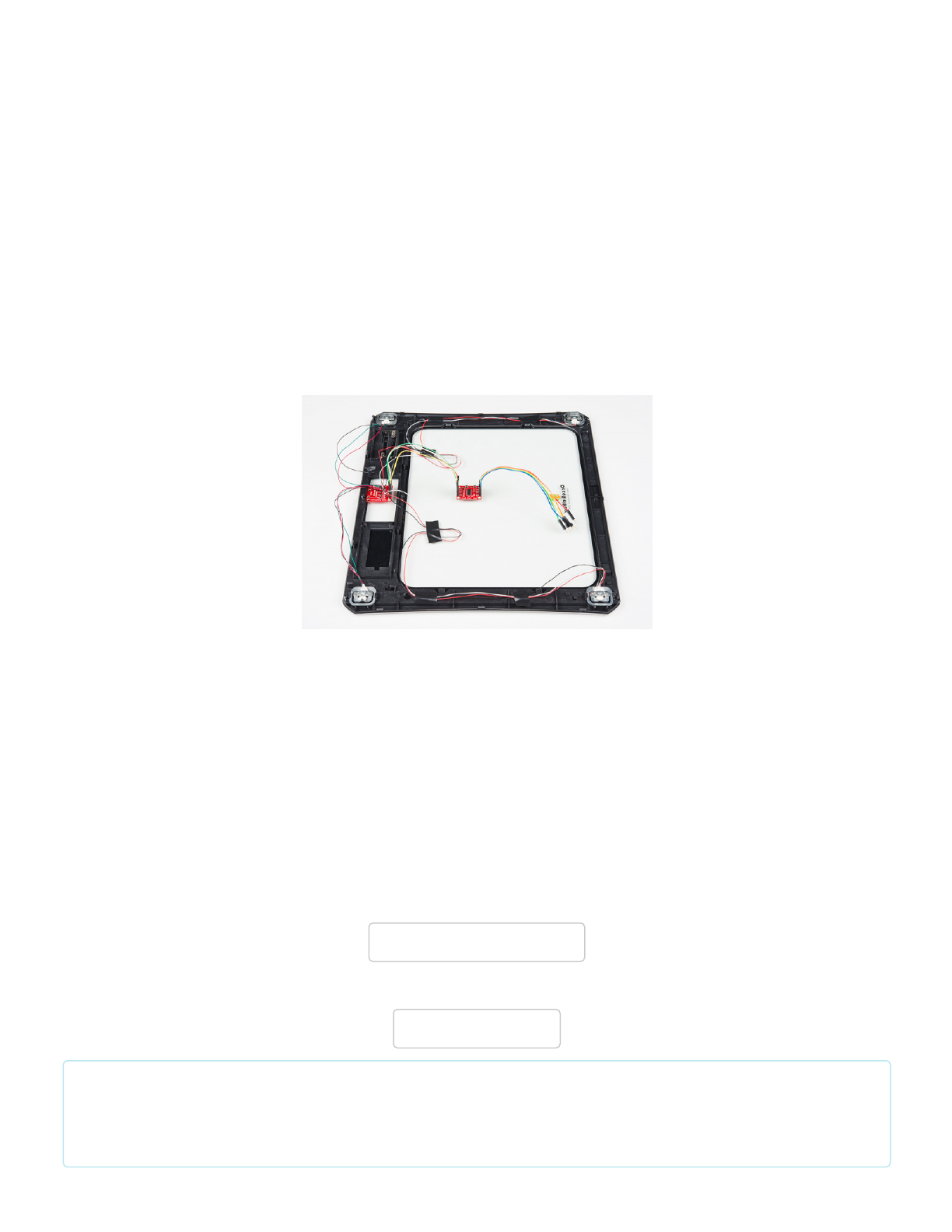

Hacked home scale’s four load sensors hooked up to our combinator board
7/27/2018 Load Cell Amplifier HX711 Breakout Hookup Guide - learn.sparkfun.com
https://learn.sparkfun.com/tutorials/load-cell-amplifier-hx711-breakout-hookup-guide#hardware-hookup- 9/15
Example of a single strain gauge, or load sensor. Here RED is the center tap
For load sensors, there isn’t a set color coded standard. Comparing the scale pictured above with the load sensor
schematic, while the black wires matched, the red and white wires were swapped. Also, only two of the four
sensors used a white wire for the ‘center tap’ of the load sensor, the other two used green. I connected the black
wires to “-”, the red to “+”, and the white and green wires to “C”.
To determine how to hook up your single strain gauge load cells to the combinator, measure the resistance
between the three wires. You should find a larger resistance (close to double) between a pair. In our example the
resistance between red and black was 1.6 kΩ, and the resistance between white/green and red was 800 Ω.
Therefore, the center tap to the strain gauge is the white/green wire. The center tap or center pin of your strain
gauge connects to the “C” pin on the combinator. The larger resistance wires (red and black in this example)
connect to the “+” and “-” pins on the combinator.
The combinator board hooks up the four load sensors in such a way that two resistors in the wheatstone bridge
configuration are constant values and the other two are variable in this way:
To hook up the combinator board to the HX711 match the RED, BLK, WHT, and GRN pins
Once you have the combinator board successfully soldered to the twelve wires, you can now connect it to the
HX711 amplifier board via the 4 standard load cell wires. You can use short jumper wires or if your electronics are
a long distance away from your scale consider using an RJ45 connector and an ethernet cable to connect the
combinator to the HX711 amplifier.
Arduino Code
Now that you have your load cell, amplifier, and microcontroller hooked up, you can add your code and start
calibrating your setup.
You can download the most up-to-date code from the link below.
GITHUB REPOSITORY
The example code also depends on this excellent library from bogde:
HX711 LIBRARY
Note: This example assumes you are using the latest version of the Arduino IDE on your desktop. If this is
your first time using Arduino, please review our tutorial on installing the Arduino IDE.
If you have not previously installed an Arduino library, please check out our installation guide.
7/27/2018 Load Cell Amplifier HX711 Breakout Hookup Guide - learn.sparkfun.com
https://learn.sparkfun.com/tutorials/load-cell-amplifier-hx711-breakout-hookup-guide#hardware-hookup- 10/15
The first thing you will want to work with is the calibration code: “SparkFun_HX711_Calibration”:
7/27/2018 Load Cell Amplifier HX711 Breakout Hookup Guide - learn.sparkfun.com
https://learn.sparkfun.com/tutorials/load-cell-amplifier-hx711-breakout-hookup-guide#hardware-hookup- 11/15
/*
Example using the SparkFun HX711 breakout board with a scale
By: Nathan Seidle
SparkFun Electronics
Date: November 19th, 2014
License: This code is public domain but you buy me a beer if you use this and we meet s
omeday (Beerware license).
This is the calibration sketch. Use it to determine the calibration_factor that the mai
n example uses. It also
outputs the zero_factor useful for projects that have a permanent mass on the scale in
between power cycles.
Setup your scale and start the sketch WITHOUT a weight on the scale
Once readings are displayed place the weight on the scale
Press +/- or a/z to adjust the calibration_factor until the output readings match the k
nown weight
Use this calibration_factor on the example sketch
This example assumes pounds (lbs). If you prefer kilograms, change the Serial.print(" l
bs"); line to kg. The
calibration factor will be significantly different but it will be linearly related to l
bs (1 lbs = 0.453592 kg).
Your calibration factor may be very positive or very negative. It all depends on the se
tup of your scale system
and the direction the sensors deflect from zero state
This example code uses bogde's excellent library: https://github.com/bogde/HX711
bogde's library is released under a GNU GENERAL PUBLIC LICENSE
Arduino pin 2 -> HX711 CLK
3 -> DOUT
5V -> VCC
GND -> GND
Most any pin on the Arduino Uno will be compatible with DOUT/CLK.
The HX711 board can be powered from 2.7V to 5V so the Arduino 5V power should be fine.
*/
#include "HX711.h"
#define DOUT 3
#define CLK 2
HX711 scale(DOUT, CLK);
float calibration_factor = -7050; //-7050 worked for my 440lb max scale setup
void setup() {
Serial.begin(9600);
Serial.println("HX711 calibration sketch");
Serial.println("Remove all weight from scale");
7/27/2018 Load Cell Amplifier HX711 Breakout Hookup Guide - learn.sparkfun.com
https://learn.sparkfun.com/tutorials/load-cell-amplifier-hx711-breakout-hookup-guide#hardware-hookup- 12/15
Serial.println("After readings begin, place known weight on scale");
Serial.println("Press + or a to increase calibration factor");
Serial.println("Press - or z to decrease calibration factor");
scale.set_scale();
scale.tare(); //Reset the scale to 0
long zero_factor = scale.read_average(); //Get a baseline reading
Serial.print("Zero factor: "); //This can be used to remove the need to tare the scal
e. Useful in permanent scale projects.
Serial.println(zero_factor);
}
void loop() {
scale.set_scale(calibration_factor); //Adjust to this calibration factor
Serial.print("Reading: ");
Serial.print(scale.get_units(), 1);
Serial.print(" lbs"); //Change this to kg and re-adjust the calibration factor if you
follow SI units like a sane person
Serial.print(" calibration_factor: ");
Serial.print(calibration_factor);
Serial.println();
if(Serial.available())
{
char temp = Serial.read();
if(temp == '+' || temp == 'a')
calibration_factor += 10;
else if(temp == '-' || temp == 'z')
calibration_factor -= 10;
}
}
Once you have calculated your calibration factor of your load cell set up, you can move on to other code, such as
the simple scale output example code, “SparkFun_HX711_Example”:
7/27/2018 Load Cell Amplifier HX711 Breakout Hookup Guide - learn.sparkfun.com
https://learn.sparkfun.com/tutorials/load-cell-amplifier-hx711-breakout-hookup-guide#hardware-hookup- 13/15
/*
Example using the SparkFun HX711 breakout board with a scale
By: Nathan Seidle
SparkFun Electronics
Date: November 19th, 2014
License: This code is public domain but you buy me a beer if you use this and we meet s
omeday (Beerware license).
This example demonstrates basic scale output. See the calibration sketch to get the cal
ibration_factor for your
specific load cell setup.
This example code uses bogde's excellent library: https://github.com/bogde/HX711
bogde's library is released under a GNU GENERAL PUBLIC LICENSE
The HX711 does one thing well: read load cells. The breakout board is compatible with a
ny wheat-stone bridge
based load cell which should allow a user to measure everything from a few grams to ten
s of tons.
Arduino pin 2 -> HX711 CLK
3 -> DAT
5V -> VCC
GND -> GND
The HX711 board can be powered from 2.7V to 5V so the Arduino 5V power should be fine.
*/
#include "HX711.h"
#define calibration_factor -7050.0 //This value is obtained using the SparkFun_HX711_Cal
ibration sketch
#define DOUT 3
#define CLK 2
HX711 scale(DOUT, CLK);
void setup() {
Serial.begin(9600);
Serial.println("HX711 scale demo");
scale.set_scale(calibration_factor); //This value is obtained by using the SparkFun_HX
711_Calibration sketch
scale.tare(); //Assuming there is no weight on the scale at start up, reset the scale
to 0
Serial.println("Readings:");
}
void loop() {
Serial.print("Reading: ");
Serial.print(scale.get_units(), 1); //scale.get_units() returns a float
7/27/2018 Load Cell Amplifier HX711 Breakout Hookup Guide - learn.sparkfun.com
https://learn.sparkfun.com/tutorials/load-cell-amplifier-hx711-breakout-hookup-guide#hardware-hookup- 14/15
Serial.print(" lbs"); //You can change this to kg but you'll need to refactor the cali
bration_factor
Serial.println();
}
Check out the other example code in the Github repo for powering down the HX711 (github) and known zero
startup (github).
Resources and Going Further
Now that you’ve successfully got your HX711 up and running, it’s time to incorporate it into your own project!
For more information, check out the resources below:
Schematic (PDF)
Eagle Files (ZIP)
HX711 Datasheet
GitHub
Design Files & Example Code
Library
SFE Product Showcase: Dog Treat Dispenser
Need some inspiration for your next project? Check out some of these related tutorials:
OpenScale Applications and Hookup Guide
OpenScale allows you to have a permanent scale for
industrial and biological applications. Learn how to use
the OpenScale board to read and configure load cells.
Getting Started with Load Cells
A tutorial defining what a load cell is and how to use
one.
IoT Industrial Scale
What does a baby elephant weigh? How much impact
force does a jump have? Answer these questions and
more by building your very own IoT industrial scale
using the SparkFun OpenScale.
IoT Weight Logging Scale
This tutorial will show you how to make a scale that
logs your weight to a custom website on the Internet.
The principles can be extrapolated to any type of data.
7/27/2018 Load Cell Amplifier HX711 Breakout Hookup Guide - learn.sparkfun.com
https://learn.sparkfun.com/tutorials/load-cell-amplifier-hx711-breakout-hookup-guide#hardware-hookup- 15/15
Need even more? Check out these additional links below:
SparkFun IoT Beehive
The Internet of Bees: Adding Sensors to Monitor Hive Health
GitHub Repo: Open Scale
Phidgets: Load Cell Primer - Article about wheatstone bridges and load cell types
