2007 / 2008 CATALOG
22007LUKJANMETALPRODUCTSCATALOG
WWW.LUKJAN.COM
ABOUT LUKJAN
LUKJAN METAL PRODUCTS HAS BEEN MANUFACTURING AND SELLING HIGH QUALITY SHEET METAL PIPE, DUCT AND FITTINGS TO THE
WHOLESALE HVAC INDUSTRY SINCE 1964. LUKJAN HAS TWO MANUFACTURING FACILITIES; A 330,000 SQ. FT. FACILITY IN CONNEAUT, OHIO
AND A 250,000 SQ. FT. FACILITY IN KINGS MOUNTAIN, NC. LUKJAN REMAINS A FAMILY OWNED AND OPERATED BUSINESS FOLLOWING THESE
GUIDING PRINCIPLES ESTABLISHED BY ITS FOUNDERS, ANATOL AND NATALIA LUKJANCZUK: PROVIDE THE BEST QUALITY PRODUCT AT
COMPETITIVE PRICES BACKED BY EXCEPTIONAL CUSTOMER SERVICE. THESE SAME PRINCIPLES LIVE ON TODAY IN ALL ASPECTS OF OUR
BUSINESS UNDER THE LEADERSHIP OF DAN LUKJANCZUK AND ELENA LUKJANCZUK-KELLY.
ORDERING/SCHEDULING
CUSTOMERS CAN PLACE ORDERS VIA FAX, EMAIL, PHONE OR VIA EDI. ORDERS ARE TYPICALLY FILLED WITHIN 5-10
BUSINESS DAYS. PLEASE INQUIRE REGARDING REGULAR DELIVERY SCHEDULES.
FREIGHT ALLOWANCE
FREIGHT ALLOWANCE IS DETERMINED BASED ON DELIVERY FREQUENCY, ORDER VOLUME , PRODUCT MIX AND LOCATION. PLEASE CONTACT LUKJAN CUSTOMER
SERVICE OR YOUR SALES REPRESENTATIVE FOR INFORMATION REGARDING FREIGHT ALLOWANCE FOR YOUR ACCOUNT.
BOX QUANTITIES/CATALOG PRICING
PLEASE CONTACT LUKJAN CUSTOMER SERVICE OR OUR WEBSITE WWW.LUKJAN.COM FOR A COMPLETE LISTING OF ALL LUKJAN PRODUCT CODES, PRODUCT LIST
PRICES AND BOX QUANTITIES. ORDERING FULL BOX QUANTITIES HELPS US PROVIDE YOU THE MOST COMPETITIVE PRICES AND FACILITATES PRODUCT HANDLING.
METAL SHIPPING RACKS
LUKJAN UTILIZES BOTH 4’ AND 8’ METAL SHIPPING RACKS FOR HIGH VOLUME DUCT AND PIPE PURCHASES. A SUMMARY OF OUR RACK POLICY IS AS FOLLOWS:
1. RACKS ARE PROVIDED AS A “FREE” SERVICE TO OUR WHOLESALERS/DISTRIBUTORS FOR THE HANDLING AND STORAGE OF LUKJAN PRODUCT.
2. RACKS NOT RETURNED WITHIN A REASONABLE TIME FRAME (~ 6 MONTHS) WILL BE INVOICED TO THE WHOLESALER/DISTRIBUTOR OF RECORD.
3. RACKS SENT TO CUSTOMER SITES ARE THE RESPONSIBILITY OF THE WHOLESALER/DISTRIBUTOR OF RECORD AND ARE INVOICED TO THE WHOLESALER/
DISTRIBUTOR OF RECORD UPON DELIVERY.
4. RACKS ARE CURRENTLY VALUED AT $120.00 (4’) AND $245.00 (8’) AND MAY CHANGE BASED ON PREVAILING REPLACEMENT COSTS.
CUSTOMERS ARE ASKED TO CONTACT LUKJAN CUSTOMER SERVICE TO ARRANGE PICK-UP WHEN RACKS HAVE BEEN EMPTIED. CUSTOMERS ARE ASKED TO NEATLY
STACK CLEARED RACKS AND PROVIDE SAFE AND EASY ACCESS FOR LUKJAN DRIVERS.
DAMAGED GOODS
PRODUCT(S) RECEIVED IN DAMAGED CONDITIONED CAN BE RETURNED FOR FULL CREDIT. CUSTOMERS HAVE UP TO 5 DAYS FROM THE PRODUCT DELIVERY DATE
TO CONTACT CUSTOMER SERVICE AND ARRANGE FOR A RETURN AUTHORIZATION AND PICK-UP. CREDIT PENDING RETURN VERIFICATION.
RETURNS AND RESTOCKING
LUKJAN WILL, AT ITS DISCRETION, ACCEPT RETURNS FOR CREDIT PROVIDED THE PRODUCT IS IN RE-SALABLE CONDITION AND IS A STANDARD LUKJAN PART.
CUSTOM MADE METAL PRODUCTS WILL NOT BE ACCEPTED. RETURNED GOODS ARE SUBJECT TO A 20% RESTOCKING AND HANDLING FEE.
ELECTRONIC DATA INTERCHANGE (EDI)
LUKJAN CURRENTLY UTILIZES EDI FOR ORDERING, ACKNOWLEDGEMENT AND INVOICING. ANY CUSTOMER INTERESTED IN UTILIZING EDI CAN CONTACT OUR
CUSTOMER SERVICE TEAM OR THEIR LUKJAN SALES REPRESENTATIVE.
ELECTRONIC INFORMATION
LUKJAN ASKS, AS A BUSINESS COURTESY, THAT ALL CUSTOMERS MANAGE ANY ELECTRONIC DATA PROVIDED BY LUKJAN IN A CONFIDENTIAL MANNER.
DISCOUNTS/TERMS
PLEASE INQUIRE REGARDING DISCOUNTS FOR EARLY PAYMENTS.
PACKING SLIP/INVOICES
ITEMS APPEARING ON LUKJAN PACKING SLIPS AND INVOICES NOW MATCH THE SEQUENTIAL ORDER OF THE CUSTOMER PURCHASE ORDER, ENHANCING
ACCOUNTING, BILLING RECONCILIATION AND IMPROVING ORDER RECEIPT.
BOX IDENTIFICATION
TO FURTHER IMPROVE MATERIAL HANDLING AND ORDER RECEIPT, ALL BOXED ITEMS ARE UNIQUELY IDENTIFIED TO INCLUDE THE PRODUCT BAR CODE, CUSTOMER
ID, CUSTOMER PURCHASE ORDER NUMBER AND THE SEQUENCE NUMBER LISTED ON THE LUKJAN PACKING SLIP.
PRODUCT CODES
ALL ITEMS IN THIS CATALOG ARE IDENTIFIED WITH BOTH A CATALOG CODE (L575) AND A COMPUTER PRODUCT CODE (RB30). THE PRODUCT CODE IS
THE LUKJAN COMPUTER PART NUMBER. THIS DUAL IDENTIFICATION IS PROVIDED TO ASSIST IN THE PROCESS OF ACCURATELY QUOTING, ORDERING AND SHIPPING
OF METAL PRODUCTS. MANY ITEMS FURTHER LIST THE DETAILED NUMBERING SCHEME THAT IDENTIFIES KEY DIMENSIONS AND OR PROPERTIES OF THE ITEM.
FOR EXAMPLE:
RP05XXYYZZ WHERE: RP05= UNBOXED ROUND PIPE XX= PIPE DIAMETER YY= GAUGE (30, 28, 26, 24, ETC.)
ZZZ= LENGTH INCHES (012, 024, 048, 060, 120)
RP050630060 = 6” UNBOXED ROUND PIPE, 30 GAUGE, 5FT.
LUKJAN RESERVES THE RIGHT TO MAKE ADJUSTMENTS AND/OR CHANGES TO
POLICIES, PRICES AND PRODUCT AVAILABILITY AT ITS DISCRETION AND WITHOUT NOTICE.
GENERAL INFORMATION
3
OHIO:440‐599‐8127• FAX440‐593‐6237
NORTHCAROLINA:704‐734‐0544• FAX704‐734‐0993
SERVICE♦QUALITY♦TRUST
PRODUCT INDEX
COLDAIRRETURNBOOTS
4
FURNACEBOXES
4
FILTERFRAMES/BOXES
4
ELBOWS,ANGLES
5
ROUNDPIPE
5
REGISTERBOOTS,CRD’S
5
SHEETMETALTAKEOFFS
6
ADHESIVETAKEOFFS
7
ROUNDCOLLARS
8
CEILINGBOXES,INSULATED
8
DUCTBOARDFITTINGS
9
PLENUMS,JOISTPANNING
10
HANGERS&SUPPORTS
10
RECT.DUCT&FITTINGS
11
TEES&WYES
12
OVALPIPEANDFITTINGS
13
WALLSTACK&FITTINGS
14
STACKHEADFITTINGS
15
TOE‐KICKBOOTS
15
REDUCERS&INCREASERS
15
SPIRALPIPE&FITTINGS
16
PVCCOATEDSPIRALPIPE
17
STAINLESSSTEELPIPE
18
BLACKPIPE&FITTINGS
18
ROOF,RAINCAPS,VENTING
19
DAMPERS&ACCESSORIES
19
STEELSHEETS
19
SPIN‐INS
6
TWIST‐INS
9
DESCRIPTION CAT# CODE PG. DESCRIPTION CAT# CODE PG. DESCRIPTION CAT# CODE PG.
Alum Long Radius Elbow AX54 12 Filter Frame CA 2 0 4 St ack B oo t ,Elb 575 SB 30 14
Alum.Collar, Crimp 413A AX11 12 Filter Frame WISE CA 72 4 St ack Boot,End 571 SB 10 14
Alum.Collar, Long 416A AX16 12 Flex Connect or, Round RX 58 8 St ack Boot,St r 572 SB20 14
Alum.Collar, NC 412A AX10 12 Flexib le Duct Connect or DX 3 6 10 St ack Conn. 604 SX 35 14
Aluminum Cap AX20 12 Frame B ox CA 74 4 St ack Elb o w 524 SX 24 14
Aluminum Elbow AX53 12 Fresh Air Intake CA64 4 Stack End Cap 512 SX44 14
Aluminum Pipe AP01 12 Furnace Boxes CA 50 4 St ack Horiz.A ng . 532 SX 27 14
Angle RX 50 5 Galv. Sp iro Pipe GP01 16 St ack Horiz.Elb. 525 SX 25 14
Angles DX 18 10 Galvanized St l. Sheet s GS01 19 St ack Start ing Collar 520 SX 33 14
Basement Boot PH-1 RB 45 5 Header Plat e PX 05 10 St ack Vert. A ngle 314 SX23 14
Black Adapter BX60 18 Increaser WC 432 RX43 15 Stack Vert.Elbow 307 SX21 14
Black Angle BX50 18 Joist Blockoff PX06 10 Stack, Side Takeoff 364 SX42 14
Black Cap, Incr. 452B BX25 18 Joist Head PX07 10 Stack, Top Takeoff 362 SX41 14
Black Cap, NC 421B BX21 18 M obile Ho me Box 573 RB 55M 4 St ackhead 315 SX75 14
Black Cap, Red. NC 450 B BX23 18 O.B oot ,A ng OL577 OB 4 0 13 St ackhead, Doub le 311 SX73 15
Black Cap, Red. WC 451B BX24 18 O.B oot,Elb OL575 OB30 13 St ackhead, Lo ng 310 SX71 15
Black Cap, WC 422B BX22 18 O.B oot ,End OL571 OB10 13 St ackhead, Out of Wall 313 SX74 15
Black Drawb and 4 10B BX 01 18 O.B o ot ,St r OL572 OB20 13 St ackhead, Short 30 2 SX 70 15
Black Elbow BX53 18 Offset St. Collar 519 DX31 11 Stainless Angle NX50 18
Black Increaser WC 432B BX43 18 Off set St k SX 94 14 St ainless Cap 421SS NX21 18
Black Pipe BP01 18 Oval Dble. St ackhead OX11 13 St ainless Collar, WC 413SS NX 11 18
Black Reducer NC 431B BX41 18 Oval Horizont al Ang le OX 51 13 St ainless Connector NX 58 18
Black Reducer WC 430B BX40 18 Oval Horizont al Elbow OX 53 13 Stainless Drawb and 410SS NX01 18
Black Tee 352B BX70 18 Oval Pipe OP01 13 St ainless Elb ow NX 53 18
Black Trim Collar BX10 18 Oval Stackhead OX 10 13 St ainless Incr. WC 4 3 1SS NX25 18
Boot Frame RB 70 5 Oval Starting Collar OX 6 3 13 St ainless Pipe NP01 18
Boot Rails RB66 5 Oval Takeoff OX60 13 Stainless Rain Cap 30SS NX28 18
Boot,Perimeter L580 RB43 5 Oval Vertical Angle OX52 13 Stainless Reducer 431SS NX41 18
Bridge-SPEAR RX95 10 Oval Vertical Elbow OX54 13 Stainless Tee 352SS NX70 18
CA Rt n-Air Box CA 60 4 Oval-Oval, Rev. B o o t 78 OB78 13 St ainless Trim Collar NX10 18
CA Rt n-Air Frame CA 62 4 Oval-Rd, Elbow Boo t 75 OB75 13 St anding 'S'Cleat DX 13 10
C-Air Frame CA 16 4 Oval-Rd, End B o ot 71 OB 71 13 St arter Base CA 42 4
C-Air Ground CA 19 4 Oval-Rd, St r. Boot 72 OB72 13 St art ing Collar DB 520DB DX 35 9
C-Air Ret .KIT CA 10 4 Panning PS40 10 Stckhd, Lo ng wo Ears 30 9 SX 72 15
C-Air Rt . Bt. CA12 4 Plenum (Cust o m) PL10 10 St rap ping DX16 10
Cap, Crimped 422 RX 22 8 Plenum Corners PX 20 10 Support B ox CA40 4
Cap, Increaser WC 452 RX 25 15 Plenum Do or PX 12 10 Support B racket DX17 10
Cap, No Crimp 421 RX 21 8 Plenum Rail PX16 10 Takeof f , Elbow SM 92 TO93 6
Cap, Reducer NC 4 51 RX 2 4 15 Plenum Side PX14 10 Takeoff , Elb ow, DB DB 9 2 TO94 9
Cap, Reducer WC 4 50 RX 2 3 15 Plenum To p PX 18 10 Takeoff , Lever Lock TO92 6
Ceil. Box Angle RB65 8 PVC Angle VX50 17 Takeoff, Rd. Adj. 325 TO30 6
Ceil. Box Side RB 61 8 PVC B oot ,Elb PL575 V B 3 0 17 Takeof f , Rd. Adj.Half Tab 325H TO33 6
Ceil. Box Top RB 6 2 8 PVC B o ot ,End PL571 V B 10 17 Takeof f , Rd. Side 32 6 TO36 6
Ceiling Boot, Side RB41 8 PVC Boot,Prmtr VB70 17 Takeoff, Snap Lock TO91 6
Chimney Thimb le 415 RX 05 19 PV C B oot ,Str PL572 V B20 17 Takeoff , Sq. Adj. 30 3 TO10 6
Collar, Clinch w/tabs 417 RX14 8 PVC Collar 416P VX11 17 Takeoff, Sq. Adj. DB 303DB TO14 9
Collar, Crimped 4 13 RX 11 8 PV C Connector VX58 17 Takeof f , Sq . Non-A dj. 308 TO2 0 6
Collar, Long Ext . 416 RX12 8 PV C Elbow VX53 17 Takeoff , Sq. No n-Adj.DB 30 8 DB TO18 9
Collar, Long Ext . WD 416D RX 13 8 PV C End Cap 422 P VX20 17 Takeof f , Sq . Side 3 2 8 TO38 6
Collar, No Crimp 412 RX10 8 PVC Reducer 433P VX44 17 Takeoff, Sq. Side 328DB TO39 9
Collar, Roth 413R RX16 8 PVC Saddle VX61 17 Takeoff, Sq.NA,0R,Dbl 462 TO40 6
Connect or RX 58 16 PV C Saddle W/45 231P V X6 2 17 Takeoff , Sq.NA,0R,Top 563 TO50 6
D.Hanger Str. DX15 10 PVC Saddle W/90 230P VX63 17 Takeoff, Sq.NA,1R,Dbl 463 TO41 6
D.Hanger'L' DX19 10 PVC Spiro Pipe VP01 17 Takeoff, Sq.NA,1R,Top 564 TO51 6
Damper W/1 Hardware 10 RX31 19 PVC Tee 352P VX70 17 Takeoff, Sq.NA,1R,Top 564DB TO54 9
Damper W/2 Hardware 10 RX32 19 PVC Wye 229P VX80 17 Takeoff, Sq.NA,2R,Dbl 464 TO42 6
DB Collar, ND 52 DX 76 9 R.Boot,A ng L577 RB40 5 Takeof f , Sq .NA ,2R,To p 565 TO52 6
DB Co llar, WD 53 DX 38 9 R.Boot,Elb L575 RB 3 0 5 Tee (Flared & St raight ) 352 RX 70 12
DB Collar,ND Tabloc 52T DX77 9 R.Boot,End L571 RB10 5 TO, Adh, Conical 1330 TA 60 7
Drain Pans CA 30 4 R.B oot,Str L572 RB 2 0 5 TO, Adh, Of f set 1573 TA 57 7
Drawband 410 RX 01 19 Rain Cap 30 RX28 19 TO, Adh, Rd.Collar 1329R TA 40 7
D r i v e C l eat s D X 10 10 R ed ucer G S 4 3 0 GS R X 4 4 16 T O , A d h, Sq .A d j . 13 0 3 TA 10 7
Dryer Box Wall Frame EX30 19 Reducer NC 431 RX41 15 TO, Adh, Sq.Adj. D 1303D TA 11 7
Duct A d apt er 534 DX 80 11 Reducer WC 430 RX40 15 TO, Adh, Sq.Collar 13 2 9 TA39 7
Duct Damp er DX50 11 Reg ister Box 11" H 517 RB51 15 TO, Adh, Sq.N.A d j 130 8 TA20 7
Duct End Cap 512 DX44 11 Register Box 5" H 516 RB50 15 TO, Adh, Sq.NA,Top 1564 TA 51 7
Duct Hanger 'Z' DX14 10 Regist er Pan 573 RB55 15 TO, Adh, Sq.Sid e 13 2 8 TA38 7
Duct Horiz.Angle 532 DX27 11 Register Saddle RX65 16 Toe Kick Boot RB95 15
Duct Horiz.Elbow 525 DX25 11 Round Pipe RP01 5 Toe Kick Box RB94 15
Duct Reducer 533 DX 41 11 Round Pipe Unbo xed RP05 5 Transf ormer 472 TO80 6
Duct Reducerette DX79 11 S' Cleats DX12 10 Trim Collar RX09 19
Duct St arting Collar 520 DX33 11 Saddle, Flue W45 230 RX60 16 Twist -In, ND 40 DX60 9
Duct Transition 518 DX82 11 Saddle, Flue W90 231 RX61 16 Twist-In, W/45 Scp 42 DX62 9
Duct Vert. Angle 314 DX23 11 Saddle, Rd/Rd 1231 TA09 7 Twist-In, W/90 Scp 43 DX63 9
Duct Vert.Elbow 307 DX21 11 Spin-In, ND 46 DX70 6 Twist-In, WD 41 DX61 9
Duct , Rect ang ular 24GA DT03 11 Sp in-In, w/ 45 scoop 48 DX72 6 Twist -In, WD-45 scp 44 DX64 9
Duct, Rectangular 26GA DT01 11 Spin-In, w/90 scoop 49 DX73 6 Twist-In, WD-90 scp 45 DX65 9
Duct , Rect ang ular 28GA DT02 11 Sp in-In, WD 47 DX 71 6 Wall Stack SK0 1 14
ECONO Dmpr. W/1 Hrdwr 11 RX 35 19 Spin-In, WD-4 5scp 50 DX74 6 Wall Stackhead SX76 15
ECONO Dmpr. W/ 1 Hrdwr 11 RX 3 6 19 Sp in-In, WD-90 scp 51 DX 75 6 Wye, Adj. 33 6 RX83 12
ECONO Dmpr. W/ 2 Hrdwr 11 RX37 19 Sq - Rd Transition 573 RB55 4 Wye, A d j. Perimeter 332 RX82 12
ECONO Dmpr. W/2 Hrdwr 11 RX38 19 Stack Adapter 601 SX80 14 Wye, Branch 330 RX81 12
Elbow RX53 5 Stack Adapter, Elb. 602 SX81 14 Wye, Flue 229 RX80 12
Elbow Long Rad. RX 54 5 St ack Boot,A ng 577 SB40 14 Wye, Reducing 22 8 RX79 12
42007LUKJANMETALPRODUCTSCATALOG
WWW.LUKJAN.COM

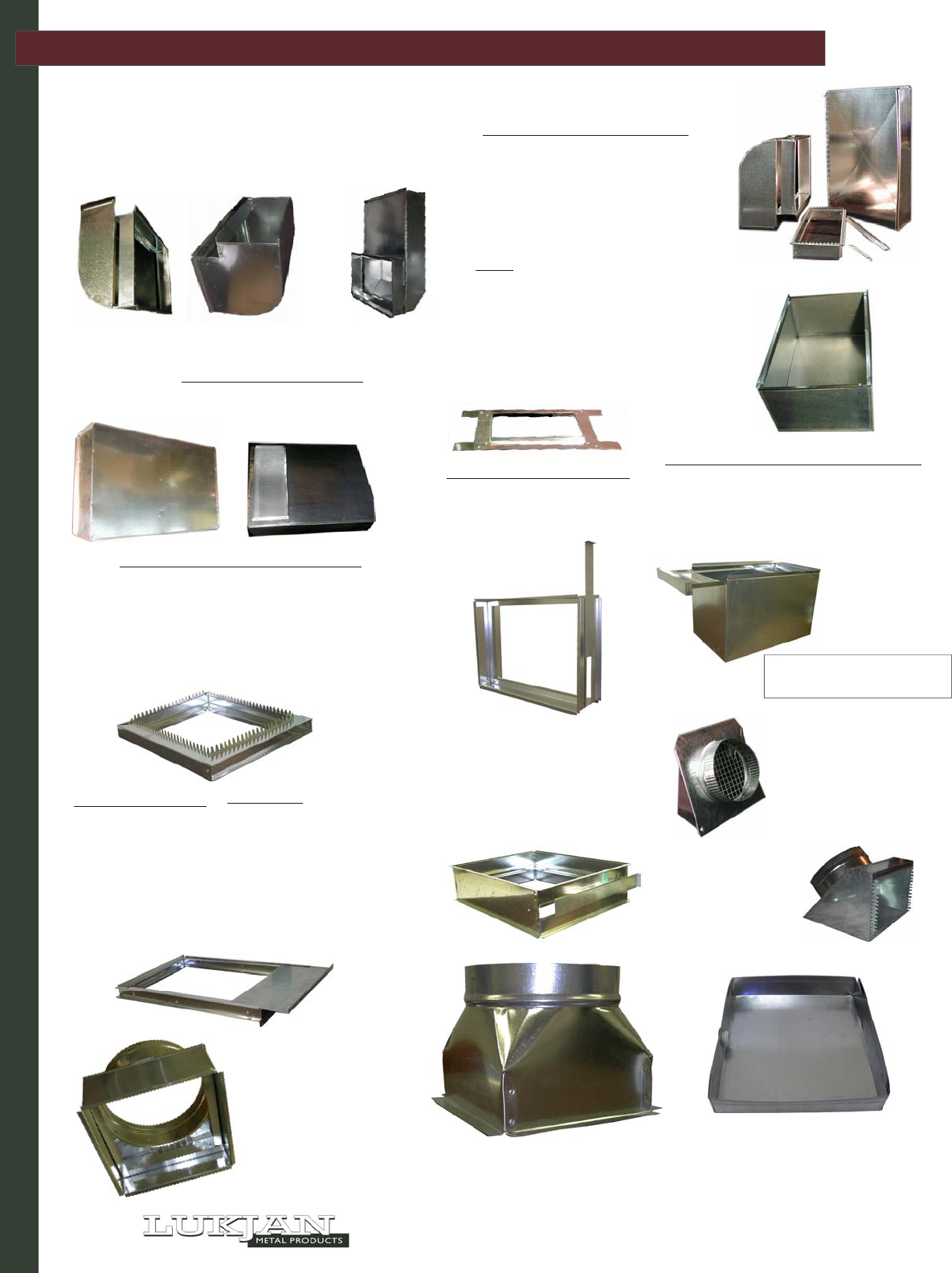

COLD AIR RETURN BOOTS, FURNACE BOXES & FILTER FRAMES
COLD AIR RETURN BOOT KIT
CA10XXYYAABB
KIT INCLUDES: (1) 520 STARTING
COLLAR, (2) JTS 32” DUCT, (1) CA
RETURN BOOT, (2) S CLEATS,
(6) DRIVE CLEATS
ROUND BACK STRAIGHT BACK
SIDE LOAD TOP LOAD
COLD AIR RETURN BOOTS
CA12AABBXXYY
COLD AIR RETURN FRAME
CA16XXYYZZ
XX=REG LENGTH, YY= REG. WIDTH,
ZZ=STUD DISTANCE (16 OR 24)
MOBILE
BOOT
CA18XXYY
ALL COLD AIR RETURN BOOTS AND KITS CAN BE OPTIONED AS FOLLOWS:
NOTE:
KITS LIST FURNACE FIRST, DROP SECOND
BOOTS LIST DROP FIRST, FURNACE SECOND
AA = CA DROP SLIP DIMENSION
BB = CA DROP DRIVE DIMENSION
XX = FURNACE CUTOUT (LARGER)
YY = FURNACE CUTOUT (SMALLER)
FRESH AIR INTAKE
CA64XX
W/DAMPER
CA64DXX
XX=04-12
FILTER FRAME (1”)
CA20XXYYZ
XX=FILTER WIDTH
YY=FILTER LENGTH
Z= STYLE TYPE
OPTIONS: CLIP-ON DOOR
STYLE TYPES:
A = FLANGE BOTH SIDES; TEETH ONE
SIDE, PLAIN FLANGE OTHER
B = FLANGE ONE SIDE W/TEETH ONE
SIDE AND FLAT ON OTHER SIDE
C= SAME AS B BUT WO TEETH
D= SAME AS A BUT WO TEETH
WISE STYLE= PLAIN FLANGE BOTH
SIDES CA72XXYYZ
A STYLE
1” FILTER FRAME BOX
W/SLIDING COVER (BELOW)
FURNACE SUPPORT BOXES (24GA)
SOLID CA40XXYY 12”H
CUTOUT CA40XXYYAABB 10”H
XX=BOX LENGTH, YY= BOX WIDTH
AA= CUTOUT L, BB=CUTOUT W
XX=OVERALL BOX LENGTH
YY= OVERALL BOX WIDTH
XX
YY
BB
AA
FILTER FRAME BOX
W/SLIDE-ON DOOR
CA74XXYYZ
XX=HEIGHT, YY= LENGTH, Z= WIDTH
CAN BE MADE TO FIT FILTERS > 1”
OPTIONAL DOORS: CLIP-ON DOOR (C), HINGED
DOOR (H) OR SLIDE-ON DOOR (S)
UPRIGHT VIEW
FLAT VIEW
SLIDING FILTER
TRAY MODEL

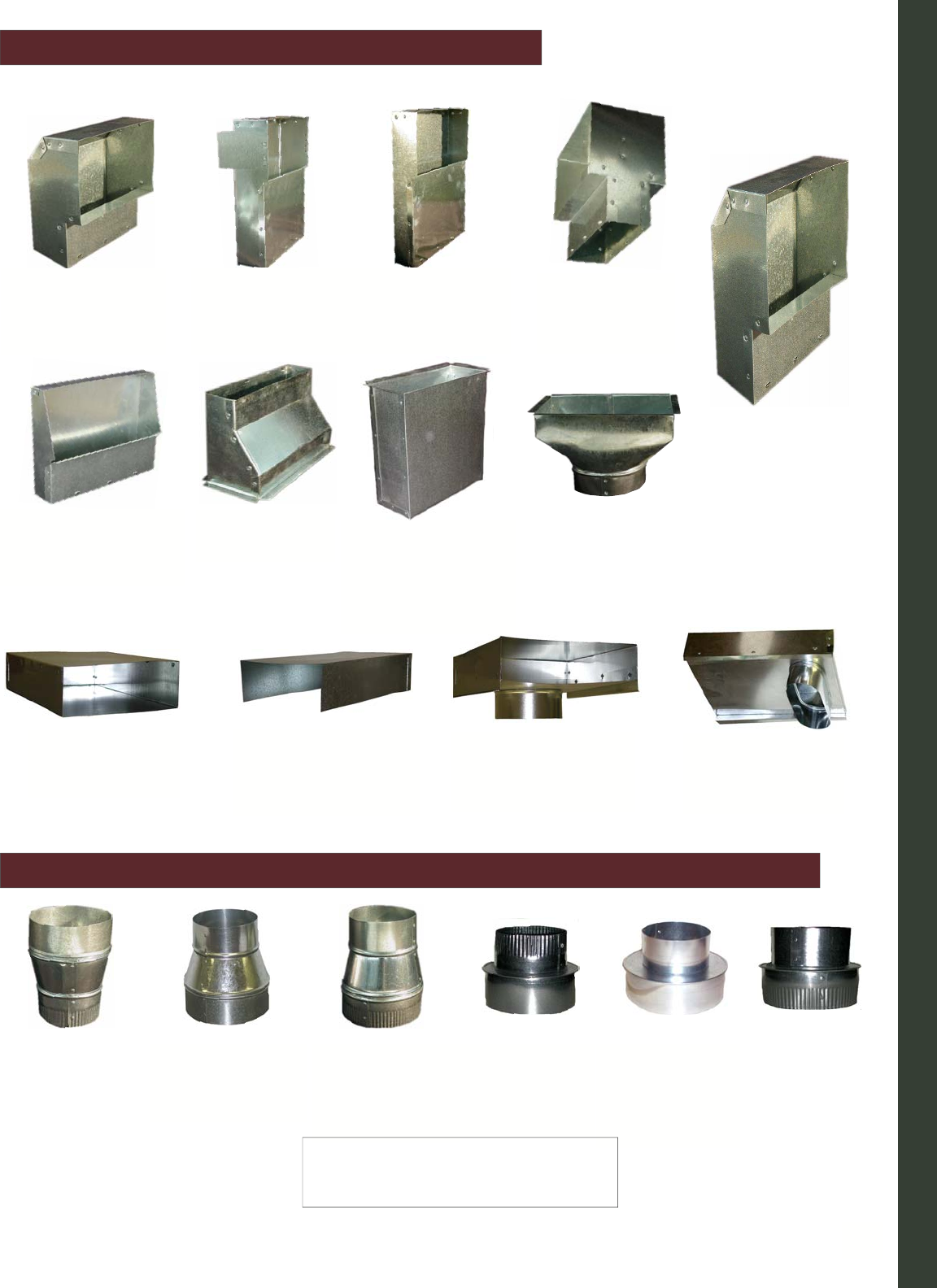

FURNACE BOXES (OPEN TOP, 24GA)
CA50XXYYZZ
XX=LENGTH, YY=WIDTH, ZZ=HEIGHT
OPTIONS: FT= 1” FILTER TRAY,
D= SNAP-ON FILTER DOOR
SFT=SLIDING FILTER TRAY
XX
YY
ZZ
• ROUND BACK OR STRAIGHT BACK
• TOP LOAD OR SIDE LOAD FILTER OPENING
• BOOT ONLY OR AS A COMPLETE KIT
• WITH SNAP-ON FILTER DOOR
573 SQUARE TO ROUND
RB55XXYYZZ
SPECIFY W/ OR WO FLANGE
MOBILE HOME BOX
RB55XXYYZZM
SAME AS 573 SQ RD
BUT WITH INSIDE FILTER LEDGE DRAIN PANS
CA30XXYYZZ
PLUG ON LONG SIDE STANDARD
XX= WIDTH, YY=LENGTH,
ZZ=26 OR 24 GAUGE
ASK ABOUT OUR NEW
INSULATED FURNACE BOXES!
5
OHIO:440‐599‐8127• FAX440‐593‐6237
NORTHCAROLINA:704‐734‐0544• FAX704‐734‐0993
SERVICE♦QUALITY♦TRUST
2-PIECE ADJ.
45º ANGLE
USE RX50
BUTTON LOCK , SNAP LOCK OR
HAMMER LOCK
RP01XXYYZZ (BOXED)
RP05XXYYZZ (UNBOXED)
XX=03-36 PIPE DIAMETER
YYY=24,48,60,120 LENGTH
ZZ=WA,30,28,26,24,22 GAUGE
EX: RP050630060 6” 30GA 60”
UNBOXED ROUND PIPE
L-577
45º ANGLE BOOT
RB40XYYZ
L-571 END BOOT
SPECIFY CENTER (C),
LEFT (L) AND RIGHT (R)
RB10XYYZ
L-572
STRAIGHT BOOT
RB20XYYZ
L-575
90º ELBOW BOOT
RB30XYYZ
XX=03-36 DIAMETER
ZZ=30, 28, 26, 24, 22 GAUGE
EXAMPLE: RX530630 6” 30 GA ELBOW
STANDARD PACKAGING:
3”-6” ELBOWS BOXED
7”-14” BANDED, >16” LOOSE
STRAIGHT ELBOWS AVAILABLE IN
4”, 5”, 6”, 7”, & 8” PROVIDING-
GREATER PACKAGING DENSITY.
X= REGISTER HEIGHT, YY= REGISTER WIDTH
Z= ROUND DIAMETER, F= FLANGE
EXAMPLE: RB304106F
4X10X6 ELBOW REGISTER BOOT W/FLANGE
ALL BOOTS CAN BE MANUFACTURED TO INCLUDE
LONGER REGISTER THROATS (3”-6” TYPICAL)
L580 PERIMETER
BOOT
RB43XXYYZZ
ALL SIZES 10/BUNDLE EXCEPT 3”
@ 5/BNDL
3-9” SIZES BOXED OR UNBOXED
ADD’L CHARGE FOR BOXED
10” & ABOVE BUNDLED ONLY
BEADED PIPE AVAILABLE
3” & 4” AVAILABLE ASSEMBLED
FOR EXTRA CHARGE
4-PIECE ADJ 90º
ELBOW
RX53XXZZ
REGISTER BOOT WITH INTEGRATED UL APPROVED
3 HR RATED CEILING RADIATION DAMPER (CRD).
AVAILABLE IN ELBOW AND STRAIGHT BOOTS, 4X8
TO 6X14 WITH 1/2” SHEETROCK FLANGE AND LIP
RB30XXYYZFSE (ELBOW)
RB20XXYYZFSE (STRAIGHT)
E = 4 OR 6 THROAT EXTENSION
EXAMPLE: RB306127FS6 = 6X12X7 ELBOW REG BOOT W/
CEILING RADIATION DAMPER, 6” THROAT EXTENSION

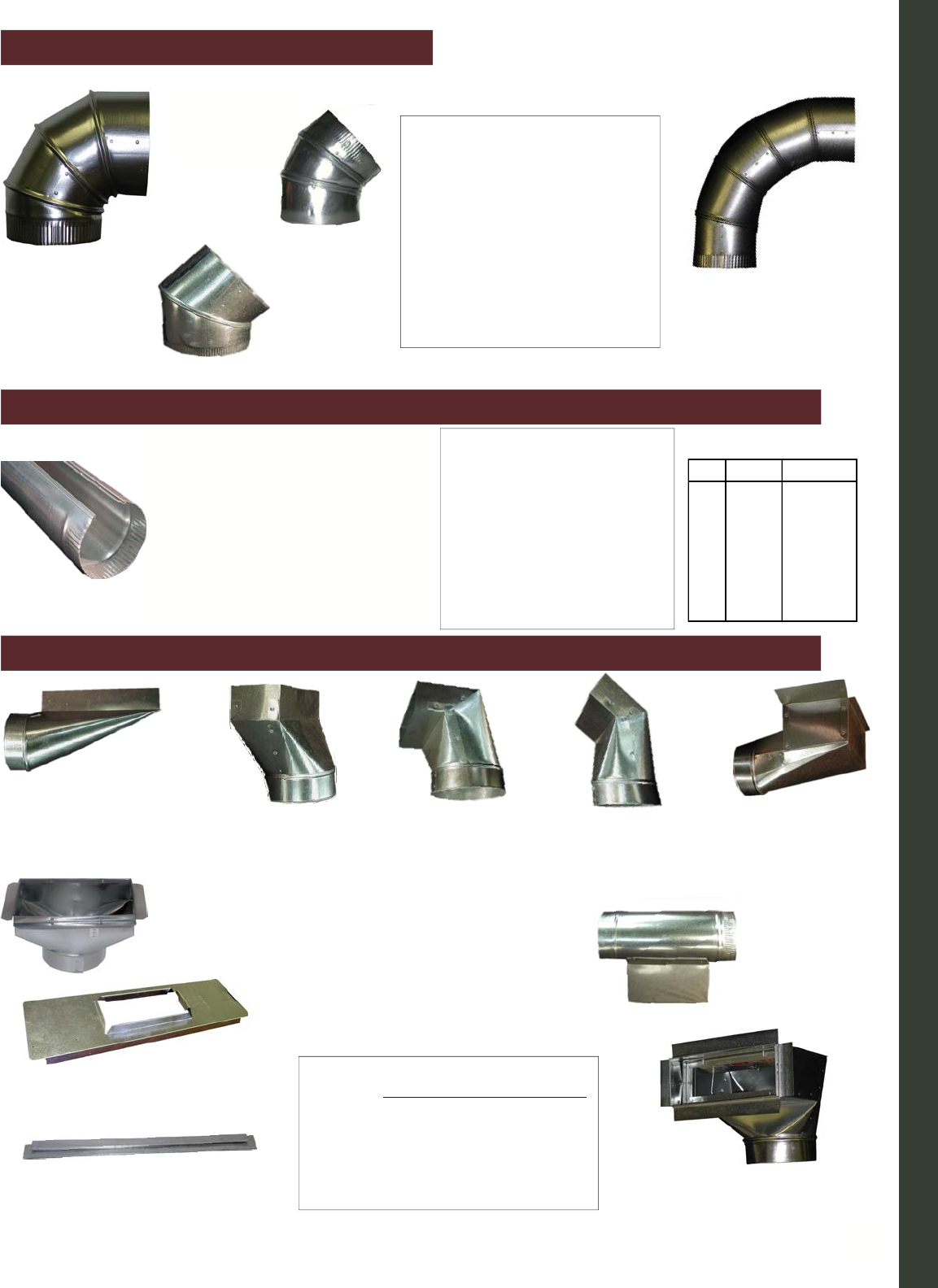

LONG RADIUS ELBOWS
RX54XXZZ
PROVIDES IMPROVED AIRFLOW
AVAILABLE IN 3-12”
GALVANIZED OR ALUMINUM
PH-1
BASEMENT BOOT
RB45XYYZ
ELBOWS & ANGLES
3-PIECE ADJ.
45º ANGLE
RX50XXZZ
ROUND PIPE
Rack Qtys.
Size BOXED UNBOXED
3" 550
4" 480 630
5" 350 480
6" 300 350
7" 200 240
8" 160 200
9" 160
10" 150
12" 90
14" 80
REGISTER, PERIMETER, BASEMENT & CRD BOOTS
BOOT FRAME
RB70XYYZ
FITS BOTH 16” & 24” STUDS
NEW STAMPED DESIGN W/ROUNDED EDGES
4X10, 4X12, 4X14, 6X10, 6X12, 6X14
ELBOW BOOT WITH
INTEGRATED CRD
BOOT RAILS RB66XX
XX=16, 20, 24, 26
ALL BOOTS CAN BE
MANUFACTURED WITH
1” FLANGE
62007LUKJANMETALPRODUCTSCATALOG
WWW.LUKJAN.COM

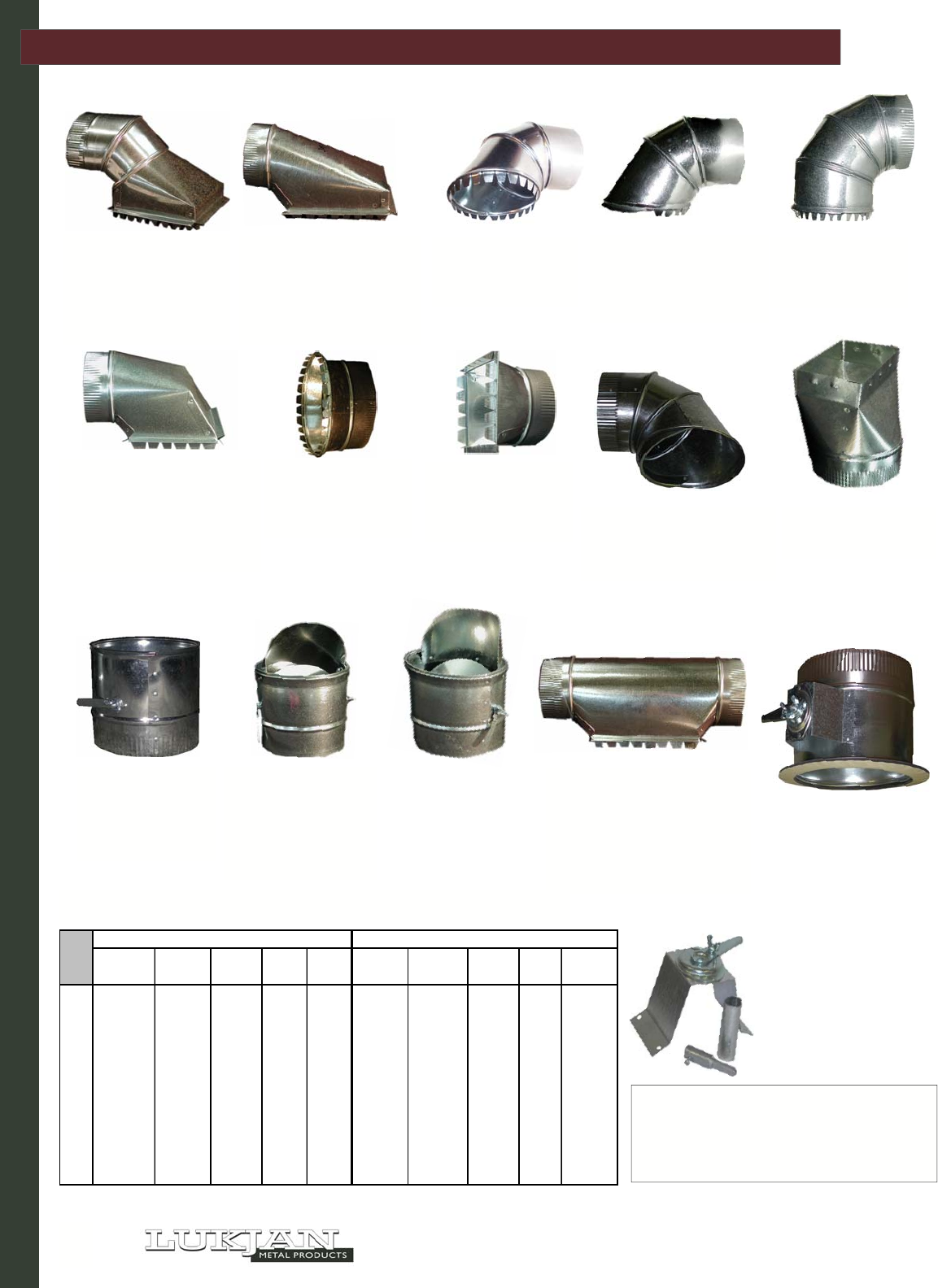

328 SQUARE
SIDE TAKEOFF
TO38XX
308 RECTANGULAR
NON-ADJ. TAKEOFF
TO20XX (04-18”)
TO20DXX (W/DAMPER)
NON-ADJUSTABLE
DOUBLE TAKEOFF
TO40XX (462, 0” RISE)
TO41XX (463, 1” RISE)
TO42XX (464, 2” RISE)
325H HALF-TAB
RND ADJ. TAKEOFF
TO33XX
(6” & 7” ONLY)
325 ROUND
ADJ. TAKEOFF
TO30XX (04-14”)
SM92 TAKEOFF
ELBOW
TO93XX
NON-ADJ. SQUARE
TOP TAKEOFF
TO50XX (563, 0” RISE)
TO51XX (564, 1” RISE)
TO52XX (565, 2” RISE)
303 SQUARE
ADJ. TAKEOFF
TO10XX (04-18”)
TO16XX (W/DAMPER)
SPIN-IN WITH
45º SCOOP
48 DX72XX
50 DX74XX
(W/DAMPER)
SPIN-IN WITH
90º SCOOP
49 DX73XX
51 DX75XX
(W/DAMPER)
SPIN-IN
46 DX70XX
47 DX71XX
(W/DAMPER)
326 ROUND
SIDE TAKEOFF
TO36XX LOCKING ADJ. TAKE-OFF
TO91XX SNAP LOCK
TO92XX LEVER LOCK
472 TRANSFORMER
TO80XX
ROUND ADH. TAKEOFF
W/DAMPER EXTENSION KIT
ADD “E” TO ANY TAKEOFF FOR
EXTENSION KIT INSTALLATION
EX: TA40DE06
DAMPER
EXTENSION KITS
USED TO EXTEND DAMPER HANDLE
WHEN WRAPPING PIPE/DUCT
SPECIFY 2.5” OR 1.0”
WIDE STANDOFF
1.5” HIGH STANDARD
1/4” OR 5/16” SHAFT ADAPTER
OFFER YOUR CUSTOMERS A WAY TO SAVE VALUABLE
INSTALLATION TIME. INQUIRE ABOUT LUKJAN PRE-
INSTALLING THESE DAMPER EXTENSION KITS ON
ANY TYPE TAKEOFF (SHEET METAL OR ADHESIVE)
FOR JOBS REQUIRING WRAPPED INSULATION.
SHEET METAL TAKEOFFS, SPIN-INS
RECTANGULAR & SQUARE FITTING OPENING DIMENSIONS
Sheet Metal Adhesive
TO10 TO20 TO38 TO40 TO51 TA10 TA20 TA38 TA51 TA57
303 308 328 462 564 1303 1308 1328 1564 1573
4" 4x6 4x6 5x5 5x7 4x5 4x6 4x6 4x4 4x4 6x10
5" 5x7 5x7 5x5 6x8 5x6 5x7 5x7 5x5 5x5 8x12
6" 6x8 6x8 6x6 7x9 6x7 6x7 6x8 6x6 6x6 7x14
7" 6.5x10 7x9 7x7 7x10 7x8 6.5x10 7x9 7x7 7x7 7x17
8" 6.5x12 7x11.5 7x9 7x12 8x8 6.5x12 8x11.5 7x9 8x8 7x20
9" 7x13 9x9 9x9 7x13 9x9 9x9 9x9
10" 7x14 7x14 10x10 7x14 7x14 10x10 7x14
12" 7x16 12x12 7x16 7x16 12x12 7x16
14" 7x18 14x14
16" 7x20 16x16
18" 7x22 18x18
7
OHIO:440‐599‐8127• FAX440‐593‐6237
NORTHCAROLINA:704‐734‐0544• FAX704‐734‐0993
SERVICE♦QUALITY♦TRUST

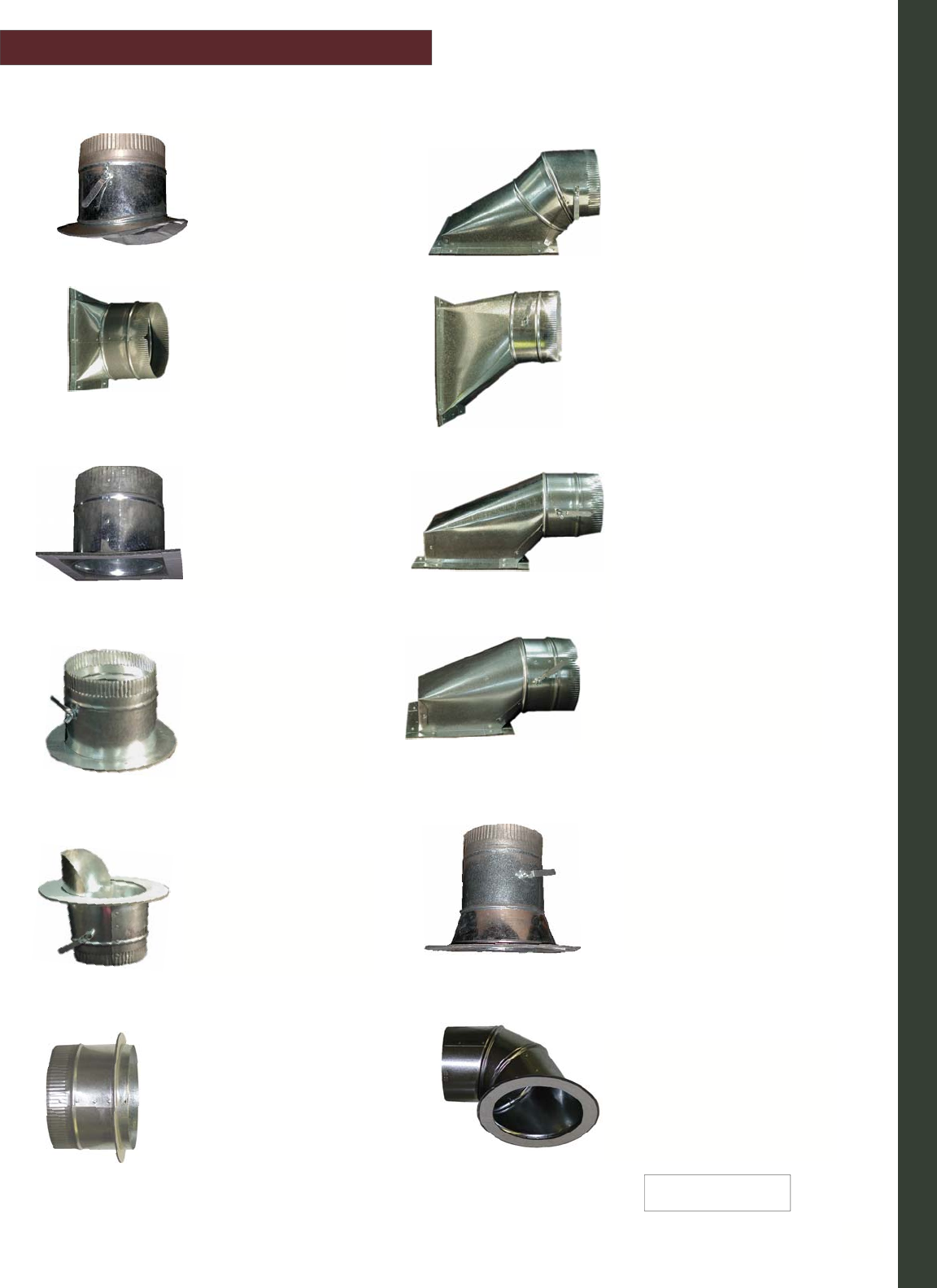

ROUND
SADDLE TAKEOFF
1231 TA09XX
1231D TA09DXX
(W/DAMPER)
1231DS TA09DSXX
(W DAMPER & SCOOP)
ADJUSTABLE
ADHESIVE TAKEOFF
1303 TA10XX
1303D TA11XX
(W/DAMPER)
SIDE TAKEOFF
1328 TA38XX
1328D TA38DXX
(W/DAMPER)
HIGH EFFICIENCY
OFFSET TAKEOFF
1573 TA57XX
1573D TA57DXX
(W/DAMPER)
NON-ADJUSTABLE TOP
ADHESIVE TAKEOFF-SQUARE
1564 TA51XX
1564D TA51DXX
(W/DAMPER)
NON-ADJUSTABLE TOP
ADHESIVE TAKEOFF
RECTANGULAR
1308 TA20XX
1308D TA20DXX
(W/DAMPER)
ROUND BASE
TAKEOFF COLLAR
1329R TA40XX
1329RD TA40DXX
(W/DAMPER)
SQUARE BASE
TAKEOFF COLLAR
1329 TA39XX
1329D TA39DXX
(W/DAMPER)
ROUND BASE TAKE-OFF
WITH SCOOP & DAMPER
1329RDS TA40DSXX
1329RS TA40SXX
(SCOOP ONLY)
CONICAL ROUND
TAKEOFF
1330 TA60XX
1330D TA60DXX
(W/DAMPER)
XX= DIAMETER
ROUND ADJUSTABLE
TAKE-OFF
1325 TA30XX
PROVIDES AN AIR-TIGHT SEAL WHILE
COMBINING A STANDARD
TAKEOFF & ELBOW WITH ONE FITTING
ROUND BASE
TAKEOFF COLLAR
W/1” SLEEVE
1329RF TA40FXX
1329RDF TA40DFXX
(W/DAMPER)
1” SLEEVE PROTECTS
INSULATED DUCTBOARD
ADHESIVE TAKEOFFS
82007LUKJANMETALPRODUCTSCATALOG
WWW.LUKJAN.COM
412 “B” COLLAR
NO CRIMP
RX10XX
XX=03-24”
413 “A” COLLAR
WITH CRIMP
RX11XX
XX=03-24”
LONG EXT. COLLAR
416 RX12XX
416RG RX12XXRG
RG=SOLID RING
XX=03-36
416D COLLAR
LONG EXT. W/DAMPER
RX13XX
416DS W/DAMPER & SCOOP
RX13SXX
XX=04-24
END CAP
421 RX21XX (NO CRIMP)
422 RX22XX (CRIMP)
XX=03-24”
413R ROTH
COLLAR
RX16XX
XX=03-24
COLLAR LENGTHS
“A” & “B” = 2 3/8”
ROTH = 4”
LONG EXT = 6”
412 RING COLLAR
412RG RX10XXRG
413RG RX11XXRG
SOLID RING
CEILING BOX
SIDE OUTLET
RB61XXYYZZ
XX=06-22
YY=06-22
ZZ=04-20 DIAMETER
HEIGHT = 10, 12, 14
DEPENDING ON TAKEOFF
CEILING BOX
TOP OUTLET
RB62XXYYZZ
XX=06-30
YY=06-24
ZZ=06-20 DIAMETER
STANDARD HEIGHT 6”
INSULATED CEILING BOXES
RB61XXYYZZRF SIDE
RB62XXYYZZRF TOP
RB65XXYYZZRF ANGLED
XX, YY REGISTER OPENNING
ZZ=TAKEOFF DIAMETER
R= R4 FOR 1”, R6 FOR 1.5” INSULATION
SPECIFY “F” FOR EDGE FLANGE
ALL HAVE REGISTER FLANGE FOR CLEAN, EASY INSTALLATION.
EX: RB62061206R4F
6X12X6 TOP INSULATED CEILING BOX
W/1” INSULATION AND 1” EDGE FLANGE
TOP INSULATED WITH
1” EDGE FLANGE
TOP INSULATED WITH
REGISTER FLANGE ONLY
REGISTER OPENING
FLANGE
417 COLLAR
LONG EXT. W/TABS
RX14XX
XX=04-28”
TABS KEEP FLEX FROM
SLIPPING OFF COLLAR
TABS
ANGLED INSULATED CEILING BOX
WITH 1” EDGE FLANGE
SIDE INSULATED WITH
EDGE & REGISTER FLANGE
ROUND COLLARS
CEILING BOXES; REGULAR AND INSULATED
EDGE FLANGE
EDGE AND REGISTER
FLANGE DETAILS
REGISTER FLANGE
NEW DESIGN!
CEILING BOOT SIDE OUTLET
RB41XXYYZZ
CALL FOR SIZES
416T TABLOC
LONG EXT. COLLAR
RX12TXX
COMES NESTED. QUICK LOC TAB
WON’T RELEASE ONCE CLOSED.
SERRATED RING
PROVIDES FLAT, SECURE FIT.
FLEX CONNECTOR
RX58XX
USED TO JOIN SHORT
PIECES OF FLEX
RETURN AIR INSULATED BOX
(DUCTBOARD INSULATION)
STANDARD HEIGHT 3”
WITH OR WITHOUT COLLAR
9
OHIO:440‐599‐8127• FAX440‐593‐6237
NORTHCAROLINA:704‐734‐0544• FAX704‐734‐0993
SERVICE♦QUALITY♦TRUST

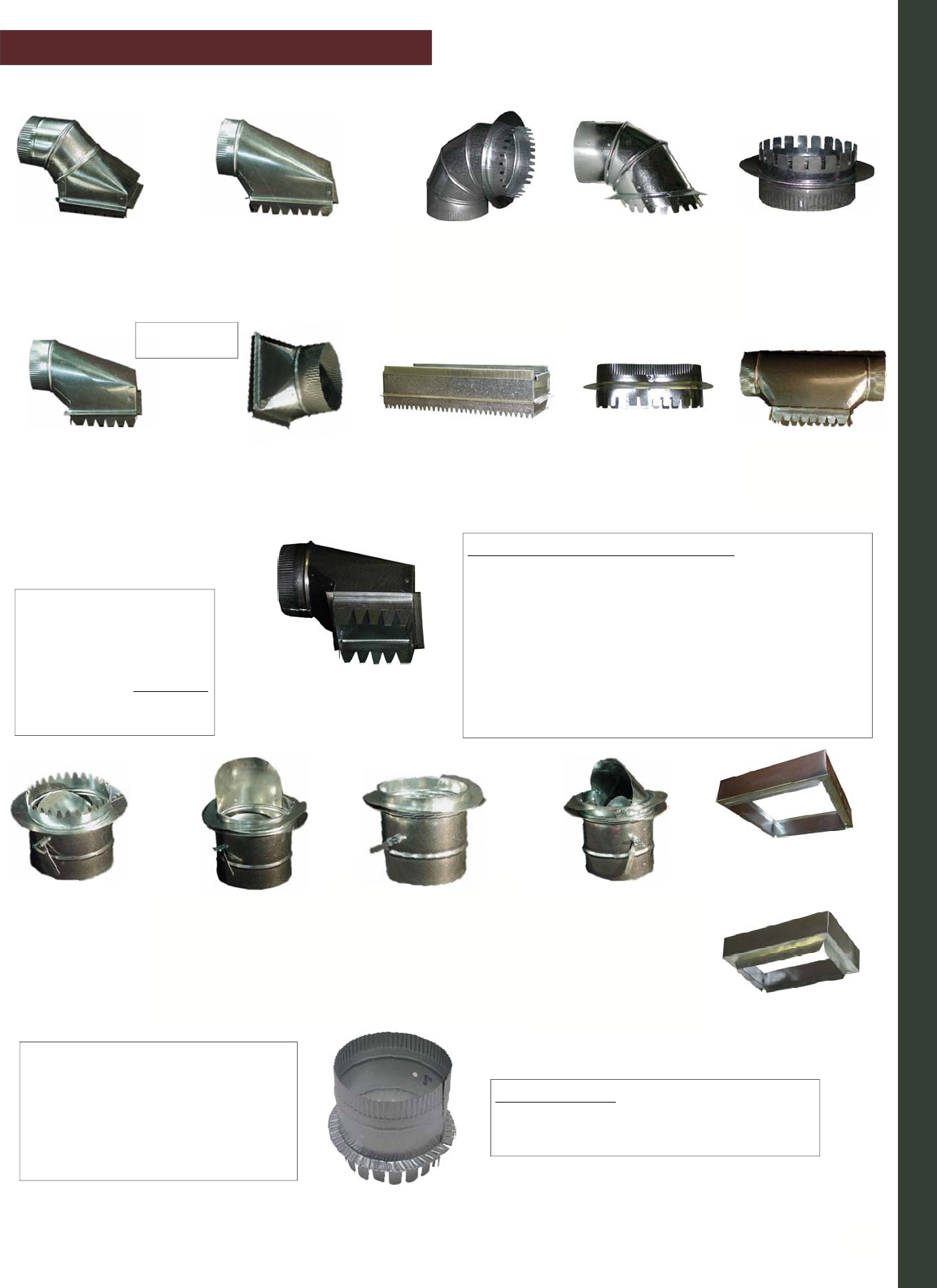

308DB NON-ADJ. RECT.
DUCTBRD TAKEOFF
TO18XXZ
TO18DXXZ
W/DAMPER
325DB ADJUSTABLE
ROUND DUCTBOARD
TAKEOFF
TO30XXDB
328DB SQUARE SIDE
DUCTBRD TAKEOFF
TO39XXZ
DUCTBRD TWIST-IN
40 W/O DAMPER
DX60XXZ
41 W/DAMPER
DX61XXZ
DUCTBRD TWIST-IN
WITH 90º SCOOP
43 W/O DAMPER
DX63XXZ
45 W/DAMPER
DX65XXZ
DUCTBRD TWIST-IN
WITH 45º SCOOP
42 W/O DAMPER
DX62XXZ
44 W/DAMPER
DX64XXZ
DUCTBRD COLLAR
52 W/O DAMPER
DX76XXZ
53 W/DAMPER
DX38XXZ
564DB NON-ADJ. SQUARE
TOP DUCTBRD TAKEOFF
TO54XXZ
TO54DXXZ
W/DAMPER
DUCTBOARD
DOUBLETAKEOFF
413DB
DUCTBOARD
COLLAR
RX11XXDB
DUCTBOARD
ELBOW TAKEOFF
DB92 TO94XX
TO94DXX
W/DAMPER
303DB ADJ. SQUARE
DUCTBRD TAKEOFF-
TO14XXZ
TO14DXXZ
W/DAMPER
SQUARE AND RECTANGULAR FITTINGS
XX= DIAMETER
Z= DUCTBOARD THICKNESS (BLANK = 1”)
U : UNIVERSAL SUPPORTING BOTH 1” AND
1.5”
FOR SQUARE AND RECT. FITTINGS ONLY
L : 1.5” DUCTBOARD
L2 : 2” DUCTBOARD
EX: TO5406U UNIVERSAL 6” ADJ SQ TAKEOFF FOR
1” AND 1.5” DUCTBOARD (UNIVERSAL)
LUKJAN MANUFACTURES A FULL
LINE OF 1”, 1.5” AND 2”
DUCTBOARD FITTINGS.
WE ALSO MANUFACTURE SQUARE
AND RECTANGULAR UNIVERSAL
FITTINGS THAT SUPPORT BOTH 1”
AND 1.5” DB
52T TABLOC DUCTBOARD COLLAR
DX77XX
BEADED AND WITH CRIMP. COMES NESTED.
QUICK LOC TAB WON’T
RELEASE ONCE CLOSED.
SUPPORTS BOTH 1” AND 1.5” DB
ROUND FITTINGS
ALL ROUND DUCTBOARD FITTINGS CAN BE MADE TO
SUPPORT 1”, 1.5” OR 2” DUCTBOARD. SPECIFY L OR
L2 AS LISTED ABOVE.
564DB UNIVERSAL
DB TAKEOFF
TO54XXU
520DB DUCTBOARD
STARTING COLLAR
DX35XXYYDB
413 ODB OVAL
DUCTBOARD COLLAR
OX63XX
DUCTBOARD
COLLAR BOX
USED TO PRODUCE DUCTBOARD COLD
AIR RETURN BOXES
DUCTBOARD METAL
BOOT FLANGE
USED TO PRODUCE DB
INSULATED CEILING BOXES
DUCTBOARD FITTINGS & TWIST-IN’S
563DB = 0” RISE TO53
564DB = 1” RISE TO54
565DB = 2” RISE TO55
462DB = 0” RISE TO43
463DB = 1” RISE TO44
464DB = 2” RISE TO45
SEE PAGE 6 FOR
OPENING DIMENSIONS
102007LUKJANMETALPRODUCTSCATALOG
WWW.LUKJAN.COM

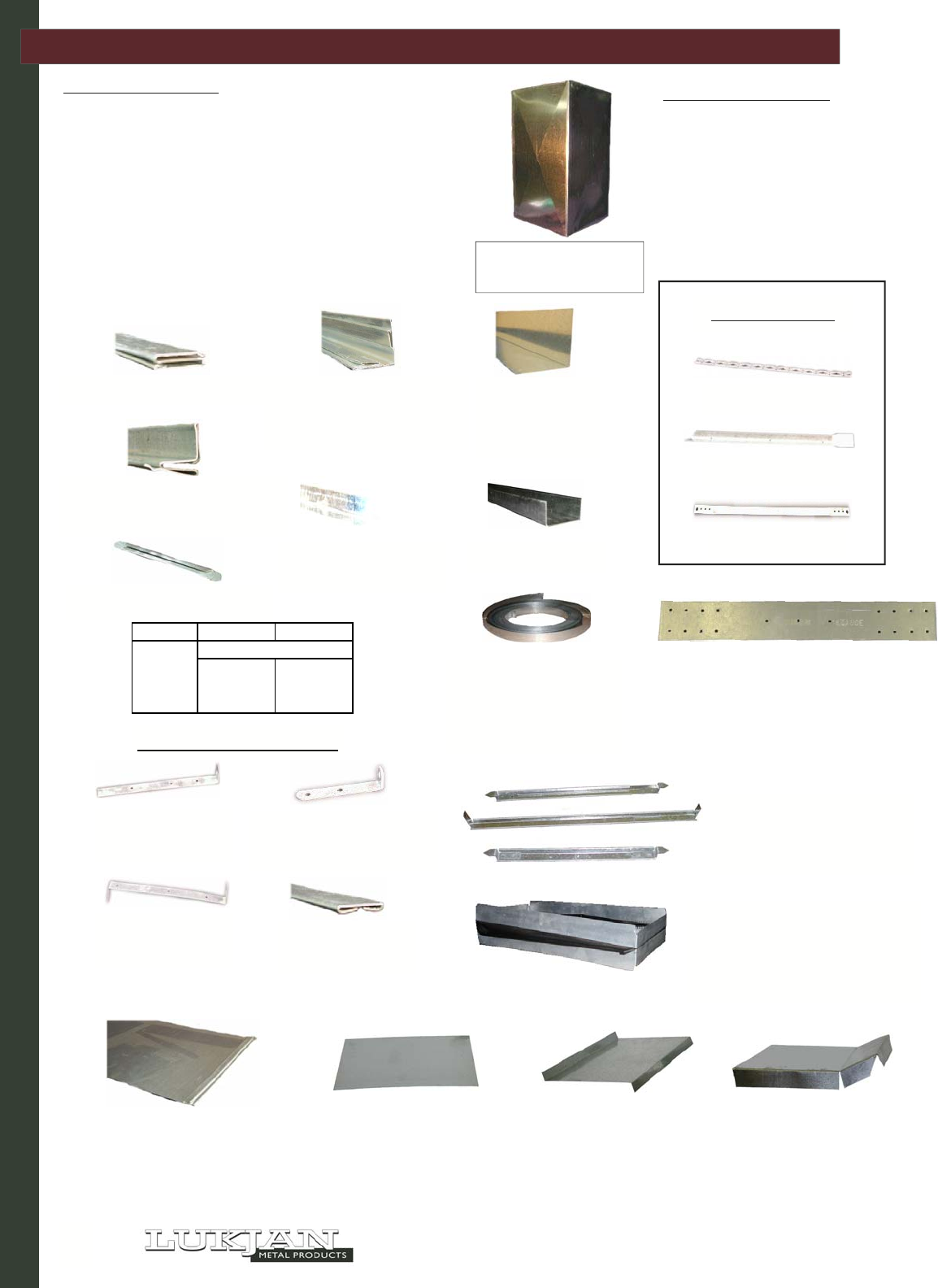

UNIVERSAL PLENUM
CROSSBROKE WITH SNAP-LOCK SEAMS
PX14XXZZZ PLENUM SIDES
PX16XXZZZ PLENUM RAILS
PX18XXYY PLENUM TOPS
XX= WIDTH, YY= DEPTH,
ZZZ=LENGTH
PLENUM CORNER
PX20ZZZ
ZZZ=036, 060,120
ANGLES
DX18
VARIOUS SIZES &
GA. AVAIL
U-CHANNEL
COLD AIR GROUND
CA1908 (8FT.)
STRAPPING
FOR PIPE OR DUCT
HANGING
DX16S1 100’ 1”
DX16S2 100’ 2”
STRAIGHT END
PIPE HANGER
DUCT HANGER
8 & 9” L, 1” W
ECONO DUCT HANGER
2-1/2”L X 1/2”W
18GA.
Z-HANGER
8” & 9” LENGTH
DUCT HANGERS DX19
JOIST HEADER PLATE
PX05XXYYZZ
XX = WIDTH
YY= LENGTH
ZZ= GAUGE
STANDING “S” CLEAT
DX13YZZZ
DRIVE CLEAT DX10ZZZ
“S” CLEAT DX12ZZZ
SPEAR
JAVELIN
UNIVERSAL
BRIDGES RX95
CUSTOM PLENUMS
IN ADDITION TO UNIVERSAL FOUR SIDED PLENUMS, LUKJAN OFFERS
CUSTOM PLENUMS IN ANY SIZE AND CONFIGURATION. CROSSBROKE
WITH SNAP-LOCK SEAMS.
SOME SAMPLE OPTIONS INCLUDE:
• DOUBLE TOP
• TWO PIECE DESIGNS
• 1/2” FLANGE
• 1/2” HEM
• INSULATED
NOW YOU CAN EASILY STOCK PLENUMS TO FIT YOUR FURNACE LINE.
CALL WITH YOUR REQUIREMENTS FOR QUOTE.
PL10XXYYZZ XX=WIDTH, YY=DEPTH, ZZ=HEIGHT
JOIST BLOCKOFF
PX06XXYYZZ
XX = WIDTH
YY= LENGTH
ZZ= GAUGE
SUPPORT BRACKETS/NAIL PLATES
USED TO RE-INFORCE JOIST CUTOUTS
(BOCA PLATE)
DX17XXYYHHZZ
XX=WIDTH, YY=LENGTH, HH= # HOLES, ZZ= 18 OR 16
EX: DX1703181916 = 3”X18” 19 HOLE 16 GA
JOIST HEAD
PX07XXYYZZ
XX = WIDTH
YY= LENGTH
ZZ= GAUGE
JOIST PANNING
PS40XXYYY
XX = WIDTH
YYY= LENGTH
ADJUSTABLE DUCT
HANGERS
SPEAR TIP AND SCREW TIP
PLENUMS, JOIST PANNING, HANGERS & SUPPORTS
Size S Cleat Drive
8" 100 or 500/box
60" 50/box 100/box
96" 25/bundle 25/bundle
120" 25/bundle 25/bundle
FLEXIBLE DUCT CONNECTOR
DX36AABB
AA=DRIVE, BB=SLIP
EFFECTIVE IN REDUCING VIBRATION AND NOISE
BETWEEN PLENUM AND DUCT LINE
ASK ABOUT OUR NEW
INSULATED PLENUMS!
11
OHIO:440‐599‐8127• FAX440‐593‐6237
NORTHCAROLINA:704‐734‐0544• FAX704‐734‐0993
SERVICE♦QUALITY♦TRUST
SLIDE LOCK DUCT
SLIP & DRIVE DUCT
DT01XXYYZZ 26GA
DT02XXYYZZ 28GA
DT03XXYYZZ 24GA
XX=SLIP, YY= DRIVE
ZZ=LENGTH INCHES
307 VERTICAL 90º ELBOW
DX21YYXX
ROUND OR SQUARE INSIDE NECK
525 HORIZONTAL 90º ELBOW
DX25YYXX
ROUND OR SQUARE INSIDE NECK
519 OFFSET
STARTING COLLAR
DX31YYXX
STANDARD OFFSET =3”
512 END CAP
WITH 2” EXT.
DX45YYXX
512 END CAP
DX44YYXX 520 DUCT
STARTING COLLAR
DX33YYXX
DUCT DAMPER
DX50YYXX
533 FULL DUCT
REDUCER
DX41YYXX
LARGEST OPENNING
SPECIFY REDUCTION
314 VERTICAL
45º ANGLE
DX23YYXX
532R HORIZONTAL
45º ANGLE
DX27YYXX
534 DUCT ADAPTER
DX80YYXX
XX=DUCT REDUCTION
YY=DUCT DRIVE DIMENSION
EX: DX800408 4X8 DUCT ADAPTER

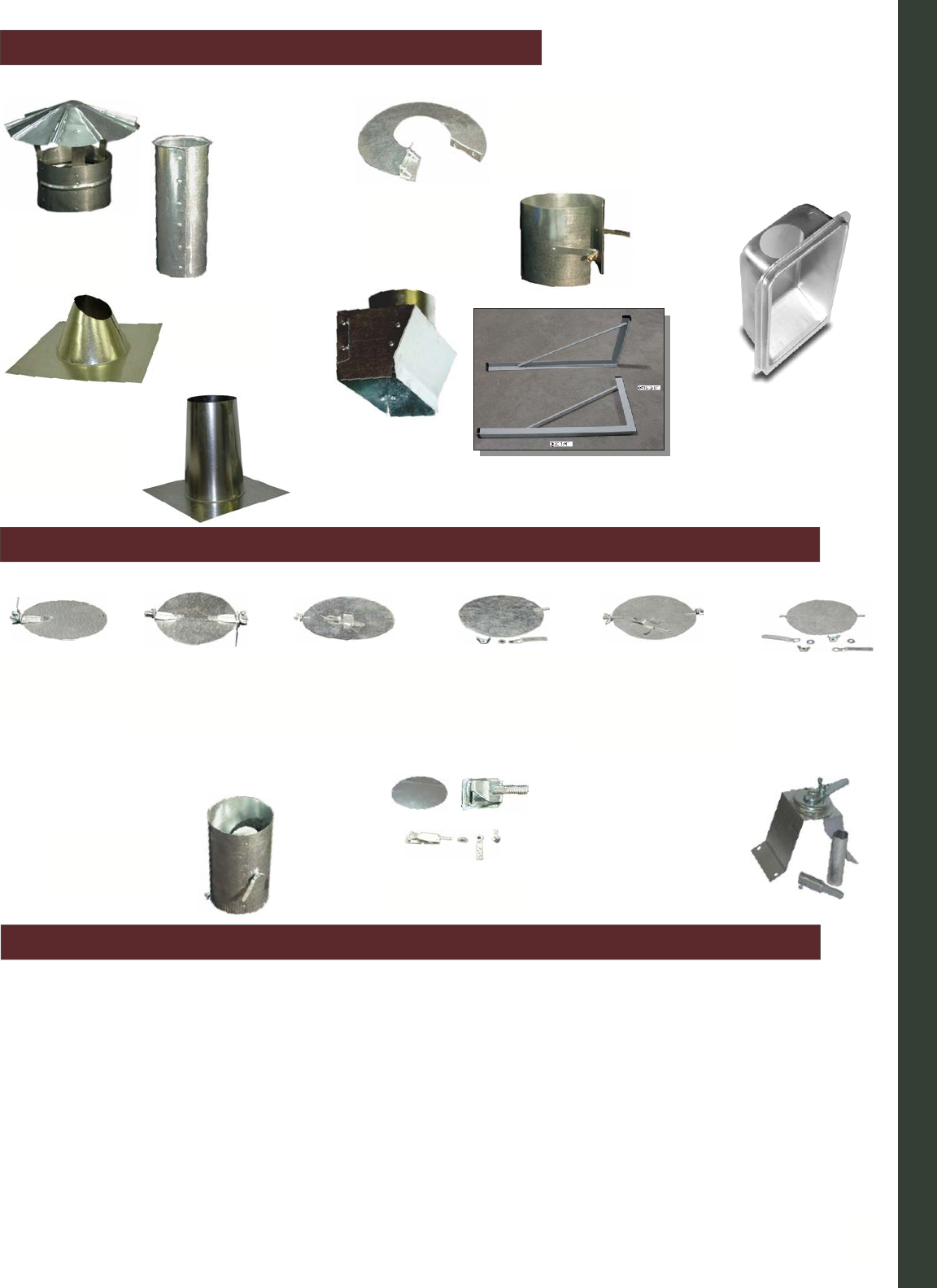

DUCT DAMPER
HARDWARE
18 GA. ZINC PLATED
CENTER HOLE AVAILABLE:
1/4” SQUARE
3/8” SQUARE
5/16” OVAL
ALL RECTANGULAR DUCT IS CROSS-BROKE. BEADED AVAILABLE.
STANDARD 48”, 60” AND 96” LENGTHS.
INQUIRE REGARDING OTHER LENGTHS.
X8 DRIVE STANDARD WITH X10 THRU X20 DRIVES AVAILABLE
BUTTON LOCK STANDARD
E-LOCK AVAILABLE
(E-LOCK HAS NO EXPOSED SHARP EDGES)
NOTE:
RECTANGULAR DUCT LISTS THE SLIP DIMENSION FIRST FOLLOWED BY DRIVE XXYY
DUCT FITTINGS LIST THE DRIVE FIRST FOLLOWED BY SLIP DIMENSION YYXX
DUCT REDUCERETTE
DX79XXYY
XX=DUCT REDUCTION
YY=DUCT DRIVE DIMENSION
518 TRANSITION
TAKEOFF
DX82YYXXZ
XX=DUCT SLIP
YY=DUCT DRIVE
Z=D W/DAMPER
SPECIFY PLENUM OPENING

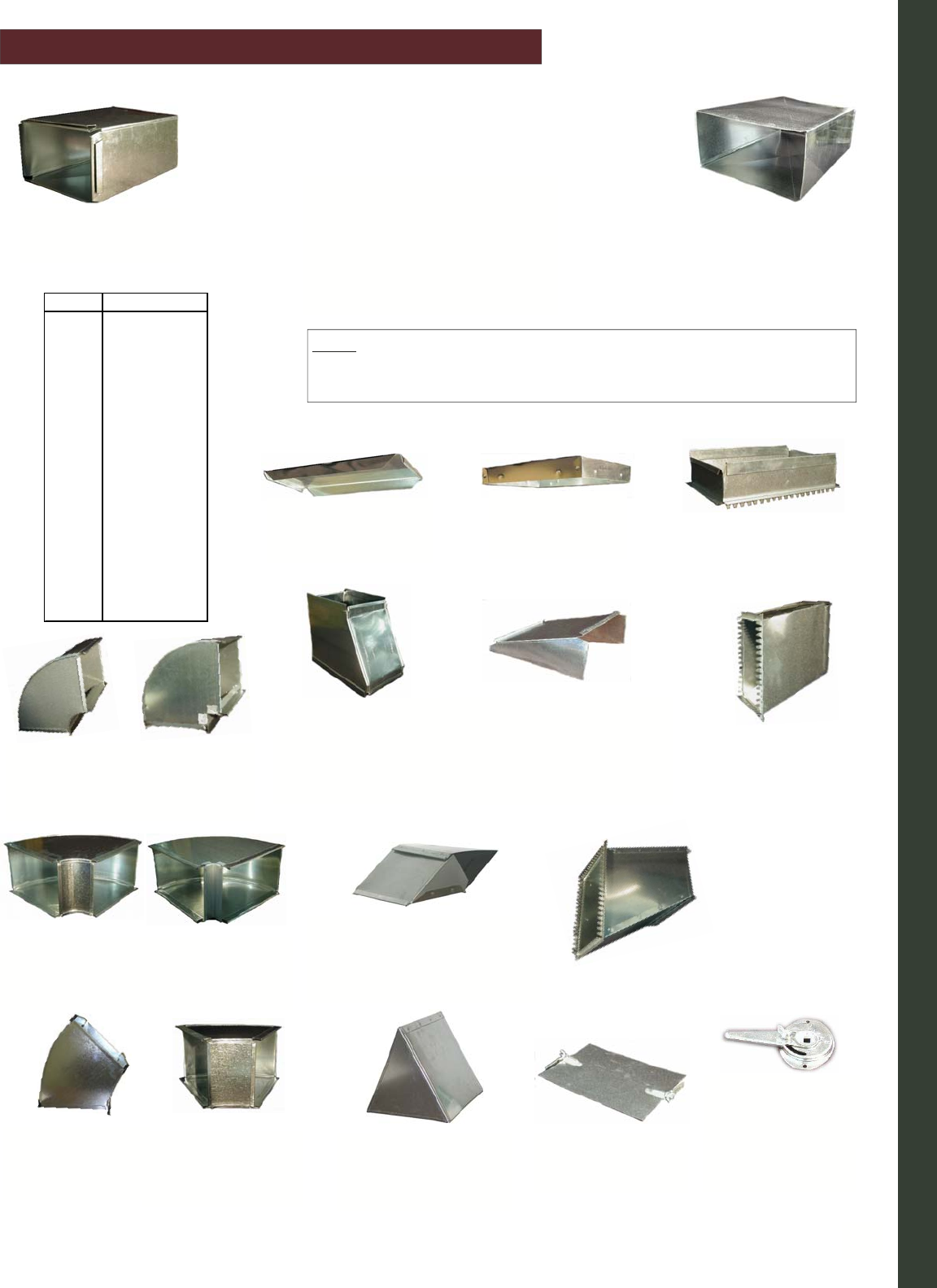

RECTANGULAR DUCT & FITTINGS
TRIANGLE BOXES
DX47XX
USED IN FLEXDUCT
DISTRIBUTION SYSTEMS
STANDARD UNBOXED
DUCT RACK QUANTITIES
S D 4' 5' 8'
8 8 150 150 180
10 8 150 150 120
10 10 90 90 90
12 8 150 150 150
12 10 100 100 100
14 8 160 160 160
14 10 120 120 120
16 8 120 120 120
16 10 90 90 90
18 8 100 100 100
18 10 80 80 80
20 8 100 100 100
20 10 80 80 80
22 8 100 100 100
22 10 80 80 80
24 8 100 100 100
24 10 80 80 80
122007LUKJANMETALPRODUCTSCATALOG
WWW.LUKJAN.COM
336 ADJUSTABLE WYE
RX83XXYYZZ
XX=04-14” FEED DIAMETER
YY=03-12” BRANCH 1 DIA.
ZZ=03-12” BRANCH 2 DIA.
YY = ZZ (TYPICAL)
330 WYE BRANCH
RX81XXYYZZ
XX=03-14” FEED DIA.
YY=03-10” BRANCH 1
ZZ=03-10” BRANCH 2
YY=ZZ (TYPICAL)
332 ADJUSTABLE
PERIMETER WYE
RX82XXYYZZ
XX=04-10” FEED DIAMETER
YY=03-08” STR. BRANCH
ZZ=03-08” ADJ. BRANCH
YY = ZZ (TYPICAL)
352 SQUARE OR FLARED TEE
RX70XXYYZZ
XX=03-16” AIR ENTRY SIDE
YY=03-16 AIR EXIT (CRIMPED)
ZZ=03-16” AIR EXIT
RX70XX
EQUAL SIZED OPENINGS
SWIVEL TEE
(CALL FOR PRICE
AND SIZES)
4-PIECE ADJUSTABLE
ALUMINUM 90º ELBOW
AX53XX
XX=03-16
ALUMINUM PIPE, ELBOWS & FITTINGS
ALUMINUM PIPE
AP01XXYY
XX=03-14 DIAMETER
YY=24, 48 LENGTH
229 FLUE WYE RX80XXYYZZ
XX=03-24” FURNACE SIDE
YY=04-24” FLUE SIDE (CRIMPED)
ZZ=03-24” BRANCH SIDE
DEFAULT GAUGE =26GA
ADD 24 OR 22 FOR OTHER GA
FOR EQUAL OPENINGS, SPECIFY SINGLE DIA.
EX: RX8004 = 4X4X4
229 SHORT FLUE WYE
RX80XXYYZZ
XX=03-24” FURNACE SIDE
YY=04-24” FLUE SIDE (CRIMPED)
ZZ=03-24” BRANCH SIDE
FLOW
228 REDUCING WYE RX79XXYYZZ
USED IN ROUND DUCT SYSTEMS
XX=03-24” AIR EXIT SIDE (CRIMPED)
YY=04-24” AIR INPUT SIDE (UNCRIMPED)
ZZ=03-24” BRANCH EXIT SIDE (CRIMPED)
DEFAULT GAUGE =26GA
ADD 24 OR 22 FOR OTHER GA
FLOW
ALUMINUM STARTING COLLARS
412 AX10XX (UNCRIMPED)
413 AX11XX (CRIMPED)
416 AX12XX (LONG)

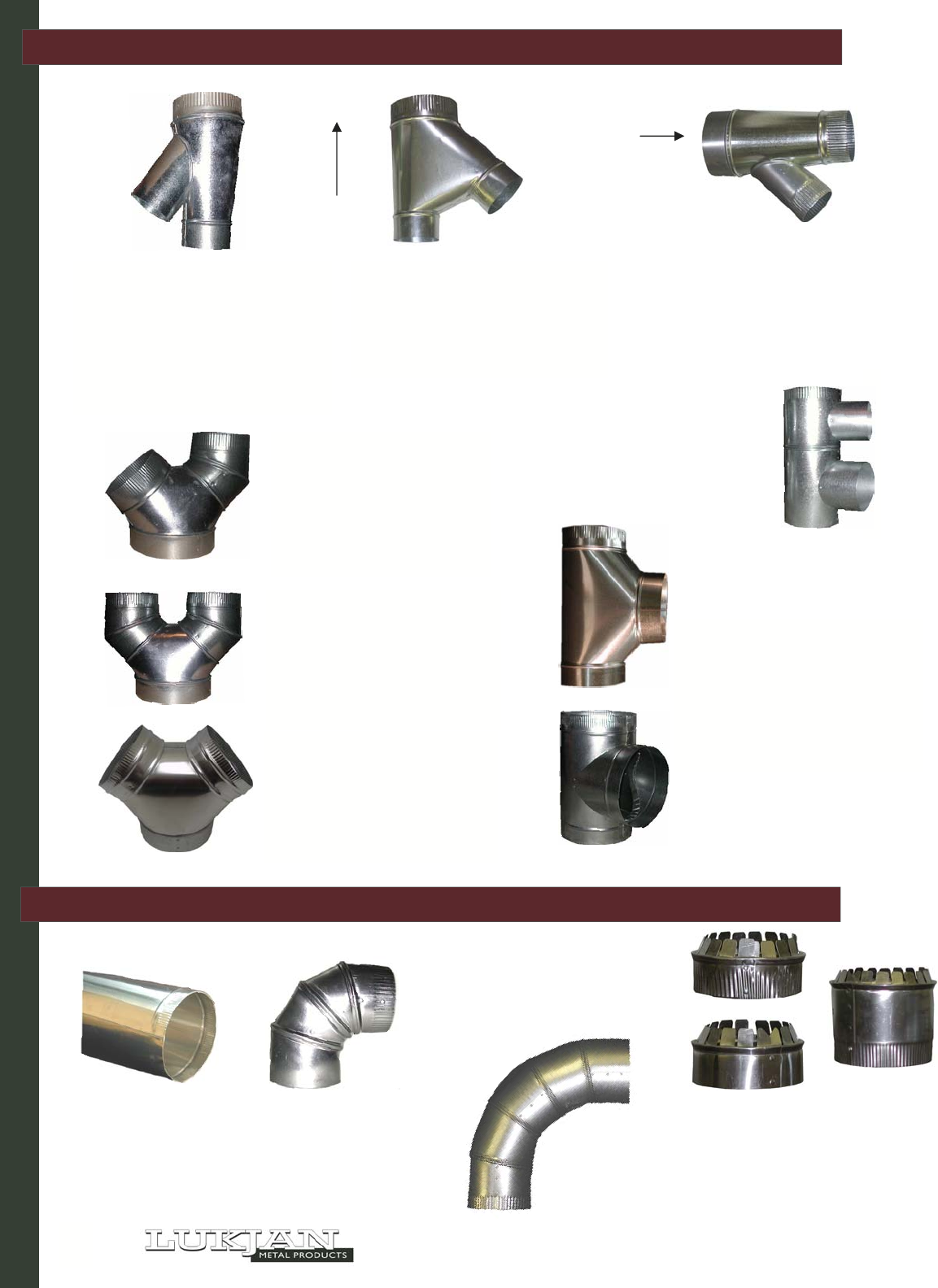

TEES & WYES
5-PIECE LONG RADIUS
ADJUSTABLE
ALUMINUM 90º ELBOW
AX54XX
XX=03 & 04”
PERFECT FOR USE WITH THE
DRYER BOX WALL FRAME
(SEE PAGE 19)
XX
YY
ZZ
ZZ
XX
YY
ZZ
XX
YY
ZZ
XX
ZZ YY
13
OHIO:440‐599‐8127• FAX440‐593‐6237
NORTHCAROLINA:704‐734‐0544• FAX704‐734‐0993
SERVICE♦QUALITY♦TRUST
OVAL STARTING
COLLAR
OX63XX
(SEE ALSO OVAL DUCTBOARD
STARTING COLLAR)
OVAL 90º ELBOW
BOOT OL-575
OB30XYYZ
OVAL 45º ANGLE
BOOT OL-577
OB40XYYZ
OVAL END BOOT
OL-571
OB10XYYZ
OVAL STRAIGHT BOOT
OL-572
OB20XYYZ
78 OVAL-OVAL
REVERSE BOOT
OB78XX
71 RND-OVAL
END BOOT
OB71XXYY
75 RND-OVAL 90º
ELBOW BOOT
OB75XXYY
72 RND-OVAL
STRAIGHT BOOT
OB72XXYY
OVAL
HORIZONTAL 45º
ANGLE
OX51XX
OVAL
HORIZONTAL
90º ELBOW
OX53XX
OVAL VERTICAL
ONE-PIECE 45º
ANGLE
OX52XX
OVAL PIPE (BUTTON LOCK)
OP01XXYYY
XX=05-08
YYY=060-115
CENTER OR SIDE SEAM
OVAL VERTICAL
ONE-PIECE 90º
ELBOW
OX54XX
OVAL STACKHEAD W/
TAKEOFF
OX11XXYYZ
OVAL STACKHEAD
W/EARS
OX10XXYYZ
FOR OVAL BOOTS:
X=REGISTER HEIGHT
YY= REGISTER WIDTH
Z= OVAL DIAMETER
EX: OB204106
OVAL STR BOOT 4X10X6
FOR RD-OVAL BOOTS:
XX=05,06,07,08 (OVAL)
YY= 06, 07 (ROUND)
IF OVAL =RD, YY BLANK
SPECIFY: CR FOR CRIMP ROUND
AND CO FOR CRIMP OVAL
EX: OB750706CO
7” OVAL TO 6” RD ELBOW
CRIMP OVAL END
WE OFFER THE COMPLETE LINE OF OVAL
PIPE AND FITTINGS FROM 5” THRU 8”.
PIPE LENGTHS STANDARD AT 60” AND
100”. OTHER LENGTHS AVAILABLE.
30GA STANDARD, 26GA AVAILABLE.
STANDARD 9” THROAT
OVAL FIRESTOP
OX90XX XX=06-08
USED TO SEAL JOIST CUT-OUT
WHEN RUNNING OVAL
OVAL DOUBLE
STACKHEAD W/
TAKEOFF
(OPEN BOTH SIDES)
W/EARS
OX13XXYYZ
OVAL DOUBLE
STACKHEAD
(OPEN BOTH SIDES)
W/EARS
OX12XXYYZ

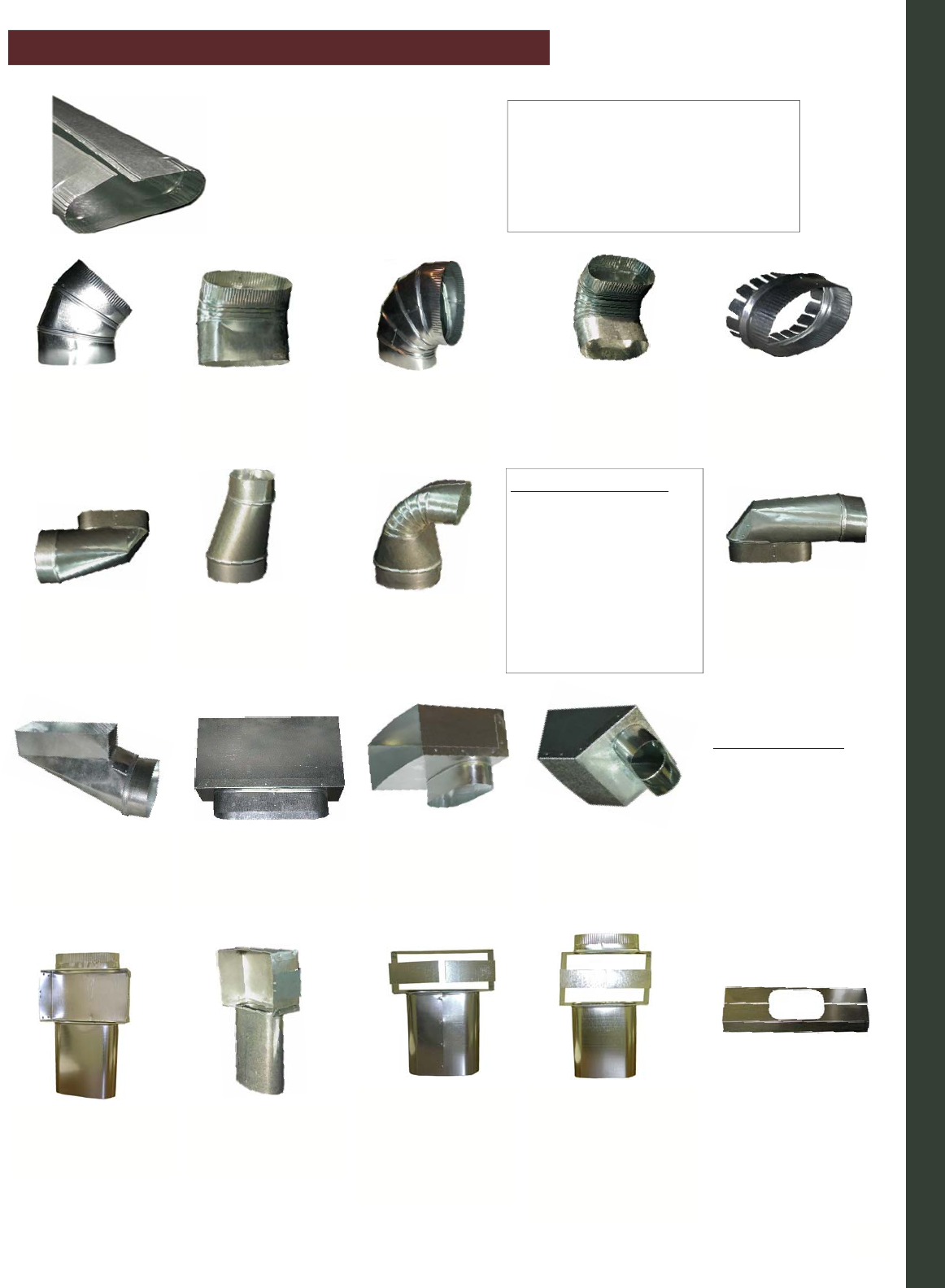

OVAL PIPE & FITTINGS
142007LUKJANMETALPRODUCTSCATALOG
WWW.LUKJAN.COM
WALL STACK TWO PIECE
SNAP-LOCK
SK01XYYZZZ
532
HORIZONTAL STACK
45º ANGLE
SX27XXYY
604 STACK
CONNECTOR
SX35XYY
OFFSET STACK
SX94ABBXYY
SAME DIMENSION,
3” STANDARD OFFSET, 9” LONG
314
VERTICAL STACK
45º ANGLE
SX23XXYY
362
TOP STACK TAKEOFF
SX41XYY
364
SIDE STACK TAKEOFF
SX42XYY
525 HORIZONTAL
STACK 90º ELBOW
SX25XXYY
512
STACK END CAP
SX44XXYY
520
STACK STARTING
COLLAR
SX33XXYY
524 STACK ELBOW
SX24XXYYZ
Z=C (CENTER), L (LEFT), R (RIGHT)
LEFT SHOWN
307
VERTICAL STACK
90º ELBOW
SX21XXYY
571
STACK END BOOT
SB10XYYZ
SPECIFY CENTER (C), LEFT (L)
AND RIGHT (R)
572
STACK STRAIGHT
BOOT
SB20XYYZ
575
90º STACK
ELBOW BOOT
SB30XYYZ
577
45º STACK
ANGLE BOOT
SB40XYYZ
601 STACK
ADAPTER
SX80ABBXYY
602 STACK
ADAPTER
SX81ABBXYY
X=STACK DEPTH (2=2.25)
(3=3.25)
YY=STACK WIDTH 10, 12, 14
ZZZ=ANY SIZE STACK LENGTH
(STANDARD 24, 48, 100)
CALL FOR OTHER SIZES
ALL STACK BOOTS
COME WITH BOOT
CLIPS ATTACHED

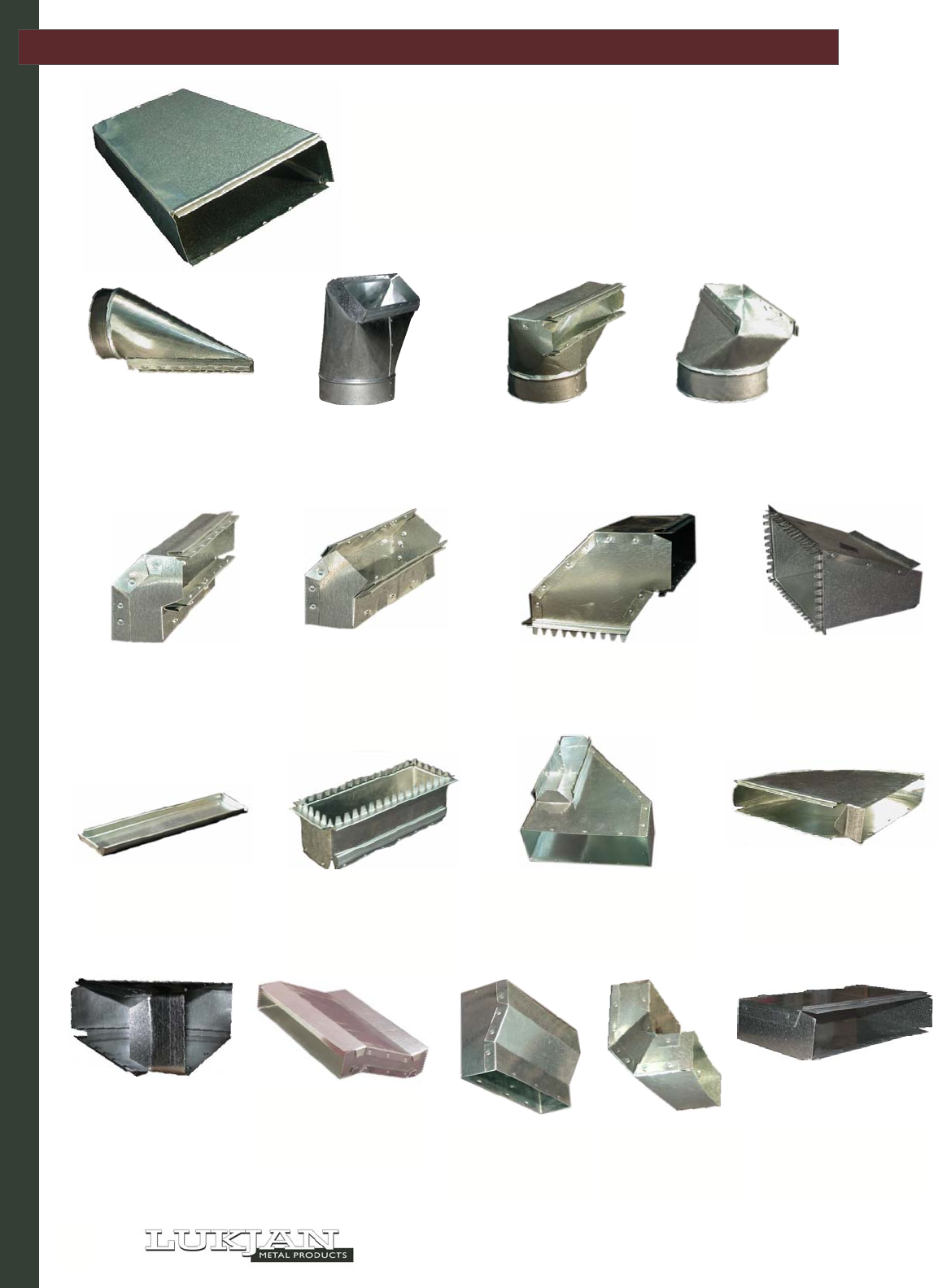

WALL STACK AND FITTINGS
15
OHIO:440‐599‐8127• FAX440‐593‐6237
NORTHCAROLINA:704‐734‐0544• FAX704‐734‐0993
SERVICE♦QUALITY♦TRUST
310 LONG THROAT
STACKHEAD
WITHOUT EARS
SX72ABBXYY
311 DOUBLE
STACKHEAD
SX73ABBXYY
302 SHORT THROAT
STACKHEAD
SX70ABBXYY
315 STACKHEAD
SX75ABBXYY REGISTER BOX
516 = 5” HIGH
RB50XXYY
517 =11” HIGH
RB51XXYY
309 LONG THROAT
STACKHEAD
WITH EARS
SX71ABBXYY
313 OUT OF WALL
STACKHEAD
SX74ABBXYY
TOE-KICK BOX
RB94XXYYS
(OPEN BOTTOM AND SIDE)
TOE-KICK BOOT
W/OVAL COLLAR
RB95XYYZO
TOE-KICK BOOT
W/ ROUND COLLAR
RB95XYYZ
TOE-KICK BOX
RB94XXYY
(OPEN REG. SIDE ONLY)
STANDARD LENGTH 12” FOR ALL TOE-KICK PRODUCTS
431 TAPERED
REDUCER NO CRIMP
RX41XXYYZZ
432 TAPERED
INCREASER
W/CRIMP
RX43XXYYZZ
430 TAPERED
REDUCER
W/CRIMP
RX40XXYYZZ
451 SHORT CAP
REDUCER
NO CRIMP
RX24XXYYZZ
450 SHORT CAP
REDUCER
W/CRIMP
RX23XXYYZZ
452 SHORT CAP
INCREASER
W/CRIMP
RX25XXYYZZ
XX=04-24”, YY=03-22”
ZZ= BLANK FOR 26GA
SPECIFY 24 FOR 24GA, 22 FOR 22 GA
STACKHEAD FITTINGS & TOE KICK BOOTS
ROUND PIPE REDUCERS & INCREASERS
STANDARD 1/2”
FLANGE
573
REGISTER PAN
RB55XXYYZZ
XX=06-14
YY=06-16
ZZ=05-14 (DIAM.)
WALL STACKHEAD
USED AS THRU -THE- WALL
RETURN GRILL
SX76ABBXYY
AA= WIDTH REG GRILL
BB= LENGTH REG GRILL
XX= FLOOR WIDTH OPENING
YY= FLOOR DEPTH OPENING
AA = XX TYPICAL
SPECIFY W OR W/O
1” FLANGE ON
FLOOR OPENING
AA
BB
YY
XX
162007LUKJANMETALPRODUCTSCATALOG
WWW.LUKJAN.COM

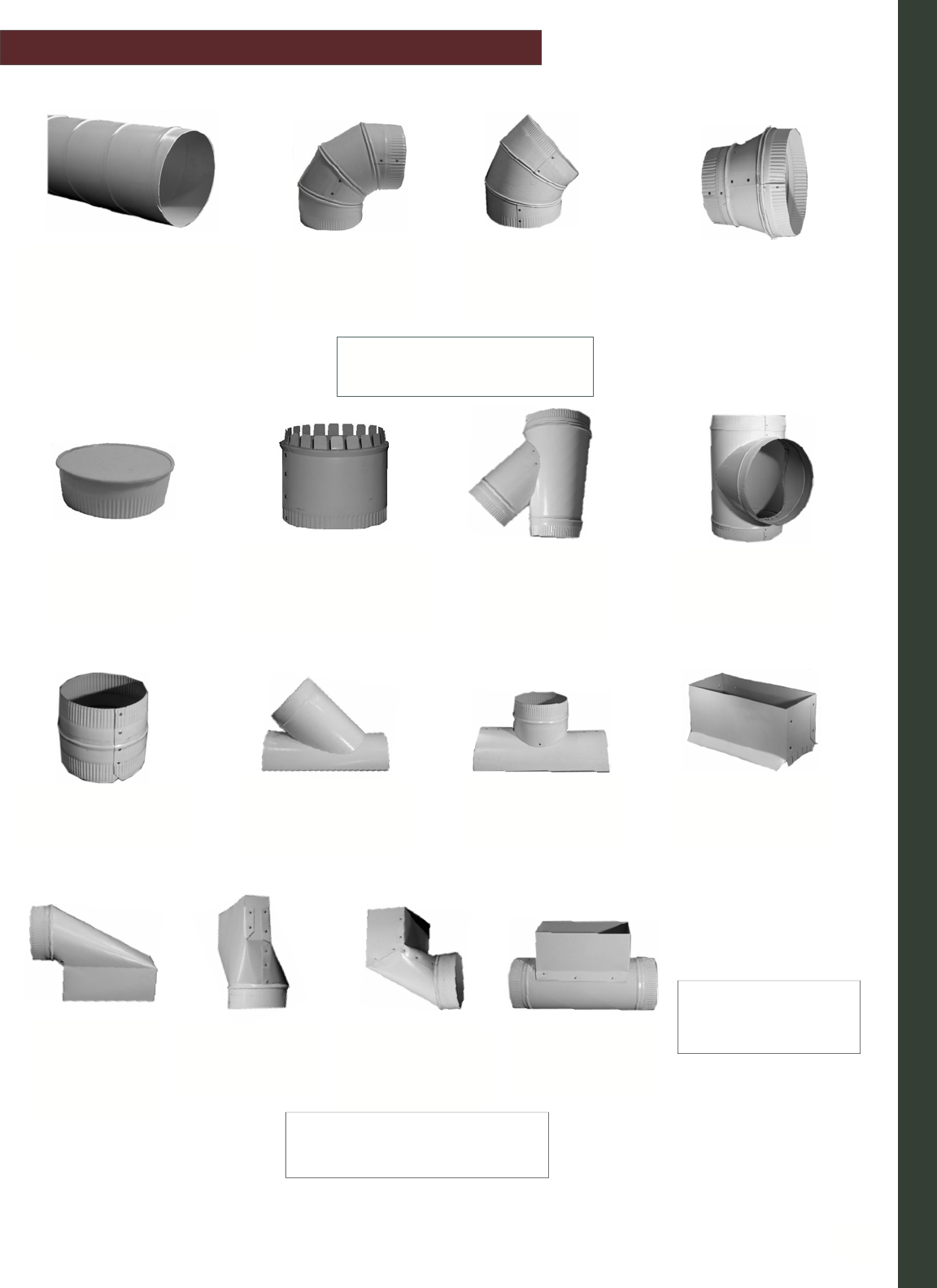

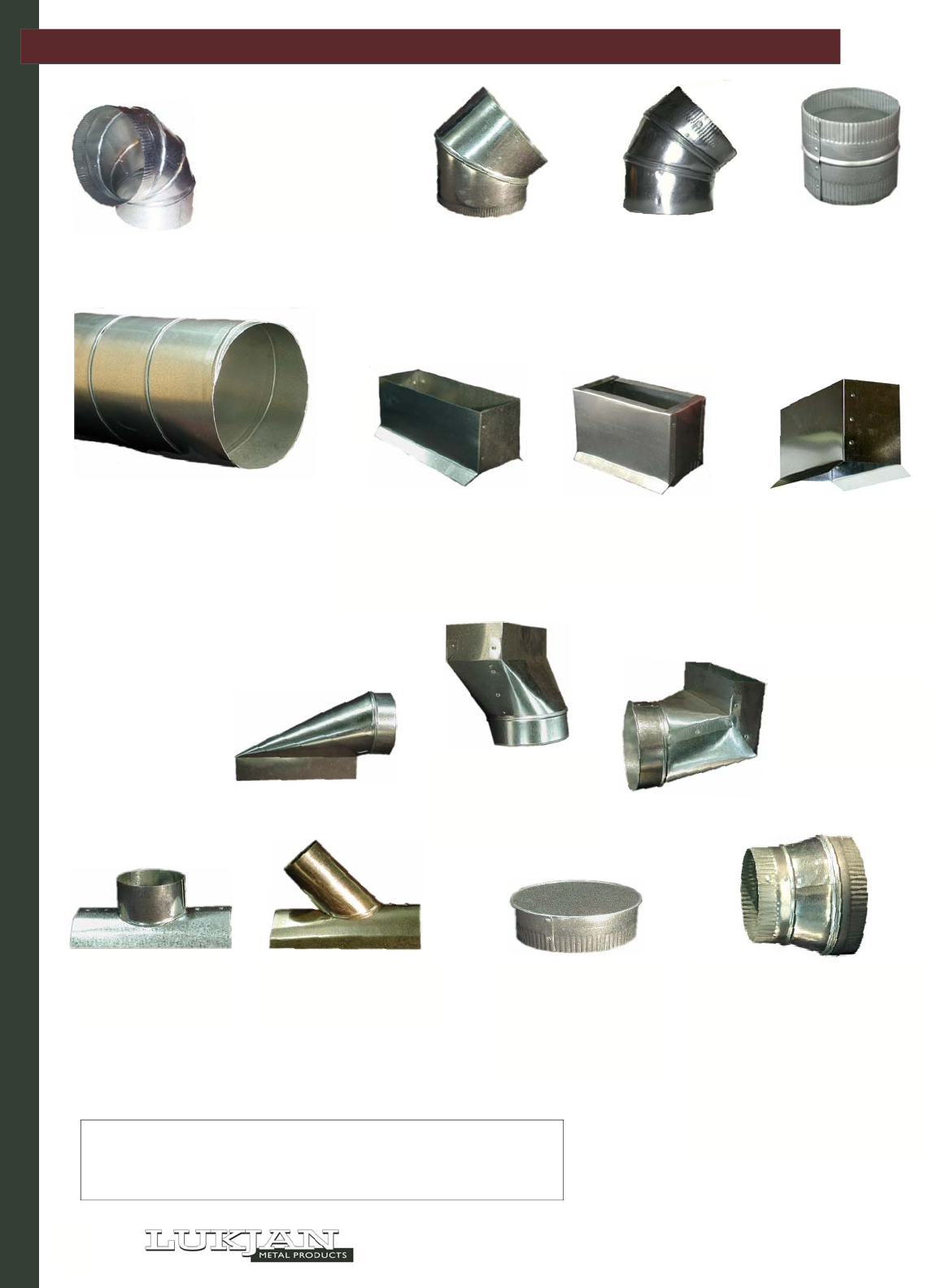

GALVANIZED SPIRAL PIPE
GP01XXZZ
XX= DIAMETER 03-36
ZZ=GAUGE 22, 24, 26
SPECIFY SMOOTH OR
RAISED BEAD
STANDARD LENGTH IS 10’ OR 20’
$2/CUT CHARGE FOR ALL OTHER SIZES
CONNECTOR
BOTH ENDS CRIMPED
RX58XXZZGS
XX=DIAMETER
ZZ=GAUGE
ADJUSTABLE 2 PIECE
45º ANGLE,
BOTH ENDS CRIMPED
ADJUSTABLE 4 PIECE
90º ELBOW,
BOTH ENDS CRIMPED
RX53XXZZGS
XX=DIAMETER
ZZ=GAUGE 22, 24
DEFAULT=26GA
433GS TAPERED OR
ECCENTRIC REDUCER
CRIMPED BOTH ENDS
RX44XXYYZZGS
XX=DIAMETER 1
YY= DIAMETER 2
ZZ= GAUGE 22, 24
BLANK=26
SPECIFY ECCENTRIC (FLAT ONE-SIDE)
ADDITIONAL 10%
GSL-572
STRAIGHT BOOT
RB20XYYZGS
(ROUND END CRIMPED)
GSL-571 END BOOT
RB10XYYZAGS
A= C (CENTER), L (LEFT),
R (RIGHT)
(ROUND END CRIMPED)
EX: RB104106RGS
4X10X6 RIGHT END BOOT
FOR GAL SPIRAL
GSL-575
90º ELBOW BOOT
RB30XYYZGS
(ROUND END CRIMPED)
REGISTER SADDLE
OPTIONS: W/1” FLANGE IN
(FI) OR 1” FLANGE OUT (FO)
5% ADDITIONAL
ALL GALVANIZED SPIRAL PRODUCTS AVAILABLE IN 22 THRU 26 GAUGE
AND MANUFACTURED ACCORDING TO SMACNA STANDARDS.
3-PIECE ADJ.
45º ANGLE
RX50XXZZGS
BOTH ENDS CRIMPED
NEW ADHESIVE
REGISTER SADDLE
RX64XXYYZZ
PROVIDES AN AIR-TIGHT FIT
AND SPEEDS INSTALLATION
REGISTER SADDLE
RX65XXYYZZ
XX=REG HEIGHT 02-14
YY=REG WIDTH 06-32
ZZ=GAUGE 22, 24 BLANK= 26GA
422GS END CAP
CRIMPED
RX22XXZZGS
XX= DIAMETER
ZZ=GAUGE 22, 24
BLANK = 26
231GS
90º FLUE SADDLE
RX61XXZZGS
230GS
45º FLUE SADDLE
RX60XXZZGS
XX=OPENING
ZZ=GAUGE 22, 24, 26
BLANK = 26
SPECIFY FITTED PIPE DIAMETER
GALVANIZED SPIRAL PIPE AND FITTINGS
17
OHIO:440‐599‐8127• FAX440‐593‐6237
NORTHCAROLINA:704‐734‐0544• FAX704‐734‐0993
SERVICE♦QUALITY♦TRUST
422P
PVC END CAP
VX20XX
416P
PVC STARTING COLLAR
VX11XX
433P
PVC TAPERED AND ECCENTRIC
REDUCERS
CRIMPED BOTH ENDS
VX44XXYY
SPECIFY TAPERED OR
ECCENTRIC (FLAT ONE SIDE)
PVC CONNECTOR
VX58XX
3-PIECE PVC
45º ANGLE
VX50XX
4-PIECE PVC
90º ELBOW
VX53XX
PVC SPIRAL PIPE
VP01XX
XX=03-36
SPECIFY SMOOTH OR RAISED BEAD
STANDARD LENGTHS 10’ AND 20’
$2/CUT CHARGE FOR OTHER SIZES
PVC REGISTER
SADDLE
VX61XYY
PVC PERIMETER
BOOT
VB70XYYZ
PL-575 PVC
90º ELBOW BOOT
VB30XYYZ
PL-572 PVC
STRAIGHT BOOT
VB20XYYZ
PL-571 PVC
END BOOT
VB10XYYZ
231 P
90º SADDLE
VX63XX
230 P
45º SADDLE
VX62XX
229 P
45º WYE
VX80XX
352 P
90º TEE
VX70XX
X = REG. HEIGHT
YY = REG. WIDTH
Z = ROUND DIAMETER
PVC COATED SPIRAL PIPE & FITTINGS
TOUCHUP PAINT 12.75OZ.
ROLL PVC TAPE 2” X 100’
CALL FOR LATEST PRICING & AVAILABILITY
1 MIL COATING INSIDE WITH 4 MIL
COATING OUTSIDE STANDARD
182007LUKJANMETALPRODUCTSCATALOG
WWW.LUKJAN.COM
431SS
STAINLESS STEEL
TAPERED REDUCER
NX41XXYY
352SS STAINLESS
STEEL 90º TEE
NX70XX
STAINLESS STEEL
2 PIECE ADJ.
45º ANGLE
NX50XX
STAINLESS STEEL
4 PIECE ADJ. 90º ELBOW
NX53XX
XX=03-24
STAINLESS STEEL PIPE
NP01XXYY
XX= DIAMETER (03-26)
YY= LENGTH (12, 24, 36)
HAMMER LOCK
#30SS STAINLESS
STEEL RAIN CAP
NX28XX
XX= 03-24
410SS STAINLESS
STEEL DRAWBAND
NX01XX
XX=03-14
STAINLESS STEEL
TRIM COLLAR
NX10XX
XX=04-14
(3 1/2” WIDE)
413SS STAINLESS
STEEL COLLAR
NX11XX
STAINLESS
STEEL
CONNECTOR
NX58XX
352B BLACK TEE
BX70XX
410B BLACK
DRAWBAND
BX01XX
452B BLACK
SHORT CAP INCREASER
BX25XXYY
LARGE END CRIMPED
421B/422B
BLACK END CAP
BX21XX NO CRIMP
BX22XX CRIMP
BLACK 2-PIECE
ADJ. 45º ANGLE
BX50XX
BLACK ROUND PIPE
BP01XXYY
XX=04-12, YY=12 & 24
BLACK TRIM COLLAR
BX10XX
450B BLACK
SHORT CAP REDUCER
BX24XXYY
W/SMALL END CRIMPED
451B BLACK
SHORT CAP REDUCER
BX23XXYY
NO CRIMP
430B BLACK
TAPERED REDUCER
BX40XXYY
W/SMALL END CRIMPED
432B BLACK
TAPERED INCREASER
BX43XXYY
W/LARGE END CRIMPED
BLACK ADAPTER
BX60XX
431B BLACK
TAPERED REDUCER
BX41XXYY
NO CRIMP
BLACK 4-PIECE
ADJ. 90º ELBOW
BX53XX

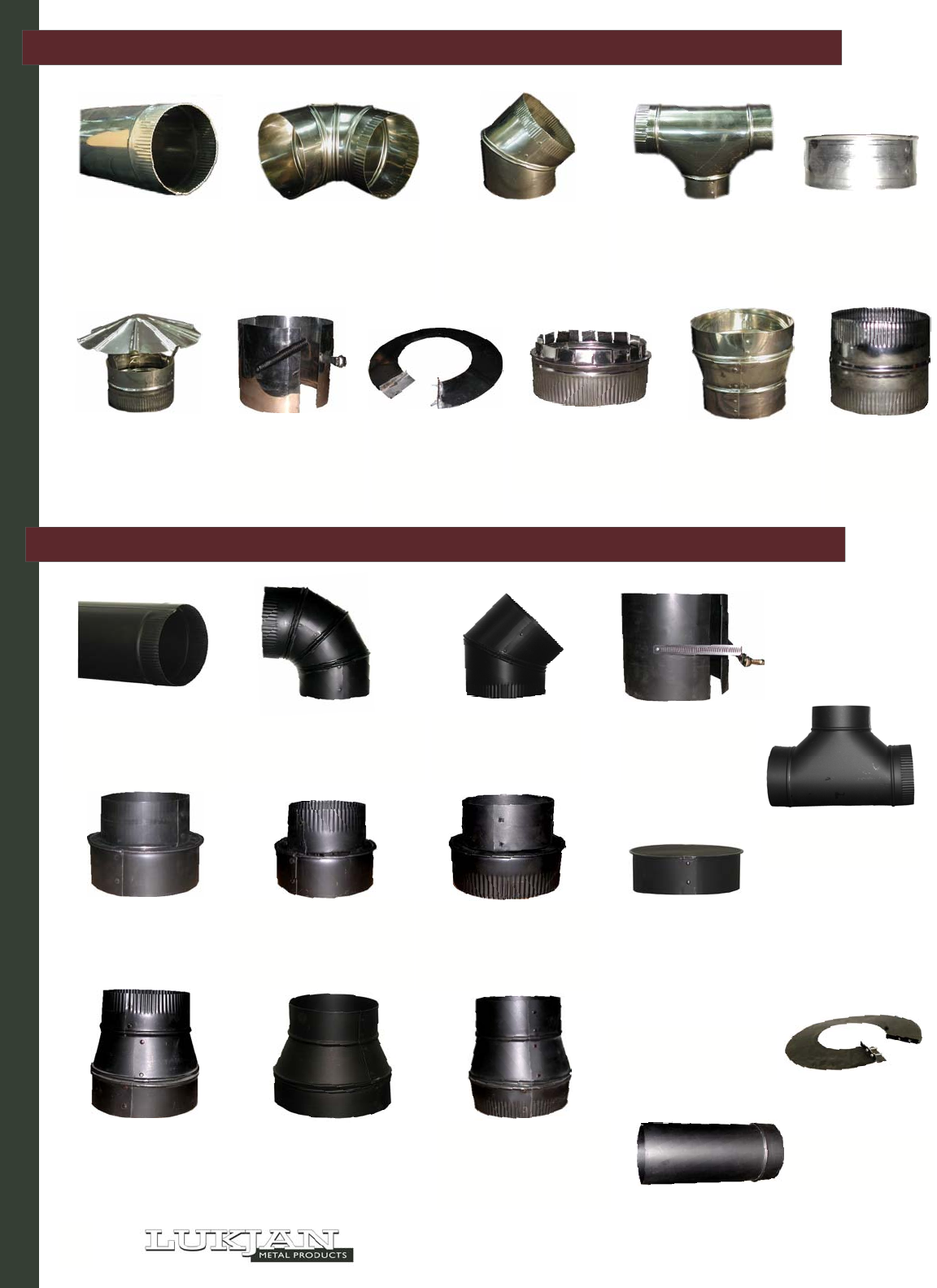

STAINLESS STEEL PIPE & ACCESSORIES
BLACK PIPE & ACCESSORIES
421SS STAINLESS
STEEL END CAP
NX21XX
STAINLESS STEEL SPECS:
304 ALLOY, 24GA STANDARD
19
OHIO:440‐599‐8127• FAX440‐593‐6237
NORTHCAROLINA:704‐734‐0544• FAX704‐734‐0993
SERVICE♦QUALITY♦TRUST
#11 ECONO DAMPER
SINGLE HARDWARE
UNASSEMBLED
RX36XX
XX=4-12
#11 ECONO DAMPER
SINGLE HARDWARE
ASSEMBLED
RX35XX
XX=4-12
#11 ECONO DAMPER
DOUBLE HARDWARE
ASSEMBLED
RX37XX
XX=4-18
#11 ECONO DAMPER
DOUBLE HARDWARE
UNASSEMBLED
RX38XX
XX=4-14
#10 STANDARD
SINGLE HARDWARE
RX31XX
XX=4-14
#10 STANDARD
DOUBLE HARDWARE
RX32XX
XX=4-36
DAMPER TUBE
RX39XX
REGULATOR &
DAMPER QUAD
#10 STANDARD HAVE
SPRING LOADED DAMPER CLIPS
410 DRAWBAND
RX01XX
XX=03-20”
415 CHIMNEY
THIMBLE
RX05XX
XX= 03-12”
TRIM COLLAR
RX09XX
XX=04-30”
(3 1/2” WIDE)
# 30 RAIN CAP
RX28XX
XX=03-36”
TALL CONE
ROOF FLASHING
ROOF
FLASHING
RANGE HOOD
SX86XXYYZZ
XX, YY= HOOD OPEN-
ING
DRYER BOX WALL FRAME
EX30XXY
XX=35 (3.5”) OR 425 (4.25”)
Y= U FOR UP, D FOR DOWN
(SEE PG 12 FOR LONG RADIUS
ALUMINUM ELBOWS)
GALVANIZED STEEL SHEETS GS01XXYYYZZ
S
TAINLESS STEEL SHEETS NS01XXYYYZZ
PVC COATED STEEL S HEETS VS01XXYYYZZ
BLACK STEEL SHEETS BS01XXYYYZZ
ALUMINUM STEEL SHEETS AS01XXYYYZZ
XX=WIDTH (36 OR 48), YYY=LENGTH (096 OR 120), ZZ= GAUGE (22, 24, 26, 28, 30)
AVAILABLE BEADED OR SMOOTH
CALL LUKJAN CUSTOMER SERVICE FOR THE LATEST
PRICE INFORMATION AND ORDER MINIMUMS
ROOF, RAIN CAP, VENTING, MISCELLANEOUS
STEEL SHEETS
DAMPERS & DAMPER ACCESSORIES
AC BRACKET
MOUNTS TO OUTDOOR WALL. PERMITS ABOVE-GROUND
INSTALLATION OF AC CONDENSING UNIT.
WELDED CONSTRUCTION
WITH CROSS-BRACKETS.
30X30
36X30
42X30
RATED 800LB.
DAMPER
EXTENSION KITS
USED TO EXTEND DAMPER HANDLE
WHEN WRAPPING PIPE/DUCT
SPECIFY 2.5” OR 1.0”
WIDE STANDOFF
1.5” HIGH STANDARD
1/4” OR 5/16” SHAFT ADAPTER
LUKJANISALONGSTANDINGMEMBEROFTHE
AIRDISTRIBUTIONINSTITUTE(ADI)ANDPARTICIPATESIN
OTHERASSOCIATIONSDEDICATEDTOTHEADVANCEMENT
OFTHEHVACINDUSTRY.
..............................................
LUKJANMETALPRODUCTS
P.O.BOX357
645INDUSTRYROAD
CONNEAUT,OHIO44030
(440)599‐8127FAX:(440)593‐6237
111KINGSROAD
KINGSMOUNTAIN,NC28086
(704)734‐0544FAX:(704)734‐0993
WEBSITE:
WWW.LUKJAN.COM
EMAIL:
SALES@LUKJAN.COM
.......................................
SERVICE ♦ QUALITY ♦ TRUST
