Keysight M9203A

PXIe High-Speed Digitizer/

Wideband Digital Receiver

2 channels, 12-bit, up to 3.2 GS/s,

DC to 2 GHz bandwidth

Data Sheet

02 | Keysight | M9203A PXIe High-Speed Digitizer/Wideband Digital Receiver - Data Sheet

Overview

Introduction

The Keysight M9203A is a very fast and low noise PXIe High-

Speed Digitizer/Wideband Digital Receiver featuring wide analog

bandwidth, making it ideal for wireless, radar and satellite commu-

nication applications or any application requiring wideband signal

capture, and at the same time very high dynamic range. Thanks

to its PCI Express® backplane connection, the M9203A supports

continuous data streaming to disk.

Product description

The M9203A is a dual-slot 3U PXIe 12-bit High-Speed Digitizer/

Wideband Digital Receiver running at 3.2 GS/s, with up to 2 GHz

instantaneous analog bandwidth and providing a large 4 GB DDR3

acquisition memory. The M9203A features a large Xilinx Virtex-6

FPGA that can implement different functionalities depending on

which rmware option you choose.

The M9203A PXIe High-Speed Digitizer/Wideband Digital Receiver

can also be combined with the Keysight 89600 VSA software for

advanced dual-channel signal analysis.

For information on other rmware options please contact Keysight

Technologies: digitizers@keysight.com

Example applications

– Wireless communication (5G, LTE)

– Emerging communication standards (e.g. DOCSIS 3.1)

– Radar and wideband signal capture

– Radar and satellite communication applications

– Semiconductor automated test

Product features

– 1 channel with 12-bit resolution up to 3.2 GS/s sampling rate

with interleaving enabled

– 2 channels up to 1.6 GS/s simultaneous sampling rate

– DC up to 2 GHz bandwidth

– 50 Ω input impedance, DC coupled

– Selectable 1 V or 2 V full scale range (FSR)

– ±200 fs channel-to-channel skew stability

– 15 ps RMS trigger time interpolator (TTI) precision

– Up to 4 GB DDR3 on-board memory

– Enhanced real-time processing using Xilinx Virtex-6 FPGA

– Support for loading custom real-time processing

– High data throughput PCIe® Gen2 (x8) backplane

– Real-time digital down-conversion (-DDC) with adjustable

center frequency and analysis bandwidth

– Real-time digitizer raw data streaming and recording bundle

– Real-time digital down-conversion with I/Q data streaming

(-CB0) and recording bundle (-CB2)

Uncompromising values

– Fast PXIe 12-bit wideband digitizer with on-board real-time

processing

– Capture wide bandwidth signals

– High dynamic range acquisition for better measurement

delity

– Accurate long term measurement

– Capable of switching between multiple rmware programs

– Self-trigger mode for unequaled synchronous noise reduction

– Open FPGA for custom process

– Reduced test time by tuning and zooming on signals (-DDC)

– Up to 1 GHz baseband streaming and recording (-CB0)

– Dual channel phase coherent streaming and recording with up

to 320 MHz alias protected IBW (-CB2)

03 | Keysight | M9203A PXIe High-Speed Digitizer/Wideband Digital Receiver - Data Sheet

Hardware platform

Product overview

The M9203A is PXI Express compliant. Designed to benet

from fast data interfaces, the product can be integrated in

PXIe and PXI Hybrid chassis slots. The PXI format offers high

performance in a small, rugged package. It is an ideal deploy-

ment platform for many automated measurements systems.

ADC

DDR3 SDRAM

memory

QDR2 SRAM

memory

DDR3 SDRAM

memory

PCIe BUS

Trigger

FPGA

Front-end

TimeBase

PCIe

switch

Control

IN 1

IN 2

REF IN

CLK IN

TRG IN

TRG OUT

I/O

DPU

Custom

real-time

processing

ADC

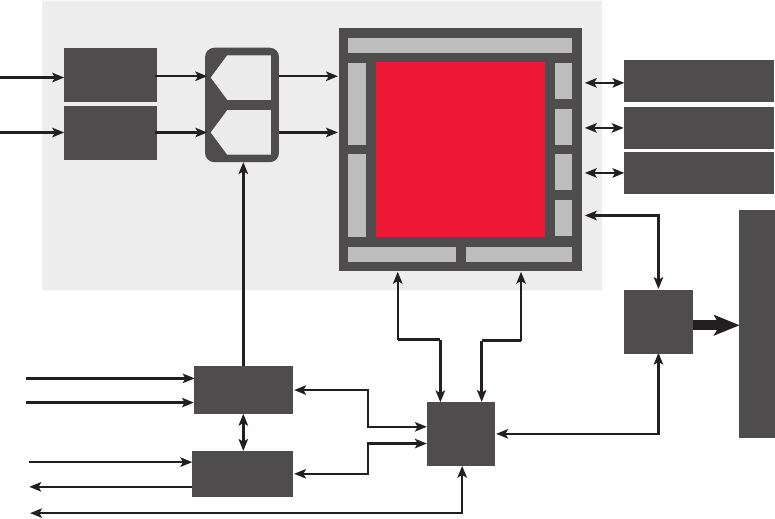

Figure 1. Simplied block diagram of the M9203A PXIe High-Speed Digitizer/Wideband Digital Receiver.

Block diagram

On-board real-time processing

At the heart of the M9203A PXIe High-Speed Digitizer/Wideband

Digital Receiver is a data processing unit (DPU) based on the

powerful Xilinx Virtex-6 FPGA. This DPU is responsible for

controlling the module functionality, data ow and real-time

signal processing. This powerful feature allows data reduction

and storage to be carried out at the digitizer level, minimizing

transfer volumes and speeding-up analysis.

04 | Keysight | M9203A PXIe High-Speed Digitizer/Wideband Digital Receiver - Data Sheet

Software Platform

Keysight Software Suite

Keysight IO Libraries Suite offers fast and easy connection to

instruments and the newest version extends that capability to

include modular instruments.

Drivers

The module comes with the IviDigitizer class compliant Keysight

MD2 IVI-COM and IVI-C drivers that work in the most popular

development environments including Visual C/C++, C#, VB.NET,

MATLAB, and LabVIEW. Linux is also supported using the IVI-C

driver.

Easy software integration

To help you get started and complete complex tasks quickly, the

M9203A PXIe Wideband Digitizer is supplied with a comprehen-

sive portfolio of module drivers, documentation, examples, and

software tools to help you quickly develop test systems with your

software platform of choice.

Compliance

The M9203A is PXI Express compliant. Designed to benet from

fast data interfaces, the product can be integrated in PXIe and

PXI Hybrid chassis slots.

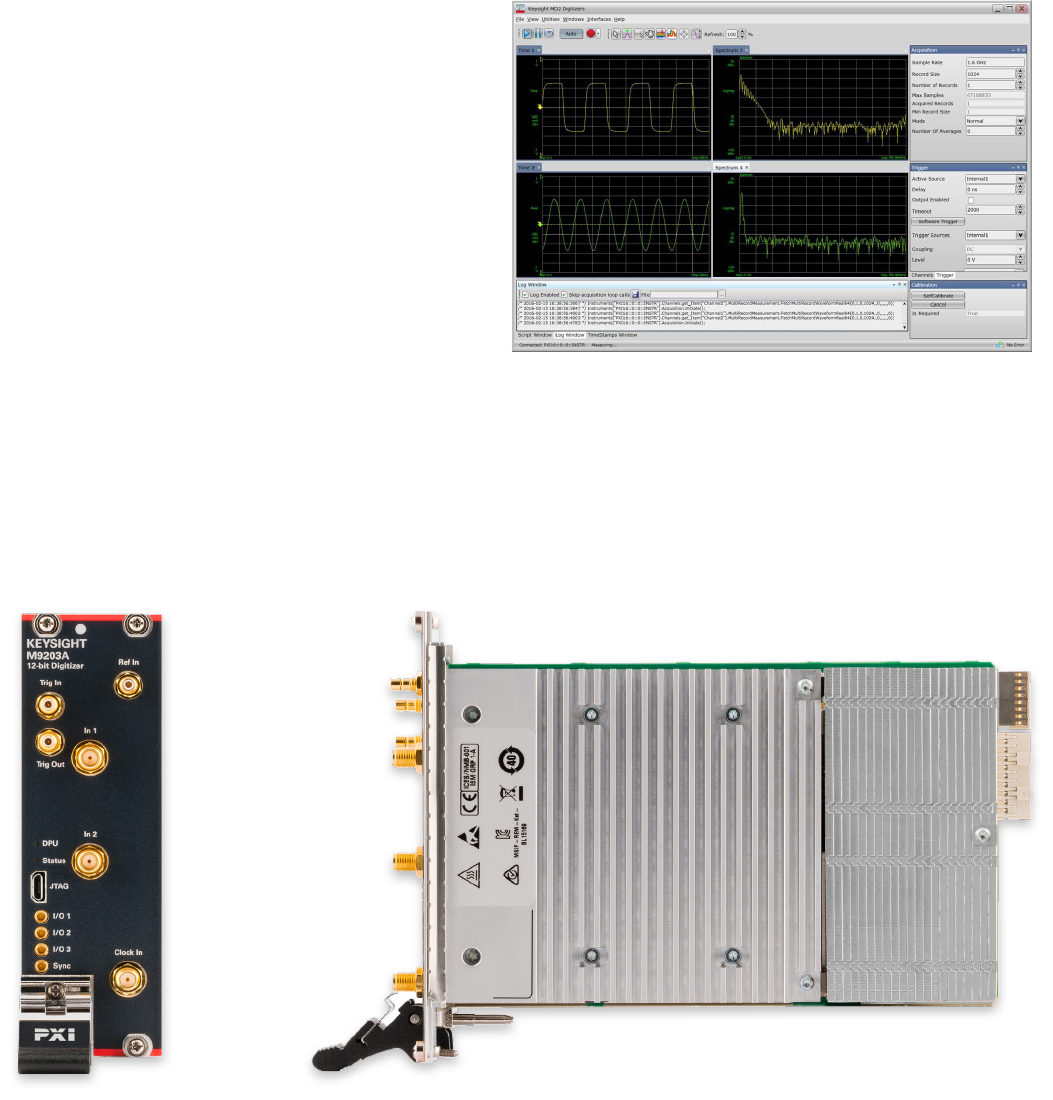

Figure 3. M9203A front panel

with analog inputs and multiple

I/O signals.

Software applications

In addition, the M9203A includes the Keysight MD2 soft front

panel (SFP) graphical interface. This software application can be

used to explore the capabilities of the Keysight modular high-

speed digitizers.

For advanced measurement analysis, the M9203A PXIe High-

Speed Digitizer/Wideband Digital Receiver can be combined with

Keysight’s 89600 Vector Signal Analysis software, the industry’s

standard for signal analysis and demodulation. The M9203A

allows fast connection to the 89600 VSA software through its

high data throughput PCIe backplane, compared to traditional

instruments.

Figure 2. MD2 software front panel (SFP) interface.

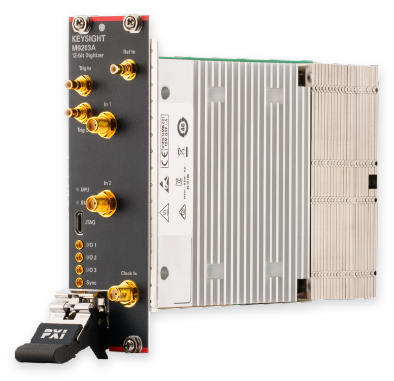

Figure 4. M9203A PXIe 12-bit High-Speed Digitizer/Wideband Digital Receiver

offers a small size for easy integration within a PXIe chassis.

05 | Keysight | M9203A PXIe High-Speed Digitizer/Wideband Digital Receiver - Data Sheet

Firmware Options

The M9203A PXIe High-Speed Digitizer/Wideband Digital

Receiver provides several rmware options:

– DGT: Digitizer rmware

– INT: Interleaved channel sampling functionality

– FDK1: Custom rmware capablility

– TSR2: Triggered simultaneous acquisition and readout

– DDC: Wideband real-time digital down-conversion

Easy rmware switch

A simple call to the conguration function will enable to switch to

the required option.

DGT digitizer rmware

The digitizer rmware:

– Allows standard data acquisition, including: digitizer

initialization, setting of the acquisition and clocking modes,

management of channel triggering for best synchronization,

storing data in the internal memory and/or transferring them

through the backplane bus.

– Implements multi-record acquisition functionality.

– Supports xed internal clocking frequency with internal or

external reference, and variable frequency external clock.

– Offers programmable binary decimation to lower the sample

rate by a factor of 2n where n is dened in the range 1 to 10

for single record.

e.g. you can select from 1.6 GS/s down to 1.5625 MS/s.

– Trigger time interpolator (TTI): high precision integrated time

to digital converter can be used to increase time measure-

ment accuracy.

INT interleaved channel sampling functionality

This interleave option allows two channels to be combined and to

reach 3.2 GS/s in one channel acquisition mode.

FDK custom rmware capability

This option enables loading4 custom rmware created with the

U5340A FPGA development kit5.

1. A calibration digitizer function is available with each rmware.

2. Only available with DGT option.

3. Please contact Keysight to nd out the repetition rate that can be

achieved in your application.

4. On the Virtex-6 LX195T DPU FPGA.

5. There are 11 W maximum power dedicated to FPGA processing, the

custom rmware design must t within this power provision.

The triggered simultaneous acquisition and readout architecture

allows to continuously acquire new records while reading previ-

ous ones.

TSR solution is dedicated to applications requiring no trigger loss,

achieving longer recording time when compares with standard

digitizer (-DGT).

TSR option main features:

– High trigger rate with guaranteed no lost trigger for specic

conguration3.

– Easy to use solution, implementing an optimal and

automated control of memory addressing.

– Selecting larger memory size option allows longer record

size and provides larger buffer for data transfer to host PC,

especially useful for applications with non-periodic trigger or

very high trigger rate during a limited period.

DDC real-time digital down-conversion

The real-time digital down-conversion option (-DDC), in addition

to the basic digitizer functionality, implements a real-time digital

decimation and ltering on the digitized data, allowing the user

to tune and zoom on the signals of interest. This exclusive IP

algorithm provides very powerful and exible digital down-

conversion on 2 channels. The lters and local oscillators (LO) are

synchronized to maintain constant phase and timing relationships

allowing phase-coherent post processing.

The DDC provides three main functions:

– Frequency shifting (tune): Independently shifting each chan-

nels IF signal into baseband, allows the analysis bandwidth

to be set around the signal of interest.

– Data reduction (zoom): Reducing the bandwidth and sample

rate to match the analyzed signal decreases the amount of

data that needs to be transferred for a given capture dura-

tion, in turn accelerating post-processing operations.

– Magnitude trigger: Setting the magnitude level that the

down converted signal needs to achieve at a specied

frequency and bandwidth to generate a digital trigger on all

channels.

These functions allow isolation of the signal of interest from

other signals in a crowded spectrum, improved dynamic range

as the integrated noise is reduced, and increased SNR and

effective number of bits (ENOB). The resulting advantage for your

application is a reduced test time, while improving overall test

efciency.

TSR triggered simultaneous acquisition and readout

06 | Keysight | M9203A PXIe High-Speed Digitizer/Wideband Digital Receiver - Data Sheet

Firmware Development

U5340A - FPGA Development Kit1

The FPGA development kit is primarily intended to open the

design of the FPGA to specic user requirements by providing

a development framework that interfaces to the underlying

hardware.

The FPGA development kit combines capabilities to:

– Achieve multi GS/s real-time processing on a full digitizer

framework by leveraging the full density and speed of the

FPGA.

– Shorten time-to-market with turn-key, easy-to-use

development ow and debug.

There are several rationales to consider developing custom signal

processing such as:

– Data throughput optimization

– Real time processing

– Implementation of custom IP and OEM technical know-how

– Re-usability and upgradability.

The FPGA development kit includes everything you need: source

code, ready-to-use base design, a set of cores to easily interface

to the underlying hardware, a test-bench environment for design

and simulation, and automated building script.

ADC interface

Calibration digitizer

Configuration

Custom

real-time

processing

DDR3

Ctrl

SRAM

Ctrl

DDR3

Ctrl

PCIe

Gen 2

System monitoring Clock/reset manager

FPGA

Figure 5. Enlarged block diagram of the FPGA Xilinx Virtex-6

Predened Keysight IP cores

Custom real-time processing (using the FPGA development kit)

For more information:

Keysight U5340A - FPGA Development Kit for High-Speed Digitizers

Keysight product brochure 5991-2424EN

http://literature.cdn.keysight.com/litweb/pdf/5991-2424EN.pdf

1. This standalone software package must be acquired separately.

07 | Keysight | M9203A PXIe High-Speed Digitizer/Wideband Digital Receiver - Data Sheet

Application Options1

For specic applications the M9203A PXIe High-Speed Digitizer/

Wideband Digital Receiv er can be congured with specic

options:

–CB0: Digitizer streaming and recording

–CB2: Digital down converter streaming and recording at

1.6 GS/s

–BB1: High delity digitizer

CB0 digitizer streaming and recording

CB0 is a turnkey reference bundle, based on the continuous

simultaneous acquisition and readout architecture, implementing

a real time digitizer data recorder for gapless acquisition. It

includes a command line application ensuring performance of

up to 2 GB/s2 in a specic qualied system. An easy to use data

viewer application is also provided.

This digitizer streaming and recording option with bundled appli-

cations provides:

– Guaranteed recording specication

– Various recording speed controlled by application

– Adaptable sampling rate (decimation and external clock)

– Data throughput optimization (12-bit, 10-bit or 8-bit mode).

This option is added on top of a M9203A pre-congured version

composed of:

– 1.6 GS/s sampling rate (-SR2) or up to 2 GS/s (-SR2, -INT,

with external clock)

– Full bandwidth (-F10)

– 4 GB acquisition memory (-M40)

– Digitizer rmware (-DGT)

The digitizer data streamer application is an intuitive command

line application which allows to control the M9203A and adapts

its data rate to the target application.

The data viewer is a graphical user interface (GUI) application

which allows to read, display, select and export the data stored.

2 GB/s

SSD

Data

Storage

M9203A PXIe Digitizer

Channel 2

Channel 1 Up to 3 GB/s

Recommended

Host PC

CB2 digital down-conversion streaming and

recording

This bundle enables continuous gapless acquisition, implementing:

– Digital down converter functionality in real time

– Data steaming to host

– Multichannel recording to disk all I/Q samples for later analysis.

– Independent local-oscillators, with phase-coherency between

channels.

The -CB2 option is added on top of a M9203A pre-congured

version composed of:

– 1.6 GS/s sampling rate (-SR2)

– Full bandwidth (-F10)

– 4 GB acquisition memory (-M40)

– Digitizer rmware (-DGT)

This option provides:

– Guaranteed recording specication up to 320 MHz

instantaneous bandwidth (IBW) with tunable intermediate

frequency with recommended conguration.

– Data throughput optimization (I/Q samples with 32-bit, 16-bit

or 12-bit mode).

The option includes an intuitive command line application allowing

to control the M9203A and a data viewer providing a simple

graphical user interface (GUI) which allows to read, display, select

and export the data stored.

Maximum streaming and recording performance is guaranteed

using an additional qualied host computer system with specic

storage devices conguration.4

BB1 high delity digitizer

This high delity digitizer option provides enhanced performance

by:

– Compensating the ADC and front-end distortion

– Minimizing interleave spurs

– Reducing the overall noise bandwidth.

This results in highly improved and uniform measurement delity

across the useful bandwidth, which greatly benets RF and wireless

frequency domain measurements. The digitizer’s post processing

compensation also delivers better spurious-free dynamic range

(SFDR) and intermodulation product (IMx) specications.

This application option is pre-congured with:

– 1.6 GS/s sampling rate (-SR2)

Leaving choice of bandwidth and memory, for optional use in -BB1

mode, recommendation is:

– 650 MHz bandwidth (-F05)

– 256 MB acquisition memory (-M02)

It allows the following usage as high delity digitizer:

– 1.6 GS/s with 650 MHz bandwidth, up to 64 MSamples/ch.

– 800 MS/s with 400 MHz bandwidth, up to 32 MSamples/ch.

– 400 MS/s with 200 MHz bandwidth, up to 16 MSamples/ch.

– 200 MS/s with 100 MHz bandwidth, up to 8 MSamples/ch.

– 100 MS/s with 50 MHz bandwidth, up to 4 MSamples/ch.

1. Application options are delivered on the high-speed digitizer DVD.

2. Equivalent to: 2 GS/s in 8-bit mode, 1.6 GS/s in 10-bit mode, and

1.3 GS/s in 12-bit mode.

3. To reach the guaranteed performances the system requires both an

external computer and data storage.

4. Keysight proposes full system and installation services. Please contact

support at digitizers@keysight.com for additional information.

Figure 6. Streaming options (-CB0, -CB2) are proposed with a recommended host

PC and SSD. Performance is guaranteed with specic congurations3.

Maximum streaming and recording performance is guaranteed

using an additional qualied host computer system with specic

storage devices conguration.4

08 | Keysight | M9203A PXIe High-Speed Digitizer/Wideband Digital Receiver - Data Sheet

Technical Specications and Characteristics

Analog input (IN1 and IN2 SMA connectors)

Number of channels 2 (without INT option), 2 or 1 (with INT option)

Impedance 50 Ω ±2 %

Coupling DC

Full scale ranges (FSR) 1 V and 2 V

Maximum input voltage 1V FSR: Clamp at ± 3.6 V, absolute maximum DC voltage rating ± 4.6 V

2V FSR: Clamp at ± 6.3 V, absolute maximum DC voltage rating ± 5.0 V

Input voltage offset –2xFSR to +2xFSR

Input frequency range (-3 dB bandwidth) -F05, -SR2 DC to 650 MHz (nominal) in 1V FSR at 1.6 GS/s

DC to 650 MHz (nominal) in 2V FSR at 1.6 GS/s

-F05, -SR2, -INT DC to 650 MHz (nominal) in 1V FSR at 3.2 GS/s

DC to 650 MHz (nominal) in 2V FSR at 3.2 GS/s

-F10, -SR2 DC to 1.9 GHz (nominal) in 1V FSR at 1.6 GS/s

DC to 2.0 GHz (nominal) in 2V FSR at 1.6 GS/s

-F10, -SR2, -INT DC to 1.4 GHz (nominal) in 1V FSR at 3.2 GS/s

DC to 1.4 GHz (nominal) in 2V FSR at 3.2 GS/s

DC gain accuracy ± 0.5% (nominal) in 1V FSR

± 0.7% (nominal) in 2V FSR

Offset accuracy ± 0.5% in 1V FSR

± 1.5% in 2V FSR

Time skew1Skew between channels250 ps (nominal)

Channel-to-channel skew stability3± 200 fs pk (nominal)

75 fs RMS (nominal)2

Bandwidth limit lters (BWL) 650 MHz (nominal) for -SR2

Effective number of bits (ENOB)4-SR2 @ 410 MHz 9.1 (nominal)

Signal to noise ratio (SNR)4-SR2 @ 410 MHz 57 dB (nominal)

Spurious free dynamic range (SFDR)4-SR2 @ 410 MHz 64 dBc (nominal)

Total harmonic distortion (THD)4-SR2 @ 410 MHz –64 dB (nominal)

1. The channel-to-channel skew is dened as the magnitude of time delay difference between two digitized channel inputs, granted the same signal is

provided to each channel at the exact same time.

2. The measurement represents the maximum time skew between 2 channels of a single unit, measured with a Sinet method on 100 kSamples, for a sinusoid

signal at 400 MHz and averaged 10 times.

3. Skew and offset stability are measured at 25 °C in a climatic chamber. The skew and offset between channels are measured every 5 minutes over 12 hours

and after 1 hour stabilization time and the values represent the dispersion of the measurements.

4. Measured for a –1 dBFS input signal in internal clock mode with option -F10 at 1.6 GS/s (option -SR2).

09 | Keysight | M9203A PXIe High-Speed Digitizer/Wideband Digital Receiver - Data Sheet

Technical Specications and Characteristics (continued)

Digital conversion

Resolution 12 bits

Acquisition memory -M02

-M10

-M40

256 MB (64 MSamples/ch)

1 GB (256 MSamples/ch)

4 GB (1 GSamples/ch)

Sample clock sources Internal or external

Internal clock source Internal, external reference

Real-time sampling rates -SR2

-SR2, -INT

1.6 GS/s

3.2 GS/s

Sampling jitter 225 fs (nominal)1

Clock accuracy ±15 ppm (nominal)

External clock source (CLK IN MMCX connector)

Impedance 50 Ω (nominal)

Frequency range2-SR2 1.8 GHz to 3.2 GHz

Signal level +5 dBm to +15 dBm (nominal), 0 V DC

Coupling AC

External reference clock (REF IN SMB connector)

Impedance 50 Ω (nominal)

Frequency range 100 MHz ±1 kHz (nominal)

Signal level –3 dBm to +3 dBm (nominal)

Coupling AC

Acquisition modes (depends on rmware options) Single shot, sequence3, continuous

1. Jitter gure based on phase noise integration from 100 Hz to 1600 MHz.

2. The sampling rate corresponds to half of the external clock frequency in 2-channel mode (non interleaved channels). In interleaved mode (only available

with the INT option), the sampling rate corresponds to the frequency of the external clock signal.

3. Up to 131072 records. Record maximum length = memory size/number of channels.

10 | Keysight | M9203A PXIe High-Speed Digitizer/Wideband Digital Receiver - Data Sheet

1. At 10 MHz on a 50 Ω load.

2. I/0 3 reserved for future use.

3. Only on I/O 1.

4. At maximum sample rate or at decimated sampling rate down to 1/16 of the highest sample rate (1/32 of the highest sample rate with interleaving).

Technical Specications and Characteristics (continued)

Trigger

Trigger modes Positive or negative edge

Trigger sources External, Software, Channel

Channel trigger frequency range DC to 250 MHz

External trigger (TRG IN SMB connector)

Coupling DC

Impedance 50 Ω (nominal)

Level range ± 5 V (nominal)

Minimum amplitude 0.5 V pk-pk

Frequency range DC to 2 GHz (nominal)

Maximum time stamp duration -SR2 32 days

Trigger time interpolator resolution4 6.25 ps (nominal)

Trigger time interpolator precision415 ps RMS (nominal)

Rearm time (deadtime) -SR2 500 ns (nominal)

Trigger out (TRG OUT SMB connector)11 (programmable), 50 Ω source

Signal level 0.8 Vpp ±2.5 Voffset (nominal) into high impedance

Control IO (I/O 1 and 2 MMCX connectors)2

Output functions Acquisition active

Trigger is armed

Trigger accept resynchronization

100 MHz reference clock divided by 23

Sampling clock divided by 323

Low level

High level

FPGA synchronization

Input/output function FPGA programmable I/O

11 | Keysight | M9203A PXIe High-Speed Digitizer/Wideband Digital Receiver - Data Sheet

1. Samples of this product have been type tested in accordance with the Keysight Environmental Test Manual and veried to be robust against the environ-

mental stresses of Storage, Transportation and End-use; those stresses include but are not limited to temperature, humidity, shock, vibration, altitude and

power line conditions. Test Methods are aligned with IEC 60068-2 and levels are similar to MIL-PRF-28800F Class 3.

Technical Specications and Characteristics (continued)

Environmental and physical1

Temperature range Operating 0 to +50 °C (sea-level to 10,000 feet)2

0 to +45 °C (10,000 to 15,000 feet)2

Non-operating –40 to +70 °C

Altitude Up to 15,000 feet (4’572 meters)

EMC Complies with European EMC Directive

– IEC/EN 61326-1

– CISPR Pub 11 Group 1, class A

– AS/NZS CISPR 11

– ICES/NMB-001

This ISM device complies with Canadian ICES-001.

Cet appareil ISM est conforme à la norme NMB-001 du Canada.

Acoustic European Machinery Directive

Acoustic noise emission

LpA < 70 dB

Operator position

Normal operation mode

Power dissipation

+ 3.3 V + 12 V Power on PXI connector

3.2 A (typical) 3.5 A (typical) 55 W (typical)

Mechanical characteristics

Form Factor 3U/2-slot PXI-Express

Chassis slot compatibility: PXI Hybrid, PXIe

Front panel complies with IEEE1101.10 certication

Size Length 185 mm x Width 130 mm x Height 40mm

Weight 0.8 kg (1.76 lbs)

12 | Keysight | M9203A PXIe High-Speed Digitizer/Wideband Digital Receiver - Data Sheet

1. On older PCs with minimum RAM, installation can take a long time when installing the IO Libraries Suite and the .NET Framework.

2. Because of the installation procedure, less disk space may be required for operation than is required for installation. The amount of space listed above is

required for installation. The .NET Framework Runtime Components are installed by default with most Windows installations, so you may not need this

amount of available disk space.

Technical Specications and Characteristics (continued)

System requirements

Topic Windows Linux

Operating systems Windows 10 (32-bit and 64-bit), All versions

Windows 8.1 (32-bit and 64-bit), All versions

Windows 7 SP1 (32-bit and 64-bit).

Note: If using high-speed digitizer applications DVD,

Windows 7 (64-bit) is supported.

Linux Kernel 2.6 or higher (32 or 64-bit), Debian 7.0, CentOS 6

Processor speed 1 GHz 32-bit (x86), 1 GHz 64-bit (x64),

no support for Itanium 64

As per the minimum requirements of the chosen distribution

Available memory 1 GB minimum1 As per the minimum requirements of the chosen distribution

Available

disk space

2.5 GB available hard disk space, includes:2

–1 GB for Keysight IO Libraries Suite

–1 GB for Microsoft .NET Framework

Note: 400 MB for high-speed digitizer applications.

100 MB

Display Minimum of 1024 x 768, 96 or 120 DPI No display required

Browser Use a supported version of Internet Explorer;

see http://support.microsoft.com/kb/969393

Distribution supplied browser

Denitions for specications

Specications describe the warranted performance of calibrated cards that have been stored for a minimum of 2 hours within the

operating temperature range of 0 to 50 °C, unless otherwise stated, and after a 45 minute warm-up period. Data represented in this

document are specications unless otherwise noted.

Characteristics describe product performance that is useful in the application of the product, but that is not covered by the product

warranty. Characteristics are often referred to as Typical or Nominal values.

– Typical describes characteristic performance, which 80% of cards will meet when operated over a 20 to 30 °C temperature range.

Typical performance is not warranted.

– Nominal describes representative performance that is useful in the application of the product when operated over a 20 to 30 °C

temperature range. Nominal performance is not warranted.

Note: All graphs contain measured data from several units at room temperature unless otherwise noted.

Calibration

The M9203A is factory calibrated and shipped with a certicate of calibration.

13 | Keysight | M9203A PXIe High-Speed Digitizer/Wideband Digital Receiver - Data Sheet

M9203A PXIe High_Speed Digitizer_ Wideband Digital Receiver 12_bit 3.2 GS_s FPGA Signal Processing Data Sheet Brochure

Navigation menu

Versions of this User Manual:

Views

Navigation
