wWarning:

Be careful not to touch the fuser, which

is marked CAUTION HIGH

TEMPERATURE, or the surrounding

areas. Ifthe printer has been in use, the

fuser and the surrounding areas may

be very hot.

4

5

1

2

Note:

When jammed paper cannot be found,

proceed to the next step.

3

4

wWarning:

Be careful not to touch the fuser,

which is marked CAUTION

HIGH TEMPERATURE,orthe

surrounding areas. If the printer

has been in use, the fuser and the

surrounding areas may be very

hot.

5

6

Color Laser Printer

Paper Jam Guide When the LCD panel displays the Jam WWWWW error message, choose the appropriate

description to clear the jammed paper.

For more information, see the Online Reference Guide.

wWarnings must be followed

carefully to avoid bodily injure.

Notes contain important information and

useful tips on the operation of your printer.

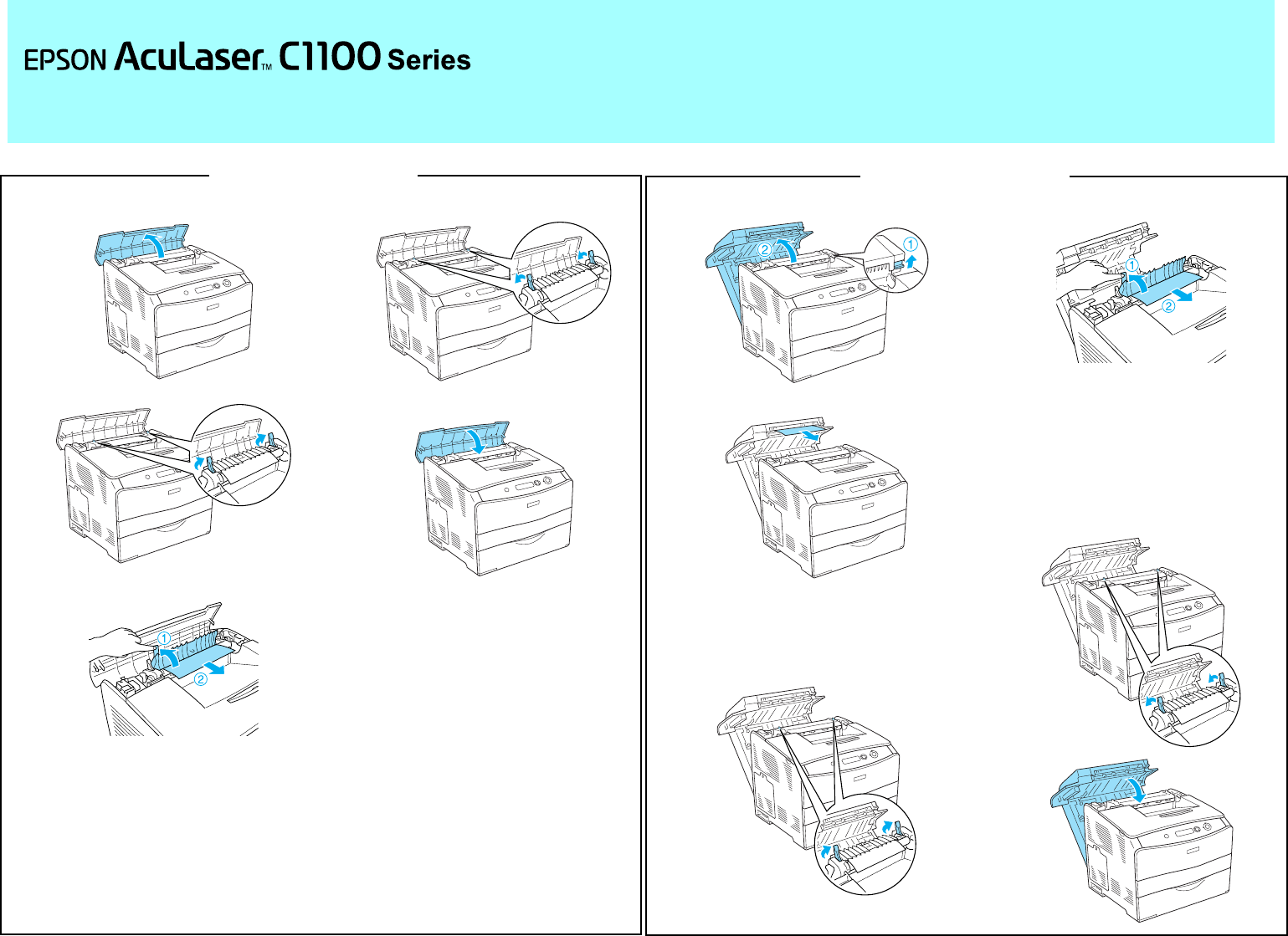

Jam C (cover C) Jam D (cover D)

1

Note:

When the optional Duplex Unit is

installed, open cover D first.

2

1

Note:

When the optional Duplex Unit is

installed, open cover D first.

2

3

4

Note:

When hard to see the jammed paper, the

jam occurs inside of the printer. In such

case, gently pull the paper until the

position illustrated as above, then

slowly pull out the paper.

5

6

Note:

When the optional Duplex Unit is

installed, close cover D last.

1

2

3

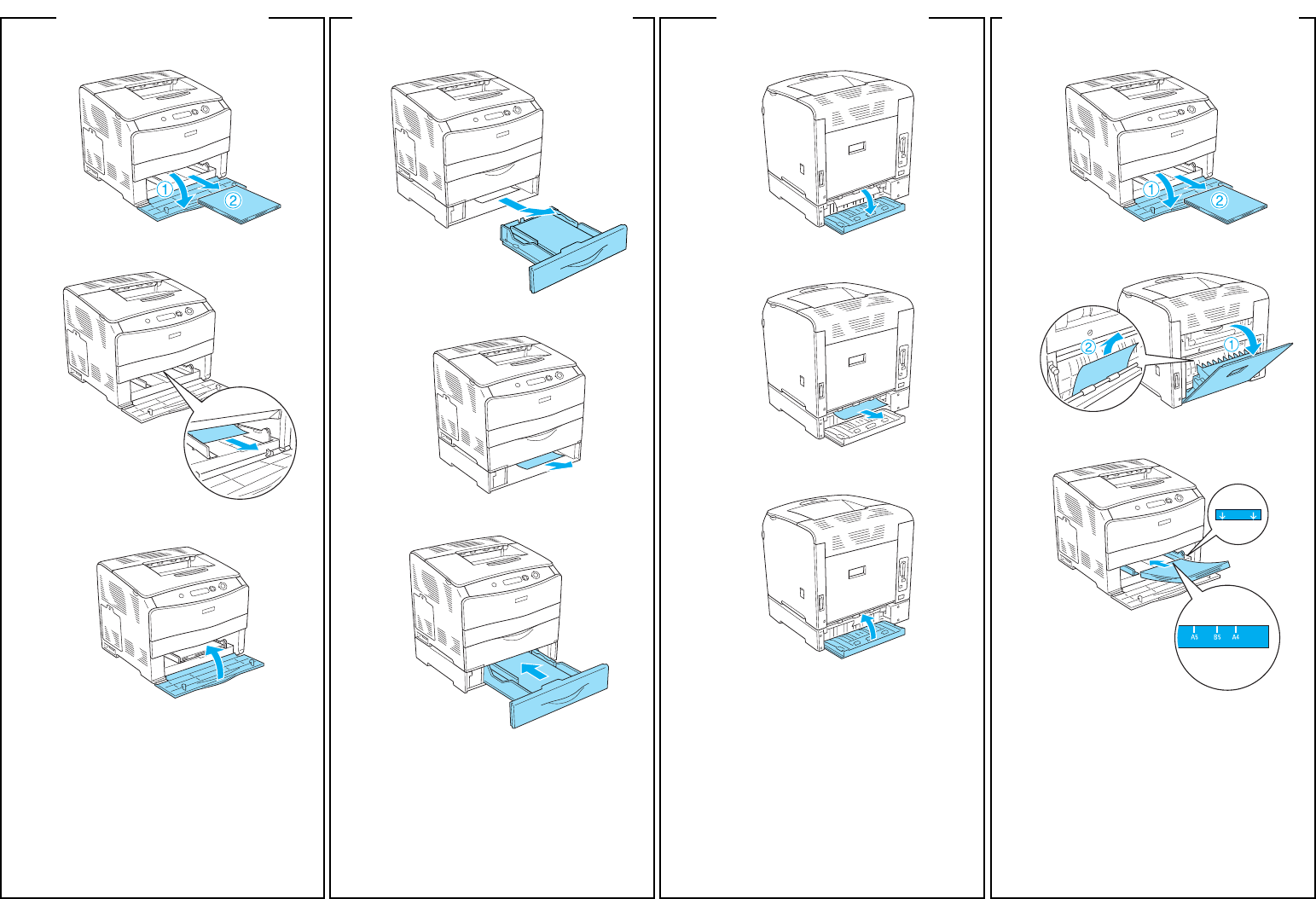

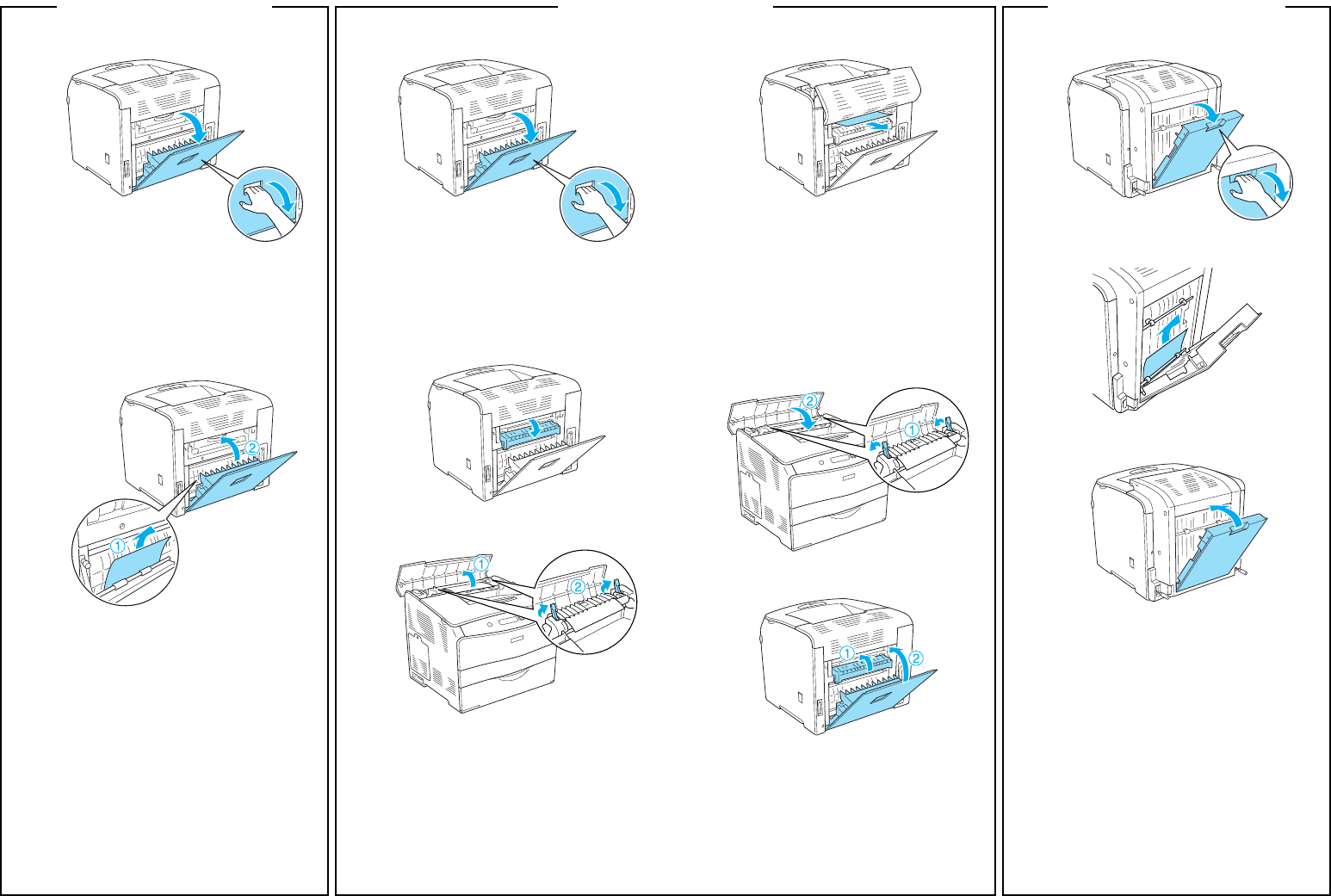

Jam E (cover E) Jam F (cover F) Jam DM (cover DM)

1

2

3

1

2

3

1

2

3

1

2

3

Jam E (cover E)

Jam G (cover G)Jam LC (paper cassette)Jam MP (MP tray)

Copyright© 2004 by Seiko Epson Corporation, Nagano, Japan

NPD0774-00

When transparencies are

jammed at the MP tray
