MAX870

User Manual: MAX870

Open the PDF directly: View PDF PDF.
Page Count: 92

3 CD CHANGER
MINI MINI COMPONENT
MAX-870/880/878/888
SERVICEManual
3CD CHANGER MINI COMPONENT CONTENTS
1. Precautions
2. Specifications

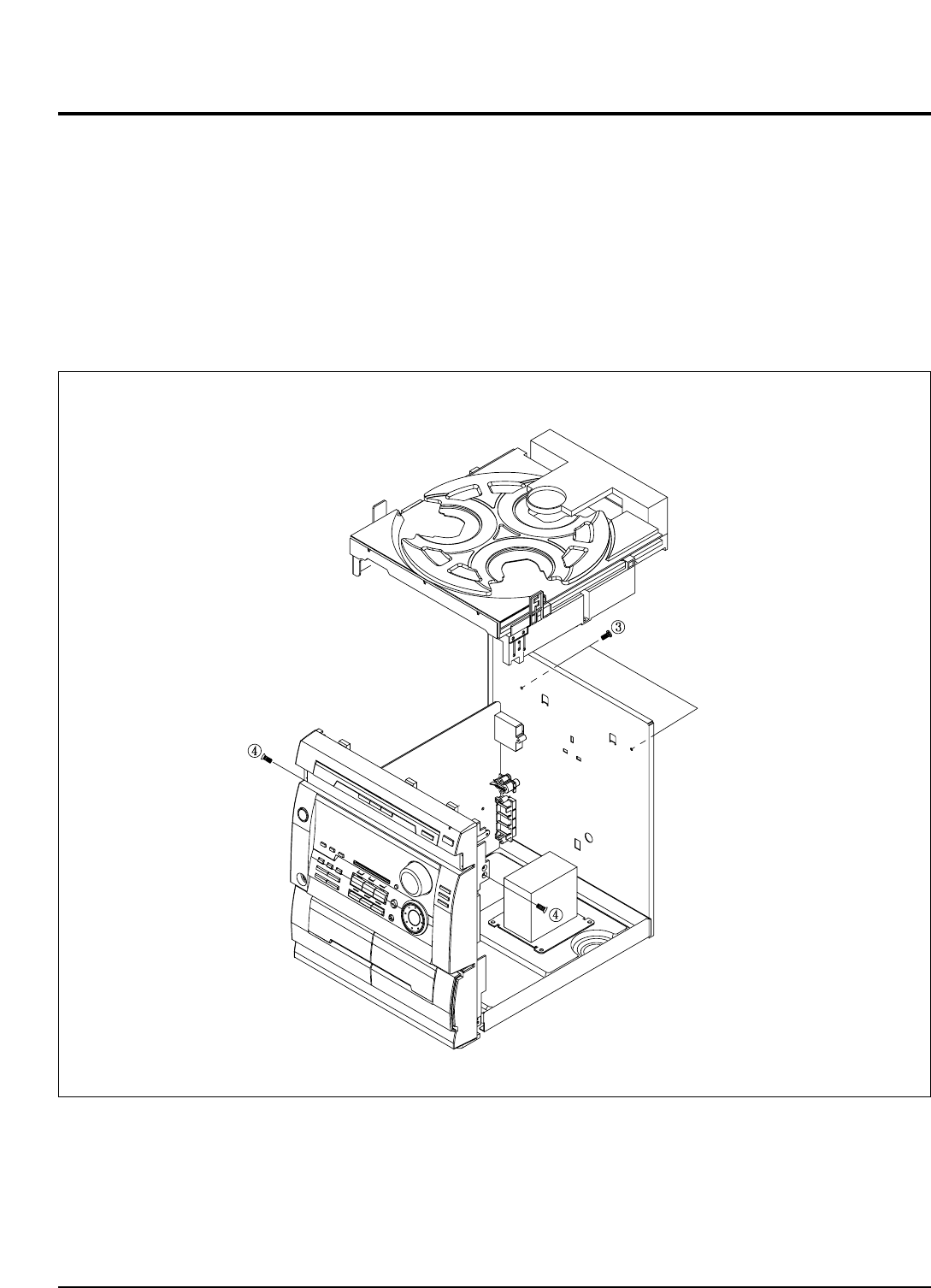

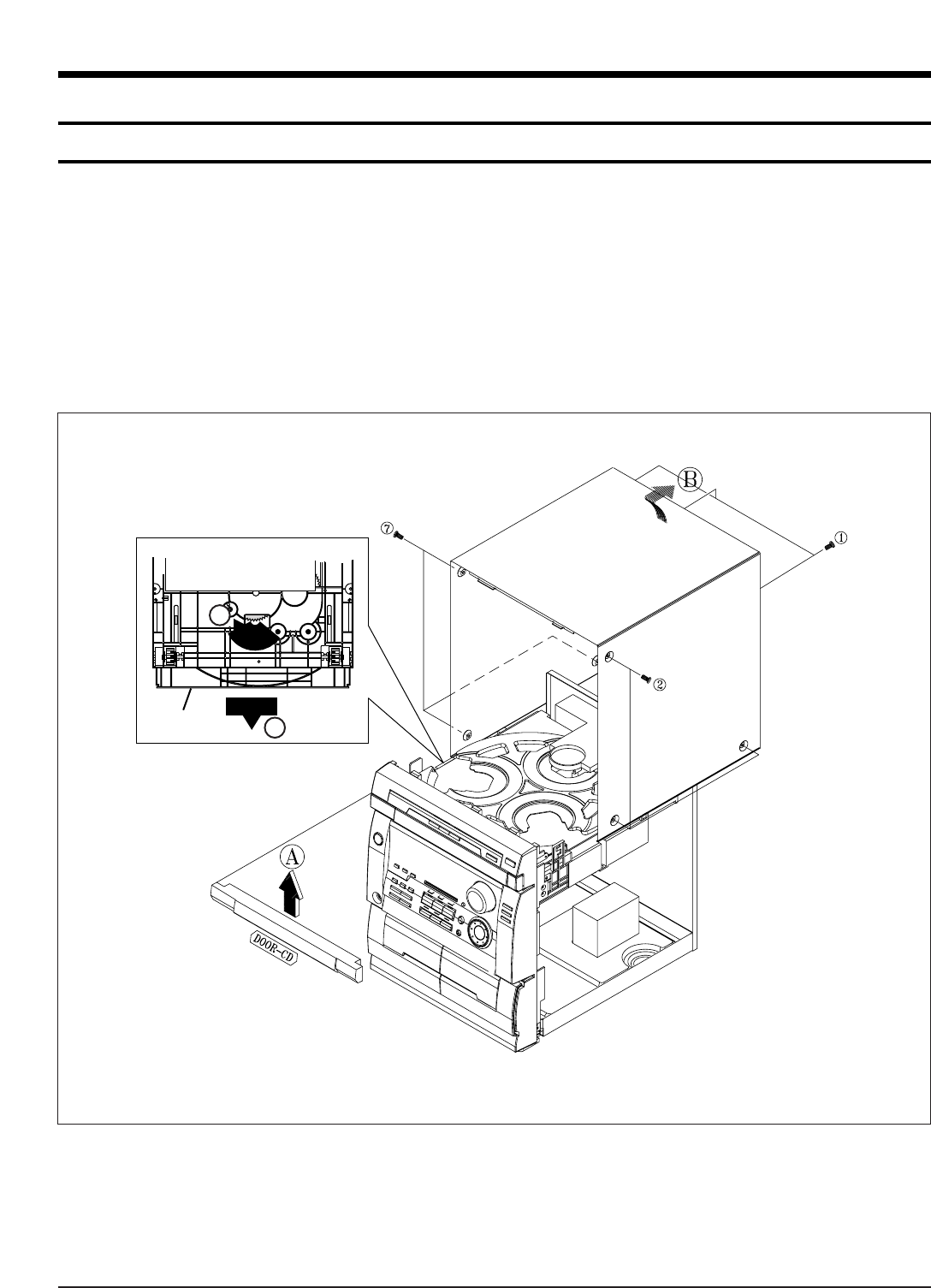

3. Disassembly and Reassembly

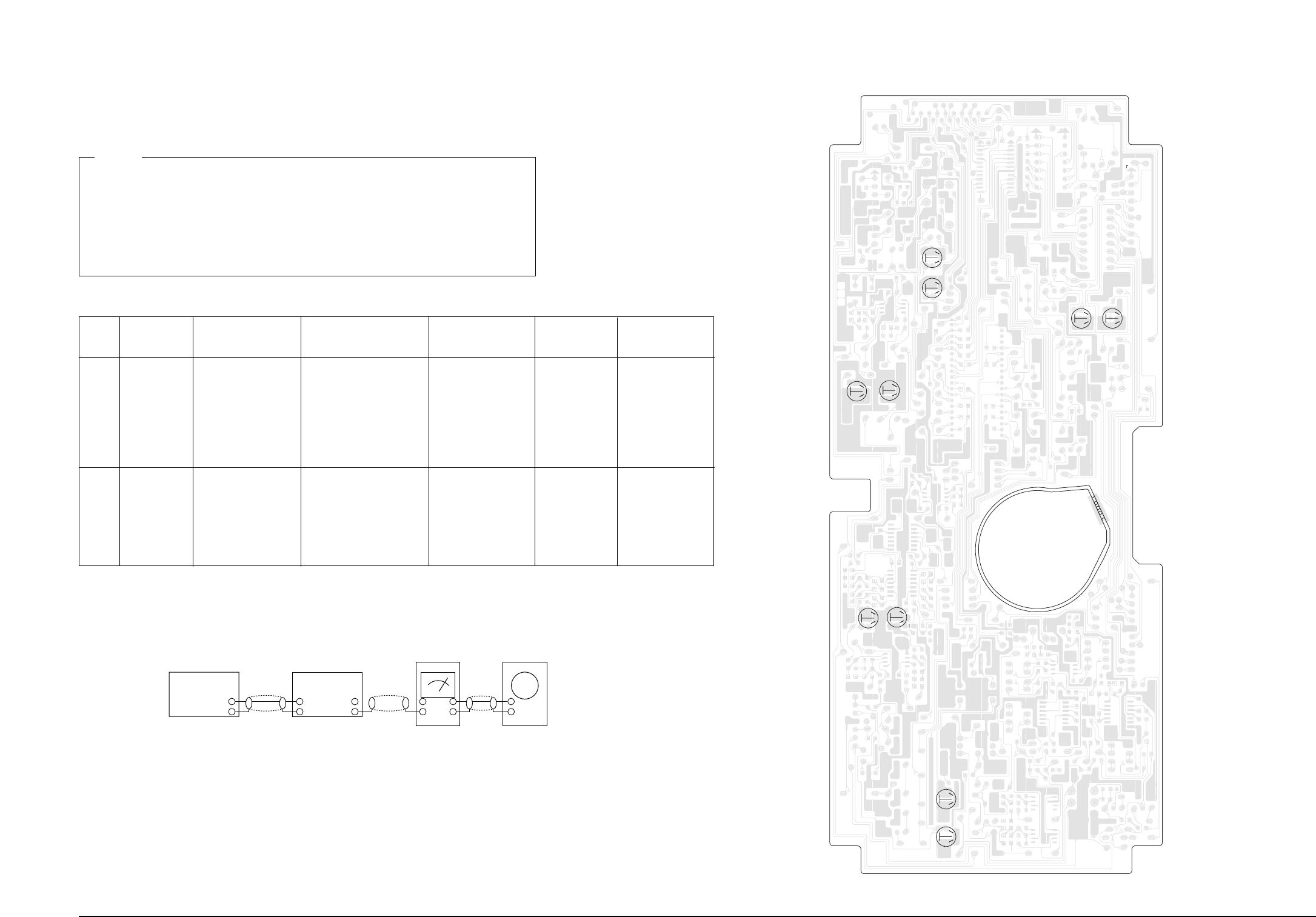

4. Alignment and Adjustments

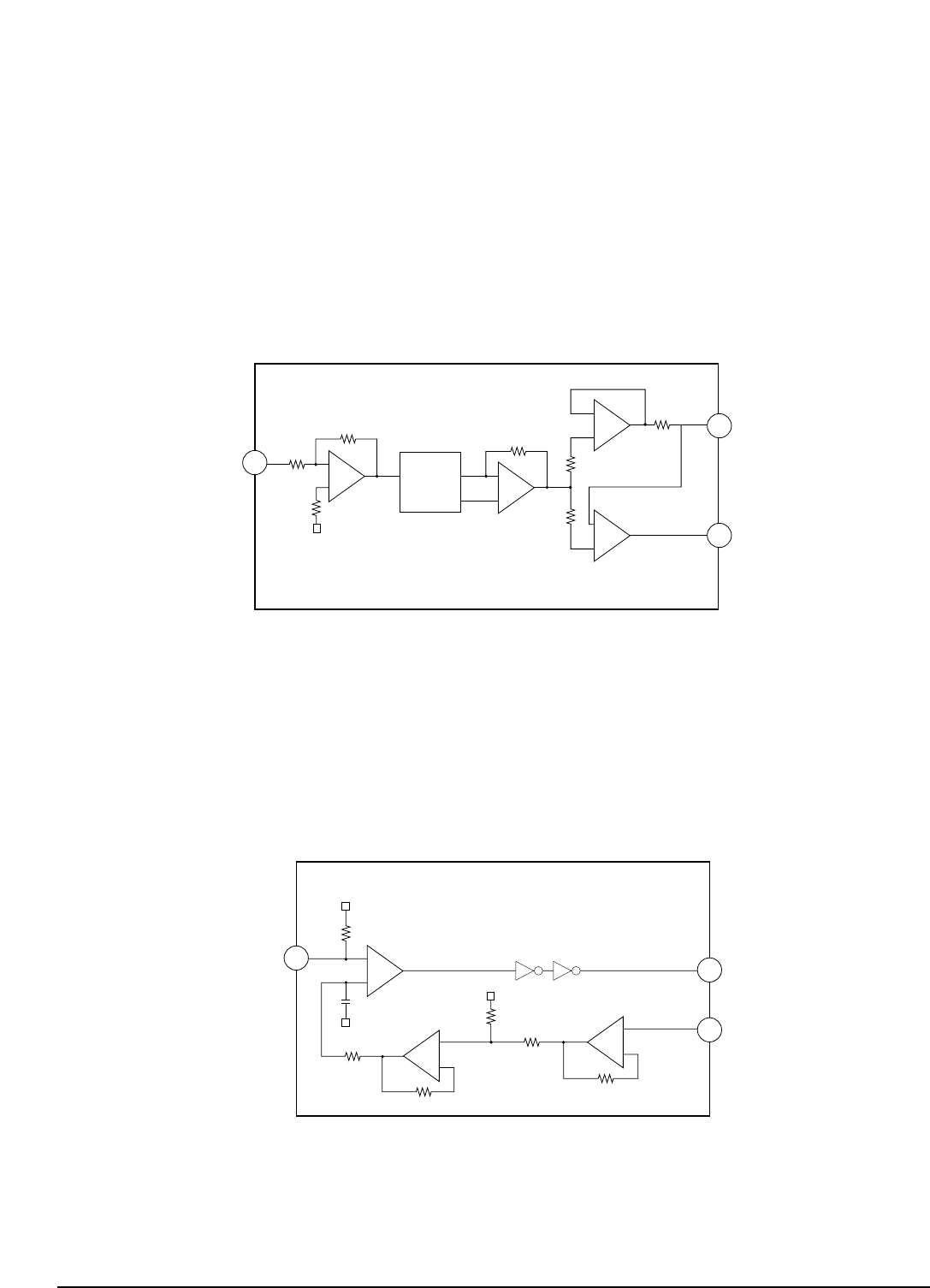

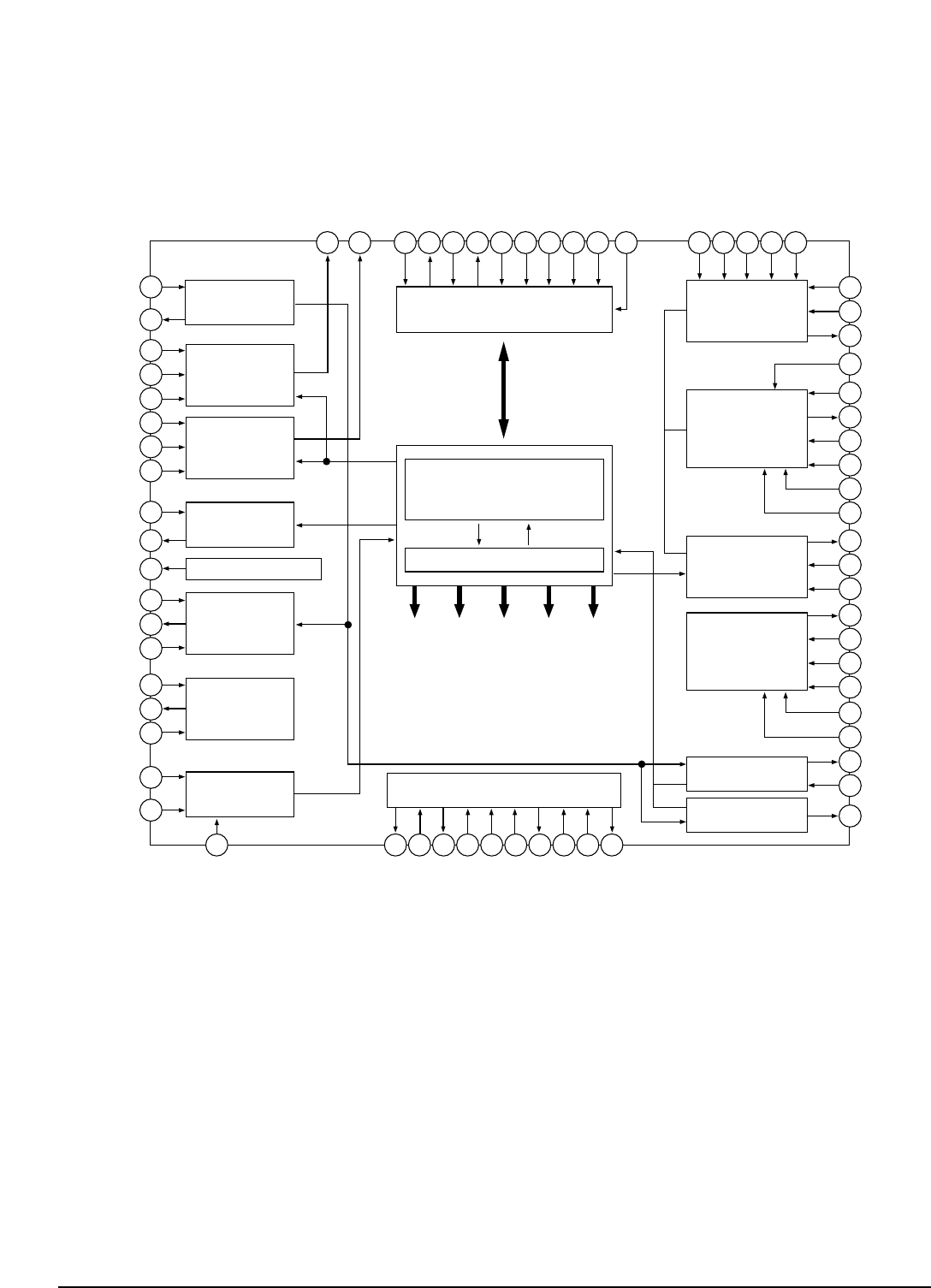

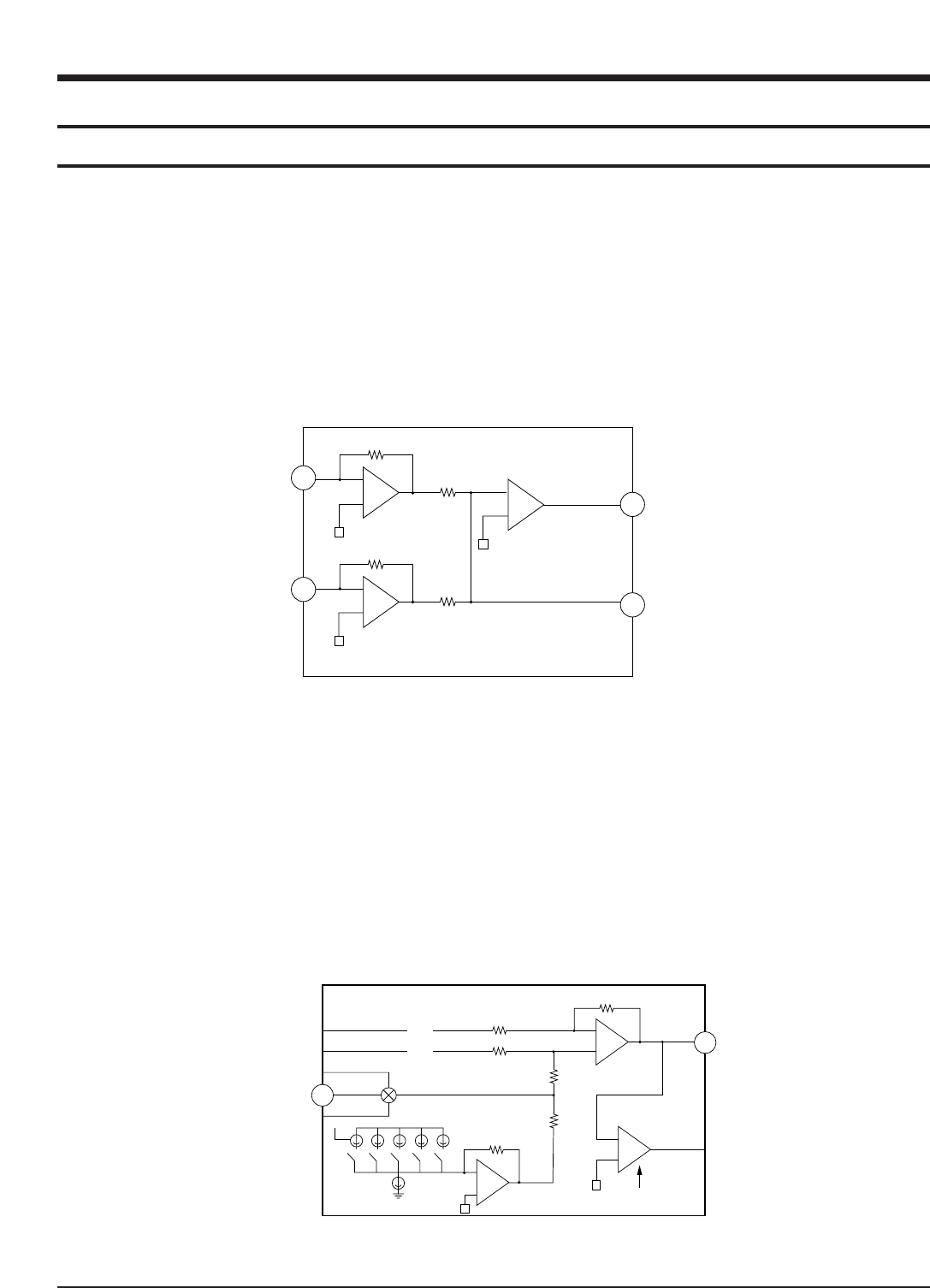

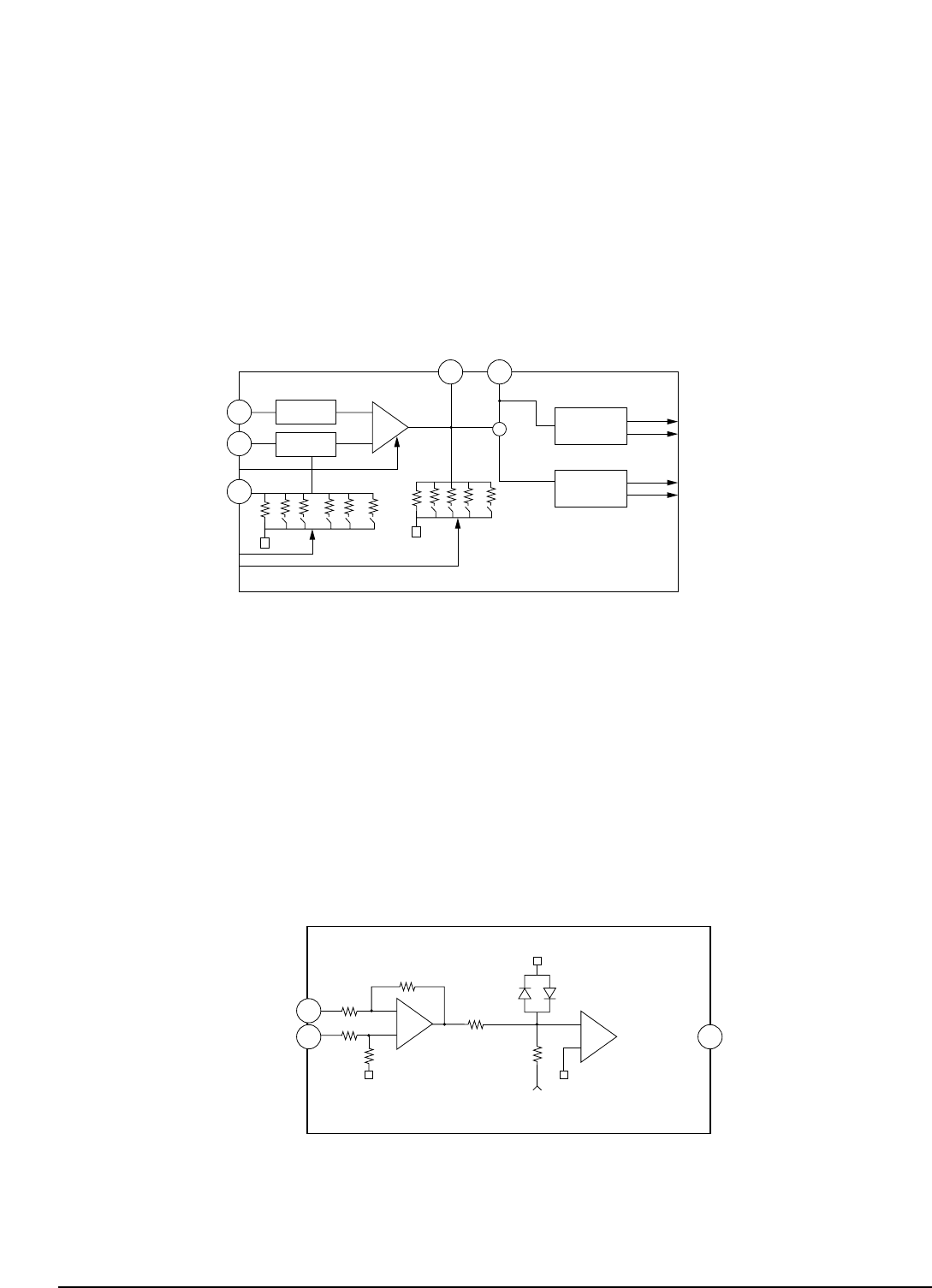

5. Special Circuit Descriptions

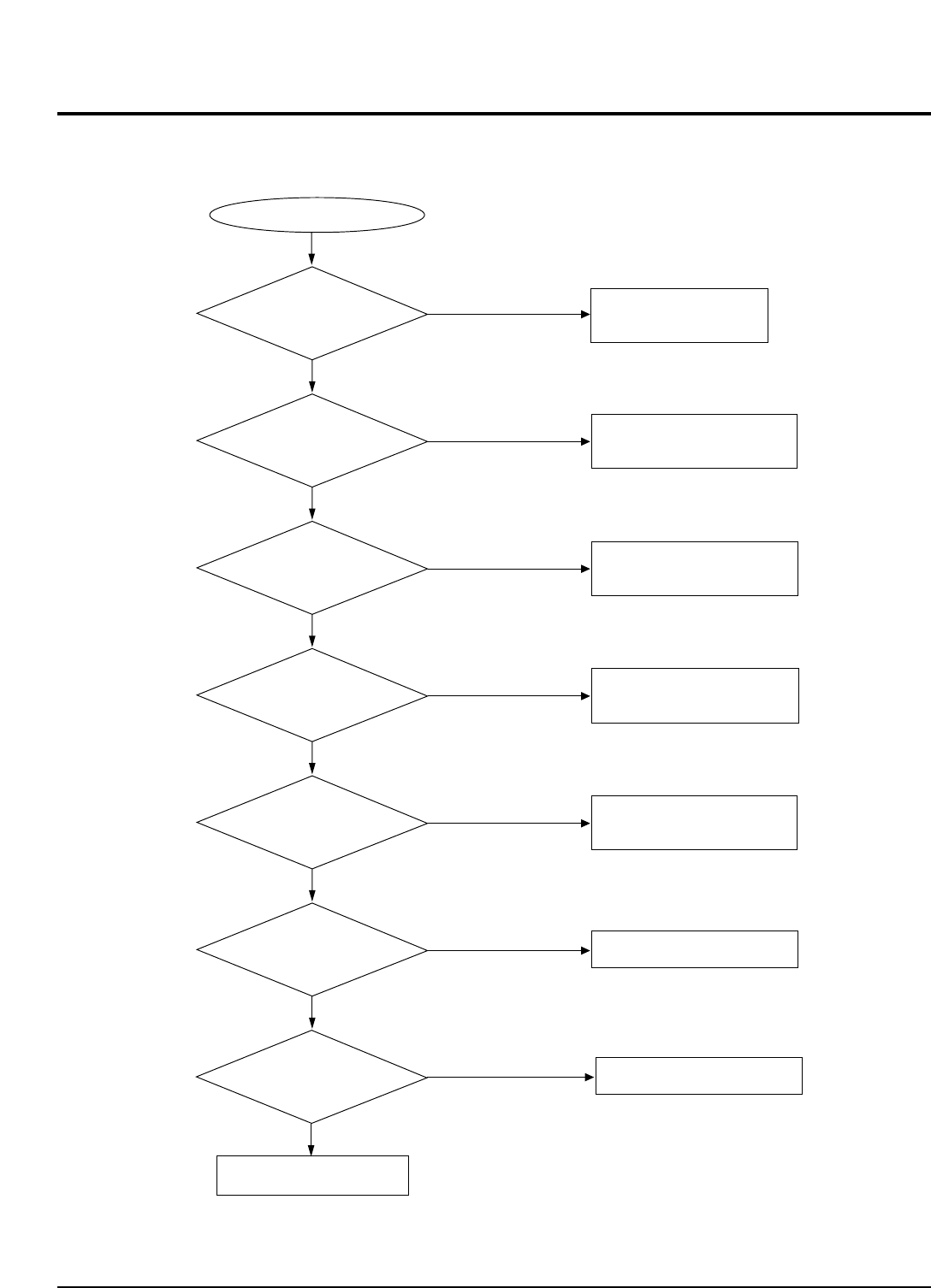

6. Troubleshooting

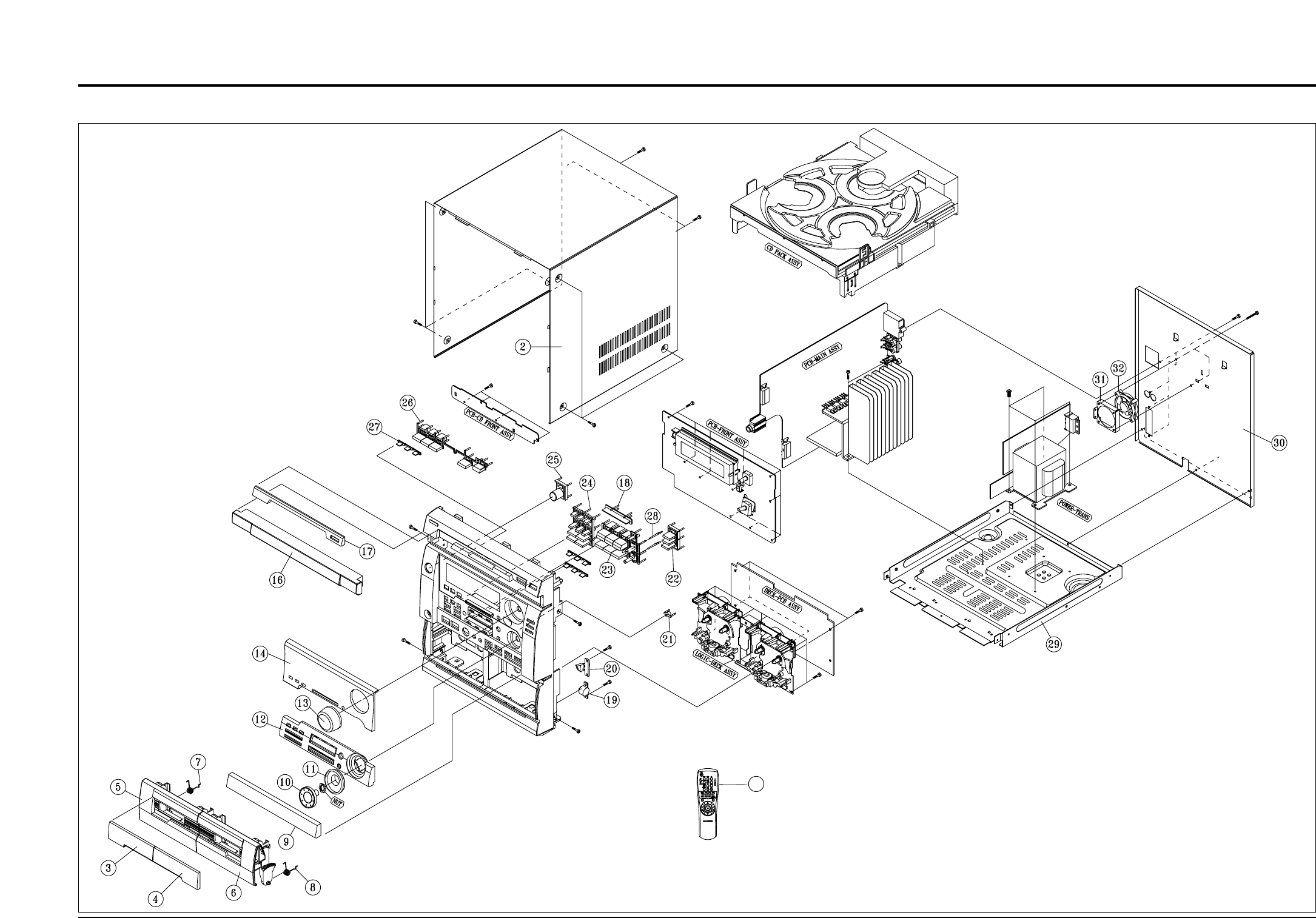

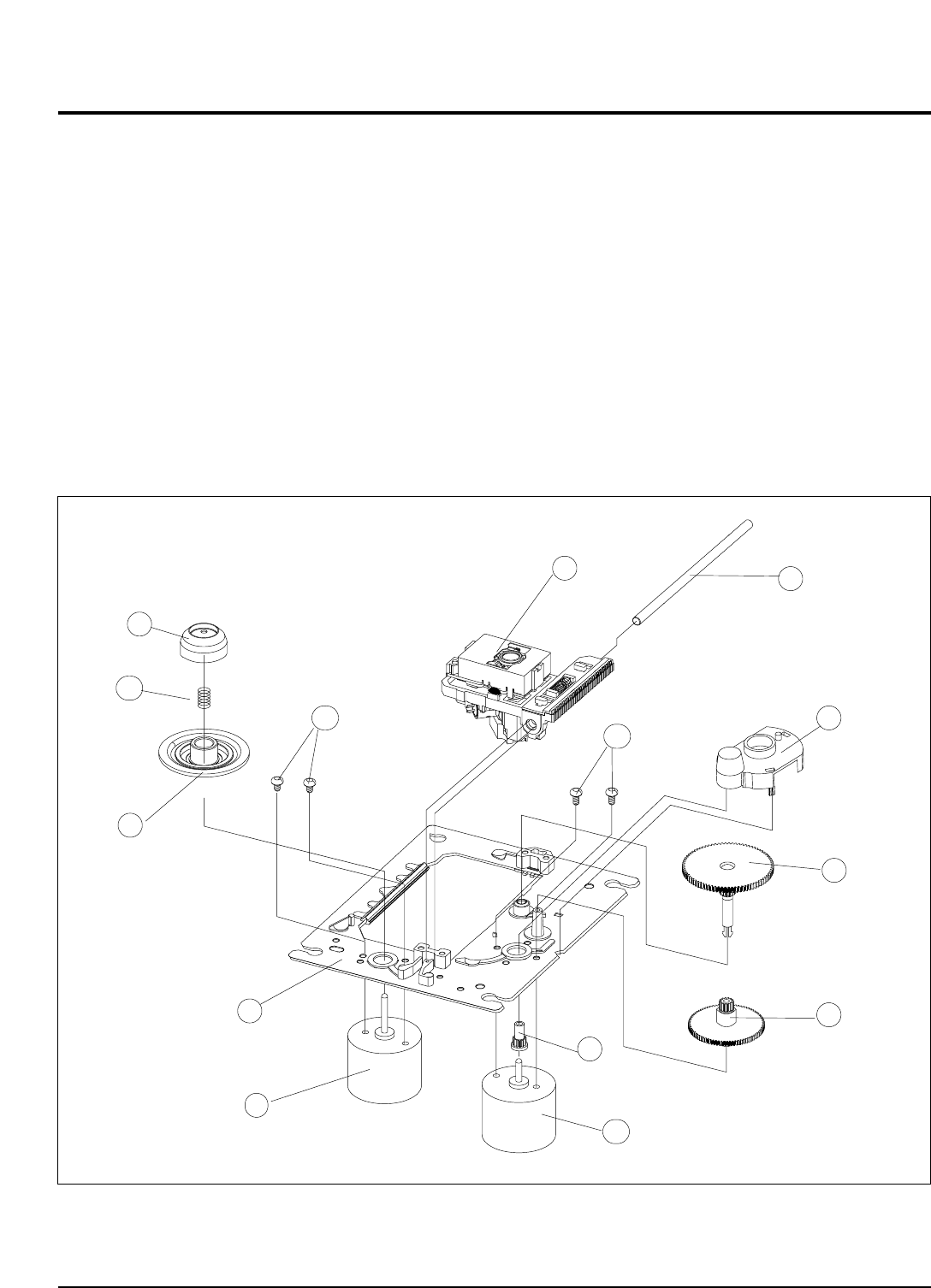

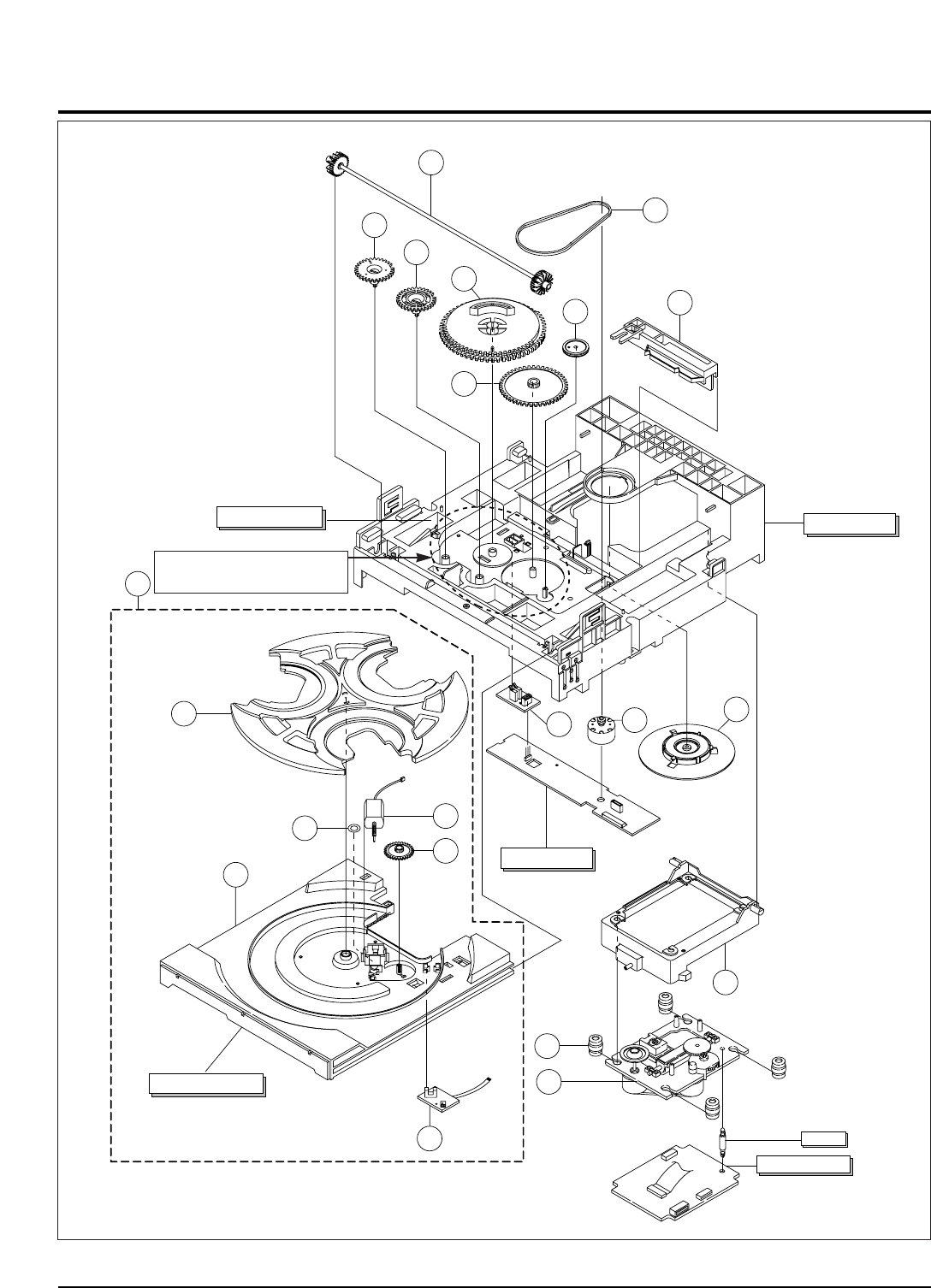

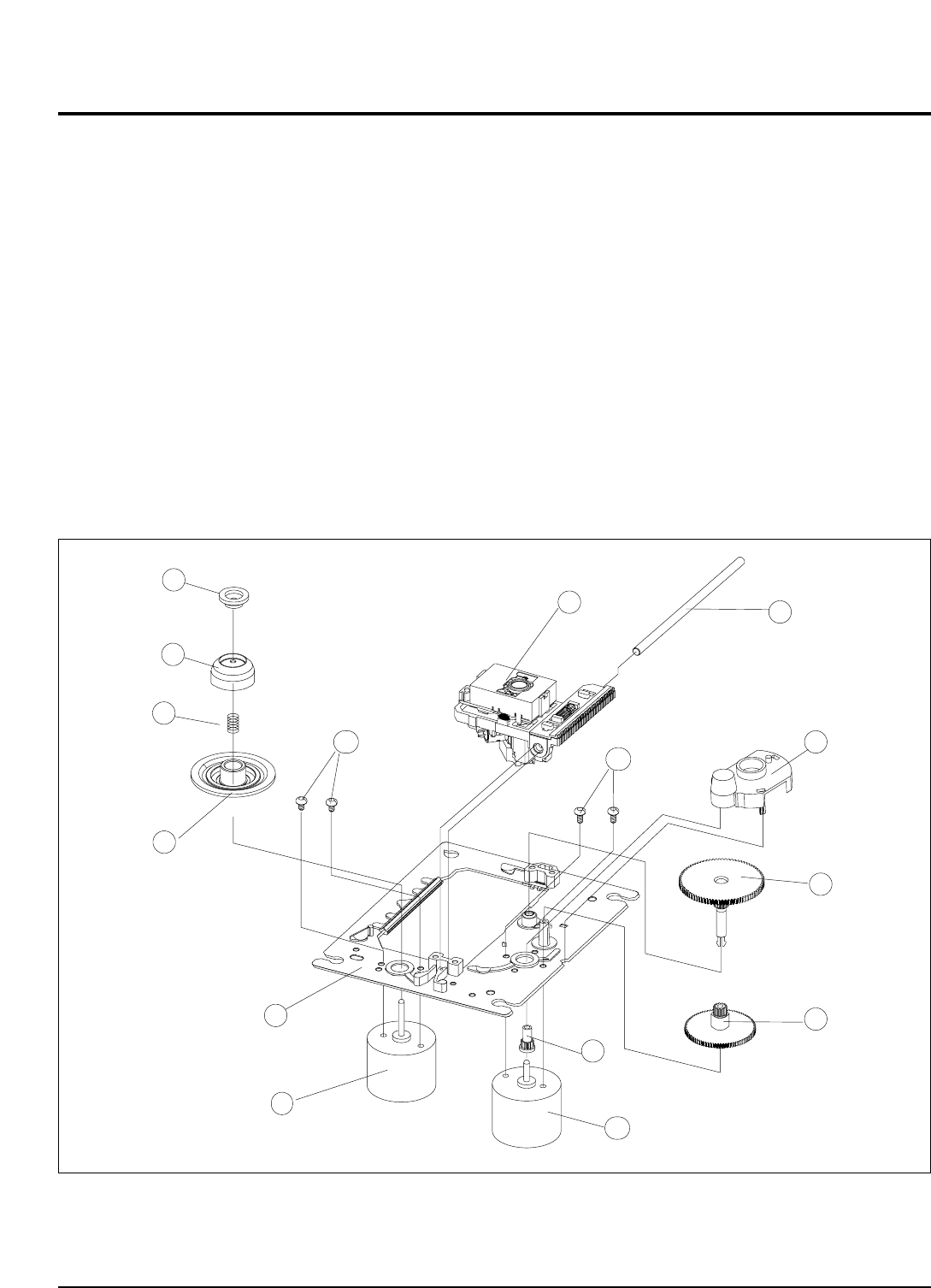

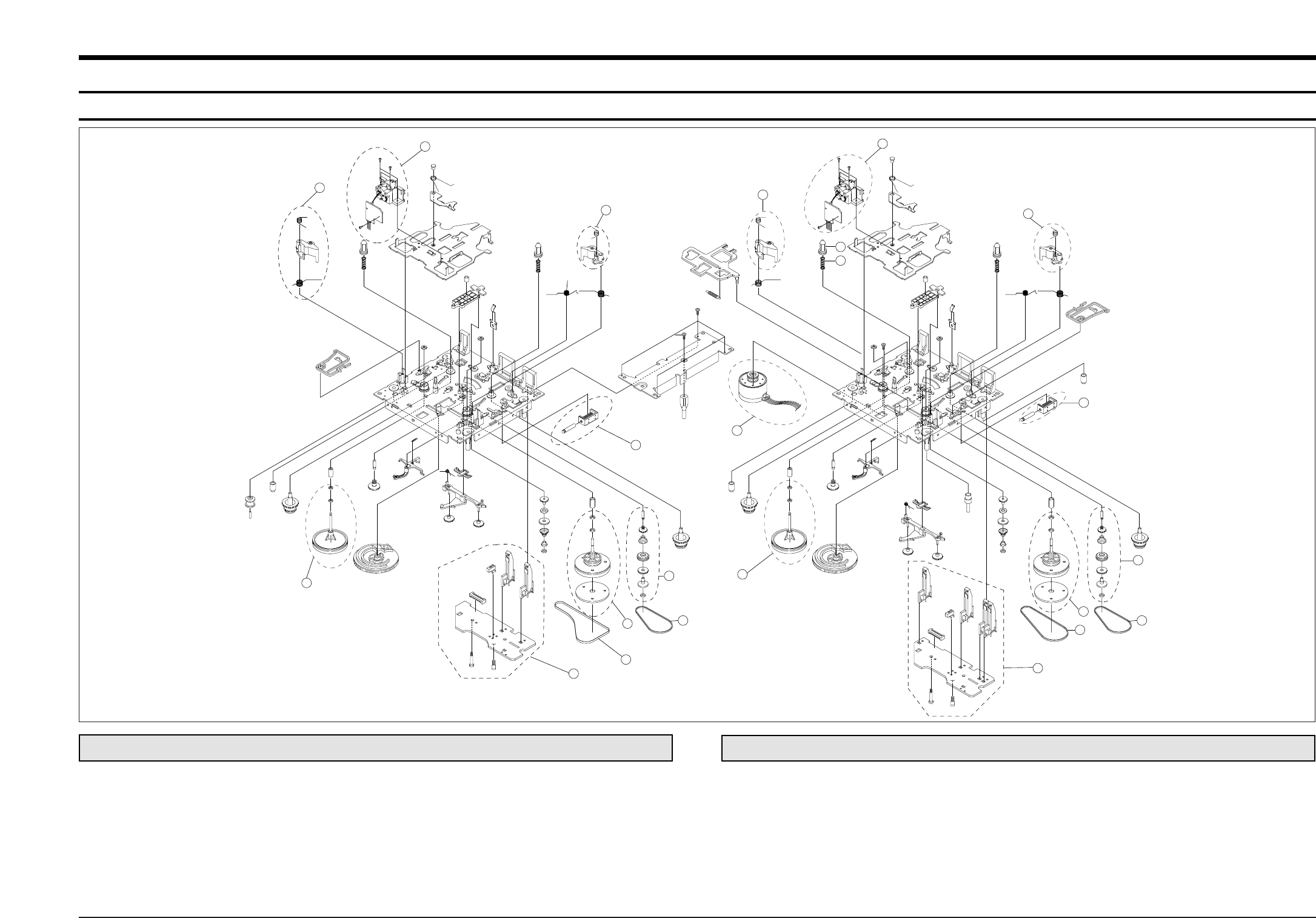

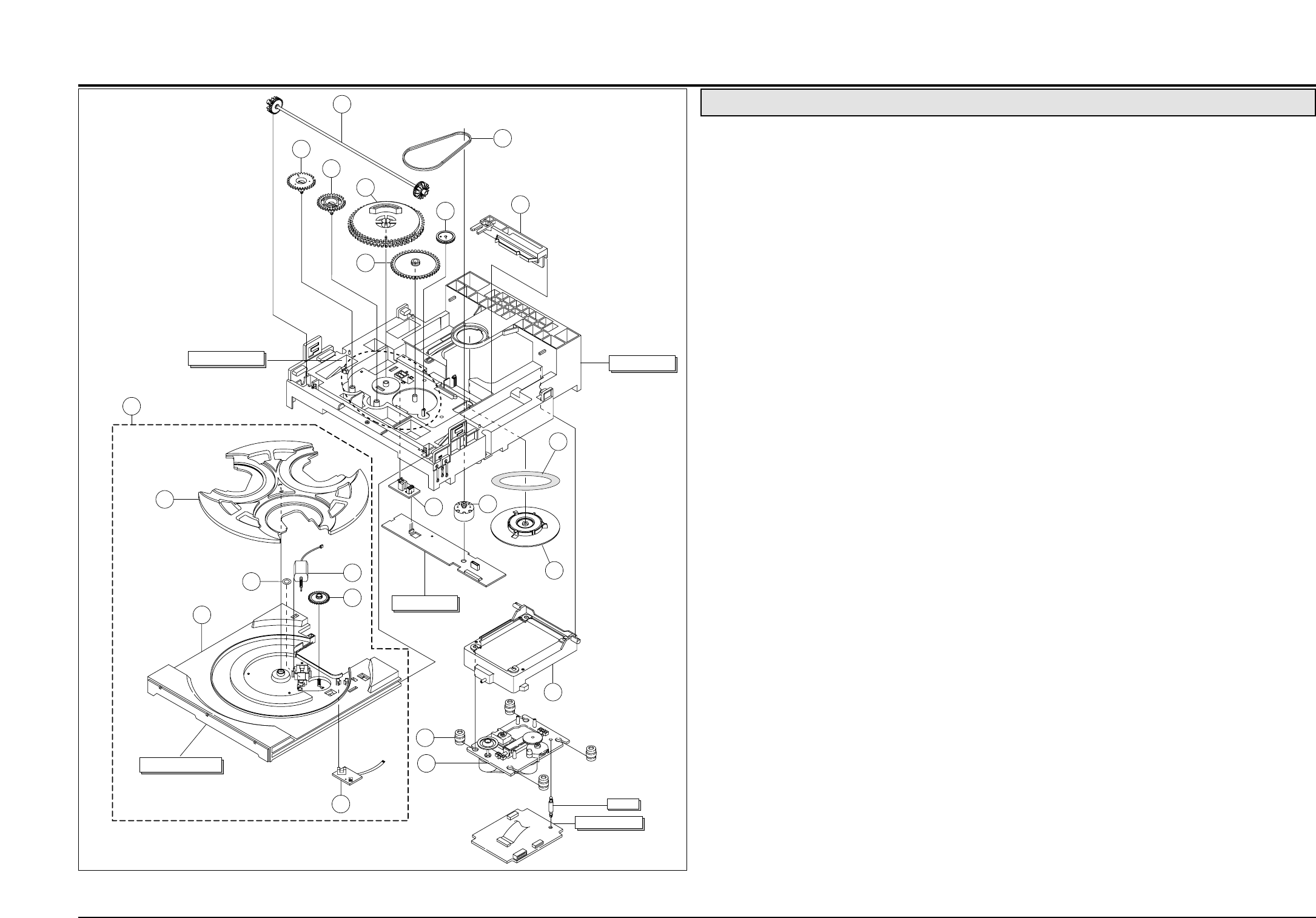

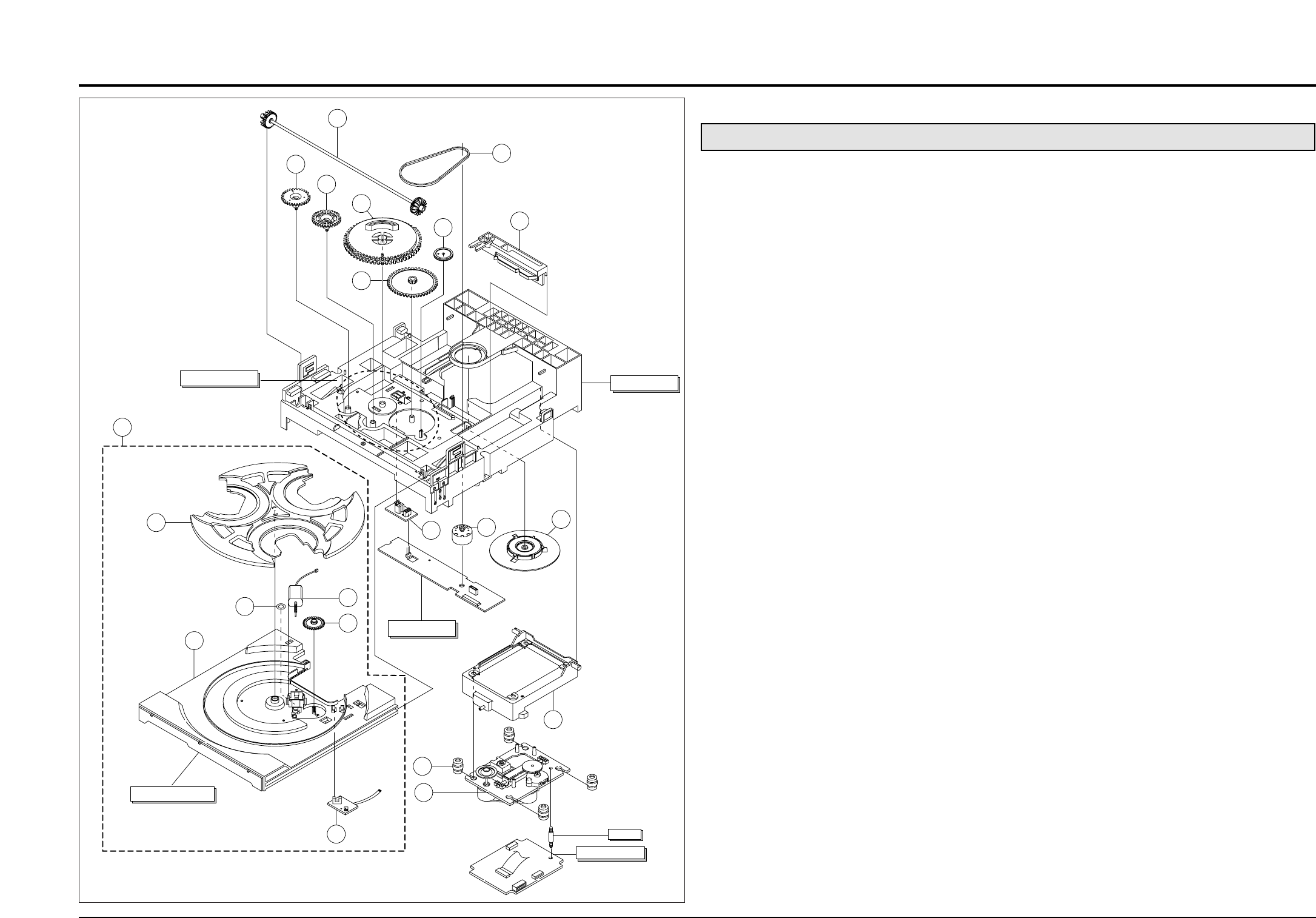

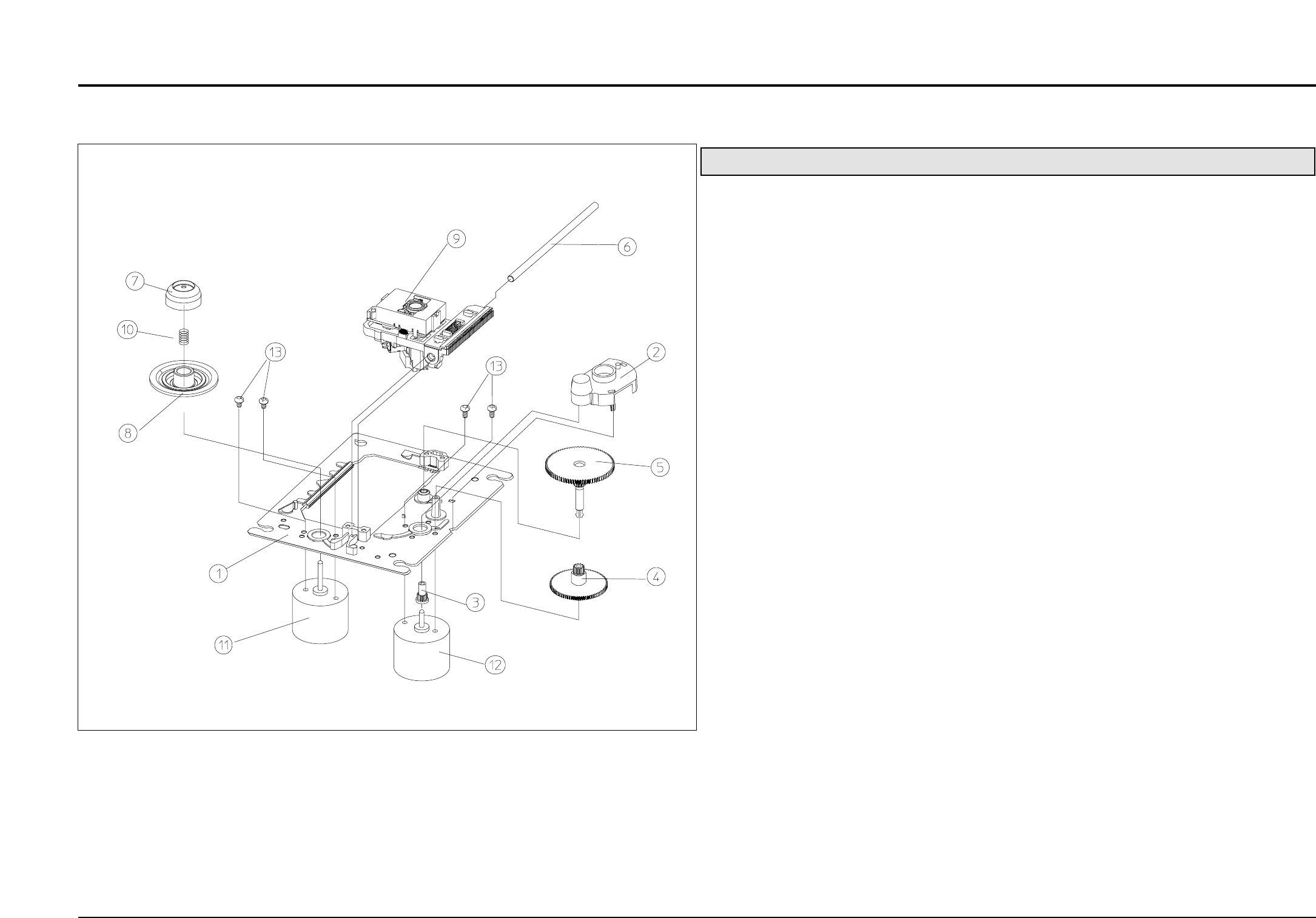

7. Exploded Views and Parts List
8. Electrical Parts List

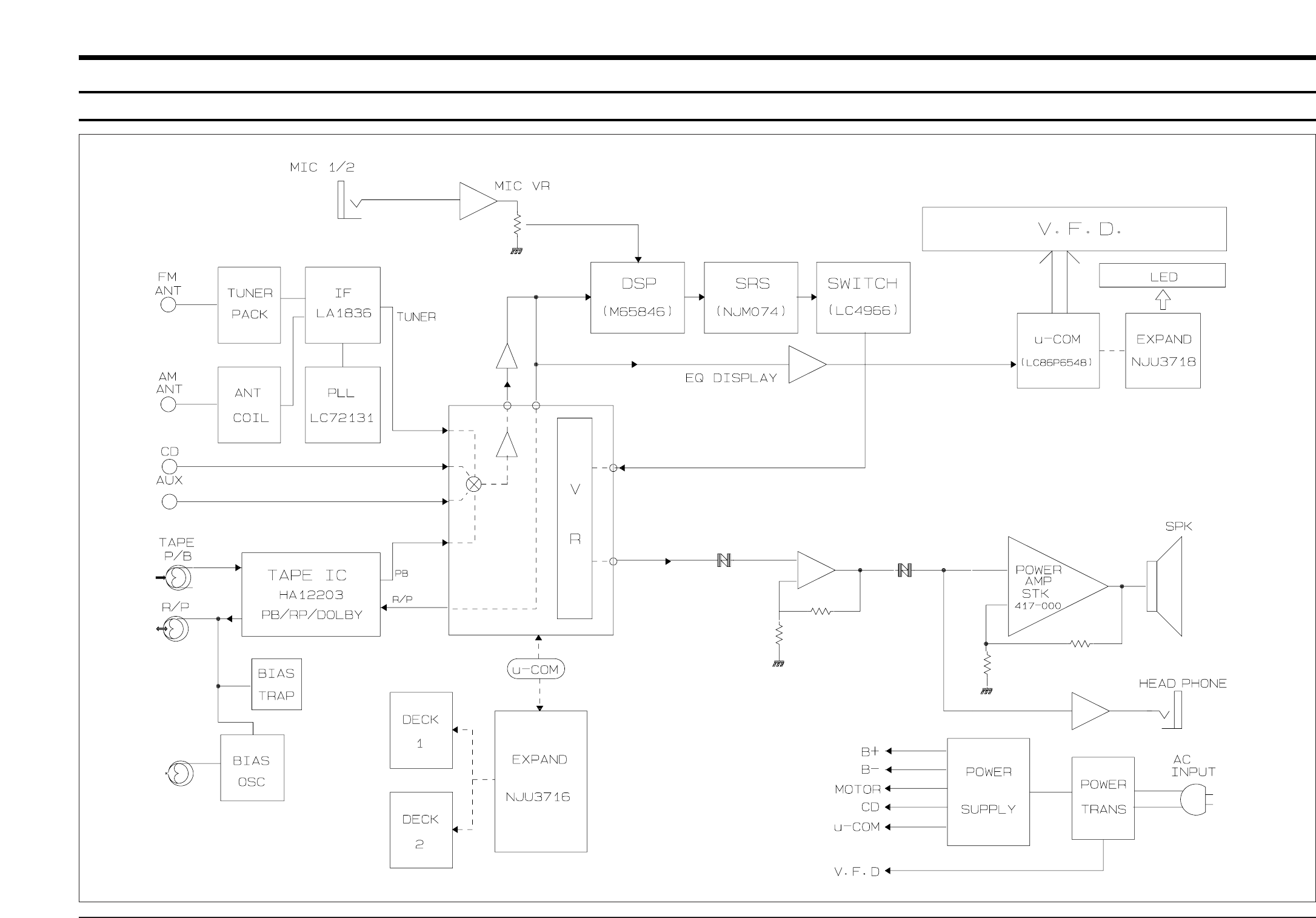

9. Block Diagrams

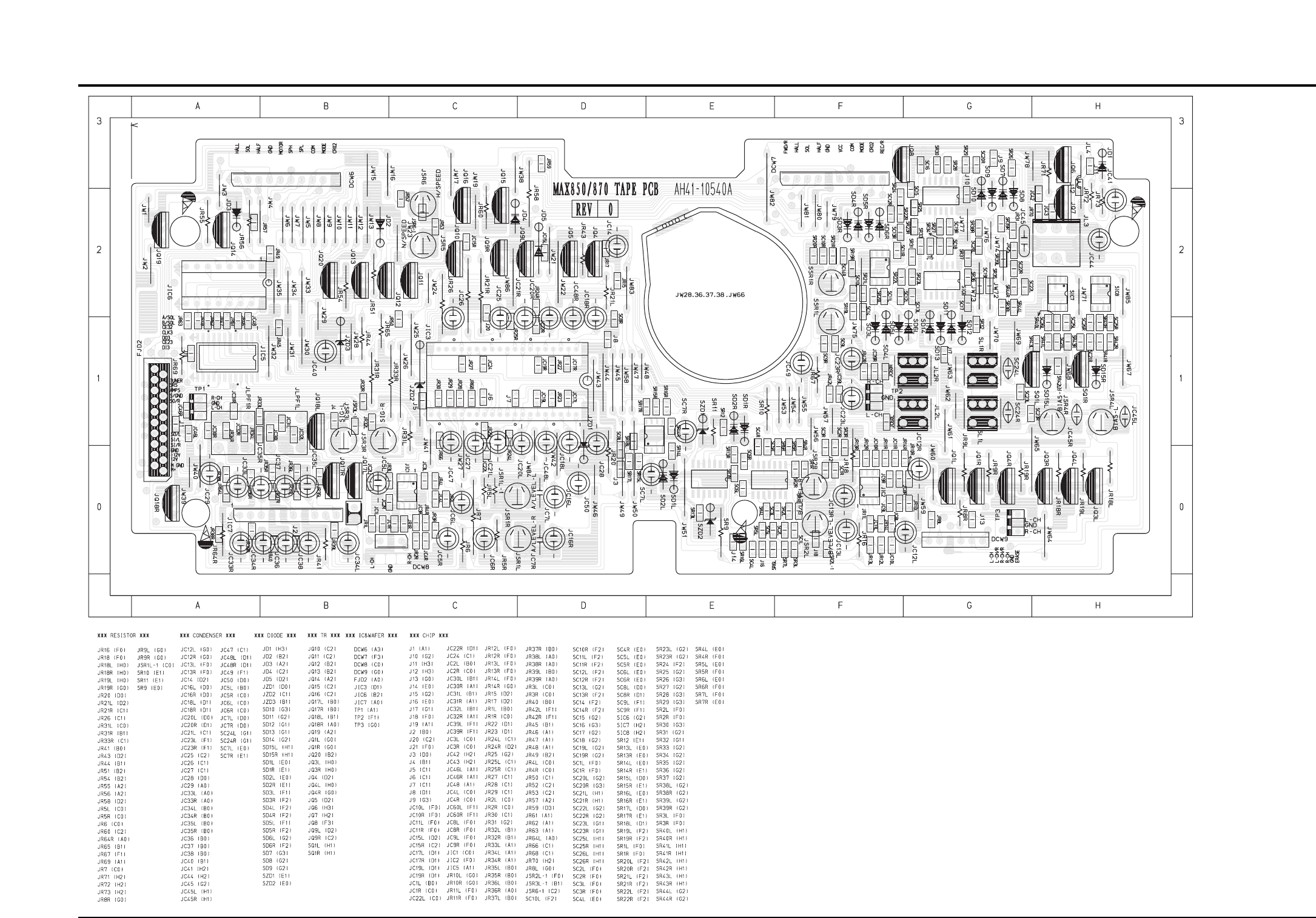

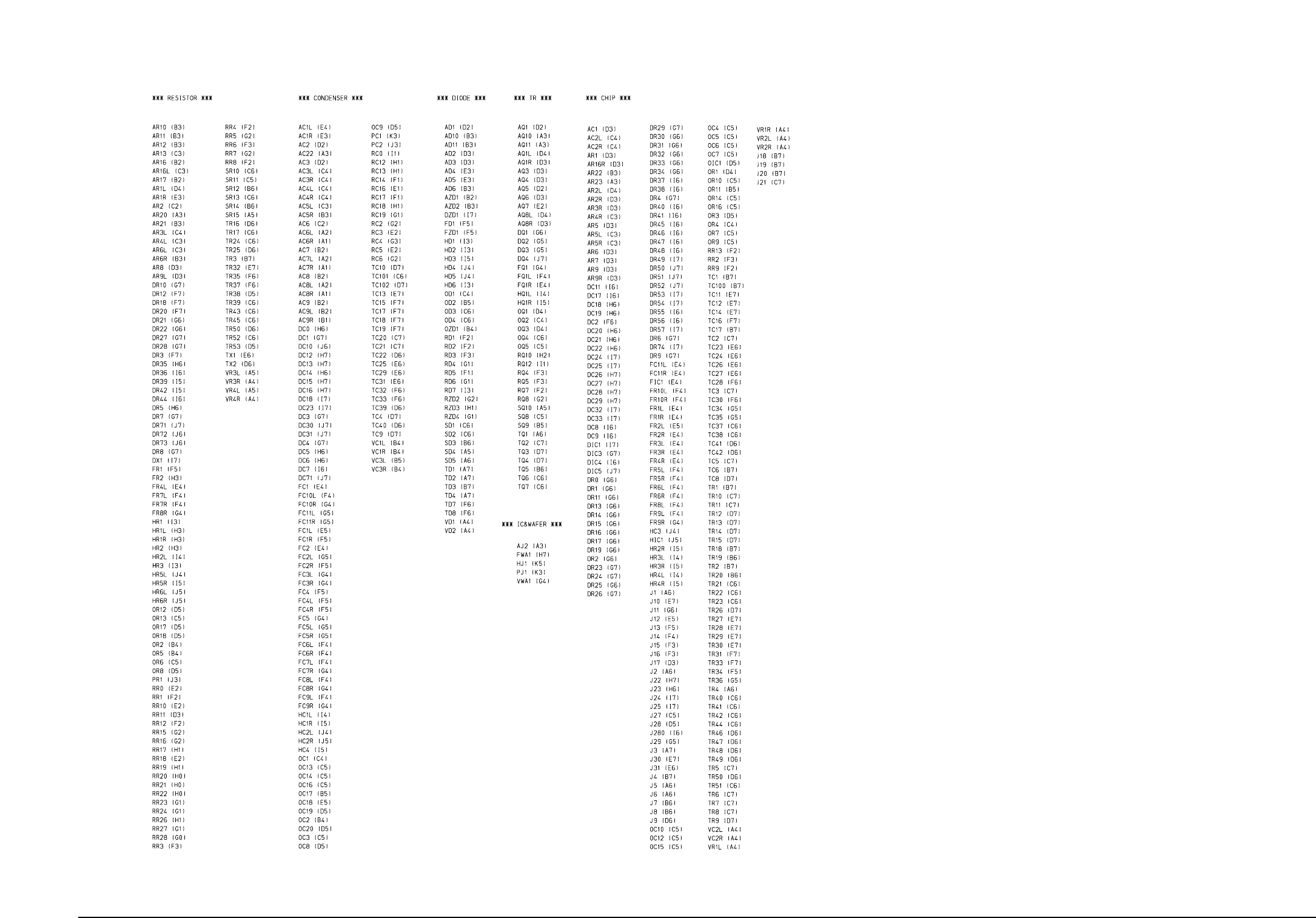

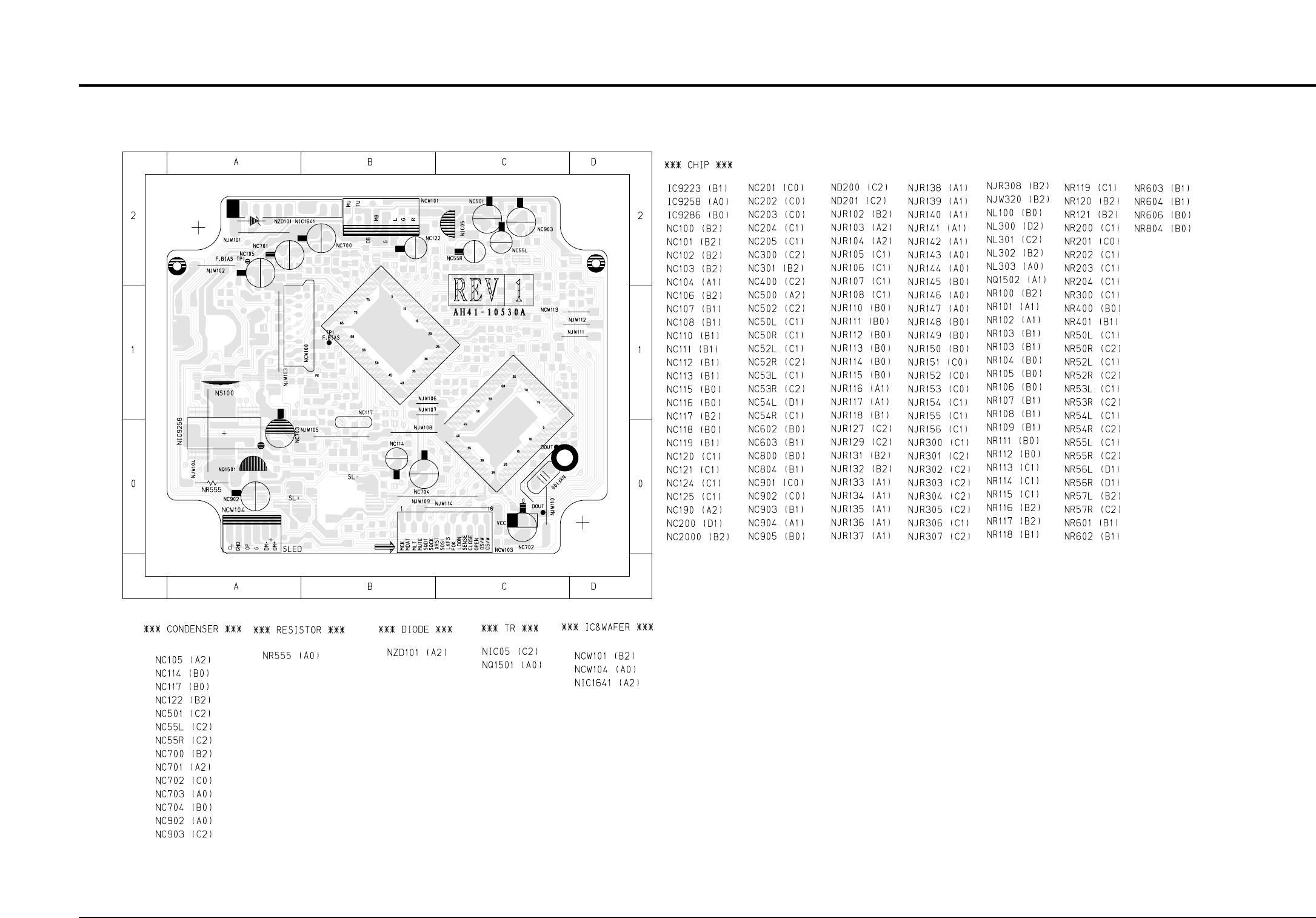

10. PCB Diagrams

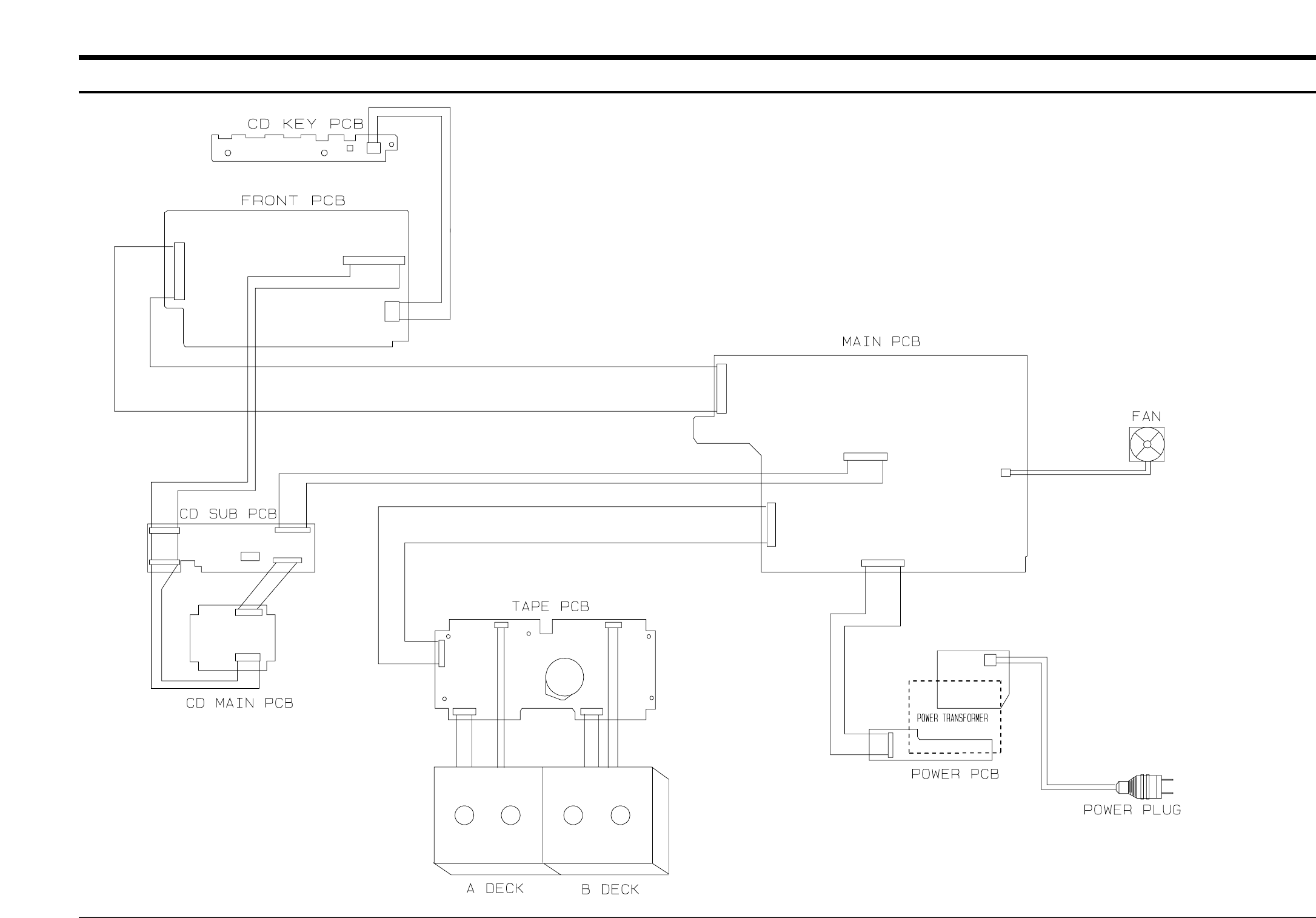

11. Wiring Diagram

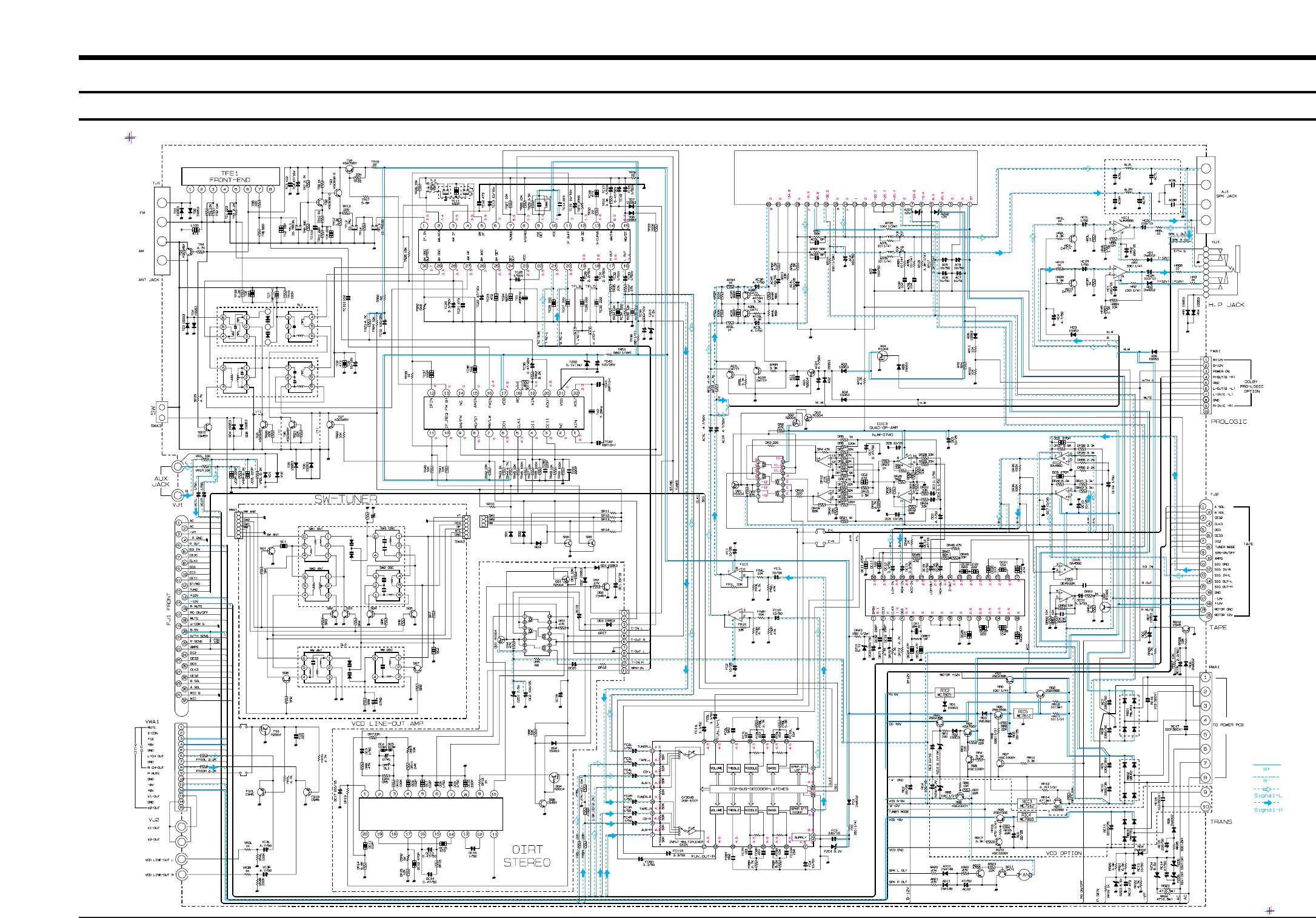

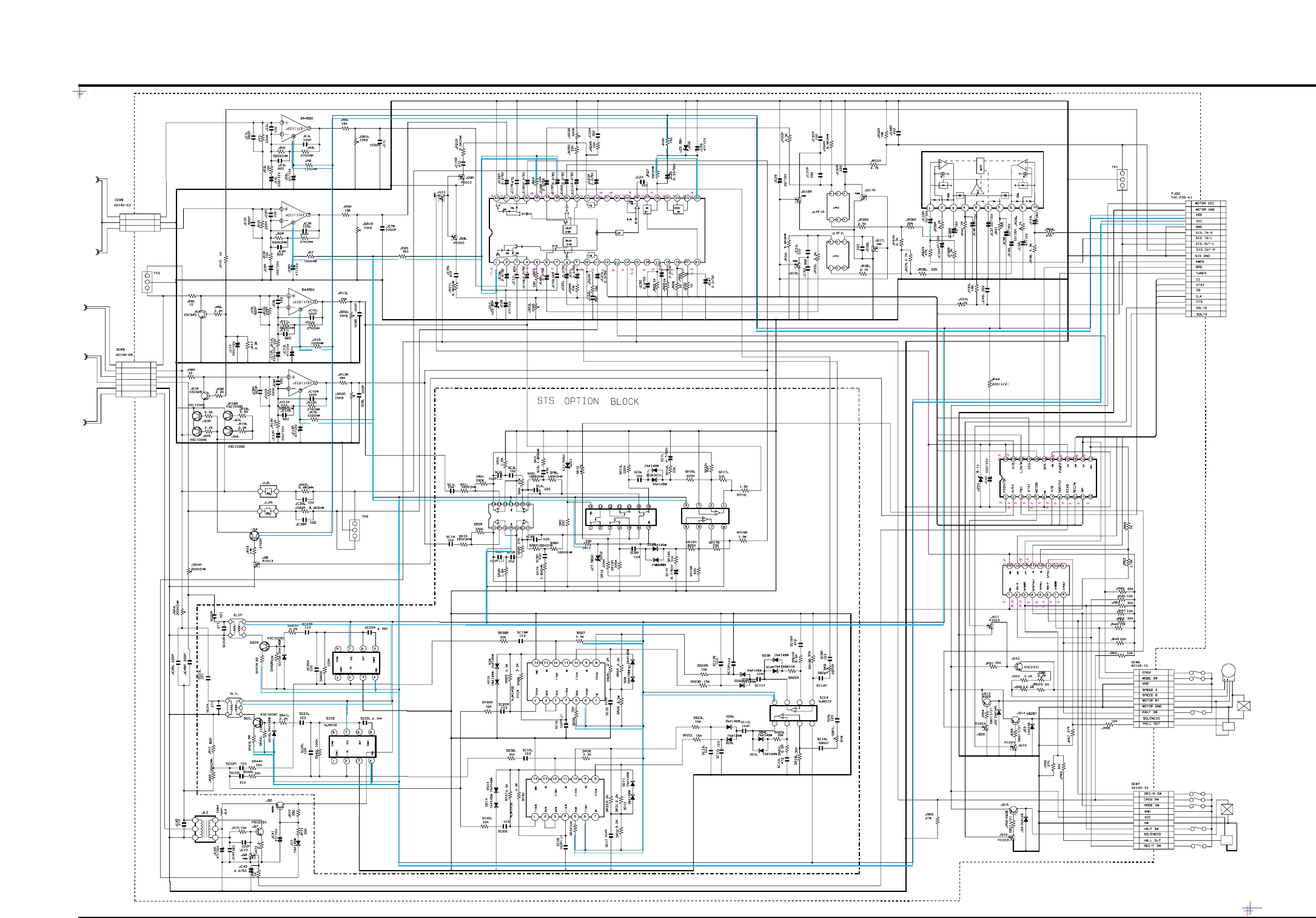

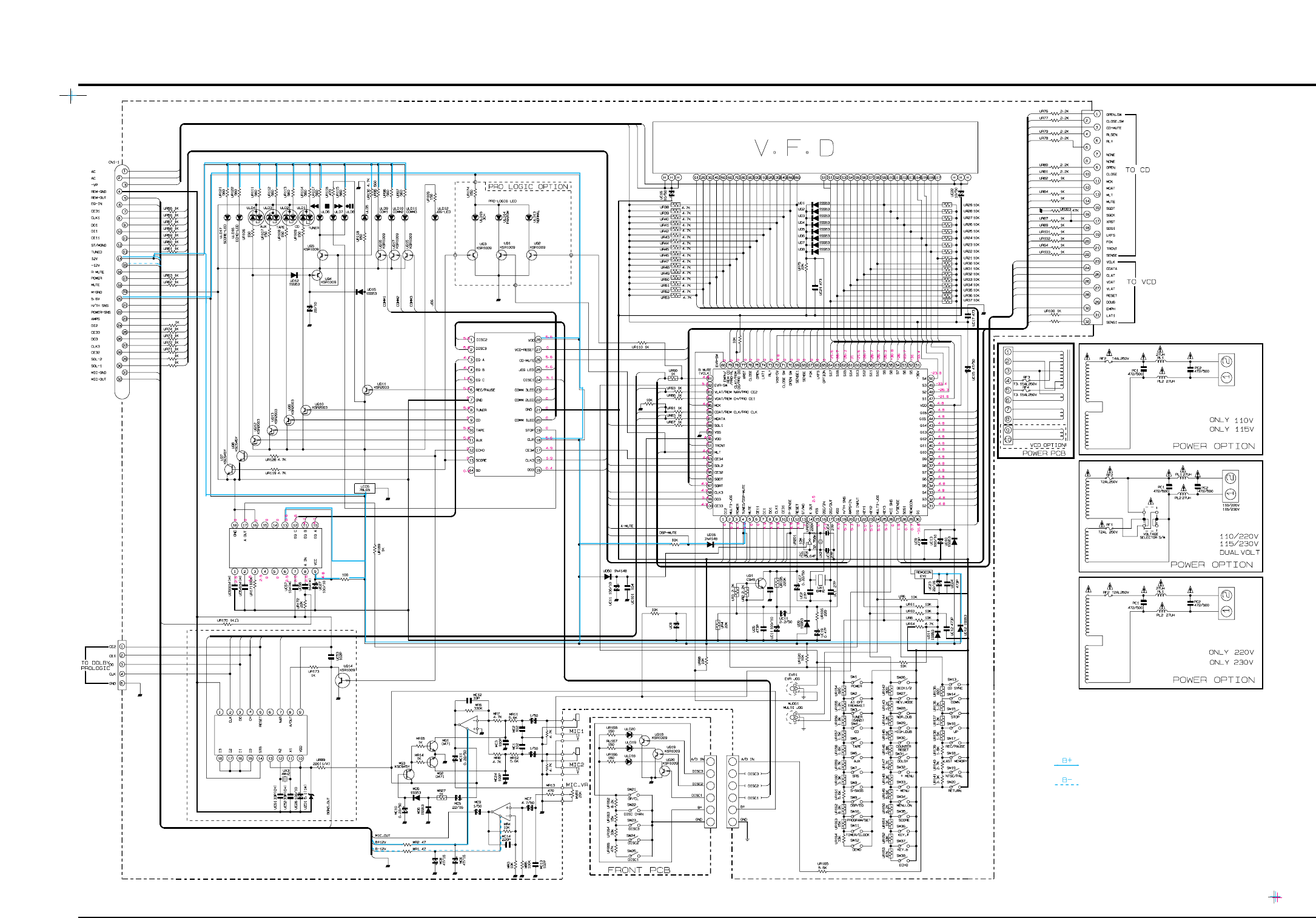

12. Schematic Diagrams
ELECTRONICS
© Samsung Electronics Co.,Ltd. Jan. 1998
Printed in Korea
Code no. AH68-20177A
1. Precautions
Follow these safety, servicing and ESD precautions to prevent damage and protect against potential hazards
such as electrical shock and X-rays.
Samsung Electronics 1-1
1-1 Safety Precautions
1. Be sure that all of the built-in protective
devices are replaced.
2. When reinstalling the chassis and its
assemblies, be sure to restore all protective
devices, including control knobs and
compartment covers.
3. Make sure that there are no cabinet
openings through which people--
particularly children--might insert fingers
and contact dangerous voltages. Such
openings include the spacing between the
picture tube and the cabinet mask,
excessively wide cabinet ventilation slots,
and improperly fitted back covers.
4. Design Alteration Warning:
Never alter or add to the mechanical or
electrical design of the unit. Example: Do
not add auxiliary audio or video connec-
tors. Such alterations might create a safety
hazard. Also, any design changes or addi-
tions will void the manufacturer's warran-
ty.
5. Leakage Current Hot Check (Figure 1-1):
Warning: Do not use an isolation
transformer during this test. Use a leakage-
current tester or a metering system that
complies with American National Standards
Institute (ANSI C101.1, Leakage Current for
Appliances), and Underwriters Laboratories
(UL Publication UL1410, 59.7).
With the unit completely reassembled, plug
the AC line cord directly into a 120V AC
outlet. With the unit's AC switch first in
the ON position and then OFF, measure the
current between a known earth ground
(metal water pipe, etc.) and all exposed
metal parts. Examples: Handle brackets,
metal cabinets, screwheads and control
shafts. The current measured should not
exceed 0.5 milliamp. Reverse the power-
plug prongs in the AC outlet and repeat.
6. Insulation Resistance Cold Check:
(1) With the unit's AC plug disconnected
from the AC source, connect an electrical
jumper across the two AC prongs. (2) Set
the power switch to ON. (3) Measure the
resistance between the shorted AC plug and
any exposed metallic parts. Example:
Screwheads, antenna, control shafts or
handle brackets.
If any of the exposed metallic parts has a
return path to the chassis, the measured
resistance should be between 1 and 5.2
megohms. If there is no return path, the
measured resistance should be "infinite." If
the resistance is outside these limits, a shock
hazard might exist. See Figure 1-2
Device
Under
Test
(Reading should
not be above
0.5mA)
Leakage
Currant
Tester
Earth
Ground
Test all
exposed metal
surfaces
Also test with
plug reversed
(using AC adapter
plug as required)
2-Wire Cord
Antenna
Terminal
Exposed
Metal Part
ohm Ohmmeter

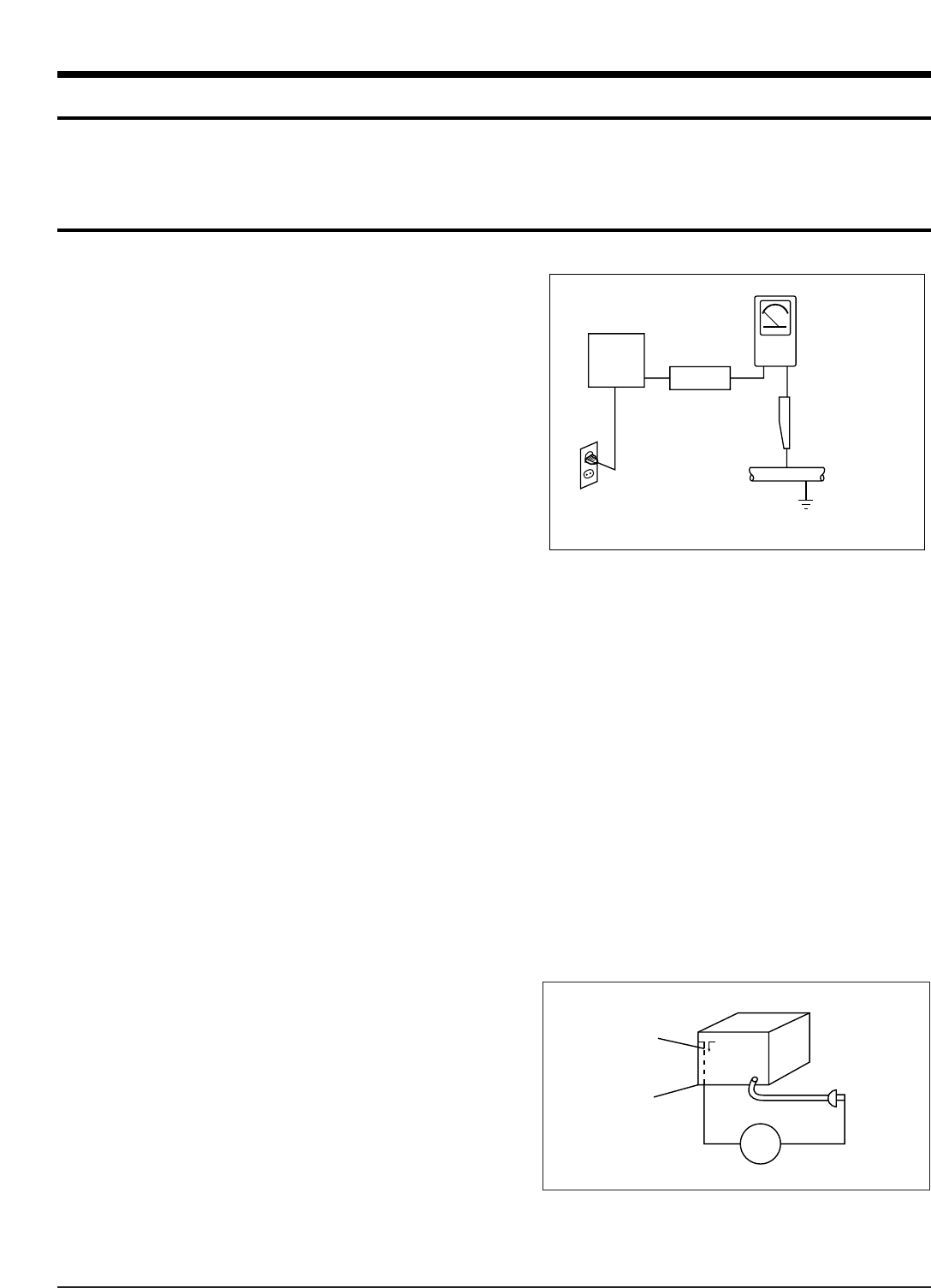

Fig. 1-1 AC Leakage Test
Fig. 1-2 Insulation Resistance Test
Samsung Electronics1-2
1-1 Safety Precautions (Continued)
7. Components, parts and wiring that appear
to have overheated or that are otherwise
damaged should be replaced with parts
that meet the original specifications.
Always determine the cause of damage or
overheating, and correct any potential
hazards
8. Observe the original lead dress, especially
near the following areas: Antenna
wiring, sharp edges, and especially the
AC and high voltage power supplies.
Always inspect for pinched, out-of-place,
or frayed wiring. Do not change the
spacing between components and the
printed circuit board. Check the AC
power cord for damage. Make sure that
no wires or components touch thermally
hot parts.
9. Product Safety Notice:
Some electrical and mechanical parts
have special safety-related characteristics
which might not be obvious from visual
inspection. These safety features and the
protection they give might be lost if the
replacement component differs from the
original--even if the replacement is rated
for higher voltage, wattage, etc.
10 Components that are critical for safety are
indicated in the circuit diagram by
shading, or . Use replacement
components that have the same ratings,
especially for flame resistance and
dielectric strength specifications. A
replacement part that does not have the
same safety characteristics as the original
might create shock, fire or other hazards.
1-2 Servicing Precautions
1. Servicing precautions are printed on the
cabinet. Follow them.
2. Always unplug the unit's AC power cord
from the AC power source before
attempting to: (a) Remove or reinstall any
component or assembly, (b) Disconnect an
electrical plug or connector, (c) Connect a
test component in parallel with an
electrolytic capacitor.
3. Some components are raised above the
printed circuit board for safety. An
insulation tube or tape is sometimes used.
The internal wiring may be clamped to
prevent contact with thermally hot
components. Reinstall all such elements to
their original position.
4. After servicing, always check that the
screws, components and wiring have been
correctly reinstalled. Make sure that the
portion around the serviced part has not
been damaged.
5. Check the insulation between the blades of
the AC plug and accessible conductive parts
(examples: metal panels, input terminals
and earphone jacks).
6. Insulation Checking Procedure: Disconnect
the power cord from the AC source and
turn the power switch ON. Connect an
insulation resistance meter (500V) to the
blades of the AC plug.
The insulation resistance between each
blade of the AC plug and accessible
conductive parts (see above) should be
greater than 1 megohm.
7. Never defeat any of the B+ voltage
interlocks. Do not apply AC power to the
unit (or any of its assemblies) unless all
solid-state heat sinks are correctly installed.
8. Always connect a test instrument's ground
lead to the instrument chassis ground
before connecting the positive lead; always
remove the instrument's ground lead last.
Precautions
Warning1: First read the "Safety Precautions" section of this manual. If some unforeseen circumstance creates a conflict
between the servicing and safety precautions, always follow the safety precautions.
Samsung Electronics 1-3
1-3 Precautions for Electrostatically Sensitive Devices (ESDs)
1-4 Special Precautions and Warning Labels for Laser Products
1. Some semiconductor ("solid state") devices
are easily damaged by static electricity.
Such components are called Electrostatically
Sensitive Devices (ESDs). Examples include
integrated circuits and some field-effect
transistors. The following techniques will
reduce the occurrence of component
damage caused by static electricity.
2. Immediately before handling any
semiconductor components or assemblies,
drain the electrostatic charge from your
body by touching a known earth ground.
Alternatively, wear a discharging
wrist-strap device. (Be sure to remove it
prior to applying power--this is an electric
shock precaution.)
3. After removing an ESD-equipped assembly,
place it on a conductive surface such as
aluminum foil to prevent accumulation of
electrostatic charge.
4. Do not use freon-propelled chemicals.
These can generate electrical charges that
damage ESDs.
5. Use only a grounded-tip soldering iron
when soldering or unsoldering ESDs.
6. Use only an anti-static solder removal
device. Many solder removal devices are
not rated as "anti-static" (these can
accumulate sufficient electrical charge to
damage ESDs).
7. Do not remove a replacement ESD from its
protective package until you are ready to
install it. Most replacement ESDs are
packaged with leads that are electrically
shorted together by conductive foam,
aluminum foil or other conductive
materials.
8. Immediately before removing the protective
material from the leads of a replacement
ESD, touch the protective material to the
chassis or circuit assembly into which the
device will be installed.
9. Minimize body motions when handing
unpackaged replacement ESDs. Motions
such as brushing clothes together, or lifting
a foot from a carpeted floor can generate
enough static electricity to damage an ESD.
Precautions
UL : Manufactured for U.S.A. Market.
CSA : Manufactured for Canadian Market.
EU : Manufactured for European Market.
SCAN : Manufactured for Scandinavian
Market.
This Product Complies with
DHHS Rules 21CFR, Sub
chapter J.At date of Manu-
facture
(UL)
(SCAN)
(EU)
CERTIFIED ONLY TO CANADIAN
ELECTRICAL CODE.
CERTIFIE EN VERTU DU CODE
CANADIAN DE LELETRICITE
SEULEMENT
(CSA)
CLASS 1
LASER PRODUCT
(EU)
Fig. 1-3 Warning Labels (Location: Enclosure Block)
Fig. 1-4 Warning Labels (Location: Disc Clamper, Inner Side of Unit Door or Nearby Unit Chassis )
CAUTION : INVISIBLE LASER RADIATION WHEN OPEN
AND INTERLOCKS DEFEATEO AVOIDEXPOSURE TO BEAM
ADVARSEL:USYNLIG LASERSTRÅLING VED ABNING
NÅR SIKKERHEDSAFBRYDERE ER UDE AF FUNKTION
UNDGA UDSAETTELSE FOR STRALING
VARO:AVATTAESSA JA SUOJALUKITUS OHITETTAESSA
OLET ALTTINA NAKYMATTÖMALLE LASERSATEILYLLE ALA
KATSO SATEESEEN!
VARNING:OSYNLIG LASERSTRÅLNING NAR DENNA DEL
AR OPPNAD OCH SPARREN AR URKOPPLAD BETRAKTA
EJSTRÅLEN!
Samsung Electronics1-4
1-4 Special Precautions and Warning Labels for Laser Products (Continued)
1-4-1 Warnings
1. When servicing, do not approach the LASER
exit with the eye too closely. In case it is
necessary to confirm LASER beam emission,
be sure to observe from a distance of more
than 30 cm from the surface of the objective
lens on the optical pick-up block.
2. Do not attempt to handle the objective lens
when the DISC is not on the tray.
1-4-2 Laser Diode Specifications
Material: GaAs+ GaAlAs
Wavelength: 760-800 nm
Emission Duration: Continuous
Laser Output: 0.2 mw (measured at a
1.6 mm distance from the objective lens
surface on the optical pick-up block.)

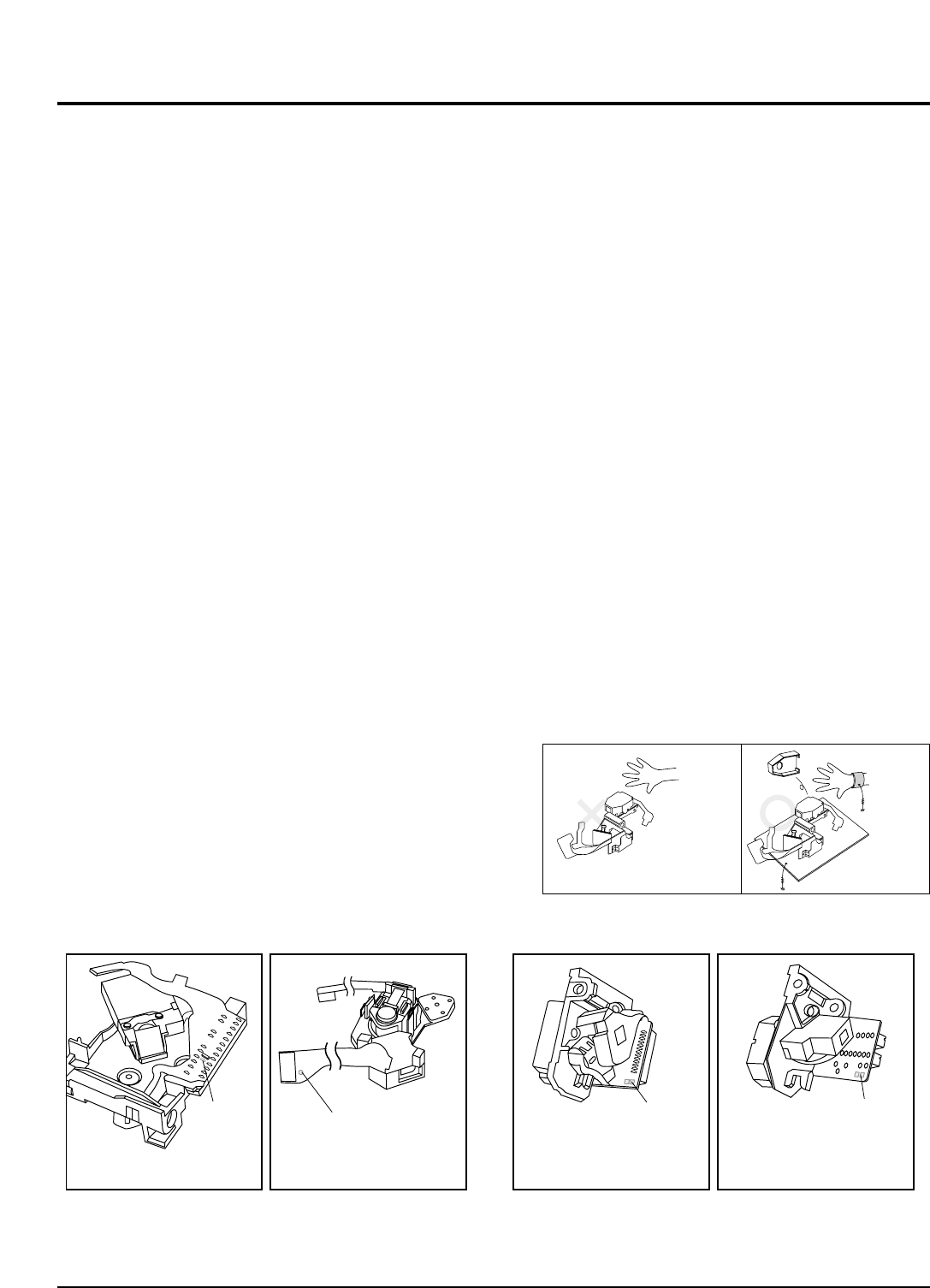

1-4-3 Handling the Optical Pick-up
1. Static electricity from clothing or the body
may cause electrostatic breakdown of the
laser diode in the Optical Pickup. Follow
this procedure:
2. Place a conductive sheet on the work bench
(i.e., the black sheet used for wrapping
repair parts.) Note: The surface of the work
bench should be covered by a copper
ground plane, which is grounded.
3. The repair technician must wear a wrist
strap which is grounded to the copper sheet.
4. To remove the Optical Pickup block:
Place the set on the conductive sheet, and
momentarily touch the conductive sheet
with both hands. (While working, do not
allow any electrostatic sources--such as
clothes--to touch the unit.)
5. Ground the "Short Terminal" (located on the
PCB, inside the Pickup Assembly) before
replacing the Pickup. This terminal should
be shorted whenever the Pickup Assembly
is lifted or moved.
6. After replacing the Pickup, reopen the Short
Terminal. See diagrams below:
Precautions
THE UNIT
(1) WRIST-STRAP
FOR GROUNDING
1M
1M
CONDUCTIVE SHEET
short
terminal short terminal short
terminal short
terminal
SOH91VI(LDP) SOH91CI(CAR,walkman) SOH94T4N
(CMS-V10,CMS-V30)
SOH-A1
(CMS-V10,CMS-V30)
2. Product Specfications
Samsung Electronics 2-1
General
Amp
Cassette
Tuner
Compact Disc
FM
MW
(AM)
LW
(option)
Power source
Power consumption
- MAX-870
- MAX-880
Dimensions (mm)
Power output (Front)
- MAX-870
- MAX-880
Total harmonic distortion
Frequency response
Signal to noise ratio
Channel separation
Input sensitivity
- Mic
- Aux
Frequency range
Usable sensitivity
Signal to noise ratio
IF rejection ratio
Total harmonic distoration
Separation (Stereo)
Frequency range
Usable sensitivity
Signal to noise ratio
IF rejection ratio
Total harmonic distortion
Frequency range
WOW FLUTTER
Erasing effect
Signal to noise ratio
Total harmonic distortion
Frequency response
Signal to noise ratio
Channel separation
Total harmonic distortion
Audio Output
125Hz ~ 12.5KHz(-5dB)
0.15%
60 dB
40 dB
2.5%
20Hz ~ 20KHz(±1dB)
90 dB(1kHz)
75 dB(1kHz)
0.1% (100Hz)
0.05%(1kHz)
0.2% (10kHz)
1V (1kHz 0dB)
Frequency range
Usable sensitivity
Signal to noise ratio
146 ~ 290KHz
60 dB
35 dB
87.5 ~ 108MHz
6 dB
62 dB
60 dB
0.3%
35 dB
522 ~ 1611KHz
54 dB
40 dB
30 dB
2%
100W / Ch(6Ω) (THD 10%)
150W / Ch(6Ω) (THD 10%)
0.08% (1kHz)
30Hz ~ 30kHz
75 dB
50 dB (1kHz)
5mV (±3)
400mV (±80)
AC 230V 50HZ (option)
340W
550W
270(W) x 317(H) x 340(D)
Specifications are subject to change without notice.

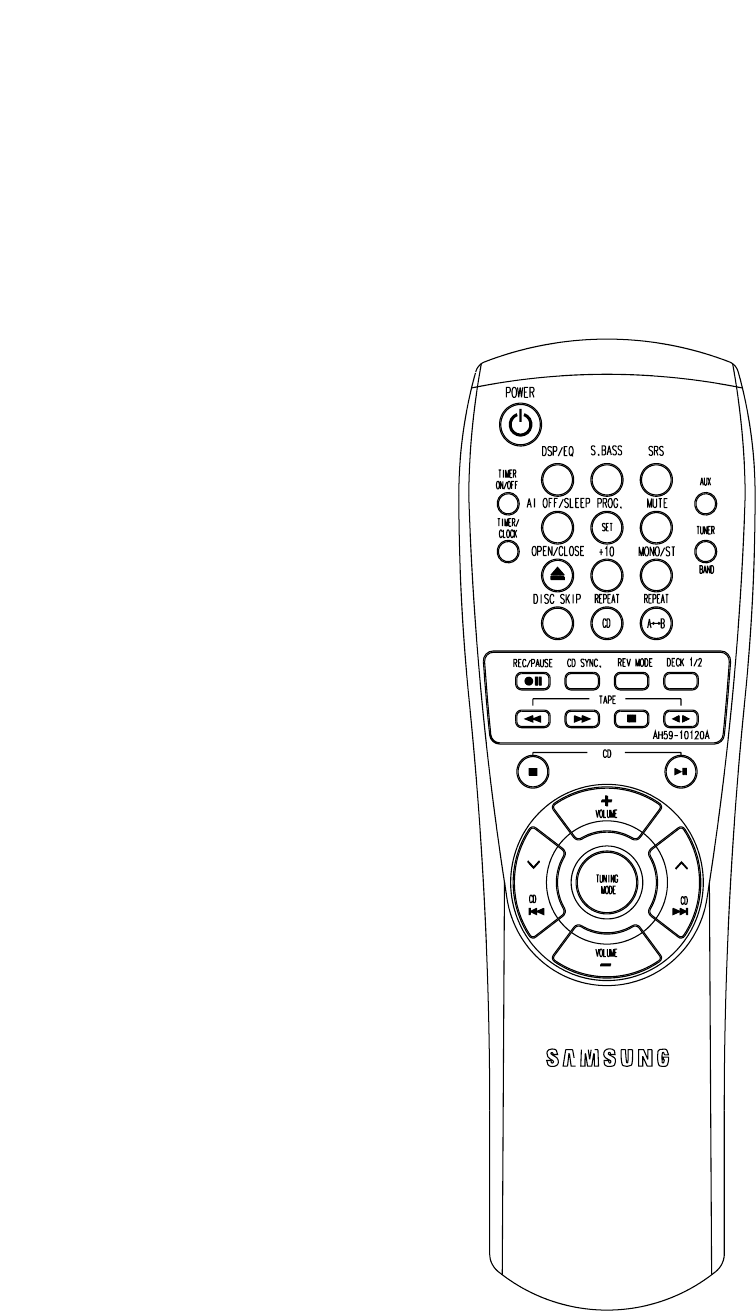

Remote Control
3. Disassembly and Reassembly
3-1 Cabinet-Top
* If power is connected ;
1. Turn power on and open the CD ,push the Door-CD in the direction of arrow to remove.
2. Remove 7 screws !, @holding the Cabinet-Top.
Lift the back of the Cabinet-Top and shade it to the rear to remove.
* If power is not connected ;
Remove the Cabinet-Top and Turn the Gear the clockwise using the hand as shown in figure 3-1-1.
Open the Door-CD and pull the Tray in the direction of arrow @.
Figure 3-1
Samsung Electronics 3-1
Figure 3-1-1
Figure 3-2
3-2 Samsung Electronics
3-2 CD-Mecha, Door-CD
Disassembly and Reassembly
1. Remove 4 screws #, $.
2. Lift the back of the CD-Mecha to remove.

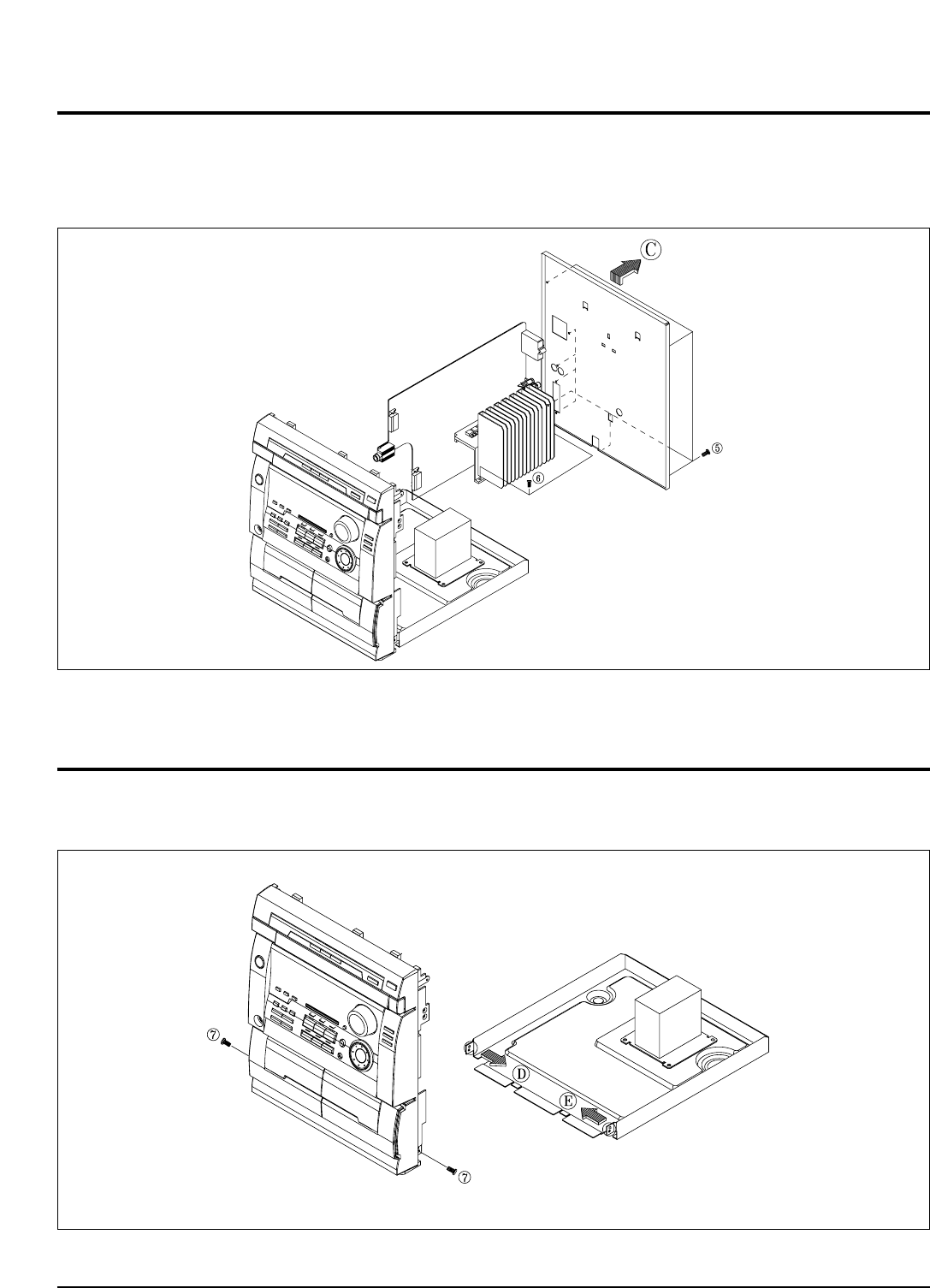

3-3 Cabinet-Rear and Main PCB
1. Remove 9 screws %.
2. Lift the Cabinet-Rear and slide it to the rear by releasing the hook of Cabinet-Bottom.
3. Remove 2 screws ^ and slide the Main PCB to the rear to remove.
1. Remove 2 screws &.
2. Slide it to the front by releasing two hooks on the bottom of Cabinet-Front to remove.
Figure 3-3
Figure 3-4
3-4 Cabinet-Front and Cabinet-Bottom
Samsung Electronics 3-3
Disassembly and Reassembly
Figure 3-5
3-4 Samsung Electronics
Disassembly and Reassembly
3-5 CD Mecha
Refer to the next page
for timming point
Samsung Electronics 3-5
Disassembly and Reassembly
3-5 CD Mecha Continued
3-5-1 Tray Disassembly
3-5-2 Main Disassembly
3-5-3 CD Main PCB Disassembly
*When removing, take extreme care not to damage the hook.
1. Open the Tray Disc AssÕy by turning the Gear-Load(%) in the direction of open,then remove the Wire-Tray(Q).
2. Remove two Tray-Stopper and tray.
1. Remove the Tray-Roulette(3) from the Tray-Disc AssÕy(4) by releasing the hook.
2. Remove the PCB-Sensor AssÕy(5) from the tray by releasing the hook.
3. Remove the Worm-Motor AssÕy())from the Tray-Disc AssÕy(4).
4. Remove the Cushion-Motor(1) from the Tray.
5. Remove the Gear-Roulette(2) from the Tray-Disc AssÕy(4) by releasing the hook.
1. Remove the Table-Chuck AssÕy(6) from the Base-Main by turning it.
2. Push the Slider-Cam(!)towards right, then lift it up to remove.
3. Remove the Gear-Tray(^) from the Base-Main by releasing the fixed hook.
4. Remove the Gear-Converter(&)from the Base-Main by releasing the fixed hook.
5. Remove the Gear-Cam(%) from the Base-Main by releasing the fixed hook.
6. Remove the Belt(@) from the Pulley-Motor AssÕy(7) & the Gear-Pulley(#).
7. Remove the Gear-Pulley(#) from the Base-Main by releasing the fixed hook.
8. Remove the Gear-Load($).
9. Remove the Gear-Synchro(*).
10. Desolder two soldering points of the CD SUB PCB, then remove it from Base-Main by
releasing the hook.
11. Remove the Pulley-Motor AssÕy(7) by releasing the hook.
12. Remove the PCB-SW AssÕy(8) by releasing the hook.
1. Remove the Lever-Lifter(9) from the Base-Main by releasing two hooks.
2. Remove four Rubber-CD(0) from the Lever-Lifter and then remove the Deck-CD(“).
3. Remove the Hook.
4. Remove the CD MAIN PCB with the soldering iron.
Figure 3-6
Figure 3-7
3-6 Samsung Electronics
Disassembly and Reassembly
* Reinstall in reverse order.
* Align the Gear-Cam with the Gear-Tray as
shown ing Figure 3-6, then mount the Tray-Disc.
* When assembling the Tray-Disc,take extreme
care not to engage with Gear-Synchro.
Gear-Cam
Gear-Cam
Gear-Cam
Gear-Cam
Timming Point
Gear-Cam
Gear-Synchro
Gear-Disc
Insert
Figure 3-8
Samsung Electronics 3-7

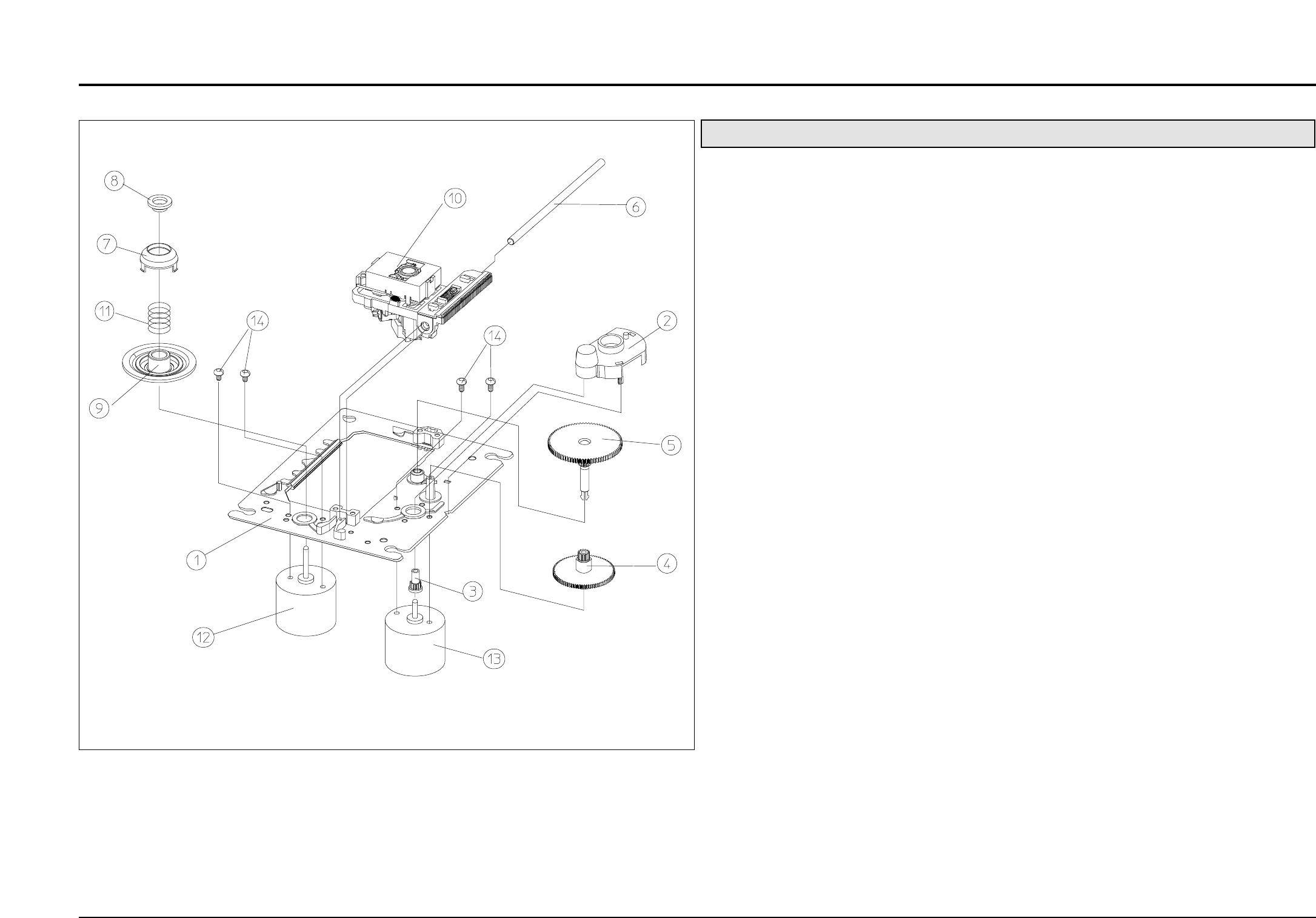

3-6 CD Deck
1. Remove the Shaft !.
2. Lift the P/U @.
Note : Take extreme care not to touch the surface of lens.
If there is an alien materials, clean it with swab smeared alcohol.
3. Lift the Center-ring #.
4. Remove the Spring-T/Table $.
5. Remove the Turn-Table (M) %.
6. Remove 2 screws ^and then remove the Spindle-Motor &.
7. Remove the Cover-Gear *by pushing the hook.
8. Remove the Gear (c) (by pushing the hook.
9. Lift the Gear(b) ).
10. Remove the Gear(a) 1.
11. Remove 2 screws 2and the then remove the Feed-Motor 3.
12. Remove the Chassis-Deck (M) 4.
Disassembly and Reassembly
Figure 3-9
3-8 Samsung Electronics
3-6 CD Deck (Option)
Disassembly and Reassembly
1. Remove the Shaft !.
2. Lift the P/U @.
Note : Take extreme care not to touch the surface of lens.
If there is an alien materials, clean it with swab smeared alcohol.
3. Lift the Center-Knob #.
4. Remove the Center-ring $.
5. Remove the Spring-T/Table %.
6. Remove the Turn-Table(M) ^.
7. Remove 2 screws &and then remove the Spindle-Motor *.
8. Remove the Cover-Gear (by pushing the hook.
9. Remove the Gear(c) )by pushing the hook.
10. Lift the Gear(b) 1.
11. Remove the Gear(a) 2.
12. Remove 2 screws 3and then remove the Feed-Motor 4.
13. Remove the Chassis-Deck(M) 5.
Samsung Electronics
4. Alignment and Adjustments
4-1 Tuner
4-1
FM THD Adjustment
Output
Output 450kHz
60 dB
Minumum Distortion (0.3% below)
(Figure 4-1)
SSG FREQ.
Adjustment
point
(TL3)
98 MHz
FM DETECTOR COIL
FM Search Level Adjustment
Adjust IVR1 so that “TUNED” of FLT is
lighted (Figure 4-2)
Figure4-2 FM Auto Search Level Adjustment
*Adjust FM S.S.G level to 23dB
Figure4-1 IF CENTER and THD Adjustment
SSG FREQ.
Adjustment
point
(TSR2)
98 MHz
BEACON
SENSITIVITY
SEMI-VR(5KΩ)FM S.S.G GND
23 dB
FM S.S.G
Output
GND
Speaker
Terminal
FM
Antenna
Terminal
Distortion Meter
Input
SET
Input
output
Oscilloscope
FM IN
FM Antenna
SET
5 kΩ
TSR1
AM TUND
TL3
FM T.H.D
TSR2
FM TUND
Alignment and Adjustments
4-2 Samsung Electronics
4-2-1 To Adjust Tape Speed
1) Measuring tape: i) MTT-111 (or equivalent)
(Tapes recorded with 3kHz)
ii) MTT-5512 (or equivalent)
2) Connect the cassette deck to the frequency counter
as in figure 4-3.
1) Before the actual adjustment, clean the play/recording
head.
2) Measuring tape :
i) MTT-114NA(or equivalent 12.5kHz AZIMUTH control)
ii) MTT-150(or equivalent : Dolby level 200nwb/m)
3) Dolby NR SW OFF
4) The cassette deck is connections as shown in figure 4-5.
Notes Notes
NOR
SPEED
Control
1
2
OUT
(connected
to the frequency
counter)
Turn JSR5 to
left and right 3KHz
6KHz
Turn JSR6
to left and
right
Remark
Standard
To Adjust
Pre-Setup
Item
Step Pre-Setup
Condition
Same as above
1) Deck 1:MTT-111
2) Press PLAY
SW button
3) Deck 2:Same
as above
1) Deck 1:MTT-111
2) Deck 2:MTT-5512
3) Press Hi Speed
dubbing SW button
HI SPEED
Control
AZIMUTH
1
2
TP1 OUT
(VTVM is
connected to
the scope)
1) Turn the control
screw to as shown
in Figure4-4.
2) Adjust the right
control screw to
playback REV. Mode
Max output
and same phase
(both channels)
After
adjustment
secure it with
REGION
LOCK.
150mV
L-CH:Turn JSR1L
to the right and
left
R-CH:Turn J SR1R to
the right and left
See the
diagram for
adjustment
locations.
Remark
Standard
To Adjust
Pre-Setup
Item
Step Pre-Setup
Condition
Same as
above
After putting MTT-
114NA into Deck 1
1) Press FWD PLAY
button.
2) Press REV PLAY
button.
PLAY MTT-150
on Deck 1.
PlayBack
out Level
AZIMUTH
1
2
TP1 OUT
(VTVM is
connected to
the scope)
1) Turn the control
screw to as shown
in Figure4-4.
2)Adjust the right
control screw to
playback REV. Mode
Max output
and same phase
(both channels)
After
adjustment
secure it with
REGION
LOCK.
150mV
L-CH:Turn JSR2L
to the right and
left
R-CH:Turn JSR2R to
the right and left
See the
diagram for
adjustment
locations.
Remark
Standard
To Adjust
Pre-Setup
Item
Step Pre-Setup
Condition
Same as
above
After putting MTT-
114NA into Deck 2
1)Press FWD PLAY
button.
2)Press REV PLAY
button.
PLAY MTT-150
on Deck 2.
PlayBack
out Level
4-2-2 To Adjust PlayBack Level
@ Adjust Deck 2 Play Level
! Adjust Deck 1 Play Level
TP1
Cassette Deck
output
LINE OUT
Frequency Counter
Figure 4-3
Figure 4-4
LINE OUT
TP1
Recording /Play head
FWD PLAY
REVERSE PLAY
AZIMUTH control screw
Figure 4-5
In Out
Cassette Deck Oscilloscope
(GND)
VTVM
4-2 Cassette Deck
Alignment and Adjustments
4-3Samsung Electronics
1) Connect the measuring instruments as shown in Figure 4-6.
2) Set the DOLBY NR Switch off.
3) Measuring tape:
MTT-5512 (or equivalent: normal recording)
4) The input signals supply 400Hz 400mV into AUX IN of AMP (AUDIO OSC.)
4-2-3 To Adjust Recording Level
Normal
electric
current
for
recording
1
2
See diagram
for adjustment
locations
See diagram
for adjustment
locations
400 mV
6 mV
Connect to TP2
as in Figure4-6
and read VTVM
L-CH : JSR3L
to the right and
left.
R-CH : JSR3R
to the right and
left
L-CH: JSR4L and
R-CH: JSR4R to
the right and left
To Adjust Standard Remark
Pre-Setup
Item
Step Pre-Setup
Condition
Connect to
TP3 as in Figure
4-6 and read the
VTVM
Insert MTT-5512
into Deck2, then
press REC button.
Insert MTT-5512 into
Deck2, then press
REC button.
BIAS
Electric
current
Figure 4-6
Audio OSC. Cassette Deck Oscilloscope
AUX IN
LINE OUT
VTVM
IN TP
IN OUT
NOTES
JSR6
HI-SPEED
JSR5
NOR SPEED
JSR3L
REC
SIGNAL CURRENT
JSR3R
JSR1R
DECK1
JSR1L
PLAY
JSR2L
JSR2R
DECK2
PLAY
BIAS
JSR4R
CURRENT
JSR4L
Samsung Electronics 5-1
5. Special Circuit Descriptions
5-1 RF Amp Block
5-1-1 RF Amplifier
5-1-2 Focus Error Amp
PD1
PD2
VC
RF-
RFO
RF SUMMINGAMP
VC
VC
VB 10K
58K
IV AMP
VA 10K
58K
IV AMP
+
-
+
-
+
-
65
66
73
74
32K
160K
4K
32K
164K
3K
+
-
+
-
+
-
63
59 FE1
VB>
VA>
SW1
FEBIAS
FEBIAS
sev-stopb
VC fe-stopb
fcmpo
sev-stop
X1 X2 X4 X8 X16
<5 Bit Counter>
The two currents from input pins PD1 (A+C) and PD2 (B+D) are converted into voltages through I/V Amp,
and they are added to RF summing Amp. The photo diode (A+B+C+D) signal which is I-V changed is
outputted by RFO (pin74). At this pin, the eye pattern can be checked.
The output of the focus error amp is the difference between RF I-V AMP(1) output Va and RF I-V AMP(2)
output Vb,just is the Photo Diode ((A+C) - (B+D)) signal which is I-V changed.
The focus error bias voltage applied to the (+) of focus error amp can be changed by D/A converter as shown in
diagram, so that the offset of focus error amp can be adjust automatical.
Focus error bias can be adjusted from the range of +100mV ~ -100mV by connectiong the resistor with pin 63
(FEBIAS).
Special Circuit Descriptions
5-2 Samsung Electronics
5-1-3 Tracking Error Amp
5-1-4 Focus OK Circuit
The current signals from the side spot photo diode (E and F) are input to the E and F pin and converted into
voltage signals by E I-V and F I-V AMP. The output of tracking error amp is due to the difference between
E I-V AMP voltage output.
The E-F balance can be adjusted by modifying the gain of E I-V AMP, and the tracking gain(Pin TE1) can be
adjusted automatically by micom program.
Extracting the DC part of RFI and RFO and comparing with the basic DC level, if RF Level is more than basic
level, the FOK is output. The focus OK circuit generates a timing window of focus on to monitor the focus
search status of focus serve.
+
-
79
68
67
F
E
EI
TGFI
BAL< 4 0 >
GAIN< 3 : 0 >
from Digital
TGL
TGH
TE1 LPFT
BALL
To ISTAT,TRCNT
BALH
GAIN
-
UP/DOWN
75K
220K
110K
56K
27K
13K
13K
16K
7.5K
3.3K
1.5K
IV AMP
IV AMP
WIN COMP
WIN COMP
54 55
-
40K
40K
40K 90K
57K
FOK
VC+0.625V
+
-
74
75 40
+
-
Special Circuit Descriptions
Samsung Electronics 5-3
5-1-5 Mirror Circuit
5-1-6 EFM Comparator
After RFI signal is amplified by mirror amp, mirror signal is held in peak and bottom circuit. The following of
100KHZ traverse is possible in peak hold circuit and the loss of track count due to defect is counted in bottom
hold circuit. Mirror output beyond 2KHz is. ÒLÓ at track on disc, ÒHÓ at interval between track on disc, ÒHÓ
when the defect beyond 1.4ms is detected.
The time constant for the mirror hold must be sufficiently large than of the traverse signal
The EFM comparator converts a RF signal into a binary signal
As the asymmertry due to variations in disc manufacturing can not be eilminated by thr AC coupling alone,
the reference voltage of EFM comparator is controlled utilizing the fact that the generation probability of 1,0
50% each in the binary EFM signals.
+
-
+
-
+
-
+
-
75
1
39
38K
96K
17K
1.5K
2.5K
17K
19K
IRF
MIRROR
MCP
Peak and
Bottom
Hold
+
-
+
-
+
-
77 1
39
40K
100K
100K
20K
85K
19K
RFI EFM
ASY
Special Circuit Descriptions
5-4 Samsung Electronics
5-1-7 Defect Circuit
5-1-8 APC Circuit
The RFO signal bottom, after being inverted, is held with two time constant of long and short.
The short time-constant bottom hold is done for a disc mirror defect more than 0.1msec, the long
time-constant bottom hold is done with the mirror level prior to the defect. By differentiating this with a
capacitor coupling and shifting the level, both signals are compared to generate the mirror defect detection
signal.
As the laser diode has large negative temperature characteristic in its optical output when driven with a
constant current on laser diode. Therefore, the output on processing monitor photo diode, must be a
controlled current for getting regularly output power, thus the APC (Auto Power Control) circuit is composed.
75K
43K
28K
75K
VC
37.5K
75
2
5 4
41
RFO
DCB
SSTOP/DFCT
DFCT
DCC2DCC1
+
-
+
-
BOTTOM
HOLD
BOTTOM
HOLD
43.5K LD
5.15K
150K
150K
150K
300K
0.75K
69
70
PD
LDON
PN
From Micom
+
-
+
-
Special Circuit Descriptions
Samsung Electronics 5-5

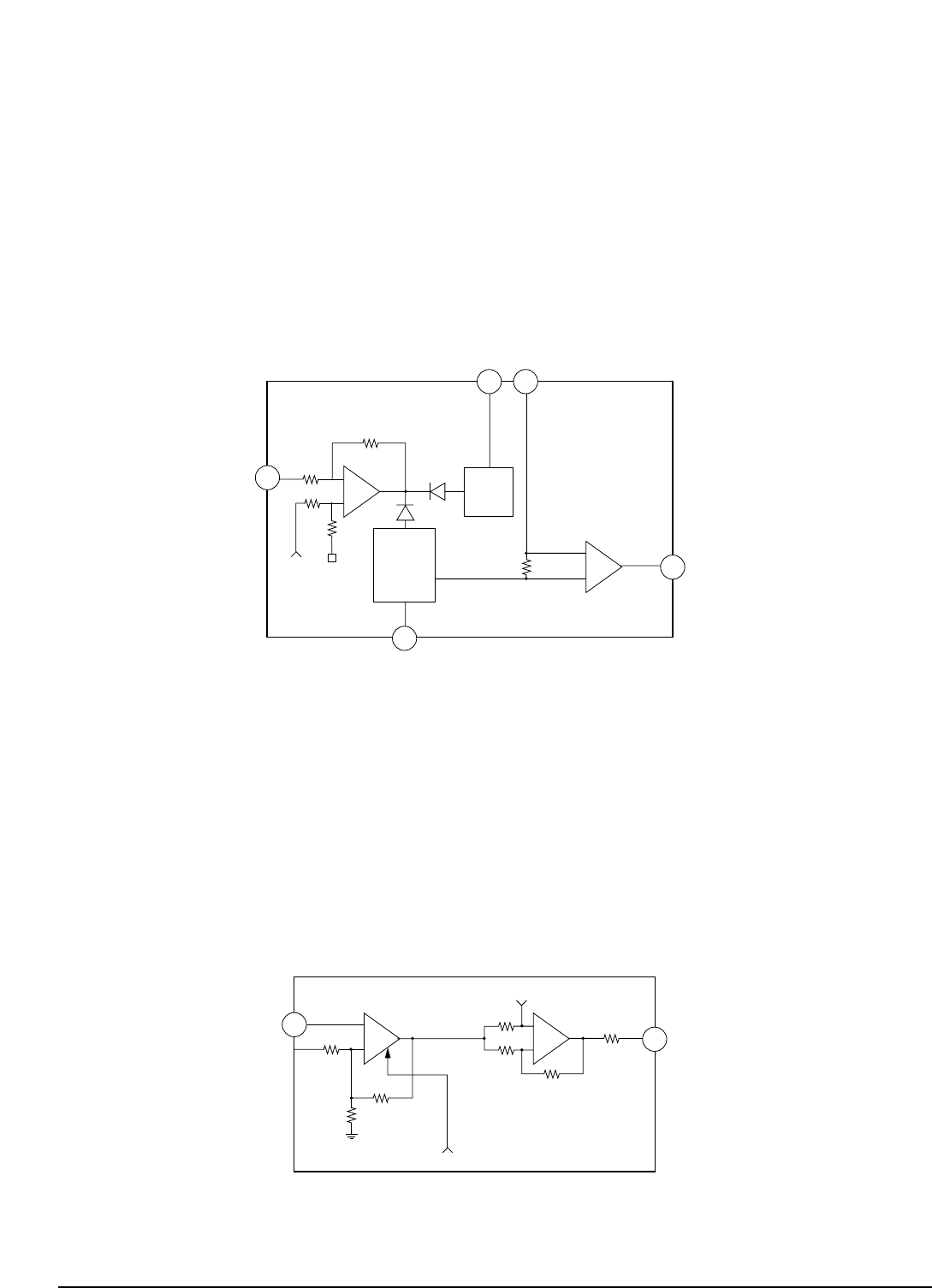

5-1-9 AGC Stability Circuit
5-1-10 Post Filter

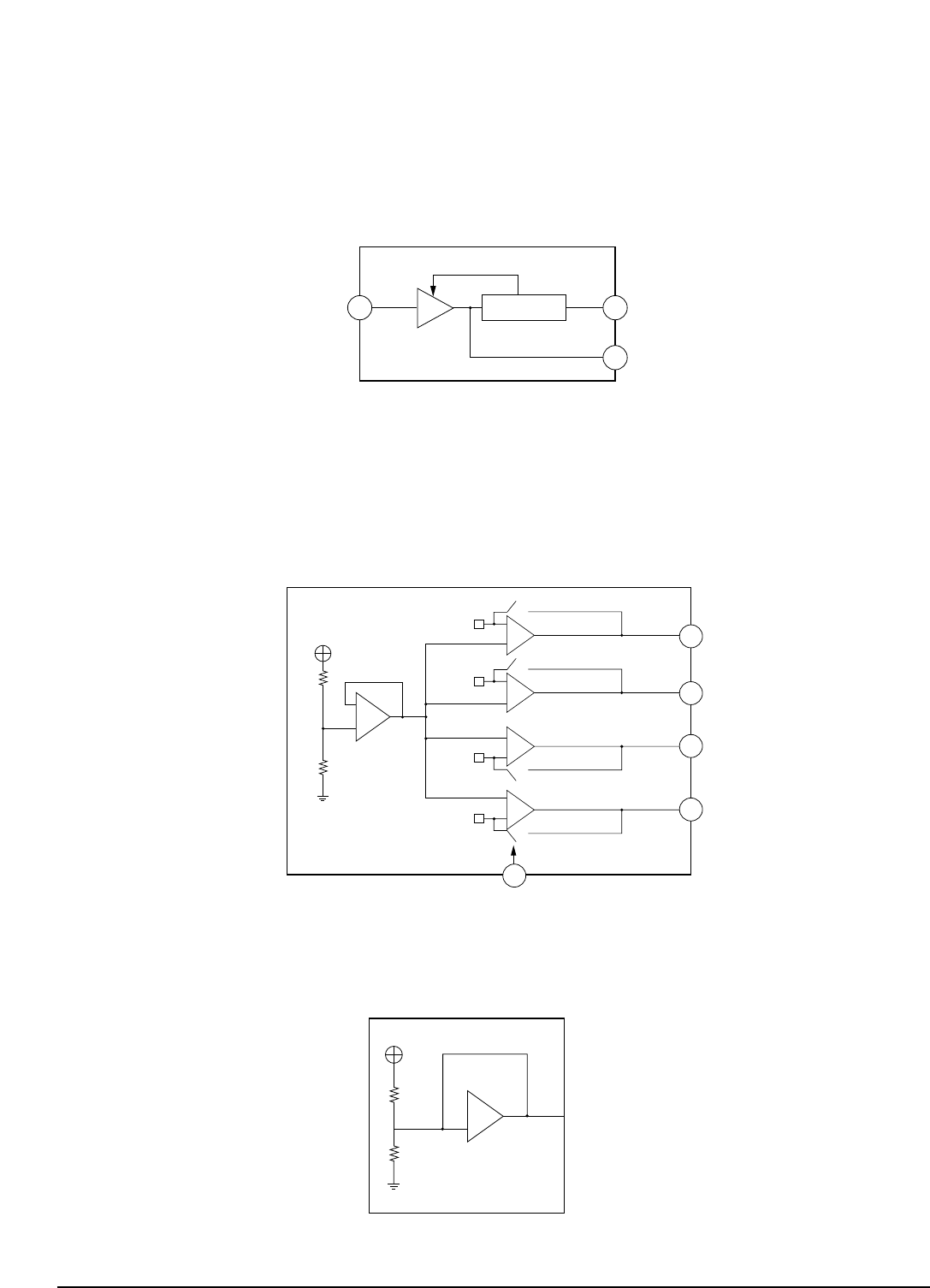

5-1-11 Center Voltage Generation Circuit
The gain is adjusted by AGC Block with the function of maintainning the definite RF peak to peak level,
after the operation of RF envelop detection and comparing with reference voltage.
RFO level is kept stable in 1Vp-p, and input to EFM Slice.
The adjustment of audio output gain and the integration of possible de-emphasis output are executed by
the low pass filter. If the control by MUTE signal from micom exist, and when input signal absent, two
channel of right and left is builted in.
The Center Voltage is generated by using resistor dividing voltage.
75 78
76
IRF CAGC
ARF
EQUALIZEVCA
25K
CH2O
GC2O
GC1O
CH1O
25K
CH2I
GC2I
GC1I
GC1I
MUTEI (From Micom)
+
-
+
-
+
-
+
-
+
-
12
10
15
13
19
30K
VC
30K
+
-
Special Circuit Descriptions
5-6 Samsung Electronics

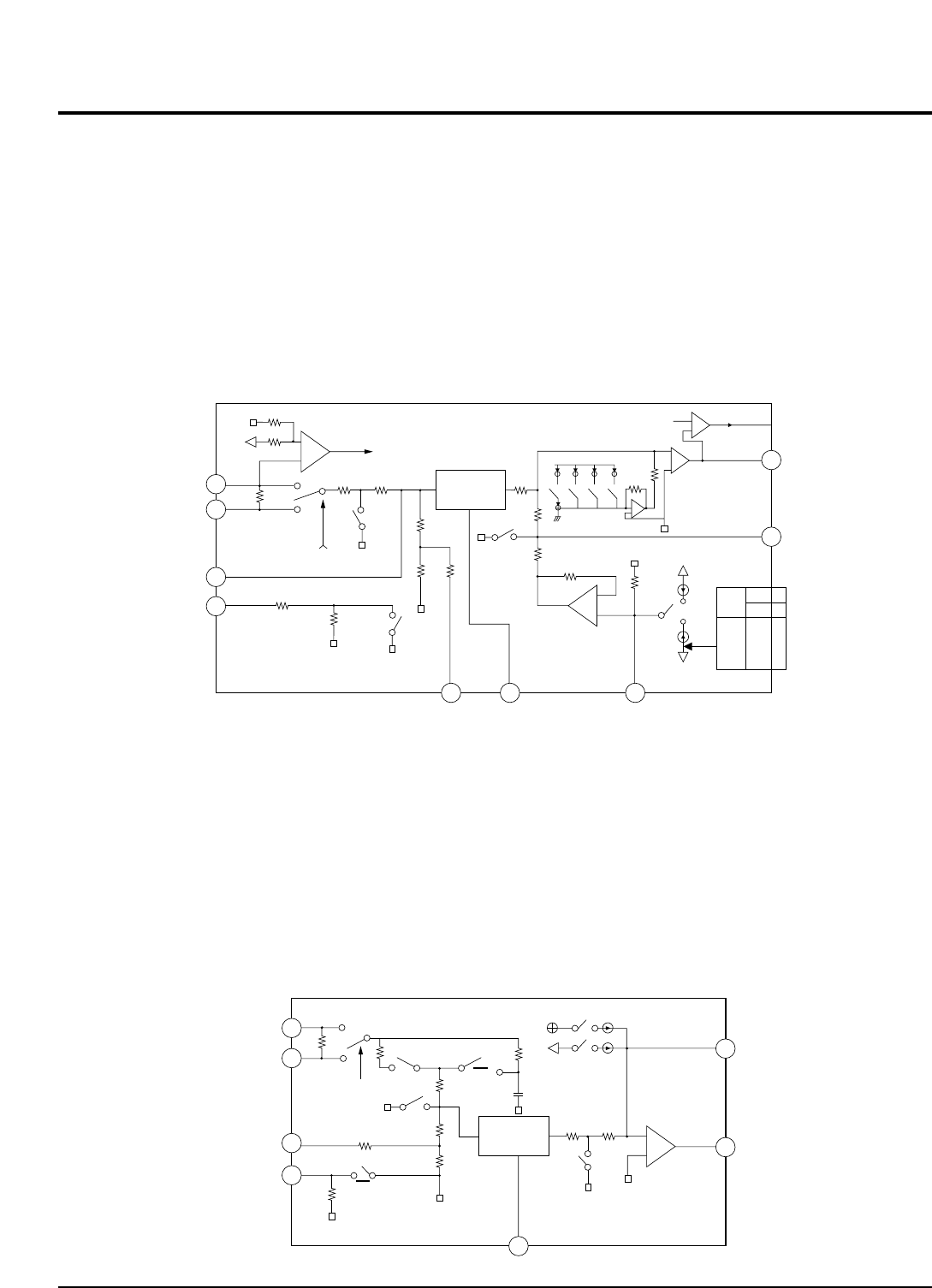

5-2 Servo Block
5-2-1 Focus Servo Block
5-2-2 Tracking Servo Block
When defect=ÒH (the defect signal is detected), the focus servo loop is muting in case of focus phase
compensation. At this time, the focus error signal is outputted through the low pass filter formed by
connecting a capacitor(0.1µF) and a built-in 470K½ resistor to the FDFCT pin (pin60). Accordingly, the focus
error output is held as the error value just before defect error during defect occuring. The peak frequency of
focus loop phase compensation is at about 1.2KHz when the resistor connected to FSET pin(pin6) is 510k½,
and it is inversely proportional to the resistor connected to the FSET pin. While the focus search is operating,
the FS4 switch is on and then focus error signal is isolated, accordingly the focus search signal is output by
FEO pin(pin48). When the FS2 switch is on(focus on), the focus servo loop is on and the focus error signal
from FE2 pin(pin58) is outputted through the focus servo loop.
During detection of defect, the tracking error signal is output through the tracking servo loop after through
the low pass filter formed by connecting a capacitor(0.1µF) and a built-in 470K½ resistor to the TDFCT
pin(pin57) in case of tracking phase compensation. The value of tracking gain up/down can be controlled by
TGU and TG2 pin. The peak frequency of tracking loop phase compensation, the dynamic range and offset of
op amp can be adjusted by changing the value of resistor connected to FSET pin same as focus loop. In case
of unstable status of actuator after jumping, the ON/OFF of tracking loop is controlled by TM7 switch of
break circuit.
After 10-track jumping, servo circuit gets out of the liner range and actuator,s tracking is unstable occasionally.
Accordingly, unnecessary jumping with many tracking error should be prevented.
58
60
28
27
26 6 3
47
48
FE2
3.6K
3.6K
20K
40K
10K
50K
PS
43
0X1 0
0X2 1
1X3 0
1X4 1
FS1
FE-
FED
VC FSCMPO
130K
48K 92K
40K
FS4B FS2B
DFCTI
FZCI
60K
470K
46K 580K FS3
470K
FGD
FS3
FDFCT
+
-
+
-
+
-
+
-
+
-
Focus Phase
Compensation
FLB FSET FRCH
TE2
TGU
TG2
TDFCT
DFCTI
470K
10K
680K
10K 90K
TED
TE-
66PF
680K
470K
82K
110K
TG1 TG1
TM7
FSET
TM4
TM3
+
-
53
57
61
62
6
49
50
TG2
TRACKING
PHASE
COMPENSATION
Special Circuit Descriptions
Samsung Electronics 5-7

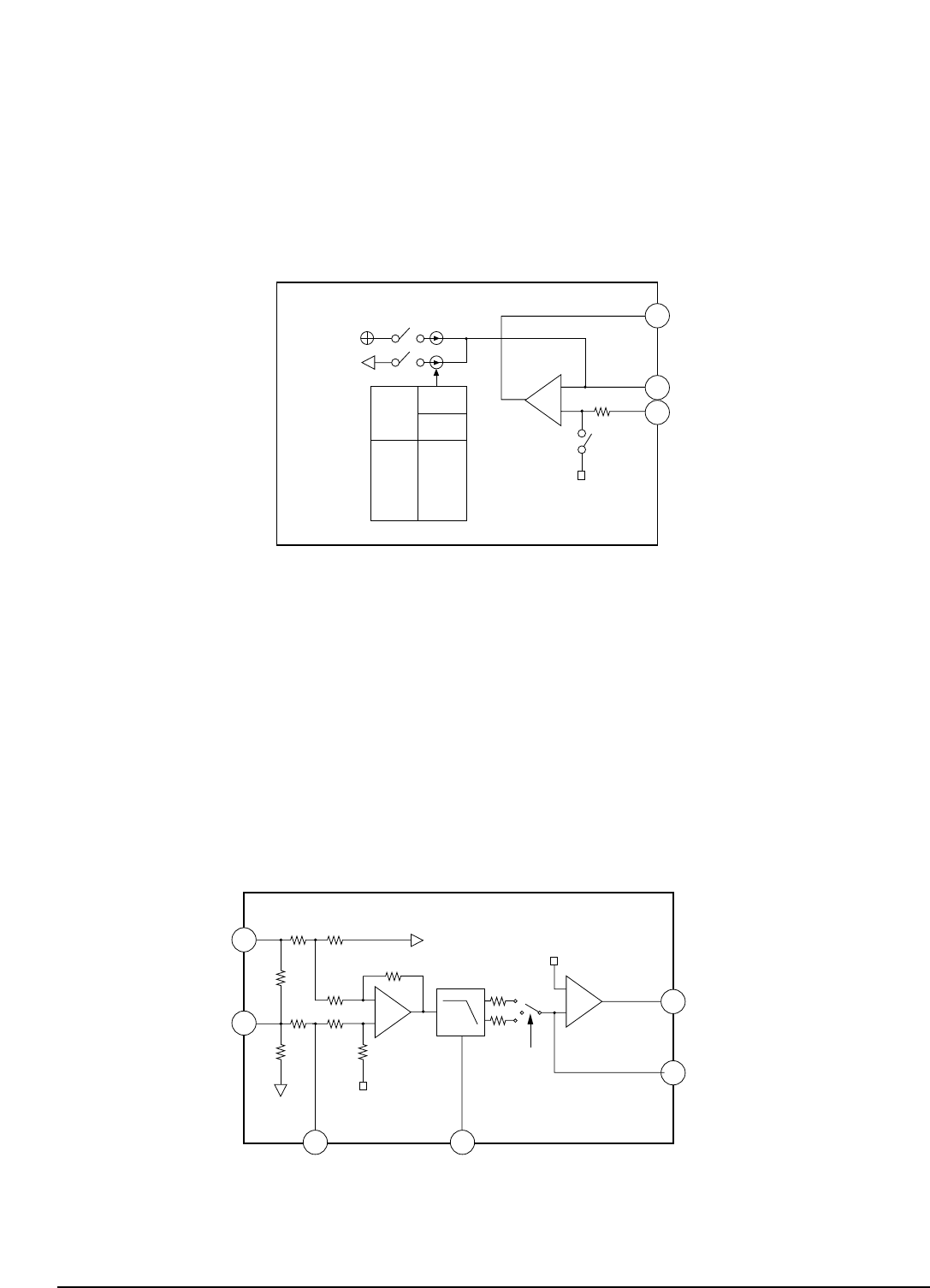

5-2-3 Sled Servo Block
5-2-4 Spindle Servo Block
The 20K½ resistor and 0.33µF capacitor form the 200Hz low pass filter, and the carrier component of spindle
servo error signals is eliminated. In CLV-S mode, SMEF becomes ÒLÓ and pin 25 low pass filter fc lowers,
strenthening the filter further. The characteristics of high frequency phase compensation in focus tracking
servo and the characteristics of cut off frequecny in CLV low pass filter are test by FSET pin.
The moving of pick-up is controlled by tracking servo output through low pass filter.
The sled kick voltage is output for track jump operation.
43
42
+
-
44
TM6
TM2
SL+
SL-
SLO
PS
43
0X1 0
0X2 1
1X3 0
1X4 1
TM7
22K 22K
15K
15K
220K
220K
220K
100K
50K
Double
speed
SPDLO
FSET
SMEF
SPDL-
220K
SMON
SMDP 20K
24
23
25 6
46
45
+
-
+
-
Front PCB µ-com VDD(5V)
normal?
UIC1 pin no. 18,46,90
Check the Main PCB
RIC2(MC7805),FJ1
Check the Front PCB
UD9(1N4002), CN1-1
Main PCB RIC2(MC7805) IN: 12V
Input voltage normal?
Yes
Check the Main PCB;
RIC5(MC7812),PBD2
RR11 10Ω(1/2W)
Check the Power PCB;
Fuse P/T, PW1
Yes
No No
Front PCB
Does UX1(6MHz)
oscillate ?
FRONT PCB PWR-SENS
voltage normal ?
(pin no. 11 ; 5V)
Check the Main PCB
RD4,RR19,RC13,RZD3
RC12,RR22,RR20
Yes
Front PCB
When the power is
ON 'H' displays
at pin no. 3 ?(5V)
Yes
Check the Main PCB
RQ7(C1008Y),RR9(22K)
RQ6(B1566), RR8(680Ω)
Replace µ-com.
Yes
No
No
No
Samsung Electronics 6-1
6. Troubleshooting
6-1 Amplifier
6-1-1 Power Malfunction
6-1-2 No Output
Yes
AQ8L, 8R, 1L, 1R ?
Is Mute selected ? Remove it with Remocon.
Main PCB AIC1
pin no. 1,8,16,17
B+,B- normal? Check the B+,B- Power source
BPD1, RC7, RC8, RWA1
Check the Power PCB
Fuse, P/T, PW1
Yes
Check the Main PCB
AIC1, FIC2, FIC1
No
No
Yes
Check the Main PCB
AQ8L,8R,1L,1R
No
Headphone Jack short ? Check Headphone jack
soldering condition.
Yes
No
UIC1(µ-COM) pin 5 Check the Front PCB
UIC1 (µ-COM).
Yes
No
Check the "H"?
Base B+?
6-2 Samsung Electronics
Troubleshooting
6-1-3 Tuner Malfunction(FM/AM)
Main PCB
TZD1(7.5V), TZD2(5.1V)
Voltage normal?
TIC1 (LA1836)
Tuner BAND Switching ?
(pin 14)
Yes
Check the Main PCB
TZD1 (7.5V), TZD2 (5.1V)
TR38,TR53
No
Check the Main PCB
TIC2 (LC72131)
pin3,4,5,6
Check the Front PCB
UIC1 (µ-com)
No
Yes
TIC2 (LC72131)
VT Level Changeable?
(pin 20)
Check the Main PCB
TIC2 (LC72131) Oscillator
TX2 (7.2MHz)
No
Yes
TIC2 (LA1836)
If input normal ?
(pin 1,5)
Check the Main PCB
TFE1 (Front END Pack)
TL1 (MW/LW coil)
No
Yes
Check the Main PCB
FIC2 (TDA7439)
Function IC
Samsung Electronics 6-3
Troubleshooting
6-1-4 Tape
Tape PCB
JIC3 (HA12203) B+, B-
Voltage normal?
No
Tape PCB
JIC3 (HA12203) pin2,4,39,41
Input signal normal?
No Check the Tape PCB
DCW8, DCW9, JIC1,JIC2
Check the Main PCB
FIC2 (TDA7439)
Function IC
Yes
Tape PCB
JIC3 (HA12203) pin8,35
Output signal normal? No Check the Tape PCB
JIC3, JIC5
Yes
Yes
Check the Tape PCB
JZD1, JZD2, FZD2
6-4 Samsung Electronics
Troubleshooting
6-3 CD
6-3-1 Revolution Malfunction
Yes
Check Deck down
Check CLOSE S/W voltage.
CLOSE condition: 0V Check CLOSE MOTOR
and CLOSE S/W.
Does Roulette revolve ? Check Roulette Motor.
Yes
Is Roulette Control ok ? No Check Roulette Control Sensor
Is Focus Search ok ? No Check oscillation of NXF100
(16.9344MHZ)
Does Laser function during
Focus Search ? Replace PICK UP
Replace NIC9223 or NIC9258
Yes
POWER ON
Check UP/DOWN MOTOR
Replace NIC9286
Check NIC9286 pin73 voltage
during Focus Search
: 5V
No
Yes
Yes
No
No
Yes
Yes
No
No
Yes
Samsung Electronics 6-5
Troubleshooting
6-6 Samsung Electronics
Troubleshooting
6-2-2 Audio Output Malfunction
Check voltage of NIC05 : 5V No
Check waveform of NIC9223
pin no. 12,13 Check NIC9223 soldering
Check waveform of NC55R,L Replace NIC9223
Check NIC9223 soldering
Yes
Replace NIC05
Check Amp
Malfunction of Audio Output
Yes
Yes
Yes
No
No
7.Exploded Views and Parts List
7-1 Cassette Deck Exploded View and Parts List
Samsung Electronics 7-1
45
10
9
4
5
7
12
14
11
2
3
1
11
8
9
4
6
13
11
14
3
10
7
No. Code No. Description Specification Remarks
1
2
3
4
5
6
7
AH59-20004U
AH81-11052G
AH81-11052D
AH81-10798D
AH81-10798E
AH81-11052E
AH81-11052B
AH81-10798H
DECK-CASSETTE
MOTOR ASS’Y
HEAD ASS’Y (R/P)
HEAD ASS’Y (P/B)
SOLENOID ASS’Y
CNTR ASS’Y (R/P)
CNTR ASS’Y (P/B)
FLYWHEEL ASS’Y (F)
ADR2118TW
EG530YD2BH
YK56RAA4N3
YK50PBB4N3
ADR2100-01
ADR2118TW-03
ADR2118TW-04
ADR2100-04
No. Code No. Description Specification Remarks
8
9
10
11
12
13
14
AH81-10798J
AH81-10798K
AH81-10798M
AH81-10798N
AH81-11052A
AH81-11052E
AH81-10798U
FLYWHEEL ASS’Y (R)
PINCH ARM (F)
PINCH ARM (R)
CLUTCH ASS’Y
MAIN BELT (R/P)
MAIN BELT (P/B)
SUB BELT
ADR2100-05
ADR2100-06
ADR2100-07
ADR2100-08
ADR2118TW-01
ADR2118TW-02
ADR2100-09
33
7-2 Main Exploded View and Parts List
7-2-1 Exploded View
Exploded Views and Parts List
7-2 Samsung Electronics
7-2-2 Parts List (using MAX-870) 7-2-2 Parts List (using MAX-880)
No. Code No. Description Specification Remarks
2
3
4
5
6
7
8
9
10
11
12
13
14
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
AH64-30390A
AH64-40431A
AH64-40432A
AH64-50335C
AH64-50337C
AH61-62004A
AH61-62005A
AH61-20480B
AH64-11222C
AH64-42002B
AH64-42001C
AH64-11221C
AH64-40430C
AH64-50336D
AH64-40429B
AH67-10162A
AH61-80030A
AH95-50001A
AH67-10164A
AH64-11217B
AH64-11218D
AH64-11219B
AH64-11223C
AH64-11216C
AH67-10163A
AH67-10165A
AH64-30416A
AH64-30417D
AH64-30417E
AH64-30417F
AH64-30417J
AH61-10747A
AH31-10020A
AH59-10120A
CABINET-TOP
WINDOW-DOOR,A
WINDOW-DOOR,B
DOOR-CASS,A
DOOR-CASS,B
SPRING-EJECT,A
SPRING-EJECT,B
CAP-FRONT,E
KNOB-JOG
DECO-JOG
DECO-FRONT
KNOB-VOLUME
WINDOW-VFD
DOOR-CD
WINDOW-CD
LENS-COM
DAMPER-ASSY
LATCH-ASSY
LENS-JOG
KNOB-SRS
KNOB-FUNCTION
KNOB-DECK
KNOB-POWER
KNOB-CD OPEN
LENS-CD
LENS-ECHO
CABINET-BOTTOM
CABINET-REAR
BRACKT-FAN
FAN-DC
REMOCON-ASSY
PCM 0.625T (D/GRAY)
PMMA VIOLET(LUCKY, 71129)
PMMA VIOLET(LUCKY, 71129)
ABS 94HB BLK
ABS 94HB BLK
STS Ø1.1
STS Ø1.1
MIPS 94HB BLK
ABS D/GRAY (HF-06660I,G3174)
ABS NATURAL HF-0660I,G3174
MIPS 94HB BLK
ABS D/GRAY (HF-0660I,G3174)
PMMA VIOLET(LUCKY,41802)
ABS 94HB BLK(LUCKY,41802)
PMMA VIOLET
ACRYL
HF-0660I, G3174
MAX-555
ACRYL
ABS D/GRAY (HF-0660I, G3174)
ABS D/GRAY (HF-0660I, G3174)
ABS D/GRAY (HF-0660I, G3174)
ABS D/GRAY (HF-0660I, G3174)
ABS D/GRAY (HF-0660I, G3174)
ACRYL
ACRYL
SECC 1.0T
SECC 0.8T
BRACKT-FAN
FAN-DC
REMOCON-ASSY
No. Code No. Description Specification Remarks
2
3
4
5
6
7
8
9
10
11
12
13
14
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
AH64-30390A
AH64-40431A
AH64-40432A
AH64-50335C
AH64-50337C
AH61-62004A
AH61-62005A
AH61-20480B
AH64-11222C
AH64-42002B
AH64-42001C
AH64-11221C
AH64-40430C
AH64-50336E
AH64-40429B
AH67-10162A
AH61-80030A
AH95-50001A
AH67-10164A
AH64-11217B
AH64-11218D
AH64-11219B
AH64-11223C
AH64-11216C
AH67-10163A
AH67-10165A
AH64-30416A
AH64-30417D
AH64-30417E
AH64-30417F
AH64-30417J
AH61-10747A
AH31-10020A
AH59-10120A
CABINET-TOP
WINDOW-DOOR,A
WINDOW-DOOR,B
DOOR-CASS,A
DOOR-CASS,B
SPRING-EJECT,A
SPRING-EJECT,B
CAP-FRONT,E
KNOB-JOG
DECO-JOG
DECO-FRONT
KNOB-VOLUME
WINDOW-VFD
DOOR-CD
WINDOW-CD
LENS-COM
DAMPER-ASSY
LATCH-ASSY
LENS-JOG
KNOB-SRS
KNOB-FUNCTION
KNOB-DECK
KNOB-POWER
KNOB-CD OPEN
LENS-CD
LENS-ECHO
CABINET-BOTTOM
CABINET-REAR
BRACKT-FAN
FAN-DC
REMOCON-ASSY
PCM 0.625T (D/GRAY)
PMMA VIOLET(LUCKY, 71129)
PMMA VIOLET(LUCKY, 71129)
ABS 94HB BLK
ABS 94HB BLK
STS Ø1.1
STS Ø1.1
MIPS 94HB BLK
ABS D/GRAY (HF-06660I,G3174)
ABS NATURAL HF-0660I,G3174
MIPS 94HB BLK
ABS D/GRAY (HF-0660I,G3174)
PMMA VIOLET(LUCKY,41802)
ABS 94HB BLK(LUCKY,41802)
PMMA VIOLET
ACRYL
HF-0660I, G3174
MAX-555
ACRYL
ABS D/GRAY (HF-0660I, G3174)
ABS D/GRAY (HF-0660I, G3174)
ABS D/GRAY (HF-0660I, G3174)
ABS D/GRAY (HF-0660I, G3174)
ABS D/GRAY (HF-0660I, G3174)
ACRYL
ACRYL
SECC 1.0T
SECC 0.8T
BRACKT-FAN
FAN-DC
REMOCON-ASSY
Exploded Views and Parts List
Samsung Electronics 7-3
Exploded Views and Parts List
7-4 Samsung Electronics
7-3 CD Mecha Exploded View and Parts List
13
8
2
7
6
5
4
9
31
10
17 16
12
11
20
15
21
14
19
CD SUB PCB
TRAY DISC ASS'Y
TRAY STOPPER
CD MAIN PCB
HOOK
BASE MAIN
18
No. Code No. Description Specification Remarks
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
19
20
21
AH66-80022A
AH66-60034A
AH66-20186A
AH66-20187A
AH66-20188A
AH66-20189A
AH66-20190A
AH66-20191A
AH59-10097A
AH59-10098A
AH69-20044A
AH66-20193A
AH66-90056A
AH66-90055A
AH59-10099A
AH59-10100A
AH59-10101A
AH66-30086A
AH73-10016A
AJ59-20003F
SLIDER-CAM
BELT-LOAD
GEAR-PULLEY
GEAR-LOAD
GEAR-CAM
GEAR-TRAY
GEAR-CONVERT
GEAR-SYNCRO
ASSY-TRAY DISC
ASS-WORM-MOTOR
CUSHION-MOTOR
GEAR-ROULETTE
TRAY-ROULETTE
TRAY-DISC
ASSY-PCB SENSOR
ASSY-TABLE CHUCK
ASSY-PULLEY-MOTOR
LEVER-LIFTER
RUBBER-CD
DECK-CDP
ABS HF-380 NTR
CR
POM(M90-44) WHT
POM(M90-44) BLK
POM(M90-44) WHT
POM(M90-44) BLK
POM(M90-44) WHT
ABS HF-380 NTR
CMS-300, ASS’Y-TRAY
CMS-300, ASS’Y-WORM
NBR BLK
POM(M90-44) BLK
ABS XR-401 BLK
-,ABS,-,BLK
CMS-300,ASS’Y SENSOR
CMS-300,ASS’Y CHUCK
CMS-300,ASS’Y CHUCK
ABS HF-380 BLK
IRR
DECK-CD *CMS-A30NM6
Exploded Views and Parts List
Samsung Electronics 7-5
7-3 CD Mecha Exploded View and Parts List (Option)
13
8
2
7
6
5
4
9
31
10
17
12
11
20
15
21
16
14
19
CD SUB PCB
TRAY DISC ASS'Y
TRAY STOPPER
CD MAIN PCB
HOOK
BASE MAIN
18
22
No. Code No. Description Specification Remarks
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
19
20
21
22
AH66-80022A
AH66-60034A
AH66-20186A
AH66-20187A
AH66-20188A
AH66-20189A
AH66-20190A
AH66-20191A
AH59-10097A
AH59-10098A
AH69-20044A
AH66-20193A
AH66-90056A
AH66-90055A
AH59-10099A
AH59-10100B
AH59-10101A
AH66-30086A
AH73-10016A
AH59-20004Y
AH63-70141A
SLIDER-CAM
BELT-LOAD
GEAR-PULLEY
GEAR-LOAD
GEAR-CAM
GEAR-TRAY
GEAR-CONVERT
GEAR-SYNCRO
ASSY-TRAY DISC
ASS-WORM-MOTOR
CUSHION-MOTOR
GEAR-ROULETTE
TRAY-ROULETTE
TRAY-DISC
ASSY-PCB SENSOR
ASSY-TABLE CHUCK
ASSY-PULLEY-MOTOR
LEVER-LIFTER
RUBBER-CD
DECK-CDP
SHEET-CHUCK
ABS HF-380 NTR
CR
POM(M90-44) WHT
POM(M90-44) BLK
POM(M90-44) WHT
POM(M90-44) BLK
POM(M90-44) WHT
ABS HF-380 NTR
CMS-300, ASS’Y-TRAY
CMS-300, ASS’Y-WORM
NBR BLK
POM(M90-44) BLK
ABS XR-401 BLK
-,ABS,-,BLK
CMS-300,ASS’Y SENSOR
CMS-300UD,TABLE-CHUCK ASSY
CMS-300,ASS’Y CHUCK
ABS HF-380 BLK
IRR
CMS-P30AM6UD
PVC 1.0
7-6 Samsung Electronics
7-4 CD Deck Exploded View and Parts List
7-4-1 Exploded View
No. Code No. Description Specification Remarks
1
2
3
4
5
6
7
8
9
10
11
12
13
AJ59-20003F
AH61-10022C
AH63-30048A
AH66-20016A
AH66-20017A
AH66-20018A
AH71-50036A
15253-503-011
AH66-90018A
AJ30-20001B
AH61-60055A
AH31-10009A
AH31-10002B
AH60-10014A
DECK-CD
CHASSIS-DECK(M)
COVER-GEAR
GEAR(A)
GEAR(B)
GEAR(C)
SHAFT-PU
CENTER-RING
TURN-TABLE(M)
PICK-UP CDP
SPRING-T/TABLE
MOTOR-SPINDLE
MOTOR-FEED
SCREW-PH(+M2*3)
CMS-P30NM6
CMSA30 POM M90-44
CMS-V30 BLK ABS
CMS-V30 M0.3 Z13 SP POM
CMS-V30 M0.3 Z13 SP POM
CMS-V30 M0.3 Z16/Z90 SP POM
CMS-V30 D3 L79 SUS420J2
ABS+GS 20% CMS-V10N
ABS+GS 20% CMS-V10N
P/U SOH-A1 ROW V-P/J
CS STS-W PI0.4 D5.7 L9.3 CMS-V10N
RF-310T-11400 43L 25V 85mA
RF-310ta 30MM NDM4RA3ETL 11.0MM
+M2X3 FE FZY W700
Exploded Views and Parts List
7-4-2 Parts List
Samsung Electronics 7-7
Exploded Views and Parts List
7-4 CD Deck Exploded View and Parts List (Option)
No. Code No. Description Specification Remarks
1
2
3
4
5
6
7
8
9
10
11
12
13
14
AH59-20004Y
AH61-10022B
AH63-30048A
AH66-20016A
AH66-20017A
AH66-20018A
AH71-50036A
15253-503-011
AH64-10648A
AH66-90029A
AJ30-20001B
AH61-60055A
AH31-10009A
AH31-10002B
AH60-10014A
DECK-CD
CHASSIS-DECK(M)
COVER-GEAR
GEAR(A)
GEAR(B)
GEAR(C)
SHAFT-PU
CENTER-RING
CENTER-KNOB
TURN-TABLE(M)
PICK-UP CDP
SPRING-T/TABLE
MOTOR-SPINDLE
MOTOR-FEED
SCREW-PH(+M2*3)
CMS-P30AM6UD
CMSP30 POM M90-44
CMS-V30 BLK ABS
CMS-V30 M0.3 Z13 SP POM
CMS-V30 M0.3 Z13 SP POM
CMS-V30 M0.3 Z16/Z90 SP POM
CMS-V30 D3 L79 SUS 420J2
ABS+GS 20% CMS-V10N
ABS 94HB
-,-,-,CMS-V30
P/U SOH-A1 ROW V-P/J
CS STS-W PI0.4 D5.7 L9.3 CMS-V10N
RF-310T-11400 43L 25V 85mA
RF-310TA 30MM NDM4RA3ETL 11.0MM
+M2X3 FE FZY W700
7-8 Samsung Electronics

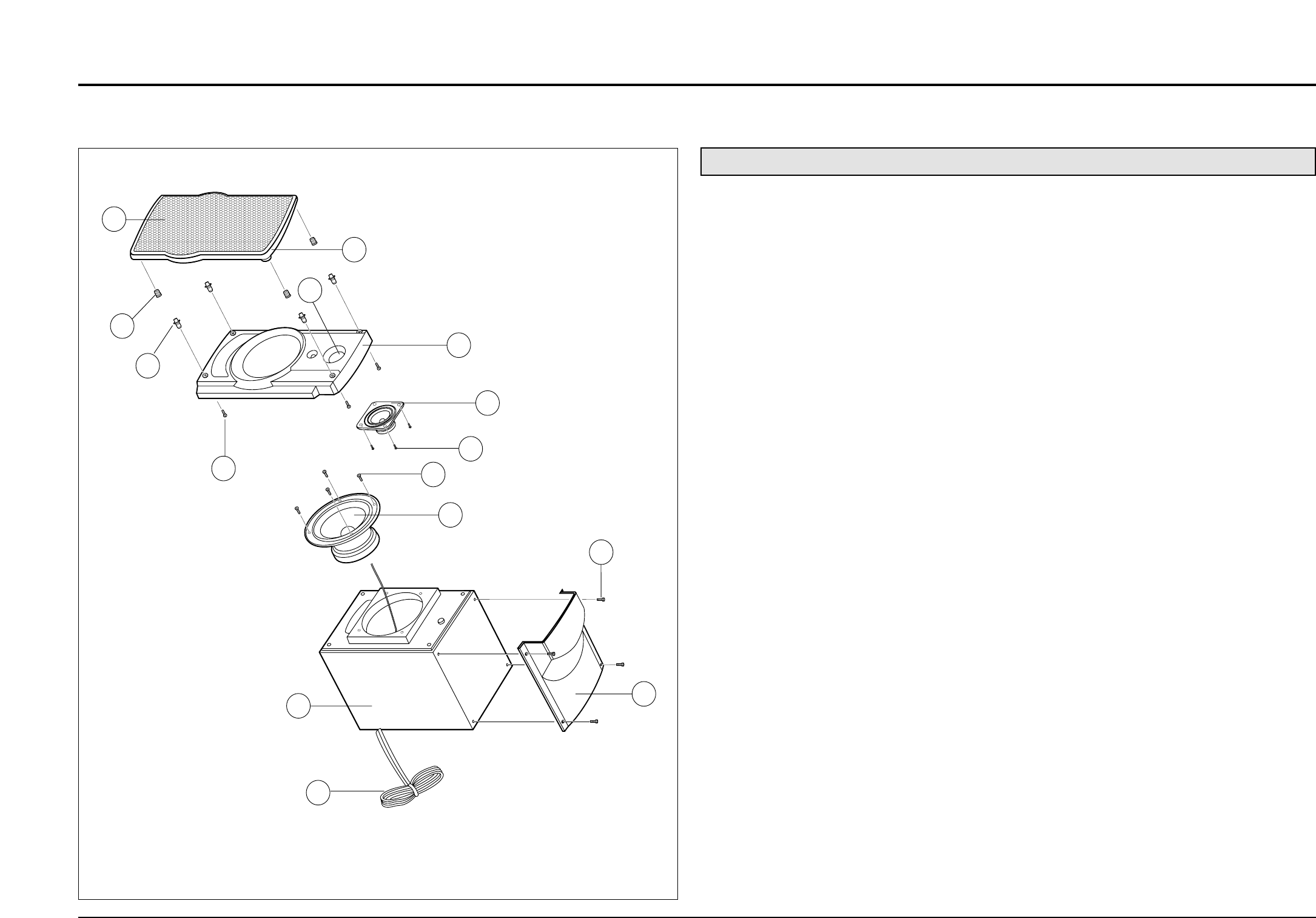

Exploded Views and Parts List
No. Code No. Description Specification Remarks
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
AH59-90217A
AH81-10977A
AH81-10977B
AH81-10977C
AH81-10977D
AH81-10977H
AH81-10977S
AH81-10977T
AH81-10977U
AH81-10977G
AH81-10977K
AH81-10977V
AH81-10977Q
AH81-10977N
AH81-10977P
AH81-10977X
AH81-10977Y
AH81-10977Z
AH81-11054E
AH81-10977J
SPEAKER-SYSTEM
FRONT PANEL
TOP PANEL
NET FRAME
PUNCHING
CABINET
WOOFER
TWEETER
PIEZO
BADGE
CORD ASS’Y
STEEL HOLDER
NET HOLDER
DUCT CUSHION
FOOT
SCREW W/F
SCREW T/W
SCREW T/PANEL
SCREW S/HOLDER
CAP HOLDER
PS880, EXPORT
210 X 383.8 X 42.84
210 X 230 X 73.3
196.0 X 377.8 X 10.4
179.4 X 365.2 X 0.6t
209 X 302.5 X 230
SG16W50KFA
SG06T13BFA
ø28
35mm SAMSUNG
ø5 X 0.5t, STEEL
ø0.18 X 20 X 29 X 2.5 mm
ø17 X 12t
135 X 50 X 2t , EVA
ø 10 X 2t
ø 4 X 14 BLK
ø 3 X 6 BLK
ø 4 X 23mm BLK
ø 3 X 8 BLK
ø 28, HIPS
7-5-2 Parts List
7-5 Speaker System
7-5-1 Exploded View
2
1
18
12
11
4
3
7
6
16
15
5
17
10
8
4301-000116 BATTERY-LI;1.5V,500MA,AAA,10.2X44MM,-
AH26-80142X TRANS-POWER;EI85.8X57,115/230V,50/60Hz,M
0AH39-10002N POWER CORD;EP2,SPT-1#2/18,2.0M,5239,UL/C
AH90-10738N ASSY-MAIN PCB;MAX870,DOM S.N.A
AH93-10006G ASSY-MAIN,MANU;MAX870,MAIN MANU DOM
S.N.A
AC4 2401-000375 C-AL;100UF,5%,100V,GP,TP,10X20,5MM
AC5 2401-000375 C-AL;100UF,5%,100V,GP,TP,10X20,5MM
AIC1 1201-001218 IC-POWER AMP;417,SIP,22P,-,DUAL,40DB,PLA
AIC1 AH62-32001A HEAT SINK-M;-,AL,-,T6,-,-,-,MAX853V
AJ1 3716-000209 TERMINAL-BLOCK;,-,-,60V,7A
AJ2 3711-000820 CONNECTOR-HEADER;BOX,2P,1R,2.5MM,STRAIGH
BPF1L AH26-10001A TRANS-IF;FV-AD-BASE19K/38K,LOW PASS FILT
BPF1R AH26-10001A TRANS-IF;FV-AD-BASE19K/38K,LOW PASS FILT
DIC2 1205-000529 IC-SWITCH;LC4966,DIP,14P,-,-,40V,300MW,-
DX1 2802-000158 RESONATOR-CERAMIC;4MHZ,0.5%,TP,10.0X5.0X
FAN AH31-10020A FAN-DC;D0620B-12M,12VDC/0.16A,
FIC2 1204-001281 IC-AUDIO PROCESSOR;TDA7439,DIP,30P,400MI
FJ1 3711-003771 CONNECTOR-HEADER;2WALL,32P,1R,1.25mm,ANG
FJ2 3711-003735 CONNECTOR-HEADER;BOX,20P,2R,2.54MM,ANGLE
HJ1 3722-000363 JACK-PHONE;9P,6.4MM,AU,BLK,-
IFE1 AH40-10001U TUNER;FE337-A05,-,75OHM
RBD1 0402-001010 DIODE-BRIDGE;GBU6D,200V,6A,SIP-4
RBD12 AH62-30127A HEAT SINK-TR;-,AL,-,T2.0,-,WHT,-,MAX870
RBD2 0402-001010 DIODE-BRIDGE;GBU6D,200V,6A,SIP-4
RC10 2401-001942 C-AL;3300UF,20%,35V,GP,BK,18X35.5MM
RC15 2401-000375 C-AL;100UF,5%,100V,GP,TP,10X20,5MM
RC7 2401-003267 C-AL;4700UF,20%,80V,GP,BK,30X40,10
RC8 2401-003267 C-AL;4700UF,20%,80V,GP,BK,30X40,10
RC9 2401-001942 C-AL;3300UF,20%,35V,GP,BK,18X35.5MM
RIC2 1203-000276 IC-POSI.FIXED REG.;7805,TO-220,3P,-,PLAS
RIC2 AH62-30060A HEAT SINK-CD;AL,-,T1.0,-,-,-,SCM-7000,-
RIC3 1203-000110 IC-NEGA.FIXED REG.;7912,TO-220,3P,-,PLAS
RIC3 AH62-30060A HEAT SINK-CD;AL,-,T1.0,-,-,-,SCM-7000,-
RIC5 1203-000242 IC-POSI.FIXED REG.;7812,TO-220,3P,-,PLAS
RQ1 0502-000425 TR-POWER;2SD2395-F,NPN,2W,TO-220FN,BK,1
RQ11 0502-000303 TR-POWER;KSD882,NPN,1W,TO-126,TP,160-32
RQ2 0502-000424 TR-POWER;2SB1566-F,PNP,2W,TO-220FN,BK,1
RQ3 0502-000425 TR-POWER;2SD2395-F,NPN,2W,TO-220FN,BK,1
RQ6 0502-000424 TR-POWER;2SB1566-F,PNP,2W,TO-220FN,BK,1
RR14 13954-100-310 CERAMIC-PIPE;PI1.4 15MM WHT
RR14 2003-000314 R-METAL OXIDE;47OHM,5%,2W,AE,TP,6X16MM
RR18 13954-100-310 CERAMIC-PIPE;PI1.4 15MM WHT
RR18 2003-000473 R-METAL OXIDE(S);10OHM,5%,3W,AA,TP,6X16M
RWA1 AH39-20560P LEAD CONNECTOR-ASSY;-,5264,51088,8p,300m
TFL1 2903-000105 FILTER-CERAMIC;BP,10.7MHZ+-25KHZ,180KHZ+
TFL3 2903-000105 FILTER-CERAMIC;BP,10.7MHZ+-25KHZ,180KHZ+
TFL4 2903-000148 FILTER-CERAMIC;BP,450KHZ+-1KHZ,-,6DB,-,B
TIC1 AH14-10007H IC;LA1836,DIP,STICK IF+MPX
TIC2 AH14-10007G IC;LC72131,DIP,STICK PLL
TJ2 3716-000201 TERMINAL-BLOCK;NON SOLDER,4P,4MM,-,
TL1 AH27-80060A COIL-OSC;RBW07VB,345UH,AM+RF
TL2 AH26-10001E TRANS-IF;KS940228-09,-,-,7.6X12.0,-,450K
TL3 AH26-10020A TRANS-DET;-,7KLL,DET,-,7.8MM,91PF,11.32M
TX1 2802-000215 RESONATOR-CERAMIC;19KHZ,+-38HZ,-,7.0X3.5
TX2 2801-003152 CRYSTAL-UNIT;7.2MHZ,20PPM,28-AAS,12PF,50
VJ1 3722-000377 JACK-RCA;4P/2C,3.5MM,SN,BLK,#16~22
VWA1 3711-002809 CONNECTOR-HEADER;BOX,8P,1R,2MM,STRAIGHT,
AH93-20003U ASSY-MAIN,CHIP;MAX870,MAIN,CHIP DOM S.N.A
AC1 2203-000609 C-CERAMIC,CHIP;22nF,10%,50V,X7R,TP,2012,
AC2L 2203-001640 C-CERAMIC,CHIP;390PF,10%,50V,X7R,TP,1608
AC2R 2203-001640 C-CERAMIC,CHIP;390PF,10%,50V,X7R,TP,1608
AR16R 2007-000686 R-CHIP;3.3Kohm,5%,1/10W,DA,TP,2012
AR22 2007-000941 R-CHIP;47Kohm,5%,1/10W,DA,TP,2012
AR23 2007-000493 R-CHIP;2.2Kohm,5%,1/10W,DA,TP,2012
AR2L 2007-000282 R-CHIP;100Kohm,5%,1/10W,DA,TP,2012
AR2R 2007-000282 R-CHIP;100Kohm,5%,1/10W,DA,TP,2012
AR3R 2007-000468 R-CHIP;1Kohm,5%,1/10W,DA,TP,2012
AR4R 2007-001039 R-CHIP;56Kohm,5%,1/10W,DA,TP,2012
AR5L 2007-000241 R-CHIP;1.5Kohm,5%,1/10W,DA,TP,2012
AR5R 2007-000241 R-CHIP;1.5Kohm,5%,1/10W,DA,TP,2012
AR9 2007-001208 R-CHIP;82Kohm,5%,1/10W,DA,TP,2012
AR9R 2007-000686 R-CHIP;3.3Kohm,5%,1/10W,DA,TP,2012
D1C4 1201-000163 IC-OP AMP;4560,SOP,8P,150MIL,DUAL,100V/M
D1C5 1201-000163 IC-OP AMP;4560,SOP,8P,150MIL,DUAL,100V/M
DC11 2203-000953 C-CERAMIC,CHIP;470pF,5%,50V,NPO,TP,2012,
DC17 2203-001550 C-CERAMIC,CHIP;1.2NF,10%,50V,X7R,TP,2012
DC18 2203-001143 C-CERAMIC ;68nF,10%,50V,X7R,2012,2mm,TP
DC19 2203-000495 C-CERAMIC,CHIP;2.2nF,10%,50V,X7R,TP,2012
DC2 2203-000892 C-CERAMIC,CHIP;4.7nF,10%,50V,X7R,TP,2012
DC20 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012,
DC21 2203-000199 C-CERAMIC,CHIP;100nF,+80-20%,50V,Z5U,TP,
DC22 2203-000919 C-CERAMIC,CHIP;470nF,+80-20%,16V,Y5V,TP,
DC24 2203-001524 C-CERAMIC,CHIP;47pF,5%,50V,NPO,TP,2012,-
DC25 2203-001524 C-CERAMIC,CHIP;47pF,5%,50V,NPO,TP,2012,-
DC26 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012,
DC27 2203-000495 C-CERAMIC,CHIP;2.2nF,10%,50V,X7R,TP,2012
DC28 2203-000199 C-CERAMIC,CHIP;100nF,+80-20%,50V,Z5U,TP,
DC29 2203-000919 C-CERAMIC,CHIP;470nF,+80-20%,16V,Y5V,TP,
DC32 2203-000363 C-CERAMIC,CHIP;150pF,5%,50V,NPO,TP,2012,
DC33 2203-000363 C-CERAMIC,CHIP;150pF,5%,50V,NPO,TP,2012,
DC8 2203-000661 C-CERAMIC,CHIP;270pF,5%,50V,NPO,TP,2012,
DC9 2203-000661 C-CERAMIC,CHIP;270pF,5%,50V,NPO,TP,2012,
DIC1 AH14-10007E IC;M65846FP,SOP,STICK DSP/ECHO
DIC3 1201-000463 IC-OP AMP;074,SOP,14P,196MIL,SINGLE,88DB
DR0 2007-000941 R-CHIP;47Kohm,5%,1/10W,DA,TP,2012
DR1 2007-000941 R-CHIP;47Kohm,5%,1/10W,DA,TP,2012
DR11 2007-000710 R-CHIP;3.9Kohm,5%,1/10W,DA,TP,2012
DR13 2007-000586 R-CHIP;22Kohm,5%,1/10W,DA,TP,2012
DR14 2007-001208 R-CHIP;82Kohm,5%,1/10W,DA,TP,2012
DR15 2007-000241 R-CHIP;1.5Kohm,5%,1/10W,DA,TP,2012
DR16 2007-001208 R-CHIP;82Kohm,5%,1/10W,DA,TP,2012
DR17 2007-000338 R-CHIP;120Kohm,5%,1/10W,DA,TP,2012
DR19 2007-000001 R-CHIP;68Kohm,5%,1/10W,DA,TP,2012
DR2 2007-000941 R-CHIP;47Kohm,5%,1/10W,DA,TP,2012
DR23 2007-000468 R-CHIP;1Kohm,5%,1/10W,DA,TP,2012
DR24 2007-000774 R-CHIP;33Kohm,5%,1/10W,DA,TP,2012
DR25 2007-001028 R-CHIP;560ohm,1%,1/10W,DA,TP,2012
DR26 2007-000409 R-CHIP;15Kohm,5%,1/10W,DA,TP,2012
DR29 2007-000774 R-CHIP;33Kohm,5%,1/10W,DA,TP,2012
Electrical Parts List
Location no. Code no. Description & Specifiation Remarks Location no. Code no. Description & Specifiation Remarks
Samsung Electronics 8-1
8. Electrical Parts List
DR30 2007-001028 R-CHIP;560ohm,1%,1/10W,DA,TP,2012
DR31 2007-000001 R-CHIP;68Kohm,5%,1/10W,DA,TP,2012
DR32 2007-000001 R-CHIP;68Kohm,5%,1/10W,DA,TP,2012
DR33 2007-000774 R-CHIP;33Kohm,5%,1/10W,DA,TP,2012
DR34 2007-000774 R-CHIP;33Kohm,5%,1/10W,DA,TP,2012
DR37 2007-000981 R-CHIP;5.6Kohm,5%,1/10W,DA,TP,2012
DR4 2007-000941 R-CHIP;47Kohm,5%,1/10W,DA,TP,2012
DR40 2007-000981 R-CHIP;5.6Kohm,5%,1/10W,DA,TP,2012
DR45 2007-000941 R-CHIP;47Kohm,5%,1/10W,DA,TP,2012
DR46 2007-000941 R-CHIP;47Kohm,5%,1/10W,DA,TP,2012
DR47 2007-001208 R-CHIP;82Kohm,5%,1/10W,DA,TP,2012
DR48 2007-000774 R-CHIP;33Kohm,5%,1/10W,DA,TP,2012
DR49 2007-000586 R-CHIP;22Kohm,5%,1/10W,DA,TP,2012
DR55 2007-000493 R-CHIP;2.2Kohm,5%,1/10W,DA,TP,2012
DR56 2007-000493 R-CHIP;2.2Kohm,5%,1/10W,DA,TP,2012
DR57 2007-000477 R-CHIP;1Mohm,5%,1/10W,DA,TP,2012
DR6 2007-000338 R-CHIP;120Kohm,5%,1/10W,DA,TP,2012
DR74 2007-000468 R-CHIP;1Kohm,5%,1/10W,DA,TP,2012
DR9 2007-001208 R-CHIP;82Kohm,5%,1/10W,DA,TP,2012
F1C1 1201-000163 IC-OP AMP;4560,SOP,8P,150MIL,DUAL,100V/M
FR10L 2007-000493 R-CHIP;2.2Kohm,5%,1/10W,DA,TP,2012
FR10R 2007-000493 R-CHIP;2.2Kohm,5%,1/10W,DA,TP,2012
FR1L 2007-000774 R-CHIP;33Kohm,5%,1/10W,DA,TP,2012
FR1R 2007-000774 R-CHIP;33Kohm,5%,1/10W,DA,TP,2012
FR2L 2007-000941 R-CHIP;47Kohm,5%,1/10W,DA,TP,2012
FR2R 2007-000941 R-CHIP;47Kohm,5%,1/10W,DA,TP,2012
FR3L 2007-000872 R-CHIP;4.7Kohm,5%,1/10W,DA,TP,2012
FR3R 2007-000872 R-CHIP;4.7Kohm,5%,1/10W,DA,TP,2012
FR4R 2007-000300 R-CHIP;10Kohm,5%,1/10W,DA,TP,2012
FR5L 2007-000586 R-CHIP;22Kohm,5%,1/10W,DA,TP,2012
FR5R 2007-000586 R-CHIP;22Kohm,5%,1/10W,DA,TP,2012
FR6L 2007-000653 R-CHIP;27Kohm,5%,1/10W,DA,TP,2012
FR6R 2007-000653 R-CHIP;27Kohm,5%,1/10W,DA,TP,2012
FR8L 2007-000518 R-CHIP;2.7Kohm,5%,1/10W,DA,TP,2012
FR9L 2007-000981 R-CHIP;5.6Kohm,5%,1/10W,DA,TP,2012
FR9R 2007-000981 R-CHIP;5.6Kohm,5%,1/10W,DA,TP,2012
H1C1 1201-000163 IC-OP AMP;4560,SOP,8P,150MIL,DUAL,100V/M
HR2R 2007-000766 R-CHIP;330ohm,5%,1/10W,DA,TP,2012
HR3L 2007-000300 R-CHIP;10Kohm,5%,1/10W,DA,TP,2012
HR3R 2007-000300 R-CHIP;10Kohm,5%,1/10W,DA,TP,2012
HR4L 2007-000241 R-CHIP;1.5Kohm,5%,1/10W,DA,TP,2012
HR4R 2007-000241 R-CHIP;1.5Kohm,5%,1/10W,DA,TP,2012
J1 2007-000029 R-CHIP;0ohm,5%,1/10W,DA,TP,2012
J10 2007-000029 R-CHIP;0ohm,5%,1/10W,DA,TP,2012
J11 2007-000029 R-CHIP;0ohm,5%,1/10W,DA,TP,2012
J12 2007-000029 R-CHIP;0ohm,5%,1/10W,DA,TP,2012
J13 2007-000029 R-CHIP;0ohm,5%,1/10W,DA,TP,2012
J14 2007-000029 R-CHIP;0ohm,5%,1/10W,DA,TP,2012
J16 2007-000029 R-CHIP;0ohm,5%,1/10W,DA,TP,2012
J18 2007-000029 R-CHIP;0ohm,5%,1/10W,DA,TP,2012
J19 2007-000029 R-CHIP;0ohm,5%,1/10W,DA,TP,2012
J2 2007-000029 R-CHIP;0ohm,5%,1/10W,DA,TP,2012
J20 2007-000029 R-CHIP;0ohm,5%,1/10W,DA,TP,2012
J21 2007-000029 R-CHIP;0ohm,5%,1/10W,DA,TP,2012
J3 2007-000029 R-CHIP;0ohm,5%,1/10W,DA,TP,2012
J30 2007-000029 R-CHIP;0ohm,5%,1/10W,DA,TP,2012
J31 2007-000029 R-CHIP;0ohm,5%,1/10W,DA,TP,2012
J4 2007-000029 R-CHIP;0ohm,5%,1/10W,DA,TP,2012
J5 2007-000029 R-CHIP;0ohm,5%,1/10W,DA,TP,2012
J9 2007-000029 R-CHIP;0ohm,5%,1/10W,DA,TP,2012
RR13 2007-000586 R-CHIP;22Kohm,5%,1/10W,DA,TP,2012
RR2 2007-000586 R-CHIP;22Kohm,5%,1/10W,DA,TP,2012
RR9 2007-000586 R-CHIP;22Kohm,5%,1/10W,DA,TP,2012
TC1 2203-000609 C-CERAMIC,CHIP;22nF,10%,50V,X7R,TP,2012,
TC100 2203-000979 C-CERAMIC,CHIP;47nF,10%,50V,X7R,TP,2012,
TC11 2203-000408 C-CERAMIC,CHIP;180pF,5%,50V,NPO,TP,2012,
TC12 2203-000979 C-CERAMIC,CHIP;47nF,10%,50V,X7R,TP,2012,
TC14 2203-000609 C-CERAMIC,CHIP;22nF,10%,50V,X7R,TP,2012,
TC16 2203-000979 C-CERAMIC,CHIP;47nF,10%,50V,X7R,TP,2012,
TC17 2203-000429 C-CERAMIC,CHIP;18pF,5%,50V,NPO,TP,2012,-
TC2 2203-001517 C-CERAMIC,CHIP;15pF,5%,50V,NPO,TP,2012,-
TC23 2203-000892 C-CERAMIC,CHIP;4.7nF,10%,50V,X7R,TP,2012
TC24 2203-001223 C-CERAMIC,CHIP;820PF,10%,50V,X7R,2012,2.
TC26 2203-000802 C-CERAMIC,CHIP;33nF,10%,50V,X7R,TP,2012,
TC27 2203-000802 C-CERAMIC,CHIP;33nF,10%,50V,X7R,TP,2012,
TC3 2203-001537 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,-
TC34 2203-000495 C-CERAMIC,CHIP;2.2nF,10%,50V,X7R,TP,2012
TC35 2203-000495 C-CERAMIC,CHIP;2.2nF,10%,50V,X7R,TP,2012
TC37 2203-000239 C-CERAMIC,CHIP;100pF,5%,50V,NPO,TP,2012,
TC38 2203-001537 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,-
TC41 2203-001611 C-CERAMIC,CHIP;22pF,5%,50V,NPO,TP,2012,2
TC42 2203-001517 C-CERAMIC,CHIP;15pF,5%,50V,NPO,TP,2012,-
TC5 2203-000609 C-CERAMIC,CHIP;22nF,10%,50V,X7R,TP,2012,
TC6 2203-001137 C-CERAMIC,CHIP;68NF,+80-20%,50V,Y5V,TP,2
TC8 2203-000979 C-CERAMIC,CHIP;47nF,10%,50V,X7R,TP,2012,
TC91 2203-000595 C-CERAMIC,CHIP;220pF,5%,50V,NPO,TP,2012,
TC92 2203-000595 C-CERAMIC,CHIP;220pF,5%,50V,NPO,TP,2012,
TR1 2007-000355 R-CHIP;12Kohm,5%,1/10W,DA,TP,2012
TR10 2007-000308 R-CHIP;10ohm,5%,1/10W,DA,TP,2012
TR11 2007-000572 R-CHIP;220ohm,5%,1/10W,DA,TP,2012
TR12 2007-000686 R-CHIP;3.3Kohm,5%,1/10W,DA,TP,2012
TR13 2007-000572 R-CHIP;220ohm,5%,1/10W,DA,TP,2012
TR15 2007-000586 R-CHIP;22Kohm,5%,1/10W,DA,TP,2012
TR18 2007-000493 R-CHIP;2.2Kohm,5%,1/10W,DA,TP,2012
TR19 2007-000282 R-CHIP;100Kohm,5%,1/10W,DA,TP,2012
TR2 2007-000300 R-CHIP;10Kohm,5%,1/10W,DA,TP,2012
TR23 2007-000872 R-CHIP;4.7Kohm,5%,1/10W,DA,TP,2012
TR26 2007-000409 R-CHIP;15Kohm,5%,1/10W,DA,TP,2012
TR27 2007-000300 R-CHIP;10Kohm,5%,1/10W,DA,TP,2012
TR28 2007-000300 R-CHIP;10Kohm,5%,1/10W,DA,TP,2012
TR29 2007-000710 R-CHIP;3.9Kohm,5%,1/10W,DA,TP,2012
TR30 2007-000593 R-CHIP;22ohm,5%,1/10W,DA,TP,2012
TR31 2007-000686 R-CHIP;3.3Kohm,5%,1/10W,DA,TP,2012
TR33 2007-000282 R-CHIP;100Kohm,5%,1/10W,DA,TP,2012
TR34 2007-001071 R-CHIP;6.8Kohm,5%,1/10W,DA,TP,2012
TR36 2007-001071 R-CHIP;6.8Kohm,5%,1/10W,DA,TP,2012
TR4 2007-000872 R-CHIP;4.7Kohm,5%,1/10W,DA,TP,2012
TR40 2007-000300 R-CHIP;10Kohm,5%,1/10W,DA,TP,2012
TR41 2007-000300 R-CHIP;10Kohm,5%,1/10W,DA,TP,2012
TR42 2007-000300 R-CHIP;10Kohm,5%,1/10W,DA,TP,2012
TR44 2007-000872 R-CHIP;4.7Kohm,5%,1/10W,DA,TP,2012
TR46 2007-000282 R-CHIP;100Kohm,5%,1/10W,DA,TP,2012
TR47 2007-000300 R-CHIP;10Kohm,5%,1/10W,DA,TP,2012
TR48 2007-000282 R-CHIP;100Kohm,5%,1/10W,DA,TP,2012
TR49 2007-000300 R-CHIP;10Kohm,5%,1/10W,DA,TP,2012
TR5 2007-000290 R-CHIP;100ohm,5%,1/10W,DA,TP,2012
TR50 2007-000282 R-CHIP;100Kohm,5%,1/10W,DA,TP,2012
TR51 2007-000493 R-CHIP;2.2Kohm,5%,1/10W,DA,TP,2012
TR6 2007-001028 R-CHIP;560ohm,1%,1/10W,DA,TP,2012
TR7 2007-000518 R-CHIP;2.7Kohm,5%,1/10W,DA,TP,2012
Electrical Parts List
Location no. Code no. Description & Specifiation Remarks Location no. Code no. Description & Specifiation Remarks
8-2 Samsung Electronics
TR8 2007-000822 R-CHIP;390ohm,5%,1/10W,DA,TP,2012
TR9 2007-000468 R-CHIP;1Kohm,5%,1/10W,DA,TP,2012
VC2L 2203-000595 C-CERAMIC,CHIP;220pF,5%,50V,NPO,TP,2012,
VC2R 2203-000595 C-CERAMIC,CHIP;220pF,5%,50V,NPO,TP,2012,
VR1L 2007-000300 R-CHIP;10Kohm,5%,1/10W,DA,TP,2012
VR1R 2007-000300 R-CHIP;10Kohm,5%,1/10W,DA,TP,2012
VR2L 2007-001177 R-CHIP;8.2Kohm,5%,1/10W,DA,TP,2012
VR2R 2007-001177 R-CHIP;8.2Kohm,5%,1/10W,DA,TP,2012
AH93-30005N ASSY-MAIN,TAPG;MAX870,MAIN,AUTO DOM S.N.A
AC1L 2401-001954 C-AL;4.7UF,20%,50V,GP,BK,5X11MM,5
AC1R 2401-001954 C-AL;4.7UF,20%,50V,GP,BK,5X11MM,5
AC21 2401-001954 C-AL;4.7UF,20%,50V,GP,BK,5X11MM,5
AC22 2401-001572 C-AL;47UF,20%,50V,GP,-,6.3X11,2.5MM
AC3L 2401-001954 C-AL;4.7UF,20%,50V,GP,BK,5X11MM,5
AC3R 2401-001954 C-AL;4.7UF,20%,50V,GP,BK,5X11MM,5
AC4L 2401-001895 C-AL;100uF,20%,16V,GP,6.3x11mm,2.5m
AC4R 2401-001895 C-AL;100uF,20%,16V,GP,6.3x11mm,2.5m
AC5L 2201-000619 C-CERAMIC,DISC;5pF,0.3pF,50V,CH,TP,7x4,5
AC5R 2201-000619 C-CERAMIC,DISC;5pF,0.3pF,50V,CH,TP,7x4,5
AC6 2401-000385 C-AL;10UF,20%,100V,GP,-,6.3X11,2.5M
AC7 2401-000385 C-AL;10UF,20%,100V,GP,-,6.3X11,2.5M
AC8 2401-000385 C-AL;10UF,20%,100V,GP,-,6.3X11,2.5M
AC9 2401-000385 C-AL;10UF,20%,100V,GP,-,6.3X11,2.5M
AC9L 2301-000375 C-FILM,PEF;100NF,5%,50V,TP,11X12.5X6.5,7
AC9R 2301-000375 C-FILM,PEF;100NF,5%,50V,TP,11X12.5X6.5,7
AD10 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,500mW,
AD11 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,500mW,
AD2 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,500mW,
AD3 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,500mW,
AD4 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,500mW,
AD5 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,500mW,
AD6 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,500mW,
AQ10 0501-000294 TR-SMALL SIGNAL;KSA708-Y,PNP,800mW,TO-92
AQ11 0501-000407 TR-SMALL SIGNAL;KSD471A-Y,NPN,800mW,TO-9
AQ1L 0501-000407 TR-SMALL SIGNAL;KSD471A-Y,NPN,800mW,TO-9
AQ1R 0501-000407 TR-SMALL SIGNAL;KSD471A-Y,NPN,800mW,TO-9
AQ3 0504-000146 TR-DIGITAL;KSR2004,PNP,300MW,47K-47K,TO-
AQ4 0504-000203 TR-DIGITAL;KSR1004,NPN,300MW,47K-47K,TO-
AQ7 0504-000146 TR-DIGITAL;KSR2004,PNP,300MW,47K-47K,TO-
AQ8L 0501-000407 TR-SMALL SIGNAL;KSD471A-Y,NPN,800mW,TO-9
AR10 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm
AR11 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm
AR12 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m
AR13 2004-000798 R-METAL;33Kohm,1%,1/8W,AA,TP,1.8x3.2mm
AR14 2001-000028 R-CARBON(S);100ohm,5%,1/2W,AA,TP,2.4x6.4
AR15 2001-000028 R-CARBON(S);100ohm,5%,1/2W,AA,TP,2.4x6.4
AR16 2001-000588 R-CARBON;3.3Kohm,5%,1/4W,AA,TP,2.4x6.4m
AR17 2001-000588 R-CARBON;3.3Kohm,5%,1/4W,AA,TP,2.4x6.4m
AR1L 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m
AR1R 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m
AR20 2001-000786 R-CARBON;47Kohm,5%,1/8W,AA,TP,1.8x3.2mm
AR21 2001-000786 R-CARBON;47Kohm,5%,1/8W,AA,TP,1.8x3.2mm
AR3L 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
AR4L 2001-000858 R-CARBON;56KOHM,1%,1/8W,AD,TP,1.8X3.2MM
AR6L 2001-000858 R-CARBON;56KOHM,1%,1/8W,AD,TP,1.8X3.2MM
AR6R 2001-000858 R-CARBON;56KOHM,1%,1/8W,AD,TP,1.8X3.2MM
AR8 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m
AR8L 2003-000468 R-METAL OXIDE(S);10OHM,5%,1W,AA,TP,3.3X9
AR8R 2003-000468 R-METAL OXIDE(S);10OHM,5%,1W,AA,TP,3.3X9
AZD1 0403-000363 DIODE-ZENER;UZ6.8BH,6.8V,6.8-7.2V,500MW
AZD2 0403-000363 DIODE-ZENER;UZ6.8BH,6.8V,6.8-7.2V,500MW
DC0 2401-001954 C-AL;4.7UF,20%,50V,GP,BK,5X11MM,5
DC1 2401-001968 C-AL;470NF,20%,50V,GP,TP,5X11MM,5
DC10 2401-000438 C-AL;10UF,20%,25V,GP,-,5X11,2MM
DC12 2401-001022 C-AL;3.3UF,20%,50V,GP,-,5X11,2MM
DC13 2401-001022 C-AL;3.3UF,20%,50V,GP,-,5X11,2MM
DC14 2401-001975 C-AL;47UF,20%,16V,GP,TP,5X11MM,5
DC15 2401-001022 C-AL;3.3UF,20%,50V,GP,-,5X11,2MM
DC16 2401-001022 C-AL;3.3UF,20%,50V,GP,-,5X11,2MM
DC18 2401-001912 C-AL;1uF,20%,50V,GP,5x11mm,2mm,BK
DC23 2401-001895 C-AL;100uF,20%,16V,GP,6.3x11mm,2.5m
DC3 2401-001887 C-AL;100NF,20%,50V,-,TP,4X7MM,5
DC4 2401-001887 C-AL;100NF,20%,50V,-,TP,4X7MM,5
DC5 2401-000438 C-AL;10UF,20%,25V,GP,-,5X11,2MM
DC6 2401-000438 C-AL;10UF,20%,25V,GP,-,5X11,2MM
DC7 2401-000438 C-AL;10UF,20%,25V,GP,-,5X11,2MM
DQ1 0504-000203 TR-DIGITAL;KSR1004,NPN,300MW,47K-47K,TO-
DQ2 0504-000146 TR-DIGITAL;KSR2004,PNP,300MW,47K-47K,TO-
DQ3 0504-000203 TR-DIGITAL;KSR1004,NPN,300MW,47K-47K,TO-
DR10 2001-001000 R-CARBON;82KOHM,5%,1/8W,AA,TP,1.8X3.2MM
DR12 2001-000563 R-CARBON;27Kohm,5%,1/8W,AA,TP,1.8x3.2mm
DR18 2001-000515 R-CARBON;220ohm,5%,1/8W,AA,TP,1.8x3.2mm
DR20 2001-000411 R-CARBON;18Kohm,5%,1/8W,AA,TP,1.8x3.2mm
DR21 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
DR22 2001-000472 R-CARBON;2.7Kohm,5%,1/8W,AA,TP,1.8x3.2m
DR27 2001-000660 R-CARBON;33Kohm,5%,1/8W,AA,TP,1.8x3.2mm
DR28 2001-000660 R-CARBON;33Kohm,5%,1/8W,AA,TP,1.8x3.2mm
DR3 2001-000515 R-CARBON;220ohm,5%,1/8W,AA,TP,1.8x3.2mm
DR35 2001-000273 R-CARBON;100Kohm,5%,1/8W,AA,TP,1.8x3.2m
DR36 2001-000273 R-CARBON;100Kohm,5%,1/8W,AA,TP,1.8x3.2m
DR43 2003-000500 R-METAL OXIDE(S);150ohm,5%,1W,AA,TP,3.3x
DR44 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
DR5 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
DR7 2001-000522 R-CARBON;22Kohm,5%,1/8W,AA,TP,1.8x3.2mm
DR71 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m
DR72 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m
DR73 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m
DR8 2001-000786 R-CARBON;47Kohm,5%,1/8W,AA,TP,1.8x3.2mm
DZD1 0403-000354 DIODE-ZENER;UZ5.1B,5.1V,4.8-5.4V,500MW,D
FC1 2401-000438 C-AL;10UF,20%,25V,GP,-,5X11,2MM
FC10L 2301-000375 C-FILM,PEF;100NF,5%,50V,TP,11X12.5X6.5,7
FC10R 2301-000375 C-FILM,PEF;100NF,5%,50V,TP,11X12.5X6.5,7
FC11L 2401-001022 C-AL;3.3UF,20%,50V,GP,-,5X11,2MM
FC11R 2401-001022 C-AL;3.3UF,20%,50V,GP,-,5X11,2MM
FC1L 2401-000475 C-AL;10UF,20%,50V,GP,-,5X11,2MM
FC1R 2401-000475 C-AL;10UF,20%,50V,GP,-,5X11,2MM
FC2 2401-000438 C-AL;10UF,20%,25V,GP,-,5X11,2MM
FC2L 2401-001912 C-AL;1uF,20%,50V,GP,5x11mm,2mm,BK
FC2R 2401-001912 C-AL;1uF,20%,50V,GP,5x11mm,2mm,BK
FC3 2401-001102 C-AL;330UF,20%,16V,GP,TP,8X12,5
FC3L 2401-001912 C-AL;1uF,20%,50V,GP,5x11mm,2mm,BK
FC3R 2401-001912 C-AL;1uF,20%,50V,GP,5x11mm,2mm,BK
FC4 2401-000475 C-AL;10UF,20%,50V,GP,-,5X11,2MM
FC4L 2401-001912 C-AL;1uF,20%,50V,GP,5x11mm,2mm,BK
FC4R 2401-001912 C-AL;1uF,20%,50V,GP,5x11mm,2mm,BK
Electrical Parts List
Location no. Code no. Description & Specifiation Remarks Location no. Code no. Description & Specifiation Remarks
Samsung Electronics 8-3
FC5 2301-000412 C-FILM,PEF;22NF,10%,50V,TP,6.5X10.5X4MM,
FC5L 2401-001022 C-AL;3.3UF,20%,50V,GP,-,5X11,2MM
FC5R 2401-001022 C-AL;3.3UF,20%,50V,GP,-,5X11,2MM
FC6L 2301-000453 C-FILM,PEF;5.6NF,10%,50V,TP,5.5X7X3MM,5M
FC6R 2301-000453 C-FILM,PEF;5.6NF,10%,50V,TP,5.5X7X3MM,5M
FC7L 2301-000393 C-FILM,PEF;18NF,10%,50V,TP,6.5X12.5X3.5M
FC7R 2301-000393 C-FILM,PEF;18NF,10%,50V,TP,6.5X12.5X3.5M
FC8L 2301-000412 C-FILM,PEF;22NF,10%,50V,TP,6.5X10.5X4MM,
FC8R 2301-000412 C-FILM,PEF;22NF,10%,50V,TP,6.5X10.5X4MM,
FC9L 2301-000375 C-FILM,PEF;100NF,5%,50V,TP,11X12.5X6.5,7
FC9R 2301-000375 C-FILM,PEF;100NF,5%,50V,TP,11X12.5X6.5,7
FD1 0402-000127 DIODE-RECTIFIER;1N4002,100V,1A,DO-41
FQ1 0504-000146 TR-DIGITAL;KSR2004,PNP,300MW,47K-47K,TO-
FQ1L 0501-000398 TR-SMALL SIGNAL;KSC945,NPN,250mW,TO-92,T
FQ1R 0501-000398 TR-SMALL SIGNAL;KSC945,NPN,250mW,TO-92,T
FR1 2001-000111 R-CARBON;150ohm,5%,1/4W,AA,TP,2.4x6.4mm
FR2 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm
FR4L 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm
FR7L 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m
FR7R 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m
FR8R 2001-000472 R-CARBON;2.7Kohm,5%,1/8W,AA,TP,1.8x3.2m
FRONT AH41-10537A PCB-MAIN MAX870;MAX870,1L,FR-1,330*247*1
HC1 2401-001364 C-AL;470UF,20%,16V,GP,TP,10X12MM,5M
HC1L 2401-001912 C-AL;1uF,20%,50V,GP,5x11mm,2mm,BK
HC1R 2401-001912 C-AL;1uF,20%,50V,GP,5x11mm,2mm,BK
HC2 2401-001364 C-AL;470UF,20%,16V,GP,TP,10X12MM,5M
HC2L 2401-000240 C-AL;100UF,20%,10V,GP,TP,6X11MM,5MM
HC2R 2401-000240 C-AL;100UF,20%,10V,GP,TP,6X11MM,5MM
HC4 2401-001954 C-AL;4.7UF,20%,50V,GP,BK,5X11MM,5
HD1 0402-000127 DIODE-RECTIFIER;1N4002,100V,1A,DO-41
HD2 0402-000127 DIODE-RECTIFIER;1N4002,100V,1A,DO-41
HD3 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,500mW,
HD4 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,500mW,
HD5 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,500mW,
HD6 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,500mW,
HQ1L 0501-000407 TR-SMALL SIGNAL;KSD471A-Y,NPN,800mW,TO-9
HQ1R 0501-000407 TR-SMALL SIGNAL;KSD471A-Y,NPN,800mW,TO-9
HR1 2004-000207 R-METAL;100ohm,5%,1/4W,AA,TP,2.4x6.4mm
HR1L 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
HR1R 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
HR2 2001-000027 R-CARBON;100ohm,5%,1/4W,AA,TP,2.4x6.4mm
HR2L 2001-000003 R-CARBON;330ohm,5%,1/8W,AA,TP,1.8x3.2mm
HR3 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
HR5L 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm
HR5R 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm
HR6L 2001-000302 R-CARBON;10ohm,5%,1/8W,AA,TP,1.8x3.2mm
HR6R 2001-000302 R-CARBON;10ohm,5%,1/8W,AA,TP,1.8x3.2mm
RC0 2401-001912 C-AL;1uF,20%,50V,GP,5x11mm,2mm,BK
RC12 2401-001912 C-AL;1uF,20%,50V,GP,5x11mm,2mm,BK
RC13 2401-001572 C-AL;47UF,20%,50V,GP,-,6.3X11,2.5MM
RC14 2401-001572 C-AL;47UF,20%,50V,GP,-,6.3X11,2.5MM
RC16 2201-000161 C-CERAMIC,DISC;10nF,+80-20%,500V,Y5V,TP,
RC17 2201-000161 C-CERAMIC,DISC;10nF,+80-20%,500V,Y5V,TP,
RC19 2401-001919 C-AL;2.2UF,20%,50V,-,TP,4X7MM,5
RC2 2401-001938 C-AL;22UF,20%,25V,GP,BK,5X11MM,2MM
RC3 2401-000438 C-AL;10UF,20%,25V,GP,-,5X11,2MM
RC5 2401-001938 C-AL;22UF,20%,25V,GP,BK,5X11MM,2MM
RD1 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,500mW,
RD3 0402-000151 DIODE-RECTIFIER;1N5392,100V,1.5A,DO-15
RD4 0402-000127 DIODE-RECTIFIER;1N4002,100V,1A,DO-41
RD5 0402-000127 DIODE-RECTIFIER;1N4002,100V,1A,DO-41
RD6 0402-000127 DIODE-RECTIFIER;1N4002,100V,1A,DO-41
RD7 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,500mW,
RQ12 0501-000010 TR-SMALL SIGNAL;KSC1008,NPN,80V,60V,700m
RQ4 0501-000296 TR-SMALL SIGNAL;KSA709-Y,PNP,800mW,TO-92
RQ5 0501-000010 TR-SMALL SIGNAL;KSC1008,NPN,80V,60V,700m
RQ7 0501-000010 TR-SMALL SIGNAL;KSC1008,NPN,80V,60V,700m
RR1 2001-000362 R-CARBON;150ohm,5%,1/8W,AA,TP,1.8x3.2mm
RR11 2001-000019 R-CARBON(S);10ohm,5%,1/2W,AA,TP,2.4x6.4m
RR12 2004-000903 R-METAL;4.7KOHM,5%,1/2W,AA,TP,3.3X9MM
RR19 2001-000780 R-CARBON;470ohm,5%,1/8W,AA,TP,1.8x3.2mm
RR20 2001-000613 R-CARBON;3.9Kohm,5%,1/8W,AA,TP,1.8x3.2m
RR21 2001-000890 R-CARBON;6.8KOHM,5%,1/8W,AA,TP,1.8X3.2M
RR22 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m
RR23 2001-001153 R-CARBON(S);47OHM,5%,1/2W,AA,TP,2.4X6.4M
RR24 2001-001153 R-CARBON(S);47OHM,5%,1/2W,AA,TP,2.4X6.4M
RR26 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m
RR27 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm
RR28 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm
RR3 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm
RR4 2001-000802 R-CARBON;5.6KOHM,5%,1/8W,AA,TP,1.8X3.2M
RR8 2001-001178 R-CARBON(S);680ohm,5%,1/2W,AA,TP,2.4x6.4
RZD1 0403-000399 DIODE-ZENER;UZP9.1B,9.1V,8.5-9.6V,1W,DO
RZD3 0403-000357 DIODE-ZENER;UZ5.6BM,5.6V,5.4-5.8V,500MW
RZD4 0403-000357 DIODE-ZENER;UZ5.6BM,5.6V,5.4-5.8V,500MW
RZD5 0403-000564 DIODE-ZENER;TZP16A,16V,15.3-17.1V,1W,DO-
RZD6 0403-000564 DIODE-ZENER;TZP16A,16V,15.3-17.1V,1W,DO-
TC10 2401-000303 C-AL;100uF,20%,25V,GP,TP,6.3x11,2.5
TC101 2202-000796 C-CERAMIC,MLC-AXIAL;1nF,10%,50V,Y5P,TP,3
TC13 2401-000419 C-AL;10UF,20%,16V,GP,-,4X7,5
TC15 2401-000419 C-AL;10UF,20%,16V,GP,-,4X7,5
TC17 2401-001912 C-AL;1uF,20%,50V,GP,5x11mm,2mm,BK
TC18 2401-001968 C-AL;470NF,20%,50V,GP,TP,5X11MM,5
TC19 2401-001912 C-AL;1uF,20%,50V,GP,5x11mm,2mm,BK
TC20 2401-001022 C-AL;3.3UF,20%,50V,GP,-,5X11,2MM
TC21 2202-000854 C-CERAMIC,MLC-AXIAL;47NF,30%,50V,Y5R,TP,
TC22 2401-001975 C-AL;47UF,20%,16V,GP,TP,5X11MM,5
TC25 2401-001912 C-AL;1uF,20%,50V,GP,5x11mm,2mm,BK
TC29 2401-002180 C-AL;2.2UF,20%,50V,GP,TP,5X11,5MM
TC31 2401-002180 C-AL;2.2UF,20%,50V,GP,TP,5X11,5MM
TC32 2401-001912 C-AL;1uF,20%,50V,GP,5x11mm,2mm,BK
TC33 2401-001912 C-AL;1uF,20%,50V,GP,5x11mm,2mm,BK
TC36 2401-002189 C-AL;330uF,20%,10V,GP,BK,8x11.5mm,5
TC39 2401-001968 C-AL;470NF,20%,50V,GP,TP,5X11MM,5
TC4 2401-001975 C-AL;47UF,20%,16V,GP,TP,5X11MM,5
TC40 2401-000303 C-AL;100uF,20%,25V,GP,TP,6.3x11,2.5
TC9 2401-000419 C-AL;10UF,20%,16V,GP,-,4X7,5
TD1 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,500mW,
TD2 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,500mW,
TD3 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,500mW,
TD4 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,500mW,
TD7 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,500mW,
TD8 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,500mW,
TQ2 0501-000392 TR-SMALL SIGNAL;KSC838-O,NPN,250MW,TO-92
TQ3 0501-000392 TR-SMALL SIGNAL;KSC838-O,NPN,250MW,TO-92
TQ4 0501-000294 TR-SMALL SIGNAL;KSA708-Y,PNP,800mW,TO-92
TQ5 0501-000398 TR-SMALL SIGNAL;KSC945,NPN,250mW,TO-92,T
TQ6 0501-000398 TR-SMALL SIGNAL;KSC945,NPN,250mW,TO-92,T
Electrical Parts List
Location no. Code no. Description & Specifiation Remarks Location no. Code no. Description & Specifiation Remarks
8-4 Samsung Electronics
TQ7 0501-000398 TR-SMALL SIGNAL;KSC945,NPN,250mW,TO-92,T
TR16 2001-000527 R-CARBON;22OHM,5%,1/8W,AA,TP,1.8X3.2MM
TR17 2001-000802 R-CARBON;5.6KOHM,5%,1/8W,AA,TP,1.8X3.2M
TR24 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm
TR25 2001-000008 R-CARBON;15Kohm,5%,1/8W,AA,TP,1.8x3.2mm
TR3 2001-000449 R-CARBON;2.2Kohm,5%,1/8W,AA,TP,1.8x3.2m
TR32 2001-000302 R-CARBON;10ohm,5%,1/8W,AA,TP,1.8x3.2mm
TR35 2001-000563 R-CARBON;27Kohm,5%,1/8W,AA,TP,1.8x3.2mm
TR37 2001-000563 R-CARBON;27Kohm,5%,1/8W,AA,TP,1.8x3.2mm
TR38 2001-000117 R-CARBON(S);68ohm,5%,1/2W,AA,TP,2.4x6.4m
TR39 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
TR43 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
TR45 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm
TR50 2001-000938 R-CARBON;68OHM,5%,1/8W,AA,TP,1.8X3.2MM
TR52 2001-000977 R-CARBON;8.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
TR53 2001-000855 R-CARBON;560ohm,5%,1/4W,AA,TP,2.4x6.4mm
TSR1 2103-000290 VR-SEMI;20KOHM,30%,1/10W,TOP
TSR2 2103-000492 VR-SEMI;5KOHM,30%,1/10W,TOP
TZD1 0403-000562 DIODE-ZENER;MTZ7.5B,7.5V,7.07-7.45V,500m
TZD2 0403-000393 DIODE-ZENER;UZP5.1B,5.1V,4.8-5.4V,1W,DO
VC1L 2401-001912 C-AL;1uF,20%,50V,GP,5x11mm,2mm,BK
VC1R 2401-001912 C-AL;1uF,20%,50V,GP,5x11mm,2mm,BK

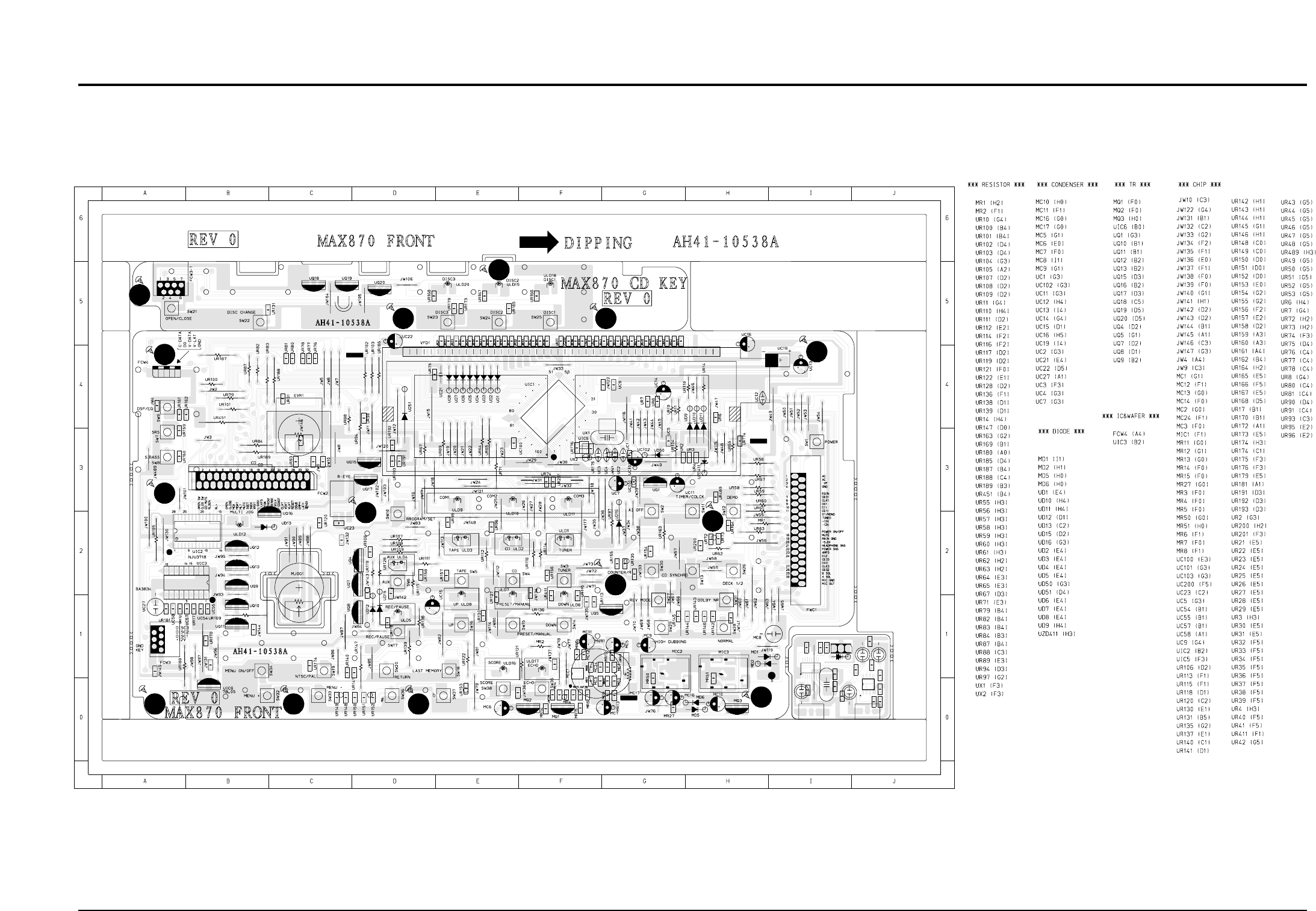

AH90-10739D ASSY-FRONT PCB;MAX870,SPA
AH93-10005R ASSY-FRONT,MANU;MAX870,FRONT MANU SPA
EVR1 3406-001022 SWITCH-ROTARY;5V,0.5MA,24PULSE/NO CLICK,
FCW2 3708-000454 CONNECTOR-FPC/FC/PIC;22P,1.25MM,STRAIGHT
FCW2 3809-001034 CABLE-FLAT;30V,80C,170MM,22P,1.25MM,UL28
FCW3 3708-000449 CONNECTOR-FPC/FC/PIC;7P,1.25MM,STRAIGHT,
FCW3-1 3708-000307 CONNECTOR-FPC/FC/PIC;7P,1.25MM,ANGLE,SN
FCW3-1 3809-001092 CABLE-FLAT;30V,80C,300mm,7P,1.25mm,UL289
MJOG1 3406-001023 SWITCH-ROTARY;5V,0.5MA,24DETENT/CLICK,12
R-EYE AH59-60001J MODULE-REMOCON;GP1U271R,38KHZ,-,MESH,-,
UIC3 1204-000156 IC-EQUALIZER;BA3834S,DIP,18P,-,PLASTIC,7
UX1 2802-000181 RESONATOR-CERAMIC;6MHZ,0.3%,BK,9.0X4.0X7
UX2 2801-001394 CRYSTAL-UNIT;32.768KHz,20ppm,28-AAY,12.5
VFD AH61-20483A HOLDER-VFD;-,ABS,94HB,BLK,-,MAX870
VFD1 AH07-20045T VF-DISPLAY;SVA-16MM16 3##,16SEG,125.0x40
AH93-20004J ASSY-MAIN,CHIP;MAX870,FRONT,CHIP SPA
MIC1 1201-000163 IC-OP AMP;4560,SOP,8P,150MIL,DUAL,100V/M
MR3 2007-000872 R-CHIP;4.7Kohm,5%,1/10W,DA,TP,2012
UC100 2203-000979 C-CERAMIC,CHIP;47nF,10%,50V,X7R,TP,2012,
UC101 2203-000199 C-CERAMIC,CHIP;100nF,+80-20%,50V,Z5U,TP,
UC101 2203-000979 C-CERAMIC,CHIP;47nF,10%,50V,X7R,TP,2012,
UC23 2203-000979 C-CERAMIC,CHIP;47nF,10%,50V,X7R,TP,2012,
UC5 2203-000979 C-CERAMIC,CHIP;47nF,10%,50V,X7R,TP,2012,
UC54 2203-000199 C-CERAMIC,CHIP;100nF,+80-20%,50V,Z5U,TP,
UC55 2203-000199 C-CERAMIC,CHIP;100nF,+80-20%,50V,Z5U,TP,
UC57 2203-000199 C-CERAMIC,CHIP;100nF,+80-20%,50V,Z5U,TP,
UC58 2203-000199 C-CERAMIC,CHIP;100nF,+80-20%,50V,Z5U,TP,
UC9 2203-000979 C-CERAMIC,CHIP;47nF,10%,50V,X7R,TP,2012,
UC99 2203-000979 C-CERAMIC,CHIP;47nF,10%,50V,X7R,TP,2012,
UIC1 AH09-10062Y IC-MCU;LC866548V-XXXX,100P,QFP,MAX850
UIC2 AH14-10004L IC;NJU3718,SOP,BULK
UIC5 0801-000305 IC-CMOS LOGIC;7SU04,INVERTER,SOP,5P,150M
UR106 2007-000401 R-CHIP;150ohm,5%,1/10W,DA,TP,2012
UR113 2007-000872 R-CHIP;4.7Kohm,5%,1/10W,DA,TP,2012
UR115 2007-001028 R-CHIP;560ohm,1%,1/10W,DA,TP,2012
UR118 2007-000401 R-CHIP;150ohm,5%,1/10W,DA,TP,2012
UR120 2007-000300 R-CHIP;10Kohm,5%,1/10W,DA,TP,2012
UR130 2007-000221 R-CHIP;1.2Kohm,5%,1/10W,DA,TP,2012
UR131 2007-001177 R-CHIP;8.2Kohm,5%,1/10W,DA,TP,2012
UR135 2007-001201 R-CHIP;820ohm,5%,1/10W,DA,TP,2012
UR137 2007-000023 R-CHIP;120ohm,5%,1/10W,DA,TP,2012
UR140 2007-000518 R-CHIP;2.7Kohm,5%,1/10W,DA,TP,2012
UR142 2007-001201 R-CHIP;820ohm,5%,1/10W,DA,TP,2012
UR143 2007-000221 R-CHIP;1.2Kohm,5%,1/10W,DA,TP,2012
UR144 2007-000221 R-CHIP;1.2Kohm,5%,1/10W,DA,TP,2012
UR145 2007-000241 R-CHIP;1.5Kohm,5%,1/10W,DA,TP,2012
UR146 2007-000267 R-CHIP;1.8Kohm,5%,1/10W,DA,TP,2012
UR148 2007-000686 R-CHIP;3.3Kohm,5%,1/10W,DA,TP,2012
UR149 2007-000981 R-CHIP;5.6Kohm,5%,1/10W,DA,TP,2012
UR150 2007-001177 R-CHIP;8.2Kohm,5%,1/10W,DA,TP,2012
UR151 2007-000409 R-CHIP;15Kohm,5%,1/10W,DA,TP,2012
UR152 2007-000774 R-CHIP;33Kohm,5%,1/10W,DA,TP,2012
UR153 2007-000941 R-CHIP;47Kohm,5%,1/10W,DA,TP,2012
UR154 2007-001201 R-CHIP;820ohm,5%,1/10W,DA,TP,2012
UR155 2007-000221 R-CHIP;1.2Kohm,5%,1/10W,DA,TP,2012
UR156 2007-000221 R-CHIP;1.2Kohm,5%,1/10W,DA,TP,2012
UR157 2007-000241 R-CHIP;1.5Kohm,5%,1/10W,DA,TP,2012
UR158 2007-000267 R-CHIP;1.8Kohm,5%,1/10W,DA,TP,2012
UR159 2007-000518 R-CHIP;2.7Kohm,5%,1/10W,DA,TP,2012
UR160 2007-000686 R-CHIP;3.3Kohm,5%,1/10W,DA,TP,2012
UR161 2007-000981 R-CHIP;5.6Kohm,5%,1/10W,DA,TP,2012
UR162 2007-001177 R-CHIP;8.2Kohm,5%,1/10W,DA,TP,2012
UR163 2007-000409 R-CHIP;15Kohm,5%,1/10W,DA,TP,2012
UR164 2007-000774 R-CHIP;33Kohm,5%,1/10W,DA,TP,2012
UR165 2007-000941 R-CHIP;47Kohm,5%,1/10W,DA,TP,2012
UR166 2007-000572 R-CHIP;220ohm,5%,1/10W,DA,TP,2012
UR167 2007-000572 R-CHIP;220ohm,5%,1/10W,DA,TP,2012
UR168 2007-000572 R-CHIP;220ohm,5%,1/10W,DA,TP,2012
UR17 2007-000282 R-CHIP;100Kohm,5%,1/10W,DA,TP,2012
UR170 2007-000468 R-CHIP;1Kohm,5%,1/10W,DA,TP,2012
UR172 2007-000586 R-CHIP;22Kohm,5%,1/10W,DA,TP,2012
UR181 2007-000290 R-CHIP;100ohm,5%,1/10W,DA,TP,2012
UR191 2007-000468 R-CHIP;1Kohm,5%,1/10W,DA,TP,2012
UR192 2007-000300 R-CHIP;10Kohm,5%,1/10W,DA,TP,2012
UR193 2007-000300 R-CHIP;10Kohm,5%,1/10W,DA,TP,2012
UR2 2007-000872 R-CHIP;4.7Kohm,5%,1/10W,DA,TP,2012
UR200 2007-000468 R-CHIP;1Kohm,5%,1/10W,DA,TP,2012
UR201 2007-000468 R-CHIP;1Kohm,5%,1/10W,DA,TP,2012
UR201 2007-001654 R-CHIP;10Mohm,1%,1/10W,DA,TP,2012
UR209 2007-000565 R-CHIP;220Kohm,5%,1/10W,DA,TP,2012
UR21 2007-000300 R-CHIP;10Kohm,5%,1/10W,DA,TP,2012
UR210 2007-000981 R-CHIP;5.6Kohm,5%,1/10W,DA,TP,2012
UR22 2007-000300 R-CHIP;10Kohm,5%,1/10W,DA,TP,2012
UR23 2007-000300 R-CHIP;10Kohm,5%,1/10W,DA,TP,2012
UR24 2007-000300 R-CHIP;10Kohm,5%,1/10W,DA,TP,2012
UR25 2007-000300 R-CHIP;10Kohm,5%,1/10W,DA,TP,2012
UR26 2007-000300 R-CHIP;10Kohm,5%,1/10W,DA,TP,2012
UR27 2007-000300 R-CHIP;10Kohm,5%,1/10W,DA,TP,2012
UR28 2007-000300 R-CHIP;10Kohm,5%,1/10W,DA,TP,2012
UR29 2007-000300 R-CHIP;10Kohm,5%,1/10W,DA,TP,2012
UR3 2007-000493 R-CHIP;2.2Kohm,5%,1/10W,DA,TP,2012
UR30 2007-000300 R-CHIP;10Kohm,5%,1/10W,DA,TP,2012
UR301 2007-000774 R-CHIP;33Kohm,5%,1/10W,DA,TP,2012
UR31 2007-000300 R-CHIP;10Kohm,5%,1/10W,DA,TP,2012
Electrical Parts List
Location no. Code no. Description & Specifiation Remarks Location no. Code no. Description & Specifiation Remarks
Samsung Electronics 8-5
UR32 2007-000300 R-CHIP;10Kohm,5%,1/10W,DA,TP,2012
UR33 2007-000300 R-CHIP;10Kohm,5%,1/10W,DA,TP,2012
UR34 2007-000300 R-CHIP;10Kohm,5%,1/10W,DA,TP,2012
UR35 2007-000300 R-CHIP;10Kohm,5%,1/10W,DA,TP,2012
UR36 2007-000300 R-CHIP;10Kohm,5%,1/10W,DA,TP,2012
UR37 2007-000300 R-CHIP;10Kohm,5%,1/10W,DA,TP,2012
UR38 2007-000872 R-CHIP;4.7Kohm,5%,1/10W,DA,TP,2012
UR39 2007-000872 R-CHIP;4.7Kohm,5%,1/10W,DA,TP,2012
UR4 2007-000586 R-CHIP;22Kohm,5%,1/10W,DA,TP,2012
UR40 2007-000872 R-CHIP;4.7Kohm,5%,1/10W,DA,TP,2012
UR41 2007-000872 R-CHIP;4.7Kohm,5%,1/10W,DA,TP,2012
UR42 2007-000872 R-CHIP;4.7Kohm,5%,1/10W,DA,TP,2012
UR43 2007-000872 R-CHIP;4.7Kohm,5%,1/10W,DA,TP,2012
UR44 2007-000872 R-CHIP;4.7Kohm,5%,1/10W,DA,TP,2012
UR45 2007-000872 R-CHIP;4.7Kohm,5%,1/10W,DA,TP,2012
UR451 2007-000300 R-CHIP;10Kohm,5%,1/10W,DA,TP,2012
UR46 2007-000872 R-CHIP;4.7Kohm,5%,1/10W,DA,TP,2012
UR47 2007-000872 R-CHIP;4.7Kohm,5%,1/10W,DA,TP,2012
UR48 2007-000872 R-CHIP;4.7Kohm,5%,1/10W,DA,TP,2012
UR489 2007-000300 R-CHIP;10Kohm,5%,1/10W,DA,TP,2012
UR49 2007-000872 R-CHIP;4.7Kohm,5%,1/10W,DA,TP,2012
UR50 2007-000872 R-CHIP;4.7Kohm,5%,1/10W,DA,TP,2012
UR51 2007-000872 R-CHIP;4.7Kohm,5%,1/10W,DA,TP,2012
UR52 2007-000872 R-CHIP;4.7Kohm,5%,1/10W,DA,TP,2012
UR53 2007-000872 R-CHIP;4.7Kohm,5%,1/10W,DA,TP,2012
UR6 2007-000300 R-CHIP;10Kohm,5%,1/10W,DA,TP,2012
UR7 2007-000300 R-CHIP;10Kohm,5%,1/10W,DA,TP,2012
UR72 2007-000468 R-CHIP;1Kohm,5%,1/10W,DA,TP,2012
UR73 2007-000468 R-CHIP;1Kohm,5%,1/10W,DA,TP,2012
UR74 2007-000468 R-CHIP;1Kohm,5%,1/10W,DA,TP,2012
UR75 2007-000586 R-CHIP;22Kohm,5%,1/10W,DA,TP,2012
UR76 2007-000468 R-CHIP;1Kohm,5%,1/10W,DA,TP,2012
UR77 2007-000468 R-CHIP;1Kohm,5%,1/10W,DA,TP,2012
UR78 2007-000468 R-CHIP;1Kohm,5%,1/10W,DA,TP,2012
UR8 2007-000300 R-CHIP;10Kohm,5%,1/10W,DA,TP,2012
UR80 2007-000468 R-CHIP;1Kohm,5%,1/10W,DA,TP,2012
UR81 2007-000468 R-CHIP;1Kohm,5%,1/10W,DA,TP,2012
UR90 2007-000468 R-CHIP;1Kohm,5%,1/10W,DA,TP,2012
UR91 2007-000468 R-CHIP;1Kohm,5%,1/10W,DA,TP,2012
UR93 2007-000468 R-CHIP;1Kohm,5%,1/10W,DA,TP,2012
UR95 2007-000401 R-CHIP;150ohm,5%,1/10W,DA,TP,2012
UR96 2007-000401 R-CHIP;150ohm,5%,1/10W,DA,TP,2012
AH93-30006H ASSY-FRONT,TAPG;MAX870,FRONT,AUTO SPA
SW1 3404-000165 SWITCH-TACT;12V,50MA,160GF+-50GF,6X6MM,S
SW10 3404-000165 SWITCH-TACT;12V,50MA,160GF+-50GF,6X6MM,S
SW11 3404-000165 SWITCH-TACT;12V,50MA,160GF+-50GF,6X6MM,S
SW12 3404-000165 SWITCH-TACT;12V,50MA,160GF+-50GF,6X6MM,S
SW13 3404-000165 SWITCH-TACT;12V,50MA,160GF+-50GF,6X6MM,S
SW14 3404-000165 SWITCH-TACT;12V,50MA,160GF+-50GF,6X6MM,S
SW15 3404-000165 SWITCH-TACT;12V,50MA,160GF+-50GF,6X6MM,S
SW16 3404-000165 SWITCH-TACT;12V,50MA,160GF+-50GF,6X6MM,S
SW17 3404-000165 SWITCH-TACT;12V,50MA,160GF+-50GF,6X6MM,S
SW2 3404-000165 SWITCH-TACT;12V,50MA,160GF+-50GF,6X6MM,S
SW21 3404-000165 SWITCH-TACT;12V,50MA,160GF+-50GF,6X6MM,S
SW22 3404-000165 SWITCH-TACT;12V,50MA,160GF+-50GF,6X6MM,S
SW23 3404-000165 SWITCH-TACT;12V,50MA,160GF+-50GF,6X6MM,S
SW24 3404-000165 SWITCH-TACT;12V,50MA,160GF+-50GF,6X6MM,S
SW25 3404-000165 SWITCH-TACT;12V,50MA,160GF+-50GF,6X6MM,S
SW26 3404-000165 SWITCH-TACT;12V,50MA,160GF+-50GF,6X6MM,S
SW27 3404-000165 SWITCH-TACT;12V,50MA,160GF+-50GF,6X6MM,S
SW28 3404-000165 SWITCH-TACT;12V,50MA,160GF+-50GF,6X6MM,S
SW29 3404-000165 SWITCH-TACT;12V,50MA,160GF+-50GF,6X6MM,S
SW3 3404-000165 SWITCH-TACT;12V,50MA,160GF+-50GF,6X6MM,S
SW30 3404-000165 SWITCH-TACT;12V,50MA,160GF+-50GF,6X6MM,S
SW31 3404-000165 SWITCH-TACT;12V,50MA,160GF+-50GF,6X6MM,S
SW34 3404-000165 SWITCH-TACT;12V,50MA,160GF+-50GF,6X6MM,S
SW4 3404-000165 SWITCH-TACT;12V,50MA,160GF+-50GF,6X6MM,S
SW5 3404-000165 SWITCH-TACT;12V,50MA,160GF+-50GF,6X6MM,S
SW6 3404-000165 SWITCH-TACT;12V,50MA,160GF+-50GF,6X6MM,S
SW7 3404-000165 SWITCH-TACT;12V,50MA,160GF+-50GF,6X6MM,S
SW8 3404-000165 SWITCH-TACT;12V,50MA,160GF+-50GF,6X6MM,S
SW9 3404-000165 SWITCH-TACT;12V,50MA,160GF+-50GF,6X6MM,S
UC1 2201-000423 C-CERAMIC,DISC;27pF,5%,50V,NPO,TP,5x3,2.
UC102 2401-000244 C-AL;100UF,20%,10V,GP,TP,6.3X7,2.5M
UC11 2401-000650 C-AL;2.2UF,20%,50V,GP,BK,3X5,1MM
UC12 2201-000565 C-CERAMIC,DISC;47nF,20%,50V,Y5V,12.5x4.0
UC13 2401-000244 C-AL;100UF,20%,10V,GP,TP,6.3X7,2.5M
UC14 2401-000244 C-AL;100UF,20%,10V,GP,TP,6.3X7,2.5M
UC15 2401-000909 C-AL;22UF,20%,16V,GP,TP,5X5,2MM
UC16 2401-001953 C-AL;4.7UF,20%,50V,BP,BK,6.3X11MM,2
UC19 2409-000123 C-EDL;47000UF,4UA,5.5V,-,BK,-,5MM
UC2 2201-000423 C-CERAMIC,DISC;27pF,5%,50V,NPO,TP,5x3,2.
UC21 2202-000854 C-CERAMIC,MLC-AXIAL;47NF,30%,50V,Y5R,TP,
UC22 2401-001953 C-AL;4.7UF,20%,50V,BP,BK,6.3X11MM,2
UC27 2401-000240 C-AL;100UF,20%,10V,GP,TP,6X11MM,5MM
UC3 2201-000423 C-CERAMIC,DISC;27pF,5%,50V,NPO,TP,5x3,2.
UC4 2201-000423 C-CERAMIC,DISC;27pF,5%,50V,NPO,TP,5x3,2.
UC7 2401-000752 C-AL;220NF,20%,50V,GP,BK,3X5,1MM
UC9 2202-000854 C-CERAMIC,MLC-AXIAL;47NF,30%,50V,Y5R,TP,
UD10 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,500mW,
UD11 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,500mW,
UD12 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,500mW,
UD13 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,500mW,
UD15 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,500mW,
UD16 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,500mW,
UD50 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,500mW,
UD51 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,500mW,
UD9 0402-000127 DIODE-RECTIFIER;1N4002,100V,1A,DO-41
UIC6 AC14-12001G IC;KA78L05,T,-
ULD1 0601-001051 LED;ROUND,GRN/RED,3.2MM,563/650NM
ULD10 0601-000245 LED;ROUND,RED,3.1mm,650nm
ULD11 0601-000245 LED;ROUND,RED,3.1mm,650nm
ULD12 0601-000245 LED;ROUND,RED,3.1mm,650nm
ULD18 0601-000141 LED;ROUND,GRN,3.1MM,555NM
ULD19 0601-000141 LED;ROUND,GRN,3.1MM,555NM
ULD2 0601-001051 LED;ROUND,GRN/RED,3.2MM,563/650NM
ULD20 0601-000141 LED;ROUND,GRN,3.1MM,555NM
ULD3 0601-001051 LED;ROUND,GRN/RED,3.2MM,563/650NM
ULD4 0601-001051 LED;ROUND,GRN/RED,3.2MM,563/650NM
ULD5 0601-000245 LED;ROUND,RED,3.1mm,650nm
ULD6 0601-000141 LED;ROUND,GRN,3.1MM,555NM
ULD7 0601-000141 LED;ROUND,GRN,3.1MM,555NM
ULD8 0601-000141 LED;ROUND,GRN,3.1MM,555NM
ULD9 0601-000245 LED;ROUND,RED,3.1mm,650nm
UQ1 0501-000398 TR-SMALL SIGNAL;KSC945,NPN,250mW,TO-92,T
UQ10 0504-001003 TR-DIGITAL;KSR2003,PNP,300MW,22K-22K,TO-
UQ11 0504-001003 TR-DIGITAL;KSR2003,PNP,300MW,22K-22K,TO-
Electrical Parts List
Location no. Code no. Description & Specifiation Remarks Location no. Code no. Description & Specifiation Remarks
8-6 Samsung Electronics
UQ12 0504-001003 TR-DIGITAL;KSR2003,PNP,300MW,22K-22K,TO-
UQ13 0504-001003 TR-DIGITAL;KSR2003,PNP,300MW,22K-22K,TO-
UQ15 0504-000122 TR-DIGITAL;KSR1009Y,NPN,300mW,4.7K,TO-92
UQ16 0504-000122 TR-DIGITAL;KSR1009Y,NPN,300mW,4.7K,TO-92
UQ17 0504-000122 TR-DIGITAL;KSR1009Y,NPN,300mW,4.7K,TO-92
UQ18 0504-000122 TR-DIGITAL;KSR1009Y,NPN,300mW,4.7K,TO-92
UQ19 0504-000122 TR-DIGITAL;KSR1009Y,NPN,300mW,4.7K,TO-92
UQ20 0504-000122 TR-DIGITAL;KSR1009Y,NPN,300mW,4.7K,TO-92
UQ4 0504-000122 TR-DIGITAL;KSR1009Y,NPN,300mW,4.7K,TO-92
UQ5 0504-000122 TR-DIGITAL;KSR1009Y,NPN,300mW,4.7K,TO-92
UQ9 0504-001003 TR-DIGITAL;KSR2003,PNP,300MW,22K-22K,TO-
UR10 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm
UR100 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
UR101 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
UR102 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
UR103 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
UR104 2001-000508 R-CARBON;220Kohm,5%,1/8W,AA,TP,1.8x3.2m
UR105 2001-000362 R-CARBON;150ohm,5%,1/8W,AA,TP,1.8x3.2mm
UR107 2001-000362 R-CARBON;150ohm,5%,1/8W,AA,TP,1.8x3.2mm
UR108 2001-000362 R-CARBON;150ohm,5%,1/8W,AA,TP,1.8x3.2mm
UR109 2001-000362 R-CARBON;150ohm,5%,1/8W,AA,TP,1.8x3.2mm
UR11 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm
UR110 2001-000515 R-CARBON;220ohm,5%,1/8W,AA,TP,1.8x3.2mm
UR111 2001-000857 R-CARBON;560ohm,5%,1/8W,AA,TP,1.8x3.2mm
UR112 2001-000857 R-CARBON;560ohm,5%,1/8W,AA,TP,1.8x3.2mm
UR113 2001-000857 R-CARBON;560ohm,5%,1/8W,AA,TP,1.8x3.2mm
UR113 2001-000857 R-CARBON;560ohm,5%,1/8W,AA,TP,1.8x3.2mm
UR114 2001-000857 R-CARBON;560ohm,5%,1/8W,AA,TP,1.8x3.2mm
UR115 2001-000038 R-CARBON;390OHM,5%,1/4W,AA,TP,2.4X6.4MM
UR117 2001-000038 R-CARBON;390OHM,5%,1/4W,AA,TP,2.4X6.4MM
UR121 2001-000857 R-CARBON;560ohm,5%,1/8W,AA,TP,1.8x3.2mm
UR136 2001-000221 R-CARBON;1.2Kohm,5%,1/8W,AA,TP,1.8x3.2m
UR138 2001-000241 R-CARBON;1.5Kohm,5%,1/8W,AA,TP,1.8x3.2m
UR139 2001-000258 R-CARBON;1.8Kohm,5%,1/8W,AA,TP,1.8x3.2m
UR14 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m
UR147 2001-000472 R-CARBON;2.7Kohm,5%,1/8W,AA,TP,1.8x3.2m
UR163 2001-000008 R-CARBON;15Kohm,5%,1/8W,AA,TP,1.8x3.2mm
UR169 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
UR180 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm
UR185 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
UR187 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
UR188 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
UR189 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
UR303 2001-000786 R-CARBON;47Kohm,5%,1/8W,AA,TP,1.8x3.2mm
UR55 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
UR56 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
UR57 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
UR58 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
UR59 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
UR60 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
UR61 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
UR62 2001-000356 R-CARBON;150Kohm,5%,1/8W,AA,TP,1.8x3.2m
UR63 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
UR64 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
UR65 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
UR67 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
UR71 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
UR79 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
UR82 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
UR83 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
UR84 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
UR87 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
UR88 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
UR89 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
UR94 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
UR97 2001-000362 R-CARBON;150ohm,5%,1/8W,AA,TP,1.8x3.2mm
AH90-10739X ASSY-POWER PCB;MAX880,120V S.N.A
AH93-10004Z ASSY-POWER,MANU;MAX870,POWER MANU EM1
S.N.A
PC1 2201-000520 C-CERAMIC,DISC;4.7NF,+80-20%,400VAC,Y5V,
PC2 2201-000520 C-CERAMIC,DISC;4.7NF,+80-20%,400VAC,Y5V,
PJ1 3711-000190 CONNECTOR-HEADER;1WALL,2P,1R,7.92MM,STRA
PL1 AH27-10001F COIL-CHOKE;27UH,K,Q30,-,-,DR(6.5*7.5),-,
PL2 AH27-10001F COIL-CHOKE;27UH,K,Q30,-,-,DR(6.5*7.5),-,
PW1 3711-003112 CONNECTOR-HEADER;BOX,8P,1R,2.5MM,STRAIGH
RF2 3601-000301 FUSE-FERRULE;250V,6.3A,TIME LAG,GLASS,5X
RF3 3601-000282 FUSE-FERRULE;250V,4A,TIME LAG,GLASS,5X20
FUSE1 3602-000147 FUSE-CLIP;250V,7.5A,30mohm
RCW1 3711-000190 CONNECTOR-HEADER;1WALL,2P,1R,7.92MM,STRA
RCW3 3708-001044 CONNECTOR-FPC/FC/PIC;5P,1.5MM,STRAIGHT,S
RF4 3601-000282 FUSE-FERRULE;250V,4A,TIME LAG,GLASS,5X20
FUSE1 3602-000147 FUSE-CLIP;250V,7.5A,30mohm
RCW1 3711-000190 CONNECTOR-HEADER;1WALL,2P,1R,7.92MM,STRA
RCW3 3708-001044 CONNECTOR-FPC/FC/PIC;5P,1.5MM,STRAIGHT,S
AH93-30005E ASSY-POWER,TAPG;MAX870,POWER,AUTO EM1
S.N.A
RF2 3602-000147 FUSE-CLIP;250V,7.5A,30mohm
RF3 3602-000147 FUSE-CLIP;250V,7.5A,30mohm
RF4 3602-000147 FUSE-CLIP;250V,7.5A,30mohm
AH90-10741W ASSY-DECK PCB;MAX850,FUL
AH93-10003T ASSY-DECK,MANU;MAX850,DECK MANU FUL
DCW6 3710-001272 CONNECTOR-SOCKET;10P,1R,2.5mm,STRAIGHT-F
DCW6-1 3711-003785 CONNECTOR-HEADER;NOWALL,10P,1R,2.5mm,STR
DCW7 3710-001272 CONNECTOR-SOCKET;10P,1R,2.5mm,STRAIGHT-F
DCW7-1 3711-003785 CONNECTOR-HEADER;NOWALL,10P,1R,2.5mm,STR
DCW8 3710-000544 CONNECTOR-SOCKET;3P,1R,2.5MM,STRAIGHT,SN
DCW8 3710-001248 CONNECTOR-SOCKET;3P,1R,2.5mm,STRAIGHT,SN
DCW9 3710-001270 CONNECTOR-SOCKET;6P,1R,2.5mm,STRAIGHT-F,
FJD2 3713-001128 CONNECTOR-HOUSING;20P,2.54MM,FEMALE,2R
JIC3 1204-001297 IC-EQUALIZER;HA12203NT,DIP,42P,-,PLASTIC
JIC6 AH14-10006F IC;TC9173P,DIP,EXPANDER 16P
JIC7 1201-000357 IC-PREAMP;3312,SIP,10P,-,-,55V/MV,PLASTI
JL2L AH26-10002X COIL-TRAP;KS940830-05,BIAS-TRAP,30DB,7.6
JL2R AH26-10002X COIL-TRAP;KS940830-05,BIAS-TRAP,30DB,7.6
JL3 AH26-10003C COIL-TRAP;PCHNS-5371EQJ,BIAS-TRAP,-,-,85
JLPF1L 2909-000210 FILTER-LC;LP,-,1DB,TP,30DB/19KHZ,50DB/10
JLPF1R 2909-000210 FILTER-LC;LP,-,1DB,TP,30DB/19KHZ,50DB/10
TP1 3711-000907 CONNECTOR-HEADER;BOX,3P,1R,2mm,STRAIGHT,
TP2 3711-000907 CONNECTOR-HEADER;BOX,3P,1R,2mm,STRAIGHT,
TP3 3711-000907 CONNECTOR-HEADER;BOX,3P,1R,2mm,STRAIGHT,
AH93-20003S ASSY-DECK,CHIP;MAX850,DECK CHIP FUL
JC10L 2203-000239 C-CERAMIC,CHIP;100pF,5%,50V,NPO,TP,2012,
JC10R 2203-000239 C-CERAMIC,CHIP;100pF,5%,50V,NPO,TP,2012,
Electrical Parts List
Location no. Code no. Description & Specifiation Remarks Location no. Code no. Description & Specifiation Remarks
Samsung Electronics 8-7
JC11L 2203-001036 C-CERAMIC,CHIP;5.6nF,10%,50V,X7R,TP,2012
JC11R 2203-001036 C-CERAMIC,CHIP;5.6nF,10%,50V,X7R,TP,2012
JC15L 2203-000892 C-CERAMIC,CHIP;4.7nF,10%,50V,X7R,TP,2012
JC15R 2203-000892 C-CERAMIC,CHIP;4.7nF,10%,50V,X7R,TP,2012
JC17L 2203-000892 C-CERAMIC,CHIP;4.7nF,10%,50V,X7R,TP,2012
JC17R 2203-000892 C-CERAMIC,CHIP;4.7nF,10%,50V,X7R,TP,2012
JC19L 2203-000199 C-CERAMIC,CHIP;100nF,+80-20%,50V,Z5U,TP,
JC19R 2203-000199 C-CERAMIC,CHIP;100nF,+80-20%,50V,Z5U,TP,
JC1L 2203-001058 C-CERAMIC,CHIP;560pF,5%,50V,NPO,TP,2012,
JC1R 2203-001058 C-CERAMIC,CHIP;560pF,5%,50V,NPO,TP,2012,
JC22L 2203-000727 C-CERAMIC,CHIP;3.9NF,10%,50V,X7R,TP,2012
JC22R 2203-000727 C-CERAMIC,CHIP;3.9NF,10%,50V,X7R,TP,2012
JC24 2203-001537 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,-
JC2L 2203-000239 C-CERAMIC,CHIP;100pF,5%,50V,NPO,TP,2012,
JC2R 2203-000239 C-CERAMIC,CHIP;100pF,5%,50V,NPO,TP,2012,
JC30L 2007-000029 R-CHIP;0ohm,5%,1/10W,DA,TP,2012
JC30R 2007-000029 R-CHIP;0ohm,5%,1/10W,DA,TP,2012
JC31L 2203-000727 C-CERAMIC,CHIP;3.9NF,10%,50V,X7R,TP,2012
JC31R 2203-000727 C-CERAMIC,CHIP;3.9NF,10%,50V,X7R,TP,2012
JC32L 2007-000029 R-CHIP;0ohm,5%,1/10W,DA,TP,2012
JC32R 2007-000029 R-CHIP;0ohm,5%,1/10W,DA,TP,2012
JC39L 2203-001550 C-CERAMIC,CHIP;1.2NF,10%,50V,X7R,TP,2012
JC39R 2203-001550 C-CERAMIC,CHIP;1.2NF,10%,50V,X7R,TP,2012
JC3L 2203-000239 C-CERAMIC,CHIP;100pF,5%,50V,NPO,TP,2012,
JC3R 2203-000239 C-CERAMIC,CHIP;100pF,5%,50V,NPO,TP,2012,
JC42 2203-000417 C-CERAMIC,CHIP;18NF,10%,50V,X7R,TP,2012,
JC43 2203-000495 C-CERAMIC,CHIP;2.2nF,10%,50V,X7R,TP,2012
JC46L 2203-000495 C-CERAMIC,CHIP;2.2nF,10%,50V,X7R,TP,2012
JC46R 2203-000495 C-CERAMIC,CHIP;2.2nF,10%,50V,X7R,TP,2012
JC48 2203-000979 C-CERAMIC,CHIP;47nF,10%,50V,X7R,TP,2012,
JC4L 2203-001105 C-CERAMIC,CHIP;6.8NF,10%,50V,X7R,TP,2012
JC4R 2203-001105 C-CERAMIC,CHIP;6.8NF,10%,50V,X7R,TP,2012
JC60L 2203-000239 C-CERAMIC,CHIP;100pF,5%,50V,NPO,TP,2012,
JC60R 2203-000239 C-CERAMIC,CHIP;100pF,5%,50V,NPO,TP,2012,
JC8L 2203-001537 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,-
JC8R 2203-001537 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,-
JC9L 2203-000239 C-CERAMIC,CHIP;100pF,5%,50V,NPO,TP,2012,
JC9R 2203-000239 C-CERAMIC,CHIP;100pF,5%,50V,NPO,TP,2012,
JIC1 1201-000163 IC-OP AMP;4560,SOP,8P,150MIL,DUAL,100V/M
JIC2 1201-000163 IC-OP AMP;4560,SOP,8P,150MIL,DUAL,100V/M
JIC5 AH14-10007D IC;NJU3716M,SOP,STICK EXPANDER 16BIT
JR10L 2007-000565 R-CHIP;220Kohm,5%,1/10W,DA,TP,2012
JR10R 2007-000565 R-CHIP;220Kohm,5%,1/10W,DA,TP,2012
JR11L 2007-001024 R-CHIP-HARNESS;560Kohm,5%,1/10W,DA,TP,20
JR11R 2007-001024 R-CHIP-HARNESS;560Kohm,5%,1/10W,DA,TP,20
JR12L 2007-000653 R-CHIP;27Kohm,5%,1/10W,DA,TP,2012
JR12R 2007-000653 R-CHIP;27Kohm,5%,1/10W,DA,TP,2012
JR13L 2007-000409 R-CHIP;15Kohm,5%,1/10W,DA,TP,2012
JR13R 2007-000409 R-CHIP;15Kohm,5%,1/10W,DA,TP,2012
JR14L 2007-000290 R-CHIP;100ohm,5%,1/10W,DA,TP,2012
JR14R 2007-000290 R-CHIP;100ohm,5%,1/10W,DA,TP,2012
JR17 2007-000686 R-CHIP;3.3Kohm,5%,1/10W,DA,TP,2012
JR1L 2007-000565 R-CHIP;220Kohm,5%,1/10W,DA,TP,2012
JR1R 2007-000565 R-CHIP;220Kohm,5%,1/10W,DA,TP,2012
JR22 2007-000586 R-CHIP;22Kohm,5%,1/10W,DA,TP,2012
JR23 2007-000774 R-CHIP;33Kohm,5%,1/10W,DA,TP,2012
JR24L 2007-000409 R-CHIP;15Kohm,5%,1/10W,DA,TP,2012
JR24R 2007-000409 R-CHIP;15Kohm,5%,1/10W,DA,TP,2012
JR25L 2007-000774 R-CHIP;33Kohm,5%,1/10W,DA,TP,2012
JR25R 2007-000774 R-CHIP;33Kohm,5%,1/10W,DA,TP,2012
JR27 2007-000282 R-CHIP;100Kohm,5%,1/10W,DA,TP,2012
JR2L 2007-001024 R-CHIP-HARNESS;560Kohm,5%,1/10W,DA,TP,20
JR2R 2007-001024 R-CHIP-HARNESS;560Kohm,5%,1/10W,DA,TP,20
JR32L 2007-000267 R-CHIP;1.8Kohm,5%,1/10W,DA,TP,2012
JR32R 2007-000267 R-CHIP;1.8Kohm,5%,1/10W,DA,TP,2012
JR33L 2007-000686 R-CHIP;3.3Kohm,5%,1/10W,DA,TP,2012
JR34L 2007-000981 R-CHIP;5.6Kohm,5%,1/10W,DA,TP,2012
JR34R 2007-000981 R-CHIP;5.6Kohm,5%,1/10W,DA,TP,2012
JR35L 2007-000518 R-CHIP;2.7Kohm,5%,1/10W,DA,TP,2012
JR35R 2007-000518 R-CHIP;2.7Kohm,5%,1/10W,DA,TP,2012
JR36L 2007-000586 R-CHIP;22Kohm,5%,1/10W,DA,TP,2012
JR36R 2007-000586 R-CHIP;22Kohm,5%,1/10W,DA,TP,2012
JR37L 2007-000872 R-CHIP;4.7Kohm,5%,1/10W,DA,TP,2012
JR37R 2007-000872 R-CHIP;4.7Kohm,5%,1/10W,DA,TP,2012
JR38L 2007-000941 R-CHIP;47Kohm,5%,1/10W,DA,TP,2012
JR38R 2007-000941 R-CHIP;47Kohm,5%,1/10W,DA,TP,2012
JR39L 2007-000872 R-CHIP;4.7Kohm,5%,1/10W,DA,TP,2012
JR39R 2007-000872 R-CHIP;4.7Kohm,5%,1/10W,DA,TP,2012
JR3L 2007-000290 R-CHIP;100ohm,5%,1/10W,DA,TP,2012
JR3R 2007-000290 R-CHIP;100ohm,5%,1/10W,DA,TP,2012
JR40 2007-000498 R-CHIP;2.2MOHM,5%,1/10W,DA,TP,2012
JR42L 2007-001071 R-CHIP;6.8Kohm,5%,1/10W,DA,TP,2012
JR42R 2007-001071 R-CHIP;6.8Kohm,5%,1/10W,DA,TP,2012
JR4L 2007-000653 R-CHIP;27Kohm,5%,1/10W,DA,TP,2012
JR4R 2007-000653 R-CHIP;27Kohm,5%,1/10W,DA,TP,2012
JR52 2007-000981 R-CHIP;5.6Kohm,5%,1/10W,DA,TP,2012
JR53 2007-000221 R-CHIP;1.2Kohm,5%,1/10W,DA,TP,2012
JR57 2007-000653 R-CHIP;27Kohm,5%,1/10W,DA,TP,2012
JR62 2007-000300 R-CHIP;10Kohm,5%,1/10W,DA,TP,2012
JR63 2007-000710 R-CHIP;3.9Kohm,5%,1/10W,DA,TP,2012
JR64L 2007-000686 R-CHIP;3.3Kohm,5%,1/10W,DA,TP,2012
JR70 2007-000300 R-CHIP;10Kohm,5%,1/10W,DA,TP,2012
JR8L 2007-000308 R-CHIP;10ohm,5%,1/10W,DA,TP,2012
SC1L 2007-000029 R-CHIP;0ohm,5%,1/10W,DA,TP,2012
SC1R 2007-000029 R-CHIP;0ohm,5%,1/10W,DA,TP,2012
SC8L 2203-001550 C-CERAMIC,CHIP;1.2NF,10%,50V,X7R,TP,2012
SC8R 2203-001550 C-CERAMIC,CHIP;1.2NF,10%,50V,X7R,TP,2012
SR16L 2007-000029 R-CHIP;0ohm,5%,1/10W,DA,TP,2012
SR16R 2007-000029 R-CHIP;0ohm,5%,1/10W,DA,TP,2012
SR17L 2007-000029 R-CHIP;0ohm,5%,1/10W,DA,TP,2012
SR17R 2007-000029 R-CHIP;0ohm,5%,1/10W,DA,TP,2012
SR18L 2007-000029 R-CHIP;0ohm,5%,1/10W,DA,TP,2012
SR1L 2007-000029 R-CHIP;0ohm,5%,1/10W,DA,TP,2012
SR1R 2007-000029 R-CHIP;0ohm,5%,1/10W,DA,TP,2012
SR2L 2007-000029 R-CHIP;0ohm,5%,1/10W,DA,TP,2012
SR2R 2007-000029 R-CHIP;0ohm,5%,1/10W,DA,TP,2012
SR6L 2007-000029 R-CHIP;0ohm,5%,1/10W,DA,TP,2012
AH93-30004M ASSY-DECK,TAPG;MAX850,DECK,AUTO FUL
JC12L 2401-000240 C-AL;100UF,20%,10V,GP,TP,6X11MM,5MM
JC12R 2401-000240 C-AL;100UF,20%,10V,GP,TP,6X11MM,5MM
JC13L 2401-001975 C-AL;47UF,20%,16V,GP,TP,5X11MM,5
JC13R 2401-001975 C-AL;47UF,20%,16V,GP,TP,5X11MM,5
JC14 2401-000240 C-AL;100UF,20%,10V,GP,TP,6X11MM,5MM
JC16L 2401-002180 C-AL;2.2UF,20%,50V,GP,TP,5X11,5MM
JC16R 2401-002180 C-AL;2.2UF,20%,50V,GP,TP,5X11,5MM
JC18L 2401-001968 C-AL;470NF,20%,50V,GP,TP,5X11MM,5
JC18R 2401-001968 C-AL;470NF,20%,50V,GP,TP,5X11MM,5
JC20L 2401-002180 C-AL;2.2UF,20%,50V,GP,TP,5X11,5MM
JC20R 2401-002180 C-AL;2.2UF,20%,50V,GP,TP,5X11,5MM
Electrical Parts List
Location no. Code no. Description & Specifiation Remarks Location no. Code no. Description & Specifiation Remarks
8-8 Samsung Electronics
JC21L 2401-002180 C-AL;2.2UF,20%,50V,GP,TP,5X11,5MM
JC21R 2401-002180 C-AL;2.2UF,20%,50V,GP,TP,5X11,5MM
JC23L 2401-000419 C-AL;10UF,20%,16V,GP,-,4X7,5
JC23R 2401-000419 C-AL;10UF,20%,16V,GP,-,4X7,5
JC25 2401-001080 C-AL;330NF,20%,50V,GP,-,5X11,2MM
JC26 2401-001975 C-AL;47UF,20%,16V,GP,TP,5X11MM,5
JC27 2401-000907 C-AL;22UF,20%,16V,GP,-,5X11,2MM
JC28 2401-001975 C-AL;47UF,20%,16V,GP,TP,5X11MM,5
JC33L 2401-000419 C-AL;10UF,20%,16V,GP,-,4X7,5
JC33R 2401-000419 C-AL;10UF,20%,16V,GP,-,4X7,5
JC34L 2401-001975 C-AL;47UF,20%,16V,GP,TP,5X11MM,5
JC34R 2401-001465 C-AL;47UF,20%,10V,GP,-,5X11,2MM
JC35L 2401-000419 C-AL;10UF,20%,16V,GP,-,4X7,5
JC35R 2401-000419 C-AL;10UF,20%,16V,GP,-,4X7,5
JC36 2401-001465 C-AL;47UF,20%,10V,GP,-,5X11,2MM
JC37 2401-001975 C-AL;47UF,20%,16V,GP,TP,5X11MM,5
JC38 2401-001975 C-AL;47UF,20%,16V,GP,TP,5X11MM,5
JC40 2401-000240 C-AL;100UF,20%,10V,GP,TP,6X11MM,5MM
JC41 2401-000419 C-AL;10UF,20%,16V,GP,-,4X7,5
JC44 2401-000419 C-AL;10UF,20%,16V,GP,-,4X7,5
JC45 2301-000404 C-FILM,PEF;2.2NF,10%,50V,TP,5.5X7X3.2MM,
JC45L 2201-000368 C-CERAMIC,DISC;220pF,10%,50V,SL,TP,6.5x3
JC45R 2201-000368 C-CERAMIC,DISC;220pF,10%,50V,SL,TP,6.5x3
JC47 2401-000907 C-AL;22UF,20%,16V,GP,-,5X11,2MM
JC48L 2401-001968 C-AL;470NF,20%,50V,GP,TP,5X11MM,5
JC48R 2401-001968 C-AL;470NF,20%,50V,GP,TP,5X11MM,5
JC49 2401-002180 C-AL;2.2UF,20%,50V,GP,TP,5X11,5MM
JC50 2401-002180 C-AL;2.2UF,20%,50V,GP,TP,5X11,5MM
JC5L 2401-000240 C-AL;100UF,20%,10V,GP,TP,6X11MM,5MM
JC5R 2401-000240 C-AL;100UF,20%,10V,GP,TP,6X11MM,5MM
JC6L 2401-001975 C-AL;47UF,20%,16V,GP,TP,5X11MM,5
JC6R 2401-001975 C-AL;47UF,20%,16V,GP,TP,5X11MM,5
JC7L 2202-000796 C-CERAMIC,MLC-AXIAL;1nF,10%,50V,Y5P,TP,3
JC7R 2202-000796 C-CERAMIC,MLC-AXIAL;1nF,10%,50V,Y5P,TP,3
JD1 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,500mW,
JD2 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,500mW,
JD3 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,500mW,
JD4 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,500mW,
JD5 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,500mW,
JL4 2701-000177 INDUCTOR-AXIAL;33UH,10%,2.5X3.4MM
JQ10 0504-001003 TR-DIGITAL;KSR2003,PNP,300MW,22K-22K,TO-
JQ11 0504-000118 TR-DIGITAL;KSR1003,NPN,300MW,22K-22K,TO-
JQ12 0501-000398 TR-SMALL SIGNAL;KSC945,NPN,250mW,TO-92,T
JQ13 0501-000610 TR-SMALL SIGNAL;KSA928A-Y,PNP,1W,TO-92L,
JQ14 0501-000610 TR-SMALL SIGNAL;KSA928A-Y,PNP,1W,TO-92L,
JQ15 0501-000610 TR-SMALL SIGNAL;KSA928A-Y,PNP,1W,TO-92L,
JQ16 0504-000118 TR-DIGITAL;KSR1003,NPN,300MW,22K-22K,TO-
JQ19 0504-000118 TR-DIGITAL;KSR1003,NPN,300MW,22K-22K,TO-
JQ1L 0501-000398 TR-SMALL SIGNAL;KSC945,NPN,250mW,TO-92,T
JQ1R 0501-000398 TR-SMALL SIGNAL;KSC945,NPN,250mW,TO-92,T
JQ20 0504-000118 TR-DIGITAL;KSR1003,NPN,300MW,22K-22K,TO-
JQ3L 0501-000010 TR-SMALL SIGNAL;KSC1008,NPN,80V,60V,700m
JQ3R 0501-000010 TR-SMALL SIGNAL;KSC1008,NPN,80V,60V,700m
JQ4 0501-000294 TR-SMALL SIGNAL;KSA708-Y,PNP,800mW,TO-92
JQ4L 0501-000010 TR-SMALL SIGNAL;KSC1008,NPN,80V,60V,700m
JQ4R 0501-000010 TR-SMALL SIGNAL;KSC1008,NPN,80V,60V,700m
JQ5 0504-000118 TR-DIGITAL;KSR1003,NPN,300MW,22K-22K,TO-
JQ6 0501-000369 TR-SMALL SIGNAL;KSC2331-Y,NPN,1W,TO-92L,
JQ7 0501-000369 TR-SMALL SIGNAL;KSC2331-Y,NPN,1W,TO-92L,
JQ8 0504-000118 TR-DIGITAL;KSR1003,NPN,300MW,22K-22K,TO-
JQ9L 0504-000118 TR-DIGITAL;KSR1003,NPN,300MW,22K-22K,TO-
JQ9R 0504-000118 TR-DIGITAL;KSR1003,NPN,300MW,22K-22K,TO-
JR16 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm
JR18 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm
JR18L 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m
JR18R 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m
JR19L 2001-000449 R-CARBON;2.2Kohm,5%,1/8W,AA,TP,1.8x3.2m
JR19R 2001-000449 R-CARBON;2.2Kohm,5%,1/8W,AA,TP,1.8x3.2m
JR20 2001-000362 R-CARBON;150ohm,5%,1/8W,AA,TP,1.8x3.2mm
JR21L 2001-000890 R-CARBON;6.8KOHM,5%,1/8W,AA,TP,1.8X3.2M
JR21R 2001-000890 R-CARBON;6.8KOHM,5%,1/8W,AA,TP,1.8X3.2M
JR26 2001-000362 R-CARBON;150ohm,5%,1/8W,AA,TP,1.8x3.2mm
JR31L 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m
JR31R 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m
JR33R 2001-000591 R-CARBON;3.3Kohm,5%,1/8W,AA,TP,1.8x3.2m
JR41 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm
JR43 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
JR44 2001-001107 R-CARBON(S);220ohm,5%,1/2W,AA,TP,2.4x6.4
JR51 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m
JR54 2001-001178 R-CARBON(S);680ohm,5%,1/2W,AA,TP,2.4x6.4
JR55 2001-001178 R-CARBON(S);680ohm,5%,1/2W,AA,TP,2.4x6.4
JR56 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm
JR58 2001-000563 R-CARBON;27Kohm,5%,1/8W,AA,TP,1.8x3.2mm
JR5L 2001-000008 R-CARBON;15Kohm,5%,1/8W,AA,TP,1.8x3.2mm
JR5R 2001-000008 R-CARBON;15Kohm,5%,1/8W,AA,TP,1.8x3.2mm
JR6 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm
JR60 2001-001178 R-CARBON(S);680ohm,5%,1/2W,AA,TP,2.4x6.4
JR64R 2001-000591 R-CARBON;3.3Kohm,5%,1/8W,AA,TP,1.8x3.2m
JR65 2001-000977 R-CARBON;8.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
JR67 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
JR69 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
JR7 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm
JR71 2001-000456 R-CARBON;2.2ohm,5%,1/4W,AA,TP,2.4x6.4mm
JR72 2001-000005 R-CARBON;390OHM,5%,1/8W,AA,TP,1.8X3.2MM
JR73 2001-000005 R-CARBON;390OHM,5%,1/8W,AA,TP,1.8X3.2MM
JR8R 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm
JR9L 2001-000449 R-CARBON;2.2Kohm,5%,1/8W,AA,TP,1.8x3.2m
JR9R 2001-000449 R-CARBON;2.2Kohm,5%,1/8W,AA,TP,1.8x3.2m
JSR1L 2103-000171 VR-SEMI;10KOHM,30%,1/10W,TOP
JSR1R 2103-000171 VR-SEMI;10KOHM,30%,1/10W,TOP
JSR2L 2103-000171 VR-SEMI;10KOHM,30%,1/10W,TOP
JSR2R 2103-000171 VR-SEMI;10KOHM,30%,1/10W,TOP
JSR3L 2103-000171 VR-SEMI;10KOHM,30%,1/10W,TOP
JSR3R 2103-000171 VR-SEMI;10KOHM,30%,1/10W,TOP
JSR4L 2103-000248 VR-SEMI;200KOHM,30%,1/10W,TOP
JSR4R 2103-000248 VR-SEMI;200KOHM,30%,1/10W,TOP
JSR5 2103-000341 VR-SEMI;2KOHM,30%,1/10W,TOP
JSR6 2103-000341 VR-SEMI;2KOHM,30%,1/10W,TOP
JZD1 0403-000562 DIODE-ZENER;MTZ7.5B,7.5V,7.07-7.45V,500m
JZD2 0403-000562 DIODE-ZENER;MTZ7.5B,7.5V,7.07-7.45V,500m
JZD3 0403-000355 DIODE-ZENER;UZ5.1BSB,5.1V,4.97-5.18V,50
AH90-10719E ASSY-PCB;G3A8-3VI/C,NEW
AH94-10025M ASSY-PCB,MANU;G3A8-3VI/C,NEW
3708-001131 CONNECTOR-FPC/FC/PIC;5P,1.25MM,STRAIGHT,
3711-003379 CONNECTOR-HEADER;NOWALL,3P,1R,2.5MM,STRA
SCW1 3711-002579 CONNECTOR-HEADER;WALL,22P,1R,2.5MM,ANGLE
SCW2 3708-000507 CONNECTOR-FPC/FC/PIC;12P,1.25MM,ANGLE,SN
Electrical Parts List
Location no. Code no. Description & Specifiation Remarks Location no. Code no. Description & Specifiation Remarks
Samsung Electronics 8-9
SCW3 AH39-20025T LEAD-CONNECTOR,ASSY;-,51004-08,35023-08,
SCW4 AH39-20025S LEAD-CONNECTOR,ASSY;-,51004-08,35023-08,
AH94-30025M ASSY-PCB,AUTO;G3A8-3VI/C,NEW
AH41-10265C PCB-CD SUB;CD SUB,1L,FR-1,197X197X1.6T
SC1 2202-000797 C-CERAMIC,MLC-AXIAL;10NF,30%,16V,Y5P,TP,
SC11 2401-000240 C-AL;100UF,20%,10V,GP,TP,6X11MM,5MM
SC2 2202-000797 C-CERAMIC,MLC-AXIAL;10NF,30%,16V,Y5P,TP,
SC3 2202-000797 C-CERAMIC,MLC-AXIAL;10NF,30%,16V,Y5P,TP,
SC4 2202-000797 C-CERAMIC,MLC-AXIAL;10NF,30%,16V,Y5P,TP,
SC5 2201-000163 C-CERAMIC,DISC;10nF,+80-20%,50V,Y5V,TP,6
SC6 2201-000163 C-CERAMIC,DISC;10nF,+80-20%,50V,Y5V,TP,6
SC7 2201-000163 C-CERAMIC,DISC;10nF,+80-20%,50V,Y5V,TP,6
SC8 2401-000795 C-AL;220UF,20%,16V,GP,-,8X11.5,3.5M
SC9 2401-000795 C-AL;220UF,20%,16V,GP,-,8X11.5,3.5M
SIC1 1003-000298 IC-MOTOR DRIVER;LB1641,SIP,10P,-,-,-,ST,
SIC2 1003-000298 IC-MOTOR DRIVER;LB1641,SIP,10P,-,-,-,ST,
SIC3 AC14-12001G IC;KA78L05,T,-
SL1 2701-000179 INDUCTOR-AXIAL;33UH,10%,4.2X9.8MM
SR1 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
SR2 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
SR3 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m
SR4 2001-000028 R-CARBON(S);100ohm,5%,1/2W,AA,TP,2.4x6.4
SR5 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
SZD1 0403-000352 DIODE-ZENER;UZ4.7BM,4.7V,4.4-5.0V,500MW,
SZD2 0403-000361 DIODE-ZENER;UZ6.2BSB,6.2V,5.99-6.24V,50
AH90-10737E ASSY-CD MAIN PCB;G3X8,NON ADJUST
AH93-10001Q ASSY-CD MAIN,MANU;G3X8,NON ADJUST
3409-000174 SWITCH-LEAF;16VDC,500MA,10GF,SPST
3708-000177 CONNECTOR-FPC/FC/PIC;16P,1MM,ANGLE,SN
3708-000412 CONNECTOR-FPC/FC/PIC;12P,1.25MM,ANGLE,
3711-001136 CONNECTOR-HEADER;BOX,8P,1R,2mm,ANGLE,SN
3809-000202 CABLE-FLAT;30V,80C,82MM,16P,1MM,UL2896
AH62-30047A HEAT SINK;ETHD,-,T0.5,-,-,-,MAX-555,-
NXF100 2802-000211 RESONATOR-CERAMIC;16.93MHZ,0.5%,TP,10.0X
AH93-20001P ASSY-CD MAIN,CHIP;G3X8,NON ADJUST
IC9223 1204-001286 IC-ASP;KB9223,QFP,80P,-,PLASTIC,6V,20
IC9258 1003-000179 IC-MOTOR DRIVER;KA9258D,SOP,28P,-,SINGLE
IC9286 0904-001159 IC-DSP;9286,8BIT,QFP,80P,-,1MHZ,TR,CM
NC100 2203-000892 C-CERAMIC,CHIP;4.7nF,10%,50V,X7R,TP,2012
NC101 2203-000802 C-CERAMIC,CHIP;33nF,10%,50V,X7R,TP,2012,
NC102 2203-001551 C-CERAMIC,CHIP;1.5nF,10%,50V,X7R,2012,2m
NC103 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012,
NC104 2203-001537 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,-
NC106 2203-000892 C-CERAMIC,CHIP;4.7nF,10%,50V,X7R,TP,2012
NC107 2203-000199 C-CERAMIC,CHIP;100nF,+80-20%,50V,Z5U,TP,
NC108 2203-000199 C-CERAMIC,CHIP;100nF,+80-20%,50V,Z5U,TP,
NC110 2203-000495 C-CERAMIC,CHIP;2.2nF,10%,50V,X7R,TP,2012
NC111 2203-000802 C-CERAMIC,CHIP;33nF,10%,50V,X7R,TP,2012,
NC112 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012,
NC113 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012,
NC115 2203-001137 C-CERAMIC,CHIP;68NF,+80-20%,50V,Y5V,TP,2
NC116 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012,
NC118 2203-000787 C-CERAMIC,CHIP;330pF,5%,50V,NPO,TP,2012,
NC119 2203-000199 C-CERAMIC,CHIP;100nF,+80-20%,50V,Z5U,TP,
NC120 2203-000199 C-CERAMIC,CHIP;100nF,+80-20%,50V,Z5U,TP,
NC121 2203-000199 C-CERAMIC,CHIP;100nF,+80-20%,50V,Z5U,TP,
NC124 2203-000919 C-CERAMIC,CHIP;470nF,+80-20%,16V,Y5V,TP,
NC125 2203-000802 C-CERAMIC,CHIP;33nF,10%,50V,X7R,TP,2012,
NC190 2203-001256 C-CERAMIC,CHIP;8pF,0.25pF,50V,NPO,TP,201
NC200 2203-000979 C-CERAMIC,CHIP;47nF,10%,50V,X7R,TP,2012,
NC2000 2203-001026 C-CERAMIC,CHIP;4PF,0.25PF,50V,SL,TP,2012
NC201 2203-001551 C-CERAMIC,CHIP;1.5nF,10%,50V,X7R,2012,2m
NC202 2203-001619 C-CERAMIC,CHIP;27pF,5%,50V,NPO,TP,2012,2
NC203 2203-001619 C-CERAMIC,CHIP;27pF,5%,50V,NPO,TP,2012,2
NC204 2203-000919 C-CERAMIC,CHIP;470nF,+80-20%,16V,Y5V,TP,
NC205 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012,
NC300 2203-001537 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,-
NC301 2203-000477 C-CERAMIC,CHIP;1uF,+80-20%,16V,Y5V,TP,20
NC400 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012,
NC500 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012,
NC502 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012,
NC50L 2404-000367 C-TA,CHIP;4.7UF,20%,6.3V,-,TP,3216,-
NC50R 2404-000367 C-TA,CHIP;4.7UF,20%,6.3V,-,TP,3216,-
NC52L 2203-001537 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,-
NC52R 2203-001537 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,-
NC53L 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012,
NC53R 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012,
NC54L 2203-000239 C-CERAMIC,CHIP;100pF,5%,50V,NPO,TP,2012,
NC54R 2203-000239 C-CERAMIC,CHIP;100pF,5%,50V,NPO,TP,2012,
NC602 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012,
NC603 2203-001537 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,-
NC800 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012,
NC804 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012,
NC901 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012,
NC902 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012,
NC903 2203-001537 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,-
NC904 2203-000199 C-CERAMIC,CHIP;100nF,+80-20%,50V,Z5U,TP,
NC905 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012,
ND200 0407-000101 DIODE-ARRAY;DA204K,20V,100MA,C2-3,SOT-23
ND201 0407-000101 DIODE-ARRAY;DA204K,20V,100MA,C2-3,SOT-23
NJR102 2007-000029 R-CHIP;0ohm,5%,1/10W,DA,TP,2012
NJR103 2007-000033 R-CHIP;0ohm,5%,1/8W,DA,TP,3216
NJR104 2007-000029 R-CHIP;0ohm,5%,1/10W,DA,TP,2012
NJR105 2007-000033 R-CHIP;0ohm,5%,1/8W,DA,TP,3216
NJR105 2007-000033 R-CHIP;0ohm,5%,1/8W,DA,TP,3216
NJR106 2007-000029 R-CHIP;0ohm,5%,1/10W,DA,TP,2012
NJR107 2007-000033 R-CHIP;0ohm,5%,1/8W,DA,TP,3216
NJR108 2007-000033 R-CHIP;0ohm,5%,1/8W,DA,TP,3216
NJR110 2007-000029 R-CHIP;0ohm,5%,1/10W,DA,TP,2012
NJR111 2007-000033 R-CHIP;0ohm,5%,1/8W,DA,TP,3216
NJR112 2007-000033 R-CHIP;0ohm,5%,1/8W,DA,TP,3216
NJR113 2007-000033 R-CHIP;0ohm,5%,1/8W,DA,TP,3216
NJR114 2007-000033 R-CHIP;0ohm,5%,1/8W,DA,TP,3216
NJR115 2007-000029 R-CHIP;0ohm,5%,1/10W,DA,TP,2012
NJR116 2007-000029 R-CHIP;0ohm,5%,1/10W,DA,TP,2012
NJR117 2007-000029 R-CHIP;0ohm,5%,1/10W,DA,TP,2012
NJR118 2007-000029 R-CHIP;0ohm,5%,1/10W,DA,TP,2012
NJR127 2007-000033 R-CHIP;0ohm,5%,1/8W,DA,TP,3216
NJR129 2007-000029 R-CHIP;0ohm,5%,1/10W,DA,TP,2012
NJR131 2007-000033 R-CHIP;0ohm,5%,1/8W,DA,TP,3216
NJR132 2007-000033 R-CHIP;0ohm,5%,1/8W,DA,TP,3216
NJR133 2007-000033 R-CHIP;0ohm,5%,1/8W,DA,TP,3216
NJR134 2007-000029 R-CHIP;0ohm,5%,1/10W,DA,TP,2012
NJR135 2007-000029 R-CHIP;0ohm,5%,1/10W,DA,TP,2012
NJR136 2007-000033 R-CHIP;0ohm,5%,1/8W,DA,TP,3216
NJR137 2007-000033 R-CHIP;0ohm,5%,1/8W,DA,TP,3216
Electrical Parts List
Location no. Code no. Description & Specifiation Remarks Location no. Code no. Description & Specifiation Remarks
8-10 Samsung Electronics
NJR138 2007-000033 R-CHIP;0ohm,5%,1/8W,DA,TP,3216
NJR139 2007-000029 R-CHIP;0ohm,5%,1/10W,DA,TP,2012
NJR140 2007-000033 R-CHIP;0ohm,5%,1/8W,DA,TP,3216
NJR141 2007-000033 R-CHIP;0ohm,5%,1/8W,DA,TP,3216
NJR142 2007-000033 R-CHIP;0ohm,5%,1/8W,DA,TP,3216
NJR143 2007-000029 R-CHIP;0ohm,5%,1/10W,DA,TP,2012
NJR144 2007-000033 R-CHIP;0ohm,5%,1/8W,DA,TP,3216
NJR145 2007-000033 R-CHIP;0ohm,5%,1/8W,DA,TP,3216
NJR146 2007-000033 R-CHIP;0ohm,5%,1/8W,DA,TP,3216
NJR147 2007-000033 R-CHIP;0ohm,5%,1/8W,DA,TP,3216
NJR148 2007-000029 R-CHIP;0ohm,5%,1/10W,DA,TP,2012
NJR149 2007-000033 R-CHIP;0ohm,5%,1/8W,DA,TP,3216
NJR150 2007-000029 R-CHIP;0ohm,5%,1/10W,DA,TP,2012
NJR151 2007-000033 R-CHIP;0ohm,5%,1/8W,DA,TP,3216
NJR152 2007-000029 R-CHIP;0ohm,5%,1/10W,DA,TP,2012
NJR153 2007-000029 R-CHIP;0ohm,5%,1/10W,DA,TP,2012
NJR154 2007-000033 R-CHIP;0ohm,5%,1/8W,DA,TP,3216
NJR155 2007-000033 R-CHIP;0ohm,5%,1/8W,DA,TP,3216
NJR156 2007-000033 R-CHIP;0ohm,5%,1/8W,DA,TP,3216
NJR300 2007-000033 R-CHIP;0ohm,5%,1/8W,DA,TP,3216
NJR301 2007-000033 R-CHIP;0ohm,5%,1/8W,DA,TP,3216
NJR302 2007-000033 R-CHIP;0ohm,5%,1/8W,DA,TP,3216
NJR303 2007-000033 R-CHIP;0ohm,5%,1/8W,DA,TP,3216
NJR304 2007-000033 R-CHIP;0ohm,5%,1/8W,DA,TP,3216
NJR305 2007-000029 R-CHIP;0ohm,5%,1/10W,DA,TP,2012
NJR306 2007-000033 R-CHIP;0ohm,5%,1/8W,DA,TP,3216
NJR307 2007-000033 R-CHIP;0ohm,5%,1/8W,DA,TP,3216
NJR308 2007-000033 R-CHIP;0ohm,5%,1/8W,DA,TP,3216
NJW320 2007-000029 R-CHIP;0ohm,5%,1/10W,DA,TP,2012
NL100 2703-000001 INDUCTOR-SMD;10uH,10%,2.5x3.2x2mm
NL300 3301-000325 CORE-FERRITE BEAD;AB,3.2X2.5X1.3MM,-,-
NL301 2703-000001 INDUCTOR-SMD;10uH,10%,2.5x3.2x2mm
NL302 3301-000325 CORE-FERRITE BEAD;AB,3.2X2.5X1.3MM,-,-
NL303 2703-000001 INDUCTOR-SMD;10uH,10%,2.5x3.2x2mm
NQ1502 0501-000314 TR-SMALL SIGNAL;KSA812,PNP,150MW,SOT-23,
NR100 2007-000355 R-CHIP;12Kohm,5%,1/10W,DA,TP,2012
NR101 2007-000593 R-CHIP;22ohm,5%,1/10W,DA,TP,2012
NR102 2007-000468 R-CHIP;1Kohm,5%,1/10W,DA,TP,2012
NR103 2007-000395 R-CHIP;150Kohm,5%,1/10W,DA,TP,2012
NR104 2007-000338 R-CHIP;120Kohm,5%,1/10W,DA,TP,2012
NR105 2007-000830 R-CHIP;39Kohm,5%,1/10W,DA,TP,2012
NR106 2007-000338 R-CHIP;120Kohm,5%,1/10W,DA,TP,2012
NR107 2007-000338 R-CHIP;120Kohm,5%,1/10W,DA,TP,2012
NR108 2007-000941 R-CHIP;47Kohm,5%,1/10W,DA,TP,2012
NR109 2007-000282 R-CHIP;100Kohm,5%,1/10W,DA,TP,2012
NR111 2007-000941 R-CHIP;47Kohm,5%,1/10W,DA,TP,2012
NR112 2007-001039 R-CHIP;56Kohm,5%,1/10W,DA,TP,2012
NR113 2007-001177 R-CHIP;8.2Kohm,5%,1/10W,DA,TP,2012
NR114 2007-000477 R-CHIP;1Mohm,5%,1/10W,DA,TP,2012
NR115 2007-000444 R-CHIP;180KOHM,5%,1/10W,DA,TP,2012
NR116 2007-001195 R-CHIP;820Kohm,5%,1/10W,DA,TP,2012
NR117 2007-000898 R-CHIP;430KOHM,5%,1/10W,DA,TP,2012
NR118 2007-001213 R-CHIP;82ohm,1%,1/10W,DA,TP,2012
NR119 2007-000395 R-CHIP;150Kohm,5%,1/10W,DA,TP,2012
NR120 2007-000355 R-CHIP;12Kohm,5%,1/10W,DA,TP,2012
NR121 2007-000355 R-CHIP;12Kohm,5%,1/10W,DA,TP,2012
NR200 2007-000653 R-CHIP;27Kohm,5%,1/10W,DA,TP,2012
NR201 2007-000686 R-CHIP;3.3Kohm,5%,1/10W,DA,TP,2012
NR202 2007-000686 R-CHIP;3.3Kohm,5%,1/10W,DA,TP,2012
NR203 2007-000282 R-CHIP;100Kohm,5%,1/10W,DA,TP,2012
NR204 2007-000355 R-CHIP;12Kohm,5%,1/10W,DA,TP,2012
NR300 2007-000282 R-CHIP;100Kohm,5%,1/10W,DA,TP,2012
NR400 2007-000409 R-CHIP;15Kohm,5%,1/10W,DA,TP,2012
NR401 2007-000468 R-CHIP;1Kohm,5%,1/10W,DA,TP,2012
NR500 2007-000395 R-CHIP;150Kohm,5%,1/10W,DA,TP,2012
NR50L 2007-000586 R-CHIP;22Kohm,5%,1/10W,DA,TP,2012
NR50R 2007-000586 R-CHIP;22Kohm,5%,1/10W,DA,TP,2012
NR52L 2007-000774 R-CHIP;33Kohm,5%,1/10W,DA,TP,2012
NR52R 2007-000774 R-CHIP;33Kohm,5%,1/10W,DA,TP,2012
NR53L 2007-000872 R-CHIP;4.7Kohm,5%,1/10W,DA,TP,2012
NR53R 2007-000872 R-CHIP;4.7Kohm,5%,1/10W,DA,TP,2012
NR54L 2007-000468 R-CHIP;1Kohm,5%,1/10W,DA,TP,2012
NR54R 2007-000468 R-CHIP;1Kohm,5%,1/10W,DA,TP,2012
NR55L 2007-000872 R-CHIP;4.7Kohm,5%,1/10W,DA,TP,2012
NR55R 2007-000872 R-CHIP;4.7Kohm,5%,1/10W,DA,TP,2012
NR56L 2007-000290 R-CHIP;100ohm,5%,1/10W,DA,TP,2012
NR56R 2007-000290 R-CHIP;100ohm,5%,1/10W,DA,TP,2012
NR57L 2007-000282 R-CHIP;100Kohm,5%,1/10W,DA,TP,2012
NR57R 2007-000282 R-CHIP;100Kohm,5%,1/10W,DA,TP,2012
NR601 2007-000468 R-CHIP;1Kohm,5%,1/10W,DA,TP,2012
NR602 2007-000300 R-CHIP;10Kohm,5%,1/10W,DA,TP,2012
NR603 2007-000300 R-CHIP;10Kohm,5%,1/10W,DA,TP,2012
NR604 2007-000468 R-CHIP;1Kohm,5%,1/10W,DA,TP,2012
NR606 2007-000282 R-CHIP;100Kohm,5%,1/10W,DA,TP,2012
NR804 2007-000468 R-CHIP;1Kohm,5%,1/10W,DA,TP,2012
AH93-30001X ASSY-CD MAIN,AUTO;G3X8,NON ADJUST
NC105 2401-000243 C-AL;100UF,20%,10V,GP,TP,6.3X5,2.5M
NC114 2401-000419 C-AL;10UF,20%,16V,GP,-,4X7,5
NC117 2301-000389 C-FILM,PEF;150NF,5%,50V,TP,12.5X15X7.5,7
NC122 2401-001238 C-AL;4.7UF,20%,25V,GP,BK,3X5,1MM
NC501 2401-000243 C-AL;100UF,20%,10V,GP,TP,6.3X5,2.5M
NC55L 2401-001238 C-AL;4.7UF,20%,25V,GP,BK,3X5,1MM
NC55R 2401-001238 C-AL;4.7UF,20%,25V,GP,BK,3X5,1MM
NC700 2401-000868 C-AL;220UF,20%,4V,GP,TP,6.3X5,2.5MM
NC701 2401-000868 C-AL;220UF,20%,4V,GP,TP,6.3X5,2.5MM
NC702 2401-000243 C-AL;100UF,20%,10V,GP,TP,6.3X5,2.5M
NC703 2401-001364 C-AL;470UF,20%,16V,GP,TP,10X12MM,5M
NC704 2401-000778 C-AL;220UF,20%,10V,GP,-,6.3X11,2.5M
NC902 2401-000243 C-AL;100UF,20%,10V,GP,TP,6.3X5,2.5M
NC903 2401-001238 C-AL;4.7UF,20%,25V,GP,BK,3X5,1MM
NIC05 AC14-12001G IC;KA78L05,T,-
NQ1501 0501-000610 TR-SMALL SIGNAL;KSA928A-Y,PNP,1W,TO-92L,
NR555 2008-000141 R-FUSIBLE;2.2OHM,5%,1/4W,AA,TP,2.6X6.7MM
Electrical Parts List
Location no. Code no. Description & Specifiation Remarks Location no. Code no. Description & Specifiation Remarks
Samsung Electronics 8-11
Electrical Parts List
8-12 Samsung Electronics
OPTION
* Power-IC Option List
PCB Ass’y
Main PCB
Ass’y
Location no.
AIC1
AIC1
AIC1
1201-001244
1201-001218
1201-001213
MAX-850
MAX-880
MAX-860
MAX-870
STK417-090
STK417-130
STK417-100
IC-POWER AMP ; 417,SIP,22P,-,
SIGLE 40dB
IC-POWER AMP ; 417,SIP,22P,-,
SIGLE 40dB
IC-POWER AMP ; 417,SIP,22P,-,
SIGLE 40dB
Code no. Description & Specification
Description & Specification
Description & Specification
Model IC Name
* MAX850/860/870/880 OUTPUT POWER OPTION LIST
- MAX850 SERIES - MAX850 ; 60W
- MAX870 SERIES - MAX870,MAX860 ; 80W
- MAX880 SERIES - MAX880 ; 120W
*The Others Parts List
PCB Ass’y
Main PCB
Ass’y
Location no.
AR8L,R
AR16L
AR16R
AQ8L,R
AIC1S
AIC1S2
2003-000471
2001-000591
2007-000686
0501-000407
6003-000276
A0102-0011
O
X
X
X
X
8EA
2EA
X
O
O
O
O
10EA
2EA
10 ohm 1W
20 ohm 2W
R-CARBON ; 3.3Kohm 5% 1/8W,AA
TP,1.8*3.2mm
R-CHIP ; 3.3Kohm 5% 1/10W,
DA,TP,2012
TR-SMALL SIGNAL; KSD471AY,NPN,800MW
SCREW ; 3*12 YEL
SCREW ; 3*14 YEL
Code no. MAX850 MAX870
/860/880
* Power Source Parts List
PCB Ass’y
Main PCB
Ass’y
Location no.
AC4,5
AC6,9
RC7,8
RBD1,2
AZD1,2
RBD12
2401-001902
2401-000375
2401-000475
2401-000385
2401-001943
2401-003266
2401-003267
0402-000450
0402-001010
0403-000004
0403-000363
AH62-30127A
MAX850
MAX880/870/860
MAX850
MAX880/870/860
MAX850
MAX870/860
MAX880
MAX850
MAX880/870/860
MAX850
MAX880/870/860
MAX880/870/860
C-AL;100UF,20%,50V,GP,-,6.3X11,2.5
C-AL;100UF,20%,100V,GP,-,10X20.5
C-AL;10UF,20%,50V,GP,-,5X11,2.5
C-AL;10UF,20%,100V,GP,-,5X11,2.5
C-AL;3300UF,20%,50V,GP,-,25X40MM
C-AL; 4700UF,20%,63V,GP,-,30X30
C-AL; 4700UF,20%,80V,GP,-,30X30
DIODE-BRIDGE ; PBL403,200V,4.0A
DIODE-BRIDGE ; GBU6D,200V,6A
DIODE-ZENER ; UZ12BM,12V,11.6-12.4
V,500MW
DIODE-ZENER ; UZD6.8BM,6.8V,0.5W
HEAT-SINK-TR ; -,AL,-,T2,0,-,WHT,-
Code no. Model
AH96-10001C ASS’Y-CD PACK; G3X8C,G3X8+UD SP
3809-001034 CABLE-FLAT;30V,80C,170mm,22P,1.25mm,UL28
AH59-20004Y DECK-CDP;CMS-P30AM6UD,-,-,-,-
AH59-20004Z DECK-3CD CHANGER;CMS300UD,-,-,-,-
AH90-10719E ASSY-PCB;G3A8-3VI/C,NEW
AH94-10025M ASSY-PCB,MANU;G3A8-3VI/C,NEW
3708-001131 CONNECTOR-FPC/FC/PIC;5P,1.25mm,STRAIGHT,
3711-003379 CONNECTOR-HEADER;NOWALL,3P,1R,2.5mm,STRA
SCW1 3711-002579 CONNECTOR-HEADER;WALL,22P,1R,2.5MM,ANGLE
SCW2 3708-000507 CONNECTOR-FPC/FC/PIC;12P,1.25MM,ANGLE,SN
SCW3 AH39-20025T LEAD-CONNECTOR,ASSY;-,51004-08,35023-08,
SCW4 AH39-20025S LEAD-CONNECTOR,ASSY;-,51004-08,35023-08,
AH94-30025M ASSY-PCB,AUTO;G3A8-3VI/C,NEW
AH41-10265C PCB-CD SUB;CD SUB,1L,FR-
1,197X197X1.6T
SC1 2202-000797 C-CERAMIC,MLC-AXIAL;10NF,30%,16V,Y5P,TP,
SC11 2401-000240 C-AL;100UF,20%,10V,GP,TP,6X11MM,5MM
SC2 2202-000797 C-CERAMIC,MLC-AXIAL;10NF,30%,16V,Y5P,TP,
SC3 2202-000797 C-CERAMIC,MLC-AXIAL;10NF,30%,16V,Y5P,TP,
SC4 2202-000797 C-CERAMIC,MLC-AXIAL;10NF,30%,16V,Y5P,TP,
SC5 2201-000163 C-CERAMIC,DISC;10nF,+80-20%,50V,Y5V,TP,6
SC6 2201-000163 C-CERAMIC,DISC;10nF,+80-20%,50V,Y5V,TP,6
SC7 2201-000163 C-CERAMIC,DISC;10nF,+80-20%,50V,Y5V,TP,6
SC8 2401-000795 C-AL;220UF,20%,16V,GP,-,8X11.5,3.5M
SC9 2401-000795 C-AL;220UF,20%,16V,GP,-,8X11.5,3.5M
SIC1 1003-000298 IC-MOTOR DRIVER;LB1641,SIP,10P,-,-,-,ST,
SIC2 1003-000298 IC-MOTOR DRIVER;LB1641,SIP,10P,-,-,-,ST,
SIC3 AC14-12001G IC;KA78L05,T,-
SJW1 3811-000389 WIRE-NO SHEATH CU;SPCW,300V,52.4mm,1/0.5
SJW2 3811-000389 WIRE-NO SHEATH CU;SPCW,300V,52.4mm,1/0.5
SJW3 3811-000389 WIRE-NO SHEATH CU;SPCW,300V,52.4mm,1/0.5
SJW4 3811-000389 WIRE-NO SHEATH CU;SPCW,300V,52.4mm,1/0.5
SJW5 3811-000389 WIRE-NO SHEATH CU;SPCW,300V,52.4mm,1/0.5
SJW6 3811-000389 WIRE-NO SHEATH CU;SPCW,300V,52.4mm,1/0.5
SJW7 3811-000389 WIRE-NO SHEATH CU;SPCW,300V,52.4mm,1/0.5
SJW8 3811-000389 WIRE-NO SHEATH CU;SPCW,300V,52.4mm,1/0.5
SL1 2701-000179 INDUCTOR-AXIAL;33uH,10%,4.2x9.8mm
SR1 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
SR2 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
SR3 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m
SR4 2001-000028 R-CARBON(S);100ohm,5%,1/2W,AA,TP,2.4x6.4
SR5 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
SZD1 0403-000352 DIODE-ZENER;UZ4.7BM,4.7V,4.4-5.0V,500mW,
SZD2 0403-000361 DIODE-ZENER;UZ6.2BSB,6.2V,5.99-6.24V,500
AH90-10737E ASSY-CD MAIN PCB;G3X8,NON ADJUST
AH93-10001Q ASSY-CD MAIN,MANU;G3X8,NON ADJUST
3409-000174 SWITCH-LEAF;16Vdc,500mA,10gf,SPST
3708-000177 CONNECTOR-FPC/FC/PIC;16P,1MM,ANGLE,SN
3708-000412 CONNECTOR-FPC/FC/PIC;12P,1.25MM,ANGLE,
3711-001136 CONNECTOR-HEADER;BOX,8P,1R,2mm,ANGLE,SN
3809-000202 CABLE-FLAT;30V,80C,82MM,16P,1MM,UL2896
AH61-22002A HOLDER-PCB;-,NYLON 66,-,-,OD3.4,DVC-650S
AH62-30047A HEAT SINK;ETHD,-,T0.5,-,-,-,MAX-555,-
NXF100 2802-000211 RESONATOR-CERAMIC;16.93MHz,0.5%,TP,10.0x
AH93-20001P ASSY-CD MAIN,CHIP;G3X8,NON ADJUST
IC9223 1204-001286 IC-ASP;KB9223,QFP,80P,-,PLASTIC,6V,20
IC9258 1003-000179 IC-MOTOR DRIVER;KA9258D,SOP,28P,-,SINGLE
IC9286 0904-001159 IC-DSP;9286,8BIT,QFP,80P,-,1MHz,TR,CM
NC100 2203-000892 C-CERAMIC,CHIP;4.7nF,10%,50V,X7R,TP,2012
NC101 2203-000802 C-CERAMIC,CHIP:33nF,10%,50V,X7R,TP,2012,
NC102 2203-001551 C-CERAMIC,CHIP;1.5nF,10%,50V,X7R,2012,2m
NC103 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012,
NC104 2203-001537 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,-
NC106 2203-000892 C-CERAMIC,CHIP;4.7nF,10%,50V,X7R,TP,2012
NC107 2203-000199 C-CERAMIC,CHIP;100nF,+80-20%,50V,Z5U,TP,
NC108 2203-000199 C-CERAMIC,CHIP;100nF,+80-20%,50V,Z5U,TP,
NC110 2203-000495 C-CERAMIC,CHIP;2.2nF,10%,50V,X7R,TP,2012
NC111 2203-000802 C-CERAMIC,CHIP:33nF,10%,50V,X7R,TP,2012,
NC112 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012,
NC113 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012,
NC115 2203-001137 C-CERAMIC,CHIP;68NF,+80-20%,50V,Y5V,TP,2
NC116 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012,
NC118 2203-000787 C-CERAMIC,CHIP;330pF,5%,50V,NPO,TP,2012,
NC119 2203-000199 C-CERAMIC,CHIP;100nF,+80-20%,50V,Z5U,TP,
NC120 2203-000199 C-CERAMIC,CHIP;100nF,+80-20%,50V,Z5U,TP,
NC121 2203-000199 C-CERAMIC,CHIP;100nF,+80-20%,50V,Z5U,TP,
NC124 2203-000919 C-CERAMIC,CHIP;470nF,+80-20%,16V,Y5V,TP,
NC125 2203-000802 C-CERAMIC,CHIP:33nF,10%,50V,X7R,TP,2012,
NC190 2203-001256 C-CERAMIC,CHIP;8pF,0.25pF,50V,NPO,TP,201
NC200 2203-000979 C-CERAMIC,CHIP;47nF,10%,50V,X7R,TP,2012,
NC2000 2203-001026 C-CERAMIC,CHIP;4PF,0.25PF,50V,SL,TP,2012
NC201 2203-001551 C-CERAMIC,CHIP;1.5nF,10%,50V,X7R,2012,2m
NC202 2203-001619 C-CERAMIC,CHIP;27pF,5%,50V,NPO,TP,2012,2
NC203 2203-001619 C-CERAMIC,CHIP;27pF,5%,50V,NPO,TP,2012,2
NC204 2203-000919 C-CERAMIC,CHIP;470nF,+80-20%,16V,Y5V,TP,
NC205 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012,
NC300 2203-001537 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,-
NC301 2203-000477 C-CERAMIC,CHIP;1uF,+80-20%,16V,Y5V,TP,20
NC400 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012,
NC500 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012,
NC502 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012,
NC50L 2404-000367 C-TA,CHIP;4.7UF,20%,6.3V,-,TP,3216,-
NC50R 2404-000367 C-TA,CHIP;4.7UF,20%,6.3V,-,TP,3216,-
NC52L 2203-001537 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,-
NC52R 2203-001537 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,-
NC53L 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012,
NC53R 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012,
NC54L 2203-000239 C-CERAMIC,CHIP;100pF,5%,50V,NPO,TP,2012,
NC54R 2203-000239 C-CERAMIC,CHIP;100pF,5%,50V,NPO,TP,2012,
NC602 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012,
NC603 2203-001537 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,-
NC800 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012,
NC804 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012,
NC901 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012,
NC902 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012,
NC903 2203-001537 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,-
NC904 2203-000199 C-CERAMIC,CHIP;100nF,+80-20%,50V,Z5U,TP,
NC905 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012,
ND200 0407-000101 DIODE-ARRAY;DA204K,20V,100mA,C2-3,SOT-2
ND201 0407-000101 DIODE-ARRAY;DA204K,20V,100mA,C2-3,SOT-2
NJR102 2007-000029 R-CHIP;0ohm,5%,1/10W,DA,TP,2012
Electrical Parts List
Location no. Code no. Description & Specifiation Remarks Location no. Code no. Description & Specifiation Remarks
Samsung Electronics 8-13
- Option -
NJR103 2007-000033 R-CHIP;0ohm,5%,1/8W,DA,TP,3216
NJR104 2007-000029 R-CHIP;0ohm,5%,1/10W,DA,TP,2012
NJR105 2007-000033 R-CHIP;0ohm,5%,1/8W,DA,TP,3216
NJR105 2007-000033 R-CHIP;0ohm,5%,1/8W,DA,TP,3216
NJR106 2007-000029 R-CHIP;0ohm,5%,1/10W,DA,TP,2012
NJR107 2007-000033 R-CHIP;0ohm,5%,1/8W,DA,TP,3216
NJR108 2007-000033 R-CHIP;0ohm,5%,1/8W,DA,TP,3216
NJR110 2007-000029 R-CHIP;0ohm,5%,1/10W,DA,TP,2012
NJR111 2007-000033 R-CHIP;0ohm,5%,1/8W,DA,TP,3216
NJR112 2007-000033 R-CHIP;0ohm,5%,1/8W,DA,TP,3216
NJR113 2007-000033 R-CHIP;0ohm,5%,1/8W,DA,TP,3216
NJR114 2007-000033 R-CHIP;0ohm,5%,1/8W,DA,TP,3216
NJR115 2007-000029 R-CHIP;0ohm,5%,1/10W,DA,TP,2012
NJR116 2007-000029 R-CHIP;0ohm,5%,1/10W,DA,TP,2012
NJR117 2007-000029 R-CHIP;0ohm,5%,1/10W,DA,TP,2012
NJR118 2007-000029 R-CHIP;0ohm,5%,1/10W,DA,TP,2012
NJR127 2007-000033 R-CHIP;0ohm,5%,1/8W,DA,TP,3216
NJR129 2007-000029 R-CHIP;0ohm,5%,1/10W,DA,TP,2012
NJR131 2007-000033 R-CHIP;0ohm,5%,1/8W,DA,TP,3216
NJR132 2007-000033 R-CHIP;0ohm,5%,1/8W,DA,TP,3216
NJR133 2007-000033 R-CHIP;0ohm,5%,1/8W,DA,TP,3216
NJR134 2007-000029 R-CHIP;0ohm,5%,1/10W,DA,TP,2012
NJR135 2007-000029 R-CHIP;0ohm,5%,1/10W,DA,TP,2012
NJR136 2007-000033 R-CHIP;0ohm,5%,1/8W,DA,TP,3216
NJR137 2007-000033 R-CHIP;0ohm,5%,1/8W,DA,TP,3216
NJR138 2007-000033 R-CHIP;0ohm,5%,1/8W,DA,TP,3216
NJR139 2007-000029 R-CHIP;0ohm,5%,1/10W,DA,TP,2012
NJR140 2007-000033 R-CHIP;0ohm,5%,1/8W,DA,TP,3216
NJR141 2007-000033 R-CHIP;0ohm,5%,1/8W,DA,TP,3216
NJR142 2007-000033 R-CHIP;0ohm,5%,1/8W,DA,TP,3216
NJR143 2007-000029 R-CHIP;0ohm,5%,1/10W,DA,TP,2012
NJR144 2007-000033 R-CHIP;0ohm,5%,1/8W,DA,TP,3216
NJR145 2007-000033 R-CHIP;0ohm,5%,1/8W,DA,TP,3216
NJR146 2007-000033 R-CHIP;0ohm,5%,1/8W,DA,TP,3216
NJR147 2007-000033 R-CHIP;0ohm,5%,1/8W,DA,TP,3216
NJR148 2007-000029 R-CHIP;0ohm,5%,1/10W,DA,TP,2012
NJR149 2007-000033 R-CHIP;0ohm,5%,1/8W,DA,TP,3216
NJR150 2007-000029 R-CHIP;0ohm,5%,1/10W,DA,TP,2012
NJR151 2007-000033 R-CHIP;0ohm,5%,1/8W,DA,TP,3216
NJR152 2007-000029 R-CHIP;0ohm,5%,1/10W,DA,TP,2012
NJR153 2007-000029 R-CHIP;0ohm,5%,1/10W,DA,TP,2012
NJR154 2007-000033 R-CHIP;0ohm,5%,1/8W,DA,TP,3216
NJR155 2007-000033 R-CHIP;0ohm,5%,1/8W,DA,TP,3216
NJR156 2007-000033 R-CHIP;0ohm,5%,1/8W,DA,TP,3216
NJR300 2007-000033 R-CHIP;0ohm,5%,1/8W,DA,TP,3216
NJR301 2007-000033 R-CHIP;0ohm,5%,1/8W,DA,TP,3216
NJR302 2007-000033 R-CHIP;0ohm,5%,1/8W,DA,TP,3216
NJR303 2007-000033 R-CHIP;0ohm,5%,1/8W,DA,TP,3216
NJR304 2007-000033 R-CHIP;0ohm,5%,1/8W,DA,TP,3216
NJR305 2007-000029 R-CHIP;0ohm,5%,1/10W,DA,TP,2012
NJR306 2007-000033 R-CHIP;0ohm,5%,1/8W,DA,TP,3216
NJR307 2007-000033 R-CHIP;0ohm,5%,1/8W,DA,TP,3216
NJR308 2007-000033 R-CHIP;0ohm,5%,1/8W,DA,TP,3216
NJW320 2007-000029 R-CHIP;0ohm,5%,1/10W,DA,TP,2012
NL100 2007-000033 R-CHIP;0ohm,5%,1/8W,DA,TP,3216
NL300 3301-000325 CORE-FERRITE BEAD;AB,3.2X2.5X1.3MM,-,-
NL301 2703-000001 INDUCTOR-SMD;10uH,10%,2.5x3.2x2mm
NL302 3301-000325 CORE-FERRITE BEAD;AB,3.2X2.5X1.3MM,-,-
NL303 2703-000001 INDUCTOR-SMD;10uH,10%,2.5x3.2x2mm
NQ1502 0501-000314 TR-SMALL SIGNAL;KSA812,PNP,150MW,SOT-23,
NR100 2007-000355 R-CHIP;12Kohm,5%,1/10W,DA,TP,2012
NR101 2007-000593 R-CHIP;22ohm,5%,1/10W,DA,TP,2012
NR102 2007-000468 R-CHIP;1Kohm,5%,1/10W,DA,TP,2012
NR103 2007-000395 R-CHIP;150Kohm,5%,1/10W,DA,TP,2012
NR104 2007-000338 R-CHIP;120Kohm,5%,1/10W,DA,TP,2012
NR105 2007-000830 R-CHIP;39Kohm,5%,1/10W,DA,TP,2012
NR106 2007-000338 R-CHIP;120Kohm,5%,1/10W,DA,TP,2012
NR107 2007-000338 R-CHIP;120Kohm,5%,1/10W,DA,TP,2012
NR108 2007-000941 R-CHIP;47Kohm,5%,1/10W,DA,TP,2012
NR109 2007-000282 R-CHIP;100Kohm,5%,1/10W,DA,TP,2012
NR111 2007-000941 R-CHIP;47Kohm,5%,1/10W,DA,TP,2012
NR112 2007-001039 R-CHIP;56Kohm,5%,1/10W,DA,TP,2012
NR113 2007-001177 R-CHIP;8.2Kohm,5%,1/10W,DA,TP,2012
NR114 2007-000477 R-CHIP;1Mohm,5%,1/10W,DA,TP,2012
NR115 2007-000444 R-CHIP;180KOHM,5%,1/10W,DA,TP,2012
NR116 2007-001195 R-CHIP;820Kohm,5%,1/10W,DA,TP,2012
NR117 2007-000898 R-CHIP;430Kohm,5%,1/10W,DA,TP,2012
NR118 2007-001213 R-CHIP;82ohm,1%,1/10W,DA,TP,2012
NR119 2007-000395 R-CHIP;150Kohm,5%,1/10W,DA,TP,2012
NR120 2007-000355 R-CHIP;12Kohm,5%,1/10W,DA,TP,2012
NR121 2007-000355 R-CHIP;12Kohm,5%,1/10W,DA,TP,2012
NR200 2007-000653 R-CHIP;27Kohm,5%,1/10W,DA,TP,2012
NR201 2007-000686 R-CHIP;3.3Kohm,5%,1/10W,DA,TP,2012
NR202 2007-000686 R-CHIP;3.3Kohm,5%,1/10W,DA,TP,2012
NR203 2007-000282 R-CHIP;100Kohm,5%,1/10W,DA,TP,2012
NR204 2007-000355 R-CHIP;12Kohm,5%,1/10W,DA,TP,2012
NR300 2007-000282 R-CHIP;100Kohm,5%,1/10W,DA,TP,2012
NR400 2007-000409 R-CHIP;15Kohm,5%,1/10W,DA,TP,2012
NR401 2007-000468 R-CHIP;1Kohm,5%,1/10W,DA,TP,2012
NR500 2007-000395 R-CHIP;150Kohm,5%,1/10W,DA,TP,2012
NR50L 2007-000586 R-CHIP;22Kohm,5%,1/10W,DA,TP,2012
NR50R 2007-000586 R-CHIP;22Kohm,5%,1/10W,DA,TP,2012
NR52L 2007-000774 R-CHIP;33Kohm,5%,1/10W,DA,TP,2012
NR52R 2007-000774 R-CHIP;33Kohm,5%,1/10W,DA,TP,2012
NR53L 2007-000872 R-CHIP;4.7Kohm,5%,1/10W,DA,TP,2012
NR53R 2007-000872 R-CHIP;4.7Kohm,5%,1/10W,DA,TP,2012
NR54L 2007-000468 R-CHIP;1Kohm,5%,1/10W,DA,TP,2012
NR54R 2007-000468 R-CHIP;1Kohm,5%,1/10W,DA,TP,2012
NR55L 2007-000872 R-CHIP;4.7Kohm,5%,1/10W,DA,TP,2012
NR55R 2007-000872 R-CHIP;4.7Kohm,5%,1/10W,DA,TP,2012
NR56L 2007-000290 R-CHIP;100ohm,5%,1/10W,DA,TP,2012
NR56R 2007-000290 R-CHIP;100ohm,5%,1/10W,DA,TP,2012
NR57L 2007-000282 R-CHIP;100Kohm,5%,1/10W,DA,TP,2012
NR57R 2007-000282 R-CHIP;100Kohm,5%,1/10W,DA,TP,2012
NR601 2007-000468 R-CHIP;1Kohm,5%,1/10W,DA,TP,2012
NR602 2007-000300 R-CHIP;10Kohm,5%,1/10W,DA,TP,2012
NR603 2007-000300 R-CHIP;10Kohm,5%,1/10W,DA,TP,2012
NR604 2007-000468 R-CHIP;1Kohm,5%,1/10W,DA,TP,2012
NR606 2007-000282 R-CHIP;100Kohm,5%,1/10W,DA,TP,2012
NR804 2007-000468 R-CHIP;1Kohm,5%,1/10W,DA,TP,2012
AH93-30001X ASSY-CD MAIN,AUTO;G3X8,NON ADJUST
NC105 2401-000243 C-AL;100UF,20%,10V,GP,TP,6.3X5,2.5M
NC114 2401-000419 C-AL;10UF,20%,16V,GP,-,4X7,5
NC117 2301-000389 C-FILM,PEF;150nF,5%,50V,12.5x15x7.5,7mm,
NC122 2401-001238 C-AL;4.7UF,20%,25V,GP,BK,3X5,1MM
NC501 2401-000243 C-AL;100UF,20%,10V,GP,TP,6.3X5,2.5M
NC55L 2401-001238 C-AL;4.7UF,20%,25V,GP,BK,3X5,1MM
Electrical Parts List
Location no. Code no. Description & Specifiation Remarks Location no. Code no. Description & Specifiation Remarks
8-14 Samsung Electronics
NC55R 2401-001238 C-AL;4.7UF,20%,25V,GP,BK,3X5,1MM
NC700 2401-000868 C-AL;220UF,20%,4V,GP,TP,6.3X5,2.5MM
NC701 2401-000868 C-AL;220UF,20%,4V,GP,TP,6.3X5,2.5MM
NC702 2401-000243 C-AL;100UF,20%,10V,GP,TP,6.3X5,2.5M
NC703 2401-001364 C-AL;470UF,20%,16V,GP,TP,10X12MM,5M
NC704 2401-000778 C-AL;220uF,20%,10V,GP,-,6.3x11,2.5m
NC902 2401-000243 C-AL;100UF,20%,10V,GP,TP,6.3X5,2.5M
NC903 2401-001238 C-AL;4.7UF,20%,25V,GP,BK,3X5,1MM
NIC05 AC14-12001G IC;KA78L05,T,-
NJW101 3811-000389 WIRE-NO SHEATH CU;SPCW,300V,52.4mm,1/0.5
NJW102 3811-000389 WIRE-NO SHEATH CU;SPCW,300V,52.4mm,1/0.5
NJW103 3811-000389 WIRE-NO SHEATH CU;SPCW,300V,52.4mm,1/0.5
NJW104 3811-000389 WIRE-NO SHEATH CU;SPCW,300V,52.4mm,1/0.5
NJW105 3811-000389 WIRE-NO SHEATH CU;SPCW,300V,52.4mm,1/0.5
NJW106 3811-000389 WIRE-NO SHEATH CU;SPCW,300V,52.4mm,1/0.5
NJW107 3811-000389 WIRE-NO SHEATH CU;SPCW,300V,52.4mm,1/0.5
NJW107 3811-000389 WIRE-NO SHEATH CU;SPCW,300V,52.4mm,1/0.5
NJW108 3301-000297 CORE-FERRITE BEAD;AA,3.6x1.2x5.7mm,1400,
NJW109 3811-000389 WIRE-NO SHEATH CU;SPCW,300V,52.4mm,1/0.5
NJW110 3811-000389 WIRE-NO SHEATH CU;SPCW,300V,52.4mm,1/0.5
NJW111 3811-000389 WIRE-NO SHEATH CU;SPCW,300V,52.4mm,1/0.5
NJW112 3811-000389 WIRE-NO SHEATH CU;SPCW,300V,52.4mm,1/0.5
NJW113 3811-000389 WIRE-NO SHEATH CU;SPCW,300V,52.4mm,1/0.5
NJW114 3811-000389 WIRE-NO SHEATH CU;SPCW,300V,52.4mm,1/0.5
NQ1501 0501-000610 TR-SMALL SIGNAL;KSA928A-Y,PNP,1W,TO-92L,
NR555 2008-000141 R-FUSIBLE;2.2ohm,5%,1/4W,AA,TP,2.6x6.7mm
Electrical Parts List
Location no. Code no. Description & Specifiation Remarks Location no. Code no. Description & Specifiation Remarks
Samsung Electronics 8-15
Electrical Parts List
8-16 Samsung Electronics
OPTION
* Power-IC Option List
PCB Ass’y
Main PCB
Ass’y
Location no.
AIC1
AIC1
AIC1
1201-001244
1201-001218
1201-001213
MAX-850
MAX-880
MAX-860
MAX-870
STK417-090
STK417-130
STK417-100
IC-POWER AMP ; 417,SIP,22P,-,
SIGLE 40dB
IC-POWER AMP ; 417,SIP,22P,-,
SIGLE 40dB
IC-POWER AMP ; 417,SIP,22P,-,
SIGLE 40dB
Code no. Description & Specification
Description & Specification
Description & Specification
Model IC Name
* MAX850/860/870/880 OUTPUT POWER OPTION LIST
- MAX850 SERIES - MAX850 ; 60W
- MAX870 SERIES - MAX870,MAX860 ; 80W
- MAX880 SERIES - MAX880 ; 120W
*The Others Parts List
PCB Ass’y
Main PCB
Ass’y
Location no.
AR8L,R
AR16L
AR16R
AQ8L,R
AIC1S
AIC1S2
2003-000471
2001-000591
2007-000686
0501-000407
6003-000276
A0102-0011
O
X
X
X
X
8EA
2EA
X
O
O
O
O
10EA
2EA
10 ohm 1W
20 ohm 2W
R-CARBON ; 3.3Kohm 5% 1/8W,AA
TP,1.8*3.2mm
R-CHIP ; 3.3Kohm 5% 1/10W,
DA,TP,2012
TR-SMALL SIGNAL; KSD471AY,NPN,800MW
SCREW ; 3*12 YEL
SCREW ; 3*14 YEL
Code no. MAX850 MAX870
/860/880
* Power Source Parts List
PCB Ass’y
Main PCB
Ass’y
Location no.
AC4,5
AC6,9
RC7,8
RBD1,2
AZD1,2
RBD12
2401-001902
2401-000375
2401-000475
2401-000385
2401-001943
2401-003266
2401-003267
0402-000450
0402-001010
0403-000004
0403-000363
AH62-30127A
MAX850
MAX880/870/860
MAX850
MAX880/870/860
MAX850
MAX870/860
MAX880
MAX850
MAX880/870/860
MAX850
MAX880/870/860
MAX880/870/860
C-AL;100UF,20%,50V,GP,-,6.3X11,2.5
C-AL;100UF,20%,100V,GP,-,10X20.5
C-AL;10UF,20%,50V,GP,-,5X11,2.5
C-AL;10UF,20%,100V,GP,-,5X11,2.5
C-AL;3300UF,20%,50V,GP,-,25X40MM
C-AL; 4700UF,20%,63V,GP,-,30X30
C-AL; 4700UF,20%,80V,GP,-,30X30
DIODE-BRIDGE ; PBL403,200V,4.0A
DIODE-BRIDGE ; GBU6D,200V,6A
DIODE-ZENER ; UZ12BM,12V,11.6-12.4
V,500MW
DIODE-ZENER ; UZD6.8BM,6.8V,0.5W
HEAT-SINK-TR ; -,AL,-,T2,0,-,WHT,-
Code no. Model
Electrical Parts List
Samsung Electronics 8-17
* Power PCB Parts Option List
PCB Ass’y
Power PCB
Ass’y
Location no.
RF1
RF2
RF3,4
JWA
JWB
JWC
JWD
JWE
JWF
JWG
3601-000248
3601-000248
3601-000282
3601-000282
3811-000389
3811-000389
3811-000389
3811-000389
3811-000389
3811-000389
3811-000389
FUSE-FERRULE ; 250V,2A,TIME LAG,
GLASS, 5*20
FUSE-FERRULE ; 250V,2A,TIME LAG,
GLASS, 5*20
FUSE-FERRULE ; 250V,4A,TIME LAG,
GLASS, 5*20
FUSE-FERRULE ; 250V,4A,TIME LAG,
GLASS, 5*20
WIRE-NO SHEATH CU ; SPCW,300V,
52.4MM,1/0.5
WIRE-NO SHEATH CU ; SPCW,300V,
52.4MM,1/0.5
WIRE-NO SHEATH CU ; SPCW,300V,
52.4MM,1/0.5
WIRE-NO SHEATH CU ; SPCW,300V,
52.4MM,1/0.5
WIRE-NO SHEATH CU ; SPCW,300V,
52.4MM,1/0.5
WIRE-NO SHEATH CU ; SPCW,300V,
52.4MM,1/0.5
WIRE-NO SHEATH CU ; SPCW,300V,
52.4MM,1/0.5
Code no. Description & Specification
Description & Specification
MAX870
DUAL 230V 115V
O X X
O O X
X X O
O O O
O X X
O X X
X X X
X O X
X X O
X X O
O X X
* Power PCB Pats Option List
PCB Ass’y
Power PCB
Ass’y
Location no.
RF1
RF2
RF3,4
JWA
JWB
JWC
JWD
JWE
JWF
JWG
3601-000263
3601-000263
3601-000301
3601-000282
3811-000389
3811-000389
3811-000389
3811-000389
3811-000389
3811-000389
3811-000389
FUSE-FERRULE ; 250V,2A,TIME LAG,
GLASS, 5*20
FUSE-FERRULE ; 250V,3.15A,TIME LAG,
GLASS, 5*20
FUSE-FERRULE ; 250V,6.3A,TIME LAG,
GLASS, 5*20
FUSE-FERRULE ; 250V,4A,TIME LAG,
GLASS, 5*20
WIRE-NO SHEATH CU ; SPCW,300V,
52.4MM,1/0.5
WIRE-NO SHEATH CU ; SPCW,300V,
52.4MM,1/0.5
WIRE-NO SHEATH CU ; SPCW,300V,
52.4MM,1/0.5
WIRE-NO SHEATH CU ; SPCW,300V,
52.4MM,1/0.5
WIRE-NO SHEATH CU ; SPCW,300V,
52.4MM,1/0.5
WIRE-NO SHEATH CU ; SPCW,300V,
52.4MM,1/0.5
WIRE-NO SHEATH CU ; SPCW,300V,
52.4MM,1/0.5
Code no. MAX880
DUAL 230V 115V
O X X
O O X
X X O
O O O
O X X
O X X
X X X
X O X
X X O
X X O
O X X
Electrical Parts List
8-18 Samsung Electronics
Location no.
*VFD List
PCB Ass’y
Front PCB
Ass’y
Location no.
VFD AH07-20045T OO
VF-DISPLAY ; SVA-16MM 14,16SEG,
125.0*40.0
Code no. Description & Specification
Description & Specification
Description & Specification
MAX870 MAX880
*Power Transformer Code List
AH26-80142X
AH26-80142Y
AH26-80142Z
AH26-80142U
AH26-80142V
AH26-80142W
MAX-880
MAX-870/MAX-860
MAX-850
MAX-850
MAX-870/MAX-860
MAX-880
115/230V
115/230V
115/230V
115/230V
115/230V
115/230V
TRANS-POWER ; E185,8*57,115/230V, 50/60Hz
TRANS-POWER ; E185,8*57,115/230V, 50/60Hz
TRANS-POWER ; E185,8*57,115/230V, 50/60Hz
TRANS-POWER ; E185,8*57,115/230V, 50/60Hz
TRANS-POWER ; E185,8*57,115/230V, 50/60Hz
TRANS-POWER ; E185,8*57,115/230V, 50/60Hz
Code no. Model Power Source
*BAND-Option List (Main PCB Ass’y)
AH40-10001T
AH40-10001U
2707-000029
2707-000586
2707-000300
3811-000389
0501-000398
2903-000102
2903-000105
3811-000389
2903-000105
AH27-80060B
AH26-80060A
TFE1
J6,7,8
TR20,21
TR22
JW3,4
IQ5,6,7
TFL1,3
JW18
TFL2
TL1
X
O
X
O
O
X
O
X
O
O
X
O
X
X
O
O
X
X
O
X
X
O
O
X
X
O
O
X
X
O
O
X
O
O
X
X
O
O
X
TUNER ; FE415-G11,-,75ohm
TUNER ; FE337-A05,-,75ohm
R-CHIP ; 0ohm, 5%,1/10W,DA,TP,2012
R-CHIP ; 22Kohm, 5%,1/10W,DA,TP,2012
R-CHIP ; 10ohm, 5%,1/10W,DA,TP,2012
WIRE-NO SHEATH CU ; SPCW,300V,52.4MM
TR-SMALL SIGNAL ; KSC945,NPN,250mW,
TO-92,T
FILTER-CERAMIC ; BP,10.7MHZ+ -25KHZ
150KHZ +
FILTER-CERAMIC ; BP,10.7MHZ+ -25KHZ
180KHZ +
WIRE-NO SHEATH CU ; SPCW,300V,52.4MM
FILTER-CERAMIC ; BP,10.7MHZ+ -25KHZ
180KHZ +
COIL-OSC ; RBQ-07VB,373UH,MW/LW-RF
COIL-OSC ; RBW-07VB,345UH,AM+RF
Code no. T-BAND
L-BAND
(General)
L-BAND
(FTZ,CE)
Electrical Parts List
Samsung Electronics 8-19
Description & Specification
PCB Ass’y
Front PCB
Ass’y
*MIC Option List
3722-001190
2101-000130
1201-000163
0501-000407
0501-000398
0501-000398
2001-000857
2007-000300
0601-000245
3404-000165
2001-000793
0401-000101
2401-001917
2401-000918
2401-001931
2401-001511
2401-001952
2203-000239
2203-000818
2007-000300
2007-000872
2007-000778
2007-000468
2001-000734
2007-000029
2203-001537
2203-000595
2007-000282
2007-000941
2001-000857
2007-000931
3811-000389
MIC2,3
MVR1
MIC1
MQ1,2
MQ3,UQ8
UQ7
UR121
MR4
ULD17
SW35
MR1,2
MD3,4,5,6
MC9,16,17
MC5
MC10,11
MC6,8
MC7
MC3,24
MC12
MR11,12
MR3,7,8,
50,51,
UR128
MR6
MR14,15
MR27
UR119
JW137
138,139
140
MC13
MC14
MR5
UR153
UR21
MR13
JW489
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
X
JACK-PHONE ; 9P/2C,6.43MM,AU,BLK,RC6701
VR-ROTARY ; 10Kohm,20%1/10W,TOP
IC-OP AMP ;4560,SOP,8P,150ML,DUAL,100V/M
TR-SMALL SIGNAL ; KSD471A-Y,NPN,800mW
TR-SMALL SIGNAL ; KSC945,NPN,250mW
TR-SMALL SIGNAL ; KSC945,NPN,250mW
R-CARBON;560ohm, 5%,1/8W,AA,TP,1.8x3.2mm
R-CHIP;10Kohm,5%,1/10W,DA,TP,2012
LED;ROUND,RED,3.1mm, 650nm
SWITCH-TACT;12V,50MA,160GF+-50GF
R-CARBON;47ohm,5%,1/8W,AA,TP,1.8X3.2mm
DIODE-SWITCHING;1N4148,100V,200mA,500mV
C-AL;1UF,20%,50V,-,TP,5X7MM
C-AL;22UF,20%,16V,-,TP,6.3X7.5MM
C-AL;220UF,20%,50V,-,TP,4X7MM
C-AL;47UF,20%,16V,-,TP,6X7MM
C-AL;4.7UF,20%,50V,-,TP,6.3X7MM
C-CERAMIC,CHIP;100pF,5%,50V,NPO,TP,2012
C-CERAMIC,CHIP;33pF,5%,50V,NPO,TP,2012
R-CHIP; 10Kohm,5%,1/10W,DA,TP,2012
R-CARBON; 4.7Kohm,5%,1/10W,DA,TP,2012
R-CHIP; 330Kohm,5%,1/10W,DA,TP,2012
R-CHIP;1Kohm,5%,1/10W,DA,TP,2012
R-CARBON; 4.7Kohm,5%,1/8W,DA,TP,2012
R-CHIP; 0ohm,5%,1/10W,DA,TP,2012
C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012
C-CERAMIC,CHIP;220pF,5%,50V,X7R,TP,2012
R-CHIP;100Kohm,5%,1/10W,DA,TP,2012
R-CHIP;47Kohm,5%,1/10W,DA,TP,2012
R-CARBON;560ohm,5%,1/8W,AA,TP
R-CARBON;470ohm,5%,1/8W,AA,TP
WIRE-NO SHEATH CU;SPCW,300V,52.4MM 1/0.5
Code no.
Location
No.
Without
Mic
Option
Mic
Option
9. Block Diagrams
9-1 Main
Samsung Electronics 9-1
Samsung Electronics9-2
Block Diagrams
9-2 CD

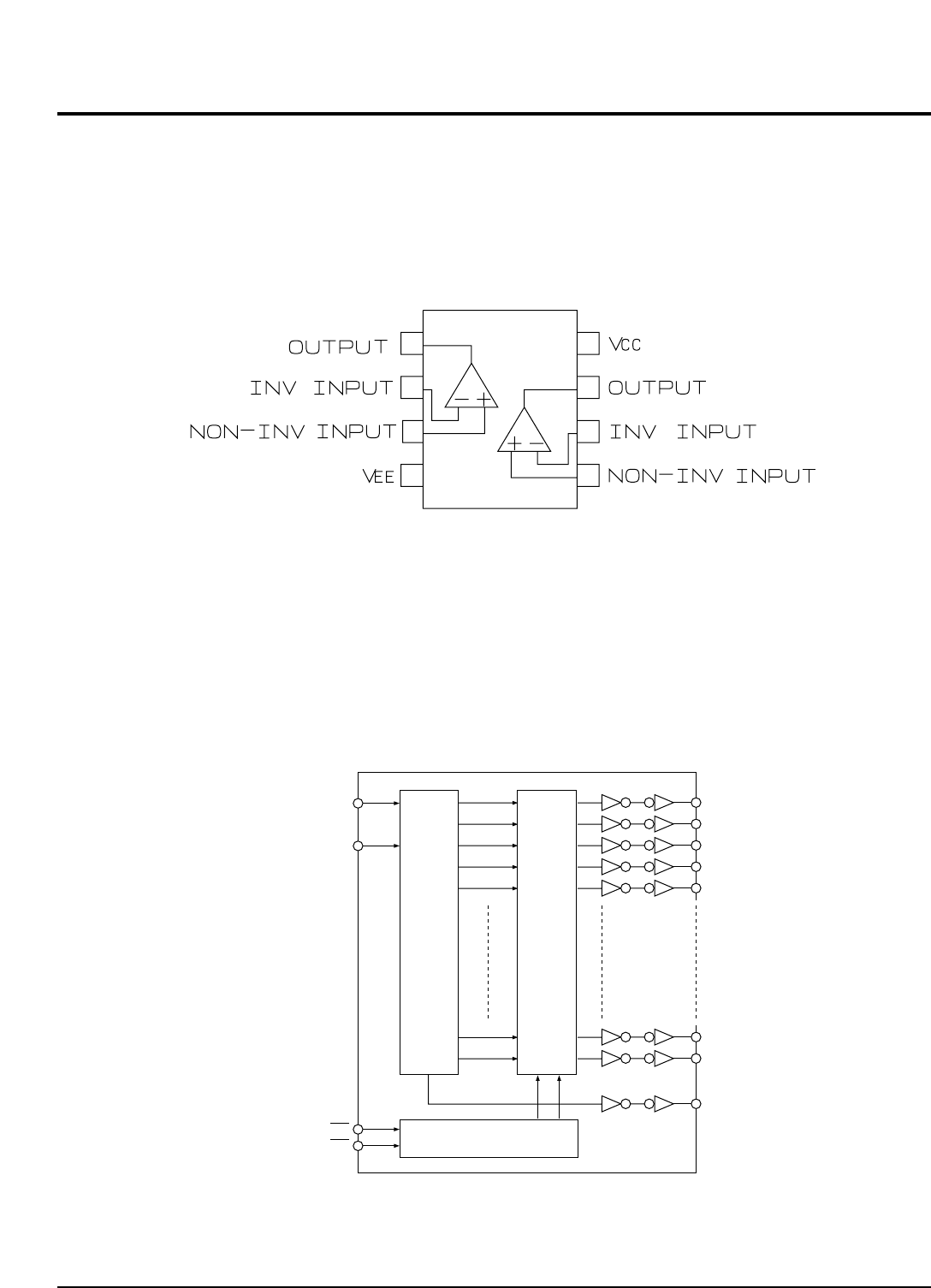

9-3Samsung Electronics
Block Diagrams
DATA
CLK
STB
CLK
P1
P2
P3
P4
P5
P15
P16
SO
Controller Circuit
Shift Register
Latch Circuit
NJU3716M : JIC5
BA4560 : DIC4
9-3-1 Main
9-3 IC & TR Internal Diagrams
Samsung Electronics9-4
Block Diagrams
1
22
XIN
XOUT
16
FMIN
15
AMIN
3
CE
4
DI
5
CL
6
DO
17
VDD
21
Vss
C2B
1/F
P0WER
ON
RESET
7 8 9 10
BO1 BO2 BO3 BO4
11
IO1
13
IO2
18 PD
19 AIN
20 ADUT
12 IFIN
REFERENCE
DIVIDER
PHASE DETECTOR
CHARGE PUMP
UNLOCK
DETECTOR
UNIVERSAL
COUNTER
DATA SHIFT REGISTER
LATCH
12bita PROGRAMMABLE
DIVIDER
SWALLOW COUNTER
1/16, 1/17 4D1ts
1/2
L-N1
L-N2
L-N3
L-N4
R-N1
R-N2
R-N3
R-N4
11
12
13
14
10
9
8
7
100K
100K
100K
100K
100K
100K
100K
100K
G
G
0/30dB
2dB STEP
INPUT MULTIPLEXER
GAIN
MUXOUTL
15 16 27 26 25 23 24
TREBLE(L)
MOUT(L)
BN(L)
BOUT(L)
UN(L)
RR
MUXOUTR
TREBLE(R)
MOUT(R)
BN(R)
BOUT(R)
CREF
UN(R)
RR
17 18 20 19 20 21 22 2
4
3
5
30
1
29
6
AGND
R OUT
L OUT
DIGGND
SDA
SCL
SPKR ATT
LEFT
I CBUS DECDER + LATCHES
2
VOLUME TREBLE MIDDLE BASS SPKR ATT
RIGHT
Verf
V3
VOLUME TREBLE MIDDLE BASS
LC72131 : TIC2
TDA7439: FIC2
9-5Samsung Electronics
Block Diagrams
DATA
CLK
STB
CLK
P1
P2
P3
P4
P5
P19
P20
SO
Controller Circuit
Shift Register
Latch Circuit
BIASC 1
VREFC 2
RREF 3
N.C. 4
N.C. 5
DIFOUT 6
CIN 7
AIN 8
VCC 9
PEAK
HOLD
PEAK
HOLD
PEAK
HOLD
PEAK
HOLD
PEAK
HOLD
PEAK
HOLD
PEAK
HOLD
RES
RES
RES
RES
RES
RES
RES
G4Hz
BPF
160Hz
BPF
400Hz
BPF
1KHz
BPF
2.5KHz
BPF
6.3KHz
BPF
15.6KHz
BPF
DIF
1 8
1 7
1 6
1 5
1 4
1 3
1 2
1 1
1 0
GND
AOUT
TEST
N.C.
N.C.
SEL
C
B
A
BIAS
VREF
REFFERENCE CURRENT
MPX
A
A-C
C
DES
BA3834S : UIC3
NJU3718 : UIC2

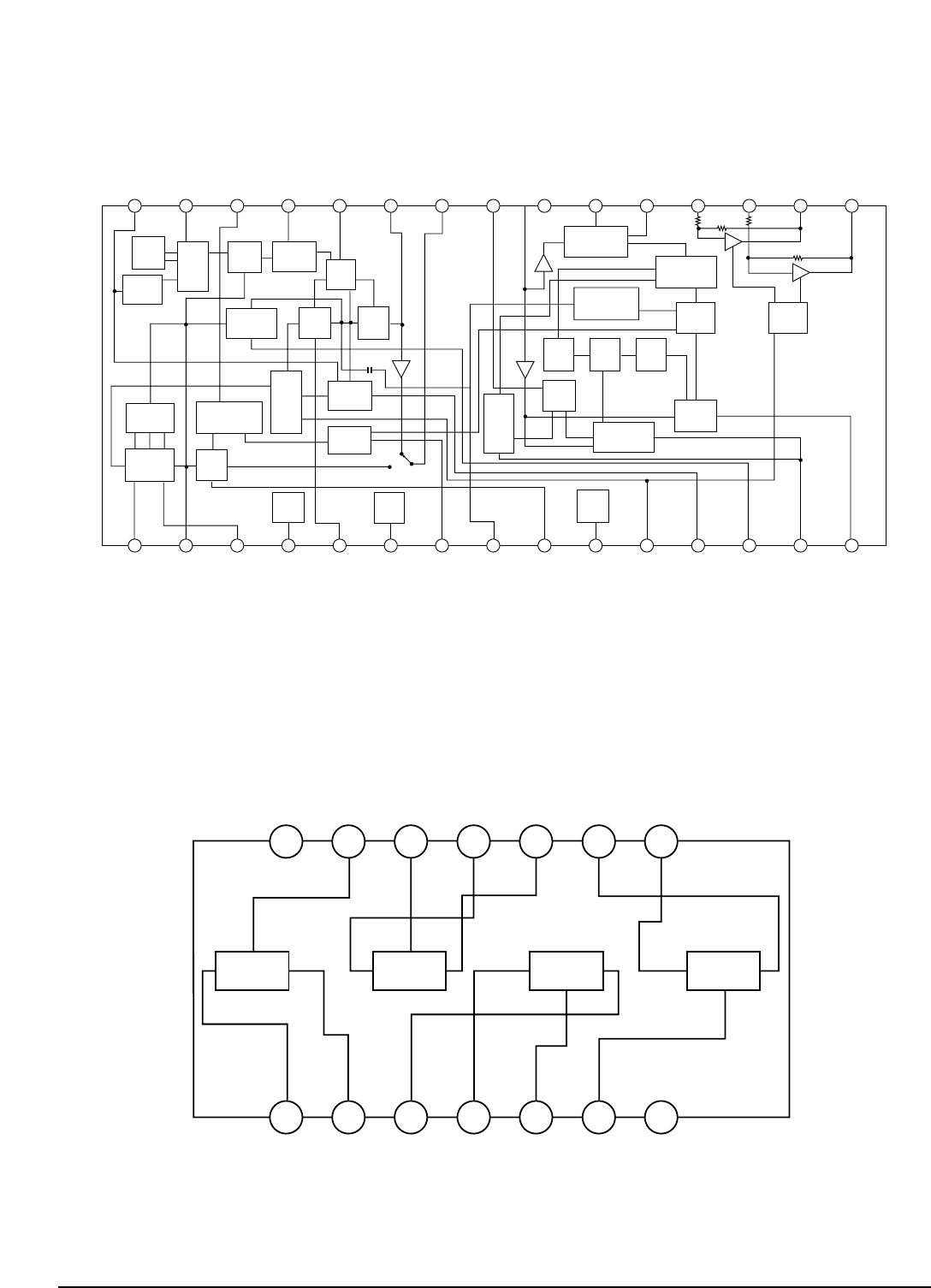

Samsung Electronics9-6
Block Diagrams
12345678910 11 12 13 14 15
29 29 28 27 26 25 24 23 22 21 20 19 18 17 16
ALC
DUFF
AM
OSC
AM
MIX AM
RF AMF AGC
AM
DET
AM
IF
SMFT
LEVEL
DET
FM
IF FM
DET
REG GND
TUNING
DRIVE
S-CURVE
AM/FM
IF
BUFF
COMP
VCC
AM/FM
SW
VCC
PHASE DET
PILOT
DET
FF FF FF
STEREO
DRIVE TRIG MUTE
STERO
SW
DECODER
PM
AM
SW A SW B SW C SW D
14 13 12 10 9 811
123 5674
LA1836: TIC1
LC4966: DIC2
9-7Samsung Electronics
Block Diagrams

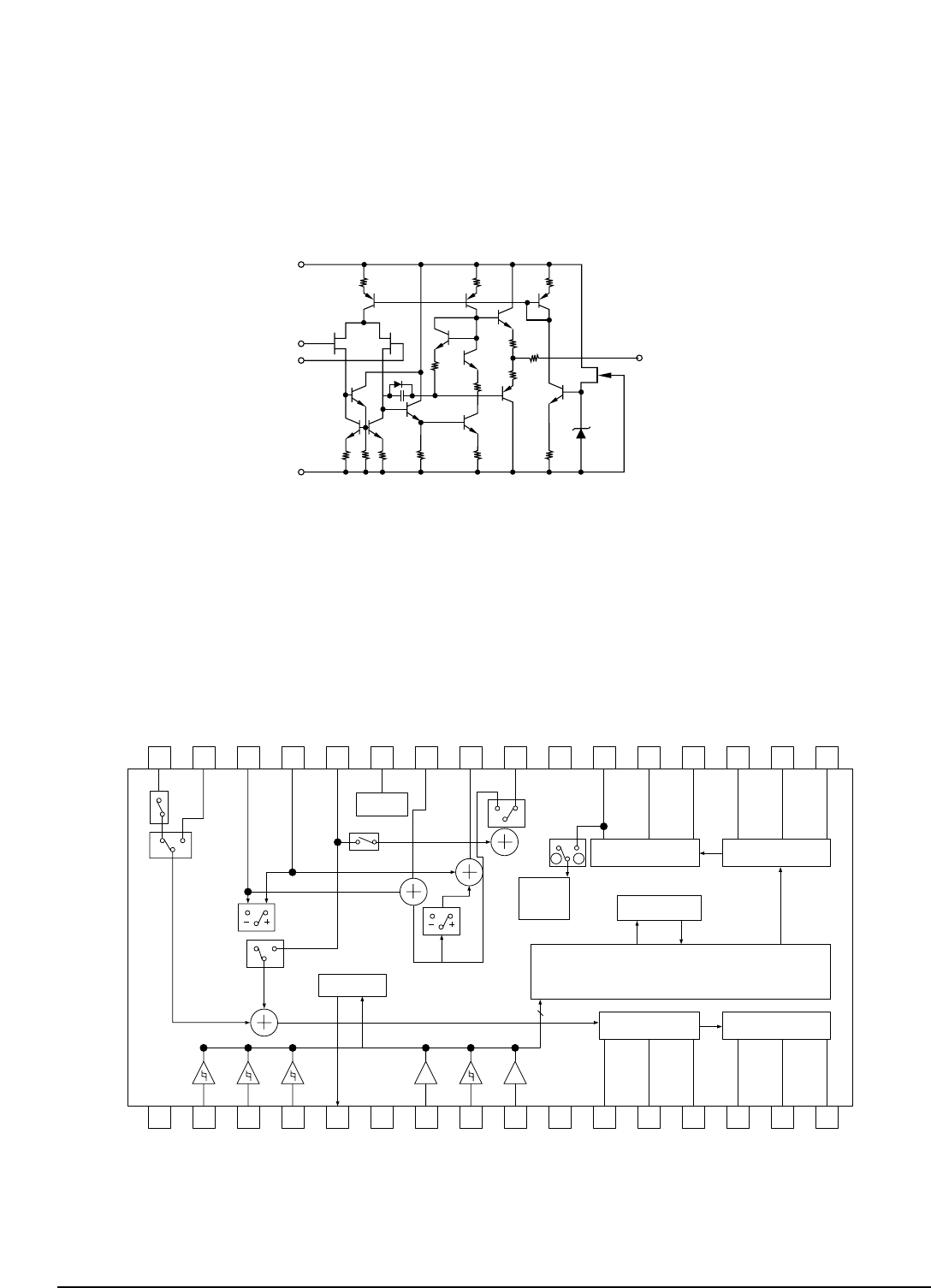

OUTPUT
V+
-INPUT
+INPUT
V-
32
1
31
2
30
3
29
4
28
5
27
6
26
7
25
8
24
9
23
10
22
11
21
12
20
13
19
14
18
15
17
16
C L K
L P F A / D
L O G I C
SFB SW
MODE SEL
SU EC
SU EC
MODE SEL
PHASE
SEL
V O L 16kSRAM
L P F D / A
6
1/2Vcc
MICMIX SW
DMIX SW
ON OFF
1 2
Vcc
VOL SEL
PHASE SEL
NJM074 : DIC3
M65846FP : DIC1

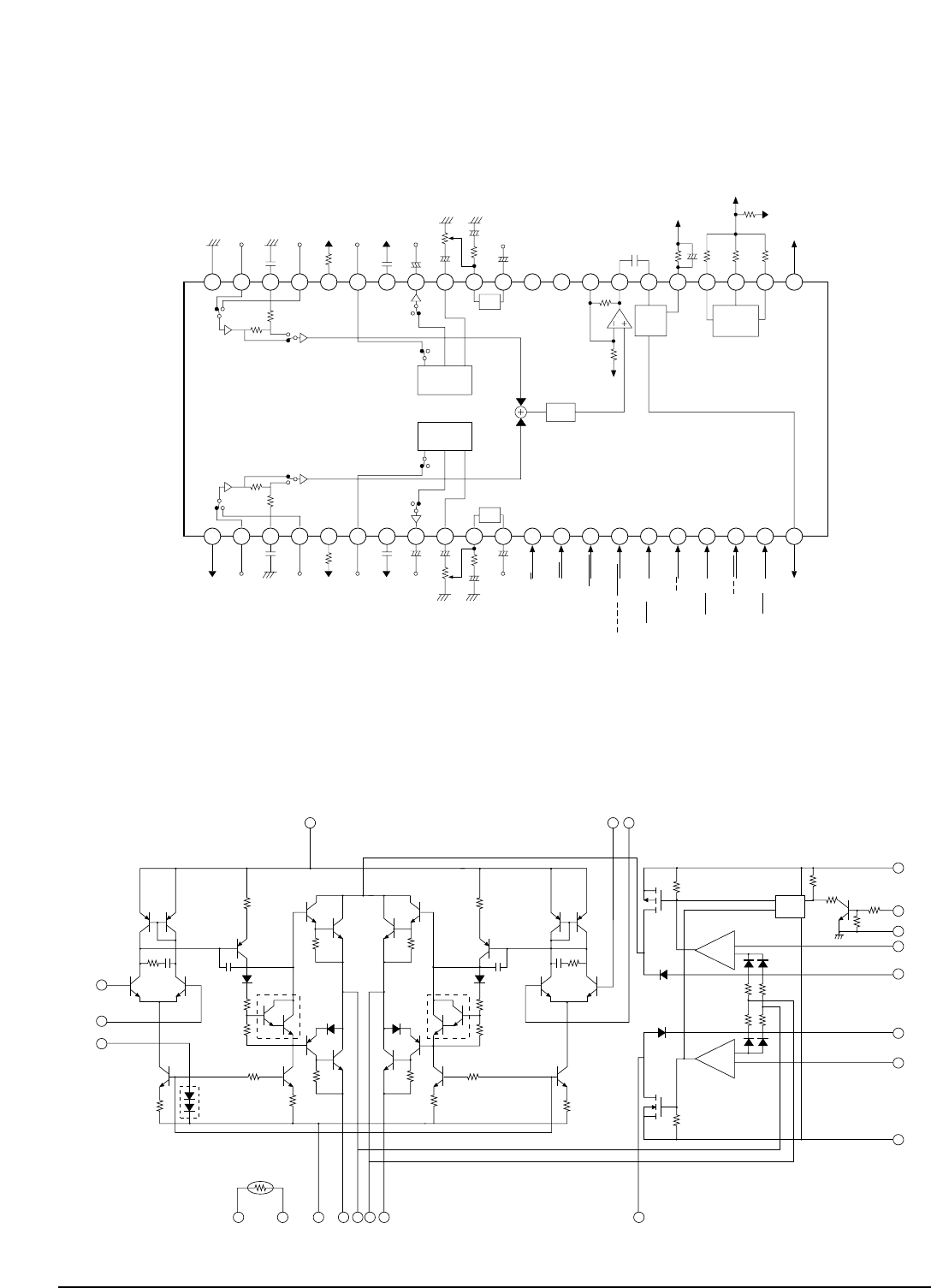

Samsung Electronics9-8
Block Diagrams
TR1 TR2
R2
TR3 TR4
TR5
TR5
R3 O1 R8
R10 R20
R18
R17
R13
TR19 TR17
R7
R6
R5
R4
R9
R14
R12
R19
TR9
TR11
TR21
TR14 TR13 TR51 TR42
SUB
TR51
R51
Comparator
Comparator
R51 R42
R45
R44
R43
D53
D51 D52
R58
R58 R59
R59
D53
TR18
TR20 TR16 TR15
O5
R15
R16
O3O2
TR22TR10
TR12 TR24
C4 C3
TR23
TR8
O4
C2
TR7
R31
C1
18
19
20
12 13 16 10 14 15 11 9
6
7
4
5
2
3
1
212217
8
S. W.
Cont.
21
MSOUT
201918171615141312
PB A/B
111098765
BIAS 1
DET(R)
RECOUT(R)
EQOUT(R)
EQIN(R)
PBOUT(R)
RIN(R)
33k
0.1µ
+
+
43
ABO(R)
0.0047µ
2
AIN(R)
1
222324252627282930313233343536373839404142
VEE
VCC
VCC
VEE
BIAS
VCC
VEE
BIN(R)
DET(L)
RIN(L)
BIN(L)
ABO(L)
AIN(L)
GND
BIAS 2
0.1µ
0.0047µ
22k
+
+
++
++
A 120/70
NORM/HIGH
BIAS ON/OFF
NR ON/OFF
RM ON/OFF
B NORM/CROM/METAL
REC/PB/PASS
BIAS(M)
BIAS(C)
BIAS(N)
MSDET
MSIN
MAOUT
MAI
100k
15k
12k
LPF
DOLBY
B-NR
EQ
8.2k
GPCAL
RECCAL
EQOUT(L)
EQIN(L)
RECOUT(L)
PBOUT(L)
0.33µ
1000 p
BIAS
SW
MS
DET
300k
LM ON/OFF
15k
12k
EQ
DOLBY
B-NR
+
HA12203/HA12204 : JIC3
STK417-090: AIC1

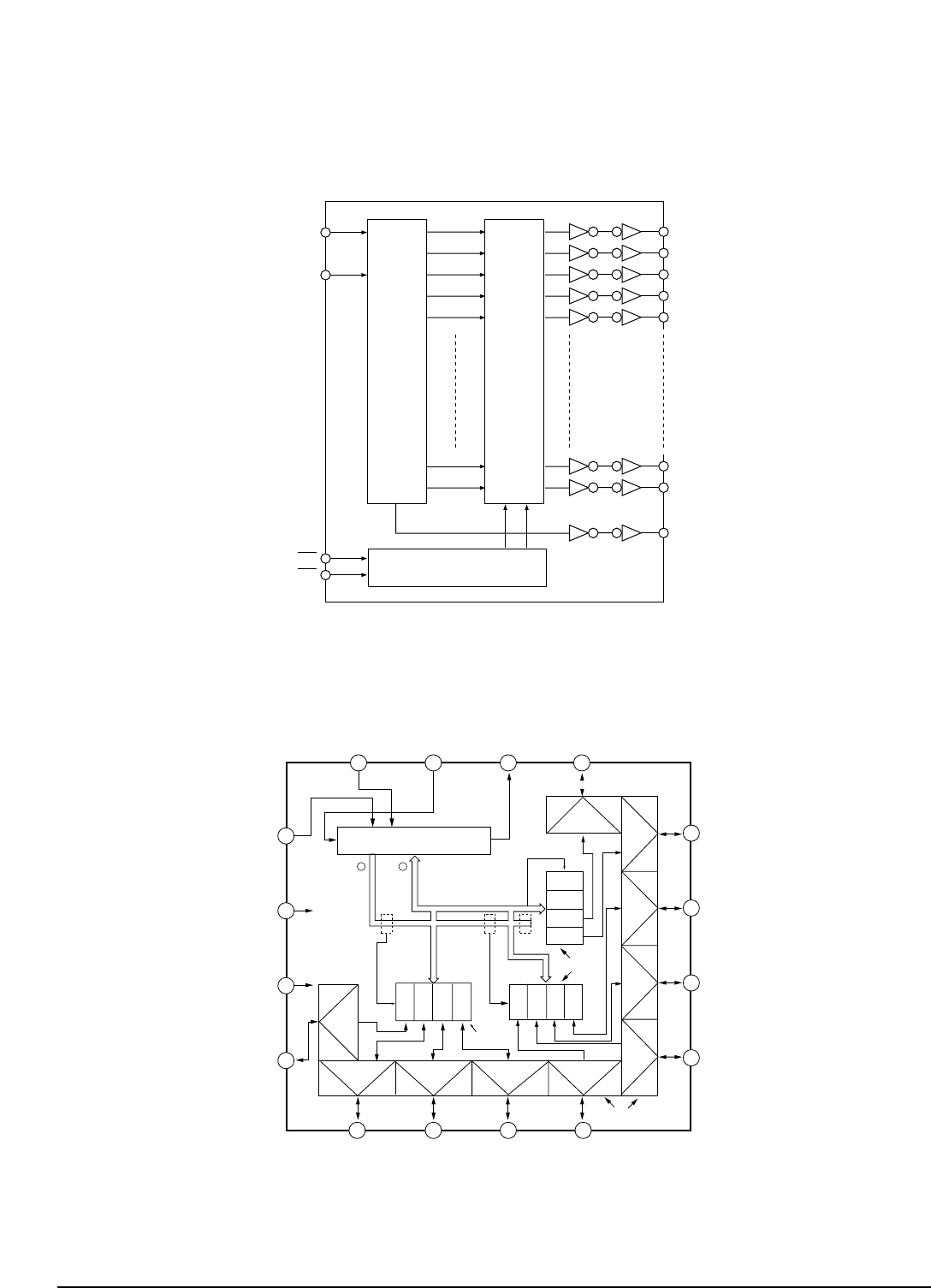

9-9Samsung Electronics
Block Diagrams
DATA
CLK
STB
CLK
P1
P2
P3
P4
P5
P15
P16
SO
Controller Circuit
Shift Register
Latch Circuit
CK
C
SI SO
(OP-10)
I/O-10
I/O-9
(OP-9)
I/O-8
(OP-8)
I/O-7
(OP-7)
I/O-6
(OP-6)
I/O-5
(OP-5)
I/O-4
(OP-4)
I/O-3
(OP-3)
I/O-2
(OP-2)
I/O-1
(OP-1)
GND
VDD
STB Serial
Latch
Latch
Latch
Driver
Y
NJU3716M : JIC5
TC9173P : JIC6

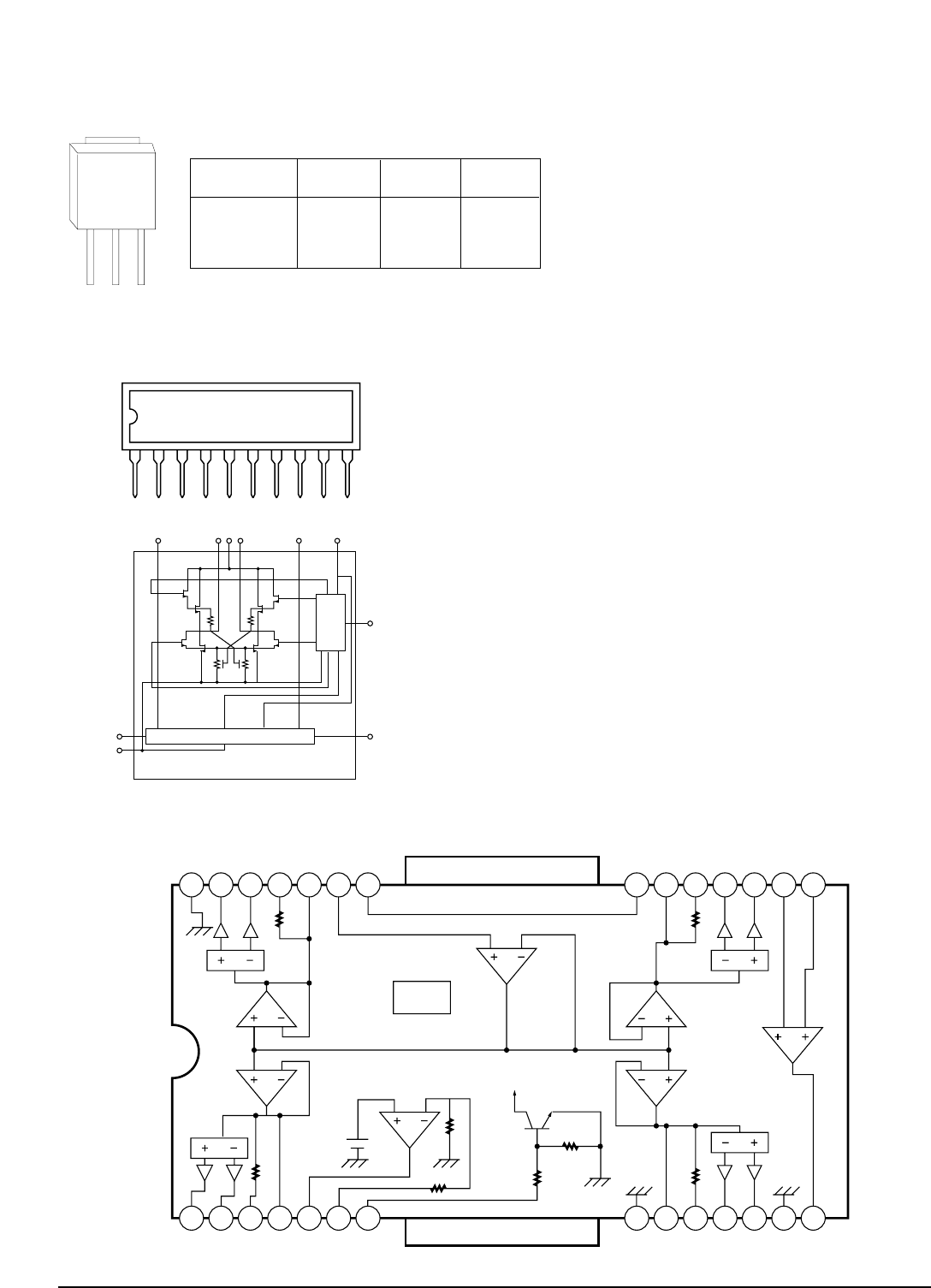

Samsung Electronics9-10
Block Diagrams
32
OUT1 OUT2
VCC2
810 9 7
P1 P2 VCC1
4V2
6IN2IN1
GND
5
1LB1641
Input logic circuit
Predriver
LB1641/BA6209
28 27 26 25 24 23 22 21 20 19 18 17 16 15
1 2 3 4 6 7 8 9 10 11 12 13 14
LEVEL
SHIFT
LEVEL
SHIFT
BUY
10K
10K
REGULATOR
10K
MUTE
50K
50K
10K
LEVEL
SHIFT
LEVEL
SHIFT
10K
BUY
T S D
10K
BUY
5
KA9258 : NIC9258
LB1641/BA6209(MOTOR DRIVER) : SIC1,SIC2,SIC3,NIC1641
9-3-2 CD
TR 1
E
* NOTE : KSB564 = ‘EBC’ TYPE
CB
23
KSR1003
A928

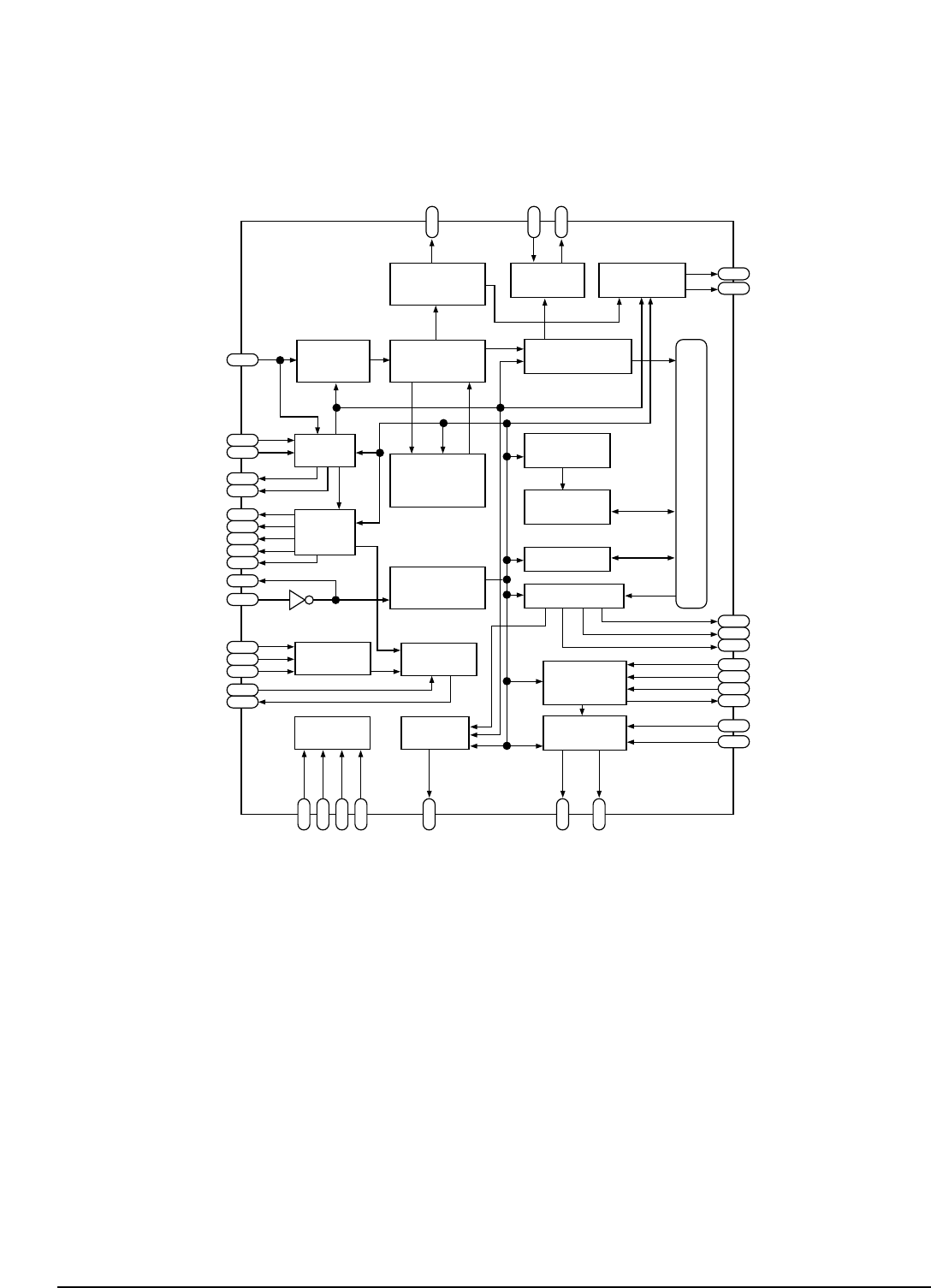

9-11Samsung Electronics
Block Diagrams
26
32
33
30
11
12
14
77
67
80
24
17
22
37
38
36
69
68
8
9
72
73
75
76
70
4
2
5
3
66
19
20
7
29
65
63
62
61
EFMI
CNTVOL
DPFIN
DPFOUT
DPDO
SMEF
SMON
SMDP
SMSD
LOCK
XOUT
XIN
MDAT
MCK
MLT
TRCNT
/ISTAT
LRCHO
ADATAO
BCKO
BCKI
ADATAI
LRCHI
EMPH
VREFL1
VREFH1
XTALSEL
TESTO
CDROM
TEST1
DATX
RCHOUT
LCHOUT
S0S1
SBCK
SDAT
SUBCODE
SYNC
DETECTOR
SUBCODE
OUTPUT SUBCODE-Q
REGISTER
EFM
PHASE
DETECTOR
FRAME SYNC
DETECTOR
PROTECTOR
INSERTOR
EFM
DEMODULATOR
SQDT
SQCK
DIGITAL
PLL
DIGITAL
CLV
SERVO
23BIT
SHIFT
REGISTER
X-TAL
TIMING
GENERATOR
CPU
INTERFACE TRACK
COUNTER
MODE
SELECTOR DIGITAL
OUTPUT
ADDRESS
GENERATOR
16K
SRAM
ECC
INTERPOLATOR
DIGITAL
FILTER
& DE-EMPH
D/A
CONVERTER
8BIT DATA BUS
KS9286 : NIC9286
Samsung Electronics9-12
Block Diagrams
KB9223 : NIC9223
RF–
FEI
RF Amp
FDFCT
59 54 22 30 29 31 38 37 36 35 51 52 58 26 28 27 3
60
47
48
57
49
50
53
55
62
61
43
44
42
46
45
23
24
25
6
39
1
40
15 16 13 14 19 17 12 11 9 105
32
33
77
2
4
78
76
75
69
70
71
68
79
66
63
67
65
73
74
TE1
WDCH
TRCNT
LOCH
ISTAT
RESET
MLT
MDATA
MCK
ATSC
TZC
FE2
FLB
FGD
FS3
FE-
FEO
TDFCT
TE-
TEO
TE2
LPFT
TG2
TGU
SLO
SL–
SL+
SPDLO
SPDL-
SMDP
SMON
SMEF
FSET
MIRROR
MCP
FOK
GC10
GC11
CH10
CH11
MUTEI
RRC
CH20
CH21
GC21
GC20
DCC1
RFO
PD1
PD2
F
E
EI
PD
LD
VR
ARF
IRF
ASY
EFM
RFI
DCB
Focus Error Amp
FE-BIAS Adjustment
Tracking Error Amp
E/F Balance & Gain
Control
APC Amp
Center Voltage Amp.
RF Level AGC
&
Equalizer
EFM
Comparator
Defect Dectection
Circuit
Micom Data
Interface Logic
MICOM TO SERVO CONTROL
AUTO SEQUENCER
ADJUSTMENT-FREE CONTROL
FS1 to
FS4 TM to
TM6 BAL1 to
BAL5 PS1 to
PS4 GA1 to
GAS
Focus Phase
Compensation
& Offset cancel circuit
Tracking Phase
Compensation Block
& Jump Pulse GEN.
Sled Servo Amplifier
& Sled Kick GEN.
Spindle Servo LPF
(Double Speed)
MIRROR DETECTION
CIRCUIT
FOK DETECTION
CIRCUIT
Built-in Post Filter Amp (L&R)
RF Amp
9-13Samsung Electronics
9-4 µ-COM : UIC1
No. Port Name I/O Function
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
P 16
17
30
31
32
33
34
35
36
37
70
RESET
P 74
75
VSS1
CF 1
2
VDD1
P 80
81
82
83
84
85
86
87
P 71
72
73
S 0
1
2
3
4
5
6
7
8
9
S 10
11
12
13
14
15
VDD3
S 16
17
18
19
D12
JOG
POWER
TUNED
A/MUTE
CE11
DI1
DO1
CLK1
CE31
PSNS
MO/ST
CF2
GND
XT1
XT2
THS
AMPS
EQ IN
KEY1
KEY2
JOG
KEY3
MIC
T/SENS
SCOR
REMO
G1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
S1
2
3
4
I
I
O
I/O
O
O
I
O
O
O
I
O
I
I
I
I
I
I
I
I
I
I
I
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
TC9173 INPUT
MULTI JOG IN
POWER ON/OFF
TUNED/DSP MUTE
AUDIO MUTE
LC72131(PLL) CE
LC72131 DATA INPUT
LC72131 /TDA7439
LC72131 /TDA7439
M65846 CE
POWER SENSE
FM MONO/STEREO
SUB OSC(CLOCK)
MAIN GND
MAIN OSC
MAIN OSC
MAIN 5V
POWER AMP PROTECT/HPS
AMPS SIGNAL
EQUALIZER INPUT
A/D KEY INPUT 1
A/D KEY INPUT 2
MULTI JOG IN
A/D KEY INPUT 3
MIC ON SNS
CD TRAY SENSE
SCOR INT
REMOCON INPUT
VFD GRID 1
VFD GRID 2
VFD GRID 3
VFD GRID 4
VFD GRID 5
VFD GRID 6
VFD GRID 7
VFD GRID 8
VFD GRID 9
VFD GRID 10
VFD GRID 11
VFD GRID 12
VFD GRID 13
VFD GRID 14
VFD GRID 15
VFD GRID 16
VFD SEG 1
VFD SEG 2
VFD SEG3
VFD SEG4
Block Diagrams
Samsung Electronics9-14
No. Port Name I/O Function
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
VP
S 20
21
22
23
24
25
26
27
28
29
30
31
32
PE 1
2
3
4
5
6
7
VDD 4
PF 0
1
2
3
4
5
6
7
PG 0
1
2
3
P 00
01
02
03
VSS2
VDD2
P 04
05
06
07
10
11
12
13
14
15
S5
S6
S7
S8
S9
S10
S11
S12
S13
S14
S15
S16
S17
OPT
LKFS
FOK
SENSE
SENSE1
SW2
SW1
RL+
LAT1
OPEN
CLOSE
XRST
C-LAT
EMPH
EVR
VCLK
VR
V-LAT
V-DATA
MCK
C-DATA
MDATA
1 SOL
CE32
MLT
CE34
SOL2
TRCNT
SQDT
SQRT
CLK3
DO3
CE33
O
O
O
O
O
O
O
O
O
O
O
O
O
I
I
I
I
I
I
I
O
O
O
O
O
O
O
O
O
I
I
I/O
O
O
O
O
O
O
O
O
O
I
O
O
O
O
VFD SEG 5
VFD SEG 6
VFD SEG 7
VFD SEG 8
VFD SEG 9
VFD SEG 10
VFD SEG 11
VFD SEG 12
VFD SEG 13
VFD SEG 14
VFD SEG 15
VFD SEG 16
VFD SEG 17
TUNER/TIME/PRO-LOGIC
FOCUS OK
SENSE & LIMIT SWITCH
SENSE1
ROULETTE+
LATCH
OPEN MOTOR
CLOSE MOTOR
RESET
C-LATCH/REM DO/PRO DO
EMPHASI/REM CE/PRO LED P
ERE VR SW
VCD-CLOCK/REM MUTE/PRO-L
ELE VR SW
VCD LAT/REM NAR/PRO CE2
VCD DATA/REM CH/PRO CE1
DSP/SSP CONTROL CLOCK
C-DATA/REM CLK/PRO CLK
DSP/SSP CONTROL DATA
1 DECK SOLENOID
TC9173 CE
DSP/SSP CONTROL LATCH
NJU3718 CHIP ENABLE
2 DECK SOLENOID
LD ON
SUBQ DATA INPUT
SUBQ DATA INPUT CLOCK
NJU3716/18/TC9173/M65846
NJU3716/18/TC9173/M65846
NJU3716 CE
Block Diagrams
9-15Samsung Electronics
Block Diagrams
Name
No.
NJU3718 : UIC2
TC9173 : JIC6
NJU3716 : JIC5
Function
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
P 9
10
11
12
13
14
GND
P 15
16
17
18
19
20
S 0
DO3
CLK3
CE34
CLR
P1
P2
VSS
P3
P4
P5
P6
P7
P8
VDD
DISC2 LED
DISC3 LED
EQ A
EQ B
EQ C
REC/PAUSE
TUNER FUNCTION LED
CD FUNCTION LED
TAPE FUNCTION LED
AUX FUNCTION LED
ECHO LED / PRO LED
SCORE LED
MICOM 99
MICOM 98
MICOM 93
VDD
STOP LED
COMM` 1 LED
GND
COMM` 2 LED
COMM` 3 LED
DISC 1 LED
JOG LED
CD MUTE
VCD / REMAKE RESET
Name
No. Function
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
P 7
8
9
10
11
GND
P 12
13
14
15
16
S 0
DO3
CLK3
CE32
CLR
P 1
GND
P 2
3
4
5
6
VDD
STS 1
R/P
P/B 1
MOTOR
HI / SP
REC 1
A/B
NOR/HI
REC MUTE
DOLBY NR
TUNER MODE
SRS
STS
LINE MUTE
P/B
Name
No. Function
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
GND
P 1
2
3
4
5
6
7
8
9
10
DO 3
DI 2
CLK
CE 33
CLR
GND
REC / R
MODE / B
HALF / B
HALL / B
REC / F
MODE / A
HALF / A
NC
NC
HALL / A
Samsung Electronics9-16
Block Diagrams
9-5 RF AMP & Servo Processor(KB9223) : NIC9223
No. Port Description
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
MCP
DCB
FRSH
DCC2
DCC1
FSET
VDDA
VCCP
GC21
GC20
CH2I
GC2O
CH1O
CH1I
GC1O
GC1I
RRC
VSSP
MUTEI
ISET
VREG
WDCK
SMDP
SMON
SMEF
FLB
FS3
FGD
LOCK
TRCNT
ISTAT
ASY
EFM
VSSA
MCK
MDATA
MLT
RESET
MIRROR
FOK
Capacitor connection pin for mirror hold
Capacitor connection pin for defect Bottom hold
Capacitor connection pin for time constant to generate focus search waveform
The input pin through capacitor of defect bottom hold output
The output pin of defect bottom hold
The peak frequency setting pin for focus, tracking servo and cut of frequency
of CLV LPF
Analog VCC for servo part
Vcc for post filter
Amplifier negative input pin for gain and low pass filtering of DAC output CH2
Amplifier output pin for gain and low pass filtering of DAC output CH2
The input pin for post filter channel2
The output pin for post filter channel2
The output pin for post filter channel1
The input pin for post filter channel1
Amplifier output pin for gain and low pass filtering of DAC output CH1
Amplifier negative input pin for gain and low pass filtering of DAC output CH1
The pin for noise reduction of post filter bias
VSS for post filter
The input pin for post filter muting control
The input pin for current setting of focus search, track jump and sled kick volt-
age
The output pin of regulator
The clock input pin for auto sequence
The input pin of CLV control output pin SMDP of DSP
The input pin for spindle servo ON through SMON of DSP
The input pin of provide for an external LPF time constant
Capacitor connection pin to perform rising low bandwidth of focus loop
The pin for high frequency gain change of focus loop with internal FS3 pin
switch
Reducing high frequency gain with capacitor between FS3 pin
Sled runaway prevention pin
Track count output pin
Internal status output pin
The input pin for asymmetry control
EFM comparator output pin
Analog VSS for servo part
Micom clock input pin
Micom data input pin
Micom data latch input pin
Reset input pin
The mirror output for test
The output pin of focus OK comparator
9-17Samsung Electronics
Block Diagrams
No. Port Description
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
SSTOP
SL+
SLO
SL-
SPDL-
SPDLO
FE-
FEO
TE-
TEO
ATSC
TZC
TE2
TE1
LPFT
DVDD
TDFCT
FE2
FE1
FDFCT
TGU
TG2
FEBIAS
DVEE
PD1
PD2
F
E
PD
LD
VR
VCC
RF-
RFO
IRF
ARF
RFI
CAGC
EI
GND
The pin for detection whether pick_up position is innermost or not
The noninverting input pin of sled servo amplifier
The output pin of sled servo amplifier
The inverting input pin of sled servo amplifier
The noninverting input pin of spindle servo amplifier
The output pin of spindle servo amplifier
The inverting input pin of focus servo amplifier
The output pin of focus servo amplifier
The inverting input pin of tracking servo amplifier
The output pin of tracking servo amplifier
The input pin for Anti-shock detection
The comparator input pin for tracking zero crossing detection
Tracking servo input pin
Tracking error amplifier output pin
The input pin of tracking error low pass filtering signal
The power supply pin for logic circuit
The capacitor connectiong pin for tracking defect compensation
Focus servo input pin
Focus error amplifier output pin
The capacitor connection pin for focus defect compensation
The capacitor connection pin for high frequency tracking gain switch
The pin for high frequency gain change of tracking servo loop with internal
TG2 switch
Focus error bias voltage control pin
The DVEE pin for logic circuit
The negative input pin of RF I/V amplifier1(A+C signal)
The negative input pin of RF I/V amplifier2(B+D signal)
The negative input pin of F I/V amplifier(F signal)
The negative input pin of E I/V amplifier(E signal)
The input pin for APC
The output pin for APC
The output pin of (AVEE+AVCC)/2 voltage
VCC for RF part
RF summing amplifier inverting input pin
RF summing amplifier output pin
The input pin for AGC
The output pin for AGC
The input pin for EFM comparating
The capacitor connection pin for AGC
Feedback input pin of E I/V amplifier for EF Balance control
GND for RF part
Samsung Electronics9-18
Block Diagrams
No. Port Port Description
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
-
O
I
O
I
-
O
I
O
O
O
O
-
O
O
I
I
-
O
O
-
I
I
O
O
O
I
I
I
O
O
I
O
-
I
I
I
I
I/O
I/O
AVDD1
DPDO
DPFIN
DPFOUT
CNTVOL
AVSS1
DATX
XIN
XOUT
WDCHO
LRCHO
ADATAO
DVSS1
BCKO
C2PO
VREFL2
VREFL1
AVDD2
RCHOUT
LCHOUT
AVSS2
VREFH1
VREFH2
EMPH
LKFS
S0S1
RESET
/ESP
SQCK
SQDT
SQOK
SBCK
SDAT
DVDD1
MUTE
MLT
MDAT
MCK
DB8
DB7
Analog VCC1
Charge pump output for Digital PLL
Filter input for Digital PLL
Filter output for Digital PLL
VCO control voltage for Digital PLL
Analog Ground1
Digital Audio output data
X’tal oscillator input
X’tal oscillator output
Word clock output of 48 bit/Slot (88.2KHz)
Channel clock output of 48 bit/Slot (44.1KHz), 88.2KHz when ESP ON
Serial audio data output of 48 bit/Slot (MSB first), double speed output
when ESP ON
Digital Ground1
Audio data bit clock output of 48 bit/Slot(2.1168MHz), 4.2336MHz when
ESP ON
C2 Pointer for output audio data
Input terminal2 of reference voltage “L”(Floating)
Input terminal2 of reference voltage “L”(GND connection)
Analog VCC2
Right-Channel audio output through D/A converter
Left-Channel audio output through D/A converter
Analog ground2
Input terminal1 of reference voltage “H” (VDD connection)
Input terminal2 of reference voltage “H” (Floating)
Emphasis/Non-Emphasis output, H: Emphasis ON, L: Emphasis OFF
The Lock Status output of frame sync
Output of subcode sync signal(S0+S1)
System reset at “L”
ESP function ON/OFF control(“L”: ESP function ON, “H”: ESP function
OFF)
Clock for output Subcode-Q data
Serial output of Subcode-Q data
The CRC (Cycle Redundancy Check) check result signal output of
Subcode-Q)
Clock for output subcode data
Subcode serial data output
Digital VDD1
Mute control input (“H”: Mute ON)
Latch Signal input from Micom (Schmit Trigger)
Latch Signal input from Micom (Schmit Trigger)
Latch Signal input from Micom (Schmit Trigger)
SRAM data I/O port8 (MSB)
SRAM data I/O port7
9-6 Digital Signal Processor(KS9286) : NIC9286
9-19Samsung Electronics
Block Diagrams
No. Port Port Description
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I
I
I
I
I
I
I
O
I
O
O
O
O
-
O
O
I
I
I
I
DB6
DB5
DB4
DB3
DB2
DB1
C1F1
C1F2
C2F1
C2F2
C2FL
/PBCK
DVSS2
FSDW
ULKFS
/JIT
C4M
C16M
/WE
/CS
XTALSEL
TEST0
CDROM
SRAM
TEST1
EFMI
ADATAI
/ISTAT
TRCNT
LOCK
PBFR
SMEF
SMON
DVDD2
SMDP
SMSD
BCKI
TESTV
DSPEED
LRCHI
SARM data I/O port 6
SARM data I/O port 5
SARM data I/O port 4
SARM data I/O port 3
SARM data I/O port 2
SARM data I/O port 1 (LSB)
Monitoring output for C1 error correction (RA1)
Monitoring output for C1 error correction (RA2)
Monitoring output for C2 error correction (RA3)
Monitoring output for C21 error correction (RA4)
C2 decoder flag (RA5, “H” : When the processing C2 code is impossible
correction status.)
Output of VCO/2 (4.3218MHz) (RA6)
Digital ground2
Window or unprotected frame sync (RA7)
Frame sync protection state (RA8)
Display of either RAM overflow or underflow for ±4 frame jitter margin
(RA9)
Only monitoring signal (4.2336MHz) (RA10)
16.9344MHz signal output (RA11)
Terminal for test
Terminal for test
Mode Selection1 (H: 33.8688MHz, L:16.9344MHz)
TEST input terminal (GND connection)
Mode Selection2 (H: CD-ROM, L: CDP)
TEST input terminal (GND connection)
TEST input terminal (GND connection)
EFM signal input
Serial audio data input of 48 bit/Slot (MSB first)
The internal status output
Tracking counter input signal
Output signal of LKFS condition sampled PBFR/16 (if LKFS is “H”, LOCK
is “H”, if LKFS is sampled “L” at least 8 times by PBFR/16, LOCK is “L”)
Write frame clock (Lock: 7.35KHz)
LPF time constant control of the spindle servo error signal
ON/OFF control signal for spindle servo
Digital VDD2
Spindle Motor drive (Rough control in the SPEED mode, Phase control
in the PHASE mode)
Spindle Motor drive (Velocity control in the PHASE mode)
Audio data bit clock input of 48 bit/Slot (2.1168MHz)
TEST input terminal (GND connection)
TEST input terminal (VDD connection)
Channel clock input of 48 bit/Slot (44.1KHz)
10. PCB Diagrams

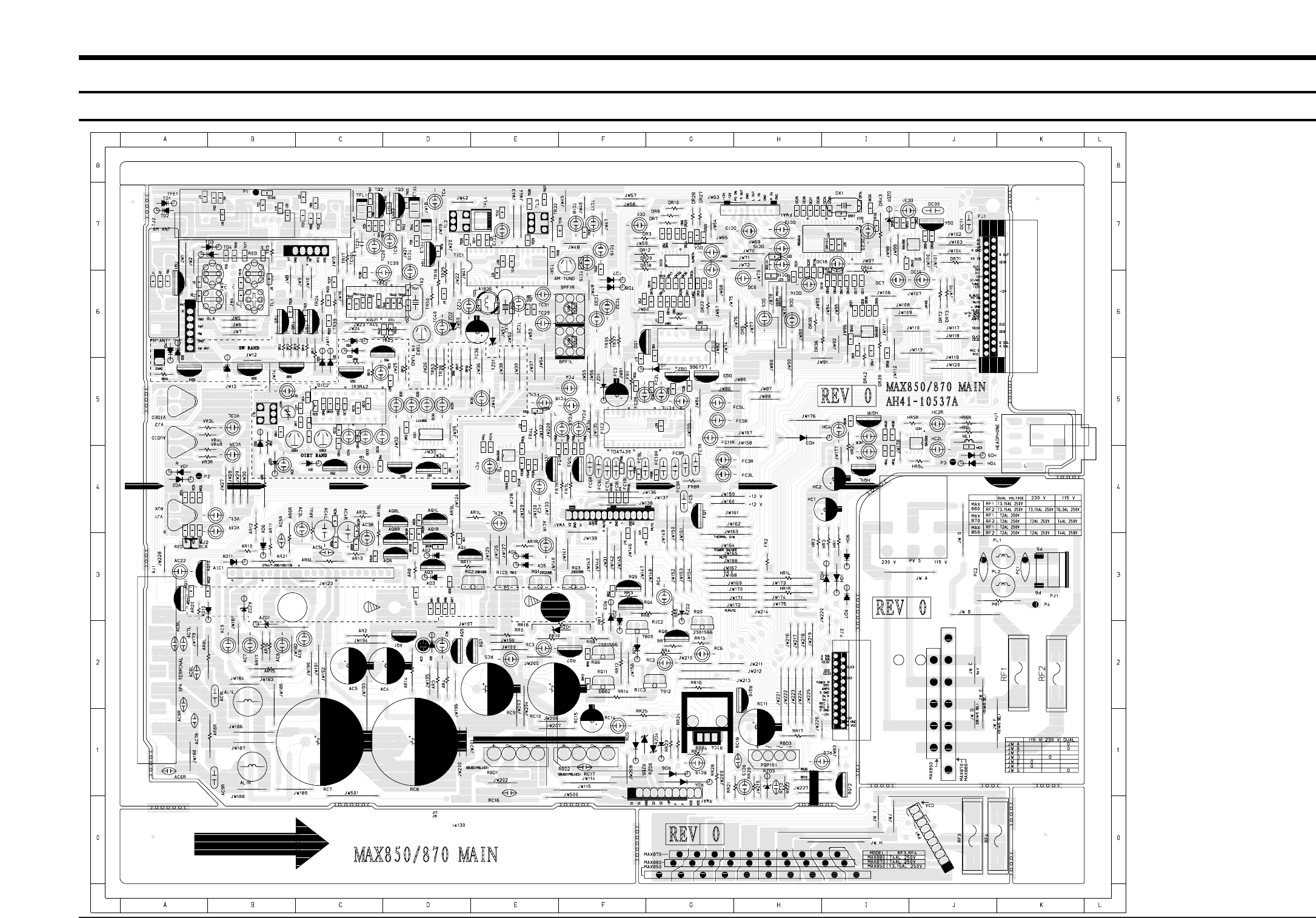

10-1 Main
Samsung Electronics 10-1
10-2 Samsung Electronics
PCB Diagrams
10-2 Front
PCB Diagrams
Samsung Electronics 10-3
10-3 Deck
PCB Diagrams
10-4 Samsung Electronics
10-4 CD
PCB Diagrams
10-4-1 Main
Samsung Electronics 10-5
PCB Diagrams
10-4-2 SUB
10-6 Samsung Electronics
11. Wiring Diagram
Samsung Electronics 11-1
FWC1
FCW2
FCW3
FCW3-1
FJ1
VWA1
FJ2
RWA1
AJ2
PW1
PJ1
SCW1
SCW2
SCW4
SCW3
NCW101
NCW103
FJD2
DCW6
DCW8 DCW9
DCW7
TIC1 LA1836
TIC2 LC72131
OIC1
LC4066
QIC2 IR3R42
FIC2
TDA7439
DIC1 M65846
DIC2
LC4966
AIC1 417-100/130
12. Schematic Diagrams
12-1 Main
Samsung Electronics 12-1
12-2 Front
Schematic Diagrams
12-2 Samsung Elctronics
UIC2
NJU3718
UIC1
LC866548V-XXXX
MIC1
BA4560
UIC4
MSM6654
UIC3
BA3834
JIC4
BA3312N
JIC5 NJU3716
SIC8
NJM318
SIC7
NJM318
SIC6
SIC4
NJM072
SIC1
NJM074
MC14066
SIC2
SIC3
NJM072
JIC6
TC9173P
JIC3
HA12203
L-CH
GND
R-CH
L-CH
L-CH/R
R-CH/R
R-CH
GND
ERASE
12-3 Deck
Schematic Diagrams
12-3 Samsung Electronics

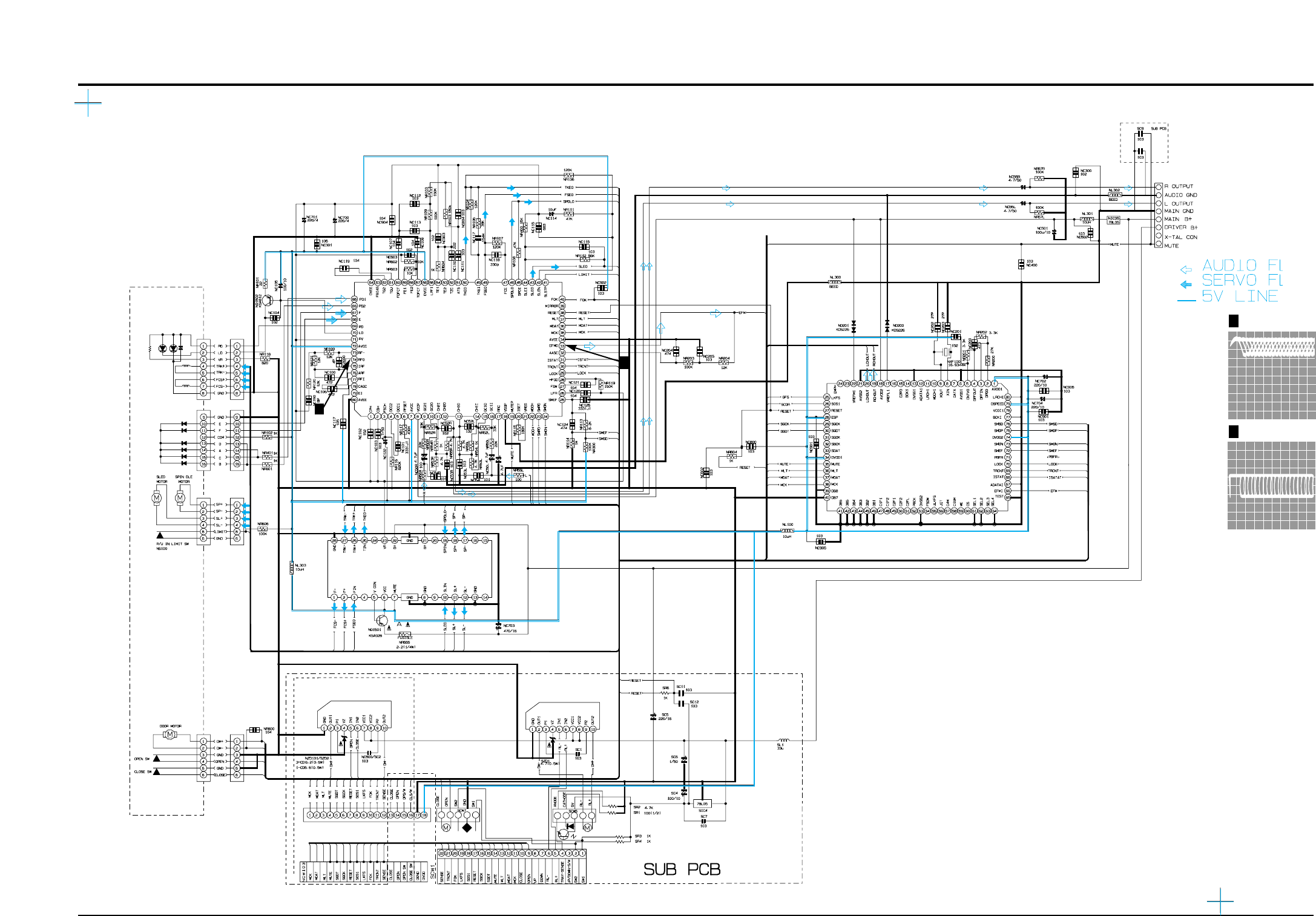

12-4 CD
12-4 Samsung Electronics
Schematic Diagrams
1
2
NCW104
NCW100
G3X8(KB9223 + KS9286)
SCHEMATIC DIAGRAM
NIC1641/SIC2
1-CD SIC1 LB1641
3-CD
NIC9223
KB9223
ASSP
NIC9286
KS9286
DSP&D/ACON
NIC9258
KA9258
NCW101
1
2
STOP MODE STOP MODE STOP MODE PLAY MODE
KB9223
PLAY MODE PLAY MODE
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
5V
0V
5V
0V
0V
0V
0V
5V
0V
0V
5V
0V
5V
5V
KB9223 KA9258
5V
0V
2.5V
0V
2.5V
5V
0V
2.5V
0V
0V
5V
5V
0V
0V
5V
0V
2.5V
0V
2.5V
5V
0V
2.5V
5V
0V
5V
0V
0V
0V
2.5V
2.5V
2.5V
8V
5V
5V
0V
2.5V
2.5V
2.5V
0V
2.5V
2.5V
2.5V
8V
8V
2.5V
2.5V
2.5V
2.5V
0V
4.5V
4.5V
2.5V
8V
5V
5V
0V
2.5V
4.5V
4.5V
0V
4.5V
4.5V
2.5V
8V
8V
2.5V
2.5V
4.5V
4.5V
0V
No.
IC Name
STOP MODE STOP MODE
KB9223
PLAY MODE PLAY MODE
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
5V
0V
5V
2.5V
5V
0V
5V
0V
3.8V
2.5V
5V
0V
KB9223
0V
0V
0V
0V
0V
0V
0V
0V
0V
0V
0V
0V
0V
5V
0V
5V
0V
0V
0V
0V
0V
0V
0V
0V
0V
0V
0V
0V
0V
5V
5V
0V
5V
0V
No.
IC Name
Voltage Table
Remark
-Refer to old Service
Manual for the
service.(common)
-Space Surround Speaker
(SS-SPK)
⇒ Refer to next page
SERVICE BULLETIN
ProDuct : AUDIO
MODEL : See below
Buyer : See attachment
Bulletin No. : 98-AUD-E0003
Bulletin Date : Aug 14.1998
ECN & data : Aug 13.1998
- Application Models : MAX-805,818,838,858(R),868,878,888,858P
Background : Change to new speaker(SS-SPK)
Cause : Change to model name
Solution : Refer to old Service Manual for the service(See below table)
Application Date : Running Change
SUBJECT : Service Guide for model employed the new speaker
NO
1
2
3
4
5
6
7
8
9
Old Model
Name
MAX-800
MAX-810
MAX-820
MAX-830
MAX-850(R)
MAX-852P
MAX-860
MAX-870
MAX-880
New Model
Name
MAX-805
MAX-818
MAX-828
MAX-838
MAX-858(R)
MAX-858P
MAX-868
MAX-878
MAX-888
Service Manual
Code No
AH68-20181A
AH68-20173A
AH68-20186A
AH68-20186A
AH68-20176A
AH68-20195A
AH68-20176A
AH68-20177A
AH68-20177A
Change area
PS-445 use
SS-SPK use
SS-SPK use
SS-SPK use
SS-SPK use
SS-SPK use
SS-SPK use
SS-SPK use
SS-SPK use
Attachment Schematic Diagram ( ) Component Lay-out ( ) Schematic Diagram ( )
Mechanical Diagram( ) None ( ) Others ( o )
Published by : Checked by : Approved by :

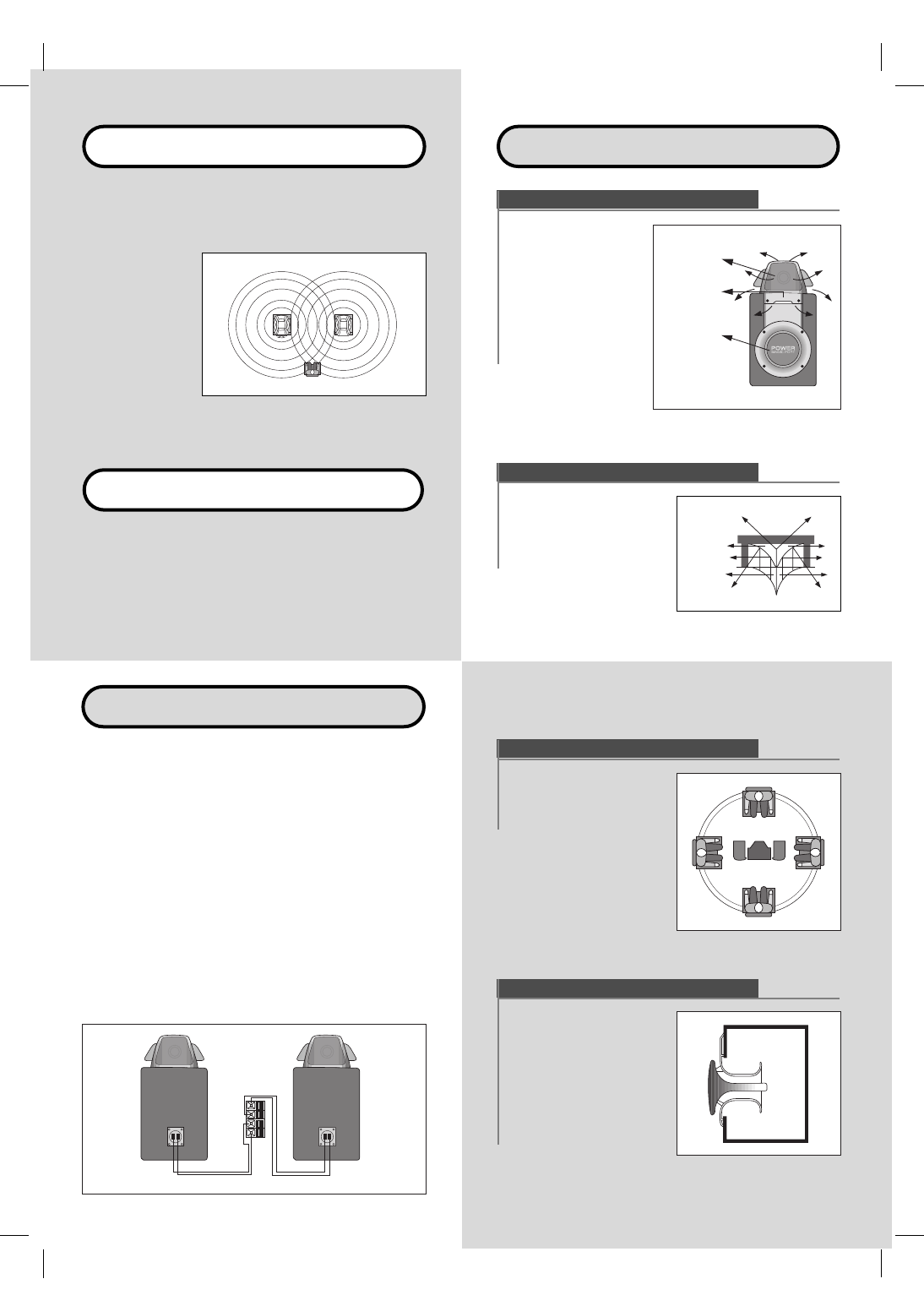

Reflecting top disc
¥ Turn the power of the amplifier off before connecting the
speakers.
¥ Connect the speakers using the cable enclosed with the
speakers as the figure shown below. The red cable should be
connected to the red terminal on both the speaker and the
amplifier and the black cable to the black terminal on both.
Besides, the left(L) and right(R) should be matched.
¥ Connect the speaker cable to the terminal accurately.
If it is connected inaccurately, there may be no sound or
noisy sound. Furthermore, if the +,
-
cables touched each
other, the amplifier may be damaged.
¥ If the polarity of the connection is reversed, the sound quali-
ty will be lowered badly and the stereo sound will not be
produced owing to the phase condition of the left and the
right. Take great care to connect the speakers in phase.
¥ Clean the system with a soft cloth applied with mild deter-
gent or water.
¥ Do not use thinner, alcohol, or benzene, which peels off the
paint or makes stains on the surface.
The 360¡ Space Surround Speaker System
provides all the listeners
around the speaker system
with the same quality and
volume of the sound.
reproduces the rich and
dynamic bass sound.
Especially, by the dynamic
range of the medium and
low frequency response, the
noise generated through the
port is reduced effectively to
reproduce the clear bass
sound.
❊ Power PortTM is the patent of Polk Audio in U.S.A. Samsung Electronic has the
manufacturing license to produce it.
Right (R) speaker
Red cable
Black cable
Red cable
Black cable
R
LLeft (L) speaker
Front and
rear tweeter
Reflecting top disc
Woofer
Power Magic Port
¥ If possible, position the height of the tweeter of the speaker
system at the same height of the ears of the listener to enjoy
richer sound.
¥ It differs according
to the structure of
the room.
Place the speakers
at the various
positions to find
out the optimum
position. Then you
will enjoy better
sound.
reproduces the sound of
the musical instrument
more
naturally than the regular
speakers.
It is because that this
speaker system reproduces
the sound on the same
principle as the resounding
of the musical instrument.
To get the most effective stereo sound
About the 360° Space Surround
Maintenance
Connecting the speakers
reflects the sound uniform-
ly in all direction.
Therefore, you can hear the
same sound all around the
speaker system.
Reflecting
disc
The 360¡ Space Surround Speaker System
Power Magic PortTM
¥
¥
¥
¥
¥
*Note : Design and Specfication are subject to change upon improvement without prior notice.

Navigation menu
