1.0 General Section

Table of Contents

1.1 Purpose

1.2 Introduction to the Telephone Package (Motorola digital Phone)

1.2.1 CDMA, TDMA and GSM Protocols

1.2.2 CDMA, TDMA and GSM Handset Descri

tions

1.2.3 Phone Activation/Pro

rammin

1.3 Telephone System Components

1.3.1 Phone Cradle

1.3.2 Microphone

1.3.3A Portable Support Electronics Module (PSE)

1.3.3B Communication Platform Module (CP)

1.3.3C Multiple Handset Interface Module (MHI)

1.3.4 Handset

1.3.5 Compensator

1.0 General Section

Mercedes Benz Technical Manual for Telephone v4.6 Date: 09/01/2004

1.1 Purpose

This manual was written to familiarize the Mercedes-Benz Service Technician with the telephone

system designed by Motorola for Mercedes-Benz MY00 thru MY05 vehicles. It is recommended that

this training manual be reviewed prior to performing the installation of the telephone package. This

document is not an installation guide or procedure, a separate Mercedes-Benz manual has been created

for that purpose. However, basic troubleshooting charts are included as a part of this document to assist

in correcting problems that may occur.

1.2 Introduction to the Telephone Package (Motorola Digital Phone)

Prior telephone systems that have been installed in Mercedes-Benz vehicles have used only 800MHz

analog technology. The MY00 uses the 800MHz analog/digital and MY01/05 uses 1900MHz digital in

addition to 800MHz analog/digital. MY00 thru MY04 telephone packages use CDMA or TDMA

protocols and, MY05 vehicles offer the option of GSM as a third protocol depending on the model

selected for installation, which will be determined by the customer and/or carrier availability.

Additionally, the telephone package has the ability to automatically default to an analog signal if a

digital signal is not available, or is too weak to provide a quality conversation.

The telephone package allows calls to be made and received without taking your eyes off the road or

your hands off the steering wheel. This is accomplished by integrating the phone with the

multifunction controls located on the sides of the steering wheel (if equipped) and through Voice

Recognition (if equipped). Displays on the MCS, Audio 30 or COMAND relay information, such as,

numbers stored in the handset’s memory, signal strength, etc. Refer to the K2OPTION owner’s manual

for details on the various features of this system.

1.2.1 CDMA, TDMA and GSM Protocols

CDMA is an acronym for Code Division Multiple Access. It is one of several methods of providing

digital cellular service. CDMA imposes several digital signal patterns, one pattern per conversation,

on a single carrier frequency. The communication link (conversation) is kept separated from other

links by the ability of the telephone to only recognize its assigned signaling pattern (code). CDMA

technology is popular because it provides for a large number of communication links on a single

carrier frequency, but one of its drawbacks is that as more links are established, distortion and

interference increases.

TDMA stands for Time Division Multiple Access, and is another method of providing digital cellular

service with multiple links (conversations) on the same carrier frequency. It differs from CDMA in that it

uses slots of time for each link. Each time slot repeats continuously at a predetermined rate or speed.

Samples of each link are taken at the same rate and mixed with the carrier frequency, each in its turn. On

the receiving end, the receiver selects the data from the time slots of the assigned communication link,

1.0 General Section

Mercedes Benz Technical Manual for Telephone v4.6 Date: 09/01/2004

and then filters the data to provide a good representation of the original information.

GSM stands for Global System for Mobile Communication, and is similar to both CDMA and TDMA

protocols in that it also provides digital cellular service with multiple links (conversations) on the same

carrier frequency. Like both CDMA and TDMA, GSM uses its own unique method of transmitting

conversation wirelessly. GSM is based on the platform of TDMA, but a more robust method when

utilizing the timeslots allotted for the milliseconds of data needing to be transferred/received. GSM is

also unique in that it utilizes a ‘smart card’ called Subscriber Identity Module (SIM) allowing for easy

portability between different GSM handsets. GSM handsets are not identified like both CDMA and

TDMA handsets by using an Electronic Serial Number (ESN); instead it is uniquely identified by the

International Mobile Equipment Identity (IMEI).

The type of digital handset that will be installed into the vehicle will be contingent upon the local

carrier’s signal processing capabilities. Some carriers only use CDMA protocols whereas others may

only use TDMA or GSM. It is possible in some areas for the customer to have a choice of all three

protocols to use when carriers in the same cellular coverage area offer CDMA technology while others

offer TDMA or GSM technologies. Some carriers are requiring special ‘un-lock codes’ for handsets that

are to be used in their coverage area and on their systems. It is important to be aware of this in the event

that you experience trouble with activating the phone. More information regarding these codes is

available through the carrier, which the handset is being activated on. Refer to the Mercedes-

Benz/Motorola website (www.mbconnectedcar.com) or Motorola’s Customer Support at 877-668-8600

for carrier contact numbers.

1.2.2 CDMA, TDMA and GSM Handset Descriptions

The CDMA StarTAC and Timeport handsets have three partially blue keys with an icon that represents a

"soft key" function. Soft keys are keys that change their function according to what is being displayed

on the screen for a particular function. These keys are located on the fifth row of the keypad and are on

the "RCL", "STO", and "CLR" keys.

Another way to differentiate between a TDMA and CDMA handset is to compare the displays. The

CDMA handset uses the OELD (Organic Electro Luminescent Display, Timeport only). The TDMA

handset uses 5-line LCD dot-matrix display. The TDMA Timeport and v.60t handsets have a fixed

antenna compared to the traditional extendable antenna on both of the StarTAC’s and CDMA Timeport

and v.60c. The CDMA phones and TDMA v.60t indicates that the user is in digital mode by displaying a

“D” inside a square border on the left side of the display, vs. a "D" with no border in the lower left hand

corner of the TDMA StarTAC and Timeport handsets. When in analog mode, the StarTAC and

Timeport CDMA handsets display an “A” inside a circle; the StarTAC and Timeport TDMA handsets

are in analog mode when no “D” is present in the lower left corner of the display. When both the CDMA

v.60c and TDMA v.60t are in analog mode an “A” is present inside a square, instead of a “D”. GSM

handsets use a removable ‘smart card’ known as SIM, which is found under the battery. Other detailed

differences can be found in the owner’s manual for the specific handset functions.

In addition to the above criteria, there will be a separate part number for each type of handset.

Reference the Mercedes-Benz/Motorola website for part numbers and availability according to zip

code.

1.0 General Section

Mercedes Benz Technical Manual for Telephone v4.6 Date: 09/01/2004

1.2.3 Phone Activation/Programming

The programming procedure for a CDMA handset is not the same as a TDMA handset. There are also

programming differences between StarTAC/Timeport and v.60 procedures. Refer to following

programming card appropriate for the desired handset being programmed.

NOTE 1: ANY PROGRAMMING OF HANDSETS REQUIRING AN ‘UN-LOCK CODE’ NEED

ADDITIONAL ASSISTANCE FROM THE CARRIER SPECIFIED BY THE HANDSET.

NOTE 2: PROGRAMMING / ACTIVATION FOR HANDSETS RELEASED AFTER THE V60I

SERIES PHONE ARE FULLY SUPPORTED BY THE CARRIER SUPPLYING CELLULAR

SERVICE TO THE PHONE.

CDMA StarTAC/TIMEPORT PROGRAMMING CARD

TO ENTER PHONE DISPLAYS

1 Enter NAM 1

programming mode PRESS 7, 4, 6, 6, 3, #, 1, FCN, FCN Enter MIN

2 Enter Your

Phone Number Use the keypad to enter all ten digits of

your phone number and press “STO” Sample Number:

312-555-1212

3 Enter AMPS System

ID (Analog) Enter _ _ _ _ _. Press “STO” Sample Number:

11111

4 Enter Digital

System ID Enter _ _ _ _ _. Press “STO” Sample Number:

11111

TDMA StarTAC/TIMEPORT PROGRAMMING CARD

TO ENTER PHONE DISPLAYS

1 Enter programming

mode PRESS “#”, Carrier System ID,

“#”, “*”, “SEND” Nam 1 Prog

*= Yes #= No

2 PRESS “*” Security

Code _ _ _ _ _ _

3 Enter Security Code PRESS 0, 0, 0, 0, 0, 0

(This is the code that is in the phone

when it is shipped out of the factory)

Phone displays its ESN

(Electronic Serial Number)

4 PRESS “SEND” Phone #

_ _ _ _ _ _ _ _ _ _

5 Enter Phone Number ENTER Entire Phone Number

(_ _ _) _ _ _ - _ _ _ _

PRESS “SEND” NAM Program Begins

1.0 General Section

Mercedes Benz Technical Manual for Telephone v4.6 Date: 09/01/2004

CDMAv.60c PROGRAMMING CARD

TO ENTER PHONE DISPLAYS

1 Enter Programming Mode PRESS 7, 4, 6, 6, 3, #, MENU,

MENU Nam 1

Nam 2

2 Selecting NAM CHOSE “SELECT” for NAM 1 MIN: 0000000000

3 Enter Phone Number INSERT 10-digit MIN through the

keypad and SELECT “OK”

(This is the customers cellular

number)

IMSI

4 Enter AMPS system ID SCROLL down to AMPS Sys ID

and INSERT number then SELECT

“OK”

(AMPS data provided by carrier)

CDMA Sys ID:

5 Enter CDMA system ID INSERT CDMA Sys ID then

SELECT “OK”

(CDMA data provided by carrier)

MIN:

6 Finalizing Programming SELECT “DONE” then PRESS the

“END” key Main Menu

TDMA v.60t PROGRAMMING CARD

TO ENTER PHONE DISPLAYS

1 Enter Programming Mode PRESS #, Carrier System I.D., #,*,

“SEND” Enter Security Code

-----------------

2 Enter Security Code PRESS 0,0,0,0,0,0, and SELECT

“OK”

(This is the factory default code)

ESN (Hex)

3 Enter Phone Number SCROLL down to MIN: ---------------

and INSERT 10-digit MIN through

the keypad and SELECT “OK”

(MIN is the customer cell number)

IMSI

4 Finalizing Programming SELECT “DONE” (the handset

display will turn off temporarily) Main Menu

1.0 General Section

Mercedes Benz Technical Manual for Telephone v4.6 Date: 09/01/2004

1.3 Telephone System Components

The Motorola integrated telephone packages from MY2000 thru MY2005 consist of the following

components:

KEY: ‘1’ = PSE/D2B Components, ‘2’ = CP/MOST Components, ‘3’ = MHI/MOST Components

 Antenna Switch (Splitter for SL only) – 1, 3

 Coil Cord – 1, 2

 Compensator – 1, 2, 3

 Communication Platform Module - 2

 D2B Wiring – 1

 MOST Wiring – 2, 3

 Motorola Cellular Telephone

(CDMA, TDMA or GSM with Mercedes-Benz Logo and Software) – 1, 2, 3

 Multiple Handset Interface Module (MHI) - 3

 Phone Cradle – 1, 2, 3

 Portable Support Electronics Module (PSE) – 1

 Voice Recognition Module (Optional Kit on Some Models) – 1, 2, 3

 “Y” Cable – 1

The components of the telephone package between MY2000 and MY2001 are not compatible or

interchangeable due to the technological differences between the two systems. The MY2000 telephone

package is 800MHz only and cannot support the MY2001 telephone package components, which are

1900MHz in addition to the 800MHz.

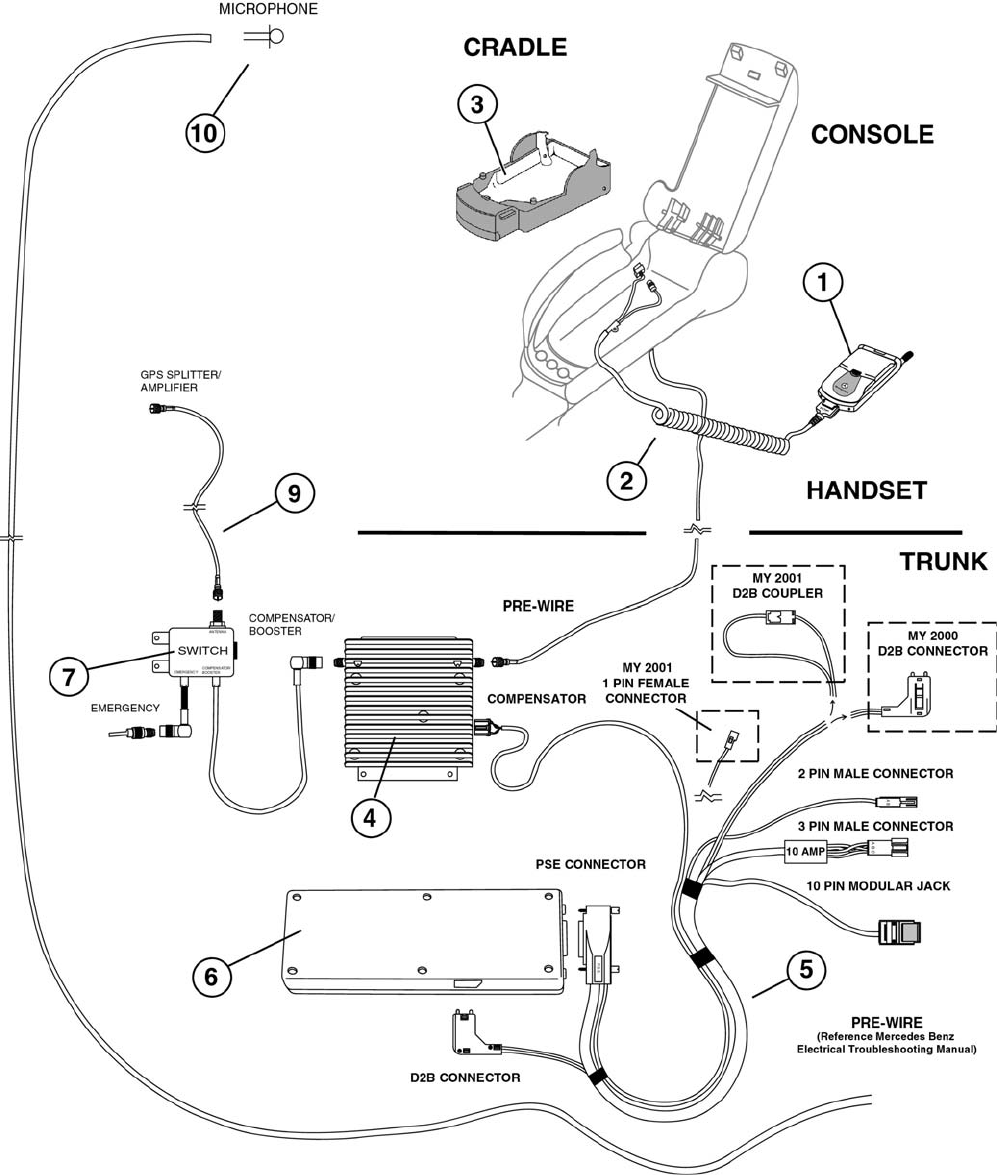

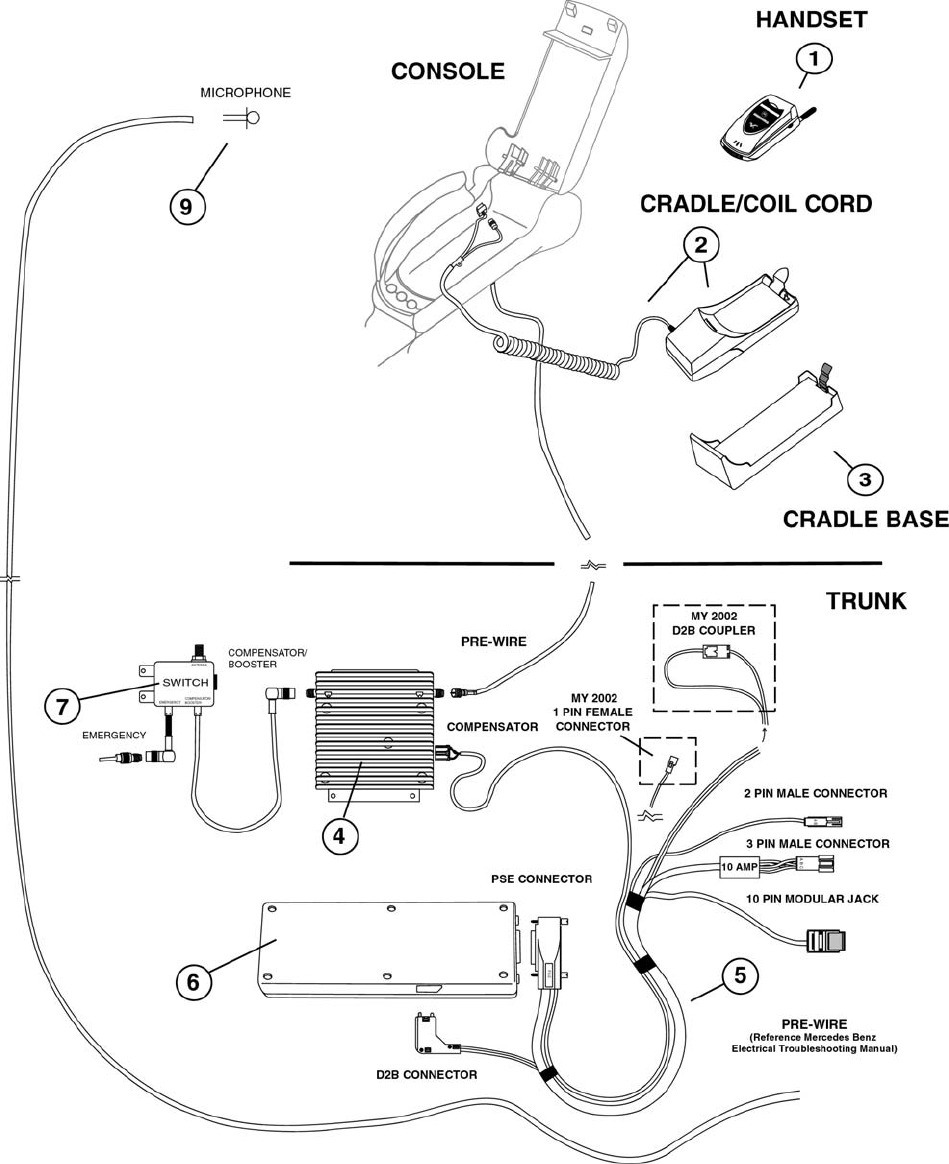

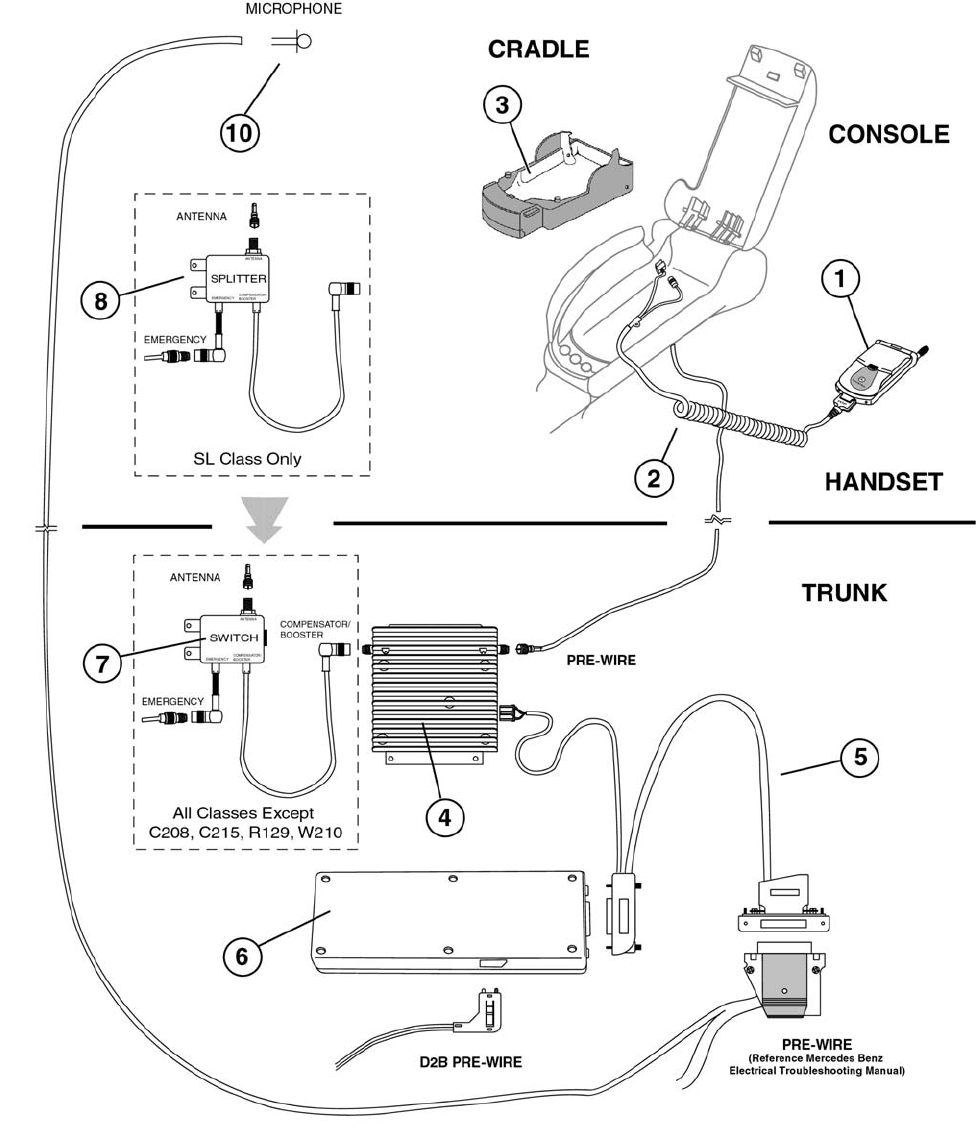

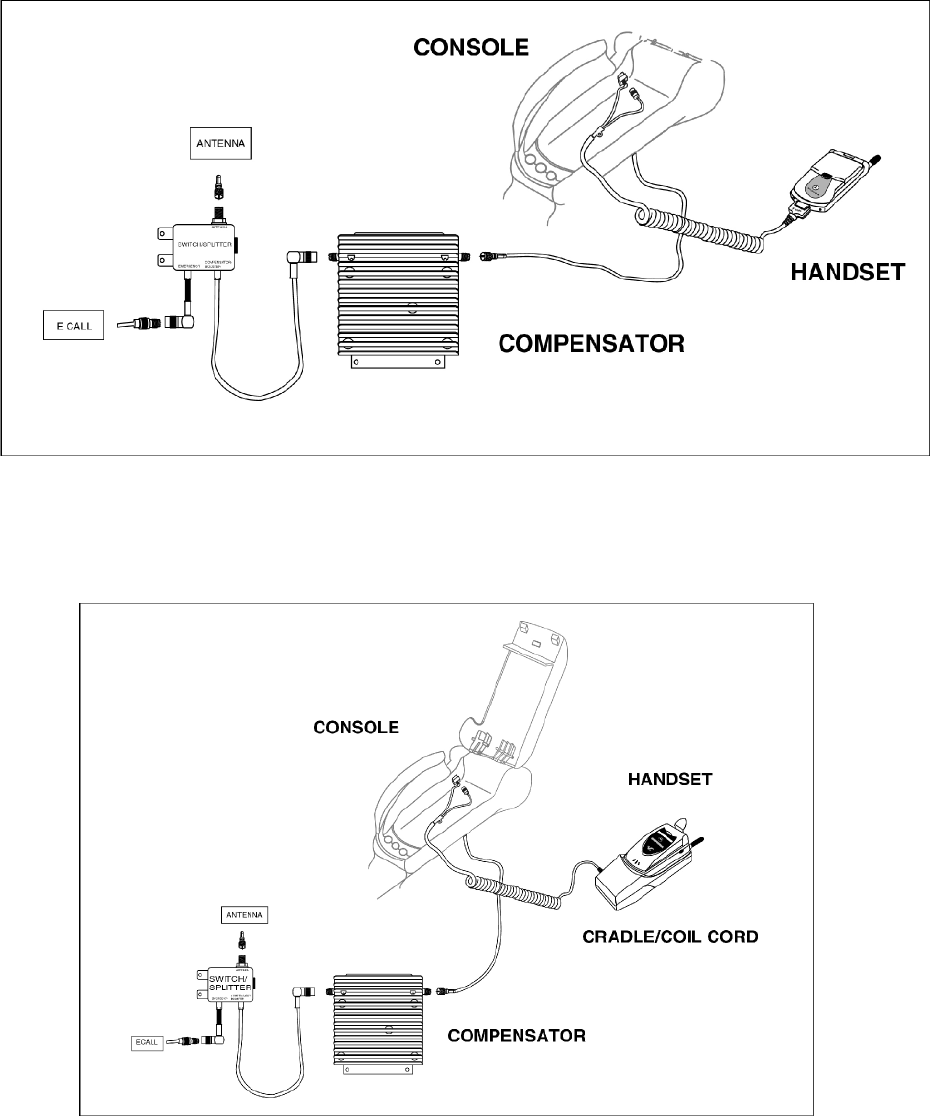

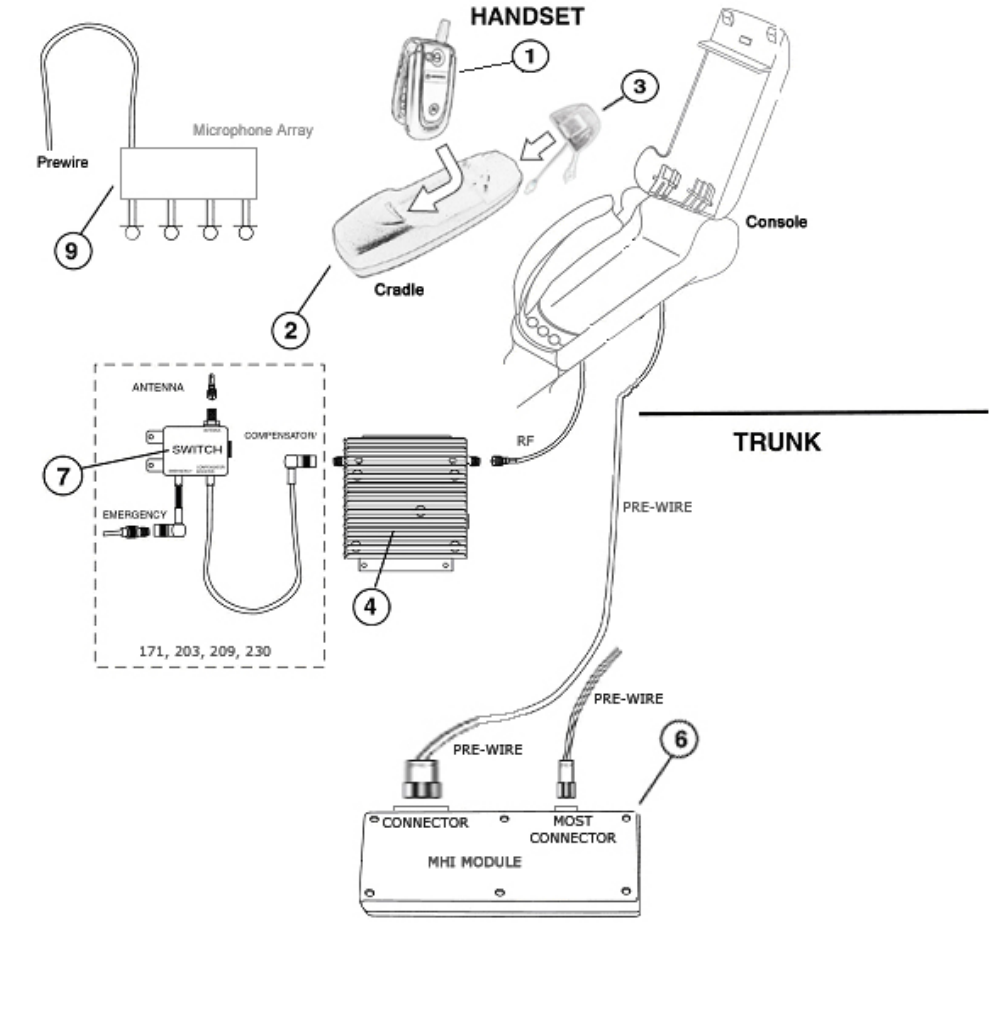

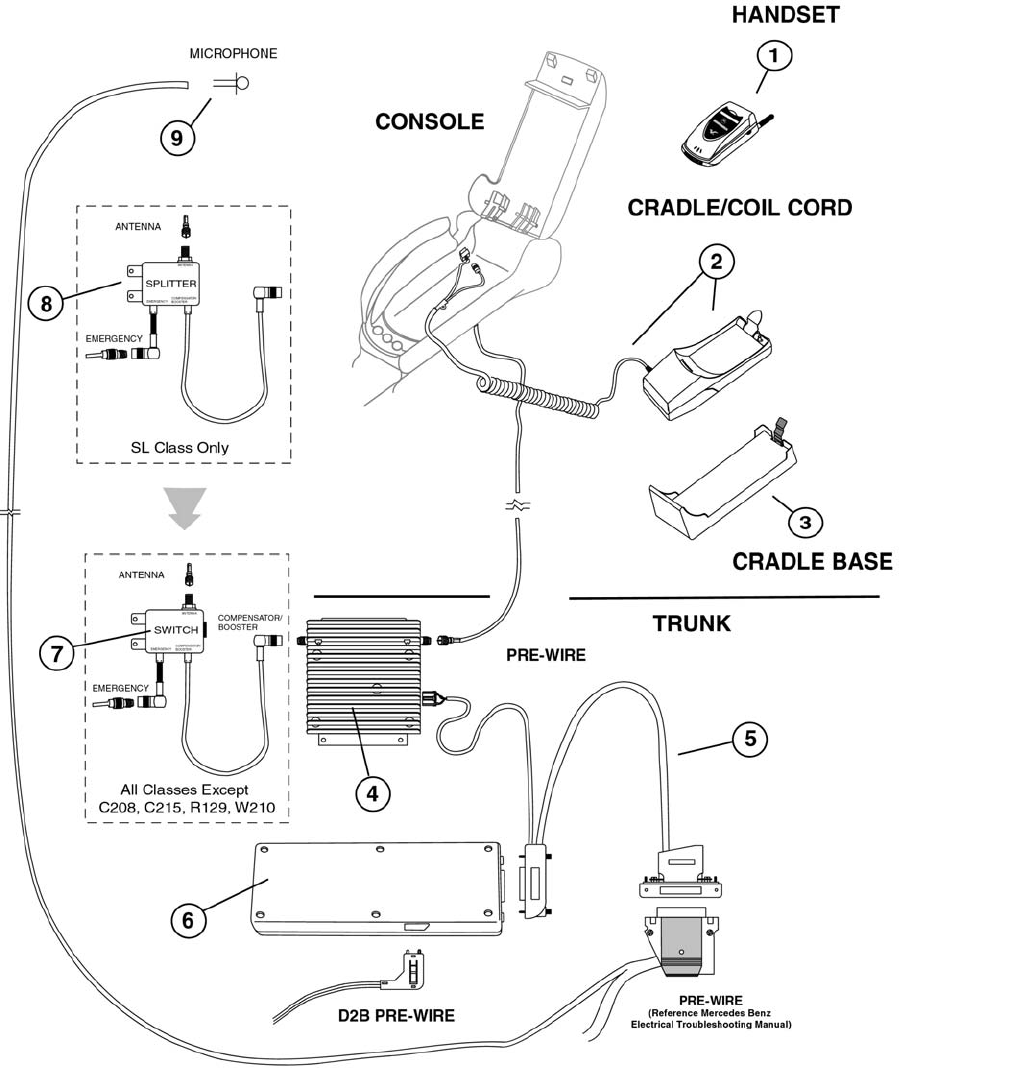

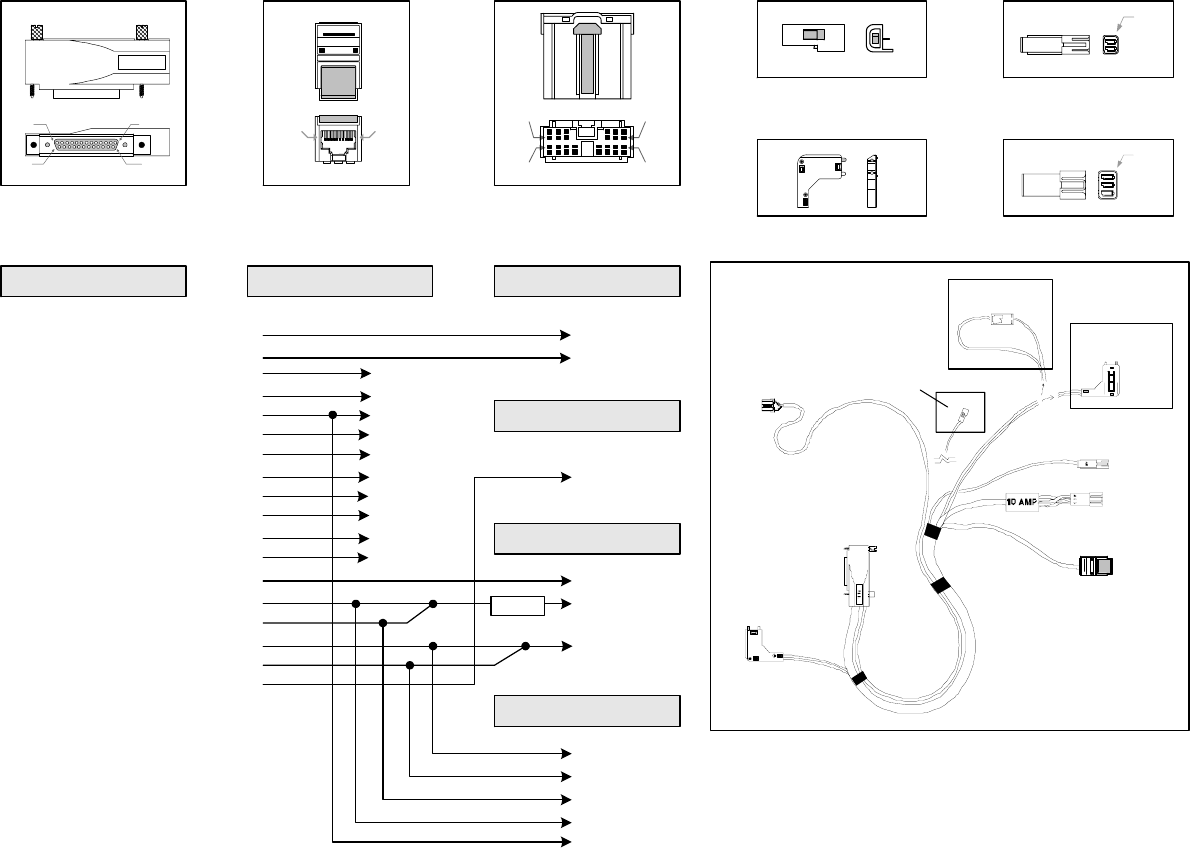

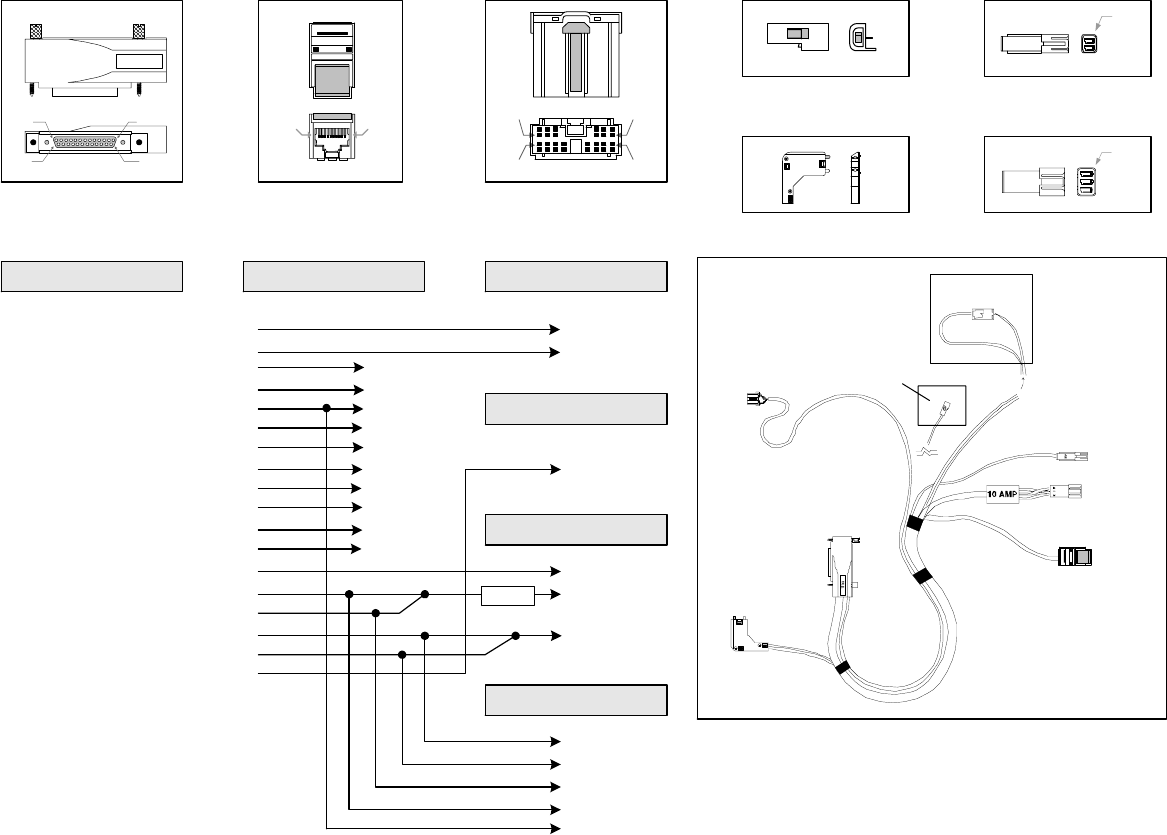

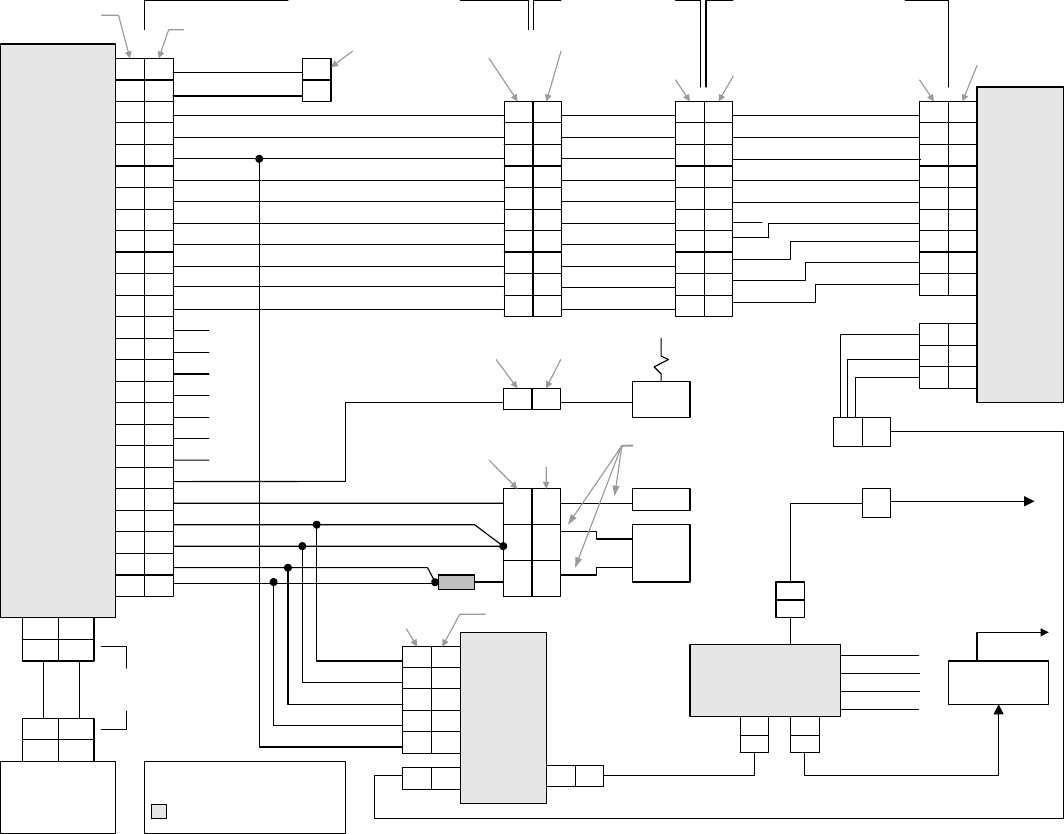

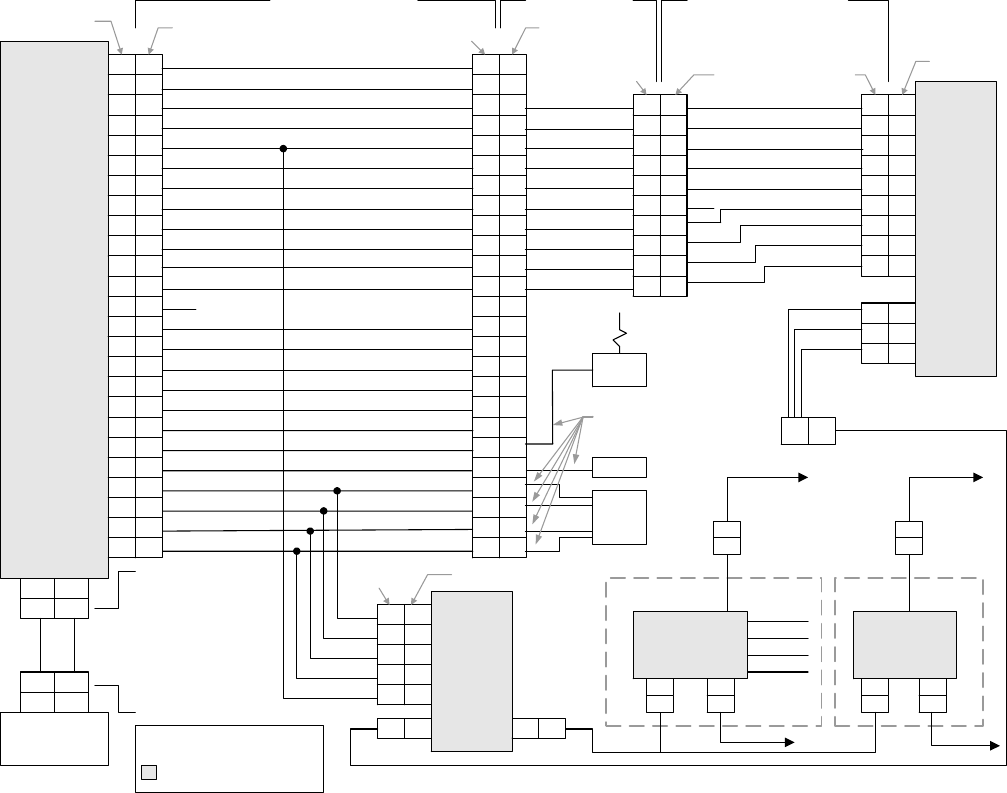

Figures 1 thru 10 of the StarTAC/Timeport Block Diagram provide illustrations of the telephone

package component layout for the MY2000/01 S-Class (W220, C215), CLK (A208, C208), E-Class

(W210, S210), SL (R129), C-Class (W203), SLK (R170), and M-Class (W163) MY2000 & MY2001

Mercedes-Benz when utilizing the PSE module and D2B system. Figures 1 thru 9 of the v60 Block

Diagram provide illustrations of the telephone package component layout for the aforementioned

Classes reflecting MY2002/04 when utilizing the PSE module and D2B system. Figures 1 thru 6, 9 of

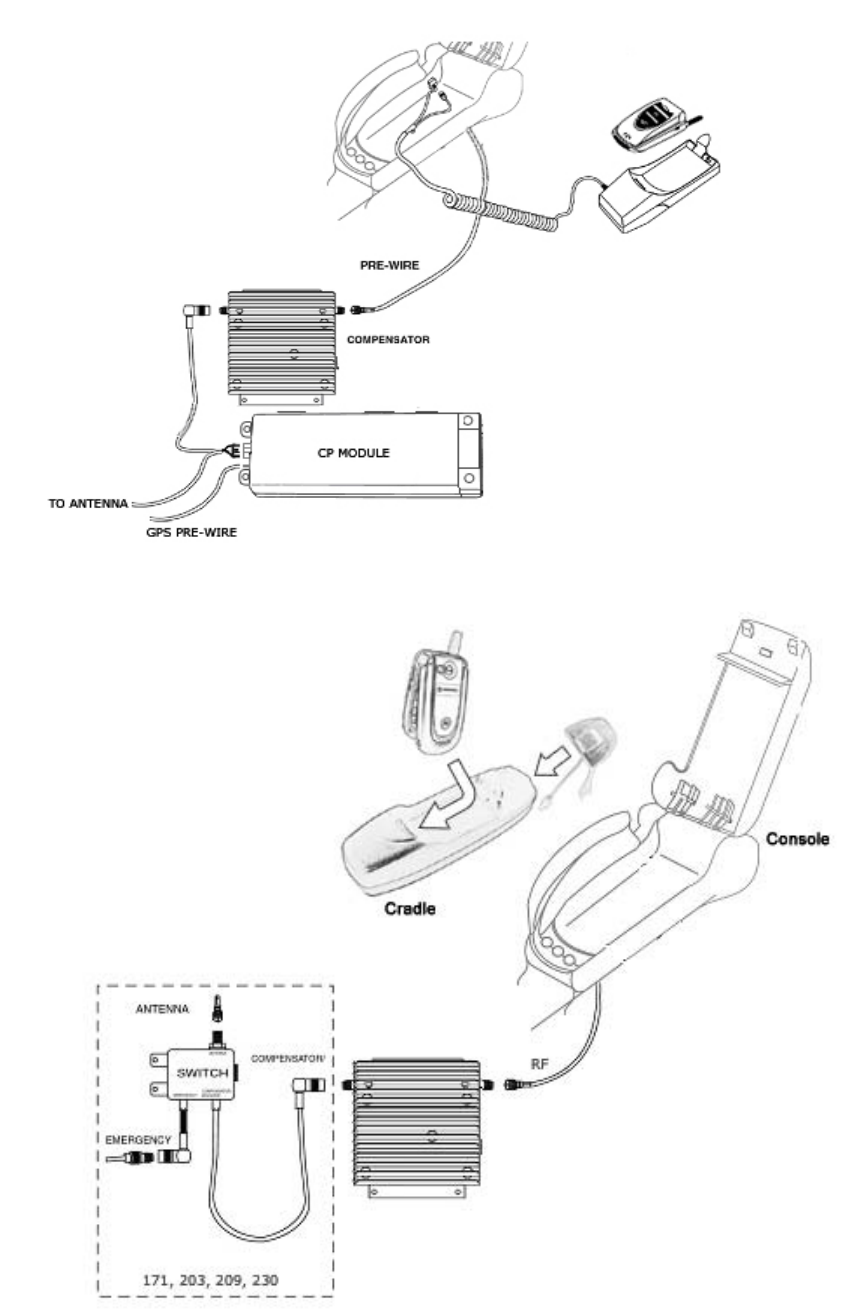

the CP Block Diagram provide illustrations of the telephone package component layout for the

MY2003/04 E-Class (BR211) and MY2004 S-Class (BR220), CL-Class (BR215) and Maybach

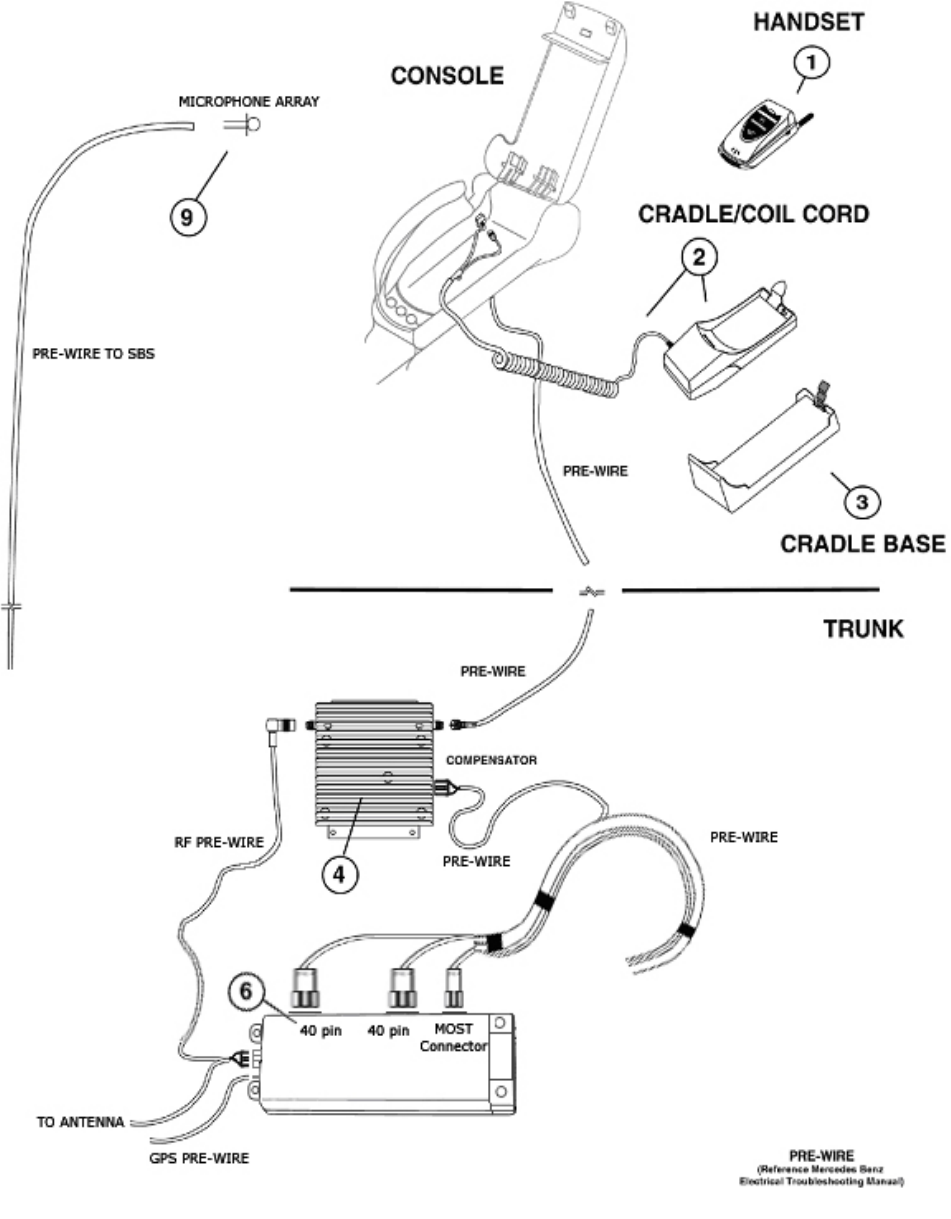

(BR240) when utilizing the CP module and MOST system. Figures 1 thru 6, 8, 9 of the MHI Block

Diagram provide illustrations of the telephone package component layout for all the MY2005 vehicle

chassis when supported by the MHI module and MOST system. These drawings and components are

discussed in greater detail beginning with section 3.1.

1.3.1 Phone Cradle

The MY2001 phone cradle is similar in appearance to the MY2000 phone cradle, except that it has been

modified to accommodate the Motorola Timeport™ handset. The MY2002/04 phone cradles clip into

the cradle base for full integration and is removable allowing for ease of use in private mode. The cradle

1.0 General Section

Mercedes Benz Technical Manual for Telephone v4.6 Date: 09/01/2004

version accepting the v60s utilizes two different ‘cradle clips’ depending on the phone used. One cradle

clip is used for the v60s handset, whereas a second cradle clip is used for both the v60i and v60x. The

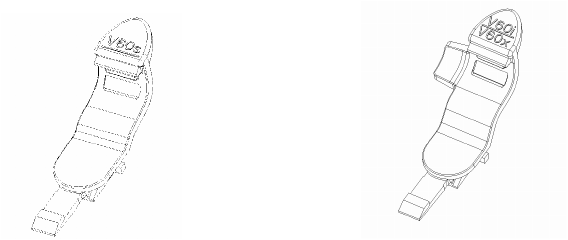

pictures below point out the physical differences between the two clips. The MY2005 phone cradle has

a couple of differences compared to the prior ones. The MY2005 cradle is not removable; instead the

phone is snapped into the cradle for a secure fit, while using the fully integrated hands-free system. The

MY2005 cradle also contains a circuit board enabling a more intelligent connection between the

handset and the vehicle system. All the phone cradles are located between the front seats in the console.

1.3.2 Microphone

The microphone for MY2000/04 is located in the headliner near the rear view mirror and is labeled as

number 10 in each block diagram. MY2005 vehicles use a microphone array consisting of four

microphones evenly distributed across the headliner in front of the windshield and is labeled as number

10 in the MHI block diagram. For all the vehicles, the microphone will be installed at the factory. A

connector in the headliner attaches to the microphone assembly (microphone array for MY2005) and

ties into the Mercedes-Benz pre-wired harness. Vehicles utilizing the PSE module and D2B system will

connect to Motorola’s “y” cable before connecting to the PSE, vehicles utilizing either the CP or MHI

modules and MOST system will run directly to the respective control modules.

1.3.3A Portable Support Electronics Module (PSE)

The PSE box for the telephone package contains the software and associated electronics that are

responsible for processing the voice data as well as the central processing of data to allow the integration

of the phone with the vehicle. MY00, MY01, and MY02/04 PSE boxes are not the same internally.

MY00 is 800MHz analog/digital. MY01 and MY02/04 are both 1900MHz digital in addition to 800MHz

analog/digital. Only MY02/04 PSE supports either Timeport or v.60 systems with appropriate coil cord,

cradle, and handset.

Note: Labeling for the MY00 and MY01 PSEs will have white barcodes. Labeling for the MY02/04

PSEs will have blue barcodes.

1.3.3B Communication Platform Module (CP)

The CP modules were first introduced on the MY2003 E-Class (BR211) and later on the MY2004 S-

Mercedes Benz Technical Manual for Telephone v4.6 Date: 09/01/2004

1.0 General Section

Class (BR220), CL-Class (BR215) and Maybach (BR240). The CP module for the telephone package

contains the PSE box supporting the software and associated electronics for the integration of the handset

to the vehicle. The CP module also contains the Tele-Aid module supporting the emergency notification

system in the vehicle.

1.3.3C Multiple Handset Interface Module (MHI)

MHI was introduced on the MY2005 vehicles across all chassis except for Maybach, which still utilizes

the CP module. The MHI module is similar to the PSE module in that it supports the portable phone’s

initial integration for the telephone package into the vehicle system, but communicates using the MOST

vehicle bus instead of the D2B vehicle bus. The MHI system is designed to be forwards-compatible with

future portable phones (the user only needs to change the cradle in order to upgrade to new portables in

the future). The MHI also has integrated software to perform the Hands-free Audio function, such that the

Microphone Array Module from AKG is no longer required to be part of the system.

1.3.4 Handset

A Motorola Digital handset is used for the telephone system. Although the Digital handset is available as

a portable phone sold separately by various vendors, it will not interface with the Mercedes-Benz vehicle.

Only handsets that are part of the telephone package will interface with the Mercedes-Benz vehicle. They

can also be used as a portable cellular phone when not interfacing with the vehicle. The three types of

handsets available for the telephone package are digital TDMA, CDMA or GSM, which will be

determined by the customer and/or carrier availability. Refer to section 1.2.1 and 1.2.2 of this manual and

the appropriate user manual for a full description of each handset and a detailed explanation of CDMA,

TDMA and GSM technologies. The customer will have the option to purchase more than one handset

that can also be integrated with the same vehicle, but only one handset can be integrated at any time.

1.3.5 Compensator

The compensator is used to "compensate" for the small amount of power that is lost as a result of the

extra RF cable needed to send or receive the signal through the vehicles antenna. The compensator is not

a booster when in digital or analog modes. Refer to section 4 for a complete layout and description of the

RF path, which includes the compensator.

~ The voice activation feature interfaces with the telephone package. It is treated as a separate system and

is not covered in this manual.

Mercedes Benz Technical Manual for Telephone v4.6 Date: 09/01/2004

1.0 General Section

2.0 Wiring Section

2.0 Electrical Connectors and Wiring Section

Table of Contents

2.1 __ StarTAC/Timeport Layout, Connectors and Schematics

2.2 V.60 Layout, Connectors and Schematics

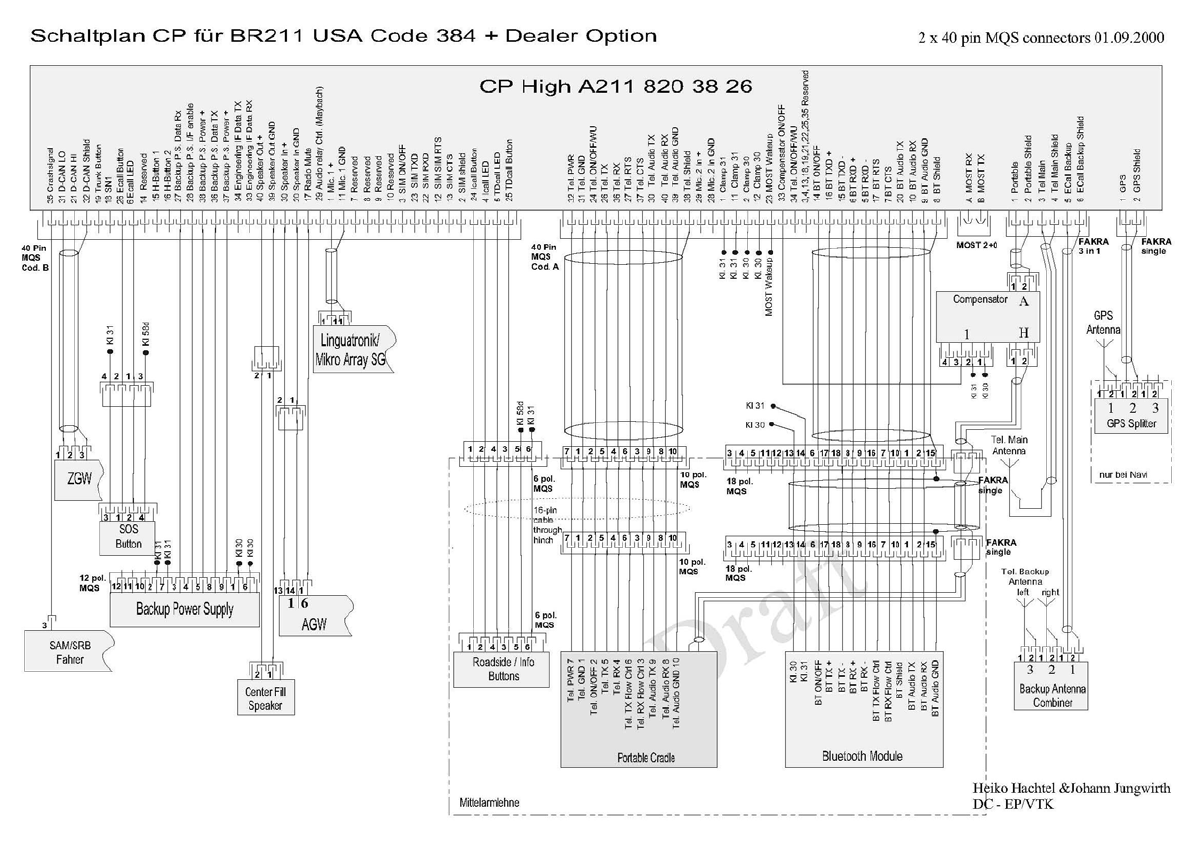

2.3 CP Layout and Schematics

2.4 MHI Layout and Schematics

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

2.0 Wiring Section

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

2.1 StarTAC/Timeport Connectors and Schematic Key

2.1.1 StarTAC/Timeport Block Diagram (All classes except M class)

2.1.2 StarTAC/Timeport M-class Block Diagram

2.1.3 StarTAC/Timeport Y Cable Connector Pin-out (all classes except M class)

2.1.4 StarTAC/Timeport Wiring Diagram (all classes except M class)

2.1.5 StarTAC/Timeport M-class Y Cable Connector Pin-out

2.1.6 StarTAC/Timeport M-class Wiring Diagram

2.1.7 StarTAC/Timeport Coil Cord Pin-out

2.0 Wiring Section

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

2.1 StarTAC/Timeport Connectors and Schematic Key

Page Reference

Ref.

No. Component Name Desc. Pin-out Part No.

MY00 StarTAC Handset 3 21

1 MY01/02 Timeport Handset 3 21

Reference Website:

www.mbusaphones.com

Q6820464: (W220, C215, R129,

W203, R170, W163)

2 Coil Cord N/A 21 Q6820465: (A208, C208, W210,

S210)

MY00: Q6820459

3 Cradle 11 N/A

MY01/02: Q6820649

MY00 Single Band Compensator 12 17, 19 MY00: Q6820525

4 MY01/02 Dual Band Compensator 12 17, 19 MY01/02: Q6820657

“Y” Cable (All Classes except M Class) 17 Q6820468

MY00: Q6820469

5 M Class “Y” Cable N/A 19 MY01/02: Q6820672

MY00: Q6820460

6 Portable Support Electronics (PSE) 12 17, 19 MY01/02: Q6820648

Single Band Antenna Switch 17, 19 MY00: Q6820430

7 Dual Band Antenna Switch N/A 17, 19 MY01/02: Q6820652

8 Antenna Splitter (SL only) N/A 17 MY01/02: Q6820675

MY00: Q6820470

9 GPS Splitter Coax (M-Class Only) N/A 19 MY01/02: Q6820674

10 Microphone 12 17, 19 See Mercedes-Benz Dealer

2.0 Wiring Section

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

2.1.1 StarTAC/Timeport Block Diagram (All Classes Except M Class)

2.0 Wiring Section

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

2.1.2 StarTAC/Timeport M-Class Block Diagram

2.0 Wiring Section

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

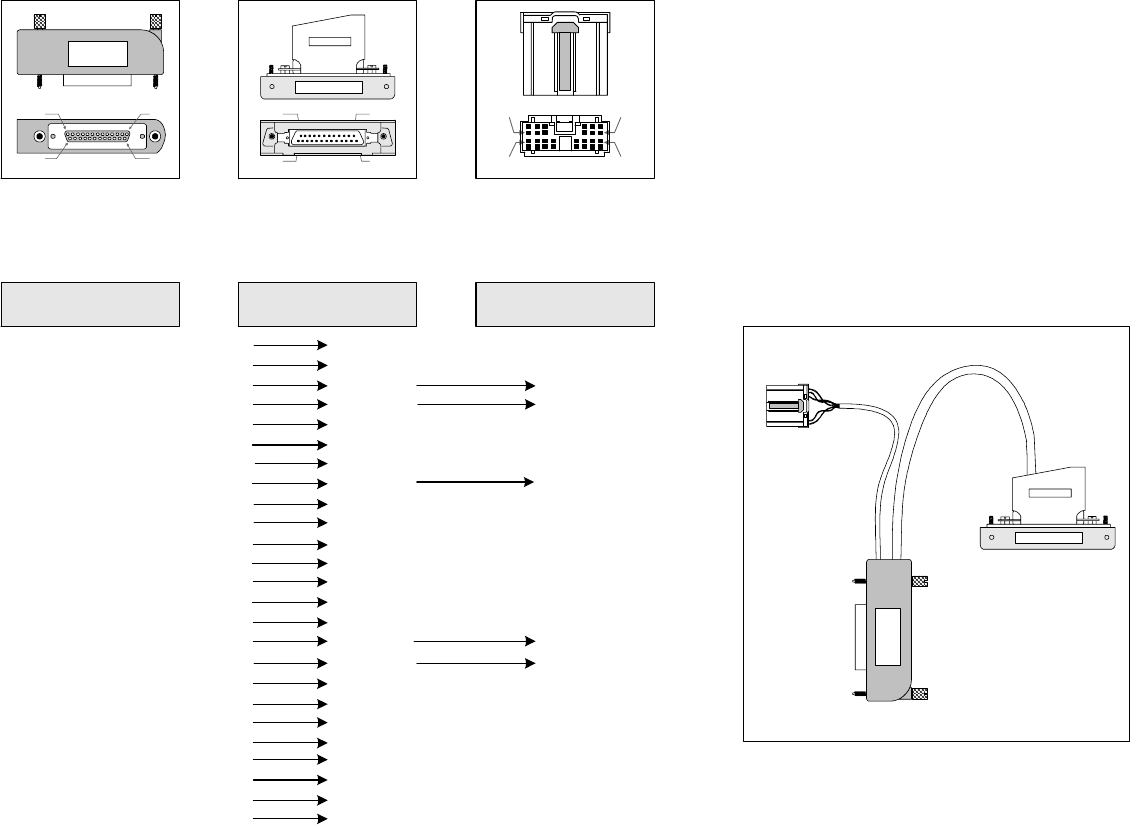

2.1.3 StarTAC/Timeport “Y” Cable Connector Pin Out Diagrams (All Classes Except M-Class)

Main Harness ConnectorPSE Connector

113

25 14

Motorola "Y" Cable

MB Part #Q6820468, Motorola Part #SKN4979A

(All Classes Except "M" Class)

1RX GND

2Not Used

3 Battery Negative

4 Battery Positive

5Not Used

6TX Audio

7 Battery Feedback

8 External Power

9 Antenna Switch

10 Not Used

11 Data Out

12 Not Used

13 D2B Wakeup

14 MIC GND

15 MIC Audio

16 Battery Positive

17 Battery Negative

18 Data In

19 Not Used

20 Not Used

21 Manual Test

22 Not Used

23 Ground

24 Audio Ground

25 Not Used

PSE Connector Main Harness

Connector Compensator

113

25 14

Compensator

PSE Connector

Main Harness

Connector

2.0 Wiring Section

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

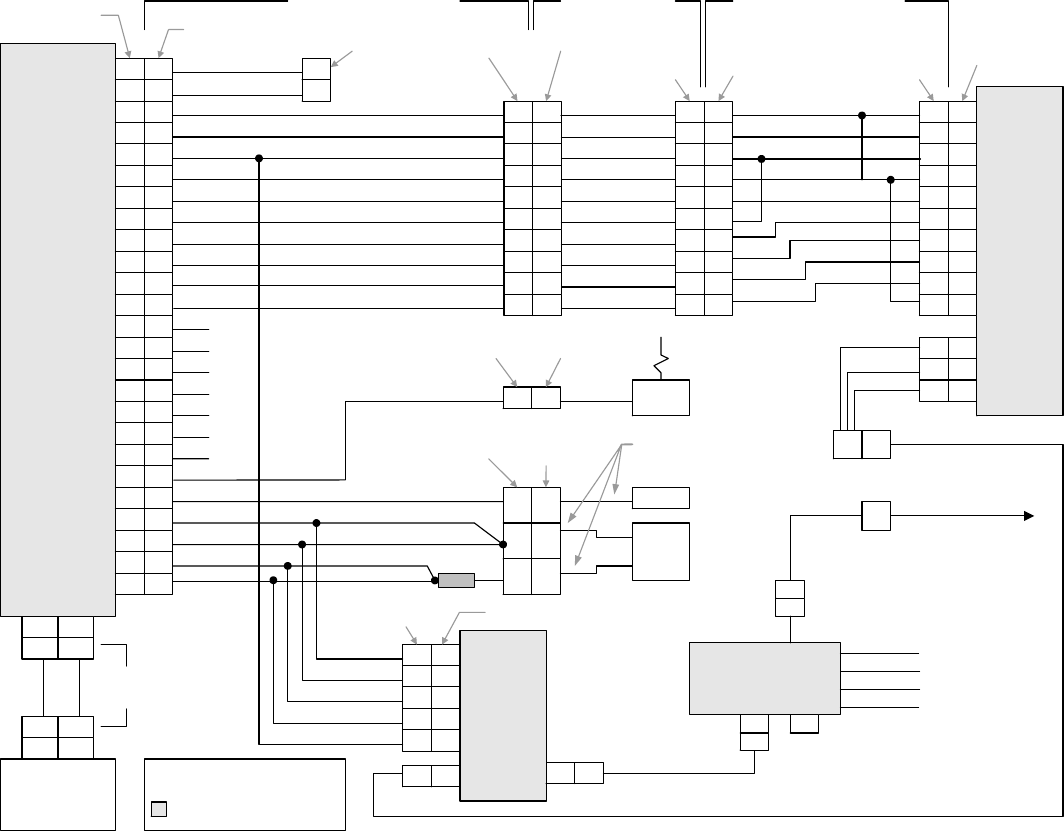

2.1.4 StarTAC/Timeport Wiring Diagram (All Classes Except M-Class)

P.S.E.

(Portable Support Electronics) Module

Model Year 2000: Q6820460, SYN0234C (All Classes)

Model Year 2001: Q6820648, SYN8738C (All Classes)

22 AWG MIC GND

22 AWG MIC AUDIO

24 AWG

22 AWG RED

22 AWG BROWN

22 AWG GREEN

MANUAL TEST

EXT. PWR

BATT FEEDBACK

AUDIO GND

TX AUDIO

RX AUDIO

DATA IN

GND

DATA OUT

NOT USED

POSITIVE BATT

NEGATIVE BATT

D2B WAKEUP

ANTENNA SWITCH

OUT

ICU

Portable

Phone

Motorola Supplied D2B

Fiber Optic Cable

M F

Digital

Compensator

Q6820657

(all classes)

SYN8486A

F M

Antenna Splitter

Q6820675,

SYN8711A (R129)

Motorola "Y" Cable MB Prewire Motorola Coil Cord

Battery

To ICU

Antenna

MINI-UHF

Prewired

Q6820464, SKN4974A (C215, R129, R170,

W203, W220)

Q6820465, SKN4975A (A208, C208, S210,

W210, W463)

SL-Class

Only

E-Call Unit To

E-Call Unit

Antenna Switch

Q6820652, SYN8711A

(A208, CL203, R170,

S203, S210, W203,

W220)

KL 31

TEL PSE PIN 9

E-CALL UNIT

KL 15

Shaded Box indicates

Motorola Supplied Component Motorola Confidential and Proprietary

Q6820425, SKN4949A (R129)

Q6820432, SKN4960A

(W220, W463)

Q6820466, SKN4981A (S210)

Q6820508, SKN4984A (C215)

Q6820467, SKN4982A (W210)

Q6820468, SKN4979A

(All Classes Except M Class)

Prewired

Q# is Mercedes-Benz Part No.

S# is Motorola Part No.

15 PIN PHONE

CONNECTOR

15 PIN PHONE

JACK

10 PIN MODULAR

JACK (PREWIRED) 10 PIN

MODULAR

PLUG

MINI-UHF

MINI-

UHF

MINI-

UHF

MINI-

UHF

MINI-UHF

MINI-

UHF

25 PIN MALE

DSUB 25 PIN FEMALE

DSUB 25 PIN MALE

CONNECTOR 25 PIN FEMALE

(PREWIRED)

14 PIN MALE

14 PIN FEMALE

To Antenna To Antenna

2.0 Wiring Section

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

2.1.5 StarTAC/Timeport M-Class “Y” Cable Connector Pin Out Diagrams

Compensator10 Pin Modular JackPSE Connector

25 14 14

Motorola "Y" Cable

Model Year 2000:

MB Part #Q6820469, Motorola Part #SKN5000A

Model Year 2001:

MB Part #Q6820672, Motorola Part #SKN6327A

14 MIC GND

15 MIC Audio

21 Manual Test

7 Battery Feedback

8 External Power

23 Ground

11 Data Out

12 Not Used

18 Data In

24 Audio Ground

1 RX Audio

6 TX Audio

13 D2B Wakeup

4 Positive Batt

16 Positive Batt

3 Negative Batt

17 Negative Batt

9 Antenna Switch

PSE Connector 10 Pin Modular Jack

Compensator

110

2 Pin Male

3 Pin Male

10 AMP

2Not Used

5Not Used

10 Not Used

19 Not Used

20 Not Used

22 Not Used

25 Not Used

1 Pin Female

P.S.E.

A B C

A B

D2B Connector

2 Pin Male Connector

3 Pin Male Connector

1 Pin Female

Connector

Compensator

D2B Connector

PSE Connector

10 Pin Modular

Jack

MY 2001

1 Pin Female

Connector

2 Pin Male

Connector

3 Pin Male Connector

MY 2001

D2B Coupler

MY 2000

D2B Connector

2.0 Wiring Section

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

2.1.6 StarTAC/Timeport M-Class Wiring Diagram

P.S.E.

(Portable Support Electronics) Module

Model Year 2000: Q6820460, SYN0234C

Model Year 2001: Q6820648, SYN8738C

22 AWG MIC GND

22 AWG MIC AUDIO

24 AWG

MANUAL TEST

EXT. PWR

BATT FEEDBACK

AUDIO GND

TX AUDIO

RX AUDIO

DATA IN

GND

DATA OUT

NOT USED

POSITIVE BATT

NEGATIVE BATT

D2B WAKEUP

ANTENNA SWITCH

OUT

ICU

Portable

Phone

Motorola Supplied D2B

Fiber Optic Cable

M F

Digital

Compensator

Q6820657,

SYN8486A

F M

Motorola "Y" Cable

Q6820672, SKN6327A MB Prewire Motorola Coil Cord

Q6820464, SKN4974A

Battery

To ICU

Antenna

MINI-UHF

Prewired

To E-Call Unit

Antenna Switch

Q6820652, SYN8711A

KL 31

TEL PSE PIN 9

E-CALL UNIT

KL 15

Shaded Box indicates

Motorola Supplied Component

Motorola Confidential and Proprietary

Prewired

Q# is Mercedes-Benz Part No.

S# is Motorola Part No.

Coax Cable to GPS Splitter/Amplifier

Q6820674, SKN6329A

Coax Cable to E-Call

Q6820673, SKN6328a

25 PIN MALE

DSUB 25 PIN FEMALE

DSUB 2 PIN MALE 10 PIN

MODULAR

JACK

10 PIN MODULAR

PLUG (PREWIRED)

10 PIN MODULAR

JACK (PREWIRED)

10 PIN

MODULAR

PLUG 15 PIN PHONE

CONNECTOR 15 PIN PHONE

JACK

14 PIN MALE

14 PIN FEMALE

MINI-UHF MINI-UHF

MINI-UHF

3 PIN

MALE 3 PIN

FEMALE

1 PIN

FEMALE 1 PIN

MALE

Prewired

HIRSCHMANN

GPS

Splitter/Amplifier

To Antenna

2.0 Wiring Section

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

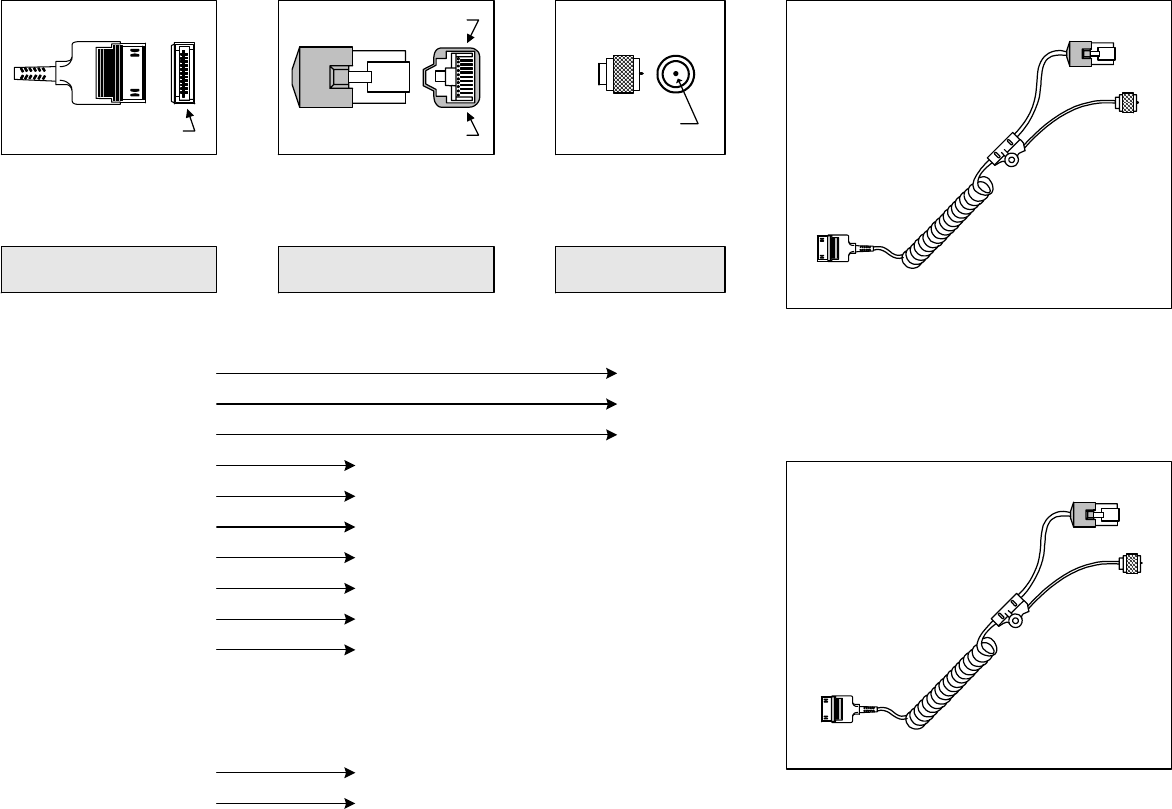

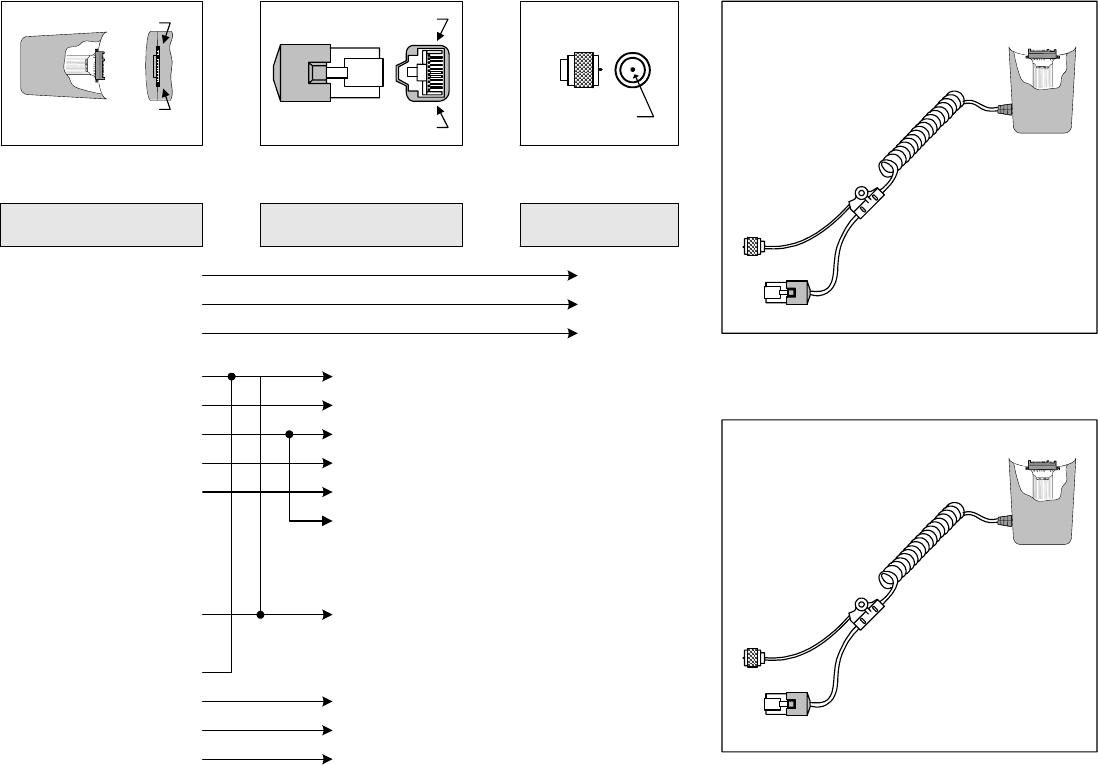

2.1.7 StarTAC/Timeport Coil Cord Pin Out Diagrams

Motorola Coil Cord

MB Part #Q6820464, Motorola Part #SKN 4974A

(C215, R129, R170, W163, W203, W220)

1 Coax Outer Housing

2 Coax Center Pin

3 Coax Outer Housing

4 Battery Feedback

5 Manual Test

6 Data Out

7 Data In

8TX Audio

9RX Audio

10 Ground

11 Not Used

12 Not Used

13 Not Used

14 External Power

15 Audio Ground

10 Pin Modular Plug15 Pin Phone Connector

7Motorola Coil Cord

MB Part #Q6820465, Motorola Part #SKN 4975A

(A208, C208, S210, W210, W463)

10 Pin Modular

Plug

Mini-UHF

Connector

15 Pin Phone

Connector

10 Pin Modular Plug

15 Pin Phone Connector

Pin 1

Pin 10

Coax Mini-UHF

Connector

Coax

Coax Connector

Pin 1

PUSH

TOP

Center Pin

PUS

TOP

10 Pin Modular

Plug

Mini-UHF

Connector

15 Pin Phone

Connector

PUS

TOP

2.0 Wiring Section

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

Table of Contents

2.2 ___ v.60 Connectors and Schematic Key

2.2.1 v.60 Block Diagram (All classes except M class)

2.2.2 v.60 M-class Block Diagram

2.2.3 v.60 Y Cable Connector Pin-out (all classes except M class)

2.2.4 v.60 Wiring Diagram (all classes except M class)

2.2.5 v.60 M-class Y Cable Connector Pin-out

2.2.6 v.60 M-class Wiring Diagram

2.2.7 v.60 Coil Cord Pin-out

2.1 v.60 Connectors and Schematic Key

Page Reference

Ref.

No. Component Name Desc. Pin-out Part No.

1 MY02 v.60 Handset 3 28 Reference Website:

www.mbusaphones.com

Q6820770: (W220, C215, R129,

W203, R170, W163)

v.60 Coil Cord Cradle Assembly 11 28 Q6820771: (A208, C208, W210,

S210, W463)

Q6820722: (W220, C215, R129,

W203, R170, W163)

Timeport Coil Cord Cradle Assembly 11 21 Q6820723: (A208, C208, W210,

S210, W463)

3. v.60 Cradle Base N/A N/A Q6820768

4 MY02 Dual Band Compensator 12 24, 26 Q6820657

“Y” Cable (All Classes except M Class) 24 Q6820468

5 M Class “Y” Cable N/A 26 Q6820672

6 Portable Support Electronics (PSE) 12 24, 26 Q6820754

7 Dual Band Antenna Switch N/A 24,26 Q6820652

8 Antenna Splitter (SL only) N/A 24 Q6820675

9 Microphone 12 24, 26 See Mercedes-Benz Dealer

2.0 Wiring Section

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

2.1.1 v.60 Block Diagram (All Classes Except M Class)

2.0 Wiring Section

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

2.1.2 v.60 M-Class Block Diagram

2.0 Wiring Section

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

2.1.3 v.60 “Y” Cable Connector Pin Out Diagrams (All Classes Except M-Class)

Main Harness ConnectorPSE Connector

113

25 14

Motorola "Y" Cable

MB Part #Q6820468, Motorola Part #SKN4979A

(All Classes Except "M" Class)

1RX GND

2Not Used

3 Battery Negative

4 Battery Positive

5Not Used

6TX Audio

7 Battery Feedback

8 External Power

9 Antenna Switch

10 Not Used

11 Data Out

12 Not Used

13 D2B Wakeup

14 MIC GND

15 MIC Audio

16 Battery Positive

17 Battery Negative

18 Data In

19 Not Used

20 Not Used

21 Manual Test

22 Not Used

23 Ground

24 Audio Ground

25 Not Used

PSE Connector Main Harness

Connector Compensator

113

25 14

Compensator

PSE Connector

Main Harness

Connector

2.0 Wiring Section

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

2.1.4 v.60 Wiring Diagram (All Classes Except M-Class)

P.S.E.

(Portable Support Electronics) Module

Model Year 2002: Q6820754, SYN9266A

22 AWG MIC GND

22 AWG MIC AUDIO

24 AWG

22 AWG RED

22 AWG BROWN

22 AWG GREEN

MANUAL TEST

EXT. PWR

BATT FEEDBACK

AUDIO GND

TX AUDIO

RX AUDIO

DATA IN

GND

DATA OUT

NOT USED

POSITIVE BATT

NEGATIVE BATT

D2B WAKEUP

ANTENNA SWITCH

OUT

ICU

Motorola Supplied D2B

Fiber Optic Cable

M F

Digital

Compensator

Q6820657

(all classes)

SYN8486A

F M

Antenna Splitter

Q6820675,

SYN8711A (R129)

Motorola "Y" Cable MB Prewire Motorola Coil Cord/Cradle

Battery

To ICU

Antenna

MINI-UHF

Prewired

Q6820770, SYN8952A (C215, R129, R170,

W203, W220)

Q6820771, SYN8953A (A208, C208, S210,

W210, W463)

SL-Class

Only

E-Call Unit To

E-Call Unit

Antenna Switch

Q6820652, SYN8711A

(A208, CL203, R170,

S203, S210, W203,

W220)

KL 31

TEL PSE PIN 9

E-CALL UNIT

KL 15

Shaded Box indicates

Motorola Supplied Component Motorola Confidential and Proprietary

Q6820425, SKN4949A (R129)

Q6820432, SKN4960A

(W220, W463)

Q6820466, SKN4981A (S210)

Q6820508, SKN4984A (C215)

Q6820467, SKN4982A (W210)

Q6820468, SKN4979A

(All Classes Except M Class)

Prewired

Q# is Mercedes-Benz Part No.

S# is Motorola Part No.

17 PIN PHONE

CONNECTOR

17 PIN PHONE

JACK

10 PIN MODULAR

JACK (PREWIRED) 10 PIN

MODULAR

PLUG

MINI-UHF

MINI-

UHF

MINI-

UHF

MINI-

UHF

MINI-UHF

MINI-

UHF

25 PIN MALE

DSUB 25 PIN FEMALE

DSUB 25 PIN MALE

CONNECTOR 25 PIN FEMALE

(PREWIRED)

14 PIN MALE

14 PIN FEMALE

To Antenna To Antenna

Not Used

6,7,8,9,10,11,13

Portable

Phone

14 14

2.0 Wiring Section

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

2.1.5 v.60 M-Class “Y” Cable Connector Pin Out Diagrams

Compensator10 Pin Modular JackPSE Connector

25 14 14

Motorola "Y" Cable

Model Year 2002:

MB Part #Q6820672, Motorola Part #SKN6327A

14 MIC GND

15 MIC Audio

21 Manual Test

7 Battery Feedback

8 External Power

23 Ground

11 Data Out

12 Not Used

18 Data In

24 Audio Ground

1RX Audio

6 TX Audio

13 D2B Wakeup

4 Positive Batt

16 Positive Batt

3 Negative Batt

17 Negative Batt

9 Antenna Switch

PSE Connector 10 Pin Modular Jack

Compensator

110

2 Pin Male

3 Pin Male

10 AMP

2 Not Used

5 Not Used

10 Not Used

19 Not Used

20 Not Used

22 Not Used

25 Not Used

1 Pin Female

P.S.E.

A B C

A B

D2B Connector

2 Pin Male Connector

3 Pin Male Connector

1 Pin Female

Connector

Compensator

D2B Connector

PSE Connector

10 Pin Modular

Jack

MY 2002

1 Pin Female

Connector

2 Pin Male

Connector

3 Pin Male Connector

MY 2002

D2B Coupler

2.0 Wiring Section

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

2.1.6 v.60 M-Class Wiring Diagram

P.S.E.

(Portable Support Electronics) Module

Model Year 2002: Q6820754, SYN9266A

22 AWG MIC GND

22 AWG MIC AUDIO

24 AWG

MANUAL TEST

EXT. PWR

BATT FEEDBACK

AUDIO GND

TX AUDIO

RX AUDIO

DATA IN

GND

DATA OUT

NOT USED

POSITIVE BATT

NEGATIVE BATT

D2B WAKEUP

ANTENNA SWITCH

OUT

ICU

Portable

Phone

Motorola Supplied D2B

Fiber Optic Cable

M F

Digital

Compensator

Q6820657,

SYN8486A

F M

Motorola "Y" Cable

Q6820672, SKN6327A MB Prewire Motorola Cradle/Coil Cord

Q6820770, SYN8952A

Battery

To ICU

Antenna

MINI-UHF

Prewired

To E-Call Unit

Antenna Switch

Q6820652, SYN8711A

KL 31

TEL PSE PIN 9

E-CALL UNIT

KL 15

Shaded Box indicates

Motorola Supplied Component

Motorola Confidential and Proprietary

Prewired

Q# is Mercedes-Benz Part No.

S# is Motorola Part No.

Coax Cable to E-Call

Q6820673, SKN6328a

25 PIN MALE

DSUB 25 PIN FEMALE

DSUB 2 PIN MALE 10 PIN

MODULAR

JACK

10 PIN MODULAR

PLUG (PREWIRED)

10 PIN MODULAR

JACK (PREWIRED)

10 PIN

MODULAR

PLUG 17 PIN PHONE

CONNECTOR 17 PIN PHONE

JACK

14 PIN MALE

14 PIN FEMALE

MINI-UHF MINI-UHF

MINI-UHF

3 PIN

MALE 3 PIN

FEMALE

1 PIN

FEMALE 1 PIN

MALE

Prewired

HIRSCHMANN

14 14

2.0 Wiring Section

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

2.1.7 v.60 Cradle/Coil Cord Pin Out Diagram

Motorola Coil Cord

MB Part #Q6820770, Motorola Part #SYN 8952A

(C215, R129, R170, W163, W203, W220)

1Coax Outer Housing

2 Coax Center Pin

3Coax Outer Housing

10 Pin Modular PlugPhone Connector

7Motorola Coil Cord

MB Part #Q6820771, Motorola Part #SYN 8953A

(A208, C208, S210, W210, W463)

10 Pin Modular Plug

Phone Connector

Pin 1

Pin 10

Coax Mini-UHF

Connector

Coax

Coax Connector

17 Center Pin

Pin 1

CRADLE

10 Pin Modular

Plug

Mini-UHF

Connector

Phone Connector

CRADLE

10 Pin Modular

Plug

Mini-UHF

Connector

Phone Connector

CRADLE

1Logic GND

2 Battery Feedback

3External B+

4 RS232 TXD

5 RS232 RXD

6,7,8,9,10,11 Not Used

12 D_SEL_0

13 Not Used

14 OPT_SEL_2

15 RX Audio

16 TX Audio

17 Audio GND

2.0 Wiring Section

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

Table of Contents

2.3 ___CP Layout and Schematics

2.3.1 CP Block Diagram for MY2003/04 E-Class (BR211) and MY2004 S-Class (BR220), CL-

Class (BR215) and Maybach (BR240).

2.3.2 CP Schematic

2.0 Wiring Section

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

2.3 CP Connectors and Schematic Key

Ref.

No. Component Name Pin-out Part No.

1 MY03/04 CP Supported v.60 Handset 28 Reference Website:

www.mbusaphones.com

Q6820883: MY04 (215, 220, 240)

2 v.60 Coil Cord Cradle Assembly

Q6820833: MY03 (211)

3 v.60 Cradle Base N/A Q6820768

4 Dual Band Compensator 24, 26 Q6820657

5 Wiring Harnesses 40, 40, MOST Vehicle Pre-wire

6 Communication Platform (CP) 40, 40, MOST A2408201526

9 Microphone Array 24, 26 See Mercedes-Benz Dealer

2.0 Wiring Section

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

2.3.1 CP Block Diagram

2.0 Wiring Section

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

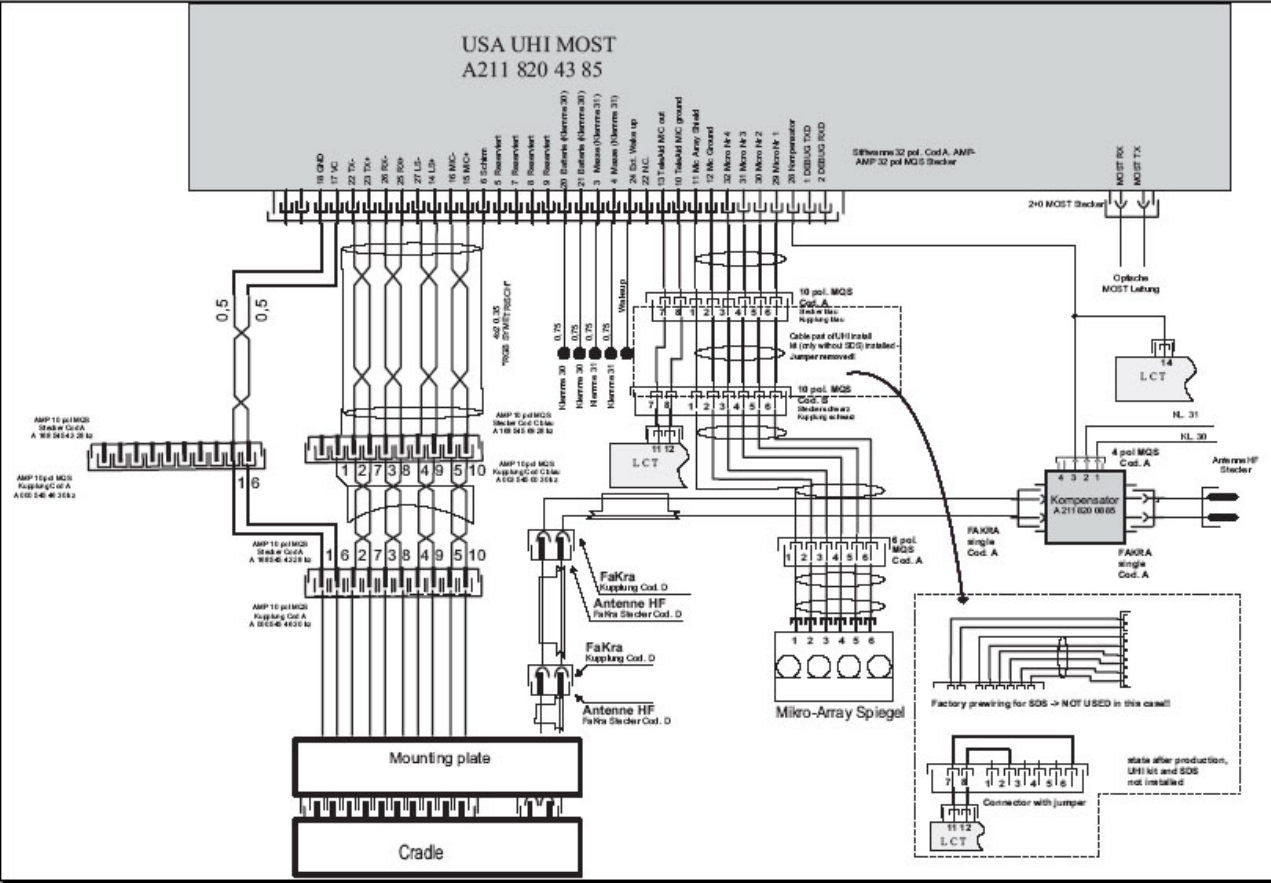

2.3.2 CP Wiring Diagram

2.0 Wiring Section

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

Table of Contents

2.4 ___MHI Layout and Schematics

2.4.1 MHI Block Diagram for MY2005 Vehicles

2.4.2 MHI Schematic

2.0 Wiring Section

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

2.4 MHI Components and Schematic Key

Ref.

No. Component Name Pin-out Part No.

1 MY05 MHI Supported ‘V’ Series Handsets 28 Reference Website:

www.mbusaphones.com

V60i – Q6820988

V60s – Q6820925

V600 – Q6820919

Cradle v60i, v60s, v600, v710 N/A

V710 – Q6820920

A23082005011 (171, 230)

A2038201311 (203, 209, 211)

A2158200611 (215)

Cradle Base (Contact Plate) N/A

A2208201511 (220)

4 Dual Band Compensator 24 Q6820829

5 Wiring Harness N/A Vehicle Pre-wire

6 Multiple Handset Interface (MHI) MOST Q6820936

8 Antenna Switch 24 A2208271842

9 Microphone Array 24, 26 See Mercedes-Benz Dealer

2.0 Wiring Section

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

2.4.1 MHI Block Diagram

2.0 Wiring Section

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

2.4.2 MHI Wiring Diagram

3.0 Installation Section

Table of Contents

3.1 MY2000 Installation Instructions

D2B Fiber Optic Configuration

All Classes

Cellular Telephone Configuration

C-Class

M-Class with Navigation

M-Class without Navigation

SLK-Class

Voice Activated Cellular Telephone Configuration

CL-Class

CLK-Class

CLK-Class Cabriolet

E-Class

E-Class Wagon

S-Class

S-Class Updated

SL-Class

3.0 Installation Section

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

MY2001 Installation Instructions

D2B Fiber Optic Configuration

All Classes

Cellular Telephone Configuration

C-Class

M-Class with Navigation

M-Class Without Navigation

SLK-Class

Voice Activated Cellular Telephone Configuration

CL-Class

CLK-Class

CLK-Class Cabriolet

E-Class

E-Class Wagon

S-Class

SL-Class

3.0 Installation Section

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

4.0 Troubleshooting Section

Table of Contents

4.1 __V.60 Characteristics/Differences From Timeport

4.2 __RF Path From Handset Thru Antenna/E-call Unit

4.2.1__ StarTAC/Timeport

4.2.2__ V.60

4.2.3__ CP

4.2.4__ MHI

4.3 __Failure Mode Effects And Analysis (FMEA) Tables

4.3.1__ PSE FMEA

4.3.2__ CP FMEA

4.3.3__ MHI FMEA

4.4 __Preliminary Troubleshooting Procedure

4.4.1__ Handset Keypad Or Display Problems

4.4.2__ No Battery Charging While Plugged Into The Vehicle

4.4.3__ Phone Does Not Power Up

4.4.4 No Keypad Tones And/Or No Incoming Audio In Hands-free Mode From Vehicle

Speakers

4.4.5__ Static During Calls And/Or Dropped Calls

4.4.6 No Handset Audio Or Landline Cannot Hear Mobile On Handset Or Mobile Cannot

Hear Landline On Handset

4.4.7 No Hands-free Transmit Audio/Called Party Cannot Hear You

4.4.8 No SVC Indicator Stays On

4.4.9 Complete Loss Of Vehicle System Audio

4.0 Troubleshooting Section

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

4.1 v.60 Characteristics/Differences from Timeport

ID # v.60 Characteristics/Differences from Timeport

001 Power down phone from phone key while it is powering up. Power back up and no

DTMF keypress tones in vehicle and in the phone (when flip opened).

002 Unknown caller ID is in phone incoming call list as unknown or private but shows

nothing in HU calls list.

003

Speed dial a number from phonebook containing a variable number will keep

displaying dialing until call is ended. The 1 st call after ending call will not complete.

Must be ended and next call will complete.

004

Phone in call plug into vehicle with flip open and speaker phone soft key does not work

1 st time. SPEAKER PHONE SOFT KEY IS NOT INTENDED FOR VEHICLE USE.

SEE NOTE ON PAGE 10 OF VEHICLE MANUAL.

005

Phone in autolock, connected, unlock phone, power down, power up, HU displays

Ready for 8 seconds before Lock screen, during 8 seconds phone can be accessed from

HU.

006

Phone is disconnected and reconnected before disconnect tones(less than 3 seconds

between connections). Phone loses communication with PSE until power cycled. HU

Displays still 'Tel. not plugged in'.

007 Phonebook/Calls/Last Calls blinks 2 times quickly whenever lists are updated due to

incoming or outgoing calls.

008

If user has the same phone number stored with a different area code it will not matched

to name tag correctly. Proper number will be dialed but the first name tag entry

alphabetically will be displayed.

009

Call failed/redial – Call failed, redial?, screen will not be displayed on head unit as with

Timeport. Phone will automatically go into redial mode and head unit will display

dialing for up to 4 minutes. Call can be ended from head unit or phone at any time.

After 4 minute the phone redial mode will timeout and head unit will go back to Ready

screen.

010

Phone book quantity – Timeport has maximum of 99 entries and v.60 has possible 400

entries. The head units can only display up to 99 entries. If phone book entry location is

greater than 99 it will not be displayed or selectable on head unit but will be available

from the phone. Under this condition it would appear as if head unit and phone are not

synchronized.

011 Digits entered on head unit with phone flip open will display on phone and does not get

cleared when cleared on head unit, must be cleared on phone.

012 v.60 takes much longer to power up and down which sometimes appears that head unit

and phone are out of sync.

013 Pause dialing – pause character is entered from head unit but wait character is entered

into phone. Operation is identical to Timeport but symbol in phone is different.

014 DTMF tones heard in phone speaker when flip open and in an active call

015 911 automatically dialed from location 1 when phone locked and location 1

speed/turbo dialed.

4.0 Troubleshooting Section

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

ID # v.60 Characteristics/Differences from Timeport

016 Cannot partially enter lock code on the phone and then try to complete entry from the

HU.

017 v.60 phone uses 4-digits unlock code in stand alone portable mode and first 3 digits

only in vehicle mode.

018 Variable dialing can only be initiated from the v.60 phone.

019 Phone charging time changed from 8 hours to 5 minutes when phone is connected to an

unpowered car.

020 Text and voice mail message alert tones are defaulted to Vibe pulse setting. This will

eliminate the vehicle system audio muting during message receipt.

021 Reminder tones are defaulted Off. User must turn on which will result in vehicle

system audio muting during a reminder event.

022

v.60 presently uses a fast switching half duplex audio processing technique. The user

may experience an inability to easily break in on the other party when they are

speaking or if they are in an environment with high background noise. See page 3 of

vehicle manual.

4.0 Troubleshooting Section

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

4.2 RF Path From Handset Thru Antenna/E-Call Unit

4.2.1 StarTAC/Timeport [phone, compensator, RF antenna switch, antenna/E-call unit]

4.2.2 v.60 RF Path [phone, compensator, RF antenna splitter, antenna/E-call unit]

4.0 Troubleshooting Section

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

4.2.3 CP RF Path [phone, compensator, CP module]

4.2.4 MHI RF Path [phone, cradle base, compensator, RF antenna switch, E-call unit]

4.0 Troubleshooting Section

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

4.3 Failure Mode Effects And Analysis (FMEA) Tables

4.3.1 PSE FMEA table

FMEA TABLE

PSE Pin Signal Open Short to Ground Short to 12v Notes

Phone will not turn off/on via head unit TEL key No transmit or receive hands free audio No in HF; loud transmit

1 receive audio ground noise;

Audio _In/On_Off No receive audio in hands free mode Key on: phone powers down when connected; key off: audio OK

hdh

2 NOT USED

3 Ground chassis No adverse effect No adverse effect Blow fuse on sourcing feed

4 A+ No adverse effect Blows fuse to tel system No adverse effect

5 NOT USED

No transmit audio in hands free Ground (white) noise on landline

6 Audio out 50Hz TDMA buzz on landline No transmit audio from vehicle hands free mic No transmit or receive audio in HF PSE permanently damaged (no transmit audio

after original CDMA test; replaced and retested

CDMA, no problem)

No visible effect No visible effect TDMA: No adverse effect Battery indicates charging despite no charging

going on

7 Battery Feedback

Battery will not charge; poor talk time outside car Battery will not charge; poor talk time outside car; battery

will have excess drain CDMA: Phone powers down and can not be powered

Pin 8 will be at 4.4v (min charge voltage) Can

verify charging circuit function by comparing

pins 7&8 on PSE with phone connected. 8

should be 1.4v greater than pin 7

No vehicle power to phone; no charging No charging; phone will operate but on main battery only

until dead

8 B+ out

Disconnecting phone battery shuts down phone TDMA: download takes 8X longer (5 – 40 sec.)

No charging, switches to battery “Charging” will not be indicated in FCN4 mode

9 Ant drive

Pour reception and likely no ability to call out; no ant

drive in R129 Pour reception and likely no ability to call out; no ant

drive in R129 No adverse effect on ant sw; power antenna always

up in R129 Open and short will cause antenna to go to Tele

Aid at all times

11 SCI RXD Phone powers on/off constantly @ 6 sec. intervals Phone powers on/off constantly @ 6 sec. intervals CDMA: Phone permanently damaged; TDMA No

damaging effect but no operation with H/U PSE is turning on phone via PSE dial in an

attempt wakeup portable

12 NOT USED

13 D2B wakeup PSE sleeps; no ring start Ring does not start; phone powers on/off @ 2 sec.

intervals Ring will never start

14 Ground chassis No adverse effect No adverse effect Blow fuse on sourcing feed Microphone shield

15 Mic Hi No transmit audio in hands free No transmit audio in hands free TDMA/ CDMA: No transmit audio

16 A+ No adverse effect Blows fuse to telephone system No adverse effect If 4 & 16 are last, gross system failure

17 Ground chassis No adverse effect No adverse effect Blow fuse on sourcing feed

18 SCI TXD Phone cycles on/off constantly @ 18 sec. Intervals

(TDMA) 6 sec. (CDMA) Phone cycles on/off constantly @ 18 sec. Intervals

(TDMA) 6 sec. (CDMA) TDMA remains on but no function with head unit;

CDMA: powers down and will not power up

19 NOT USED

20 Ground chassis No adverse effect No adverse effect Blow fuse on sourcing feed Shield for data lines to R1-45. Not ground

source

Fast battery outline flash & “charging disabled” on

TDMA FCN4 TDMA: powers off then on and enters test mode Fast battery outline flash & “charging disabled” on

TDMAFCN4

21 MANUAL TEST

“Externally powered” on CDMA function 4 CDMA: powers off then can not be powered on CDMA: Powers down and then when powered up

NAM is erased including ESN

PSE supplies 33k ohms to ground to tell phone

to charge; must power down to exit test mode if

shorted

22 NOT USED

23 Ground chassis No adverse effect No adverse effect Blow fuse on sourcing feed Ground source to StarTAC. With this open

StarTAC gets ground through coax

TDMA: heavy pulse noise, no transmit audio, will not

recognize phone is connected to coil cord TDMA: Heavy noise pulse; H/U will not shut down if in

a call

24 Ground analog

CDMA: Slow oscillating noise, no transmit audio, will

not recognize phone is connected to coil cord CDMA: Slow oscillating noise; H/U will not shut down if

in a call

Blow fuse on sourcing feed

25 NOT USED

4.0 Troubleshooting Section

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

4.3.2 CP FMEA Table

BLOCK

Item Shorted to ground. Open. Shorted to Vbatt.

Function

J1-Telephone Connector/ PIN-1

/ KL31-GND None. Unstable GND. Potential increase in

audio noise and EMC emissions

System fuse will open. Loss of

functionality. MRS/CAN/MOST/DTS

will be set

J1-Telephone Connector/ PIN-2

/ KL30-Power Vbatt.

System fuse will open. Loss of

functionality. MRS/CAN/MOST DTS

will be set.

TCU will lose power. Loss of

functionality. Potential increases in

Audio noise/ EMC emission. DTC will

be set.

None.

J1-Telephone Connector/ PIN-3

/ Reserved. None. None. None.

J1-Telephone Connector/ PIN-4

/ Reserved. None. None. None.

J1-Telephone Connector/ PIN-5

/ BT RxD-.

Unable to receive messages from

the BT module. Loss of BT

functionality. DTC will be set. Hand

Set will not function.

Receive Line will be disabled. DTC

will be set. Hand Set will not function.

Unable to receive messages from

the BT module. Loss of BT

functionality. DTC will be set. Hand

Set will not function.

J1-Telephone Connector/ PIN-6

/ BT RxD+.

Unable to receive messages from

the BT module. Loss of BT

functionality. DTC will be set. Hand

Set will not function.

Receive Line will be disabled. DTC

will be set. Hand Set will not function.

Unable to receive messages from

the BT module. Loss of BT

functionality. DTC will be set. Hand

Set will not function.

J1-Telephone Connector/ PIN-7

/ BT CTS-Flow Control.

Unable to receive and/or transmit

messages. Loss of BT functionality.

DTC will be set. Hand Set will not

function.

Unable to receive and/or transmit

messages. Loss of BT functionality.

DTC will be set. Hand Set will not

function.

Unable to receive and/or transmit

messages. Loss of BT functionality.

DTC will be set. Hand Set will not

function.

J1-Telephone Connector/ PIN-8

/ BT Shield-GND. None. Additional Audio noise. PCB trace or wire may open.

J1-Telephone Connector/ PIN-9

/ BT Audio GND. None. Additional Audio noise. Loss of BT Audio signal. DTC will be

set.

J1-Telephone Connector/ PIN-

10 / BT Audio Rx - Analog

Audio . None. Unreliable or no Audio signal from

the BT module. DTC will be set. No Audio signal from the BT module.

DTC will be set.

4.0 Troubleshooting Section

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

J1-Telephone Connector/ PIN-

11 / KL31-GND. None. Unstable GND. Potential increases in

Audio noise/ EMC emission.

System fuse will open. Loss of

functionality. MRS/CAN/MOST DTS

will be set.

J1-Telephone Connector/ PIN-

12 / KL30-Power Vbatt.

System fuse will open. Loss of

functionality. MRS/CAN/MOST DTS

will be set.

Unstable GND. Potential increases in

Audio noise/ EMC emission. None.

J1-Telephone Connector/ PIN-

13 / Reserved. None. None. None.

J1-Telephone Connector/ PIN-

14 / BT On/Off - On/Off Control

for BT module.

Unable to turn Off BT module. Loss

of functionality. DTC will be set. Unable to turn On BT module. Loss

of functionality. DTC will be set.

J1-Telephone Connector/ PIN-

15 / BT TxD-.

Unable to transmit messages to the

BT module. Loss of BT functionality.

DTC will be set. Hand Set will not

function.

BT will lose functionality. DTC will be

set. Hand Set will not function.

Unable to transmit messages to the

BT module. Loss of BT functionality.

DTC will be set. Hand Set will not

function.

J1-Telephone Connector/ PIN-

16 / BT TxD+.

Unable to transmit messages to the

BT module. Loss of BT functionality.

DTC will be set. Hand Set will not

function.

Unable to transmit messages to the

BT module. Loss of BT functionality.

DTC will be set.

Unable to transmit messages to the

BT module. Loss of BT functionality.

DTC will be set. Hand Set will not

function.

J2-Telephone Connector/ PIN-

17 / BT RTS-Flow Control.

Unable to transmit and/or receive

messages. Loss of BT functionality.

DTC will be set. Hand Set will not

function.

Unable to transmit and/or receive

messages. Loss of BT functionality.

DTC will be set. Hand Set will not

function.

Unable to transmit and/or receive

messages. Loss of BT functionality.

DTC will be set. Hand Set will not

function.

J1-Telephone Connector/ PIN-

18 / Reserved. None. None. None.

J1-Telephone Connector/ PIN-

19 / Reserved. None. None. None.

J1-Telephone Connector/ PIN-

20 / BT Audio Tx-Analog Audio. None. No Audio signal to the BT module.

DTC will be set. Hand Set will not

function.

No Audio signal to the BT module.

DTC will be set. Hand Set will not

function.

J1-Telephone Connector/ PIN-

21 / Reserved. None. None. None.

J1-Telephone Connector/ PIN-

22 / Reserved. None. None. None.

J1-Telephone Connector/ PIN-

23 / MOST Wake-up

TCU unable to enter Sleep mode.

Excessive current during ignition off

condition. Main battery will be drain

faster than expected. DTC will be

set.

TCU unable to enter Sleep mode.

Excessive current during ignition off

condition. Main battery will be drain

faster than expected. DTC will be

set.

TCU will wake-up on CAN

messages, unable to wake-up on

MOST signal. MOST DTC will be

set.

J1-Telephone Connector/ PIN-

24 / Tel On/Off/WU - Phone/

Charger/ SIM On/Off; / Wake-

up.

Improper or no operation of the

Portable Phone and/or Charger,

and/or SIM Card Reader, and/or

Wake-up circuitry. DTC will be set.

Improper or no operation of the

Portable Phone and/or Charger,

and/or SIM Card Reader, and/or

Wake-up circuitry. DTC will be set.

Hand Set will not function.

Improper or no operation of the

Portable Phone and/or Charger,

and/or SIM Card Reader, and/or

Wake-up circuitry. DTC will be set.

J1-Telephone Connector/ PIN-

25 / Reserved. None. None. None.

J1-Telephone Connector/ PIN-

26 / Tel TxD - TXD for Portable

Phone/ DSC uplink.

No communication on the Portable

Phone. Loss of functionality. DTC

will be set.

No communication on the Portable

Phone. Loss of functionality. DTC will

be set.

No communication on the Portable

Phone. Loss of functionality. DTC

will be set.

J1-Telephone Connector/ PIN-

27 / Tel RTS - Portable Flow

Control.

Improper and/or no communication

on the Portable Phone. Loss of

functionality. DTC will be set. Hand

Set will not function.

No communication on the Portable

Phone. Loss of functionality. DTC will

be set.

Improper and/or no communication

on the Portable Phone. Loss of

functionality. DTC will be set. Hand

Set will not function.

J1-Telephone Connector/ PIN-

28 / Mic2 In GND - NOT USED. None. None. None.

J1-Telephone Connector/ PIN-

29 / Mic2 In+ - NOT USED. None. None. None.

J1-Telephone Connector/ PIN-

30 / Tel Audio Tx - Portable TX

Audio.

No Audio signal to the Portable

Phone. DTC will be set. Unreliable or no Audio signal to the

Portable Phone. No Audio signal to the Portable

Phone. DTC will be set.

J1-Telephone Connector/ PIN-

31 / Tel GND - Portable GND. None. Unreliable GND for the Portable

Phone. Signal may be lose. No Audio signal to the Portable

Phone. DTC will be set.

J1-Telephone Connector/ PIN-

32 / Portable Phone Power. No power for the Portable Phone.

Loss of functionality. DTC will be set. No power for the Portable Phone.

Loss of functionality. DTC will be set. None.

J1-Telephone Connector/ PIN-

33 / Comp On/Off -

Compensator On/Off

(ECE/USA).

None. Unable to turn On/Off compensator.

Loss of functionality. Unable to turn On compensator.

Loss of functionality.

J1-Telephone Connector/ PIN-

34 / Tel On/Off/WU - On/Off

Control Portable. Unable to turn Off Portable Phone. Unable to turn On/Off Portable

Phone. DTC will be set. Hand Set

will not function. None.

J1-Telephone Connector/ PIN-

35 / Reserved. None. None. None.

J1-Telephone Connector/ PIN-

36 / Tel RxD - RXD for Portable

Phone/ DSC Downlink.

No communication on the Portable

Phone. Loss of functionality. DTC

will be set. Hand Set will not

function.

No communication on the Portable

Phone. Loss of functionality. DTC will

be set. Hand Set will not function.

No communication on the Portable

Phone. Loss of functionality. DTC

will be set. Hand Set will not

function.

J1-Telephone Connector/ PIN-

37 / Tel CTS - Portable Flow

Control.

No communication on the Portable

Phone. Loss of functionality. DTC

will be set. Hand Set will not

function.

No communication on the Portable

Phone. Loss of functionality. DTC

will be set. Hand Set will not function.

No communication on the Portable

Phone. Loss of functionality. DTC

will be set. Hand Set will not

function.

J1-Telephone Connector/ PIN-

38 / Tel Shield - Portable

Shield. None. Additional Audio noise. PCB trace or wire may open.

J1-Telephone Connector/ PIN-

39 / Tel Audio GND - Portable

Audio GND. None. Additional Audio noise. PCB trace or wire may open.

J1-Telephone Connector/ PIN-

40 / Tel Audio Rx - Portable RX

Audio.

No communication on the Portable

Phone. Loss of functionality. DTC

will be set. Hand Set will not

function.

No communication on the Portable

Phone. Loss of functionality. DTC will

be set. Hand Set will not function.

No communication on the Portable

Phone. Loss of functionality. DTC

will be set. Hand Set will not

function.

J2-Telematic Connector/ PIN-1 /

Mic1 In+. No Audio signal. Loss of

functionality. DTC will be set. No Audio signal. Loss of

functionality. DTC will be set.

J2-Telematic Connector/ PIN-2 /

SIM Shield - SIM Card Reader

Shield. None. Additional Audio noise. PCB trace or wire may open. DTC

will be set.

J2-Telematic Connector/ PIN-3 /

SIM On/Off - SIM Card Reader

On/Off.

Unable to turn On SIM Card Reader.

Loss of functionality. DTC will be set.

Unable to turn On/Off SIM Card

Reader. Loss of functionality. DTC

will be set.

Unable to turn Off SIM Card Reader.

Loss of functionality. DTC will be set.

J2-Telematic Connector/ PIN-4 /

IC LED - Visual Feedback Inside

Button.

LED will never light up, may

damaged. LED will never light up. LED will never turn Off.

J2-Telematic Connector/ PIN-5 /

TD LED - Visual Feedback Inside

Button.

LED will never light up, may

damaged. LED will never light up. LED will never turn Off.

J2-Telematic Connector/ PIN-6 /

EC LED - Visual Feedback Inside

Button.

LED will never light up, may

damaged. LED will never light up. LED will never turn Off.

J2-Telematic Connector/ PIN-7

/ Reserved.

None. None. None.

J2-Telematic Connector/ PIN-8 /

Reserved. None. None. None.

J2-Telematic Connector/ PIN-9 /

Reserved. None. None.

J2-Telematic Connector/ PIN-10

/ Reserved. None. None. None.

J2-Telematic Connector/ PIN-11

/ Mic1 In GND. None. Improper/or no Audio signal.

Possibility to lose functionality. DTC

will be set.

No Audio signal. Loss of

functionality. DTC will be set.

J2-Telematic Connector/ PIN-12

/ SIM RTS - SIM Card

Presence Detect.

Improper/or no detection of presence

of the SIM Card. DTC will be set. Improper/or no detection of presence

of the SIM Card. Improper/or no detection of presence

of the SIM Card. DTC will be set.

J2-Telematic Connector/ PIN-13

/ SIM CTS - SIM Card Reader

Detect Override.

Improper/or no detection of presence

of the SIM Card. DTC will be set. Improper/or no detection of presence

of the SIM Card. DTC will be set.

J2-Telematic Connector/ PIN-14

/ Reserved. None. None. None.

J2-Telematic Connector/ PIN-15

/ NOT USED. None. None. None.

J2-Telematic Connector/ PIN-16

/ H-Button 2 None. None. None.

J2-Telematic Connector/ PIN-17

/ Mute Unable to MUTE Radio. Unable to MUTE Radio. Radio will be MUTED constantly.

J2-Telematic Connector/ PIN-18

NOT USED. None. None. None.

J2-Telematic Connector/ PIN-19

/ Trunk - Discrete Input.

During Engineering Test will cause

Test code to Reset DTC will be set.

Loss of functionality. None. Unable to maintain Engineering Test.

DTC will be set.

J2-Telematic Connector/ PIN-

20 / Spkr In - Audio Signal

from AGW.

Improper/or no Audio Signal from the

Service Operator. Loss of

functionality. DTC will be set.

No Audio Signal from the Service

Operator. Loss of functionality. DTC

will be set.

No Audio Signal from the Service

Operator. Loss of functionality. DTC

will be set.

J2-Telematic Connector/ PIN-21

/ D-CAN Hi - Diagnosis CAN.

No messages from the CAN

interface. Loss of diagnostic. DTC

will be set.

No communication on the CAN lines.

Loss of functionality. DTC will be set. No messages from the CAN

interface. Lost of diagnostic. DTC will

be set.

J2-Telematic Connector/ PIN-22

/ SIM RxD - DSC Downlink.

No communication on the SIM Card

lines. Loss of functionality. DTC will

be set.

No communication on the SIM Card

lines. Loss of functionality. DTC will

be set.

No communication on the SIM Card

lines. Loss of functionality. DTC will

be set.

J2-Telematic Connector/ PIN-23

/ SIM TxD - DSC Uplink.

No communication on the SIM Card

lines. Loss of functionality. DTC will

be set.

No communication on the SIM Card

lines. Loss of functionality. DTC will

be set.

No communication on the SIM Card

lines. Loss of functionality. DTC will

be set.

J2-Telematic Connector/ PIN-24

/ IC BUT - Switch. DTC will be set. No activation. Unable to activate the IC call. DTC

will be set. DTC will be set. Unable to turn Off.

J2-Telematic Connector/ PIN-25

/ TD BUT - Switch. DTC will be set. No activation. DTC will be set. No activation. DTC will be set. Unable to turn Off.

J2-Telematic Connector/ PIN-26

/ EC BUT - Switch. DTC will be set. No activation. DTC will be set. No activation. DTC will be set. Unable to turn Off.

J2-Telematic Connector/ PIN-27

/ BPS I/F RX - Control Data.

NOT USED. None. None. None.

J2-Telematic Connector/ PIN-28

/ BPS I/F ENA - I/F Control.

NOT USED. None. None. None.

J2-Telematic Connector/ PIN-29

/ Cntrl Relay - NOT USED. None. None. None.

J2-Telematic Connector/ PIN-30

/ Spkr In+ - Audio Signal from

AGW.

NOT USED.

None. None. None.

J2-Telematic Connector/ PIN-31

/ D-CAN Lo - Diagnosis CAN.

NOT USED. None. None. None.

J2-Telematic Connector/ PIN-32

/ D-CAN Shield - Shielding. None. No messages from the CAN

interface. Lost of diagnostic.

No Shield for the CAN. No

messages from the CAN interface.

Lost of diagnostic. DTC will be set.

J2-Telematic Connector/ PIN-33

/ Eng I/F Rx. Unable to provide Engineering Test.

DTC will be set. Unable to provide Engineering Test.

DTC will be set.

J2-Telematic Connector/ PIN-34

/ Eng I/F Tx. Unable to provide Engineering Test.

DTC will be set. Unable to provide Engineering Test.

DTC will be set.

J2-Telematic Connector/ PIN-35

/ Crash - Digital Crash Input

(200 Bd).

No Crash signal will be receive. Loss

of functionality. DTC will be set. No Crash signal will be receive. Loss

of functionality. DTC will be set.

J2-Telematic Connector/ PIN-36

/ BPS I/F TX - Control Data.

NOT USED. None. None. None.

J2-Telematic Connector/ PIN-37

/ BPS + - Backup Power Line. Unable to activate the BPS device.

Loss of functionality. DTC will be set. Unable to activate the BPS device.

Loss of functionality. DTC will be set. Unable to turn Off the BPS device.

Loss of functionality. DTC will be set.

J2-Telematic Connector/ PIN-38

/ BPS + - Backup Power Line. Unable to activate the BPS device.

Loss of functionality. DTC will be set. Unable to activate the BPS device.

Loss of functionality. DTC will be set. Unable to turn Off the BPS device.

Loss of functionality. DTC will be set.

J2-Telematic Connector/ PIN-39

/ Spkr Out- Audio Ground to

Center Speaker. None. Unstable GND for the Speaker.

Distortions and/or noise on the Audio

Signal.

No Audio signals on the Speaker.

DTC will be set.

J2-Telematic Connector/ PIN-40

/ Spkr Out+ - Audio Signal to

Center Speaker.

No Audio signals on the Speaker.

DTC will be set. No Audio signals on the Speaker.

DTC will be set.

FAKRA Single Connector/ PIN

1/ GPS+ - GPS RF

Signal & Antenna Power.

No GPS RF Signal, no Antenna

Power. Loss of functionality. DTC will

be set.

No GPS RF Signal, no Antenna

Power. Loss of functionality. DTC will

be set.

FAKRA Single Connector/ PIN

2/ GPS GND. None. Unstable GND for the GPS &

Antenna. Signal may be lost. DTC

will be set.

FAKRA Triple Connector/ PIN 1/

Main Antenna-Phone RF.

Main Antenna will be grounded. No

RF signal from/to Main Antenna.

DTC will be set.

No RF signal from/to Main Antenna.

DTC will be set.

FAKRA Triple Connector/ PIN 2/

Main Antenna GND. None. Unstable GND for the Main Antenna.

Signal may be distorted.

FAKRA Triple Connector/ PIN 3/

Portable Antenna - Phone RF.

Portable Antenna will be grounded.

No RF signal from/to Portable

Antenna. DTC will be set.

No RF signal from/to Portable

Antenna. DTC will be set.

FAKRA Triple Connector/ PIN 4/

Portable Antenna GND. None. Unstable GND for the Portable

Antenna. Signal may be distorted.

FAKRA Triple Connector/ PIN 5/

Backup Antenna - Phone RF.

Backup Antenna will be grounded.

No RF signal from/to Portable

Antenna. DTC will be set.

No RF signal from/to Backup

Antenna. DTC will be set.

FAKRA Triple Connector/ PIN 6/

Backup Antenna GND. None. Unstable GND for the Portable

Antenna. Signal may be distorted.

4.3.3 MHI FMEA Table

BLOCK

Item Shorted to Battery Open. Shorted to Ground

Function

DIAG_TXD J1-1 None None None

DIAG_RXD J1-2 None None None

Ground J1-3 Attached Fuse will blow. increased current through J1-4 None

Ground J1-4 Attached Fuse will blow. increased current through J1-3 None

No Connect J1-5 None None None

HUC Data Shield J1-6 Attached Fuse will blow. Lower immunity to EMI. None

No Connect J1-7

None None None

No Connect J1-8 None None None

No Connect J1-9 None None None

CP_SHIELD J1-10 Attached Fuse will blow. Lower immunity to EMI. May have

additional noise on uplink audio. None

MIC SHIELD J1-11 Attached Fuse will blow. Lower immunity to EMI. May have

additional noise on uplink audio. None

MIC- J1-12

Loss or degradation of Microphone

(audio uplink) performance may

occur.

Loss or degradation of Microphone

(audio uplink) performance. Module will

go into Re-flash Mode. "No Phone" will

be displayed.

Loss or degradation of Microphone

(audio uplink) performance may

occur.

CP_MIC_OUT J1-13 No Downlink audio from ATX. No Downlink audio from ATX. No Downlink audio from ATX.

HUC_SKRIN+ J1-14

Degradation of downlink audio

quality. Lower noise immunity. Degradation of downlink audio quality.

Lower noise immunity. Degradation of downlink audio

quality. Lower noise immunity.

HUC_MICOUT+ J1-15

Degradation of uplink audio quality.

Lower noise immunity. Degradation of uplink audio quality.

Lower noise immunity.

HUC_MICOUT- J1-16

Degradation of uplink audio quality.

Lower noise immunity. Degradation of uplink audio quality.

Lower noise immunity.

HUC_BATT J1-17 None Loss of cradle functionality, loss of

communication with Cradle Fuse will blow.

HUC_GROUND J1-18 Attached Fuse will blow. MHI module may go into re-flash mode

and will cause excess current draw. None

4.0 Troubleshooting Section

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

HUC_AUDIO Shield J1-19

Attached Fuse will blow. Lower immunity to EMI. May have

additional noise on uplink and downlink

audio. None

V_BATTERY J1-20 None Higher current will be seen on J1-21 7.5 amp Fuse will Blow

V_BATTERY J1-21 None Higher current will be seen on J1-20 7.5 amp Fuse will Blow

HUC_TXD- J1-22 None Loss of cradle functionality, loss of

communication with Cradle Fuse or 0 ohm jumper will blow.

HUC_TXD+ J1-23 None Loss of cradle functionality, loss of

communication with Cradle Fuse or 0 ohm jumper will blow.

MOST_WAKE J1-24

MOST ring will not be able to

wakeup. MOST ring will not be able to wakeup. MOST bus kept on, excess current

draw, may cause battery drain.

HUC_RXD+ J1-25

Loss of cradle functionality, loss of

communication with Cradle Loss of cradle functionality, loss of

communication with Cradle

HUC_RXD- J1-26

Loss of cradle functionality, loss of

communication with Cradle Loss of cradle functionality, loss of

communication with Cradle

HUC_SPKRIN- J1-27

Degradation of downlink audio

quality. Lower noise immunity. Degradation of downlink audio quality.

Lower noise immunity. Degradation of downlink audio

quality. Lower noise immunity.

Compensator J1-28 degradation of cellular performance degradation of cellular performance degradation of cellular performance

MIC1 J1-29

Degradation of audio quality on

uplink. DTC 670 Degradation of audio quality on uplink.

DTC 670 Degradation of audio quality on

uplink. DTC 671

MIC2 J1-30

Degradation of audio quality on

uplink. DTC 672 Degradation of audio quality on uplink.

DTC 672 Degradation of audio quality on

uplink. DTC 673

MIC3 J1-31

Degradation of audio quality on

uplink. DTC 674 Degradation of audio quality on uplink.

DTC 674 Degradation of audio quality on

uplink. DTC 675

MIC4 J1-32

Degradation of audio quality on

uplink. DTC 676 Degradation of audio quality on uplink.

DTC 676 Degradation of audio quality on

uplink. DTC 677

FAKRA Single Connector/

PIN 1/ Bluetooth

Signal & Antenna Power.

No Bluetooth RF Signal, no

Antenna Power. Loss of

functionality. DTC 6A2 will be set.

No Bluetooth RF Signal, no Antenna

Power. Loss of functionality. DTC 6A1

will be set.

No Bluetooth RF Signal, no

Antenna Power. Loss of

functionality. DTC 6A1 will be set.

FAKRA Single Connector/

PIN 2/ Bluetooth

GND. Attached Fuse will blow. Degradation in Bluetooth Performance None

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

4.4 Preliminary Troubleshooting Procedure

1. Verify the Problem

Assure that the problem is not due to operator error. It is important that the operator is familiar

with how the telephone package functions. Refer to the owner’s manual for specific phone

function capability.

2. Verify that the Handset is the Correct One for the Customer’s Coverage Area

Handset part numbers are carrier dependent. If the part number of the handset does not

correspond with the carrier specific number, the phone will not function properly and will appear

to be defective. Refer to the parts department to find the correct handset type (CDMA or

TDMA), and carrier specific part number for the customer’s carrier preference.

The part numbers can also be found on the web at: http://www.mbusaphones.com. This site is

provided by Motorola and is intended for dealer use only. The site is password protected. Enter

"mbusa" for the "User Name" entry, and "k2option" for the "Password", both entries need to

be in lower case letters, and then select “O.K.”.

3. Assure that the Handset is Programmed Correctly

Assure that the phone is properly programmed and activated. If the customer is switching cell

service from analog to digital, inform the carrier that the new phone is digital to avoid activation

problems. Make a test call to verify that the carrier has activated the phone, and that it has been

programmed correctly.

4. Assure that the System is Installed Properly

Inspect the installation of the system. Assure that all component connections and wiring

connectors are properly connected. Assure that the Compensator has not been installed

backwards (reversed in the antenna line).

5. Check Applicable Fuses

Assure that all fuses are good. In addition to checking the fuses for the phone system, other

vehicle systems which interface with the telephone package might have a blown fuse, such as the

radio, etc, which would affect the operation of the phone functions. If a fuse is blown, determine

the cause to eliminate the problem from reoccurring.

6. Signal Quality

If the problem is poor signal quality, assure that it is not a carrier problem. Eliminate the

possibility of a cell site malfunction or other carrier related anomaly by calling the customer’s

carrier to verify that they are not experiencing technical problems. A bad signal could also be the

result of the operator being outside of, or on the edge of, a carrier provider’s coverage area.

4.0 Troubleshooting Section

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

Tall buildings, hills or mountains, valleys, inside buildings, etc, can "block" the RF signal and

give a false impression that the telephone package is defective. Some examples would be, inside

the center of a building with few or no windows, an under-ground parking facility where the

signal is virtually blocked in both directions (receive/transmit) by the structure, driving through

tunnels, etc.

7. Inspect the Coil Cord

Assure that the phone to coil cord connection is good. Closely inspect the male connection at the

end of the coil cord and the female connection on the bottom end of the handset for missing or

damaged pins, corrosion, etc.

8. Assure that all Components are Receiving Power and have a good Ground Path

Refer to the electrical diagrams in section 4 to assure that power and ground is present for each

component.

9. Inspect and Test the Handset

Use a known good handset to determine whether the problem is with the portable or mobile mode.

Test a known good handset in the mobile mode. If the system functions correctly with a known

good handset, then the mobile side of the system is not likely the problem. Make several trials

with the known good handset and the original, to rule out the possibility of an intermittent

problem with either mode.

If the problem is suspected to be with the portable mode, assure that the battery is fully charged

and not defective. Use a known good battery when testing in portable mode. Inspect the handset’s

antenna for damage and assure that it is properly secured and extended when testing in portable

mode.

The handset utilizes different circuitry internally for each mode; therefore a handset might operate

correctly in the portable mode but not in the mobile mode. For example if the coil cord receptacle

on the bottom of the handset is defective, then the handset would function properly in the portable

mode, but may present integration issues when handset is placed in cradle for mobile mode.

Assure that the handset is not using the "Lock" security feature before troubleshooting the system.

The handset will not function if the phone is locked. Assure that steps ‘1’ thru ‘9’ have been

performed before deciding that a component is defective and returning it to the warranty

department.

10. Troubleshooting Procedures

If all of the steps in this procedure have been completed, and the problem was not found, then go

to the troubleshooting procedures that pertain to the malfunction (sections 6.2 thru 6.10) and

continue with the problem-solving process.

4.0 Troubleshooting Section

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

4.4.1 Handset Keypad Or Display Problems

1. With the phone in portable mode (disconnected from the vehicle), turn on the

phone. With the phone still on, press “8” twenty times.

Does the handset display show twenty “8’s” with all segments?

Yes – All display segments are functioning. Go to Step B.

No – Handset display segments incomplete. Handset is defective. Replace. END

2. With the phone still on, press and hold CLR for 2 seconds. Press 123456789*0#.

Does the handset display 1-2-3-4-5-6-7-8-9*-0-#?

Yes – Tested buttons on the handset are functioning properly. Press and hold the CLR button for 2

seconds. Go to STEP C.

No – Handset buttons are not functioning properly. Handset is defective. Replace. END

3. Press “RCL-END”, “STO-END”, “CLR-END”, “FCN-END”, “Mail-END”,

“SENDEND”.

Is a beep heard for each key pressed in the above sequence? Yes –

Tested buttons on the handset are functioning properly. END No –

Defective button detected on handset. Replace. END

4.4.2 No Battery Charging While Plugged Into the Vehicle

1. Place the portable with a battery installed in the vehicle’s holder with coil cord

plugged into the phone. Turn on the ignition and check the battery indicator on the portable’s

display.

Is the battery indicator flashing?

Yes – The PSE system is operating properly. Go to Step 3

No – Substitute a known good battery.

Is the battery indicator flashing?

Yes – Original battery was defective. END No

– Reinstall original battery. Go to Step 2

2. Substitute a known good coil cord. Power up the phone system.

Is the battery indicator flashing?

Yes – Original coil cord is defective. END

No – Reinstall the original coil cord. Go to Step 3.

3. Substitute a known good phone. Power up the phone system.

Is the battery indicator flashing?

Yes – Original phone is defective. END

No – Reinstall original phone. Go to Step 4.

4.0 Troubleshooting Section

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

4. Substitute a known good PSE, and with the ignition on, connect the coil cord

to the portable with the battery installed on the portable.

Is the battery indicator flashing?

Yes – Original PSE was defective. END No

– Reinstall original PSE. Go to Step 5.

5. Substitute a 25-pin sub-wire harness. Power up the phone system.

Is the battery indicator flashing?

Yes – Original 25-pin sub-wire harness is defective. END

No – Call the Mercedes-Benz Regional Technical Support Specialist for assistance.

4.4.3 Phone Does Not Power Up

1. Does phone power up in Portable Mode (coil cord unplugged)? Yes – Go

to STEP 2. No – Remove the battery; inspect battery connectors between the handset and

battery.

Are handset battery connectors in good condition?

No - If broken or non-repairable, replace the handset. Call service provider to activate new

handset ESN. Perform “Initial installation checks”. END

Yes - Install a freshly charged battery.

Does the phone power up in Portable Mode (coil cord unplugged)?

No - Handset is defective. Replace the handset. Call service provider to activate

new handset ESN. Program phone in Portable Mode (coil cord unplugged). Enter

customer’s security and unlock code. Enter numbers stored in memory (enter them

one at a time). If numbers not available, advise customer that numbers were not

retrievable from handset. Perform “Initial Installation Checks”. END

Yes - Charge customer’s battery enough to test. (8 hours on overnight charger or ½

hour in vehicle with coil cord connected.)

Does the phone power up in Portable Mode (coil cord unplugged)?

No - Perform the Basic Battery Tests on the troubleshooting chart.

Yes - Inform customer of correct charging procedure and maintenance. Also

inform customer about approximate talk times. END

2. Does the phone power up in the Mobile Mode (coil cord plugged

in)? Yes - With the phone powered up, shake the coil cord.

Does the phone stay "ON"?

Yes - No problem found. Secure further information from the customer. END No

- Go to STEP 3.

4.0 Troubleshooting Section

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

No - Go to STEP 3.

3. Install new coil cord.

Does phone power up in Mobile Mode (coil cord plugged in)?

Yes - With the phone powered up, shake the coil cord.

Does the phone stay "ON"?

Yes - Coil cord defective. END

No - Reinstall original coil cord. There is a connection problem between the coil cord and

the handset. Carefully clean the connectors and retry. END

No - Reinstall original coil cord. Go to STEP 4.

4. Gain access to the PSE and RF compensator.

5. Are the connectors of the Y harness firmly connected with the RF compensator

and PSE?

Yes - Go to STEP 7.

No - Reseat Y harness connectors.

Does the phone power up?

Yes - Y harness improperly connected. END No

- Go to STEP 6.

6. Disconnect the Y harness from the PSE.

7. Turn the ignition on.

8. Check for battery voltage at pins 4 and 16 of the 25-pin connector for the PSE.

Is battery voltage available at each location?

Yes - Go to STEP 9.

No - Remove the Y harness.

With the ignition on, is voltage present at pins 4 and 16 of the 25-pin connector of the

vehicle pre-wire?

Yes - Replace the Y harness. END

No - Repair vehicle wiring/fuse between the battery and the 25-pin connector of the

vehicle pre-wire Use appropriate Electrical Wiring Diagram manual to locate best test

locations. END

9. Check pins 3 and 17 of the PSE connector of the Y harness for proper

continuity to ground.

Continuity to ground confirmed?

Yes - Go to STEP 10.

No - Remove the Y harness. Check for continuity between pins 3 and 17 of the 25-pin connector

of the vehicle pre-wire and ground.

4.0 Troubleshooting Section

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

4.0 Troubleshooting Section

Continuity to ground confirmed?

Yes - Replace the Y harness. END

No - Repair faulty ground connection between vehicle pre-wire and ground. Use

appropriate Electrical Wiring Diagram manual to locate best test locations. END

10. Reconnect Y harness connector to the PSE.

Does the phone power up in the Mobile Mode (coil cord plugged in)?

Yes - Clean and tighten connections that have been moved. END No - Go

to STEP 11.

11. Disconnect the RF compensator. (Leave the PSE connected).

Does the phone power up in the mobile mode?

Yes - Original RF compensator defective. END

No - Reconnect the RF compensator. Go to STEP 12.

12. Install a known good PSE.

Does the phone power up?

Yes - Original PSE defective. END

No - Reinstall original PSE. Go to STEP 13.

13. Substitute a known good coil cord.

Does the phone power up?

Yes - Coil cord defective. END No

- Go to STEP 14.

14. Substitute a known good Y harness.

Does the phone power up?

Yes - Defective Y harness. END

No - Reinstall original Y harness. Go to STEP 15.

15. Install a known good portable phone. (No need to program)

Does the phone power up?

Yes - Original portable phone faulty.

A. Call service provider to activate new ESN.

B. Program phone in Portable Mode (coil cord unplugged).

C. Transfer numbers stored in memory. (Enter them one at a time.)

D. Perform "Initial Installation" checks. END

No - Reinstall original portable phone. Not a cellular phone problem. Inspect vehicle wiring.

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

4.4.4 No Keypad Tones And/Or No Incoming Audio In Hands-free

Mode From Vehicle Speakers

1. Turn on the ignition and turn on the phone. In the Mobile Mode (coil cord plugged

in), listen for tones when the portable handset keys are pressed.

2. Are tones audible from speakers? Yes - With the coil cord plugged in and the

handset in the cradle, place a hands-free call and listen for incoming audio at the appropriate door

speaker.

Incoming audio heard?

Yes - No trouble found. Get further information from the customer. END No

- Key tones are heard-no incoming audio. Go to STEP 3.

No - Ensure "Keypad Tone" feature is turned on. To access "Feature Menu" press "FCN-1" and

use "#" or "*" to scroll and locate "Tone Control," press "STO." Use "#" or "' to scroll and locate

"Keypad Tones. If “Keypad Tones Off” is displayed, press the smart key to turn tones back on.

Are tones audible from speakers?

Yes - Improper programming-programming corrected. END No

- Tones are not audible from keypad. Go to STEP 4.

3. During the hands-free call, can the land party hear

you? Yes - Go to STEP 18. No - Go to STEP 15.

4. Dial a number on the head unit and attempt to place a call to the number dialed.

Call placed?

Yes - Go to STEP 9.

No – Check the connections of the D2B cable into the PSE and into the vehicle cabling. Go to

STEP 6.

5. Listen for tones when handset keys are pressed.

Tones heard at speaker?

Yes – Poor connection caused problems. END

No – Replace the D2B fiber optic cable, which connects to the PSE with a known good cable. Go

to STEP 7.

6. Listen for tones when handset keys are pressed.

Tones heard at speaker?

Yes – Defective D2B cable. END

No – Substitute a known good PSE. Go to STEP 8.

4.0 Troubleshooting Section

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

7. Listen for tones when handset keys are pressed.

Tones heard at speaker?

Yes – Defective PSE. END

No – Replace original PSE. Not a cellular phone related problem. Repair head unit or vehicle

wiring problem.

8. Check connections of PSE 25 pin Y harness cable to make sure connectors are firmly

mated. Go to STEP 10.

9. Listen for tones when handset keys are pressed.

Tones heard at speaker?

Yes – Poor connection caused problem. END

No – Replace the PSE 25 pin Y harness cable with a known good cable. Go to STEP 11.

10. Listen for tones when handset keys are pressed.

Tones heard at speaker?

Yes – Defective Y harness. END

No – Replace the Y harness cable with the original. Go to STEP 12.

11. Replace the PSE with a known good PSE. Listen for tones when handset keys are

pressed.

Tones heard at speaker? Yes

– Defective PSE. END

No – Re-install the original PSE in the vehicle. Go to STEP 13.

12. Replace the coil cord with a known good coil cord. Listen for tones when handset keys

are pressed.

Tones heard at speaker?

Yes – Defective coil cord. END

No – Re-install the original coil cord in the vehicle. Go to STEP 14.

13. Replace the phone with a known good phone. Listen for tones when handset keys are

pressed.

Tones heard at speaker?

Yes – Defective phone. END

No – Not a cellular phone related problem. Repair vehicle wiring. END

14. Substitute a known good Y harness. Place a hands-free call (coil cord plugged in) with

handset in cradle.

Can both parties be heard?

Yes - Original Y harness faulty. END

4.0 Troubleshooting Section

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

No - Reinstall original Y harness and substitute a known good coil cord. Go to STEP 16.

15. Power up phone and listen for tones when handset keys are pressed.

Tones heard at speaker?

Yes - Defective coil cord. END

No - Reinstall original coil cord and substitute a known good PSE. Go to STEP 17.

16. Place a hands-free call (coil cord plugged in) with handset in cradle.

Can both parties be heard?

Yes - Original PSE faulty. Perform "Initial Installation" checks. END

No - Reinstall original PSE. Call Mercedes-Benz Regional Technical Support for further

assistance. END

17. Check for tight/good connections of the Y harness and PSE.

Place a hands-free call. Can you hear the land party?

Yes - Loose connections caused problem. END No - Go

to STEP 19.

18. Substitute a known good PSE. Place a hands-free call.

Can you hear the land party?

Yes - Original PSE faulty. Perform "Initial Installation" checks. END

No - Reinstall original PSE. Call technical support number for further assistance. END

4.4.5 Static During Calls And/Or Dropped Calls

These types of problems usually require detailed input from the customer. The questions asked of

the customer will greatly assist in obtaining a correct conclusion. MOST OF THE PROBLEMS

IN THIS AREA ARE RELATED TO POOR COVERAGE BY THE SYSTEM PROVIDER.

Most complaints relating to the performance of the cellular telephone are not due to a malfunction

of the Telephone System or the Cellular Network itself. It is more likely that the cause lies in the

characteristics inherent to wireless communications. Radio signals both transmitted and received

by the cellular telephone work best when there is an unobstructed path between the phone's

antenna and the network's "base site" antennas. Because of the reflecting characteristics of the

cellular phone radio signal, directed and reflected signals may reach the antenna at the same time

("multi-path"). They cancel each other out, creating small "islands" where audio “nulls” occurs.

As the car moves through these spots, the caller will hear a momentary flutter. This same

characteristic causes "ghost" images in television when an airplane flies over. Multi-path can also

cause a "cross-talk" phenomenon, where the driver may temporarily hear another cellular

conversation.

Common symptoms, which may occur in a cellular conversation, are: o

Static, Lack of coverage or "multi-path" condition.

4.0 Troubleshooting Section

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

o Cross talk: The cellular telephone has captured a "voice channel" from another base site

due to weak coverage or multi-path condition. This is a landline or system coverage

problem.

o Dropped calls: Weak coverage area, multi-path condition, or "system" drop.

o Clicks/occasional chopped word: System handoff to another base site.

o Increased/decreased volume at either landline or vehicle.

o Echo or feedback: The current "voice channel" that the system has assigned to the

cellular telephone has a higher or lower gain, or more or less "side tone," compared to a

previous channel.

It is extremely important to confirm that there is in fact good coverage in the area where

difficulties are encountered. "Dead" or "Black" zones are very prevalent in. all areas.

1. In which mode below are static or dropped

calls experienced?

A. Portable Mode only (coil cord unplugged).

Go to STEP 2.

B. Mobile Mode only (coil cord plugged in).

Go to STEP 4.

If the problem exists in both the Mobile and Portable Modes-most likely this is a cellular system

problem and not the phone in the vehicle. If available, compare to another phone on the same

cellular provider. If this is not possible, use the Portable Mode (A) test first and then proceed

with the Mobile Mode (B) test.

2. In the Portable Mode (coil cord unplugged), is the static/dropped call condition Not

Evident Now (Intermittent) or Evident Now (Continuous)?

Not Evident Now (Intermittent) -Question the customer to determine if he/she has noted a pattern

such as the same location, time of day, or type of geography (hills, valleys, tunnels, etc.) during

which the static/dropped call problem occurs and what is the SSM (Signal Strength Meter) at the

time of the occurrence. (As with any intermittent complaint, do not replace parts without

confirming the condition.) Record all information on the "Troubleshooting Questionnaire."

Is Signal Strength Meter High or Low (Portable Mode)?

High - 3 bars or more. Go to STEP 3.

Low - 2 bars or less. Most probable no malfunction exists. Some static is normal in this range and

it is likely that calls could be dropped if conditions change, but reconfirm that antenna is in good

condition and properly installed. Ask customer to gather more data if condition persists, paying

particular attention to the SSM. END

Evident Now (Continuous -meaning it is present now!) - Place a call to reconfirm the noise.

Make sure signal strength is 3 bars or more! Obtain another Portable Plus phone. Place a call

from each unit in the same area in Portable Mode.

4.0 Troubleshooting Section

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

Do both units exhibit the same problem?

Yes - Not a fault with the phone. This may be a temporary cellular system issue. END

No – Are both phones on the same carrier?

Yes - Customer handset is malfunctioning. Replace handset.

A. Call service provider to activate new ESN.

B. Program phone in Portable Mode (coil cord unplugged).

C. Transfer numbers stored in locations 1-99. (Enter them one at a time.)

D. Perform "Initial Installation" checks. END No - The two phones are on

different carriers. Locate a test phone on the same carrier and repeat the test procedure.

Static may be on one carrier, but not on the other.

Do both units exhibit the same problem?

Yes - Not a fault with the phone. END

No - If original phone still exhibits the problem, the handset is faulty; replace

handset.

A. Call service provider to activate new ESN.

B. Program phone in Portable Mode (coil cord unplugged).

C. Transfer numbers stored in locations 1-99. (Enter them one at a

time.)

D. Perform "Initial Installation" checks. END

3. Place a few calls in Portable Mode (coil cord unplugged), listening for static or a

dropped call.

Static/dropped call experienced? (If not sure, compare with another unit, if available.)

No - Describe to the customer the cellular system characteristics that will cause these problems,

and advise of areas that may cause static/dropped calls. Also have the customer check the

SSM at the time of the occurrence. Advise the customer that a Low SSM will have static

and the strong possibility of dropped calls. END

Yes – Check the System ID and phone number information. (Refer to phone manual for

instructions.)

Is information correct for chosen carrier?

Yes - Place a few more calls to reconfirm the condition.

Is static/dropped call experienced?

Yes - Original handset faulty. Replace handset.

A. Call service provider to activate new ESN.

B. Program phone in portable mode (coil cord unplugged).

C. Transfer numbers stored in locations 1-99. (Enter them one at a time.)

D. Perform "Initial Installation" checks. END

No - Describe to the customer the cellular system characteristics that will cause

these problems, and advise of areas that may cause static/dropped calls. Also

have the customer check the SSM at the time of the occurrence. Advise the

customer that a Low SSM will have static and the strong possibility of

dropped calls. END

4.0 Troubleshooting Section

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

No - Correct programming error and retest for static/dropped calls by placing a few calls

in Portable Mode (coil cord unplugged). (Refer to Easy Programming Card or call

Motorola Technical Support for instructions)

Is static/dropped call experienced (Portable Mode)?

Yes - Original handset faulty Replace handset.

A. Call service provider to activate new ESN.

B. Program phone in Portable Mode (coil cord unplugged).

C. Transfer numbers stored in locations 1-99. (Enter them one at a time.)

D. Perform "Initial Installation" checks. END

No – Programming error caused problems. END

4. In the Mobile Mode (coil cord plugged in) is the static/dropped call condition

Evident Now or Not Evident Now?

Not Evident Now (Intermittent) - Question the customer to determine if he/she has noted a

pattern such as the same location, time of day, or type of geography (hills, valleys, tunnels, etc.)

during which the static/dropped calls problem occurs and what is the SSM at the time of the

occurrence. (As with any intermittent complaint, do not replace parts without confirming the

condition.)

Turn on ignition and power up the phone.

Is the SSM 3 bars or more?

Yes - High (3 bars or more) - Go to STEP 5.

No - Low (Less than 3 bars) - Go to STEP 6.

Evident Now (Continuous--meaning It is present NOW) - Place a few calls to reconfirm the

complaint is evident now.

Is static/noise present during the calls?

Yes - Go to STEP 8.

No - Problem not evident at this time. Question the customer to determine if he/she has noted a

pattern such as the same location, time of day, or type of geography (hills, valleys, tunnels,

etc.) during which the static/dropped call problem occurs and what is the SSM at the time of

the occurrence. (As with any complaint, do not replace parts without confirming the

condition.) Record all information on the "Troubleshooting Questionnaire." END

5. Place a few calls to try and confirm customer complaint.

Is customer complaint confirmed?

Yes - Use Evident Now (Continuous) Path. Go to STEP 8.

No - Go to STEP 7.

6. Move the vehicle to several locations with good system

coverage. Will the SSM indicate a signal greater than 3 bars or more?

4.0 Troubleshooting Section

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

Yes - Most probable that no malfunction exists. Some static is normal in the 2 bar or less range

and it is likely that calls could be dropped if conditions change, but reconfirm that antenna is in

good condition and properly installed. Ask customer to gather more data if condition persists,

paying particular attention to the SSM. END

No - Access the compensator and connect the magnetic mount antenna to the compensator

connector marked "antenna. Place the magnetic mount "antenna" at the vehicle roof level.

Will the SSM indicate a level higher than 2 bars?

Yes - Reconnect the vehicle's antenna. Go to STEP 11.

No - Disconnect the 5-pin connector and both coaxial connectors from the compensator. Do not

disconnect the 25-pin connector from the PSE. (Note: It is OK to leave the compensator dis-

connected during this test.) Place a double-sided female adapter between the two-coax ends, thus

bypassing the compensator.

Does the SSM indicate a level higher than 2 bars?

Yes - Original compensator defective. Replace and confirm. END

No - Reconnect the 5-pin connector and antenna coax cables to the compensator. Disconnect coil

cord coax connector, install double-sided female adapter to the coil cord and attach magnetic

mount antenna.

Does the SSM indicate a level higher than 2 bars?

Yes - Original antenna cable defective. END NO -

Replace coil cord with known good cord.

Does the SSM indicate a level higher than 2 bars?

Yes - Original coil cord faulty. END

No - Reinstall original coil cord. Substitute a known good handset (no need to program).

Does the SSM indicate a level higher than 2 bars?

Yes - Original handset faulty Replace handset.

A. Call service provider to activate new ESN.

B. Program phone in Portable Mode (coil cord unplugged).

C. Transfer numbers stored in locations 1-99. (Enter them one at a time.)

D. Perform "Initial Installation" checks. END

No - Reinstall original handset. Reconfirm condition. Contact Mercedes-Benz Regional

Technical Support Specialist for assistance. Document further diagnostic procedures,

results, repairs, and time used on work order. END

7. During a test call; shake, twist, and move the coil cord around.

Is static/noise present or does it change while shaking or moving the coil cord?

Yes - Substitute a new coil cord and place a few calls while shaking the coil cord as before.

Is static/noise present or does it change while shaking or moving the coil cord?

Yes - Reinstall original coil cord. Go to STEP 11.

No - Defective coil cord. END

No - Go to STEP 8

4.0 Troubleshooting Section

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

8. Start engine and place a call. While hearing static/noise during the call, vary engine

speed.

Is the complaint of static/noise engine speed related?

Yes - Substitute a known good handset.

Noise gone?

Yes - Original handset faulty.

A. Call service provider to activate new ESN.

B. Program phone in Portable Mode (coil cord unplugged).

C. Transfer numbers stored in location 1-99. (Enter them one at a time.)

D. Perform "Initial Installation" checks. END

No - If problem persists, contact Mercedes-Benz Regional Technical Support Specialist

for assistance. Document further diagnostic procedures, results, repairs, and time

used on work order. END

No - With the ignition on, power up the phone.

Is SSM 3 bars or more?

Yes - Go to STEP 9.

No - Move vehicle to a known good cellular coverage area.

Is SSM 3 bars or more?

Yes - Go to STEP 9.

No - Go to STEP 6.

9. During a test call shake, twist, and move the coil cord around.

Is static/noise present or did it change while shaking or moving the coil cord?

Yes - Substitute a new coil cord and place a few calls while shaking the coil cord as before.

Is static/noise present or did it change while shaking or moving the coil cord?

Yes - Reinstall original coil cord. Go to STEP 10. No - Original coil cord defective.

END

No - Go to STEP 10.

10. Visually inspect antenna cable for loose connections and antenna for proper installation.

Are connections loose or damaged?

Yes – Fix connection.

Is static/noise present?

Yes – Continue to step 11.

No – Original connection defective. END

No – Continue to step 11.

11. Visually inspect antenna cable for loose connections at the coil cord and compensator.

Are connections loose or damaged?

Yes – Fix connection.

4.0 Troubleshooting Section

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

Is static/noise present?

Yes – Continue to step 12.

No – Original connection defective. END

No – Continue to step 12.

12. If problem persists, replace PSE, make phone several phone calls.

Is static/noise present?

Yes – Reinstall original PSE. Go to Step 13.

No – Original PSE was defective. END

13. Replace 25 pin Y cable, make several phone calls.

Is static/noise present?

Yes – Reinstall original Y cable. Go to Step 14.

No – Original Y cable was defective. END

14. Temporarily install a vehicle specific wiring harness between armrest connectors and Y

cable, make several test phone calls.

Is static/noise present?

Yes – Reconnect original pre-wire. Go to 15.

No – Original pre-wire was defective. END

15. Contact Mercedes-Benz Regional Technical Support Specialist for further assistance.

Document further diagnostic procedures, results, repairs and time used on work order.

END

4.4.6 No Handset Audio (Transmit or Receive) or Landline Cannot

Hear Mobile On Handset Or Mobile Cannot Hear Landline On

Handset.

The diagnostics that follow assume that the phone operates normally in Portable Mode (Coil

Cord Unplugged). Please confirm prior to continuing.

1. Verify complaint by making a handset call (coil cord plugged in); during the call, shake

the handset several times.

Can both parties hear each other?

Yes- Problem not evident at this time. Get more information from the customer. End.

No- Transmit /receive audio not heard. Go To STEP 2.

2. Verify 10-pin connector in center armrest is not damaged (bent or missing pins). If

damaged replace, otherwise substitute a known good 10-pin connector.

Can both parties hear each other?

4.0 Troubleshooting Section

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

4.0 Troubleshooting Section

Yes- Original 10-pin connector was damaged or defective. END

No- Reinstall original 10-pin connector. Go To STEP 3.

3. Substitute a known good handset. (must be programmed with an active number). Place

test call.

Can landline hear you?

Yes- Original handset defective.

A. Call the service provider to activate new ESN.

B. Program phone in portable mode (coil cord unplugged). Enter customer’s security and

unlock code.

C. Transfer ALL of customer’s phonebook from old phone to new phone.

D. Perform “Initial Installation” checks to verify that phone functions properly in car.

END.

No- Reconnect original handset. Go To STEP 4.

4. Substitute a known good coil cord. Place test call.

Can landline hear you?

Yes- Original coil cord was defective. END No-

Reinstall original coil cord. Go To STEP 5.

5. Look at PSE for bent or damaged pins, if pins look good substitute a known good PSE.

Place test call.

Can landline hear you? Yes-Original PSE

defective. END No-Reinstall original PSE.

Go To STEP 6

6. Substitute a known good Y cable. Place test call.

Can landline hear you?

Yes- Original Y cable defective. END

No- Reinstall original Y cable. Go To STEP 7

7. Substitute a known good microphone. Place test call.

Can landline hear you?

Yes- Original microphone defective. END

No- Reinstall original microphone. Go To STEP 8

8. If after completing all of the above previous there is still a problem contact Mercedes-

Benz Regional Technical Support Specialist.

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

4.4.7 No Hands-free Transmit Audio/Called Party Cannot Hear You

The diagnostics that follow assume that the phone operates normally in Portable Mode (Coil Cord

Unplugged). Please confirm prior to continuing.

1. Verify complaint by making a hands-free call in the Mobil Mode (Coil Cord Plugged

in) with the flip closed.

Can land party hear your hands-free conversation?

Yes- Problem is not evident at this time- get more specific information from the customer

regarding the problem.

No- Can you hear land party?

Yes- Go To STEP 2

No- Test voice recognition and Tele-aid for proper ground, if grounded, Go To STEP 5

2. Verify 10 pin connector in center armrest is not damaged (bent or missing pins). If

damaged replace. Otherwise substitute a known good 10-pin connector. Place test call.

Can landline hear you?

Yes- Original 10-pin connector was damaged or defective. END

No- Reinstall original 10-pin connector. Go To STEP 3.

3. Try a known good handset. Place test call.

Can landline hear you?

Yes- Original handset defective.

A. Call the service provider to activate new ESN.

B. Program phone in portable mode (coil cord unplugged). Enter customer’s security and

unlock code.

C. Transfer ALL of customer’s phonebook from old phone to new phone.

D. Perform “Initial Installation” checks to verify that phone functions properly in car.

END.

No- Reconnect original handset. Go To STEP 4.

4. Substitute a known good coil cord. Place test call.

Can landline hear you?

Yes- Original coil cord was defective. END

No- Reinstall original coil cord. Go To STEP 6.

5. Verify the Hands-free volume is turned to a high enough level that you can hear it.

6. Look at PSE for bent or damaged pins, if pins look good substitute a known good PSE.

Place test call.

Can landline hear you? Yes-Original PSE

defective. END No-Reinstall original PSE.

Go To STEP 7

7. Substitute a known good Y cable. Place test call.

4.0 Troubleshooting Section

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

Can landline hear you?

Yes- Original Y cable defective. END

No- Reinstall original Y cable. Go To STEP 8

8. Substitute a known good microphone. Place test call.

Can landline hear you?

Yes- Original microphone defective. END

No- Reinstall original microphone. Go To STEP 9

9. If after completing all of the above and there is still a problem, contact your Mercedes-

Benz Regional Technical Support Specialist.

4.4.8 No SVC Indicator Stays On

Prior to proceeding, verify that there is cellular coverage in the area in which the repairs are being

conducted. Powering up a known good phone, which uses the same cellular provider in the service area,

and confirming that the “No SVC” indicator goes out can do verification.

1. Is the "NO SVC" indicator staying on in the PORTABLE mode (coil cord unplugged)?

No- Go to next STEP

Yes - Please verify the phone setting. (Refer to the users menu about phone programming). END.

2. Is the "NO SVC" indicator staying on in the MOBILE mode (coil cord plugged in)? No-

Customer may have inadvertently left home service area or powered up phone in an area of

highly restricted signal strength (underground parking, etc). Obtain further information

from the customer. END.

Yes - Go to next STEP

3. Visually inspect antenna cable connections at center console and the compensator.

Confirm that the antenna is attached to the connector marked "antenna" on the compensator.

Is installation correct?

No- Install components correctly.

Did "NO SVC" indicator go off?

No- Go to next STEP.

Yes- Improper antenna/installation connection. END.

Yes - Go to next STEP.

4. Disconnect antenna from compensator connector marked "antenna" and connect the

magnetic mount test antenna to the compensator connector marked "antenna" and place antenna at

vehicle roof level.

Is "NO SVC" indicator off?

No- Go to next STEP.

Yes - Replace the cable or the antenna. END.

4.0 Troubleshooting Section

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

5. Install a known good compensator. Connect vehicle antenna to connector marked

"antenna" on the compensator.

Is "NO SVC" indicator off?

No- Reinstall original compensator. Go to next STEP.

Yes - Original compensator faulty. Perform "Initial Installation" checks. END.

6. Disconnect the coil cord RF connector at the center console. Install a double-sided

female adapter on the coil cord RF connector and attach the magnetic mount antenna.

Is the "NO SVC" indicator off?

No- Go to next STEP.

Yes - Antenna cable between coil cord and the compensator defective. END.

7. Install a known good coil cord.

Is the "NO SVC" indicator off? No

- Go to next STEP.

Yes - Original coil cord defective. END.

8. Install a known good portable phone.

Is the "NO SVC" indicator off?

No- Contact the Mercedes-Benz Regional Technical Support Specialist as no other components

can be involved. Document further diagnostic problems, results, repairs and record on work

order. END.

Yes - Original portable phone defective. END.

4.4.9 Complete Loss of Vehicle System Audio

Any of the devices in the list below can cause loss of system audio. The specific device

configuration will vary depending on the options installed and the vehicle type. Use the basic

troubleshooting technique below for all devices except the head control unit, also reference

phone manual for further information.

 Head control unit

 Audio amplifier

 Voice recognition module

 Phone Support Electronics module

 CD player

 Tele-Aid II module

LEVEL 1: Basic Device Troubleshooting Technique

1. One device at a time, remove the fiber optic (D2B) cable and complete the D2B network by

connecting a jumper joining the 2 ends of the cable just removed.

2. Power cycle the Head Unit off and on. Select radio function.

4.0 Troubleshooting Section

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

4.0 Troubleshooting Section

Can radio audio be heard?

Yes – Replace the device now jumpered out. Power cycle the head control unit.

Can radio audio be heard?

Yes – Replaced device was defective. END

No – Inspect for damage on optical cable connecting to this device.

No – Put original device back in the D2B ring and repeat step 1 & 2 until all devices have been

bypassed. Go to LEVEL 2.

LEVEL 2: Head Unit Troubleshooting

1. Replace head unit.

Can radio audio be heard?

Yes – Original head unit defective. END

No – Inspect head unit optical cable for damage.

Is cable damaged?

Yes – Fix or replace damaged cable. END

No – All devices have been check. A defective cable is the most likely cause of the defect.

~ Use an optical jumper cable between devices to locate area of damaged cable.

Call Mercedes-Benz Regional Technical Support Specialist for assistance if pre-wire cabling defect

cannot be located.

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

5.0 Bill of Materials Section

Table of Contents

5.1 __ MY00 Antenna Application Matrix

5.2 __ MY00 StarTAC Bill of Materials

5.3 __ MY01 Timeport Bill of Materials

5.4 __ MY02 v.60 Bill of Materials

5.5 __ CP Module Bill of Materials

5.6 __ MHI Module Bill of Materials

5.0 Bill of Materials Section

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

5.1 MY00 Antenna Application Matrix

Part Numbers and Mounting Locations

Tele Aid Antennas

Vehicle AM/FM/WB GPS GPS Splitter Primary Back-Up Phone

129 820 16 75 129 820 19 75 129 820 21 75 129 820 16 75 129 820 16 75

R129 Pwr Ant. Mast 1 Trunk Lid n/a Bumper Pwr Ant. Mast 1, 2 Pwr Ant. Mast 1, 2

163 820 06 75 4

163 827 00 01 3

?163 820 06 75 4

M163

Rear Glass Roof Top n/a n/a n/a Roof Top

202 820 22 75

R170 Fender Mast n/a n/a n/a n/a Bumper

210 820 13 75 210 820 13 75 202 820 22 75

W202 Rear Glass Roof Top 5 n/a Roof Top 5 Under Hat Shelf Bumper

129 820 19 75 210 820 24 89 202 820 22 75 202 820 22 75

A208 Fender Mast 1 Trunk Lid Left Rear Wheel

Well Fender Mast 1 Bumper 6 Bumper 6

210 820 13 75 210 820 24 89 210 820 13 75 210 820 14 75 202 820 22 75

C208 Rear Glass Roof Top 5

Right Rear

Longitudinal

Chassis Member

Roof Top 5 Under Hat Shelf Bumper

210 820 13 75 210 820 24 89 210 820 13 75 210 820 14 75 202 820 22 75

W210 Rear Glass Roof Top 5 C-Pillar Passenger

Compartment Roof Top 5 Under Hat Shelf Bumper

210 820 13 75 210 820 24 89 210 820 13 75 202 820 22 75 202 820 22 75

S210 Left Rear

Side Glass Roof Top 5 C-Pillar Passenger

Compartment Roof Top 5 Bumper 6 Bumper 6

215 820 11 75 210 820 24 89 215 820 12 75 202 820 22 75 215 820 11 75

C215 Rear Glass Trunk Lid 5

(inside - left) Right Rear Quarter

Panel Trunk Lid

(inside-right) Bumper Trunk Lid 5

(inside - left)

220 820 17 89 220 820 13 75 210 820 24 89 220 820 13 75 210 820 18 75 210 820 18 75

V220 Rear Glass Shark Fin Right Rear Quarter

Panel Shark Fin Bumper 6 Bumper 6

1 Integrated AM/FM/WB/800 Mhz Cellular Antenna

2 Cellular mast antenna is shared. When telephone is installed RF switch Q 6 82 0430 is required.

3 Cellular antenna only

4 Integrated GPS and cellular antenna. Uses same vehicle coax ; signal is split at splitter 163 820 12 89 in radio compartment

5 Integrated GPS and cellular antenna.

6 When telephone is installed, bumper antenna is shared. RF switch Q 6 82 0430 is required.

5.0 Bill of Materials Section

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

5.2 MY00 StarTAC Bill of Materials

Vehicle Type MY2000 StarTAC S-Class Sedan

(

W220

)

MBUSA Sales Model# Q6820446 N/A

STANDARD TELEPHONE KIT OPTIONAL SBS KIT

DESCRIPTION MOTOROLA P/N MBNA P/N MOTOROLA P/N MBNA P/N

PSE SYN0234A Q6820460 SBS STANDARD

COMPENSATOR SYN8015A Q6820461 SBS STANDARD

DASA SBS MODULE SYN7103A Q6820422 SBS STANDARD

DASA SBS MODULE AUDIO TAPE SYN7603A P2703098 SBS STANDARD

HOLDER, ANTI-FLIP OPENING SYN8008A Q6820459 SBS STANDARD

INSTALL HDW, GENERAL SYN8013A Q6820462 SBS STANDARD

INSTALL HDW, SBS OPTION -- -- SBS STANDARD

INSTALL HDW, MISC. -- -- SBS STANDARD

CABLE, COILCORD SKN4974A Q6820464 SBS STANDARD

CABLE, D2B OPTICAL SKN4960A Q6820432 SBS STANDARD

CABLE, PSE/COMPSTR SKN4979A Q6820468 SBS STANDARD

CABLE, PSE/COMPSTR/D2B OPTICAL -- -- SBS STANDARD

CABLE, COAX EXTENSION -- -- SBS STANDARD

BRKT, PSE SYN7162A Q6820426 SBS STANDARD

BRKT, PSE/COMPENSATOR -- -- SBS STANDARD

BRKT, ANTENNA SWITCH SYN7161A Q6820431 SBS STANDARD

BRKT, DASA SBS MODULE SYN7163A Q6820429 SBS STANDARD

BRKT, COMPENSATOR SYN7164A Q6820427 SBS STANDARD

BRKT, PSE/COMPENSATOR/SBS -- -- SBS STANDARD

BRKT PSE/COMPEN/SBS/ANTSW -- -- SBS STANDARD

BRKT PSE/COMPEN/ANTSW -- -- SBS STANDARD

BRKT, PLASTIC SHIELD (SL ONLY) -- -- SBS STANDARD

BRKT, HOLDER MOUNTING -- -- SBS STANDARD

BRKT, CD-CHNGR BASEPLT (SL ONLY) -- -- SBS STANDARD

FALSE BOTTOM (A208 & C208 ONLY) -- -- SBS STANDARD

PTT LEVER: R129 -- -- SBS STANDARD

PTT LEVER: R170 -- -- SBS STANDARD

PTT LEVER: A208, C208, W210, S210 -- -- SBS STANDARD

PTT LEVER: W220, C215 -- -- SBS STANDARD

ANTENNA SWITCH SYN7195A Q6820430 SBS STANDARD

ADPTR, MALE SAP TO MALE MINI-U -- -- SBS STANDARD

TEMPLATE, INSTALLATION SJN9088A Q6820482 SBS STANDARD

FOAM "U" CHANNEL (SLK ONLY) -- -- SBS STANDARD

MANUAL, SBS ONLY SJN8956A P2710220099 SBS STANDARD

ANTENNA (M-CLASS ONLY) -- -- SBS STANDARD

5.0 Bill of Materials Section

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

Vehicle Type MY2000 StarTAC S-Class Coupe

(C215)

(INTRODUCED

1/00)

MBUSA Sales Model# Q6820524 N/A

STANDARD TELEPHONE KIT OPTIONAL SBS KIT

DESCRIPTION MOTOROLA P/N MBNA P/N MOTOROLA P/N MBNA P/N

PSE SYN0234A Q6820460 SBS STANDARD

COMPENSATOR SYN8015A Q6820461 SBS STANDARD

DASA SBS MODULE SYN7103A Q6820422 SBS STANDARD

DASA SBS MODULE AUDIO TAPE SYN7603A P2703098 SBS STANDARD

HOLDER, ANTI-FLIP OPENING SYN8008A Q6820459 SBS STANDARD

INSTALL HDW, GENERAL SYN8013A Q6820462 SBS STANDARD

INSTALL HDW, SBS OPTION -- -- SBS STANDARD

INSTALL HDW, MISC. -- -- SBS STANDARD

CABLE, COILCORD SKN4974A Q6820464 SBS STANDARD

CABLE, D2B OPTICAL SKN4984A TBD SBS STANDARD

CABLE, PSE/COMPSTR SKN4979A Q6820468 SBS STANDARD

CABLE, PSE/COMPSTR/D2B OPTICAL -- -- SBS STANDARD

CABLE, COAX EXTENSION -- -- SBS STANDARD

BRKT, PSE -- -- SBS STANDARD

BRKT, PSE/COMPENSATOR SYN7978A Q6820510 SBS STANDARD

BRKT, ANTENNA SWITCH -- -- SBS STANDARD

BRKT, DASA SBS MODULE SYN7977A Q6820509 SBS STANDARD

BRKT, COMPENSATOR -- -- SBS STANDARD

BRKT, PSE/COMPENSATOR/SBS -- -- SBS STANDARD

BRKT PSE/COMPEN/SBS/ANTSW -- -- SBS STANDARD

BRKT PSE/COMPEN/ANTSW -- -- SBS STANDARD

BRKT, PLASTIC SHIELD (SL ONLY) -- -- SBS STANDARD

BRKT, HOLDER MOUNTING -- -- SBS STANDARD

BRKT, CD-CHNGR BASEPLT (SL ONLY) -- -- SBS STANDARD

FALSE BOTTOM (A208 & C208 ONLY) -- -- SBS STANDARD

PTT LEVER: R129 -- -- SBS STANDARD

PTT LEVER: R170 -- -- SBS STANDARD

PTT LEVER: A208, C208, W210, S210 -- -- SBS STANDARD

PTT LEVER: W220, C215 SYN8055A Q6820512 SBS STANDARD

ANTENNA SWITCH -- -- SBS STANDARD

ADPTR, MALE SAP TO MALE MINI-U -- -- SBS STANDARD

TEMPLATE, INSTALLATION SJN9220A Q6820511 SBS STANDARD

FOAM "U" CHANNEL (SLK ONLY) -- -- SBS STANDARD

MANUAL, SBS ONLY SJN9358A P2710000 SBS STANDARD

ANTENNA (M-CLASS ONLY) -- -- SBS STANDARD

5.0 Bill of Materials Section

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

Vehicle Type MY2000 StarTAC CLK

CONVERTIBLE

(A208)

MBUSA Sales Model# Q6820440 Q6820448 (same for both CLKs)

STANDARD TELEPHONE KIT OPTIONAL SBS KIT

DESCRIPTION MOTOROLA P/N MBNA P/N MOTOROLA P/N MBNA P/N

PSE SYN0234A Q6820460 -- --

COMPENSATOR SYN8015A Q6820461 -- --

DASA SBS MODULE -- --

SYN7103A Q6820422

DASA SBS MODULE AUDIO TAPE -- --

SYN7603A P2703098

HOLDER, ANTI-FLIP OPENING SYN8008A Q6820459 -- --

INSTALL HDW, GENERAL SYN8013A Q6820462 -- --

INSTALL HDW, SBS OPTION -- --

SYN8138A Q6820463

INSTALL HDW, MISC. -- -- --

CABLE, COILCORD SKN4975A Q6820465 -- --

CABLE, D2B OPTICAL

ONE REQUIRED- TEL & SBS

PREWIRED

CABLE, PSE/COMPSTR SKN4979A Q6820468 -- --

CABLE, PSE/COMPSTR/D2B OPTICAL -- -- --

CABLE, COAX EXTENSION -- -- --

BRKT, PSE -- -- --

BRKT, PSE/COMPENSATOR -- -- --

BRKT, ANTENNA SWITCH -- -- --

BRKT, DASA SBS MODULE -- -- --

BRKT, COMPENSATOR -- -- --

BRKT, PSE/COMPENSATOR/SBS -- -- --

BRKT PSE/COMPEN/SBS/ANTSW SYN7974A Q6820476 -- --

BRKT PSE/COMPEN/ANTSW -- -- --

BRKT, PLASTIC SHIELD (SL ONLY) -- -- --

BRKT, HOLDER MOUNTING -- -- --

BRKT, CD-CHNGR BASEPLT (SL ONLY) -- -- --

FALSE BOTTOM (A208 & C208 ONLY) SYN6754A Q6820322 -- --

PTT LEVER: R129 -- -- --

PTT LEVER: R170 -- -- --

PTT LEVER: A208, C208, W210, S210 -- --

SYN8014A Q6820479

PTT LEVER: W220, C215 -- -- --

ANTENNA SWITCH SYN7195A Q6820430 -- --

ADPTR, MALE SAP TO MALE MINI-U -- -- -- --

TEMPLATE, INSTALLATION -- -- --

FOAM "U" CHANNEL (SLK ONLY) -- -- --

MANUAL, SBS ONLY -- --

SJN9358A P2710000

ANTENNA (M-CLASS ONLY) -- -- --

5.0 Bill of Materials Section

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

Vehicle Type MY2000 StarTAC CLK SEDAN (C208)

MBUSA Sales Model# Q6820439 Q6820448 (same for both CLKs)

STANDARD TELEPHONE KIT OPTIONAL SBS KIT

DESCRIPTION MOTOROLA P/N MBNA P/N MOTOROLA P/N MBNA P/N

PSE SYN0234A Q6820460 -- --

COMPENSATOR SYN8015A Q6820461 -- --

DASA SBS MODULE -- --

SYN7103A Q6820422

DASA SBS MODULE AUDIO TAPE -- --

SYN7603A P2703098

HOLDER, ANTI-FLIP OPENING SYN8008A Q6820459 -- --

INSTALL HDW, GENERAL SYN8013A Q6820462 -- --

INSTALL HDW, SBS OPTION -- --

SYN8138A Q6820463

INSTALL HDW, MISC. -- -- --

CABLE, COILCORD SKN4975A Q6820465 -- --

CABLE, D2B OPTICAL

ONE REQUIRED-TEL & SBS

PREWIRED

CABLE, PSE/COMPSTR SKN4979A Q6820468 -- --

CABLE, PSE/COMPSTR/D2B OPTICAL -- -- --

CABLE, COAX EXTENSION -- -- --

BRKT, PSE -- -- --

BRKT, PSE/COMPENSATOR -- -- --

BRKT, ANTENNA SWITCH -- -- --

BRKT, DASA SBS MODULE -- -- --

BRKT, COMPENSATOR -- -- --

BRKT, PSE/COMPENSATOR/SBS SYN7975A Q6820474 -- --

BRKT PSE/COMPEN/SBS/ANTSW -- -- --

BRKT PSE/COMPEN/ANTSW -- -- --

BRKT, PLASTIC SHIELD (SL ONLY) -- -- --

BRKT, HOLDER MOUNTING -- -- --

BRKT, CD-CHNGR BASEPLT (SL ONLY) -- -- --

FALSE BOTTOM (A208 & C208 ONLY) SYN6754A Q6820322 -- --

PTT LEVER: R129 -- -- --

PTT LEVER: R170 -- -- --

PTT LEVER: A208, C208, W210, S210 -- --

SYN8014A Q6820479

PTT LEVER: W220, C215 -- -- --

ANTENNA SWITCH -- -- --

ADPTR, MALE SAP TO MALE MINI-U -- -- --

TEMPLATE, INSTALLATION -- -- --

FOAM "U" CHANNEL (SLK ONLY) -- -- --

MANUAL, SBS ONLY -- --

SJN9358A P2710000

ANTENNA (M-CLASS ONLY) -- -- --

5.0 Bill of Materials Section

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

Vehicle Type MY2000 StarTAC E-CLASS SEDAN

(W210)

MBUSA Sales Model# Q6820442 Q6820449

STANDARD TELEPHONE KIT OPTIONAL SBS KIT

DESCRIPTION MOTOROLA P/N MBNA P/N MOTOROLA P/N MBNA P/N

PSE SYN0234A Q6820460 -- --

COMPENSATOR SYN8015A Q6820461 -- --

DASA SBS MODULE -- --

SYN7103A Q6820422

DASA SBS MODULE AUDIO TAPE -- --

SYN7603A P2703098

HOLDER, ANTI-FLIP OPENING SYN8008A Q6820459 -- --

INSTALL HDW, GENERAL SYN8013A Q6820462 -- --

INSTALL HDW, SBS OPTION -- --

SYN8138A Q6820463

INSTALL HDW, MISC. -- -- --

CABLE, COILCORD SKN4975A Q6820465 -- --

CABLE, D2B OPTICAL SKN4981A Q6820466 SKN4982A Q6820467

CABLE, PSE/COMPSTR SKN4979A Q6820468 -- --

CABLE, PSE/COMPSTR/D2B OPTICAL -- -- --

CABLE, COAX EXTENSION -- -- --

BRKT, PSE -- -- --

BRKT, PSE/COMPENSATOR -- -- --

BRKT, ANTENNA SWITCH -- -- --

BRKT, DASA SBS MODULE -- -- --

BRKT, COMPENSATOR -- -- --

BRKT, PSE/COMPENSATOR/SBS SYN7983A Q6820475 -- --

BRKT PSE/COMPEN/SBS/ANTSW -- -- --

BRKT PSE/COMPEN/ANTSW -- -- --

BRKT, PLASTIC SHIELD (SL ONLY) -- -- --

BRKT, HOLDER MOUNTING -- -- --

BRKT, CD-CHNGR BASEPLT (SL ONLY) -- -- --

FALSE BOTTOM (A208 & C208 ONLY) -- -- --

PTT LEVER: R129 -- -- --

PTT LEVER: R170 -- -- --

PTT LEVER: A208, C208, W210, S210 -- --

SYN8014A Q6820479

PTT LEVER: W220, C215 -- -- --

ANTENNA SWITCH -- -- --

ADPTR, MALE SAP TO MALE MINI-U -- -- --

TEMPLATE, INSTALLATION -- -- --

FOAM "U" CHANNEL (SLK ONLY) -- -- --

MANUAL, SBS ONLY -- --

SJN9358A P2710000

ANTENNA (M-CLASS ONLY) -- -- --

5.0 Bill of Materials Section

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

Vehicle Type MY2000 StarTAC E-CLASS WAGON

(S210)

MBUSA Sales Model# Q6820443 Q6820450

STANDARD TELEPHONE KIT OPTIONAL SBS KIT

DESCRIPTION MOTOROLA P/N MBNA P/N MOTOROLA P/N MBNA P/N

PSE SYN0234A Q6820460 -- --

COMPENSATOR SYN8015A Q6820461 -- --

DASA SBS MODULE -- --

SYN7103A Q6820422

DASA SBS MODULE AUDIO TAPE -- --

SYN7603A P2703098

HOLDER, ANTI-FLIP OPENING SYN8008A Q6820459 -- --

INSTALL HDW, GENERAL SYN8013A Q6820462 -- --

INSTALL HDW, SBS OPTION -- --

SYN8138A Q6820463

INSTALL HDW, MISC. -- -- --

CABLE, COILCORD SKN4975A Q6820465 -- --

CABLE, D2B OPTICAL SKN4981A Q6820466 SKN4982A Q6820467

CABLE, PSE/COMPSTR SKN4979A Q6820468 -- --

CABLE, PSE/COMPSTR/D2B OPTICAL -- -- --

CABLE, COAX EXTENSION -- -- --

BRKT, PSE -- -- --

BRKT, PSE/COMPENSATOR -- -- --

BRKT, ANTENNA SWITCH -- -- --

BRKT, DASA SBS MODULE -- --

SYN7984A Q6820472

BRKT, COMPENSATOR -- -- --

BRKT, PSE/COMPENSATOR/SBS -- -- --

BRKT PSE/COMPEN/SBS/ANTSW -- -- --

BRKT PSE/COMPEN/ANTSW -- -- --

BRKT, PLASTIC SHIELD (SL ONLY) -- -- --

BRKT, HOLDER MOUNTING -- -- --

BRKT, CD-CHNGR BASEPLT (SL ONLY) -- -- --

FALSE BOTTOM (A208 & C208 ONLY) -- -- --

PTT LEVER: R129 -- -- --

PTT LEVER: R170 -- -- --

PTT LEVER: A208, C208, W210, S210 -- --

SYN8014A Q6820479

PTT LEVER: W220, C215 -- -- --

ANTENNA SWITCH SYN7195A Q6820430 -- --

ADPTR, MALE SAP TO MALE MINI-U -- -- --

TEMPLATE, INSTALLATION -- -- --

FOAM "U" CHANNEL (SLK ONLY) -- -- --

MANUAL, SBS ONLY -- --

SJN9358A P2710000

ANTENNA (M-CLASS ONLY) -- -- --

5.0 Bill of Materials Section

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

Vehicle Type MY2000 StarTAC SL (R129)

MBUSA Sales Model# Q6820445 N/A

STANDARD TELEPHONE KIT OPTIONAL SBS KIT

DESCRIPTION MOTOROLA P/N MBNA P/N MOTOROLA P/N MBNA P/N

PSE SYN0234A Q6820460 SBS STANDARD

COMPENSATOR SYN8015A Q6820461 SBS STANDARD

DASA SBS MODULE SYN7103A Q6820422 SBS STANDARD

DASA SBS MODULE AUDIO TAPE SYN7603A P2703098 SBS STANDARD

HOLDER, ANTI-FLIP OPENING SYN8008A Q6820459 SBS STANDARD

INSTALL HDW, GENERAL SYN8013A Q6820462 SBS STANDARD

INSTALL HDW, SBS OPTION -- -- SBS STANDARD

INSTALL HDW, MISC. -- -- SBS STANDARD

CABLE, COILCORD SKN4974A Q6820464 SBS STANDARD

CABLE, D2B OPTICAL SKN4949A Q6820425 SBS STANDARD

CABLE, PSE/COMPSTR SKN4979A Q6820468 SBS STANDARD

CABLE, PSE/COMPSTR/D2B OPTICAL -- -- SBS STANDARD

CABLE, COAX EXTENSION -- -- SBS STANDARD

BRKT, PSE -- -- SBS STANDARD

BRKT, PSE/COMPENSATOR -- -- SBS STANDARD

BRKT, ANTENNA SWITCH SYN7996A Q6820471 SBS STANDARD

BRKT, DASA SBS MODULE -- -- SBS STANDARD

BRKT, COMPENSATOR -- -- SBS STANDARD

BRKT, PSE/COMPENSATOR/SBS SYN6974A Q6820395 SBS STANDARD

BRKT PSE/COMPEN/SBS/ANTSW -- -- SBS STANDARD

BRKT PSE/COMPEN/ANTSW -- -- SBS STANDARD

BRKT, PLASTIC SHIELD (SL ONLY) SYN7190A Q6820405 SBS STANDARD

BRKT, HOLDER MOUNTING SYN8016A Q6820477 SBS STANDARD

BRKT, CD-CHNGR BASEPLT (SL ONLY)

OT IN KIT--DEALER ORDERS SYN6975A

(Q6820396) ONLY IF REQUIRED

FALSE BOTTOM (A208 & C208 ONLY) -- -- SBS STANDARD

PTT LEVER: R129 SYN7104A Q6820423 SBS STANDARD

PTT LEVER: R170 -- -- SBS STANDARD

PTT LEVER: A208, C208, W210, S210 -- -- SBS STANDARD

PTT LEVER: W220, C215 -- -- SBS STANDARD

ANTENNA SWITCH SYN7195A Q6820430 SBS STANDARD

ADPTR, MALE SAP TO MALE MINI-U -- -- SBS STANDARD

TEMPLATE, INSTALLATION SJN9087A Q6820480 SBS STANDARD

FOAM "U" CHANNEL (SLK ONLY)

-- -- SBS STANDARD

MANUAL, SBS ONLY SJN8955A P2710129099 SBS STANDARD

ANTENNA (M-CLASS ONLY) -- -- SBS STANDARD

5.0 Bill of Materials Section

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

Vehicle Type MY2000 StarTAC C-CLASS (W202)

MBUSA Sales Model# Q6820441 N/A

STANDARD TELEPHONE KIT OPTIONAL SBS KIT

DESCRIPTION MOTOROLA P/N MBNA P/N MOTOROLA P/N MBNA P/N

PSE SYN0234A Q6820460 SBS NOT AVAILABLE

COMPENSATOR SYN8015A Q6820461 SBS NOT AVAILABLE

DASA SBS MODULE -- --

SBS NOT AVAILABLE

DASA SBS MODULE AUDIO TAPE -- --

SBS NOT AVAILABLE

HOLDER, ANTI-FLIP OPENING SYN8008A Q6820459 SBS NOT AVAILABLE

INSTALL HDW, GENERAL SYN8013A Q6820462 SBS NOT AVAILABLE

INSTALL HDW, SBS OPTION -- --

SBS NOT AVAILABLE

INSTALL HDW, MISC. -- --

SBS NOT AVAILABLE

CABLE, COILCORD SKN4975A Q6820465 SBS NOT AVAILABLE

CABLE, D2B OPTICAL

ONE REQUIRED-PREWIRED SBS NOT AVAILABLE

CABLE, PSE/COMPSTR SKN4979A Q6820468 SBS NOT AVAILABLE

CABLE, PSE/COMPSTR/D2B OPTICAL -- --

SBS NOT AVAILABLE

CABLE, COAX EXTENSION -- --

SBS NOT AVAILABLE

BRKT, PSE -- --

SBS NOT AVAILABLE

BRKT, PSE/COMPENSATOR SYN7604A Q6820330 SBS NOT AVAILABLE

BRKT, ANTENNA SWITCH -- --

SBS NOT AVAILABLE

BRKT, DASA SBS MODULE -- --

SBS NOT AVAILABLE

BRKT, COMPENSATOR -- --

SBS NOT AVAILABLE

BRKT, PSE/COMPENSATOR/SBS -- --

SBS NOT AVAILABLE

BRKT PSE/COMPEN/SBS/ANTSW -- --

SBS NOT AVAILABLE

BRKT PSE/COMPEN/ANTSW -- --

SBS NOT AVAILABLE

BRKT, PLASTIC SHIELD (SL ONLY) -- --

SBS NOT AVAILABLE

BRKT, HOLDER MOUNTING -- --

SBS NOT AVAILABLE

BRKT, CD-CHNGR BASEPLT (SL ONLY) -- --

SBS NOT AVAILABLE

FALSE BOTTOM (A208 & C208 ONLY) -- --

SBS NOT AVAILABLE

PTT LEVER: R129 -- --

SBS NOT AVAILABLE

PTT LEVER: R170 -- --

SBS NOT AVAILABLE

PTT LEVER: A208, C208, W210, S210 -- --

SBS NOT AVAILABLE

PTT LEVER: W220, C215 -- --

SBS NOT AVAILABLE

ANTENNA SWITCH -- --

SBS NOT AVAILABLE

ADPTR, MALE SAP TO MALE MINI-U -- --

SBS NOT AVAILABLE

TEMPLATE, INSTALLATION -- --

SBS NOT AVAILABLE

FOAM "U" CHANNEL (SLK ONLY) -- --

SBS NOT AVAILABLE

MANUAL, SBS ONLY -- --

SBS NOT AVAILABLE

ANTENNA (M-CLASS ONLY) -- --

SBS NOT AVAILABLE

5.0 Bill of Materials Section

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

Vehicle Type MY2000 StarTAC SLK (R170)

MBUSA Sales Model# Q6820444

STANDARD TELEPHONE KIT OPTIONAL SBS KIT

DESCRIPTION MOTOROLA P/N MBNA P/N MOTOROLA P/N MBNA P/N

PSE SYN0234A Q6820460 SBS NOT AVAILABLE

COMPENSATOR SYN8015A Q6820461 SBS NOT AVAILABLE

DASA SBS MODULE -- --

SBS NOT AVAILABLE

DASA SBS MODULE AUDIO TAPE -- --

SBS NOT AVAILABLE

HOLDER, ANTI-FLIP OPENING SYN8008A Q6820459 SBS NOT AVAILABLE

INSTALL HDW, GENERAL SYN8013A Q6820462 SBS NOT AVAILABLE

INSTALL HDW, SBS OPTION -- --

SBS NOT AVAILABLE

INSTALL HDW, MISC. SYN5859A Q6820278 SBS NOT AVAILABLE

CABLE, COILCORD SKN4974A Q6820464 SBS NOT AVAILABLE

CABLE, D2B OPTICAL

ONE REQUIRED-PREWIRED SBS NOT AVAILABLE

CABLE, PSE/COMPSTR SKN4979A Q6820468 SBS NOT AVAILABLE

CABLE, PSE/COMPSTR/D2B OPTICAL -- --

SBS NOT AVAILABLE

CABLE, COAX EXTENSION -- --

SBS NOT AVAILABLE

BRKT, PSE -- --

SBS NOT AVAILABLE

BRKT, PSE/COMPENSATOR -- --

SBS NOT AVAILABLE

BRKT, ANTENNA SWITCH -- --

SBS NOT AVAILABLE

BRKT, DASA SBS MODULE -- --

SBS NOT AVAILABLE

BRKT, COMPENSATOR SYN5855A Q6820276 SBS NOT AVAILABLE

BRKT, PSE/COMPENSATOR/SBS -- --

SBS NOT AVAILABLE

BRKT PSE/COMPEN/SBS/ANTSW -- --

SBS NOT AVAILABLE

BRKT PSE/COMPEN/ANTSW -- --

SBS NOT AVAILABLE

BRKT, PLASTIC SHIELD (SL ONLY) -- --

SBS NOT AVAILABLE

BRKT, HOLDER MOUNTING SYN8136A Q6820478 SBS NOT AVAILABLE

BRKT, CD-CHNGR BASEPLT (SL ONLY) -- --

SBS NOT AVAILABLE

FALSE BOTTOM (A208 & C208 ONLY) -- --

SBS NOT AVAILABLE

PTT LEVER: R129 -- --

SBS NOT AVAILABLE

PTT LEVER: R170 -- --

SBS NOT AVAILABLE

PTT LEVER: A208, C208, W210, S210 -- --

SBS NOT AVAILABLE

PTT LEVER: W220, C215 -- --

SBS NOT AVAILABLE

ANTENNA SWITCH (NOT REQ'D-- NO TELEAID UNTIL

3/00)

SBS NOT AVAILABLE

ADPTR, MALE SAP TO MALE MINI-U 81161 Q6820274 SBS NOT AVAILABLE

TEMPLATE, INSTALLATION -- --

SBS NOT AVAILABLE

FOAM "U" CHANNEL (SLK ONLY) SYN5853B Q6820390 SBS NOT AVAILABLE

MANUAL, SBS ONLY -- --

SBS NOT AVAILABLE

ANTENNA (M-CLASS ONLY) -- --

SBS NOT AVAILABLE

5.0 Bill of Materials Section

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

Vehicle Type MY2000 StarTAC M-CLASS

MBUSA Sales Model# Q6820438 N/A

STANDARD TELEPHONE KIT OPTIONAL SBS KIT

DESCRIPTION MOTOROLA P/N MBNA P/N MOTOROLA P/N MBNA P/N

PSE SYN0234A Q6820460 SBS NOT AVAILABLE

COMPENSATOR SYN8015A Q6820461 SBS NOT AVAILABLE

DASA SBS MODULE -- --

SBS NOT AVAILABLE

DASA SBS MODULE AUDIO TAPE -- --

SBS NOT AVAILABLE

HOLDER, ANTI-FLIP OPENING SYN8008A Q6820459 SBS NOT AVAILABLE

INSTALL HDW, GENERAL SYN8013A Q6820462 SBS NOT AVAILABLE

INSTALL HDW, SBS OPTION -- --

SBS NOT AVAILABLE

INSTALL HDW, MISC. -- --

SBS NOT AVAILABLE

CABLE, COILCORD SKN4974A Q6820464 SBS NOT AVAILABLE

CABLE, D2B OPTICAL -- --

SBS NOT AVAILABLE

CABLE, PSE/COMPSTR -- --

SBS NOT AVAILABLE

CABLE, PSE/COMPSTR/D2B OPTICAL SKN5000A Q6820469 SBS NOT AVAILABLE

CABLE, COAX EXTENSION SKN6118A Q6820470 SBS NOT AVAILABLE

BRKT, PSE -- --

SBS NOT AVAILABLE

BRKT, PSE/COMPENSATOR -- --

SBS NOT AVAILABLE

BRKT, ANTENNA SWITCH -- --

SBS NOT AVAILABLE

BRKT, DASA SBS MODULE -- --

SBS NOT AVAILABLE

BRKT, COMPENSATOR SYN7986A Q6820473 SBS NOT AVAILABLE

BRKT, PSE/COMPENSATOR/SBS -- --

SBS NOT AVAILABLE

BRKT PSE/COMPEN/SBS/ANTSW -- --

SBS NOT AVAILABLE

BRKT PSE/COMPEN/ANTSW -- --

SBS NOT AVAILABLE

BRKT, PLASTIC SHIELD (SL ONLY) -- --

SBS NOT AVAILABLE

BRKT, HOLDER MOUNTING -- --

SBS NOT AVAILABLE

BRKT, CD-CHNGR BASEPLT (SL ONLY) -- --

SBS NOT AVAILABLE

FALSE BOTTOM (A208 & C208 ONLY) -- --

SBS NOT AVAILABLE

PTT LEVER: R129 -- --

SBS NOT AVAILABLE

PTT LEVER: R170 -- --

SBS NOT AVAILABLE

PTT LEVER: A208, C208, W210, S210 -- --

SBS NOT AVAILABLE

PTT LEVER: W220, C215 -- --

SBS NOT AVAILABLE

ANTENNA SWITCH -- --

SBS NOT AVAILABLE

ADPTR, MALE SAP TO MALE MINI-U -- --

SBS NOT AVAILABLE

TEMPLATE, INSTALLATION SYN8160A Q6820481 SBS NOT AVAILABLE

FOAM "U" CHANNEL (SLK ONLY) -- --

SBS NOT AVAILABLE

MANUAL, SBS ONLY -- --

SBS NOT AVAILABLE

ANTENNA (M-CLASS ONLY) 510405 A1638270001 SBS NOT AVAILABLE

5.0 Bill of Materials Section

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

5.3 MY01 Timeport Bill of Materials

Vehicle Type MY2001 Timeport S-Class Sedan

(W220)

MBUSA SALES MODEL# Q6820571 N/A

STANDARD TELEPHONE KIT OPTIONAL SBS KIT

COMPONENT MOTOROLA P/N MBUSA P/N MOTOROLA P/N MBUSA P/N

PSE SYN8738A Q6820648 SBS STANDARD

COMPENSATOR (DUAL BAND) SYN8486A Q6820657 SBS STANDARD

SBS MODULE 01000131 Q6820650 SBS STANDARD

CRADLE, NON-OPENING TIMEPORT SYN8726A Q6820649 SBS STANDARD

INSTALL HDW, GENERAL SYN8013A Q6820462 SBS STANDARD

INSTALL HDW, SBS OPTION -- -- SBS STANDARD

INSTALL HDW, MISC. -- -- SBS STANDARD

CABLE, COILCORD SKN4974A Q6820464 SBS STANDARD

CABLE, D2B OPTICAL SKN4960A Q6820432 SBS STANDARD

CABLE, PSE/COMPSTR SKN4979A Q6820468 SBS STANDARD

CABLE, PSE/COMPSTR/D2B OPTICAL -- -- SBS STANDARD

CABLE, COAX ANT SW. TO ECALL -- -- SBS STANDARD

CABLE, COAX ANT SW. TO GPS SPLIT -- -- SBS STANDARD

BRKT, PSE SYN7162A Q6820426 SBS STANDARD

BRKT, PSE/COMPENSATOR -- -- SBS STANDARD

BRKT, ANTENNA SWITCH SYN7161A Q6820431 SBS STANDARD

BRKT, SBS MODULE SYN7163A Q6820429 SBS STANDARD

BRKT, COMPENSATOR SYN7164A Q6820427 SBS STANDARD

BRKT, PSE/COMPENSATOR/SBS -- -- SBS STANDARD

BRKT PSE/COMPEN/SBS/ANTSW -- -- SBS STANDARD

BRKT PSE/COMPEN/ANTSW -- -- SBS STANDARD

BRKT, PLASTIC SHIELD (SL ONLY) -- -- SBS STANDARD

BRKT, HOLDER MOUNTING -- -- SBS STANDARD

BRKT, CD-CHNGR BASEPLT (SL ONLY) -- -- SBS STANDARD

FALSE BOTTOM (CLK) -- -- SBS STANDARD

PTT LEVER: W203 -- -- SBS STANDARD

PTT LEVER: R129 -- -- SBS STANDARD

PTT LEVER: R170 -- -- SBS STANDARD

PTT LEVER: A208, C208, W210, S210 -- -- SBS STANDARD

PTT LEVER: W220, C215 SYN8055A Q6820512 SBS STANDARD

ANTENNA SWITCH (DUAL BAND) SYN8711A Q6820652 SBS STANDARD

ANTENNA SPLITTER (SL ONLY) -- -- SBS STANDARD

ADPTR, MALE SAP TO MALE MINI-U -- -- SBS STANDARD

TEMPLATE, INSTALLATION SJN9088A Q6820482 SBS STANDARD

FOAM "U" CHANNEL FOR PSE -- -- SBS STANDARD

FOAM "U" CHANNEL FOR PSE/SBS -- -- SBS STANDARD

MANUAL, SBS ONLY SJN9882A S-2765-000 SBS STANDARD

5.0 Bill of Materials Section

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

Vehicle Type MY2001 Timeport S-Class Coupe

(C215)

MBUSA SALES MODEL# Q6820572 N/A

STANDARD TELEPHONE KIT OPTIONAL SBS KIT

COMPONENT MOTOROLA P/N MBUSA P/N MOTOROLA P/N MBUSA P/N

PSE SYN8738A Q6820648 SBS STANDARD

COMPENSATOR (DUAL BAND) SYN8486A Q6820657 SBS STANDARD

SBS MODULE 01000131 Q6820650 SBS STANDARD

CRADLE, NON-OPENING TIMEPORT SYN8726A Q6820649 SBS STANDARD

INSTALL HDW, GENERAL SYN8013A Q6820462 SBS STANDARD

INSTALL HDW, SBS OPTION -- -- SBS STANDARD

INSTALL HDW, MISC. -- -- SBS STANDARD

CABLE, COILCORD SKN4974A Q6820464 SBS STANDARD

CABLE, D2B OPTICAL SKN4984A Q6820508 SBS STANDARD

CABLE, PSE/COMPSTR SKN4979A Q6820468 SBS STANDARD

CABLE, PSE/COMPSTR/D2B OPTICAL -- -- SBS STANDARD

CABLE, COAX ANT SW. TO ECALL -- -- SBS STANDARD

CABLE, COAX ANT SW. TO GPS SPLIT -- -- SBS STANDARD

BRKT, PSE -- -- SBS STANDARD

BRKT, PSE/COMPENSATOR SYN7978A Q6820510 SBS STANDARD

BRKT, ANTENNA SWITCH -- -- SBS STANDARD

BRKT, SBS MODULE SYN7977A Q6820509 SBS STANDARD

BRKT, COMPENSATOR -- -- SBS STANDARD

BRKT, PSE/COMPENSATOR/SBS -- -- SBS STANDARD

BRKT PSE/COMPEN/SBS/ANTSW -- -- SBS STANDARD

BRKT PSE/COMPEN/ANTSW -- -- SBS STANDARD

BRKT, PLASTIC SHIELD (SL ONLY) -- -- SBS STANDARD

BRKT, HOLDER MOUNTING -- -- SBS STANDARD

BRKT, CD-CHNGR BASEPLT (SL ONLY) -- -- SBS STANDARD

FALSE BOTTOM (CLK) -- -- SBS STANDARD

PTT LEVER: W203 -- -- SBS STANDARD

PTT LEVER: R129 -- -- SBS STANDARD

PTT LEVER: R170 -- -- SBS STANDARD

PTT LEVER: A208, C208, W210, S210 -- -- SBS STANDARD

PTT LEVER: W220, C215 SYN8055A Q6820512 SBS STANDARD

ANTENNA SWITCH (DUAL BAND) -- -- SBS STANDARD

ANTENNA SPLITTER (SL ONLY) -- -- SBS STANDARD

ADPTR, MALE SAP TO MALE MINI-U -- -- SBS STANDARD

TEMPLATE, INSTALLATION SJN9220A Q6820511 SBS STANDARD

FOAM "U" CHANNEL FOR PSE -- -- SBS STANDARD

FOAM "U" CHANNEL FOR PSE/SBS -- -- SBS STANDARD

MANUAL, SBS ONLY SJN9882A S-2765-000 SBS STANDARD

5.0 Bill of Materials Section

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

Vehicle Type MY2001 Timeport CLK

CONVERTIBLE

(A208)

MBUSA SALES MODEL# Q6820565 Q6820573 (for both A208 & C208)

STANDARD TELEPHONE KIT OPTIONAL SBS KIT

COMPONENT MOTOROLA P/N MBUSA P/N MOTOROLA P/N MBUSA P/N

PSE SYN8738A Q6820648 -- --

COMPENSATOR (DUAL BAND) SYN8486A Q6820657 -- --

SBS MODULE -- --

01000131 Q6820650

CRADLE, NON-OPENING TIMEPORT SYN8726A Q6820649 -- --

INSTALL HDW, GENERAL SYN8013A Q6820462 -- --

INSTALL HDW, SBS OPTION -- --

SYN8138A Q6820463

INSTALL HDW, MISC. -- -- --

CABLE, COILCORD SKN4975A Q6820465 -- --

CABLE, D2B OPTICAL

ONE REQUIRED- TEL & SBS

PREWIRED

CABLE, PSE/COMPSTR SKN4979A Q6820468 -- --

CABLE, PSE/COMPSTR/D2B OPTICAL -- -- --

CABLE, COAX ANT SW. TO ECALL -- -- --

CABLE, COAX ANT SW. TO GPS SPLIT -- -- --

BRKT, PSE -- -- --

BRKT, PSE/COMPENSATOR -- -- --

BRKT, ANTENNA SWITCH -- -- --

BRKT, SBS MODULE -- -- --

BRKT, COMPENSATOR -- -- --

BRKT, PSE/COMPENSATOR/SBS -- -- --

BRKT PSE/COMPEN/SBS/ANTSW SYN7974A Q6820476 -- --

BRKT PSE/COMPEN/ANTSW -- -- --

BRKT, PLASTIC SHIELD (SL ONLY) -- -- --

BRKT, HOLDER MOUNTING -- -- --

BRKT, CD-CHNGR BASEPLT (SL ONLY) -- -- --

FALSE BOTTOM (CLK) SYN6754A Q6820322 -- --

PTT LEVER: W203 -- -- --

PTT LEVER: R129 -- -- --

PTT LEVER: R170 -- -- --

PTT LEVER: A208, C208, W210, S210 -- --

SYN8014A Q6820479

PTT LEVER: W220, C215 -- -- --

ANTENNA SWITCH (DUAL BAND) SYN8711A Q6820652 -- --

ANTENNA SPLITTER (SL ONLY) -- -- --

ADPTR, MALE SAP TO MALE MINI-U -- -- --

TEMPLATE, INSTALLATION -- -- --

FOAM "U" CHANNEL FOR PSE -- -- --

FOAM "U" CHANNEL FOR PSE/SBS -- -- --

MANUAL, SBS ONLY -- --

SJN9882A S-2765-000

5.0 Bill of Materials Section

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

Vehicle Type MY2001 Timeport CLK COUPE

(C208)

MBUSA SALES MODEL# Q6820564 Q6820573 (for both A208 & C208)

STANDARD TELEPHONE KIT OPTIONAL SBS KIT

COMPONENT MOTOROLA P/N MBUSA P/N MOTOROLA P/N MBUSA P/N

PSE SYN8738A Q6820648 -- --

COMPENSATOR (DUAL BAND) SYN8486A Q6820657 -- --

SBS MODULE -- --

01000131 Q6820650

CRADLE, NON-OPENING TIMEPORT SYN8726A Q6820649 -- --

INSTALL HDW, GENERAL SYN8013A Q6820462 -- --

INSTALL HDW, SBS OPTION -- --

SYN8138A Q6820463

INSTALL HDW, MISC. -- -- --

CABLE, COILCORD SKN4975A Q6820465 -- --

CABLE, D2B OPTICAL

ONE REQUIRED-TEL & SBS

PREWIRED

CABLE, PSE/COMPSTR SKN4979A Q6820468 -- --

CABLE, PSE/COMPSTR/D2B OPTICAL -- -- --

CABLE, COAX ANT SW. TO ECALL -- -- --

CABLE, COAX ANT SW. TO GPS SPLIT -- -- --

BRKT, PSE -- -- --

BRKT, PSE/COMPENSATOR -- -- --

BRKT, ANTENNA SWITCH -- -- --

BRKT, SBS MODULE -- -- --

BRKT, COMPENSATOR -- -- --

BRKT, PSE/COMPENSATOR/SBS SYN7975A Q6820474 -- --

BRKT PSE/COMPEN/SBS/ANTSW -- -- --

BRKT PSE/COMPEN/ANTSW -- -- --

BRKT, PLASTIC SHIELD (SL ONLY) -- -- --

BRKT, HOLDER MOUNTING -- -- --

BRKT, CD-CHNGR BASEPLT (SL ONLY) -- -- --

FALSE BOTTOM (CLK) SYN6754A Q6820322 -- --

PTT LEVER: W203 -- -- --

PTT LEVER: R129 -- -- --

PTT LEVER: R170 -- -- --

PTT LEVER: A208, C208, W210, S210 -- --

SYN8014A Q6820479

PTT LEVER: W220, C215 -- -- --

ANTENNA SWITCH (DUAL BAND) -- -- --

ANTENNA SPLITTER (SL ONLY) -- -- --

ADPTR, MALE SAP TO MALE MINI-U -- -- --

TEMPLATE, INSTALLATION -- -- --

FOAM "U" CHANNEL FOR PSE -- -- --

FOAM "U" CHANNEL FOR PSE/SBS -- -- --

MANUAL, SBS ONLY -- --

SJN9882A S-2765-000

5.0 Bill of Materials Section

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

Vehicle Type MY2001 Timeport E-CLASS SEDAN

(W210)

MBUSA SALES MODEL# Q6820567 Q6820574

STANDARD TELEPHONE KIT OPTIONAL SBS KIT

COMPONENT MOTOROLA P/N MBUSA P/N MOTOROLA P/N MBUSA P/N

PSE SYN8738A Q6820648 -- --

COMPENSATOR (DUAL BAND) SYN8486A Q6820657 -- --

SBS MODULE -- --

01000131 Q6820650

CRADLE, NON-OPENING TIMEPORT SYN8726A Q6820649 -- --

INSTALL HDW, GENERAL SYN8013A Q6820462 -- --

INSTALL HDW, SBS OPTION -- --

SYN8138A Q6820463

INSTALL HDW, MISC. -- -- -- --

CABLE, COILCORD SKN4975A Q6820465 -- --

CABLE, D2B OPTICAL SKN4981A Q6820466 SKN4982A Q6820467

CABLE, PSE/COMPSTR SKN4979A Q6820468 -- --

CABLE, PSE/COMPSTR/D2B OPTICAL -- -- -- --

CABLE, COAX ANT SW. TO ECALL -- -- -- --

CABLE, COAX ANT SW. TO GPS SPLIT -- -- -- --

BRKT, PSE -- -- -- --

BRKT, PSE/COMPENSATOR -- -- -- --

BRKT, ANTENNA SWITCH -- -- -- --

BRKT, SBS MODULE -- -- -- --

BRKT, COMPENSATOR -- -- -- --

BRKT, PSE/COMPENSATOR/SBS SYN7983A Q6820475 -- --

BRKT PSE/COMPEN/SBS/ANTSW -- -- -- --

BRKT PSE/COMPEN/ANTSW -- -- -- --

BRKT, PLASTIC SHIELD (SL ONLY) -- -- -- --

BRKT, HOLDER MOUNTING -- -- -- --

BRKT, CD-CHNGR BASEPLT (SL ONLY) -- -- -- --

FALSE BOTTOM (CLK) -- -- -- --

PTT LEVER: W203 -- -- -- --

PTT LEVER: R129 -- -- -- --

PTT LEVER: R170 -- -- -- --

PTT LEVER: A208, C208, W210, S210 -- --

SYN8014A Q6820479

PTT LEVER: W220, C215 -- -- -- --

ANTENNA SWITCH (DUAL BAND) -- -- -- --

ANTENNA SPLITTER (SL ONLY) -- -- -- --

ADPTR, MALE SAP TO MALE MINI-U -- -- -- --

TEMPLATE, INSTALLATION -- -- -- --

FOAM "U" CHANNEL FOR PSE -- -- -- --

FOAM "U" CHANNEL FOR PSE/SBS -- -- -- --

MANUAL, SBS ONLY -- --

SJN9882A S-2765-000

5.0 Bill of Materials Section

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

Vehicle Type MY2001 Timeport E-CLASS WAGON

(S210)

MBUSA SALES MODEL# Q6820568 Q6820575

STANDARD TELEPHONE KIT OPTIONAL SBS KIT

COMPONENT MOTOROLA P/N MBUSA P/N MOTOROLA P/N MBUSA P/N

PSE SYN8738A Q6820648 -- --

COMPENSATOR (DUAL BAND) SYN8486A Q6820657 -- --

SBS MODULE -- --

01000131 Q6820650

CRADLE, NON-OPENING TIMEPORT SYN8726A Q6820649 -- --

INSTALL HDW, GENERAL SYN8013A Q6820462 -- --

INSTALL HDW, SBS OPTION -- -- SYN8138A Q6820463

INSTALL HDW, MISC. -- -- -- --

CABLE, COILCORD SKN4975A Q6820465 -- --

CABLE, D2B OPTICAL SKN4981A Q6820466 SKN4982A Q6820467

CABLE, PSE/COMPSTR SKN4979A Q6820468 -- --

CABLE, PSE/COMPSTR/D2B OPTICAL -- -- -- --

CABLE, COAX ANT SW. TO ECALL -- -- -- --

CABLE, COAX ANT SW. TO GPS SPLIT -- -- -- --

BRKT, PSE -- -- -- --

BRKT, PSE/COMPENSATOR -- -- -- --

BRKT, ANTENNA SWITCH -- -- -- --

BRKT, SBS MODULE -- --

SYN7984A Q6820472

BRKT, COMPENSATOR -- -- -- --

BRKT, PSE/COMPENSATOR/SBS -- -- -- --

BRKT PSE/COMPEN/SBS/ANTSW -- -- -- --

BRKT PSE/COMPEN/ANTSW -- -- -- --

BRKT, PLASTIC SHIELD (SL ONLY) -- -- -- --

BRKT, HOLDER MOUNTING -- -- -- --

BRKT, CD-CHNGR BASEPLT (SL ONLY) -- -- -- --

FALSE BOTTOM (CLK) -- -- -- --

PTT LEVER: W203 -- -- -- --

PTT LEVER: R129 -- -- -- --

PTT LEVER: R170 -- -- -- --

PTT LEVER: A208, C208, W210, S210 -- --

SYN8014A Q6820479

PTT LEVER: W220, C215 -- -- -- --

ANTENNA SWITCH (DUAL BAND) SYN8711A Q6820652 -- --

ANTENNA SPLITTER (SL ONLY) -- -- -- --

ADPTR, MALE SAP TO MALE MINI-U -- -- -- --

TEMPLATE, INSTALLATION -- -- -- --

FOAM "U" CHANNEL FOR PSE -- -- -- --

FOAM "U" CHANNEL FOR PSE/SBS -- -- -- --

MANUAL, SBS ONLY -- --

SJN9882A S-2765-000

5.0 Bill of Materials Section

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

Vehicle Type MY2001 Timeport SL ROADSTER

(R129)

MBUSA SALES MODEL# Q6820570 N/A

STANDARD TELEPHONE KIT OPTIONAL SBS KIT

COMPONENT MOTOROLA P/N MBUSA P/N MOTOROLA P/N MBUSA

P/N

PSE SYN8738A Q6820648 SBS STANDARD

COMPENSATOR (DUAL BAND) SYN8486A Q6820657 SBS STANDARD

SBS MODULE 01000131 Q6820650 SBS STANDARD

CRADLE, NON-OPENING TIMEPORT SYN8726A Q6820649 SBS STANDARD

INSTALL HDW, GENERAL SYN8013A Q6820462 SBS STANDARD

INSTALL HDW, SBS OPTION -- -- SBS STANDARD

INSTALL HDW, MISC. -- -- SBS STANDARD

CABLE, COILCORD SKN4974A Q6820464 SBS STANDARD

CABLE, D2B OPTICAL SKN4949A Q6820425 SBS STANDARD

CABLE, PSE/COMPSTR SKN4979A Q6820468 SBS STANDARD

CABLE, PSE/COMPSTR/D2B OPTICAL -- -- SBS STANDARD

CABLE, COAX ANT SW. TO ECALL -- -- SBS STANDARD

CABLE, COAX ANT SW. TO GPS SPLIT -- -- SBS STANDARD

BRKT, PSE -- -- SBS STANDARD

BRKT, PSE/COMPENSATOR -- -- SBS STANDARD

BRKT, ANTENNA SWITCH SYN7996A Q6820471 SBS STANDARD

BRKT, SBS MODULE -- -- SBS STANDARD

BRKT, COMPENSATOR -- -- SBS STANDARD

BRKT, PSE/COMPENSATOR/SBS SYN6974A Q6820395 SBS STANDARD

BRKT PSE/COMPEN/SBS/ANTSW -- -- SBS STANDARD

BRKT PSE/COMPEN/ANTSW -- -- SBS STANDARD

BRKT, PLASTIC SHIELD (SL ONLY) SYN7190A Q6820405 SBS STANDARD

BRKT, HOLDER MOUNTING SYN8016A Q6820477 SBS STANDARD

BRKT, CD-CHNGR BASEPLT (SL ONLY)

OT IN KIT--DEALER ORDERS SYN6975A

(Q6820396) ONLY IF NO CD CHANGER

FALSE BOTTOM (CLK) -- -- SBS STANDARD

PTT LEVER: W203 -- -- SBS STANDARD

PTT LEVER: R129 SYN7104A Q6820423 SBS STANDARD

PTT LEVER: R170 -- -- SBS STANDARD

PTT LEVER: A208, C208, W210, S210 -- -- SBS STANDARD

PTT LEVER: W220, C215 -- -- SBS STANDARD

ANTENNA SWITCH (DUAL BAND) -- -- SBS STANDARD

ANTENNA SPLITTER (SL ONLY) SYN8784A Q6820675 SBS STANDARD

ADPTR, MALE SAP TO MALE MINI-U -- -- SBS STANDARD

TEMPLATE, INSTALLATION SJN9087A Q6820480 SBS STANDARD

FOAM "U" CHANNEL FOR PSE -- -- SBS STANDARD

FOAM "U" CHANNEL FOR PSE/SBS -- -- SBS STANDARD

MANUAL, SBS ONLY SJN9882A S-2765-000 SBS STANDARD

5.0 Bill of Materials Section

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

Vehicle Type MY2001 Timeport C-CLASS SEDAN

(W203)

MBUSA SALES MODEL# Q6820566 Q6820577

STANDARD TELEPHONE KIT OPTIONAL SBS KIT

COMPONENT MOTOROLA P/N MBUSA P/N MOTOROLA P/N MBUSA P/N

PSE SYN8738A Q6820648 -- --

COMPENSATOR (DUAL BAND) SYN8486A Q6820657 -- --

SBS MODULE -- --

01000131 Q6820650

CRADLE, NON-OPENING TIMEPORT SYN8726A Q6820649 -- --

INSTALL HDW, GENERAL SYN8013A Q6820462 -- --

INSTALL HDW, SBS OPTION -- -- --

INSTALL HDW, MISC. -- -- --

CABLE, COILCORD SKN4974A Q6820464 -- --

CABLE, D2B OPTICAL

ONE REQUIRED-PREWIRED FOR TEL AND

SBS

-- --

CABLE, PSE/COMPSTR SKN4979A Q6820468 -- --

CABLE, PSE/COMPSTR/D2B OPTICAL -- -- --

CABLE, COAX ANT SW. TO ECALL -- -- --

CABLE, COAX ANT SW. TO GPS SPLIT -- -- --

BRKT, PSE -- -- --

BRKT, PSE/COMPENSATOR -- -- --

BRKT, ANTENNA SWITCH -- -- --

BRKT, SBS MODULE -- --

SYN8460A Q6820654

BRKT, COMPENSATOR -- -- --

BRKT, PSE/COMPENSATOR/SBS -- -- --

BRKT PSE/COMPEN/SBS/ANTSW -- -- --

BRKT PSE/COMPEN/ANTSW SYN8457A Q6820653 -- --

BRKT, PLASTIC SHIELD (SL ONLY) -- -- --

BRKT, HOLDER MOUNTING -- -- --

BRKT, CD-CHNGR BASEPLT (SL ONLY) -- -- --

FALSE BOTTOM (CLK) -- -- --

PTT LEVER: W203 -- --

01000154 Q6820651

PTT LEVER: R129 -- -- --

PTT LEVER: R170 -- -- --

PTT LEVER: A208, C208, W210, S210 -- -- --

PTT LEVER: W220, C215 -- -- --

ANTENNA SWITCH (DUAL BAND) -- -- --

ANTENNA SPLITTER (SL ONLY) -- -- --

ADPTR, MALE SAP TO MALE MINI-U -- -- --

TEMPLATE, INSTALLATION SYN8733A TBD -- --

FOAM "U" CHANNEL FOR PSE -- -- --

FOAM "U" CHANNEL FOR PSE/SBS -- -- --

MANUAL, SBS ONLY -- --

SJN9882A S-2765-000

5.0 Bill of Materials Section

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

Vehicle Type MY2001 Timeport SLK ROADSTER (R170)

MBUSA SALES MODEL# Q6820569 Q6820576

STANDARD TELEPHONE KIT OPTIONAL SBS KIT

COMPONENT MOTOROLA P/N MBUSA P/N MOTOROLA P/N MBUSA P/N

PSE SYN8738A Q6820648 -- --

COMPENSATOR (DUAL BAND) SYN8486A Q6820657 -- --

SBS MODULE -- --

01000131 Q6820650

CRADLE, NON-OPENING TIMEPORT SYN8726A Q6820649 -- --

INSTALL HDW, GENERAL SYN8013A Q6820462 -- --

INSTALL HDW, SBS OPTION -- -- --

INSTALL HDW, MISC. SYN5859A Q6820278 -- --

CABLE, COILCORD SKN4974A Q6820464 -- --

CABLE, D2B OPTICAL

ONE REQUIRED-PREWIRED FOR TEL SKN6117A Q6820549

CABLE, PSE/COMPSTR SKN4979A Q6820468 -- --

CABLE, PSE/COMPSTR/D2B OPTICAL -- -- --

CABLE, COAX ANT SW. TO ECALL -- -- --

CABLE, COAX ANT SW. TO GPS SPLIT -- -- --

BRKT, PSE -- -- --

BRKT, PSE/COMPENSATOR -- -- --

BRKT, ANTENNA SWITCH -- -- --

BRKT, SBS MODULE -- --

SYN8339A Q6820548

BRKT, COMPENSATOR SYN8338A Q6820547 -- --

BRKT, PSE/COMPENSATOR/SBS -- -- --

BRKT PSE/COMPEN/SBS/ANTSW -- -- --

BRKT PSE/COMPEN/ANTSW -- -- --

BRKT, PLASTIC SHIELD (SL ONLY) -- -- --

BRKT, HOLDER MOUNTING SYN8136A Q6820478 -- --

BRKT, CD-CHNGR BASEPLT (SL ONLY) -- -- --

FALSE BOTTOM (CLK) -- -- --

PTT LEVER: W203 -- -- --

PTT LEVER: R129 -- -- --

PTT LEVER: R170 -- --

SYN8054A Q6820551

PTT LEVER: A208, C208, W210, S210 -- -- --

PTT LEVER: W220, C215 -- -- --

ANTENNA SWITCH (DUAL BAND) SYN8711A Q6820652 -- --

ANTENNA SPLITTER (SL ONLY) -- -- --

ADPTR, MALE SAP TO MALE MINI-U 81161 Q6820274 -- --

TEMPLATE, INSTALLATION -- -- --

FOAM "U" CHANNEL FOR PSE SYN5853B Q6820390 -- --

FOAM "U" CHANNEL FOR PSE/SBS

SYN8159A Q6820550

MANUAL, SBS ONLY -- --

SJN9882A S-2765-000

5.0 Bill of Materials Section

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

Vehicle Type MY2001 Timeport M-CLASS (W163)

MBUSA SALES MODEL# Q6820563

STANDARD TELEPHONE KIT OPTIONAL SBS KIT

COMPONENT MOTOROLA P/N MBUSA P/N MOTOROLA P/N MBUSA P/N

PSE SYN8738A Q6820648 SBS NOT AVAILABLE

COMPENSATOR (DUAL BAND) SYN8486A Q6820657 SBS NOT AVAILABLE

SBS MODULE -- --

SBS NOT AVAILABLE

CRADLE, NON-OPENING TIMEPORT SYN8726A Q6820649 SBS NOT AVAILABLE

INSTALL HDW, GENERAL SYN8013A Q6820462 SBS NOT AVAILABLE

INSTALL HDW, SBS OPTION -- --

SBS NOT AVAILABLE

INSTALL HDW, MISC. -- --

SBS NOT AVAILABLE

CABLE, COILCORD SKN4974A Q6820464 SBS NOT AVAILABLE

CABLE, D2B OPTICAL -- --

SBS NOT AVAILABLE

CABLE, PSE/COMPSTR -- --

SBS NOT AVAILABLE

CABLE, PSE/COMPSTR/D2B OPTICAL SKN6327A Q6820672 SBS NOT AVAILABLE

CABLE, COAX ANT SW. TO ECALL SKN6328A Q6820673 SBS NOT AVAILABLE

CABLE, COAX ANT SW. TO GPS SPLIT SKN6329A Q6820674 SBS NOT AVAILABLE

BRKT, PSE -- --

SBS NOT AVAILABLE

BRKT, PSE/COMPENSATOR -- --

SBS NOT AVAILABLE

BRKT, ANTENNA SWITCH -- --

SBS NOT AVAILABLE

BRKT, SBS MODULE -- --

SBS NOT AVAILABLE

BRKT, COMPENSATOR SYN7986A Q6820473 SBS NOT AVAILABLE

BRKT, PSE/COMPENSATOR/SBS -- --

SBS NOT AVAILABLE

BRKT PSE/COMPEN/SBS/ANTSW -- --

SBS NOT AVAILABLE

BRKT PSE/COMPEN/ANTSW -- --

SBS NOT AVAILABLE

BRKT, PLASTIC SHIELD (SL ONLY) -- --

SBS NOT AVAILABLE

BRKT, HOLDER MOUNTING -- --

SBS NOT AVAILABLE

BRKT, CD-CHNGR BASEPLT (SL ONLY) -- --

SBS NOT AVAILABLE

FALSE BOTTOM (CLK) -- --

SBS NOT AVAILABLE

PTT LEVER: W203 -- --

SBS NOT AVAILABLE

PTT LEVER: R129 -- --

SBS NOT AVAILABLE

PTT LEVER: R170 -- --

SBS NOT AVAILABLE

PTT LEVER: A208, C208, W210, S210 -- --

SBS NOT AVAILABLE

PTT LEVER: W220, C215 -- --

SBS NOT AVAILABLE

ANTENNA SWITCH (DUAL BAND) SYN8711A Q6820652 SBS NOT AVAILABLE

ANTENNA SPLITTER (SL ONLY) -- --

SBS NOT AVAILABLE

ADPTR, MALE SAP TO MALE MINI-U -- --

SBS NOT AVAILABLE

TEMPLATE, INSTALLATION SYN8160A Q6820481 SBS NOT AVAILABLE

FOAM "U" CHANNEL FOR PSE -- --

SBS NOT AVAILABLE

FOAM "U" CHANNEL FOR PSE/SBS -- --

SBS NOT AVAILABLE

MANUAL, SBS ONLY -- --

SBS NOT AVAILABLE

5.0 Bill of Materials Section

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

5.4 MY02 v.60 Bill of Materials

Vehicle Type MY2002 v.60 S-Class Sedan (W220)

MBUSA/MOT. SALES MODEL# Q6820720 N/A

SALES MODEL TYPE S-CLASS SEDAN (W220) WITH VR

VEHICLE COMPLETER KIT OPTIONAL SBS KIT

COMPONENT MOTOROLA P/N MBUSA P/N MOTOROLA P/N MBUSA

P/N

SBS MODULE 01000131 Q6820650 SBS STANDARD

INSTALL HDW, SBS OPTION -- -- SBS STANDARD

INSTALL HDW, MISC. -- -- SBS STANDARD

CABLE, D2B OPTICAL SKN4960A Q6820432 SBS STANDARD

D2B CABLE CONNECTOR HOUSINGS -- -- SBS STANDARD

CABLE, PSE/COMPSTR SKN4979A Q6820468 SBS STANDARD

CABLE, PSE/COMPSTR/D2B OPTICAL -- -- SBS STANDARD

CABLE, COAX (S203 ONLY) -- -- SBS STANDARD

BRKT, PSE SYN7162A Q6820426 SBS STANDARD

BRKT, PSE/COMPENSATOR -- -- SBS STANDARD

BRKT, ANTENNA SWITCH SYN7161A Q6820431 SBS STANDARD

BRKT, SBS MODULE SYN7163A Q6820429 SBS STANDARD

BRKT, COMPENSATOR SYN7164A Q6820427 SBS STANDARD

BRKT, PSE/COMPENSATOR/SBS -- -- SBS STANDARD

BRKT PSE/COMPEN/SBS/ANTSW -- -- SBS STANDARD

BRKT PSE/COMPEN/ANTSW -- -- SBS STANDARD

BRKT, PLASTIC SHIELD (SL ONLY) -- -- SBS STANDARD

BRKT, HOLDER MOUNTING -- -- SBS STANDARD

BRKT, v.60 HOLDER MTG PLATE -- -- SBS STANDARD

BRKT, CD-CHNGR BASEPLT (SL ONLY) -- -- SBS STANDARD

FALSE BOTTOM (CLK ONLY) -- -- SBS STANDARD

PTT LEVER SYN8055A Q6820512 SBS STANDARD

ANTENNA SWITCH (DUAL BAND) SYN8711A Q6820652 SBS STANDARD

ANTENNA SPLITTER (SL ONLY) -- -- SBS STANDARD

ADPTR, MALE SAP TO MALE MINI-U (SLK

only) -- -- SBS STANDARD

TEMPLATE, v.60 HOLDER INSTALL SYN9403A Q6820755 SBS STANDARD

TEMPLATE, TIMEPORT HOLDER INSTALL SJN9088A Q6820482 SBS STANDARD

FOAM "U" CHANNEL FOR PSE -- -- SBS STANDARD

FOAM "U" CHANNEL FOR PSE/SBS -- -- SBS STANDARD

MANUAL, SBS SJN9882A S-2765-000 SBS STANDARD

5.0 Bill of Materials Section

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

Vehicle Type MY2002 v.60 S-Class Coupe (C215)

MBUSA/MOT. SALES MODEL# Q6820721 N/A

SALES MODEL TYPE S-CLASS COUPE (C215) WITH VR

VEHICLE COMPLETER KIT OPTIONAL SBS KIT

COMPONENT MOTOROLA P/N MBUSA P/N MOTOROLA P/N MBUSA

P/N

SBS MODULE 01000131 Q6820650 SBS STANDARD

INSTALL HDW, SBS OPTION -- -- SBS STANDARD

INSTALL HDW, MISC. -- -- SBS STANDARD

CABLE, D2B OPTICAL SKN4984A Q6820508 SBS STANDARD

D2B CABLE CONNECTOR HOUSINGS -- -- SBS STANDARD

CABLE, PSE/COMPSTR SKN4979A Q6820468 SBS STANDARD

CABLE, PSE/COMPSTR/D2B OPTICAL -- -- SBS STANDARD

CABLE, COAX (S203 ONLY) -- -- SBS STANDARD

BRKT, PSE -- -- SBS STANDARD

BRKT, PSE/COMPENSATOR SYN7978A Q6820510 SBS STANDARD

BRKT, ANTENNA SWITCH -- -- SBS STANDARD

BRKT, SBS MODULE SYN7977A Q6820509 SBS STANDARD

BRKT, COMPENSATOR -- -- SBS STANDARD

BRKT, PSE/COMPENSATOR/SBS -- -- SBS STANDARD

BRKT PSE/COMPEN/SBS/ANTSW -- -- SBS STANDARD

BRKT PSE/COMPEN/ANTSW -- -- SBS STANDARD

BRKT, PLASTIC SHIELD (SL ONLY) -- -- SBS STANDARD

BRKT, HOLDER MOUNTING -- -- SBS STANDARD

BRKT, v.60 HOLDER MTG PLATE -- -- SBS STANDARD

BRKT, CD-CHNGR BASEPLT (SL ONLY) -- -- SBS STANDARD

FALSE BOTTOM (CLK ONLY) -- -- SBS STANDARD

PTT LEVER SYN8055A Q6820512 SBS STANDARD

ANTENNA SWITCH (DUAL BAND) -- -- SBS STANDARD

ANTENNA SPLITTER (SL ONLY) -- -- SBS STANDARD

ADPTR, MALE SAP TO MALE MINI-U (SLK

only) -- -- SBS STANDARD

TEMPLATE, v.60 HOLDER INSTALL SYN9424A Q6820756 SBS STANDARD

TEMPLATE, TIMEPORT HOLDER INSTALL SJN9220A Q6820511 SBS STANDARD

FOAM "U" CHANNEL FOR PSE -- -- SBS STANDARD

FOAM "U" CHANNEL FOR PSE/SBS -- -- SBS STANDARD

MANUAL, SBS SJN9882A S-2765-000 SBS STANDARD

5.0 Bill of Materials Section

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

Vehicle Type MY2002 v.60 CLK CABRIO (A208)

MBUSA/MOT. SALES MODEL# Q6820711

Q6820573 (for both A208 & C208)

N/A (MY01

carryover)

SALES MODEL TYPE CLK CABRIO (A208) VEHICLE

COMPLETER KIT OPTIONAL SBS

KIT

COMPONENT MOTOROLA P/N MBUSA P/N MOTOROLA P/N MBUSA P/N

SBS MODULE -- --

01000131 Q6820650

INSTALL HDW, SBS OPTION -- --

SYN8138A Q6820463

INSTALL HDW, MISC. -- -- --

CABLE, D2B OPTICAL

ONE REQUIRED- TEL &

SBS PREWIRED --

D2B CABLE CONNECTOR HOUSINGS -- -- --

CABLE, PSE/COMPSTR SKN4979A Q6820468 -- --

CABLE, PSE/COMPSTR/D2B OPTICAL -- -- --

CABLE, COAX (S203 ONLY) -- -- --

BRKT, PSE -- -- --

BRKT, PSE/COMPENSATOR -- -- --

BRKT, ANTENNA SWITCH -- -- --

BRKT, SBS MODULE -- -- --

BRKT, COMPENSATOR -- -- --

BRKT, PSE/COMPENSATOR/SBS -- -- --

BRKT PSE/COMPEN/SBS/ANTSW SYN7974A Q6820476 -- --

BRKT PSE/COMPEN/ANTSW -- -- --

BRKT, PLASTIC SHIELD (SL ONLY) -- -- --

BRKT, HOLDER MOUNTING -- -- --

BRKT, v.60 HOLDER MTG PLATE -- -- --

BRKT, CD-CHNGR BASEPLT (SL ONLY) -- -- --

FALSE BOTTOM (CLK ONLY) SYN6754A Q6820322 -- --

PTT LEVER -- --

SYN8014A Q6820479

ANTENNA SWITCH (DUAL BAND) SYN8711A Q6820652 -- --

ANTENNA SPLITTER (SL ONLY) -- -- --

ADPTR, MALE SAP TO MALE MINI-U (SLK

only) -- -- --

TEMPLATE, v.60 HOLDER INSTALL SYN9404A Q6820757 -- --

TEMPLATE, TIMEPORT HOLDER INSTALL -- -- --

FOAM "U" CHANNEL FOR PSE -- -- --

FOAM "U" CHANNEL FOR PSE/SBS -- -- --

MANUAL, SBS -- --

SJN9882A S-2765-000

5.0 Bill of Materials Section

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

Vehicle Type MY2002 v.60 CLK COUPE (C208)

MBUSA/MOT. SALES MODEL# Q6820710

Q6820573 (for both A208 & C208)

N/A (MY01 carryover)

SALES MODEL TYPE CLK COUPE (C208) VEHICLE COMPLETER KIT OPTIONAL SBS KIT

COMPONENT MOTOROLA P/N MBUSA P/N MOTOROLA P/N MBUSA P/N

SBS MODULE -- --

01000131 Q6820650

INSTALL HDW, SBS OPTION -- --

SYN8138A Q6820463

INSTALL HDW, MISC. -- -- --

CABLE, D2B OPTICAL NONE REQUIRED-TEL & SBS PREWIRED --

D2B CABLE CONNECTOR HOUSINGS -- -- --

CABLE, PSE/COMPSTR SKN4979A Q6820468 -- --

CABLE, PSE/COMPSTR/D2B OPTICAL -- -- --

CABLE, COAX (S203 ONLY) -- -- --

BRKT, PSE -- -- --

BRKT, PSE/COMPENSATOR -- -- --

BRKT, ANTENNA SWITCH -- -- --

BRKT, SBS MODULE -- -- --

BRKT, COMPENSATOR -- -- --

BRKT, PSE/COMPENSATOR/SBS SYN7975A Q6820474 -- --

BRKT PSE/COMPEN/SBS/ANTSW -- -- --

BRKT PSE/COMPEN/ANTSW -- -- --

BRKT, PLASTIC SHIELD (SL ONLY) -- -- --

BRKT, HOLDER MOUNTING -- -- --

BRKT, v.60 HOLDER MTG PLATE -- -- --

BRKT, CD-CHNGR BASEPLT (SL ONLY) -- -- --

FALSE BOTTOM (CLK ONLY) SYN6754A Q6820322 -- --

PTT LEVER -- --

SYN8014A Q6820479

ANTENNA SWITCH (DUAL BAND) -- -- --

ANTENNA SPLITTER (SL ONLY) -- -- --

ADPTR, MALE SAP TO MALE MINI-U (SLK only) -- -- --

TEMPLATE, v.60 HOLDER INSTALL SYN9404A Q6820757 -- --

TEMPLATE, TIMEPORT HOLDER INSTALL -- -- --

FOAM "U" CHANNEL FOR PSE -- -- --

FOAM "U" CHANNEL FOR PSE/SBS -- -- --

MANUAL, SBS -- --

SJN9882A S-2765-000

5.0 Bill of Materials Section

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

Vehicle Type MY2002 v.60 E-CLASS SEDAN (W210)

MBUSA/MOT. SALES MODEL# Q6820716 Q6820574 (MY01 carryover)

SALES MODEL TYPE E-CLASS SEDAN (W210) VEHICLE COMPLETER KIT OPTIONAL SBS KIT

COMPONENT MOTOROLA P/N MBUSA P/N MOTOROLA P/N MBUSA P/N

SBS MODULE -- --

01000131 Q6820650

INSTALL HDW, SBS OPTION -- --

SYN8138A Q6820463

INSTALL HDW, MISC. -- -- -- --

CABLE, D2B OPTICAL SKN4981A Q6820466 SKN4982A Q6820467

D2B CABLE CONNECTOR HOUSINGS -- -- --

CABLE, PSE/COMPSTR SKN4979A Q6820468 -- --

CABLE, PSE/COMPSTR/D2B OPTICAL -- -- --

CABLE, COAX (S203 ONLY) -- --

BRKT, PSE -- -- --

BRKT, PSE/COMPENSATOR -- -- --

BRKT, ANTENNA SWITCH -- -- --

BRKT, SBS MODULE -- -- --

BRKT, COMPENSATOR -- -- --

BRKT, PSE/COMPENSATOR/SBS SYN7983A Q6820475 -- --

BRKT PSE/COMPEN/SBS/ANTSW -- -- --

BRKT PSE/COMPEN/ANTSW -- -- --

BRKT, PLASTIC SHIELD (SL ONLY) -- -- --

BRKT, HOLDER MOUNTING -- -- --

BRKT, v.60 HOLDER MTG PLATE -- -- --

BRKT, CD-CHNGR BASEPLT (SL ONLY) -- -- --

FALSE BOTTOM (CLK ONLY) -- -- --

PTT LEVER -- --

SYN8014A Q6820479

ANTENNA SWITCH (DUAL BAND) -- -- --

ANTENNA SPLITTER (SL ONLY) -- -- --

ADPTR, MALE SAP TO MALE MINI-U (SLK only) -- -- --

TEMPLATE, v.60 HOLDER INSTALL SYN9405A Q6820758 -- --

TEMPLATE, TIMEPORT HOLDER INSTALL -- -- --

FOAM "U" CHANNEL FOR PSE -- -- --

FOAM "U" CHANNEL FOR PSE/SBS -- -- --

MANUAL, SBS -- --

SJN9882A S-2765-000

5.0 Bill of Materials Section

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

Vehicle Type MY2002 v.60 E-CLASS WAGON (S210)

MBUSA/MOT. SALES MODEL# Q6820717 Q6820575 (MY01 carryover)

SALES MODEL TYPE E-CLASS WAGON (S203) VEHICLE COMPLETER KIT OPTIONAL SBS KIT

COMPONENT MOTOROLA P/N MBUSA P/N MOTOROLA P/N MBUSA P/N

SBS MODULE -- --

01000131 Q6820650

INSTALL HDW, SBS OPTION -- --

SYN8138A Q6820463

INSTALL HDW, MISC. -- -- --

CABLE, D2B OPTICAL SKN4981A Q6820466 SKN4982A Q6820467

D2B CABLE CONNECTOR HOUSINGS -- -- --

CABLE, PSE/COMPSTR SKN4979A Q6820468 -- --

CABLE, PSE/COMPSTR/D2B OPTICAL -- -- --

CABLE, COAX (S203 ONLY)

BRKT, PSE -- -- --

BRKT, PSE/COMPENSATOR -- -- --

BRKT, ANTENNA SWITCH -- -- --

BRKT, SBS MODULE -- --

SYN7984A Q6820472

BRKT, COMPENSATOR -- -- --

BRKT, PSE/COMPENSATOR/SBS -- -- --

BRKT PSE/COMPEN/SBS/ANTSW -- -- --

BRKT PSE/COMPEN/ANTSW -- -- --

BRKT, PLASTIC SHIELD (SL ONLY) -- -- --

BRKT, HOLDER MOUNTING -- -- --

BRKT, v.60 HOLDER MTG PLATE -- -- --

BRKT, CD-CHNGR BASEPLT (SL ONLY) -- -- --

FALSE BOTTOM (CLK ONLY) -- -- --

PTT LEVER -- --

SYN8014A Q6820479

ANTENNA SWITCH (DUAL BAND) SYN8711A Q6820652 -- --

ANTENNA SPLITTER (SL ONLY) -- -- --

ADPTR, MALE SAP TO MALE MINI-U (SLK only) -- -- --

TEMPLATE, v.60 HOLDER INSTALL SYN9405A Q6820758 -- --

TEMPLATE, TIMEPORT HOLDER INSTALL -- -- --

FOAM "U" CHANNEL FOR PSE -- -- --

FOAM "U" CHANNEL FOR PSE/SBS -- -- --

MANUAL, SBS -- --

SJN9882A S-2765-000

5.0 Bill of Materials Section

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

Vehicle Type MY2002 v.60 SL ROADSTER (R129)

MBUSA/MOT. SALES MODEL# Q6820719 N/A

SALES MODEL TYPE SL (R129) WITH VR VEHICLE

COMPLETER KIT OPTIONAL SBS KIT

COMPONENT MOTOROLA P/N MBUSA P/N MOTOROLA P/N MBUSA

P/N

SBS MODULE 01000131 Q6820650 SBS STANDARD

INSTALL HDW, SBS OPTION -- -- SBS STANDARD

INSTALL HDW, MISC. -- -- SBS STANDARD

CABLE, D2B OPTICAL SKN4949A Q6820425 SBS STANDARD

D2B CABLE CONNECTOR HOUSINGS -- -- SBS STANDARD

CABLE, PSE/COMPSTR SKN4979A Q6820468 SBS STANDARD

CABLE, PSE/COMPSTR/D2B OPTICAL -- -- SBS STANDARD

CABLE, COAX (S203 ONLY) -- -- SBS STANDARD

BRKT, PSE -- -- SBS STANDARD

BRKT, PSE/COMPENSATOR -- -- SBS STANDARD

BRKT, ANTENNA SWITCH SYN7996A Q6820471 SBS STANDARD

BRKT, SBS MODULE -- -- SBS STANDARD

BRKT, COMPENSATOR -- -- SBS STANDARD

BRKT, PSE/COMPENSATOR/SBS SYN6974A Q6820395 SBS STANDARD

BRKT PSE/COMPEN/SBS/ANTSW -- -- SBS STANDARD

BRKT PSE/COMPEN/ANTSW -- -- SBS STANDARD

BRKT, PLASTIC SHIELD (SL ONLY) SYN7190A Q6820405 SBS STANDARD

BRKT, HOLDER MOUNTING SYN9287A Q6820759 SBS STANDARD

BRKT, v.60 HOLDER MTG PLATE SYN9437A Q6820760 SBS STANDARD

BRKT, CD-CHNGR BASEPLT (SL ONLY)

OT IN KIT--DLR

ORDERS

SYN6975A

(Q6820396) ONLY

IF NO CD

CHANGER

INSTALLED

FALSE BOTTOM (CLK ONLY) -- -- SBS STANDARD

PTT LEVER SYN7104A Q6820423 SBS STANDARD

ANTENNA SWITCH (DUAL BAND) -- -- SBS STANDARD

ANTENNA SPLITTER (SL ONLY) SYN8784A Q6820675 SBS STANDARD

ADPTR, MALE SAP TO MALE MINI-U (SLK

only) -- -- SBS STANDARD

TEMPLATE, v.60 HOLDER INSTALL SJJN4491A Q6820761 SBS STANDARD

TEMPLATE, TIMEPORT HOLDER INSTALL SJN9087A Q6820480 SBS STANDARD

FOAM "U" CHANNEL FOR PSE -- -- SBS STANDARD

FOAM "U" CHANNEL FOR PSE/SBS -- -- SBS STANDARD

MANUAL, SBS SJN9882A S-2765-000 SBS STANDARD

5.0 Bill of Materials Section

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

Vehicle Type MY2002 v.60 C-CLASS SEDAN (W203)

MBUSA/MOT. SALES MODEL# Q6820712 Q6820577 (for W/S/CL 203)

(MY01 carryover)

SALES MODEL TYPE C-CLASS SEDAN (W203) VEHICLE

COMPLETER KIT OPTIONAL SBS KIT

COMPONENT MOTOROLA P/N MBUSA P/N MOTOROLA P/N MBUSA P/N

SBS MODULE -- -- 01000131 Q6820650

INSTALL HDW, SBS OPTION -- -- -- --

INSTALL HDW, MISC. -- -- -- --

CABLE, D2B OPTICAL NONE REQUIRED-PREWIRED FOR

PHONE & SBS

D2B CABLE CONNECTOR HOUSINGS -- -- -- --

CABLE, PSE/COMPSTR SKN4979A Q6820468 -- --

CABLE, PSE/COMPSTR/D2B OPTICAL -- -- -- --

CABLE, COAX (S203 ONLY) -- -- -- --

BRKT, PSE -- -- -- --

BRKT, PSE/COMPENSATOR -- -- -- --

BRKT, ANTENNA SWITCH -- -- -- --

BRKT, SBS MODULE -- -- SYN8460A Q6820654

BRKT, COMPENSATOR -- -- -- --

BRKT, PSE/COMPENSATOR/SBS -- -- -- --

BRKT PSE/COMPEN/SBS/ANTSW -- -- -- --

BRKT PSE/COMPEN/ANTSW SYN8457A Q6820653 -- --

BRKT, PLASTIC SHIELD (SL ONLY) -- -- -- --

BRKT, HOLDER MOUNTING -- -- -- --

BRKT, v.60 HOLDER MTG PLATE -- -- -- --

BRKT, CD-CHNGR BASEPLT (SL ONLY) -- -- -- --

FALSE BOTTOM (CLK ONLY) -- -- -- --

PTT LEVER -- -- 01000154 Q6820651

ANTENNA SWITCH (DUAL BAND) SYN8711A Q6820652 -- --

ANTENNA SPLITTER (SL ONLY) -- -- -- --

ADPTR, MALE SAP TO MALE MINI-U (SLK

only) -- -- -- --

TEMPLATE, v.60 HOLDER INSTALL SYN9440A Q6820762 -- --

TEMPLATE, TIMEPORT HOLDER INSTALL SYN8733A Q6820763 -- --

FOAM "U" CHANNEL FOR PSE -- -- -- --

FOAM "U" CHANNEL FOR PSE/SBS -- -- -- --

MANUAL, SBS -- -- SJN9882A S-2765-000

5.0 Bill of Materials Section

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

Vehicle Type MY2002 v.60 C-CLASS WAGON (S203)

MBUSA/MOT. SALES MODEL# Q6820713 Q6820577 (for W/S/CL 203)

(MY01 carryover)

SALES MODEL TYPE C-CLASS WAGON (S203) VEHICLE COMPLETER KIT OPTIONAL SBS KIT

COMPONENT MOTOROLA P/N MBUSA P/N MOTOROLA P/NMBUSA P/N

SBS MODULE -- --

01000131 Q6820650

INSTALL HDW, SBS OPTION -- -- --

INSTALL HDW, MISC. -- -- -- --

CABLE, D2B OPTICAL NONE REQUIRED-PREWIRED FOR PHONE &

D2B CABLE CONNECTOR HOUSINGS -- -- --

CABLE, PSE/COMPSTR SKN4979A Q6820468 -- --

CABLE, PSE/COMPSTR/D2B OPTICAL -- -- --

CABLE, COAX (S203 ONLY) SKN6358A Q6820702 -- --

BRKT, PSE -- -- --

BRKT, PSE/COMPENSATOR -- -- --

BRKT, ANTENNA SWITCH -- -- --

BRKT, SBS MODULE -- --

SYN8460A Q6820654

BRKT, COMPENSATOR -- -- --

BRKT, PSE/COMPENSATOR/SBS -- -- --

BRKT PSE/COMPEN/SBS/ANTSW -- -- --

BRKT PSE/COMPEN/ANTSW SYN8458A Q6820656 -- --

BRKT, PLASTIC SHIELD (SL ONLY) -- -- --

BRKT, HOLDER MOUNTING -- -- --

BRKT, v.60 HOLDER MTG PLATE -- -- --

BRKT, CD-CHNGR BASEPLT (SL ONLY) -- -- --

FALSE BOTTOM (CLK ONLY) -- -- --

PTT LEVER -- --

01000154 Q6820651

ANTENNA SWITCH (DUAL BAND) SYN8711A Q6820652 -- --

ANTENNA SPLITTER (SL ONLY) -- -- --

ADPTR, MALE SAP TO MALE MINI-U (SLK only) -- -- --

TEMPLATE, v.60 HOLDER INSTALL SYN9440A Q6820762 -- --

TEMPLATE, TIMEPORT HOLDER INSTALL SYN8733A Q6820763 -- --

FOAM "U" CHANNEL FOR PSE -- -- --

FOAM "U" CHANNEL FOR PSE/SBS -- -- --

MANUAL, SBS -- --

SJN9882A S-2765-000

5.0 Bill of Materials Section

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

Vehicle Type MY2002 v.60 C-CLASS COUPE (CL203) WITHOUT TELEAID

MBUSA/MOT. SALES MODEL# Q6820715 Q6820577 (for W/S/CL 203)

(MY01 carryover)

SALES MODEL TYPE C-CLASS COUPE (CL203) WITHOUT TELEAID

VEHICLE COMPLETER KIT OPTIONAL SBS KIT

COMPONENT MOTOROLA P/N MBUSA P/N MOTOROLA P/N MBUSA P/N

SBS MODULE -- --

01000131 Q6820650

INSTALL HDW, SBS OPTION -- -- --

INSTALL HDW, MISC. -- -- --

CABLE, D2B OPTICAL

ONE REQUIRED-PREWIRED

FOR PHONE & SBS --

D2B CABLE CONNECTOR HOUSINGS -- -- --

CABLE, PSE/COMPSTR SKN4979A Q6820468 -- --

CABLE, PSE/COMPSTR/D2B OPTICAL -- -- --

CABLE, COAX (S203 ONLY) -- -- --

BRKT, PSE -- -- --

BRKT, PSE/COMPENSATOR -- -- --

BRKT, ANTENNA SWITCH -- -- --

BRKT, SBS MODULE -- --

SYN8460A Q6820654

BRKT, COMPENSATOR -- -- --

BRKT, PSE/COMPENSATOR/SBS -- -- --

BRKT PSE/COMPEN/SBS/ANTSW -- -- --

BRKT PSE/COMPEN/ANTSW SYN8459A Q6820655 -- --

BRKT, PLASTIC SHIELD (SL ONLY) -- --

BRKT, HOLDER MOUNTING -- -- --

BRKT, v.60 HOLDER MTG PLATE -- -- --

BRKT, CD-CHNGR BASEPLT (SL ONLY) -- -- --

FALSE BOTTOM (CLK ONLY) -- -- --

PTT LEVER -- --

01000154 Q6820651

ANTENNA SWITCH (DUAL BAND) -- -- --

ANTENNA SPLITTER (SL ONLY) -- -- --

ADPTR, MALE SAP TO MALE MINI-U (SLK

only) -- -- --

TEMPLATE, v.60 HOLDER INSTALL SYN9440A Q6820762 -- --

TEMPLATE, TIMEPORT HOLDER INSTALL SYN8733A Q6820763 -- --

FOAM "U" CHANNEL FOR PSE -- -- --

FOAM "U" CHANNEL FOR PSE/SBS -- -- --

MANUAL, SBS -- --

SJN9882A S-2765-000

5.0 Bill of Materials Section

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

Vehicle Type MY2002 v.60 C-CLASS COUPE (CL203) WITH TELEAID

MBUSA/MOT. SALES MODEL# Q6820714 Q6820577 (for W/S/CL 203)

(MY01 carryover)

SALES MODEL TYPE C-CLASS COUPE (CL203) VEHICLE COMPLETER KIT OPTIONAL SBS KIT

COMPONENT MOTOROLA P/N MBUSA P/N MOTOROLA P/N MBUSA P/N

SBS MODULE -- --

01000131 Q6820650

INSTALL HDW, SBS OPTION -- -- --

INSTALL HDW, MISC. -- -- --

CABLE, D2B OPTICAL NONE REQUIRED-PREWIRED FOR PHONE & SBS

D2B CABLE CONNECTOR HOUSINGS -- -- --

CABLE, PSE/COMPSTR SKN4979A Q6820468 -- --

CABLE, PSE/COMPSTR/D2B OPTICAL -- -- --

CABLE, COAX (S203 ONLY) -- -- --

BRKT, PSE -- -- --

BRKT, PSE/COMPENSATOR -- -- --

BRKT, ANTENNA SWITCH -- -- --

BRKT, SBS MODULE -- --

SYN8460A Q6820654

BRKT, COMPENSATOR -- -- --

BRKT, PSE/COMPENSATOR/SBS -- -- --

BRKT PSE/COMPEN/SBS/ANTSW -- -- --

BRKT PSE/COMPEN/ANTSW SYN8459A Q6820655 -- --

BRKT, PLASTIC SHIELD (SL ONLY) -- -- --

BRKT, HOLDER MOUNTING -- -- --

BRKT, v.60 HOLDER MTG PLATE -- -- --

BRKT, CD-CHNGR BASEPLT (SL ONLY) -- -- --

FALSE BOTTOM (CLK ONLY) -- -- --

PTT LEVER -- --

01000154 Q6820651

ANTENNA SWITCH (DUAL BAND) SYN8711A Q6820652 -- --

ANTENNA SPLITTER (SL ONLY) -- -- --

ADPTR, MALE SAP TO MALE MINI-U (SLK only) -- -- --

TEMPLATE, v.60 HOLDER INSTALL SYN9440A Q6820762 -- --

TEMPLATE, TIMEPORT HOLDER INSTALL SYN8733A Q6820763 -- --

FOAM "U" CHANNEL FOR PSE -- -- --

FOAM "U" CHANNEL FOR PSE/SBS -- -- --

MANUAL, SBS -- --

SJN9882A S-2765-000

5.0 Bill of Materials Section

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

Vehicle Type MY2002 v.60 SLK ROADSTER (R170)

MBUSA/MOT. SALES MODEL# Q6820718 Q6820576 (MY01 carryover)

SALES MODEL TYPE SLK (R170) VEHICLE COMPLETER KIT OPTIONAL SBS KIT

COMPONENT MOTOROLA P/N MBUSA P/N MOTOROLA P/N MBUSA P/N

SBS MODULE -- --

01000131 Q6820650

INSTALL HDW, SBS OPTION -- -- --

INSTALL HDW, MISC. SYN5859A Q6820278 -- --

CABLE, D2B OPTICAL NONE REQUIRED-PREWIRED SKN6117A Q6820549

D2B CABLE CONNECTOR HOUSINGS -- -- --

CABLE, PSE/COMPSTR SKN4979A Q6820468 -- --

CABLE, PSE/COMPSTR/D2B OPTICAL -- -- --

CABLE, COAX (S203 ONLY) -- --

BRKT, PSE -- -- --

BRKT, PSE/COMPENSATOR -- -- --

BRKT, ANTENNA SWITCH -- -- --

BRKT, SBS MODULE -- --

SYN8339A Q6820548

BRKT, COMPENSATOR SYN8338A Q6820547 -- --

BRKT, PSE/COMPENSATOR/SBS -- -- --

BRKT PSE/COMPEN/SBS/ANTSW -- -- --

BRKT PSE/COMPEN/ANTSW -- -- --

BRKT, PLASTIC SHIELD (SL ONLY) -- -- --

BRKT, HOLDER MOUNTING SYN9286A Q6820764 -- --

BRKT, v.60 HOLDER MTG PLATE -- -- --

BRKT, CD-CHNGR BASEPLT (SL ONLY) -- -- --

FALSE BOTTOM (CLK ONLY) -- -- --

PTT LEVER -- --

SYN8054A Q6820551

ANTENNA SWITCH (DUAL BAND) SYN8711A Q6820652 -- --

ANTENNA SPLITTER (SL ONLY) -- -- --

ADPTR, MALE SAP TO MALE MINI-U (SLK only) 81161 Q6820274 -- --

TEMPLATE, v.60 HOLDER INSTALL -- -- --

TEMPLATE, TIMEPORT HOLDER INSTALL -- -- --

FOAM "U" CHANNEL FOR PSE SYN5853B Q6820390 -- --

FOAM "U" CHANNEL FOR PSE/SBS -- --

SYN8159A Q6820550

MANUAL, SBS -- --

SJN9882A S-2765-000

5.0 Bill of Materials Section

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

Vehicle Type MY2002 v.60 M-CLASS (W163)

Q6820708 Q6820769 Q6820704

MBUSA/MOT. SALES MODEL#

SALES MODEL TYPE M-CLASS (W163) VEHICLE

COMPLETER KIT

M-CLASS (W163)

SUPPLEMENTAL V.60

COMPLETER KIT OPTIONAL SBS KIT

COMPONENT MOTOROLA P/N MBUSA

P/N MOTOROLA

P/N MBUSA P/N MOTOROLA

P/N MBUSA

P/N

SBS MODULE -- -- -- --

01000131 Q6820650

INSTALL HDW, SBS OPTION -- -- -- -- -- --

INSTALL HDW, MISC. -- -- -- --

SYN9386A Q6820705

CABLE, D2B OPTICAL -- -- -- --

SKN4981A Q6820466

D2B CABLE CONNECTOR HOUSINGS -- -- -- -- -- --

CABLE, PSE/COMPSTR -- -- -- -- -- --

CABLE, PSE/COMPSTR/D2B OPTICAL SKN6327A Q6820672 -- -- -- --

CABLE, COAX (S203 ONLY) -- -- -- -- -- --

BRKT, PSE -- -- -- -- -- --

BRKT, PSE/COMPENSATOR -- -- -- -- -- --

BRKT, ANTENNA SWITCH -- -- -- -- -- --

BRKT, SBS MODULE -- -- -- -- -- --

BRKT, COMPENSATOR SYN7986A Q6820473 -- -- -- --

BRKT, PSE/COMPENSATOR/SBS -- -- -- -- -- --

BRKT PSE/COMPEN/SBS/ANTSW -- -- -- -- -- --

BRKT PSE/COMPEN/ANTSW -- -- -- -- -- --

BRKT, PLASTIC SHIELD (SL ONLY) -- -- -- -- -- --

BRKT, HOLDER MOUNTING -- --

SYN9438A Q6820726 -- --

BRKT, v.60 HOLDER MTG PLATE -- -- -- -- -- --

BRKT, CD-CHNGR BASEPLT (SL ONLY) -- -- -- -- -- --

FALSE BOTTOM (CLK ONLY) -- -- -- -- -- --

PTT LEVER -- -- -- --

01000155 Q6820706

ANTENNA SWITCH (DUAL BAND) SYN8711A Q6820652 -- -- -- --

ANTENNA SPLITTER (SL ONLY) -- -- -- -- -- --

ADPTR, MALE SAP TO MALE MINI-U (SLK

only) -- -- -- -- -- --

TEMPLATE, v.60 HOLDER INSTALL -- --

SJJN4501A Q6820765 -- --

TEMPLATE, TIMEPORT HOLDER INSTALL SYN9387A Q6820703 -- -- -- --

FOAM "U" CHANNEL FOR PSE -- -- -- -- -- --

FOAM "U" CHANNEL FOR PSE/SBS -- -- -- -- -- --

MANUAL, SBS -- -- -- --

SJN9882A S-2765-000

5.0 Bill of Materials Section

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

Vehicle Type MY2002 v.60 G-Class

MBUSA/MOT. SALES MODEL# Q6820709 N/A

SALES MODEL TYPE G-CLASS VEHICLE COMPLETER KIT OPTIONAL SBS KIT

COMPONENT MOTOROLA P/N MBUSA P/N MOTOROLA P/N MBUSA P/N

SBS MODULE 01000131 Q6820650 SBS STANDARD

INSTALL HDW, SBS OPTION -- -- SBS STANDARD

INSTALL HDW, MISC. -- -- SBS STANDARD

CABLE, D2B OPTICAL -- -- SBS STANDARD

D2B CABLE CONNECTOR HOUSINGS SYN9388A Q6820766 SBS STANDARD

CABLE, PSE/COMPSTR SKN4979A Q6820468 SBS STANDARD

CABLE, PSE/COMPSTR/D2B OPTICAL -- -- SBS STANDARD

CABLE, COAX (S203 ONLY) -- -- SBS STANDARD

BRKT, PSE -- -- SBS STANDARD

BRKT, PSE/COMPENSATOR -- -- SBS STANDARD

BRKT, ANTENNA SWITCH -- -- SBS STANDARD

BRKT, SBS MODULE -- -- SBS STANDARD

BRKT, COMPENSATOR -- -- SBS STANDARD

BRKT, PSE/COMPENSATOR/SBS -- -- SBS STANDARD

BRKT PSE/COMPEN/SBS/ANTSW -- -- SBS STANDARD

BRKT PSE/COMPEN/ANTSW -- -- SBS STANDARD

BRKT, PLASTIC SHIELD (SL ONLY) -- -- SBS STANDARD

BRKT, HOLDER MOUNTING -- -- SBS STANDARD

BRKT, v.60 HOLDER MTG PLATE -- -- SBS STANDARD

BRKT, CD-CHNGR BASEPLT (SL ONLY) -- -- SBS STANDARD

FALSE BOTTOM (CLK ONLY) -- -- SBS STANDARD

PTT LEVER 01000154 Q6820651 SBS STANDARD

ANTENNA SWITCH (DUAL BAND) SYN8711A Q6820652 SBS STANDARD

ANTENNA SPLITTER (SL ONLY) -- -- SBS STANDARD

ADPTR, MALE SAP TO MALE MINI-U (SLK only) -- -- SBS STANDARD

TEMPLATE, v.60 HOLDER INSTALL TBD TBD SBS STANDARD

TEMPLATE, TIMEPORT HOLDER INSTALL -- -- SBS STANDARD

FOAM "U" CHANNEL FOR PSE -- -- SBS STANDARD

FOAM "U" CHANNEL FOR PSE/SBS -- -- SBS STANDARD

MANUAL, SBS SJN9882A S-2765-000 SBS STANDARD

5.0 Bill of Materials Section

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

5.5 CP Module Bill of Materials

Vehicle Type MY2003 v.60 E-CLASS SEDAN (BR211)

MBUSA/MOT. SALES MODEL# Q6820826 Q6820827

SALES MODEL TYPE E-CLASS SEDAN (BR211) VEHICLE COMPLETER KIT OPTIONAL SBS KIT

COMPONENT MOTOROLA P/N MBUSA P/N MOTOROLA P/N MBUSA P/N

SBS MODULE -- --

SYN0489A Q6820830

INSTALL HDW, SBS OPTION -- --

SYN8138A Q6820463

INSTALL HDW, MISC. -- -- -- --

CABLE, D2B OPTICAL -- -- -- --

D2B CABLE CONNECTOR HOUSINGS -- -- --

CABLE, PSE/COMPSTR SKN6366A Q6820832 -- --

CABLE, PSE/COMPSTR/D2B OPTICAL -- -- --

CABLE, COAX (S203 ONLY) -- --

BRKT, PSE -- -- --

BRKT, PSE/COMPENSATOR -- -- --

BRKT, ANTENNA SWITCH -- -- --

BRKT, SBS MODULE -- -- --

BRKT, COMPENSATOR -- -- --

BRKT, PSE/COMPENSATOR/SBS -- -- -- --

BRKT PSE/COMPEN/SBS/ANTSW -- -- --

BRKT PSE/COMPEN/ANTSW -- -- --

BRKT, PLASTIC SHIELD (SL ONLY) -- -- --

BRKT, HOLDER MOUNTING -- -- --

BRKT, v.60 HOLDER MTG PLATE -- -- --

BRKT, CD-CHNGR BASEPLT (SL ONLY) -- -- --

FALSE BOTTOM (CLK ONLY) -- -- --

PTT LEVER -- --

SYN0379A Q68200820

ANTENNA SWITCH (DUAL BAND) -- -- --

ANTENNA SPLITTER (SL ONLY) -- -- --

ADPTR, MALE SAP TO MALE MINI-U (SLK only) -- -- --

TEMPLATE, v.60 HOLDER INSTALL -- -- -- --

TEMPLATE, TIMEPORT HOLDER INSTALL -- -- --

FOAM "U" CHANNEL FOR PSE -- -- --

COMPENSATOR, UNIVERSAL FAKRA/MQS SYN9528A Q6820829 -- --

MANUAL, SBS -- --

SJJN6264A P2799-04A

5.0 Bill of Materials Section 5.0 Bill of Materials Section

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

Vehicle Type MY2004 v.60 S-Class Sedan (BR220)

MBUSA/MOT. SALES MODEL# Q6820878 N/A

SALES MODEL TYPE S-CLASS SEDAN (BR220) WITH VR

VEHICLE COMPLETER KIT OPTIONAL SBS KIT

COMPONENT MOTOROLA P/N MBUSA P/N MOTOROLA P/N MBUSA

P/N

SBS MODULE SYN0814A Q6820881 SBS STANDARD

INSTALL HDW, SBS OPTION -- -- SBS STANDARD

INSTALL HDW, MISC. SYN8013A Q6820462 SBS STANDARD

CABLE, D2B OPTICAL -- -- SBS STANDARD

D2B CABLE CONNECTOR HOUSINGS -- -- SBS STANDARD

CABLE, PSE/COMPSTR -- -- SBS STANDARD

CABLE, PSE/COMPSTR/D2B OPTICAL -- -- SBS STANDARD

CABLE, COAX (S203 ONLY) -- -- SBS STANDARD

BRKT, PSE -- -- SBS STANDARD

BRKT, PSE/COMPENSATOR -- -- SBS STANDARD

BRKT, ANTENNA SWITCH -- -- SBS STANDARD

BRKT, SBS MODULE -- -- SBS STANDARD

BRKT, COMPENSATOR SYN7164A Q6820427 SBS STANDARD

BRKT, PSE/COMPENSATOR/SBS -- -- SBS STANDARD

BRKT PSE/COMPEN/SBS/ANTSW -- -- SBS STANDARD

BRKT PSE/COMPEN/ANTSW -- -- SBS STANDARD

BRKT, PLASTIC SHIELD (SL ONLY) -- -- SBS STANDARD

BRKT, HOLDER MOUNTING -- -- SBS STANDARD

BRKT, v.60 HOLDER MTG PLATE -- -- SBS STANDARD

BRKT, CD-CHNGR BASEPLT (SL ONLY) -- -- SBS STANDARD

FALSE BOTTOM (CLK ONLY) -- -- SBS STANDARD

PTT LEVER SYN0379A Q6820820 SBS STANDARD

ANTENNA SWITCH (DUAL BAND) -- -- SBS STANDARD

ANTENNA SPLITTER (SL ONLY) -- -- SBS STANDARD

ADPTR, MALE SAP TO MALE MINI-U (SLK

only) -- -- SBS STANDARD

TEMPLATE, v.60 HOLDER INSTALL -- -- SBS STANDARD

TEMPLATE, TIMEPORT HOLDER INSTALL -- -- SBS STANDARD

FOAM "U" CHANNEL FOR PSE -- -- SBS STANDARD

COMPENSATOR, UNIVERSAL FAKRA/MQS SYN9528A Q6820829 SBS STANDARD

MANUAL, SBS SJJN5661A P2780-04A SBS STANDARD

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

Vehicle Type MY2004 v.60 CL-Class Coupe (BR215)

MBUSA/MOT. SALES MODEL# Q6820879 N/A

SALES MODEL TYPE CL-CLASS COUPE (BR215) WITH VR

VEHICLE COMPLETER KIT OPTIONAL SBS KIT

COMPONENT MOTOROLA P/N MBUSA P/N MOTOROLA P/N MBUSA

P/N

SBS MODULE SYN0814A Q6820881 SBS STANDARD

INSTALL HDW, SBS OPTION -- -- SBS STANDARD

INSTALL HDW, MISC. SYN8013A Q6820462 SBS STANDARD

CABLE, D2B OPTICAL -- -- SBS STANDARD

D2B CABLE CONNECTOR HOUSINGS -- -- SBS STANDARD

CABLE, PSE/COMPSTR -- -- SBS STANDARD

CABLE, PSE/COMPSTR/D2B OPTICAL -- -- SBS STANDARD

CABLE, COAX (S203 ONLY) -- -- SBS STANDARD

BRKT, PSE -- -- SBS STANDARD

BRKT, PSE/COMPENSATOR -- -- SBS STANDARD

BRKT, ANTENNA SWITCH -- -- SBS STANDARD

BRKT, SBS MODULE SYN9779A Q6820851 SBS STANDARD

BRKT, COMPENSATOR SYN7978A Q6820510 SBS STANDARD

BRKT, PSE/COMPENSATOR/SBS -- -- SBS STANDARD

BRKT PSE/COMPEN/SBS/ANTSW -- -- SBS STANDARD

BRKT PSE/COMPEN/ANTSW -- -- SBS STANDARD

BRKT, PLASTIC SHIELD (SL ONLY) -- -- SBS STANDARD

BRKT, HOLDER MOUNTING -- -- SBS STANDARD

BRKT, v.60 HOLDER MTG PLATE -- -- SBS STANDARD

BRKT, CD-CHNGR BASEPLT (SL ONLY) -- -- SBS STANDARD

FALSE BOTTOM (CLK ONLY) -- -- SBS STANDARD

PTT LEVER SYN0379A Q6820820 SBS STANDARD

ANTENNA SWITCH (DUAL BAND) -- -- SBS STANDARD

ANTENNA SPLITTER (SL ONLY) -- -- SBS STANDARD

ADPTR, MALE SAP TO MALE MINI-U (SLK

only) -- -- SBS STANDARD

TEMPLATE, v.60 HOLDER INSTALL SYN9424B Q6820755 SBS STANDARD

TEMPLATE, TIMEPORT HOLDER INSTALL -- -- SBS STANDARD

FOAM "U" CHANNEL FOR PSE -- -- SBS STANDARD

FOAM "U" CHANNEL FOR PSE/SBS SYN9528A Q6820829 SBS STANDARD

MANUAL, SBS SJJN5661A P2780-04A SBS STANDARD

5.0 Bill of Materials Section

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

5.6 MHI Module Bill of Materials

"S" CLASS COMPLETER KIT

MBUSA # Q6820917

COMPLETER KIT PARTS MOTOROLA PART # MBUSA# DC PART # V220

CONTACT PLATE 0143211X04 A 220 820 15 11 1

ANTENNA SWITCH WITH FAKRA

CONNECTIONS 0143204X01 A220 827 18 42 1

550 mm RF Cable 3088722M04 N/A 1

220 UHI BRACKET 0743333X01 A 220 545 48 40 1

220 COMPENSATOR BRACKET 0704633Z01 1

CLAMPS TO FIX UHI BRACKET TO

CD CHANGER 0743334X01 N/A 2

220 MOST CABLE WITH VOICE 3043460X01 N/A 1

TEMIC VOICE REQ. MODULE 0143489X01 Q6820934 A2208206285 1

PTT LEVER 5585978K06 A 000 545 08 44 1

VOICE REQ. MANUAL 6809474A29 P-2780-04A 1

UHI VEHICLE CORE KIT

MBUSA #Q6820906

COMPONENT

MOTOROLA P/N MBUSA P/N DC P/N

UHI MODULE 0142208z97 Q6820936 A 211 820 43 85

HARDWARE KIT 0109950J09

DUAL BAND COMPENSATOR 0187419M01 Q6820829

CRADLES KITS MOTOROLA PART

#'s CRADLE KIT#

Motorola V600 Cradle 0143213X01

Vehicle Manual 68P40402Z

600

Q6820919

Motorola V60i Cradle 0143212X01

Vehicle Manual 68P40402Z

60i

Q6820988

Motorola V60s Cradle 0143659Z01

Vehicle Manual 68P40402Z

60s

Q6820925

Motorola V710 Cradle 0143246X01

Vehicle Manual 68P40402Z

710

Q6820920

5.0 Bill of Materials Section

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

"SL" CLASS COMPLETER KIT

MBUSA # Q6820916

COMPLETER KIT PARTS MOTOROLA PART # MBUSA# DC PART # R230

CONTACT PLATE 0143211X02 A 230 820 05 011 1

ANTENNA SWITCH WITH

FAKRA CONNECTIONS 0143204X01 A220 827 18 42 1

230 UHI BRACKET - WITH

VOICE 0743335X01 A 230 545 34 40 1

230 MOST CABLE - WITH

VOICE 3043462X01 N/A 1

TEMIC VOICE REQ.

MODULE 0143489X01 Q6820934 A2208206285 1

PTT LEVER 5585978K06 A 000 545 08 44 1

VOICE REQ. MANUAL 6809474A29 P-2780-04A 1

UHI VEHICLE CORE KIT

MBUSA #Q6820906

COMPONENT

MOTOROLA P/N MBUSA P/N DC P/N

UHI MODULE 0142208z97 Q6820936 A 211 820 43 85

HARDWARE KIT 0109950J09

DUAL BAND

COMPENSATOR 0187419M01 Q6820829

CRADLES KITS MOTOROLA PART

#'s CRADLE KIT#

Motorola V600 Cradle 0143213X01

Vehicle Manual 68P40402Z

600

Q6820919

Motorola V60i Cradle 0143212X01

Vehicle Manual 68P40402Z

60i

Q6820988

Motorola V60s Cradle 0143659Z01

Vehicle Manual 68P40402Z

60s

Q6820925

Motorola V710 Cradle 0143246X01

Vehicle Manual 68P40402Z

710

Q6820920

5.0 Bill of Materials Section

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

"CL" CLASS COMPLETER KIT

MBUSA #Q6820918

COMPLETER KIT PARTS MOTOROLA

PART # MBUSA# DC PART # C215

CONTACT PLATE 0143211X03 A 215 820 06 11 1

ANTENNA SWITCH WITH

FAKRA CONNECTIONS 0143204X01 A220 827 18 42 1

550 mm RF Cable 3088722M04 N/A 1

215 UHI BRACKET 0743331X01 A 215 545 16 40 1

215 VOICE BRACKET 0743332X01 A 215 545 09 40 1

215 MOST CABLE WITH

VOICE 3043460X01 N/A 1

215 COMPENSATOR

BRACKET 0785903J02 1

TEMIC VOICE REQ.

MODULE 0143489X01 Q6820934 A2208206285 1

PTT LEVER 5585978K06 A 000 545 08 44 1

VOICE REQ. MANUAL 6809474A29 P-2780-04A 1

CLIP TO SECURE CABLES

ON MOUNTING PLATE (2

EACH KIT) 0743214X01

A 220 823 03 32 1

UHI VEHICLE CORE KIT

MBUSA #Q6820906

COMPONENT

MOTOROLA

P/N MBUSA P/N DC P/N

UHI MODULE 0142208z97 Q6820936 A 211 820 43 85

HARDWARE KIT 0109950J09

DUAL BAND

COMPENSATOR 0187419M01 Q6820829

CRADLES KITS MOTOROLA

PART #'s CRADLE KIT#

Motorola V600 Cradle 0143213X01

Vehicle Manual 68P40402Z

600

Q6820919

Motorola V60i Cradle 0143212X01

Vehicle Manual 68P40402Z

60i

Q6820988

Motorola V60s Cradle 0143659Z01

Vehicle Manual 68P40402Z

60s

Q6820925

Motorola V710 Cradle 0143246X01

Vehicle Manual 68P40402Z

710

Q6820920

5.0 Bill of Materials Section

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

"CLK" CLASS COMPLETER KITS

MBUSA #

Q6820912 MBUSA # Q6820913

COMPLETER KIT PARTS MOTOROLA

PART # DC PART # C209 A209 - CABRIO

CONTACT PLATE 0143211X01 A 203 820 13 11 1 1

ANTENNA SWITCH WITH

FAKRA CONNECTIONS 0143204X01 A220 827 18 42 1 1

C209 UHI BRACKET 0743329X01 A 209 545 23 40 1

A209 CABRIO BRACKET 0743315X01 A 209 000 00 00 1

CLIP TO SECURE CABLES

ON MOUNTING PLATE (2

EACH KIT) 0743214X01 A 220 823 03 32 2 2

UHI VEHICLE CORE KIT

MBUSA #Q6820906

COMPONENT

MOTOROLA P/N MBUSA P/N DC P/N

UHI MODULE 0142208z97 Q6820936

A 211 820 43

HARDWARE KIT 0109950J09

DUAL BAND

COMPENSATOR 0187419M01 Q6820829

CRADLES KITS MOTOROLA

PART #'s CRADLE KIT#

Motorola V600 Cradle 0143213X01

Vehicle Manual 68P40402Z

600

Q6820919

Motorola V60i Cradle 0143212X01

Vehicle Manual 68P40402Z

60i

Q6820988

Motorola V60s Cradle 0143659Z01

Vehicle Manual 68P40402Z

60s

Q6820925

Motorola V710 Cradle 0143246X01

Vehicle Manual 68P40402Z

710

Q6820920

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

5.0 Bill of Materials Section

"E" CLASS COMPLETER KIT

MBUSA #

Q6820914 MBUSA # Q6820930

COMPLETER KIT PARTS MOTOROLA PART # DC PART # W211 W/O VOICE S211 W/O VOICE

CONTACT PLATE 0143211X01 A 203 820 13 11 1 1

ANTENNA SWITCH WITH FAKRA

CONNECTIONS 0143204X01 A220 827 18 42 1 1

211 MOUNTING PANEL 1543684Z01 1 1

211 UHI BRACKET 0743330X01 A 211 545 67 40 1

211 UHI BRACKET 0743622Z01 1

211 MOST CABLE WITHOUT

VOICE 3043459X01 A 211 540 6433 1 1

UHI VEHICLE CORE KIT

MBUSA #Q6820906

COMPONENT MOTOROLA P/N MBUSA P/N DC P/N

UHI MODULE 0142208z97 Q6820936 A 211 820 43 85

HARDWARE KIT 0109950J09

DUAL BAND COMPENSATOR 0187419M01 Q6820829

CRADLES KITS MOTOROLA PART #'s CRADLE KIT#

Motorola V600 Cradle 0143213X01

Vehicle Manual 68P40402Z

600

Q6820919

Motorola V60i Cradle 0143212X01

Vehicle Manual 68P40402Z

60i

Q6820988

Motorola V60s Cradle 0143659Z01

Vehicle Manual 68P40402Z

60s

Q6820925

Motorola V710 Cradle 0143246X01

Vehicle Manual 68P40402Z

710

Q6820920

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

5.0 Bill of Materials Section

"E" CLASS VOICE REQ.

KIT

MBUSA # Q6820928

COMPLETER KIT PARTS MOTOROLA PART # MBUSA# DC PART # 211 VOICE KIT

TEMIC VOICE REQ. MODULE 0143463X01 Q6820929 A2408200885 1

PTT LEVER 5585978K06 A000 545 11 44 1

VOICE REQ. MANUAL? 6840418Z01/ SJJN6264A P-2799-04A 1

211 MOST CABLE WITH VOICE 3043459X02 ? 1

UHI VEHICLE CORE KIT

MBUSA #Q6820906

COMPONENT

MOTOROLA

P/N MBUSA P/N DC P/N

UHI MODULE 0142208z97 Q6820936 A 211 820 43 85

HARDWARE KIT 0109950J09

DUAL BAND COMPENSATOR 0187419M01 Q6820829

CRADLES KITS MOTOROLA

PART #'s CRADLE KIT#

Motorola V600 Cradle 0143213X01

Vehicle Manual 68P40402Z

600

Q6820919

Motorola V60i Cradle 0143212X01

Vehicle Manual 68P40402Z

60i

Q6820988

Motorola V60s Cradle 0143659Z01

Vehicle Manual 68P40402Z

60s

Q6820925

Motorola V710 Cradle 0143246X01

Vehicle Manual 68P40402Z

710

Q6820920

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

5.0 Bill of Materials Section

"C" CLASS COMPLETER KIT PART #'S

MBUSA #

Q6820909 MBUSA #

Q6820910 MBUSA #

Q6820907 MBUSA #

Q6820908

COMPLETER KIT PARTS MOTOROLA

PART # DC PART # CL203 WITH

SOUND CL203 WITHOUT

SOUND W203 S203

CONTACT PLATE 0143211X01 A 203 820 13 11 1 1 1 1

ANTENNA SWITCH WITH

FAKRA CONNECTIONS 0143204X01 A220 827 18 42 1 1 1 1

203 - 250 mm LENGTH WITH

RIGHT ANGLE FAKRA AT ONE

END S203 ONLY 3088722M05 N/A 1

CL203 WITH SOUND BRACKET 0743183X01 A 203 545 74 40 1

CL203 WITHOUT SOUND

BRACKET 0743185X01 A 203 545 59 40 1

W203 BRACKET 0743186X01 A 203 545 60 40 1

S203 BRACKET 0743188X01 A 203 545 70 40 1

SPECIAL HARDWARE KIT FOR

S203 COMPLETER KIT ONLY.

CONTAINS (4) FASTENER

CLIPS + (4) SCREWS

0109950J08 N/A 1

CLIP TO SECURE CABLES ON

MOUNTING PLATE (2 EACH

KIT) 07D43214X A 220 823 03 32 2 2 2 2

UHI VEHICLE CORE KIT

MBUSA #Q6820906

COMPONENT MOTOROLA

P/N MBUSA P/N DC P/N

UHI MODULE 0142208z97 Q6820936 A 211 820 43 85

HARDWARE KIT 0109950J09

DUAL BAND COMPENSATOR 0187419M01 Q6820829

CRADLES KITS MOTOROLA

PART #'s CRADLE KIT#

Motorola V600 Cradle 0143213X01

Vehicle Manual 68P40402Z

600

Q6820919

Motorola V60i Cradle 0143212X01

Vehicle Manual 68P40402Z

60i

Q6820988

Motorola V60s Cradle 0143659Z01

Vehicle Manual 68P40402Z

60s

Q6820925

Motorola V710 Cradle 0143246X01

Vehicle Manual 68P40402Z

710

Q6820920

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

5.0 Bill of Materials Section

"SLK" CLASS COMPLETER KIT W/O

VOICE

MBUSA #Q6820915

COMPLETER KIT PARTS MOTOROLA PART # DC PART # 171 W/O VOICE

CONTACT PLATE 0143211X02 A 230 820 05 011 1

ANTENNA SWITCH WITH FAKRA CONNECTIONS 0143204X01 A 220 827 18 42 1

171 UHI BRACKET 0743327X01 A 171 545 26 40 1

171 COMPENSATOR BRACKET 0743328X01 A 171 545 02 40 1

171 MOST CABLE WITHOUT VOICE 3043458X02 N/A 1

UHI VEHICLE CORE KIT

MBUSA #Q6820906

COMPONENT MOTOROLA P/N MBUSA P/N DC P/N

UHI MODULE 0142208z97 Q6820936 A 211 820 43 85

HARDWARE KIT 0109950J09

DUAL BAND COMPENSATOR 0187419M01 Q6820829

CRADLES KITS MOTOROLA PART

#'s CRADLE KIT#

Motorola V600 Cradle 0143213X01

Vehicle Manual 68P40402Z

600

Q6820919

Motorola V60i Cradle 0143212X01

Vehicle Manual 68P40402Z

60i

Q6820988

Motorola V60s Cradle 0143659Z01

Vehicle Manual 68P40402Z

V60s

Q6820925

Motorola V710 Cradle 0143246X01

Vehicle Manual 68P40402Z

V710

Q6820920

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

5.0 Bill of Materials Section

6.0 Conclusion

Table of Contents

6.1 __ For Additional Information

6.2 __ Technical Manual Feedback Form

6.3 __ Key Contacts

6.0 Conclusion

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

6.1 For Additional Information

By reviewing the contents of this manual, the service technician can obtain a general understanding of the

Telephone package. You may have questions about this new system that were not answered by reading

this book; for this reason, other sources are available to assist you in becoming more familiar with this

product.

A web site has been developed by Motorola to cover key topics of the K2OPTION package. This web

page can be accessed at: http://www.mbusaphones.com. The web site is intended for dealer use only and

is not accessible to the general public; for this reason it is password protected. Enter "mbusa" for the

"User Name" entry, and "safecars" for the " Password", both entries need to be in lower case letters, and

then select "OK".

Additionally, each dealership will receive materials from Motorola describing the Telephone package that

can help you to become more familiar with the new system. An installation guide has been generated by

Mercedes-Benz and will be a part of the installation kit. The installation guide provides detailed sketches

and a step-by-step procedure for installing and programming the Telephone package.

~ For all feedback on the technical support manual, please fill-out ‘Telephone Technical Feedback

Form’ and send to Area Technical Specialist or contact Motorola @ 877-668-8600.

~ You may also log onto the website and use the ‘Contact Us’ link, which will allow you to submit

feedback and comments directly to Motorola’s Technical Support Specialists.

6.0 Conclusion

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

6.2 Technical Manual Feedback Form

Please use this form to provide feed-back on the manual to the Mercedes-Benz Regional Technical

Supports Specialist.

Your Name:

Date: _________

Contact Number:

Dealer Code:

6.0 Conclusion

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

6.3 Key Contacts

A Mercedes-Benz Regional Technical Support Specialist is available, through your service manager, to

assist you if you encounter problems with the Telephone package after reviewing all of the material

described above.

For the Motorola help line, call 877-668-8600.

Website: www.mbusaphones.com, (log in and password need to be in lower case.)

Password: safecars

— Mercedes-Benz Telephone Manual —

The information presented in this manual is subject to change.

Additional manuals can be ordered from Service Engineering.

Produced by Motorola and Mercedes-Benz USA, LLC

6.0 Conclusion

Mercedes Benz Telephone Manual v4.6 Date: 09/01/2004

Star TAC TDMA MB Phone Manual V4.6

Navigation menu

Versions of this User Manual:

Views

Navigation
