User Manual: Electramac ES1814

Open the PDF directly: View PDF .
Page Count: 3

ELECTROLUX OUTDOOR PRODUCT

S

PNC Type/Prefix/nd Model Brand

953900366 06 ELECTRAMAC 235 McCULLOCH

953900551

953900552

953900420

953900644

953900668

953900497 06 MEL 235 "

953900463 06 ES 1814 -

953900468 06 ES 1816 -

953900605

953900663 06 ELECTRAMAC ES 1816 McCULLOCH

953900413 06 P 1435 PARTNER

953900478 06 EL 1640 -

953900554 06 PARTNER ES 18 -

953900664 06 P 2114 PARTNER

953900665 06 P 2116 PARTNER

953900704 06 EM 235 -

953900679 06 'ELECTRAMAC ES 1750-14 McCULLOCH

953900736 06 P ES 18-16" PARTNER

953900745 06 ELECTRAMAC EL 1750-14 McCULLOCH

Number of Pages 1 of 3

Factory: IIQ - Valmadrera Product Group: OP 93

Publication Number: EIPL2004_VP041100

5

Petrol Portable

Publication Date: 11/02/05 Sub Group 9434

Publication No:

EIPL2004_VP0411005 Page: 2 of 3

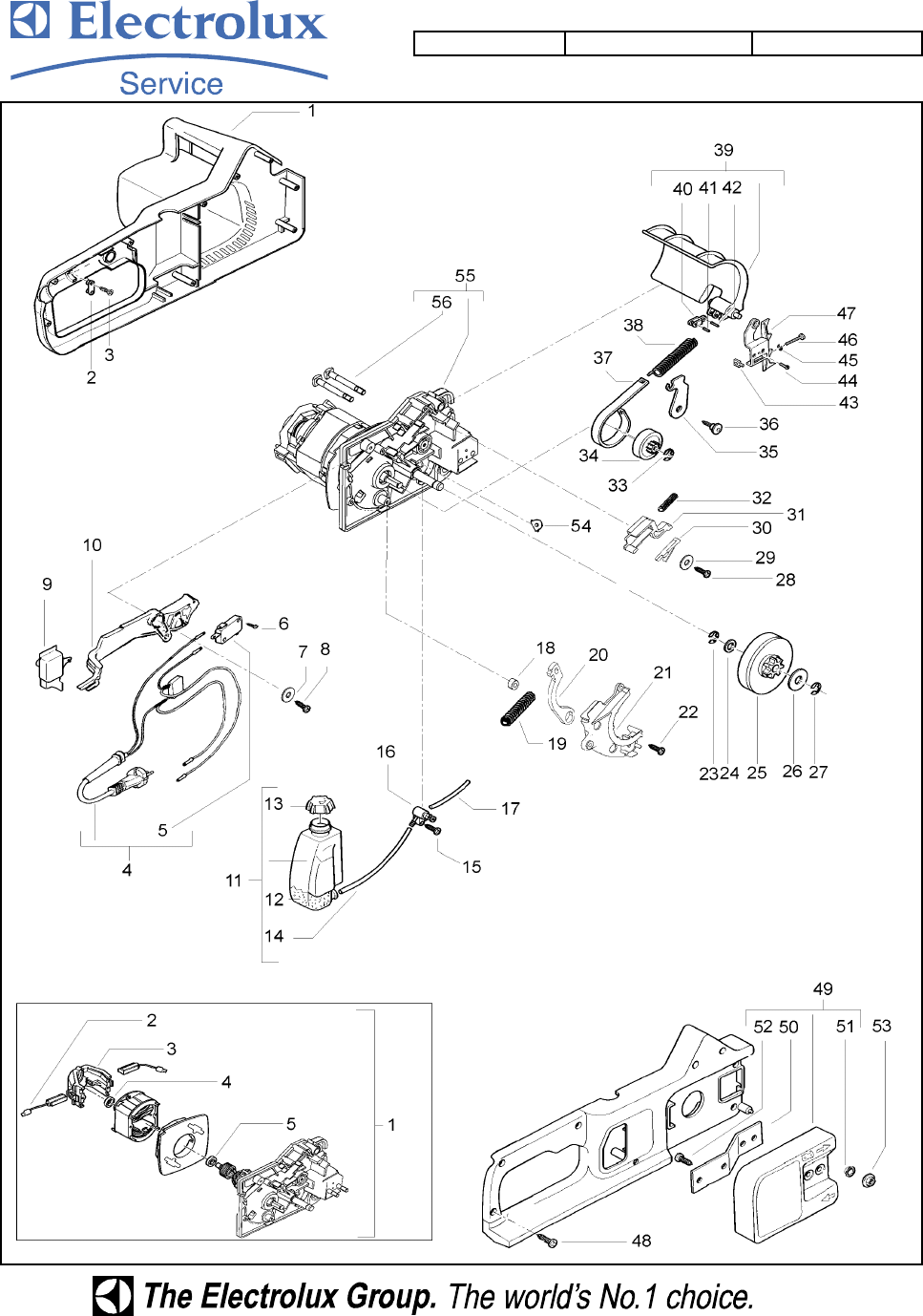

FIGURE 2

FIGURE 1

Publication No:

Item P/N McC P/N ELX Qty DESCRIPTION Item P/N McC P/N ELX Qty DESCRIPTION

FIGURE 1 43 241037 538241037 1tensioner nut

44 229082 538229082 1screw

1 249134 538249134 1crankcase kit 45 235367 538235367 1seeger ring

2 241052 538241052 1wires clamp 46 241167 538241167 1screw

3 241077 538241077 2screw 47 241036 538241036 1spiked bumper

C 4 243008 538243008 1wires ass'y(schuko) 48 240862 538240862 8screw self threading 4x18

C 4 243039 538243039 1wires ass'y(UK) C 49 4355 538004355 1pinion cover ass'y

C 4 243038 538243038 1wires ass'y(CH) 50 z241066 538241066 1pinion cover plate

C 4 243044 538243044 1wires ass'y(AU) 51 z241067 538241067 2bushing

C5 z242687 538242687 1microswitch 52 z241077 538241077 1screw self threading 4x14

6 240862 538240862 1screw self threading 4x18 A 53 242501 538242501 2nut M6

7 241703 538241703 1washer B 54 243017 538243017 1cap

8 240833 538240833 1screw self threading 3x20 55 FIGURE 2

9 243009 538243009 1trigger A56 z241035 538241035 2bar bolt

10 243014 538243014 1trigger lever

C 11 4305 538004305 1oil tank ass'y

12 z242365 538242365 1oil filter FIGURE 2 1500W -1650 W

B13 z241060 538241060 1cap

C14 z242402 538242402 1oil tube (tank - oil pump) C 1 243033 538243033 1motor ass'y

15 240862 538240862 1screw self threading 4x18 C2 z00248956 538048956 2brushes

B 16 241183 538241183 1oil pump C3 z00248957 538048957 1brushes holder

17 229743 538229743 1oil tube (oil tank - chain) C4 z00216400 538216400 1bearing

B 18 243005 538243005 1bushing C5 z00216404 538216404 1bearing

19 243006 538243006 1spring

B 20 243004 538243004 1brake (stop in time)

21 243007 538243007 1brake cover FIGURE 2 1700W -1750W - 1800W - 1850W - 2200W

22 240862 538240862 3screw self threading 4x18

23 229137 538229137 1seeger D.8 C 1 243035 538243035 1motor ass'y

C 24 241074 538241074 1washer 10x15x1 C2 z00248956 538048956 2brushes

A 25 241038 538241038 1gear C3 z00248957 538048957 1brushes holder

C 26 241075 538241075 1washer 10x30x0,8 C4 z00216400 538216400 1bearing

B 27 229137 538229137 1seeger D.8 C5 z00216404 538216404 1bearing

28 240862 538240862 3screw self threading 4x18

29 241703 538241703 1washer 4,5x16x0,8

C 30 243019 538243019 1trigger lock

C 31 243018 538243018 1slide

C 32 241574 538241574 1spring

33 241073 538241073 1seeger D.8

B 34 243003 538243003 1pinion

35 241044 538241044 1lever

36 241045 538241045 1screw

37 241500 538241500 1brake metal stripping

38 241451 538241451 1brake spring

39 247717 538247717 1brake lever ass'y

40 z241043 538241043 1toggle

41 z229394 538229394 1pin

42 z241978 538241978 1pin

A=ALTA ROTAZIONE A=HIGH MOVING A=HAUTE DEMANDE A=GROBE NACHFRAGE

B=MEDIA ROTAZIONE B=MEDIUM MOVING B=MOYENNE DEMANDE B=MITTELMAESSIGE

C=ALTA ROTAZIONE C=SLOW MOVING C=BASSE DEMANDE C=WENIGE NACHFRAGE

NUOVI CODICI NEW P. NUMBERS NOUVELLES REFERENCES NEU CODEX

EIPL2004_VP0411005 Page: 3 of 3
