ILLUSTRATED PARTS LIST
MODEL NO. 96021000900
CUSTOMER CATALOG NO. MOWCART 66
PRODUCT NO. 960 21 00-09
532 43 67-91 Rev. 8
2
1 532 43 67-15 DECAL, STEERING WHEEL
2 532 43 35-96 DECAL, V-BELT SCH 30"
3 532 42 51-13 DECAL, WARN. DEFLECT/CTFGR
4 532 43 67-16 DECAL, DECK/DEFLECTOR
6 532 43 44-57 DECAL, WARNING
7 532 43 53-48 DECAL, INSTALL BOOT
8 532 12 44-33 DECAL, 80 DBA
9 532 16 88-69 DECAL, TICK MARK
10 532 43 67-23 DECAL, DEFLEC
- - 532 43 44-57 DECAL, BYPASS
- - 532 43 67-90 MANUAL OPERATOR ENGLISH
1
9
6
4
7
10
8
3
2
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
RIDING MOWER - - MODEL NO. MOWCART 66
DECALS
27
27
3
BATTERY
FUSE-40A
RED
RED
WHITE
BLACK/WHITE
RED
GREEN
YELLOW
BLACK/WHITE
BLACK
BLACK
GRAY
BLACK
RELAY
M
STARTER
CLUTCH / BRAKE
(PEDAL UP)
SEAT SWITCH
(NOT OCCUPIED)
IGNITION
UNIT
SM
B
GA1
A2
L
REVERSE SWITCH
SPARK PLUG
GAP
NOT IN REVERSE SHORTING CONNECTOR
ATTACHMENT CLUTCH
(CLUTCH OFF)
REMOVABLE
CONNECTIONS
WIRING INSULATED CLIPS
NOTE: IF WIRING INSULATED CLIPS
WERE REMOVED FOR SERVICING OF
UNIT, THEY SHOULD BE RE-INSTALLED
TO PROPERLY SECURE YOUR WIRING.
IGNITION SWITCH
CIRCUITPOSITION
OFF
B+A1
RUN/OVERRIDE
B+S+A1START
M+G+A1
B+A1RUN
“MAKE”
L+A2
NON-REMOVABLE
CONNECTIONS
STATOR
DIODE
28 VOLTS AC MIN. @ 3600 RPM
(CHARGING SYSTEM DISCONNECTED)
CHARGING SYSTEM OUTPUT
. 5 AMP DC @ 3600 RPM
SCH21
STARTER
FUSE-5A
SAFETY START MODULE
ABF
DE
C
RED
RED
BLACK/WHITE
BLACK
VIOLET
BLACK
BLACK/WHITE
BLACK
A
BDC
E
F
SAFETY START MODULE
VIEWED FROM MATING SIDE
85 86
30 87
87A
RED
VIOLET
VIOLET TO IGN. SWITCH ‘A1’

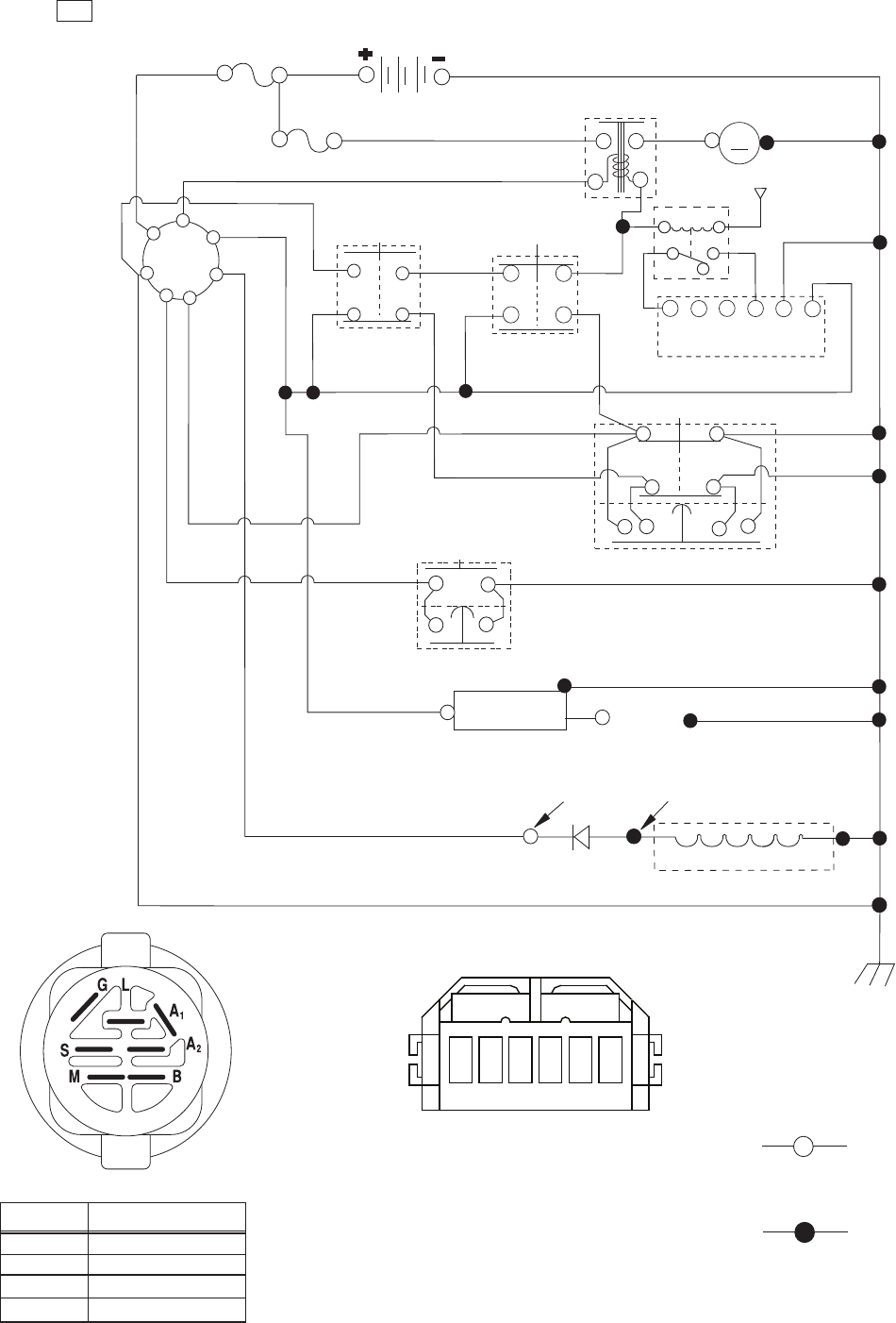

RIDING MOWER - - MODEL NO. MOWCART 66
SCHEMATIC
38
38
4
11
LRV1
10
9
8
14
12
13
7
1
2
34
6
5

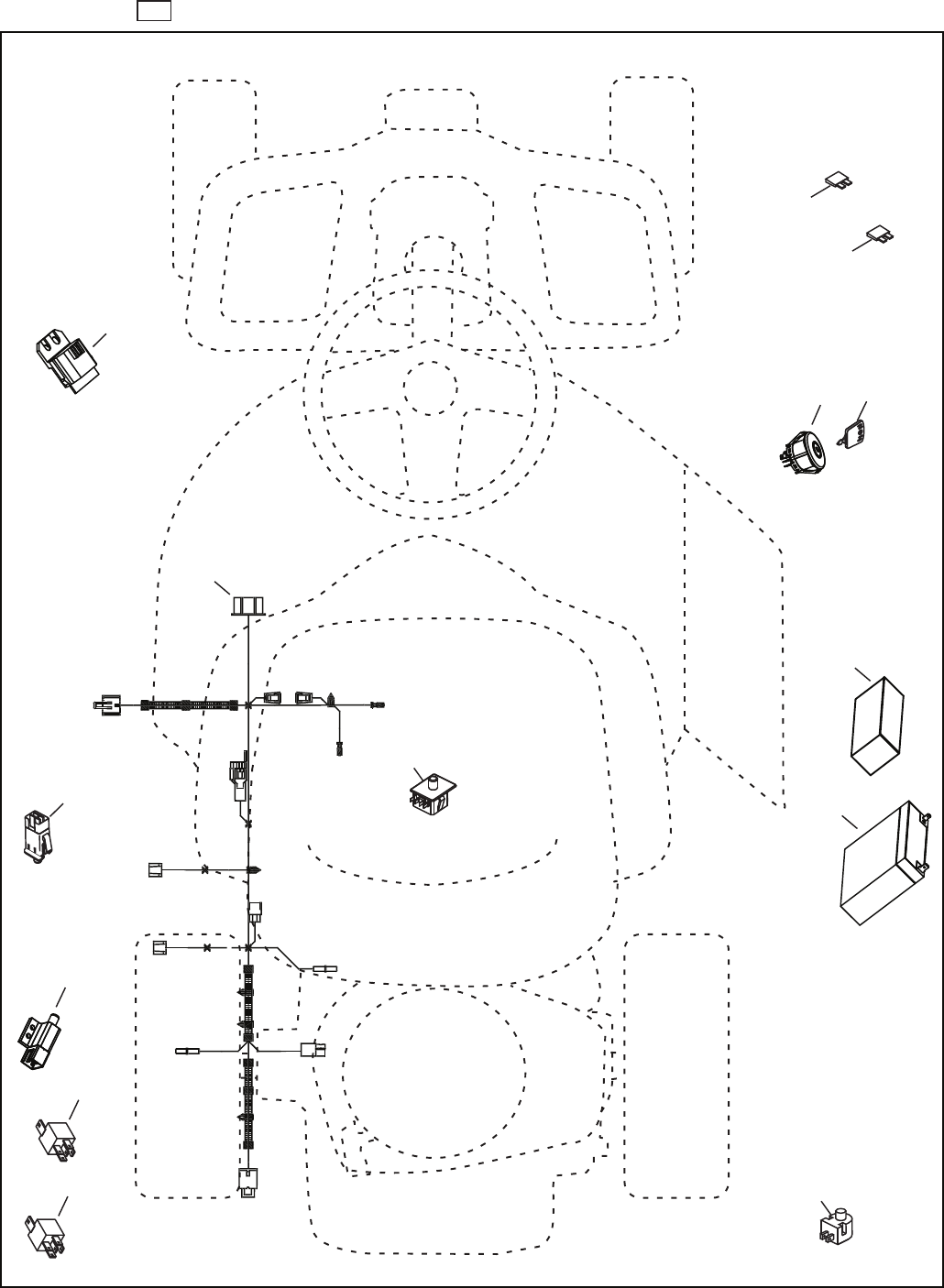

RIDING MOWER - - MODEL NO. MOWCART 66
ELECTRICAL
32
32
5
1 532 43 70-70 BATTERY
2 532 42 54-16 FOAM, POLYURETHANE
3 532 19 33-50 SWITCH, IGN, DLTA, P-IN, ROS
4 532 41 19-34 KEY, MOLDED
5 532 43 33-30 FUSE, 5A
6 532 42 59-37 FUSE, 40A
7 532 16 07-84 SWITCH, PLUNGER, NO, OLIVE
8 532 43 15-42 RELAY, 40A
9 532 10 95-53 SWITCH, INTLK,CL, MWR, GRY
10 532 17 61-38 SWITCH, INTERLOCK, NONC,GRAY
11 532 43 18-46 MODULE, STARTING, RECOIL, LRV
12 532 19 27-49 SWITCH, SEAT, DP, ROS
13 532 42 84-77 HARNESS, IGN, ELECTSTART, LRV
14 532 10 97-48 RELAY
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
RIDING MOWER - - MODEL NO. MOWCART 66
ELECTRICAL
32
32
6
10
11
3
4
5
7
9
8
1
2
12
13
49
14
15
16
17
18
19
20
21
22
23
24
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
39
40
40
41
41
42 43
44
45
45
50
50
45
45
45
45
45
45
6
46
46
45
45
45
46
48
46
48
46
46
47
LRV-Chassis_1_r2

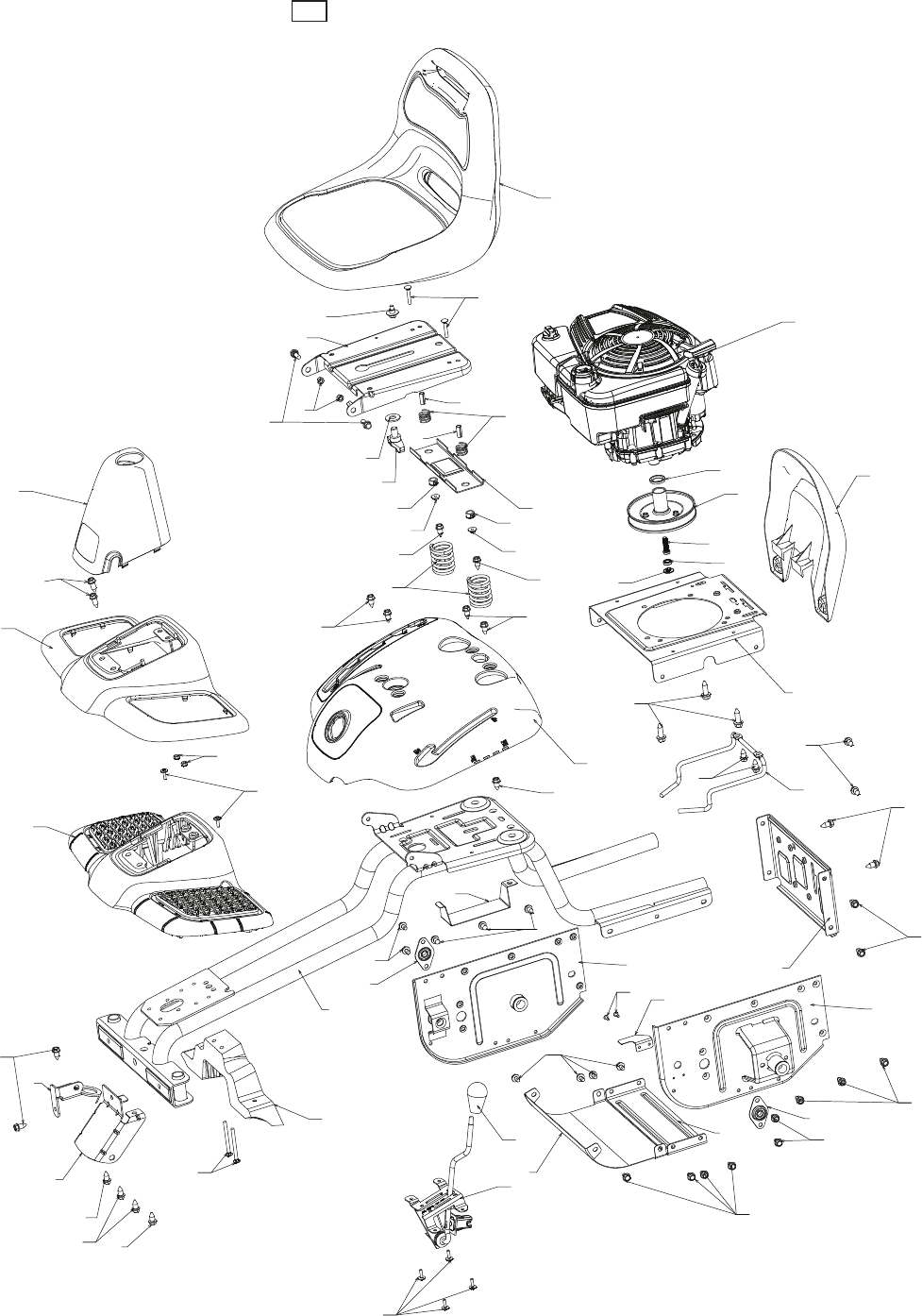

RIDING MOWER - - MODEL NO. MOWCART 66
CHASSIS AND ENCLOSURES
39
39
7
1 532 42 80-48 WELDMENT, CHASSIS
2 532 42 82-47 SUPPORT, AXEL LH
3 532 42 82-44 SUPPORT, AXEL RH
4 532 42 83-46 SHIELD, TRANSAXLE FRONT
5 532 42 81-10 BRACE, AXLE CROSS
6 532 42 81-09 COVER, FRICTION DRIVE
7 532 42 80-40 PLATE, ENGINE
8 532 42 85-76 BRACKET, CHASSIS FRONT
9 532 42 88-56 BRACKET, STEERING SUPPORT
10 532 19 55-30 PAN, SEAT
11 532 17 46-48 BRACKET, SWITCH MOUNTING
12 532 42 82-48 BOOT, DUST
13 532 43 69-13 COVER, FOOT REST
14 532 42 82-50 STRUCTURE, FOOT REST
15 532 42 82-49 SUPPORT, FOOT REST
16 532 43 69-11 FENDER, CONTROL
17 532 42 83-48 GUARD, ENGINE
18 532 43 65-09 ENGINE, 12S907-1473-B1
19 532 42 89-86 KEEPER, BELT
20 532 42 80-46 BRACKET, BATTERY
21 532 42 98-15 LEVER, SWITCH
22 532 42 88-26 DECK CLUTCH ASM
23 532 14 98-46 KNOB
24 532 41 63-58 SCREW, NO. 10
25 872 14 04-24 BOLT, CARRIAGE 1/4-20 X 3
26 873 51 04-00 NUT, 1/4-20
27 532 43 00-87 SPACER, ENGINE
28 532 42 83-01 DISC, FRICTION ASM
29 532 43 08-17 BOLT, SCKT HD 3/8-24 X 1 .25
30 532 43 04-70 BEARING
31 532 43 04-69 SPACER, NEUTRAL
32 532 15 04-06 BOLT, 3/8-16 X .280
33 532 12 41-81 SPRING, SEAT
34 532 12 12-50 SPRING
35 872 05 04-12 BOLT, 1/4-20 X 1 1/2
36 532 12 70-18 BOLT, SHOULDER
37 819 17 19-12 WASHER, 17/32 X 1 3/16
38 532 16 63-69 KNOB, SEAT
39 532 13 43-00 SPACER
40 532 12 12-48 BUSHING, NYLON SNAP
41 532 12 39-76 NUT, LOCK
42 532 17 18-52 BOLT, 5/16-18 SHOULDER
43 873 80 05-00 NUT, 5/16-18
44 532 43 67-31 SEAT
45 817 00 05-12 BOLT, 5/16-18 X 3/4
46 817 49 05-08 BOLT, 5/16-18 X 1/2
47 532 08 67-77 SCREW,
48 532 40 89-81 BEARING, FLANGE, BALL
49 817 06 05-16 SCREW, 5/16-18 X1
50 532 16 54-92 BOLT, SHOULDER, 5/16-18 X .561
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
RIDING MOWER - - MODEL NO. MOWCART 66
CHASSIS AND ENCLOSURES
39
39
8
LRV-Drive_2
10
11
11
3
12
2
3
4
5
6
7
72
8
8
1
2
23
4
5
6
7
8
73
8
12
13
13
70
70
14
14
15
71
15
16
17
18
19
20
21
22
23
24
24
25
26
27
28
29 30
31
32
33
34 35
36
37
37
38
38
38
39
40
41
42
43
70
45
46
47
48
49
50
51
52
53
54
55
56
57
58
58
58
70
70
70
59
70
70
70
60
61
62
63
63
64
64
65
66
67
68
69
7
1
75
74
RIDING MOWER - - MODEL NO. MOWCART 66
DRIVE
40
40
9
– – 532 43 61-44 SERVICE KIT, TRANSAXLE
1 532 43 64-98 WHEEL ASM (REAR)
2 532 12 17-48 WASHER, 16 GA.
3 812 00 00-01 E-CLIP
4 532 12 35-83 KEY. SQUARE
5 532 42 79-39 WELDMENT. DRIVE AXLE
6 532 42 80-69 CHAIN DRIVE
7 532 42 78-73 SPROCKET. 9 TOOTH
SPLINED
8 812 10 00-09 RING, SNAP
10 532 42 88-76 DIFFERENTIAL ASM
11 532 00 13-70 WASHER, THRUST
12 532 43 06-45 CHAIN, PRIMARY DRIVE
13 532 43 08-45 BUSHING
14 532 43 85-68 BRACKET, CARRIER
15 532 12 47-93 BEARING ASM
16 532 42 79-26 SHAFT INPUT
17 532 42 81-06 WHEEL, FRICTION A5M
18 532 42 47-59 ARM, SHIFT
19 532 43 08-70 ROD, BYPASS
20 532 42 79-97 BRACE CARRIER REAR
21 532 42 80-77 SPRING, CARRIER
22 532 42 80-76 SPRING, BRAKE
23 532 43 13-74 SPRING, BYPASS
24 532 42 79-95 BRACE CARRIER BOX
25 532 42 83-03 LINK, SHIFT
26 532 42 98-16 ARM. CLUTCH
27 532 42 90-53 WELDMENT SHIFT LEVER
28 532 42 83-02 SUPPORT, SHIFT LEVER
29 532 17 48-40 WASHER, NYLON
30 532 18 39-00 HUB SHIFT LEVER
31 532 42 90-55 SPACER, NYLON
32 532 42 84-64 MNTG BRKT. SHIFT ARM
33 532 42 84-61 BRACKET, SHIFTER FLEX
34 532 42 84-62 TUBE SHIFT ARM
35 532 19 64-92 GRIP, HANDLE
36 872 11 04-06 BOLT, CARRIAGE - 114-20 X 3/4
37 873 80 04-00 NUT NYLON LOCK 114-20
38 532 16 54-92 BOLT, SHOULDER
39 874 78 04-12 BOLT, 1/4-20 X 3/4
40 810 04 04-00 WASHER, LOCK
41 819 09 12-10 WASHER FLAT
42 532 16 60-02 WASHER, SERRATED
43 873 68 04-00 NUT, CROWN LOCK 114-20
45 817 49 04-36 SCREW 1/4-20 X 2 114
46 819 09 10-16 WASHER
47 817 49 04-20 SCREW, 1/4-20 X 1 1/2
48 532 43 02-49 PLATE BRAKE ANTI - ROTATE
49 532 43 02-45 SPRING, BRAKE RETURN
50 532 42 80-21 ARM, BRAKE
51 532 43 02-47 SPACER RETURN
52 532 42 80-78 CALIPER, BRAKE ASM
53 877 01 08-10 PIN, DOWEL 1/4
54 532 42 80-19 PLATE, BRAKE PAD
55 532 42 80-17 PUCK BRAKE
56 532 43 52-53 ROTOR, BRAKE
57 532 42 80-16 CAP, BRAKE CALIPER
58 532 12 47-88 PIN, RETAINER
59 817 49 05-08 BOLT, 5/16-16 X 112
60 532 44 08-55 CABLE, BRAKE
61 532 42 79-45 WELDMENT, PEDAL
62 532 42 96-78 ROD, PARKING BRAKE
63 877 10 08-12 PIN, .25 X .75 CLEVIS
64 532 42 10-76 PIN, COTTER 5/64 X 3/4
65 532 42 93-25 BRACKET, BRAKE SUPPORT
66 532 42 96-94 COVER PEDAL
67 532 42 96-93 COVER, BRAKE PEDAL
68 817 49 04-06 SCREW, 1/4-20 X 3/8
69 532 42 80-70 BRAKE CABLE MOUNT
70 817 00 05-12 BOLT, 5/16-18 X 3/4
71 532 19 32-68 CAP HUB AXLE
72 812 00 00-02 E RING #5133-62
73 532 42 95-19 SPROCKET II TOOTH
SPLINED
74 532 43 78-41 TENSION LRV CHAIN
75 532 43 34-95 SPROCKET, IDLER
KEY PART
NO. NO. DESCRIPTION KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
RIDING MOWER - - MODEL NO. MOWCART 66
DRIVE
40
40
10
10
11
2
2
4
6
6
7
7
9
9
9
1
2
30
3
1230
3
4
4
5
29
8
88
12
13
14
15
16
17
18
19
19
20
21
22
28
23
24
25
26
27
LRV-Steering_1_r2
RIDING MOWER - - MODEL NO. MOWCART 66
STEERING ASSEMBLY
41
41
11
1 532 43 65-00 WHEEL ASM (FRONT)
2 812 00 00-01 E-CLIP
3 532 18 89-67 WASHER, HARDENED
4 532 12 17-49 WASHER, 1/4 X 3/4
5 532 42 80-34 SPINDLE, RH
6 532 12 49-31 WASHER, HARDENED THRUST
7 532 12 49-37 BUSHING, STEERING COLUMN
8 532 42 10-76 PIN, 5/64 X 3/4 COTTER
9 819 13 14-14 WASHER
10 532 42 80-57 WELDMENT, LWR STRG SHAFT
11 532 42 80-35 LINK, STRNG LH
12 532 42 80-36 LINK, STRNG RH
13 874 78 05-24 BOLT, 5/16-18 X 1 1/2
14 819 13 10-16 WASHER
15 873 80 05-00 NUT, 5/16-18
16 532 42 80-44 BUSHING, STEERING SNAP
17 532 42 82-52 SUPPORT, UPPER STEERING
18 532 19 52-27 BUSHING, STEERING
19 817 00 05-12 BOLT, 5/16-18 X 3/4
20 532 42 80-45 CLIP, RETAINER SPRING
21 532 42 83-47 COVER, STEERING COLUMN
22 532 42 82-13 SHAFT, STEERING
23 532 18 67-37 ADAPTER, STEERING WHEEL
24 819 18 38-12 WASHER, 9/16 X 2 3/8 12 GA.
25 873 94 08-00 NUT, JAM LOCK 1/2-20
26 532 42 41-46 WHEEL, STEERING
27 532 42 41-47 CAP, STEERING WHEEL
28 532 19 98-49 CLIP, RETAINER SPRING
29 532 42 80-33 SPINDLE, LH
30 532 19 32-68 CAP, HUB, AXLE
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
RIDING MOWER - - MODEL NO. MOWCART 66
STEERING ASSEMBLY
41
41
12
10
11
1
2
3
4
5
7
9
8
12
13
41
14
15
16
16
17
17
17
40
17
45
18
18 19
19
19
19
20
20
21 22
23
42
24
25
26
27
27
28
29
30
31 32
33
34
35
36
37
37
38
39
39
LRV-Deck_1_r4
44
43
46
6
36
RIDING MOWER - - MODEL NO. MOWCART 66
MOWER DECK
44
44
13
1 532 42 81-93 DECK, 26"
2 532 19 28-70 MANDREL ASM
3 532 43 25-20 KEEPER, BELT
4 532 43 25-94 PULLEY, MANDREL
5 532 42 85-78 BELT
6 532 42 82-42 COVER, MANDREL
7 532 42 93-95 LIFT ASM, DECK
8 532 42 91-95 LINK, DECK LIFT
9 532 42 93-97 LINK, ADJUSTABLE
10 532 43 89-23 DEFLECTOR
11 532 42 89-68 SUPPORT, DEFLECTOR
12 532 13 14-91 ROD, HINGE
13 532 19 70-26 SPRING, TORSION
14 532 41 88-63 ARM, MOWER SUPPORT
15 873 90 05-00 NUT, LOCK
16 532 19 51-61 STUD
17 819 19 19-12 WASHER
18 532 19 42-09 PIN
19 532 19 65-39 BOLT, SHOULDER
20 532 19 42-08 PIN
21 819 17 19-12 WASHER, 17/32 X 1 3/16
22 532 42 93-50 LINK, DECK
23 873 93 06-00 NUT, LCK 3/8-16
24 532 42 95-31 SPRING, DECK
25 532 12 47-88 PIN
26 532 18 76-90 SPACER, MANDREL
27 532 17 39-84 BOLT, MANDREL
28 532 40 02-34 NUT, LOCK
29 532 42 85-00 BLADE
30 532 19 30-03 BOLT, BLADE
31 532 19 31-97 PULLEY, IDLER
32 532 14 10-43 GUARD, IDLER
33 532 19 34-14 KEEPER, BELT IDLER
34 872 11 06-12 BOLT, 3/8-16 X 1 1/2
35 532 19 94-70 ARM, BRAKE
36 532 13 77-29 SCREW, 1/4-20 X 5/8
37 873 90 06-00 NUT, 3/8-16 FLANGE
38 532 42 84-35 ARM, IDLER
39 817 49 05-08 BOLT, 5/16-18 X 1/2
40 819 17 16-16 WASHER, 16 GA.
41 532 10 53-04 CAP, SLEEVE
42 532 11 04-52 NUT, PUSH
43 532 12 56-31 GRIP, HANDLE
44 532 42 94-01 PLUNGER
45 532 10 57-67 PIN
46 532 43 86-10 KEEPER, BELT
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
RIDING MOWER - - MODEL NO. MOWCART 66
MOWER DECK
44
44
09.27.12 TH/SR/TH

Navigation menu
