IPL, McCulloch, M51 500 CMDW, 96648590100, 2010 02, Lawn Mower 966485901 MCCI2010 AAaa V070000001

User Manual: 966485901

Open the PDF directly: View PDF .
Page Count: 3

HUSQVARNA OUTDOOR PRODUCTS ITALIA SPA

V070000001

PNC ML Model Brand

966485901 00 M 51–500 CMDW McCulloch

Number of Pages 1 of 3

Factory: IIQ - Valmadrera Product Group: OP 93

Publication Number: MIPL2010 V070000001 Petrol Portable

Publication Date: 18/02/10 Sub Group 1071

HUSQVARNA OUTDOOR PRODUCTS ITALIA SPA

MIPL2010 V070000001 Page 2 of 3

HUSQVARNA OUTDOOR PRODUCTS ITALIA SPA

MIPL2010 V070000001 Page 3 of 3

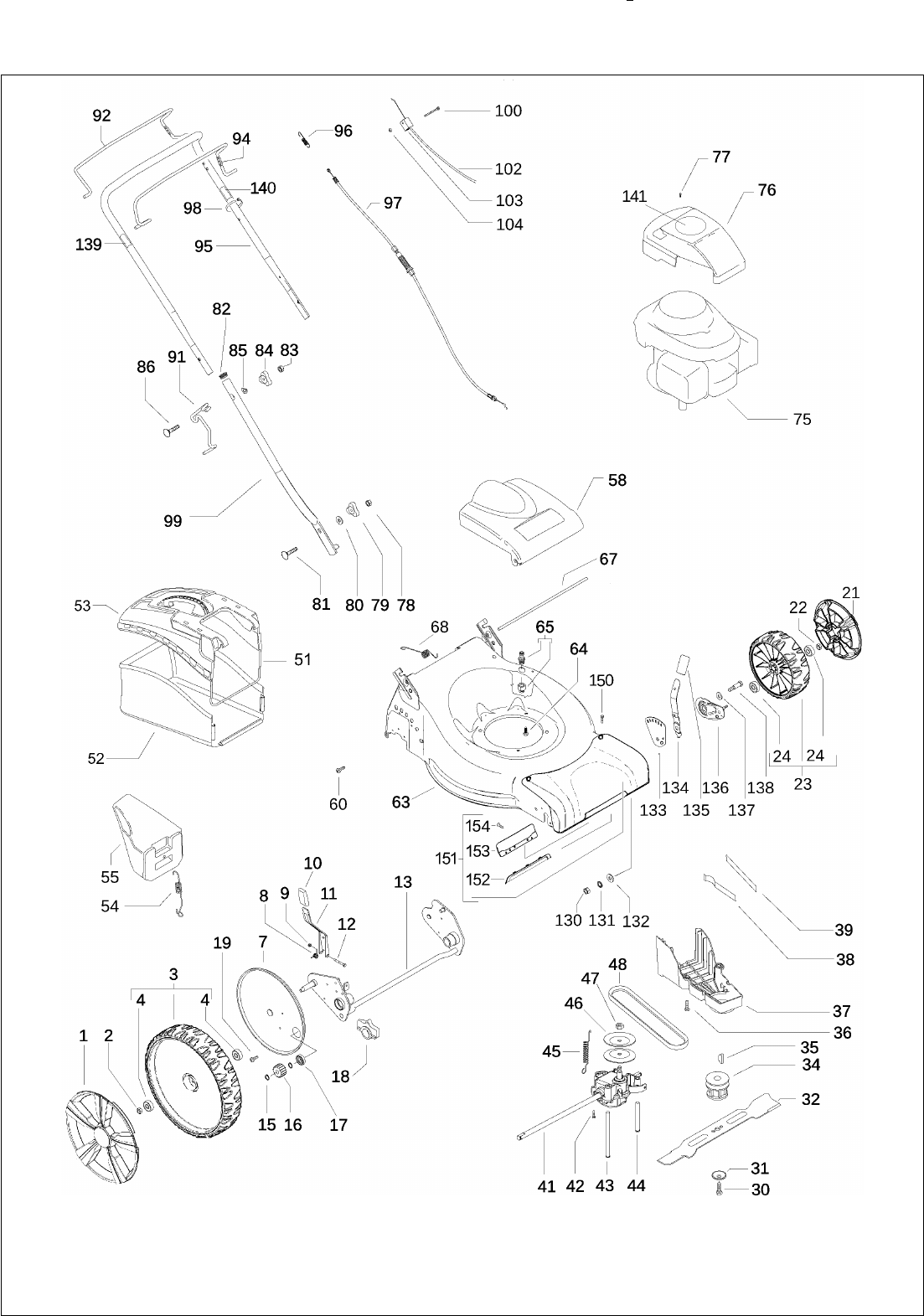

Item PN Description Qty

1 574 39 66–01 wheel cover Ø280 2

2 504 85 78–01 nut M8, self locking, flanged 2

3 574 45 12–01 wheel assy Ø280 2

4 504 54 82–01 ball bearing 4

7 504 53 99–01 dust shield Ø280 2

8 531 21 08–17 spring, wheel regulator lever 1

9 531 20 84–92 nut M5, self locking 1

10 574 61 05–01 handle, wheel regulator 1

11 525 34 84–02 wheel regulator lever 1

12 538 23 58–07 screw 5x45 1

13 510 09 29–01 rear axle 1

15 531 20 87–72 seeger 4

16 544 34 23–01 gear 2

17 531 20 87–78 ball bearing 2

18 531 20 59–44 rear axle housing 2

19 531 20 78–56 screw M5x10 4

21 574 39 64–01 wheel cover Ø190 2

22 504 85 78–01 nut M8, self locking, flanged 2

23 574 45 09–01 wheel assy Ø190 2

24 504 54 82–01 ball bearing 4

30 531 20 80–08 screw, 3/8” 1

31 531 20 72–37 spring washer 1

32 504 11 33–01 mulching blade 1

34 504 59 12–01 blade support 1

35 504 59 14–01 key 1

36 531 20 78–56 screw 5x10 3

37 544 46 23–01 belt cover 1

38 504 04 61–01 belt guide 1

39 544 46 25–01 belt guide 1

41 504 54 14–03 gear box 1

42 510 03 75–01 screw 4x16 2

43 504 10 31–01 belt guide 1

44 544 93 43–01 belt guide 1

45 544 93 47–01 gear box spring 1

46 504 54 79–01 pulley plate 2

47 504 54 80–01 nut 1

48 504 10 33–01 belt Z30 10X765 1

51 531 21 35–88 sack frame 1

52 531 21 32–11 sack 1

53 531 21 35–87 hard top 1

54 531 21 11–91 spring, mulching plug 1

55 531 21 33–93 mulching plug 1

58 544 25 55–01 safety flap 1

60 531 20 66–77 screw 2

63 575 50 14–02 deck 1

64 531 21 28–51 screw 3/8” + split washer 3

65 531 20 53–18 cap 1

67 531 20 50–60 safety flap bar 1

68 531 20 59–99 spring 1

75 ——— engine, Briggs & Stratton, model

number 10T5020188B1

1

76 522 86 81–01 cover engine 1

77 531 21 27–10 cover engine screw 2

78 531 20 79–82 nut M8 2

79 531 20 49–23 knob 2

80 531 20 49–22 washer 2

Item PN Description Qty

81 531 20 49–21 screw M8x25 2

83 531 20 70–89 screw M8x50 2

85 531 20 70–90 washer 1

86 531 20 49–23 knob 2

87 531 20 79–82 nut M8 2

91 504 70 86–01 starter cable guide 1

92 504 70 84–01 clutch lever 1

94 504 70 83–04 brake lever 1

95 504 70 80–01 upper handle 1

96 531 21 05–73 spring, clutch 1

97 544 90 80–02 drive cable 1

98 531 20 55–81 binder 2

99 531 20 60–71 lower handle 2

100 531 20 63–46 screw M5x40 1

102 531 21 35–22 brake cable 1

103 531 20 80–43 cable support 1

104 531 20 52–13 nut M5 1

130 531 20 79–78 nut M10 2

131 531 20 89–74 washer 2

132 531 20 79–89 washer 2

133 544 45 22–01 bracket, wheel adj. 2

134 544 45 25–01 wheel regulator lever 2

135 574 61 05–01 handle, wheel regulator lever 2

136 504 85 14–01 wheels support 2

137 531 20 60–20 washer 2

138 531 20 49–12 screw M10 2

139 576 28 37–01 label, handle clutch 1

140 576 28 32–01 label, handle brake 1

141 576 28 51–01 label, cover engine 1

150 576 04 74–01 screw 2

151 575 56 22–02 front cover 1

152 574 37 51–01 frontal plate 1

153 574 72 17–01 back plate 1

154 575 95 57–01 screw 2
