PARAMOUNT PARTS LIST
R
WEED EATER PARTS LIST
R
R
POULAN PARTS LIST
R
NEW
1
Note: Illustration may differ from actual model due to design changes
PARTS L IST NO.
PAGE NO.
CHAIN SAW MODEL(s)
581359101 CS330
DATE
9/05/12

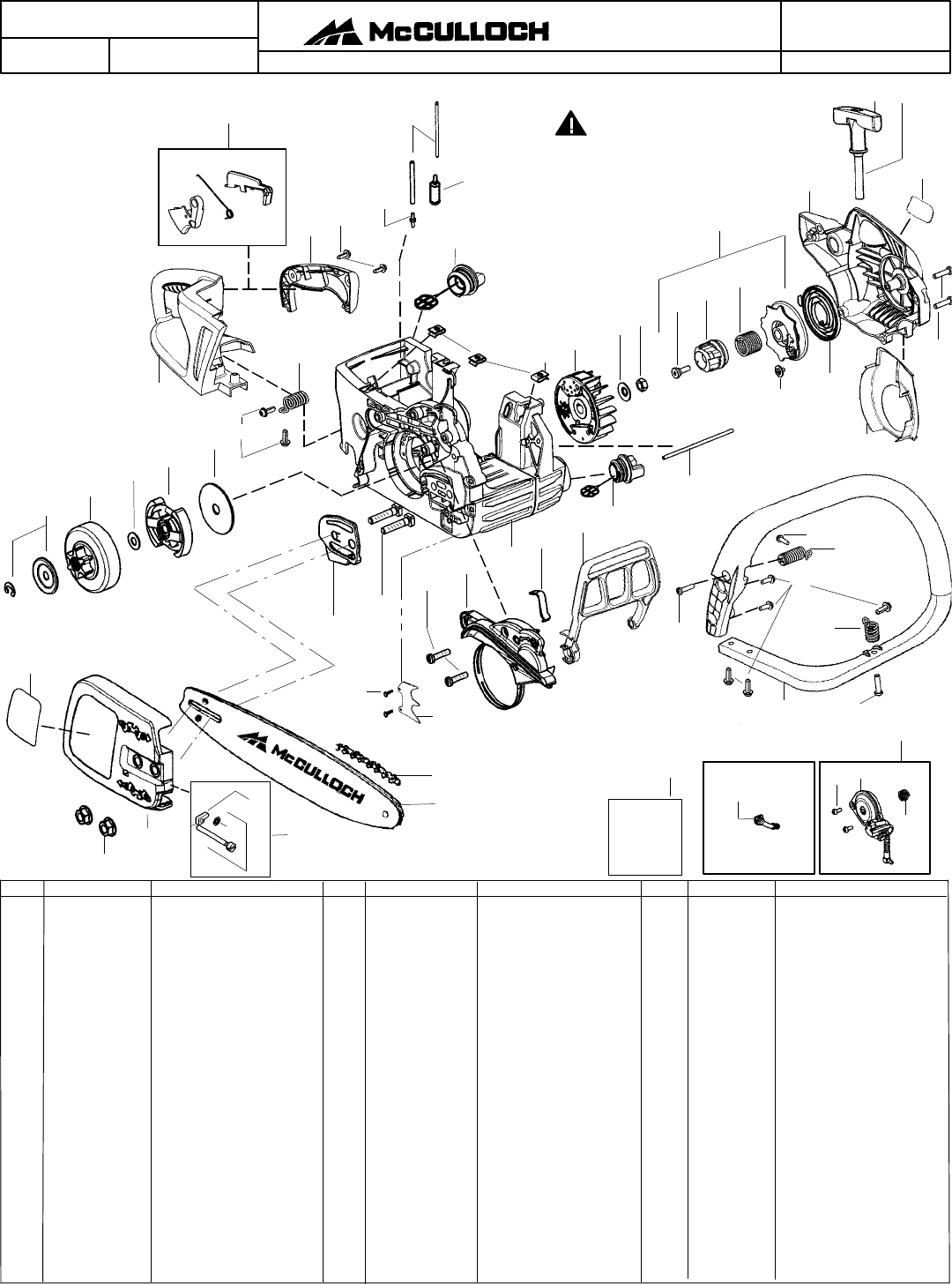

PARTS LIST
All repairs, adjustments and maintenance
not described in the Operator’s Manual
must be performed by qualified service
personnel.
WARNING
Ref. Part No. Description Ref. Part No. Description Ref. Part No. Description
49
50
1. 580864201 Kit---Trigger/Lockout
2. 545011912 Cover ---Handle
3. 530016433 Screw
4. 530023877 Fitting---Fuel line
5. 580727101 Kit---Fuel Line
6. 530095646 Assy---Fuel Pick Up
7. 545012112 Handle---Rear
8. 530059475 Spring---Rear Isolator
9 . --- --- --- --- W a s h e r ( R e f . # 5 8 )
10. 530057905 Assy---Clutch Drum 3/8”
1 1 . --- --- --- --- W a s h e r --- ( R e f . # 5 8 )
12. 530057907 Assy---Clutch
13. 530016419 Washer---Large Clutch
14. 530015906 Screw
15. 577858501 Assy---Fuel Cap w/ret
16. 530015922 Nut---”U” type speed
17. 545016308 Assy---Flywheel
18. 530015127 Washer---Flywheel
19. 530016134 Nut---Flywheel
20. 530021179 Screw---Shoulder
21. 530059677 Starter Hub ---EPS
22. 530021180 Spring---EPS
23. 530071966 Kit--- EPS Starter Pulley
(Incl. 20,21,22,30)
24. 545045901 Housing---Fan
25. 580835201 Handle--- Starter
26. 530069232 Kit---Rope
27. 580767001 Decal --- Fan Housing
28. 530016432 Screw
29. 576657801 Spring---Starter
30. 530016080 Screw
31. 580678501 Baffle
32. 530058786 Assy---Oil Vent
33. 530057236 Assy---Oil Cap w/ret.
34. 530057880 Handguard
35. 530016416 Spring---Handguard
36. 579061501 Assy---Chassis (Incl.
4,5,8,14,15,16,
,32,33,35,39,55)
37. 530071893 Kit---Chainbrake
38. 530016432 Screw
39. 530016133 Bolt---Bar
40. 530057910 Plate--- Bar
41. 581359301 Decal --- B/C CS330
42. 530015917 Nut---Bar
43. 545012201 Assy---Clutch Cover
(Incl. #46)
44. 530015826 Pin---Bar adjust
45. 530038593 Retainer
46. 530069611 Kit---Bar Adjust
(Incl. 44,45)
47. 530016439 Screw
48. 530014381 Kit---Spike (Incl.47)
49. 579579501 14” PX Chain
50. 580968201 Bar 14”
51. 530016432 Screw
52. 530016443 Screw
53. 530059480 Assy---Rear Iso. Spring
54. 530015906 Screw
55. 530059479 Assy---Front Iso. Spring
56. 530057878 Handle--- Front
57. 530016432 Screw
58. 530071945 Kit---Clutch Washer
(Incl. 9,11)
59. 530057924 Assy---Oil Pick Up
60. 530071891 Kit---Oil Pump
(Incl. 61,62,63)
61. 545227101 Screw
62. 530057931 Assy---Oil Pump
63. 530037820 Gear---Worm
=NEW PART NUMBER FOR THIS IPLn=REFER TO THE SERVICE REFERENCE INDICATED FOR MORE INFORMATION. (LOCATED AT END OF IPL)
K
1
15
10
12
13
17
18 19
22
23
29
24
16
43
56
60
40
39
36
33
32
28
34
37
38
35
2625
61 62
59
63
6
5
4
42
30
21
20
3
57
55
54
53
52
51
2
7
8
14
Clutch
Washer
Kit
58
9
11
31
44
46
45
47
48
27
41
PARAMOUNT PARTS LIST
R
WEED EATER PARTS LIST
R
R
POULAN PARTS LIST
R
NEW
2
Note: Illustration may differ from actual model due to design changes
PARTS L IST NO.
PAGE NO.
CHAIN SAW MODEL(s)
581359101 CS330
DATE
9/05/12

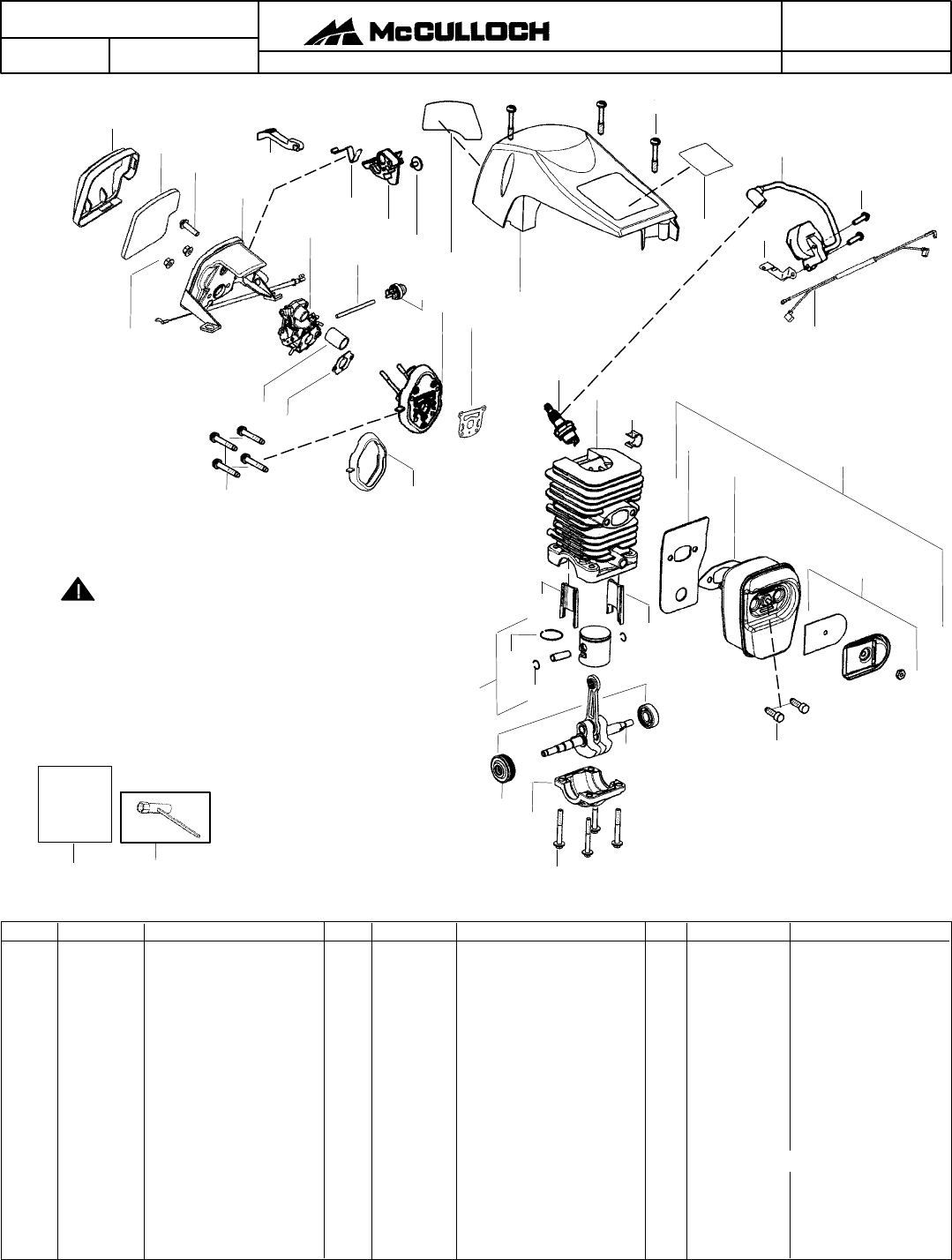

PARTS LIST
1. 530016153 Screw
2. 545115801 Module---Ignition
3. 530016432 Screw
4. 530058661 Strap--- Ground
5. 530057943 Assy---Wire Harness
6. 577923702 Decal --- Warning
7. 545045801 Shield---Cylinder(Incl. 1)
8. 580783801 Decal---Start Reminder
9. 530016080 Screw
10. 530057891 Lever---Ignition Switch
11. 530057908 Spring --- Ignition Switch
12. 530059399 Knob---Choke
13. 530059001 Cover---Air Filter
14. 530057869 Filter---Air
15. 530016425 Screw
16. 545046901 Housing ---Air Filter w/cable
17. 545070601 Carburetor Zama W26
18. 580727101 Kit---Fuel Line
19. 530047721 Bulb ---Purge “snap ---in”
20. 530071889 Kit---Carb. Adaptor
( Incl. # 21,39,42)
2 1 . --- --- --- --- G a s k e t ( R e f . # 2 0 , 4 4 )
22. 952030150 Accy---Spark Plug (RCJ ---7Y)
23. 530071885 Kit---Cylinder (Incl. 30,38)
24. 530058660 Clip---High Tension Lead
25. 545081801 Kit---Muffler(Incl.26,27,28,29)
26. 530057942 Backplate---Muffler
2 7 . --- --- --- --- G a s k e t ( R e f . # 2 5 , 4 4 )
28. 545081701 Kit---Spark Arrestor
29. 530016338 Bolt---Muffler
30. 545015301 Insert---Left Cyl.(black)
31. 545112901 Assy---Crankshaft/Rod
32. 530016417 Bolt
33. 530057941 Cap ---Crankcase
34. 530056363 Assy---Bearing/Seal
Ref. Part No. Description Ref. Part No. Description Ref. Part No. Description
35. 530071882 Kit---Piston (Incl. 36,37)
36. 530015697 Retainer ---Piston Pin
37. 530038729 Ring ---Piston
38. 545015401 Insert---Right Cyl.(gray)
3 9 . --- --- --- --- S e a l ( R e f . # 2 0 , 4 4 )
40. 530016426 Screw
4 1 . --- --- --- --- G a s k e t ( R e f . # 4 4 )
42. 530057926 Tube---Intake
43. 530016101 Nut---Carb.
44. 530071894 Kit---Gasket
(Incl . 21,27,39,41)
45. 530031135 Scrench
580767801 Scabbard Assy.
Engine
Gasket
Kit
=NEW PART NUMBER FOR THIS IPLn=REFER TO THE SERVICE REFERENCE INDICATED FOR MORE INFORMATION. (LOCATED AT END OF IPL)K
44
Not Shown
45
All repairs, adjustments and maintenance not
described in the Operator’s Manual must be
performed by qualified service personnel.
WARNING
13
14
15
16
17
18
19 20
21
22
23
24
26
27 25
7
1
2
3
5
4
42
41
40 39
30
36
37
31
33
29
35
28
11
10
9
12
43
34
32
38
6
8
