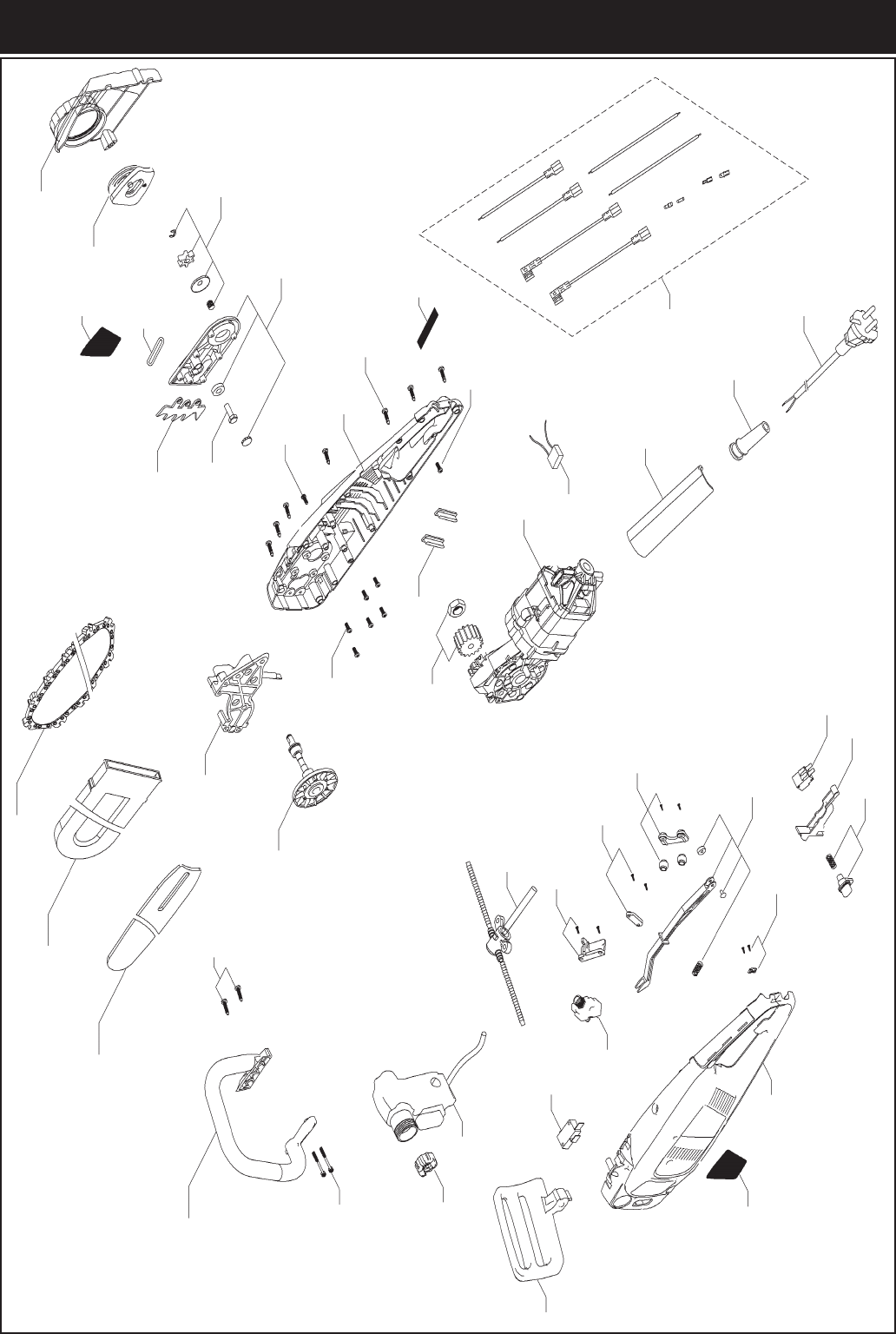

IPL, McCulloch, Inline 1800T, 964830301, 2200T, 966793701, 2012 09, Electric Chain Saw 964830301 MCCI2012 AAaa AP1209007
User Manual: 964830301
Open the PDF directly: View PDF
.
Page Count: 2
IPL, McCulloch Inline 1800T 9648303-01, McCulloch Inline 2200T 9667937-01, Partner P718T
9648311-01, Partner P722T 9648313-01 2012-09
AP1209007 Replaces AP0712002Publication Number
1
44
2
3
45
6
7
8
9
10 11 12 13
14 15 16
17
18 19
20
21
22
23 24
25 26
27 28 29 30
31 32
33 34
35
36
37
38
39 40
41
42
43
15
10
IPL, McCulloch Inline 1800T 9648303-01, McCulloch Inline 2200T 9667937-01, Partner P718T
9648311-01, Partner P722T 9648313-01 2012-09
Item PNC Description Qty Notes
1 531 02 41-22 Chain 14" 1
1531 02 41-28 Chain 16" 1
2 505 56 46-01 Chain Cover Assy 1
3 530 04 75-13 Blade Sheath 16" 1
4 505 56 49-01 Label Kit RHS 1
5 505 56 44-01 Chain Adjustment Assy 1
6 531 02 42-26 Guide Bar 14" 1
6 531 02 42-37 Guide Bar 16" 1
7 505 55 89-01 Oil Seal 1
8 505 55 88-01 Spike 1
9 505 55 80-01 Handle Front 1
10 505 55 82-01 Screw Kit x 12 1
11 505 55 95-01 Stop Pin Assy 1
12 505 56 18-01 Bar Stud 1
13 505 55 90-01 Drive Gear Kit 1
14 505 55 96-01 Output Shaft Assy 1
15 505 55 92-01 Screw Kit 1
16 505 55 91-01 Mount Plate Assy 1
17 505 55 94-01 Screw Kit x 6 1
18 505 55 81-01 Screw Kit x 2 1
19 505 55 87-01 RH Clamshell Assy 1
20 505 56 25-01 Label Warning 1
21 505 55 93-01 Rubber Mount Kit x 4 1
22 505 55 98-01 Gear Kit 1
23 505 56 16-01 Oil Cap Assy 1
24 505 56 17-01 Oil Tank Assy 1
25 505 56 01-01 Oil Pump Assy 1
26 505 55 97-01 Motor Assy 1
27 505 56 42-01 Chain Brake Lever 1
28 505 56 14-01 Micro Switch 1
29 505 56 12-01 Overload Clamp Kit 1
30 505 56 00-01 Capacitor 1
31 505 56 13-01 Overload Protector 1
32 505 56 11-01 Clamp Plate Kit 1
33 505 56 10-01 Push Rod Guide Kit 1
34 505 56 03-01 Handle Grip 1
35 505 55 99-01 Wiring Kit 1
36 505 47 04-01 Sleeve Protection 1
37 505 56 09-01 Push Rod Kit 1
38 505 56 57-01 Label Kit LHS 1
39 505 56 15-01 Clamshell Assy LH 1
40 505 56 08-01 Cable Clamp Kit 1
41 505 56 19-01 Power Cord EU 1
42 505 56 04-01 Switch 1
43 505 56 05-01 Switch Lever 1
44 505 56 07-01 Safety Button Kit 1
