Honeywell Access Systems
Honeywell Access Systems
Honeywell Security
Let’s Talk Solutions
Intro Tabs.indd 3Intro Tabs.indd 3 8/13/08 3:39:49 PM8/13/08 3:39:49 PM
CONTENTS
SOFTWARE & SYSTEMS
WIN-PAK® SE ............................................235
WIN-PAK SE Integration kits......... ................237

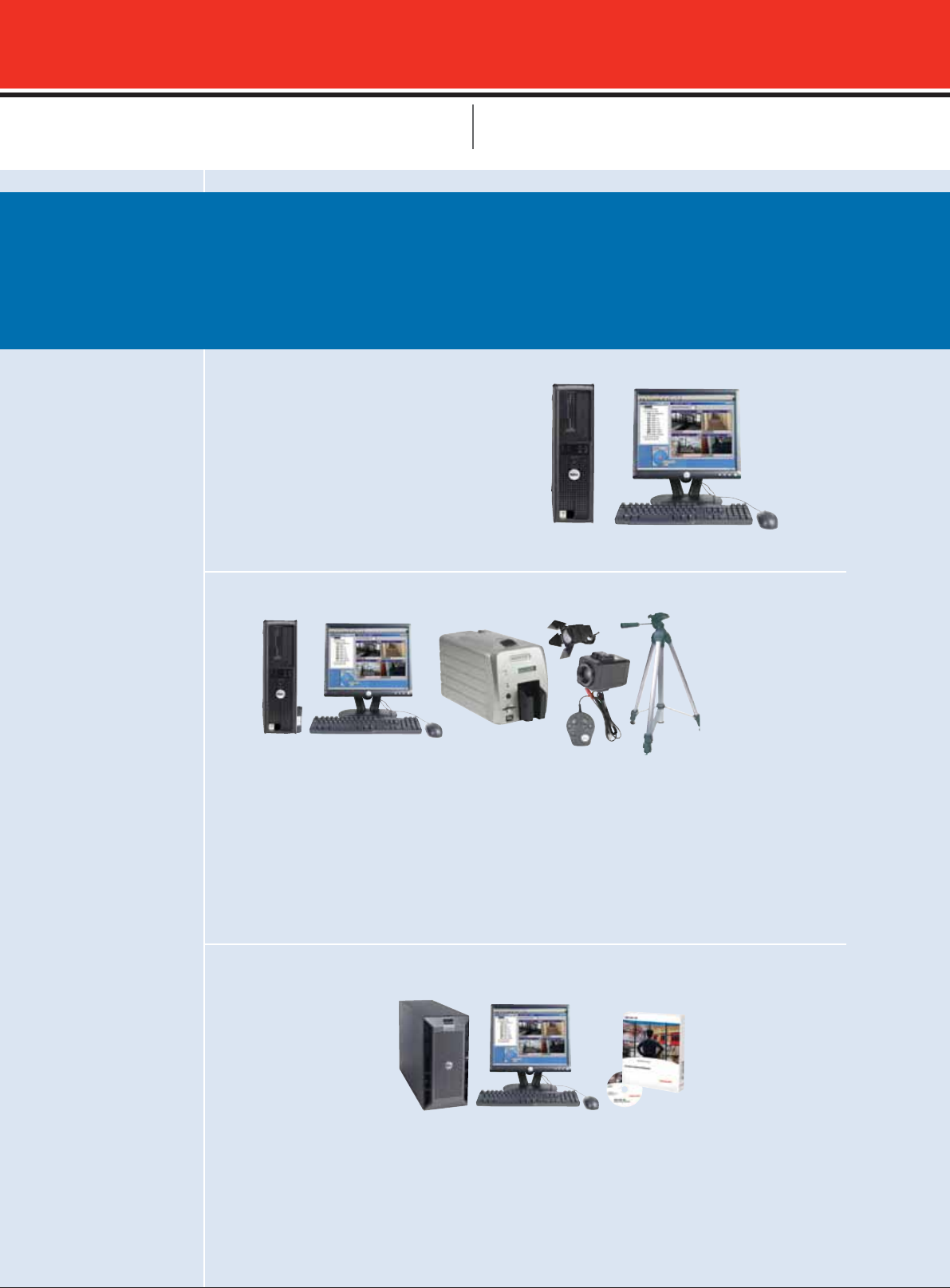

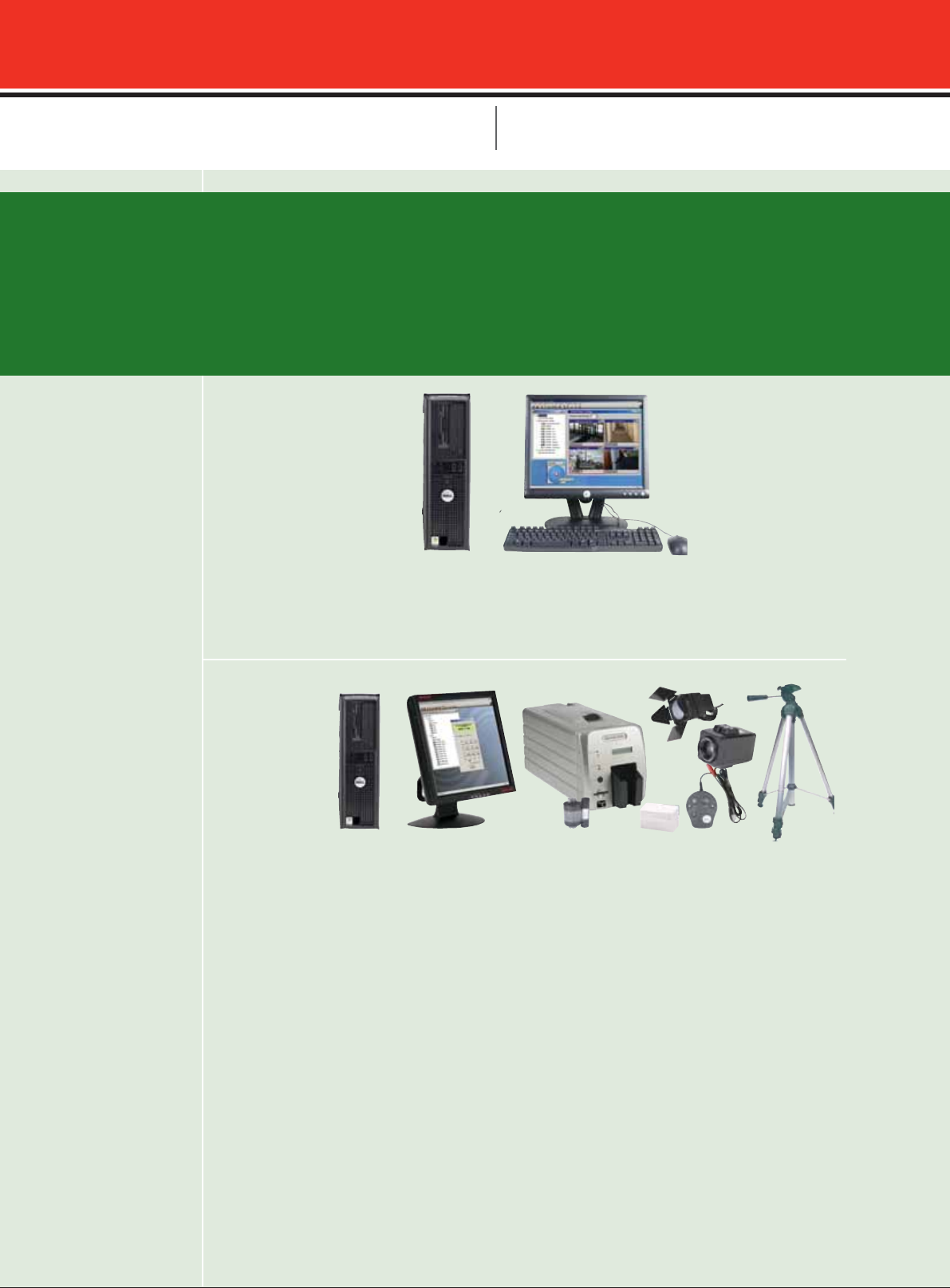

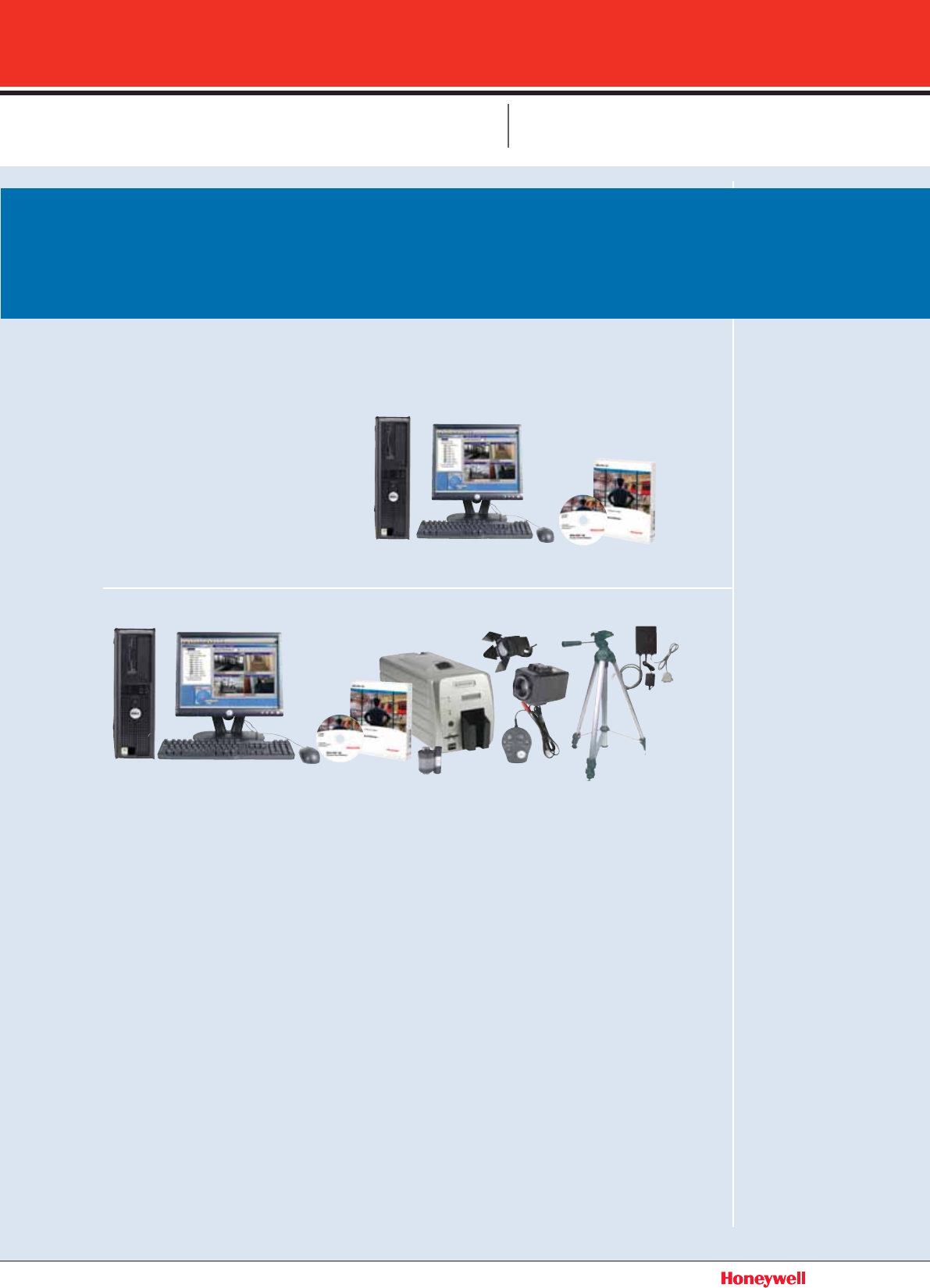

WIN-PAK SE Computer & Badging..............239
WIN-PAK SE Work Stations & File ................240
PROFESSIONAL SYSTEMS
WIN-PAK® PE.............................................. 244
WIN-PAK® PE Servers ................................ 245
WIN-PAK® PE Work Station........................246
WIN-PAK® PE Systems...............................247
WIN-PAK® PRO Central Station .................. 248
PRO2200 Controllers ...................................252
WEB-BASED ACCESS CONTROL
NetAXS Standalone Kits .............................. 256
NetAXS Control Panels.................................258
ENTRY LEVEL SOLUTIONS
NSTAR ..........................................................261
NS2 ...............................................................262
DIGITAL VIDEO SOLUTIONS
DVR Integration............................................ 264
VISITOR MANAGEMENT
LobbyWorks™ Kits ......................................266
LobbyWorks Software ..................................268
LobbyWorks Optional Hardware ...................270
INTEGRATED SYSTEMS
N-750 ...........................................................274
PassPoint® Plus.......................................... 278

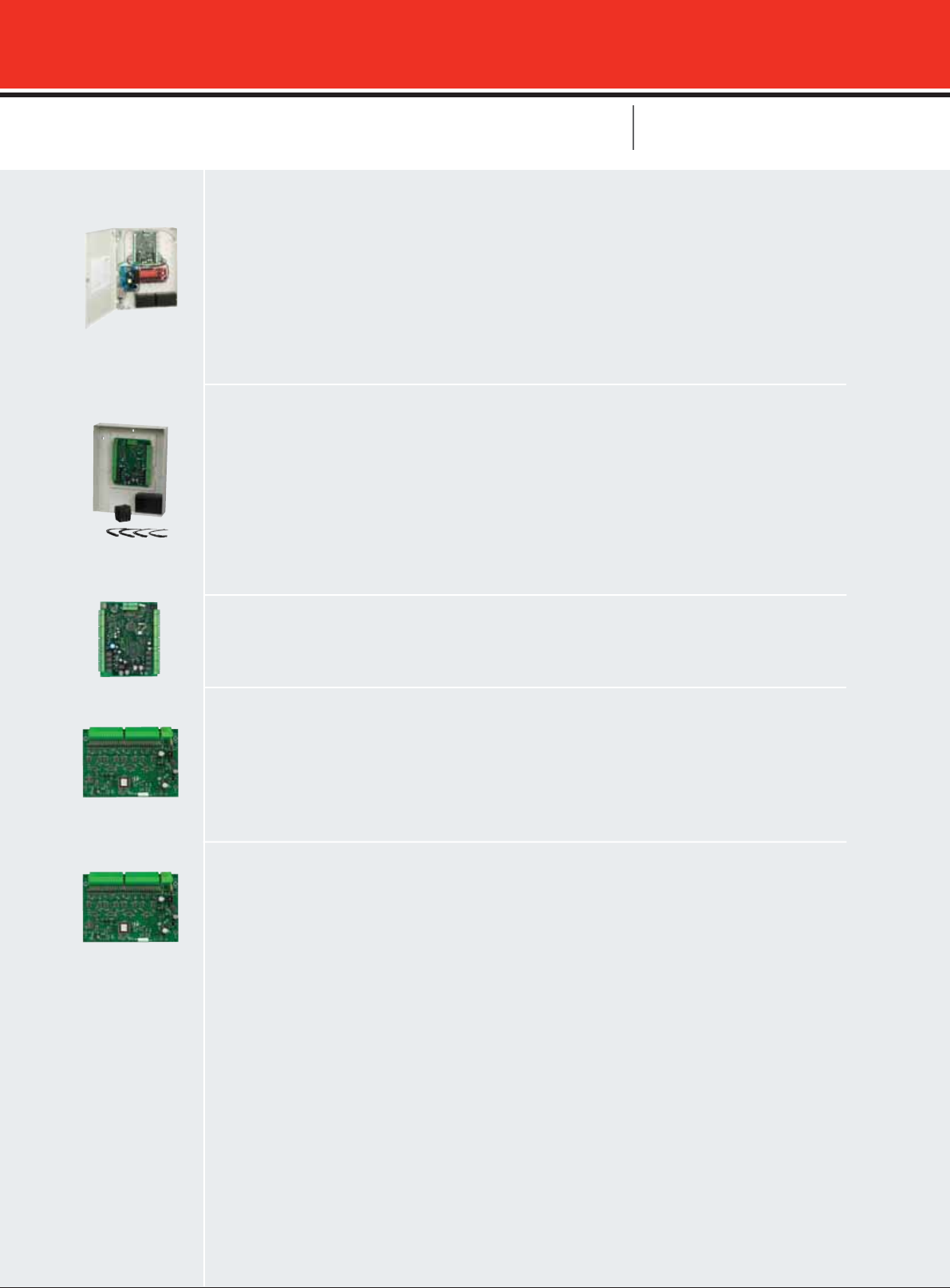

CONTROL PANEL SOLUTIONS
NetAXS™ .....................................................283
N-1000 Series ..............................................284
N-1000 System Kits ......................................286
NS2+.............................................................288
STANDALONE SYSTEMS
NS1.............................................................292
EntryProx.....................................................295
BADGING SYSTEMS
Rio 2e/Tango................................................297
Prima........................................................... 299
Alto..............................................................300

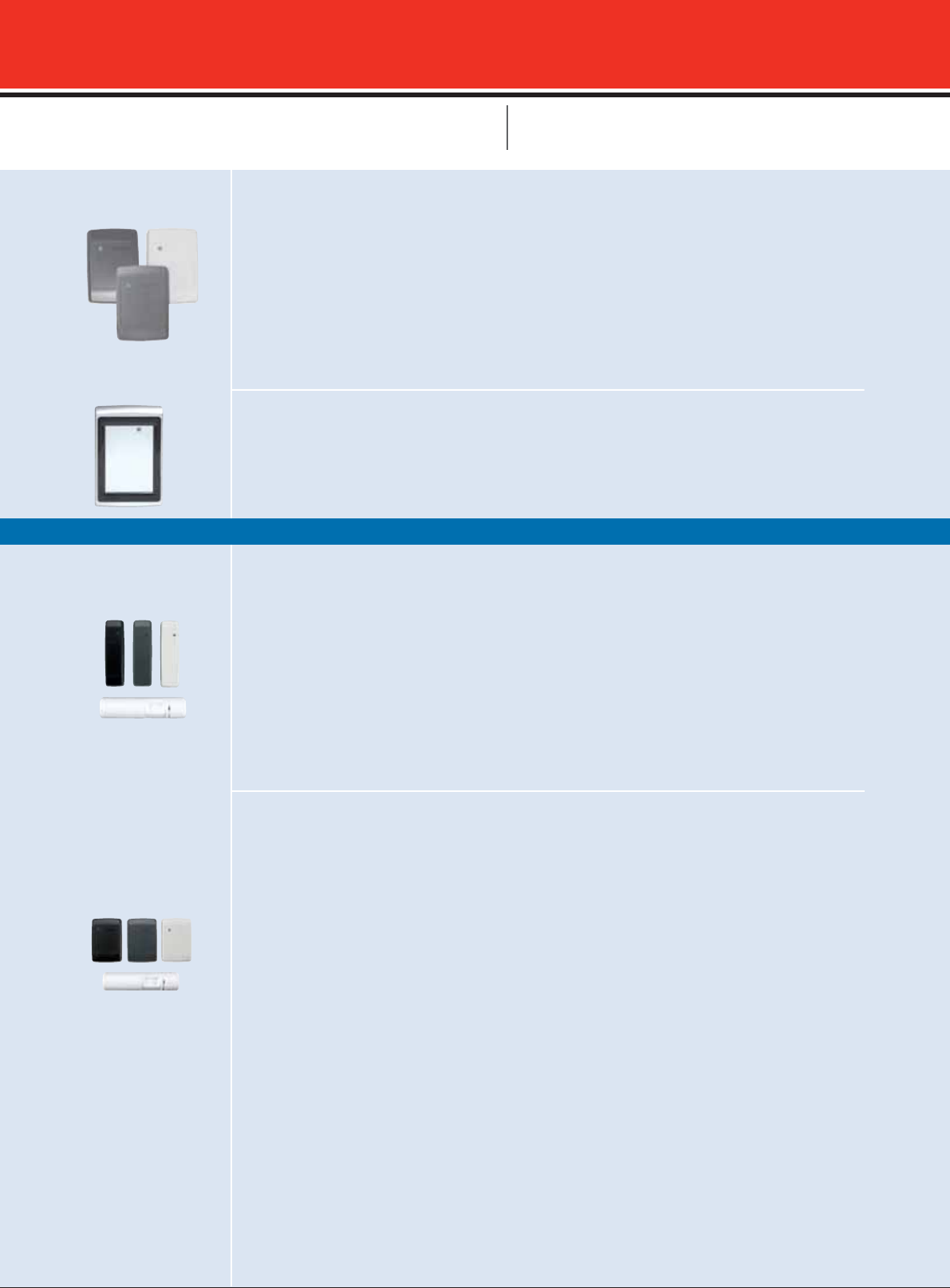

READERS & CREDENTIALS
Proximity......................................................311

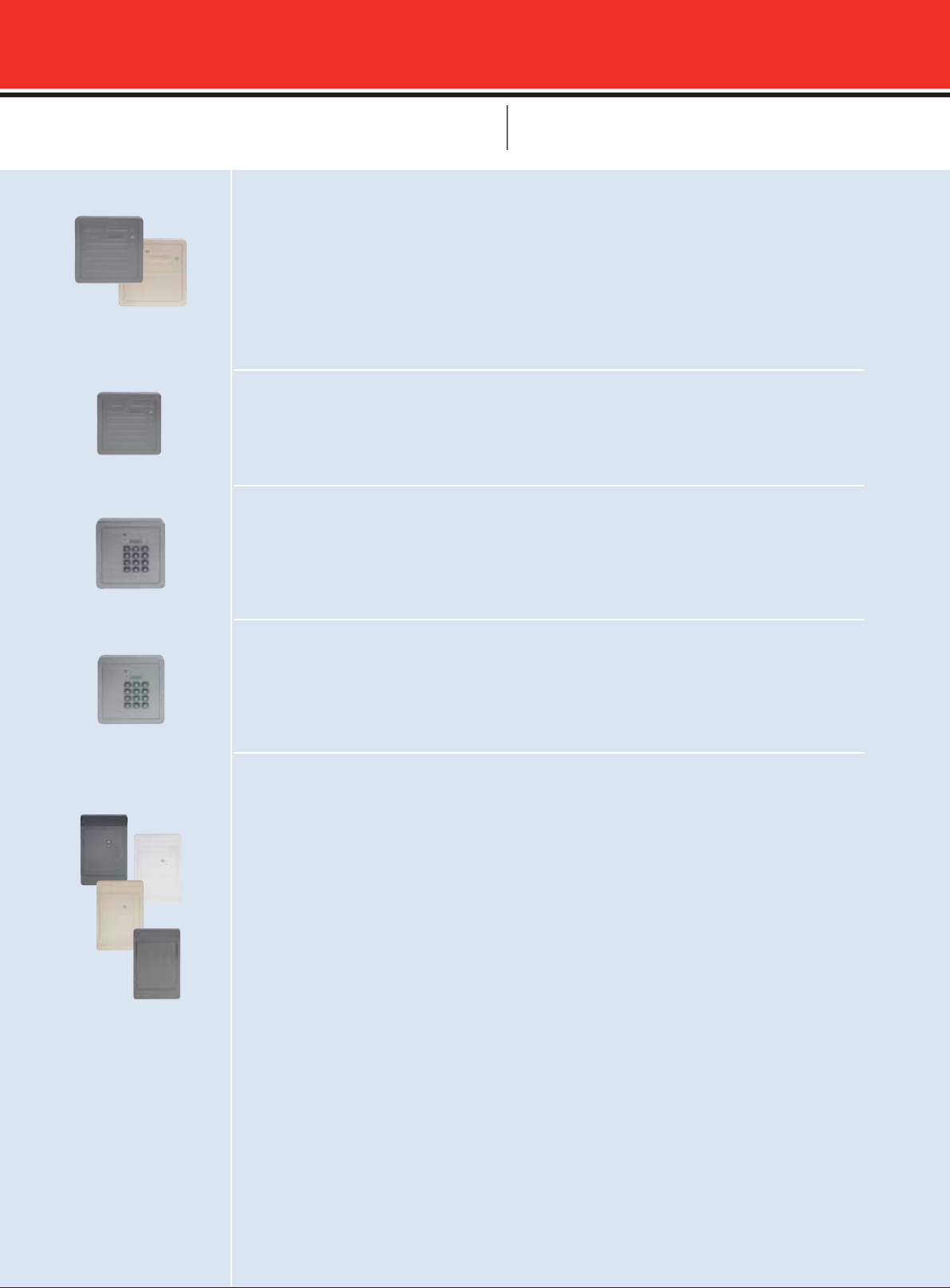

Hid Proximity................................................313
Indala Proximity............................................319
Smart Technology........................................323
Biometrics....................................................331
Magnetic Stripe............................................336
Wiegand......................................................338

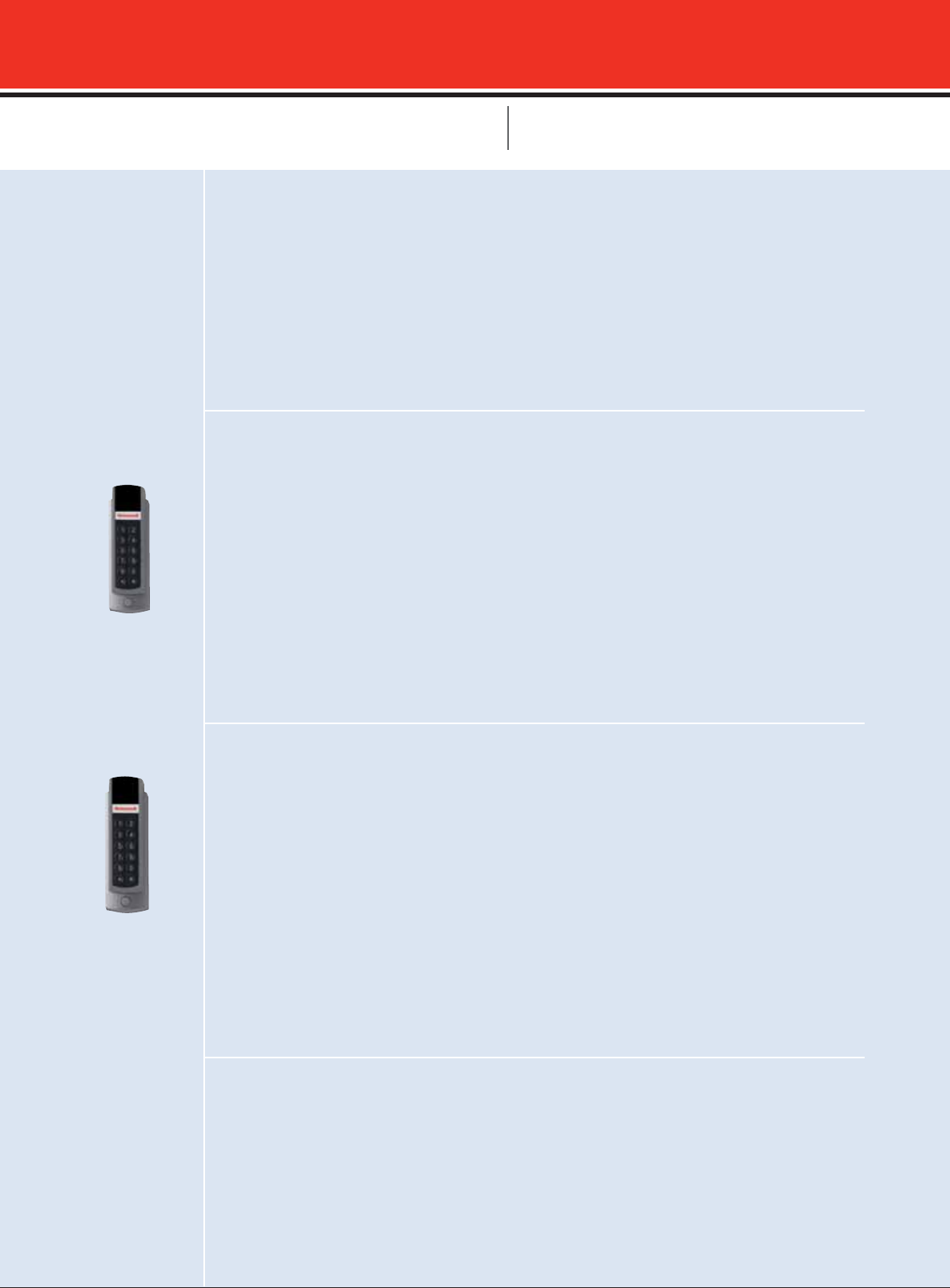

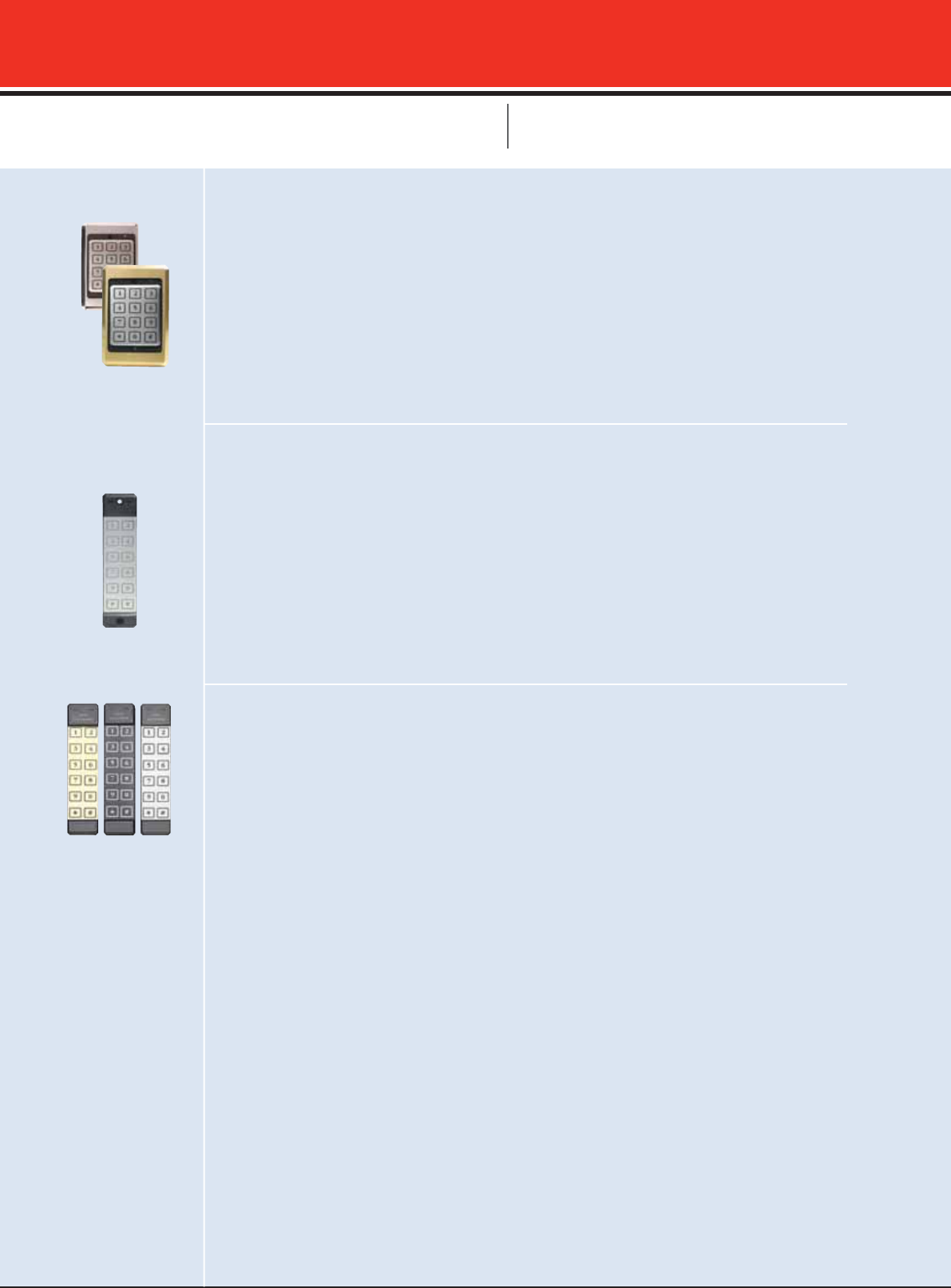

Keypads...................................................... 341
Barcode.......................................................343
Wirles Transmitters / Receivers....................344
Card Accessories........................................ 346
Reader Accessories..................................... 348

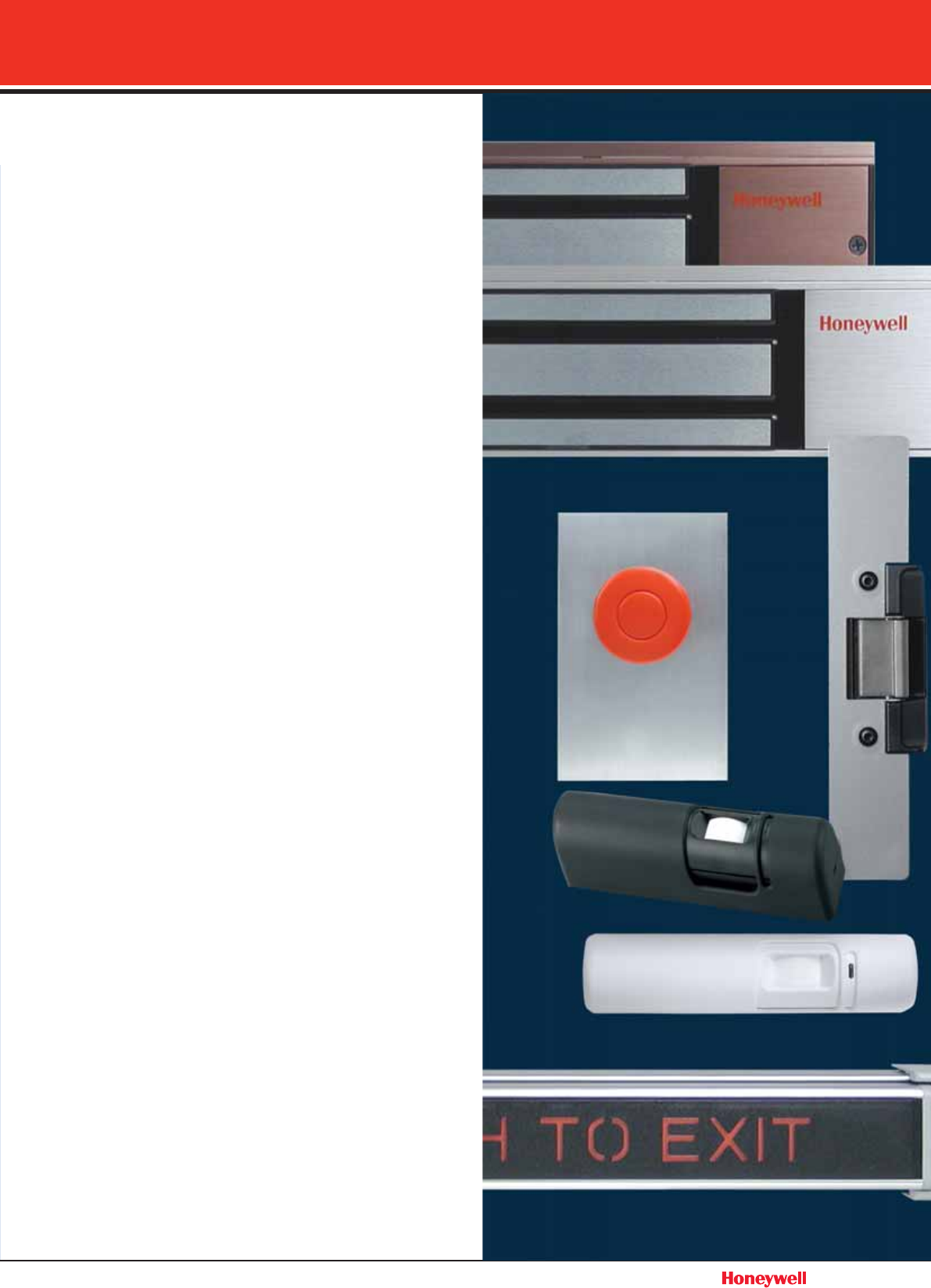

LOCKS & EGRESS DEVICES

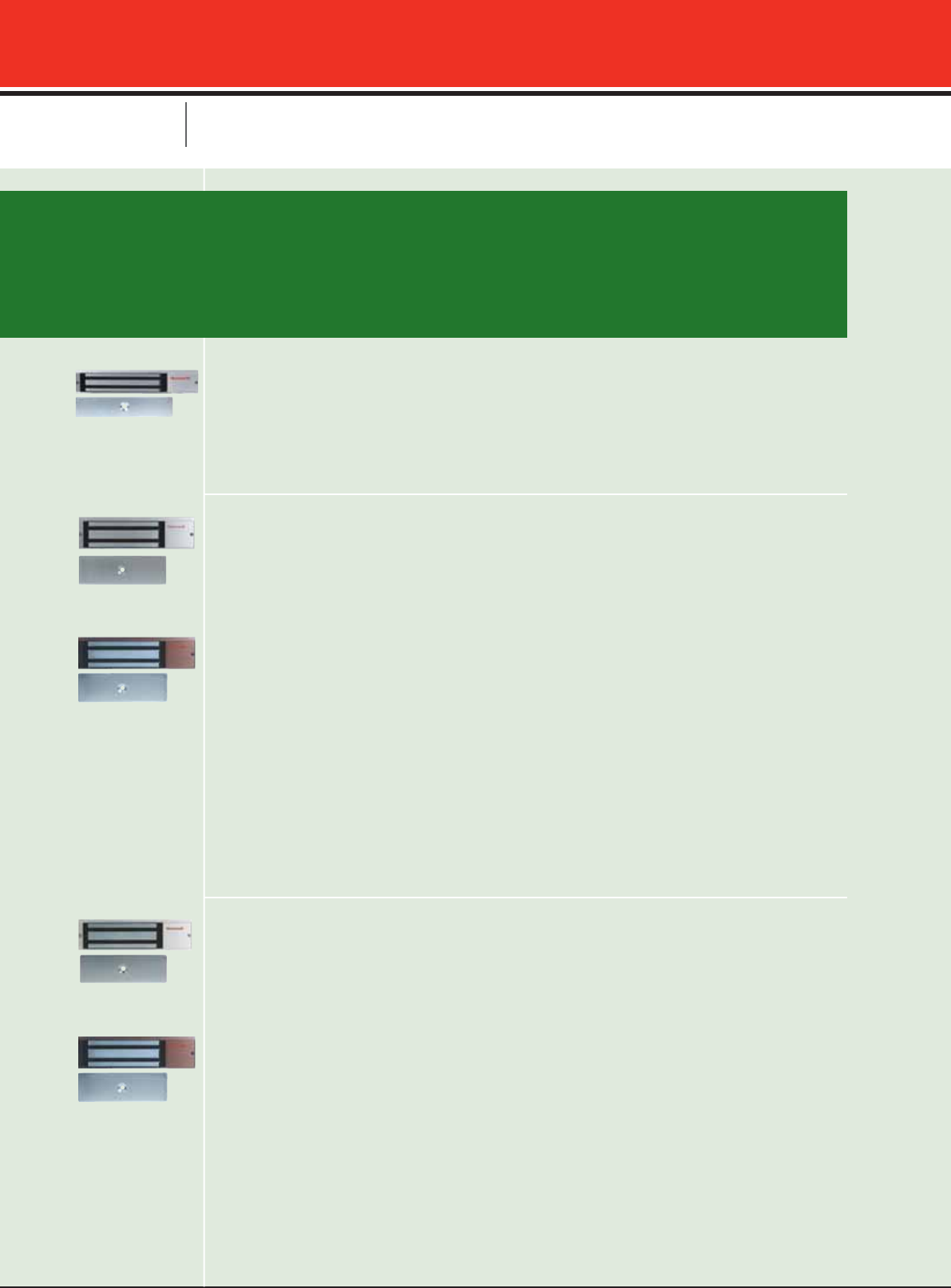

Magnetic Locks .......................................... 350
Door Strikes.................................................352
Egress Devices............................................353
COMMUNICATIONS & ACCESSORIES

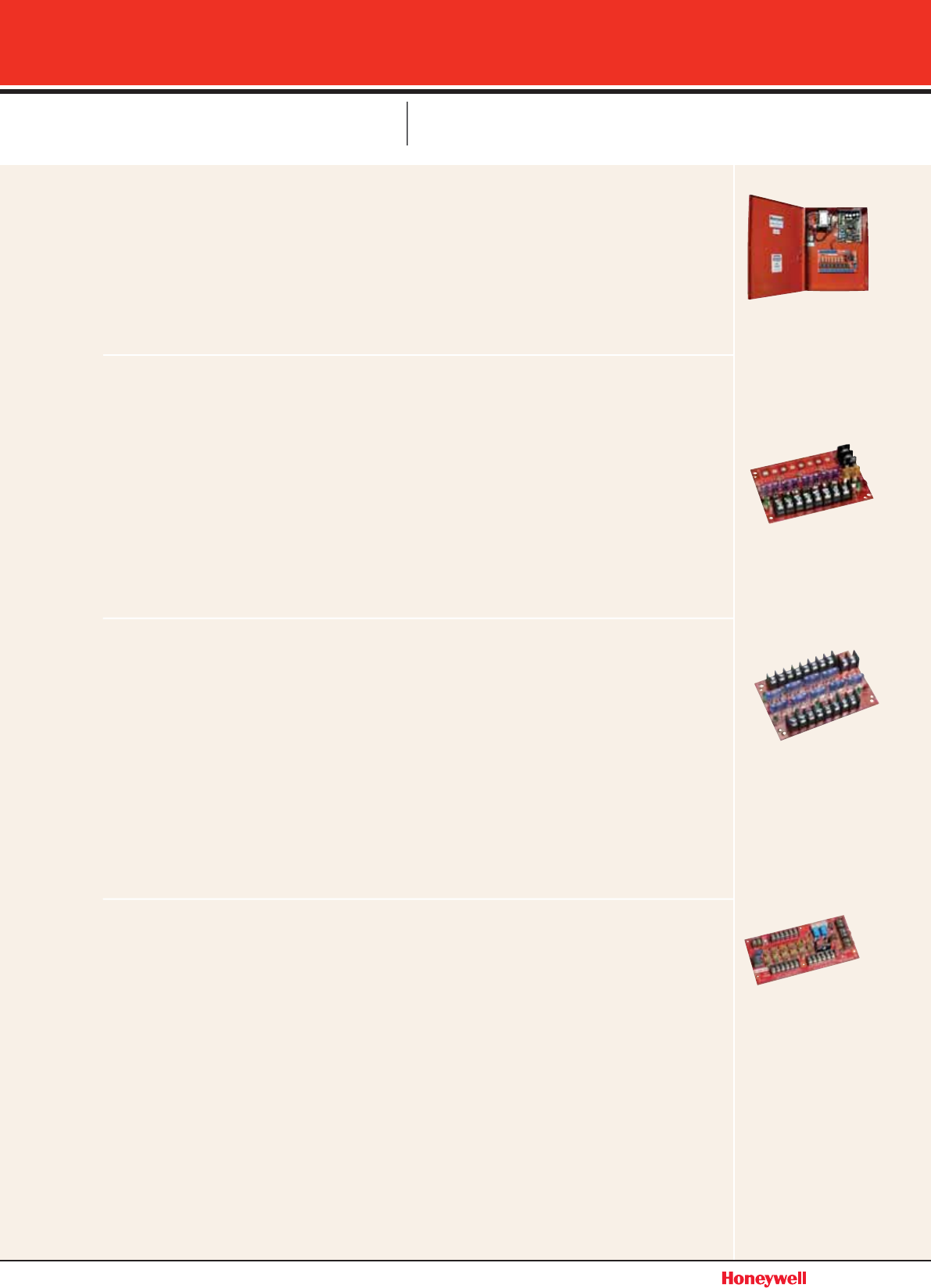

POWER SUPPLIES
Auxiliary Power Modules..............................362
Power Distribution Modules......................... 364

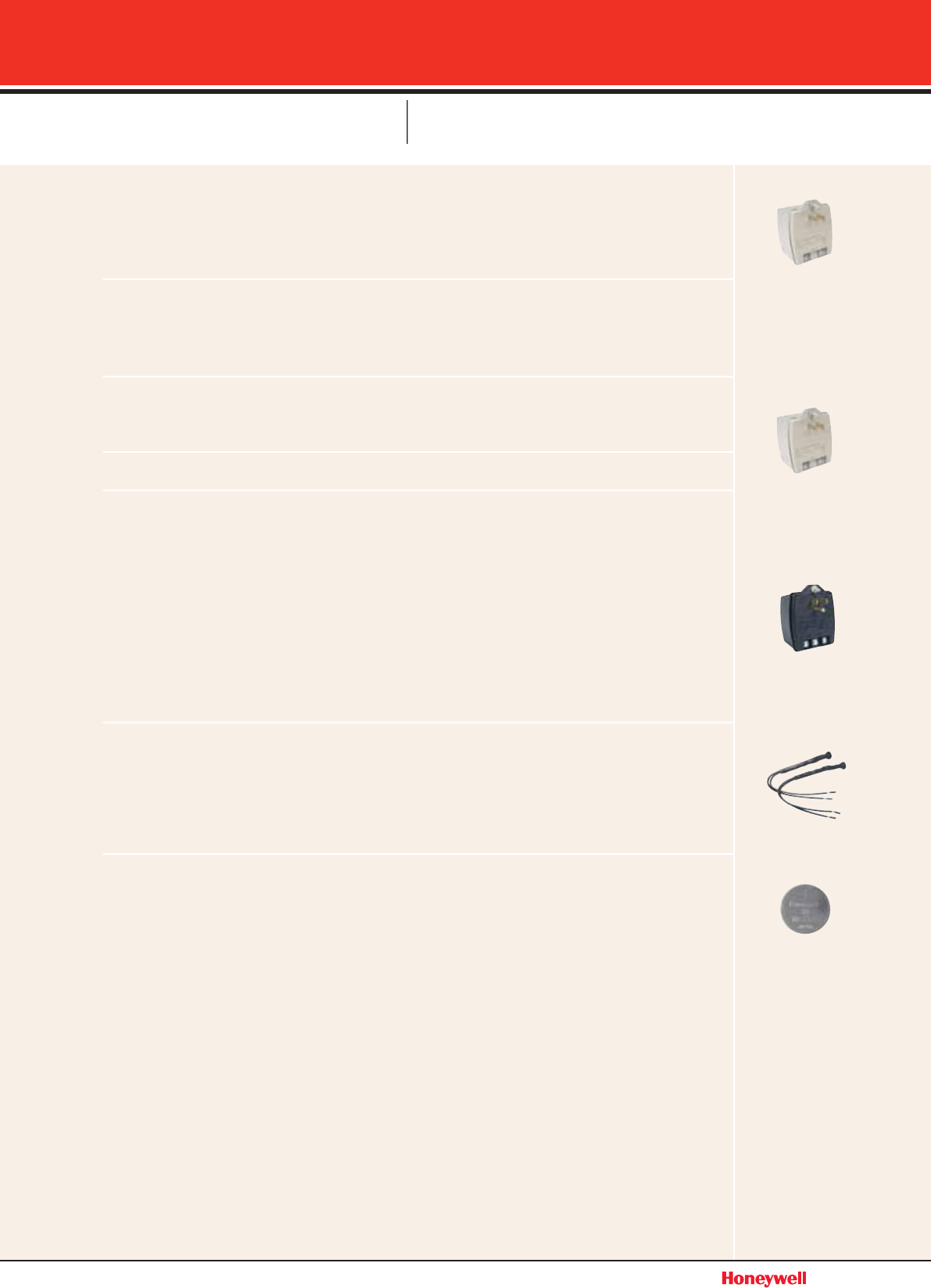

Transformers/Batteries.................................365
ADDITIONAL INFORMATION
Product Compatibility Chart.........................367

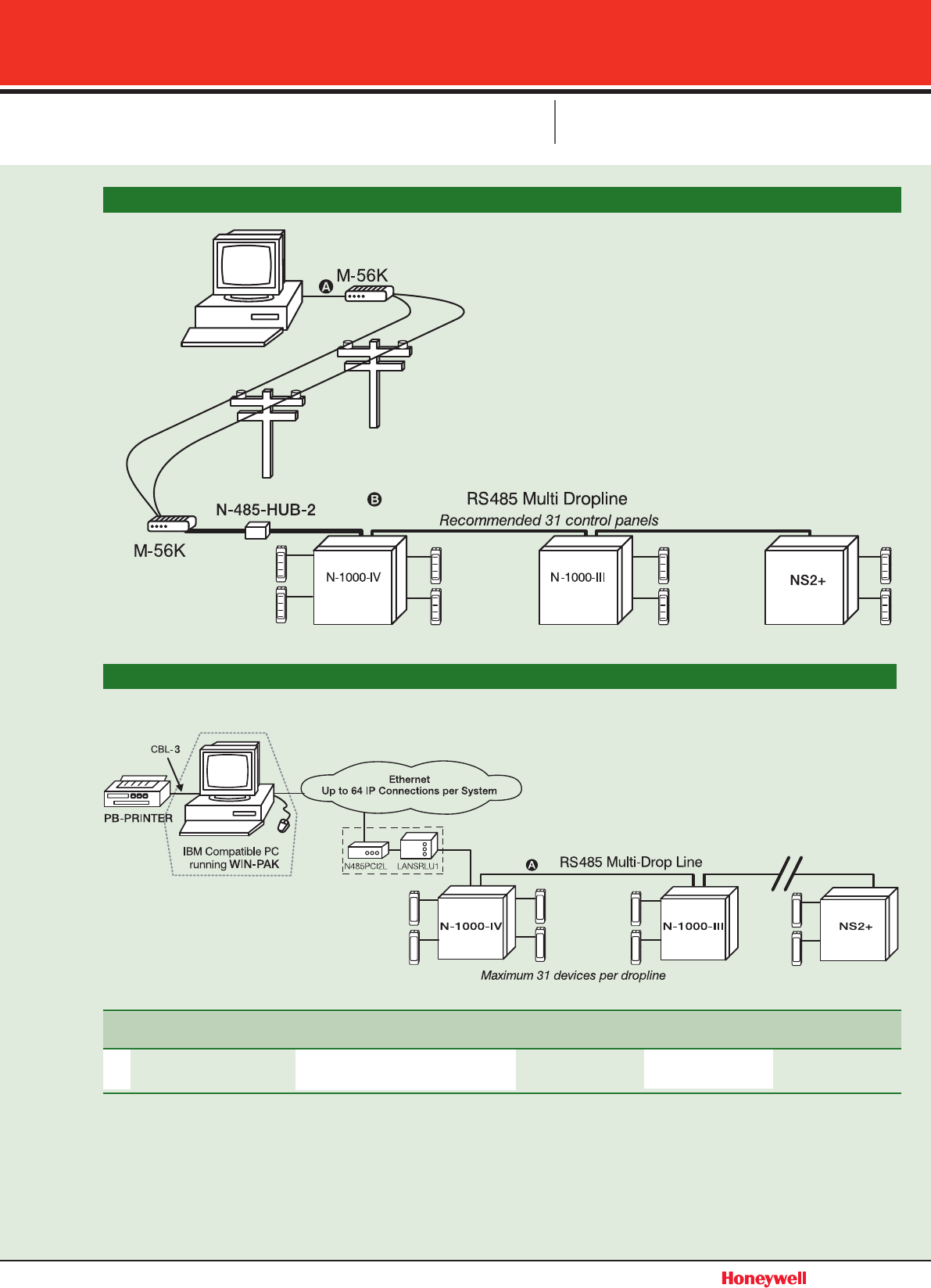

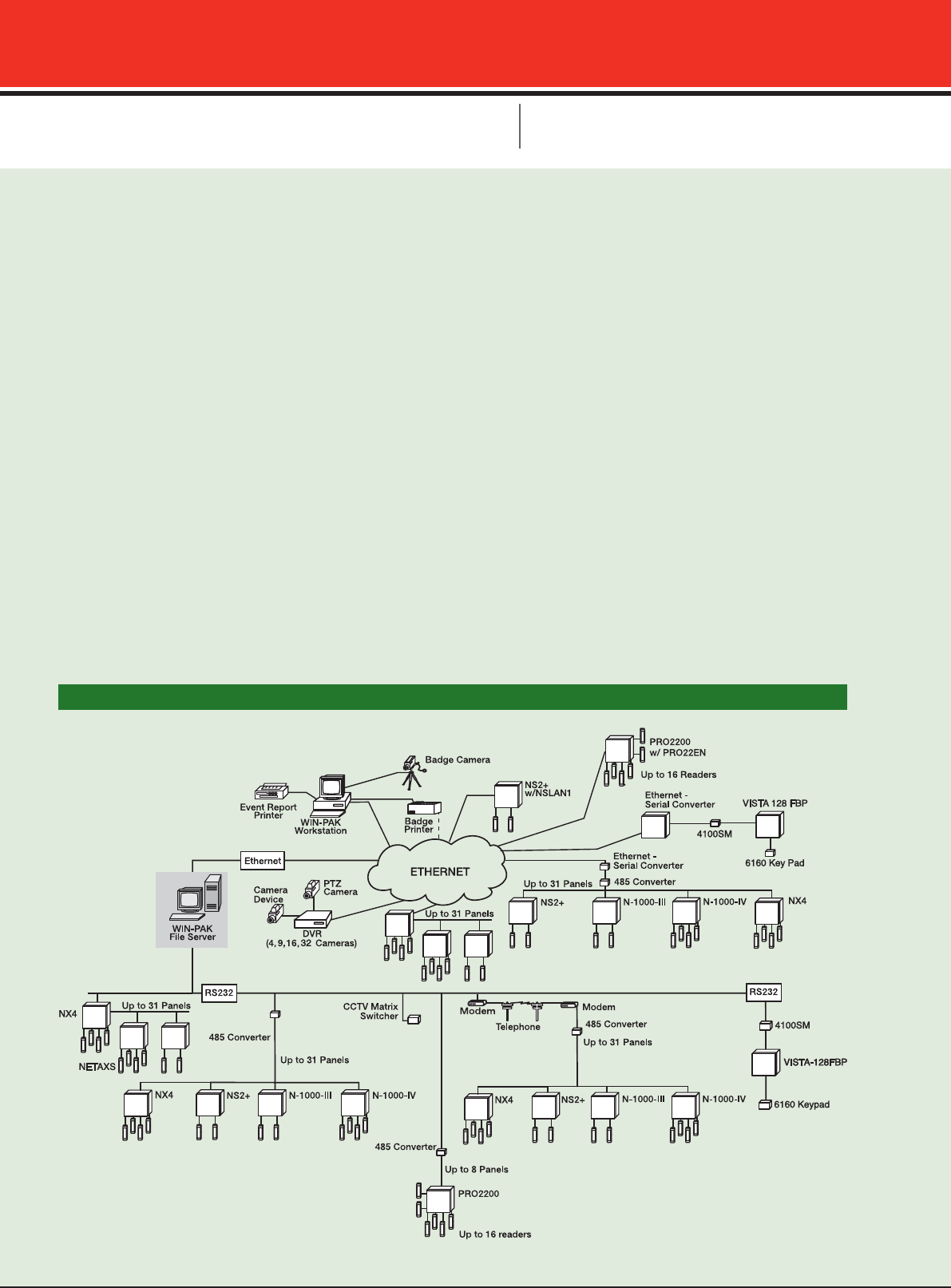

System Configurations.................................369
231
HONEYWELL ACCESS SYSTEMS
Access Systems-231-328 02-08.ind231 231Access Systems-231-328 02-08.ind231 231 8/12/08 12:50:59 PM8/12/08 12:50:59 PM
Access Systems-231-328 02-08.ind0233 0233Access Systems-231-328 02-08.ind0233 0233 8/12/08 12:50:59 PM8/12/08 12:50:59 PM
HONEYWELL ACCESS SYSTEMS
More and more, customer requirements cannot
be met with one solution—rather, they need a
holistic approach that integrates different ele-
ments to suit their needs. In the case of access
control, the trend toward digital networking solu-
tions has made it
easier for management to bring together the
worlds of access control and video surveillance
into a single integrated system.
THIS SECTION INCLUDES:
WIN-PAK® SE
WIN-PAK SE SYSTEM KITS
WIN-PAK SE INTEGRATION KITS
Software &
Systems
233
Access Systems-231-328 02-08.ind0236 0236Access Systems-231-328 02-08.ind0236 0236 8/12/08 12:50:59 PM8/12/08 12:50:59 PM
www.security.honeywell.com/me
HONEYWELL ACCESS SYSTEMS

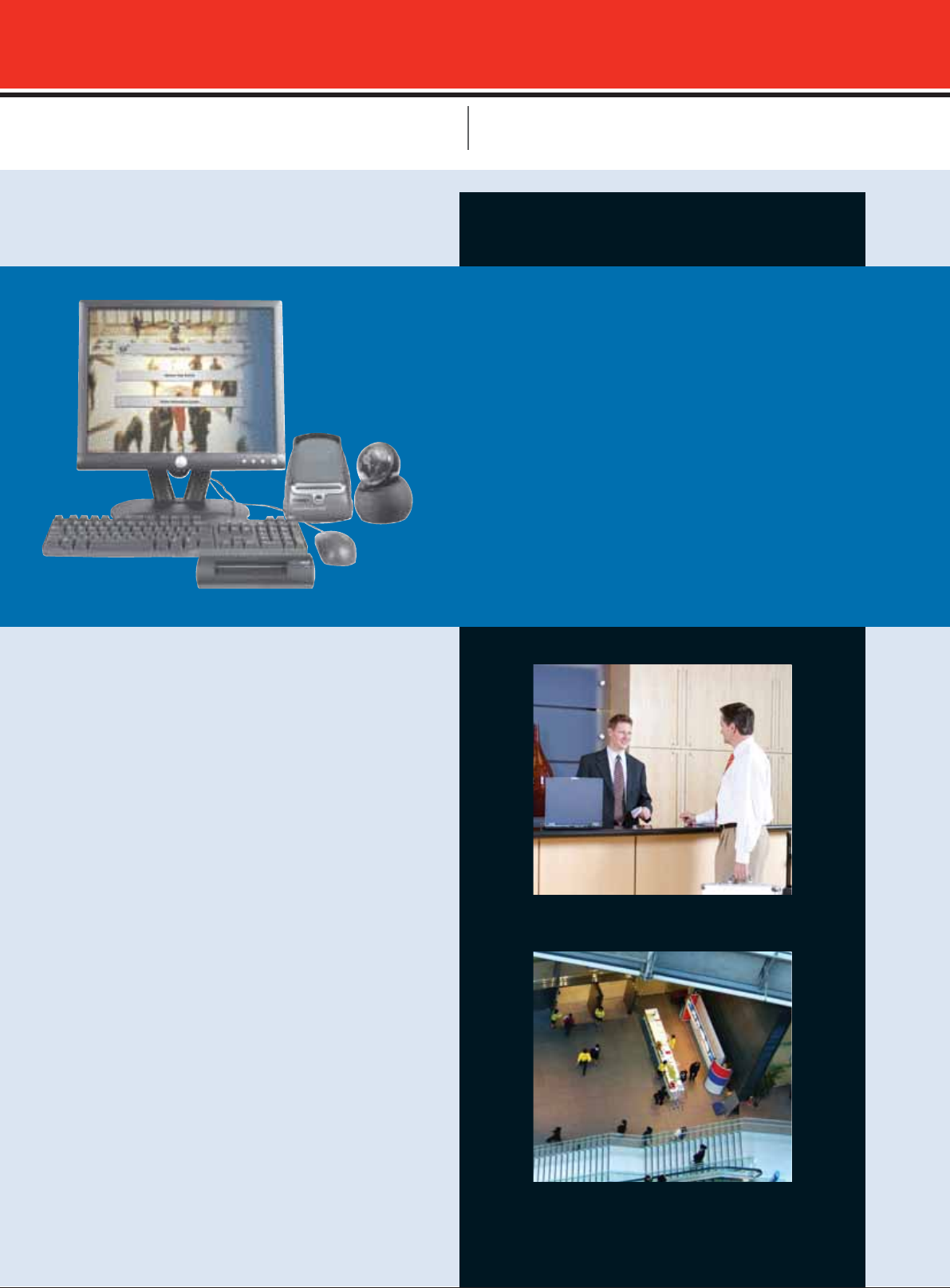

WIN-PAK® SE w/VISTA Benefits
• Save time and money by managing three separate
systems with one easy-to-use software interface.
• Improve the level of security by eliminating user code
sharing. Increase security by using a unique card to
disarm a system and grant access at the door.
• WIN-PAK SE software interface allows users to
retrieve and play back video associated with intrusion
and access control.
• Automated reporting allows users to send up-to-date
reports on intrusion and access events hourly, daily,
weekly or monthly.
• Reduce employee down-time by requiring training on
only one system.
• Align WIN-PAK SE with VISTA integration with exist-
ing system needs for an added level of security.
• Expand to meet current and future needs. Start with
access and add video or intrusion later as require-
ments change.
Honeywell’s exciting new WIN-PAK SE with VISTA
works with our Rapid Eye™ and Fusion DVRs and
NS2+, N-1000 and PW2000 access controllers to
let you quickly and easily add video surveillance
and intrusion every time you install an access
control system. The result is a solution powerful
enough to handle all of your customer’s integrated
security requirements from a single user interface.
The unique combination of intrusion, video and
access control saves time and money
by reducing training and labor.
Software & Systems
234
Access Systems-231-328 02-08.indSec1:234 Sec1:234Access Systems-231-328 02-08.indSec1:234 Sec1:234 8/12/08 12:51:08 PM8/12/08 12:51:08 PM
HONEYWELL ACCESS SYSTEMS
235

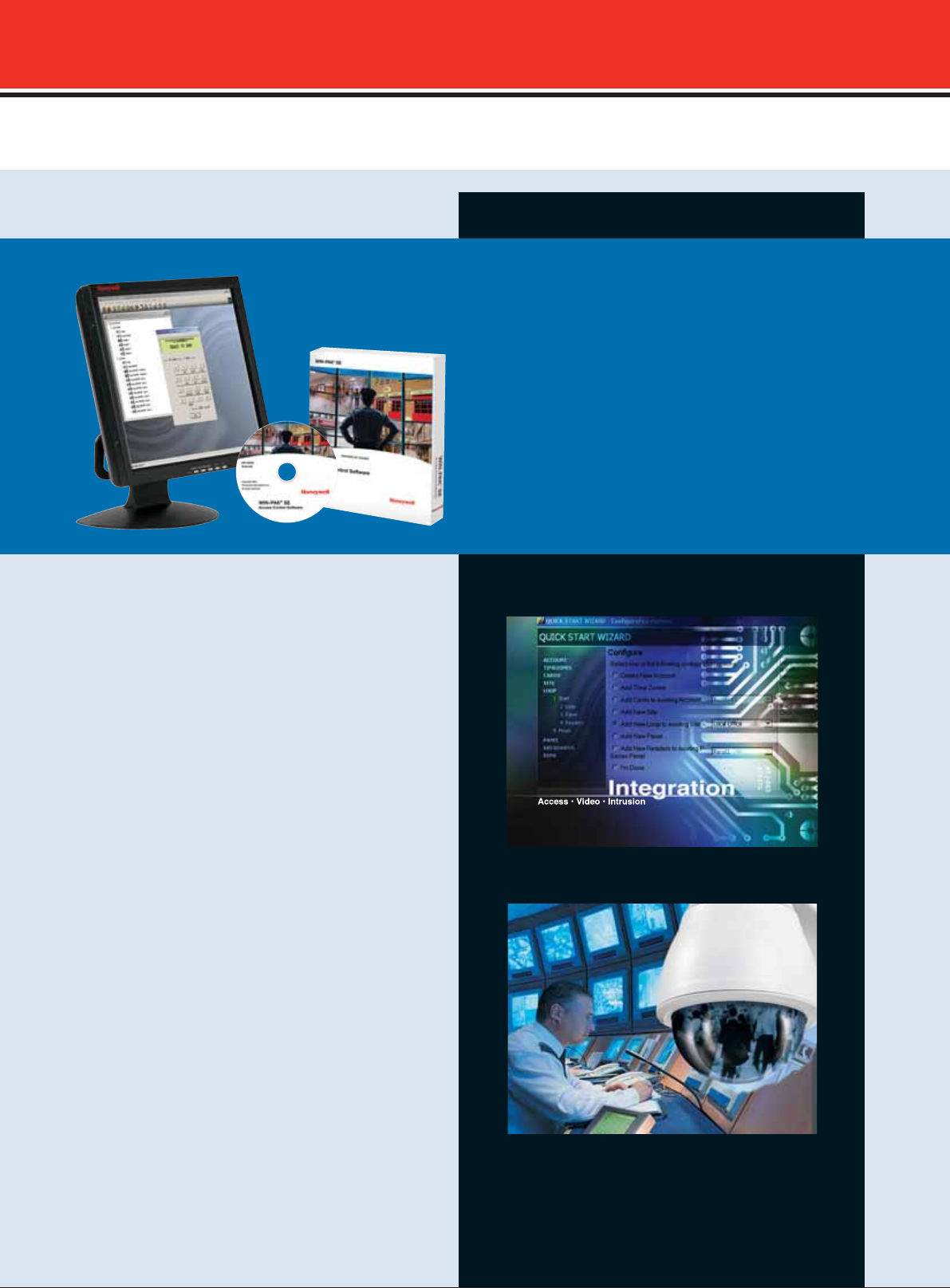

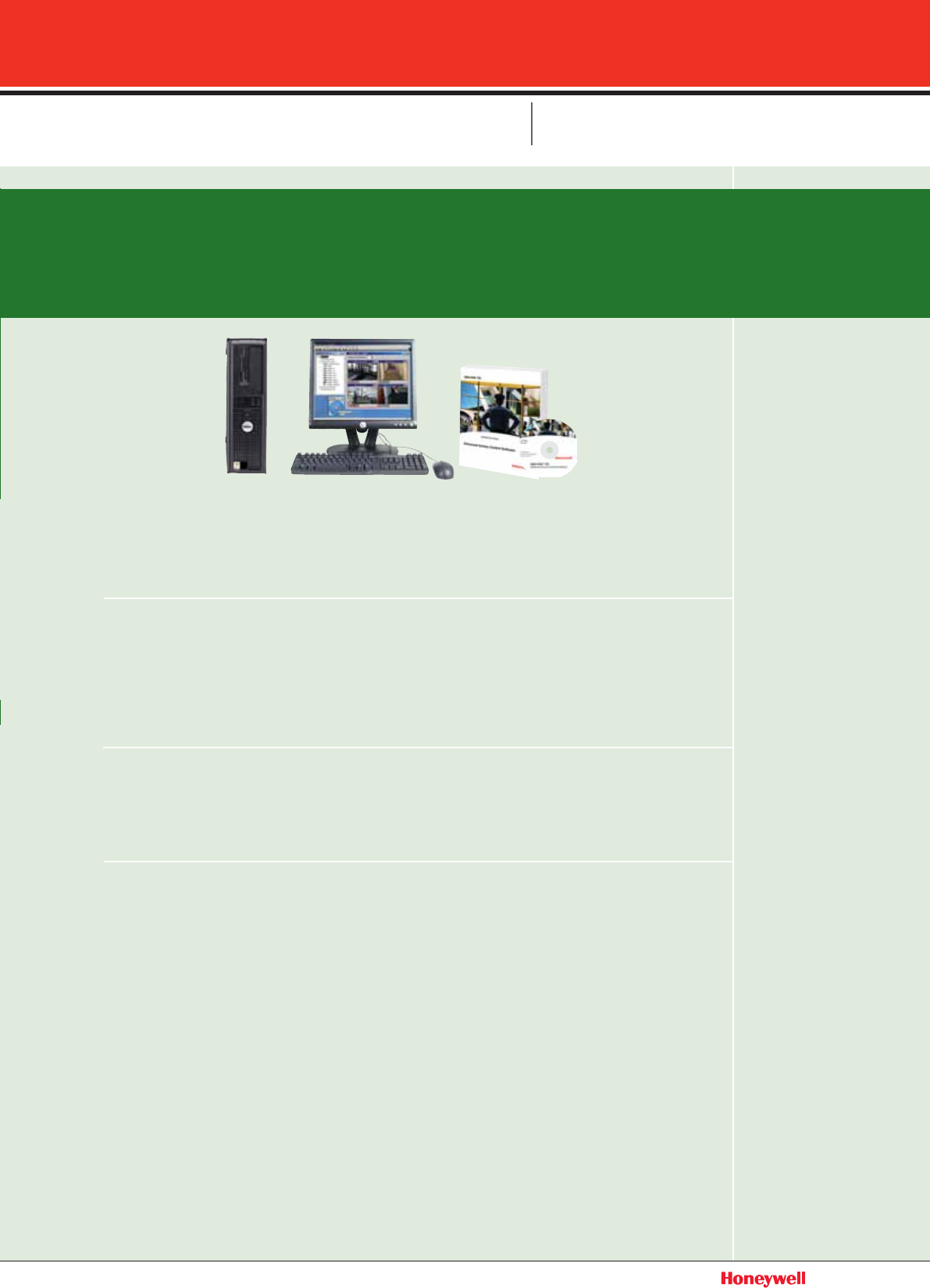

Software & Systems WIN-PAK® SE SOFTWARE
WPSE
WIN-PAK SE Access Control Software
Standalone - Single user version of WIN-PAK SE.
WPSEU5
WIN-PAK SE Software, 5-user
Provides support of up to 5 concurrent WIN-PAK SE workstations.
WPSEV
WIN-PAK SE single user with VISTA integration
Standalone - Single user version of WIN-PAK SE with VISTA integration.
WPSEU5V
WIN-PAK SE VISTA 5-user with VISTA integration
Provides support of up to 5 concurrent WIN-PAK SE workstations with VISTA integration.
UKWPSEV
Upgrade from WP2K5 to WPSEV
Upgrade from WIN-PAK 2005 single user to WIN-PAK SE single user with VISTA
integration.
U5WPSEU5V
Upgrade from WP2KU5 to WPSEU5V
Upgrade from WIN-PAK 2005 5-user to WIN-PAK SE 5-users with VISTA integration.
WIN-PAK SOFTWARE UPGRADES

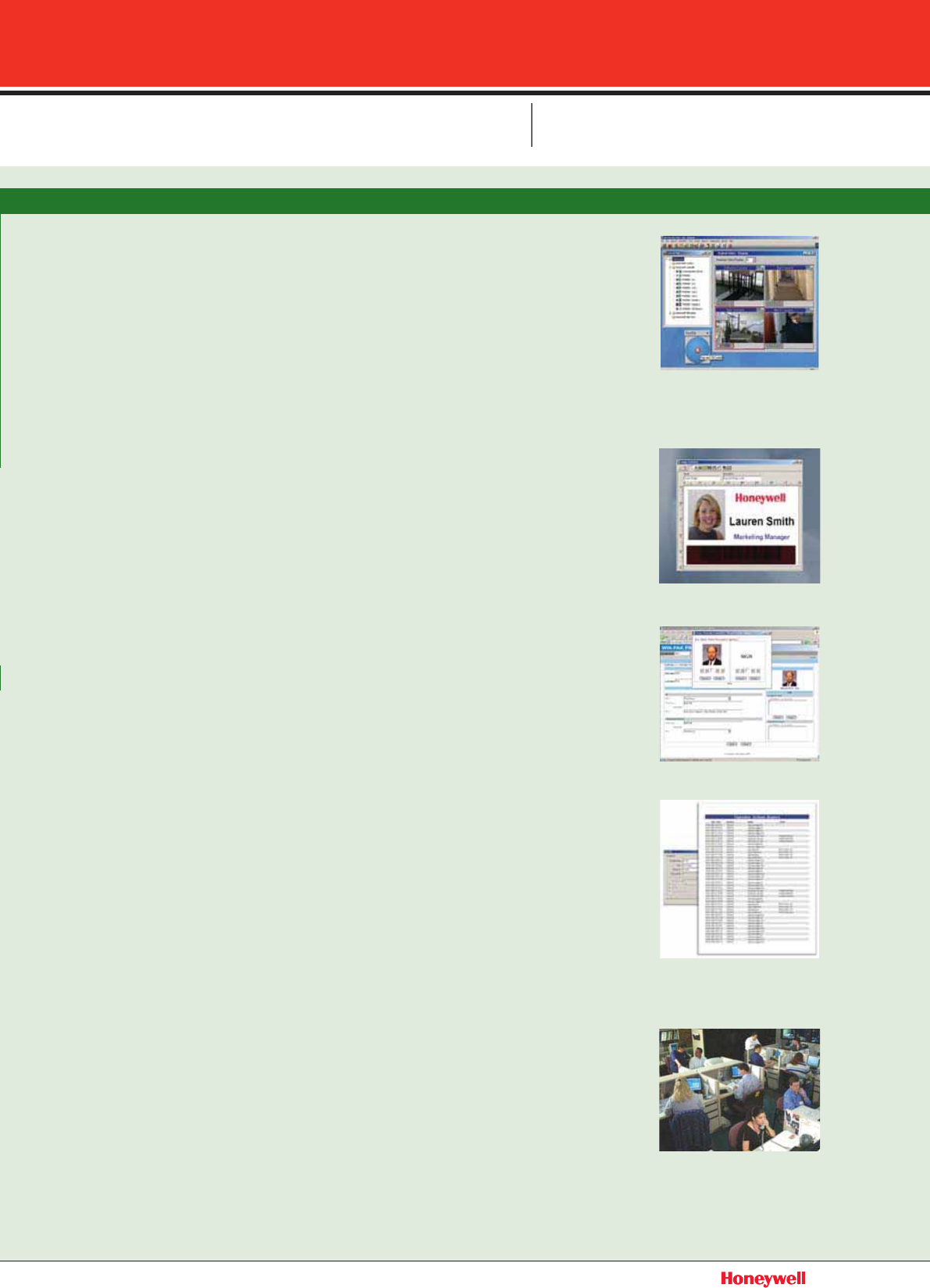

WIN-PAK® SE
WIN-PAK® SE access control software is used to program, operate and
report access control events. Standard features include badging, configuration
wizards, digital video integration, prioritized alarm events, floorplans, pop-up
video and alarms. Supported access control panels are the NS2+, N-1000
and PW-2000. Supported digital video systems are Rapid Eye™, Rapid
Eye LT and Fusion™. Multiple workstations are supported as concurrent
users and are software activated (no dongles). Supported operating sys-
tems are: Windows VISTA Business*, Windows® 2003 Server, Windows
XP Professional SP2, Windows 2000 Server SP4 and Windows 2000
Professional SP4.
Features:
• Integrated DVR Support
• Photo ID Badging
• Scheduled Reports
• Installation Wizard
• Card Frequency Report
• e-mail Reports / Events
• Domain or Workgroup Network Support
• Up to 5 Concurrent Users
Access Systems-231-328 02-08.indSec1:235 Sec1:235Access Systems-231-328 02-08.indSec1:235 Sec1:235 8/12/08 12:51:11 PM8/12/08 12:51:11 PM
www.security.honeywell.com/me
HONEYWELL ACCESS SYSTEMS
* Windows VISTA Business requires SQL 2005 Server or Express Edition.
Software & Systems WIN-PAK® SE SOFTWARE
USESEV
Upgrade from WPSE to WPSEV
Upgrade from WIN-PAK SE single user to WIN-PAK SE single user with VISTA integration
USESEU5
Upgrade from WPSE to WPSEU5
Upgrade from WIN-PAK SE single user to WIN-PAK SE 5-users.
USESEU5V
Upgrade from WPSE to WPSEU5V
Upgrade from WIN-PAK SE single user to WIN-PAK SE 5-users with VISTA integration
USE5SEU5V
Upgrade from WPSEU5 to WPSEU5V
Upgrade WIN-PAK SE 5-users to WIN-PAK SE 5-users with VISTA integration.
UN1PSE
Upgrade from NStar single user to WPSE Upgrade from NStar single user to
WIN-PAK SE single user.
UN1PSEU5
Upgrade from NStar single user to WPSEU5
Upgrade from NStar single user to WIN-PAK SE 5-users.
UN1PSEU5V
Upgrade from NStar single user to WPSEU5V
Upgrade from NStar single user to WIN-PAK SE 5-users with VISTA integration.
UN1PSEV
Upgrade from NStar single user to WPSEV
Upgrade from NStar single user to WIN-PAK SE with VISTA integration.
UN5PSEU5
Upgrade from NStar 5-users to WPSEU5
Upgrade from NStar 5-users to WIN-PAK SE 5-users.
UN5PSEU5V
Upgrade from NStar 5-users to WPSEU5V
Upgrade from NStar 5-users to WIN-PAK SE 5-users with VISTA integration.
NOTE: Consult factory for hardware key requirements for RAID system configurations.
NOTE: Consult factory for NStar upgrades to WIN-PAK SE.
236
Access Systems-231-328 02-08.indSec1:236 Sec1:236Access Systems-231-328 02-08.indSec1:236 Sec1:236 8/12/08 12:51:11 PM8/12/08 12:51:11 PM
HONEYWELL ACCESS SYSTEMS
237

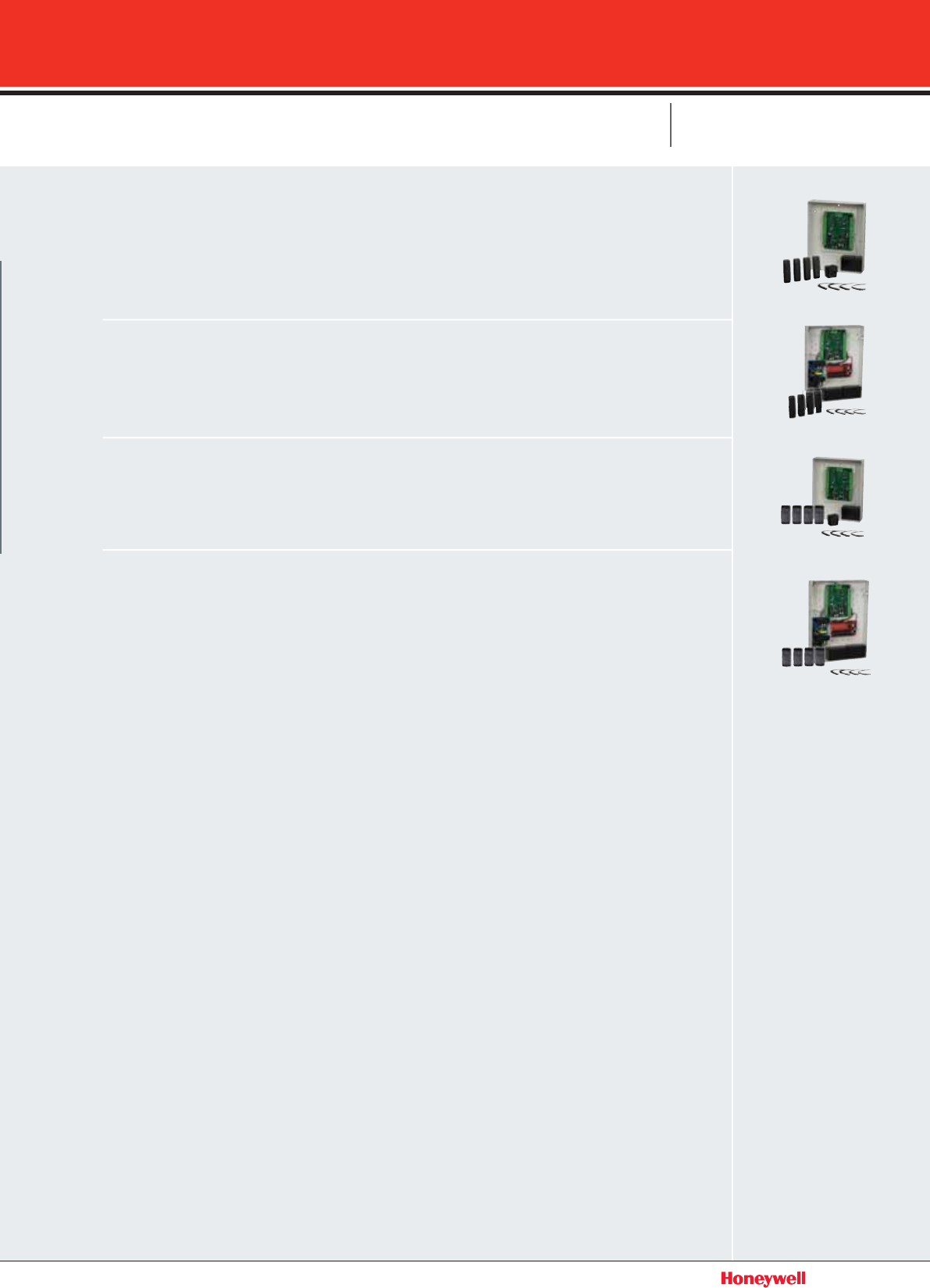

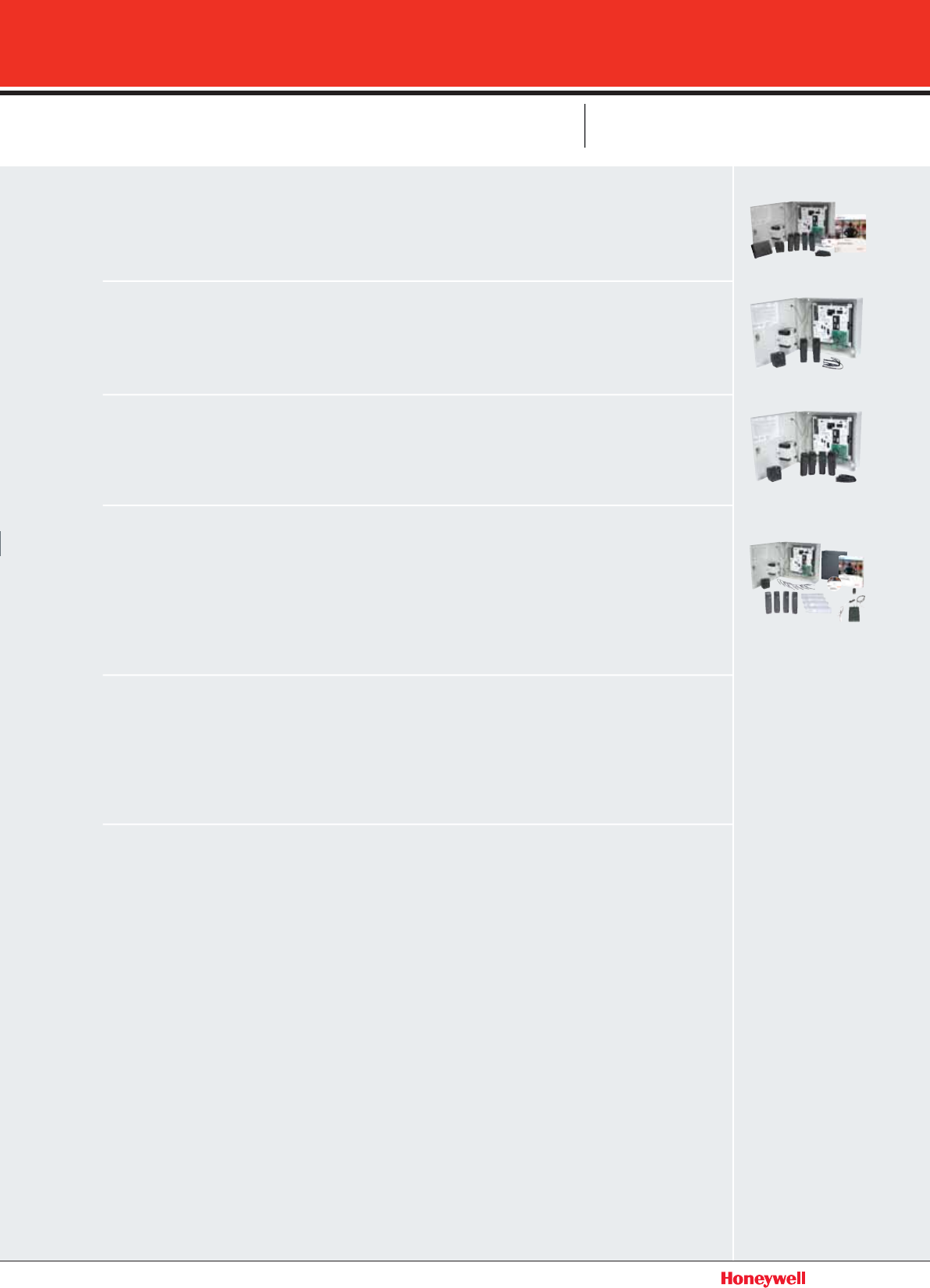

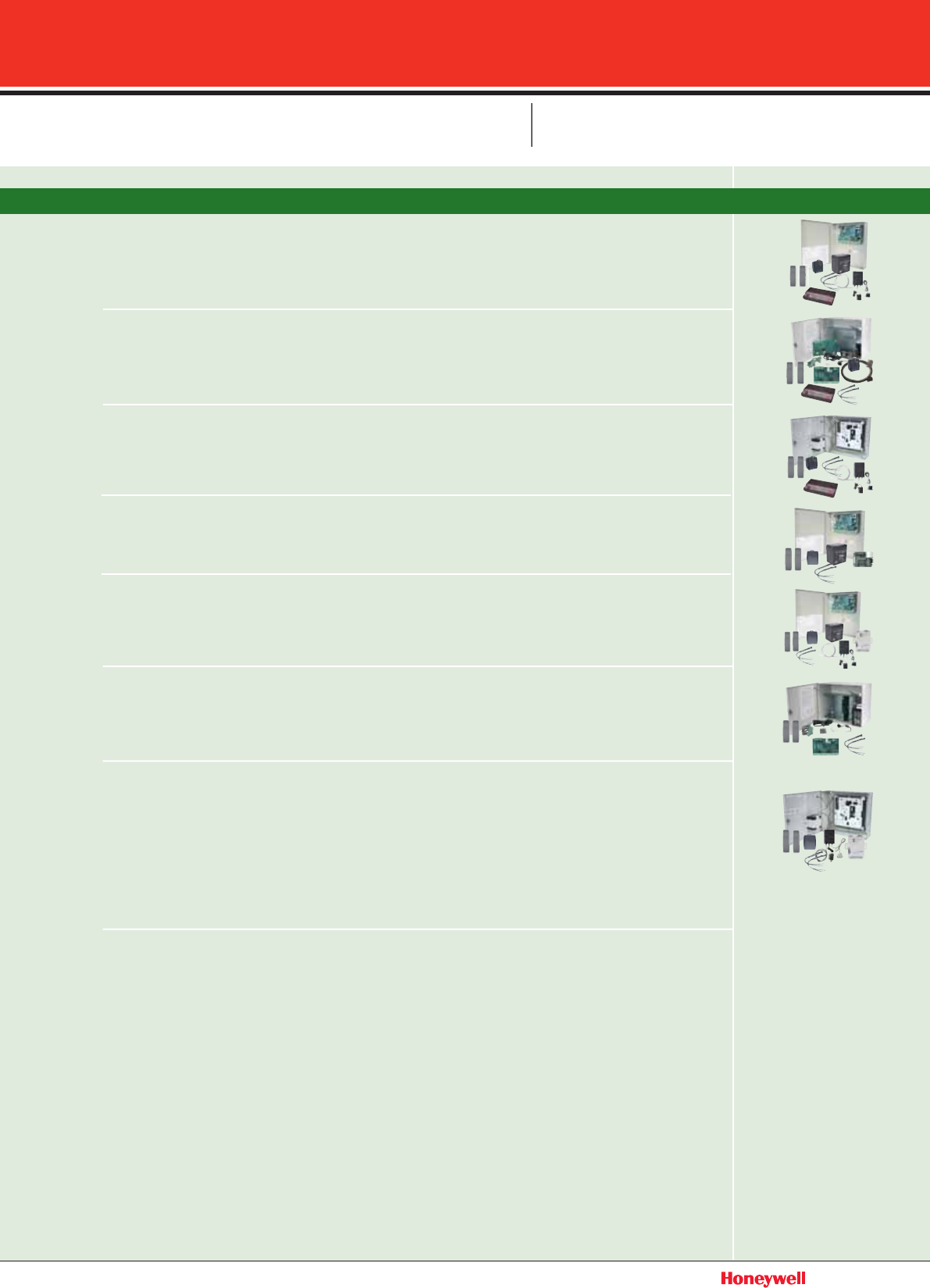

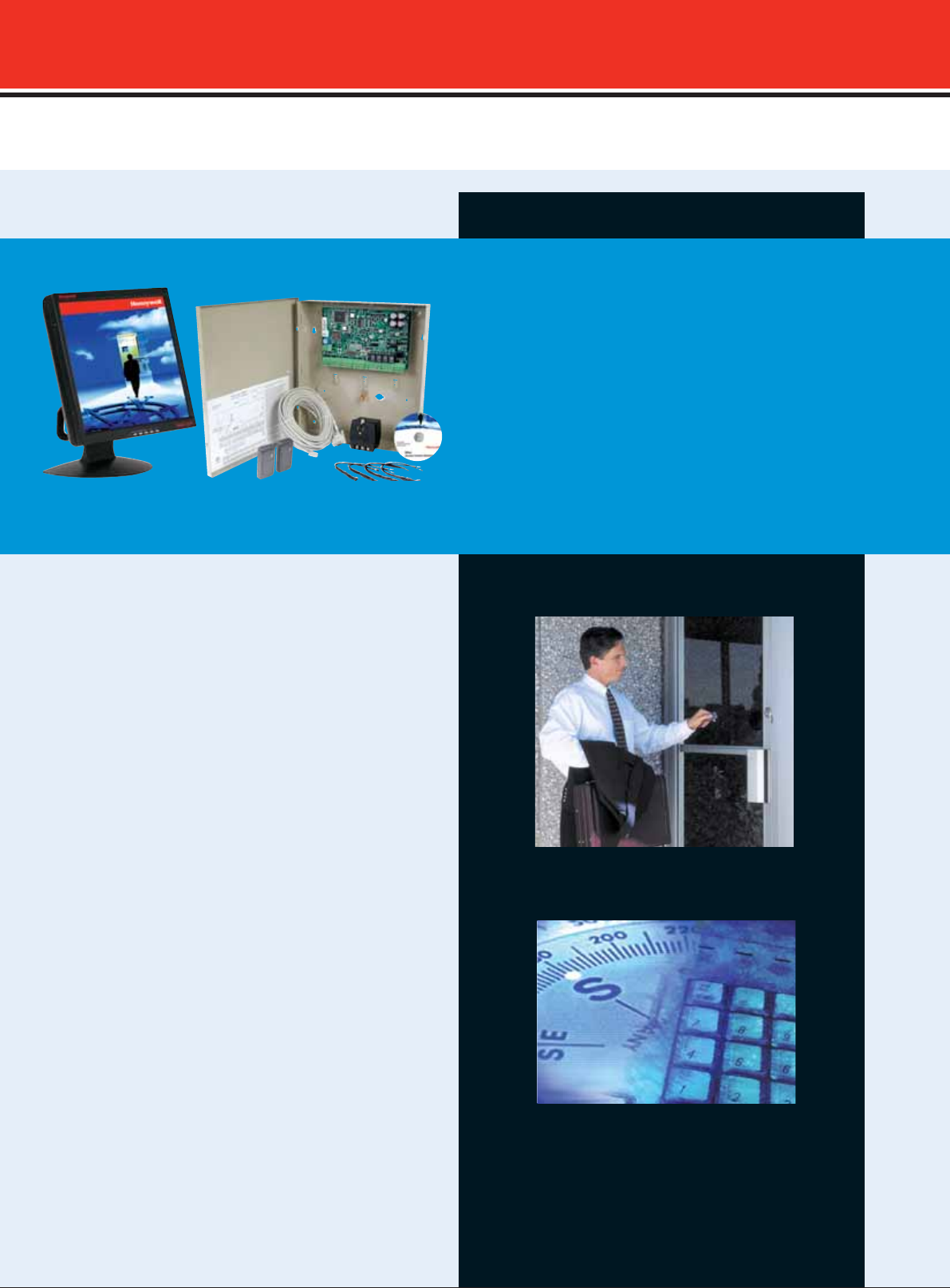

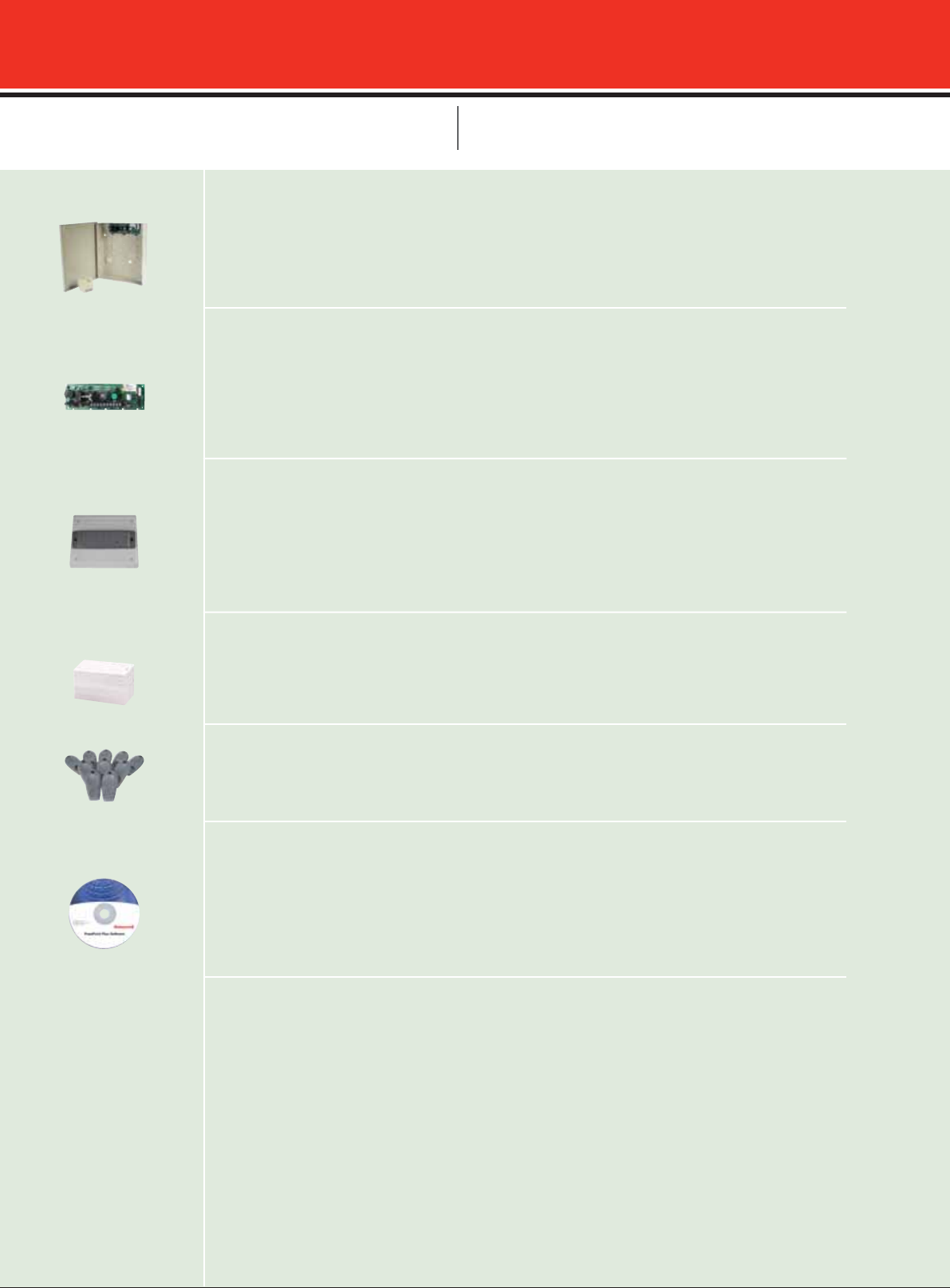

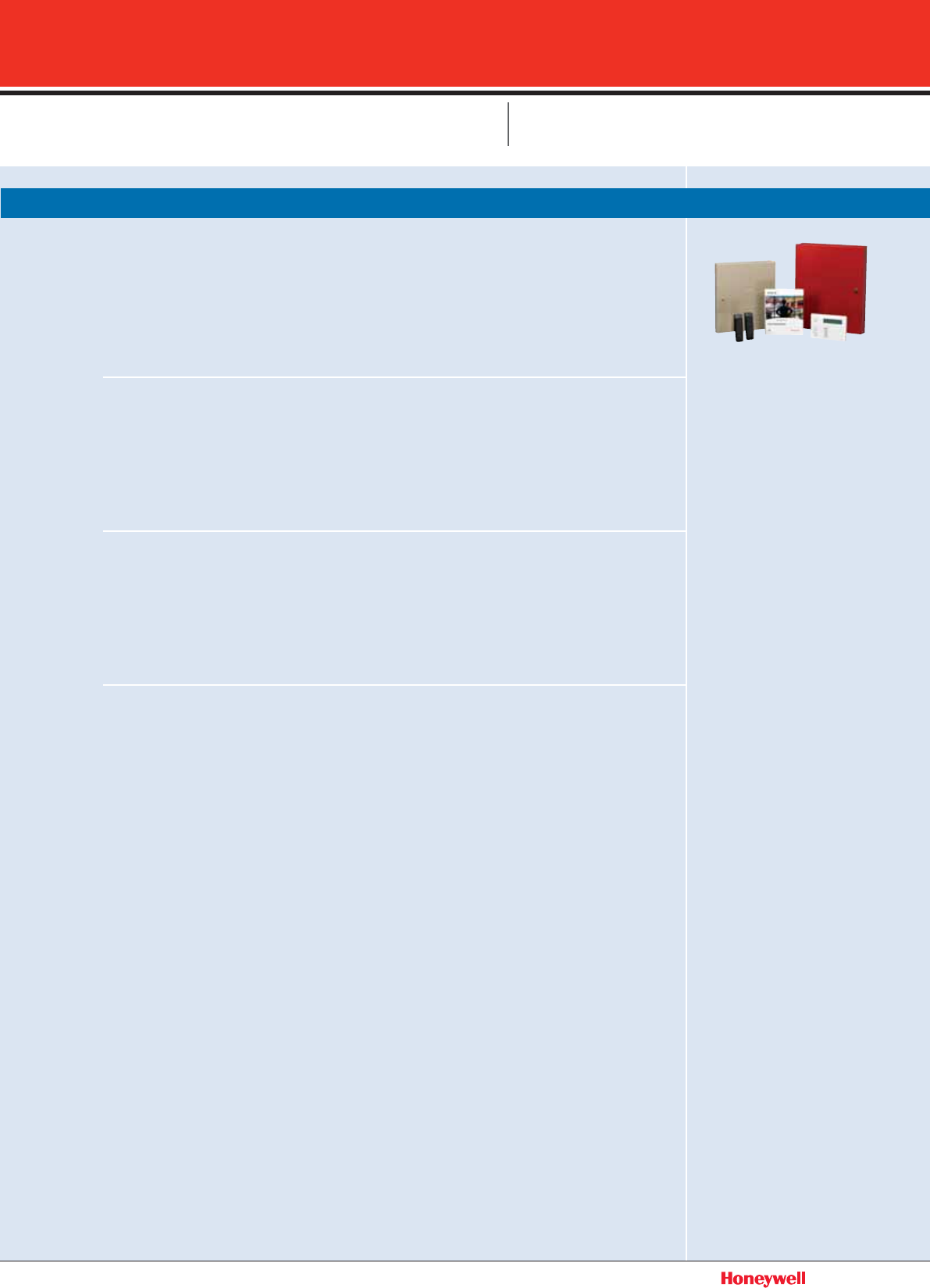

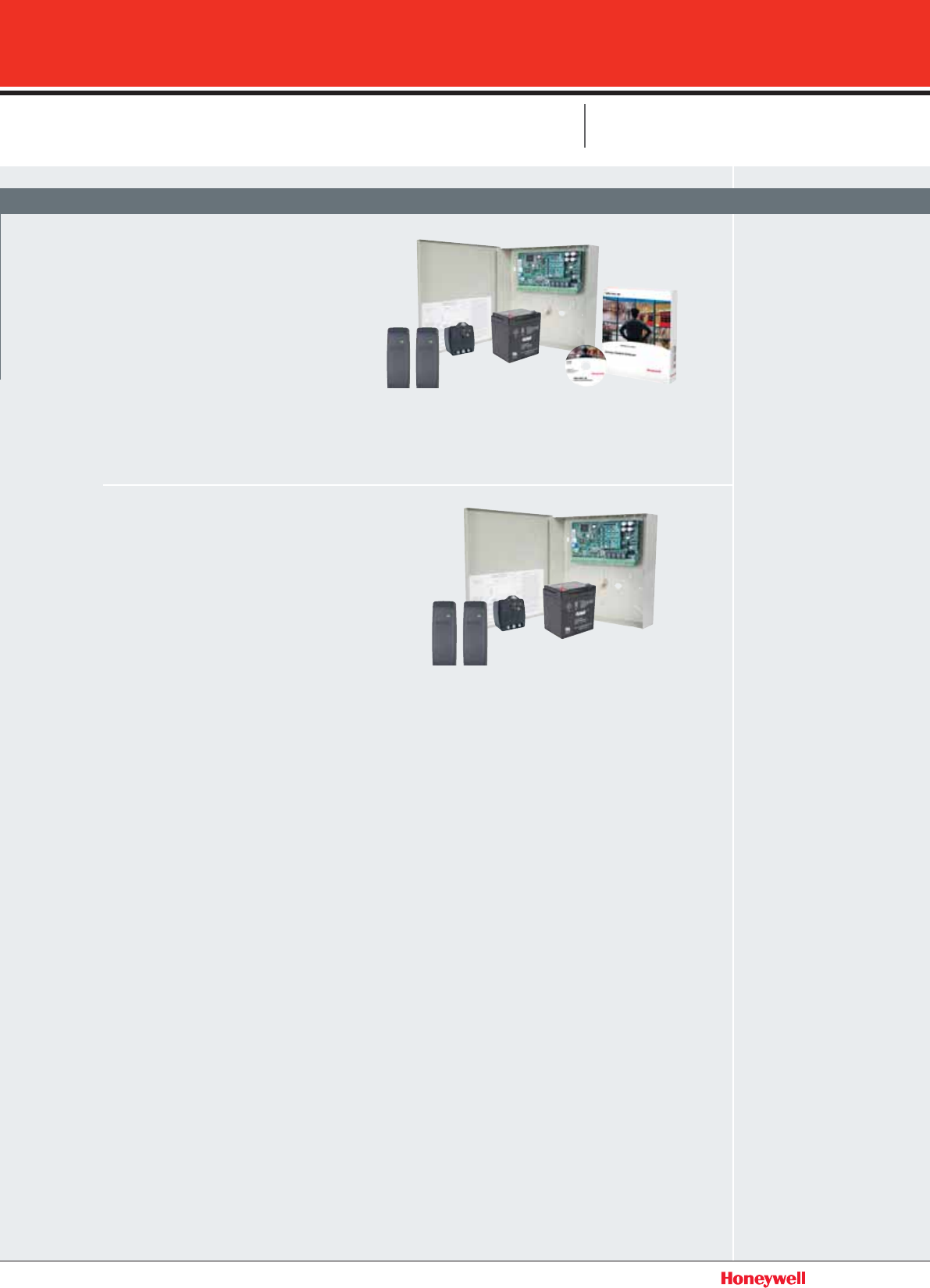

Access and 128 Zone Intrusion Integration Kit for RS232 Based
Communications
Access and Intrusion Integration Kit for RS232 based communication includes WIN-PAK
SE with VISTA integration option (WPSEV), 2 door access control panel (NS2P - S-4
suppressors), intrusion panel (VISTA-128FBP), two access readers (OP30HONE), intrusion
keypad (6160), serial converter for the intrusion panel (4100SM), serial to RS485 converter for
the access control panel (N-485-PCI-2).
Access and 128 Zone Intrusion Integration Kit for Ethernet Based
Communications
Access and Intrusion Integration Kit for RS232 based communication includes WIN-PAK
SE with VISTA integration option (WPSEV), 2 door access control panel (NS2P - and S-4
suppressors), intrusion panel (VISTA-128FBP) two access readers (OP30HONE), intrusion
keypad (6160), serial converter for the intrusion panel (4100SM), serial to Ethernet converter
(LANSRLU1), Ethernet to RS-485 converter kit for the access control panel (N485PCI2L).
Access and 250 Zone Intrusion Integration Kit for RS232 Based
Communications
Access and Intrusion Integration Kit for RS232 based communication includes WIN-PAK
SE with VISTA integration option (WPSEV), 2 door access control panel (NS2P - S-4
suppressors), intrusion panel (VISTA-250FBP) two access readers (OP30HONE), intrusion
keypad (6160), serial converter for the intrusion panel (4100SM), serial to RS485 converter for
the access control panel (N-485-PCI-2).
Access and 250 Zone Intrusion Integration Kit for Ethernet Based
Communications
Access and Intrusion Integration Kit for RS232 based communication includes WIN-PAK
SE with VISTA integration option (WPSEV), 2 door access control panel (NS2P and S-4
suppressors), intrusion panel (VISTA-250FBP), two access readers (OP30HONE), intrusion
keypad (6160), serial converter for the intrusion panel (4100SM), serial to Ethernet converter
Software & Systems WIN-PAK® SE WITH VISTA INTEGRATION KITS
SAMPLE WIN-PAK® SE WITH VISTA INTEGRATION KITS
# Power Supplies & Batteries Sold separately
Access Systems-231-328 02-08.indSec1:237 Sec1:237Access Systems-231-328 02-08.indSec1:237 Sec1:237 8/12/08 12:51:11 PM8/12/08 12:51:11 PM
www.security.honeywell.com/me
HONEYWELL ACCESS SYSTEMS
(LANSRLU1), Ethernet to RS485 converter kit for the access control panel (N485PCI2L).

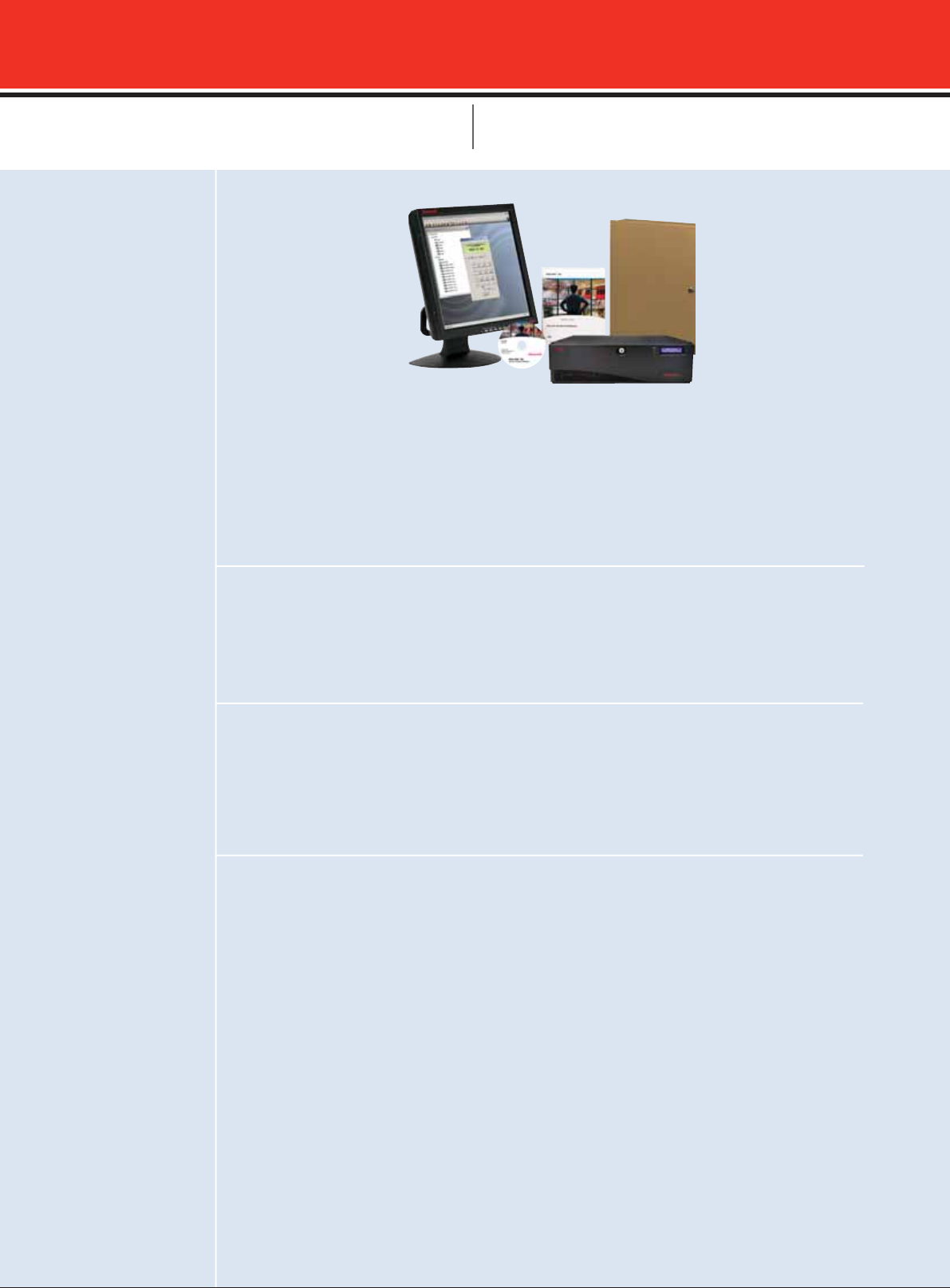

Access and Video Integration Kit for Ethernet Based Communications.
Access and Intrusion Integration Kit for RS232 based communication includes WIN-PAK SE
(WPSEV), 2 door access control panel (NS2P - includes and S-4 suppressors), digital video
recorder (HRM60N1000), two access readers (OP30HONE), Ethernet to RS485
converter kit for the access control panel (N485PCI2L).
Access and Video w/CD Integration Kit for Ethernet Based Communications.
Access and Intrusion Integration Kit for RS232 based communication includes WIN-PAK SE WPSEV),
2 door access control panel (NS2P and S-4 suppressors), digital video recorder (HRM60CD1000),
two access readers (OP30HONE), Ethernet to RS485 converter kit for the access control panel
(N485PCI2L).
Access, Video, 128 Zone Intrusion Integration Kit for Ethernet Based Communications.
Access and Intrusion Integration Kit for RS232 based communication includes WIN-PAK SE with
VISTA integration option (WPSEV), 2 door access control panel (NS2P and S-4 suppressors), digital
video recorder (HRM60N1000), intrusion panel (VISTA-128FBP) two access readers (OP30HONE),
intrusion keypad (6160), serial converter for the intrusion panel (4100SM), serial to Ethernet converter
(LANSRLU1), Ethernet to RS485 converter kit for the access control panel (N485PCI2L).
Access, Video w/CD, 128 Zone Intrusion Integration Kit for Ethernet
Based Communications.
Access and Intrusion Integration Kit for RS232 based communication includes WIN-PAK SE with VISTA
integration option (WPSEV), 2 door access control panel and S-4 suppressors), digital video recorder
(HRM60CD1000), intrusion panel (VISTA-128FBP) two access readers (OP30HONE), intrusion keypad
(6160), serial converter for the intrusion panel (4100SM), serial to Ethernet converter (LANSRLU1),
Ethernet to RS485 converter kit for the access control panel (N485PCI2L).
Software & Systems WIN-PAK® SE WITH VISTA INTEGRATION KITS
# Power Supplies & Batteries Sold separately
238
Access Systems-231-328 02-08.indSec1:238 Sec1:238Access Systems-231-328 02-08.indSec1:238 Sec1:238 8/12/08 12:51:12 PM8/12/08 12:51:12 PM
HONEYWELL ACCESS SYSTEMS
239

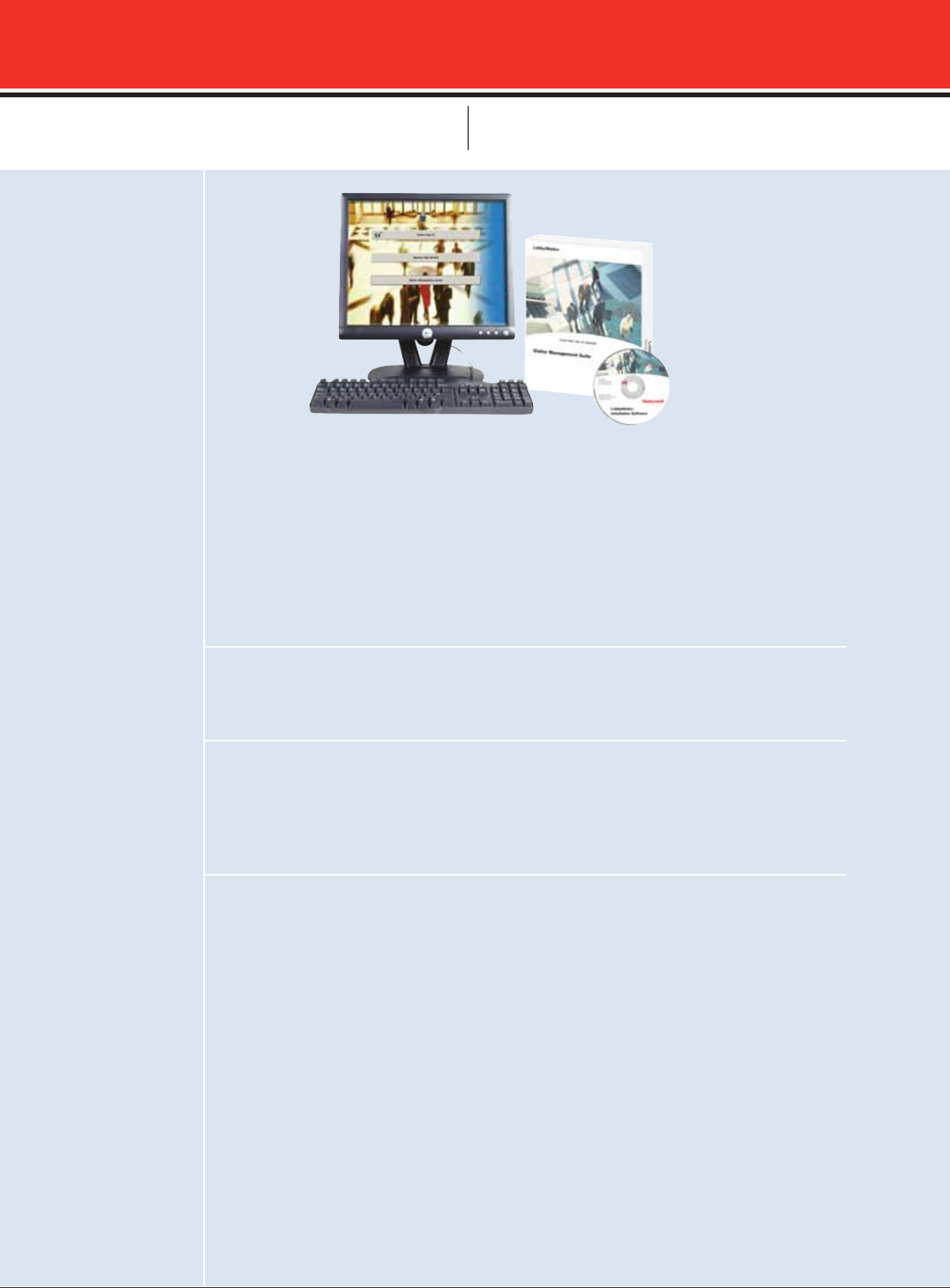

PCAC202
WIN-PAK SE Computer with 5-User Software
WIN-PAK computer and software only.

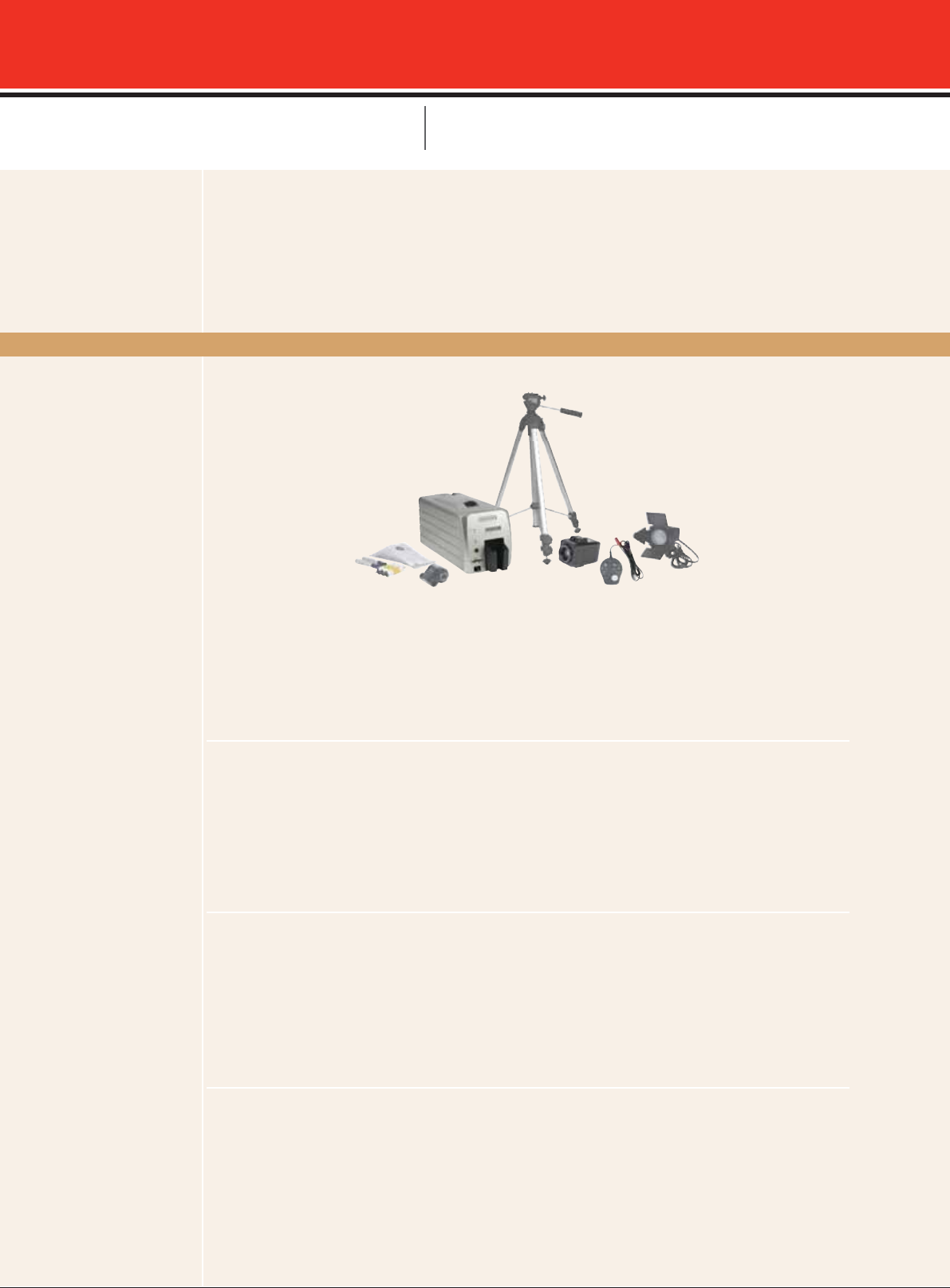

PCAC235
WIN-PAK SE Badging System with Simplex Printer
The system includes WIN-PAK SE software (WPSEU5), camera (PBCAM14), lighting kit
(PBLK3), tripod (PB-TRI-POD), video cable (CBL-VB-CAM-2), standard parallel printer
cable (CBL-3), event printer (PB-PRINTER), 25 no-technology PVC cards (PVC-NT-1),
one communication adapter (N-485-PCI-2), Rio 2e simplex PVC card printer (M9006-749),
color ribbon (M9005-751) and cleaning kit (N9005-761MED).
WIN-PAK® SE
COMPUTER &
BADGING SYSTEMS
All computer systems (PCACxx) are preloaded with WIN-PAK®
SE 5-User software and include monitor, keyboard and mouse.
Optional converters,badging kits and printers can be ordered
separately.
Software & Systems WIN-PAK® SE COMPUTER
& BADGING SYSTEMS
Access Systems-231-328 02-08.indSec1:239 Sec1:239Access Systems-231-328 02-08.indSec1:239 Sec1:239 8/12/08 12:51:13 PM8/12/08 12:51:13 PM
www.security.honeywell.com/me
HONEYWELL ACCESS SYSTEMS
PCWS201
WIN-PAK SE Workstation
Workstation computer. Does not include software.
PCWS235
WIN-PAK SE Badging Workstation with Simplex Printer
The system includes Rio 2e simplex badging card printer (M9006-749), camera and power supply
(PBCAM14), lighting kit (PBLK3), tripod (PB-TRI-POD), video cable (CBL-VB-CAM-2), standard paral-
lel
printer cable (CBL-3), event printer (PB-PRINTER), 25 no-technology PVC cards (PVC-NT-1),
one communication adapter (N-485-PCI-2), color ribbon (M9005-751) and cleaning kit
(N9005-761MED).
PCFS202
WIN-PAK SE File Server Computer and 5-User Software
File server computer configured with WIN-PAK SE (WPSEU5) and 5-user Windows 2003 Server.
Does not support badging kits.
WIN-PAK® SE
WORKSTATIONS
& FILE SERVERS
All workstations (PCWSxx), when ordered with a computer system (PCACxx),
are preloaded with WIN-PAK® SE user interface. No software is loaded if
sold separately. This ensures that the same software version on the
WIN-PAK SE server can be loaded on the workstation. Optional printers or
badging kits can be ordered separately.
240
Software & Systems WIN-PAK® SE WORKSTATIONS
& FILE SERVERS
Access Systems-231-328 02-08.indSec1:240 Sec1:240Access Systems-231-328 02-08.indSec1:240 Sec1:240 8/12/08 12:51:22 PM8/12/08 12:51:22 PM
HONEYWELL ACCESS SYSTEMS
241
Included Components
Dell Standard CPU P P
Dell File Server CPU, 5-User OS P
Dell Workstation CPU P P
WIN-PAK SE, 5-User (WPSEU5) P P P
Dell 17” Flat Screen LCD Monitor P P P P P
Rio 2 Simplex Printer (M9006-749) P P
Rio 2 Color Ribbon (M9005-751) P P
Rio 2 Cleaning Kit (N9005-761MED) P P
PC Communication Interface (N-485-PCI-2) P
USB Badging Camera (PBCAM14CO) P P
USB Camera Power Supply (PBCAM14PS) P P
USB Camera Remote (PBCAM14RC) P P
Camera Tripod (PB-TRI-POD) P P
Badging Lighting Kit (PBLK3) P P
Dot-Matrix Event Printer (PB-PRINTER) P
Printer Cable (CBL-3) P
Blank PVC Cards, 25 Quantity (PVC-NT-1) P P
Quick Reference Guide (TD0074-02) P P P P P
5-User WIN-PAK SE Computer
(PCAC202)
5-User WIN-PAK SE Badging System
(PCAC235)
WIN-PAK SE Workstation
(PCWS201)
WIN-PAK SE Badging Workstation
(PCWS235)
5-User OS WIN-PAK SE
File Server Computer (PCFS202)
Badging Kits Not Supported
SYSTEM INCLUSIONS
Software & Systems WIN-PAK® SE SYSTEMS
Access Systems-231-328 02-08.indSec1:241 Sec1:241Access Systems-231-328 02-08.indSec1:241 Sec1:241 8/12/08 12:51:28 PM8/12/08 12:51:28 PM
www.security.honeywell.com/me
HONEYWELL ACCESS SYSTEMS
With powerful system software and reliable, intel-
ligent controllers, Honeywell’s state-of-the-art
technology is designed to meet the complex and
ever-evolving security requirements of businesses
today. We offer scalable access control solutions
for enterprise level management systems. Solutions
such as integrated digital video monitoring,
Web-based management tools and central station
reporting which increases recurring monthly
revenues while decreasing installation and service
costs. Honeywell offers you unique products and
services that enable you to differentiate yourself
from the competition – winning more business and
developing stronger customer relationships.
THIS SECTION INCLUDES:
WIN-PAK® PE
WIN-PAK® PRO Central Station
PRO2200 Controllers
Professional
Systems
Professional Systems products are available only to certified
dealers who have met Honeywell dealer requirements and
completed the required technical training. Contact Honeywell
Sales Support or your Regional Sales Manager for more
information about becoming a certified dealer.
242
Access Systems-231-328 02-08.indSec1:242 Sec1:242Access Systems-231-328 02-08.indSec1:242 Sec1:242 8/12/08 12:51:28 PM8/12/08 12:51:28 PM
HONEYWELL ACCESS SYSTEMS
243
WIN-PAK® PRO Benefits:
• Enhanced digital video integration creates
additional add-on opportunities.
• Manage multiple locations and accounts from the
software; ideal for property managers, business or
university campuses and multi-location
corporations.
• Customized reporting provides greater management
capability to the system. In addition, scheduling
reports to print or e-mail meets customer demand.
• Advanced card management provides greater
control and security for customers.
WIN-PAK® PRO Central Station Benefits:
• Increased revenue by providing value added
services such as digital video monitoring, Web
browser user interface, e-mail event and report
notification, scheduled reporting, video verification
and photo-ID badging.
• Reduced installation and service costs. Without
on-site PC and software installation, dealers can
manage and repair systems remotely.
WIN-PAK® PE offers enterprise level access
control capabilities with full scale system
management of single or multiple locations. With
true digital videoand intrusion integration options,
it is an easy choice for enterprise applications.
PRO2200 is a highly evolved modular controller
with advanced features such as triggers and
procedures.
WIN-PAK® PE Central Station access control
provides a cost effective and easy-to-manage
security solution for businesses, while providing
security dealers with multiple recurring revenue
streams.
Professional Systems
Access Systems-231-328 02-08.indSec1:243 Sec1:243Access Systems-231-328 02-08.indSec1:243 Sec1:243 8/12/08 12:51:30 PM8/12/08 12:51:30 PM
www.security.honeywell.com/me
HONEYWELL ACCESS SYSTEMS
Professional Systems WIN-PAK® PE SOFTWARE
WPPE
WIN-PAK PE Access Control Software
Unrestricted users and communication servers.
WPPEV
WIN-PAK PE with VISTA integration
Unrestricted users and communication servers with VISTA integration.
UKWPPEV
Upgrade from WP2K5 to WPPEV
Upgrade from WIN-PAK 2005 single user or WIN-PAK Release 4 single user
to WIN-PAK PE with VISTA integration.
U5WPPEV
Upgrade from WP2KU5 to WPPEV
Upgrade from WIN-PAK 2005 5-users or WIN-PAK Release 4 5-users to
WIN-PAK PE with VISTA integration.
USEPEV
Upgrade from WPSE to WPPEV
Upgrade from WIN-PAK SE single user to WIN-PAK PE with VISTA integration.
USE5PEV
Upgrade from WPSEU5 to WPPEV
Upgrade from WIN-PAK SE 5-users to WIN-PAK PE with VISTA integration.
* Note: Windows VISTA Business requires SQL Server 2005 or Express Edition.
WIN-PAK PE SOFTWARE UPGRADES
WIN-PAK® PE
WIN-PAK® PE access control software is used to program and operate access
control systems and report events. Supported access control panels are the
NS2+, N-1000, PW-2000 and PRO2200. Supported digital video systems
are Rapid Eye, Rapid Eye LT and Fusion. Supported operating systems are
Windows® 2003 Server, Windows XP Professional SP2, Windows 2000 Server
SP4 and Windows 2000 Professional SP4.*
Features:
• Unrestricted Number of Users
• Multiple Accounts are Supported
• Installation Wizard
• Integrated DVR Support
• Photo ID Badging
• Scheduled Reports
• E-mail Reports / Events
• Pop-up Video and Alarms
244
Access Systems-231-328 02-08.indSec1:244 Sec1:244Access Systems-231-328 02-08.indSec1:244 Sec1:244 8/12/08 12:51:31 PM8/12/08 12:51:31 PM
HONEYWELL ACCESS SYSTEMS
245
Professional Systems WIN-PAK® PE SERVERS
WPPAC202
WIN-PAK® PE Server Access Control Computer
with 5-User OS
WIN-PAK PE file server computer with 5-user operating system.
WPPAC202-S
WIN-PAK PE Server Access Control Computer
with 5-User OS and SQL Server
WIN-PAK PE file server computer with 5-user operating system with SQL server loaded as the
default
database engine.
WPPFS202
WIN-PAK PE Server Access Control Computer
with 10-User OS
WIN-PAK PE file server computer with 10-user operating system.
WPPFS202-S
WIN-PAK PE Server Access Control Computer
with 10-User OS and SQL Server
WIN-PAK PE file server computer with 10-user operating system with SQL server loaded as the
default database engine.
Consult www.honeywellaccess.com for current computer hardware specifications.
Professional Systems products are available only to certified dealers who have met Honeywell dealer require-
ments and completed the required technical training. Contact Honeywell Sales Support or your Regional Sales
Manager for more information about becoming a certified dealer.
WIN-PAK® PE
SERVERS
All WIN-PAK® PE systems are file server computers with 5-user or
10-user OS. Included with the file servers is WIN-PAK® PE, monitor,
keyboard and mouse. Optional converters and printers can be
ordered separately.
Access Systems-231-328 02-08.indSec1:245 Sec1:245Access Systems-231-328 02-08.indSec1:245 Sec1:245 8/12/08 12:51:32 PM8/12/08 12:51:32 PM
www.security.honeywell.com/me
HONEYWELL ACCESS SYSTEMS
Professional Systems WIN-PAK® PE WORKSTATIONS
WPPWS201
WIN-PAK PE Workstation Computer
WIN-PAK PE workstation computer.
WPPWS235
WIN-PAK PE* Badging System with Simplex Printer
Badging ready workstation equipped with the Rio 2e simplex badging printer (M9006-749).
Includes camera and power supply (PBCAM14), lighting kit (PBLK3), tripod (PB-TRI-POD),
25 no-technology PVC cards (PVC-NT-1), color ribbon (M9005-751) and cleaning kit
(M9005-761MED).
WIN-PAK® PE
WORKSTATIONS
All workstations are loaded with the WIN-PAK® PE user interface when
ordered with a file server. No WIN-PAK PE software is loaded if sold
separately. This ensures that the same software version on the WIN-PAK
PE server can be loaded on the workstation. Workstations include monitor,
keyboard and mouse. Optional printers or badging kits can be ordered
separately.
*Consult www.honeywellaccess.com for current computer hardware specifications.
246
Access Systems-231-328 02-08.indSec1:246 Sec1:246Access Systems-231-328 02-08.indSec1:246 Sec1:246 8/12/08 12:51:34 PM8/12/08 12:51:34 PM
HONEYWELL ACCESS SYSTEMS
247
Professional Systems WIN-PAK® PE SYSTEMS
Included Components
Dell File Server CPU, 5-User OS P P
Dell File Server CPU, 10-User OS P P
Dell Workstation CPU
P P
WIN-PAK PE Software P P P P
MS SQL Server 2005 Database P P
Dell 17” Flat Screen LCD Monitor P P P P P P

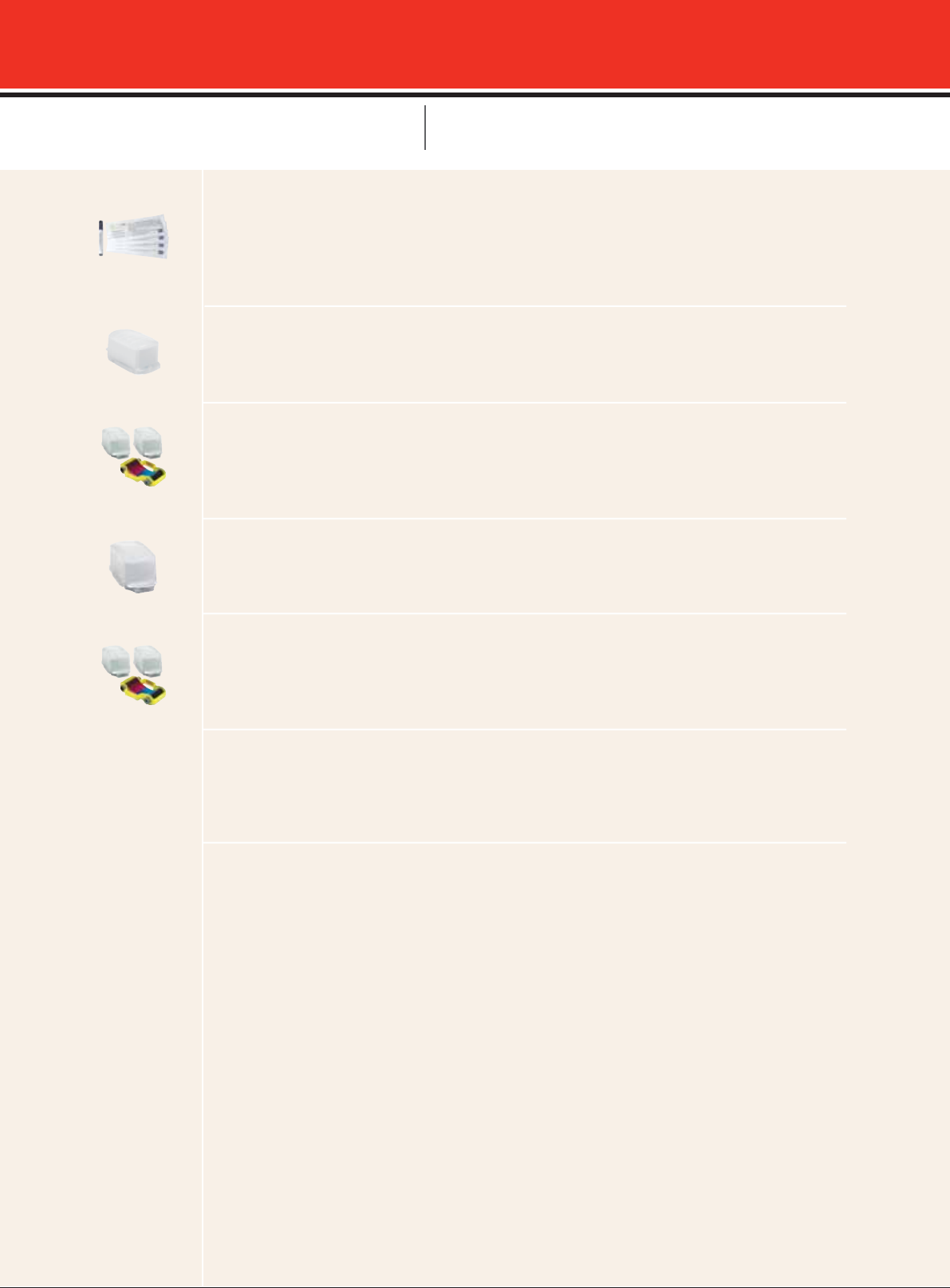

Rio 2e Simplex Printer (M9006-749) P
Rio 2e Color Ribbon (M9005-751) P
Rio 2e Cleaning Kit (N9005-761MED) P
USB Badging Camera (PBCAM14CO)
P
USB Camera Power Supply (PBCAM14PS) P
USB Camera Remote (PBCAM14RC)
P
Badging Lighting Kit (PBLK3)
P
Camera Tripod (PB-TRI-POD)
P

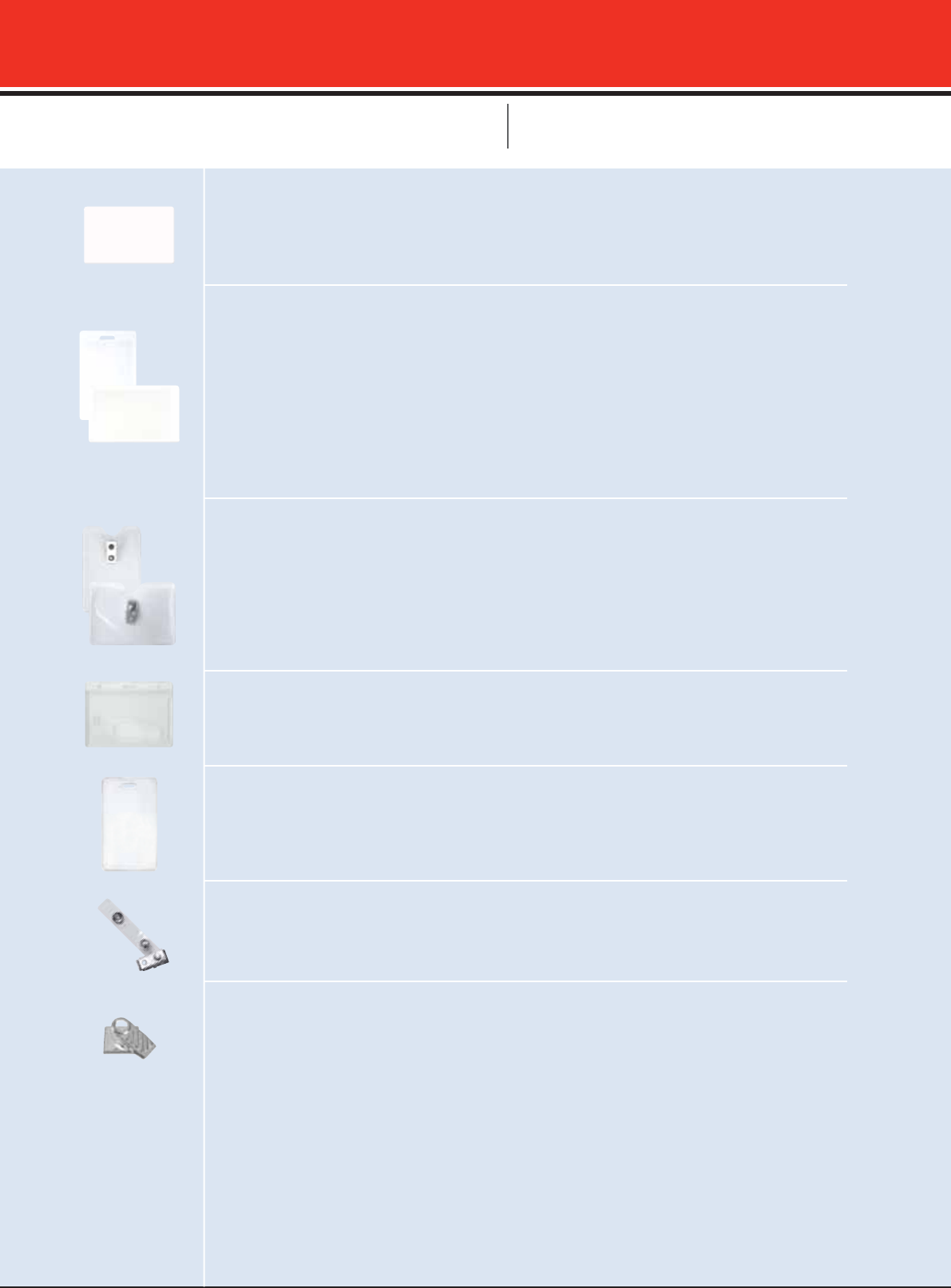

Blank PVC Cards, 25 Quantity (PVC-NT-1) P
Quick Reference Guide (TD0074-02) P P P P P P
5-User WIN-PAK PE
File Server Computer (WPPAC202)
5-User WIN-PAK PE
File Server SQL Computer (WPPAC202-S)
10-User WIN-PAK PE
File Server Computer (WPPFS202)
10-User WIN-PAK PE
File Server SQL Computer (WPPFS202-S)
WIN-PAK PE Workstation
(WPPWS201)
WIN-PAK PE
Badging Workstation (WPPWS235)
Professional Systems products are available only to certified dealers who have met Honeywell dealer requirements and completed the required
technical training. Contact Honeywell Sales Support or your Regional Sales Manager for more information about becoming a certified dealer.
WIN-PAK® PE
SYSTEMS
WIN-PAK® PE “AC” and “FS” systems use a true file server computer.
The “AC” systems use a 5-user Windows 2003 Server OS. The “FS”
systems use a 10-user Windows 2003 Server OS. Badging is not
supported on a file server. Badging kits can be added to the
WPPWS201. The following chart indicates what each system includes.
Access Systems-231-328 02-08.indSec1:247 Sec1:247Access Systems-231-328 02-08.indSec1:247 Sec1:247 8/12/08 12:51:39 PM8/12/08 12:51:39 PM
www.security.honeywell.com/me
HONEYWELL ACCESS SYSTEMS

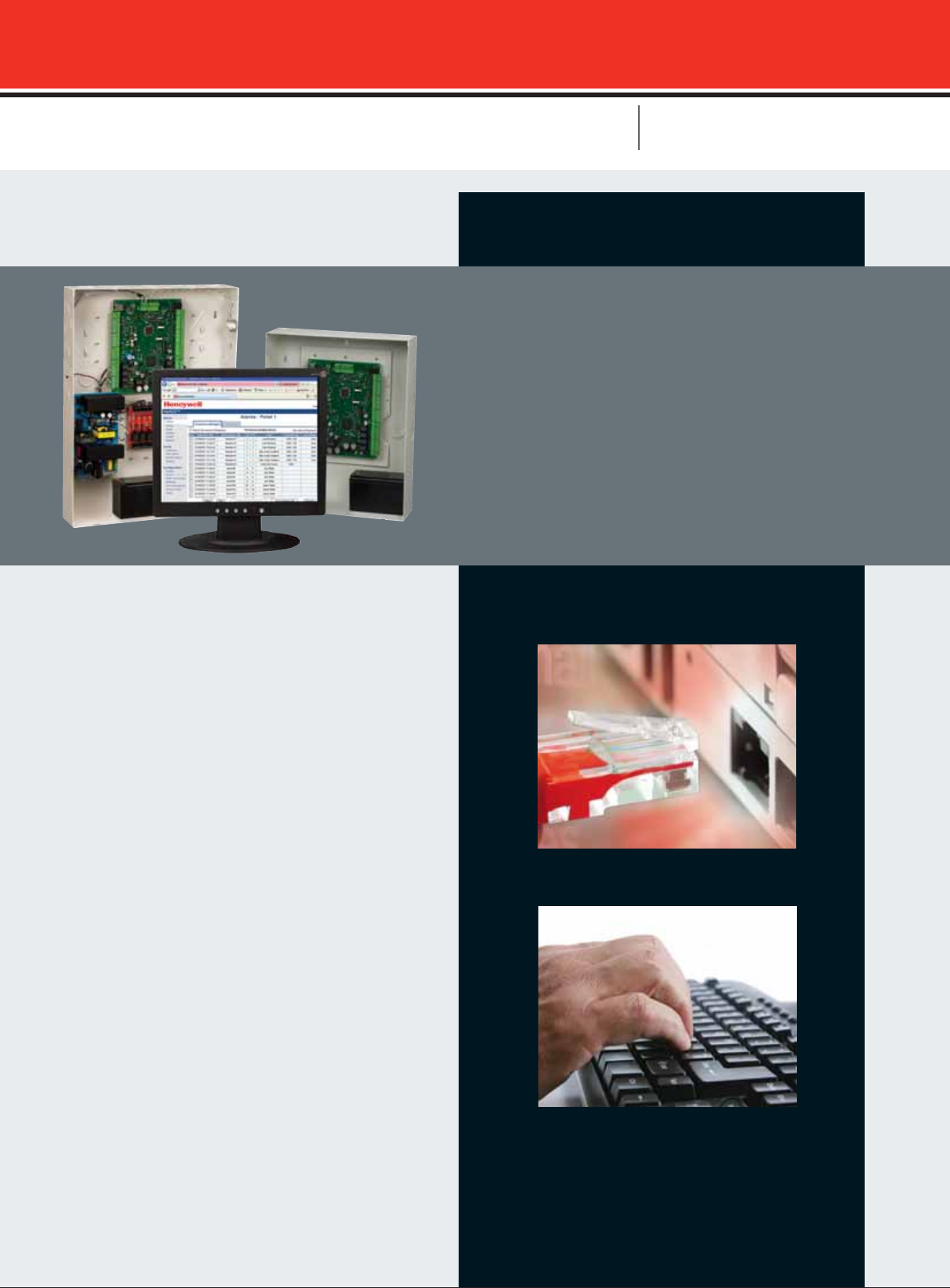

Professional Systems WIN-PAK® PRO CENTRAL STATION
WIN-PAK® PRO
CENTRAL STATION
Sustaining growth and staying ahead of the competition are the greatest
challenges facing security dealers today. Honeywell’s new WIN-PAK® PRO
Central Station access control product provides a cost effective and
easy-to-manage security solution for businesses, while providing security
dealers with multiple recurring revenue streams. WIN-PAK PRO Central
Station offers dealers the opportunity to take control of their customer’s
installations and provide worry-free access control and value added services.
• Win More Business
• Keep Customers Longer
• Increase Profitability
• Reduce Installation Costs
• Reduce Service Costs
248
Customized reports by account can be created and scheduled to run hourly, daily or weekly. Alarms,
events and reports can be sent to email, cell phone or any enabled device. Remote photo-ID
badging tools Internet portal option for customers allows access via any web browser.
Advanced operator actions like alarm routing, keyboard shortcuts, floor plan graphic displays and
remote digital video monitoring provide powerful support. For customers that would like to have
local control over their system, WIN-PAK PRO Central Station offers a web enabled interface to their
account. Customers can access their information live using any standard web browser interface.
Capabilities include running predefined reports, adding and deleting users, managing time schedules
and more.
FEATURES
• Access Control Alarm and Event
Monitoring
- Monitor alarms and events real-time
- Special response messages per
account/per alarm or event
- 99 priority levels of alarms/events
- Control and response, including
acknowledge, clear, annotate, live
video and recorded video
- Manual override, lock and unlock
doors, shunt/bypass zones and
input points
- Live floor plan views
• Remote Digital Video Monitoring usin
Honeywell Rapid Eye, Rapid Eye LT
and Fusion DVR’s
- Record and playback events
- Multiple camera control, including
pan, tilt & zoom
- Alarm video pop-up
- Prevent unauthorized access with
Video Verification
- View video from up to 16 accounts
at a time
• Central Station Operator Controls
- Monitor alarms & events real-time
- Remote digital video monitoring
- Operator event claiming
- Account specific access
- Fast keyboard shortcuts
- Alarm or event routing by operator
• Customized Reporting
- Create customized reporting options
by account
- Email report options
- Send detailed reports to BlackBerry®,
cell phone, fax, email
- Specialized reports like card
frequency and attendance

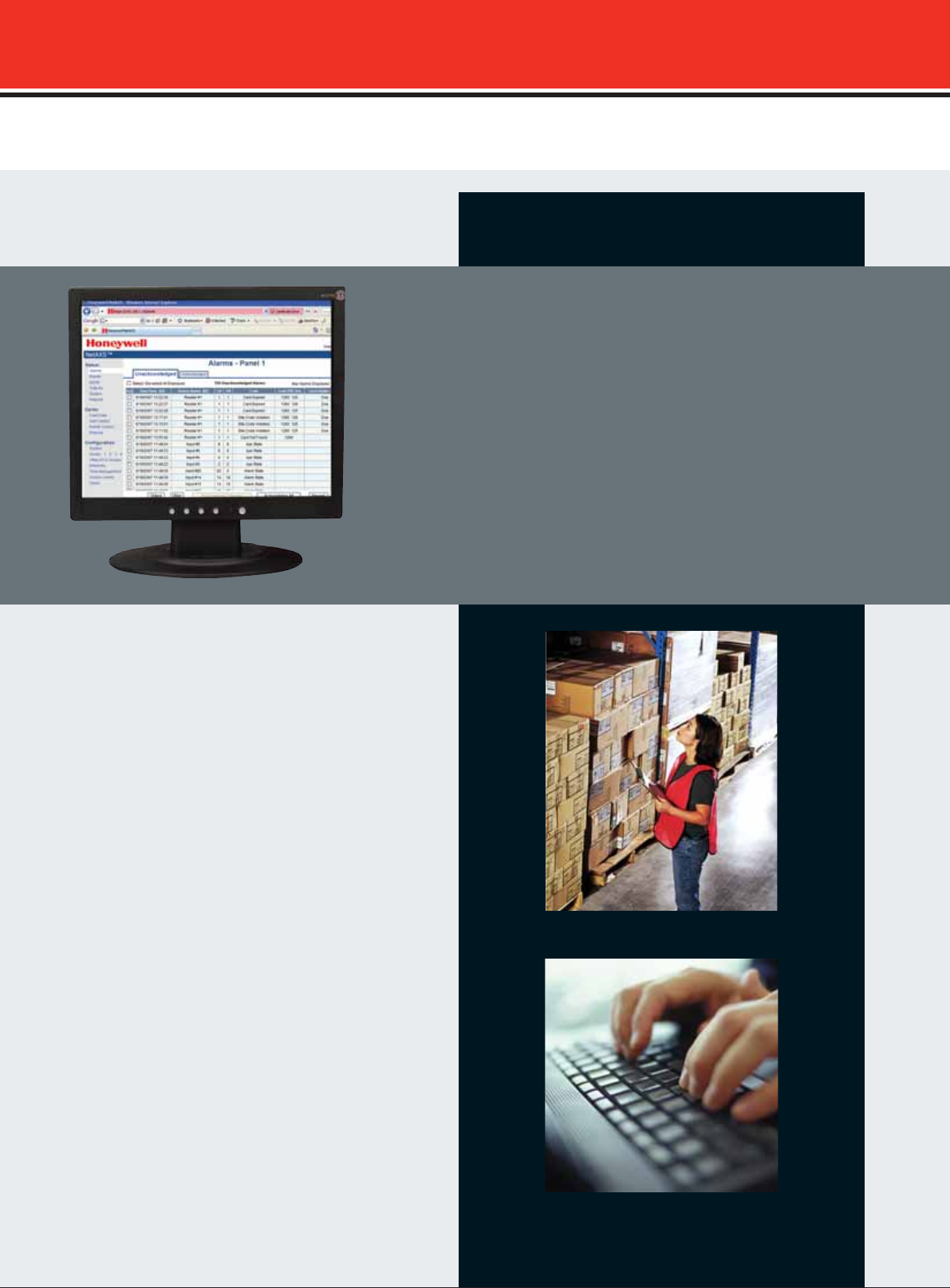

• User Web Interface
- Access from any web browser
- Run or schedule predefined reports
- Add/remove users
- Upload employee photos
- Manage time schedules and
access levels
• Photo-ID Badging Management
- Recurring revenue opportunity
- Lost card replacement
- Increased customer value
- Upload images via web interface
Access Systems-231-328 02-08.indSec1:248 Sec1:248Access Systems-231-328 02-08.indSec1:248 Sec1:248 8/12/08 12:51:40 PM8/12/08 12:51:40 PM
HONEYWELL ACCESS SYSTEMS
249
Professional Systems WIN-PAK® PRO CENTRAL STATION
BENEFITS
Remote Digital Video Monitoring
WIN-PAK PRO Central Station offers integration for monitoring
a customer’s digital video system. Operators can monitor live
video from up to 16 different accounts at a time. Operators
can pan, tilt and zoom cameras from any account. Remote
monitoring also includes Visual Video Verification, which allows
a live image to be compared to a stored database image of an
individual before access is granted.
Photo-ID Badge Production
A central management function for badge production offers
value to customers that want the security of having printed
photo-ID badges, but cannot justify the cost for the number of
badges required. Photo-ID badge production requires minimal
investment in a card printer for the dealer that can be spread
across multiple accounts as badges are produced. Combined
with the web browser interface, images can be uploaded via
the web and are easy to retrieve by the dealer.
Web Browser Interface
Customers can access their account from an enabled web
browser. The web browser allows customers to manage
cardholders, access levels and cardholder reports.
Customized Reporting
Not all customers want the same reports. With WIN-PAK PRO
Central Station, dealers can create customized reporting solutions
for each account. These reports can then be scheduled to run auto-
matically hourly, daily, weekly or monthly. Once the report is run it
can be emailed, faxed or sent to any enabled device.
Advanced Operator Controls
Central Monitored System Operators have access to many
advanced account management and handling capabilities.
Operators have the ability to monitor alarms and events
and provide verification for the customer. In addition operators
can monitor customer’s live digital video systems and provide
appropriate support. Event claiming allows an operator to claim
an event and the system will lock out other operators from that
account. Event claiming eliminates duplicate alarm handling.
The operator then has exclusive account control and all events
are focused to the operator that has claimed the event.
Access Systems-231-328 02-08.indSec1:249 Sec1:249Access Systems-231-328 02-08.indSec1:249 Sec1:249 8/12/08 12:51:41 PM8/12/08 12:51:41 PM
www.security.honeywell.com/me
HONEYWELL ACCESS SYSTEMS
Professional Systems WIN-PAK® PRO CS SSA / SYSTEMS
WCSFSM
WIN-PAK PRO Central Station – 50 Account System – Basic
50 account system for Ethernet and/or dial-up includes four communication ports (NTEXPDI4),
cables (NTEXPCM) and modems (M-56K). Basic file server computer with 5-user server OS,
36 GB SCSI, 1 GB RAM and MSDE database engine. Does not include Web interface option.
WCSFSMW
WIN-PAK PRO Central Station – 100 Account System – Standard
100 account system for Ethernet and/or dial-up includes four communication ports (NTEXPDI4), cables
(NTEXPCM) and modems (M-56K). Dual processor file server computer with 5-user server OS, 3-
36 GB SCSI (RAID 5 configuration), 2 GB RAM, redundant power supply and SQL2000 database
engine. Does not include Web interface option.
WCSFSB
WIN-PAK PRO Central Station – 500 Account System – Premium 500 account system
for Ethernet and/or dial-up includes eight communication ports (NTEXPDI8), cables (NTEXPCM) and
modems (M-56K). Dual processor file server computer with 5-user server OS, 5-36GB 15kRPM
SCSI (RAID 5 configuration), 2GB RAM, redundant power supply and SQL2000 database engine.
Does not include Web interface option.
Consult factory for applications requiring more than 500 accounts.
Professional Systems products are available only to certified dealers who have met Honeywell dealer
requirements and completed the required technical training. Contact Honeywell Sales Support or your
Regional Sales Manager for more information about becoming a certified dealer.
WIN-PAK PRO CENTRAL STATION COMPUTER SYSTEMS
250
WCS0
WIN-PAK PRO Central Station for 5 Accounts and 5 Concurrent Users
WCS1
WIN-PAK PRO Central Station for 50 Accounts and 5 Concurrent Users
WCS2
WIN-PAK PRO Central Station for 100 Accounts and 5 Concurrent Users
WCS3
WIN-PAK PRO Central Station for 250 Accounts and 5 Concurrent Users
WCS4
WIN-PAK PRO Central Station for 500 Accounts and 5 Concurrent Users
WCS5
WIN-PAK PRO Central Station for 1,000 Accounts and 5 Concurrent Users
WCS6
WIN-PAK PRO Central Station for 2,500 Accounts and 5 Concurrent Users
WCS7
WIN-PAK PRO Central Station for Unrestricted Accounts and 5 Concurrent Users
WCSW
Web Interface for WIN-PAK PRO Central Station
The Web interface allows credential management to be performed via a trusted link from the dealer’s
Web page. Credential management includes cards, card holder with note fields, photos, signatures,
access levels, reports for cards, card holder and access level. Unrestricted number of accounts or users.
Access Systems-231-328 02-08.indSec1:250 Sec1:250Access Systems-231-328 02-08.indSec1:250 Sec1:250 8/12/08 12:51:41 PM8/12/08 12:51:41 PM
HONEYWELL ACCESS SYSTEMS

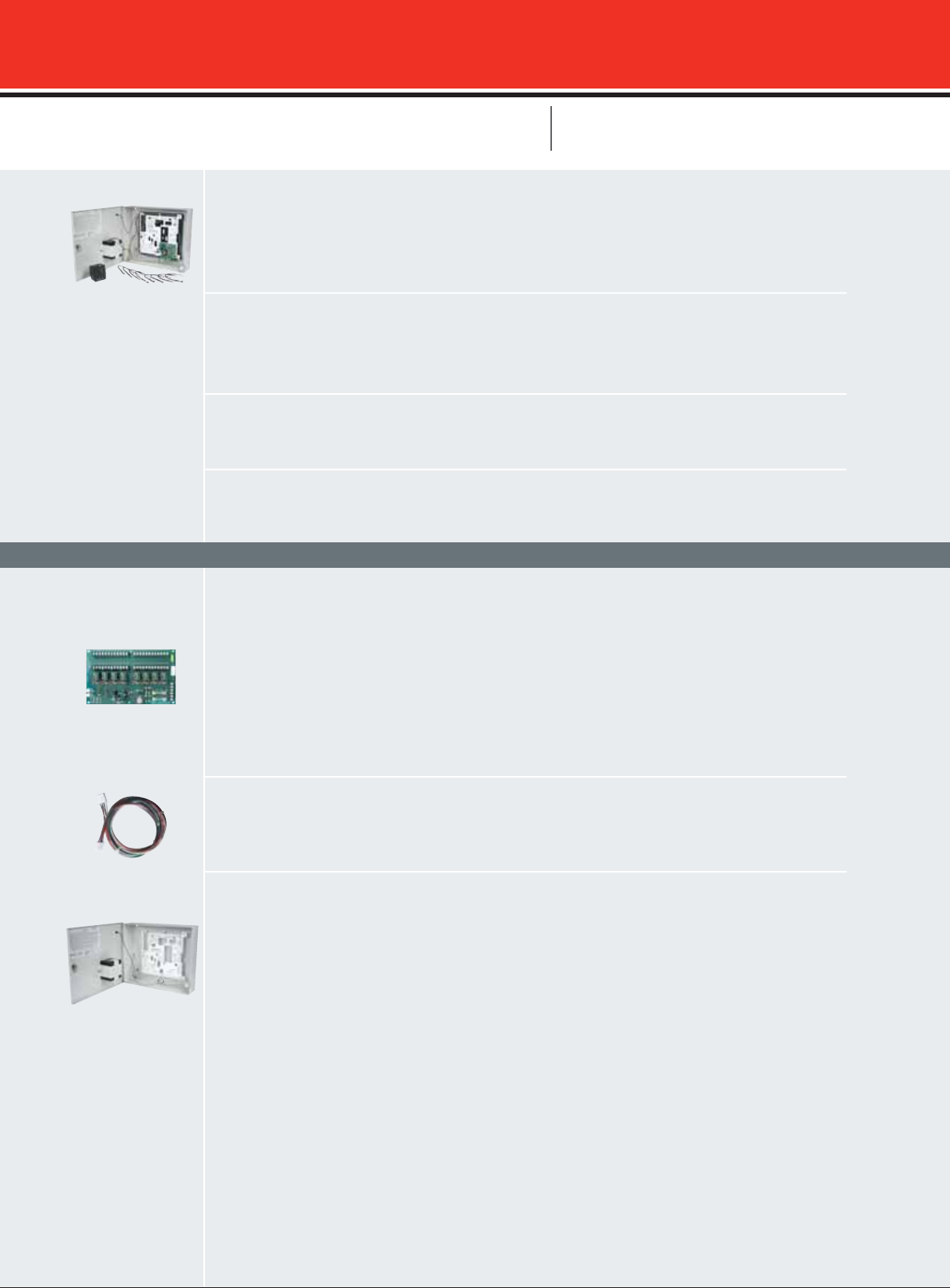

Professional Systems REMOTE SITE STARTER KITS – DIAL-UP

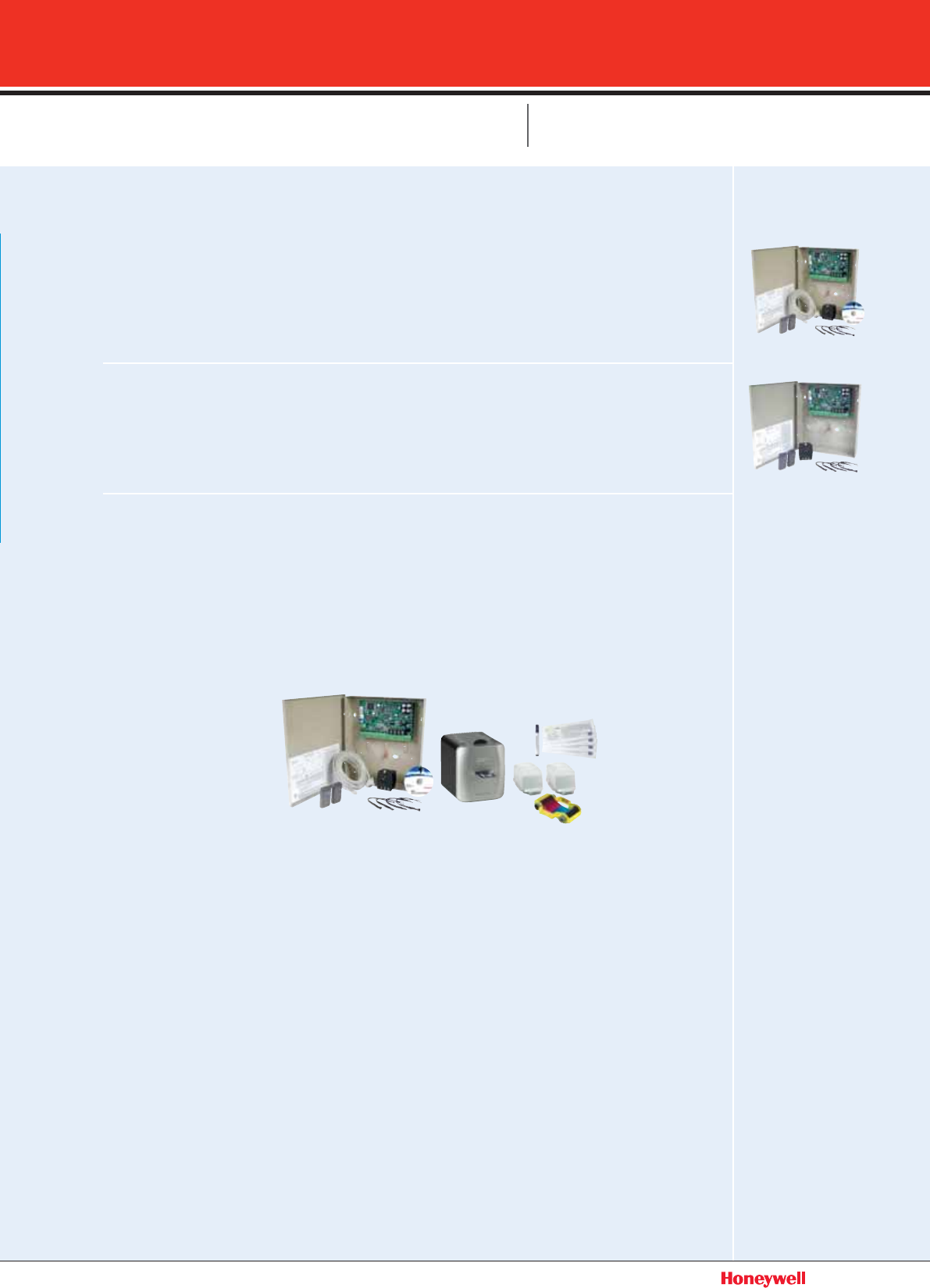

NS2+ Remote Site Dial-up Starter Kit
NS2+ based kit with modem (M-56K), two readers (OP30HONE), battery backup
(BAT-3), suppressor kit (S-4) and converter (N-485-HUB-2).
PRO2200 Remote Site Dial-up Starter Kit PRO2200 based kit with intelligent controller with
enclosure, (PRO22E1IC), two-reader board (PRO22R2), modem (M-56K), modem cable (CBL-2), two
readers (OP30HONE) and suppressor kit (S-4). The enclosure allows seven additional expansion boards.
N-1000-III Remote Site Dial-up Starter Kit
N-1000-III based kit with modem (M-56K), two readers (OP30HONE), suppressor kit
(S-4) and converter (N-485-HUB-2).
NS2+ Remote Site Ethernet Starter Kit
NS2+ based kit with Ethernet interface (NSLAN1), two readers (OP30HONE) and suppressor kit (S-4).
NS2+ Remote Site Ethernet Starter Kit with Multidrop 485
NS2+ based kit with 485 converter (N485PCI2L), Ethernet converter (LANSRLU1), two readers
(OP30HONE), transformer (X-4), battery backup (BAT-3) and suppressor kit (S-4).

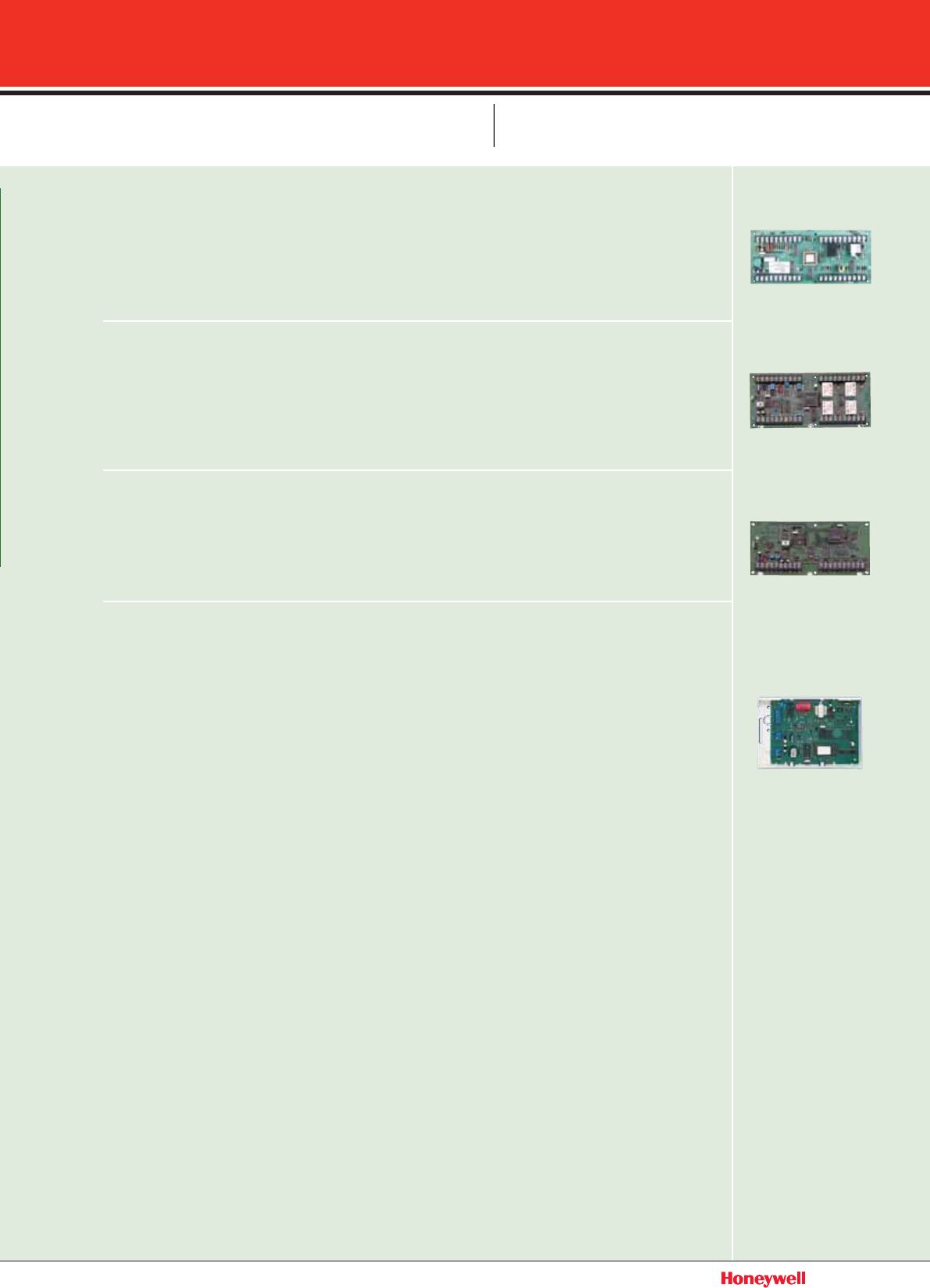

PRO2200 Remote Site Ethernet Starter Kit PRO2200 based kit with intelligent controller,
Ethernet interface, enclosure with (PRO22E1EN), two-reader board (PRO22R2), two readers
(OP30HONE) and suppressor kit (S-4). The enclosure allows 7 additional expansion boards.
N-1000-III Remote Site Ethernet Starter Kit
N-1000-III based kit with Ethernet interface (LANSRLU1), two readers (OP30HONE),
suppressor kit (S-4) and converter (N485PCI2L).
SAMPLE REMOTE SITE STARTER KITS - DIAL-UP
# Power Supplies & Batteries Sold separately
251
Access Systems-231-328 02-08.indSec1:251 Sec1:251Access Systems-231-328 02-08.indSec1:251 Sec1:251 8/12/08 12:51:44 PM8/12/08 12:51:44 PM
www.security.honeywell.com/me
HONEYWELL ACCESS SYSTEMS

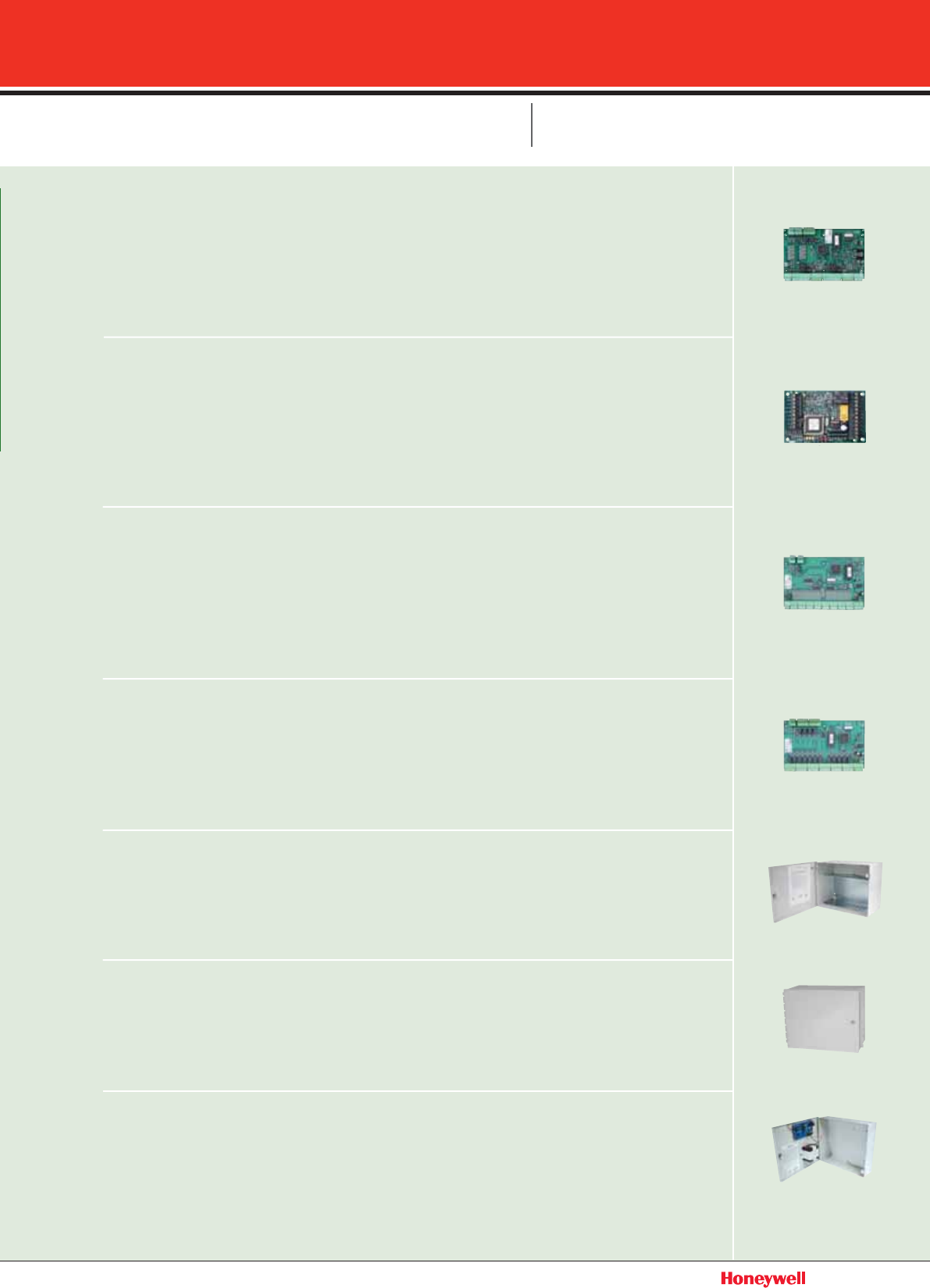

Professional Systems REMOTE SITE STARTER KITS – ETHERNET
PRO22E1EN
PRO2200 Intelligent Controller Kit with TCP/IP Communication
This kit contains the intelligent controller (PRO22IC), a high-density wall mount enclosure
(PRO22ENC1), the high-density power supply (PRO22E1PS) and 7AH battery (PRO22BAT1)
capable of supplying primary and backup power for up to 9 PRO2200 modules and Ethernet device
(PRO22EN) for communication via TCP/IP to the host.
ALSO AVAILABLE:
PRO22E1IC
PRO2200 Intelligent Controller Kit with RS485 Communication
Same as PRO22E1EN, but utilizes an RS232 to RS485 converter in place of the
PRO22EN for communication to the host.
PRO22E1D2
PRO2200 2 Door TCP/IP Kit
Adds one dual reader board (PRO22R2) to the PRO22E1EN.
PRO22E1D4
PRO2200 4 Door TCP/IP Kit
Adds two dual reader boards (PRO22R2) to the PRO22E1EN.
PRO22E1D8
PRO2200 8 Door TCP/IP Kit
Adds four dual reader boards (PRO22R2) to the PRO22E1EN
PRO22IC
PRO2200 Intelligent Controller
The PRO22IC supports any combination of up to 8 input/output or reader boards to monitor alarm
input points, relay output points and access control reader interface points. The standard PRO22IC
accommodates a card database of 20,000 cards, and a standard transaction buffer of 5,000
transactions. Units can be mounted in a high-density configuration (PRO22ENC1,
PRO22ENC2 and PRO22ENC5) when space is limited, or in a tile-mount configuration
(PRO22ENC3). Board dimensions: 5.5" H x 9.0" W x 1.0" D (228.6 mm H x 139.7 mm
W x 25.4 mm D). Power requirements: 10-16 VDC @ 400 mA.
PRO2200

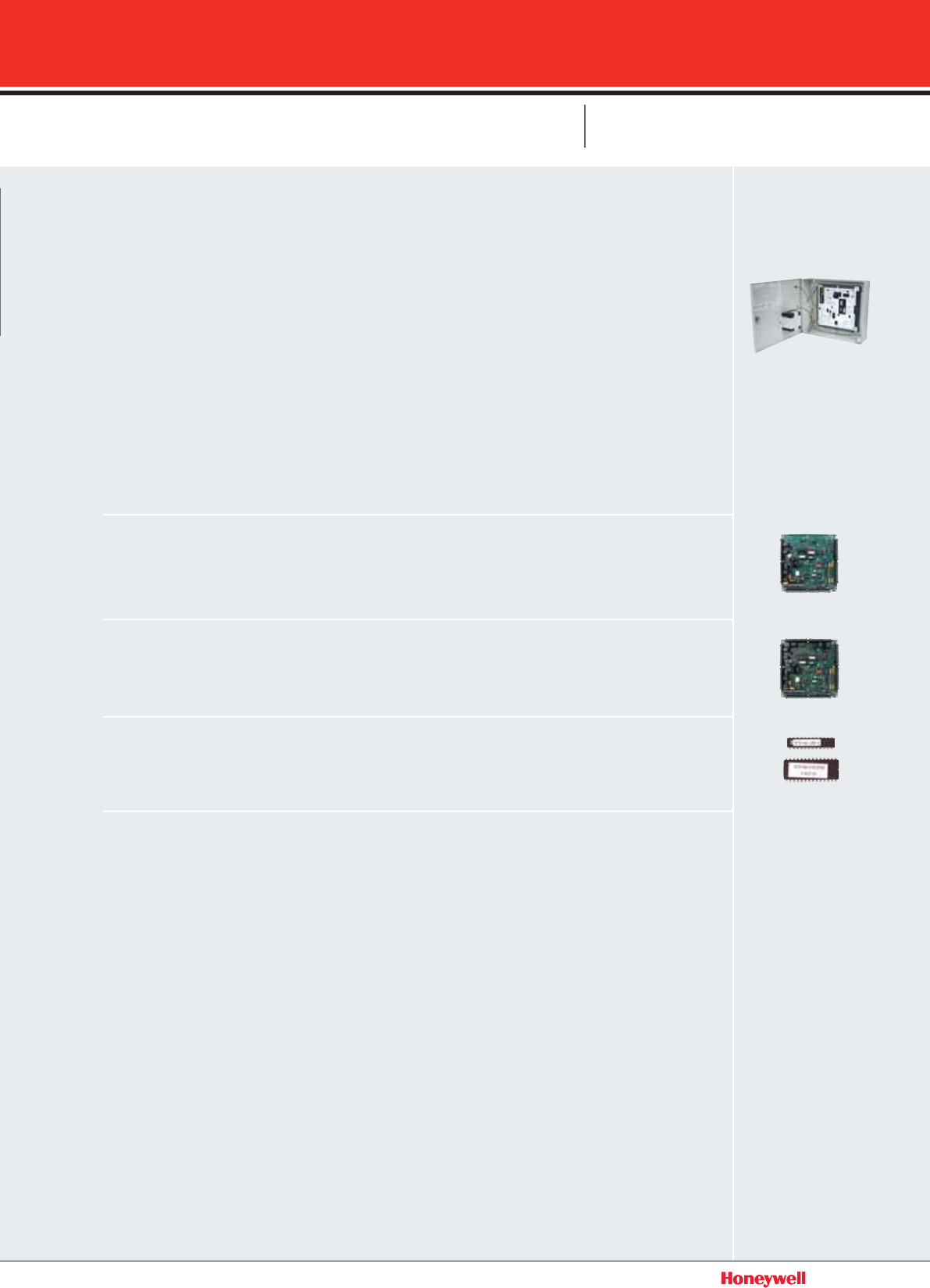

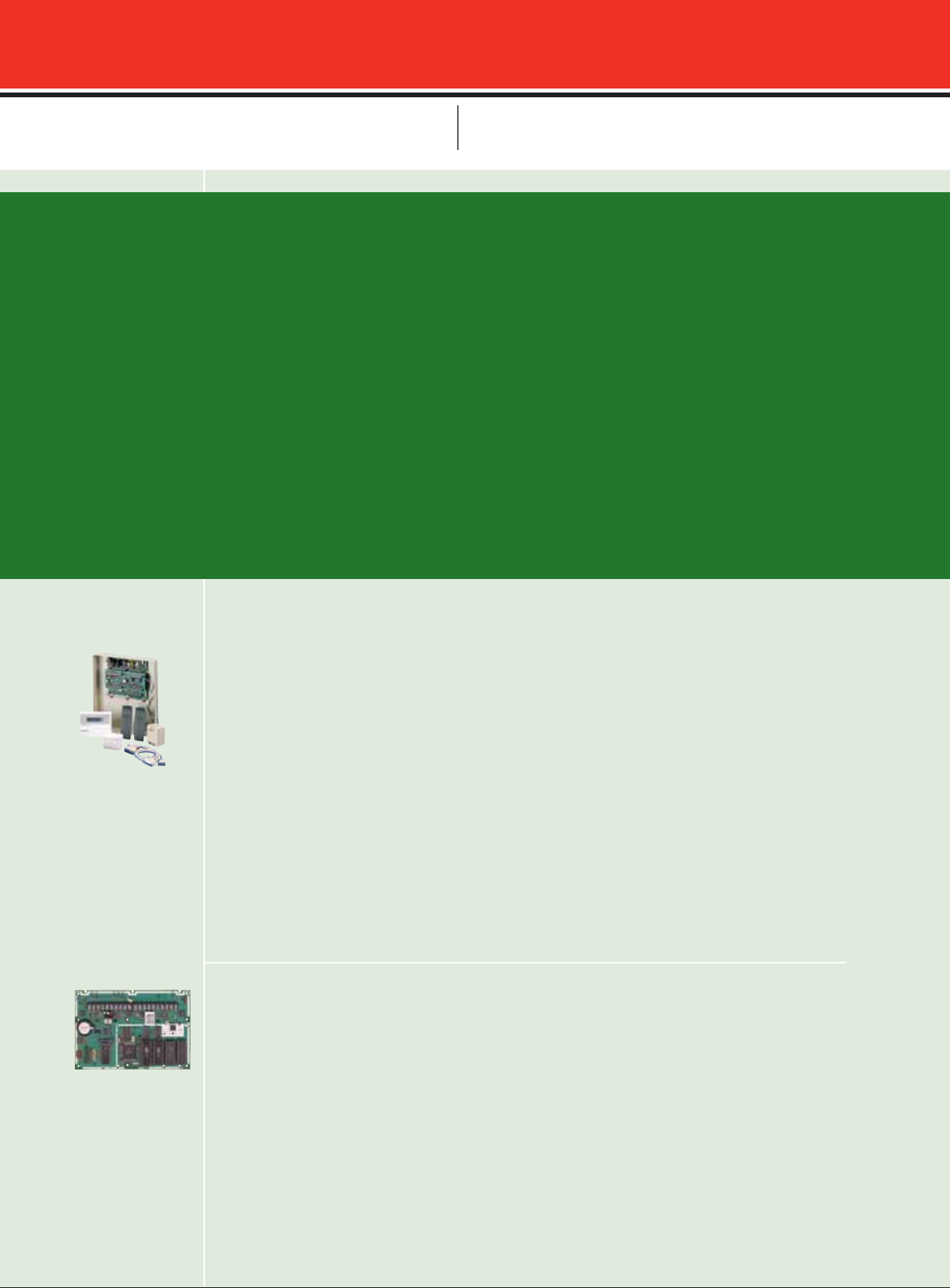

The PRO2200 Intelligent Control Module (PRO22IC) is an advanced access
control panel capable of providing solutions for large applications. The
PRO22IC provides power and flexibility with its 32-bit CPU architecture,
optional TCP/IP protocol support, flash memory for firmware and large local
card holder database. The PRO22IC supports any combination of up to 8
I/O or reader boards to monitor alarm input points, relay output points and
access control reader interface points. By offering a modular design, the
system can be tailored to meet a wide range of applications while optimizing
cost and mounting space. The PRO22IC is designed with various mount-
ing options available. Units can be mounted in a high-density configuration
(PRO22ENC1, PRO22ENC2 and PRO22ENC5) when space is limited or in
a tile mount configuration (PRO22ENC3).
# Power Supplies & Batteries Sold separately
252
Access Systems-231-328 02-08.indSec1:252 Sec1:252Access Systems-231-328 02-08.indSec1:252 Sec1:252 8/12/08 12:52:08 PM8/12/08 12:52:08 PM
HONEYWELL ACCESS SYSTEMS
Professional Systems PRO2200 CONTROLLERS
PRO22R2
PRO2200 Two Reader Board
PRO2200 dual reader board supports two TTL (Wiegand or clock and data) readers and supplies two
Form-C contacts, 5 A @ 28 VDC (resistive) for controlling locks and four Form-C, 2 A @ 28 VDC
(resistive) for controller auxiliary devices. Provides eight supervised inputs and two unsupervised
dedicated inputs. Dimensions: 5.5" H x 9.0" W x 1.0" D (139.7 mm H x 228.6 mm W x 25.4 mm D).
Power requirements: 12 VDC @ 400 mA.
PRO22R1
PRO2200 Single Reader Board
PRO2200 single reader board supports one TTL (Wiegand or clock and data) reader and supplies one
Form-C contact, 5 A @ 28 VDC (resistive) for controlling locks and one 1 A @ 28 VDC for controlling
other devices along with two supervised inputs for door contact and REX device. Use PRO22ENC4
enclosure. Board dimensions: 2.75" H x 4.25" W x 1.4" D (108 mm H x 70 mm W x 36 mm D).
Power requirements: 12 VDC 125 m A (175 mA max available for reader power).
PRO22IN
PRO2200 16 Input Module
PRO2200 input module with 12 general purpose inputs with programmable circuit type (16 are available
when using PRO22ENC3 tile-mounted enclosure), two dedicated alarm inputs for tamper detection
and power loss (tile-mounted only), and two general purpose, Form-C, 2 A @ 30 VDC relays
(only one available when using PRO22ENC1, PRO22ENC2 and PRO22ENC5). Dimensions: 5.5" H x 9.0"
W x 1.0" D (139.7 mm H x 228.6 mm W x 25.4 mm D). Power requirements: 12 VDC @ 350 mA.
PRO22OUT
PRO2200 16 Output Module
PRO2200 output module with 12 general purpose output relays, Form-C, 2 A @ 30 VDC
(16 are available when using PRO22ENC3 tile-mounted enclosure) and two dedicated alarm inputs for
tamper detection and powerloss (tile-mounted only). Dimensions: 5.5" H x 9.0" W x 1.0" D
(139.7 mm H x 228.6 mm W x 25.4 mm D). Power requirements: 12 VDC @ 400 mA.
PRO22ENC1
PRO2200 High Density Enclosure Only
The PRO22ENC1 is a high-density wall mount enclosure capable of housing up to nine PRO2200
modules. Power supply (PRO22E1PS) and battery (PRO22BAT1) sold separately.
Dimensions: 13.9" H x 17" W x 9" D (35.3 cm H x 43.2 cm W x 22.9 cm D).
PRO22ENC2
PRO2200 Rack Mount Enclosure Only
The PRO22ENC1 is a high-density 19" rack mount enclosure capable of housing up to nine PRO2200
modules. Power supply (PRO22E1PS) and battery (PRO22BAT1) sold separately.
Dimensions: 13.9" H x 18.9" W x 9" D (35.3 cm H x 48.0 cm W x 22.9 cm D).
PRO22ENC3
PRO2200 Tile Mount Remote Enclosure
PRO2200 tile mount enclosure capable of housing and supplying battery backed power for two
PRO2200 series modules. Contains 2.4 A power supply and 4 AH sealed lead acid battery.
Dimensions: 14" H x 16" W x 4" D (35.6 cm H x 40.7 cm W x 10.2 cm D).
Professional Systems products are available only to certified dealers who have met Honeywell dealer
requirements and completed the required technical training. Contact Honeywell Sales Support or your
Regional Sales Manager for more information about becoming a certified dealer.
253
Access Systems-231-328 02-08.indSec1:253 Sec1:253Access Systems-231-328 02-08.indSec1:253 Sec1:253 8/12/08 12:52:11 PM8/12/08 12:52:11 PM
www.security.honeywell.com/me
HONEYWELL ACCESS SYSTEMS

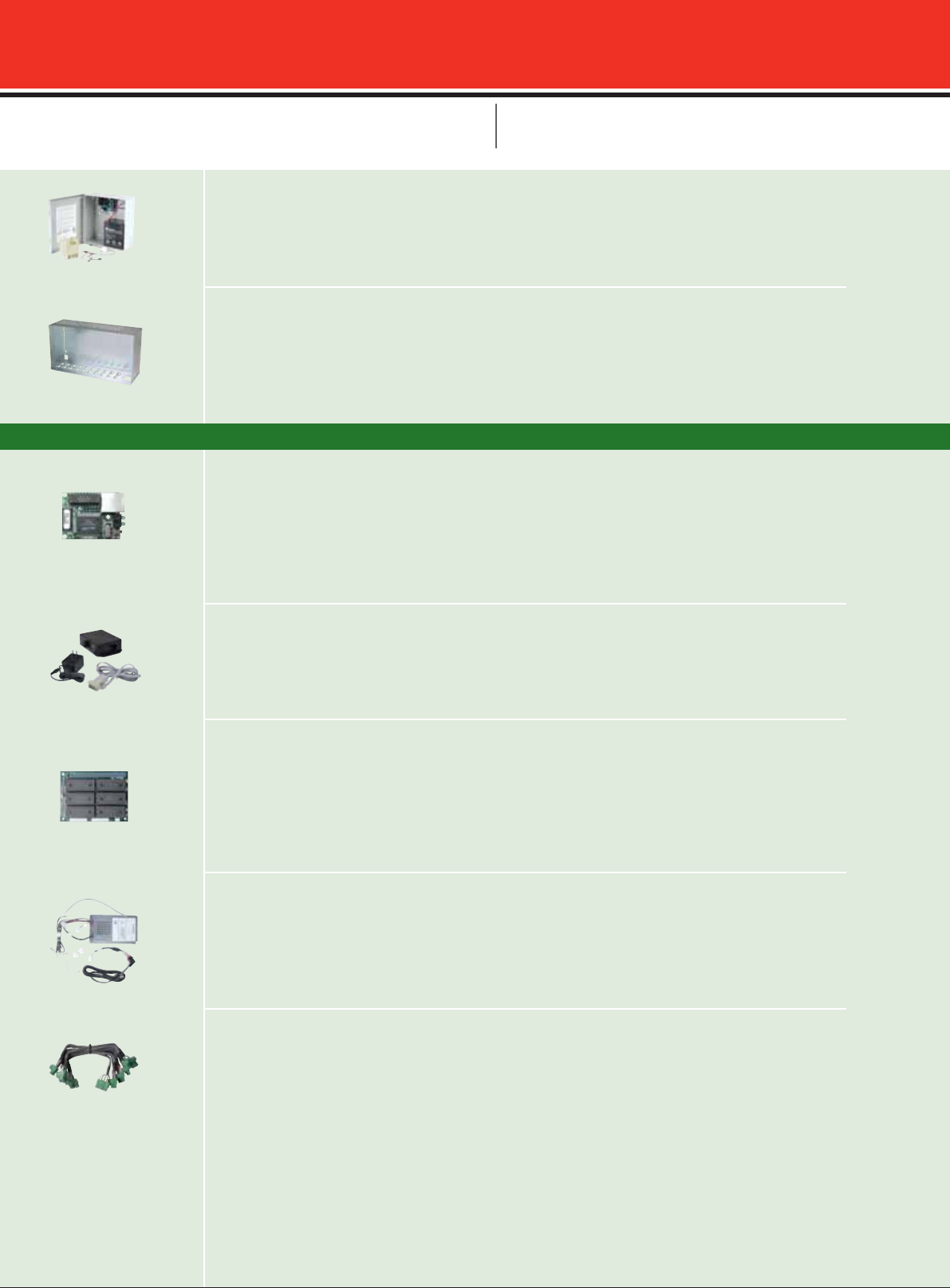

PRO22ENC4
PRO22R1 Single Reader Board Enclosure
Single reader board enclosure designed specifically for the PRO22R1. Includes power supply and
battery. Dimensions: 8.37" H x 7.63" W x 7.63" D (21.3 cm H x 19.4 cm W x 19.4 cm D).
PRO22ENC5
PRO2200 Card Rack Only, No Enclosure
Rack cage only for custom enclosures. Capacity: nine PRO2200 modules (excluding PRO22R1).
Power supply (PRO22E1PS) and battery (PRO22BAT1) not included.
Dimensions: 9.35" H x 16.85" W x 5.6" D (23.8 cm H x 42.8 cm W x 14.2 cm D).
PRO22EN
PRO2200 Ethernet Daughter Board
The PRO22EN offers TCP/IP (10Base-T) interface that mounts directly on the PRO22IC and requires
no external devices or wiring. Power is supplied by thePRO22IC. Simply use the standard RJ45 jack to
connect via CAT-5 to the existing LAN/WAN network. Transmit, receive, and good link diagnostic TCP/IP
status indicators. Dimensions: 1.574" H x 1.929" W x 1" D (40.0 mm H x 49.0 mm W x 25.4 mm D).
PRO22CVT1
RS232-RS485 Data Converter
The PRO22CVT1 is an RS485 interface located between the computer and the PRO22IC. The
device converts the RS232 data coming from the serial port on the PC into RS485 data.
PRO22M4
PRO2200 4MB Memory Expansion
The memory expansion module (PRO22M4) mounts directly on the PRO22IC and allows for a card
database of 50,000 cards and a transaction buffer capable of storing 35,000 transactions.
* When using WIN-PAK PE with multiple access levels, the card data base maximum is 10,000
PRO22E1PS
4 A Rack Mounted Power Supply with Battery Backup
12 VDC @ 4 A power supply with battery charger for use in PRO22ENC1 or PRO22ENC2 enclosures.
This power supply is auto-switching and can accept 85 VAC to 230 VAC @ 50/60 Hz.
Battery (PRO22BAT1) sold separately.
PRO22DCC
PRO2200 Daisy Chain Cable
The PRO22DCC daisy chain cable is a prewired cable harness used to quickly route power and
RS485 communications across up to nine PRO2200 series panels located in the PRO22ENC1
or PRO22ENC2 enclosure.
PRO2200 COMMUNICATIONS
Professional Systems products are available only to certified dealers who have met Honeywell dealer requirements and
completed the required technical training. Contact Honeywell Sales Support or your Regional Sales Manager for more
information about becoming a certified dealer.
Professional Systems PRO2200 ACCESSORIES
254
Access Systems-231-328 02-08.indSec1:254 Sec1:254Access Systems-231-328 02-08.indSec1:254 Sec1:254 8/12/08 12:52:16 PM8/12/08 12:52:16 PM
HONEYWELL ACCESS SYSTEMS

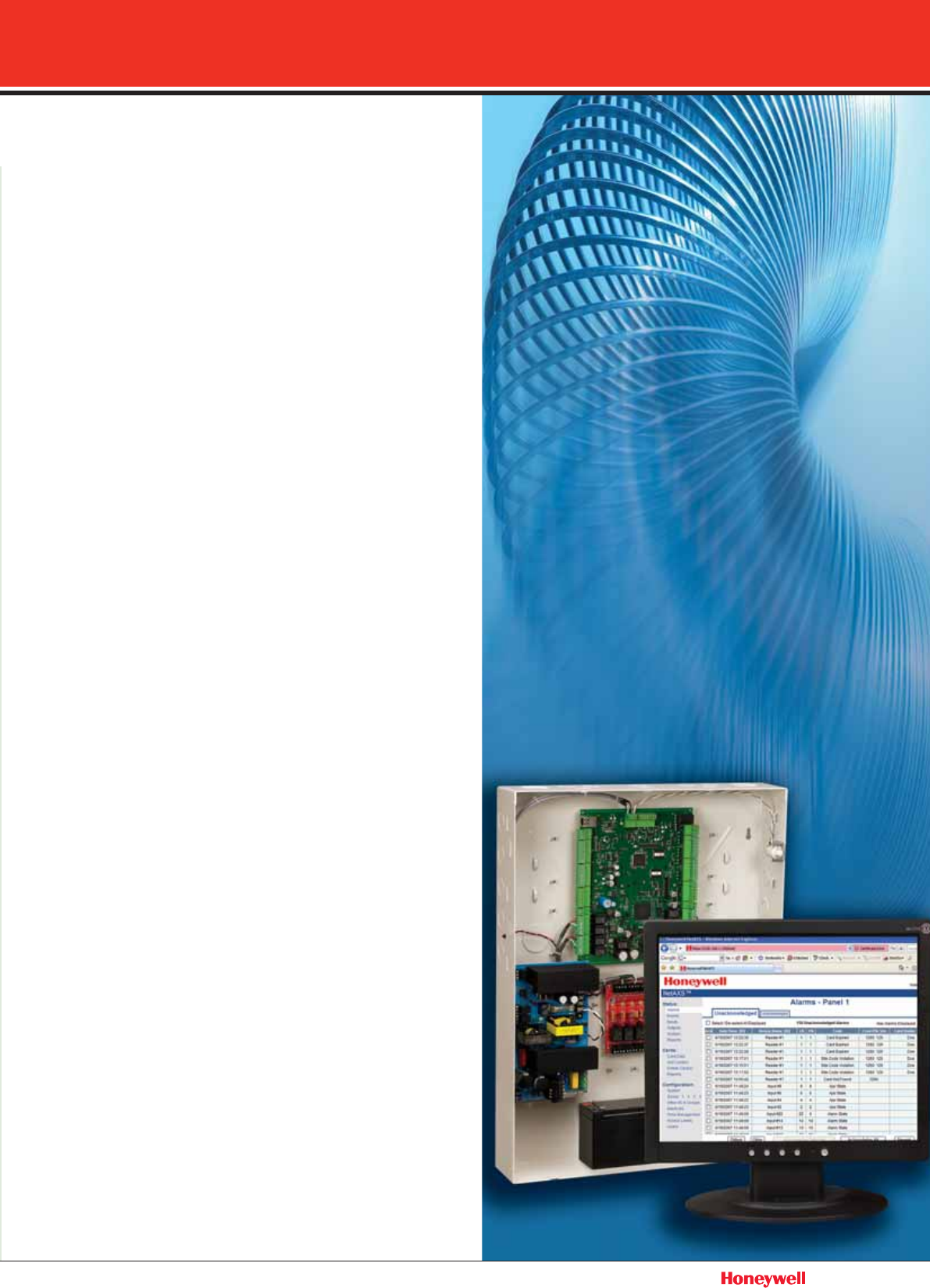

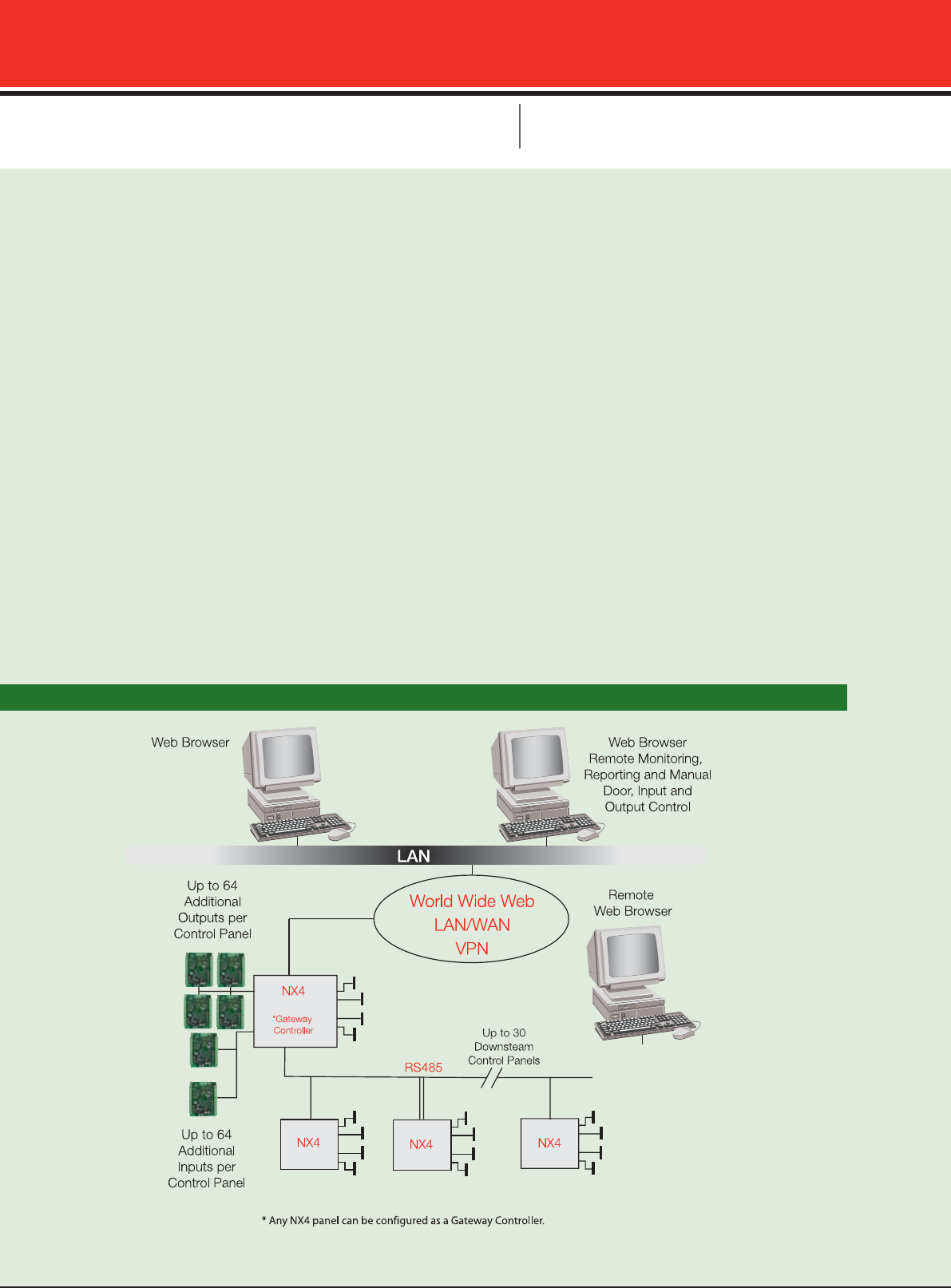

For customers who are looking to take
advantage of Web-based access control,
Honeywell’s NetAXS™ offers a solution that helps
reduce time spent on installation, support and
training. Web-based access control is the ideal
solution for customers who want to manage their
own access control solution but want to avoid
the issues associated with managing operating
systems, software upgrades, and compatibility
issues. Now, customers can access and manage
their system from any Internet connection—any-
where. Using the Web-based access control
solutions provided by NetAXS, customers can
start with the Web and grow as their needs
change. Then, if their needs grow beyond the
capability of the Web system, they can migrate to
the WIN-PAK platform and expand their
system further.
THIS SECTION INCLUDES:
NetAXS Standalone Kits
NetAXS Control Panels
Web-based
Access Control
255
Access Systems-231-328 02-08.indSec1:255 Sec1:255Access Systems-231-328 02-08.indSec1:255 Sec1:255 8/12/08 12:52:32 PM8/12/08 12:52:32 PM
www.security.honeywell.com/me
HONEYWELL ACCESS SYSTEMS
Benefits:
• Intuitive interface – Simple Web pages allow fast
programming and easy usability
• Low-cost solution – Integrated enclosure keeps
installation costs to a minimum
• Simple installation – Pre-wired power and connectors
let you hang it up, plug it in, and go. No other solution
makes installation easier!
• Reduce costs – No PC software to purchase or install
• Worry-free operation – No operating systems, virus
checking, or hard drive issues
• World Wide Security – Check your system or run
reports from any Web browser
Honeywell’s NetAXS™ is the ideal solution for
users who are new to access control. Simple
programming and menu options are based on
typical Web usability which helps reduce the
overall learning curve. NetAXS is IT friendly and
has built-in Ethernet support that is encrypted
and easy to manage.
Web-based Access Control NETAXS™ STANDALONE KITS
256
Access Systems-231-328 02-08.indSec1:256 Sec1:256Access Systems-231-328 02-08.indSec1:256 Sec1:256 8/12/08 12:52:39 PM8/12/08 12:52:39 PM
HONEYWELL ACCESS SYSTEMS
Web-based Access Control NETAXS™ STANDALONE KITS

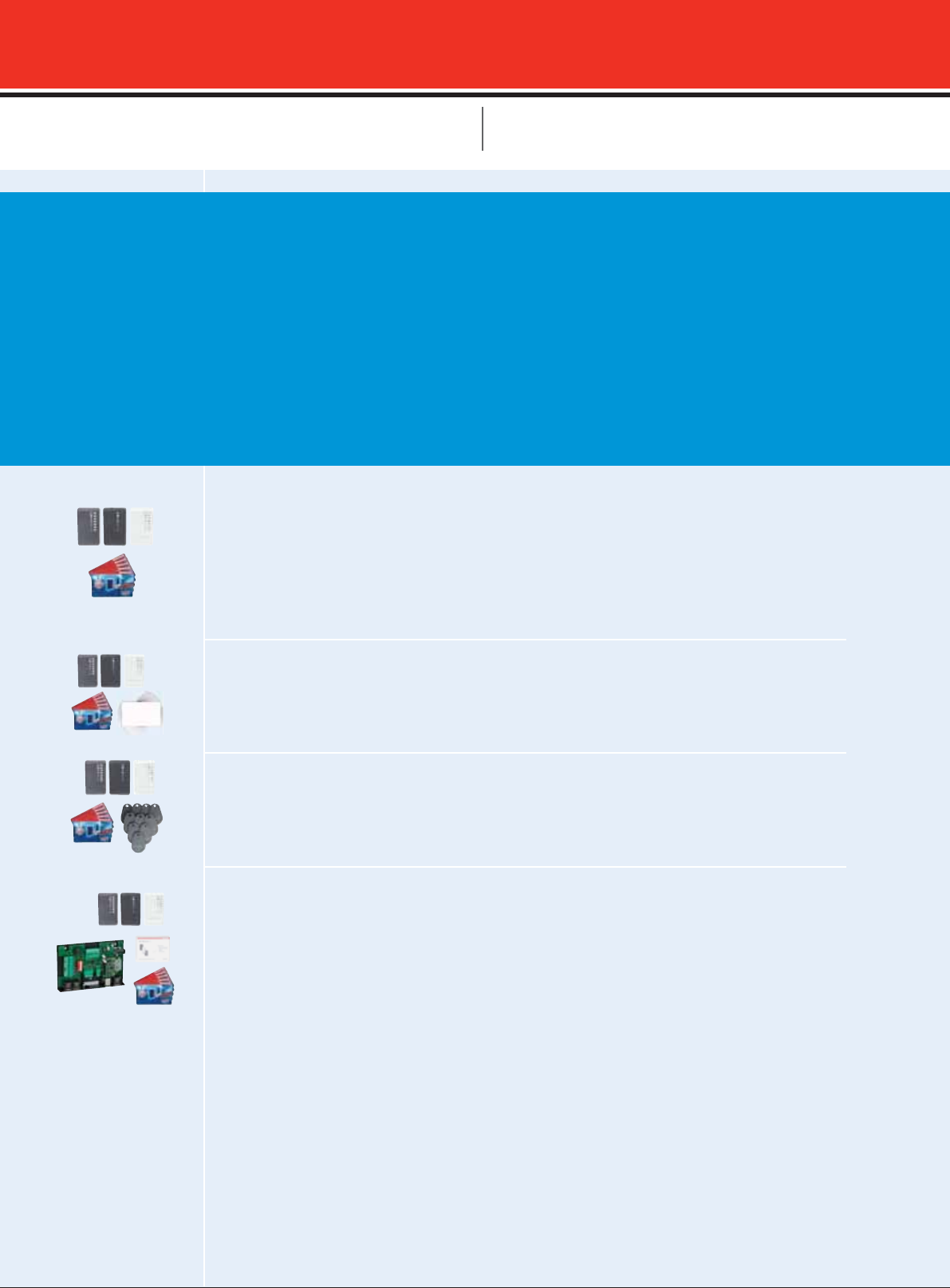

SAMPLE KITS
NX4 with Small Enclosure - Standalone Web-based
Access 4 Door Kit with OP30HONE
NetAXS Standalone Web Controller Kit with 4 OP30HONE Proximity Readers, small enclosure,
NX4 control panel.
NX4 with Large Enclosure - Standalone Web-based
Access 4 Door Kit with OP30HONE
NetAXS Standalone Web Controller Kit with 4 OP30HONE Proximity Readers, large enclosure,
NX4 control panel, 8 output fused relay board.
NetAXS with Small Enclosure - Standalone Web-based
Access 4 Door Kit with OP40HONE
NetAXS Standalone Web Controller Kit with 4 OP40HONE Proximity Readers, small enclosure,
NX4 control panel.
NetAXS with Large Enclosure - Standalone Web-based
Access 4 Door Kit with OP40HONE
NetAXS Standalone Web Controller Kit with 4 OP40HONE Proximity
Readers, large enclosure, NX4 control panel, 8 output fused relay board.
# Power Supplies & Batteries Sold separately
257
Access Systems-231-328 02-08.indSec1:257 Sec1:257Access Systems-231-328 02-08.indSec1:257 Sec1:257 8/12/08 12:52:45 PM8/12/08 12:52:45 PM
www.security.honeywell.com/me
HONEYWELL ACCESS SYSTEMS
Web-based Access Control NETAXS™ CONTROL PANELS

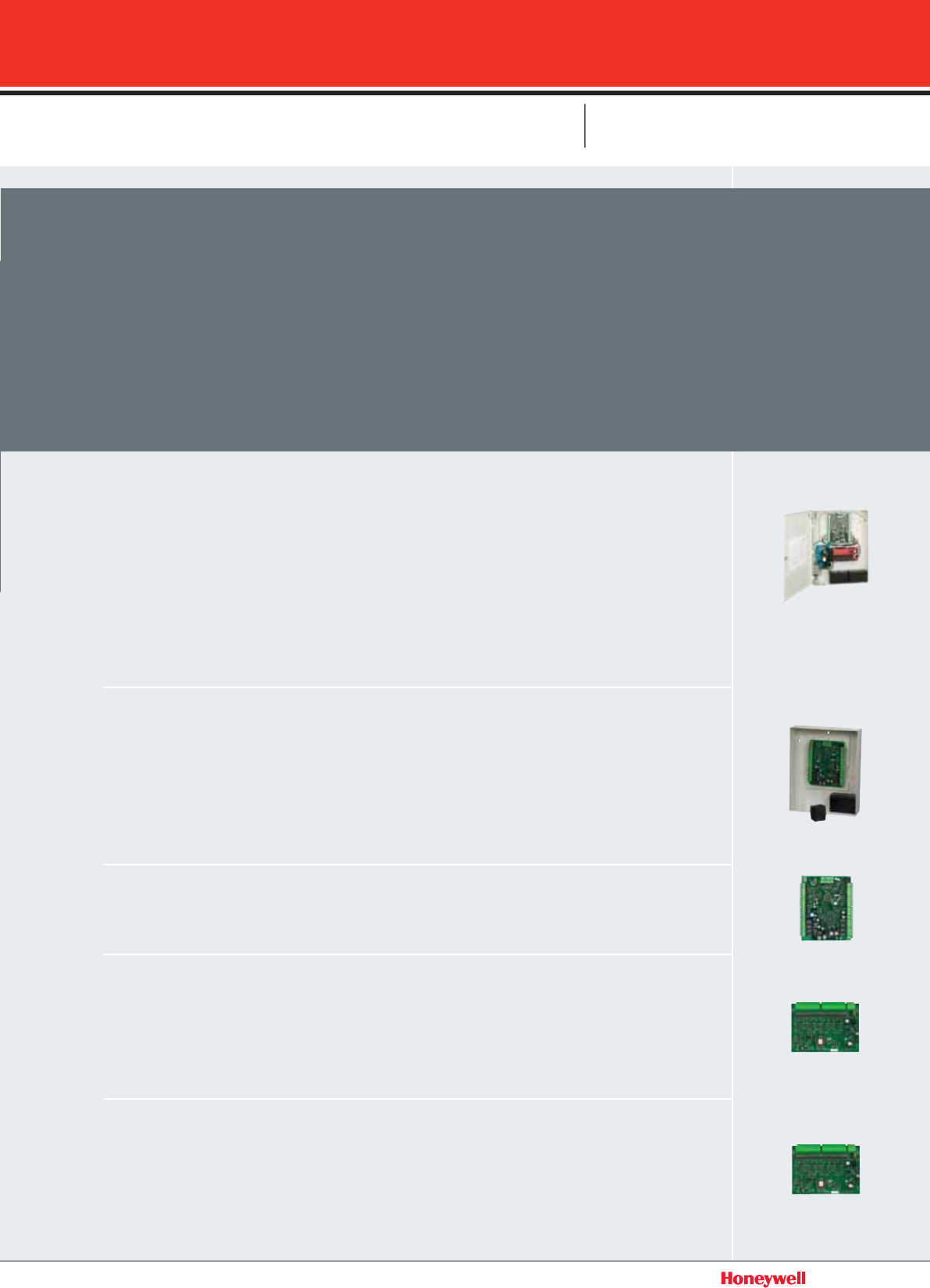

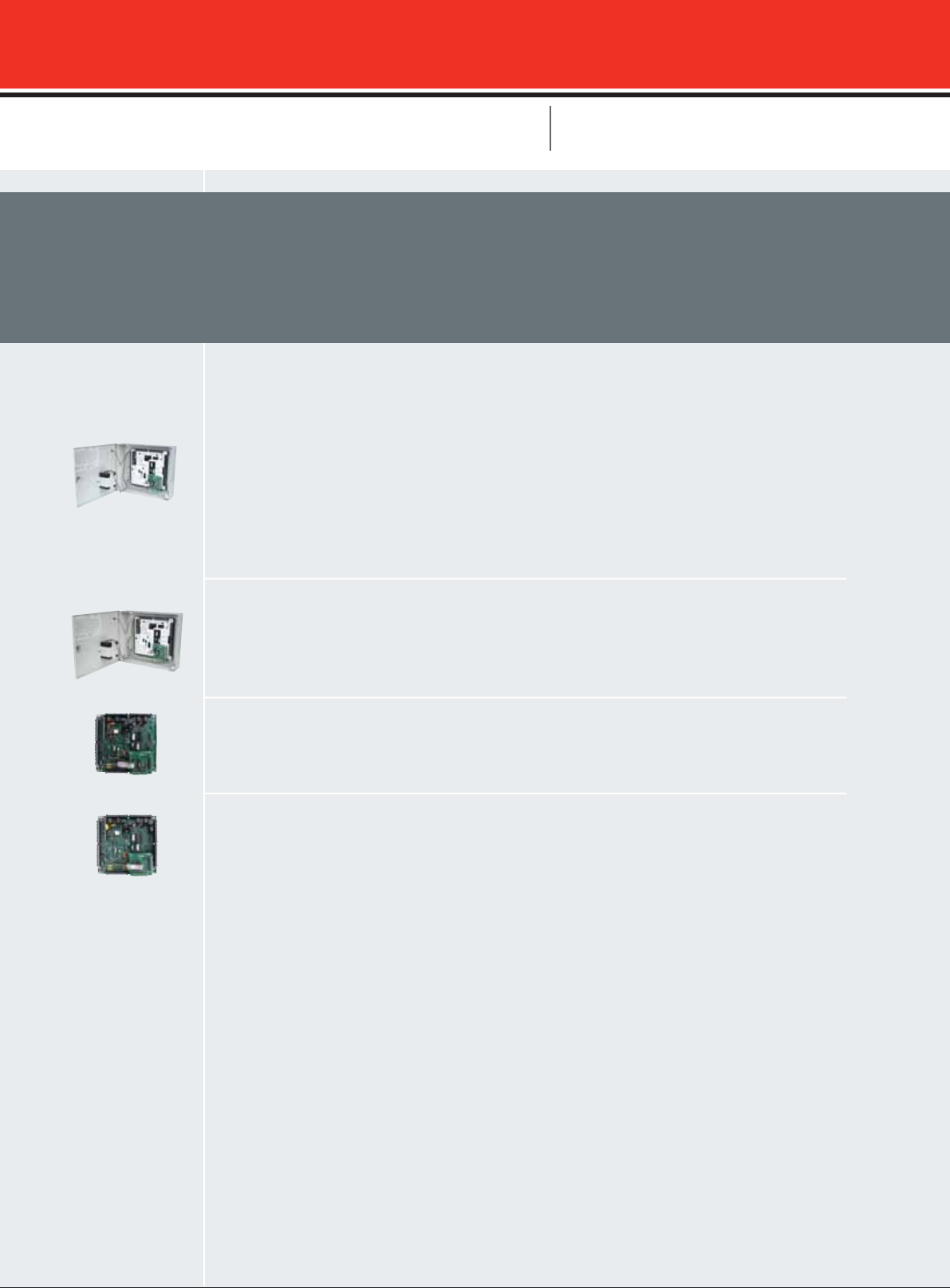

NX4L1
NX4 Pre-wired 4 Door Hybrid Control Panel
NX4 pre-wired 4 door control panel includes large enclosure with NX4 control panel, 8 output fused
relay board, System specifications include fast 32-bit processor with memory capacity for 10,000
card holders; 25,000 buffer capacity; 14 supervised alarm inputs, expandable to 78 total inputs; 8
relay outputs (SPDT), expandable to 72 total outputs; built-in Ethernet interface with integrated Linux
Web server, RS232 and RS485 communication interfaces. Direct 110 VAC power cord. Dimensions:
17.7" W x 23.9" H x 3.5" D (45.0 cm W x 60.7 cm H x 9.0 cm D). Temperature: 35-110°F (2-43°C)
operational humidity: 0 to 85% RHNC; UL 294 and CE listed.
NX4S1
NetAXS Small 4 Door Hybrid Control Panel
NetAXS 4 door control panel includes small enclosure with NX4 control panel System specifications
include fast 32-bit processor with memory capacity for 10,000 card holders; 25,000 buffer capacity;
14 supervised alarm inputs, expandable to 78 total inputs; 8 relay outputs (SPDT), expandable to 72
total outputs; built-in Ethernet interface with integrated Linux Web server, RS232 and RS485 commu-
nication interfaces. 24 VDC @ 2 A or 16.5 VAC @ 2 A. Dimensions: 14.5" W x 18.0" H x 4.4" D (36.8
cm W x 45.7 cm H x 12.0 cm D). Temperature: 35-110°F (2-43°C) operational humidity: 0 to 85%
RHNC; UL 294 and CE listed.
NX4PCB
NetAXS Control Panel – Board Only
NetAXS Control Panel without Enclosure

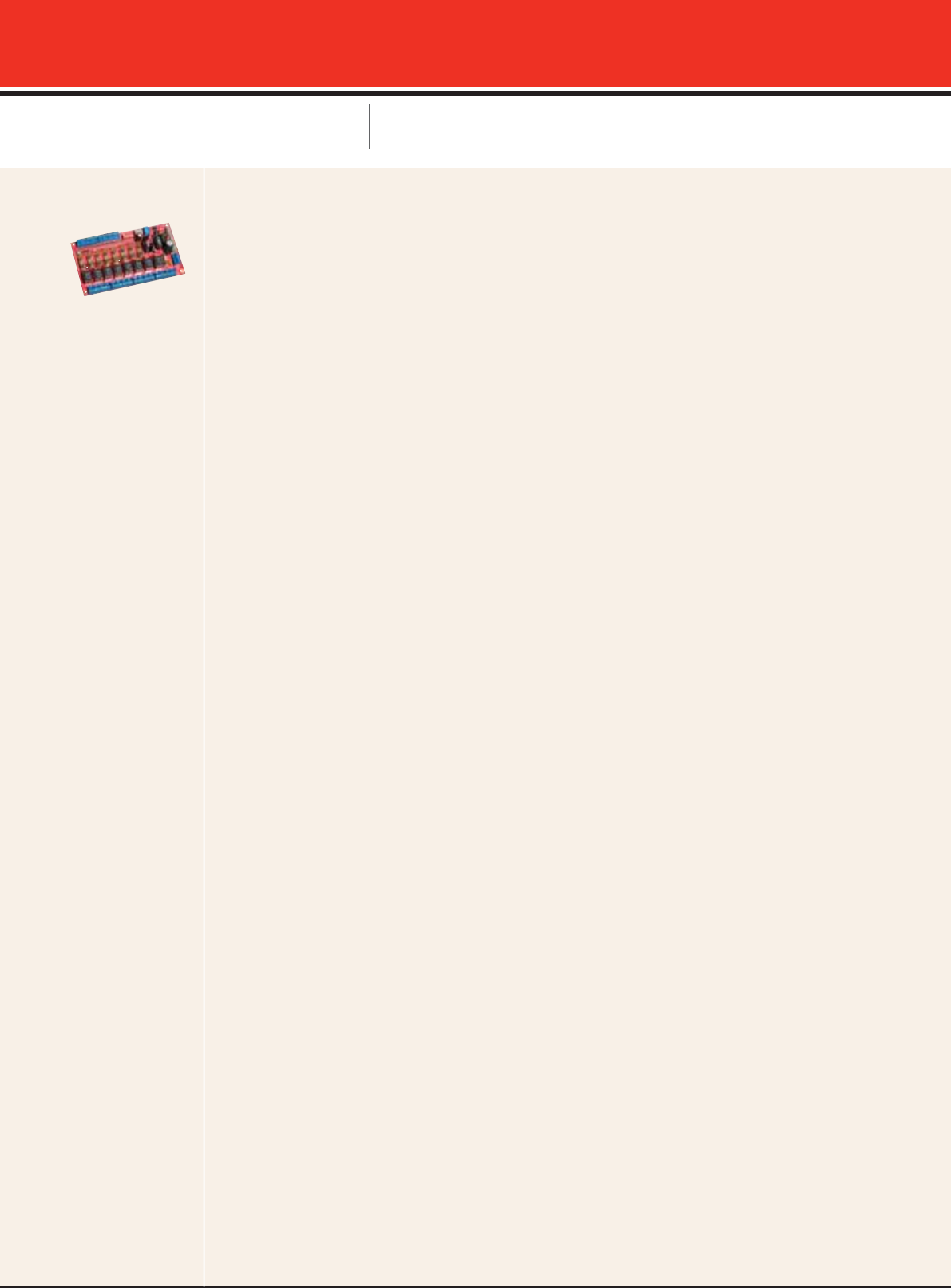

NX4OUT
NetAXS 16 Output Board
NetAXS 16 Output Relay Board with 16 general purpose output relays, Form-C, 2 A @ 30 VDC and
two dedicated alarm inputs for tamper detection and power loss. Up to 4 NX4OUT output boards
per NetAXS control panel. Dimensions: 5.5" H x 9.0" W x 1.0" D (139.7 mm H x 228.6 mm W x 25.4
mm D). Power requirements: 12 VDC @ 400 mA.
NX4IN
NetAXS 32 Input Board
NX4IN input module with 32 general purpose inputs with programmable ircuit types. Up to 2 NX4IN
input panels per NetAXS control panel. Dimensions: 5.5" H x 9.0" W x 1.0" D (139.7 mm H x 228.6
mm W x 25.4 mm D). Power requirements: 12 VDC @ 350 mA.
# Power Supplies & Batteries Sold separately
258
Access Systems-231-328 02-08.ind258 258Access Systems-231-328 02-08.ind258 258 8/12/08 12:52:56 PM8/12/08 12:52:56 PM
HONEYWELL ACCESS SYSTEMS
For small to medium-sized applications
Honeywell offers a turnkey access control
solution in an easy-to-install package that does
not compromise on desirable features such as
video integration and networking. And should the
need arise, there is an easy upgrade path to a
larger scale Honeywell solution.
THIS SECTION INCLUDES:
NStar
NS2
Entry Level
Solutions
259
Access Systems-231-328 02-08.ind259 259Access Systems-231-328 02-08.ind259 259 8/12/08 12:53:00 PM8/12/08 12:53:00 PM
www.security.honeywell.com/me
HONEYWELL ACCESS SYSTEMS
Benefits:
• State-of-the-art technology, processing power and
speed uncommon in an entry-level product.
• Unprecedented scalability allowing for easy system
expansions or future technology updates via a unique
XPort expansion port.
• Comprehensive software with fast installation, simple
operation via user-defined control and viewing of sys-
tem status, and an event viewer for real-time observa-
tion of system activities.
• Available option package including video badging,
real-time alarm pop-up, digital video integration and
networking is available to meet future needs.
NStar is a cost-effective solution for entry level
applications with the ability to seamlessly expand
and adapt to future growth needs. The solution
is composed of the NS2 control panel and NStar
access control software. It allows you to start
small and easily upgrade your access control
system as your security requirements evolve.
Entry Level Solutions
260
Access Systems-231-328 02-08.ind260 260Access Systems-231-328 02-08.ind260 260 8/12/08 12:53:01 PM8/12/08 12:53:01 PM
HONEYWELL ACCESS SYSTEMS
Entry Level Solutions NSTAR
SAMPLE KITS
NStar Access Starter Kit with OmniProx Readers
The NSSKR is an NStar starter kit with readers. The kit contains NStar software, NS2 controller (NS2),
two HID compatible OmniProx readers (OP10HONE), locking enclosure (ENC10), accessory kit
(NS2ACC), 50' communications cable (CBL50) and two suppressor kits (S-4).
Optional 485 or onboard TCP/IP available. Dimensions: 14.5" H x 12.5" W x 3.5" D
(36.83 cm H x 31.75 cm W x 8.89 cm D).
NStar Access Expansion Kit with OmniProx Readers
The NSEKR is an expansion kit with readers that adds two doors to an existing NStar installation.
The kit contains the NS2 controller (NS2), locking enclosure (ENC10), NS2 accessory kit (NS2ACC),
two HID compatible OmniProx readers (OP10HONE) and two suppressor kits (S-4).
Dimensions: 14.5" H x 12.5" W x 3.5" D (36.83 cm H x 31.75 cm W x 8.89 cm D).
NSOPT1
NStar Software Upgrade
Enhances NStar by activating the following features: Networking to 5 concurrent NStar users; photo ID
badging production includes layout utility that includes bar codes, magnetic stripe encoding and two-sided
printing; auto card pop-up; Rapid Eye and Rapid Eye LT DVR support allows a pop-up of the live view,
retrieve stored events and control PTZ camera(s); alarm popup view with up to 99 priority levels.
NStar Access and Badging Kit
Everything needed for access and badging in one affordable kit. Includes: NStar Starter Kit
with readers (NSSKR) and Software Option Pack (NSOPT1), camera, Alto photo ID badging
printer (M9006-380), color ribbon (PCX-PF2) and cleaning kit (CK1).
# Power Supplies & Batteries Sold separately
261
Access Systems-231-328 02-08.ind261 261Access Systems-231-328 02-08.ind261 261 8/12/08 12:53:06 PM8/12/08 12:53:06 PM
www.security.honeywell.com/me
HONEYWELL ACCESS SYSTEMS

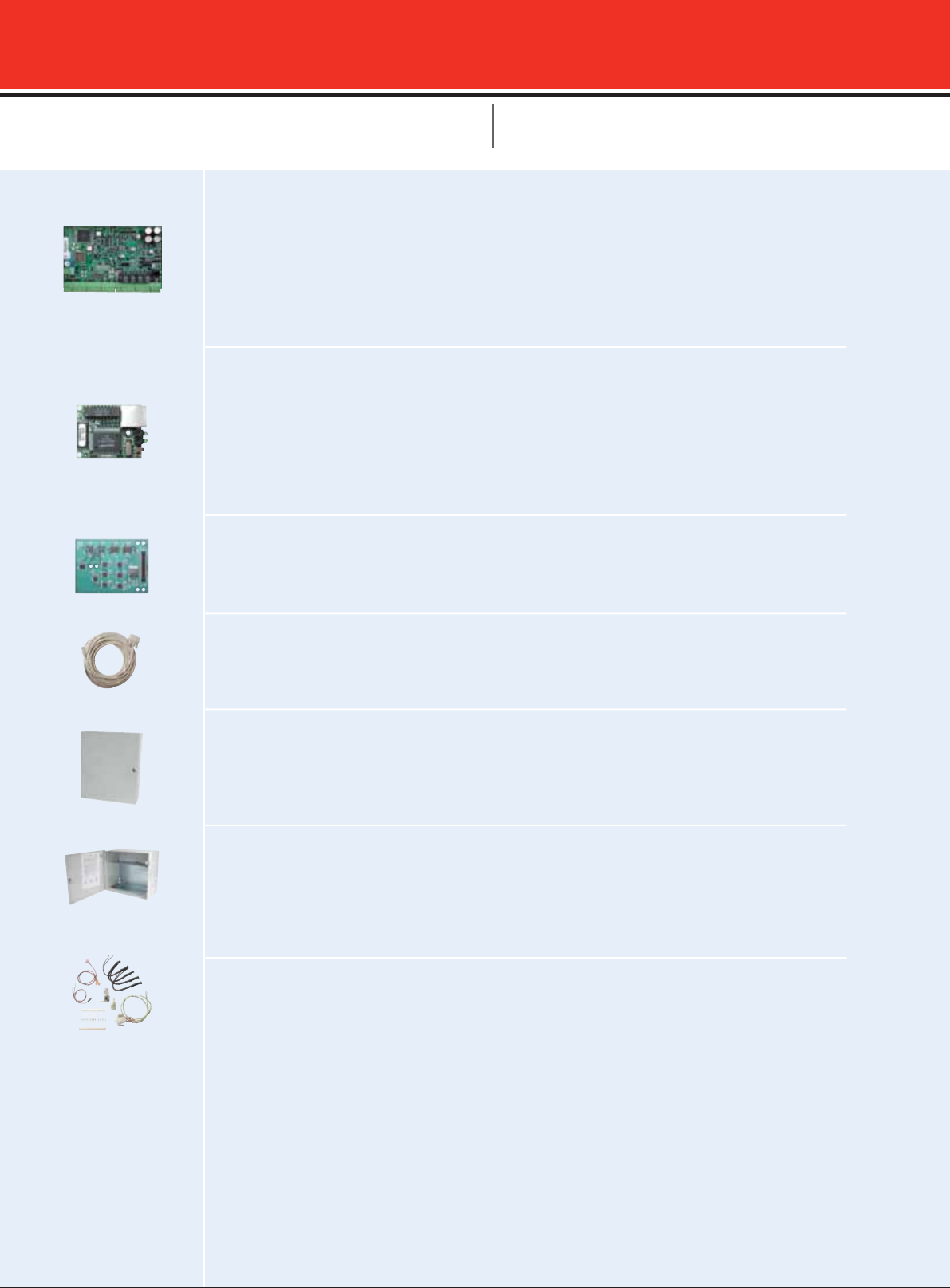

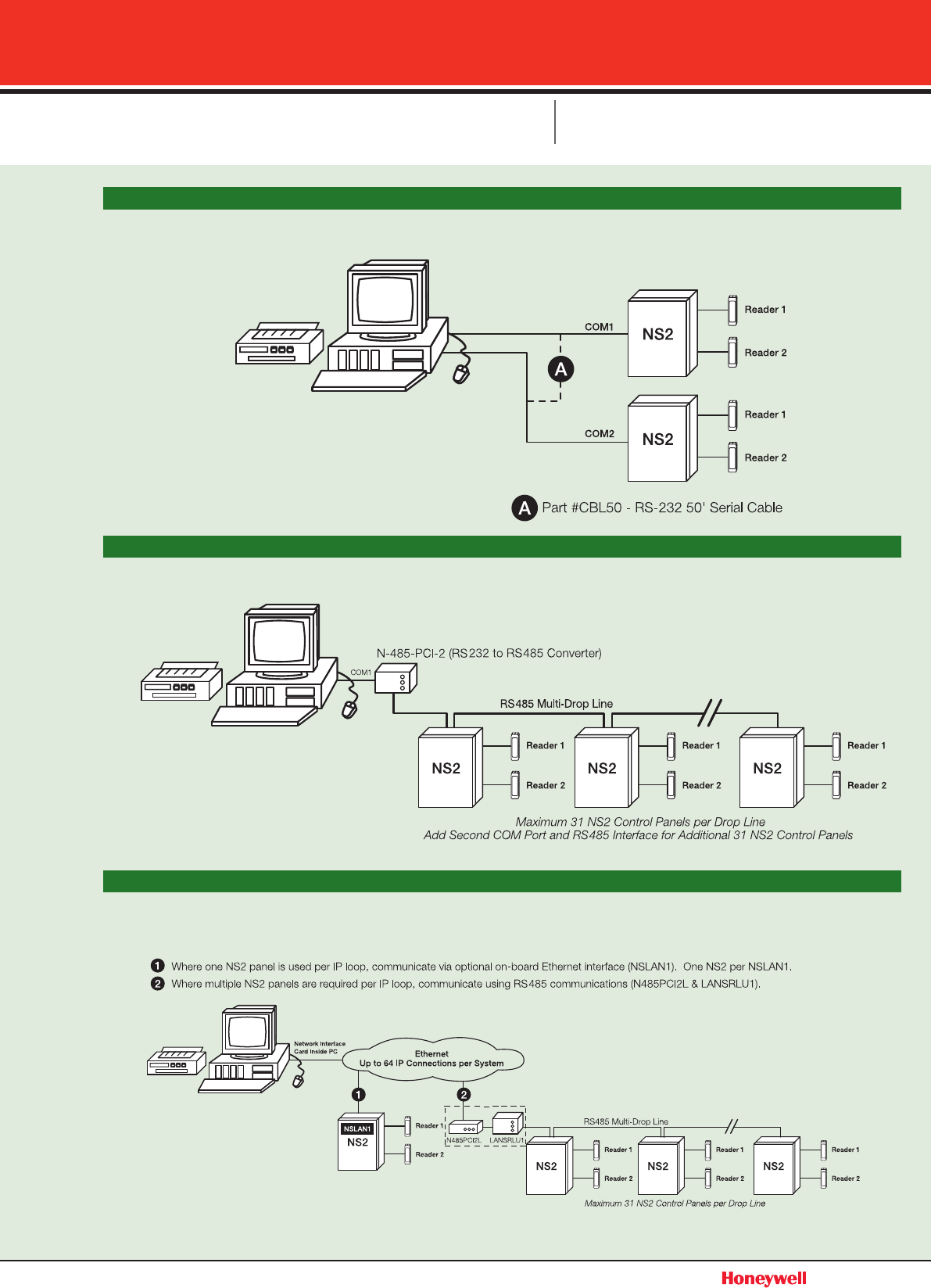

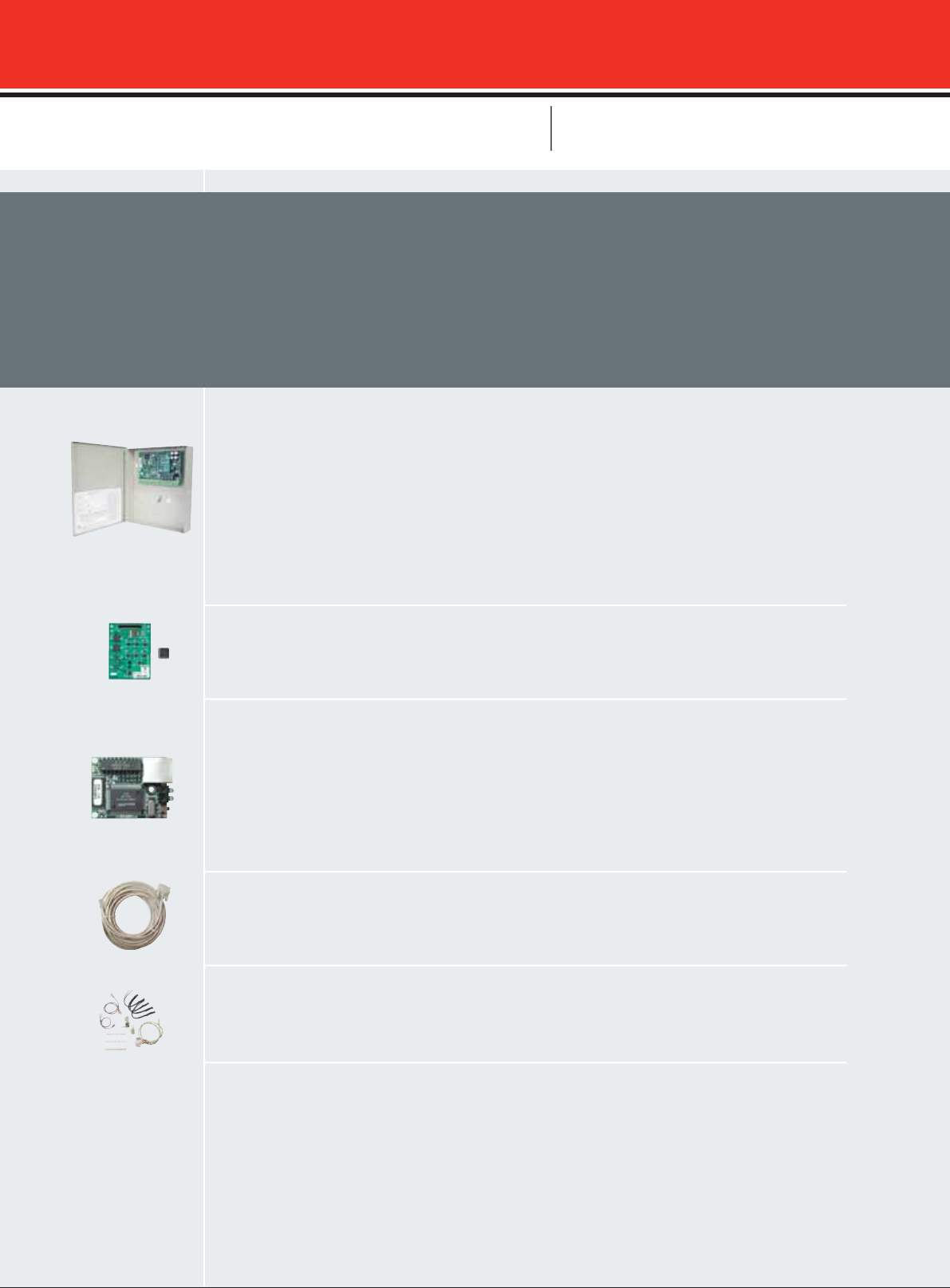

Entry Level Solutions NS2
NS2
NS2 Control Panel, Board Only
Two reader/keypad access control panel for NStar only. 2,000 code capacity,
10,000 buffer capacity, four relays (SPDT) 12 A @ 28 VDC, eight supervised alarm inputs, RS485
communications or TCP/IP interface module (optional). 600 mA 12 VDC output for readers and
auxiliary devices. Current draw is 1.25A maximum. Power requirements: 16.5 VAC or 24 VDC @
1.25A. Dimensions: 5.75" H x 9" W x 1.5" D (14.61 cm H x 22.86 cm W x 3.81 cm D).
NSLAN1
Ethernet Adapter for NS2
The NSLAN1 is a TCP/IP (10BASE-T) interface that mounts directly on the NS2 and requires no
external devices or wiring and receives power from the NS2. Simply use the standard RJ45 jack to
connect via CAT-5 to the existing LAN/WAN network. Use one NSLAN1 for each NS2. Transmit,
receive and good link diagnostic TCP/IP status indicators.
Dimensions: 1.574" H x 1.929" W x 1" D (40.0 mm H x 49.0 mm W x 25.4 mm D).
NS2MEM
NS2 Memory Expansion Module
Expands the NS2 to 10,000 card holders and 100,000 buffers.
CBL50
RJ45 to DB9F Serial Cable for NS2 Control Panel
50’ RJ45 to DB9F serial cable for use with the NS2 control panel. Included with NSSK and NSSKR
ENC10
Universal Beige Cabinet
Beige enclosure for NS2. Dimensions: 14.5" H x 12.5" W x 3.5" D
(36.83 cm H x 31.75 cm W x 8.9 cm D).
ENC30
NS2 High Density Enclosure Only
A high-density wall mount enclosure capable of housing up to nine NS2 panels.
Power supply and battery sold separately. Dimensions: 13.9" H x 17" W x 9" D
(35.3 cm H x 43.2 cm W x 22.9 cm D).
NS2ACC
NS2/NS2+ Accessory Kit
Includes cabinet lock and key, terminating resistors, LED, battery leads,
surge suppressors, panel tamper and grounding block.
# Power Supplies & Batteries Sold separately
262
Access Systems-231-328 02-08.ind262 262Access Systems-231-328 02-08.ind262 262 8/12/08 12:53:18 PM8/12/08 12:53:18 PM
HONEYWELL ACCESS SYSTEMS
Honeywell is a whole solution provider that offers
digital video integration using Honeywell DVR
products. Integration through NStar, WIN-PAK®
SE, WIN-PAK® PE and WIN-PAK® PRO Central
Station allows video to be tied to access control
events and alarms. Video clips can be recalled
through the software based on time or event.
With integration, users can have complete camera
control, including pan, tilt and zoom, and verify
live users with stored images using the Video
Verification option.
THIS SECTION INCLUDES:
Rapid Eye™
Rapid Eye™ Multi-Media LT
Fusion
Digital Video
Solutions
Image courtesy of Mystic Lake Casino & Hotel - Shakopee Mdewakanton
Sioux Community designed by the SMSC Gaming Enterprise
263
Access Systems-231-328 02-08.ind263 263Access Systems-231-328 02-08.ind263 263 8/12/08 12:53:45 PM8/12/08 12:53:45 PM
www.security.honeywell.com/me
HONEYWELL ACCESS SYSTEMS
Digital Video Solutions
1-2 Door
Application
Entry Level
Commercial
Small - Medium
Commercial
Large
Commercial
Centrally
Monitored
Typical Applications • Gates
• Small Retail
• Small Office
Buildings
• Medical/
Professional
• Daycare Centers
• Medium Businesses
• Financial
• Manufacturing
• Light Industrial
• Medium-large
Commercial
• Financial
• Pharmaceutical
•
Universities/Campuse
s
• Government
• Small-medium
Commercial
• Remote
Managed Sites
• Web-based
Management
Software Solution • NStar
Starter Kit
• NStar • WIN-PAK SE • WIN-PAK SE
• WIN-PAK PE
• WIN-PAK PE
Central Station
Hardware Solution • NS1 Single
Door System
• NS2 Controller • NS2+ Controller • N-1000 Controller
•
PRO-2200 Controller
• NS2+ Controller
• N-1000 Controller
•
PRO-2200 Controller
Video Solution
• Rapid Eye™
Multi Media
v7 with
NSOPT1
• Rapid Eye™
Multi-Media LT v7
with NSOPT1
• Rapid Eye™
Multi-Media v7
and Fusion III
• Rapid Eye™
Multi-Media DSP
v7 or Fusion III
• Rapid Eye™
Multi-Media LTv7,
v7 and DSP v7
DVR INTEGRATION
Honeywell offers enhanced digital video recording integration by
combining its video and CCTV systems with access control systems to
create powerful security solutions. With Honeywell’s video systems, you
get innovative PC-based digital recording technology that seamlessly inte-
grates with access control and software systems from Honeywell’s access
systems. This powerful combination gives you enhanced
functionality and greater control over your security needs.
DVR Integration
• Capture live video and link it to access control alarms and events such as
door forced open, invalid card readers, glass break, motion alarms and
others.
• Video verification for access control allows operators to verify a live user
and match the user to an existing image stored in the access control
database. The operator can then grant or deny access based on
verification.
• Video pop-ups linked to alarms or events generated by an access control
system. Thereafter, a video screen displays the event as it occurs – and
operators can retrieve video prior to the alarm or event.
• Consistent camera control in the access control software, such as pan, tilt,
and zoom are connected to the DVR directly from the access control soft
ware, which allows up to six cameras to be monitored simultaneously and
gives the operator the ability to select specific cameras to control.
• Additional features include live video call-up, alarm view screen, digital
video screen, set camera presets, history event filters, synchronized
playback of multiple cameras and more.
264
Access Systems-231-328 02-08.ind264 264Access Systems-231-328 02-08.ind264 264 8/12/08 12:53:46 PM8/12/08 12:53:46 PM
HONEYWELL ACCESS SYSTEMS
The lobby is your first line of defense and your
visitor’s first impression. With increased threats,
the traditional method of using a log book
and generic visitor tags leaves you vulnerable.
LobbyWorks™ is a simple and effective way to
gain better control of your visitor traffic. With
LobbyWorks, visitors are identified, potential
threats are flagged, expected visitors are
pre-authorized, badges are issued, sponsors are
notified, and visitors are tracked while on the
premises.
THIS SECTION INCLUDES:
LobbyWorks™ Kits
LobbyWorks Software
LobbyWorks Optional Hardware
LobbyWorks Accessories
Visitor
Management
265
Access Systems-231-328 02-08.ind265 265Access Systems-231-328 02-08.ind265 265 8/12/08 12:53:47 PM8/12/08 12:53:47 PM
www.security.honeywell.com/me
HONEYWELL ACCESS SYSTEMS

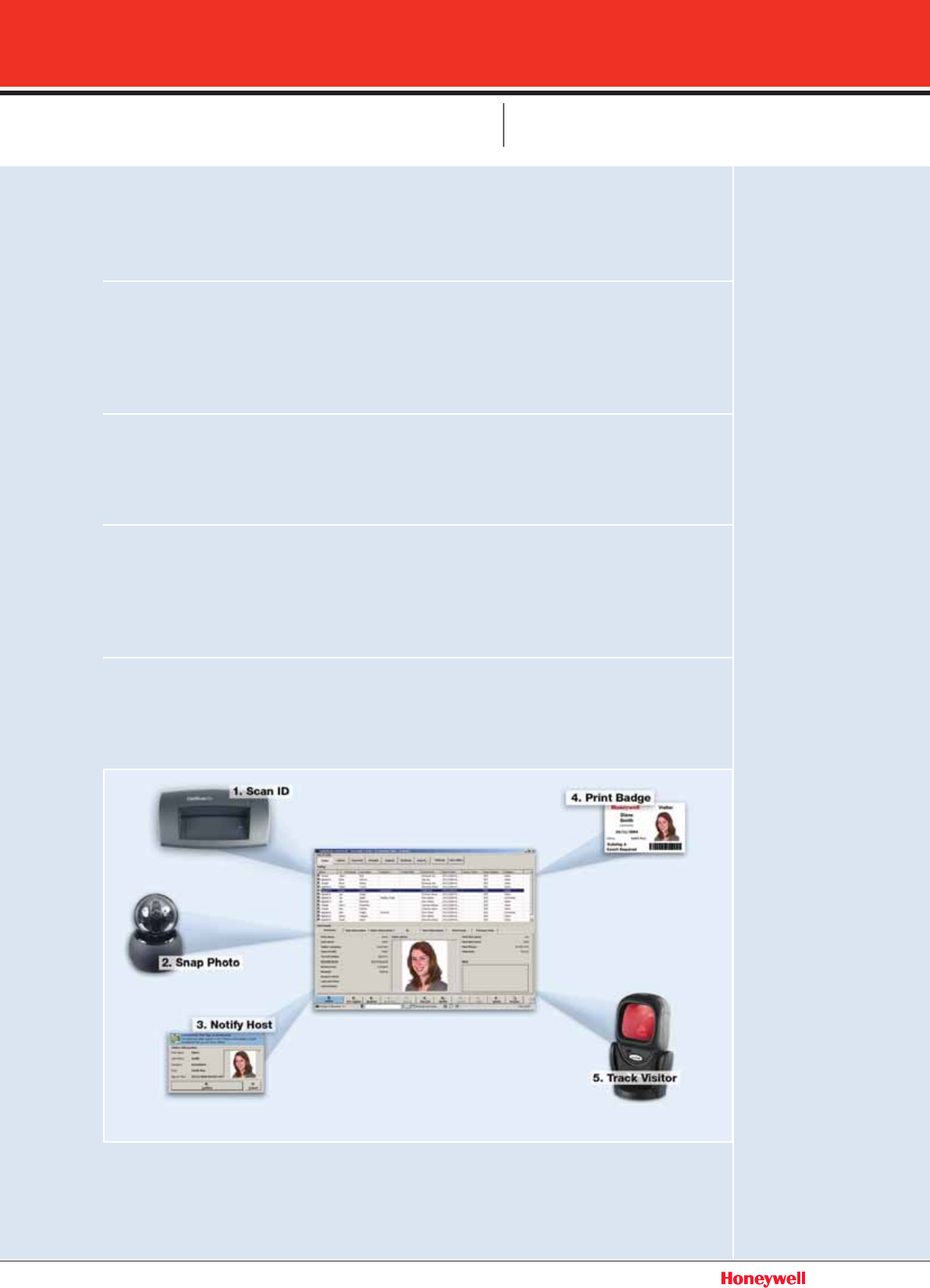

Each day scores of visitors pass through the entrances
to your facility. Having the ability to screen and track
them can contribute substantially to the safety and pro-
tection of your personnel and property. For companies
that have made significant investments in perimeter
security and access control, the ability to automatically
screen and track visitors is an essential part of a com-
plete security plan. Deploying the LobbyWorks™ suite is
a simple and cost effective way to:
• Determine who is in your facility at all times.
• Identify unwanted visitors.
• Eliminate abuse of visitor badges.
• Protect the confidentiality of visitors.
• Facilitate communication between hosts, visitors,
and security personnel.
• Improve lobby and security desk productivity.
Electronic visitor management is gaining wide
acceptance as an essential part of physical
security infrastructure. Visitor management is
being adopted across the board in many
industries including pharmaceutical and
healthcare facilities, food supply chain,
technology R&D centers, manufacturing sites,
media and communication companies,
government agencies, defense contractors,
chemical production sites, utilities, and finance
and insurance corporate offices. All have a com-
mon need to maintain better visibility of their
visitor traffic through consistent registration and
visitor policy enforcement procedures.
Visitor Management LOBBYWORKS™ KITS
266
Access Systems-231-328 02-08.ind266 266Access Systems-231-328 02-08.ind266 266 8/12/08 12:53:51 PM8/12/08 12:53:51 PM
HONEYWELL ACCESS SYSTEMS
LWVMSKSTD
LobbyWorks™ Standard Edition Starter Kit
Contains:
• LWVMSSTD – LobbyWorks™ Standard Edition
• LWVMSBP – Dymo LabelWriter 400
• LWVMSDLS – Driver License and Business Card Scanner
• LWVMSDOME – Logitech Orbit PTZ Camera
• LWVMSVB – Dymo Adhesive Visitor Badge Labels – 12 rolls (300 labels/roll)
WVMSKSTDCL
LobbyWorks Standard Edition Additional License Kit
Contains:
• LWVMSSTDCL – LobbyWorks Standard Edition
• LWVMSBP – Dymo LabelWriter 400
• LWVMSDLS – Driver License and Business Card Scanner
• LWVMSDOME – Logitech Orbit PTZ Camera
LWVMSKPRO
LobbyWorks Professional Edition Kit
Contains:
• LWVMSPRO – LobbyWorks Professional Edition
• LWVMSBP – Dymo LabelWriter 400
• LWVMSDLS – Driver License and Business Card Scanner
• LWVMSDOME – Logitech Orbit PTZ Camera
• LWVMSVB – Dymo Adhesive Visitor Badge Labels – 12 rolls (300 labels/roll)
Visitor Management LOBBYWORKS™ KITS
LOBBYWORKS SOFTWARE COMPARISON
Features Professional Edition Standard Edition
Multiple Stations P P
Registration P P
Tracking P P
Badging P P
Watch List P P
Photo P P
Business Card Image P P
Driver License Image P P
Signature Image P P
Group Registration P P
Asset Tracking P
Delivery Tracking P
Available Add-ons
Web Center P
Notify
P
Kiosk
P
Reports P
267
Access Systems-231-328 02-08.ind267 267Access Systems-231-328 02-08.ind267 267 8/12/08 12:53:53 PM8/12/08 12:53:53 PM
www.security.honeywell.com/me
HONEYWELL ACCESS SYSTEMS
Visitor Management LOBBYWORKS™ SOFTWARE
LWVMSSTD
LobbyWorks Standard Edition
First license for LobbyWorks networked edition. Full featured visitor management with interface to
many registration devices such as cameras, signature pad, barcode scanner, business card
scanner, driver license and passport scanner, card reader, and voice modem. Standard Edition
includes LobbyWorks Front Desk, Administrator, and Reporter. Supported databases: MSDE 2000,
MS-SQL 2000. LobbyWorks Standard Edition can be networked with additional Front Desk licenses
(LWVMSSTDCL), Kiosk Software (LWVMSEXPCL), LobbyWorks Web Center (LWVMSEBNDL) for
Web-based pre-registration, and LobbyWorks Notify (LWVMSCOM) for real-time network notification.
LWVMSSTDCL
LobbyWorks Standard Edition Additional License
Additional LobbyWorks Front Desk license for LobbyWorks Standard Edition.
LWVMSPRO
LobbyWorks Professional Edition
LobbyWorks standalone edition supports the same capabilities as Standard Edition but cannot
be used to network multiple station connect to LobbyWorks Kiosk, LobbyWorks Web Center, or
LobbyWorks Notify.
LWVMSEXP
LobbyWorks Kiosk Software License
First license of LobbyWorks visitor self-registration software. May be used as standalone or in
networked configuration. Self registration supports scanning visitor’s card, identifying their host,
capturing their picture, displaying NDA and visit instructions, obtaining real-time approval of the
visit, and printing the visitor’s badge. The LobbyWorks Kiosk may also dispense relevant visitor
information. LobbyWorks Kiosk software may be used in conjunction with any touch screen or the
LobbyWorks Integrated Kiosk (LWVMSDIKD).
268
Access Systems-231-328 02-08.ind268 268Access Systems-231-328 02-08.ind268 268 8/12/08 12:53:56 PM8/12/08 12:53:56 PM
HONEYWELL ACCESS SYSTEMS
LWVMSEXPCL
LobbyWorks Kiosk Additional License
Additional LobbyWorks Kiosk license for LobbyWorks Standard Edition
(LWVMSSTD) or LobbyWorks Kiosk (LWVMSEXP).
LWVMSEBNDL
LobbyWorks Web Center
Web access to LobbyWorks server to allow hosts to pre-register their visitors, and allow security
to view real-time visitor traffic and validate/sign in/sign out visitor badges. One license required per site.
Requires Microsoft IIS.
LWVMSRPT
LobbyWorks Reporter Additional License
Report generation utility. First license comes with Standard Edition (LWVMSSTD),
Professional Edition (LWVMSPRO) and LobbyWorks Kiosk (LWVMSEXP).
LWVMSCOM
LobbyWorks Notify
Real-time network pop-up at the employee’s desktop to confirm the visitor is expected upon
arrival, and to confirm the visitor has left the site at the end of the expected visit period.
One license required per site.
LWVMSPESE
LobbyWorks Software Upgrade
Software license upgrade from LobbyWorks Professional Edition (LWVMSPRO) to Standard Edition
(LWVMSSTD).
Visitor Management LOBBYWORKS™ SOFTWARE
269
Access Systems-231-328 02-08.ind269 269Access Systems-231-328 02-08.ind269 269 8/12/08 12:53:57 PM8/12/08 12:53:57 PM
www.security.honeywell.com/me
HONEYWELL ACCESS SYSTEMS

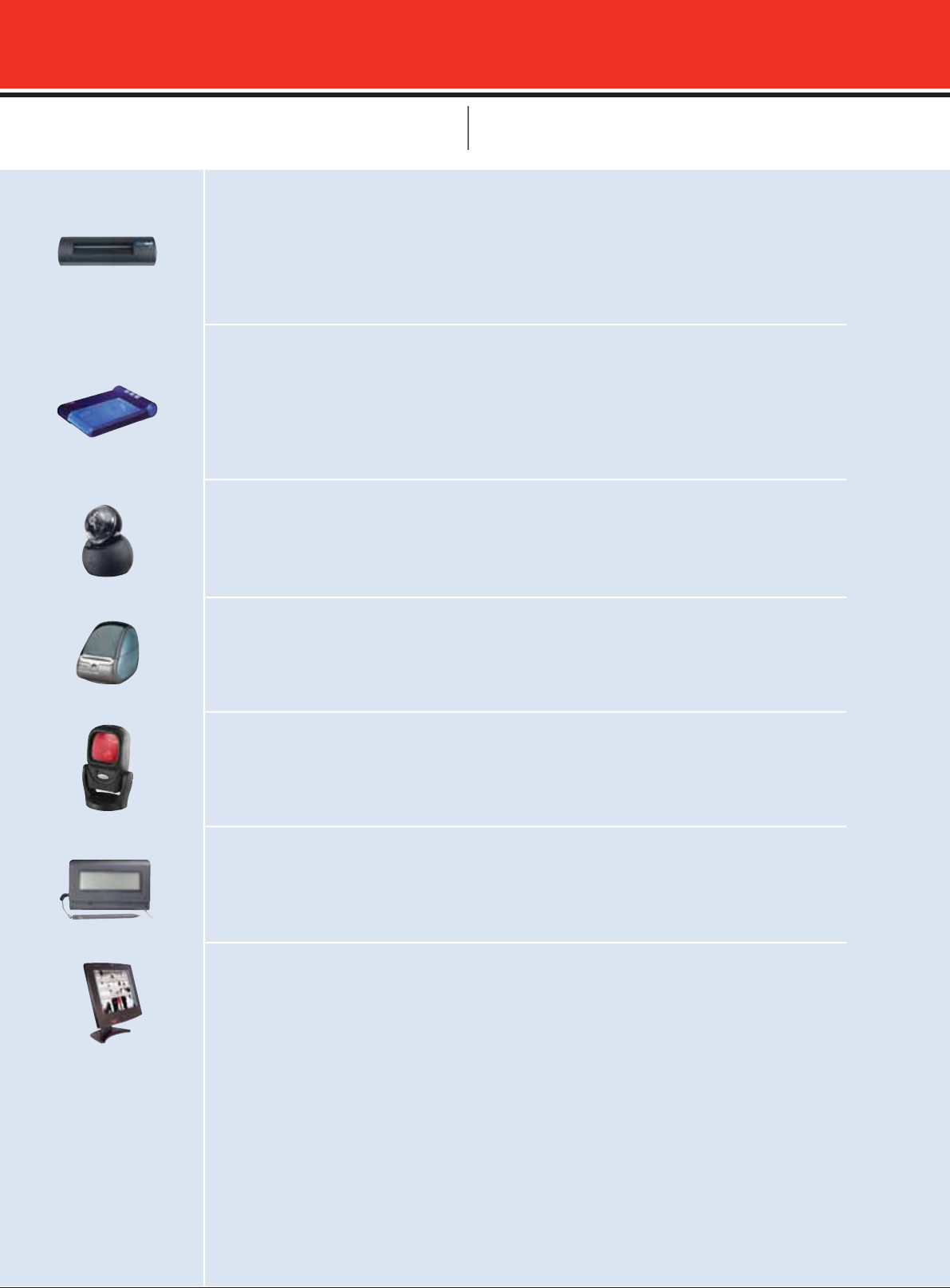

LWVMSDLS
ScanShell Business Card and Driver License Scanner
USB document scanner used to scan visitor business cards or driver licenses during registration at
the LobbyWorks Front Desk or LobbyWorks Kiosk. Check LobbyWorks documentation for supported
driver license states and countries. Dimensions: 1.25" H x 7" W x 2" D
(3.18 cm H x 17.78 cm W x 5.08 cm D).
LWVMSPPS
ScanShell Flatbed Scanner
USB document scanner used to scan visitor business cards, driver
licenses or passports during registration at the LobbyWorks Front Desk
or LobbyWorks Kiosk. Check LobbyWorks documentation for supported driver license states and
countries. Dimensions: 1" H x 7" W x 6" D (2.54 cm H x 17.78 cm W x 15.24 cm D).
LWVMSDOME
Logitech Orbit PTZ Dome Camera
USB Web camera, PTZ with stand. Camera may be set to perform face tracking to automatically
frame the visitor in picture.
LWVMSBP
Dymo LabelWriter 400
USB, 300 dpi, black/white thermal printer for visitor labels. Dimensions: 5.5" H x 5" W x 7" D (13.97
cm H x 12.7 cm W x 17.78 cm D).
LWVMSOBS
Symbol LS9208 Barcode Scanner
USB omni-directional barcode scanner used to scan barcodes on visitor badges to quickly sign them
in and out. Dimensions: 7.18" H x 4.83" W x 3.73" D (18.24 cm H x 12.27 cm W x 9.47 cm D).
LWVMSSIG
Topaz SigLight LCD Signature Capture Pad
USB signature capture pad used to capture visitor signatures during
registration. Dimensions: 3" H x 6" W x 1" D (7.62 cm H x 15.24 cm W x 2.54 cm D).
LWVMSIKD
Touchscreen Kiosk with Integrated Camera and Speakers
17” touchscreen with an integrated camera and speakers. Used to display
the LobbyWorks Kiosk software for visitor self-registration.
Visitor Management LOBBYWORKS™ OPTIONAL HARDWARE
270
Access Systems-231-328 02-08.ind270 270Access Systems-231-328 02-08.ind270 270 8/12/08 12:53:58 PM8/12/08 12:53:58 PM
HONEYWELL ACCESS SYSTEMS
LWVMSISK
Full-size Touchscreen Kiosk with
Integrated Computer and Components
LobbyWorks Kiosk is a visitor self-registration station for high traffic or
unsupervised registration. Using state of the art technology, LobbyWorks
Kiosk greets arriving visitors and coaches them through a quick and simple
registration process. Kiosk enclosure includes computer, touchscreen, camera,
barcode scanner, and driver license/business card scanner. Dimensions:
50.2" H x 16.2" W x 15.2" D (127.51 cm H x 41.15 cm W x 38.61 cm D).
Weight: 70 lbs. (31.8 kg).
LWVMSHUB
4-Port USB Hub
4-port USB 1.1 hub with external power supply. Used to add USB ports for
PCs that do not have enough ports to support the LobbyWorks devices.
LWVMS56K
MultiTech 5600 Serial Voice Modem
Serial interface voice modem. Used by LobbyWorks Front Desk and
LobbyWorks Kiosk to call the host, announce the visit and accept a
touch-tone confirmation of the visit. Dimensions: 1" H x 4.5" W x 7" D
(2.54 cm H x 11.43 cm W x 17.78 cm D).
LWVMSVB
Adhesive Visitor Badge Labels
Thermal labels for Dymo printer - 12 rolls (300 labels/roll). Prints black/white badges only.
LWVMSCVB
4" x 6" Non-Adhesive Visitor Badges
Fold-and-clip secure visitor paper badges. Can be used in ink and laser paper printers. 1,000 badges
per pack. Dimensions: 4" H x 6" W (10.16 cm H x 15.24 cm W).
Visitor Management LOBBYWORKS™ OPTIONAL HARDWARE
271
Access Systems-231-328 02-08.ind271 271Access Systems-231-328 02-08.ind271 271 8/12/08 12:54:03 PM8/12/08 12:54:03 PM
www.security.honeywell.com/me
HONEYWELL ACCESS SYSTEMS
N-750 and PassPoint® Plus provide an ideal
environment for dealers who are familiar with
intrusion but are new to access control.
They are designed for those intrusion dealers
who want to grow their business profitability by
offering innovative access control solutions.
The terminology and function is based around
intrusion, but the solution provides the additional
capabilities of access control.
THIS SECTION INCLUDES:
N-750
PassPoint® Plus
Integrated
Systems
272
Access Systems-231-328 02-08.ind272 272Access Systems-231-328 02-08.ind272 272 8/12/08 12:54:05 PM8/12/08 12:54:05 PM
HONEYWELL ACCESS SYSTEMS
Integrated Systems
Benefits:
• Reduce overall system cost and installation by
providing an integrated system solution.
• Increase revenue by adding access control to your
next installation.
• Manage multiple accounts from a single software.
Ideal for property managers or facilities with
multiple locations.
• Reduce false alarms by preventing access when
the system is armed.
• Provide enhanced services by reporting access control
events such as door held open or door forced open to
a central station.
• Integrated vs. interfaced provides logical solution
through the control panel and software controls
instead of complicated relays and timers.
Honeywell integrated products use logical controls
instead of complicated relays to achieve access and
intrusion integration. The N-750 provides a complete
single panel / single software solution for new installa-
tions. PassPoint® Plus provides a host of new access
control capabilities when retrofitted
to existing VISTA control panel installations.
273
Access Systems-231-328 02-08.ind273 273Access Systems-231-328 02-08.ind273 273 8/12/08 12:54:06 PM8/12/08 12:54:06 PM
www.security.honeywell.com/me
HONEYWELL ACCESS SYSTEMS
WIN750
Integrated Access Control & Intrusion Management Software
Win750 is the newest software release for the N-750 integrated control panel. Win750 provides
remote programming and system management of the N-750 for an installer, but also is used for an
end user to generate reports and manage users for their system. With Win750 it is possible to
manage a single account or multiple accounts with multiple locations. The Win750 brings together
intrusionand access control in a single, easy to manage software platform. Win750 supports
Microsoft® Windows® 2000 and XP Professional operating systems.
N-750
Integrated Intrusion and Access Control Panel
The N-750 is an integrated control panel that combines intrusion with access control and can report
back to a central station. The N-750 supports direct RS232 communications or dial-up, or can be
interfaced with an Ethernet option. The N-750 includes an on-board dialer for central station
reporting. Able to manage up to eight partitions with eight areas per partition, the N-750 is a perfect
solution for property managers or multi-tenant facilities. Includes 18 VDC transformer. Power: 18
VAC, 60 Hz, 50 VA. Operating temperature range: 32° to 120° F (0 to 49° C). Dimensions: 20" H x
15" W x 3" D (15.24 cm H x 38.1 cm W x 7.65 cm D). Weight: 17 lbs. (7.65 kg).
ALSO AVAILABLE:
N-750-PCB
N-750 Board Only, Without Enclosure
Dimensions: 6" H x 7.875" W x 1.5" D (15.24 cm H x 20.0 cm W x 3.81 cm D)
Power Requirements: 40 mA @ 11-14 VDC (provided by N-750 panel).
N-750
The N-750 is a truly integrated system that provides a single software and
single panel solution. Integration between access control and intrusion
provides unique capabilities to manage multiple tasks through a single system.
The N-750 is capable of managing multiple users across multiple accounts through the
Win750 software. The N-750 can be installed standalone or at a central station.
The N-750 can report standard events and alarms including door access events like
door held open or door forced open through the internal dialer. Additional features
include:
• 400 Zone Inputs
(hardwired or multiplex)
• 24 Touchpads
• 24 Card Readers
• 1800 Users/Card Holders
• Complete UL Listing for Intrusion,
Access Control and Central
Station Reporting
Integrated Systems N-750
274
Access Systems-231-328 02-08.ind274 274Access Systems-231-328 02-08.ind274 274 8/12/08 12:54:08 PM8/12/08 12:54:08 PM
HONEYWELL ACCESS SYSTEMS
Integrated Systems N-750
N-750-PAIT
Programming/Access Touchpad Interface
The N-750-PAIT is a commercial touchpad that can be used as a door access station.
The N-750-PAIT can be used in conjunction with the N-750-ADM for a total combination of
24 devices. The N-750 system must have at least one N-750-PAIT. The N-750-PAIT has one
SPDT relay for door lock and two contact inputs for door egress and status. The touchpad can
also be used to program the system in addition to arming and disarming alarms and checking the
status of areas. Dimensions: 4.38" H x 7.13" W x 1.13" D (11.1 cm H x 18.1 cm W x 2.86 cm D).
Power: 90 mA @ 11-14VDC (provided by N-750 panel).
N-750-ADM
Door Access Module for N-750
The N-750-ADM is a card reader interface for the N-750. The N-750-ADM can be used in
conjunction with the N-750-PAIT for a total combination of 23 devices. The N-750-ADM has two
SPDT relays for door lock and door held open and two contact inputs for door egress and status.
Dimensions: 6" H x 7.88" W x 1.5" D (15.24 cm H x 20.0 cm W x 3.81 cm D).
Power: 25 mA @ 11-14 VDC (provided by N-750 panel).
N-750-ZONE
64-Zone Hardwire Expander for the N-750
The N-750-ZONE is a hardwire expander that allows 64 zones to be added to the N-750 system.
A total of six N-750-ZONE modules can be added to the system (if no other zone expansion device is
being used). Dimensions: 16.13" H x 12.25" W x 3" D (40.96 cm H x 31.12 cm W x 7.62 cm D).
Power: 80 mA @ 11-14 VDC (provided by N-750 panel).
N-750-SSE
128-Zone Smart Sensor Expander
The N-750-SSE serial zone expander is a UL listed zone expansion system used in conjunction with the
N-750-SS smart sensor. Each N-750 system can support a total of three N-750-SSE expanders for a
total of 384 points, with 128 points per N-750-SSE. Each point on the N-750-SSE is addressed with an
N-750-SS. The N-750-SS does not have a built-in end-of-line resistor, and the N-750-EOL-UL-SS resistor
should be used for all UL smart sensor applications. Dimensions: 4" H x 5.5" W x 1" D
(10.16 cm H x 13.97 cm W x 2.54 cm D) Power: 80 mA @ 11-14 VDC (provided by N-750 panel).
N-750-SS
Smart Sensor for the N-750-SSE & N-750 (10 Pack)
The N-750-SS smart sensor is used in conjunction with the N-750-SSE. The N-750-SS connects to
serial loops on the N-750-SS controller module. N-750-SS smart sensor point ID modules allow
connection to and from point identification of most security devices. Ten per pack. Smart sensor
point ID modules are addressed on-site using an N-750-PAIT.
# Power Supplies & Batteries Sold separately
275
Access Systems-231-328 02-08.ind275 275Access Systems-231-328 02-08.ind275 275 8/12/08 12:54:11 PM8/12/08 12:54:11 PM
www.security.honeywell.com/me
HONEYWELL ACCESS SYSTEMS
Integrated Systems N-750 / ACCESSORIES
N-750-SDB
Expandable Relay Board, 4 SPST Relays
The N-750-SDB expandable relay board provides 16 low voltage outputs plus four Form C relay
outputs. Up to three per N-750 system may be connected to provide up to 60 programmable
outputs. Dimensions: 6.0" H x 7.88" W x 1.5" D (15.24 cm H x 20.0 cm W x 3.81cm D).
Power: 25 mA @ 11-14 VDC (provided by N-750 panel).
N-750-PI
Serial/Parallel Interface for the N-750
The N-750-PI serial/parallel module provides one 9 pin RS232 serial port and one parallel printer port.
Eight N-750-PIs can be used per N-750. The N-750 can be used for either connection to a
PC directly using a modem cable (CBL-N-750-PI) or in conjunction with a modem (M-56K) and
cable (CBL-2) for remote communications. Dimensions: 6" H x 7.88" W x 1.5" D
(15.24 cm H x 20.0 cm W x 3.81cm D). Power: 40 mA @ 11-14 VDC (provided by N-750 panel).
CBL-N-750-PI
10' Null Modem Cable for N-750
The CBL-N-750-PI is used to interface the N-750-PI to a computer for direct connect using the
Win750 software programs. 10' (3.05m) null cable with DB9 female to DB9 female connections.
N-750-APS
Auxiliary 12 VDC Power Supply for the N-750 The N-750-APS is a notification and
auxiliary power expander thatprovides up to 2.5 A of 12 V power for powering notification
appliances and auxiliary devices. The N-750-APS uses the N-750 snap track located in the N-750
cabinet or the N-750-ENC accessory enclosure. Dimensions: 4" H x 4.75" W x 1.75" D
(10.16 cm H x 12.07 cm W x 4.45 cm D).
N-750-COMM-CBL
Digital Dialer Cable for the N-750
The N-750-COMM-CBL is a 3' (0.9m) RJ31X cord for connecting a phone line to the built-in digital
communicator on the N-750. The cable can also be used when the N-750-DPLM dual phone
line adapter is installed in the N-750.
N-750-DPLM
Dual Phone Line Module for the N-750
The N-750-DPLM provides a second phone line connection. Includes a line monitor and ring
detector for a second line. Required for UL installations. Connects and mounts directly to the
standoffs provided on the panel. Power: 11-14 VDC at 20 mA (active only).
Dimensions: 2.38" H x 2.18" W x 1.75" D (6.0 cm H x 5.53 cm W x 4.5 cm D)
ACCESSORIES
276
Access Systems-231-328 02-08.ind276 276Access Systems-231-328 02-08.ind276 276 8/12/08 12:54:20 PM8/12/08 12:54:20 PM
HONEYWELL ACCESS SYSTEMS
v
Integrated Systems N-750 / ACCESSORIES

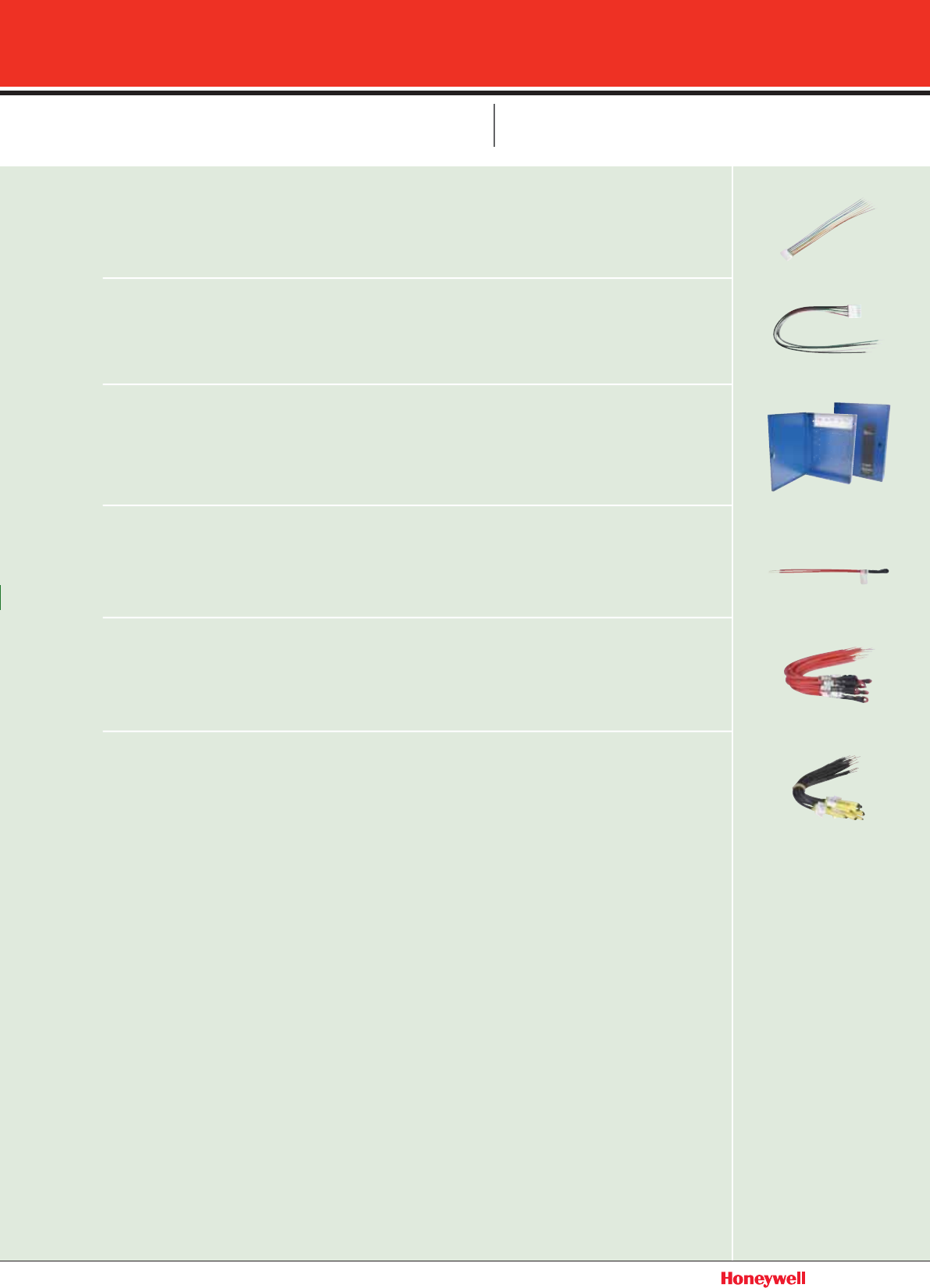

N-750-INPT-CNCT
Input/Relay Connector for the N-750-PAIT
Connector that plugs into the N-750-PAIT. This allows for the input zones and output relay of the
N-750-PAIT to be connected. One unit comes standard with each N-750-PAIT.
N-750-RDR-CNCT
Reader Connector for the N-750-PAIT
Five-wire Wiegand connector that plugs into the N-750-PAIT. This allows a Wiegand format
reader to be plugged directly into the N-750-PAIT. One unit comes standard with each N-750-PAIT.
N-750-ENC
Accessory Enclosure for the N-750
Standard N-750 size enclosure with two snap tracks. Snap tracks are used to mount accessories
such as the N-750-APS and N-750-SSE. Each enclosure can hold four accessories and two
BAT-N-750. Dimensions: 20" H x 15" W x 3" D (50.8 cm H x 38.1 cm W x 7.62 cm D).
N-750-EOL-UL
End-of-Line UL Resistor
End-of-line UL approved 4.7K resistor. The N-750-EOL-UL is used for all hardwire input zones on the
N-750. (The N-750-EOL-UL is not used with the N-750-SS; use N-750-EOL-UL-SS).
N-750-EOL-UL-10
End-of-Line UL Resistors, 4.7K (10-Pack)
End-of-line UL approved 4.7K resistors 10-pack. The N-750-EOL-UL-10 is used for all hardwire input
zones on the N-750. (The N-750-EOL-UL-10 is not used with the N-750-SS; use the N-750-EOL-UL-SS)
N-750-EOL-UL-SS
End-of-Line UL Resistors for the N-750-SS (10-Pack)
Ten-pack of 1.43K ohm, end-of-line resistors for use with the N-750-SS. The N-750-EOL-UL-SS is
required for UL applications.
277
Access Systems-231-328 02-08.ind277 277Access Systems-231-328 02-08.ind277 277 8/12/08 12:54:28 PM8/12/08 12:54:28 PM
www.security.honeywell.com/me
HONEYWELL ACCESS SYSTEMS
Integrated Systems PASSPOINT® PLUS
SAMPLE KITS
PassPoint® Plus Access Starter Kit with 2 Proximity Readers and 50 Cards
PassPoint Plus 2-door starter kit for entry level applications with integration to VISTA 32, 128
and 250 control panels. Starter kit includes PassPoint Plus software (PTPLUS21), main logic board
(PTMLB), 2-door control module (PTDCM), two OmniProx readers (OP30HONE), 50 PassPoint
format cards (two packs – PTPROX25), 6139 keypad/display, control panel enclosure, 1.8 A @ 12
VDC distributed power supply (PTDPSU), 18 VAC 50 VA transformer and RS232 PC connection
cable. Enclosure dimensions: 14.5" H x 12.5" W x 3" D (36.83 cm H x 31.75 cm W x 7.62 cm D).
PASSPOINT®
PLUS
PassPoint® Plus is an entry level access solution with integration to Honeywell
VISTA 32, 128 and 250 intrusion panels. Integration to the VISTA panel is provided
through PassPoint Plus and VISTA Gateway Module (PTVGM). Integration capa-
bilities include arm or disarm upon card swipe, first card in / last card out, bypass
zone with card swipe, door access with keypad,
prevent access when system is armed and more. In addition to its integration
capabilities, PassPoint Plus has a long list of features including:
• Quick start wizards
• Real-time alarm monitoring
• Photo-ID badging
• Dynamic 3-D floor plan
• Customized report generator
• Report scheduling
• E-mail reports and events
• Up to 32 doors of access
• Windows® 2000 and XP
Professional compatible
278
PTMLB
Main Logic Board Only
The main logic board is the main controller of the access control system. It holds the system
configuration information, card database, and event log. It includes a real timeclock used to validate
schedules and provide a time and date stamp for events.The MLB also provides two input zones
and one Form C relay output. Dimensions: 5.5" H x 8" W x 1.25" D
(13.97 cm H x 20.32 cm W x 3.18 cm D). Power: 1.8 A @ 11-14 VDC.
ALSO AVAILABLE:
PTMLBX
Expanded Version Main Logic Board Only
Expand card holders to 10,000 and events to 40,000. Dimensions: 5.5" H
x 8" W x 1.25" D (13.97 cm H x 20.32 cm W x 3.18 cm D). Power: 1.8 A @ 11-14 VDC.
Access Systems-231-328 02-08.ind278 278Access Systems-231-328 02-08.ind278 278 8/12/08 12:54:33 PM8/12/08 12:54:33 PM
HONEYWELL ACCESS SYSTEMS
Integrated Systems PASSPOINT® PLUS
PTDCM
Door Control Module Only
The door control module provides all of the inputs and outputs necessary to manage up to two doors
of access control. Two supervised Form C relays, two trigger outputs and four supervised zone inputs
(for managing door status and egress) are supplied on-board. Dimensions: 3.75" H x 8" W x 1.25" D
(9.53cm H x 20.32 cm W x 3.18 cm D). Power: 900 mA @ 11-14 VDC.
PTQRM
Quad Relay Module – 4 SPDT, 4 Trigger
The quad relay module provides four Form C, supervised output relays and four trigger outputs 15 mA,
15 VDC max. Maximum eight PTQRM per system. Use PTCANPOWER for every two PTQRM modules.
Dimensions: 3.75" H x 8" W x 1.25" D (9.53 cm H x 20.32 cm W x 3.18 cm D).
Power: 100 mA @ 11-14 VDC.
PTZIM
Zone Input Module – 8 Input Board
The zone input module provides eight zone inputs. Maximum eight PTZIM per system. Use
PTCANPOWER for every two PTZIM modules. Dimensions: 3.75" H x 8" W x 1.25" D
(9.53 cm H x 20.32 cm W x 3.18 cm D). Power: 100 mA @ 11-14 VDC.
PTVGM
VISTA Gateway Module
The VISTA gateway module provides a means of integrating the PassPoint
Plus access control system with the VISTA 250FB, 128B, 128FB or 32FB
alarm control panels. Bi-directional communications between the two systems
support arming/disarming and mapping of access zones into the VISTA
panel, among a host of other features. The VGM allows existing central
station automation equipment to accept and recognize access control
related events and differentiate them from burglar and fire activities through
the VISTA 250FB, 128B, 128FB and 32FB. Dimensions: 4.5" H x 6.5" W x
1.4" D (11.43 cm H x 16.51 cm W x 3.56 cm D). Power: 100 mA @ 11-14 VDC.
279
Access Systems-231-328 02-08.ind279 279Access Systems-231-328 02-08.ind279 279 8/12/08 12:54:35 PM8/12/08 12:54:35 PM
www.security.honeywell.com/me
HONEYWELL ACCESS SYSTEMS
Integrated Systems PASSPOINT® PLUS
PTCANPOWER
Enclosure, Smart Power Supply and Transformer
Power supply 12 VDC @ 1.8 A, mounted in a system enclosure with a wall transformer 18 VAC-50
VAC. Use to power two PTZIMs or PTQRMs. Dimensions: 14.5" H x 12.5" W x 3" D
(36.83 cm H x 31.75 cm W x 7.62 cm D).
PTDPSU
Distributed Power Supply Unit 12 VDC, 3 A
The power supply produces a nominal 12 VDC @ 1.8 A when connected to the supplied 18 VAC
transformer. It has sufficient power to run the MLB, DCM, two card readers and two door locks
(rated 12 VDC @ < 450 mA each). Dimensions: 2.75" H x 8" W x 2.25" D (7.0 cm H x
20.32 cm W x 5.72 cm D).
PTCEKPROX
Card Enrollment Kit
Card enrollment cabinet containing integral proximity reader and computer port module,
one 15 VDC @ 600 mA transformer and case. (Required twisted-pair 22 AWG cable is not
included and must be ordered separately). Dimensions: 5" H x 7" W x 4.5" D
(12.7 cm H x 17.78 cm W x 11.43 cm D). Power: 190 mA @ 11-14 VDC.
PTPROX25
25 Prox Cards
Pack of 25 HID proximity cards (PassPoint 34-bit) with slot hole punch on the short side.
Dimensions: 2.125" H x 3.375" W x .070" T (5.398 cm H x 8.573 cm W x .178 cm T).
PTKEY10
Package of 10 HID Key Tags
Pack of 10 HID key tags (PassPoint 34-bit format).
PTPLUS21
PassPoint Plus Software, Version 2.1
PassPoint Plus, the enhanced version of the widely acclaimed PassPoint Express, continues to offer
powerful simplicity in setup and maintenance, which provides major savings in materials and labor.
PassPoint Plus is a full-featured access control system priced at the cost of systems with far fewer
capabilities and features.
ALSO AVAILABLE:
PTPLUS21UG
PassPoint Plus Version 2.1 Upgrade
PassPoint Express to PassPoint Plus 2.1 upgrade. Includes software,
manuals and main logic board (MLB) firmware upgrade.
280
Access Systems-231-328 02-08.ind280 280Access Systems-231-328 02-08.ind280 280 8/12/08 12:54:38 PM8/12/08 12:54:38 PM
HONEYWELL ACCESS SYSTEMS
Honeywell’s control panel solutions have been the
reliable choice of dealers for many years.
Our controllers are the benchmark of the industry
and offer unmatched flexibility and reliability that
result in fewer callbacks and improved
bottom-line profits for dealers. The new NetAXS™
series control panels provide the latest technol-
ogy and innovations for access control solutions.
NetAXS functions both as a replacement panel for
the N-1000 control panel and as a next generation
controller with all the capabilities our
customers demand.
THIS SECTION INCLUDES:
NetAXS™
N-1000 Series
N-1000 System Kits
NS2+
Control Panel
Solutions
281
Access Systems-231-328 02-08.ind281 281Access Systems-231-328 02-08.ind281 281 8/12/08 12:54:44 PM8/12/08 12:54:44 PM
www.security.honeywell.com/me
HONEYWELL ACCESS SYSTEMS
Control Panel Solutions
Benefits:
• Proven track record over the past 20 years of
performance for single-door or multiple door
applications.
• Next generation NetAXS hybrid control panel provides
either Web-based or PC-based access control.
• IT friendly design that provides on-board Ethernet
with NetAXS or add-on options for N-1000 and
NS2+ installations using existing network wiring.
• Designed to decrease installation time and labor with
removable terminal blocks, standard wiring options,
simple diagnostics and flexible system architecture.
• The ability to mix and match NetAXS, N-1000 and
NS2+ control panels allows updating of existing
installations with powerful new features.
The next generation of control panels is here.
NetAXS™ is a direct N-1000 replacement that can
be retrofitted* in over 100,000 installed panels.
Along with the N-1000, NetAXS provides simple
installation, robust operation and full features.
NetAXS offers the latest technologies in IP
communications, Web browser interface, fast
processor and more. Use NetAXS for your next
N-1000 service replacement or on your next new
installation.
* Consult factory when using with C-100-A1 20 mA communications
and AEP3 or AEP5 control boards.
282
Access Systems-231-328 02-08.ind282 282Access Systems-231-328 02-08.ind282 282 8/12/08 12:54:45 PM8/12/08 12:54:45 PM
HONEYWELL ACCESS SYSTEMS
SAMPLE KITS
NetAXS Pre-wired 4 Door Hybrid Control Panel
NX4 pre-wired 4 door control panel includes large enclosure with 8 output fused relay board,
and (4) S-4 surge suppressors. System specifications include fast 32-bit processor with memory capac-
ity for 10,000 card holders; 25,000 buffer capacity; 14 supervised alarm inputs, expandable to 78 inputs;
8 relay outputs (SPDT), expandable to 72 outputs; built-in Ethernet interface with integrated Linux Web
server, RS232 and RS485 communication interfaces. Direct 110 VAC power cord. Dimensions: 17.7" W x
23.9" H x 3.5" D (45.0 cm W x 60.7 cm H x 9.0 cm D). Temperature: 35-110°F (2-43°C) operational
humidity: 0 to 85% RHNC; UL 294 and CE listed.
NetAXS Small 4 Door Hybrid Control Panel
NetAXS 4 door control panel includes small enclosure with NX4 control
S-4 surge suppressors, System specifications include fast 32-bit processor with memory c
apacity for 10,000 card holders; 25,000 buffer capacity; 14 supervised alarm inputs, expandable to 78
total inputs; 8 relay outputs (SPDT), expandable to 72 total outputs; built-in Ethernet interface with inte-
grated Linux Web server, RS232 and RS485 communication interfaces. 24 VDC @ 2 A or
16.5 VAC @ 2 A. Dimensions: 14.5" W x 18.0" H x 4.4" D (36.8 cm W x 45.7 cm H x 12.0 cm D).
Temperature: 35-110°F (2-43°C) operational humidity: 0 to 85% RHNC; UL 294 and CE listed.
NX4PCB
NetAXS Control Panel – Board Only
NetAXS Control Panel without Enclosure
NX4OUT
NetAXS 16 Output Board
NetAXS 16 Output Relay Board with 16 general purpose output relays, Form-C, 2 A @ 30 VDC and
two dedicated alarm inputs for tamper detection and power loss. Up to 4 NX4OUT output boards
per NetAXS control panel. Dimensions: 5.5" H x 9.0" W x 1.0" D
(139.7 mm H x 228.6 mm W x 25.4 mm D). Power requirements: 12 VDC @ 400 mA.
NX4IN
NetAXS 32 Input Board
NX4IN input module with 32 general purpose inputs with programmable circuit types. Up to 2 NX4IN
input panels per NetAXS control panel. Dimensions: 5.5" H x 9.0" W x 1.0" D (139.7 mm H x 228.6 mm
W x 25.4 mm D). Power requirements: 12 VDC @ 350 mA.
Control Panel Solutions NETAXS™
NetAXS™ is a new hybrid access control panel that lets you program
and manage your access control system using either an integrated
Web-browser or traditional PC-based software. The new hybrid solution
provides the best of both worlds and lets you choose the level of security
and functionality your business requires, bringing flexibility to access
control. NetAXS can be used in-line with most N-1000 and NS2+ control
panel installations. NetAXS offers two different pre-wired configuration
choices—each distinguished by simplicity and flexibility:
• Large: incorporates the control panel within a large enclosure that
includes the power supply, distributed relay module and battery backup
• Small: features the control panel and one battery within a small enclosure
NETAXS
CONTROL PANEL
# Power Supplies & Batteries Sold separately
283
Access Systems-231-328 02-08.ind283 283Access Systems-231-328 02-08.ind283 283 8/12/08 12:54:47 PM8/12/08 12:54:47 PM
www.security.honeywell.com/me
HONEYWELL ACCESS SYSTEMS
Control Panel Solutions N-1000 CONTROL PANELS
N-1000-IV
Intelligent 4 Door Controller
4 reader access control panel. Supports proximity, smart, Wiegand, magnetic stripe, keypad,
barcode, vehicle ID and biometric devices. 5,000 code capacity, 10,200 buffer capacity, four relays
(DPDT), 16 supervised alarm inputs,20 mA or RS485 communications (RS485 requires the use of
N-485-HUB-2 or N-485-PCI-2 interfaces). Includes 12 V battery backup, detachable terminal blocks,
locking enclosure with tamper switch. 12 V 500 mA output for external readers. Requires 16.5 VAC
transformer or 12 VDC power supply for panel power and one suppressor kit (S-4) per used (active)
relay. Current draw is 1.8 A maximum. Use with WIN-PAK software.
Dimensions: 14" H x 18" W x 4" D (35.5 cm H x 45.6 cm W x 10.0 cm D). UL 294 and CE listed.
ALSO AVAILABLE:
N-1000-IV-X
Expanded Intelligent 4 Door Controller
Same as the N-1000-IV with 8 total relays and expanded memory (25,000 codes and 6,600 buffers)
N-1000-IV-CB
N-1000-IV Circuit Board Only
Circuit board only. Dimensions: 11" H x 11" W x 1.5" D (27.94 cm H x 27.94 cm W x 3.81 cm D).
N-1000-IV-X-CB
N-1000-IV-X Circuit Board Only
Circuit board only. Dimensions: 11" H x 11" W x 1.5" D (27.94 cm H x 27.94 cm W x 3.81 cm D).
(See page 365)
Versatility, reliability and expandability are the three main features that make
the N-1000 one of the most popular access control panels ever.
The N-1000’s distributed database stores all card, time zone, relay
control and alarm point information in its memory.
N-1000
CONTROL
PANELS
# Power Supplies & Batteries Sold separately
284
Access Systems-231-328 02-08.ind284 284Access Systems-231-328 02-08.ind284 284 8/12/08 12:54:50 PM8/12/08 12:54:50 PM
HONEYWELL ACCESS SYSTEMS
Control Panel Solutions N-1000
N-1000-III
Intelligent 2 Door Controller
2 reader/keypad access control panel. Supports proximity, smart, Wiegand, magnetic stripe,
keypad, barcode, vehicle ID and biometric devices. 5,000 code capacity, 10,200 buffer capacity,
4 relays (DPDT),16 supervised alarm inputs standard, 20 mA or RS485 communications
(RS485 requires the use of N-485-HUB-2 or N-485-PCI-2 interfaces). Includes 12 V battery backup,
detachable terminal blocks, locking enclosure with tamper switch. 12 V 500 mA output for external
readers. Requires 16.5 VAC transformer or 12 VDC power supply for panel power
and one suppressor kit (S-4) per used (active) relay. Current draw is 1.8 A maximum.
Dimensions: 14" H x 18" W x 4" D (35.5 cm H x 45.6 cm W x 10.0cm D).
Use with WIN-PAK software. UL 294 and CE listed.
ALSO AVAILABLE:
N-1000-III-X
Expanded Intelligent 2 Door Controller
Same as the N-1000-III with 8 total relays and expanded memory (25,000 codes and 6,600 buffers).
N-1000-III-CB
N-1000-III Circuit Board Only
Circuit board only. Dimensions: 11" H x 11" W x 1.5" D (27.94 cm H x 27.94 cm W x 3.81 cm D).
N-1000-III-X-CB
N-1000-III-X Circuit Board Only
Circuit board only. Dimensions: 11" H x 11" W x 1.5" D (27.94 cm H x 27.94 cm W x 3.81 cm D).
UGN1K3807
V8.07.01 N-1000-III/IV Firmware Upgrade
N-1000-III/IV version 8.07.01 firmware upgrade kit. Contains the PROM and PAL chips.
UGN1K2807
V8.07.01 N-1000-II Firmware Upgrade
N-1000-II version 8.07.01 firmware upgrade kit. Contains the PROM and PAL chips.
# Power Supplies & Batteries Sold separately
285
Access Systems-231-328 02-08.ind285 285Access Systems-231-328 02-08.ind285 285 8/12/08 12:54:55 PM8/12/08 12:54:55 PM
www.security.honeywell.com/me
HONEYWELL ACCESS SYSTEMS
Control Panel Solutions N-1000 KITS / ACCESSORIES
N1000K4
N-1000-IV Control Panel Kit
Complete N-1000-IV assembly with enclosure (N-1000-IV) transformer (X-4)
and four suppressor kits (S-4).
ALSO AVAILABLE:
N1000K4X
N-1000-IV-X Control Panel Kit
N1000K3
N-1000-III Control Panel Kit
N1000K3X
N-1000-III-X Control Panel Kit
AEP-3
Expanded Relay Board 8 Outputs DPDT
Auxiliary output board. Provides 8 additional relay outputs to any N-1000 panel with version 5.10 or
newer firmware (excluding version 6). Up to two AEP-3 boards per N-1000 panel. Can be mounted
on the inside cover of the N-1000 control panel or separately in the ENC-1 enclosure. Contacts
are DPDT. Includes interconnecting cable (AEP-3-CBL). Requires separate 12 VAC 20 VA transformer
or 12 VDC power supply, linear @ 500 mA). Current draw is 150 to 325 mA. Dimensions: 6" H x 10"
W x 1.75" D, (15.24 cm H x 25.4 cm W x 4.445 cm D). Operating
temperature range: 35°-110° F (2°-43°C).
AEP-3-CBL
AEP-3 Interconnecting Cable
Used to connect two AEP-3 relay boards or for use between AEP-3 and N-1000 panel.
ENC-3
Enclosure for N-1000-III
Enclosure for N-1000-III with knockouts, hinged cover and lock and key. Tamper switch provided.
ALSO AVAILABLE:
ENC-4
Enclosure for N-1000-IV
N-1000 SERIES ACCESSORIES
# Power Supplies & Batteries Sold separately
286
Access Systems-231-328 02-08.ind286 286Access Systems-231-328 02-08.ind286 286 8/12/08 12:55:00 PM8/12/08 12:55:00 PM
HONEYWELL ACCESS SYSTEMS
Control Panel Solutions N-1000 SYSTEM KITS
ROCKET4
4 Door Access Control Starter Kit
Includes WIN-PAK SE (WPSE), RS485 converter (N-485-PCI-2), 4 door control panel (N-1000-IV-X),
four OmniProx proximity readers (OP30HONE), and four suppressor kits (S-4).
BOOSTER2
2 Door Add-On Kit for Rocket Box
Includes 2 door control panel (N-1000-III), two OmniProx proximity readers (OP30HONE),
and two suppressor kits (S-4)
BOOSTER4
4 Door Add-On Kit for Rocket Box
Includes 4 door control panel (N-1000-IV-X), four OmniProx proximity readers (OP30HONE), transformer
(X-4) and four suppressor kits (S-4).
TSAP
4 Door Total Starter Access Package
The most complete system on the market, all you need to add is wire, locks and cards. This starter kit
includes WIN-PAK SE access control software (WPSE), N-1000 control panel with trans former and four
surge suppressors (N1000K4). RS45 interface (N-485-PCI-2), four OmniProx HID compatible mullion
mount readers (OP30HONE), four request-to-exit devices (IS310WH)
and four door contacts (7939WH).
TEAP2
2 Door Total Expansion Package
2-door expansion kit for the total starter package. This expansion kit includes an N-1000 control panel
with transformer and two surge suppressors (N1000K3), two OmniProx HID compatible mullion mount
readers (OP30HONE), two request-to-exit devices (IS310WH) and two
door contacts (7939WH).
TEAP4
4 Door Total Expansion Package
4 door expansion kit for the total starter package. This expansion kit includes N-1000 control panel
with transformer and four surge suppressors (N1000K4), four OmniProx HID compatible mullion mount
readers (OP30HONE), four request-to-exit devices (IS310WH) and
four door contacts (7939WH).
# Power Supplies & Batteries Sold separately
287
Access Systems-231-328 02-08.ind287 287Access Systems-231-328 02-08.ind287 287 8/12/08 12:55:05 PM8/12/08 12:55:05 PM
www.security.honeywell.com/me
HONEYWELL ACCESS SYSTEMS
Control Panel Solutions NS2+
NS2P
NS2+ Intelligent 2 Door Controller
2 reader/keypad access control panel. 10,000 code capacity, 100,000 buffer capacity, four relays
(SPDT) 12 A @ 28 VDC, 8 supervised alarm inputs, RS485 communications or TCP/IP interface
module (optional). Requires WIN-PAK SE, WIN-PAK PE, WIN-PAK PRO 2005 or WIN-PAK PRO
Central Station. Includes locking enclosure with tamper switch, transformer (X-4) and two surge
suppressors (S-4). 600 mA @ 12 VDC output for readers and auxillary devices.
Current draw: 1.25 A maximum. Dimensions: 14.5" H x 12.5" W x 3.5" D
(36.33 cm H x 31.75 cm W x 8.89 cm D).
NS2UPG1
NS2+ Upgrade Kit
Upgrade from NS2 to NS2+ control panel.
NSLAN1
Ethernet Adapter for NS2+
The NSLAN1 is a TCP/IP (10Base-T) interface that mounts directly on the NS2+ and requires no
external devices or wiring and receives power from the NS2+. Simply use the standard RJ45 jack to
connect via CAT-5 to the existing LAN/WAN network. Use one NSLAN1 for each NS2+. Transmit,
receive and good link diagnostic TCP/IP status indicators. Dimensions: 1.57" H x 1.93" W x 1.0” D
(40.0 mm H x 49.0 mm W x 25.4 mm D).
CBL50
RJ45 to DB9F Serial Cable for NS2+ Control Panel
50’ RJ45 to DB9F serial cable for use with the NS2+ control panel.
NS2ACC
NS2/NS2+ Accessory Kit
Includes cabinet lock and key, terminating resistors, LED, battery leads,
S-4 surge suppressors, panel tamper and grounding block.
NS2+
CONTROL
PANEL
The NS2+ is an intelligent 2 door controller with the feature set and processing
power comparable to many advanced controllers yet it’s user-friendly, installs
quickly and is highly economical for entry to mid-level solutions. The NS2+
boasts a 32-bit processor and memory capacity to simultaneously support
10,000 cardholders and 100,000 transactions. With an optional on-board TCP/IP
interface, the NS2+ is capable of meeting the growing demand
for Ethernet-based solutions.
# Power Supplies & Batteries Sold separately
288
Access Systems-231-328 02-08.ind288 288Access Systems-231-328 02-08.ind288 288 8/12/08 12:55:16 PM8/12/08 12:55:16 PM
HONEYWELL ACCESS SYSTEMS
Control Panel Solutions NS2+ KITS
ROCKET2P
ROCKET2P 2 Door Starter Kit with OP30 Readers
2 Door Starter Kit includes WIN-PAK SE Software, NS2+ Control Panel, (2) OP30HONE
OmniProx Proximity Readers, Transformer, RS485 Interface and Accessories.
BOOSTER2P
2 Door Expansion Kit with OP30 Readers
2 Door Expansion Kit includes NS2+ Control Panel, (2) OP30HONE OmniProx Proximity
Readers, Transformer and Accessories.
SAMPLE KITS
# Power Supplies & Batteries Sold separately
289
Access Systems-231-328 02-08.ind289 289Access Systems-231-328 02-08.ind289 289 8/12/08 12:55:43 PM8/12/08 12:55:43 PM
www.security.honeywell.com/me
HONEYWELL ACCESS SYSTEMS
Honeywell’s standalone solutions provide an
opportunity for dealers to offer access control for
single door applications. And when the need
arises these single-door/standalone solutions
can be expanded to include additional readers
or migrate to a full-fledged
access control system.
THIS SECTION INCLUDES:
NS1
EntryProx
Standalone
Systems
290
Access Systems-231-328 02-08.ind290 290Access Systems-231-328 02-08.ind290 290 8/12/08 12:55:48 PM8/12/08 12:55:48 PM
HONEYWELL ACCESS SYSTEMS
Standalone Systems
Benefits:
• Multiple programming options, keypad,
programming cards or PC-based software (NS1).
• Wiegand output allows both systems to
communicate to a full Honeywell
access control system.
• Indoor or outdoor options provide ideal
applications for gates, vestibules, small retail,
storage lockers, and more.
• Complete audit trail and reporting options provide
full system functionality at a fraction of the price.
• The NS1 can expand up to eight readers
connected through PC software.
• Tamper resistant option provides input to a
sounder or alarm.
• Flexible options for users wanting
cards or key tags.
Based on our experience, we know that customers that
start with one door eventually add more doors to an
installation. With Honeywell’s standalone
solutions users can start small and expand as their
needs grow. The NS1 is a complete standalone
controller that can be expanded to eight doors.
The EntryProx is a single door solution that is
also simple to install. Both solutions can easily migrate
to a full-featured system.
291
Access Systems-231-328 02-08.ind291 291Access Systems-231-328 02-08.ind291 291 8/12/08 12:55:54 PM8/12/08 12:55:54 PM
www.security.honeywell.com/me
HONEYWELL ACCESS SYSTEMS
Standalone Systems NS1
NS1
Integrated Single Door Proximity Reader/Controller
The NS1 is an integrated proximity reader and door controller designed to operate in standalone
or in a network mode. Supports EM format cards (NS1CARD). Requires 12 VDC @ 40 mA nominal
voltage power supply (NS1PS). Dimensions: 3.25" H x 1.89" W x .96" D (82.5 mm H x 48 mm W x
24.5 mm D). Operating temperature: 5° - 158° F (-15° - 70° C). Humidity: max 100%.
Completely sealed for outdoor applications.
NS1EM1
NS1 with 10 Proximity Cards and Program Master Cards
Complete kit containing the NS1 controller, 10 EM format cards (NS1CARD) and Program Master
cards. Power supply (NS1PS) not included.
NS1EM2
NS1 with 10 Proximity Key Tags and Program Master Cards
Complete kit containing the NS1 controller, 10 EM format key tags (NS1TAG) and Program Master
cards. Power supply (NS1PS) not included.
NS1EM3
NS1 with PC Manage Software, 485 Connection Unit & Cable
The NS1EM3 kit contains the NS1 controller, USB to RS485 converter and cable along with the
NS1 Manage software for programming and monitoring via a Windows-based PC. Network up to 8
units when connected to NS1 Manage software. 485 connection interface unit (NS1CU) is required
for each additional NS1. Supports Microsoft Windows 2000, XP and Visa. Requires 12 VDC @ 40
mA nominal voltage power supply (NS1PS).
NS1
The NS1 offers a variety of options unparalleled in an entry-level product.
Its small size, combined with powerful functions and programming capabilities,
makes the NS1 ideal for small entry-level applications with a single door or up to
eight doors of access control. Within the flexibility of the NS1, it is also capable
of migrating to other control panels as a functional proximity reader.
Features:
• 5,000 tag memory
• 2,300 event storage
• Real-time clock with two access levels
• 3 colored bezels included
• 3-5" read range
• PC-based software option
292
Access Systems-231-328 02-08.ind292 292Access Systems-231-328 02-08.ind292 292 8/12/08 12:55:57 PM8/12/08 12:55:57 PM
HONEYWELL ACCESS SYSTEMS

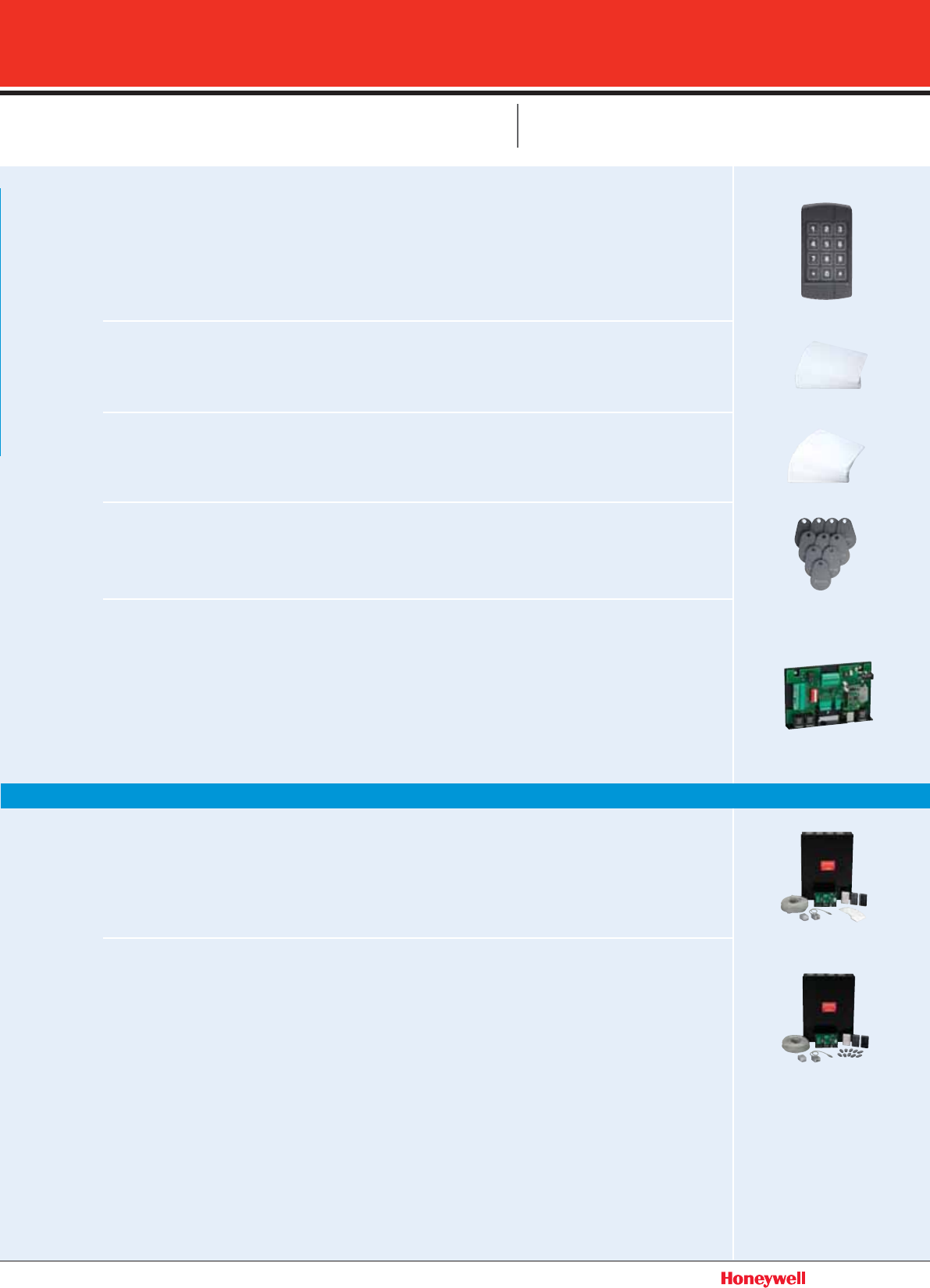

Standalone Systems NS1
NS1PRG
Wireless RF NS1 Programmer
The NS1PRG remote programmer is a wireless programming keypad for the NS1 or N-300. All system
configuration and settings can be made with the NS1PRG. The programmer utilizes a passive RF design
and does not require batteries. Dimensions: 3.5" H x 2.17" W x .5" D
(90 mm H x 55 mm W x 14 mm D).
NS1CARD
10 Pack of PVC Printable Proximity Cards for the NS1
Pack of 10 EM format PVC printable cards for the NS1 or N-300.
NS1PC25
25 Pack of PVC Printable Proximity Cards for the NS1
Pack of 25 EM format PVC printable cards for the NS1 or N-300.
NS1TAG
10 Pack Proximity Key Tags for the NS1
Pack of 10 EM format key tags for the NS1 or N-300.
NS1CU
NS1 485 Connection Interface Unit
The NS1CU connection interface unit provides an interface from the NS1 reader to a PC for
programming and monitoring utilizing the NS1 Manage software. The connection unit makes
installation easy by providing an interface for NS1 communication, door lock (2 A @ 30 VDC relay),
door status contact and REX. Communication is RS232 from PC to NS1CU with a standard DB9
connection. Dimensions: 3.88" H x 4.63" W x 1.75" D (98 mm H x 118 mm W x 45 mm D).
Power requirements: 12 VDC @ 400 mA.
NS1K1
Single Door Starter Kit with RS485 Interface – 10 Cards
Single Door Starter Kit with RS485 Expansion up to 8 Doors includes NS1 Single Door Controller with
HID reader, 100 ft. USB Extender, 12 VDC, 4 A Power Supply, HP4OOULM Battery Backup, 200 ft.
Power Cable, PC Software, RS485 Communications Interface and 10 Pack Proximity Cards.
NS1K2
S1 Single Door Starter Kit with RS485 Interface - 10 Tags
Single Door Starter Kit with RS485 Expansion up to 8 Doors includes NS1 Single Door Controller with
HID reader, 100 ft. USB Extender, 12 VDC, 4 A Power Supply, HP4OOULM Battery Backup, 200 ft.
Power Cable, PC Software, RS485 Communications Interface and 10 Pack Key Tags.
NS1 KITS
# Power Supplies & Batteries Sold separately
293
Access Systems-231-328 02-08.ind293 293Access Systems-231-328 02-08.ind293 293 8/12/08 12:56:04 PM8/12/08 12:56:04 PM
www.security.honeywell.com/me
HONEYWELL ACCESS SYSTEMS
Standalone Systems NS1 KITS / NS1 ACCESSORIES
NS1K3
NS1 Single Door Add-On Kit
NS1 Single Door Controller Add-On to NS1K1 and NS1K2. Kit includes NS1 Single Door Controller,
RS485 Communications Interface, 200 ft. Communications Cable and 200 ft. Power Cable.
NS1ANT
NS1 Remote Antenna
The NS1ANT remote antenna is developed for tamper-sensitive environments. The NS1 can be
mounted inside the building and the antenna on the outside wall surface, the remote antenna is
used to transfer the signal to the NS1. Max distance: 9.8' (3m). Dimensions: 4.65" H x 3.3" W x
.75" D (118 mm H x 84 mm W x 19 mm D).
NS1MASTER
Master Programming Cards (Program, Add, Void and Lock)
Master Programming cards for programming basic system configuration, adding and deleting cards
and performing the Night Lock function.
NS1RE
NS1 Read Range Extender
NS1 read range extender provides an additional read range up to 18". Power requirements: 12VDC
@ 300mA. Dimensions: 10.95" H x 10.4" W x1.46" D (27.8 cm H x 26.4 cm W x 3.7 cm D).
NS1SGM
NS1 Single Gang Mounting Adapter
The NS1SGM is used to mount the NS1 to a single gang electrical box (wall switch, US). Contains a
black adapter to house the NS1, metal mounting bracket and screws.
NS1TOOL
NS1 Security Tool/Bezel Opener
NS1 security tool used to remove the bezel from the NS1.
NS1PS
NS1 Power Supply
NS1 power supply rated at 750 mA @ 12 VDC. Includes 4 AH battery
backup, transformer and enclosure. Dimensions: 8.5" H x 7.5" W
x 3.5" D (21.59 cm H x 19.05 cm W x 8.89 cm D).
NSI ACCESSORIES
294
Access Systems-231-328 02-08.ind294 294Access Systems-231-328 02-08.ind294 294 8/12/08 12:56:11 PM8/12/08 12:56:11 PM
HONEYWELL ACCESS SYSTEMS

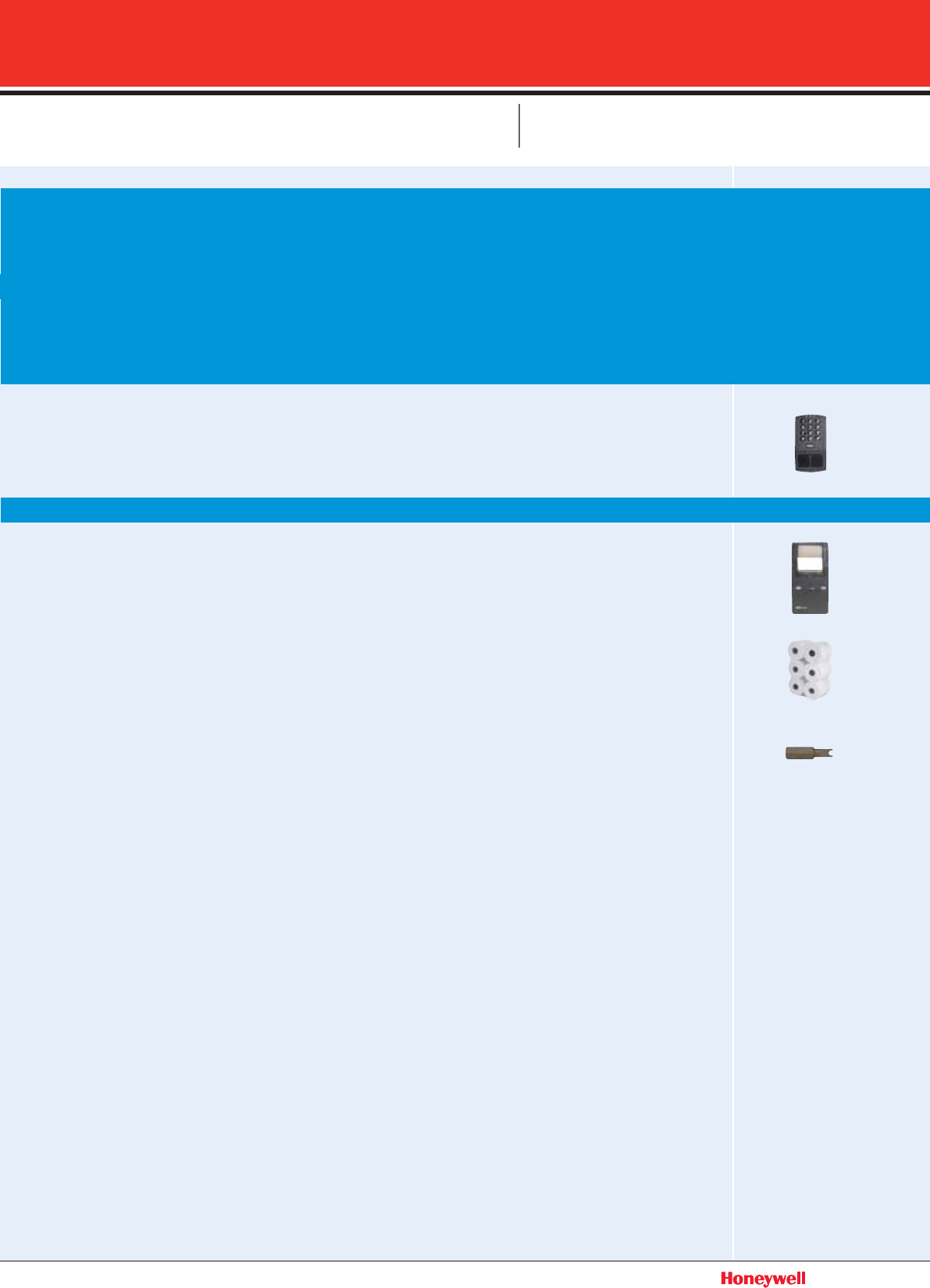

Standalone Systems ENTRYPROX
ENTRY-PROX
Standalone Proximity Controller
Dimensions: 5.25" H x 2.75" W x 1.38" D (13.33 cm H x 6.98 cm W x 3.49 cm D).
Power supply: 10-15 VDC, 150 mA @ 12 VDC.
ENTRYPROX
EntryProx provides single-door proximity access control for up to 2,000 users.
It is ideal for standalone installations, remote locations or when used in
conjunction with an on-line system. EntryProx can easily be switched to
Wiegand output mode and connected to any Honeywell or OEM controller. This
standalone reader is compatible with all 26-bit HID proximity cards or keytags. It
can also enroll most OEM or Corporate 1000 format cards and keytags
up to 37-bit.
295
ACCESSORIES
ENPROX-PRN
ENPROX Infrared Handheld Printer
IR handheld printer used for printing transactions from the EntryProx.
ENPROX-PP
ENPROX Handheld Printer Paper
Paper used with the handheld printer (ENPROX-PRN).
ENPROX-ST
ENPROX Security Tool
Access Systems-231-328 02-08.ind295 295Access Systems-231-328 02-08.ind295 295 8/12/08 12:56:17 PM8/12/08 12:56:17 PM
www.security.honeywell.com/me
HONEYWELL ACCESS SYSTEMS
296
Offer a complete access control system using
photo identification badges. Photo IDs provide
additional security for your facility by allowing
other employees to visually validate the
cardholder. Additional security is provided when
the cardholder’s image is brought up on the
security monitor providing instant verification
when the card is not visible.
A full line of badging accessories provide the
finishing touches to your badging applications.
Accessories include card punches, lanyards,
chains, clips and more.
THIS SECTION INCLUDES:
Badging Printers
Add-on Kits
Supplies
Card Accessories
Badging
Systems
Access Systems-231-328 02-08.ind296 296Access Systems-231-328 02-08.ind296 296 8/12/08 12:56:18 PM8/12/08 12:56:18 PM
HONEYWELL ACCESS SYSTEMS
297
Badging Systems RIO 2e™/TANGO 2e™ PRINTERS
M9006-749
Rio 2e Simplex PVC Color Badging Printer
Rio 2e photo ID badge printer for single side print applications. Weight: 15.8 lbs (7.2 kg).
Dimensions: 9.15" H x 7.6" W x 14.55" D (23.25 cm H x 19.35 cm W x 36.95 cm D).
ALSO AVAILABLE:
M9006-751
Rio 2e Simplex PVC Color Badging Printer with Magnetic Stripe Encoder
M9006-745
Tango 2e Duplex PVC Color Badging Printer
Tango 2e photo ID badge printer for two-sided print applications. Weight: 18.3 lbs (8.3 kg).
Dimensions: 9.15" H x 7.6" W x 18.58" D (23.25 cm H x 19.35 cm W x 47.11cm D).
M9006-747
Tango 2e Duplex PVC Color Badging Printer with Magnetic Stripe Encoder
Tango 2e photo ID badge printer for two-sided print and magnetic stripe encoding applications.
The magnetic stripe encoder is a dual coercivity magnetic stripe encoder which offers
encoding of all three tracks. Weight: 18.3 lbs (8.3 kg). Dimensions: 9.15" H x 7.6" W x 18.58" D
(23.25 cm H x 19.35 cm W x 47.11c m D).
M9007-125E
Tango +L Duplex Printer with Built-In Laminator
The Tango +L is a duplex printer that provides additional laminate protection to the card
surface. The single unit design allows simple configuration. 113 V operation. Weight: 44 lbs (20
kg).
Dimensions: 10” H x 12” W x 27.5” D (26 cm H x 30 cm W x 70 cm D).
See matrix charts for printer supplies and legacy part number cross reference on pages 84 and 89.
RIO 2e™ / TANGO 2e™
PRINTERS
Whether your badging needs demand production of hundreds of
badges a day or just a few, the Rio 2e™ and Tango 2e™ printers
provide a combination of ease of use and reliability to meet your
demands. The Rio 2e printer provides simplex (one-sided) card
printing while the Tango 2e provides duplex (two-sided) card
printing and lamination.The built in HoloKote™ security watermark
feature comes standard with both printers.
Features:
• Edge-to-edge printing
• 20 second print time
(40 seconds for color duplex)
• LCD display
• 100 card hopper
• USB and parallel cables included
• 3-year warranty with loaner
• USB, Ethernet and parallel
interfaces
Access Systems-231-328 02-08.ind297 297Access Systems-231-328 02-08.ind297 297 8/12/08 12:56:20 PM8/12/08 12:56:20 PM
www.security.honeywell.com/me
HONEYWELL ACCESS SYSTEMS
298
Badging Systems RIO 2e™/TANGO 2e™ PRINTERS
M9007-257E
Tango +L Duplex Printer with Built in Laminator and Chip Encoder
The Tango +L is a duplex printer with smart chip encoder that provides additional laminate
protection to the card surface and is approved for FIPS 201 applications. The single unit
design allows simple configuration. 115 V operation. Weight: 44 lbs (20 kg).
Dimensions: 10” H x 12” W x27.5” D (26 cm H x 30 cm W x 70 cm D).
PB35KT
Rio 2e Add-On Simplex Badging Kit
Photo ID badging kit. Includes Rio 2e simplex badging printer (M9006-749), color ribbon,
camera, tripod, lighting kit and 25 blank cards. Video capture card required for NStar, WIN-PAK 2.0
and WIN-PAK PRO systems (PBVC15). No video capture card is required when used with WIN-PAK
SE, WIN-PAK PE, WIN-PAK 2005 or WIN-PAK PRO 2005. Not intended for installation
on a file server OS.
PB35MOKT
Rio 2e Add-On Simplex and Magnetic Stripe Badging Kit
Photo ID badging kit. Includes Rio 2e simplex badging printer with magnetic stripe encoder
(M9006-751), color ribbon, camera, tripod, lighting kit and 25 blank cards. Video capture card
required for NStar, WIN-PAK 2.0 and WIN-PAK PRO systems (PBVC15). No video capture card is
required when used with WIN-PAK SE, WIN-PAK PE, WIN-PAK 2005 or WIN-PAK PRO 2005. Not
intended for installation on a file server OS.
PB35DOKT
Tango 2e Add-On Duplex Badging Kit
Photo ID badging kit. Includes Tango 2e duplex badging printer (M9006-745), color ribbon,
camera, tripod, lighting kit and 25 blank cards. Video capture card required for NStar, WIN-PAK 2.0
and WIN-PAK PRO systems (PBVC15). No video capture card is required when used with WIN-PAK
SE, WIN-PAK PE, WIN-PAK 2005 or WIN-PAK PRO 2005. Not intended for installation
on a file server OS.
PB35DMKT
Tango 2e Add-On Duplex and Magnetic Stripe Encoder Badging Kit
Photo ID badging kit. Includes Tango 2e duplex badging printer with magnetic stripe encoder
(M9006-747), color ribbon, camera, tripod, lighting kit and 25 blank cards. Video capture card
required for NStar, WIN-PAK 2.0 and WIN-PAK PRO systems (PBVC15). No video capture card is
required when used with WIN-PAK SE, WIN-PAK PE, WIN-PAK 2005 or WIN-PAK PRO 2005. Not
intended for installation on a file server OS.
RIO 2e/TANGO 2e ADD-ON BADGING KITS
Access Systems-231-328 02-08.ind298 298Access Systems-231-328 02-08.ind298 298 8/12/08 12:56:22 PM8/12/08 12:56:22 PM
HONEYWELL ACCESS SYSTEMS
299
Badging Systems PRIMA™ PRINTERS
PRIMA/100
Prima 2e Reverse Transfer Duplex PVC Color Badging Printer
Prima 2e reverse transfer, two sided photo ID badge printer. Color ribbon plus retransfer ribbon
are used together. Weight: 48.5 lbs (22 kg). Dimensions: 15.0" H x 13.4" W x 13.4" D
(28.1 cm H x 34.0 cm W x 34.00 cm D).
PRIMA/101
Prima 2e Reverse Transfer Duplex PVC Color Badging Printer
with Magnetic Stripe Encoder
Prima 2e reverse transfer, two sided photo ID badge printer with magnetic stripe encoder.
Color ribbon plus retransfer ribbon are used together. The magnetic stripe encoder is a dual corecivity
magnetic stripe encoder. Weight: 48.5 lbs (22 kg). Dimensions: 15.0" H x 13.4" W x 13.4" D
(28.1 cm H x 34.0 cm W x 34.00 cm D).
PRIMA/017
Prima Lamination Unit
PRIMA106R
Prima Contact Chip Controller Kit
PRIMA064R
Prima 2e Inline Single Side Lamination Unit for PRIMA/100 and PRIMA/101
Connecting the PRIMA064R unit to the Prima 2e is very easy. Simply attach the unit joining plate to
the printer unit, position the PRIMA064R on the joining plate and plug in the communication cable.
PRIMA™ PRINTERS
The reverse-transfer Prima 2e is ideal for producing top quality, dura-
ble cards. The quality of the finished card is similar to that achieved
by off-set litho printing, but with the advantage that every card can be
different.
Features:
• Prints 30 seconds/side full color
• 300 card hopper
• 1000 – print YMCK ribbon
• 1000 – print retransfer film
• 3-year hot swap warranty
(US & Canada)
– Interface: USB or Ethernet
Access Systems-231-328 02-08.ind299 299Access Systems-231-328 02-08.ind299 299 8/12/08 12:56:25 PM8/12/08 12:56:25 PM
www.security.honeywell.com/me
HONEYWELL ACCESS SYSTEMS
300
Badging Systems ALTO™ PRINTERS
M9006-380
Alto Printer
Alto™ photo ID badge printer for single side print applications. Weight: 7 lbs (3.2 kg).
Dimensions: 7.8" H x 6.9" W x 8.3" D (20.0 cm H x 17.5 cm W x 21.1 cm D).
M9006-381
Alto Printer with Magnetic Encoder
Alto photo ID badge printer for single side print and magnetic stripe
encoding applications. The magnetic stripe encoder is high coercivity
for track 1 and track 2 encoding only. Weight: 7 lbs (3.2 kg).
Dimensions: 7.8" H x 6.9" W x 8.3" D (20.0 cm H x 17.5 cm W x 21.1 cm D).
ALTO™
PRINTERS
For small applications the Alto™ printer provides quality badge printing at
an affordable price. Cards are conveniently stored in a dispenser allowing
only one card to be hand fed at a time. Flip the card over and print on the
other side and save the cost of a more expensive duplex printer. The built in
HoloKote™ security watermark feature comes standard.
Features:
• Edge-to-edge printing
• 30 second print time
• USB cable included
• 3-year warranty with loaner
Access Systems-231-328 02-08.ind300 300Access Systems-231-328 02-08.ind300 300 8/12/08 12:56:25 PM8/12/08 12:56:25 PM
HONEYWELL ACCESS SYSTEMS
301

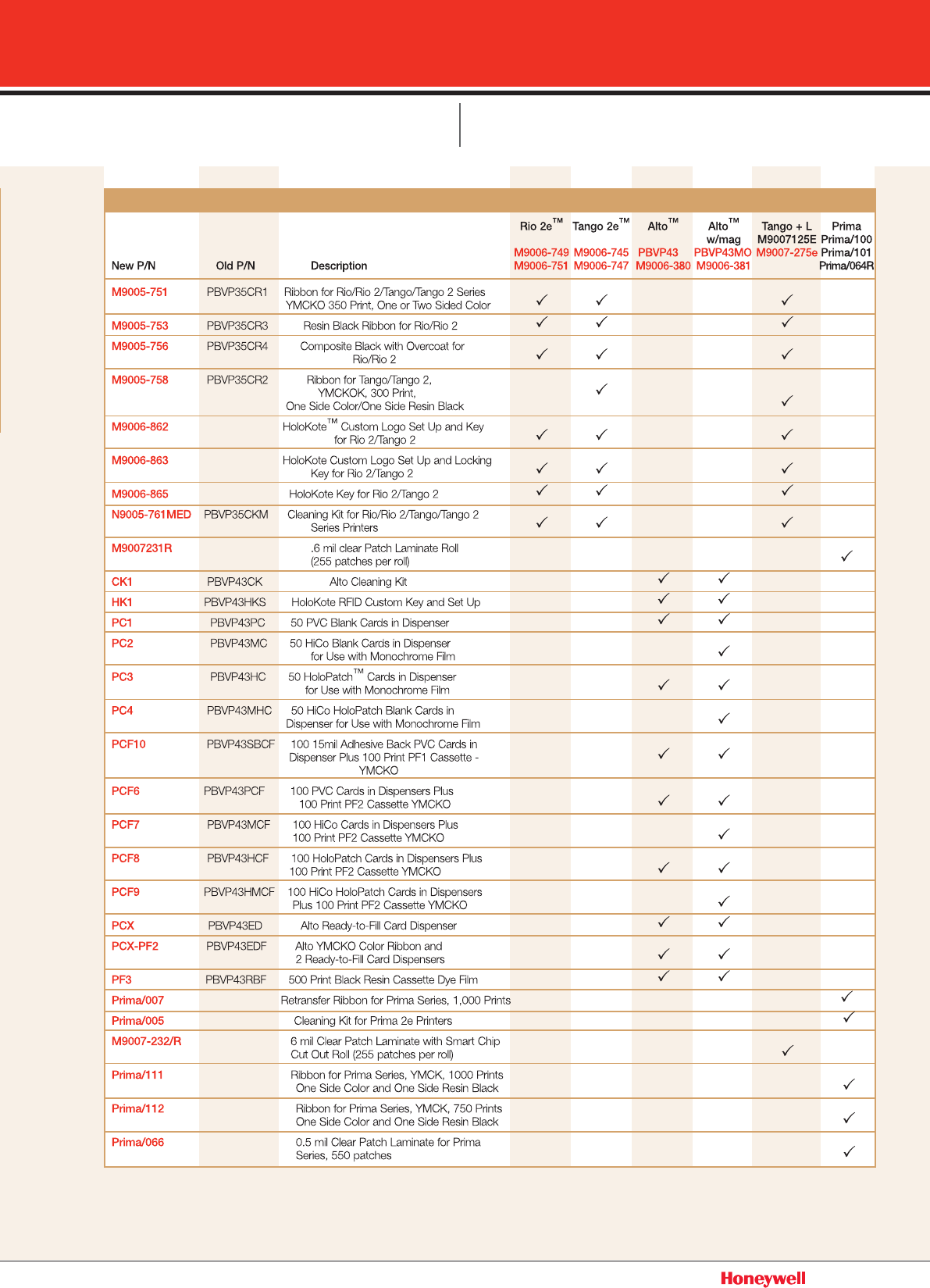

Badging Systems SUPPLY MATRIX FOR ACTIVE PRINTERS
ACTIVE PRINTERS
SUPPLIES
Access Systems-231-328 02-08.ind301 301Access Systems-231-328 02-08.ind301 301 8/12/08 12:56:26 PM8/12/08 12:56:26 PM
www.security.honeywell.com/me
HONEYWELL ACCESS SYSTEMS
302

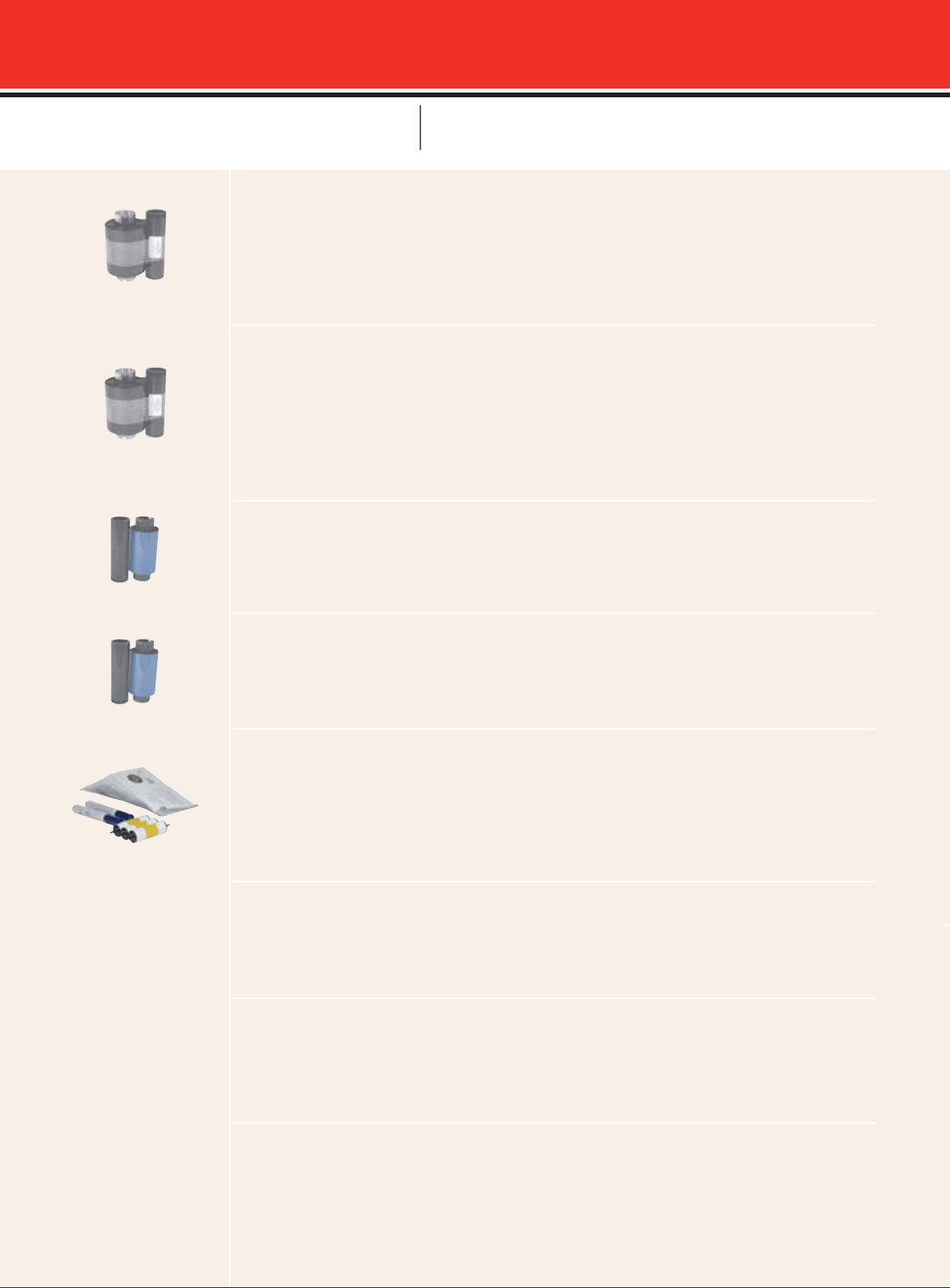

Badging Systems RIO 2e™/TANGO 2e™ SUPPLIES
M9005-751
Ribbon, Simplex or Duplex Print for Rio/Rio 2e and
Tango-/Tango 2e/Tago +L Printers
Provides 300 simplex or 175 duplex prints. Color ribbon for Rio/Rio 2e and Tango/Tango 2e/Tango
+L printers. Provides full color with resin black and overcoat (YMCKOK). Resin black provides
carbon content for infrared bar code readers and crisp black for text.
M9005-758
One-Side Color/One-Side Resin Black for
Tango/Tango 2e/Tango +L Printers
Provides 300 duplex prints. Color ribbon for Tango/Tango 2e/Tango +L two-sided series printers.
One side full color print with resin black and overcoat and second side with resin black only
(YMCKOK). Resin black provides carbon content for infrared bar code readers and
crisp black for text.
M9005-753
Resin Black Ribbon for Rio/Rio 2e and Tango/Tango 2e/Tango +L Printers
Provides 1,000 prints. Resin black provides carbon content for infrared
bar code readers and a crisp black for text.
M9005-756
Resin Black with Overcoat for Rio/Rio 2e and Tango/Tango 2e/Tango +L Printers
Provides 600 prints. Resin black provides carbon content for infrared bar code
readers and a crisp black for text.
N9005-761MED
Cleaning Kit for Rio/Rio 2e and Tango/Tango 2e Printers
Cleaning kit for Rio/Rio 2e and Tango/Tango 2e printers. Contains ten cleaning cards, two
cleaning pens and three cleaning rollers. Cleaning should be performed between each ribbon
replacement or 300 prints for Tango +L. Under typical conditions one N9005-761MED should be
ordered for every ten ribbons ordered.
PRIMA/007
Prima 2e Retransfer Ribbon
Retransfer ribbon provides for up to 1,000 prints (500 two sided cards).
Use with Prima 2e series printers.
PRIMA/005
Cleaning Kit for Prima 2e Printers
Cleaning kit for Prima 2e printers consists of 10 pads and 10 cards.
Suggested cleaning frequency is about once for every 300 cards printed.
PRIMA/111
Color Ribbon for the PRIMA 2e Printers
Provides 1,000 (500 two sided) color prints (YMCK). Use with Prima 2e series printer.
Access Systems-231-328 02-08.ind302 302Access Systems-231-328 02-08.ind302 302 8/12/08 12:56:26 PM8/12/08 12:56:26 PM
HONEYWELL ACCESS SYSTEMS
303
Badging Systems RIO 2e/TANGO 2e ACCESSORIES
PRIMA/112
Color Ribbon for the PRIMA 2e Printers
Print up to 750 cards - one side full color print with resin black and second side with resin black only
(YMCKK). Resin black provides carbon content for infrared bar code readers and crisp black for text.
Use with Prima 2e series printer
PRIMA/066
Clear Patch Laminate
Provides 550 laminate patches, 0.5 mil thick for use with the PRIMA064R inline laminator.
M9006-862
HoloKote™ Custom Logo Set Up and Key for Rio 2e/Tango 2e Printers
HoloKote™ Custom Key™ for the Rio 2e or Tango 2e provides a removable key for higher security against
unauthorized card production. Either USB or parallel printer port can be used for connection to the computer.
ALSO AVAILABLE:
M9006-863
HoloKote Custom Logo Set Up and Key with Locking Capability
for Rio 2e/Tango 2e Printers
M9006-865
Duplicate HoloKote Key for Rio 2e/Tango 2e Printers
Duplicate HoloKote™ Custom Key™ only for the Rio 2e/Tango 2e.
Requires that a M9006-862 has already been made.
M9007-231R
Ultra Shield for Tango +L, Sicura or UltraShield Laminators.
0.6 mil clear patch laminate roll-255 patches per roll.
M9007-230R
Ultra Shield for Tango +L, Sicura or UltraShield Laminators
1.0 mil clear patch laminate roll-255 patches per roll.
M9007-232R
Ultra Shield for Tango +L with Chip Cut Out
0.6 mil clear patch laminate roll with chip cut out. 255 patches.
M9006-735
Feed Hopper for Rio 2e/Tango 2e
M9006-736
Collector Hopper for Rio2e/Tango
Access Systems-231-328 02-08.ind303 303Access Systems-231-328 02-08.ind303 303 8/12/08 12:56:27 PM8/12/08 12:56:27 PM
www.security.honeywell.com/me
HONEYWELL ACCESS SYSTEMS
304
Badging Systems ALTO™ SUPPLIES / ACCESSORIES
CK1
Alto™ Cleaning Kit
Cleaning kit for Alto printers. Cleaning kit contains five cleaning cards and one cleaning pen. Cleaning
should be performed between each ribbon replacement. Under typical conditions one CK1 should be
ordered for every five ribbons ordered.
PCX
Alto Ready-to-Fill Card Dispenser
Ready-to-fill card dispenser for technology cards for Alto printers.
PCX-PF2
Alto Color Ribbon and 2 Ready-to-Fill Dispensers
100 print color YMCKO cassette for the Alto printer and two ready-to-fill
50-card capacity dispensers for technology cards.
PC3
50 HoloPatch™ Cards in Dispenser for use with Black Resin Film
50 HoloPatch cards in dispenser for use with black resin film (PF3).
PCF8
100 HoloPatch Cards in Dispensers with Color Print Cassette
100 print color YMCKO cassette for the Alto printer and two dispensers each
with 50 HoloPatch cards.
ALSO AVAILABLE: PCF7
100 Magnetic Stripe Cards in Dispensers with Color Print Cassette
100 print color YMCKO cassette for the Alto printer and two dispensers each
with 50 high coercivity magnetic stripe cards.
PCF9
100 Magnetic Stripe HoloPatch Cards in Dispensers with Color Print Cassette
100 print color YMCKO cassette for the Alto printer and two dispensers each
with 50 high coercivity magnetic stripe HoloPatch cards.
Access Systems-231-328 02-08.ind304 304Access Systems-231-328 02-08.ind304 304 8/12/08 12:56:28 PM8/12/08 12:56:28 PM
HONEYWELL ACCESS SYSTEMS
305

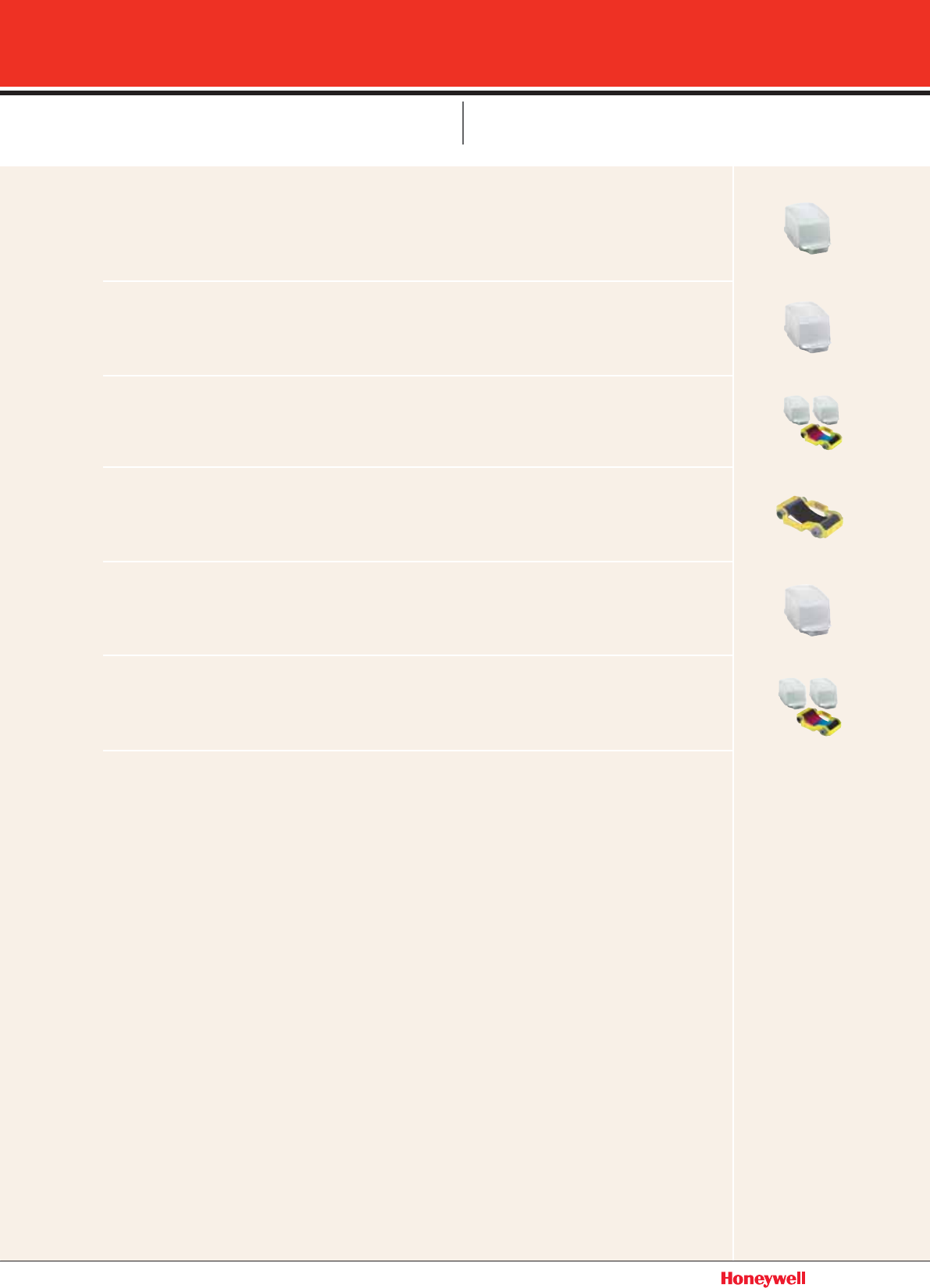

Badging Systems ALTO™ SUPPLIES / ACCESSORIES
PC4
50 Magnetic Stripe HoloPatch™ Blank Cards in
Dispenser for Use with Black Resin Film
50 high coercivity magnetic stripe HoloPatch blank cards in dispenser for use with black resin film (PF3)
PC1
50 PVC Blank Cards in Dispenser
50 blank cards in dispenser for use with black resin film (PF3).
PCF6
100 PVC Cards in Dispensers with Color Print Cassette
100 print color YMCKO cassette and two dispensers each with 50 blank cards.
PF3
Monochrome Cassette Dye Film
500 print black resin cassette dye film.
PC2
50 Blank Cards with Magnetic Stripe in Dispenser
50 high coercivity magnetic stripe blank cards in dispenser for use with monochrome film (PF3).
PCF10
100 Stickyback Cards in Dispensers with Color Print Cassette
100 15 mil adhesive back PVC cards in dispensers plus 100 print color YMCKO cassette.
HK1
HoloKote RFID Custom Key & Set Up for Alto Printers
HoloKote Custom Key for Alto printers provides a removable key for higher security against
unauthorized card production. The key is programmed with custom text only.
Access Systems-231-328 02-08.ind305 305Access Systems-231-328 02-08.ind305 305 8/12/08 12:56:30 PM8/12/08 12:56:30 PM
www.security.honeywell.com/me
HONEYWELL ACCESS SYSTEMS
306
Rio Tango
M9005-724 M9005-776 Turbo
PBVP35 PBVP35DO PB-VP-17
M9005-725 M9005-777
M-300 Turbo UltraShield
New P/N Old P/N Description PBVP35MO PBVP35DM PB-VP-8
PB-VP-17-DO
PBVP-8-LAM
M3610-037 PB-VP8S
Color Ribbon with Resin Black for PB-VP-8
P
P
or PB-VP-17 Series, YMCKO 250 Print
M9002-819 PB-VP8S-CLR PB-VP-8 Sticky Cleaning Roller
P
P
M9003-189 PBVP8S3 Ultra Resin Black Only Ribbon 600 Print
P
P
M9003-215 PBVP8S2 Ribbon for PBVP-17-Dx Series YMCKOK
200 Print, One Side Color /
P
One Side Resin Black
M9004-371 PBVP-8-LAM-RIB Ultra Shield for PBVP35LAM or PBVP-8-LAM
P
M9005-751 PBVP35CR1 Ribbon for Rio/Rio 2e/Tango/Tango 2e Series
P
P
YMCKO 350 Print, One or Two Sided Color
M9005-753 PBVP35CR3 Resin Black Ribbon for Rio/Rio 2e
P
P
M9005-756 PBVP35CR4 Composite Black with Overcoat for Rio/Rio 2e
P
P
M9005-758 PBVP35CR2
Ribbon for Tango/Tango 2e, YMCKOK 300 Print
P
One Side Color / One Side Resin Black
M9005-762 PBVP35HKL HoloKote Custom Logo Set Up and Key
P
P
for PBVP35 Series (Rio / Tango)
M9005-763 PBVP35HKO HoloKote Key for PBVP35 (Rio / Tango)
P
P
N9005-761MED PBVP35CKM Cleaning Kit for Rio/Rio 2e/Tango/Tango 2e
P
P
Series Printers
N9003564L
PB-VP-8-CLEAN-K
Cleaning Kit for Turbo and M-300
P
P
LEGACY PRINTERS
SUPPLIES
Badging Systems SUPPLY MATRIX FOR LEGACY PRINTERS
Access Systems-231-328 02-08.ind306 306Access Systems-231-328 02-08.ind306 306 8/12/08 12:56:32 PM8/12/08 12:56:32 PM
HONEYWELL ACCESS SYSTEMS
307

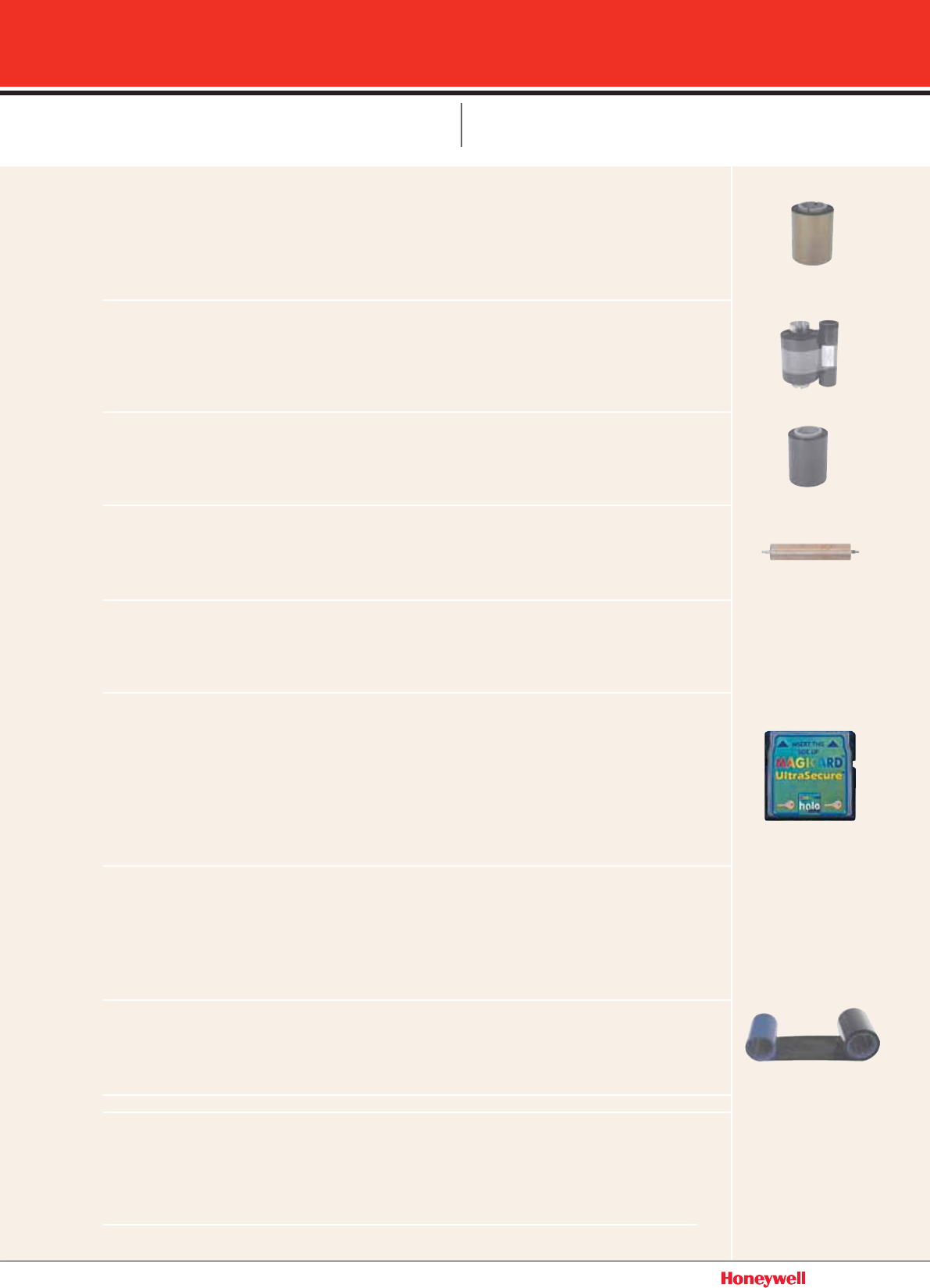

Badging Systems SUPPLIES FOR LEGACY PRINTERS
M3610-037
Color Ribbon with Resin Black for M-300 & Turbo Printers
Color ribbon for the Turbo and M-300 PVC printer. 4-color dye-sublimation YMCKO ribbon with
clear overlay, resin black panel, good for up to 250 cards. This ribbon can be used with infrared
barcode readers like the BR-7.
M9003-215
Ribbon for Turbo Duplex Printers, One Side Color/One Side Resin Black
Color YMCKOK ribbon for the Turbo Flip and Sprinter Flip printers.
Prints one side color and the other side resin black. 200 prints per roll.
M9003-189
Resin Black Only Ribbon
Resin black only ribbon for the Turbo and M-300 printers. 600 prints.
M9002-819
Sticky Cleaning Roller
Sticky cleaning roller for the Turbo and M-300 printers.
N9003564L
Cleaning Kit for M-300 & Turbo Printers
Cleaning kit for M-300 and Turbo printers. Includes 100 cleaning cards and 6 cleaning pens.
M9005-762
HoloKote Custom Logo Set Up & Key for Rio/Tango Printers
HoloKote Custom Key for the Rio/Tango printers that provides a removable key for higher secu-
rity against unauthorized card production. The key is programmed with your logo. A graphic of the
logo must be submitted no larger than 158 x 149 pixels. Can be used with cards that have the
HoloPatch. The custom key plugs into the printer. Either USB or parallel printer port can be used for
connection to the computer
ALSO AVAILABLE:
M9005-763
Duplicate HoloKote Key for Rio/Tango Printers
Duplicate HoloKote Custom Key only for the Rio/Tango Printers.
Requires that a M9005-762 has already been made.
PBAITCR1
Printer Ribbon for Datacard Magna Series Printers
Four-color platinum series YMCKT ribbon with topcoat for use with Magna
series printers starting with the serial number "Bxxxxxx." For single or two-sided full color printing.
ALSO AVAILABLE:
PBAITCR2
Printer Ribbon for Datacard Magna Series Printers
Same as above, YMCKT with K panel. One side color print / other side resin black.
Access Systems-231-328 02-08.ind307 307Access Systems-231-328 02-08.ind307 307 8/12/08 12:56:33 PM8/12/08 12:56:33 PM
www.security.honeywell.com/me
HONEYWELL ACCESS SYSTEMS
308
Badging Systems BADGING COMPONENTS
PBCAM14
Photo ID Badging Camera
Badging camera kit includes camera, power supply, wired remote control and lighting kit mounting
adapter. Camera features auto focus, 16x optical (128 digital) zoom, S-video and composite video
output, USB 1.1 (USB 2.0 compliant), active pixels NTSC 768 X 494, USB resolution at 15 fps,
640 x 480 res. Power supply is 120 V plug in with 12 VDC output. Dimensions: 2.35" H x 2.28"
W x 3.90" D (5.98 cm H x 5.80 cm W x 9.90 cm D).
PBLK3
Single Point Lighting Kit
Single point lighting kit for the PBCAM14, PBCAM12 or PBCAM-10 cameras. Light brilliance is
controlled by slide dimmer and “barn doors.” Tilts for angle adjustment. Tempered glass safety
shield. 100 W quartz lamp included. Replacement bulb is the PBLK3BLB.
Dimensions: 2.75" H x 2.75" W x 4.25" D (6.99 cm H x 6.99 cm W x 10.8 cm D).
PBLK3BLB
Replacement Bulb for PBLK3
LWVMSSIG
Topaz SigLight LCD Signature Capture Pad
USB signature capture pad used to capture visitor signatures during registration.
Dimensions: 3" H x 6" W x 1" D (7.62 cm H x 15.24 cm W x 2.54 cm D).
Note: For use with WIN PAK SE, WIN PAK PE.
PB-SIG-CAP-STYL
Stylus Pen for Signature Capture Pad
Replacement stylus pen for the PB-SIG-CAP or PBSIGCAPLCD.
PB-TRI-POD
Tripod for Badging Camera
3-way fluid panhead with quick release geared center column, 3-section 20mm tubular
aluminum legs, steel ground spikes with adjustable rubber-tipped feet. Height range:
21-57" (144.78-53.34 cm).
PBVC16
Video Capture Card
Video capture card compatible with WIN-PAK 1.17, WIN-PAK 2.0 Release 4, WIN-PAK 2005, WIN-PAK SE,
WIN-PAK PRO Release 4 and WIN-PAK PRO™ 2005 software programs. Accepts composite or S-video input.
Requires one PCI style slot. Does not replace your existing video card. Requires cable (CBL-VB-CAM-2).
PBVC17
Video Capture Card
Same as the PBVC16 except it is a half height card for small form factor computers.
PBVC17
Half height version of the PBVC16
CBL-VB-CAM-2
12' Camera to Capture Card Cable
12' (3.65m) BNC Male – BNC Male RG59 video camera cable. For use with video capture card (PBVC15).
Access Systems-231-328 02-08.ind308 308Access Systems-231-328 02-08.ind308 308 8/12/08 12:56:33 PM8/12/08 12:56:33 PM
HONEYWELL ACCESS SYSTEMS
309
Honeywell offers a comprehensive selection of
readers and credentials to fit any application.
From basic proximity technology to the more
advanced smart card and biometric solutions
– you can find the exact reader and credential
solution to meet the needs of any customer.
THIS SECTION INCLUDES:
Proximity
Smart Technology
Biometrics
Magnetic Stripe
Wiegand
Keypads
Barcode
Transmitters / Receivers
Card Accessories
Reader Accessories
Wireless Readers
Readers &
Credentials
Access Systems-231-328 02-08.ind309 309Access Systems-231-328 02-08.ind309 309 8/12/08 12:56:39 PM8/12/08 12:56:39 PM
www.security.honeywell.com/me
HONEYWELL ACCESS SYSTEMS
Readers & Credentials
Benefits:
• Unprecedented choice in the type, shape, size
and color for readers.
• Comprehensive offering of 125 kHz proximity,
magnetic stripe and keypad readers provides an
economical access control solution for retrofits,
expansions and new installations.
• Availability of newer technologies such as 13.56
MHz smart cards and readers provides the ability
to offer sophisticated access control solutions that
can integrate with other enterprise functions such
as logical access or financial transactions.
• Biometric solutions offer enhanced security
for sensitive facilities and also bridge the gap
between physical and logical security.
Honeywell’s OmniProx™ offers a complete line of
HID compatible 125 kHz proximity readers. The
new OmniAssure™ family is a line of smart card
readers that are the easiest to use in today’s mar-
ket. In addition to the above brands, Honeywell
offers a wide selection of popular readers and
credentials from other manufacturers such as HID,
Precise Biometrics and Indala, to name a few.
310
Access Systems-231-328 02-08.ind310 310Access Systems-231-328 02-08.ind310 310 8/12/08 12:56:39 PM8/12/08 12:56:39 PM
HONEYWELL ACCESS SYSTEMS
311

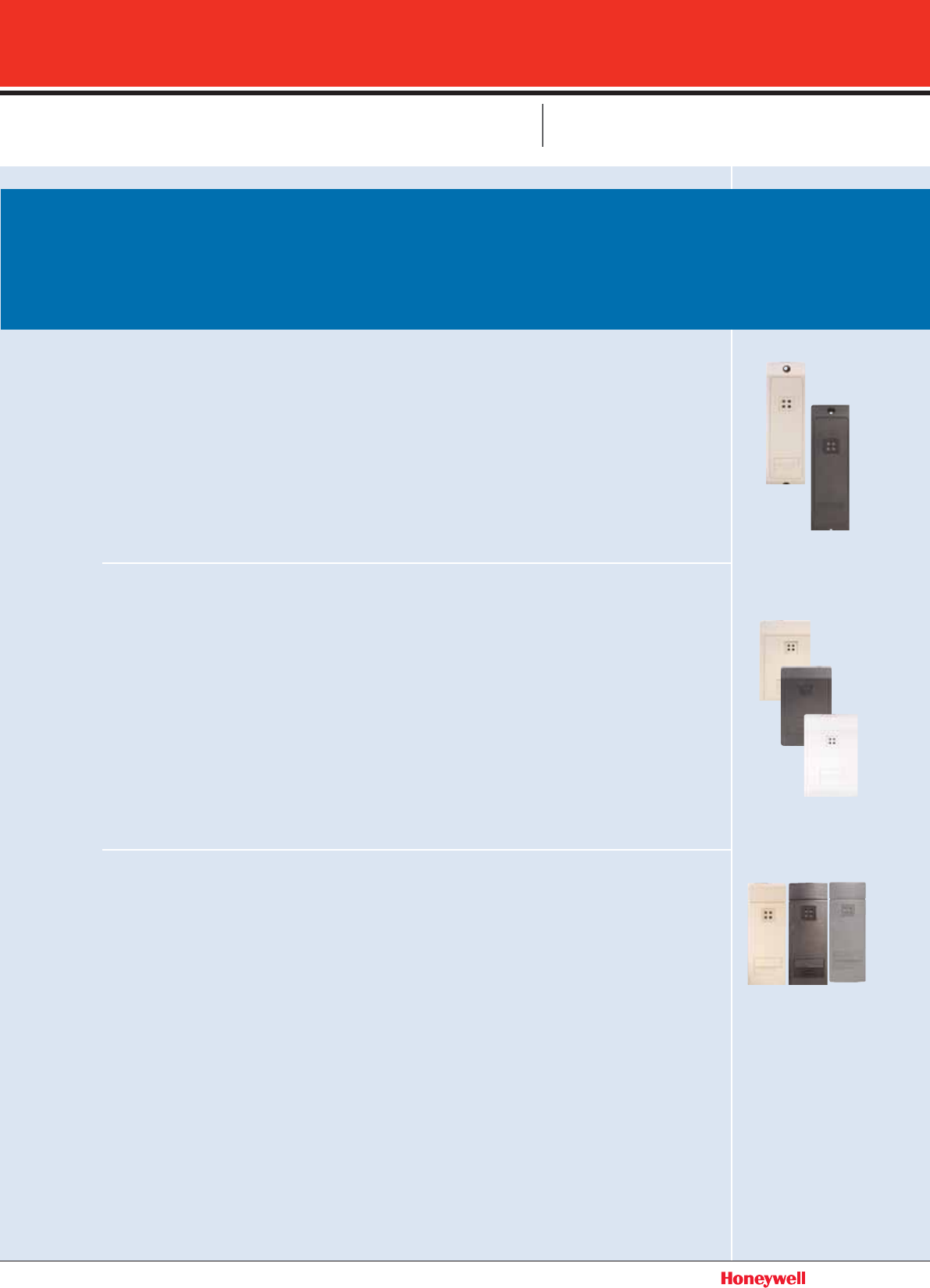

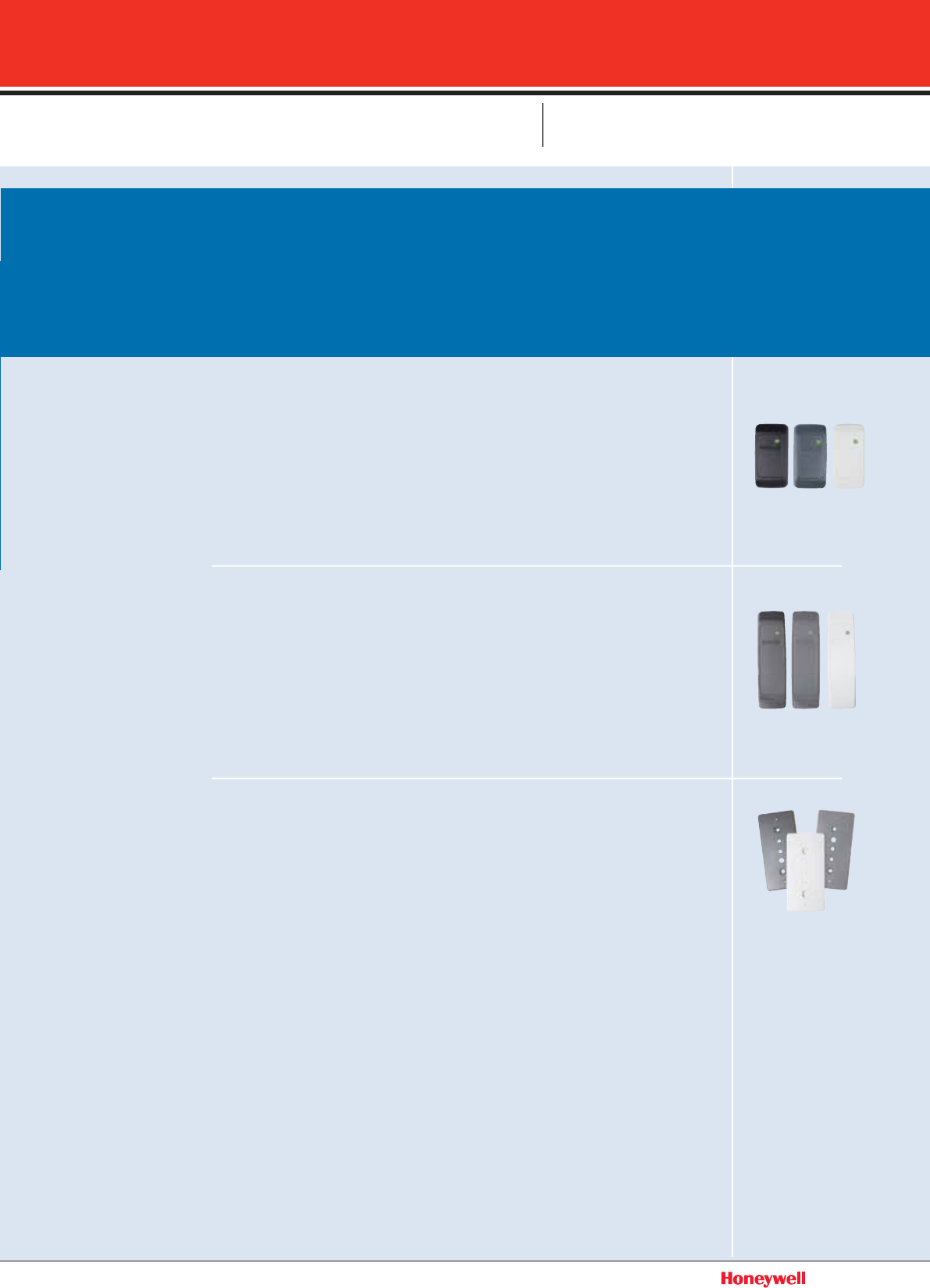

Readers & Credentials OMNIPROX™ PROXIMITY READERS
OP10HONE
OmniProx Mini Mullion Mount Reader with Honeywell Logo
Mini mullion, HID compatible reader with up to a 3" (7.62 cm) read range and includes black,
charcoal gray and ivory bezels. This reader features a built-in tamper and Wiegand output.
Dimensions: 3.15" H x 1.57" W x 0.50" D (8.0 cm H x 4.0 cm W x 1.28 cm D).
ALSO AVAILABLE:
OP10GENE
OmniProx Mini Mullion Mount Reader with No Logo
OP30HONE
OmniProx Mullion Mount Reader with Honeywell Logo
Mullion, HID compatible reader with up to a 5" (12.7 cm) read range and includes black,
charcoal gray and ivory bezels. This reader features a built-in tamper and Wiegand output.
Dimensions: 5.71" H x 1.69" W x 0.79" D (14.5 cm H x 4.3 cm W x 2.0 cm D).
ALSO AVAILABLE:
OP30GENE
OmniProx Mullion Mount Reader with No Logo
OAMAP30
OP30 Single Gang Adapter Plate – Set of 3
Set of 3 adapter plates (black, charcoal gray and ivory) for covering a U.S. gangbox prior to
mounting a mullion reader. The adapter plate is compatible with all OP30 models.
Use to retrofit existing HID MiniProx readers.
3 colored bezels included
3 colored bezels included
OMNIPROX™
PROXIMITY
READERS
The OmniProx™ family is a complete line of 125 kHz HID compatible
proximity readers. All OmniProx readers (except the OP90) include three
bezels: black, charcoal gray and ivory and are potted for both indoor and out-
door applications. For locations that require a proximity reader able to with-
stand vandal-prone environments, the OP90 vandal resistant readers come
standard in zinc die-cast metal housing.
Access Systems-231-328 02-08.ind311 311Access Systems-231-328 02-08.ind311 311 8/12/08 12:56:40 PM8/12/08 12:56:40 PM
www.security.honeywell.com/me
HONEYWELL ACCESS SYSTEMS
Readers & Credentials OMNIPROX PROXIMITY READERS
OP40HONE
OmniProx Wall Mount Reader with Honeywell Logo
U.S. gangbox, HID compatible reader with up to a 4" (10.16 cm) read range and includes black,
charcoal gray and ivory bezels. This reader features a built-in tamper and Wiegand output.
Dimensions: 4.33" H x 2.95" W x 0.59" D (11.0 cm H x 7.5 cm W x 1.5 cm D).
ALSO AVAILABLE:
OP40GENE
OmniProx Wall Mount Reader with No Logo
OP90HONE
OmniProx Vandal Resistant Mount Reader with Honeywell Logo
Stainless steel, vandal-resistant reader with up to a 1.5" (3.81 cm) read range. This reader features
a built-in tamper and Wiegand output. Dimensions: 4.75" H x 3" W x 0.82" D
(12.1 cm H x 7.6 cm W x 2.1 cm D).
OP30RTEWH
OmniProx Mullion Mount Reader and PIR Kit
Includes an OmniProx mullion mount reader (OP30HONE) and a white PIR (IS310WH). Mullion,
HID compatible reader with up to a 5” (12.7cm) read range and includes black, charcoal gray
and ivory bezels. This reader features a built-in tamper and wiegand output.
Dimensions: 5.71” H x 1.69” W x .79” D (14.5 cm H x 4.3 cm W x 2.0 cm D).
ALSO AVAILABLE:
OP30RTEBK
OmniProx Mullion Mount Reader and PIR Kit
Includes an OmniProx reader (OP30HONE) and a black PIR (IS310BK).
OP40RTEWH
OmniProx Wall Mount Reader and PIR Kit
Includes an OmniProx wall mount reader (OP40HONE) and a white PIR (IS310WH).
Single gangbox, HID compatible reader with up to a 4” (10.16 cm) read range and includes black,
charcoal gray and ivory bezels. This reader features a built-in tamper and Wiegand output.
Dimensions: 4.33” H x 2.95” W x .59” D (11.0 cm H x 7.5cm W x 1.5 cm D).
ALSO AVAILABLE:
OP40RTEBK
OmniProx Wall Mount Reader and PIR Kit
Includes an OmniProx reader (OP40HONE) and a black PIR (IS310BK).
3 colored bezels included
OMNIPROX KITS
312
Access Systems-231-328 02-08.ind312 312Access Systems-231-328 02-08.ind312 312 8/12/08 12:56:42 PM8/12/08 12:56:42 PM
HONEYWELL ACCESS SYSTEMS
313

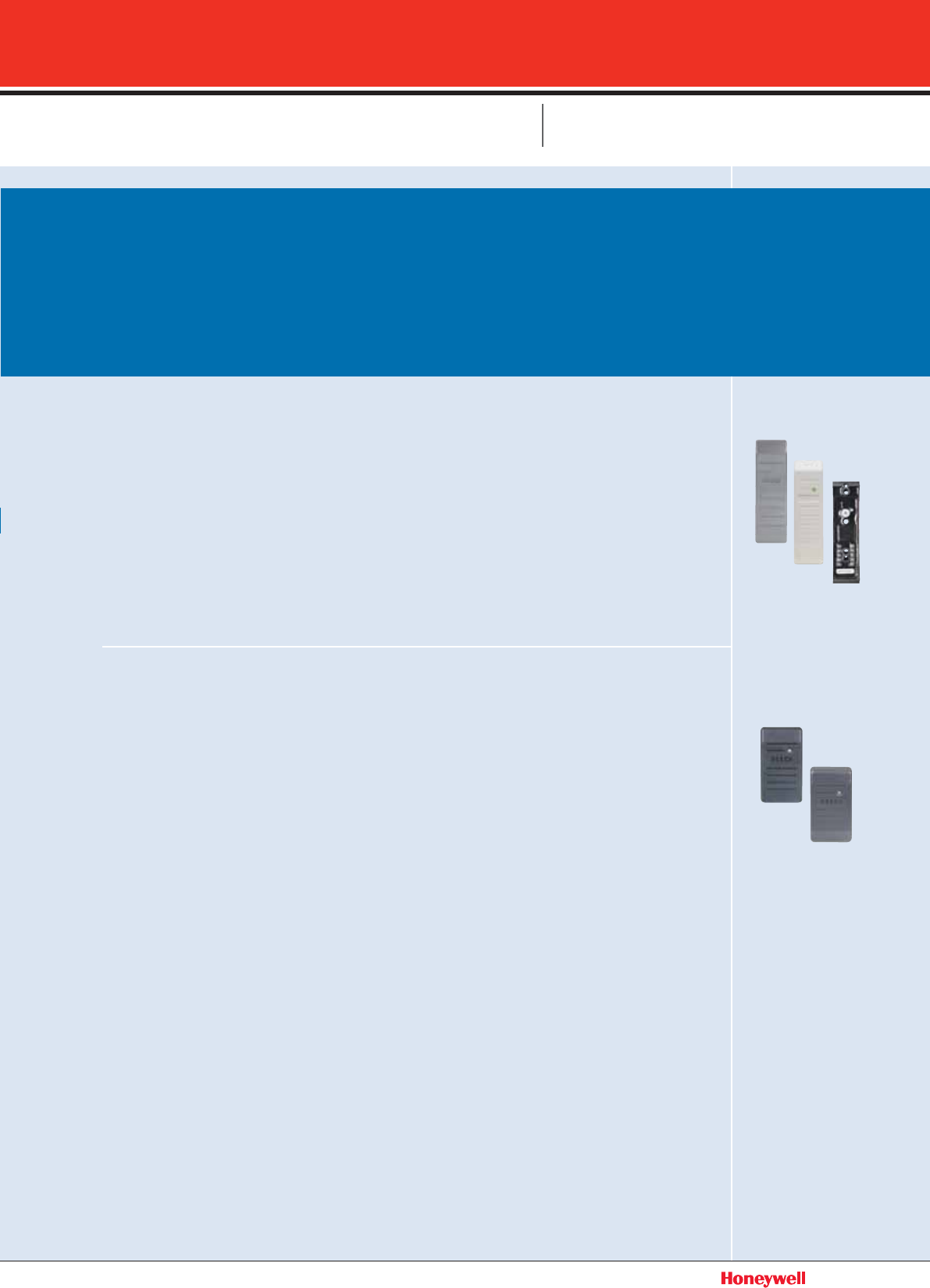

Readers & Credentials HID PROXIMITY READERS
HU/5365EGP00 (formerly PR-MINI-PROX)
HID MiniProx Reader, Charcoal Gray
Exterior or interior proximity reader with up to a 4" (10.16 cm) read range.
Charcoal gray with HID artwork. Requires 5-16 VDC linear power supply.
Dimensions: 6" H x 1.7" W x .7" D (15.24 cm H x 4.32 cm W x 1.78 cm D).
ALSO AVAILABLE:
HU/5365EBP00 (formerly PR-MINI-PROX-B)
HID MiniProx Reader, Beige
HU/5365EGT00 (formerly PR-MINI-PROX-T)
HID MiniProx with Terminal Strip, Charcoal Gray
HU/6005BKB00 (formerly PRPNTPLBK)
HID ProxPoint Plus Reader, Black
Exterior or interior proximity reader with a read range up to 3" (7.62 cm). The ProxPoint is designed
for mounting directly on metal with no change in read range performance. Power: 4.75-16 VDC.
Dimensions: 3.14" H x 1.7" W x 0.51" D (7.96 cm H x 4.3 cm W x 1.3 cm D).
ALSO AVAILABLE:
HU/6005BGB00 (formerly PRPNTPLCG)
HID ProxPoint Plus Reader, Charcoal Gray
HU/6005BBB00 (formerly PRPNTPLBG)
HID ProxPoint Plus Reader, Beige
HU/6005BWB00 (formerly PRPNTPLWH)
HID ProxPoint Plus Reader, White
HID PROXIMITY
READERS
The HID 125 kHz proximity reader family offers readers for many
environments from basic UL-rated, indoor/outdoor environments to
explosion-proof environments and many read-ranges from basic
mini-mullion readers to longer-range parking lot readers. HID 125 kHz
proximity readers include models with or without keypads as well as
glass-mount options. HID 125 kHz proximity cards are available in both
standard and custom configurations to address application needs.
Access Systems-231-328 02-08.ind313 313Access Systems-231-328 02-08.ind313 313 8/12/08 12:56:45 PM8/12/08 12:56:45 PM
www.security.honeywell.com/me
HONEYWELL ACCESS SYSTEMS

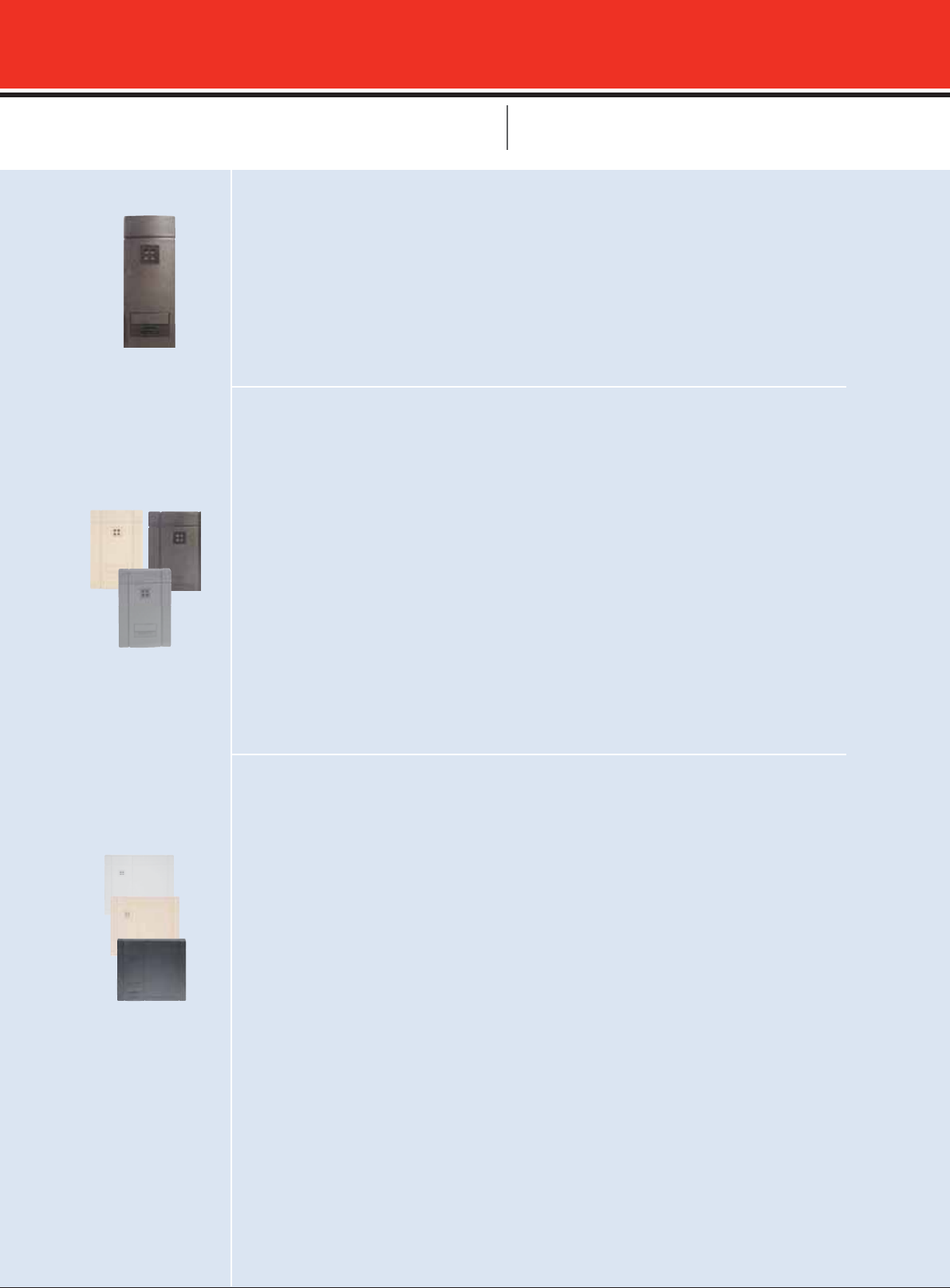

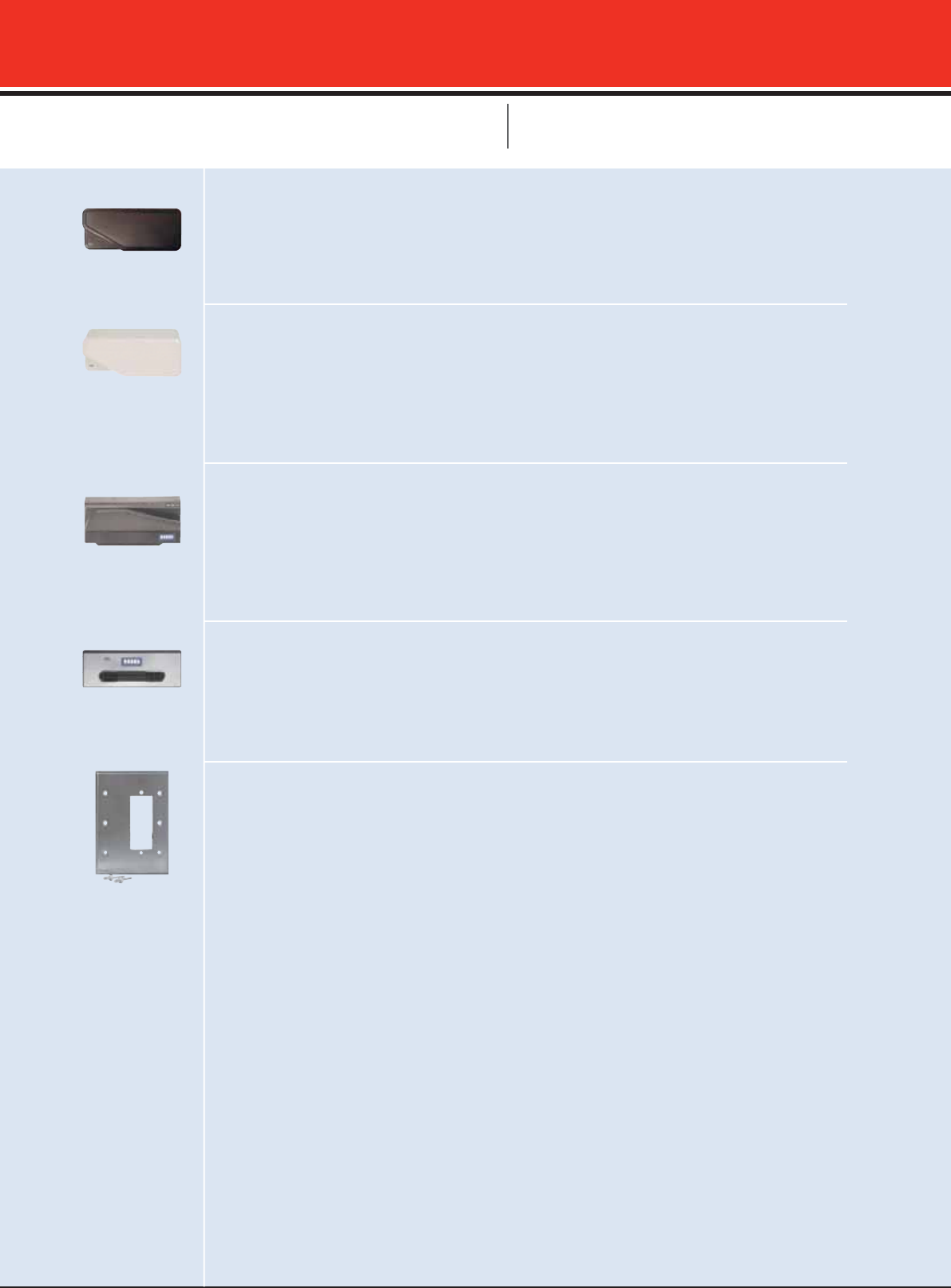

Readers & Credentials HID PROXIMITY READERS
HU/5355AGN00 (formerly PR-P-PRO)
HID ProxPro Reader, Charcoal Gray
Exterior or interior proximity reader with up to an 8" (20.3 cm) read range. Requires 12 VDC
power supply (HPS123). Dimensions: 5" H x 5" W x 1" D (12.7 cm H x 12.7 cm W x 2.54 cm D).
ALSO AVAILABLE:
HU/5355ABN00 (formerly PR-P-PRO/BEIGE)
HID ProxPro Reader, Beige
HU/5455BGN00 (formerly PRPROII)
HID ProxPro II Reader, Charcoal Gray
Exterior or interior proximity reader with up to an 8" (20.3 cm) read range. Requires 12 VDC
power supply (HPS123). Dimensions: 5" H x 5" W x 1" D (12.7 cm H x 12.7 cm W x 2.54 cm D).
HU/5355AGK00 (formerly PR-PROXPRO-K)
HID ProxPro Reader with Keypad, Charcoal Gray
Exterior or interior keypad/proximity reader with up to an 8" (20.3 cm) read
range. For use with NS2, NS2+, PRO2200 and PTDEK control panels. Requires 12 VDC power
supply (HPS123). Dimensions: 5" H x 5" W x 1" D (12.7 cm H x 12.7 cm W x 2.54 cm D).
PR-PROXPRO-K2
HID ProxPro Reader with Keypad, Charcoal Gray
Exterior or interior keypad/proximity reader with up to an 8" (20.3 cm) read range. For use with the
N-1000-II, N-1000-III and N-1000-IV control panels only. Requires 12 VDC power supply (HPS123).
Dimensions: 5" H x 5" W x 1" D (12.7 cm H x 12.7 cm W x 2.54 cm D).
HU/5395CK100 (formerly PR-THIN)
HID ThinLine II Switch Plate Reader, Black
Exterior or interior proximity reader with up to a 5" (12.5 cm) read range.
Dimensions: 4.7" H x 3" W x .5" D (11.93 cm H x 7.62 cm W x 1.27 cm D).
ALSO AVAILABLE:
HU/5395CW100 (formerly PR-THIN/WHITE)
HID ThinLine II Switch Plate Reader, White
HU/5395CB100 (formerly PR-THIN-B)
HID ThinLine II Switch Plate Reader, Beige
HU/5395CG100 (formerly PR-THIN-C)
HID ThinLine II Switch Plate Reader, Charcoal Gray
314
Access Systems-231-328 02-08.ind314 314Access Systems-231-328 02-08.ind314 314 8/12/08 12:56:46 PM8/12/08 12:56:46 PM
HONEYWELL ACCESS SYSTEMS
315

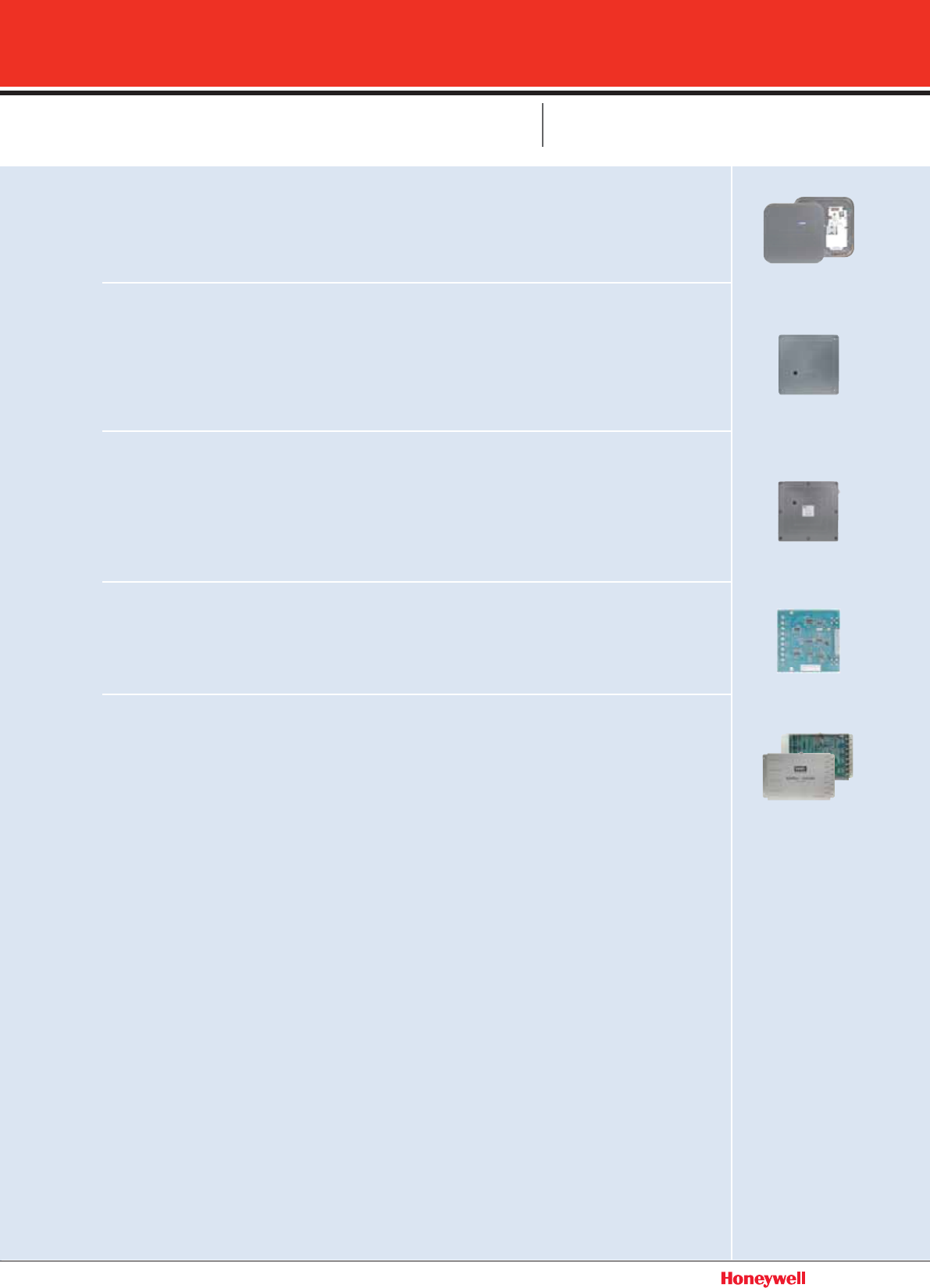

Readers & Credentials HID PROXIMITY READERS
HU/5375AGN00 (formerly PR-MAX-PRO)
HID Maxi-Prox Reader, Charcoal Gray
Exterior or interior proximity reader with up to a 22" (55.9 cm) read range. Requires 12-24 VDC linear
power supply (HPS123). Dimensions: 12" H x 12" W x 1" D (30.48 cm H x 30.48 cm W x 2.54 cm D).
HU/5385AGB00 (formerly NC-862814)
MultiProx Reader – Back Connect, Charcoal Gray
The MultiProx reader reads the HID or Schlage proximity card. The reader is a direct replacement
for the Schlage 2700 or 2800 series sensor. Exterior or interior proximity reader with a read range
up to 3" (7.6 cm). Dimensions: 7.5" H x 7.5" W x .8" D (19 cm H x 19 cm W x 2 cm D).
Power: 50 mA at 24 VDC powered by the controller.
HU/5385AGS00 (formerly NC-862815)
MultiProx Reader – Side Connect
The MultiProx reader reads the HID or Schlage proximity card. The reader is a direct replacement
for the Schlage 2700 or 2800 series sensor. Exterior or interior proximity reader with a read range
up to 3" (7.62 cm). Dimensions: 7.5" H x 7.5" W x .8" D (19 cm H x 19 cm W x 2cm D).
Power: 50 mA at 24 VDC powered by the controller.
HU/6020ANN00 (formerly NC-86774)
HID MultiProx HSM
The MultiProx HSM replaces the Schlage MSM, which contains four inputs and four dry contacts.
Dimensions: 4.5" H x 4.5" W x 2.3" D (11.4 cm H x 11.4 cm W x 5.8 cm D).
HU/6000BNN00 (formerly NC-86808)
MultiProx Controller
The MultiProx controller replaces the Schlage 708 or 808 series reader controller.
Dimensions: 10.4" H x 18" W x 2.7" D (26.4 cm H x 46 cm W x 6.8 cm D).
Power: 2.0A at 24 VDC. Temperature: 0° to 122° F (-20° to 50° C).
Access Systems-231-328 02-08.ind315 315Access Systems-231-328 02-08.ind315 315 8/12/08 12:56:51 PM8/12/08 12:56:51 PM
www.security.honeywell.com/me
HONEYWELL ACCESS SYSTEMS
Readers & Credentials PROXIMITY CARD QUICK REFERENCE
HID-Card Printable Non-Printable Magstripe
26-Bit 34-Bit Type Card Card Key Fob (Un-encoded) Notes
PVC-H-4 P 1386 P
PVC-H-4-26 P 1386 P
PVC-H-4-SPEC P 1386 P Special Order Card
PVC-H-4-26-SPEC P 1386 P Special Order Card
PX-4-H P 1326 P Northern Logo
PX-26-H P 1326 P Northern Logo
PX-4-H-PW P 1326 P Plain White
PX-26-H-PW P 1326 P Plain White
PX-4-H-SPEC P 1326 P Special Order Card
PX-26-H-SPEC P 1326 P Special Order Card
PX-4-H-PW-SPEC P 1326 P Special Order Card, Plain White
PX-26-H-PW-SPEC P 1326 P Special Order Card, Plain White
PX-KEY-H P 1346 P
PX-KEY-H-26 P 1346 P
PX-KEY-H-SPEC P 1346 P Special Order Key Fob
PX-KEY-H-26-SPEC P 1346 P Special Order Key Fob
PVC-H-5 P 1336 P P
PVC-H-5-26 P 1336 P P
PVC-H-5-SPEC P 1336 P P Special Order Card
PVC-H-5-26-SPEC P 1336 P P Special Order Card
PROXIMITY CARD QUICK REFERENCE GUIDE
Note For Special Card Orders:
If you are requesting specific facility code(s) and/or card number(s), you must order the cards with the following added to the part number: -SPEC.
For example, when ordering PX-4-H cards for a specific range of card numbers, you would specify PX-4-H-SPEC. (This does not include cards requiring
custom artwork. Please consult Honeywell Access Systems for quotation and minimum order requirements.)
1. Include facility code(s) or card number(s).
2. Additional cost for cards.
3. Lead times vary. Check with your sales representative to confirm.
4. A minimum order of 100 is required on all special cards, except Indala PVC cards which require a minimum of 500.
5. Wiegand special order cards vary approximately 5% over or under when ordered.
316
Access Systems-231-328 02-08.ind316 316Access Systems-231-328 02-08.ind316 316 8/12/08 12:56:53 PM8/12/08 12:56:53 PM
HONEYWELL ACCESS SYSTEMS
317

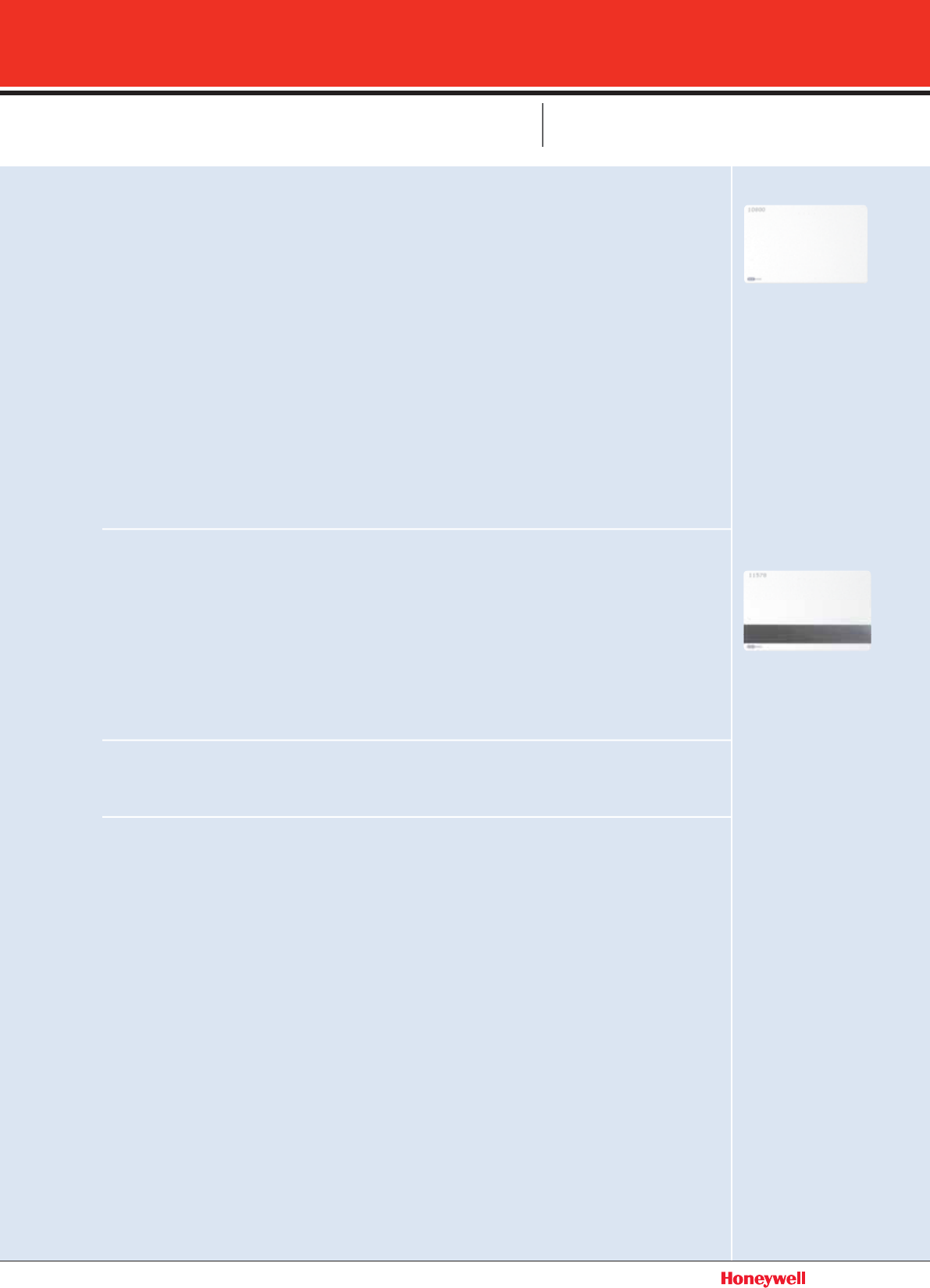

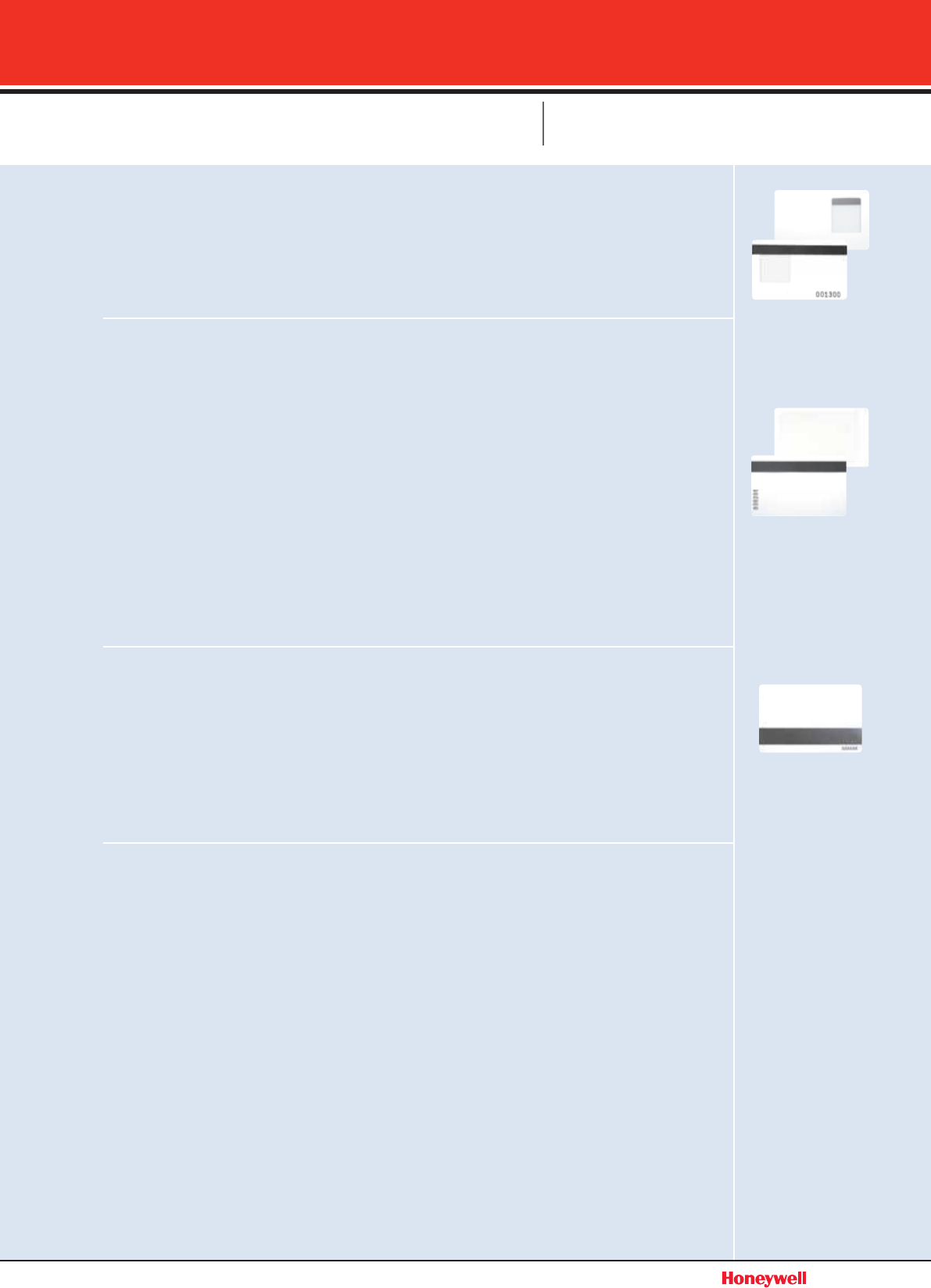

Readers & Credentials HID PROXIMITY CREDENTIALS
PVC-H-4
HID PVC Prox Card (34-Bit)
HID PVC proximity card sequentially numbered where encoded number equals printed number.
Allows a video photo ID to be printed directly on the card surface. This card can be used
with all PVC printers.
ALSO AVAILABLE:
PVC-H-4-26
HID PVC Prox Card (26-Bit)
PX-ISOPROX
HID ISOProx PVC Access Control Card (26-Bit)
HID artwork.
PVCH4NP
Non-Programmed HID PVC Card
HID PVC proximity card non-programmed.
PVC-H-5
HID PVC Prox Card (34-Bit) with Magnetic Stripe (Not Encoded)
HID PVC proximity card with magnetic stripe (not encoded) sequentially numbered where encoded
number equals printed number. Allows a video photo ID to be printed directly on the card surface.
This card can be used with all PVC printers.
ALSO AVAILABLE:
PVC-H-5-26
HID PVC Prox Card (26-Bit) with Magnetic Stripe (Not Encoded)
PVCH5NP
Non-Programmed HID PVC Card with Magnetic Stripe (Not Encoded)
PVC-H-6
HID DUOPROX (34-Bit) 2 Sided Glossy with Magnetic Stripe
RF programmable card offers proximity, magnetic stripe and photo identification technologies
on a single access control card. 34-bit, two sided, glossy printable surface. Made of a thin,
flexible polyvinyl chloride (PVC) laminate with an ABA standard, high coercivity magnetic stripe
rated 4000 Oerstad. Dimensions: 2.125" H x 3.375" W x 0.031" T
(5.4 cm H x 8.57 cm W x 0.079 cm T).
Access Systems-231-328 02-08.ind317 317Access Systems-231-328 02-08.ind317 317 8/12/08 12:56:54 PM8/12/08 12:56:54 PM
www.security.honeywell.com/me
HONEYWELL ACCESS SYSTEMS

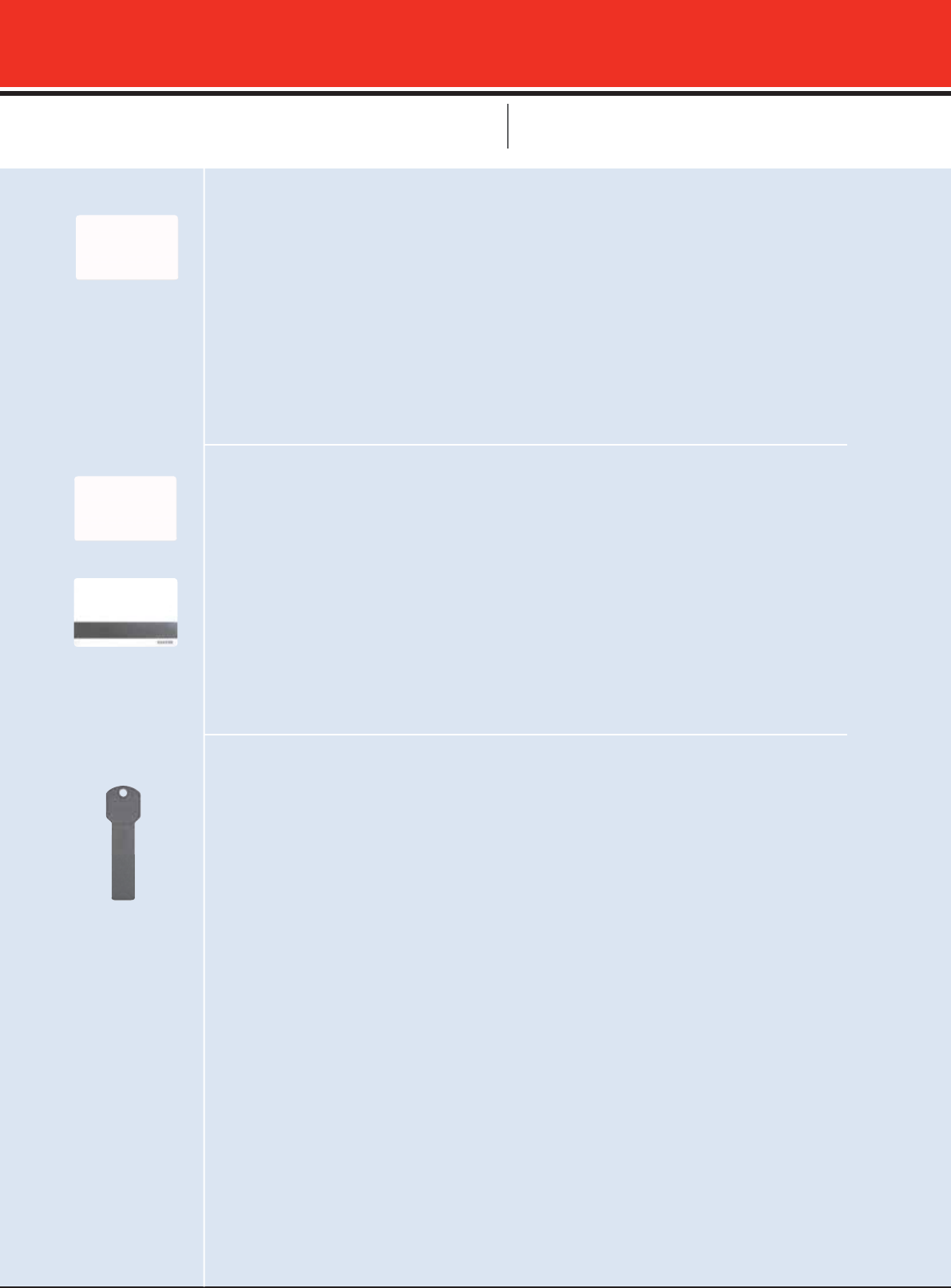

PX-4-H
HID Prox Card with Logo (34-Bit)
HID proximity card (34-bit) with logo and a slot hole punch on the short side.
Dimensions: 2.125" H x 3.375" W x 0.070" T (5.398 cm H x 8.573 cm W x .178 cm T).
ALSO AVAILABLE:
PX-4-H-PW
HID Prox Card, Plain White (34-Bit)
Plain white with no logo.
PX-26-H
HID Card with Hot Stamp (26-Bit) and Logo
PX-26-H-PW
HID Prox Card, Plain White (26-Bit)
Plain white with no logo.
PX-PROXCARDII
HID ProxCard II Card (26-Bit)
PX-KEY-H
HID Proximity Card Key Fob (34-Bit) HID proximity key fob (34-bit) designed to be carried
on a user’s key ring.Read ranges may be reduced by 50% when using the fob versus a card.
Dimensions: 1.87" H x .925" W x .395" T (4.75 cm H x 2.350 cm W x 1 cm T).
ALSO AVAILABLE:
PX-KEY-H-26
HID Proximity Card Key Fob (26-Bit)
PROX-PASS
HID Active Automobile Tag, 6-8' Read Range (34-Bit)
HID active automobile tag (34-bit). Works in conjunction with the PR-MAX-PRO.
Read range: 6-8'. Dimensions: 2.625" H x 3.625" W x .30" T
(6.75 cm H x 9.25 cm W x .76 cm T).
ALSO AVAILABLE:
PROX-PASS26
Automobile Active Tag (26-Bit)
Readers & Credentials HID PROXIMITY CREDENTIALS
318
Access Systems-231-328 02-08.ind318 318Access Systems-231-328 02-08.ind318 318 8/12/08 12:56:54 PM8/12/08 12:56:54 PM
HONEYWELL ACCESS SYSTEMS
319

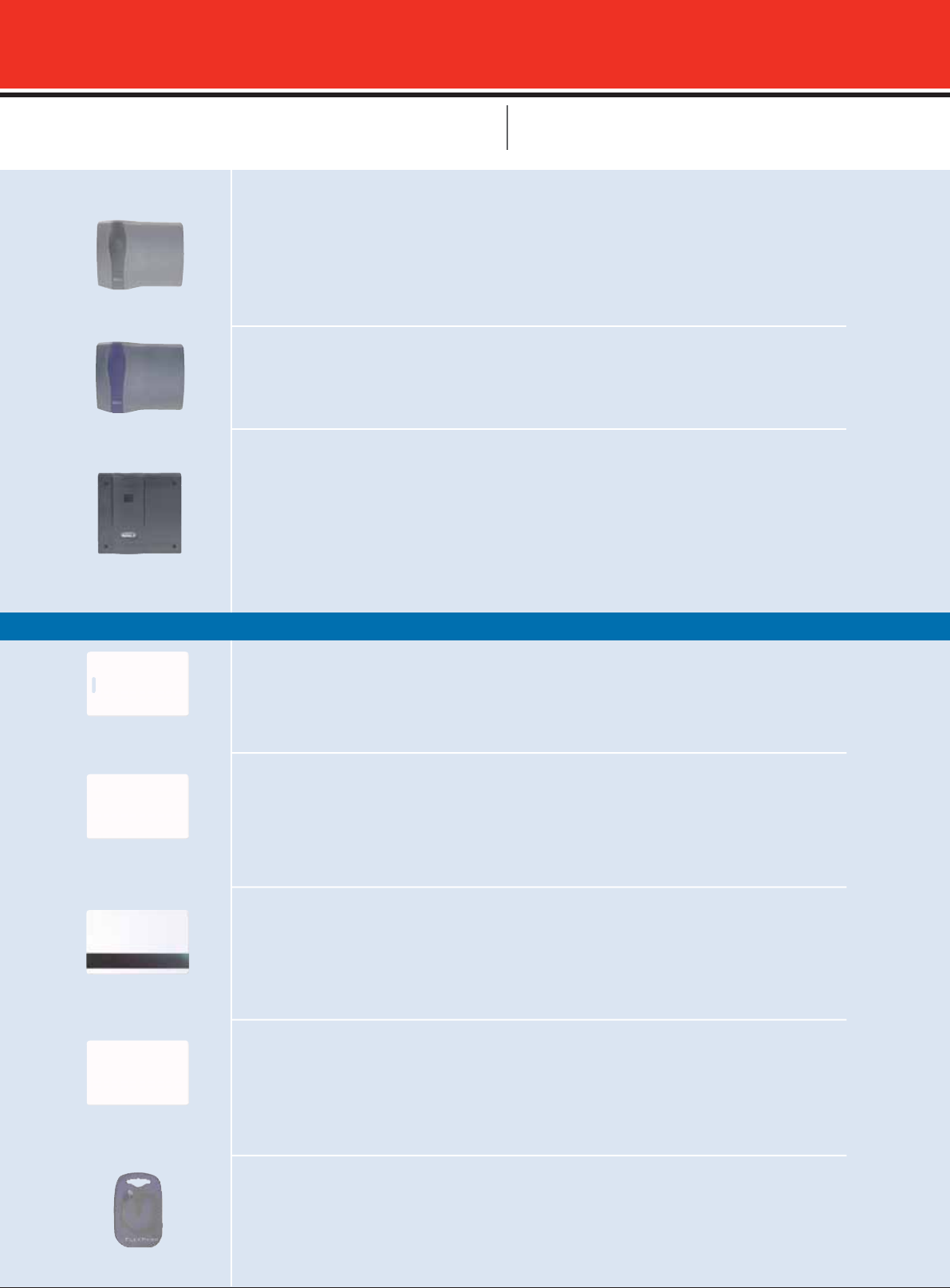

FP503BG
Indala FlexPass Linear Slim, Beige
FlexPass Linear style slim mount proximity reader. Up to 4" (10 cm) read range. Single stage,
low profile door frame mullion mount, interior or exterior reader. Contains red/green LED indicator.
Requires 4-16 VDC linear power supply. Maximum current: 88 mA @ 12 VDC, 100 mA @ 5 VDC.
Dimensions: 5.5" H x 1.65" W x 0.75" D (14 cm H x 4.2 cm W x 1.9 cm D).
ALSO AVAILABLE:
FP503BK
Indala FlexPass Linear Slim, Black
FP505BG
Indala FlexPass Linear Wall, Beige
FlexPass Linear style wall switch mount proximity reader. Up to 4" (10 cm) read range. Single stage,
interior or exterior reader mounts in a single gangbox or easy installation. Contains a red/green LED
indicator. Requires 4-16 VDC linear power supply. Maximum current: 89 mA @ 12 VDC,
100 mA @ 5 VDC. Dimensions: 4.7" H x 3" W x .9" D (11.8 cm H x 7.6 cm W x 2.3 cm D).
ALSO AVAILABLE:
FP505BK
Indala FlexPass Linear Wall, Black
FP505WH
Indala FlexPass Linear Wall, White
FP603BG
Indala FlexPass Arch Slim, Beige
FlexPass Arch style slim proximity reader. Up to 5" (12.7 cm) read range. Single stage, interior
or exterior reader mounts in a single gangbox for easy installation. Contains a red/green LED indicator.
Requires 4-16 VDC linear power supply. Maximum current: 96 mA @ 12 VDC, 100 mA @ 5 VDC.
Dimensions: 4.5" H x 1.72" W x 0.85" D (11.42 cm H x 4.37 cm W x 2.16 cm D).
INDALA
PROXIMITY
READERS
Indala’s line of 125 kHz readers combines intelligent programming
technology with interchangeable components including uniform modules and a
range of stylish cover designs. Indala readers are UL rated for indoor and outdoor
applications and feature Wiegand output wiring. Indala readers are compatible
with Indala credentials.
Readers & Credentials INDALA PROXIMITY READERS
Access Systems-231-328 02-08.ind319 319Access Systems-231-328 02-08.ind319 319 8/12/08 12:56:55 PM8/12/08 12:56:55 PM
www.security.honeywell.com/me
HONEYWELL ACCESS SYSTEMS
Readers & Credentials INDALA PROXIMITY READERS
ALSO AVAILABLE:
FP603BK
Indala FlexPass Arch Slim, Black
FP603GY
Indala FlexPass Arch Slim, Charcoal Gray
FP603WH
Indala FlexPass Arch Slim, White
FP605BG
Indala FlexPass Arch Wall, Beige
FlexPass Arch style wall switch proximity reader. Up to 5" (12.7 cm) read range. Single stage,
low profile wall switch mount, interior or exterior reader. Contains red/green LED indicator.
Requires 4-16 VDC linear power supply. Maximum current: 96 mA @ 12 VDC, 100 mA @ 5 V DC.
Operating temperature range: -31° to 149° F (-35° to 65° C). Dimensions: 4.5" H x 2.99" W x
0.85" D (11.42 cm H x 7.59 cm W x 2.16 cm D).
ALSO AVAILABLE:
FP605BK
Indala FlexPass Arch Wall, Black
FP605GY
Indala FlexPass Arch Wall, Charcoal Gray
FP605WH
Indala FlexPass Arch Wall, White
FP610BG
Indala FlexPass Arch Mid-Range, Beige
FlexPass Arch style mid-range proximity reader. Up to 12" (30.5 cm) read range. Single stage,
low profile wall mount, interior or exterior reader. Contains red/green LED indicator.
Requires 4-14 VDC linear power supply. Maximum current: 140 mA @ 12 VDC, 82 mA @ 5
VDC. Operating temperature range: -31° to 149° F (-35° to 65° C). Dimensions: 5.10" H x 6.10"
W x 1.00" D (12.95 cm H x 15.49 cm W x 2.54 cm D).
ALSO AVAILABLE:
FP610WH
Indala FlexPass Arch Mid-Range, White
FP610BK
Indala FlexPass Arch Mid-Range, Black
320
Access Systems-231-328 02-08.ind320 320Access Systems-231-328 02-08.ind320 320 8/12/08 12:57:00 PM8/12/08 12:57:00 PM
HONEYWELL ACCESS SYSTEMS
321

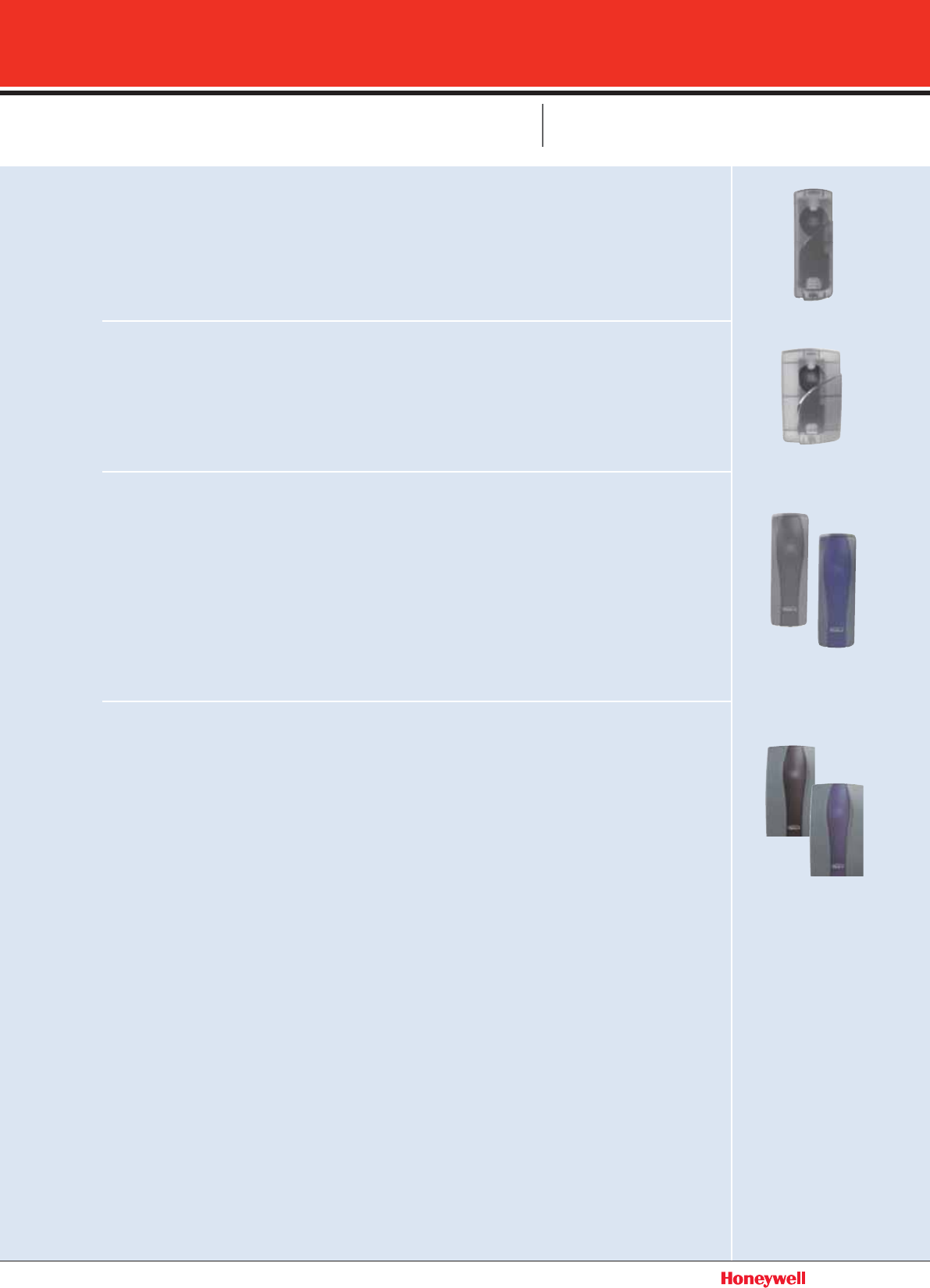

Readers & Credentials INDALA PROXIMITY READERS
FP703BK
Indala FlexPass Curve Slim, Black
FlexPass Curve style slim proximity reader. Up to a 5" (12.7 cm) read range. Single stage, interior
or exterior reader mounts in a single gangbox for easy installation. Contains a red/green LED indicator.
Requires 4-16 VDC power supply. Maximum current: 96 mA @ 12 VDC, 100 mA @ 5 VDC. Dimensions:
4.5" H x 1.72" W x 1.1" D (12.1 cm H x 4.4 cm W x 2.8 cm D).
FP705BK
Indala FlexPass Curve Wall, Black
FlexPass Curve style wall switch proximity reader. Up to a 5" (12.7cm) read range. Single stage,
low profile wall switch mount, interior or exterior reader. Contains red/green LED indicator.
Requires 4-16VDC power supply. Maximum current: 96 mA @ 12 VDC, 100 mA @ 5 VDC.
Dimensions: 4.75" H x 3.24" W x 1.1" D (12.1 cm H x 8.2 cm W x 2.8 cm D).
FP803BK
Indala FlexPass Wave Slim, Black
FlexPass Wave style slim proximity reader. Up to a 5" (12.7 cm) read range. Single stage, interior
or exterior reader mounts in a single gangbox for easy installation. Contains a red/green LED indicator.
Requires 4-16 VDC power supply. Maximum current: 96 mA @ 12 VDC, 100 mA @ 5 VDC.
Dimensions: 4.5" H x 1.72" W x 1.1" D (12.1 cm H x 4.4 cm W x 2.8cm D).
ALSO AVAILABLE:
FP803MA
Indala FlexPass Wave Slim, Marine
FP805BK
Indala FlexPass Wave Wall, Black
FlexPass Wave style wall switch proximity reader. Up to a 5" (12.7 cm) read range. Single stage,
low profile wall switch mount, interior or exterior reader. Contains red/green LED indicator.
Requires 4-16 VDC linear power supply. Maximum current: 9 6 mA @ 12 VDC, 100 mA @ 5 VDC.
Dimensions: 4.75" H x 3.24" W x 1.1" D (12.1 cm H x 8.2 cm W x 2.8 cm D).
ALSO AVAILABLE:
FP805MA
Indala FlexPass Wave Wall, Marine
Access Systems-231-328 02-08.ind321 321Access Systems-231-328 02-08.ind321 321 8/12/08 12:57:03 PM8/12/08 12:57:03 PM
www.security.honeywell.com/me
HONEYWELL ACCESS SYSTEMS
Readers & Credentials INDALA PROXIMITY READERS
FP810BK
Indala FlexPass Wave Mid-Range, Black
FlexPass Wave style mid-range proximity reader. Up to a 12" (30.5 cm) read range. Single stage,
low profile wall mount, interior or exterior reader. Contains red/green LED indicator. Requires 4-14
VDC linear power supply. Maximum current: 140 mA @ 12 VDC, 82 mA @ 5 VDC.
Dimensions: 5.6" H x 6.5" W x 1.5" D (14.2 cm H x 16.5cm W x 3.8 cm D).
ALSO AVAILABLE:
FP810MA
Indala FlexPass Wave Mid-Range, Marine
PR-ASR-620
Indala FlexPass Long Range, Black
Proximity card reader. Up to 28" (71 cm) read range using the FlexCard™ standard card. Single
piece construction for easy installation. Reads bi-directionally. Weather resistant and field pro-
grammable. Requires 12-24 VDC linear power supply. Requires 12 VDC @1.0A nominal /1.2 A
maximum or 24
VDC @ 750 mA nominal/900 mA maximum. Dimensions: 11.2" H x 11.2" W x 1.8" D
(28.4 cm H x 28.4 cm W x 4.6 cm D).
322
PX-121-I
Indala Proximity Card with Hot Stamp (26-Bit)
Standard Indala proximity card for ASR series readers. Includes hole punch on short side and printed
card number. Dimensions: 2.13" H x 3.38" W x .09" T (5.41 cm H x 8.585 cm W x .229 cm T).
PVC-I-5
Indala Imaging Proximity Card (26-Bit)
Indala PVC proximity card (26-bit) sequentially numbered with standard ead range. Allows a video
photo ID to be printed directly on the card surface. This card can be used with all PVC printers.
Dimensions: 2.125" H x 3.375" W x .030" T (5.398 cm H x 8.573 cm W x .076 cm T).
PVC-I-6
Indala Imaging Proximity Card with Magnetic Stripe
Indala PVC proximity card sequentially numbered with magnetic stripe and standard read range.
Allows a video photo ID to be printed directly on the card surface. This card can be used with all
PVC printers. Dimensions: 2.125" H x 3.375" W x .030" T (5.398 cm H x 8.573 cm W x .076 cm T).
PVC-I-7
Indala Imaging Proximity Card, Printable on 2 Sides
Indala PVC proximity card sequentially numbered 2 side printable with standard read range. Allows a
video photo ID to be printed directly on the card surface. This card can be used with all PVC printers.
Dimensions: 2.125" H x 3.375" W x .030" T (5.398 cm H x 8.573 cm W x .076 cm T).
PX-115-I
Indala Proximity Key Tag with Hot Stamp (26-Bit)
Indala proximity key tag made of durable ABS plastic, designed to be carried on a key ring. Includes
label with encoded number. Reader read ranges may be reduced by 50% when using the tag versus a
card. Dimensions: 2.2" H x 1.3" W x .25" T (5.588 cm H x 3.302 cm W x .635 cm T).
INDALA PROXIMITY CREDENTIALS
Access Systems-231-328 02-08.ind322 322Access Systems-231-328 02-08.ind322 322 8/12/08 12:57:06 PM8/12/08 12:57:06 PM
HONEYWELL ACCESS SYSTEMS
323

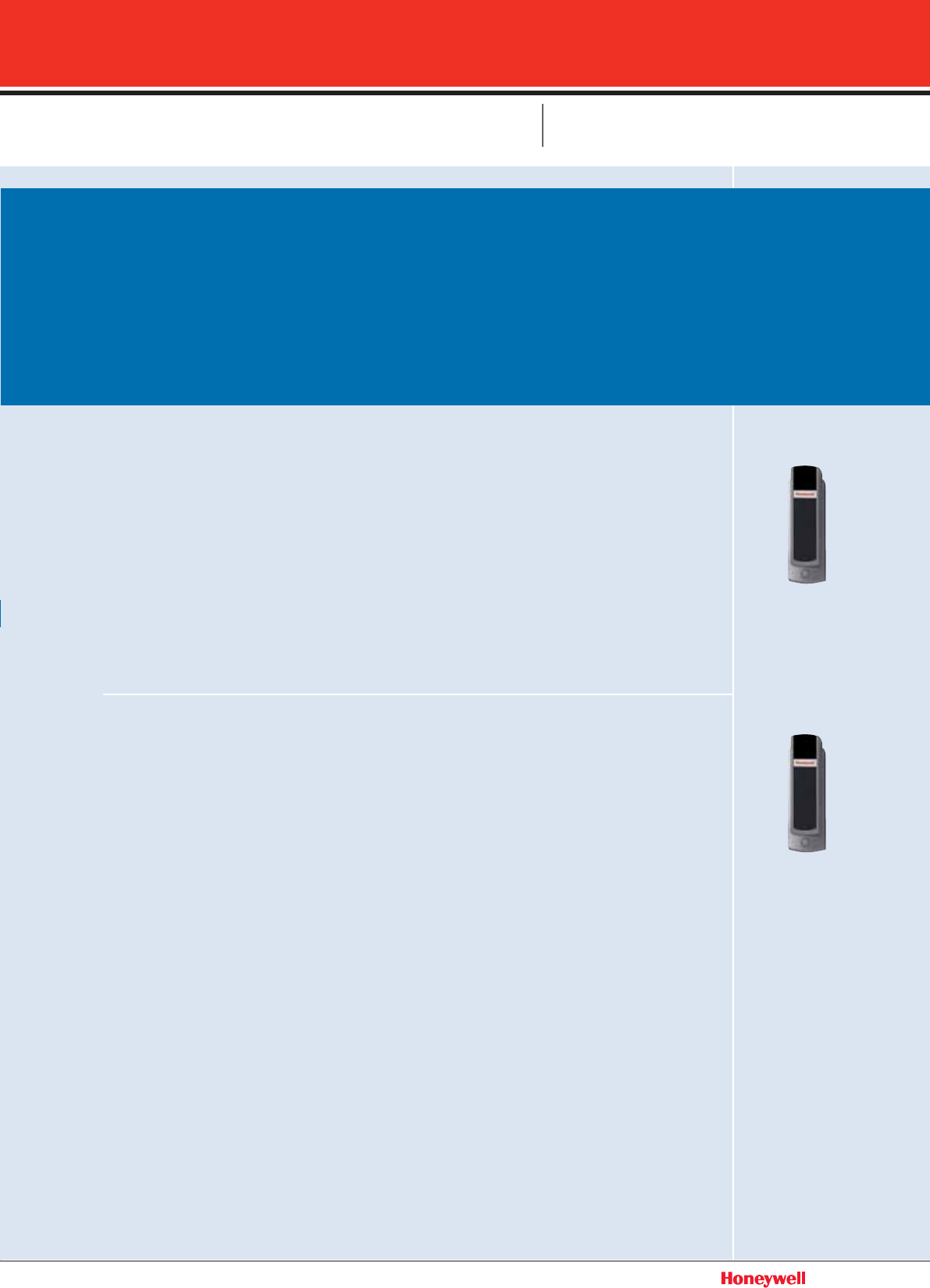

Readers & Credentials OMNIASSURE™ SMART CARD READERS
OT30HONA
OmniAssure Mullion Reader, Silver, PIV II
Smart card mullion-style reader with a silver bezel and a terminal block connection. Default
credential is PIV II. Reprogrammable for TWIC, FRAC, CAC, ISO14443 A/B, Mifare, DESFire,
SmartMX credentials. Flash update capable via flash smart card. Output interfaces: Wiegand,
clock & data, RS485/RS232/RS422. Requires 4.5-16 VDC linear power supply.
Maximum current: 400 mA @ 5 VDC, 167 mA @ 12 VDC. Dimensions: 5.59" H x 1.81" W x .98" D
(14.2 cm H x 4.62 cm W x 2.5 cm D). Operating temperature range: -4° to 140° F (-20° to 60° C).
ALSO AVAILABLE:
OT30SPEC
OmniAssure Mullion Reader, Silver, Special Order Configuration
Custom reader configuration and card credential.
OT31HONA
OmniAssure Mullion Reader, Silver, PIV II + 125 kHz HID Prox
Smart card mullion-style reader with a silver bezel and a terminal block connection.
Default credentials are PIV II and 125 kHz HID proximity cards. Reprogrammable for TWIC, FRAC,
CAC, ISO14443 A/B, Mifare, DESFire, SmartMX credentials. Flash update capable via flash smart
card.
Output interfaces: Wiegand, clock & data, RS485/RS232/RS422. Requires 4.5-16 VDC linear
power supply. Maximum current: 400 mA @ 5 VDC, 167 mA @ 12 VDC.
Dimensions: 5.59" H x 1.81" W x .98" D (14.2 cm H x 4.62 cm W x 2.5 cm D).
Operating temperature range: -4° to 140° F (-20° to 60° C).
Honeywell’s OmniAssure contactless smart card family is based on 13.56 MHz
technology. The OmniAssure family eloquently combines compliance with
convenience. Their U.S. patent-pending flash-on-card design makes OmniAssure
readers the easiest to use in today’s market. With flash-on-card, the reader’s
flash firmware can be easily updated to support changing government standards
without removing the readers from the wall. The OmniAssure family has options
to support FIPS 201 PIV II, TWIC, FRAC, DoD CAC, open standard ISO 14443
(Mifare®, DESFire® and SmartMX®), and 125 kHz HID® Prox cards.
OMNIASSURE™
SMART CARD
READERS
Access Systems-231-328 02-08.ind323 323Access Systems-231-328 02-08.ind323 323 8/12/08 12:57:10 PM8/12/08 12:57:10 PM
www.security.honeywell.com/me
HONEYWELL ACCESS SYSTEMS
324
Readers & Credentials OMNIASSURE™ SMART CARD READERS
ALSO AVAILABLE:
OT31HONAS
OmniAssure Mullion Reader, Silver, Card Serial Number Only
+ 125 kHz HID Prox
Default credentials are Mifare, DESFire, ISO14443 A/B and 125 kHz HID proximity cards.
Reprogrammable for PIV II, TWIC, FRAC, CAC, SmartMX credentials.
OT31SPEC
OmniAssure Mullion Reader, Silver, Special Order Configuration + 125 kHz HID Prox
Custom reader configuration and card credential.
T35HONA
OmniAssure Mullion Reader with Keypad, Silver, PIV II
Smart card mullion-style keypad/proximity reader with a silver bezel and a terminal block connection.
Default credential is PIV II. Reprogrammable for TWIC, FRAC, CAC, ISO14443 A/B, Mifare, DESFire,
SmartMX credentials. Flash update capable via flash smart card. Output interfaces: Wiegand, clock
& data, RS485/RS232/RS422. Requires 4.5-16 VDC linear power supply.
Maximum current: 400 mA @ 5 VDC, 167 mA @ 12 VDC. Dimensions: 5.59”
H x 1.81” W x .98” D (14.2 cm H x 4.62 cm W x 2.5 cm D). Operating
temperature range: -4° to 140° F (-20° to 60° C).
ALSO AVAILABLE:
OT35SPEC
OmniAssure Mullion Reader with Keypad, Silver, Special Order Configuration
Custom reader configuration and card credential.
OT36HONA
OmniAssure Mullion Reader with Keypad, Silver, PIV II +
Smart card mullion-style keypad/proximity reader with a silver bezel and a terminal block connection.
Default credentials are PIV II and 125 kHz HID proximity cards. Reprogrammable for TWIC, FRAC,
CAC, ISO14443 A/B, Mifare, DESFire, SmartMX credentials. Flash update capable via flash smart card.
Output interfaces: Wiegand, clock & data, RS485/RS232/RS422. Requires 4.5-16 VDC linear power
supply. Maximum current: 400 mA @ 5 VDC, 167 mA @ 12 VDC. Dimensions: 5.59" H x 1.81" W x .98”
D (14.2 cm H x 4.62 cm W x 2.5 cm D). Operating temperature range: -4° to 140° F (-20° to 60° C).
ALSO AVAILABLE:
OT36HONAS
OmniAssure Mullion Reader with Keypad, Silver,
Card Serial Number Only + 125 kHz HID Prox
Default credentials are Mifare, DESFire, ISO14443 A/B and 125 kHz HID proximity cards.
Reprogrammable for PIV II, TWIC, FRAC, CAC, SmartMX credentials.
OT36SPEC
OmniAssure Mullion Reader with Keypad, Silver, Special Order
Configuration + 125 kHz HID Prox
Custom reader configuration and card credential.
Access Systems-231-328 02-08.ind324 324Access Systems-231-328 02-08.ind324 324 8/12/08 12:57:11 PM8/12/08 12:57:11 PM
HONEYWELL ACCESS SYSTEMS
325
Readers & Credentials OMNIASSURE™ SMART CARD READERS
OT70HONA
OmniAssure Mullion Fingerprint Reader, Silver, DESFire Serial Number Only
Smart card mullion-style fingerprint/proximity reader with a silver bezel and a terminal block con-
nection. It is a dual factor reader that verifies the live fingerprint against the template stored in a
smart card. Default credential is DESFire. Reprogrammable for ISO14443 A/B, Mifare, SmartMX
credentials. Flash update capable via PC connection. Output interfaces: Wiegand, clock & data,
RS485/RS232/RS422. Requires 8-24 VDC linear power supply. Maximum current: 417 mA @
12 VDC, 208 mA @ 24 VDC. Dimensions: 7.58" H x 1.99" W x 1.69" D (19.25 cm H x 5.05 cm
W x 4.3 cm D). Operating temperature range: 32° to 140° F (0° to 60° C).
ALSO AVAILABLE:
OT70HONAS
OmniAssure Mullion Fingerprint Reader, Silver, Mifare Serial Number Only
Default credential is Mifare. Reprogrammable for ISO14443 A/B, DESFire, SmartMX credentials
OT70SPEC
OmniAssure Mullion Fingerprint Reader, Silver, Special Order Configuration
Custom reader configuration and card credential.
OT75HONA
OmniAssure Mullion Fingerprint Reader with Keypad, Silver,
DESFire Serial Number Only
Smart card mullion-style fingerprint/keypad/proximity reader with a silver bezel and a terminal
block
connection. It is a dual factor reader that verifies the live fingerprint against the template stored
in a smart card. Default credential is DESFire. Reprogrammable for ISO14443 A/B, Mifare,
SmartMX credentials. Flash update capable via PC connection. Output interfaces: Wiegand,
clock & data, RS485/RS232/RS422. Requires 8-24 VDC linear power supply. Maximum current:
417 mA @ 12 VDC, 208 mA @ 24 VDC. Dimensions: 7.58" H x 1.99" W x 1.69" D (19.25 cm H
x 5.05 cm W x 4.3 cm D). tOperating temperature range: 32° to 140° F (0° to 60° C).
ALSO AVAILABLE:
OT75HONAS
OmniAssure Mullion Fingerprint Reader with Keypad, Silver,
Mifare Serial Number Only
Default credential is Mifare. Reprogrammable for ISO14443 A/B, DESFire, SmartMX credentials.
OT75SPEC
OmniAssure Mullion Fingerprint Reader with Keypad,
Silver, Special Order Configuration
Custom reader configuration and card credential.
Access Systems-231-328 02-08.ind325 325Access Systems-231-328 02-08.ind325 325 8/12/08 12:57:11 PM8/12/08 12:57:11 PM
www.security.honeywell.com/me
HONEYWELL ACCESS SYSTEMS
326
OXPAPP00
Application Card for OmniAssure Readers
Un-programmed SmartMX card used for programming applications on the OmniAssure readers.
ODP4N00
PVC DESFire Card
Un-programmed DESFire card. This card has a 56-bit unique serial number
and 4K of memory. Printable white glossy finish card on both sides.
ALSO AVAILABLE:
ODP4M00
PVC DESFire Card with Magnetic Stripe
OFP1N00
PVC Mifare 1K Card
Un-programmed Mifare 1K card. This card has a 32-bit unique serial number and 1K of memory.
Printable white glossy finish card on both sides.
ALSO AVAILABLE:
OFP1M00
PVC Mifare 1K Card with Magnetic Stripe
Un-programmed Mifare 1K card with an un-encoded magnetic stripe. This card has a 32-bit unique
serial number and 1K of memory. Printable white glossy finish card on both sides.
OFP4N00
PVC Mifare 4K Card
Un-programmed Mifare 4K card. This card has a 32-bit unique serial number and 4K of memory.
Printable white glossy finish card on both sides.
ALSO AVAILABLE:
OFP4M00
PVC Mifare 4K Card with Magnetic Stripe
OFP1N0026
Dual Tech PVC Mifare 1K Card and HID Prox
Un-programmed Mifare 1K and programmed 26-bit HID proximity card. This card has a 32-bit unique
serial number and 4K of memory. Printable white glossy finish card on both sides.
ALSO AVAILABLE:
OFP1M0026
Dual Tech PVC Mifare 1K Card with Magnetic Stripe and HID Prox
OFP4N0026
Dual Tech PVC Mifare 4K Card and HID Prox
Un-programmed Mifare 4K and programmed 26-bit HID proximity card. This card has a 32-bit
unique serial number and 4K of memory. Printable whi te glossy finish card on both sides.
OFP4M0026
Dual Tech PVC Mifare 4K Card with Magnetic Stripe and HID Prox
Un-programmed Mifare 4K with an un-encoded magnetic stripe and programmed 26-bit HID
proximity card. This card has a 32-bit unique serial number and 4K of memory.
Printable white glossy finish card on both sides.
Readers & Credentials OMNIASSURE™ SMART CREDENTIALS
Access Systems-231-328 02-08.ind326 326Access Systems-231-328 02-08.ind326 326 8/12/08 12:57:13 PM8/12/08 12:57:13 PM
HONEYWELL ACCESS SYSTEMS
327

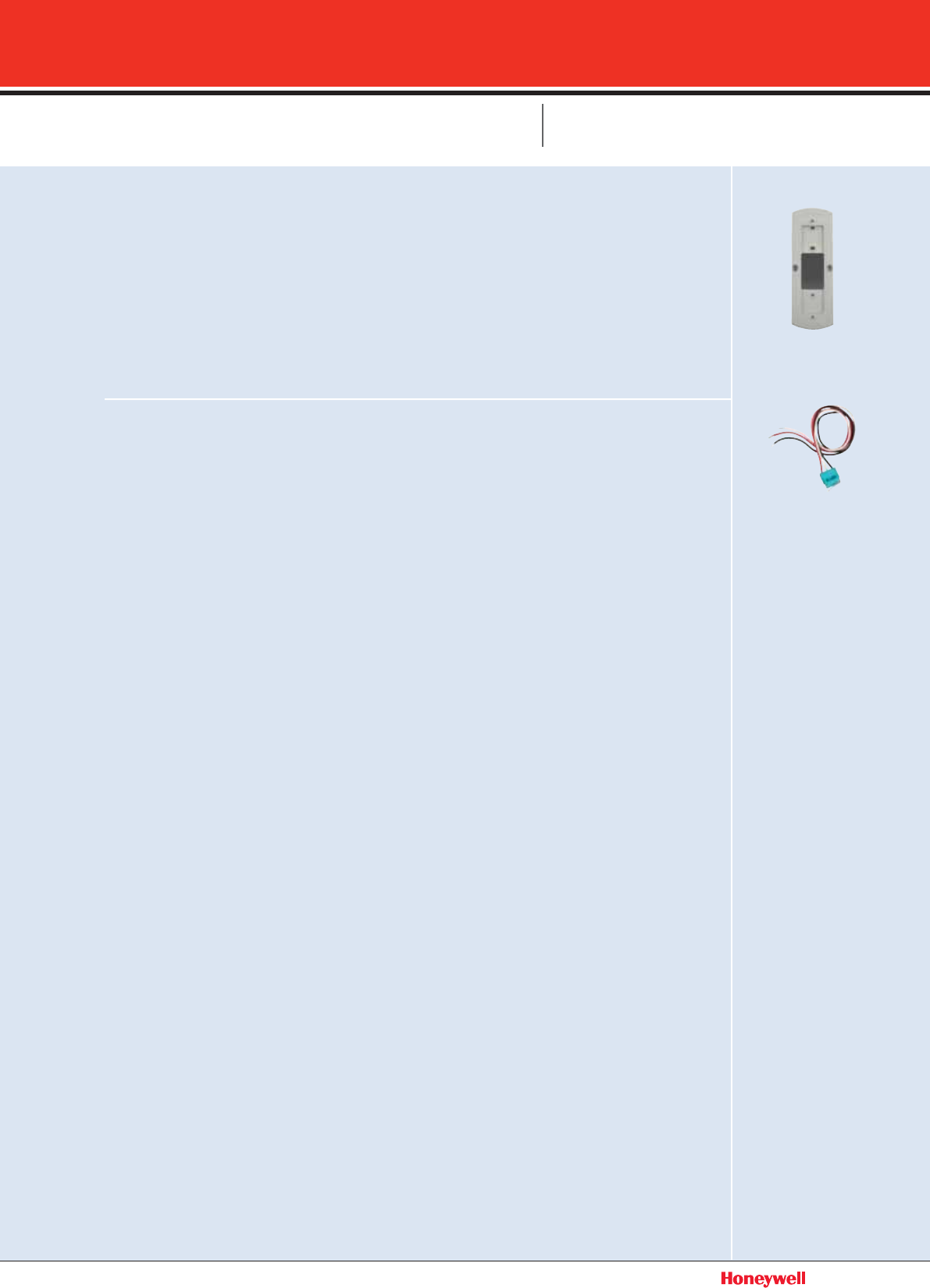

Readers & Credentials OMNIASSURE™ ACCESSORIES
IEMOUNT
Single Gang Reader Mounting Kit
Single gangbox mounting kit for all OmniAssure OT30, OT31, OT35, and OT36 models. Makes
overall reader dimensions 5.59” x 2.87” x 1.1” (14.2 cm x 7.32 cm x 2.8 cm).
ALSO AVAILABLE:
IEMOUNT2
Single Gang Reader Mounting Kit
Single gangbox mounting kit for all OmniAssure OT70 and OT75 models. Makes overall reader
dimensions 8.58” x 2.99” x 2.05” (21.8 cm x 7.6 cm x 5.2 cm).
IETAMPER
Tamper Switch Accessory for OmniAssure readers
Access Systems-231-328 02-08.ind327 327Access Systems-231-328 02-08.ind327 327 8/12/08 12:57:14 PM8/12/08 12:57:14 PM
328

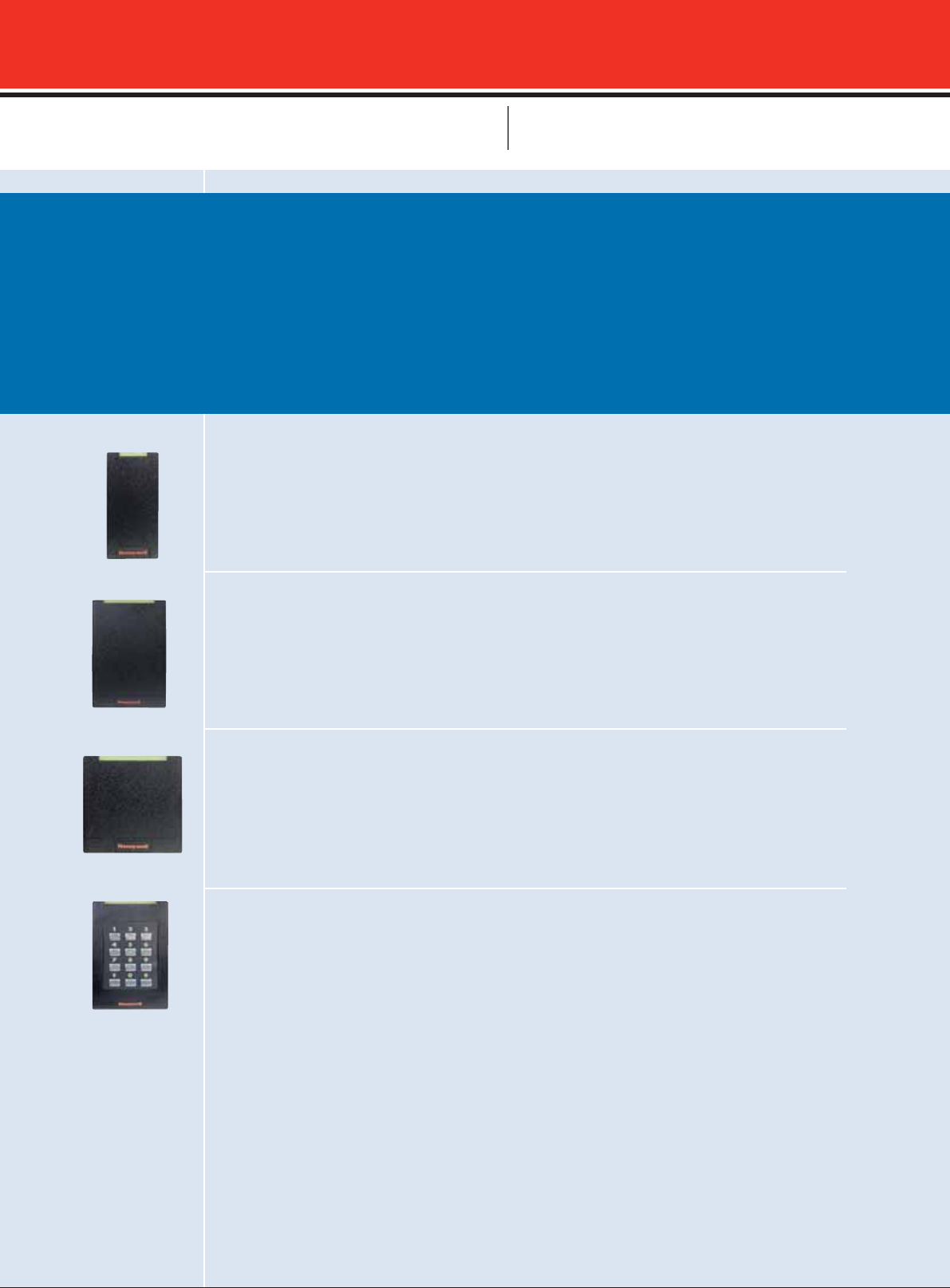

Readers & Credentials OMNICLASS™ SMART CARD READERS
OM30BHONA
OmniClass Mullion Reader, Black
Black-colored, Honeywell OmniClass, mullion-style smart card reader with18" pigtail wire connection.
Compatible with OmniClass and iCLASS credentials. Up to 3.0" (7.6 cm) read range. Requires 10-16
VDC linear power supply. Current requirements: 65 mA average, 225 mA peak. Dimensions: 4.04" H x
1.90" W x .80" D (10.26 cm H x 4.83 cm W x 2.03 cm D).
OM40BHONA
OmniClass US Gang Reader, Black
Black-colored, Honeywell OmniClass, US gangbox-style smart card reader with 18" pigtail wire con-
nection and magnetic tamper. Compatible with OmniClass and iCLASS credentials. Up to 4.5" (11.4 cm)
read range. Requires 10-16 VDC linear power supply. Current requirements: 80 mA average, 260 mA peak.
Dimensions: 4.80" H x 3.30" W x .85" D (12.19 cm H x 8.38 cm W x 2.16 cm D).
OM45BHONA
OmniClass UK/Asian Gang, Black
Black-colored, Honeywell OmniClass, UK/Asian gangbox-style smart card reader with 18" pigtail wire
connection and magnetic tamper. Compatible with OmniClass and iCLASS credentials. Up to 3.0" (7.6
cm) read range. Requires 10-16 VDC linear power supply. Current requirements: 80 mA average, 260 mA
peak. Dimensions: 3.30" H x 3.30" W x .75" D (8.38 cm H x 8.38 cm W x 1.91 cm D).
OM55BHONA
OmniClass Keypad Reader, Black
Black-colored, Honeywell OmniClass, keypad smart card reader with 18" pigtail wire connection and
magnetic tamper. Compatible with OmniClass and iCLASS credentials. Up to 4.0" (10.1 cm) read
range. Requires 10-16 VDC linear power supply. Current requirements: 72 mA average, 244 mA
peak. Dimensions: 4.80" H x 3.30" W x .90" D (12.19 cm H x 8.38 cm W x 2.29 cm D).
OMNICLASS™
Honeywell’s OmniClass™
contactless smart card family is based on 13.56
MHz technology. The OmniClass family’ s encryption provides more security
than standard 125 kHz proximity. The OmniClass readers support ISO14443A,
14443B and 15693, although the reader may only be able to read the card
serial number on some cards. OmniClass credentials that are 16K can also
store data for other applications, allowing campuses and other facilities to
issue a single card. OmniClass credentials include multi-technology cards
with OmniClass, HID prox and/or magnetic stripe.
www.security.honeywell.com/me
HONEYWELL ACCESS SYSTEMS
Access Systems-231-328 02-08.ind328 328Access Systems-231-328 02-08.ind328 328 8/12/08 12:57:16 PM8/12/08 12:57:16 PM
Readers & Credentials OMNICLASS™ SMART CREDENTIALS
OKP0N34
OmniClass 2K PVC Card (34-Bit, HAS Format)
OmniClass 2K PVC smart card. 34-bit Wiegand format.
ALSO AVAILABLE:
OKP0N26
OmniClass 2K PVC Card (26-Bit)
OmniClass 2K PVC smart card. 26-bit Wiegand format.
OKP2N34
OmniClass 16K PVC Card (34-Bit, HAS Format)
OmniClass 16K PVC smart card with 16 application areas. 34-bit
Wiegand format.
ALSO AVAILABLE:
OKP2N26
OmniClass 16K PVC Card (26-Bit)
OmniClass 16K PVC smart card with 16 application areas. 26-bit
Wiegand format.
OKP2M34
OmniClass 16K PVC Magnetic Card (34-Bit, HAS Format)
OmniClass 16K PVC smart card. 34-bit Wiegand format. This card also includes a user-programmable
magnetic stripe for interfacing with legacy systems.
ALSO AVAILABLE:
OKP2M26
OmniClass 16K PVC Magnetic Card (26-Bit)
OmniClass 16K PVC smart card. 26-bit Wiegand format. This card
also includes a user-programmable magnetic stripe for interfacing with
legacy systems.
OKH2N34
OmniClass 16K PVC 125 kHz HID Proximity Card (34-Bit, HAS Format)
OmniClass 16K PVC smart card with 16 application areas. 34-bit Wiegand format. This card also
includes a 125 kHz HID proximity chip of the same Wiegand format.
ALSO AVAILABLE:
OKH2N26
OmniClass 16K PVC 125 kHz HID Proximity Card (26-Bit)
OmniClass 16K PVC smart card. 26-bit Wiegand format. This card also includes a 125 kHz
HID proximity chip of the same Wiegand format.
329
HONEYWELL ACCESS SYSTEMS
Access Systems-329-376 02-08.ind329 329Access Systems-329-376 02-08.ind329 329 8/12/08 5:17:02 PM8/12/08 5:17:02 PM
www.security.honeywell.com/me
HONEYWELL ACCESS SYSTEMS
OKH2M34
OmniClass 16K PVC 125 kHz HID Proximity Card with
Magnetic Stripe (34-Bit, HAS Format)
OmniClass 16K PVC smart card with 16 application areas. 34-bit Wiegand format.
This card also includes a 125 kHz HID prox chip of the same Wiegand format and a
user-programmable magnetic stripe.
ALSO AVAILABLE:
OKH2M26
OmniClass 16K PVC 125 kHz HID Proximity Card with
Magnetic Stripe (26-Bit)
OmniClass 16K PVC smart card. 26-bit Wiegand format. This card also includes a 125 kHz
HID proximity chip of the same Wiegand format and a user-programmable magnetic stripe.
OKS2N34
OmniClass 16K Sticker (34-Bit, HAS Format)
OmniClass 16K smart sticker with 16 application areas. 34-bit Wiegand format with more memory.
ALSO AVAILABLE:
OKS2N26
OmniClass 16K Sticker (26-Bit)
OKK2N34
OmniClass 16K Key Fob (34-Bit, HAS Format)
OmniClass 16K smart key fob with 16 application areas. 34-bit Wiegand format with more memory.
ALSO AVAILABLE:
OKK2N26
OmniClass 16K Key Fob (26-Bit)
Readers & Credentials OMNICLASS™ SMART CREDENTIALS
NOTE: 34-bit HAS format is recommended as it allows the most flexibility for future access control system expansions.
Note For Special Card Orders:
If you are requesting specific facility code(s) and/or card number(s), you must order the OmniClass
cards with the following added to the part number: SP. For example, when ordering OKP0N26 cards for a specific range
of card numbers, you would specify OKP0N26SP. (This does not include cards requiring custom artwork. Please consult
Honeywell Access Systems for quotation and minimum order requirements.)
1. Include facility code(s) or card number(s).
2. Additional cost for cards.
3. Lead times vary. Check with your sales representative to confirm.
4. A minimum order of 100 is required on all special cards, except Motorola PVC cards which require a minimum of 500.
5. Wiegand special order cards vary approximately 5% over or under when ordered.
330
Access Systems-329-376 02-08.ind330 330Access Systems-329-376 02-08.ind330 330 8/12/08 5:17:03 PM8/12/08 5:17:03 PM
HONEYWELL ACCESS SYSTEMS
Readers & Credentials BIOMETRICS – FINGERPRINT READERS
BVVSMARTI
V-Smart™
with HID iClass 13.56 MHz Reader
V-Smart with HID iClass/OmniClass 13.56 MHz reader is a dual factor reader for security and access
control. It verifies the live fingerprint against the template stored in the 16K smart card and allows for
Wiegand communication formats up to 64 bits. Operating temperature range: 32° to 140° F ( 0° to 60° C).
Dimensions: 5.1" H x 4.7" W x 2.5" D (13 cm H x 11.8 cm W x 6.4 cm D).
ALSO AVAILABLE:
BVVSMART
V-Smart with Mifare 13.56 MHz Reader
BVVTENCW
V-Smart Outdoor Enclosure with Window
Dimensions: 11.5" H x 8.07" W x 5.5" D (29.2 cm H x 20.5 cm W x 14.0 cm D). Lid lifts up and is 11.25"
H x 9.25" W (28.6 cm H x 23.5 cm W). Reader not included.
BVVSTATNA
V-Station Base Model with LCD Display
Up to 3,550 Templates
A fingerprint biometric terminal for use with security and access control systems, V-Station includes
LCD display and keypad.The fingerprint is verified against the template stored in the terminal after
it has been chosen by PIN or external Wiegand device. Up to 3,550 templates stored in each
terminal. Operating temperature range: 32° to 140° F ( 0° to 60° C). Dimensions: 5.63"
H x 6.63" W x 2.63" D (14.3 cm H x 16.8 cm W x 6.7 cm D).
BIOMETRICS
Technology-proven fingerprint and hand geometry readers enable
security managers to ensure that the person with the card is the person
to whom the card was issued. Biometric solutions are encouraged for
high-security facilities or locations within a facility. When installing
readers outdoors, please review needs for enclosures, heaters
and/or cooling fans.
331
Access Systems-329-376 02-08.ind331 331Access Systems-329-376 02-08.ind331 331 8/12/08 5:17:04 PM8/12/08 5:17:04 PM
www.security.honeywell.com/me
HONEYWELL ACCESS SYSTEMS
Readers & Credentials BIOMETRICS – FINGERPRINT READERS
BVVSTATNAS
V-Station Base Model with LCD and Display, Search, Up to 200 Templates
Includes LCD display, keypad and fingerprint identification. Identifies the user from up to 200 templates
stored in the terminal without use of card or PIN.
BVVSTATNAP
V-Station Base Model with LCD & HID 125 kHz Proximity Reader
A fingerprint biometric terminal for use with security and access control
systems, V-Station includes LCD display, keypad and HID 125 kHz proximity
reader. The fingerprint is verified against the template stored in the terminal
after it has been chosen by PIN or internal proximity reader. Up to 3,550
templates stored in each terminal. Operating temperature range: 32° to
140° F ( 0° to 60° C). Dimensions: 5.63" H x 6.63" W x 2.63" D (14.3 cm H
x 16.8 cm W x 6.7 cm D).
ALSO AVAILABLE:
BVVSTATNAH
V-Station Base Model with LCD & HID iClass Reader
Includes LCD display, keypad and HID iClass/OmniClass Reader. The fingerprint
is verified against the template stored in the 16K iClass or OmniClass smart
card. Unlimited users as the template is stored and transported on the card.
BVVSTATNAG
V-Station Base Model with LCD & Mifare™ Reader
Includes LCD display, keypad and Mifare reader. The fingerprint is verified
against the template stored in the Mifare contactless smart card. Unlimited
users as the template is stored and transported on the card.
BVVNENC
V-Station Outdoor Enclosure Only
Dimensions: 11.5" H x 9.25" W x 5.5" D (29.2 cm H x 23.5 cm W x 14.0 cm D).
Lid lifts up and is 11.25" H x 9.25" W (28.6 cm H x 23.5 cm W).
ALSO AVAILABLE:
BVVNENCHT
V-Station Outdoor Enclosure with Heater
BVVNENCW
V-Station Outdoor Enclosure with Window
BVVNENCWHT
V-Station Outdoor Enclosure with Window and Heater
332
Access Systems-329-376 02-08.ind332 332Access Systems-329-376 02-08.ind332 332 8/12/08 5:17:05 PM8/12/08 5:17:05 PM
HONEYWELL ACCESS SYSTEMS

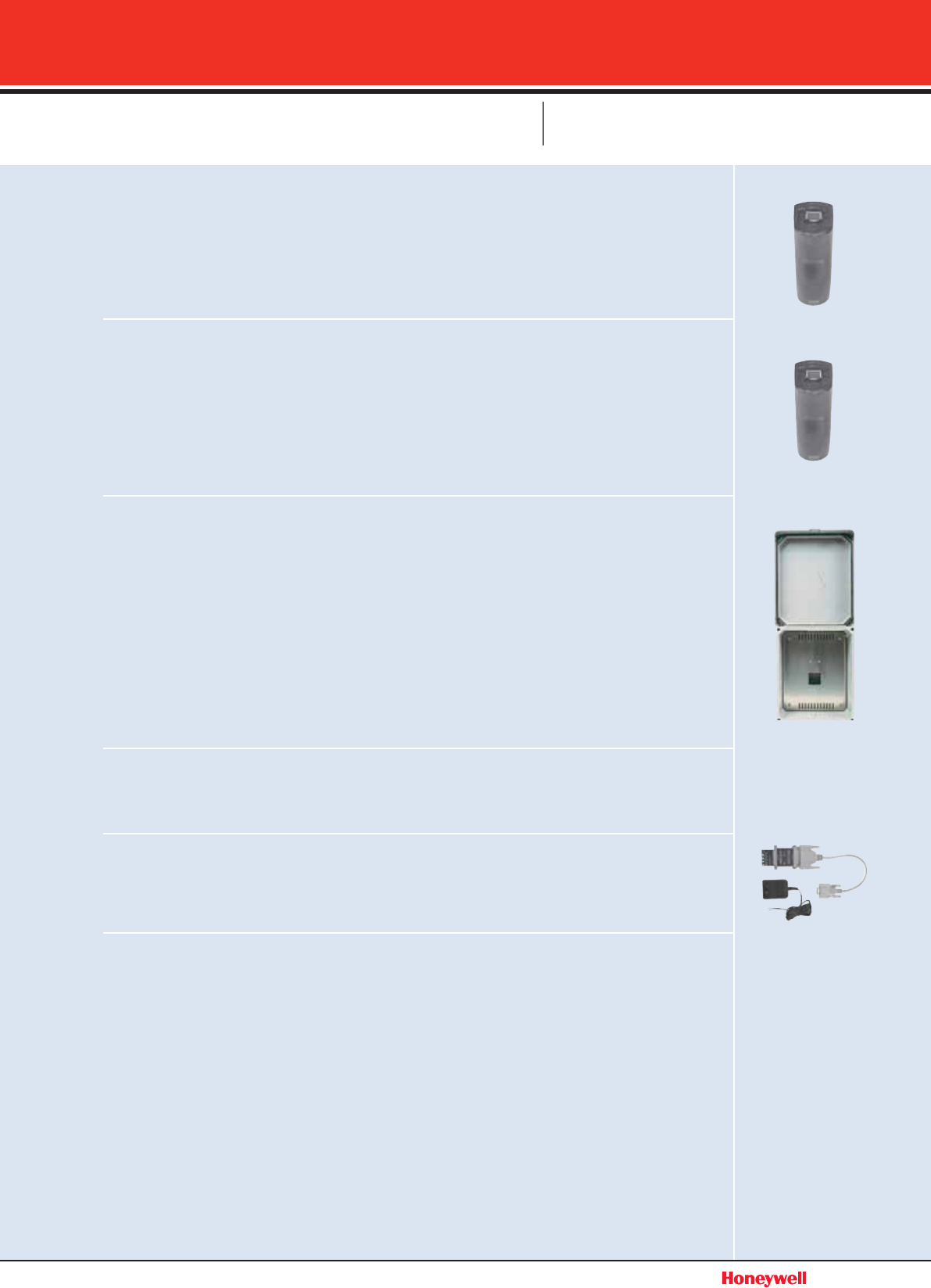

Readers & Credentials BIOMETRICS – FINGERPRINT READERS
BVVPASSFX
V-Pass™
Fingerprint Only Reader, No Card Needed for Access, Up to 500 Templates
V-Pass biometric fingerprint only reader is a biometric reader for security and access control. The unit
identifies the user from up to 500 templates stored in the terminal without use of card or PIN.
Operating temperature range: 32° to 140° F ( 0° to 60° C). Dimensions: 5.1" H x 2" W x 2.5"
D (13 cm H x 5 cm W x 6.6 cm D).
BV-VPROX
V-Prox™
Fingerprint Reader w/HID Prox Reader, 4,000 Templates, includes Software
V-Prox reader w/HID prox reader is a dual factor reader for security and access control. It verifies the live
fingerprint for the proximity card user against the template stored in the reader and allows for Wiegand
communication formats up to 64-bits. Up to 4,000 templates, includes administration software.
Operating temperature range: 32° to 140° F ( 0° to 60° C). Dimensions: 5.1" H x 2" W x 2.5"
D (13 cm H x 5 cm W x 6.6 cm D).
BVVENC
V-Prox/V-Pass/V-Flex Outdoor Enclosure
Dimensions: 11.5" H x 8.07" W x 5.5" D (29.2 cm H x 20.5 cm W x
14.0 cm D) Lid lifts up and is 11.25" H x 9.25" W (28.6 cm H x 23.5 cm W).
ALSO AVAILABLE:
BVVENCHT
V-Prox/V-Pass/V-Flex Outdoor Enclosure with Heater
BVVENCW
V-Prox/V-Pass/V-Flex Outdoor Enclosure with Window
BVVENCWHT
V-Prox/V-Pass/V-Flex Outdoor Enclosure with Window & Heater
BVVSERIESCN
VeriSeries RS485 Interface
VeriSeries converter, RS232 to RS485.
BVVSERIESPWR
12 V Power Supply for VeriSeries Readers/220 VAC
333
Access Systems-329-376 02-08.ind333 333Access Systems-329-376 02-08.ind333 333 8/12/08 5:17:05 PM8/12/08 5:17:05 PM
www.security.honeywell.com/me
HONEYWELL ACCESS SYSTEMS

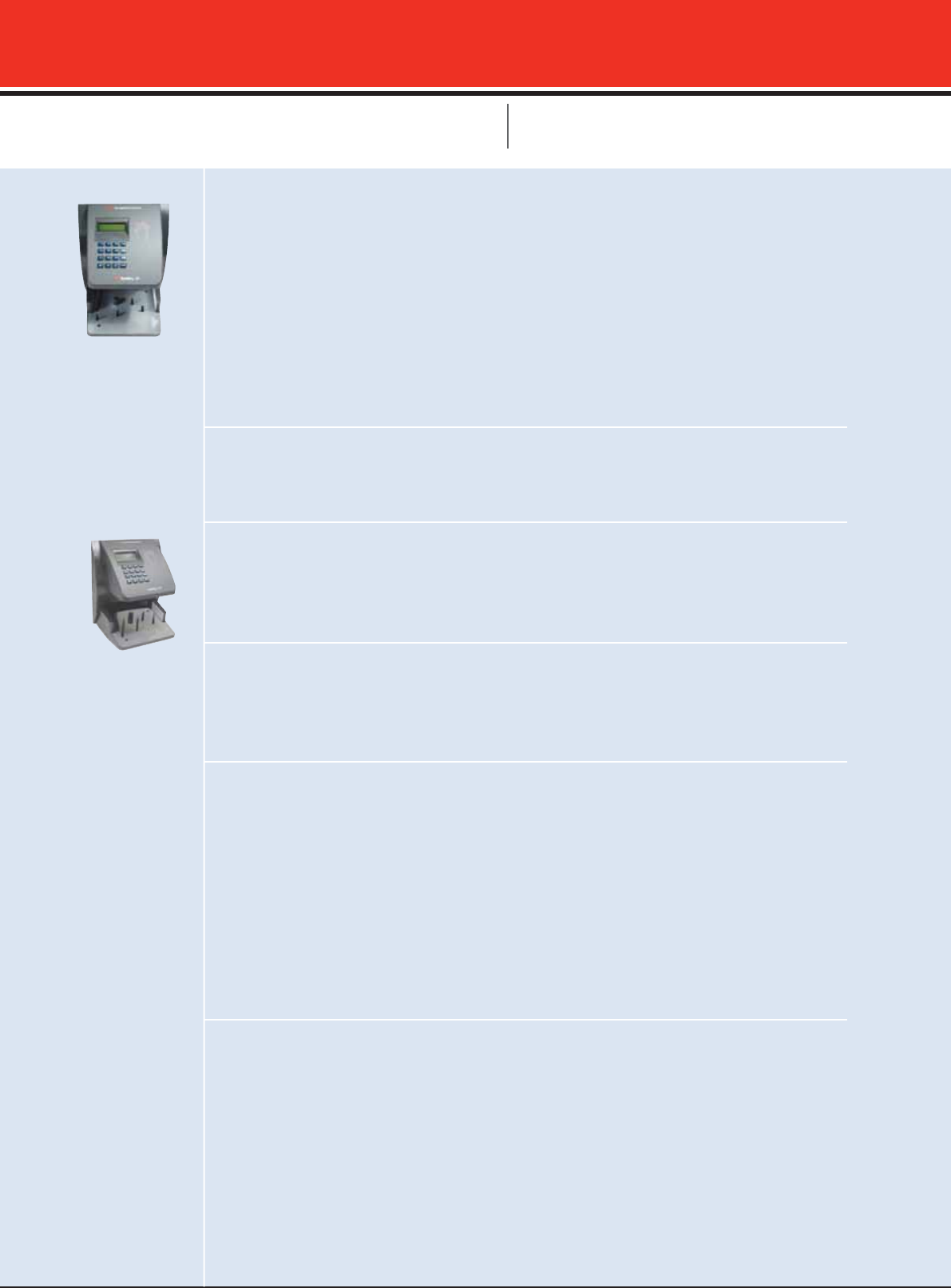

Readers & Credentials BIOMETRICS – HAND GEOMETRY READERS
HG-4
HandKey CR Hand Geometry Reader
Biometric hand geometry reader, 512 users. Operating temperature range: 32° to 113° F
(0° to 45° C) with 20 to 80% relative humidity non-condensing. Dimensions: 11.65" H x 8.85"
W x 8.55" D (29.6 cm H x 22.3 cm W x 21.7 cm D)
ALSO AVAILABLE:
HG4ICLASS
HandKey CR Hand Geometry Reader with iClass Smart Card Reader
Biometric hand geometry reader including an iClass/OmniClass smart card
reader. Templates are stored on the smart card.
HG4-PROX
HandKey Hand Geometry Reader with HID Proximity Reader
HG-4 HandKey biometric reader with internal HID proximity reader.
HG4-II
HandKey II Standalone Hand Geometry Reader
Standalone biometric hand geometry reader with two auxiliary and a door
egress input and three auxiliary outputs, for interior usage, 512 users.
HGEN200
Ethernet Module for HG4
10Base-T with RJ-45 connector. Must be ordered at time of purchase in
order to be installed at the factory. Cannot be installed in the field.
HGHNR5
Handnet for Windows®, 5 Reader License
(Includes RS485 Interface)
HandNet for Windows® software is used to link HandKey units into an integrated system. All alarms
and transactions will report back to a central computer in real time, making monitoring easy and
efficient. System user activity reports are easily created and printed. Up to 5 readers supported.
ALSO AVAILABLE:
HGHNR25
Handnet for Windows®, 25 Reader License (Includes RS485 Interface)
Up to 25 readers supported.
HGHNRUNL
Handnet for Windows®, Unlimited Reader License (Includes RS485 Interface)
Unlimited number of readers supported.
334
Access Systems-329-376 02-08.ind334 334Access Systems-329-376 02-08.ind334 334 8/12/08 5:17:06 PM8/12/08 5:17:06 PM
HONEYWELL ACCESS SYSTEMS
Readers & Credentials BIOMETRICS – HAND GEOMETRY READERS
HG4-EM801
Memory Expansion for HG-4 and HG4-II
Memory expansion software key for HG-4 and HG4-II built after 2003– 9,728 users.
ALSO AVAILABLE:
HG4-EM-800
Template Memory Upgrade for HG-4/HG4-II
Memory expansion EEPROM chip for HG-4 and HG4-II – 9,728 users.
HG4-EM-803
Template Memory Upgrade for HG-4/HG4-II
35,512 template memory upgrade for HG-4/HG4-II.
HG4ENC1
HG4 Hurricane Outdoor Enclosure
A direct weather enclosure made from high-impact ABS plastic for the HG-4 and HG4-II hand geom-
etry readers. The generous lid offers protection from rain by opening in an upward direction. Operating
temperature range: -20° to 120° F (-29° to 49° C) when using internal heater option.
Dimensions:14" H x 12" W x 10.5" D (58.5 cm H x 35.6 cm W x 29.3 cm D).
HGDC103
RS232 to 2-Wire RS485 Interface for HG4 Reader
Data converter for 2-wire system RS232 to RS485 with 120 V, 60 Hz power supply.
335
Access Systems-329-376 02-08.ind335 335Access Systems-329-376 02-08.ind335 335 8/12/08 5:17:07 PM8/12/08 5:17:07 PM
www.security.honeywell.com/me
HONEYWELL ACCESS SYSTEMS

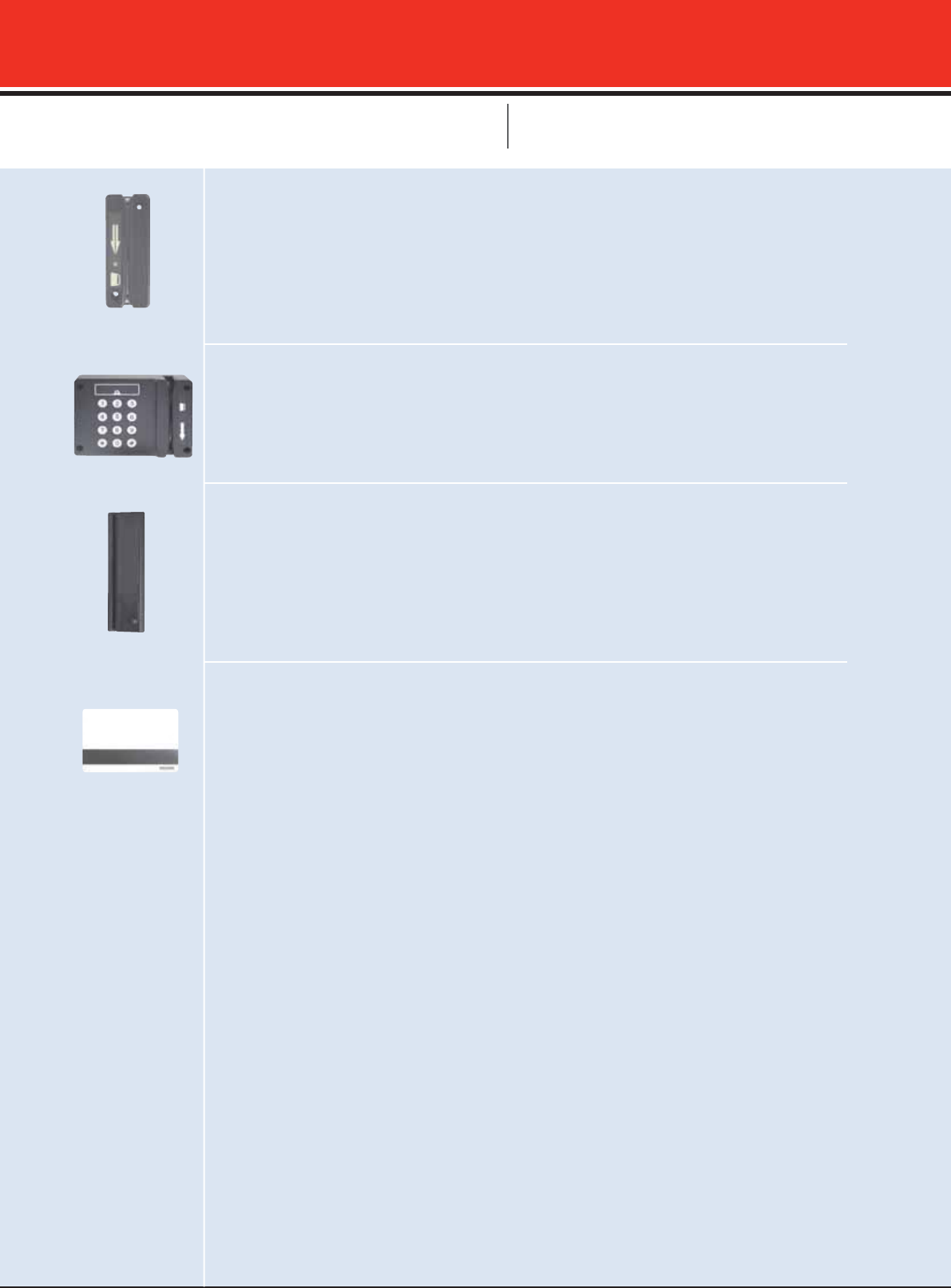

Readers & Credentials MAGNETIC STRIPE READERS
NR-5
Wide Gap Magnetic Stripe Reader, Track 2
ISO track 2 magnetic stripe card reader for interior or exterior use. Supports NC format 32-bit
Wiegand and ABA track 2 encoding (consult factory for special configurations when using existing
ABA encoded cards). Tri-color LED indication and fully encapsulated construction. Operating
temperature range: -22° to 131° F (-30° to 55° C). Dimensions: 4.52" H x 1.8" W x 1.56" D
(11.3 cm H x 4.5 cm W x 3.9 cm D).
NR-5-KP
Wide Gap Magnetic Stripe Reader with 10-wire Matrix Keypad
High quality vandal resistant keypad and magnetic card reader in metal case for interior or exterior
use. Multicolor LED is used for status indication. Operating temperature range: -8° to 130° F
(-20° to 55° C). Dimensions: 4.52" H x 6" W x 1.56" D (11.3 cm H x 15.2 cm W x 3.9 cm D).
NR-2-WR
Exterior/Interior Magnetic Stripe Reader, Track 1
Track 1 magnetic stripe card reader for interior or exterior use. Metal construction (cast zinc)
for heavy duty applications. Surface mount. Supports NC format 32-bit Wiegand and ABA track 1
encoding (consult factory for special configurations when using existing ABA encoded cards).
Dimensions: 1.5" H x 1.6" W x 6.25" D (3.9 cm H x 4.0 cm W x 16 cm D).
Operating temperature range: -40° to 185° F (-40° to 85° C).
NC-2
NC Magnetic Stripe Card (32-Bit)
Magnetic stripe cards with 32-bit NC encoding. Designed to work with the NR-5 magnetic
stripe readers. Encoded on high-energy magnetic stripe for long life. Includes hot stamp number
equal to encoded number. Dimensions: 2.125" H x 3.375" W x .030" T
(5.398 cm H x 8.573 cm W x .079 cm T).
ALSO AVAILABLE:
NC-2/26
Magnetic Stripe Card (26-Bit)
Magnetic stripe card with 26-bit encoding. Designed to work with the
NR-5 magnetic stripe readers.
NC2ABA
ABA Format Encoded Magnetic Stripe Card
Magnetic stripe card with ABA format.
336
Access Systems-329-376 02-08.ind336 336Access Systems-329-376 02-08.ind336 336 8/12/08 5:17:08 PM8/12/08 5:17:08 PM
HONEYWELL ACCESS SYSTEMS
Readers & Credentials MAGNETIC STRIPE CREDENTIALS
NPC-2
Magnetic Stripe Small Photo ID Card (32-Bit)
1/4 size photo-ID slot magnetic stripe cards. Designed to work with NR-5 magnetic stripe readers.
Encoded on high-energy magnetic stripe for long life. Includes hot stamping number equal to encoded
number. Photo slot dimensions: 1.25" H x 1" W (3.2 cm H x 2.55 cm W). Card dimensions:
2.125" H x 3.375" W (5.398 cm H x 8.573 cm W).
NPC-3
Magnetic Stripe Full Photo ID Card (32-Bit)
Full size photo-ID slot magnetic stripe cards. Designed to work with the NR-5 magnetic stripe reader.
Encoded on high-energy magnetic stripe for long life. Includes hot stamping number equal to encoded
number. Photo slot dimensions: 2.75" H x 1.75" W (7.0 cm H x 4.5 cm W). Card dimensions:
2.125" H x 3.375" W (5.398 cm H x 8.573 cm W).
ALSO AVAILABLE:
NPC-4
UV Magnetic Stripe Badging Card (32-Bit)
Full-size photo magnetic stripe cards. Designed to work with the NR-5 magnetic stripe reader.
Encoded on high-energy magnetic stripe for long life. The laminate material is UV rated to provide for
less bleeding and a longer card life. Includes hot stamping number equal to encoded number. Photo slot
dimensions: 2.75" H x 1.75" W (7.0 cm H x 4.5 cm W). Card dimensions: 2.125" H x 3.375" W
(5.398 cm H x 8.573 cm W).
PVC-M-1
Magnetic Stripe Encoded PVC Card with Printed Number (32-Bit)
Plain white PVC high-energy magnetic stripe card. This card can be used with all PVC printers.
Dimensions: 2.125" H x 3.375" W x .030" D (5.398 cm H x 8.573 cm W x .076 cm D).
ALSO AVAILABLE:
PVC-M-2
Magnetic Stripe PVC Card, No Hot Stamp (32-Bit)
PVC-M-4
PVC 3 Track Low Coercivity, Not Encoded, Blank
337
Access Systems-329-376 02-08.ind337 337Access Systems-329-376 02-08.ind337 337 8/12/08 5:17:09 PM8/12/08 5:17:09 PM
www.security.honeywell.com/me
HONEYWELL ACCESS SYSTEMS
Readers & Credentials WIEGAND READERS
HU/W3100340 (formerly CR-1)
Wiegand Swipe Reader, Black
Black Wiegand swipe card reader. Can be used exterior or interior. Surface mount. Compatible with
all Wiegand cards except the SC-2-A and NC-1100008. Dimensions: 2.3" H x 5.3" W x 1.7" D
(6.0 cm H x 13.6 cm W x 4.5 cm D).
ALSO AVAILABLE:
HU/W3100500 (formerly CR-1B)
Wiegand Swipe Reader, Beige
Beige Wiegand swipe card reader. Can be used exterior or interior. Surface mount. Compatible
with all Wiegand cards except the SC-2-A and NC-1100008. Dimensions: 2.3" H x 5.3" W x 1.7" D
(6.0 cm H x 13.6 cm W x 4.5 cm D).
HU/W3152540 (formerly AR-1)
Epic Reader Black
Black ergonomic design Wiegand swipe reader using the same mounting pattern as the HU/
W3100340 (standard Wiegand swipe reader). Compatible with all Wiegand cards except the SC-2-A
and NC-1100008. Dimensions: 2.63" H x 5.88" W x 1.75" D (6.67 cm H x 14.93 cm W x 4.45 cm D).
Operating temperature range: -40° to 158° F (-40° to 70° C).
HU/W3121260 (formerly CI-1)
Wiegand Insertion Reader
Wiegand insertion card reader. Can be used exterior or interior. Flush mount on a triple gangbox
using mounting plate (CI-MP). Compatible with all Wiegand cards except the SC-2-A and
NC-1100008. Dimensions: 2.0" H x 3.2" W x 3.0" D (5.1 cm H x 8.2 cm W x 7.6 cm D).
HU/W3121510 (formerly CI-MP)
Card Insert Reader Mounting Plate
Mounting plate for the HU/W3121260 Wiegand insertion card readers.
Fits triple gang 3.5" (8.89 cm) deep box.
338
Access Systems-329-376 02-08.ind338 338Access Systems-329-376 02-08.ind338 338 8/12/08 5:17:10 PM8/12/08 5:17:10 PM
HONEYWELL ACCESS SYSTEMS

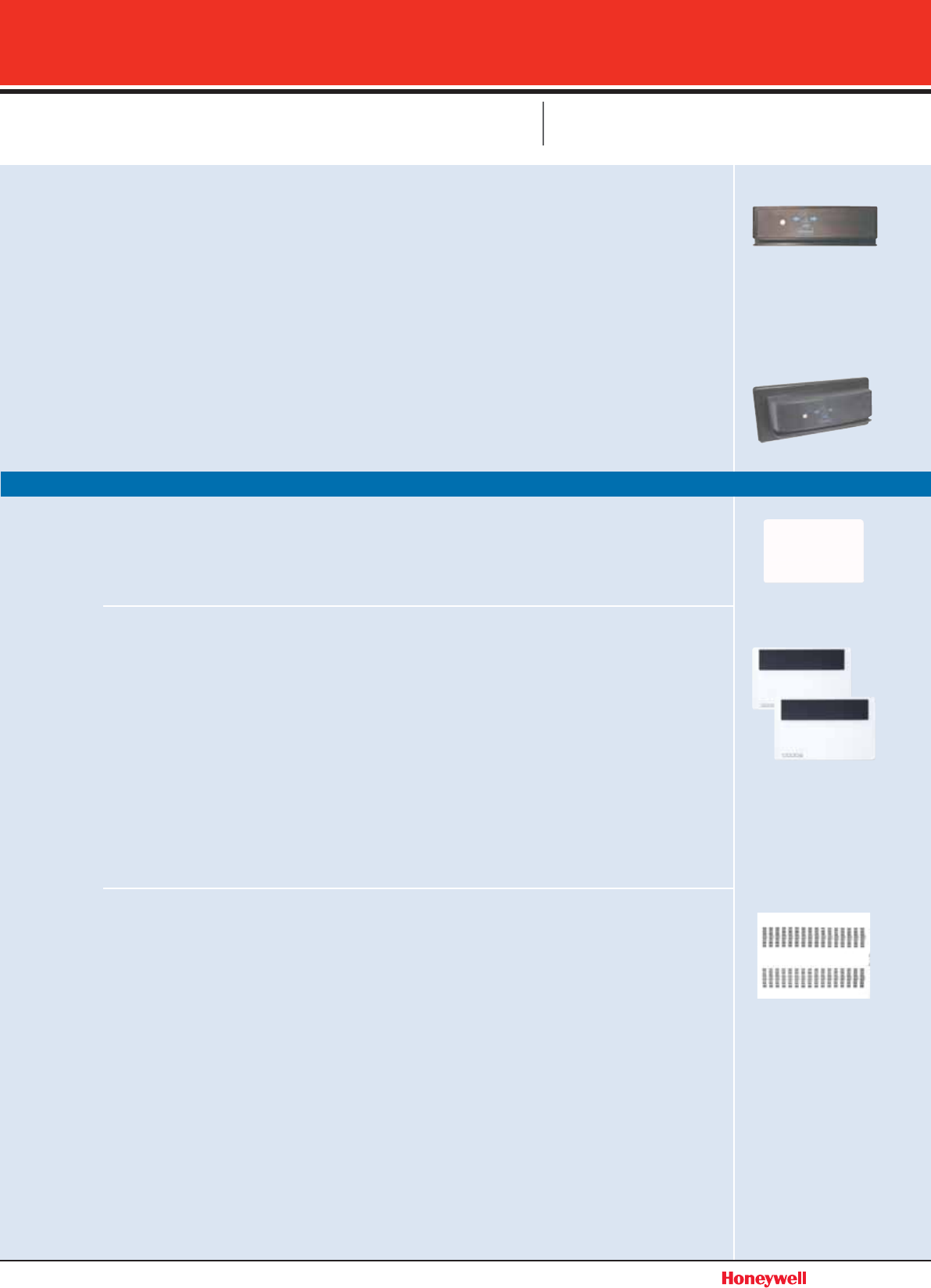

Readers & Credentials WIEGAND READERS
HU/W3130180 (formerly KR-1)
Wiegand Key Reader
Wiegand key insertion reader for exterior or interior use. Flush mount using mounting plate
(HU/W3131550). Compatible with all Wiegand keys. Dimensions: 1.62" H x 1.5" W x 2.25" D
(4.1 cm H x 3.8 cm W x 5.7 cm D).
ALSO AVAILABLE:
HU/W5084400 (formerly KR-ES)
Key Reader Escutcheon
The escutcheon, or trim piece, around the HU/W3130180 Wiegand key reader.
HU/W3131550 (formerly KR-MP)
Single Gang Key Reader Mount Plate
Single gang mounting kit for HU/W3130180 insertion reader. Brushed stainless steel.
HU/W2803001 (formerly TR-1)
Wiegand Turnstile Reader, Black
Wiegand turnstile card reader can be used exterior or interior.
Compatible with all Wiegand cards except the SC-2-A and NC-1100008.
Dimensions: 1.75" H x 7.0" W x 1.75" D (4.5 cm H x 17.8 cm W x 4.5 cm D).
ALSO AVAILABLE:
HU/W3141650 (formerly TR-1/CHROME)
Wiegand Turnstile Reader, Chrome
339
Access Systems-329-376 02-08.ind339 339Access Systems-329-376 02-08.ind339 339 8/12/08 5:17:12 PM8/12/08 5:17:12 PM
www.security.honeywell.com/me
HONEYWELL ACCESS SYSTEMS
SC-2
Wiegand Card, Hot Stamp (26-Bit)
Wiegand 26-bit NC format card with printed number on card equal to encoded number. Compatible
with all Wiegand readers except the CI-2 or NC-2802001. SC-2 cards feature Northern artwork and
logo. Dimensions: 3.375" H x 2.125" W (8.573 cm H x 5.398 cm W).
ALSO AVAILABLE:
SC-1
Wiegand Card, No Hot Stamp (26-Bit)
Wiegand 26-bit NC format card with no numbers stamped on card. Compatible with all Wiegand
readers except the CI-2 or NC-2802001. SC-1 cards feature Northern artwork and logo.
Dimensions: 3.375" H x 2.125" W (8.573 cm H x 5.398 cm W).
PVC-W-3
Wiegand PVC Card, 2 Side Printable, Glossy (26-Bit)
Wiegand card (26-bit) with two glossy sides to print on using the PVC printer (can be used with all
PVC printers). No hot stamped number. Compatible with all Wiegand readers except the CI-2.
Dimensions: 3.375" H x 2.125" W (8.573 cm H x 5.398 cm W).
ALSO AVAILABLE:
PVC-W-4
Wiegand/Magnetic Stripe Card, 1 Side Printable,
Hot Stamp, Glossy (26-Bit)
Wiegand card (26-bit) with one glossy side to print on using the PVC printer (can be used with all
PVC printers). Printed number on card equals the encoded number. Compatible with all Wiegand
readers except the CI-2. Dimensions: 3.375" H x 2.125" W (8.573 cm H x 5.398 cm W).
KI-2
Wiegand Key, Matching Number, Hot Stamp (26-Bit)
Wiegand 26-bit NC format insertion key. With printed number equal to encoded number. Compatible
with all Wiegand key insertion readers. Dimensions: 3.25" H x 1" W (8.255 cm H x 2.54 cm W).
ALSO AVAILABLE:
KI-1
Wiegand Key, No Hot Stamp (26-Bit)
With no numbers stamped on key.
KI-1-CRS
Wiegand Key, Cross Reference, Hot Stamp (26-Bit)
With cross referenced hot stamped number.
Readers & Credentials WIEGAND CREDENTIALS
340
Access Systems-329-376 02-08.ind340 340Access Systems-329-376 02-08.ind340 340 8/12/08 5:17:13 PM8/12/08 5:17:13 PM
HONEYWELL ACCESS SYSTEMS
Readers & Credentials KEYPADS

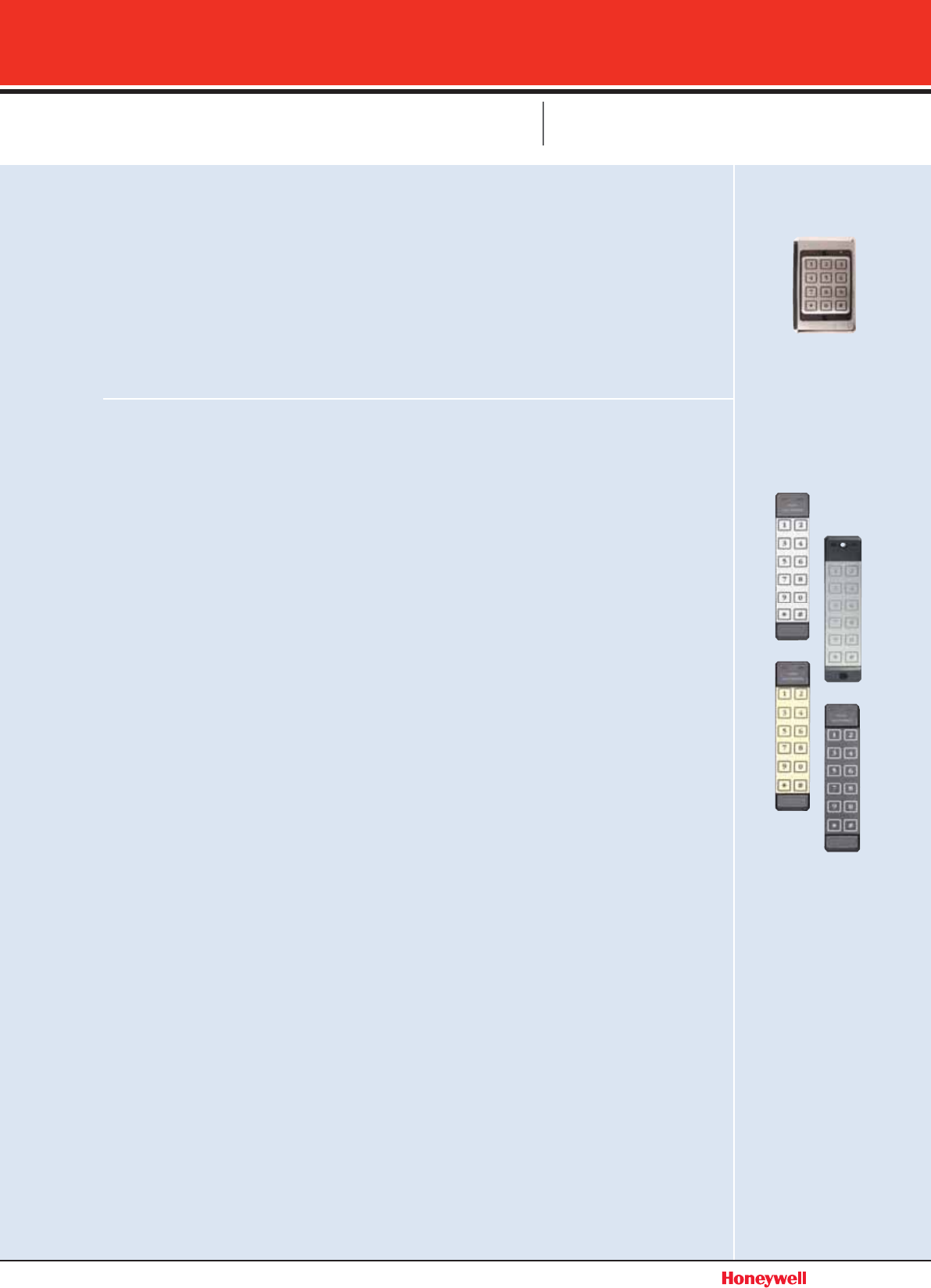

KP-11
Exterior/Interior Piezo Keypad 5 Wire Matrix (32-Bit), Stainless
Exterior or interior keypad. Brushed stainless steel, piezo electric with audio and visual feedback, 32-bit
Wiegand style output, mounts on a single gangbox. Dimensions: 5.125" H x 3.375" W x .5" D
(13.02 cm H x 8.57 cm W x 1.27 cm D). Operating temperature range: -40° to 160° F (-40° to 71° C).
ALSO AVAILABLE:
KP-11-26
Exterior/Interior Piezo Keypad 5 Wire Matrix (26-Bit), Stainless
26-bit Wiegand style output, mounts on a single gangbox.
KP-13
Exterior/Interior 2 x 6 Mullion Keypad 5 Wire Matrix (32-Bit)
Exterior or interior 5 conductor, 32-bit Wiegand keypad suitable for mounting on mullion frames.
The keypad area uses a stainless steel overlay. Dimensions: 7.5" H x 1.75" W x .75" D (19.05 cm H x
4.45 cm W x 1.91cm D). Operating temperature range: -40° to 158° F (-40° to 70° C).
ALSO AVAILABLE:
KP-13-26
Exterior/Interior 2 x 6 Mullion Keypad 5 Wire Matrix (26-Bit)
Exterior or interior 5 conductor, 26-bit Wiegand keypad suitable for mounting on mullion frames.
The keypad area uses a stainless steel overlay. Dimensions: 7.5" H x 1.75" W x .75" D
(19.05 cm H x 4.45 cm W x 1.91 cm D). Operating temperature range: -40° to 158° F (-40° to 70° C).
KP-13-BRA
Exterior/Interior 2 x 6 Mullion Keypad 5 Wire Matrix, Braille Face Plate
The keypad area uses a braille overlay.
KP-13-BRS
Exterior/Interior 2 x 6 Mullion Keypad 5 Wire Matrix, Brass Face Plate
The keypad area uses a brass overlay.
KP-13-ILL
Exterior/Interior 2 x 6 Mullion Keypad 5 Wire Matrix, Illuminated Face Plate
The keypad area uses an illuminated, translucent lexan overlay. Requires a separate 5V @ 200 mA DC
supply if more than one keypad or reader is used in the panel for illumination and keypad operation.
341
Access Systems-329-376 02-08.ind341 341Access Systems-329-376 02-08.ind341 341 8/12/08 5:17:13 PM8/12/08 5:17:13 PM
www.security.honeywell.com/me
HONEYWELL ACCESS SYSTEMS
Readers & Credentials KEYPADS
KP-10
Exterior/Interior Piezo Matrix Keypad, Stainless
Exterior or interior keypad. Brushed stainless steel, piezo electric with audio and visual feedback, 12
wire hook-up, mounts on a single gang box. Used only with the N-1000-II, III and IV in card and pin
configuration. Dimensions: 5.125" H x 3.375" W x .5" D (13.02 cm H x 8.57 cm W x 1.27 cm D).
Operational temperature range: -40° to 160° F (-40° to 71° C).
ALSO AVAILABLE:
KP-10-BRASS
Exterior/Interior Piezo Matrix Keypad, Brass Face Plate
Shiny brass finish on bezel - brushed brass on touchpad.
KP-12
Exterior/Interior 2 x 6 Mullion Matrix Keypad, Stainless
Exterior or interior 11 conductor keypad suitable for mounting on mullion frames. The keypad area
uses a stainless steel overlay. Used only with the N-1000-II, N-1000-III and N-1000-IV in card and
pin configuration. Dimensions: 7.5" H x 1.75" W x .75" D (19.05 cm H x 4.45 cm W x1.91 cm D).
Operating temperature range: -40° to 158° F (-40° to 70° C).
ALSO AVAILABLE:
KP-12-BRA
Exterior/Interior 2 x 6 Mullion Matrix Keypad, Braille Face Plate
The keypad area uses a braille overlay.
KP-12-BRS
Exterior/Interior 2 x 6 Mullion Matrix Keypad, Brass Face Plate
The keypad area uses a brass overlay.
KP-12-ILL
Exterior/Interior 2 x 6 Mullion Matrix Keypad, Illuminated Face Plate
The keypad area uses an illuminated, translucent lexan overlay.
342
Access Systems-329-376 02-08.ind342 342Access Systems-329-376 02-08.ind342 342 8/12/08 5:17:15 PM8/12/08 5:17:15 PM
HONEYWELL ACCESS SYSTEMS
Readers & Credentials BARCODE READERS/CREDENTIALS
BR-7
Barcode Reader Exterior/Interior, Infrared
Weather resistant, surface mount, bi-directional, infrared barcode swipe reader with cast aluminum
housing and red/green LED. Reads most barcode formats including code 39 and interleaved 2 of 5.
Standard outputs are 5 digit Wiegand (card number 1-65,535) and up to 12 digits
(card number 1-999,999,999,999). To ensure proper operation on existing cards, sample cards should be
sent to the factory for verification and proper format programming. Dimensions: 2" H x 6" W x 1.75" D
(5.08 cm H x 15.24 cm W x 4.445 cm D).
ALSO AVAILABLE:
BR-VL
Barcode Reader Exterior/Interior, Visible Light
Weather resistant, surface mount, bi-directional, visible light barcode swipe
reader with cast aluminum housing and red/green LED. All other specifications equivalent to BR-7.
BC-2
Barcode Card, Code 39
Barcode cards encoded code 39 for use with the BR-7 barcode reader.
Dimensions: 2.125" H x 3.375" W (5.398 cm H x 8.573 cm W).
BCP-2
Barcode Card with Photo Flap and Mask, Code 39
Barcode cards encoded code 39 with photo flap for use with the BR-7 barcode reader.
The BCP-2 has a mask to prevent copying of cards for greater security.
Dimensions: 2.125" H x 3.375" W (5.398 cm H x 8.573 cm W).
ALSO AVAILABLE:
BCP-2-SPEC
Barcode Card with Photo Flap and Mask, Code 39
BC-2-M
Barcode Card with Mask, Code 39
BC-LBL
Barcode Label, 32/Sheet, Code 39
Barcode labels for use with the BR-7 barcode reader. Consists of a sheet of 32 peel off barcode labels.
Dimensions: .625" H x 3" W (1.59 cm H x 7.62 cm W).
BARCODE CREDENTIALS
343
Access Systems-329-376 02-08.ind343 343Access Systems-329-376 02-08.ind343 343 8/12/08 5:17:17 PM8/12/08 5:17:17 PM
www.security.honeywell.com/me
HONEYWELL ACCESS SYSTEMS
Readers & Credentials WIRELESS TRANSMITTERS / RECEIVERS
ACARD-SBT
Single Button A-Card (26-Bit)
Single button transmitter for use with the A-card receiver (ACARD-REC). Operates on a 9V battery
and individually numbered at the factory for high security. Range of over 100' (30.48m) is attain-
able (similar to a garage door opener). Dimensions: 4.1" H x 2.3" W x 1" D (10.41cm H x 5.84cm W x
2.54cm D). Operating temperature range: -40° to 160° F (-40° to 71° C).
ACARD-DBT
Dual Button A-Card (26-Bit)
Dual button transmitter allows you to use two A-card receivers (ACARD-REC). One button for the in
reader and the other button for the out reader. Operates on a 9V battery and individually numbered
at the factory for high security. Range of over 100' (30.48m) is attainable (similar to a garage door
opener). Dimensions: 4.1" H x 2.3" W x 1" D (10.41cm H x 5.84cm W x 2.54cm D). Operating
temperature range: -40° to 160° F (-40° to 71° C).
ACARD-REC
A-Card Receiver
The A-card receiver is commonly used as a reader for gate control. This reader provides a 26-bit
Wiegand style output. Use power supply (HPS123) for back-up applications. Comes with a 12VAC
transformer. Compatible transmitter cards are the ACARD-DBT or ACARD-SBT. Dimensions: 8" H
x 6" W x 3.5" D with 10" antenna (20.32cm H x 15.24cm W x 8.89cm D with 25.4cm antenna).
Operating temperature range: -40° to 160° F (-40° to 71° C).
344
Access Systems-329-376 02-08.ind344 344Access Systems-329-376 02-08.ind344 344 8/12/08 5:17:18 PM8/12/08 5:17:18 PM
HONEYWELL ACCESS SYSTEMS
Readers & Credentials WIRELESS TRANSMITTERS / RECEIVERS

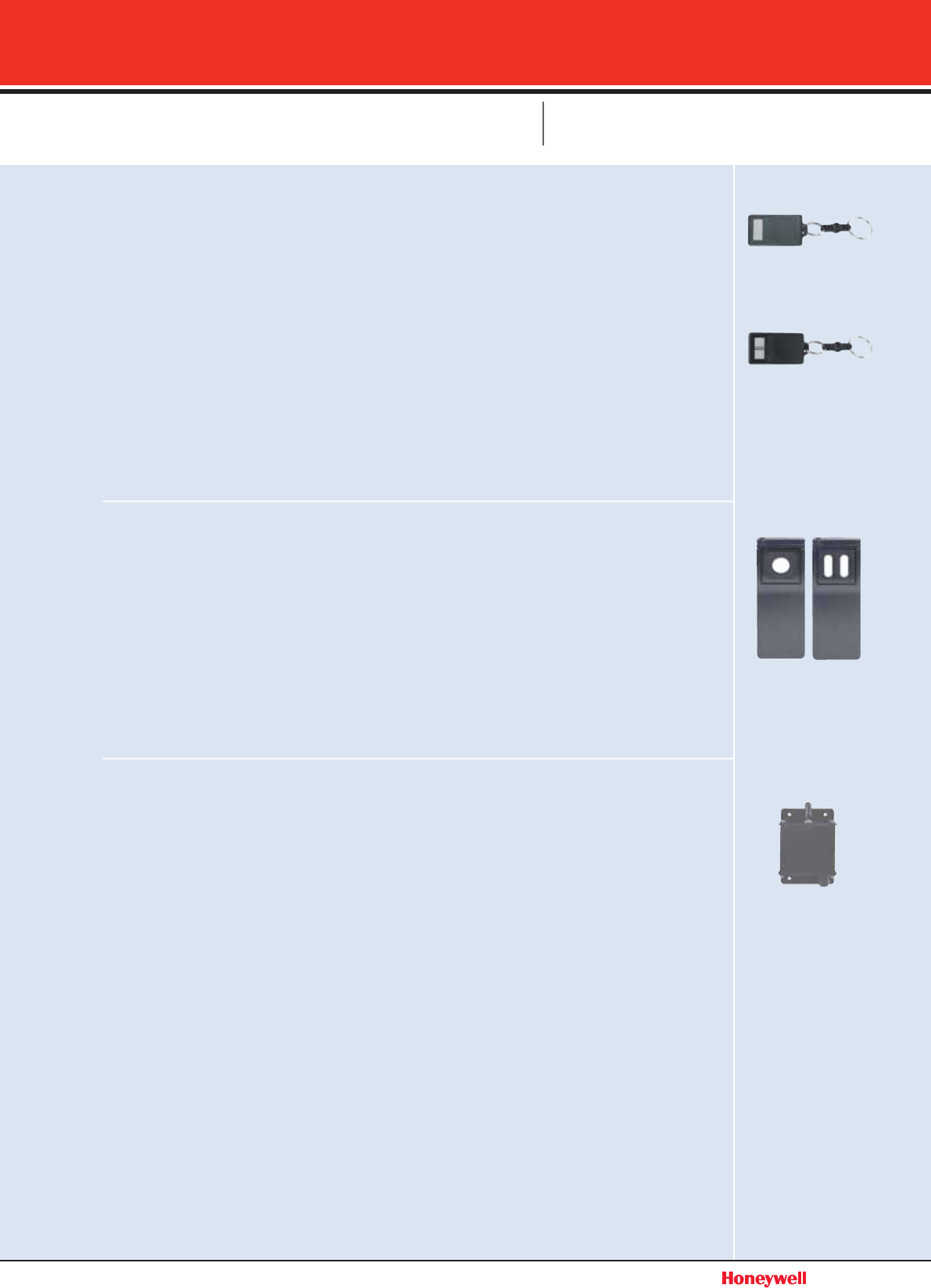

LIN-KEY-1
Single Button Transmitter, Key Ring Style for LIN-REC
Single button (1 channel) key ring transmitter for the LIN-REC. Black case with gray button. Powered by
two-3V DL-1616 lithium batteries (included). 318 MHz transmitter frequency. Individually numbered at the
factory with random code numbers. Dimensions: 1.25" H x 2.25" W x .48" D
(3.18 cm H x 5.72 cm W x 1.22 cm D).
ALSO AVAILABLE:
LIN-KEY-2
Dual Button Transmitter, Key Ring Style for LIN-REC
Dual button (2 channels) key ring transmitter for the LIN-REC.
LINKEY4
Linear 4 Channel Transmitter
Four-button (4 channels) key ring transmitter for the LIN-REC.
LIN-VSR-1
Single Button Transmitter, Visor Style for LIN-REC
Single button (1 channel) visor clip transmitter for the LIN-REC. Black case with gray button. Powered by
two-3V DL-1616 lithium batteries (included). 318 MHz transmitter frequency. Individually numbered at the
factory with random code numbers. Dimensions: 1.6" W x 4.2" H x .8" D
(4.064 cm W x 10.68 cm H x 2.032 cm D).
ALSO AVAILABLE:
LIN-VSR-2
Dual Button Transmitter, Visor Style for LIN-REC
Dual button (2 channels) visor clip transmitter for the LIN-REC.
LIN-REC
Reader/Receiver for LIN-KEY and LIN-VSR Transmitters
Reader/receiver for the LIN-KEY-1, LIN-KEY-2, LIN-VSR-1 and LIN-VSR-2 transmitters. LIN-REC has a
Wiegand output. Reader enclosure is weather- resistant black anodized aluminum with removable end
cap to provide wiring and switch setting access; end caps secured with screws. Power
requirements: 6-24 VDC unregulated or 5 VDC regulated with a current draw of 17 mA. Dimensions:
6.25" H x 4.25" W x 2.5" D with 10" antenna (15.88 cm H x 10.8 cm W x 6.35 cm D
with 25.4 cm antenna).
345
Access Systems-329-376 02-08.ind345 345Access Systems-329-376 02-08.ind345 345 8/12/08 5:17:19 PM8/12/08 5:17:19 PM
www.security.honeywell.com/me
HONEYWELL ACCESS SYSTEMS
PVC-NT-1
No-Technology PVC Card
Plain white PVC card with no access control technology. For badging only. This card can be used
with all PVC printers. Dimensions: 2.125" H x 3.375" W (5.398cm H x 8.573cm W).
PF-4-VERT
Vertical UV Photo ID Flap
Vertical self-adhesive UV photo flap. Allows standard cards to be photo ID cards in a vertical
orientation.
PF-4-HORZ
Horizontal UV Photo ID Flap
Horizontal self-adhesive UV photo flap. Allows standard cards to be photo ID cards in a
horizontal orientation.
PIP-1
Vertical Card Pouch
Vertical card pouch with metal clip. This pouch is designed to work with standard size cards.
PIP-2
Horizontal Card Pouch
Horizontal card pouch with metal clip.
PIP-4
Frosted Rigid Plastic Badge Holder
Durable plastic card holder designed to work with standard size cards.
PIP-5
Vertical Card Holder with Clip Hole
Durable plastic card holder with convenient clip holder, designed to work
with standard size cards.
BC-1
Badge Clips
Badge clips for photo ID cards. Metal clip with plastic band and metal snap.
BC-3
Badge Clip with Adhesive
Badge clip with adhesive back for use with proximity cards. The badge clip may interfere with insertion or
swipe card readers depending on mounting location.
Readers & Credentials CARD ACCESSORIES
346
Access Systems-329-376 02-08.ind346 346Access Systems-329-376 02-08.ind346 346 8/12/08 5:17:21 PM8/12/08 5:17:21 PM
HONEYWELL ACCESS SYSTEMS

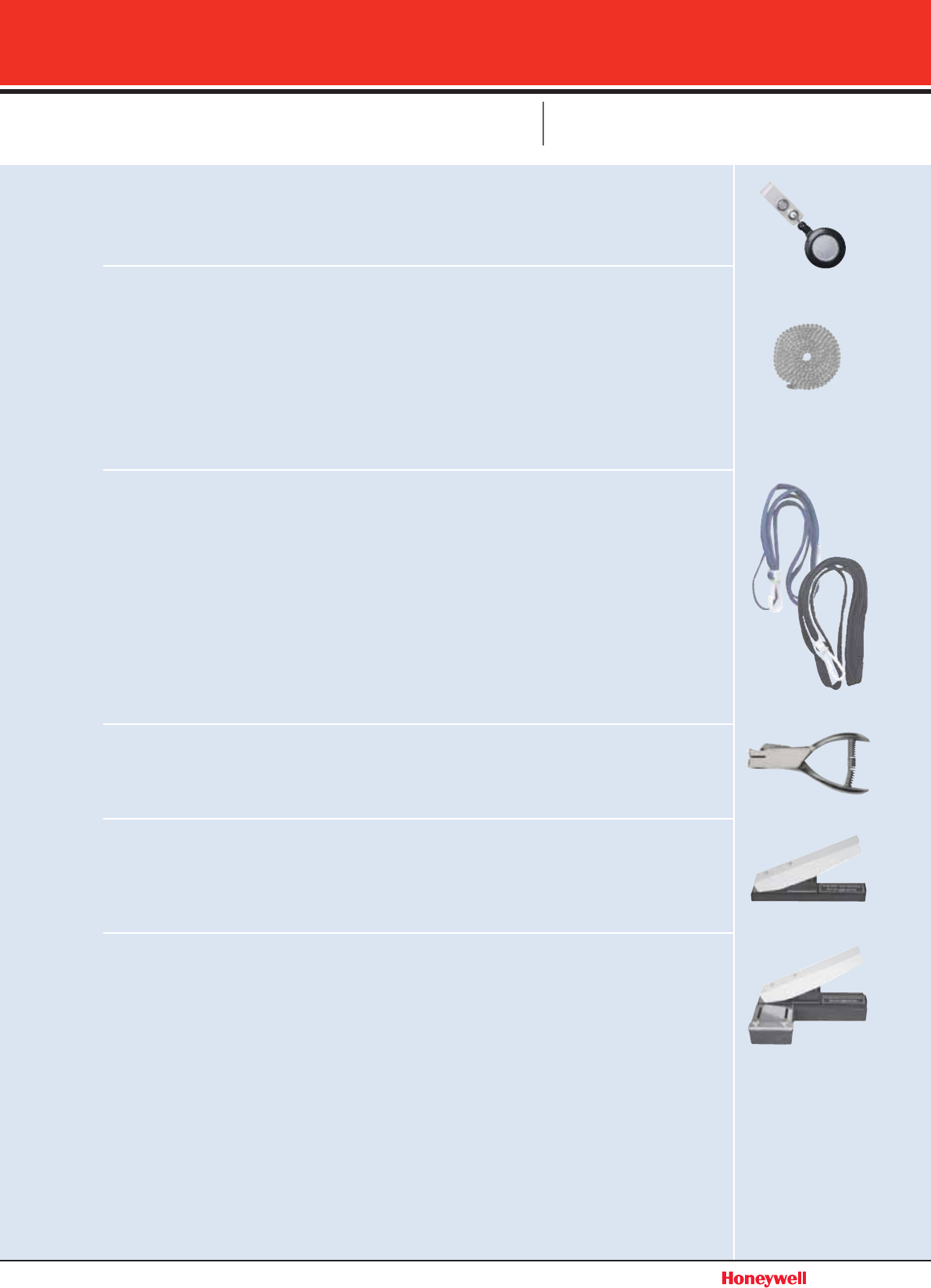

Readers & Credentials CARD ACCESSORIES
BCRETRACT
Retractable Coil Badge Holder with Clip
Retractable coil badge holder with clip.
NCKCHN30
30" Neck Chain, Silver
Neck chain with silver finish. Length: 30" (.76m).
ALSO Available:
NCKCHN36
36" Neck Chain, Silver
Neck chain with silver finish. Length: 36" (.91m) .
NCKLNRDBA
35" Break Away Neck Lanyard, Royal Blue
Break away, flat woven neck lanyard.
Dimensions: .375" W x 35" L (.95 cm W x 88.9 cm L ).
ALSO Available:
NCKLNRDBK
35" Break Away Neck Lanyard, Black
NCKLNRDNB
35" Break Away Neck Lanyard, Navy Blue
CP-1
Card Punch
Hand-held card punch for making slots in cards for badge clips.
CP-5
Manual Desktop Card Punch
Stapler-style slot punch with slot receptacle. Slot size: .125" L x .625" W
(3 mm L x 16 mm W).
CP7
Desktop Card Punch
Stapler-style slot punch with adjustable centering guides to provide a
consistent positioning of the slot. Slot size: .125" L x .550" H
(3 mm L x 14 mm W).
347
Access Systems-329-376 02-08.ind347 347Access Systems-329-376 02-08.ind347 347 8/12/08 5:17:23 PM8/12/08 5:17:23 PM
www.security.honeywell.com/me
HONEYWELL ACCESS SYSTEMS
Readers & Credentials READER ACCESSORIES

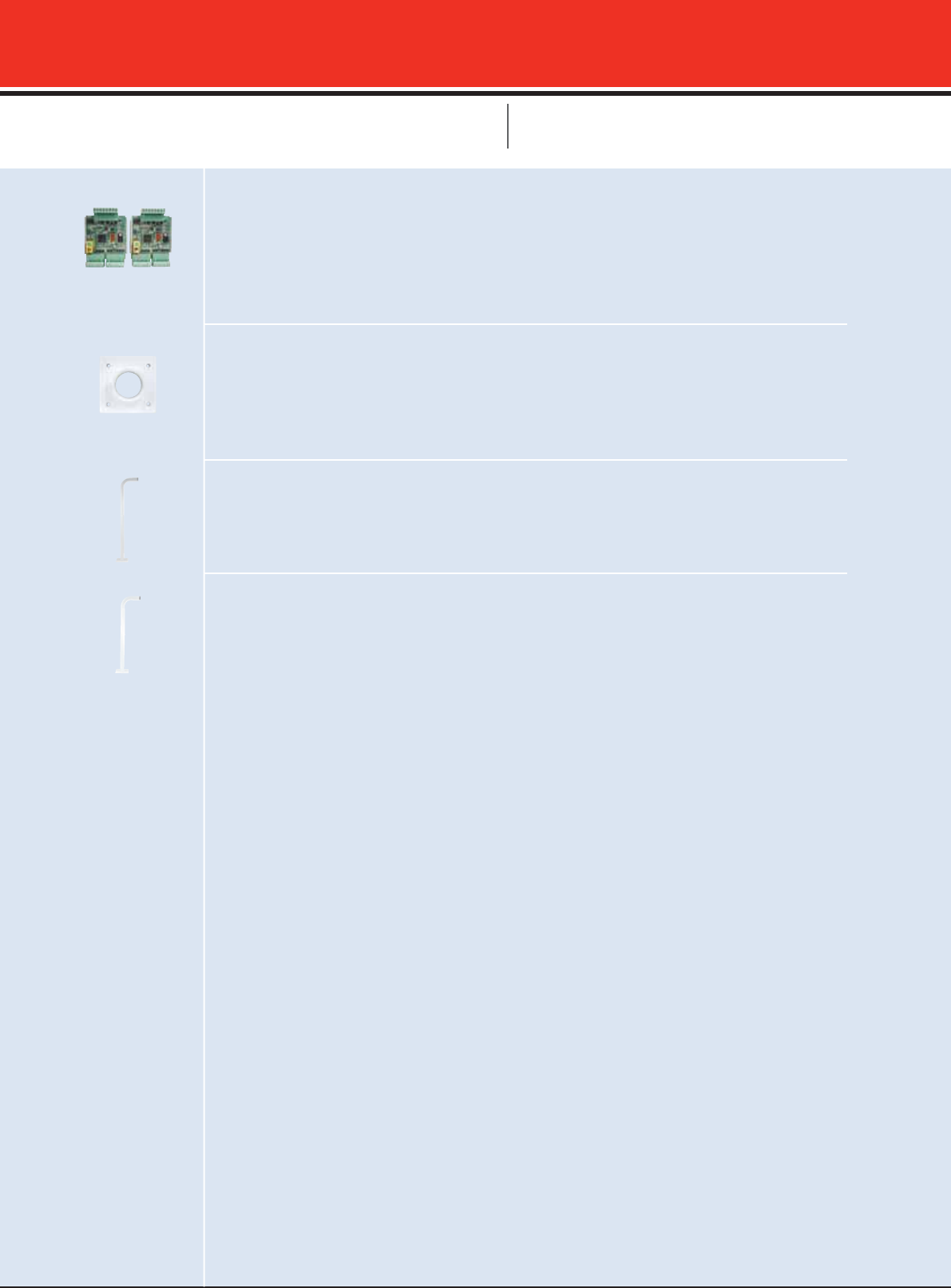

SPX-2-W
Wiegand Extender
Extends Wiegand communications up to 10,000' using a single twisted pair. The system supports
from 24 to 36 data bits and has a SPST relay at the remote unit that is energized when the reader
LED is energized. The central unit provides an alarm relay to indicate if power or communication is
lost at the remote unit. Requires 8-24 VDC power supply (HPS123).
PED-GA-1
Gooseneck Adapter Plate, White
Adapter plate is 4" H x 4" W (10.16 cm H x 10.16 cm W) that screws on to
the goose neck (PED-GS-1). The plate has 4.25" H x 20" W (.635 cm H x
50.8 cm W) threaded holes to allow mounting of your own adapter piece.
PED-GS-1
42" Gooseneck White Post, White
42" H (1.06m H) high gooseneck post. 2" W (5.08 cm W) pipe.
Use adapter plate (PED-GA-1) to mount adapter.
PED-GS-2
36" Gooseneck White Post
36" H (.914m H) high gooseneck post. 2" W (5.08cm W) pipe.
Use adapter plate (PED-GA-1) to mount adapter.
348
Access Systems-329-376 02-08.ind348 348Access Systems-329-376 02-08.ind348 348 8/12/08 5:17:25 PM8/12/08 5:17:25 PM
HONEYWELL ACCESS SYSTEMS
Through its strategic partners, Honeywell offers
locking and egress solutions to fit any
application. All products have been tested with
Honeywell products and provide an excellent
opportunity for dealers to increase their revenue
on their next installation.
THIS SECTION INCLUDES:
349
Locks &
Egress Devices
Access Systems-329-376 02-08.ind349 349Access Systems-329-376 02-08.ind349 349 8/12/08 5:17:26 PM8/12/08 5:17:26 PM
www.security.honeywell.com/me
HONEYWELL ACCESS SYSTEMS
Locks MAGNETIC LOCKS
ML-8005
Single Door Small Magnet, 650 lbs
Designed to accommodate low door clearance or minimum security applications.
Holding force: 650 lbs (295 kg) Current draw: 415 mA @ 12 VDC, 215 mA @ 24 VDC.
Lock size: 1.625" H x 10" W x 1" D (4.2 cm H x 25.0 cm W x 2.5 cm D).
Armature dimensions: 1.5" H x 7.25" W x .5" D (3.8 cm H x 18.5 cm W x 1.2 cm D).
ML8011-LC-US28
Magnetic Lock, 1,200 lbs
UL Listed magnetic door lock for a single door with 1,200 lbs (544 kg)
holding force, operates on 12/24 VDC .2 A current draw and comes with a US28 (satin stainless)
finish. Lock dimensions: 2.625" H x 10.5" W x 1.625" D (6.67 cm H x 26.67 cm W x 4.13 cm D).
Armature dimensions: 2.5" H x 7" W x .375" D (6.35 cm H x 17.78 cm W x .95 cm D).
ALSO AVAILABLE:
ML8011-LC-US40
Magnetic Lock, 1,200 lbs
US40 (brown aluminum) finish.
ML8011-LCR-US28
Magnetic Lock, 1,200 lbs with Bond Sensor
US28 (satin stainless) finish.
ML8011-LCR-US40
Magnetic Lock, 1,200 lbs with Bond Sensor
US40 (brown aluminum) finish.
ML8011-002-US28
Magnetic Lock, 1,500 lbs with Door Sensor Switch
UL Listed magnetic door lock with door sensor switch for a single door with 1,500 lbs (680 kg)
holding force, operates on 12/24 VDC .2 A current draw and comes with a US28 (satin stainless)
finish. Lock dimensions: 2.625" H x 10.5" W x 1.625" D (6.67 cm H x 26.67 cm W x 4.13 cm D).
Armature dimensions: 2.5" H x 7" W x .375" D (6.35 cm H x 17.78 cm W x .95 cm D).
ALSO AVAILABLE:
ML8011-002-US40
Magnetic Lock, 1,500 lbs with Door Sensor Switch
MAGNETIC
LOCKS
Honeywell magnetic locks provide reliable and affordable locking options. Our
magnetic locks have been tested with all Honeywell control panels to assure
that they will work properly every time. Additionally, Honeywell locks include
standard mounting templates that take the fear out of drilling into a door. All
locks are UL Listed and meet the needs of most applications.
350
Access Systems-329-376 02-08.ind350 350Access Systems-329-376 02-08.ind350 350 8/12/08 5:17:28 PM8/12/08 5:17:28 PM
HONEYWELL ACCESS SYSTEMS
Locks MAGNETIC LOCKS / MOUNTING ACCESSORIES

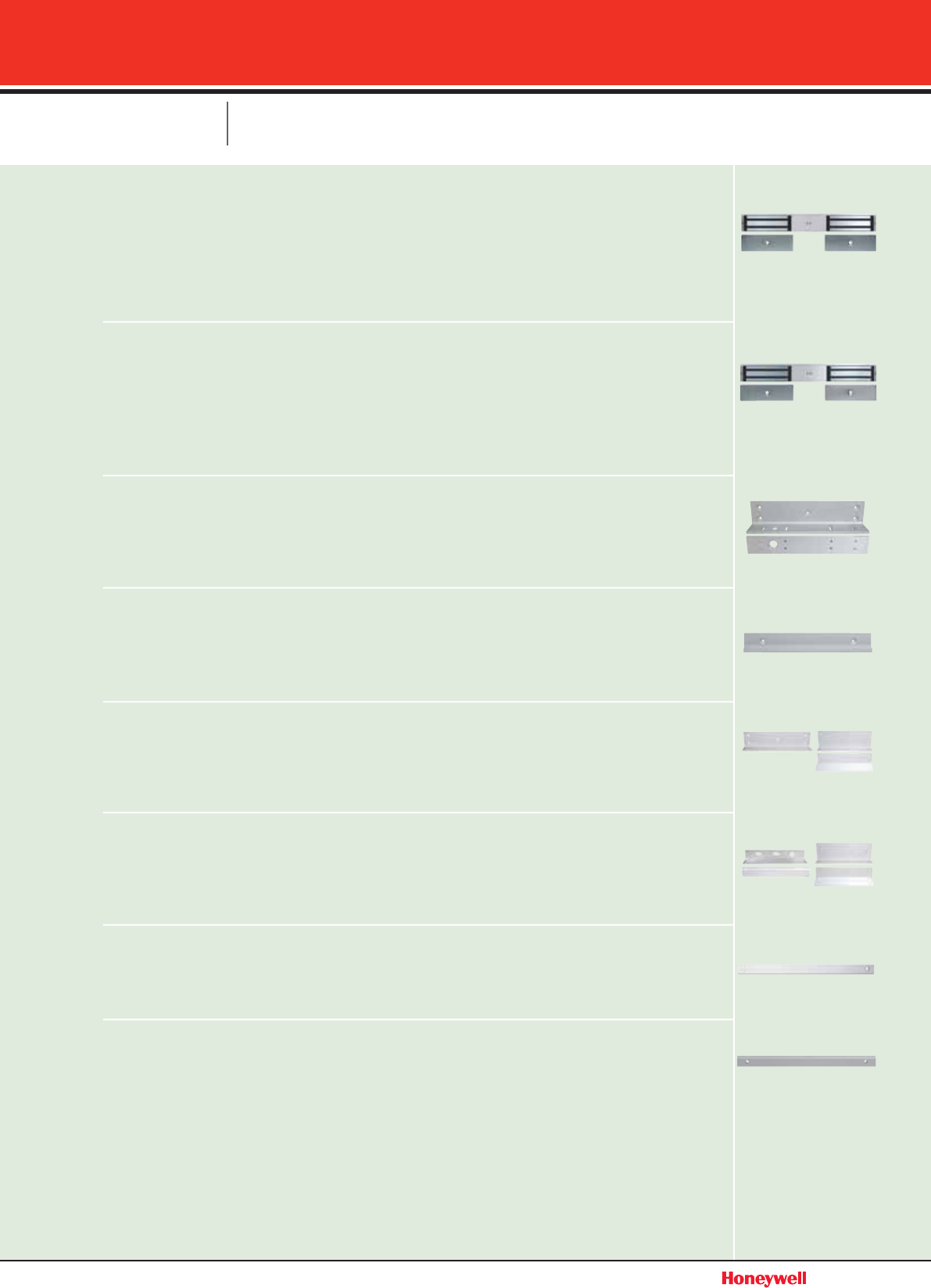

ML8022-LC-US28
Magnetic Lock for Double Doors, 1,200 lbs
UL Listed magnetic door lock for a double door with 1,200 lbs (544 kg) holding force, operates on
12/24 VDC .5 A current draw and a US28 (satin stainless) finish.
Lock dimensions: 2.625" H x 21" W x 1.625" D (6.68 cm H x 53.6 cm W x 4.13 cm D).
Armature dimensions: 2.375" H x 7.25" W x .625" D (6.0 cm H x 19.0 cm W x 1.6 cm D).
ML8022-002-US28
Magnetic Lock for Double Doors, 1,500 lbs
UL Listed magnetic door lock for a pair of doors with 1,500 lbs (544 kg) holding force, operates
on 12/24 VDC .4 A current draw and a US28 (satin stainless) finish.
Lock dimensions: 2.625" H x 21" W x 1.625" D (6.68 cm H x 53.6 cm W x 4.13 cm D).
Armature dimensions: 2.375" H x 7.25" W x .625" D (6.0 cm H x 19.0 cm W x 1.6 cm D).
MB21021-2-US28
Adjustable Angle Bracket for ML8011 Series Locks
Adjustable angle bracket for ML8011 series locks in a US28 satin aluminum finish.
Dimensions: 1.5" H x 2.375" W (3.81 cm H x 6.03 cm W).
MB21021-US28
Angle Bracket for ML8011 Series Locks
Angle bracket for ML8011 series locks in a US28 satin aluminum finish.
Dimensions: 1" H x 1.5" W x .3125" D (2.54 cm H x 3.8 cm W x .795 cm D).
MB21031-US28
Z-Bracket for ML8011 Series Locks
Angle bracket for ML8011 series locks. US28 satin aluminum finish.
Dimensions: 1" H x 1.5" W x .3125" D (2.54 cm H x 3.8 cm W x .795 cm D).
MB21034-US28
Tamper-proof Z-Bracket for ML8011 Series Locks
Tamper-proof Z-bracket for in-swinging or out-swinging doors using the
ML8011 series locks. US28 satin aluminum finish.
MB21001-US28
Filler Plate for ML8011 Series Locks, 1/2" X 3/4"
1/2" x 3/4" or 3/4" x 1/2" filler plate for ML8011 series locks. US28 satin aluminum finish.
MB21005-US28
Filler Plate for ML8011 Series Locks, 5/8" X 3/4"
5/8" x 3/4" or 3/4" x 5/8" filler plate for ML8011 series locks. US28 satin aluminum finish.
351
Access Systems-329-376 02-08.ind351 351Access Systems-329-376 02-08.ind351 351 8/12/08 5:17:30 PM8/12/08 5:17:30 PM
www.security.honeywell.com/me
HONEYWELL ACCESS SYSTEMS
Locks & Egress Devices DOOR STRIKES / EGRESS

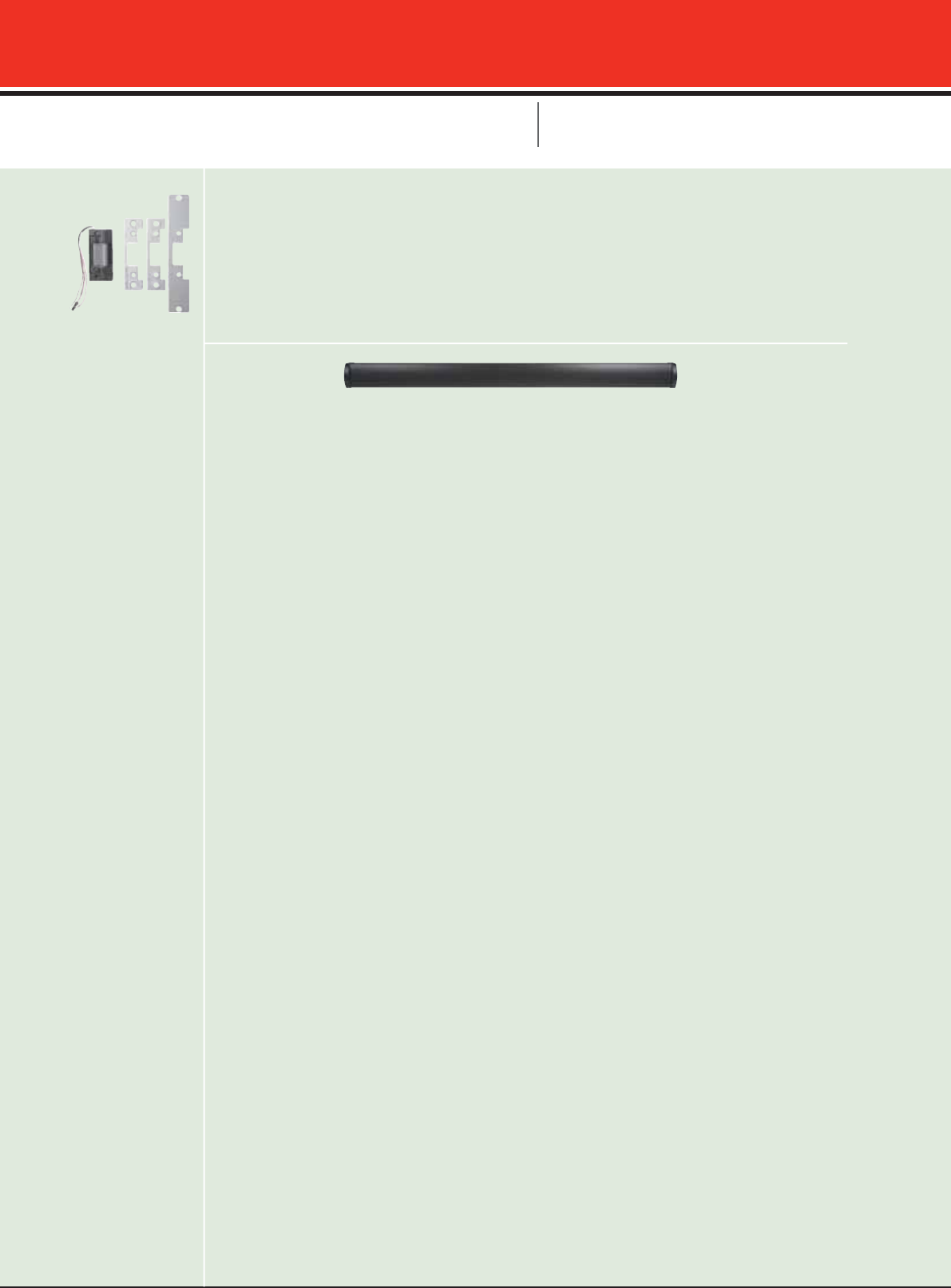

NS5100
Dual Voltage Electric Door Strike, 3 Face Plates
Dual voltage electric door strike providing over 1,300 lbs. of holding force. Fail-secure/fail-safe field
reversible. The NS5100 is .38A @ 12 VDC or .19A @ 24 VDC. Strike includes three face plates for
use with hollow metal, wood or aluminum frames. Adjustable keeper and small backbox fit almost
any application. Retrofit existing doors or lock replacements with included neoprene filler. Backbox:
3.375" H x 1" W x 1.345" D. Keeper pocket: 1.4375" H x .5" D x .6875–.8125" W (adjustable).
SMART-BAR
36" Electronic Smart Touch Sensor Bar Exit Device, 12/24 VDC,
IR Beam Activation
The smart touch sensor bar provides a clean, contemporary design. The bar uses two redundant
detection systems to sense an exit request. The first is a capacitance touch sense when a person
touches the metal portion of the bar. The second is an invisible infrared light beam, which is directed
across the front of the bar. The bar is constructed of heavy-duty aluminum extrusion.
Requires 12/24 VDC linear power supply. Dimensions: 2.5" H x 36" W x 3.25" D
(6.4 cm H x 91 cm W x 8.3 cm D).
352
Access Systems-329-376 02-08.ind352 352Access Systems-329-376 02-08.ind352 352 8/12/08 5:17:33 PM8/12/08 5:17:33 PM
HONEYWELL ACCESS SYSTEMS
Egress Devices

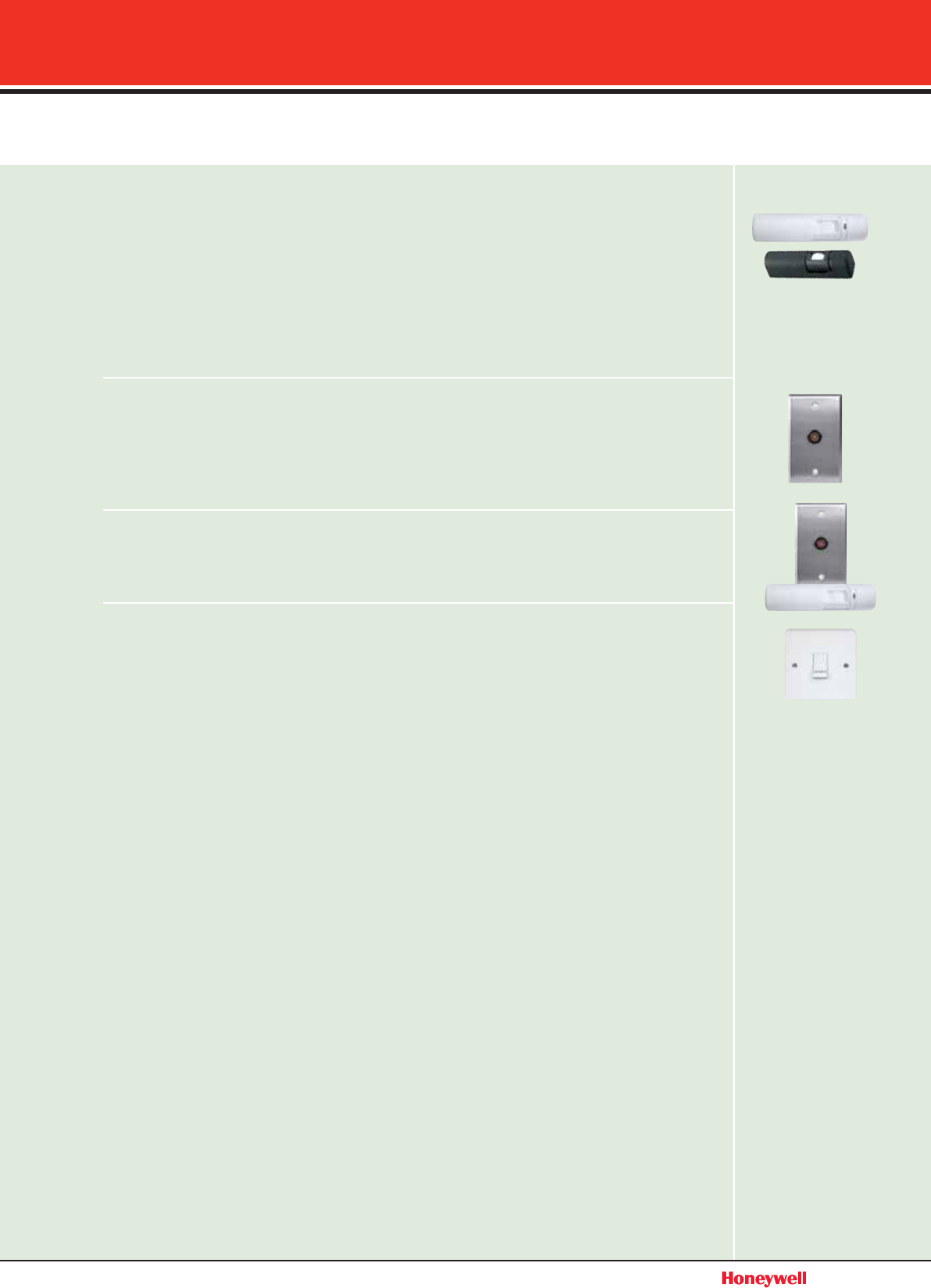

IS310WH
Curtain PIR, White
Request to exit PIR with up to 10' (3.05m) coverage. Two Form C contacts can be adjusted from .25 to
60 seconds. Temperature range: -20° to 120° F (-29° to 49° C). UL 294 listed. Power requirements:
12/24 VAC or VDC. Dimensions 1.5" H x 6.25" W x 1.5" D (3.8 cm H x 15.8 cm W x 3.8 cm D).
ALSO AVAILABLE:
IS310BL
Curtain PIR, Black
EXB-1
Egress Button
Exit button with a single gang stainless steel mounting plate, DPDT. Can be configured with momentary
or latching contact status. Temperature range: 32° to 158° F (0° to 70° C).
Dimensions: 4.5" H x 2.75" W x 2.13" D (11.43 cm H x 6.99 cm W x 5.40 cm D).
EGRESSK1
PIR and Request to Exit Button Kit
Includes PIR (IS310WH) and egress button (EXB-1).
R1010
Switch Manual Release
Switch with momentary contact and key-symbol, white color. Dimensions:
2.375" H x 2.375" W x .625" D (6.1 cm H x 6.1 cm W x 1.5 cm D).
353
Access Systems-329-376 02-08.ind353 353Access Systems-329-376 02-08.ind353 353 8/12/08 5:17:33 PM8/12/08 5:17:33 PM
www.security.honeywell.com/me
HONEYWELL ACCESS SYSTEMS

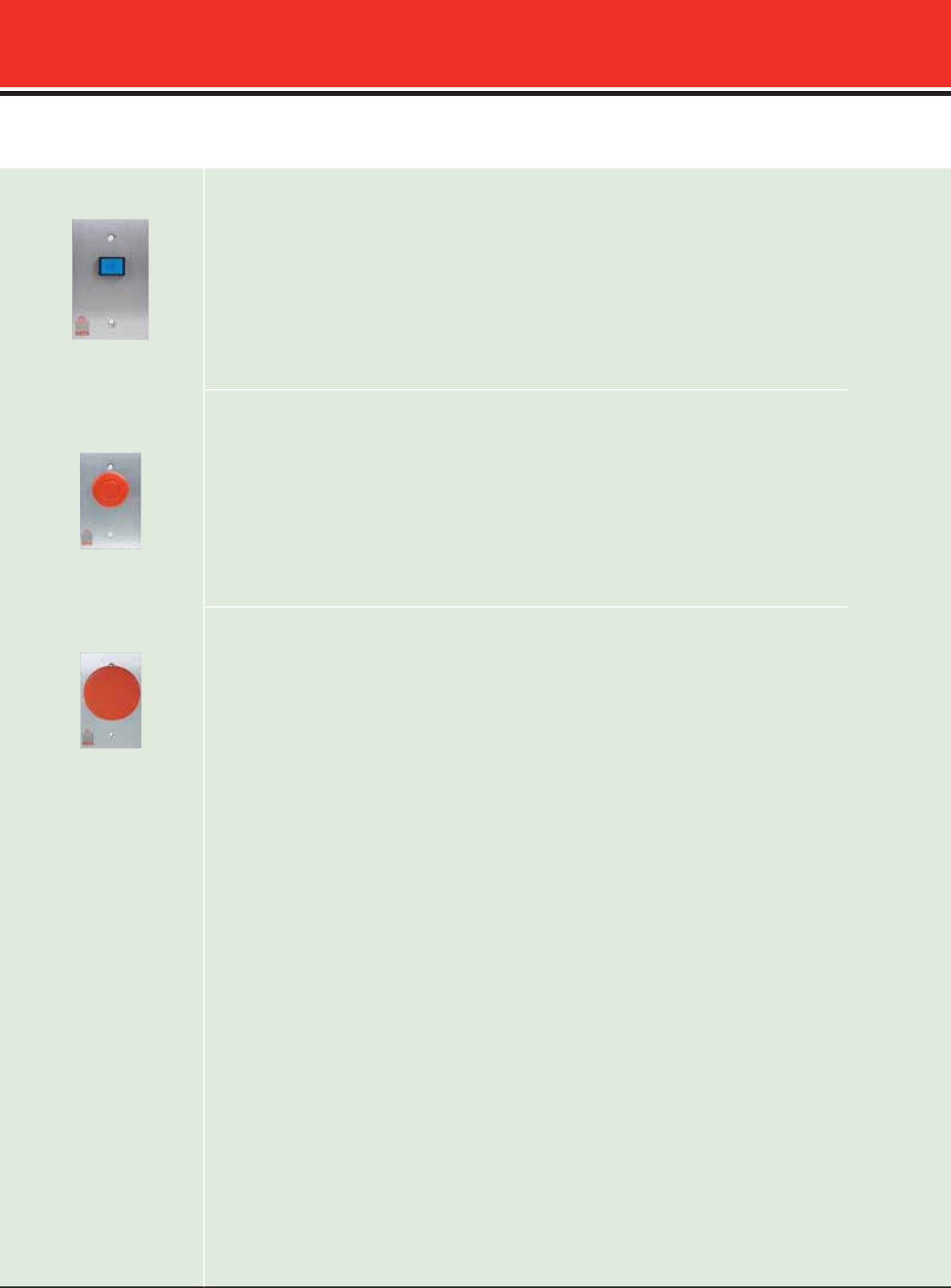

Egress Devices
R9300-US28
Momentary Exit Switch
Momentary aluminum exit switch with blue push button. Satin stainless
finish. Dimensions: 4.75" H x 3" W x .25" D (12 cm H x 7.6 cm W x .6cm D).
ALSO AVAILABLE:
R9300-US40
Momentary Exit Switch
Brown aluminum finish.
R9400-US28
1-1/2" Cap Exit Switch
Momentary 1.5" mushroom aluminum exit switch (red mushroom cap) with satin stainless finish.
Dimensions: 4.75" H x 3" W x .25" D (12 cm H x 7.6 cm W x .6 cm D).
ALSO AVAILABLE:
R9400-US40
1-1/2" Cap Exit Switch
Brown aluminum finish.
R9600-US28
2-3/8" Cap Exit Switch
Momentary 2.375" mushroom aluminum exit switch (red mushroom cap) with satin stainless finish.
Dimensions: 4.75" H x 3" W x .25" D (12 cm H x 7.6 cm W x .6 cm D).
ALSO AVAILABLE:
R9600-US40
2-3/8" Cap Exit Switch
Brown aluminum finish.
354
Access Systems-329-376 02-08.ind354 354Access Systems-329-376 02-08.ind354 354 8/12/08 5:17:35 PM8/12/08 5:17:35 PM
HONEYWELL ACCESS SYSTEMS
355
F E A T U R E S
Piezoelectric Switches
Egress Buttons
• Advanced soft touch Piezoelectric
Switch
• Weatherproof design
• Vandal resistant stainless steel
construction
• Field selectable illumination
• Single gang or mullion mount
• Two outputs (1 N/O, 1 N/C)
• Adjustable output and LED indication
time(1to60seconds)
• Output and indication toggle option
Honeywell piezoelectric switches enhance facilities with a
professional, stainless steel finish to accompany magnetic-lock
controlled doors. The switches, designed for indoor and outdoor
use, feature an illuminated ring that changes color when the
button is touched, making it easy to find in a dark location.
Mullion-size and U.S. gang switchbox form factors are available
to support multiple mounting configurations.
Rated for both indoor and outdoor use, the switch is corro s i o n
resistant and rugged enough for most environments. The larger
button size (4.5 in x 2.75 in x 1.25 in) makes it more accessible for
use by individuals with special work or environment needs.
Because the buttons are not mechanical and have no moving
parts, the button mechanism on the switch is not subject to typical
“wear and tear.” The button generates a dry contact normally
open/normally closed (NO/NC) relay pulse by the touch of a finger.
Switch life expectancy is solely dependent upon the re l a y.
By default, the button ships with the relay in a toggle
configuration. The relay can also be set as an adjustable,
timer-controlled output with a sustained output time from 1 to
60 seconds. Similarly, the LED indication time is configurable
from 1 to 60 seconds.
Vandal Resistant
• Stainless steel mounting plate and
solid state button
Adjustable Output Time
• 1 to 60 seconds
• Toggle option
Field Selectable Illumination Status
• Jumper selectable
Relay OFF: Red, green or no illumination
Relay ON: Red, green or no Illumination
Power Requirements
• 10to24VDC
• Power consumption
Standby: 15 mA @ 24 VDC
Maximum: 140 mA @ 24 VDC
Outputs
• 1 normally open, 1 normally closed
• Jumper selectable relay
(Normally ON or OFF)
Dimensions
• Single gang: 4.5 in x 2.75 in x 1.25 in
(11.4 cm x 7.0 cm x 3.2 cm)
• Mullion: 4.5 in x 1.75 in x 1.25 in
(11.4 cm x 4.4 cm x 3.2 cm)
Weatherproof Design
• Circuit assembly encapsulation
Mounting Methods
• Single gang box
• Mullion
Faceplate Graphics
• Single gang: “PUSH TO EXIT”
• Mullion: “EXIT”
• Custom laser marked graphics available,
minimum order quantities apply
Environmental Characteristics
• Environment: Indoor and outdoor (IP-65)
• Operating temperature: -40°C to 63°C
(-40°F to 145°F)
• Operating humidity: 0 to 95%
(Non-condensing)
Relay Life Expectancy
• 100,000 @ 2A 30 VDC
500,000 @ 1A 30 VDC
S P E C I F I C AT I O N S
Access Systems-329-376 02-08.ind355 355Access Systems-329-376 02-08.ind355 355 8/12/08 5:17:37 PM8/12/08 5:17:37 PM
www.security.honeywell.com/me
HONEYWELL ACCESS SYSTEMS
Egress Buttons
Piezoelectric Switches
PEXBHON1 U.S. Single Gang Mount Piezoelectric Switch w/Honeywell Logo
PEXBHON2 Mullion Mount Piezoelectric Switch w/Honeywell Logo
PEXBGEN1 U.S. Single Gang Mount Piezoelectric Switch
PEXBGEN2 Mullion Mount Piezoelectric Switch
Kits:
HONDK3 OP30HONE Proximity Reader, PEXBHON1 Piezo Egress Button and ML8011-LC-US28
Magnetic Lock
HONDK4 OP40HONE Proximity Reader, PEXBHON1 Piezo Egress Button and ML8011-LC-US28
Magnetic Lock
EGRESSK2 IS310WH Request to Exit and PEXBHON1 Piezo Egress Button
MLKIT1 ML8011-LC-US28 Magnetic Lock, and PEXBHON1 Piezo Egress Button
MLKIT2 ML8011-LC-US28 Magnetic Lock, PEXBHON1 Piezo Egress Button and IS310WH Request
to Exit Sensor
O R D E R I N G
356
Access Systems-329-376 02-08.ind356 356Access Systems-329-376 02-08.ind356 356 8/12/08 5:17:37 PM8/12/08 5:17:37 PM
HONEYWELL ACCESS SYSTEMS
Honeywell provides a wide variety of
communication devices and accessories that
seamlessly integrate with our access control
product lines.
Communications
& Accessories
357
Access Systems-329-376 02-08.ind357 357Access Systems-329-376 02-08.ind357 357 8/12/08 5:17:38 PM8/12/08 5:17:38 PM
www.security.honeywell.com/me
HONEYWELL ACCESS SYSTEMS
Communications PANEL COMMUNICATIONS
N-485-PCI-2
RS485 PC Interface
The N-485-PCI-2 is an RS485 interface located between the computer and the access control
panels. It converts the RS232 data coming from the PC into RS485 data. Comes with a 3' (0.9 m)
9-pin cable for connection to the PC, cable can be extended to within RS232 maximum distance.
For use with N-485-API-2, N-1000-III, N-1000-IV, NS2 or NS2+ panel. Dimensions: 5.5" H x 3.875"
W x 2" D (13.97 cm H x 9.843 cm W x 5.08 cm D). ALL 485 UNITS IN THE SYSTEM MUST HAVE
THE SAME VERSION FIRMWARE.
ALSO AVAILABLE:
N-485-HUB-2
RS485 Modem Interface
The N-485-HUB-2 converts RS232 data coming from the modem into
RS485 data. ALL 485 UNITS IN THE SYSTEM MUST HAVE THE SAME VERSION FIRMWARE
N485PCI2L
RS485 Interface for LANSRLU1
Designed specifically for use with the LANSRLU1 network converter. The N485PCI2L is an RS485
interface located between the LANSRLU1 and the access control panels. Converts RS485 signal
(from panel) to RS232 with cable for direct connection to network converter. ALL 485 UNITS IN
THE SYSTEM MUST HAVE THE SAME VERSION FIRMWARE.
LANSRLU1
RS232 to LAN Converter (10/100)
This device server enables management of serial devices over IP-based
Ethernet networks and easily lets you replace limited distance, point-to-point serial connections.
Converts RS232 signal into 10Base-T (10 Mbps) or 100Base-TX (100 Mbps). Supplied with 110
VAC power adapter. Dimensions: 3.5" H x 2.5" W x .9" D (90 mm H x 64 mm W x 23 mm D).
LAN485KIT
Kit with LANSRLU1 & N485PCI2L
Includes LANSRLU1 and N485PCI2L.
FC485
Multimode 2 Strand 485-Fiber Transceiver with Transformer
The FC485 provides fast RS485 to fiber [2 strand 62.5 micron multimode – max 1 mile (~1600m)]
conversion applications at any baud rate between 300 to 115.2K. Auto-baud capability requires no
resistors or jumpers to set. Jumpers for 120 ohm bias and line termination are provided. The unit is
enclosed and transformer is included. Use NC2441-TN or NCP2441-TN wire. Dimensions: 3.25"
H x 5.5" W x 1.375" D (8.25 cm H x 13.9 cm W x 3.49 cm D).
358
Access Systems-329-376 02-08.ind358 358Access Systems-329-376 02-08.ind358 358 8/12/08 5:17:39 PM8/12/08 5:17:39 PM
HONEYWELL ACCESS SYSTEMS

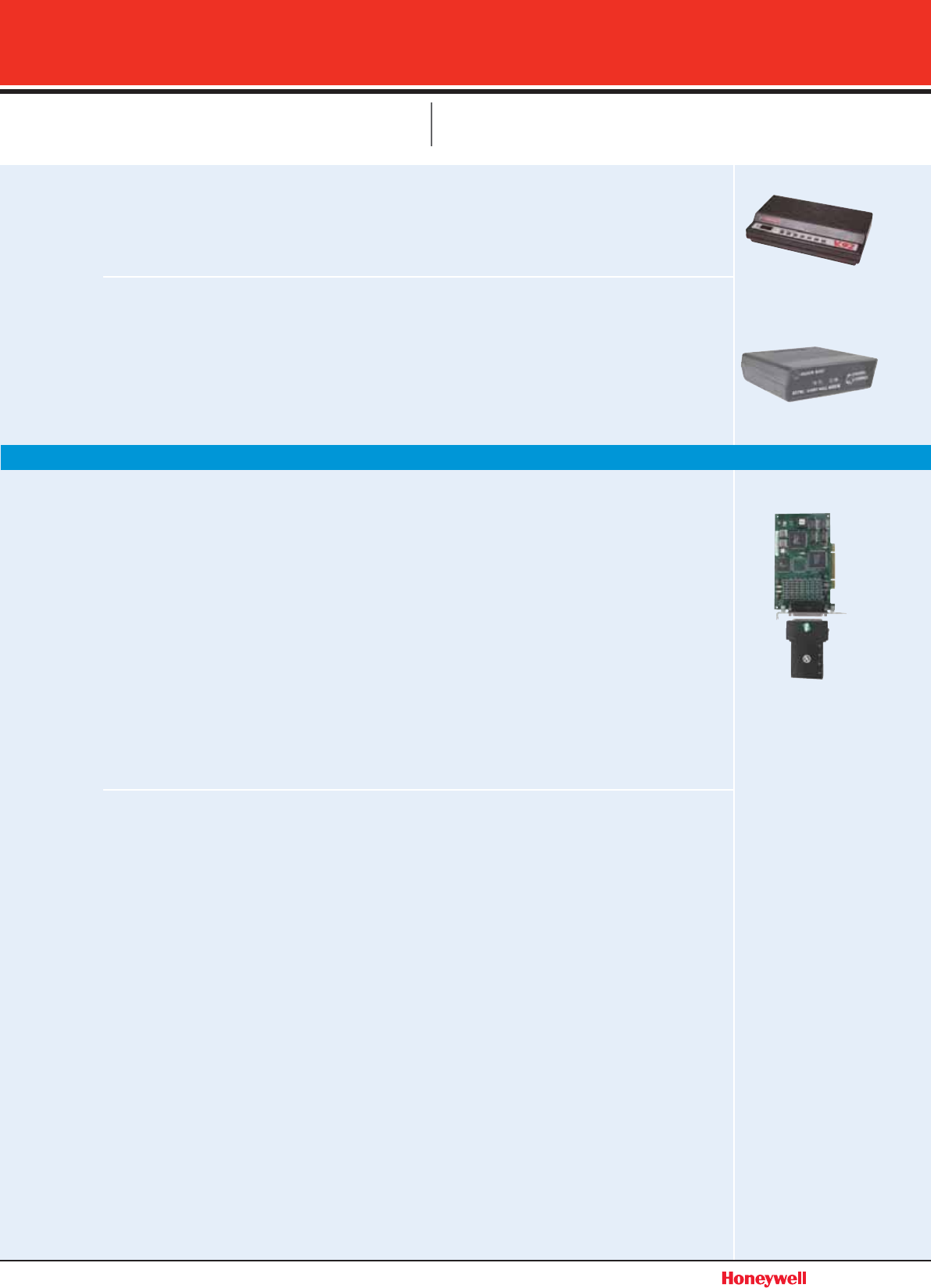

Communications MODEMS / SERIAL PORT EXPANDERS
M-56K
56K External Modem
High speed modem for N-485-HUB-2 interface. Transformer included. Dimensions: 3.75" H x 6.63" W x
1.25" D (9.52 cm H x 16.82 cm W x 3.17 cm D).
SHM-B-ASYNC
Short Haul Modem
Short haul modem for communicating RS232 across two twisted pairs of 24-26 AWG unshielded
telephone cable, insulated by polyethylene with a mutual capacitance of 0.083 mfd/mile. Transmission
distance up to 4 miles (6.4 km) at 2400 baud or 1 mile (1.6 km) at 19,200 baud are achievable
using specified wire. Requires two SHM-B-ASYNC, one at each end. Transformer included.
Dimensions: 1.4" H x 4.25" W x 4.5" D (3.8 cm H x 10.9 cm W x 11.7 cm D).
NTEXPDI4
4-Port Communication Board
Used for WIN-PAK 2.0 or higher to add four RS232 communication ports.
The NTEXPDI4 includes a PCI expansion board and a four port RJ45 connector. You must order the
optional RJ45 connecting cable assemblies as required for your installation. The optional cables are
NTEXPC25 used for C-100-A1 and external modems or NTEXPC9 used for N-485-PCI-2 applications.
ALSO AVAILABLE:
NTEXPDI8
8-Port Communication Board
Used for WIN-PAK 2.0 or higher to add eight RS232 communication ports.
The NTEXPDI8 includes a PCI expansion board and an eight port RJ45 connector. You must order the
optional RJ45 connecting cable assemblies as required for your installation.
The optional cables are: NTEXPC25 used for C-100-A1 and external modems or NTEXPC9 used for
N-485-PCI-2 applications.
NTEXPDI16
16-Port Communication Board
Used for WIN-PAK 2.0 or higher to add 16 RS232 communication ports.
The NTEXPDI16 includes a PCI expansion board and a 5' DB44 EBI cable used to connect the expansion
board to the 16-port RJ45 external cable. You must order the optional RJ45 connecting cable assem-
blies as required for your installation. The optional cables are NTEXPC25 used for external modems or
NTEXPC9 used for N-485-PCI-2 applications.
359
SERIAL PORT EXPANDERS
Access Systems-329-376 02-08.ind359 359Access Systems-329-376 02-08.ind359 359 8/12/08 5:17:43 PM8/12/08 5:17:43 PM
www.security.honeywell.com/me
HONEYWELL ACCESS SYSTEMS

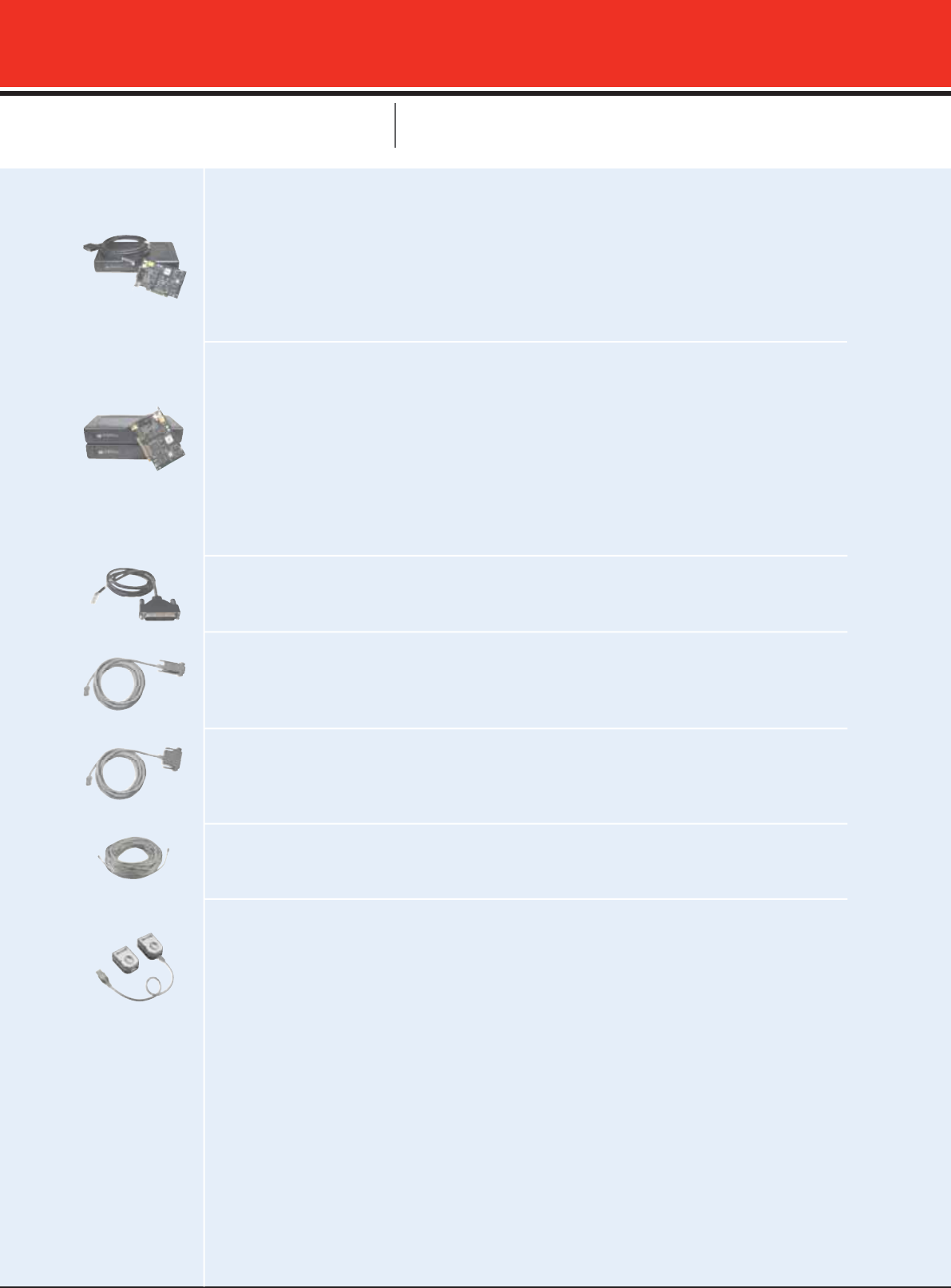

NTEXPDI32
32-Port Communication Board
Used for WIN-PAK 2.0 or higher to add 32 RS232 communication ports. The NTEXPDI32 includes a
PCI expansion board and a 5' DB44 EBI cable used to connect the expansion board to the
32-port RJ45 external cable. You must order the optional RJ45 connecting cable assemblies as
required for your installation. The optional cables are NTEXPC25 used for external
modems or NTEXPC9 used for N-485-PCI-2 applications.
NTEXPDI64
64-Port Communications Kit
Used for WIN-PAK 2.0 or higher to add 64 RS232 communication ports in a Windows NT environ-
ment (will not work in a Windows 9x environment). The NTEXPDI64 includes a PCI expansion board,
5' DB44 EBI cable used to connect the expansion board to the first 16-port RJ45 external module
and three additional 16" cables to attach the second, third and fourth 16 port modules and a power
supply. You must order the optional RJ45 connecting cable assemblies as required for your installa-
tion. The optional cables are NTEXPC25 used for C-100-A1 and external modems or
NTEXPC9 used for N-485-PCI-2 applications.
NTEXPCM
RJ45 to 25-Pin Modem Cable
NTEXPC9
RJ45 Cable and 9-Pin Shell Assembly for N-485-PCI-2
RJ45 cable and 9-pin shell assembly for use with N-485-PCI-2.
NTEXPC25
RJ45 Cable and 25-Pin Shell Assembly for Modems
RJ45 cable and 25-pin shell assembly for use with modems and C-100-A1.
CBLE100
RJ45 Patch Cable, 100 ft.
CBLE200
RJ45 Patch Cable, 200 ft.
USBXT
USB Extender, 150 ft.
Communications SERIAL PORT EXPANDERS AND CABLES
360
Access Systems-329-376 02-08.ind360 360Access Systems-329-376 02-08.ind360 360 8/12/08 5:17:45 PM8/12/08 5:17:45 PM
HONEYWELL ACCESS SYSTEMS
Honeywell power supplies are offered
specifically to support access control and
electric locking hardware.
The power supplies/chargers convert 115
VAC/60 Hz into a power limited, field-selectable
continuous power output. These power
supplies are UL Listed for access control
(UL294), fire alarm (UL1481) and burglar alarm
installations (UL603), and conform to NEC
requirements. Distribution modules capable of
distributing one power source across multiple
fused outputs and a fire panel interface make
ordering and installation more convenient.
THIS SECTION INCLUDES:
Auxiliary Power Modules
Power Distribution Modules
Transformers
Batteries
143
361
Power Supplies
Access Systems-329-376 02-08.ind361 361Access Systems-329-376 02-08.ind361 361 8/12/08 5:17:45 PM8/12/08 5:17:45 PM
www.security.honeywell.com/me
HONEYWELL ACCESS SYSTEMS
HPS123
6/12/24 VDC 2.5A or 1 A Power Supply, Enclosure & Battery
Converts 115 VAC/60 Hz into 6/12 VDC @ 2.5 A of continuous supply current (24 VDC @ 1A).
Comes with a plug in 24V 50 VA transformer, 5 AH battery, battery leads and hardware. Filtered and
electronically regulated output. Built-in charger for sealed lead acid or gel type batteries. Automatic
switchover to stand-by battery. Circuit breaker battery protection. AC input and DC output
LED diagnostic indicators. For 24 VDC, an additional BAT-3 must be ordered separately.
Enclosure dimensions: 10" H x 10" W x 4.5" D (25 cm H x 25 cm W x 11.5 cm D).
ALSO AVAILABLE:
HPS125
6/12/24 VDC 4 A or 2.5 A Power Supply, Enclosure & Battery Converts 115 VAC/60 Hz into 6/12
VDC @ 4 A of continuous supply current (24 VDC @ 2.5 A). For 24 VDC, an additional BAT-3
must be ordered.
HP300ULX
12/24 VDC 2.5 A Power Supply and Enclosure
Converts 115 VAC/60 Hz into a 12/24 VDC @ 2.5 A single class 2 rated power limited supply. AC
fail, low battery and battery presence monitoring. Enclosure accommodates up to two 12 AH batteries.
Dimensions: 13" H x 13.5" W x 3.25" D (33 cm H x 34.3 cm W x 8.3 cm D).
ALSO AVAILABLE:
HP400ULX
12/24 VDC 4 A Power Supply and Enclosure
Converts 115 VAC/60 Hz into a 12/24 VDC @ 4 A single class 2 rated power limited supply.
HP600ULX
12/24 VDC 6 A Power Supply and Enclosure
Converts 115 VAC/60 Hz into a 12/24 VDC @ 6 A single class 2 rated power limited supply.
HP300ULM
12/24 VDC 2.5 A Power Supply, Enclosure and HPMOM5
Converts 115 VAC/60 Hz into a 12/24 VDC @ 2.5 A single class 2 rated power limited supply.
Includes the HPMOM5 interface which features fire alarm panel or access control system NO,
NC or polarity reversal trigger input and six individually protected PTC outputs rated at 2.5 A each.
AC fail, low battery and battery presence monitoring. Enclosure accommodates up to two 12 AH
batteries. Dimensions: 13" H x 13.5" W x 3.25" D (33 cm H x 34.3 cm W x 8.3 cm D).
ALSO AVAILABLE:
HP400ULM
12/24 VDC 4 A Power Supply, Enclosure and HPMOM5
Converts 115 VAC/60 Hz into a 12/24 VDC @ 4 A single class 2 rated power limited supply.
HP600ULM
12/24 VDC 6 A Power Supply, Enclosure and HPMOM5
Converts 115 VAC/60 Hz into a 12/24 VDC @ 6 A single class 2 rated power limited supply.
Power Supplies AUXILIARY POWER MODULES
362
Access Systems-329-376 02-08.ind362 362Access Systems-329-376 02-08.ind362 362 8/12/08 5:17:47 PM8/12/08 5:17:47 PM
HONEYWELL ACCESS SYSTEMS

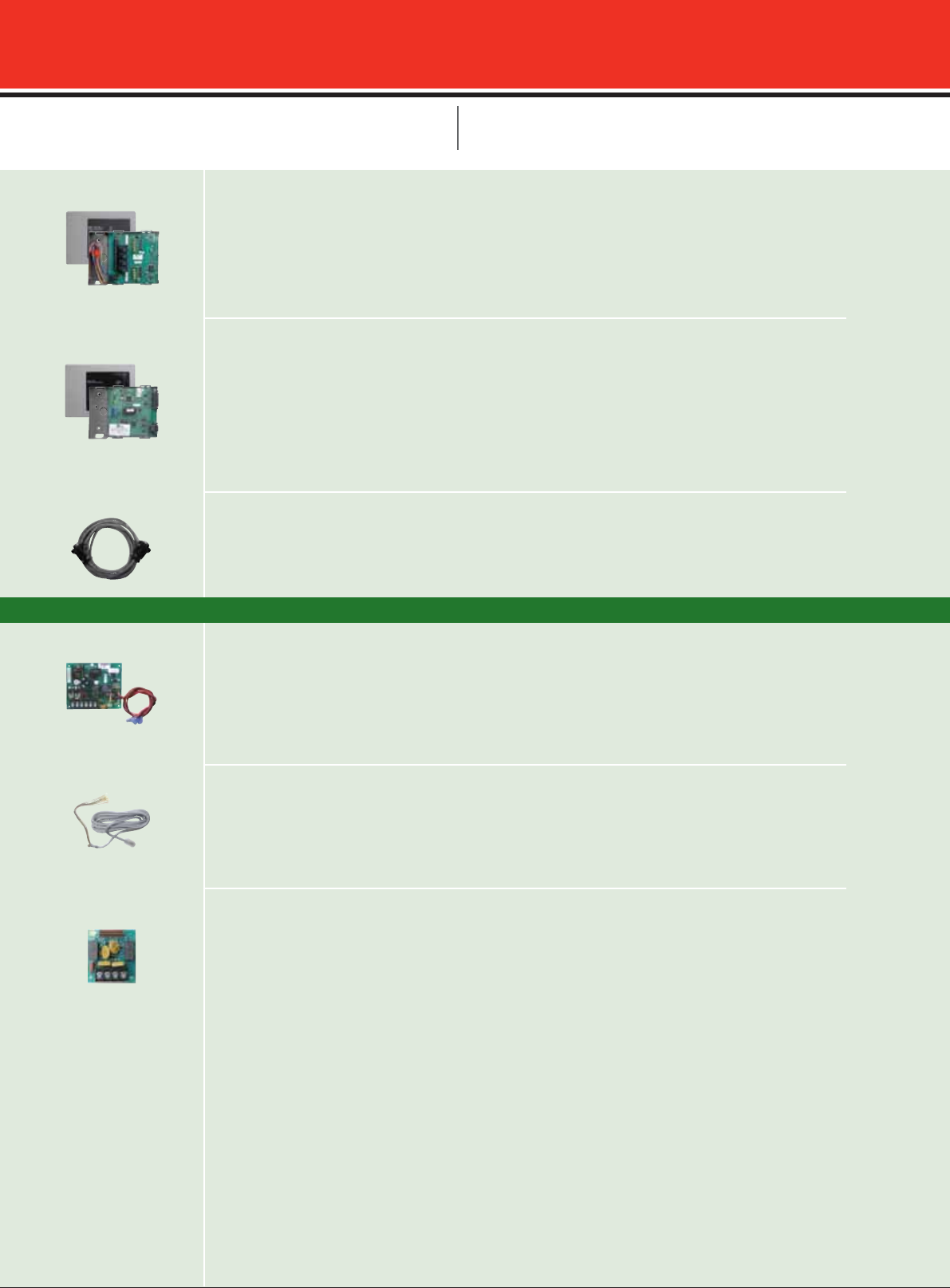

HP600ULACM8
12/24 VDC 6 A Power Supply, Enclosure and HPACM8
Converts 115 VAC/60 Hz into a 12/24 VDC @ 6 A single class 2 rated power limited supply.
Includes the HPACM8 interface which features fire alarm panel or access control system NO,
NC or polarity reversal trigger input and eight independently operated and individually protected outputs
rated at 2.5 A each. AC fail, low battery and battery presence monitoring. Enclosure accommodates
up to two 12 AH batteries. Dimensions: 13" H x 13.5" W x 3.25"
D (33 cm H x 34.3 cm W x 8.3 cm D).
HPD4
4 Fused Output Distribution Module
Distributes one low voltage power input to 4 individually protected outputs. Each circuit uses automotive style
fuses rated 3 A @ 35 VDC (up to 5 A fuses may be used) and the board is protected with a 5 A main fuse.
Handling up to 28 VAC/ VDC, this board has a power switch, surge protected outputs, power LED
indicator, and diagnostic LEDs per circuit. Mounts with included foam backed tape or optional snap track
(HST34). Dimensions: 3" H x 4.3" W x 1.0" D (7.6 cm H x 11 cm W x 2.5 cm D).
ALSO AVAILABLE:
HPD4CB
4 PTC Output Distribution Module
Includes individual auto-reset type PTCs rated 2.5 A @ 30 VDC each instead of fuses.
HPD8
8 Fused Output Distribution Module
These convert one low voltage power input to 8 individually protected
outputs. Handling up to 28 VAC/VDC, this board has a power switch, surge protected outputs, power
LED indicator, and diagnostic LEDs per circuit. Each circuit is protected with automotive style fuses rated
3 A @ 35 VDC (up to 5 A fuses may be used) and the board has a 5 A main fuse. Mounts with included
foam backed tape or optional snap track (HST34).
Dimensions: 3" H x 4.3" W x 1.0" D (7.6 cm H x 11 cm W x 2.5 cm D).
ALSO AVAILABLE:
HPD8CB
8 PTC Output Distribution Module
Each circuit is protected with auto-reset PTC’s rated 2.5 A @ 30 VDC instead of fuses.
HPMOM5
6 Fused Output Distribution with Fire Panel Interface
This multi-output power distribution module converts one non-power limited 12 VDC or 24 VDC voltage
input to 6 power limited outputs. Each output can be used to power magnetic locks, electric strikes,
magnetic door holders, etc. Outputs switch together and operate both fail-safe and fail-secure. Activation
is through normally open or normally closed supervised input or the polarity reversal from a fire alarm
control panel. A Form C dry output relay will enable HVAC shutdown, elevator recall or trigger auxiliary
devices. Class 2 current rated at 2.5 A per output. Diagnostic LEDs per circuit. Power and input trigger
LEDs. Power fail supervision relay is Form C rated 1 A @ 28 VDC/115 VAC.
Dimensions: 5.3" H x 3.5" W x 1" D (13.5 cm H x 8.9 cm W x 2.5 cm D).
Power Supplies AUXILIARY POWER MODULES
363
Access Systems-329-376 02-08.ind363 363Access Systems-329-376 02-08.ind363 363 8/12/08 5:18:05 PM8/12/08 5:18:05 PM
www.security.honeywell.com/me
HONEYWELL ACCESS SYSTEMS
Power Supplies POWER DISTRIBUTION MODULES
HPACM8
8 Fused Output Distribution with FACP Interface
This distributes one 12 to 24 VAC or DC input over 8 independently controlled fuse protected outputs.
The outputs can also be configured as dry Form C contacts. Activated by an open collector sink or
normally open dry trigger input from an access system, card reader, keypad, push button, PIR, etc.
Outputs operate both fail-safe and fail-secure and will power magnetic locks, electric strikes,
magnetic door holders, etc. Powered by either one common source or by two independent sources,
one for board power and the other for accessory power. The FACP interface can trigger emergency
exit, monitoring, HVAC shutdown, elevator recall or other auxiliary devices. The fire alarm disconnect
is configurable for all affected or 50/50 mode. Dimensions: 8" W x 4.5" H x 1.25" D
(20.3 cm W x 11.4 cm H x 3.8 cm D).
ALSO AVAILABLE:
HPACM4
4 Fused Output Distribution with FACP Interface
Distributes one 12-24 VAC or VDC input over 4 independently controlled fuse protected outputs.
364
Access Systems-329-376 02-08.ind364 364Access Systems-329-376 02-08.ind364 364 8/12/08 5:18:07 PM8/12/08 5:18:07 PM
HONEYWELL ACCESS SYSTEMS
Power Supplies TRANSFORMERS / BATTERIES
X-750
18 VAC, 50 VA Transformer for the N-750
18 VAC 50 VA plug in transformer for the N-750 system. Each N-750 system
comes standard with one X-750.
PS-220/Transformer
220 VAC/16VAC P14G in Transformer
For N-1000-III/IV, NS2, NS27, NX4S1 and replacement tranformer for PS-1-12E.
X-2
12 VAC Transformer
Transformer that converts 120 VAC to 12 VAC. 40 VA rating. AC power supply for the following legacy
devices: N-501-LB, N-500-LB-B, N-500-PCM, N-1000-II, N-1000-II-X, and C-100-A1.
X-4
16.5 VAC 50 VA Transformer 110VAC
16.5 VAC 50 VA plug in transformer. For N-1000-III/IV, NS2, NS2+,
NX4S1 and replacement transformer for PS-1-12E.
ALSO AVAILABLE:
X4CAN
CSA Approved Transformer
CSA Approved 16.5 VAC 50 VA plug-in transformer for N-1000-III,
N-1000-IV, NS2, NS2+, NX4S1 control panels.
S-4
Suppressor Kit
Provides proper protection against electrical spikes caused
by collapsing electrical fields. One suppressor kit is required for every electrical switching device
connected through a relay contact on the N-1000-II, N-1000-III, N-1000-IV, NS2 and NS2+ control panels.
BAT-2
Lithium Battery for N-1000
Replacement lithium battery. Provides backup power for memory retention on the N-1000-II
control panels.
365
Access Systems-329-376 02-08.ind365 365Access Systems-329-376 02-08.ind365 365 8/12/08 5:18:08 PM8/12/08 5:18:08 PM
www.security.honeywell.com/me
HONEYWELL ACCESS SYSTEMS
Honeywell’s wide assortment of products
allows dealers to tailor a complete access control
system for any facility. This section includes a
Product Compatibility Chart to simplify the
selection of components for application and
provides basic instructions on how to
configure the system.
THIS SECTION INCLUDES:
Product Compatibility Chart
System Configurations
Sales Policy
Additional
Information
366
Access Systems-329-376 02-08.ind366 366Access Systems-329-376 02-08.ind366 366 8/12/08 5:18:10 PM8/12/08 5:18:10 PM
HONEYWELL ACCESS SYSTEMS
Additional Information COMPATIBILITY CHART
NX4S1 N-1000-III N-1000-IV PW-2000-III PW-2000-IV PTMLB/
CONTROLLER NS2 NS2+ NX4L1 N-1000-III-X N-1000-IV-X PW-2000-III-X PW-2000-IV-X PRO2200 N-750 PTDCM
Security Management Systems
NStar P
WIN-PAK SE P P P P P P P
WIN-PAK PE P P P P P P P
WIN-PAK PRO Central Station P P P P P P P
Win750
P
PassPoint Plus P
Discontinued Part Numbers
WIN-PAK 2005 P P P P P P P
WIN-PAK PRO 2005 P P P P P P P
125 KHz Proximity Readers
OP10HONE P P P P P P P P P P
OP10GENE P P P P P P P P P P
OP30HONE P P P P P P P P P
OP30GENE P P P P P P P P P P
OP40HONE P P P P P P P P P P
OP40GENE P P P P P P P P P P`
HID ProxPoint (6005) P P P P P P P P P P
HID MiniProx (5365) P P P P P P P P P P
HID ThinProx (5395) P P P P P P P P P P
HID ProxPro (5355) P P P P P P P P P P
HID ProxPro II (5455) P P P P P P P P P P
HID ProxPro Keypad
(5355K) P P P P P
HID ProxPro Keypad
Matrix (PR-PROXPRO-K2) P P P P
HID MaxProx (5375) P P P P P P P P P P
Indala Flex Pass Linear
(FP5XX) P P P P P P P P P P
Indala Flex Pass Arch
(FP6XX) P P P P P P P P P P
Indala Flex Pass Curve
(FP7XX) P P P P P P P P P P
Indala Flex Pass Wave
(FP8XX) P P P P P P P P P P
13.56 MHz Smart Card Proximity Readers
OM30BHONA P P P P P P P P P P
OM40BHONA P P P P P P P P P P
OM45BHONA P P P P P P P P P
OM55BHONA P P P * * * * P * P
OmniAssure Readers
OT30XXXX + + + + + + +
OT31XXXX + + + + + + +
OT35XXXX + + + + + + +
OT36XXXX + + + + + + +
OT70XXXX + + + + + + +
OT75XXXX + + + + + + +
Wiegand Readers
HU/W3100340 (CR-1) P P P P P P P P P P
HU/W3152540 (AR-1) P P P P P P P P P
HU/W3130180 (KR-1) P P P P P P P P P P
HU/W3121260 (CI-1) P P P P P P P P P P
HU/W2803001 (TR-1) P P P P P P P P P P
* Card read only. Keypad PIN not passed to panel.
+ Consult factory for exact product compatibility.
367
Access Systems-329-376 02-08.ind367 367Access Systems-329-376 02-08.ind367 367 8/12/08 5:18:12 PM8/12/08 5:18:12 PM
www.security.honeywell.com/me
HONEYWELL ACCESS SYSTEMS
Additional Information COMPATIBILITY CHART
NX4S1 N-1000-III N-1000-IV PW-2000-III PW-2000-IV PTMLB/X
CONTROLLER NS2 NS2+ NX4L1 N-1000-III-X N-1000-IV-X PW-2000-III-X PW-2000-IV-X PRO2200 N-750 PTDCM
Magnetic Stripe Readers
NR-5 ** ** ** P P P P P ** **
NR-5-KP
P P P P
NR-2-WR ** ** ** P P P P P ** **
Barcode Readers
BR-7 ** ** ** P P P P P ** **
BR-VL ** ** ** P P P P P ** **
Keypad Readers
KP-10
P P P P
KP-11 P P P P P P P P P P
KP-12
P P P P
KP-13 P P P P P P P P P P
Biometric Readers
IR HandKey CR P P P P P P P P P P
IR HandKey II P P P P P P P P P P
Bioscrypt VProx P P P P P P P P P P
Bioscrypt VPass P P P P P P P P P P
Bioscrypt VFlex P P P P P P P P P P
Bioscrypt VSmart P P P P P P P P P P
Bioscrypt VStation P P P P P P P P P P
Communication Devices – RS485
N-485-PCI-2 P P P P P P P
PRO22CVT1
P
Communication Devices – Dial-Up
SHM-B-ASYNC P P P P P P P P P P
M-56K P P P P P P P P P P
Communication Devices – Ethernet
NSLAN1 P P
LANSRLU1 P P P P P P P P
N485PCI2L P P P P P P
PRO22EN
P
Communication Devices – Other
F290D P P P P P P P P P P
SPX-II-2-W P P P P P P P P P P
NTEXPDI4
P P P P P P
NTEXPDI8
P P P P P P
NTEXPDI16
P P P P P P
NTEXPDI32
P P P P P P
NTEXPDI64
P P P P P P
EnclosuresENC-3
P P
P
ENC-4
P P P
ENC10 P P
ENC30 P P
PRO22ENC1
P
PRO22ENC2
P
PRO22ENC3
P
PRO22ENC4
P
PRO22ENC5
P
N-750-ENC
P
PTCANPOWER
P
** Limited compatibility for Wiegand data. Provide sample cards to factory for testing and compatibility.
368
Access Systems-329-376 02-08.ind368 368Access Systems-329-376 02-08.ind368 368 8/12/08 5:18:12 PM8/12/08 5:18:12 PM
HONEYWELL ACCESS SYSTEMS
Additional Information WIN-PAK® SE CONFIGURATION
Access Control
• Cardholder capacity: Unrestricted
with WIN-PAK® SE software
host grant feature
• Operators: One or five concurrent
• Time zones: Unrestricted
• Holidays: 32 (2 types with NS2+)
• Server client protocols: TCP/IP
• On-line transaction storage:
Limited only by drive space
• Elevator control: Up to 24 floors and
32 definitions with N-1000 Control
Panel
• Operators/passwords: Unlimited
• 40 User-defined cardholder data fields
per account
• First valid card in unlocks door/
activates time zone with NS2+
• Up to 32 access levels can be applied
to a card (multiple access level mode)
Alarm Monitoring
• Monitor points:126,480 per system
• Sound files played per event status
• Monitor 16 live cameras in a
single view
• VISTA 128FBP/250FBP (optional)
Reporting and Operating
• Operator instructions:
Definable per alarm point and state
• Reports:
- Scheduled Reports-Cardholder
or History
- Cardholder or Number
- Device (Panels, Readers, Comm)
- Operator actions
- Database reports
- Email reports in HTML format
• Graphical map import: WMF
Communications
• Supports direct TCP/IP connection to
control panels eliminating the need for
costly multi-port boards
• Controllers: 7,905 hardwired per
system
• Readers: 31,620 per system
Other
• Database engines: MSDE 2000
standard, SQL Server 2005, SQL
Server 2000 (optional)
• Door control modes: Shunt, unshunt,
lock, unlock, pulse, timed pulse
• Door configuration: Card only, Card
and PIN, card or PIN and keypad only
• Multi-threaded application capable of
utilizing multiple processor servers
WIN-PAK SE CONFIGURATION
369
Access Systems-329-376 02-08.ind369 369Access Systems-329-376 02-08.ind369 369 8/12/08 5:18:13 PM8/12/08 5:18:13 PM
www.security.honeywell.com/me
HONEYWELL ACCESS SYSTEMS
Additional Information WIN-PAK® PE CONFIGURATION
NX4
NX4
WIN-PAK PE CONFIGURATION
Access Control
• Cardholder capacity: Unrestricted
with WIN-PAK® PE software host
grant feature
• Communication Servers:
Unrestricted
• Operators: Unrestricted
• Supports multiple accounts allowing
separate access to the card data-
base, badge layout, operator access,
reporting and account sensitive
operator rights
• Time zones: Unrestricted
• Holidays: 255 per PRO2200
• Server client protocols: TCP/IP
• On-line transaction storage: Limited
only by drive space
• Elevator control: Up to 112 floors
and 255 definitions with PRO2200
Control Panel
• Operators/passwords: Unrestricted
• 40 User-defined cardholder data
fields per account
Communication Server
• Multiple communication servers on
LAN/WAN provide distributed
networking capabilities, improving
system performance and capacity
• Supports direct TCP/IP connection to
control panels eliminating the need for
costly multi-port boards
• Controllers: 7,905 hardwired per
communication server
• Readers: 31,620 per communication
server
Alarm Monitoring
• Monitor points: 261,120 per
communications server with PRO2200
Control Panel
• Sound files played per event status
• Monitor 16 live camera views
• VISTA 128FBP/250FBP (optional)
Reporting and Operating
• Operator instructions:
Definable per alarm point and state
• Reports:
- Scheduled Reports-Cardholder
or History
- Cardholder or Number
- Device (Panels, Readers, Comm)
- Operator actions
- Database reports
- E-mail reports in HTML format
• Graphical map import: WMF
Other
• Database engines: MSDE 2000
standard, SQL Server 2005, SQL Server
2000 (optional)
• Door control modes with PRO2200
Control Panel: Disable, unlock, lock,
no access egress only, facility code only,
card only, card and PIN, card or PIN,
or PIN only
• Multi-threaded application capable of
utilizing multiple processor servers
370
Access Systems-329-376 02-08.ind370 370Access Systems-329-376 02-08.ind370 370 8/12/08 5:18:13 PM8/12/08 5:18:13 PM
HONEYWELL ACCESS SYSTEMS
Additional Information NETAXS™ STANDALONE WEB CONFIGURATION
NETAXS™ STANDALONE WEB CONFIGURATION
Host PC System
WIN-PAK SE/PE
Web Features
• Built-in Web browser interface
• Real time system control
• Live remote monitor of alarms
and events
• Detailed report viewer
• Audit trail and customized
reporting
• Add/remove users
• Live monitoring of system events
• Alarm annunciation status bar
• Manual control of readers, locks and
inputs/outputs
• Multiple user connections per sys-
tem
• Special functions
- N-Man rule
- Supervisor rule
- Escort rule
- Limited use (number of uses
or dates)
• Automatic clock synchronization
• High-security with SSL level
encryption
System Communications
• Multiple communication options
- On-board Ethernet
- Built-in RS485 (does not
require N-485-PCI-2)
- Built-in RS232
System Capacities
• 10,000 cardholders
• 25,000 events/buffers
• 4 readers, expandable up to 124
• 14 supervised inputs
- Add up to 64 additional inputs
• 8 SPDT, relay outputs
- Add up to 64 additional outputs
• Motorola Coldfire 32-bit processor
• Flash programming for firmware
revision updates
• Temperature: 35-110° F
(-2-43° C)
• Humidity: 0 to 85% RHNC
NetAXS Enclosure Options
• Large Enclosure
- NetAXS 4 door control panel
- 24 VDC, 6 A power supply
- Distributed relay board
- 24V battery backup
- Noise suppression filter
- Convenient 2-Wire lock power
- Reader power
- Auxiliary device power
• Small Enclosure
- NetAXS 4 door control panel
- 12 VDC battery backup
- 16.5 VAC, 50 VA transformer
- Standard enclosure
Web browser interface
• Internet Explorer
• Netscape Navigator
• Mozilla Firefox
371
Access Systems-329-376 02-08.ind371 371Access Systems-329-376 02-08.ind371 371 8/12/08 5:18:13 PM8/12/08 5:18:13 PM
www.security.honeywell.com/me
HONEYWELL ACCESS SYSTEMS
Additional Information NETAXS™ HYBRID WEB CONFIGURATION
Hybrid System Features
- Local and remote managed
access control
• WIN-PAK PC Hosted
- Provides full featured access
control through local software
- Complete access control
functionality
• Web Browser Interface
- Remote system access to
embedded NetAXS Web server
- Remote monitoring and
management
- Full detail reporting
- Manual door control
- Input and output control
System Communications
• Multiple communication options
- On-board Ethernet
- Built-in RS485 (does not require
N-485-PCI-2)
- Built-in RS232
System Capacities
• 10,000 cardholders
• 25,000 events/buffers
• 4 readers, expandable up to 124
• 14 supervised inputs
- Add up to 64 additional inputs
• 8 SPDT, relay outputs
- Add up to 64 additional outputs
• Motorola Coldfire 32-bit processor
• Flash programming for firmware
revision updates
• Dedicated panel tamper alarm and
power fall
• Real time clock: Geographic time
zone support
• Daylight Saving Time
• Temperature: 35-110° F (-2-43 °C)
• Humidity: 0 to 85% RHNC
• UL294 listing / CE Certification
NetAXS Enclosure Options
• Large enclosure
• NetAXS 4 door control panel
• 24 VDC, 6 A power supply
• Distributed relay board
• 24V battery backup
• Noise suppression filter
• Convenient 2-wire lock power
• Reader power
• Auxiliary device power
• Small enclosure
• NetAXS 4 door control panel
• 12 VDC battery backup
• 16.5 VAC, 50 VA transformer
• Standard enclosure
Web Browser Interface
• Internet Explorer
• Netscape Navigator
• Mozilla Firefox
Host PC System
WIN-PAK SE/PE
NETAXS™ HYBRID WEB CONFIGURATION
372
Access Systems-329-376 02-08.ind372 372Access Systems-329-376 02-08.ind372 372 8/12/08 5:18:14 PM8/12/08 5:18:14 PM
HONEYWELL ACCESS SYSTEMS
Additional Information NSTAR / NS2 CONFIGURATION
NSTAR RS485 COMMUNICATION
LAN485KITLAN485KIT
Standard configuration uses two communication ports for two loops. Control 31 NS2 control panels per loop, 62 NS2 panels total.
Where one NS2 panel is used per IP loop, communicate via optional on-board Ethernet interface (NSLAN1). One NS2 per NSLAN1.
Where multiple NS2 panels are required per IP loop, communicate using RS485 communications (N485PCI2L & LANSRLU1).
NSTAR SERIAL COMMUNICATION
Standard configuration uses two communication ports. Control one NS2 control panel per communication port.
NSTAR ETHERNET COMMUNICATION
373
Access Systems-329-376 02-08.ind373 373Access Systems-329-376 02-08.ind373 373 8/12/08 5:18:14 PM8/12/08 5:18:14 PM
www.security.honeywell.com/me
HONEYWELL ACCESS SYSTEMS
Additional Information CONTROLLER CONFIGURATION
CONTROLLER CONFIGURATION
,
or
or
NX4
NX4
Total possible devices NS2+ N-1000-III N-1000-IV NX4
Readers or Keypads 2 2 4 4
Card PIN/Keypads 2 2 2 4
Door Sensor 2 2 4 4
Request-to-Exit 2 2 4 4
Locking Relay 2 2 4 4
NON-PLENUM CABLE
PLENUM CABLE
DISTANCE
LOCATION WIRE TYPE
PART NUMBER
PART NUMBER
RATING
Control panel to 6 conductor, 18 AWG
A card reader (0.75 mm) shielded NC1861-BL NCP1861-BL 500'
Control panel to exit
B device/alarm point twisted pair, 22 AWG shielded NC2221-BR NCP2221-BR 2,000'
C Door power cable twisted pair, 18 AWG shielded NC1821-OR NCP1821-OR 2,000'
D RS485 communications 4 conductor, 24 AWG NC2441-TN NCP2441-TN 4,000'
E PIR status & power 4 conductor, 18 AWG NC1841-GY NCP1841-GY 2,000'
6 conductor, 18 AWG
* For keypads with NS2+ (0.75 mm) shielded NC1861-BL NCP1861-BL 500'
For keypads (when card
& pin are used), limited to
* 2 keypads (card-pin) per 12 conductor, 18 AWG shielded NC18121-YL NCP18121-YL 500'
panel N-1000-IV
374
Access Systems-329-376 02-08.ind374 374Access Systems-329-376 02-08.ind374 374 8/12/08 5:18:14 PM8/12/08 5:18:14 PM
HONEYWELL ACCESS SYSTEMS
Additional Information WIN-PAK® REMOTE SITE CONFIGURATION
M-56K CONFIGURATION - DIAL UP
LAN485KIT
LAN485KIT
ETHERNET TO RS485 COMMUNICATIONS
NON-PLENUM CABLE
PLENUM CABLE
DISTANCE
LOCATION WIRE TYPE
PART NUMBER
PART NUMBER
RATING
120 ohm, 20.3 pF twisted pair
A N-485 dropline cable shielded NC2441-TN NCP2441-TN 4,000' total
Standard configuration uses two communication ports for two loops. Control 31 control panels per loop, 62 panels total.
375
Access Systems-329-376 02-08.ind375 375Access Systems-329-376 02-08.ind375 375 8/12/08 5:18:15 PM8/12/08 5:18:15 PM
Additional Information WIN-PAK® LOCAL SITE ACCESS
Standard configuration uses two communication ports for two loops. Optional configuration of up to 32 ports/drop lines is available.
RS485 COMMUNICATION LEGACY
NON-PLENUM CABLE
PLENUM CABLE
DISTANCE
LOCATION WIRE TYPE
PART NUMBER
PART NUMBER
RATING
120 ohm, 20.3 pF twisted pair
A N-485 dropline cable shielded NC2441-TN NCP2441-TN 4,000' total
RS485 COMMUNICATION NETAXS
NON-PLENUM CABLE
PLENUM CABLE
DISTANCE
LOCATION WIRE TYPE
PART NUMBER
PART NUMBER
RATING
120 ohm, 20.3 pF twisted pair
A N-485 dropline cable shielded NC2441-TN NCP2441-TN 4,000' total
*Any NX4 panel can be configured as a Gateway Controller.
376
www.security.honeywell.com/me
HONEYWELL ACCESS SYSTEMS
Access Systems-329-376 02-08.ind376 376Access Systems-329-376 02-08.ind376 376 8/12/08 5:18:15 PM8/12/08 5:18:15 PM
