A Range of Residential

& Commercial Grounds Care Equipment

VISION INNOVATION LEADERSHIP QUALITY RELIABILITY SUPPORT PRIDE COMMITMENT

Grounds Care

MF_catalogue_2012_MF 08.02.12 16:49 Seite 1

For more than 40 years, Massey-

Ferguson has led the way in the

design and manufacture of grounds

care machinery and has a history in

land management, which traces

back over 160 years.

We’ve earned a coveted reputation

for rugged build quality, efficiency,

reliability and excellent value for

money.

Our experience in machine

manufacture is reflected in the

awards we have won.

To complement all of this, a wide

choice of optional features and

accessories provides the opportunity

to tailor each machine to perform

precisely the range of tasks required.

You can rest-assured that all

Massey Ferguson grounds care

equipment comes with the

reassurance of the best after-sales

service and support package in the

world from the Massey Ferguson

network.

Think pride…

Built on experience, growing through innovation.

Massey Ferguson grounds care equipment has come a long way,

all in the name of quality and constantly strives; for more efficient

products, the ethos being based around performance, reliability

and a long heritage. And so, Massey Ferguson is proud to present

a range of high-quality grounds care equipment, extending an

already comprehensive stable of grounds care machines.

MF_catalogue_2012_MF 08.02.12 16:49 Seite 2

01 02

03 04

01 MF 42-22 SD, side discharge

lawn tractor

02 Self propelled lawn mower,

MF 19 SHWB, MF 19 SB,

MF 21 SB, MF 21 SHWB

03 MF 48-24 RD 04 MF 50-25 SD, side discharge lawn

tractor with tow steel dump cart.

MF_catalogue_2012_MF 08.02.12 16:49 Seite 3

Self-propelled

lawn mowers

Built to last: you can depend on your

Massey Ferguson petrol mower to be

with you throughout the year in the day-

to-day life of your garden. The modern

technology and the best workmanship

see to that. Powerful engines, the easy-

to-empty grass bag, the ergonomically

formed handle and the easy-to-handle

cutting height adjustment guarantee

excellent mowing results.

- Briggs & Stratton engine,

750 Series DOV

- Fuel capacity 1,1 l

- Bag full indicator

- Grass bag volume 75 l

- 19” / 48 cm cutting deck

- 4 in 1 cutting system

- Mulch, collect, side or rear discharge

- Variable speed

- Rear wheel drive

- Ergonomic handle

- Deluxe handle panel and foam grip

- Ball bearings

- 18 / 20 cm wheel size (front / rear)

MF 19 SB Rotary Mower

Mulching, bagging, discharge

There are different ways to dispose

the clippings: mulching, bagging or

discharge. When mulching, the

grass clippings are cut several

times to fine particles and can

directly be used as a natural green

fertilizer.

Our models MF 19 SB,

MF 19 SHWB, MF 21 SB and

MF 21 SHWB offer you all three

options simultaneously.

MF_catalogue_2012_MF 08.02.12 16:49 Seite 4

- Briggs & Stratton engine,

750 Series DOV

- Fuel capacity 1,1 l

- Bag full indicator

- Grass bag volume 80 l

- 21” / 53 cm cutting deck

- 4 in 1 cutting system

- Mulch, collect, side or rear discharge

- Variable speed

- Rear wheel drive

- Ergonomic handle

- Deluxe handle panel and foam grip

- Ball bearings

- 20 / 30 cm wheel size (front / rear)

MF 21 SHWB Rotary Mower

- Briggs & Stratton engine,

750 Series DOV

- Fuel capacity 1,1 l

- Bag full indicator

- Grass bag volume 75 l

- 19” / 48 cm cutting deck

- 4 in 1 cutting system

- Mulch, collect, side or rear discharge

- Variable speed

- Rear wheel drive

- Ergonomic handle

- Deluxe handle panel and foam grip

- Ball bearings

- 18 / 30 cm wheel size (front / rear)

MF 19 SHWB Rotary Mower MF 21 SB Rotary Mower

- Briggs & Stratton engine,

750 Series DOV

- Fuel capacity 1,1 l

- Bag full indicator

- Grass bag volume 80 l

- 21” / 53 cm cutting deck

- 4 in 1 cutting system

- Mulch, collect, side or rear discharge

- Variable speed

- Rear wheel drive

- Ergonomic handle

- Deluxe handle panel and foam grip

- Ball bearings

- 20 / 20 cm wheel size (front / rear)

01 Self propelled lawn mower,

MF 21 SHWB

02 Detail: high wheel MF 19 SHWB 03 Self propelled lawn mower,

MF 19 SB

04 Detail: Briggs & Stratton engine,

700 Series

05 Self propelled lawn mower,

MF 19 SB

06 Detail: Ergonomic deluxe handle panel

with foam grip and variable speed

control

04 05

01 02

MF_catalogue_2012_MF 08.02.12 16:49 Seite 5

Rear discharge

lawn tractors

Whether on smooth, spacious lawns or smaller, uneven ground,

Massey Ferguson provides you with the appropriate equipment.

Our lawn tractors with rear discharge, floating cutting deck and

turf saving wheels guarantee a clean and even cut.

01 03

MF 41-18 RD Lawn Tractor - B&S Intek engine, 2600 min-¹/8,4 KW

- 105 cm mowing deck

- Hydrostatic transmission

- Ball bearings

- Pivoting front axle

- Cast-iron front axle

- Mulch kit optional

- Grass bag capacity 350 l

- Toolbox & 12 V plug

- Turning radius 40 cm

- Acoustic bag full indicator

- Deck wash system

- RevTEK-reverse mowing technology

MF_catalogue_2012_MF 08.02.12 16:49 Seite 6

MF 36-16 RD Lawn TractorMF 30-15 RT Lawn Tractor MF 41-18 RH Lawn Tractor

MF 30-15 RT / MF 36-15 RT

- B&S Intek engine,

2800 min-¹/9,2 KW / 2500 min-¹/8,5 KW

- 76 cm / 92 cm mowing deck

- Transmatic transmission

- Ball bearings (MF36-15 RT)

- Pivoting front axle

- Mulch kit optional (MF36-15RT)

- Grass bag capacity 210 l / 240 l

- Turning radius 46 cm

- Convenient step through frame

- Floating deck

MF 30-13 RH / MF 36-15 RH /

MF 41-18 RH

- B&S* Intek engine

2800 min-¹/6,3 KW / 2500 min-¹/8,5 KW

2500 min-¹/8,9 KW

- 76 cm / 92 cm / 105 cm

mowing deck

- Hydrostatic transmission

- Ball bearings

(MF36-15RH + MF41-18RH)

- Pivoting front axle

- Cast-iron front axle

- Mulch kit optional

(MF36-15RH + MF41-18RH)

- Grass bag capacity

210 l / 240 l / 240 l

- Turning radius 46 cm

- Rubber foot pads

MF 36-16 RD / MF 41-22 RD /

MF 48-24 RD

- Kawasaki* OHV engine

2500 min-¹/9,2 KW / 2400 min-¹/12 KW

2500 min-¹/12,7 KW

- 92 cm / 105 cm / 122 cm mowing deck

- 4 anti-scalping wheels

- Hydrostatic transmission

- Wheels (f/r) 15"x6" / 20"x8"

- Ball bearings

- Pivoting front axle

- Cast-iron front axle

- Mulch kit optional

- Grass bag capacity 280 l / 350 l / 400 l

- Rubber foot pads

- Toolbox & 12 V plug

- Turning radius 40 cm

- Cruise control

- Acoustic bag full indicator

- Deck wash system

- RevTEK-reverse mowing technology

01 Rear discharge lawn tractor

MF 36-16 RD

02 Detail: Control panel with

parking brake, cruise control,

choke and throttle

03 Detail: Cast-iron front axle with

adjustable tie rod and grease

fittings

04 Rear discharge lawn tractor

MF 41-18RH

MF_catalogue_2012_MF 08.02.12 16:49 Seite 7

MF 38-15 ST Lawn Tractor

MF 38-15 ST

- B&S Intek engine, 2600 min-¹/8,9 KW

- 96 cm Mowing deck

- Transmatic transmission

- Ball bearings

- Pivoting front axle

- Mulch kit standard

- Rubber foot pads

- Turning radius 46 cm

- Convenient step through frame

- Floating deck

Side discharge

lawn tractors

Tractors with side discharge are extraordi-

narily versatile. These

machines with working widths of 96 cm,

107 cm or 127 cm are characterised by

optimal manoeuvrability on all models.

Cutting the grass over larger areas is

made quick and easy. Thanks to an easy-

to-operate cutting height adjustment and a

suspended mowing deck, you will have

optimum cutting results even on difficult

ground. Furthermore, you can

easily attach accessories, such as snow

blades, lawn rollers or dump carts.

MF_catalogue_2012_MF 08.02.12 16:49 Seite 8

MF 50-25 SD Lawn TractorMF 42-18 SH Lawn Tractor MF 38-16 SD Lawn Tractor

MF 42-18 SH

- B&S Intek engine, 2800 min-¹/9,4 KW

- 107 cm Mowing deck

- Hydrostatic transmission

- Ball bearings

- Pivoting front axle

- Cast-iron front axle

- Mulch kit standard

- Rubber foot pads

- Turning radius 46 cm

- Convenient step through frame

- Floating deck

MF 38-16 SD / MF 42-22 SD

- Kawasaki OHV engine

2800 min-¹/9,7 KW / 2400 min-¹/12 KW

- 96 / 107 cm Mowing deck

- Hydrostatic transmission

- Ball bearings

- Electric blade engagement

- Pivoting front axle

- Adjustable tie rod

- Mulch kit standard

- Grass catcher optional

- Rubber foot pads

- Turning radius 40 cm

- Cruise control and hour meter

- RevTEK - reverse mowing

technology

MF 50-25 SD

- Kawasaki OHV engine, 3000 min-¹/13,6 KW

- 127 cm Mowing deck

- Hydrostatic transmission

- Ball bearings

- Electric blade engagement

- Adjustable tie rod

- Pivoting front axle

- Mulch kit standard

- Grass catcher optional

- Turning radius 40 cm

- Cruise control and hour meter

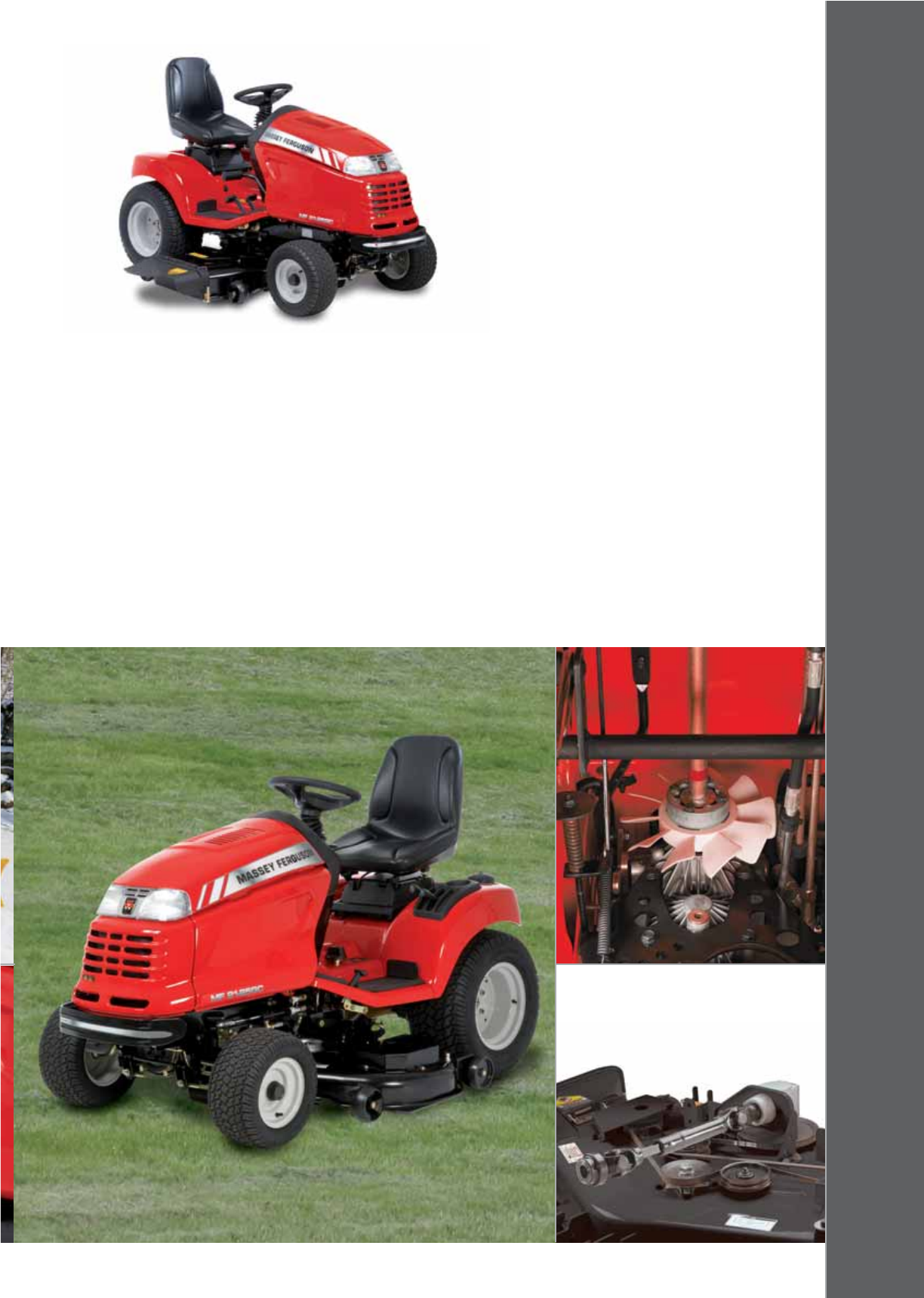

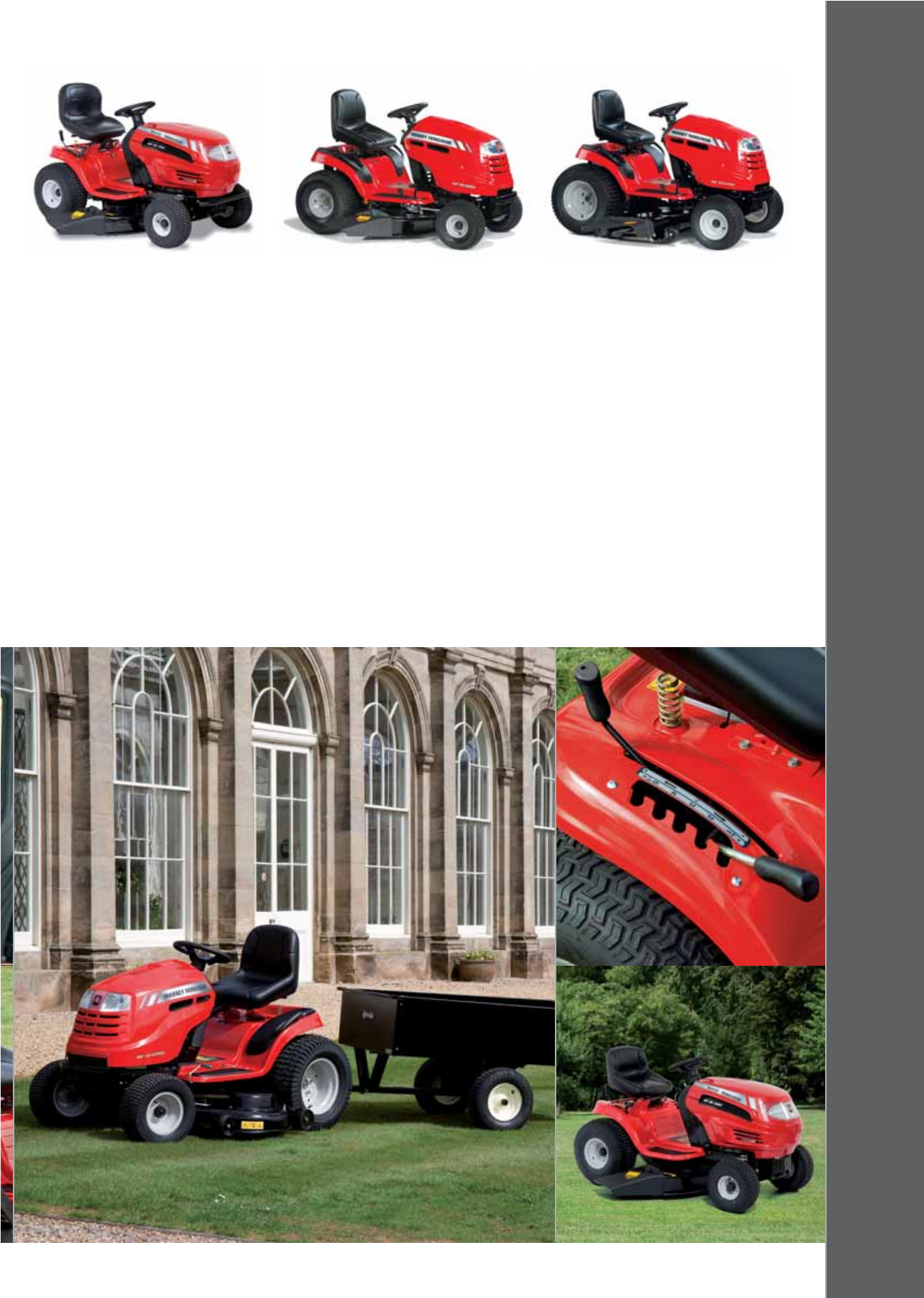

01 Detail: RevTEK, reverse mowing

technology

02 Optional available: Twin bagger 03 Side discharge lawn tractor

MF 50-25SD with dump trailer

(optional available)

04 Detail: Blade engagement and

deck height adjustment

05 Side discharge lawn tractor

MF 38-15 ST

0503

MF_catalogue_2012_MF 08.02.12 16:49 Seite 9

Innovation!

The range of commercial-quality, multi-purpose tractors are

designed for residential and estate users requiring a power unit

capable of operating a wide range of front and rear attachments,

delivering optimum versatility and cost effective operation throughout

the year. All models can be equipped additionally with rear discharge

cutter decks with optional grass collection systems.

The MF 21-25 RD and the MF 21-25 RD 4WD are powered by 24hp

twin-cylinder petrol engines. The first MF 21-25 RD model is

specified with either two-wheel or the MF 21-25 RD 4WD offers

all-wheel hydrostatic drive.

The MF 31-25 RD 4 WD is intelligent, powerful, reliable and rugged.

Whether you need it for lawn care, tall meadows in rough terrain,

courtyards, access roads or company sites - the technique of the

MF 31-25 RD 4 WD with its 24 hp makes this tractor a full

professional in nearly every terrain.

MF 21-25 RD / MF 21-25 RD 4WD

Standard features designed to give

these garden tractors a work capa-

city far greater than conventional

lawn and garden tractors of similar

size are their heavy-duty welded tu-

bular steel frames, pivoting front

axles and pedal-engaged differen-

tial locks. Other model specific fea-

tures

include selectable high and low

speed ranges, Servocom steering,

electrically-engaged power take-off

and dual hydraulic outlets at the

front and rear of the machine.

Available is an extensive list of

optional equipment and accessories

for these garden tractors, including

the choice of turf or agricultural tyres,

high-back seats with and without

armrests and rear tipping grass

collectors of various capacities with

electric opening and high-tip

emptying.

Among the attachments also

available will be trailed and

mounted fertiliser/salt spreaders,

a towed truck, front sweepers with

collection system, a snow blade,

540rpm/1,000rpm front power take-

off, a triangular front implement

attachment frame, a road legal

lighting kit and a weather cab.

Two conventional rear-discharge

cutter decks in 1.05 m and 1.22 m

widths will be offered,

complemented by a four-in-one

1.02 m deck capable of cutting at a

wide range of heights prior to

mulching, collecting or discharging

the clippings directly onto the

ground.

Efficient delivery of cut grass to an

optional rear grass collector is

achieved by the fitting of a large

diameter discharge chute to all

cutter decks, which are equipped

with spring-assisted deck lift

mechanisms.

All grass collection systems

incorporate an acoustic "box full"

sensor alarm.

MF 31-25 RD 4WD

This 4 WD tractor is equipped with

2 hydraulic engines pivoted

assembled on the steering stub

axle. This allows a direct and short

transmission to each front wheel

and attains an excellent thrust

performance.

In addition, the MF 31-25 RD 4 WD

has a "second speed" available.

The power of the front hydraulic

engines is bypassed to the rear

hydraulic engines. Thereby a

maximum speed of approximately

15 km/h will be achieved

MF_catalogue_2012_MF 08.02.12 16:49 Seite 10

MF 31-25 RD 4WDMF 21-25 RD MF 21-25 RD 4WD

MF 21-25 RD

- 24 hp Kawasaki OHV engine

- Hydraulic transmission

- Ball bearings

- Pivoting front axle

- Cast-iron front axle

- Mulch kit optional

- Hour meter

- Differential lock

- Electric PTO

- Hydraulic deck lifter

- Road approval available

MF 21-25 RD 4WD

- 24 hp Kawasaki OHV engine

- Hydraulic transmission and

2 hydraulic motors

- Pivoting front axle

- Cast-iron front axle

- Mulch kit optional

- Hour meter

- Front bumper

- Differential lock

- Electric PTO

- Hydraulic deck lifter

- Halogen light

- Road approval available

MF 31-25 RD 4WD

- 24 hp Kawasaki OHV engine

- 4 hydraulic motors

- Pivoting front axle

- Cast-iron front axle

- Mulch kit optional

- Hour meter

- Front bumper

- Differential lock

- Electric PTO

- Hydraulic deck lifter

- Halogen light

- Road approval available

01 Detail: Steering wheel and

control panel

02 Standard lawn tyres

(MF 21-25RD and

MF 21-25RD 4WD)

02 Optional available: Hydraulic

snow blade

04 Optional available: Stainless

steel hydraulic spreader

05 High dump system

(optional available)

All pictures with accessories. 11

MF_catalogue_2012_MF 08.02.12 16:49 Seite 11

High grass cutting

tractor

The MF 36-22 HG with a high grass cutting deck is especially

suitable for wide expenses such as paddocks and meadows.

Agricultural tyres allow for even better grip on difficult mowing areas.

MF_catalogue_2012_MF 08.02.12 16:49 Seite 12

01 High grass cutting tractor

MF 36-22 HG

02 Agricultural tyres (18”x9,5”) 03 Agricultural tyres (18”x9,5”)

MF 36-22 HG

- V-Twin Kawasaki OHV engine

2400 min-¹/12 KW

- 92 cm High grass cutting deck

- Hydrostatic transmission

- Agricultural rear tyres

- Cruise control

- Tool box and 12V plug

- Pivoting cast-iron front axle

- Rubber foot pads

- Turning radius 40 cm

- Ball bearings

MF_catalogue_2012_MF 08.02.12 16:49 Seite 13

Garden tractor

You can't get any tougher than the

MF 21-25 GC. Features like a 9-gauge

welded-steel frame and a cast-iron front

axle stand up to the toughest terrain.

Plus, power steering makes it easy to

operate the mower on all types of terrain.

That's smarter. That's tougher.

MF_catalogue_2012_MF 08.02.12 16:49 Seite 14

MF 21-25 GC

- 25 hp V-Twin Kohler OHV engine

- Mowing decks optional

- Hydrostatic transmission

- Differential lock

- Direct shaft drive

- Hydraulic deck lift

- Pivoting cast-iron front axle

- Cruise control and hour meter

- Turning radius 69 cm

- Ball bearings

01 Side discharge garden tractor

MF 21-25 GC with snow blade

anfd tow spreader (optional available)

02 Detail: Foot pedal,

Rubber foot pad

03 Side discharge garden tractor

MF 21-25 GC

04 Detail: Tranmission 05 Detail: Heavy-duty shaft drive:

no belts to stretch, slip or replace

0503

MF_catalogue_2012_MF 08.02.12 16:49 Seite 15

Intelligent

zero-turn rider

Tight turns are enhanced by

exceptional ground-following

capabilities thanks to the use of a

pivoting front axle, wide track and

low centre of gravity that keeps all

wheels firmly on the ground to give

a smoother, safer cut on level or

sloping terrain.

petrol engine (3100 min-¹/12,5 KW),

the MF 50-24 IZ is equipped with a

1.27 m heavy-duty triple bladed mo-

wing deck with anti-scalp rollers and

mulching kit. An optional collector is

available for use with the quick-attach,

side-discharge deck.

Other standard equipment includes

an adjustable high-back seat,

comfortable soft-touch steering

wheel and patented Smart Jet high-

pressure deck washing system.

The new MF 50-24 IZ ride-on mid mower has independently-driven rear

wheels and a unique steerable front axle operated by a conventional

steering wheel. Drive to the two rear wheels is controlled by advanced

Synchro technology (patents pending) that synchronises front wheel

steering movements with speed and direction of rotation of the rear

wheels. The result is zero-turn radius agility from a conventionally-

steered mower, enabling 360 degree turns to be made within the

length of the machine.

MF_catalogue_2012_MF 08.02.12 16:49 Seite 16

01 Zero turn tractor MF 50-24 IZ 02 Manoeuvrable zero turn tractor

MF 50-24 IZ

03 Detail: Forward – and

reverse pedal

04 Innovation meets design 05 Steering wheels. Inside wheel

with a steering lock angle more

than 90°

0403

MF_catalogue_2012_MF 08.02.12 16:49 Seite 17

Zero-turn front cut

rotary rider

The front cut rotary riders MF 48-22 FMZ and MF 50-22 FMZ are

using an advanced Synchro synchronised steering technology. These

riders have front drive wheels whose speed and direction of rotation

are controlled by movements of the rear steered axle, actuated

through a conventional steering wheel. The result is a high-output

mower with a maximum working speed of 6 mph that is able to turn

within its own length, delivering superb manoeuvrability, particularly

useful for cutting in awkward or confined areas.

MF_catalogue_2012_MF 08.02.12 16:49 Seite 18

01 Zero turn rider MF 48-22 FMZ 02 Steering wheels. Inside wheel

with a steering lock angle more

than 90°

03 Zero turn rider MF 50-22 FMZ

MF 48-22 FMZ

MF_catalogue_2012_MF 08.02.12 16:49 Seite 19

The machine is powered by a Kawa-

saki petrol engine 3150 min-¹/ 13,8

KW) and has a quick-attach 1.27 m

heavy-duty floating cutter deck fitted

with three blades. Blade engagement

is by electrically-operated clutch and

height of cut is adjustable from

25 mm to 114 mm on the two

swivelling front support wheels.

The side-discharge deck has anti-

scalping rollers and incorporates the

patented Smart Jet high-pressure

deck washing system. A mulching

kit is supplied as standard.

Maximum operator comfort and

convenience are assured by an

easily-accessed driver’s platform

with fingertip controls, well-

positioned instrumentation and a

multi-position high back seat with

arm rests.

Zero-turn front cut

rotary rider

MF_catalogue_2012_MF 08.02.12 16:49 Seite 20

02 03

01 Zero turn rider MF 50-22 FMZ 02 Detail: Fuel tank with gas gauge

window

03 Detail: 127 cm / 50” front

cutting deck

MF 50-22 FMZ

MF_catalogue_2012_MF 08.02.12 16:49 Seite 21

Dual-lever zero turn

rider

Dual transmission utilizes the full

potential of both the engine and the

transmission. No hoses between

pump and motor allows more

power for deck.

The dual-lever steering arms let you

control each wheel independently

with precise movements and less

effort. Zip around the bushes.Turn

a full 360°.

MF 50-22 ZT Zero turn rider

- Kawasaki* V-Twin engine

2400 min-¹/12 KW)

- Full pressure lube

- 50”/127 cm Side discharge deck

with 4 anti-scalping wheels

- Electric PTO engagement

- Mulch kit standard

- Dual lever steering

- Caster wheels / Pivoting front axle

- 2 hydrostatic transmissions

Designed to cut grass and trim time. Powerful Kawasaki OHV

engine. Quiet, reliable performance from an engine designed for

longer life. HydroGear™ EZT transmission - no hoses between the

pump and motor gives more power to operate the deck. Pivoting

front axle provides a smoother ride and a more professional cut while

allowing a more enjoyable riding experience. Electric PTO for smoother

deck engagement. 127 cm triple blade deck with 4 anti-scalping

wheels, adjustable seat and steering levers. Deck wash hose

attachment. High-pressure water blast cleans out grass and debris

after each mowing. Optional baggers and mulch kits.

MF_catalogue_2012_MF 08.02.12 16:49 Seite 22

01 Manoeuverable Zero turn rider

MF 50-22 ZT

02 Detail: Cutting height

adjustment lever

03 Zero turn rider MF 50-22 ZT 04 Detail: HydroGear™ EZT

transmission

05 Zero turn rider MF 50-22 ZT 06 Detail: Control panel and

hour meter

03 04

05 23

MF_catalogue_2012_MF 08.02.12 16:49 Seite 23

The Bull

Introducing the MF Bull, whether you need a worker out on the farm

or a way to get out into the woods (or perhaps a little of both), the

4x4 Bull gets it done. With 4-wheel, fully independent double

A-arm suspension and a wide stance, it offers increased stability on

rough terrain. The 4x4's tight curb-to-curb turning circle and rear

anti-roll bar provide superb cornering at faster speeds. Wherever you

go, you'll have the ultimate in 4-wheel performance.

The new Bull 4x2 sets new standards by delivering 4x4 performance

in a 4x2 UV. The 4x2 is built on the same rugged frame as the Bull 4x4

with fully independent suspension, for a steady and comfortable ride

even in rough territory. The 4x2 is as strong and as quiet as it is

smooth. Quite simply, it outworks and outplays the competition every

time.

02 03 05

01 04

MF_catalogue_2012_MF 08.02.12 16:49 Seite 24

The Bull – 2-wheel-drive

MF 20 MD 4x2

- Utility vehicle

- 22 hp Kohler V-Twin

- 4 X 2 drive

- 2 speed continuously variable

transmission with reverse

- 10.5” ground clearance at axle

- Independent suspension

- Durable dual-purpose tyres

- Rugged steel frame

- Steel cargo bed

The Bull – 4-wheel-drive

MF 20 MD 4x4

- Utility vehicle

- 20 hp Perkins diesel engine

- 4 X 4 drive with auto engage front

- Axle electronic slip sensing

- Differential lock

- 2 speed continuously variable

transmission with reverse

- 10.5” ground clearance at axle

- Independent suspension

- Roll bar payload capacity 408 kg

- Towing capacity 600 kg

01 Utility Vehicle MF 20 MD 4x4 02 Utility Vehicle MF 20 MD 4x4 03 Utility Vehicle MF 20 MD 4x4 with optional cabin 04 Utility Vehicle MF 20 MD 4x4

Massey-Ferguson – The Bull

06 08

08 Carry big loads with the MF 20 MD 4x407 Utility Vehicle MF 20 MD 4x4 with optional cabin

06 Working on slopes up to 15°

05 Out in the green with the MF 20 MD

MF_catalogue_2012_MF 08.02.12 16:49 Seite 25

Not available -

Standard 

Optional 

Rear discharge lawn tractors

Engine

MF 30-15

MF 30-13

MF 36-15

MF 41-18

MF 36-16

MF 41-22

MF 48-24

MF 41-18

Engine B&S B&S B&S B&S B&S

Kawasaki Kawasaki Kawasaki

B&S

Engine rpm min-¹2800 2800 2500 2500 2500 2500 2400 2500 2400

Kilowatt kW 9,2 6,3 8,5 8,5 8,9 9,2 12,0 12,7 8,4

Cylinders single / V-Twin / - / - / - / - / - - / - / - /   / -

Engine type Intek Intek Intek Intek Intek OHV OHV OHV Intek

Fuel capacity litre 3,8 3,8 3,8 3,8 3,8 7,5 7,5 7,5 7,5

Transmission

Drive transmatic / hydrostat / - - /   / - - / - / - / - / - / - / 

Ball bearings - -       

Pivot bar cast --     

Adjustable tie rod - - - - -    

Wheels and tyres

Turf saving tyres front 13x5 13x5 15x6 15x6 15x6 15x6 15x6 15x6 15x6

rear 18x6,5 18x6,5 18x9,5 18x9,5 18x9,5 20x8 20x8 20x8 20x8

Cutting equipment

Blade engagement manual 

Cutting width cm / in 76 / 30 76 / 30 92 / 36 92 / 36 105 / 41 92 / 36 105 / 41 122 / 48 105 / 41

Deck wheels - -2224444

Discharge rear RD RD RD RD RD RD RD RD RD

Mulch kit - - 

Deflector rear 

Grass bag 

Grass bag capacity litre 210 210 240 240 240 280 350 400 350

Bag full indicator -----

Bag lift --------

Weights and dimensions

Turning radius cm 46 46 46 46 46 40 40 40 40

Length cm 225 225 225 225 225 250 250 250 250

Width cm 99 99 99 99 110 99 111 124 111

Height cm 100 100 100 100 100 110 110 110 110

Weight kg 190 190 195 195 198 227 240 240 140

Other

Seat high back / medium back - /   / - - /   / - / - / - / - / - / -

Seat style adjustable --

Steering wheel softgrip 

Cruise control -----

RevTEK -----

Light switch 

Tool box -----

12V plug -----

Foot pads rubber 

Front bumper         

Rear Hitch extendable 

MF_catalogue_2012_MF 08.02.12 16:49 Seite 26

Side discharge lawn tractors

Engine MF 38-15 ST MF 42-18 SH MF 38-16 SD MF 42-22 SD MF 50-25 SD

Engine B&S B&S Kawasaki Kawasaki Kawasaki

Engine rpm min-¹2600 2800 2800 2400 3000

Kilowatt kW 8,9 9,4 9,7 12,0 13,6

Cylinders single / V-Twin / - / - - / - / - / 

Engine type Intek Intek OHV OHV OHV

Fuel capacity litre 3,8 3,8 11,4 11,4 11,4

Transmission

Drive transmatic / hydrostat / - - / - / - / - / 

Ball bearings 

Pivot bar cast -   

Adjustable tie rod - -   

Wheels and tyres

Turf saving tyres front 15x6 15x6 15x6 15x6 16x6,5

rear 20x8 20x8 20x8 20x10 22x9,5

Cutting equipment

Blade engagement manual / E-PTO / - / - - / - / - / 

Cutting width cm / in 96 / 38 107 / 42 96 / 38 107 / 42 127 / 50

Deck wheels 22244

Discharge side 

Mulch kit 

Deflector side 

Grass bag 

Bag full indicator -----

Bag lift -----

Weights and

dimensions

Turning radius cm 46 46 40 40 40

Length cm 170 170 172 172 172

Width / with deflector cm 107 / 130 115 / 139 107 / 139 115 / 139 130 / 136

Height cm 100 100 116 116 116

Weight kg 150 175 170 170 190

Other

Seat high back / medium back - /   / - / - / - / -

Seat style adjustable -   

Steering wheel softgrip 

Cruise control - -   

RevTEK - -   

Hourmeter - -   

Light switch 

Tool box -----

12V plug -----

Foot pads rubber 

Front bumper     

Rear Hitch fixed 

Specifications Every effort has been made to ensure that the information contained in this publication is as accurate and current as possible. However, inaccuracies, errors or omissions may occur and

details of the specifications may be changed at any time without notice. Therefore, all specifications should be confirmed with your Massey Ferguson Dealer or Distributor prior to any purchase.

MF_catalogue_2012_MF 08.02.12 16:50 Seite 27

High grass cutting tractor Garden tractor

Engine MF 21-25 GC

Engine Kohler

Horsepower hp 25

Kilowatt kW 18,7

Cylinders single / V-Twin - / 

Engine type OHV

Fuel capacity litre 17

Transmission

Drive automatic / hydrostat - / 

Direct shaft drive 

Differential lock 

Ball bearings 

Pivot bar cast 

Adjustable tie rod 

Wheels and tyres

Turf saving tyres front 16x7,5

rear 24x10,5

Cutting equipment

Blade engagment manual/ E-PTO/ E-VAC - / / 

Cutting width cm / in 

Deck wheels 

Discharge side 

Wash nozzle 

Mulch kit 

Deflector side 

Power deck lift hydaulics 

Grass bag 

Bag full indicator -

Weights and

dimensions

Turning radius cm 40

Length cm 185

Width cm 99

Height cm 110

Weight kg 240

Other

Seat high back 

Seat style adjustable 

Steering wheel softgrip 

Cruise control 

RevTEK 

Hourmeter -

Light switch seperate

Tool box 

12V plug 

Foot pads rubber 

Front bumper 

Rear Hitch fixed / extendable / -

Weights and

dimensions

Turning radius cm 69

Length cm 195

Width cm 103

Height cm 133

Weight kg 489

Other

Seat deluxe high back 

Steering wheel adjustable 

Cruise control 

RevTEK 

Hourmeter 

Tool box -

12V plug 

Foot pads rubber 

Front bumper 

Rear Hitch fixed / extendable / -

Engine MF 36-22 HG

Engine Kawasaki

Engine rpm min-¹2400

Kilowatt kW 12

Cylinders single / V-Twin - / 

Engine type OHV

Fuel capacity litre 7,5

Transmission

Drive automatic / hydrostat - / 

Ball bearings 

Pivot bar cast 

Adjustable tie rod 

Wheels and tyres

Turf saving tyres front 15x6

Agricultural tyres rear 18x9,5

Cutting equipment

Blade engagement manual / E-PTO / -

Cutting width cm / in 92 / 36

Deck wheels -

Discharge side 

Mulch kit -

Deflector side -

Grass bag -

Bag full indicator -

Bag lift -

MF_catalogue_2012_MF 08.02.12 16:50 Seite 28

Zero turn riders

Engine MF 48-22 FMZ MF 50-22 FMZ MF 50-22 ZT MF 50-24 IZ

Engine Kawasaki Kawasaki Kawasaki Kawasaki

Horsepower hp 22 22 22 24

Kilowatt kW 16,4 16,4 16,4 17,9

Cylinders single / V-Twin - / - / - / - / 

Engine type OHV OHV OHV OHV

Fuel capacity litre 13,25 13,25 11,4 9,5

Transmission

Drive hydrostat hydrostat hydrostat hydrostat

Direct shaft drive - - - -

Differential lock - - - -

Ball bearings    

Pivot bar cast / tube / - / - - /   / -

Adjustable tie rod - - - 

Wheels and tyres

Turf saving tyres front 20x10 20x10 13x5 15x6

rear 15x6 15x6 18x9,5 20x8

Cutting equipment

Blade engagement E-PTO    

Cutting width cm / in 122 / 48 127 / 50 127 / 50 127 / 50

Cutting height mm 10/25-114 10/25-114 6/30-95 6/35-100

Deck wheels 2 + Roller 2 + Roller 4 2

Discharge side    

Wash nozzle    

Mulch kit    

Deflector side    

Deck lift manual / hydaulics / - / - / - / -

Grass bag - -  

Bag full indicator - - - -

Weights and dimensions

Turning radius cm 0 0 0 0

Length cm 228 228 175 177

Width / with deflector cm 127/ - 155/ - 139/158 139/158

Height cm 120 120 100 117

Weight kg 306 306 239 270

Other

Seat high back    

Seat style adjustable    

Seat style armrest  -

Steering wheel softgrip    

Cruise control - - - -

RevTEK   -

Hourmeter    

Battery charging light   -

Bumper front / rear - / - / -/ -

Specifications Every effort has been made to ensure that the information contained in this publication is as accurate and current as possible. However, inaccuracies, errors or omissions may occur and

details of the specifications may be changed at any time without notice. Therefore, all specifications should be confirmed with your Massey Ferguson Dealer or Distributor prior to any purchase.

MF_catalogue_2012_MF 08.02.12 16:50 Seite 29

Engine MF 19 SB MF 19 SHWB MF 21 SB MF 21 SHWB

Engine Briggs&Stratton Briggs&Stratton Briggs&Stratton Briggs&Stratton

Kilowatt kW 2,8 2,8 2,75 2,75

Displacement ccm 160 160 160 160

Engine Type 700 Series DOV 

Fuel Capacity litre 1,1 1,1 1,1 1,1

Engine Start pull / electric / - / - / - / -

Wheels and tyres

Wheels size front in / cm 7 / 18 7 / 18 8 / 20 8 / 20

Wheels size rear in / cm 8 / 20 12 / 30 8 / 20 12 / 30

Ball bearings 

Cutting equipment

Deck size in / cm 19 / 48 19 / 48 21 / 53 21 / 53

Cutting height mm 25 - 90 25 - 90 20 - 90 20 - 90

Height adjustment central 

Deck material steel 

Discharge rear / side / mulch  /  /   /  /   /  /   /  / 

Discharge Configuration 4in1 4in1 4in1 4in1

Mulch kit 

Deflector rear / side  /   /   /   / 

Grass bag 

Grass bag capacity litre 75 75 80 80

Grass bag material soft bag / hard top  /   /   /   / 

Controls & Handle

Controls bail bail bail bail

Speed variable variable variable variable

Handle type standard / ergo - / - / - / - / 

Full fold handle 

Weight

Weight kg 32 32 45 45

Self propelled lawnmowers

MF_catalogue_2012_MF 08.02.12 16:50 Seite 30

Specifications Every effort has been made to ensure that the information contained in this publication is as accurate and current as possible. However, inaccuracies, errors or omissions may occur and

details of the specifications may be changed at any time without notice. Therefore, all specifications should be confirmed with your Massey Ferguson Dealer or Distributor prior to any purchase.

Utility vehicles

Engine MF 20 MD 4x2 MF 20 MD 4x4

Engine Kohler Perkins

Horsepower hp 20 22

Kilowatt kW 14,9 14,9

Cylinders single / V-Twin / 3 - / / - - / - / 

Engine type Gasoline / Diesel / - - / 

Fuel capacity litre 21,5 21,5

Transmission

Drive CVT  

Transmission type 2WD / 4WD / - - / 

Differential lock rear / front - / - / 

Ball bearings  

Suspension travel front cm / in 20 / 8 20 / 8

Suspension travel rear cm / in 20 / 8 20 / 8

Wheels and tyres

Turf tyres front 25x10-12 25x10-12

rear 25x11-12 25x11-12

Tyres type Trail Trail

Weights and dimensions

Turning radius cm 405 405

Length cm 314 314

Width cm 162 162

Height cm 198 198

Weight kg 727 727

Other

Seats 2 2

Seats deluxe high back  

Steering type Rack & pinion Rack & pinion

Hourmeter  

Tool box  

12V plug  

Battery charging light std std

Front bumper std std

MF_catalogue_2012_MF 08.02.12 16:50 Seite 31

High capacity rear discharge tractor

Engine MF 21-25 RD MF 21-25 RD 4 WD MF 31-25 RD 4 WD

Engine Kawasaki Kawasaki Kawasaki

Horsepower hp 24 24 24

Kilowatt kW 18,7 18,7 18,7

Cylinders single / V-Twin - / - / - / 

Engine type OHV OHV OHV

Fuel capacity litre 5 5 14

Transmission

Drive automatic / hydrostat / motors - / / - - / / 2 - / - / 4

Differential lock left / right / front / rear / / - / - / / - / - - / - / / 

Hydraulics front / rear - / - /   / 

Ball bearings 

Steering Servocom 

Pivot bar steel 

Adjustable tie rod 

Wheels and tyres

Turf saving tyres front 15x6,5 15x6,5 15x6,5

rear 20x10 20x10 20x10

Agricultural tyres front / rear   

Cutting equipment

Blade engagement manual/ E-PTO - / - / - / 

Cutting Deck   

Cutting width (Deck 1) / 3 in 1 cm / in 105 / 41 105 / 41 -

Cutting width (Deck 2) / 3 in 1 cm / in 122 / 48 122 / 48 122 / 48

Cutting width (Deck 3) / 4 in 1 cm / in 102 / 40 102 / 40 102 / 40

Cutting height mm 2,5-100 2,5-100 2,5-100

Deck wheels 4 4 4

Discharge rear 

Wash nozzle   

Mulch kit   

Deflector rear 

Power deck lift manual / hydaulics / - / - - / 

Grass bag capacities 350 l / 450 l /   /   / 

High dump capacity 400 l   

Power bag lift   

Bag full indicator 

Chute standard / large / x-tra large - / / - - / / - - / - / 

Weights and dimensions

Turning radius cm 64 64 64

Length (Basic tractor) cm 200 200 200

Width (Basic tractor) cm 100 100 100

Height (Basic tractor) cm 140 140 140

Weight kg

Other

Seat high back 

Seat type adjustable 

Cruise control ---

RevTEK ---

Hourmeter 

Front bumper 

MF_catalogue_2012_MF 08.02.12 16:50 Seite 32

MF 38-15 ST | MF 42-18 SH

Tyre chains 196-658-699

46"/117 cm Dozer blade OEM-190-833

42"/107 cm 2-stage snowthrower

OEM-190-032

01 Head rest kit – 39A-207-100

02 Light Bar, four lights – 39A-204-100

03 Electric bed lift – 39A-209-100

04 UV coveroversized – 39A-211-100

05 Rockinger hitch – 39A-242-600

06 Winch – 39A-205-100

07 Front Sweeper – 196-226-678 / Front Bag Collector – 196-226B678

08 42"/107 cm 2-stage Snowthrower –OEM-190-032

09 46"/117 cm Dozer Blade –OEM-190-833

10 Rear Deflector – 196-750-678

11 Tire Chains – 196-658-699

12 Agri Tires – 196-658-699

MF 38-16 SD | MF 42-22 SD

Tyre chains 196-658-678

46"/117 cm Dozer blade OEM-190-833

Rubber lip for dozer blade 196-718-678

42"/107 cm 2-stage snowthrower

OEM-190-032

Twin bagger OEM-190-180

MF 50-24 SD

Tyre chains 196-658-678

46"/117 cm Dozer blade OEM-190-833

Rubber lip for dozer blade 196-718-678

42"/107 cm 2-stage snowthrower

OEM-190-032

Triple bagger 19A40002000

MF 36-16 RD | MF 41-22 RD |

MF 48-24 RD

Front sweeper FS 105/33 196-226B678

Frontbag collector for front sweeper

196-227A678

46"/117 cm Dozer blade OEM-190-833

Rubber lip for dozer blade 196-718-678

42"/107 cm 2-stage snowthrower

OEM-190-032

Tyre chains 196-898-699

Agricultural tyres 196-721-678

Electric battery charger 196-967-678

12 13

13 Cover for Lawn Tractors – LMC-20L-EU

Accessories.

MF_catalogue_2012_MF 08.02.12 16:50 Seite 33

Accessories.

MF 20 MD 4x4

Light bar, four lights, mounting bar,

harness, switch, mounting hardware

(requires accessory harness 39A-209-

100) 39A-204-100

Winch, 3500 lb., mounting bracket,

roller hawse, switch, harness, mounting

hardware, front only 39A-205-100

Head Rest Kit full screen, multi-position

covered head rests, clamps, mounting

hardware 39A-207-100

Electrical accessory harness installed

when electrical accessories are used

39B-209-100

UV cover oversized, UV cover for

accessories, waterproof, elastic bottom

39A-211-100

Electric bed lift, lift cylinder, switch,

wiring harness, mounting hardware

(requires accessory harness 39B-209-

100) 39A-212-100

Floor mats sectional, rubber

39A-213-100

Additional alternator 100 Amp

39A-213-100

Rockinger hitch, incl. in the road

approval paper 39A-242-600

Turf saving tyres incl. rims, black, no

road approval 196-309-600

Snow chains, front wheels 196-893-678

Snow chains, rear wheels 196-966-678

Snow Blade 72"/183 cm with electric lift

and bracket, incl. Y-adapter (requires

accessory harness 39B-209-100)

39A-229-100

Cabin for 4x4 MF frame, roof, wiper and

windshield, grey roof 196-206-600

Doors incl. rear window for cabin

196-303-600

Heater for dashboard cabin 196-304-600

Beacon light orange for cabin

196-305-600

2 working lights front for cabin

196-306-600

1 working light rear for cabin

196-307-600

Windscreen wash system for cabin

196-308-600

Plastic bed liner 39A700001100

MF 50-22 ZT

Twin bagger - 50"127 cm "P" deck

19A70004100

MF 50-24 IZ

Twin bagger - 50"/127 cm "P" deck

19A70006100

Tyre chains 20 x 8.00 196-658-678

46"/117 cm Dozer blade OEM-190-833

MF 36-22 HG

46"/117 cm Dozer blade OEM-190-833

Rubber lip for Dozer blade 196-718-678

42"/107 cm 2-stage snowthrower

OEM-190-032

05 06

02 03

MF_catalogue_2012_MF 08.02.12 16:50 Seite 34

01 Head rest kit – 39A-207-100

02 Light Bar, four lights – 39A-204-100

03 Electric bed lift – 39A-209-100

04 UV coveroversized – 39A-211-100

05 Rockinger hitch – 39A-242-600

06 Winch – 39A-205-100

07 Push broadcast spreader – 190-525-000

08 Tow Steel Dump Cart – 190-223B000

09 Tow lawn sweeper – 190-145A000

1107 12 13

08 09 10

Accessories.

Universal attachments and accesso-

ries for all lawn tractors

Cover for lawn tractors LMC-20L-EU

Aluminium ramp ARL1EU

Tow poly dump cart,

size w/l/h:

30x41,5x11,6" (74,6x105,4x27,1cm)

capacity max. 500 lb (227 kg)

190-236A000

Tow steel dump cart, size

size w/l/h,:

32,5"x42,5"x12" (82,5x107,9x30 cm)

capacity max. 500 lb (227 kg )

190-223B000

Heavy duty cart, 17 cu. ft.

w/l/h:

33,8"x58"x14" (85,7x147,3x35,6cm)

capacity max 1500 lb (680 kg)

190-425A000

Tow steel dump cart,

size w/l/h:

29,8"x46"x12" (75,7x116,8,4x30,5 cm)

capacity max. 750 lb (340 kg)

190-653A000

Tow lawn sweeper, width 38" (96cm),

hopper capacity 12 cu. ft. (340 l),

height adjustment 190-145A000

Tow lawn sweeper, width 42" (107cm),

hopper capacity 12 cu. ft. (340 l),

height adjustment 190-163A000

Push broadcast spreader, volume 50 lb

(23 kg), spread width 4-8' (121-240 cm)

190-701-000

Push broadcast spreader, volume 85 lb

(39 kg), spread width 8-10' (240-300 cm)

196-029-000

Push broadcast spreader, volume 125 lb

(57 kg), spread width 10-12'

(300-365 cm) 190-454-000

Tow broadcast spreader, volume 175 lb

(80 kg), spread width 10-12'

(300-365 cm) 190-438-000

Tow broadcast spreader 196-031-000

Tow broadcast spreader, volume 100 lb

(45 kg), spread width 8-10'

(240-300 cm) 190-525-000

Tow aerator (spiker) / spreader, volume

100 lb (45 kg), spread width 32"

(81 cm) 196-033-000

Push/tow poly lawn roller, drum 18"x24"

(460x610 mm), max.weight 250 lb

(114 kg) with water 190-228-000

Tow poly lawn roller, drum 18"x36"

(460x915 mm), max.weight 400 lb.

(182kg) with water 190-229-000

Tow tine de-thatcher, width 40"

(102cm), 20 teeth (heat treated)

190-526-000

Tow lawn aerator (spiker type ), width

40" (102 cm), 12 spike wheels

190-224A000

Tow sprayer, capacity 15 gallon (57 l)

190-155-000

Tow Sprayer, capacity 25 gallon (95 l)

190-537-000

MF 30-15 RT | MF 30-13 RH |

46"/117 cm Dozer blade OEM-190-833

42"/107 cm 2-stage snowthrower

OEM-190-032

Tyre chains 196-898-699

Electric battery charger 196-967-678

MF 36-15 RT | MF 36-15 RH |

MF 36-15 RT |

Rear Deflector 196-750-678

Mulch kit 196-749-678

46"/117 cm Dozer blade OEM-190-833

42"/107 cm 2-stage snowthrower

OEM-190-032

Tyre chains 196-898-699

Electric battery charger 196-967-678

MF 21-25 GC

Front hydr. frame

(for 190-352-100 + 190-353-100)

190-414-100

Hydr. angling kit (for 190-352-100)

190-288-100

Adapter frame, rear attachments

196-195-603

50"/127 cm Deck ASM Euro 3000

(black) incl. mulch kit 19A-124-600

54"/137 cm Deck ASM Euro 3000

(black) incl. mulch kit 19A-125-600

Mulch kit for 54"/137cm 3 blades

590-507-100

Mulch kit for 48" deck 590-506-100

Tyre chains 24 x 10.50 196-893-678

Snowblade 137 cm (angling kit

190-288-100 required to mount),

no rubber lip 190-352-100

Front sweeper 120 cm,

brush for snow and dirt 196-188-603

10 Tow Sprayer – 190-537-000

11 Tow Tine De-Thatcher – 190-526-000

12 Push/ tow poly lawn roller– 190-228-000

13 Tow Poly Dump Cart – 190-236A000

MF_catalogue_2012_MF 08.02.12 16:50 Seite 35

MF Grounds Care

highlights

Here’s a quick reminder of some of the many features of the latest

MF Grounds Care family of products which strengthens their place in the

residential and commercial sectors.

01 The ultimate choice of side discharge and rear

discharge lawn tractors. Models, ranging from

15 hp to 25 hp and cutting widths

from 76 cm to 127 cm.

02 Simply the best in the business, these racy Massey

Ferguson Bull Utility Vehicles offer side by side

2-seater safety, a payload of 400 Kg, the choice of

2 and 4 wheel drive and a cab option to make your

Bull experience complete.

03 The advanced Synchro™ technology (patents

pending) offers an unprecedented Zero Turn

experience. Featured in both of the new Zero Turn

ride-on mowers; the 127 mm MF 50-24 IZ provides

intelligent drive to the rear wheels that synchronises

front wheel steering movements with speed and

direction of rotation of the rear wheels; and the Front

Cut MF 48-22 FMZ which offers maximum

manoeuvrability, particularly useful for cutting in

awkward or confined spaces.

04 Massey Ferguson self propelled walk behind lawn

mowers make mowing easier. The new high wheelers

provide maximum grip in every location, and whatever

the weather. And a choice of cutting widths up to 84

mm’s mean large areas can be cut – in very short

times.

05 Mulch it, bag it, or discharge it, the choice of grass

disposal is yours. Most machines offer 3in1 flexibility,

but with the added facility on many machines of side

and rear discharge, the choices have never been

greater.

06 Designed with the user in mind the new Massey

Ferguson Grounds Care product range offers a com

prehensive choice of power matched cutting widths,

the latest ergonomics features to make cutting the

grass a joy, and every machine is backed by the best

dealer network in the industry.

is a worldwide brand of AGCO Corporation

MF_catalogue_2012_MF 08.02.12 16:50 Seite 36

MF !! MFGrounds Care EN

Preview ! MFGroundsCare_EN Ferguson Lawn Mower Manuals - Lawn Mower Manuals – The Best Lawn Mower Manuals Collection

Navigation menu

Versions of this User Manual:

Views

Navigation
