www.mellanox.com
Mellanox MLNX-OS® User Manual
for Ethernet
Rev 4.60
Software Version 3.6.2102
Mellanox Technologies Confidential
Document Number: MLNX-15-1560-ETH
Rev 4.60
Mellanox Technologies Confidential
2
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 3
Table of Contents
Document Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
About this Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Chapter 1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
1.1 System Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
1.2 Ethernet Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Chapter 2 Getting Started. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
2.1 Configuring the Switch for the First Time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
2.1.1 Re-Running the Wizard. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
2.2 Starting the Command Line (CLI). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
2.3 Starting the Web User Interface (WebUI) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
2.4 Licenses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
2.4.1 Installing MLNX-OS® License (CLI) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
2.4.2 Installing MLNX-OS License (Web) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
2.4.3 Retrieving a Lost License Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
2.4.4 Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Chapter 3 User Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
3.1 Command Line Interface Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
3.1.1 CLI Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
3.1.2 Syntax Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
3.1.3 Getting Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
3.1.4 Prompt and Response Conventions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
3.1.5 Using the “no” Form . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
3.1.6 Parameter Key. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
3.1.7 Command Output Filtering and Monitoring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
3.1.8 CLI Shortcuts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
3.2 Web Interface Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
3.2.1 Setup Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
3.2.2 System Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
3.2.3 Security Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
3.2.4 Ports Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
3.2.5 Status Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
3.2.6 ETH Mgmt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
3.2.7 IP Route. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
3.3 Secure Shell (SSH) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
3.3.1 Adding a Host and Providing an SSH Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
3.3.2 Retrieving Return Codes when Executing Remote Commands . . . . . . . . . . . . . . 69
3.4 Management Information Bases (MIBs) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
3.5 Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
3.5.1 CLI Session . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
3.5.2 Banner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
3.5.3 SSH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 4
3.5.4 Remote Login . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
3.5.5 Web Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
Chapter 4 System Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
4.1 Management Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
4.1.1 Configuring Management Interfaces with Static IP Addresses . . . . . . . . . . . . . 127
4.1.2 Configuring IPv6 Address on the Management Interface. . . . . . . . . . . . . . . . . . 127
4.1.3 Dynamic Host Configuration Protocol (DHCP) . . . . . . . . . . . . . . . . . . . . . . . . . 128
4.1.4 Default Gateway . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
4.1.5 In-Band Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
4.1.6 Configuring Hostname via DHCP (DHCP Client Option 12) . . . . . . . . . . . . . . 129
4.1.7 Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130
4.2 NTP, Clock & Time Zones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178
4.2.1 NTP Authenticate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178
4.2.2 NTP Authentication Key. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178
4.2.3 Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 179
4.3 Software Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 197
4.3.1 Upgrading MLNX-OS Software. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 197
4.3.2 Upgrading MLNX-OS HA Groups. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200
4.3.3 Deleting Unused Images . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 201
4.3.4 Downgrading MLNX-OS Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 201
4.3.5 Upgrading System Firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 204
4.3.6 Image Maintenance via Mellanox ONIE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 206
4.3.7 Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 208
4.4 Configuration Management. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 219
4.4.1 Saving a Configuration File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 219
4.4.2 Loading a Configuration File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 219
4.4.3 Restoring Factory Default Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 219
4.4.4 Managing Configuration Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 219
4.4.5 Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 222
4.5 Logging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 250
4.5.1 Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 250
4.5.2 Remote Logging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 250
4.5.3 Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 251
4.6 Debugging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 270
4.6.1 Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 271
4.7 Event Notifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 290
4.7.1 Supported Events . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 290
4.7.2 Terminal Notifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 291
4.7.3 Email Notifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 292
4.7.4 Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 294
4.8 User Management and Security. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 313
4.8.1 User Accounts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 313
4.8.2 Authentication, Authorization and Accounting (AAA) . . . . . . . . . . . . . . . . . . . 313
4.8.3 System Secure Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 315
4.8.4 Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 317
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 5
4.9 Cryptographic (X.509, IPSec) and Encryption . . . . . . . . . . . . . . . . . . . . . . . . . 361
4.9.1 System File Encryption. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 361
4.9.2 Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 362
4.10 Scheduled Jobs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 376
4.10.1 Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 376
4.11 Statistics and Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 386
4.11.1 Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 386
4.12 Chassis Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 404
4.12.1 System Health Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 404
4.12.2 Power Management. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 410
4.12.3 Monitoring Environmental Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 411
4.12.4 USB Access. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 413
4.12.5 Unit Identification LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 414
4.12.6 System Reboot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 414
4.12.7 Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 415
4.13 Network Management Interfaces. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 443
4.13.1 SNMP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 443
4.13.2 XML API . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 453
4.13.3 Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 454
4.14 Puppet Agent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 470
4.14.1 Setting the Puppet Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 470
4.14.2 Accepting the Switch Request . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 470
4.14.3 Installing Modules on the Puppet Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 471
4.14.4 Writing Configuration Classes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 471
4.14.5 Supported Configuration Capabilities. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 473
4.14.6 Supported Resources for Each Type. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 477
4.14.7 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 478
4.14.8 Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 479
4.15 Virtual Machine. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 486
4.15.1 Virtual Machine Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 486
4.15.2 Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 489
4.16 IP Table Filtering. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 512
4.16.1 Configuring IP Table Filtering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 512
4.16.2 Modifying IP Table Filtering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 513
4.16.3 Rate-limit Rule Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 514
4.16.4 Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 515
Chapter 5 Ethernet Switching. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 520
5.1 Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 520
5.1.1 Break-Out Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 520
5.1.2 56GbE Link Speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 522
5.1.3 Transceiver Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 523
5.1.4 High Power Transceivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 524
5.1.5 Forward Error Correction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 524
5.1.6 Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 525
5.2 Interface Isolation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 551
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 6
5.2.1 Configuring Isolated Interfaces. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 551
5.2.2 Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 553
5.3 Link Aggregation Group (LAG) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 559
5.3.1 Configuring Static Link Aggregation Group (LAG) . . . . . . . . . . . . . . . . . . . . . 559
5.3.2 Configuring Link Aggregation Control Protocol (LACP) . . . . . . . . . . . . . . . . . 559
5.3.3 Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 561
5.4 MLAG . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 581
5.4.1 MLAG Keepalive and Failover. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 583
5.4.2 Unicast and Multicast Sync. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 583
5.4.3 MLAG Port Sync . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 583
5.4.4 MLAG Virtual System-MAC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 584
5.4.5 Upgrading MLAG Pair . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 584
5.4.6 Configuring MLAG . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 584
5.4.7 Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 589
5.5 VLANs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 607
5.5.1 Configuring Access Mode and Assigning Port VLAN ID (PVID). . . . . . . . . . . 607
5.5.2 Configuring Hybrid Mode and Assigning Port VLAN ID (PVID). . . . . . . . . . . 608
5.5.3 Configuring Trunk Mode VLAN Membership. . . . . . . . . . . . . . . . . . . . . . . . . . 608
5.5.4 Configuring Hybrid Mode VLAN Membership . . . . . . . . . . . . . . . . . . . . . . . . . 609
5.5.5 Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 610
5.6 Voice VLAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 620
5.6.1 Configuring Voice VLAN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 621
5.6.2 Limitations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 624
5.7 QinQ. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 625
5.7.1 QinQ Operation Modes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 625
5.7.2 Configuring QinQ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 625
5.7.3 Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 628
5.8 MAC Address Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 629
5.8.1 Configuring Unicast Static MAC Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 629
5.8.2 MAC Learning Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 629
5.8.3 Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 630
5.9 Spanning Tree . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 637
5.9.1 Port Priority and Cost . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 637
5.9.2 Port Type. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 637
5.9.3 BPDU Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 638
5.9.4 BPDU Guard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 638
5.9.5 Loop Guard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 638
5.9.6 Root Guard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 639
5.9.7 MSTP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 639
5.9.8 RPVST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 639
5.9.9 Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 642
5.10 OpenFlow. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 671
5.10.1 Flow Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 671
5.10.2 OpenFlow 1.3 Spec Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 672
5.10.3 Configuring OpenFlow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 676
5.10.4 Configuring Secure Connection to OpenFlow . . . . . . . . . . . . . . . . . . . . . . . . . . 676
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 7
5.10.5 Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 680
5.11 IGMP Snooping. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 693
5.11.1 Configuring IGMP Snooping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 693
5.11.2 Defining a Multicast Router Port on a VLAN . . . . . . . . . . . . . . . . . . . . . . . . . . 693
5.11.3 IGMP Snooping Querier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 695
5.11.4 Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 696
5.12 Link Layer Discovery Protocol (LLDP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 715
5.12.1 Configuring LLDP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 715
5.12.2 DCBX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 716
5.12.3 Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 717
5.13 Quality of Service (QoS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 732
5.13.1 QoS Classification. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 732
5.13.2 QoS Rewrite . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 734
5.13.3 Queuing and Scheduling (ETS) for SwitchX . . . . . . . . . . . . . . . . . . . . . . . . . . . 735
5.13.4 Queuing and Scheduling (ETS) for Spectrum . . . . . . . . . . . . . . . . . . . . . . . . . . 736
5.13.5 RED and ECN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 738
5.13.6 Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 740
5.14 Access Control List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 768
5.14.1 Configuring Access Control List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 768
5.14.2 ACL Actions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 768
5.14.3 Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 770
5.15 Port Mirroring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 783
5.15.1 Mirroring Sessions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 783
5.15.2 Configuring Mirroring Sessions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 786
5.15.3 Verifying Mirroring Sessions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 788
5.15.4 Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 789
5.16 sFlow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 798
5.16.1 Flow Samples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 798
5.16.2 Statistical Samples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 798
5.16.3 sFlow Datagrams. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 799
5.16.4 Sampled Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 799
5.16.5 Configuring sFlow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 799
5.16.6 Verifying sFlow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 800
5.16.7 Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 801
5.17 Transport Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 813
5.17.1 RDMA over Converged Ethernet (RoCE) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 813
5.18 802.1x Protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 817
5.18.1 802.1x Operating Modes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 817
5.18.2 Configuring 802.1x . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 818
5.18.3 Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 819
5.19 Priority Flow Control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 835
5.19.1 Flow Control Threshold Configuration for Spectrum. . . . . . . . . . . . . . . . . . . . . 836
5.19.2 Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 838
5.20 Shared Buffers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 842
5.20.1 Packet Buffering Classification. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 842
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 8
5.20.2 Buffering Allocation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 843
5.20.3 Pools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 844
5.20.4 Default Configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 844
5.20.5 Configuration Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 845
5.20.6 Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 847
5.21 Ethernet Resource Scale . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 860
5.21.1 Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 861
Chapter 6 IP Routing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 863
6.1 General. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 863
6.1.1 IP Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 863
6.1.2 Equal Cost Multi-Path Routing (ECMP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 866
6.1.3 Virtual Routing and Forwarding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 867
6.1.4 Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 868
6.2 OSPF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 908
6.2.1 Router ID. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 908
6.2.2 ECMP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 908
6.2.3 Configuring OSPF. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 909
6.2.4 Verifying OSPF. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 910
6.2.5 Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 913
6.3 BGP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 948
6.3.1 State Machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 948
6.3.2 Configuring BGP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 948
6.3.3 Verifying BGP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 950
6.3.4 Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 951
6.3.5 IP AS-Path Access-List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1002
6.3.6 IP Community-List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1004
6.4 Policy Rules. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1007
6.4.1 Route Map. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1007
6.4.2 IP Prefix-List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1037
6.5 Multicast (IGMP and PIM) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1040
6.5.1 Bidirectional PIM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1040
6.5.2 PIM Load-Sharing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1040
6.5.3 Bootstrap Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1041
6.5.4 Configuring Multicast . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1042
6.5.5 Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1044
6.6 VRRP. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1086
6.6.1 Load Balancing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1086
6.6.2 Configuring VRRP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1087
6.6.3 Verifying VRRP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1088
6.6.4 Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1090
6.7 MAGP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1101
6.7.1 Configuring MAGP. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1101
6.7.2 Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1103
6.8 DHCP Relay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1109
6.8.1 Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1110
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 9
Appendix A Enhancing System Security According to NIST SP 800-131A . . . . . . 1118
A.1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1118
A.2 Web Certificate. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1118
A.3 SNMP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1119
A.4 SSH. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1119
A.5 HTTPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1120
A.6 LDAP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1121
A.7 Password Hashing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1123
Appendix B Mellanox NEO™ on Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1125
B.1 Deploying Mellanox NEO™ on a MLNX-OS® Switch . . . . . . . . . . . . . . 1125
B.2 Getting Familiar with Mellanox NEO GUI . . . . . . . . . . . . . . . . . . . . . . . . 1126
B.3 Account Password, General Information, User Manual and Log-out Menu 1126
B.4 Network Notifications Icon. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1127
B.5 Main Tabs/Categories/Navigator Buttons. . . . . . . . . . . . . . . . . . . . . . . . . . 1127
B.6 Fabric Dashboard for On-Screen Status Monitoring . . . . . . . . . . . . . . . . . 1130
B.7 Last 24 Hours Events. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1131
6.8.2 Devices Heatmap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1131
6.8.3 Fabric Utilization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1133
6.8.4 Top Alerted Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1134
6.8.5 Recent Activity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1135
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 10
List of Tables
Table 1 -Reference Documents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Table 2 -Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Table 3 -General System Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Table 4 -Ethernet Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Table 5 -Serial Terminal Program Configuration for x86 Based Systems . . . . . . . . . . . . . . 37
Table 6 -Serial Terminal Program Configuration for PPC Based Systems . . . . . . . . . . . . . 37
Table 7 -Configuration Wizard Session - IP Configuration by DHCP . . . . . . . . . . . . . . . . . 38
Table 8 -Configuration Wizard Session - IP Zeroconf Configuration . . . . . . . . . . . . . . . . . 40
Table 9 -Configuration Wizard Session - Static IP Configuration . . . . . . . . . . . . . . . . . . . . 41
Table 10 -MLNX-OS Licenses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Table 11 -CLI Modes and Config Context . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Table 12 -Syntax Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Table 13 -Angled Brackets Parameter Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Table 14 -CLI Keyboard Shortcuts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Table 15 -WebUI Setup Submenus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Table 16 -WebUI System Submenus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Table 17 -WebUI Security Submenus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Table 18 -WebUI Ports Submenus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Table 19 -WebUI Status Submenus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Table 20 -WebUI ETH Mgmt Submenus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Table 21 -WebUI IP Route Submenus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Table 22 -Module Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Table 23 -Device Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Table 24 -Sensor Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Table 25 -Supported Event Notifications and MIB Mapping . . . . . . . . . . . . . . . . . . . . . . . 290
Table 26 -User Roles (Accounts) and Default Passwords . . . . . . . . . . . . . . . . . . . . . . . . . 313
Table 27 -Chassis Manager Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 404
Table 28 -System Health Monitor Alerts Scenarios . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 405
Table 29 -LWR Configuration Behavior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 411
Table 30 -Standard MIBs – Textual Conventions and Conformance MIBs . . . . . . . . . . . . 443
Table 31 -Standard MIBs – Chassis and Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 443
Table 32 -Private MIBs Supported . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 445
Table 33 -SNMP Traps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 445
Table 34 -Supported SET OIDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 449
Table 35 -Ethernet and Port-Channel Interface Capabilities . . . . . . . . . . . . . . . . . . . . . . . 473
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 11
Table 36 -VLAN Capabilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 474
Table 37 -L2 Ethernet and Port-Channel Interface Capabilities . . . . . . . . . . . . . . . . . . . . . 474
Table 38 -LAG Capabilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 474
Table 39 -L3 Interface Capabilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 474
Table 40 -OSPF Interface Capabilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 475
Table 41 -OSPF Area Capabilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 475
Table 42 -Router OSPF Capabilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 476
Table 43 -Protocol Enable/Disable Capabilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 476
Table 44 -Fetched Image Capabilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 476
Table 45 -Installed Image Capabilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 477
Table 46 -Fetched Image Capabilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 477
Table 47 -Supported VLANs by RPVST per Switch System . . . . . . . . . . . . . . . . . . . . . . . 640
Table 48 -Packet Classification Rules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 732
Table 49 -Default QoS Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 733
Table 50 -Default Shaper Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 737
Table 51 -Mirroring Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 784
Table 52 -List of Statistical Counters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 798
Table 53 -Navigator Tabs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1127
Table 54 -Job States . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1129
Table 55 -Recent Activity Icon Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1135
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 12
List of Figures
Figure 1: Managing an Ethernet Fabric Using MLNX-OS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
Figure 2: Console Ports SX10xx Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
Figure 3: MLNX-OS Login Window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43
Figure 4: EULA Prompt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44
Figure 5: Welcome Popup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44
Figure 6: Display After Login . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45
Figure 7: No Licenses Installed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47
Figure 8: Enter License Key(s) in Text Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48
Figure 9: Installed License . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48
Figure 10: WebUI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64
Figure 11: Index Scheme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70
Figure 12: Accepting an Agent Request through the Console . . . . . . . . . . . . . . . . . . . . . . . . . . . . .471
Figure 13: Break-Out Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .520
Figure 14: Interface Isolation Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .551
Figure 15: Basic MLAG Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .581
Figure 16: Basic MLAG Topology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .584
Figure 17: Tagging Voice Packets with a Different VLAN ID . . . . . . . . . . . . . . . . . . . . . . . . . . . .620
Figure 18: MAC Learning Disable Example Case . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .629
Figure 19: RPVST Network Config . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .639
Figure 20: RPVST and RSTP Cluster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .640
Figure 21: OpenFlow 1.3 Pipeline . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .672
Figure 22: RED/ECN Drop Profiles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .738
Figure 23: Overview of Mirroring Functionality . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .783
Figure 24: Mirror to Analyzer Mapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .783
Figure 25: Header Format Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .786
Figure 26: Mirroring Session . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .787
Figure 27: sFlow Functionality Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .798
Figure 28: RoCEv2 and RoCE Frame Format Differences . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .813
Figure 29: RoCEv2 Protocol Stack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .814
Figure 30: Xon/Xoff Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .837
Figure 31: ECMP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .866
Figure 32: Multiple Hash Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .867
Figure 33: OSPF Basic Topology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .909
Figure 34: Basic BGP Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .948
Figure 35: Common VRRP Configuration with Load Balancing . . . . . . . . . . . . . . . . . . . . . . . . .1086
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 13
Figure 36: NEO GUI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1127
Figure 37: NEO Jobs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1129
Figure 38: Fabric Dashboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1131
Figure 39: 24-Hour View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1131
Figure 40: Device Heatmap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1132
Figure 41: Device Heatmap Dialog . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1132
Figure 42: Device Heatmap Dialog Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1133
Figure 43: Device Heatmap Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1133
Figure 44: Device Heatmap Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1133
Figure 45: NEO Fabric Utilization Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1134
Figure 46: Fabric Utilization of Device per Category . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1134
Figure 47: Top Alerted Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1134
Figure 48: Recent Activity Examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1135
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 14
Document Revision History
Rev 4.60 – November 01, 2016
Added:
•the command “show ip igmp snooping membership” on page 709
• Section 5.10.2.1, “ACL Tables (0-249),” on page 673
• Section 5.10.2.2, “FDB Table (250),” on page 675
• Section 5.10.2.3, “Router Table (251),” on page 675
Updated:
•the command “image options” on page 216 “serve all” parameter description
• Section 4.4.4.2, “Text Configuration Files,” on page 220
•the command “show running-config” on page 248
•the command “fec-override” on page 535
• Section 5.10.2, “OpenFlow 1.3 Spec Support,” on page 672
•the command “ip igmp snooping static-group” on page 701
•the command “ip igmp snooping version” on page 703
•the command “openflow mode hybrid” on page 682
•the command “show ip igmp snooping groups” on page 707
•the command “show ip igmp snooping querier” on page 711
•the command “show ip igmp snooping statistics” on page 713
Rev 4.50 – September 30, 2016
Added:
• Section 3.1.7.2, ““watch” CLI Monitoring Option,” on page 61
•the command “ntp server trusted-enable” on page 190
•the command “logging <syslog IP address> port” on page 251
•the command “install-from-usb” on page 495
•the command “boot-delay” on page 526
•the command “show interfaces ethernet rates” on page 543
•the command “show interfaces ethernet transceiver diagnostics” on page 548
•the command “show mac-address-table summary” on page 636
• Section 5.10.2, “OpenFlow 1.3 Spec Support,” on page 672
• Section 8.3, “Proxy-ARP Event Notifications,” on page 1433
• Appendix B, “Mellanox NEO™ on Switch” on page 1125
Updated:
• Section 1.2, “Ethernet Features,” on page 34 with Spectrum™ unicast addresses
•Section 4.4.4.1, “BIN Configuration Files,” on page 220
• Section 4.4.4.2, “Text Configuration Files,” on page 220
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 15
•the command “reset factory” on page 227
•the command “show running-config” on page 248
• Section 4.5.2, “Remote Logging,” on page 250 with Step 3
•the command “username” on page 317
• Section 4.12.5, “Unit Identification LED,” on page 414
•the command “led uid” on page 417
•the command “show leds” on page 426
• Section 4.13.1.2, “Private MIB,” on page 445
•Section “Changing Configuration with SNMP” on page 451
• Section 4.15.1, “Virtual Machine Configuration,” on page 486
•the command “show interfaces ethernet” on page 537
• Section 5.4.6, “Configuring MLAG,” on page 584
• Section 5.9.7, “MSTP,” on page 639
• Section 5.10.4, “Configuring Secure Connection to OpenFlow,” on page 676
•the command “controller-ip (Spectrum)” on page 683
•the command “controller-ip (SwitchX)” on page 684
• Section 5.11, “IGMP Snooping,” on page 693 with IGMPv3 note
• Section 5.14.2, “ACL Actions,” on page 768
•the command “deny/permit (IPv4 TCP/UDP/ICMP ACL rule)” on page 774
•the command “monitor session” on page 789
• Section 6.7.1, “Configuring MAGP,” on page 1101
Rev 4.40 – June 28, 2016
Added:
• Section 4.3.4.3, “Switching to Partition with Older Software Version,” on page 204 for
clarity
• Section 4.4.4.1, “BIN Configuration Files,” on page 220
• Section 4.9.1, “System File Encryption,” on page 361
• Section 4.12.5, “Unit Identification LED,” on page 414
•the command “crypto encrypt-data” on page 362
•the command “show crypto encrypt-data” on page 374
•the command “led uid” on page 417
•the command “show leds” on page 426
•the command “show protocols” on page 431
•the command “show system capabilities” on page 433
• Section 5.1.5, “Forward Error Correction,” on page 524
•the command “show interfaces ethernet transceiver counters” on page 546
•the command “show interfaces ethernet transceiver counters details” on page 547
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 16
•the command “show interfaces ethernet transceiver raw” on page 550
• Section 5.2, “Interface Isolation,” on page 551
•the command “show interfaces port-channel counters” on page 577
• “Enabling L3 Forwarding with User VRF” on page 588
•the command “show interfaces mlag-port-channel counters” on page 604
•the command “switchport voice” on page 618
• Section 5.6, “Voice VLAN,” on page 620
•the command “ip igmp snooping clear counters” on page 698
•the command “ip igmp snooping version” on page 703
•the command “show ip igmp snooping querier counters” on page 712
•the command “lldp med-tlv-select” on page 724
• Section 5.13.1, “QoS Classification,” on page 732
• Section 5.13.2, “QoS Rewrite,” on page 734
• Section 5.13.3, “Queuing and Scheduling (ETS) for SwitchX,” on page 735
• Section 5.13.6.1, “QoS Classification,” on page 740
•the command “no area” on page 925
•the command “neighbor send-community” on page 984
Updated:
•the command “ip arp timeout” on page 164
• Section 4.3.6, “Image Maintenance via Mellanox ONIE,” on page 206
•the command “image fetch” on page 213
•the command “configuration switch-to” on page 240
• “Changing Configuration with SNMP” on page 451 with BinaryDelete and TextDelete
commands
•the command “show inventory” on page 425
•the command “show interfaces ethernet” on page 537
•the command “show interfaces ethernet counters” on page 540
•the command “show interfaces port-channel” on page 575
•the command “show interfaces mlag-port-channel” on page 603
• Section 5.8.1, “Configuring Unicast Static MAC Address,” on page 629
•the command “show openflow” on page 687
•the command “show openflow detail (SwitchX)” on page 688
•the command “show openflow flows” on page 689
•the command “show openflow statistics (SwitchX)” on page 690
•the command “ip igmp snooping static-group” on page 701
•the command “show ip igmp snooping” on page 706
•the command “show ip igmp snooping groups” on page 707
•the command “show ip igmp snooping statistics” on page 713
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 17
• Section 5.12.2, “DCBX,” on page 716
•the command “show lldp interfaces” on page 727
• Section 5.20, “Shared Buffers,” on page 842
•the command “ip arp timeout” on page 900
•the command “router ospf” on page 914
•the command “area stub” on page 923
•the command “show ip ospf” on page 940
•the command “show ip ospf border-routers” on page 941
•the command “show ip ospf database” on page 942
•the command “show ip ospf interface” on page 943
•the command “show ip ospf neighbors” on page 944
•the command “neighbor peer-group” on page 979
•the command “ip dhcp relay address” on page 1110
•the command “ip dhcp relay always-on” on page 1112
•the command “clear ip dhcp relay counters” on page 1113
•the command “ip dhcp relay information option circuit-id” on page 1114
•the command “show ip dhcp relay” on page 1116
•the command “show ip dhcp relay counters” on page 1117
Removed “Security Vulnerabilities and Exposures” appendix and moved it to
www.mellanox.com/page/mlnx_os_security_vulnerabilities_and_exposures
Rev 4.30 – March 02, 2016
Added:
• Section 3.1.8, “CLI Shortcuts,” on page 62
• Section 3.4, “Management Information Bases (MIBs),” on page 70
•the command “cli max-sessions” on page 76
•the command “show cli max-sessions” on page 82
•the command “show cli num-sessions” on page 83
•the command “banner logout” on page 87
•the command “banner logout-local” on page 88
•the command “banner logout-remote” on page 89
•the command “ssh server login attempts” on page 96
•the command “ssh server login timeout” on page 97
• Section 4.1.6, “Configuring Hostname via DHCP (DHCP Client Option 12),” on
page 129
•the command “dhcp hostname” on page
141
• Section 4.2.1, “NTP Authenticate,” on page 178
• Section 4.2.2, “NTP Authentication Key,” on page 178
•the command “ntp authenticate” on page 183
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 18
•the command “ntp authentication-key” on page 184
• the command “ntp peer disable” on page 185
• the command “ntp peer keyID” on page 186
• the command “ntp peer version” on page 187
•the command “ntp server disable” on page 188
•the command “ntp server keyID” on page 189
•the command “ntp server version” on page 191
•the command “ntp trusted-key” on page 192
•the command “show ntp configured” on page 195
•the command “show ntp keys” on page 196
• Section 4.3.6, “Image Maintenance via Mellanox ONIE,” on page 206
• Section 4.8.2.1, “User Re-authentication,” on page 314
•the command “aaa authentication attempts fail-delay” on page 324
•the command “show system type” on page 436
• Section 4.16, “IP Table Filtering,” on page 512
•the command “show interfaces ethernet counters” on page 540
• Section 5.13.5, “RED and ECN,” on page 738
• Section 5.13.6.4, “RED & ECN,” on page 766
• Section 5.21, “Ethernet Resource Scale,” on page 860
•the command “ip multicast filter” on page 1475
•the command “show ip multicast interface proxy-arp” on page 1491
•the command “show ip multicast interface proxy-arp count” on page 1492
•the command “show ip multicast filter interface proxy-arp” on page 1494
Updated:
•the command “show banner” on page 91
•the command “ssh server login attempts” on page 96
•the command “ssh server security strict” on page 100
•the command “show ssh server” on page 108
• Section 4.1, “Management Interface,” on page 127
•the command “show interface configured” on page 152
•the command “show ntp” on page 194
•the command “show aaa authentication attempts” on page 335
• Table 28, “System Health Monitor Alerts Scenarios,” on page 405
•the command “show inventory” on page 425
•the command “show power” on page 429
•the command “show power consumers” on page 430
• Table 31, “Standard MIBs – Chassis and Switch,” on page 443
• Section 5.1.1, “Break-Out Cables,” on page 520
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 19
• Section 5.1.2, “56GbE Link Speed,” on page 522
• Section 5.1.5, “Forward Error Correction,” on page 524
•the command “speed” on page 532
•the command “deny/permit (MAC ACL rule)” on page 772
•the command “deny/permit (IPv4 ACL rule)” on page 773
•the command “deny/permit (IPv4 TCP/UDP/ICMP ACL rule)” on page 774
• Section 5.15.1.2, “Destination Interface,” on page 784
•the command “add source interface” on page 792
•the command “header-format” on page 793
•the command “show monitor session” on page 796
• Section 5.20, “Shared Buffers,” on page 842
•the command “ip load-sharing” on page 895
•the command “ip arp timeout” on page 900
•the command “bgp listen range” on page 959
•the command “show ip mroute” on page 1071
•the command “vrrp” on page 1091
• Section A.6.1, “Upgrading Software on the MEX6200,” on page 481
• Section A.4, “SSH,” on page 1119
Rev 4.20 – August 16, 2015
Added:
• Section 4.3.6, “Image Maintenance via Mellanox ONIE,” on page 206
• Section 4.8.3, “System Secure Mode,” on page 315
•the command “system secure-mode enable” on page 359
•the command “show system secure-mode” on page 360
•the command “switchport dot1q-tunnel qos-mode” on page 615
• Section 5.7, “QinQ,” on page 625
•the command “dot1x host-mode” on page 822
•the command “show ip route” on page 896
•the command “vlan-pop” on page 778
•the command “vlan-push” on page 779
Updated:
•Table 7, “Configuration Wizard Session - IP Configuration by DHCP,” on page 38
•Section 2.4, “Licenses,” on page 45
•the command “ssh server host-key” on page 93
• notes of the command “aaa authorization” on page 332
• Table 28, “System Health Monitor Alerts Scenarios,” on page 405
• the command “show module” on page 428
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 20
• the command “snmp-server user” on page 464
• Section 5.1.2, “56GbE Link Speed,” on page 522
•the command “switchport mode” on page 613
•the command “ip ospf authentication-key” on page 937
•the command “neighbor password” on page 978
•the command “neighbor peer-group” on page 979
Rev 4.10 – June 11, 2015
Added:
•Section 2.1, “Configuring the Switch for the First Time,” on page 36 with MLNX-OS®
Boot Menu step
•the command “ssh server security strict” on page 100
•the command “ssh server tcp-forwarding enable” on page 101
•Section 4.1.5, “In-Band Management,” on page 128
This feature can now be enabled with IP Routing. Also updated the flow of setting an
in-band management channel.
•the command “show module” on page 428
• Section 5.1.1, “Break-Out Cables,” on page 520
•the command “ip address dhcp” on page 534
•the command “ip address dhcp” on page 568
• Section 5.4.4, “MLAG Virtual System-MAC,” on page 584
• Section 5.4.5, “Upgrading MLAG Pair,” on page 584
• Section 5.18, “802.1x Protocol,” on page 817
• Section 6.1.3, “Virtual Routing and Forwarding,” on page 867
•the command “ip l3” on page 868
•the command “vrf definition” on page 869
•the command “routing-context vrf” on page 870
•the command “description” on page 872
•the command “rd” on page 873
•the command “vrf forwarding” on page 874
•the command “show routing-context vrf” on page 876
•the command “show vrf” on page 877
•the command “ip address dhcp” on page 882
• Section 6.2, “IPv6,” on page 990 commands by adding loopback interface configuration
mode to the commands
• Section 6.5.2, “PIM Load-Sharing,” on page 1040
•the command “ip pim multipath rp” on page 1058
Updated:
•the command “tcpdump” on page 177
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 21
• Section 4.3.1, “Upgrading MLNX-OS Software,” on page 197 with HA group note
• Section 4.3.2, “Upgrading MLNX-OS HA Groups,” on page 200
•the command “show inventory” on page 425
•the command “show asic-version” on page 420
• Section 5.4.1, “MLAG Keepalive and Failover,” on page 583
•Step 10 in Section 5.4.6, “Configuring MLAG,” on page 584
•the example of the command “upgrade-timeout” on page 600
•the command “ip routing” on page 871
•the command “show ip routing” on page 875
•the command “show ip interface” on page 889
•the command “interface loopback” on page 890 “id” parameter range
•the command “ip route” on page 894
•the command “show ip route” on page 896
•the command “clear ip arp” on page 901
•the command “show ip arp” on page 902
•the command “ping” on page 903
•the command “traceroute” on page 904
•the command “tcpdump” on page 906
Removed:
•the command “interface vlan create” from Section 4.1.7, “Commands,” on page 130
• the command “ipv6 dhcp client”
Split:
• the command “ipv6 dhcp”
Rev 3.70 – March 19, 2015
Updated:
• the command “speed” on page 433
• the command “show interfaces ib” on page 437
• the command “show interfaces ib status” on page 438
Rev 3.70 – March 19, 2015
No changes
Rev 3.60 – March 05, 2015
Added:
• MLAG configuration Step 10
• the command “system-mac” on page 599
• the command “upgrade-timeout” on page 600
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 22
•Section 5.9.4, “BPDU Guard,” on page 638
Updated:
• MLAG configuration verification Step 1 with system MAC and upgrade timeout
• the command “show mlag” on page 601
•Table 47, “Supported VLANs by RPVST per Switch System,” on page 640
Rev 3.60 – March 05, 2015
No changes
Rev 3.50 – February 24, 2015
Added:
• the command “show version concise” on page 440
Updated:
• the command “show uboot” on page 438
Rev 3.40 – February 11, 2015
Added:
• “List of Tables” and “List of Figures” Sections
• Updated Section 2.4, “Licenses,” on page 45
• the command “license delete” on page 52
• the command “license install” on page 53
• the command “telnet” on page 109
• the command “terminal” on page 79
• the command “web cache-enable” on page 113
• the command “ip default-gateway” on page 132
• the command “boot system” on page 210
• the command “configuration write” on page 245
• the command “logging trap” on page 267
• the command “email autosupport enable” on page 294
• the command “email autosupport event” on page 295
• the command “crypto ipsec ike” on page 363
• the command “lacp-individual enable” on page 567
• the command “show interfaces port-channel” on page 575
• the command “show interfaces port-channel compatibility-parameters” on page 578
• the command “show interfaces port-channel load-balance” on page 579
• the command “show interfaces port-channel summary” on page 580
•Section 5.9.8, “RPVST,” on page 639
• the command “spanning-tree vlan forward-time” on page 661
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 23
• the command “spanning-tree vlan hello-time” on page 662
• the command “spanning-tree vlan max-age” on page 663
• the command “spanning-tree vlan priority” on page 664
• the command “show spanning-tree vlan” on page 670
• Section 6.2, “IPv6,” on page 990
• the command “auto-cost reference-bandwidth” on page 917
•
• the command “show ip multicast interface proxy-arp” on page 1491
Updated:
•Section 2.3, “Starting the Web User Interface (WebUI),” on page 43
• the command “image options” on page 216
• the command “reload” on page 226
•Section 4.5.2, “Remote Logging,” on page 250
• the command “logging debug-files” on page 254
• Section 4.6.1, “Commands,” on page 271
•Section 4.8.1, “User Accounts,” on page 313
• the command “username” on page 317
• the command “aaa authentication attempts fail-delay” on page 324
• the command “radius-server host” on page 337
• the command “tacacs-server host” on page 341
• Table 28, “System Health Monitor Alerts Scenarios,” on page 405
• the command “snmp-server auto-refresh” on page 454
• the command “snmp-server user” on page 464
• the command “show interfaces ethernet description” on page 542
• the command “show interfaces ethernet status” on page 544
• the command “show interfaces port-channel summary” on page 580
• the command “show interfaces mlag-port-channel summary” on page 605
• the command “spanning-tree mode” on page 643
• the command “show spanning-tree” on page 665
• the command “show spanning-tree detail” on page 666
• the command “show spanning-tree interface” on page 667
• the command “show spanning-tree mst” on page 668
• the command “show spanning-tree root” on page 669
•Section 5.11.2, “Defining a Multicast Router Port on a VLAN,” on page 693
• the command “dcb application-priority” on page 725
• the command “dcb priority-flow-control enable” on page 838
•Section 5.16.1, “Flow Samples,” on page 798
• the command “ip arp timeout” on page 900
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 24
• the command “redistribute” on page 919
Rev 3.30 – November 19, 2014
Added:
• Section 5.1.4, “High Power Transceivers,” on page 524
Updated:
• the command “web https” on page 120
• the command “show interfaces ethernet” on page 537
• the command “show interfaces ethernet transceiver” on page 545
• the command “dcb application-priority” on page 725
• Section A.5, “HTTPS,” on page 1120
• Section A.7, “Password Hashing,” on page 1123
Rev 3.20 – November 09, 2014
Added:
• Section 4.15, “Virtual Machine,” on page 486
•Section 5.8.2, “MAC Learning Considerations,” on page 629
• the command “mac-learning disable” on page 632
• Appendix A,“Enhancing System Security According to NIST SP 800-131A,” on page
1118
Updated:
• Section 1.2, “Ethernet Features,” on page 34
• Section 3.2, “Web Interface Overview,” on page 63
• the command “reset factory” on page 227
• Section 4.13.1.7, “SNMP SET Operations,” on page 448
• the command “interface port-channel” on page 561
• the command “show lacp interfaces neighbor” on page 571
• Section 5.4, “MLAG,” on page 581
• the command “mlag-channel-group mode” on page 596
• the command “show mlag statistics” on page 606
•the command “ip icmp redirect” on page 888
• Section 6.3, “BGP,” on page 948
• Section 6.6.2, “Configuring VRRP,” on page 1087
Replaced:
•the command “show lacp interfaces port-channel” with the command “show lacp” on
page 573
•the command “show lacp system-identifier” with the command “show lacp interfaces
system-identifier” on page 574
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 25
Rev 3.10 – July 20, 2014
Added:
• Section 5.17, “Transport Applications,” on page 813
• Section 6.1.1, “IP Interfaces,” on page 863
• Section 6.3, “BGP,” on page 948
• the command “show ip pim upstream joins” on page 1067
Updated:
• Chapter 1, “Introduction” on page 33
• Section 4.13.1.8, “IF-MIB and Interface Information,” on page 452
• Section 4.13.2, “XML API,” on page 453
• MAC addresses note in Section 5.4, “MLAG,” on page 581
•Chapter 6, “IP Routing” on page 863 with the appropriate configuration modes for the
new configuration contexts and commands added
• the command “route-map” on page 1008
• the command “continue <sequence-number>” on page 1009
• the command “abort” on page 1010
• the command “exit” on page 1011
• Section 6.5, “Multicast (IGMP and PIM),” on page 1040
• the command “ip pim join-prune-interval” on page 1055
• the command “show ip pim bsr” on page 1061
• the command “show ip mroute” on page 1071
Rev 3.00 – June 05, 2014
Updated:
• Section 6.5, “Multicast (IGMP and PIM),” on page 1040
• Section 6.6.3, “Verifying VRRP,” on page 1088
Rev 2.90 – 19 May, 2014
Added:
• Section 6.5, “Multicast (IGMP and PIM),” on page 1040
Updated:
• the command “show configuration” on page 247
• the command “show uboot” on page 438
• the command “show voltage” on page 441
• Section 5.4, “MLAG,” on page 581
• the command “show mlag” on page 601
• Section 6.1.4.2, “IP Interfaces,” on page 878
• Section 6.1.4.4, “Loopback Interface,” on page 890
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 26
Rev 2.80 – May 08, 2014
Added:
• supported versions note in Section 5.11, “IGMP Snooping,” on page 693
• Section 6.6, “VRRP,” on page 1086
• Section 6.7, “MAGP,” on page 1101
• Section 6.8, “DHCP Relay,” on page 1109
Rev 2.70 – April 30, 2014
Added:
• Appendix A,“Enhancing System Security According to NIST SP 800-131A,” on page
1118
• supported versions note in Section 5.11, “IGMP Snooping,” on page 693
Updated:
• the command “show ssh server” on page 108
• the command “web auto-logout” on page 112
• the command “web https” on page 120
• the command “show web” on page 126
• the command “show usernames” on page 319
• the command “ldap base-dn” on page 344
• the command “ldap ssl” on page 354
Rev 2.60 – April 10, 2014
Updated:
• Table 32, “Private MIBs Supported,” on page 445
Rev 2.50 – April 2014
Updated:
• Section 3.1.7, “Command Output Filtering and Monitoring,” on page 60
• the command “show protocols” on page 431
• the command “show mac-address-table” on page 634
• the command “deny/permit (MAC ACL rule)” on page 772
• the command “show mac/ipv4 access-lists” on page 781
Added:
• Section 5.4, “MLAG,” on page 581
• configuration mode Config Interface MLAG Port Channel to the following commands:
• “flowcontrol” on page 527
• “mtu” on page 529
• “shutdown” on page 530
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 27
• “description” on page 531
•“speed” on page 532
• “load-interval” on page 533
• “clear counters” on page 536
•“switchport mode” on page 613
• “switchport access” on page 616
• “spanning-tree port-priority” on page 647
• “spanning-tree cost” on page 648
• “spanning-tree port type” on page 649
• “spanning-tree guard” on page 650
• “ip igmp snooping fast-leave” on page 699
• “dcb priority-flow-control mode on” on page 840
• “ipv4/mac port access-group” on page 771
• “sflow enable (interface)” on page 811
Rev 2.40 – February, 2014
Updated:
•Section 4.3.5.2, “Importing Firmware and Changing the Default Firmware,” on
page 205 – updated Step 1
• the command “show running-config” on page 248
• the command “show log” on page 269
• Section 4.9, “Cryptographic (X.509, IPSec) and Encryption,” on page 361
•Section 5.3.1, “Configuring Static Link Aggregation Group (LAG),” on page 559 –
removed unnecessary step
• the command “lldp tlv-select” on page 723
Added:
• Section 3.1.7, “Command Output Filtering and Monitoring,” on page 60
• FCoE and SX1700 GW license in Section 2.4, “Licenses,” on page 45
• Section 4.13.1.8, “IF-MIB and Interface Information,” on page 452
Rev 2.30 – January, 2014
Updated:
• Section 4.14.4, “Writing Configuration Classes,” on page 471
• the command “crypto certificate generation” on page 368
• the command “crypto certificate name” on page 369
Rev 2.20 – January, 2014
Updated:
• Section 4.14.5.11, “Installed Image Capabilities,” on page 477
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 28
Rev 2.10 – January, 2014
Added:
• Section 4.12.2.1, “Width Reduction Power Saving,” on page 410
Updated:
• Section 2.2, “Starting the Command Line (CLI),” on page 42
• Section 2.3, “Starting the Web User Interface (WebUI),” on page 43
•Section 4.3.1, “Upgrading MLNX-OS Software,” on page 197 with EULA note
• Section 4.14, “Puppet Agent,” on page 470
• the command “load-interval” on page 533 with Config Interface Port Channel
• the command “spanning-tree port-priority” on page 647 with Config Interface Port
Channel
• Section 5.10, “OpenFlow,” on page 671
• the command “openflow description (SwitchX)” on page 681
• the command “show openflow” on page 692
• the command “switchport {hybrid, trunk} allowed-vlan” on page 617 with Config
Interface Port Channel
• the command “spanning-tree cost” on page 648 with Config Interface Port Channel
• the command “spanning-tree port type” on page 649 with Config Interface Port Channel
• the command “spanning-tree guard” on page 650 with Config Interface Port Channel
• the command “spanning-tree bpdufilter” on page 651 with Config Interface Port Chan-
nel
• the command “deny/permit (IPv4 ACL rule)” on page 773
• the command “sflow enable (interface)” on page 811 with Config Interface Port Chan-
nel
• Section 6.2, “OSPF,” on page 908
• the command “router-id” on page 915
Rev 2.00 – December 2013
Added:
• Section 5.1.3, “Transceiver Information,” on page 523
•the command “run-interval” on page 482
Updated:
• Section 4.3.1, “Upgrading MLNX-OS Software,” on page 197
• Section 4.3.3, “Deleting Unused Images,” on page 201
• Section
4.6, “Debugging,” on page 270
• the example of the command “show cpld” on page 422
• “Notification Indicator” column in Section 8.4.2, “Standalone Proxy-ARP Configura-
tion,” on page 1435
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 29
•the command “show puppet-agent” on page 484
•the command “lldp tlv-select” on page 723
Moved:
Section 3.3, “Secure Shell (SSH),” on page 69 from 4.13.2
Removed:
• mention of the MLNX-OS Command Reference Guide
• the command “lldp tlv-select dcbx”
Rev 1.90 – November 2013
Added Appendix A,“MEX6200 System,” on page 467
Rev 1.80 – October 2013
Added:
• Section 4.14, “Puppet Agent,” on page 470
• Section 5.9.7, “MSTP,” on page 639
• Section 5.10, “OpenFlow,” on page 671
• Section 5.11.3, “IGMP Snooping Querier,” on page 695
•the command “ip igmp snooping querier”
•the command “igmp snooping querier query-interval”
•the command “show ip igmp snooping querier”
• Section 5.12.2, “DCBX,” on page 716
• the command “lldp tlv-select dcbx”
•the command “dcb application-priority”
•the command “show dcb application-priority”
Updated:
•the command “show lldp interfaces”
Rev 1.7.0 – October 2013
Merged “MLNX-OS Command Reference Guide” Rev. 1.6.9 and “MLNX-OS User Manual”
Rev. 1.6.9.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 30
About this Manual
This manual provides general information concerning the scope and organization of this User’s
Manual.
Intended Audience
This manual is intended for network administrators who are responsible for configuring and
managing Mellanox Technologies’ SwitchX based Switch Platforms.
Related Documentation
The following table lists the documents referenced in this User’s Manual.
Table 1 - Reference Documents
Document Name Description
Director switch Installation Guide Each Mellanox Technologies' switch platform is
shipped with an Installation Guide document to
bring-up and initialize the switch platform.
System Hardware User Manual This document contains hardware descriptions, LED
assignments and hardware specifications among other
things.
Switch Product Release Notes Please look up the relevant SwitchX®-based switch
system/series release note file
Mellanox Virtual Modular Switch
Reference Guide This reference architecture provides general informa-
tion concerning Mellanox L2 and L3 Virtual Modular
Switch (VMS) configuration and design.
All of these documents can be found on the Mellanox website. They are available either through
the product pages or through the support page with a login and password.
Glossary
Table 2 - Glossary
AAA Authentication, Authorization, and Accounting.
Authentication - verifies user credentials (username and password).
Authorization - grants or refuses privileges to a user/client for accessing spe-
cific services.
Accounting - tracks network resources consumption by users.
ARP Address Resolution Protocol. A protocol that translates IP addresses into
MAC addresses for communication over a local area network (LAN).
CLI Command Line Interface. A user interface in which you type commands at the
prompt
DCB Data Center Bridging
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 31
DCBX DCBX protocol is an extension of the Link Layer Discovery Protocol
(LLDP). DCBX end points exchange request and acknowledgment messages.
For flexibility, parameters are coded in a type-length-value (TLV) format.
DHCP The Dynamic Host Configuration Protocol (DHCP) is an automatic configura-
tion protocol used on IP networks.
DNS Domain Name System. A hierarchical naming system for devices in a com-
puter network
ETS ETS provides a common management framework for assignment of band-
width to traffic classes.
FTP/TFTP/sFTP File Transfer Protocol (FTP) is a standard network protocol used to transfer
files from one host to another over a TCP-based network, such as the Internet.
Gateway A network node that interfaces with another network using a different network
protocol
HA (High Availability) A system design protocol that provides redundancy of system components,
thus enables overcoming single or multiple failures in minimal downtime
Host A computer platform executing an Operating System which may control one
or more network adapters
LACP Link Aggregation Control Protocol (LACP) provides a method to control the
bundling of several physical ports together to form a single logical channel.
LACP allows a network device to negotiate an automatic bundling of links by
sending LACP packets to the peer (directly connected device that also imple-
ments LACP).
LDAP The Lightweight Directory Access Protocol is an application protocol for
reading and editing directories over an IP network.
LLDP (Link Layer Discovery
Protocol) A vendor neutral link layer protocol used by network devices to advertise their
identify, capabilities and for neighbor discovery
MAC A Media Access Control address (MAC address) is a unique identifier
assigned to network interfaces for communications on the physical network
segment. MAC addresses are used for numerous network technologies and
most IEEE 802 network technologies including Ethernet.
MTU (Maximum Transfer Unit) The maximum size of a packet payload (not including headers) that can be
sent /received from a port
Network Adapter A hardware device that allows for communication between computers in a
network
PFC/FC Priority Based Flow Control applies pause functionality to traffic classes OR
classes of service on the Ethernet link.
RADIUS Remote Authentication Dial In User Service. A networking protocol that
enables AAA centralized management for computers to connect and use a net-
work service.
RDMA (Remote Direct Memory
Access) Accessing memory in a remote side without involvement of the remote CPU
Table 2 - Glossary
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 32
RSTP Rapid Spanning Tree Protocol. A spanning-tree protocol used to prevent loops
in bridge configurations. RSTP is not aware of VLANs and blocks ports at the
physical level.
SA (Subnet Administrator) The interface for querying and manipulating subnet management data
SCP Secure Copy or SCP is a means of securely transferring computer files
between a local and a remote host or between two remote hosts. It is based on
the Secure Shell (SSH) protocol.
SNMP Simple Network Management Protocol. A network protocol for the manage-
ment of a network and the monitoring of network devices and their functions
NTP Network Time Protocol. A protocol for synchronizing computer clocks in a
network
SSH Secure Shell. A protocol (program) for securely logging in to and running pro-
grams on remote machines across a network. The program authenticates
access to the remote machine and encrypts the transferred information through
the connection.
syslog A standard for forwarding log messages in an IP network
TACACS+ Terminal Access Controller Access-Control System Plus. A networking pro-
tocol that enables access to a network of devices via one or more centralized
servers. TACACS+ provides separate AAA services.
XML Gateway Extensible Markup Language Gateway. Provides an XML request-response
protocol for setting and retrieving HW management information.
Table 2 - Glossary
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 33
1 Introduction
Mellanox® Operating System (MLNX-OS®) enables the management and configuration of Mel-
lanox Technologies’ SwitchX® Family silicon based switch platforms.
MLNX-OS provides a full suite of management options, including support for SNMPv1, 2, 3,
and web user interface (WebUI). In addition, it incorporates a familiar industry-standard CLI,
which enables administrators to easily configure and manage the system.
1.1 System Features
Table 3 - General System Features
Feature Description
Software Management • Dual software image
• Software and firmware updates
File management • FTP
• TFTP
• SCP
Logging • Event history log
• SysLog support
Management Interface • DHCP/Zeroconf
• IPv6
Chassis Management • Monitoring environmental controls
• Power management
• Auto-temperature control
• High availability
Network Management
Interfaces
• SNMP v1,v2c,v3
• interfaces (XML Gateway)
• Puppet Agent
Security • SSH
• Telnet
• RADIUS
• TACACS+
Date and Time • NTP
Cables & Transceivers • Transceiver info
Unbreakable links • LLR
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 34
1.2 Ethernet Features
Table 4 - Ethernet Features
Feature Description
General • ACL – 6400 rules (permit/deny)
• Breakout cables
• Jumbo Frames (9K)
Ethernet support • 48K unicast MAC addresses on SwitchX®-2 based systems
• 90100 unicast MAC addresses on Spectrum™ based systems
• DCBX
• DHCP Relay
• ETS (802.1Qaz)
• Flow control (802.3x)
• IGMP snooping v1,2
• LAG/LACP (802.3ad), 16 links per LAG (64 LAGs)
• LLDP
• MLAG
• MSTP
• OpenFlow 1.3
• PFC (802.1Qbb)
• Rapid Spanning Tree (802.1w)
• sFlow
• VLAN (802.1Q) – 4K
IP routing • BGP
• DHCP Relay
• ECMP
• IGMP
• IPv4
• IPv6
• OSPF
• PIM
• VLAN interface
• Loopback interface
• Router interface
• VRRP
• 2K static multicast MAC addresses
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 35

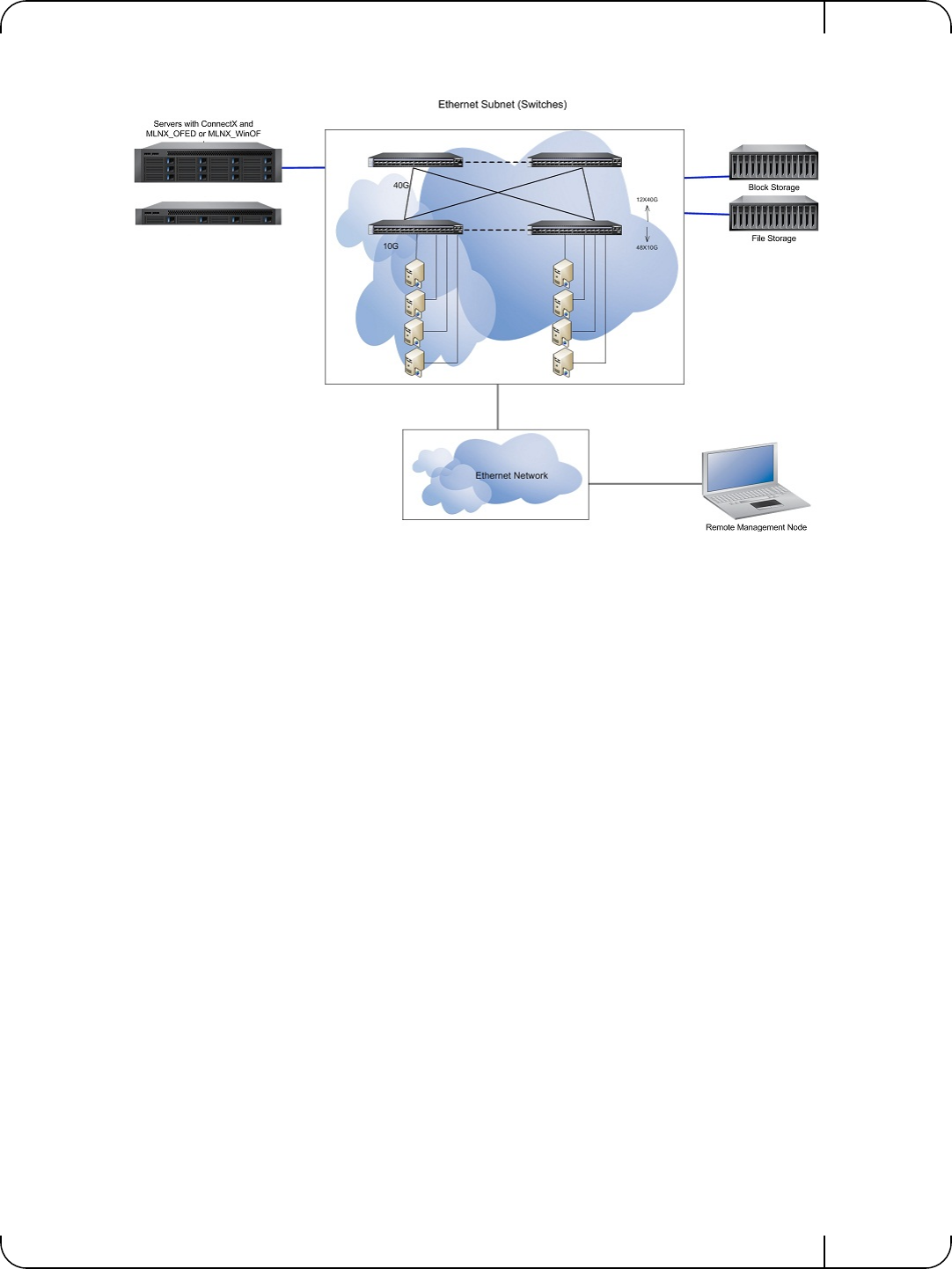

Figure 1: Managing an Ethernet Fabric Using MLNX-OS
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 36
2 Getting Started
The procedures described in this chapter assume that you have already installed and powered on
your switch according to the instructions in the Hardware Installation Guide, which was shipped
with the product.
2.1 Configuring the Switch for the First Time
To configure the switch:
Step 1. Connect the host PC to the console (RJ-45) port of the switch system using the supplied cable.
The console ports for systems are shown below.
Figure 2: Console Ports SX10xx Systems
Step 2. Configure a serial terminal with the settings described below.
Make sure to connect to the console RJ-45 port of the switch and not to the MGT port.
DHCP is enabled by default over the MGT port. Therefore, if you have configured
your DHCP server and connected an RJ-45 cable to the MGT port, simply log in using
the designated IP address.
This step may be skipped if the DHCP option is used and an IP is already configured
for the MGT port.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 37
Step 3. You are prompted with the boot menu.
The MLNX-OS Boot Menu features a countdown timer. It is recommended to allow
the timer to run out by not selecting any of the options.
Step 4. Login as admin and use admin as password.
If the machine is still initializing, you might not be able to access the CLI until initialization
completes. As an indication that initialization is ongoing, a countdown of the number of
remaining modules to be configured is displayed in the following format: “<no. of modules>
Modules are being configured”.
Step 5. Go through the Mellanox configuration wizard.
Table 5 - Serial Terminal Program Configuration for PPC Based Systems
Parameter Setting
Baud Rate 9600
Data bits 8
Stop bits 1
Parity None
Flow Control None
Table 6 - Serial Terminal Program Configuration for x86 Based Systems
Parameter Setting
Baud Rate 115200
Data bits 8
Stop bits 1
Parity None
Flow Control None
Mellanox MLNX-OS Boot Menu:
1: <image #1>
2: <image #2>
u: USB menu (if USB device is connected) (password required)
c: Command prompt (password required)
Choice:
Select “1” to boot with software version installed on partition #1.
Select “2” to boot with software version installed on partition #2.
Selecting “u” is not currently supported.
Select “c” to proceed to advanced booting options – available to Mellanox Support
only.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 38
The following table shows an example of a wizard session.
Table 7 - Configuration Wizard Session - IP Configuration by DHCP (Sheet 1 of 2)
Wizard Session Display (Example) Comments
Mellanox configuration wizard
Do you want to use the wizard for initial con-
figuration? yes
You must perform this configuration the first
time you operate the switch or after resetting
the switch to the factory defaults. Type “y” and
then press <Enter>.
Step1: Hostname? [switch-1] If you wish to accept the default hostname,
then press <Enter>. Otherwise, type a different
hostname and press <Enter>.
Step 2: Use DHCP on mgmt0 interface? [yes] Perform this step to obtain an IP address for the
switch. (mgmt0 is the management port of the
switch.)
If you wish the DHCP server to assign the IP
address, type “yes” and press <Enter>.
If you type “no” (no DHCP), then you will be
asked whether you wish to use the “zeroconf”
configuration or not. If you enter “yes” (yes
Zeroconf), the session will continue as shown
in Table 8.
If you enter “no” (no Zeroconf), then you need
to enter a static IP, and the session will con-
tinue as shown in Table 9.
Step 3: Enable IPv6 [yes] Perform this step to enable IPv6 on manage-
ment ports.
If you wish to enable IPv6, type “yes” and
press <Enter>.
If you enter “no” (no IPv6), then you will auto-
matically be referred to Step 5.
Step 4: Enable IPv6 autoconfig (SLAAC) on
mgmt0 interface Perform this step to enable StateLess address
autoconfig on external management port.
If you wish to enable it, type “yes” and press
<Enter>.
If you wish to disable it, enter “no”.
Step 5: Use DHCPv6 on mgmt0 interface?
[yes] Perform this step to enable DHCPv6 on the
MGMT0 interface.
Step 5: Admin password (Press <Enter> to
leave unchanged)? <new_password>
Step 4: Confirm admin password? <new_pass-
word>
To avoid illegal access to the machine, please
type a password and then press <Enter>. Then
confirm the password by re-entering it.
Note that password characters are not printed.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 39
You have entered the following information:
1. Hostname: <switch name>
2. Use DHCP on mgmt0 interface: yes
3. Enable IPv6: yes
4. Enable IPv6 autoconfig (SLAAC) on mgmt0
interface: yes
5. Enable DHCPv6 on mgmt0 interface: no
6. Admin password (Enter to leave unchanged):
(CHANGED)
To change an answer, enter the step number to
return to.
Otherwise hit <enter> to save changes and exit.
Choice: <Enter>
Configuration changes saved.
To return to the wizard from the CLI, enter the
“configuration jump-start” command from
configuration mode. Launching CLI...
<switch name> [standalone: master] >
The wizard displays a summary of your
choices and then asks you to confirm the
choices or to re-edit them.
Either press <Enter> to save changes and exit,
or enter the configuration step number that you
wish to return to.
Note:
To run the command “configuration jump-
start” you must be in Config mode.
Table 7 - Configuration Wizard Session - IP Configuration by DHCP (Sheet 2 of 2)
Wizard Session Display (Example) Comments
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 40
Table 8 - Configuration Wizard Session - IP Zeroconf Configuration
Wizard Session Display - IP Zeroconf Configuration (Example)
Mellanox configuration wizard
Do you want to use the wizard for initial configuration? y
Step 1: Hostname? [switch-112126]
Step 2: Use DHCP on mgmt0 interface? [no]
Step 3: Use zeroconf on mgmt0 interface? [no] yes
Step 4: Default gateway? [192.168.10.1]
Step 5: Primary DNS server?
Step 6: Domain name?
Step 7: Enable IPv6? [yes] yes
Step 8: Enable IPv6 autoconfig (SLAAC) on mgmt0 interface? [no] no
Step 9: Admin password (Enter to leave unchanged)?
You have entered the following information:
1. Hostname: switch-112126
2. Use DHCP on mgmt0 interface: no
3. Use zeroconf on mgmt0 interface: yes
4. Default gateway: 192.168.10.1
5. Primary DNS server:
6. Domain name:
7. Enable IPv6: yes
8. Enable IPv6 autoconfig (SLAAC) on mgmt0 interface: yes
9. Admin password (Enter to leave unchanged): (unchanged)
To change an answer, enter the step number to return to.
Otherwise hit <enter> to save changes and exit.
Choice:
Configuration changes saved.
To return to the wizard from the CLI, enter the “configuration jump-start”
command from configure mode. Launching CLI...
<switch name> [standalone: master] >
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 41
Table 9 - Configuration Wizard Session - Static IP Configuration
Wizard Session Display - Static IP Configuration (Example)
Mellanox configuration wizard
Do you want to use the wizard for initial configuration? y
Step 1: Hostname? [switch-112126]
Step 2: Use DHCP on mgmt0 interface? [yes] n
Step 3: Use zeroconf on mgmt0 interface? [no]
Step 4: Primary IP address? 192.168.10.4
Mask length may not be zero if address is not zero (interface mgmt0)
Step 5: Netmask? [0.0.0.0] 255.255.255.0
Step 6: Default gateway? 192.168.10.1
Step 7: Primary DNS server?
Step 8: Domain name?
Step 9: Enable IPv6? [yes] yes
Step 10: Enable IPv6 autoconfig (SLAAC) on mgmt0 interface? [no] no
Step 11: Admin password (Enter to leave unchanged)?
You have entered the following information:
1. Hostname: switch-112126
2. Use DHCP on mgmt0 interface: no
3. Use zeroconf on mgmt0 interface: no
4. Primary IP address: 192.168.10.4
5. Netmask: 255.255.255.0
6. Default gateway: 192.168.10.1
7. Primary DNS server:
8. Domain name:
9. Enable IPv6: yes
10. Enable IPv6 autoconfig (SLAAC) on mgmt0 interface: no
11. Admin password (Enter to leave unchanged): (unchanged)
To change an answer, enter the step number to return to.
Otherwise hit <enter> to save changes and exit.
Choice:
Configuration changes saved.
To return to the wizard from the CLI, enter the “configuration jump-start”
command from configure mode. Launching CLI...
<switch name>[standalone: master] >
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 42
Step 6. Check the mgmt0 interface configuration before attempting a remote (for example, SSH) con-
nection to the switch. Specifically, verify the existence of an IP address.
2.1.1 Re-Running the Wizard
To rerun the wizard:
Step 1. Enter the config mode.
Step 2. Rerun the wizard.
2.2 Starting the Command Line (CLI)
Step 1. Set up an Ethernet connection between the switch and a local network machine using a stan-
dard RJ-45 connector.
Step 2. Start a remote secured shell (SSH) to the switch using the command “ssh -l <username>
<switch ip address>.”
Step 3. Login to the switch (default username is admin, password admin)
Step 4. Read and accept the EULA when prompted.
switch # show interfaces mgmt0
Interface mgmt0 state
Admin up: yes
Link up: yes
IP address: 169.254.15.134
Netmask: 255.255.0.0
IPv6 enabled: yes
Autoconf enabled: yes
Autoconf route: yes
Autoconf privacy: no
IPv6 addresses: 1
IPv6 address: fe80::202:c9ff:fe11:a1b2/64
Speed: 1000Mb/s (auto)
Duplex: full (auto)
Interface type: ethernet
Interface source: physical
MTU: 1500
HW address: 00:02:C9:11:A1:B2
Comment:
RX bytes: 11700449 TX bytes: 15139846
RX packets: 55753 TX packets: 28452
RX mcast packets: 0 TX discards: 0
RX discards: 0 TX errors: 0
RX errors: 0 TX overruns: 0
RX overruns: 0 TX carrier: 0
RX frame: 0 TX collisions: 0
TX queue len: 1000
switch > enable
switch # config terminal
switch (config) # configuration jump-start
rem_mach1 > ssh -l <username> <ip address>
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 43
Step 5. Once you get the prompt, you are ready to use the system.
2.3 Starting the Web User Interface (WebUI)
To start a WebUI connection to the switch platform:
Step 1. Set up an Ethernet connection between the switch and a local network machine using a stan-
dard RJ-45 connector.
Step 2. Open a web browser – Firefox 12, Chrome 18, IE 8, Safari 5 or higher.
Note: Make sure the screen resolution is set to 1024*768 or higher.
Step 3. Type in the IP address of the switch or its DNS name in the format: http://<switch_IP_ad-
dress>.
Step 4. Login to the switch (default user name is admin, password admin).
Figure 3: MLNX-OS Login Window
Mellanox MLNX-OS Switch Management
Password:
Last login: <time> from <ip-address>
Mellanox Switch
Please read and accept the Mellanox End User License Agreement located at:
http://www.mellanox.com/related-docs/prod_management_software/MLNX-OS_EULA.pdf
switch >
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 44
Step 5. Read and accept the EULA if prompted.
You are only prompted if you have not accessed the switch via CLI before.
Figure 4: EULA Prompt
Step 6. The Welcome popup appears. After reading through the content, click OK to continue.
You may click on the links under Documentation to reach the MLNX-OS documentation.
The link under What’s New takes you straight to the RN Changes and New Features section.
Figure 5: Welcome Popup
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 45
You may also tick the box to not show this popup again. But should you wish to see this win-
dow again, click “Product Documents” on the upper right corner of the WebUI.
Step 7. A default status summary is displayed as shown in Figure 6.
Figure 6: Display After Login
2.4 Licenses
MLNX-OS software package can be extended with premium features. Installing a license allows
you to access the specified premium features.
The following licenses are offered with MLNX-OS software:
Gateway is not supported in MLNX-OS® release 3.4.1110.
This section is relevant only to switch systems with an internal management capability.
Table 10 - MLNX-OS Licenses
OPN Valid on Product Description
UPGR-6012-GW SX6012 Ethernet L2/L3, Gateway
UPGR-1012-GW SX1012 Ethernet L3, Gateway
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 46
2.4.1 Installing MLNX-OS® License (CLI)
To install an MLNX-OS license via CLI:
Step 1. Login as admin and change to Config mode.
Step 2. Install the license using the key. Run:
Step 3. Display the installed license(s) using the following command.
Make sure that the “Valid” and “Active” fields both indicate “yes”.
Step 4. Save the configuration to complete the license installation. Run:
2.4.2 Installing MLNX-OS License (Web)
To install an MLNX-OS license via WebUI:
Step 1. Log in as admin.
Step 2. Click the Setup tab and then Licensing on the left side navigation pane.
UPGR-6018-GW SX6018 Ethernet L2/L3, Gateway
UPGR-6036-GW SX6036 Ethernet L2/L3, Gateway
UPGR-1036-GW SX1036 Ethernet L3, Gateway
UPGR-1710-GW SX1710 Ethernet L3, Gateway
UPGR-6710-GW SX6710 Ethernet L3, Gateway
UPGR-xxxx-FCOE-J All systems support-
ing Ethernet directly
or via license.
Enables FCoE protocol
switch > enable
switch # config terminal
switch (config) # license install <license key>
switch (config) # show licenses
License 1: <license key>
Feature: EFM_SX
Valid: yes
Active: yes
switch (config) #
switch (config) # configuration write
If you do not save the installation session, you will lose the license at the next system
start up.
Table 10 - MLNX-OS Licenses
OPN Valid on Product Description
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 47
Figure 7: No Licenses Installed
Step 3. Enter your license key(s) in the text box. If you have more than one license, please enter each
license in a separate line. Click “Add Licenses” after entering the last license key to install
them.
If you wish to add another license key in the future, you can simply enter it in the text
box and click “Add Licenses” to install it.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 48
Figure 8: Enter License Key(s) in Text Box
All installed licenses should now be displayed.
Figure 9: Installed License
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 49
Step 4. Save the configuration to complete the license installation.
2.4.3 Retrieving a Lost License Key
In case of a lost MLNX-OS® license key, contact your authorized Mellanox reseller and provide
the switch’s chassis serial number.
To obtain the switch’s chassis serial number:
Step 1. Login to the switch.
Step 2. Retrieve the switch’s chassis serial number using the command “show inventory”.
Step 3. Send your Mellanox reseller the following information to obtain the license key:
• The chassis serial number
• The type of license you need to retrieve. Refer to “Licenses” on page 45.
Step 4. Once you receive the license key, you can install the license as described in the sections above.
If you do not save the installation session, you will lose the installed licenses at the
next system boot.
switch (config) # show inventory
-------------------------------------------------------------------------
Module Part number Serial Number Asic Rev. HW Rev.
-------------------------------------------------------------------------
CHASSIS MSX1036B-1SFR MT1205X01549 N/A A1
MGMT MSX1036B-1SFR MT1205X01549 0 A1
FAN MSX60-FF MT1206X07209 N/A A3
PS1 MSX60-PF MT1206X06697 N/A A2
switch (config) #
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 50
2.4.4 Commands
Uploads the Mellanox End User License Agreement to a specified remote location.
filename The Mellanox End User License Agreement
URL URL or scp://username[:password]@hostname/path/
filename
N/A
Config
3.4.1100
monitor/admin
switch (config) # file help-docs upload Mellanox_End_User_
License_Agreement.pdf <scp://username[:password]@hostname/path/
filename>
switch (config) #
license
file eula upload
file eula upload <filename> <URL>
Syntax Description
Default
Configuration Mode
History
Role
Example
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 51
file help-docs upload
file help-docs upload <filename> <URL or scp://username[:password]@host-
name/path/filename>
Uploads the MLNX-OS UM or RN to a specified remote location.
Syntax Description filename The file to upload to a remote host
URL URL or scp://username[:password]@hostname/path/
filename
Default N/A
Configuration Mode Config
History 3.4.1100
Role admin
Example switch (config) # file help-docs upload MLNX-OS_ETH_User_Manual.pdf
<scp://username[:password]@hostname/path/filename>
switch (config) #
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 52
license delete
license delete <license-number>
Removes license keys by ID.
Syntax Description N/A
Default N/A
Configuration Mode Config
History 3.4.1100
Role admin
Example switch (config) # license delete <license-key>
switch (config) #
Related Commands
Note Before deleting a license from a switch which is configured to a system profile other
than its default, the user must first disable all interfaces and then return the switch to
its default system profile.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 53
license install
license install <license-key>
Installs a new license key.
Syntax Description N/A
Default N/A
Configuration Mode Config
History 3.4.1100
Role admin
Example switch (config) # licenses install <license-key>
switch (config) #
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 54
show licenses
show licenses
Displays a list of all installed licenses. For each license, the following is displayed:
• a unique ID which is a small integer
• the text of the license key as it was added
• whether or not it is valid and active
• which feature(s) it is activating
• a list of all licensable features specifying whether or not it is currently activated by a
license
Syntax Description N/A
Default N/A
Configuration Mode Config
History 3.4.1100
Role admin
Example switch (config) # show licenses
License 1: <license key>
Feature: SX_CONFIG
Valid: yes
Active: yes
switch (config) #
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 55
3 User Interfaces
3.1 Command Line Interface Overview
MLNX-OS® is equipped with an industry-standard command line interface (CLI). The CLI is
accessed through SSH or Telnet sessions, or directly via the console port on the front panel (if it
exists).
3.1.1 CLI Modes
The CLI can be in one of following modes, and each mode makes available a certain group (or
level) of commands for execution. The different CLI configuration modes are:
Table 11 - CLI Modes and Config Context
Configuration Mode Description
Standard When the CLI is launched, it begins in Standard mode. This is
the most restrictive mode and only has commands to query a
restricted set of state information. Users cannot take any actions
that directly affect the system, nor can they change any configu-
ration.
Enable The
enable
command moves the user to Enable mode. This
mode offers commands to view all state information and take
actions like rebooting the system, but it does not allow any con-
figurations to be changed. Its commands are a superset of those
in Standard mode.
Config The
configure terminal
command moves the user from
Enable mode to Config mode. Config mode is allowed only for
user accounts in the “admin” role (or capabilities). This mode has
a full unrestricted set of commands to view anything, take any
action, and change any configuration. Its commands are a super-
set of those in Enable mode. To return to Enable mode, enter
exit
or
no configure
.
Note that moving directly from/to Standard mode to/from Config
mode is not possible.
Config Interface Management Configuration mode for management interface mgmt0, mgmt1
and loopback.
Config Interface Ethernet Configuration mode for Ethernet interface.
Config Interface Port Channel Configuration mode for Port channel (LAG).
Config VLAN Configuration mode for VLAN.
Any Command Mode Several commands such as “show” can be applied within any
context.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 56
3.1.2 Syntax Conventions
To help you identify the parts of a CLI command, this section explains conventions of presenting
the syntax of commands.
Table 12 - Syntax Conventions
Syntax Convention Description Example
< > Angled brackets Indicate a value/variable that
must be replaced. <1...65535> or <switch inter-
face>
[ ] Square brackets Enclose optional parameters.
However, only one parameter out
of the list of parameters listed can
be used. The user cannot have a
combination of the parameters
unless stated otherwise.
[destination-ip | destination-port |
destination-mac]
{ } Braces Enclose alternatives or variables
that are required for the parameter
in square brackets.
[mode {active | on | passive}]
| Vertical bars Identify mutually exclusive
choices. active | on | passive
3.1.3 Getting Help
You may request context-sensitive help at any time by pressing “?” on the command line. This
will show a list of choices for the word you are on, or a list of top-level commands if you have
not typed anything yet.
For example, if you are in Standard mode and you type “?” at the command line, then you will
get the following list of available commands.
switch > ?
cli Configure CLI shell options
enable Enter enable mode
exit Log out of the CLI
help View description of the interactive help system
no Negate or clear certain configuration options
show Display system configuration or statistics
Do not type the angled or square brackets, vertical bar, or braces in command lines. This
guide uses these symbols only to show the types of entries.
CLI commands and options are in lowercase and are case-sensitive.
For example, when you enter the
enable
command, enter it all in lowercase. It cannot
be ENABLE or Enable. Text entries you create are also case-sensitive.
Mellanox Technologies Confidential
slogin Log into another system securely using ssh
switch Configure switch on system
telnet Log into another system using telnet
terminal Set terminal parameters
traceroute Trace the route packets take to a destination
switch-11a596 [standalone: master] >
Rev 4.60
Mellanox Technologies Confidential 57
If you type a legal string and then press “?” without a space character before it, then you will
either get a description of the command that you have typed so far or the possible command/
parameter completions. If you press “?” after a space character and “<cr>” is shown, this means
that what you have entered so far is a complete command, and that you may press Enter (carriage
return) to execute it.
Try the following to get started:
?
show ?
show c?
show clock?
show clock ?
show interfaces ? (from enable mode)
You can also enter “help” to view a description of the interactive help system.
Note also that the CLI supports command and/or parameter tab-completions and their shortened
forms. For example, you can enter “en” instead of the “enable” command, or “cli cl” instead of
“cli clear-history”. In case of ambiguity (more than one completion option is available, that is),
then you can hit double tabs to obtain the disambiguation options. Thus, if you are in Enable
mode and wish to learn which commands start with the letter “c”, type “c” and click twice on the
tab key to get the following:
switch # c<tab>
clear cli configure
switch # c
(There are three commands that start with the letter “c”:
clear
,
cli
and
configure
.)
3.1.4 Prompt and Response Conventions
The prompt always begins with the hostname of the system. What follows depends on what com-
mand mode the user is in. To demonstrate by example, assuming the machine name is
“switch”, the prompts for each of the modes are:
switch > (Standard mode)
switch # (Enable mode)
switch (config) # (Config mode)
The following session shows how to move between command modes:
switch > (You start in Standard mode)
switch > enable (Move to Enable mode)
switch # (You are in Enable mode)
switch # configure terminal (Move to Config mode)
switch (config) # (You are in Config mode)
switch (config) # exit (Exit Config mode)
switch # (You are back in Enable mode)
switch # disable (Exit Enable mode)
switch > (You are back in Standard mode)
\
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 58
Commands entered do not print any response and simply show the command prompt after you
press <Enter>.
If an error is encountered in executing a command, the response will begin with “
%
”, followed by
some text describing the error.
3.1.5 Using the “no” Form
Several Config mode commands offer the negation form using the keyword “no”. This no form
can be used to disable a function, to cancel certain command parameters or options, or to reset a
parameter value to its default. To re-enable a function or to set cancelled command parameters or
options, enter the command without the “no” keyword (with parameter values if necessary).
The following example performs the following:
1. Displays the current CLI session options.
2. Disables auto-logout.
3. Displays the new CLI session options (auto-logout is disabled).
4. Re-enables auto-logout (after 15 minutes).
5. Displays the final CLI session options (auto-logout is enabled)
// 1. Display the current CLI session options
switch (config) # show cli
CLI current session settings:
Maximum line size: 8192
Terminal width: 157 columns
Terminal length: 60 rows
Terminal type: xterm
Auto-logout: 15 minutes
Paging: enabled
Progress tracking: enabled
Prefix modes: enabled
...
// 2. Disable auto-logout
switch (config) # no cli session auto-logout
// 3. Display the new CLI session options
switch-1 [standalone: master] (config) # show cli
CLI current session settings:
Maximum line size: 8192
Terminal width: 157 columns
Terminal length: 60 rows
Terminal type: xterm
Auto-logout: disabled
Paging: enabled
Progress tracking: enabled
Prefix modes: enabled
...
// 4. Re-enable auto-logout after 15 minutes
switch (config) # cli session auto-logout 15
Mellanox Technologies Confidential
// 5. Display the final CLI session options
switch (config) # show cli
CLI current session settings:
Maximum line size: 8192
Terminal width: 157 columns
Terminal length: 60 rows
Terminal type: xterm
Auto-logout: 15 minutes
Paging: enabled
Progress tracking: enabled
Prefix modes: enabled
...
Rev 4.60
Mellanox Technologies Confidential 59
3.1.6 Parameter Key
This section provides a key to the meaning and format of all of the angle-bracketed parameters in
all the commands that are listed in this document.
Table 13 - Angled Brackets Parameter Description
Parameter Description
<domain> A domain name, e.g. “mellanox.com”.
<hostname> A hostname, e.g. “switch-1”.
<ifname> An interface name, e.g. “mgmt0”, “mgmt1”, “lo” (loopback), etc.
<index> A number to be associated with aliased (secondary) IP addresses.
<IP address> An IPv4 address, e.g. “192.168.0.1”.
<log level> A syslog logging severity level. Possible values, from least to most severe, are:
“debug”, “info”, “notice”, “warning”, “error”, “crit”, “alert”, “emerg”.
<GUID> Globally Unique Identifier. A number that uniquely identifies a device or compo-
nent.
<MAC address> A MAC address. The segments may be 8 bits or 16 bits at a time, and may be
delimited by “:” or “.”. So you could say “11:22:33:44:55:66”,
“1122:3344:5566”, “11.22.33.44.55.66”, or “1122.3344.5566”.
<netmask> A netmask (e.g. “255.255.255.0”) or mask length prefixed with a slash (e.g. “/
24”). These two express the same information in different formats.
<network prefix> An IPv4 network prefix specifying a network. Used in conjunction with a net-
mask to determine which bits are significant. e.g. “192.168.0.0”.
<regular expression> An extended regular expression as defined by the “grep” in the man page. (The
value you provide here is passed on to “grep -E”.)
<node id> ID of a node belonging to a cluster. This is a numerical value greater than zero.
<cluster id> A string specifying the name of a cluster.
<port> TCP/UDP port number.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 60
3.1.7 Command Output Filtering and Monitoring
3.1.7.1 “include” and “exclude” CLI Filtration Options
The MLNX-OS CLI supports filtering “show” commands to display lines containing or exclud-
ing certain phrases or characters. To filter the outputs of the “show” commands use the following
format:
switch (config) # <show command> | {include | exclude} <extended regular expression>
[<ignore-case>] [next <lines>] [prev <lines>]
The filtering parameters are separated from the show command they filter by a pipe character
(i.e. “|”). Quotation marks may be used to include or exclude a string including space, and multi-
ple filters can be used simultaneously. For example:
switch (config) # <show command> | {include <extended regular expression>} [<ignore-
case>] [next <lines>] [prev <lines>] | exclude <extended regular expression> [<ignore-
case>] [next <lines>] [prev <lines>]]
Examples:
switch (config) # show asic-version | include SX
MGMT SX 9.3.3150
arc-switch14 [standalone: master] (config) # show module | exclude PS
======================
Module Status
======================
MGMT ready
FAN1 ready
FAN2 ready
switch (config) # show interfaces | include "Eth|discard pac"
Eth1/1
0 discard packets
0 discard packets
<TCP port> A TCP port number in the full allowable range [0...65535].
<URL> A normal URL, using any protocol that wget supports, including http, https, ftp,
sftp, and tftp; or a pseudo-URL specifying an scp file transfer. The scp pseudo-
URL format is scp://username:password@hostname/path/filename.
Note that the path is an absolute path. Paths relative to the user's home directory
are not currently supported. The implementation of ftp does not support authenti-
cation, so use scp or sftp for that.
Note also that if you omit the “:password” part, you may be prompted for the
password in a follow up prompt, where you can type it securely (without the
characters being echoed). This prompt will occur if the “cli default prompt
empty-password” setting is true; otherwise, the CLI will assume you do not want
any password. If you include the “:” character, this will be taken as an explicit
declaration that the password is empty, and you will not be prompted in any case.
Table 13 - Angled Brackets Parameter Description
Parameter Description
Mellanox Technologies Confidential
Eth1/2
0 discard packets
0 discard packets
Eth1/3
0 discard packets
0 discard packets
Eth1/4
0 discard packets
0 discard packets
switch (config) # show interfaces | include "Tx" next 5 | exclude broad
Tx
0 packets
0 unicast packets
0 multicast packets
0 bytes
--
Tx
0 packets
0 unicast packets
0 multicast packets
0 bytes
Rev 4.60
Mellanox Technologies Confidential 61
3.1.7.2 “watch” CLI Monitoring Option
MLNX-OS also allows viewing a live feed of the progress of any “show” command by using the
“watch” option as follows:
switch (config) # <show command> | watch [diff] [interval <1-100 secs>]
Running the command as such displays an output of the show command that gets updated at a
time interval which may be specified using the “interval” parameter (2 seconds by default).
The “diff” parameter highlights the differences between each iteration of the command. For
example running the command “
show power | watch diff interval 1
” yields something
similar to the following:
With the highlighted black blocks indicating the change that has occurred between one iteration
of the command from one second to the next.
To exit “watch” mode, press Ctrl+C.
The “watch” option may also be used in conjunction with the “include” and “exclude” options as
follows:
switch (config) # <show command> | {include | exclude} <extended regular expression> |
watch [diff] [interval <1-100 secs>]
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 62
For example:
switch (config) # show power | include PS | watch diff interval 1
3.1.8 CLI Shortcuts
Table 14 presents the available keyboard shortcuts on the MLNX-OS® CLI.
Table 14 - CLI Keyboard Shortcuts
Key Combination Description
Ctrl-a Move cursor to beginning of line
Ctrl-b Move cursor backward one character without deleting
Ctrl-c Terminate operation
Ctrl-d If cursor is in the middle of the line, delete one character forward
If cursor is at the end of the line, show auto-complete options for current word or
word fragment
If cursor at an empty line, same as Esc
Ctrl-e Move cursor to end of line
Ctrl-f Move cursor forward one character
Ctrl-h Delete one character backwards from cursor
Ctrl-i Auto-complete current word (same as TAB)
Ctrl-j Return carriage (same as ENTER)
Ctrl-k Delete line after cursor
Ctrl-l Clear screen and show line at the top of terminal window
Ctrl-m Return carriage (same as ENTER)
Ctrl-n Next line (same as DOWN ARROW)
Ctrl-p Next line (same as UP ARROW)
Ctrl-t Transpose the two characters on either side of cursor
Ctrl-u Delete line
Ctrl-y Retrieve (“yank”) last item deleted
Esc b Move cursor one word backward
Esc c Capitalizes first letter in word after cursor
Esc d Delete one word forward from cursor
Esc f Move one word forward from cursor
Esc l Change word after cursor to lowercase letters
Esc Ctrl-h Delete one word backward from cursor
Esc [ A Next line (same as DOWN ARROW)
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 63
3.2 Web Interface Overview
MLNX-OS® package equipped with web interface which is a web GUI that accept input and
provide output by generating webpages which can be viewed by the user using a web browser.
The following web browsers are supported:
• Internet Explorer 8.0 or higher
• Chrome 18 or higher
• Mozilla Firefox 12 or higher
• Safari 5 or higher
The web interface makes available the following perspective tabs:
• Setup
• System
• Security
• Ports
• Status
• IB SM Management
• Fabric Inspector
• Ethernet Management
• IP Route
• Gateway
Esc [ B Next line (same as UP ARROW)
Esc [ C Move forward one character from cursor
Esc [ D Move backward one character from cursor
Make sure to save your changes before switching between menus or submenus. Click the
“Save” button to the right of “Save Changes?”.
Table 14 - CLI Keyboard Shortcuts
Key Combination Description
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 64
Figure 10: WebUI
3.2.1 Setup Menu
The Setup menu makes available the following submenus (listed in order of appearance from top
to bottom):
Table 15 - WebUI Setup Submenus
Submenu Title Description
Interfaces Obtains the status of, configures, or disables interfaces to the fabric. Thus, you
can: set or clear the IP address and netmask of an interface; enable DHCP to
dynamically assign the IP address and netmask; and set interface attributes such
as MTU, speed, duplex, etc.
Routing Configures, removes or displays the default gateway, and the static and dynamic
routes.
Hostname Configures or modifies the hostname.
Configures or deletes static hosts.
DNS Configures, removes, modifies or displays static and dynamic name servers.
Login Messages Edits the login messages: Message of the Day (MOTD), Remote Login message,
and Local Login message.
Address Resolution Adds static and dynamic ARP entries, and clears the dynamic ARP cache.
IPSec Configures IPSec.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 65
3.2.2 System Menu
The System menu makes available the following sub-menus (listed in order of appearance from
top to bottom):
Table 16 - WebUI System Submenus
Submenu Title Description
Modules Displays a graphic illustration of the system modules. By moving the mouse
over the ports in the front view, a pop-up caption is displayed to indicate the sta-
tus of the port. The port state (active/down) is differentiated by a color scheme
(green for active, gray/black for down). By moving the mouse over the rear view,
a pop-up caption is displayed to indicate the leaf part information.
Inventory Displays a table with the following information about the system modules: mod-
ule name, type, serial number, ordering part number and Asic firmware version.
Power Management Displays a table with the following information about the system power supplies:
power supply name, power, voltage level, current consumption, and status. A
total power summary table is also displayed providing the power used, the power
capacity, and the power available.
MLNX-OS Upgrade Displays the installed MLNX-OS images (and the active partition), uploads a
new image, and installs a new image.
Reboot Reboots the system. Make sure that you save your configuration prior to clicking
reboot.
Neighbors Displays IPv6 neighbor discovery protocol.
Virtualization Manages the virtualization and virtual machines.
Virtual Switch Mgmt Configures the system profile.
Web Configures web user interface and proxy settings.
SNMP Configures SNMP attributes, SNMP admin user, and trap sinks.
Email Alerts Configures the destination of email alerts and the recipients to be notified.
XML gateway Provides an XML request-response protocol to get and set hardware manage-
ment information.
Logs Sets up system log files, remote log sinks, and log formats.
Configurations Manages, activates, saves, and imports MLNX-OS SwitchX configuration files,
and executes CLI commands.
Date and Time Configures the date, time, and time zone of the switch system.
NTP Configures NTP (Network Time Protocol) and NTP servers.
Licensing Manages MLNX-OS licenses.
Table 15 - WebUI Setup Submenus
Submenu Title Description
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 66
3.2.3 Security Menu
The Security menu makes available the following sub-menus (listed in order of appearance from
top to bottom):
Table 17 - WebUI Security Submenus
Submenu Title Description
Users Manages (setting up, removing, modifying) user accounts.
Admin Password Modifies the system administrator password.
SSH Displays and generate host keys.
AAA Configures AAA (Authentication, Authorization, and Accounting) security ser-
vices such as authentication methods and authorization.
Login Attempts Manages login attempts
RADIUS Manages Radius client.
TACACS+ Manages TACACS+ client.
LDAP Manages LDAP client.
Certificate Manages certificates.
3.2.4 Ports Menu
The Ports menu displays the port state and enables some configuration attributes of a selected
port. It also enables modification of the port configuration. A graphical display of traffic over
time (last hour or last day) through the port is also available.
Table 18 - WebUI Ports Submenus
Submenu Title Description
Ports Manages port attributes, counters, transceiver info and displays a graphical
counters histogram.
Phy Profile Provides the ability to manage phy profiles.
Monitor Session Displays monitor session summary and enables configuration of a selected
session.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 67
3.2.5 Status Menu
The Status menu makes available the following sub-menus (listed in order of appearance from
top to bottom):
Table 19 - WebUI Status Submenus
Submenu Title Description
Summary Displays general information about the switch system and the MLNX-OS image,
including current date and time, hostname, uptime of system, system memory,
CPU load averages, etc.
Profile and Capabilities Displays general information about the switch system capabilities such as the
enabled profiles (e.g IB/ETH) and their corresponding values.
Temperature Provides a graphical display of the switch module sensors’ temperature levels
over time (1 hour). It is possible to display either the temperature level of one
module’s sensor or the temperature levels of all the module sensors’ together.
Power Supplies Provides a graphical display of one of the switch’s power supplies voltage level
over time (1 hour).
Fans Provides a graphical display of fan speeds over time (1 hour). The display is per
fan unit within a fan module.
CPU Load Provides a graphical display of the management CPU load over time (1 hour).
Memory Provides a graphical display of memory utilization over time (1 day).
Network Provides a graphical display of network usage (transmitted and received packets)
over time (1 day). It also provides per interface statistics.
Logs Displays the system log messages. It is possible to display either the currently
saved system log or a continuous system log.
Maintenance Performs specific maintenance operations automatically on a predefined sched-
ule.
Alerts Displays a list of the recent health alerts and enables the user to configure health
settings.
Virtualization Displays the virtual machines, networks and volumes.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 68
3.2.6 ETH Mgmt
The ETH Mgmt menu makes available the following sub-menus (listed in order of appearance
from top to bottom):
Table 20 - WebUI ETH Mgmt Submenus
Submenu Title Description
Spanning Tree Configures and monitors spanning tree protocol.
MAC Table Configures static mac addresses in the switch, and displays the MAC address
table.
Link Aggregation Configures and monitors aggregated Ethernet links (LAG) and configures
LACP.
VLAN Manages the switch VLAN table.
IGMP Snooping Manages IGMP snooping in the switch.
ACL Manages Access Control in the switch.
Priority Flow Control Manages priority flow control.
3.2.7 IP Route
The IP Route menu makes available the following sub-menus (listed in order of appearance
from top to bottom):
Table 21 - WebUI IP Route Submenus
Submenu Title Description
Router Global Enables/disables IP Routing protocol on the machine.
IP Route Not implemented.
IP Interface Not implemented.
Address Resolution Not implemented.
IP Diagnostic Not implemented.
The Eth Mgmt menu is not applicable when the switch profile is not Ethernet.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 69
3.3 Secure Shell (SSH)
3.3.1 Adding a Host and Providing an SSH Key
To add entries to the global known-hosts configuration file and its SSH value:
Step 1. Change to Config mode Run:
Step 2. Add an entry to the global known-hosts configuration file and its SSH value. Run:
Step 3. Verify what keys exist in the host. Run:
3.3.2 Retrieving Return Codes when Executing Remote Commands
To stop the CLI and set the system to send return errors if some commands fail:
Step 1. Connect to the system from the host SSH.
Step 2. Add the
-h
parameter after the
cli
(as shown in the example below) to notify the system to halt
on failure and pass through the exit code.
It is recommended not to use more than 50 concurrent SSH sessions to the switch.
switch [standalone: master] > enable
switch [standalone: master] # configure terminal
switch [standalone: master] (config) #
switch [standalone: master] (config) # ssh client global known-host "myserver ssh-rsa
AAAAB3NzaC1yc2EAAAABIwAAAIEAsXeklqc8T0EN2mnMcVcfhueaRYzIVqt4rVsrERIjmlJh4mkYYIa8hGGikNa+
t5xw2dRrNxnHYLK51bUsSG1ZNwZT1Dpme3pAZeMY7G4ZMgGIW9xOuaXgAA3eBeoUjFdi6+1BqchWk0nTb+gMfI/
MK/heQNns7AtTrvqg/O5ryIc=”
switch [standalone: master] (config) #
switch [standalone: master] (config) # show ssh client
SSH client Strict Hostkey Checking: ask
SSH Global Known Hosts:
Entry 1: myserver
Finger Print: d5:d7:be:d7:6c:b1:e4:16:df:61:25:2f:b1:53:a1:06
No SSH user identities configured.
No SSH authorized keys configured.
switch [standalone: master] (config) #
ssh <username>@<hostname> cli -h '"enable" "show interfaces brief"'
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 70
3.4 Management Information Bases (MIBs)
The inventory in the switch system can be accessed through a MIB browser. These devices are
indexed (entPhysicalIndex) using three levels:
1. Module layer which includes modules located on system (e.g. cables, fan, power supply, etc.).
See table Table 22 for more details.
2. Device layer which includes system devices (e.g. switch devices, sensor aggregators, etc.).
See table Table 23 for more details.
3. Sensor layer which includes system sensors (e.g. fan, and temperature sensors) located in the
devices. See table Table 24 for more details.
Each layer is assigned a fixed position in the index number to represent it.
Figure 11: Index Scheme
Each position could indicate different types of component according to the following criteria:
Table 22 - Module Type
Number Description
1 Chassis
2 Management
3 Spine
4 Leaf
5 Fan
6 Power supply
7 BBU
8 x86 CPU
9 Port module
Table 23 - Device Type
Number Description
01 PS
02 FAN
03 BOARD_MONITOR
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 71
04 CPU_BOARD_MONITOR
05 SX
06 SIB
07 CPU_MEZZ_TEMP
08 CPU Package Sensor
09 CPU Core Sensor
10 SX_AMBIENT_TEMP
11 SX_MONITOR
12 AUX_IN_TMP_SNSR
13 AUX_OUT_TMP_SNSR
14 MAIN_IN_TMP_SNSR
15 MAIN_OUT_TMP_SNSR
16 CPU_MEZZ_TEMP
17 Controller
18 QSFP_TEMP
19 QSFP-ASIC
20 Board AMB temp
21 Ports AMB temp
22 Power monitor
23 PS_MONITOR
24 SWB AMB temp
25 pcie-switch-temp
26 SPC
Table 24 - Sensor Type
Number Description
1 t – temperature sensor
2 f – fan sensor
Table 23 - Device Type
Number Description
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 72
For example:
• 401191311
The first layer is “401” where:
• “4”, according to Table 22, indicates a leaf
• “01” indicates index #1 (Leaf #1)
The second layer is “1913” where:
• “19”, according to Table 23, indicates a QSFP ASIC
• “1” indicates ASIC #1
• “3” indicates sensor #3 (QSFP-ASIC1-3)
The third layer is “11” where:
• “1”, according to Table 24, indicates a temperature sensor
• “1” indicates sensor #1 (T1)
The resulting output in the entPhysicalDescr column of the MIB would be: L01/QSFP-ASIC-1/T1.
• 501020021
The first layer is 501 where
• “5”, according to Table 22, indicates a fan
• “01 indicates index #1 (Fan #1)
The second layer is 0200 where:
• 02, according to Table 23, indicates a fan
• 0 – indicates that there is no first index
• 0 – indicates that there is no second index
The third layer is 21 where:
• “2”, according to Table 24, indicates a fan sensor
• “1” indicates sensor #1 (F1)
The resulting output in the entPhysicalDescr column of the MIB would be: FAN1/FAN/F1.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 73
3.5 Commands
3.5.1 CLI Session
This chapter displays all the relevant commands used to manage CLI session terminal.
Clears the command history of the current user.
N/A
N/A
Config
3.1.0000
admin
switch (config) # cli clear-history
switch (config) #
N/A
cli clear-history
cli clear-history
Syntax Description
Default
Configuration Mode
History
Role
Example
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 74
cli default
cli default {auto-logout <minutes> | paging enable | prefix-modes {enable | show-
config} | progress enable | prompt {confirm-reload | confirm-reset | confirm-
unsaved | empty-password}}
no cli default {auto-logout | paging enable | prefix-modes {enable | show-config} |
progress enable prompt {confirm-reload | confirm-reset | confirm-unsaved |
empty-password}
Configures default CLI options for all future sessions.
The no form of the command deletes or disables the default CLI options.
Syntax Description minutes Configures keyboard inactivity timeout for automatic
logout. Range is 0-35791 minutes. Setting the value to
0 or using the no form of the command disables the
auto-logout.
paging enable Enables text viewing one screen at a time.
prefix-modes {enable |
show-config} Configures the prefix modes feature of CLI.
• “prefix-modes enable” enables prefix modes for current
and all future sessions
• “prefix-modes show-config” uses prefix modes in “show
configuration” output for current and all future sessions
progress enable Enables progress updates.
prompt confirm-reload Prompts for confirmation before rebooting.
prompt confirm-reset Prompts for confirmation before resetting to factory
state.
prompt confirm-unsaved Confirms whether or not to save unsaved changes
before rebooting.
prompt empty-password Prompts for a password if none is specified in a pseudo-
URL for SCP.
Default N/A
Configuration Mode Config
History 3.1.0000
Role admin
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 75
Example switch (config) # cli default prefix-modes enable
switch (config) # show cli
CLI current session settings:
Maximum line size: 8192
Terminal width: 171 columns
Terminal length: 38 rows
Terminal type: xterm
X display setting: (none)
Auto-logout: disabled
Paging: enabled
Progress tracking: enabled
Prefix modes: disabled
CLI defaults for future sessions:
Auto-logout: disabled
Paging: enabled
Progress tracking: enabled
Prefix modes: enabled (and use in 'show configuration')
Settings for both this session and future ones:
Show hidden config: yes
Confirm losing changes: yes
Confirm reboot/shutdown: no
Confirm factory reset: yes
Prompt on empty password: yes
switch (config) #
Related Commands show cli
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 76
cli max-sessions
cli max-sessions <number>
no cli max-sessions
Configures the maximum number of simultaneous CLI sessions allowed.
The no form of the command resets this value to its default.
Syntax Description number Range: 3-60
Default 50 sessions
Configuration Mode Config
History 3.5.0200
Role admin
Example switch (config) # cli max-sessions 40
switch (config) #
Related Commands show terminal
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 77
cli session
cli session {auto-logout <minutes> | paging enable | prefix-modes {enable | show-
config} | progress enable | terminal {length <size> | resize | type <terminal-type>
| width} | x-display full <display>}
no cli session {auto-logout | paging enable | prefix-modes {enable | show-config} |
progress enable | terminal type | x-display}
Configures default CLI options for all future sessions.
The no form of the command deletes or disables the CLI sessions.
Syntax Description minutes Configures keyboard inactivity timeout for automatic
logout. Range is 0-35791 minutes. Setting the value to
0 or using the no form of the command disables the
auto logout.
paging enable Enables text viewing one screen at a time.
prefix-modes enable |
show-config Configures the prefix modes feature of CLI.
• “prefix-modes enable” enables prefix modes for current
and all future sessions
• “prefix-modes show-config” uses prefix modes in “show
configuration” output for current and all future sessions
progress enable Enables progress updates.
terminal length Sets the number of lines for the current terminal. Valid
range is 5-999.
terminal resize Resizes the CLI terminal settings (to match the actual
terminal window).
terminal-type Sets the terminal type. Valid options are:
• ansi
• console
• dumb
• linux
• unknown
• vt52
• vt100
• vt102
• vt220
• vt320
• xterm
terminal width Sets the width of the terminal in characters. Valid range
is 34-999.
x-display full <display> Specifies the display as a raw string, e.g localhost:0.0.
Default N/A
Configuration Mode Config
History 3.1.0000
Role admin
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 78
Example switch (config) # cli session auto-logout
switch (config) #
Related Commands show terminal
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 79
terminal
terminal {length <number of lines> | resize | type <terminal type> | width <num-
ber of characters>}
no terminal type
Configures default CLI options for all future sessions.
The no form of the command clears the terminal type.
Syntax Description length Sets the number of lines for this terminal
Range: 5-999
resize Resizes the CLI terminal settings (to match with real
terminal)
type Sets the terminal type. Possible values: ansi, console,
dumb, linux, screen, vt52, vt100, vt102, vt220, xterm.
width Sets the width of this terminal in characters
Range: 34-999
Default N/A
Configuration Mode Config
History 3.1.0000
Role admin
Example switch (config) # terminal length 500
switch (config) #
Related Commands show terminal
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 80
terminal sysrq enable
terminal sysrq enable
no terminal sysrq enable
Enable SysRq over the serial connection (RS232 or Console port).
The no form of the command disables SysRq over the serial connection (RS232 or
Console port).
Syntax Description N/A
Default Enabled
Configuration Mode Config
History 3.4.3000
Role admin
Example switch (config) # terminal sysrq enable
switch (config) #
Related Commands show terminal
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 81
show cli
show cli
Displays the CLI configuration and status.
Syntax Description N/A
Default N/A
Configuration Mode Any Command Mode
History 3.1.0000
Role admin
Example switch (config) # show cli
CLI current session settings:
Maximum line size: 8192
Terminal width: 171 columns
Terminal length: 38 rows
Terminal type: xterm
X display setting: (none)
Auto-logout: disabled
Paging: enabled
Progress tracking: enabled
Prefix modes: disabled
CLI defaults for future sessions:
Auto-logout: disabled
Paging: enabled
Progress tracking: enabled
Prefix modes: enabled (and use in 'show configuration')
Settings for both this session and future ones:
Show hidden config: yes
Confirm losing changes: yes
Confirm reboot/shutdown: no
Confirm factory reset: yes
Prompt on empty password: yes
switch (config) #
Related Commands cli default
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 82
show cli max-sessions
show cli max-sessions
Displays maximum number of sessions.
Syntax Description N/A
Default N/A
Configuration Mode Any Command Mode
History 3.5.0200
Role admin
Example switch (config) # show cli max-sessions
Maximum number of CLI sessions: 50
switch (config) #
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 83
show cli num-sessions
show cli num-sessions
Displays current number of sessions.
Syntax Description N/A
Default N/A
Configuration Mode Any Command Mode
History 3.5.0200
Role admin
Example switch (config) # show cli num-sessions
Current number of CLI sessions: 40
switch (config) #
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 84
3.5.2 Banner
Sets the CLI welcome banner message.
The no form of the command resets the system login banner to its default.
string Text string.
“Mellanox MLNX-OS Switch Management”
Config
3.1.0000
admin
switch (config) # banner login Example
switch (config) #
show banner
If more than one word is used (there is a space) quotation marks should be added (i.e.
“xxxx xxxx”).
banner login
banner login <string>
no banner login
Syntax Description
Default
Configuration Mode
History
Role
Example
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 85
banner login-local
banner login-local <string>
no banner login-local
Sets system login local banner.
The no form of the command resets the banner.
Syntax Description string Text string.
Default N/A
Configuration Mode Config
History 3.1.0000
3.5.0200 Added no form of the command
Role admin
Example switch (config) # banner login-local Testing
switch (config) #
Related Commands show banner
Note • The login-local refers to the serial connection banner
• If more than one word is used (there is a space) quotation marks should be added (i.e.
“xxxx xxxx”).
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 86
banner login-remote
banner login-remote <string>
no banner login-remote
Sets system login remote banner.
The no form of the command resets the banner.
Syntax Description string Text string.
Default N/A
Configuration Mode Config
History 3.1.0000
3.5.0200 Added no form of the command
Role admin
Example switch (config) # banner login-remote Testing
switch (config) #
Related Commands show banner
Note • The login-remote refers to the SSH connections banner
• If more than one word is used (there is a space) quotation marks should be added (i.e.
“xxxx xxxx”).
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 87
banner logout
banner logout <string>
no banner logout
Set system logout banner (for both local and remote logins).
The no form of the command resets the banner.
Syntax Description string Text string.
Default N/A
Configuration Mode Config
History 3.5.0200
Role admin
Example switch (config) # banner logout Testing
switch (config) #
Related Commands show banner
Note If more than one word is used (there is a space) quotation marks should be added (i.e.
“xxxx xxxx”).
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 88
banner logout-local
banner logout-local <string>
no banner logout-local
Sets system logout local banner.
The no form of the command resets the banner.
Syntax Description string Text string.
Default N/A
Configuration Mode Config
History 3.5.0200
Role admin
Example switch (config) # banner logout-local Testing
switch (config) #
Related Commands show banner
Note • The logout-local refers to the serial connection banner
• If more than one word is used (there is a space) quotation marks should be added (i.e.
“xxxx xxxx”).
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 89
banner logout-remote
banner logout-remote <string>
no banner logout-remote
Sets system logout remote banner.
The no form of the command resets the banner.
Syntax Description string Text string.
Default N/A
Configuration Mode Config
History 3.5.0200
Role admin
Example switch (config) # banner logout-remote Testing
switch (config) #
Related Commands show banner
Note • The logout-remote refers to SSH connections banner
• If more than one word is used (there is a space) quotation marks should be added (i.e.
“xxxx xxxx”).
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 90
banner motd
banner motd <string>
no banner motd
Sets the message of the day banner.
The no form of the command resets the system Message of the Day banner.
Syntax Description string Text string.
Default “Mellanox Switch”
Configuration Mode Config
History 3.1.0000
Role admin
Example switch (config) # banner motd “My Banner”
switch (config) #
Related Commands show banner
Note • If more than one word is used (there is a space) quotation marks should be added (i.e.
“xxxx xxxx”).
• To insert a multi-line MotD, hit Ctrl-V (escape sequence) followed by Ctrl-J (new line
sequence). The symbol “^J” should appear. Then, whatever is typed after it becomes the
new line of the MotD. Remember to also include the string between quotation marks.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 91
show banner
show banner
Displays configured banners.
Syntax Description N/A
Default N/A
Configuration Mode Config
History 3.1.0000
3.5.0200 Updated Example
Role Any Command Mode
Example switch (config) # show banner
Banners:
Message of the Day (MOTD):
Mellanox Switch
Login:
Mellanox MLNX-OS Switch Management
Logout:
Goodbye
switch (config) #
Related Commands banner login
banner login-local
banner login-remote
banner logout
banner logout-local
banner logout-remote
banner motd
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 92
3.5.3 SSH
Enables the SSH server.
The no form of the command disables the SSH server.
N/A
SSH server is enabled
Config
3.1.0000
admin
switch (config) # ssh server enable
switch (config) # show ssh server
SSH server configuration:
SSH server enabled: yes
Server security strict mode: no
Minimum protocol version: 2
TCP forwarding enabled: yes
X11 forwarding enabled: no
SSH server ports: 22
Interface listen enabled: yes
No Listen Interfaces.
Host Key Finger Prints:
RSA v1 host key: SHA256:ElFoK7Jts7ejIws0Jgs3yt46goOCkln0JzNzAGx0ue4 (2048)
RSA v2 host key: SHA256:N4n+Un/lErjtzmmDJH+qcdsmHgHc0itlYArFgqP+UFI (2048)
DSA v2 host key: SHA256:2rIuzmPD9OAWooQaEjI1SH5EF0DjQ9DDSTaAMrzDFCY (1024)
switch (config) #
show ssh server
Disabling SSH server does not terminate existing SSH sessions, it only prevents new
ones from being established.
ssh server enable
ssh server enable
no ssh server enable
Syntax Description
Default
Configuration Mode
History
Role
Example
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 93
ssh server host-key
ssh server host-key {<key-type> {private-key <private-key>| public-key <public-
key>} | generate}
Manipulates host keys for SSH.
Syntax Description key-type • rsa1 - RSAv1
• rsa2 - RSAv2
• dsa2 - DSAv2
private-key Sets new private-key for the host keys of the specified
type.
public-key Sets new public-key for the host keys of the specified
type.
generate Generates new RSA and DSA host keys for SSH.
Default SSH keys are locally generated
Configuration Mode Config
History 3.1.0000
3.4.2300 Added notes
Role admin
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 94
Example switch (config) # ssh server host-key dsa2 private-key
Key: ***********************************************
Confirm: ***********************************************
switch (config) # show ssh server host-keys
SSH server configuration:
SSH server enabled: yes
Minimum protocol version: 2
X11 forwarding enabled: no
SSH server ports: 22
Interface listen enabled: yes
No Listen Interfaces.
Host Key Finger Prints:
RSA v1 host key: a0:63:db:96:e2:95:5a:5a:fd:a8:d0:f4:ab:e3:5f:f8
RSA v2 host key: 1e:b7:8b:ec:ab:35:98:be:6b:d6:12:c2:18:72:12:d6
DSA v2 host key: 7c:4a:f7:72:51:67:b5:0b:cd:a2:d2:b9:f3:be:3e:68
Host Keys:
RSA v1 host key: "switch-5ea5d8 1024 35
12457497995374010105491416867919987976776882016984375942831915584962796
99375406596085804272219042450456598705866658144854493132172365068789517
13570509420864336951833046700451354269467758379288848962624165330724512
16091899983038691571036219385577978596282214644533444813712105628654158
3022982220576029771297093"
RSA v2 host key: "switch-5ea5d8 ssh-rsa AAAAB3NzaC1yc2EAAAABIwAAA-
IEArB9i5OnukAHNUOkwpCmEl0m88kJgBzL22+F5tfaSn+S0pVYxrceZeyuzXsoZ1VtFTk2-
Fydwy0YvMS0Kcv2PuCrPZV/
GYd31QEnn22rEmrlPrKCrMl1XlUy6DFlr3OgwWm1baobmDlG/gSziWz/gc4Jgqf2CyX-
Fq4pzaR1jar1Vk="
DSA v2 host key: "switch-5ea5d8 ssh-dss AAAAB3NzaC1kc3MAAAC-
BAMeJ3S+nyaHhRbwv3tJqlWttDC35RZVC5iG4ZEvMMHp28VL94OcyyuGh39VCdM9pEVaI7h
zZrsgHrNqakb/YLD/7anGH3wpl9Fx8lfe0RH3bloJzG+mJ6R5momdoPCrKwEKiKABKE00-
jLzlVznpP0IHxjwF+TbR3dK5HwVzQYw/bAAAAFQCBoDPqBZZa+2KylKlzUsbZ2pKhgQAAA-
IAJK+StiQdtORw1B5UCMzTrTef5L07DSfVreMEYtTRnBBtgVSNqQFWpSQIYbVDHQr9T6qCM
4VO39DuHUGQ1TMDIX7t+9mfbB87YyUu5a/ndbf3GhNhxHWwbzlr9hgLL7FSHA7DYH7bVOZ-
RlqxH64eQKGZqy1ps/F4E31lyn7GC4EQAAAIA/2osHipXf+NRjplgfmHROVVf/mGE9Vzc9/
AMUxlJJn5VhvEJ5CZW9cI+LxMOJojhOj3YW3B1czGxRObDA9vUbKXTNc8bkgoUrxySAH1rH
N0PqJgeT4L009AItSp3m1mxHqdS7jixfTvOTEKWXrgpczlmTB8+zjhUah/YuuBl2H
g=="
switch (config) #
Related Commands show ssh server
system secure-mode enable
Note When working in secure mode, the commands “ssh server host-key rsa1” and “ssh
server host-key generate” do not create RSAv1 key-type.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 95
ssh server listen
ssh server listen {enable | interface <inf>}
no ssh server listen {enable | interface <inf>}
Enables the listen interface restricted list for SSH. If enabled, and at least one non-
DHCP interface is specified in the list, the SSH connections are only accepted on
those specified interfaces.
The no form of the command disables the listen interface restricted list for SSH.
When disabled, SSH connections are not accepted on any interface.
Syntax Description enable Enables SSH interface restrictions on access to this sys-
tem.
interface <inf> Adds interface to SSH server access restriction list.
Possible interfaces are “lo”, and “mgmt0”.
Default SSH listen is enabled
Configuration Mode Config
History 3.1.0000
Role admin
Example switch (config) # ssh server listen enable
switch (config) # show ssh server
SSH server configuration:
SSH server enabled: yes
Minimum protocol version: 2
X11 forwarding enabled: no
SSH server ports: 22
Interface listen enabled: yes
No Listen Interfaces.
Host Key Finger Prints:
RSA v1 host key: a0:63:db:96:e2:95:5a:5a:fd:a8:d0:f4:ab:e3:5f:f8
RSA v2 host key: 1e:b7:8b:ec:ab:35:98:be:6b:d6:12:c2:18:72:12:d6
DSA v2 host key: 7c:4a:f7:72:51:67:b5:0b:cd:a2:d2:b9:f3:be:3e:68
switch (config) #
Related Commands show ssh server
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 96
ssh server login attempts
ssh server login attempts <number>
no ssh server login attempts
Configures maximum login attempts on SSH server.
The no form of the command resets the login attempts value to its default.
Syntax Description number Range: 3-100 attempts.
Default 6 attempts
Configuration Mode Config
History 3.5.0200
3.5.1000 Increased minimum number of attempts allowed
Role admin
Example switch (config) # ssh server login attempts 5
Related Commands show ssh server
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 97
ssh server login timeout
ssh server login timeout <time>
no ssh server login timeout
Configures login timeout on SSH server.
The no form of the command resets the timeout value to its default.
Syntax Description time Range: 1-600 seconds
Default 120 seconds
Configuration Mode Config
History 3.5.0200
Role admin
Example switch (config) # ssh server login timeout 130
Related Commands show ssh server
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 98
ssh server min-version
ssh server min-version <version>
no ssh server min-version
Sets the minimum version of the SSH protocol that the server supports.
The no form of the command resets the minimum version of SSH protocol supported.
Syntax Description version Possible versions are 1 and 2.
Default 2
Configuration Mode Config
History 3.1.0000
Role admin
Example switch (config) # ssh server min-version 2
switch (config) # show ssh server
SSH server configuration:
SSH server enabled: yes
Minimum protocol version: 2
X11 forwarding enabled: no
SSH server ports: 22
Interface listen enabled: yes
No Listen Interfaces.
Host Key Finger Prints:
RSA v1 host key: a0:63:db:96:e2:95:5a:5a:fd:a8:d0:f4:ab:e3:5f:f8
RSA v2 host key: 1e:b7:8b:ec:ab:35:98:be:6b:d6:12:c2:18:72:12:d6
DSA v2 host key: 7c:4a:f7:72:51:67:b5:0b:cd:a2:d2:b9:f3:be:3e:68
switch (config) #
Related Commands show ssh server
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 99
ssh server ports
ssh server ports {<port1> [<port2>...]}
Specifies which ports the SSH server listens on.
Syntax Description port Port number in [1...65535].
Default 22
Configuration Mode Config
History 3.1.0000
Role admin
Example switch (config) # ssh server ports 22
switch (config) # show ssh server
SSH server configuration:
SSH server enabled: yes
Minimum protocol version: 2
X11 forwarding enabled: no
SSH server ports: 22
Interface listen enabled: yes
No Listen Interfaces.
Host Key Finger Prints:
RSA v1 host key: a0:63:db:96:e2:95:5a:5a:fd:a8:d0:f4:ab:e3:5f:f8
RSA v2 host key: 1e:b7:8b:ec:ab:35:98:be:6b:d6:12:c2:18:72:12:d6
DSA v2 host key: 7c:4a:f7:72:51:67:b5:0b:cd:a2:d2:b9:f3:be:3e:68
switch (config) #
Related Commands show ssh server
Note • Multiple ports can be specified by repeating the <port> parameter
• The command will remove any previous ports if not listed in the command
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 100
ssh server security strict
ssh server security strict
Enables strict security settings.
The no form of the command disables strict security settings.
Syntax Description N/A
Default N/A
Configuration Mode Config
History 3.3.5060
Role admin
Example switch (config) # ssh server security strict
switch (config) #
Related Commands show ssh server
Note The following ciphers are disabled for SSH when strict security is enabled:
• aes256-cbc
• aes192-cbc
• aes128-cbc
• arcfour
• blowfish-cbc
• cast128-cbc
• rijndael-cbc@lysator.liu.se
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 101
ssh server tcp-forwarding enable
ssh server tcp-forwarding enable
Enables TCP port forwarding.
The no form of the command disables TCP port forwarding.
Syntax Description N/A
Default N/A
Configuration Mode Config
History 3.1.0000
Role admin
Example switch (config) # ssh server tcp-forwarding enable
switch (config) #
Related Commands show ssh server
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 102
ssh server x11-forwarding
ssh server x11-forwarding enable
no ssh server x11-forwarding enable
Enables X11 forwarding on the SSH server.
The no form of the command disables X11 forwarding.
Syntax Description N/A
Default X11-forwarding is disabled.
Configuration Mode Config
History 3.1.0000
Role admin
Example switch (config) # ssh server x11-forwarding enable
switch (config) # show ssh server
SSH server configuration:
SSH server enabled: yes
Minimum protocol version: 2
X11 forwarding enabled: yes
SSH server ports: 22
Interface listen enabled: yes
No Listen Interfaces.
Host Key Finger Prints:
RSA v1 host key: a0:63:db:96:e2:95:5a:5a:fd:a8:d0:f4:ab:e3:5f:f8
RSA v2 host key: 1e:b7:8b:ec:ab:35:98:be:6b:d6:12:c2:18:72:12:d6
DSA v2 host key: 7c:4a:f7:72:51:67:b5:0b:cd:a2:d2:b9:f3:be:3e:68
switch (config) #
Related Commands N/A
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 103
ssh client global
ssh client global {host-key-check <policy>} | known-host <known-host-entry>}
no ssh client global {host-key-check | known-host localhost}
Configures global SSH client settings.
The no form of the command negates global SSH client settings.
Syntax Description host-key-check <policy> Sets SSH client configuration to control how host key
checking is performed. This parameter may be set in 3
ways.
• If set to “no” it always permits connection, and accepts
any new or changed host keys without checking
• If set to “ask” it prompts user to accept new host keys, but
does not permit a connection if there was already a known
host entry that does not match the one presented by the
host
• If set to “yes” it only permits connection if a matching
host key is already in the known hosts file
known-host Adds an entry to the global known-hosts configuration
file.
known-host-entry Adds/removes an entry to/from the global known-hosts
configuration file. The entry consist of “<IP> <key-
type> <key>”.
Default host-key-check - ask, no keys are configured by default
Configuration Mode Config
History 3.1.0000
Role admin
Example switch (config) # ssh client global host-key-check no
switch (config) # ssh client global known-host "72.30.2.2 ssh-rsa
AAAAB3NzaC1yc2EAAAABIwAAAIEArB9i5OnukAHNUOkwpCmEl0m88kJgB-
zL22+F5tfaSn+S0pVYxrceZeyuzXsoZ1VtFTk2Fydwy0YvMS0Kcv2PuCrPZV/
GYd31QEnn22rEmrlPrKCrMl1XlUy6DFlr3OgwWm1baobmDlG/gSziWz/gc4Jgqf2CyX-
Fq4pzaR1jar1Vk="
switch (config) # show ssh client
SSH client Strict Hostkey Checking: ask
SSH Global Known Hosts:
Entry 1: 72.30.2.2
Finger Print: 1e:b7:8b:ec:ab:35:98:be:6b:d6:12:c2:18:72:12:d6
No SSH user identities configured.
No SSH authorized keys configured.
switch (config) #
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 104
Related Commands show ssh client
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 105
ssh client user
ssh client user <username> {authorized-key sshv2 <public key> | identity <key
type> {generate | private-key [<private key>] | public-key [<public key>]} |
known-host <known host> remove}
no ssh client user admin {authorized-key sshv2 <public key ID> | identity <key
type>}
Adds an entry to the global known-hosts configuration file, either by generating new
key, or by adding manually a public or private key.
The no form of the command removes a public key from the specified user's autho-
rized key list, or changes the key type.
Syntax Description username The specified user must be a valid account on the sys-
tem. Possible values for this parameter are “admin”,
“monitor”, “xmladmin”, and “xmluser”.
authorized-key sshv2
<public key> Adds the specified key to the list of authorized SSHv2
RSA or DSA public keys for this user account. These
keys can be used to log into the user's account.
identity <key type> Sets certain SSH client identity settings for a user, dsa2
or rsa2.
generate Generates SSH client identity keys for specified user.
private-key Sets private key SSH client identity settings for the
user.
public-key Sets public key SSH client identity settings for the user.
known-host <known host>
remove Removes host from user's known host file.
Default No keys are created by default
Configuration Mode Config
History 3.1.0000
Role admin
Example switch (config) # ssh client user admin known-host 172.30.1.116 remove
switch (config) #
Related Commands show ssh client
Note If a key is being pasted from a cut buffer and was displayed with a paging program, it
is likely that newline characters have been inserted, even if the output was not long
enough to require paging. One can specify “no cli session paging enable” before run-
ning the “show” command to prevent the newlines from being inserted.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 106
slogin
slogin [<slogin options>] <hostname>
Invokes the SSH client. The user is returned to the CLI when SSH finishes.
Syntax Description slogin options usage: slogin [-1246AaCfgkNnqsTtVvXxY] [-b
bind_address] [-c cipher_spec] [-D port] [-e
escape_char] [-F configfile] [-i identity_file] [-L
port:host:hostport] [-l login_name] [-m mac_spec] [-o
option] [-p port] [-R port:host:hostport] [user@]host-
name [command]
Default N/A
Configuration Mode Config
History 3.1.0000
Role monitor/admin
Example switch (config) # slogin 192.168.10.70
The authenticity of host '192.168.10.70 (192.168.10.70)' can't be estab-
lished.
RSA key fingerprint is 2e:ad:2d:23:45:4e:47:e0:2c:ae:8c:34:f0:1a:88:cb.
Are you sure you want to continue connecting (yes/no)? yes
Warning: Permanently added '192.168.10.70' (RSA) to the list of known hosts.
Mellanox MLNX-OS Switch Management
Last login: Sat Feb 28 22:55:17 2009 from 10.208.0.121
Mellanox Switch
switch (config) #
Related Commands N/A
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 107
show ssh client
show ssh client
Displays the client configuration of the SSH server.
Syntax Description N/A
Default N/A
Configuration Mode Config
History 3.1.0000
Role admin
Example switch (config) # show ssh client
SSH client Strict Hostkey Checking: ask
SSH Global Known Hosts:
Entry 1: 72.30.2.2
Finger Print: 1e:b7:8b:ec:ab:35:98:be:6b:d6:12:c2:18:72:12:d6
No SSH user identities configured.
No SSH authorized keys configured.
switch (config) #
Related Commands N/A
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 108
show ssh server
show ssh server
Displays SSH server configuration.
Syntax Description N/A
Default N/A
Configuration Mode Config
History 3.1.0000
3.4.0000 Updated Example
3.5.0200 Added SSH login timeout and max attempts
Role admin
Example switch (config) # show ssh server
SSH server configuration:
SSH server enabled: yes
Server security strict mode: no
Minimum protocol version: 2
TCP forwarding enabled: yes
X11 forwarding enabled: no
SSH login timeout: 120
SSH login max attempts: 6
SSH server ports: 22
Interface listen enabled: yes
No Listen Interfaces.
Host Key Finger Prints and Key Lengths:
RSA v1 host key: 5f:4e:5f:4a:81:bb:6a:b4:06:52:77:eb:d3:ad:78:92 (2048)
RSA v2 host key: 15:e2:a8:45:1c:58:1b:00:cc:29:ec:00:38:83:49:00 (2048)
DSA v2 host key: df:c0:ac:a6:3e:a5:52:a5:d1:f6:22:37:ef:f1:08:f9 (1024)
switch (config) #
Related Commands ssh server
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 109
3.5.4 Remote Login
Logs into another system using telnet.
N/A
N/A
Config
3.1.0000
admin
switch (config) # (config) # telnet
telnet>
telnet-server
telnet
telnet
Syntax Description
Default
Configuration Mode
History
Role
Example
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 110
telnet-server enable
telnet-server enable
no telnet-server enable
Enables the telnet server.
The no form of the command disables the telnet server.
Syntax Description N/A
Default Telnet server is disabled
Configuration Mode Config
History 3.1.0000
Role admin
Example switch (config) # telnet-server enable
switch (config) # show telnet-server
Telnet server enabled: yes
Related Commands show telnet-server
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 111
show telnet-server
show telnet-server
Displays telnet server settings.
Syntax Description N/A
Default N/A
Configuration Mode Config
History 3.1.0000
Role admin
Example switch (config) # show telnet-server
Telnet server enabled: yes
switch (config) #
Related Commands telnet-server enable
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 112
3.5.5 Web Interface
Configures length of user inactivity before auto-logout of a web session.
The no form of the command disables the web auto-logout (web sessions will never
logged out due to inactivity).
number of minutes The length of user inactivity in minutes.
0 will disable the inactivity timer (same as a “no web
auto-logout” command).
60 minutes
Config
3.1.0000
3.4.0000 Updated Example
admin
switch (config) # web auto-logout 60
switch (config) # show web
Web User Interface:
Web interface enabled: yes
HTTP enabled: yes
HTTP port: 80
HTTP redirect to HTTPS: no
HTTPS enabled: yes
HTTPS port: 443
HTTPS ssl-ciphers: all
HTTPS certificate name: default-cert
Listen enabled: yes
No Listen Interfaces.
Inactivity timeout: 1 hr
Session timeout: 2 hr 30 min
Session renewal: 30 min
Web file transfer proxy:
Proxy enabled: no
Web file transfer certificate authority:
HTTPS server cert verify: yes
HTTPS supplemental CA list: default-ca-list
switch (config) #
show web
The no form of the command does not automatically log users out due to inactivity.
web auto-logout
web auto-logout <number of minutes>
no web auto-logout <number of minutes>
Syntax Description
Default
Configuration Mode
History
Role
Example
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 113
web cache-enable
web cache-enable
no web cache-enable
Enables web clients to cache webpages.
The no form of the command disables web clients from caching webpages.
Syntax Description N/A
Default Enabled
Configuration Mode Config
History 3.4.1100
Role admin
Example switch (config) # no web cache-enable
Related Commands N/A
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 114
web client cert-verify
web client cert-verify
no web client cert-verify
Enables verification of server certificates during HTTPS file transfers.
The no form of the command disables verification of server certificates during
HTTPS file transfers.
Syntax Description N/A
Default N/A
Configuration Mode Config
History 3.2.3000
Role admin
Example switch (config) # web client cert-verify
Related Commands N/A
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 115
web client ca-list
web client ca-list {<ca-list-name> | default-ca-list | none}
no web client ca-list
Configures supplemental CA certificates for verification of server certificates during
HTTPS file transfers.
The no form of the command uses no supplemental certificates.
Syntax Description ca-list-name Specifies CA list to configure.
default-ca-list Configures default supplemental CA certificate list.
none Uses no supplemental certificates.
Default default-ca-list
Configuration Mode Config
History 3.2.3000
Role admin
Example switch (config) # web client ca-list default-ca-list
Related Commands N/A
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 116
web enable
web enable
no web enable
Enables the web-based management console.
The no form of the command disables the web-based management console.
Syntax Description N/A
Default enable
Configuration Mode Config
History 3.1.0000
3.4.0000 Updated Example
Role admin
Example switch (config) # web enable
switch (config) # show web
Web User Interface:
Web interface enabled: yes
HTTP enabled: yes
HTTP port: 80
HTTP redirect to HTTPS: no
HTTPS enabled: yes
HTTPS port: 443
HTTPS ssl-ciphers: all
HTTPS certificate name: default-cert
Listen enabled: yes
No Listen Interfaces.
Inactivity timeout: 1 hr
Session timeout: 2 hr 30 min
Session renewal: 30 min
Web file transfer proxy:
Proxy enabled: no
Web file transfer certificate authority:
HTTPS server cert verify: yes
HTTPS supplemental CA list: default-ca-list
switch (config) #
Related Commands show web
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 117
web http
web http {enable | port <port number> | redirect}
no web http {enable | port | redirect}
Configures HTTP access to the web-based management console.
The no form of the command negates HTTP settings for the web-based management
console.
Syntax Description enable Enables HTTP access to the web-based management
console.
port number Sets a port for HTTP access.
redirect Enables redirection to HTTPS. If HTTP access is
enabled, this specifies whether a redirect from the
HTTP port to the HTTPS port should be issued to man-
date secure HTTPS access.
Default HTTP is enabled
HTTP TCP port is 80
HTTP redirect to HTTPS is disabled
Configuration Mode Config
History 3.1.0000
3.4.0000 Updated Example
Role admin
Example switch (config) # web http enable
switch (config) # show web
Web User Interface:
Web interface enabled: yes
HTTP enabled: yes
HTTP port: 80
HTTP redirect to HTTPS: no
HTTPS enabled: yes
HTTPS port: 443
HTTPS ssl-ciphers: all
HTTPS certificate name: default-cert
Listen enabled: yes
No Listen Interfaces.
Inactivity timeout: 1 hr
Session timeout: 2 hr 30 min
Session renewal: 30 min
Web file transfer proxy:
Proxy enabled: no
Web file transfer certificate authority:
HTTPS server cert verify: yes
HTTPS supplemental CA list: default-ca-list
switch (config) #
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 118
Related Commands show web
web enable
Note Enabling HTTP is meaningful if the WebUI as a whole is enabled.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 119
web httpd
web httpd listen {enable | interface <ifName> }
no web httpd listen {enable | interface <ifName> }
Enables the listen interface restricted list for HTTP and HTTPS.
The no form of the command disables the HTTP server listen ability.
Syntax Description enable Enables Web interface restrictions on access to this sys-
tem.
interface <ifName> Adds interface to Web server access restriction list (i.e.
mgmt0, mgmt1)
Default Listening is enabled.
all interfaces are permitted.
Configuration Mode Config
History 3.1.0000
3.4.0000 Updated Example
Role admin
Example switch (config) # web httpd listen enable
switch (config) # show web
Web User Interface:
Web interface enabled: yes
HTTP enabled: yes
HTTP port: 80
HTTP redirect to HTTPS: no
HTTPS enabled: yes
HTTPS port: 443
HTTPS ssl-ciphers: all
HTTPS certificate name: default-cert
Listen enabled: yes
No Listen Interfaces.
Inactivity timeout: 1 hr
Session timeout: 2 hr 30 min
Session renewal: 30 min
Web file transfer proxy:
Proxy enabled: no
Web file transfer certificate authority:
HTTPS server cert verify: yes
HTTPS supplemental CA list: default-ca-list
switch (config) #
Related Commands N/A
Note If enabled, and if at least one of the interfaces listed is eligible to be a listen interface,
then HTTP/HTTPS requests will only be accepted on those interfaces. Otherwise,
HTTP/HTTPS requests are accepted on any interface.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 120
web https
web https {certificate {regenerate | name | default-cert} | enable | port <port
number> | ssl ciphers {all | TLS | TLS1.2}}
no web https {enable | port <port number>}
Configures HTTPS access to the web-based management console.
The no form of the command negates HTTPS settings for the web-based management
console.
Syntax Description certificate regenerate Re-generates certificate to use for HTTPS connections.
certificate name Configure the named certificate to be used for HTTPS
connections
certificate default-cert Configure HTTPS to use the configured default certifi-
cate
enable Enables HTTPS access to the web-based management
console.
port Sets a TCP port for HTTPS access.
ssl ciphers {all | TLS |
TLS1.2} Sets ciphers to be used for HTTPS.
Default HTTPS is enabled
Default port is 443
Configuration Mode Config
History 3.1.0000
3.4.0000 Added “ssl ciphers” parameter
3.4.0010 Added TLS parameter to “ssl ciphers”
Role admin
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 121
Example switch (config) # web https enable
switch (config) # show web
Web User Interface:
Web interface enabled: yes
HTTP enabled: yes
HTTP port: 80
HTTP redirect to HTTPS: no
HTTPS enabled: yes
HTTPS port: 443
HTTPS ssl-ciphers: all
HTTPS certificate name: default-cert
Listen enabled: yes
No Listen Interfaces.
Inactivity timeout: 1 hr
Session timeout: 2 hr 30 min
Session renewal: 30 min
Web file transfer proxy:
Proxy enabled: no
Web file transfer certificate authority:
HTTPS server cert verify: yes
HTTPS supplemental CA list: default-ca-list
switch (config) #
Related Commands show web
web enable
Note • Enabling HTTPS is meaningful if the WebUI as a whole is enabled.
• See the command “crypto certificate default-cert name” for how to change the default cer-
tificate if inheriting the configured default certificate is preferred
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 122
web session
web session {renewal <minutes> | timeout <minutes>}
no web session {renewal | timeout}
Configures session settings.
The no form of the command resets session settings to default.
Syntax Description renewal <minutes> Configures time before expiration to renew a session.
timeout <minutes> Configures time after which a session expires.
Default timeout - 2.5 hours
renewal - 30 min
Configuration Mode Config
History 3.1.0000
Role admin
Example switch (config) # web session renewal 60
switch (config) # show web
Web User Interface:
Web interface enabled: yes
HTTP enabled: yes
HTTP port: 80
HTTP redirect to HTTPS: no
HTTPS enabled: yes
HTTPS port: 443
HTTPS ssl-ciphers: all
HTTPS certificate name: default-cert
Listen enabled: yes
No Listen Interfaces.
Inactivity timeout: 1 hr
Session timeout: 2 hr 30 min
Session renewal: 60 min
Web file transfer proxy:
Proxy enabled: no
Web file transfer certificate authority:
HTTPS server cert verify: yes
HTTPS supplemental CA list: default-ca-list
switch (config) #
Related Commands N/A
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 123
web proxy auth
web proxy auth {authtype <type>| basic [password <password> | username
<username>]}
no web proxy auth {authtype | basic {password | username }
Configures authentication settings for web proxy authentication.
The no form of the command resets the attributes to their default values.
Syntax Description type Configures the type of authentication to use with web
proxy.
The possible values are:
• basic - HTTP basic authentication
• none - No authentication
basic Configures HTTP basic authentication settings for
proxy. The password is accepted and stored in plaintext.
password A password used for HTTP basic authentication with
the web proxy.
username A username used for HTTP basic authentication with
the web proxy.
Default Web proxy is disabled.
Configuration Mode Config
History 3.1.0000
Role admin
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 124
Example switch (config) # web proxy auth authtype basic
switch (config) # web proxy auth basic username web-user
switch (config) # web proxy auth basic password web-password
switch (config) # show web
Web User Interface:
Web interface enabled: yes
HTTP enabled: yes
HTTP port: 80
HTTP redirect to HTTPS: no
HTTPS enabled: yes
HTTPS port: 443
HTTPS ssl-ciphers: all
HTTPS certificate name: default-cert
Listen enabled: yes
No Listen Interfaces.
Inactivity timeout: 1 hr
Session timeout: 2 hr 30 min
Session renewal: 30 min
Web file transfer proxy:
Proxy enabled: yes
Proxy address: 10.10.10.11
Proxy port: 40
Authentication type: basic
Basic auth username: web-user
Basic auth password: web-password
Web file transfer certificate authority:
HTTPS server cert verify: yes
HTTPS supplemental CA list: default-ca-list
switch (config) #
Related Commands show web
web proxy host
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 125
web proxy host
web proxy host <IP address> [port <port number>]
no web proxy
Adds and enables a proxy to be used for any HTTP or FTP downloads.
The no form of the command disables the web proxy.
Syntax Description IP address IPv4 or IPv6 address.
port number Sets the web proxy default port.
Default 1080
Configuration Mode Config
History 3.1.0000
Role admin
Example switch (config) # web proxy host 10.10.10.10 port 1080
switch (config) # show web
Web User Interface:
Web interface enabled: yes
HTTP enabled: yes
HTTP port: 80
HTTP redirect to HTTPS: no
HTTPS enabled: yes
HTTPS port: 443
HTTPS ssl-ciphers: all
HTTPS certificate name: default-cert
Listen enabled: yes
No Listen Interfaces.
Inactivity timeout: 1 hr
Session timeout: 2 hr 30 min
Session renewal: 30 min
Web file transfer proxy:
Proxy enabled: yes
Proxy address: 10.10.10.10
Proxy port: 1080
Authentication type: basic
Basic auth username: web-user
Basic auth password: web-password
Web file transfer certificate authority:
HTTPS server cert verify: yes
HTTPS supplemental CA list: default-ca-list
switch (config) #
Related Commands web proxy auth
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 126
show web
show web
Displays the web configuration.
Syntax Description N/A
Default N/A
Configuration Mode Config
History 3.1.0000
3.4.0000 Updated Example
3.4.1100 Updated Example
Role admin
Example switch (config) # show web
Web User Interface:
Web interface enabled: yes
Web caching enabled: yes
HTTP enabled: yes
HTTP port: 80
HTTP redirect to HTTPS: no
HTTPS enabled: yes
HTTPS port: 443
HTTPS ssl-ciphers: all
HTTPS certificate name: default-cert
Listen enabled: yes
No Listen Interfaces.
Inactivity timeout: 1 hr
Session timeout: 2 hr 30 min
Session renewal: 30 min
Web file transfer proxy:
Proxy enabled: yes
Proxy address: 10.10.10.11
Proxy port: 40
Authentication type: basic
Basic auth username: web-user
Basic auth password: web-password
Web file transfer certificate authority:
HTTPS server cert verify: yes
HTTPS supplemental CA list: default-ca-list
switch (config) #
Related Commands show web
web proxy auth
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 127
4 System Management
4.1 Management Interface
Management interfaces are used in order to provide access to switch management user interfaces
(e.g. CLI, WebUI). Mellanox switches support out-of-band (OOB) dedicated interfaces (e.g.
mgmt0, mgmt1) and in-band dedicated interfaces. In addition, most Mellanox switches feature a
serial port that provides access to the CLI only.
On switch systems with two OOB management ports, both of them may be configured on the
same VLAN if needed. In this case, ARP replies to the IP of those management interfaces is
answered from either of them.
4.1.1 Configuring Management Interfaces with Static IP Addresses
If your switch system was set during initialization to obtain dynamic IP addresses through DHCP
and you wish to switch to static assignments, perform the following steps:
Step 1. Enter Config configuration mode. Run:
Step 2. Disable setting IP addresses using the DHCP using the following command:
Step 3. Define your interfaces statically using the following command:
4.1.2 Configuring IPv6 Address on the Management Interface
Step 1. Enable IPv6 on this interface.
Step 2. Set the IPv6 address to be configured automatically.
Step 3. Verify the IPv6 address is configured correctly.
switch >
switch > enable
switch # configure terminal
switch (config) #
switch (config) # no interface <ifname> dhcp
switch (config) # interface <ifname> ip address <IP address> <netmask>
switch (config) # interface mgmt0 ipv6 enable
switch (config) # interface mgmt0 ipv6 address autoconfig
switch (config) # show interfaces mgmt0 brief
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 128
4.1.3 Dynamic Host Configuration Protocol (DHCP)
DHCP is used for automatic retrieval of management IP addresses.
For all other systems (and software versions) DHCP is disabled by default.
4.1.4 Default Gateway
To configure manually the default gateway, use the “ip route” command, with “0.0.0.0” as prefix
and mask. The next-hop address must be within the range of one of the IP interfaces on the sys-
tem.
switch (config)# ip route 0.0.0.0 0.0.0.0 10.209.0.2
switch (config)# show ip route
Destination Mask Gateway Interface Source Distance/Metric
default 0.0.0.0 10.209.0.2 mgmt0 static 0/0
10.209.0.0 255.255.254.0 0.0.0.0 mgmt0 direct 0/0
switch (config)#
4.1.5 In-Band Management
In-band management is a management path passing through the data ports. In-band management
can be created over one of the VLANs in the systems.
The in-band management feature does not require any license. However, it works only for the
system profile Ethernet. It can be enabled with IP Routing but not with IP Proxy-ARP.
To set an in-band management channel:
Step 1. Create a VLAN. Run:
Step 2. Create a VLAN interface. Run:
Step 3. Enter the VLAN interface configuration mode and configure L3 attributes. Run:
If a user connects through SSH, runs the wizard and turns off DHCP, the connection is
immediately terminated as the management interface loses its IP address.
<localhost># ssh admin@<ip-address>
Mellanox MLNX-OS Switch Management
Password:
Mellanox Switch
Mellanox configuration wizard
Do you want to use the wizard for initial configuration? yes
Step 1: Hostname? [my-switch]
Step 2: Use DHCP on mgmt0 interface? [yes] no
<localhost>#
In such case the serial connection should be used.
switch (config) # vlan 10
switch (config vlan 10) #
switch (config) # interface vlan 10
switch (config) # interface vlan 10
switch (config interface vlan 10) # ip address 10.10.10.10 /24
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 129
Step 4. (Optional) Verify in-band management configuration. Run:
4.1.6 Configuring Hostname via DHCP (DHCP Client Option 12)
This feature, also known as the DHCP Client Option 12, is enabled by default and assigns the
switch system a hostname via DHCP as long as network manager configures hostname to the
management interfaces’ (i.e. mgmt0, mgmt1) MAC address. If a network manager configures the
hostname manually through any of the user interfaces, the hostname is not retrieved from the
DHCP server.
To enable fetching hostname from DHCP server, run:
To disable fetching hostname from DHCP server, run:
switch (config) # show interfaces vlan 10
Admin state: Enabled
Operational state: Up
Mac Address: f4:52:14:67:07:e8
Internet Address: 10.10.10.10/24
Broadcast address: 10.10.10.255
MTU: 1500 bytes
Arp timeout: 1500 seconds
Icmp redirect: Disabled
Description: N/A
VRF: default
Counters: Enabled
RX
0 Unicast packets
0 Multicast packets
0 Unicast bytes
0 Multicast bytes
0 Bad packets
0 Bad bytes
TX
0 Unicast packets
0 Multicast packets
0 Unicast bytes
0 Multicast bytes
switch (config) #
switch (config interface mgmt0) # dhcp hostname
switch (config interface mgmt0) # no dhcp hostname
Getting the hostname through DHCP is enable by default and will change the switch
hostname if the hostname is not set by the user. Therefore, if a switch is part of an HA
cluster (e.g. , or MLAG) the user would need to make sure the HA master has the same
HA node names as the DHCP server.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 130
4.1.7 Commands
4.1.7.1 Interface
This chapter describes the commands should be used to configure and monitor the management
interface.
Enters a management interface context.
mgmt0 Management port 0 (out of band).
mgmt1 Management port 1 (out of band).
lo Loopback interface.
vlan<id> In-band management interface (e.g. vlan10).
N/A
Config
3.1.0000
admin
switch (config) # interface mgmt0
switch (config interface mgmt0) #
show interfaces <ifname>
interface
interface {mgmt0 | mgmt1 | lo | vlan<id>}
Syntax Description
Default
Configuration Mode
History
Role
Example
Related Commands
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 131
ip address
ip address <IP address> <netmask>
no ip address
Sets the IP address and netmask of this interface.
The no form of the command clears the IP address and netmask of this interface.
Syntax Description IP address IPv4 address
netmask Subnet mask of IP address
Default 0.0.0.0/0
Configuration Mode Config Interface Management
History 3.1.0000
Role admin
Example switch (config) # interface mgmt0
switch (config interface mgmt0) # ip address 10.10.10.10 255.255.255.0
switch (config interface mgmt0) # show interfaces mgmt0
Interface mgmt0 state
Admin up: yes
Link up: yes
IP address: 10.10.10.10
Netmask: 255.255.255.0
IPv6 enabled: yes
Autoconf enabled: no
Autoconf route: yes
Autoconf privacy: no
IPv6 addresses: 1
IPv6 address: fe80:202:c9ff:fe5e:a5d8/64
Speed: 1000Mb/s (auto)
Duplex: full (auto)
Interface type: ethernet
Interface ifindex: 2
Interface source: physical
MTU: 1500
HW address: 00:02:C9:5E:A5:D8
Comment:
RX bytes: 2946769856 TX bytes: 467577486
RX packets: 44866091 TX packets: 1385520
RX mcast packets: 0 TX discards: 0
RX discards: 0 TX errors: 0
RX errors: 0 TX overruns: 0
RX overruns: 0 TX carrier: 0
RX frame: 0 TX collisions: 0
TX queue len: 1000
switch (config interface mgmt0) #
Related Commands show interfaces <ifname>
Notes If DHCP is enabled on the specified interface, then the DHCP IP assignment will
hold until DHCP is disabled.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 132
ip default-gateway
ip default-gateway <next hop IP address or interface name>
no ip default-gateway
Configures a default route.
The no form of the command removes the current default route.
Syntax Description next hop IP address or
interface name IP address, lo, mgmt0, or mgmt1.
Default N/A
Configuration Mode Config Interface Management
History 3.1.0000
Role admin
Example switch (config) # ip default-gateway mgmt1
switch (config) #
Related Commands
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 133
alias
alias <index> ip address < IP address> <netmask>
no alias <index>
Adds an additional IP address to the specified interface. The secondary address will
appear in the output of “show interface” under the data of the primary interface along
with the alias.
The no form of the command removes the secondary address to the specified inter-
face.
Syntax Description index A number that is to be aliased to (associated with) the
secondary IP.
IP address Additional IP address.
netmask Subnet mask of the IP address.
Default N/A
Configuration Mode Config Interface Management
History 3.1.0000
Role admin
Example switch (config interface mgmt0) # alias 2 ip address 9.9.9.9
255.255.255.255
switch (config interface mgmt0) # show interfaces mgmt0
Interface mgmt0 state
Admin up: yes
Link up: yes
IP address: 172.30.2.2
Netmask: 255.255.0.0
Secondary address: 9.9.9.9/32 (alias: 'mgmt0:2')
IPv6 enabled: yes
Autoconf enabled: no
Autoconf route: yes
Autoconf privacy: no
IPv6 addresses: 1
IPv6 address: fe80::202:c9ff:fe5e:a5d8/64
Speed: 1000Mb/s (auto)
Duplex: full (auto)
Interface type: ethernet
Interface ifindex: 2
Interface source: physical
MTU: 1500
HW address: 00:02:C9:5E:A5:D8
Comment:
RX bytes: 2970074221 TX bytes: 468579522
RX packets: 44983023 TX packets: 1390539
RX mcast packets: 0 TX discards: 0
RX discards: 0 TX errors: 0
RX errors: 0 TX overruns: 0
RX overruns: 0 TX carrier: 0
RX frame: 0 TX collisions: 0
TX queue len: 1000
switch (config interface mgmt0) #
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 134
Related Commands show interfaces <ifname>
Notes • If DHCP is enabled on the specified interface, then the DHCP IP assignment will hold until
DHCP is disabled
• More than one additional IP address can be added to the interface
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 135
mtu
mtu <bytes>
no mtu <bytes>
Sets the Maximum Transmission Unit (MTU) of this interface.
The no form of the command resets the MTU to its default.
Syntax Description bytes The entry range is 68-1500.
Default 1500
Configuration Mode Config Interface Management
History 3.1.0000
Role admin
Example switch (config interface mgmt0) # mtu 1500
switch (config interface mgmt0) # show interfaces mgmt0
Interface mgmt0 state
Admin up: yes
Link up: yes
IP address: 172.30.2.2
Netmask: 255.255.0.0
Secondary address: 9.9.9.9/32 (alias: 'mgmt0:2')
IPv6 enabled: yes
Autoconf enabled: no
Autoconf route: yes
Autoconf privacy: no
IPv6 addresses: 1
IPv6 address: fe80:202:c9ff:fe5e:a5d8/64
Speed: 1000Mb/s (auto)
Duplex: full (auto)
Interface type: ethernet
Interface ifindex: 2
Interface source: physical
MTU: 1500
HW address: 00:02:C9:5E:A5:D8
Comment:
RX bytes: 2970074221 TX bytes: 468579522
RX packets: 44983023 TX packets: 1390539
RX mcast packets: 0 TX discards: 0
RX discards: 0 TX errors: 0
RX errors: 0 TX overruns: 0
RX overruns: 0 TX carrier: 0
RX frame: 0 TX collisions: 0
TX queue len: 1000
switch (config interface mgmt0) #
Related Commands show interfaces <ifname>
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 136
duplex
duplex <duplex>
no duplex
Sets the interface duplex.
The no form of the command resets the duplex setting for this interface to its default
value.
Syntax Description duplex Sets the duplex mode of the interface. The following
are the possible values:
• half - half duplex
• full - full duplex
• auto - auto duplex sensing (half or full)
Default auto
Configuration Mode Config Interface Management
History 3.1.0000
Role admin
Example switch (config interface mgmt0) # duplex auto
switch (config interface mgmt0) # show interfaces mgmt0
Interface mgmt0 state
Admin up: yes
Link up: yes
IP address: 172.30.2.2
Netmask: 255.255.0.0
Secondary address: 9.9.9.9/32 (alias: 'mgmt0:2')
IPv6 enabled: yes
Autoconf enabled: no
Autoconf route: yes
Autoconf privacy: no
IPv6 addresses: 1
IPv6 address: fe80::202:c9ff:fe5e:a5d8/64
Speed: 1000Mb/s (auto)
Duplex: full (auto)
Interface type: ethernet
Interface ifindex: 2
Interface source: physical
MTU: 1500
HW address: 00:02:C9:5E:A5:D8
Comment:
RX bytes: 2970074221 TX bytes: 468579522
RX packets: 44983023 TX packets: 1390539
RX mcast packets: 0 TX discards: 0
RX discards: 0 TX errors: 0
RX errors: 0 TX overruns: 0
RX overruns: 0 TX carrier: 0
RX frame: 0 TX collisions: 0
TX queue len: 1000
switch (config interface mgmt0) #
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 137
Related Commands show interfaces <ifname>
Notes • Setting the duplex to “auto” also sets the speed to “auto”
• Setting the duplex to one of the settings “half” or “full” also sets the speed to a manual set-
ting which is determined by querying the interface to find out its current auto-detected state
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 138
speed
speed <speed>
no speed
Sets the interface speed.
The no form of the command resets the speed setting for this interface to its default
value.
Syntax Description speed Sets the speed of the interface. The following are the
possible values:
• 10 - fixed to 10Mbps
• 100 - fixed to 1000Mbps
• 1000 - fixed to 1000Mbps
• auto - auto speed sensing (10/100/1000Mbps)
Default auto
Configuration Mode Config Interface Management
History 3.1.0000
Role admin
Example switch (config interface mgmt0) # speed auto
switch (config interface mgmt0) # show interfaces mgmt0
Interface mgmt0 state
Admin up: yes
Link up: yes
IP address: 172.30.2.2
Netmask: 255.255.0.0
Secondary address: 9.9.9.9/32 (alias: 'mgmt0:2')
IPv6 enabled: yes
Autoconf enabled: no
Autoconf route: yes
Autoconf privacy: no
IPv6 addresses: 1
IPv6 address: fe80::202:c9ff:fe5e:a5d8/64
Speed: 1000Mb/s (auto)
Duplex: full (auto)
Interface type: ethernet
Interface ifindex: 2
Interface source: physical
MTU: 1500
HW address: 00:02:C9:5E:A5:D8
Comment:
RX bytes: 2970074221 TX bytes: 468579522
RX packets: 44983023 TX packets: 1390539
RX mcast packets: 0 TX discards: 0
RX discards: 0 TX errors: 0
RX errors: 0 TX overruns: 0
RX overruns: 0 TX carrier: 0
RX frame: 0 TX collisions: 0
TX queue len: 1000
switch (config interface mgmt0) #
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 139
Related Commands show interfaces <ifname>
Notes • Setting the speed to “auto” also sets the duplex to “auto”
• Setting the speed to one of the manual settings (generally “10”, “100”, or “1000”) also sets
the duplex to a manual setting which is determined by querying the interface to find out its
current auto-detected state
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 140
dhcp
dhcp [renew]
no dhcp
Enables DHCP on the specified interface.
The no form of the command disables DHCP on the specified interface.
Syntax Description renew Forces a renewal of the IP address. A restart on the
DHCP client for the specified interface will be issued.
Default Could be enabled or disabled (per part number) manufactured with 3.2.0500
Configuration Mode Config Interface Management
History 3.1.0000
Role admin
Example switch (config interface mgmt0) # dhcp
switch (config) # show interfaces mgmt0 configured
Interface mgmt0 configuration
Enabled: yes
DHCP: yes
Zeroconf: no
IP address:
Netmask:
IPv6 enabled: yes
Autoconf enabled: no
Autoconf route: yes
Autoconf privacy: no
IPv6 addresses: 0
Speed: auto
Duplex: auto
MTU: 1500
Comment:
Related Commands show interfaces <ifname> configured
Notes • When enabling DHCP, the IP address and netmask are received via DHCP hence, the static
IP address configuration is ignored
• Enabling DHCP disables zeroconf and vice versa
• Setting a static IP address and netmask does not disable DHCP. DHCP is disabled using the
“no” form of this command, or by enabling zeroconf.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 141
dhcp hostname
dhcp hostname
no dhcp hostname
Enables fetching the hostname from DHCP for this interface.
The no form of the command disables fetching the hostname from DHCP for this
interface.
Syntax Description N/A
Default Enabled
Configuration Mode Config Interface Management
History 3.5.1000
Role admin
Example switch (config interface mgmt0) # dhcp hostname
switch (config interface mgmt0) #
Related Commands hostname <hostname>
show interfaces <ifname> configured
Notes • If a hostname is configured manually by the user, that configuration would override the
“dhcp hostname” configuration
• After upgrading to version 3.5.1000 when a default hostname is not configured, the DHCP
server assigns the new hostname for your machine
• These commands do not work on in-band interfaces
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 142
shutdown
shutdown
no shutdown
Disables the specified interface.
The no form of the command enables the specified interface.
Syntax Description N/A
Default no shutdown
Configuration Mode Config Interface Management
History 3.1.0000
Role admin
Example switch (config interface mgmt0) # no shutdown
switch (config) # show interfaces mgmt0 configured
Interface mgmt0 configuration
Enabled: yes
DHCP: yes
DHCP Hostname: yes
Zeroconf: no
IP address:
Netmask:
IPv6 enabled: yes
Autoconf enabled: no
Autoconf route: yes
Autoconf privacy: no
IPv6 addresses: 0
Speed: auto
Duplex: auto
MTU: 1500
Comment:
switch (config) #
Related Commands show interfaces <ifname> configured
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 143
zeroconf
zeroconf
no zeroconf
Enables zeroconf on the specified interface. It randomly chooses a unique link-local
IPv4 address from the 169.254.0.0/16 block. This command is an alternative to
DHCP.
The no form of the command disables the use of zeroconf on the specified interface.
Syntax Description N/A
Default no zeroconf
Configuration Mode Config Interface Management
History 3.1.0000
Role admin
Example switch (config interface mgmt0) # zeroconf
switch (config) # show interfaces mgmt0 configured
Interface mgmt0 configuration
Enabled: yes
DHCP: no
DHCP Hostname: yes
Zeroconf: yes
IP address:
Netmask:
IPv6 enabled: yes
Autoconf enabled: no
Autoconf route: yes
Autoconf privacy: no
IPv6 addresses: 0
Speed: auto
Duplex: auto
MTU: 1500
Comment:
Related Commands show interfaces <ifname> configured
Notes Enabling zeroconf disables DHCP and vice versa.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 144
comment
comment <comment>
no comment
Adds a comment for an interface.
The no form of the command removes a comment for an interface.
Syntax Description comment A free-form string that has no semantics other than
being displayed when the interface records are listed.
Default no comment
Configuration Mode Config Interface Management
History 3.1.0000
Role admin
Example switch (config interface mgmt0) # comment my-interface
switch (config interface mgmt0) # show interfaces mgmt0
Interface mgmt0 state
Admin up: yes
Link up: yes
IP address: 172.30.2.2
Netmask: 255.255.0.0
IPv6 enabled: yes
Autoconf enabled: no
Autoconf route: yes
Autoconf privacy: no
IPv6 addresses: 1
IPv6 address: fe80::202:c9ff:fe5e:a5d8/64
Speed: 1000Mb/s (auto)
Duplex: full (auto)
Interface type: ethernet
Interface ifindex: 2
Interface source: physical
MTU: 1500
HW address: 00:02:C9:5E:A5:D8
Comment: my-interface
RX bytes: 962067812 TX bytes: 40658219
RX packets: 3738865 TX packets: 142345
RX mcast packets: 0 TX discards: 0
RX discards: 0 TX errors: 0
RX errors: 0 TX overruns: 0
RX overruns: 0 TX carrier: 0
RX frame: 0 TX collisions: 0
TX queue len: 1000
switch (config interface mgmt0) #
Related Commands N/A
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 145
ipv6 enable
ipv6 enable
no ipv6 enable
Enables all IPv6 addressing for this interface.
The no form of the command disables all IPv6 addressing for this interface.
Syntax Description N/A
Default IPv6 addressing is disabled
Configuration Mode Config Interface Management
History 3.1.0000
Role admin
Example switch (config interface mgmt0) # ipv6 enable
switch (config interface mgmt0) # show interfaces mgmt0
Interface mgmt0 state
Admin up: yes
Link up: yes
IP address: 172.30.2.2
Netmask: 255.255.0.0
IPv6 enabled: yes
Autoconf enabled: no
Autoconf route: yes
Autoconf privacy: no
IPv6 addresses: 1
IPv6 address: fe80::202:c9ff:fe5e:a5d8/64
Speed: 1000Mb/s (auto)
Duplex: full (auto)
Interface type: ethernet
Interface ifindex: 2
Interface source: physical
MTU: 1500
HW address: 00:02:C9:5E:A5:D8
Comment: my-interface
RX bytes: 962067812 TX bytes: 40658219
RX packets: 3738865 TX packets: 142345
RX mcast packets: 0 TX discards: 0
RX discards: 0 TX errors: 0
RX errors: 0 TX overruns: 0
RX overruns: 0 TX carrier: 0
RX frame: 0 TX collisions: 0
TX queue len: 1000
switch (config interface mgmt0) #
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 146
Related Commands ipv6 address
show interface <ifname>
Notes • The interface identifier is a 64-bit long modified EUI-64, which is based on the MAC
address of the interface
• If IPv6 is enabled on an interface, the system will automatically add a link-local address to
the interface. Link-local addresses can only be used to communicate with other hosts on the
same link, and packets with link-local addresses are never forwarded by a router.
• A link-local address, which may not be removed, is required for proper IPv6 operation. The
link-local addresses start with “fe80::”, and are combined with the interface identifier to
form the complete address.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 147
ipv6 address
ipv6 address {<IPv6 address/netmask> | autoconfig [default | privacy]}
no ipv6 {<IPv6 address/netmask> | autoconfig [default | privacy]}
Configures IPv6 address and netmask to this interface, static or autoconfig options
are possible.
The no form of the command removes the given IPv6 address and netmask or dis-
ables the autoconfig options.
Syntax Description IPv6 address/netmask Configures a static IPv6 address and netmask.
Format example: 2001:db8:1234::5678/64.
autoconfig Enables IPv6 stateless address auto configuration
(SLAAC) for this interface. An address will be auto-
matically added to the interface based on an IPv6 prefix
learned from router advertisements, combined with an
interface identifier.
autoconfig default Enables default learning routes. The default route will
be discovered automatically, if the autoconfig is
enabled.
autoconfig privacy Uses privacy extensions for SLAAC to construct the
autoconfig address, if the autoconfig is enabled.
Default No IP address available, auto config is enabled
Configuration Mode Config Interface Management
History 3.1.0000
Role admin
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 148
Example switch (config interface mgmt0) # ipv6 fe80::202:c9ff:fe5e:a5d8/64
switch (config interface mgmt0) # show interfaces mgmt0
Interface mgmt0 state
Admin up: yes
Link up: yes
IP address: 172.30.2.2
Netmask: 255.255.0.0
IPv6 enabled: yes
Autoconf enabled: no
Autoconf route: yes
Autoconf privacy: no
IPv6 addresses: 1
IPv6 address: fe80::202:c9ff:fe5e:a5d8/64
Speed: 1000Mb/s (auto)
Duplex: full (auto)
Interface type: ethernet
Interface ifindex: 2
Interface source: physical
MTU: 1500
HW address: 00:02:C9:5E:A5:D8
Comment: my-interface
RX bytes: 962067812 TX bytes: 40658219
RX packets: 3738865 TX packets: 142345
RX mcast packets: 0 TX discards: 0
RX discards: 0 TX errors: 0
RX errors: 0 TX overruns: 0
RX overruns: 0 TX carrier: 0
RX frame: 0 TX collisions: 0
TX queue len: 1000
switch (config interface mgmt0) #
Related Commands ipv6 enable
show interface <ifname>
Notes • Unlike IPv4, IPv6 can have multiple IPv6 addresses on a given interface
• For Ethernet, the default interface identifier is a 64-bit long modified EUI-64, which is
based on the MAC address of the interface
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 149
ipv6 dhcp primary-intf
ipv6 dhcp primary-intf <if-name>
no ipv6 dhcp primary-intf
Sets the interface from which non-interface-specific (resolver) configuration is
accepted via DHCPv6.
The no form of the command resets non-interface-specific (resolver) configuration.
Syntax Description if-name Interface name:
•lo
• mgmt0
• mgmt1
Default N/A
Configuration Mode Config
History 3.1.0000
Role admin
Example switch (config) # ipv6 dhcp primary-intf mgmt0
switch (config) #
Related Commands ipv6 enable
ipv6 address
show interface <ifname>
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 150
ipv6 dhcp stateless
ipv6 dhcp stateless
no ipv6 dhcp stateless
Enables stateless DHCPv6 requests.
The no form of the command disables stateless DHCPv6 requests.
Syntax Description N/A
Default N/A
Configuration Mode Config
History 3.1.0000
Role admin
Example switch (config) # ipv6 dhcp stateless
switch (config) #
Related Commands ipv6 enable
ipv6 address
show interface <ifname>
Notes • This command only gets DNS configuration, not an IPv6 address
• The no form of the command requests all information, including an IPv6 address
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 151
show interface brief
show interface <ifname> brief
Displays a brief info on the interface configuration and status.
Syntax Description ifname The interface name e.g., “mgmt0”, “mgmt1”, “lo”
(loopback), etc.
Default N/A
Configuration Mode Any Command Mode
History 3.1.0000
Role admin
Example switch (config) # show interfaces mgmt0 brief
Interface mgmt0 state
Admin up: yes
Link up: yes
IP address: 172.30.2.2
Netmask: 255.255.0.0
IPv6 enabled: yes
Autoconf enabled: no
Autoconf route: yes
Autoconf privacy: no
IPv6 addresses: 1
IPv6 address: fe80::202:c9ff:fe5e:a5d8/64
Speed: 1000Mb/s (auto)
Duplex: full (auto)
Interface type: ethernet
Interface ifindex: 2
Interface source: physical
MTU: 1500
HW address: 00:02:C9:5E:A5:D8
Comment: my-interface
switch (config) #
Related Commands N/A
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 152
show interface configured
show interface <ifname> configured
Displays configuration information about the specified interface.
Syntax Description ifname The interface name e.g., “mgmt0”, “mgmt1”, “lo”
(loopback), etc.
Default N/A
Configuration Mode Any Command Mode
History 3.1.0000
3.5.1000 Updated Example with “DHCP Hostname”
Role admin
Example switch (config) # show interfaces mgmt0 configured
Interface mgmt0 configuration
Enabled: yes
DHCP: yes
DHCP Hostname: yes
Zeroconf: no
IP address:
Netmask:
IPv6 enabled: yes
Autoconf enabled: no
Autoconf route: yes
Autoconf privacy: no
IPv6 addresses: 0
Speed: auto
Duplex: auto
MTU: 1500
Comment: my-interface
Related Commands N/A
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 153
4.1.7.2 Hostname Resolution
Sets a static system hostname.
The no form of the command clears the system hostname.
hostname A free-form string.
Default hostname
Config
3.1.0000
admin
switch (config) # hostname my-switch-hostname
my-switch-hostname (config) #
show hosts
• Hostname may contain letters, numbers, and hyphens ('-'), in any combination
• Hostname may not contain other letters, such as ‘%’, ‘_’, ‘.’etc
• Hostname may not begin with a hyphen
• Hostname may be 1-63 characters long
• Changing hostname stamps a new HTTPS certificate
hostname
hostname <hostname>
no hostname
Syntax Description
Default
Configuration Mode
History
Role
Example
Related Commands
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 154
ip name-server
ip name-server <IPv4/IPv6 address>
no name-server <IPv4/IPv6 address>
Sets the static name server.
The no form of the command clears the name server.
Syntax Description IPv4/v6 address IPv4 or IPv6 address.
Default No server name
Configuration Mode Config
History 3.1.0000
Role admin
Example switch (config) # ip name-server 9.9.9.9
switch (config) # show hosts
Hostname: switch
Name server: 9.9.9.9 (configured)
Name server: 10.211.0.121 (dynamic)
Name server: 172.30.0.126 (dynamic)
Name server: 10.4.0.135 (dynamic)
Domain name: lab.mtl.com (dynamic)
Domain name: vmlab.mtl.com (dynamic)
Domain name: yok.mtl.com (dynamic)
Domain name: mtl.com (dynamic)
IP 127.0.0.1 maps to hostname localhost
IPv6 ::1 maps to hostname localhost6
Automatically map hostname to loopback address: yes
Automatically map hostname to IPv6 loopback address: no
switch (config) #
Related Commands show hosts
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 155
ip domain-list
ip domain-list <domain-name>
no ip domain-list <domain-name>
Sets the static domain name.
The no form of the command clears the domain name.
Syntax Description domain-name The domain name in a string form.
A domain name is an identification string that defines a
realm of administrative autonomy, authority, or control
in the Internet. Domain names are formed by the rules
and procedures of the Domain Name System (DNS).
Default No static domain name
Configuration Mode Config
History 3.1.0000
Role admin
Example switch (config) # ip domain-list mydomain.com
switch (config) # show hosts
Hostname: switch
Name server: 10.211.0.121 (dynamic)
Name server: 172.30.0.126 (dynamic)
Name server: 10.4.0.135 (dynamic)
Domain name: mydomain.com (configured)
Domain name: lab.mtl.com (dynamic)
Domain name: vmlab.mtl.com (dynamic)
Domain name: yok.mtl.com (dynamic)
Domain name: mtl.com (dynamic)
IP 1.1.1.1 maps to hostname p
IP 127.0.0.1 maps to hostname localhost
IPv6 ::1 maps to hostname localhost6
Automatically map hostname to loopback address: yes
Automatically map hostname to IPv6 loopback address: no
switch (config) #
Related Commands show hosts
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 156
ip/ipv6 host
{ip | ipv6} host <hostname> <IP Address>
no {ip | ipv6} host <hostname> <IP Address>
Configures the static hostname IPv4 or IPv6 address mappings.
The no form of the command clears the static mapping.
Syntax Description hostname The hostname in a string form.
IP Address The IPv4 or IPv6 address.
Default No static domain name.
Configuration Mode Config
History 3.1.0000
Role admin
Example switch (config) # ip host my-host 2.2.2.2
switch (config) # ipv6 host my-ipv6-host 2001::8f9
switch (config) # show hosts
Hostname: switch
Name server: 9.9.9.9 (configured)
Name server: 10.211.0.121 (dynamic)
Name server: 172.30.0.126 (dynamic)
Name server: 10.4.0.135 (dynamic)
Domain name: mydomain.com (configured)
Domain name: lab.mtl.com (dynamic)
Domain name: vmlab.mtl.com (dynamic)
Domain name: yok.mtl.com (dynamic)
Domain name: mtl.com (dynamic)
IP 1.1.1.1 maps to hostname p
IP 127.0.0.1 maps to hostname localhost
IP 2.2.2.2 maps to hostname my-host
IPv6 2001::8f9 maps to hostname my-ipv6-host
IPv6 ::1 maps to hostname localhost6
Automatically map hostname to loopback address: yes
Automatically map hostname to IPv6 loopback address: yes
switch (config) #
Related Commands show hosts
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 157
ip/ipv6 map-hostname
{ip |ipv6} map-hostname
no {ip | ipv6} map-hostname
Maps between the currently-configured hostname and the loopback address
127.0.0.1.
The no form of the command clears the mapping.
Syntax Description N/A
Default IPv4 mapping is enabled by default
IPv6 mapping is disabled by default
Configuration Mode Config
History 3.1.0000
Role admin
Example switch (config) # ip map-hostname
switch (config) # # show hosts
Hostname: switch
Name server: 9.9.9.9 (configured)
Name server: 10.211.0.121 (dynamic)
Name server: 172.30.0.126 (dynamic)
Name server: 10.4.0.135 (dynamic)
Domain name: mydomain.com (configured)
Domain name: lab.mtl.com (dynamic)
Domain name: vmlab.mtl.com (dynamic)
Domain name: yok.mtl.com (dynamic)
Domain name: mtl.com (dynamic)
IP 1.1.1.1 maps to hostname p
IP 127.0.0.1 maps to hostname localhost
IP 2.2.2.2 maps to hostname my-host
IPv6 2001::8f9 maps to hostname my-ipv6-host
IPv6 ::1 maps to hostname localhost6
Automatically map hostname to loopback address: yes
Automatically map hostname to IPv6 loopback address: yes
switch (config) #
switch (config) # ping my-host-name
PING localhost (127.0.0.1) 56(84) bytes of data.
64 bytes from localhost (127.0.0.1): icmp_seq=1 ttl=64 time=0.078 ms
64 bytes from localhost (127.0.0.1): icmp_seq=2 ttl=64 time=0.052 ms
64 bytes from localhost (127.0.0.1): icmp_seq=3 ttl=64 time=0.058 ms
Related Commands show hosts
Notes • If no mapping is configured, a mapping between the hostname and the IPv4 loopback
address 127.0.0.1 will be added
• The no form of the command maps the hostname to the IPv6 loopback address if there is no
statically configured mapping from the hostname to an IPv6 address (disabled by default)
• Static host mappings are preferred over DNS results. As a result, with this option set, you
will not be able to look up your hostname on your configured DNS server; but without it
set, some problems may arise if your hostname cannot be looked up in DNS.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 158
show hosts
show hosts
Displays hostname, DNS configuration, and static host mappings.
Syntax Description N/A
Default N/A
Configuration Mode Any Command Mode
History 3.1.0000
Role admin
Example switch (config) # show hosts
Hostname: my-host-name
Name server: 9.9.9.9 (configured)
Name server: 10.211.0.121 (dynamic)
Name server: 172.30.0.126 (dynamic)
Name server: 10.4.0.135 (dynamic)
Domain name: mydomain.com (configured)
Domain name: lab.mtl.com (dynamic)
Domain name: vmlab.mtl.com (dynamic)
Domain name: yok.mtl.com (dynamic)
Domain name: mtl.com (dynamic)
IP 1.1.1.1 maps to hostname p
IP 127.0.0.1 maps to hostname localhost
IP 2.2.2.2 maps to hostname my-host
IPv6 ::1 maps to hostname localhost6
Automatically map hostname to loopback address: yes
Automatically map hostname to IPv6 loopback address: no
switch (config) #
Related Commands N/A
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 159
4.1.7.3 Routing
no ip route <vrf-name> <network-prefix> <netmask> <next-hop>
Sets a static route for a given IP.
The no form of the command deletes the static route.
network-prefix IPv4 or IPv6 network prefix.
netmask IPv4 netmask formats are:
• /24
• 255.255.255.0
IPv6 netmask format is:
• /48 (as a part of the network prefix)
nexthop-address The IPv4 or IPv6 address of the next hop router for this
route.
ifname The interface name (e.g., mgmt0, mgmt1).
N/A
Config
3.1.0000
admin
switch (config) # ip route 20.20.20.0 255.255.255.0 mgmt0
switch (config) # show ip route
Destination Mask Gateway Interface Source
default 0.0.0.0 172.30.0.1 mgmt0 DHCP
10.10.10.10 255.255.255.255 0.0.0.0 mgmt0 static
20.10.10.10 255.255.255.255 172.30.0.1 mgmt0 static
20.20.20.0 255.255.255.0 0.0.0.0 mgmt0 static
172.30.0.0 255.255.0.0 0.0.0.0 mgmt0 interface
show ip route
ip/ipv6 route
{ip | ipv6} route vrf <vrf-name> <network-prefix> <netmask> <next-hop>
Syntax Description
Default
Configuration Mode
History
Role
Example
Related Commands
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 160
ipv6 default-gateway
ipv6 default-gateway {<ip-address> | <ifname>}
no ipv6 default-gateway
Sets a static default gateway.
The no form of the command deletes the default gateway.
Syntax Description ip address The default gateway IP address (IPv6).
ifname The interface name (e.g., mgmt0, mgmt1).
Default N/A
Configuration Mode Config
History 3.1.0000 First version
3.2.0500 removed IPv4 configuration option
Role admin
Example switch (config) # ipv6 default-gateway ::1
switch (config) # show ipv6 default-gateway static
Configured default gateways:
::1
switch (config) #
Related Commands show ip route
Notes • The configured default gateway will not be used if DHCP is enabled.
• In order to configure ipv4 default-gateway use ‘ip route’ command.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 161
show ip/ipv6 route
show {ip | ipv6} route [static]
Displays the routing table in the system.
Syntax Description static Filters the table with the static route entries.
Default N/A
Configuration Mode Any Command Mode
History 3.1.0000
Role admin
Example switch (config) # show ip route
Destination Mask Gateway Interface Source
default 0.0.0.0 172.30.0.1 mgmt0 DHCP
10.10.10.10 255.255.255.255 0.0.0.0 mgmt0 static
20.10.10.10 255.255.255.255 172.30.0.1 mgmt0 static
20.20.20.0 255.255.255.0 0.0.0.0 mgmt0 static
172.30.0.0 255.255.0.0 0.0.0.0 mgmt0 interface
switch (config) # show ipv6 route
Destination prefix
Gateway Interface Source
-----------------------------------------------------------------------
::/0
:: mgmt0 static
::1/128
:: lo local
2222:2222:2222::/64
:: mgmt1 interface
switch (config) #
Related Commands show ip default-gateway
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 162
show ipv6 default-gateway
show ipv6 default-gateway [static]
Displays the default gateway.
Syntax Description static Displays the static configuration of the default gateway
Default N/A
Configuration Mode Any Command Mode
History 3.1.0000
Role admin
Example switch (config) # ipv6 default-gateway 10.10.10.10
switch (config) # show ipv6 default-gateway
Active default gateways:
172.30.0.1 (interface: mgmt0)
switch (config) # show ipv6 default-gateway static
Configured default gateway: 10.10.10.10
Related Commands ipv6 default-gateway
Notes The configured IPv4 default gateway will not be used if DHCP is enabled.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 163
4.1.7.4 Network to Media Resolution (ARP & NDP)
IPv4 network use Address Resolution Protocol (ARP) to resolve IP address to MAC address,
while IPv6 network uses Network Discovery Protocol (NDP) that performs basically the same as
ARP.
no ip arp <IP address> <MAC address>
Sets a static ARP entry.
The no form of the command deletes the static ARP.
IP address IPv4 address.
MAC address MAC address.
N/A
Config Interface Management
3.2.0500
admin
switch (config interface mgmt0) #ip arp 20.20.20.20 aa:aa:aa:aa:aa:aa
switch (config interface mgmt0) # show ip arp
Total number of entries: 6
Address Type MAC Address Interface
10.209.1.103 Dynamic 00:02:C9:11:A1:78 mgmt0
10.209.1.168 Dynamic 00:02:C9:5E:C3:28 mgmt0
10.209.1.104 Dynamic 00:02:C9:11:A1:E6 mgmt0
10.209.1.153 Dynamic 00:02:C9:11:A1:86 mgmt0
10.209.1.105 Dynamic 00:02:C9:5E:0B:56 mgmt0
10.209.0.1 Dynamic 00:00:5E:00:01:01 mgmt0
20.20.20.20 Static AA:AA:AA:AA:AA:AA mgmt0
switch (config interface mgmt0) #
show ip arp
ip route
ip arp
ip arp <IP address> <MAC address>
Syntax Description
Default
Configuration Mode
History
Role
Example
Related Commands
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 164
ip arp timeout
ip arp [vrf <vrf-name>] timeout <timeout-value>
no ip arp [vrf <vrf-name>] timeout
Sets the dynamic ARP cache timeout.
The no form of the command sets the timeout to default.
Syntax Description timeout-value Time (in seconds) that an entry remains in the ARP
cache. Range: 60-28800.
vrf-name VRF session name
Default 1500 seconds
Configuration Mode Config
History 3.2.0230
3.5.1000 Added VRF parameter and updated Notes
Role admin
Example switch (config) # ip arp timeout 2000
switch (config) #
Related Commands ip arp
show ip arp
Notes • This value is used as the default ARP timeout whenever a new IP interface is created
• The time interval after which each ARP entry becomes stale may actually vary from 50-
150% of the configured value
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 165
show ip arp
show ip arp [interface <type>| <ip-address> | count]
Displays ARP table.
Syntax Description interface type Filters the table according to a specific interface (i.e.
mgmt0)
ip-address Filters the table to the specific ip-address
count Shows ARP statistics
Default N/A
Configuration Mode Any Command Mode
History 3.3.3000
Role admin
Example switch-626a54 [standalone: master] (config) # show ip arp
Total number of entries: 3
Address Type Hardware Address Interface
---------------------------------------------------------------------
---
10.209.0.1 Dynamic ETH 00:00:5E:00:01:01 mgmt0
10.209.1.120 Dynamic ETH 00:02:C9:62:E8:C2 mgmt0
10.209.1.121 Dynamic ETH 00:02:C9:62:E7:42 mgmt0
switch (config) # show ip arp count
ARP Table size: 3 (inband: 0, out of band: 3)
switch (config) #
Related Commands
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 166
ipv6 neighbor
ipv6 neighbor <IPv6 address> <ifname> <MAC address>
no ipv6 neighbor <IPv6 address> <ifname> <MAC address>
Adds a static neighbor entry.
The no form of the command deletes the static entry.
Syntax Description IPv6 address The IPv6 address.
ifname The management interface (i.e. mgmt0, mgmt1).
MAC address The MAC address.
Default N/A
Configuration Mode Config
History 3.1.0000
Role admin
Example switch (config) # ipv6 neighbor 2001:db8:701f::8f9 mgmt0
00:11:22:33:44:55
switch (config) #
Related Commands show ipv6 neighbor
ipv6 route
arp
clear ipv6 neighbors
Notes • ARP is used only with IPv4. In IPv6 networks, Neighbor Discovery Protocol (NDP) is
used similarly.
• Use The no form of the command to remove static entries. Dynamic entries can be cleared
via the “clear ipv6 neighbors” command.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 167
clear ipv6 neighbors
clear ipv6 neighbors
Clears the dynamic neighbors cache.
Syntax Description N/A
Default N/A
Configuration Mode Config
History 3.1.0000
Role admin
Example switch (config) # clear ipv6 neighbors
switch (config) #
Related Commands ipv6 neighbor
show ipv6 neighbor
arp
Notes • Clearing Neighbor Discovery Protocol (NDP) cache removes only the dynamic entries
learned and not the static entries configured
• Use the no form of the command to remove static entries
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 168
show ipv6 neighbors
show ipv6 neighbors [static]
Displays the Neighbor Discovery Protocol (NDP) table.
Syntax Description static Filters only the table of the static entries.
Default N/A
Configuration Mode Config
History 3.1.0000
Role admin
Example switch (config) # show ipv6 neighbors
IPv6 Address Age MAC Address State Interf
------------------------------------- ----- ----------------- ---------- ---
2001::2 9428 AA:AA:AA:AA:AA:AA permanent mgmt0
switch (config) #
Related Commands ipv6 neighbor
clear ipv6 neighbor
show ipv6
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 169
4.1.7.5 DHCP
ip dhcp
ip dhcp {default-gateway yield-to-static| hostname <hostname>| primary-intf
<ifname> | send-hostname }
no ip dhcp {default-gateway yield-to-static| hostname | | primary-intf | send-host-
name}
Sets global DHCP configuration.
The no form of the command deletes the DHCP configuration.
Syntax Description yield-to-static| Does not allow you to install a default gateway from
DHCP if there is already a statically configured one.
hostname Specifies the hostname to be sent during DHCP client
negotiation if send-hostname is enabled.
primary-intf <ifname> Sets the interface from which a non-interface-specific
configuration (resolver and routes) will be accepted via
DHCP.
send-hostname Enables the DHCP client to send a hostname during
negotiation.
Default no ip dhcp yield-to-static
no ip dhcp hostname
ip ip dhcp primary-intf mgmt0
no ip dhcp send-hostname
Configuration Mode Config
History 3.1.0000
Role admin
Example switch (config) # ip dhcp default-gateway yield-to-static
switch (config) # show ip dhcp
DHCP DHCP Valid
Interface Enabled Running lease
-------------------------------------
lo no no no
mgmt0 yes yes yes
mgmt1 yes yes no
DHCP primary interface:
Configured: mgmt0
Active: mgmt0
DHCP default gateway yields to static configuration: yes
DHCP client options:
Send Hostname: no
Client Hostname: switch (using system hostname)
switch (config) #
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 170
Related Commands show ip dhcp
dhcp [renew]
Notes DHCP is supported for IPv4 networks only.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 171
show ip dhcp
show ip dhcp
Displays the DHCP configuration and status.
Syntax Description N/A
Default N/A
Configuration Mode Any Command Mode
History 3.1.0000
Role admin
Example switch (config) # show ip dhcp
DHCP primary interface:
Configured: mgmt0
Active: mgmt0
DHCP: yield default gateway to static configuration: yes
DHCP Client Options:
Send Hostname: no
Client Hostname: switch (using system hostname)
switch (config) #
Related Commands ip dhcp
dhcp [renew]
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 172
4.1.7.6 General IPv6 Commands
Enables IPv6 globally on the management interface.
The no form of the command disables IPv6 globally on the management interface.
N/A
IPv6 is disabled
Config
3.1.0000
admin
switch (config) # ipv6 enable
switch (config) # show ipv6
IPv6 summary
IPv6 supported: yes
IPv6 admin enabled: yes
IPv6 interface count: 2
switch (config) #
ipv6 default-gateway
ipv6 host
ipv6 map-hostname
ipv6 neighbor
ipv6 route
show ipv6
show ipv6 default-gateway
show ipv6 route
ipv6 enable
ipv6 enable
no ipv6 enable
Syntax Description
Default
Configuration Mode
History
Role
Example
Related Commands
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 173
4.1.7.7 IP Diagnostic Tools
Sends ICMP echo requests to a specified host.
Linux Ping options http://linux.about.com/od/commands/l/blcm-
dl8_ping.htm
N/A
Config
3.1.0000
admin
switch (config) # ping 172.30.2.2
PING 172.30.2.2 (172.30.2.2) 56(84) bytes of data.
64 bytes from 172.30.2.2: icmp_seq=1 ttl=64 time=0.703 ms
64 bytes from 172.30.2.2: icmp_seq=2 ttl=64 time=0.187 ms
64 bytes from 172.30.2.2: icmp_seq=3 ttl=64 time=0.166 ms
64 bytes from 172.30.2.2: icmp_seq=4 ttl=64 time=0.161 ms
64 bytes from 172.30.2.2: icmp_seq=5 ttl=64 time=0.153 ms
64 bytes from 172.30.2.2: icmp_seq=6 ttl=64 time=0.144 ms
^C
--- 172.30.2.2 ping statistics ---
6 packets transmitted, 6 received, 0% packet loss, time 5004ms
rtt min/avg/max/mdev = 0.144/0.252/0.703/0.202 ms
switch (config) #
traceroutes
ping
ping [-LRUbdfnqrvVaA] [-c count] [-i interval] [-w deadline] [-p pattern] [-s
packetsize] [-t ttl] [-I interface or address] [-M mtu discovery hint] [-S sndbuf] [-
T timestamp option ] [-Q tos ] [hop1 ...] destination
Syntax Description
Default
Configuration Mode
History
Role
Example
Related Commands
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 174
traceroute
traceroute [-46dFITUnrAV] [-f first_ttl] [-g gate,...] [-i device] [-m max_ttl] [-N
squeries] [-p port] [-t tos] [-l flow_label] [-w waittime] [-q nqueries] [-s src_addr]
[-z sendwait] host [packetlen]
Traces the route packets take to a destination.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 175
Syntax Description -4 Uses IPv4.
-6 Uses IPv6.
-d Enables socket level debugging.
-F Sets DF (do not fragment bit) on.
-I Uses ICMP ECHO for tracerouting.
-T Uses TCP SYN for tracerouting.
-U Uses UDP datagram (default) for tracerouting.
-n Does not resolve IP addresses to their domain names.
-r Bypasses the normal routing and send directly to a host
on an attached network.
-A Performs AS path lookups in routing registries and
print results directly after the corresponding addresses.
-V Prints version info and exit.
-f Starts from the first_ttl hop (instead from 1).
-g Routes packets throw the specified gateway (maximum
8 for IPv4 and 127 for IPv6).
-i Specifies a network interface to operate with.
-m Sets the max number of hops (max TTL to be reached).
Default is 30.
-N Sets the number of probes to be tried simultaneously
(default is 16).
-p Uses destination port. It is an initial value for the UDP
destination port (incremented by each probe, default is
33434), for the ICMP seq number (incremented as well,
default from 1), and the constant destination port for
TCP tries (default is 80).
-t Sets the TOS (IPv4 type of service) or TC (IPv6 traffic
class) value for outgoing packets.
-l Uses specified flow_label for IPv6 packets.
-w Sets the number of seconds to wait for response to a
probe (default is 5.0). Non-integer (float point) values
allowed too.
-q Sets the number of probes per each hop. Default is 3.
-s Uses source src_addr for outgoing packets.
-z Sets minimal time interval between probes (default is
0). If the value is more than 10, then it specifies a num-
ber in milliseconds, else it is a number of seconds (float
point values allowed too).
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 176
Default N/A
Configuration Mode Config
History 3.1.0000
Role admin
Example switch (config) # traceroute 192.168.10.70
traceroute to 192.168.10.70 (192.168.10.70), 30 hops max, 40 byte pack-
ets
1 172.30.0.1 (172.30.0.1) 3.632 ms 2.849 ms 3.544 ms
2 10.222.128.46 (10.222.128.46) 3.176 ms 3.289 ms 3.656 ms
3 10.158.128.30 (10.158.128.30) 15.331 ms 15.819 ms 16.388 ms
4 10.158.128.65 (10.158.128.65) 20.468 ms 7.893 ms 12.27 ms
5 10.7.34.115 (10.7.34.115) 16.405 ms 11.985 ms 12.264 ms
6 192.168.10.70 (192.168.10.70) 16.377 ms 16.091 ms 20.475 ms
switch (config) #
Related Commands
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 177
tcpdump
tcpdump [-aAdDeflLnNOpqRStuUvxX] [-c count] [ -C file_size ]
[ -E algo:secret ] [ -F file ] [ -i interface ] [ -M secret ]
[ -r file ] [ -s snaplen ] [ -T type ] [ -w file ]
[ -W filecount ] [ -y datalinktype ] [ -Z user ]
[ -D list possible interfaces ] [ expression ]
Invokes standard binary, passing command line parameters straight through. Runs in
foreground, printing packets as they arrive, until the user hits Ctrl+C.
Syntax Description N/A
Default N/A
Configuration Mode Config
History 3.1.0000
Role admin
Example switch (config) # tcpdump
......
09:37:38.678812 IP 192.168.10.7.ssh > 192.168.10.1.54155: P
1494624:1494800(176) ack 625 win 90
<nop,nop,timestamp 5842763 858672398>
09:37:38.678860 IP 192.168.10.7.ssh > 192.168.10.1.54155: P
1494800:1495104(304) ack 625 win 90
<nop,nop,timestamp 5842763 858672398>
...
9141 packets captured
9142 packets received by filter
0 packets dropped by kernel
switch (config) #
Related Commands N/A
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 178
4.2 NTP, Clock & Time Zones
Network Time Protocol (NTP) is a networking protocol for clock synchronization between com-
puter systems over packet-switched, variable-latency data networks. NTP is intended to synchro-
nize all participating computers to within a few milliseconds of Coordinated Universal Time
(UTC) and is designed to mitigate the effects of variable network latency. NTP can usually main-
tain time to within tens of milliseconds over the public Internet, and can achieve better than one
millisecond accuracy in local area networks under ideal conditions.
For an example, please refer to “HowTo enable NTP on Mellanox switches” in the Mellanox
Community (https://community.mellanox.com).
4.2.1 NTP Authenticate
When authentication of incoming NTP packets is enabled, the switch ensures that they come
from an authenticated time source before using them for time synchronization on the switch.
Authentication keys are created and added to the trusted list.
To add a key to be used for authentication
Step 1. Create the key. Run:
Step 2. Add the key to the trusted list. Run:
Step 3. Assign the key to the server/peer. Run:
4.2.2 NTP Authentication Key
An authentication key may be created and used to authenticate incoming NTP packets.
For the key to be used:
1. It should be shared with the NTP server/peer sending the NTP packet.
2. It should be added to the trusted list.
3. NTP authenticate should be enabled on the switch.
switch (config)# ntp authentication-key 1 md5 password
switch (config)# ntp trusted-key 1
switch (config)# ntp server 10.34.1.1 keyID 1
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 179
4.2.3 Commands
Sets the time and date.
hh:mm:ss Time.
yyyy/mm/dd Date.
N/A
Config
3.1.0000
admin
switch (config) # clock set 23:23:23 2010/08/19
switch (config) # show clock
Time: 23:23:26
Date: 2010/08/19
Time zone: UTC
(Etc/UTC)
UTC offset: same as UTC
switch (config) #
show clock
If not specified, the date will be left the same.
clock set
clock set <hh:mm:ss> [<yyyy/mm/dd>]
Syntax Description
Default
Configuration Mode
History
Role
Example
Related Commands
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 180
clock timezone
clock timezone [<zone word> [<zone word> [<zone
word>] [<zone word>]]]
Sets the system time zone. The time zone may be specified in one of three ways:
• A nearby city whose time zone rules to follow. The system has a large list of cities which
can be displayed by the help and completion system. They are organized hierarchically
because there are too many of them to display in a flat list. A given city may be required to
be specified in two, three, or four words, depending on the city.
• An offset from UTC. This will be in the form UTC-offset UTC, UTC-offset UTC+<0-14>,
UTC-offset UTC-<1-12>.
• UTC (Universal Time, which is almost identical to GMT), and this is the default time zone
The no form of the command resets time zone to its default (GMT).
Syntax Description zone word The possible forms this could take include: continent,
city, continent, country, city, continent, region, country,
city, ocean, and/or island.
Default GMT
Configuration Mode Config
History 3.1.0000
Role admin
Example switch (config) # clock timezone America North United_States Other
New_York
switch (config) # show clock
Time: 10:08:53
Date: 2015/10/29
Time zone: America North United_States Other New_York
(America/New_York)
UTC offset: -0400 (UTC minus 4 hours)
switch (config) #
Related Commands show clock
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 181
ntp
ntp {disable | enable | {peer | server} <IP address> [version <number> | disable]}
no ntp {disable | enable | {peer | server} <IP address> [version <number> | dis-
able]}
Configures NTP.
The no form of the command negates NTP options.
Syntax Description disable Disables NTP
enable Enables NTP
peer or server Configures an NTP peer or server node
IP address IPv4 or IPv6 address
version <number> Specifies the NTP version number of this peer
Possible values: 3 or 4
Default NTP is enabled
NTP version number is 4
Configuration Mode Config
History 3.1.0000
Role admin
Example switch (config) # no ntp peer 192.168.10.24 disable
switch (config) #
Related Commands N/A
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 182
ntpdate
ntpdate <IP address>
Sets the system clock using the specified SNTP server.
Syntax Description IP address IP.
Default N/A
Configuration Mode Config
History 3.1.0000
Role admin
Example switch (config) # ntpdate 192.168.10.10
26 Feb 17:25:40 ntpdate[15206]: adjust time server 192.168.10.10 offset
-0.000092 sec
switch (config) #
Related Commands N/A
Notes This is a one-time operation and does not cause the clock to be kept in sync on an
ongoing basis. It will generate an error if SNTP is enabled since the socket it requires
will already be in use.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 183
ntp authenticate
ntp authenticate
no ntp authenticate
Enables NTP authentication.
The no form of the command disables NTP authentication.
Syntax Description N/A N/A
Default Disabled
Configuration Mode Config
History 3.5.0200
Role admin
Example switch (config) # ntp authenticate
Related Commands N/A
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 184
ntp authentication-key
ntp authentication-key <key_id> <encrypt_type> [<password>]
no ntp authentication-key <key_id>
Adds a new authentication key and stores it.
The no form of the command removes key ID configuration if it exists.
Syntax Description key_id Specifies a key ID, whether existing or a new one to be
added. Range: 1-65534.
encrypt_type Specifies encryption type to use (md5, or sha1)
password Password string
Default Disabled
Configuration Mode Config
History 3.5.0200
Role admin
Example switch (config) # ntp authentication-key 123 md5 examplepass
switch (config) # ntp authentication-key 1234 sha1
Password: **
Confirm: **
switch (config) #
Related Commands N/A
Notes If a password is not entered, a prompt appears requiring that a password is introduced.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 185
ntp peer disable
ntp peer <ip_address> disable
no ntp peer <ip_address> disable
Temporarily disables this NTP peer.
The no form of the command enables this NTP peer.
Syntax Description ip_address IP address of the peer (IPv4 and IPv6 are acceptable)
Default Disabled
Configuration Mode Config
History 3.5.0200
Role admin
Example switch (config) # ntp peer 10.10.10.10 disable
switch (config) #
Related Commands N/A
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 186
ntp peer keyID
ntp peer <ip_address> keyID <key_id>
no ntp peer <ip_address> keyID <key_id>
Specifies the KeyID of the NTP peer.
The no form of the command removes key ID configuration from the NTP peer.
Syntax Description ip_address IP address of the peer (IPv4 and IPv6 are acceptable)
key_id Range: 1-65534
Default Disabled
Configuration Mode Config
History 3.5.0200
Role admin
Example switch (config) # ntp peer 10.10.10.10 keyID 120
Related Commands N/A
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 187
ntp peer version
ntp peer <ip_address> version <ver_num>
no ntp peer <ip_address> version <ver_num>
Specifies the NTP version number of this peer.
The no form of the command defaults NTP to version 4.
Syntax Description ip_address IP address of the peer (IPv4 and IPv6 are acceptable)
ver_num NTP version (3 or 4)
Default 4
Configuration Mode Config
History 3.5.0200
Role admin
Example switch (config) # ntp peer 10.10.10.10 version 4
Related Commands N/A
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 188
ntp server disable
ntp server <ip_address> disable
no ntp server <ip_address> disable
Temporarily disables this NTP server.
The no form of the command enables this NTP server.
Syntax Description ip_address IP address of the server (IPv4 and IPv6 are acceptable)
Default Disabled
Configuration Mode Config
History 3.5.0000
Role admin
Example switch (config) # ntp server 10.10.10.10 disable
switch (config) #
Related Commands N/A
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 189
ntp server keyID
ntp server <ip_address> keyID <key_id>
no ntp server <ip_address> keyID <key_id>
Specifies the KeyID of the NTP server.
The no form of the command removes key ID configuration from the NTP server.
Syntax Description ip_address IP address of the server (IPv4 and IPv6 are acceptable)
key_id Range: 1-65534
Default Disabled
Configuration Mode Config
History 3.5.0200
Role admin
Example switch (config) # ntp server 10.10.10.10 keyID 120
Related Commands N/A
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 190
ntp server trusted-enable
ntp server <ip_address> trusted-enable
no ntp server <ip_address> trusted-enable
Trusts this NTP server; if authentication is configured this will additionally force all
time updates to only use trusted servers.
The no form of the command removes trust from this NTP server
Syntax Description ip_address IP address of NTP server
Default N/A
Configuration Mode Config
History 3.6.2002
Role admin
Example switch (config) # ntp server 10.10.10.10 trusted-enable
Related Commands N/A
Notes NTP trusted servers can be used as a mitigation for Sybil attacks which is a vulnera-
bility caused by NTP peers sharing the same NTP key base. This mitigation adds the
concept of trusted servers which if enabled in conjunction with NTP authentication
ensures that time information will only be obtained from trusted servers.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 191
ntp server version
ntp server <ip_address> version <ver_num>
no ntp server <ip_address> version <ver_num>
Specifies the NTP version number of this server.
The no form of the command defaults NTP to version 4.
Syntax Description ip_address IP address of the server (IPv4 and IPv6 are acceptable)
ver_num NTP version (3 or 4)
Default 4
Configuration Mode Config
History 3.5.0200
Role admin
Example switch (config) # ntp server 10.10.10.10 version 4
Related Commands N/A
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 192
ntp trusted-key
ntp trusted-key <key(s)>
no ntp trusted-key <key(s)>
Adds one or more keys to the trusted key list.
The no form of the command removes keys from the trusted key list.
Syntax Description key(s) Range: 1-65534.
Default Disabled
Configuration Mode Config
History 3.5.0200
Role admin
Example switch (config) # ntp trusted-key 1,3,5
switch (config) # ntp trusted-key 1-5
Related Commands ntp authentication-key
Notes Keys may be separated with commas without any space, or they may be set as a range
using a hyphen.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 193
show clock
show clock
Displays the current system time, date and time zone.
Syntax Description N/A
Default N/A
Configuration Mode Any Command Mode
History 3.1.0000
Role admin
Example switch (config) # show clock
Time: 04:21:44‘
Date: 2012/02/26
Time zone: America North United_States Other New_York
switch (config) #
Related Commands N/A
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 194
show ntp
show ntp
Displays the current NTP settings.
Syntax Description N/A
Default N/A
Configuration Mode Any Command Mode
History 3.1.0000
3.5.0200 Updated Example
Role admin
Example switch (config) # show ntp
NTP is administratively enabled.
NTP Authentication is administratively disabled.
Clock is synchronized. Reference: 10.134.46.4. Offset: -9.605 ms.
Active servers and peers:
10.1.1.1
Conf Type : dual
Status : pending
Stratum : 16
Offset(msec) : 0.000
Ref clock : .INIT.
Poll Interval (sec): 64
Last Response (sec): N/A
Auth state : none
10.134.46.4
Conf Type : serv
Status : sys.peer(*)
Stratum : 4
Offset(msec) : -9.605
Ref clock : 10.7.77.134
Poll Interval (sec): 64
Last Response (sec): 55
Auth state : none
switch (config) #
Related Commands N/A
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 195
show ntp configured
show ntp configured
Displays NTP configuration.
Syntax Description N/A
Default N/A
Configuration Mode Any Command Mode
History 3.5.0200
Role admin
Example switch (config) # show ntp configured
NTP enabled: yes
NTP Authentication enabled: no
No NTP peers configured.
NTP server 10.10.10.10
Enabled: yes
NTP version: 4
Key ID: none
switch (config) #
Related Commands N/A
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 196
show ntp keys
show ntp configured
Displays NTP keys.
Syntax Description N/A
Default N/A
Configuration Mode Any Command Mode
History 3.5.0200
Role admin
Example switch (config) # show ntp keys
NTP Key 1
Trusted: yes
Encryption Type: MD5
NTP Key 2
Trusted: yes
Encryption Type: MD5
NTP Key 3
Trusted: yes
Encryption Type: MD5
NTP Key 4
Trusted: yes
Encryption Type: md5
switch (config) #
Related Commands N/A
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 197
4.3 Software Management
4.3.1 Upgrading MLNX-OS Software
To upgrade MLNX-OS software on your system, perform the following steps:
Step 1. Change to Config mode.
Step 2. Obtain the previously available image (.img file). You must delete this image in the next step to
make room for fetching the new image.
When upgrading from a software version older than 3.2.0100 to software version
3.3.0000 or higher, the upgrade procedure must be done in two steps. First update the
software to 3.2.0506 , then update to the desired software version.
The system being upgraded becomes indisposed throughout the upgrade procedure.
The upgrade procedure burns the software image as well as the firmware should there
be a need.
To upgrade the MLNX-OS version of on a gateway, SM, or MLAG cluster, please
refer to Section 4.3.2, “Upgrading MLNX-OS HA Groups,” on page 200.
You have to read and accept the End-User License Agreement (EULA) after image
upgrade in case the EULA is modified. The EULA link is only available upon first
login to CLI.
switch > enable
switch # configure terminal
switch (config) #
switch (config) # show images
Installed images:
Partition 1:
SX_PPC_M460EX 3.3.3130 2013-03-20 21:32:25 ppc
Partition 2:
SX_PPC_M460EX 3.3.3130 2013-03-20 21:32:25 ppc
Images available to be installed:
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 198
Step 3. Delete the old image (if one exists) that is listed under
Images available to be installed
prior to fetching the new image. Use the command
image delete
for this purpose.
Step 4. Fetch the new software image.
Step 5. Display the available images.
image-PPC_M460EX-SX_3.3.3256.img
SX_PPC_M460EX 3.3.3256 2013-03-20 21:32:25 ppc
Serve image files via HTTP/HTTPS: no
No image install currently in progress.
Boot manager password is set.
No image install currently in progress.
Require trusted signature in image being installed: yes (default)
switch (config) #
switch (config) # image delete image-PPC_M460EX-3.0.1224.img
switch (config) #
When deleting an image, you delete the file but not the partition. This is recommended
so as to not overload system resources.
switch (config) # image fetch scp://username:password@192.168.10.125/var/www/html/
<image_name>
Password (if required): ****** 100.0%[##################################################
###############]
switch (config) #
To recover from image corruption (e.g., due to power interruption), there are two
installed images on the system. See the commands:
image boot next
image boot location
.
switch (config) # show images
Installed images:
Partition 1:
SX <old ver> 2013-04-28 16:02:50
Partition 2:
SX <new ver> 2013-04-28 16:52:50
Images available to be installed:
new_image.img
SX <new ver> 2013-04-28 16:52:50
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 199
Step 6. Install the new image.
Step 7. Have the new image activate during the next boot. Run:
Step 8. Run
show images
to review your images. Run:
Serve image files via HTTP/HTTPS: no
No image install currently in progress.
Boot manager password is set.
No image install currently in progress.
Require trusted signature in image being installed: yes (default)
switch (config) #
switch (config) # image install <image_name>
Step 1 of 4: Verify Image
100.0% [#############################################################]
Step 2 of 4: Uncompress Image
100.0% [#############################################################]
Step 3 of 4: Create Filesystems
100.0% [#############################################################]
Step 4 of 4: Extract Image
100.0% [#############################################################]
switch (config) #
CPU utilization may go up to 100% during image upgrade.
switch (config) # image boot next
switch (config) # show images
Images available to be installed:
new_image.img
SX <new ver> 2011-04-28 16:52:50
Installed images:
Partition 1:
SX <old ver> 2011-04-28 16:02:50
Partition 2:
SX <new ver> 2011-04-28 16:52:50
Last boot partition: 1
Next boot partition: 2
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 200
Step 9. Save current configuration. Run:
Step 10. Reboot the switch to run the new image. Run:
4.3.2 Upgrading MLNX-OS HA Groups
In case fallback is ever necessary in an HA group, all cluster nodes must have the same MLNX-
OS version installed and they must be immediately reloaded.
To upgrade MLNX-OS version without affecting an HA group:
Step 1. Identify the HA group master.
for MLAG. Run:
Step 2. Upgrade standby nodes in the HA group according to steps 1-8 in section Section 4.3.1, on
page 197.
No boot manager password is set.
switch (config) #
switch (config) # configuration write
switch (config)#
switch (config) # reload
Configuration has been modified; save first? [yes] yes
Configuration changes saved.
Rebooting...
switch (config)#
After software reboot, the software upgrade will also automatically upgrade the firm-
ware version.
In order to upgrade the system on dual management system refer to Section 4.3.1,
“Upgrading MLNX-OS Software,” on page 197.
When performing upgrade from the WebUI, make sure that the image you are trying to
upgrade to is not located already in the system (i.e. fetched from the CLI).
switch (config)# show mlag-vip
MLAG VIP
========
MLAG group name: my-mlag-group
MLAG VIP address: 1.1.1.1/30
Active nodes: 2
Hostname VIP-State IP Address
----------------------------------------------------
SwitchA master 10.10.10.1
SwitchB standby 10.10.10.2
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 201
Step 3. Wait until all standby nodes have rejoined the group.
Step 4. Upgrade the master node in the HA group according to steps 1-8 in section Section 4.3.1,
on page 197.
4.3.3 Deleting Unused Images
To delete unused images:
Step 1. Enter Config mode. Run:
Step 2. Get a list of the unused images. Run
Step 3. Delete the unused images. Run:
4.3.4 Downgrading MLNX-OS Software
Prior to downgrading software, please make sure the following prerequisites are met:
Step 1. Log into your switch via the CLI using the console port.
Step 2. Backup your configuration according to the following steps:
1. Change to Config mode. Run:
switch >
switch > enable
switch # configure terminal
switch (config) # show images
Images available to be installed:
image-PPC_M460EX-3.1.1224.img
SX-OS_PPC_M460EX 3.1.1224 2011-04-28 12:29:48 ppc
Installed images:
Partition 1:
SX-OS_PPC_M460EX 3.1.0000-dev-HA 2011-04-10 12:02:49 ppc
Partition 2:
SX-OS_PPC_M460EX 3.1.0000-dev-HA 2011-04-10 12:02:49 ppc
Last boot partition: 1
Next boot partition: 1
Boot manager password is set.
No image install currently in progress.
Require trusted signature in image being installed: yes
switch (config) #
switch config) # image delete image-PPC_M460EX-3.1.1224.img
switch (config) #
When deleting an image, you delete the file but not the partition. This is recommended
so as to not overload system resources.
switch-112094 [standalone: master] > enable
switch-112094 [standalone: master] # configure terminal
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 202
2. Disable paging of CLI output. Run:
3. Display commands to recreate current running configuration. Run:
4. Copy the output to a text file.
4.3.4.1 Downloading Image
Step 1. Log into the system to obtain the serial number. Run:
Step 2. Download the requested MLNX-OS version from the following link:
http://support.mellanox.com/SupportWeb/
Step 3. Enter your username and password when prompted.
Step 4. Log into the switch via the CLI using the console port.
Step 5. Change to Config mode. Run:
Step 6. Delete all previous images from the
Images available to be installed
prior to fetching
the new image. Run:
Step 7. Fetch the requested software image. Run:
4.3.4.2 Downgrading Image
Step 1. Log in as admin.
Step 2. Enter config mode. Run:
Step 3. Show all image files on the system. Run:
switch-112094 [standalone: master] (config) #
switch-112094 [standalone: master] (config) # no cli default paging enable
switch-112094 [standalone: master] (config) # show running-config
switch-112094 [standalone: master] (config) # show inventory
switch > enable
switch # configure terminal
switch (config) #
switch (config) # image delete image-EFM_PPC_M405EX-ppc-m405ex 20090531-190132.img
switch (config) # image fetch scp://username:password@192.168.10.125/var/www/html/
<image_name>
100.0%[################################################## ###############]
The procedure below assumes that booting and running is done from Partition 1 and the
downgrade procedure is performed on Partition 2.
switch > enable
switch # configure terminal
switch (config) # show images
Images available to be installed:
new_image.img
<downgrade version> 2010-09-19 16:52:50
Installed images:
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 203
Step 4. Install the MLNX-OS image. Run:
Step 5. Show all image files on the system. Run:
Step 6. Set the boot location to be the other (next) partition. Run:
Partition 1:
<current version> 2010-09-19 03:46:25
Partition 2:
<current version> 2010-09-19 03:46:25
Last boot partition: 1
Next boot partition: 1
No boot manager password is set.
switch (config) #
switch (config) # image install <image_name>
Step 1 of 4: Verify Image
100.0% [#################################################################]
Step 2 of 4: Uncompress Image
100.0% [#################################################################]
Step 3 of 4: Create Filesystems
100.0% [#################################################################]
Step 4 of 4: Extract Image
100.0% [#################################################################]
switch (config) #
switch (config) # show images
Images available to be installed:
new_image.img
<downgrade version> 2010-09-19 16:52:50
Installed images:
Partition 1:
<current version> 2010-09-19 03:46:25
Partition 2:
<downgrade version> 2010-09-19 16:52:50
Last boot partition: 1
Next boot partition: 2
No boot manager password is set.
switch (config) #
switch (config) # image boot next
There are two installed images on the system. Therefore, if one of the images gets cor-
rupted (due to power interruption, for example), in the next reboot the image will go up
from the second partition.
In case you are downloading to an older software version which has never been run yet
on the switch, use the following command sequence as well:
switch (config) # no boot next fallback-reboot enable
switch (config) # configuration write
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 204
Step 7. Reload the switch. Run:
4.3.4.3 Switching to Partition with Older Software Version
The system saves a backup configuration file when upgrading from an older software version to a
newer one. If the system returns to the older software partition, it uses this backup configuration
file.
There are 2 instances where the backup configuration file does not exist:
• The user has run “reset factory” command, which clears all configuration files in the
system
• The user has run “configuration switch-to” to a configuration file with different name
then the backup file
Note that the configuration file becomes empty if the switch is downgraded to a software version
which has never been installed yet.
To allow switching partition to the older software version for the 2 aforementioned cases only,
follow the steps below:
Step 1. Run the command:
Step 2. Set the boot partition. Run:
Step 3. Save the configuration. Run:
Step 4. Reload the system. Run:
4.3.5 Upgrading System Firmware
Each MLNX-OS software package version has a default switch firmware version. When you
update the MLNX-OS software to a new version, an automatic firmware update process will be
attempted by MLNX-OS. This process is described below.
4.3.5.1 After Updating MLNX-OS Software
Upon rebooting your switch system after updating the MLNX-OS software, MLNX-OS com-
pares its default firmware version with the currently programmed firmware versions on all the
switch modules (leafs and spines on director-class switches, or simply the switch card on edge
switch systems).
switch (config) # reload
***IMPORTANT NOTE***
All configuration changes done with the new software are lost when returning to the
older software version.
switch (config)# no boot next fallback-reboot enable
switch (config)# image boot next
switch (config)# configuration write
switch (config)# reload
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 205
If one or more of the switch modules is programmed with a firmware version other than the
default version, then MLNX-OS automatically attempts to burn the default firmware version
instead.
To verify that the firmware update was successful, log into MLNX-OS and run the command
“show asic-version” (can be run in any mode). This command lists all of the switch modules
along with their firmware versions. Make sure that all the firmware versions are the same and
match the default firmware version. If the firmware update failed for one or more modules, then
the following warning is displayed.
Some subsystems are not updated with a default firmware.
4.3.5.2 Importing Firmware and Changing the Default Firmware
To perform an automatic firmware update by MLNX-OS for a different switch firmware version
without changing the MLNX-OS version, import the firmware package as described below.
MLNX-OS sets it as the new default firmware and performs the firmware update automatically
as described in the previous subsections.
Default Firmware Change on Standalone Systems
Step 1. Import the firmware image (.mfa file). Run:
Step 2. Save the configuration. Run:
Step 3. Reboot the system to enable auto update.
If a firmware update takes place, then the login process is delayed a few minutes.
If you detect a mismatch in firmware version for one or more modules of the switch
system, please contact your assigned Mellanox Technologies field application engi-
neer.
switch (config) # image fetch scp://root@1.1.1.1:/tmp/fw-SX-rel-9_2_6440-FIT.tgz
Password (if required): *******
100.0% [###############################################################################]
switch (config) # image default-chip-fw fw-SX-rel-9_2_6440-FIT.mfa
Installing default firmware image. Please wait...
Default Firmware 9.2.6440 updated. Please save configuration and reboot for new FW to
take effect.
switch (config) #
switch (config) # configuration write
switch (config) #
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 206
4.3.6 Image Maintenance via Mellanox ONIE
ONIE is an “open compute” Open Network Install Environment for bare metal network switches.
ONIE enables a bare metal network switch ecosystem where end-users have a choice among dif-
ferent network operating systems.
MLNX-OS® is distributed in way that allows installation on an ONIE environment. Certain Mel-
lanox switch models come pre-installed with ONIE and MLNX-OS and support changing to a
different operating system (OS).
To change the switch system’s OS:
Step 1. Reboot the switch and wait for it to reach the GRUB menu:
Step 2. Select the ONIE option using the arrow keys. The following message appears:
Step 3. Type YES to continue.
Since MLNX-OS is being uninstalled and deleted from the hard drive, the process takes a few
hours. After this is finished, the system reboots into the ONIE shell and auto discovery begins.
Step 4. In order to manually insert an install URL, press Enter and insert the command “install_url
<http> / <tftp> <url> <image name .bin>”. For example:
Once you hit Enter, you have about 4 second to insert the command so it is recommended to
prepare the command in advance and simply pasting it in. At this stage, the OS installation
begins.
Supported only on MSX1710-BS2F2O, and Mellanox Spectrum™ based switch sys-
tems.
GNU GRUB version 2.02
X86_64 3.4.1932 2015-04-24 18:04:12 x86_64 1
X86_64 3.4.1932 2015-04-24 18:04:12 x86_64 2
ONIE
Due to security constraints, this option will uninstall your current MLNX OS system.
Are you sure ?
Info: Fetching tftp://10.224.13.11/7C-FE-90-5E-6A-4A/onie-installer-x86_64-mlnx_x86-
r5.0.1400 ...
Failure: Unable to find installer: /installer
Info: Fetching tftp://10.224.13.11/0AE016FB/onie-installer-x86_64-mlnx_x86-r5.0.1400 ...
Failure: Unable to find installer: /installer
Info: Fetching tftp://10.224.13.11/0AE016F/onie-installer-x86_64-mlnx_x86-r5.0.1400 ...
...
install_url http://<ip_address>//sx_mlnx_os/sx_mlnx_os-3.5.1000-21/X86_64/X86_64-
3.5.1000-21-installer.bin
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 207
Step 5. Wait for the installation to end and reboot this switch to boot into the OS.
ONIE:/ # install_url http://<ip_address>//sx_mlnx_os/sx_mlnx_os-3.5.1000-21/X86_
64/X86_64-3.5.1000-21-installer.bin
Stopping: discover... done.
down.
ONIE: eth1: link down. Skipping configuration.
ONIE: Failed to configure eth1 interface
Info: Fetching http://<ip_address>//sx_mlnx_os/sx_mlnx_os-3.5.1000-21/X86_64/X86_64-
3.5.1000-21-installer.bin ...
Connecting to <ip_address>
installer 100% |*******************************| 392M 0:00:00 ETA
ONIE: Executing installer: http://<ip_address>//sx_mlnx_os/sx_mlnx_os-3.5.1000-21/
X86_64/X86_64-3.5.1000-21-installer.bin
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 208
4.3.7 Commands
This chapter displays all the relevant commands used to manage the system software image.
Specifies the default location where the system should be booted from.
location ID Specifies the default destination location. There can be
up to 2 images on the system. The possible values are 1
or 2.
next Sets the boot location to be the next once after the one
currently booted from, thus avoiding a cycle through all
the available locations.
N/A
enable/config
3.1.0000
admin
switch (config) # image boot location 2
switch (config) #
show images
image boot
image boot {location <location ID> | next}
Syntax Description
Default
Configuration Mode
History
Role
Example
Related Commands
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 209
boot next
boot next fallback-reboot enable
no boot next fallback-reboot enable
Sets the default setting for next boot. Normally, if the system fails to apply the config-
uration on startup (after attempting upgrades or downgrades, as appropriate), it will
reboot to the other partition as a fallback.
The no form of the command tells the system not to do that, only for the next boot.
Syntax Description N/A
Default N/A
Configuration Mode Config
History 3.2.0506
Role admin
Example switch (config) # boot next fallback-reboot enable
switch (config) #
Related Commands show images
Notes • Normally, if the system fails to apply the configuration on startup (after attempting
upgrades or downgrades, as appropriate) it reboots to the other partition as a fallback.
• The no form of this command tells the system not to do that only for the next boot. In other
words, this setting is not persistent, and goes back to enabled automatically after each boot.
• When downgrading to an older software version which has never been run yet on a system,
the “fallback reboot” always happens, unless the command “no boot next fallback-reboot
enable” is used. However, this also happens when the older software version has been run
before, but the configuration file has been switched since upgrading. In general, a down-
grade only works (without having the fallback reboot forcibly disabled) if the process can
find a snapshot of the configuration file (by the same name as the currently active one)
which was taken before upgrading from the older software version. If that is not found, a
fallback reboot is performed in preference to falling back to the initial database because the
latter generally involves a loss of network connectivity, and avoiding that is of paramount
importance.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 210
boot system
boot system {location | next}
no boot system next
Configures which system image to boot by default.
The no form of the command resets the next boot location to the current active one.
Syntax Description location Specifies location from which to boot system
• 1 – installs to location 1
• 2 – installs to location 2
next Boots system from next location after one currently
booted
Default N/A
Configuration Mode Config
History 3.2.0506
Role admin
Example switch (config) # boot system location 2
switch (config) #
Related Commands show images
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 211
image default-chip-fw
image default-chip-fw <file name>
Sets the default firmware package to be installed.
Syntax Description filename Specifies the firmware filename.
Default N/A
Configuration Mode Config
History 3.1.0000
Role admin
Example switch (config) # image default-chip-fw image-SX_PPC_M460EX-ppc-m460ex-
20120122-084759.img
switch (config) #
Related Commands image install-chip fw
show images
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 212
image delete
image delete <image name>
Deletes the specified image file.
Syntax Description image name Specifies the image name.
Default N/A
Configuration Mode Config
History 3.1.0000
Role admin
Example switch (config) # image delete image-MLXNX-OS-201140526-010145.img
switch (config) #
Related Commands show images
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 213
image fetch
image fetch <URL> [<filename>]
Downloads an image from the specified URL or via SCP.
Syntax Description URL HTTP, HTTPS, FTP, TFTP, SCP and SFTP are sup-
ported. Example: scp://username[:password]@host-
name/path/filename.
filename Specifies a filename for this image to be stored as
locally.
Default N/A
Configuration Mode Config
History 3.1.0000
Role admin
Example switch (config) # image fetch scp://<username>@192.168.10.125/var/www/
html/<image_name>
Password ******
100.0%[############################################################]
switch (config) #
Other options:
switch (config) # image fetch http://10.1.0.40/path/filename
switch (config) # image fetch http://[fd4f:13:cc00:1::40]/path/filename
switch (config) # image fetch ftp://user:mypassword@10.1.0.40/foo/
bar.img
switch (config) # image fetch ftp://user:mypassword@[fd4f:13:cc00:1:
:40]/foo/bar.img
switch (config) # image fetch tftp://hostname/dir/filename
switch (config) # image fetch tftp://[fd4f:13:cc00:1::40]/dir/filename
switch (config) # image fetch scp://user@myhost/dir/filename
switch (config) # image fetch scp://user@myhost:1022/dir/filename
switch (config) # image fetch scp://user:pass@[fd4f:13:cc00:1::40]/dir/
filename
switch (config) # image fetch sftp://user@myhost/dir/filename
switch (config) # image fetch sftp://user@[fd4f:13:cc00:1::40]:1022/
dir/filename
switch (config) # image fetch sftp://user:pass@[fd4f:13:cc00:1::40]/
dir/filename
Related Commands show images
Notes • Please delete the previously available image, prior to fetching the new image
• The path to the file in the case of TFTP depends on the server configuration. Therefore, it
may not be an absolute path but a relative one.
• See section “Upgrading MLNX-OS SX Software,” in the Mellanox SwitchX® User Man-
ual for a full upgrade example
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 214
image install
image install <image filename> [location <location ID>] | [progress <prog-
options>] [verify <ver-options>]
Installs the specified image file.
Syntax Description image filename Specifies the image name.
location ID Specifies the image destination location.
prog-options • “no-track” overrides CLI default and does not track the
installation progress
• “track” overrides CLI default and tracks the installation
progress
ver-options • “check-sig” requires an image to have either a valid sig-
nature or no signature
• “ignore-sig” allows unsigned or invalidly signed images
to be installed
• “require-sig” requires from the installed image to have a
valid signature. If a valid signature is not found on the
image, the image cannot be installed.
Default N/A
Configuration Mode Config
History 3.1.0000
Role admin
Example switch (config) # image install SX_PPC_M460EX 3.0.0000-dev-HA 2012-01-
22 08:47:59 ppc
Step 1 of 4: Verify Image
100.0%
[################################################################]
Step 2 of 4: Uncompress Image
100.0%
[################################################################]
Step 3 of 4: Create Filesystems
100.0%
[################################################################]
Step 4 of 4: Extract Image
100.0%
[################################################################]
switch (config) #
Related Commands show images
Notes • The image cannot be installed on the “active” location (the one which is currently being
booted)
• On a two-location system, the location is chosen automatically if no location is specified
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 215
image move
image move <src image name> <dest image name>
Renames the specified image file.
Syntax Description src image name Specifies the old image name.
dest image name Specifies the new image name.
Default N/A
Configuration Mode Config
History 3.1.0000
Role admin
Example switch (config) # image move image1.img image2.img
switch (config) #
Related Commands show images
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 216
image options
image options {require-sig | serve all}
no image options {require-sig | serve all}
Configures options and defaults for image usage.
The no form of the command disables options and defaults for image usage.
Syntax Description require-sig Requires images to be signed by a trusted signature
serve all Specifies that the image files present on this appliance
should be made available for HTTP and/or HTTPS
download
Default N/A
Configuration Mode Config
History 3.1.0000
Role admin
Example switch (config) # image options require-sig
Related Commands show images
Notes The parameter “serve all” affects not only the files currently present, but also any
files that are later downloaded. It only applies to image files, not the installed images,
which are not themselves in a downloadable format.
After running “serve all” the URLs where the images will be available are:
• http://<HOSTNAME>/system_images/<FILENAME>
• https://<HOSTNAME>/system_images/<FILENAME>
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 217
show bootvar
show bootvar
Displays the installed system images and the boot parameters.
Syntax Description N/A
Default N/A
Configuration Mode Config
History 3.1.0000
Role admin
Example switch (config) # show bootvar
Installed images:
Partition 1:
SX_PPC_M460EX 3.0.0000-dev-HA 2012-01-22 08:47:59 ppc
Last dobincp: 2012/01/23 14:54:23
Partition 2:
SX_PPC_M460EX 3.0.0000-dev-HA 2012-01-18 09:52:41 ppc
Last dobincp: 2012/01/19 16:48:23
Last boot partition: 1
Next boot partition: 1
Boot manager password is set.
No image install currently in progress.
Image signing: trusted signature always required
Admin require signed images: yes
Settings for next boot only:
Fallback reboot on configuration failure: yes (default)
switch (config) #
Related Commands N/A
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 218
show images
show image
Displays information about the system images and boot parameters.
Syntax Description N/A
Default N/A
Configuration Mode Any Command Mode
History 3.1.0000
Role admin
Example switch (config) # show images
Images available to be installed:
image-SX_PPC_M460EX-ppc-m460ex-20120122-084759.img
SX_PPC_M460EX 3.0.0000-dev-HA 2012-01-22 08:47:59 ppc
Installed images:
Partition 1:
SX_PPC_M460EX 3.0.0000-dev-HA 2012-01-22 08:47:59 ppc
Last dobincp: 2012/01/23 14:54:23
Partition 2:
SX_PPC_M460EX 3.0.0000-dev-HA 2012-01-18 09:52:41 ppc
Last dobincp: 2012/01/19 16:48:23
Last boot partition: 1
Next boot partition: 1
Boot manager password is set.
No image install currently in progress.
Image signing: trusted signature always required
Admin require signed images: yes
Settings for next boot only:
Fallback reboot on configuration failure: yes (default)
switch (config) #
Related Commands N/A
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 219
4.4 Configuration Management
4.4.1 Saving a Configuration File
To save the current configuration to the active configuration file, you can either use the
config-
uration write
command (requires running in Config mode) or the
write memory
command
(requires running in Enable mode).
• To save the configuration to the active configuration file, run:
switch (config) # configuration write
• To save the configuration to a user-specified file without making the new file the active
configuration file, run:
switch (config) # configuration write to myconf no-switch
• To save the configuration to a user-specified file and make the new file the active con-
figuration file, run:
switch (config) # configuration write to myconf
• To display the available configuration files and the active file, run:
switch (config) # show configuration files
initial
myconf (active)
switch (config) #
4.4.2 Loading a Configuration File
By default, or after a system reset, the system loads the default “initial” configuration file.
To load a different configuration file and make it the active configuration:
4.4.3 Restoring Factory Default Configuration
In cases where the system configuration becomes corrupted it is suggested to restore the factory
default configuration.
To restore factory default configuration on a single management module system:
Step 1. Run the command
reset factory [reboot] [keep-basic] [keep-all-config]:
4.4.4 Managing Configuration Files
There are two types of configuration files that can be applied on the switch, BIN files (binary)
and text-based configuration files.
switch [standalone: master] >
switch [standalone: master] > enable
switch [standalone: master] # configure terminal
switch [standalone: master] (config) # configuration switch-to myconfig
switch [standalone: master] (config) #
switch (config) # reset factory keep-basic
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 220
4.4.4.1 BIN Configuration Files
BIN configuration files are not human readable. Additionally, these files are encrypted and con-
tain integrity verification preventing them from being edited and used on the switch.
To create a new BIN configuration file:
To upload a BIN configuration file from a switch to an external file server:
To fetch a BIN configuration file:
To see the available configuration files:
To load a BIN configuration file:
4.4.4.2 Text Configuration Files
Text configuration files are text based and editable. It is similar in form to the output of the com-
mand “show running-config expanded”.
switch (config) # configuration new my-filename
A newly created BIN configuration file is always empty and is not created from the run-
ning-config.
switch (config) # configuration upload my-filename scp://myusername@my-server/path/to/
my/<file>
switch (config) # configuration fetch scp://myusername@my-server/path/to/my/<file>
switch (config) # show configuration files
initial (active)
my-filename
Active configuration: initial
Unsaved changes: no
switch (config) #
switch (config) # configuration switch-to my-filename
This requires a reboot.
Type 'yes' to confirm: yes
Applying a new BIN configuration file changes the whole switch’s configuration and
requires system reboot which can be preformed using the command
reload
.
A binary configuration file uploaded from the switch is encrypted and has integrity ver-
ification. If the file is modified in any manner, the fetch to the switch fails.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 221
To create a new text-based configuration file:
To apply a text-based configuration file:
To upload a text-based configuration file from a switch to an external file server
To fetch a text-based configuration file from an external file server to a switch
To apply a text-based configuration file:
switch (config) # configuration text generate active running save my-filename
A newly created text configuration file is always created from the running-config.
switch (config) # configuration text file my-filename apply
Applying a text-based configuration file to an existing/running data port configuration
may result in unpredictable behavior. It is therefore suggested to first clear the switch’s
configuration by applying a specific configuration file (following the procedure in Sec-
tion 4.4.4.1) or by resetting the switch back to factory default.
switch (config) # configuration text file my-filename upload scp://root@my-server/root/
tmp/my-filename
switch (config) # configuration text fetch scp://root@my-server/root/tmp/my-filename
switch (config) # configuration text file my-filename apply
When applying a text-based configuration file, the configuration is appended to the
switch’s existing configuration. Only new or changed configuration is added. Reboot is
not required.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 222
4.4.5 Commands
4.4.5.1 File System
Generates a debug dump.
N/A
N/A
Config
3.1.0000
admin
switch (config) # debug generate dump
Generated dump sysdump-switch-112104-201140526-091707.tgz
switch (config) #
file debug-dump
The dump can then be manipulated using the “file debug-dump...” commands.
debug generate dump
debug generate dump
Syntax Description
Default
Configuration Mode
History
Role
Example
Related Commands
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 223
file debug-dump
file debug-dump {delete {<filename> | latest} | email {<filename> | latest} |
upload {{<filename> | latest} <URL>}}
Manipulates debug dump files.
Syntax Description delete {<filename> | lat-
est} Deletes a debug dump file.
email {<filename> | lat-
est} Emails a debug dump file to pre-configured recipients
for “informational events”, regardless of whether they
have requested to receive “detailed” notifications or
not.
upload {{<filename> | lat-
est} <URL>}} Uploads a debug dump file to a remote host. The URL
to the remote host: HTTP, HTTPS, FTP, TFTP, SCP
and SFTP are supported. Example: scp://user-
name[:password]@hostname/path/filename.
Default N/A
Configuration Mode Config
History 3.1.0000 Initial release
3.3.4000 Added “latest” parameter
Role admin
Example switch (config) # file debug-dump email sysdump-switch-112104-20114052-
091707.tgz
switch (config) #
Related Commands show files debug-dump
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 224
file stats
file stats {delete <filename> | move {<source filename> | <destination filename>}
| upload <filename> <URL>}
Manipulates statistics report files.
Syntax Description delete <filename> Deletes a stats report file.
move <source filename>
<destination filename> Renames a stats report file.
upload <filename>
<URL> Uploads a stats report file.
URL - HTTP, HTTPS, FTP, TFTP, SCP and SFTP are
supported. Example: scp://username[:password]@host-
name/path/filename.
Default N/A
Configuration Mode Config
History 3.1.0000
Role admin
Example switch (config) # file stats move memory-1.csv memory-2.csv
switch (config) #
Related Commands show files stats
show files stats <filename>
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 225
file tcpdump
file tcpdump {delete <filename> | upload <filename> <URL>}
Manipulates tcpdump output files.
Syntax Description delete <filename> Deletes the specified tcpdump output file.
upload <filename>
<URL> Uploads the specified tcpdump output file to the speci-
fied URL.
URL - HTTP, HTTPS, FTP, TFTP, SCP and SFTP are
supported. Example: scp://username[:password]@host-
name/path/filename.
Default N/A
Configuration Mode Config
History 3.1.0000
Role admin
Example switch (config) # file tcmpdump delete my-tcpdump-file.txt
switch (config) #
Related Commands show files stats
tcpdump
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 226
reload
reload [force immediate | halt [noconfirm] | noconfirm]
Reboots or shuts down the system.
Syntax Description force immediate Forces an immediate reboot of the system even if the
system is busy.
halt Shuts down the system.
noconfirm Reboots the system without asking about unsaved
changes.
Default N/A
Configuration Mode Config
History 3.1.0000
Role admin
Example switch (config) # reload
Configuration has been modified; save first? [yes] yes
Configuration changes saved.
...
switch (config) #
Related Commands reset factory
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 227
reset factory
reset factory [keep-all-config | keep-basic | keep-virt-vols | only-config] [halt]
Clears the system and resets it entirely to its factory state.
Syntax Description keep-all-cofig Preserves all configuration files including licenses.
Removes the logs, stats, images, snapshots, history,
known hosts.
The user is prompted for confirmation before honoring
this command, unless confirmation is disabled with the
command: “no cli default prompt confirm-reset”.
keep-basic Preserves licenses in the running configuration file
keep-virt-vols Preserve all virtual disk volumes
only-config Removes configuration files only. The logs, stats,
images, snapshots, history, and known hosts are pre-
served.
halt The system is halted after this process completes
Default N/A
Configuration Mode Config
History 3.1.0000
3.4.0000 Added notes and “keep-virt-vols” parameter
3.6.2002 Updated Example and Notes
Role admin
Example switch (config) # reset factory
Warning - confirming will cause system reboot.
Type 'YES' to confirm reset: YES
Resetting and rebooting the system -- please wait...
...
Related Commands reload
Notes • Effects of parameter “keep-all-cofig”: Licenses – not deleted; profile – no change;
configuration – unchanged; management IP – unchanged
• Effects of parameter “keep-basic”: Licenses – not deleted; profile – reset; configuration –
reset; management IP – reset
• Effects of parameter “keep-virt-vols”: Licenses – deleted; profile – reset; configuration –
reset; management IP – unchanged
• Confirming the command causes system reboot
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 228
show files debug-dump
show files debug-dump [<filename>]
Displays a list of debug dump files.
Syntax Description filename Displays a summary of the contents of a particular
debug dump file.
Default N/A
Configuration Mode Config
History 3.1.0000
Role admin
Example switch (config) # show files debug-dump sysdump-switch-112104-20114052-
091707.tgz
System information:
Hostname: switch-112104
Version: SX_PPC 3.1.0000 2011-05-25 13:59:00 ppc
Date: 2012-01-26 09:17:07
Uptime: 0d 18h 47m 48s
==================================================
Output of 'uname -a':
Linux switch-112104 2.6.27-MELLANOXuni-m405ex SX_PPC 3.1.0000 #1 2012-
01-25 13:59:00 ppc ppc
ppc GNU/Linux
==================================================
..................................................
switch (config) #
Related Commands file debug-dump
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 229
show files stats
show files stats <filename>
Displays a list of statistics report files.
Syntax Description filename Display the contents of a particular statistics report file.
Default N/A
Configuration Mode Config
History 3.1.0000
Role admin
Example switch (config) # show files stats
memory-201140524-111745.csv
switch (config) #
Related Commands file stats
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 230
show files system
show files system [detail]
Displays usage information of the file systems on the system.
Syntax Description detail Displays more detailed information on file-system.
Default N/A
Configuration Mode Config
History 3.1.0000
Role admin
Example switch (config) # show files system
Statistics for /config filesystem:
Bytes Total 100 MB
Bytes Used 3 MB
Bytes Free 97 MB
Bytes Percent Free 97%
Bytes Available 97 MB
Inodes Total 0
Inodes Used 0
Inodes Free 0
Inodes Percent Free 0%
Statistics for /var filesystem:
Bytes Total 860 MB
Bytes Used 209 MB
Bytes Free 651 MB
Bytes Percent Free 75%
Bytes Available 651 MB
Inodes Total 0
Inodes Used 0
Inodes Free 0
Inodes Percent Free 0%
switch (config) #
Related Commands N/A
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 231
show files tcpdump
show files tcpdump
Displays a list of statistics report files.
Syntax Description N/A
Default N/A
Configuration Mode Config
History 3.1.0000
Role admin
Example switch (config) # show files stats
test
dump3
switch (config) #
Related Commands file tcpdump
tcpdump
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 232
4.4.5.2 Configuration Files
Chooses settings related to configuration change auditing.
max-changes Set maximum number of audit messages to log per
change.
1000
Config
3.1.0000
admin
switch (config) # configuration audit max-changes 100
switch (config) # show configuration audit
Maximum number of changes to log: 100
switch (config) #
show configuration
N/A
configuration audit
configuration audit max-changes <number>
Syntax Description
Default
Configuration Mode
History
Role
Example
Related Commands
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 233
configuration copy
configuration copy <source name> <dest name>
Copies a configuration file.
Syntax Description source name Name of source file.
dest name Name of destination file. If the file of specified file-
name does not exist a new file will be created with said
filename.
Default N/A
Configuration Mode Config
History 3.1.0000
Role admin
Example switch (config) # configuration copy initial.bak example
switch (config) #
Related Commands
Notes • This command does not affect the current running configuration
• The active configuration file may not be the target of a copy. However, it may be the source
of a copy in which case the original remains active.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 234
configuration delete
configuration delete <filename>
Deletes a configuration file.
Syntax Description filename Name of file to delete.
Default N/A
Configuration Mode Config
History 3.1.0000
Role admin
Example switch (config) # show configuration files
example initial initial.bak initial.prev
switch (config) # configuration delete example
switch (config) # show configuration files
initial initial.bak initial.prev
switch (config) #
Related Commands show configuration
Notes • This command does not affect the current running configuration
• The active configuration file may not be deleted
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 235
configuration fetch
configuration fetch <URL> [<name>]
Downloads a configuration file from a remote host.
Syntax Description URL HTTP, HTTPS, FTP, TFTP, SCP and SFTP are sup-
ported. Example: scp://username[:password]@host-
name/path/filename.
name The configuration file name.
Default N/A
Configuration Mode Config
History 3.1.0000
Role admin
Example switch (config) # configuration fetch scp://root:password@
192.168.10.125/tmp/conf1
switch (config) #
Related Commands configuration switch-to
Notes • The downloaded file should not override the active configuration file, using the <name>
parameter
• If no name is specified for a configuration fetch, it is given the same name as it had on the
server
• No configuration file may have the name “active”
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 236
configuration jump-start
configuration jump-start
Runs the initial-configuration wizard.
Syntax Description N/A
Default N/A
Configuration Mode Config
History 3.1.0000
Role admin
Example switch (config) # configuration jump-start
Mellanox configuration wizard
Step 1: Hostname? [switch-3cc29c]
Step 2: Use DHCP on mgmt0 interface? y
Step 3: Admin password (Enter to leave unchanged)?
You have entered the following information:
1. Hostname: switch-3cc29c
2. Use DHCP on mgmt0 interface: yes
3. Enable IPv6: yes
4. Enable IPv6 autoconfig (SLAAC) on mgmt0 interface: yes
53. Admin password (Enter to leave unchanged): (unchanged)
To change an answer, enter the step number to return to.
Otherwise hit <enter> to save changes and exit.
Choice:
Configuration changes saved.
switch (config) #
Related Commands N/A
Notes • The wizard is automatically invoked whenever the CLI is launched when the active config-
uration file is fresh (i.e. not modified from its initial contents)
• This command invokes the wizard on demand – see chapter “Initializing the Switch for the
First Time” in the Mellanox MLNX-OS SwitchX User Manual
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 237
configuration merge
configuration merge <filename>
Merges the “shared configuration” from one configuration file into the running con-
figuration.
Syntax Description filename Name of file from which to merge settings.
Default N/A
Configuration Mode Config
History 3.1.0000
Role admin
Example switch (config) # configuration merge new-config-file
switch (config) #
Related Commands
Notes • No configuration files are modified during this process
• The configuration name must be a non-active configuration file
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 238
configuration move
configuration move <source name> <dest name>
Moves a configuration file.
Syntax Description source name Old name of file to move.
dest name New name for moved file.
Default N/A
Configuration Mode Config
History 3.1.0000
Role admin
Example switch (config) # show configuration files
example1 initial initial.bak initial.prev
switch (config) # configuration move example1 example2
switch (config) # show configuration files
example2 initial initial.bak initial.prev
switch (config) #
Related Commands show configuration
Notes • This command does not affect the current running configuration
• The active configuration file may not be the target of a move
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 239
configuration new
configuration new <filename> [factory [keep-basic] [keep-connect]]
Creates a new configuration file under the specified name. The parameters specify
what configuration, if any, to carry forward from the current running configuration.
Syntax Description filename Names for new configuration file.
factory Creates new file with only factory defaults.
keep-basic Keeps licenses and host keys.
keep-connect Keeps configuration necessary for connectivity (inter-
faces, routes, and ARP).
Default Keeps licenses and host keys
Configuration Mode Config
History 3.1.0000
Role admin
Example switch (config) # show configuration files
initial initial.bak initial.prev
switch (config) # configuration new example2
switch (config) # show configuration files
example2 initial initial.bak initial.prev
switch (config) #
Related Commands show configuration
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 240
configuration switch-to
configuration switch-to <filename> [no-reboot]
Loads the configuration from the specified file and makes it the active configuration
file.
Syntax Description no-reboot Forces configuration change without rebooting the
switch
Default N/A
Configuration Mode Config
History 3.1.0000
3.6.1002 Added “no-reboot” option
Role admin
Example switch (config) # show configuration files
initial (active)
newcon
initial.prev
initial.bak
switch (config) # configuration switch-to newcon no-reboot
switch (config) # show configuration files
initial
newcon (active)
initial.prev
initial.bak
switch (config) #
Related Commands show configuration files
Notes • The current running configuration is lost and not automatically saved to the previous active
configuration file.
• When running the command without the “no-reboot” parameter, the user is prompted to
OK a reboot. If the answer is “yes”, the configuration is replaced and the switch is rebooted
immediately.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 241
configuration text fetch
configuration text fetch <URL> [apply [discard | fail-continue | filename | over-
write | verbose] | filename <filename> | overwrite [apply | filename <filename>]]
Fetches a text configuration file (list of CLI commands) from a specified URL.
Syntax Description apply Applies the file to the running configuration (i.e. exe-
cutes the commands in it). This option has the follow-
ing parameters:
• discard: Does not keep downloaded configuration text file
after applying it to the system
• fail-continue: If applying commands, continues execution
even if one of them fails
• overwrite: If saving the file and the filename already
exists, replaces the old file
• verbose: Displays all commands being executed and their
output instead of just those that get errors
filename Specifies filename for saving downloaded text file.
overwrite Downloads the file and saves it using the same name it
had on the server. This option has the following param-
eters:
• apply: Applies the downloaded configuration to the run-
ning system
• filename: Specifies filename for saving downloaded text
file
Default N/A
Configuration Mode Config
History 3.2.1000 First version
3.2.3000 Updated command
Role admin
Example switch (config) # configuration fetch text scp://username[:pass-
word]@hostname/path/filename
Related Commands N/A
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 242
configuration text file
configuration text file <filename> {apply [fail-continue] [verbose] | delete |
rename <filename> | upload < URL>}
Performs operations on text-based configuration files.
Syntax Description filename <file> Specifies the filename.
apply Applies the configuration on the system.
fail-continue Continues execution of the commands even if some
commands fail.
verbose Displays all commands being executed and their out-
put, instead of just those that get errors.
delete Deletes the file.
rename <filename> Renames the file.
upload <URL> Supported types are HTTP, HTTPS, FTP, TFTP, SCP
and SFTP. For example: scp://username[:pass-
word]@hostname/path/filename.
Default N/A
Configuration Mode Config
History 3.1.0000
Role admin
Example switch (config) # configuration text file my-config-file delete
switch (config) #
Related Commands show configuration files
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 243
configuration text generate
configuration text generate {active {running | saved} | file <filename> } {save
<filename> | upload <URL>}
Generates a new text-based configuration file from this system's configuration.
Syntax Description active Generates from currently active configuration.
running Uses running configuration.
saved Uses saved configuration.
file <filename> Generates from inactive saved configuration.
save Saves new file to local persistent storage.
upload <URL> Supported types are HTTP, HTTPS, FTP, TFTP, SCP
and SFTP. For example: scp://username[:pass-
word]@hostname/path/filename.
Default N/A
Configuration Mode Config
History 3.1.0000
Role admin
Example switch (config) # configuration text generate file initial.prev save
example
switch (config) # show configuration files
initial (active)
initial.prev
initial.bak
Active configuration: initial
Unsaved changes: yes
switch (config) #
Related Commands show configuration files
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 244
configuration upload
configuration upload {active | <name>} <URL or scp or sftp://username:pass-
word@hostname[:port]/path/filename>
Uploads a configuration file to a remote host.
Syntax Description active Upload the active configuration file.
Default N/A
Configuration Mode Config
History 3.1.0000
Role admin
Example switch (config) # configuration upload active scp://root:password@
192.168.10.125/tmp/conf1
switch (config) #
Related Commands N/A
Notes No configuration file may have the name “active”.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 245
configuration write
configuration write [local | to <filename> [no-switch]]
Saves the running configuration to the active configuration file.
Syntax Description local Saves the running configuration locally (same as “write
memory local”)
to <filename> Saves the running configuration to a new file under a
different name and makes it the active file
no-switch Saves the running configuration to this file but keep the
current one active
Default N/A
Configuration Mode Config
History 3.1.0000
Role admin
Example switch (config) # configuration write
switch (config) #
Related Commands write
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 246
write
write {memory [local] | terminal}
Saves or displays the running configuration.
Syntax Description memory Saves running configuration to the active configuration
file. It is the same as “configuration write”.
local Saves the running configuration only on the local node.
It is the same as “configuration write local”.
terminal Displays commands to recreate current running config-
uration. It is the same as “show running-config”.
Default N/A
Configuration Mode Config
History 3.1.0000
Role admin
Example switch (config) # write terminal
##
## Running database "initial"
## Generated at 20114/05/27 10:05:16 +0000
## Hostname: switch
##
##
## Network interface configuration
##
interface mgmt0 comment ""
interface mgmt0 create
interface mgmt0 dhcp
interface mgmt0 display
interface mgmt0 duplex auto
interface mgmt0 mtu 1500
no interface mgmt0 shutdown
interface mgmt0 speed auto
no interface mgmt0 zeroconf
##
## Local user account configuration
##
username a** capability admin
no username a** disable
username a** disable password
......
switch (config) #
Related Commands show running-config
configuration write
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 247
show configuration
show configuration [audit | files [<filename>] | running | text files]
Displays a list of CLI commands that will bring the state of a fresh system up to
match the current persistent state of this system.
Syntax Description audit Displays settings for configuration change auditing.
files [<filename>] Displays a list of configuration files in persistent stor-
age if no filename is specified. If a filename is speci-
fied, it displays the commands to recreate the
configuration in that file. In the latter case, only non-
default commands are shown, as for the normal “show
configuration” command.
running Displays commands to recreate current running config-
uration. Same as “show configuration” except that it
applies to the currently running configuration, rather
than the current persisted configuration.
text files Displays names of available text-based configuration
files.
Default N/A
Configuration Mode Config
History 3.1.0000
3.3.5006 Removed “running full” and “full” parameters
Role monitor/admin
Example switch (config) # show configuration
##
## Active saved database "newcon"
## Generated at 20114/05/25 10:18:52 +0000
## Hostname: switch-3cc29c
##
##
## Network interface configuration
##
interface mgmt0 comment ""
interface mgmt0 create
interface mgmt0 dhcp
interface mgmt0 display
interface mgmt0 duplex auto
interface mgmt0 mtu 1500
no interface mgmt0 shutdown
interface mgmt0 speed auto
no interface mgmt0 zeroconf
switch (config) #
Related Commands
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 248
show running-config
show running-config [expanded | protocol <protocol>]
Displays commands to recreate current running configuration.
Syntax Description expanded Displays commands in expanded format without com-
pressing ranges
protocol Only displays commands relating to the specified pro-
tocol
Default N/A
Configuration Mode Config
History 3.1.0000
3.3.4402 Removed “full” parameter
3.6.2002 Updated Example and added parameters
Role monitor/admin
Example switch (config) # show running-config
##
## Running database "initial"
## Generated at 2016/08/03 17:28:18 +0000
## Hostname: tarantula-9
##
##
## Running-config temporary prefix mode setting
##
no cli default prefix-modes enable
##
## Chassis configuration
##
no fae fw-auto-update enable
##
## MLAG protocol
##
protocol mlag
##
## Interface Ethernet configuration
##
interface mlag-port-channel 1-49
interface mlag-port-channel 53-56
interface port-channel 1
interface ethernet 1/1-1/43 mtu 9216 force
interface ethernet 1/49-1/56 mtu 9216 force
interface mlag-port-channel 1-42 mtu 9216 force
interface mlag-port-channel 49 mtu 9216 force
interface mlag-port-channel 53 mtu 9216 force
...
switch (config) #
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 249
Related Commands
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 250
4.5 Logging
4.5.1 Monitor
To print logging events to the terminal:
Set the modules or events you wish to print to the terminal. For example, run:
switch (config) # logging monitor events notice
switch (config) # logging monitor sx-sdk warning
These commands print system events in severity “notice” and sx-sdk module notifications in severity
“warning” to the screen. For example, in case of interface-down event, the following gets printed to
the screen.
switch (config) #
Wed Jul 10 11:30:42 2013: Interface IB1/17 changed state to DOWN
Wed Jul 10 11:30:43 2013: Interface IB1/18 changed state to DOWN
switch (config) #
To see a list of the events, refer to Table 25, “Supported Event Notifications and MIB Mapping,” on
page 290.
4.5.2 Remote Logging
To configure remote syslog to send syslog messages to a remote syslog server:
Step 1. Enter Config mode. Run:
Step 2. Set remote syslog server. Run
Step 3. (Optional) Set the destination port of the remote host. Run:
Step 4. Set the minimum severity of the log level to
info
. Run:
Step 5. Override the log levels on a per-class basis. Run:
switch >
switch > enable
switch # configure terminal
switch (config) # logging <IP address>
switch (config) # logging <IP address> port <port>
switch (config) # logging <IP address> trap info
switch (config) # logging <IP address> trap override class <class name> priority <level>
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 251
4.5.3 Commands
Configures remote server destination port for log messages.
The no form of the command resets the remote log port to its default value.
destination-port Range: 1-65535
514 (UDP)
Config
3.6.2002
admin
switch (config) # logging 10.0.0.1 port 105
logging <syslog IP address> trap
logging <syslog IP address> port
logging <syslog IP address> port <destination-port>
no logging <syslog IP address> port
Syntax Description
Default
Configuration Mode
History
Role
Example
Related Commands
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 252
logging <syslog IP address> trap
logging <syslog IP address> [trap {<log-level> | override class <class> priority
<log-level>}]
no logging <syslog IP address> [trap {<log-level> | override class <class> prior-
ity <log-level>}]
Enables (by setting the IP address) sending logging messages, with ability to filter the
logging messages according to their classes.
The no form of the command stops sending messages to the remote syslog server.
Syntax Description syslog IP address IPv4 address of the remote syslog server.
log-level • alert - alert notification, action must be taken immediately
• crit - critical condition
• debug - debug level messages
• emerg - system is unusable (emergency)
• err - error condition
• info - informational condition
• none - disables the logging locally and remotely
• notice - normal, but significant condition
• warning - warning condition
class Sets or removes a per-class override on the logging
level. All classes which do not have an override set will
use the global logging level set with “logging local
<log level>”. Classes that do have an override will do
as the override specifies. If “none” is specified for the
log level, MLNX-OS will not log anything from this
class.
Classes available:
• iss-modules - protocol stack
• mgmt-back - system management back-end
• mgmt-core - system management core
• mgmt-front - system management front-end
• mlx-daemons - management daemons
• sx-sdk - switch SDK
log-level • alert - alert notification, action must be taken immediately
• crit - critical condition
• debug - debug level messages
• emerg - system is unusable (emergency)
• err - error condition
• info - informational condition
• none - disables the logging locally and remotely
• notice - normal, but significant condition
• warning - warning condition
Default Remote logging is disabled
Configuration Mode Config
History 3.1.0000
Role admin
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 253
Example switch (config) # logging local info
switch (config) # show logging
Local logging level: info
Default remote logging level: notice
No remote syslog servers configured.
Allow receiving of messages from remote hosts: no
Number of archived log files to keep: 10
Log rotation size threshold: 5.000% of partition (43 megabytes)
Log format: standard
Subsecond timestamp field: disabled
Levels at which messages are logged:
CLI commands: notice
Audit messages: notice
switch (config) #
Related Commands show logging
logging local override
logging <syslog IP address> port
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 254
logging debug-files
logging debug-files {delete {current | oldest} | rotation {criteria | force | max-
num} | update {<number> | current} | upload <log-file> <upload URL>}
Configures settings for debug log files.
Syntax Description delete {current | oldest} Deletes certain debug-log files.
• current: Deletes the current active debug-log file
• oldest: Deletes some of the oldest debug-log files
rotation {criteria
{frequency {daily |
weekly | monthly} | size
<size> | size-pct
<percentage>} | force |
max-num}
Configures automatic rotation of debug-logging files.
• criteria: Sets how the system decides when to rotate
debug files.
• frequency: Rotate log files on a fixed time-based
schedule
• size: Rotate log files when they pass a size threshold
in megabytes
• size-pct: Rotate logs when they surpass a specified
percentage of disk
• forces: Forces an immediate rotation of the log files
• max-num: Specifies the maximum number of old log files
to keep
update {<number> |
current} Uploads a local debug-log file to a remote host.
• current: Uploads log file “messages” to a remote host
• number: Uploads compressed log file “debug.<num-
ber>.gz” to a remote host. Range is 1-10
upload Uploads debug log file to a remote host
log-file Possible values: 1-7, or current
upload URL HTTP, HTTPS, FTP, TFTP, SCP and SFTP are sup-
ported (e.g.: scp://username[:password]@hostname/
path/filename)
Default N/A
Configuration Mode Config
History 3.3.4150
Role admin
Example switch (config) # logging debug-files delete current
switch (config) #
Related Commands
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 255
logging local override
logging local override [class <class> priority <log-level>]
no logging local override [class <class> priority <log-level>]
Enables class-specific overrides to the local log level.
The no form of the command disables all class-specific overrides to the local log
level without deleting them from the configuration, but disables them so that the log-
ging level for all classes is determined solely by the global setting.
Syntax Description override Enables class-specific overrides to the local log level.
class Sets or removes a per-class override on the logging
level. All classes which do not have an override set will
use the global logging level set with “logging local
<log level>”. Classes that do have an override will do
as the override specifies. If “none” is specified for the
log level, MLNX-OS will not log anything from this
class.
Classes available:
• debug-module - debug module functionality
• protocol-stack - protocol stack modules functionality
• mgmt-back - system management back-end components
• mgmt-core - system management core
• mgmt-front - system management front-end components
• mlx-daemons - management daemons
• sx-sdk - switch SDK
log-level • alert - alert notification, action must be taken immediately
• crit - critical condition
• debug - debug level messages
• emerg - system is unusable (emergency)
• err - error condition
• info - informational condition
• none - disables the logging locally and remotely
• notice - normal, but significant condition
• warning - warning condition
Default Override is disabled.
Configuration Mode Config
History 3.1.0000
3.3.4150 Added debug-module class
Changed iss-modules with protocol-stack
Role admin
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 256
Example switch (config) # logging local override class mgmt-front priority
warning
switch (config) # show logging
Local logging level: info
Override for class mgmt-front: warning
Default remote logging level: notice
No remote syslog servers configured.
Allow receiving of messages from remote hosts: no
Number of archived log files to keep: 10
Log rotation size threshold: 5.000% of partition (43 megabytes)
Log format: standard
Subsecond timestamp field: disabled
Levels at which messages are logged:
CLI commands: notice
Audit messages: notice
switch (config) #
Related Commands show logging
logging local
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 257
logging fields
logging fields seconds {enable | fractional-digits <f-digit> | whole-digits <w-
digit>}
no logging fields seconds {enable | fractional-digits <f-digit> | whole-digits <w-
digit>}
Specifies whether to include an additional field in each log message that shows the
number of seconds since the Epoch or not.
The no form of the command disallows including an additional field in each log mes-
sage that shows the number of seconds since the Epoch.
Syntax Description enable Specifies whether to include an additional field in each
log message that shows the number of seconds since
the Epoch or not.
f-digit The fractional-digits parameter controls the number of
digits to the right of the decimal point. Truncation is
done from the right.
Possible values are: 1, 2, 3, or 6.
w-digit The whole-digits parameter controls the number of dig-
its to the left of the decimal point. Truncation is done
from the left. Except for the year, all of these digits are
redundant with syslog's own date and time.
Possible values: 1, 6, or all.
Default disabled
Configuration Mode Config
History 3.1.0000
Role admin
Example switch (config) # logging fields seconds enable
switch (config) # logging fields seconds whole-digits 1
switch (config) # show logging
Local logging level: info
Override for class mgmt-front: warning
Default remote logging level: notice
No remote syslog servers configured.
Allow receiving of messages from remote hosts: no
Number of archived log files to keep: 10
Log rotation size threshold: 5.000% of partition (43 megabytes)
Log format: standard
Subsecond timestamp field: enabled
Subsecond timestamp precision: 1 whole digit; 3 fractional digits
Levels at which messages are logged:
CLI commands: notice
Audit messages: notice
switch (config) #
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 258
Related Commands show logging
Notes This is independent of the standard syslog date and time at the beginning of each
message in the format of “July 15 18:00:00”. Aside from indicating the year at full
precision, its main purpose is to provide subsecond precision.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 259
logging files delete
logging files delete {current | oldest [<number of files>]}
Deletes the current or oldest log files.
Syntax Description current Deletes current log file.
oldest Deletes oldest log file.
number of files Sets the number of files to be deleted.
Default CLI commands and audit message are set to notice logging level
Configuration Mode Config
History 3.1.0000
Role admin
Example switch (config) # logging files delete current
switch (config) #
Related Commands show logging
show log files
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 260
logging files rotation
logging files rotation {criteria { frequency <freq> | size <size-mb>| size-pct <size-
percentage>} | force | max-number <number-of-files>}
Sets the rotation criteria of the logging files.
Syntax Description freq Sets rotation criteria according to time. Possible
options are:
• Daily
• Weekly
• Monthly
size-mb Sets rotation criteria according to size in mega bytes.
The range is 1-9999.
size-percentage Sets rotation criteria according to size in percentage of
the partition where the logging files are kept in. The
percentage given is truncated to three decimal points
(thousandths of a percent).
force Forces an immediate rotation of the log files. This does
not affect the schedule of auto-rotation if it was done
based on time: the next automatic rotation will still
occur at the same time for which it was previously
scheduled. Naturally, if the auto-rotation was based on
size, this will delay it somewhat as it reduces the size of
the active log file to zero.
number-of-files The number of log files will be kept. If the number of
log files ever exceeds this number (either at rotation
time, or when this setting is lowered), the system will
delete as many files as necessary to bring it down to
this number, starting with the oldest.
Default 10 files are kept by default with rotation criteria of 5% of the log partition size
Configuration Mode Config
History 3.1.0000
Role admin
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 261
Example switch (config) # logging files rotation criteria size-pct 6
switch (config) # show logging
Local logging level: info
Override for class mgmt-front: warning
Default remote logging level: notice
No remote syslog servers configured.
Allow receiving of messages from remote hosts: no
Number of archived log files to keep: 10
Log rotation size threshold: 6.000% of partition (51.60 megabytes)
Log format: standard
Subsecond timestamp field: enabled
Subsecond timestamp precision: 1 whole digit; 3 fractional digits
Levels at which messages are logged:
CLI commands: info
Audit messages: notice
switch (config)
Related Commands show logging
show log files
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 262
logging files upload
logging files upload {current | <file-number>} <url>
Uploads a log file to a remote host.
Syntax Description current The current log file.
The current log file will have the name “messages” if
you do not specify a new name for it in the upload
URL.
file-number An archived log file.
The archived log file will have the name “mes-
sages<n>.gz” (while “n” is the file number) if you do
not specify a new name for it in the upload URL. The
file will be compressed with gzip.
url Uplaods URL path.
FTP, TFTP, SCP, and SFTP are supported. For exam-
ple: scp://username[:password]@hostname/path/file-
name.
Default 10 files are kept by default with rotation criteria of 5% of the log partition size
Configuration Mode Config
History 3.1.0000
Role admin
Example switch (config) # logging files uplaod 1 scp://admin@scpserver
Related Commands show logging
show log files
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 263
logging format
logging format {standard | welf [fw-name <hostname>]}
no logging format {standard | welf [fw-name <hostname>]}
Sets the format of the logging messages.
The no form of the command resets the format to its default.
Syntax Description standard Standard format.
welf WebTrends Enhanced Log file (WELF) format.
hostname Specifies the firewall hostname that should be associ-
ated with each message logged in WELF format. If no
firewall name is set, the hostname is used by default.
Default standard
Configuration Mode Config
History 3.1.0000
Role admin
Example switch (config) # logging format standard
switch (config) # show logging
Local logging level: info
Default remote logging level: notice
No remote syslog servers configured.
Allow receiving of messages from remote hosts: yes
Number of archived log files to keep: 10
Log rotation size threshold: 5.000% of partition (43 megabytes)
Log format: standard
Subsecond timestamp field: disabled
Levels at which messages are logged:
CLI commands: notice
Audit messages: notice
switch (config) #
Related Commands show logging
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 264
logging level
logging level {cli commands <log-level> | audit mgmt <log-level>}
Sets the severity level at which CLI commands or the management audit message that
the user executes are logged. This includes auditing of both configuration changes
and actions.
Syntax Description cli commands Sets the severity level at which CLI commands which
the user executes are logged.
audit mgmt Sets the severity level at which all network manage-
ment audit messages are logged.
log-level • alert - alert notification, action must be taken immediately
• crit - critical condition
• debug - debug level messages
• emerg - system is unusable (emergency)
• err - error condition
• info - informational condition
• none - disables the logging locally and remotely
• notice - normal, but significant condition
• warning - warning condition
Default CLI commands and audit message are set to notice logging level
Configuration Mode Config
History 3.1.0000
Role admin
Example switch (config) # logging level cli commands info
switch (config) # show logging
Local logging level: info
Override for class mgmt-front: warning
Default remote logging level: notice
No remote syslog servers configured.
Allow receiving of messages from remote hosts: no
Number of archived log files to keep: 10
Log rotation size threshold: 5.000% of partition (43 megabytes)
Log format: standard
Subsecond timestamp field: enabled
Subsecond timestamp precision: 1 whole digit; 3 fractional digits
Levels at which messages are logged:
CLI commands: info
Audit messages: notice
switch (config) #
Related Commands show logging
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 265
logging monitor
logging monitor <facility> <priority-level>
no logging monitor <facility> <priority-level>
Sets monitor log facility and level to print to the terminal.
The no form of the command disables printing logs of facilities to the terminal.
Syntax Description facility • mgmt-front
• mgmt-back
• mgmt-core
• events
• sx-sdk
• mlnx-daemons
• iss-modules
priority-level • none
• emerg
• alert
• crit
• err
• warming
• notice
• info
• debug
Default no logging monitor
Configuration Mode Config
History 3.3.4000
Role admin
Example switch (config) # logging monitor events notice
switch (config) #
Related Commands
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 266
logging receive
logging receive
no logging receive
Enables receiving logging messages from a remote host.
The no form of the command disables the option of receiving logging messages from
a remote host.
Syntax Description N/A
Default Receiving logging is disabled
Configuration Mode Config
History 3.1.0000
Role admin
Example switch (config) # logging receive
switch (config) # show logging
Local logging level: info
Default remote logging level: notice
No remote syslog servers configured.
Allow receiving of messages from remote hosts: yes
Number of archived log files to keep: 10
Log rotation size threshold: 5.000% of partition (43 megabytes)
Log format: standard
Subsecond timestamp field: disabled
Levels at which messages are logged:
CLI commands: notice
Audit messages: notice
switch (config) #
Related Commands show logging
logging local
logging local override
Notes • This does not log to the console TTY port
• In-band management should be enabled in order to open a channel from the host to the
CPU
• If enabled, only log messages matching or exceeding the minimum severity specified with
the “logging local” command will be logged, regardless of what is sent from the remote
host
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 267
logging trap
logging trap <log-level>
no logging trap
Configures the minimum severity of log messages sent to syslog servers.
The no form of the command disables sending event log messages to syslog servers.
Syntax Description log-level The minimum severity level for all configured syslog
servers:
• none – disable logging
• emerg – emergency: system is unusable
• alert – action must be taken immediately
• crit – critical conditions
• err – error conditions
• warning – warning conditions
• notice – normal but significant condition
• info – informational messages
• debug – debug-level messages
Default Receiving logging is disabled
Configuration Mode Config
History 3.1.0000
Role admin
Example switch (config) # logging trap info
switch (config) #
Related Commands
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 268
show logging
show logging
Displays the logging configurations.
Syntax Description N/A
Default N/A
Configuration Mode Any Command Mode
History 3.1.0000
Role admin
Example switch (config) # show logging
Local logging level: info
Override for class mgmt-front: warning
Default remote logging level: notice
No remote syslog servers configured.
Allow receiving of messages from remote hosts: no
Number of archived log files to keep: 10
Log rotation size threshold: 5.000% of partition (43 megabytes)
Log format: standard
Subsecond timestamp field: enabled
Subsecond timestamp precision: 1 whole digit; 3 fractional digits
Levels at which messages are logged:
CLI commands: info
Audit messages: notice
switch (config) #
Related Commands logging fields
logging files rotation
logging level
logging local
logging receive
logging <syslog IP address>
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 269
show log
show log [continues | files [<file-number>]] [[not] matching <reg-exp>]
Displays the log file with optional filter criteria.
Syntax Description continues Displays the last few lines of the current log file and
then continues to display new lines as they come in
until the user hits Ctrl+C, similar to LINUX “tail” util-
ity.
files Displays the list of log files.
<file-number> Displays an archived log file, where the number may
range from 1 up to the number of archived log files
available.
[not] matching <reg-exp> The file is piped through a LINUX “grep” utility to
only include lines either matching, or not matching, the
provided regular expression.
Default N/A
Configuration Mode Any Command Mode
History 3.1.0000
3.3.4402 Updated example and added note
Role admin
Example switch (config) # show log matching "Executing|Action"
Jan 19 10:55:38 arc-switch14 cli28202: [cli.NOTICE]: user admin: Executing command: en
Jan 19 11:19:32 arc-switch14 cli28202: [cli.NOTICE]: user admin: Executing command: image
install image-SX_PPC_M460EX-ppc-m460ex-20140119-115026.img
Jan 19 11:19:32 arc-switch14 mgmtd4064: [mgmtd.NOTICE]: Action ID 326: requested by: user
admin (System Administrator) via CLI
Jan 19 11:19:32 arc-switch14 mgmtd4064: [mgmtd.NOTICE]: Action ID 326: descr: install
system software image
Jan 19 11:19:32 arc-switch14 mgmtd4064: [mgmtd.NOTICE]: Action ID 326: param: image file-
name: image-SX_PPC_M460EX-ppc-m460ex-20140119-115026.img, version: SX_PPC_M460EX
3.0.0000-dev-master-HA 2014-01-19 11:50:26 ppc
Jan 19 11:19:32 arc-switch14 mgmtd4064: [mgmtd.NOTICE]: Action ID 326: param: switch next
boot location after install: no
switch (config) #
Related Commands logging fields
logging files rotation
logging level
logging local
logging receive
logging <syslog IP address>
show logging
Notes When using a regular expression containing | (OR), the expression should be sur-
rounded by quotes (“<expression>”), otherwise it is parsed as filter (PIPE) command.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 270
4.6 Debugging
To use the debugging logs feature:
Step 1. Enable debugging. Run:
Step 2. Display the debug level set. Run:
Step 3. Display the logs. Run:
switch (config) # debug ethernet all
switch (config) # show debug ethernet
switch (config) # show log debug {match|continue}
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 271
4.6.1 Commands
Enables debug traces for Ethernet modules.
The no form of the command disables the debug traces for all Ethernet modules.
N/A
N/A
Config
3.3.4150
admin
switch (config) # debug ethernet all
switch (config) #
debug ethernet all
debug ethernet all
no debug ethernet all
Syntax Description
Default
Configuration Mode
History
Role
Example
Related Commands
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 272
debug ethernet dcbx
debug ethernet dcbx {all | management | fail-all | control-panel | tlv}
Configures the trace level for DCBX.
The no form of the command disables the configured DCBX debug traces.
Syntax Description all Enables all traces.
management Management messages.
fail-all All failure traces.
control-panel Control plane traces.
tlv TLV related trace configuration.
Default N/A
Configuration Mode Config
History 3.3.4150
Role admin
Example switch (config) # debug ethernet dcbx all
switch (config) #
Related Commands
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 273
debug ethernet ip all
debug ethernet ip all
Enables debug traces for all routing modules.
The no form of the command disables debug traces for all routing modules.
Syntax Description N/A
Default N/A
Configuration Mode Config
History 3.3.4150
Role admin
Example switch (config) # debug ethernet ip all
switch (config) #
Related Commands
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 274
debug ethernet ip arp all
debug ethernet ip arp all
no debug ethernet ip arp all
Enables the trace level for ARP.
The no form of the command disables the trace level for ARP.
Syntax Description N/A
Default N/A
Configuration Mode Config
History 3.3.4150
Role admin
Example switch (config) # debug ethernet ip arp all
switch (config) #
Related Commands
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 275
debug ethernet ip bgp
debug ethernet ip bgp {all | control-path | dampening | graceful-restart | internal
| keep-alive | receive | resources | rtm | transmit | update}
no debug ethernet ip bgp {all | control-path | dampening | graceful-restart | inter-
nal | keep-alive | receive | resources | rtm | transmit | update}
Enables the trace level for BGP.
The no form of the command disables tracking a specified level.
Syntax Description all Enable track traces
control-path Control path dump trace
dampening Dampening information
graceful-restart Graceful-restart events
internal Internal events
keep-alive Keep-alive packets exchange
neighbor Peer connection/state changes traces
receive All received packets
resources OS Resource trace
rtm Route change notifications
transmit All transmitted packets
update Update packets exchange
Default N/A
Configuration Mode Config
History 3.3.4150
Role admin
Example switch (config) # debug ethernet ip arp all
switch (config) #
Related Commands
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 276
debug ethernet ip dhcp-relay
debug ethernet ip dhcp-relay {all | error}
no debug ethernet ip dhcp-relay {all | error}
Configures the trace level for DHCP.
The no form of the command disables tracking a specified level.
Syntax Description all Enables track traces
error Error code debug messages
Default N/A
Configuration Mode Config
History 3.3.4150
Role admin
Example switch (config) # debug ethernet ip dhcp-relay all
switch (config) #
Related Commands
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 277
debug ethernet ip igmp-l3
debug ethernet ip igmp-l3 {all | control-plane | data-path | fail-all | init-shut |
management | memory | packet-path | resources}
no debug ethernet ip igmp-l3 {all | control-plane | data-path | fail-all | init-shut |
management | memory | packet-path | resources}
Configures the trace level for IGMP.
The no form of the command disables tracking a specified level.
Syntax Description all Enable track traces
control-plane Control plane traces
data-path IP packet dump trace
fail-all All failures including Packet Validation Trace
init-shut Init and shutdown messages
management Management messages
memory Memory related messages
packet-dump Packet dump messages
resources OS resource trace
Default N/A
Configuration Mode Config
History 3.3.4150
Role admin
Example switch (config) # debug ethernet ip igmp-l3 all
switch (config) #
Related Commands
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 278
debug ethernet ip igmp-snooping
debug ethernet ip igmp-snooping {all | forward-db-messages | group-info | init-
shut | packet-dump | query | source-info | system-resources-management | timer |
vlan-info}
no debug ethernet ip igmp-snooping {all | forward-db-messages | group-info |
init-shut | packet-dump | query | source-info | system-resources-management |
timer | vlan-info}
Configures the trace level for IGMP snooping.
The no form of the command disables tracking a specified level.
Syntax Description all Enable track traces
forward-db-messages Forwarding database messages
group-info Group information messages
init-shut Init and shutdown messages
packet-dump Packet dump messages
query Query related messages
source-info Source information messages
system-resources-
management System resources management messages
timer Timer messages
vlan-info VLAN information messages
Default N/A
Configuration Mode Config
History 3.3.4150
Role admin
Example switch (config) # debug ethernet ip igmp-snooping all
switch (config) #
Related Commands
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 279
debug ethernet ip interface
debug ethernet ip interface {all | arp-packet-dump | buffer | enet-packet-dump |
error | fail-all | filter | trace-error | trace-event}
no debug ethernet ip interface {all | arp-packet-dump | buffer | enet-packet-
dump | error | fail-all | filter | trace-error | trace-event}
Configures the trace level for interface.
The no form of the command disables tracking a specified level.
Syntax Description all Enable track traces
arp-packet-dump ARP packet dump trace
buffer Buffer trace
enet-packet-dump ENET packet dump trace
error Trace error messages
fail-all All failures including Packet Validation Trace
filter Lower layer traces
trace-error Trace error messages
trace-event Trace event messages
Default N/A
Configuration Mode Config
History 3.3.4150
Role admin
Example switch (config) # debug ethernet ip interface all
switch (config) #
Related Commands
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 280
debug ethernet ip ospf
debug ethernet ip ospf {adjacency | all | configuration | ddp-packet | helper |
Interface | ism | lrq-packet | lsa_packet | lsu-packet}
Configures the trace level for OSPF.
The no form of the command disables tracking a specified level.
Syntax Description adjacency Adjacency formation debug messages
all Enable track traces
configuration Configuration debug messages
ddp-packet DDP packet debug messages
helper Helper debug messages
Interface Interface debug messages
ism Interface State Machine debug messages
lrq-packet Link State Request Packet debug messages
lsa_packet Link State Acknowledge Packet debug messages
lsu-packet Link State Update Packet debug messages
nsm Neighbor State Machine debug messages
Default N/A
Configuration Mode Config
History 3.3.4150
Role admin
Example switch (config) # debug ethernet ip ospf all
switch (config) #
Related Commands
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 281
debug ethernet lacp
debug ethernet lacp {all | all-resource | data-path | fail-all | init-shut |
management | memory | packet}
no debug ethernet lacp {all | all-resources | data-path | fail-all | init-shut |
management | memory | packet}
Configures the trace level for LACP.
The no form of the command disables the configured LACP debug traces.
Syntax Description all Enables all traces.
all-resource BPDU related messages.
data-path Init and shutdown traces.
fail-all Management messages.
init-shut Memory related messages.
management memory IP packet dump trace.
memory All failure traces.
packet OS resource trace.
Default N/A
Configuration Mode Config
History 3.3.4150
Role admin
Example switch (config) # debug ethernet lacp all
switch (config) #
Related Commands
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 282
debug ethernet lldp
debug ethernet lldp {all | control-panel | critical-event | data-path | fail-all | init-
shut | management | memory | neigh-add | neigh-age-out | neigh-del | neigh-drop
| neigh-updt | tlv}
no debug ethernet lldp {all | control-panel | critical-event | data-path | fail-all |
init-shut | management | memory | neigh-add | neigh-age-out | neigh-del | neigh-
drop | neigh-updt | tlv}
Configures the trace level for LLDP.
The no form of the command disables the configured LLDP debug traces.
Syntax Description all Enables all traces.
control-panel Control plane traces.
critical-event Critical traces.
data-path IP packet dump trace.
fail-all All failure traces.
init-shut Init and shutdown traces.
management Management messages.
memory Memory related messages.
neigh-add Neighbor add traces.
neigh-age-out Neighbor ageout traces.
neigh-del Neighbor delete traces.
neigh-drop Neighbor drop traces.
neigh-updt Neighbor update traces.
tlv TLV related trace configuration
Default N/A
Configuration Mode Config
History 3.3.4150
Role admin
Example switch (config) # debug ethernet lldp all
switch (config) #
Related Commands
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 283
debug ethernet port
debug ethernet port all
Configures the trace level for port.
The no form of the command disables the configured port debug traces.
Syntax Description N/A
Default N/A
Configuration Mode Config
History 3.3.4150
Role admin
Example switch (config) # debug ethernet port all
switch (config) #
Related Commands
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 284
debug ethernet qos
debug ethernet qos {all | all-resource | control-panel | fail-all | filters | init-shut |
management | memory | packet}
no debug ethernet qos {all | all-resource | control-panel | fail-all | filters | init-shut
| management | memory | packet}
Configures the trace level for QoS.
The no form of the command disables the configured QoS debug traces.
Syntax Description all Enables all traces.
all-resource OS resource traces.
control-panel Control plane traces.
fail-all All failure traces.
filters Lower layer traces.
init-shut Init and shutdown traces.
management Management messages.
memory Memory related messages.
packet BPDU related messages.
Default N/A
Configuration Mode Config
History 3.3.4150
Role admin
Example switch (config) # debug ethernet port all
switch (config) #
Related Commands
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 285
debug ethernet spanning-tree
debug ethernet spanning-tree {all | error | event | filters | init-shut | management
| memory | packet | port-info-state-machine | port-receive-state-machine | port-
role-selection-state-machine | port-transit-state-machine | port-transmit-state-
machine | protocol-migration-state-machine | timers}
no debug ethernet spanning-tree {all | error | event | filters | init-shut | manage-
ment | memory | packet | port-info-state-machine | port-receive-state-machine |
port-role-selection-state-machine | port-transit-state-machine | port-transmit-
state-machine | protocol-migration-state-machine | timers}
Configures the trace level for spanning-tree.
The no form of the command disables the configured spanning-tree debug traces.
Syntax Description all Enables all traces.
error Error messages trace.
event Events related messages.
filters Lower later traces.
init-shut Init and shutdown traces.
management Management messages.
memory Memory related messages.
packet BPDU related messages.
port-info-state-machine Port information messages.
port-receive-state-
machine Port received messages.
port-role-selection-state-
machine Port role selection messages.
port-transit-state-machine Port transition messages.
port-transmit-state-
machine Port transmission messages.
protocol-migration-state-
machine Protocol migration messages.
timers Timer modules message.
Default N/A
Configuration Mode Config
History 3.3.4150
Role admin
Example switch (config) # debug ethernet spanning-tree all
switch (config) #
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 286
Related Commands
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 287
debug ethernet vlan
debug ethernet vlan {all | fwd | priority | filters}
no debug ethernet vlan {all | fwd | priority | filters}
Configures the trace level for VLAN.
The no form of the command disables the configured VLAN debug traces.
Syntax Description all Enables all traces
fwd Forward.
priority Priority.
filters Lower layer traces.
Default N/A
Configuration Mode Config
History 3.3.4150
Role admin
Example switch (config) # debug ethernet vlan all
switch (config) #
Related Commands
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 288
show debug ethernet
show debug ethernet {dcbx | ip {arp | dhcp-relay | igmp-snooping | interface |
ospf} | lacp | lldp | port | qos | spanning-tree | vlan}
Displays debug level configuration on a specific switch.
Syntax Description dcbx Displays the trace level for spanning tree.
ip Displays debug trace level for ethernet routing module.
• arp
• dhcp-relay
• igmp-snooping
• interface
• ospf
lacp Displays the trace level for LACP.
lldp Displays the trace level for LLDP.
port Displays the trace level for port.
qos Displays the trace level for QoS.
spanning-tree Displays the trace level for spanning tree.
vlan Displays the trace level for VLAN.
Default N/A
Configuration Mode Any Command Mode
History 3.3.4150
Role admin
Example switch (config) # show debug ethernet dcbx
dcbx protocol :
management is ON
fail-all is ON
control-panel is ON
tlv is ON
switch (config) #
Related Commands
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 289
show log debug
show log debug [continuous | files | matching | not]
Displays current event debug-log file in a scrollable pager.
Syntax Description continuous Displays new event log messages as they arrive.
files Displays archived debug log files.
matching Displays event debug logs that match a given regular
expression.
not Displays event debug logs that do not meet certain cri-
teria.
Default N/A
Configuration Mode Any Command Mode
History 3.3.4150
Role admin
Example switch (config) # show log debug
Jun 15 16:20:47 switch-627e4c last message repeated 7 times
Jun 15 16:20:47 switch-627e4c issd[6509]: TID 1274844336: [issd.DEBUG]: NPAPI: >>QoSHwQueueDelete i4IfIndex[137]
Jun 15 16:20:47 switch-627e4c last message repeated 7 times
Jun 15 16:20:47 switch-627e4c issd[6509]: TID 1274844336: [issd.DEBUG]: NPAPI: >>QoSHwQueueDelete i4IfIndex[141]
Jun 15 16:20:47 switch-627e4c last message repeated 7 times
Jun 15 16:20:48 switch-627e4c issd[6509]: TID 1274844336: [issd.DEBUG]: NPAPI: ==FsHwSetSpeed sx_api_port_speed_admin_set = 0
Jun 15 16:20:48 switch-627e4c issd[6509]: TID 1274844336: [issd.DEBUG]: NPAPI: ==FsHwGetSpeed sx_api_port_speed_oper_get = 0
Jun 15 16:20:49 switch-627e4c issd[6509]: TID 1274844336: [issd.DEBUG]: NPAPI: >>CfaGddConfigPort NS u4IfIndex[89], u1ConfigOption[6]
Jun 15 16:20:49 switch-627e4c issd[6509]: TID 1274844336: [issd.DEBUG]: NPAPI: >>CfaGddConfigPort NS u4IfIndex[33], u1ConfigOption[6]
Jun 15 16:20:49 switch-627e4c issd[6509]: TID 1274844336: [issd.DEBUG]: NPAPI: >>CfaGddConfigPort NS u4IfIndex[73], u1ConfigOption[6]
Jun 15 16:20:49 switch-627e4c issd[6509]: TID 1274844336: [issd.DEBUG]: NPAPI: >>CfaGddConfigPort NS u4IfIndex[121], u1ConfigOption[6]
Jun 15 16:20:49 switch-627e4c issd[6509]: TID 1274844336: [issd.DEBUG]: NPAPI: >>CfaGddConfigPort NS u4IfIndex[133], u1ConfigOption[6]
Jun 15 16:20:49 switch-627e4c issd[6509]: TID 1274844336: [issd.DEBUG]: NPAPI: >>CfaGddConfigPort NS u4IfIndex[13], u1ConfigOption[6]
Jun 15 16:20:49 switch-627e4c issd[6509]: TID 1274844336: [issd.DEBUG]: NPAPI: >>CfaGddConfigPort NS u4IfIndex[81], u1ConfigOption[6]
Jun 15 16:20:49 switch-627e4c issd[6509]: TID 1274844336: [issd.DEBUG]: NPAPI: >>CfaGddConfigPort NS u4IfIndex[117], u1ConfigOption[6]
Jun 15 16:20:49 switch-627e4c issd[6509]: TID 1274844336: [issd.DEBUG]: NPAPI: >>CfaGddConfigPort NS u4IfIndex[65], u1ConfigOption[6]
.
.
.
switch (config) #
Related Commands
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 290
4.7 Event Notifications
MLNX-OS features a variety of supported events. Events are printed in the system log file, and,
optionally, can be sent to the system administrator via email, SNMP trap or directly prompted to
the terminal.
4.7.1 Supported Events
Table 25 presents the supported events and maps them to their relevant MIB OID.
Table 25 - Supported Event Notifications and MIB Mapping
Event Name Event Description MIB OID Comments
asic-chip-down ASIC (chip) down Mellanox-EFM-MIB:
asicChipDown Not supported
cpu-util-high CPU utilization has risen
too high Mellanox-EFM-MIB:
cpuUtilHigh N/A
disk-space-low File system free space has
fallen too low Mellanox-EFM-MIB:
diskSpaceLow N/A
health-module-status Health module status
changed Mellanox-EFM-MIB:
systemHealthStatus N/A
insufficient-fans Insufficient amount of fans
in system Mellanox-EFM-MIB:
insufficientFans N/A
insufficient-fans-recover Insufficient amount of fans
in system recovered Mellanox-EFM-MIB:
insufficientFansRecover N/A
insufficient-power Insufficient power supply Mellanox-EFM-MIB:
insufficientPower N/A
interface-down An interface’s link state
has changed to DOWN RFC1213: linkdown
(SNMPv1) Supported for
Ethernet, and man-
agement interfaces
for 1U and blade
systems
interface-up An interface’s link state
has changed to UP RFC1213: linkup
(SNMPv1) Supported for
Ethernet, and man-
agement interfaces
for 1U and blade
systems
internal-bus-error Internal bus (I2C) error Mellanox-EFM-MIB:
internalBusError N/A
liveness-failure A process in the system is
detected as hung Not implemented N/A
low-power Low power supply Mellanox-EFM-MIB:
lowPower N/A
low-power-recover Low power supply recover Mellanox-EFM-MIB:
lowPowerRecover N/A
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 291
4.7.2 Terminal Notifications
To print events to the terminal:
Set the events you wish to print to the terminal. Run:
switch (config) # logging monitor events notice
This command prints system events in the severity “notice” to the screen. For example, in case of
interface-down event, the following gets printed to the screen.
switch (config) #
Wed Jul 10 11:30:42 2013: Interface IB1/17 changed state to DOWN
Wed Jul 10 11:30:43 2013: Interface IB1/18 changed state to DOWN
switch (config) #
new_root Local bridge became a
root bridge Bridge-MIB:
newRoot Supported for
Ethernet
paging-high Paging activity has risen
too high N/A Not supported
power-redundancy-mismatch Power redundancy mis-
match Mellanox-EFM-MIB:
powerRedundancyMis-
match
Supported only for
director switch
systems
process-crash A process in the system
has crashed Mellanox-EFM-MIB:
procCrash N/A
process-exit A process in the system
unexpectedly exited Mellanox-EFM-MIB:
procUnexpectedExit N/A
snmp-authtrap An SNMPv3 request has
failed authentication Not implemented N/A
topology_change Topology change triggered
by a local bridge Bridge-MIB: topology-
Change Supported for
Ethernet
unexpected-shutdown Unexpected system shut-
down Mellanox-EFM-MIB:
unexpectedShutdown N/A
To send, use the CLI com-
mand
snmp-server notify
send-test
Send a testing event testTrap N/A
N/A Reset occurred due to
over-heating of ASIC Mellanox-EFM-MIB:
asicOverTempReset Not supported
temperature-too-high Temperature is too high Mellanox-EFM-MIB:
asicOverTemp N/A
Table 25 - Supported Event Notifications and MIB Mapping
Event Name Event Description MIB OID Comments
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 292
4.7.3 Email Notifications
To configure MLNX-OS to send you emails for all configured events and failures:
Step 1. Enter to Config mode. Run:
Step 2. Set your mailhub to the IP address to be your mail client’s server – for example, Microsoft Out-
look exchange server.
Step 3. Add your email address for notifications. Run:
Step 4. Configure the system to send notifications for a specific event. Run:
Step 5. Show the list of events for which an email is sent. Run:
Step 6. Have the system send you a test email. Run:
switch >
switch > enable
switch # configure terminal
switch (config) # email mailhub <IP address>
switch (config) # email notify recipient <email address>
switch (config) # email notify event <event name>
switch (config) # show email events
Failure events for which emails will be sent:
process-crash: A process in the system has crashed
unexpected-shutdown: Unexpected system shutdown
Informational events for which emails will be sent:
asic-chip-down: ASIC (Chip) Down
cpu-util-high: CPU utilization has risen too high
cpu-util-ok: CPU utilization has fallen back to normal levels
disk-io-high: Disk I/O per second has risen too high
disk-io-ok: Disk I/O per second has fallen back to acceptable levels
disk-space-low: Filesystem free space has fallen too low
.
.
.
switch (config) #
switch # email send-test
The last command should generate the following email:
-----Original Message-----
From: Admin User [mailto:do-not-reply@switch.]
Sent: Sunday, May 01, 2011 11:17 AM
To: <name>
Subject: System event on switch: Test email for event notification
==== System information:
Hostname: switch
Version: <version> 2011-05-01 14:56:31
...
Date: 2011/05/01 08:17:29
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 293
Uptime: 17h 8m 28.060s
This is a test email.
==== Done.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 294
4.7.4 Commands
4.7.4.1 Email Notification
Sends automatic support notifications via email.
The no form of the command stops sending automatic support notifications via email.
N/A
N/A
Config
3.2.3000
admin
switch (config) # email autosupport enable
N/A
email autosupport enable
email autosupport enable
no email autosupport enable
Syntax Description
Default
Configuration Mode
History
Role
Example
Related Commands
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 295
email autosupport event
email autosupport event <event>
no email autosupport event
Specifies for which events to send auto-support notification emails.
The no form of the command resets auto-support email security mode to its default.
Syntax Description event • process-crash – a process has crashed
• process-exit – a process unexpectedly exited
• liveness-failure – a process iss detected as hung
• cpu-util-high – CPU utilization has risen too high
• cpu-util-ok – CPU utilization has fallen back to normal
levels
• paging-high – paging activity has risen too high
• paging-ok – paging activity has fallen back to normal lev-
els
• disk-space-low – filesystem free space has fallen too low
• disk-space-ok – filesystem free space is back in the nor-
mal range
• memusage-high – memory usage has risen too high
• memusage-ok – memory usage has fallen back to accept-
able levels
• netusage-high – network utilization has risen too high
• netusage-ok – network utilization has fallen back to
acceptable levels
• disk-io-high – disk I/O per second has risen too high
• disk-io-ok – disk I/O per second has fallen back to accept-
able levels
• unexpected-cluster-join – node has unexpectedly joined
the cluster
• unexpected-cluster-leave – node has unexpectedly left the
cluster
• unexpected-cluster-size – the number of nodes in the
cluster is unexpected
• unexpected-shutdown – unexpected system shutdown
• interface-up – an interface’s link state has changed to up
• interface-down – an interface's link state has changed to
down
• user-login – a user has logged into the system
• user-logout – a user has logged out of the system
• health-module-status – health module Status
• temperature-too-high – temperature has risen too high
• low-power – low power supply
• low-power-recover – low power supply Recover
• insufficient-power – insufficient power supply
• power-redundancy-mismatch – power redundancy mis-
match
• insufficient-fans – insufficient amount of fans in system
• insufficient-fans-recover – insufficient amount of fans in
system recovered
• asic-chip-down – ASIC (Chip) Down
• internal-bus-error – internal bus (I2C) Error
• internal-link-speed-mismatch – internal links speed mis-
match
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 296
Default N/A
Configuration Mode Config
History 3.2.3000
Role admin
Example switch (config) # email autosupport event process-crash
Related Commands N/A
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 297
email autosupport ssl mode
email autosupport ssl mode {none | tls | tls-none}
no email autosupport ssl mode
Configures type of security to use for auto-support email.
The no form of the command resets auto-support email security mode to its default.
Syntax Description none Does not use TLS to secure auto-support email.
tls Uses TLS over the default server port to secure auto-
support email and does not send an email if TLS fails.
tls-none Attempts TLS over the default server port to secure
auto-support email, and falls back on plaintext if this
fails.
Default tls-none
Configuration Mode Config
History 3.2.3000
Role admin
Example switch (config) # email autosupport ssl mode tls
Related Commands N/A
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 298
email autosupport ssl cert-verify
email autosupport ssl cert-verify
no email autosupport ssl cert-verify
Verifies server certificates.
The no form of the command does not verify server certificates.
Syntax Description N/A
Default N/A
Configuration Mode Config
History 3.2.3000
Role admin
Example switch (config) # email autosupport ssl cert-verify
Related Commands N/A
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 299
email autosupport ssl ca-list
email autosupport ssl ca-list {<ca-list-name> | default_ca_list | none}
no email autosupport ssl ca-list
Configures supplemental CA certificates for verification of server certificates.
The no form of the command removes supplemental CA certificate list.
Syntax Description default_ca_list Default supplemental CA certificate list.
none No supplemental list; uses built-in list only.
Default default_ca_list
Configuration Mode Config
History 3.2.3000
Role admin
Example switch (config) # email autosupport ssl ca-list default_ca_list
Related Commands N/A
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 300
email dead-letter
email dead-letter {cleanup max-age <duration> | enable}
no email dead-letter
Configures settings for saving undeliverable emails.
The no form of the command disables sending of emails to vendor auto-support upon
certain failures.
Syntax Description duration Example: “5d4h3m2s” for 5 days, 4 hours, 3 minutes, 2
seconds.
enable Saves dead-letter files for undeliverable emails.
Default Save dead letter is enabled
The default duration is 14 days
Configuration Mode Config
History 3.1.0000
Role admin
Example switch (config) # email dead-letter enable
switch (config) #
Related Commands show email
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 301
email domain
email domain <hostname or IP address>
no email domain
Sets the domain name from which the emails will appear to come from (provided that
the return address is not already fully-qualified). This is used in conjunction with the
system hostname to form the full name of the host from which the email appears to
come.
The no form of the command clears email domain override.
Syntax Description hostname or IP address IP address.
Default No email domain
Configuration Mode Config
History 3.1.0000
Role admin
Example switch (config) # email domain mellanox
switch (config) # show email
Mail hub: 10.0.8.11
Mail hub port: 125
Domain: mellanox
Return address: do-not-reply
Include hostname in return address: yes
...
switch (config) #
Related Commands show emails
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 302
email mailhub
email mailhub <hostname or IP address>
no email mailhub
Sets the mail relay to be used to send notification emails.
The no form of the command clears the mail relay to be used to send notification
emails.
Syntax Description hostname or IP address Hostname or IP address.
Default N/A
Configuration Mode Config
History 3.1.0000
Role admin
Example switch (config) # email mailhub 10.0.8.11
switch (config) # show email
Mail hub: 10.0.8.11
Mail hub port: 25
Domain: (not specified)
Return address: do-not-reply
Include hostname in return address: yes
...
switch (config) #
Related Commands show email [events]
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 303
email mailhub-port
email mailhub-port <hostname or IP address>
no email mailhub-port
Sets the mail relay port to be used to send notification emails.
The no form of the command resets the port to its default.
Syntax Description hostname or IP address hostname or IP address.
Default 25
Configuration Mode Config
History 3.1.0000
Role admin
Example switch (config) # email mailhub-port 125
switch (config) # show email
Mail hub: 10.0.8.11
Mail hub port: 125
Domain: (system domain name)
Return address: do-not-reply
Include hostname in return address: yes
...
switch (config) #
Related Commands show email
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 304
email notify event
email notify event <event name>
no email notify event <event name>
Enables sending email notifications for the specified event type.
The no form of the command disables sending email notifications for the specified
event type.
Syntax Description event name Example event names would include “process-crash”
and “cpu-util-high”.
Default No events are enabled
Configuration Mode Config
History 3.1.0000
Role admin
Example switch (config) # email notify event process-crash
switch (config) # show email events
Failure events for which emails will be sent:
process-crash: A process in the system has crashed
unexpected-shutdown: Unexpected system shutdown
Informational events for which emails will be sent:
liveness-failure: A process in the system was detected as hung
process-exit: A process in the system unexpectedly exited
cpu-util-ok: CPU utilization has fallen back to normal levels
cpu-util-high: CPU utilization has risen too high
disk-io-ok: Disk I/O per second has fallen back to acceptable levels
...
temperature-too-high: Temperature has risen too high
All events for which autosupport emails will be sent:
process-crash: A process in the system has crashed
liveness-failure: A process in the system was detected as hungswitch
(config) #
switch (config) #
Related Commands show email
Notes This does not affect auto-support emails. Auto-support can be disabled overall, but if
it is enabled, all auto-support events are sent as emails.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 305
email notify recipient
email notify recipient <email addr> [class {info | failure} | detail]
no email notify recipient <email addr> [class {info | failure} | detail]
Adds an email address from the list of addresses to which to send email notifications
of events.
The no form of the command removes an email address from the list of addresses to
which to send email notifications of events.
Syntax Description email addr Email address of intended recipient.
class Specifies which types of events are sent to this recipi-
ent.
info Sends informational events to this recipient.
failure Sends failure events to this recipient.
detail Sends detailed event emails to this recipient.
Default No recipients are added
Configuration Mode Config
History 3.1.0000
Role admin
Example switch (config) # email notify recipient user2@autosupport.mellanox.com
switch (config) # show email
Mail hub:
Mail hub port: 25
Domain: (not specified)
Return address: user1
Include hostname in return address: no
Dead letter settings:
Save dead.letter files: yes
Dead letter max age: (none)
Email notification recipients:
user2@autosupport.mellanox.com (all events, in detail)
Autosupport emails
Enabled: no
Recipient: autosupport@autosupport.mellanox.com
Mail hub: autosupport.mellanox.com
switch (config) #
Related Commands show email
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 306
email return-addr
email return-addr <username>
no email domain
Sets the username or fully-qualified return address from which email notifications are
sent.
• If the string provided contains an “@” character, it is considered to be fully-qualified and
used as-is.
• Otherwise, it is considered to be just the username, and we append “@<host-
name>.<domain>”. The default is “do-not-reply”, but this can be changed to “admin” or
whatnot in case something along the line does not like fictitious addresses.
The no form of the command resets this attribute to its default.
Syntax Description username Username.
Default do-not-reply
Configuration Mode Config
History 3.1.0000
Role admin
Example switch (config) # email return-addr user1
switch (config) # show email
Mail hub:
Mail hub port: 25
Domain: (not specified)
Return address: user1
Include hostname in return address: yes
...
switch (config) #
Related Commands show email
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 307
email return-host
email return-host
no email return-host
Includes the hostname in the return address for emails.
The no form of the command does not include the hostname in the return address for
emails.
Syntax Description N/A
Default No return host
Configuration Mode Config
History 3.1.0000
Role admin
Example switch (config) # no email return-host
switch (config) # show email
Mail hub:
Mail hub port: 25
Domain: (system domain name)
Return address: my-address
Include hostname in return address: no
Current reply address: host@localdomain
Dead letter settings:
Save dead.letter files: yes
Dead letter max age: 5 days
No recipients configured.
Autosupport emails
Enabled: no
Recipient: autosupport@autosupport.mellanox.com
Mail hub: autosupport.mellanox.com
switch (config) #
Related Commands show email
Notes This only takes effect if the return address does not contain an “@” character.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 308
email send-test
email send-test
Sends test-email to all configured event and failure recipients.
Syntax Description N/A
Default N/A
Configuration Mode Config
History 3.1.0000
Role admin
Example switch (config) # email autosupport enable
switch (config) #
Related Commands show email [events]
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 309
email ssl mode
email ssl mode {none | tls | tls-none}
no email ssl mode
Sets the security mode(s) to try for sending email.
The no form of the command resets the email SSL mode to its default.
Syntax Description none No security mode, operates in plaintext.
tls Attempts to use TLS on the regular mailhub port, with
STARTTLS. If this fails, it gives up.
tls-none Attempts to use TLS on the regular mailhub port, with
STARTTLS. If this fails, it falls back on plaintext.
Default default-cert
Configuration Mode Config
History 3.2.3000
Role admin
Example switch (config) # email ssl mode tls-none
Related Commands N/A
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 310
email ssl cert-verify
email ssl cert-verify
no email ssl cert-verify
Enables verification of SSL/TLS server certificates for email.
The no form of the command disables verification of SSL/TLS server certificates for
email.
Syntax Description N/A
Default N/A
Configuration Mode Config
History 3.2.3000
Role admin
Example switch (config) # email ssl cert-verify
Related Commands N/A
Notes This command has no impact unless TLS is used.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 311
email ssl ca-list
email ssl ca-list {<ca-list-name> | default-ca-list | none}
no email ssl ca-list
Specifies the list of supplemental certificates of authority (CA) from the certificate
configuration database that is to be used for verification of server certificates when
sending email using TLS, if any.
The no form of the command uses no list of supplemental certificates.
Syntax Description ca-list-name Specifies CA list name.
default-ca-list Uses default supplemental CA certificate list.
none Uses no list of supplemental certificates.
Default default-ca-list
Configuration Mode Config
History 3.2.3000
Role admin
Example switch (config) # email ssl ca-list none
Related Commands N/A
Notes This command has no impact unless TLS is used, and certificate verification is
enabled.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 312
show email
show email [events]
Shows email configuration or events for which email should be sent upon.
Syntax Description events show event list
Default N/A
Configuration Mode Any Command Mode
History 3.1.0000
Role admin
Example switch (config) # show email
Mail hub:
Mail hub port: 25
Domain: (system domain name)
Return address: my-address
Include hostname in return address: no
Current reply address: host@localdomain
Dead letter settings:
Save dead.letter files: yes
Dead letter max age: 5 days
No recipients configured.
Autosupport emails
Enabled: no
Recipient: autosupport@autosupport.mellanox.com
Mail hub: autosupport.mellanox.com
switch (config) #
Related Commands show email
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 313
4.8 User Management and Security
4.8.1 User Accounts
There are two general user account types: admin and monitor. As admin, the user is privileged to
execute all the available operations. As monitor, the user can execute operations that display sys-
tem configuration and status, or set terminal settings.
Table 26 - User Roles (Accounts) and Default Passwords
User Role Default Password
admin admin
monitor monitor
xmladmin xmladmin
xmluser xmluser
To remove passwords from the XML users, run the command
username <username>
nopassword
.
4.8.2 Authentication, Authorization and Accounting (AAA)
AAA is a term describing a framework for intelligently controlling access to computer resources,
enforcing policies, auditing usage, and providing the information necessary to bill for services.
These combined processes are considered important for effective network management and secu-
rity. The AAA feature allows you to verify the identity of, grant access to, and track the actions of
users managing the MLNX-OS switch. The MLNX-OS switch supports Remote Access Dial-In
User Service (RADIUS) or Terminal Access Controller Access Control device Plus (TACACS+)
protocols.
•Authentication - authentication provides the initial method of identifying each individ-
ual user, typically by entering a valid username and password before access is granted.
The AAA server compares a user's authentication credentials with the user credentials
stored in a database. If the credentials match, the user is granted access to the network
or devices. If the credentials do not match, authentication fails and network access is
denied.
•Authorization - following the authentication, a user must gain authorization for per-
forming certain tasks. After logging into a system, for instance, the user may try to issue
commands. The authorization process determines whether the user has the authority to
issue such commands. Simply put, authorization is the process of enforcing policies:
determining what types or qualities of activities, resources, or services a user is permit-
ted. Usually, authorization occurs within the context of authentication. Once you have
authenticated a user, they may be authorized for different types of access or activity.
•Accounting - the last level is accounting, which measures the resources a user con-
sumes during access. This includes the amount of system time or the amount of data a
user has sent and/or received during a session. Accounting is carried out by logging of
session statistics and usage information, and is used for authorization control, billing,
trend analysis, resource utilization, and capacity planning activities.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 314
Authentication, authorization, and accounting services are often provided by a dedicated AAA
server, a program that performs these functions. Network access servers interface with AAA
servers using the Remote Authentication Dial-In User Service (RADIUS) protocol.
4.8.2.1 User Re-authentication
Re-authentication prevents users from accessing resources or perform tasks for which they do not
have authorization. If credential information (e.g. AAA server information like IP address, key,
port number etc.) that has been previously used to authenticate a user is modified, that user gets
immediately logged out of the switch and asked to re-authenticate.
4.8.2.2 RADIUS
RADIUS (Remote Authentication Dial-In User Service), widely used in network environments,
is a client/server protocol and software that enables remote access servers to communicate with a
central server to authenticate dial-in users and authorize their access to the requested system or
service. It is commonly used for embedded network devices such as routers, modem servers,
switches and so on. RADIUS is currently the de-facto standard for remote authentication. It is
prevalent in both new and legacy systems.
It is used for several reasons:
• RADIUS facilitates centralized user administration
• RADIUS consistently provides some level of protection against an active attacker
4.8.2.3 TACACS+
TACACS (Terminal Access Controller Access Control System), widely used in network envi-
ronments, is a client/server protocol that enables remote access servers to communicate with a
central server to authenticate dial-in users and authorize their access to the requested system or
service. It is commonly used for providing NAS (Network Access Security). NAS ensures secure
access from remotely connected users. TACACS implements the TACACS Client and provides
the AAA (Authentication, Authorization and Accounting) functionalities.
TACACS is used for several reasons:
• Facilitates centralized user administration
• Uses TCP for transport to ensure reliable delivery
• Supports inbound authentication, outbound authentication and change password request
for the authentication service
• Provides some level of protection against an active attacker
4.8.2.4 LDAP
LDAP (Lightweight Directory Access Protocol) is an authentication protocol that allows a
remote access server to forward a user's log-on password to an authentication server to determine
whether access can be allowed to a given system. LDAP is based on a client/server model. The
switch acts as a client to the LDAP server. A remote user (the remote administrator) interacts
only with the switch, not the back-end server and database.
LDAP authentication consists of the following components:
• A protocol with a frame format that utilizes TCP over IP
• A centralized server that stores all the user authorization information
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 315
• A client: in this case, the switch
Each entry in the LDAP server is referenced by its Distinguished Name (DN). The DN consists
of the user-account name concatenated with the LDAP domain name. If the user-account name is
John, the following is an example DN:
uid=John,ou=people,dc=domain,dc=com
4.8.3 System Secure Mode
System secure mode is a state that configures the switch system to run secure algorithms in com-
pliance with FIPS 140-2 requirements. In this mode, unsecure algorithms are disabled and unse-
cure feature configurations are disallowed.
In this mode the system supports Federal Information Processing Standards (FIPS) 140-2, Secu-
rity Requirements for Cryptographic Modules, which is a NIST (National Institute of Standards
and Technology) publication that specifies the requirement for system cypher functionality.
When this mode is activated, all the modules which are used by the system are verified to work in
compliance with the secure mode.
Note that if system fails to load in secure mode it is loaded in non-secure mode.
Prerequisites:
Step 1. Disable SNMPv1 and v2. Run:
Step 2. Only allow SNMPv3 users with sha and aes-128. Run:
Step 3. Only allow SNMPv3 traps with sha and aes-128. Run:
Step 4. Only allow SSHv2. Run:
Step 5. Enable SSH server strict security mode. Run:
Step 6. Disable HTTP access. Run:
Step 7. Enable HTTPS strict cyphers. Run:
Step 8. Disable router BGP neighbor password configuration. Run:
Step 9. Disable router BGP peer group password configuration. Run:
Step 10. Disable BGP password configuration. Run:
switch (config) # no snmp-server enable communities
switch (config) # snmp-server user <username> v3 auth sha <password1> priv aes-128 <pass-
word2>
switch (config) # snmp-server host <ip-address> informs version 3 user <username> auth
sha <password1> priv aes-128 <password2>
switch (config) # ssh server min-version 2
switch (config) # ssh server security strict
switch (config) # no web http enable
switch (config) # web https ssl ciphers TLS1.2
switch (config) # no router bgp <as-number> neighbor <ip-address> password
switch (config) # no router bgp <as-number> peer-group <peer-group-name> password
switch (config) # no neighbor <ip-address> password
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 316
Step 11. Disable MD5 password hashing on for users. Run:
To activate secure mode:
To deactivate secure mode:
To verify secure mode configuration and state:
switch (config) # username <username> password <password>
If a necessary prerequisite is not fulfilled the system does not activate secure mode and
issues an advisory message accordingly.
Secure mode is not supported on director switch systems.
switch (config) # system secure-mode enable
Warning! Configuration is about to be saved and the system will be reloaded.
Type 'YES' to confirm the change in secure mode: YES
switch (config) # no system secure-mode enable
Warning! Configuration is about to be saved and the system will be reloaded.
Type 'YES' to confirm the change in secure mode: YES
switch (config)# show system secure-mode
Secure mode configured: yes
Secure mode enabled: yes
switch (config) #
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 317
4.8.4 Commands
4.8.4.1 User Accounts
username
username <username> [capability <cap> | disable [login | password] | disconnect
| full-name <name> | nopassword | password [0 | 7] <password>]
no username <username> [capability | disable [login | password] | full-name]
Creates a user and sets its capabilities, password and name.
The no form of the command deletes the user configuration.
Syntax Description username Specifies a username and creates a user account. New
users are created initially with admin privileges but is
disabled.
capability <cap> Defines user capabilities.
• admin - full administrative capabilities
• monitor - read only capabilities, can not change the run-
ning configuration
• unpriv – can only query the most basic information, and
cannot take any actions or change any configuration
• v_admin – basic administrator capabilities
disable [login | password] • Disable - disable this account
• Disable login - disable all logins to this account
• Disable password - disable login to this account using a
local password
disconnect Logs out the specified user from the system
name Full name of the user
nopassword The next login of the user will not require password.
0 | 7 • 0: specifies a login password in cleartext
• 7: specifies a login password in encrypted text
password Specifies a password for the user in string form. If [0 |
7] was not specified then the password is in cleartext.
Default The following usernames are available by default:
• admin
• monitor
• xmladmin
• xmluser
Configuration Mode Config
History 3.1.0000
3.4.0000 Updated Example
3.4.1100 Updated Example
3.6.2002 Added “disconnect” parameter
Role admin
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 318
Example switch (config) # username monitor full-name smith
switch (config) # show usernames
USERNAME FULL NAME CAPABILITY ACCOUNT STATUS
USERID System Administrator admin Password set
admin System Administrator admin Password set
monitor smith monitor Password set (SHA512)
xmladmin XML Admin User admin Password set (SHA512)
xmluser XML Monitor User monitor Password set (SHA512)
switch (config) #
Related Commands show usernames
show users
Notes • To enable a user account, just set a password on it (or use the command
username <user>
nopassword
to enable it with no password required for login)
• Removing a user account does not terminate any current sessions that user has open; it just
prevents new sessions from being established
• Encrypted password is useful for the command
show configuration
, since the cleartext
password cannot be recovered after it is set
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 319
show usernames
show usernames
Displays list of users and their capabilities.
Syntax Description N/A
Default N/A
Configuration Mode Any Command Mode
History 3.1.0000
Role admin
Example switch (config) # show usernames
USERNAME FULL NAME CAPABILITY ACCOUNT STATUS
USERID System Administrator admin Password set
admin System Administrator admin Password set
monitor smith monitor Password set (SHA512)
xmladmin XML Admin User admin No password required
xmluser XML Monitor User monitor No password required
switch (config) #
Related Commands username
show users
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 320
show users
show users [history]
Displays logged in users and related information such as idle time and what host they
have connected from.
Syntax Description history Displays current and historical sessions.
Default N/A
Configuration Mode Any Command Mode
History 3.1.0000
Role admin
Example switch (config) # show users
USERNAME FULL NAME LINE HOST IDLE
admin System Administrator pts/0 172.22.237.174 0d0h34m4s
admin System Administrator pts/1 172.30.0.127 1d3h30m49s
admin System Administrator pts/3 172.22.237.34 0d0h0m0s
switch (config) #show users history
admin pts/3 172.22.237.34 Wed Feb 1 11:56 still logged in
admin pts/3 172.22.237.34 Wed Feb 1 11:42 - 11:46 (00:04)
wtmp begins Wed Feb 1 11:38:10 2012
switch (config) #
Related Commands username
show usernames
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 321
show whoami
show whoami
Displays username and capabilities of user currently logged in.
Syntax Description N/A
Default N/A
Configuration Mode Any Command Mode
History 3.1.0000
Role admin
Example switch (config) # show whoami
Current user: admin
Capabilities: admin
switch (config) #
Related Commands username
show usernames
show users
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 322
4.8.4.2 AAA Methods
Enables logging of system changes to an AAA accounting server.
The no form of the command disables the accounting.
N/A
N/A
Config
3.1.0000 First version
3.2.3000 Removed ‘time’ parameter from the command.
admin
switch (config) # aaa accounting changes default stop-only tacacs+
switch (config) # show aaa
AAA authorization:
Default User: admin
Map Order: local-only
Authentication method(s):
local
radius
tacacs+
ldap
Accounting method(s):
tacacs+
switch (config) #
show aaa
• TACACS+ is presently the only accounting service method supported
• Change accounting covers both configuration changes and system actions that are visible
under audit logging, however this feature operates independently of audit logging, so it is
unaffected by the “logging level audit mgmt” or “configuration audit” commands
• Configured TACACS+ servers are contacted in the order in which they appear in the con-
figuration until one accepts the accounting data, or the server list is exhausted
• Despite the name of the “stop-only” keyword, which indicates that this feature logs a
TACACS+ accounting “stop” message, and in contrast to configuration change account-
ing, which happens after configuration database changes, system actions are logged when
the action is started, not when the action has completed
aaa accounting
aaa accounting changes default stop-only tacacs+
no aaa accounting changes default stop-only tacacs+
Syntax Description
Default
Configuration Mode
History
Role
Example
Related Commands
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 323
aaa authentication login
aaa authentication login default <auth method> [<auth method> [<auth
method> [<auth method> [<auth method>]]]]
no aaa authentication login
Sets a sequence of authentication methods. Up to four methods can be configured.
The no form of the command resets the configuration to its default.
Syntax Description auth-method • local
• radius
• tacacs+
• ldap
Default local
Configuration Mode Any Command Mode
History 3.1.0000
Role admin
Example switch (config) # aaa authentication login default local radius tacacs+
ldap
switch (config) # show aaa
AAA authorization:
Default User: admin
Map Order: local-only
Authentication method(s):
local
radius
tacacs+
ldap
Accounting method(s):
tacacs+
switch (config) #
Related Commands show aaa
Notes The order in which the methods are specified is the order in which the authentication
is attempted. It is required that “local” is one of the methods selected. It is recom-
mended that “local” be listed first to avoid potential problems logging in to local
accounts in the face of network or remote server issues.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 324
aaa authentication attempts fail-delay
aaa authentication attempts fail-delay <time>
no aaa authentication attempts fail-delay
Configures delay for a specific period of time after every authentication failure.
The no form of the command resets the fail-delay to its default value.
Syntax Description time Range: 0-60 seconds
Default 0
Configuration Mode Config
History 3.5.0200
Role admin
Example switch (config) # aaa authentication attempts fail-delay 1
Related Commands N/A
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 325
aaa authentication attempts track
aaa authentication attempts track {downcase | enable}
no aaa authentication attempts track {downcase | enable}
Configure tracking for failed authentication attempts.
The no form of the command clears configuration for tracking authentication failures.
Syntax Description downcase Does not convert all usernames to lowercase (for
authentication failure tracking purposes only).
enable Disables tracking of failed authentication attempts
Default N/A
Configuration Mode Config
History 3.2.3000
Role admin
Example switch (config) # aaa authentication attempts track enable
Related Commands N/A
Notes • This is required for the lockout functionality described below, but can also be used on its
own for informational purposes.
• Disabling tracking does not clear any records of past authentication failures, or the locks in
the database. However, it does prevent any updates to this database from being made: no
new failures are recorded. It also disables lockout, preventing new lockouts from being
recorded and existing lockouts from being enforced.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 326
aaa authentication attempts lockout
aaa authentication attempts lockout {enable | lock-time | max-fail | unlock-time}
no aaa authentication attempts lockout {enable | lock-time | max-fail | unlock-
time}
Configures lockout of accounts based on failed authentication attempts.
The no form of the command clears configuration for lockout of accounts based on
failed authentication attempts.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 327
Syntax Description enable Enables locking out of user accounts based on authenti-
cation failures.
This both suspends enforcement of any existing lock-
outs, and prevents any new lockouts from being
recorded. If lockouts are later re-enabled, any lockouts
that had been recorded previously resume being
enforced; but accounts which have passed the max-fail
limit in the meantime are NOT automatically locked at
this time. They would be permitted one more attempt,
and then locked, because of how the locking is done:
lockouts are applied after an authentication failure, if
the user has surpassed the threshold at that time.
Lockouts only work if tracking is enabled. Enabling
lockouts automatically enables tracking. Disabling
tracking automatically disables lockouts.
lock-time Sets maximum permitted consecutive authentication
failures before locking out users.
Unlike the “max-fail” setting, this does take effect
immediately for all accounts
If both unlock-time and lock-time are set, the unlock-
time must be greater than the lock-time
This is not based on the number of consecutive failures,
and is therefore divorced from most of the rest of the
tally feature, except for the tracking of the last login
failure
max-fail Sets maximum permitted consecutive authentication
failures before locking out users.
This setting only impacts what lockouts are imposed
while the setting is active; it is not retroactive to previ-
ous logins. So if max-fail is disabled or changed, this
does not immediately cause any users to be changed
from locked to unlocked or vice-versa.
unlock-time Enables the auto-unlock of an account after a specified
number of seconds if a user account is locked due to
authentication failures, counting from the last valid
login attempt.
Unlike the “max-fail” setting, this does take effect
immediately for all accounts.
If both unlock-time and lock-time are set, the unlock-
time must be greater than the lock-time.
Careful with disabling the unlock-time, particularly if
you have max-fail set to something, and have not over-
ridden the behavior for the admin (i.e. they are subject
to lockouts also). If the admin account gets locked out,
and there are no other administrators who can aid, the
user may be forced to boot single-user and use the
pam_tallybyname command-line utility to unlock your
account manually. Even if one is careful not to incur
this many authentication failures, it makes the system
more subject to DOS attacks.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 328
Default N/A
Configuration Mode Config
History 3.2.3000
Role admin
Example switch (config) # aaa authentication attempts lockout enable
Related Commands N/A
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 329
aaa authentication attempts class-override
aaa authentication attempts class-override {admin [no-lockout] | unknown {no-
track | hash-username}}
no aaa authentication attempts class-override {admin | unknown {no-track |
hash-username}}
Overrides the global settings for tracking and lockouts for a type of account.
The no form of the command removes this override and lets the admin be handled
according to the global settings.
Syntax Description admin Overrides the global settings for tracking and lockouts
for the admin account. This applies only to the single
account with the username “admin”. It does not apply
to any other users with administrative privileges.
no-lockout Prevents the admin user from being locked out, though
the authentication failure history is still tracked (if
tracking is enabled overall).
unknown Overrides the global settings for tracking and lockouts
for unknown accounts. The “unknown” class here con-
tains the following categories:
• Real remote usernames which simply failed authentica-
tion
• Mis-typed remote usernames
• Passwords accidentally entered as usernames
• Bogus usernames made up as part of an attack on the sys-
tem
hash-username Applies a hash function to the username, and stores the
hashed result in lieu of the original.
no-track Does not track authentication for such users (which of
course also implies no-lockout).
Default N/A
Configuration Mode Config
History 3.2.3000
Role admin
Example switch (config) # aaa authentication attempts class-override admin no-
lockout
Related Commands N/A
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 330
aaa authentication attempts reset
aaa authentication attempts reset {all | user <username>} [{no-clear-history | no-
unlock}]
Clears the authentication history for and/or unlocks specified users.
Syntax Description all Applies function to all users.
user Applies function to specified user.
no-clear-history Leaves the history of login failures but unlocks the
account.
no-unlock Leaves the account locked but clears the history of
login failures.
Default N/A
Configuration Mode Config
History 3.2.3000
Role admin
Example switch (config) # aaa authentication attempts reset user admin all
Related Commands N/A
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 331
clear aaa authentication attempts
clear aaa authentication attempts {all | user <username>} [no-clear-history | no-
unlock]
Clears the authentication history for and/or unlocks specified users
Syntax Description all Applies function to all users.
user Applies function to specified user.
no-clear-history Clears the history of login failures.
no-unlock Unlocks the account.
Default N/A
Configuration Mode Config
History 3.2.3000
Role admin
Example switch (config) # aaa authentication attempts reset user admin no-
clear-history
Related Commands N/A
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 332
aaa authorization
aaa authorization map [default-user <username> | order <policy>]
no aaa authorization map [default-user | order]
Sets the mapping permissions of a user in case a remote authentication is done.
The no form of the command resets the attributes to default.
Syntax Description username Specifies what local account the authenticated user will
be logged on as when a user is authenticated (via
RADIUS or TACACS+) and does not have a local
account. If the username is local, this mapping is
ignored.
order <policy> Sets the user mapping behavior when authenticating
users via RADIUS or TACACS+ to one of three
choices. The order determines how the remote user
mapping behaves. If the authenticated username is
valid locally, no mapping is performed. The setting has
the following three possible behaviors:
• remote-first – if a local-user mapping attribute is returned
and it is a valid local username, it maps the authenticated
user to the local user specified in the attribute. Otherwise,
it uses the user specified by the default-user command.
• remote-only – maps a remote authenticated user if the
authentication server sends a local-user mapping attri-
bute. If the attribute does not specify a valid local user, no
further mapping is tried.
• local-only – maps all remote users to the user specified by
the “aaa authorization map default-user <user name>”
command. Any vendor attributes received by an authenti-
cation server are ignored.
Default Default user - admin
Map order - remote-first
Configuration Mode Config
History 3.1.0000
Role admin
Example switch (config) # aaa authorization map default-user admin
switch (config) # show aaa
AAA authorization:
Default User: admin
Map Order: remote-first
Authentication method(s):
local
Accounting method(s):
tacacs+
switch (config) #
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 333
Related Commands show aaa
username
Notes • If, for example, the user is locally defined to have admin permission, but in a remote server
such as RADIUS the user is authenticated as monitor and the order is remote-first, then the
user is given monitor permissions.
• If AAA authorization order policy is configured to remote-only, then when upgrading to
3.4.3000 or later from an older MLNX-OS version, this policy is changed to remote-first.
• The user must be careful when setting AAA authorization to “remote-only” because if the
remote server happens to be configured incorrectly, then the user may lock themselves out.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 334
show aaa
show aaa
Displays the AAA configuration.
Syntax Description N/A
Default N/A
Configuration Mode Any Command Mode
History 3.1.0000
Role admin
Example switch (config) # show aaa
AAA authorization:
Default User: admin
Map Order: remote-first
Authentication method(s):
local
Accounting method(s):
tacacs+
switch (config) #
Related Commands aaa accounting
aaa authentication
aaa authorization
show aaa
show usernames
username
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 335
show aaa authentication attempts
show aaa authentication attempts [configured | status user <username>]]
Shows the current authentication, authorization and accounting settings.
Syntax Description authentication attempts Displays configuration and history of authentication
failures.
configured Displays configuration of authentication failure track-
ing.
status user Displays status of authentication failure tracking and
lockouts for specific user.
Default N/A
Configuration Mode Any Command Mode
History 3.2.1000
3.5.0200 Updated Example
Role admin
Example switch (config) # show aaa authentication attempts
Configuration for authentication failure tracking and locking:
Track authentication failures: yes
Lock accounts based on authentication failures: yes
Override treatment of 'admin' user: (none)
Override treatment of unknown usernames: hash-usernames
Convert usernames to lowercase for tracking: no
Delay after each auth failure (fail delay): none
Configuration for lockouts based on authentication failures:
Lock account after consecutive auth failures: 5
Allow retry on locked accounts (unlock time): after 15 second(s)
Temp lock after each auth failure (lock time): none
Username Known Locked Failures Last fail time Last fail from
-------- ----- ------ -------- -------------- --------------
0Q72B43EHBKT8CB5AF5PGRX3U3B3TUL4CYJP93N(*) no no 1 2012/08/20 14:29:19 ttyS0
(*) Hashed for security reasons
switch-627d3c [standalone: master] (config) #
switch (config) #
Related Commands N/A
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 336
4.8.4.3 RADIUS
no radius-server {key | retransmit | timeout}
Sets global RADIUS server attributes.
The no form of the command resets the attributes to their default values.
secret Sets a secret key (shared hidden text string), known to
the system and to the RADIUS server.
retries Number of retries (0-5) before exhausting from the
authentication.
seconds Timeout in seconds between each retry (1-60).
3 seconds, 1 retry
Config
3.1.0000
admin
switch (config) #radius-server retransmit 3
switch (config) # show radius
RADIUS defaults:
Key: 3333
Timeout: 3
Retransmit: 1
No RADIUS servers configured.
switch (config) #
aaa authorization
radius-server host
show radius
Each RADIUS server can override those global parameters using the command
“radius-server host”.
radius-server
radius-server {key <secret>| retransmit <retries> | timeout <seconds>}
Syntax Description
Default
Configuration Mode
History
Role
Example
Related Commands
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 337
radius-server host
radius-server host <IP address> [enable | auth-port <port> | key <secret> |
prompt-key | retransmit <retries> | timeout <seconds>]
no radius-server host <IP address> [auth-port | enable]
Configures RADIUS server attributes.
The no form of the command resets the attributes to their default values and deletes
the RADIUS server.
Syntax Description IP address RADIUS server IP address
enable Administrative enable of the RADIUS server
auth-port Configures authentication port to use with this
RADIUS server
port RADIUS server UDP port number
key Configures shared secret to use with this RADIUS
server
prompt-key Prompt for key, rather than entering on command line
retransmit Configures retransmit count to use with this RADIUS
server
retries Number of retries (0-5) before exhausting from the
authentication
timeout Configures timeout between each try
seconds Timeout in seconds between each retry (1-60)
Default 3 seconds, 1 retry
Default UDP port is 1812
Configuration Mode Config
History 3.1.0000
Role admin
Example switch (config) # radius-server host 40.40.40.40
switch (config) # show radius
RADIUS defaults:
Key: 3333
Timeout: 3
Retransmit: 1
RADIUS servers:
40.40.40.40:1812
Enabled: yes
Key: 3333 (default)
Timeout: 3 (default)
Retransmit: 1 (default)
switch (config) #
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 338
Related Commands aaa authorization
radius-server
show radius
Notes • RADIUS servers are tried in the order they are configured
• If you do not specify a parameter for this configured RADIUS server, the configuration
will be taken from the global RADIUS server configuration. Refer to “radius-server” com-
mand.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 339
show radius
show radius
Displays RADIUS configurations.
Syntax Description N/A
Default N/A
Configuration Mode Any Command Mode
History 3.1.0000
Role admin
Example switch (config) # show radius
RADIUS defaults:
Key: 3333
Timeout: 3
Retransmit: 1
RADIUS servers:
40.40.40.40:1812
Enabled: yes
Key: 3333 (default)
Timeout: 3 (default)
Retransmit: 1 (default)
switch (config) #
Related Commands aaa authorization
radius-server
radius-server host
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 340
4.8.4.4 TACACS+
no tacacs-server {key | retransmit | timeout}
Sets global TACACS+ server attributes.
The no form of the command resets the attributes to default values.
secret Set a secret key (shared hidden text string), known to
the system and to the TACACS+ server.
retries Number of retries (0-5) before exhausting from the
authentication.
seconds Timeout in seconds between each retry (1-60).
3 seconds, 1 retry
Config
3.1.0000
admin
switch (config) #tacacs-server retransmit 3
switch (config) # show tacacs
TACACS+ defaults:
Key: 3333
Timeout: 3
Retransmit: 1
No TACACS+ servers configured.
switch (config) #
aaa authorization
show radius
show tacacs
tacacs-server host
Each TACACS+ server can override those global parameters using the command
“tacacs-server host”.
tacacs-server
tacacs-server {key <secret>| retransmit <retries> | timeout <seconds>}
Syntax Description
Default
Configuration Mode
History
Role
Example
Related Commands
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 341
tacacs-server host
tacacs-server host <IP address> {enable | auth-port <port> | auth-type <type> |
key <secret> | prompt-key | retransmit <retries> | timeout <seconds>}
no tacacs-server host <IP address> {enable | auth-port}
Configures TACACS+ server attributes.
The no form of the command resets the attributes to their default values and deletes
the TACACS+ server.
Syntax Description IP address TACACS+ server IP address
enable Administrative enable for the TACACS+ server
auth-port Configures authentication port to use with this
TACACS+ server
port TACACS+ server UDP port number
auth-type Configures authentication type to use with this
TACACS+ server
type Authentication type. Possible values are:
• ASCII
• PAP (Password Authentication Protocol)
key Configures shared secret to use with this TACACS+
server
secret Sets a secret key (shared hidden text string), known to
the system and to the TACACS+ server
prompt-key Prompts for key, rather than entering key on command
line
retransmit Configures retransmit count to use with this TACACS+
server
retries Number of retries (0-5) before exhausting from the
authentication
timeout Configures timeout to use with this TACACS+ server
seconds Timeout in seconds between each retry (1-60)
Default 3 seconds, 1 retry
Default TCP port is 49
Default auth-type is PAP
Configuration Mode Config
History 3.1.0000
Role admin
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 342
Example switch (config) # tacacs-server host 40.40.40.40
switch (config) # show tacacs
TACACS+ defaults:
Key: 3333
Timeout: 3
Retransmit: 1
TACACS+ servers:
40.40.40.40:49
Enabled: yes
Auth-type PAP
Key: 3333 (default)
Timeout: 3 (default)
Retransmit: 1 (default)
switch (config) #
Related Commands aaa authorization
show tacacs
tacacs-server
Notes • TACACS+ servers are tried in the order they are configured
• A PAP auth-type similar to an ASCII login, except that the username and password arrive
at the network access server in a PAP protocol packet instead of being typed in by the user,
so the user is not prompted
• If the user does not specify a parameter for this configured TACACS+ server, the configu-
ration will be taken from the global TACACS+ server configuration. Refer to “tacacs-
server” command.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 343
show tacacs
show tacacs
Displays TACACS+ configurations.
Syntax Description N/A
Default N/A
Configuration Mode Any Command Mode
History 3.1.0000
Role admin
Example switch (config) # show tacacs
TACACS+ defaults:
Key: 3333
Timeout: 3
Retransmit: 1
TACACS+ servers:
40.40.40.40:49
Enabled: yes
Auth-type PAP
Key: 3333 (default)
Timeout: 3 (default)
Retransmit: 1 (default)
switch (config) #
Related Commands aaa authorization
tacacs-server
tacacs-server host
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 344
4.8.4.5 LDAP
ldap base-dn
ldap base-dn <string>
no ldap base-dn
Sets the base distinguished name (location) of the user information in the schema of
the LDAP server.
The no form of the command resets the attribute to its default values.
Syntax Description string A case-sensitive string that specifies the location in the
LDAP hierarchy where the server should begin search-
ing when it receives an authorization request.
For example:
“ou=users,dc=example,dc=com”, with no spaces.
when:
ou - Organizational unit
dc - Domain component
cn - Common name
sn - Surname
Default ou=users,dc=example,dc=com
Configuration Mode Config
History 3.1.0000
3.4.0000 Updated Example
Role admin
Example switch (config) # ldap base-dn ou=department,dc=example,dc=com
switch (config) # show ldap
User base DN : ou=department,dc=example,dc=com
User search scope : subtree
Login attribute : sAMAccountName
Bind DN :
Bind password :
Group base DN :
Group attribute : member
LDAP version : 3
Referrals : yes
Server port : 389
Search Timeout : 5
Bind Timeout : 5
SSL mode : none
Server SSL port : 636 (not active)
SSL ciphers : TLS1.2 (not active)
SSL cert verify : yes
SSL ca-list : default-ca-list
LDAP servers:
1: 10.10.10.10
2: 10.10.10.12
switch (config) #
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 345
Related Commands show ldap
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 346
ldap bind-dn/bind-password
ldap {bind-dn | bind-password} <string>
no ldap {bind-dn | bind-password}
Gives the distinguished name or password to bind to on the LDAP server. This can be
left empty for anonymous login (the default).
The no form of the command resets the attribute to its default values.
Syntax Description string A case-sensitive string that specifies distinguished
name or password to bind to on the LDAP server.
Default “”
Configuration Mode Config
History 3.1.0000
3.4.0000 Updated Example
Role admin
Example switch (config) # ldap bind-dn my-dn
switch (config) # ldap bind-password my-password
switch (config) # show ldap
User base DN : ou=department,dc=example,dc=com
User search scope : subtree
Login attribute : sAMAccountName
Bind DN : my-dn
Bind password : my-password
Group base DN :
Group attribute : member
LDAP version : 3
Referrals : yes
Server port : 389
Search Timeout : 5
Bind Timeout : 5
SSL mode : none
Server SSL port : 636 (not active)
SSL ciphers : TLS1.2 (not active)
SSL cert verify : yes
SSL ca-list : default-ca-list
LDAP servers:
1: 10.10.10.10
2: 10.10.10.12
switch (config) #
Related Commands show ldap
Notes For anonymous login, bind-dn and bind-password should be empty strings “”.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 347
ldap group-attribute/group-dn
ldap {group-attribute {<group-att> |member | uniqueMember} | group-dn
<group-dn>}
no ldap {group-attribute | group-dn}
Sets the distinguished name or attribute name of a group on the LDAP server.
The no form of the command resets the attribute to its default values.
Syntax Description group-att Specifies a custom attribute name.
member groupOfNames or group membership attribute.
uniqueMember groupOfUniqueNames membership attribute.
group-dn DN of group required for authorization.
Default group-att: member
group-dn: “”
Configuration Mode Config
History 3.1.0000
3.4.0000 Updated Example
Role admin
Example switch (config) # ldap group-attribute member
switch (config) # ldap group-dn my-group-dn
switch (config) # show ldap
User base DN : ou=department,dc=example,dc=com
User search scope : subtree
Login attribute : sAMAccountName
Bind DN : my-dn
Bind password : my-password
Group base DN : my-group-dn
Group attribute : member
LDAP version : 3
Referrals : yes
Server port : 389
Search Timeout : 5
Bind Timeout : 5
SSL mode : none
Server SSL port : 636 (not active)
SSL ciphers : TLS1.2 (not active)
SSL cert verify : yes
SSL ca-list : default-ca-list
LDAP servers:
1: 10.10.10.10
2: 10.10.10.12
switch (config) #
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 348
Related Commands show ldap
Notes • The user’s distinguished name must be listed as one of the values of this attribute, or the
user will not be authorized to log in
• After login authentication, if the group-dn is set, a user must be a member of this group or
the user will not be authorized to log in. If the group is not set (“” - the default) no authori-
zation checks are done.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 349
ldap host
ldap host <IP Address> [order <number> last]
no ldap host <IP Address>
Adds an LDAP server to the set of servers used for authentication.
The no form of the command deletes the LDAP host.
Syntax Description IP Address IPv4 or IPv6 address.
number The order of the LDAP server.
last The LDAP server will be added in the last location.
Default No hosts configured
Configuration Mode Config
History 3.1.0000
3.4.0000 Updated Example
Role admin
Example switch (config) # ldap host 10.10.10.10
switch (config) # show ldap
User base DN : ou=department,dc=example,dc=com
User search scope : subtree
Login attribute : sAMAccountName
Bind DN : my-dn
Bind password : my-password
Group base DN : my-group-dn
Group attribute : member
LDAP version : 3
Referrals : yes
Server port : 389
Search Timeout : 5
Bind Timeout : 5
SSL mode : none
Server SSL port : 636 (not active)
SSL ciphers : TLS1.2 (not active)
SSL cert verify : yes
SSL ca-list : default-ca-list
LDAP servers:
1: 10.10.10.10
2: 10.10.10.12
switch (config) #
Related Commands show aaa
show ldap
Notes • The system will select the LDAP host to try according to its order
• New servers are by default added at the end of the list of servers
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 350
ldap login-attribute
ldap login-attribute {<string> | uid | sAMAccountName}
no ldap login-attribute
Sets the attribute name which contains the login name of the user.
The no form of the command resets this attribute to its default.
Syntax Description string Custom attribute name.
uid LDAP login name is taken from the user login user-
name.
sAMAccountName SAM Account name, active directory login name.
Default sAMAccountName
Configuration Mode Config
History 3.1.0000
3.4.0000 Updated Example
Role admin
Example switch (config) # ldap login-attribute uid
switch (config) # show ldap
User base DN : ou=department,dc=example,dc=com
User search scope : subtree
Login attribute : uid
Bind DN : my-dn
Bind password : my-password
Group base DN : my-group-dn
Group attribute : member
LDAP version : 3
Referrals : yes
Server port : 389
Search Timeout : 5
Bind Timeout : 5
SSL mode : none
Server SSL port : 636 (not active)
SSL ciphers : TLS1.2 (not active)
SSL cert verify : yes
SSL ca-list : default-ca-list
LDAP servers:
1: 10.10.10.10
2: 10.10.10.12
switch (config) #
Related Commands show aaa
show ldap
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 351
ldap port
ldap port <port>
no ldap port
Sets the TCP port on the LDAP server to connect to for authentication.
The no form of the command resets this attribute to its default value.
Syntax Description port TCP port number.
Default 389
Configuration Mode Config
History 3.1.0000
3.4.0000 Updated Example
Role admin
Example switch (config) # ldap port 1111
switch (config) # show ldap
User base DN : ou=department,dc=example,dc=com
User search scope : subtree
Login attribute : uid
Bind DN : my-dn
Bind password : my-password
Group base DN : my-group-dn
Group attribute : member
LDAP version : 3
Referrals : yes
Server port : 1111
Search Timeout : 5
Bind Timeout : 5
SSL mode : none
Server SSL port : 636 (not active)
SSL ciphers : TLS1.2 (not active)
SSL cert verify : yes
SSL ca-list : default-ca-list
LDAP servers:
1: 10.10.10.10
2: 10.10.10.12
switch (config) #
Related Commands show aaa
show ldap
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 352
ldap referrals
ldap referrals
no ldap referrals
Enables LDAP referrals.
The no form of the command disables LDAP referrals.
Syntax Description N/A
Default LDAP referrals are enabled
Configuration Mode Config
History 3.1.0000
3.4.0000 Updated Example
Role admin
Example switch (config) # no ldap referrals
switch (config) # show ldap
User base DN : ou=department,dc=example,dc=com
User search scope : subtree
Login attribute : uid
Bind DN : my-dn
Bind password : my-password
Group base DN : my-group-dn
Group attribute : member
LDAP version : 3
Referrals : no
Server port : 1111
Search Timeout : 5
Bind Timeout : 5
SSL mode : none
Server SSL port : 636 (not active)
SSL ciphers : TLS1.2 (not active)
SSL cert verify : yes
SSL ca-list : default-ca-list
LDAP servers:
1: 10.10.10.10
2: 10.10.10.12
switch (config) #
Related Commands show aaa
show ldap
Notes Referral is the process by which an LDAP server, instead of returning a result, will
return a referral (a reference) to another LDAP server which may contain further
information.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 353
ldap scope
ldap scope <scope>
no ldap scope
Specifies the extent of the search in the LDAP hierarchy that the server should make
when it receives an authorization request.
The no form of the command resets the attribute to its default value.
Syntax Description scope • one-level - searches the immediate children of the base dn
• subtree - searches at the base DN and all its children
Default subtree
Configuration Mode Config
History 3.1.0000
3.4.0000 Updated Example
Role admin
Example switch (config) # ldap scope subtree
switch (config) # show ldap
User base DN : ou=department,dc=example,dc=com
User search scope : subtree
Login attribute : uid
Bind DN : my-dn
Bind password : my-password
Group base DN : my-group-dn
Group attribute : member
LDAP version : 3
Referrals : no
Server port : 1111
Search Timeout : 5
Bind Timeout : 5
SSL mode : none
Server SSL port : 636 (not active)
SSL ciphers : TLS1.2 (not active)
SSL cert verify : yes
SSL ca-list : default-ca-list
LDAP servers:
1: 10.10.10.10
2: 10.10.10.12
switch (config) #
Related Commands show aaa
show ldap
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 354
ldap ssl
ldap ssl {ca-list <options> | cert-verify | ciphers {all | TLS1.2} | mode <mode> |
port <port-number>}
no ldap ssl {cert-verify | ciphers | mode | port}
Sets SSL parameter for LDAP.
The no form of the command resets the attribute to its default value.
Syntax Description options This command specifies the list of supplemental certifi-
cates of authority (CAs) from the certificate configura-
tion database that is to be used by LDAP for
authentication of servers when in TLS or SSL mode.
The options are:
• default-ca-list - uses default supplemental CA certifi-
cate list
• none - no supplemental list, uses the built-in one
only
CA certificates are ignored if “ldap ssl mode” is not
configured as either “tls” or “ssl”, or if “no ldap ssl
cert-verify” is configured.
The default-ca-list is empty in the factory default con-
figuration. Use the command: “crypto certificate ca-list
default-ca-list name” to add trusted certificates to that
list.
The “default-ca-list” option requires LDAP to consult
the system’s configured global default CA-list for sup-
plemental certificates.
cert-verify Enables verification of SSL/TLS server certificates.
This may be required if the server's certificate is self-
signed, or does not match the name of the server.
ciphers {all | TLS1.2} Sets SSL mode to be used.
mode Sets the security mode for connections to the LDAP
server.
• none – requests no encryption for the LDAP connection
• ssl – the SSL-port configuration is used, an SSL connec-
tion is made before LDAP requests are sent (LDAP over
SSL)
• start-tls – the normal LDAP port is used, an LDAP con-
nection is initiated, and then TLS is started on this exist-
ing connection
port-number Sets the port on the LDAP server to connect to for
authentication when the SSL security mode is enabled
(LDAP over SSL).
Default cert-verify: enabled
mode: none (LDAP SSL is not activated)
port-number: 636
ciphers: all
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 355
Configuration Mode Config
History 3.1.0000 First version
3.2.3000 Added ca-list argument.
3.4.0000 Added “ssl ciphers” parameter
Updated Example
Role admin
Example switch (config) # ldap ssl mode ssl
switch (config) # show ldap
User base DN : ou=department,dc=example,dc=com
User search scope : subtree
Login attribute : uid
Bind DN : my-dn
Bind password : my-password
Group base DN : my-group-dn
Group attribute : member
LDAP version : 3
Referrals : no
Server port : 1111
Search Timeout : 5
Bind Timeout : 5
SSL mode : ssl
Server SSL port : 636 (not active)
SSL ciphers : TLS1.2 (not active)
SSL cert verify : yes
SSL ca-list : default-ca-list
LDAP servers:
1: 10.10.10.10
2: 10.10.10.12
switch (config) #
Related Commands show aaa
show ldap
Notes • If available, the TLS mode is recommended, as it is standardized, and may also be of
higher security
• The port number is used only for SSL mode. In case the mode is TLS, the LDAP port num-
ber will be used.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 356
ldap timeout
ldap {timeout-bind | timeout-search} <seconds>
no ldap {timeout-bind | timeout-search}
Sets a global communication timeout in seconds for all LDAP servers to specify the
extent of the search in the LDAP hierarchy that the server should make when it
receives an authorization request.
The no form of the command resets the attribute to its default value.
Syntax Description timeout-bind Sets the global LDAP bind timeout for all LDAP serv-
ers.
timeout-search Sets the global LDAP search timeout for all LDAP
servers.
seconds Range: 1-60 seconds.
Default 5 seconds
Configuration Mode Config
History 3.1.0000
3.4.0000 Updated Example
Role admin
Example switch (config) # ldap timeout-bind 10
switch (config) # show ldap
User base DN : ou=department,dc=example,dc=com
User search scope : subtree
Login attribute : uid
Bind DN : my-dn
Bind password : my-password
Group base DN : my-group-dn
Group attribute : member
LDAP version : 3
Referrals : no
Server port : 1111
Search Timeout : 5
Bind Timeout : 10
SSL mode : none
Server SSL port : 636 (not active)
SSL ciphers : TLS1.2 (not active)
SSL cert verify : yes
SSL ca-list : default-ca-list
LDAP servers:
1: 10.10.10.10
2: 10.10.10.12
switch (config) #
Related Commands show aaa
show ldap
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 357
ldap version
ldap version <version>
no ldap version
Sets the LDAP version.
The no form of the command resets the attribute to its default value.
Syntax Description version Sets the LDAP version. Values: 2 and 3.
Default 3
Configuration Mode Config
History 3.1.0000
3.4.0000 Updated Example
Role admin
Example switch (config) # ldap version 3
switch (config) # show ldap
User base DN : ou=department,dc=example,dc=com
User search scope : subtree
Login attribute : uid
Bind DN : my-dn
Bind password : my-password
Group base DN : my-group-dn
Group attribute : member
LDAP version : 3
Referrals : no
Server port : 1111
Search Timeout : 5
Bind Timeout : 10
SSL mode : none
Server SSL port : 636 (not active)
SSL ciphers : TLS1.2 (not active)
SSL cert verify : yes
SSL ca-list : default-ca-list
LDAP servers:
1: 10.10.10.10
2: 10.10.10.12
switch (config) #
Related Commands show aaa
show ldap
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 358
show ldap
show ldap
Displays LDAP configurations.
Syntax Description N/A
Default N/A
Configuration Mode Any Command Mode
History 3.1.0000
3.4.0000 Updated Example
Role admin
Example switch (config) # show ldap
User base DN : ou=department,dc=example,dc=com
User search scope : subtree
Login attribute : uid
Bind DN : my-dn
Bind password : my-password
Group base DN : my-group-dn
Group attribute : member
LDAP version : 3
Referrals : no
Server port : 1111
Search Timeout : 5
Bind Timeout : 10
SSL mode : none
Server SSL port : 636 (not active)
SSL ciphers : TLS1.2 (not active)
SSL cert verify : yes
SSL ca-list : default-ca-list
LDAP servers:
1: 10.10.10.10
2: 10.10.10.12
switch (config) #
Related Commands show aaa
show ldap
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 359
4.8.4.6 System Secure Mode
Enables secure mode on the switch.
The no form of the command disables secure mode.
N/A
Disabled
Config
3.5.0200
admin
switch (config) # system secure-mode enable
Warning! Configuration is about to be saved and the system will be
reloaded.
Type 'YES' to confirm the change in secure mode: YES
user <username> password <password>
ssh server min-version
ssh server security strict
snmp-server user
no neighbor <ip-address> password
ntp server disable
ntp server keyID
router bgp neighbor password
router bgp peer-group password
Before enabling secure mode, the command performs the following configuration
checks:
• NTP Key ID cannot be MD5 when secure mode is enabled
• SSH min-version cannot be 1 when enabling secure mode
• SSH security must be set to strict security
• SNMPv3 user auth cannot be md5 when enabling secure mode
• SNMPv3 user priv cannot be des when enabling secure mode
• SNMPv3 trap auth cannot be md5 when enabling secure mode
• SNMPv3 trap priv cannot be des when enabling secure mode
• Router BGP neighbor password cannot be set when enabling secure mode
• Router BGP peer-group password cannot be set when enabling with secure mode
• User password hash cannot be MD5 when secure mode is enabled
Only if the check passes, secure mode is enabled on the switch system.
system secure-mode enable
system secure-mode enable
no system secure-mode enable
Syntax Description
Default
Configuration Mode
History
Role
Example
Related Commands
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 360
show system secure-mode
show system secure-mode
Displays the security mode of the switch system.
Syntax Description N/A
Default N/A
Configuration Mode Any Command Mode
History 3.4.2300
Role admin
Example switch (config) # show system secure-mode
Secure mode configured: yes
Secure mode enabled : yes
switch (config) #
Related Commands system secure-mode enable
Notes “Secure mode configuration” describes the user configuration
“Secure mode enabled” describes the system state
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 361
4.9 Cryptographic (X.509, IPSec) and Encryption
This chapter contains commands for configuring, generating and modifying x.509 certificates
used in the system. Certificates are used for creating a trusted SSL connection to the system.
Crypto commands also cover IPSec configuration commands used for establishing a secure con-
nection between hosts over IP layer which is useful for transferring sensitive information.
4.9.1 System File Encryption
This feature encrypts all sensitive data on Mellanox systems including logs certificates, keys, etc.
To activate encryption on the switch:
Step 1. Enable encryption and configure key location as USB (if you are using a USB device). Run:
Step 2. After the system reboots, verify configuration. Run:
switch (config)# crypto encrypt-data key-location usb key mypassword
Warning! All sensitive files are about to be encrypted
- System will perform reset factory, configuration files will be preserved
- System will be rebooted
- Do not power-off, wait for the system to boot
Type 'YES' to confirm this action: YES
***IMPORTANT NOTE***
Encryption and decryption perform “reset factory keep-config” on the switch system
once configured. This means that sysdumps, logs, and images are deleted.
The key may be saved locally as well by using the parameter “local” instead of “usb”
but that configuration is less secure.
switch (config)# show crypto encrypt-data
Sensitive files encryption:
Status: enabled
Key location: usb
Cipher: aes256
Once encryption is enabled, reverting back to an older version while encrypted is not
possible. The command “no crypto encrypt-data” must be run before attempting to
downgrade to an older MLNX-OS version.
If encryption is enabled, upgrading to a new MLNX-OS® version maintains the encryp-
tion configuration.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 362
4.9.2 Commands
Enables and configures system file encryption.
The no form of the command decrypts sensitive information on the system.
key-location Configures where to store the encryption key:
• local – Stores the key locally
• usb – Stores the key on a USB device
key Configures a key
N/A
Config
3.6.1002
admin
switch (config)# crypto encrypt-data key-location usb key mypassword
Warning! All sensitive files are about to be encrypted
- System will perform reset factory, configuration files will be preserved
- System will be rebooted
- Do not power-off, wait for the system to boot
Type 'YES' to confirm this action: YES
• It is recommended to store the encryption password on a USB device rather than locally
• Enabling encryption may slightly slow system performance
• If the key is stored on the USB, it must be plugged into the switch in order for the switch to
boot. After the switch has booted, the USB key is no longer required and, for security pur-
poses, it is recommended to remove it after running “usb eject”. The USB key may be
needed again if the switch is rebooted or if the switch needs to be decrypted.
crypto encrypt-data
crypto encrypt-data key-location <local | usb> key <password>
no crypto encrypt-data
Syntax Description
Default
Configuration Mode
History
Role
Example
Related Commands
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 363
crypto ipsec ike
crypto ipsec ike {clear sa [peer {any | <IPv4 or IPv6 address>} local <IPv4 or
IPv6 address>] | restart}
Manage the IKE (ISAKMP) process or database state
Syntax Description clear Clears IKE (ISAKMP) peering state
sa Clears IKE generated ISAKMP and IPSec security
associations (remote peers are affected)
peer Clears security associations for the specified IKE peer
(remote peers are affected)
all – clears security associations for all IKE peerings
with a specific local address (remote peers are affected)
IPv4 or IPv6 address – clears security associations for
specific IKE peering with a specific local address
(remote peers are affected)
IPv4 or IPv6 address Clears security associations for the specified IKE peer-
ing (remote peer is affected)
local Clear security associations for the specified/all IKE
peering (remote peer is affected)
restart Restarts the IKE (ISAKMP) daemon (clears all IKE
state, peers may be affected)
Default N/A
Configuration Mode Config
History 3.2.3000
Role admin
Example switch (config)# crypto ipsec ike restart
switch (config)#
Related Commands N/A
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 364
crypto ipsec peer local
crypto ipsec peer <IPv4 or IPv6 address> local <IPv4 or IPv6 address> {enable |
keying {ike [auth {hmac-md5 | hmac-sha1 | hmac-sha256 | null} | dh-group | dis-
able | encrypt | exchange-mode | lifetime | local | mode | peer-identity | pfs-group |
preshared-key | prompt-preshared-key | transform-set] | manual [auth | disable |
encrypt | local-spi | mode | remote-spi]}}
Configures ipsec in the system.
Syntax Description enable Enables IPSec peering.
ike Configures IPSec peering using IKE ISAKMP to man-
age SA keys. It has the following optional parameters:
• auth: Configures the authentication algorithm for IPSec
peering
• dh-group: Configures the phase1 Diffie-Hellman group
proposed for secure IKE key exchange
• disable: Configures this IPSec peering administratively
disabled
• encrypt: Configures the encryption algorithm for IPSec
peering
• exchange-mode: Configures the IKE key exchange mode
to propose for peering
• lifetime: Configures the SA lifetime to propose for this
IPSec peering
• local-identity: Configures the ISAKMP payload identifi-
cation value to send as local endpoint's identity
• mode: Configures the peering mode for this IPSec peer-
ing
• peer-identity: Configures the identification value to
match against the peer's ISAKMP payload identification
• pfs-group: Configures the phase2 PFS (Perfect Forward-
ing Secrecy) group to propose for Diffie-Hellman
exchange for this IPSec peering
• preshared-key: Configures the IKE pre-shared key for the
IPSec peering
• prompt-preshared-key: Prompts for the pre-shared key,
rather than entering it on the command line
• transform-set: Configures transform proposal parameters
keying Configures key management for this IPSec peering:
• auth: Configures the authentication algorithm for this
IPSec peering
• disable: Configures this IPSec peering administratively
disabled
• encrypt: Configures the encryption algorithm for this
IPSec peering
• local-spi: Configures the local SPI for this manual IPSec
peering
• mode: Configures the peering mode for this IPSec peer-
ing
• remote-spi: Configures the remote SPI for this manual
IPSec peering
manual Configures IPSec peering using manual keys.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 365
Default N/A
Configuration Mode Config
History 3.2.3000
Role admin
Example switch (config)# crypto ipsec peer 10.10.10.10 local 10.7.34.139 enable
switch (config)#
Related Commands N/A
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 366
crypto certificate ca-list
crypto certificate ca-list [default-ca-list name {<cert-name> | system-self-
signed}]
no crypto certificate ca-list [default-ca-list name {<cert-name> | system-self-
signed}]
Adds the specified CA certificate to the default CA certificate list.
The no form of the command removes the certificate from the default CA certificate
list.
Syntax Description cert-name The name of the certificate.
Default N/A
Configuration Mode Config
History 3.2.3000
Role admin
Example switch (config) # crypto certificate default-cert name test
Related Commands N/A
Notes • Two certificates with the same subject and issuer fields cannot both be placed onto the CA
list
• The no form of the command does not delete the certificate from the certificate database
• Unless specified otherwise, applications that use CA certificates will still consult the well-
known certificate bundle before looking at the default-ca-list
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 367
crypto certificate default-cert
crypto certificate default-cert name {<cert-name> | system-self-signed}
no crypto certificate default-cert name {<cert-name> | system-self-signed}
Designates the named certificate as the global default certificate role for authentica-
tion of this system to clients.
The no form of the command reverts the default-cert name to “system-self-signed”
(the “cert-name” value is optional and ignored).
Syntax Description cert-name The name of the certificate.
Default N/A
Configuration Mode Config
History 3.2.3000
Role admin
Example switch (config) # crypto certificate default-cert name test
Related Commands N/A
Notes • A certificate must already be defined before it can be configured in the default-cert role
• If the named default-cert is deleted from the database, the default-cert automatically
becomes reconfigured to the factory default, the “system-self-signed” certificate
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 368
crypto certificate generation
crypto certificate generation default {country-code | days-valid | email-addr |
hash-algorithm {sha1 | sha256} | key-size-bits | locality | org-unit | organization |
state-or-prov}
Configures default values for certificate generation.
Syntax Description country-code Configures the default certificate value for country
code with a two-alphanumeric-character code or -- for
none.
days-valid Configures the default certificate value for days valid.
email-addr Configures the default certificate value for email
address.
hash-algorithm {sha1 |
sha256} Configures the default certificate hashing algorithm.
key-size-bits Configures the default certificate value for private key
size. (Private key length in bits – at least 1024, but 2048
is strongly recommended.)
locality Configures the default certificate value for locality.
org-unit Configures the default certificate value for organiza-
tional unit.
organization Configures the default certificate value for the organi-
zation name.
state-or-prov Configures the default certificate value for state or
province.
Default N/A
Configuration Mode Config
History 3.2.1000 First version
3.3.4350 Added “hash-algorithm” parameter
Role admin
Example switch (config) # crypto certificate generation default hash-algorithm
sha256
Related Commands N/A
Notes The default hashing algorithm used is sha1.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 369
crypto certificate name
crypto certificate name {<cert-name> | system-self-signed} {comment <new
comment> | generate self-signed [comment <cert-comment> | common-name
<domain> | country-code <code> | days-valid <days> | email-addr <address> |
hash-algorithm {sha1 | sha256} | key-size-bits <bits> | locality <name> | org-unit
<name> | organization <name> | serial-num <number> | state-or-prov <name>]}
| private-key pem <PEM string> | prompt-private-key | public-cert [comment
<comment string> | pem <PEM string>] | regenerate days-valid <days> | rename
<new name>}
no crypto certificate name <cert-name>
Configures default values for certificate generation.
The no form of the command clears/deletes certain certificate settings.
Syntax Description cert-name Unique name by which the certificate is identified.
comment Specifies a certificate comment.
generate self-signed Generates certificates. This option has the following
parameters which may be entered sequentially in any
order:
• comment: Specifies a certificate comment (free string)
• common-name: Specifies the common name of the issuer
and subject (e.g. a domain name)
• country-code: Specifies the country codwo-alphanu-
meric-character country code, or “--” for none)
• days-valid: Specifies the number of days the certificate is
valid
• email-addr: Specifies the email address
• hash-algorithm: Specifies the hashing function used for
signature algorithm
• key-size-bits: Specifies the size of the private key in bits
(private key length in bits - at least 1024 but 2048 is
strongly recommended)
• locality: Specifies the locality name
• org-unit: Specifies the organizational unit name
• organization: Specifies the organization name
• serial-num: Specifies the serial number for the certificate
(a lower-case hexadecimal serial number prefixed with
“0x”)
• state-or-prov: Specifies the state or province name
private-key pem Specifies certificate contents in PEM format.
prompt-private-key Prompts for certificate private key with secure echo.
public-cert Installs a certificate.
regenerate Regenerates the named certificate using configured cer-
tificate generation default values for the specified
validity period
rename Renames the certificate.
Default N/A
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 370
Configuration Mode Config
History 3.2.3000 First version
3.3.4402 Added “hash-algorithm” parameter
Role admin
Example switch (config) # crypto certificate name system-self-signed generate
self-signed hash-algorithm sha256
Related Commands N/A
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 371
crypto certificate system-self-signed
crypto certificate system-self-signed regenerate [days-valid <days>]
Configures default values for certificate generation.
Syntax Description days-valid Specifies the number of days the certificate is valid
Default N/A
Configuration Mode Config
History 3.2.1000
Role admin
Example switch (config) # crypto certificate system-self-signed regenerate
days-valid 3
Related Commands N/A
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 372
show crypto certificate
show crypto certificate [detail | public-pem | default-cert [detail | public-pem] |
[name <cert-name> [detail | public-pem] | ca-list [default-ca-list]]
Displays information about all certificates in the certificate database.
Syntax Description ca-list Displays the list of supplemental certificates configured
for the global default system CA certificate role.
default-ca-list Displays information about the currently configured
default certificates of the CA list.
default-cert Displays information about the currently configured
default certificate.
detail Displays all attributes related to the certificate.
name Displays information about the certificate specified.
public-pem Displays the uninterpreted public certificate as a PEM
formatted data string
Default N/A
Configuration Mode Config
History 3.2.1000
Role admin
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 373
Example switch (config)# show crypto certificate
Certificate with name 'system-self-signed' (default-cert)
Comment: system-generated self-signed certif-
icate
Private Key: present
Serial Number: 0x546c935511bcafc21ac0e8249fbe0844
SHA-1 Fingerprint: fe6df38dd26801971cb2d44f62d-
be492b6063c5f
Validity:
Starts: 2012/12/02 13:45:05
Expires: 2013/12/02 13:45:05
Subject:
Common Name: IBM-DEV-Bay4
Country: IS
State or Province:
Locality:
Organization:
Organizational Unit:
E-mail Address:
Issuer:
Common Name: IBM-DEV-Bay4
Country: IS
State or Province:
Locality:
Organization:
Organizational Unit:
E-mail Address:
switch (config)#
Related Commands N/A
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 374
show crypto encrypt-data
show encrypt-data
Displays sensitive data encryption information.
Syntax Description N/A
Default N/A
Configuration Mode Config
History 3.6.1002
Role admin
Example switch (config)# show crypto encrypt-data
Sensitive files encryption:
Status: enabled
Key location: usb
Cipher: aes256
switch (config)#
Related Commands N/A
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 375
show crypto ipsec
show crypto ipsec [brief | configured | ike | policy | sa]
Displays information ipsec configuration.
Syntax Description N/A
Default N/A
Configuration Mode Config
History 3.2.1000
Role admin
Example switch (config)# show crypto ipsec
IPSec Summary
-------------
Crypto IKE is using pluto (Openswan) daemon.
Daemon process state is stopped.
No IPSec peers configured.
IPSec IKE Peering State
-----------------------
Crypto IKE is using pluto (Openswan) daemon.
Daemon process state is stopped.
No active IPSec IKE peers.
IPSec Policy State
------------------
No active IPSec policies.
IPSec Security Association State
--------------------------------
No active IPSec security associations.
switch (config)#
Related Commands N/A
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 376
4.10 Scheduled Jobs
Use the commands in this section to manage and schedule the execution of jobs
4.10.1 Commands
Creates a job.
The no form of the command deletes the job.
job ID An integer.
N/A
Config
3.1.0000
admin
switch (config) # job 100
switch (config job 100) #
show jobs
Job state is lost on reboot.
job
job <job ID>
no job <job ID>
Syntax Description
Default
Configuration Mode
History
Role
Example
Related Commands
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 377
command
command <sequence #> | <command>
no command <sequence #>
Adds a CLI command to the job.
The no form of the command deletes the command from the job.
Syntax Description sequence # An integer that controls the order the command is exe-
cuted relative to other commands in this job. The com-
mands are executed in an ascending order.
command A CLI command.
Default N/A
Configuration Mode Config job
History 3.1.0000
Role admin
Example switch (config)# job 100
switch (config job 100) # command 10 “show power”
switch (config job 100) #
Related Commands show jobs
Notes • The command must be defined with inverted commas (“”)
• The command must be added as it was executed from the “config” mode. For example, in
order to change the interface description you need to add the command: “interface <type>
<number> description my-description”.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 378
comment
comment <comment>
no comment
Adds a comment to the job.
The no form of the command deletes the comment.
Syntax Description comment The comment to be added (string).
Default “”
Configuration Mode Config job
History 3.1.0000
Role admin
Example switch (config)# job 100
switch (config job 100) # comment Job_for_example
switch (config job 100) #
Related Commands show jobs
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 379
enable
enable
no enable
Enables the specified job.
The no form of the command disables the specified job.
Syntax Description N/A
Default N/A
Configuration Mode Config job
History 3.1.0000
Role admin
Example switch (config)# job 100
switch (config job 100) # enable
switch (config job 100) #
Related Commands show jobs
Notes If a job is disabled, it will not be executed automatically according to its schedule;
nor can it be executed manually.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 380
execute
execute
Forces an immediate execution of the job.
Syntax Description N/A
Default N/A
Configuration Mode Config job
History 3.1.0000
Role admin
Example switch (config)# job 100
switch (config job 100) # execute
switch (config job 100) #
Related Commands show jobs
Notes • The job timer (if set) is not canceled and the job state is not changed: i.e. the time of the
next automatic execution is not affected
• The job will not be run if not currently enabled
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 381
fail-continue
fail-continue
no fail-continue
Continues the job execution regardless of any job failures.
The no form of the command returns fail-continue to its default.
Syntax Description N/A
Default A job will halt execution as soon as any of its commands fails
Configuration Mode Config job
History 3.1.0000
Role admin
Example switch (config)# job 100
switch (config job 100) # fail-continue
switch (config job 100) #
Related Commands show jobs
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 382
name
name <job name>
no name
Configures a name for this job.
The no form of the command resets the name to its default.
Syntax Description name Specifies a name for the job (string).
Default “”.
Configuration Mode Config job
History 3.1.0000
Role admin
Example switch (config)# job 100
switch (config job 100) # name my-job
switch (config job 100) #
Related Commands show jobs
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 383
schedule type
schedule type <recurrence type>
no schedule type
Sets the type of schedule the job will automatically execute on.
The no form of the command resets the schedule type to its default.
Syntax Description recurrence type The available schedule types are:
• daily - the job is executed every day at a specified time
• weekly - the job is executed on a weekly basis
• monthly - the job is executed every month on a specified
day of the month
• once - the job is executed once at a single specified date
and time
• periodic - the job is executed on a specified fixed time
interval, starting from a fixed point in time.
Default once
Configuration Mode Config job
History 3.1.0000
Role admin
Example switch (config)# job 100
switch (config job 100) # schedule type once
switch (config job 100) #
Related Commands show jobs
Notes A schedule type is essentially a structure for specifying one or more future dates and
times for a job to execute.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 384
schedule <recurrence type>
schedule <recurrence type> <interval and date>
no schedule
Sets the type of schedule the job will automatically execute on.
The no form of the command resets the schedule type to its default.
Syntax Description recurrence type The available schedule types are:
• daily - the job is executed every day at a specified time
• weekly - the job is executed on a weekly basis
• monthly - the job is executed every month on a specified
day of the month
• once - the job is executed once at a single specified date
and time
• periodic - the job is executed on a specified fixed time
interval, starting from a fixed point in time.
interval and date Interval and date, per recurrence type.
Default once
Configuration Mode Config job
History 3.1.0000
Role admin
Example switch (config)# job 100
switch (config job 100) # schedule monthly interval 10
switch (config job 100) #
Related Commands show jobs
Notes A schedule type is essentially a structure for specifying one or more future dates and
times for a job to execute.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 385
show jobs
show jobs [<job-id>]
Displays configuration and state (including results of last execution, if any exist) of
all jobs, or of one job if a job ID is specified.
Syntax Description job-id Job ID.
Default N/A
Configuration Mode Config
History 3.1.0000
Role admin
Example switch (config) # show jobs 10
Job 10:
Status: inactive
Enabled: yes
Continue on failure: no
Schedule Type: once
Time and date: 1970/01/01 00:00:00 +0000
Last Exec Time: Thu 2012/04/05 13:11:42 +0000
Next Exec Time: N/A
Commands:
Command 10: show power
Last Output:
=====================
Module Status
=====================
PS1 OK
PS2 NOT PRESENT
switch (config) #
Related Commands show jobs
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 386
4.11 Statistics and Alarms
4.11.1 Commands
Clears alarm state.
alarm ID Alarms supported by the system, for example:
• cpu_util_indiv - Average CPU utilization too high: per-
cent utilization
• disk_io - Operating System Disk I/O per second too high:
kilobytes per second
• fs_mnt - Free filesystem space too low: percent of disk
space free
• intf_util - Network utilization too high: bytes per second
• memory_pct_used - Too much memory in use: percent of
physical memory used
• paging - Paging activity too high: page faults
• temperature - Temperature is too high: degrees
N/A
Config
3.1.0000
admin
switch (config) # stats alarm cpu_util_indiv clear
switch (config) #
show stats alarm
stats alarm <alarm-id> clear
stats alarm <alarm ID> clear
Syntax Description
Default
Configuration Mode
History
Role
Example
Related Commands
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 387
stats alarm <alarm-id> enable
stats alarm <alarm-id> enable
no stats alarm <alarm-id> enable
Enables the alarm.
The no form of the command disables the alarm, notifications will not be received.
Syntax Description alarm ID Alarms supported by the system, for example:
• cpu_util_indiv - Average CPU utilization too high: per-
cent utilization
• disk_io - Operating System Disk I/O per second too high:
kilobytes per second
• fs_mnt - Free filesystem space too low: percent of disk
space free
• intf_util - Network utilization too high: bytes per second
• memory_pct_used - Too much memory in use: percent of
physical memory used
• paging - Paging activity too high: page faults
• temperature - Temperature is too high: degrees
Default The default is different per alarm-id
Configuration Mode Config
History 3.1.0000
Role admin
Example switch (config) # stats alarm cpu_util_indiv enable
switch (config) #
Related Commands show stats alarm
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 388
stats alarm <alarm-id> event-repeat
stats alarm <alarm ID> event-repeat {single | while-not-cleared}
no stats alarm <alarm ID> event-repeat
Configures repetition of events from this alarm.
Syntax Description alarm ID Alarms supported by the system, for example:
• cpu_util_indiv - Average CPU utilization too high: per-
cent utilization
• disk_io - Operating System Disk I/O per second too high:
kilobytes per second
• fs_mnt - Free filesystem space too low: percent of disk
space free
• intf_util - Network utilization too high: bytes per second
• memory_pct_used - Too much memory in use: percent of
physical memory used
• paging - Paging activity too high: page faults
• temperature - Temperature is too high: degrees
single Does not repeat events: only sends one event whenever
the alarm changes state.
while-not-cleared Repeats error events until the alarm clears.
Default single
Configuration Mode Config
History 3.1.0000
Role monitor/admin
Example switch (config) # stats alarm cpu_util_indiv event-repeat single
switch (config) #
Related Commands show stats alarm
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 389
stats alarm <alarm-id> {rising | falling}
stats alarm <alarm ID> {rising | falling} {clear-threshold | error-threshold}
<threshold-value>
Configure alarms thresholds.
Syntax Description alarm ID Alarms supported by the system, for example:
• cpu_util_indiv - Average CPU utilization too high: per-
cent utilization
• disk_io - Operating System Disk I/O per second too high:
kilobytes per second
• fs_mnt - Free filesystem space too low: percent of disk
space free
• intf_util - Network utilization too high: bytes per second
• memory_pct_used - Too much memory in use: percent of
physical memory used
• paging - Paging activity too high: page faults
• temperature - Temperature is too high: degrees
falling Configures alarm for when the statistic falls too low.
rising Configures alarm for when the statistic rises too high.
error-threshold Sets threshold to trigger falling or rising alarm.
clear-threshold Sets threshold to clear falling or rising alarm.
threshold-value The desired threshold value, different per alarm.
Default Default is different per alarm-id
Configuration Mode Config
History 3.1.0000
Role admin
Example switch (config) # stats alarm cpu_util_indiv falling clear-threshold 10
switch (config) #
Related Commands show stats alarm
Notes Not all alarms support all four thresholds.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 390
stats alarm <alarm-id> rate-limit
stats alarm <alarm ID> rate-limit {count <count-type> <count> | reset | window
<window-type> <duration>}
Configures alarms rate limit.
Syntax Description alarm ID Alarms supported by the system, for example:
• cpu_util_indiv - Average CPU utilization too high: per-
cent utilization
• disk_io - Operating System Disk I/O per second too high:
kilobytes per second
• fs_mnt - Free filesystem space too low: percent of disk
space free
• intf_util - Network utilization too high: bytes per second
• memory_pct_used - Too much memory in use: percent of
physical memory used
• paging - Paging activity too high: page faults
• temperature - Temperature is too high: degrees
count-type Long medium, or short count (number of alarms).
reset Set the count and window durations to default values
for this alarm.
window-type Long medium, or short count, in seconds.
Default Short window: 5 alarms in 1 hour
Medium window: 20 alarms in 1 day
Long window: 50 alarms in 7 days
Configuration Mode Config
History 3.1.0000
Role monitor/admin
Example switch (config) # stats alarm paging rate-limit window long 2000
switch (config) #
Related Commands show stats alarm
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 391
stats chd <chd-id> clear
stats chd <CHD ID> clear
Clears CHD counters.
Syntax Description CHD ID CHD supported by the system, for example:
• cpu_util - CPU utilization: percentage of time spent
• cpu_util_ave - CPU utilization average: percentage of
time spent
• cpu_util_day - CPU utilization average: percentage of
time spent
• disk_device_io_hour - Storage device I/O read/write sta-
tistics for the last hour: bytes
• disk_io - Operating system aggregate disk I/O average
(KB/sec)
• eth_day
• eth_hour
• eth_ip_day
• eth_ip_hour
• fs_mnt_day - Filesystem system usage average: bytes
• fs_mnt_month - Filesystem system usage average: bytes
• fs_mnt_week - Filesystem system usage average: bytes
• ib_day
• ib_hour
• intf_day - Network interface statistics aggregation: bytes
• intf_hour - Network interface statistics (same as “inter-
face” sample)
• intf_util - Aggregate network utilization across all inter-
faces
• memory_day - Average physical memory usage: bytes
• memory_pct - Average physical memory usage
• paging - Paging activity: page faults
• paging_day - Paging activity: page faults
Default N/A
Configuration Mode Config
History 3.1.0000
Role admin
Example switch (config) # stats chd memory_day clear
switch (config) #
Related Commands show stats chd
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 392
stats chd <chd-id> enable
stats chd <chd-id>
enable
no stats chd <chd-id> enable
Enables the CHD.
The no form of the command disables the CHD.
Syntax Description chd-id CHD supported by the system, for example:
• cpu_util - CPU utilization: percentage of time spent
• cpu_util_ave - CPU utilization average: percentage of
time spent
• cpu_util_day - CPU utilization average: percentage of
time spent
• disk_device_io_hour - Storage device I/O read/write sta-
tistics for the last hour: bytes
• disk_io - Operating system aggregate disk I/O average:
KB/sec
• eth_day
• eth_hour
• fs_mnt_day - Filesystem system usage average: bytes
• fs_mnt_month - Filesystem system usage average: bytes
• fs_mnt_week - Filesystem system usage average: bytes
• ib_day
• ib_hour
• intf_day - Network interface statistics aggregation: bytes
• intf_hour - Network interface statistics (same as “inter-
face” sample)
• intf_util - Aggregate network utilization across all inter-
faces
• memory_day - Average physical memory usage: bytes
• memory_pct - Average physical memory usage
• paging - Paging activity: page faults
• paging_day - Paging activity: page faults
Default Enabled
Configuration Mode Config
History 3.1.0000
Role monitor/admin
Example switch (config) # stats chd memory_day enable
switch (config) #
Related Commands show stats chd
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 393
stats chd <chd-id> compute time
stats chd <CHD ID> compute time {interval | range} <number of seconds>
Sets parameters for when this CHD is computed.
Syntax Description CHD ID Possible IDs:
• cpu_util - CPU utilization: percentage of time spent
• cpu_util_ave - CPU utilization average: percentage of
time spent
• cpu_util_day - CPU utilization average: percentage of
time spent
• disk_device_io_hour - Storage device I/O read/write sta-
tistics for the last hour: bytes
• disk_io - Operating system aggregate disk I/O average:
KB/sec
• eth_day
• eth_hour
• fs_mnt_day - Filesystem system usage average: bytes
• fs_mnt_month - Filesystem system usage average: bytes
• fs_mnt_week - Filesystem system usage average: bytes
• ib_day
• ib_hour
• intf_day - Network interface statistics aggregation: bytes
• intf_hour - Network interface statistics (same as “inter-
face” sample)
• intf_util - Aggregate network utilization across all inter-
faces
• memory_day - Average physical memory usage: bytes
• memory_pct - Average physical memory usage
• paging - Paging activity: page faults
• paging_day - Paging activity: page faults
interval Specifies calculation interval (how often to do a new
calculation) in number of seconds.
range Specifies calculation range, in number of seconds.
number of seconds Number of seconds.
Default Different per CHD
Configuration Mode Config
History 3.1.0000
Role monitor/admin
Example switch (config) # stats chd memory_day compute time interval 120
switch (config) # show stats chd memory_day
CHD "memory_day" (Average physical memory usage: bytes):
Source dataset: sample "memory"
Computation basis: time
Interval: 120 second(s)
Range: 1800 second(s)
switch (config) #
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 394
Related Commands show stats chd
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 395
stats sample <sample-id> clear
stats sample <sample ID> clear
Clears sample history.
Syntax Description sample ID Possible sample IDs are:
• congested
• cpu_util - CPU utilization: milliseconds of time spent
• disk_device_io - Storage device I/O statistics
• disk_io - Operating system aggregate disk I/O: KB/sec
• eth
• eth-abs
• eth_ip
• fan - Fan speed
• fs_mnt_bytes - Filesystem usage: bytes
• fs_mnt_inodes - Filesystem usage: inodes
•ib
• interface - Network interface statistics
• intf_util - Network interface utilization: bytes
• memory - System memory utilization: bytes
• paging - Paging activity: page faults
• power - Power supply usage
• power-consumption
• temperature - Modules temperature
Default N/A
Configuration Mode Config
History 3.1.0000
Role admin
Example switch (config) # stats sample temperature clear
switch (config) #
Related Commands show stats sample
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 396
stats sample <sample-id> enable
stats sample <sample-id> enable
no states sample <sample-id> enable
Enables the sample.
The no form of the command disables the sample.
Syntax Description sample-id Possible sample IDs are:
• congested
• cpu_util - CPU utilization: milliseconds of time spent
• disk_device_io - Storage device I/O statistics
• disk_io - Operating system aggregate disk I/O: KB/sec
• eth
• fan - Fan speed
• fs_mnt_bytes - Filesystem usage: bytes
• fs_mnt_inodes - Filesystem usage: inodes
•ib
• interface - Network interface statistics
• intf_util - Network interface utilization: bytes
• memory - System memory utilization: bytes
• paging - Paging activity: page faults
• power - Power supply usage
• power-consumption
• temperature - Modules temperature
Default Enabled
Configuration Mode Config
History 3.1.0000
Role admin
Example switch (config) # stats sample temperature enable
switch (config) #
Related Commands show stats sample
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 397
stats sample <sample-id> interval
stats sample <sample ID> interval <number of seconds>
Sets the amount of time between samples for the specified group of sample data.
Syntax Description sample ID Possible sample IDs are:
• congested
• cpu_util - CPU utilization: milliseconds of time spent
• disk_device_io - Storage device I/O statistics
• disk_io - Operating system aggregate disk I/O: KB/sec
• eth
• fan - Fan speed
• fs_mnt_bytes - Filesystem usage: bytes
• fs_mnt_inodes - Filesystem usage: inodes
•ib
• interface - Network interface statistics
• intf_util - Network interface utilization: bytes
• memory - System memory utilization: bytes
• paging - Paging activity: page faults
• power - Power supply usage
• power-consumption
• temperature - Modules temperature
number of seconds Interval in seconds.
Default Different per sample
Configuration Mode Config
History 3.1.0000
Role admin
Example switch (config) # stats sample temperature interval 1
switch (config) # show stats sample temperature
Sample "temperature" (Modules temperature):
Enabled: yes
Sampling interval: 1 second
switch (config) #
Related Commands show stats sample
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 398
stats clear-all
stats clear all
Clears data for all samples, CHDs, and status for all alarms.
Syntax Description N/A
Default N/A
Configuration Mode Config
History 3.1.0000
Role admin
Example switch (config) # stats clear-all
switch (config) #
Related Commands N/A
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 399
stats export
stats export <format> <report name> [{after | before} <yyyy/mm/dd>
<hh:mm:ss>] [filename <filename>]
Exports statistics to a file.
Syntax Description format Currently the only supported value for <format> is
“csv” (comma-separated value).
report name Determines dataset to be exported. Possible report
names are:
• memory - Memory utilization
• paging - Paging I/O
• cpu_util - CPU utilization
after | before Only includes stats collected after or before a specific
time.
yyyy/mm/dd Date: It must be between 1970/01/01 and 2038/01/19.
hh:mm:ss Time: It must be between 00:00:00 and 03:14:07 UTC
and is treated as local time.
filename Specifies filename to give new report. If a filename is
specified, the stats will be exported to a file of that
name; otherwise a name will be chosen automatically
and will contain the name of the report and the time and
date of the export. Any automatically-chosen name will
be given a .csv extension.
Default N/A
Configuration Mode Config
History 3.1.0000
Role admin
Example switch (config) # stats export csv memory filename mellanoxexample
before 2000/08/14 15:59:50 after 2000/08/14 15:01:50
Generated report file: mellanoxexample.csv
switch (config) # show files stats
mellanoxexample.csv
switch (config) #
Related Commands show files stats
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 400
show stats alarm
show stats alarm [<Alarm ID> [rate-limit]]
Displays status of all alarms or the specified alarm.
Syntax Description Alarm ID May be:
• cpu_util_indiv - Average CPU utilization too high: per-
cent utilization
• disk_io - Operating System Disk I/O per second too high:
kilobytes per second
• fs_mnt - Free filesystem space too low: percent of disk
space free
• intf_util - Network utilization too high: bytes per second
• memory_pct_used - Too much memory in use: percent of
physical memory used
• paging - Paging activity too high: page faults
• temperature - Temperature is too high: degrees
rate-limit Displays rate limit parameters.
Default N/A
Configuration Mode Config
History 3.1.0000
Role admin
Example switch (config) # show stats alarm
Alarm cpu_util_indiv (Average CPU utilization too high): ok
Alarm disk_io (Operating System Disk I/O per second too high): (dis-
abled)
Alarm fs_mnt (Free filesystem space too low): ok
Alarm intf_util (Network utilization too high): (disabled)
Alarm memory_pct_used (Too much memory in use): (disabled)
Alarm paging (Paging activity too high): ok
Alarm temperature (Temperature is too high): ok
switch (config) #
Related Commands stats alarm
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 401
show stats chd
show stats chd [<CHD ID>]
Displays configuration of all statistics CHDs.
Syntax Description CHD ID May be:
• cpu_util_indiv - Average CPU utilization too high: per-
cent utilization
• disk_io - Operating System Disk I/O per second too high:
kilobytes per second
• fs_mnt - Free filesystem space too low: percent of disk
space free
• intf_util - Network utilization too high: bytes per second
• memory_pct_used - Too much memory in use: percent of
physical memory used
• paging - Paging activity too high: page faults
• temperature - Temperature is too high: degrees
Default N/A
Configuration Mode Config
History 3.1.0000
Role admin
Example switch (config) # show stats chd disk_device_io_hour
CHD "disk_device_io_hour" (Storage device I/O read/write statistics for
the last
hour: bytes):
Enabled: yes
Source dataset: sample "disk_device_io"
Computation basis: data points
Interval: 1 data point(s)
Range: 1 data point(s)
switch (config) #
Related Commands stats chd
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 402
show stats cpu
show stats cpu
Displays some basic stats about CPU utilization:
• the current level
• the peak over the past hour
• the average over the past hour
Syntax Description N/A
Default N/A
Configuration Mode Config
History 3.1.0000
Role admin
Example switch (config) # show stats cpu
CPU 0
Utilization: 6%
Peak Utilization Last Hour: 16% at 2012/02/28 08:47:32
Avg. Utilization Last Hour: 8%
switch (config) #
Related Commands N/A
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 403
show stats sample
show stats sample [<sample ID>]
Displays sampling interval for all samples, or the specified one.
Syntax Description sample ID Possible sample IDs are:
• congested
• cpu_util - CPU utilization: milliseconds of time spent
• disk_device_io - Storage device I/O statistics
• disk_io - Operating system aggregate disk I/O: KB/sec
• eth
• fan - Fan speed
• fs_mnt_bytes - Filesystem usage: bytes
• fs_mnt_inodes - Filesystem usage: inodes
•ib
• interface - Network interface statistics
• intf_util - Network interface utilization: bytes
• memory - System memory utilization: bytes
• paging - Paging activity: page faults
• power - Power supply usage
• power-consumption
• temperature - Modules temperature
Default N/A
Configuration Mode Config
History 3.1.0000
Role admin
Example switch (config) # show stats sample fan
Sample "fan" (Fan speed):
Enabled: yes
Sampling interval: 1 minute 11 seconds
switch (config) #
Related Commands N/A
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 404
4.12 Chassis Management
The chassis manager provides the user access to the following information:
Table 27 - Chassis Manager Information
Accessible Parameters Description
switch temperatures Displays system’s temperature
power supply voltages Displays power supplies’ voltage levels
fan unit Displays system fans’ status
power unit Displays system power consumers
Flash memory Displays information about system memory utilization.
Additionally, it monitors:
• AC power to the PSUs
• DC power out from the PSUs
• Chassis failures
4.12.1 System Health Monitor
The system health monitor scans the system to decide whether or not the system is healthy. When
the monitor discovers that one of the system's modules (leaf, spine, fan, or power supply) is in an
unhealthy state or returned from an unhealthy state, it notifies the users through the following
methods:
• System logs – accessible to the user at any time as they are saved permanently on the system
• Status LEDs – changed by the system health monitor when an error is found in the system and is
resolved
• email/SNMP traps – notification on any error found in the system and resolved
4.12.1.1 Re-Notification on Errors
When the system is in an unhealthy state, the system health monitor notifies the user about the
current unresolved issue every X seconds. The user can configure the re-notification gap by run-
ning the “health notif-cntr <counter>” command.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 405
4.12.1.2 System Health Monitor Alerts Scenarios
• System Health Monitor sends notification alerts in the following cases:
Table 28 - System Health Monitor Alerts Scenarios (Sheet 1 of 6)
Alert Message Scenario Notification Indicator Recovery Action Recovery Message
<fan_name>
speed is below
minimal range
A chassis fan speed is
below minimal threshold:
15% of maximum speed
Email, fan LED and
system status LED set
red, log alert, SNMP.
Check the fan
and replace it if
required
“<fan_name> has
been restored to
its normal state”
Fan <fan_num-
ber> speed in
spine number
<spine_num-
ber> is below
minimal range
A spine fan speed is below
minimal threshold:
30% of maximum speed
Email, fan LED and
system status LED set
red, log alert, SNMP
Check the fan
and replace it if
required
“Fan speed
<fan_number> in
spine number
<spine_number>
has been restored
to its normal
state”
<fan_name> is
unresponsive A chassis fan is not respon-
sive on MLNX-OS sys-
tems
Email, fan LED and
system status LED set
red, log alert, SNMP
Check fan con-
nectivity and
replace it if
required
“<fan_name> has
been restored to
its normal state”
Fan <fan_num-
ber> in spine
number
<spine_num-
ber> is unre-
sponsive
A spine fan is not respon-
sive on MLNX-OS sys-
tems
Email, fan LED and
system status LED set
red, log alert, SNMP
Check fan con-
nectivity and
replace it if
required
“Fan <fan_num-
ber> in spine
number
<spine_number>
has been restored
to its normal
state”
<fan_name> is
not present A chassis fan is missing Email, fan LED and
system status LED set
red, log alert, SNMP
Insert a fan unit “<fan_name> has
been restored to
its normal state”
Fan <fan_num-
ber> in spine
number
<spine_num-
ber> is not pres-
ent.
A spine fan is missing Email, fan LED and
system status LED set
red, log alert, SNMP
Insert a fan unit “Fan <fan_num-
ber> in spine
number
<spine_number>
has been restored
to its normal
state”
Insufficient
number of work-
ing fans in the
system
Insufficient number of
working fans in the system Email, fan LED and
system status LED set
red, log alert, SNMP
Plug in addi-
tional fans or
change faulty
fans
“The system cur-
rently has suffi-
cient number of
working fans”
Power Supply
<ps_number>
voltage is out of
range
The power supply voltage
is out of range. Email, power supply
LED and system sta-
tus LED set red, log
alert, SNMP
Check the
power connec-
tion of the PS
“Power Supply
<ps_number>
voltage is in
range”
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 406
Power supply
<ps_number>
temperature is
too hot
A power supply unit tem-
perature is higher than the
maximum threshold of 70
Celsius on MLNX-OS sys-
tems
Email, power supply
LED and system sta-
tus LED set red, log
alert, SNMP
Check chassis
fans connec-
tions. On
MLNX-OS sys-
tems, check
system fan con-
nections.
“Power supply
<ps_number>
temperature is
back to normal”
Power Supply
<number> is
unresponsive
A power supply is mal-
functioning or discon-
nected
Email, system status
LED set red, log alert,
SNMP
Connect power
cable or replace
malfunctioning
PS
“Power supply
has been
removed” or “PS
has been restored
to its normal
state”
Unit/leaf/spine
<leaf/spine num-
ber> is unre-
sponsive
A leaf/spine is not respon-
sive Email, system status
LED set red, log alert,
SNMP
Check leaf/
spine connec-
tivity and
replace it if
required
“Leaf/spine num-
ber <leaf/spine
number> has
been restored to
its normal state”
Unit/leaf/spine
voltage is out of
range
One of the voltages in a
MLNX-OS unit is below
minimal threshold or
higher than the maximum
threshold - both thresholds
are 15% of the expected
voltage
Email, system status
LED set red, log alert,
SNMP
Check leaf con-
nectivity “Unit voltage is
in range”
ASIC tempera-
ture is too hot A SwitchX unit tempera-
ture is higher than the max-
imum threshold of 105
Celsius on MLNX-OS sys-
tems
Email, system status
LED set red, log alert,
SNMP
Check the fans
system “SwitchX tem-
perature is back
to normal”
BBU Health Monitoring
“BBU<num>
active alarms:
Under-tempera-
ture during dis-
charge (UTD)”
Under-temperature during
discharge Email, system status
LED set red, log alert,
SNMP
Check ambient
temperature.
Replace BBU if
the problem
persist.
“Module
BBU<num> has
been restored to
its normal state”
“BBU<num>
active alarms:
Under-tempera-
ture during
charge (UTC)”
Under-temperature during
charge Email, system status
LED set red, log alert,
SNMP
Check ambient
temperature.
Replace BBU if
the problem
persist.
“Module
BBU<num> has
been restored to
its normal state”
Table 28 - System Health Monitor Alerts Scenarios (Sheet 2 of 6)
Alert Message Scenario Notification Indicator Recovery Action Recovery Message
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 407
“BBU<num>
active alarms:
Over pre-charge
current
(PCHGC)”
Over pre-charge current Email, system status
LED set red, log alert,
SNMP
Replace BBU if
the problem
persists.
“Module
BBU<num> has
been restored to
its normal state”
“BBU<num>
active alarms:
Overcharging
voltage
(CHGV)”
Overcharging voltage Email, system status
LED set red, log alert,
SNMP
Replace BBU if
the problem
persists.
“Module
BBU<num> has
been restored to
its normal state”
“BBU<num>
active alarms:
Overcharging
current
(CHGC)”
Overcharging current Email, system status
LED set red, log alert,
SNMP
Replace BBU if
the problem
persists.
“Module
BBU<num> has
been restored to
its normal state”
“BBU<num>
active alarms:
Overcharge
(OC)”
Overcharged BBU Email, system status
LED set red, log alert,
SNMP
Replace BBU if
the problem
persists.
“Module
BBU<num> has
been restored to
its normal state”
“BBU<num>
active alarms:
Charge timeout
suspend
(CTOS)”
Charge timeout suspend Email, system status
LED set red, log alert,
SNMP
N/A “Module
BBU<num> has
been restored to
its normal state”
“BBU<num>
active alarms:
Charge timeout
(CTO)”
Charge timeout Email, system status
LED set red, log alert,
SNMP
N/A “Module
BBU<num> has
been restored to
its normal state”
“BBU<num>
active alarms:
Pre-charge time-
out suspend
(PTOS)”
Pre-charge timeout sus-
pend Email, system status
LED set red, log alert,
SNMP
N/A “Module
BBU<num> has
been restored to
its normal state”
“BBU<num>
active alarms:
Pre-charge time-
out (PTO)”
Pre-charge timeout Email, system status
LED set red, log alert,
SNMP
N/A “Module
BBU<num> has
been restored to
its normal state”
“BBU<num>
active alarms:
Over-tempera-
ture FET (OTF)”
Over-temperature FET Email, system status
LED set red, log alert,
SNMP
N/A “Module
BBU<num> has
been restored to
its normal state”
Table 28 - System Health Monitor Alerts Scenarios (Sheet 3 of 6)
Alert Message Scenario Notification Indicator Recovery Action Recovery Message
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 408
“BBU<num>
active alarms:
Cell under-volt-
age compen-
sated (CUVC)”
Cell under-voltage com-
pensated Email, system status
LED set red, log alert,
SNMP
Replace BBU if
the problem
persists.
“Module
BBU<num> has
been restored to
its normal state”
“BBU<num>
active alarms:
Over-tempera-
ture during dis-
charge (OTD)”
Over-temperature during
discharge Email, system status
LED set red, log alert,
SNMP
Replace BBU if
the problem
persists.
“Module
BBU<num> has
been restored to
its normal state”
“BBU<num>
active alarms:
Over-tempera-
ture during
charge (OTC)”
Over-temperature during
charge Email, system status
LED set red, log alert,
SNMP
Check ambient
temperature.
Replace BBU if
the problem
persists.
“Module
BBU<num> has
been restored to
its normal state”
“BBU<num>
active alarms:
Short-circuit
during discharge
latch (ASCDL)”
Short-circuit during dis-
charge latch Email, system status
LED set red, log alert,
SNMP
Replace BBU N/A
“BBU<num>
active alarms:
Short-circuit
during discharge
(ASCL)”
Short-circuit during dis-
charge Email, system status
LED set red, log alert,
SNMP
Replace BBU if
the problem
persists.
“Module
BBU<num> has
been restored to
its normal state”
“BBU<num>
active alarms:
Short-circuit
during charge
latch (ASCCL)”
Short-circuit during charge
latch Email, system status
LED set red, log alert,
SNMP
Replace BBU N/A
“BBU<num>
active alarms:
Short-circuit
during charge
(ASCC)”
Short-circuit during charge Email, system status
LED set red, log alert,
SNMP
Replace BBU if
the problem
persists.
“Module
BBU<num> has
been restored to
its normal state”
“BBU<num>
active alarms:
Overload during
discharge latch
(AOLDL)”
Overload during discharge
latch Email, system status
LED set red, log alert,
SNMP
Replace BBU N/A
Table 28 - System Health Monitor Alerts Scenarios (Sheet 4 of 6)
Alert Message Scenario Notification Indicator Recovery Action Recovery Message
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 409
“BBU<num>
active alarms:
Overload during
discharge
(AOLD)”
Overload during discharge Email, system status
LED set red, log alert,
SNMP
Replace BBU if
the problem
persists.
“Module
BBU<num> has
been restored to
its normal state”
“BBU<num>
active alarms:
Over-current
during discharge
1 (OCD1)”
Over-current during dis-
charge Email, system status
LED set red, log alert,
SNMP
Replace BBU if
the problem
persists.
“Module
BBU<num> has
been restored to
its normal state”
“BBU<num>
active alarms:
Over-current
during discharge
2 (OCD2)”
Over-current during dis-
charge Email, system status
LED set red, log alert,
SNMP
Replace BBU if
the problem
persists.
“Module
BBU<num> has
been restored to
its normal state”
“BBU<num>
active alarms:
Over-current
during charge 1
(OCC1)”
Over-current during charge Email, system status
LED set red, log alert,
SNMP
Replace BBU if
the problem
persists.
“Module
BBU<num> has
been restored to
its normal state”
“BBU<num>
active alarms:
Over-current
during charge 2
(OCC2)”
Over-current during charge Email, system status
LED set red, log alert,
SNMP
Replace BBU if
the problem
persists.
“Module
BBU<num> has
been restored to
its normal state”
“BBU<num>
active alarms:
Cell over-volt-
age (COV)”
Cell over-voltage Email, system status
LED set red, log alert,
SNMP
Replace BBU if
the problem
persists (may
take up to 48
hours if BBU
was in storage).
“Module
BBU<num> has
been restored to
its normal state”
“BBU<num>
active alarms:
Cell under-volt-
age (CUV)”
Cell under-voltage Email, system status
LED set red, log alert,
SNMP
Replace BBU if
the problem
persists.
“Module
BBU<num> has
been restored to
its normal state”
“Module
BBU<num>
voltage is out of
range”
Cell over-voltage Email, system status
LED set red, log alert,
SNMP
Replace BBU if
the problem
persists (may
take up to 48
hours if BBU
was in storage).
“Module
BBU<num> volt-
age is back in
range”
“Module
BBU<num> cur-
rent is too high”
Over-current during charge Email, system status
LED set red, log alert,
SNMP
Replace BBU if
the problem
persists.
“BBU<num> has
been restored to
its normal state”
Table 28 - System Health Monitor Alerts Scenarios (Sheet 5 of 6)
Alert Message Scenario Notification Indicator Recovery Action Recovery Message
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 410
4.12.2 Power Management
4.12.2.1 Width Reduction Power Saving
Link width reduction (LWR) is a Mellanox proprietary power saving feature to be utilized to
economize the power usage of the fabric. LWR may be used to manually or automatically config-
ure a certain connection between Mellanox switch systems to lower the width of a link from 4X
operation to 1X based on the traffic flow.
LWR is relevant only for 40GbE speeds in which the links are operational at a 4X width.
LWR has three operating modes per interface:
• Disabled – LWR does not operate and the link remains in 4X under all circumstances.
• Automatic – the link automatically alternates between 4X and 1X based on traffic flow.
• Force – a port is forced to operate in 1X mode lowering the throughput capability of the
port. This mode should be chosen in cases where constant low throughput is expected
on the port for a certain time period – after which the port should be configured to one
of the other two modes, to allow higher throughput to pass through the port.
“Module
BBU<num> cur-
rent is too high”
Over-current during dis-
charge Email, system status
LED set red, log alert,
SNMP
Replace BBU if
the problem
persists.
“BBU<num> has
been restored to
its normal state”
“Module
BBU<num>
temperature is
too hot”
Over-temperature during
charge Email, system status
LED set red, log alert,
SNMP
Check ambient
temperature.
Replace BBU if
the problem
persist.
“Module
BBU<num> tem-
perature is back
to normal”
“Module
BBU<num>
temperature is
too hot”
Over-temperature during
discharge Email, system status
LED set red, log alert,
SNMP
Check ambient
temperature.
Replace BBU if
the problem
persist.
“Module
BBU<num> tem-
perature is back
to normal”
When “show interfaces” is used, a port’s speed appears unchanged even when only
one lane is active.
See command “power-management width” on page 418.
Table 28 - System Health Monitor Alerts Scenarios (Sheet 6 of 6)
Alert Message Scenario Notification Indicator Recovery Action Recovery Message
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 411
4.12.3 Monitoring Environmental Conditions
Step 1. Display module’s temperature. Run:
Table 29 - LWR Configuration Behavior
Switch-A Configuration Switch-B Configuration Behavior
Disable Disable LWR is disabled.
Disable Force Transmission from Switch-B to Switch-A operates at
1X. On the opposite direction, LWR is disabled.
Disable Auto Depending on traffic flow, transmission from Switch-
B to Switch-A may operate at 1X. On the opposite
direction, LWR is disabled.
Auto Force Transmission from Switch-B to Switch-A operates at
1 lane. Transmission from Switch-A to Switch-B may
operate at 1X depending on the traffic.
Auto Auto Width of the connection depends on the traffic flow
Force Force Connection between the switches operates at 1x
switch (config) # show temperature
============================================
Module Sensor CurTemp Status
(Celsius)
============================================
MGMT CPU_BOARD_MONITOR 40.00 OK
L01 BOARD_MONITOR 27.00 OK
L01 QSFP_TEMP1 24.00 OK
L01 QSFP_TEMP2 22.00 OK
L01 QSFP_TEMP3 21.00 OK
L01 SX 38.00 OK
L02 BOARD_MONITOR 27.00 OK
L02 QSFP_TEMP1 24.50 OK
L02 QSFP_TEMP2 22.50 OK
L02 QSFP_TEMP3 21.50 OK
L02 SX 32.00 OK
PS2 PS_MONITOR 24.66 OK
PS3 PS_MONITOR 31.04 OK
PS4 PS_MONITOR 28.06 OK
S01 BOARD_MONITOR 23.00 OK
S01 SX 34.00 OK
S01 SX_AMBIENT_TEMP 22.50 OK
S02 BOARD_MONITOR 24.00 OK
S02 SX 49.00 OK
S02 SX_AMBIENT_TEMP 24.00 OK
switch (config) #
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 412
Step 2. Display measured voltage levels of power supplies. Run:
switch (config) # show voltage
======================================================
Module Power Meter Reg Expected Actual Status
Voltage Voltage
======================================================
PS2 PS_MONITOR V1 48.00 46.88 OK
PS3 PS_MONITOR V1 48.00 48.29 OK
PS4 PS_MONITOR V1 48.00 48.29 OK
MGMT CPU_BOARD_MONITOR V1 12.00 11.92 OK
MGMT CPU_BOARD_MONITOR V2 2.50 2.48 OK
MGMT CPU_BOARD_MONITOR V3 3.30 3.31 OK
MGMT CPU_BOARD_MONITOR V4 3.30 3.30 OK
MGMT CPU_BOARD_MONITOR V5 1.80 1.81 OK
MGMT CPU_BOARD_MONITOR V6 1.20 1.26 OK
S01 BOARD_MONITOR V1 3.30 3.33 OK
S01 BOARD_MONITOR V2 2.27 2.15 OK
S01 BOARD_MONITOR V3 1.80 1.76 OK
S01 BOARD_MONITOR V4 3.30 3.30 OK
S01 BOARD_MONITOR V5 0.90 0.93 OK
S01 BOARD_MONITOR V6 1.20 1.19 OK
S02 BOARD_MONITOR V1 3.30 3.26 OK
S02 BOARD_MONITOR V2 2.27 2.16 OK
S02 BOARD_MONITOR V3 1.80 1.79 OK
S02 BOARD_MONITOR V4 3.30 3.31 OK
S02 BOARD_MONITOR V5 0.90 0.95 OK
S02 BOARD_MONITOR V6 1.20 1.20 OK
L01 BOARD_MONITOR V1 3.30 3.33 OK
L01 BOARD_MONITOR V2 2.27 2.16 OK
L01 BOARD_MONITOR V3 1.80 1.76 OK
L01 BOARD_MONITOR V4 3.30 3.30 OK
L01 BOARD_MONITOR V5 0.90 0.93 OK
L01 BOARD_MONITOR V6 1.20 1.19 OK
L02 BOARD_MONITOR V1 3.30 3.26 OK
L02 BOARD_MONITOR V2 2.27 2.17 OK
L02 BOARD_MONITOR V3 1.80 1.79 OK
L02 BOARD_MONITOR V4 3.30 3.30 OK
L02 BOARD_MONITOR V5 0.90 0.89 OK
L02 BOARD_MONITOR V6 1.20 1.19 OK
switch (config) #
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 413
Step 3. Display the fan speed and status. Run:
Step 4. Display the voltage current and status of each module in the system. Run:
4.12.4 USB Access
MLNX-OS can access USB devices attached to switch systems. USB devices are automatically
recognized and mounted upon insertion. To access a USB device for reading or writing a file,
you need to provide the path to the file on the mounted USB device in the following format:
scp://username:password@hostname/var/mnt/usb1/<file name>
While username and password are the admin username and password and hostname is the IP of
the switch.
switch (config) # show fan
=====================================================
Module Device Fan Speed Status
(RPM)
=====================================================
FAN1 FAN F1 6994.00 OK
FAN2 FAN F1 6792.00 OK
FAN3 FAN F1 6870.00 OK
FAN4 FAN F1 6818.00 OK
S01 FAN F1 7800.00 OK
S01 FAN F2 8130.00 OK
S02 FAN F1 8130.00 OK
S02 FAN F2 8490.00 OK
S03 FAN - - NOT PRESENT
S04 FAN - - NOT PRESENT
S05 FAN - - NOT PRESENT
S06 FAN - - NOT PRESENT
switch (config) #
switch (config) # show power consumers
================================================
Module Power Voltage Current Status
(Watts) (Amp)
================================================
FAN1 15.55 48.00 0.32 OK
FAN2 16.26 48.00 0.34 OK
FAN3 15.30 48.00 0.32 OK
FAN4 14.98 48.00 0.31 OK
L01 32.45 48.00 0.68 OK
L02 28.75 48.00 0.60 OK
MGMT 16.08 48.00 0.34 OK
S01 37.34 48.00 0.78 OK
S02 35.09 48.00 0.73 OK
Total power used : 211.79 W
Max power : 686.00 W
switch (config) #
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 414
Examples:
To fetch an image from a USB device, run the command:
To save log file ‘my-logfile’ to a USB device under the name
test_logfile
using the
log-
ging files
command, run (in Enable or Config mode):
To safely remove the USB and to flush the cache, after writing (log files, for example) to a
USB, use the
usb eject
command (in Enable or Config mode).
4.12.5 Unit Identification LED
The unit identification (UID) LED is a hardware feature used as a means of locating a specific
switch system in a server room.
To activate the UID LED on a switch system, run:
To verify the LED status, run:
To deactivate the UID LED on a switch system, run:
4.12.6 System Reboot
4.12.6.1 Rebooting 1U Switches
To reboot a 1U switch system:
Step 1. Enter Config mode. Run:
Step 2. Reboot the system. Run:
switch (config) # “image fetch scp://admin:admin@10.10.10.10/var/mnt/usb1/image.img
switch (config) # logging files upload my-logfile scp://username:password@hostname/var/
mnt/usb1/test_logfile
switch (config) # usb eject
switch (config) # led MGMT uid on
switch (config) # show leds
Module LED Status
--------------------------------------------------------------------------
MGMT UID Blue
switch (config) # led MGMT uid off
switch >
switch > enable
switch # configure terminal
switch (config) # reload
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 415
4.12.7 Commands
4.12.7.1 Chassis Management
Clears switch counters.
all Clears all switch counters.
type A specific interface type
number The interface number.
N/A
Config Interface Port Channel
3.2.3000
admin
switch (config) # clear counters
clear counters
clear counters [all | interface <type> <number>]
Syntax Description
Default
Configuration Mode
History
Role
Example
Related Commands
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 416
health
health {max-report-len <length> | re-notif-cntr <counter> | report-clear}
Configures health daemon settings.
Syntax Description max-report-len <length> Sets the length of the health report - number of line
entries. Range: 10-2048.
re-notif-cntr <counter> Health control changes notification counter, in seconds.
Range: 120-7200 seconds.
report-clear Clears the health report.
Default max-report-len: 50
re-notif-cntr:
Configuration Mode Config
History 3.1.0000
Role admin
Example switch (config) # health re-notif-cntr 125
switch (config) #
Related Commands show health-report
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 417
led uid
led <module> uid <on | off>
Configures the UID LED.
Syntax Description module Specifies the module whose UID LED to configure
on Turns on UID LED
off Turns off UID LED
Default N/A
Configuration Mode Config
History 3.6.1002
Role admin
Example switch (config) # led MGMT uid on
switch (config) #
Related Commands N/A
Notes •
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 418
power-management width
power-management width {auto | force}
no power-management width
Sets the width of the interface to be automatically adjusted.
The no form of the command disables power-saving.
Syntax Description auto Allows the system to automatically decide whether to
work in power-saving mode or not.
force Forces power-saving mode on the port.
Default Disabled
Configuration Mode Config Interface Ethernet
History 3.3.4000
Role admin
Example switch (config interface ib 1/1) # power-management width auto
switch (config) #
Related Commands show interface
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 419
usb eject
usb eject
Gracefully turns off the USB interface.
Syntax Description N/A
Default N/A
Configuration Mode Config
History 3.1.0000
Role admin
Example switch (config) # usb eject
switch (config) #
Related Commands N/A
Notes Applicable only for systems with USB interface.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 420
show asic-version
show asic-version
Displays firmware ASIC version.
Syntax Description N/A
Default N/A
Configuration Mode Any Command Mode
History 3.1.0000
3.4.2008 Updated Example
Role admin
Example switch (config) # show asic-version
================================================
Module Device Version
================================================
MGMT SX 9.2.9160
Related Commands N/A
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 421
show bios
show bios
Displays the bios version information.
Syntax Description N/A
Default N/A
Configuration Mode Any Command Mode
History 3.3.4150
Role admin
Example switch (config) # show bios
BIOS version : 4.6.5
BIOS subversion : Official AMI Release
BIOS release date : 07/02/2013
switch (config) #
Related Commands
Notes The command is available only on X86 systems (not on PPC).
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 422
show cpld
show cpld
Displays status of all CPLDs in the system.
Syntax Description N/A
Default N/A
Configuration Mode Any Command Mode
History 3.1.0000
3.3.4302 Updated example
Role admin
Example switch (config) # show cpld
=====================================
Name Type Version
=====================================
Cpld1 CPLD_TOR 4
Cpld2 CPLD_PORT1 2
Cpld3 CPLD_PORT2 2
Cpld4 CPLD_MEZZ 3
switch (config) #
Related Commands N/A
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 423
show fan
show fan
Displays fans status.
Syntax Description N/A
Default N/A
Configuration Mode Any Command Mode
History 3.1.0000
Role admin
Example switch (config) # show fan
switch (config) # show fan
=====================================================
Module Device Fan Speed Status
(RPM)
=====================================================
FAN FAN F1 5340.00 OK
FAN FAN F2 5340.00 OK
FAN FAN F3 5640.00 OK
FAN FAN F4 5640.00 OK
PS1 FAN F1 5730.00 OK
PS2 FAN - - NOT PRESENT
switch (config) #
Related Commands N/A
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 424
show health-report
show health-report
Displays health report.
Syntax Description N/A
Default N/A
Configuration Mode Any Command Mode
History 3.1.0000 First version
3.3.0000 Output update
Role admin
Example switch (config) # show health-report
========================
| ALERTS CONFIGURATION |
========================
Re-notification counter (sec):[3600]
Report max counter: [50]
========================
| HEALTH REPORT |
========================
No Health issues file
switch (config) #
Related Commands N/A
Notes Problems with the power supply cannot be monitored on SX1016 switch systems.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 425
show inventory
show inventory
Displays system inventory.
Syntax Description N/A
Default N/A
Configuration Mode Any Command Mode
History 3.1.0000
3.4.1604 Removed CPU module output from Example
3.5.1000 Removed Type column from Example
3.6.1002 Updated output
Role admin
Example switch (config) # show inventory
-------------------------------------------------------------------------
Module Part number Serial Number Asic Rev. HW Rev.
-------------------------------------------------------------------------
CHASSIS MSX1036B-1SFR MT1205X01549 N/A A1
MGMT MSX1036B-1SFR MT1205X01549 0 A1
FAN MSX60-FF MT1206X07209 N/A A3
PS1 MSX60-PF MT1206X06697 N/A A2
switch (config) #
Related Commands N/A
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 426
show leds
show leds [<module>]
Displays the LED status of the switch system.
Syntax Description module Specifies the module whose LED status to display
Default N/A
Configuration Mode Config
History 3.6.1002
3.6.2002 Updated output
Role admin
Example switch (config) # show leds
Module LED Status
--------------------------------------------
MGMT STATUS Green
MGMT FAN1 Green
MGMT FAN2 Green
MGMT FAN3 Green
MGMT FAN4 Green
MGMT PS_STATUS Green
MGMT PS1 Green
MGMT PS2 Green
MGMT UID Blue
Related Commands N/A
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 427
show memory
show memory
Displays memory status.
Syntax Description N/A
Default N/A
Configuration Mode Any Command Mode
History 3.1.0000
Role admin
Example switch (config) # show memory
Total Used Free Used+B/C Free-B/C
Physical 2027 MB 761 MB 1266 MB 1214 MB 813 MB
Swap 0 MB 0 MB 0 MB
Physical Memory Borrowed for System Buffers and Cache:
Buffers: 0 MB
Cache: 452 MB
Total Buffers/Cache: 452 MB
switch (config) #
Related Commands N/A
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 428
show module
show module
Displays modules status.
Syntax Description N/A
Default N/A
Configuration Mode Any Command Mode
History 3.1.0000 First version
3.3.0000 Added “Is Fatal” column
3.4.2008 Updated command output
3.4.3000 Updated command output and added note
Role admin
Example switch (config) # show module
======================
Module Status
======================
MGMT ready
FAN1 ready
FAN2 ready
PS1 ready
PS2 not-present
switch (config) #
Related Commands N/A
Notes The Status column may have one of the following values: error, fatal, not-present,
powered-off, powered-on, ready.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 429
show power
show power
Displays power supplies and power usage.
Syntax Description N/A
Default N/A
Configuration Mode Any Command Mode
History 3.1.0000
3.5.1000 Updated Example
Role admin
Example
switch (config) # show power
----------------------------------------------------------------------------------
Module Device Sensor Power Voltage Current Capacity Feed Status
[Watts] [Volts] [Amp] [Watts]
----------------------------------------------------------------------------------
PS1 power-mon input 32.25 12.11 1.26 800.00 DC OK
PS2 power-mon input 46.56 12.13 2.33 800.00 DC OK
switch (config) #
Related Commands N/A
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 430
show power consumers
show power consumers
Displays power consumption information.
Syntax Description N/A
Default N/A
Configuration Mode Any Command Mode
History 3.1.0000
3.5.1000 Updated Example
Role admin
Example switch (config) # show power consumers
-------------------------------------------------------------------------
Module Device Sensor Power Voltage Current Status
[Watts] [Volts] [Amp]
-------------------------------------------------------------------------
MGMT CURR_MONITOR 12V 52.96 11.71 4.52 OK
Total power used : 52.96 Watts
switch (config) #
Related Commands N/A
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 431
show protocols
show protocols
Displays all protocols enabled in the system.
Syntax Description N/A
Default N/A
Configuration Mode Any Command Mode
History 3.2.3000
3.3.4550 Updated Example
3.6.1002 Updated Example
Role admin
Example switch (config) # show protocols
Ethernet enabled
spanning-tree rst
lacp disabled
lldp disabled
igmp-snooping disabled
ets enabled
priority-flow-control disabled
sflow disabled
openflow disabled
mlag disabled
dot1x disabled
isolation-group disabled
IP routing disabled
bgp disabled
pim disabled
vrrp disabled
ospf disabled
magp disabled
dhcp-relay disabled
Related Commands N/A
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 432
show resources
show resources
Displays system resources.
Syntax Description N/A
Default N/A
Configuration Mode Any Command Mode
History 3.1.0000
Role admin
Example switch (config) # show resources
Total Used Free
Physical 2027 MB 761 MB 1266 MB
Swap 0 MB 0 MB 0 MB
Number of CPUs: 1
CPU load averages: 0.11 / 0.23 / 0.23
CPU 1
Utilization: 5%
Peak Utilization Last Hour: 19% at 2012/02/15 13:26:19
Avg. Utilization Last Hour: 7%
switch (config) #
Related Commands N/A
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 433
show system capabilities
show system capabilities
Displays system capabilities.
Syntax Description N/A
Default N/A
Configuration Mode Any Command Mode
History 3.1.0000 First version
3.3.0000 Added gateway support
3.6.1002 Updated output
Role admin
Example switch (config) # show system capabilities
Ethernet: Supported, L2, L3
Ethernet Max licensed speed: 56Gb
Related Commands show system profile
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 434
show system mac
show system mac
Displays system MAC address.
Syntax Description N/A
Default N/A
Configuration Mode Any Command Mode
History 3.1.0000
Role admin
Example switch (config) # show system mac
00:02:C9:5E:AF:18
switch (config) #
Related Commands N/A
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 435
show system profile
show system profile
Displays system profile.
Syntax Description N/A
Default N/A
Configuration Mode Any Command Mode
History 3.2.0000
Role admin
Example switch (config) # show system profile
eth-single-switch
switch (config) #
Related Commands system profile
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 436
show system type
show system type
Displays system type.
Syntax Description N/A
Default N/A
Configuration Mode Any Command Mode
History 3.5.1000
Role admin
Example switch (config) # show system type
SX1036
switch (config) #
Related Commands
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 437
show temperature
show temperature
Displays system temperature sensors status.
Syntax Description N/A
Default N/A
Configuration Mode Any Command Mode
History 3.1.0000
Role admin
Example switch (config) # show temperature
===================================================
Module Component Reg CurTemp Status
(Celsius)
===================================================
MGMT BOARD_MONITOR T1 25.00 OK
MGMT CPU_BOARD_MONITOR T1 26.00 OK
MGMT CPU_BOARD_MONITOR T2 41.00 OK
MGMT QSFP_TEMP1 T1 23.00 OK
MGMT QSFP_TEMP2 T1 22.50 OK
MGMT QSFP_TEMP3 T1 23.00 OK
MGMT SX T1 37.00 OK
switch (config) #
Related Commands N/A
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 438
show uboot
show uboot
Displays u-boot version.
Syntax Description N/A
Default N/A
Configuration Mode Any Command Mode
History 3.3.5006
3.4.1110 Updated Example
Role admin
Example switch (config) # show uboot
UBOOT version : U-Boot 2009.01 SX_PPC_M460EX 3.2.0330-82 ppc (Dec 20 2012 - 17:53:54)
switch (config) #
Related Commands N/A
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 439
show version
show version
Displays version information for the currently running system image.
Syntax Description N/A
Default N/A
Configuration Mode Any Command Mode
History 3.1.0000
Role admin
Example switch (config) # show version
Product name: MLNX-OS
Product release: 3.1.0000
Build ID: #1-dev
Build date: 2012-02-26 08:47:51
Target arch: ppc
Target hw: m460ex
Built by: root@r-fit16
Uptime: 1d 3h 32m 24.656s
Product model: ppc
Host ID: 0002c911a15e
System memory: 110 MB used / 1917 MB free / 2027 MB total
Swap: 0 MB used / 0 MB free / 0 MB total
Number of CPUs: 1
CPU load averages: 0.18 / 0.19 / 0.16
switch (config) #
Related Commands N/A
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 440
show version concise
show version concise
Displays concise version information for the currently running system image.
Syntax Description N/A
Default N/A
Configuration Mode Any Command Mode
History 3.1.0000
Role admin
Example switch (config) # show version concise
PPC_M460EX 3.4.2000 2015-05-06 20:26:41 ppc
switch (config) #
Related Commands N/A
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 441
show voltage
show voltage
Displays voltage level measurements on different sensors.
Syntax Description N/A
Default N/A
Configuration Mode Any Command Mode
History 3.1.0000
3.3.5006 Updated Example
Role admin
Example
switch (config) # show voltage
===========================================================================================
Module Power Meter Reg Expected Actual Status High Low
Voltage Voltage Range Range
===========================================================================================
MGMT BOARD_MONITOR USB 5V sensor 5.00 5.15 OK 5.55 4.45
MGMT BOARD_MONITOR Asic I/O sensor 2.27 2.11 OK 2.55 1.99
MGMT BOARD_MONITOR 1.8V sensor 1.80 1.79 OK 2.03 1.57
MGMT BOARD_MONITOR SYS 3.3V sensor 3.30 3.28 OK 3.68 2.92
MGMT BOARD_MONITOR CPU 0.9V sensor 0.90 0.93 OK 1.04 0.76
MGMT BOARD_MONITOR 1.2V sensor 1.20 1.19 OK 1.37 1.03
MGMT CPU_BOARD_MONITOR 12V sensor 12.00 11.67 OK 13.25 10.75
MGMT CPU_BOARD_MONITOR 12V sensor 2.50 2.46 OK 2.80 2.20
MGMT CPU_BOARD_MONITOR 2.5V sensor 3.30 3.26 OK 3.68 2.92
MGMT CPU_BOARD_MONITOR SYS 3.3V sensor 3.30 3.24 OK 3.68 2.92
MGMT CPU_BOARD_MONITOR SYS 3.3V sensor 1.80 1.79 OK 2.03 1.57
MGMT CPU_BOARD_MONITOR 1.8V sensor 1.20 1.24 OK 1.37 1.03
switch (config) #
Related Commands N/A
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 442
show chassis ha
show chassis ha
Displays Chassis HA parameters and status.
Syntax Description N/A
Default N/A
Configuration Mode Config
History 3.1.0000
Role admin
Example switch (config) # show chassis ha
2-node HA state:
Box management IP: 172.30.1.200/16
interface: mgmt0
local role: master
local slot: 1
other state: ready
reset count: 0
switch (config) #
Related Commands chassis ha
Notes This command is applicable only for director switch systems.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 443
4.13 Network Management Interfaces
4.13.1 SNMP
Simple Network Management Protocol (SNMP), is a network protocol for the management of a
network and the monitoring of network devices and their functions. SNMP supports asynchro-
nous event (trap) notifications and queries.
MLNX-OS supports:
• SNMP versions v1, v2c and v3
• SNMP trap notifications
• Standard MIBs
• Mellanox private MIBs
4.13.1.1 Standard MIBs
Table 30 - Standard MIBs – Textual Conventions and Conformance MIBs
MIB Standard Comments
INET-ADDRESS-MIB RFC-4001
SNMPV2-CONF
SNMPV2-TC RFC 2579
SNMPV2-TM RFC 3417
SNMP-USM-AES-MIB RFC 3826
IANA-LANGUAGE-MIB RFC 2591
IANA-RTPROTO-MIB RFC 2932
IANAifType-MIB
IANA-ADDRESS-FAMILY-NUMBERS-
MIB
Starting from version 3.4.1600, IB interfaces in interfaces tables (i.e. ifTable, ifxTable)
have changed from SX<if>/<port> to IB/port.
Table 31 - Standard MIBs – Chassis and Switch
MIB Standard Comments
RFC1213-MIB RFC 1213
IF-MIB RFC 2863 ifXTable only supported.
ENTITY-MIB RFC 4133
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 444
ENTITY-SENSOR-MIB RFC 3433 Fan and temperature sensors
ENTITY-STATE-MIB RFC 4268 Fan and temperature states
Bridge MIB RFC 4188 dot1dTpFdbGroup and dot1dStaticGroup are
not supported in this MIB, it is supported as a
part of Q-Bridge-MIB.
Q-Bridge MIB RFC 4363 The following SNMP groups are not sup-
ported:
• qBridgeVlanStatisticsGroup,
• qBridgeVlanStatisticsOverflowGroup ,
• qBridgeVlanHCStatisticsGroup,
• qBridgeLearningConstraintsGroup.
The following SNMP tables are not sup-
ported:
• dot1qTpGroupTable (dynamic MC MAC
addresses)
• dot1qForwardAllTable (GMRP)
• dot1qForwardUnregisteredTable (GMRP)
dot1qVlanCurrentTable (GVRP)
RSTP-MIB RFC 4318
LLDP-MIB 802.1AB-2005
Table 31 - Standard MIBs – Chassis and Switch
MIB Standard Comments
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 445
4.13.1.2 Private MIB
Table 32 - Private MIBs Supported
MIB Description
MELLANOX-SMI-MIB Mellanox Private MIB main structure (no objects)
MELLANOX-PRODUCTS-MIB List of OID – per managed system (sysObjID)
MELLANOX-IF-VPI-MIB IfTable extensions
MELLANOX-EFM-MIB Partially deprecated MIB (based on Mellanox-MIB)
Traps definitions and test trap set scalar are supported.
MELLANOX-ENTITY-MIB Enhances the standard ENTITY-MIB (contains GUID and ASIC
revision).
MELLANOX-POWER-CYCLE Allows rebooting the switch system
MELLANOX-SW-UPDATE-MIB Allows viewing what SW images are installed, uploading and
installing new SW images
MELLANOX-CONFIG-DB Allows loading, uploading, or deleting configuration files
MELLANOX-ENTITY-STATE-MIB Extension to support state change traps
Note: Currently supported for power supply insertion and
extraction only
Mellanox private MIBs can be downloaded from the Mellanox Support webpage.
4.13.1.3 Mellanox Private Traps
The following private traps are supported by MLNX-OS®.
Table 33 - SNMP Traps
Trap Action Required
asicChipDown Reboot the system.
asicOverTempReset Check fans and environmental temperature.
asicOverTemp Check fans and environmental temperature.
lowPower Add/connect power supplies.
internalBusError N/A
procCrash Generate SysDump and contact Mellanox support.
cpuUtilHigh N/A
procUnexpectedExit Generate SysDump and contact Mellanox support.
diskSpaceLow Clean images and sysDump files using the commands “image
delete” and “file debug-dump delete”.
systemHealthStatus Refer to Health Status table.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 446
For additional information refer to MELLANOX-EFM-MIB.
4.13.1.4 Configuring SNMP
To set up the SNMP:
Step 1. Activate the SNMP server on the MLNX-OS switch (in configure mode) using the following
commands:
4.13.1.5 Configuring an SNMPv3 User
To configure SNMPv3 user:
Step 1. Configure the user using the command:
lowPowerRecover N/A
insufficientFans Check Fans and environmental conditions.
insufficientFansRecover N/A
insufficientPower Add/connect power supplies, or change power mode using the com-
mand “power redundancy mode”.
insufficientPowerRecover N/A
For event-to-MIB mapping, please refer to Table 25, “Supported Event Notifications
and MIB Mapping,” on page 290.
Community strings are case sensitive.
Director switches require SNMP timeout configuration on the agent of 60 seconds.
switch (config) # snmp-server enable
switch (config) # snmp-server enable notify
switch (config) # snmp-server community public ro
switch (config) # snmp-server contact "contact name"
switch (config) # snmp-server host <host IP address> traps version 2c public
switch (config) # snmp-server location "location name"
switch (config) # snmp-server user admin v3 enable
switch (config) # snmp-server user admin v3 prompt auth md5 priv des
switch (config) # snmp-server user [role] v3 prompt auth <hash type> priv <privacy type>
Table 33 - SNMP Traps
Trap Action Required
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 447
where
• user role –
admin
• auth type –
md5
or
sha
• priv type –
des
or
aes-128
Step 2. Enter authentication password and its confirmation.
Step 3. Enter privacy password and its confirmation.
To retrieve the system table, run the following SNMP command:
4.13.1.6 Configuring an SNMP Notification
To set up the SNMP Notification (traps or informs):
Step 1. Make sure SNMP and SNMP notification are enable. Run:
Step 2. Configure SNMP host with the desired arguments (IP Address, SNMP version, authentication
methods). More than one host can be configured. Each host may have different attributes. Run:
Step 3. Verify the SNMP host configuration. Run:
switch (config) # snmp-server user admin v3 prompt auth md5 priv des
Auth password: ********
Confirm: ********
Privacy password: ********
Confirm: ********
switch (config) #
snmpwalk -v3 -l authPriv -a MD5 -u admin -A “<Authentication password>” -x DES -X “<pri-
vacy password>” <system ip> SNMPv2-MIB::system
switch (config) # snmp-server enable
switch (config) # snmp-server enable notify
switch (config) #
switch (config) # snmp-server host 10.134.47.3 traps version 3 user my-username auth sha
my-password
switch (config) #
switch (config) # show snmp host
Notifications enabled: yes
Default notification community: public
Default notification port: 162
Notification sinks:
10.134.47.3
Enabled: yes
Port: 162 (default)
Notification type: SNMP v3 trap
Username: my-username
Authentication type: sha
Privacy type: aes-128
Authentication password: (set)
Privacy password: (set)
switch (config) #
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 448
Step 4. Configure the desired event to be sent via SNMP. Run:
Step 5. Verify the list of traps and informs being sent to out of the system. Run:
4.13.1.7 SNMP SET Operations
MLNX-OS allows the user to use SET operations via SNMP interface. This is needed to config-
ure a user/community supporting SET operations.
Enabling SNMP SET
To allow SNMP SET operations using SNMPv1/v2:
Step 1. Enable SNMP communities. Run:
switch (config) # snmp-server notify event interface-up
switch (config) #
This particular event is used as an example only.
switch (config) # show snmp events
Events for which traps will be sent:
asic-chip-down: ASIC (Chip) Down
cpu-util-high: CPU utilization has risen too high
disk-space-low: Filesystem free space has fallen too low
health-module-status: Health module Status
insufficient-fans: Insufficient amount of fans in system
insufficient-fans-recover: Insufficient amount of fans in system recovered
insufficient-power: Insufficient power supply
interface-down: An interface's link state has changed to down
interface-up: An interface's link state has changed to up
internal-bus-error: Internal bus (I2C) Error
liveness-failure: A process in the system was detected as hung
low-power: Low power supply
low-power-recover: Low power supply Recover
new_root: local bridge became a root bridge
paging-high: Paging activity has risen too high
power-redundancy-mismatch: Power redundancy mismatch
process-crash: A process in the system has crashed
process-exit: A process in the system unexpectedly exited
snmp-authtrap: An SNMP v3 request has failed authentication
topology_change: local bridge trigerred a topology change
unexpected-shutdown: Unexpected system shutdown
switch (config) #
To print event notifications to the terminal (SSH or CONSOLE) refer to Section 4.5.1,
“Monitor,” on page 250.
switch (config) # snmp-server enable communities
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 449
Step 2. Configure a read-write community. Run:
Step 3. Make sure SNMP communities are enabled (enabled by default). Make sure “(DISABLED)”
does not appear beside “Read-only communities” / “Read-write communities”. Run:
Step 4. Configure this RW community in your MIB browser.
To allow SNMP SET operations using SNMPv3:
Step 1. Create an SNMPv3 user. Run:
Step 2. Make sure the username is enabled for SET access and has admin capability level. Run:
MLNX-OS supports the OIDs for SET operation listed in Table 34 which are expanded upon in
the following subsections.
switch (config) # snmp-server community my-community-name rw
switch (config) # show snmp
SNMP enabled: yes
SNMP port: 161
System contact:
System location:
Read-only communities:
public
Read-write communities:
my-community-name
switch (config) # show snmp
No Listen Interfaces.
switch (config) # snmp-server user myuser v3 auth sha <password1> priv aes-128 <pass-
word2>
It is possible to use other configuration options not specified in the example above.
Please refer to the command “snmp-server user” on page 464 for more information.
switch (config) # show snmp user
User name: myuser
Enabled overall: yes
Authentication type: sha
Privacy type: aes-128
Authentication password: (set)
Privacy password: (set)
Require privacy: yes
SET access:
Enabled: yes
Capability level: admin
Table 34 - Supported SET OIDs
MIB Name OID Name OID
MELLANOX-EFM-MIB sendTestTrapSet 1.3.6.1.4.1.33049.2.1.1.1.6.0
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 450
Sending a Test Trap SET Request
MLNX-OS allows the user to use test the notification mechanism via SNMP SET. Sending a SET
request with the designated OID triggers a test trap.
Prerequisites:
1. Enable SET operations by following the instructions in Section , “Enabling SNMP SET,” on
page 448.
2. Configure host to which to send SNMP notifications.
3. Set a trap receiver in the MIB browser.
To send a test trap:
Step 1. Send a SET request to the switch IP with the OID 1.3.6.1.4.1.33049.2.1.1.1.6.0.
Step 2. Make sure the test trap is received by the aforementioned trap receiver (OID:
1.3.6.1.4.1.33049.2.1.2.13).
Setting Hostname with SNMP
Mellanox supports setting system hostname using an SNMP SET request as described in
SNMPv2-MIB (sysName, OID: 1.3.6.1.2.1.1.5.0).
The restrictions on setting a hostname via CLI also apply to setting a hostname through SNMP.
Refer to the command“hostname” on page 153 for more information.
Power Cycle with SNMP
Mellanox supports power cycling its systems using an SNMP SET request as described in MEL-
LANOX-POWER-CYCLE MIB.
Power cycle command is issued via the OID mellanoxPowerCycleCmdExecute. The following
options are available:
• Reload – saves any unsaved configuration and reloads the switch
SNMPv2-MIB sysName 1.3.6.1.2.1.1.5.0
MELLANOX-CONFIG-DB mellanoxConfigDBCmdExecute
mellanoxConfigDBCmdFilename
mellanoxConfigDBCmdStatus
mellanoxConfigDBCmdStatusString
mellanoxConfigDBCmdUri
1.3.6.1.4.1.33049.12.1.1.2.3.0
1.3.6.1.4.1.33049.12.1.1.2.2.0
1.3.6.1.4.1.33049.12.1.1.2.4.0
1.3.6.1.4.1.33049.12.1.1.2.5.0
1.3.6.1.4.1.33049.12.1.1.2.1.0
MELLANOX-POWER-
CYCLE mellanoxPowerCycleCmdExecute
mellanoxPowerCycleCmdStatus
mellanoxPowerCycleCmdStatusString
1.3.6.1.4.1.33049.10.1.1.2.1.0
1.3.6.1.4.1.33049.10.1.1.2.2.0
1.3.6.1.4.1.33049.10.1.1.2.3.0
MELLANOX-SW-UPDATE mellanoxSWUpdateCmdSetNext
mellanoxSWUpdateCmdUri
mellanoxSWUpdateCmdExecute
mellanoxSWUpdateCmdStatus
mellanoxSWUpdateCmdStatusString
mellanoxSWActivePartition
mellanoxSWNextBootPartition
1.3.6.1.4.1.33049.11.1.1.2.1.0
1.3.6.1.4.1.33049.11.1.1.2.2.0
1.3.6.1.4.1.33049.11.1.1.2.3.0
1.3.6.1.4.1.33049.11.1.1.2.4.0
1.3.6.1.4.1.33049.11.1.1.2.5.0
1.3.6.1.4.1.33049.11.1.1.3.0.0
1.3.6.1.4.1.33049.11.1.1.4.0.0
Table 34 - Supported SET OIDs
MIB Name OID Name OID
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 451
• Reload discard – reboots the system and discards of any unsaved changes
• Reload force – forces an expedited reload on the system even if it is busy without saving
unsaved configuration (equals the CLI command
reload force
)
• Reload slave – reloads the slave management on dual management systems (must be
executed from the master management module)
Changing Configuration with SNMP
Mellanox supports making configuration changes on its systems using SNMP SET requests.
Configuration requests are performed by setting several values (arguments) and then executing a
command by setting the value for the relevant operation.
It is possible to set the parameters and execute the commands on the same SNMP request or sep-
arate them to several SET operations. Upon executing a command, the values of its arguments
remain and can be read using GET commands.
Once a command is executed there may be two types of errors:
• Immediate: This error results in a failure of the SNMP request. This means a critical
error in the SNMP request has occurred or that a previous SET request is being exe-
cuted
•Delayed: The SET request has been accepted by the switch but an error occurred during
its execution.
For example, when performing a fetch (download) operation, an immediate error can occur when
the given URL is invalid. A delayed error can occur if the download process fails due to network
connectivity issues.
The following parameters are arguments are supported:
• Command URI – URI to fetch the configuration file from or upload the file to (for sup-
ported URI format please refer to the CLI command “configuration fetch” for more
details)
• Config file name – filename to save the configuration file to or to upload to remote loca-
tion
The following commands are supported:
• BinarySwitchTo – replaces the configuration file with a new binary configuration file.
This option fetches the configuration file from the URI provided in the mellanoxCon-
figDBCmdUri and switches to that configuration file. This command should be preceded by a
reload command in order for the new configuration to apply.
• TextApply – fetches a configuration file in human-readable format and applies its con-
figuration upon the current configuration.
• BinaryUpload – uploads a binary format configuration file of the current running con-
figuration or an existing configuration file on the switch to the URI in the mellanoxCon-
figDBCmdUri command. The filename parameter indicates what configuration file on the
switch to upload.
On dual management systems it is advised to connect via the BIP to make sure com-
mands are executed from the master management.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 452
• TextUpload – uploads a human-readable configuration file of the current running con-
figuration of an existing configuration file on the switch to the URI in the mellanoxCon-
figDBCmdUri command. The filename parameter indicates what configuration file on the
switch to upload (same as the CLI command
configuration text generate file
<filename> upload
).
• ConfigWrite – saves active configuration to a filename on the switch as given in the
filename parameter. In case filename is “active”, active configuration is saved to the
current saved configuration (same as the CLI command
configuration write
).
• BinaryDelete – deletes a binary based configuration file
• TextDelete – deletes a text based configuration file
Upgrading MLNX-OS Software with SNMP
Mellanox supports upgrading MLNX-OS software using an SNMP SET request as described in
MELLANOX-SW-UPDATE MIB.
The software upgrade command is issued via the OID mellanoxSWUpdateCmdExecute. The fol-
lowing options are available:
• Update – fetches the image from a specified URI (equivalent to the command “image
fetch” followed by “image install”)
The image to update from is defined by the OID mellanoxSWUpdateCmdUri. The restrictions on the
URI are identical to what is supported in the CLI command “image fetch” on page 213.
• Set-Next – changes the image for the next boot equivalent to the CLI command “image
boot”)
The partition from which to boot is defined by the OID mellanoxSWUpdateCmdSetNext. The param-
eters for this OID are as follows:
• 0 – no change
• 1 – partition 1
• 2 – partition 2
• 3 – next partition (default)
Using the OIDs mellanoxSWUpdateCmdStatus and mellanoxSWUpdateCmdStatusString you
may view the status of the latest operation performed from the aforementioned in either integer
values, or human-readable forms, respectively. The integer values presented may be as follows:
• 0 – no operation
• 1-100 – progress%
• 101 – success
• 200 – failure
4.13.1.8 IF-MIB and Interface Information
MLNX-OS supports displaying information of switch ports, LAG ports, MLAG ports and VLAN
interfaces on all systems via SNMP interface. This feature is enabled by default. The interface
information is available in the ifTables, ifXTable and mellanoxIfVPITable. Additionally, traps
for interface up/down, and internal link suboptimal speed are enabled. The user has the ability to
enable one or both of these traps.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 453
Interface up/down traps are sent whenever there is a change in the interface’s operational state.
These traps are suppressed for internal links when the internal link’s speed does not match the
configured speed of the link (mismatch condition).
4.13.2 XML API
MLNX-OS XML API is currently under development. For further information please contact
Mellanox support.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 454
4.13.3 Commands
4.13.3.1 SNMP
The commands in this section are used to manage the SNMP server.
Configures SNMPD refresh settings.
The no form of the command disables SNMPD refresh mechanism.
enable Enables SNMPD refresh mechanism.
interval Sets SNMPD refresh interval.
time In seconds. Range: 20-500.
Enabled.
Interval: 60 secs
Config
3.2.3000
3.4.1100 Added time parameter and updated notes
admin
switch (config) # snmp-server auto-refresh interval 120
show snmp
• When configuring an interval lower than 60 seconds, the following warning message
appears asking for confirmation: “Warning: this configuration may increase CPU utiliza-
tion, Type 'YES' to confirm: YES”.
• When disabling SNMP auto-refresh, information is retrieved no more than once every 60
seconds just like SNMP tables that do not have an auto-refresh mechanism.
snmp-server auto-refresh
snmp-server auto-refresh {enable | interval <time>}
no snmp-server auto-refresh enable
Syntax Description
Default
Configuration Mode
History
Role
Example
Related Commands
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 455
snmp-server community
snmp-server community <community> [ ro | rw]
no snmp-server community <community>
Sets a community name for either read-only or read-write SNMP requests.
The no form of the command sets the community string to default.
Syntax Description community Community name.
ro Sets the read-only community string.
rw Sets the read-write community string.
Default Read-only community: “public”
Read-write community: “”
Configuration Mode Config
History 3.1.0000
Role admin
Example switch(config) # snmp-server community private rw
switch (config) # show snmp
SNMP enabled: yes
SNMP port: 161
System contact:
System location:
Read-only community: public
Read-write community: private
Interface listen enabled: yes
No Listen Interfaces.
Traps enabled: yes
Default trap community: public
Default trap port: 162
No trap sinks configured.
switch(config) #
Related Commands show snmp
Notes • If neither the “ro” or the “rw” parameters are specified, the read-only community is set as
the default community
• If the read-only community is specified, only queries can be performed
• If the read-write community is specified, both queries and sets can be performed
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 456
snmp-server contact
snmp-server contact <contact name>
no snmp-server contact
Sets a value for the sysContact variable in MIB-II.
The no form of the command resets the parameter to its default value.
Syntax Description contact name Contact name.
Default “”
Configuration Mode Config
History 3.1.0000
Role admin
Example switch (config) # snmp-server contact my-name
switch (config) # show snmp
SNMP enabled: yes
SNMP port: 161
System contact: my-name
System location:
Read-only community: public
Read-write community: private
Interface listen enabled: yes
No Listen Interfaces.
Traps enabled: yes
Default trap community: public
Default trap port: 162
No trap sinks configured.
switch (config) #
Related Commands show snmp
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 457
snmp-server enable
snmp-server enable [communities | mult-communities | notify]
no snmp-server enable [communities | mult-communities | notify]
Enables SNMP-related functionality.
The no form of the command disables the SNMP server.
Syntax Description enable Enables SNMP-related functionality:
• SNMP engine
• SNMP traps
communities Enables community-based authentication on this sys-
tem.
mult-communities Enables multiple communities to be configured.
notify Enables sending of SNMP traps and informs from this
system.
Default SNMP is enabled by default
SNMP server communities are enabled by default
SNMP notifies are enabled by default
SNMP server multi-communities are disabled by default
Configuration Mode Config
History 3.1.0000 First version
3.2.1050 Change traps to notify
Role admin
Example switch (config) # snmp-server enable
switch (config) # show snmp
SNMP enabled: yes
SNMP port: 161
System contact: my-name
System location:
Read-only community: public
Read-write community: private
Interface listen enabled: yes
No Listen Interfaces.
Traps enabled: yes
Default trap community: public
Default trap port: 162
No trap sinks configured.
switch (config) #
Related Commands show snmp
Notes SNMP traps are only sent if there are trap sinks configured with the “snmp-server
host...” command, and if these trap sinks are themselves enabled.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 458
snmp-server host
snmp-server host <IP address> {disable | {traps | informs} [<community> |
<port> | version <snmp version>]}
no snmp-server host <IPv4 or IPv6 address> {disable | {traps| informs} [<com-
munity> | <port>]}
Configures hosts to which to send SNMP traps.
The no form of the commands removes a host from which SNMP traps should be
sent.
Syntax Description IP address IPv4 or IPv6 address.
disable Temporarily disables sending of traps to this host.
community Specifies trap community string.
port Overrides default UDP port for this trap sink.
snmp version Specifies the SNMP version of traps to send to this
host.
Default No hosts are configured
Default community is “public”
Default UDP port is 162
Default SNMP version is 2c
Configuration Mode Config
History 3.1.0000 First version
3.2.1050 Add inform option
Role admin
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 459
Example switch (config) # snmp-server host 10.10.10.10 traps version 1
switch (config) # show snmp
SNMP enabled: yes
SNMP port: 161
System contact:
System location:
Read-only communities:
public
Read-write communities:
(none)
Interface listen enabled: yes
No Listen Interfaces.
Traps enabled: yes
Default trap community: public
Default trap port: 162
Trap sinks:
10.10.10.10
Enabled: yes
Type: traps version 1
Port: 162 (default)
Community: public (default)
switch (config) #
Related Commands show snmp
snmp-server enable
Notes This setting is only meaningful if traps are enabled, though the list of hosts may still
be edited if traps are disabled. Refer to “snmp-server enable” command.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 460
snmp-server listen
snmp-server listen {enable | interface <ifName>}
no snmp-server listen {enable | interface <ifName> }
Configures SNMP server interface access restrictions.
The no form of the command disables the listen interface restricted list for SNMP
server.
Syntax Description enable Enables SNMP interface restrictions on access to this
system.
ifName Adds an interface to the “listen” list for SNMP server.
For example: “mgmt0”, “mgmt1”.
Default N/A
Configuration Mode Config
History 3.1.0000
Role admin
Example switch (config) # snmp listen enable
switch (config) # show snmp
SNMP enabled: yes
SNMP port: 161
System contact:
System location:
Read-only community: public
Read-write community: private
Interface listen enabled: yes
No Listen Interfaces.
Traps enabled: yes
Default trap community: public
Default trap port: 162
Trap sinks:
10.10.10.10
Enabled: yes
Type: traps version 1
Port: 3
Community: public (default)
switch (config) #
Related Commands show snmp
Notes If enabled, and if at least one of the interfaces listed is eligible to be a listen interface,
then SNMP requests will only be accepted on those interfaces. Otherwise, SNMP
requests are accepted on any interface.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 461
snmp-server location
snmp-server location <system location>
no snmp-server location
Sets a value for the sysLocation variable in MIB-II.
The no form of the command clears the contents of the sysLocation variable.
Syntax Description system location String.
Default “”
Configuration Mode Config
History 3.1.0000
Role admin
Example switch (config) # snmp-server location lab
switch (config) # show snmp
SNMP enabled: yes
SNMP port: 161
System contact: my-name
System location: lab
Read-only community: public
Read-write community: private
Interface listen enabled: yes
No Listen Interfaces.
Traps enabled: yes
Default trap community: public
Default trap port: 162
No trap sinks configured.
switch (config) #
Related Commands show snmp
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 462
snmp-server notify
snmp-server notify {community <community> | event <event name> | port
<port> | send-test}
no snmp-server notify {community | event <event name> | port}
Configures SNMP notifications (traps and informs).
The no form of the commands negate the SNMP notifications.
Syntax Description community Sets the default community for traps sent to hosts
which do not have a custom community string set.
event Specifies which events will be sent as traps.
port Sets the default port to which traps are sent.
send-test Sends a test trap.
Default Community: public
All informs and traps are enabled
Port: 162
Configuration Mode Config
History 3.1.0000 First version
3.2.1050 Changed traps to notify
Role admin
Example switch (config) # snmp-server community public
switch (config) # show snmp
SNMP enabled: yes
SNMP port: 1000
System contact: my-name
System location: lab
Read-only community: public
Read-write community: private
Interface listen enabled: yes
No Listen Interfaces.
Traps enabled: yes
Default trap community: public
Default trap port: 162
No trap sinks configured.
switch (config) #
Related Commands show snmp
show snmp events
Notes • This setting is only meaningful if traps are enabled, though the list of hosts may still be
edited if traps are disabled
• Refer to Mellanox MIB file for the list of supported traps
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 463
snmp-server port
snmp-server port <port>
no snmp-server port
Sets the UDP listening port for the SNMP agent.
The no form of the command resets the parameter to its default value.
Syntax Description port UDP port.
Default 161
Configuration Mode Config
History 3.1.0000
Role admin
Example switch (config) # snmp-server port 1000
switch (config) # show snmp
SNMP enabled: yes
SNMP port: 1000
System contact: my-name
System location: lab
Read-only community: public
Read-write community: private
Interface listen enabled: yes
No Listen Interfaces.
Traps enabled: yes
Default trap community: public
Default trap port: 162
No trap sinks configured.
switch (config) #
Related Commands show snmp
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 464
snmp-server user
snmp-server user {admin | <username>} v3 {[encrypted] auth <hash-type>
<password> [priv <privacy-type> [<password>]] | capability <cap> | enable
<sets> | prompt auth <hash-type> [priv <privacy-type>] | require-privacy}
no snmp-server user {admin | <username> } v3 {[encrypted] auth <hash-type>
<password> [priv <privacy-type> [<password>]] | capability <cap> | enable
<sets> | prompt auth <hash-type> [priv <privacy-type>]}
Specifies an existing username, or a new one to be added.
The no form of the command disables access via SNMP v3 for the specified user.
Syntax Description v3 Configures SNMP v3 users
auth Configures SNMP v3 security parameters, specifying
passwords in plaintext on the command line (note:
passwords are always stored encrypted)
capability Sets capability level for SET requests
enable Enables SNMP v3 access for this user
encrypted Configures SNMP v3 security parameters, specifying
passwords in encrypted form
prompt Configures SNMP v3 security parameters, specifying
passwords securely in follow-up prompts, rather than
on the command line
require-privacy Requires privacy (encryption) for requests from this
user
Default No SNMP v3 users defined
Configuration Mode Config
History 3.1.0000
Role admin
Example switch (config) # snmp-server user admin v3 enable
switch (config) # show snmp user
User name: admin
Enabled overall: yes
Authentication type: sha
Privacy type: aes-128
Authentication password: (NOT SET; user disabled)
Privacy password: (NOT SET; user disabled)
SET access:
Enabled: yes
Capability level: admin
switch (config) #
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 465
Related Commands show snmp user
Notes • The username chosen here may be anything that is valid as a local UNIX username (alpha-
numeric, plus '-', '_', and '.'), but these usernames are unrelated to, and independent of, local
user accounts. That is, they need not have the same capability level as a local user account
of the same name. Note that these usernames should not be longer than 31 characters, or
they will not work.
• The hash algorithm specified is used both to create digests of the authentication and pri-
vacy passwords for storage in configuration, and also in HMAC form for the authentication
protocol itself.
• There are three variants of the command, which branch out after the “v3” keyword. If
“auth” is used next, the passwords are specified in plaintext on the command line. If
“encrypted” is used next, the passwords are specified encrypted (hashed) on the command
line. If “prompt-pass” is used, the passwords are not specified on the command line the
user is prompted for them when the command is executing. If “priv” is not specified, only
the auth password is prompted for. If “priv” is specified, the privacy password is prompted
for; entering an empty string for this prompt will result in using the same password speci-
fied for authentication.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 466
show snmp
show snmp [auto-refresh | engineID | events | host | user]
Displays SNMP-server configuration and status.
Syntax Description auto-refresh SNMP refreshed mechanism status.
engineID SNMP Engine ID.
events SNMP events.
host List of notification sinks.
user SNMP users.
Default N/A
Configuration Mode Config
History 3.1.0000
Role admin
Example switch (config) # show snmp user
User name: Hendrix
Enabled overall: yes
Authentication type: sha
Privacy type: des
Authentication password: (set)
Privacy password: (set)
Require privacy: yes
SET access:
Enabled: yes
Capability level: admin
switch (config) #
Related Commands show snmp
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 467
show snmp auto-refresh
show snmp auto-refresh
Displays SNMPD refresh mechanism status.
Syntax Description N/A
Default N/A
Configuration Mode Config
History 3.1.0000
Role admin
Example switch(config) # show snmp auto-refresh
=================
SNMP auto refresh
=================
Auto-refresh enabled: yes
Refresh interval (sec): 60
=====================
Auto-Refreshed tables
=====================
entPhysicalTable
ifTable
ifXTable
switch(config) #
Related Commands snmp-server auto-refresh
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 468
4.13.3.2 XML API
Enables the XML gateway.
The no form of the command disables the XML gateway.
N/A
XML Gateway is enabled
Config
3.1.0000
admin
switch (config) # xml-gw enable
switch (config) # show xml-gw
XML Gateway enabled: yes
switch (config) #
show xml-gw
xml-gw enable
xml-gw enable
no xml-gw enable
Syntax Description
Default
Configuration Mode
History
Role
Example
Related Commands
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 469
show xml-gw
show xml-gw
Displays the XML gateway setting.
Syntax Description N/A
Default N/A
Configuration Mode Config
History 3.1.0000
Role admin
Example switch (config) # show xml-gw
XML Gateway enabled: yes
switch (config) #
Related Commands xml-gw enable
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 470
4.14 Puppet Agent
Puppet is a software that allows network administrators to automate repetitive tasks. MLNX-OS
includes a built-in agent for the open-source “Puppet” configuration change management system.
The Puppet agent enables configuring Mellanox switches in accordance with the standard “pup-
pet-netdev-stdlib” type library and with the “Mellanox-netdev-stdlib-mlnxos” and “Mellanox-
netdev-ospf-stdlib” type libraries provided by Mellanox Technologies to the Puppet community.
For more information, please refer to the CLI commands, to the NetDev documentation at https:/
/github.com/puppetlabs/puppet-netdev-stdlib and to Mellanox’s Puppet modules GitHub page at
https://github.com/Mellanox.
4.14.1 Setting the Puppet Server
To set the puppet server:
Step 1. Define the Puppet server (the name has to be a DNS and not IP). Run:
Step 2. Enable the Puppet agent. Run:
Step 3. (Optional) Verify there are no errors in the Puppet agent log. Run:
4.14.2 Accepting the Switch Request
To accept the switch’s request:
Option 1 – using Puppet CLI commands:
Step 1. Ensure the certificate request. Run:
Step 2. Sign the certificate request if the cert_name parameter (e.g. switch1.domain) is in the list. Run:
Step 3. Verify the request is removed from the Puppet certification list. Run:
Option 2 – accept certificate requests in the puppet server console:
Step 1. Go to the “nodes requests” page (the button is at the top right), and wait for a certificate request
for the switch and then accept it.
switch (config) # puppet-agent master-hostname <please_type_your_hostname_DNS_here>
switch (config) #
switch (config) # puppet-agent enable
switch (config) #
switch (config) # show puppet-agent log continuous
switch (config) #
This is to be performed on the first run only.
# puppet cert list
"<switch>"
(F4:B4:20:3B:2B:11:76:37:14:34:D0:D1:03:ED:3D:B5)
# puppet cert sign <full_domain_name>
# puppet cert list
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 471
Figure 12: Accepting an Agent Request through the Console
4.14.3 Installing Modules on the Puppet Server
Mellanox uses netdev-stdlib types and provides a package of Mellanox providers for those types
which have to be installed at the Puppet server prior to the first Puppet configuration run (before
configuring resources on the Mellanox switch).
To install those modules, run the following commands in the Puppet server:
# puppet module install netdevops-netdev_stdlib
# puppet module install mellanox-netdev_ospf_stdlib
# puppet module install mellanox-netdev_stdlib_mlnxos
For more information please refer to the Network Automation Tools document or Puppet cate-
gory in the Mellanox community site at: http://community.mellanox.com/community/support/
solutions.
4.14.4 Writing Configuration Classes
To write configuration classes:
Step 1. Assigning Configuration Classes to a Node
Configuration files can be written and changed in the puppet server machine in the directory
“/etc/puppetlabs/puppet/manifests/” (or “/etc/puppet/manifests” in case of an open source pup-
pet server).
The file “/etc/puppetlabs/puppet/manifests/site.pp” is the main file for Puppet-classes-to-nodes
association. To associate a configuration to a Puppet agent node, just append association lines
as below:
In case of an already installed module, please use the command “
puppet module
upgrade <module_name>
” or “
puppet module install <module_name> -
-force
” instead of “
puppet module install <module_name>
” to reinstall the
modules.
import "netdev_vlan_example"
import "netdev_l2_vlan_example"
import "netdev_lag_example"
node 'switch-6375dc.mtr.labs.mlnx'{
netdev_device { $hostname: }
include vlan_example # Asserts a class vlan_example in one of the files
include l2_interface_example
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 472
Step 2. Update VLAN
Manifest example (located in “/etc/puppetlabs/puppet/manifests/netdev_vlan_example.pp”).
Step 3. Update Layer 2 Interface.
Manifest example (located in “/etc/puppetlabs/puppet/manifests/netdev_l2_interface_exam-
ple.pp”)
include lag_example
}
If you have a puppet console, you may assign classes of configuration in the following
way:
• Add the relevant classes (using the console add class button on the “nodes” page).
• Assign the classes to the relevant nodes/groups in the puppet server console (in the console
node/group page -> edit -> Classes).
class vlan_example{
$vlans = {
'Vlan244' => {vlan_id => 244, ensure => present},
'Vlan245' => {vlan_id => 245, ensure => present},
}
create_resources( netdev_vlan, $vlans )
}
class vlans_ensure_example{
$vlans = {
'Vlan347' => {vlan_id => 347, ensure => present},
'Vlan348' => {vlan_id => 348, ensure => present},
'Vlan349' => {vlan_id => 349, ensure => present},
}
create_resources( netdev_vlan, $vlans )
}
class l2_interface_example{
include vlans_ensure_example #class to Ensure VLANs before assigning
$l2_interfaces = {
'ethernet 1/3' => {ensure => absent, vlan_tagging => disable}, #default
'ethernet 1/4' => {ensure => present, vlan_tagging => enable,
tagged_vlans => [Vlan348,Vlan347], untagged_vlan => Vlan349} #hybrid
}
create_resources( netdev_l2_interface, $l2_interfaces )
}
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 473
Step 4. Update LAG.
Manifest example (located in “/etc/puppetlabs/puppet/manifests/netdev_lag_example.pp”)
4.14.5 Supported Configuration Capabilities
4.14.5.1 Ethernet and Port-Channel Interface Capabilities
Table 35 - Ethernet and Port-Channel Interface Capabilities
Field Description Values Example
ensure Sets the given values or
restores the interface to
default
absent, present ensure => present
speed Sets the speed of the inter-
face. auto*|10m|100m|1g|10g|40
g|56g speed => 1g
admin Disables/enables interface
admin state. up, down admin => up
mtu Configures the maximum
transmission unit frame
size for the interface.
Ethernet: 1518-9216 mtu => 1520
description Sets the Ethernet and LAG
description. Text description =>
“changed_by_puppet”
class lag_example{
$lags = {
'port-channel 101' => {ensure => present,
links => ['ethernet 1/12', 'ethernet 1/13'], lacp => active},
'port-channel 102' => {ensure => present,
links => ['ethernet 1/6','ethernet 1/5'], lacp => disabled},
}
create_resources( netdev_lag, $lags )
}
You may add classes to ensure that all assigned links are with the same layer 1 and
layer 2 configurations (similarly to the way we did in update l2_interface section with
vlans_ensure_example class).
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 474
4.14.5.2 VLAN Capabilities
Table 36 - VLAN Capabilities
Field Description Values Example
ensure Creates or destroys the
VLAN given as a resource
ID
absent, present ensure => present
vlan_id The VLAN ID 1-4094 (integer) vlan_id => 245
4.14.5.3 Layer 2 Ethernet Interface Capabilities
Table 37 - L2 Ethernet and Port-Channel Interface Capabilities
Field Description Values Example
ensure Sets the given values or
restores the Layer 2 inter-
face to default.
absent, present ensure => present
vlan_tagging VLAN tagging mode enable,disable vlan_tagging => enable
tagged_vlans List of tagged (trunked)
VLANs 2-4994 (range) tagged_vlans =>
[Vlan348,Vlan347]
untagged_vlan Untag (access) VLAN <VLAN name> untagged_vlan => Vlan349
4.14.5.4 LAG (Port-Channel) Capabilities
Table 38 - LAG Capabilities
Field Description Values Example
ensure creates or destroys the
port-channel given as a
resource ID
absent, present ensure => present
lacp The LACP mode of the
LAG passive | active | on lacp => on
links List of ports assigned to the
LAG List of link names links => ['ethernet 1/6','eth-
ernet 1/5']
4.14.5.5 Layer 3 Interface Capabilities
Table 39 - L3 Interface Capabilities
Field Description Values Example
ensure Creates or destroys the
interface VLAN specified
in the resource ID.
present, absent ensure => present
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 475
4.14.5.6 OSPF Interface Capabilities
Table 40 - OSPF Interface Capabilities
Field Description Values Example
ensure Creates or destroys the
OSPF interface of the asso-
ciated interface of the
VLAN specified in the
resource ID
present, absent ensure => present
area_id The associated area ID Integer representing an IP area_id => ‘7200’
Type The network type broadcast, point_to_point type => ‘point_to_point’
4.14.5.7 OSPF Area Capabilities
Table 41 - OSPF Area Capabilities
Field Description Values Example
ensure Creates or destroys the
OSPF area specified in the
resource ID
present, absent ensure => present
router_id The OSPF area associated
router ID (currently sup-
ports only default router)
default router_id => 'default'
ospf_area_mode The OSPF area mode normal, stub, nssa ospf_area_mode => 'stub'
subnets A list of associated subnets List of subnets ["192.168.4.0/24",
"192.168.5.0/24"]
ipaddress Sets IP address on the
Layer 3 interface (requires
netmask).
A valid IP address ipaddress => ‘192.168.4.2’
netmask Sets netmask for the IP
address. A valid netmask (of the
form X.1X2.X3.X4),
which creates a valid com-
bination with the given IP
address
netmask =>
‘255.255.255.0’
method Configures the method of
the L3 interface (currently
supports only static
method).
static method => static
Table 39 - L3 Interface Capabilities
Field Description Values Example
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 476
4.14.5.8 Router OSPF Capabilities
Table 42 - Router OSPF Capabilities
Field Description Values Example
ensure Enables/disables the router
ID specified in the resource
ID
present, absent ensure => present
4.14.5.9 Protocol LLDP, SNMP, IP Routing and Spanning Tree Capabilities
Table 43 - Protocol Enable/Disable Capabilities
Field Description Values Example
ensure Enables/disables the proto-
col specified in the
resource ID
present, absent ensure => present
4.14.5.10Fetched Image Capabilities
Table 44 - Fetched Image Capabilities
Field Description Values Example
ensure Enables/disables the proto-
col specified in the
resource ID
present, absent ensure => present
protocol Specifies the protocol for
fetch method http, https, ftp, tftp, scp,
sftp protocol => scp
host The host where the file-
name located DNS/IP host => my_DNS
user The username for fetching
the image Username user => my_username
password The password for fetching
the image Password password => my_pass
location The location of the file
name in the host file sys-
tem
Directory full path location => '/tmp'
force_delete Remove all the images or
only the ones which are not
installed on any partition,
before fetching
yes, no force_delete => no
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 477
4.14.5.11Installed Image Capabilities
Table 45 - Installed Image Capabilities
Field Description Values Example
ensure Specifies if the image ver-
sion given in as resource
ID is ensured to be
installed or not
present, absent ensure => present
is_next_boot Ensures that the installed
image is the next boot par-
tition
yes, no is_next_boot => yes
configuration_write Writes configurations to
database. yes, no configuration_write => yes
force_reload Reload if image is in other
partition. yes, no force_reload => no
4.14.6 Supported Resources for Each Type
Table 46 - Fetched Image Capabilities
Resource Type Puppet Type Name Supported Resource IDS Example
Network device netdev_device $hostname netdev_device { $host-
name: }
Layer 1 interface netdev_interface 'ethernet <#ID>', 'port-
channel <#id>', 'ib <#ID>' netdev_interface{'ethernet
1/3': ensure => absent}
Layer 2 interface netdev_l2_interface 'ethernet <#ID>', 'port-
channel <#id>' netdev_l2_interface{'ether-
net 1/3': ensure => absent}
VLAN netdev_vlan VLAN name string netdev_vlan {'Vlan244':
vlan_id => 244, ensure =>
present }
LAG netdev_lag 'port-channel <#id>' netdev_lag {'port-channel
101': ensure => present }
Layer 3 interface netdev_l3_interface 'vlan <#ID>' netdev_l3_interface{ 'vlan
4': ipaddress =>
'192.168.4.2', netmask =>
'255.255.255.0'}
OSPF interface netdev_ospf_interface 'vlan <#ID>' netdev_ospf _interface{
'vlan 4': ensure => present,
area_id => '10' }
OSPF area netdev_ospf_area Valid area ID (representing
an IP) netdev_ospf _area{ '10':
ensure => present, osp-
f_area_mode=>'stub'}
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 478
4.14.7 Troubleshooting
This section presents common issues that may prevent the switch from connecting to the puppet
server.
4.14.7.1 Switch and Server Clocks are not Synchronized
This can be fixed by using NTP to synchronize the clocks at the switch (using the CLI command
ntp
) and at the server (e.g. using
ntpdate
).
4.14.7.2 Outdated or Invalid SSL Certificates Either on the Switch or the Server
This can be fixed on the switch using the CLI command
puppet-agent clear-certificates
(requires
puppet-agent restart
to take effect).
On the server it can be fixed by running
puppet cert clean <switch_fqdn>
(FQDN is the
Fully Qualified Domain Name which consists of a hostname and a domain suffix).
4.14.7.3 Communications Issue
Make sure it is possible to ping the puppet server hostname from the switch (using the CLI com-
mand
ping
).
If the hostname is not reachable (e.g. no DNS server) it can be statically added to the switch local
hosts lookup (using the CLI command
ip host
).
Make sure that port 8140 is open (using the command tracepath {<hostname> | <ip>}/8140).
OSPF router netdev_router_ospf Currently only supports
'default' netdev_router_ospf
{'default':
ensure => present }
Protocol mlnx_protocol ip_routing, lldp, snmp,
spanning_tree mlnx_protocol { 'ip_rout-
ing': ensure => present}
Fetched image mlnx_fetched_img The image file name mlnx_fetched_image {
'image-PPC_M460EX-
3.3.4300.img': ensure =>
present}
Installed image mlnx_installed_img The image version name mlnx_installed_img {
'3.3.4300':
ensure => present}
Table 46 - Fetched Image Capabilities
Resource Type Puppet Type Name Supported Resource IDS Example
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 479
4.14.8 Commands
Enters puppet agent configuration mode.
N/A
None
Config
3.3.4200
admin
switch (config) # puppet-agent
switch (config puppet-agent) #
puppet-agent
puppet-agent
Syntax Description
Default
Configuration Mode
History
Role
Example
Related Commands
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 480
master-hostname
master-hostname <hostname>
no master-hostname
Sets the puppet server hostname.
The no form of the command resets the parameter to its default.
Syntax Description hostname Puppet server hostname. Free string may be entered.
Default puppet
Configuration Mode Config Puppet
History 3.3.4200
Role admin
Example switch (config puppet-agent) # master-hostname my-puppet-server-host-
name
switch (config puppet-agent) #
Related Commands
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 481
enable
enable
no enable
Enables the puppet server on the switch.
The no form of the command disables the puppet server.
Syntax Description N/A
Default Disabled
Configuration Mode Config Puppet
History 3.3.4200
Role admin
Example switch (config puppet-agent) # enable
switch (config puppet-agent) #
Related Commands
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 482
run-interval
run-interval <time>
Configures the time interval in which the puppet agent reports to the puppet server.
Syntax Description time Can be in seconds (“30” or “30s”), minutes (“30m”),
hours (“6h”), days (“2d”), or years (“5y”).
Default 30m
Configuration Mode Config Puppet
History 3.3.4302
Role admin
Example switch (config puppet-agent) # run-interval 40m
switch (config puppet-agent) #
Related Commands show puppet-agent
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 483
restart
puppet-agent restart
Restarts the puppet agent.
Syntax Description N/A
Default N/A
Configuration Mode Config Puppet
History 3.3.4200
Role admin
Example switch (config puppet-agent) # restart
switch (config puppet-agent) #
Related Commands
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 484
show puppet-agent
show puppet-agent
Displays Puppet agent status and configuration.
Syntax Description N/A
Default N/A
Configuration Mode Any Command Mode
History 3.3.4200
3.3.4302 Updated output with run interval
Role admin
Example switch (config puppet-agent) # show puppet-agent
Puppet agent is disabled
Puppet master hostname: puppet
Run interval: 40m
switch (config puppet-agent) #
Related Commands
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 485
show puppet-agent log
show puppet-agent log [[not] [matching | continuous] <string> | files [[not]
matching] <string>]
Displays the Puppet agent’s log file.
Syntax Description continuous Puppet agent log messages as they arrive.
files Displays archived Puppet agent log files.
matching Displays Puppet agent log that match a given string.
not Displays Puppet agent log that do not meet a certain
string.
string Free string.
Default N/A
Configuration Mode Any Command Mode
History 3.3.4200
Role admin
Example switch (config puppet-agent) # show puppet-agent log
Mon Nov 04 11:52:42 +0000 2013 Puppet (notice): Starting Puppet client version 3.2.3
Mon Nov 04 11:52:44 +0000 2013 Puppet (warning): Unable to fetch my node definition, but the agent run will continue:
Mon Nov 04 11:52:44 +0000 2013 Puppet (warning): Could not intern from pson: source '"#<Puppet::Node:0x7f' not in PSON!
Mon Nov 04 11:53:21 +0000 2013 /Netdev_vlan[Vlan104]/ensure (notice): created
Mon Nov 04 11:53:22 +0000 2013 /Netdev_vlan[Vlan101]/ensure (notice): created
Mon Nov 04 11:53:23 +0000 2013 /Netdev_vlan[Vlan102]/ensure (notice): created
Mon Nov 04 11:53:24 +0000 2013 /Netdev_vlan[Vlan103]/ensure (notice): created
Mon Nov 04 11:53:40 +0000 2013 /Netdev_l2_interface[ethernet 1/6]/untagged_vlan (notice): untagged_vlan changed 'default' to 'Vlan103'
Mon Nov 04 11:53:43 +0000 2013 /Netdev_l2_interface[ethernet 1/7]/untagged_vlan (notice): untagged_vlan changed 'default' to 'Vlan103'
Mon Nov 04 11:53:48 +0000 2013 /Netdev_vlan[Vlan100]/ensure (notice): created
Mon Nov 04 11:53:48 +0000 2013 /Netdev_l2_interface[ethernet 1/5]/vlan_tagging (notice): vlan_tagging changed 'enable' to 'disable'
Mon Nov 04 11:53:48 +0000 2013 /Netdev_l2_interface[ethernet 1/5]/tagged_vlans (notice): tagged_vlans changed '[]' to
'[Vlan100,Vlan101,Vlan102]'
Mon Nov 04 11:53:51 +0000 2013 /Netdev_l2_interface[ethernet 1/1]/tagged_vlans (notice): tagged_vlans changed '[]' to '[Vlan101,Vlan104]'
Mon Nov 04 11:53:51 +0000 2013 /Netdev_l2_interface[ethernet 1/1]/untagged_vlan (notice): untagged_vlan changed 'default' to 'Vlan100'
Mon Nov 04 11:53:54 +0000 2013 /Netdev_l2_interface[ethernet 1/3]/tagged_vlans (notice): tagged_vlans changed '[]' to '[Vlan101,Vlan104]'
Mon Nov 04 11:53:54 +0000 2013 /Netdev_l2_interface[ethernet 1/3]/untagged_vlan (notice): untagged_vlan changed 'default' to 'Vlan100'
Mon Nov 04 11:53:58 +0000 2013 /Netdev_l2_interface[ethernet 1/4]/vlan_tagging (notice): vlan_tagging changed 'enable' to 'disable'
Mon Nov 04 11:53:58 +0000 2013 /Netdev_l2_interface[ethernet 1/4]/tagged_vlans (notice): tagged_vlans changed '[]' to
'[Vlan100,Vlan101,Vlan102]'
Mon Nov 04 11:54:03 +0000 2013 /Netdev_l2_interface[ethernet 1/2]/tagged_vlans (notice): tagged_vlans changed '[]' to '[Vlan101,Vlan104]'
Mon Nov 04 11:54:03 +0000 2013 /Netdev_l2_interface[ethernet 1/2]/untagged_vlan (notice): untagged_vlan changed 'default' to 'Vlan100'
Mon Nov 04 11:54:06 +0000 2013 Puppet (notice): Finished catalog run in 47.90 seconds
switch (config puppet-agent) #
Related Commands
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 486
4.15 Virtual Machine
A virtual machine (VM) on a switch is added to allow additional OS to run on top of the switch.
The VM OS can connect through mgmt0 interface to the switch system’s management interface.
In addition, the VM is also connected to the out-of-band network. This allows it to communicate
through the network and to control the switch management software.
The number of VMs that may run on a system is user-configurable and also relies on resource
availability.
Each VM consumes the following resources:
• Memory
• Processing power which is not policed (the user may determine the core to be used)
• MACs which are required for each vNIC (user configurable)
4.15.1 Virtual Machine Configuration
To configure a VM:
Step 1. Enable the VM feature. Run:
Step 2. Create a VM. Run:
Step 3. Define storage for the VM. Run:
Step 4. Display the VM parameters (notice boldface). Run:
The number of configurable VMs is limited to 4.
The example below installs Ubuntu 14 and defines 3GB storage with 512MB memory
(default) using the first core of the switch system (default) through mgmt0 interface
(default) with an auto-generated MAC (default).
switch (config) # virtual-machine enable
switch (config) # virtual-machine host my-vm
switch (config virtual-machine host my-vm) #
switch (config virtual-machine host my-vm) # storage create disk size-max 3000
100.0% [#################################################################]
Created empty virtual disk volume 'vdisk001.img' in pool 'default'
Device attached to drive number 1.
switch (config virtual-machine host my-vm) #
switch (config virtual-machine host my-vm) # show virtual-machine host my-vm
VM 'my-vm'
Status: shut off Architecture: x86_64
VCPU used: 0 sec Number of VCPUs: 1
Boot order: hd, cdrom Memory size: 512 MB
Consoles: text, graphics
Storage:
IDE bus, drive 1: default/vdisk001.img (3000 MB capacity)
Interfaces:
1: on bridge 'mgmt0' address unknown (MAC 52:54:00:2F:89:69)
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 487
Step 5. Import the VM image. Run:
Step 6. Install the imported image. Run:
Step 7. Switch to a different terminal, and run the following command to connect VNC viewer to the
VM:
Continue VM installation from the VNC prompt.
To verify VM configuration, run:
switch (config virtual-machine host my-vm) # exit
switch (config) #
switch (config) # virtual-machine volume fetch url scp://root@<ip>/.../ubuntu-14.04-
server-amd64.iso
Password (if required): *************
100.0% [#################################################################]
switch (config) # virtual-machine host my-vm
switch (config virtual-machine host my-vm) # install cdrom file ubuntu-14.04-server-
amd64.iso
$ vncviewer -via admin@<switch IP> 127.0.0.1:0
...
Mellanox MLNX-OS Switch Management
Password: ************
The switch prompt is unresponsive pending a successful VM installation. Successful
VM installation is indicated by the reboot of the VM.
VM IP is determined by DHCP configuration according to the MAC address in Step 4.
switch (config virtual-machine host my-vm) # show virtual-machine host my-vm
VM 'my-vm'
Status: running Architecture: x86_64
VCPU used: 12 min 27.440 sec Number of VCPUs: 1
Boot order: cdrom, hd Memory size: 512 MB
Consoles: text, graphics
Storage:
IDE bus, drive 1: default/vdisk001.img (3000 MB capacity)
IDE bus, drive 2: default/ubuntu-14.04-server-amd64.iso (564 MB capacity) READ-ONLY
Interfaces:
1: on bridge 'mgmt0' address unknown (MAC 52:54:00:2F:89:69)
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 488
To perform a VM installation from a USB stick:
Step 1. Insert the USB stick (supplied by Mellanox) to the USB port of your switch system.
Step 2. Decide on a name for the VM (e.g. “my_vm”).
Step 3. Decide on the network configuration of the VM.
• Use DHCP or alternately use static IP definitions
• Assign a MAC address or alternately use the default MAC address
Step 4. Launch the full installation of the VM with the network definitions of your choice.
For a configuration example, please refer to Section B.1, “Deploying Mellanox NEO™ on a
MLNX-OS® Switch,” on page 1125.
USB stick with supported VM image should be supplied to the user by Mellanox.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 489
4.15.2 Commands
4.15.2.1 Config
Enables VM feature on the switch.
The no form of the command disables VM feature on the switch.
N/A
no virtual-machine enable
Config
3.4.0000
admin
switch (config) # virtual-machine enable
virtual-machine enable
virtual-machine enable
no virtual-machine enable
Syntax Description
Default
Configuration Mode
History
Role
Example
Related Commands
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 490
virtual-machine host
virtual-machine host <vm-name>
no virtual-machine host <vm-name>
Creates a VM, or enters its configuration context if it already exists.
The no form of the command removes the VM with the specified name.
Syntax Description vm-name Configures a name for the VM
Default N/A
Configuration Mode Config
History 3.4.0000
Role admin
Example switch (config)# virtual-machine host my-vm
switch (config virtual-machine host my-vm)#
Related Commands
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 491
arch
arch {i386 | x86_64}
Configures VM CPU architecture.
Syntax Description i386 32-bit x86 CPU architecture
x86_64 64-bit x86 CPU architecture
Default x86_64
Configuration Mode Config Virtual Machine Host
History 3.4.0000
Role admin
Example switch (config virtual-machine host my-vm)# arch i386
Related Commands virtual-machine
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 492
comment
comment <string>
no comment
Configures a comment describing the VM.
The no form of the command deletes the configured comment.
Syntax Description string Free string
Default N/A
Configuration Mode Config Virtual Machine Host
History 3.4.0000
Role admin
Example switch (config virtual-machine host my-vm)# comment “example VM”
Related Commands virtual-machine
Notes To configure a multi-word string, the string must be placed within quotation marks.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 493
console
console {connect [graphics | text [force]] | graphics vnc | text tty}
no console {graphics vnc | text tty}
Configures or connects to a text or graphical console.
The no form of the command clears console settings.
Syntax Description connect Connects to the text console unless specified otherwise:
• graphics – connects to the X11 graphical (VNC) console
• text – connects to the text console
graphics vnc Enables graphical (VNC) console access
text tty Enables TTY text console access
Default Graphical and textual consoles are enabled
Configuration Mode Config Virtual Machine Host
History 3.4.0000
Role admin
Example switch (config virtual-machine host my-vm)# console connect text
Related Commands virtual-machine
ssh server x11-forwarding enable
Notes • To exit the text console press Ctrl-6 (or Ctrl-Shift-6)
• If the guest OS is not configured to receive input from a serial console (ttyS0), the VM
console becomes unresponsive when connected to.
• To view the graphical console, X display must be enabled. There are two options to acti-
vate it, the command
vncviewer -via admin@<switchIP> 127.0.0.1:<VNC display
num>
(which is run from an external Linux host) and the command
ssh server
x11-forwarding enable
(which is run from within the switch and requires that you log
out and log back in again using
ssh -X
). The latter command weakens the switch security,
therefore, it is recommended to opt for the second option. The VNC display num parameter
may be procured by running the command
show virtual-machine <vm-name> detail
.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 494
install
install {cancel |cdrom [pool <pool-name>] {file <volume-name> [connect-console
<console-type> | disk-overwrite | timeout {<minutes> | none}]}}
Installs an operating system onto this VM (temporarily attach a CD and boot from it).
Syntax Description cancel Cancels an install already in progress
cdrom Installs an operating system from a CD-ROM (ISO)
pool <pool-name> Configures storage pool in which to find image to
install:
• default
• usb
file <volume-name> Specifies CD-ROM (ISO) image from which to install
connect-console <console-
type> Connects to the console during installation. The types
may be:
• text – text console
• graphics – graphical console
disk-overwrite Installs even if primary target volume is not empty
timeout {<minutes> |
none} Configures a timeout for installation in minutes (default
is no timeout).
Default N/A
Configuration Mode Config Virtual Machine Host
History 3.4.0000
Role admin
Example switch (config virtual-machine host my-vm)# install cdrom pool usb file
<image>
Related Commands virtual-machine
Notes The default pool from which the system installs the ISO image is the /var/ partition in
the switch.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 495
install-from-usb
install-from-usb [ip-address <ip-address> <mask> default-gateway <gw-ip>
[mac <mac-address>] | mac <mac-address>]
Installs a VM including resource allocation and network configurations from a VM
image file located on a USB stick.
Syntax Description ip-address The IP address to configure for the installed VM
mask The IP mask to configure to the installed VM
Format example: /24 or 255.255.255.0
Note that a space is required between the IP address
and the netmask length
default-gateway The IP address of the default gateway to configure for
the installed VM
mac The MAC address to configure for the installed VM
(e.g. ff:ee:dd:cc:bb:aa)
Default N/A
Configuration Mode Config Virtual Machine Host
History 3.6.2002
Role admin
Example switch (config virtual-machine host my-vm)# install-from-usb
100.0% [##############################################################]
VM host my-vm MAC is: aa:bb:cc:dd:ee:ff
switch (config virtual-machine host my-vm)#
Related Commands virtual-machine
Notes USB stick supplied by Mellanox must be inserted into the USB port of the switch sys-
tem prior to running this command.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 496
interface
interface <id> {bridge <bridge> | macaddr <mac> | model <model> | name
<name>}
Configures virtual interfaces.
Syntax Description <id> Interface ID number (1-8 permitted)
bridge <bridge> Configures bridge for this interface (i.e. mgmt0 or
mgmt1)
macaddr <mac> Configures MAC address (e.g. ff:ee:dd:cc:bb:aa)
model <model> Configures virtual interface model:
• realtek-8139 – Realtek 8139 (default)
• virtio – Virtual IO
name <name> Configures virtual interface name. The name must
begin with “vif”.
Default N/A
Configuration Mode Config Virtual Machine Host
History 3.4.0000
Role admin
Example switch (config virtual-machine host my-vm)# interface 1 model virtio
Related Commands virtual-machine
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 497
memory
memory <MB>
Configures memory allowance.
Syntax Description MB Size in megabytes.
Default 512MB
Configuration Mode Config Virtual Machine Host
History 3.4.0000
Role admin
Example switch (config virtual-machine host my-vm)# memory 1024
Related Commands virtual-machine
Notes It is recommended not to allocate more than 1GB of memory per VM.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 498
power
power {cycle [force | connect-console {graphics | text}] | off [force] | on [connect-
console {graphics | text}]}
Turns the VM on or off, or other related options.
Syntax Description cycle Powers the VM down and then on again immediately
force Forces an action on the system.
connect-console <console-
type> Connects to the console after power-on. The types may
be:
• text – text console
• graphics – graphical console
off Powers down the VM
on Powers on VM:
Default N/A
Configuration Mode Config Virtual Machine Host
History 3.4.0000
Role admin
Example switch (config virtual-machine host my-vm)# power cycle force
Related Commands virtual-machine
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 499
storage create
storage create disk [drive-number <number> | file <filename> | mode {read-only
| read-write} | pool <pool-name> | size-max <MB>]
Creates a new storage device for the VM, with an automatically assigned name.
Syntax Description create disk Creates a new virtual disk image for this VM.
drive-number <number> Specifies the drive number to be assigned to the vol-
ume. Insert “new” to assign a new drive number to the
volume.
file <filename> Specifies filename for new volume to be created
mode {read-only | read-
write} Specifies initial device mode
pool <pool-name> Specifies storage pool in which to create new volume
size-max <MB> Specifies maximum disk capacity in megabytes
Default N/A
Configuration Mode Config Virtual Machine Host
History 3.4.0000
Role admin
Example switch (config virtual-machine host my-vm)# storage create disk size-
max 2000
Related Commands virtual-machine
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 500
storage device
storage device [bus ide] drive-number <number> [mode {read-only | read-
write}] source {[pool <pool-name>] file <filename>}
no storage device [bus ide] drive-number <id>
Modifies existing storage device, or create a new one with a specific name.
The no form of the command removes a storage device from the VM.
Syntax Description device Modifies existing storage device, or creates a new one
with a specific name
bus ide Configures bus type to IDE
drive-number <number> Selects device to configure by drive number
mode {read-only | read-
write} Configures the device mode:
• read-only – sets the read-only attribute of the volume
• read-write – sets the read-write attribute of the volume
source Specifies where the data for this volume resides
file <filename> Specifies the filename for this volume
pool <pool-name> file
<filename> Specifies the storage pool for this volume
Default N/A
Configuration Mode Config Virtual Machine Host
History 3.4.0000
Role admin
Example switch (config virtual-machine host my-vm)# storage create disk bus ide
Related Commands virtual-machine
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 501
vcpus
vcpus {count <count> | vcpu <vcpu> pin <cpu-list> [<cpu-list>]}
no vcpus {pin | vcpu <vcpu> pin}
Specifies virtual CPUs.
The no form of the command removes certain CPU configuration.
Syntax Description count <count> Specifies the number of virtual CPUs
vcpu <vcpu> Specifies options for a particular virtual CPU
pin <cpu-list> Specifies physical CPUs to pin to this vCPU
Default N/A
Configuration Mode Config Virtual Machine Host
History 3.4.0000
Role admin
Example switch (config virtual-machine host my-vm)# vcpus count 1
Related Commands
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 502
virtual-machine volume fetch url
virt volume fetch url <download-url> [filename <filename> | pool <pool-name>
filename <filename>]
Fetches volume image from a remote host.
Syntax Description download-url Specifies URL from which to fetch a volume. Format:
http, https, ftp, tftp, scp and sftp are supported (e.g.
scp://username[:password]@hostname/path/filename)
filename <filename> Specifies new filename for fetched volume image
pool-name <pool-name> Specifies storage pool for fetched volume image
Default N/A
Configuration Mode Config Virtual Machine Host
History 3.4.0000
Role admin
Example switch (config) # virtual-machine volume fetch scp://admin[:admin-
pass]@<hostname/path/filename>
Related Commands
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 503
virt volume file
virt volume file <name> {create disk size-max <MB> | move {new-name <new-
name> | pool <pool-name> new-name <new-name>} | upload <upload-url>}
no virt volume file <volume-name>
Specifies name of volume file to manage.
The no form of the command deletes the volume file.
Syntax Description file <name> Specifies name of volume file to manage
create Creates a new volume file under this name
disk size-max <MB> Specifies maximum capacity of virtual disk to create
move Moves or renames this volume
new-name <filename> Specifies a name for the destination file
pool <pool-name> new-
name <filename> Specifies a storage pool for the copy
upload <upload-url> Uploads this volume file to a remote host. Format: ftp,
tftp, scp and sftp are supported (e.g.
scp://username[:password]@hostname/path/filename)
Default N/A
Configuration Mode Config Virtual Machine Host
History 3.4.0000
Role admin
Example switch (config) # virt volume file my-vm_file create cdrom extract
cdrom1
Related Commands
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 504
4.15.2.2 Show
Displays global virtualization configuration.
N/A
N/A
Any Command Mode
3.4.0000
admin
switch (config) # show virtual-machine configured
Virtualization enabled: yes
Virtual machines: 2 configured
Virtual networks: 0 configured
switch (config) #
show virtual-machine configured
show virtual-machine configured
Syntax Description
Default
Configuration Mode
History
Role
Example
Related Commands
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 505
show virtual-machine host
show virtual-machine host [<vm-name>]
Displays status for this VM.
Syntax Description vm-name The name of the VM.
Default N/A
Configuration Mode Any Command Mode
History 3.4.0000
Role admin
Example switch (config) # show virtual-machine host my-vm
VM 'my-vm'
Status: shut off Architecture: x86_64
VCPU used: 0 sec Number of VCPUs: 1
Boot order: hd, cdrom Memory size: 512 MB
Consoles: text, graphics
Storage:
IDE bus, drive 1: default/vdisk001.img (3000 MB capacity)
Interfaces:
1: on bridge 'mgmt0' address unknown (MAC 52:54:00:2F:89:69)
switch (config) #
Related Commands
Notes If the command is run in the middle of an installation, the following banner appears:
*** INSTALL IN PROGRESS: begun <time> ago ***
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 506
show virtual-machine host configured
show virtual-machine host <vm-name> configured [detail]
Displays configuration for this VM.
Syntax Description vm-name The name of the VM.
detail Displays detailed configuration for this VM.
Default N/A
Configuration Mode Any Command Mode
History 3.4.0000
Role admin
Example switch (config) # show virtual-machine host my-vm configured detail
VM 'my-vm'
UUID: 0a177a99-f780-5951-877a-bd660e12e5db
Text console: enabled
Graphics console: enabled
Auto-power: last
Boot order: hd, cdrom
Architecture: x86_64
Memory size: 512 MB
Features: ACPI, APIC
Number of VCPUs: 1
(No VCPUs pinned)
Storage:
IDE bus, drive 1
Source pool: default
Source file: vdisk001.img (3000 MB capacity)
Mode: read-write
Interfaces:
Interface 1
Name: vif1
MAC address: 52:54:00:2F:89:69
Model: realtek-8139
Bound to: bridge 'mgmt0'
switch (config) #
Related Commands
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 507
show virtual-machine host detail
show virtual-machine host <vm-name> detail
Displays detailed status for this VM.
Syntax Description vm-name The name of the VM.
Default N/A
Configuration Mode Any Command Mode
History 3.4.0000
Role admin
Example switch (config) # show virtual-machine host my-vm detail
VM 'my-vm'
Status: shut off
UUID: 0a177a99-f780-5951-877a-bd660e12e5db
Text console: enabled
Device: N/A
Graphics console: enabled
VNC display num: N/A
Boot order: hd, cdrom
Architecture: x86_64
Memory size: 512 MB
Features: ACPI, APIC
Number of VCPUs: 1
(State of individual VCPUs unavailable when VM is powered off)
Storage:
IDE bus, drive 1
Source pool: default
Source file: vdisk001.img (3000 MB capacity)
Mode: read-write
Device type: disk
Read requests: N/A
Read bytes: N/A
Write requests: N/A
Write bytes: N/A
Interfaces:
Interface 1
Name: vif1
MAC address: 52:54:00:2F:89:69
Model: realtek-8139
Bound to: bridge 'mgmt0'
IP address:
RX bytes: 0 TX bytes: 0
RX packets: 0 TX packets: 0
RX errors: 0 TX errors: 0
RX drop: 0 TX drop: 0
switch (config) #
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 508
Related Commands
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 509
show virtual-machine install
show virtual-machine host <vm-name> install
Displays status of installation of guest OS.
Syntax Description vm-name The name of the VM.
Default N/A
Configuration Mode Any Command Mode
History 3.4.0000
Role admin
Example switch (config) # show virtual-machine host my-vm install
Install status for VM 'my-vm'
Install in progress, begun 2 minutes 28 seconds ago.
No previous install information available.
switch (config) #
Related Commands
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 510
show virtual-machine interface
show virtual-machine host <vm-name> interface [brief | configure]
Displays full status of all interfaces for this VM.
Syntax Description vm-name The name of the VM.
brief Displays brief status of all interfaces for this VM.
configure Displays configuration of all interfaces for this VM.
Default N/A
Configuration Mode Any Command Mode
History 3.4.0000
Role admin
Example switch (config) # show virtual-machine host my-vm interface
Interface 1
Name: vif1
MAC address: 52:54:00:2F:89:69
Model: realtek-8139
Bound to: bridge 'mgmt0'
IP address:
RX bytes: 0 TX bytes: 0
RX packets: 0 TX packets: 0
RX errors: 0 TX errors: 0
RX drop: 0 TX drop: 0
switch (config) #
Related Commands
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 511
show virtual-machine storage
show virtual-machine host <vm-name> storage
Displays statistics for attached storage.
Syntax Description vm-name The name of the VM.
Default N/A
Configuration Mode Any Command Mode
History 3.4.0000
Role admin
Example switch (config) # show virtual-machine host my-vm storage
Storage for VM 'my-vm'
IDE bus, drive 1
Source pool: default
Source file: vdisk001.img (3000 MB capacity)
Mode: read-write
Device type: disk
Read requests: N/A
Read bytes: N/A
Write requests: N/A
Write bytes: N/A
switch (config) #
Related Commands
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 512
4.16 IP Table Filtering
IP table filtering is a mechanism that allows the user to apply actions to a specific control packet
flow identified by a certain flow key.
This mechanism is used in order to protect switch control traffic against attacks. For example, it
could allow traffic coming from a specific trusted management subnet only, block the SNMP
UDP port from receiving traffic, and force ping rate to be lower than a specific threshold.
Each IP table rule is defined by key, priority, and action:
• Key – the key is a combination of physical port and layer 3 parameters (e.g. SIP, DIP,
SPORT, DPORT, etc.), and other fields. Each part of the key, can be set to a specific
value or masked.
• Priority – each rule in the IP table is assigned a priority, and the rule with the highest
priority whose key matches the packet executes the action.
• Action – the action describes the behavior of packets which match the key. The action
type may be drop, accept, rate limit, etc.
An IP table rule is bound to an IP interface that can be a management out-of-band interface,
VLAN interface, or router port interface. Once bound, all traffic received (ingress rule) or trans-
mitted (egress rule) in this direction is being verified with all bounded rules.
Once a match was found, the rule action is executed. If no match is found, the default policy of
the chain shall apply.
4.16.1 Configuring IP Table Filtering
Prerequisite for IPv6:
switch (config) # ipv6 enable
To configure IPv4 table filtering:
Step 1. Select the policy that applies to the input/output chain. (Default policy is accept.) Run:
Step 2. Append filtering rules to the list or set a specific rule number, select a target, and (optional) any
additional filter conditions. For example, run:
Step 3. Enable IP table filtering. Run:
IP table rules get a lower priority than ACL mechanism.
switch (config)# ip filter chain input policy drop
switch (config)# ip filter chain output policy accept
switch (config)# ip filter chain input rule append tail target rate-limit 2 protocol udp
switch (config)# ip filter chain input rule set 2 target drop protocol icmp in-intf mgmt1
switch (config)# ip filter chain output rule append tail target drop protocol icmp
switch (config) # ip filter enable
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 513
Step 4. Verify IP table filtering configuration. Run:
4.16.2 Modifying IP Table Filtering
To modify IP table filtering configuration:
To delete an existing IP table filtering rule:
To delete all existing IP table filtering rules:
switch (config) # show ip filter configured
Packet filtering for IPv4: enabled
IPv4 configuration:
------------------------------------
Chain: 'input' Policy: 'accept'
------------------------------------
Rule : 1
Target : rate-limit 2 pps
Protocol : udp
Source : all
Destination : all
Interface : all
State : any
Other Filter : -
Rule : 2
Target : drop
Protocol : icmp
Source : all
Destination : all
Interface : mgmt1(ingress)
State : any
Other Filter : -
------------------------------------
Chain: 'output' Policy: 'accept'
------------------------------------
Rule : 1
Target : drop
Protocol : icmp
Source : all
Destination : all
Interface : all
State : any
Other Filter : -
switch (config) # ip filter chain input rule modify 3 target reject-with icmp6-adm-pro-
hibited source-addr 10::0 /126
switch (config) # no ip filter chain input rule 2
switch (config) # no ip filter chain output rule all
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 514
To insert an IP table filtering rule in a chain:
4.16.3 Rate-limit Rule Configuration
Using a rate-limit target allows to create a rule to limit the rate of certain traffic types. The limit is
specified in packets per second (pps) and can be anywhere between 1-1000 pps. When enabled,
the system takes the user specified rate and converts it into units of 1/10000 of a second. There-
fore, any value greater than 100 can have a slight difference when the rule is displayed using the
show command.
Unlike other rules which are a match type of rule, limiting packets should be followed by a rule
that drops additional packets of the same “type”. Alternatively, this can be implicitly achieved by
setting the chain policy to “drop” so that it drops packets not processed by matching rules. Other-
wise, no effect of the rule is observed as the remaining traffic simply gets accepted.
switch (config) # ip filter chain input rule 2 set target drop protocol tcp dest-port 22
in-intf mgmt1
Rate-limit is implemented with an average rate and a burst-limit. Rate values are speci-
fied in pps and take a range from 1-1000 pps. For rate values in the range 1-100, the
burst value is set equal to the rate value. For rate values in the range 101-1000, the burst
limit is set to 100.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 515
4.16.4 Commands
Enables IP filtering.
The no form of the command disables IP filtering.
N/A
Disabled
Config
3.5.1000
admin
switch (config) # ip filter enable
switch (config) #
N/A
It is recommended to run this command only after configuring all of the IP table filter
parameters.
ip filter enable
ipv6 filter enable
{ip | ipv6} filter enable
no {ip | ipv6} filter enable
Syntax Description
Default
Configuration Mode
History
Role
Example
Related Commands
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 516
ip filter chain policy
ipv6 filter chain policy
{ip | ipv6} filter chain <chain_name> policy {accept | drop}
no {ip | ipv6} filter chain <chain_name> policy
Configures default policy for a specific chain (if no rule matches this default policy
action shall apply).
The no form of the command resets default policy for a specific chain.
Syntax Description chain_name Selects a chain for which to add or modify a filter:
• input – input chain or ingress interfaces
• output – output chain or egress interfaces
accept Accepts all traffic by default for this chain
drop Drops all traffic by default for this chain
Default Accept for input and output chains
Configuration Mode Config
History 3.5.1000
Role admin
Example switch (config) # ipv6 filter chain input policy accept
switch (config) #
Related Commands N/A
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 517
ip filter chain rule target
ipv6 filter chain rule target
{ip | ipv6} filter chain <chain_name> rule <oper> target <target> [<param>]
no {ip | ipv6} filter chain <chain_name> rule {<number> | all}
Inserts rule before specified rule number.
The no form of the command deletes rule for a specific chain.
Syntax Description chain_name A chain to which to add or modify a filter:
• input – input chain or ingress interfaces
• output – output chain or egress interfaces
rule • append tail – appends operation to the bottom of opera-
tion list
• insert <oper_num> – inserts operation at specified posi-
tion (existing operation at that position moves back in the
list)
• modify <oper_num> – modifies existing operation at
specified position. Only the parameters specified in this
invocation are altered; everything else is left untouched.
• move <oper_num1> to <oper_num2> – moves one opera-
tion to another place in the operation list
• set <oper_num> – sets operation at specified position
(overwrites existing)
target • accept – allows the packets that match the rule into the
management plane
• drop – drops packets that match the rule
• rate-limit – allows with rate limiting in packets per sec
(PPS)
• reject-with – drops the packet and replies with an ICMP
error message
param • comment <text> – specifies description string for this rule
(60 chars max)
• dest-addr <ip> – IP matching a specific destination
address or address range. A specific IPv4 address can be
provided or an entire subnet by giving an address along
with netmask in dot notation or as a CIDR notation (e.g.
/24).
• not-dest-addr <ip> – IP not matching a specific destina-
tion address range
• dest-port <port(s)> – matching a specific destination port
or port range
• not-dest-port <port(s)> – port not matching a specific des-
tination port or port range
• dup-delete – deletes any preexisting duplicates of this rule
• in-intf – interface matching a specific inbound interface
• not-in-intf <if_name> – interface not matching a specific
inbound interface
• out-intf <if_name> – matches a specific outbound inter-
face
• not-out-intf <if_name> – interface not matching a spe-
cific outbound interface
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 518
param4 (cont.) • protocol <if_name> – matches a specific protocol
• tcp
• udp
• icmp
• all
• not-protocol <protocol> – does not match a specific pro-
tocol
• tcp
• udp
• icmp
• all
• source-addr <ip> – matches a specific source address
range
• not-source-addr <ip> – does not match a specific source
address range
• source-port <port(s)> – matches a specific source port or
port range
• not-source-port <port(s)> – does not match a specific
source port or port range
• state – matches packets in a particular state. Possible val-
ues:
• established – packet associated with an established
connection which has seen traffic in both directions
• related – packet that starts a new connection but is
related to an existing connection
• new – packet that starts a new, unrelated connection
• A combination can be entered separated by commas
Default N/A
Configuration Mode Config
History 3.5.1000
Role admin
Example switch (config) # ipv6 filter enable chain input rule append tail target
drop state related protocol all dup-delete
switch (config) #
Related Commands N/A
Notes • The source and destination ports may each be either a single number, or a range specified
as “<low>-<high>”. For example: “10-20” would specify ports 10 through 20 (inclusive).
• The port parameter only works in conjunction with TCP and UDP.
• Setting a “positive” rule removes any corresponding “not-” rules, and vice-versa
• The “state” parameter is a classification of the packet relative to existing connections
• If TCP or UDP are selected for the “protocol” parameter, source and/or destination ports
may be specified. If ICMP is selected, these options are either ignored, or an error is pro-
duced.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 519
show ip filter
show ipv6 filter
show ip filter [configured | all]
Displays active IP filtering state.
Syntax Description configured Displays configured IP filtering rules
all Displays configured and predefined IP filtering rules
Default N/A
Configuration Mode Config
History 3.5.1000
Role admin
Example switch (config) # show ip filter
Packet filtering for IPv4: enabled
Active IPv4 filtering rules (omitting any not from configuration):
------------------------------------
Chain: 'input' Policy: 'accept'
------------------------------------
Rule : 1
Target : accept
Protocol : udp
Source : all
Destination : all
Interface : all
State : any
Other Filter : -
------------------------------------
Chain: 'output' Policy: 'accept'
------------------------------------
No rules.
switch (config) #
Related Commands N/A
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 520
5 Ethernet Switching
5.1 Interface
Interface Ethernet have the following physical set of configurable parameters
• Admin state – enabling or disabling the interface
• Flow control – admin state per direction (send or receive)
• MTU (Maximum Transmission Unit) – 1500-9216 bytes
• Speed – 1/10/40/56/100GbE (depending interface type and system)
• Description – user defined string
• Module-type – the type of the module plugged in the interface
5.1.1 Break-Out Cables
The break-out cable is a unique Mellanox capability, where a single physical quad-lane QSFP
port is divided into 2 dual-lane ports or 4 single-lane ports. It maximizes the flexibility of the end
user to use the Mellanox switch with a combination of dual-lane, single-lane and quad-lane inter-
faces according to the specific requirements of its network. Certain ports cannot be split at all,
and there are ports which can be split into 2 ports only (for more information please refer to your
Switch System Hardware User Manual). Splitting a port changes the notation of that port from x/
y to x/y/z with “x/y” indicating the previous notation of the port prior to the split and “z” indicat-
ing the number of the resulting single-lane port (1,2 or 1,2,3,4). Each sub-physical port is then
handled as an individual port. For example: splitting port 10 into 4 lanes gives the following new
ports: 1/10/1, 1/10/2, 1/10/3, 1/10/4.
Figure 13: Break-Out Cable
A split-4 operation results in blocking a quad-lane port in addition to the one being split. A set of
hardware restrictions determine which of the ports can be split.
To use 40GbE QSFP interfaces as 10GbE (via QSA adapter), the speed must be manu-
ally set with the command “speed 10000” under the interface configuration mode.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 521
Specific ports can be split by using a QSFP 1X4 breakout cable to split one single-lane port into
4 lanes (4 SFP+ connectors). These 4 lanes then go, one lane to each of the 4 SFP+ connectors.
When splitting an interface’s traffic into 4 data streams (four lanes) one of the other ports on the
switch is disabled (unmapped).
To see the exact splitting options available per system, refer to each specific system’s hardware
user manual (Cabling chapter) located on the Mellanox website.
5.1.1.1 Changing the Module Type to a Split Mode
To split an interface:
Step 1. Shut down all the ports related to the interface. Run:
• in case of split-2, shut down the current interface only
• in case of split-4, shut down the current interface and the other interface according switch system’s spec
Step 2. Split the ports as desired. Run:
Step 3. The following warning will be displayed:
the following interfaces will be unmapped: 1/4 1/1
.
Choose
Yes
when prompted
Type 'yes' to confirm split
The
<ports>
field in the warning refers to the affected ports from splitting port
<inf>
in the
applied command.
5.1.1.2 Unsplitting a Split Port
To unsplit a split port:
Step 1. Shut down all of the split ports. Run:
Splitting the interface deletes all configuration on that interface.
switch (config) # interface ethernet 1/1
switch (config interface ethernet 1/1) # shutdown
switch (config interface ethernet 1/1) # exit
switch (config) # interface ethernet 1/4
switch (config interface ethernet 1/4) # shutdown
switch (config interface ethernet 1/4) # module-type qsfp-split-4
switch (config interface ethernet 1/4) #
Please beware that splitting a port into 4 prevents you from accessing the splittable port,
and an additional one. For example, in the procedure above, ports 3 and 4 become unac-
cessible.
switch (config interface ethernet 1/4/4) # shutdown
switch (config interface ethernet 1/4/4) # exit
switch (config) # interface ethernet 1/4/3
switch (config interface ethernet 1/4/3) # shutdown
switch (config interface ethernet 1/4/3) # exit
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 522
Step 2. From the first member of the split (1/4/1), change the module-type back to QSFP. Run:
The following warning will be displayed:
The following interfaces will be unmapped: 1/4/1 1/4/2 1/4/3 1/4/4.
Step 3. Type “
yes
” when prompted “
Type 'yes' to confirm unsplit
.”
5.1.2 56GbE Link Speed
Mellanox offers proprietary speed of 56Gb/s per Ethernet interface.
• MSX6036F-xxxx
• MSX1036x-xxxS
• MSX1024x-xxxS
• MSX1012x-xxxx
• MSX6012F-xxxx
• MSX6018F-xxxx
• MSX6036T-xxxx
• MSX1036x-xxxR
• MSX6012T-xxxx
• MSX6018T-xxxx
To achieve 56GbE link speed:
Step 1. Make sure your system is 56Gb/s capable (i.e. SX6036F, SX1024, and SX1036).
Step 2. Install Ethernet license. Run:
switch (config) # interface ethernet 1/4/2
switch (config interface ethernet 1/4/2) # shutdown
switch (config interface ethernet 1/4/2) # exit
switch (config) # interface ethernet 1/4/1
switch (config interface ethernet 1/4/1) # shutdown
switch (config interface ethernet 1/4/1) # module-type qsfp
The module-type can be changed only from the first member of the split and not from
the interface that was split.
The following OPNs support 56GbE:
The following OPNs do not support 56GbE:
56GbE speed is not supported on SwitchX® (A1) ASIC based switch systems.
56GbE can only be achieved on 1U FDR capable systems.
switch (config) # license install <license key>
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 523
Step 3. Set the system profile to be
eth-single-switch
, and reset the system:
Step 4. Set the speed for the desired interface to 56GbE as follows. Run:
Step 5. Verify the speed is 56GbE
5.1.3 Transceiver Information
MLNX-OS offers the option of viewing the transceiver information of a module or cable con-
nected to a specific interface. The information is a set of read-only parameters burned onto the
EEPROM of the transceiver by the manufacture. The parameters include identifier (connector
type), cable type, speed and additional inventory attributes.
For a list of the available licenses see Section 2.4, “Licenses,” on page 45.
switch (config) # system profile eth-single-profile
switch (config) # interface ethernet 1/1
switch (config interface ethernet 1/1) # speed 56000
switch (config interface ethernet 1/1) #
switch (config) # show interfaces ethernet 1/1
Eth1/1
Admin state: Enabled
Operational state: Down
Description: N\A
Mac address: 00:02:c9:5d:e0:26
MTU: 1522 bytes
Flow-control: receive off send off
Actual speed: 56 Gbps
Switchport mode: access
Rx
0 frames
0 unicast frames
0 multicast frames
0 broadcast frames
0 octets
0 error frames
0 discard frames
Tx
0 frames
0 unicast frames
0 multicast frames
0 broadcast frames
0 octets
0 discard frames
switch (config) #
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 524
To display transceiver information of a specific interface, run:
5.1.4 High Power Transceivers
Mellanox switch systems offer high power transceiver (LR4) support in the following ports:
• SX1036/SX1700 – ports 1, 3, 33, 35
• SX1024/SX1400 – ports 50, 52, 54, 56, 58, 60
• SX1012/SX1710 – all ports
If a high power transceiver (e.g. LR4) is inserted to a port that does not support it, the link does
not go up, and the following warning message is displayed: “Warning: High power transceiver is
not supported” when the command “show interfaces ethernet” is run.
5.1.5 Forward Error Correction
Forward Error Correction (FEC) mechanism adds extra data to the transmitted information. The
receiving device uses this additional data to verify that the received data contains no errors. If the
receiving side discovers errors within the received data it is able to correct some of these errors.
The number or errors that can be corrected depends on the FEC algorithm and the amount of
redundant data.
100GbE Mellanox-to-Mellanox Ethernet connections always enable standard Reed Solomon
(RS) FEC on all cables.
If a Mellanox system is connected to a 3rd party system, then FEC is only activated if the 3rd
party requests it also.
switch (config) # show interfaces ethernet 1/60 transceiver
Port 1/60 state
identifier : QSFP+
cable/ module type : Passive copper, unequalized
ethernet speed and type: 56GigE
vendor : Mellanox
cable length : 1m
part number : MC2207130-001
revision : A3
serial number : MT1238VS04936
switch (config) #
The indicated cable length is rounded up to the nearest natural number.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 525
5.1.6 Commands
Enters the Ethernet interface or Ethernet interface range configuration mode.
<slot>/<port> Ethernet port number.
subport Ethernet subport number. to be used in case of split
port.
N/A
Config
3.1.0000 First version
3.2.1100 Added range support
admin
switch (config) # interface ethernet 1/1
switch (config interface ethernet 1/1) # exit
switch (config) # interface ethernet 1/1-1/10
switch (config interface ethernet 1/1-1/10) #
show interfaces ethernet
interface ethernet
interface ethernet <slot>/<port>[/<subport>]-[<slot>/<port>[/<subport>]]
Syntax Description
Default
Configuration Mode
History
Role
Example
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 526
boot-delay
boot-delay [<time>]
no boot-delay
Configures interface boot-delay timer.
The no form of the command returns boot-delay time to its default value.
Syntax Description time Boot delay time in seconds
Range: 0-600
Default 0 seconds
Configuration Mode Config Interface Ethernet
Config Interface Port Channel
Config Interface MLAG Port Channel
History 3.6.2002
Role admin
Example switch (config interface ethernet 1/1) # boot-delay 60
Related Commands show interfaces ethernet
Note This command delays the interface from boot time of the interface
Configuration save and system reboot is required for the configuration to take effect.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 527
flowcontrol
flowcontrol {receive | send} {off | on} [force]
Enables or disables IEEE 802.3x link-level flow control per direction for the speci-
fied interface.
Syntax Description receive | send receive - ingresses direction
send - egresses direction
off | on on - enables IEEE 802.3x link-level flow control for the
specified interface on receive or send.
off - disables IEEE 802.3x link-level flow control for
the specified interface on receive or send
force Forces command implementation.
Default receive off, send off
Configuration Mode Config Interface Ethernet
Config Interface Port Channel
Config Interface MLAG Port Channel
History 3.1.0000
3.3.4500 Added MLAG port-channel configuration mode
Role admin
Example switch (config interface ethernet 1/1) # flowcontrol receive off
switch (config interface ethernet 1/1) #
Related Commands show interfaces ethernet
Note N/A
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 528
module-type
module-type <type> [force]
no module-type <type> [force]
Splits the interface to two or four separate interfaces, or merges them back to a single
interface (QSFP).
The no form of the command resets the interface to its default configuration.
Syntax Description type qsfp - Port runs at 40000/56000Mbps
qsfp-split-2 - Port is split and runs at 2X10000Mb/s
qsfp-split-4 - Port is split and runs at 4X10000Mb/s
force Force the split operation without asking for user confir-
mation.
Default QSFP
Configuration Mode Config Interface Ethernet
History 3.1.1400
3.5.0000
Role admin
Example switch (config interface ethernet 1/4) # module-type qsfp-split-4
The following interfaces will be unmapped: 1/4 1/1
Type 'yes' to confirm split: yes
switch (config interface ethernet 1/4) #
Related Commands
Note • The affected interfaces should be disabled prior to the operation
• In order to unsplit the interface, use the command with “qsfp”, the speed is set to 40Gb/s
“module-type qsfp”
• The following speeds are supported on the different Ethernet interface types:
• qsfp - 1G, 10G, 25G, 40G, 50G, 56G, 100G
• qsfp-split-2 - 1G, 10G, 25G, 50G
• qsfp-split-4 - 1G, 10G, 25G
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 529
mtu
mtu <frame-size>
Configures the Maximum Transmission Unit (MTU) frame size for the interface.
Syntax Description frame-size This value may be 1500-9216 bytes
Default 1500 bytes
Configuration Mode Config Interface Ethernet
Config Interface Port Channel
Config Interface MLAG Port Channel
History 3.1.0000
3.3.4500 Added MLAG port-channel configuration mode
Role admin
Example switch (config interface ethernet 1/1) # mtu 9216
switch (config interface ethernet 1/1) #
Related Commands show interfaces ethernet
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 530
shutdown
shutdown
no shutdown
Disables the interface.
The no form of the command enables the interface.
Syntax Description N/A
Default The interface is enabled.
Configuration Mode Config Interface Ethernet
Config Interface Port Channel
Config Interface MLAG Port Channel
History 3.1.0000
3.3.4500 Added MLAG port-channel configuration mode
Role admin
Example switch (config interface ethernet 1/1) # shutdown
switch (config interface ethernet 1/1) #
Related Commands show interfaces ethernet
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 531
description
description <string>
no description
Sets an interface description.
The no form of the command returns the interface description to its default value.
Syntax Description string 40 bytes
Default “”
Configuration Mode Config Interface Ethernet
Config Interface Port Channel
Config Interface MLAG Port Channel
History 3.1.0000
3.3.4500 Added MLAG port-channel configuration mode
Role admin
Example switch (config interface ethernet 1/1) # description my-interface
switch (config interface ethernet 1/1) #
Related Commands show interfaces ethernet
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 532
speed
speed <port speed> [force]
no speed
Sets the speed of the interface.
The no form of the command sets the speed of the interface to its default value.
Syntax Description port speed The following options are available:
1G or 1000 - 1GbE
10G or 10000 - 10GbE
25G or 25000 - 25GbE
40G or 40000 - 40GbE
50G or 50000 - 50GbE
56G or 56000 - 56GbE
100G or 100000 - 100GbE
force Forces speed change configuration
Default Depends on the port module type, see the “Notes” section below.
Configuration Mode Config Interface Ethernet
Config Interface Port Channel
Config Interface MLAG Port Channel
History 3.1.0000
3.3.4500 Added MLAG port-channel configuration mode
3.5.0000 Added 25GbE, 50GbE, and 100GbE speeds and
updated notes
Role admin
Example switch (config interface ethernet 1/1) # speed 40G
switch (config interface ethernet 1/1) #
Related Commands show interfaces ethernet
Note • The default speed depends on the interface capabilities, interface capable of 40GbE will
have 40GbE speed by default
• SwitchX systems do not support 25GbE, 50GbE, and 100GbE speeds
• Not all interfaces support all speed options
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 533
load-interval
load-interval <time>
no load-interval
Sets the interface counter interval.
The no form of the command resets the interval to its default value.
Syntax Description time In seconds.
Default 300 seconds.
Configuration Mode Config Interface Ethernet
Config Interface Port Channel
Config Interface MLAG Port Channel
History 3.3.0000
3.3.4500 Added MLAG port-channel configuration mode
Role admin
Example switch (config interface ethernet 1/1) # load-interval 30
switch (config interface ethernet 1/1) #
Related Commands show interfaces ethernet
Note This interval is used for the ingress rate and egress rate counters.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 534
ip address dhcp
ip address dhcp
no ip address dhcp
Enables DHCP on this Ethernet interface.
Syntax Description N/A
Default Disabled
Configuration Mode Config Interface Ethernet set as router interface
Config Interface Port Channel set as router interface
History 3.4.2008
Role admin
Example switch (config interface ethernet 1/1) # ip address dhcp
switch (config interface ethernet 1/1) #
Related Commands interface ethernet
show interfaces ethernet
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 535
fec-override
fec-override <fec-configuration> [force]
no fec-override <fec-configuration> [force]
Changes FEC configuration on a specific port or range of ports.
The no form of the command resets this parameter to its default value.
Syntax Description fec-configuration • auto – auto-FEC selection
• no-fec – disables FEC
• fec-on – enables FEC
force Forces configuration (does not require toggling inter-
face to take effect)
Default Auto-FEC selection
Configuration Mode Config Interface Ethernet
History 3.5.0000
3.6.2002 Added force option
Role admin
Example switch (config interface ethernet 1/2) # fec-override fec-on
Related Commands show interfaces ethernet
Notes • This command is supported only on Spectrum™ based switch systems
• Use this command with caution. There is no limitation in configuring non-standard FEC. It
may cause the link to malfunction.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 536
clear counters
clear counters
Clears the interface counters.
Syntax Description N/A
Default N/A
Configuration Mode Config Interface Ethernet
Config Interface Port Channel
History 3.1.0000
3.3.4500 Added MLAG port-channel configuration mode
Role admin
Example switch (config interface ethernet 1/1) # clear counters
Related Commands show interfaces ethernet
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 537
show interfaces ethernet
show interfaces ethernet <inf>
Displays the configuration and status for the interface.
Syntax Description inf Interface number: <slot>/<port>.
Default N/A
Configuration Mode Any Command Mode
History 3.1.0000
3.6.1002 Added “error packets” counter to Tx, “Last change in
operational status”, and “Isolation group” to output
3.6.2002 Added “boot delay” parameters to output
Role admin
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 538
Example switch (config) # show interfaces ethernet 1/14
Eth1/14
Admin state: Enabled
Operational state: Up
Last change in operational status: 4w4d and 22:35:26 ago (1 oper
change)
Boot delay time: 60 sec
Boot delay timer status: N/A
Description: N\A
Mac address: f4:52:14:5c:73:f8
MTU: 1500 bytes(Maximum packet size 1522 bytes)
Fec: auto
Flow-control: receive off send off
Actual speed: 40 Gbps
Width reduction mode: disabled
DHCP client: Disabled
IP Address: 8.9.14.9 /24
Broadcast address: 8.9.14.255
Arp timeout: 1500 seconds
VRF: default
MAC learning mode: Enabled
Isolation group: N\A
Last clearing of "show interface" counters : Never
60 seconds ingress rate: 168 bits/sec, 21 bytes/sec, 1 packets/sec
60 seconds egress rate: 160 bits/sec, 20 bytes/sec, 1 packets/sec
Rx
559480 packets
4335 unicast packets
550812 multicast packets
4333 broadcast packets
56941600 bytes
0 error packets
0 discard packets
Tx
557579 packets
4332 unicast packets
548912 multicast packets
4335 broadcast packets
54615032 bytes
0 error packets
0 discard packets
Related Commands
Note If a high power transceiver (e.g. LR4) is inserted to a port that does not support it, the
link does not go up, and the following warning message is displayed: “Warning: High
power transceiver is not supported” when running the command “show interfaces
ethernet” is run. For more information, please refer to Section 5.1.4, “High Power
Transceivers,” on page 524.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 539
show interfaces ethernet capabilities
show interfaces ethernet [<inf>] capabilities
Displays the interface capabilities.
Syntax Description inf Interface number: <slot>/<port>.
Default N/A
Configuration Mode Any Command Mode
History 3.1.0000
Role admin
Example switch (config) # show interfaces ethernet 1/1 capabilities
Eth1/1
Speed : 10000,40000
FlowControl : Send, Receive
switch (config) #
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 540
show interfaces ethernet counters
show interfaces ethernet <inf> counters [priority <prio>]
Displays the extended counters for the interface.
Syntax Description inf Interface number: <slot>/<port>
priority Displays interface extended counters per priority.
Range: 0-7 or “all”
Default N/A
Configuration Mode Any Command Mode
History 3.1.0000
3.5.1000 Added notes
3.6.1002 Added “error packets” counter to Tx
Role admin
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 541
Example switch (config) # show interfaces ethernet 1/1 counters
Rx
0 packets
0 unicast packets
0 multicast packets
0 broadcast packets
0 bytes
0 packets of 64 bytes
0 packets of 65-127 bytes
0 packets of 128-255 bytes
0 packets of 256-511 bytes
0 packets of 512-1023 bytes
0 packets of 1024-1518 bytes
0 packets Jumbo
0 error packets
0 discard packets
0 fcs errors
0 undersize packets
0 oversize packets
0 pause packets
0 unknown control opcode
0 symbol errors
Tx
0 packets
0 unicast packets
0 multicast packets
0 broadcast packets
0 bytes
0 error packets
0 discard packets
0 pause packets
0 TX wait
0 TX wait useconds
0 queue depth TC0
0 queue depth TC1
0 queue depth TC2
0 queue depth TC3
0 queue depth TC4
0 queue depth TC5
0 queue depth TC6
0 queue depth TC7
switch (config) #
Related Commands
Note • Spectrum™ based systems display queue depth for TC0 - TC7
• SwitchX® based systems display queue depth for TC0 - TC3 only
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 542
show interfaces ethernet description
show interfaces ethernet [<inf>] description
Displays the admin status and protocol status for the specified interface.
Syntax Description inf Interface number: <slot>/<port>.
Default N/A
Configuration Mode Any Command Mode
History 3.1.0000
3.4.1100 Updated Example
Role admin
Example switch (config) # show interfaces ethernet description
Interface Admin state Operational state
--------- ----------- -----------------
Eth1/58 Enabled Down
Eth1/59 Enabled Up
Eth1/60 Enabled Down (Suspend)
switch (config) # show interfaces ethernet 1/60 description
Eth1/60
Admin state: Enabled
Operational state: Down (Suspend)
switch (config) #
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 543
show interfaces ethernet rates
show interfaces ethernet [<inf>] rates [<transfer-rate-unit>]
Displays the current transfer rate of the interface.
Syntax Description transfer-rate-unit • KB – displays interface transfer rate in KB/s
• MB – displays interface transfer rate in MB/s
• GB – displays interface transfer rate in GB/s
• If no parameter is entered transfer rate is displayed in
readable unit (KB/MB/GB/BS) depending on the range
Default N/A
Configuration Mode Any Command Mode
History 3.6.2002
Role admin
Example switch (config) # show interfaces ethernet rates KB
Port egress ingress
avg rate (KB/s) pkts/sec avg rate (KB/s) pkts/sec
--------- ---------------- -------- --------------- --------
Eth1/1 0 0 0.032 1
Eth1/2 0 0 0.032 1
Eth1/3 0 0 0 0
...
switch (config) #
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 544
show interfaces ethernet status
show interfaces ethernet [<inf>] status
Displays the status, speed and negotiation mode of the specified interface.
Syntax Description inf Interface number: <slot>/<port>.
Default N/A
Configuration Mode Any Command Mode
History 3.1.0000
3.4.1100 Updated Example
Role admin
Example switch (config) # show interfaces ethernet status
Port Operational state Speed Negotiation
---- ----------------- ----- -----------
Eth1/58 Down 40 Gbps No-Negotiation
Eth1/59 Up 40 Gbps No-Negotiation
Eth1/60 Down (Suspend) 40 Gbps No-Negotiation
switch (config) #
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 545
show interfaces ethernet transceiver
show interfaces ethernet [<inf>] transceiver
Displays the transceiver info.
Syntax Description inf interface number: <slot>/<port>
Default N/A
Configuration Mode Any Command Mode
History 3.1.0000
Role admin
Example switch (config) # show interfaces ethernet 1/1 transceiver
Port 1/1 state
identifier : QSFP+
cable/module type : Optical cable/module
ethernet speed and type: 40GBASE - SR4
vendor : Mellanox
cable_length : 50 m
part number : MC2210411-SR4
revision : A1
serial number : TT1151-00006
switch (config) #
Related Commands
Note • For a full list of the supported cables and transceivers, please refer to the LinkX™ Cables
and Transceivers webpage in Mellanox.com: http://www.mellanox.com/page/
cables?mtag=cable_overview.
• If a high power transceiver (e.g. LR4) is used, it will be indicated in the field “cable/mod-
ule type”.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 546
show interfaces ethernet transceiver counters
show interfaces ethernet [<inf>] transceiver counters
Displays PHY counters.
Syntax Description inf interface number: <slot>/<port>
Default N/A
Configuration Mode Any Command Mode
History 3.6.1002
Role admin
Example switch (config) # show interfaces ethernet 1/1 transceiver counters
Rx
phy received bits 17725862707200
phy symbol errors 0
phy corrected bits 0
Related Commands
Note • The counter “phy received bits” provides information on the total amount of traffic
received and can be used to estimate the ratio of error traffic
• The counter “phy symbol errors” provides information on the error traffic that was not cor-
rected because the FEC algorithm could not do it or because FEC was not active on this
interface
• The counter “phy corrected bits” provides the number of corrected bits by the active FEC
mode (RS/FC)
• This command is only supported on Spectrum™ based switch systems
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 547
show interfaces ethernet transceiver counters details
show interfaces ethernet [<inf>] transceiver counters
Displays all PHY counters.
Syntax Description inf interface number: <slot>/<port>
Default N/A
Configuration Mode Any Command Mode
History 3.6.1002
Role admin
Example switch (config) # show interfaces ethernet 1/1 transceiver counters
details
---------------------------------------------------
Phy counters
---------------------------------------------------
Symbol errors 0
Sync headers errors 0
Edpl/bip errors lane0 0
Edpl/bip errors lane1 0
Edpl/bip errors lane2 0
Edpl/bip errors lane3 0
FC corrected blocks lane0 0
FC corrected blocks lane1 0
FC corrected blocks lane2 0
FC corrected blocks lane3 0
FC uncorrectable blocks lane0 0
FC uncorrectable blocks lane1 0
FC uncorrectable blocks lane2 0
FC uncorrectable blocks lane3 0
RS corrected blocks 0
RS uncorrectable blocks 0
RS no errors blocks 1130552748
RS single error blocks 0
RS corrected symbols total 0
RS corrected symbols lane0 0
RS corrected symbols lane1 0
RS corrected symbols lane2 0
RS corrected symbols lane3 0
Link down events 0
Successful recovery events 0
Time since last clear 176127
Related Commands
Note The number of lanes displayed depends on interface splitter ratio (4-way-split – each
split has only 1 lane; 2-way-split – each split has 2 lanes)
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 548
show interfaces ethernet transceiver diagnostics
show interfaces ethernet [<inf>] transceiver diagnostics
Displays cable channel monitoring and diagnostics info for this interface.
Syntax Description inf Interface number: <slot>/<port>
Default N/A
Configuration Mode Any Command Mode
History 3.6.2002
Role admin
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 549
Example switch (config) # show interfaces ethernet 1/1 transceiver diagnostics
Port 1/1 transceiver diagnostic data:
Temperature (-127C to +127C)
Temperature : 33 C
Hi Temp Alarm Thresh : 17 C
Low Temp Alarm Thresh : 2 C
Temperature Alarm : None
Voltage ( 0 to 6.5535 V)
Voltage : 3.29450 V
Hi Volt Alarm Thresh : 3.70000 V
Low Volt Alarm Thresh : 2.90000 V
Voltage Alarm : None
Tx Bias Current ( 0 to 131 mA)
Ch1 Tx Current : 6.60000 mA
Ch2 Tx Current : 6.60000 mA
Ch3 Tx Current : 6.60000 mA
Ch4 Tx Current : 6.60000 mA
Hi Tx Crnt Alarm Thresh : 8.50000 mA
Low Tx Crnt Alarm Thresh : 5.49200 mA
Ch1 Tx Current Alarm : None
Ch2 Tx Current Alarm : None
Ch3 Tx Current Alarm : None
Ch4 Tx Current Alarm : None
Tx Power ( 0 to 6.5535 mW)
Ch1 Tx Power : 1.03080 mW
Ch2 Tx Power : 1.05070 mW
Ch3 Tx Power : 1.07150 mW
Ch4 Tx Power : 1.10180 mW
Hi Tx Power Alarm Thresh : 3.46730 mW
Low Tx Power Alarm Thresh : 0.07240 mW
Ch1 Tx Power Alarm : None
Ch2 Tx Power Alarm : None
Ch3 Tx Power Alarm : None
Ch4 Tx Power Alarm : None
Rx Power ( 0 to 6.5535 mW)
Ch1 Rx Power : 1.13980 mW
Ch2 Rx Power : 1.11720 mW
Ch3 Rx Power : 1.08800 mW
Ch4 Rx Power : 1.16450 mW
Hi Rx Power Alarm Thresh : 0.33000 mW
Low Rx Power Alarm Thresh : 1.01830 mW
Ch1 Rx Power Alarm : None
Ch2 Rx Power Alarm : None
Ch3 Rx Power Alarm : None
Ch4 Rx Power Alarm : None
Vendor Date Code (dd-mm-yyyy) : 12-05-2016
Related Commands
Note This example is for a QSFP transceiver
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 550
show interfaces ethernet transceiver raw
show interfaces ethernet [<inf>] transceiver raw
Displays cable info for this interface.
Syntax Description inf Interface number: <slot>/<port>
Default N/A
Configuration Mode Any Command Mode
History 3.6.1002
Role admin
Example switch (config) # show interfaces ethernet 1/7 transceiver raw
Port 1/7 raw transceiver data:
I2C Address 0x50, Page 0, 0:255:
0000 0d 02 06 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
0010 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
0020 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
0030 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
0040 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
0050 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
0060 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
0070 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
0080 0d 00 23 08 00 00 00 00 00 00 00 05 8d 00 00 00 ..#.............
0090 00 00 01 a0 4d 65 6c 6c 61 6e 6f 78 20 20 20 20 ....Mellanox
00a0 20 20 20 20 0f 00 02 c9 4d 43 32 32 30 37 31 33 ....MC220713
00b0 30 2d 30 30 41 20 20 20 41 33 02 03 05 00 46 66 0-00A A3....Ff
00c0 00 00 00 00 4d 54 31 32 32 37 56 53 30 30 36 34 ....MT1227VS0064
00d0 32 20 20 20 31 32 30 37 30 38 20 20 00 00 00 e4 2 120708 ....
00e0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
00f0 00 00 00 00 00 00 00 00 00 00 02 00 00 30 00 00
I2C Address 0x50, Pages 1, 128:255:
0080 0d 02 06 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
0090 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
00a0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
00b0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
00c0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
00d0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
00e0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
00f0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
...
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 551
5.2 Interface Isolation
Interface isolation provides the ability to group interfaces in sets where traffic from each port is
isolated from other interfaces in the group. The isolated interfaces in the group, however, are able
to communicate with the interface marked as privileged.
5.2.1 Configuring Isolated Interfaces
Figure 14: Interface Isolation Example
To configure isolated interfaces:
Step 1. Create the VLANs to be used. Run:
Step 2. Unlock isolation interface protocol. Run:
Step 3. Create isolation Group A. Run:
Step 4. Assign VLANs 2 and 3 to isolation Group A. Run:
Step 5. Create isolation Group B. Run:
Step 6. Assign VLANs 4 and 5 to isolation Group B. Run:
Step 7. Assign VLANs 4 and 5 to isolation Group B. Run:
switch (config) # vlan 2-5
(config vlan 2-5) # exit
switch (config) # protocol isolation-group
switch (config) # isolation-group GroupA
(config isolation-group GroupA) # vlan 2-3
(config isolation-group GroupA) # exit
switch (config) # isolation-group GroupB
(config isolation-group GroupB) # vlan 4-5
(config isolation-group GroupB) # exit
(config isolation-group GroupB) #
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 552
Step 8. Set Ethernet interfaces 1-3 to access for VLAN 3. Run:
Step 9. Isolate Ethernet interfaces 1 and 2 and set Ethernet interfaces 3 as privileged. Run:
Step 10. Enable isolation Group A. Run:
Step 11. Set Ethernet interfaces 4-6 to trunk. Run:
Step 12. Isolate Ethernet interfaces 4 and 5 and set Ethernet interfaces 6 as privileged. Run:
Step 13. Enable isolation Group B. Run:
Step 14. Verify configuration. Run:
(config) # interface ethernet 1/1 switchport access vlan 3
(config) # interface ethernet 1/2 switchport access vlan 3
(config) # interface ethernet 1/3 switchport access vlan 3
(config) # interface ethernet 1/1-1/2 isolation-group GroupA mode isolated
(config) # interface ethernet 1/3 isolation-group GroupA mode privileged
(config) # isolation-group GroupA no shutdown
(config) # interface ethernet 1/4 switchport mode trunk
(config) # interface ethernet 1/5 switchport mode trunk
(config) # interface ethernet 1/6 switchport mode trunk
(config) # interface ethernet 1/4-1/5 isolation-group GroupA mode isolated
(config) # interface ethernet 1/6 isolation-group GroupA mode privileged
(config) # isolation-group GroupB no shutdown
(config) # show isolation-group
Isolation group: GroupA
State: Enabled
VLANs: 2, 3
Privileged port: Eth1/3
Isolated ports: Eth1/1, Eth1/2
Isolation group: GroupB
State: Enabled
VLANs: 4, 5
Privileged port: Eth1/6
Isolated ports: Eth1/4, Eth1/5
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 553
5.2.2 Commands
Enables interface isolation and unlocks further isolation-group commands.
The no form of the command disables interface isolation and locks other isolation-
group commands.
N/A
Disabled
Config
3.6.1002
admin
switch (config) # protocol isolation-group
• MLAG must be disabled before enabling interface isolation
• When disabled, all configuration is lost
protocol isolation-group
protocol isolation-group
no protocol isolation-group
Syntax Description
Default
Configuration Mode
History
Role
Example
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 554
isolation-group
isolation-group <name>
no isolation-group <name>
Creates isolation group.
The no form of the command deletes isolation group.
Syntax Description N/A
Default N/A
Configuration Mode Config
History 3.6.1002
Role admin
Example switch (config) # isolation-group mygroup
Related Commands protocol isolation-group
Note • The no form of this command deletes the isolation group, removes its attached ports, and
the VLANs from the group
• Up to 64 isolation groups can be created
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 555
shutdown
shutdown
no shutdown
Enables isolation group.
The no form of the command disables isolation group.
Syntax Description N/A
Default Disabled
Configuration Mode Config Isolation Group
History 3.6.1002
Role admin
Example switch (config isolation-group mygroup) # no shutdown
Related Commands protocol isolation-group
isolation-group
Note Enabling isolation groups fails if there are VLANs with ports both inside and outside
the group.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 556
vlan
vlan <vid>
no vlan <vid>
Adds a VLAN to isolation group.
The no form of the command removes a VLAN from an isolation group.
Syntax Description N/A
Default N/A
Configuration Mode Config Isolation Group
History 3.6.1002
Role admin
Example switch (config isolation-group mygroup) # vlan 10
Related Commands protocol isolation-group
isolation-group
Note • Enabling isolation groups fails if there are VLANs with ports both inside and outside the
group
• The VLAN must be created before running this command
• All interfaces in the VLAN must be attached to only this isolation group
• The VLAN added cannot have a respective VLAN interface
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 557
isolation-group mode
isolation-group <name> mode {isolated | privileged}
no isolation-group <name> mode {isolated | privileged}
Adds a VLAN to isolation group.
The no form of the command removes a VLAN from an isolation group.
Syntax Description name The isolation group name
isolated Configures this interface as isolated
privileged Configures this interface as privileged
Default N/A
Configuration Mode Config Interface Ethernet
Config Interface Port Channel
History 3.6.1002
Role admin
Example switch (config interface ethernet 1/2) # isolation-group mygroup mode
privileged
Related Commands
Note • Enabling isolation groups fails if there are VLANs with ports both inside and outside the
group
• The VLAN must be created before running this command
• All interfaces in the VLAN must be attached to only this isolation group
• The VLAN added cannot have a respective VLAN interface
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 558
show isolation-group
show isolation-group <name>
Displays isolation group information.
Syntax Description N/A
Default N/A
Configuration Mode Any Command Mode
History 3.6.1002
Role admin
Example switch (config) # show isolation-group mygroup
State: Enabled
VLANs: 3, 4, 3000
Privileged port: Eth1/25
Isolated ports: Eth1/1, Eth1/2, Eth1/3, Eth1/4, Eth1/5, Eth1/17,
Eth1/18, Eth1/19, Eth1/20, Eth1/21, Eth1/27, Eth1/28,
Eth1/29, Po60, Po777
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 559
5.3 Link Aggregation Group (LAG)
Link Aggregation protocol describes a network operation in which several same speed links are
combined into a single logical entity with the accumulated bandwidth of the originating ports.
LAG groups exchange Lag Aggregation Control Protocol (LACP) packets in order to align the
functionality between both endpoints of the LAG. To equally send traffic on all LAG links, the
switch uses a hash function which can use a set of attributes as key to the hash function.
As many as 16 physical ports can be aggregated on a single LAG.
5.3.1 Configuring Static Link Aggregation Group (LAG)
To configure a static LAG:
Step 1. Log in as admin.
Step 2. Enter config mode. Run:
Step 3. Create a port-channel entity. Run:
Step 4. Change back to config mode.
Step 5. Add a physical port to the port-channel. Run:
5.3.2 Configuring Link Aggregation Control Protocol (LACP)
To configure LACP:
Step 1. Log in as admin.
Step 2. Enter config mode. Run:
Step 3. Create a port-channel entity. Run:
Step 4. Change back to config mode. Run:
switch > enable
switch # configure terminal
switch (config) # interface port-channel 1
switch (config interface port-channel 1) #
switch (config interface port-channel 1) # exit
switch (config) #
switch (config interface ethernet 1/4) # channel-group 1 mode on
switch (config interface ethernet 1/4) #
If the physical port is operationally up, this port becomes an active member of the
aggregation. Consequently, it becomes able to convey traffic.
switch > enable
switch # configure terminal
switch (config) # interface port-channel 1
switch (config interface port-channel 1) #
switch (config interface port-channel 1) # exit
switch (config) #
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 560
Step 5. Enable LACP in the switch. Run:
Step 6. Add a physical port to the port-channel. Run:
switch (config) # lacp
switch (config) #
switch (config interface ethernet 1/4) # channel-group 1 mode active/passive
switch (config interface ethernet 1/4) #
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 561
5.3.3 Commands
Creates a LAG and enters the LAG configuration mode. There is an option to create a
range of LAG interfaces.
The no form of the command deletes the LAG, or range of LAGs.
1-4096 / 2-4096 LAG number
N/A
Config
3.1.1400 First version
3.2.1100 Added range support
3.4.0000 Added note
admin
switch (config)# interface port-channel 1
switch (config interface port-channel 1) # exit
switch (config)# interface port-channel 1-10
switch (config interface port-channel 1-10) #
If a LAG is also an IPL, attempting to delete it without first deleting the IPL is
rejected by the management.
interface port-channel
interface port-channel <1-4096>[-<2-4096>]
no interface port-channel <1-4096>[-<2-4096>]
Syntax Description
Default
Configuration Mode
History
Role
Example
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 562
lacp
lacp
no lacp
Enables LACP in the switch.
The no form of the command disables LACP in the switch.
Syntax Description N/A
Default LACP is disabled.
Configuration Mode Config
History 3.1.1400
Role admin
Example switch (config)# lacp
switch (config)#
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 563
lacp system-priority
lacp system-priority <1-65535>
no lacp system-priority
Configures the LACP system priority.
The no form of the command sets the LACP system-priority to default.
Syntax Description 1-65535 LACP system-priority.
Default 32768
Configuration Mode Config
History 3.1.1400
Role admin
Example switch (config)# lacp system-priority 1
switch (config)# show lacp interfaces port-channel
Port-channel Module Admin Status is enabled
Port-channel System Identifier is 00:02:c9:5c:61:70
LACP System Priority: 3
switch (config)#
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 564
lacp (interface)
lacp {rate fast | port-priority <1-65535>}
no lacp {rate fast | port-priority}
Configures the LACP interface parameters.
The no form of the command sets the LACP interface configuration to default.
Syntax Description rate fast Sets LACP PDUs on the port to be in fast (1 second) or
slow rate. (30 seconds).
1-65535 LACP port-priority.
Default rate - slow (30 seconds)
port-priority 32768
Configuration Mode Config
History 3.1.1400
Role admin
Example switch (config interface ethernet 1/7)# lacp rate fast
switch (config interface ethernet 1/7)# show lacp interfaces ethernet
1/7
Port : 1/7
-------------
Port State = Down
Channel Group : 1
Pseudo port-channel = Po1
LACP port-priority = 32768
LACP Rate = Slow
LACP Activity : Passive
LACP Timeout : Short
Aggregation State : Aggregation, Defaulted,
LACP Port Admin Oper Port Port
Port State Priority Key Key Number State
-------------------------------------------------------------------
1/7 Down 128 1 1 0x7 0x0
switch (config)#
Related Commands
Note Configuring LACP rate (fast or slow) will configure the peer port to send (fast or
slow), it does not make any affect on the local port LACP rate.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 565
port-channel load-balance ethernet
port-channel load-balance ethernet <method>
no port-channel load-balance ethernet <method>
Configures the port-channel load balancing distribution function method.
The no form of the command sets the distribution function method to default.
Syntax Description method Possible load balance methods:
• destination-ip
• destination-mac
• destination-port
• source-destination-ip
• source-destination-mac
• source-destination-port
• source-ip
• source-mac
• source-port
Default source-destination-mac
Configuration Mode Config
History 3.1.1400
Role admin
Example switch (config)# port-channel load-balance ethernet destination-ip
source-port source-mac
switch (config)# show interfaces port-channel load-balance
destination-ip,source-mac,source-port
switch (config)#
Related Commands
Note Several load balance methods can be configured (refer to the example)
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 566
channel-group
channel-group <1-4096> [mode {on | active | passive}]
no channel-group
Assigns and configures a physical interface to a port channel.
The no form of the command removes a physical interface from the port-channel.
Syntax Description 1-4096 The port channel number.
mode on Static assignment the port to LAG. LACP will not be
enabled on this port.
mode active/passive Dynamic assignment of the port to LAG. LACP will be
enabled in either passive or active mode.
Default N/A
Configuration Mode Config Interface Ethernet
History 3.1.1400
3.4.0008 Added a note
Role admin
Example switch (config interface ethernet 1/7)# channel-group 1 mode active
Related Commands show interfaces port-channel summary
show interfaces port-channel compatibility-parameters
show lacp interfaces ethernet
Note • Setting the mode to active/passive is possible only in LACP is enabled.
• The first port in the LAG decide if the LAG will be static (“on”) or LACP (“active” ,
“pasive”).
• All the ports in the LAG must have the same configuration, determines by the first port
added to the LAG. The port with a different configuration will be rejected, for the list of
dependencies refer to ‘show interfaces port-channel compatibility-parameters’
• A physical port may only be part of one channel-group
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 567
lacp-individual enable
lacp-individual enable [force]
no lacp-individual enable [force]
Configures the LAG to act with LACP-individual capabilities.
The no form of the command disables the LACP-individual capability.
Syntax Description force Toggles the interface after enabling LACP-individual.
Default N/A
Configuration Mode Config Interface Port Channel
History 3.4.1100
Role admin
Example switch (config interface port-channel 10)# lacp-individual enable force
Related Commands
Note If a switch is connected via LAG to a host without LACP capability, running this
command on that LAG allows a member port (with the lowest numerical priority
value), acting as an individual, to communicate with the host.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 568
ip address dhcp
ip address dhcp
no ip address dhcp
Enables DHCP on this LAG interface.
Syntax Description N/A
Default Disabled
Configuration Mode Config Interface Port Channel set as router interface
History 3.4.2008
Role admin
Example switch (config interface port channel 10) # ip address dhcp
switch (config interface port channel 10) #
Related Commands interface port-channel
show interface port-channel
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 569
show lacp counters
show lacp counters
Displays the LACP PDUs counters.
Syntax Description N/A
Default N/A
Configuration Mode Any Command Mode
History 3.1.1400
Role admin
Example switch (config)# show lacp counters
LACPDUs Marker Marker Response LACPDUs
Port Sent Recv Sent Recv Sent Recv Illegal Unknown
----------------------------------------------------------------------
Port-channel: 1
------------------
1/7 0 0 0 0 0 0 0 0
switch (config) # switch (config)#
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 570
show lacp interfaces ethernet
show lacp interface ethernet <inf>
Displays the LACP interface configuration and status.
Syntax Description inf Interface number, for example “1/1”.
Default N/A
Configuration Mode Any Command Mode
History 3.1.1400
Role admin
Example switch (config) # show lacp interfaces ethernet 1/4
Port : 1/4
-------------
Port State = Down
Channel Group : 1
Pseudo port-channel = Po1
LACP port-priority = 128
LACP Rate = Slow
LACP Activity : Passive
LACP Timeout : Short
Aggregation State : Aggregation, Defaulted,
LACP Port Admin Oper Port Port
Port State Priority Key Key Number State
-------------------------------------------------------------------
1/4 Down 128 1 1 0x4 0x0
switch (config) #
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 571
show lacp interfaces neighbor
show lacp interfaces neighbor
Displays the LACP interface neighbor status.
Syntax Description N/A
Default N/A
Configuration Mode Any Command Mode
History 3.1.1400 First version
3.4.0000 Updated output
Role admin
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 572
Example switch (config) # show lacp interfaces neighbor
Flags:
A - Device is in Active mode
P - Device is in Passive mode
Channel group 1 neighbors
Port 1/4
----------
Partner System ID : 00:00:00:00:00:00
Flags : A
LACP Partner Port Priority : 0
LACP Partner Oper Key : 0
LACP Partner Port State : 0x0
Port State Flags Decode
------------------------
Activity : Active
Aggregation State : Aggregation, Sync, Collecting, Distributing
MLAG channel group 25 neighbors
Port 1/49
----------
Partner System ID : 00:02:c9:fa:c4:c0
Flags : A
LACP Partner Port Priority : 255
LACP Partner Oper Key : 33
LACP Partner Port State : 0xbc
Port State Flags Decode
------------------------
Activity : Active
Aggregation State : Aggregation, Sync, Collecting, Distributing,
MLAG channel group 28 neighbors
Port 1/51
----------
Partner System ID : f4:52:14:10:d8:f1
Flags : A
LACP Partner Port Priority : 255
LACP Partner Oper Key : 33
LACP Partner Port State : 0xbc
Port State Flags Decode
------------------------
Activity : Active
Aggregation State : Aggregation, Sync, Collecting, Distributing,
switch (config) #
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 573
show lacp
show lacp
Displays the LACP global parameters.
Syntax Description N/A
Default N/A
Configuration Mode Any Command Mode
History 3.4.0000
Role admin
Example switch (config) # show lacp
Port-channel Module Admin Status is enabled
switch (config) #
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 574
show lacp interfaces system-identifier
show lacp interfaces {mlag-port-channel | port-channel} <instance> system-
identifier
Displays the system identifier of LACP.
Syntax Description instance LAG or MLAG instance.
Default N/A
Configuration Mode Any Command Mode
History 3.4.0000
Role admin
Example switch (config)# show lacp interfaces port-channel 2 system-identifier
Priority: 12345
MAC: 00:02:C9:AC:2A:60
switch (config)#
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 575
show interfaces port-channel
show interfaces port-channel <port-channel>
Displays port-channel configuration properties.
Syntax Description port-channel LAG interface whose properties to display
Default N/A
Configuration Mode Any Command Mode
History 3.3.4000
3.4.1100 Updated Example
3.6.1002 Added “error packets” counter to Tx
Role admin
Example switch (config) # show interfaces port-channel 2
Po2
Admin state: Enabled
Operational state: Up
Description: N\A
Mac address: 00:00:00:00:00:00
MTU: 9216 bytes (Maximum packet size 9238 bytes)
lacp-individual mode: Enabled
Flow-control: receive off send off
Actual speed: 2 X 40 Gbps
Width reduction mode: Not supported
Switchport mode: trunk
MAC learning mode: Enabled
Last clearing of "show interface" counters : Never
60 seconds ingress rate: 2440 bits/sec, 305 bytes/sec, 5 packets/sec
60 seconds egress rate: 2440 bits/sec, 305 bytes/sec, 5 packets/sec
Rx
24060 packets
23447 unicast packets
598 multicast packets
15 broadcast packets
1796876 bytes
0 error packets
0 discard packets
Tx
23961 packets
23454 unicast packets
496 multicast packets
11 broadcast packets
1805778 bytes
0 error packets
4 discard packets
switch (config) #
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 576
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 577
show interfaces port-channel counters
show interfaces port-channel <port-channel> counters
Displays the extended counters for the interface.
Syntax Description port-channel LAG interface whose properties to display
Default N/A
Configuration Mode Any Command Mode
History 3.6.1002
Role admin
Example switch (config) # show interfaces port-channel 3 counters
Rx
0 packets
0 unicast packets
0 multicast packets
0 broadcast packets
0 bytes
0 packets of 64 bytes
0 packets of 65-127 bytes
0 packets of 128-255 bytes
0 packets of 256-511 bytes
0 packets of 512-1023 bytes
0 packets of 1024-1518 bytes
0 packets Jumbo
0 error packets
0 discard packets
0 fcs errors
0 undersize packets
0 oversize packets
0 pause packets
0 unknown control opcode
0 symbol errors
Tx
1000000 packets
0 unicast packets
1000000 multicast packets
0 broadcast packets
1505000000 bytes
1000000 error packets
0 discard packets
0 pause packets
switch (config) #
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 578
show interfaces port-channel compatibility-parameters
show interfaces port-channel compatibility-parameters
Displays port-channel parameters.
Syntax Description N/A
Default N/A
Configuration Mode Any Command Mode
History 3.3.4000
Role admin
Example switch (config) # show interfaces port-channel compatibility-parameters
* Port-mode
* Speed
* MTU
* Flow Control
* Access VLAN
* Allowed VLAN list
* Flowcontrol & PFC
* Channel-group mode
* CoS parameters
* MAC learning disable
Static configuration on the port should be removed:
* ACL port binding
* Static mrouter
* sflow
* OpenFlow
* port mirroring local analyzer port
* Static mac address
switch (config) #
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 579
show interfaces port-channel load-balance
show interfaces port-channel load-balance
Displays the type of load-balancing in use for port-channels.
Syntax Description N/A N/A
Default N/A
Configuration Mode Any Command Mode
History 3.3.4000
Role admin
Example switch (config) # show interfaces port-channel load-balance
source-destination-mac
switch (config) #
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 580
show interfaces port-channel summary
show interfaces port-channel summary
Displays a summary for the port-channel interfaces.
Syntax Description N/A
Default N/A
Configuration Mode Any Command Mode
History 3.1.1400
3.4.1100 Updated Example
Role admin
Example switch (config) # show interfaces port-channel summary
Flags: D - Down, U - Up, P - Up in port-channel (members)
S - Suspend in port-channel (members), I - Individual
-----------------------------------------------------------------------
Group Port- Type Member Ports
Channel
-----------------------------------------------------------------------
1 Po2(U) LACP Eth1/58(D) Eth1/59(I) Eth1/60(S)
2 Po5(D) LACP Eth1/1(S) Eth1/33(I)
3 Po10(U) LACP Eth1/49(P) Eth1/50(P) Eth1/51(S) Eth1/52(S)
switch (config) #
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 581
5.4 MLAG
Figure 15: Basic MLAG Setup
A link aggregation group (LAG) is used for extending the bandwidth from a single link to multi-
ple links and provide redundancy in case of link failure. Extending the implementation of the
LAG to more than a single device provides yet another level of redundancy that extends from the
link level to the node level. This extrapolation of the LAG from single to multiple switches is
referred to as multi-chassis link aggregation (MLAG).
All nodes in an MLAG must be of the same CPU type (i.e. PPC or x86).
Each switch configuration is independent and it is user responsibility to make sure to
configure both switches similarly pertaining MLAG (e.g. MLAG port-channel VLAN
membership, static MAC, ACL, etc).
MLAG is currently supported for 2 switches only.
The VIP address must be on the same management IP subnet.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 582
A peered device (host or switch) connecting to switches running an MLAG runs a standard LAG
and is unaware of the fact that the LAG connects to two separate switches.
The MLAG switches share an inter-peer link (IPL) between them for carrying control messages
in a steady state or data packages in failure scenarios. Thus, the bandwidth of the IPL should be
defined accordingly. The IPL itself can be a LAG and may be constructed of either 10GbE or
40GbE links. In such a case, PFC must be configured on this IPL. Figure 16, “Basic MLAG
Topology,” on page 584 illustrates this. The IPL serves the following purposes:
• MLAG protocol control – keepalive messages, MAC sync, MLAG port sync, etc.
• MLAG port failure – serves redundancy in case of a fallen link on one of the MLAG switches
• Layer-3 failure – serves redundancy in case of a failed connection between the MLAG
switches and the rest of the L3 network should there be one
The MLAG protocol is made up of the following components to be expanded later:
• Keepalive
• Unicast and multicast sync
• MLAG port sync
When positioned at the top of rack (ToR) and connecting with a Layer-3 uplink, the MLAG pair
acts as the L3 border for the hosts connected to it. To allow default gateway redundancy, both
MLAG switches should be addressed by the host via the same default gateway address.
MLAG uses an IP address (VIP) that is always directed to the MLAG-VIP master node.
When running MLAG with L3, VRRP or MAGP must be deployed. For more information, refer
to Section 6.6, “VRRP,” on page 1086 or Section 6.7, “MAGP,” on page 1101 respectively.
The two peer switches need to carry the exact same configuration of the MLAG attributes for
guaranteeing proper functionality of the MLAG.
MLAG links currently mandate disabling xSTP control protocol. However, interfaces
not part of an MLAG can run any protocol independently.
The IPL VLAN interface must be used only for MLAG protocol and must not be used
by any other interfaces (e.g. port-channel, Ethernet).
When MLAG is connected through a Layer-2 based uplink, there is no need to apply
default gateway redundancy towards hosts since this function is implemented on the L2/
L3 border points of the network.
Ensuring that both switches are configured identically is the responsibility of the user
and is not monitored by the MLNX-OS software.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 583
5.4.1 MLAG Keepalive and Failover
Master election in MLAG is based on the IPs of the nodes taking part of the MLAG. The master
elected is that which has the highest IPL VLAN interface local IP address.
The MLAG pair of switches periodically exchanges a keepalive message on a user configurable
interval. If the keepalive message fails to arrive for three consecutive intervals the switches break
into two standalone switches. In such case the remaining active switch begins to act as a stand-
alone switch and assumes that its previously peering MLAG switch has failed.
To avoid a scenario where failure on the IPL causes both MLAG peers to assume that their peer
has failed, a safety mechanism based on UDP packets running via the management plane is main-
tained and alerts both peers of IPL failure. In such a case of IPL failure, the slave shuts down its
interfaces to avoid a split brain scenario and the master becomes a standalone switch.
5.4.2 Unicast and Multicast Sync
Unicast and multicast sync is a mechanism which syncs the unicast and multicast FDBs of the
MLAG peers. It prevents unicast asymmetric traffic from loading the network with flood traffic
and multicast traffic from being processed.
5.4.3 MLAG Port Sync
Under normal circumstances, traffic from the IPL cannot pass through the MLAG ports (the IPL
is isolated from the MLAG ports). If one of the MLAG links break, the other MLAG switch
opens that isolation and allows traffic from its peer through the IPL to flow via the MLAG port
which accesses the destination of the fallen link.
When working with MLAG the maximum number of MAC addresses is limited to
47,970. Without it, the number of MAC addresses would be 55,872.
When transitioning from standalone into a group or vice versa, a few seconds are
required for the node state to stabilize. During that time, group features such as Gate-
way HA, SM HA, and MLAG commands should not be executed. To run group fea-
tures, wait for the CLI prompt to turn into [standalone:master], [<group>:master] or
[<group>:standby] instead of [standalone:*unknown*] or [<group>:*unknown*].
In a scenario where there is no IP communication between the MGMT ports of the
MLAG switches (for example when one MGMT port is disconnected), the following
CLI prompt is displayed:
<hostname>[<mlag cluster name>:unknown]#
This does not reflect the MLAG state, but only the state of the cluster.
MLAG master/slave roles take effect in fault scenarios such as split-brain, peer faults,
and during software upgrades.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 584
5.4.4 MLAG Virtual System-MAC
A pair of MLAG switches uses a single virtual system MAC for L2 protocols (such as LACP)
operating on the MLAG ports.
The virtual system MAC is automatically computed based on the MLAG VIP name, but can be
manually set using the command “system-mac”.
MLAG relies on systems to have the same virtual system MAC. Therefore, if a system MAC
mismatch is detected, the slave shuts down its interfaces.
5.4.5 Upgrading MLAG Pair
Switches in the same MLAG group must have the same MLNX-OS version.
When peers identify having different versions, they enter an upgrading state in which the slave
peer waits for a specific period of time (according to the command “upgrade-timeout” on
page 600) before closing its ports.
For more information on MLAG upgrade, please see Section 4.3.2, “Upgrading MLNX-OS HA
Groups,” on page 200.
5.4.6 Configuring MLAG
This section provides a basic example of how to configure two switches and a server in an
MLAG setup.
Figure 16: Basic MLAG Topology
For more advanced configuration options, please refer to the following Mellanox Community
post: https://community.mellanox.com/docs/DOC-2262.
To configure L2 MLAG:
Prerequisites:
Step 1. Enable IP routing. Run:
switch (config)# ip routing
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 585
Step 2. (Recommended) Enable LACP in the switch. Run:
Step 3. Enable QoS on the switch to avoid congestion on the IPL port. Run:
Step 4. Enable the MLAG protocol commands. Run:
Configuring the IPL:
Step 1. Create a VLAN for the inter-peer link (IPL) to run on. Run:
Step 2. Create a LAG. Run:
Step 3. Map a physical port to the LAG in active mode (LACP). Run:
Step 4. Set this LAG as an IPL. Run:
Step 5. Enable QoS on this specific interface. Run:
Step 6. Create a VLAN interface. Run:
Step 7. Set an IP address and netmask for the VLAN interface.
On SwitchA, run:
On SwitchB, run:
Step 8. Map the VLAN interface to be used on the IPL and set the peer IP address (the IP address of the
IPL port on the second switch) of the IPL peer port. IPL peer ports must be configured on the
same netmask.
On SwitchA, run:
On SwitchB, run:
Step 9. Configure a virtual IP (VIP) for the MLAG. Run:
On SwitchA, run:
switch (config)# lacp
switch (config)# dcb priority-flow-control enable force
switch (config)# protocol mlag
switch (config)# vlan 4000
switch (config vlan 4000)#
switch (config)# interface port-channel 1
switch (config interface port-channel 1)#
switch (config)# interface ethernet 1/1 channel-group 1 mode active
switch (config interface port-channel 1)# ipl 1
switch (config interface port-channel 1)# dcb priority-flow-control mode on force
switch (config)# interface vlan 4000
switch (config interface vlan 4000)#
switch (config interface vlan 4000)# ip address 10.10.10.1 /30
switch (config interface vlan 4000)# ip address 10.10.10.2 /30
switch (config interface vlan 4000)# ipl 1 peer-address 10.10.10.2
switch (config interface vlan 4000)# ipl 1 peer-address 10.10.10.1
switch (config)# mlag-vip my-vip ip 10.10.10.254 /24 //mask may also be 255.255.255.0
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 586
On SwitchB, run:
Step 10. (Optional) Configure a virtual system MAC for the MLAG. Run:
Creating an MLAG interface:
Step 1. Create an MLAG interface for the host. Run:
Step 2. Disable STP. Run:
Step 3. Bind an Ethernet port to the MLAG group. Run:
Step 4. Create and enable the MLAG interface. Run:
Enabling MLAG:
Step 1. Enable MLAG. Run:
To verify MLAG configuration:
Step 1. Examine MLAG configuration and status. Run:
switch (config)# mlag-vip my-vip
switch (config)# mlag system-mac 00:00:5E:00:01:5D
switch (config)# interface mlag-port-channel 1
switch (config interface mlag-port-channel 1)#
switch (config interface mlag-port-channel 1)# spanning-tree port type edge
switch (config interface mlag-port-channel 1)# spanning-tree bpdufilter enable
switch (config interface ethernet 1/2)# mlag-channel-group 1 mode on
switch (config interface mlag-port-channel 1)# no shutdown
STP must be disabled (
no spanning-tree
) on the MLAG switches when there is at
least 1 MLAG port-channel connected to a switch and not to a host.
switch [my-vip: master] (config mlag)# no shutdown
When running MLAG with L3, VRRP or MAGP must be deployed. For more informa-
tion, refer to Section 6.6, “VRRP,” on page 1086 or Section 6.7, “MAGP,” on
page 1101 respectively.
SX2 [mellanox: master] (config)# show mlag
Admin status: Enabled
Operational status: Up
Reload-delay: 1 sec
Keepalive-interval: 30 sec
Upgrade-timeout: 60 min
System-mac: 00:00:5E:00:01:5D
MLAG Ports Configuration Summary:
Configured: 1
Disabled: 0
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 587
Step 2. Examine the MLAG summary table. Run:
Step 3. Examine the MLAG statistics. Run:
Enabled: 1
MLAG Ports Status Summary:
Inactive: 0
Active-partial: 0
Active-full: 1
MLAG IPLs Summary:
ID Group Vlan Operational Local Peer
Port-Channel Interface State IP address IP address
---------------------------------------------------------------------
1 Po1 1 Up 10.10.10.1 10.10.10.2
Peers state Summary:
System-id State Hostname
-----------------------------------
F4:52:14:2D:9B:88 Up <SX2>
F4:52:14:2D:9B:08 Up SX1
switch [mellanox: master] (config)#
switch [my-vip: master] (config)# show interfaces mlag-port-channel summary
MLAG Port-Channel Flags: D-Down, U-Up
P-Partial UP, S - suspended by MLAG
Port Flags: D - Down, P - Up in port-channel (members)
S - Suspend in port-channel (members), I - Individual
Group
Port-Channel Type Local Ports Peer Ports
(D/P/S/I)
(D/P/S/I) (D/P/S/I)
----------------------------------------------------------------------
1 Mpo2(U) Static Eth1/2(P) Eth1/2(P)
switch (config)#
switch [my-vip: master] (config)# show mlag statistics
IPL 1:
Rx Heartbeat : 516
Tx Heartbeat : 516
Rx IGMP tunnel : 0
Tx IGMP tunnel : 0
RX mlag-notification: 0
TX mlag-notification: 0
Rx port-notification : 0
Tx port-notification : 0
Rx FDB sync : 0
Tx FDB sync : 0
RX LACP manager: 1
TX LACP manager: 0
switch (config)#
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 588
Enabling L3 Forwarding with User VRF
If you want to use a VRF for IP routing and forwarding on an MLAG topology, it is recom-
mended to configure an additional VLAN interface with the same user VRF context as the non-
MLAG L3 interface that has to route through the same physical ports as the IPL. This would
allow forwarding L3 traffic through this VLAN interface on the same ports as the IPL.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 589
5.4.7 Commands
Enables MLAG functionality and unhides the MLAG commands.
The no form of the command hides the MLAG commands and deletes its database.
no protocol mlag
Config
3.3.4500
admin
switch (config) # protocol mlag
switch (config) #
• Running the no form of this command hides MLAG commands.
• MLAG may be enabled without IP routing, but without IP routing an IPL vLAN interface
cannot be configured and thus MLAG does not function.
• MLAG may be enabled without IGMP snooping, but if IGMP snooping is disabled, multi-
cast FDBs do not sync.
protocol mlag
protocol mlag
no protocol mlag
Syntax Description
Default
Configuration Mode
History
Role
Example
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 590
mlag
mlag
Enters MLAG configuration mode.
Syntax Description N/A
Default N/A
Configuration Mode Config
History 3.3.4500
Role admin
Example switch (config) # mlag
switch (config mlag) #
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 591
shutdown
shutdown
no shutdown
Enables MLAG.
The no form of the command disables MLAG.
Syntax Description N/A
Default Disabled
Configuration Mode Config MLAG
History 3.3.4500
Role admin
Example switch (config mlag) # no shutdown
switch (config mlag) #
Related Commands
Note This parameter must be similar in all MLAG peers.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 592
interface mlag-port-channel
interface mlag-port-channel <if-number>
no interface mlag-port-channel <if-number>
Creates an MLAG interface.
The no form of the command deletes the MLAG interface.
Syntax Description if-number Integer. Interface number range: 1-1000.
Default N/A
Configuration Mode Config
History 3.3.4500
Role admin
Example switch (config) # interface mlag-port-channel 1
switch (config interface mlag-port-channel 1) #
Related Commands
Note • The maximum number of interfaces is 64.
• The default Admin state is disabled.
• Range configuration is possible on this interface.
• This interface number must be the same in all the MLAG switches.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 593
ipl
ipl <ipl-id>
no ipl <ipl-id>
Sets this LAG as an IPL port.
The no form of the command resets this LAG as regular LAG.
Syntax Description ipl-id IPL ID. Only “1” IPL port is supported.
Default no ipl
Configuration Mode Config Interface Port Channel
History 3.3.4500
Role admin
Example switch (config interface port-channel 1)# ipl 1
Related Commands
Note • If a LAG is set as IPL, only the commands “[no] shutdown”, “no ipl” and “no interface
port-channel” become applicable.
• A LAG interface set as IPL must have default LAG configuration, otherwise the set is
rejected. Force option can be used.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 594
ipl peer-address
ipl <ipl-id> peer-address <IP-Address>
no ipl <ipl-id>
Maps a VLAN interface to be used for an IPL LAG and sets the peer IP address of the
IPL peer port.
The no form of the command deletes a peer IPL LAG and unbinds this VLAN inter-
face from the IPL function.
Syntax Description ipl-id IPL ID. Only “1” IPL port is supported.
IP-Address IPv4 address.
Default N/A
Configuration Mode Config Interface VLAN
History 3.3.4500
Role admin
Example switch (config interface vlan 1)# ipl 1 peer-address 10.10.10.10
switch (config interface vlan 1)#
Related Commands
Note • The subnet mask is the same subnet mask of the VLAN interface.
• This VLAN interface should be used for IPL only.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 595
keep-alive-interval
keep-alive-interval <value>
no keep-alive-interval
Configures the interval during which keep-alive messages are issued between the
MLAG switches.
The no form of the command resets this parameter to its default value.
Syntax Description value Time in seconds. Range: 1-300.
Default 1 second
Configuration Mode Config MLAG
History 3.3.4500
Role admin
Example switch (config mlag) # keep-alive-interval 1
switch (config mlag) #
Related Commands
Note This parameter must be similar in all MLAG peers.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 596
mlag-channel-group mode
mlag-channel-group <if-number> mode {on | active | passive}
no mlag-channel-group
Binds an Ethernet port to the MLAG LAG.
The no form of the command deletes the binding.
Syntax Description if-number Integer. Interface number range: 1-1000.
on Binds to static MLAG.
active Sets MLAG LAG in LACP active mode.
passive Sets MLAG LAG in LACP passive mode.
Default N/A
Configuration Mode Config Interface Ethernet
History 3.3.4500
Role admin
Example switch (config interface ethernet 1/1)# mlag-channel-group 1 mode on
switch (config interface ethernet 1/1)#
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 597
mlag-vip
mlag-vip <domain-name> ip [<ip-address> {<masklen> | netmask> [force]]
no mlag-vip
Sets the VIP domain and IP address for MLAG.
The no form of the command deletes the VIP domain and IP address.
Syntax Description domain-name MLAG group name
<ip-address> IP address
<masklen> Format example: /24. Note that a space is required
between the IP address and the mask.
<netmask> Format example: 255.255.255.0. Note that a space is
required between the IP address and the mask.
force Forces the IP address if another IP is already config-
ured.
Default N/A
Configuration Mode Config
History 3.3.4500
Role admin
Example switch (config)# mlag-vip my-mlag-domain ip 10.10.10.254/24
switch (config)#
Related Commands
Note • This IP address must be configured in one of the MLAG switches and must be in the box
management subnet.
• Other switches in the MLAG must join the same domain name.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 598
reload-delay
reload-delay <value>
no reload-delay
Specifies the amount of time that MLAG ports are disabled after system reboot.
The no form of the command resets this parameter to its default value.
Syntax Description value Time in seconds. Range: 0-300.
Default 30 seconds
Configuration Mode Config MLAG
History 3.3.4500
Role admin
Example switch (config mlag) # reload-delay 30
switch (config mlag) #
Related Commands
Note • This interval allows the switch to learn the IPL topology to identify the master and sync the
MAC address before opening the MLAG ports.
• This parameter must be similar in all MLAG peers.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 599
system-mac
system-mac <virtual-mac>
no system-mac <virtual-mac>
Configures virtual system MAC.
The no form of the command resets this value to its default value.
Syntax Description virtual-mac MAC address
Default Default is calculated according to the MLAG-VIP name, using the base MAC as
VRRP MAC prefix (00:00:5E:00:01:xx) with the suffix hashed from the mlag-vip
name 0...255.
Configuration Mode Config MLAG
History 3.4.2008
Role admin
Example switch (config mlag) # system-mac 00:00:5E:00:01:5D
switch (config mlag) #
Related Commands
Note This parameter must be configured the same in all MLAG peers.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 600
upgrade-timeout
upgrade-timeout <time>
no upgrade-timeout
Configures the time period during which an MLAG slave keeps its ports active while
in upgrading state.
The no form of the command resets the parameter value to its default.
Syntax Description time Time in minutes. Range: 0-120 minutes.
Default 60
Configuration Mode Config MLAG
History 3.4.2008
Role admin
Example switch (config mlag) # upgrade-timeout 60
switch (config mlag) #
Related Commands
Note This parameter must be configured the same in all MLAG peers.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 601
show mlag
show mlag
Displays MLAG configuration and status.
Syntax Description N/A
Default N/A
Configuration Mode Any Command Mode
History 3.3.4500
3.3.5006 Updated example
3.4.2008 Updated example with system MAC and upgrade
timeout
Role admin
Example SX2 [mellanox: master] (config)# show mlag
Admin status: Enabled
Operational status: Up
Reload-delay: 1 sec
Keepalive-interval: 30 sec
Upgrade-timeout: 60 min
System-mac: 00:00:5E:00:01:5D
MLAG Ports Configuration Summary:
Configured: 1
Disabled: 0
Enabled: 1
MLAG Ports Status Summary:
Inactive: 0
Active-partial: 0
Active-full: 1
MLAG IPLs Summary:
ID Group Vlan Operational Local Peer
Port-Channel Interface State IP address IP address
---------------------------------------------------------------------
1 Po1 1 Up 10.10.10.1 10.10.10.2
MLAG Members Summary:
System-id State Hostname
-----------------------------------
F4:52:14:2D:9B:88 Up <SX2>
F4:52:14:2D:9B:08 Up SX1
SX2 [mellanox: master] (config)#
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 602
show mlag-vip
show mlag-vip
Displays MLAG VIP configuration and status.
Syntax Description N/A
Default N/A
Configuration Mode Any Command Mode
History 3.3.4500
Role admin
Example switch (config)# show mlag-vip
MLAG VIP
========
MLAG group name: my-mlag-group
MLAG VIP address: 1.1.1.1/30
Active nodes: 2
Hostname VIP-State IP Address
----------------------------------------------------
SwitchA master 10.10.10.1
SwitchB standby 10.10.10.2
switch (config)#
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 603
show interfaces mlag-port-channel
show interfaces mlag-port-channel <if-number>
Displays the MLAG LAG configuration and status.
Syntax Description N/A
Default N/A
Configuration Mode Any Command Mode
History 3.3.4500
3.6.1002 Added “error packets” counter to Tx
Role admin
Example switch (config)# show interfaces mlag-port-channel 1
Mpo1
Admin state: Enabled
Operational state: Down
Description: N\A
Mac address: 00:00:00:00:00:00
MTU: 1500 bytes (Maximum packet size 1522 bytes)
Flow-control: receive off send off
Actual speed: 0 Gbps
Width reduction mode: Not supported Switchport mode: access
Last clearing of "show interface" counters : Never
60 seconds ingress rate: 0 bits/sec, 0 bytes/sec, 0 packets/sec
60 seconds egress rate: 0 bits/sec, 0 bytes/sec, 0 packets/sec
Rx
0 packets
0 unicast packets
0 multicast packets
0 broadcast packets
0 bytes
0 error packets
0 discard packets
Tx
0 packets
0 unicast packets
0 multicast packets
0 broadcast packets
0 bytes
0 error packets
0 discard packets
switch (config)#
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 604
show interfaces mlag-port-channel counters
show interfaces mlag-port-channel <if-number> counters
Displays the extended counters for the interface.
Syntax Description N/A
Default N/A
Configuration Mode Any Command Mode
History 3.6.1002
Role admin
Example switch (config)# show interfaces mlag-port-channel 3 counters
Rx
12 packets
0 unicast packets
12 multicast packets
0 broadcast packets
2700 bytes
0 packets of 64 bytes
0 packets of 65-127 bytes
12 packets of 128-255 bytes
0 packets of 256-511 bytes
0 packets of 512-1023 bytes
0 packets of 1024-1518 bytes
0 packets Jumbo
0 error packets
0 discard packets
0 fcs errors
0 undersize packets
0 oversize packets
0 pause packets
0 unknown control opcode
0 symbol errors
Tx
0 packets
0 unicast packets
0 multicast packets
0 broadcast packets
152100000000 bytes
100000000 error packets
0 discard packets
0 pause packets
switch (config)#
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 605
show interfaces mlag-port-channel summary
show interfaces mlag-port-channel summary
Displays MLAG summary table.
Syntax Description N/A
Default N/A
Configuration Mode Any Command Mode
History 3.3.4500 First version
3.4.0000 Added notes and updated example
3.4.1100 Updated Example
Role admin
Example switch [my-vip: standby] (config)# show interfaces mlag-port-channel
summary
MLAG Port-Channel Flags: D-Down, U-Up
P-Partial UP, S - Suspended by MLAG
Port Flags: D - Down, P - Up in port-channel (members)
S - Suspend in port-channel (members), I - Individual
Group
Port-Channel Type Local Ports Peer Ports
(D/U/P/S) (D/P/S/I) (D/P/S/I)
----------------------------------------------------------------------
1 Mpo2(U) Static Eth1/2(P) Eth1/2(P)
2 Mpo3(U) Static Eth1/4(P) Eth1/8(P)
3 Mpo4(U) LACP Eth1/5(P) Eth1/5(P)
switch (config)#
Related Commands
Note • If a cluster is not available, the column “Peer Ports” shows “N/A”. If the cluster is available
but is not configured on the peer, the “Peer Ports” column shows nothing.
• If the system happens to be busy, peer ports may be unavailable and the following prompt
may appear in the output: “System busy and partial information is presented – please try
again later”.
• The “I” flag indicates an interface which is part of a port-channel and in individual state
• The “S” flag indicates an interface which is part of a port-channel and in suspended state
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 606
show mlag statistics
show mlag statistics
Displays the MLAG IPL counters.
Syntax Description N/A
Default N/A
Configuration Mode Any Command Mode
History 3.3.4500
3.4.0000 Updated example
Role admin
Example switch (config)# show mlag statistics
IPL 1:
RX Heartbeat: 439908
TX Heartbeat: 439951
RX IGMP tunnel: 0
TX IGMP tunnel: 1
RX mlag-notification: 0
TX mlag-notification: 12
RX port-notification: 56
TX port-notification: 73
RX FDB sync: 424
TX FDB sync: 778
RX LACP manager: 38
TX LACP manager: 21
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 607
5.5 VLANs
A Virtual Local Area Network (VLAN) is an L2 segment of the network which defines a broad-
cast domain and is identified by a tag added to all Ethernet frames running within the domain.
This tag is called a VLAN ID (VID) and can take a value of 1-4094.
Each port can have a switch mode of either:
•Access – Access port is a port connected to a host. It can accept only untagged frames, and
assigns them a default configured VLAN (Port VLAN ID). On egress, traffic sent from the
access port is untagged.
• Access-dcb – This mode is Mellanox specific that receives ingress untagged traffic but sends
egress priority tag (VLAN ID = 0)
• Hybrid – Hybrid port is a port connected to either switches or hosts. It can receive both tagged
and untagged frames and assigns untagged frames a default configured VLAN (Port VLAN
ID). It receives tagged frames with VLANs of which the port is a member (these VLANs’
names are allowed). On egress, traffic of allowed VLANs sent from the Hybrid port is sent
tagged, while traffic sent with PVID is untagged.
• Trunk – Trunk port is a port connecting 2 switches. It accepts only tagged frames with
VLANs of which the port is a member. On egress, traffic sent from the Trunk port is tagged.
By default, a Trunk port is, automatically, a member on all current VLANs.
5.5.1 Configuring Access Mode and Assigning Port VLAN ID (PVID)
To configure Access mode and assign PVID to interfaces:
Step 1. Log in as admin.
Step 2. Enter config mode. Run:
Step 3. Create a VLAN. Run:
Step 4. Change back to config mode. Run:
Step 5. Enter the interface context. Run:
Step 6. From within the interface context, configure the interface mode to Access. Run:
Step 7. From within the interface context, configure the Access VLAN membership. Run:
switch > enable
switch # configure terminal
switch (config) # vlan 6
switch (config vlan 6) #
switch (config vlan 6) # exit
switch (config) #
switch (config) # interface ethernet 1/36
switch (config interface ethernet 1/36) #
switch (config interface ethernet 1/36) # switchport mode access
switch (config interface ethernet 1/36) #
switch (config interface ethernet 1/36) # switchport access vlan 6
switch (config interface ethernet 1/36) #
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 608
Step 8. Change back to config mode. Run:
5.5.2 Configuring Hybrid Mode and Assigning Port VLAN ID (PVID)
To configure Hybrid mode and assign PVID to interfaces:
Step 1. Log in as admin.
Step 2. Enter config mode. Run:
Step 3. Create a VLAN. Run:
Step 4. Change back to config mode. Run:
Step 5. Enter the interface context. Run:
Step 6. From within the interface context, configure the interface mode to Access. Run:
Step 7. From within the interface context, configure the Access VLAN membership. Run:
Step 8. Change to config mode again. Run:
5.5.3 Configuring Trunk Mode VLAN Membership
To configure Trunk mode VLAN membership:
Step 1. Log in as admin.
Step 2. Enter config mode. Run:
Step 3. Create a VLAN. Run:
Step 4. Change back to config mode. Run:
switch (config interface ethernet 1/36) # exit
switch (config) #
switch > enable
switch # configure terminal
switch (config) # vlan 6
switch (config vlan 6) #
switch (config vlan 6) # exit
switch (config) #
switch (config) # interface ethernet 1/36
switch (config interface ethernet 1/36) #
switch (config interface ethernet 1/36) # switchport mode hybrid
switch (config interface ethernet 1/36) #
switch (config interface ethernet 1/36) # switchport access vlan 6
switch (config interface ethernet 1/36) #
switch (config interface ethernet 1/36) # exit
switch (config) #
switch > enable
switch # configure terminal
switch (config) # vlan 10
switch (config vlan 10) #
switch (config vlan 10) # exit
switch (config) #
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 609
Step 5. Enter the interface context. Run:
Step 6. From within the interface context, configure the interface mode to Trunk. Run:
5.5.4 Configuring Hybrid Mode VLAN Membership
To configure Hybrid mode VLAN membership:
Step 1. Log in as admin.
Step 2. Enter config mode. Run:
Step 3. Create a VLAN. Run:
Step 4. Change back to config mode. Run:
Step 5. Enter the interface context. Run:
Step 6. From within the interface context, configure the interface mode to Hybrid. Run:
Step 7. From within the interface context, configure the allowed VLAN membership. Run:
Step 8. Change to config mode again. Run:
switch [standalone: master] (config) # interface ethernet 1/35
switch [standalone: master] (config interface ethernet 1/35) #
switch [standalone: master] (config interface ethernet 1/35) # switchport mode trunk
switch [standalone: master] (config interface ethernet 1/35) #
switch > enable
switch # configure terminal
switch (config) # vlan 10
switch (config vlan 10) #
switch (config vlan 10) # exit
switch (config) #
switch (config) # interface ethernet 1/35
switch (config interface ethernet 1/35) #
switch (config interface ethernet 1/35) # switchport mode hybrid
switch (config interface ethernet 1/35) #
switch (config interface ethernet 1/35) # switchport hybrid allowed-vlan add 10
switch (config interface ethernet 1/35) #
switch (config interface ethernet 1/35) # exit
switch (config) #
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 610
5.5.5 Commands
no vlan {<vlan-id> | <vlan-range>}
Creates a VLAN or range of VLANs, and enters a VLAN context.
The no form of the command deletes the VLAN or VLAN range.
vlan-id 1-4094.
vlan-range Any range of VLANs.
VLAN 1 is enabled by default.
Config
3.1.1400
admin
switch (config) # vlan 10
switch (config vlan 10) # show vlan
VLAN Name Ports
---- ----------- --------------------------------------
1 default Eth1/2, Eth1/3, Eth1/4/1, Eth1/4/2 ...
10
switch (config vlan 10) #
show vlan
switchport mode
switchport [trunk | hybrid] allowed-vlan
Interfaces are not added automatically to VLAN unless configured with trunk or
hybrid mode with “all” option turned on.
vlan
vlan {<vlan-id> | <vlan-range>}
Syntax Description
Default
Configuration Mode
History
Role
Example
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 611
name
name <vlan-name>
no name
Adds VLAN name.
The no form of the command deletes the VLAN name.
Syntax Description vlan-name 40-character long string.
Default No name available.
Configuration Mode Config VLAN
History 3.1.1400
Role admin
Example switch (config) # vlan 10
switch (config vlan 10) # name my-vlan-name
switch (config vlan 10) # show vlan
VLAN Name Ports
---- ----------- --------------------------------------
1 default Eth1/2, Eth1/3, Eth1/4/1, Eth1/4/2, Eth1/
5,
Eth1/6, Eth1/7, Eth1/8, Eth1/9, Eth1/10,
Eth1/11, Eth1/12, Eth1/13, Eth1/14, Eth1/
15,
Eth1/16, Eth1/17, Eth1/18, Eth1/19, Eth1/
20,
Eth1/21, Eth1/22, Eth1/23, Eth1/24, Eth1/
25,
Eth1/26, Eth1/27, Eth1/28, Eth1/29, Eth1/
30,
Eth1/31, Eth1/32, Eth1/33, Eth1/34, Eth1/
35,
Eth1/36, Po34, Po4096
10 my-vlan-name
Related Commands show vlan
switchport mode
switchport [trunk | hybrid] allowed-vlan
Note Name can not be added to a range of VLANs.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 612
show vlan
show vlan [id <vlan-id>]
Displays the VLAN table.
Syntax Description vlan-id 1-4094.
Default N/A
Configuration Mode Any Command Mode
History 3.1.1400
Role admin
Example switch (config vlan 10) # show vlan
VLAN Name Ports
---- ----------- --------------------------------------
1 default Eth1/2, Eth1/3, Eth1/4/1, Eth1/4/2 ...
10 my-vlan-name
Related Commands show vlan
switchport mode
switchport [trunk | hybrid] allowed-vlan
vlan
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 613
switchport mode
switchport mode {access | dot1q-tunnel | trunk | hybrid | access-dcb}
no switchport mode
Sets the switch port mode.
The no form of the command sets the switch port mode to access.
Syntax Description access Untagged port. 802.1q tagged traffic are filtered. Egress
traffic is untagged.
dot1q-tunnel Allows both tagged and untagged ingress Ethernet
packets. Egress packets are tagged with a second
VLAN (802.1Q) header.
trunk 802.1q tagged port, untagged traffic is filtered.
hybrid Both 802.1q tagged and untagged traffic is allowed on
the port.
access-dcb Untagged port, egress traffic is priority tagged.
Default access
Configuration Mode Config Interface Ethernet
Config Interface Port Channel
Config Interface MLAG Port Channel
History 3.1.1400
3.3.4500 Added MLAG port-channel configuration mode
3.4.3000 Added dot1q-tunnel parameter
Role admin
Example switch (config) # interface ethernet 1/7
switch (config interface ethernet 1/7) # switchport mode access
switch (config interface ethernet 1/7) # show interfaces switchport
Interface | Mode | Access vlan | Allowed vlans
-----------|------------|-------------|---------------------------
Eth1/2 access 1
Eth1/3 access 1
Eth1/4/1 access 1
Eth1/4/2 access 1
Eth1/5 access 1
Eth1/6 access 1
....
Po34 access 1
Po4096 access 1
switch (config interface ethernet 1/7) #
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 614
Related Commands show vlan
show interfaces switchport
switchport access vlan
switchport [trunk | hybrid] allowed-vlan
switchport dot1q-tunnel qos-mode
vlan
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 615
switchport dot1q-tunnel qos-mode
switchport dot1q-tunnel qos-mode {pipe | uniform}
no switchport dot1q-tunnel qos-mode
Assigns QoS to the service provider’s traffic.
The no form of the command resets the parameter value to its default.
Syntax Description pipe Gives the service provider’s traffic QoS 0
uniform Gives the service provider’s traffic the same QoS as the
customer’s traffic
Default pipe
Configuration Mode Config Interface Ethernet
Config Interface Port Channel
Config Interface MLAG Port Channel
History 3.4.3000
Role admin
Example switch (config interface ethernet 1/1) # switchport dot1q-tunnel qos-
mode uniform
switch (config interface ethernet 1/1) #
Related Commands show vlan
show interfaces switchport
switchport access vlan
switchport [trunk | hybrid] allowed-vlan
vlan
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 616
switchport access
switchport access vlan <vlan-id>
no switchport access vlan
Sets the port access VLAN.
The no form of the command sets the port access VLAN to 1.
Syntax Description vlan-id 1-4094.
Default 1
Configuration Mode Config Interface Ethernet
Config Interface Port Channel
Config Interface MLAG Port Channel
History 3.1.1400 First version
3.2.0500 Format change (removed hybrid and access-dcb
options). Previous command format was: “switchport
{hybrid | access-dcb | access} vlan <vlan-id>”
3.3.4500 Added MLAG port-channel configuration mode
Role admin
Example switch (config) # interface ethernet 1/7
switch (config interface ethernet 1/7) # switchport access vlan 10
switch (config interface ethernet 1/7) # show interfaces switchport
Interface | Mode | Access vlan | Allowed vlans
-----------|------------|-------------|---------------------------
Eth1/2 access 1
Eth1/3 access 1
Eth1/4/1 access 1
Eth1/4/2 access 1
Eth1/5 access 1
Eth1/6 access 1
Eth1/7 access 10
....
Po4096 access 1
switch (config interface ethernet 1/7) #
Related Commands show vlan
show interfaces switchport
switchport mode
switchport [trunk | hybrid] allowed-vlan
vlan
Note This command is not applicable for interfaces with port mode trunk.
only one option (“access”, “access-dcb” or “hybrid”) is applicable to configure on the
port, depends on the switchport mode of the port.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 617
switchport {hybrid, trunk} allowed-vlan
switchport {hybrid, trunk} allowed-vlan {<vlan> | add <vlan> | remove <vlan>
all | except <vlan> | none}
Sets the port allowed VLANs.
Syntax Description vlan VLAN ID (1-4094) or VLAN range.
add Adds VLAN or range of VLANs.
remove Removes VLANs or range of VLANs.
all Adds all VLANs in available in the VLAN table.
New VLANs added to the VLAN table are added auto-
matically.
except Adds all VLANs expect this VLAN or VLAN range.
none Removes all VLANs.
Default N/A
Configuration Mode Config Interface Ethernet
Config Interface Port Channel
Config Interface MLAG Port Channel
History 3.1.1400
Role admin
Example switch (config) # interface ethernet 1/7
switch (config interface ethernet 1/7) # switchport hybrid allowed-vlan
all
switch (config interface ethernet 1/7) #show interfaces switchport
Interface | Mode | Access vlan | Allowed vlans
-----------|------------|-------------|---------------------------
Eth1/2 access 1
Eth1/3 access 1
Eth1/4/1 access 1
Eth1/4/2 access 1
Eth1/5 access 1
Eth1/6 access 1
Eth1/7 hybrid 1 1, 10
....
Po34 access 1
Po4096 access 1
switch (config interface ethernet 1/7) #
Related Commands show vlan
show interfaces switchport
switchport access vlan
switchport mode
vlan
Note This command is not applicable for interfaces with port mode access or access-dcb.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 618
switchport voice
switchport voice vlan <vlan-id>
no switchport voice vlan
Configures voice VLAN for the interface.
The no form of the command disables voice VLAN.
Syntax Description vlan-id 1-4094.
Default Disabled
Configuration Mode Config Interface Ethernet
Config Interface Port Channel
Config Interface MLAG Port Channel
History 3.6.1002
Role admin
Example switch (config) # interface ethernet 1/7
switch (config interface ethernet 1/7) # switchport voice vlan 10
switch (config interface ethernet 1/7) # show interfaces switchport
Interface | Mode | Access vlan | Allowed vlans
-----------|------------|-------------|---------------------------
Eth1/2 access 1
Eth1/3 access 1
Eth1/4/1 access 1
Eth1/4/2 access 1
Eth1/5 access 1
Eth1/6 access 1
Eth1/7 access 10
....
Po4096 access 1
switch (config interface ethernet 1/7) #
Related Commands lldp med-tlv-select
show vlan
show interfaces switchport
switchport mode
switchport [trunk | hybrid] allowed-vlan
vlan
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 619
show interface switchport
show interface switchport
Displays all interface switch port configurations.
Syntax Description N/A
Default N/A
Configuration Mode Any Command Mode
History 3.1.1400
Role admin
Example switch (config) #show interfaces switchport
Interface | Mode | Access vlan | Allowed vlans
-----------|------------|-------------|---------------------------
Eth1/2 access 1
Eth1/3 access 1
Eth1/4/1 access 1
Eth1/4/2 access 1
Eth1/5 access 1
Eth1/6 access 1
Eth1/7 hybrid 1 1, 10
....
Po34 access 1
Po4096 access 1
switch (config)#
Related Commands show vlan
switchport access vlan
switchport mode
vlan
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 620
5.6 Voice VLAN
This feature allows configuring a port to provide QoS to voice and data traffic in a scenario
where a terminal is connected to an IP phone which is in turn connected to the port on the switch.
The IP phone bridges the data traffic from the terminal into the switch port. Any voice traffic
from the IP phone is also sent to the same port with no differentiation. Therefore it is in the
administrator’s interest to provide different QoS to the voice traffic and the data traffic by placing
the voice traffic on a different VLAN from the data traffic.
This can be achieved by configuring a voice VLAN on the desired switch port using LLDP-MED
TLVs. Media Endpoint Discovery (MED) TLVs allow the switch to apply certain policies by
informing the remote media device to configure itself using different TLV.
In this use-case scenario we employ the use of the network policy TLV, which is defined as per
TIA-TR41. The network policy TLV can be used to inform a specific VLAN to use for an appli-
cation stream.
MLNX-OS® allow the user to configure the VLAN for voice traffic. In Figure 17, the user con-
figures a voice VLAN of 25 and the switch port has a PVID of 50. Therefore all the voice traffic
is switched onto VLAN 25 and the untagged packets from the terminal are switched into VLAN
50.
Figure 17: Tagging Voice Packets with a Different VLAN ID
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 621
5.6.1 Configuring Voice VLAN
To configure LLDP-MED TLV, run:
switch (config) # interface ethernet 1/4
switch (config interface ethernet 1/4) # lldp med-tlv-select media-capabilities
switch (config interface ethernet 1/4) # lldp med-tlv-select network-policy
switch (config interface ethernet 1/4) # lldp med-tlv-select all
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 622
To verify LLDP-MED TLV configuration, run:
To configure voice VLAN:
switch (config) # show lldp interfaces
TLV flags:
PD: port-description, SN: sys-name, SD: sys-description, SC: sys-capabilities, MA: man-
agement-address
ETS-C: ETS-Configuration, ETS-R: ETS-Recommendation, AP: Application Priority, PFC: Pri-
ority Flow Control
CEE: Converged Enhanced Ethernet DCBX version
MED-CAP: Media Capabilities
MED-NWP: MED-Network Policy
Interface Receive Transmit TLVs
--------------------------------------------------------------------------------
Eth1/1 Enabled Enabled PD, SD
Eth1/2 Enabled Enabled PD, SN, SD, SC, MA, PFC, AP, ETS-C, ETS-R
Eth1/3 Disabled Disabled PD, SN, SD, SC, MA, PFC, AP, ETS-C, ETS-R, MED-NWP
Eth1/4 Enabled Enabled PD, SN, SD, SC, MA, PFC, AP, ETS-C, ETS-R,
MED-CAP, MED-NWP
Eth1/5 Enabled Enabled PD, SN, SD, SC, MA, PFC, AP, ETS-C, ETS-R
Eth1/6 Enabled Enabled PD, SN, SD, SC, MA, PFC, AP, ETS-C, ETS-R
...
switch (config) # show lldp interfaces ethernet 1/4
TLV flags:
PD: port-description, SN: sys-name, SD: sys-description, SC: sys-capabilities, MA: man-
agement-address
ETS-C: ETS-Configuration, ETS-R: ETS-Recommendation, AP: Application Priority, PFC: Pri-
ority Flow Control
CEE: Converged Enhanced Ethernet DCBX version
MED-CAP: Media Capabilities
MED-NWP: MED-Network Policy
Interface Receive Transmit TLVs
-----------------------------------------------------------------------------
Eth1/4 Enabled Enabled PD, SN, SD, SC, MA, PFC, AP, ETS-C, ETS-R,
MED-CAP, MED-NWP
switch (config) # show lldp interfaces ethernet 1/4 med-cap
Media Capabilities:
LLDP-MED Capab : Yes
Network Policy : Yes
Location Id : No
Ext Power MDI-PSE: No
Ext Power MDI-PD : No
Network Policy:
Application Type : 1 (Voice)
VLAN Id : 11
L2 Priority : 0
DSCP Value : 0
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 623
Step 1. Create a VLAN. Run:
Step 2. Set the interface mode to be hybrid. Run:
Step 3. Assign the VLAN to the interface. Run:
Step 4. (Optional) Change the PVID of the port so that untagged packets go to a different VLAN than
the default. Run:
Step 5. Verify the configuration. Run:
switch (config) # vlan 200
switch (config vlan 200) # exit
switch (config) #
switch (config) # interface ethernet 1/4 switchport mode hybrid
switch (config) # interface ethernet 1/4 switchport hybrid allowed-vlan 200
switch (config) # interface ethernet 1/4 switchport voice vlan 200
switch (config)# vlan 300
switch (config vlan 300)# exit
switch (config)# interface ethernet 1/4 switchport access vlan 200
switch (config)# show interfaces switchport
Interface Mode Access vlan Allowed vlans
---------------------------------------------------------------------------------
Eth1/1 access 1
Eth1/2 access 1
Eth1/3 access 1
Eth1/4 hybrid 300 200
Eth1/5 access 1
...
switch (config)# show lldp interfaces ethernet 1/4
TLV flags:
PD: port-description, SN: sys-name, SD: sys-description, SC: sys-capabilities, MA: man-
agement-address
ETS-C: ETS-Configuration, ETS-R: ETS-Recommendation, AP: Application Priority, PFC: Pri-
ority Flow Control
CEE: Converged Enhanced Ethernet DCBX version
MED-CAP: Media Capabilities
MED-NWP: MED-Network Policy
Interface Receive Transmit TLVs
--------------------------------------------------------------------------------
Eth1/4 Enabled Enabled PD, SN, SD, SC, MA, PFC, AP, ETS-C, ETS-R,
MED-CAP, MED-NWP
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 624
To remove voice VLAN and LLDP-MED TLV:
Step 1. Remove the voice VLAN from the interface. Run:
Step 2. Disable the MED TLV from the interface. Run:
5.6.2 Limitations
1. LLDP MED cannot be enabled on a Router Port and vice versa (i.e. a port that has LLDP
MED enabled cannot be configured as a Router Port).
2. LLDP MED cannot be enabled on a LAG and vice versa (i.e. a port that has LLDP MED
enabled cannot be configured as a LAG).
3. If switchport is in trunk, dot1q-tunnel, or dcbx-access, configuring either the TLV or Voice
VLAN gives a warning message.
switch (config)# show lldp interfaces ethernet 1/4 med-cap
Media Capabilities:
LLDP-MED Capab : Yes
Network Policy : Yes
Location Id : No
Ext Power MDI-PSE: No
Ext Power MDI-PD : No
Network Policy:
Application Type : 1 (Voice)
VLAN Id : 200
L2 Priority : 0
DSCP Value : 0
switch (config)# no interface ethernet 1/4 switchport voice vlan
switch (config)# interface ethernet 1/4 lldp med-tlv-select none
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 625
5.7 QinQ
A QinQ VLAN tunnel enables a service provider (SP) to segregate the traffic of different custom-
ers in their infrastructure, while still giving the customer a full range of VLANs for their internal
use by adding a second 802.1Q VLAN tag to an already tagged frame.
So let us assume for example that an SP exists which needs to offer L2 connectivity to two corpo-
rations, “X” and “Y”, that have campuses located in both “A”, “B”. All campuses run Ethernet
LANs, and the customers intend to connect through the SP’s L2 VPN network so that their cam-
puses are in the same LAN (L2 network). Hence, it would be desirable for “X”, “Y” to have a
single LAN each in both “A”, “B” which could easily exceed the VLAN limit of 4096 of the
802.1Q specification.
5.7.1 QinQ Operation Modes
QinQ can be enabled on a port or according to predefined conditions.
• ACL-mode: Adding and removing S-VLAN is determined by an ACL-dependent action
• Port-mode: All ingress traffic to a specific QinQ-enabled interface is tagged with an addi-
tional VLAN 802.1Q tag (also known as S-VLAN). The S-VLAN ID is equal to that inter-
face’s PVID (access VLAN).
The S-VLAN tag is added regardless of whether the traffic is tagged or untagged. Traffic
coming out from this port, has the S-VLAN stripped from it.
5.7.2 Configuring QinQ
To configure QinQ:
Step 1. Create the C-VLAN. Run:
Step 2. Enter the configuration mode of an Ethernet, LAG, or MLAG interface. Run:
Step 3. Change the switchport mode of the interface to enable QinQ. Run:
Step 4. Change its port VLAN ID (PVID). This configures the S-VLAN. Run:
C-VLAN is the VLAN tag assigned to the ingress traffic of a QinQ-enabled interface.
S-VLAN is the VLAN tag assigned to the egress traffic of a QinQ-enabled interface.
switch (config) # vlan 200
switch (config vlan 200) # exit
switch (config) # interface port-channel 100
switch (config interface port-channel 100) # switchport mode dot1q-tunnel
switch (config interface port-channel 100) # switchport access vlan 200
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 626
Step 5. Verify the configuration. Run:
switch (config interface port-channel 100) # show interface port-channel 100
Po100
Admin state: Enabled
Operational state: Up
Description: N\A
Mac address: 00:00:00:00:00:00
MTU: 1500 bytes(Maximum packet size 1522 bytes)
lacp-individual mode: Disabled
Flow-control: receive off send off
Actual speed: 1 X 40 Gbps
Width reduction mode: Not supported
Switchport mode: dot1q-tunnel
QoS mode: uniform
MAC learning mode: Enabled
Last clearing of "show interface" counters : Never
60 seconds ingress rate: 0 bits/sec, 0 bytes/sec, 0 packets/sec
60 seconds egress rate: 0 bits/sec, 0 bytes/sec, 0 packets/sec
Rx
0 packets
0 unicast packets
0 multicast packets
0 broadcast packets
0 bytes
0 error packets
0 discard packets
Tx
0 packets
0 unicast packets
0 multicast packets
0 broadcast packets
0 bytes
0 discard packets
switch (config interface port-channel 100) #
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 627
Step 6. Verify the configuration. Run:
switch (config interface port-channel 100) # show interfaces switchport
Interface Mode Access vlan Allowed vlans
-------------------------------------------------------------------------
Eth1/1 access 1
Eth1/2 access 1
Eth1/3 access 1
Eth1/4 access 1
Eth1/5 access 1
Eth1/6 access 1
...
Eth1/27 access 1
Eth1/33 access 1
Eth1/34 access 1
Eth1/35 access 1
Eth1/36 access 1
Po400 dot1q-tunnel 200
switch (config interface port-channel 100) #
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 628
5.7.3 Commands
no switchport dot1q-tunnel qos-mode
Assigns QoS to the service provider’s traffic.
The no form of the command resets the parameter value to its default.
pipe Gives the service provider’s traffic the same QoS as the
customer’s traffic
uniform Gives the service provider’s traffic QoS 0
pipe
Config Interface Ethernet
Config Interface Port Channel
Config Interface MLAG Port Channel
3.4.3000
admin
switch (config interface ethernet 1/1) # switchport dot1q-tunnel qos-
mode uniform
switch (config interface ethernet 1/1) #
show vlan
show interfaces switchport
switchport access vlan
switchport [trunk | hybrid] allowed-vlan
vlan
switchport dot1q-tunnel qos-mode
switchport dot1q-tunnel qos-mode {pipe | uniform}
Syntax Description
Default
Configuration Mode
History
Role
Example
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 629
5.8 MAC Address Table
5.8.1 Configuring Unicast Static MAC Address
You can configure static MAC addresses for unicast traffic. This feature improves security and
reduces unknown unicast flooding.
To configure Unicast Static MAC address:
Step 1. Log in as admin.
Step 2. Enter config mode. Run:
Step 3. Run the command “
mac-address-table static unicast <destination mac address>
vlan <vlan identifier(1-4094)> interface ethernet <slot>/ <port>
”.
5.8.2 MAC Learning Considerations
MAC learning may be disabled using the command
mac-learning disable
which is beneficial
in the following situations:
• To prevent denial-of-service attacks
• To manage the available MAC address table space by controlling which interfaces can learn
MAC addresses
• To duplicate to a dedicated server (port7) all the packets that one host (host1; port1) sends to
another (host2; port2), like in port mirroring. To accomplish this, MAC learning is disabled
on port2. In this case the FDB does not obtain the MAC address of host2. Also, to prevent
broadcast to every port, it is possible to configure a VLAN (VLAN 80) which ports 1, 2 and 7
are member of.
Figure 18: MAC Learning Disable Example Case
switch > enable
switch # configure terminal
switch (config) # mac-address-table static 00:11:22:33:44:55 vlan 1 interface ethernet 1/
1
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 630
5.8.3 Commands
no mac-address-table aging-time
Sets the maximum age of a dynamically learnt entry in the MAC address table.
The no form of the command resets the aging time of the MAC address table to its
default.
age 10-1000000 seconds.
300
Config
3.1.0600
admin
switch (config) # mac-address-table aging-time 50
switch (config) # show mac-address-table aging-time
Mac Address Aging Time: 50
switch (config) #
show mac-address-table
show mac-address-table aging time
mac-address-table aging-time
mac-address-table aging-time <age>
Syntax Description
Default
Configuration Mode
History
Role
Example
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 631
mac-address-table static
mac-address-table static <mac address> vlan <vlan> interface <if-type> <if-
number>
no mac-address-table static <mac address> vlan <vlan> interface <if-type> <if-
number>
Configures a static MAC address in the forwarding database.
The no form of the command deletes a configured static MAC address from the for-
warding database.
Syntax Description mac address Destination MAC address.
vlan VLAN ID or VLAN range.
if-type Ethernet or port-channel interface type.
if-number The interface number (i.e. 1/1, 3).
Default No static MAC addresses available in default.
Configuration Mode Config
History 3.1.0600
Role admin
Example switch (config) # mac-address-table static aa:aa:aa:aa:aa:aa vlan 1
interface ethernet 1/7
switch (config) # show mac-address-table
Switch ethernet-default
Vlan Mac Address Type Interface
---- ----------- ---- ------------
1 aa:aa:aa:aa:aa:aa static Eth1/7
Number of unicast: 1
Number of multicast: 0
switch (config) #
Related Commands show mac-address-table
mac-address-table aging time
Note The no form of the command will not clear a dynamic MAC address. Dynamic MAC
addresses are cleared using the “clear mac-address-table dynamic” command.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 632
mac-learning disable
mac-learning disable
no mac-learning disable
Disables MAC-address learning.
The no form of the command enables MAC-address learning.
Syntax Description N/A
Default Enabled
Configuration Mode Config Interface Ethernet
Config Interface Port Channel
History 3.1.0600
Role admin
Example switch (config interface ethernet 1/1) # mac-learning disable
Related Commands
Note • When adding a port to a LAG, the port needs to be aligned with the LAG’s configuration
• When removing a port from a LAG, the port remains in whichever configuration the LAG
is in
• Disabling MAC learning is not supported on a local analyzer port.
• Disabling MAC learning is not supported on an IPL LAG.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 633
clear mac-address-table dynamic
clear mac-address-table dynamic
Clear the dynamic entries in the MAC address table.
Syntax Description N/A
Default N/A
Configuration Mode Config
History 3.1.0600
Role admin
Example switch (config) # clear mac-address-table dynamic
switch (config) #
Related Commands mac-address-table aging-time
mac-address-table static
show mac-address-table
Note This command does not clear the MAC addresses learned on the mgmt0 port. Static
entries are deleted using the “no mac-address-table static” command.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 634
show mac-address-table
show mac-address-table [address <mac-address> | interface ethernet <if-num-
ber> | vlan [<vlan> | range <range>] | unicast | multicast]
Displays the static and dynamic unicast and multicast MAC addresses for the switch.
Various of filter options available.
Syntax Description mac-address Filter the table to a specific MAC address.
if-number Filter the table to a specific interface.
vlan Filter the table to a specific VLAN number (1-4094).
range Filter the table to a range of VLANs.
unicast Filter the table to a unicast addresses only.
multicast Filter the table to a multicast addresses only.
Default N/A
Configuration Mode Any Command Mode
History 3.1.0600
3.3.4500 Updated Example
Role admin
Example switch (config) # show mac-address-table
Switch ethernet-default
Vlan Mac Address Type Interface
---- ----------- ---- ------------
1 00:00:00:00:00:01 Static Po5
1 00:00:3D:5C:FE:16 Dynamic Eth1/1
1 00:00:3D:5D:FE:1B Dynamic Eth1/2
Number of unicast: 2
Number of multicast: 0
switch (config) #
Related Commands mac-address-table static
clear mac-address-table
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 635
show mac-address-table aging-time
show mac-address-table aging-time
Displays the MAC address table aging time.
Syntax Description N/A
Default N/A
Configuration Mode Any Command Mode
History 3.1.0600
Role admin
Example switch (config) # mac-address-table aging-time 300
switch (config) # show mac-address-table aging-time
Mac Address Aging Time: 300
switch (config) #
Related Commands mac-address-table aging-time
mac-address-table static
clear mac-address-table
Note MAC addresses learned on the mgmt0 is not shown by this command.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 636
show mac-address-table summary
show mac-address-table summary
Displays total number of unicast/multicast MAC address entries.
Syntax Description N/A
Default N/A
Configuration Mode Any Command Mode
History 3.6.2002
Role admin
Example switch (config) # show mac-address-table summary
Number of unicast: 4
Number of multicast: 0
Related Commands mac-address-table static
clear mac-address-table
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 637
5.9 Spanning Tree
The operation of Rapid Spanning Tree Protocol (RSTP) provides for rapid recovery of connectiv-
ity following the failure of a bridge/bridge port or a LAN. The RSTP component avoids this
delay by calculating an alternate root port, and immediately switching over to the alternate port if
the root port becomes unavailable. Thus, using RSTP, the switch immediately brings the alternate
port to forwarding state, without the delays caused by the listening and learning states. The RSTP
component conforms to IEEE standard 802.1D 2004.
RSTP enhancements is a set of functions added to increase the volume of RSTP in Mellanox
switches. It adds a set of capabilities related to the behavior of ports in different segments of the
network. For example: the required behavior of a port connected to a non-switch entity, such as
host, is to converge quickly, while the required behavior of a port connected to a switch entity is
to converge based on the RSTP parameters.
Additionally, it adds security issues on a port and switch basis, allowing the operator to deter-
mine the state and role of a port or the entire switch should an abnormal event occur. For exam-
ple: If a port is configured to be root-guard, the operator will not allow it to become a root-port
under any circumstances, regardless of any BPDU that will have been received on the port.
5.9.1 Port Priority and Cost
When two ports on a switch are part of a loop, the STP port priority and port path cost configura-
tion determine which port on the switch is put in the forwarding state and which port is put in the
blocking state.
To configure port priority use the following command:
switch (config interface etherent <inf>)# spanning-tree port-priority <0-240>
To configure port path cost use the following command:
switch (config interface etherent <inf>)# spanning-tree cost <1-200000000>
5.9.2 Port Type
Port type has the following configuration options:
•edge – is not assumed to be converged by the RSTP learning/forwarding mechanism. It con-
verges to forwarding quickly.
•normal – is assumed to be connected to a switch, thus it tries to be converged by the RSTP
learning/forwarding. However, if it does not receive any BPDUs, it is operationally moved to
be edge.
•network – is assumed to be connected to a switch. If it does not receive any BPDUs, it is
moved to discarding state.
Each of these configuration options is mutually exclusive.
Port type is configured using the command spanning-tree port type. It may be applied globally on
the switch (Config) level, which configures all switch interfaces. Another option is to configure
ports individually by entering the interface’s configuration mode.
It is recommended to configure the port type for all ports connected to hosts as edge
ports.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 638
• Global configuration:
switch (config)# spanning-tree port type {edge , normal , network} default
• Interface configuration:
switch (config interface etherent <inf>)# spanning-tree port type {edge , normal, net-
work}
5.9.3 BPDU Filter
Using BPDU filter prevents the CPU from sending/receiving BPDUs on specific ports.
BPDU filtering is configured per interface. When configured, the port does not send any BPDUs
and drops all BPDUs that it receives. To configure BPDU filter, use the following command:
switch (config interface etherent <inf>)# spanning-tree bpdufilter {enable , disable}
5.9.4 BPDU Guard
BPDU guard is a security feature which, when enabled, shuts down the port in case it receives
BPDU packets. This feature becomes useful when connecting to an unauthorized switch.
To configure BPDU guard use the following command:
switch (config interface etherent <inf>)# spanning-tree port type <type> bpduguard
5.9.5 Loop Guard
Loop guard is a feature that prevents loops in the network.
When a blocking port in a redundant topology transitions to the forwarding state (accidentally),
an STP loop occurs. This happens when BPDUs are no longer received by one of the ports in a
physically redundant topology.
Loop guard is useful in switched networks where devices are connected point-to-point. A desig-
nated bridge cannot disappear unless it sends an inferior BPDU or brings the link down on a
point-to-point connection.
If loop guard is enabled and the port does not receive BPDUs, the port is put into an inconsistent
state (blocking) until the port starts to receive BPDUs again. A port in the inconsistent state does
not transmit BPDUs. If BPDUs are received again, loop guard alters its inconsistent state condi-
tion. STP converges to a stable topology without the failed link or bridge after loop guard isolates
the failure.
Disabling loop guard moves all loop-inconsistent ports to listening state.
Configuring BPDU filtering on a port connected to a switch can cause bridging loops
because the port filters any BPDU it receives and goes to forwarding state.
The loop guard configuration is only allowed on “network” port type.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 639
To configure loop guard use the following command:
switch (config interface etherent <inf>)# spanning-tree guard loop
5.9.6 Root Guard
Configuring root guard on a port prevents that port from becoming a root port. A port put in root-
inconsistent (blocked) state if an STP convergence is triggered by a BPDU that makes that port a
root port. The port is unblocked after the port stops sending BPDUs.
To configure loop guard use the following command:
switch (config interface etherent <inf>)# spanning-tree guard root
5.9.7 MSTP
Spanning Tree Protocol (STP) is a mandatory protocol to run on L2 Ethernet networks to elimi-
nate network loops and the resulting broadcast storm caused by these loops. Multiple STP
(MSTP) enables the virtualization of the L2 domain into several VLANs, each governed by a
separate instance of a spanning tree which results in a network with higher utilization of physical
links while still keeping the loop free topology on a logical level.
Up to 64 MSTP instances can be configured on a switch.
For MSTP network design over Mellanox L2 VMS, please refer to Mellanox Virtual Modular
Switch Reference Guide.
5.9.8 RPVST
Rapid Per-VLAN Spanning Tree (RPVST) flavor of the STP provides finer-grained traffic by
paving a spanning-tree instance per each configured VLAN. Like MSTP, it allows a better utili-
zation of the network links comparing to RSTP.
Figure 19 exhibits a typical RPVST network configuration to get a better utilization on the inter-
switch trunk ports.
Figure 19: RPVST Network Config
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 640
5.9.8.1 RPVST and VLAN Limitations
When the STP of the switch is set to RPVST, spanning tree is set on each of the configured
VLANs in the system by default. To enable the spanning tree mode, the command “spanning-
tree” must be run.
Each VLAN runs an STP state machine and an RPVST instance. There is a global limitation on
the number of active state machines that can operate in MLNX-OS. Enforcement of this limita-
tion is done through the maximum number of VLANs allowed in the system. On x86 switch sys-
tems the limitation is 128 VLANs and on PPC systems it ranges from 13-18 VLANs depending
on the switch system. The more ports the switch system has the less VLANs it can support.
Table 47 - Supported VLANs by RPVST per Switch System
Switch System Model Number of Supported VLANs
x86 systems 128
SX1012 17
SX1016 13
SX1024 13
SX1035 13
SX1036 13
The state machine takes attributes like forward time, hello time, max age and priority, etc.
5.9.8.2 RPVST and RSTP Interoperability
Figure 20: RPVST and RSTP Cluster
When configuring priority on a VLAN in RPVST, the operational priority given to the
VLAN is a summation of what the user configured and the value of the VLAN itself.
For example running “spanning-tree vlan 10 priority 32768” yields a priority of 32778
for VLAN 10.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 641
RPVST domains can be interconnected by a standard 802.1Q domain that runs RSTP protocol.
While the RSTP domain builds a single common instance spanning tree, the RPVST domains at
the edge continue to build a tree per VLAN while exchanging tagged RPVST multicast BPDUs.
(This exchange may happen on untagged RPVST BPDUs as well.) The switch devices that are in
the boundary between the RPVST and the RSTP domains should be configured as RPVST mode.
When set to RPVST mode, the switch continues to run the common instance spanning tree
(CIST) state machine on VLAN 1 by exchanging IEEE BPDUs with the legacy RSTP switches.
To successfully connect RSTP and RPVST domains, the system administrator must align the
native VLAN configuration across all network switches, or in other words, the internal identifi-
cation of untagged packets to VLAN.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 642
5.9.9 Commands
Globally enables the spanning tree feature.
The no form disables the spanning tree feature.
N/A
Spanning tree is enabled.
Config
3.1.0000
admin
switch (config) # no spanning-tree
switch (config) #
show spanning-tree
spanning-tree
spanning-tree
no spanning-tree
Syntax Description
Default
Configuration Mode
History
Role
Example
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 643
spanning-tree mode
spanning-tree mode {rst | mst | rpvst}
no spanning-tree mode
Changes the spanning tree mode.
The no form of the command sets the parameter to its default value.
Syntax Description mst Multiple spanning tree.
rst Rapid spanning tree.
rpvst Rapid per-VLAN spanning tree.
Default rst
Configuration Mode Config
History 3.3.4150
Role admin
Example switch (config)# spanning-tree mode mst
Related Commands
Note • On x86 switch systems, the number of VLANs supported by RPVST are 128
• On PPC switch systems, the number of VLANs supported by RPVST are between 13-18
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 644
spanning-tree (timers)
spanning-tree [forward-time <time in secs> | hello-time <time in secs> | max-age
<time in secs>]
no spanning-tree [forward-time | hello-time | max-age | priority]
Sets the spanning tree timers.
The no form of the command sets the timer to default.
Syntax Description forward-time Controls how fast a port changes its spanning tree state
from Blocking state to Forwarding state.
Parameter range: 4-30 seconds.
hello-time Determines how often the switch broadcasts its hello
message to other switches when it is the root of the
spanning tree.
Parameter range: 1-2 seconds.
max-age Sets the maximum age allowed for the Spanning Tree
Protocol information learnt from the network on any
port before it is discarded.
Parameter range: 6-40 seconds.
Default forward-time: 15 seconds
hello-time:2 seconds
max-age: 20 seconds
Configuration Mode Config
History 3.1.0000
Role admin
Example switch (config) # spanning-tree forward-time
switch (config) #
Related Commands show spanning-tree
Note The following formula applies on the spanning tree timers:
2*(ForwardTime -1)>=MaxAgeTime >= 2*(Hello Time + 1)
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 645
spanning-tree port type (default global)
spanning-tree port type {edge [bpdufilter | bpduguard] | network [bpduguard] |
normal [bpduguard]} default
no spanning-tree port type default
Configures all switch interfaces as edge/network/normal ports. These ports can be
connected to any type of device.
The no form of the command disables the spanning tree operation.
Syntax Description edge Assumes all ports are connected to hosts/servers.
bpdufilter Configures to enable the spanning tree BPDU filter.
bpduguard Configures to enable the spanning tree BPDU guard.
network Assumes all ports are connected to switches and
bridges.
normal The port type (edge or network) determines according
to the spanning tree operational mode.
Default Normal
Configuration Mode Config
History 3.1.0000
3.4.0008 Updated command syntax
Role admin
Example switch (config) # spanning-tree port type edge default
switch (config) #
Related Commands show spanning-tree
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 646
spanning-tree priority
spanning-tree priority <bridge-priority>
no spanning-tree priority
Sets the spanning tree bridge priority.
The no form of the command sets the bridge priority to default.
Syntax Description bridge-priority Sets the bridge priority for the spanning tree. Its value
must be in steps of 4096, starting from 0. Only the fol-
lowing values are applicable: 0, 4096, 8192, 12288,
16384, 20480, 24576, 28672, 32768, 36864, 40960,
45056, 49152, 53248, 57344, 61440.
Default 32786
Configuration Mode Config
History 3.1.0000
Role admin
Example switch (config) # spanning-tree priority 4096
switch (config) #
Related Commands show spanning-tree
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 647
spanning-tree port-priority
spanning-tree port-priority <priority>
no spanning-tree port-priority
Configures the spanning-tree interface priority.
The no form of the command returns configuration to its default.
Syntax Description priority Spanning tree interface priority. The possible values
are: 0, 16, 32,48, 64, 80, 96, 112, 128,144, 160, 176,
192, 208, 224, 240.
Default 128
Configuration Mode Config Interface Ethernet
Config Interface Port Channel
Config Interface MLAG Port Channel
History 3.1.0000
3.3.4500 Added MLAG port-channel configuration mode
Role admin
Example switch (config) # interface ethernet 1/1
switch (config interface ethernet 1/1) # spanning-tree port-priority 16
switch (config interface ethernet 1/1) #
Related Commands show spanning-tree
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 648
spanning-tree cost
spanning-tree cost <port cost>
no spanning-tree cost
Configures the interface cost of the spanning tree.
The no form of the command returns configuration to its default.
Syntax Description port cost Sets the spanning tree cost of an interface.
Value range is 0-200000000.
Default The default cost is derived from the speed.
1Gbps 20000
10Gbps 2000
40Gbps 500
56Gbps 357
Configuration Mode Config Interface Ethernet
Config Interface Port Channel
Config Interface MLAG Port Channel
History 3.1.0000
3.3.4500 Added MLAG port-channel configuration mode
Role admin
Example switch (config) # interface ethernet 1/1
switch (config interface ethernet 1/1) # spanning-tree cost 1000
switch (config interface ethernet 1/1) #
Related Commands show spanning-tree
Note • LAG default cost is calculated by dividing the port speed by the number of active links in
UP state. For example: if there were 4 links in the LAG out of which only two are in UP
state, assuming the port speed is 10Gbps, the LAG cost will be 2000/2 = 1000.
• When configuring the cost for a LAG, the cost will be fixed to this configuration, no matter
what the number of active links (UIP state) in the LAG is
• Unstable network may cause the LAG cost to change dynamically assuming the cost
parameter is not configured for anything else other than default
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 649
spanning-tree port type
spanning-tree port type <port type>
no spanning-tree port type
Configures spanning-tree port type
The no form of the command returns configuration to default.
Syntax Description default According to global configuration
edge Assumes all ports are connected to hosts/servers.
normal The port type (edge or network) determines according
to the spanning tree operational mode.
network Assumes all ports are connected to switches and
bridges.
bpdufilter Configures to enable the spanning tree BPDU filter.
bpduguard Configures to enable the spanning tree BPDU guard.
Default Globally defined by the command “spanning-tree port type <port-type> default”
Configuration Mode Config Interface Ethernet
Config Interface Port Channel
Config Interface MLAG Port Channel
History 3.1.0000
3.3.4500 Added MLAG port-channel configuration mode
Role admin
Example switch (config) # interface ethernet 1/1
switch (config interface ethernet 1/1) # spanning-tree port type edge
switch (config interface ethernet 1/1) #
Related Commands show spanning-tree
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 650
spanning-tree guard
spanning-tree guard {loop | root}
no spanning-tree guard {loop | root}
Configures spanning-tree guard.
The no form of the command returns configuration to default.
Syntax Description loop Enables loop-guard on the interface.
If the loop-guard is enabled, upon a situation where the
interface fails to receive BPDUs the switch will not
egress data traffic on this interface.
root Enables root-guard on the interface.
If root-guard is enabled on the interface, the interface
will never be selected as root port.
Default loop-guard and loop-guard are disabled.
Configuration Mode Config Interface Ethernet
Config Interface Port Channel
Config Interface MLAG Port Channel
History 3.1.0000
3.3.4500 Added MLAG port-channel configuration mode
Role admin
Example switch (config) # interface ethernet 1/1
switch (config interface ethernet 1/1) # spanning-tree guard root
switch (config interface ethernet 1/1) #
Related Commands show spanning-tree
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 651
spanning-tree bpdufilter
spanning-tree bpdufilter {disable | enable}
no spanning-tree bpdufilter
Configures spanning-tree BPDU filter on the interface. The interface will ignore any
BPDU that it receives and will not send PDBUs, The STP state on the port will move
to the forwarding state.
The no form of the command returns the configuration to default.
Syntax Description disable Disables the BPDU filter on this port.
enable Enables the BPDU filter on this port.
Default BPDU filter is disabled.
Configuration Mode Config Interface Ethernet
Config Interface Port Channel
Config Interface MLAG Port Channel
History 3.1.0000
Role admin
Example switch (config) # interface ethernet 1/1
switch (config interface ethernet 1/1) # spanning-tree bpdufilter
enable
Related Commands show spanning-tree
Note This command can be used when the switch is connected to hosts.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 652
clear spanning-tree counters
clear spanning-tree counters
Clears the spanning-tree counters.
Syntax Description N/A
Default N/A
Configuration Mode Config
History 3.1.0000
Role admin
Example switch (config) # clear panning-tree counters
switch (config) #
Related Commands show spanning tree
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 653
spanning-tree mst max-hops
spanning-tree mst max-hops <max-hops>
no spanning-tree mst max-hops
Specifies the max hop value inserts into BPDUs that sent out as the root bridge.
The no form of the command sets the parameter to its default value.
Syntax Description max-hops Max hop value. The range is 6-40.
Default 20
Configuration Mode Config
History 3.3.4150
Role admin
Example switch (config)# spanning-tree mst max-hops 20
switch (config)#
Related Commands
Note • The max hop setting determines the number of bridges in an MST region that a BPDU can
traverse before it is discarded
• This command is available when global STP mode is set to MST
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 654
spanning-tree mst priority
spanning-tree mst <mst-instance> priority <priority>
no spanning-tree mst <mst-instance> priority
Configures the specified instance’s priority number.
The no form of the command sets the parameter to its default value.
Syntax Description mst-instance MST instance. Range is 1-64.
priority MST instance port priority. Possible values are: 0,
4096, 8192, 12288, 16384, 20480, 24576, 28672,
32768, 36864, 40960, 45056, 49152,
53248, 57344, 61440
Default 32768
Configuration Mode Config
History 3.3.4150
Role admin
Example switch (config)# spanning-tree mst 1 priority 32768
switch (config)#
Related Commands
Note • The bridge priority is the four most significant digits of the bridge ID, which is used by
spanning tree algorithms to select the root bridge and choose among redundant links.
Bridge ID numbers range from 0-65535 (16 bits); bridges with smaller bridge IDs are
elected over other bridges.
• This command is available when global STP mode is set to MST
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 655
spanning-tree mst vlan
spanning-tree mst <mst-instance> vlan <vlan-range>
no spanning-tree mst <mst-instance> vlan <vlan-range>
Maps a VLAN or a range of VLANs into an MSTP instance.
The no form of the command unmaps a VLAN or a range of VLANs from MSTP
instances.
Syntax Description mst-instance MST instance. Range is 1-64.
vlan <vlan-range> A single VLAN or a a range of VLANs. The format is
<vlan> or <from-vlan>-<to-vlan>.
Default N/A
Configuration Mode Config
History 3.3.4150
Role admin
Example switch (config)# spanning-tree mst 1 vlan 10-20
switch (config)#
Related Commands
Note This command is available when global STP mode is set to MST
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 656
spanning-tree mst revision
spanning-tree mst revision <number>
no spanning-tree mst revision
Configures the MSTP revision number.
The no form of the command sets the parameter to its default value.
Syntax Description number The MST revision number. Range is 0-65535.
Default 0
Configuration Mode Config
History 3.3.4150
Role admin
Example switch (config)# spanning-tree mst revision 1
switch (config)#
Related Commands
Note • The revision number is one of three parameters, along with the MST name and VLAN-to-
instance map, that identify the switch’s MST region
• This command is available when global STP mode is set to MST
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 657
spanning-tree mst name
spanning-tree mst name <name>
no spanning-tree mst name
Configures the MSTP name.
The no form of the command sets the parameter to its default value.
Syntax Description name MST name: Up to 32 characters.
Default N/A
Configuration Mode Config
History 3.3.4150
Role admin
Example switch (config)# spanning-tree mst name my-mst
switch (config)#
Related Commands
Note • The name is one of three parameters, along with the MST revision number and VLAN-to-
instance map, that identifies the switch’s MST region
• This command is available when global STP mode is set to MST
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 658
spanning-tree mst root
spanning-tree mst <mst-instance> root <role>
no spanning-tree mst <mst-instance> root
Changes the bridge priority for the specified MST instance to the following values:
• Primary – 8192
• Secondary – 16384
The no form of the command sets the parameter to its default value.
Syntax Description mst-instance MSTP instance. Possible range is 1-64.
role Values: “primary” or “secondary”.
Default primary
Configuration Mode Config
History 3.3.4150
Role admin
Example switch (config)# spanning-tree mst name my-mst
switch (config)#
Related Commands
Note • The root command is a way to automate a system configuration while ‘playing’ with the
priority field. The priority field granularity may be too explicit for some users in case you
wish to have 2 levels of priority (primary and secondary). So by default all the switches get
the same priority and while using the root option you can get the role of master and backup
by setting the priority field to a predefined value.
• This command is available when global STP mode is set to MST.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 659
spanning-tree mst port-priority
spanning-tree mst {mst-instance} port-priority <priority>
no spanning-tree mode
Changes the spanning tree mode.
The no form of the command sets the parameter to its default value.
Syntax Description mst-instance MST instance. Range is 0-4094.
priority MST instance port priority. Valid values are: 0, 16, 32,
48, 64, 80, 96, 112, 128, 144, 160, 176, 192, 208, 224
and 240.
Default rst
Configuration Mode Config Interface Ethernet
Config Interface Port Channel
History 3.3.4150
Role admin
Example switch (config interface ethernet 1/1)# spanning-tree mst 1 port-
priority 32768
switch (config interface port-channel 1)# spanning-tree mst 1 port-
priority 32768
Related Commands
Note This command is available when global STP mode is set to MST.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 660
spanning-tree mst cost
spanning-tree mst {mst-instance} cost <cost-value>
no spanning-tree mode
Configures the cost per MSTP instance.
The no form of the command sets the parameter to its default value.
Syntax Description mst-instance MST instance. Range is 1-64.
cost-value MST instance port cost. Range is 0-200000000.
Default 2000 for 10Gb/s, 500 for 40Gb/s, 20000 for 1Gb/s, 357 for 56Gb/s
Configuration Mode Config Interface Port Channel
History 3.3.4150
Role admin
Example switch (config interface ethernet 1/1)# spanning-tree mst 1 cost 4000
switch (config interface port-channel 1)# spanning-tree mst 1 cost 4000
switch (config)#
Related Commands
Note This command is available when global STP mode is set to MST.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 661
spanning-tree vlan forward-time
spanning-tree vlan <vid> forward-time <secs>
no spanning-tree vlan <vid> forward-time
Configures how fast an interface changes its spanning tree state from Blocking to
Forwarding.
The no form of the command resets the parameter value to its default.
Syntax Description secs Parameter range: 4-30 seconds.
Default 15 seconds
Configuration Mode Config
History 3.4.1100
Role admin
Example switch (config) # spanning-tree vlan 10 forward-time 15
Related Commands show spanning-tree
Note • The following formula applies on the spanning tree timers:
2*(ForwardTime -1)>=MaxAgeTime >= 2*(Hello Time + 1)
• This command is available when global STP mode is set to RPVST
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 662
spanning-tree vlan hello-time
spanning-tree vlan <vid> hello-time <secs>
no spanning-tree vlan <vid> hello-time
Configures how often the switch broadcasts its hello message to other switches when
it is the root of the spanning tree.
The no form of the command resets the parameter value to its default.
Syntax Description secs Parameter range: 1-2 seconds.
Default 2 seconds
Configuration Mode Config
History 3.4.1100
Role admin
Example switch (config) # spanning-tree vlan 10 hello-time 2
Related Commands show spanning-tree
Note • The following formula applies on the spanning tree timers:
2*(ForwardTime -1)>=MaxAgeTime >= 2*(Hello Time + 1)
• This command is available when global STP mode is set to RPVST
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 663
spanning-tree vlan max-age
spanning-tree vlan <vid> max-age <secs>
no spanning-tree vlan <vid> max-age
Sets the maximum age allowed for the Spanning Tree Protocol information learned
from the network on any port before it is discarded.
The no form of the command resets the parameter value to its default.
Syntax Description secs Parameter range: 6-40 seconds.
Default 20 seconds
Configuration Mode Config
History 3.4.1100
Role admin
Example switch (config) # spanning-tree vlan 10 max-age 20
Related Commands show spanning-tree
Note • The following formula applies on the spanning tree timers:
2*(ForwardTime -1)>=MaxAgeTime >= 2*(Hello Time + 1)
• This command is available when global STP mode is set to RPVST
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 664
spanning-tree vlan priority
spanning-tree vlan <vid> priority <priority>
no spanning-tree vlan <vid> priority
Configures RPVST instance port priority.
The no form of the command resets the parameter value to its default.
Syntax Description priority Possible values are: 0, 4096, 8192, 12288, 16384,
20480, 24576, 28672, 32768, 36864, 40960, 45056,
49152, 53248, 57344, 61440.
Default 32768
Configuration Mode Config
History 3.4.1100
Role admin
Example switch (config) # spanning-tree vlan 10 priority 32768
Related Commands show spanning-tree
Note • The following formula applies on the spanning tree timers:
2*(ForwardTime -1)>=MaxAgeTime >= 2*(Hello Time + 1)
• This command is available when global STP mode is set to RPVST
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 665
show spanning-tree
show spanning-tree
Displays spanning tree information.
Syntax Description N/A
Default N/A
Configuration Mode Any Command Mode
History 3.1.0000
3.4.1100 Updated Example with R and G flags
Role admin
Example switch (config) # show spanning-tree
Switch ethernet-default
Spanning tree protocol is enabled rst
Spanning tree force version:2
Root ID
Priority 32768
Address 00:02:c9:7a:e9:40
Cost 1000
Port Eth1/32
Hello Time 2 sec Max Age 20 sec Forward Delay 15 sec
Bridge ID
Priority 32768
Address 00:02:c9:96:c6:d0
Hello Time 2 sec Max Age 20 sec Forward Delay 15 sec
L - Loop Inconsistent
R - Root Inconsistent
G - BPDU Guard Inconsistent
Interface Role Sts Cost Prio Type
---- ---- ----- ---- ---- ----
Eth1/9 Designated Forwarding 500 128 normal
Eth1/22 Designated Discarding(R) 500 128 normal
Eth1/32 Root Forwarding 500 128 normal
Eth1/39 Disabled Discarding(G) 2000 128 normal
switch (config) #
Related Commands clear spanning-tree counters
spanning-tree
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 666
show spanning-tree detail
show spanning-tree detail
Displays detailed spanning-tree configuration and statistics.
Syntax Description N/A
Default N/A
Configuration Mode Any Command Mode
History 3.1.0000
Role admin
Example switch (config) # show spanning-tree detail
Switch ethernet-default
Spanning tree protocol is enabled
Bridge is executing the rst compatible Spanning Tree Protocol
Bridge Identifier has priority 32768, address 00:02:c9:96:c6:d0
Configured hello time 2, max age 20, forward delay 15
Current root has priority 32768, address 00:02:c9:7a:e9:40
Root port is Eth1/32( Ethernet1/32),cost of root path is 1000
Number of topology changes 21,last change occurred 00:00:03 ago
Timers: hold 6 hello 2, max age 20, forward delay 15
default port type: normal, default bpdu filter: disabled,
default bpdu guard: disabled
switch (config) #
Related Commands clear spanning-tree counters
spanning-tree
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 667
show spanning-tree interface
show spanning-tree interface {ethernet <slot>/<port> | port-channel
<port-channel> | mlag-port-channel <mlag-port-channel>
Display running state for specific interfaces.
Syntax Description ethernet Ethernet interface.
port-channel LAG instance.
mlag-port-channel MLAG instance.
Default N/A
Configuration Mode Any Command Mode
History 3.3.4150
Role admin
Example switch (config) # show spanning-tree interface ethernet 1/2
Eth1/2 is Disabled Discarding
Port path cost 500, Port priority 128, Port Identifier 128.5
Designated root has priority 0, address unknown
Designated bridge has priority 0, address unknown
Designated port id 0.0, designated path cost 0
Number of transitions to forwarding state: 0
Port type: normal
PortFast is: off
Bpdu filter: disabled
Bpdu guard: disabled
Loop guard: disabled
Root guard: disabled
Link type: point-to-point
BPDU: sent: 0 received: 0
switch (config) #
Related Commands clear spanning-tree counters
spanning-tree
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 668
show spanning-tree mst
show spanning-tree mst [details | <instance> interface {ethernet <slot>/<port> |
port-channel <port-channel> | mlag-port-channel <mlag-port-channel>}]
Displays basic multi-spanning-tree information.
Syntax Description details Displays detailed multi-spanning-tree configuration
and statistics.
ethernet Ethernet interface.
port-channel LAG instance.
mlag-port-channel MLAG instance.
Default N/A
Configuration Mode Any Command Mode
History 3.3.4150
Role admin
Example switch (config) # show spanning-tree mst
MST0
vlans mapped: 1-1023,1025-2047,2049-3071,3073-4094
Interface Role Sts Cost Prio Type
---- ---- ----- ---- ---- ----
Eth1/9 Designated Forwarding 500 128.9 point-to-point
Eth1/10 Designated Forwarding 500 128.10 point-to-point
Eth1/11 Back Up Discarding 500 128.22 point-to-point
switch (config) #
Related Commands clear spanning-tree counters
spanning-tree
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 669
show spanning-tree root
show spanning-tree root
Displays root multi-spanning-tree information.
Syntax Description N/A
Default N/A
Configuration Mode Any Command Mode
History 3.3.4150
Role admin
Example switch (config) # show spanning-tree root
Instance Priority MAC addr Root Cost Hello Time Max Age FWD Dly Root Port
------- ------ -------- --------- -------- -------- ------- ---------
MST0 32768 00:02:c9:71:ed:40 500 2 20 15 Eth1/20
MST1 32768 00:02:c9:71:f0:c0 0 2 20 15 -
MST2 0 00:02:c9:71:f0:c0 0 2 20 15 -
MST3 32768 00:02:c9:71:f0:c0 0 2 20 15 -
switch (config) #
Related Commands clear spanning-tree counters
spanning-tree
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 670
show spanning-tree vlan
show spanning-tree vlan <vid> [detail | interface {ethernet <slot>/<port> | port-
channel <port-channel> | mlag-port-channel <mlag-port-channel>}]
Displays spanning tree information.
Syntax Description vid VLAN ID. Range is also supported.
Format: <vid1>[-<vid2>]
detail Displays detailed RPVST configuration and statistics.
ethernet Ethernet interface.
port-channel LAG instance.
mlag-port-channel MLAG instance.
Default N/A
Configuration Mode Any Command Mode
History 3.4.1100
Role admin
Example switch (config) # show spanning-tree vlan 10
Switch ethernet-default
Spanning tree protocol is enabled rpvst
Spanning tree force version:2
Vlan 10
Root ID
Priority 10
Address 00:02:c9:96:c6:d0
This bridge is the root
Hello Time 2 sec Max Age 20 sec Forward Delay 15 sec
Bridge ID
Priority 10
Address 00:02:c9:96:c6:d0
Hello Time 2 sec Max Age 20 sec Forward Delay 15 sec
L - Loop Inconsistent
Interface Role Sts Cost Prio Type
---- ---- ----- ---- ---- ----
Mpo21 Designated Forwarding 500 128 normal
Mpo20 Back Up Discarding 500 128 normal
switch (config) #
Related Commands clear spanning-tree counters
spanning-tree
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 671
5.10 OpenFlow
MLNX-OS supports OpenFlow 1.0 (on SwitchX®) and 1.3 (on Spectrum™). OpenFlow is a net-
work protocol that facilitates direct communication between network systems via Ethernet. Soft-
ware Defined Networks (SDN) allows a centralist management of network equipment.
OpenFlow allows the SDN controller to manage SDN equipment. The OpenFlow protocol allows
communication between the OpenFlow controller and OpenFlow agent.
OpenFlow is useful to manage switches and allow applications running on the OpenFlow con-
troller to have access to the switch’s data path and provide functionality such as flow steering,
security enhancement, traffic monitoring and more.
The OpenFlow controller communicates with the OpenFlow switch over secured channel using
OpenFlow protocol.
An OpenFlow switch contains a flow table which contains flows inserted by the OpenFlow con-
troller. And the OpenFlow switch performs packet lookup and forwarding according to those
rules.
Mellanox OpenFlow switch implementation is based on the hybrid model, allowing the coexis-
tence of an OpenFlow pipeline and a normal pipeline. In this model, a packet is forwarded
according to OpenFlow configuration, if such configuration is matched with the packet parame-
ters. Otherwise, the packet is handled by the normal (regular forwarding/routing) pipeline.
The OpenFlow specification defines:
“OpenFlow-hybrid switches support both OpenFlow operation and normal Ethernet switch-
ing operation, i.e. traditional L2 Ethernet switching, VLAN isolation, L3 routing (IPv4 rout-
ing, IPv6 routing...), ACL and QoS processing. Those switches must provide a classification
mechanism outside of OpenFlow that routes traffic to either the OpenFlow pipeline or the
normal pipeline. For example, a switch may use the VLAN tag or input port of the packet to
decide whether to process the packet using one pipeline or the other, or it may direct all pack-
ets to the OpenFlow pipeline.”
Utilizing the built-in capabilities of the hybrid switch/router is the main benefit of the hybrid
mode. It increases network performance and efficiency – faster processing of new flows as well
as lower load on the controllers. The hybrid switch processes non-OpenFlow data through its
local management plane and achieve better efficiency and use of resources, compared to the pure
OpenFlow switch.
5.10.1 Flow Table
The flow table contains flows which are used to perform packet lookup, modification and for-
warding. Each flow has a 12 tuple key. The key is used in order to classify a packet into a certain
flow. The key contains the flowing fields: ingress port, source MAC, destination MAC, Ether-
Type, VLAN ID, PCP, source IP, destination IP, IP protocol, IP ToS bits, TCP/UDP source port
and TCP/UDP destination port.
The flow key can have a specific value for each field or wildcard which signals to the switch to
ignore this part of the key.
Each packet passes through the flow table once a match is found; the switch performs the actions
configured to the specific flow by the OpenFlow controller.
Upkeeping a flow table enables the switch to forward incoming traffic with a simple lookup on
its flow table entries. OpenFlow switches perform a check for matching entries on, or ignore
using a wildcard, specific fields of the ingress traffic. If the entry exists, the switch performs the
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 672
action associated with that flow entry. Packets without a flow entry match are forwarded accord-
ing to the normal pipeline (hybrid switch).
Every flow entry contains one of the following parameters:
1. Header fields for matching purposes with each entry containing a specific value or a wildcard
which could match all entries.
2. Matching packet counters which are useful for statistical purposes, in order to keep track of
the number of packets.
3. Actions which specify the manner in which to handle the packets of a flow which can be any
of the following:
a. Forwarding the packet
b. Dropping the packet
c. Forwarding the packet to the OpenFlow controller
d. Modifying the VLAN, VLAN priority (PCP), and/or stripping the VLAN header
5.10.2 OpenFlow 1.3 Spec Support
OpenFlow 1.3 is supported according to the OpenFlow Switch Specification v1.3.5. OpenFlow
1.3 supports 252 tables as detailed in the following:
• Tables 0-249 are the ACL tables
• Table 250 is the FDB table
• Table 251 is the ROUTER (to reach the router table, a goto table rule must be present in one
of the ACL tables)
Figure 21: OpenFlow 1.3 Pipeline
The flow table on SwitchX® supports up to 1000 flows.
OpenFlow 1.3 has been tested on ONOS, Spirent, and IXIA.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 673
The default switch mode is secured, so that if the controller disconnects, the rules are not flushed.
5.10.2.1 ACL Tables (0-249)
There are 250 OpenFlow ACL tables (0-249) that use the HW ACL engine whose cumulative
number of rules may be up to 6K.
Supported ACL Instructions
• OFPIT_APPLY_ACTIONS – apply_actions
• OFPIT_GOTO_TABLE – goto_table
• OFPIT_METER – meter
• OFPIT_WRITE_METADATA – write meta-data with mask <METADATA>/0xFFF
• OFPIT_EXPERIMENTE – goto to a specific controller
• DROP
Supported ACL Apply Actions
• OFPAT_OUTPUT – output (may be controller port)
• OFPAT_GROUP – group
• OFPAT_POP_VLAN – strip_vlan
• OFPAT_PUSH_VLAN – push_vlan
• OFPAT_SET_NW_TT – mod_nw_ttl
• OFPAT_DEC_NW_TTL – dec_ttl
• OFPAT_SET_FIELD – set_queue
Supported ACL Set Fields
• OXM_OF_ETH_SRC – eth_src
• OXM_OF_ETH_DST – eth_dst
• OXM_OF_VLAN_VID – vlan_vid
• OXM_OF_VLAN_PCP – vlan_pcp
• OXM_OF_IP_DSCP – ip_dscp
• OXM_OF_IP_ECN – nw_ecn
Supported ACL Matching Rules
• OXM_OF_METADATA – metadata: Arbitrary mask
• OXM_OF_IN_PORT – in_port: Exact match or wildcard
• OXM_OF_ETH_SRC – eth_src: Arbitrary mask
• OXM_OF_ETH_DST – eth_dst: Arbitrary mask
• OXM_OF_ETH_TYPE – eth_type: Exact match or wildcard
• OXM_OF_VLAN_VID – vlan_tci: Arbitrary mask
• OXM_OF_VLAN_PCP
• OXM_OF_IPV4_SRC – ip_src: Arbitrary mask
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 674
• OXM_OF_IPV4_DST – ip_dst: Arbitrary mask
• OXM_OF_IP_PROTO – nw_proto: Exact match or wildcard
• OXM_OF_IP_DSCP – ip_dscp: Exact match or wildcard
• OXM_OF_IP_ECN – nw_ecn: Exact match or wildcard
• nw_ttl: exact match or wildcard
• OXM_OF_TCP_SRC – tcp_src: Arbitrary mask
• OXM_OF_TCP_DST – tcp_dst: Arbitrary mask
• OXM_OF_UDP_SRC – udp_src: Arbitrary mask
• OXM_OF_UDP_DST – udp_dst: Arbitrary mask
• OXM_OF_SCTP_SRC
• OXM_OF_SCTP_DST
• OXM_OF_ICMPV4_TYPE
• OXM_OF_ICMPV4_CODE
• OXM_OF_ARP_OP
• OXM_OF_ARP_SPA
• OXM_OF_ARP_TPA
Supported ACL Meters
• ACL tables support up to 968 with 1 band per meter
• Only the rate or the burst_size fields can be modified using OFPMC_MODIFY
• Valid meter_id range: 1-969
• Meter type can be OFPMF_KBPS or OFPMF_PKTPS but not both
• Both OFPMF_KBPS and OFPMF_PKTPS support OFPMF_BURST
• There are no statistics for meters
Meter actions:
• OFPMBT_DROP
Meter flags:
• OFPMF_KBPS
• OFPMF_PKTPS
• OFPMF_BURST
Supported ACL Groups
• ACL tables support OFPAT_GROUP
• Only group type OFPGT_ALL is supported
• Total number of buckets is 64
• Bucket action can only be OFPAT_OUTPUT
• Controller can modify group using OFPGC_MODIFY, with the aforementioned restrictions
• The switch allows creating an invalid group but fails on the rule action
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 675
5.10.2.2 FDB Table (250)
The FDB table is the same one shared with regular MLNX-OS® configuration (e.g. learning,
static macs, etc). The cumulative number of supported FDB rules is 88K. FDB may only config-
ure rules with priority of 0x8000. Hard timeout is supported for FDB table rules. FDB rules can-
not have wildcard on VID/ETH_DST. The default action for the FDB table is NORMAL.
Note that statistics rules are not supported.
Supported FDB Instructions
• OFPIT_APPLY_ACTIONS – apply_actions
Supported FDB Apply Actions
• OFPAT_OUTPUT (output can be controller port)
• DROP
Supported FDB Matching Rules
• OXM_OF_VLAN_VID
• OXM_OF_ETH_DST
5.10.2.3 Router Table (251)
The cumulative number of supported router rules is 88K. Hard timeout is supported for router
table rules. Switch systems ignore rule priority and configure rules according to masklen in DST
IPv4/IPv6 match. A rule with action output must have SET_FIELD with ETH_DST and
DEC_NW_TTL. The default action for the router table is DROP.
Set DMAC can be assigned only to one output port. When a new rule with a set DMAC and a
new output port is configured, the previous rules are removed from the HW. Later, if the new
configuration is deleted, the previous rules get reinstalled in HW.
Note that all sent packets from the Router Table are without a VLAN header (untagged).
Note also that statistics rules are not supported.
Supported Router Instructions
• OFPIT_APPLY_ACTIONS – apply_actions
• DROP
Supported Router Apply Actions
• OFPAT_OUTPUT – output (may be controller port)
• OFPAT_DEC_NW_TTL – dec_ttl
Supported Router Set Fields
• OXM_OF_ETH_DST
Supported Router Matching Rules
• OXM_OF_IPV4_DST
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 676
• OXM_OF_IPV6_DST
5.10.3 Configuring OpenFlow
To run OpenFlow on a switch:
Step 1. Unlock the OpenFlow CLI commands. Run:
Step 2. Configure interfaces to be managed by OpenFlow. Run:
Step 3. Configure the OpenFlow controller IP and TCP port. Run:
Step 4. (Optional) Verify the OpenFlow configuration. Run:
5.10.4 Configuring Secure Connection to OpenFlow
Since OpenFlow requires a certificate signed by the certificate authority (CA), the default certifi-
cate, which is self-signed, must be replaced.
Changing default certificate for secure OpenFlow connection:
Step 1. Import the certificate to be used. Run:
switch (config) # protocol openflow
switch (config) # interface ethernet 1/1-1/4 openflow mode hybrid
switch (config) # openflow controller-ip 10.209.0.205 tcp-port 6633
Spectrum based systems do not support a different controller port other than the default
(6633).
switch (config) # show openflow
OpenFlow version: OF VERSION 1.0
Table size: 1000, 0 in use
Active controller ip: 10.209.0.205 port: 6633
Connection status: HANDSHAKE_COMPLETE (CONNECTED)
Forward-to-controller: ospf lldp arp-unicast arp-broadcast (all)
Enabled ports: Eth1/1 Eth1/2 Eth1/3 Eth1/4
switch (config) #
To be able to configure the switch using the controller, you should see the following line
in the output:
Connection status must be: HANDSHAKE_COMPLETE (CONNECTED).
switch (config) # crypto certificate name my-openflow public-cert pem "-----BEGIN CERTIF-
ICATE-----
> MIIDYzCCAksCCQC9EPbMuxjNBzANBgkqhkiG9w0BAQsFADBeMQswCQYDVQQGEwJJ
...
> fEt2ui9taB1dl9480xDsGUxwUDX4YOs/bQDjp99z+cKXUe2eYzeEwnTdrCzPZuQo
> -----END CERTIFICATE-----"
Successfully installed certificate with name 'my-openflow'
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 677
Step 2. Import key of certificate. Run:
Step 3. Designate “my-openflow” as the global default certificate for authentication of this system to
clients. Run:
Step 4. Import the CA certificate which signed for the controller. Run:
Step 5. Adds the “rootCA” to the default CA certificate list. Run:
Step 6. Save configuration. Run:
Step 7. Reboot the switch. Run:
Step 8. Verify configuration. Run:
switch (config) # crypto certificate name my-openflow private-key pem "-----BEGIN RSA
PRIVATE KEY-----
> MIIEpAIBAAKCAQEAypJnZkwbhmt71Kf/MO6cy7QmWWHhCozzWRwuWGKse+MxSmfC
...
> QAuPOVR1lSyIEnYU+X0rMHc/9tgUh/8C7mBKwj7dccMmnRWz2djsjg==
> -----END RSA PRIVATE KEY-----"
switch (config) # crypto certificate default-cert name my-openflow
switch (config) # # crypto certificate name rootCA public-cert pem "-----BEGIN CERTIFI-
CATE-----
> MIIDjzCCAnegAwIBAgIJALVou4mcQtxlMA0GCSqGSIb3DQEBCwUAMF4xCzAJBgNV
...
> +ZfQIOCFS8gY4BDq73W4ugr38mqIA8UXXAMPwgjCbk4NyOh0rJ1P6WT8fYzvunct
> -----END CERTIFICATE-----"
Successfully installed certificate with name 'rootCA'
switch (config) # crypto certificate ca-list default-ca-list name rootCA
switch (config) # configuration write
switch (config) # reload
switch (config) # show crypto certificate
Certificate with name 'system-self-signed'
Comment: system-generated self-signed certificate
Private Key: present
Serial Number: 0x543e2efc3a5ecdbe18b5b5e744598424
SHA-1 Fingerprint: 14e1d36035c7a5fea9f7f0f423572c9954cb9fac
Validity:
Starts: 2016/09/12 12:44:10
Expires: 2017/09/12 12:44:10
Subject:
Common Name: switch
Country: IS
State or Province: TBD
Locality: TBD
Organization: TBD
Organizational Unit: TBD
E-mail Address: TBD
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 678
Issuer:
Common Name: switch
Country: IS
State or Province: TBD
Locality: TBD
Organization: TBD
Organizational Unit: TBD
E-mail Address: TBD
Certificate with name 'my-openflow' (default-cert)
Private Key: present
Serial Number: 0xbd10f6ccbb18cd07
SHA-1 Fingerprint: 1e0e3302182ab56f2cbd3ca21722dec55299d670
Validity:
Starts: 2016/09/12 15:16:48
Expires: 2018/01/25 14:16:48
Subject:
Common Name: switch
Country: *
State or Province: Some-State
Locality: *
Organization: Mlnx
Organizational Unit: e2e
E-mail Address: none@nowhere.com
Issuer:
Common Name: ca
Country: *
State or Province: Some-State
Locality: *
Organization: Mlnx
Organizational Unit: e2e
Certificate with name 'rootCA'
Private Key: not present
Serial Number: 0xb568bb899c42dc65
SHA-1 Fingerprint: 9855536f6ee0177356ffbdc54ffe803bc83fb4c6
Validity:
Starts: 2016/09/08 10:34:23
Expires: 2019/06/29 10:34:23
Subject:
Common Name: ca
Country: *
State or Province: Some-State
Locality: *
Organization: Mlnx
Organizational Unit: e2e
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 679
Step 9. Configure secure controller IP connection. Run:
Issuer:
Common Name: ca
Country: *
State or Province: Some-State
Locality: *
Organization: Mlnx
Organizational Unit: e2e
switch (config) # controller-ip 10.10.10.10 tls
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 680
5.10.5 Commands
Unhides the OpenFlow commands.
The no form of the command hides the OpenFlow commands.
N/A
no protocol openflow
Config
3.3.4200
admin
switch (config) # protocol openflow
switch (config) #
protocol openflow
protocol openflow
no protocol openflow
Syntax Description
Default
Configuration Mode
History
Role
Example
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 681
openflow description (SwitchX)
openflow description <string>
Sets the OpenFlow description.
Syntax Description string Free string.
Default N/A
Configuration Mode Config
History 3.3.4302
3.6.1002 Updated Note
Role admin
Example switch (config) # openflow description OF-switch-104
switch (config) # show openflow detail
OpenFlow version: OF VERSION 1.0
Table size: 1000, 0 in use
Active controller ip: 10.209.1.39 port: 6633
Connection status: HANDSHAKE_COMPLETE (CONNECTED)
Forward-to-controller: ospf lldp arp-unicast arp-broadcast (all)
Enabled ports: Eth1/10 Eth1/11 Eth1/13 Eth1/19
Echo period: 10 sec
Keep alive period: 30 sec
Messages in (last session): 86290
Messages out (last session): 47984
Disconnect count: 0
Openflow description: OF-switch-104
Datapath ID: 00:00:00:02:c9:a8:e3:50
Not supporting buffering
Not supporting emergency flows
Not supporting port statistics
Not supporting IP reassemble
Supporting spanning tree
Not supporting queue statistics
switch (config) #
Related Commands
Note Not supported on Spectrum based switch systems
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 682
openflow mode hybrid
openflow mode hybrid
no openflow mode
Enables OpenFlow on the port.
The no form of the command returns the port to its default state.
Syntax Description N/A
Default no openflow mode
Configuration Mode Config Interface Ethernet
History 3.3.4200
3.6.2100 Updated Note section
Role admin
Example switch (config interface etherent 1/1)# openflow mode hybrid
switch (config interface etherent 1/1)#
Related Commands
Note On Spectrum based systems, it is possible to run “interface port-channel <port num-
ber> openflow mode hybrid”
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 683
controller-ip (Spectrum)
openflow controller-ip <ip-address> [tls] [tcp-port <tcp-port>]
no openflow controller-ip <ip-address>
Sets the OpenFlow controller’s IP & TCP port.
The no form of the command sets the parameter to its default.
Syntax Description ip-address The IPv4 address of the OpenFlow controller
tls Configures secure connection to OpenFlow controller
tcp-port Sets the TCP port number of the OpenFlow controller
Default TCP port 6633
Configuration Mode Config OpenFlow
History 3.6.1002
3.6.2002 Added “tls” parameter
Role admin
Example switch (config openflow) # controller-ip 10.10.10.10 tls tcp-port 6633
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 684
controller-ip (SwitchX)
openflow controller-ip <ip-address> [tcp-port <tcp-port>]
no openflow controller-ip [tcp-port <tcp-port>]
Sets the OpenFlow controller’s IP & TCP port.
The no form of the command sets the parameter to its default.
Syntax Description ip-address The IPv4 address of the OpenFlow controller
tcp-port Sets the TCP port number of the OpenFlow controller
Default TCP port 6633
Configuration Mode Config OpenFlow
History 3.3.4200
Role admin
Example switch (config openflow) # controller-ip 10.10.10.10 tcp-port 6633
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 685
datapath-id
datapath-id <value>
no datapath-id
Sets a specific identifier for the switch with which the controller is communicating.
The no form of the command resets the parameter to its default value.
Syntax Description value The most significant 16 bits of the agent data-path ID.
Range is 0x0000-0xFFFF in hexa.
Default 0x0000
Configuration Mode Config OpenFlow
History 3.3.4200
Role admin
Example switch (config openflow) # datapath-id 0x1234
switch (config openflow) #
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 686
forward-to-controller (SwitchX)
forward-to-controller {[ospf] [lldp] [arp-unicast] [arp-broadcast] all | none}
Forwards the selected traffic types to the controller from all the ports on which Open-
Flow enabled.
Syntax Description ospf Forwards OSPF traffic to the controller
lldp Forwards LLDP traffic to the controller
arp-unicast Forwards ARP-unicast traffic to the controller
arp-broadcast Forwards ARP-broadcast traffic to the controller
all Forwards all traffic types to the controller
none Forwards no traffic to the controller
Default None
Configuration Mode Config OpenFlow
History 3.3.4200
Role admin
Example switch (config openflow) # forward-to-controller all
switch (config openflow) #
Related Commands
Note This command is not relevant to Spectrum based switch systems
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 687
show openflow
show openflow
Displays general information about the OpenFlow protocol configuration.
Syntax Description N/A
Default None
Configuration Mode Any Command Mode
History 3.3.4200
3.3.4302 Removed flow-id parameter
3.6.1002 Updated Example
Role admin
Example switch (config) # show openflow
OpenFlow Version: OpenFlow 1.3
Datapath ID: ffff7cfe90e600c0
Controllers Information:
Controller State Role Changed (sec) Last Error
----------- ----- ---- ------------- ----------
tcp:1.1.1.1:6633 BACKOFF other 3 Connection timed out
tcp:10.10.10.10:6633 ACTIVE other 2067 N/A
tcp:10.10.10.30:6633 ACTIVE other 2067 N/A
Mapping of OpenFlow ports to their OpenFlow numbers:
Interface OF-Port
--------- -------
Eth1/12 OF107
Eth1/9 OF109
Eth1/10 OF111
Eth1/7 OF113
Eth1/8 OF115
Eth1/3 OF121
Eth1/4 OF123
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 688
show openflow detail (SwitchX)
show openflow detail
Displays detailed information about the OpenFlow protocol.
Syntax Description N/A
Default None
Configuration Mode Any Command Mode
History 3.3.4200
3.6.1002 Updated Example
Role admin
Example switch (config) # show openflow detail
Echo period: 0 sec
Keep alive period: 0 sec
Messages in (last session): 0
Messages out (last session): 0
Disconnect count: 0
Openflow description:
Datapath ID: 02:10:e4:52:14:5d:76:70
Not supporting buffering
Not supporting emergency flows
Not supporting port statistics
Not supporting IP reassemble
Supporting spanning tree
Not supporting queue statistics
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 689
show openflow flows
show openflow flows
Displays information about the OpenFlow flows.
Syntax Description N/A
Default None
Configuration Mode Any Command Mode
History 3.3.4302
3.6.1002 Updated Example
Role admin
Example switch (config) # show openflow flows
OFPST_FLOW reply (OF1.3) (xid=0x2):
cookie=0x0, duration=467.993s, table=0, n_packets=0, n_bytes=0, send_flow_rem priority=8,in_port=125 actions=output:123
cookie=0x0, duration=439.218s, table=0, n_packets=0, n_bytes=0, send_flow_rem priority=9999,in_port=125 actions=output:123
cookie=0x0, duration=467.984s, table=0, n_packets=0, n_bytes=0, send_flow_rem priority=1000 actions=drop
cookie=0x0, duration=467.975s, table=0, n_packets=0, n_bytes=0, send_flow_rem priority=200,dl_vlan=222 actions=pop_vlan,output:123
cookie=0x0, duration=467.987s, table=0, n_packets=0, n_bytes=0, send_flow_rem priority=10,dl_vlan=10 actions=output:123
cookie=0x0, duration=468.013s, table=0, n_packets=0, n_bytes=0, send_flow_rem priority=8,dl_dst=01:01:01:01:01:01 actions=output:123
cookie=0x0, duration=467.991s, table=0, n_packets=0, n_bytes=0, send_flow_rem priority=8,dl_src=01:01:01:01:01:01 actions=output:123
cookie=0x0, duration=467.992s, table=0, n_packets=0, n_bytes=0, send_flow_rem priority=5,arp actions=output:123
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 690
show openflow statistics (SwitchX)
show openflow statistics
Displays information about the OpenFlow flows.
Syntax Description N/A
Default None
Configuration Mode Any Command Mode
History 3.3.4302
3.6.1002 Updated Example
Role admin
Example switch (config) # show openflow statistics
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 691
show openflow tables (SwitchX)
show openflow tables
Displays information about the OpenFlow tables (size, type, etc.).
Syntax Description N/A
Default None
Configuration Mode Any Command Mode
History 3.3.4200
3.6.1002 Added Example
Role admin
Example switch (config) # show openflow tables
Table id: 0
Maximum table size: 1000, 0 in use
Key: 12 tuple ACL
Supported actions: Modify VID, Mofify PCP, Strip VID
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 692
show openflow
show openflow [detail | tables | flows <id>]
Displays general information about the OpenFlow protocol configuration.
Syntax Description detail Displays detailed information about the OpenFlow pro-
tocol.
tables Displays information about the OpenFlow tables (size,
type, etc.).
flows <id> Displays specific flows inside the OpenFlow tables. ID
may be a range (e.g. 1-10).
statistics Displays OpenFlow statistics.
Default None
Configuration Mode Any Command Mode
History 3.3.4200
3.3.4302 Removed flow-id parameter
Added “flows” and “statistics” parameters
Role admin
Example switch (config) # show openflow flows
OFPST_FLOW reply (OF1.3) (xid=0x2):
cookie=0x0, duration=467.993s, table=0, n_packets=0, n_bytes=0, send_flow_rem priority=8,in_port=125 actions=output:123
cookie=0x0, duration=439.218s, table=0, n_packets=0, n_bytes=0, send_flow_rem priority=9999,in_port=125 actions=output:123
cookie=0x0, duration=467.975s, table=0, n_packets=0, n_bytes=0, send_flow_rem priority=10,in_port=125 actions=push_vlan:0x8100,set_field:4111->vlan_vid,output:123
cookie=0x0, duration=467.984s, table=0, n_packets=0, n_bytes=0, send_flow_rem priority=1000 actions=drop
cookie=0x0, duration=467.975s, table=0, n_packets=0, n_bytes=0, send_flow_rem priority=200,dl_vlan=222 actions=pop_vlan,output:123
cookie=0x0, duration=467.978s, table=0, n_packets=0, n_bytes=0, send_flow_rem priority=100,dl_vlan=10 actions=set_field:7->vlan_pcp,output:123
cookie=0x0, duration=467.980s, table=0, n_packets=0, n_bytes=0, send_flow_rem priority=12,dl_vlan=10 actions=set_field:4111->vlan_vid,output:123
cookie=0x0, duration=467.987s, table=0, n_packets=0, n_bytes=0, send_flow_rem priority=10,dl_vlan=10 actions=output:123
cookie=0x0, duration=468.013s, table=0, n_packets=0, n_bytes=0, send_flow_rem priority=8,dl_dst=01:01:01:01:01:01 actions=output:123
cookie=0x0, duration=467.991s, table=0, n_packets=0, n_bytes=0, send_flow_rem priority=8,dl_src=01:01:01:01:01:01 actions=output:123
cookie=0x0, duration=467.992s, table=0, n_packets=0, n_bytes=0, send_flow_rem priority=5,arp actions=output:123
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 693
5.11 IGMP Snooping
The Internet Group Multicast Protocol (IGMP) is a communications protocol used by hosts and
adjacent routers on IP networks to establish multicast group memberships. The host joins a mul-
ticast-group by sending a join request message towards the network router, and responds to que-
ries sent from the network router by dispatching a join report.
A given port can be either manually configured to be a router-port or it can be dynamically man-
ifested when having received a query, hence, the network router is connected to this port. All
IGMP Snooping control packets received from hosts (joins/leaves) are forwarded to the router-
port, and the router-port updates its multicast-group data-base accordingly. Each dynamically
learned multicast group will be added to all of the router-ports on the switch.
As many as 5K multicast groups can be created on the switch.
5.11.1 Configuring IGMP Snooping
You can configure IGMP snooping to establish multicast group memberships.
To configure IGMP snooping:
Step 1. Log in as admin.
Step 2. Enter config mode. Run:
Step 3. Enable IGMP snooping globally. Run:
Step 4. Enable IGMP snooping on a VLAN. Run:
5.11.2 Defining a Multicast Router Port on a VLAN
You can define a Multicast Router (MRouter) port on a VLAN in one of the following methods:
To change the interface switchport to trunk:
Step 1. Log in as admin.
Step 2. Enter config mode. Run:
Step 3. Enable IGMP snooping globally. Run:
While IGMPv3 is supported on SwitchX®, the source is not considered. So a “join” to a
group from a specific source (S,G) is treated as a join to the group from all sources
(*,G).
switch > enable
switch # configure terminal
switch (config) # ip igmp snooping
switch (config) #
switch (config) # vlan 2
switch (config vlan 2) # ip igmp snooping
switch > enable
switch # configure terminal
switch (config) # ip igmp snooping
switch (config) #
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 694
Step 4. Change the interface switchport mode of the port (the interface is member of VLAN 1 by
default). Run:
Step 5. Change back to config mode. Run:
Step 6. Define the MRouter port on the VLAN. Run:
To change the interface switchport to hybrid:
Step 1. Log in as admin.
Step 2. Enter config mode. Run:
Step 3. Enable IGMP snooping globally. Run:
Step 4. Create a VLAN. Run:
Step 5. Change back to config mode. Run:
Step 6. Change the interface switchport mode of the port (the interface is member of VLAN 1 by
default). Run:
Step 7. Attach the VLAN to the port’s interface. Run:
Step 8. Change to config mode again. Run:
Step 9. Define the MRouter port on the VLAN. Run:
switch (config) # interface ethernet 1/1
switch (config interface ethernet 1/1) # switchport mode trunk
switch (config interface ethernet 1/1) # exit
switch (config) #
switch (config) # vlan 2
switch (config vlan 2) # ip igmp snooping mrouter interface ethernet 1/1
switch (config vlan 2) #
switch > enable
switch # configure terminal
switch (config) # ip igmp snooping
switch (config) #
switch (config) # vlan 200
switch (config vlan 200) #
switch (config vlan 200) # exit
switch (config) #
switch (config) # interface ethernet 1/36
switch (config interface ethernet 1/36) # switchport mode hybrid
switch (config interface ethernet 1/36) # switchport mode hybrid allowed-vlan 200
switch (config interface ethernet 1/36) #
switch (config interface ethernet 1/36) # exit
switch (config) #
switch (config) # vlan 200
switch (config vlan 200) # ip igmp mrouter interface ethernet 1/36
switch (config vlan 200) #
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 695
5.11.3 IGMP Snooping Querier
IGMP Snooping Querier compliments the IGMP snooping functionality. IGMP Snooping Que-
rier is used to support IGMP snooping in a VLAN where PIM and IGMP are not configured
because the multicast traffic does not need to be routed. When IGMP Snooping Querier is
enabled, IGMP queries are sent out periodically by the switch through all ports in the VLAN and
to which hosts wishing to receive IP multicast traffic respond with IGMP report messages. IGMP
Snooping Querier must be used in conjunction with IGMP snooping as IGMP snooping listens to
these IGMP reports to establish appropriate forwarding.
To configure IGMP Snooping Querier:
Step 1. Enable the IGMP snooping on the switch. Run:
Step 2. Enable the IGMP snooping querier on a specific VLAN. Run:
Step 3. Set the query interval time. Run:
Step 4. (Optional) Verify the IGMP snooping querier configuration. Run:
switch (config) # ip igmp snooping
switch (config) # vlan 10
switch (config vlan 10)# ip igmp snooping querier
switch (config vlan 10)# igmp snooping querier query-interval 25
switch (config vlan 10)# show ip igmp snooping querier
Snooping querier information for VLAN 10
IGMP Querier Present
Querier IP address: 1.1.1.2
Query interval: 125
Response interval: 100
Group membership interval: 1
Robustness: 2
Version: 2
switch (config vlan 10)#
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 696
5.11.4 Commands
Enables IGMP snooping globally or per VLAN.
The no form of the command disables IGMP snooping globally or per VLAN.
N/A
IGMP snooping is disabled, globally and per VLAN.
Config
Config VLAN
3.1.1400
admin
switch (config) # ip igmp snooping
switch (config) # vlan 10
switch (config vlan 10) # ip igmp snooping
show ip igmp snooping
IGMP snooping has global admin state, and per VLAN admin state. Both states need
to be enabled in order to enable the IGMP snooping on a specific VLAN.
ip igmp snooping (admin)
ip igmp snooping
no ip igmp snooping
Syntax Description
Default
Configuration Mode
History
Role
Example
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 697
ip igmp snooping (config)
ip igmp snooping {last-member-query-interval <1-25> | proxy reporting
mrouter-timeout <60-600> | port-purge-timeout <130-1225> | report-suppres-
sion-interval <1-25>}
no ip igmp snooping {last-member-query-interval | proxy reporting | mrouter-
timeout | report-suppression-interval}
Configures IGMP global parameters.
The no form of the command resets the IGMP global parameters to default.
Syntax Description last-member-query-inter-
val <1-25> Sets the time period (in seconds) with which the gen-
eral queries are sent by the IGMP quarrier. After time-
out expiration the port will be removed from the
multicast group.
proxy reporting Enables proxy reporting
mrouter-timeout <60-
600> Sets the IGMP snooping router port purge time-out
after which the port gets deleted if no IGMP router con-
trol packets are received.
The default value is 125 seconds.
port-purge-timeout <130-
1225> Sets the IGMP snooping port purge time interval after
which the port gets deleted if no IGMP reports are
received.
report-suppression-inter-
val <1-25> Sets the IGMP snooping report-suppression time inter-
val for which the IGMPv2 report messages for the same
group will not get forwarded onto the router ports.
The default value is 5 seconds.
Default last-member-query-interval – 1 second
proxy reporting is disabled
mrouter-timout – 125
port-purge-timeout – 260 seconds
report-suppression-interval – 5 seconds
Configuration Mode Config
History 3.1.1400
Role admin
Example switch (config) # ip igmp snooping report-suppression-interval 3
Related Commands ip igmp snooping (admin)
show ip igmp snooping
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 698
ip igmp snooping clear counters
ip igmp snooping clear counters [vlan <vlan-id>]
Clears IGMP snooping counters.
Syntax Description vlan Clears IGMP snooping counters per VLAN
Default N/A
Configuration Mode Config
History 3.6.1002
Role admin
Example switch (config) # ip igmp snooping clear counters vlan 2
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 699
ip igmp snooping fast-leave
ip igmp snooping fast-leave
no ip igmp snooping fast-leave
Enables fast leave processing on a specific interface.
The no form of the command disables fast leave processing on a specific interface.
Syntax Description N/A
Default Normal-leave is enabled.
Configuration Mode Config Interface Ethernet
Config Interface Port Channel
Config Interface MLAG Port Channel
History 3.1.1400
3.3.4500 Added MLAG port-channel configuration mode
Role admin
Example switch (config interface ethernet 1/1) # ip igmp snooping fast-leave
Related Commands show ip igmp snooping interfaces
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 700
ip igmp snooping mrouter
ip igmp snooping mrouter interface <type> <number>
no ip igmp snooping mrouter interface <type> <number>
Creates a static multicast router port on a specific VLAN, on a specific interface.
The no form of the command removes the static multicast router port from a specific
VLAN.
Syntax Description interface <type> <num-
ber> Attaches the group to a specific interface.
type - ethernet or port-channel.
Default No static mrouters are configured.
Configuration Mode Config VLAN
History 3.1.1400
Role admin
Example switch (config)# vlan 1
switch (config vlan 1) # ip igmp snooping mrouter interface ethernet 1/1
Related Commands show ip igmp snooping mrouter
Note The multicast router port can be created only if IGMP snooping is enabled both glob-
ally and on the VLAN.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 701
ip igmp snooping static-group
ip igmp snooping static-group <IP address> interface <type> <number> [source
<source-IP>]
no ip igmp snooping static-group <IP address> interface <type> <number>
[source <source-IP>]
Creates a specified static multicast group for specified ports and from a specified
source IP address.
The no form of the command deletes the interface from the multicast group.
Syntax Description IP address Multicast IP address <224.x.x.x - 239.255.255.255>
interface Attach the group to a specific interface
type Ethernet or port-channel
source Source IP address
If omitted, a multicast group is created for all sources
Default No static groups are configured.
Configuration Mode Config VLAN
History 3.1.1400
3.6.2100 Added “source” parameter
Role admin
Example switch (config vlan 1) # ip igmp snooping static-group 230.0.0.1 inter-
face ethernet 1/1
Related Commands show ip igmp snooping groups
Note If the deleted interface is the last port, it deletes the entire multicast group.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 702
ip igmp snooping unregistered multicast
ip igmp snooping unregistered multicast <options>
no ip igmp snooping unregistered multicast
Sets the behavior of the snooping switch for unregistered multicast traffic.
The no form of the command sets it default.
Syntax Description options • flood
• forward-to-mrouter-ports
Default flood
Configuration Mode Config
History 3.2.0500
Role admin
Example switch (config) # ip igmp snooping unregisted multicast flood
Related Commands show ip igmp snooping
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 703
ip igmp snooping version
ip igmp snooping version {2 | 3}
Configures the default operating version to be used for newly created IGMP snooping
instances.
Syntax Description 2 Enables IGMPv2
3 Enables IGMPv3
Default 3
Configuration Mode Config
Config VLAN
History 3.6.1002
3.6.2100 Updated default
Role admin
Example switch (config vlan 2)# ip igmp snooping version 3
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 704
ip igmp snooping querier
ip igmp snooping querier
no ip igmp snooping querier
Enables the IGMP Snooping Querier on a VLAN.
The no form of the command disables the IGMP Snooping Querier on a VLAN.
Syntax Description N/A
Default Disable
Configuration Mode Config VLAN
History 3.3.4200
Role admin
Example switch (config vlan 1)# ip igmp snooping querier
switch (config vlan 1)#
Related Commands igmp snooping querier query-interval
show ip igmp snooping querier
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 705
igmp snooping querier query-interval
igmp snooping querier query-interval <time>
no igmp snooping querier query-interval
Configures the query interval.
The no form of the command rests the parameter to its default.
Syntax Description time Time interval between queries (in seconds).
Default 125 seconds
Configuration Mode Config VLAN
History 3.3.4200
Role admin
Example switch (config vlan 1)# igmp snooping querier query-interval 20
switch (config vlan 1)#
Related Commands igmp snooping querier query-interval
show ip igmp snooping querier
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 706
show ip igmp snooping
show ip igmp snooping
Displays IGMP snooping information for all VLANs or a specific VLAN.
Syntax Description N/A
Default N/A
Configuration Mode Any Command Mode
History 3.1.1400
3.6.1002 Added default IGMP version to output
Role admin
Example switch (config) # show ip igmp snooping
IGMP snooping global configuration:
IGMP snooping globally enabled
IGMP default version for new VLAN is V3
IGMP snooping operationally enabled
Proxy-reporting globally disabled
Last member query interval is 1 seconds
Mrouter timeout is 125 seconds
Port purge timeout is 260 seconds
Report suppression interval is 5 seconds
IGMP snooping unregistered multicast: flood
switch (config) #
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 707
show ip igmp snooping groups
show ip igmp snooping groups [vlan <vlan ID> [group <group IP >]]
Displays per VLAN the list of multicast groups attached (static or dynamic allocated)
per port.
Syntax Description N/A
vlan VLAN ID
group Multicast group IP address
Default N/A
Configuration Mode Any Command Mode
History 3.1.1400
3.6.1002 Updated Example
3.6.2100 Added “vlan” and “group” parameters and updated
Example
Role admin
Example switch (config) # show ip igmp snooping groups
Vlan ID Source St/Dyn Ports
-------- ---------- ------- -------
1 12.10.10.1 Dyn Eth1/2
1 12.11.11.2 St Eth1/1
Total Num of Dynamic Group Addresses 1
Total Num of Static Group Addresses 1
switch (config) # show ip igmp snooping groups vlan 1 group 224.5.5.5
Snooping group information for VLAN 1 and group 224.5.5.5
Filter Mode: INCLUDE
Include sources: 1.2.3.4
V1/V2 Receiver Ports:
None
V3 Receiver Ports:
Port Number: Eth1/1
Include sources: 1.2.3.4
Exclude sources: None
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 708
show ip igmp snooping interfaces
show ip igmp snooping interfaces
Displays IGMP snooping interface information.
Syntax Description N/A
Default N/A
Configuration Mode Any Command Mode
History 3.1.1400
Role admin
Example switch (config) # show ip igmp snooping interfaces
interface leave-mode
----------- ------------
1/1 Normal
1/2 Normal
1/3 Normal
1/4 Fast
...
switch (config) #
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 709
show ip igmp snooping membership
show ip igmp snooping membership [vlan <VID> [group <group IP>]]
Displays IGMP snooping querier counters.
Syntax Description vlan Displays IGMP snooping querier counters on specific
VLAN
group Multicast group IP address
Default N/A
Configuration Mode Any Command Mode
History 3.6.2100
Role admin
Example switch (config) # show ip igmp snooping membership vlan 1 group
224.5.5.5
Snooping membership information for VLAN 1 and group 224.5.5.5
Receiver Port: Eth1/1
Attached Host: 10.10.10.1
Version: 3
Mode: Include
Sources: 10.10.10.100
Timeout since the host has been joined: 0:00:02
Expiry timeout: 0:04:18
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 710
show ip igmp snooping mrouter
show ip igmp snooping mrouter
Displays IGMP snooping multicast router information.
Syntax Description N/A
Default N/A
Configuration Mode Any Command Mode
History 3.1.1400
Role admin
Example switch (config) # show ip igmp snooping mrouter
Vlan Ports
-------- ------------
1 Eth1/1(static)
switch (config) #
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 711
show ip igmp snooping querier
show ip igmp snooping querier [vlan <num>]
Displays running IGMP snooping querier configuration on the VLANs.
Syntax Description vlan <num> Displays the IGMP snooping querier configuration run-
ning on the specified VLAN.
Default N/A
Configuration Mode Any Command Mode
History 3.3.4200
3.6.2100 Updated Example
Role admin
Example switch (config) # show ip igmp snooping querier vlan 1
Snooping querier information for VLAN 1
IGMP Querier Present
Querier IP address: 10.10.10.10
Query interval: 125
Response interval: 100
Group membership interval: 1
Robustness: 2
Version: 3
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 712
show ip igmp snooping querier counters
show ip igmp snooping querier counters [vlan <num> [group <group-id>]]
Displays IGMP snooping querier counters.
Syntax Description vlan Displays IGMP snooping querier counters on specific
VLAN
group Multicast group IP address
Default N/A
Configuration Mode Any Command Mode
History 3.6.1002
Role admin
Example switch (config) # show ip igmp snooping querier counters vlan 10
Snooping querier counters for VLAN 10
General queries received: 0
General queries transmitted: 0
Group specific queries received : 0
Group specific queries transmitted : 0
Group source specific queries received : 0
Group source specific queries transmitted : 0
Leave messages received : 0
Leave messages transmitted : 0
V1/V2 reports received : 0
V1/V2 reports transmitted : 0
V3 reports received: 0
V3 reports transmitted: 0
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 713
show ip igmp snooping statistics
show ip igmp snooping statistics
Displays IGMP snooping statistical counters.
Syntax Description N/A
Default N/A
Configuration Mode Any Command Mode
History 3.1.1400
3.6.1002 Updated Example
3.6.2100 Updated Example
Role admin
Example switch (config) # show ip igmp snooping statistics
Snooping Statistics for VLAN 3770
General queries received : 3
General queries transmitted: 0
Group specific queries received : 0
Group specific queries transmitted: 0
Group and source specific queries received : 0
Group and source specific queries transmitted: 0
V1/V2 reports received : 0
V1/V2 reports transmitted : 0
Leave messages received : 0
Leave messages transmitted: 0
V3 reports received : 12
V3 reports transmitted : 0
Active Groups count: 2
Dropped packets: 0
Joins: 0
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 714
show ip igmp snooping vlan
show ip igmp snooping vlan {<vlan/vlan-range> | all}
Displays IGMP configuration per VLAN or VLAN range.
Syntax Description vlan/vlan range Displays IGMP VLAN configuration per specific
VLAN or VLAN range.
all Display IGMP VLAN configuration on all VLAN.
Default N/A
Configuration Mode Any Command Mode
History 3.1.1400
Role admin
Example switch (config) # show ip igmp vlan 1
Vlan 1 configuration parameters:
IGMP snooping is enabled
IGMP version is V2
Snooping switch is acting as Non-Querier
mrouter static port list: Eth1/1
mrouter dynamic port list: none
switch (config) #
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 715
5.12 Link Layer Discovery Protocol (LLDP)
The Link Layer Discovery Protocol (LLDP) is a vendor-neutral Link Layer protocol in the Inter-
net Protocol Suite used by network devices for advertising their identity, capabilities, and neigh-
bors on a IEEE 802 LAN. The protocol is formally defined in IEEE 802.1AB.
5.12.1 Configuring LLDP
To configure the LLDP on the switch:
Step 1. Log in as admin.
Step 2. Enter config mode. Run:
Step 3. Enable LLDP globally on the switch. Run:
Step 4. Enable LLDP per interface. Run:
Step 5. Show LLDP local information. Run:
Step 6. Show LLDP remote information. Run:
switch > enable
switch # configure terminal
switch (config) # lldp
switch (config) #
switch (config interface ethernet 1/1) # lldp receive
switch (config interface ethernet 1/1) # lldp transmit
switch (config) # show lldp local
LLDP is Enabled
Local global configuration
Chassis sub type: macAddress (4)
Chassis id: 00:11:22:33:44:55
System Name: "switch-111111"
System Description: my-system-description
Supported capabilities: B
Supported capabilities enabled: B
switch (config)# show lldp interfaces ethernet 1/1 remote
Ethernet 1/1
Remote Index: 1
Remote chassis id: 00:11:22:33:44:55 ; chassis id subtype: mac
Remote port-id: ethenret 1/2; port id subtype: local
Remote port description: ethernet 1/2
Remote system name: remote-system
Remote system description: remote-system-description
Remote system capabilities supported: B ; B
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 716
5.12.2 DCBX
Data Center Bridging (DCB) is an enabler for running the Ethernet network with lossless connec-
tivity using priority-based flow control and enhanced transmission selection. DCBX (exchange)
compliments the DCB implementation by offering a dynamic protocol that communicates DCB
attributes between peering endpoint.
MLNX-OS supports two versions of DCBX TLVs running on top of LLDP:
• DCBX IEEE
• DCBX CEE
By default DCBX IEEE is enabled when LLDP is enabled (LLDP, however, is not enabled by
default).
For more information, please refer to the Mellanox Community at:
https://community.mellanox.com/docs/DOC-2485.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 717
5.12.3 Commands
Enables LLDP globally.
The no form of the command disables the LLDP.
N/A
Disabled
Config
3.2.0300
admin
switch (config)# lldp
switch (config)#
show lldp local
lldp
lldp
no lldp
Syntax Description
Default
Configuration Mode
History
Role
Example
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 718
lldp reinit
lldp reinit <seconds>
no lldp reinit
Sets the delay in seconds from enabling the LLDP on the port until re-initialization
will be attempted.
The no form of the command sets the parameter to default.
Syntax Description seconds 1-10
Default 2
Configuration Mode Config
History 3.2.0300
Role admin
Example switch (config)# lldp reinit 10
switch (config)#
Related Commands show lldp timers
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 719
lldp timer
lldp timer <seconds>
no lldp timer
Sets the LLDP interval at which LLDP frames are transmitted. (lldpMessageTxInter-
val)
The no form of the command sets the parameter to default.
Syntax Description seconds 5-32768
Default 30
Configuration Mode Config
History 3.2.0300
Role admin
Example switch (config)# lldp timer 10
switch (config)#
Related Commands show lldp timers
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 720
lldp tx-delay
lldp tx-delay <seconds>
no lldp tx-delay
Indicates the delay in seconds between successive LLDP frame transmissions
The no form of the command sets the parameter to default.
Syntax Description seconds 1-8192
Default 2
Configuration Mode Config
History 3.2.0300
Role admin
Example switch (config)# lldp tx-delay 10
switch (config)#
Related Commands show lldp timers
Note The recommended value for the tx-delay is set by the following formula:
1 <= lldp tx-delay <= (0.25 * lldp timer)
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 721
lldp tx-hold-multiplier
lldp tx-hold-multiplier <seconds>
no lldp tx-hold-multiplier
The time-to-live value expressed as a multiple of the lldpMessageTxInterval object.
The no form of the command sets the parameter to default.
Syntax Description seconds 1-8192
Default 2
Configuration Mode Config
History 3.2.0300
Role admin
Example switch (config)# lldp tx-hold-multiplier 10
switch (config)#
Related Commands show lldp timers
Note The actual time-to-live value used in LLDP frames, can be expressed by the follow-
ing formula: TTL = min(65535, (lldpMessageTxInterval * lldpMessageTxHoldMul-
tiplier)) For example, if the value of lldpMessageTxInterval is '30', and the value of
lldpMessageTxHoldMultiplier is '4', then the value '120' is encoded in the TTL field
in the LLDP header.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 722
lldp (interface)
lldp {receive | transmit}
no lldp {receive | transmit}
Enables LLDP receive or transmit capabilities.
The no form of the command disables LLDP receive or transmit capabilities.
Syntax Description med-tlv-select Enables LLDP media TLVs
receive Enables LLDP receive on this port
tlv-select Enables LLDP TLVs
transmit Enables LLDP transmit on this port
Default Enabled for receive and trasmit.
Configuration Mode Config Interface Ethernet
History 3.2.0300
Role admin
Example switch (config interface ethernet 1/1)# lldp receive
switch (config interface ethernet 1/1)#
Related Commands show lldp interface
Note The LLDP is disabled by default (globally)
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 723
lldp tlv-select
lldp tlv-select {[dcbx] [dcbx-cee] [port-description] [sys-name] [sys-description]
[sys-capababilities] [management-address] [none] all}
Sets the LLDP basic TLVs to be transmitted on this port.
Syntax Description dcbx Enables LLDP-DCBX TLVs.
dcbx-cee Enables LLDP-DCBX CEE TLVs.
port-description LLDP port description TLV.
sys-name LLDP system name TLV.
sys-description LLDP system description TLV.
sys-capabilities LLDP system capabilities TLV.
management-address LLDP management address TLV.
all all above TLVs.
none None of the above TLVs.
Default all
Configuration Mode Config Interface Ethernet
History 3.2.0300 Initial revision
3.3.0000 Added “none” parameter
3.3.4302 Added “dcbx” parameter
3.3.4402 Added “dcbx-cee” parameter
Role admin
Example switch (config interface ethernet 1/1)# lldp tlv-select port-descrip-
tion sys-name
switch (config interface ethernet 1/1)#
Related Commands show lldp interface
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 724
lldp med-tlv-select
lldp med-tlv-select {all | media-capability | network-policy | none}
Configures LLDP media TLV attributes.
Syntax Description all Enables all LLDP media TLVs
media-capabilities Enables Media Capabilities TLV
network-policy Enables Network-Policy TLV
none Disables all LLDP media TLVs
Default Disabled
Configuration Mode Config Interface Ethernet
History 3.6.1002
Role admin
Example switch (config interface ethernet 1/1)# lldp med-tlv-select all
switch (config interface ethernet 1/1)#
Related Commands show lldp interface
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 725
dcb application-priority
dcb application-priority <selector> <protocol> <priority>
Adds an application to the application priority table.
Syntax Description selector Protocol type: ethertype
protocol Protocol field in hexadecimal notation (e.g. ‘0x8906’
for FCoE, ‘0x8914’ for FIP).
priority Range: 0-7.
Default No applications are available. The table is empty.
Configuration Mode Config
History 3.3.4200
3.4.0008
Role admin
Example switch (config-if)# dcb application-priority ethertype 0x8906
switch (config-if)#
Related Commands show lldp interface
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 726
show lldp local
show lldp local
Shows LLDP local information.
Syntax Description N/A
Default N/A
Configuration Mode Any Command Mode
History 3.2.0300
Role admin
Example switch (config)# show lldp local
LLDP is Enabled
Local global configuration
Chassis sub type: macAddress (4)
Chassis id: 0002C9030046AF00
System Name: my-switch
System Description: SX1036
Supported capabilities: B,R
Supported capabilities enabled: B
switch (config)#
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 727
show lldp interfaces
show lldp interfaces [ethernet <inf> [med-cap | remote]]
Shows LLDP remote interface table information.
Syntax Description inf Local interface number (e.g. 1/1)
med-cap Displays local port media capabilities information
remote Displays LLDP Ethernet remote configuration & status
Default N/A
Configuration Mode Any Command Mode
History 3.2.0300 First version
3.3.4200 Updated Example
3.6.1002 Updated Example
Role admin
Example switch (config)# show lldp interfaces
TLV flags:
PD: port-description, SN: sys-name, SD: sys-description, SC: sys-capabilities, MA:
management-address
ETS-C: ETS-Configuration, ETS-R: ETS-Recommendation, AP: Application Priority, PFC:
Priority Flow Control
CEE: Converged Enhanced Ethernet DCBX version
MED-CAP: Media Capabilities
MED-NWP: MED-Network Policy
Interface Receive Transmit TLVs
--------------------------------------------------------------------------------
Eth1/1 Enabled Enabled PD, SD
Eth1/2 Enabled Enabled PD, SN, SD, SC, MA, PFC, AP, ETS-C, ETS-R
Eth1/3 Disabled Disabled PD, SN, SD, SC, MA, PFC, AP, ETS-C, ETS-R, MED-NWP
Eth1/4 Enabled Enabled PD, SN, SD, SC, MA, PFC, AP, ETS-C, ETS-R,
MED-CAP, MED-NWP
Eth1/5 Enabled Enabled PD, SN, SD, SC, MA, PFC, AP, ETS-C, ETS-R
Eth1/6 Enabled Enabled PD, SN, SD, SC, MA, PFC, AP, ETS-C, ETS-R
Eth1/7 Enabled Enabled PD, SN, SD, SC, MA, PFC, AP, ETS-C, ETS-R
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 728
show lldp timers
show lldp timers
Shows LLDP timers configuration
Syntax Description N/A
Default N/A
Configuration Mode Any Command Mode
History 3.2.0300
Role admin
Example switch (config)# show lldp timers
msg-tx-interval:30
tx-delay:2
tx-hold:4
tx-reinit-delay:2
switch (config)#
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 729
show lldp statistics global
show lldp statistics global
Shows LLDP global statistics
Syntax Description N/A
Default N/A
Configuration Mode Any Command Mode
History 3.2.0300
Role admin
Example switch (config)# show lldp timers
Remote Table Last Change Time : 10300
Remote Table Inserts : 5
Remote Table Deletes : 0
Remote Table Drops : 0
Remote Table Ageouts : 0
switch (config)#
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 730
show lldp statistics [interface ethernet <inf>]
show lldp statistics [interface ethernet <inf>]
Shows LLDP interface statistics
Syntax Description N/A
Default N/A
Configuration Mode Any Command Mode
History 3.2.0300
Role admin
Example switch (config)# show lldp statistics ethernet 1/1
Interface Frames In In TLVs TLVs Ageout Out
Discarded Errors Total Discarded Unrecognize Frames
-----------------------------------------------------------------------
Eth 1/1 0 0 10 0 0 0 0
switch (config)#
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 731
show dcb application-priority
show dcb application-priority
Displays application priority admin table.
Syntax Description N/A
Default N/A
Configuration Mode Any Command Mode
History 3.3.4200
Role admin
Example switch (config)# show dcb application-priority
Application priority configuration
Selector Protocol Priority
------------------------------
Ethertype 0x8906 3
Ethertype 0x8914 3
switch (config)#
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 732
5.13 Quality of Service (QoS)
5.13.1 QoS Classification
QoS classification assigns a QoS class to the packet. The QoS class of the packet is indicated
internally in the switch using the switch-priority parameter (8 possible values).
Switch-priority affects the packet buffering and transmission scheduling. There are 8 possible
values for switch-priority. The classification is based on the PCP and DEI fields in the VLAN
tag, the DSCP field in the IP header. In addition, the default value can be configured for the
incoming port. And the switch-priority of the packet also can be reconfigured by the ACL.
The switch-priority of the packet is used for priority fields re-marking at the egress.
5.13.1.1 Trust Levels
QoS classification depends on the port configuration for QoS trust level which determines which
packet header fields derive the switch-priority. The following trust states are supported:
•Trust port
• Based on port default settings
• Trust L2 (PCP,DEI)
• Based on packet PCP,DEI fields for VLAN tagged packets
• Else, based on the port default setting for VLAN un-tagged packets
• Trust L3 (DSCP)
• Else, based on packet DSCP field for IP packet
• Else, based on port default setting for non-IP
• Trust both
• Else, based on packet DSCP for IP packet
• Else, based on packet PCP,DEI for VLAN tagged packets
• Else, based on the port default setting
Table 48 and figure summarize the classification rules.
Table 48 - Packet Classification Rules
Packet Type QoS Classification Config (per Interface)
IP/MPLS VLAN Trust Both Trust L3 Trust L2 Trust Port
IP/MPLS Tagged DSCP DSCP PCP,DEI Port Default
IP/MPLS Untagged DSCP DSCP Port Default Port Default
non-IP/MPLS Tagged PCP,DEI Port Default PCP,DEI Port Default
non-IP/MPLS Untagged Port Default Port Default Port Default Port Default
Default switch-priority is configured as trust L2.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 733
5.13.1.2 Switch Priority to IEEE Priority Mapping
IEEE defines priority value for a packet which is used in the switch for the pause flow control.
The device maps the switch-priority into IEEE priority value using device global switch priority
to IEEE priority table.
5.13.1.3 Default QoS Configuration
Table 49 - Default QoS Configuration
Parameter Range Configuration
Trust level All ports Trust L2
DSCP to switch-priority 0-7 0
DSCP to switch-priority 8-15 1
DSCP to switch-priority 16-23 2
DSCP to switch-priority 24-31 3
DSCP to switch-priority 32-39 4
DSCP to switch-priority 40-47 5
DSCP to switch-priority 48-55 6
DSCP to switch-priority 56-63 7
PCP to switch-priority 0 0
PCP to switch-priority 1 1
PCP to switch-priority 2 2
PCP to switch-priority 3 3
PCP to switch-priority 4 4
PCP to switch-priority 5 5
PCP to switch-priority 6 6
PCP to switch-priority 7 7
Port PCP,DEI default All ports 0
Port switch-priority when “trust port” is enabled All ports 0
Switch-priority to IEEE priority 0 0
Switch-priority to IEEE priority 1 1
Switch-priority to IEEE priority 2 2
Switch-priority to IEEE priority 3 3
Switch-priority to IEEE priority 4 4
Switch-priority to IEEE priority 5 5
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 734
5.13.2 QoS Rewrite
Spectrum™ based switch systems enables rewriting QoS identifier values (DSCP, PCP, DEI) of
incoming packets.
The configuration for preserving the values or rewriting them is set per ingress port. The config-
uration of the new values is set per egress port and is based on the mapping from the switch-pri-
ority.
In addition, the packets that pass the router module in the switch can be configured to change the
“rewrite enable” configuration as well as the switch-priority.
5.13.2.1 Switch-priority to PCP,DEI Re-marking Mapping
Packet PCP and DEI fields can be updated by the switch based on switch-priority to PCP,DEI
mapping tables. The mapping can be configured per egress port.
The reason for the mapping is to enable changing interpretation between two administrative
domains in the network, or when a source of data is not fully trusted, and the default values are
not desired. This mapping takes effect after deriving switch-priority from the PCP,DEI fields.
5.13.2.2 Switch-priority to DSCP Re-marking Mapping
Packet DSCP field can be updated based on switch-priority to DSCP mapping tables. The map-
ping can be configured per egress port. MPLS packets are untouched regardless this setting.
The reason for the mapping is to enable changing interpretation between two administrative
domains in the network, or when a source of data is not fully trusted. This mapping will take
affect after deriving switch-priority from the DSCP field.
5.13.2.3 DSCP to Switch-priority in Router
Spectrum™ enables mapping of DSCP to switch-priority in the router using a global mapping
table.
This mapping has global configuration for whether to change the “Rewrite/Preserve PCP,DEI”
bit. This configuration sets how the DSCP to switch-priority would affect the packet.
5.13.2.4 Default Configuration
• By default no ingress rewrite configuration is set
• By default PCP rewrite configuration in router is set
• The default mapping is as following:
• Switch-priority=i to PCP,DEI=i,0, i=0-7
• Switch-priority=i to DSCP=8i, i=0-7
Switch-priority to IEEE priority 6 6
Switch-priority to IEEE priority 7 7
Table 49 - Default QoS Configuration
Parameter Range Configuration
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 735
5.13.3 Queuing and Scheduling (ETS) for SwitchX
Enhanced Transmission Selection (ETS) provides a common management framework for assign-
ment of bandwidth to traffic classes, for weighted round robin (WRR) scheduling. If a traffic
class does not use all the bandwidth allocated to it, other traffic classes can use that available
bandwidth. This allows optimal utilization of the network capacity while prioritizing and provid-
ing the necessary resources.
The ETS feature has the following attributes:
•ETS global admin:
• Enable (default) – scheduling mode is WRR according to the configured bandwidth-per-
traffic class
• Disable – scheduling mode is Strict Priority (SP)
•Bandwidth percentage for each traffic class: By default each traffic class gets an equal share
The default mapping of priority to traffic classes (per interface) is as follows:
• Priority 0,1 mapped to TC 0
• Priority 2,3 mapped to TC 1
• Priority 4,5 mapped to TC 2
• Priority 6,7 mapped to TC 3
ETS is enabled by default (scheduling is WRR).
To set the scheduling mode to Strict Priority:
Step 1. Run the command
dcb ets disable
.
To configure the WRR bandwidth percentage:
Step 1. Make sure ETS feature is enabled. Run:
Step 2. Choose the WRR bandwidth rate and distribution.
By default the WRR distribution function is equal 25% per TC. Changing the WRR bandwidth
rate will cause a change in the distribution function, for example if you wish to schedule more
TC0 and TC3 are lossy TCs, while TC1 and TC2 can be lossless as well as lossy. It is
possible but not recommended to map PFC enabled priorities (lossless traffic) to those
TC0 or TC3.
switch (config) # no dcb ets enable
switch (config) # dcb ets enable
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 736
traffic on TC-0, TC-1, TC-2 while reducing the amount of traffic sent on TC-3, run the com-
mand
dcb ets tc bandwidth
.
Step 3. Run the command
show dcb ets
to verify the configuration.
5.13.4 Queuing and Scheduling (ETS) for Spectrum
After the output port of the packet is determined and the packet is buffered, it is queued for trans-
mission. Each egress port is combined from the multi-level queuing structure. The scheduling of
transmission from the queues relies on various configurations such as ETS weight, flow control,
rate shaping etc.
switch (config) # dcb ets tc bandwidth 30 30 30 10
# show dcb ets
ETS enabled
TC Bandwidth
--------------------------
0 30%
1 30%
2 30%
3 10%
Number of Traffic Class: 4
switch (config) #
Traffic class priorities are <0-3>, where 0 is the lowest and 3 is the highest.
The sum of all traffic class bandwidth value (in percentage) should be 100, otherwise
the command fails.
switch (config) # show dcb ets
ETS enabled
TC Bandwidth
--------------------------
0 30%
1 30%
2 10%
3 30%
Number of Traffic Class: 4
switch (config) #
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 737
5.13.4.1 Traffic Class
The switch-priority of the packet assigns it to a specific traffic class (TClass). The TClass of the
packet determines the packet path in the queuing structure. There are 8 TCs supported by the sys-
tem.
5.13.4.2 Multicast Aware Traffic Class Mapping
Spectrum™ supports a mode of MC aware TC mapping if the mapping to the TCs is based also
on the whether the packet is unicast or multicast. So, packets of the same switch-priority can be
mapped to two different TCs, based on their traffic type. With MC aware mode enabled, MC traf-
fic is mapped into 8 MC TCs in parallel to 8 unicast TCs. Unicast TC has strict priority over its
parallel multicast TC.
5.13.4.3 Traffic Shapers
Maximum Shapers
TCs can be configured for rate shaping as described in the following:
• TClass queues: shaper per TClass queue
• Port: shaper per port (bytes only)
Shapers support the following configurations:
• Committed Incoming Rate (CIR) [bits/packets per second]
• Committed Burst Size (CBS) [bites/packets]
Each shaper has granularity rate of 1Mb/s, 10Mb/s, 100Mb/s and 1Gb/s (or 128K, 1280K, 12M,
128M pps). The maximum CBS is 3GB or 384M packets.
Minimum Shapers
TC queues can be configured for minimal rate shaping. The minimum shaper configuration over-
rides all other scheduling configurations. So that if ETS or WRR scheduling allocates to a TC
queue lower rate than the configured minimum, that queue receives strictly higher priority over
the others. If several queues receive a rate below the configured minimum, the arbitration
between them can be configured as a WRR, or as strict according to the queue index.
The configuration of min shaper is identical to the configuration of max shaper.
5.13.4.4 Default Shaper Configuration
Table 50 - Default Shaper Configuration
Parameter Range Configuration
Switch-priority to TC 0 0
Switch-priority to TC 1 1
Switch-priority to TC 2 2
Switch-priority to TC 3 3
Switch-priority to TC 4 4
Switch-priority to TC 5 5
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 738
5.13.5 RED and ECN
Random early detection (RED) is a mechanism that randomly drops packets before the switch
buffer fills up in case of congestion. Explicit congestion notification (ECN) is used for conges-
tion control protocols (TCP and RoCE CC – DCQCN) to handle congestion before packets are
dropped. RED and ECN can be configured separately or concurrently per traffic class.
Spectrum™ based systems support relative RED/ECN on TC queues. This feature allows the
thresholds of the drop/mark actions to behave relatively to the dynamic thresholds configured for
the shared buffer.
RED/ECN drop profiles are defined according to 2 parameters as shown in Figure 22:
Figure 22: RED/ECN Drop Profiles
• Minimum – a threshold that defines the average queue length below which the packets are not
dropped/marked
• Maximum – a threshold that defines the average queue length above which the packets are
always dropped/marked
Switch-priority to TC 6 6
Switch-priority to TC 7 7
MC-aware TC mapping All ports True
Shaping All ports No max/min shaping configured
Supported only on Spectrum™ based switch systems.
Table 50 - Default Shaper Configuration
Parameter Range Configuration
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 739
It is possible to configure the minimum and maximum thresholds to have the same value which
would represent a step function from “drop none” to “drop all”.
Spectrum™ based systems support RED/ECN only for unicast traffic classes.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 740
5.13.6 Commands
5.13.6.1 QoS Classification
Configures default PCP for packets arrived without VLAN tag.
The no form of the command resets the value to its default.
priority Range: 0-7
0
Config Interface Ethernet
Config Interface Port Channel
Config Interface MLAG Port Channel
3.6.1002
admin
switch (config interface ethernet 1/1) # vlan default priority 0
N/A
This command is only supported on Spectrum™ based switch systems
vlan default priority
vlan default priority [<priority>]
no vlan default priority [<priority>]
Syntax Description
Default
Configuration Mode
History
Role
Example
Related Commands
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 741
vlan default dei
vlan default dei [<dei>]
no vlan default dei [<dei>]
Configures default DEI for packets arrived without VLAN tag.
The no form of the command resets the value to its default.
Syntax Description N/A
Default 0
Configuration Mode Config Interface Ethernet
Config Interface Port Channel
Config Interface MLAG Port Channel
History 3.6.1002
Role admin
Example switch (config interface ethernet 1/1) # vlan default dei 0
Related Commands N/A
Notes This command is only supported on Spectrum™ based switch systems
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 742
qos trust
qos trust [port | L2 | L3 | both]
no qos trust [port | L2 | L3 | both]
Configures QoS trust mode for the interface.
The no form of the command resets the value to its default.
Syntax Description N/A
Default L2
Configuration Mode Config Interface Ethernet
Config Interface Port Channel
Config Interface MLAG Port Channel
History 3.6.1002
Role admin
Example switch (config interface ethernet 1/1) # qos trust L2
Related Commands N/A
Notes This command is only supported on Spectrum™ based switch systems
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 743
qos default switch-priority
qos default switch-priority [<switch-priority>]
no qos default switch-priority [<switch-priority>]
Configures default switch-priority for interface when “port” trust mode is active, or
for non-IP and untagged packets in other trust modes.
The no form of the command resets the value to its default.
Syntax Description switch-priority Range: 0-7
Default 0
Configuration Mode Config Interface Ethernet
Config Interface Port Channel
Config Interface MLAG Port Channel
History 3.6.1002
Role admin
Example switch (config interface ethernet 1/1) # qos default switch-priority 0
Related Commands qos trust
Notes This command is only supported on Spectrum™ based switch systems
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 744
qos map pcp dei
qos map pcp <pcp> dei <dei> [to switch-priority <switch-priority>]
no qos map pcp <pcp> dei <dei> [to switch-priority <switch-priority>]
Configures interface PCP,DEI to switch-priority mapping for IP/MPLS and non-IP/
MPLS tagged packets in “L2” trust mode and for non-IP/MPLS tagged packets in
“both” trust mode.
The no form of the command resets the value to its default.
Syntax Description N/A
Default PCP to switch-priority
mapping: 0 → 0
1 → 1
2 → 2
3 → 3
4 → 4
5 → 5
6 → 6
7 → 7
Configuration Mode Config Interface Ethernet
Config Interface Port Channel
Config Interface MLAG Port Channel
History 3.6.1002
Role admin
Example switch (config interface ethernet 1/1) # qos map pcp 5 dei 5
Related Commands qos trust
Notes This command is only supported on Spectrum™ based switch systems
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 745
qos map dscp
qos map dscp <dscp> [to switch-priority <switch-priority>]
no qos map dscp <dscp> [to switch-priority <switch-priority>]
Configures interface DSCP to switch-priority mapping in “L3” or “both” trust mode.
The no form of the command resets the value to its default.
Syntax Description switch-priority Range: 0-7
dscp Range: 0-63
Default DSCP to switch-priority
mapping: 0-7 → 0
8-15 → 1
16-23 → 2
24-31 → 3
32-39 → 4
40-47 → 5
48-55 → 6
56-63 → 7
Configuration Mode Config Interface Ethernet
Config Interface Port Channel
Config Interface MLAG Port Channel
History 3.6.1002
Role admin
Example switch (config interface ethernet 1/1) # qos map dscp 45
Related Commands qos trust
Notes This command is only supported on Spectrum™ based switch systems
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 746
show qos
show qos [interface <type> <number>]
Displays QoS information.
Syntax Description N/A
Default DSCP to switch-priority
mapping: 0-7 → 0
8-15 → 1
16-23 → 2
24-31 → 3
32-39 → 4
40-47 → 5
48-55 → 6
56-63 → 7
Configuration Mode Any Command Mode
History 3.6.1002
Role admin
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 747
Example switch (config) # show qos interface ethernet 1/1
Eth1/1
Trust mode: L2
Default switch-priority: 0
Default PCP: 0
Default DEI: 0
PCP,DEI rewrite: disabled
IP PCP,DEI rewrite: preserve (router is disabled)
DSCP rewrite: disabled
PCP,DEI to switch-priority mapping:
PCP,DEI switch-priority
------- ---------------
0,0 0
1,0 1
2,0 2
...
6,1 6
7,1 7
DSCP to switch-priority mapping:
DSCP switch-priority
---- ---------------
0 0
1 0
2 0
...
62 7
63 7
PCP,DEI rewrite mapping (switch-priority to PCP,DEI):
switch-priority PCP,DEI
--------------- -------
0 0,0
1 1,0
2 2,0
...
DSCP rewrite mapping (switch-priority to DSCP):
switch-priority DSCP
--------------- ----
0 0
1 8
2 16
...
Related Commands N/A
Notes This command is only supported on Spectrum™ based switch systems
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 748
5.13.6.2 QoS Rewrite
Enables or disables PCP,DEI rewrite on the interface.
N/A
Disabled
Config Interface Ethernet
Config Interface Port Channel
Config Interface MLAG Port Channel
3.6.1002
admin
switch (config interface ethernet 1/1) # qos rewrite pcp-enable
This command is only supported on Spectrum™ based switch systems
qos rewrite pcp
qos rewrite pcp-enable
qos rewrite pcp-disable
Syntax Description
Default
Configuration Mode
History
Role
Example
Related Commands
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 749
qos rewrite dscp
qos rewrite dscp-enable
qos rewrite dscp-disable
Enables or disables DSCP rewrite on the interface.
Syntax Description N/A
Default Disabled
Configuration Mode Config Interface Ethernet
Config Interface Port Channel
Config Interface MLAG Port Channel
History 3.6.1002
Role admin
Example switch (config interface ethernet 1/1) # qos rewrite dscp-enable
Related Commands
Notes This command is only supported on Spectrum™ based switch systems
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 750
qos rewrite map switch-priority pcp dei
qos rewrite map switch-priority <switch-priority> pcp <pcp> dei <dei>
no qos rewrite map switch-priority <switch-priority> pcp <pcp> dei <dei>
Configures switch-priority to PCP,DEI mapping on the interface.
The no form of the command resets the value to their defaults.
Syntax Description switch-priority Range: 0-7
pcp Range: 0-7
dei Value: 0
Default Switch priority to
PCP,DEI mapping: Switch priority → PCP,DEI:
0 → 0,0
1 → 1,0
2 → 2,0
3 → 3,0
4 → 4,0
5 → 5,0
6 → 6,0
7 → 7,0
Configuration Mode Config Interface Ethernet
Config Interface Port Channel
Config Interface MLAG Port Channel
History 3.6.1002
Role admin
Example switch (config interface ethernet 1/1) # qos rewrite map switch
-priority 11 pcp 7 dei 0
Related Commands N/A
Notes This command is only supported on Spectrum™ based switch systems
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 751
qos rewrite map switch-priority dscp
qos rewrite map switch-priority <switch-priority> dscp <dscp>
no qos rewrite map switch-priority <switch-priority> dscp <dscp>
Configures switch-priority to DSCP mapping on the interface.
The no form of the command resets the value to their defaults.
Syntax Description N/A
Default Switch priority to DSCP
mapping: 0 → 0
1 → 8
2 → 16
3 → 24
4 → 32
5 → 40
6 → 48
7 → 54
Configuration Mode Config Interface Ethernet
Config Interface Port Channel
Config Interface MLAG Port Channel
History 3.6.1002
Role admin
Example switch (config interface ethernet 1/1) # qos rewrite map switch
-priority 5 dscp 40
Related Commands N/A
Notes This command is only supported on Spectrum™ based switch systems
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 752
qos ip rewrite pcp
qos ip rewrite pcp [disable | enable | preserve]
no qos ip rewrite pcp [disable | enable | preserve]
Enables or preserves the rewrite of PCP, DEI of routed packets in egress interface.
The no form of the command resets the value to their defaults.
Syntax Description disable No rewrite occurs
enable PCP,DEI are rewritten based on the mapping config-
ured on the egress port
preserve Ingress interface configuration determines action
Default Default is “preserve” when router is disabled
Default is “enable” when router is enabled
(Router can be enabled/disabled using the “ip routing” command)
Configuration Mode Config
History 3.6.1002
Role admin
Example switch (config) # qos ip rewrite pcp enable
Related Commands N/A
Notes The parameter “preserve” is only supported on Spectrum based switch systems
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 753
5.13.6.3 Queuing and Scheduling (ETS)
Sets the switch egress scheduling mode to be weighted round robin.
The no form of the command sets the switch egress scheduling mode to be strict pri-
ority.
N/A
ETS is enabled
Config
3.1.0000
3.6.1002 Updated Note
admin
switch (config)# dcb ets enable
switch (config)# show dcb ets
ETS enabled
TC Bandwidth
--------------------------
0 25%
1 25%
2 25%
3 25%
Number of Traffic Class: 4
switch (config) #
show dcb ets
The show command output is from a SwitchX® based switch systems
dcb ets enable
dcb ets enable
no dcb ets enable
Syntax Description
Default
Configuration Mode
History
Role
Example
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 754
dcb ets tc bandwidth
dcb ets tc bandwidth <tc-0> <tc-1> <tc-2> <tc-3>
no dcb ets tc bandwidth
Configures the bandwidth limit of the traffic class.
The no form of the command sets the bandwidths per traffic class back to its default.
Syntax Description tc-i 0-100.
Default 25% per traffic class
Configuration Mode Config
History 3.1.0000
3.6.1002 Updated Note
Role admin
Example switch (config)# dcb ets tc bandwidth 20 20 30 30
switch (config) # show dcb ets
ETS enabled
TC Bandwidth
--------------------------
0 20%
1 20%
2 30%
3 30%
Number of Traffic Class: 4
switch (config) #
Related Commands show dcb ets
Note • The sum of all traffic class bandwidth must be equal to 100
• This command is only supported on a SwitchX® based switch systems
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 755
vlan map-priority
vlan map priority <priority> traffic-class <tc>
no vlan map priority <priority>
Maps an VLAN user priority to a traffic class.
The no form of the command sets the mapping back to default.
Syntax Description N/A
Default Priority 0,1 mapped to tc 0
Priority 2,3 mapped to tc 1
Priority 4,5 mapped to tc 2
Priority 6,7 mapped to tc 3
Configuration Mode Config Interface Ethernet
History 3.1.0000
3.6.1002 Updated Note
Role admin
Example switch (config interface ethernet 1/1) # vlan map-priority 1 traffic-
class 2
Related Commands show dcb ets interface
Note This command is only supported on SwitchX® based switch systems
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 756
show dcb ets (SwitchX)
show dcb ets
Displays ETS configuration and operational data.
Syntax Description N/A
Default ETS is enabled.
Configuration Mode Any Command Mode
History 3.1.0000
3.6.1002 Updated Note
Role admin
Example switch (config)# show dcb ets
ETS enabled
TC Bandwidth
--------------------------
0 25%
1 25%
2 25%
3 25%
Number of Traffic Class: 4
Related Commands
Note The show command output is from a SwitchX® based switch systems
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 757
show dcb ets interface
show dcb ets interface <type> <number>
Displays ETS configuration and operational data, per interface.
Syntax Description type ethernet or port-channel
number interface number, i.e. 1/1
Default ETS is enabled.
Configuration Mode Any Command Mode
History 3.1.0000
Role admin
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 758
Example switch (config)# show dcb ets interface ethernet 1/1
ETS Port Mode :ON MODE
ETS Oper State :INIT STATE
ETS State Machine Type :Assymetric
-----------------------------------------------
ETS Local Port Info
-----------------------------------------------
TC bandwidth table
-----------------------------------------------
TC Bandwidth RecomBandwidth
-----------------------------------------------
0 25% 25%
1 25% 25%
2 25% 25%
3 25% 25%
priority assignment table
--------------------------------------
Priority TC
--------------------------------------
0 0
1 0
2 1
3 1
4 2
5 2
6 3
7 3
Number of Traffic Class: 4
Willing Status: Disable
-----------------------------------------------
ETS Admin Port Info
-----------------------------------------------
TC Bandwidth RecomBandwidth
-----------------------------------------------
0 30% 30%
1 30% 30%
2 30% 30%
3 10% 10%
-----------------------------------------------
ETS Remote Port Info
-----------------------------------------------
No Remote Entry is Present
-----------------------------------------------
switch (config) #
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 759
bind switch-priority
bind switch-priority [<priority_1> [<priority_2] .. <priority_n>]]
no bind switch-priority [<priority>]
Configures binding of switch-priority to traffic class.
The no form of the command:
• When run in the interface configuration mode: Resets to default the binding of all
switch-priorities from all traffic classes
• When run in the interface’s traffic class: Negates the binding of a specific switch-
priority from a specific traffic class
Syntax Description N/A
Default Switch priority to traffic
class mapping: 0 → 0
1 → 1
2 → 2
3 → 3
4 → 4
5 → 5
6 → 6
7 → 7
Configuration Mode Config Interface Ethernet
Config Interface Ethernet Traffic Class
Config Interface Port Channel
Config Interface Port Channel Traffic Class
Config Interface MLAG Port Channel
Config Interface MLAG Port Channel Traffic Class
History 3.6.1002
Role admin
Example switch (config interface ethernet 1/1 traffic-class 0) # bind switch-
property 1
Related Commands N/A
Notes • Context is egress interface traffic class
• This command is only supported on Spectrum™ based switch systems
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 760
bandwidth guaranteed
bandwidth guaranteed [<rate>]
no bandwidth guaranteed [<rate>]
Configures the minimum bandwidth for outbound traffic.
Syntax Description rate Rate in GbE
Range: 0 - max speed supported
Default 0
Configuration Mode Config Interface Ethernet Traffic Class
Config Interface Port Channel Traffic Class
Config Interface MLAG Port Channel Traffic Class
History 3.6.1002
Role admin
Example switch (config interface ethernet 1/1 traffic-class 0) # bandwidth
guaranteed 0.4G
Related Commands N/A
Notes • Context is egress interface traffic class
• Bandwidth guaranteed rate determines the bandwidth guaranteed by the switch for out-
bound traffic assigned to this traffic class on this interface
• Bandwidth is in granularity of 0.2G
• This command is only supported on Spectrum™ based switch systems
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 761
bandwidth shape
bandwidth shape [<rate>]
no bandwidth shape [<rate>]
Configures the bandwidth shaper for outbound traffic.
Syntax Description rate Rate in GbE
Range: 0 - max speed supported
Default Maximum port rate (100GbE on Spectrum™ based switches)
Configuration Mode Config Interface Ethernet Traffic Class
Config Interface Port Channel Traffic Class
Config Interface MLAG Port Channel Traffic Class
History 3.6.1002
Role admin
Example switch (config interface ethernet 1/1 traffic-class 7) # bandwidth
shape 0.4G
Related Commands N/A
Notes • Context is egress interface traffic class and/or port
• Bandwidth shape rate determines the bandwidth of the shaper for outbound traffic assigned
to this traffic class on this interface
• Bandwidth is in granularity of 0.2G
• This command is only supported on Spectrum™ based switch systems
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 762
dcb ets
dcb ets [strict | wrr <weight>]
no dcb ets [strict | wrr <weight>]
Configures ETS mode to strict or WRR.
Syntax Description weight
Default Default is WRR with the following default weights.
Traffic class to weight mapping: 0 → 12
1 → 13
2 → 12
3 → 13
4 → 12
5 → 13
6 → 12
7 → 13
Configuration Mode Config Interface Ethernet Traffic Class
Config Interface Port Channel Traffic Class
Config Interface MLAG Port Channel Traffic Class
History 3.6.1002
Role admin
Example switch (config interface ethernet 1/1 traffic-class 1) # dcb ets wrr 50
Related Commands N/A
Notes • Context is egress interface traffic class
• This command is only supported on Spectrum™ based switch systems
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 763
mc-unaware tc binding
mc-unaware tc binding
no mc-unaware tc binding
Configures the MC-unaware TC binding.
The no form of the command disables MC-unaware TC binding.
Syntax Description N/A
Default Disabled
Configuration Mode Config Interface Ethernet
Config Interface Port Channel
Config Interface MLAG Port Channel
History 3.6.1002
Role admin
Example switch (config interface ethernet 1/1) # mc-unaware tc binding
Related Commands N/A
Notes • When the no form is configured, the multicast traffic of a switch-priority that is mapped to
TC X is re-mapped to TC X+8
• Context is egress interface
• This command is only supported on Spectrum™ based switch systems
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 764
show dcb ets (Spectrum)
show dcb ets [interface {ethernet | mlag-port-channel | port-channel} <number>]
Displays ETS information.
Syntax Description N/A
Default Disabled
Configuration Mode Any Command Mode
History 3.6.1002
Role admin
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 765
Example switch (config) # show dcb ets interface ethernet 1/1
Eth1/1
Interface Bandwidth Shape [Mbps]: 100000
Multicast unaware mapping : disabled
ETS per TC :
TC Scheduling Mode Weight Weight (%)
-- --------------- ------ ----------
0 WRR 12 12
1 WRR 13 13
2 WRR 12 12
3 WRR 13 13
4 WRR 12 12
5 WRR 13 13
6 WRR 12 12
7 WRR 13 13
Bandwidth Shape per TC:
TC Bandwidth Shape [Mbps]
-- ----------------------
0 100000
1 100000
2 100000
3 100000
4 100000
5 100000
6 100000
7 100000
Bandwidth Guarantee per TC:
TC Bandwidth Guaranteed [Mbps]
-- ---------------------------
0 0
1 0
2 0
3 0
4 0
5 0
6 0
7 0
Switch Priority to TC mapping:
Switch Priority TC
--------------- --
0 0
1 1
2 2
3 3
4 4
5 5
6 6
7 7
Related Commands N/A
Notes The show command output is from a Spectrum™ based switch systems
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 766
5.13.6.4 RED & ECN
Enables RED/ECN marking for traffic class queue.
The no form of the command disables RED/ECN marking for traffic class queue.
tc Traffic class. Range: 0-7.
red Enables random early detection for traffic class queue
ecn Enables explicit congestion notification for traffic class
queue
both Enables both RED and ECN marking for traffic class
queue
minimum-absolute Set minimum-absolute value (in KBs) for marking traf-
fic-class queue
maximum-absolute Set minimum-absolute value (in KBs) for marking traf-
fic-class queue
minimum-relative Set minimum-relative value (in percentage) for mark-
ing traffic-class queue
maximum-relative Set maximum-relative value (in percentage) for mark-
ing traffic-class queue
Disabled
Config Interface Ethernet
3.5.1000
admin
switch (config interfaces ethernet 1/1)# traffic-class 0 congestion-
control both minimum-relative 50 maximum-relative 80
traffic-class congestion-control
traffic-class <tc> congestion-control [red | ecn | both] [minimum- absolute
<min> maximum-absolute <max> | minimum-relative <min> maximum-relative
<max>]
no traffic-class <tc> congestion-control
Syntax Description
Default
Configuration Mode
History
Role
Example
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 767
show interfaces ethernet congestion-control
show interfaces ethernet congestion-control
Displays specific interface congestion control information.
Syntax Description N/A
Default N/A
Configuration Mode Any Command Mode
History 3.5.1000
Role admin
Example switch (config)# show interfaces ethernet 1/1 congestion-control
Interface ethernet: 1/1
ECN marked packets: 0
TC-0
Mode: ECN
Threshold mode: absolute
Minimum threshold: 0 KB
Maximum threshold: 200 KB
RED dropped packets: 0
TC-1
Mode: RED
Threshold mode: relative
Minimum threshold: 0%
Maximum threshold: 100%
RED dropped packets: 0
TC-2
Mode: none
TC-3
Mode: none
TC-4
Mode: ECN
Threshold mode: relative
Minimum threshold: 25%
Maximum threshold: 80%
RED dropped packets: 0
TC-5
Mode: none
TC-6
Mode: both
Threshold mode: absolute
Minimum threshold: 100 KB
Maximum threshold: 200 KB
RED dropped packets: 0
TC-7
Mode: none
switch (config) #
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 768
5.14 Access Control List
An Access Control List (ACL) is a list of permissions attached to an object, to filter or match
switches packets. When the pattern is matched at the hardware lookup engine, a specified action
(e.g. permit/deny) is applied. The rule fields represent flow characteristics such as source and
destination addresses, protocol and VLAN ID.
ACL support currently allows actions of permit or deny rules, and supports only ingress direc-
tion. ACL search pattern can be taken from either L2 or L3 fields, e.g L2/L3 source and destina-
tion addresses, protocol, VLAN ID and priority or TCP port.
5.14.1 Configuring Access Control List
Access Control List (ACL) is configured by the user and is applied to a port once the ACL search
engine matches search criteria with a received packet.
To configure ACL:
Step 1. Log in as admin.
Step 2. Enter config mode. Run:
Step 3. Create a MAC / IPv4 ACL (access-list) entity.
Step 4. Add a MAC / IP rules to the appropriate access-list.
Step 5. Bind the created access-list to an interface (slot/port or port-channel).
5.14.2 ACL Actions
An ACL action is a set of actions can be activated in case the packet hits the ACL rule.
To modify the VLAN tag of the egress traffic as part of the ACL “permit” rule:
Step 1. Create access-list action profile:
Step 1a. Create an action access-list profile using the command
access-list action <action-pro-
file-name>
.
Step 1b. Add rule to map a VLAN using the command
vlan-map <vlan-id>
within the action profile
configuration mode.
Step 1c. Add action on a rule to strip the VLAN from a packet using the command
vlan-pop
within the
action profile configuration mode.
Step 1d. Add action on a rule to append a VLAN to a packet using the command
vlan-push
within the
action profile configuration mode.
switch > enable
switch # configure terminal
switch (config) mac access-list mac-acl
switch (config mac access-list mac-acl) #
switch (config mac access-list mac-acl)seq-number 10 deny 0a:0a:0a:0a:0a:0a mask
ff:ff:ff:ff:ff:ff any vlan 6 cos 2 protocol 80
switch (config mac access-list mac-acl) #
switch (config)
switch (config) # interface ethernet 1/1
switch (config interface ethernet 1/1) # mac port access-group mac-acl
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 769
Step 2. Create an access-list and bind the action rule:
a.Create an access-list profile using the command
ipv4/mac access-list
b.Add access list rule using the command
deny/permit (action <action profile name>)
Step 3. Bind the access-list to an interface using the command
ipv4/mac port access-group
.
Create an action profile and add vlan mapping action:
switch (config)# access-list action my-action
switch (config access-list action my-action)# vlan-map 20
switch (config access-list action my-action)# exit
Create an access list and bind rules:
switch (config)# mac access-list my-list
switch (config mac access-list my-list)# permit any any action my-action
switch (config mac access-list my-list)# exit
Bind an access-list to a port:
switch (config)# interface ethernet 1/1
switch (config interface ethernet 1/1)# mac access-list my-list
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 770
5.14.3 Commands
Creates a MAC or IPv4 ACL and enter the ACL configuration mode.
The no form of the command deletes the ACL.
ipv4 | mac IPv4 or MAC – access list.
acl-name User defined string for the ACL.
No ACL available by default.
Config
3.1.1400
admin
switch (config)# mac access-list my-mac-list
switch (config mac access-list my-mac-list)#
ipv4/port access-group
ipv4/mac access-list
{ipv4 | mac} access-list <acl-name>
no {ipv4 | mac} access-list <acl-name>
Syntax Description
Default
Configuration Mode
History
Role
Example
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 771
ipv4/mac port access-group
{ipv4 | mac} port access-list <acl-name>
no {ipv4 | mac} port access-list <acl-name>
Binds an ACL to the interface.
The no form of the command unbinds the ACL from the interface.
Syntax Description ipv4 | mac IPv4 or MAC – access list.
acl-name ACL name.
Default No ACL is bind by default.
Configuration Mode Config Interface Ethernet
Config Interface Port Channel
Config Interface MLAG Port Channel
History 3.1.1400
3.3.4500 Added MLAG port-channel configuration mode
Role admin
Example switch (config interface ethernet 1/1) # mac port access-group my-list
switch (config interface ethernet 1/1) #
Related Commands ipv4/mac access-list
Note The access control list should be defined prior to the binding action.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 772
deny/permit (MAC ACL rule)
[seq-number <sequence-number>] {deny|permit} {any | <source-mac> [mask
<mac>]} {any |<destination-mac> [mask <mac>]} [protocol <protocol>] [cos
<cos-value>] [vlan <vlan-id> | vlan-mask <vlan-mask>] [action <action-id>]
no <sequence-number>
Creates a rule for MAC ACL.
The no form of the command deletes a rule from the MAC ACL.
Syntax Description sequence-number Optional parameter to set a specific sequence number
for the rule. The range is:1-65535.
deny | permit Determines the type of the rule, denies or permits
action.
{any | <source-mac>
[mask <mac>]} Sets source MAC and optionally sets a mask for that
MAC. The “any” option will cause the rule not to check
the source MAC.
{any | <destination-mac>
[mask <mac>]} Sets destination MAC and optionally sets a mask for
that MAC. The “any” option will cause the rule not to
check the destination MAC.
protocol Sets the Ethertype filed value from the MAC address.
Possible range is: 0x0000-0xffff.
cos-value Sets the COS (priority bits) field, possible range is: 0-7.
vlan-id Sets the VLAN ID field, possible range is 0-4095
vlan-mask <vlan-mask> Sets VLAN group. Range: 0x0000-0x0FFF.
action Action name (free string)
Default No rule is added by default to access control list.
Default sequence number is in multiple of 10.
Configuration Mode Config MAC ACL
History 3.1.1400
3.3.4500 Added vlan-mask parameter
3.5.1000 Updated seq-number parameter
Role admin
Example switch (config mac access-list my-list) # seq-number 10 deny
0a:0a:0a:0a:0a:0a mask ff:ff:ff:ff:ff:ff any vlan 6 cos 2 protocol 80
switch (config mac access-list my-list) #
Related Commands ipv4/mac access-list
ipv4/mac port access-group
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 773
deny/permit (IPv4 ACL rule)
[seq-number <sequence-number>] {permit | deny} ip {<source-ip> [mask <ip>] |
[any]} {<dest-ip> [mask <ip>] | [any]} [action <action-id>]
no <sequence-number>
Creates a rule for IPv4 ACL.
The no form of the command deletes a rule from the IPv4 ACL.
Syntax Description sequence-number Optional parameter to set a specific sequence number
for the rule. The range is:1-65535.
deny | permit Determines the type of the rule, deny or permit action.
Valid mask values fall in the range 0-255.
{any | <source-ip> [mask
<ip>]} Sets source IP and optionally sets a mask for that IP
address. The “any” option causes the rule to not check
the source IP.
Valid mask values fall in the range 0-255.
{any | <destination-ip>
[mask <ip>]} Sets destination IP and optionally sets a mask for that
MAC. The “any” option causes the rule to not check
the destination MAC.
Default No rule is added by default to access control list.
Default sequence number is in multiple of 10.
Configuration Mode Config IPv4 ACL
History 3.1.1400 First version
3.3.4302 Updated syntax description of mask <ip> parameter
3.5.1000 Updated seq-number parameter
Role admin
Example switch (config ipv4 access-list my-list) # seq-number 51 deny ip 1.1.1.1
mask 123.12.13.53 45.45.45.0 mask 123.132.21.123
switch (config ipv4 access-list my-list) #
Related Commands ipv4/mac access-list
ipv4/mac port access-group
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 774
deny/permit (IPv4 TCP/UDP/ICMP ACL rule)
[seq-number <sequence-number>] {permit | deny} {tcp | udp | icmp} {<source-
ip> [mask <ip>] | [any]} {<dest-ip> [mask <ip>] | [any]} [eq-source <port-num-
ber>] [eq-destination <port-number>] [action <action-id>] [eq-code <icmp-
code>] [eq-type <icmp-type>]
no <sequence-number>
Creates a rule for IPv4 UDP/TCP/ICMP ACL.
The no form of the command deletes a rule from the ACL.
Syntax Description sequence-number Optional parameter to set a specific sequence number
for the rule. The range is:1-65535.
deny | permit Determines the type of the rule, deny or permit action.
tcp | udp | icmp UDP, TCP, or ICMP rule transport type.
{any | <source-ip> [mask
<ip>]} Sets source IP and optionally sets a mask for that IP
address. The “any” option will cause the rule not to
check the source IP.
{any | <destination-ip>
[mask <ip>]} Sets destination IP and optionally sets a mask for that
IP. The “any” option will cause the rule not to check the
destination IP.
[eq-source <port-num-
ber>] TCP/UDP/ICMP source port number
Range is 0-65535
[eq-destination <port-
number>] TCP/UDP/ICMP destination port number
Range is 0-65535
eq-code <icmp-code> Range: 0-255
eq-type <icmp-type> Range: 0-255
Default No rule is added by default to access control list
Default sequence number is in multiple of 10
Configuration Mode Config IPv4 ACL
History 3.1.1400
3.5.1000 Updated seq-number parameter
3.6.2002 Added ICMP options and Notes section
Role admin
Example switch (config ipv4 access-list my-list) # seq-number 10 deny tcp any
any eq-source 1200
switch (config ipv4 access-list my-list) #
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 775
Related Commands ipv4/mac access-list
ipv4/mac port access-group
Notes • ICMP Code must be specified in conjunction with an ICMP Type. If ICMP Type is speci-
fied but no ICMP code is specified, the rule matches all ICMP packets of the given Type. If
no ICMP Type or Code are specified, the rule matches all ICMP packets from the specified
source/destination address.
• The parameters “eq-source” and “eq-destination” are not applicable with ICMP
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 776
access-list action
access-list action <action-profile-name>
no access-list action <action-profile-name>
Creates access-list action profile and entering the action profile configuration mode.
The no form of the command deletes the action profile.
Syntax Description action-profile-name given name for the profile.
Default N/A
Configuration Mode Config
History 3.2.0230
Role admin
Example switch (config)# access-list action my-action
switch (config access-list action my-action)# show access-list action
my-action
Access-list Action my-action
Mapped_Vlan_ID |Mapped_port |Counter_set |Policer_ID |
================================================================
N/A |N/A |N/A |N/A |
switch (config access-list action my-action)#
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 777
vlan-map
vlan-map <vlan-id>
no vlan-map
Adds action to map a new VLAN to the packet (in the ingress port or VLAN).
The no form of the command removes the action to map a new VLAN.
Syntax Description vlan-id 0-4095.
Default N/A
Configuration Mode Config ACL Action
History 3.2.0230
Role admin
Example switch (config access-list action my-action)# vlan-map 10
switch (config access-list action my-action)# show access-list action
my-action
Access-list Action my-action
Mapped_Vlan_ID |Mapped_port |Counter_set |Policer_ID |
================================================================
10 |N/A |N/A |N/A |
switch (config access-list action my-action)#
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 778
vlan-pop
vlan-pop
Pops VLAN frames from traffic.
Syntax Description vlan-id VLAN ID: 0-4095.
Default N/A
Configuration Mode Config ACL Action
History 3.4.3000
Role admin
Example switch (config access-list action my-action)# vlan-pop
switch (config access-list action my-action)# show access-list action
my-action
Access-list Action my-action
Popped_Vlan_ID |Mapped_port |Counter_set |Policer_ID |
=====================================================================
N/A |N/A |N/A |N/A |
switch (config access-list action my-action) #
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 779
vlan-push
vlan-push <vlan-id>
Pushes (or adds) VLAN frames to traffic.
Syntax Description vlan-id VLAN ID: 0-4095
Default N/A
Configuration Mode Config ACL Action
History 3.4.3000
Role admin
Example switch (config access-list action my-action)# vlan-push 10
switch (config access-list action my-action)# show access-list action
my-action
Access-list Action my-action
Mapped_Vlan_ID |Mapped_port |Counter_set |Policer_ID |
=========================================================
10 |N/A |N/A |N/A |
switch (config access-list action my-action)#
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 780
show access-list action
show access-list action {<action-profile-name> | summary}
Displays the access-list action profiles summary.
Syntax Description action-profile-name Filter the table according to the action profile name.
summary Display summary of the action list.
Default N/A
Configuration Mode Any Command Mode
History 3.2.0230
Role admin
Example witch (config)# show access-list action my-action
Access-list Action my-action
Mapped_Vlan_ID |Mapped_port |Counter_set |Policer_ID |
================================================================
10 |N/A |N/A |N/A |
switch (config)#
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 781
show mac/ipv4 access-lists
show [mac |ipv4 |] access-lists <access-list-name>
Displays the list of rules for the MAC/IPv4 ACL.
Syntax Description ipv4 | mac IPv4 or MAC - access list.
access-list-name ACL name.
Default N/A
Configuration Mode Any Command Mode
History 3.1.1400
History 3.3.4500 Updated output
Role admin
Example switch (config mac access-list my-list) # show mac access-lists my-list
mac access-list my-list
seq-number|p/d |smac |dmac |protocol|cos |vlan |vlan-mask|action|
====================================================================
10 |deny |any |any |0800 |3 |3 |0x0FFF |none |
20 |deny |any |any |80 |2 |6 |0x0000 |none |
30 |deny |any |any |any |any |any |0x0ACB |none |
40 |deny |any |any |any |any |any |N/A |none |
switch (config mac access-list my-list) #
Related Commands deny/permit (MAC ACL rule)
deny/permit (IPv4 ACL rule)
deny/permit (IPv4 TCP/UDP ACL rule)
ipv4/mac access-list
ipv4/mac port access-group
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 782
show mac/ipv4 access-lists summary
show [mac |ipv4 |] access-lists summary
Displays the summary of number of rules per ACL, and the interfaces attached.
Syntax Description ipv4 | mac IPv4 or MAC - Access list
access-list-name ACL name
Default N/A
Configuration Mode Any Command Mode
History 3.1.1400
Role admin
Example switch (config) # show mac access-lists summary
mac access-list my-list
Total ACEs Configured: 2
Configured on interfaces:
Ethernet 1/1
Ethernet 1/2
switch (config) #
Related Commands deny/permit (MAC ACL rule)
deny/permit (IPv4 ACL rule)
deny/permit (IPv4 TCP/UDP ACL rule)
ipv4/mac access-list
ipv4/mac port access-group
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 783
5.15 Port Mirroring
Port mirroring enables data plane monitoring functionality which allows the user to send an
entire traffic stream for testing. Port mirroring sends a copy of packets of a port’s traffic stream,
called “mirrored port”, into an analyzer port. Port mirroring is used for network monitoring. It
can be used for intrusion detection, security breaches, latency analysis, capacity and performance
matters, and protocol analysis.
Figure 23 provides an overview of the mirroring functionality.
Figure 23: Overview of Mirroring Functionality
There is no limitation on the number of mirroring sources and more than a single source can be
mapped to a single analyzer destination.
5.15.1 Mirroring Sessions
Port mirroring is performed by configuring mirroring sessions. A session is an association of a
mirror port (or more) and an analyzer port.
Figure 24: Mirror to Analyzer Mapping
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 784
A mirroring session is a monitoring configuration mode that has the following parameters:
Table 51 - Mirroring Parameters
Parameter Description Access
Source interface(s) List of source interfaces to be mirrored. RW
Destination interface A single analyzer port through which all mirrored traffic egress. RW
Header format The format and encapsulation of the mirrored traffic when sent to analyzer. RW
Truncation Enabling truncation segments each mirrored packet to 64 bytes. RW
Congestion control Controls the behavior of the source port when destination port is congested. RW
Admin state Administrative state of the monitoring session. RW
5.15.1.1 Source Interface
The source interface (mirror port) refers to the interface from which the traffic is monitored. Port
mirroring does not affect the switching of the original traffic. The traffic is simply duplicated and
sent to the analyzer port. Traffic in any direction (either ingress, egress or both) can be mirrored.
There is no limitation on the number of the source interfaces mapped to a mirroring session.
LAG
The source interface can be a physical interface or a LAG.
Port mirroring can be configured on a LAG interface but not on a LAG member. When a port is
added to a mirrored LAG it inherits the LAG’s mirror configuration. However, if port mirroring
configuration is set on a port, that configuration must be removed prior to adding the port to a
LAG interface.
When a port is removed from a LAG, the mirror property is switched off for that port.
Control Protocols
All control protocols captured on the mirror port are forwarded to the analyzer port in addition to
their normal treatment. For example LACP, STP, and LLDP are forwarded to the analyzer port in
addition to their normal treatment by the CPU.
Exceptions to the behavior above are the packets that are being handled by the MAC layer, such
as pause frames.
5.15.1.2 Destination Interface
The destination interface is an analyzer port to which mirrored traffic is directed. The mirrored
packets are duplicated, optionally modified, and sent to the analyzer port. SwitchX® platforms
support up to 7 analyzer ports, and Spectrum™ platforms support up to 2 only, where any mirror
Ingress and egress traffic flows of a specific source interface can be mapped to two dif-
ferent sessions.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 785
port can be mapped to any analyzer port and more than a single mirror port can be mapped to a
single analyzer port.
Packets can be forwarded to any destination using the command
destination interface
.
The analyzer port supports status and statistics as any other port.
LAG
The destination interface cannot be a member of LAG when the header format is local.
Control Protocols
The destination interface may also operate in part as a standard port, receiving and sending out
non-mirrored traffic. When the header format is configured as a local port, ingress control proto-
col packets that are received by the local analyzer port get discarded.
Advanced MTU Considerations
The analyzer port, like its counterparts, is subject to MTU configuration. It does not send packets
longer than configured.
When the analyzer port sends encapsulated traffic, the analyzer traffic has additional headers and
therefore longer frame. The MTU must be configured to support the additional length, otherwise,
the packet is truncated to the configured MTU.
The system on the receiving end of the analyzer port must be set to handle the egress traffic. If it
is not, it might discard it and indicate this in its statistics (packet too long).
5.15.1.3 Header Format
Ingress traffic from the source interface can be manipulated in several ways depending on the
network layout using the command
header-format
.
If the analyzer system is directly connected to the destination interface, then the only parameters
that can be configured on the port are the MTU, speed and port based flow control. Priority flow
control is not supported is this case. However, if the analyzer system is indirectly connected to
the destination interface, there are two options for switching the mirrored data to the analyzer
system:
• A VLAN tag may be added to the Ethernet header of the mirrored traffic
• An Ethernet header can be added with include a new destination address and VLAN tag
It must be taken into account that adding headers increases packet size.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 786
Figure 25: Header Format Options
5.15.1.4 Congestion Control
The destination ports might receive pause frames that lead to congestion in the switch port. In
addition, too much traffic directed to the analyzer port (for example 40GbE mirror port is
directed into 10G analyzer port) might also lead to congestion.
In case of congestion:
• When best effort mode is enabled on the analyzer port, SwitchX drops excessive traffic
headed to the analyzer port using tail drop mechanism, however, the regular data (mirrored
data heading to its original port) does not suffer from a delay or drops due to the analyzer port
congestion.
•When the best effort mode on the analyzer port is disabled, the SwitchX does not drop the
excessive traffic. This might lead to buffer exhaustion and data path packet loss.
The default behavior in congestion situations is to drop any excessive frames that may clog the
system.
5.15.1.5 Truncation
When enabled, the system can truncate the mirrored packets into smaller 64-byte packets
(default) which is enough to capture the packets’ L2 and L3 headers.
5.15.2 Configuring Mirroring Sessions
Figure 26 presents two network scenarios with direct and remote connectivity to the analyzer
equipment. Direct connectivity is when the analyzer is connected to the analyzer port of the
switch. In this case there is no need for adding an L2 header to the mirrored traffic. Remote con-
nectivity is when the analyzer is indirectly connected to the analyzer port of the switch. In this
situation, adding an L2 header may be necessary depending on the network’s setup.
ETS, PFC and FC configurations do not apply to the destination port.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 787
Figure 26: Mirroring Session
To configure a mirroring session:
Step 1. Create a session. Run:
Step 2. Add source interface(s). Run:
Step 3. Add destination interface. Run:
Step 4. (Optional) Set header format. Run:
Step 5. (Optional) Truncate the mirrored traffic to 64-byte packets. Run:
Step 6. (Optional) Set congestion control. Run:
switch (config) # monitor session 1
This command enters a monitor session configuration mode. Upon first implementa-
tion the command also creates the session.
switch (config monitor session 1) # add source interface ethernet 1/1 direction both
switch (config monitor session 1) # destination interface ethernet 1/2
switch (config monitor session 1) # header-format add-ethernet-header destination-mac
00:0d:ec:f1:a9:c8 add-vlan 10 priority 5 traffic-class 2
For remote connectivity use the header formats
add-vlan
or
add-ethernet-header
. For
local connectivity, use
local
.
switch (config monitor session 1) # truncate
switch (config monitor session 1) # congestion pause-excessive-frames
The default for this command is to drop excessive frames. The
pause-excessive-
frames
option uses flow control to regulate the traffic from the source interfaces.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 788
Step 7. Enable the session. Run:
5.15.3 Verifying Mirroring Sessions
To verify the attributes of a specific mirroring session:
To verify the attributes of running mirroring sessions:
If the option
pause-excessive-frame
is selected, make sure that flow control is
enabled on all source interfaces on the ingress direction of the monitoring session
using the command
flowcontrol
in the interface configuration mode.
switch (config monitor session 1) # no shutdown
switch (config) # show monitor session 1
Admin: Enable
Status: Up
Truncate: Enable
Destination interface: eth1/2
Congestion type: pause-excessive-frames
Header format: add-ethernet-header
- traffic class 2
- vlan 10
- priority 5
- destination-mac 00:0d:ec:f1:a9:c8
Source interfaces
Interface direction
-------------------------
eth1/1 both
switch (config) # show monitor session summary
Session Admin Status Mode Destination Source
1 Enable Up add-eth eth1/2 eth1/1(b)
2 Disable Down add-vlan eth1/2 eth1/8(i), po1(e)
3 Enable Up add-eth eth1/5 eth1/18(e)
7 Disable Down local
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 789
5.15.4 Commands
5.15.4.1 Config
Creates session and enters monitor session configuration mode upon using this com-
mand for the first time.
The no form of the command deletes the session.
session-id The monitor session ID.
Range is:
• 1-7 for SwitchX®
• 1-2 for Spectrum™
N/A
Config
3.3.3500
admin
switch (config)# monitor session 1
switch (config monitor session 1)#
monitor session
monitor session <session-id>
no monitor session <session-id>
Syntax Description
Default
Configuration Mode
History
Role
Example
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 790
5.15.4.2 Config Monitor Session
Sets the egress interface number.
The no form of the command deletes the destination interface.
interface <type> <num-
ber> Sets the interface type and number (e.g. ethernet 1/2)
force The user does not need to shutdown the port prior the
operation.
no destination interface
Config Monitor Session
3.3.3500 First version
3.3.4100 Added force argument
admin
switch (config monitor session 1) # destination interface ethernet 1/2
switch (config monitor session 1)#
destination interface
destination interface <type> <number> [force]
no destination interface
Syntax Description
Default
Configuration Mode
History
Role
Example
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 791
shutdown
shutdown
no shutdown
Disables the session.
The no form of the command enables the session.
Syntax Description N/A
Default Disabled
Configuration Mode Config Monitor Session
History 3.3.3500
Role admin
Example switch (config monitor session 1) # no shutdown
switch (config monitor session 1)#
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 792
add source interface
add source interface <type> <number> direction <d-type>
no source interface <type> <number>
Adds a source interface to the mirrored session.
The no form of the command deletes the source interface.
Syntax Description interface <type> <num-
ber> Configures interface as “ethernet” or “port-channel”.
direction <d-type> Configures the direction of the mirrored traffic. The
options are as follows:
• egress – sets the egress traffic to be monitored
• ingress – sets the ingress traffic to be monitored
• both – sets egress and ingress traffic to be monitored
Default N/A
Configuration Mode Config Monitor Session
History 3.3.3500
3.5.1000 Updated
Role admin
Example switch (config monitor session 1) # add source interface ethernet 1/1
direction ingress
switch (config monitor session 1)#
Related Commands
Note • If mirroring is configured in one direction (e.g. ingress) on an interface and then is config-
ured in the other direction (e.g. egress), then the ultimate setting is “both”
• Spectrum™ based switch systems only support mirroring ingress traffic
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 793
header-format
header-format {local [traffic-class <tc>] | add-vlan <vlan-id> [priority <prio>]
[traffic-class <tc>] [switch-priority <sp>] | add-ethernet-header destination-mac
<mac-address> [add-vlan <vlan-id> [priority <prio>]] [traffic-class <tc>]}
no header-format
Sets the header format of the mirrored traffic.
The no form of the command resets the parameter values back to default.
Syntax Description local The mirrored header of the frame is not changed.
traffic-class <tc> Changes the egress traffic class of the frame.
Range: 0-3.
switch-priority <sp> Changes the egress switch priority of the frame.
Range: 0-15.
add-vlan <vlan-id> An 802.1q VLAN tag is added to the frame.
priority <prio> The priority to be added to the Ethernet header.
Range: 0-7.
add-ethernet-header Adds an Ethernet header to the mirrored frame.
destination-mac The destination MAC address of the added Ethernet
frame.
Default no-change
vlan 1
priority 0
traffic-class 0
Configuration Mode Config Monitor Session
History 3.3.3500
3.5.1000 Added switch-priority parameter
Role admin
Example switch (config monitor session 1) # header-format add-ethernet-header
destination-mac 00:0d:ec:f1:a9:c8 add-vlan 10 priority 5 traffic-class
2
switch (config monitor session 1)#
Related Commands
Note • If add-ethernet-header is used, the source MAC address is the one attached to the switch
• The parameter traffic-class is only available on SwitchX® based switch systems
• The parameter switch-priority is only available on Spectrum™ based switch systems
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 794
truncate
truncate
no truncate
Truncates the mirrored frames to 64-byte packets.
The no form of the command disables truncation.
Syntax Description N/A
Default no truncate
Configuration Mode Config Monitor Session
History 3.3.3500
Role admin
Example switch (config monitor session 1) # truncate
switch (config monitor session 1)#
Related Commands
Note This command applies for all sessions on the same analyzer port.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 795
congestion
congestion [drop-excessive-frames | pause-excessive-frames]
no congestion
Sets the system’s behavior when congested
The no form of the command disables truncation.
Syntax Description drop-excessive-frames Drops excessive frames.
pause-excessive-frames Pauses excessive frames.
Default drop-excessive-frames
Configuration Mode Config Monitor Session
History 3.3.3500
3.3.4000 Added Syntax Description.
Role admin
Example switch (config monitor session 1) # congestion pause-excessive-frames
switch (config monitor session 1)#
Related Commands
Note This command applies for all sessions on the same analyzer port.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 796
5.15.4.3 Show
Displays monitor session configuration and status.
session-id The monitor session ID. Range is 1-7.
N/A
Any Command Mode
3.3.3500
3.5.1000 Updated Note section
admin
switch (config) # show monitor session 1
Admin: Enable
Status: Up
Truncate: Enable
Destination interface: eth1/2
Congestion type: pause-excessive-frames
Header format: add-ethernet-header
- traffic class 2
- vlan 10
- priority 5
- destination-mac 00:0d:ec:f1:a9:c8
Source interfaces
Interface direction
-------------------------
eth1/1 both
switch (config) #
The output provided is from a SwitchX® based switch system.
show monitor session
show monitor session <session-id>
Syntax Description
Default
Configuration Mode
History
Role
Example
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 797
show monitor session summary
show monitor session summary
Displays monitor session configuration and status summary.
Syntax Description N/A
Default N/A
Configuration Mode Any Command Mode
History 3.3.3500
Role admin
Example switch (config) # show monitor session summary
Session Admin Status Mode Destination Source
1 Enable Up add-eth eth1/2 eth1/1(b)
2 Disable Down add-vlan eth1/2 eth1/8(i), po1(e)
3 Enable Up add-eth eth1/5 eth1/18(e)
7 Disable Down local
switch (config) #
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 798
5.16 sFlow
sFlow (ver. 5) is a procedure for statistical monitoring of traffic in networks. MLNX-OS supports
an sFlow sampling mechanism (agent), which includes collecting traffic samples and data from
counters. The sFlow datagrams are then sent to a central collector.
The sampling mechanism must ensure that any packet going into the system has an equal chance
of being sampled, irrespective of the flow to which it belongs. The sampling mechanism provides
the collector with periodical information on the amount (and load) of traffic per interface by
loading the counter samples into sFlow datagrams.
The sFlow packets are encapsulated and sent in UDP over IP. The UDP port number that is used
is the standard 6343 by default.
Figure 27: sFlow Functionality Overview
5.16.1 Flow Samples
The sFlow agent samples the data path based on packets.
Truncation and sampling rate are the two parameters that influence the flow samples. In case of
congestion the flow samples can be truncated to a predefined size before it is assigned to the
CPU. The truncation can be set to any value between 64 to 256 bytes with the default being 128
bytes.
The sampling rate can be adjusted by setting an average rate. The system assures that a random
number of packets is sampled, however, the sample rate on average converges to the configured
rate. Valid values range between 4000 to 16777215 packets.
5.16.2 Statistical Samples
The sFlow agent samples interface counters time based. Polling interval is configurable to any
value between 5-3600 seconds with the default being 20 seconds.
The following statistics are gathered by the CPU:
Table 52 - List of Statistical Counters
Counter Description
Total packets The number of packets that pass through sFlow-enabled ports.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 799
5.16.3 sFlow Datagrams
The sFlow datagrams contain flow samples and statistical samples.
The sFlow mechanism uses IP protocol, therefore if the packet length is more than the interface
MTU, it becomes fragmented by the IP stack. The MTU may also be set manually to anything in
the range of 200-9216 bytes. The default is 1400 bytes.
5.16.4 Sampled Interfaces
sFlow must be enabled on physical or LAG interfaces that require sampling. When adding a port
to a LAG, sFlow must be disabled on the port. If a port with enabled sFlow is configured to be
added to a LAG, the configuration is rejected. Removing a port from a LAG disables sFlow on
the port regardless of the LAG’s sFlow status.
5.16.5 Configuring sFlow
To configure the sFlow agent:
Step 1. Unlock the sFlow commands. Run:
Step 2. Enable sFlow on the system. Run:
Step 3. Enter sFlow configuration mode. Run:
Step 4. Set the central collector’s IP. Run:
Step 5. Set the agent-ip used in the sFlow header. Run:
Step 6. (Optional) Set the sampling rate of the mechanism. Run:
Number of flow samples The number of packets that are captured by the sampling mecha-
nism.
Number of statistic samples The number of statistical samples.
Number of discarded samples The number of samples that were discarded.
Number of datagrams The number of datagrams that were sent to the collector.
switch (config) # protocol sflow
switch (config) # sflow enable
switch (config) # sflow
switch (config sflow) #
switch (config sflow) # collector-ip 10.10.10.10
switch (config sflow) # agent-ip 20.20.20.20
switch (config sflow) # sampling-rate 16000
This means that one every 16000 packet gets collected for sampling.
Table 52 - List of Statistical Counters
Counter Description
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 800
Step 7. (Optional) Set the maximum size of the data path sample. Run:
Step 8. (Optional) Set the frequency in which counters are polled. Run:
Step 9. (Optional) Set the maximum size of the datagrams sent to the central collector. Run:
Step 10. Enable the sFlow agent on the desired interfaces. Run:
5.16.6 Verifying sFlow
To verify the attributes of the sFlow agent:
switch (config sflow) # max-sample-size 156
switch (config sflow) # counter-poll-interval 19
switch (config sflow) # max-datagram-size 1500
switch (config interface ethernet 1/1)# sflow enable
switch (config interface port-channel 1)# sflow enable
switch (config)# show sflow
sflow protocol enabled
sflow enabled
sampling-rate 16000
max-sampled-size 156
counter-poll-interval 19
max-datagram-size 1500
collector-ip 10.10.10.10
collector-port 6343
agent-ip 20.20.20.20
Interfaces
Ethernet: eth1/1
Port-channel: po1
Statistics:
Total Packets: 2000
Number of flow samples: 1200
Number of samples discarded: 0
Number of statistic samples: 800
Number of datagrams: 300
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 801
5.16.7 Commands
5.16.7.1 Config
Unhides the sFlow commands.
The no form of the command deletes sFlow configuration and hides the sFlow com-
mands.
N/A
Disabled
Config
3.3.3500
admin
switch (config) # protocol sflow
switch (config) #
protocol sflow
protocol sflow
no protocol sflow
Syntax Description
Default
Configuration Mode
History
Role
Example
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 802
sflow enable (global)
sflow enable
no sflow enable
Enables sFlow in the system.
The no form of the command disables sFlow without deleting the configuration.
Syntax Description N/A
Default Disabled
Configuration Mode Config
History 3.3.3500
Role admin
Example switch (config) # sflow enable
switch (config) #
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 803
sflow
sflow
Enters sFlow configuration mode.
Syntax Description N/A
Default N/A
Configuration Mode Config
History 3.3.3500
Role admin
Example switch (config) # sflow
switch (config sflow) #
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 804
5.16.7.2 Config sFlow
Sets sFlow sampling ratio.
The no form of the command resets this parameter to its default value.
rate Sets the number of packets passed before selecting one
for sampling. The range is 4000-16777215. Zero dis-
ables sampling.
16000
Config sFlow
3.3.3500
admin
switch (config sflow) # sampling-rate 16111
switch (config sflow) #
sampling-rate
sampling-rate <rate>
no sampling-rate
Syntax Description
Default
Configuration Mode
History
Role
Example
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 805
max-sample-size
max-sample-size <packet-size>
no max-sample-size
Sets the maximum size of sampled packets by sFlow.
The no form of the command resets the parameter to its default value.
Syntax Description packet-size The sampled packet size. The range is 64-256 bytes.
Default 128 bytes
Configuration Mode Config sFlow
History 3.3.3500
Role admin
Example switch (config sflow) # max-sample-size 165
switch (config sflow) #
Related Commands
Note Sampled payload beyond the configured size is discarded.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 806
counter-poll-interval
counter-poll-interval <seconds>
no counter-poll-interval
Sets the sFlow statistics polling interval.
The no form of the command resets the parameter to its default value.
Syntax Description seconds The sFlow statistics polling interval in seconds. Range
is 5-3600 seconds. Zero disables the statistic polling.
Default 20 seconds
Configuration Mode Config sFlow
History 3.3.3500
Role admin
Example switch (config sflow) # counter-poll-interval 30
switch (config sflow) #
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 807
max-datagram-size
max-datagram-size <packet-size>
no max-datagram-size
Sets the maximum sFlow packet size to be sent to the collector.
The no form of the command resets the parameter to its default value.
Syntax Description packet-size The packet size of the packet being sent to the collector.
The range is 200-9216 bytes.
Default 1400 bytes
Configuration Mode Config sFlow
History 3.3.3500
Role admin
Example switch (config sflow) # max-datagram-size 9216
switch (config sflow) #
Related Commands
Note This packet contains the data sample as well as the statistical counter data.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 808
collector-ip
collector-ip <ip-address> [udp-port <udp-port-number>]
no collector-ip [<ip-address> udp-port]
Sets the collector’s IP.
The no form of the command resets the parameters to their default values.
Syntax Description ip-address The collector IP address.
udp-port <udp-port-num-
ber> Sets the collector UDP port number.
Default ip-address: 0.0.0.0
udf-port-number: 6343
Configuration Mode Config sFlow
History 3.3.3500
Role admin
Example switch (config sflow) # collector-ip 10.10.10.10
switch (config sflow) #
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 809
agent-ip
agent-ip {<ip-address> | interface [ethernet <slot/port> | port-channel <channel-
group>] | <if-name> | loopback <number> | vlan <id>}
no agent-ip
Sets the IP address associated with this agent.
The no form of the command resets the parameters to their default values.
Syntax Description interface Configures a specific ethernet/port-channel interface’s
agent IP.
if-name Interface name (e.g. mgmt0, mgmt1).
ip-address The sFlow agent’s IP address (i.e. the source IP of the
packet).
loopback <number> Loopback interface number. Range: 1-32.
vlan <id> Interface VLAN. Range: 1-4094.
Default ip-address: 0.0.0.0
Configuration Mode Config sFlow
History 3.3.3500
3.3.5200 Updated “interface” parameters
Role admin
Example switch (config sflow) # agent-ip 20.20.20.20
switch (config sflow) #
Related Commands
Note The IP address here is used in the sFlow header.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 810
clear counters
clear counters
Clears sFlow counters.
Syntax Description N/A
Default N/A
Configuration Mode Config sFlow
History 3.3.3500
Role admin
Example switch (config sflow) # clear counters
switch (config sflow) #
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 811
sflow enable (interface)
sflow enable
no sflow enable
Enables sFlow on this interface.
The no form of the command disables sFlow on the interface.
Syntax Description N/A
Default disable
no view-port-channel member
Configuration Mode Config Interface Ethernet
Config Interface Port Channel
Config Interface MLAG Port Channel
History 3.3.3500
3.3.4500 Added MLAG port-channel configuration mode
Role admin
Example switch(config interface ethernet 1/1)# sflow enable
...
switch(config interface port-channel 1)# sflow enable
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 812
5.16.7.3 Show
Displays sFlow configuration and counters.
N/A
N/A
Any Command Mode
3.3.3500
admin
switch (config)# show sflow
sflow protocol enabled
sflow enabled
sampling-rate 16000
max-sampled-size 156
counter-poll-interval 19
max-datagram-size 1500
collector-ip 10.10.10.10
collector-port 6343
agent-ip 20.20.20.20
Interfaces
Ethernet: eth1/1
Port-channel: po1
Statistics:
Total Packets: 2000
Number of flow samples: 1200
Number of samples discarded: 0
Number of statistic samples: 800
Number of datagrams: 300
show sflow
show sflow
Syntax Description
Default
Configuration Mode
History
Role
Example
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 813
5.17 Transport Applications
5.17.1 RDMA over Converged Ethernet (RoCE)
5.17.1.1 RoCE Overview
Remote Direct Memory Access (RDMA) is the remote memory management capability that
allows server to server data movement directly between application memory without any CPU
involvement. RDMA over Converged Ethernet (RoCE) is a mechanism to provide this efficient
data transfer with very low latencies on loss-less Ethernet networks. With advances in data center
convergence over reliable Ethernet, ConnectX® EN with RoCE uses the proven and efficient
RDMA transport to provide the platform for deploying RDMA technology in mainstream data
center application at 10GigE and 40GigE link-speed. ConnectX® EN with its hardware offload
support takes advantage of this efficient RDMA transport services over Ethernet to deliver ultra-
low latency for performance-critical and transaction intensive applications such as financial,
database, storage, and content delivery networks. RoCE encapsulates IB transport and GRH
headers in Ethernet packets bearing a dedicated ether type. While the use of GRH is optional
within subnets, it is mandatory when using RoCE. Applications written over IB verbs should
work seamlessly, but they require provisioning of GRH information when creating address vec-
tors. The library and driver are modified to provide mapping from GID to MAC addresses
required by the hardware.
5.17.1.1.1IP Routable (RoCEv2)
A straightforward extension of the RoCE protocol enables traffic to operate in layer 3 environ-
ments. This capability is obtained via a simple modification of the RoCE packet format. Instead
of the GRH used in RoCE, routable RoCE packets carry an IP header which allows traversal of
IP L3 Routers and a UDP header that serves as a stateless encapsulation layer for the RDMA
Transport Protocol Packets over IP.
Figure 28: RoCEv2 and RoCE Frame Format Differences
The proposed RoCEv2 packets use a well-known UDP destination port value that unequivocally
distinguishes the datagram. Similar to other protocols that use UDP encapsulation, the UDP
source port field is used to carry an opaque flow-identifier that allows network devices to imple-
ment packet forwarding optimizations (e.g. ECMP) while staying agnostic to the specifics of the
protocol header format.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 814
Furthermore, since this change exclusively affects the packet format on the wire, and due to the
fact that with RDMA semantics packets are generated and consumed below the AP applications
can seamlessly operate over any form of RDMA service (including the routable version of RoCE
as shown in Figure 2), in a completely transparent way1.
Figure 29: RoCEv2 Protocol Stack
5.17.1.2 RoCE Configuration
In order to function reliably, RoCE requires a form of flow control. While it is possible to use
global flow control, this is normally undesirable, for performance reasons.
The normal and optimal way to use RoCE is to use Priority Flow Control (PFC). To use PFC, it
must be enabled on all endpoints and switches in the flow path.
In the following section we present instructions to configure PFC on Mellanox ConnectX™
cards. There are multiple configuration steps required, all of which may be performed via Power-
Shell. Therefore, although we present each step individually, you may ultimately choose to write
a PowerShell script to do them all in one step. Note that administrator privileges are required for
these steps.
For further information, please refer to the following URL:
http://blogs.technet.com/b/josebda/archive/2012/07/31/deploying-windows-server-2012-with-
smb-direct-smb-over-rdma-and-the-mellanox-connectx-3-using-10gbe-40gbe-roce-step-by-
step.aspx
5.17.1.2.1Prerequisites
The following are the driver’s prerequisites in order to set or configure RoCE:
• ConnectX®-3 and ConnectX®-3 Pro firmware version 2.30.3000 or higher
1. Standard RDMA APIs are IP based already for all existing RDMA technologies
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 815
• Set HCA to use Ethernet protocol:
Display the Device Manager and expand “System Devices”.
5.17.1.2.2Configuring Windows Host
Configuring Windows host requires configuring QoS.
5.17.1.2.2.1 Using Global Pause Flow Control (GFC)
To use Global Pause Flow Control (GFC) mode, disable QoS and Priority:
5.17.1.3 Configuring Switch Systems
To enable RoCE, the SwitchX should be configured as follows:
• Ports facing the host should be configured as access ports, and either use global pause or Port
Control Protocol (PCP) for priority flow control
•Ports facing the network should be configured as trunk ports, and use Port Control Protocol
(PCP) for priority flow control
5.17.1.4 Configuring Router (PFC only)
The router uses L3's DSCP value to mark the egress traffic of L2 PCP. The required mapping,
maps the three most significant bits of the DSCP into the PCP. This is the default behavior, and
no additional configuration is required.
5.17.1.4.1Copying Port Control Protocol (PCP) Between Subnets
The captured PCP option from the Ethernet header of the incoming packet can be used to set the
PCP bits on the outgoing Ethernet header.
5.17.1.5 Configuring the RoCE Mode
Configuring the RoCE mode requires the following:
• RoCE mode is configured per-driver and is enforced on all the devices in the system
RoCE mode can be enabled and disabled via PowerShell.
To enable RoCE using the PowerShell:
• Open the PowerShell and run:
Set-MlnxDriverCoreSetting –RoceMode 1
Since PFC is responsible for flow controlling at the granularity of traffic priority, it is
necessary to assign different priorities to different types of network traffic.
As per RoCE configuration, all ND/NDK traffic is assigned to one or more chosen pri-
orities, where PFC is enabled on those priorities.
PS $ Disable-NetQosFlowControl
PS $ Disable-NetAdapterQos
The supported RoCE modes depend on the firmware installed. If the firmware does not
support the needed mode, the fallback mode would be the maximum supported RoCE
mode of the installed NIC.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 816
To enable RoCEv2 using the PowerShell:
• Open the PowerShell and run:
Set-MlnxDriverCoreSetting –RoceMode 2
To disable any version of RoCE using the PowerShell:
Open the PowerShell and run:
Set-MlnxDriverCoreSetting –RoceMode 0
To check current version of RoCE using the PowerShell:
Step 1. Open the PowerShell and run:
Step 2. Example output:
Get-MlnxDriverCoreSetting
Caption : DriverCoreSettingData 'mlx4_bus'
Description : Mellanox Driver Option Settings
.
.
.
RoceMode : 0
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 817
5.18 802.1x Protocol
The 802.1x standard describes a way to authenticate hosts (or supplicants) and to allow connec-
tion only to a list of allowed hosts pre-configured on an authentication server. The authentication
is performed by the switch (authenticator) which negotiates the authentication with a RADIUS
server (authentication server). This allows to block traffic from non-authenticated sources.
The 802.1x protocol defines the following roles:
•Supplicant – the host. It provides the authentication credentials to the authenticator and awaits
approval.
• Authenticator – the device that connects the supplicant to the network, and checks the authen-
tication with the authentication server. The authenticator is also in charge of blocking and iso-
lating of new client till authenticated and allowing communication once the client has passed
the authentication. Mellanox switch acts as an authenticator.
• Authentication server – a RADIUS server which can authenticate the user.
5.18.1 802.1x Operating Modes
The following operating modes are supported in 802.1x:
• Single host – only one supplicant can communicate through the port.
Once authentication of the supplicant is accepted by the authentication server, the switch
allows it access. If the supplicant logs off or the port state is changed, the port becomes unau-
The 802.1x is available only on access physical ports. It is not available on LAG and
MLAG ports.
A local analyzer port cannot support 802.1x protocol.
802.1x cannot be activated on router ports.
802.1x cannot run on a port configured to switchport trunk or hybrid.
Management interfaces cannot be configured as 802.1x port access entity (PAE) authenti-
cators.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 818
thenticated. And if a different supplicant tries to access through this port, its bidirectional traf-
fic is discarded (including authentication traffic).
• Multi-host mode – allows connection of multiple hosts over a single port. Only the first sup-
plicant is authenticated. Subsequent hosts have network access without the need to authenti-
cate.
5.18.2 Configuring 802.1x
To configure 802.1x on the switch
Step 1. Enable 802.1x protocol. Run:
Step 2. Enable the system as authenticator. Run:
Step 3. Configure RADIUS server parameters. Run:
Step 4. Enter the configuration mode of an Ethernet interface. Run:
Step 5. Configure the interface as a port access entity authenticator. Run:
Step 6. Configure the interface to perform authentication on ingress traffic. Run:
Step 7. Verify 802.1x configuration. Run:
An exception to this is multicast and broadcast traffic which do get transmitted over the
interface once authenticated and are exposed to an unauthorized supplicant if it exists.
switch (config) # protocol dot1x
switch (config) # dot1x system-auth-control
switch (config) # dot1x radius-server host 10.10.10.10 key my4uth3nt1c4t10nk3y retrans-
mit 2 timeout 3
switch (config) # interface ethernet 1/1
switch (config interface ethernet 1/1) #
switch (config interface ethernet 1/1) # dot1x pae authenticator
switch (config interface ethernet 1/1) # dot1x port-control auto
switch (config interface ethernet 1/1) # show dot1x interfaces ethernet 1/1
Eth1/1
PAE Status: Enabled
Configured host mode: Multi-host
Configured port-control: Auto
Authentication status: Unauthorized
Re-Authentication: Disabled
Re-Authentication period (sec): -
Tx wait period (sec): 30
Quiet period (sec): 60
Max request retry: 2
Last EAPOL RX source MAC: 00:00:00:00:00:00
switch (config interface ethernet 1/1)#
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 819
5.18.3 Commands
Enables 802.1x EAPOL protocol.
The no form of the command disables 802.1x EAPOL protocol.
N/A
Disabled
Config
3.4.2008
admin
switch (config)# protocol dot1x
protocol dot1x
protocol dot1x
no protocol dot1x
Syntax Description
Default
Configuration Mode
History
Role
Example
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 820
dot1x clear-statistics
dot1x clear-statistics
Resets the 802.1x counters on all or a specific port.
Syntax Description N/A
Default N/A
Configuration Mode Config
Config Interface Ethernet
History 3.4.2008
Role admin
Example switch (config)# dot1x clear-statistics
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 821
dot1x pae authenticator
dot1x pae authenticator
no dot1x pae authenticator
Configures the port as a 802.1x port access entity (PAE) authenticator.
The no form of the command disables the port from being a 802.1x PAE authentica-
tor.
Syntax Description N/A
Default Disabled
Configuration Mode Config Interface Ethernet
History 3.4.2008
Role admin
Example switch (config interface ethernet 1/2)# dot1x system-auth-control
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 822
dot1x host-mode
dot1x host-mode [multi-host | single-host]
no dot1x host-mode
Configures the authentication mode to either multi-host or single-host.
The no form of the command resets the parameter to its default.
Syntax Description multi-host Sets the interface to operate in a port-based mode
single-host Sets the interface to operate in a MAC-based mode
with support of a single supplicant per interface
Default single-host
Configuration Mode Config Interface Ethernet
History 3.4.2008
3.4.2300 Added “single-host” option
Role admin
Example switch (config interface ethernet 1/2)# dot1x host-mode single-host
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 823
dot1x port-control
dot1x port-control [auto | force-authorized | force-unauthorized]
no dot1x port-control
Configures 802.1x port access entity (PAE) port-control.
The no form of the command resets the parameter to its default.
Syntax Description auto The authenticator uses PAE authentication services to
allow or block the port traffic
force-authorized Allows traffic on this port regardless of supplicant
authorization
force-unauthorized Blocks traffic on this port regardless of supplicant
authorization
Default Force-authorized
Configuration Mode Config Interface Ethernet
History 3.4.2008
Role admin
Example switch (config interface ethernet 1/2)# dot1x port-control auto
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 824
dot1x radius-server host
dot1x radius-server host <IP address> [enable | auth-port <port> | key <pass-
word> | prompt-key | retransmit <retries> | timeout <seconds>]
no dot1x radius-server host <IP address> enable
Configure 802.1x RADIUS server IP address.
The no form of the command disables 802.1x RADIUS server.
Syntax Description auth-port Sets 802.1x RADIUS port to use with this server.
Range: 1-65535.
enable Sets 802.1x RADIUS as administratively enabled
key Configures 802.1x global RADIUS shared secret for
servers.
prompt-key Prompts for key, rather than entering on command line
retransmit Configure 802.1x global RADIUS retransmit count for
servers. The time configured is in seconds. Range: 0-5.
timeout Configures 802.1x global RADIUS timeout value for
servers. The time configured is in seconds. Range: 1-
60.
Default auth-port: 1812
key: empty string
retransmit: 1
timeout: 3
Configuration Mode Config
History 3.4.2008
Role admin
Example switch (config)# dot1x radius-server host 10.10.10.10 auth-port 65535
prompt-key enable
Related Commands
Note • The no form of the various parameters resets them to their default values as indicated in the
Default section above
• It is possible to configure up to 5 RADIUS servers
• It is possible to configure only 1 authentication port per RADIUS server IP
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 825
dot1x reauthenticate
dot1x reauthenticate
no dot1x reauthenticate
Enables supplicant re-authentication according to the configuration of command
“dot1x timeout reauthentication”.
The no form of the command disables supplicant re-authentication.
Syntax Description N/A
Default No re-authentication
Configuration Mode Config Interface Ethernet
History 3.4.2008
Role admin
Example switch (config interface ethernet 1/2)# dot1x reauthenticate
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 826
dot1x system-auth-control
dot1x system-auth-control
no dot1x system-auth-control
Enables the system as authenticator.
The no form of the command disables the system as authenticator.
Syntax Description N/A
Default Disabled
Configuration Mode Config
History 3.4.2008
Role admin
Example switch (config)# dot1x system-auth-control
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 827
dot1x timeout reauthentication
dot1x timeout reauthentication <period>
no dot1x timeout reauthentication
Configures the number of seconds between re-authentication attempts.
The no form of the command resets the parameter to its default.
Syntax Description period Time in second. Range: 1-65535 seconds.
Default 3600 seconds
Configuration Mode Config Interface Ethernet
History 3.4.2008
Role admin
Example switch (config interface ethernet 1/2)# dot1x timeout reauthentication
3600
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 828
dot1x timeout quiet-period
dot1x timeout quiet-period <period>
no dot1x timeout quiet-period
Configures the number of seconds that the authenticator remains quiet following a
failed authentication exchange with the supplicant.
The no form of the command resets the parameter to its default.
Syntax Description period Time in second. Range: 1-65535 seconds.
Default 60 seconds
Configuration Mode Config Interface Ethernet
History 3.4.2008
Role admin
Example switch (config interface ethernet 1/2)# dot1x timeout quiet-period 60
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 829
dot1x timeout tx-period
dot1x timeout tx-period <period>
no dot1x timeout tx-period
Configures the maximum number of seconds that the authenticator waits for suppli-
cant response of EAP-request/identify frame before retransmitting the request.
The no form of the command resets the parameter to its default.
Syntax Description period Time in second. Range: 1-65535 seconds.
Default 30 seconds
Configuration Mode Config Interface Ethernet
History 3.4.2008
Role admin
Example switch (config interface ethernet 1/2)# dot1x timeout quiet-period 30
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 830
dot1x max-req
dot1x max-req <retries>
no dot1x max-req
Configures the maximum amount of retries for the authenticator to communicate with
the supplicant over EAP.
The no form of the command resets the parameter to its default.
Syntax Description retries The number of request retries. Range: 1-10.
Default 2
Configuration Mode Config Interface Ethernet
History 3.4.2008
Role admin
Example switch (config interface ethernet 1/2)# dot1x max-req 2
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 831
show dot1x
show dot1x
Displays 802.1x information on all interfaces.
Syntax Description N/A
Default N/A
Configuration Mode Any Command Mode
History 3.4.2008
Role admin
Example switch (config)# show dot1x
System authentication is enabled
---------------------------------------------------------------------
Port Pae Host-mode Port-control Status
---------------------------------------------------------------------
Eth1/1 Enabled multi-host auto unauthorized
Eth1/2 Disabled multi-host force-authorized down
Eth1/3 Disabled multi-host force-authorized down
Eth1/4 Disabled multi-host force-authorized down
Eth1/5 Disabled multi-host force-authorized down
Eth1/6 Disabled multi-host force-authorized down
Eth1/7 Disabled multi-host force-authorized down
Eth1/8 Disabled multi-host force-authorized down
Eth1/9 Disabled multi-host force-authorized down
...
switch (config)#
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 832
show dot1x interfaces ethernet
show dot1x interfaces ethernet <slot>/<port>
Displays 802.1x interface information.
Syntax Description <slot>/<port> Ethernet interface
Default N/A
Configuration Mode Any Command Mode
History 3.4.2008
Role admin
Example switch (config)# show dot1x interfaces ethernet 1/2
Eth1/2
PAE Status: Enabled
Configured host mode: Multi-host
Configured port-control: Auto
Authentication status: Unauthorized
Re-Authentication: Enabled
Re-Authentication period (sec): 3600
Tx wait period (sec): 30
Quiet period (sec): 60
Max request retry: 2
Last EAPOL RX source MAC: 00:00:00:00:00:00
switch (config interface ethernet 1/2)#
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 833
show dot1x interfaces ethernet statistics
show dot1x interfaces ethernet <slot>/<port> statistics
Displays 802.1x interface information.
Syntax Description <slot>/<port> Ethernet interface
Default N/A
Configuration Mode Any Command Mode
History 3.4.2008
Role admin
Example switch (config)# show dot1x interfaces ethernet 1/2 statistics
Eth1/2
EAPOL frames received: 3
EAPOL frames transmitted: 2
EAPOL Start frames received: 1
EAPOL Logoff frames received: 0
EAP Response-ID frames received: 2
EAP Response frames received: 0
EAP Request-ID frames transmitted: 2
EAP Request frames transmitted: 0
Invalid EAPOL frames received: 0
EAP length error frames received: 0
Last EAPOL frame version: 1
Last EAPOL frame source: 00:1A:A0:02:E9:8E
switch (config)#
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 834
show dot1x radius
show dot1x radius
Displays 802.1x RADIUS settings.
Syntax Description N/A
Default N/A
Configuration Mode Any Command Mode
History 3.4.2008
Role admin
Example switch (config)# show dot1x radius
802.1x RADIUS defaults:
Key: ********
Timeout: 3
Retransmit: 1
No 802.1x RADIUS servers configured.
switch (config)#
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 835
5.19 Priority Flow Control
Priority Flow Control (PFC) provides an enhancement to the existing pause mechanism in Ether-
net. The current Ethernet pause option stops all traffic on a link. PFC creates eight separate vir-
tual links on the physical link and allows any of these links to be paused and restarted
independently, enabling the network to create a no-drop class of service for an individual virtual
link.
PFC offers the following features:
• Provides per-priority enabling or disabling of flow control
• Transmits PFC-PAUSE frames when the receive threshold for a particular traffic class is
reached
• Provides the management capability for an administrator to configure the flow control prop-
erties on each port of the switch
• Keeps flow control disabled for all priorities on all ports by default
• Allows an administrator to enable or disable flow control per port and per priority level
• Supports flow control only on physical ports, not on logical interfaces such as tunnels or
interfaces defined by sharing a physical port in multiple virtual switch contexts
• Uses the configured threshold values to set up the queue buffer spaces accordingly in the
data-path
• Provides hardware abstraction layer call-outs for the following:
• Enabling or disabling of flow control on each port for each priority
• Configuring the queue depth for each priority on each port
• Provides trace logs for execution upon error conditions and for any event notifications from
the hardware or data-path. These trace logs are a useful aid in troubleshooting.
•Allows the administrator to configure the minimum and maximum threshold values for flow
control. These configurations are applied globally on all ports and priorities.
Priority Based Flow Control (PFC) provides an enhancement to the existing pause flow control
mechanism as described in 802.1x.
To enable PFC globally:
Step 1. Log in as admin.
Step 2. Enter config mode. Run:
Step 3. Enable PFC globally on the switch. Run:
To enable PFC per priority:
Step 1. Log in as admin.
Step 2. Enter config mode. Run:
switch > enable
switch # configure terminal
switch (config) # dcb priority-flow-control enable
This action might cause traffic loss while shutting down a port with priority-flow-con-
trol mode on
Type 'yes' to confirm enable pfc globally: yes
switch > enable
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 836
Step 3. Enable PFC globally on the switch. Run:
Step 4. Choose the desirable priority you want to enable using the command
dcb priority-flow-
control priority <pri[0..7]> enable
.
To enable PFC per interface:
Step 1. Log in as admin.
Step 2. Change to config mode. Run:
Step 3. Enable PFC globally on the switch. Run:
Step 4. Choose the desirable priority you want to enable using the command
dcb priority-flow-
control priority <pri[0..7]> enable
Step 5. Change to Interface mode. Run:
Step 6. Enable PFC for the specific interface:
When working with lossless traffic, the receiving side sends a pause frame (Xoff) to the transmit-
ting side before the buffer is filled. When the buffer empties, the receiving side sends an un-pause
frame (Xon) to the transmitting side.
5.19.1 Flow Control Threshold Configuration for Spectrum
The user has to set the buffer usage Xoff and Xon thresholds. The thresholds depend on network
parameters (bandwidth, link latency, MTU) and the allocated size for the region.
switch # configure terminal
switch (config) # dcb priority-flow-control enable
# dcb priority-flow-control enable
This action might cause traffic loss while shutting down a port with priority-flow-con-
trol mode on
Type 'yes' to confirm enable pfc globally: yes
switch (config) #
switch (config) # dcb priority-flow-control priority 5 enable
switch > enable
switch # configure terminal
switch (config) # dcb priority-flow-control enable
switch (config) # dcb priority-flow-control 5 enable
switch (config) #
switch (config) # interface ethernet 1/1
switch (config interface ethernet 1/1) #
switch (config interface ethernet 1/1) # dcb priority-flow-control mode on
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 837
Figure 30: Xon/Xoff Configuration
When working with global flow control mode only, a single PG shall be used and Xoff
and Xon shall be set on this PG. When working with priority flow control, Xoff and Xon
shall be set on each lossless PG.
See Section 5.20, “Shared Buffers,” on page 842 for more information on flow control.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 838
5.19.2 Commands
Enables PFC globally on the switch.
The no form of the command globally disables PFC on the switch.
force Forces operation
PFC is disabled.
Config
3.1.0000
3.3.0000 Updated Example
admin
switch (config)# dcb priority-flow-control enable
This action might cause traffic loss while shutting down a port with
priority-flow-control mode on
Type 'yes' to confirm enable pfc globally: yes
switch (config)# show dcb priority-flow-control
PFC enabled
Priority Enabled List :
Priority Disabled List :0 1 2 3 4 5 6 7
TC Lossless
--- ----------
0 N
1 Y
2 Y
3 N
Interface PFC admin PFC oper
------------ -------------- -------------
1/1 Disabled Disabled
1/2 Disabled Disabled
1/3 Disabled Disabled
1/4 Disabled Disabled
...
switch (config) #
show dcb priority-flow-control
This command asks the user to approve traffic loss because some interfaces with
DCB mode activated might get shut down.
dcb priority-flow-control enable
dcb priority-flow-control enable [force]
no dcb priority-flow-control enable [force]
Syntax Description
Default
Configuration Mode
History
Role
Example
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 839
dcb priority-flow-control priority
dcb priority-flow-control priority <prio> enable
no dcb priority-flow-control priority <prio> enable
Enables PFC per priority on the switch.
The no form of the command disables PFC per priority on the switch.
Syntax Description prio 0-7.
Default PFC is disabled for all priorities.
Configuration Mode Config
History 3.1.0000
Role admin
Example switch (config)# dcb priority-flow-control priority 0 enable
switch (config)# show dcb priority-flow-control
PFC enabled
Priority Enabled List : 0
Priority Disabled List : 1 2 3 4 5 6 7
TC Lossless
--- ----------
0 N
1 Y
2 Y
3 N
Interface PFC admin PFC oper
------------ -------------- -------------
1/1 Disabled Disabled
1/2 Disabled Disabled
1/3 Disabled Disabled
1/4 Disabled Disabled
...
switch (config) #
Related Commands show dcb priority-flow-control
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 840
dcb priority-flow-control mode on
dcb priority-flow-control mode on [force]
no dcb priority-flow-control mode
Enables PFC per interface.
The no form of the command disables PFC per interface.
Syntax Description force Force command implementation.
Default PFC is disabled for all interfaces.
Configuration Mode Config Interface Ethernet
Config Interface Port Channel
Config Interface MLAG Port Channel
History 3.1.0000
3.3.4500 Added MLAG port-channel configuration mode
Role admin
Example switch (config interface ethernet 1/1) # dcb priority-flow-control mode
on
switch (config interface ethernet 1/1) # show dcb priority-flow-control
PFC enabled
Priority Enabled List : 0
Priority Disabled List : 1 2 3 4 5 6 7
TC Lossless
--- ----------
0 N
1 Y
2 Y
3 N
Interface PFC admin PFC oper
------------ -------------- -------------
1/1 On Enabled
1/2 Disabled Disabled
1/3 Disabled Disabled
1/4 Disabled Disabled
...
switch (config) #
Related Commands show dcb priority-flow-control
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 841
show dcb priority-flow-control
show dcb priority-flow-control [interface <type> <inf>] [detail]
Displays DCB priority flow control configuration and status.
Syntax Description type • ethernet
• port-channel
inf The interface number.
detail Adds details information to the show output.
Default N/A
Configuration Mode Any Command Mode
History 3.1.0000
Role admin
Example switch (config interface ethernet 1/1) # show dcb priority-flow-control
PFC enabled
Priority Enabled List : 0
Priority Disabled List : 1 2 3 4 5 6 7
TC Lossless
--- ----------
0 N
1 Y
2 Y
3 N
Interface PFC admin PFC oper
------------ -------------- -------------
1/1 On Enabled
1/2 Disabled Disabled
1/3 Disabled Disabled
1/4 Disabled Disabled
...
switch (config) #
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 842
5.20 Shared Buffers
All successfully received packets by a switch are stored on internal memory from the time they
are received until the time they are transmitted. The packet buffer is fully shared between all
physical ports and is hence called a shared buffer. Buffer configuration is applied in order to pro-
vide lossless services and to ensure fairness between the ports and priorities.
The buffer mechanism allows defining reserved memory allocation and limiting the usage of
memory based on incoming/outgoing ports and priority of the packet. In addition, the buffer can
be divided into static pools, each for a specific set of priorities. Buffer configuration mechanism
allows fair enforcement from both ingress and egress sides.
5.20.1 Packet Buffering Classification
When a packet arrives to the switch it is classified according to its ingress port, egress port, and
layer 2 and layer 3 header fields. The following terms are used to handle packet classification
within the switch.
• Port
• Ingress port (iPort) – the port which the packet is received on
• Egress port (ePort) – the port on which the packet is going to be transmitted
• Priority
• Switch priority (SP) – internal identifier of the packet priority which is used as a key for
several internal switch functions and decisions, specifically buffering. The SP of the
packet is assigned according to a port’s trust level configuration and packet QoS identifi-
ers in the header (PCP, DEI, DSCP).
• Priority group (PG) – PG is combined of a group of SPs. It is used for grouping packets of
several switch priorities into a single ingress buffer space.
• Traffic class (TC) – TC is combined of a group of SPs. It is used for grouping packets of
several switch priorities into a single egress queue and buffer space.
Buffers configuration mechanism is providing a way to allocate buffer space for specific traffic
types based on the following classification parameters.
• iPort – traffic that arrived on a specific port
• iPort.PG – traffic that arrived on a specific port and mapped to a specific PG
• ePort – traffic that is going to be transmitted on a specific port
• ePort.TC – traffic that is going to be transmitted on a specific port and mapped to a specific
TC
By default, multicast packets (including flooding and broadcast) are counted on the egress side.
However, multicast packets consume the physical memory space of a single packet and, hence,
using native buffering calculations, the multicast packet may negatively affect buffer utilization.
Counting multicast traffic only once is not possible since, unlike unicast traffic where the TC is
used as the region indicator of egress traffic, multicast traffic can be transmitted using different
TCs on different ports. Therefore, instead of using TC as an egress region indicator, SP is used.
This section is relevant only for Spectrum™ based switch systems.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 843
Thus, the egress region for multicast traffic is named MC,SP. Hence the following classification
parameters for multicast traffic are used.
• MC – traffic to be transmitted as multicast
• MC.SP – traffic to be transmitted as multicast on a specific SP
5.20.2 Buffering Allocation
For the aforementioned classification parameters, a buffering region can be allocated. The buffer-
ing region is defined as a set of one of the following: {iPort}, {iPort.pg}, {ePort}, {ePort.TC},
{MC} or {MC.SP}.
For buffer regions, reserved and shared buffering quotas are allocated based on the following
configuration parameters.
• Reserved allocation (size) – guaranteed buffering quota for the region which is not shared
with other regions
• Shared allocation (shared) – best-effort buffering quota for the region which can be shared
with other regions and allocated dynamically. Region usage cannot overflow this quota.
Shared allocation can be set using static or dynamic threshold.
•Shared pool – static bound from which the shared space is dynamically allocated (cannot be
configured for {iPort}, {ePort}, or {MC})
The iPort.PG buffer can be configured to work in one of two modes:
• Lossy – for lossy traffic
• Lossless – for lossless traffic
In this mode, the user must define the flow control thresholds (Xoff, Xon). When PG buffer
occupancy reaches the threshold, the specific flow control packet is sent.
If there is a physical buffer space for an arriving packet, it is temporarily stored for processing.
After processing its egress port, TC and ingress PG are defined. Then, it can be evaluated for eli-
gibility for being stored in the buffer space until it is forwarded.
Buffer eligibility is defined based on the following conditions:
• There is available quota within at least one of the four reserved allocation regions
• For lossy traffic: iPort.PG.usage < iPort.PG.reserved || iPort.usage < iPort.reserved ||
ePort.TC.usage < ePort.TC.reserved || ePort.usage < ePort.reserved
• For lossless traffic: ePort.TC.usage < ePort.TC.reserved || ePort.usage < ePort.reserved
Note: Ingress check is not performed since all the ingress reserved space is allocated for
headroom.
• If a packet is below the all aforementioned four shared allocation thresholds:
iPort.PG.usage < iPort.PG.shared && iPort.usage < iPort.shared && ePort.TC.usage <
ePort.TC.shared && ePort.usage < ePort.shared
If a packet is not eligible for buffering:
• For lossy traffic: Packet is dropped
• For lossless traffic: Packet stays in headroom
The eligible packet is counted in usage for the egress regions (ePort, ePort,tc or MC, MC,SP). A
packet in lossy traffic is counted for usage in the ingress regions (iPort, iPort,PG). An eligible
packet in lossless traffic is counted for usage in the ingress iPort region also, but if it is not eligi-
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 844
ble and stayed in the headroom, it is counted in its ingress region (iPort,PG) causing it to reach
closer to the Xoff threshold.
5.20.3 Pools
Shared buffer space can be statically divided among multiple pools. Each region (iPort, ePort,
MC, iPort.PG, ePort.TC and MC.SP) is mapped to specific pools. The pools are divided to
ingress pools (iPools) and egress pools (ePools).
Each pool has the following parameters:
• Size – the total size which is shared among the regions allocated to that pool. The pool’s size
binds the amount of cumulative shared usage of the regions that are mapped to the pool.
Note: The pool size does not include the reserved sizes of regions.
• Mode – working mode
• Static – each region has a static maximum threshold defined in bytes. The user sets the
maximum shared quota for this buffer from a specific pool. It is configured in percentage
out of the bounded pool size.
•Dynamic – each region has a dynamic maximal threshold defined as alpha (α) which is the
ratio between the current region usage and the pool’s free space (equal to the pool usage
subtracted from pool size):
•α accepts the following values 0, 1/128, 1/64, …1/2,1,2,…,64, infinity
• Buffer acceptance condition is: region usage < α*free pool space
The port region is counted against the pool that the PG/TC region of the packet is mapped to.
5.20.4 Default Configurations
5.20.4.1 Default Lossy Configuration
The default, out-of-box configuration provides the following settings:
• Pool allocation for ingress control and data packets
• Each port has a reserved quota and in addition shared buffers
• A single buffer (PG) per port for data packets
• A single buffer (PG) per port for control packets – cannot be configured by the user
• Pool allocation for egress control and data packets
• Each port has a (small) reserved quota and in addition shared buffers
• 8 TC per port for data packets
• A single buffer per port for control packets – cannot be configured by the user
• Pool allocation for egress CPU traffic
• Each TC has a reserved quota and in addition shared buffers
• Only iPort.PG and ePort.TC enforcement is used, not iPort and ePort enforcement
All the switch-priorities are mapped to ingress PG 0. Each switch-priority i is mapped into a cor-
responding traffic class i.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 845
5.20.4.2 Default Lossless Configuration
One can switch from lossy to lossless defaults by disabling/enabling global flow control.
The lossless buffer allocation is identical to the lossy default allocation with different shared buf-
fer dynamic thresholds and with an addition of flow control thresholds.
The default Xon and Xoff thresholds are both set to 17KB. The reserved buffer is set to 90KB. It
allows having a 100 meter lossless link working at 100GbE, supporting 9KB MTU packets.
5.20.5 Configuration Example
The following example exhibits how to divide the buffer among traffic priorities. Assuming that
over an out-of-box lossy default configuration is set, the user here configures buffering configu-
ration for lossless traffic classified to switch-priority 3.
The changes on the default configuration are summarized in the following:
• Ingress:
• Default reserved PG buffer is reduced from 90KB to 20KB, freeing 70KB for lossless traf-
fic
• Egress:
• TC3 shared α is configured to infinite, as recommended for TCs with lossless traffic.
Example:
// Setting PFC on priority 3
switch (config) # dcb priority-flow-control enable force
switch (config) # dcb priority-flow-control priority 3 enable
switch (config) # interface ethernet <id> dcb priority-flow-control mode on force
// Reducing default PG size
switch (config)# interface ethernet <id> ingress-buffer iPort.pg0 map pool ipool0 type
lossy reserved 20K shared alpha 8
// Setting lossless ingress buffer PG3 and lossless egress TC3
switch (config)# interface ethernet <id> ingress-buffer iPort.pg3 map pool iPool0 type
lossless reserved 70K xoff 17K xon 17K shared alpha 2
switch (config)# interface ethernet <id> egress-buffer ePort.tc3 map pool ePool0 reserved
4K shared alpha inf
// Mapping switch priority 3 to lossless ingress PG buffer
(config)# interface ethernet <id> ingress-buffer iport.pg3 bind switch-priority 3
If the user wants to allocate a separate pool for the new lossless traffic. The changes needed are
as follows:
• Ingress:
• Default reserved PG buffer is reduced from 90KB to 20KB, freeing up more than 70KB
for lossless traffic
• Default pool is reduced from 7960K to 3000K. The rest is allocated to the new pool.
• Egress:
• TC3 shared alpha is configured to infinite as recommended for TCs with lossless traffic.
Default pool is reduced from 14232KB to 4888K. The rest is allocated to the new pool.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 846
Example:
// Setting PFC on priority 3
switch (config)# dcb priority-flow-control enable force
switch (config)# dcb priority-flow-control priority 3 enable
switch (config)# interface ethernet <id> dcb priority-flow-control mode on force
// Reducing default PG size
switch (config)# interface ethernet <id> ingress-buffer iPort.pg0 map pool ipool0 type
lossy reserved 20K shared alpha 8
// Setting separate pool for lossless traffic
// Reducing data pool
switch (config)# pool iPool0 direction ingress size 3000 type dynamic
switch (config)# pool ePool0 direction egress size 4888 type dynamic
// Defining lossless pool #1
switch (config)# pool iPool1 direction ingress size 7768 type dynamic
switch (config)# pool ePool1 direction egress size 7768 type dynamic
// Setting lossless ingress buffer PG3 and lossless egress TC3
// Setting iPool1 for infinite alpha
switch (config)# interface ethernet <id> ingress-buffer iPort.pg3 map pool ipool1 type
lossless reserved 70K xoff 17K xon 17K shared alpha 2
switch (config)# interface ethernet <id> ingress-buffer iPort pool iPool1 reserved 0K
shared alpha inf
switch (config)# interface ethernet <id> egress-buffer ePort.tc3 map pool epool1 reserved
4K shared alpha inf
// Mapping switch priority 3 to lossless ingress PG buffer
switch (config)# interface ethernet <id> ingress-buffer iport.pg3 bind switch-priority 3
When the egress traffic class (TC) region buffer size exceeds the TX α (max) threshold,
the non-eligible packet is dropped (does not stay in the headroom) regardless whether it
belongs to a lossy or lossless ingress buffer. Therefore, the recommendation is to map
lossless traffic to separate TCs than lossy traffic and to configure egress α (max) thresh-
old of these TCs to infinity in order to avoid dropping lossless traffic.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 847
5.20.6 Commands
Creates and enters the ingress buffer context.
The no form of the command deletes an existing buffer.
buffer-name Name of ingress buffer
N/A
Config Interface Ethernet
3.6.1002
admin
switch (config interface ethernet 1/1)# ingress-buffer iPort.pg1
switch (config interface ethernet 1/1 ingress-buffer iPort.pg1)#
iPort.pg9 is reserved for control traffic and hence cannot be edited
ingress-buffer
ingress-buffer <buffer-name>
no ingress-buffer <buffer-name>
Syntax Description
Default
Configuration Mode
History
Role
Example
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 848
egress-buffer
egress-buffer <buffer-name>
no egress-buffer <buffer-name>
Creates and enters the buffer context.
The no form of the command deletes an existing buffer.
Syntax Description buffer-name Name of egress buffer
Default N/A
Configuration Mode Config Interface Ethernet
History 3.6.1002
Role admin
Example switch (config interface ethernet 1/1)# egress-buffer ePort.tc4
switch (config interface ethernet 1/1 egress-buffer ePort.tc4)#
Related Commands
Note ePort.tc16 is reserved for control traffic and hence cannot be edited
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 849
pool reserved
pool <pool-name> reserved <reserved> shared {alpha | max} <shared>
no pool <pool-name>
Configures the buffer.
The no form of the command resets the values to their default.
Syntax Description pool-name Possible values: iPool0, iPool1, iPool2, iPool3
reserved Amount of reserved memory for the buffer in bytes
shared The amount of shared memory for this buffer
• When working in alpha mode, alpha can have the values 0,
1/128, 1/64 … 1, 2, 4, … 64, inf
• When working in max mode, the shared size is defined as a
percentage from the pool size
Default According to system default OOB configuration
Configuration Mode Config Interface Ethernet Egress Buffer
Config Interface Ethernet Ingress Buffer
History 3.6.1002
Role admin
Example switch (config interface ethernet 1/1 ingress-buffer iPort)# pool iPool0
reserved 90K shared alpha 1/8
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 850
map pool
map pool <pool-name> type <type> reserved <reserved> [xoff <xoff> xon [<xon>]
shared {alpha | max} <shared>
Configures the buffer.
The no form of the command resets the values to their default.
Syntax Description pool-name Possible values: iPool0, iPool1, iPool2, iPool3
reserved Amount of reserved memory for the buffer in bytes
xoff Relevant only on lossless type, Xoff threshold in bytes
xon Relevant only on lossless type, Xon threshold in bytes
shared The amount of shared memory for this buffer
• When working in alpha mode, alpha can have the values 0,
1/128, 1/64 … 1, 2, 4, … 64, inf
• When working in max mode, the shared size is defined as a
percentage from the pool size
Default According to system default OOB configuration
Configuration Mode Config Interface Ethernet Egress Buffer
Config Interface Ethernet Ingress Buffer
History 3.6.1002
Role admin
Example switch (config interface ethernet 1/1 ingress-buffer iPort.pg0)# map pool
iPool0 type lossless reserved 90K xoff 17K xon 17K shared alpha 1/8
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 851
bind switch-priority
bind switch-priority <list-of-switch-priorities>
Bind a switch priority (SP) to an ingress buffer.
The no form of the command resets the values to their default.
Syntax Description list-of-switch-priorities Possible values: 0-7
Default According to system default OOB configuration
Configuration Mode Config Interface Ethernet Egress Buffer
Config Interface Ethernet Ingress Buffer
History 3.6.1002
Role admin
Example switch (config interface ethernet 1/1 ingress-buffer iPort.pg1)# bind
switch-priority 0 1
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 852
description
description <description>
Configures buffer description.
The no form of the command resets the values to their default.
Syntax Description description Text string
Default “”
Configuration Mode Config Interface Ethernet Egress Buffer
Config Interface Ethernet Ingress Buffer
History 3.6.1002
Role admin
Example switch (config interface ethernet 1/1 ingress-buffer iPort.pg1)#
description example
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 853
pool direction
pool <pool-name> direction <direction> size <size> type <type>
Configures pool.
The no form of the command resets the values to their default.
Syntax Description pool Possible values: iPool0, iPool1, iPool2, iPool3
direction Ingress or egress traffic
size Size of pool in bytes
type Static or dynamic
Default N/A
Configuration Mode Config Interface Ethernet Egress Buffer
Config Interface Ethernet Ingress Buffer
History 3.6.1002
Role admin
Example switch (config interface ethernet 1/1 ingress-buffer iPort.pg1)# pool
iPool1 direction ingress size 1M type dynamic
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 854
pool mc-buffer
pool <pool-name> mc-buffer <buffer> reserved <reserved> shared {alpha | max}
<shared>
no pool <pool-name>
Configures pool.
The no form of the command resets the values to their default.
Syntax Description mc-buffer Buffer can have the values mc.sp0, mc.sp1…mc.sp14
reserved The amount of shared memory for this buffer
shared The amount of shared memory for this buffer
• When working in alpha mode, alpha can have the values 0,
1/128, 1/64 … 1, 2, 4, … 64, inf
• When working in max mode, the shared size is defined as a
percentage from the pool size
Default N/A
Configuration Mode Config Interface Ethernet Egress Buffer
History 3.6.1002
Role admin
Example switch (config interface ethernet 1/1 egress-buffer ePort.tc4)# pool
iPool1 mc-buffer mx.sp0 reserved 90K shared alpha 1/8
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 855
pool description
pool <pool-name> description <description>
no pool <pool-name>
Configures the buffer description of a specific pool-name.
The no form of the command resets the values to their default.
Syntax Description description String text
Default “”
Configuration Mode Config Interface Ethernet Egress Buffer
Config Interface Ethernet Ingress Buffer
History 3.6.1002
Role admin
Example switch (config interface ethernet 1/1 ingress-buffer iPort.pg1)# pool
iPool1 description myDescription
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 856
show buffers status
show buffers status interfaces ethernet <slot>/<port>
Displays buffer status
Syntax Description <slot>/<port> Ethernet interface
Default N/A
Configuration Mode Config
History 3.6.1002
Role admin
Example switch (config)# show buffers status 1/25
Interface Buffer Resv Shared Usage MaxUsage
[Byte] [%/a] [Byte] [Byte]
--------- ------ ---- ------ ----- --------
Eth1/25 iPort 192 1/128 0 0
iPort 0 0 0 0
iPort 0 0 0 0
iPort 0 0 0 0
iPort.pg0 0 0 0 0
iPort.pg1 0 0 0 0
iPort.pg2 0 0 0 0
iPort.pg3 0 0 0 0
iPort.pg4 0 0 0 0
iPort.pg5 0 0 0 0
iPort.pg6 0 0 0 0
iPort.pg7 0 0 0 0
iPort.pg9 19.5K inf 0 0
ePort 0 inf 0 0
ePort 0 inf 0 0
ePort 0 inf 0 0
ePort 0 inf 0 0
ePort.tc0 1.5K 2 0 0
ePort.tc1 1.5K 2 0 0
ePort.tc2 1.5K 2 0 0
ePort.tc3 1.5K 2 0 0
ePort.tc4 1.5K 2 0 0
ePort.tc5 1.5K 2 0 0
ePort.tc6 1.5K 2 0 0
ePort.tc7 1.5K 2 0 0
ePort.tc8 0 0 0 0
ePort.tc9 0 0 0 0
ePort.tc10 0 0 0 0
ePort.tc11 0 0 0 0
ePort.tc12 0 0 0 0
ePort.tc13 0 0 0 0
ePort.tc14 0 0 0 0
ePort.tc15 0 0 0 0
ePort.tc16 96 inf 0 0
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 857
show buffers details
show buffers details interfaces ethernet <slot>/<port>
Displays buffer status in details.
Syntax Description <slot>/<port> Ethernet interface
Default N/A
Configuration Mode Config
History 3.6.1002
Role admin
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 858
Example switch (config)# show buffers details interfaces ethernet 1/25
Flags: Y - Lossy, L - Lossless
S - Static, D - Dynamic
Shared size is in Bytes for static pool and in alphas for dynamic pool.
Interface: Eth1/25
Buffer Resv Xoff Xon Shared Pool Description
[Byte] [Byte] [Byte] [%/a]
------ ------ ------ ------ ------ ---- -----------
iPort(Y) 192 - - 1/128 iPool0(D)
iPort(Y) 0 - - 0 iPool1(D)
iPort(Y) 0 - - 0 iPool2(D)
iPort(Y) 0 - - 0 iPool3(D)
iPort.pg0(Y) 0 - - 0 iPool0(D) Data
iPort.pg1(Y) 0 - - 0 iPool0(D)
iPort.pg2(Y) 0 - - 0 iPool0(D)
...
iPort.pg7(Y) 0 - - 0 iPool0(D)
iPort.pg9(Y) 19.5K - - inf iPool0(D) Control
ePort 0 - - inf ePool0(D)
ePort 0 - - inf ePool1(D)
ePort 0 - - inf ePool2(D)
ePort 0 - - inf ePool3(D)
ePort.tc0 1.5K - - 2 ePool0(D)
ePort.tc1 1.5K - - 2 ePool0(D)
ePort.tc2 1.5K - - 2 ePool0(D)
...
ePort.tc6 1.5K - - 2 ePool0(D)
ePort.tc7 1.5K - - 2 ePool0(D)
ePort.tc8 0 - - 0 ePool0(D)
ePort.tc9 0 - - 0 ePool0(D)
...
ePort.tc15 0 - - 0 ePool0(D)
ePort.tc16 96 - - inf ePool0(D) Control
Switch-priority Buffer
--------------- ------
0 iPort.pg0
1 iPort.pg0
2 iPort.pg0
3 iPort.pg0
4 iPort.pg0
...
10 iPort.pg0
11 iPort.pg0
12 iPort.pg0
13 iPort.pg0
14 iPort.pg0
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 859
show buffers pools
show buffers pools <pool-name>
Displays pool status and configuration.
Syntax Description pool-name Possible pool name values:
iPool0…iPool3, ePool0…ePool3, and mc-buffers
Default N/A
Configuration Mode Config
History 3.6.1002
Role admin
Example switch (config)# show buffers pools iPool0
Flags: S - Static, D - Dynamic
Pool Direction Size Usage MaxUsage Description
[Byte] [Byte] [Byte]
------ --------- ------ ----- --------- -----------
iPool0 ingress(D) 8.1M 0 0 Data
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 860
5.21 Ethernet Resource Scale
MLNX-OS allows dynamic allocation of internal resources so that different internal subsystems
could use as much resources as are available until resource exhaustion is reached.
Internal subsystems (e.g. like ACL, OF, IP router) may use internal resources according to con-
figured allocation policy mode which could be one of the following:
• Loose – a configuration that supports flexible user experience while providing protection to
assure some protection against flooding of ARP
•Strict – allows backward compatibility
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 861
5.21.1 Commands
Configures system resource table.
The no form of the command restores the system to its default mode.
loose Sets system resource table mode as loose
strict Sets system resource table mode as strict
PPC: Strict
x86: Loose
Spectrum™: Loose
Config
3.5.1000
admin
switch (config) # system resource table strict
N/A
• PPC based systems only support strict mode
• x86 based systems support strict and loose modes
• Spectrum based systems only support loose mode
system resource table
system resource table {loose | strict}
no system resource table
Syntax Description
Default
Configuration Mode
History
Role
Example
Related Commands
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 862
show system resource table
show system resource table [<table-id>]
Displays all system resource in-use value.
Syntax Description table-id Displays information for a specific in-use resource
table
Default N/A
Configuration Mode Any Command Mode
History 3.5.1000
Role admin
Example switch (config) # show system resource table
--------------------------------------
Table-Id In-Use
--------------------------------------
acl 0
ipv4-uc 1
ipv4-mc 0
ipv4-neigh 0
ipv6-uc 0
ipv6-mc 0
ipv6-neigh 0
System mode: strict
Total configured entries: 1
switch (config) # show system resource table acl
--------------------------------------
Table-Id In-Use
--------------------------------------
ipv4-uc 1
System mode: strict
Total configured entries: 1
Related Commands N/A
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 863
6 IP Routing
6.1 General
6.1.1 IP Interfaces
MLNX-OS supports 3 types of IP interfaces.
• VLAN interface
• Loopback interface
• Router ports
VLAN interface is a logical IPv4 interface created per subnet over a specific 802.1Q VLAN ID.
If two hosts from two different subnets need to communicate (via the IP layer), the network
administrator needs to configure two interface VLANs, one for each of the subnets. The user may
configure up to 64 VLAN interfaces.
Each interface VLAN has the following attributes:
• Admin state
• Operational state
• MAC address
• IP address and mask
• MTU
• Description
• Set of counters
Loopback interface is a logical software entity where traffic transmitted to this interface is imme-
diately received on the sending end.
Router port is a regular switch port configured to operate as an L3 interface. Router ports are
assigned an IP address and all L3 commands become applicable to them.
Once configured, router ports no longer partake in the bridging activities of the switch and
VLANs configured on them are separate from the pool allocated for the switch ports.
6.1.1.1 Configuring a VLAN Interface
To configure a VLAN interface:
Step 1. Create a VLAN. Run:
Step 2. Assign a physical interface to this VLAN. Run:
Router ports are not supported on SX10xx-xxxR and SX60xx-xxxR systems.
switch (config)# vlan 10
switch (config vlan 10)# exit
switch (config)# interface ethernet 1/1
switch (config interface ethernet 1/1)# switchport mode access
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 864
Step 3. There must be at least one interface in the operational state “UP”.
Step 4. Create a VLAN interface that matches the VLAN. Run:
Step 5. Configure an IP address and a network mask to the interface. Run:
Step 6. Verify VLAN interface configuration. Run:
6.1.1.2 Configuring a Loopback Interface
To configure a loopback interface:
Step 1. Create a loopback interface. Run:
Step 2. Configure an IP address on the loopback interface. Run:
Step 3. Verify loopback interface configuration. Run:
switch (config interface ethernet 1/1)# exit
switch (config)# show interface etherent 1/1 status
Port Operational state Speed Negotiation
---- ----------------- ----- -----------
Eth1/1 Up 40 Gbps No-Negotiation
switch (config)# interface vlan 10
switch (config interface vlan 10)#
switch (config interface vlan 10)# ip address 10.10.10.10 /24
switch (config interface vlan 10)# show interface vlan 10
Vlan 10
Admin state: Enabled
Operational state: UP
Mac Address: 00:02:c9:5d:e0:f0
Internet Address: 10.10.10.10/24
Broadcast address: 10.10.10.255
MTU: 1500 bytes
Description: my-ip-interface
Counters: disabled
switch (config)# interface loopback 2
switch (config interface loopback 2)#
switch (config interface loopback 2)# ip address 20.20.20.20 /32
switch (config interface loopback 2)# show interfaces loopback 2
Loopback 2
Internet Address: 20.20.20.20/32
Broadcast address: 20.20.20.20
MTU: 1500 bytes
Description: my-loopback
switch (config) #
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 865
6.1.1.3 Configuring a Router Port
Step 1. Enter an Ethernet interface’s configuration context. Run:
Step 2. Configure the Ethernet interface to become an L3 router port. Run:
Step 3. Configure an IP address on the router port. Run:
Step 4. Verify router port configuration. Run:
switch (config)# interface ethernet 1/10
switch (config interface ethernet 1/10)#
switch (config interface ethernet 1/10)# no switchport force
switch (config interface ethernet 1/10)# ip address 100.100.100.100 /24
switch (config interface ethernet 1/10)# show interfaces ethernet 1/10
Eth1/10
Admin state: Enabled
Operational state: Down
Description: N\A
Mac address: 00:02:c9:96:c6:d8
MTU: 1500 bytes(Maximum packet size 1522 bytes)
Flow-control: receive off send off
Actual speed: 40 Gbps
Width reduction mode: Not supported
DHCP client: Disabled
IP Address: 100.100.100.100 /24
Broadcast address: 100.100.100.255
Arp timeout: 1500 seconds
VRF: default
MAC learning mode: Enabled
Last clearing of "show interface" counters : 00:00:01
60 seconds ingress rate: 0 bits/sec, 0 bytes/sec, 0 packets/sec
60 seconds egress rate: 0 bits/sec, 0 bytes/sec, 0 packets/sec
Rx
0 packets
0 unicast packets
0 multicast packets
0 broadcast packets
0 bytes
0 error packets
0 discard packets
Tx
0 packets
0 unicast packets
0 multicast packets
0 broadcast packets
0 bytes
0 discard packets
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 866
6.1.2 Equal Cost Multi-Path Routing (ECMP)
Equal-cost multi-path routing (ECMP) is a routing strategy where next-hop packet forwarding to
a single destination can occur over multiple paths.
In Figure 31, routers R1 and R2 can both access each of their router peer networks. Router R1
routing table for 10.0.40/24 will contain the following routes:
• 10.0.10.2
• 10.0.20.2
• 10.0.30.2

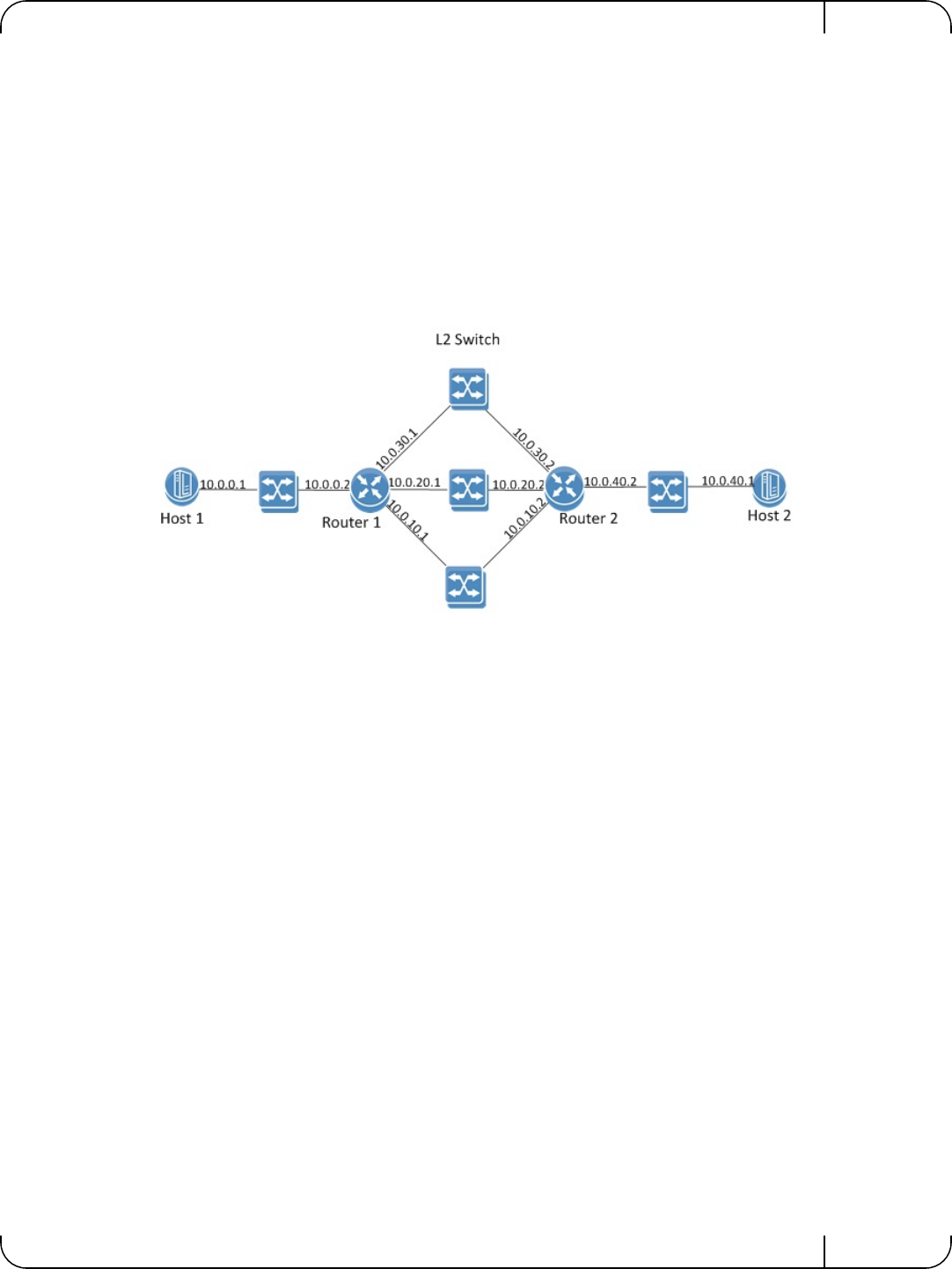

Figure 31: ECMP
The load balancing function of the ECMP is configured globally on the system.
Hash algorithm can be symmetric or asymmetric. In symmetric hash functions bidirectional
flows between routes will follow the same path, while in asymmetric hash functions, bidirec-
tional traffic can follow different paths in both directions.
The following load balancing types are supported:
• Source IP & Port – source IP (SIP) and source UDP/TCP port: If the packet is not UDP/
TCP, only SIP is used for the hash calculation. This is an asymmetric hash function.
• Destination IP & Port – destination IP (DIP) and destination UDP/TCP port: If the
packet is not UDP/TCP, only DIP is used for the hash calculation. This is an asymmetric
hash function.
• Source and Destination IP & Port – destination and source IP, as well as destination and
source UDP/TCP port: If the packet is not UDP/TCP, only SIP/DIP are used for the
hash calculation. This is a symmetric hash function.
• Traffic Class: Load balance based on the traffic class assigned to the packet. This is an
asymmetric hash function.
• All (default): all above fields are part of the hash calculations. This is a symmetric hash
function.
6.1.2.1 Hash Functions
It is advised that LAG and ECMP hash function configuration over more than one hop is differ-
ent. If the same hash function is used over two hops, all the traffic sorted from one hop to follow-
ing one will arrive already having the same characteristics, which will render the next hash
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 867
function useless. For example, configure load-balancing on the first hop based on source IP while
on the next hop based on destination IP.
Figure 32: Multiple Hash Functions
6.1.3 Virtual Routing and Forwarding
Virtual routing and forwarding (VRF) allows multiple routing table instances to coexist within
the same router simultaneously. Since the routing instances are independent, IP addresses on
each routing table may overlap without conflicting with each other.
VRF can be used for the following purposes:
• Ensure customer privacy and security
• Separate between management and user data
• Support customers with the same address space
• Support VPN
Multiple routing instances defined in the router can have different purposes and can be config-
ured in different manners:
• Different IP interfaces can be attached to different VRFs (only one IP interface can be in
a single VRF)
• Routing in VRF can be enabled or disabled
• Each VRF component can run its own routing protocol independently from other
instances
• Differently configured IPv4 and IPv6 services
The first VRF in the system is created automatically and it is called “default” VRF. It cannot be
deleted or configured.
Only static IPv4 and ECMP are supported with VRF.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 868
6.1.4 Commands
6.1.4.1 General
Enables IP routing capabilities.
The no form of the command disables IP routing and removes its configuration.
N/A
If operating with Ethernet system profile: L3
Config
3.4.1802
admin
switch (config) # ip l3 force
switch (config) #
N/A
ip l3
ip l3 [force]
no ip l3 [force]
Syntax Description
Default
Configuration Mode
History
Role
Example
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 869
vrf definition
vrf definition <vrf-name>
Creates the VRF.
Syntax Description vrf-name VRF session name
Default N/A
Configuration Mode Config
History 3.4.2008
Role admin
Example switch (config) # vrf definition my-vrf
switch (config vrf definition my-vrf) #
Related Commands N/A
Notes Only 1 VRF is supported aside from the default VRF
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 870
routing-context vrf
routing-context vrf <vrf-name>
Enters the active-context of the specified session.
Syntax Description vrf-name VRF session name
Default N/A
Configuration Mode Config
History 3.4.2008
Role admin
Example switch (config) # routing-context vrf my-vrf
switch (config) #
Related Commands N/A
Notes • If a routing-context is configured, the user does not have to explicitly specify the VRF
name parameter in this or any other VRF command
• If no routing-context is configured and the user does not specify the VRF name, default
VRF is used
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 871
ip routing
ip routing [vrf <vrf-name>]
Enables L3 forwarding between high speed interfaces.
Syntax Description vrf-name VRF session name
Default N/A
Configuration Mode Config
History 3.4.1802
3.4.2008 Added VRF parameter
Role admin
Example switch (config) # ip routing vrf my-vrf
switch (config) #
Related Commands N/A
Notes • RD must be configured to enable IP routing on the VRF
• If no routing-context is specified, the “routing-context” VRF is automatically configured.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 872
description
description <description>
no description force
Creates the VRF.
Syntax Description description Text string
force Forces deletion (no confirmation needed if configura-
tion exists inside the VRF)
Default N/A
Configuration Mode Config VRF Definition
History 3.4.2008
Role admin
Example switch (config vrf definition my-vrf) # description vrf-description
switch (config vrf definition my-vrf) #
Related Commands N/A
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 873
rd
rd [<ip addr>:<0-65,535> | <AS Number>:<0-4,294,967,295> | <AS Num-
ber>:<ip addr>]
Adds a route distinguisher (RD) to the VRF configuration mode.
Syntax Description ip-addr IPv4 address
AS Number Asynchronous machine number
Default N/A
Configuration Mode Config VRF Definition
History 3.4.2008
Role admin
Example switch (config vrf definition my-vrf) # rd 10.10.10.10:2
switch (config vrf definition my-vrf) #
Related Commands N/A
Notes • RDs internally identify routes belonging to a VRF to distinguish overlapping or duplicate
IP address ranges. This allows the creation of distinct routes to the same IP address for dif-
ferent VPNs. The RD is a 64-bit number made up of an AS number or IPv4 address fol-
lowed by a user-selected ID number. Once an RD has been assigned to a VRF it cannot be
changed. To change the RD, remove the VRF then create it again. VRF is not active until
an RD is defined.
• An RD must be defined to enable IP routing on the VRF
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 874
vrf forwarding
vrf forwarding <vrf-name>
Maps an interface to VRF.
Syntax Description vrf-name VRF session name
Default N/A
Configuration Mode Config Interface Ethernet set as router port
Config Interface VLAN
Config Interface Loopback
History 3.4.2008
Role admin
Example switch (config interface ethernet 1/2) # vrf forwarding my-vrf
switch (config interface ethernet 1/2) #
Related Commands N/A
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 875
show ip routing
show ip routing [vrf <vrf-name> | all]
Displays IP routing information per VRF.
Syntax Description vrf Displays information for specific VRF
all Displays information on all VRFs
Default N/A
Configuration Mode Any Command Mode
History 3.2.0230
3.4.2008 Added VRF parameter
Role admin
Example switch (config) # show ip routing vrf all
VRF Name: my-vrf
-----------------------------
IP routing: disabled
VRF Name: default
-----------------------------
IP routing: enabled
switch (config) #
Related Commands N/A
Notes If no routing-context is specified, the “routing-context” VRF is automatically dis-
played.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 876
show routing-context vrf
show routing-context vrf
Displays VRF active context.
Syntax Description N/A
Default N/A
Configuration Mode Any Command Mode
History 3.4.2008
Role admin
Example switch (config) # show routing-context vrf
VRF active context: my-vrf
switch (config) #
Related Commands N/A
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 877
show vrf
show vrf [<vrf-name> | all]
Displays VRF information.
Syntax Description all Displays information for all VRF instances
vrf-name Name of VRF instance
Default N/A
Configuration Mode Any Command Mode
History 3.4.2008
Role admin
Example switch (config) # show vrf my-vrf
VRF Info
Name: my-vrf
RD: 10.10.10.10:2
Description: Test VRF
IP routing state: Enabled
Protocols: IPv4
Interfaces: Eth1/2
switch (config) #
Related Commands N/A
Notes If no routing-context is specified, the “routing-context” VRF is automatically dis-
played.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 878
6.1.4.2 IP Interfaces
Configures the Ethernet interface as a regular switchport.
The no form of the command configures the Ethernet interface as a router port.
force Forces configuration even if the interface’s admin state
is enabled.
N/A
Config Interface Ethernet
Config Interface Port Channel
3.3.5200
admin
switch (config interface ethernet 1/10)# no switchport force
switchport
switchport [force]
no switchport [force]
Syntax Description
Default
Configuration Mode
History
Role
Example
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 879
encapsulation dot1q vlan
encapsulation dot1q vlan <vlan-id> [force]
no encapsulation dot1q vlan [force]
Enables L2 802.1Q encapsulation of traffic on a specified router port in a VLAN.
The no form of the command disables L2 802.1Q encapsulation of traffic on a speci-
fied router port in a VLAN.
Syntax Description vlan-id Enables L2 802.1Q encapsulation of traffic on a router
port in a VLAN.
force Forces admin state down.
Default N/A
Configuration Mode Config Interface Ethernet
History 3.3.5200
Role admin
Example switch (config interface ethernet 1/10)# encapsulation dot1q vlan 10
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 880
6.1.4.3 Interface VLAN
Creates a VLAN interface and enters the interface VLAN configuration mode.
The no form of the command deletes the VLAN interface.
vlan-id A numeric range of 1-4094
N/A
Config
3.2.0230
admin
switch (config) # interface vlan 10
switch (config interface vlan 10) #
ip routing
vlan <vlan-id>
switchport mode
switchport access
show interfaces vlan
• Make sure the VLAN was created, using the command “vlan <vlan-id>” in the global con-
figuration mode
• The VLAN must be assigned to one of the L2 interfaces. To do so, run the command
“swichport ...”
• At least one interface belong to that VLAN must be in UP state
interface vlan
interface vlan <vlan-id>
no interface vlan <vlan-id>
Syntax Description
Default
Configuration Mode
History
Role
Example
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 881
ip address
ip address <ip-address> <mask>
no ip address <ip-address> <mask>
Enters user-defined description for the interface.
Syntax Description ip-address IPv4 address
mask There are two possible ways to the mask:
• /length (i.e. /24)
• Network address (i.e. 255.255.255.0)
Default 0.0.0.0/0
Configuration Mode Config Interface VLAN
History 3.2.0230
Role admin
Example switch (config interface vlan 10) # ip address 10.10.10.10 /24
switch (config interface vlan 10) #
Related Commands interface vlan
show interfaces vlan
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 882
ip address dhcp
ip address dhcp
no ip addres dhcp
Enables DHCP on this VLAN interface.
Syntax Description N/A
Default Disabled
Configuration Mode Config Interface VLAN
History 3.4.2008
Role admin
Example switch (config interface vlan 10) # ip address dhcp
switch (config interface vlan 10) #
Related Commands interface vlan
show interfaces vlan
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 883
counters
counters
no counters
Enables counters on the IP interface.
The no form of the command disables counters gathering on the IP interface.
Syntax Description
N/A
Default counters are disabled.
Configuration Mode Config Interface VLAN
History 3.2.0230
Role admin
Example switch (config interface vlan 10) # counters
switch (config interface vlan 10) #
Related Commands counters
interface vlan
show interfaces vlan
Note • Enabling counters for the router interface adds delay to the traffic stream
• There are maximum of 16 counter sets
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 884
description
description <string>
no description
Enters a description for the interface.
The no form of the command sets the description to default.
Syntax Description string User defined string
Default “”
Configuration Mode Config Interface VLAN
History 3.2.0230
Role admin
Example switch (config interface vlan 10) # description my-ip-interface
switch (config interface vlan 10) #
Related Commands interface vlan
show interfaces vlan
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 885
mtu
mtu <size> [force]
no mtu
Sets the MTU for the interface.
The no form of the command sets the MTU to default.
Syntax Description size 1500-9216.
force Forces command implementation.
Default 1522
Configuration Mode Config Interface VLAN
History 3.2.0230
Role admin
Example switch (config interface vlan 10)# mtu 9216
switch (config interface vlan 10 #
Related Commands interface vlan
show interfaces vlan
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 886
shutdown
shutdown
no shutdown
Disables the interface.
The no form of the command enables the interface.
Syntax Description N/A
Default The interface is enabled.
Configuration Mode Config Interface VLAN
History 3.1.0000
Role admin
Example switch (config interface vlan 20) # shutdown
switch (config interface vlan 20) #
Related Commands interface vlan
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 887
clear counters
clear counters
Clears the interface counters.
Syntax Description N/A
Default N/A
Configuration Mode Config Interface VLAN
History 3.2.0230
Role admin
Example switch (config interface vlan 10) # clear counters
switch (config interface vlan 10) #
Related Commands interface vlan
counters
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 888
ip icmp redirect
ip icmp redirect
no ip icmp redirect
Enables ICMP redirect.
The no form of the command disables ICMP redirect.
Syntax Description N/A
Default Enabled
Configuration Mode Config Interface VLAN
History 3.4.0010
Role admin
Example switch (config interface vlan 10) # no ip icmp redirect
Related Commands interface vlan
counters
Note • ICMP redirect transmits messages to hosts alerting them about the existence of more effi-
cient routes to a specific destination
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 889
show ip interface
show ip interface [vrf <vrf-name> | all] [brief]
Displays IP interfaces information per VRF.
Syntax Description all Displays information on all VRFs
brief Displays IP interfaces information in a shortened form
Default N/A
Configuration Mode Any Command Mode
History 3.4.2008
Role admin
Example
switch (config) # show ip interface vrf all brief
Interface Address/Mask Admin-state Oper-state MTU VRF
mgmt0 10.224.22.27/24 Enabled Up 1500 default
mgmt1 0.0.0.0/0 Enabled Down 1500 default
Vlan 20 20.20.20.1/24 Enabled Down 1500 my-vrf
Eth1/1 1.1.1.1/24 Enabled Down 1500 my-vrf
Loopback 10 10.10.10.1/32 Enabled Up 1500 my-vrf
Vlan 30 30.30.30.1/24 Enabled Down 1500 default
Eth1/2 2.2.2.2/24 Enabled Down 1500 default
Loopback 11 11.11.11.1/32 Enabled Up 1500 default
switch (config) # show ip interface vrf my-vrf brief
Interface Address/Mask Admin-state Oper-state MTU VRF
Vlan 20 20.20.20.1/24 Enabled Down 1500 my-vrf
Eth1/1 1.1.1.1/24 Enabled Down 1500 my-vrf
Loopback 10 10.10.10.1/32 Enabled Up 1500 my-vrf
switch (config) # show ip interface vrf default brief
Interface Address/Mask Admin-state Oper-state MTU VRF
mgmt0 10.224.22.27/24 Enabled Up 1500 default
mgmt1 0.0.0.0/0 Enabled Down 1500 default
Vlan 30 30.30.30.1/24 Enabled Down 1500 default
Eth1/2 2.2.2.2/24 Enabled Down 1500 default
Loopback 11 11.11.11.1/32 Enabled Up 1500 default
switch (config) #
Related Commands N/A
Notes If no routing-context is specified, the “routing-context” VRF is automatically dis-
played.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 890
6.1.4.4 Loopback Interface
Creates a loopback interface and enters the interface configuration mode.
The no form of the command deletes the interface.
id A numeric range of 0-31
N/A
Config
3.2.3000
admin
switch (config) # interface loopback 10
switch (config interface loopback 10) #
• Up to 32 loopback interfaces can be configured
• Within the loopback configuration mode, you can configure description and ip-address
• MTU cannot be configured on the loopback interface
interface loopback
interface loopback <id>
no interface loopback <id>
Syntax Description
Default
Configuration Mode
History
Role
Example
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 891
ip address
ip address <ip-address> <mask>
no ip address <ip-address> <mask>
Enters user-defined description for the interface.
Syntax Description ip-address IPv4 address.
mask There are two possible ways to the mask:
• /length – only /32 is possible
• Network address (i.e. 255.255.255.0)
Default 0.0.0.0/0
Configuration Mode Config Interface Loopback
History 3.3.5006
Role admin
Example switch (config interface loopback 10) # ip address 10.10.10.10 /32
Related Commands interface loopback
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 892
description
description <string>
no description
Enters a description for the interface.
The no form of the command sets the description to default.
Syntax Description string User defined string.
Default “”
Configuration Mode Config Interface Loopback
History 3.3.5006
Role admin
Example switch (config interface loopback 10) # description my-ip-interface
Related Commands interface loopback
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 893
show interfaces loopback
show interface loopback <id>
Shows the attribute of the interface loopback.
Syntax Description id A numeric range of 1-32
Default N/A
Configuration Mode Config
History 3.2.3000
Role admin
Example switch (config) # show interfaces loopback 2
Loopback 2
Internet Address: 2.2.2.2/32
Broadcast address: 2.2.2.2
MTU: 1500 bytes
Description: my-loopback
switch (config) #
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 894
6.1.4.5 Routing and ECMP
Configures a static route inside VRF.
The no form of the command removes the static route configured.
vrf-name VRF session name
ip prefix IP address
netmask There are two possible ways to the mask:
• /length (i.e. /24)
• Network address (i.e. 255.255.255.0)
next hop IP address IP address of the next hop.
N/A
Config
3.1.0000
3.4.2008 Added VRF parameter
admin
switch (config) # ip route vrf my-vrf 80.80.80.0 /24 20.20.20.2
N/A
If no routing-context is specified, the “routing-context” VRF is automatically config-
ured.
ip route
ip route [vrf <vrf-name>] <IP prefix> <netmask> <next hop IP address>
no ip route [vrf <vrf-name>] <IP prefix> <netmask> <next hop IP address>
Syntax Description
Default
Configuration Mode
History
Role
Example
Related Commands
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 895
ip load-sharing
ip load-sharing <type>
no ip load-sharing
This command sets the ECMP load sharing mode.
The no form of the command sets the load-sharing to default.
Syntax Description type • source-ip-port – source ip and TCP/UDP port
• destination-ip-port – destination ip and TCP/UDP port
• source-destination-ip-port – source & destination ip and
TCP/UDP port
• traffic-class – traffic class
• flow-label – flow label
• all – all options
Default all
Configuration Mode Config
History 3.2.0230
3.5.1000 Added flow-label parameter and updated Note section
Role admin
Example switch (config) # ip load-sharing all
switch (config) # show ip load-sharing
Load sharing: all
switch (config)
Related Commands ip route
Note The parameter “traffic-class” is available on SwitchX® based systems only
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 896
show ip route
show ip route [vrf [<vrf-name> | all]] [-a | static | summary]
Displays routing table of VRF instance.
Syntax Description all Displays routing tables for all VRF instances
-a Displays static routes currently inactive due to the
interface being down
static Displays static route
summary Displays route summary
Default N/A
Configuration Mode Any Command Mode
History 3.1.0000 First version
3.3.3500 Added Distance/Metric column
3.4.0000 Added -a parameter
3.4.2008 Added VRF parameter
3.4.3000 Updated Notes section
Role admin
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 897
Example
switch (config) # show ip route vrf my-vrf
VRF Name: my-vrf
-----------------------------
Destination Mask Gateway Interface Source Distance/Metric
10.10.10.1 255.255.255.255 0.0.0.0 loopback10 direct 0/0
20.20.20.0 255.255.255.0 0.0.0.0 vlan20 direct 0/0
80.80.80.0 255.255.255.0 20.20.20.2 vlan20 static 1/0
switch (config) # show ip route vrf my-vrf static
VRF Name: my-vrf
-----------------------------
Destination Mask Gateway Interface Source Distance/Metric
80.80.80.0 255.255.255.0 20.20.20.2 vlan20 static 1/0
switch (config) # show ip route vrf my-vrf summary
VRF Name: my-vrf
-----------------------------
Route Source Routes
direct 2
static 1
ospf 0
bgp 0
DHCP 0
Total 3
switch (config) # show ip route vrf my-vrf -a
VRF Name: my-vrf
-----------------------------
Destination Mask Gateway Interface Source Distance/Metric
90.90.90.0 255.255.255.0 1.1.1.2 NA static 1/0
switch (config) #
Related Commands ip route
Notes • If no routing-context is specified, the “routing-context” VRF is automatically displayed
• If no default route exists, then the message “Route not found” is printed
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 898
show ip load-sharing
show ip load-sharing
Displays ECMP hash attribute.
Syntax Description N/A
Default N/A
Configuration Mode Any Command Mode
History 3.2.0230
Role admin
Example switch (config) # show ip load-sharing
Load sharing: all
switch (config) #
Related Commands ip load-sharing
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 899
6.1.4.6 Network to Media Resolution (ARP)
Configures IP ARP properties of VRF
The no form of the command deletes the static ARP configuration.
vrf-name VRF session name
IP address IPv4 address
mac-address MAC address (format XX:XX:XX:XX:XX:XX)
N/A
Config
3.4.2008
admin
switch (config) # ip arp vrf my-vrf 20.20.20.2 aa:bb:cc:dd:ee:ff
N/A
If no routing-context is specified, the “routing-context” VRF is automatically config-
ured.
ip arp
ip arp [vrf <vrf-name>] <ip-address> <mac-address>
no ip arp <ip-address>
Syntax Description
Default
Configuration Mode
History
Role
Example
Related Commands
Notes
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 900
ip arp timeout
ip arp timeout <timeout-value>
no ip arp timeout
Sets the dynamic ARP cache timeout.
The no form of the command sets the timeout to default.
Syntax Description timeout-value Time (in seconds) that an entry remains in the ARP
cache. Range: 240-28800.
Default 1500 seconds
Configuration Mode Config Interface Ethernet
Config Interface VLAN
Config Interface Port Channel
History 3.2.0230
3.5.1000 Updated Note section
Role admin
Example switch (config) # ip arp timeout 2000
switch (config) # show ip arp
ARP Timeout: 2000
Total number of entries: 55
IP Address MAC Address Interface
1.0.0.2 00:02:c9:5c:30:40 Vlan11
1.0.0.3 00:11:22:33:44:55 Vlan11
2.0.0.2 00:02:c9:5c:30:40 Vlan12
3.0.0.2 00:02:c9:5c:30:40 Vlan13
4.0.0.2 00:02:c9:5c:30:40 Vlan14
switch (config) #
Related Commands ip arp
show ip arp
Note • This configuration may take up to 5 minutes to take effect
• The time interval after which each ARP entry becomes stale may actually vary from 50-
150% of the configured value
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 901
clear ip arp
clear ip arp [vrf <vrf-name>] [interface <type> | <IP-address>]
Clears the dynamic ARP cache for the specific VRF session.
Syntax Description vrf-name VRF session name
interface Clears dynamic ARP entries for a interface
ip-address Clears dynamic ARP entries for a specific IP address
Default N/A
Configuration Mode Config
History 3.2.0230
History 3.4.2008 Added VRF parameter
Role admin
Example switch (config) # clear ip arp vrf my-vrf
switch (config) #
Related Commands ip arp
show ip arp
Notes If no routing-context is specified, the “routing-context” VRF is automatically config-
ured.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 902
show ip arp
show ip arp [vrf [<vrf-name> | all]] [interface <type> | count]
Displays all ARP information for VRF instance.
Syntax Description all Displays all ARP information for all VRF
interface Displays all ARP information for specific interface
count Displays number of ARPs for specific VRF
Default N/A
Configuration Mode Any Command Mode
History 3.3.3000
3.4.2008 Added VRF parameter
Role admin
Example
switch (config) # show ip arp vrf my-vrf
VRF Name: my-vrf
-----------------------------
Total number of entries: 2
Address Type Hardware Address Interface
------------------------------------------------------------------------
20.20.20.2 Static ETH AA:AA:AA:BB:BB:BB vlan 20
1.1.1.2 Static ETH 00:11:22:33:44:55 eth 1/1
switch (config) # show ip arp vrf my-vrf interface ethernet 1/1
VRF Name: my-vrf
-----------------------------
Total number of entries: 1
Address Type Hardware Address Interface
------------------------------------------------------------------------
1.1.1.2 Static ETH 00:11:22:33:44:55 eth 1/1
switch (config) # show ip arp vrf my-vrf interface vlan 20
VRF Name: mmm
-----------------------------
Total number of entries: 1
Address Type Hardware Address Interface
------------------------------------------------------------------------
20.20.20.2 Static ETH AA:AA:AA:BB:BB:BB vlan 20
switch (config) #
Related Commands ip arp
Notes If no routing-context is specified, the “routing-context” VRF is automatically dis-
played.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 903
6.1.4.7 IP Diagnostic Tools
Sends ICMP echo requests to a specified host.
Linux Ping options
vrf Specifies VRF instance name
N/A
Config
3.1.0000
3.4.2008 Added VRF parameter
admin
switch (config) # ping 172.30.2.2
PING 172.30.2.2 (172.30.2.2) 56(84) bytes of data.
64 bytes from 172.30.2.2: icmp_seq=1 ttl=64 time=0.703 ms
64 bytes from 172.30.2.2: icmp_seq=2 ttl=64 time=0.187 ms
64 bytes from 172.30.2.2: icmp_seq=3 ttl=64 time=0.166 ms
64 bytes from 172.30.2.2: icmp_seq=4 ttl=64 time=0.161 ms
64 bytes from 172.30.2.2: icmp_seq=5 ttl=64 time=0.153 ms
64 bytes from 172.30.2.2: icmp_seq=6 ttl=64 time=0.144 ms
^C
--- 172.30.2.2 ping statistics ---
6 packets transmitted, 6 received, 0% packet loss, time 5004ms
rtt min/avg/max/mdev = 0.144/0.252/0.703/0.202 ms
switch (config) #
When using -I option use the interface name + interface number, for example “ping -I
vlan10”
ping
ping [vrf <vrf-name>] [-LRUbdfnqrvVaA] [-c count] [-i interval] [-w deadline] [-
p pattern] [-s packetsize] [-t ttl] [-I interface or address] [-M mtu discovery hint]
[-S sndbuf] [-T timestamp option ] [-Q tos ] [hop1 ...] destination
Syntax Description
Default
Configuration Mode
History
Role
Example
Related Commands traceroute
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 904
traceroute
traceroute [vrf <vrf-name>] [-46dFITUnrAV] [-f first_ttl] [-g gate,...] [-i device]
[-m max_ttl] [-N squeries] [-p port] [-t tos] [-l flow_label] [-w waittime] [-q nque-
ries] [-s src_addr] [-z sendwait] host [packetlen]
Traces the route packets take to a destination.
Syntax Description vrf Specifies VRF instance name
-4 Uses IPv4.
-6 Uses IPv6
-d Enables socket level debugging.
-F Sets DF (“do not fragment” bit) on.
-I Uses ICMP ECHO for tracerouting.
-T Uses TCP SYN for tracerouting.
-U Uses UDP datagram (default) for tracerouting.
-n Does not resolve IP addresses to their domain names.
-r Bypasses the normal routing and send directly to a host
on an attached network.
-A Performs AS path lookups in routing registries and
print results directly after the corresponding addresses.
-V Prints version info and exit.
-f Starts from the first_ttl hop (instead from 1).
-g Routes packets throw the specified gateway (maximum
8 for IPv4 and 127 for IPv6).
-i Specifies a network interface to operate with.
-m Sets the max number of hops (max TTL to be reached).
Default is 30.
-N Sets the number of probes to be tried simultaneously
(default is 16).
-p Uses destination port. It is an initial value for the UDP
destination port (incremented by each probe, default is
33434), for the ICMP seq number (incremented as well,
default from 1), and the constant destination port for
TCP tries (default is 80).
-t Sets the TOS (IPv4 type of service) or TC (IPv6 traffic
class) value for outgoing packets.
-l Uses specified flow_label for IPv6 packets.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 905
-w Sets the number of seconds to wait for response to a
probe (default is 5.0). Non-integer (float point) values
allowed too.
-q Sets the number of probes per each hop. Default is 3.
-s Uses source src_addr for outgoing packets.
-z Sets minimal time interval between probes (default is
0). If the value is more than 10, then it specifies a num-
ber in milliseconds, else it is a number of seconds (float
point values allowed too).
Default N/A
Configuration Mode Config
History 3.1.0000
3.4.2008 Added VRF parameter
Role admin
Example switch (config) # traceroute 192.168.10.70
traceroute to 192.168.10.70 (192.168.10.70), 30 hops max, 40 byte packets
1 172.30.0.1 (172.30.0.1) 3.632 ms 2.849 ms 3.544 ms
2 10.222.128.46 (10.222.128.46) 3.176 ms 3.289 ms 3.656 ms
3 10.158.128.30 (10.158.128.30) 15.331 ms 15.819 ms 16.388 ms
4 10.158.128.65 (10.158.128.65) 20.468 ms 7.893 ms 12.27 ms
5 10.7.34.115 (10.7.34.115) 16.405 ms 11.985 ms 12.264 ms
6 192.168.10.70 (192.168.10.70) 16.377 ms 16.091 ms 20.475 ms
switch (config) #
Related Commands
Note • The following flags are not supported: -6, -l, -A
• When using -i option use the interface name + interface number, for example “traceroute -i
vlan10”
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 906
tcpdump
tcpdump [vrf <vrf-name>] [-aAdeflLnNOpqRStuUvxX] [-c count] [ -C file_size ]
[ -E algo:secret ] [ -F file ] [ -i interface ] [ -M secret ]
[ -r file ] [ -s snaplen ] [ -T type ] [ -w file ]
[ -W filecount ] [ -y datalinktype ] [ -Z user ]
[ expression ]
Invokes standard binary, passing command line parameters straight through. Runs in
foreground, printing packets as they arrive, until the user hits Ctrl+C.
Syntax Description vrf Specifies VRF instance name
Default N/A
Configuration Mode Config
History 3.1.0000
3.4.2008 Added VRF parameter
Role admin
Example switch (config) # tcpdump
......
09:37:38.678812 IP 192.168.10.7.ssh > 192.168.10.1.54155: P
1494624:1494800(176) ack 625 win 90
<nop,nop,timestamp 5842763 858672398>
09:37:38.678860 IP 192.168.10.7.ssh > 192.168.10.1.54155: P
1494800:1495104(304) ack 625 win 90
<nop,nop,timestamp 5842763 858672398>
...
9141 packets captured
9142 packets received by filter
0 packets dropped by kernel
switch (config) #
Related Commands N/A
Note • When using -i option use the interface name + interface number, for example “tcpdump -i
vlan10”
• For all flag options of this command refer to the linux ‘man page’ of tcp dump.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 907
6.1.4.8 QoS
Configures the router to copy PCP bits when transferring data from one subnet to
another.
The no form of the command disables this ability.
N/A
Disabled.
Config
3.3.4000
admin
switch (config) # qos map dscp-to-pcp preserve-pcp
switch (config) #
qos map dscp-to-pcp preserve-pcp
qos map dscp-to-pcp preserve-pcp
no qos map dscp-to-pcp preserve-pcp
Syntax Description
Default
Configuration Mode
History
Role
Example
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 908
6.2 OSPF
Open Shortest Path First (OSPF) is a link-state routing protocol for IP networks. It uses a link
state routing algorithm and falls into the group of interior routing protocols, operating within a
single autonomous system (AS).
OSPF-speaking routers send Hello packets to all OSPF-enabled IP interfaces. If two routers shar-
ing a common data link agree on certain parameters specified in their respective Hello packets,
they become neighbors.
Adjacencies, which can be thought of as virtual point-to-point links, are formed between some
neighbors. OSPF defines several network types and several router types. The establishment of an
adjacency is determined by the types of routers exchanging Hellos and the type of network over
which the Hello packets are exchanged.
Each router sends link-state advertisements (LSAs) over all adjacencies. The LSAs describe all
of the router’s links, or interfaces, the router's neighbors, and the state of the links. These links
might be to stub networks (those without another router attached), to other OSPF routers, to net-
works in other areas, or to external networks (those learned from another routing process).
Because of the varying types of link-state information, OSPF defines multiple LSA types.
Each router receiving an LSA from a neighbor records the LSA in its link-state database and
sends a copy of the LSA to all of its other neighbors. By flooding LSAs throughout an area, all
routers will build identical link-state databases.
When the databases are complete, each router uses the SPF algorithm to calculate a loop-free
graph describing the shortest (lowest cost) path to every known destination, with itself as the
root.
When all link-state information has been flooded to all routers in an area, and neighbors have
verified that their databases are identical, it means the link-state databases have been synchro-
nized and the route tables have been built. Hello packets are exchanged between neighbors as
keepalives, and LSAs are retransmitted. If the network topology is stable, no other activity
should occur.
For OSPF network design over Mellanox L2 VMS, please refer to Mellanox Virtual Modular
Switch Reference Guide.
6.2.1 Router ID
The router ID is a 32-bit number assigned to the router running the OSPF protocol. This number
uniquely identifies the router within an Autonomous System.
Router ID can be configured statically, however, if it is not configured, then the default election
is as follows:
• If a loopback interface already exists, the router ID takes the loopback IP address;
• Otherwise, the lowest IP address is elected as router ID
6.2.2 ECMP
Equal-cost multi-path (ECMP) routing is a routing strategy where next-hop packet forwarding to
a single destination can occur over multiple paths. The OSPF link-state routing algorithm can
find multiple routes to the same destination, all multiple routes are added to the routing table only
if those routes are equal-cost routes.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 909
In case there are several routes with different cost, only the route with the lowest cost is selected.
In case there are multiple routes with the same lowest cost, all of them are used (up to maximum
of 64 ECMP routes).
ECMP is not configurable but is enabled by default for OSPF.
6.2.3 Configuring OSPF
Figure 33: OSPF Basic Topology
Precondition steps:
Step 1. Make sure an L3 license is installed. For a list of the available licenses see Section 2.4,
“Licenses,” on page 45.
Step 2. Enable IP routing functionality. Run:.
Step 3. Enable the desired VLAN. Run:.
Step 4. Add this VLAN to the desired interface. Run:
The following configuration example refers to Router 2 in Figure 33. The remainder of
the routers in the figure are configured similarly.
It is recommended to disable STP before enabling OSPF. Use the command
no span-
ning-tree
.
switch (config)# ip routing
switch (config)# vlan 10
switch (config)# vlan 20
switch (config)# interface ethernet 1/1
switch (config ethernet 1/1)# switchport access vlan 10
switch (config ethernet 1/1)# exit
switch (config)# interface ethernet 1/2
switch (config ethernet 1/2)# switchport access vlan 20
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 910
Step 5. Create a VLAN interface. Run:
Step 6. Apply IP address to the VLAN interface. Run:
Step 7. Enable the interface. Run:
Step 8. Create a second VLAN interface. Run:
Step 9. Apply IP address to the second VLAN interface. Run:
Step 10. Enable the second interface. Run:
Basic OSPF Configuration:
Step 1. To enable OSPF configuration run:
Step 2. To create a router OSPF instance run:
Step 3. Associate the VLAN interfaces to the OSPF area. Area 0 is the backbone area, run:
6.2.4 Verifying OSPF
To verify OSPF configuration and status:
Step 1. Verify OSPF configuration and status. Run:
switch (config)# interface vlan 10
switch (config interface vlan 10)# ip address 10.10.10.2 /16
switch (config interface vlan 10)# no shutdown
switch (config)# interface vlan 20
switch (config interface vlan 20)# ip address 10.10.20.2 /16
switch (config interface vlan 20)# no shutdown
switch (config)# protocol ospf
switch (config)# router ospf
Only one instance of OSPF is supported.
switch (config interface vlan 10)# ip ospf area 0
switch (config interface vlan 10)# exit
switch (config)# interface vlan 20
switch (config interface vlan 20)# ip ospf area 0
switch (config) # show ip ospf
Routing Process 1 with ID 10.10.10.10 vrf-default
Stateful High Availability disabled
Graceful-restart is not supported
Supports only single TOS (TOS 0) route
Opaque LSA not supported
OSPF Admin State is enabled
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 911
Step 2. Verify the OSPF neighbors status. Make sure that each neighbor reaches FULL state with its
peer to enable it take part in all dynamic routing changes in the network. Run:
Redistributing External Routes: Disabled
Administrative distance 110
Reference Bandwidth is 40Gb
Initial SPF schedule delay 1 msecs
SPF Hold time 10 msecs
Maximum paths to destination 64
Router is not originating router LSA with maximum metric
Condition: Always
Number of external LSAs 0, checksum sum 0
Number of opaque AS LSAs 0,checksum sum 0
Number of areas is 1, 1 normal, 0 stub, 0 nssa
Number of active areas is 1, 1 normal, 0 stub, 0 nssa
Area (0.0.0.0) (Active)
Interfaces in this area: 2 Active Interfaces: 2
Passive Interfaces: 0
SPF Calculation has run 5 times
This area is Normal area
Number of LSAs: 1, checksum sum 7700
switch (config) #
switch (config) # show ip ospf neighbors
Neighbor 10.10.10.1, interface address 10.10.10.2
In the area 0.0.0.0 via interface Vlan 10
Neighbor priority is 1, State is FULL
BDR is 10.10.10.1
Options 0
Dead timer due in 35
Neighbor 10.10.20.1, interface address 10.10.20.2
In the area 0.0.0.0 via interface Vlan 20
Neighbor priority is 1, State is FULL
BDR is 10.10.20.1
Options 0
Dead timer due in 35
switch (config) #
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 912
Step 3. Verify the OSPF Interface configuration and status run:
switch (config) # show ip ospf interface
Interface Vlan is 10 Enabled, line protocol is Down
IP address 10.10.10.2, Mask 255.255.0.0
Process ID 1 VRF Default, Area 0.0.0.0
OSPF Interface Admin State is enabled
State DOWN, Network Type BROADCAST, Cost 1
Transmit delay 1 sec, Router Priority 1
No designated router on this network
No backup designated router on this network
Timer intervals (sec's): Hello 10, Dead 40, Wait 40, Retransmit 5
No authentication
Number of opaque link LSAs: 0, checksum sum 0
Interface Vlan is 20 Enabled, line protocol is Up
IP address 10.10.20.2, Mask 255.255.0.0
Process ID 1 VRF Default, Area 0.0.0.0
OSPF Interface Admin State is enabled
State DESIGNATED ROUTER, Network Type BROADCAST, Cost 1
Transmit delay 1 sec, Router Priority 1
No designated router on this network
No backup designated router on this network
Timer intervals (sec's): Hello 10, Dead 40, Wait 40, Retransmit 5
No authentication
Number of opaque link LSAs: 0, checksum sum 0
switch (config) #
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 913
6.2.5 Commands
6.2.5.1 Config
Enables Open Shortest Path First Protocol (OSPF), and unhides the related OSPF
commands.
The no form of the command deletes the OSPF configuration and hides the OSPF
related commands.
N/A
OSPF feature is disabled.
Config
3.3.3500
admin
switch (config)# protocol ospf
ip routing
protocol ospf
protocol ospf
no protocol ospf
Syntax Description
Default
Configuration Mode
History
Role
Example
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 914
router ospf
router ospf [<process-id> [vrf <vrf-name>]]
no router ospf [<process-id> [vrf <vrf-name>]]
Enters router OSPF configuration mode, and creates default OSPF instance on spe-
cific VRF with specific Process ID if one does not exist.
The no form of the command deletes the OSPF instance.
Syntax Description process-id OSPF instance ID
vrf VRF name (e.g. default)
Default Process ID: 1
VRF: Active VRF routing-context
Configuration Mode Config
History 3.3.3500
3.6.1002 Added VRF and process ID parameters and updated
Example
Role admin
Example switch (config)# router ospf 2 vrf myvrf
switch (config router ospf 2)#
Related Commands N/A
Note Only one OSPF instance is supported
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 915
6.2.5.2 Config Router
Sets Router ID for the OSPF instance.
The no form of the command causes automatic election of router ID by the router.
ip-address The Router id in IP address format.
The router ID is a 32-bit number assigned to the router running the OSPF protocol.
This number uniquely identifies the router within an Autonomous System.
Router ID can be configured statically, however, if it is not configured, then the
default election is as follows:
• If a loopback interface already exists, the router ID takes the loopback IP address;
• Otherwise, the lowest IP address is elected as router ID.
Config OSPF Router
3.3.3500
admin
switch (config router ospf)# router-id 10.10.10.10
N/A
router-id
router-id <ip-address>
no router-id
Syntax Description
Default
Configuration Mode
History
Role
Example
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 916
shutdown
shutdown
no shutdown
Disables the OSPF instance.
The no form of the command enables the OSPF instance.
Syntax Description N/A
Default Enable (no shutdown)
Configuration Mode Config OSPF Router
History 3.3.3500
Role admin
Example switch (config router ospf)# shutdown
Related Commands N/A
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 917
auto-cost reference-bandwidth
auto-cost reference-bandwidth <ref-bw> [Gbps | Mbps]
no auto-cost reference-bandwidth
Configures reference-bandwidth in Gb/s (Default) or Mb/s.
The no form of the command resets this parameter to its default value.
Syntax Description ref-bw Range: 1-4294
Gbps Value in Gbps (default if not specified)
Mbps Value in Mbps
Default 40 Gbps
Configuration Mode Config OSPF Router
History 3.3.3500
Role admin
Example switch (config router ospf)# auto-cost reference-bandwidth 10 Gbps
Related Commands N/A
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 918
distance
distance <value>
no distance
Configures the OSPF route administrative distance.
The no form of the command resets this parameter to default.
Syntax Description value OSPF administrative distance. Range is 1-255.
Default 110
Configuration Mode Config OSPF Router
History 3.3.3500
Role admin
Example switch (config router ospf)# distance 100
Related Commands N/A
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 919
redistribute
redistribute {bgp | direct | static}
no redistribute {bgp | direct | static}
Import routes from other routing protocols as well as any statically configured routers
into OSPF.
The no form of the command disables the importing of the routes.
Syntax Description direct Redistribute directly connected routes.
bgp Redistribute routes from BGP protocol.
static Redistribute static configured routes.
Default Disable (no redistribution)
Configuration Mode Config OSPF Router
History 3.2.1000
Role admin
Example switch (config router ospf)# redistribute direct
Related Commands N/A
Note Routes from multiple protocols can be imported in parallel.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 920
timers throttle spf
timers throttle spf <spf-delay> <spf-hold>
no timers throttle spf
Sets the OSPF throttle SPF timers.
The no form of the command resets the timers to default.
Syntax Description spf-delay The interval by which SPF calculations delayed after a
topology change reception. Range is 0-100 millisec-
onds.
spf-hold The minimum delay between two consecutive delay
calculations. Range is 0-1000 milliseconds.
Default spf-delay: 1 millisecond
spf-hold: 10 millisecond
Configuration Mode Config OSPF Router
History 3.3.3500
Role admin
Example switch (config router ospf)# timers throttle spf 100 1000
Related Commands N/A
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 921
area default-cost
area <area-id> default-cost <cost>
no area <area-id> default-cost
Specifies cost for the default summary route sent into an OSPF stub or not-so-stubby
area (NSSA).
The no form of the command sets the cost to the default value.
Syntax Description area-id OSPF area-id. Range is 0-4294967295.
cost The cost for the default summary route. Range is 1-
16777215.
Default The summary route cost is based on the area border router that generated the sum-
mary route.
Configuration Mode Config OSPF Router
History 3.3.3500
Role admin
Example switch (config router ospf)# area 0 default-cost 100
Related Commands N/A
Note Base cost for all calculation is 56GbE.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 922
area range
area <area-id> range <ip-address> <prefix> [not-advertise]
no area <area-id> range <ip-address> <prefix> [not-advertise]
Consolidates and summarizes routes at an OSPF area boundary.
The no form of the command removes the ip-prefix range from summarization.
Syntax Description area-id OSPF area-ID. Range is 0-4294967295.
ip-address IP Address.
not-advertise Suppresses routes that match the specified IP address.
prefix Network prefix (in the format of /24, or 255.255.255.0
for example).
Default Disabled
Configuration Mode Config OSPF Router
History 3.3.3500
Role admin
Example switch (config router ospf)# area 0 range 10.10.10.10 /24
Related Commands N/A
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 923
area stub
area <area-id> stub [no-summary]
no area <area-id> stub [no-summary]
Configures an area as an OSPF stub area (an area is created if non-existent).
The no form of the command removes the stub area configuration and changes the
area to normal, or deletes the area (if stub is not used).
Syntax Description area-id OSPF area-ID. Range is 0-4294967295.
no-summary Summary route will not be advertised into the stub
area.
Default Summary route will be advertised.
Configuration Mode Config OSPF Router
History 3.3.3500
Role admin
Example switch (config router ospf)# area 0 stub
Related Commands N/A
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 924
area nssa
area <area-id> nssa [default-information-originate [metric <m-value>] [metric-
type <m-type>]] [nosummary] [translate type7 always]
no area <area-id> nssa [default-information-originate ] [no-summary] [translate
type7 always]
Configures an area as an OSPF not-so-stubby (NSSA) area.
The no form of the command removes the NSSA area configuration and changes the
area to default.
Syntax Description area-id OSPF area ID. Range is 0-4294967295.
default-information-origi-
nate A default type7 LSA (Link State Advertisements) is
generated into the NSSA area.
m-type Metric type for OSPF. Range is 1-2.
m-value Metric value for OSPF. Range is 1-65535.
no-summary Summary route will not be advertised into the NSSA
area.
translate type7 always Type7 LSAs is translated to type5 LSAs (Link State
Advertisements).
Default Default m-type:2
Default m-value:10
Configuration Mode Config OSPF Router
History 3.3.3500
Role admin
Example switch (config router ospf)# area 0 nssa
Related Commands N/A
Note An area can be either stub, NSSA or normal.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 925
no area
no area <area-id>
Deletes OSPF area and its related configuration.
Syntax Description area-id OSPF area ID
Range is 0-4294967295
Default N/A
Configuration Mode Config OSPF Router
History 3.3.3500
Role admin
Example switch (config router ospf)# no area 1
Related Commands N/A
Note The command fails if the area is attached to active interfaces.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 926
summary-address
summary-address <ip-address> <prefix> [not-advertise]
no summary-address <ip-address> <prefix> [not-advertise]
Creates aggregate addresses for the OSPF protocol.
The no form of the command disables the aggregation of the ip-address.
Syntax Description ip-address The summary IP address.
not-advertise Suppresses routes that match the specified ip-address.
prefix Network prefix (in the format of /24 or 255.255.255.0,
for example).
Default N/A
Configuration Mode Config OSPF Router
History 3.3.3500
Role admin
Example switch (config router ospf)# summary-address 10.10.10.10 /24
Related Commands N/A
Note Maximum of 1500 summarized IP addresses can be configured.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 927
6.2.5.3 Interface
Sets OSPF cost of sending packet of this interface.
The no form of the command resets this parameter to default.
cost The Interface cost used by the OSPF. Range is 1-65535.
1
Config Interface VLAN
Config Interface Ethernet configured as a router port
Config Interface Port Channel configured as a router port
3.3.3500
admin
switch (config interface vlan 10)# ip ospf cost 100
N/A
ip ospf cost
ip ospf cost <cost>
no ip ospf cost
Syntax Description
Default
Configuration Mode
History
Role
Example
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 928
ip ospf dead-interval
ip ospf dead-interval <seconds>
no ip ospf dead-interval
Configures the interval during which at least one Hello packet must be received from
a neighbor before the router declares that neighbor as down.
The no form of the command resets this parameter to its default.
Syntax Description seconds The dead-interval timer, in seconds. Range is 1-65535.
Default 40
Configuration Mode Config Interface VLAN
Config Interface Ethernet configured as a router port
Config Interface Port Channel configured as a router port
History 3.3.3500
Role admin
Example switch (config interface vlan 10)# ip ospf dean-interval 10
Related Commands N/A
Note The value must be the same for all nodes on the network.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 929
ip ospf hello-interval
ip ospf hello-interval <seconds>
no ip ospf hello-interval
Configures the interval between Hello packets that OSPF sends on the interface.
The no form of the command resets this parameter to default.
Syntax Description seconds The Hello interval timer, in seconds. Range is 1-65535.
Default 10
Configuration Mode Config Interface VLAN
Config Interface Ethernet configured as a router port
Config Interface Port Channel configured as a router port
History 3.3.3500
Role admin
Example switch (config interface vlan 10)# ip ospf hello-interval 20
Related Commands N/A
Note The value must be the same for all nodes on the network.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 930
ip ospf priority
ip ospf priority <number>
no ip ospf priority
Configures the priority for this OSPF interface.
The no form of the command resets this parameter to default.
Syntax Description number The Interface priority used by the OSPF protocol.
Range is 0-255
Default 1
Configuration Mode Config Interface VLAN
Config Interface Ethernet configured as a router port
Config Interface Port Channel configured as a router port
History 3.3.3500
Role admin
Example switch (config interface vlan 10)# ip ospf priority 100
Related Commands N/A
Note • Use the “ip ospf priority” command to set the router priority, which determines the desig-
nated router for this network. When two routers are attached to a network, both attempt to
become the designated router.
• The router with the higher router priority takes precedence. If there is a tie, the router with
the higher router ID takes precedence. A router with a router priority set to zero cannot
become the designated router or backup designated router.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 931
ip ospf network
ip ospf network <type>
no ip ospf network
Sets the OSPF interface network type.
The no form of the command resets the interface network type to its default.
Syntax Description type The network type on this interface. The options are
‘broadcast’ or ‘point-to-point’.
Default broadcast
Configuration Mode Config Interface VLAN
Config Interface Ethernet configured as a router port
Config Interface Port Channel configured as a router port
History 3.3.3500
Role admin
Example switch (config interface vlan 10)# ip ospf network point-to-point
Related Commands N/A
Note • The network type influences the behavior of the OSPF interface. An OSPF network type is
usually broadcast, which uses OSPF multicasting capabilities. Under this network type, a
designated router and backup designated router are elected. For point-to-point networks,
there are only two neighbors and multicast is not required.
• All routers on the same network should have the same network type.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 932
ip ospf retransmit-interval
ip ospf retransmit-interval <seconds>
no ip ospf retransmit-interval
Configures the time between OSPF link-state advertisement (LSA) retransmissions
for adjacencies that belongs to the interface.
The no form of the command resets this parameter to its default.
Syntax Description seconds The retransmit interval in seconds. Range is 0-3600.
Default 5
Configuration Mode Config Interface VLAN
Config Interface Ethernet configured as a router port
Config Interface Port Channel configured as a router port
History 3.3.3500
Role admin
Example switch (config interface vlan 10)# ip ospf retransmit-interval 10
Related Commands N/A
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 933
ip ospf passive-interface
ip ospf passive-interface
no ip ospf passive-interface
Suppresses flooding of OSPF routing updates on an interface.
The no form of the command reverts the status to active OSPF interface.
Syntax Description N/A
Default Active interface (no ip ospf passive-interface)
Configuration Mode Config Interface VLAN
Config Interface Ethernet configured as a router port
Config Interface Port Channel configured as a router port
History 3.3.3500
Role admin
Example switch (config interface vlan 10)# ip ospf passive-interface
Related Commands N/A
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 934
ip ospf transmit-delay
ip ospf transmit-delay <seconds>
no ip ospf transmit-delay
Sets the estimated time required to send an OSPF link-state update packet.
The no form of the command resets this parameter to its default.
Syntax Description seconds The transmit-delay interval in seconds. Range is 0-
3600.
Default 1
Configuration Mode Config Interface VLAN
Config Interface Ethernet configured as a router port
Config Interface Port Channel configured as a router port
History 3.3.3500
Role admin
Example switch (config interface vlan 10)# ip ospf transmit-delay 2
Related Commands N/A
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 935
ip ospf shutdown
ip ospf shutdown
no ip ospf shutdown
Disables the OSPF instance on the interface.
The no form of the command enables the OSPF on this interface.
Syntax Description N/A
Default Enabled (no shutdown)
Configuration Mode Config Interface VLAN
Config Interface Ethernet configured as a router port
Config Interface Port Channel configured as a router port
History 3.3.3500
Role admin
Example switch (config interface vlan 10)# ip ospf shutdown
Related Commands N/A
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 936
ip ospf authentication
ip ospf authentication [message-digest]
no ip ospf authentication
Specifies the authentication type for OSPF.
The no form of the command disables the authentication.
Syntax Description message-digest Specifies that message-digest authentication (MD5) is
used.
Default Disabled (no)
Configuration Mode Config Interface VLAN
Config Interface Ethernet configured as a router port
Config Interface Port Channel configured as a router port
History 3.3.3500
Role admin
Example switch (config interface vlan 10)# ip ospf authentication
Related Commands N/A
Note • Without message-digest option, a simple password authentication will be used.
• Message-digest authentication can be enabled only if a key is configured.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 937
ip ospf authentication-key
ip ospf authentication-key [<auth-type>] <password>
no ip ospf authentication-key
To assign a password for simple password authentication for the OSPF.
The no form of the command deletes the simple password authentication key.
Syntax Description auth-type The authentication type:
0 – unencrypted password
7 – MD5 key
password Authentication password (up to 8 alphanumeric string)
Default Unencrypted password
Configuration Mode Config Interface VLAN
Config Interface Ethernet configured as a router port
Config Interface Port Channel configured as a router port
History 3.3.3500
Role admin
Example switch (config interface vlan 10)# ip ospf authentication-key 0
mycleartextpassword
Related Commands N/A
Note • When selecting an encrypted password “7”, the user must input a password encrypted with
an MD5 key.
• When selecting an unencrypted password “0”, the user must input a cleartext password.
Then when examining the running-config, it exhibits the encrypted password.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 938
ip ospf message-digest-key
ip ospf message-digest-key <key-id> md5 [auth-type] <key>
no ip ospf message-digest-key <key-id>
Sets the message digest key for MD5 authentication.
The no form of the command deletes the key for MD5 authentication.
Syntax Description auth-type The authentication type:
0 - Unencrypted password
7 - MD5 key
key Authentication password, up to 8 alphanumeric string.
key-id Alphanumeric password of up to 16 bytes.
Default Unencrypted (no)
Configuration Mode Config Interface VLAN
Config Interface Ethernet configured as a router port
Config Interface Port Channel configured as a router port
History 3.3.3500
Role admin
Example switch (config interface vlan 10)# ip ospf message-digest-key mykeyid
md5 7 mykey
Related Commands N/A
Note The user cannot delete the last key until authentication is disabled.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 939
ip ospf area
ip ospf area <area-id>
no ip ospf area
Sets OSPF area of this interface (and creates the area if non-existent).
The no form of the command removes the interface from the area.
Syntax Description area-id OSPF area ID
Range is 0-4294967295
Default N/A
Configuration Mode Config Interface VLAN
Config Interface Ethernet configured as a router port
Config Interface Port Channel configured as a router port
Config Interface Loopback
History 3.3.3500
Role admin
Example switch (config interface vlan 10)# ip ospf area 0
Related Commands N/A
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 940
6.2.5.4 Show
Displays general OSPF configuration on specific VRF and status.
process-id OSPF instance ID
vrf VRF instance
Process ID: 1
VRF: Active VRF routing-context
Any Command Mode
3.3.3500
3.6.1002 Added VRF and process ID parameters and updated
Example
admin
switch (config)# show ip ospf 2 vrf myvrf
Routing Process 2 with ID 2.2.2.2 myvrf
Stateful High Availability is not supported
Graceful-restart is not supported
Supports only single TOS (TOS 0) route
Opaque LSA not supported
OSPF Admin State is enabled
Redistributing External Routes: Disabled
Administrative distance 110
Reference Bandwidth is 40 Gbps
Initial SPF schedule delay 1 msecs
SPF Hold time 5000 msecs
Maximum paths to destination 64
Router LSA with maximum metric is not supported
Condition: Always
Number of external LSAs 0, checksum sum 0
Number of opaque AS LSAs 0, checksum sum 0
Number of areas is 1, 1 normal, 0 stub, 0 nssa
Number of active areas is 1, 1 normal, 0 stub, 0 nssa
Area (0.0.0.0) (Active)
Interfaces in this area: 2 Active Interfaces: 2
Passive Interfaces: 0
SPF Calculation has run 6 times
This area is Normal area
Number of LSAs: 3, checksum sum 161346
N/A
show ip ospf
show ip ospf [<process-id> [vrf <vrf-name>]]
Syntax Description
Default
Configuration Mode
History
Role
Example
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 941
show ip ospf border-routers
show ip ospf border-routers [vrf <vrf-name>]
Displays routing table entries to an Area Border Routers.
Syntax Description vrf OSPF routing table entries to an Area Border Routers
on specific VRF.
Default VRF: Active VRF routing-context
Configuration Mode Any Command Mode
History 3.3.3500
3.6.1002 Added VRF parameter and updated Example
Role admin
Example switch (config)# show ip ospf border-routers vrf myvrf
OSPF Process ID 2, vrf myvrf Internal Routing Table
Codes: i - Intra-area route, I - Inter-area route
i 1.1.1.1 [0] ABR Area: 0.0.0.0, Next Hop: 21.21.21.1
Related Commands N/A
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 942
show ip ospf database
show ip ospf database [summary] [<process-id> <area-id> [<link-state-id>]]
[adv-router <ip-address> | self-originated] [vrf <vrf-name>]
Displays the OSPF database.
Syntax Description adv-router <ip-address> Filters per advertise router
area-id Filters the command per OSPF Area ID. Range is 0-
4294967295.
link-state-id The link state ID
self-originated Self Originate
summary Summarizes the output of the OSPF database.
process-id Displays OSPF database on specific instance ID
vrf Displays OSPF database on specific VRF
Default Process ID: 1
VRF: Active VRF routing-context
Configuration Mode Any Command Mode
History 3.3.3500
3.6.1002 Added VRF and process ID parameters and updated
Example
Role admin
Example switch (config)# show ip ospf database 2 vrf myvrf
OSPF Router with ID (2.2.2.2) (Process ID 2 VRF myvrf)
Router Link States (Area 0.0.0.0)
-----------------------------------------
Link ID ADV Router Age Seq Checksum LinkCount
2.2.2.2 2.2.2.2 1150 0x80000006 0xbd2a 3
1.1.1.1 1.1.1.1 1152 0x80000006 0xf7f5 3
Network Link States (Area 0.0.0.0)
-----------------------------------------
Link ID ADV Router Age Seq Checksum
21.21.21.2 2.2.2.2 1150 0x80000003 0xbb26
Related Commands N/A
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 943
show ip ospf interface
show ip ospf interface [<process-id>] [vlan <vlan-id>] [brief]
Displays the OSPF related interface configuration.
Syntax Description brief Gives a brief summary of the output
process-id Displays OSPF interface configuration on specific
instance ID
vlan <vlan-id> Displays OSPF interface configuration and status per
VLAN interface
vrf Displays OSPF interface configuration on specific VRF
Default Process ID: 1
VRF: Active VRF routing-context
Configuration Mode Any Command Mode
History 3.3.3500
3.6.1002 Added VRF and process ID parameters and updated
Example
Role admin
Example switch (config) # show ip ospf interface 2 vrf myvrf
Interface Vlan is 21 Enabled, line protocol is Up
IP address 21.21.21.2, Mask 255.255.255.0
Process ID 2 VRF myvrf, Area 0.0.0.0
OSPF Interface Admin State is enabled
State DESIGNATED ROUTER, Network Type BROADCAST, Cost 10
Transmit delay 1 sec, Router Priority 1
DR is 2.2.2.2
Backup Designated Router is 1.1.1.1
Timer intervals (secs): Hello 10, Dead 40, Wait 40, Retransmit 5
No authentication
Number of opaque link LSAs: 0, checksum sum 0
switch (config) # show ip ospf interface 2 vrf myvrf brief
OSPF Process ID 2 VRF myvrf
Total number of interface: 2
Interface Id Area Cost State Neighbors Status
Vlan21 0.0.0.0 10 Enabled 1 Up
Ethernet1/22 0.0.0.0 1 Enabled 1 Up
Related Commands N/A
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 944
show ip ospf neighbors
show ip ospf neighbors [vlan <vlan-id>] [<neighbor-id>] [vrf <vrf-name>]
Displays the OSPF related interface neighbor configuration.
Syntax Description vlan <vlan-id> Displays OSPF interface configuration and status per
VLAN interface
neighbor-id Filers the output per a specific OSPF neighbor
vrf Displays OSPF interface neighbor configuration on
specific VRF
Default VRF: Active VRF routing-context
Configuration Mode Any Command Mode
History 3.3.3500
3.6.1002 Added VRF parameter and updated Example
Role admin
Example switch (config) # show ip ospf neighbors vrf myvrf
Neighbor 1.1.1.1, interface address 21.21.21.1
In the area 0.0.0.0 via Interface Vlan 21
Neighbor priority is 1, State is FULL
DR is 2.2.2.2
Backup Designated Router is 1.1.1.1
Options 2
Dead timer due in 36
Neighbor 1.1.1.1, interface address 22.22.22.1
In the area 0.0.0.0 via Interface Ethernet 1/22
Neighbor priority is 1, State is FULL
No designated router on this network
No backup designated router on this network
Options 2
Dead timer due in 36
switch (config) # show ip ospf neighbors interface ethernet 1/22 vrf
myvrf
Neighbor 1.1.1.1, interface address 22.22.22.1
In the area 0.0.0.0 via interface Ethernet 1/22
Neighbor priority is 1, State is FULL
No designated router on this network
No backup designated router on this network
Options 2
Dead timer due in 29
Related Commands N/A
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 945
show ip ospf request-list
show ip ospf request-list <neighbor-id> vlan <vlan-id>
Displays the OSPF list of all link-state advertisements (LSAs) requested by a router.
Syntax Description neighbor-id Filers the output per a specific OSPF neighbor.
vlan-id Filers the output per a specific VLAN ID.
Default N/A
Configuration Mode Any Command Mode
History 3.3.3500
Role admin
Example Router# show ip ospf request-list 40.40.40 ethernet 2/1
OSPF Process ID p1
Neighbor 40.40.40.40, interface Ethernet2/1, address 192.0.2.1
1 LSAs on request-list
Type LS ID ADV RTR Seq NO Age Checksum
1 192.0.2.12 192.0.2.12 0x8000020D 8 0x6572
Related Commands N/A
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 946
show ip ospf retransmission-list
show ip ospf retransmission-list <neighbor-id> vlan <vlan-id>
Displays the OSPF list of all link-state advertisements (LSAs) waiting to be resent to
neighbors.
Syntax Description neighbor-id Filers the output per a specific OSPF neighbor.
vlan-id Filers the output per a specific VLAN ID.
Default N/A
Configuration Mode Any Command Mode
History 3.3.3500
Role admin
Example Router# show ip ospf retransmission-list 192.0.2.11 ethernet 2/1
OSPF Router with ID (192.0.2.12) (Process ID 1)
Neighbor 192.0.2.11, interface Ethernet2/1 address 209.165.201.11
Link state retransmission due in 3764 msec, Queue length 2
Type LS ID ADV RTR Seq NO Age Checksum
1 192.0.2.12 192.0.2.12 0x80000210 0 0xB196
Related Commands N/A
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 947
show ip ospf summary-address
show ip ospf summary-address
Displays a list of all summary address redistribution information configured on the
OSPF.
Syntax Description N/A
Default N/A
Configuration Mode Any Command Mode
History 3.3.3500
Role admin
Example switch (config)# show ip ospf summary-address
Display of Summary addresses for External Routes and area ranges for the
summary LSAs
OSPF Process default
OSPF External Summary Address and area-range Configuration Information
-------------------------------------------------------
Network Mask Area Advertise LSA type Metric Tag
--------------------------------------------------------------
1.1.1.1 255.255.255.0 NA Advertise Type5 10 0
2.2.2.0 255.255.255.0 10.10.10.10 Not Advertise Type3 10 0
Related Commands N/A
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 948
6.3 BGP
Border Gateway Protocol (BGP) is an exterior gateway protocol which is designed to transfer
routing information between routers. It maintains and propagates a table of routes which desig-
nates network reachability among autonomous systems (ASs).
BGP neighbors, or peers, are routers configured manually to converse using the BGP protocol on
top of a TCP session on port 179. A BGP speaker periodically sends keep-alive messages to
maintain the connection. Network reachability includes such information as forwarding destina-
tions (IPv4 or IPv6) together with a list of ASs that this information traverses and other attri-
butes, so it becomes possible to construct a graph of AS connectivity without routing loops. BGP
makes possible to apply policy rules to enforce connectivity graph.
BGP routers communicate through TCP connection on port 179. Connection between BGP
neighbors is configured manually or can be established dynamically by configuring dynamic lis-
ten groups. When BGP runs between two peers in the same AS, it is referred to as Internal BGP
(iBGP, or Interior Border Gateway Protocol). When it runs between separate ASs, it is called
External BGP (eBGP, or Exterior Border Gateway Protocol). Both sides can initiate a connection,
after the initial connectivity is created, BGP state machine drives both sides to enter into ESTAB-
LISHED state where they can exchange UPDATE messages with reachability information.
6.3.1 State Machine
In order to make decisions in its operations with peers, a BGP peer uses a simple finite state
machine (FSM) that consists of six states: Idle; Connect; Active; OpenSent; OpenConfirm; and
Established. For each peer-to-peer session, a BGP implementation maintains a state variable that
tracks which of these six states the session is in. The BGP protocol defines the messages that
each peer should exchange in order to change the session from one state to another.
The first state is the “Idle” state. In “Idle” state, BGP initializes all resources, refuses all inbound
BGP connection attempts and initiates a TCP connection to the peer. The second state is “Con-
nect”. In the “Connect” state, the router awaits the TCP connection to complete and transitions to
the “OpenSent” state if successful. If unsuccessful, it initializes the ConnectRetry timer and tran-
sitions to the “Active” state upon expiration. In the “Active” state, the router resets the Connec-
tRetry timer to zero and returns to the “Connect” state. In the “OpenSent” state, the router sends
an Open message and waits for one in return in order to transition to the “OpenConfirm” state.
KeepAlive messages are exchanged and, upon successful receipt, the router is placed into the
“Established” state. In the “Established” state, the router can send/receive: KeepAlive; Update;
and Notification messages to/from its peer.
6.3.2 Configuring BGP
Figure 34: Basic BGP Configuration
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 949
Follow these steps for basic BGP configuration on two switches (Router 1 and Router 2):
Preconditions:
Step 1. Make sure the license installed supports L3.
Step 2. Enable IP routing functionality. Run:
Step 3. Enable the desired VLAN. Run:
Step 4. Add this VLAN to the desired interface. Run:
Step 5. Create a VLAN interface. Run:
Step 6. Apply IP address to the VLAN interface on Router 1. Run:
Step 7. Apply IP address to the VLAN interface on Router 2. Run:
Step 8. Enable the interface. Run:
Configure BGP:
Step 1. Enable BGP. Run:
Step 2. Configure an AS number that identifies the BGP router. Run:
Step 3. Configure BGP Router 1 neighbor. Run:.
Step 4. Configure BGP Router 2 neighbor. Run:.
switch (config)# ip routing
switch (config)# vlan 10
The same VLAN must be configured on both switches.
switch (config)# interface ethernet 1/1
switch (config ethernet 1/1)# switchport access vlan 10
switch (config)# interface vlan 10
switch (config interface vlan 10)# ip address 10.10.10.1 /24
switch (config interface vlan 10)# ip address 10.10.10.2 /24
switch (config interface vlan 10)# no shutdown
switch (config)# protocol bgp
switch (config)# router bgp 100
To run iBGP, the AS number of all remote neighbors should be similar to the local AS
number of the configured router.
switch (config router bgp 100)# neighbor 10.10.10.2 remote-as 100
switch (config router bgp 100)# neighbor 10.10.10.1 remote-as 100
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 950
6.3.3 Verifying BGP
Step 1. Check the general status of BGP. Run:
• Verify that the state of each BGP neighbor reached to ESTABLISHED state.
• In case the neighbor is disabled (shutdown). The state of the neighbor will be IDLE.
• BGP incoming and outgoing messages should be incremented.
• The AS number of each neighbor is the correct one.
Step 2. Check the status of the neighbors. Run:
You should be able to see running BGP counters and ESTABLISHED state per active neigh-
bor.
switch (config)# show ip bgp summary
BGP router identifier 10.10.10.1, local AS number 100
BGP table version is 100, main routing table version 100
0 network entries using 0 bytes of memory
0 path entries using 0 bytes of memory
0 BGP AS-PATH entries using 0 bytes of memory
0 BGP community entries using 0 bytes of memory
0 BGP extended community entries using 0 bytes of memory
Neighbor V AS MsgRcvd MsgSent TblVer InQ OutQ Up/Down State/PfxRcd
10.10.10.2 0 100 100 76 3 0 0
00:0:10:19
ESTABLISHED
switch (config)#
BGP summary information for VRF default, address family IPv4
switch (config)# show ip bgp neighbors
BGP neighbor is
10.10.10.2
, remote AS 100, external link
BGP version 0, remote router ID 0.0.0.0
BGP State =
ESTABLISHED
Last read 0:00:00:00, last write 0:00:00:00, hold time is 180, keepalive
interval is 60 seconds
Configured hold time is 180, keepalive interval is 60 seconds
Minimum holdtime from neighbor is 0 seconds
switch (config)#
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 951
6.3.4 Commands
6.3.4.1 Config
Enables BGPv4, and unhides BGP related commands.
The no form of the command deletes all BGP configuration and hides BGP related
commands.
N/A
Disabled
Config
3.3.5006
admin
switch (config)# protocol bgp
switch (config)#
ip routing
protocol bgp
protocol bgp
no protocol bgp
Syntax Description
Default
Configuration Mode
History
Role
Example
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 952
clear ip bgp
clear ip bgp [{<ip-address> | all} [soft] [in | out]]
Clears BGP learned routes from the BGP table and resets the connection to the neigh-
bor.
Syntax Description ip-address A BGP peer IP address. Only the specified neighbor is
reset.
all All BGP peers. All BGP neighbors are reset.
soft Clears BGP learned routes from the BGP table without
resetting the connection to the neighbor.
in Inbound routes are reset.
out Outbound routes are reset.
Default N/A
Configuration Mode Config
History 3.3.5006 First release
3.3.5200 Updated description
Role admin
Example switch (config)# clear ip bgp all
switch (config)#
Related Commands N/A
Note This command removes BGP IPv4 learned routes from the routing table, reads all
routes from designated peers, and sends routes to those peers as required.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 953
router bgp
router bgp <as-number>
no router bgp <as-number>
Creates and enters a BGP instance with the specified AS number.
The no form of the command deletes all router BGP instance configuration.
Syntax Description as-number Autonomous system number: A unique number to be
used to identify the AS. The AS is a number which
identifies the BGP router to other routers and tags the
routing information passed along. Range: 1-65535.
Default N/A
Configuration Mode Config
History 3.3.5006 First version
3.3.5200 Updated syntax description
Role admin
Example switch (config)# router bgp 100
switch (config router bgp 100)#
Related Commands ip routing
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 954
6.3.4.2 Config Router
Gracefully disables BGP protocol without removing existing configuration.
The no form of the command enables BGP.
N/A
Enabled
Config Router BGP
3.3.5006
admin
switch (config router bgp 100)# no shutdown
shutdown
shutdown
no shutdown
Syntax Description
Default
Configuration Mode
History
Role
Example
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 955
aggregate-address
aggregate-address <prefix> [summary-only] [as-set] [attribute-map]
no aggregate-address <prefix> [summary-only] [as-set] [attribute-map]
Creates an aggregate route in the BGP database.
The no form of the command disables ECMP across AS paths.
Syntax Description prefix Destination to aggregate
summary-only Contributor routes are not advertised.
as-set Includes AS_PATH information from contributor
routes as AS_SET attributes
attribute-map Assigns attribute values in set commands of the map’s
permit clauses. Deny clauses and match commands in
permit clauses are ignored.
Default Disabled
Configuration Mode Config Router BGP
History 3.4.0000
Role admin
Example switch-e07c04 [standalone: master] (config router bgp 4) # aggregate-
address 3.5.3.7 /32
Related Commands
Note • Aggregate routes combine the characteristics of multiple routes into a single route that the
switch advertises
• Aggregation can reduce the amount of information that a BGP speaker is required to store
and transmit when advertising routes to other BGP speakers
• Aggregate routes are advertised only after they are redistributed
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 956
bestpath as-path multipath-relax
bestpath as-path multipath-relax
no bestpath as-path multipath-relax
Enables ECMP across AS paths.
The no form of the command disables ECMP across AS paths.
Syntax Description N/A
Default Disabled
Configuration Mode Config Router BGP
History 3.3.5006
3.3.5200 Updated description and notes
Role admin
Example switch (config router bgp 100)# bestpath as-path multipath-relax
Related Commands maximum-paths
Note • With this option disabled, only routes with exactly the same AS path as the best route to a
destination are considered for ECMP.
• With this option enabled, all routes with similar length AS path as the best route are consid-
ered for ECMP.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 957
bgp fast-external-fallover
bgp fast-external-fallover
no bgp fast-external-fallover
Terminates eBGP sessions of any directly adjacent peer without waiting for the hold-
down timer to expire if the link used to reach the peer goes down.
The no form of the command waits for hold-down timer to expire before terminating
eBGP sessions.
Syntax Description N/A
Default no bgp fast-external-fallover
Configuration Mode Config Router BGP
History 3.4.0000
Role admin
Example switch (config router bgp 100)# bgp fast-external-fallover
Related Commands maximum-paths
Note Although this feature improves BGP conversion time, it may cause instability in your
BGP table due to a flapping interface.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 958
bgp listen limit
bgp listen limit <maximum>
no bgp listen limit
Limits the number of dynamic BGP peers allowed on the switch.
The no form of the command resets to the default value.
Syntax Description maximum The maximum number of dynamic BGP peers to be
allowed on the switch. Range: 1-128.
Default 100
Configuration Mode Config Router BGP
History 3.4.0000
Role admin
Example switch (config router bgp 100)# bgp listen limit 101
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 959
bgp listen range
bgp listen range <ip-prefix> <length> peer-group <peer-group-name> remote-as
<as-number>
no bgp listen range <ip-prefix> <length>
Identifies a range of IP addresses from which the switch will accept incoming
dynamic BGP peering requests.
After applying the no form of the command, the switch will no longer accept dynamic
peering requests on the range.
Syntax Description ip-prefix IP address
length Mask length (e.g. /24 or 255.255.255.254)
peer-group-name Peer group name
remote-as <as-number> Remote peer’s number.
Default 100
Configuration Mode Config Router BGP
History 3.4.0000
Role admin
Example switch (config router bgp 100)# bgp listen range 10.10.10.10 /24 peer-
group my-group remote-as 13
Related Commands
Note • To create a static peer group, use the command
neighbor peer-group
• Neighbors in a dynamic peer group are configured as a group and cannot be configured
individually.
• The no form of the command may take up to a few seconds to take effect if there are many
dynamic peers and/or a lot of routes. While the clean-up process is running, creation of a
new listen range that overlaps the deleted one will fail.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 960
bgp redistribute-internal
bgp redistribute-internal
no bgp redistribute-internal
Enables iBGP redistribution into an interior gateway protocol (IGP).
The no form of the command disables iBGP redistribution into an interior gateway
protocol (IGP).
Syntax Description ip-prefix IP address
length Mask length (e.g. /24 or 255.255.255.254)
peer-group-name Peer group name
remote-as <as-number> Remote peer’s number.
Default Disabled
Configuration Mode Config Router BGP
History 3.4.0000
Role admin
Example switch (config router bgp 100)# bgp redistribute-internal
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 961
cluster-id
cluster-id <ip-address>
no cluster-id <ip-address>
Configures the cluster ID in a cluster with multiple route reflectors.
The no form of the command resets the cluster ID for route reflector.
Syntax Description ip-address The route reflector cluster ID
• 0.0.0.1 to 255.255.255.255 Valid cluster ID number
• 0.0.0.0 removes the cluster-ID from the switch (similar to
“no cluster-id”)
Default Cluster ID is the same as Router ID
Configuration Mode Config Router BGP
History 3.2.1000 First version
3.4.0000 Updated syntax description
Role admin
Example switch (config router bgp 100)# cluster-id 10.10.10.10
Related Commands N/A
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 962
client-to-client reflection
client-to-client reflection
no client-to-client reflection
The switch will be configured as a route reflector.
The no form of the command stops the switch from being a route reflector
Syntax Description N/A
Default client-to-client reflection is enabled
Configuration Mode Config Router BGP
History 3.2.1000
Role admin
Example switch (config router bgp 100)# client-to-client reflection
Related Commands N/A
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 963
distance
distance <external> <internal> <local>
no distance
Sets the administrative distance of the routes learned through BGP.
The no form of the command resets the administrative distance its default.
Syntax Description external Administrative distance for external BGP routes.
Range: 1-255.
internal Administrative distance for internal BGP routes.
Range: 1-255.
local Administrative distance for local BGP routes.
Range: 1-255.
Default external: 200
internal: 200
local: 200
Configuration Mode Config Router BGP
History 3.3.5006
Role admin
Example switch (config router bgp 100)# distance 10 20 30
Related Commands N/A
Note • Routers use administrative distances to decide on a route when two protocols provide rout-
ing information to the same destination.
• Lower distance values correspond to higher reliability.
• Routes are external when learned from an external autonomous system.
• Routes are internal when learned from a peer in the local autonomous system.
• Local routes are those networks listed with a network router configuration command, often
as back doors, for the router or for the networks being redistributed from another process.
• BGP routing tables do not include routes with a distance of 255.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 964
graceful-restart stalepath-time
graceful-restart stalepath-time <interval>
no graceful-restart stalepath-time
Configures the maximum time that stale routes from a restarting BGP neighbor are
retained after a BGP session is reestablished with that peer.
The no form of the command resets to the default value.
Syntax Description interval Time in seconds. Range: 1-3600.
Default 300 seconds
Configuration Mode Config Router BGP
History 3.4.0000
Role admin
Example switch (config router bgp 100)# graceful-restart stalepath-time 350
Related Commands N/A
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 965
graceful-restart helper
graceful-restart helper
no graceful-restart helper
Enables BGP graceful restart helper mode on the switch for all BGP neighbors.
The no form of the command disables BGP graceful restart helper mode on the
switch for all BGP neighbors.
Syntax Description N/A
Default Graceful restart is enabled
Configuration Mode Config Router BGP
History 3.4.0000
Role admin
Example switch (config router bgp 100)# graceful-restart helper
Related Commands N/A
Note • When graceful restart helper mode is enabled, the switch retains routes from neighbors
capable of graceful restart while those neighbors are restarting BGP
• Individual neighbor configuration takes precedence over the global configuration
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 966
maximum-paths
maximum-paths [ibgp] <maximum-path>
Configures the maximum number of parallel eBGP/iBGP routes that the switch
installs in the routing table.
Syntax Description ibgp Sets the configuration on the internal BGP.
maximum-path The number of routes to install to the routing table.
Default 1
Configuration Mode Config Router BGP
History 3.3.5006
3.3.5200 Updated description and notes
Role admin
Example switch (config router bgp 100)# maximum-paths ibgp 10
switch (config router bgp 100)#
Related Commands N/A
Note • This command provides an ECMP parameter that controls the number of equal-cost paths
that the switch installs in the routing table for each destination.
• The action is effective after BGP restart.
• If the parameter “ibgp” is not used, the setting is applied on routes learned from peers from
other ASs; if “ibgp” is used, the setting is applied to routes learned from peers of the same
AS.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 967
neighbor advertisement-interval
neighbor {<ip-address> | <peer-group-name>} advertisement-interval <delay>
no neighbor {<ip-address> | <peer-group-name>} advertisement-interval
Sets the minimum route advertisement interval (MRAI) between the sending of BGP
routing updates.
The no form of the command disables this function.
Syntax Description ip-address A BGP peer IP address
peer-group-name Peer group name
delay Time (in seconds) is specified by an integer.
Range: 0-600.
Default 30 seconds
Configuration Mode Config Router BGP
History 3.4.0000 First version
Role admin
Example switch (config router bgp 100)# neighbor 10.10.10.10 advertisement-
interval 90
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 968
neighbor allowas-in
neighbor {<ip-address> | <peer-group-name>} allowas-in [number]
no neighbor {<ip-address> | <peer-group-name>} allowas-in
Configures the switch to permit the advertisement of prefixes containing duplicate
autonomous switch numbers (ASNs).
The no form of the command disables this function.
Syntax Description ip-address A BGP peer IP address
peer-group-name Peer group name
number Number of switch’s (ASN) allowed in path.
Range: 1-10.
Default N/A
Configuration Mode Config Router BGP
History 3.4.0000 First version
Role admin
Example switch (config router bgp 100)# neighbor 10.10.10.10 allowas-in 2
Related Commands ip routing
router bgp <as-number>
Note Neighbors from the same AS as the router are considered as iBGP peers, and neigh-
bors from other ASs are considered eBGP peers.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 969
neighbor description
neighbor {<ip-address> | <peer-group-name>} description <string>
no neighbor {<ip-address> | <peer-group-name>} description
Associates descriptive text with the specified peer or peer group.
The no form of the command removes the description from the peer.
Syntax Description ip-address IP address of the neighbor.
peer-group-name Peer group name
string Free string, up to 80 characters in length.
Default No description
Configuration Mode Config Router BGP
History 3.3.5006 First version
3.3.5200 Updated example
Role admin
Example switch (config router bgp 100)# neighbor 10.10.10.10 description The
next door neighbor
Related Commands N/A
Note The peer description only appears in the show commands.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 970
neighbor ebgp-multihop
neighbor {<ip-address> | <peer-group-name>} ebgp-multihop [<ttl>]
no neighbor {<ip-address> | <peer-group-name>} ebgp-multihop
Enables BGP to connect to external peers that are not directly connected to the switch.
The no form of the command applies the system disables connecting to external peers.
Syntax Description ip-address IP address of the BGP-speaking neighbor
peer-group-name Peer group name
ttl Time-to-live. Range: 1-255 hops.
Default ttl: 1
Configuration Mode Config Router BGP
History 3.3.5006 First version
3.3.5200 Updated default
Role admin
Example switch (config router bgp 100)# neighbor 10.10.10.10 ebgp-multihop 5
Related Commands ip routing
neighbor <ip-address> remote-as <as-number>
Note The command does not establish the multi-hop if the only route to the peer is the
default route (0.0.0.0).
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 971
neighbor export-localpref
neighbor {<ip-address> | <peer-group-name>} export-localpref <value>
no neighbor {<ip-address> | <peer-group-name>} export-localpref
Configures the local preference value sent to the specified peer or peer group.
The no form of the command resets the local preference to its default value.
Syntax Description ip-address IP address of the BGP-speaking neighbor
peer-group-name Peer group name
value Preference value. Range: 0-2147483647.
Default 100
Configuration Mode Config Router BGP
History 3.4.0000 First version
Role admin
Example switch (config router bgp 100)# neighbor 10.10.10.10 export-localpref
100
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 972
neighbor graceful-restart helper
neighbor {<ip-address> | <peer-group-name>} graceful-restart helper
no neighbor {<ip-address> | <peer-group-name>} graceful-restart helper
Enables BGP graceful restart helper mode for the specified BGP neighbor or peer
group.
The no form of the command
Syntax Description ip-address IP address of the BGP-speaking neighbor
peer-group-name Peer group name
Default Graceful restart is enabled
Configuration Mode Config Router BGP
History 3.4.0000 First version
Role admin
Example switch (config router bgp 100)# neighbor graceful-restart helper
Related Commands
Note • When graceful restart helper mode is enabled, the switch retains routes from neighbors
capable of graceful restart while those neighbors are restarting BGP
• Individual neighbor configuration takes precedence over the global configuration
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 973
neighbor import-localpref
neighbor {<ip-address> | <peer-group-name>} import-localpref <value>
no neighbor {<ip-address> | <peer-group-name>} import-localpref
Configures the local preference value assigned to routes received from the specified
peer or peer group.
The no form of the command resets the local preference to its default value.
Syntax Description ip-address IP address of the BGP-speaking neighbor
peer-group-name Peer group name
value Preference value. Range: 0-2147483647.
Default 100
Configuration Mode Config Router BGP
History 3.4.0000 First version
Role admin
Example switch (config router bgp 100)# neighbor 10.10.10.10 import-localpref
100
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 974
neighbor local-as
neighbor {<ip-address> | <peer-group-name>} local-as <as-id> [no-prepend |
replace-as]
no neighbor {<ip-address> | <peer-group-name>} local-as
Enables the modification of the AS path attribute for routes received from an eBGP
neighbor.
The no form of the command disables AS path modification for the specified peer or
peer group.
Syntax Description ip-address IP address of the BGP-speaking neighbor
peer-group-name Peer group name
no-prepend local-as number is not prepended to the routes received
from external neighbors
replace-as Prepends only the local autonomous system number (as
configured with the IP address argument) to the AS path
attribute.
Default 12000
Configuration Mode Config Router BGP
History 3.4.0000 First version
Role admin
Example switch-e07c04 [standalone: master] (config router bgp 4) # neighbor
100.100.100.100 local-as 123
Related Commands ip routing
neighbor <ip-address> remote-as <as-number>
Note • This function allows the switch to appear as a member of a different autonomous system
(AS) to external peers.
• To disable peering with the neighbor run the command
clear ip bgp
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 975
neighbor maximum-prefix
neighbor {<ip-address> | <peer-group-name>} maximum-prefix <maximum>
[warning-only]
no neighbor {<ip-address> | <peer-group-name>} maximum-prefix
Configures the number of BGP routes the switch accepts from a specified neighbor
and defines an action when the limit is exceeded.
The no form of the command removes the limitation
Syntax Description ip-address IP address of the BGP-speaking neighbor
peer-group-name Peer group name
maximum Number of BGP routes the switch accepts from a speci-
fied neighbor. Range: 1-2147483647.
warning-only Only generates a warning rather than disconnecting the
neighbor
Default 12000
Configuration Mode Config Router BGP
History 3.4.0000 First version
Role admin
Example switch (config router bgp 100)# neighbor 10.10.10.10 maximum-prefix
12000 warning-only
Related Commands ip routing
neighbor <ip-address> remote-as <as-number>
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 976
neighbor next-hop-peer
neighbor {<ip-address> | <peer-group-name>} next-hop-peer
no neighbor {<ip-address> | <peer-group-name>} next-hop-peer
Configures the switch to list the peer address as the next hop in routes that it receives
from the specified peer BGP-speaking neighbor or members of the specified peer
group.
The no form of the command disables this function.
Syntax Description ip-address IP address of the neighbor.
peer-group-name Peer group name
Default no next-hop-peer
Configuration Mode Config Router BGP
History 3.3.5006
Role admin
Example switch (config router bgp 100)# neighbor 10.10.10.10 next-hop-peer
Related Commands
Note This command overrides the next hop for all routes received from this neighbor or
peer group
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 977
neighbor next-hop-self
neighbor {<ip-address> | <peer-group-name>} next-hop-self
no neighbor {<ip-address> | <peer-group-name>} next-hop-self
Configures the IP address of the router as the next hop address in routes advertises to
the specific neighbor.
The no form of the command resets this parameter to its default.
Syntax Description ip-address IP address of the neighbor.
peer-group-name Peer group name
Default no next-hop-self
Configuration Mode Config Router BGP
History 3.3.5006
Role admin
Example switch (config router bgp 100)# neighbor 10.10.10.10 next-hop-self
Related Commands neighbor <ip-address> remote-as <as-number>
Note • This function is used in networks where BGP neighbors do not directly access all other
neighbors on the same subnet.
• In the default state, the next hop is generated based on the IP address and the present next
hop in the route information.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 978
neighbor password
neighbor {<ip-address> | <peer-group-name>} password [<encryption>]
<string>
no neighbor {<ip-address> | <peer-group-name>} password
Enables authentication on a TCP connection with a BGP peer.
The no form of the command resets the value to its default.
Syntax Description ip-address IP address of the neighbor
peer-group-name Peer group name
encryption Possible values:
• no parameter – clear text
• 0 – clear text
• 7 – obfuscated
string Up to 8 bytes in length
Default N/A
Configuration Mode Config Router BGP
History 3.4.0000 First version
Role admin
Example switch (config router bgp 100)# neighbor 10.10.10.10 password 7
admin123
Related Commands
Note • Peers must use the same password to ensure communication.
• neighbor <ip-address> password 7 <password>' can only accept data that was created
using 'show config'.
• 'show config' will never show the clear-test password, it will always be obfuscated (and
thus displayed using the 'password 7' syntax).
• Router BGP neighbor password cannot be set when enabling secure mode
• Router BGP peer-group password cannot be set when enabling with secure mode
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 979
neighbor peer-group
1. neighbor {<ip-address>} peer-group <peer-group-name>
2. neighbor {<peer-group-name>} peer-group
3. no neighbor {<ip-address>} peer-group <peer-group-name>
4. no neighbor {<peer-group-name>} peer-group
1. Assigns BGP neighbors to an existing peer group
2. Creates a peer-group
3. Unassigns a BGP neighbor from a peer-group
4. Deletes the peer-group
Syntax Description ip-address IP address of the neighbor
peer-group-name Peer group name
Default N/A
Configuration Mode Config Router BGP
History 3.4.0000 First version
Role admin
Example switch (config router bgp 100)# neighbor groupA peer-group
switch (config router bgp 100)# neighbor 1.2.3.4 peer-group groupA
Related Commands
Note • Once a peer group is created, the group name can be used as a parameter in neighbor con-
figuration commands, and the configuration will be applied to all members of the group.
• Settings applied to an individual neighbor in the peer group override group settings.
• A neighbor can only belong to one peer group, so issuing this command for a neighbor that
is already a member of another group removes it from that group.
• When a neighbor is removed from a peer group, the neighbor retains the configuration
inherited from the peer group.
• Router BGP peer-group password cannot be set when enabling with secure mode
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 980
neighbor remote-as
neighbor {<ip-address>} remote-as <as-number>
no neighbor {<ip-address>} remote-as <as-number>
Configures a neighbor.
The no form of the command removes the neighbor, dropping the connection and all
routes if already connected.
Syntax Description ip-address A BGP peer IP address
peer-group-name Peer group name
as-number The BGP peer as-number. Range: 1-65535.
Default N/A
Configuration Mode Config Router BGP
History 3.3.5006 First version
3.3.5200 Updated description and note
Role admin
Example switch (config router bgp 100)# neighbor 10.10.10.10 remote-as 200
switch (config router bgp 100)#
Related Commands ip routing
router bgp <as-number>
Note Neighbors from the same AS as the router are considered as iBGP peers, and neigh-
bors from other ASs are considered eBGP peers.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 981
neighbor remove-private-as
neighbor {<ip-address> | <peer-group-name>} remove-private-as
no neighbor {<ip-address> | <peer-group-name>} remove-private-as
Removes private autonomous system numbers from outbound routing updates for
external BGP (eBGP) neighbors.
The no form of the command preserves private AS numbers for the specified peer.
Syntax Description ip-address A BGP peer IP address
peer-group-name Peer group name
Default N/A
Configuration Mode Config Router BGP
History 3.4.0000 First version
Role admin
Example switch (config router bgp 100)# neighbor 10.10.10.10 remove-private-as
switch (config router bgp 100)#
Related Commands ip routing
router bgp <as-number>
Note • This can only be used with external BGP (eBGP) peers.
• If the update has only private AS numbers in the AS path, BGP removes these numbers.
• If the AS path includes both private and public AS numbers, BGP does not remove the pri-
vate AS numbers. This situation is considered a configuration error.
• If the AS path contains the AS number of the eBGP neighbor, BGP does not remove the
private AS number.
• If the AS path contains confederations, BGP removes the private AS numbers only if they
come after the confederation portion of the AS path.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 982
neighbor route-map
neighbor {<ip-address> | <peer-group-name>} route-map <route-map-name>
[in | out]
no neighbor {<ip-address> | <peer-group-name>} route-map <route-map-name>
[in | out]
Configures a route map to inbound BGP routes.
The no form of the command undoes the configuration.
Syntax Description ip-address IP address of the neighbor
peer-group-name Peer group name
route-map-name String. The name of the route-map
in Applies route map to inbound routes
out Applies route map to out-bound routes
Default N/A
Configuration Mode Config Router BGP
History 3.3.5006 First version
3.3.5200 Updated notes and default
3.4.1100 Added “out” parameter
Role admin
Example switch (config router bgp 100)# neighbor 10.10.10.10 route-map MyRoute-
Map in
Related Commands neighbor <ip-address> remote-as <as-number>
route-map <map-name> [deny | permit] [sequence-number]
clear ip bgp {<ip-address> | all}
Note • Only one inbound route-map can be applied to a given neighbor.
• If a new route-map is applied to a neighbor, it replaces the previous route map.
• Changing a route-map only takes effect on routes received or sent after the change.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 983
neighbor route-reflector-client
neighbor {<ip-address> | <peer-group-name>} route-reflector-client
no neighbor {<ip-address> | <peer-group-name>} route-reflector-client
Sets the neighbor as a client but does not set up the reflection itself.
The no form of the command disables route reflection for the specific peer.
Syntax Description ip-address IP address of the neighbor.
peer-group-name Peer group name
Default N/A
Configuration Mode Config Router BGP
History 3.3.5006 First version
3.3.5200 Updated notes and default
Role admin
Example switch (config router bgp 100)# neighbor 10.10.10.10 route-reflector-
client
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 984
neighbor send-community
neighbor {<ip-address> | <peer-group-name>} send-community [extended]
no neighbor {<ip-address> | <peer-group-name>} send-community [extended]
Configures the switch to send community attributes to the specified BGP neighbor.
The no form of the command disables sending community attributes for the specified
peer.
Syntax Description ip-address IP address of the neighbor
peer-group-name Peer group name
extended Sends extended community attributes to neighbor
Default Enabled
Configuration Mode Config Router BGP
History 3.4.0000 First version
Role admin
Example switch (config router bgp 100)# neighbor 10.10.10.10 send-community
Related Commands N/A
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 985
neighbor shutdown
neighbor {<ip-address> | <peer-group-name>} shutdown
no neighbor {<ip-address> | <peer-group-name>} shutdown
Disables BGP neighbor gracefully.
The no form of the command enables BGP neighbor.
Syntax Description ip-address IP address of the neighbor.
peer-group-name Peer group name
Default Enabled
Configuration Mode Config Router BGP
History 3.3.5006 First version
3.3.5200 Updated note
Role admin
Example switch (config router bgp 100)# neighbor 10.10.10.10 shutdown
Related Commands N/A
Note Disabling a neighbor terminates all its active sessions and removes associated routing
information.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 986
neighbor timers
neighbor {<ip-address> | <peer-group-name>} timers <keep-alive> <hold-time>
no neighbor {<ip-address> | <peer-group-name>} timers
Configures the keepalive and hold times for a specified peer.
The no form of the command resets the parameters to their default values.
Syntax Description ip-address IP address of the neighbor.
peer-group-name Peer group name
keep-alive The period between the transmission of consecutive
keep-alive messages. Range: 1-3600 seconds. “0”
means that keepalive is not sent and the connection
does not expire.
hold-time The period the switch waits for a keepalive or update
message before it disables peering. Range: 3-7200 sec-
onds. “0” means that keepalive is not sent and the con-
nection does not expire.
Default keep-alive: 60 seconds
hold-time: 180 seconds
Configuration Mode Config Router BGP
History 3.3.5006 First version
3.3.5200 Updated description
Role admin
Example switch (config router bgp 100)# neighbor 10.10.10.10 timers 65 195
Related Commands neighbor <ip-address> remote-as <as-number>
Note Hold time must be at least 3 seconds and should be three times longer than the keep-
alive setting.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 987
neighbor transport connection-mode passive
neighbor {<ip-address> | <peer-group-name>} transport connection-mode
passive
no neighbor {<ip-address> | <peer-group-name>} transport connection-mode
passive
Sets the TCP connection for the specified BGP neighbor or peer group to passive
mode.
The no form of the command sets the specified BGP neighbor or peer group to active
connection mode.
Syntax Description ip-address IP address of the neighbor.
peer-group-name Peer group name
Default TCP sessions initiated
Configuration Mode Config Router BGP
History 3.4.0000 First version
Role admin
Example switch (config router bgp 100)# neighbor 10.10.10.10 transport connec-
tion-mode passive
Related Commands
Note • When the peer’s transport connection mode is set to passive, it accepts TCP connections
for BGP, but does not initiate them.
• BGP peers in active mode can both accept and initiate TCP connections for BGP.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 988
neighbor update-source
neighbor <ip-address> update-source {ethernet <slot/port> | loopback <num-
ber> | port-channel <number> | vlan <vlan-id>}
no neighbor <ip-address> update-source
Configures the source-address for routing updates and to establish TCP connections
with peers.
The no form of the command disables configured source-address for routing updates
and for TCP connection establishment with a peer.
Syntax Description ip-address IP address of the neighbor.
ethernet <slot/port> Ethernet interface.
loopback <number> Loopback interface number.
vlan <vlan-id> VLAN interface. Range: 1-4094.
port-channel <number> LAG interface. Range is 1-4094.
Default BGP uses best local address
Configuration Mode Config Router BGP
History 3.3.5006 First version
3.3.5200 Updated example
Role admin
Example switch (config router bgp 100)# neighbor 10.10.10.2 update-source vlan
10
Related Commands N/A
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 989
neighbor weight
neighbor {<ip-address> | <peer-group-name>} weight <value>
no neighbor {<ip-address> | <peer-group-name>} weight
Assigns a weight attribute to paths from the specified neighbor.
The no form of the command resets to default values.
Syntax Description ip-address IP address of the neighbor
peer-group-name Peer group name
value Weight value. Range: 1-65535.
Default Value is 32768 for router-originated paths and 0 for routes received through BGP
Configuration Mode Config Router BGP
History 3.4.0000 First version
Role admin
Example switch (config router bgp 100)# neighbor 10.10.10.10 weight 100
Related Commands N/A
Note • Weight values set through route map commands have precedence over neighbor weight
command values.
• Other attributes are used only when all paths to the prefix have the same weight.
• A path’s BGP weight is also configurable through route maps.
• When multiple paths to a destination prefix exist, the best-path selection algorithm prefers
the path with the highest weight.
• Weight is the first parameter that the BGP best-path selection algorithm considers.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 990
network
network <ip-prefix> <length> [<route-map-name>]
no network <ip-prefix> <length> [<route-map-name>]
Configures a route for advertisement to BGP peers.
The no form of the command removes the route from the BGP routes table, prevent-
ing its advertisement. The route is only advertised if the router has a gateway to the
destination.
Syntax Description ip-prefix A string that specific route map is assigned to the net-
work.
length /24 or 255.255.255.0 format.
route-map-name The name of a route-map which is used to set the
route’s attributes when it is advertised.
Default N/A
Configuration Mode Config Router BGP
History 3.3.5006 First version
3.3.5200 Updated description, syntax description and notes
Role admin
Example switch (config router bgp 100)# network 10.10.10.0 /24 routemap
Related Commands
Note • The parameters “ip-prefix” and “length” specify the route destination.
• The configuration zeros the host portion of the specified network address. For example,
192.0.2.4/24 is stored as 192.0.2.0/24.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 991
redistribute
redistribute {connected | static | ospf | ospf-internal | ospf-external} [<route-
map>]
no redistribute {connected | static | ospf}
Enables redistribution of specified routes to the BGP domain.
The no form of the command disables route redistribution from the specified source.
Syntax Description connected Redistributes the direct routes
static Redistributes the user-defined (static) route
ospf Redistributes all routes learned by ospf protocol
ospf-internal Redistributes all osfp-learned routes which are marked
as internal
ospf-external Redistributes all osfp-learned routes which are marked
as external
Default No redistribution
Configuration Mode Config Router BGP
History 3.2.1000
Role admin
Example switch (config router bgp 100)# redistribute ospf
Related Commands N/A
Note Multiple redistribution options can be applied.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 992
router-id
router-id <ip-address>
no router-id
Configures a fixed router ID for BGP.
The no form of the command removes the fixed router ID and restores the system
default.
Syntax Description ip-address IP Address identified the router ID
Default The Router ID is dynamically elected (no router-id).
• If a loopback interface is configured, the router ID is set to the IP address of the loopback
interface.
• If multiple loopback interfaces are configured, the router ID is set to the IP address of the
loopback interface with the highest IP address.
• If no loopback interface is configured, the router ID is set to the highest IP address on a
physical interface.
Configuration Mode Config Router BGP
History 3.3.5006
Role admin
Example switch (config router bgp 100)# router-id 10.10.10.10
Related Commands
Note The IP address configured identifies the BGP speaker. The command triggers an
automatic notification and session reset for the BGP neighbors.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 993
timers bgp
timers bgp <keep-alive> <hold>
no timers bgp
Configures the BGP keepalive and hold times.
The no form of the command resets the parameters to their default settings.
Syntax Description keep-alive Frequency (in seconds) with which keepalive messages
are sent to its peer. Range: 1-3600 seconds; 0 – no
keep-alive messages are sent.
hold Interval (in seconds) after not receiving a keepalive
message that a peer is declared dead. 3-7200 seconds;
0 – peer is held indefinitely regardless of keep-alive
messages.
Default Keepalive time: 60 secs
Hold time: 180 secs
Configuration Mode Config Router BGP
History 3.3.5006 First version
3.3.5200 Updated syntax description, related commands and
notes
Role admin
Example switch (config router bgp 100)# timers bgp 61 181
switch (config router bgp 100)#
Related Commands ip routing
neighbor timers
router bgp <as-number>
show ip bgp
Note • Timer settings apply to every peer connection.
• The command “neighbor timers” configures the times on a specified peer connection.
• Hold time should be three times longer than the keepalive setting.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 994
6.3.4.3 Show
Displays information about the BGP routes table (RIB).
ip-address IP address (e.g. 172.3.12.4).
mask Netmask (e.g. /24 or 255.255.255.0).
detail Displays detailed information about a subset of the bgp
learned routes.
longer-prefixes Displays the routes to the specified destination and any
routes to a more specific destination.
Example: If “10.20.30.0 /24 longer-prefixes” is run, all
routes starting with 10.20.30 regardless of the prefix
length (10.20.30.X /24, 10.20.30.X /25, etc.) are dis-
played – providing there are any such routes received/
sent from/to that neighbor.
N/A
Any Command Mode
3.3.5200
admin
switch (config) # show ip bgp
BGP table version is 100, local router ID is 16.0.1.1
Status codes: s suppressed, d damped, h history, * valid, > best, i - internal
r RIB-failure, S Stale, m multipath, b backup-path, x best-external
Origin codes: i - IGP, e - EGP, ? - incomplete
100.100.100.0/24 2.2.2.2 0 2 50 100 e
100.100.100.0/24 2.2.2.12 0 12 50 100 e
Network Next Hop Metric LocPrf Weight Path
20.20.20.0/24 2.2.2.2 0 2 20 e
40.40.40.0/24 4.4.4.4 0 4 40 i
100.100.90.32/28 2.2.2.2 0 2 100 i
100.100.100.0/24 4.4.4.4 0 4 50 i
switch (config) #
N/A
show ip bgp
show ip bgp [<ip-address> <mask> [detail | longer-prefixes [detail]]]
Syntax Description
Default
Configuration Mode
History
Role
Example
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 995
show ip bgp community
show ip bgp community <comm1> <comm2> … <commn> [exact] [detail]
Displays information about the BGP routes (RIB) filtered according to communities.
Syntax Description N/A
Default N/A
Configuration Mode Any Command Mode
History 3.4.0000
Role admin
Example switch (config) # show ip bgp community 100:1
BGP table version is 8, local router ID is 3.5.7.4
Status codes: s suppressed, d damped, h history, * valid, > best, i -
internal
r RIB-failure, S Stale, m multipath, b backup-path, x best-
external
Origin codes: i - IGP, e - EGP, ? - incomplete
Network Next Hop Metric LocPrf Weight
Path
*> 3.4.3.11/32 0.0.0.0 0 0 32768 i
*> 3.5.7.88/32 0.0.0.0 0 0 32768 i
*> 3.5.7.99/32 0.0.0.0 0 0 32768 i
switch (config) # show ip bgp community 100:1 exact
BGP table version is 8, local router ID is 3.5.7.4
Status codes: s suppressed, d damped, h history, * valid, > best, i -
internal
r RIB-failure, S Stale, m multipath, b backup-path, x best-
external
Origin codes: i - IGP, e - EGP, ? - incomplete
Network Next Hop Metric LocPrf Weight
Path
*> 3.4.3.11/32 0.0.0.0 0 0 32768 i
*> 3.5.7.99/32 0.0.0.0 0 0 32768 i
Related Commands N/A
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 996
show ip bgp neighbors
show ip bgp neighbors
Displays summaries information about all BGP neighbors.
Syntax Description N/A
Default N/A
Configuration Mode Any Command Mode
History 3.3.5200
Role admin
Example switch (config) # show ip bgp neighbors 3.5.7.5 received
BGP table version is 66, local router ID is 3.5.7.4
Status codes: s suppressed, d damped, h history, * valid, > best, i - internal
r RIB-failure, S Stale, m multipath, b backup-path, x best-external
Origin codes: i - IGP, e - EGP, ? - incomplete
Network Next Hop Metric LocPrf Weight Path
*> 100.0.20.0/24 3.5.7.5 10 100 0 5 i
*> 3.5.7.128/32 3.5.7.5 7 100 0 5 i
*> 100.0.30.0/24 3.5.7.5 0 100 0 5 i
*> 10.20.30.0/24 3.5.7.5 0 100 0 5 12 i
switch (config) #
Related Commands N/A
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 997
show ip bgp neighbors <ip>
show ip bgp neighbors <ip-address>
Displays BGP summary information.
Syntax Description ip-address Neighbor IP address.
Default N/A
Configuration Mode Any Command Mode
History 3.3.5200
Role admin
Example switch (config) # show ip bgp neighbors 3.5.7.5 received
BGP table version is 66, local router ID is 3.5.7.4
Status codes: s suppressed, d damped, h history, * valid, > best, i - internal
r RIB-failure, S Stale, m multipath, b backup-path, x best-external
Origin codes: i - IGP, e - EGP, ? - incomplete
Network Next Hop Metric LocPrf Weight Path
*> 100.0.20.0/24 3.5.7.5 10 100 0 5 i
*> 3.5.7.128/32 3.5.7.5 7 100 0 5 i
*> 100.0.30.0/24 3.5.7.5 0 100 0 5 i
*> 10.20.30.0/24 3.5.7.5 0 100 0 5 12 i
switch (config) #
Related Commands N/A
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 998
show ip bgp neighbors <ip> received
show ip bgp neighbors <ip-address> received [<ip-address> [<mask>] [longer-
prefixes]]
Displays BGP summary information.
Syntax Description ip-address Neighbor IP address
longer-prefixes Displays the routes to the specified destination and any
routes to a more specific destination. (Only available if
both IP and mask are specified.)
Default N/A
Configuration Mode Any Command Mode
History 3.3.5200
Role admin
Example
Related Commands N/A
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 999
show ip bgp paths
show ip bgp paths
Displays summary of all AS paths.
Syntax Description N/A
Default N/A
Configuration Mode Any Command Mode
History 3.3.5200
Role admin
Example switch (config) # show ip bgp paths
Refcount Metric Path
1 0 4 50 100
1 0 2 50 100
1 0 4 40
1 0 12 50 100
1 0 2
1 0 2 20
switch (config) #
Related Commands N/A
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1000
show ip bgp peer-group
show ip bgp peer-group [<peer-group-name>]
Displays information about peer groups.
Syntax Description peer-group-name Displays information about a specific peer-group.
Default N/A
Configuration Mode Any Command Mode
History 3.4.0000
Role admin
Example switch (config) # show ip bgp peer-group
BGP Peer-group [grpA]:
Hold time: 1, Keep-alive: 60
Allow as-in: 0
Weight: 32768
Max prefix: 12000
Export local preferences: 100, Import local preferences: 100
Soft reconfiguration: set
Neighbor V AS MsgRcvd MsgSent TblVer InQ OutQ Up/Down
State/PfxRcd
3.5.7.5 0 5 0 0 0 0 0 0:00:00:42
CONNECT
100.100.100.100 0 100 0 0 0 0 0 Never
IDLE
BGP Peer-group [grpB]:
Hold time: 1, Keep-alive: 60
Allow as-in: 0
Weight: 32768
Max prefix: 12000
Export local preferences: 100, Import local preferences: 100
Soft reconfiguration: set
Neighbor V AS MsgRcvd MsgSent TblVer InQ OutQ Up/Down
State/PfxRcd
3.4.3.7 0 7 0 0 0 0 0 0:00:00:17
ACTIVE
BGP Peer-group [tomer_group]:
Hold time: 1, Keep-alive: 60
Allow as-in: 0
Weight: 32768
Max prefix: 12000
Export local preferences: 100, Import local preferences: 100
Soft reconfiguration: set
Peer-groups count: 3
switch-e07c04 [standalone: master] (config) #
Related Commands N/A
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1001
show ip bgp summary
show ip bgp summary
Displays BGP summary information.
Syntax Description N/A
Default N/A
Configuration Mode Any Command Mode
History 3.3.5200
Role admin
Example switch (config) # show ip bgp summary
BGP router identifier 3.5.7.4, local AS number 4
BGP table version is 70, main routing table version 70
8 network entries using 2176 bytes of memory
4 path entries using 1088 bytes of memory
4 BGP path attribute entries using 256 bytes of memory
0 multipath network entries and 0 multipath paths
4 BGP community entries using 64 bytes of memory
0 received paths for inbound soft reconfiguration
BGP using 26308 total bytes of memory
Dampening disabled. 0 history paths, 0 dampened paths
BGP activity 37/8 prefixes, 37/4 paths
Neighbor V AS MsgRcvd MsgSent TblVer InQ OutQ Up/Down
State/PfxRcd
3.4.3.7 4 7 3 9 70 0 0 0:00:00:48
ESTABLISHED
3.5.7.5 0 5 0 0 0 0 0 0:00:01:54
CONNECT
100.100.100.100 0 100 0 0 0 0 0 Never
IDLE
switch-e07c04 [standalone: master] (config) #
Related Commands N/A
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1002
6.3.5 IP AS-Path Access-List
6.3.5.1 Commands
Creates an access list to filter BGP route updates.
The no ip as-path access-list command deletes the named access list.
list-name The name for the access list
permit Permits access for a matching condition
deny Denies access for a matching condition
reg-exp Regular expression that is used to specify a pattern to
match against an input string.
any Any route type
egp External BGP routes
igp Internal BGP routes
incomplete Routes marked as “Incomplete”
N/A
Config
3.4.0000
admin
switch (config)# ip as-path access-list mylist permit
switch (config)#
N/A
If access list_name does not exist, this command creates it. If it already exists, this
command appends statements to the list.
ip as-path access-list
ip as-path access-list <list-name> {permit | deny} <reg-exp> [any | egp | igp |
incomplete]
no ip as-path access-list <list-name>
Syntax Description
Default
Configuration Mode
History
Role
Example
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1003
show ip as-path access-list
show ip as-path access-list [list-name]
Presents defined as-path access lists
Syntax Description list-name Displays a specific prefix-list.
Default N/A
Configuration Mode Config
History 3.4.0000
Role admin
Example switch (config)# show ip as-path access-list mylist
Related Commands N/A
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1004
6.3.6 IP Community-List
6.3.6.1 Commands
Adds a standard entry to a community-list.
The no form of the command deletes the specified community list.
list-name The name for the community list
permit Permits access for a matching condition.
deny Denies access for a matching condition.
list-of-communities List of standard communities:
• <aa:nn>
• <number>
• internet
• local-AS
• no-advertise
• no-export
N/A
Config
3.4.0000
admin
switch (config)# ip community-list standard mycommunity permit 1:2 3:4
N/A
A BGP community access list filters route maps that are configured as BGP commu-
nities. The command uses regular expressions to name the communities specified by
the list.
ip community-list standard
ip community-list standard <list-name> {deny | permit} <list-of-communities>
no ip community-list standard <list-name>
Syntax Description
Default
Configuration Mode
History
Role
Example
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1005
ip community-list expanded
ip community-list expanded <list-name> {deny | permit} <reg-exp>
no ip community-list expanded <list-name>
Adds a regular expression entry to a community-list
The no form of the command deletes the specified community list.
Syntax Description list-name Configures a named standard community list.
permit Permits access for a matching condition.
deny Denies access for a matching condition.
reg-exp Regular expression that is used to specify a pattern to
match against an input string.
Default N/A
Configuration Mode Config
History 3.4.0000
Role admin
Example switch (config)# ip community-list expanded mycommunity permit
1:[0-9]+
Related Commands N/A
Note A BGP community access list filters route maps that are configured as BGP commu-
nities. The command uses regular expressions to name the communities specified by
the list.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1006
show ip community-list
show ip community-list [community-list-name]
Displays the defined community lists
Syntax Description community-list-name An optional parameter to display only the specified list
Default N/A
Configuration Mode Config
History 3.4.0000
Role admin
Example switch (config)# show ip community-list mycommunity
Related Commands N/A
Note A BGP community access list filters route maps that are configured as BGP commu-
nities. The command uses regular expressions to name the communities specified by
the list.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1007
6.4 Policy Rules
6.4.1 Route Map
Route maps define conditions for redistributing routes between routing protocols. A route map
clause is identified by a name, filter type (permit or deny) and a sequence number. Clauses with
the same name are components of a single route map; the sequence number determines the order
in which the clauses are compared to a route.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1008
6.4.1.1 Commands
Creates a route map that can be used for importing, exporting routes and applying
local policies.
name Name of the route-map.
deny | permit Configures the rule to be used.
sequence-number Sequence number for a route-map specific record.
N/A
Config
3.3.5006
3.3.5200 Updated notes
admin
switch (config) # route-map mymap permit 1200
switch (config route-map mymap permit 1200)#
N/A
• All changes in a the route map configuration mode become pending until the end of the
route-map session.
• If not configured, deny | permit is configured as permit.
• If not configured, sequence-number default value is 10.
route-map
route-map <map-name> [deny | permit] [sequence-number]
no route-map <map-tag> {deny | permit} [<sequence-number>]
Syntax Description
Default
Configuration Mode
History
Role
Example
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1009
continue <sequence-number>
continue <sequence-number>
no continue
Enables additional route map evaluation of routes whose parameters meet the
clause’s matching criteria.
The no form of the command removes this configuration from the route map clause.
Syntax Description prefix-list-name
Default N/A
Configuration Mode Config Route Map
History 3.3.5006 First version
3.3.5200 Updated example
Role admin
Example switch (config route-map mymap permit 10)# match as-number 40
switch (config route-map mymap permit 10)# set weight 7
switch (config route-map mymap permit 10)# continue 1200
switch (config route-map mymap permit 10)# exit
switch (config)# show route-map test
route-map test, permit, sequence 10
Match clauses:
as-number 40
Set clauses:
weight 7
continue 1200
switch (config route-map mymap permit 10)# route-map test permit 10 no
continue
switch (config route-map mymap permit 10)# show route-map test
route-map test, permit, sequence 10
Match clauses:
as-number 40
Set clauses:
weight 7
switch (config route-map mymap permit 10)#
Related Commands route-map <map-name> [deny | permit] [sequence-number]
Note • A clause typically contains a match (route-map) and a set (route-map) statement. The eval-
uation of routes whose settings are the same as match statement parameters normally end
and the clause’s set statement are applied to the route. Routes that match a clause contain-
ing a continue statement are evaluated against the clause specified by the continue state-
ment.
• When a route matches multiple route-map clauses, the filter action (deny or permit) is
determined by the last clause that the route matches. The set statements in all clauses
matching the route are applied to the route after the route map evaluation is complete. Mul-
tiple set statements are applied in the same order by which the route was evaluated against
the clauses containing them.
• Continue cannot be set to go back to a previous clause; <sequence-number> of the continue
must always be higher than the current clause’s sequence number.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1010
abort
abort
Discards pending changes and returns to global configuration mode.
Syntax Description N/A
Default N/A
Configuration Mode Config Route Map
History 3.3.5006 First version
3.3.5200 Updated example
Role admin
Example switch (config)# route-map mymap permit 10 match as-number 40
switch (config)# route-map mymap permit 10 set weight 7
switch (config)# show route-map test
route-map test, permit, sequence 10
Match clauses:
as-number 40
Set clauses:
weight 7
switch (config)# route-map mymap permit 1200
switch (config route-map mymap permit 1200)# set weight 11
switch (config route-map mymap permit 1200)# abort
switch (config)# show route-map mymap
route-map mymap, permit, sequence 10
Match clauses:
as-number 40
Set clauses:
weight 7
switch (config)#
Related Commands N/A
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1011
exit
exit
Saves pending route map clause changes to running-config and returns to global con-
figuration mode.
Syntax Description N/A
Default N/A
Configuration Mode Config Route Map
History 3.3.5006
Role admin
Example switch (config)# route-map mymap permit 10 match as-number 40
switch (config)# route-map mymap permit 10 set weight 7
switch (config)# show route-map test
route-map test, permit, sequence 10
Match clauses:
as-number 40
Set clauses:
weight 7
switch (config)# route-map mymap permit 1200
switch (config route-map mymap permit 1200)# set weight 11
switch (config route-map mymap permit 1200)# exit
switch (config)# show route-map test
route-map mymap, permit, sequence 10
Match clauses:
as-number 40
Set clauses:
weight 7
route-map mymap, permit, sequence 1200
Set clauses:
weight 11
switch (config)#
Related Commands N/A
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1012
match as-number
match as-number <number>
no match as-number
Filters according to one of the AS numbers in the AS path of the route.
The no form of the command removes this configuration from the route map clause.
Syntax Description number Autonomous system number to check.
Default N/A
Configuration Mode Config Route Map
History 3.3.5006
Role admin
Example switch (config route-map mymap permit 10)# match as-number 40
switch (config route-map mymap permit 10)#
Related Commands N/A
Note • When a clause contains multiple match commands, the permit or deny filter applies to a
route only if its properties are equal to corresponding parameters in each match statement.
• When a route’s properties do not equal the statement parameters, the route is evaluated
against the next clause in the route map, as determined by sequence number.
• If all clauses fail to permit or deny the route, the route is denied.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1013
match as-path
match as-path <as-path-list name>
no match as-path
Creates a route map clause entry that matches the route‘s AS path using an as-path
access-list.
The no form of the command removes the match statement from the configuration
mode route map clause.
Syntax Description number Autonomous system number to check.
Default N/A
Configuration Mode Config Route Map
History 3.3.5006
Role admin
Example switch (config route-map mymap permit 10)# match as-path my-list
Related Commands N/A
Note • When a clause contains multiple match commands, the permit or deny filter applies to a
route only if its properties are equal to corresponding parameters in each match statement.
• When a route’s properties do not equal the statement parameters, the route is evaluated
against the next clause in the route map, as determined by sequence number.
• If all clauses fail to permit or deny the route, the route is denied.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1014
match community
match community <list-of-communities> [exact-match]
no match community <list-of-communities>
Creates a route map clause entry that matches a route if it contains at least the speci-
fied communities.
The no form of the command removes the match clause.
Syntax Description list of communities List of standard communities:
• <aa:nn>
• <number>
• internet
• local-AS
• no-advertise
• no-export
exact-match Creates a route map clause entry that matches the
route‘s communities exactly.
Default N/A
Configuration Mode Config Route Map
History 3.3.5006
Role admin
Example switch (config route-map mymap permit 10)# match community 1:100 3:52
Related Commands N/A
Note • When a clause contains multiple match commands, the permit or deny filter applies to a
route only if its properties are equal to corresponding parameters in each match statement.
• When a route’s properties do not equal the statement parameters, the route is evaluated
against the next clause in the route map, as determined by sequence number.
• If all clauses fail to permit or deny the route, the route is denied.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1015
match community-list
match community <communities-list-name> exact-match
no match community <communities-list-name> exact-match
Creates a route map clause entry that specifies one route filtering condition
The no form of the command removes the match clause.
Syntax Description communities-list-name A name of an IP community list
Default N/A
Configuration Mode Config Route Map
History 3.3.5006
Role admin
Example switch (config route-map mymap permit 10)# match community-list
COM_LIST exact-match
Related Commands N/A
Note • When a clause contains multiple match commands, the permit or deny filter applies to a
route only if its properties are equal to corresponding parameters in each match statement.
• When a route’s properties do not equal the statement parameters, the route is evaluated
against the next clause in the route map, as determined by sequence number.
• If all clauses fail to permit or deny the route, the route is denied.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1016
match interface
match interface <interface-type> <number>
no match interface
Matches the route’s interface
The no form of the command removes the match clause.
Syntax Description prefix-list-name Prefix-list name.
Default N/A
Configuration Mode Config Route Map
History 3.3.5006
Role admin
Example switch (config route-map mymap permit 10)# match interface ethernet 1/1
Related Commands N/A
Note • When a clause contains multiple match commands, the permit or deny filter applies to a
route only if its properties are equal to corresponding parameters in each match statement.
• When a route’s properties do not equal the statement parameters, the route is evaluated
against the next clause in the route map, as determined by sequence number.
• If all clauses fail to permit or deny the route, the route is denied.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1017
match ip address
match ip address <prefix-list-name>
no match ip address
Filters according to IPv4 prefix list.
The no form of the command removes this configuration from the route map clause.
Syntax Description prefix-list-name Prefix-list name.
Default N/A
Configuration Mode Config Route Map
History 3.3.5006
Role admin
Example
switch (config route-map mymap permit 10)# match ip address listSmallRoutes
Related Commands N/A
Note • When a clause contains multiple match commands, the permit or deny filter applies to a
route only if its properties are equal to corresponding parameters in each match statement.
• When a route’s properties do not equal the statement parameters, the route is evaluated
against the next clause in the route map, as determined by sequence number.
• If all clauses fail to permit or deny the route, the route is denied.
• The prefix-list-name should point to an existing IP prefix-list. If it is not found, no route is
considered as a match for this clause.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1018
match ip next-hop
match ip next-hop <value>
no match ip next-hop
Configures a route’s entry next-hop match.
The no form of the command removes a route-map’s entry next-hop match.
Syntax Description value Next hop IP address: A.B.C.D (e.g. 10.0.13.86).
Default N/A
Configuration Mode Config Route Map
History 3.3.5200
Role admin
Example switch (config route-map mymap permit 10)# match ip next-hop
10.10.10.10
Related Commands N/A
Note • When a clause contains multiple match commands, the permit or deny filter applies to a
route only if its properties are equal to corresponding parameters in each match statement.
• When a route’s properties do not equal the statement parameters, the route is evaluated
against the next clause in the route map, as determined by sequence number.
• If all clauses fail to permit or deny the route, the route is denied.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1019
match local-preference
match local-preference <value>
no match local-preference
Configures a route’s entry local-preference match.
The no form of the command removes a route-map’s entry local-preference match.
Syntax Description value Range: 1-2147483647.
Default N/A
Configuration Mode Config Route Map
History 3.3.5200 First version
3.4.0000 Updated value range
Role admin
Example switch (config route-map mymap permit 10)# match local-preference 10
Related Commands N/A
Note • When a clause contains multiple match commands, the permit or deny filter applies to a
route only if its properties are equal to corresponding parameters in each match statement.
• When a route’s properties do not equal the statement parameters, the route is evaluated
against the next clause in the route map, as determined by sequence number.
• If all clauses fail to permit or deny the route, the route is denied.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1020
match metric
match metric <value>
no match metric
Configures a route’s entry metric match.
The no form of the command removes a route-map’s entry metric match.
Syntax Description value Range: 1-2147483647.
Default N/A
Configuration Mode Config Route Map
History 3.3.5200 First version
3.4.0000 Updated value range
Role admin
Example switch (config route-map mymap permit 10)# match metric 10
Related Commands N/A
Note • When a clause contains multiple match commands, the permit or deny filter applies to a
route only if its properties are equal to corresponding parameters in each match statement.
• When a route’s properties do not equal the statement parameters, the route is evaluated
against the next clause in the route map, as determined by sequence number.
• If all clauses fail to permit or deny the route, the route is denied.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1021
set as-path prepend
set as-path prepend <value1> <value2> ... <valuen>
no set as-path prepend
Modifies as-path on affected routes
The no form of the command removes the set statement from the route map.
Syntax Description value BGP AS number that is prepended to as-path.
Range: 1-4294967295.
Default N/A
Configuration Mode Config Route Map
History 3.4.0000
Role admin
Example switch (config route-map mymap permit 10)# set as-path prepend 5 10
Related Commands N/A
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1022
set as-path tag
set as-path tag <value>
no set as-path tag
Configures a route’s entry AS-path tag parameter.
The no form of the command removes a route-map’s entry AS path tag setting.
Syntax Description value Range: 1-2147483648.
Default N/A
Configuration Mode Config Route Map
History 3.3.5200
Role admin
Example switch (config route-map mymap permit 10)# set as-path tag 1
Related Commands N/A
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1023
set community
set community {<list of communities> | none}
no set community {<list of communities> | none}
Sets the community attribute of a distributed route
The no form of the command removes the set statement from the clause.
Syntax Description list of communities List of standard communities:
• <aa:nn>
• <number>
• internet
• local-AS
• no-advertise
• no-export
Default N/A
Configuration Mode Config Route Map
History 3.3.5200
Role admin
Example switch (config route-map mymap permit 10)# set community 1:2 3:4
Related Commands N/A
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1024
set community additive
set community <list-of-communities> additive
no set community <list-of-communities> additive
Adds the matching communities
The no form of the command removes the set statement from the clause.
Syntax Description list-of-communities List of standard communities:
• <aa:nn>
• <number>
• internet
• local-AS
• no-advertise
• no-export
Default N/A
Configuration Mode Config Route Map
History 3.3.5200
Role admin
Example switch (config route-map mymap permit 10)# set community none
Related Commands N/A
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1025
set community none
set community none
no set community none
Sets the community attribute of a distributed route to be empty
The no form of the command removes the set statement from the clause.
Default N/A
Configuration Mode Config Route Map
History 3.3.5200
Role admin
Example switch (config route-map mymap permit 10)# set community none
Related Commands N/A
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1026
set community delete
set community <list of communities> delete
no set community <list of communities> delete
Deletes matching communities.
The no form of the command removes the set statement from the clause.
Syntax Description list of communities List of standard communities:
• <aa:nn>
• <number>
• internet
• local-AS
• no-advertise
• no-export
Default N/A
Configuration Mode Config Route Map
History 3.3.5200
Role admin
Example switch-e07c04 [standalone: master] (config) # route-map test_route_map
switch-e07c04 [standalone: master] (config route-map test_route_map
permit 10) # set community 400:1 delete
Related Commands N/A
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1027
set community-list
set community-list <community-list-name>
no set community <list of communities>
Configures a named standard community list.
The no form of the command removes the set statement from the clause.
Syntax Description <community-list-name> Name of community list
Default N/A
Configuration Mode Config Route Map
History 3.3.5200
Role admin
Example switch (config route-map mymap permit 10)# set community internet 1:3
additive
Related Commands N/A
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1028
set community-list additive
set community-list <community-list-name> additive
no set community <list of communities> additive
Adds to existing communities using the communities found in the community list.
The no form of the command removes the set statement from the clause.
Syntax Description <community-list-name> Name of community list
Default N/A
Configuration Mode Config Route Map
History 3.3.5200
Role admin
Example switch (config route-map mymap permit 10)# set community-list mycommu-
nity additive
Related Commands N/A
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1029
set community-list delete
set community-list <community-list-name> delete
no set community-list
Deletes the matching community list permit entries from the route community list
The no form of the command removes the set statement from the clause.
Syntax Description community-list-name Name of community list
Default N/A
Configuration Mode Config Route Map
History 3.3.5200
Role admin
Example switch (config route-map mymap permit 10)# set community-list mycommu-
nity delete
Related Commands N/A
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1030
set ip next-hop
set ip next-hop <value>
no set ip next-hop
Configures a route’s entry next-hop parameter.
The no form of the command removes a route-map’s entry next-hop setting.
Syntax Description value Route next-hop IP: A.B.C.D (e.g. 10.0.13.86).
Default N/A
Configuration Mode Config Route Map
History 3.3.5200
Role admin
Example switch (config route-map mymap permit 10)# set ip next-hop 10.10.10.10
Related Commands N/A
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1031
set local-preference
set local-preference <value>
no set local-preference
Configures a route’s entry local-preference parameter.
The no form of the command removes a route-map’s entry local-pref setting.
Syntax Description value Route local-pref: 1-2147483648.
Default N/A
Configuration Mode Config Route Map
History 3.3.5200
Role admin
Example switch (config route-map mymap permit 10)# set local-preference 10
Related Commands N/A
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1032
set metric
set metric <value>
no set metric
Configures a route’s entry metric parameter.
The no form of the command removes a route-map’s entry metric setting.
Syntax Description value Route metric: 1-2147483647.
Default N/A
Configuration Mode Config Route Map
History 3.3.5200
Role admin
Example switch (config route-map mymap permit 10)# set metric 10
Related Commands N/A
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1033
set origin
set origin {egp | igp | incomplete}
no set origin
Configures a route’s entry origin parameter.
The no form of the command removes a route-map’s entry origin setting.
Syntax Description egp Set a route’s entry origin parameter to external.
igp Set a route’s entry origin parameter to internal.
incomplete Set a route’s entry origin parameter to incomplete.
Default N/A
Configuration Mode Config Route Map
History 3.3.5200
Role admin
Example switch (config route-map mymap permit 10)# set origin egp
Related Commands N/A
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1034
set tag
set tag <value>
no set tag
Configures a route’s entry tag parameter.
The no form of the command removes a route-map’s entry tag setting.
Syntax Description value Range: 1-2147483647.
Default N/A
Configuration Mode Config Route Map
History 3.3.5200
3.4.0000 Updated parameter range
Role admin
Example switch (config route-map mymap permit 10)# set tag 10
Related Commands N/A
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1035
set weight
set weight <number>
no set weight
Configures modifications to redistributed routes.
The no form of the command removes this configuration from the route map clause.
Syntax Description number Value of the weight to set. Range: 1-65535.
Default N/A
Configuration Mode Config Route Map
History 3.3.5006 First version
3.4.0000 Updated parameter range
Role admin
Example switch (config route-map mymap permit 10)# set weight 7
Related Commands route-map <map-name> [deny | permit] [sequence-number]
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1036
show route-map
show route-map [<name>]
Displays route map configuration.
Syntax Description N/A
Default N/A
Configuration Mode Any Command Mode
History 3.3.5006
Role admin
Example switch (config)# show route-map mymap
route-map mymap, permit, sequence 1200
Set clauses:
continue 1800
switch (config)#
Related Commands N/A
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1037
6.4.2 IP Prefix-List
Prefix-list is a list of entries, each of which can match one or more IP prefixes. A prefix-list is
usually used to match a specific IP prefix, mostly in relation to IP route destinations.
The prefix is considered to match the list if one of the entries match the prefix; the entry itself can
be marked as a “permit” entry or a “deny” entry, which can be used by the matching code to
decide if the route is to be accepted or not.
The prefix is matched to the prefix-list entries in the order of the sequence number of the entries
in the list.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1038
6.4.2.1 Commands
Creates or updates a prefix-list.
The no form of the command deletes a prefix-list or a prefix-list entry
list-name String
seq <number> Sequence number assigned to entry. Range: 0-65535.
permit Permits access for a matching condition.
deny Denies access for a matching condition.
ip IP address
eq | ge | le <mask> • eq: Equal to a specified prefix length
• ge: Greater than or equal to a specified prefix length
• le: Less than or equal to a specified prefix length
Sequence value = 10
Config
3.3.5200
admin
switch (config)# ip prefix-list a-list permit 10.20.0.0 /16 eq 24
switch (config)#
N/A
ip prefix-list
ip prefix-list <list-name> [seq <number>] {permit | deny} <ip> [eq <length> |
<prefix> [eq <length> | le <length> | ge <length> [le <length>]]]
no ip prefix-list <list-name> [seq <number>]
Syntax Description
Default
Configuration Mode
History
Role
Example
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1039
show ip prefix-list
show ip prefix-list [<name>]
Displays prefix-lists.
Syntax Description name Displays a specific prefix-list.
Default N/A
Configuration Mode Any Command Mode
History 3.3.5200
Role admin
Example switch (config)# show ip prefix-list
prefix-list: a-list
count: 1, range entries: 1, sequences: 10 - 10
seq 10 permit 10.20.0.0 /16 ge 24 (hit count: 0, refcount: 0)
prefix-list: b-list
count: 2, range entries: 2, sequences: 10 - 20
seq 10 deny 10.10.0.0 /16 le 24 (hit count: 0, refcount: 0)
seq 20 deny 10.20.0.0 /16 le 24 (hit count: 0, refcount: 0)
switch (config)#
Related Commands N/A
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1040
6.5 Multicast (IGMP and PIM)
Protocol independent multicast (PIM) is a collection of protocols that deal with efficient delivery
of IP multicast (MC) data. Those protocols are published in the series of RFCs and define differ-
ent ways and aspects of multicast data distribution. PIM protocol family includes PIM dense
mode (PIM-DM), PIM sparse mode (PIM-SM, which is not supported on Mellanox platforms),
Bidirectional PIM (PIM-BIDIR) and Bootstrap router (BSR) protocol.
PIM builds and maintains multicast routing tables based on the unicast routing information pro-
vided by unicast routing tables that can be maintained statically or dynamically by IP routing
protocols like OSPF and BGP.
6.5.1 Bidirectional PIM
Bidirectional PIM (PIM-BIDIR) is a variant of PIM-SM that builds bidirectional distribution
trees that connect multicast senders and receivers. It differs from PIM-SM by eliminating a need
to tunnel multicast packets to RP and to keep a state for each (S,G) pair. It also eliminates a need
in data driven protocol events. PIM-BIDIR achieves it by defining a new role, Designated For-
warder (DF), and by defining new forwarding rules and keeping all other PIM-SM mechanisms
intact.
DF is a PIM enabled router that is the closest router to RP among all PIM routers residing on spe-
cific L2 network. It is dynamically elected by all PIM routers on that network. DF is required on
each L2 multicast capable network for each RP. DF serves all multicast groups that share the
same RP and has following duties:
• It is an only router that is responsible to receive and forward upstream multicast packets
on that L2 segment
• It is a router that should collect all Join requests from the routers on that L2 segment
• It is an only router that will distribute downstream multicast packets on that segment.
Once Designated forwarders are elected and forwarding rules are established, PIM routers can
start to issue (*,G) Join messages and build shared distribution trees. When shared tree is created,
multicast sources can start to exchange data with receivers and it doesn't require any additional
maintenance of the multicast states.
Compared to PIM-SM, in bidirectional PIM:
•Each router will keep only (*,G) state and not (*,G) and (S,G) like in PIM-SM
• Multicast traffic from the beginning is forwarded naturally - no need to tunnel data to
RP
• Resulting multicast tree is not shortest path optimal and converges around selected Ren-
dezvous point, but is shared among all participants in that multicast group
In BIDIR-PIM, the packet forwarding rules have been improved over PIM-SM, allowing traffic
to be passed up the shared tree toward the RP. To avoid multicast packet looping, bidir-PIM intro-
duces a new mechanism called designated forwarder (DF) election, which establishes a loop-free
SPT rooted at the RP.
6.5.2 PIM Load-Sharing
PIM load-sharing improves network efficiency in IP multicast applications especially in cases
when we have multiple equal-cost paths to the same destination. There two methods which
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1041
enhance IP multicast bandwidth capacity consumption: rendezvous point load sharing and next-
hop load sharing.
6.5.2.1 Rendezvous Point Load-Sharing
IP multicast routing is facilitated by use of rendezvous points (RPs) which are anchors in IP mul-
ticast distribution trees, and, in case of PIM-BIDIR, are central points that perform IP multicast
packet forwarding. Therefore, they can get heavily loaded.
When multiple RPs serve the same multicast IP addresses and are located at an equal distance
from a traffic source or receiver, data streams can be shared between those RPs. This enhances
switching performance, improves network bandwidth consumption and increases reliability. Data
packets based on the packet flow parameters are equally shared between all RPs located at an
equal-distance.
6.5.2.2 Next Hop Load-Sharing
Another way to improve network capacity consumption and increase the amount of IP multicast
data carried by the network, is to utilize multiple equal-cost paths from RPs to IP multicast
receivers. A network usually selects a single path to carry specific multicast group data packets
from a source to a specific multicast destination. But when enabling next hop load-sharing, mul-
tiple paths between RP and multicast group receivers may be utilized, and based on traffic flow
parameters, the data stream may be split to multiple flows that go through several equal-cost
paths to the same destination.
6.5.3 Bootstrap Router
For correct operation each PIM router requires a capability to map a multicast group that it needs
to serve to a Rendezvous point for that group. This mapping can be done manually or the map-
ping can be distributed dynamically in the network. BSR protocol serves for this purpose.
This protocol introduces new role in the multicast network – Bootstrap router. That router is
responsible to flood multicast group to RP mapping through the multicast routing domain. Boot-
strap router is elected dynamically among bootstrap router candidates (C-BSR) and once elected
will collect from Rendezvous point candidate (C-RP) mapping information and distribute it in
the domain.
Bootstrap activity contains 4 steps. First each C-BSR configured in the network originates floods
into the network bootstrap messages that express the router desire to become BSR and also its
BSR priority. Any C-BSR that receives that information and has lower priority will suspend
itself, so eventually only one router will send BSR messages and become BSR.
When BSR is elected all RP candidates start to advertise to BSR a list of groups that this RP can
serve. On the next step, after BSR learns the group mapping proposals, it forms a final group to
RP mapping in the domain and starts to distribute it among PIM routers in the multicast routing
domain. When PIM router receives BSR message with the group to RP mapping, it installs that
mapping in the router local cache and uses that information to create multicast distribution trees.
Routers should be connected via router port and not VLAN interface. Connecting
two routers via VLAN interface with PIM load-sharing causes loops in the net-
work.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1042
6.5.4 Configuring Multicast
Precondition steps:
Step 1. Enable IP routing functionality. Run:
Step 2. Enable the desired VLAN. Run:
Step 3. Add this VLAN to the desired interface. Run:
Step 4. Create a VLAN interface. Run:
Step 5. Apply IP address to the VLAN interface. Run:
Step 6. Enable the interface. Run:
6.5.4.1 Configuring IGMP
IGMP is enabled when IP multicast is enabled and static multicast or PIM is enabled on the inter-
face.
6.5.4.2 Verifying IGMP
Step 1. Display a brief IGMP interface status. Run:
Step 2. Display detailed IGMP interface status. Run:
switch (config)# ip routing
switch (config)# vlan 10
switch (config)# interface ethernet 1/1
switch (config ethernet 1/1)#switchport access vlan 10
switch (config)# interface vlan 10
switch (config interface vlan 10)# ip address 10.10.10.10 /24
switch (config interface vlan 10)# no shutdown
switch (config)# show ip igmp interface brief
IGMP Interfaces for VRF "default", Count: 1
Interface IP Address IGMP Querier Membership Version
VLAN10 10.10.10.1 10.10.10.1 5 v2
switch (config)#show ip igmp interface vlan 10
IGMP Interfaces for VRF "default"
VLAN10
Interface status: protocol-up/admin-up/link-up
IP address: 10.10.10.1, IP Subnet: 10.10.10.0/24
Active Querier: 10.10.10.1
Membership count: 5
Route-queue depth: 0
IGMP Version: 2
IGMP query interval: 125 secs, configured value: 125 secs
IGMP max response time: 10 secs, configured value: 10 secs
IGMP startup query interval: 125 secs, configured value: 125 secs
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1043
Step 3. Display the list of IGMP groups and their status. Run:
6.5.4.3 Configuring PIM
Prerequisites:
Step 1. If not enabled, enable IP routing. Run:
Step 2. Globally enable multicast routing. Run:
To configure PIM:
Step 1. Enable PIM. Run:
Step 2. Globally enable Bidirectional PIM (BIDIR mode). Run:
IGMP startup query count: 2
IGMP group timeout: 260 secs, configured value: 260 secs
IGMP querier timeout: 260 secs configured value: 260 secs
IGMP last member mrt: 25 secs configured value: 25
IGMP robustness variable: 2
IGMP interface immediate leave: Disabled
IGMP interface statistics:
General (sent/received):
v1/v2-reports: 0/10
v2-queries: 271/0,v2-leaves: 0/0
v3-queries: 0/0,
v3-reports: 0/0
switch (config)#
switch (config)#show ip igmp groups
IGMP Connected Group Membership for VRF "default", - 2 total entries
Type: S - Static, D - Dynamic, L - Local, T - SSM Translated
Group Address Type Interface Uptime Expires Last
Reporter
226.0.1.0 D vlan10 [0d 00:00:07.46] [0d 00:04:05.08] 10.10.10.2
226.0.1.1 D vlan10 [0d 00:00:07.47] [0d 00:04:05.08] 10.10.10.2
switch (config)#
switch (config)# ip routing
switch (config)# ip multicast-routing
switch (config)# protocol pim
switch (config)# no ip pim bidir shutdown
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1044
6.5.5 Commands
6.5.5.1 PIM
Enables protocol independent multicast (PIM).
The no form of the command hides all PIM commands and deletes all PIM configura-
tions.
N/A
Disabled
Config
3.3.5006
admin
switch (config) # protocol pim
N/A
protocol pim
protocol pim
no protocol pim
Syntax Description
Default
Configuration Mode
History
Role
Example
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1045
ip pim bidir shutdown
ip pim bidir shutdown
no ip pim bidir shutdown
Disables PIM bidir.
The no form of the command enables PIM bidir.
Syntax Description N/A
Default Disabled
Configuration Mode Config
History 3.3.5006
Role admin
Example switch (config) # no ip pim bidir shutdown
Related Commands N/A
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1046
ip pim rp-address
ip pim rp-address <rp-address> [group-list <ip-address> <prefix>] [override]
bidir
no ip pim rp-address <rp-address> [group-list <ip-address> <prefix>]
Configures a static IP address of a rendezvous point for a multicast group range or
adds new multicast range to existing RP.
The no form of the command removes the rendezvous point for a multicast group
range or removes all configuration of the RP.
Syntax Description rp-address The static IP address of rendezvous point.
ip-address IP address of the group-range (coupled with the prefix
parameter).
prefix Network prefix (in the format of /24, or 255.255.255.0
for example) of group range.
override Specifies that this configuration overrides dynamic
configuration learned by BSR.
bidir Specifies that the group range uses a bidirectional PIM.
Default N/A
Configuration Mode Config
History 3.3.5006
Role admin
Example switch (config) # ip pim rp-address 10.10.10.10 bidir
Related Commands N/A
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1047
ip pim bsr-candidate
ip pim bsr-candidate {vlan <vlan-id> | loopback <number> | ethernet <port>}
[hash-len <hash-length>] [priority <priority>] [interval <interval>]
no ip pim bsr-candidate {vlan <vlan-id> | loopback <number> | ethernet <port>}
[hash-len <hash-length>] [priority <priority>] [interval <interval>]
Configures the switch as a candidate BSR router (C-BSR).
The no form of the command removes BSR-candidate configuration or restores
default parameters values.
Syntax Description vlan <vlan-id> The VLAN ID. Range is 1-4094.
loopback <number> Loopback interface number.
ethernet <port> Ethernet interface.
hash-len Specifies the hash mask length used in BSR messages.
Range: 0-32.
priority BSR priority rating. Larger numbers denote higher pri-
ority. Range: 0-255.
interval Period between the transmission of BSMs (seconds).
Range:10-536870906.
Default The interface is not BSR candidate by default.
priority: 64
interval: 60
hash-len: 30
Configuration Mode Config
Config Interface Ethernet configured as a router port
Config Interface Loopback
Config Interface Port Channel configured as a router port
Config Interface VLAN
History 3.3.5006
Role admin
Example switch (config) # ip pim bsr-candidate vlan 10 priority 100
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1048
Related Commands ip pim sparse-mode
Note • IP PIM sparse-mode must be enabled on the interface.
• A BSR is a PIM router within the PIM domain through which dynamic RP selection is
implemented. The BSR selects RPs from a list of candidate RPs and exchanges bootstrap
messages (BSM) with all routers in the domain. The BSR is elected from one of the C-
BSRs through an exchange of BSMs. A subset of PIM routers within the domain are con-
figured as candidate Bootstrap routers (C-BSRs). Through the exchange of Bootstrap mes-
sages (BSMs), the C-BSRs elect the BSR, which then uses BSMs to inform all domain
routers of its status.
• Command parameters specify the switch’s BSR address, the interval between BSM trans-
missions, hash length used for RP calculations and the priority assigned to the switch when
electing a BSR.
• Entering an ip pim bsr-candidate command replaces any previously configured bsr-candi-
date command. If the new command does not specify a priority or interval, the previously
configured values persist in running-config.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1049
ip pim bsr-holdtime
ip pim bsr-holdtime <period>
no ip pim bsr-holdtime
Configures the timeout period an elected BSR remains valid after receiving a BSM.
The no form of the command resets the parameters to their default.
Syntax Description period In seconds. Range: 12-1073741823 (1.073 billion).
Default period = 2*(BSR candidate interval) + 10
Configuration Mode Config
History 3.3.5006
Role admin
Example switch (config) # ip pim bsr-holdtime 30
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1050
ip pim rp-candidate
ip pim rp-candidate {vlan <vlan-id> | loopback <number> | ethernet <slot/
port>} group-list <ip-address> <prefix> [bidir] [priority <priority>] [interval
<interval>]
no ip pim rp-candidate {vlan <vlan-id> | loopback <number> | ethernet <slot/
port>} group-list <ip-address> <prefix> [bidir] [priority <priority>] [interval
<interval>]
Configures the switch as a candidate rendezvous point (C-RP).
The no form of the command removes the ip pim rp-candidate from running-config
command for the specified multicast group.
Syntax Description ethernet <slot/port> Ethernet interface.
port-channel <number> LAG interface.
vlan <vlan-id> VLAN ID. Range: 1-4094.
loopback <number> Loopback interface number.
ip-address The group IP address.
prefix Network prefix (for example /24, or 255.255.255.0).
priority RP priority rating. Range: 0-255, where smaller num-
bers mean higher priority.
interval RP-advertisements message transmission interval.
Range: 0-16383.
Default The RP priority is 192.
The BSR message interval is 60 seconds.
Configuration Mode Config
Config Interface Ethernet configured as a router port
Config Interface Loopback
Config Interface Port Channel configured as a router port
Config Interface VLAN
History 3.3.5006
Role admin
Example switch (config) # ip pim rp-candidate vlan 19 group-list 225.6.5.0 /25
priority 20 interval 30 bidir
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1051
Related Commands N/A
Note • The BSR selects a multicast group’s dynamic RP set from the list of C-RPs in the PIM
domain. The command specifies the interface (used to derive the RP address), C-RP adver-
tisement interval, and priority rating. The BSR selects the RP set by comparing C-RP prior-
ity ratings. The C-RP advertisement interval specifies the period between successive C-RP
advertisement message transmissions to the BSR.
• Running-config supports multiple multicast groups through multiple ip pim rp-candidate
statements:
• All commands must specify the same interface. Issuing a command with an interface that
differs from existing commands removes all existing commands from running-config.
• Running-config stores the interval and priority setting in a separate statement that applies
to all rp-candidate statements. When a command specifies an interval that differs from the
previously configured value, the new value replaces the old value and applies to all config-
ured rp-candidate statements. The default interval value is 60 seconds.
• When the no commands do not specify a multicast group, all rp-candidate statements are
removed from running-config. The no ip pim rp-candidate interval commands restore the
interval setting to the default value of 60 seconds.
• When setting a priority, all previous rp-candidates within all interfaces and groups are con-
figured to this priority.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1052
ip pim sparse-mode
ip pim sparse-mode
no ip pim sparse-mode
Sets PIM sparse mode on this interface.
The no form of the command disables the sparse-mode on the interface and deletes all
interfaces configuration.
Syntax Description N/A
Default Disabled
Configuration Mode Config Interface VLAN
Config Interface Ethernet configured as a router port
Config Interface Port Channel configured as a router port
History 3.3.5006
Role admin
Example switch (config interface vlan 10) # ip pim sparse-mode
Related Commands N/A
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1053
ip pim dr-priority
ip pim dr-priority <priority>
no ip pim dr-priority
Configures the designated router (DR) priority of PIM Hello messages.
The no form of the command resets this parameter to its default.
Syntax Description priority The designated router priority of the PIM Hello mes-
sages. Range is 1-4294967295.
Default 1
Configuration Mode Config Interface VLAN
Config Interface Ethernet configured as a router port
Config Interface Port Channel configured as a router port
History 3.3.5006
Role admin
Example switch (config interface vlan 10) # ip pim dr-priority 5
Related Commands ip pim sparse-mode
Note The command “ip pim sparse-mode” must be run prior to using this command.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1054
ip pim hello-interval
ip pim hello-interval <interval>
no ip pim hello-interval
Configures PIM Hello interval in milliseconds.
The no form of the command resets this parameter to its default.
Syntax Description interval PIM Hello interval in milliseconds.
Range:1000-65535000.
Default 30,000 milliseconds
Configuration Mode Config Interface VLAN
Config Interface Ethernet configured as a router port
Config Interface Port Channel configured as a router port
History 3.3.5006
Role admin
Example switch (config interface vlan 10) # ip pim hello-interval 70000
Related Commands ip pim sparse-mode
Note The command “ip pim sparse-mode” must be run prior to using this command.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1055
ip pim join-prune-interval
ip pim join-prune-interval <period>
no ip pim join-prune-interval
Configures the period between Join/Prune messages that the configuration mode
interface originates and sends to the upstream RPF neighbor.
The no form of the command resets this parameter to its default.
Syntax Description period Range: 1-1000000 seconds.
Default 60 seconds
Configuration Mode Config Interface VLAN
Config Interface Ethernet configured as a router port
Config Interface Port Channel configured as a router port
History 3.3.5200
Role admin
Example switch (config interface vlan 10) # ip pim join-prune-interval 60
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1056
ip pim border
ip pim border
no ip pim border
Configures an interface on an IPv4 PIM border.
The no form of the command removes the interface from being a PIM border.
Syntax Description N/A
Default Disabled
Configuration Mode Config Interface VLAN
Config Interface Ethernet configured as a router port
Config Interface Port Channel configured as a router port
History 3.3.5006
Role admin
Example switch (config interface vlan 10) # ip pim border
Related Commands
Note PIM border blocks PIM control traffic, but sends and receives all multicast traffic.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1057
ip pim bsr-border
ip pim bsr-border
no ip pim bsr-border
Prevents the switch from sending bootstrap router messages (BSMs) over the config-
uration mode interface.
The no form of the command resets the parameter to its default value.
Syntax Description N/A
Default no pim bsr-border
Configuration Mode Config Interface VLAN
Config Interface Ethernet configured as a router port
Config Interface Port Channel configured as a router port
History 3.3.5200
Role admin
Example switch (config interface vlan 10) # ip pim bsr-border
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1058
ip pim multipath rp
ip pim multipath rp
no ip pim multipath rp
Enables PIM load-sharing for Rendezvous Points (RPs).
The no form of the command disables PIM load-sharing for RPs.
Syntax Description N/A
Default Disabled
Configuration Mode Config
History 3.4.2008
Role admin
Example switch (config) # ip pim multipath rp
Related Commands N/A
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1059
debug ethernet ip pim
debug ethernet ip pim {all | control-plane | data-path | fail-all | init-shut |
management | memory | packet-dump | resources}
no debug ethernet ip pim {all | control-plane | data-path | fail-all | init-shut |
management | memory | packet-dump | resources}
Configures the trace level for PIM.
The no form of the command removes the trace level for PIM.
Syntax Description all Enable track traces.
control-plane Control plane traces.
data-path IP packet dump trace.
fail-all All failures including Packet Validation Trace.
init-shut Init and shutdown messages.
management Management messages.
memory Memory related messages.
packet-dump Packet dump messages.
resources OS Resource trace.
Default N/A
Configuration Mode Config
History 3.3.5200
Role admin
Example switch (config)# debug ethernet ip pim all
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1060
show ip pim protocol
show ip pim protocol
Displays PIM protocol information (counters).
Syntax Description N/A
Default N/A
Configuration Mode Any Command Mode
History 3.3.5200
Role admin
Example switch (config) # show ip pim protocol
PIM Control Counters
Received Sent Invalid
Assert 0 0 0
Bootstrap Router 0 0 0
CRP Advertisement 0 0 0
Graft 0 0 0
Grapt Ack 0 0 0
Hello 0 0 0
J/P 0 0 0
Register 0 0 0
Register Stop 0 0 0
State Refresh 0 0 0
switch (config) #
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1061
show ip pim bsr
show ip pim bsr
Displays PIM BSR information.
Syntax Description N/A
Default N/A
Configuration Mode Any Command Mode
History 3.3.5006
Role admin
Example arc-switch14 [standalone: master] (config) # show ip pim bsr
PIMv2 Bootstrap information
BSR address: 4.4.4.14
Uptime: 00:00:30, BSR Priority: 0, Hash mask length: 30
Expires: 00:00:57
This system is a candidate BSR
Candidate BSR address: 4.4.4.14, priority: 0, hash mask length: 30
interval: 60, holdtime: 130
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1062
show ip pim neighbor
show ip pim neighbor [vlan <vlan-id> | <other interfaces> | <ip-addr>]
Displays information about IPv4 PIM neighbors.
Syntax Description vlan <vlan-id> Filters the output per specific VLAN ID.
neighbor-addr Filters the output per specific neighbor IP address.
Default N/A
Configuration Mode Any Command Mode
History 3.3.5006
Role admin
Example switch (config) # show ip pim neighbor
PIM Neighbor Status for VRF "default"
Neighbor Interface Uptime Expires Ver DR Prio Mode
5.5.5.1 VLAN5 10:36:45 00:01:43 1
9.9.9.1 VLAN9 10:36:42 00:01:43 1
switch (config) #
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1063
show ip pim rp
show ip pim rp <rp-address>
Displays information about the rendezvous points (RPs) for PIM.
Syntax Description rp-address A rendezvous points address.
Default N/A
Configuration Mode Any Command Mode
History 3.3.5006
Role admin
Example switch(config)# show ip pim rp
PIM RP Status Information for VRF "default"
BSR: 10.10.10.10, expires: 00:01:16,
priority: 255, hash-length: 0
RP: 11.11.11.11, expires: 00:01:36
priority: 0, RP-source: 10.10.10.10, group ranges:
225.10.0.0/24
RP: 8.8.8.2, expires: 00:01:36
priority: 0, RP-source: 10.10.10.10, group ranges:
225.12.0.0/24
switch(config)#
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1064
show ip pim rp-hash
show ip pim rp-hash <group>
Displays the hashed value of the group (RP address according the group address).
Syntax Description group Filters the output per a specific IP Multicast group
address.
Default N/A
Configuration Mode Any Command Mode
History 3.3.5006
Role admin
Example switch (config) # show ip pim rp-hash 225.7.6.2
RP 20.20.20.49, v2
Info Source: 20.20.20.49, via bootstrap, priority 60, holdtime 57
Expires: 00:00:53
PIMv2 Hash Value (mask 255.255.255.252)
switch (config)#
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1065
show ip pim rp-candidate
show ip pim rp-candidate
Displays information about RP candidate status.
Syntax Description N/A
Default N/A
Configuration Mode Any Command Mode
History 3.3.5006
Role admin
Example switch (config)# show ip pim rp-candidate
Next Candidate-RP-Advertisement in 00:11:22/00:60:00
RP: 10.10.10.10
group prefixes priority
224.0.0.0/4 190
225.0.0.0/4 191
switch (config)#
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1066
show ip pim interface
show ip pim interface {[vlan <vlan id> | ethernet <port>] [df] | brief}
Displays information about the enabled interfaces for PIM.
Syntax Description vlan <vlan-id> Filters the output for specific interface.
ethernet <port> Ethernet interface.
df Displays information about elected designated forward-
ers.
brief Displays a summary of information for all interfaces.
Default N/A
Configuration Mode Any Command Mode
History 3.3.5006
Role admin
Example # arc-switch55 [standalone: master] (config) # show ip pim interface
vlan 2919
Interface Vlan2919 address is 70.28.23.80
PIM: enabled
PIM version: 2, mode: sparse
PIM DR: 70.28.23.80 (this system)
PIM DR Priority: 1
PIM configured DR priority:
PIM neighbor count: 1
PIM neighbor holdtime: 105 secs
PIM Hello Interval: 30 seconds, next hello sent in: 00:00:28
PIM Hello Generation ID: 61345
PIM Join-Prune Interval: 60 seconds
PIM domain border: no
PIM Interface Statistics:
General (sent/received):
Hellos: 36/37, JPs: 0/0, Asserts: 0/0
Grafts: 0/0, Graft-Acks: 0/0
DF-Offers: 0/0, DF-Winners: 0/0, DF-Backoffs: 0/0, DF-
Passes: 0/0
Errors:
Checksum errors: 0, Invalid packet types/DF subtypes: 0/0
Authentication failed: 0
Packets from non-neighbors: 1
JPs received on RPF-interface: 0
(*,G) Joins received with no/wrong RP: 0/0
(*,G)/(S,G) JPs received for SSM/Bidir groups: 0/0
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1067
show ip pim upstream joins
show ip pim upstream joins
Displays information about any PIM joins/prunes which are currently being sent to
upstream PIM routers
Syntax Description N/A
Default N/A
Configuration Mode Any Command Mode
History 3.3.5006
Role admin
Example switch (config) # show ip pim upstream joins
Neighbor address: 159.135.45.26
via interface: 159.135.45.34
next message in 43 seconds
Group: 224.0.10.0
Joins:
22.74.49.25
Prunes:
No prunes included
switch (config) #
Related Commands
Note Should contain the following information: neighbor address, interface address, group
range, Joins, Prunes.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1068
6.5.5.2 Multicast
Allows the switch to forward multicast packets.
The no form of the command disables multicast routing.
N/A
Disabled
Config
3.3.5006
admin
switch (config)# ip multicast-routing
N/A
ip multicast-routing
ip multicast-routing
no ip multicast-routing
Syntax Description
Default
Configuration Mode
History
Role
Example
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1069
ip mroute
ip mroute {<ip-addr> <ip-mask> <next-hop>} [pref]
no ip mroute {<ip-addr> <ip-mask>}
Configure multicast reverse path forwarding (RPF) static routes.
The no form of the command deletes the static multicast route.
Syntax Description ip-addr Unicast IP address.
ip-mask Network mask in a dotted format (e.g. 255.255.255.0)
or /24 format.
next-hop Next hop IP address.
preference Route preference. Range: 1-255.
Default Preference is 1
Configuration Mode Config
History 3.3.5006
Role admin
Example arc-switch14 [standalone: master] (config) # ip mroute 16.16.0.0 /16
3.3.3.1
Related Commands N/A
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1070
ip multicast ttl-threshold
ip multicast ttl-threshold <ttl-value>
no ip multicast ttl-threshold
Configures the time-to-live (TTL) threshold of packets being forwarded out of an
interface.
The no form of the command removes RPF static routes.
Syntax Description ttl-value Range: 0-225.
Default 0 – all packets are forwarded
Configuration Mode Config Interface VLAN
Config Interface Ethernet configured as a router port
Config Interface Port Channel configured as a router port
History 3.3.5006
Role admin
Example switch (config interface vlan 10)# ip multicast ttl-threshold 10
Related Commands N/A
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1071
show ip mroute
show ip mroute [summary | <group> [<prefix> [<source>]]]
Displays information about IPv4 multicast routes.
Syntax Description source Source IP address.
group IP address of multicast group.
prefix Network prefix of multicast group (in the format of /24,
or 255.255.255.0 for example).
summary Displays a summary of the multicast routes.
Default N/A
Configuration Mode Any Command Mode
History 3.2.1000
3.5.1000 Added new F flag and updated Example
Role admin
Example switch (config) # show ip mroute
IP Multicast Routing Table
Flags: B - Bidir Group, L - Local, P - Pruned, R - RP-bit set, T - SPT-bit set
J - Join SPT, F - Failed to install in H/W
Timers: Uptime/Expires
Interface state: Interface, State/Mode
(*, 234.10.0.0/16), 00D 01:06:04, RP 10.10.10.10, flags: BR
Bidir-Upstream: Eth1/10
Outgoing interface list:
Eth1/10, Forwarding/Sparse, 00D 01:06:04/00D 00:00:00
F(*, 234.8.0.0/16), 00D 01:06:03, RP 10.10.10.10, flags: BR
Bidir-Upstream: Eth1/10
Outgoing interface list:
Eth1/10, Forwarding/Sparse, 00D 01:06:04/00D 00:00:00
Related Commands N/A
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1072
6.5.5.3 IGMP
Enables the device to remove the group entry from the multicast routing table imme-
diately upon receiving a leave message for the group.
The no form of the command disables immediate-leave.
N/A
Disabled
Config Interface VLAN
Config Interface Ethernet configured as a router port
Config Interface Port Channel configured as a router port
3.3.5006
admin
switch (config interface vlan 10)# ip igmp immediate-leave
N/A
ip igmp immediate-leave
ip igmp immediate-leave
no ip igmp immediate-leave
Syntax Description
Default
Configuration Mode
History
Role
Example
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1073
ip igmp last-member-query-count
ip igmp last-member-query-count <count>
no ip igmp last-member-query-count
Configures the number of query messages the switch sends in response to a group-
specific or group-source-specific leave message.
The no form of the command resets this parameter to its default.
Syntax Description Count Range:1-7.
Default 2
Configuration Mode Config Interface VLAN
Config Interface Ethernet configured as a router port
Config Interface Port Channel configured as a router port
History 3.3.5006
Role admin
Example switch (config interface vlan 10)# ip igmp last-member-query-count 7
Related Commands N/A
Note This parameter reflects expected packet loss on a congested network.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1074
ip igmp last-member-query-response-time
ip igmp last-member-query-response-time <interval>
no ip igmp last-member-query-response-time
Configures the IGMP last member query response time in seconds.
The no form of the command resets this parameter to its default.
Syntax Description interval IGMP last member query response time.
Range:1-25 seconds.
Default 1
Configuration Mode Config Interface VLAN
Config Interface Ethernet configured as a router port
Config Interface Port Channel configured as a router port
History 3.3.5006
Role admin
Example switch (config interface vlan 10)# ip igmp last-member-query-response-
time 10
Related Commands N/A
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1075
ip igmp startup-query-count
ip igmp startup-query-count <count>
no ip startup-query-count
Configures the number of query messages an interface sends during startup.
The no form of the command resets this parameter to its default.
Syntax Description count Range: 1-65535.
Default 2
Configuration Mode Config Interface VLAN
Config Interface Ethernet configured as a router port
Config Interface Port Channel configured as a router port
History 3.3.5006
Role admin
Example switch (config interface vlan 10)# ip igmp startup-query-count 10
Related Commands N/A
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1076
ip igmp startup-query-interval
ip igmp startup-query-interval <interval>
no ip startup-query-interval
Configures the IGMP startup query interval in seconds.
The no form of the command resets this parameter to its default.
Syntax Description interval Range: 1-1800 seconds.
Default 30
Configuration Mode Config Interface VLAN
Config Interface Ethernet configured as a router port
Config Interface Port Channel configured as a router port
History 3.3.5006
Role admin
Example switch (config interface vlan 10)# ip igmp startup-query-interval 10
Related Commands N/A
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1077
ip igmp query-interval
ip igmp query-interval <interval>
no ip igmp query-interval
Configures the IGMP query interval in seconds.
The no form of the command resets this parameter to its default.
Syntax Description interval The IGMP query interval. Range: 1-1800 seconds.
Default 125
Configuration Mode Config Interface VLAN
History 3.3.5006
Role admin
Example switch (config interface vlan 10)# ip igmp query-interval 60
Related Commands N/A
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1078
ip igmp query-max-response-time
ip igmp query-max-response-time <time>
no ip igmp query-max-response-time
Configures the IGMP max response time in seconds.
The no form of the command resets this parameter to its default.
Syntax Description time The IGMP max response time. Range: 1-25 seconds.
Default 10
Configuration Mode Config Interface VLAN
History 3.3.5006
Role admin
Example switch (config interface vlan 10)# ip igmp query-max-response-time 20
Related Commands N/A
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1079
ip igmp robustness-variable
ip igmp robustness-variable <count>
no ip igmp robustness-variable
Configures the IGMP robustness variable.
The no form of the command resets this parameter to its default.
Syntax Description count IGMP robustness variable. Range: 1-7.
Default 2
Configuration Mode Config Interface VLAN
Config Interface Ethernet configured as a router port
Config Interface Port Channel configured as a router port
History 3.3.5006
Role admin
Example switch (config interface vlan 10)# ip igmp robustness-variable 4
Related Commands N/A
Note • The robustness variable can be increased to increase the number of times that packets are
resent.
• This parameter reflects expected packet loss on a congested network.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1080
ip igmp static-oif
ip igmp static-oif <group>
no ip igmp static-oif
Statically binds an IP interface to a multicast group.
The no form of the command deletes the static multicast address from the interface.
Syntax Description group Multicast IP address.
Default no ip igmp static-oif
Configuration Mode Config Interface VLAN
Config Interface Ethernet configured as a router port
Config Interface Port Channel configured as a router port
History 3.3.5006
Role admin
Example switch (config interface vlan 10)# ip igmp static-oif 10.10.10.5
Related Commands N/A
Note PIM must be enabled in order to configure the route in the hardware.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1081
clear ip igmp groups
clear ip igmp groups {all | <group-address> <mask>}
Clears IGMP group information.
Syntax Description all Clears all IGMP groups.
group-address Clears a specific group.
Default no ip igmp static-oif
Configuration Mode Config
History 3.3.5200
Role admin
Example switch (config)# clear ip igmp groups all
switch (config)#
Related Commands N/A
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1082
debug ethernet ip igmp-l3
debug ethernet ip igmp-l3 {all | control-plane | data-path | fail-all | init-shut |
management | memory | packet-dump | resources}
no debug ethernet ip igmp-l3 {all | control-plane | data-path | fail-all | init-shut |
management | memory | packet-dump | resources}
Configures the trace level for IGMP.
The no form of the command removes the trace level for IGMP.
Syntax Description all Enable track traces.
control-plane Control plane traces.
data-path IP packet dump trace.
fail-all All failures including Packet Validation Trace.
init-shut Init and shutdown messages.
management Management messages.
memory Memory related messages.
packet-dump Packet dump messages.
resources OS Resource trace.
Default N/A
Configuration Mode Config
History 3.3.5200
Role admin
Example switch (config)# debug ethernet ip igmp-l3 all
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1083
show ip igmp groups
show ip igmp groups [<group>] [vlan <vlan-id>]
Displays information about IGMP-attached group membership.
Syntax Description group Filters the output to a specific IP multicast group
address.
vlan <vlan-id> Filters the output to a specific VLAN ID.
Default N/A
Configuration Mode Any Command Mode
History
Role admin
Example switch (config)# show ip igmp groups
IGMP Connected Group Membership for VRF "default"
Type: S - Static, D - Dynamic, L - Local, T - SSM Translated
Group Address Type Interface Uptime Expires Last Reporter
225.7.6.0 S vlan19 [0d 00:12:12.14] [0d 00:00:00.00] 0.0.0.0
225.7.10.1 D vlan19 [0d 00:00:01.18] [0d 00:04:08.81] 19.19.19.1
225.7.7.7 S vlan19 [0d 00:12:12.15] [0d 00:00:00.00] 0.0.0.0
225.7.7.7 S vlan21 [0d 00:12:12.15] [0d 00:00:00.00] 0.0.0.0
Related Commands N/A
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1084
show ip igmp interface
show ip igmp interface [vlan <vlan-id> | brief]
Displays IGMP brief configuration and status.
Syntax Description brief Displays brief output information.
vlan <vlan-id> Filters the output to a specific VLAN ID.
Default N/A
Configuration Mode Any Command Mode
History
Role admin
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1085
Example switch(config)#show ip igmp interface
IGMP Interfaces for VRF "default"
VLAN5
Interface status: protocol-down/admin-up/link-down
IP address: 5.5.5.49, IP Subnet: 5.5.5.0/24
Active Querier: 5.5.5.48
Membership count: 0
Route-queue depth: 0
IGMP Version: 2
IGMP query interval: 125 secs, configured value: 125 secs
IGMP max response time: 100 secs, configured value: 100 secs
IGMP startup query interval: 125 secs, configured value: 125 secs
IGMP startup query count: 2
IGMP group timeout: 350 secs, configured value: 350 secs
IGMP querier timeout: 350 secs configured value: 350 secs
IGMP last member mrt: 10 secs configured value: 10
IGMP robustness variable: 2
IGMP interface immediate leave: Disabled
IGMP interface statistics:
General (sent/received):
v1/v2-reports: 0/0
v2-queries: 3/1,v2-leaves: 0/0
v3-queries: 0/0,
v3-reports: 0/0
VLAN19
Interface status: protocol-up/admin-up/link-up
IP address: 19.19.19.49, IP Subnet: 19.19.19.0/24
Active Querier: 19.19.19.49
Membership count: 3
Route-queue depth: 0
IGMP Version: 2
IGMP query interval: 125 secs, configured value: 125 secs
IGMP max response time: 10 secs, configured value: 10 secs
IGMP startup query interval: 125 secs, configured value: 125 secs
IGMP startup query count: 2
IGMP group timeout: 260 secs, configured value: 260 secs
IGMP querier timeout: 260 secs configured value: 260 secs
IGMP last member mrt: 1 secs configured value: 1
IGMP robustness variable: 2
IGMP interface immediate leave: Disabled
IGMP interface statistics:
General (sent/received):
v1/v2-reports: 0/5
v2-queries: 14/0,v2-leaves: 0/1
v3-queries: 0/0,
v3-reports: 0/0
Related Commands N/A
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1086
6.6 VRRP
The Virtual Router Redundancy Protocol (VRRP) is a computer networking protocol that pro-
vides for automatic assignment of available IP routers to participating hosts. This increases the
availability and reliability of routing paths via automatic default gateway selections on an IP sub-
network.
The protocol achieves this by creating virtual routers, which are an abstract representation of
multiple routers (that is, a master and backup routers, acting as a group). The default gateway of
a participating host is assigned to the virtual router instead of a physical router. If the physical
router that is routing packets on behalf of the virtual router fails, another physical router is
selected to automatically replace it. The physical router that is forwarding packets at any given
time is called the master router.
VRRP provides information on the state of a router, not the routes processed and exchanged by
that router. Each VRRP instance is limited, in scope, to a single subnet. It does not advertise IP
routes beyond that subnet or affect the routing table in any way.
Routers have a priority of between 1-255 and the router with the highest priority becomes the
master. The configurable priority value ranges from 1-254, the router which owns the interface IP
address as one of its associated IP addresses has the priority value 255. When a planned with-
drawal of a master router is to take place, its priority can be lowered, which means a backup
router will preempt the master router status rather than having to wait for the hold time to expire.
6.6.1 Load Balancing
To create load balancing between routers participating in the same VR, it is recommended to cre-
ate 2 (or more) VRs. Each router will be a master in one of the VRs, and a backup to the other
VR(s). A group of hosts should be configured with Router 1’s virtual address as the default gate-
way, while the second group should be configured with Router 2’s virtual address.
Figure 35: Common VRRP Configuration with Load Balancing
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1087
6.6.2 Configuring VRRP
To configure VRRP:
Precondition steps:
Step 1. Enable IP routing functionality. Run:
Step 2. Enable the desired VLAN. Run:
Step 3. Add this VLAN to the desired interface. Run:
Step 4. Create a VLAN interface. Run:
Step 5. Apply IP address to the VLAN interface.
On one of the switches, run:
On the other switch, run:
Step 6. Enable the interface. Run:
Configure VRRP:
This is the same configuration on both switches
Step 1. Enable VRRP protocol globally. Run:
Step 2. Create a virtual router group for an IP interface. Up to 255 VRRP IDs are supported. Run:
Step 3. Set the VIP address. Run:
Step 4. Influence the election of the master in the VR cluster make sure that the priority of the desired
master is the highest. Note that the higher IP address is selected in case the priority of the rout-
ers in the VR are the same. Select the priority. Run:
switch (config)# ip routing
switch (config)# vlan 20
The VLAN cannot be the same one configured for the MLAG IPL, if MLAG is used.
switch (config)# interface ethernet 1/1
switch (config ethernet 1/1)# switchport access vlan 20
switch (config)# interface vlan 20
switch (config interface vlan 20)# ip address 20.20.20.20 /24
switch (config interface vlan 20)# ip address 20.20.20.30 /24
switch (config interface vlan 20)# no shutdown
switch (config)# protocol vrrp
switch (config interface vlan 20)# vrrp 100
switch (config interface vlan 20 vrrp 100)# address 20.20.20.40
switch (config interface vlan 20 vrrp 100)# priority 200
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1088
Step 5. The advertizement interval should be the same for all the routers within the VR. Modify the
interval. Run:
Step 6. The authentication text should be the same for all the routers within the VR. Configure the
authentication text. Run:
Step 7. Use the
preempt
command to enable a high-priority backup virtual router to preempt the low-
priority master virtual router. Run:
Step 8. Disable VRRP. Run:
6.6.3 Verifying VRRP
Step 1. Display VRRP brief status. Run:
Step 2. Display VRRP detailed status. Run:
switch (config interface vlan 20 vrrp 100)# advertisement-interval 2
switch (config interface vlan 20 vrrp 100)# authentication text my-password
switch (config interface vlan 20 vrrp 100)# preempt
switch (config interface vlan 20 vrrp 100)# shutdown
The configuration will not be deleted, only the VRRP state machine will be stopped.
switch(config)# show vrrp
Interface VR Pri Time Pre State VR IP addr
------------------------------------------------------
Vlan20 1 200 2s Y Init 20.20.20.20
…
switch(config)#
switch (config)# show vrrp detail
VRRP Admin State : Enabled
Vlan20 - Group 1 (IPV4)
Instance Admin State : Enabled
State : Backup
Virtual IP Address : 20.20.20.40
Priority : 200
Advertisement interval (sec) : 2
Preemption : Enabled
Virtual MAC address : AA:BB:CC:DD:EE:FF
switch (config)#
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1089
Step 3. Display VRRP statistic counters. Run:
switch (config)# show vrrp statistics
Ethernet1/5 - Group 1 (IPV4)
Invalid packets: 0
Too short: 0
Transitions to Master 6
Total received: 155
Bad TTL: 0
Failed authentication: 0
Unknown authentication: 0
Conflicting authentication: 0
Conflicting Advertise time: 0
Conflicting Addresses: 0
Received with zero priority: 3
Sent with zero priority: 3
switch (config)#
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1090
6.6.4 Commands
Enables VRRP globally and unhides VRRP related commands.
The no form of the command deletes all the VRRP configuration and hides VRRP
related commands.
N/A
no feature vrrp
Config
3.3.4500
admin
switch (config)# protocol vrrp
protocol vrrp
protocol vrrp
no protocol vrrp
Syntax Description
Default
Configuration Mode
History
Role
Example
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1091
vrrp
vrrp <number>
no vrrp <number>
Creates a virtual router group on this interface and enters a new configuration mode.
The no form of the command deletes the VRRP instance and the related configura-
tion.
Syntax Description number A VRRP instance number. Range is 1-255.
Default N/A
Configuration Mode Config Interface VLAN
History 3.3.4500
Role admin
Example switch (config interface vlan 10)#
switch (config interface vlan 10 vrrp 10)#
Related Commands
Note A maximum total of 255 VRRP instances are supported per switch system.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1092
address
address <ip-address> [secondary]
no address [<ip-address> [secondary]]
Sets virtual router IP address (primary and secondary).
The no form of the command deletes the IP address from the VRRP interface.
Syntax Description ip-address The virtual IP address.
secondary A secondary IP address for the virtual router.
Default N/A
Configuration Mode Config VRRP Interface
History 3.3.4500
Role admin
Example switch (config vrrp 100)# address 10.10.10.10
switch (config vrrp 100)# address 10.10.10.11 secondary
switch (config vrrp 100)# address 10.10.10.12 secondary
Related Commands
Note • This command is the enabler of the protocol. Therefore, set all the protocol parameters ini-
tially and only then set the ip-address.
• There are up to 10 IP addresses associated with the VRRP instance. One primary and up to
10 secondary ip-addresses.
• If the configured IP address is the same as the interface IP address, this switch automati-
cally owns the IP address (priority 255).
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1093
shutdown
shutdown
no shutdown
Disables the virtual router.
The no form of the command enables the virtual router (stops the VRRP state
machine).
Syntax Description N/A
Default Enabled (no shutdown)
Configuration Mode Config VRRP Interface
History 3.3.4500
Role admin
Example switch (config vrrp 100)# shutdown
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1094
priority
priority <level>
no priority
Sets the priority of the virtual router.
The no form of the command resets the priority to its default.
Syntax Description level The virtual router priority level. Range is 1-254.
Default 100
Configuration Mode Config VRRP Interface
History 3.3.4500
Role admin
Example switch (config vrrp 100)# priority 200
Related Commands
Note • The higher IP address will be selected as master, in case the priority of the routers in the
VR are the same.
• To influence the election of the master in the VR cluster make sure that the priority of the
desired master is the higher.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1095
preempt
preempt
no preempt
Sets virtual router preemption mode.
The no form of the command disables the virtual router preemption.
Syntax Description N/A
Default Enabled (preempt)
Configuration Mode Config VRRP Interface
History 3.3.4500
Role admin
Example switch (config vrrp 100)# preempt
Related Commands
Note To set this router as backup for the current virtual router master, preempt must be
enabled.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1096
authentication text
authentication text <password>
no authentication text
Sets virtual router authentication password and enables authentication.
The no form of the command disables the authentication mechanism.
Syntax Description password The virtual router authentication password. The pass-
word string must be up to 8 alphanumeric characters.
Default Disabled
Configuration Mode Config VRRP Interface
History 3.3.4500
Role admin
Example switch (config vrrp 100)# authentication text mypassword
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1097
advertisement-interval
advertisement-interval <seconds>
no advertisement-interval
Sets the virtual router advertisement-interval.
The no form of the command resets the parameter to its default.
Syntax Description seconds The virtual router advertisement-interval in seconds.
Range: 1-255.
Default 1
Configuration Mode Config VRRP Interface
History 3.3.4500
Role admin
Example switch (config vrrp 100)# advertisement-interval 10
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1098
show vrrp
show vrrp [interface <type> <number>] [vr <id>]
Displays VRRP brief configuration and status.
Syntax Description interface <type> <num-
ber> Filters the output to a specific interface type and num-
ber.
vr <id> Filters the output to a specific virtual router.
Range: 1-10.
Default N/A
Configuration Mode Any Command Mode
History 3.3.4500
Role admin
Example switch(config)# show vrrp
Interface VR Pri Time Pre State VR IP addr
------------------------------------------------------
Eth1/5 1 200 2s Y Init 192.0.1.10
…
switch(config)#
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1099
show vrrp detail
show vrrp detail [interface <type> <number>] [vr <id>]
Displays detailed VRRP configuration and status.
Syntax Description interface <type> <num-
ber> Filters the output to a specific interface type and num-
ber.
vr <id> Filters the output to a specific virtual router.
Range: 1-255.
Default N/A
Configuration Mode Any Command Mode
History 3.3.4500
Role admin
Example switch (config)# show vrrp detail
VRRP Admin State : Enabled
Vlan20 - Group 1 (IPV4)
Instance Admin State : Enabled
State : Backup
Virtual IP Address : 20.20.20.40
Priority : 200
Advertisement interval (sec) : 2
Preemption : Enabled
Virtual MAC address : AA:BB:CC:DD:EE:FF
switch (config)#
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1100
show vrrp statistics
show vrrp statistics [interface <type <number>] [vr <id>]
Displays VRRP counters.
Syntax Description interface <type> <num-
ber> Filters the output to a specific interface type and num-
ber.
vr <id> Filters the output to a specific virtual router.
Range: 1-255.
Default N/A
Configuration Mode Any Command Mode
History 3.3.4500
Role admin
Example switch (config)# show vrrp statistics
Ethernet1/5 - Group 1 (IPV4)
Invalid packets: 0
Too short: 0
Transitions to Master 6
Total received: 155
Bad TTL: 0
Failed authentication: 0
Unknown authentication: 0
Conflicting authentication: 0
Conflicting Advertise time: 0
Conflicting Addresses: 0
Received with zero priority: 3
Sent with zero priority: 3
switch (config)#
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1101
6.7 MAGP
Multi-active gateway protocol (MAGP) is aimed to solve the default gateway problem when a
host is connected to a set of switch routers (SRs) via MLAG.
The network functionality in that case requires that each SR is an active default gateway router to
the host, thus reducing hops between the SRs and directly forwarding IP traffic to the L3 cloud
regardless which SR traffic comes through.
6.7.1 Configuring MAGP
Prerequisite steps:
Step 1. Enable IP routing functionality. Run:
Step 2. Enable the desired VLAN. Run:
Step 3. Add this VLAN to the desired interface. Run:
Step 4. Create a VLAN interface. Run:
Step 5. Set an IP address to the VLAN interface. Run:
Step 6. Enable the interface. Run:
To configure MAGP:
Step 1. Enable MAGP protocol globally. Run:
Step 2. Create a virtual router group for an IP interface. Run:
Designated traffic, such as ping to the MAGP interface is not supported. One of the
two switches will be able to ping, so a ping from one switch can be done.
switch (config)# ip routing
switch (config)# vlan 20
switch (config vlan 20)#
The VLAN cannot be the same one configured for the MLAG IPL, if MLAG is used.
switch (config)# interface ethernet 1/1
switch (config interface ethernet 1/1)# switchport access vlan 20
switch (config)# interface vlan 20
switch (config interface vlan 20)#
switch (config interface vlan 20)# ip address 11.11.11.11 /8
switch (config interface vlan 20)# no shutdown
switch (config)# protocol magp
switch (config interface vlan 20)# magp 100
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1102
Step 3. Set a virtual router primary IP address. Run:
Step 4. Set a virtual router primary MAC address. Run:
To verify the MAGP configuration, run:
Up to 255 MAGP IDs are supported.
switch (config interface vlan 20 magp 100)# ip virtual-router address 11.11.11.254
The IP address must be in the same subnet of the VLAN interface. This IP address is the
default gateway for this MAGP instance. This should become the default gateway con-
figured on the hosts connected to the relevant MLAG.
switch (config interface vlan 20 magp 100)# ip virtual-router mac-address
AA:BB:CC:DD:EE:FF
switch (config)# show magp 1
MAGP 1
Interface vlan:1
MAGP state: Master
MAGP virtual IP: 11.11.11.254
MAGP virtual MAC: AA:BB:CC:DD:EE:FF
switch (config)#
This output is to be expected in both MAGP switches.
For more advanced configuration options, please refer to the following Mellanox Com-
munity post: https://community.mellanox.com/docs/DOC-1476.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1103
6.7.2 Commands
Enables MAGP globally and unhides MAGP commands.
The no form of the command deletes all the MAGP configuration and hides MAGP
commands.
N/A
Disabled
Config
3.3.4500
admin
switch (config)# protocol magp
switch (config)#
IP routing must be enabled to enable MAGP.
protocol magp
protocol magp
no protocol magp
Syntax Description
Default
Configuration Mode
History
Role
Example
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1104
magp
magp <instance>
no magp <instance>
Creates an MAGP instance on this interface and enters a new configuration mode.
The no form of the command deletes the MAGP instance.
Syntax Description instance MAGP instance number. Range: 1-255.
Default Disabled
Configuration Mode Config Interface VLAN
History 3.3.4500
Role admin
Example switch (config interface vlan 10)# magp 1
switch (config interface vlan 10 magp 1)#
Related Commands
Note • Only one MAGP instance can be created on an interface
• Different interfaces cannot share an MAGP instance
• MAGP and VRRP are mutually exclusive
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1105
shutdown
shutdown
no shutdown
Enables MAGP instance.
The no form of the command disables the MAGP instance.
Syntax Description N/A
Default Disabled
Configuration Mode Config Interface VLAN MAGP
History 3.3.4500
Role admin
Example switch (config interface vlan 10 magp 1)# protocol magp
switch (config interface vlan 10 magp 1)#
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1106
ip virtual-router address
ip virtual-router address <ip-address>
no ip virtual-router address
Sets MAGP virtual IP address.
The no form of the command resets this parameter to its default.
Syntax Description ip-address The virtual router IP address.
Default N/A
Configuration Mode Config Interface VLAN MAGP
History 3.3.4500
Role admin
Example switch (config interface vlan 10 magp 1)# ip virtual-router address
10.10.10.10
switch (config interface vlan 10 magp 1)#
Related Commands
Note The MAGP virtual IP address must be different from the interface IP address
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1107
ip virtual-router mac-address
ip virtual-router mac-address <mac-address>
no ip virtual-router mac-address
Sets MAGP virtual MAC address.
The no form of the command resets the MAC address to its default.
Syntax Description mac-address MAC address. Format: AA:BB:CC:DD:EE:FF.
Default 00:00:5E:00:01-<magp instance>
Configuration Mode Config Interface VLAN MAGP
History 3.3.4500
Role admin
Example switch (config interface vlan 10 magp 1)# ip virtual-router mac-address
AA:BB:CC:DD:EE:FF
switch (config interface vlan 10 magp 1)#
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1108
show magp
show magp [<instance> | interface vlan <id>]
Displays the configuration of a specific MAGP instance.
Syntax Description instance MAGP instance number. Range: 1-255.
Default N/A
Configuration Mode Any Command Mode
History 3.3.4500
Role admin
Example switch (config)# show magp 3
Magp instance id: 3
Interface : vlan 10
Magp state: Active
Magp virtual ip :192.168.1.1
Magp virtual MAC : 00:11:22:22:44:55
switch (config)#
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1109
6.8 DHCP Relay
Since Dynamic Host Configuration Protocol must work correctly even before DHCP clients have
been configured, the DHCP server and DHCP client need to be connected to the same network.
In larger networks, this is not always practical because each network link contains one or more
DHCP relay agents. These DHCP relay agents receive messages from DHCP clients and forward
them to DHCP servers thus extending the reach of the DHCP beyond the local network.
DHCP Relay is not supported on SX10xx-xxxR and SX60xx-xxxR systems.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1110
6.8.1 Commands
Configures IP address of the DHCP server to forward DHCP requests in a given VRF.
The no form of the command deletes the DHCP server IP address.
ip-address Valid IP unicast address of DHCP server.
vrf VRF name
N/A
Config
3.3.4150
3.6.1002 Added VRF parameter
admin
switch (config)# ip dhcp relay address 10.10.10.10
switch (config)#
N/A
• Up to 16 IP addresses may be configured
• To enable DHCP relay, at least one IP address should be configured, or always-on parame-
ter should be turned on using the command “ip dhcp relay always-on”
ip dhcp relay address
ip dhcp relay address [vrf <vrf-name>] <ip-address>
no ip dhcp relay address [vrf <vrf-name>] <ip-address>
Syntax Description
Default
Configuration Mode
History
Role
Example
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1111
ip dhcp relay information option
ip dhcp relay information option
no ip dhcp relay information option
Enables the DHCP relay agent to insert option 82 info on the packets.
The no form of the command removes option 82 from the packets.
Syntax Description N/A
Default Disabled
Configuration Mode Config
History 3.3.4150
Role admin
Example switch (config)# ip dhcp relay information option
switch (config)#
Related Commands N/A
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1112
ip dhcp relay always-on
ip dhcp relay always-on [vrf <vrf-name>]
no ip dhcp relay always-on [vrf <vrf-name>]
Broadcasts DHCP requests to all interfaces with the DHCP relay agent for given VRF.
The no form of the command disables the “always-on” mode.
Syntax Description vrf VRF name
Default Disabled
Configuration Mode Config
History 3.3.4150
3.6.1002 Added VRF parameter
Role admin
Example switch (config)# ip dhcp relay always-on
switch (config)#
Related Commands N/A
Note • In order to enable DHCP relay, at least one IP address should be configured, or always-on
parameter should be turned on using the command “ip dhcp relay always-on”
• When DHCP servers are configured. requests are forwarded only to configured servers
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1113
clear ip dhcp relay counters
clear ip dhcp relay counters [vrf <vrf-name>]
Clears all DHCP relay counters (all interfaces) in a given VRF.
Syntax Description vrf VRF name
Default Disabled
Configuration Mode Config
History 3.3.4150
3.6.1002 Added VRF parameter
Role admin
Example switch (config)# clear ip dhcp relay counters
switch (config)#
Related Commands N/A
Note • In order to enable DHCP relay, at least one IP address should be configured, or always-on
parameter should be turned on using the command “ip dhcp relay always-on”
• When DHCP servers are configured. requests are forwarded only to configured servers
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1114
6.8.1.1 Interface
Specifies the content of tags that the switch attaches to DHCP requests before they
are forwarded in a given VRF.
The no form of the command removes the label assigned.
label Specifies the label attached to packets. The string may
be up to 15 characters.
vrf VRF name
The label is taken from the IP interface name (e.g. “vlan1”)
Config Interface VLAN
Config Interface Ethernet configured as a router port
Config Interface Port Channel configured as a router port
3.3.4150
3.6.1002 Added VRF parameter
admin
switch (config interface vlan 10)# ip dhcp relay information options
circuit-id my-label
switch (config interface vlan 10)#
N/A
ip dhcp relay information option circuit-id
ip dhcp relay information option [vrf <vrf-name>] circuit-id <label>
no ip dhcp relay information option [vrf <vrf-name>] circuit-id
Syntax Description
Default
Configuration Mode
History
Role
Example
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1115
clear ip dhcp relay counters
ip dhcp relay counters
no ip dhcp relay counters
Clears all DHCP relay counters on the interface.
Syntax Description N/A
Default N/A
Configuration Mode Config Interface VLAN
Config Interface Ethernet configured as a router port
Config Interface Port Channel configured as a router port
History 3.3.4150
Role admin
Example switch (config interface vlan 10)# clear ip dhcp relay counters
switch (config interface vlan 10)#
Related Commands N/A
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1116
6.8.1.2 Show
Displays DHCP relay configuration and status in a given VRF.
vrf VRF name
all All VRF instances
N/A
Any Command Mode
3.3.4150
3.6.1002 Added VRF and all parameters
admin
switch (config)# DHCP Relay is Enabled
DHCP Servers: N/A
DHCP clients requests are processed on all interfaces
DHCP server responses are processed on all interfaces
DHCP relay agent information option is Enabled
DHCP relay agent always-on is Enabled
Interface Label
----------- -----------------
Vlan2 abcd
switch (config)#
N/A
show ip dhcp relay
show ip dhcp relay [vrf <vrf-name> | all]
Syntax Description
Default
Configuration Mode
History
Role
Example
Related Commands
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1117
show ip dhcp relay counters
show ip dhcp relay counters [vrf <vrf-name> | all]
Displays the DHCP relay counters in a given VRF.
Syntax Description vrf VRF name
all All VRF instances
Default N/A
Configuration Mode Any Command Mode
History 3.3.4150
3.6.1002 Added VRF and all parameters
Role admin
Example switch (config) # VRF Name: user
Interface Received Forwarded Dropped
----------- ----------- ----------- -----------
All Req 2 2 0
All Resp 2 2 0
Interface Received Forwarded Dropped Last Cleared
----------- ----------- ----------- ----------- --------------------
Vlan10 2 2 0
Vlan20 2 2 0
VRF Name: default
Interface Received Forwarded Dropped
----------- ----------- ----------- -----------
All Req 3 2 1
All Resp 3 3 0
Interface Received Forwarded Dropped Last Cleared
----------- ----------- ----------- ----------- --------------------
Vlan30 3 2 1
Vlan40 3 3 0
Related Commands N/A
Note
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1118
Appendix A: Enhancing System Security According to
NIST SP 800-131A
A.1 Overview
This appendix describes how to enhance the security of a system in order to comply with the
NIST SP 800-131A standard. This standard is a document which defines cryptographically
“acceptable” technologies. This document explains how to protect against possible cryptographic
vulnerabilities in the system by using secure methods. Because of compatibility issues, this secu-
rity state is not the default of the system and it should be manually set.
A.2 Web Certificate
Mellanox supports signature generation of sha256WithRSAEncryption,
sha1WithRSAEncryption self-signed certificates, and importing certificates as text in PEM for-
mat.
To configure a default certificate:
Step 1. Create a new sha256 certificate. Run:
Step 2. Show crypto certificate detail. Run:
Search for “signature algorithm” in the output.
Step 3. Set this certificate as the default certificate. Run:
To configure default parameters and create a new certificate:
Step 1. Define the default hash algorithm. Run:
Step 2. Generate a new certificate with default values. Run:
Some protocols, however, cannot be operated in a manner that complies with the NIST
SP 800-131A standard.
switch (config) # crypto certificate name <cert name> generate self-signed hash-algorithm
sha256
For more details and parameters refer to the command crypto certificate name in the
MLNX-OS User Manual.
switch (config) # show crypto certificate detail
switch (config) # crypto certificate default-cert name <cert name>
switch (config) # crypto certificate generation default hash-algorithm sha256
switch (config) # crypto certificate name <cert name> generate self-signed
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1119
To test strict mode connect to the WebUI using HTTPS and get the certificate. Search for
“signature algorithm”.
A.3 SNMP
SNMPv3 supports configuring username, authentication keys and privacy keys. For authentica-
tion keys it is possible to use MD5 or SHA. For privacy keys AES or DES are to be used.
To configure strict mode, create a new user with HMAC-SHA1-96 and AES-128. Run:
To verify the user in the CLI, run:
A.4 SSH
The SSH server on the switch by default uses secure and unsecure ciphers, message authentica-
tion code (MAC), key exchange methods, and public key algorithm. When configuring SSH
When no options are selected, the generated certificate uses the default values for each
field.
There are other ways to configure the certificate to sha256. For example, it is possible to
use
certificate generation default hash-algorithm
and then regenerate the
certificate using these default values. Please refer to the MLNX-OS User Manual for
further details.
It is recommended to delete browsing data and previous certificates before retrying to
connect to the WebUI.
Make sure not to confuse “signature algorithm” with “Thumbprint algorithm”.
switch (config) # snmp-server user <username> v3 auth sha <password1> priv aes-128 <pass-
word2>
switch (config) # show snmp user
To test strict mode, configure users and check them using the CLI, then run an SNMP
request with the new users.
For more information please refer to the MLNX-OS User Manual.
SNMPv1 and SNMPv2 are not considered to be secure. To run in strict mode, only use
SNMPv3.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1120
server to strict mode, the aforementioned security methods only use approved algorithms as
detailed in the NIST 800-181A specification and the user can connect to the switch via SSH in
strict mode only.
To enable strict security mode, run:
The no form of the command disables strict security mode.
Make sure to configure the SSH server to work with minimum version 2 since 1 is vulnerable to
security breaches.
To configure min-version to strict mode, run:
A.5 HTTPS
By default, Mellanox switch supports HTTPS encryption using TLS1.0 up to TLS1.2. To work in
strict mode you must configure the system to use TLS1.2. Working in TLS1.2 mode also bans
MD5 ciphers which are not allowed per NIST 800-131a. In strict mode, the switch supports
encryption with TLS1.2 only with the following supported ciphers:
• RSA_WITH_AES_128_CBC_SHA256
• RSA_WITH_AES_256_CBC_SHA256
• DHE_RSA_WITH_AES_128_CBC_SHA256
• DHE_RSA_WITH_AES_256_CBC_SHA256
• TLS_RSA_WITH_AES_128_GCM_SHA256
• TLS_RSA_WITH_AES_256_GCM_SHA384
• TLS_DHE_RSA_WITH_AES_128_GCM_SHA256
• TLS_DHE_RSA_WITH_AES_256_GCM_SHA384
To enable all encryption methods, run:
switch (config) # ssh server security strict
The following ciphers are disabled for SSH when strict security is enabled:
• 3des-cbc
• aes256-cbc
• aes192-cbc
• aes128-cbc
• arcfour
• blowfish-cbc
• cast128-cbc
• rijndael-cbc@lysator.liu.se
switch (config) # ssh server min-version 2
Once this is done, the user cannot revert back to minimum version 1.
switch (config) # web https ssl ciphers all
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1121
To enable only TLS ciphers (enabled by default), run:
To enable HTTPS strict mode, run:
To verify which encryption methods are used, run:
On top of enabling HTTPS, to prevent security breaches HTTP must be disabled.
To disable HTTP, run:
A.6 LDAP
By default, Mellanox switch supports LDAP encryption SSL version 3 or TLS1.0 up to TLS1.2.
The only banned algorithm is MD5 which is not allowed per NIST 800-131a. In strict mode, the
switch supports encryption with TLS1.2 only with the following supported ciphers:
• DHE-DSS-AES128-SHA256
• DHE-RSA-AES128-SHA256
• DHE-DSS-AES128-GCM-SHA256
• DHE-RSA-AES128-GCM-SHA256
• DHE-DSS-AES256-SHA256
• DHE-RSA-AES256-SHA256
• DHE-DSS-AES256-GCM-SHA384
switch (config) # web https ssl ciphers TLS
switch (config) # web https ssl ciphers TLS1.2
switch (config)# show web
Web User Interface:
Web interface enabled: yes
HTTP enabled: yes
HTTP port: 80
HTTP redirect to HTTPS: no
HTTPS enabled: yes
HTTPS port: 443
HTTPS ssl-ciphers: TLS1.2
HTTPS certificate name: default-cert
Listen enabled: yes
No Listen Interfaces.
Inactivity timeout: disabled
Session timeout: 2 hr 30 min
Session renewal: 30 min
Web file transfer proxy:
Proxy enabled: no
Web file transfer certificate authority:
HTTPS server cert verify: yes
HTTPS supplemental CA list: default-ca-list
switch (config)#
switch (config)# no web http enable
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1122
• DHE-RSA-AES256-GCM-SHA384
• ECDH-ECDSA-AES128-SHA256
• ECDH-RSA-AES128-SHA256
• ECDH-ECDSA-AES128-GCM-SHA256
• ECDH-RSA-AES128-GCM-SHA256
• ECDH-ECDSA-AES256-SHA384
• ECDH-RSA-AES256-SHA384
• ECDH-ECDSA-AES256-GCM-SHA384
• ECDH-RSA-AES256-GCM-SHA384
• ECDHE-ECDSA-AES128-SHA256
• ECDHE-RSA-AES128-SHA256
• ECDHE-ECDSA-AES128-GCM-SHA256
• ECDHE-RSA-AES128-GCM-SHA256
• ECDHE-ECDSA-AES256-SHA384
• ECDHE-RSA-AES256-SHA384
• ECDHE-ECDSA-AES256-GCM-SHA384
• ECDHE-RSA-AES256-GCM-SHA384
• AES128-SHA256
• AES128-GCM-SHA256
• AES256-SHA256
• AES256-GCM-SHA384
To enable LDAP strict mode, run:
To enable all encryption methods (enabled by default), run:
switch (config) # ldap ssl mode {start-tls | ssl}
Both modes operate using SSL. The different lies in the connection initialization and the
port used.
switch (config) # ldap ssl ciphers TLS1.2
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1123
To verify which encryption methods are used, run:
A.7 Password Hashing
To comply with NIST 800-131a, Mellanox switches support password encryption with SHA512
algorithm.
To see the password encryption used, run:
When moving to strict mode, the password of each user must be reconfigured to a non-default
value using the CLI command
username
.
switch (config)# show ldap
User base DN : ou=People,dc=test,dc=com
User search scope : subtree
Login attribute : uid
Bind DN : cn=manager,dc=test,dc=com
Bind password : ********
Group base DN :
Group attribute : member
LDAP version : 3
Referrals : yes
Server port : 389 (not active)
Search Timeout : 5
Bind Timeout : 5
SSL mode : ssl
Server SSL port : 636
SSL ciphers : TLS1.2
SSL cert verify : yes
SSL ca-list : default-ca-list
LDAP servers:
1: 10.134.47.5
switch (config)#
Please make sure that “(not active)” does not appear adjacent to the line “SSL ciphers”.
switch (config)# show usernames
USERNAME FULL NAME CAPABILITY ACCOUNT STATUS
admin System Administrator admin No password required for login
monitor System Monitor monitor Password set (SHA512)
xmladmin XML Admin User admin No password required for login
xmluser XML Monitor User monitor No password required for login
Using default usernames and passwords or using usernames without passwords is
highly not recommended.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1124
For example, if you have a user ID “myuser” whose password is hashed with MD5, this user
must be recreated manually using the command “username myuser password mypassword”. The
password then is automatically hashed using SHA512.
The following output demonstrates the example above:
switch (config)# show usernames
USERNAME FULL NAME CAPABILITY ACCOUNT STATUS
admin System Administrator admin No password required for login
myuser System Monitor monitor Password set (MD5)
switch (config)# username myuser password mypassword
switch (config)# show usernames
USERNAME FULL NAME CAPABILITY ACCOUNT STATUS
admin System Administrator admin No password required for login
myuser System Monitor monitor Password set (SHA512)
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1125
Appendix B: Mellanox NEO™ on Switch
Mellanox NEO is a powerful platform for data center network orchestration and management.
Mellanox NEO enables data center operators to efficiently provision, monitor and operate the
modern data center fabric.
Mellanox NEO serves as interface to the fabric, thereby extending existing tools’ capabilities into
monitoring and provisioning the data center network. Mellanox NEO uses an extensive set of
REST APIs to allow access to fabric-related data and provisioning activities.
Mellanox NEO eliminates the complexity of fabric management. It automates the configuration
of devices, provides deep visibility into traffic and health, and provides early detection of errors
and failures.
For more information on Mellanox NEO, please refer to the NEO product brief at: http://
www.mellanox.com/related-docs/prod_management_software/PB_Mellanox_NEO.pdf.
Starting with MLNX-OS® version 3.6.2000 and NEO version 1.7, Mellanox NEO is supported
on switch systems with x86 CPU architecture. Mellanox NEO is able to operate as a virtual
machine directly on your switch system. Running NEO on the switch is an ideal solution for
small-to-medium sized fabrics, with up to 10 Mellanox switches. Simply allocate one (or more
for high-availability) of your Mellanox switches to host the Mellanox NEO virtual machine.
Then follow the installation instructions in Section B.1.
After its deployment, NEO will automatically discover your Mellanox switches over the manage-
ment interface allowing you to provision and monitor all of your Mellanox Ethernet switches
from a single pain-of-glass using Mellanox NEO software.
B.1 Deploying Mellanox NEO™ on a MLNX-OS® Switch
Step 1. Obtain the NEO image and Mellanox-supplied installation script and load it on a USB drive.
Step 2. Insert the USB drive into your switch system’s USB port.
Step 3. Log into the switch and enter config mode. Run:
Step 4. Enable virtual machine (VM) on the switch. Run:
Step 5. Create a VM. Run:
Step 6. Install the NEO image from the USB drive.
Step a. To obtain an IP address from the DHCP server, run:
switch > enable
switch # config terminal
switch (config) #
switch (config) # virtual-machine enable
switch (config)# virtual-machine host my_NEO
switch (config virtual-machine host my_NEO)#
switch (config virtual-machine host my_NEO)# install-from-usb
100.0% [###############################################################################]
VM host my_NEO MAC is: aa:bb:cc:dd:ee:ff
switch (config virtual-machine host my_NEO)#
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1126
Step b. Alternatively, to configure your own MAC address, run:
Step 7. Save the VM configuration. Run:
Step 8. Obtain the VM’s IP address from the DHCP server by using the provided MAC address.
Step 9. Connect to NEO’s GUI by entering this IP address into your web browser.
B.2 Getting Familiar with Mellanox NEO GUI
The Mellanox NEO software has several main GUI views. Before exploring the different
options, it is recommended to perform the following steps:
1. Click the “Settings” tab:
a. Select the “Users” view to add new Mellanox NEO users, and define users’ roles and credentials.
b. Select the “Email” view to add recipient lists. Upon user’s definition, these lists could be used to distribute
specific event alerts to a group of recipients.
2. Click the “Events” tab to activate and deactivate events, and define the severity, condition-
value, description and notification parameters for each event.
B.2.1 Account Password, General Information, User Manual and Log-out Menu
By clicking on the small profile icon at the top right corner of the interface’s frame, a drop down menu
appears. Users can change their account password, read about the Mellanox NEO version used, access the
User Manual, and log-out of the system.
switch (config virtual-machine host my_NEO)# install-from-usb mac aa:bb:cc:dd:ee:ff
100.0% [###############################################################################]
VM host my_NEO MAC is: aa:bb:cc:dd:ee:ff
switch (config virtual-machine host my_NEO)#
For more information on the command, please refer to “install-from-usb” on page 495.
switch (config)# configuration write
The screen captions used in this section are relevant for NEO 1.7 only. For more up-to-
date information, please refer to the Mellanox NEO User Manual.
The steps below can be performed by administrators only.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1127
Figure 36: NEO GUI
B.2.2 Network Notifications Icon
Clicking on the small envelope icon on the top right corner of the interface’s frame, will lead to
the “Notifications” tab. The number next to the icon indicates the quantity of unread network
notifications.
B.2.3 Main Tabs/Categories/Navigator Buttons
The following table describes the main Mellanox NEO™ windows and categories:
Table 53 - Navigator Tabs
Icon Function Description
Dashboard Provides single view highlighting information and network status.
Managed Elements Provides a list of devices, inventory, ports and groups.
Network Map Provides a visual view of the physical connectivity between man-
aged devices.
Services Provides automation tools for complex networking configurations.
Reports Presents several reports of information collected by the management
system, and allows to save and load them.
Tasks Displays future scheduled Jobs.
Jobs Displays all the running and completed jobs in the system.
Events Provides notification events or critical device faults of the switch
and server data events. The “Events Policy” view allows the user to
activate and deactivate events, and define the severity, condition-
value, description and notification parameters for each event.
Notifications Available for administrators only. Displays all network notifications.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1128
B.2.3.1 Dashboard Window
The Mellanox NEO dashboard enables an efficient network view from a single screen, and serves as a
starting point for event or metric exploration. The central dashboard provides single view highlighting
information and network status in the following smaller dashboard windows:
• Last 24 Hours Events
• Devices Heatmap
• Fabric Utilization (pie chart which also appears in the daily report)
• Top Alerted Devices
• Recent Activity
B.2.3.2 Network Map Window
The Network Map window shows the fabric, its topology, elements and properties. NEO per-
forms automatic fabric discovery and displays the fabric elements and the connectivity between
the elements. In the Network Map window you can see how the fabric and its elements are orga-
nized (e.g., switches and servers).
B.2.3.3 Services Window
The Tools panel provides automation tools for complex networking configurations. The tools
available in this panel are: Virtual Modular Switch, Lossless Fabric, MLAG, and MTU.
B.2.3.4 Reports Window
The Reports panel presents several reports of information collected by the management system.
Mellanox NEO™ offers several options of reports: per ports or per devices.
B.2.3.5 Tasks Window
The Tasks panel presents user’s defined tasks (future scheduled Jobs). The following tasks are
supported:
• Selecting a single or multiple devices and setting an action such as software upgrade or
provisioning (CLI-command) and the action setting data
• Selecting specific action on device / devices and create a task from this action and its set-
ting data
• Adding or deleting a task
• Dynamically selecting devices using filters (wildcards) tasks
Logs Available for administrators only. Displays detailed logs and alarms
that are filtered and sorted by category.
System Health Available for administrators only. Provides information on Mella-
nox NEO building blocks.
Table 53 - Navigator Tabs
Icon Function Description
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1129
B.2.3.6 Jobs Window
The Jobs panel displays all of Mellanox NEO’s running Jobs. A Job is a running task defined by
a user and applied on one or more of the devices (provisioning, software upgraded, switch reboot
etc.)
Mellanox NEO users can monitor the progress of a running job, as well as the time it was created,
its last update description and its status. The status value can be “Running”, during operation,
“Pending”, in case another job is already running, “Completed with Errors”, in case an error has
occurred, and “Completed”. To cancel a pending job, right-click on the relevant job, and then
choose “Abort”.
Table 54 - Job States
Job State Description
Created Job was created and will shortly start running.
Pending Job is pending by Mellanox NEO. This state appears in
case another job that contains at least one common
device is already running.
Running The pending job was released and is now running.
Completed All sub-jobs were completed successfully
Completed with Errors All sub-jobs were completed, but on some of them,
errors occurred.
Aborted A pending job was canceled by the user.
Figure 37: NEO Jobs
Jobs can also be tasks scheduled by the system. In such cases, the users can monitor the progress
of these jobs but cannot control them.
B.2.3.7 Events Window
Mellanox NEO™ includes an advanced granular monitoring engine that provides real time
access to switch and server data events. Network events can either be notification events or criti-
cal device faults. The events information includes severity, time.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1130
B.2.3.8 Notifications Window
The “Notifications” tab is Mellanox NEO’s incoming messages box, providing the administrators
network notifications.
B.2.3.9 Logs Window
The Logging panel presents detailed logs and alarms that are filtered and sorted by category, pro-
viding visibility into traffic and device events as well as into Mellanox NEO server activity his-
tory.
B.2.3.10System Health Window
The System Health panel is composed of two windows:
• Providers
Providers are the building blocks of Mellanox NEO. Each provider runs a specific service such
as Managing Device Access, Device Provisioning, and IP Discovery. Providers are controlled
by a controller. They can either run together with the controller on the same machine or sepa-
rately on a different device or VM (or container in the future).
• High Availability
This window enables configures NEO high availability and is meant to grant more stability to
the system.
B.3 Fabric Dashboard for On-Screen Status Monitoring
The Dashboard contains a snapshot of the network view and day to day required information
such as Notifications, Events and Jobs.
This panel is visible to administrators only.
This panel is visible to administrators only.
This panel is visible to administrators only.
The screen captions used in this section are relevant for NEO 1.7 only. For more up-to-
date information, please refer to the Mellanox NEO User Manual.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1131
Figure 38: Fabric Dashboard
Network activities are displayed in the following manner.
B.3.1 Last 24 Hours Events
Last 24 Hours Events displays the events that occurred over the last 24 hours in an axis view
where each column displays the level of severity per hour. The severity levels are grouped into
one column.
Figure 39: 24-Hour View
6.8.2 Devices Heatmap
Devices Heatmap displays all the devices in different colors according to the severity of their
health state. Once clicked on a certain device, you will be directed to the Devices tab under Man-
aged Elements where you can access all information about that device.
The colors imply the following health states:
• Green – OK
• Grey – Unknown
• Orange – Degraded
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1132
• Red – Major
• Dark Red – Critical
Through the Devices Heatmap panel, you can apply filters by clicking the icon
(Figure 40).
Figure 40: Device Heatmap
The following filter dialog will be displayed.
Figure 41: Device Heatmap Dialog
After customizing a certain filter for the devices, you can choose either the red or the green color
to denote the devices that match your filter.
Example:
If you wish to filter for the devices that their CPU load is greater than 5, you need to select the
“CPU Load” as the Attribute, the “>” icon as the Operator, and “5” as the Threshold. If you wish
to view the devices you filtered in green, choose the green color as the Matching Color
(Figure 42).
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1133
Figure 42: Device Heatmap Dialog Example
Once clicked on “Submit”, the customized filter will be added to the bottom of the Devices Heatmap
panel in the Dashboard (see below). The filters will be stored in the browser’s local storage so on any
user login or page reload, the heatmap panel will remain saved with all applied filters.
Figure 43: Device Heatmap Example
On the right side of the panel, you can find:
• Brief text that describes the filtered criterion, and a square icon colored with the Match-
ing Color (in this example, CPU Load > 5, green). If you click on the description, you
will be able to edit your current customized filter.
• Recycle bin icon ( ) that enables you to delete the filtered heatmap.
• Help icon (“?”) that displays your devices’ criteria according to the defined colors.
Figure 44: Device Heatmap Key
6.8.3 Fabric Utilization
Fabric Utilization displays information on groups of switches in a pie chart view where each
switch belongs to a group according to its utilization status.
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1134
Figure 45: NEO Fabric Utilization Display
Utilization of all devices which are part of a specific category can be seen by clicking on any of
the colors in the pie chart.
Figure 46: Fabric Utilization of Device per Category
6.8.4 Top Alerted Devices
Top Alerted Devices displays the total amount of critical events for the selected switches.
Figure 47: Top Alerted Devices
Mellanox Technologies Confidential
Rev 4.60
Mellanox Technologies Confidential 1135
6.8.5 Recent Activity
Recent Activity provides direct access to the most recent 20 events, jobs and notifications in a
date descending order.
Once clicked on the Event icon on the left side of each activity, you will be directed to the Events
tab where you can access all information about that event.
Figure 48: Recent Activity Examples
Table 55 - Recent Activity Icon Description
Icon Description
Jobs
Events
Notifications
Mellanox Technologies Confidential
