SERVICE
Manual
MICRO COMPONENT
AUDIO SYSTEM
Model Name : MM-DA25
Model Code : MM-DA25Q/XER
MICRO COMPONENT AUDIO SYSTEM
Refer to the service manual in the GSPN (see the rear cover) for the more information.
CONTENTS
1. Precaution
2. Product Specification
3. Disassembly & Reassembly
4. Troubleshooting
5. Exploded View & Part List
6. PCB Diagram
7. Schematic Diagram
MM-DA25
Contents
1. Precaution
1-1 Safety Precautions ...........................................................................................1-1
1-2 Servicing Precautions ......................................................................................1-3
1-3 Precautions for Electrostatically Sensitive Devices (ESDs) .............................1-4
2. Product Specification
2-1 Product Feature ...............................................................................................2-1
2-2 Specifications ...................................................................................................2-2
2-3 Specifications Analysis .....................................................................................2-4
2-4 Accessories ......................................................................................................2-5
3. Disassembly & Reassembly
3-1 Overall Disassembly & Reassembly ................................................................3-1
4. Troubleshooting
4-1 Checkpoints by Error Mode..............................................................................4-2
4-2 Measures to be taken when the Protection Circuit operates ...........................4-7
4-3 DVD flash Initialization & Update ...................................................................4-8
5. Exploded View & Part List
5-1 Exploded View .................................................................................................5-2
5-2 Electrical Part List ............................................................................................5-4
6. PCB Diagram

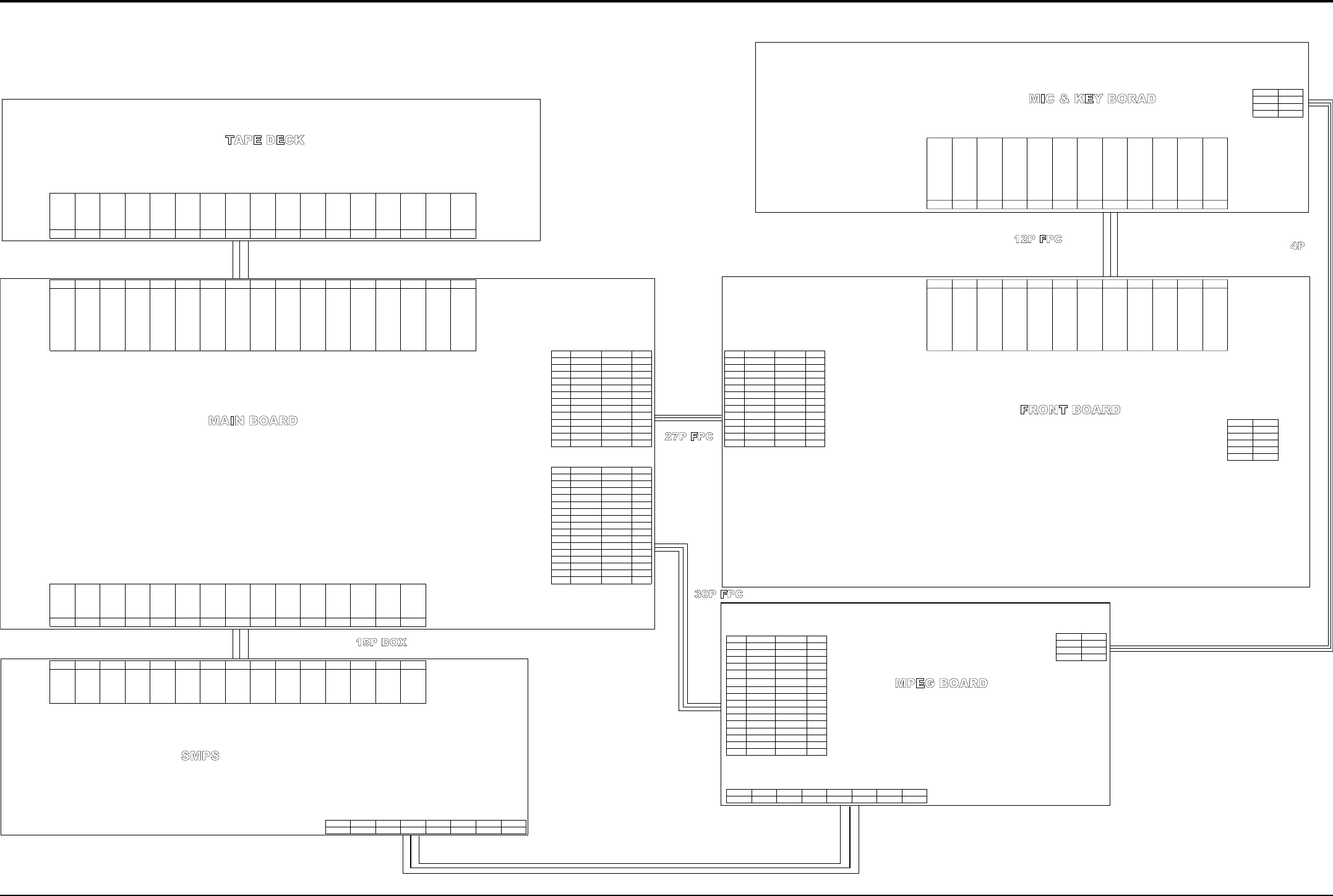

6-1 Wiring Diagram ................................................................................................6-2
6-2 MIC PCB Top ...................................................................................................6-3

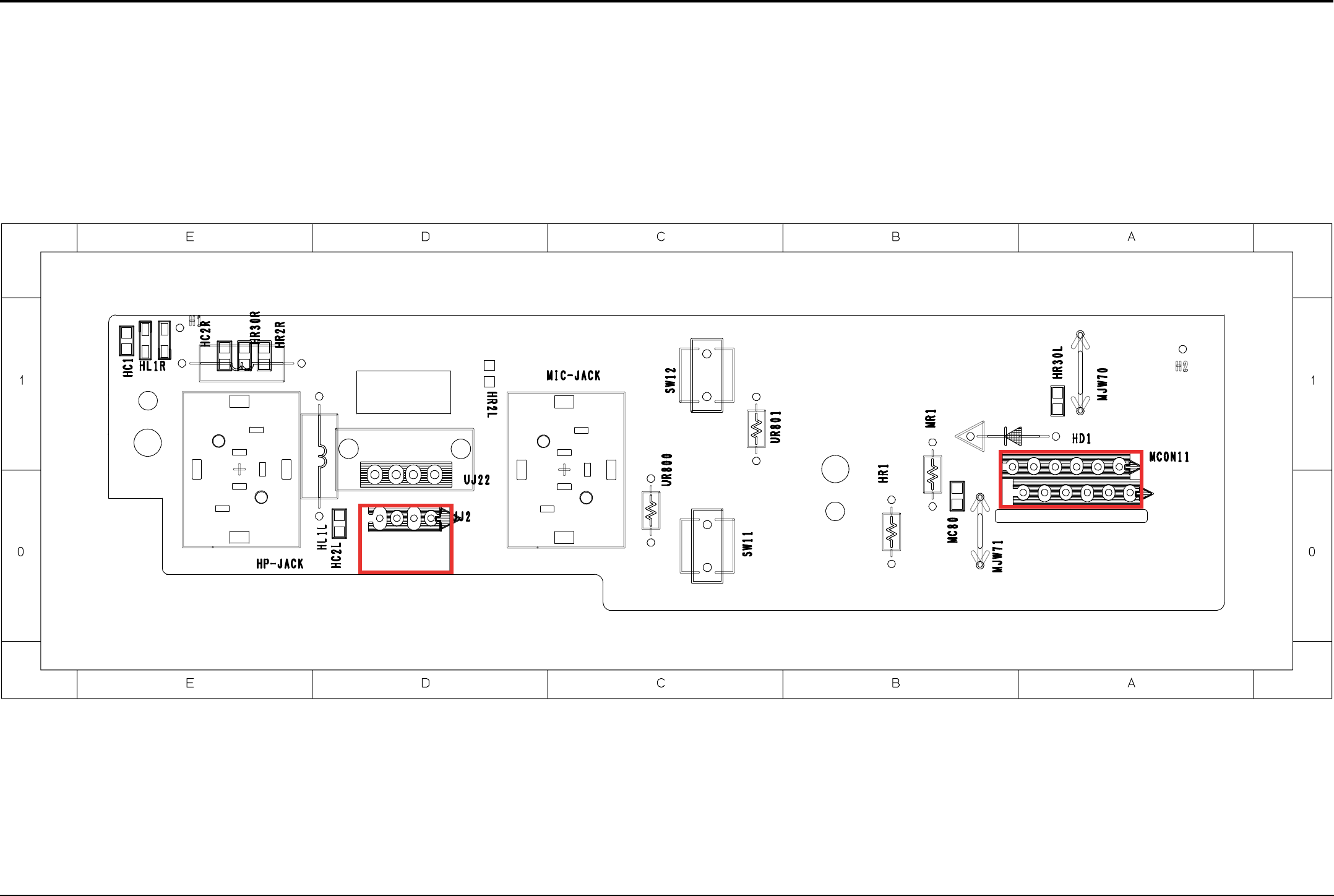

6-3 MIC PCB Bottom ..............................................................................................6-5
6-4 FRONT PCB Top ..............................................................................................6-6
6-5 FRONT PCB Bottom ........................................................................................6-8

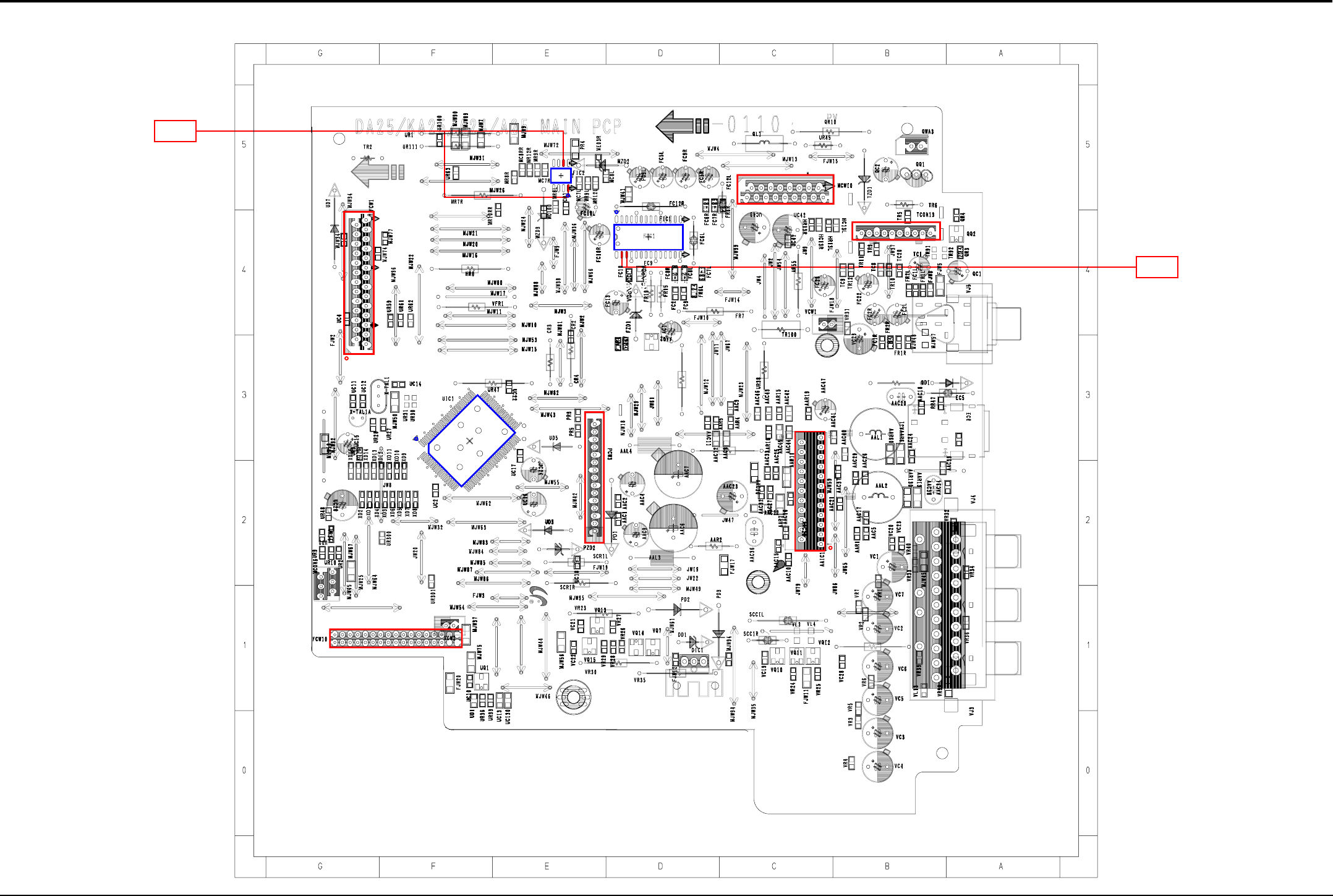

6-6 MAIN PCB Top .................................................................................................6-9
6-7 MAIN PCB Bottom ...........................................................................................6-11
6-8 MPEG PCB Top ...............................................................................................6-13
6-9 MPEG PCB Bottom ..........................................................................................6-15
6-10 SMPS PCB Top ................................................................................................6-16
6-11 SMPS PCB Bottom ..........................................................................................6-18
6-12 CD PCB Top .....................................................................................................6-19
Contents
7. Schematic Diagram

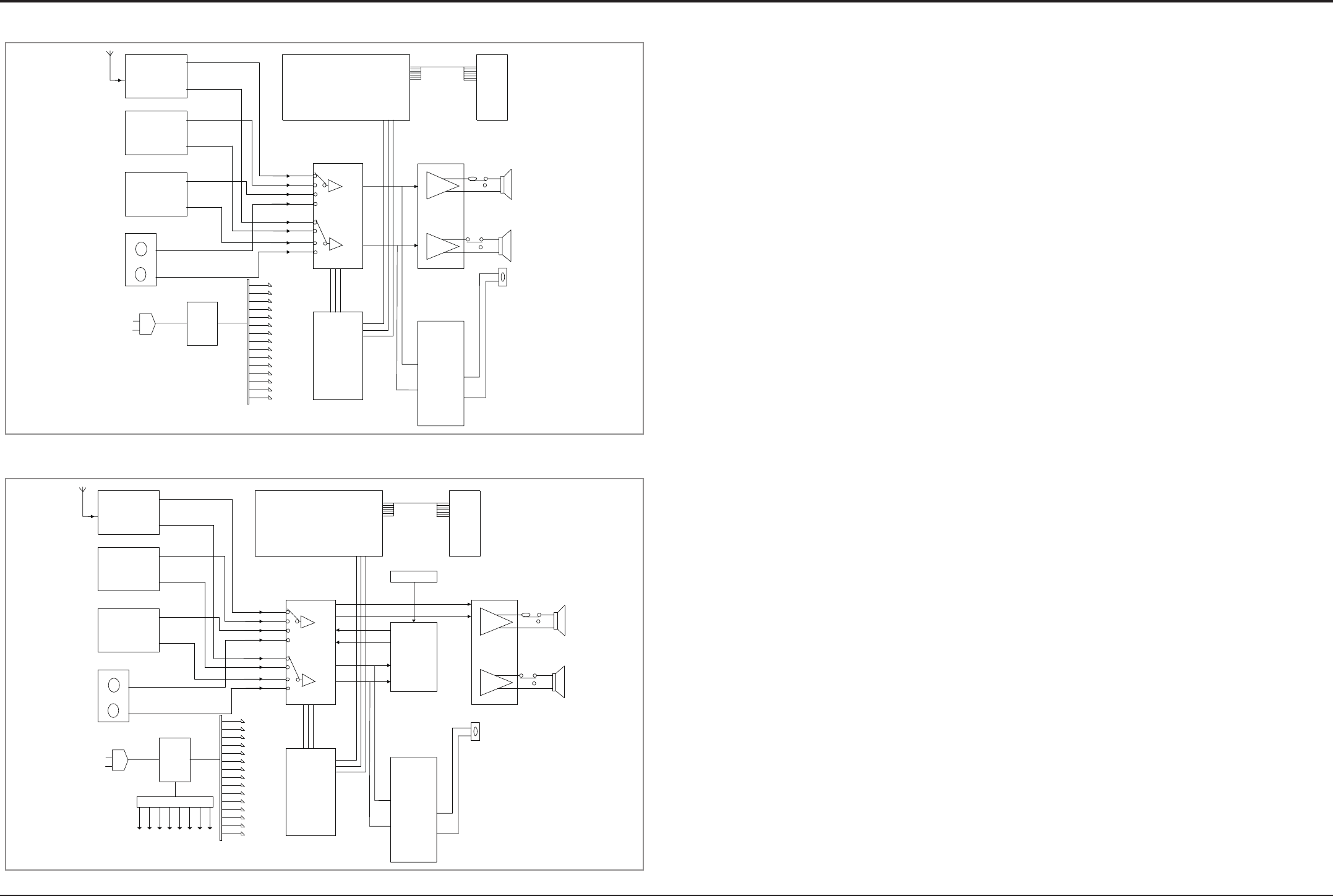

7-1 Overall Block Diagram .....................................................................................7-2
7-2 MAIN-1 .............................................................................................................7-3
7-3 MAIN-2 .............................................................................................................7-4
7-4 MPEG...............................................................................................................7-5

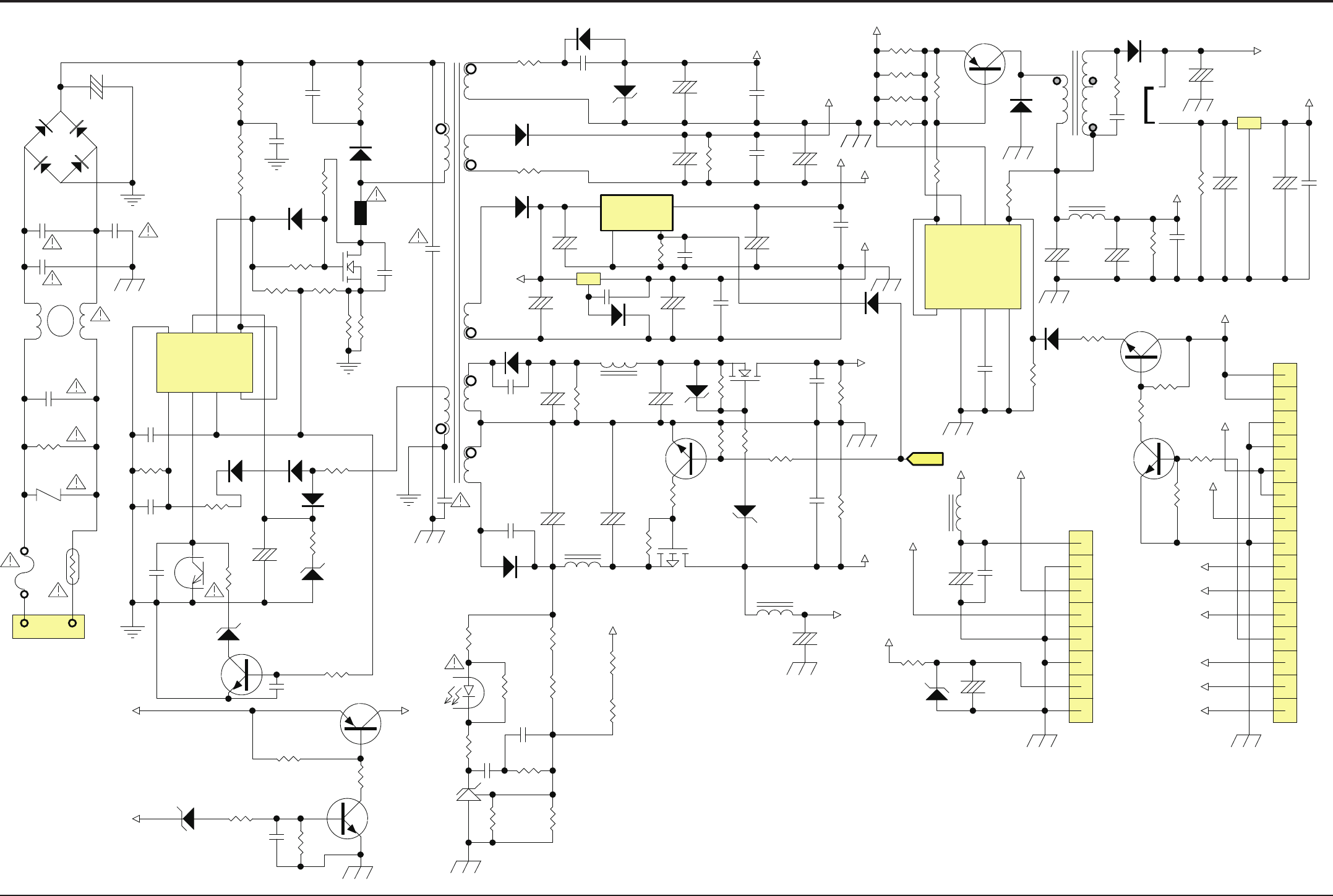

7-5 SMPS (MM-A24) ..............................................................................................7-6
7-6 SMPS (MM-A25) ..............................................................................................7-7
7-7 SMPS (MM-DA25) ...........................................................................................7-8

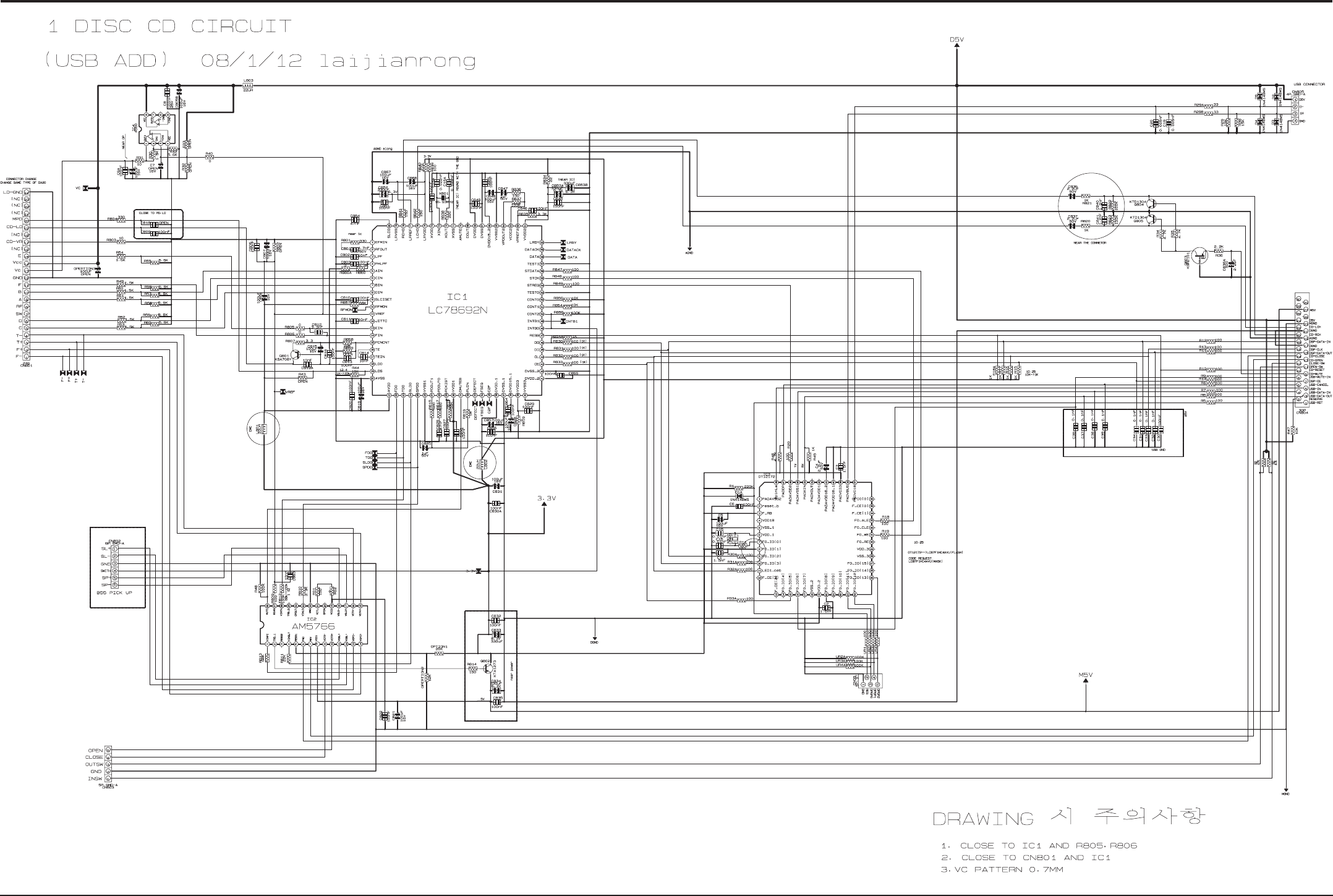

7-8 1 DISC CD ......................................................................................................7-9
Samsung Electronics 2-1
Product Specification
2. Product Specification
2-1 Product Feature
On top of the Sound Quality, Portable Device Connection, and Stylish Design, Samsung
create its own specialty by adding distinguishing feature.
Target Focusing on Powerful Sound
Customer Needs Who prefers Good Design & Alarm Function
Design Compact & Stylish Concept
User Benefits - Easy Alarm Setting
- USB Host
Region Europe, CIS, Korea
Key Features
- RMS 20W/CH
- Alarm & Morning Call
- MP3-CD Playback
- USB Host Play
Variation MP3
MM-A25/A24/DA25
Stylish Design
Matching with MP3P
Compact & Stylish concept
Sound Quality
No Distortion & New Volume
Curve
MP3P Docking
Docking with portable Device
MM-X7
2-2 Samsung Electronics
Product Specification
2-2 Specifications
Basic Specification
GENERAL
Power source 50 W
Weight 2.5 Kg
Dimensions (W x H x D) 170 x 212 x 293 mm
Operating Temperature Range +5°C ~ +35°C
Operating Humidity Range 10% ~ 75%
FM TUNER
Usable Sensitivity 3 dB
S/N Ratio 60 dB
Distortion 1.0 %
MW TUNER
Usable Sensitivity 56 dB
S/N Ratio 40 dB
Distortion 2 %
VIDEO
OUTPUT
Composite Video 1.0 Vp-p (75Ω load)
Component Video
Y: 1.0 Vp-p (75Ω load)
Pr: 0.7 Vp-p (75Ω load)
Pb: 0.7 Vp-p (75Ω load)
AMPLIFIER
Speaker output 50W/CH
Frequency range 20Hz ~ 20kHz
S/N Ratio 75 dB
Channel separation 50 dB
Input sensitivity (AUX) 500mV
SPEAKER
Impedance 4Ω x 2
Frequency range 20 Hz - 20 KHz (± 1 dB)
Output sound pressure level 84dB/W/M
Rated input 50 W
Maximum input 100 W
Dimensions (W x H x D) 170 x 212 x 293 mm
Weights 2.5 Kg
Samsung Electronics 2-3
Product Specification

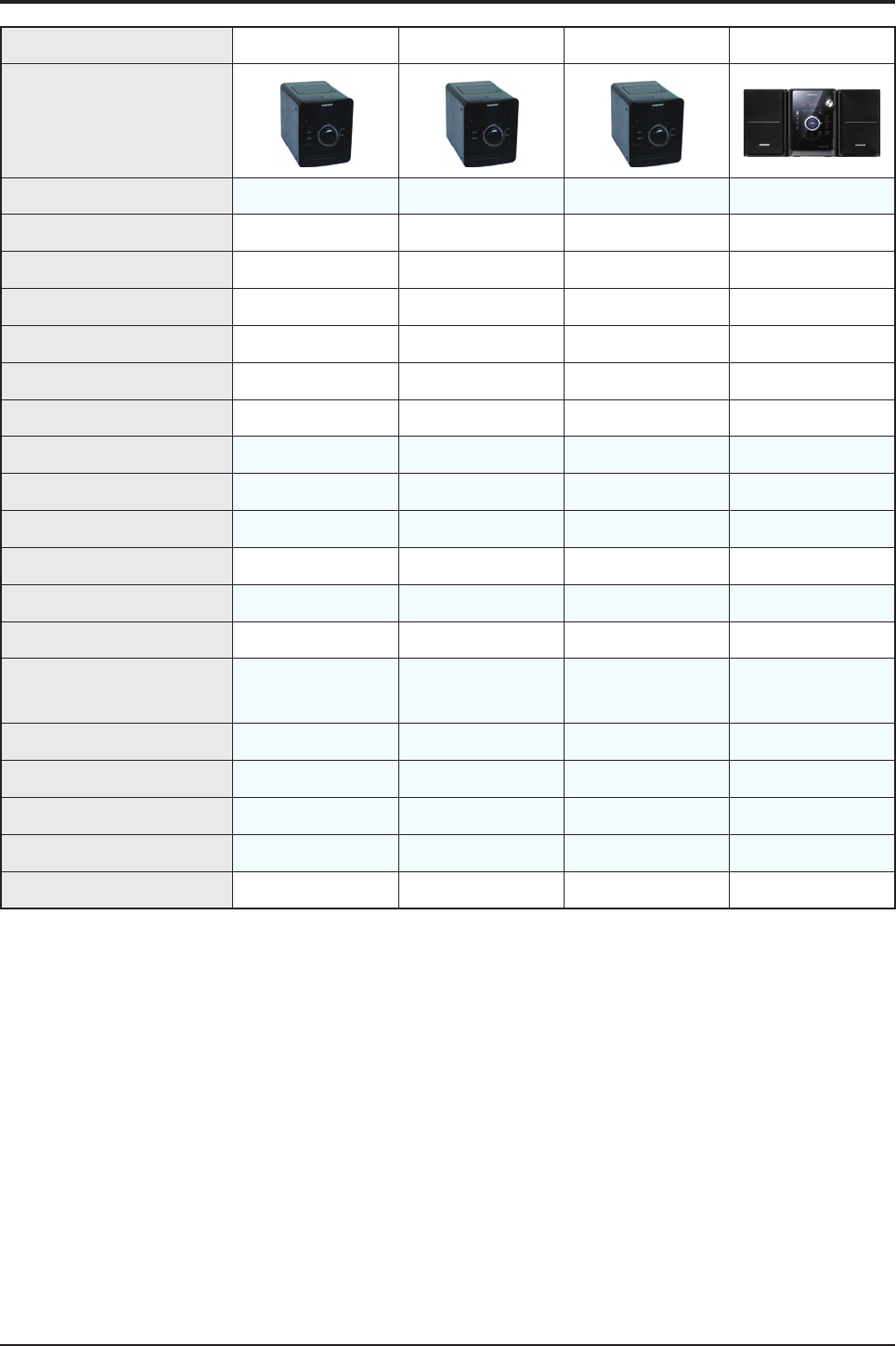

2-3 Specifications Analysis
Model Name MM-A24 MM-A25 MM-DA25 MM-X8
OUTPUT POWER 20 x 2 50 x 2 50 x 2 40 x 2
FRONT DISPLY VFD VFD VFD VFD
SLEEP
DIMMER
CD/CD-R/CD-RW
MP3
USB HOST
CD RIPPING XXX
EQ/DSP X X X 9 MODE
AUDIO IN X X
HEAD JACK/MIC
AM XXX
FM
RDS
(ONLY EUROPE)
RESET MEMORY 20 20 20 30
REMOTE KEY 34 Key 34 Key 38 Key 38 Key
UNIVERSAL X X
DUAL VOLTAGE X X
SPK IMPEDANCE 4W 4W 4W 4W
: application, X: non-application
2-4 Samsung Electronics
Product Specification
2-4 Accessories

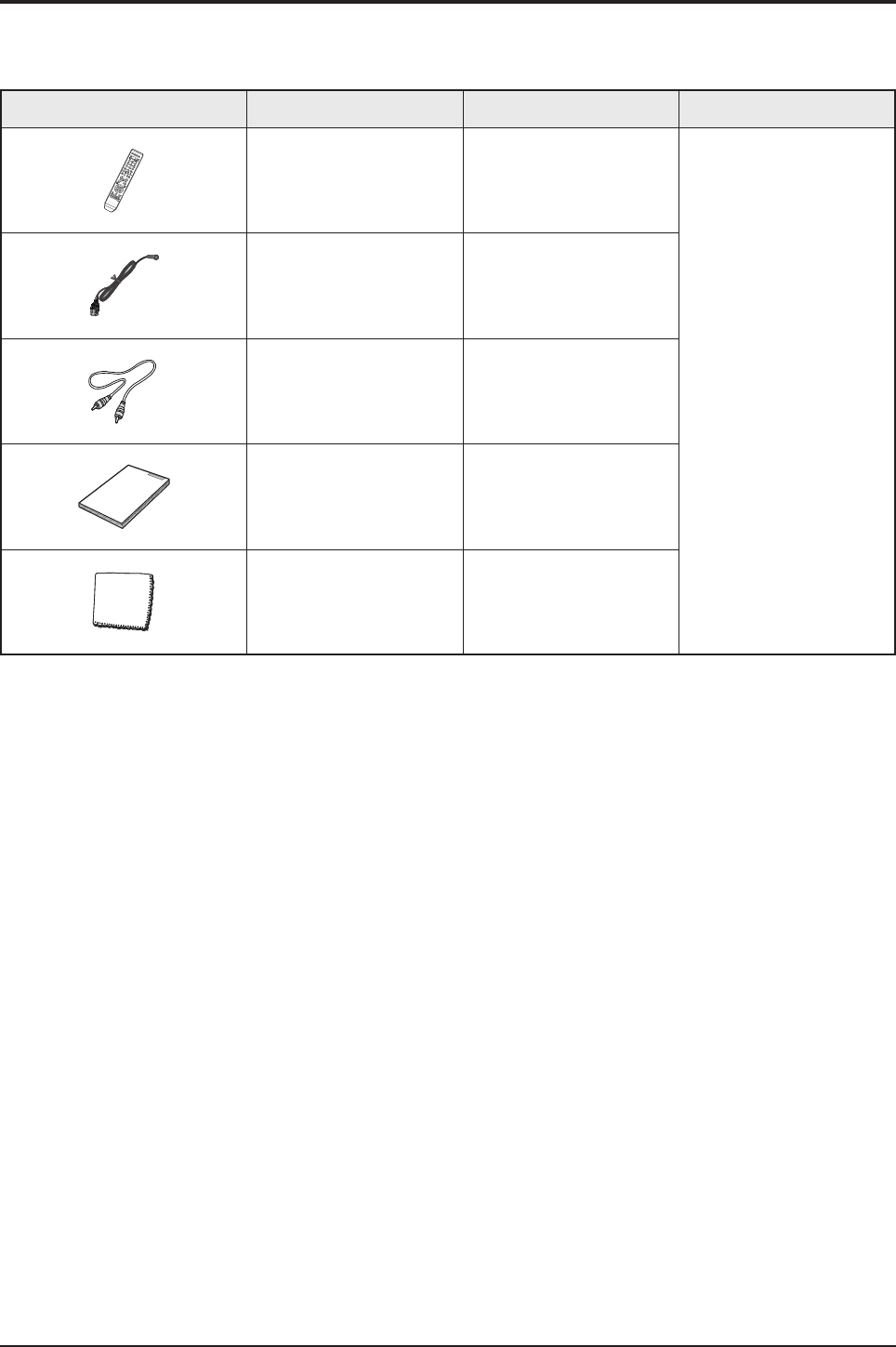

2-4-1 Supplied Accessories
Accessories Item Item code Remark
Remote Control AH59-01960B
Samsung Service Center
FM Antenna AH39-00320C
Video Cable AH39-40001V
User’s Manual AH68-02050P
Cloth Clean AH81-02286C
Samsung Electronics 3-1
Disassembly & Reassembly
3. Disassembly & Reassembly
3-1 Overall Disassembly & Reassembly
- Be careful to follow the disassembly sequence described in the manual. Otherwise, the product
may be damaged.
- Be sure to carefully read and understand the safety instructions before performing any work as
the IC chips on the PCB are vulnerable to static electricity.
- Assemble in the reverse order of disassembly.
No. Part Name Description Description Photo

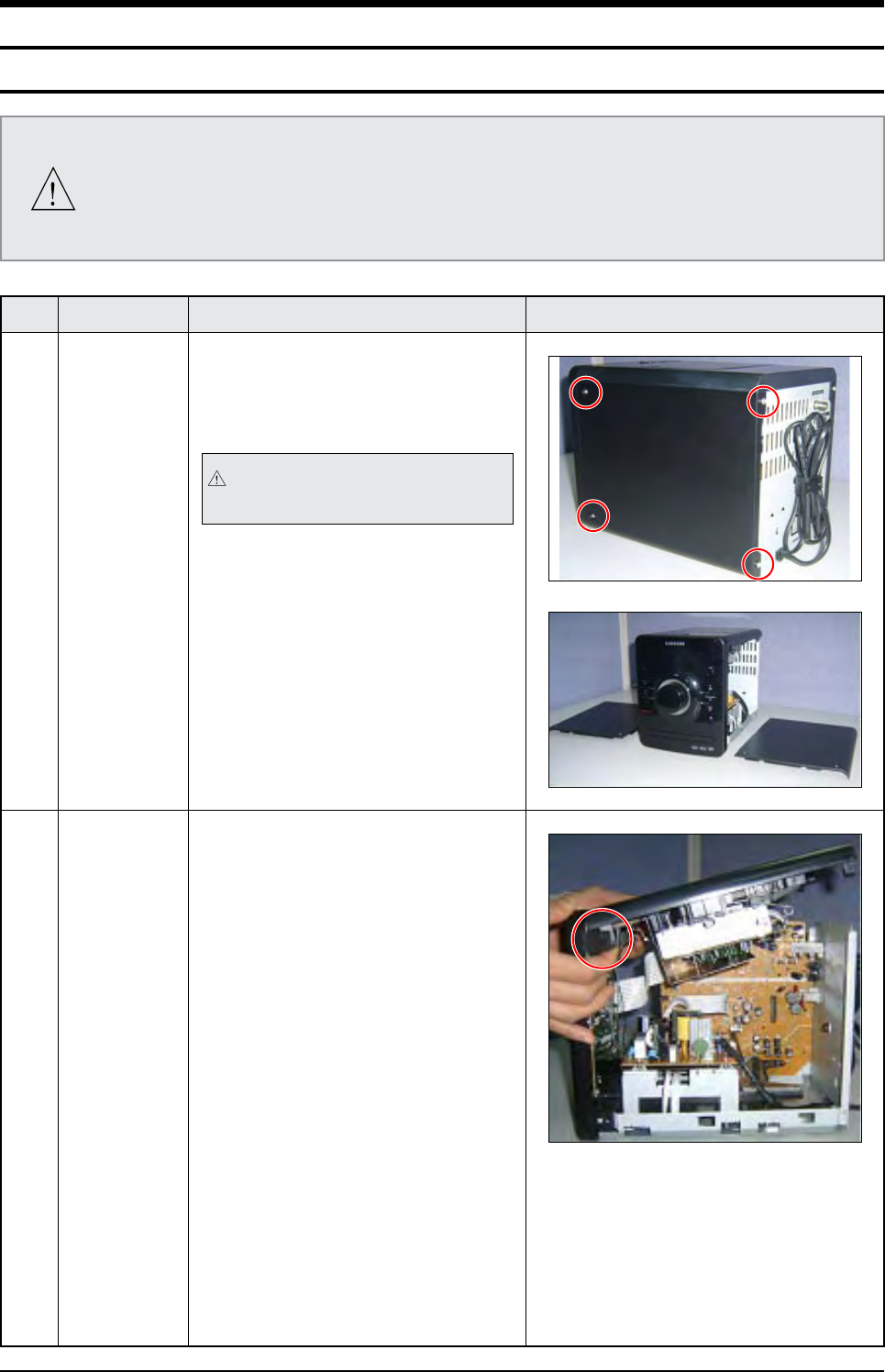

1 CABINET-
SIDE
1) Unfasten 8 screws on the CABINET-
SIDE-L\R.
: 3X10mm,black
Be careful not to make any
scratches as you remove it.
2 CABINET-
TOP
1) Turn over the hook of CABINET-TOP.
3-2 Samsung Electronics
Disassembly & Reassembly
No. Part Name Description Description Photo
3 CABINET-
FRONT
1) Turn over the hook of CABINET-
BOTTOM and separate ASSY-
FRONT.

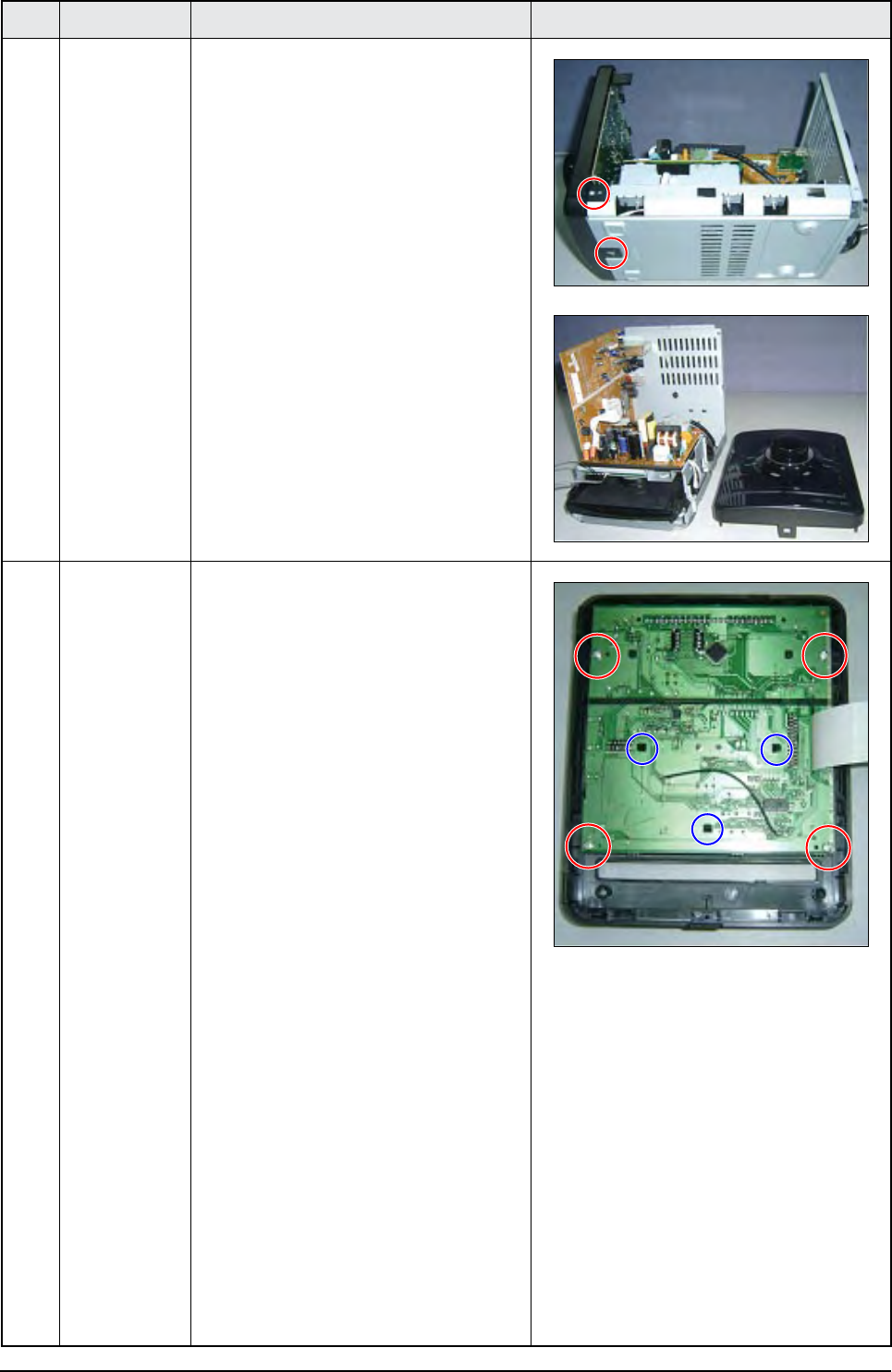

4 FRONT-PCB 1) Unfasten 4 screws and turn over the
hook of FRONT-PCB.
: 3X10mm,white
Samsung Electronics 3-3
Disassembly & Reassembly
No. Part Name Description Description Photo
5 CABINET-
REAR
&
MAIN-PCB
1) Unfasten 3 screws on the CABINET-
REAR and the one on the MAIN-
PCB.
: 3X10mm,white

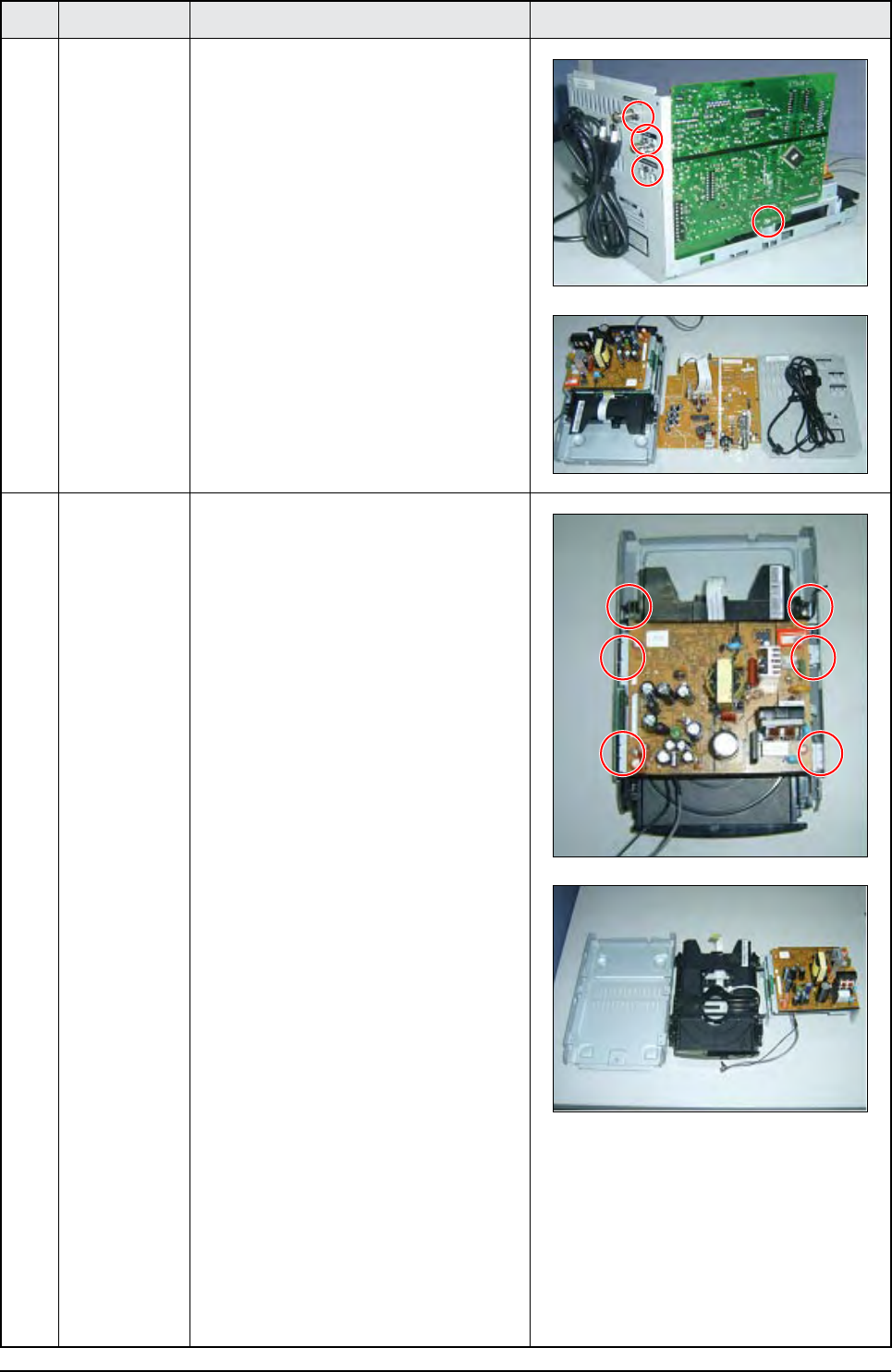

6 SMPS
&
DECK
1) Unfasten 6 screws on the SMPS and
DECK.
: 3X10mm,white
Samsung Electronics 4-1
Troubleshooting
4. Troubleshooting
4-1 Checkpoints by Error Mode ................................................................4-2
4-2 Measures to be taken when the Protection Circuit operates ...........4-7
4-3 DVD flash Initialization & Update ......................................................4-8
4-2 Samsung Electronics
Troubleshooting
4-1 Checkpoints by Error Mode
4-1-1 No Power
Check for
POWER-SENSE (5V) in
MAIN PCB PCW3 pin 11
MAIN PCB PCW3 Pin 10
voltage (5.60V)?
Check VFD Voltage in
MAIN PCB PCW3
pin 15, 14, 13
CHECK or REPLACE SMPS
CHECK or REPLACE SMPS
Yes
No
Yes
No
Yes
No
The power does not turn on.
Check for RESET/OSC parts in Main
PCB: X-TAL1, UQ1
CHECK or REPLACE SMPS
Samsung Electronics 4-3
Troubleshooting

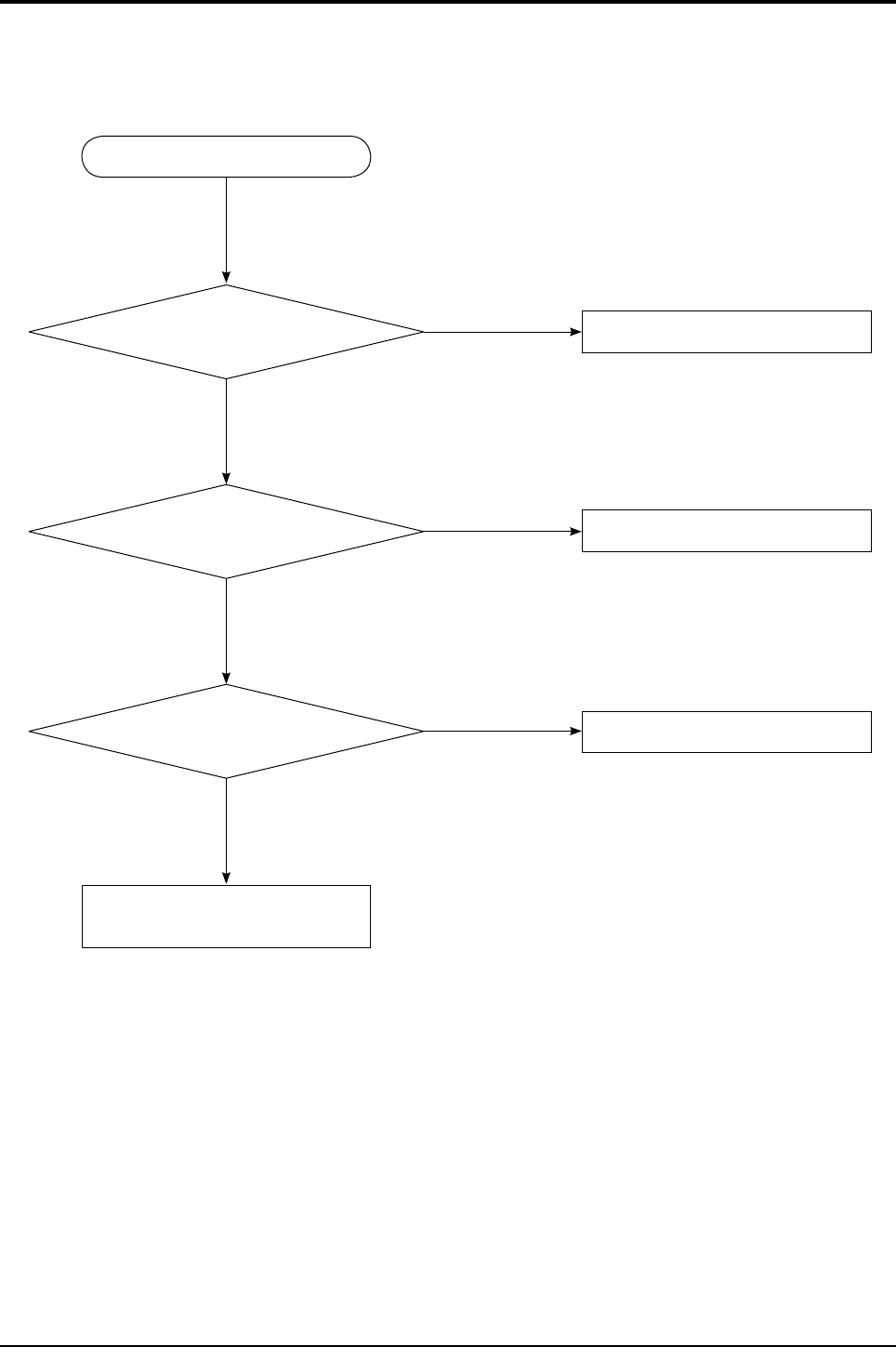

4-1-2 No Output
Check Signal
at FIC1 (R2S15904) on MAIN PCB
(Pin 26, 27 → 1KHz)
Yes
No Check Signal
in MAIN PCB FIC2
(Pin 1, 7 → 1KHz)
Yes
No Output
No
OUTPUT CHECKPARTS OPEN/SHORT
Check Mode on
AAIC1 (Pin 23)
(L: Mute, H: Normal)
REPLACE AAIC1
MICOM UIC1
Pin 47 (L: Normal, H: Mute)
Pin 48 (H: Normal, L: Mute)
Low
High
Check Voltage on
AAC6 (+22V or +15V)
AAC7 (-22V or -15V) SMPS CHECK
No
Yes

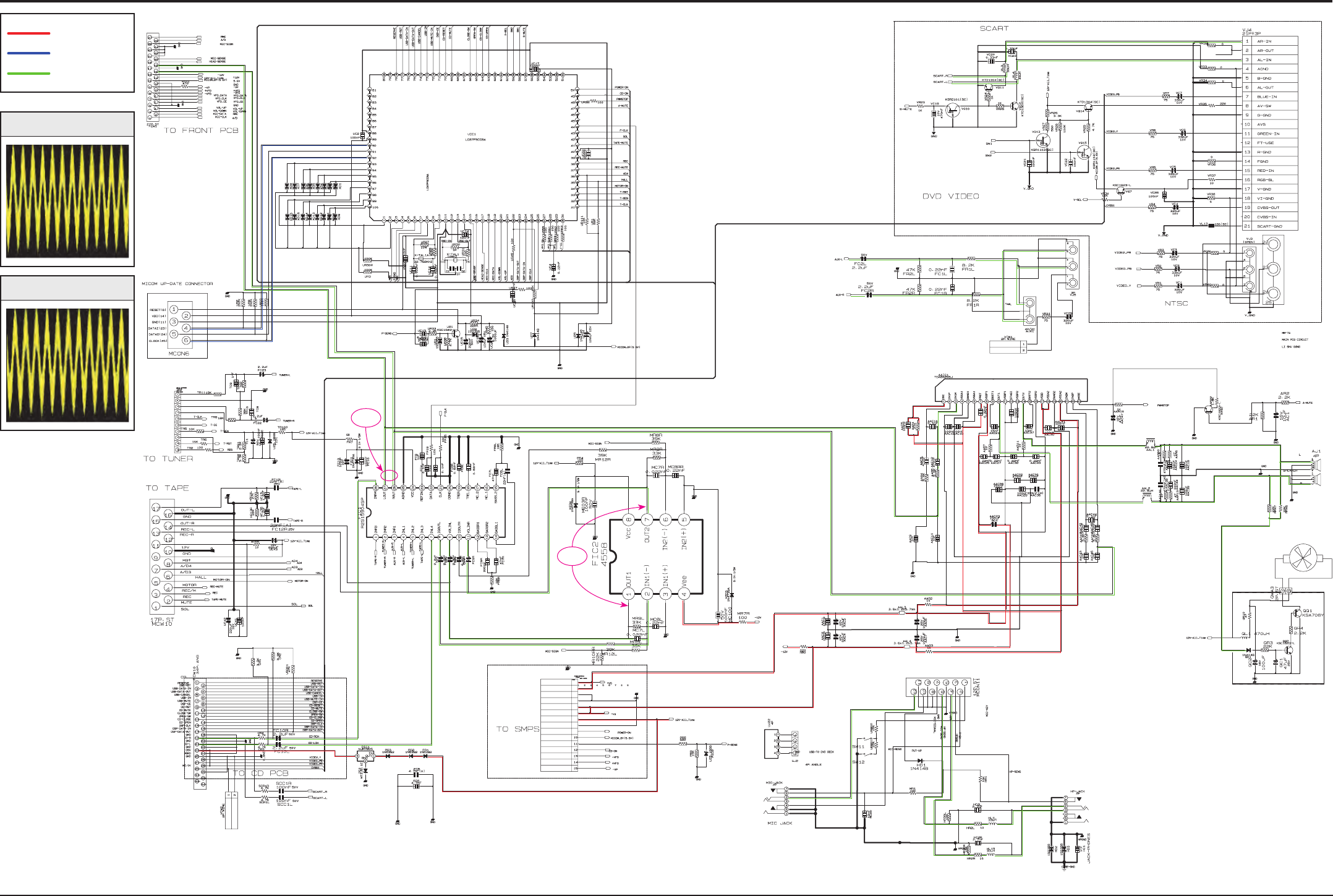

Refer to wave pattern
image of Fig. 4-1.
Refer to wave pattern
image of Fig. 4-1.
4-4 Samsung Electronics
Troubleshooting
MAIN-1 Page, 7-3
FCW1
MJW59
FCW10
MCW10
TCON13
PCW3
FIC1
FIC2
UIC1

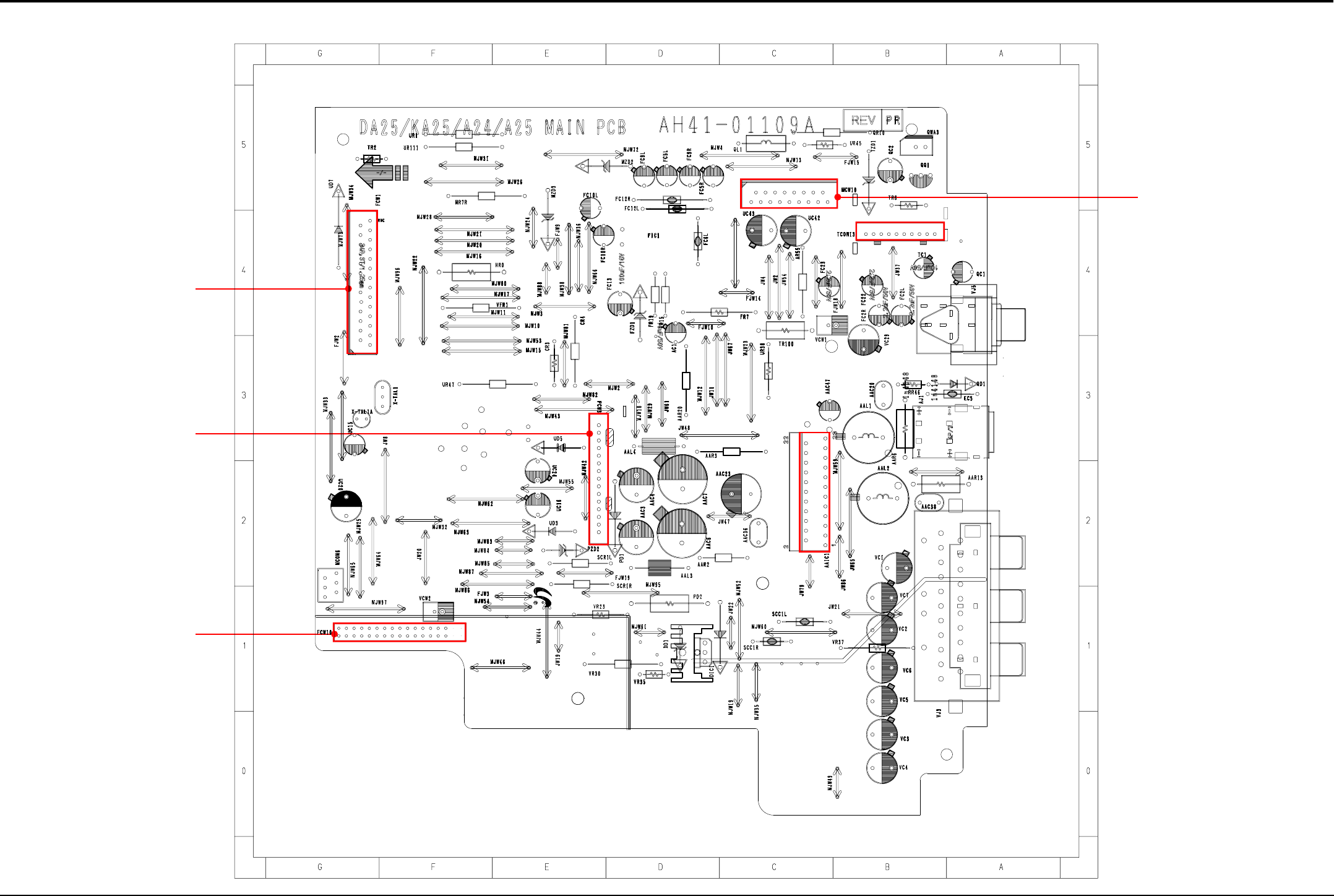

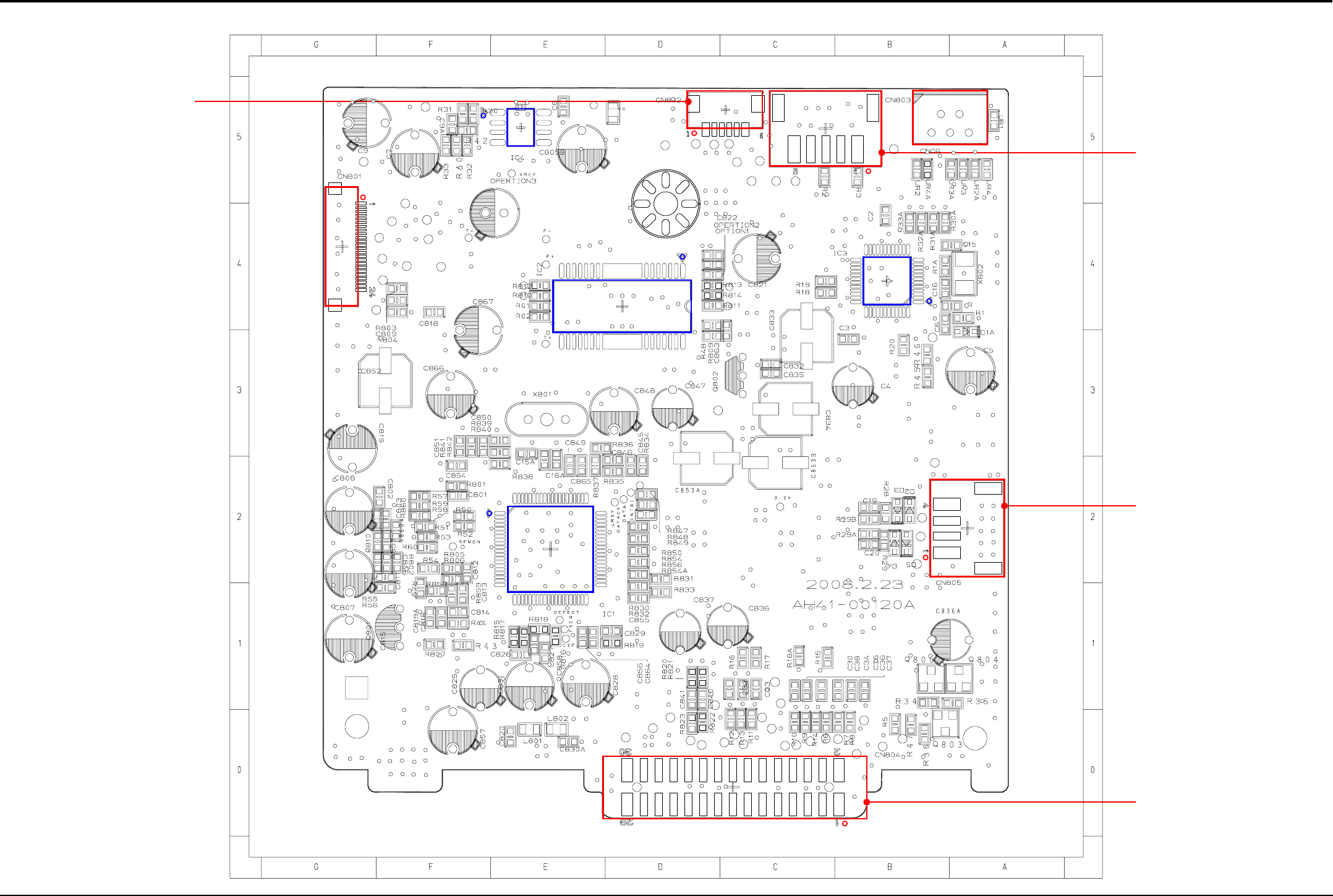

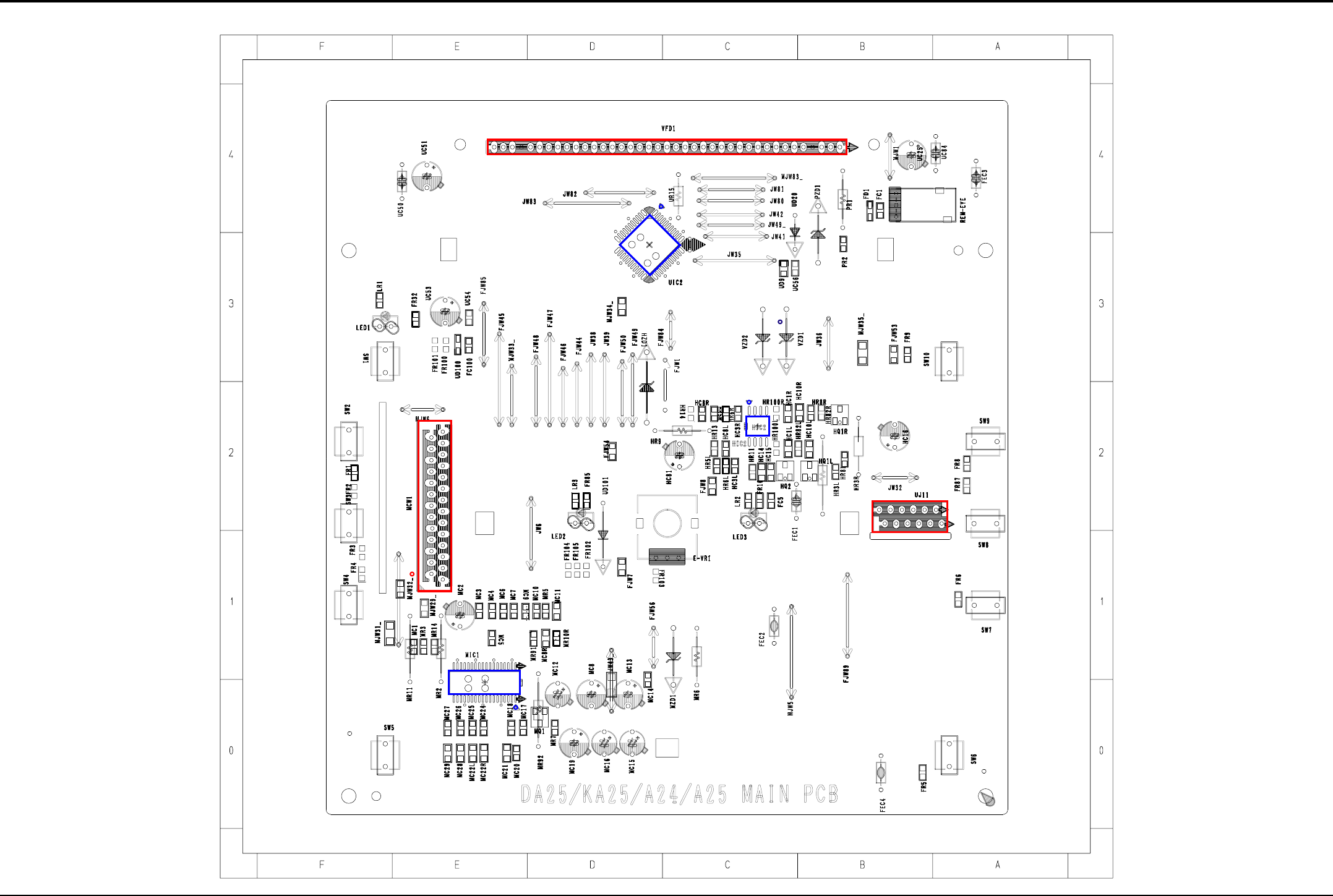

MAIN PCB Bottom Page, 6-11

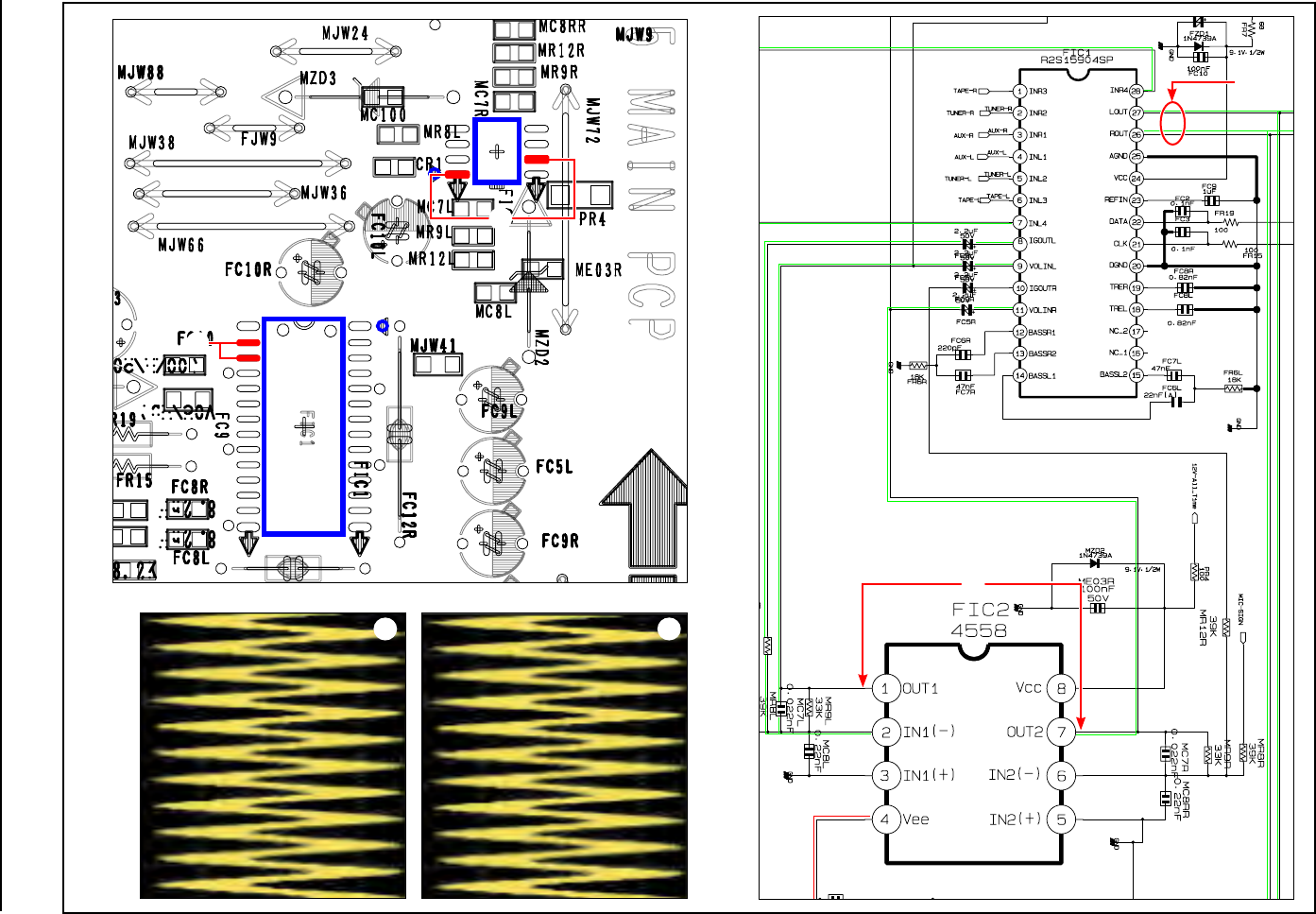

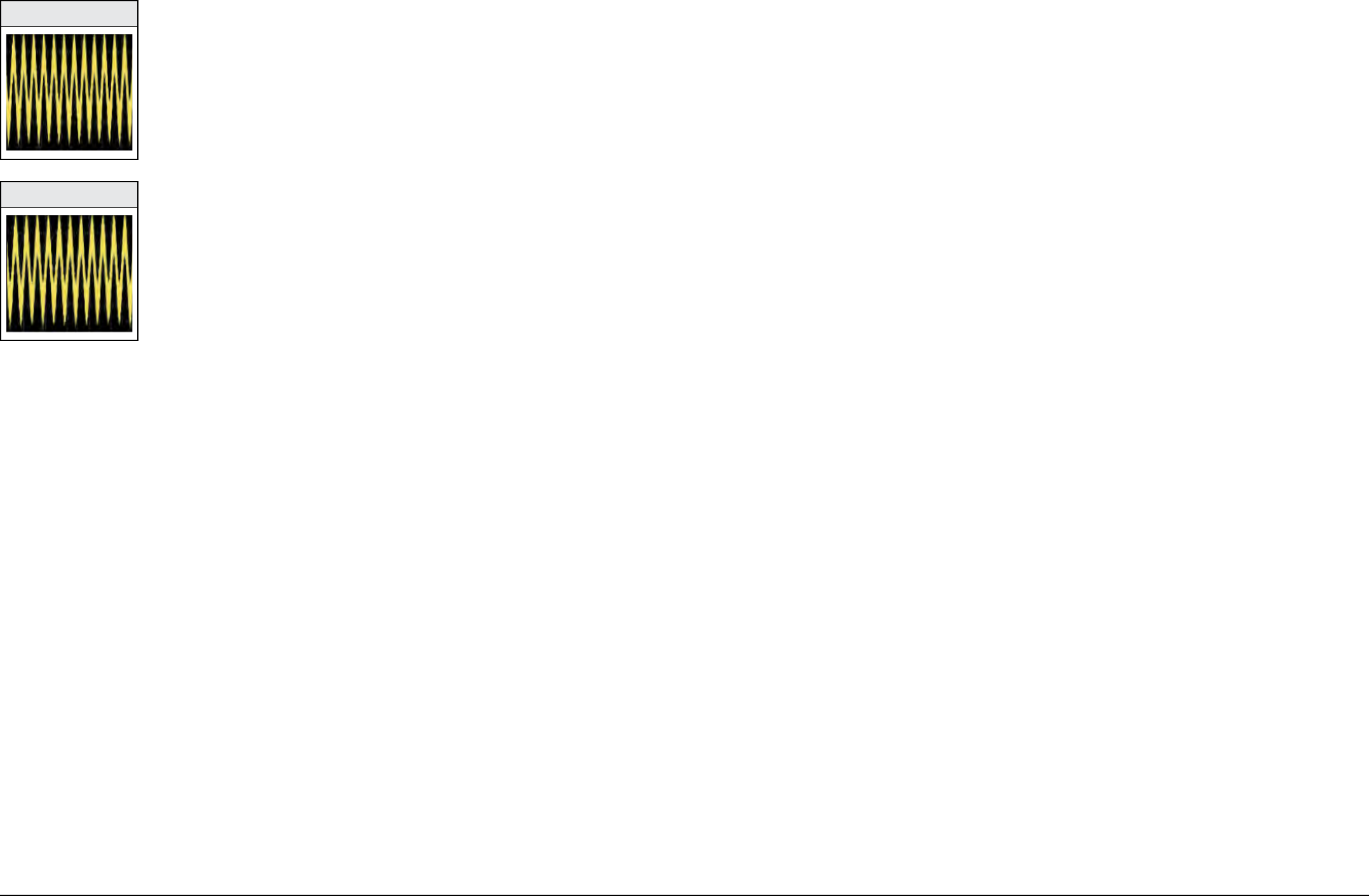

<Fig. 4-1>
1
1
1
2
2
2
Samsung Electronics 4-5
Troubleshooting
4-1-3 CD NO PLAY OR NO SOUND
PLAYING OK
No Sound
No Play MAIN PCB DIC1
OUTPUT (5V)
NG
CD NO PLAY OR NO SOUND
OK
CD DECK CHECKREPLACE SMPS
Check CD-Mute
on UIC1 P69
(H: Mute, L: Normal)
NO OUTPUT CHECK
RESET SET OR CHECK
UIC1
High
Low
4-6 Samsung Electronics
Troubleshooting
4-1-4 CD PACK
CD PACK 5V CHECK MAIN PCB to CD PCB 30 PIN
Connector Check
No
Yes
No CD PACK
CD POWER CHECK (DIC1: 7805)
PLAYING OK
Samsung Electronics 4-7
Troubleshooting
4-2 Measures to be taken when the Protection Circuit operates
4-2-1 Operation of Power Block Protection Circuit
Protection Circuit operates when power problem occurs in the SMPS.
SMPS
Part
Location Pin No. Protection Circuit Operation Remark
Open Short
CN3
+8V (1) X X
+5V (3,4) X X
+5.6V (11) X X
CN2
PVDD (about 11V) (1~2) X X
-12V (7) X X
+12V (9) X X
<Table 4-1>
4-2-2 Power Protection
The Power Protection Circuit operates in the following cases.
1. When over-current is generated in the amplifier IC (over-output or short-circuits in the output block.)
2. When the temperature of the amplifier IC exceeds 160°C.
3. When no power is supplied to the Gate Driver.
4-8 Samsung Electronics
Troubleshooting
4-3 DVD flash Initialization & Update
Micom Initialize
In STANDBY mode, push the ‘STOP’ button on front panel 5second.
Micom update (Only flash type Micom IC)
There is hole for update Micom at the bottom of case.
Required computer, ROM writer (SANYO), USB cable, Update file.
MPEG Version Check
1. Insert CD.
2. Open DISC. (Don’t pull off disc now)
3. Push button in remote ‘8’, ‘9’, ‘5’ sequentially.
4. MPEG Version will be on the VFD.
Micom Version Check
1. Turn off SET.
2. Push the FF button on the front panel 5 second.
3. MPEG Version will be on the VFD.
MPEG Flash Update
1. Save update ROM file to USB drive.
2. Function change to USB mode. Then plug in USB drive.
3. ‘UPDATING’ message will be on the VFD and SET will turn off and turn on.
Samsung Electronics 5-1
Exploded View & Part List
This Document can not be used without Samsung’s authorization.
5. Exploded View & Part List
5-1 Exploded View ......................................................................................5-2
5-2 Electrical Part List ................................................................................5-4
5-2 Samsung Electronics
Exploded View & Part List
This Document can not be used without Samsung’s authorization.

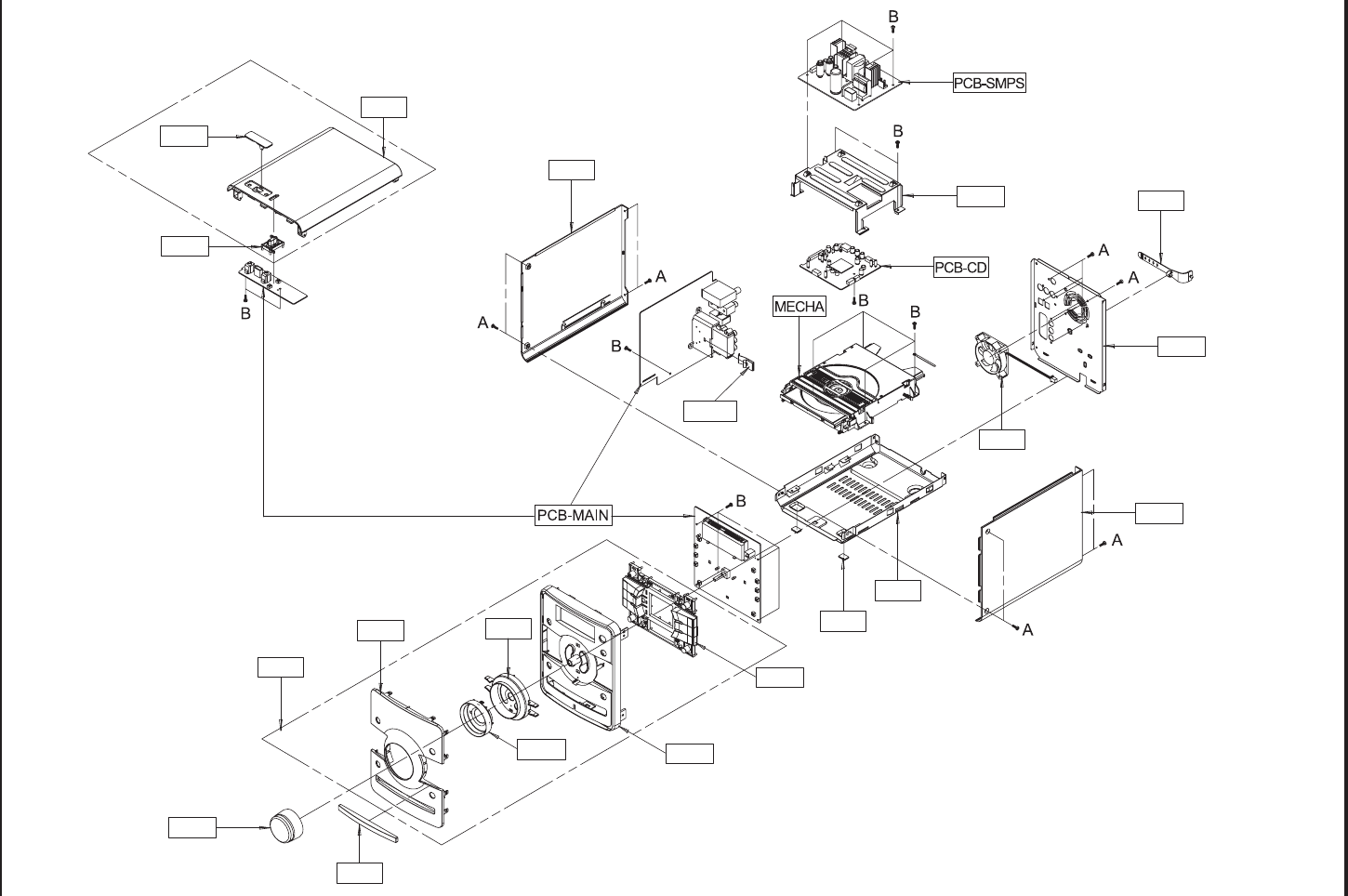

5-1 Exploded View
AC320
AK250
AC255 AD300
AC010
AD480
AK420
AC010
AK170
AL210
AC060
AH383
AC050
AC085
AC070
AC330
AC020
BRACK
AC080
AM020
Samsung Electronics 5-3
Exploded View & Part List
This Document can not be used without Samsung’s authorization.
Part List
Loc. No. Part No. Description;Specification Q’ty SNA Remark
AC010 AH64-04510B CABINET FRONT;MM-DA25,HIPS,T2.5,W170,L23 1 SNA
AC010 AH97-02630C ASSY CABINET-FRONT;MM-DA25,-,-,- 1 SA
AC020 AH64-04519A CABINET-BOTTOM;MM-DA25,SECC T0.8,T164,W2 1 SNA
AC050 AH64-04520C CABINET-REAR;MM-DA25,SECC T0.8,T7.8,W164 1 SNA
AC060 AH64-04512B CABINET-SIDE L;MM-DA25,HIPS,T15,W195,L23 1 SA
AC070 AH64-04513B CABINET-SIDE R;MM-DA25,HIPS,T15,W195,L23 1 SA
AC080 AH64-04546B CABINET-TOP 2;MM-DA25,HIPS,T37.5,W170,L2 1 SA
AC085 6502-001048 CABLE CLAMP;DACW130,-,T1.0,PE,BLK 1 SA
AC255 AH63-01566G COVER-FRONT;MM-DA25,ABS+PMMA,T29,W163,L2 1 SA
AC320 AH63-01568B COVER-USB;MM-DA25,ABS+TPU,T16.4,W26,L50, 1 SA
AC330 AH69-20031A CUSHION-FOOT;-,-,-,BLK,-,T2.0,-,-,MQ570A 2 SNA
AD300 AH64-04516B DECORATION-RING;MM-DA25,ABS,T21.8,W79,L1 1 SA
AD480 AH64-04515B DOOR-CD;MM-DA25,ABS,-,9,W9.2,L131.6,BL 1 SA
AH383 AH61-02556A HOLDER-SMPS;MM-DA25,SECC,T0.8,W149,L100, 1 SA
AK170 AH64-04517D KNOB-FUNCTION;MM-DA25,ABS,22.7,113.6,165 1 SA
AK250 AH64-04547B KNOB-MIC;MM-DA25,ABS,T21.8,W79,L116.2,- 1 SA
AK420 AH64-04518A KNOB-VOLUME;MM-DA25,ABS,T50.7,W50.7,L31. 1 SA
AL210 AH67-00497A LENS-VOLUME;MM-DA25,PMMA,-,60.4*60.4*20. 1 SA
AM020 AH31-00029E MOTOR FAN;C161NK10B0110,MX-GT88,0.15A,-, 1 SA
BRACK AH61-02549A BRACKET-PCB;MM-DA25,SECC 1.0T,T1.0,W20,L 1 SA
MECHA AH97-01831A ASSY DECK-DVD;SDM-D1FL,CMS-S75RBL,BASIC- 1 SA
PCB-CD AH92-02822A ASSY PCB-MPEG;-,MM-DA20,ES8390 4 LAYER,- 1 SA
PCB-MAIN AH92-02817M ASSY PCB-MAIN;MM-DA25,SCART, DVD. 1 SA
PCB-SMPS AH44-00186A SMPS;MM-DA25,HECK DA25000-F,AC/DC, 1 SA
A 6003-000275 SCREW-TAPTITE;BH,+,-,B,M3,L10,ZPC(BLK),S 16 SA
B 6003-001464 SCREW-TAPTITE;BH,+,B,M3,L10,ZPC(WHT) 20 SNA
5-4 Samsung Electronics
Exploded View & Part List
This Document can not be used without Samsung’s authorization.
5-2 Electrical Part List
Loc. No. Part No. Description;Specification Q’ty SNA Remark Loc. No. Part No. Description;Specification Q’ty SNA Remark
AH59-01942F SPEAKER SYSTEM;PS-DA25,-,-,-,-,-,-, 1 SA
AH81-04114A AUDIO-RECEIVER;PS-DA25,SYSTEM SPEAK 1 SNA
AH81-03718A SPEAKER-FRONT PANEL;PS-DA25,FRONT P 2 SNA
AH81-03719A SPEAKER-FRONT PANEL TOP;PS-DA25,FRO 2 SNA
AH81-04059A AUDIO-RECEIVER-SPEAKER;PS-DA25/A25, 2 SNA
AH81-04060A AUDIO-RECEIVER-SPEAKER;PS-DA25/A25, 2 SNA
AH81-04061A AUDIO-RECEIVER-SPEAKER;PS-DA25/25,T 2 SA
AH81-04062A AUDIO-RECEIVER-SPEAKER;PS-DA25,WOOF 2 SA
AH81-04064A AUDIO-RECEIVER-SPEAKER;PS-DA25/A25, 2 SNA
AH81-04191A SPEAKER;PS-A24/25,GRILL,-,-,-,-,- 2 SA
AH92-02817M ASSY PCB-MAIN;MM-DA25,SCART, DVD. 1 SA
AAC1 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA
AAC10 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 SA
AAC11 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 SA
AAC12 2203-000925 C-CER,CHIP;470nF,+80-20%,50V,Y5V,20 1 SA
AAC15 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA
AAC16 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA
AAC17 2203-001607 C-CER,CHIP;0.22nF,5%,50V,NP0,1608 1 SA
AAC18 2203-005221 C-CER,CHIP;15nF,10%,50V,X7R,1608 1 SA
AAC2 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA
AAC20 2305-000407 C-FILM,LEAD-PEF;470nF,5%,100V,TP,10 1 SA
AAC21 2203-005221 C-CER,CHIP;15nF,10%,50V,X7R,1608 1 SA
AAC22 2203-005218 C-CER,CHIP;470nF,10%,50V,X7R,3216 1 SA
AAC23 2401-000230 C-AL;100uF,20%,100V,GP,TP,12.5x20mm 1 SA
AAC24 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA
AAC25 2203-001607 C-CER,CHIP;0.22nF,5%,50V,NP0,1608 1 SA
AAC26 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA
AAC27 2203-001607 C-CER,CHIP;0.22nF,5%,50V,NP0,1608 1 SA
AAC28 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA
AAC29 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA
AAC3 2401-000325 C-AL;100uF,20%,35V,GP,-,8x11.5,3.5m 1 SA
AAC30 2203-005218 C-CER,CHIP;470nF,10%,50V,X7R,3216 1 SA
AAC32 2203-001607 C-CER,CHIP;0.22nF,5%,50V,NP0,1608 1 SA
AAC33 2203-001607 C-CER,CHIP;0.22nF,5%,50V,NP0,1608 1 SA
AAC34 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA
AAC36 2301-000216 C-FILM,LEAD-PEF;220nF,5%,50V,TP,8.0 1 SA
AAC37 2203-005221 C-CER,CHIP;15nF,10%,50V,X7R,1608 1 SA
AAC38 2305-000407 C-FILM,LEAD-PEF;470nF,5%,100V,TP,10 1 SA
AAC39 2203-005221 C-CER,CHIP;15nF,10%,50V,X7R,1608 1 SA
AAC4 2401-000325 C-AL;100uF,20%,35V,GP,-,8x11.5,3.5m 1 SA
AAC40 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA
AAC41 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA
AAC42 2203-000925 C-CER,CHIP;470nF,+80-20%,50V,Y5V,20 1 SA
AAC43 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 SA
AAC44 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 SA
AAC45 2203-000925 C-CER,CHIP;470nF,+80-20%,50V,Y5V,20 1 SA
AAC46 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 SA
AAC47 2401-001975 C-AL;47uF,20%,16V,GP,TP,5x11mm,5mm 1 SA
AAC5 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA
AAC6 2401-003564 C-AL;1000uF,20%,35V,LZ,TP,12.5X25mm 1 SA
AAC7 2401-003564 C-AL;1000uF,20%,35V,LZ,TP,12.5X25mm 1 SA
AAC8 2203-000925 C-CER,CHIP;470nF,+80-20%,50V,Y5V,20 1 SA
AAC9 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 SA
AAIC1 1201-002696 IC-AUDIO AMP;TDA8922BJ,DBS,23P,30.2 1 SA
AAL1 2702-001128 INDUCTOR-RADIAL;20uH,10%,13.8x19.5m 1 SA
AAL2 2702-001128 INDUCTOR-RADIAL;20uH,10%,13.8x19.5m 1 SA
AAL3 3301-000297 BEAD-AXIAL;25ohm,3.6x1.2x5.7mm,-,TP 1 SA
AAL4 3301-000297 BEAD-AXIAL;25ohm,3.6x1.2x5.7mm,-,TP 1 SA
AAQ2 0501-000341 TR-SMALL SIGNAL;KSC1623-L,NPN,200mW 1 SA
AAR1 2007-000129 R-CHIP;27Kohm,5%,1/10W,TP,1608 1 SA
AAR100 2007-000129 R-CHIP;27Kohm,5%,1/10W,TP,1608 1 SA
AAR11 2007-000312 R-CHIP;10ohm,5%,1/4W,TP,3216 1 SA
AAR13 2003-000587 R-METAL OXIDE(S);22ohm,5%,1W,AA,TP, 1 SA
AAR15 2007-000086 R-CHIP;5.6Kohm,5%,1/10W,TP,1608 1 SA
AAR16 2007-000086 R-CHIP;5.6Kohm,5%,1/10W,TP,1608 1 SA
AAR19 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA
AAR2 2001-000019 R-CARBON(S);10ohm,5%,1/2W,AA,TP,2.4 1 SA
AAR20 2001-000258 R-CARBON;1.8Kohm,5%,1/8W,AA,TP,1.8x 1 SA
AAR3 2001-000019 R-CARBON(S);10ohm,5%,1/2W,AA,TP,2.4 1 SA
AAR4 2007-000086 R-CHIP;5.6Kohm,5%,1/10W,TP,1608 1 SA
AAR5 2007-000086 R-CHIP;5.6Kohm,5%,1/10W,TP,1608 1 SA
AAR6 2003-000587 R-METAL OXIDE(S);22ohm,5%,1W,AA,TP, 1 SA
AAR7 2007-000312 R-CHIP;10ohm,5%,1/4W,TP,3216 1 SA
AC1 2401-000414 C-AL;10uF,20%,16V,GP,TP,4x7,5 1 SA
AJ1 3716-001242 TERMINAL-BLOCK;-,4P,4.5mm,0V,0A 1 SA
AR1 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608 1 SA
AR2 2007-000124 R-CHIP;2.2Kohm,5%,1/10W,TP,1608 1 SA
AR55 2001-000019 R-CARBON(S);10ohm,5%,1/2W,AA,TP,2.4 1 SA
AUX1 3722-000379 JACK-PIN;4P/2C,3.5mm,#16~22,SN 1 SA
BRACKET-PCB
AH61-02549A BRACKET-PCB;MM-DA25,SECC 1.0T,T1.0, 1 SA
CR1 2007-000125 R-CHIP;3.9Kohm,5%,1/10W,TP,1608 1 SA
CR2 2007-000125 R-CHIP;3.9Kohm,5%,1/10W,TP,1608 1 SA
CR3 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x 1 SA
CR4 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x 1 SA
DC1 2401-000048 C-AL;47uF,20%,25V,GP,TP,5x11,5 1 SA
DC2 2401-000042 C-AL;100uF,20%,16V,GP,TP,6.3x7,5 1 SA
DJ10 2007-000033 R-CHIP;0ohm,5%,1/4W,TP,3216 1 SA
DJ2 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
DJ3 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
DJ4 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
DJ5 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
DJ7 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
DJ8 2007-000033 R-CHIP;0ohm,5%,1/4W,TP,3216 1 SA
DJ9 2007-000033 R-CHIP;0ohm,5%,1/4W,TP,3216 1 SA
DL1 2701-000298 INDUCTOR-AXIAL;470uH,10%,4298 1 SA
DR1 2007-000950 R-CHIP;47ohm,5%,1/4W,TP,3216 1 SA
DR10 2003-000775 R-METAL OXIDE(S);68ohm,5%,1W,AA,TP, 1 SA
DR2 2007-000950 R-CHIP;47ohm,5%,1/4W,TP,3216 1 SA
DWA3 3711-000820 HEADER-BOARD TO CABLE;BOX,2P,1R,2.5 1 SNA
EC5 2202-000817 C-CERAMIC,MLC-AXIAL;4.7nF,20%,16V,Y 1 SA
EC6 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,TP,160 1 SA
EMC10 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,TP,160 1 SA
E-VR1 3406-001047 SWITCH-ROTARY;5V DC,0.5mA,-,12mm 1 SA
FC1 2203-000062 C-CER,CHIP;47nF,+80-20%,50V,Y5V,160 1 SA
FC10 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA
FC100 2203-000062 C-CER,CHIP;47nF,+80-20%,50V,Y5V,160 1 SA
FC10L 2401-000651 C-AL;2.2uF,20%,50V,GP,TP,4x7,5 1 SA
FC10R 2401-000651 C-AL;2.2uF,20%,50V,GP,TP,4x7,5 1 SA
FC12L 2202-000807 C-CERAMIC,MLC-AXIAL;22nF,+80-20%,25 1 SA
FC12R 2202-000807 C-CERAMIC,MLC-AXIAL;22nF,+80-20%,25 1 SA
FC13 2401-000042 C-AL;100uF,20%,16V,GP,TP,6.3x7,5 1 SA
Samsung Electronics 5-5
Exploded View & Part List
This Document can not be used without Samsung’s authorization.
FC1L 2203-001607 C-CER,CHIP;0.22nF,5%,50V,NP0,1608 1 SA
FC1R 2203-001607 C-CER,CHIP;0.22nF,5%,50V,NP0,1608 1 SA
FC2 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 SA
FC22 2401-000651 C-AL;2.2uF,20%,50V,GP,TP,4x7,5 1 SA
FC23 2401-000651 C-AL;2.2uF,20%,50V,GP,TP,4x7,5 1 SA
FC2L 2401-000651 C-AL;2.2uF,20%,50V,GP,TP,4x7,5 1 SA
FC2R 2401-000651 C-AL;2.2uF,20%,50V,GP,TP,4x7,5 1 SA
FC3 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 SA
FC5 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608 1 SA
FC5L 2401-000651 C-AL;2.2uF,20%,50V,GP,TP,4x7,5 1 SA
FC5R 2401-000651 C-AL;2.2uF,20%,50V,GP,TP,4x7,5 1 SA
FC6L 2202-002055 C-CERAMIC,MLC-AXIAL;47nF,+80-20%,50 1 SA
FC6R 2203-001140 C-CER,CHIP;68nF,10%,16V,X7R,1608 1 SA
FC7L 2203-001140 C-CER,CHIP;68nF,10%,16V,X7R,1608 1 SA
FC7R 2203-001140 C-CER,CHIP;68nF,10%,16V,X7R,1608 1 SA
FC8L 2203-001222 C-CER,CHIP;0.82nF,10%,50V,X7R,1608 1 SA
FC8R 2203-001222 C-CER,CHIP;0.82nF,10%,50V,X7R,1608 1 SA
FC9 2203-005171 C-CER,CHIP;1000nF,10%,16V,X7R,2012 1 SA
FC9L 2401-000651 C-AL;2.2uF,20%,50V,GP,TP,4x7,5 1 SA
FC9R 2401-000651 C-AL;2.2uF,20%,50V,GP,TP,4x7,5 1 SA
FCW1 3708-000249 CONNECTOR-FPC/FFC/PIC;27P,1.25mm,ST 1 SA
FCW10 3711-006758 HEADER-BOARD TO BOARD;NOWALL,30P,2R 1 SA
FD1 0401-001090 DIODE-SWITCHING;1SS355,80V,100MA,SO 1 SA
FEC1 2202-000173 C-CERAMIC,MLC-AXIAL;1nF,10%,50V,Y5P 1 SA
FEC2 2202-000173 C-CERAMIC,MLC-AXIAL;1nF,10%,50V,Y5P 1 SA
FEC3 2202-000173 C-CERAMIC,MLC-AXIAL;1nF,10%,50V,Y5P 1 SA
FEC4 2202-000173 C-CERAMIC,MLC-AXIAL;1nF,10%,50V,Y5P 1 SA
FIC1 1204-002518 IC-VOLUME/TONE CONT.;R2S15904SP,SOP 1 SA
FIC2 1201-000461 IC-OP AMP;4558,SOP,8P,150MIL,DUAL,2 1 SA
FJW1 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
FJW10 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
FJW11 2007-000033 R-CHIP;0ohm,5%,1/4W,TP,3216 1 SA
FJW12 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
FJW14 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
FJW15 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
FJW16 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
FJW17 2007-000033 R-CHIP;0ohm,5%,1/4W,TP,3216 1 SA
FJW18 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
FJW19 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
FJW2 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
FJW20 2007-000033 R-CHIP;0ohm,5%,1/4W,TP,3216 1 SA
FJW3 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
FJW44 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
FJW45 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
FJW46 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
FJW47 2001-001096 R-CARBON(S);2.2ohm,5%,1/2W,AA,TP,2. 1 SA
FJW48 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
FJW49 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
FJW5 2007-000033 R-CHIP;0ohm,5%,1/4W,TP,3216 1 SA
FJW50 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
FJW56 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
FJW7_ 2007-000033 R-CHIP;0ohm,5%,1/4W,TP,3216 1 SA
FJW8 2007-000033 R-CHIP;0ohm,5%,1/4W,TP,3216 1 SA
FJW84 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
FJW85 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
FJW89 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
FJW9 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
FR1 2007-000121 R-CHIP;820ohm,5%,1/10W,TP,1608 1 SA
FR100 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
FR101 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
FR102 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA
FR103 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA
FR104 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
FR105 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
FR15 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3 1 SA
FR16 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
FR19 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3 1 SA
FR1L 2007-001179 R-CHIP;8.2Kohm,5%,1/10W,TP,1608 1 SA
FR1R 2007-001179 R-CHIP;8.2Kohm,5%,1/10W,TP,1608 1 SA
FR2 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA
FR2L 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 SA
FR2R 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 SA
FR3 2007-000122 R-CHIP;1.2Kohm,5%,1/10W,TP,1608 1 SA
FR32 2007-000118 R-CHIP;390ohm,5%,1/10W,TP,1608 1 SA
FR4 2007-000123 R-CHIP;1.5Kohm,5%,1/10W,TP,1608 1 SA
FR5 2007-000079 R-CHIP;1.8Kohm,5%,1/10W,TP,1608 1 SA
FR6 2007-000124 R-CHIP;2.2Kohm,5%,1/10W,TP,1608 1 SA
FR6L 2007-000091 R-CHIP;12Kohm,5%,1/10W,TP,1608 1 SA
FR6R 2007-000091 R-CHIP;12Kohm,5%,1/10W,TP,1608 1 SA
FR7 2001-000117 R-CARBON(S);68ohm,5%,1/2W,AA,TP,2.4 1 SA
FR8 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA
FR85 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
FR87 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608 1 SA
FR9 2007-000087 R-CHIP;6.8Kohm,5%,1/10W,TP,1608 1 SA
FZD1 0403-000145 DIODE-ZENER;1N4739A,5%,1000MW,DO-41 1 SA
H/SINK AH62-00185A HEAT SINK-MAIN;MM-DA25,AL SHEET T3, 1 SA
HC1 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 SA
HC10L 2203-001596 C-CER,CHIP;2200nF,+80-20%,50V,Y5V,2 1 SA
HC10R 2203-001596 C-CER,CHIP;2200nF,+80-20%,50V,Y5V,2 1 SA
HC13L 2203-000125 C-CER,CHIP;1.2nF,10%,50V,X7R,TP,160 1 SA
HC13R 2203-000125 C-CER,CHIP;1.2nF,10%,50V,X7R,TP,160 1 SA
HC14 2203-001596 C-CER,CHIP;2200nF,+80-20%,50V,Y5V,2 1 SA
HC15 2203-001596 C-CER,CHIP;2200nF,+80-20%,50V,Y5V,2 1 SA
HC16 2401-001102 C-AL;330uF,20%,16V,GP,TP,8x11.5mm,5 1 SA
HC1L 2203-001596 C-CER,CHIP;2200nF,+80-20%,50V,Y5V,2 1 SA
HC1R 2203-001596 C-CER,CHIP;2200nF,+80-20%,50V,Y5V,2 1 SA
HC2L 2203-000531 C-CER,CHIP;2.7nF,10%,50V,X7R,1608 1 SA
HC2R 2203-000531 C-CER,CHIP;2.7nF,10%,50V,X7R,1608 1 SA
HC3L 2203-001607 C-CER,CHIP;0.22nF,5%,50V,NP0,1608 1 SA
HC3R 2203-001607 C-CER,CHIP;0.22nF,5%,50V,NP0,1608 1 SA
HC81 2401-000042 C-AL;100uF,20%,16V,GP,TP,6.3x7,5 1 SA
HC8L 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 SA
HC8R 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 SA
HD1 0401-000005 DIODE-SWITCHING;1N4148,75V,150mA,DO 1 SA
HD10 0401-000005 DIODE-SWITCHING;1N4148,75V,150mA,DO 1 SA
HD2 0401-001090 DIODE-SWITCHING;1SS355,80V,100MA,SO 1 SA
HD3 0401-001090 DIODE-SWITCHING;1SS355,80V,100MA,SO 1 SA
HIC2 1201-001285 IC-OP AMP;4556,SOP,8P,150MIL,+/-18V 1 SA
HL1L 2701-000179 INDUCTOR-AXIAL;33UH,10%,4298 1 SA
HL1R 2701-000179 INDUCTOR-AXIAL;33UH,10%,4298 1 SA
HP-JACK 3722-001588 JACK-PHONE;7P,3.6PI,AG,BLK,- 1 SA
HQ1L 0501-000341 TR-SMALL SIGNAL;KSC1623-L,NPN,200mW 1 SA
Loc. No. Part No. Description;Specification Q’ty SNA Remark Loc. No. Part No. Description;Specification Q’ty SNA Remark
5-6 Samsung Electronics
Exploded View & Part List
Loc. No. Part No. Description;Specification Q’ty SNA Remark Loc. No. Part No. Description;Specification Q’ty SNA Remark
This Document can not be used without Samsung’s authorization.
HQ1R 0501-000341 TR-SMALL SIGNAL;KSC1623-L,NPN,200mW 1 SA
HQ2 0504-000156 TR-DIGITAL;KSR2103,PNP,200MW,22K/22 1 SA
HR0 2003-000009 R-METAL OXIDE(S);220ohm,5%,1W,AA,TP 1 SA
HR1 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3 1 SA
HR100L 2007-000134 R-CHIP;33Kohm,5%,1/10W,TP,1608 1 SA
HR100R 2007-000134 R-CHIP;33Kohm,5%,1/10W,TP,1608 1 SA
HR11 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA
HR13 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
HR13L 2007-000129 R-CHIP;27Kohm,5%,1/10W,TP,1608 1 SA
HR13R 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608 1 SA
HR14 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
HR18 2001-000062 R-CARBON;470ohm,5%,1/4W,AA,TP,2.4x6 1 SA
HR2L 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 SA
HR2R 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 SA
HR30L 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
HR30R 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
HR3L 2007-000124 R-CHIP;2.2Kohm,5%,1/10W,TP,1608 1 SA
HR3R 2001-000449 R-CARBON;2.2Kohm,5%,1/8W,AA,TP,1.8x 1 SA
HR5L 2007-000086 R-CHIP;5.6Kohm,5%,1/10W,TP,1608 1 SA
HR5R 2007-000086 R-CHIP;5.6Kohm,5%,1/10W,TP,1608 1 SA
HR6L 2007-000134 R-CHIP;33Kohm,5%,1/10W,TP,1608 1 SA
HR6R 2007-000134 R-CHIP;33Kohm,5%,1/10W,TP,1608 1 SA
HR82L 2007-000086 R-CHIP;5.6Kohm,5%,1/10W,TP,1608 1 SA
HR82R 2007-000086 R-CHIP;5.6Kohm,5%,1/10W,TP,1608 1 SA
HR8L 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 SA
HR8R 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 SA
HR9 2001-000062 R-CARBON;470ohm,5%,1/4W,AA,TP,2.4x6 1 SA
HZD1 0403-000149 DIODE-ZENER;1N4742A,5%,1000MW,DO-41 1 SA
JW11 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
JW2 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
JW20 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
JW21 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
JW3 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
JW32 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
JW35 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
JW36 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
JW38 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
JW39 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
JW4 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
JW41 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
JW42 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
JW43_ 2007-000033 R-CHIP;0ohm,5%,1/4W,TP,3216 1 SA
JW47 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
JW48 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
JW49_ 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
JW54 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
JW6 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
JW61 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
JW65 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
JW67 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
JW79 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
JW8 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
JW80 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
JW81 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
JW82 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
JW83 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
JW86 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
JW9 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
KD13 0401-000005 DIODE-SWITCHING;1N4148,75V,150mA,DO 1 SA
LED1 0601-001490 LED;INVERTER,BLUE,3MM,465-477NM 1 SA
LED2 0601-001490 LED;INVERTER,BLUE,3MM,465-477NM 1 SA
LED3 0601-001490 LED;INVERTER,BLUE,3MM,465-477NM 1 SA
LR1 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
LR2 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
LR3 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
MC1 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,160 1 SA
MC10 2203-000332 C-CER,CHIP;0.012nF,5%,50V,C0G,1608 1 SA
MC100 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA
MC11 2203-005171 C-CER,CHIP;1000nF,10%,16V,X7R,2012 1 SA
MC12 2401-001931 C-AL;220nF,20%,50V,-,TP,4x7mm,5 1 SA
MC13 2401-000042 C-AL;100uF,20%,16V,GP,TP,6.3x7,5 1 SA
MC14 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,160 1 SA
MC15 2401-001931 C-AL;220nF,20%,50V,-,TP,4x7mm,5 1 SA
MC16 2401-000598 C-AL;1uF,20%,50V,GP,TP,4x7,5 1 SA
MC17 2203-001086 C-CER,CHIP;0.0050nF,0.25pF,50V,NP0, 1 SA
MC18 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,160 1 SA
MC19 2401-000042 C-AL;100uF,20%,16V,GP,TP,6.3x7,5 1 SA
MC2 2401-001508 C-AL;47uF,20%,16V,GP,TP,6.3x5,5 1 SA
MC20 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,160 1 SA
MC21 2203-001596 C-CER,CHIP;2200nF,+80-20%,50V,Y5V,2 1 SA
MC22L 2203-001596 C-CER,CHIP;2200nF,+80-20%,50V,Y5V,2 1 SA
MC22R 2203-001596 C-CER,CHIP;2200nF,+80-20%,50V,Y5V,2 1 SA
MC24 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,160 1 SA
MC25 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 SA
MC26 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 SA
MC27 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,TP,160 1 SA
MC28 2203-001596 C-CER,CHIP;2200nF,+80-20%,50V,Y5V,2 1 SA
MC29 2203-001596 C-CER,CHIP;2200nF,+80-20%,50V,Y5V,2 1 SA
MC3 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,TP,160 1 SA
MC4 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 SA
MC5 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 SA
MC6 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 SA
MC7 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608 1 SA
MC7L 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G,1608 1 SA
MC7R 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G,1608 1 SA
MC8 2401-001508 C-AL;47uF,20%,16V,GP,TP,6.3x5,5 1 SA
MC80 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608 1 SA
MC8L 2203-001607 C-CER,CHIP;0.22nF,5%,50V,NP0,1608 1 SA
MC8R 2203-001596 C-CER,CHIP;2200nF,+80-20%,50V,Y5V,2 1 SA
MC8RR 2203-001607 C-CER,CHIP;0.22nF,5%,50V,NP0,1608 1 SA
MC9 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,160 1 SA
MCON11 3708-001265 CONNECTOR-FPC/FFC/PIC;12P,1.25MM,ST 1 SA
MCW1 3708-000249 CONNECTOR-FPC/FFC/PIC;27P,1.25mm,ST 1 SA
ME03R 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA
MIC1 1204-002878 IC-VOLUME/TONE CONT.;LC75105V,SSOP, 1 SA
MIC-JACK 3722-001588 JACK-PHONE;7P,3.6PI,AG,BLK,- 1 SA
MJW1 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
MJW10 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
MJW11 2001-000016 R-CARBON(S);1ohm,5%,1/2W,AA,TP,2.4x 1 SA
MJW12 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
MJW13 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
MJW15 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
MJW16 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
MJW17 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
MJW18 0401-000005 DIODE-SWITCHING;1N4148,75V,150mA,DO 1 SA
MJW19 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
MJW2 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
Samsung Electronics 5-7
Exploded View & Part List
Loc. No. Part No. Description;Specification Q’ty SNA Remark Loc. No. Part No. Description;Specification Q’ty SNA Remark
This Document can not be used without Samsung’s authorization.
MJW20 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
MJW21 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
MJW22 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
MJW23 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
MJW24 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
MJW25 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
MJW26 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
MJW28 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
MJW29 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
MJW3 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
MJW30 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
MJW31 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
MJW31_ 2007-000033 R-CHIP;0ohm,5%,1/4W,TP,3216 1 SA
MJW32 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
MJW33 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
MJW33_ 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
MJW34 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
MJW36 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
MJW37 2007-000033 R-CHIP;0ohm,5%,1/4W,TP,3216 1 SA
MJW38 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
MJW39 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
MJW4 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
MJW41 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
MJW42 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
MJW43 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
MJW44 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
MJW48 2007-000033 R-CHIP;0ohm,5%,1/4W,TP,3216 1 SA
MJW49 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
MJW5 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
MJW50 2007-000033 R-CHIP;0ohm,5%,1/4W,TP,3216 1 SA
MJW51 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
MJW52 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
MJW53 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
MJW55 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
MJW56 2007-000033 R-CHIP;0ohm,5%,1/4W,TP,3216 1 SA
MJW57 2007-000033 R-CHIP;0ohm,5%,1/4W,TP,3216 1 SA
MJW58 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
MJW59 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
MJW6 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
MJW60 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
MJW62 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
MJW63 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
MJW64 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
MJW65 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
MJW66 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
MJW67 2007-000033 R-CHIP;0ohm,5%,1/4W,TP,3216 1 SA
MJW7 2007-000033 R-CHIP;0ohm,5%,1/4W,TP,3216 1 SA
MJW70 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
MJW71 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
MJW72 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
MJW80 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
MJW81 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
MJW82 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
MJW83 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
MJW83_ 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
MJW84 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
MJW85 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
MJW86 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
MJW87 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
MJW88 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
MJW89 2007-000033 R-CHIP;0ohm,5%,1/4W,TP,3216 1 SA
MJW9 2007-000033 R-CHIP;0ohm,5%,1/4W,TP,3216 1 SA
MJW90 2007-000033 R-CHIP;0ohm,5%,1/4W,TP,3216 1 SA
MJW92 2007-000033 R-CHIP;0ohm,5%,1/4W,TP,3216 1 SA
MJW95 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
MJW96 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
MJW97 3811-001868 WIRE-NO SHEATH CU;SnCuFe,-,52mm,-,- 1 SA
MONO WIRE
AH39-50001D WIRE HARNESS;,1007#24,200MM,RED 1 SA
MQ1 0504-000128 TR-DIGITAL;-,NPN,200MW,22K/22K,SOT- 1 SA
MR1 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3 1 SA
MR10R 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608 1 SA
MR11 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3 1 SA
MR12L 2007-000614 R-CHIP;24Kohm,1%,1/10W,TP,1608 1 SA
MR12R 2007-000614 R-CHIP;24Kohm,1%,1/10W,TP,1608 1 SA
MR14 2007-000129 R-CHIP;27Kohm,5%,1/10W,TP,1608 1 SA
MR2 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3 1 SA
MR3 2007-000134 R-CHIP;33Kohm,5%,1/10W,TP,1608 1 SA
MR5 2007-000106 R-CHIP;220Kohm,5%,1/10W,TP,1608 1 SA
MR6 2001-000027 R-CARBON;100ohm,5%,1/4W,AA,TP,2.4x6 1 SA
MR7 2007-001179 R-CHIP;8.2Kohm,5%,1/10W,TP,1608 1 SA
MR7R 2001-000027 R-CARBON;100ohm,5%,1/4W,AA,TP,2.4x6 1 SA
MR8L 2007-000614 R-CHIP;24Kohm,1%,1/10W,TP,1608 1 SA
MR8R 2007-000614 R-CHIP;24Kohm,1%,1/10W,TP,1608 1 SA
MR91 2007-000091 R-CHIP;12Kohm,5%,1/10W,TP,1608 1 SA
MR92 2001-000702 R-CARBON;39Kohm,5%,1/8W,AA,TP,1.8x3 1 SA
MR9L 2007-000129 R-CHIP;27Kohm,5%,1/10W,TP,1608 1 SA
MR9R 2007-000129 R-CHIP;27Kohm,5%,1/10W,TP,1608 1 SA
MZD1 0403-000145 DIODE-ZENER;1N4739A,5%,1000MW,DO-41 1 SA
MZD2 0403-000145 DIODE-ZENER;1N4739A,5%,1000MW,DO-41 1 SA
MZD3 0403-000145 DIODE-ZENER;1N4739A,5%,1000MW,DO-41 1 SA
PCB-MAIN
AH41-01109B PCB-MAIN;MM-DA25,KH,1,0,1.6T,-,-,1, 1 SNA
PCW1 3711-002807 HEADER-BOARD TO CABLE;BOX,6P,1R,2mm 1 SA
PCW3 3711-006142 HEADER-BOARD TO CABLE;BOX,15P,1R,2m 1 SA
PD2 2001-000855 R-CARBON;560ohm,5%,1/4W,AA,TP,2.4x6 1 SA
PR1 2001-001070 R-CARBON(S);120ohm,5%,1/2W,AA,TP,2. 1 SA
PR2 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608 1 SA
PR3 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
PR4 2007-000293 R-CHIP;100ohm,5%,1/4W,TP,3216 1 SA
PR5 2007-000120 R-CHIP;680ohm,5%,1/10W,TP,1608 1 SA
PZD1 0403-000139 DIODE-ZENER;1N4734A,5%,1000mW,DO-41 1 SA
PZD2 0403-000355 DIODE-ZENER;UZ5.1BSB,5-5.2V,500MW,D 1 SA
REM-EYE 0609-001189 MODULE REMOCON;HORIZONTAL,16.4MM,TR 1 SA
SCC1L 2202-002037 C-CERAMIC,MLC-AXIAL;100nF,+80-20%,5 1 SA
SCC1R 2202-002037 C-CERAMIC,MLC-AXIAL;100nF,+80-20%,5 1 SA
SCR1L 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x 1 SA
SCR1R 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x 1 SA
SCREW 6003-001464 SCREW-TAPTITE;BH,+,B,M3,L10,ZPC(WHT 2 SNA
SCW1 3708-000303 CONNECTOR-FPC/FFC/PIC;6P,1.25MM,STR 1 SA
SCW1A 3708-000303 CONNECTOR-FPC/FFC/PIC;6P,1.25MM,STR 1 SA
SW1 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SP 1 SA
SW10 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SP 1 SA
SW11 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SP 1 SA
SW12 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SP 1 SA
SW2 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SP 1 SA
SW3 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SP 1 SA
SW4 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SP 1 SA
5-8 Samsung Electronics
Exploded View & Part List
Loc. No. Part No. Description;Specification Q’ty SNA Remark Loc. No. Part No. Description;Specification Q’ty SNA Remark
This Document can not be used without Samsung’s authorization.
SW5 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SP 1 SA
SW6 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SP 1 SA
SW7 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SP 1 SA
SW8 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SP 1 SA
SW9 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SP 1 SA
TC1 2401-000480 C-AL;10uF,20%,50V,GP,TP,5x11,5 1 SA
TC20 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA
TC8 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 SA
TC9 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 SA
TCON13 AH40-00140A TUNER-MODULE;KST-MW004FV1-S55,MAX-D 1 SA
TR10 2007-000130 R-CHIP;39Kohm,5%,1/10W,TP,1608 1 SA
TR100 0402-000127 DIODE-RECTIFIER;1N4002,100V,1A,DO-4 1 SA
TR100A 2001-000028 R-CARBON(S);100ohm,5%,1/2W,AA,TP,2. 1 SA
TR100B 2007-000598 R-CHIP;22ohm,5%,1/4W,TP,3216 1 SA
TR11 2007-000458 R-CHIP;18Kohm,5%,1/10W,TP,1608 1 SA
TR12 2007-000130 R-CHIP;39Kohm,5%,1/10W,TP,1608 1 SA
TR2 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3 1 SA
TR5 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA
TR6 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3. 1 SA
TR9 2007-000458 R-CHIP;18Kohm,5%,1/10W,TP,1608 1 SA
TR91 2007-000124 R-CHIP;2.2Kohm,5%,1/10W,TP,1608 1 SA
TR92 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608 1 SA
TZD1 0403-000525 DIODE-ZENER;1N4733A,5%,1000MW,DO-41 1 SA
UC10 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608 1 SA
UC11 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G,1608 1 SA
UC12 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G,1608 1 SA
UC13 2401-000027 C-AL;4.7uF,20%,50V,GP,TP,5x11,5 1 SA
UC14 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,160 1 SA
UC15 2401-000759 C-AL;220nF,20%,50V,GP,TP,5x11mm,5mm 1 SA
UC16 2401-000042 C-AL;100uF,20%,16V,GP,TP,6.3x7,5 1 SA
UC17 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,160 1 SA
UC18 2203-000062 C-CER,CHIP;47nF,+80-20%,50V,Y5V,160 1 SA
UC2 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,160 1 SA
UC20 2401-003010 C-AL;1000uF,20%,6.3V,GP,TP,8x11.5mm 1 SA
UC22 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,160 1 SA
UC24 2401-000042 C-AL;100uF,20%,16V,GP,TP,6.3x7,5 1 SA
UC25 2401-000487 C-AL;10uF,20%,50V,GP,TP,6.3x5mm,5 1 SA
UC4 2203-001607 C-CER,CHIP;0.22nF,5%,50V,NP0,1608 1 SA
UC41 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA
UC50 2202-002037 C-CERAMIC,MLC-AXIAL;100nF,+80-20%,5 1 SA
UC51 2401-000487 C-AL;10uF,20%,50V,GP,TP,6.3x5mm,5 1 SA
UC54 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,160 1 SA
UC56 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,160 1 SA
UC84 2202-002037 C-CERAMIC,MLC-AXIAL;100nF,+80-20%,5 1 SA
UD1 0401-001090 DIODE-SWITCHING;1SS355,80V,100MA,SO 1 SA
UD100 0401-001090 DIODE-SWITCHING;1SS355,80V,100MA,SO 1 SA
UD101 0401-000005 DIODE-SWITCHING;1N4148,75V,150mA,DO 1 SA
UD2 0401-001090 DIODE-SWITCHING;1SS355,80V,100MA,SO 1 SA
UD20 0404-000156 DIODE-SCHOTTKY;RB441Q,40V,350MA,DO- 1 SA
UD3 0401-000005 DIODE-SWITCHING;1N4148,75V,150mA,DO 1 SA
UD5 0401-000005 DIODE-SWITCHING;1N4148,75V,150mA,DO 1 SA
UD7 0401-000005 DIODE-SWITCHING;1N4148,75V,150mA,DO 1 SA
UD9 0401-001090 DIODE-SWITCHING;1SS355,80V,100MA,SO 1 SA
UIC1 AH11-00257A IC MASK ROM-DA25;-,MM-DA25##MASK IC 1 SA
UIC2 1003-002129 IC-VFD;PT6315A,LQFP,44P,10x10mm,-,- 1 SA
UJ11 3708-001265 CONNECTOR-FPC/FFC/PIC;12P,1.25MM,ST 1 SA
UJ2 3711-000967 HEADER-BOARD TO CABLE;BOX,4P,1R,2mm 1 SA
UJ22 3722-002313 JACK-USB;4P/1C,AU30U,BLK,STRAIGHT,A 1 SA
UQ1 0501-000341 TR-SMALL SIGNAL;KSC1623-L,NPN,200mW 1 SA
UR1 2001-000522 R-CARBON;22Kohm,5%,1/8W,AA,TP,1.8x3 1 SA
UR10 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 SA
UR100 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
UR111 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3 1 SA
UR15 2001-000837 R-CARBON;51Kohm,5%,1/8W,AA,TP,1.8x3 1 SA
UR2 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 SA
UR27 2007-000305 R-CHIP;10Mohm,5%,1/10W,TP,1608 1 SA
UR28 2007-001026 R-CHIP;560Kohm,5%,1/10W,TP,1608 1 SA
UR3 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 SA
UR30 2007-000109 R-CHIP;1Mohm,5%,1/10W,TP,1608 1 SA
UR300 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 SA
UR301 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 SA
UR31 2007-000402 R-CHIP;150ohm,5%,1/10W,TP,1608 1 SA
UR33 2001-000449 R-CARBON;2.2Kohm,5%,1/8W,AA,TP,1.8x 1 SA
UR34 2007-000106 R-CHIP;220Kohm,5%,1/10W,TP,1608 1 SA
UR36 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA
UR38 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3 1 SA
UR45 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3 1 SA
UR47 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3 1 SA
UR48 2007-000402 R-CHIP;150ohm,5%,1/10W,TP,1608 1 SA
UR59 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
UR61 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
UR62 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
UR63 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
UR800 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3 1 SA
UR801 2001-000522 R-CARBON;22Kohm,5%,1/8W,AA,TP,1.8x3 1 SA
UR9 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 SA
VC1 2401-001092 C-AL;330uF,20%,10V,GP,-,8x11.5,2.5m 1 SA
VC19 2203-001652 C-CER,CHIP;470nF,+80-20%,16V,Y5V,16 1 SA
VC2 2401-001092 C-AL;330uF,20%,10V,GP,-,8x11.5,2.5m 1 SA
VC21 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA
VC22 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA
VC28 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 SA
VC29 2401-001092 C-AL;330uF,20%,10V,GP,-,8x11.5,2.5m 1 SA
VC3 2401-001092 C-AL;330uF,20%,10V,GP,-,8x11.5,2.5m 1 SA
VC4 2401-001092 C-AL;330uF,20%,10V,GP,-,8x11.5,2.5m 1 SA
VC5 2401-001092 C-AL;330uF,20%,10V,GP,-,8x11.5,2.5m 1 SA
VC6 2401-001092 C-AL;330uF,20%,10V,GP,-,8x11.5,2.5m 1 SA
VC7 2401-001092 C-AL;330uF,20%,10V,GP,-,8x11.5,2.5m 1 SA
VFD AH07-00231A VF DISPLAY-DA25;30-1101N,MM-DA25/A2 1 SA
VFD-HOLD
AH61-02548A HOLDER-VFD;MM-DA25,ABS,T2.5,W40,L80 1 SA
VFR1 2001-000019 R-CARBON(S);10ohm,5%,1/2W,AA,TP,2.4 1 SA
VJ1 AH37-00005A JACK-RCA;1P,S-440B,YELLOW,-,SHIELD 1 SA
VJ4 3722-002283 JACK-SCART;21P+3P,-,SN,BLK,- 1 SA
VL13 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115o 1 SA
VL3 2703-000275 INDUCTOR-SMD;33UH,10%,2012 1 SA
VL4 2703-000275 INDUCTOR-SMD;33UH,10%,2012 1 SA
VQ10 0504-000152 TR-DIGITAL;KSR2101,PNP,200mW,4.7K/4 1 SA
VQ11 0501-002184 TR-SMALL SIGNAL;KTD1304,NPN,200mW,S 1 SA
VQ12 0501-002184 TR-SMALL SIGNAL;KTD1304,NPN,200mW,S 1 SA
VQ13 0504-000128 TR-DIGITAL;-,NPN,200MW,22K/22K,SOT- 1 SA
VQ14 0501-002184 TR-SMALL SIGNAL;KTD1304,NPN,200mW,S 1 SA
VQ15 0504-000128 TR-DIGITAL;-,NPN,200MW,22K/22K,SOT- 1 SA
VQ7 0501-000341 TR-SMALL SIGNAL;KSC1623-L,NPN,200mW 1 SA
VR1 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 SA
VR2 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 SA
VR23 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3. 1 SA
VR24 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA
Samsung Electronics 5-9
Exploded View & Part List
Loc. No. Part No. Description;Specification Q’ty SNA Remark Loc. No. Part No. Description;Specification Q’ty SNA Remark
This Document can not be used without Samsung’s authorization.
VR25 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA
VR26 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608 1 SA
VR27 2007-000119 R-CHIP;560ohm,5%,1/10W,TP,1608 1 SA
VR28 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 SA
VR29 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA
VR3 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 SA
VR30 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3 1 SA
VR31 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 SA
VR32 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
VR34 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
VR35 2007-000075 R-CHIP;220ohm,5%,1/10W,TP,1608 1 SA
VR36 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
VR37 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 SA
VR4 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 SA
VR5 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 SA
VR6 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 SA
VR7 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 SA
VZD1 0403-001036 DIODE-ZENER;1N4745A,5%,1000MW,DO-41 1 SA
VZD2 0403-001036 DIODE-ZENER;1N4745A,5%,1000MW,DO-41 1 SA
XD1 0401-001090 DIODE-SWITCHING;1SS355,80V,100MA,SO 1 SA
XD10 0401-001090 DIODE-SWITCHING;1SS355,80V,100MA,SO 1 SA
XD11 0401-001090 DIODE-SWITCHING;1SS355,80V,100MA,SO 1 SA
XD12 0401-001090 DIODE-SWITCHING;1SS355,80V,100MA,SO 1 SA
XD13 0401-001090 DIODE-SWITCHING;1SS355,80V,100MA,SO 1 SA
XD14 0401-001090 DIODE-SWITCHING;1SS355,80V,100MA,SO 1 SA
XD15 0401-001090 DIODE-SWITCHING;1SS355,80V,100MA,SO 1 SA
XD16 0401-001090 DIODE-SWITCHING;1SS355,80V,100MA,SO 1 SA
XD2 0401-001090 DIODE-SWITCHING;1SS355,80V,100MA,SO 1 SA
XD3 0401-001090 DIODE-SWITCHING;1SS355,80V,100MA,SO 1 SA
XD4 0401-001090 DIODE-SWITCHING;1SS355,80V,100MA,SO 1 SA
XD5 0401-001090 DIODE-SWITCHING;1SS355,80V,100MA,SO 1 SA
XD6 0401-001090 DIODE-SWITCHING;1SS355,80V,100MA,SO 1 SA
XD7 0401-001090 DIODE-SWITCHING;1SS355,80V,100MA,SO 1 SA
XD8 0401-001090 DIODE-SWITCHING;1SS355,80V,100MA,SO 1 SA
XD9 0401-001090 DIODE-SWITCHING;1SS355,80V,100MA,SO 1 SA
X-TAL1 2802-001174 RESONATOR-CERAMIC;10MHZ,0.5%,BK,8X3 1 SA
X-TAL1A 2801-001394 CRYSTAL-UNIT;32.768KHz,20ppm,28-AAY 1 SA
AH99-10017R ASSY AUTO INSERT-PCB-MAIN;-,MM-DA25 1 SNA
AH97-00846A ASSY SUB MATERIAL;AH97-00846A,-,-,- 1 SNA
0201-001356 CEMEDINE;A121 0.003 SNA
0201-001357 ADHESIVE-STRL;THREE BOND 1401B,GRN, 0.5 SNA
FIL 0203-000007 TAPE-FILAMENT;3M,T0.15,W18,L55M,TRP 0.1 SNA
0203-001100 TAPE-OPP MASKING;OPP/W75/CLR,T0.05, 1.5 SNA
0203-001362 TAPE-DOUBLE FACE;#570 W10X50M CLR 10 SNA
0205-001366 GREASE-SILICON;T4110 1.4 SNA
AH97-02634R ASSY-MECHA;MM-DA25,NEW MODLE,-,- 1 SNA
6003-000275 SCREW-TAPTITE;BH,+,-,B,M3,L10,ZPC(B 14 SA
6003-001464 SCREW-TAPTITE;BH,+,B,M3,L10,ZPC(WHT 7 SNA
AH64-04512B CABINET-SIDE L;MM-DA25,HIPS,T15,W19 1 SA
AH64-04513B CABINET-SIDE R;MM-DA25,HIPS,T15,W19 1 SA
AH64-04515B DOOR-CD;MM-DA25,ABS,-,9,W9.2,L131.6 1 SA
AH64-04518A KNOB-VOLUME;MM-DA25,ABS,T50.7,W50.7 1 SA
AH69-02147A CUSHION-L;MM-DA25,EPS,T25,W388,L400 1 SNA
AH69-02148A CUSHION-R;MM-DA25,EPS,T40,W388,L400 1 SNA
AH97-02630C ASSY CABINET-FRONT;MM-DA25,-,-,- 1 SA
AH63-01566G COVER-FRONT;MM-DA25,ABS+PMMA,T29,W1 1 SA
AH64-04510B CABINET FRONT;MM-DA25,HIPS,T2.5,W17 1 SNA
AH64-04516B DECORATION-RING;MM-DA25,ABS,T21.8,W 1 SA
AH64-04517D KNOB-FUNCTION;MM-DA25,ABS,22.7,113. 1 SA
AH67-00497A LENS-VOLUME;MM-DA25,PMMA,-,60.4*60. 1 SA
AH97-02633C ASSY CABINET-REAR;MM-DA25,-,-,- 1 SA
6003-000275 SCREW-TAPTITE;BH,+,-,B,M3,L10,ZPC(B 2 SA
6502-001048 CABLE CLAMP;DACW130,-,T1.0,PE,BLK 1 SA
AH31-00029E MOTOR FAN;C161NK10B0110,MX-GT88,0.1 1 SA
AH64-04520C CABINET-REAR;MM-DA25,SECC T0.8,T7.8 1 SNA
AH97-02653A ASSY CABINET-TOP;MM-DA25,-,NO TAPE, 1 SA
AH63-01568B COVER-USB;MM-DA25,ABS+TPU,T16.4,W26 1 SA
AH64-04546B CABINET-TOP 2;MM-DA25,HIPS,T37.5,W1 1 SA
AH64-04547B KNOB-MIC;MM-DA25,ABS,T21.8,W79,L116 1 SA

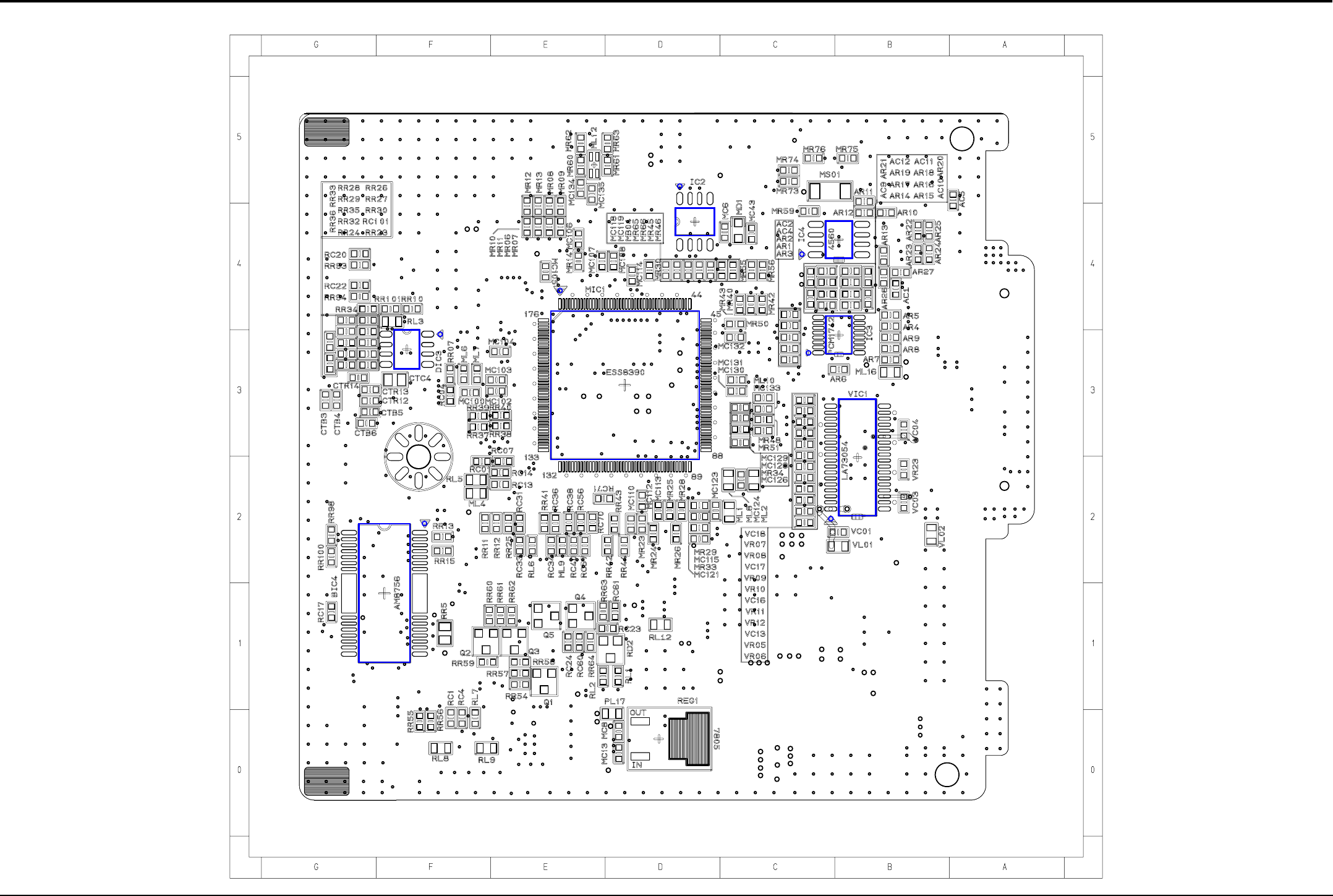

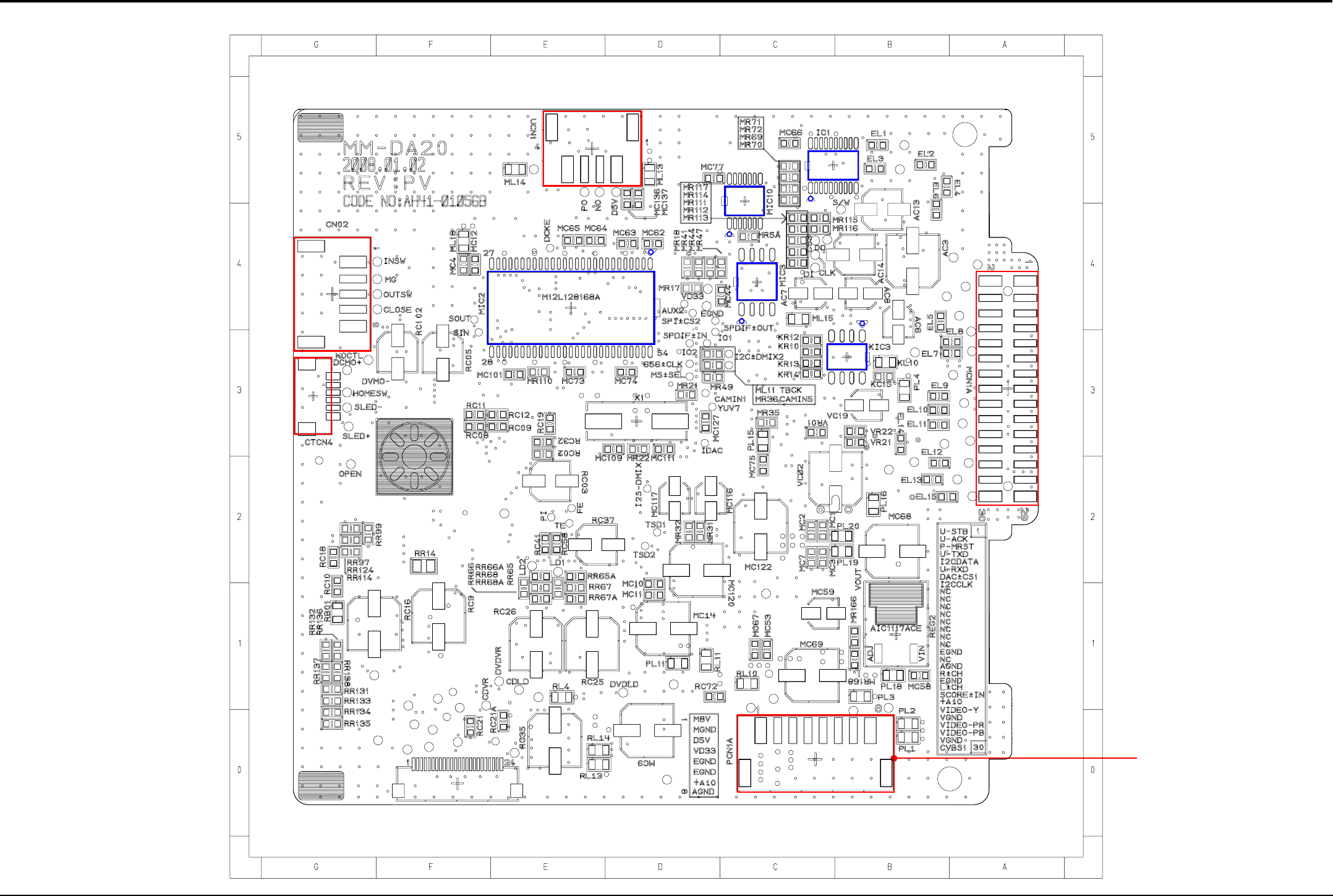

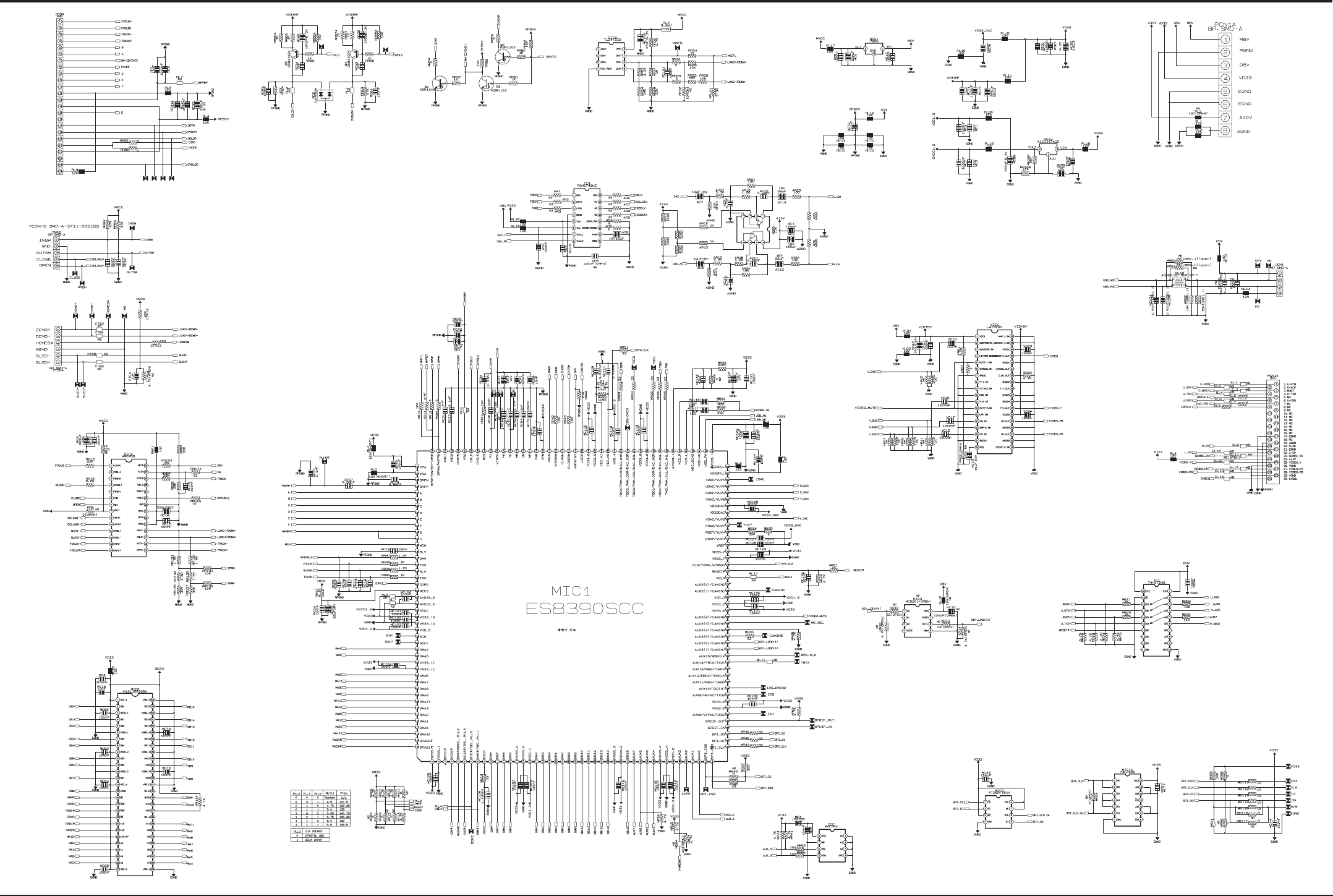

AH92-02822A ASSY PCB-MPEG;-,MM-DA20,ES8390 4 LA 1 SA
AC1 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,160 1 SA
AC10 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,TP,160 1 SA
AC11 2203-001607 C-CER,CHIP;0.22nF,5%,50V,NP0,1608 1 SA
AC12 2203-001607 C-CER,CHIP;0.22nF,5%,50V,NP0,1608 1 SA
AC13 2402-000136 C-AL,SMD;22uF,20%,16V,GP,TP,5.3x5.3 1 SA
AC14 2402-000136 C-AL,SMD;22uF,20%,16V,GP,TP,5.3x5.3 1 SA
AC2 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,160 1 SA
AC3 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6. 1 SA
AC4 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,160 1 SA
AC6 2402-001049 C-AL,SMD;10uF,20%,16V,GP,TP,3.3x3.3 1 SA
AC7 2402-001049 C-AL,SMD;10uF,20%,16V,GP,TP,3.3x3.3 1 SA
AC8 2402-001049 C-AL,SMD;10uF,20%,16V,GP,TP,3.3x3.3 1 SA
AC9 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,TP,160 1 SA
AR1 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA
AR10 2007-000060 R-CHIP;100Kohm,1%,1/10W,TP,1608 1 SA
AR11 2007-000060 R-CHIP;100Kohm,1%,1/10W,TP,1608 1 SA
AR12 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA
AR13 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA
AR14 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 SA
AR15 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 SA
AR16 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608 1 SA
AR17 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608 1 SA
AR18 2007-000123 R-CHIP;1.5Kohm,5%,1/10W,TP,1608 1 SA
AR19 2007-000123 R-CHIP;1.5Kohm,5%,1/10W,TP,1608 1 SA
AR2 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA
AR20 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
AR21 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
AR22 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
AR23 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
AR24 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 SA
AR25 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 SA
AR26 2007-000060 R-CHIP;100Kohm,1%,1/10W,TP,1608 1 SA
AR27 2007-000060 R-CHIP;100Kohm,1%,1/10W,TP,1608 1 SA
AR3 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA
AR4 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
AR5 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
AR6 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA
AR7 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA
AR8 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA
AR9 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA
BIC4 1003-001978 IC-MOTOR DRIVER;AM5766,HSOP28H,28P, 1 SA
CN02 3711-005155 HEADER-BOARD TO CABLE;BOX,5P,1R,2MM 1 SA
CN3A 3708-002062 CONNECTOR-FPC/FFC/PIC;24P,0.5MM,SMD 1 SA
5-10 Samsung Electronics
Exploded View & Part List
Loc. No. Part No. Description;Specification Q’ty SNA Remark Loc. No. Part No. Description;Specification Q’ty SNA Remark
This Document can not be used without Samsung’s authorization.
CTB3 3301-001069 BEAD-SMD;120ohm,1.6x0.8x0.8mm,200mA 1 SA
CTB4 3301-001069 BEAD-SMD;120ohm,1.6x0.8x0.8mm,200mA 1 SA
CTB5 3301-001069 BEAD-SMD;120ohm,1.6x0.8x0.8mm,200mA 1 SA
CTB6 3301-001069 BEAD-SMD;120ohm,1.6x0.8x0.8mm,200mA 1 SA
CTC4 2203-000477 C-CER,CHIP;1000NF,+80-20%,16V,Y5V,T 1 SA
CTCN4 3708-002342 CONNECTOR-FPC/FFC/PIC;6P,1mm,SMD-A, 1 SA
CTR12 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 SA
CTR13 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
DIC3 1201-001842 IC-OP AMP;TL3472CD,SO,TP,8P,-,DUAL, 1 SA
EL1 3301-001069 BEAD-SMD;120ohm,1.6x0.8x0.8mm,200mA 1 SA
EL10 3301-001069 BEAD-SMD;120ohm,1.6x0.8x0.8mm,200mA 1 SA
EL12 3301-001069 BEAD-SMD;120ohm,1.6x0.8x0.8mm,200mA 1 SA
EL13 3301-001069 BEAD-SMD;120ohm,1.6x0.8x0.8mm,200mA 1 SA
EL14 3301-001069 BEAD-SMD;120ohm,1.6x0.8x0.8mm,200mA 1 SA
EL15 3301-001069 BEAD-SMD;120ohm,1.6x0.8x0.8mm,200mA 1 SA
EL16 3301-001069 BEAD-SMD;120ohm,1.6x0.8x0.8mm,200mA 1 SA
EL2 3301-001069 BEAD-SMD;120ohm,1.6x0.8x0.8mm,200mA 1 SA
EL3 3301-001069 BEAD-SMD;120ohm,1.6x0.8x0.8mm,200mA 1 SA
EL4 3301-001069 BEAD-SMD;120ohm,1.6x0.8x0.8mm,200mA 1 SA
EL5 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
EL6 3301-001069 BEAD-SMD;120ohm,1.6x0.8x0.8mm,200mA 1 SA
EL7 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
EL8 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
EL9 3301-001069 BEAD-SMD;120ohm,1.6x0.8x0.8mm,200mA 1 SA
IC1 0801-002683 IC-CMOS LOGIC;74HCT245,TRANSCEIVER, 1 SA
IC2 1103-001333 IC-EEPROM;24C08A,1Kx8Bit,SOP,8P,5x4 1 SA
IC3 1002-001294 IC-D/A CONVERTER;PCM1742KE,24BIT,TS 1 SA
IC4 1201-000163 IC-OP AMP;4560,SOP,8P,173MIL,DUAL,1 1 SA
MC1 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608 1 SA
MC10 2203-005819 C-CER,CHIP;1000nF,+80-20%,16V,Y5V,- 1 SA
MC100 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,160 1 SA
MC101 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,160 1 SA
MC102 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,160 1 SA
MC103 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,160 1 SA
MC104 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,160 1 SA
MC105 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,160 1 SA
MC106 2203-001086 C-CER,CHIP;0.0050nF,0.25pF,50V,NP0, 1 SA
MC107 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,160 1 SA
MC108 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,160 1 SA
MC109 2203-000681 C-CER,CHIP;0.027nF,5%,50V,C0G,1608 1 SA
MC11 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608 1 SA
MC110 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,160 1 SA
MC111 2203-000646 C-CER,CHIP;0.024NF,5%,50V,C0G,TP,16 1 SA
MC112 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,160 1 SA
MC113 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,160 1 SA
MC114 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,160 1 SA
MC115 2203-000062 C-CER,CHIP;47nF,+80-20%,50V,Y5V,160 1 SA
MC116 2402-001049 C-AL,SMD;10uF,20%,16V,GP,TP,3.3x3.3 1 SA
MC117 2402-001049 C-AL,SMD;10uF,20%,16V,GP,TP,3.3x3.3 1 SA
MC118 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,160 1 SA
MC119 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,160 1 SA
MC12 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608 1 SA
MC120 2402-000167 C-AL,SMD;100uF,20%,10V,-,-,6.6x6.6x 1 SA
MC121 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,160 1 SA
MC122 2402-000167 C-AL,SMD;100uF,20%,10V,-,-,6.6x6.6x 1 SA
MC123 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,160 1 SA
MC124 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,160 1 SA
MC126 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,160 1 SA
MC127 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,160 1 SA
MC128 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,160 1 SA
MC129 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,160 1 SA
MC13 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,160 1 SA
MC130 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,160 1 SA
MC131 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,160 1 SA
MC132 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,160 1 SA
MC133 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,160 1 SA
MC134 2203-000280 C-CER,CHIP;0.01nF,0.5pF,50V,C0G,160 1 SA
MC135 2203-000280 C-CER,CHIP;0.01nF,0.5pF,50V,C0G,160 1 SA
MC137 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,160 1 SA
MC14 2402-001096 C-AL,SMD;220UF,20%,16V,GP,TP,6.6X6. 1 SA
MC2 2203-005819 C-CER,CHIP;1000nF,+80-20%,16V,Y5V,- 1 SA
MC3 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608 1 SA
MC4 2203-005819 C-CER,CHIP;1000nF,+80-20%,16V,Y5V,- 1 SA
MC43 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,160 1 SA
MC44 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,160 1 SA
MC53 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608 1 SA
MC58 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,160 1 SA
MC59 2402-001049 C-AL,SMD;10uF,20%,16V,GP,TP,3.3x3.3 1 SA
MC6 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,160 1 SA
MC62 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,160 1 SA
MC63 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,160 1 SA
MC64 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,160 1 SA
MC65 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,160 1 SA
MC66 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,160 1 SA
MC67 2203-005819 C-CER,CHIP;1000nF,+80-20%,16V,Y5V,- 1 SA
MC68 2402-001198 C-AL,SMD;330UF,20%,6.3V,GP,TP,6.6X6 1 SA
MC69 2402-001198 C-AL,SMD;330UF,20%,6.3V,GP,TP,6.6X6 1 SA
MC7 2203-005819 C-CER,CHIP;1000nF,+80-20%,16V,Y5V,- 1 SA
MC70 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 SA
MC73 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,160 1 SA
MC74 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,160 1 SA
MC75 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,160 1 SA
MC77 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,160 1 SA
MC8 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,160 1 SA
MC9 2402-001096 C-AL,SMD;220UF,20%,16V,GP,TP,6.6X6. 1 SA
MCN1A 3710-002223 SOCKET-BOARD TO CABLE;30P,2R,2mm,SM 1 SA
MD1 0401-001090 DIODE-SWITCHING;1SS355,80V,100MA,SO 1 SA
MIC1 1204-002867 IC-PAL/NTSC DECODER;ES8390SCC,LQFP, 1 SA
MIC10 0801-002391 IC-CMOS LOGIC;74LCX00,NAND GATE,TSS 1 SA
MIC2 1105-001573 IC-DRAM;K4S281632,-,128Mbit,8Mx16Bi 1 SA
MIC3 1107-001600 IC-NOR FLASH;MX25L1605A,16Mbit,2Mx8 1 SA
ML1 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115o 1 SA
ML10 3301-001069 BEAD-SMD;120ohm,1.6x0.8x0.8mm,200mA 1 SA
ML11 3301-001069 BEAD-SMD;120ohm,1.6x0.8x0.8mm,200mA 1 SA
ML12 2901-001302 FILTER-EMI SMD;20V,0.3A,0pF,2.0x1.2 1 SA
ML13 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115o 1 SA
ML14 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115o 1 SA
ML15 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115o 1 SA
ML16 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115o 1 SA
ML18 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115o 1 SA
ML2 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115o 1 SA
ML4 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115o 1 SA
ML6 3301-001069 BEAD-SMD;120ohm,1.6x0.8x0.8mm,200mA 1 SA
ML7 3301-001069 BEAD-SMD;120ohm,1.6x0.8x0.8mm,200mA 1 SA
ML8 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115o 1 SA
ML9 3301-001069 BEAD-SMD;120ohm,1.6x0.8x0.8mm,200mA 1 SA
Samsung Electronics 5-11
Exploded View & Part List
Loc. No. Part No. Description;Specification Q’ty SNA Remark Loc. No. Part No. Description;Specification Q’ty SNA Remark
This Document can not be used without Samsung’s authorization.
MR06 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA
MR07 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA
MR10 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA
MR110 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA
MR111 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 SA
MR112 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 SA
MR113 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 SA
MR114 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 SA
MR115 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 SA
MR13 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA
MR14 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA
MR166 2007-000119 R-CHIP;560ohm,5%,1/10W,TP,1608 1 SA
MR168 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
MR17 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA
MR18 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA
MR21 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA
MR22 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 SA
MR23 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA
MR24 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA
MR25 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA
MR26 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA
MR28 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA
MR30 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA
MR31 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 SA
MR32 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 SA
MR33 2007-000133 R-CHIP;330Kohm,5%,1/10W,TP,1608 1 SA
MR34 2007-000118 R-CHIP;390ohm,5%,1/10W,TP,1608 1 SA
MR35 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
MR36 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA
MR40 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA
MR41 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA
MR42 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA
MR43 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA
MR44 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA
MR46 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA
MR47 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
MR48 2007-000081 R-CHIP;2.7Kohm,5%,1/10W,TP,1608 1 SA
MR49 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA
MR50 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA
MR51 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA
MR59 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
MR62 2007-000092 R-CHIP;15Kohm,5%,1/10W,TP,1608 1 SA
MR63 2007-000092 R-CHIP;15Kohm,5%,1/10W,TP,1608 1 SA
MR65 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
MR66 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
MR69 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
MR70 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
MR71 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA
MR72 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA
MR73 2007-000081 R-CHIP;2.7Kohm,5%,1/10W,TP,1608 1 SA
MR74 2007-000081 R-CHIP;2.7Kohm,5%,1/10W,TP,1608 1 SA
MR75 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA
MR76 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA
PCB AH41-01056B PCB;MM-DA20,EPOXY,4.0,0,1.6T,197*1 0.5 SNA
PCN1A 3711-005644 CONNECTOR-HEADER;BOX,8P,1R,2mm,SMD- 1 SA
PL11 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115o 1 SA
PL15 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115o 1 SA
PL16 2007-000029 R-CHIP;0ohm,5%,1/8W,TP,2012 1 SA
PL17 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115o 1 SA
PL18 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115o 1 SA
PL19 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115o 1 SA
PL20 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115o 1 SA
PL4 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115o 1 SA
Q1 0504-000128 TR-DIGITAL;-,NPN,200MW,22K/22K,SOT- 1 SA
Q2 0504-000128 TR-DIGITAL;-,NPN,200MW,22K/22K,SOT- 1 SA
Q3 0504-000128 TR-DIGITAL;-,NPN,200MW,22K/22K,SOT- 1 SA
Q4 0501-000632 TR-SMALL SIGNAL;2SB1197K,PNP,200mW, 1 SA
Q5 0501-000632 TR-SMALL SIGNAL;2SB1197K,PNP,200mW, 1 SA
RB01 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115o 1 SA
RC01 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 SA
RC02 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608 1 SA
RC03 2402-000136 C-AL,SMD;22uF,20%,16V,GP,TP,5.3x5.3 1 SA
RC04 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,160 1 SA
RC05 2402-000136 C-AL,SMD;22uF,20%,16V,GP,TP,5.3x5.3 1 SA
RC07 2203-001126 C-CER,CHIP;0.68nF,10%,50V,X7R,1608 1 SA
RC08 2203-001652 C-CER,CHIP;470nF,+80-20%,16V,Y5V,16 1 SA
RC09 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608 1 SA
RC1 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608 1 SA
RC10 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,160 1 SA
RC101 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,16 1 SA
RC102 2402-000009 C-AL,SMD;47uF,20%,6.3V,GP,TP,5.3x5. 1 SA
RC11 2203-001652 C-CER,CHIP;470nF,+80-20%,16V,Y5V,16 1 SA
RC12 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608 1 SA
RC13 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,160 1 SA
RC14 2203-001126 C-CER,CHIP;0.68nF,10%,50V,X7R,1608 1 SA
RC16 2402-001096 C-AL,SMD;220UF,20%,16V,GP,TP,6.6X6. 1 SA
RC17 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,160 1 SA
RC18 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,160 1 SA
RC19 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,160 1 SA
RC20 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,16 1 SA
RC21 2203-005819 C-CER,CHIP;1000nF,+80-20%,16V,Y5V,- 1 SA
RC21A 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608 1 SA
RC22 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,16 1 SA
RC23 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 SA
RC24 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 SA
RC25 2402-001009 C-AL,SMD;100uF,20%,6.3V,GP,TP,5.3x5 1 SA
RC26 2402-001009 C-AL,SMD;100uF,20%,6.3V,GP,TP,5.3x5 1 SA
RC31 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 SA
RC32 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,160 1 SA
RC33 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 SA
RC34 2203-000280 C-CER,CHIP;0.01nF,0.5pF,50V,C0G,160 1 SA
RC35 2402-001198 C-AL,SMD;330UF,20%,6.3V,GP,TP,6.6X6 1 SA
RC36 2203-002398 C-CER,CHIP;22nF,10%,50V,X7R,1608 1 SA
RC37 2402-000136 C-AL,SMD;22uF,20%,16V,GP,TP,5.3x5.3 1 SA
RC4 2203-005819 C-CER,CHIP;1000nF,+80-20%,16V,Y5V,- 1 SA
RC41 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1 1 SA
RC56 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,TP,160 1 SA
RC57 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 SA
RC58 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608 1 SA
RC60 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,160 1 SA
RC61 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,160 1 SA
RC70 2203-005015 C-CER,CHIP;150nF,+80-20%,16V,Y5V,16 1 SA
RC71 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,160 1 SA
RC72 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,160 1 SA
RC9 2402-001096 C-AL,SMD;220UF,20%,16V,GP,TP,6.6X6. 1 SA
RD2 0407-000116 DIODE-ARRAY;KDS181, DAP202K,80V,100 1 SA
REG1 1203-001255 IC-POSI.FIXED REG.;7805,D-PAK,3P,-, 1 SA
5-12 Samsung Electronics
Exploded View & Part List
Loc. No. Part No. Description;Specification Q’ty SNA Remark Loc. No. Part No. Description;Specification Q’ty SNA Remark
This Document can not be used without Samsung’s authorization.
REG2 1203-002935 IC-POSI.ADJUST REG.;AIC1117ACE,TO-2 1 SA
RL1 3301-001069 BEAD-SMD;120ohm,1.6x0.8x0.8mm,200mA 1 SA
RL10 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115o 1 SA
RL11 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115o 1 SA
RL12 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115o 1 SA
RL13 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115o 1 SA
RL14 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115o 1 SA
RL2 3301-001069 BEAD-SMD;120ohm,1.6x0.8x0.8mm,200mA 1 SA
RL3 2703-000185 INDUCTOR-SMD;3.3uH,10%,2012 1 SA
RL4 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115o 1 SA
RL5 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115o 1 SA
RL6 3301-001069 BEAD-SMD;120ohm,1.6x0.8x0.8mm,200mA 1 SA
RL7 3301-001069 BEAD-SMD;120ohm,1.6x0.8x0.8mm,200mA 1 SA
RL8 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115o 1 SA
RL9 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115o 1 SA
RR07 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA
RR10 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
RR100 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA
RR101 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608 1 SA
RR114 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 SA
RR124 2007-000092 R-CHIP;15Kohm,5%,1/10W,TP,1608 1 SA
RR13 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608 1 SA
RR14 2007-000029 R-CHIP;0ohm,5%,1/8W,TP,2012 1 SA
RR15 2007-000087 R-CHIP;6.8Kohm,5%,1/10W,TP,1608 1 SA
RR23 2007-000124 R-CHIP;2.2Kohm,5%,1/10W,TP,1608 1 SA
RR24 2007-000458 R-CHIP;18Kohm,5%,1/10W,TP,1608 1 SA
RR26 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA
RR27 2007-000109 R-CHIP;1Mohm,5%,1/10W,TP,1608 1 SA
RR28 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608 1 SA
RR29 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
RR30 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
RR33 2007-000120 R-CHIP;680ohm,5%,1/10W,TP,1608 1 SA
RR34 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA
RR35 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
RR36 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
RR37 2007-000122 R-CHIP;1.2Kohm,5%,1/10W,TP,1608 1 SA
RR38 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA
RR39 2007-000122 R-CHIP;1.2Kohm,5%,1/10W,TP,1608 1 SA
RR40 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA
RR41 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
RR42 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
RR43 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 SA
RR44 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 SA
RR54 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
RR55 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
RR56 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
RR57 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA
RR58 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
RR59 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
RR60 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA
RR61 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA
RR62 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
RR63 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 SA
RR64 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 SA
RR65 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA
RR65A 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
RR66 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 SA
RR66A 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
RR67 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 SA
RR67A 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 SA
RR68 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 SA
RR68A 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 SA
RR93 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 SA
RR94 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 SA
RR97 2007-000098 R-CHIP;56Kohm,5%,1/10W,TP,1608 1 SA
RR98 2007-000130 R-CHIP;39Kohm,5%,1/10W,TP,1608 1 SA
RR99 2007-000098 R-CHIP;56Kohm,5%,1/10W,TP,1608 1 SA
UCN1 3711-005306 HEADER-BOARD TO CABLE;BOX,4P,1R,2MM 1 SA
VC01 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,160 1 SA
VC02 2402-000167 C-AL,SMD;100uF,20%,10V,-,-,6.6x6.6x 1 SA
VC03 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,160 1 SA
VC04 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,160 1 SA
VC13 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,160 1 SA
VC16 2203-006348 C-CER,CHIP;1000nF,10%,25V,X5R,TP,16 1 SA
VC17 2203-006348 C-CER,CHIP;1000nF,10%,25V,X5R,TP,16 1 SA
VC18 2203-006348 C-CER,CHIP;1000nF,10%,25V,X5R,TP,16 1 SA
VC19 2402-001049 C-AL,SMD;10uF,20%,16V,GP,TP,3.3x3.3 1 SA
VCN1 3711-005160 HEADER-BOARD TO CABLE;BOX,6P,1R,2mm 1 SA
VIC1 1204-001978 IC-VIDEO PROCESS;LA73054,-,36P,-,SS 1 SA
VL01 3301-001495 BEAD-SMD;120ohm,2012,2500mA,TP,115o 1 SA
VL02 2007-000029 R-CHIP;0ohm,5%,1/8W,TP,2012 1 SA
VR01 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA
VR05 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 SA
VR06 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 SA
VR07 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 SA
VR08 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 SA
VR09 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 SA
VR10 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 SA
VR11 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 SA
VR12 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 SA
VR21 2007-000125 R-CHIP;3.9Kohm,5%,1/10W,TP,1608 1 SA
VR23 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA
X1 2801-004284 CRYSTAL-SMD;27MHZ,10PPM,28-AAN,20PF 1 SA
AH39-00994A WIRE HARNESS;MM-DA25,UL1007#24TA,-, 1 SA
AH39-00996A WIRE HARNESS;MM-DA25,-,-,4P,-,-,-,A 1 SA
AH39-01006A WIRE HARNESS;MM-DA25,UL1007#24TA,-, 1 SA
AH44-00186A SMPS;MM-DA25,HECK DA25000-F,AC/DC, 1 SA
AH97-01831A ASSY DECK-DVD;SDM-D1FL,CMS-S75RBL,B 1 SA
AH99-10012L ASSY AUTO INSERT-PCB-MPEG;-,MM-DA20 1 SNA
AH97-02632A ASSY CABINET-BOTTOM;MM-DA25,-,MM-DA 1 SA
6003-001464 SCREW-TAPTITE;BH,+,B,M3,L10,ZPC(WHT 11 SNA
AH61-02556A HOLDER-SMPS;MM-DA25,SECC,T0.8,W149, 1 SA
AH64-04519A CABINET-BOTTOM;MM-DA25,SECC T0.8,T1 1 SNA
AH65-30010A CLAMP-WIRE;-,-,-,-,-,- 1 SNA
AH69-20031A CUSHION-FOOT;-,-,-,BLK,-,T2.0,-,-,M 2 SNA
AH97-02862M ASSY MACHINERY-ACCESSORY;XAX,MM-DA2 1 SNA
6801-001634 CARD-REGISTRATION;Russia,XER,NWT,Ru 1 SNA
6801-001669 CARD-WARRANTY;RUSS,XER,RUS,SNOWWHIT 1 SNA
6902-000385 BAG PE;LDPE,T0.03,W250,L350,TRP,8,1 1 SA
AH39-00320C CBF COAXIAL CABLE;MAX-L68,110REC,-, 1 SA
AH39-40001V CABLE-AUDIO CABLE;-,-,1P-1P,3000mm, 1 SA
AH68-02050P MANUAL USERS;MM-DA25,XAA,ENG,-,MOJO 1 SA
AH68-50254B LABEL-SERIAL;ART PAPER,T0.1,L10,W45 1.05 SNA
AH81-02286C A/S-EYEGLASS CLOTH;HT-TXQ120,POLY-B 1 SNA
Samsung Electronics 5-13
Exploded View & Part List
Loc. No. Part No. Description;Specification Q’ty SNA Remark Loc. No. Part No. Description;Specification Q’ty SNA Remark
This Document can not be used without Samsung’s authorization.
AH97-02879H ASSY MACHINERY-MAIN OTHER;SIM,MM-DA 1 SNA
3809-001325 CABLE-FLAT;30V,80C,120MM,6P,1.25MM, 1 SA
3809-001377 FPC CABLE-FLAT;30V,80C,150MM,27P,1. 1 SA
3809-001972 CABLE-FLAT;30V,80,120mm,12P,1.25mm, 1 SA
AH63-01301A SHEET-SET;HT-Q40,-,-,-,-,-,- 1 SNA
AH65-30010A CLAMP-WIRE;-,-,-,-,-,- 1 SNA
AH68-00371A LABEL-BAR CODE;DVD-611/XAA,-,MOJO20 1.05 SNA
AH68-01929G LABEL RATING;HT-A100,XTL,SLIVER PET 1.05 SNA
AH68-01984A MANUAL-CLEANING;HT-X200,-,-,-,ART P 1 SNA
AH68-02085C LABEL-POP;MM-DA25,EUR,RAINBOW SHEET 1 SA
AH39-00257A CBF-POWER CORD;Z-88,-,CP2,250V,2.5A 1 SA
AH59-01960B REMOCON-ASSY;MM-DA25 REMOCON,NO TA 1 SA
AH69-02149A MASTER CARTON;MM-DA25,PAPER,T7,W451 1 SA
Samsung Electronics 6-1
PCB Diagram
6. PCB Diagram
6-1 Wiring Diagram................................................................................................. 6-2
6-2 MIC PCB Top ..................................................................................................... 6-3
6-3 MIC PCB Bottom .............................................................................................. 6-5
6-4 FRONT PCB Top ............................................................................................... 6-6
6-5 FRONT PCB Bottom ........................................................................................ 6-8
6-6 MAIN PCB Top .................................................................................................. 6-9
6-7 MAIN PCB Bottom ............................................................................................ 6-11
6-8 MPEG PCB Top ................................................................................................. 6-13
6-9 MPEG PCB Bottom .......................................................................................... 6-15
6-10 SMPS PCB Top ................................................................................................. 6-16
6-11 SMPS PCB Bottom ........................................................................................... 6-18
6-12 CD PCB Top ...................................................................................................... 6-19
6-2 Samsung Electronics
PCB Diagram
6-1 Wiring Diagram
1V5
2A
T
AD
3KLC
4DNGM
1J
U
562100
-8073
11J
U
MIC-SIGNAL
GND
NO-MIC-MUTE
GND
GND
5.6V
R CH
HP GND
L CH
HEADPHONE SENSOR
MIC SENSOR
MIC-KEY
391000-8073
12
11
10
9
8
7
6
5
4
3
2
1
2NOCJ
SOL
MUTE
REC
REC MUTE
MOTOR ON
HALL
AD3
AD4
12V ALLTIME
GND
12V
REC R
REC L
TAPE R
GND
TAPE L
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
12
11
10
9
8
7
6
5
4
3
2
1
SOL
MUTE
REC
REC MUTE
MOTOR ON
HALL
AD3
AD4
12V ALLTIME
GND
12V
REC R
REC L
TAPE R
GND
TAPE L
MIC-SIGNAL
GND
NO-MIC-MUTE
GND
GND
5.6V
R CH
HP GND
L CH
HEADPHONE SENSOR
MIC SENSOR
MIC-KEY
01WC
M 2
D/
AKLC
-
C
I
M
1
391000
-8073 T
A
D-CI
M
3 A 4CVP
OD-LOV5 W OD-LOV W 6
8P
U-LO
V
PU-L
O
V7
01D
N
G
D
N
G
9
21
EC
-
D
F
V
EC
-
D
F
V
11
41
KLC
-D
F
V
KLC
-D
F
V31
T
A
D-D
F
V31 A TA
D
-DFV A61
81DFVDFV71
02
DFVDFV91
22
DNG
R
-
CER
12 ETADP
UP 1TE
S
ER
42V6.5
L
-C
ER
32 E
T
AD
PU F 21DD
V
62
V21
R
T
U
O
G
I52 3D
N
G
C
MR72 4
59
569
679
2UM
E
PATLO
S
1
U
M C
ER
C
ER3
1W
C
F T 4
000-8073
2
RO
T
OM5 O 6
3
DA
R
EWO
P
4DA7 O8
01LLAHETUM A9
T
AD S
D
RKLC SDR11 A21
41A
TA
DO
SN
E
S
P
31
61D
N
GB
MOCIM51
81KLCD RENUT71
02D RENUTC RENUT91
A-V2112 A C L PM H 22
DNG32 A C R PM H 42
GIS CIM52 N 62NO DC
82DNGH
C
L
D
C
72
03DNGVHC R DC92
3WC
P23Y/GSOPMOC13
241600-1173 43rP/RbP/B33
+VS
+VS
GND
GND
-VS
-VS
ALL 12V
MGND
POWER ON
5.6V
P-SENS
CD ON
VFD
VFD
VP
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
33UM EPATLOS43
U
M C
E
RC
E
R23 T 13
1V5
R
O
TO
M
03 O 92
3D
A
2AT
A
D
R
EW
OP
4
DA82 O 72
3KLC
52LLAHETUM A62
4DNGM
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
TAD
S
D
RKLC S
D
R42 A 32
+VS
+VS
GND
GND
-VS
-VS
ALL 12V
MGND
POWER ON
5.6V
P-SENS
CD ON
VFD
VFD
VP
12A
TA
DO
SN
E
S P22
91DNGB MOCIM02
224100-0173
71KLCD RENUT81
51D RENUTC RENUT61
A-V2141 AC L
P
M H 31
DNG
21 A C
R
P
M H 11
GIS CIM01 N 9NO DC
7DNGHC L DC8
6AWU
5DNGVHC R DC6
472000-8073
3Y/G
S
OPMOC4
1r
P/R
b
P/B2
87654321
DNGAV01ADNGEDNGE33DVV5DDNGMV8M
87
654
321
D
N
G
AV01A
D
N
G
EDNGE
33
DVV5D
DNG
MV8M
2
D/
AKLC
-
C
I
M
1
T
A
D-CI
M
3 A 4CVP
OD-LOV5 W OD-LOV W 6
8P
U-LO
V
PU-L
O
V7
01D
N
G
D
N
G
9
21
EC
-
D
F
V
EC
-
D
F
V
11
41
KLC
-D
F
V
KLC
-D
F
V31
T
A
D-D
F
V31 A TA
D
-DFV A61
81DFVDFV71
02
DFVDFV91
22
DNG
R
-
CER
12
42V6.5
L
-C
ER
32
62
V21
R
T
U
O
G
I52
C
MR72
MAIN BOARD
TAPE DECK
SMPS
FRONT BOARD
MIC & KEY BORAD
MPEG BOARD
12P FPC
15P BOX
27P FPC
4P
30P FPC
Samsung Electronics 6-3
PCB Diagram

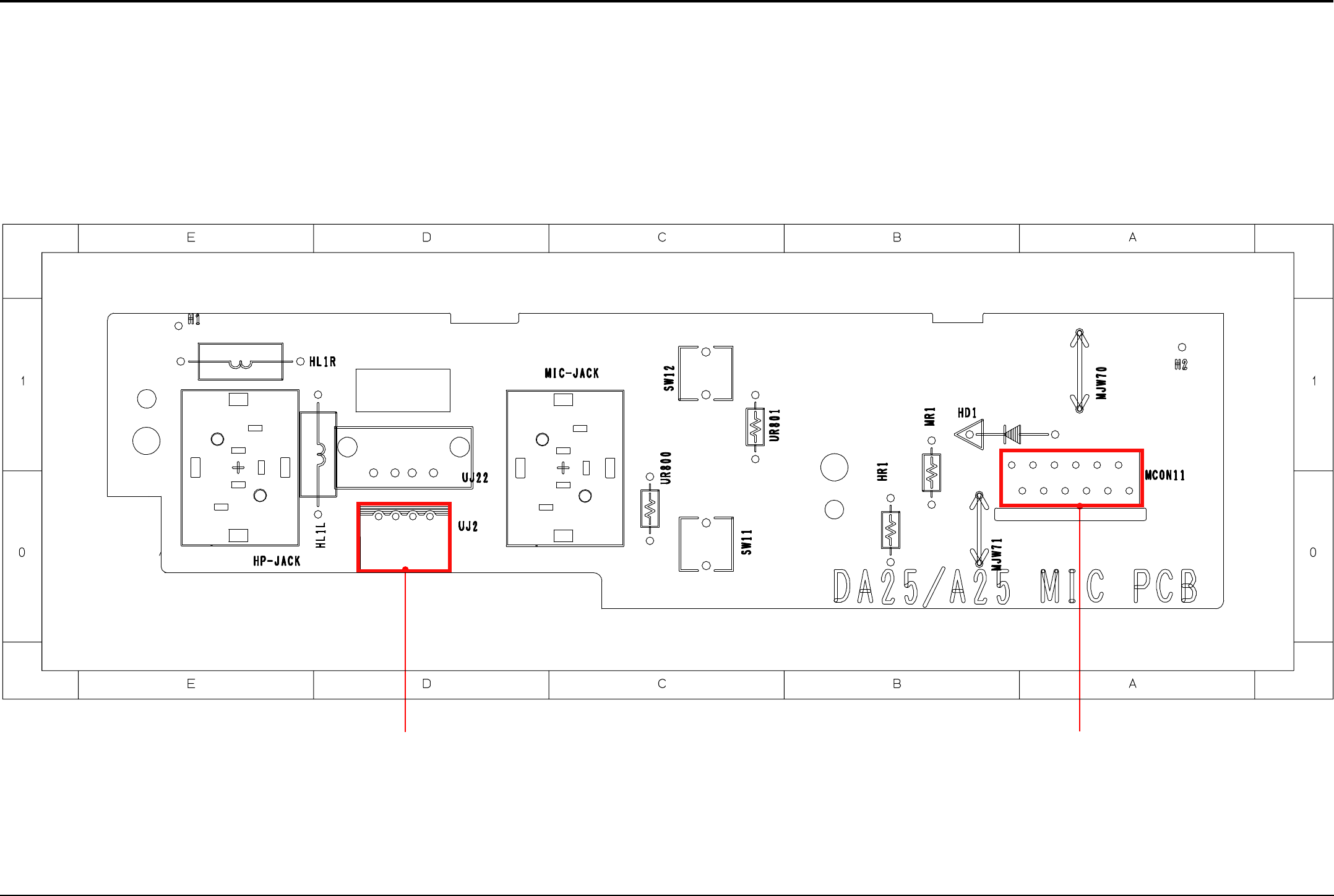

6-2 MIC PCB Top
1 2
MCON11
UJ2
6-4 Samsung Electronics
PCB Diagram
2 MCON11
MIC/HP Signal Connector
Pin No. Signal
1 MIC-KEY
2 MIC-SENS
3 HP_SENS
4 HP_LCH
5 GND
6 HP_RCH
7 5.6V
8 GND
9 GND
10 NC-GND
11 GND
12 MIC-SIGNAL
6-2-1 Pin Connection
1 UJ2
USB Signal Connector
Pin No. Signal
1 +5V
2 USB_D-
3 USB_D+
4 GND
Samsung Electronics 6-5
PCB Diagram
6-3 MIC PCB Bottom
MCON11
UJ2
6-6 Samsung Electronics
PCB Diagram
1
2
6-4 FRONT PCB Top
MCW1
VFD1
UJ11
Samsung Electronics 6-7
PCB Diagram
2 UJ11
MIC/HP Signal Connector
Pin No. Signal
1 MIC-KEY
2 MIC-SENS
3 HP_SENS
4 HP_LCH
5 GND
6 HP_RCH
7 5.6V
8 GND
9 GND
10 NC-GND
11 GND
12 MIC-SIGNAL
6-4-1 Pin Connection
1 MCW1
Signal Connector
Pin No. Signal
1 RMC
2 AD
3 MIC-SIG
4 GND
5 GND
6 GND
7 GND
8 MIC-SENS
9 HP-SENS
10 FUNCTION_L
11 GND
12 FUNCTION_R
13 -12V
14 12V
15 5.6V
16 GND
17 -VP
18 +VFD
19 -VFD
20 VFD_DATA
21 VFD_CLK
22 VFD_CE
23 GND
24 VOL_UP
25 VOL_DOWN
26 MIC_DATA
27 MIC_CLK
6-8 Samsung Electronics
PCB Diagram
6-5 FRONT PCB Bottom
MCW1
VFD1
UJ11
UIC2
HIC2
MIC1
Samsung Electronics 6-9
PCB Diagram
6-6 MAIN PCB Top
1
4
2
3
FCW1
MJW59
FCW10
MCW10
TCON13
PCW3
6-10 Samsung Electronics
PCB Diagram
2 PCW3
POWER LINE Connector
Pin No. Signal
1 +AMP
2 +AMP
3 GND
4 GND
5 -AMP
6 +AMP
7 +12V
8 GND
9 P.ON
10 5.6V
11 P/S
12 PC2
13 -VFD
14 +VFD
15 -VP
6-6-1 Pin Connection
1 FCW1
Signal Connector
Pin No. Signal
1 RMC
2 AD
3 MIC-SIG
4 GND
5 GND
6 GND
7 GND
8 MIC-SENS
9 HP-SENS
10 FUNCTION_L
11 GND
12 FUNCTION_R
13 -12V
14 12V
15 5.6V
16 GND
17 -VP
18 +VFD
19 -VFD
20 VFD_DATA
21 VFD_CLK
22 VFD_CE
23 GND
24 VOL_UP
25 VOL_DOWN
26 MIC_DATA
27 MIC_CLK
3 FCW10
CD/DVD Signal Connector
Pin No. Signal
1 RESERVE/U_STB
2 U_RST/U-ACK
3 U_DIN/P-MRST
4 U_DO/I2CDATA
5 U_CANCEL/U_RXD
6 U-IN/DAC
7 U-MUTE/I2CCLK
8 DSP-CE/NC
9 CD-RST/
10 CD-MUTE
11 CLOSE-SW
12 OPEN-SW
13 CD-CLOSE
14 CD-OPEN
15 DSP-CLK
16 DSP-DIN
17 DSP-DO
18 GND
19 CD-RST
20 GND
21 CD-L
22 GND
23 D5V
24 MGND
25 GND
26 VIDEO_Y
27 VIDEO_PB
28 VIDEO_PR
29 CVBS1
30 GND
4 MCW10
Tape Signal Connector
Pin No. Signal
1 L_CH
2 GND
3 R_CH
4 REC_L
5 REC_R
6 NC
7 12V
8 GND-M
9 M12V
10 HALF
11 RECF/R
12 HALL
13 MOTOR ON
14 REC_MUTE
15 REC_ON
16 TAPE_MUTE
17 SOL
Samsung Electronics 6-11
PCB Diagram
6-7 MAIN PCB Bottom
TP1
TP2
FCW1
MJW59
FCW10
MCW10
TCON13
PCW3
FIC1
FIC2
UIC1
6-12 Samsung Electronics
PCB Diagram
6-7-1 Test Point Wave Form
TP1
TP2
Samsung Electronics 6-13
PCB Diagram
6-8 MPEG PCB Top
1
CN02
PCN1A
UCN1
CTCN4
MCN1A
MIC2
MIC10
IC1
MIC3
KIC3
6-14 Samsung Electronics
PCB Diagram
6-8-1 Pin Connection
1 PCN1A
DVD POWER LINE Connector (DA25)
Pin No. Signal
1 M8V
2 GND
3 D5V
4 D3.3V
5 DGND
6 DGND
7 A10V
8 GND
Samsung Electronics 6-15
PCB Diagram
6-9 MPEG PCB Bottom
MIC1
BIC4 DIC3
VIC1 IC4
IC3
IC2
6-16 Samsung Electronics
PCB Diagram
1

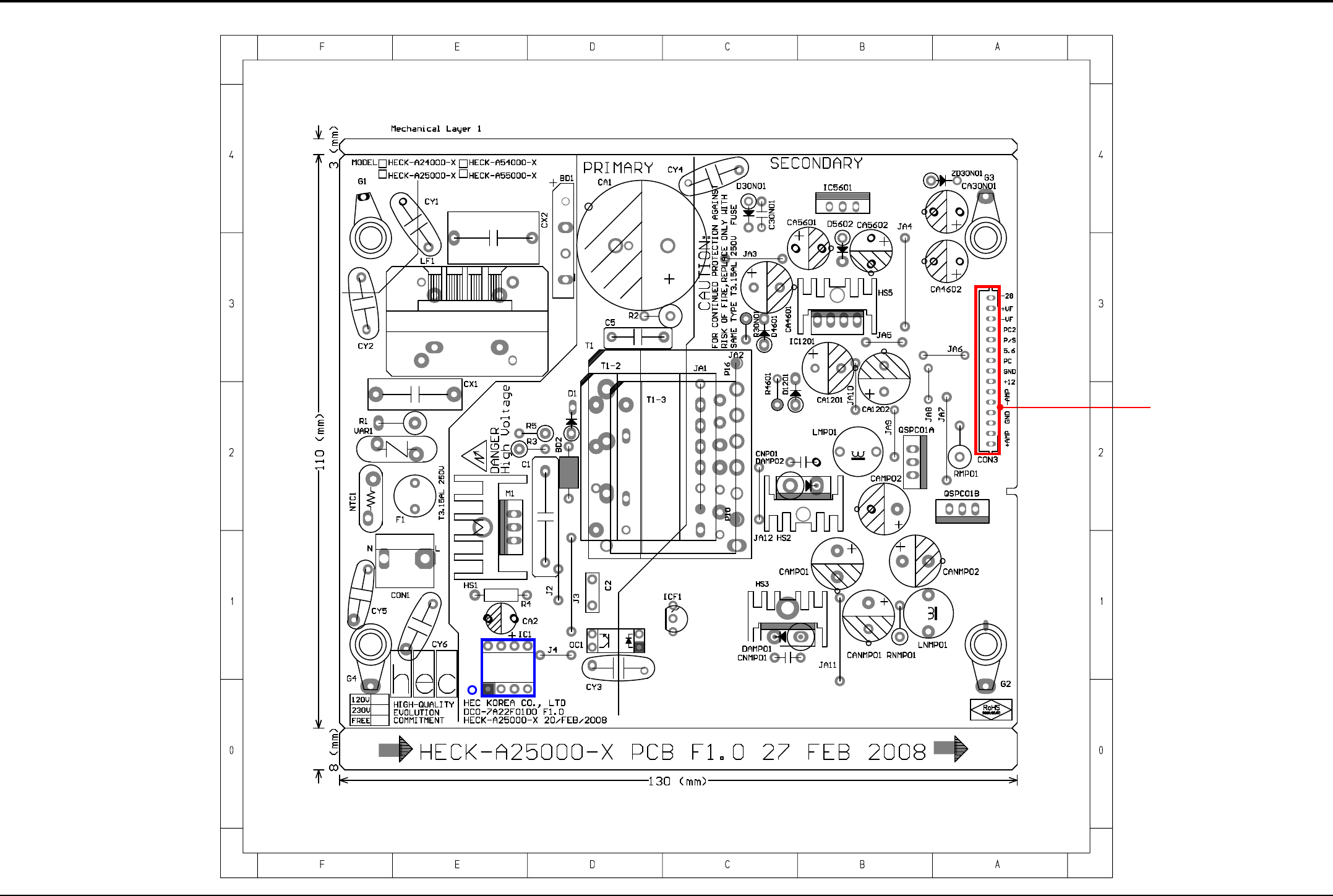

6-10 SMPS PCB Top
CON3
IC1
Samsung Electronics 6-17
PCB Diagram
6-10-1 Pin Connection
1 CON3
POWER LINE Connector
Pin No. Signal
1 +AMP
2 +AMP
3 GND
4 GND
5 -AMP
6 +AMP
7 +12V
8 GND
9 P.ON
10 5.6V
11 P/S
12 PC2
13 -VFD
14 +VFD
15 -VP
6-18 Samsung Electronics
PCB Diagram

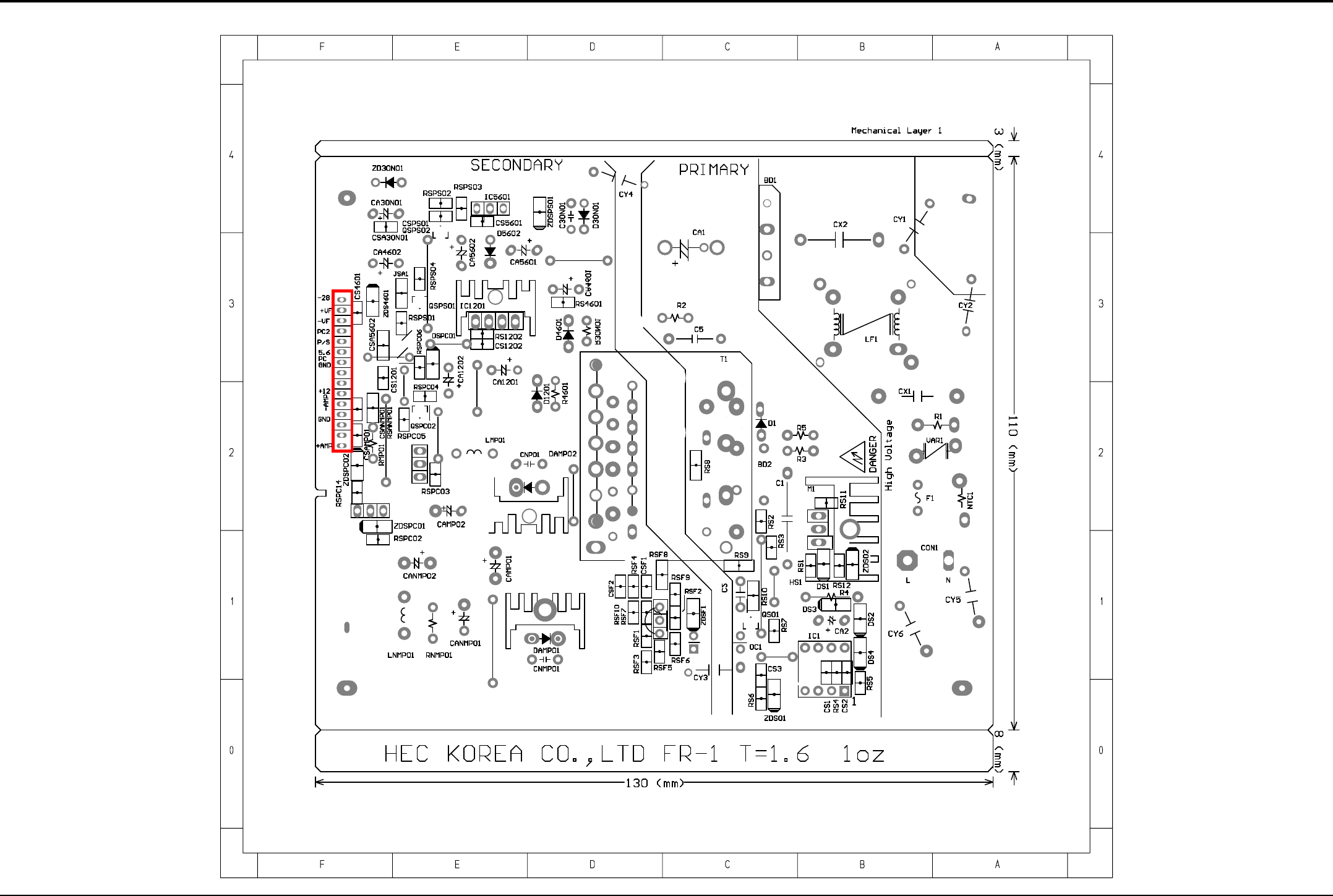

6-11 SMPS PCB Bottom
CON3
Samsung Electronics 6-19
PCB Diagram
6-12 CD PCB Top
1
2
4
3
CN802 CN803 CN06
IC2
CN801
CN805
CN804
IC1
IC3
IC4
6-20 Samsung Electronics
PCB Diagram
2 CN804
CD Signal Connector
Pin No. Signal
1 RESERVE
2 U_RST
3 U_DIN
4 U_DO
5 U_CANCEL
6 U-IN
7 U-MUTE
8 DSP-CE
9 CD-RST
10 CD-MUTE
11 CLOSE-SW
12 OPEN-SW
13 CD-CLOSE
14 CD-OPEN
15 DSP-CLK
16 DSP-DIN
17 DSP-DO
18 GND
19 CD-RST
20 GND
21 CD-L
22 GND
23 D5V
24 MGND
25 GND
26 VIDEO_Y
27 VIDEO_PB
28 VIDEO_PR
29 CVBS1
30 GND
6-12-1 Pin Connection
1 CN802
MECHA Control Connector
Pin No. Signal
1 SP+
2 SP-
3 LMT
4 GND
5 SL-
6 SL+
3 CN805
USB Signal Connector
Pin No. Signal
1 +5V
2 USB_D-
3 USB_D+
4 GND
4 CN803
MECHA Control Connector
Pin No. Signal
1 INSW
2 GND
3 OUT-SW
4 CLOSE
5OPEN
Samsung Electronics 7-1
Schematic Diagram
This Document can not be used without Samsung’s authorization.
7. Schematic Diagram
7-1 Overall Block Diagram ..................................................................................... 7-2
7-2 MAIN-1 ............................................................................................................... 7-3
7-3 MAIN-2 ............................................................................................................... 7-4
7-4 MPEG ................................................................................................................ 7-5
7-5 SMPS (MM-A24) ................................................................................................ 7-6
7-6 SMPS (MM-A25) ................................................................................................ 7-7
7-7 SMPS (MM-DA25) ............................................................................................. 7-8
7-8 1 DISC CD ........................................................................................................ 7-9
7-2 Samsung Electronics
Schematic Diagram
This Document can not be used without Samsung’s authorization.
7-1 Overall Block Diagram
A24/A25 Block Diagram
ANT
AUX-L
AUX-L
TUNER-L
TUNER-R
TAPE-L
TAPE-R
CD-L
CD-R
AC CORD
HEAD
PHONE
SPK-L
SPK-R
MCW12
L-CH
R-CH
CE CLK DATA
CE CLK DATA
VFD CONTROL
VP
VFD+
VFD-
CD-ON
P-SENSE
5.6V
P-ON
GND
12V
VCC-
VCC-
GND
GND
VCC+
VCC+
TUNER
PACK
TAPE
DECK
CD/MP3/WMA
DECK
SMPS
VFD
MICOM IC HIC2
4556
UIC2
FRONT PCB
PT6315
FIC1
FUNCTION IC
R2S15904
AAIC1
AMPLIFER IC
TDA8922BJ
DA25 Block Diagram
ANT
AUX-L
AUX-L
TUNER-L
TUNER-R
TAPE-L
TAPE-R
CD-L
CD-R
AC CORD
HEAD
PHONE
PCW13
(MAIN)
R-CH
L-CH
CE CLK DATA
CE CLK DATA
VFD CONTROL
VP
VFD+
VFD-
CD-ON
P-SENSE
5.6V
P-ON
GND
12V
VCC-
VCC-
GND
GND
VCC+
VCC+
TUNER
PACK
TAPE
DECK
CD/MP3/WMA
DECK
SMPS
VFD
MIC
MICOM IC HIC2
4556
UIC2
FRONT PCB
PT6315
FIC1
FUNCTION IC
R2S15904 FIC2
4558
SPK-L
SPK-R
AAIC1
AMPLIFER IC
TDA8922BJ
AGND
MIC SIGNAL
A10V EGND EGND 3.3V 5.0V MGND M8V
Main System MICOM control Function IC (R2S15904), Tuner pack, Tape deck IC (HA12237F), CD/DVD DECK.
It gets all information from R2S15904. They have a communication among them with the HOST ↔ SLAVE interface.
And Main System MICOM gets the information from User’s remote control. So whenever it gets the information, it
displays it on the VFD.
PCW3 on MAIN PCB gets power from SMPS;
PCN1A on DVD PCB gets power from SMPS;
The CD Deck, Tape Deck, AUX Jack and Tuner Pack GND are each connected to Function IC (R2s15904).
Then GND after processing. The Data will be sent to AMP IC VCC+ (AAIC1).
Headphone IC (4556) gets signal from Function and output it to H/P JACK.
Samsung Electronics 7-3
Schematic Diagram
This Document can not be used without Samsung’s authorization.

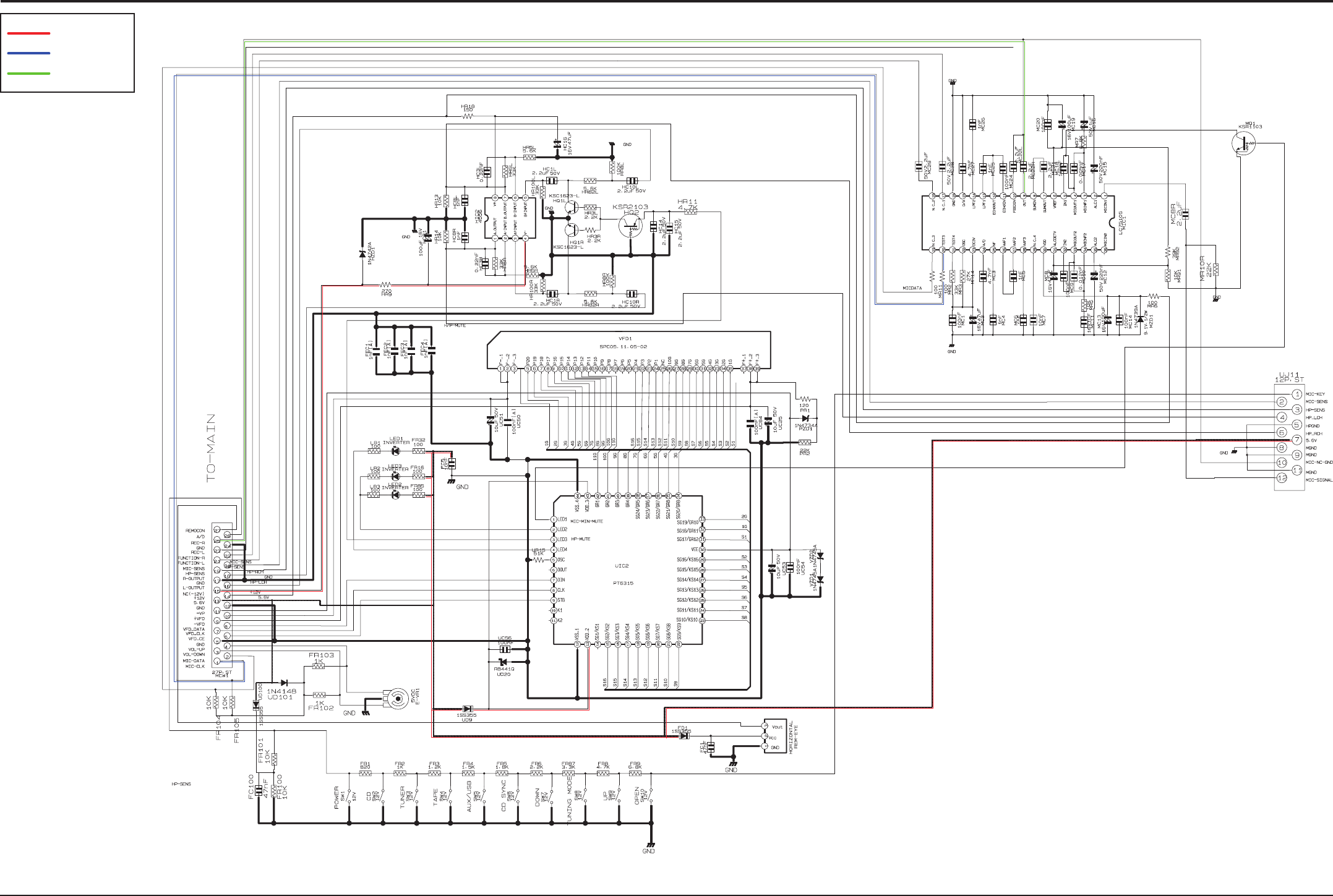

7-2 MAIN-1
POWER
AUDIO
VIDEO
TP1
TP2
TP1
TP2
7-4 Samsung Electronics
Schematic Diagram
This Document can not be used without Samsung’s authorization.
7-3 MAIN-2
POWER
AUDIO
VIDEO
Samsung Electronics 7-5
Schematic Diagram
This Document can not be used without Samsung’s authorization.
7-4 MPEG
7-6 Samsung Electronics
Schematic Diagram
This Document can not be used without Samsung’s authorization.

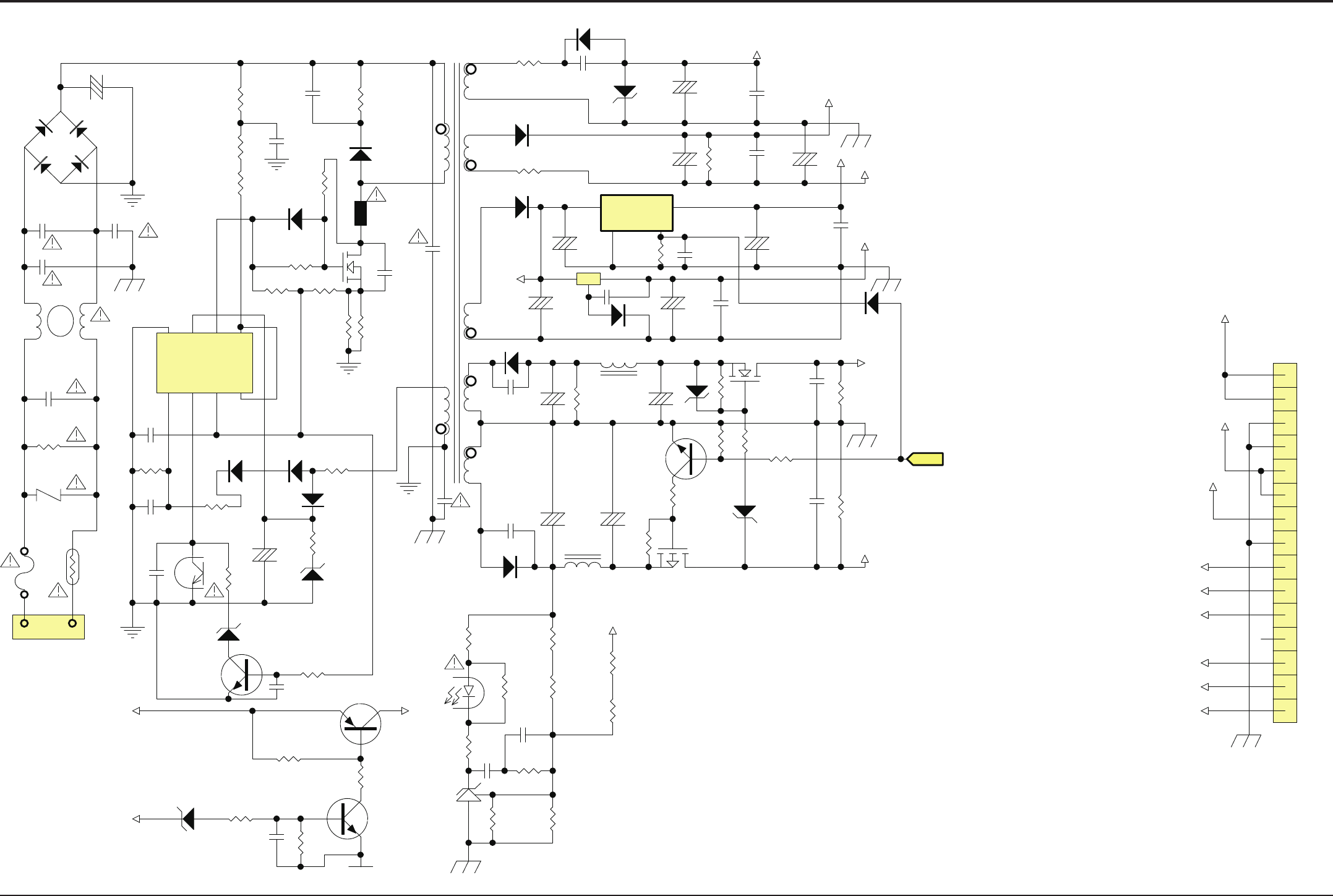

7-5 SMPS (MM-A24)
1
F
T 3.15A 250V
NTC1
SCK2R58MB0258
1FL
H
m
5
4
5
4
-
8
2
Q
S
X
W
1
XC
V572 K401
1R
A
V
V
0
0
3K
1
7
4
D
0
1R
N
G
1YC
V004 M201
1DB
GBU406 800V/4A Vf=1V
2
R
SW2 %5±K74
1CP
5C
V036
K
3
0
1
1R
S
W
1
M5
.
1
N
L
1
2
1
N
O
C
C
2
0
-
6
9
0
5
2
XC
V572 K433
2Y
C
V004 M201
+
1
AC V054
F
u86 2
6
31
01
51
41
9
61
01
11
4
8
21
01
1
T%
8
±
Hu
0
0
4
1
0
-
4
38
2
R
EE
ZC
1
REG
2
CS
3
HV
4HV 5
OUT 6
Vcc 7
GND 8
1CI
10SQ2ECI
1D
HER208 1000V/2A
2
DB
H
u
2.
1
1M
3
C
0
6
N
7
0
AP
S
1SD W
8414
N
1
1SR
W8/1%
5
±74
3
SR
K8.6 Ω8
/1%
5
±
2
SR
W
8
/
1%
5
±
0
2
2
1
C
V
K
1
/
F
p
0
6
5
1
S
C
V
0
5/Fp
0
0
1
2
SC
V
0
5/Fp
0
0
1
4
SR
8/
1%
1
±
K
7.
4
5
S
R
K
6
3fi8
/
1%
5
±
3
4
A
1C
O
B
7
1
8
VTL
3SC
102J 50V
2
S
DW8
4
1
4
N
1
3
S
D
W
8
41
4
N
1
3R
2
2.
0ΩS
W
1
%
5
±
5R
22
.
0ΩS
W
1
%5±
4R
W
4
/1
%
5
±
3
3
+
2
AC
V
0
5
/
F
u
7
4
1
0SDZ
V
3.
4
W
m
0
0
1
9
2
25Z
S
M
M
6SR
8
/
1%
1
±
K
7
.
4
1
0
S
Q
A
1
/
V0
4
A
2
2
2
2TBM
M
7
SR
8/
1%
5
±
k
3.
3
2
0
S
P
S
Q
A
1
/
V
0
4
A2
2
2
2TBM
M
4
0
S
P
S
R
K
2.
1Ω8
/
1%
1
±
SP
1
0
S
P
S
R
K
2
.
1Ω8
/
1
%
1
±
V
6
.5+
3
0
S
PSR
K
2
.
1Ω8
/
1%
1±
1
0
S
PS
DZ
V2
.
8
Wm0
0
1
7
3
2
5
ZSM
M
2
0
S
P
SR
8
/
1%5±
k3
.
3
10S
P
S
C
C
N
S21
+
3
YC
V
0
0
4
M
2
2
2
10
N
0
3R
W
2
/
1
%
5
±
7.
41
0
N
0
3
C
V
K1
K
1
3
3
1
0
N
0
3
DV0
0
4
/
A1
4
T
1
F
1
0
N
0
3
DZ
V
0
3
1
5
7
4
N
1
+
10N
03AC V
05
Fu
00
1
V82-
10N0
3
ASC
V0
5
K30
1
10
6
4
S
R
0
74
1
0
6
4
D
V0
0
4
/
A1
60
1
R
S+
10
6
4
A
C
V
0
1/F
u0
0
2
21
064S
C
V0
5
K
3
01
1
0
6
4R
3
3
.0 ΩW
2
/
1 %
5
±
F
D
V+
1
0
2
1
D
SR2A0 100V/2A
+10
2
1
AC
V
5
2
/
F
u
0
0
0
1
+
20
21A
C
V
5
2/Fu0
0
01
V
21+ F
D
V-
10
21S
C
V0
5
K3
01
1
0
S
PS
Q
A
m
00
8
/
V
06
A
7
0
9
2TB
M
M
1
0
6
5C
I
5
0
8
7
A
I
K
S21+
20
6
5
D
V0
0
4
/
A1
40
1
R
F
+
1
0
6
5
AC
V
5
2
F
u
0
7
4
+
2065AC
V01/
F
u0
0
01
1
0
6
5
S
C
V
05
K
4
0
1
V6
.
5+
20
65ASC
V05 K3
01
1
0
P
M
NC
VK
1
K
1
2
2
1
0
P
M
A
DA
5
/
V
00
1
0
A
5
R
S
ZDSPC01
NC
+
1
0
P
M
N
A
CV
5
3/Fu
0
0
0
1
1
0
P
M
N
L
H
u
5
2
+
2
0
P
M
N
AC V
5
3/Fu
0
0
0
1
B1
0
C
PSQ
L
30FN04PTS
RSPC02
8/
1%1±
K
7
.
4
1
0
P
MNA
S
C
V
05
K30
1
PM
A
-
1
0
P
N
C
V
K
1
K
1
2
2
2
0
P
M
A
DA
5
/
V
0
0
1
0
A5
R
S
2
0
C
PSDZ
V
8
1 Wm001 8
4
25ZSM
M
10PML
H
u
5
2
A10
C
P
S
Q
6
0
P
7
2
P
Q
F
3
0CP
SR
8
/
1%
1
±
K7
.
4
1
0
P
MASC
V
05
K3
01
+
1
0
P
M
AC
V
5
3
/
F
u
0
00
1
+
2
0PM
A
C
V
5
3
/
F
u0
0
0
1
20
C
PS
Q
MMBT2222A 40V/1A
5
0
CPSR
K
2
.1 Ω8/
1%
1±
60
CP
S
R
8
/
1%1±K7.4
4
0
C
PS
R
K
7.
2Ω8/1%1±
41CPSR
001 Ω8/1 %5±
1
0
P
MR
SW1 %5±K01
PMA+
1F
S
C
W
8/
1
%
5±0
6
F
SR
K
2
.1 Ω8
/
1 %
1
±
2
F
SC
V
0
5
K
4
0
1
3
F
S
R
0
7
4Ω8
/
1%1±
1
2
B
1C
O
B
7
18
V
TL
5
F
S
R
0
74 Ω8
/
1%
1
±
4
FSR
8
/
1%
1
±
K0
5
1
2
F
S
R
C
N
7F
SR
K2
.
2Ω8
/
1%1±
2 3
1
1
F
C
I
L
1
3
4
N
A
F
0
1
F
S
R
0ΩW
8
/
1 %
5
±
1
FSR
K
42 Ω8
/
1%
1
±
9
F
S
R
K
0
2Ω8/
1%
5
±
8
F
S
R
0
2
8ΩW4
/
1%5±
S21
+
1
2
3
4
5
6
7
8
9
01
51
41
31
21
11
3
N
OC
PMA+
PMA-
V21
+
1
C
P
V6.5+
SP
FDV-
FDV
+
V82
-
+
206
4A
C
V0
5
Fu0
0
1
PMA
+
P
MA+
DN
G
D
N
G
PMA
-
P
MA-
V21
+
D
N
G
1
CP
6.5+
SP
2CP
FD
V-
F
DV+
V
8
2
-
4
Y
C
V
0
0
4
M
2
3
3
10PMNASR
C
N
8SR
K1 ΩW
4/1 %5±
01SR
K
1ΩW4
/
1 %
5
±
9
S
R
K
1ΩW4
/
1 %
5
±2C
VK
1
K
2
01
4
S
DW
8
4
1
4
N
1
tuo 2
n
i
1
G
3
4
10
21
C
I
21
R
87
2A
K
2
0
2
1
SR 8/
1%
5
±
K
7.
4
202
1
S
CV
05
K4
01
1
0
P
M
N
R
C
N
11SR C
N
2
1
S
R
0
0
1fiW
8
/
1%
5
±
2
0
S
DZ
V
4
2
W
m
0
0
1
2
5
2
5
ZSM
M
1
0
CP
SD
V57
/A
m0
5
1
W
8
414N
1
4SC V
0
5 Fp
0
0
1
Samsung Electronics 7-7
Schematic Diagram
This Document can not be used without Samsung’s authorization.

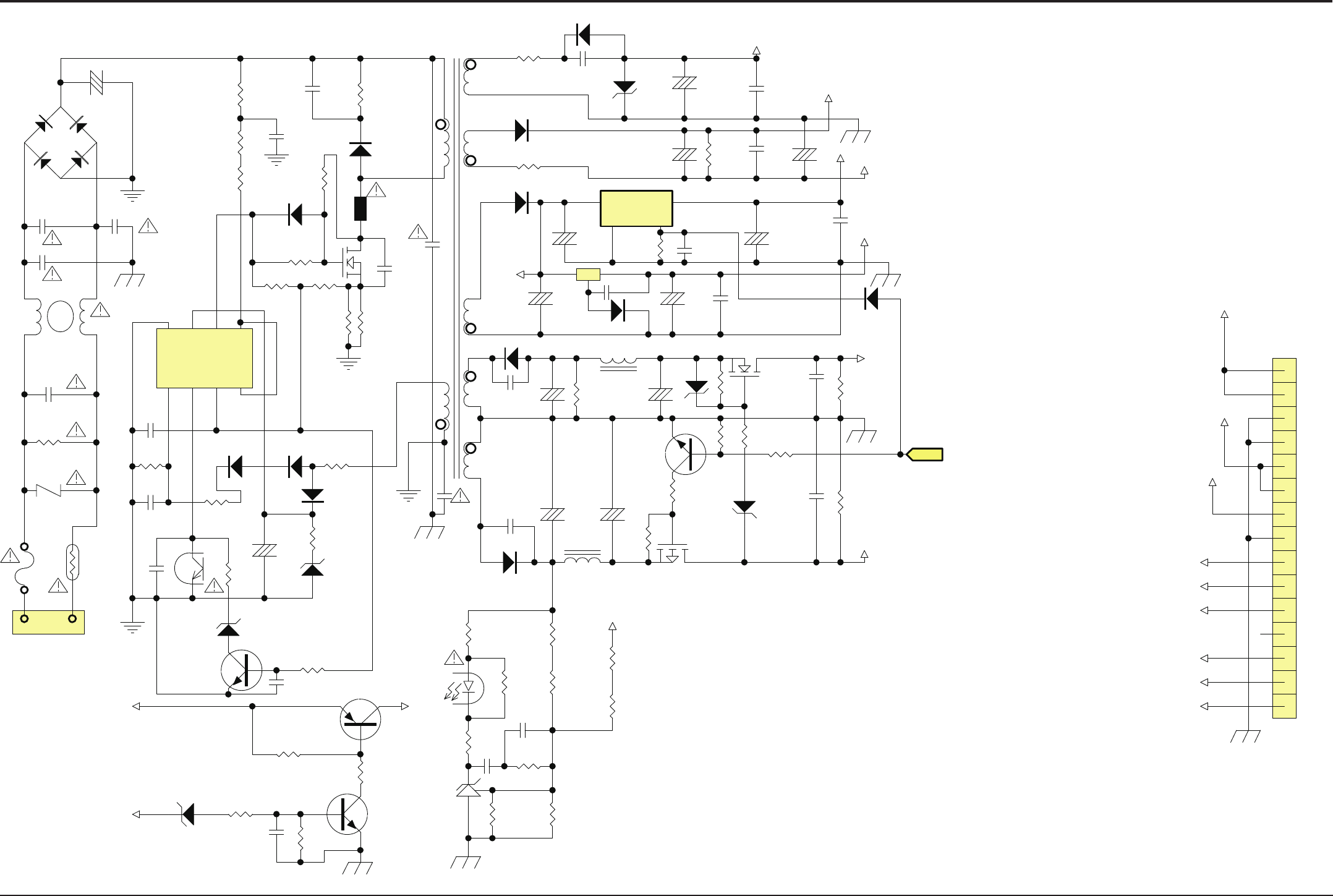

7-6 SMPS (MM-A25)
1
F
T 3.15A 250V
NTC1
SCK2R58MB0258
1FL
H
m
5
4
5
4
-
82Q
S
X
W
1
XC
V572 K401
1R
A
V
V
0
0
3K
1
7
4
D
0
1R
N
G
1YC
V
0
04
M
2
0
1
1DB
GBU406 800V/4A Vf=1V
2
R
SW2 %5±K74
1CP
5C
V036
K
3
0
1
1R
S
W
1
M5
.
1
N
L
1
2
1
N
O
C
C
2
0
-
6
9
0
5
2
XC
V572 K433
2Y
C
V004 M201
+
1
AC V054 F
u
021 2
6
31
01
51
41
9
61
01
11
4
8
21
01
1
Tu
0
7
4
1
45
3
R
EE
ZC
1
REG
2
CS
3
HV
4HV 5
OUT 6
Vcc 7
GND 8
1CI
10SQ2ECI
1D
HER208 1000V/2A
2
DB
H
u
2.
1
1M
3
C
0
6
N
7
0
AP
S
1SD W
8414
N
1
1SR
W8/1%
5
±74
3
SR
K01 ΩW
8
/
1
%1±
2
SR
W
8
/
1%
5
±
0
2
2
1
C
V
K
1
/
F
p
0
6
5
1
S
C
V
0
5/Fp
0
0
1
2
SC
V
0
5/Fp
0
0
1
4
SR
8/
1%
5
±
K
7.
4
5
S
R
K
6
3Ω8
/
1%
5
±
3
4
A
1
C
O
B
7
1
8
VT
L
3SC
102J 50V
2
S
DW8
4
1
4
N
1
3
S
D
W
8
41
4
N
1
3R
2
2.
0ΩS
W
1
%
5
±
5R
22
.
0ΩS
W
1
%5±
4R
W
4
/
1 %
5
±
2
2
+
2
AC
V
0
5
/
F
u
7
4
1
0SDZ
V
3.
4
W
m
0
0
1
9
2
25Z
S
M
M
6SR
8
/
1
%5±K
7
.4
1
0
S
Q
A
1
/
V0
4
A
2
2
2
2TBM
M
7
S
R
8/
1%
5
±
k
3.
3
2
0
S
P
S
Q
A
1
/
V
0
4
A2
2
2
2TBM
M
4
0
S
P
S
R
K
2.
1Ω8
/
1%
1
±
SP
1
0
S
P
S
R
8
/
1%
5
±
K
7
.
4
V
6
.5+
3
0
S
PSR
K
2
.
1Ω8
/
1%
1±
1
0
S
PS
DZ
V2
.
8
Wm0
0
1
7
3
2
5
ZSM
M
2
0
S
P
SR
8
/
1%5±
k3
.
3
10S
P
S
C
C
N
S21
+
3
YC
V
0
0
4
M
2
2
2
10
N
0
3R
W
2
/
1
%
5
±
7.
41
0
N
0
3
C
V
K1
K
1
3
3
10
N
0
3
DV0
0
4
/
A1
4
T
1
F
1
0
N
0
3
DZ
V
0
3
1
5
7
4
N
1
+
10N
03AC V
05
Fu
00
1
V82-
10N0
3
ASC
V0
5
K30
1
10
6
4
S
R
CN
1
0
6
4
D
V0
0
4
/
A1
60
1
R
S+
10
6
4
A
C
V
0
1/F
u0
0
2
21
064S
C
V0
5
K
3
01
1
0
6
4R
5
7
.0 ΩW2
/
1 %
5
±
F
D
V+
1
0
2
1
D
SR2A0 100V/2A
+10
2
1
AC
V
5
2
/
F
u
0
0
01
+
20
21A
C
V
5
2/Fu0
0
01
V
21+ F
D
V-
10
21S
C
V0
5
K3
01
1
0
S
PS
Q
A
m
00
8
/
V
06
A
7
0
9
2TB
M
M
1
0
6
5C
I
5
0
8
7
A
I
K
S21+
2
0
6
5
D
V
0
0
4
/
A
1
4
0
1
R
F
+
1
0
6
5
AC
V
5
2
F
u
0
7
4
+
2065AC
V01/
F
u0
0
01
1
0
6
5
S
C
V
05
K
4
0
1
V6
.
5+
20
65ASC
V05 K3
01
1
0
P
M
NC
VK
1
K
1
2
2
1
0
P
M
A
DG
4
08F
A
F
S
ZDSPC01
NC
+
1
0
P
M
N
A
CV
5
3/Fu
0
0
0
1
1
0
P
M
N
L
H
u
5
2
+
2
0
P
M
N
AC V
5
3/Fu
0
0
0
1
B1
0
C
PSQ
L
30FN04PTS
RSPC02
8/1
%1±
K
1
1
0
P
MNA
S
C
V
05
K30
1
PM
A
-
1
0
P
N
C
V
K
1
K
1
2
2
2
0
P
M
A
DV
0
0
2
/
A
8
G
40
8F
A
F
S
2
0
C
PSDZ
V
4
2 Wm001 2
5
25ZSM
M
10PML
H
u
5
2
A10
C
P
S
Q
6
0
P
7
2
P
Q
F
3
0CP
SR
8
/
1%
5
±
K7
.
4
1
0
P
MASC
V
05
K3
01
+
1
0
P
M
AC
V
5
3
/
F
u
0
00
1
+
2
0PM
A
C
V
5
3
/
F
u0
0
0
1
20
C
PS
Q
MMBT2222A 40V/1A
5
0
CPSR
K
2
.1 Ω8/
1%
1±
60
CP
S
R
8
/
1%5±K7.4
4
0
C
P
S
R
K
1.
5Ω8/1%1±
41CPSR
8/1%5±k7.2
1
0
P
MR
SW1 %5±K01
PMA+
1F
S
C
V
0
5
J
0
3
3
6
F
SR
8
/
1 %
5
±
0
74
2
F
SC
V
0
5
K
3
2
2
3F
S
R
K
2
.1 Ω8
/1%
1
±
1
2
B
1C
O
B
7
1
8
VT
L
5
FSR
8
/1%
1
±
K
1
4
FSR
8
/
1%
1
±
K0
5
1
2
F
S
R
C
N
7F
SR
K2
.
1fi8
/
1%1±
2 3
1
1
F
C
I
L
1
3
4
N
A
F
0
1
F
S
R
K
5
.
1Ω8
/
1%
1
±
1
FSR
K
81 Ω8
/
1%
1
±
9
F
S
R
K
0
1Ω8/
1%
1
±
8
F
S
R
K
5
.
1ΩW
4
/
1%
1
±
S21
+
1
2
3
4
5
6
7
8
9
01
51
41
31
21
11
3
N
OC
PMA+
PMA-
V21
+
1
C
P
V6.5+
SP
FDV-
FDV
+
V82
-
+
206
4A
C
V0
5
Fu0
0
1
PMA
+
P
MA+
DN
G
D
N
G
PMA
-
P
MA-
V21
+
D
N
G
1
CP
6.5+
SP
2CP
FD
V-
F
DV+
V
8
2
-
4
Y
C
V
0
0
4
M
2
3
3
10PMNASR
C
N
8SR
K1 ΩW
4/1 %5±
01SR
K
1ΩW4
/
1 %
5
±
9
S
R
K
1ΩW4
/
1 %
5
±2C
VK
1
K
2
01
4
S
DW
8
4
1
4
N
1
tuo 2
n
i
1
G
3
4
10
21
C
I
21
R
87
2A
K
2
0
2
1
SR 8/
1%
5
±
K
7.
4
202
1
S
CV
05
K4
01
1
0
P
M
NR
C
N
11SR C
N
2
1
S
R
0
0
1ΩW
8
/
1%
5
±
2
0
S
DZ
V
4
2
W
m
0
0
1
2
5
2
5
ZSM
M
1
0
CP
SD
V57
/A
m0
5
1
W
8
414N
1
4SC V
0
5 Fp
0
0
1
7-8 Samsung Electronics
Schematic Diagram
This Document can not be used without Samsung’s authorization.
7-7 SMPS (MM-DA25)
1
0CCVL
Hu72
+
30PMAC
V
05
Fu
00
1
CC
V
+
SW_C
1
SW_E
2
TIME_C
3
GND
4INPUT 5
VCC 6
IPK 7
DRIVE 8
10
33
SC
I
A36043CM
1033R
1
.
0ΩSW2
%
5
±
1033S
C
V0
5
/
F
p00
1
1033D
V06
/A
5 605RS
C
C
V+
10
33P
S
R
CN
2
0
33PSR
CN
30
33P
S
R
CN
3
03
3
S
R
8
/1 %5±07
4
203
3
R
8
/
1
%5±0
01
7033SR
8/1 %1±K8.1
8
033S
R
8
/1 %1±K1.1
9033SR
8/1 %5±07
4
2
9
7
6
5
2T
H
u7
4
6
191
E
E
1033Q
A5
/
V06/W0
2
1511BTK
105
D
C
I
50
87AIK
108
DA2 V06 602RS
+
10
8A
C
V61
F
u074
CSA5101
103K 50V
+
CA5101
470uF 16V
+
CA5102
470uF 16V
2V
8+
CSA3301
103K 50V
+
CA3301
2200uF 10V
1
033
L
Hu72
+
CA3302
1000uF 10V
AV
5+
V3.3
+
+
20
8A
C
V01/
F
u
0001
10
8
L
H
u72
+
1001
A
C
V5
2
Fu7
4
20
CPSD
W841
4N
1
01CPSR
8/1 %1±K01
50CPSQ
A2
222
TB
M
M
1
2
3
4
5
6
7
8
9
01
51
41
31
21
11
3
N
OC
1
2
3
4
5
6
7
8
2NOC
PMA+
11CPSR
8/
1
%5±K
7
.4
51CPSR
8
/
1
%5±0
74
4
0
CP
SQ
A22
2
2TB
M
M
21C
P
SR
8
/1
%
5
±
K7
.
4
31CPSR
K
2
.1 Ω8
/
1 %
1
±
PMA-
V21
+
1
C
P
V6.5+
SP
FDV-
FDV
+
V82
-
1001ZD
V
01
W1 A
0
474N
1
1
0
01
R
72 fiSW4/1 %5±
V3.3+
V21
+
2V8+ AV5+
V
8+
DN
G
V5+
V
3
.
3+
DNG
DNG
V01
+
DNG
P
MA+
PMA
+
D
N
G
DNG
P
M
A
-
PMA-
V
21
+
D
N
G
1CP
6
.
5+
SP
2CP
F
D
V-
FDV
+
V
82-
105S
RCN
1
08ASC
V
05
K30
1
1
F
T 3.15A 250V
NTC1
SCK2R58MB0258
1FL
H
m
5
4
5
4
-
82Q
S
X
W
1
XC
V572 K401
1R
A
V
V
0
0
3K
1
7
4
D
0
1R
N
G
1YC
V
0
04
M
2
0
1
1DB
GBU406 800V/4A Vf=1V
2
R
SW2 %5±K74
1CP
5C
V036
K
3
0
1
1R
M5
.
1ΩW
2
/1
%
5
±
N
L
1
2
1
N
O
C
C
2
0
-
6
9
0
5
2
XC
V572 K433
2Y
C
V004 M201
+
1
AC V054 F
u
021
2
6
31
01
51
41
9
61
01
11
4
8
21
01
1
Tu
0
7
4
1
45
3
R
EE
ZC
1
REG
2
CS
3
HV
4HV 5
OUT 6
Vcc 7
GND 8
1CI
10SQ2ECI
1D
HER208 1000V/2A
2
DB
H
u
2.
1
1M
3
C
0
6
N
7
0
AP
S
1SD W
8414
N
1
1SR
W8/1%
5
±74
3
SR
K01 ΩW
8
/
1
%1±
2
SR
W
8
/
1%
5
±
0
2
2
1
C
V
K
1
/
F
p
0
6
5
1
S
C
V
0
5/Fp
0
0
1
2
SC
V
0
5/Fp
0
0
1
4
SR
8/
1%
5
±
K
7.
4
5
S
R
K
6
3Ω8
/
1%
5
±
3
4
A
1
C
O
B
7
1
8
VT
L
3SC
102J 50V
2
S
DW8
4
1
4
N
1
3
S
D
W
8
41
4
N
1
3R
2
2.
0ΩS
W
1
%
5
±
5R
22
.
0ΩS
W
1
%5±
4R
W
4
/
1 %
5
±
2
2
+
2
AC
V
0
5
/
F
u
7
4
1
0SDZ
V
3.
4
W
m
0
0
5
9
2
25Z
S
M
M
6SR
8
/
1
%5±K
7
.4
1
0
S
Q
A
1
/
V0
4
A
2
2
2
2TBM
M
7
S
R
8
/
1%
5
±
k
3.
3
2
0
S
P
S
Q
A
1
/
V
0
4
A2
2
2
2TBM
M
4
0
S
P
S
R
K
2.
1Ω8
/
1%
1
±
SP
1
0
S
P
S
R
8
/
1%
5
±
K
7
.
4
V
6
.5+
3
0
S
PSR
K
2
.
1Ω8
/
1%
1±
1
0
S
PS
DZ
V2
.
8
Wm0
0
5
7
3
2
5
ZSM
M
2
0
S
P
SR
8
/
1%5±
k3
.
3
10S
P
S
C
C
N
S21
+
3
YC
V
0
0
4
M
2
2
2
10
N
0
3R
W
2
/
1
%
5
±
7.
41
0
N
0
3
C
V
K1
K
1
3
3
10
N
0
3
DV0
0
4
/
A1
4
T
1
F
1
0
N
0
3
DZ
V
0
3
1
5
7
4
N
1
+
10N
03AC V
05
Fu
00
1
V82-
10N0
3
ASC
V0
5
K30
1
1064SR
CN
1
0
6
4
D
V0
0
4
/
A1
60
1
R
S
+
10
6
4
A
C
V
0
1/F
u0
0
2
21
064S
C
V0
5
K
3
01
1
0
6
4R
5
7
.0 ΩW2
/
1 %
5
±
F
D
V+
1
0
2
1
D
SR2A0 100V/2A
+
10
2
1
AC
V
5
2
/
F
u
0
0
01
+
20
21A
C
V
5
2/Fu0
0
01
V
21+
F
D
V-
10
21S
C
V0
5
K3
01
1
0
S
PS
Q
A
m
00
8
/
V
06
A
7
0
9
2TB
M
M
1
0
6
5C
I
5
0
8
7
A
I
K
S21+
2
0
6
5
DV
0
0
4
/
A
1
4
0
1RF
+
1
0
6
5
AC
V
5
2
F
u
0
7
4
+
2065AC
V01/
F
u0
0
01
1
0
6
5
S
C
V
05
K
4
0
1
V6
.
5+
20
65ASC
V05 K3
01
1
0
P
M
NC
VK
1
K
1
2
2
1
0
P
M
A
DG
4
08F
A
F
S
ZDSPC01
NC
+
1
0
P
M
N
A
CV
5
3/Fu
0
0
0
1
1
0
P
M
N
L
H
u
5
2
+
2
0
P
M
N
AC V
5
3
/
F
u
0
00
1
B1
0
C
PSQ
n074
4
SDF
RSPC02
8/1
%1±
K
1
1
0
P
MNA
S
C
V
05
K30
1
PM
A
-
1
0
P
N
C
V
K
1
K
1
2
2
2
0
P
M
A
DV
0
0
2
/
A
8
G
40
8F
A
F
S
2
0
C
PSDZ
V
4
2 Wm005 2
5
25ZSM
M
10PML
H
u
5
2
A10
C
P
S
Q
YDB
1
0
44
i
S
3
0CP
SR
8
/
1%
5
±
K7
.
4
1
0
P
MASC
V
05
K3
01
+
1
0
P
M
AC
V
5
3
/
F
u
0
00
1
+
2
0PM
A
C
V
5
3
/
F
u0
0
0
1
20
C
PS
Q
MMBT2222A 40V/1A
5
0
CPSR
K
2
.1 Ω8/
1%
1±
60
CP
S
R
8
/
1%5±K7.4
4
0
C
P
S
R
K
1.
5Ω8/1%1±
41CPSR
8/1%5±k7.2
1
0
P
MR
SW1 %5±K01
PMA+
1F
S
C
V
0
5
J
0
3
3
6
F
SR
8
/
1 %
5
±
0
74
2
F
SC
V
0
5
K
3
2
2
3F
S
R
K
2
.1 Ω8
/1%
1
±
1
2
B
1C
O
B
7
1
8
VT
L
5
FSR
8
/
1%
1±K
1
4
FSR
8
/
1%
1
±
K0
5
1
2
F
S
R
C
N
7F
SR
K2
.
1Ω8
/
1%1±
2 3
1
1
F
C
I
L
1
3
4
N
A
F
0
1
F
S
R
K
5
.
1Ω8
/
1%
1
±
1
FSR
K
81 Ω8
/
1%
1
±
9
F
S
R
K
0
1Ω8/
1%
1
±
8
F
S
R
K
5
.
1ΩW
4
/
1%
1
±
S21
+
+
206
4A
C
V0
5
Fu0
0
1
4
Y
C
V
0
0
4
M
2
3
3
10PMNASR
C
N
8SR
K1 ΩW
4/1 %5±
01SR
K
1ΩW4
/
1 %
5
±
9
S
R
K
1ΩW4
/
1 %
5
±2C
VK
1
K
2
01
4
S
DW
8
4
1
4
N
1
tuo 2
n
i
1
G
3
4
10
21
C
I
21
R
87
2A
K
2
0
2
1
SR 8/
1%
5
±
K
7.
4
202
1
S
CV
05
K4
01
1
0
P
M
NR
C
N
11SR C
N
2
1
S
R
0
0
1ΩW
8
/
1%
5
±
2
0
S
DZ
V
4
2
W
m
0
0
5
2
5
2
5
ZSM
M
1
0
C
PSD W
841
4N1
41DJ
4SC V
0
5 Fp
0
0
1
10
8A
SR
2
08AS
C
Samsung Electronics 7-9
Schematic Diagram
This Document can not be used without Samsung’s authorization.
7-8 1 DISC CD
