SAGEM
MOD170
MOD190
GPRS Modem for industrial
applications, telemetry,
security systems and industry
GPRS class 8 (4+1) with PBCCH support
Voice and Data support
Extended AT commands
RS232 serial link
Easy integration
Plug and play
Add wireless features to your devices
with Sagem MOD170 /MOD190 !
No matter if you do not know about wireless,
MOD170 /MOD190 will add the high speed GPRS data
functionalities to your devices in a quick and smart way.
This modem constitues a self-contained, fully integrated
implementation of the GSM/GPRS standard.
Thanks to standard interfaces, it can be integrated into any
systems which offers unlimited assets.
Therefore your security system, telemetry, tracking system,
vending machines will enter the wireless world in an instant…
you will save time and money, and create a whole range of
new services.
Besides with its end-user package, MOD170 /MOD190 can
be easily connected to your PC and help you browse the
internet on the move.
SAGEM SA may, at any time and without notice, make changes or improvements to the products and services offered and/or cease producing or commercialising
them. The SAGEM logo and trademark are the property of SAGEM SA. 07/2003
Phone +33 1 40 70 63 63 Fax +33 1 40 70 66 40
www.sagem.com
Head Office : Le Ponant de Paris, 27 rue Leblanc – 75512 PARIS CEDEX 15 – France
SAGEM SA - Société anonyme à directoire et conseil de surveillance au capital de 33 300 000 € – 562 082 909 RCS PARIS
SAGEM
SA
Mobile Phones Division

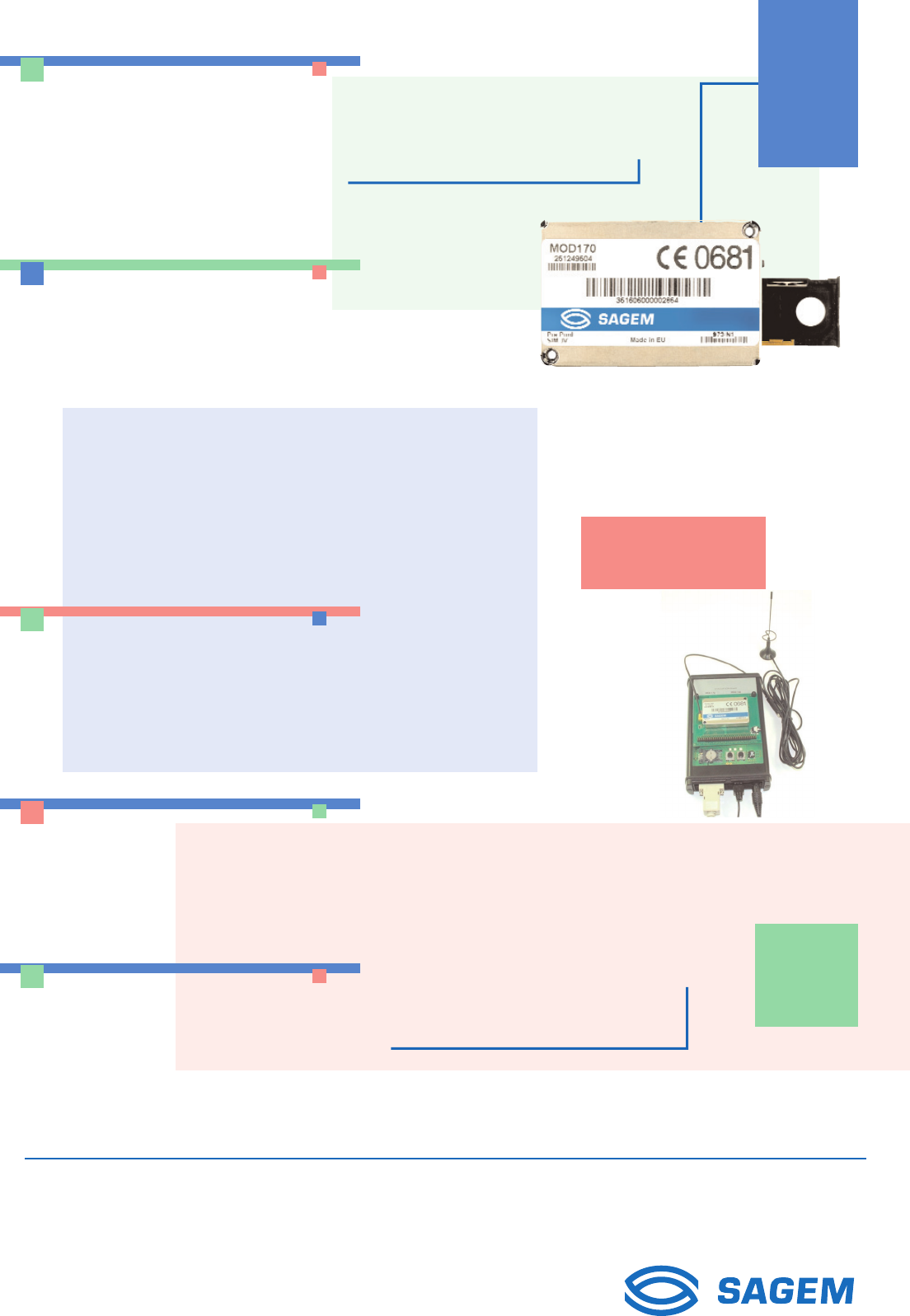

Marketing features
Tiny size
Built-in enhanced functionalities
Advanced GPRS capabilities class 8 (up to 56 kbps)
Triple band and interoperable all over the world
Benefit of the know-how and large production capacity of a world class mobile phone maker
Fully Shielded and ready-to-use
General features
Tiny form factors: 60 x 40 x 10 mm
Light weight: 35g
Volume: 24 cm3
Triple band EGSM900 / DCS1800 / PCS1900
Class 4 (2W) for EGSM900
Class 1 (1W) for DCS1800 / PCS1900
Power supply 5 VDC +/- 5%
Standby mode: 2.5mA (typ)
ETSI GSM Phase 2+Type Approved
FTA approved
Data: CSD, SMS, Fax, GPRS Multi-slot class 8 (4+1), PBCCH and ciphering support, class B terminal
Audio capabilities (only for MOD190)
Remote control by AT commands
Packaging
Mounting holes for fixing
Shock resistant package
RF shielded package
Operating temperature range at least -20/+55°C
Storage temperature range at least -40/+85°C
Interface
MMCX antenna connector
60-pin connector including RS232 serial link
Internal 3V SIM card reader
Mounting: 2 screw holes
Documentation
Modem booklet
User’s guide
List of supported AT commands (MO170/ MO190)
The MOD170/MOD190 evaluation board is optional. It can be
ordered from SAGEM S.A or directly from your distributor.
