40+ Single Stage

Rotary Vane Pumps

Model

949

-9225, 949-9240, 949-9241

Manuale di Istruzioni

Bedienungshandbuch

Notice de Mode D’Emploi

User Manual

-901-008-01 (E)

05/2013

MS40+ Single Stage Rotary Vane Pumps User Manual / 87-901-008-01 (E)

Notices

No part of this manual may be

reproduced in any form or by any

means (including electronic storage

and retrieval or translation into a

foreign language) without prior

agreement and written consent from

Agilent Technologies, Inc. as governed

by United States and international

Manual Part Number

Publication Number: 87-901-008-01 (E)

Edition

Edition 05/2013

Printed in ITALY

Agilent Technologies Italia S.p.A.

Vacuum Products Division

Via F.lli Varian, 54

10040 Leinì (TO)

ITALY

Warranty

The material contained in this

document is provided “as is,” and is

subject to being changed, without

notice, in future editions. Further, to

the maximum extent permitted by

applicable law, Agilent disclaims all

warranties, either express or implied,

with regard to this manual and any

information contained herein,

including but not limited to the

implied warranties of merchantability

and fitness for a particular purpose.

Agilent shall not be liable for errors

or for incidental or consequential

damages in connection with the

furnishing, use, or performance of

this document or of any information

contained herein. Should Agilent and

the user have a separate written

agreement with warranty terms

covering the material in this

document that conflict with these

terms, the warranty terms in the

separate agreement shall control.

Technology Licenses

The hardware and/or software

described in this document are

furnished under a license and may be

used or copied only in accordance

with the terms of such license.

Restricted Rights Legend

If software is for use in the

performance of a U.S. Government

prime contract or subcontract,

Software is delivered and licensed as

“Commercial computer software” as

defined in DFAR 252.227-7014 (June

1995), or as a “commercial item” as

defined in FAR 2.101(a) or as

“Restricted computer software” as

defined in FAR 52.227-19 (June 1987)

or any equivalent agency regulation or

contract clause. Use, duplication or

disclosure of Software is subject to

Agilent Technologies’ standard

commercial license terms, and non-

DOD Departments and Agencies of the

U.S. Government will receive no

greater than Restricted Rights as

defined in FAR 52.227-19(c)(1-2) (June

1987). U.S. Government users will

receive no greater than Limited Rights

as defined in FAR 52.227-14 (June

1987) or DFAR 252.227-7015 (b)(2)

(November 1995), as applicable in any

technical data.

Trademarks

Windows and MS Windows are U.S.

registered trademarks of Microsoft

Corporation.

Safety Notices

A CAUTION notice denotes a hazard.

It calls attention to an operating

procedure, practice, or the like that, if

not correctly performed or adhered to,

could result in damage to the product

or loss of important data. Do not

proceed beyond a CAUTION notice

until the indicated conditions are fully

understood and met.

A WARNING notice denotes a

hazard. It calls attention to an

operating procedure, practice, or the

like that, if not correctly performed

or adhered to, could result in

personal injury or death. Do not

proceed beyond a WARNING notice

until the indicated conditions are

fully understood and met.

WARNING

CAUTION

MS40+ Single Stage Rotary Vane Pumps

MS40+ Single Stage Rotary Vane Pumps User Manual / 87-901-008-01 (E) 3/90

MS40+ Single Stage Rotary Vane Pumps

4/90 MS40+ Single Stage Rotary Vane Pumps User Manual / 87-901-008-01 (E)

Contents

MS40+ Single Stage Rotary Vane Pumps User Manual / 87-901-008-01 (E) 5/90

Contents

Istruzioni per l’uso 9

Informazioni Generali 10

Immagazzinamento 11

Preparazione per l’installazione 11

Installazione 13

Uso 15

Manutenzione 15

Smaltimento 18

Gebrauchsanleitung 19

Allgemeine Hinweise 20

Lagerung 21

Vor der Installation 21

Installation 23

Gebrauch 25

Wartung 25

Entsorgung 27

Mode d’emploi 29

Indications générales 30

Emmagasinage 31

Contents

6/90 MS40+ Single Stage Rotary Vane Pumps User Manual / 87-901-008-01 (E)

Preparation pour l‘installation 31

Installation 33

Utilisation 35

Maintenance 35

Mise au rebut 37

Instructions for Use 39

General Information 40

Storage 41

Preparation for Installation 41

Installation 43

Use 45

Maintenance 45

Disposal 47

Technical Information 49

Section I 51

Technical Description 51

Vacuum Seals 52

Anti-Suckback Device 52

Technical Data 53

Safety Precautions 55

Transport and Installation 55

Section II 57

Contents

MS40+ Single Stage Rotary Vane Pumps User Manual / 87-901-008-01 (E) 7/90

Connection to the Electric Supply 57

Connections to the Inlet and Exhaust Flanges 57

Starting and Running the Pump 59

Stopping the Pump 60

Safety Rules 60

Warning Notes 61

Caution Notes 63

Maintenance Actions 64

Oil and Filter Cartridge Replacement Procedures 66

Lubricants 68

Pump Electronic Controller 71

RS 232/RS 485 Communication Description 75

Accessories 83

Contents

8/90 MS40+ Single Stage Rotary Vane Pumps User Manual / 87-901-008-01 (E)

MS40+ Single Stage Rotary Vane Pumps User Manual

9/90

Istruzioni per l’uso

Informazioni Generali 10

Immagazzinamento 11

Preparazione per l’installazione 11

Installazione 13

Uso 15

Manutenzione 15

Smaltimento 18

Traduzione delle istruzioni originali

Istruzioni per l’uso

Informazioni Generali

10/90 MS40+ Single Stage Rotary Vane Pumps User Manual / 87-901-008-01 (E)

Informazioni Generali

Questa apparecchiatura è destinata ad uso professionale.

L'utilizzatore deve leggere attentamente il presente manuale di

istruzioni ed ogni altra informazione addizionale fornita dalla Agilent

prima dell'utilizzo dell'apparecchiatura. La Agilent si ritiene sollevata

da eventuali responsabilità dovute all'inosser-vanza totale o parziale

delle istruzioni, ad uso improprio da parte di personale non

addestrato, ad in-terventi non autorizzati o ad uso contrario alle

normative nazionali specifiche.

Le MS40+ Single Stage Rotary Vane Pumps sono delle pompe rotative

monostadio a palette, a tenuta in bagno d'olio, azionate da motore

elettrico trifase. Queste pompe da alto vuoto sono adatte al

pompaggio di gas non corrosivi.

Nei paragrafi seguenti sono riportate tutte le informazioni necessarie

a garantire la sicurezza dell'operatore durante l'utilizzo

dell'apparecchiatura. Informazioni dettagliate sono fornite

nell'appendice “Technical Information”.

Questo manuale utilizza le seguenti convenzioni:

AVVERTENZA!

I messaggi di avvertenza attirano l’attenzione dell’operatore su una

procedura o una pratica specifica che, se non eseguita in modo corretto,

potrebbe provocare gravi lesioni personali.

ATTENZIONE!

I messaggi di attenzione sono visualizzati prima di procedure che, se non

osservate, potrebbero causare danni all’apparecchiatura.

NOTA Le note contengono informazioni importanti estrapolate dal testo.

Istruzioni per l’uso

Immagazzinamento

MS40+ Single Stage Rotary Vane Pumps User Manual / 87-901-008-01 (E) 11/90

Immagazzinamento

Durante il trasporto e l'immagazzinamento delle pompe non devono

essere superate le seguenti condizioni ambientali:

 temperatura: da -20 °C a 70 °C

 umidità relativa: 0 – 95 % (non condensante)

Preparazione per l’installazione

La pompa viene fornita in un imballo protettivo specia-le; se si

presentano segni di danni, che potrebbero essersi verificati durante il

trasporto, contattare l'ufficio vendite locale.

Il peso dell’imballo, comprensivo della pompa, è, al massimo, di circa

35 Kg.

Durante l'operazione di disimballaggio, prestare particolare

attenzione a non lasciar cadere la pompa e a non sottoporla ad urti o

vibrazioni.

Non disperdere l'imballo nell'ambiente. Il materiale è completamente

riciclabile e risponde alla direttiva CEE 85/399 per la tutela

dell'ambiente.

NOTA La pompa non può essere danneggiata rimanendo semplicemente esposta

all'atmosfera. Si consiglia comunque di mantenerla chiusa fino al momento

dell'installazione sul sistema onde evitare eventuale inquinamento da polvere.

Istruzioni per l’uso

Preparazione per l’installazione

12/90 MS40+ Single Stage Rotary Vane Pumps User Manual / 87-901-008-01 (E)

NOTA La pompa è fornita con alcuni accessori standard:

 1 connettore "D" a 9 contatti per I/O (femmina)

(escluso il modello 949-9241)

 1 connettore "D" a 9 contatti per RS232 (maschio)

(escluso il modello 949-9241)

 Molla di ritenuta per presa IEC320

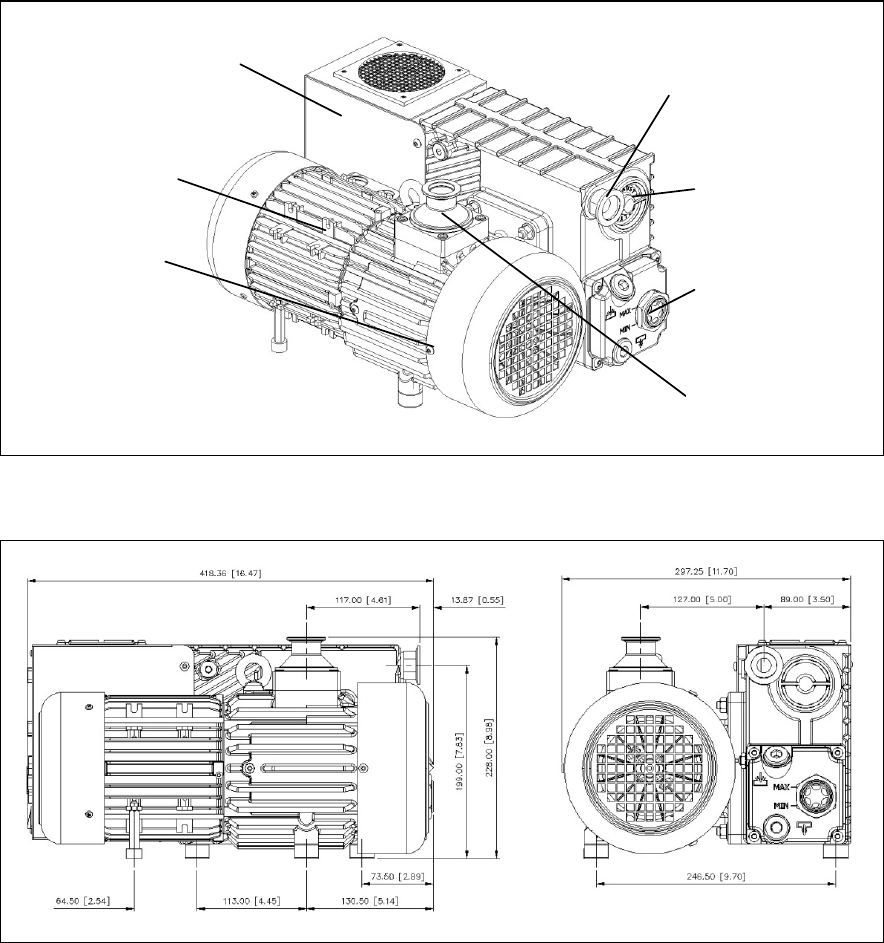

Figura 1

Istruzioni per l’uso

Installazione

MS40+ Single Stage Rotary Vane Pumps User Manual / 87-901-008-01 (E) 13/90

Installazione

Non installare e/o utilizzare la pompa in ambienti esposti ad agenti

atmosferici (pioggia, gelo, neve), polveri, gas aggressivi, in ambienti

esplosivi o con elevato rischio di incendio.

Durante il funzionamento è necessario che siano rispettate le

seguenti condizioni ambientali:

 temperatura: da +12 °C a +40 °C

 umidità relativa: 0 – 95 % (non condensante)

 valore di IP.

ATTENZIONE!

Prima di avviare la pompa, verificare il livello dell’olio.

AVVERTENZA

Togliere i tappi di protezione posti sulle flange di aspirazione e scarico prima

di ogni successiva operazione. L’aria contenuta all’interno della pompa, in

caso di accensione involontaria, può proiettarli violentemente contro

l’operatore e ferirlo.

AVVERTENZA

Durante l'installazione, prestare la massima attenzione che la flangia di

aspirazione sia collegata alla camera da evacuare e che la flangia di scarico

non sia tappata (vedere la figura seguente). La pompa non deve essere usata

come compressore. La massima pressione interna al contenitore dell'olio non

deve superare 1,5 bar (abs). L'inosservanza di queste precauzioni può causare

danni alla macchina ed all'operatore.

Istruzioni per l’uso

Installazione

14/90 MS40+ Single Stage Rotary Vane Pumps User Manual / 87-901-008-01 (E)

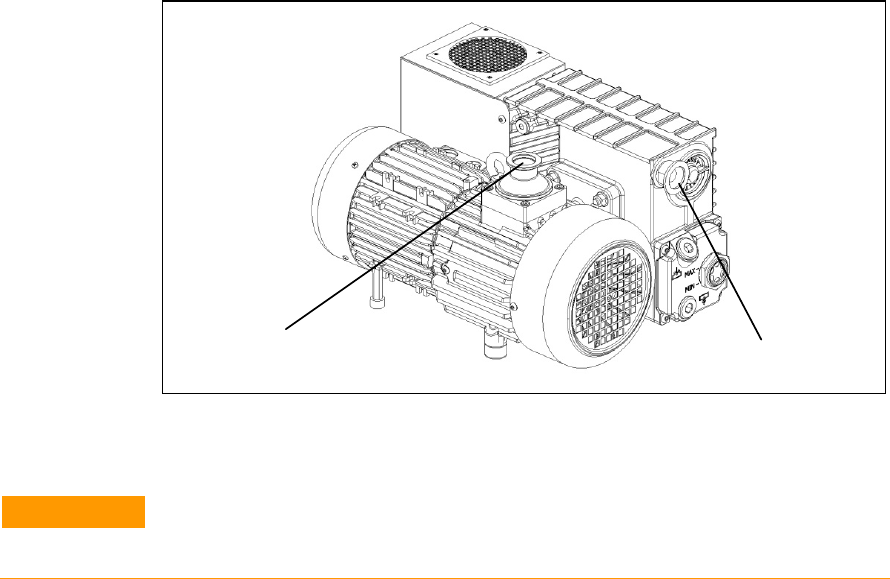

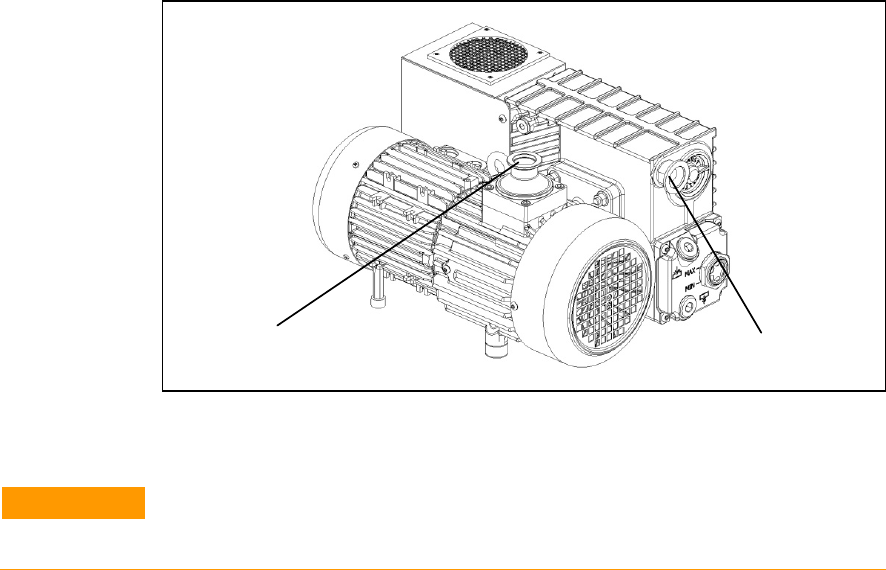

Figura 2

ATTENZIONE!

Controllare che la tensione di alimentazione corrispon-da al campo di valori

indicati sulla targhetta del controller.

Collegare la pompa all’alimentazione.

Flangia di scarico

Flangia di aspirazione

Istruzioni per l’uso

Uso

MS40+ Single Stage Rotary Vane Pumps User Manual / 87-901-008-01 (E) 15/90

Uso

L'accensione della pompa non richiede particolari ma-novre; è

sufficiente collegarla all’alimentazione elettrica agendo

sull’interruttore bipolare.

AVVERTENZA!

La pompa è progettata per operare con fluidi neutri o non corrosivi. È

assolutamente vietato l'impiego con sostanze potenzialmente esplosive o

infiammabili.

Manutenzione

Il personale addetto alla condotta ed alla manutenzione della pompa

deve essere ben addestrato e deve avere un'approfondita conoscenza

delle norme antinfortunistiche.

AVVERTENZA!

Le alte tensioni possono causare morte al contatto. Operare sempre con la

massima cautela e secondo le norme antinfortunistiche in vigore.

Istruzioni per l’uso

Manutenzione

16/90 MS40+ Single Stage Rotary Vane Pumps User Manual / 87-901-008-01 (E)

AVVERTENZA!

Quando la macchina è alimentata prestare attenzione per la presenza di parti

in movimento e di alta tensione.

AVVERTENZA!

Nel caso si debba procedere ad operazioni di manutenzione della pompa al

termine di un periodo di esercizio, è necessario lasciarla raffreddare, poichè

la temperatura esterna può superare i 60 °C.

AVVERTENZA!

Escludere sempre l'alimentazione della pompa prima di compiere operazioni

di manutenzione. Apporre specifici cartelli di avvertenza: APPARECCHIATURA

IN MANUTENZIONE - NON INSERIRE L'ALIMENTAZIONE, in corrispondenza

dell'interruttore di alimentazione. Al termine ripristinare i dispositivi di

sicurezza.

AVVERTENZA!

Non effettuare la sostituzione dell’olio subito dopo l’arresto della macchina,

in quanto la temperatura dello stesso può essere elevata.

Istruzioni per l’uso

Manutenzione

MS40+ Single Stage Rotary Vane Pumps User Manual / 87-901-008-01 (E) 17/90

NOTA Prima di rispedire al costruttore una pompa per ri-parazioni è indispensabile

compilare e far pervenire al locale ufficio vendite la scheda "Health and Safety

Certification" allegata al presente manuale di istruzioni. Copia della stessa deve

essere inserita nell'imballo della pompa prima della spedizione.

Qualora una pompa dovesse essere rottamata, procedere alla sua

eliminazione nel rispetto delle normative nazionali specifiche.

Istruzioni per l’uso

Smaltimento

18/90 MS40+ Single Stage Rotary Vane Pumps User Manual / 87-901-008-01 (E)

Smaltimento

Significato del logo "WEEE" presente sulle etichette.

Il simbolo qui sotto riportato è applicato in ottemperanza alla

direttiva CE denominata "WEEE".

Questo simbolo (valido solo per i paesi della Comunità Europea)

indica che il prodotto sul quale è applicato, NON deve essere smaltito

insieme ai comuni rifiuti domestici o industriali, ma deve essere

avviato ad un sistema di raccolta differenziata. Si invita pertanto

l'utente finale a contattare il fornitore del dispositivo, sia esso la casa

madre o un rivenditore, per avviare il processo di raccolta e

smaltimento, dopo opportuna verifica dei termini e condizioni

contrattuali di vendita.

MS40+ Single Stage Rotary Vane Pumps User Manual

19/90

Gebrauchsanleitung

Allgemeine Hinweise 20

Lagerung 21

Vor der Installation 21

Installation 23

Gebrauch 25

Wartung 25

Entsorgung 27

Übersetzung der Originalanleitungen

Gebrauchsanleitung

Allgemeine Hinweise

20/90 MS40+ Single Stage Rotary Vane Pumps User Manual / 87-901-008-01 (E)

Allgemeine Hinweise

Dieses Gerät ist für den professionellen Gebrauch bestimmt. Vor dem

Gebrauch soll der Benutzer dieses Handbuch sowie alle weiteren von

Agilent mitgelieferten Zusatzinformationen genau lesen. Bei

vollständiger bzw. teilweiser Nichtbeachtung der enthaltenen

Hinweise, unsachgemäßem Gebrauch durch ungeschultes Personal,

nicht autorisierten Eingriffen und Benutzung unter Missachtung der

nationalen Bestimmungen übernimmt Firma Agilent keinerlei

Haftung.

Die Pumpen MS40+ Single Stage Rotary Vane Pumps sind dichte

ölbadgeschmierte einstufige Flügelzellenpumpen, die von einem

Dreiphasenstrommotor betätigt werden. Diese Hochvakuumpumpen

eignen sich für das Pumpen von nicht korrosiven Gasen. In den

folgenden Abschnitten sind alle erforderlichen Informationen für die

Sicherheit des Bedieners bei der Verwendung des Geräts aufgeführt.

Detaillierte technische Informationen sind im Anhang "Technical

Information" enthalten.

In dieser Gebrauchsanleitung werden Sicherheitshinweise

folgendermaßen hervorgehoben:

WARNUNG!

Diese Warnung weist auf gefährliche Ar-beitsschritte hin, die bei

unsachgemäßer Durchfüh-rung das Risiko von Personenschäden bergen.

VORSICHT! Diese Warnung weist auf Arbeitsschritte hin, die das Risiko von Schäden am

Gerät bergen.

HINWEIS Die Hinweise enthalten wichtige Informationen, die aus dem Text

hervorgehoben werden.

Gebrauchsanleitung

Lagerung

MS40+ Single Stage Rotary Vane Pumps User Manual / 87-901-008-01 (E) 21/90

Lagerung

Während des Transports und der Lagerung der Pumpen sollen die

folgenden Umgebungsbedingungen gegeben sein:

 Temperatur: -20 °C bis +70 °C

 Relative Feuchtigkeit: 0 – 95 % (niederschlagsfrei)

Vor der Installation

Die Pumpe wird in einer speziellen Schutzverpackung geliefert.

Eventuelle Transportschäden sind der zustän-digen örtlichen

Verkaufsstelle zu melden.

Das Verpackungsgewicht beträgt, einschließlich der Pumpe, maximal

36 kg.

Beim Auspacken ist darauf zu achten, dass die Pumpe nicht

fallengelassen oder Stößen oder Vibrationen aus-gesetzt wird. Das

Verpackungsmaterial ist ordnungsgemäß zu ent-sorgen. Es ist

vollständig recyclebar und entspricht der EG-Richtlinie 85/399 für

den Umweltschutz.

HINWEIS Die Pumpe kann, wenn sie einfach der Atmosphäre ausgesetzt ist, nicht

beschädigt werden. Sie sollte jedoch bis zur Installation an der Anlage ge-

schlossen bleiben, um Verunreinigungen durch Staub zu vermeiden.

Gebrauchsanleitung

Vor der Installation

22/90 MS40+ Single Stage Rotary Vane Pumps User Manual / 87-901-008-01 (E)

HINWEIS Die Pumpe wird mit einigen Standardzubehörteilen geliefert:

 1 9-Stift-Stecker "D" für I/O (Steckbuchse)

(mit Ausnahme der 949-9241-model)

 1 9-Stift-Stecker "D" für RS232 (Stecker)

(mit Ausnahme der 949-9241-model)

 Rückhaltefeder für Anschluss IEC320

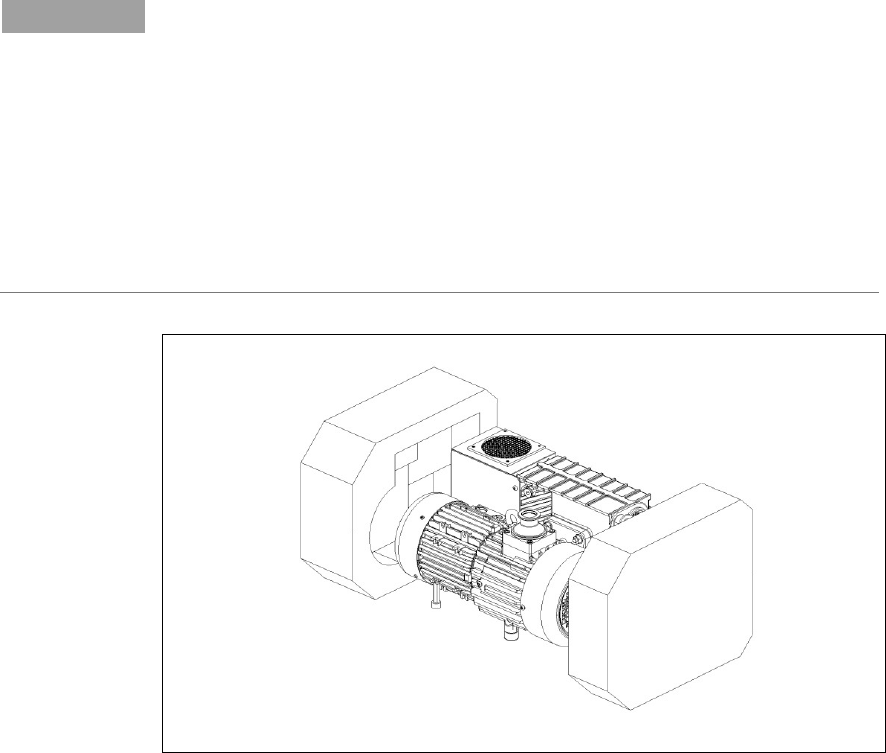

Abbildung 1

Gebrauchsanleitung

Installation

MS40+ Single Stage Rotary Vane Pumps User Manual / 87-901-008-01 (E) 23/90

Installation

Die Pumpe darf nicht in Umgebungen installiert und/oder benutzt

werden, die ungeschützt vor Witterungsbedingungen (Regen, Frost,

Schnee), Staub und aggressiven Gasen sind und in denen Explosions-

oder erhöhte Brandgefahr besteht.

Während des Betriebs sollen die folgenden Umgebungsbedingungen

gegeben sein:

 Temperatur: +12 °C bis +40 °C

 Relative Feuchtigkeit: 0 – 95 % (niederschlagsfrei)

 IP Wert.

VORSICHT! Vor Inbetriebnahme der Pumpe muss der Ölstand kontrolliert werden.

WARNUNG!

Vor Aufnahme jeglicher Arbeiten sind die Schutzkappen an den Saug- und

Druckflanschen zu entfernen. Die im Pumpeninnern enthaltene Luft könnte

diese bei unbeabsichtigter Einschaltung gegen den Bediener schleudern.

WARNUNG!

Bei der Installation ist unbedingt darauf zu achten, dass der Saugflansch an

die zu entleerende Kammer ange-schlossen ist und der Ablassflansch nicht

verschlossen ist (siehe nachstehende Abbildung). Die Pumpe darf nicht als

Verdichter verwendet werden. Der Druck im Ölbehälter darf nicht größer als

1,5 bar (abs) sein. Bei Nichtbeachtung dieser Anweisungen besteht

Schadensgefahr für das Gerät und die Bedienperson.

Gebrauchsanleitung

Installation

24/90 MS40+ Single Stage Rotary Vane Pumps User Manual / 87-901-008-01 (E)

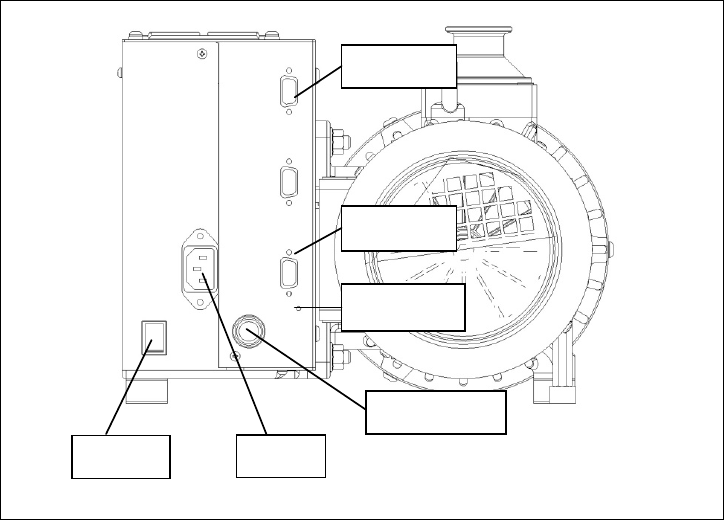

Abbildung 2

VORSICHT! Vergewissern Sie sich, dass die Versorgungsspannung mit dem Wertbereich auf

dem Typenschild des Kontrollers übereinstimmt.

Die Pumpe an das Versorgungsnetz anschließen.

Ablassflansch

Saugflansch

Gebrauchsanleitung

Gebrauch

MS40+ Single Stage Rotary Vane Pumps User Manual / 87-901-008-01 (E) 25/90

Gebrauch

Die Einschaltung der Pumpe erfordert keine speziellen Schritte, sie

braucht nur durch Betätigung des zweipoligen Schalters an den

Strom angeschlossen zu werden.

WARNUNG!

Die Pumpe ist für den Betrieb mit neutralen und nicht korrosiven Fluiden

konzipiert. Der Einsatz mit potentiell explosions- oder feuergefährlichen

Substanzen ist streng verboten.

Wartung

Das für den Betrieb und die Wartung zuständige Personal soll

geschult sein und über eine solide Kenntnis der

Unfallschutzvorschriften verfügen.

WARNUNG!

Hochspannungen können bei Kontakt tödliche Folgen haben. Es ist stets mit

größter Vorsicht und gemäß den geltenden Unfallschutzvorschriften

vorzugehen.

WARNUNG!

Bei eingeschaltetem Gerät ist auf Bewegungs- und Hochspannungsteile zu

achten.

Gebrauchsanleitung

Wartung

26/90 MS40+ Single Stage Rotary Vane Pumps User Manual / 87-901-008-01 (E)

WARNUNG!

Falls die Pumpe im Anschluß an den Betrieb gewartet werden soll, ist

abzuwarten, bis sie abgekühlt ist, da ihre Oberfläche eine Temperatur von

60 °C überschreiten kann.

WARNUNG!

Vor Wartungsarbeiten ist die Pumpe stets energiefrei zu schalten. Am

Netzschalter sind spezielle Warnschilder “INSTANDHALTUNG AM GERÄT –

NICHT EINSCHALTEN” anzubringen. Nach Abschluss der Arbeiten sind die

Sicherheitseinrichtungen wieder zu aktivieren.

WARNUNG!

Keine Ölwechsel unmittelbar nach Stillsetzung des Gerätes vornehmen, da

die Öltemperatur sehr hoch sein kann.

HINWEIS Bevor dem Hersteller eine Pumpe zur Reparatur zurückgesandt wird, ist das

Formular “Sicherheit und

Gesundheit” in der Anlage zum vorliegenden Handbuch

auszufüllen und der lokalen Verkaufsstelle zuzustellen. Eine Kopie des Formulars

ist der Pumpenverpackung vor dem Versand beizulegen.

Bei eventueller Verschrottung einer Pumpe ist diese entsprechend

der einschlägigen nationalen Vorschriften zu entsorgen.

Gebrauchsanleitung

Entsorgung

MS40+ Single Stage Rotary Vane Pumps User Manual / 87-901-008-01 (E) 27/90

Entsorgung

Bedeutung des "WEEE" Logos auf den Etiketten.

Das folgende Symbol ist in Übereinstimmung mit der EU-Richtlinie

WEEE (Waste Electrical and Electronic Equipment) angebracht.

Dieses Symbol (nur in den EU-Ländern gültig) zeigt an, dass das

betreffende Produkt nicht zusammen mit Haushaltsmüll entsorgt

werden darf sondern einem speziellen Sammelsystem zugeführt

werden muss.

Der Endabnehmer sollte daher den Lieferanten des Geräts - d.h. die

Muttergesellschaft oder den Wiederverkäufer - kontaktieren, um den

Entsorgungsprozess zu starten, nachdem er die Verkaufsbedingungen

geprüft hat.

Gebrauchsanleitung

Entsorgung

28/90 MS40+ Single Stage Rotary Vane Pumps User Manual / 87-901-008-01 (E)

MS40+ Single Stage Rotary Vane Pumps User Manual

29/90

Mode d’emploi

Indications générales 30

Emmagasinage 31

Preparation pour l‘installation 31

Installation 33

Utilisation 35

Maintenance 35

Mise au rebut 37

Traduction de la mode d’emploi originale

Mode d’emploi

Indications générales

30/90 MS40+ Single Stage Rotary Vane Pumps User Manual / 87-901-008-01 (E)

Indications générales

Cet appareil a été conçu en vue d'une utilisation professionnelle. Il

est conseillé à l'utilisateur de lire attentivement cette notice ainsi que

toute autre information fournie par Agilent avant de l'utiliser. Agilent

décline toute responsabilité en cas de non-respect total ou partiel des

instructions fournies, d'utilisation in-correcte de la part du personnel

non formé, d'opérations non autorisées ou d'un emploi contraire aux

réglementations nationales spécifiques.

MS40+ Single Stage Rotary Vane Pumps sont des pompes rotatives

monoétages, à palettes, étanches en bain d'huile, actionnées par un

moteur électrique triphasé. Ces pompes à haut vide sont adaptées au

pompage de gaz non corrosifs.

Les paragraphes suivants fournissent toute l‘information nécessaire

pour garantir la sécurité de l'opérateur pendant l'utilisation de

l'appareil. Des ren-seignements plus détaillés se trouvent dans

l'appendice «Technical Information».

Cette notice utilise les signes conventionnels suivants:

AVERTISSEMENT!

Les messages d’avertissement attirent l'attention de l'opérateur sur une

procédure ou une manœuvre spéciale dont la mauvaise exécution risque de

provoquer de graves lésions.

ATTENTION!

Les messages d'attention apparaissent avant certaines procédures dont le non-

respect pourrait endommager sérieusement l'appareil.

NOTE Les notes contiennent des renseignements importants, isolés du texte.

Mode d’emploi

Emmagasinage

MS40+ Single Stage Rotary Vane Pumps User Manual / 87-901-008-01 (E) 31/90

Emmagasinage

Pendant le transport et l'emmagasinage des pompes, veiller à

respecter les conditions environnementales suivantes:

 température: de -20 °C à +70 °C

 humidité relative: 0 – 95 % (sans condensation)

Preparation pour l‘installation

La pompe est fournie dans un emballage de protection spécial; si l'on

constate des marques de dommages pouvant s'être produites pendant

le transport, contacter aussitôt le bureau de vente local.

Le poids total de l'emballage avec la pompe est d’environ 35 kg

maximum.

Pendant l'opération d'ouverture de l'emballage, veiller tout

particulièrement à ne pas laisser tomber la pompe et à ne lui faire

subir aucun choc ni aucune vibration.

Ne pas jeter l'emballage dans la nature. Le matériel est entièrement

recyclable et il est conforme à la directive CEE 85/399 en matière de

protection de l'environnement.

NOTE La pompe ne peut être endommagée en restant simplement exposée à

l'atmosphère. Il est de toute façon conseillé de la garder dans son emballage

jusqu'au moment de sa mise en place sur le système afin d'éviter toute

pollution due à la poussière.

Mode d’emploi

Preparation pour l‘installation

32/90 MS40+ Single Stage Rotary Vane Pumps User Manual / 87-901-008-01 (E)

NOTE La pompe est équipée de certains accessoires stan-dard:

 1 connecteur “D” à 9 broches pour E/S (femelle)

(l’exclusion du modèle 949-9241)

 1 connecteur “D” à 9 broches pour RS232 (mâle)

(l’exclusion du modèle 949-9241)

 Ressort de maintien pour prise IEC320

Figure 1

Mode d’emploi

Installation

MS40+ Single Stage Rotary Vane Pumps User Manual / 87-901-008-01 (E) 33/90

Installation

Ne pas installer et/ou utiliser la pompe dans des milieux exposés aux

agents atmosphériques (pluie, gel, neige), à des poussières, à des gaz

agressifs ainsi que dans des milieux explosifs ou à risque élevé

d'incendie.

Pendant le fonctionnement, il est nécessaire de respecter les

conditions environnementales suivantes:

 Température: de +12 °C à +40 °C

 Humidité relative: 0 – 95 % (sans condensation)

 Valeur d'IP.

ATTENTION! Avant toute utilisation de la pompe, vérifier le niveau de l’huile.

AVERTISSEMENT!

Avant toute autre opération, retirer les bouchons de protection placés sur les

brides d'aspiration et de vi-dange. En cas de mise en marche inopinée de

l'appa-reil, l'air contenu à l'intérieur de la pompe peut les projeter contre

l'opérateur et le blesser.

AVERTISSEMENT!

Pendant l'installation, faire très attention à ce que la bride d'aspiration soit

reliée à la chambre à vider et que la bride de vidange ne soit pas bouchée

(voir la figure ci-après). La pompe ne doit pas être utilisée comme un

compresseur. La pression maximale à l'intérieur du réservoir d'huile ne doit

pas dépasser 1,5 bar (abs). Le non-respect de ces précautions peut entraîner

un danger pour l'opérateur et endommager la machine.

Mode d’emploi

Installation

34/90 MS40+ Single Stage Rotary Vane Pumps User Manual / 87-901-008-01 (E)

Figure 2

ATTENTION!

Contrôler que la tension d'alimentation correspond à la gamme de tensions

indiquées sur la plaquette du contrôleur.

Brancher la pompe à la source d'alimentation.

Bride de vidange

Bride d'aspiration

Mode d’emploi

Utilisation

MS40+ Single Stage Rotary Vane Pumps User Manual / 87-901-008-01 (E) 35/90

Utilisation

La mise en marche de la pompe ne requiert aucune manœuvre

particulière; il suffit de la brancher à l'alimentation électrique et

d’actionner l'interrupteur bipolaire.

AVERTISSEMENT!

La pompe a été conçue pour fonctionner avec des fluides neutres ou non

corrosifs. L'emploi de substances potentiellement explosives ou

inflammables est strictement interdit.

Maintenance

Le personnel chargé de la conduite et de la maintenance de la pompe

doit avoir la formation nécessaire et posséder une connaissance

approfondie des normes de prévention des accidents du travail.

AVERTISSEMENT!

Les hautes tensions peuvent entraîner la mort par contact. Veiller à toujours

opérer avec le maximum de prudence et dans le respect des normes de

prévention des accidents du travail en vigueur.

AVERTISSEMENT!

Lorsque la machine est sous tension, faire attention à la présence d'organes

en mouvement et de haute tension.

Mode d’emploi

Maintenance

36/90 MS40+ Single Stage Rotary Vane Pumps User Manual / 87-901-008-01 (E)

AVERTISSEMENT!

En cas de nécessité de procéder à des opérations de maintenance de la

pompe au terme d'une période de fonctionnement, il est indispensable de la

laisser refroidir car sa température extérieure peut être supérieure à 60 °C.

AVERTISSEMENT!

Avant toute opération de maintenance, il est impératif de toujours couper

l'alimentation de la pompe. Placer les panneaux spécifiques d'avertissement:

APPAREIL EN COURS DE MAINTENANCE – NE PAS BRANCHER

L'ALIMENTATION, près de l'interrupteur d'alimentation. Au terme des

opérations de maintenance, restaurer les dispositifs de sécurité.

AVERTISSEMENT!

Ne pas effectuer la substitution d'huile immédiatement après l'arrêt de la

machine car la température de celle-là peut être élevée.

NOTE Avant de retourner une pompe au constructeur pour réparation, il est

indispensable de remplir et d'adresser au bureau local de vente la fiche “Health

and Safety Certification” jointe à la présente notice. Une copie de celle-ci devra

être mise dans l'emballage de la pompe avant expédition.

En cas de mise au rebut de la pompe, procéder à son élimination

conformément aux réglementations nationales en la matière.

Mode d’emploi

Mise au rebut

MS40+ Single Stage Rotary Vane Pumps User Manual / 87-901-008-01 (E) 37/90

Mise au rebut

Signification du logo "WEEE" figurant sur les étiquettes.

Le symbole ci-dessous est appliqué conformément à la directive CE

nommée "WEEE".

Ce symbole (unique-ment valide pour les pays de la Communauté

euro-péenne) indique que le produit sur lequel il est appliqué NE

doit PAS être mis au rebut avec les ordures ména-gères ou les

déchets industriels ordinaires, mais passer par un système de

collecte sélective.

Après avoir vérifié les termes et conditions du contrat de vente,

l’utilisateur final est donc prié de contacter le fournisseur du

dispositif, maison mère ou revendeur, pour mettre en œuvre le

processus de collecte et mise au rebut.

Mode d’emploi

Mise au rebut

38/90 MS40+ Single Stage Rotary Vane Pumps User Manual / 87-901-008-01 (E)

MS40+ Single Stage Rotary Vane Pumps User Manual

39/90

Instructions for Use

General Information 40

Storage 41

Preparation for Installation 41

Installation 43

Use 45

Maintenance 45

Disposal 47

Original Instructions

Instructions for Use

General Information

40/90 MS40+ Single Stage Rotary Vane Pumps User Manual / 87-901-008-01 (E)

General Information

This equipment is destined for use by professionals. The user should

read this instruction manual and any other additional information

supplied by Agilent before operating the equipment. Agilent will not be

held responsible for any events occurring due to non-compliance, even

partial, with these instructions, improper use by untrained persons,

non-authorized interference with the equipment or any action contrary

to that provided for by specific national standards.

The MS40+ Single Stage Rotary Vane Pumps are single-stage, rotary vane

pumps oil sealed, driven by a three-phase electric motor.

These high vacuum pumps are suitable for pumping non corrosive gases.

The following paragraphs contain all the information necessary to

guarantee the safety of the operator when using the equipment. Detailed

information is supplied in the appendix "Technical Information".

This manual uses the following standard protocol:

WARNING!

The warning messages are for attracting the attention of the operator to a

particular procedure or practice which, if not followed correctly, could lead to

serious injury.

CAUTION! The caution messages are displayed before procedures which, if not followed,

could cause damage to the equipment.

NOTE The notes contain important information taken from the text.

Instructions for Use

Storage

MS40+ Single Stage Rotary Vane Pumps User Manual / 87-901-008-01 (E) 41/90

Storage

When transporting and storing the pumps, the following

environmental requirements should not be exceeded:

 temperature: from -20° to +70 °C

 relative humidity: 0 – 95 % (non-condensing)

Preparation for Installation

The pump is supplied in a special protective packing. If this shows

signs of damage which may have occurred during transport, contact

your local sales office.

Total weight of the pack, including the pump, is approx. 35 Kg.

When unpacking the pump, be sure not to drop it and avoid any kind

of sudden impact or shock vibration to it.

Do not dispose of the packing materials in an unauthorized manner.

The material is 100 % recyclable and complies with EEC Directive

85/399.

NOTE Normal exposure to the environment cannot dam-age the pump. Nevertheless, it

is advisable to keep it closed until it is installed in the system, thus pre-venting

any form of pollution by dust.

NOTE The pump is provided with some standard accessories:

 1 9 pin "D" connector for I/O (female) (excluding model 949-9241)

 1 9 pin "D" connector for RS232 (male) (excluding model 949-9241)

 IEC320 retention spring

Instructions for Use

Preparation for Installation

42/90 MS40+ Single Stage Rotary Vane Pumps User Manual / 87-901-008-01 (E)

Figure 1

Instructions for Use

Installation

MS40+ Single Stage Rotary Vane Pumps User Manual / 87-901-008-01 (E) 43/90

Installation

Do not install or use the pump in an environment exposed to

atmospheric agents (rain, snow, ice), dust, aggressive gases, or in

explosive environments or those with a high fire risk. During

operation, the following environmental conditions must be respected:

 temperature: from +12 °C to +40 °C

 relative humidity: 0 – 95 % (non-condensing)

 IP value.

CAUTION! Before starting the pump, check the oil level.

WARNING!

Take out the protective caps on the suction and exhaust flanges before doing

anything else. In the event of an accidental start-up, the air inside the pump

could violently expel the protective caps and harm the operator.

WARNING!

During installation, pay maximum attention that the suction flange is

connected to the vacuum chamber and the exhaust flange is not closed (see

the following figure). The pump must not be used as a compressor. Maximum

pressure inside the oil container must not exceed 1.5 bar (abs.). Non-

observance of these precautions may be dangerous for the machine and the

operator.

Instructions for Use

Installation

44/90 MS40+ Single Stage Rotary Vane Pumps User Manual / 87-901-008-01 (E)

Figure 2

CAUTION! Check that your electrical mains voltage corresponds to the range indicated on

controller label.

Connect the pump to the power supply.

Inlet Flange

Outlet Flange

Instructions for Use

Use

MS40+ Single Stage Rotary Vane Pumps User Manual / 87-901-008-01 (E) 45/90

Use

There are no special procedures for switching the pump on; it needs

only to be connected to the electric power by means of the bipolar

switch.

WARNING!

The pump is designed for operation with neutral or non-corrosive fluids. It is

absolutely forbidden to use potentially explosive or flammable substances.

Maintenance

Personnel responsible for pump operation and maintenance must be

well-trained and must be aware of the accident prevention rules.

WARNING!

Death may result from contact with high voltages. Always take extreme care

and observe the accident prevention regulations in force.

WARNING!

When machine is powered take care on account of moving parts and high

voltages.

Instructions for Use

Maintenance

46/90 MS40+ Single Stage Rotary Vane Pumps User Manual / 87-901-008-01 (E)

WARNING!

If you have to perform maintenance on the pump after a considerable time in

operation, leave it to cool as temperature of the outer surface may be in

excess of 60 °C.

WARNING!

Always disconnect the power supply to the pump before starting maintenance

work. Place a special warning signs over the power supply breaker switch:

MACHINE UNDERGOING MAINTENANCE - DO NOT POWER ON. When

finished, remove the safety warning.

WARNING!

Do not change the oil immediately after stopping the machine as the oil

temperature may still be high.

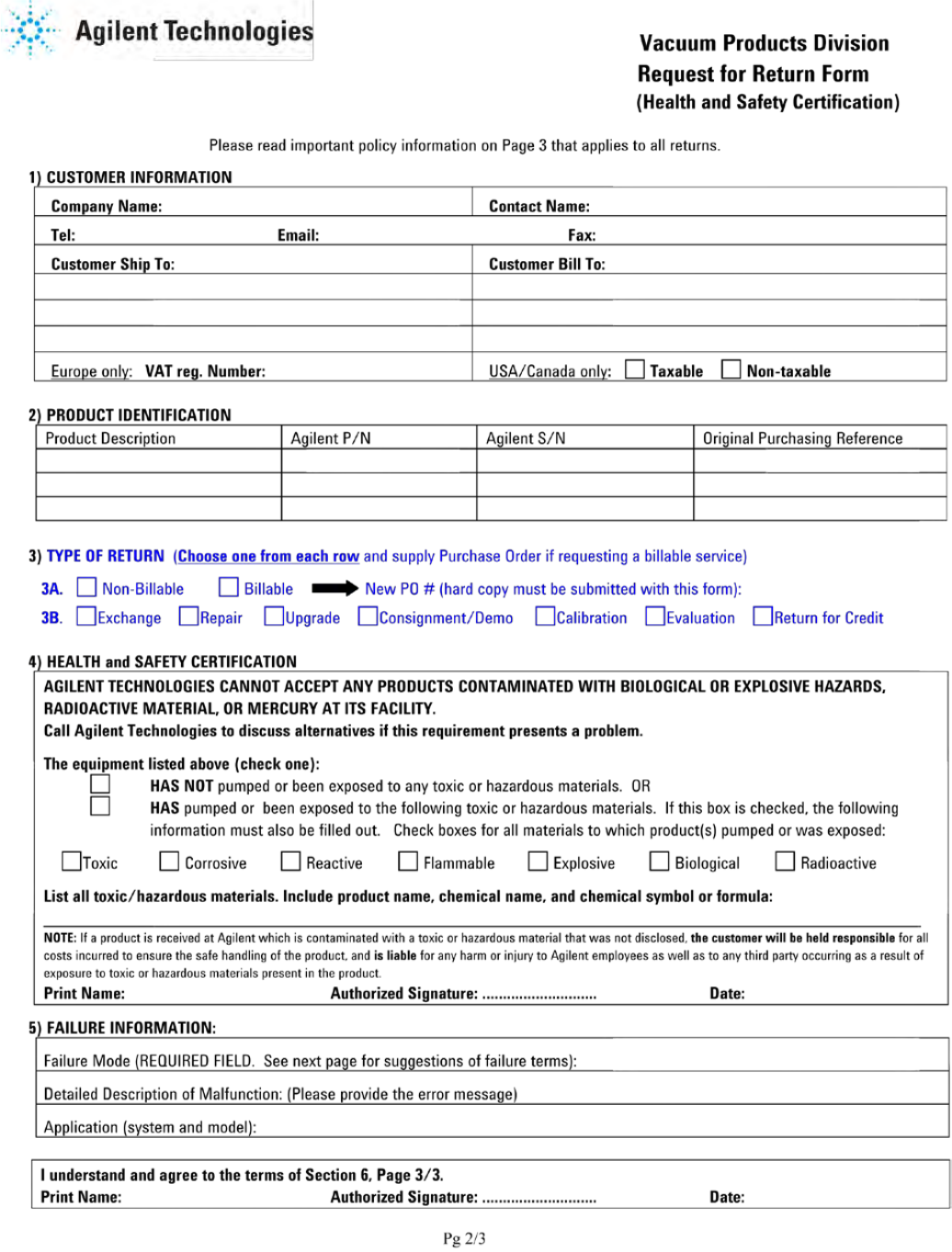

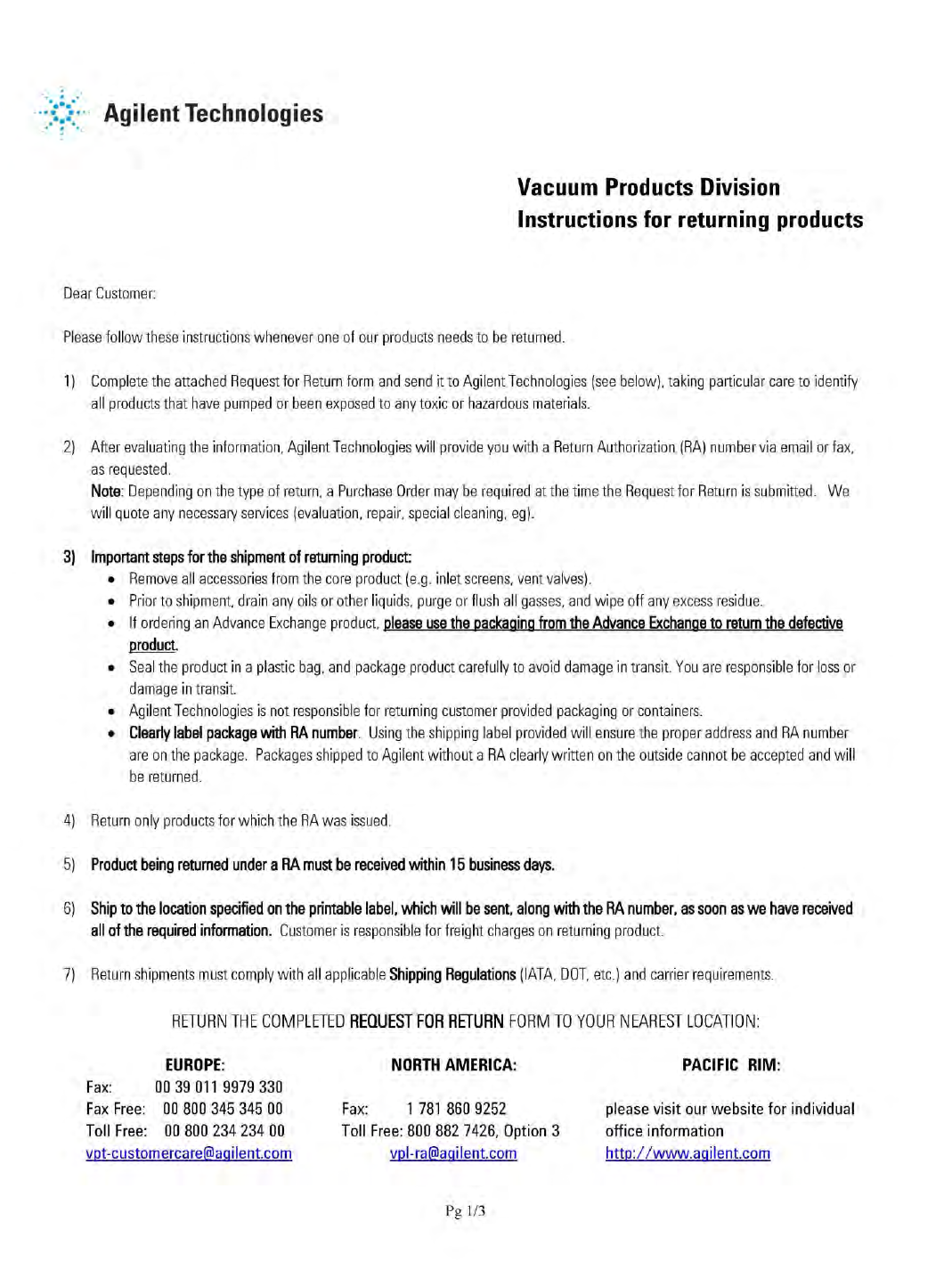

NOTE Before returning the pump to the constructor for repairs the "Health and Safety

Certification" sheet attached to this instruction manual must be filled-in and

sent to the local sales office. A copy of the sheet must be inserted in the pump

package before shipping.

If a pump is to be scrapped, it must be disposed of in accordance

with the specific national standards.

Instructions for Use

Disposal

MS40+ Single Stage Rotary Vane Pumps User Manual / 87-901-008-01 (E) 47/90

Disposal

Meaning of the "WEEE" logo found in labels

The following symbol is applied in accordance with the EC WEEE

(Waste Electrical and Electronic Equipment) Directive. This symbol

(valid only in countries of the European Community) indicates that

the product it applies to must NOT be disposed of together with

ordinary domestic or industrial waste but must be sent to a

differentiated waste collection system.

The end user is therefore invited to contact the supplier of the device,

whether the Parent Company or a retailer, to initiate the collection

and disposal process after checking the contractual terms and

conditions of sale.

Instructions for Use

Disposal

48/90 MS40+ Single Stage Rotary Vane Pumps User Manual / 87-901-008-01 (E)

MS40+ Single Stage Rotary Vane Pumps User Manual

49/90

Technical Information

Section I 51

Technical Description 51

Vacuum Seals 52

Anti-Suckback Device 52

Technical Data 53

Dimensions 54

Safety Precautions 55

Transport and Installation 55

Preliminary Operations 56

Section II 57

Connection to the Electric Supply 57

Connections to the Inlet and Exhaust Flanges 57

Starting and Running the Pump 59

Stopping the Pump 60

Safety Rules 60

Warning Notes 61

Caution Notes 63

Maintenance Actions 64

Oil and Filter Cartridge Replacement Procedures 66

Oil Change Procedure 66

Filter Cartridge Replacement Procedure 67

Lubricants 68

SW60 Oil Description 70

Original Instructions

Technical Information

Disposal

50/90 MS40+ Single Stage Rotary Vane Pumps User Manual / 87-901-008-01 (E)

Pump Electronic Controller 71

Technical Specifications 71

Input/Output Communications 73

P1 – I/O 73

RS 232/RS 485 Communication Description 75

J2 – Serial Port 75

Communication Format 75

Communication Protocol76

Examples 78

Window Meanings 79

Operational Limits 81

Status LED 81

Electronic Self-Test 82

Rotor Lock Test 82

Oil Level Check 82

Accessories 83

Technical Information

Section I

MS40+ Single Stage Rotary Vane Pumps User Manual / 87-901-008-01 (E) 51/90

Section I

Technical Description

The MS40+ Single Stage Rotary Vane Pumps are rotary vane pumps

oil sealed, driven by a three-phase electric motor.

Figure 3

These vacuum pumps are suitable for pumping non corrosive gases.

The main features are:

 all parts in direct contact with the fluid pumped are free of

copper alloys;

 all materials are carefully selected to provide extended life;

 due to its design features and low number of gaskets, the pump

requires little maintenance, disassembly and reassemble are easy

and require minimal time.

The oil guarantees perfect sealing of the discharge valves, enters the

pump to ensure lubrication and sealing of the parts inside, facilitates

heat dissipation and reduces pump noise.

Technical Information

Vacuum Seals

52/90 MS40+ Single Stage Rotary Vane Pumps User Manual / 87-901-008-01 (E)

The pump is equipped with a special anti-suckback device which

automatically isolates the vacuum system when the pump stops. This

avoids rises in pressure or oil flow in the vacuum system while air is

allowed back into the stator chambers.

The air entering the pump after the anti-suckback device has closed

prevents the oil in the casing from filling the stator chambers.

Vacuum Seals

A special feature of this pump is the low number of gaskets that are

employed.

The seals in the circuit are obtained by means of VITON gaskets.

Sealing of the rotor shaft is guaranteed by a rotating gasket with

dust-guard lip.

The suction flange and duct are sealed by mean of OR gaskets.

Anti-Suckback Device

The pump is equipped with a special anti-suckback device to avoid

air pressure rises and/or oil back-flow towards the evacuated vessel

when the pump is switched off. This device has a shutter which

automatically closes the suction duct.

In this way the pump and vacuum system are completely isolated

from each other and air can enter the pump without any risk for the

vacuum produced in the system.

The device includes some special features, namely:

 drive obtained avoiding any form of contamination of the inlet

duct by fluids (oil and/or air). Thanks to this, when the pump is

started again, the pumpdown to vacuum conditions is extremely

fast as these contaminants are not present and no degas-sing is

therefore required.

Technical Information

Technical Data

MS40+ Single Stage Rotary Vane Pumps User Manual / 87-901-008-01 (E) 53/90

Technical Data

Th The following table lists the main technical data of the MS40+

Single Stage Rotary Vane Pumps.

Tab. 1

TECHNICAL DATA RPM UNITS 949-9225 949-9240 949-9241

PUMPING SPEED (at 5 mbar inlet pressure) 1450 m3/h 40 40 40

ULTIMATE TOTAL PRESSURE * mbar 5x10-2 5x10-2 5x10-2

OIL CAPACITY min/max l 1 1 1

MOTOR RATING 3ph Kw 0.75 0.75 0.75

ROTATIONAL FREQUENCY min/max Hz 40-60 40-60 40-60

NOISE LEVEL dB(A) ≤ 62 ≤ 62 ≤ 62

OIL TEMPERATURE

(pump operating) **

°C 60 60 60

°F 140 140 140

IP Value 20

Installation category II

Pollution degree 2

OPERATING TEMPERATURE RANGE

°C

12 – 40

WEIGHT Kg 33 33 33

lb 72.7 72.7 72.7

INLET FLANGE DN 25KF 40KF 40KF

EXHAUST FLANGE DN 25KF 25KF 25KF

Main Dimensions:

- length mm 418 418 418

- width

297

- height mm 228 228 228

Nominal Input Voltage V 200-240 200-240 200-240

Input frequency Hz 50 / 60 50 / 60 50 / 60

Max input power VA 1200 1200 1200

Internal Main Fuse (TT type) A 12.5 12.5 12.5

* According to PNEUROP 6602

** At ultimate total pressure, 20 °C (68 °F) room temperature

Technical Information

Technical Data

54/90 MS40+ Single Stage Rotary Vane Pumps User Manual / 87-901-008-01 (E)

Dimensions

The following figure shows the pumps layout and dimensions:

Figure 4 MS40+ Single Stage Rotary Vane Pumps layout

Figure 5 MS40+ Single Stage Rotary Vane Pumps dimensions

Electronic controller

Electric motor

Pumping block

Outlet flange

Air filter

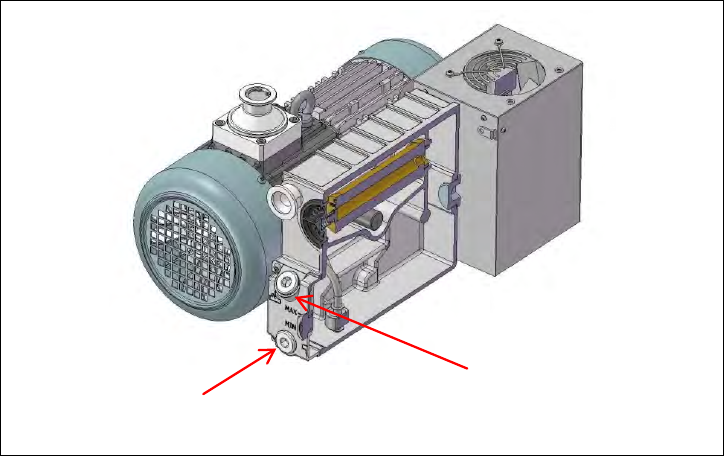

Oil level indicator

Inlet flange

Technical Information

Safety Precautions

MS40+ Single Stage Rotary Vane Pumps User Manual / 87-901-008-01 (E) 55/90

Safety Precautions

 Always carry the pump by means of the ring-bolt provided.

 The pump must be set in position taking the upmost care in order

to avoid accidental falls.

WARNING!

In case of a need to handle the pump after a pe-riod of operation, it must be

left to cool first as the external surface temperature may be in excess of

60 °C.

Transport and Installation

The pumps are shipped to the customer inside cardboard boxes.

Total weight of the pack, including the pump, is about 35 Kg.

The case must be handled with care, using appropriate lifting

equipment.

CAUTION! When moving the case, ensure that it is securely bound to the lifting equipment

and that the equip-ment is strong enough to support the weight.

The pump’s working environment is a traditional industrial

environment. Naturally sites with corrosive vapors or excessive heat

are best avoided.

Room temperature should ideally be between 12 °C and 40 °C.

If the temperature is not inside this range, consult Agilent technical

service for the changes required.

Technical Information

Transport and Installation

56/90 MS40+ Single Stage Rotary Vane Pumps User Manual / 87-901-008-01 (E)

Setting the pump in position should be performed as follows:

 Pump laid on the ground. There are no special instructions for

this type of installation, except that the floor should be as flat as

pos-sible and suited to bear the weight of the pump (it should

ideally be a concrete floor) and of any accessories mounted on it.

Note that the pump is stable on its base plate and it should not be

necessary to anchor it to the floor with bolts and screws; also

vibrations to and from the pump are greatly reduced by the use

of rubber feet.

 Pump off the ground. In this case, the user must design a suitable

support structure, re-membering the following points:

 the plane supporting the pump must be perfectly horizontal;

 the structure should be adequately rigid;

 the relevant safety precautions should be applied.

Note also that the pump should be attached to the supporting

structure after replacing the rubber feet with special anti-vibration

feet, which should be screwed to the pump base and to the

supporting plane.

After taking the pump out of its packing case, you are advised to

make the following checks:

a Ensure that the pump has not suffered any damage during

shipping.

b Check that there are no uncovered or loose parts.

Preliminary Operations

Before starting the pump, check for oil level.

CAUTION! Oil must be poured into the casing through the special threaded plughole and

NOT through the suction line.

WARNING!

Take out the protective caps on the suction and exhaust flanges before doing

anything else. In the event of an accidental start-up, the air inside the pump

could violently expel the protective caps and harm the operator.

Technical Information

Section II

MS40+ Single Stage Rotary Vane Pumps User Manual / 87-901-008-01 (E) 57/90

Section II

Connection to the Electric Supply

CAUTION!

It is recommended to connect the pump to the power supply through a dedicated

safety switch on the main electrical panel of the installation, or in proximity of

the power supply connection point.

Connections to the Inlet and Exhaust Flanges

Remove the protective caps from both flanges. Connect the system to

be evacuated to the inlet flange, using a centering ring with OR and a

locking collar.

NOTE For guaranteed reliable sealing, use an OR gasket in Perbunan or Viton.

The inlet duct is equipped with a sieve filter preventing solid

particles from entering and damaging the pump.

NOTE When the gases to be pumped out contain dust, it is advisable to insert a dust

filter before the inlet flange.

NOTE When the gases to be pumped out contain large quantities of vapor, it is

advisable to include a condense separator before the inlet flange.

To make best use of the pump’s capacity, use only short, straight

piping, with a diameter not smaller than that of the inlet flange.

Technical Information

Connections to the Inlet and Exhaust Flanges

58/90 MS40+ Single Stage Rotary Vane Pumps User Manual / 87-901-008-01 (E)

NOTE If rigid piping is used, it is good practice to use a flexible joint in order to avoid

undue forcing of the connection on the pump.

The exhaust duct must be connected to a pipe that will take away the

pumped out gases.

NOTE An internal oil mist eliminator avoids

pollution of the surrounding atmosphere by

the oil present in the exhaust duct during pump operation.

CAUTION!

Never block the pump exhaust line. This would cause overpressure in the casing

with the risk of breaking the oil tank.

Technical Information

Starting and Running the Pump

MS40+ Single Stage Rotary Vane Pumps User Manual / 87-901-008-01 (E) 59/90

Starting and Running the Pump

WARNING!

The pump is designed for operation with neutral or non-corrosive fluids. It is

absolutely forbidden to use potentially explosive or flammable substances.

NOTE If the pump is started with cold oil, initially more than normal noise will be

heard; this will last for a few minutes only until the oil reaches its working

temperature.

There are no special instructions for normal opera-tion of the pump,

which is delivered to you after completion of a runningin cycle in the

factory.

NOTE To allow the pump starting you have to wire properly the interlock pins by

connecting the mating connector provided with the pump.

NOTE For repetitive work

cycles, with brief time intervals in between, it is better not to

stop the pump.

Technical Information

Stopping the Pump

60/90 MS40+ Single Stage Rotary Vane Pumps User Manual / 87-901-008-01 (E)

Stopping the Pump

There are no special procedures for switching the pump off; it needs

only to be disconnected from the electric power by means of the

bipolar switch. When the pump is stopped, the anti-suckback de-vice

makes it possible to maintain vacuum in the vessel connected on the

inlet flange of the pump.

Safety Rules

Personnel responsible for pump operation and maintenance must be

well-trained and must be aware of the accident prevention rules. The

accident prevention precautions contained in this section must be

respected at all times during operation and maintenance of the pump

to avoid damage to operators and to the pump. These precautions are

provided in the form of WARNING and CAUTION notes.

WARNING!

Operating procedures, technical information and precautions which, if not

respected and/or implemented correctly may cause body harm to operators.

NOTE Before connecting the IEC320 mains cable, install the Retention Spring provided

with the MS40+. The Retention Spring has to be fastened to IEC320 connector

lateral screws.

NOTE Use the Retention Spring to secure the mains cable into the IEC320 socket.

CAUTION! Operating procedures, technical information and precautions, which, if not

respected and/or imple-mented correctly, may cause damage to the pump.

Technical Information

Warning Notes

MS40+ Single Stage Rotary Vane Pumps User Manual / 87-901-008-01 (E) 61/90

Warning Notes

a Death may result from contact with high volt-ages. Always take extreme care and

observe the accident prevention regulations in force.

b Always disconnect the power supply to the pump before maintenance work. Place a

special warning signs over the power supply breaker switch: MACHINE UNDERGOING

MAINTENANCE - DO NOT POWER ON.

c If you are performing maintenance after the pump has been operating for a

considerable time, allow sufficient time for it to cool as the external surface

temperature may be in excess of 60 °C.

d Failure to provide the pump with an earth con-nection may cause serious damage to

opera-tors. Always ensure that there is an earth connection and that it complies with

the standards.

e When cleaning the pump and its component parts, avoid the use of flammable or toxic

solvents, such as benzin, benzol, ether or alcohol. The recommendation is to use a soap

and water solution, preferably in ultrasound washing machines, taking care to dry all the

cleaned parts at temperatures under 100 °C in order to eliminate residual moisture.

f Prolonged overloads or breakdowns may cause the electric motor to overheat,and to

release noxious smoke; remove the power immediately as a precaution and do not

approach the pump at least until you have pro-vided ventilation to drive out the smoke.

Take care not to breathe in the fumes remaining inside the pump in the course of repair

work.

g In case of fire, do not throw water on the pump. Switch the power off and use CO2

extinguishers.

h Carefully inspect the flanges to ensure that there is no dust, oil, dirt or defects of the

mating surfaces, before making the required connections.

i Ensure that all joints and couplings are locked correctly before starting the pump again

after repair work.

Technical Information

Warning Notes

62/90 MS40+ Single Stage Rotary Vane Pumps User Manual / 87-901-008-01 (E)

j Do not wear any objects that may become entangled in the mechanisms and/or act as

conductors (chains, bracelets, etc.).

k Ensure that the tools to be used are in perfect working condition and have insulating

grips, where necessary. Check that the insulating material of the cables and that the

conductors of the test equipment do not show any signs of damage.

l Do not replace the oil immediately after stopping the machine as the oil may still be at

high temperature.

m Perform repairs in clean and, where possible, dustfree areas. Protect all the clearances of

connection points with suitable plastic caps and cover the machined surface areas of all

parts stripped down until they are put back on the pump again.

Technical Information

Caution Notes

MS40+ Single Stage Rotary Vane Pumps User Manual / 87-901-008-01 (E) 63/90

Caution Notes

a Before putting the pump back into operation after a breakdown, inspect it and check

carefully for any other signs of damage.

b Use only tools that are in perfect working order and specially designed for the job; use of

inappropriate or ineffective tools may cause serious damage.

c Perform repairs in clean and, where possible, dust-free areas. Protect all the clearances

of connection points with suitable plastic caps and cover the machined surface areas of

all parts stripped down until they are put back on the pump again.

d Always check the lubricant and that it is properly distributed through the pump;

inadequate lubrication may damage the pump seriously.

e Give the parts some form of marking as you strip them down to ensure that you

reassemble them again in the proper order.

f Check that there are no scratches or grooves on the machined shafts, in their seats

inside the pump or on machine-ground surfaces. Slight scratches and abrasions may be

eliminated with very fine emery paper or by a little light grinding.

g Before putting a group together, always spread a little oil over inner parts and mating

surfaces. Replace all seals with original spare parts before reassembling components.

Technical Information

Maintenance Actions

64/90 MS40+ Single Stage Rotary Vane Pumps User Manual / 87-901-008-01 (E)

Maintenance Actions

Maintenance may be seen as the totality of all scheduled and

unscheduled maintenance work.

 SCHEDULED MAINTENANCE: Maintaining the nominal state of

operation.

Tab. 2

Oil level checking Daily (before every starting)

Oil change

8.000 hours (light applications)

Exhaust filter replacement If oil mist at exhaust or yearly

Anti such-back valve checking 6 months

Fan cover cleaning 6 months

NOTE The scheduled maintenance is supported by an automatic timer provided by the

electronic controller. After 8000 h of operation the status led starts blink-ing

(400 ms period) orange. The led blinking highlights that is necessary to change

the oil. To switch off the alarm it’s necessary to use the serial interface (see

window list in the following pages). It is possible to read the Scheduled

Maintenance timer by using the serial interface.

 UNSCHEDULED MAINTENANCE: Restoring the nominal state

of operation.

NOTE The frequency with which repairs are performed depends on the process and

presence of substances that shorten pump life (dust, abrasives, solvents, water,

chemically aggressive substances).

The pump must be cleaned at regular intervals of time.

CAUTION! Do not clean with Alcohol the plastic or rubber components of the pump.

Use only the strictly necessary amount of lubricant; an excess of

lubricating oil, like when there is none, may sometimes compromise

proper operation of the pump.

Technical Information

Maintenance Actions

MS40+ Single Stage Rotary Vane Pumps User Manual / 87-901-008-01 (E) 65/90

Only the recommended lubricants, or lubricating oils with similar

characteristics and known and experimented quality, should be used.

Oil changes must be made with the oil at a sufficiently high

temperature, after leaving the pump to cool for a few minutes

following operation.

The drain and filler plugs must not be left open any longer than is

strictly necessary. When performing maintenance, look out for all

signals that may precede a breakdown, in particular:

 traces of corrosion;

 oil leaks;

 slack joints or couplings.

Maintenance technicians must:

 be aware of all applicable national directives concerning accident

prevention during work on motor-driven pumps and should

know how to apply them;

 have read and understood all the sections on “Safety Rules";

 be familiar with the essential design features and operation of the

pump;

 know how to use and consult the pump documentation;

 be concerned about proper operation of the pump;

 make a note of any irregularities in operation of the pump and

take the necessary action, where appropriate.

Use original spare parts wherever possible and repair a broken part

as best as possible on site or send it back to the manufacturer for

repairs. For all problems arising, or to order spare parts, refer to our

service department.

Agilent Technologies Italia S.p.A.

Vacuum Products Division

Via F.lli Varian 54

10040 Leini, (Torino) – Italy

Tel.: +39 011 997 9111 Fax: +39 011 997 9350

Toll-Free: 00 800 234 234 00

Here following the correct procedures for MS40+ Oil Change and

Filter Cartridge Replacement are described.

Technical Information

Oil and Filter Cartridge Replacement

Procedures

66/90 MS40+ Single Stage Rotary Vane Pumps User Manual / 87-901-008-01 (E)

Oil and Filter Cartridge Replacement Procedures

Oil Change Procedure

1. Place a tank for waste oil under the oil drain plug.

Figure 6

2. Unscrew slowly the oil drain cap rotating it anti-clock wise using

a 10mm hex key. Let the oil flow out. In the meantime clean the

inside of the drain plug.

3. After closing the drainage hole with its plug make the pump

perform a number of turns, giving it a brief current pulse, so as to

let residual oil in the pump chambers flow out. Then drain off the

residual oil again.

4. After the oil has been drained, close the drain plug tight; take the

tank of waste oil away and clean thoroughly, using rags of cotton

or other suitable material to dry.

Oil drain Cap

Fill oil cap

Technical Information

Oil and Filter Cartridge Replacement Procedures

MS40+ Single Stage Rotary Vane Pumps User Manual / 87-901-008-01 (E) 67/90

5. Open the fill oil cap using a 10 mm hex key and add 1 liter of

SW60 oil.

6. Close the oil fill cap tight.

7. Replace the cartridge filter as per following slide.

Filter Cartridge Replacement Procedure

1. Unscrew the cap rotating it anti-clock wise, by hand or socket

wrench with size 19 mm.

2. Pull out the cartridge filter.

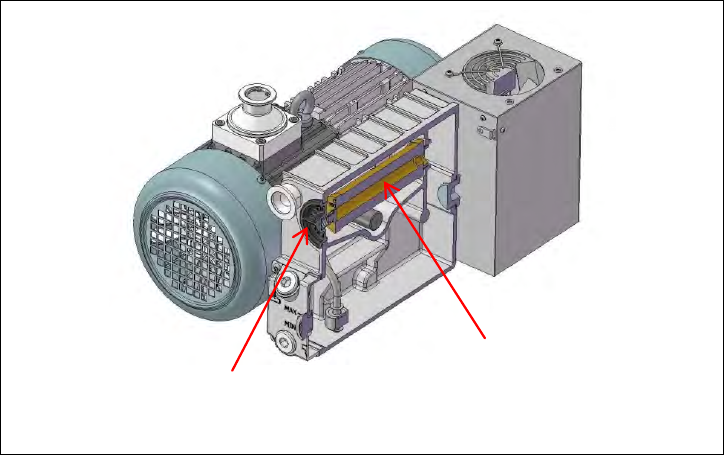

Figure 7

3. Insert new cartridge filter and double check it is in the right

position (inserted in the appropriate hole).

4. Tighten the cap rotating clock wise, by hand or socket wrench

with size 19 mm.

Cap

Cartridge Filter

P/N 9499201

Technical Information

Lubricants

68/90 MS40+ Single Stage Rotary Vane Pumps User Manual / 87-901-008-01 (E)

Lubricants

It will be readily understood how important adequate lubrication is

to high technology pumps like the Agilent vacuum pumps. Correct

use of appropriate lubricants makes a significant contribution to

achieving best performance and warding off defects.

When handling lubricants, the following sanitary protection

measures should be observed at all times:

 Avoid prolonged, excessive or repeated contact of the skin with

products for lubrication, and also avoid directly inhaling the

fumes or vapors of such products.

 Protect the skin by wearing appropriate clothes and equipment

(e.g. special suits, glasses or, where permitted by the safety

regulations, gloves) or by applying a special protective product.

 Clean the skin carefully after contact with the lubricants by

washing freely with water and soap.

 Apply a skin cream after washing.

 Take off and change clothes or shoes on which oil has been

spilled.

 Never put rags dripping with oil into the pockets of your clothes.

When disposing of waste lubricants, observe the following

environment protection regulations:

 The lubricants risk contaminating the water and the ground!

Therefore never pour lubricating products on to the ground, into

water or in the sewage system. All violations of these rules are

liable to persecution as provided for by law. When using

lubricants always keep oil can nearby.

 Take care in draining off waste oils. In disposal of these products

respect all regulations in force concerning waste oil disposal.

The recommended lubricating oil is the Agilent SW60 oil. The SW60

oil is a general purpose mechanical pump fluid specifically

engineered to provide superior performance in high speed direct

drive mechanical pumps.

Technical Information

Lubricants

MS40+ Single Stage Rotary Vane Pumps User Manual / 87-901-008-01 (E) 69/90

These precisely distilled fluids (100 % solvent refined neutral

paraffinic oil) deliver lower base pressure capability, faster pump-

down cycles, and reduced maintenance requirements on both the

pump and the fluid.

It is absolutely necessary to continue using the lubricants initially

used to fill the tank. If this is not possible for organizational or

business reasons, use only products with the same characteristics as

the previous oils.

Only use of lubricants of suitable quality will guarantee safe

operation of the pumps.

CAUTION! Mineral oils and the PFPE oil are incompatible. To change from one type to

another, the pump must be stripped down completely and all parts washed

carefully to eliminate all oil residues.

If you expect to have to use other lubricants, first find out if the two

products are compatible. In cases of doubt, the lubricant used up to

that time must be flushed out by way of a pump flushing procedure.

CAUTION! To avoid the risk of contaminating the oil, absolute cleanliness of the pump and

surrounding area must be ensured during the lubrication procedures.

Tab. 3 SW60 oil characteristics

Property

Unit of measure

SW60

Vapour Pressure @ 25 °C Torr 5x10-8

Viscosity @ 40 °C cSt 55

Max Temperature °C 150

Flash point °C 220

Technical Information

Lubricants

70/90 MS40+ Single Stage Rotary Vane Pumps User Manual / 87-901-008-01 (E)

SW60 Oil Description

SW oil have superior features;

 Reduced deposits, thanks to the absence of heavy metals

(ashless);

 Odorless;

 Exceptional lubricating properties and protection against the

most common solvents, and high oxidation resistance;

 High anti-emulsifying power with water;

 Minimal variations in viscosity according to temperature;

 Very low volatility (vapor tension) and thus suitable for use on

high vacuum pumps;

 Resistance to aging under the effect of atmospheric agents (ozone,

water, light);

 Chemical and physiological inertia of primary importance, and

extremely high anti-emulsifying properties.

This special type of oil is suitable for use in environments containing

noble or inert gases.

The SW60 oil described is combustible. If during normal use the

vacuum pump should take in mixtures with an oxygen content

greater than 21 % or pure oxygen, this should cause:

 Oxidation of the oil and thus the loss of its lubricating properties,

with serious damage to the pump itself;

 Formation of conditions favorable to explosion in the pump tank.

Technical Information

Pump Electronic Controller

MS40+ Single Stage Rotary Vane Pumps User Manual / 87-901-008-01 (E) 71/90

Pump Electronic Controller

Figure 8

Technical Specifications

 Input voltage: 200V-240V 50/60 Hz

 Max input power: 1200 VA

 Output voltage: 240 Vrms 3ph;

Max frequency: 64 Hz (factory setting)

 Starting phase maximum power: 950 W

 Normal Operation maximum power: 950 W

 Maximum room temperature: 40 °C

 Protection level: IP 20

J1 Serial

Status LED

P1 I/0 1

Tank Sensor

Mains

Switch

Technical Information

Pump Electronic Controller

72/90 MS40+ Single Stage Rotary Vane Pumps User Manual / 87-901-008-01 (E)

 CE mark:

Tab. 4

EN55011 cat “B” EN61000-4-5

EN61000-3-2

RF EN61000-4-6

EN61000-3-3 EN61000-4-8

ESD EN61000-4-2 EN61000-4-11

EN61000-4-3 EN61010-1

EN6100-4-4

 CSA mark:

 EN61010-1, Installation category II, pollution degree 2

 EN60950

NOTE Before connecting the IEC320 mains cable, install the Retention Spring

provided

with the MS40+. The Retention Spring has to be fastened to IEC320 connector

lateral screws.

NOTE Use the Retention Spring to secure the mains cable into the IEC320 socket.

Technical Information

Pump Electronic Controller

MS40+ Single Stage Rotary Vane Pumps User Manual / 87-901-008-01 (E) 73/90

Input/Output Communications

P1 – I/O

Tab. 5

PIN N. SIGNAL NAME IN / OUT

1 Interlock. Status (N.O. relay contact) out

2 Speed setting (0-10V) in

3 Oil level (relay contact) out

4 Start (-) in

5 Ground out

6 Interlock. Status (N.O. relay contact) out

7 Oil level (relay contact) out

8 Start (+) in

24V

out

 Interlock: N.O. Relay contact – It is closed as soon as the

rotational frequency exceed the threshold defined with window

no.102 (plus histerisys defined by window 105). Factory set

40 Hz.

 Speed setting: Electric motor speed setting – linear setting

between 1V=15 Hz and 9 V= Win.120 setting:

 High speed (60 Hz): Vin>9 V

 Low speed (40 Hz): Vin<1 V

Technical Information

Pump Electronic Controller

74/90 MS40+ Single Stage Rotary Vane Pumps User Manual / 87-901-008-01 (E)

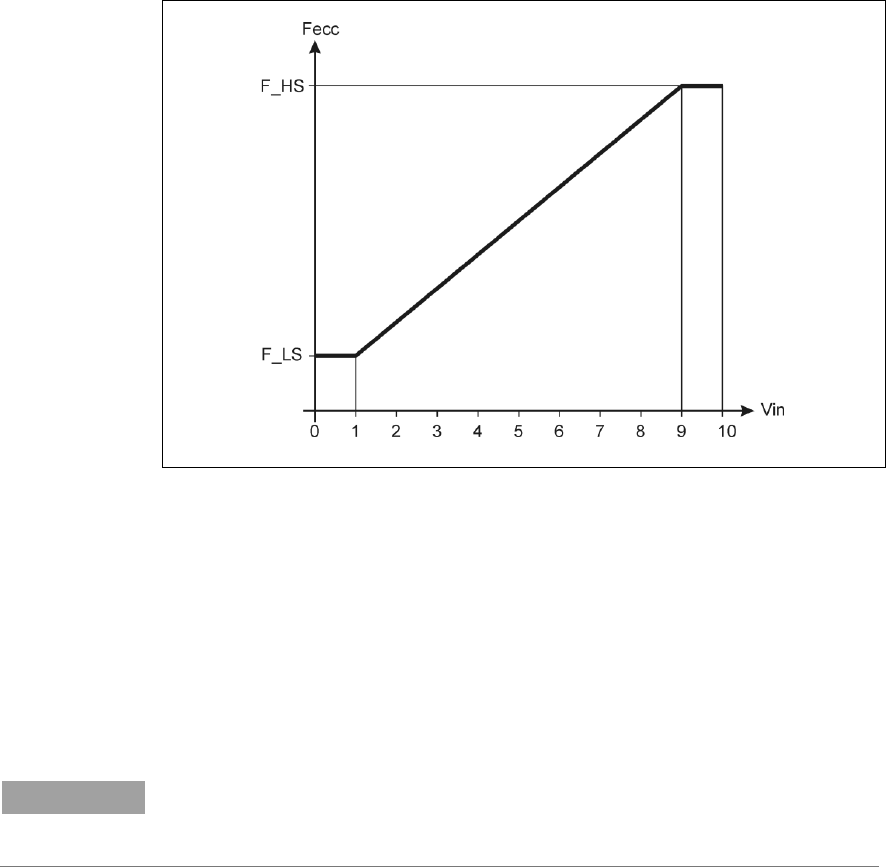

Figure 9

 Oil level: N.O. Relay contact – It is closed as soon as the oil level

comes down under the minimum level – The pump is not stopped

but the following starting is disabled.

 Start/stop: If the inverter is managed by remote port it manage

the pump starting – if you are operating in serial mode it enables

the starting. (pin 8 to pin 9 / pin 4 to pin 5).

 Rotational speed setting by analog input (0-10 V).

NOTE The pump operation is I/O signals dependent so you must always plug-in the

provided mating connector to start the pump.

Technical Information

RS 232/RS 485 Communication Description

MS40+ Single Stage Rotary Vane Pumps User Manual / 87-901-008-01 (E) 75/90

RS 232/RS 485 Communication Description

Both the RS 232 and the RS 485 interfaces are available on the

connector J2

J2 – Serial Port

Tab. 6

PIN N. SIGNAL NAME

1 + 5 V out

2 TX (RS232)

3 RX (RS232)

4 Spare

GND

6 A+ (RS485)

7 Spare

8 B- (RS485)

9 Spare

The communication protocol is the same (see the structure below),

but only the RS 485 manages the address field. Therefore to enable

the RS 485 is necessary to select the type of communication as well

as the device address by means of the T-plus software.

NOTE The RS-485 is a 2-wire (gnd optional) half-duplex communication link.

Communication Format

 8 data bit

 no parity

 1 stop bit

 baud rate: 600/1200/2400/4800/9600 programmable

Technical Information

RS 232/RS 485 Communication Description

76/90 MS40+ Single Stage Rotary Vane Pumps User Manual / 87-901-008-01 (E)

Communication Protocol

The communication protocol is a MASTER/SLAVE type where:

 Host = MASTER

 Controller = SLAVE

The communication is performed in the following way:

1. the host (MASTER) send a MESSAGE + CRC to the controller

(SLAVE);

2. the controller answer with an ANSWER + CRC to the host.

The MESSAGE is a string with the following format:

Where:

NOTE When a data is indicated between two quotes (‘...’) it means that the indicated

data is the corresponding ASCII character.

 <STX> (Start of transmission) = 0x02

 <ADDR> (Unit address) = 0x80 (for RS 232)

 <ADDR> (Unit address) = 0x80 + device number (0 to 31)

(for RS 485)

 <WIN> (Window) = a string of 3 numeric character indicating the

window number (from ‘000’ to ‘999’); for the meaning of each

window see the relevant paragraph.

 <COM> (Command) = 0x30 to read the window, 0x31 to write into

the window

 <DATA> = an alphanumeric ASCII string with the data to be

written into the window. In case of a reading command this field

is not present.

The field length is variable according to the data type as per the

following table:

Technical Information

RS 232/RS 485 Communication Description

MS40+ Single Stage Rotary Vane Pumps User Manual / 87-901-008-01 (E) 77/90

Tab. 7

Data Type Field Length Valid Characters

Logic (L) 1 ‘0’ = OFF

‘1’ = ON

Numeric (N) 6 ‘-‘, ‘.’, ‘0’ . . . ‘9’ right justified with ‘0’

Alphanumeric (A) 10 from blank to ‘_’ (ASCII)

 <ETX> (End of transmission) = 0x03

 <CRC> = XOR of all characters subsequent to <STX> and

including the <ETX> terminator. The value is hexadecimal coded

and indicated by two ASCII character.

The addressed SLAVE will respond with an ANSWER whose

structure depends from the MESSAGE type. When the MESSAGE is a

reading command, the SLAVE will respond transmitting a string with

the same structure of the MESSAGE.

The controller can answers with the following response types:

Tab. 8

Type Length Value Description

Logic 1 byte - after a read instruction of a logic window

Numeric 6 bytes - after a read instruction of a numeric

window

Alphanumeric 10 bytes - after a read instruction of an

alphanumeric window

ACK 1 byte (0x6) the command execution has been

successfully completed

NACK 1 byte (0x15) the command execution has been failed

Unknown

Window

1 byte (0x32) the specified window in the command is

not a valid window

Data Type Error 1 byte (0x33) the data type specified in the command

(Logic, Numeric or Alphanumeric) is not

accorded with the specified Window

Technical Information

RS 232/RS 485 Communication Description

78/90 MS40+ Single Stage Rotary Vane Pumps User Manual / 87-901-008-01 (E)

Type Length Value Description

Out of Range 1 byte (0x34) the value expressed during a write

command is out of the range value of the

specified window

Win Disabled 1 byte (0x35) the specified window is Read Only or

temporarily disabled (for example you

can’t write the Soft Start when the Pump

is running)

NOTE Using the RS 485 interface, the message structure remains identical to the one

used for the RS 232 interface, the only difference being that the value assigned

to the ADDRESS <ADDR>

Examples

Command: START

Source: PC

Destination: Pump

02 80 30 30 30 31 31 03 42 33

STX

ADDR

WINDOW

ETX

CRC

Source: Pump

Destination: PC

02 80 06

STX ADDR ACK ETX CRC

Command: STOP

Source: PC

Destination: Pump

02 80 30 30 30 31 30 03 42 32

STX ADDR WINDOW WR OFF ETX CRC

Technical Information

RS 232/RS 485 Communication Description

MS40+ Single Stage Rotary Vane Pumps User Manual / 87-901-008-01 (E) 79/90

Source: Pump

Destination: PC

02 80 06

STX ADDR ACK ETX CRC

Command: READ PUMP STATUS

Source: PC

Destination: Pump (with address = 3)

STX

ADDR

WINDOW

ETX

CRC

Source: Pump (with address = 3 in stop status)

Destination: PC

STX ADDR WINDOW DATA (STATUS) ETX CRC

Window Meanings

Tab. 9

WIN TYPE R/W DESCRIPTION

000 L RW START/STOP (1= START ; 0= STOP)

008 L RW REMOTE/SERIAL CONFIGURATION (1= Remote ; 0= Serial)

102 N RW SET POINT VALUE [Hz] (0 – 100)

105 N RW SET POINT HYSTERESIS [%] (0 – 100)

108 N RW BAUD RATE (0-4) [600, 1200, 2400, 4200, 9600]

120 N RW ROTATIONAL FREQUENCY SETTING [Hz] (40 - 60)

127 N R ROTATIONAL FREQUENCY SETTING [rpm] (read only)

200 N R BUS CURRENT [mA]

201 N R 3PHASE VOLTAGE [Vrms]

202 N R POWER [W]

203 N R DRIVING FREQUENCY [Hz]

205

STATUS (0=stop; 1=wait interlock; 2=start; 3=autotuning; 5=normal; 6=fail)

Technical Information

RS 232/RS 485 Communication Description

80/90 MS40+ Single Stage Rotary Vane Pumps User Manual / 87-901-008-01 (E)

WIN TYPE R/W DESCRIPTION

206 N R ERROR CODE: Bit 7: Motor blocked; Bit 6: shortcircuit; Bit 5:

Undervoltage/Overvoltage; Bit 4:Motor overtemp; Bit 3: Verify line; Bit 2:

Controller overtemp; Bit 1: Bus Undervoltage; Bit 0: overcurrent

207 N R OUTPUT FREQUENCY [rpm]

211 N R JGBT TEMPERATURE [°C]

216 N R CONTROLLER TEMPERATURE [°C]

222 N R POWER SUPPLY TEMPERATURE [°C]

225

OIL LEVEL (0=level ok; Bit 0: underlevel; Bit 1: maintenance)

233 N R ROTATIONAL FREQUENCY [rpm]

300 N R CYCLE TIME [min]

301 N R CYCLE NUMBER

302 N R PUMP LIFE [h]

305 N R TIME WITH OIL UNDER LEVEL [min]

306 N R TIME WITH DIRTY FILTER [min]

307 N R TIME CONTROLLER STAND BY

319 A RW CONTROLLER MODEL NUMBER

320 A RW PUMP MODEL NUMBER

321 A RW PUMP SPECIAL MODEL NUMBER

322

PUMP SERIAL NUMBER

323 A RW CONTROLLER SERIAL NUMBER

358 N RW MAINTENACE TIMER [hours]

362 N R LAST HOUR TEMPERATURE AVERAGE [°C]

364 N R LAST HOUR AVERAGE POWER [W]

365 N R LAST HOUR AVERAGE FREQUENCY [Hz]

382 N R LAST HOUR AVERAGE TEMPERATURE [°C]

384

AVERAGE POWER [W]

400 A R PROGRAM LISTING CRC

402 A R PARAMETER LISTING CRC

406 A R PROGRAM LISTING CODE & REVISION

407 A R PARAMETER LISTING CODE & REVISION

503 N RW RS485 SERIAL ADDRESS SETTING [0-31]

504 L RW SERIAL TYPE SELECT (0=RS232; 1=RS485)

Technical Information

RS 232/RS 485 Communication Description

MS40+ Single Stage Rotary Vane Pumps User Manual / 87-901-008-01 (E) 81/90

Operational Limits

Tab. 10

INPUT VOLTAGE (V) CONTROLLER STATUS

< 180 Power fail

180 – 264 Operative

> 264 Power fail

Status LED

Tab. 11

LED STATUS CONTROLLER STATUS

Off Stop

Green blinking Ramp – Autotuning

Green

Normal Operation

Red Fail

Red blinking Oil level fail

Orange + Off Reset + selftest

Orange blinking Maintenance required

NOTE When you switch the controller on an electronic self-test is performed, during

such phase you’ll see the led Orange for 1 sec. And turned off for two other

seconds. Immediately after the first phase the controller per-form a specific test

on the pump rotor in order to be sure that it isn’t locked.

Technical Information

RS 232/RS 485 Communication Description

82/90 MS40+ Single Stage Rotary Vane Pumps User Manual / 87-901-008-01 (E)

Electronic Self-Test

When you switch the pump on with the main On/Off switch the pump

doesn’t start immediately but it starts only after about two seconds.

This test time isn’t required if the pump is already powered as when

it is operated in remote or serial mode.

Rotor Lock Test

The rotational frequency is checked continuously. If the rotor

remains still for more than 20 sec. the pump status is changed to

“Fail”.

Oil Level Check

The oil level is continuously checked even when the pump is in Stop

status. If the oil level check highlights at low level while the pump is

OFF, it won’t starts again. If the oil level check highlights at low level

during the pump operation, it will continue to run but, if you switch

the pump off it will be impossible to start again.

NOTE If the electronic controller status is “Oil Under-level” the pump starting is not

allowed.

NOTE If the oil level check fails (low level) the pump doesn't stop. The test only

activates the output described above.

An Oil level sensor fail is highlighted by means of quick status led

blinking and RS232 window (see "Status led" and "Window meaning"

tables).

Technical Information

Accessories

MS40+ Single Stage Rotary Vane Pumps User Manual / 87-901-008-01 (E) 83/90

Accessories

Tab. 12

PART NUMBER DESCRIPTION

949-9201 MS40+ Exhaust filter

949-9202 MS40+ 1 Litre Oil Tank

949-9203 Maintenance kit

949-9396 Power cable EU

949-9400 208Vac US Power cable

949-9398 Power cable UK

949-9399 Power cable IEC320

969-9883 T-PLUS Navigator SW (w/serial cable)

Technical Information

Accessories

84/90 MS40+ Single Stage Rotary Vane Pumps User Manual / 87-901-008-01 (E)

Request for Return Form

Sales and Service Offices

United States

Agilent Technologies

Vacuum Products Division

121 Hartwell Avenue

Lexington, MA 02421 - USA

Tel.: +1 781 861 7200

Fax: +1 781 860 5437

Toll-Free: +1 800 882 7426

India

Agilent Technologies India Pvt. Ltd.

Vacuum Product Division

G01. Prime corporate Park,

230/231, Sahar Road, Opp. Blue Dart Centre,

Andheri (East), Mumbai – 400 099.India

Tel: +91 22 30648287/8200

Fax: +91 22 30648250

Toll Free: 1800 113037

Southeast Asia

Agilent Technologies Sales Sdn Bhd

Vacuum Products Division

Unit 201, Level 2 uptown 2,

2 Jalan SS21/37, Damansara Uptown

47400 Petaling Jaya,

Selangor, Malaysia

Tel : +603 7712 6106

Fax: +603 6733 8121

Benelux

Agilent Technologies Netherlands B.V.

Vacuum Products Division

Herculesweg 8

4338 PL Middelburg

The Netherlands

Tel.: +31 118 671570

Fax: +31 118 671569

Toll-Free: 00 800 234 234 00

Italy

Agilent Technologies Italia S.p.A.

Vacuum Products Division

Via F.lli Varian 54

10040 Leini, (Torino) - Italy

Tel.: +39 011 997 9111 Fax: +39 011 997 9350

Toll-Free: 00 800 234 234 00

Taiwan

Agilent Technologies Taiwan Limited

Vacuum Products Division (3F)

20 Kao-Shuang Rd.,

Pin-Chen City, 324

Taoyuan Hsien , Taiwan, R.O.C.

Tel. +886 34959281

Toll Free: 0800 051 342

Canada

Central coordination through: Agilent Technologies

Vacuum Products Division

121 Hartwell Avenue

Lexington, MA 02421 - USA

Tel.: +1 781 861 7200

Fax: +1 781 860 5437

Toll-Free: +1 800 882 7426

Japan

Agilent Technologies Japan, Ltd.

Vacuum Products Division

8th Floor Sumitomo Shibaura Building

4-16-36 Shibaura Minato-ku Tokyo 108-0023 - Japan

Tel.: +81 3 5232 1253

Fax: +81 3 5232 1710

Toll-Free: 0120 655 040

UK and Ireland

Agilent Technologies UK, Ltd.

Vacuum Products Division

6 Mead Road Oxford Industrial Park

Yarnton, Oxford OX5 1QU – UK

Tel.: +44 (0) 1865 291570

Fax: +44 (0) 1865 291571

Toll free: 00 800 234 234 00

China

Agilent Technologies (China) Co. Ltd

Vacuum Products Division

No.3, Wang Jing Bei Lu,

Chao Yang District,

Beijing, 100102

China

Tel.: +86 (10) 6439 7718

Toll-Free: 800 820 6556

Korea

Agilent Technologies Korea, Ltd.

Vacuum Products Division

Shinsa 2nd Bldg. 2F 966-5 Daechi-dong

Kangnam-gu, Seoul

Korea 135-280

Tel.: +82 2 3452 2452

Fax: +82 2 3452 2451

Toll-Free: 080 222 2452

Other Countries

Agilent Technologies Italia S.p.A.

Vacuum Products Division

Via F.lli Varian 54 10040 Leini, (Torino) -

Italy

Tel.: +39 011 997 9111

Fax: +39 011 997 9350

Toll-Free: 00 800 234 234 00

France

Agilent Technologies France

Vacuum Products Division

7 Avenue des Tropiques

Z.A. de Courtaboeuf - B.P. 12

91941 Les Ulis cedex - France

Tel.: +33 (0) 1 69 86 38 84

Fax: +33 (0) 1 69 86 29 88

Toll free: 00 800 234 234 00

Mexico

Agilent Technologies

Vacuum Products Division

Concepcion Beistegui No 109 Col Del Valle

C.P. 03100 – Mexico, D.F.

Tel.: +52 5 523 9465

Fax: +52 5 523 9472

Customer Support & Service

NORTH AMERICA:

Toll Free: 800 882 7426, Option 3

vpl-ra@agilent.com

EUROPE:

Toll Free: 00 800 234 234 00

vpt-customercare@agilent.com

PACIFIC RIM:

please visit our website for individual office

information http://www.agilent.com

Worldwide Web Site, Catalog and Order

On-line:

www.agilent.com

Representative in most countries

12/10

Germany and Austria

Agilent Technologies

Vacuum Products Division Alsfelder Strasse 6 Postfach 11

14 35

64289 Darmstadt – Germany

Tel.: +49 (0) 6151 703 353

Fax: +49 (0) 6151 703 302

Toll free: 00 800 234 234 00

Singapore

Agilent Technologies Singapore Pte. Ltd,

Vacuum Products Division

Agilent Technologies Building,

1 Yishun Avenue 7,

Singapore 768923

Tel : (65) 6215 8045

Fax : (65) 6754 0574

Printed in ITALY

05/2013

Publication Number: 87-901-008-01 (E)

MS40 Plus User Manual

Navigation menu

Versions of this User Manual:

Views

Navigation
