Introduction
1 Introduction
The Texas Instruments® IQmath and Qmath Libraries are a collection of highly optimized and
high-precision mathematical functions for C programmers to seamlessly port a floating-point algo-
rithm into fixed-point code on MSP430 and MSP432 devices. These routines are typically used
in computationally intensive real-time applications where optimal execution speed, high accuracy
and ultra low energy are critical. By using the IQmath and Qmath libraries, it is possible to achieve
execution speeds considerably faster and energy consumption considerably lower than equivalent
code written using floating-point math.
The Qmath library provides functions for use with 16-bit fixed point data types. These functions
have been optimized for all devices and can efficiently be used with or without a hardware multiplier.
The functions provide up to 16 bits of accuracy to satisfy the majority of applications on MSP430
devices.
The IQmath library provides the same functions as the Qmath library with 32-bit data types and
higher accuracy. These functions are provided for when an application requires accuracy compa-
rable or greater than the equivalent floating point math functions.
The following tool chains are supported:
Texas Instruments Code Composer Studio
IAR Embedded Workbench for MSP430 and MSP432
January 19, 2015 5
Introduction
6 January 19, 2015
Using The Qmath and IQmath Libraries
2 Using The Qmath and IQmath Libraries
2.1 Qmath Data Types
The Qmath library uses a 16-bit fixed-point signed number (an “int16_t” in C99) as its basic data
type. The Q format of this fixed-point number can range from Q1 to Q15, where the Q format
number indicates the number of fractional bits. The Q format value is stored as an integer with an
implied scale based on the Q format and the number of fractional bits. Equation 2.1 shows how
a Q format decimal number xqis stored using an integer value xiwith an implied scale, where n
represents the number of fractional bits.
Qn(xq) = xi∗2−n(2.1)
For example the Q12 value of 3.625 is stored as an integer value of 14848, shown in equation 2.2
below.
14848 ∗2−12 =Q12(3.625) (2.2)
C typedefs are provided for the various Q formats, and these Qmath data types should be used in
preference to the underlying “int16_t” data type to make it clear which variables are in Q format.
The following table provides the characteristics of the various Q formats (the C data type, the
number of integer bits, the number of fractional bits, the smallest negative value that can be repre-
sented, the largest positive value that can be represented, and the smallest difference that can be
represented):
Type Bits Range Resolution
Integer Fractional Min Max
_q15 1 15 -1 0.999 970 0.000 030
_q14 2 14 -2 1.999 940 0.000 061
_q13 3 13 -4 3.999 830 0.000 122
_q12 4 12 -8 7.999 760 0.000 244
_q11 5 11 -16 15.999 510 0.000 488
_q10 6 10 -32 31.999 020 0.000 976
_q9 7 9 -64 63.998 050 0.001 953
_q8 8 8 -128 127.996 090 0.003 906
_q7 9 7 -256 255.992 190 0.007 812
_q6 10 6 -512 511.984 380 0.015 625
_q5 11 5 -1,024 1,023.968 750 0.031 250
_q4 12 4 -2,048 2047.937 500 0.062 500
_q3 13 3 -4,096 4,095.875 000 0.125 000
_q2 14 2 -8,192 8,191.750 000 0.250 000
_q1 15 1 -16,384 16,383.500 000 0.500 000
Table 2.1: Qmath Data Types
In addition to these specific Q format types, there is an additional type that corresponds to the
GLOBAL_Q format. This is _q, and it matches one of the above Q formats (based on the setting of
January 19, 2015 7
Using The Qmath and IQmath Libraries
GLOBAL_Q). The GLOBAL_Q format has no impact when using the specific _qN types and function
such as _q12.
8 January 19, 2015
Using The Qmath and IQmath Libraries
2.2 IQmath Data Types
The IQmath library uses a 32-bit fixed-point signed number (an “int32_t” in C99) as its basic data
type. The IQ format of this fixed-point number can range from IQ1 to IQ30, where the IQ format
number indicates the number of fractional bits. The IQ format value is stored as an integer with an
implied scale based on the IQ format and the number of fractional bits. Equation 2.3 shows how
a IQ format decimal number xiq is stored using an integer value xiwith an implied scale, where n
represents the number of fractional bits.
IQn(xiq ) = xi∗2−n(2.3)
For example the IQ24 value of 3.625 is stored as an integer value of 60817408, shown in equation
2.4 below.
60817408 ∗2−24 =IQ24(3.625) (2.4)
C typedefs are provided for the various IQ formats, and these IQmath data types should be used in
preference to the underlying “int32_t” data type to make it clear which variables are in IQ format.
The following table provides the characteristics of the various IQ formats (the C data type, the
number of integer bits, the number of fractional bits, the smallest negative value that can be repre-
sented, the largest positive value that can be represented, and the smallest difference that can be
represented):
January 19, 2015 9
Using The Qmath and IQmath Libraries
Type Bits Range Resolution
Integer Fractional Min Max
_iq30 2 30 -2 1.999 999 999 0.000 000 001
_iq29 3 29 -4 3.999 999 998 0.000 000 002
_iq28 4 28 -8 7.999 999 996 0.000 000 004
_iq27 5 27 -16 15.999 999 993 0.000 000 007
_iq26 6 26 -32 31.999 999 985 0.000 000 015
_iq25 7 25 -64 63.999 999 970 0.000 000 030
_iq24 8 24 -128 127.999 999 940 0.000 000 060
_iq23 9 23 -256 255.999 999 881 0.000 000 119
_iq22 10 22 -512 511.999 999 762 0.000 000 238
_iq21 11 21 -1,024 1,023.999 999 523 0.000 000 477
_iq20 12 20 -2,048 2,047.999 999 046 0.000 000 954
_iq19 13 19 -4,096 4,095.999 998 093 0.000 001 907
_iq18 14 18 -8,192 8,191.999 996 185 0.000 003 815
_iq17 15 17 -16,384 16,383.999 992 371 0.000 007 629
_iq16 16 16 -32,768 32,767.999 984 741 0.000 015 259
_iq15 17 15 -65,536 65,535.999 969 483 0.000 030 518
_iq14 18 14 -131,072 131,071.999 938 965 0.000 061 035
_iq13 19 13 -262,144 262,143.999 877 930 0.000 122 070
_iq12 20 12 -524,288 524,287.999 755 859 0.000 244 141
_iq11 21 11 -1,048,576 1,048,575.999 511 720 0.000 488 281
_iq10 22 10 -2,097,152 2,097,151.999 023 440 0.000 976 563
_iq9 23 9 -4,194,304 4,194,303.998 046 880 0.001 953 125
_iq8 24 8 -8,388,608 8,388,607.996 093 750 0.003 906 250
_iq7 25 7 -16,777,216 16,777,215.992 187 500 0.007 812 500
_iq6 26 6 -33,554,432 33,554,431.984 375 000 0.015 625 000
_iq5 27 5 -67,108,864 67,108,863.968 750 000 0.031 250 000
_iq4 28 4 -134,217,728 134,217,727.937 500 000 0.062 500 000
_iq3 29 3 -268,435,456 268,435,455.875 000 000 0.125 000 000
_iq2 30 2 -536,870,912 536,870,911.750 000 000 0.250 000 000
_iq1 31 1 -1,073,741,824 1,073,741,823.500 000 000 0.500 000 000
Table 2.2: IQmath Data Types
In addition to these specific IQ format types, there is an additional type that corresponds to the
GLOBAL_IQ format. This is _iq, and it matches one of the above IQ formats (based on the setting
of GLOBAL_IQ).The GLOBAL_IQ format has no impact when using the specific _iqN types and
function such as _iq24.
10 January 19, 2015
Using The Qmath and IQmath Libraries
2.3 Using the Libraries
The Qmath and IQmath libraries are available for a wide range of MSP430 and MSP432 devices
from value line to the F5xx series to the latest FRAM and ARM based devices. The libraries are
available in the top level libraries directory and are divided by IDE and multiplier hardware support.
Each library name is constructed with the IDE and multiplier hardware used such that it matches
the directory path. The name is then followed by a specifier for the CPU version and code and data
models if applicable.
2.3.1 Code Composer Studio
The Code Composer Studio (CCS) libraries are provided in easy to use archive files, QmathLib.a
and IQmathLib.a. The archive files should be used with projects in place of any .lib files. When link-
ing, the archive file will select the correct library based on CPU, memory and data model compiler
settings.
To add a library to an existing CCS project, simply navigate to the device directory under IQmath-
Lib/libraries/CCS and drag and drop the QmathLib.a or IQmathLib.a file to the CCS project. When
prompted select "Link to files" and you are done!

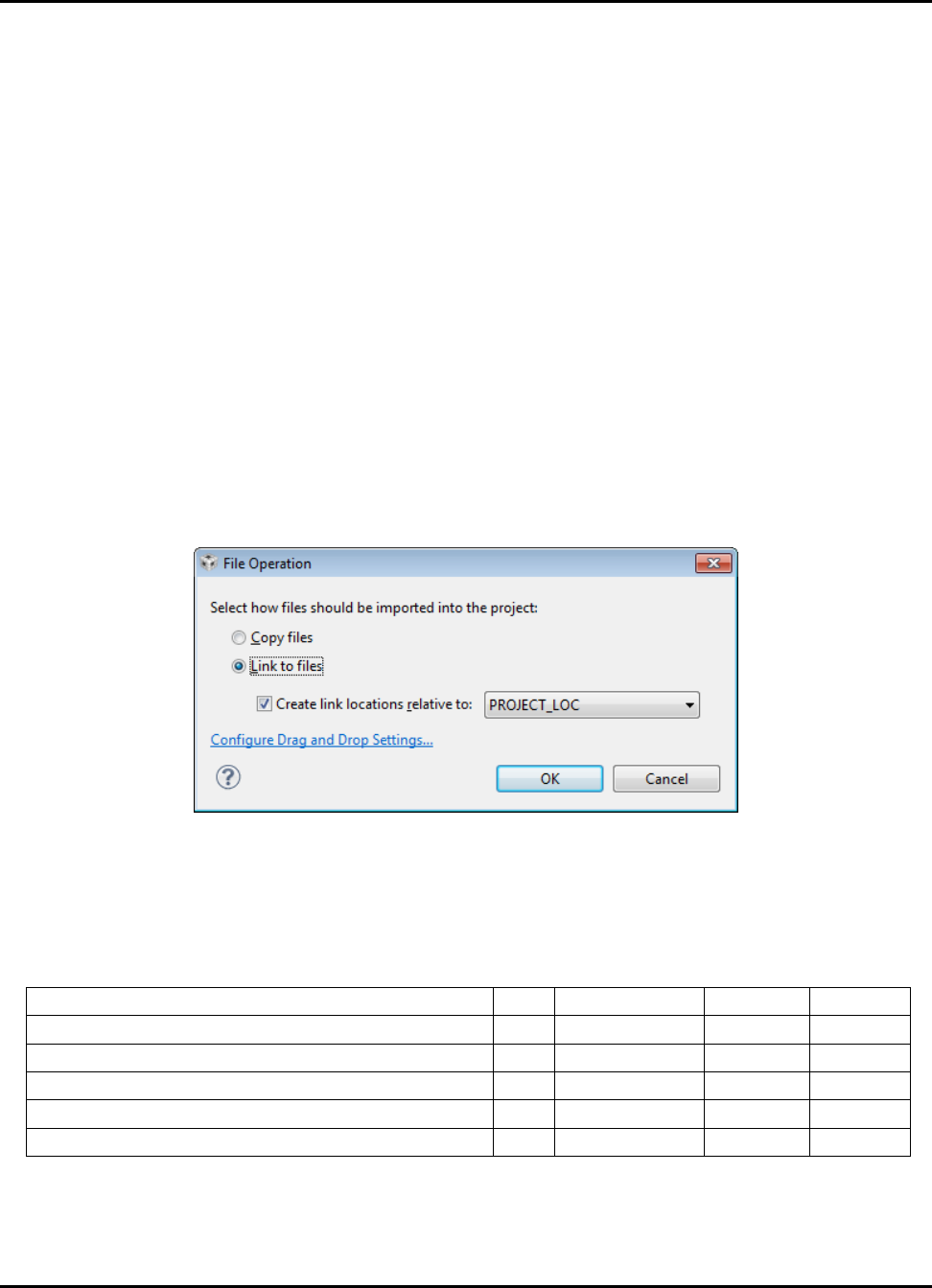

Figure 2.1: CCS file add prompt
The full list of CCS libraries are provided in the tables below. These are automatically selected
when using QmathLib.a or IQmathLib.a but can also be added directly to a project.
Library Name CPU Multiply Hardware Code Model Data Model
∗_MPYsoftware_CPU.lib CPU Software - -
∗_MPYsoftware_CPUX_small_code_small_data.lib CPUX Software small small
∗_MPYsoftware_CPUX_large_code_small_data.lib CPUX Software large small
∗_MPYsoftware_CPUX_large_code_restricted_data.lib CPUX Software large restricted
∗_MPYsoftware_CPUX_large_code_large_data.lib CPUX Software large large
Table 2.3: CCS software multiply libraries for all MSP430 devices.
January 19, 2015 11
Using The Qmath and IQmath Libraries
Library Name CPU Multiply Hardware Code Model Data Model
∗_MPY32_4xx_CPU.lib CPU MPY32 - -
∗_MPY32_4xx_CPUX_small_code_small_data.lib CPUX MPY32 small small
∗_MPY32_4xx_CPUX_large_code_small_data.lib CPUX MPY32 large small
∗_MPY32_4xx_CPUX_large_code_restricted_data.lib CPUX MPY32 large restricted
∗_MPY32_4xx_CPUX_large_code_large_data.lib CPUX MPY32 large large
Table 2.4: CCS MPY32 libraries for F4xx devices.
Library Name CPU Multiply Hardware Code Model Data Model
∗_MPY32_5xx_6xx_CPUX_small_code_small_data.lib CPUX MPY32 small small
∗_MPY32_5xx_6xx_CPUX_large_code_small_data.lib CPUX MPY32 large small
∗_MPY32_5xx_6xx_CPUX_large_code_restricted_data.lib CPUX MPY32 large restricted
∗_MPY32_5xx_6xx_CPUX_large_code_large_data.lib CPUX MPY32 large large
Table 2.5: CCS MPY32 libraries for F5xx, F6xx, FR5xx and FR6xx devices.
Library Name CPU Multiply Hardware Code Model Data Model
∗_MSP432.lib ARM M4F Yes n/a n/a
Table 2.6: CCS libraries for MSP432 devices.
2.3.2 IAR Embedded Workbench
The IAR Embedded Workbench libraries are provided under the IQmathLib/libraries/IAR folder and
organized by multiplier hardware support and device family. When selecting a library the CPU
version, code and data model must match the options used in the project settings shown below.
12 January 19, 2015
Using The Qmath and IQmath Libraries

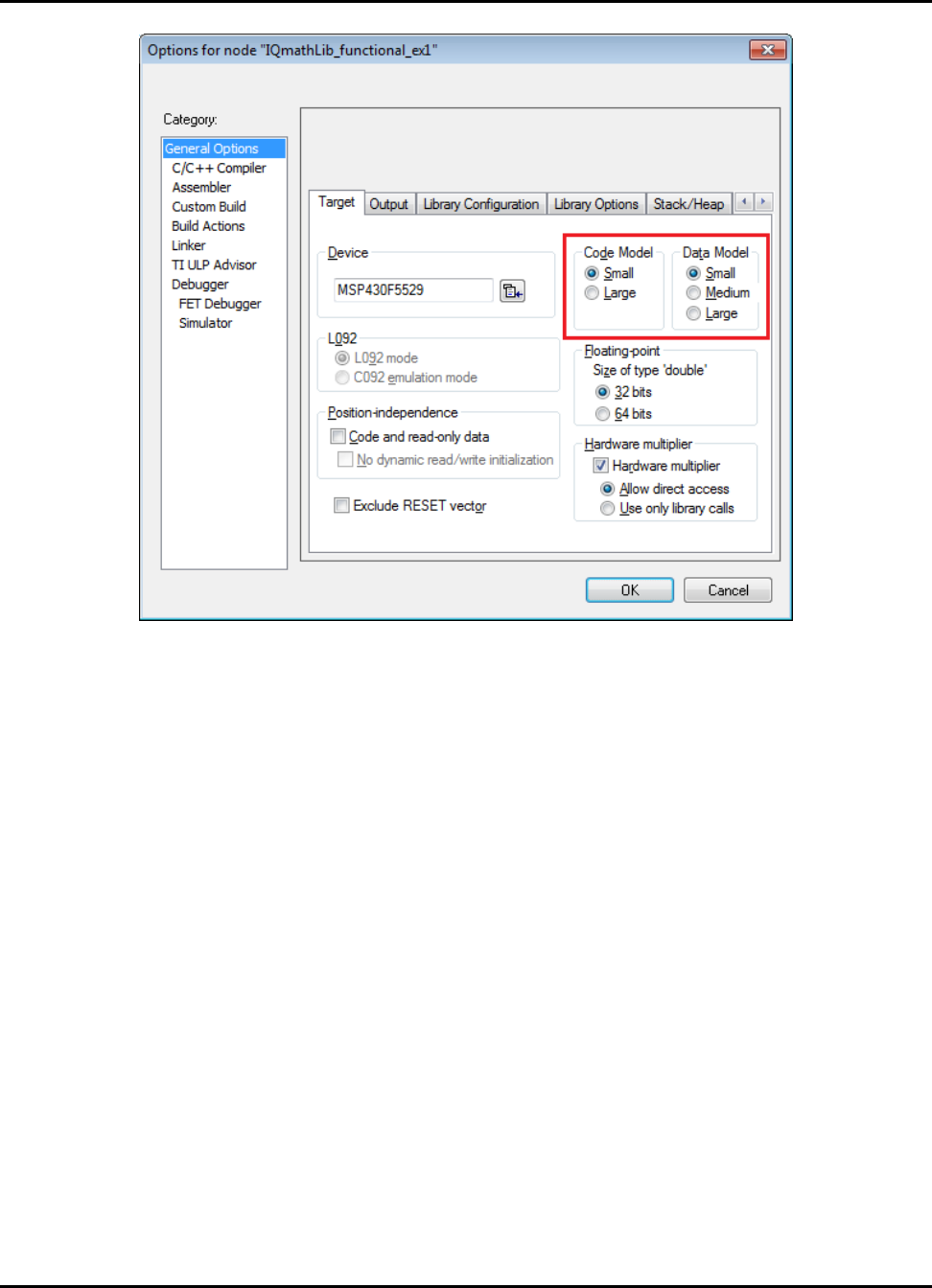

Figure 2.2: IAR code and data model options
The IAR library files can be added to a project either by dragging and dropping the library to the
project or right clicking the project and selecting Add ->Add Files as shown below.
January 19, 2015 13
Using The Qmath and IQmath Libraries

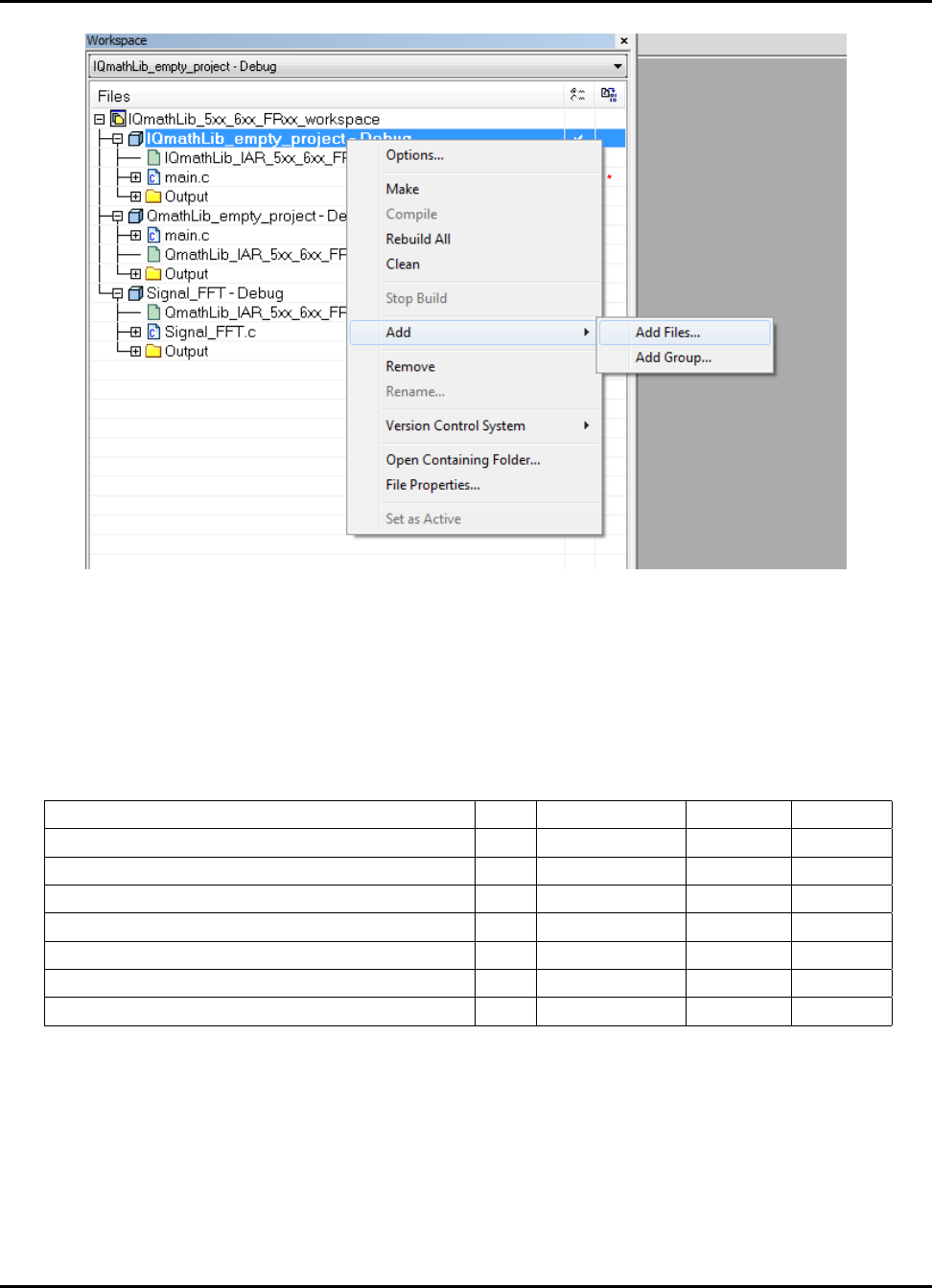

Figure 2.3: IAR add files option
When selecting a library file for versions of IAR previous to 6.10, the code model is always set to
large for CPUX based devices. The library selected must be large code model and then the data
model that matches the project settings shown above.
The full list of IAR libraries are provided in the tables below.
Library Name CPU Multiply Hardware Code Model Data Model
∗_MPYsoftware_CPU.lib CPU Software - -
∗_MPYsoftware_CPUX_small_code_small_data.lib CPUX Software small small
∗_MPYsoftware_CPUX_small_code_medium_data.lib CPUX Software small medium
∗_MPYsoftware_CPUX_small_code_large_data.lib CPUX Software small large
∗_MPYsoftware_CPUX_large_code_small_data.lib CPUX Software large small
∗_MPYsoftware_CPUX_large_code_medium_data.lib CPUX Software large medium
∗_MPYsoftware_CPUX_large_code_large_data.lib CPUX Software large large
Table 2.7: IAR software multiply libraries for all MSP430 devices.
14 January 19, 2015
Using The Qmath and IQmath Libraries
Library Name CPU Multiply Hardware Code Model Data Model
∗_MPY32_4xx_CPU.lib CPU MPY32 - -
∗_MPY32_4xx_CPUX_small_code_small_data.lib CPUX MPY32 small small
∗_MPY32_4xx_CPUX_small_code_medium_data.lib CPUX MPY32 small medium
∗_MPY32_4xx_CPUX_small_code_large_data.lib CPUX MPY32 small large
∗_MPY32_4xx_CPUX_large_code_small_data.lib CPUX MPY32 large small
∗_MPY32_4xx_CPUX_large_code_restricted_data.lib CPUX MPY32 large medium
∗_MPY32_4xx_CPUX_large_code_large_data.lib CPUX MPY32 large large
Table 2.8: IAR MPY32 libraries for F4xx devices.
Library Name CPU Multiply Hardware Code Model Data Model
∗_MPY32_5xx_6xx_CPUX_small_code_small_data.lib CPUX MPY32 small small
∗_MPY32_5xx_6xx_CPUX_small_code_medium_data.lib CPUX MPY32 small medium
∗_MPY32_5xx_6xx_CPUX_small_code_large_data.lib CPUX MPY32 small large
∗_MPY32_5xx_6xx_CPUX_large_code_small_data.lib CPUX MPY32 large small
∗_MPY32_5xx_6xx_CPUX_large_code_restricted_data.lib CPUX MPY32 large restricted
∗_MPY32_5xx_6xx_CPUX_large_code_large_data.lib CPUX MPY32 large large
Table 2.9: IAR MPY32 libraries for F5xx, F6xx, FR5xx and FR6xx devices.
Library Name CPU Multiply Hardware Code Model Data Model
∗_MSP432.lib ARM M4F Yes n/a n/a
Table 2.10: IAR libraries for MSP432 devices.
January 19, 2015 15
Using The Qmath and IQmath Libraries
2.4 MSP430-GCC Beta Support
The CCS libraries are built for and intended for use with the TI compiler tool chain. These libraries
can be linked with and used by MSP430-GCC projects, however this feature is untested and is the
responsibility of the user to verify end application functionality.
When linking the libraries with MSP430-GCC the ∗.a archive files cannot be used and the library
file must be manually selected. Additionally, the --gc-sections linker option must be applied to
discard unused sections and avoid including additional code and data sections than is required by
the application. This can be applied in the CCS GUI on the linker settings page shown below.
Figure 2.4: MSP430-GCC linker options
16 January 19, 2015
Using The Qmath and IQmath Libraries
2.5 Calling Functions From C
In order to call a Qmath or IQmath function from C, the C header file must be included. Then, the
_q,_qN,_iq and _iqN data types, along with the Qmath and IQmath functions can be used by
the application.
As an example, the following code performs some simple arithmetic in Q12 format:
#include "QmathLib.h"
int
main(void)
{
_q12 X, Y, Z;
X = _Q12(1.0);
Y = _Q12(7.0);
Z = _Q12div(X, Y);
}
January 19, 2015 17
Using The Qmath and IQmath Libraries
2.6 Selecting The Global Q and IQ Formats
Numerical precision and dynamic range requirements vary considerably from one application to an-
other. The libraries provides a GLOBAL_Q and GLOBAL_IQ format (using the _q and _iq data types
respectively) that an application can use to perform its computations in a generic format which can
be changed at compile time. An application written using the GLOBAL_Q and GLOBAL_IQ formats
can be changed from one format to another by simply changing the GLOBAL_Q and GLOBAL_IQ
values and recompiling, allowing the precision and performance effects of different formats to be
easily measured and evaluated.
The setting of GLOBAL_Q and GLOBAL_IQ does not have any influence in the _qN and _iqN format
and corresponding functions. These types will always have the same fixed accuracy regardless of
the GLOBAL_Q or GLOBAL_IQ formats.
The default GLOBAL_Q format is Q10 and the default GLOBAL_IQ format is IQ24. This can be easily
overridden in one of two ways:
In the source file, the format can be selected prior to including the header file. The following
example selects a GLOBAL_Q format of Q8:
//
// Set GLOBAL_Q to 8 prior to including QmathLib.h.
//
#define GLOBAL_Q 8
#include "QmathLib.h"
In the project file, add a predefined value for GLOBAL_Q or GLOBAL_IQ. The method to add a
predefined value varies from tool chain to tool chain.
The first method allows different modules in the application to have different global format values,
while the second method changes the global format value for the entire application. The method
that is most appropriate varies from application to application.
Note: Some functions are not available when GLOBAL_Q and GLOBAL_IQ are set to 15 and 30
respectively. Please see the Qmath and IQmath function chapters for a list of functions and the
available Q and IQ formats.
18 January 19, 2015
Using The Qmath and IQmath Libraries
2.7 Example Projects
The IQmathLib provides four example projects for use with CCS or IAR:
Empty QmathLib project
Empty IQmathLib project
QmathLib basic functional example
QmathLib signal generator and FFT example
The empty QmathLib and IQmathLib projects provide a starting point for building a fixed point
application. These projects will already have the libraries added and the include path set to include
the header files.
The third example (QmathLib_functional_ex3) demonstrates how to use several of the QmathLib
functions and data types to perform basic math calculations.
The fourth example (QmathLib_signal_FFT_ex4) is a code example that demonstrates how the
QmathLib can be used to write application code. The example can be separated into two parts:
Generate an input signal from multiple cosine waves.
Perform a complex DFT (FFT) on the input signal.
The result of the complex DFT can be used to approximate the original signals amplitude and phase
angle at each of the frequency bins.
2.7.1 Importing CCS Example Projects
The CCS example projects are provided as .projectspec files for each device family. These files can
be imported to the workspace as a new project using the "Import" option and selecting the "Existing
CCS Eclipse Projects" category shown below.
January 19, 2015 19
Using The Qmath and IQmath Libraries
Figure 2.5: CCS Import Options
Select next and browse to the IQmathLib installation directory. The example projects for all devices
will be listed and can be imported.
20 January 19, 2015
Using The Qmath and IQmath Libraries

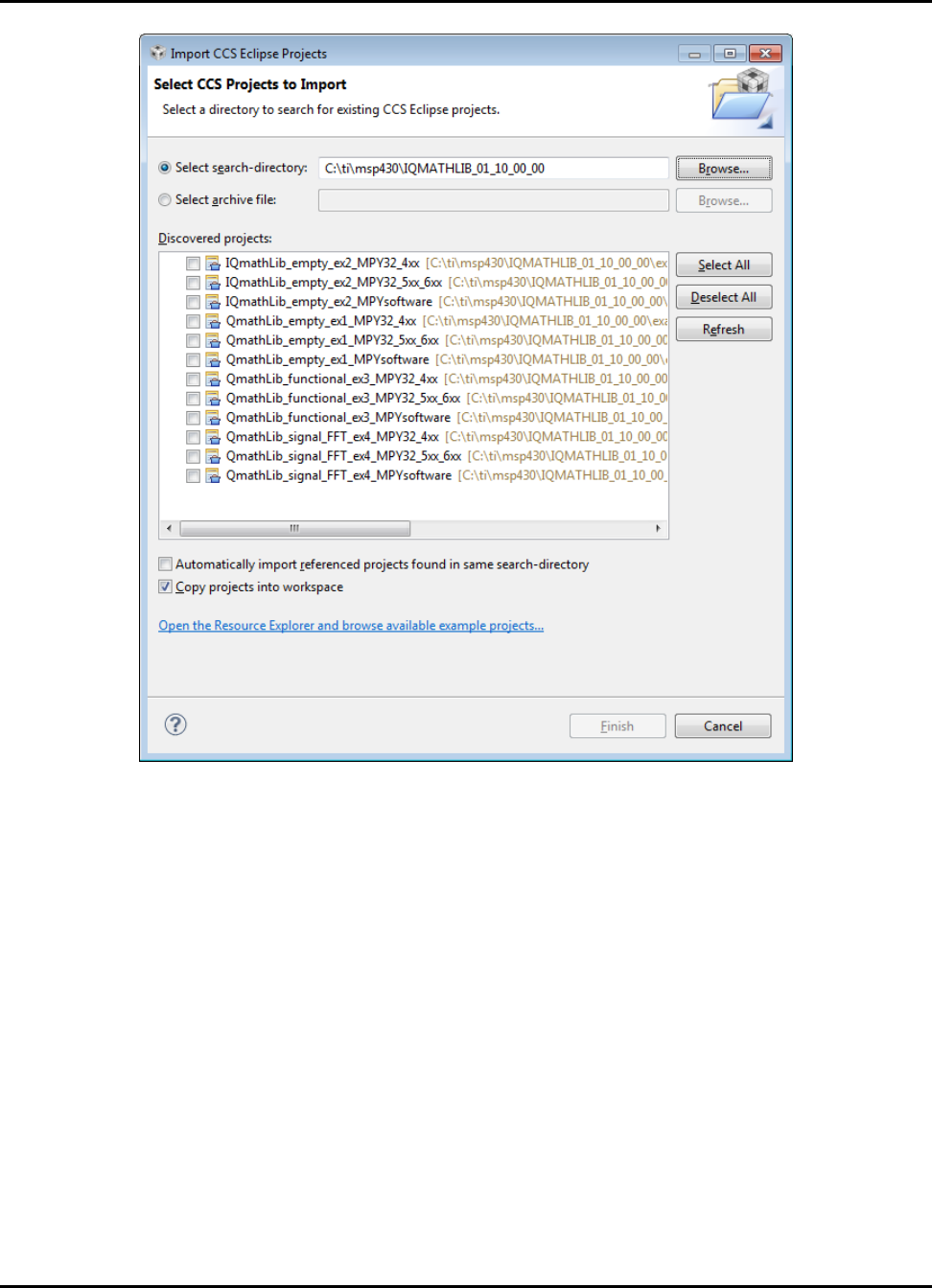

Figure 2.6: CCS Import Projects Window
January 19, 2015 21
Using The Qmath and IQmath Libraries
2.8 Function Groups
The Qmath and IQmath routines are organized into five groups:
Format conversion functions - methods to convert numbers to and from the various formats.
Arithmetic functions - methods to perform basic arithmetic (addition, subtraction, multiplication,
division).
Trigonometric functions - methods to perform trigonometric functions (sin, cos, atan, and so
on).
Mathematical functions - methods to perform advanced arithmetic (square root, ex, and so
on).
Miscellaneous - miscellaneous methods (saturation and absolute value).
In the chapters that follow, the methods in each of these groups are covered in detail.
22 January 19, 2015
Qmath Functions
3 Qmath Functions
QmathIntroduction .......................................................................................23
QmathFormat ConversionFunctions .....................................................................24
QmathArithmeticFunctions ..............................................................................29
QmathTrigonometric Functions ..........................................................................39
QmathMathematical Functions .......................................................................... 44
QmathMiscellaneousFunctions ..........................................................................48
3.1 Qmath Introduction
The Qmath library provides 16-bit fixed point math functions that have been optimized for the 16-bit
MSP430 architecture. The library has been optimized to make efficient use of resources for all
MSP430 devices. Execution times, code size and constant data tables are kept to a minimum for
each function.
The Qmath library takes advantage of the MPY32 multiplier peripheral when it is available. If the
device does not have the MPY32 peripheral then the CPU is used to perform a software multiply.
For this reason some functions will utilize larger constant data tables to reduce the number of
multiplies required to compute the result. Many of these tables are shared between functions and
will only need to be included into the applications constant memory once.
The majority of applications will only require 16-bit accuracy. If greater accuracy is required for
calculation see the IQmath chapter for a list of equivalent 32-bit functions.
January 19, 2015 23
Qmath Functions
3.2 Qmath Format Conversion Functions
The format conversion functions provide a way to convert numbers to and from various Q formats.
There are functions to convert Q numbers to and from single-precision floating-point numbers, to
and from integers, to and from strings, to and from various Q formats, and to extract the integer and
fractional portion of a Q number. The following table summarizes the format conversion functions:
Function Name Q Format Input Format Output Format
_atoQN 1-15 char * QN
_QN 1-15 float QN
_QNfrac 1-15 QN QN
_QNint 1-15 QN short
_QNtoa 1-15 QN char *
_QNtoF 1-15 QN float
_QNtoQ 1-15 QN GLOBAL_Q
_QtoQN 1-15 GLOBAL_Q QN
3.2.1 _atoQN
Converts a string to a Q number.
Prototype:
_qN
_atoQN(const char *A)
for a specific Q format (1 <= N <= 15)
- or -
_q
_atoQ(const char *A)
for the global Q format
Parameters:
Ais the string to be converted.
Description:
This function converts a string into a Q number. The input string may contain (in order) an
optional sign and a string of digits optionally containing a decimal point. A unrecognized char-
acter ends the string and returns zero. If the input string converts to a number greater than the
minimum or maximum values for the given Q format, the return value is limited to the minimum
or maximum value.
Returns:
Returns the Q number corresponding to the input string.
3.2.2 _QN
Converts a floating-point constant or variable into a Q number.
24 January 19, 2015
Qmath Functions
Prototype:
_qN
_QN(float A)
for a specific Q format (1 <= N <= 15)
- or -
_q
_Q(float A)
for the global Q format
Parameters:
Ais the floating-point variable or constant to be converted.
Description:
This function converts a floating-point constant or variable into the equivalent Q number. If the
input value is greater than the minimum or maximum values for the given Q format, the return
value wraps around and produces inaccurate results.
Returns:
Returns the Q number corresponding to the floating-point variable or constant.
3.2.3 _QNfrac
Returns the fractional portion of a Q number.
Prototype:
_qN
_QNfrac(_qN A)
for a specific Q format (1 <= N <= 15)
- or -
_q
_Qfrac(_q A)
for the global Q format
Parameters:
Ais the input number in Q format.
Description:
This function returns the fractional portion of a Q number as a Q number.
Returns:
Returns the fractional portion of the input Q number.
3.2.4 _QNint
Returns the integer portion of a Q number.
January 19, 2015 25
Qmath Functions
Prototype:
long
_QNint(_qN A)
for a specific Q format (1 <= N <= 15)
- or -
long
_Qint(_q A)
for the global Q format
Parameters:
Ais the input number in Q format.
Description:
This function returns the integer portion of a Q number.
Returns:
Returns the integer portion of the input Q number.
3.2.5 _QNtoa
Converts a Q number to a string.
Prototype:
int
_QNtoa(char *A,
const char *B,
_qN C)
for a specific Q format (1 <= N <= 15)
- or -
int
_Qtoa(char *A,
const char *B,
_q C)
for the global Q format
Parameters:
Ais a pointer to the buffer to store the converted Q number.
Bis the format string specifying how to convert the Q number. Must be of the form “%xx.yyf”
with xx and yy at most 2 characters in length.
Cis the Q number to convert.
Description:
This function converts the Q number to a string, using the specified format.
Example:
_Qtoa(buffer, "%2.4f", qInput)
26 January 19, 2015
Qmath Functions
Returns:
Returns 0 if there is no error, 1 if the width is too small to hold the integer characters, and 2 if
an illegal format was specified.
3.2.6 _QNtoF
Converts a Q number to a single-precision floating-point number.
Prototype:
float
_QNtoF(_qN A)
for a specific Q format (1 <= N <= 15)
- or -
float
_QtoF(_q A)
for the global Q format
Parameters:
Ais the Q number to be converted.
Description:
This function converts a Q number into a single-precision floating-point number.
Returns:
Returns the single-precision floating-point number corresponding to the input Q number.
3.2.7 _QNtoQ
Converts a Q number in QN format to the global Q format.
Prototype:
_q
_QNtoQ(_qN A)
for a specific Q format (1 <= N <= 15)
Parameters:
Ais Q number to be converted.
Description:
This function converts a Q number in the specified Q format to a Q number in the global Q
format.
Returns:
Returns the Q number converted into the global Q format.
3.2.8 _QtoQN
Converts a Q number in the global Q format to the QN format.
January 19, 2015 27
Qmath Functions
Prototype:
_qN
_QtoQN(_q A)
for a specific Q format (1 <= N <= 15)
Parameters:
Ais the Q number to be converted.
Description:
This function converts a Q number in the global Q format to a Q number in the specified Q
format. be limited to the minimum or maximum value.
Returns:
Returns the Q number converted to the specified Q format.
28 January 19, 2015
Qmath Functions
3.3 Qmath Arithmetic Functions
The arithmetic functions provide basic arithmetic (addition, subtraction, multiplication, division) of
Q numbers. No special functions are required for addition or subtraction; Q numbers can simply
be added and subtracted using the underlying C addition and subtraction operators. Multiplication
and division require special treatment in order to maintain the Q number of the result. The following
table summarizes the arithmetic functions:
Function Name Q Format Input Format Output Format
_Qdiv2 1-15 QN QN
_Qdiv4 1-15 QN QN
_Qdiv8 1-15 QN QN
_Qdiv16 1-15 QN QN
_Qdiv32 1-15 QN QN
_Qdiv64 1-15 QN QN
_Qmpy2 1-15 QN QN
_Qmpy4 1-15 QN QN
_Qmpy8 1-15 QN QN
_Qmpy16 1-15 QN QN
_Qmpy32 1-15 QN QN
_Qmpy64 1-15 QN QN
_QNdiv 1-15 QN/QN QN
_QNmpy 1-15 QN*QN QN
_QNmpyI16 1-15 QN*short QN
_QNmpyI16frac 1-15 QN*short QN
_QNmpyI16int 1-15 QN*short short
_QNmpyQX 1-15 QN*QN QN
_QNrmpy 1-15 QN*QN QN
_QNrsmpy 1-15 QN*QN QN
3.3.1 _Qdiv2
Divides a Q number by two.
Prototype:
_qN
_Qdiv2(_qN A)
Parameters:
Ais the number to be divided, in Q format.
Description:
This function divides a Q number by two. This will work for any Q format.
Returns:
Returns the number divided by two.
3.3.2 _Qdiv4
Divides a Q number by four.
January 19, 2015 29
Qmath Functions
Prototype:
_qN
_Qdiv4(_qN A)
Parameters:
Ais the number to be divided, in Q format.
Description:
This function divides a Q number by four. This will work for any Q format.
Returns:
Returns the number divided by four.
3.3.3 _Qdiv8
Divides a Q number by eight.
Prototype:
_qN
_Qdiv8(_qN A)
Parameters:
Ais the number to be divided, in Q format.
Description:
This function divides a Q number by eight. This will work for any Q format.
Returns:
Returns the number divided by eight.
3.3.4 _Qdiv16
Divides a Q number by sixteen.
Prototype:
_qN
_Qdiv16(_qN A)
Parameters:
Ais the number to be divided, in Q format.
Description:
This function divides a Q number by sixteen. This will work for any Q format.
Returns:
Returns the number divided by sixteen.
3.3.5 _Qdiv32
Divides a Q number by thirty two.
30 January 19, 2015
Qmath Functions
Prototype:
_qN
_Qdiv32(_qN A)
Parameters:
Ais the number to be divided, in Q format.
Description:
This function divides a Q number by thirty two. This will work for any Q format.
Returns:
Returns the number divided by thirty two.
3.3.6 _Qdiv64
Divides a Q number by sixty four.
Prototype:
_qN
_Qdiv64(_qN A)
Parameters:
Ais the number to be divided, in Q format.
Description:
This function divides a Q number by sixty four. This will work for any Q format.
Returns:
Returns the number divided by sixty four.
3.3.7 _Qmpy2
Multiplies a Q number by two.
Prototype:
_qN
_Qmpy2(_qN A)
Parameters:
Ais the number to be multiplied, in Q format.
Description:
This function multiplies a Q number by two. This will work for any Q format.
Returns:
Returns the number multiplied by two.
3.3.8 _Qmpy4
Multiplies a Q number by four.
January 19, 2015 31
Qmath Functions
Prototype:
_qN
_Qmpy4(_qN A)
Parameters:
Ais the number to be multiplied, in Q format.
Description:
This function multiplies a Q number by four. This will work for any Q format.
Returns:
Returns the number multiplied by four.
3.3.9 _Qmpy8
Multiplies a Q number by eight.
Prototype:
_qN
_Qmpy8(_qN A)
Parameters:
Ais the number to be multiplied, in Q format.
Description:
This function multiplies a Q number by eight. This will work for any Q format.
Returns:
Returns the number multiplied by eight.
3.3.10 _Qmpy16
Multiplies a Q number by sixteen.
Prototype:
_qN
_Qmpy16(_qN A)
Parameters:
Ais the number to be multiplied, in Q format.
Description:
This function multiplies a Q number by sixteen. This will work for any Q format.
Returns:
Returns the number multiplied by sixteen.
3.3.11 _Qmpy32
Multiplies a Q number by thirty two.
32 January 19, 2015
Qmath Functions
Prototype:
_qN
_Qmpy32(_qN A)
Parameters:
Ais the number to be multiplied, in Q format.
Description:
This function multiplies a Q number by thirty two. This will work for any Q format.
Returns:
Returns the number multiplied by thirty two.
3.3.12 _Qmpy64
Multiplies a Q number by sixty four.
Prototype:
_qN
_Qmpy64(_qN A)
Parameters:
Ais the number to be multiplied, in Q format.
Description:
This function multiplies a Q number by sixty four. This will work for any Q format.
Returns:
Returns the number multiplied by sixty four.
3.3.13 _QNdiv
Divides two Q numbers.
Prototype:
_qN
_QNdiv(_qN A,
_qN B)
for a specific Q format (1 <= N <= 15)
- or -
_q
_Qdiv(_q A,
_q B)
for the global Q format
Parameters:
Ais the numerator, in Q format.
Bis the denominator, in Q format.
January 19, 2015 33
Qmath Functions
Description:
This function divides two Q numbers, returning the quotient in Q format. The result is satu-
rated if it exceeds the capacity of the Q format, and division by zero always results in positive
saturation (regardless of the sign of A).
Returns:
Returns the quotient in Q format.
3.3.14 _QNmpy
Multiplies two Q numbers.
Prototype:
_qN
_QNmpy(_qN A,
_qN B)
for a specific Q format (1 <= N <= 15)
- or -
_q
_Qmpy(_q A,
_q B)
for the global Q format
Parameters:
Ais the first number, in Q format.
Bis the second number, in Q format.
Description:
This function multiplies two Q numbers, returning the product in Q format. The result is neither
rounded nor saturated, so if the product is greater than the minimum or maximum values for
the given Q format, the return value wraps around and produces inaccurate results.
Returns:
Returns the product in Q format.
3.3.15 _QNmpyI16
Multiplies a Q number by an integer.
Prototype:
_qN
_QNmpyI16(_qN A,
long B)
for a specific Q format (1 <= N <= 15)
- or -
_q
_QmpyI16(_q A,
long B)
34 January 19, 2015
Qmath Functions
for the global Q format
Parameters:
Ais the first number, in Q format.
Bis the second number, in integer format.
Description:
This function multiplies a Q number by an integer, returning the product in Q format. The result
is not saturated, so if the product is greater than the minimum or maximum values for the given
Q format, the return value wraps around and produces inaccurate results.
Returns:
Returns the product in Q format.
3.3.16 _QNmpyI16frac
Multiplies a Q number by an integer, returning the fractional portion of the product.
Prototype:
_qN
_QNmpyI16frac(_qN A,
long B)
for a specific Q format (1 <= N <= 15)
- or -
_q
_QmpyI16frac(_q A,
long B)
for the global Q format
Parameters:
Ais the first number, in Q format.
Bis the second number, in integer format.
Description:
This function multiplies a Q number by an integer, returning the fractional portion of the product
in Q format.
Returns:
Returns the fractional portion of the product in Q format.
3.3.17 _QNmpyI16int
Multiplies a Q number by an integer, returning the integer portion of the result.
Prototype:
long
_QNmpyI16int(_qN A,
long B)
January 19, 2015 35
Qmath Functions
for a specific Q format (1 <= N <= 15)
- or -
long
_QmpyI16int(_q A,
long B)
for the global Q format
Parameters:
Ais the first number, in Q format.
Bis the second number, in integer format.
Description:
This function multiplies a Q number by an integer, returning the integer portion of the product.
The result is saturated, so if the integer portion of the product is greater than the minimum or
maximum values for an integer, the result will be saturated to the minimum or maximum value.
Returns:
Returns the product in Q format.
3.3.18 _QNmpyQX
Multiplies two Q numbers.
Prototype:
_qN
_QNmpyQX(_qN A,
long QA,
_qN B,
long QB)
for a specific Q format (1 <= N <= 15)
- or -
_q
_QmpyQX(_q A,
long QA,
_q B,
long QB,)
for the global Q format
Parameters:
Ais the first number, in Q format.
QA is the Q format for the first number.
Bis the second number, in Q format.
QB is the Q format for the second number.
Description:
This function multiplies two Q numbers in different Q formats, returning the product in a third
Q format. The result is neither rounded nor saturated, so if the product is greater than the
minimum or maximum values for the given output Q format, the return value will wrap around
and produce inaccurate results.
36 January 19, 2015
Qmath Functions
Returns:
Returns the product in Q format.
3.3.19 _QNrmpy
Multiplies two Q numbers, with rounding.
Prototype:
_qN
_QNrmpy(_qN A,
_qN B)
for a specific Q format (1 <= N <= 15)
- or -
_q
_Qrmpy(_q A,
_q B)
for the global Q format
Parameters:
Ais the first number, in Q format.
Bis the second number, in Q format.
Description:
This function multiplies two Q numbers, returning the product in Q format. The result is rounded
but not saturated, so if the product is greater than the minimum or maximum values for the given
Q format, the return value wraps around and produces inaccurate results.
Returns:
Returns the product in Q format.
3.3.20 _QNrsmpy
Multiplies two Q numbers, with rounding and saturation.
Prototype:
_qN
_QNrsmpy(_qN A,
_qN B)
for a specific Q format (1 <= N <= 15)
- or -
_q
_Qrsmpy(_q A,
_q B)
for the global Q format
Parameters:
Ais the first number, in Q format.
January 19, 2015 37
Qmath Functions
Bis the second number, in Q format.
Description:
This function multiplies two Q numbers, returning the product in Q format. The result is rounded
and saturated, so if the product is greater than the minimum or maximum values for the given Q
format, the return value is saturated to the minimum or maximum value for the given Q format
(as appropriate).
Returns:
Returns the product in Q format.
38 January 19, 2015
Qmath Functions
3.4 Qmath Trigonometric Functions
The trigonometric functions compute a variety of the trigonometric functions for Q numbers. Func-
tions are provided that take the traditional radians inputs (or produce the traditional radians output
for the inverse functions), as well as a cycles per unit format where the range [0, 1) is mapped onto
the circle (in other words, 0.0 is 0 radians, 0.25 is π/2 radians, 0.5 is πradians, 0.75 is 3π/2 radians,
and 1.0 is 2πradians). The following table summarizes the trigonometric functions.
Function Name Q Format Input Format Output Format
_QNacos 1-14 QN QN
_QNasin 1-14 QN QN
_QNatan 1-15 QN QN
_QNatan2 1-15 QN,QN QN
_QNatan2PU 1-15 QN,QN QN
_QNcos 1-15 QN QN
_QNcosPU 1-15 QN QN
_QNsin 1-15 QN QN
_QNsinPU 1-15 QN QN
3.4.1 _QNacos
Computes the inverse cosine of the input value.
Prototype:
_qN
_QNacos(_qN A)
for a specific Q format (1 <= N <= 14)
- or -
_q
_Qacos(_q A)
for the global Q format
Parameters:
Ais the input value in Q format.
Description:
This function computes the inverse cosine of the input value.
Note:
This function is not available for Q15 format.
Returns:
The inverse cosine of the input value, in radians.
3.4.2 _QNasin
Computes the inverse sine of the input value.
January 19, 2015 39
Qmath Functions
Prototype:
_qN
_QNasin(_qN A)
for a specific Q format (1 <= N <= 14)
- or -
_q
_Qasin(_q A)
for the global Q format
Parameters:
Ais the input value in Q format.
Description:
This function computes the inverse sine of the input value.
Note:
This function is not available for Q15 format.
Returns:
The inverse sine of the input value, in radians.
3.4.3 _QNatan
Computes the inverse tangent of the input value.
Prototype:
_qN
_QNatan(_qN A)
for a specific Q format (1 <= N <= 15)
- or -
_q
_Qatan(_q A)
for the global Q format
Parameters:
Ais the input value in Q format.
Description:
This function computes the inverse tangent of the input value.
Returns:
The inverse tangent of the input value, in radians.
3.4.4 _QNatan2
Computes the inverse four-quadrant tangent of the input point.
40 January 19, 2015
Qmath Functions
Prototype:
_qN
_QNatan2(_qN A,
_qN B)
for a specific Q format (1 <= N <= 15)
- or -
_q
_Qatan2(_q A,
_q B)
for the global Q format
Parameters:
Ais the Y coordinate input value in Q format.
Bis the X coordinate input value in Q format.
Description:
This function computes the inverse four-quadrant tangent of the input point.
Returns:
The inverse four-quadrant tangent of the input point, in radians.
3.4.5 _QNatan2PU
Computes the inverse four-quadrant tangent of the input point, returning the result in cycles per
unit.
Prototype:
_qN
_QNatan2PU(_qN A,
_qN B)
for a specific Q format (1 <= N <= 15)
- or -
_q
_Qatan2PU(_q A,
_q B)
for the global Q format
Parameters:
Ais the X coordinate input value in Q format.
Bis the Y coordinate input value in Q format.
Description:
This function computes the inverse four-quadrant tangent of the input point, returning the result
in cycles per unit.
Returns:
The inverse four-quadrant tangent of the input point, in cycles per unit.
January 19, 2015 41
Qmath Functions
3.4.6 _QNcos
Computes the cosine of the input value.
Prototype:
_qN
_QNcos(_qN A)
for a specific Q format (1 <= N <= 15)
- or -
_q
_Qcos(_q A)
for the global Q format
Parameters:
Ais the input value in radians, in Q format.
Description:
This function computes the cosine of the input value.
Returns:
The cosine of the input value.
3.4.7 _QNcosPU
Computes the cosine of the input value in cycles per unit.
Prototype:
_qN
_QNcosPU(_qN A)
for a specific Q format (1 <= N <= 15)
- or -
_q
_QcosPU(_q A)
for the global Q format
Parameters:
Ais the input value in cycles per unit, in Q format.
Description:
This function computes the cosine of the input value.
Returns:
The cosine of the input value.
3.4.8 _QNsin
Computes the sine of the input value.
42 January 19, 2015
Qmath Functions
Prototype:
_qN
_QNsin(_qN A)
for a specific Q format (1 <= N <= 15)
- or -
_q
_Qsin(_q A)
for the global Q format
Parameters:
Ais the input value in radians, in Q format.
Description:
This function computes the sine of the input value.
Returns:
The sine of the input value.
3.4.9 _QNsinPU
Computes the sine of the input value in cycles per unit.
Prototype:
_qN
_QNsinPU(_qN A)
for a specific Q format (1 <= N <= 15)
- or -
_q
_QsinPU(_q A)
for the global Q format
Parameters:
Ais the input value in cycles per unit, in Q format.
Description:
This function computes the sine of the input value.
Returns:
The sine of the input value.
January 19, 2015 43
Qmath Functions
3.5 Qmath Mathematical Functions
The mathematical functions compute a variety of advanced mathematical functions for Q numbers.
The following table summarizes the mathematical functions:
Function Name Q Format Input Format Output Format
_QNexp 1-15 QN QN
_QNlog 1-15 QN QN
_QNsqrt 1-15 QN QN
_QNisqrt 1-15 QN QN
_QNmag 1-15 QN,QN QN
_QNimag 1-15 QN,QN QN
3.5.1 _QNexp
Computes the base-e exponential value of a Q number.
Prototype:
_qN
_QNexp(_qN A)
for a specific Q format (1 <= N <= 15)
- or -
_q
_Qexp(_q A)
for the global Q format
Parameters:
Ais the input value, in Q format.
Description:
This function computes the base-e exponential value of the input, and saturates the result if it
exceeds the range of the Q format in use.
Returns:
Returns the base-e exponential of the input.
3.5.2 _QNlog
Computes the base-e logarithm of a Q number.
Prototype:
_qN
_QNlog(_qN A)
for a specific Q format (1 <= N <= 15)
- or -
44 January 19, 2015
Qmath Functions
_q
_Qlog(_q A)
for the global Q format
Parameters:
Ais the input value, in Q format.
Description:
This function computes the base-e logarithm of the input, and saturates the result if it exceeds
the range of the Q format in use.
Returns:
Returns the base-e logarithm of the input.
3.5.3 _QNsqrt
Computes the square root of a Q number.
Prototype:
_qN
_QNsqrt(_qN A)
for a specific Q format (1 <= N <= 15)
- or -
_q
_Qsqrt(_q A)
for the global Q format
Parameters:
Ais the input value, in Q format.
Description:
This function computes the square root of the input. Negative inputs result in an output of 0.
Returns:
Returns the square root of the input.
3.5.4 _QNisqrt
Computes the inverse square root of a Q number.
Prototype:
_qN
_QNisqrt(_qN A)
for a specific Q format (1 <= N <= 15)
- or -
_q
_Qisqrt(_q A)
January 19, 2015 45
Qmath Functions
for the global Q format
Parameters:
Ais the input value, in Q format.
Description:
This function computes the inverse square root (1 / sqrt) of the input, and saturates the result
if it exceeds the range of the Q format in use. Negative inputs result in an output of 0.
Returns:
Returns the inverse square root of the input.
3.5.5 _QNmag
Computes the magnitude of a two dimensional vector.
Prototype:
_qN
_QNmag(_qN A,
_qN B)
for a specific Q format (1 <= N <= 15)
- or -
_q
_Qmag(_q A,
_q B)
for the global Q format
Parameters:
Ais the first input value, in Q format.
Bis the second input value, in Q format.
Description:
This function computes the magnitude of a two-dimensional vector provided in Q format. The
result is always positive and saturated if it exceeds the range of the Q format in use.
This is functionally equivalent to _QNsqrt(_QNrmpy(A, A) + _QNrmpy(B, B)), but provides bet-
ter accuracy, speed, and intermediate overflow handling than building this computation from
_QNsqrt() and _QNrmpy().
Returns:
Returns the magnitude of a two dimensional vector.
3.5.6 _QNimag
Computes the inverse magnitude of a two dimensional vector.
Prototype:
_qN
_QNimag(_qN A,
_qN B)
46 January 19, 2015
Qmath Functions
for a specific Q format (1 <= N <= 15)
- or -
_q
_Qimag(_q A,
_q B)
for the global Q format
Parameters:
Ais the first input value, in Q format.
Bis the second input value, in Q format.
Description:
This function computes the inverse magnitude (1 / QNmag) of a two-dimensional vector pro-
vided in Q format. The result is always positive and saturated if it exceeds the range of the Q
format in use.
Returns:
Returns the inverse of the magnitude of a two dimensional vector.
January 19, 2015 47
Qmath Functions
3.6 Qmath Miscellaneous Functions
The miscellaneous functions are useful functions that do not otherwise fit elsewhere. The following
table summarizes the miscellaneous functions:
Function Name Q Format Input Format Output Format
_QNabs 1-15 QN QN
_QNsat 1-15 QN QN
3.6.1 _QNabs
Finds the absolute value of a Q number.
Prototype:
_qN
_QNabs(_qN A)
for a specific Q format (1 <= N <= 15)
- or -
_q
_Qabs(_q A)
for the global Q format
Parameters:
Ais the input value in Q format.
Description:
This function computes the absolute value of the input Q number.
Returns:
Returns the absolute value of the input.
3.6.2 _QNsat
Satures a Q number.
Prototype:
_qN
_QNsat(_qN A,
_qN Pos,
_qN Neg)
for a specific Q format (1 <= N <= 15)
- or -
_q
_Qsat(_q A,
_q Pos,
_q Neg)
48 January 19, 2015
Qmath Functions
for the global Q format
Parameters:
Ais the input value in Q format.
Pos is the positive limit in Q format.
Neg is the negative limit in Q format.
Description:
This function limits the input Q number between the range specified by the positive and nega-
tive limits.
Returns:
Returns the saturated input value.
January 19, 2015 49
Qmath Functions
50 January 19, 2015
IQmath Functions
4 IQmath Functions
IQmath Introduction ......................................................................................51
IQmath FormatConversion Functions ....................................................................52
IQmath ArithmeticFunctions .............................................................................58
IQmath Trigonometric Functions ..........................................................................68
IQmath MathematicalFunctions ..........................................................................74
IQmath MiscellaneousFunctions .........................................................................78
4.1 IQmath Introduction
The IQmath library provides the same function set as the Qmath library with 32-bit data types
and higher accuracy. These functions are provided for when an application requires accuracy
comparable or greater than the equivalent floating point math functions. As a result the code size
and constant data tables are going to be larger than the Qmath library counterparts.
Execution time is increased however it remains manageable for devices with the MPY32 peripheral.
For devices without the MPY32 peripheral the execution time will be an order of magnitude higher
than the Qmath counterparts and it is recommended to only use the IQmath functions when greater
than 16-bit accuracy is necessary.
When mixing Qmath and IQmath, the IQmath library provides functions for converting between Q
and IQ data types to make combining Qmath and IQmath easy and seamless.
January 19, 2015 51
IQmath Functions
4.2 IQmath Format Conversion Functions
The format conversion functions provide a way to convert numbers to and from various IQ formats.
There are functions to convert IQ numbers to and from single-precision floating-point numbers, to
and from integers, to and from strings, to and from 16-bit QN format numbers, to and from various
IQ formats, and to extract the integer and fractional portion of an IQ number. The following table
summarizes the format conversion functions:
Function Name Q Format Input Format Output Format
_atoIQN 1-30 char * IQN
_IQN 1-30 float IQN
_IQNfrac 1-30 IQN IQN
_IQNint 1-30 IQN long
_IQNtoa 1-30 IQN char *
_IQNtoF 1-30 IQN float
_IQNtoIQ 1-30 IQN GLOBAL_IQ
_IQtoIQN 1-30 GLOBAL_IQ IQN
_IQtoQN 1-15 GLOBAL_IQ QN
_QNtoIQ 1-15 QN GLOBAL_IQ
4.2.1 _atoIQN
Converts a string to an IQ number.
Prototype:
_iqN
_atoIQN(const char *A)
for a specific IQ format (1 <= N <= 30)
- or -
_iq
_atoIQ(const char *A)
for the global IQ format
Parameters:
Ais the string to be converted.
Description:
This function converts a string into an IQ number. The input string may contain (in order)
an optional sign and a string of digits optionally containing a decimal point. A unrecognized
character ends the string and returns zero. If the input string converts to a number greater
than the minimum or maximum values for the given IQ format, the return value is limited to the
minimum or maximum value.
Returns:
Returns the IQ number corresponding to the input string.
52 January 19, 2015
IQmath Functions
4.2.2 _IQN
Converts a floating-point constant or variable into an IQ number.
Prototype:
_iqN
_IQN(float A)
for a specific IQ format (1 <= N <= 30)
- or -
_iq
_IQ(float A)
for the global IQ format
Parameters:
Ais the floating-point variable or constant to be converted.
Description:
This function converts a floating-point constant or variable into the equivalent IQ number. If the
input value is greater than the minimum or maximum values for the given IQ format, the return
value wraps around and produces inaccurate results.
Returns:
Returns the IQ number corresponding to the floating-point variable or constant.
4.2.3 _IQNfrac
Returns the fractional portion of an IQ number.
Prototype:
_iqN
_IQNfrac(_iqN A)
for a specific IQ format (1 <= N <= 30)
- or -
_iq
_IQfrac(_iq A)
for the global IQ format
Parameters:
Ais the input number in IQ format.
Description:
This function returns the fractional portion of an IQ number as an IQ number.
Returns:
Returns the fractional portion of the input IQ number.
January 19, 2015 53
IQmath Functions
4.2.4 _IQNint
Returns the integer portion of an IQ number.
Prototype:
long
_IQNint(_iqN A)
for a specific IQ format (1 <= N <= 30)
- or -
long
_IQint(_iq A)
for the global IQ format
Parameters:
Ais the input number in IQ format.
Description:
This function returns the integer portion of an IQ number.
Returns:
Returns the integer portion of the input IQ number.
4.2.5 _IQNtoa
Converts an IQ number to a string.
Prototype:
int
_IQNtoa(char *A,
const char *B,
_iqN C)
for a specific IQ format (1 <= N <= 30)
- or -
int
_IQtoa(char *A,
const char *B,
_iq C)
for the global IQ format
Parameters:
Ais a pointer to the buffer to store the converted IQ number.
Bis the format string specifying how to convert the IQ number. Must be of the form “%xx.yyf”
with xx and yy at most 2 characters in length.
Cis the IQ number to convert.
Description:
This function converts the IQ number to a string, using the specified format.
54 January 19, 2015
IQmath Functions
Example:
_IQtoa(buffer, "%4.8f", iqInput)
Returns:
Returns 0 if there is no error, 1 if the width is too small to hold the integer characters, and 2 if
an illegal format was specified.
4.2.6 _IQNtoF
Converts an IQ number to a single-precision floating-point number.
Prototype:
float
_IQNtoF(_iqN A)
for a specific IQ format (1 <= N <= 30)
- or -
float
_IQtoF(_iq A)
for the global IQ format
Parameters:
Ais the IQ number to be converted.
Description:
This function converts an IQ number into a single-precision floating-point number. Since single-
precision floating-point values have only 24 bits of mantissa, 8 bits of accuracy will be lost via
this conversion.
Returns:
Returns the single-precision floating-point number corresponding to the input IQ number.
4.2.7 _IQNtoIQ
Converts an IQ number in IQN format to the global IQ format.
Prototype:
_iq
_IQNtoIQ(_iqN A)
for a specific IQ format (1 <= N <= 30)
Parameters:
Ais IQ number to be converted.
Description:
This function converts an IQ number in the specified IQ format to an IQ number in the global
IQ format.
Returns:
Returns the IQ number converted into the global IQ format.
January 19, 2015 55
IQmath Functions
4.2.8 _IQtoIQN
Converts an IQ number in the global IQ format to the IQN format.
Prototype:
_iqN
_IQtoIQN(_iq A)
for a specific IQ format (1 <= N <= 30)
Parameters:
Ais the IQ number to be converted.
Description:
This function converts an IQ number in the global IQ format to an IQ number in the specified
IQ format. be limited to the minimum or maximum value.
Returns:
Returns the IQ number converted to the specified IQ format.
4.2.9 _IQtoQN
Converts an IQ number to a 16-bit number in QN format.
Prototype:
short
_IQtoQN(_iq A)
for a specific Q format (1 <= N <= 15)
Parameters:
Ais the IQ number to be converted.
Description:
This function converts an IQ number in the global IQ format to a 16-bit number in QN format.
Returns:
Returns the QN number corresponding to the input IQ number.
4.2.10 _QNtoIQ
Converts a 16-bit QN number to an IQ number.
Prototype:
_iq
_QNtoIQ(short A)
for a specific Q format (1 <= N <= 15)
Parameters:
Ais the QN number to be converted.
Description:
This function converts a 16-bit QN number to an IQ number in the global IQ format.
56 January 19, 2015
IQmath Functions
Returns:
Returns the IQ number corresponding to the input QN number.
January 19, 2015 57
IQmath Functions
4.3 IQmath Arithmetic Functions
The arithmetic functions provide basic arithmetic (addition, subtraction, multiplication, division) of
IQ numbers. No special functions are required for addition or subtraction; IQ numbers can simply
be added and subtracted using the underlying C addition and subtraction operators. Multiplication
and division require special treatment in order to maintain the IQ number of the result. The following
table summarizes the arithmetic functions:
Function Name Q Format Input Format Output Format
_IQdiv2 1-30 IQN IQN
_IQdiv4 1-30 IQN IQN
_IQdiv8 1-30 IQN IQN
_IQdiv16 1-30 IQN IQN
_IQdiv32 1-30 IQN IQN
_IQdiv64 1-30 IQN IQN
_IQmpy2 1-30 IQN IQN
_IQmpy4 1-30 IQN IQN
_IQmpy8 1-30 IQN IQN
_IQmpy16 1-30 IQN IQN
_IQmpy32 1-30 IQN IQN
_IQmpy64 1-30 IQN IQN
_IQNdiv 1-30 IQN/IQN IQN
_IQNmpy 1-30 IQN*IQN IQN
_IQNmpyI32 1-30 IQN*long IQN
_IQNmpyI32frac 1-30 IQN*long IQN
_IQNmpyI32int 1-30 IQN*long long
_IQNmpyIQX 1-30 IQN*IQN IQN
_IQNrmpy 1-30 IQN*IQN IQN
_IQNrsmpy 1-30 IQN*IQN IQN
4.3.1 _IQdiv2
Divides an IQ number by two.
Prototype:
_iqN
_IQdiv2(_iqN A)
Parameters:
Ais the number to be divided, in IQ format.
Description:
This function divides an IQ number by two. This will work for any IQ format.
Returns:
Returns the number divided by two.
4.3.2 _IQdiv4
Divides an IQ number by four.
58 January 19, 2015
IQmath Functions
Prototype:
_iqN
_IQdiv4(_iqN A)
Parameters:
Ais the number to be divided, in IQ format.
Description:
This function divides an IQ number by four. This will work for any IQ format.
Returns:
Returns the number divided by four.
4.3.3 _IQdiv8
Divides an IQ number by eight.
Prototype:
_iqN
_IQdiv8(_iqN A)
Parameters:
Ais the number to be divided, in IQ format.
Description:
This function divides an IQ number by eight. This will work for any IQ format.
Returns:
Returns the number divided by eight.
4.3.4 _IQdiv16
Divides an IQ number by sixteen.
Prototype:
_iqN
_IQdiv16(_iqN A)
Parameters:
Ais the number to be divided, in IQ format.
Description:
This function divides an IQ number by sixteen. This will work for any IQ format.
Returns:
Returns the number divided by sixteen.
4.3.5 _IQdiv32
Divides an IQ number by thirty two.
January 19, 2015 59
IQmath Functions
Prototype:
_iqN
_IQdiv32(_iqN A)
Parameters:
Ais the number to be divided, in IQ format.
Description:
This function divides an IQ number by thirty two. This will work for any IQ format.
Returns:
Returns the number divided by thirty two.
4.3.6 _IQdiv64
Divides an IQ number by sixty four.
Prototype:
_iqN
_IQdiv64(_iqN A)
Parameters:
Ais the number to be divided, in IQ format.
Description:
This function divides an IQ number by sixty four. This will work for any IQ format.
Returns:
Returns the number divided by sixty four.
4.3.7 _IQmpy2
Multiplies an IQ number by two.
Prototype:
_iqN
_IQmpy2(_iqN A)
Parameters:
Ais the number to be multiplied, in IQ format.
Description:
This function multiplies an IQ number by two. This will work for any IQ format.
Returns:
Returns the number multiplied by two.
4.3.8 _IQmpy4
Multiplies an IQ number by four.
60 January 19, 2015
IQmath Functions
Prototype:
_iqN
_IQmpy4(_iqN A)
Parameters:
Ais the number to be multiplied, in IQ format.
Description:
This function multiplies an IQ number by four. This will work for any IQ format.
Returns:
Returns the number multiplied by four.
4.3.9 _IQmpy8
Multiplies an IQ number by eight.
Prototype:
_iqN
_IQmpy8(_iqN A)
Parameters:
Ais the number to be multiplied, in IQ format.
Description:
This function multiplies an IQ number by eight. This will work for any IQ format.
Returns:
Returns the number multiplied by eight.
4.3.10 _IQmpy16
Multiplies an IQ number by sixteen.
Prototype:
_iqN
_IQmpy16(_iqN A)
Parameters:
Ais the number to be multiplied, in IQ format.
Description:
This function multiplies an IQ number by sixteen. This will work for any IQ format.
Returns:
Returns the number multiplied by sixteen.
4.3.11 _IQmpy32
Multiplies an IQ number by thirty two.
January 19, 2015 61
IQmath Functions
Prototype:
_iqN
_IQmpy32(_iqN A)
Parameters:
Ais the number to be multiplied, in IQ format.
Description:
This function multiplies an IQ number by thirty two. This will work for any IQ format.
Returns:
Returns the number multiplied by thirty two.
4.3.12 _IQmpy64
Multiplies an IQ number by sixty four.
Prototype:
_iqN
_IQmpy64(_iqN A)
Parameters:
Ais the number to be multiplied, in IQ format.
Description:
This function multiplies an IQ number by sixty four. This will work for any IQ format.
Returns:
Returns the number multiplied by sixty four.
4.3.13 _IQNdiv
Divides two IQ numbers.
Prototype:
_iqN
_IQNdiv(_iqN A,
_iqN B)
for a specific IQ format (1 <= N <= 30)
- or -
_iq
_IQdiv(_iq A,
_iq B)
for the global IQ format
Parameters:
Ais the numerator, in IQ format.
Bis the denominator, in IQ format.
62 January 19, 2015
IQmath Functions
Description:
This function divides two IQ numbers, returning the quotient in IQ format. The result is satu-
rated if it exceeds the capacity of the IQ format, and division by zero always results in positive
saturation (regardless of the sign of A).
Returns:
Returns the quotient in IQ format.
4.3.14 _IQNmpy
Multiplies two IQ numbers.
Prototype:
_iqN
_IQNmpy(_iqN A,
_iqN B)
for a specific IQ format (1 <= N <= 30)
- or -
_iq
_IQmpy(_iq A,
_iq B)
for the global IQ format
Parameters:
Ais the first number, in IQ format.
Bis the second number, in IQ format.
Description:
This function multiplies two IQ numbers, returning the product in IQ format. The result is neither
rounded nor saturated, so if the product is greater than the minimum or maximum values for
the given IQ format, the return value wraps around and produces inaccurate results.
Returns:
Returns the product in IQ format.
4.3.15 _IQNmpyI32
Multiplies an IQ number by an integer.
Prototype:
_iqN
_IQNmpyI32(_iqN A,
long B)
for a specific IQ format (1 <= N <= 30)
- or -
_iq
_IQmpyI32(_iq A,
long B)
January 19, 2015 63
IQmath Functions
for the global IQ format
Parameters:
Ais the first number, in IQ format.
Bis the second number, in integer format.
Description:
This function multiplies an IQ number by an integer, returning the product in IQ format. The
result is not saturated, so if the product is greater than the minimum or maximum values for the
given IQ format, the return value wraps around and produces inaccurate results.
Returns:
Returns the product in IQ format.
4.3.16 _IQNmpyI32frac
Multiplies an IQ number by an integer, returning the fractional portion of the product.
Prototype:
_iqN
_IQNmpyI32frac(_iqN A,
long B)
for a specific IQ format (1 <= N <= 30)
- or -
_iq
_IQmpyI32frac(_iq A,
long B)
for the global IQ format
Parameters:
Ais the first number, in IQ format.
Bis the second number, in integer format.
Description:
This function multiplies an IQ number by an integer, returning the fractional portion of the
product in IQ format.
Returns:
Returns the fractional portion of the product in IQ format.
4.3.17 _IQNmpyI32int
Multiplies an IQ number by an integer, returning the integer portion of the result.
Prototype:
long
_IQNmpyI32int(_iqN A,
long B)
64 January 19, 2015
IQmath Functions
for a specific IQ format (1 <= N <= 30)
- or -
long
_IQmpyI32int(_iq A,
long B)
for the global IQ format
Parameters:
Ais the first number, in IQ format.
Bis the second number, in integer format.
Description:
This function multiplies an IQ number by an integer, returning the integer portion of the product.
The result is saturated, so if the integer portion of the product is greater than the minimum or
maximum values for an integer, the result will be saturated to the minimum or maximum value.
Returns:
Returns the product in IQ format.
4.3.18 _IQNmpyIQX
Multiplies two IQ numbers.
Prototype:
_iqN
_IQNmpyIQX(_iqN A,
long IQA,
_iqN B,
long IQB)
for a specific IQ format (1 <= N <= 30)
- or -
_iq
_IQmpyIQX(_iq A,
long IQA,
_iq B,
long IQB,)
for the global IQ format
Parameters:
Ais the first number, in IQ format.
IQA is the IQ format for the first number.
Bis the second number, in IQ format.
IQB is the IQ format for the second number.
Description:
This function multiplies two IQ numbers in different IQ formats, returning the product in a third
IQ format. The result is neither rounded nor saturated, so if the product is greater than the
minimum or maximum values for the given output IQ format, the return value will wrap around
and produce inaccurate results.
January 19, 2015 65
IQmath Functions
Returns:
Returns the product in IQ format.
4.3.19 _IQNrmpy
Multiplies two IQ numbers, with rounding.
Prototype:
_iqN
_IQNrmpy(_iqN A,
_iqN B)
for a specific IQ format (1 <= N <= 30)
- or -
_iq
_IQrmpy(_iq A,
_iq B)
for the global IQ format
Parameters:
Ais the first number, in IQ format.
Bis the second number, in IQ format.
Description:
This function multiplies two IQ numbers, returning the product in IQ format. The result is
rounded but not saturated, so if the product is greater than the minimum or maximum values
for the given IQ format, the return value wraps around and produces inaccurate results.
Returns:
Returns the product in IQ format.
4.3.20 _IQNrsmpy
Multiplies two IQ numbers, with rounding and saturation.
Prototype:
_iqN
_IQNrsmpy(_iqN A,
_iqN B)
for a specific IQ format (1 <= N <= 30)
- or -
_iq
_IQrsmpy(_iq A,
_iq B)
for the global IQ format
Parameters:
Ais the first number, in IQ format.
66 January 19, 2015
IQmath Functions
Bis the second number, in IQ format.
Description:
This function multiplies two IQ numbers, returning the product in IQ format. The result is
rounded and saturated, so if the product is greater than the minimum or maximum values for
the given IQ format, the return value is saturated to the minimum or maximum value for the
given IQ format (as appropriate).
Returns:
Returns the product in IQ format.
January 19, 2015 67
IQmath Functions
4.4 IQmath Trigonometric Functions
The trigonometric functions compute a variety of the trigonometric functions for IQ numbers. Func-
tions are provided that take the traditional radians inputs (or produce the traditional radians output
for the inverse functions), as well as a cycles per unit format where the range [0, 1) is mapped onto
the circle (in other words, 0.0 is 0 radians, 0.25 is π/2 radians, 0.5 is πradians, 0.75 is 3π/2 radians,
and 1.0 is 2πradians). The following table summarizes the trigonometric functions.
Function Name Q Format Input Format Output Format
_IQNacos 1-29 IQN IQN
_IQNasin 1-29 IQN IQN
_IQNatan 1-29 IQN IQN
_IQNatan2 1-29 IQN,IQN IQN
_IQNatan2PU 1-30 IQN,IQN IQN
_IQNcos 1-29 IQN IQN
_IQNcosPU 1-30 IQN IQN
_IQNsin 1-29 IQN IQN
_IQNsinPU 1-30 IQN IQN
4.4.1 _IQNacos
Computes the inverse cosine of the input value.
Prototype:
_iqN
_IQNacos(_iqN A)
for a specific IQ format (1 <= N <= 29)
- or -
_iq
_IQacos(_iq A)
for the global IQ format
Parameters:
Ais the input value in IQ format.
Description:
This function computes the inverse cosine of the input value.
Note:
This function is not available for IQ30 format because the full output range (-πthrough π) cannot
be represented in IQ30 format (which ranges from -2 through 2).
Returns:
The inverse cosine of the input value, in radians.
68 January 19, 2015
IQmath Functions
4.4.2 _IQNasin
Computes the inverse sine of the input value.
Prototype:
_iqN
_IQNasin(_iqN A)
for a specific IQ format (1 <= N <= 29)
- or -
_iq
_IQasin(_iq A)
for the global IQ format
Parameters:
Ais the input value in IQ format.
Description:
This function computes the inverse sine of the input value.
Note:
This function is not available for IQ30 format because the full output range (-πthrough π) cannot
be represented in IQ30 format (which ranges from -2 through 2).
Returns:
The inverse sine of the input value, in radians.
4.4.3 _IQNatan
Computes the inverse tangent of the input value.
Prototype:
_iqN
_IQNatan(_iqN A)
for a specific IQ format (1 <= N <= 29)
- or -
_iq
_IQatan(_iq A)
for the global IQ format
Parameters:
Ais the input value in IQ format.
Description:
This function computes the inverse tangent of the input value.
Note:
This function is not available for IQ30 format because the full output range (-πthrough π) cannot
be represented in IQ30 format (which ranges from -2 through 2).
January 19, 2015 69
IQmath Functions
Returns:
The inverse tangent of the input value, in radians.
4.4.4 _IQNatan2
Computes the inverse four-quadrant tangent of the input point.
Prototype:
_iqN
_IQNatan2(_iqN A,
_iqN B)
for a specific IQ format (1 <= N <= 29)
- or -
_iq
_IQatan2(_iq A,
_iq B)
for the global IQ format
Parameters:
Ais the Y coordinate input value in IQ format.
Bis the X coordinate input value in IQ format.
Description:
This function computes the inverse four-quadrant tangent of the input point.
Note:
This function is not available for IQ30 format because the full output range (-πthrough π) cannot
be represented in IQ30 format (which ranges from -2 through 2).
Returns:
The inverse four-quadrant tangent of the input point, in radians.
4.4.5 _IQNatan2PU
Computes the inverse four-quadrant tangent of the input point, returning the result in cycles per
unit.
Prototype:
_iqN
_IQNatan2PU(_iqN A,
_iqN B)
for a specific IQ format (1 <= N <= 30)
- or -
_iq
_IQatan2PU(_iq A,
_iq B)
for the global IQ format
70 January 19, 2015
IQmath Functions
Parameters:
Ais the X coordinate input value in IQ format.
Bis the Y coordinate input value in IQ format.
Description:
This function computes the inverse four-quadrant tangent of the input point, returning the result
in cycles per unit.
Returns:
The inverse four-quadrant tangent of the input point, in cycles per unit.
4.4.6 _IQNcos
Computes the cosine of the input value.
Prototype:
_iqN
_IQNcos(_iqN A)
for a specific IQ format (1 <= N <= 29)
- or -
_iq
_IQcos(_iq A)
for the global IQ format
Parameters:
Ais the input value in radians, in IQ format.
Description:
This function computes the cosine of the input value.
Note:
This function is not available for IQ30 format because the full input range (-πthrough π) cannot
be represented in IQ30 format (which ranges from -2 through 2).
Returns:
The cosine of the input value.
4.4.7 _IQNcosPU
Computes the cosine of the input value in cycles per unit.
Prototype:
_iqN
_IQNcosPU(_iqN A)
for a specific IQ format (1 <= N <= 30)
- or -
_iq
_IQcosPU(_iq A)
January 19, 2015 71
IQmath Functions
for the global IQ format
Parameters:
Ais the input value in cycles per unit, in IQ format.
Description:
This function computes the cosine of the input value.
Returns:
The cosine of the input value.
4.4.8 _IQNsin
Computes the sine of the input value.
Prototype:
_iqN
_IQNsin(_iqN A)
for a specific IQ format (1 <= N <= 29)
- or -
_iq
_IQsin(_iq A)
for the global IQ format
Parameters:
Ais the input value in radians, in IQ format.
Description:
This function computes the sine of the input value.
Note:
This function is not available for IQ30 format because the full input range (-πthrough π) cannot
be represented in IQ30 format (which ranges from -2 through 2).
Returns:
The sine of the input value.
4.4.9 _IQNsinPU
Computes the sine of the input value in cycles per unit.
Prototype:
_iqN
_IQNsinPU(_iqN A)
for a specific IQ format (1 <= N <= 30)
- or -
_iq
_IQsinPU(_iq A)
72 January 19, 2015
IQmath Functions
for the global IQ format
Parameters:
Ais the input value in cycles per unit, in IQ format.
Description:
This function computes the sine of the input value.
Returns:
The sine of the input value.
January 19, 2015 73
IQmath Functions
4.5 IQmath Mathematical Functions
The mathematical functions compute a variety of advanced mathematical functions for IQ numbers.
The following table summarizes the mathematical functions:
Function Name Q Format Input Format Output Format
_IQNexp 1-30 IQN IQN
_IQNlog 1-30 IQN IQN
_IQNsqrt 1-30 IQN IQN
_IQNisqrt 1-30 IQN IQN
_IQNmag 1-30 IQN,IQN IQN
_IQNimag 1-30 IQN,IQN IQN
4.5.1 _IQNexp
Computes the base-e exponential value of an IQ number.
Prototype:
_iqN
_IQNexp(_iqN A)
for a specific IQ format (1 <= N <= 30)
- or -
_iq
_IQexp(_iq A)
for the global IQ format
Parameters:
Ais the input value, in IQ format.
Description:
This function computes the base-e exponential value of the input, and saturates the result if it
exceeds the range of the IQ format in use.
Returns:
Returns the base-e exponential of the input.
4.5.2 _IQNlog
Computes the base-e logarithm of an IQ number.
Prototype:
_iqN
_IQNlog(_iqN A)
for a specific IQ format (1 <= N <= 30)
- or -
74 January 19, 2015
IQmath Functions
_iq
_IQlog(_iq A)
for the global IQ format
Parameters:
Ais the input value, in IQ format.
Description:
This function computes the base-e logarithm of the input, and saturates the result if it exceeds
the range of the IQ format in use.
Returns:
Returns the base-e logarithm of the input.
4.5.3 _IQNsqrt
Computes the square root of an IQ number.
Prototype:
_iqN
_IQNsqrt(_iqN A)
for a specific IQ format (1 <= N <= 30)
- or -
_iq
_IQsqrt(_iq A)
for the global IQ format
Parameters:
Ais the input value, in IQ format.
Description:
This function computes the square root of the input. Negative inputs result in an output of 0.
Returns:
Returns the square root of the input.
4.5.4 _IQNisqrt
Computes the inverse square root of an IQ number.
Prototype:
_iqN
_IQNisqrt(_iqN A)
for a specific IQ format (1 <= N <= 30)
- or -
_iq
_IQisqrt(_iq A)
January 19, 2015 75
IQmath Functions
for the global IQ format
Parameters:
Ais the input value, in IQ format.
Description:
This function computes the inverse square root (1 / sqrt) of the input, and saturates the result
if it exceeds the range of the IQ format in use. Negative inputs result in an output of 0.
Returns:
Returns the inverse square root of the input.
4.5.5 _IQNmag
Computes the magnitude of a two dimensional vector.
Prototype:
_iqN
_IQNmag(_iqN A,
_iqN B)
for a specific IQ format (1 <= N <= 30)
- or -
_iq
_IQmag(_iq A,
_iq B)
for the global IQ format
Parameters:
Ais the first input value, in IQ format.
Bis the second input value, in IQ format.
Description:
This function computes the magnitude of a two-dimensional vector provided in IQ format. The
result is always positive and saturated if it exceeds the range of the IQ format in use.
This is functionally equivalent to _IQNsqrt(_IQNrmpy(A, A) + _IQNrmpy(B, B)), but provides
better accuracy, speed, and intermediate overflow handling than building this computation from
_IQNsqrt() and _IQNrmpy(). For example, _IQ16mag(_IQ16(30000), _IQ16(1000)) correctly
returns _IQ16(30016.6...), even though the intermediate value of _IQ16rmpy(_IQ16(30000),
_IQ16(1000)) overflows an _iq16.
Returns:
Returns the magnitude of a two dimensional vector.
4.5.6 _IQNimag
Computes the inverse magnitude of a two dimensional vector.
76 January 19, 2015
IQmath Functions
Prototype:
_iqN
_IQNimag(_iqN A,
_iqN B)
for a specific IQ format (1 <= N <= 30)
- or -
_iq
_IQimag(_iq A,
_iq B)
for the global IQ format
Parameters:
Ais the first input value, in IQ format.
Bis the second input value, in IQ format.
Description:
This function computes the inverse magnitude (1 / IQNmag) of a two-dimensional vector pro-
vided in IQ format. The result is always positive and saturated if it exceeds the range of the IQ
format in use.
Returns:
Returns the inverse of the magnitude of a two dimensional vector.
January 19, 2015 77
IQmath Functions
4.6 IQmath Miscellaneous Functions
The miscellaneous functions are useful functions that do not otherwise fit elsewhere. The following
table summarizes the miscellaneous functions:
Function Name Q Format Input Format Output Format
_IQNabs 1-30 IQN IQN
_IQNsat 1-30 IQN IQN
4.6.1 _IQNabs
Finds the absolute value of an IQ number.
Prototype:
_iqN
_IQNabs(_iqN A)
for a specific IQ format (1 <= N <= 30)
- or -
_iq
_IQabs(_iq A)
for the global IQ format
Parameters:
Ais the input value in IQ format.
Description:
This function computes the absolute value of the input IQ number.
Returns:
Returns the absolute value of the input.
4.6.2 _IQNsat
Satures an IQ number.
Prototype:
_iqN
_IQNsat(_iqN A,
_iqN Pos,
_iqN Neg)
for a specific IQ format (1 <= N <= 30)
- or -
_iq
_IQsat(_iq A,
_iq Pos,
_iq Neg)
78 January 19, 2015
IQmath Functions
for the global IQ format
Parameters:
Ais the input value in IQ format.
Pos is the positive limit in IQ format.
Neg is the negative limit in IQ format.
Description:
This function limits the input IQ number between the range specified by the positive and nega-
tive limits.
Returns:
Returns the saturated input value.
January 19, 2015 79
IQmath Functions
80 January 19, 2015
Optimization Guide For Advanced Users
5 Optimization Guide For Advanced Users
5.1 Introduction
This chapter will cover optimizations for advanced users of fixed point math. Often times there are
several ways to implement the same fixed point algorithm, all with varying differences in complex-
ity, code size, execution time and energy consumption. It is up to the application programmer to
implement the algorithms in the most efficient manner that best suits the application goals.
January 19, 2015 81
Optimization Guide For Advanced Users
5.2 Advanced Multiplication
It is very rare that an application will use the same fixed point format for all calculations. Usually it is
necessary to convert arguments to the same type however there are properties of fixed point mul-
tiplication that can be used to avoid these conversions. The fixed point multiplication function can
be written as follows using the Q and IQ formats represented in equations 2.1 and 2.3 respectively.
(xi∗2−n1)∗(yi∗2−n2) = xi∗yi∗2−(n1+n2)(5.1)
The result of the integer multiply will have an integer component with double the precision of the
original type ("int32_t" for Q and "int64_t" for IQ) and the implied scale exponents will be a combi-
nation of the two. Thus with no further steps the result of Q and IQ multiplication will be in Q(n1+n2)
or IQ(n1+n2)format.
The result must be converted to the desired Q or IQ type by adding a constant sto equation 5.1 to
manipulate both the integer result and implied scale.
(xi∗2−n1)∗(yi∗2−n2) = xi∗yi∗2−s∗2(s−(n1+n2)) (5.2)
The real integer component will be solved for by implementing equation 5.3. The resulting implied
scale does not need to be implemented since it is only implied, equation 5.4 gives the implied scale
of the result and thus the Q or IQ format.
xi∗yi∗2−s(5.3)
2(s−(n1+n2)) (5.4)
For multiplication of two identical Q or IQ types the scale exponents n1and n2will both be equal to
n, giving a resulting exponent of 2n. In order to obtain a result in the same Q or IQ format as the
arguments the constant smust also be equal to n.
2(s−(n1+n2)) = 2(n−(n+n)) = 2−n(5.5)
For example, the IQ24 multiplication function is implemented below with a scale constant of 24. It
is important to remember that one of the scales is implied and will not actually be solved.
(xi∗2−24)∗(yi∗2−24) = xi∗yi∗2−24 ∗2(24−(24+24)) =xi∗yi∗2−24 ∗2−24 (5.6)
Thus we can see each Q and IQ multiplication function will implement a constant scale sequal to
the Q or IQ type. This can be used to our advantage when mixing Q or IQ types into equation 5.2.
For example an application requires the multiplication of two arguments in IQ20 and IQ27 format
and would like the result in IQ24 format. First we must solved equation 5.4 for the desired constant
scale sthat gives us the result in the correct format.
2(s−(20+27)) = 2−24 (5.7)
The result of solving for sis 23. Instead of implementing a custom multiplication function for this
set of arguments we can use the IQ23 multiply functions since it will also implement a scale of 23.
Substituting our arguments into the full equation 5.2 will give the full result.
82 January 19, 2015
Optimization Guide For Advanced Users
(xi∗2−20)∗(yi∗2−27) = xi∗yi∗2−23 ∗2(23−(20+27)) =xi∗yi∗2−23 ∗2−24 (5.8)
To solve the integer component the IQ23 multiply function is used and the implied scale will be 2−24,
or IQ24 format.
The C code for this multiply operation can be written in many ways, three of which are shown below.
#define GLOBAL_IQ 24
#include "IQmathLib.h"
int16_t main1(void)
{
_iq20 X = _IQ20(10);
_iq27 Y = _IQ27(0.1);
_iq Z;
//Z=X*Y
Z = _IQmpyIQX(X, Q20, Y, Q27);
}
int16_t main2(void)
{
_iq20 X = _IQ20(10);
_iq27 Y = _IQ27(0.1);
_iq Z, Xt, Yt;
// Scale X and Y to the global format.
Xt = _IQ20toIQ(X);
Yt = _IQ27toIQ(Y);
//Z=X*Y
Z = _IQmpy(Xt, Yt);
}
int16_t main3(void)
{
_iq20 X = _IQ20(10);
_iq27 Y = _IQ27(0.1);
_iq Z;
//Z=X*Y
Z = _IQ23mpy(X, Y);
}
The _IQmpyIQX function used in main1 will consume the most cycles and energy of the three
implementation. This function correctly calculates the result as 1.0.
The code in main2 is more efficient however it requires conversion between IQ and the GLOBAL_IQ
formats. This method is prone to overflows and loss of precision as the IQ formats must be
scaled to match the GLOBAL_IQ format before they can be multiplied. In this example argument
Y loses four bits of accuracy when it is scale to the global IQ format and the result is calculated
as 0.9999996424. In addition to the loss of accuracy the code produced by the compiler will be
larger than necessary and require the use of temporary registers, decreasing overall performance.
The code in main3 demonstrates the best way to perform this multiplication. Using the method
outlined in equation 5.2 that has been solved in equation 5.8, only a single line of code is required.
This method will yield the fastest execution time, lowest energy consumption, lowest code size and
experience no possibility of intermediate saturation or loss of precision due to scaling to interme-
diate values. The result is correctly calculated as 1.0 and no precision is lost. Although this is
the most efficient method to perform the multiplication, extra care must be taken to make sure the
correct multiplication function is used.
January 19, 2015 83
Optimization Guide For Advanced Users
5.3 Advanced Division
Division operations can be simplified in many of the same ways as multiplication. Similar to equation
5.2, equation 5.9 below gives a the fixed point divide function with a scale constant s.
xi∗2−n1
yi∗2−n2=xi
yi
∗2s∗2(n2−n1−s)(5.9)
It is important to note that for division the scale is added with a positive exponent for the integer
component and a negative exponent for the implied scale. In the same way as multiplication, each
Q and IQ multiplication function will implement a constant scale sequal to the Q or IQ type.
For example, an application requires a division with an IQ29 numerator and IQ30 denominator with
the result in IQ24 format. For this operation a scale constant of 25 is used by using the IQ25 divide
function. The corresponding C code is given below.
xi∗2−29
yi∗2−30 =xi
yi
∗225 ∗2(30−29−25) =xi
yi
∗225 ∗2−24 (5.10)
#include "IQmathLib.h"
extern _iq29 X;
extern _iq30 Y;
int16_t main(void)
{
//Z=X/Y
_iq24 Z = _IQ25div(X, Y);
}
For a second example, two integers are divided with the result in Q15 format by using the Q15
divide function. This operation is very useful for taking any two arguments of identical format and
calculating the ratio in Q15 format.
xi∗2−0
yi∗2−0=xi
yi
∗215 ∗2(0−0−15) =xi
yi
∗215 ∗2−15 (5.11)
#include "QmathLib.h"
extern int16_t X;
extern int16_t Y;
int16_t main(void)
{
//Z=X/Y
_q15 Z = _Q15div(X, Y);
}
84 January 19, 2015
Optimization Guide For Advanced Users
5.4 Inlined Multiplication with the MPY32 Peripheral
Accessing the MPY32 multiplier peripheral directly in-line with the application code can significantly
speed up processing time by removing the overhead of function calls, returns and context saving.
Each multiply function implemented in the Qmath and IQmath libraries saves context of the multi-
plier peripheral and disables interrupts to ensure safe operation in either main or interrupts. When
adding direct access to the multiplier it is not always necessary to save context of the multiplier
or disable interrupts. It is the responsibility of the application programmer to determine if saving
multiplier context is necessary based on the usage of the multiplier within interrupts.
The following code snippets show how the multiplier can be used to perform Q15 and IQ31 multi-
plications with direct access to the peripheral.
static inline _q _Q15mpy_inline(_q q15Arg1, _q q15Arg2)
{
uint16_t ui16Result;
uint16_t ui16IntState;
uint16_t ui16MPYState;
/*Disable interrupts and save multiplier mode. [optional] */
ui16IntState = __get_interrupt_state();
__disable_interrupt();
ui16MPYState = MPY32CTL0;
/*Set the multiplier to fractional mode. */
MPY32CTL0 = MPYFRAC;
/*Perform multiplication and save result. */
MPYS = q15Arg1;
OP2 = q15Arg2;
__delay_cycles(3); //Delay for the result to be ready
ui16Result = RESHI;
/*Restore multiplier mode and interrupts. [optional] */
MPY32CTL0 = ui16MPYState;
__set_interrupt_state(ui16IntState);
return (_q)ui16Result;
}
static inline _iq _IQ31mpy_inline(_iq iq31Arg1, _iq iq31Arg2)
{
uint32_t ui32Result;
uint16_t ui16IntState;
uint16_t ui16MPYState;
/*Disable interrupts and save multiplier mode. [optional] */
ui16IntState = __get_interrupt_state();
__disable_interrupt();
ui16MPYState = MPY32CTL0;
/*Set the multiplier to fractional mode. */
MPY32CTL0 = MPYFRAC;
/*Perform multiplication and save result. */
MPYS32L = iq31Arg1;
MPYS32H = iq31Arg1 >> 16;
OP2L = iq31Arg2;
OP2H = iq31Arg2 >> 16;
__delay_cycles(5); //Delay for the result to be ready
ui32Result = RES2;
ui32Result |= (uint32_t)RES3 << 16;
January 19, 2015 85
Optimization Guide For Advanced Users
/*Restore multiplier mode and interrupts. [optional] */
MPY32CTL0 = ui16MPYState;
__set_interrupt_state(ui16IntState);
return (_iq)ui32Result;
}
For more details about using the MPY32 peripheral and the required delay timings please see the
MPY32 chapter in the device Family User Guide.
86 January 19, 2015
Benchmarks
6 Benchmarks
MSP430 Software Multiply ...............................................................................88
MSP430F4xxFamily .....................................................................................90
MSP430F5xx, MSP430F6xxand MSP430FRxxFamily ...................................................92
MSP432 Devices ........................................................................................ 94
This chapter gives benchmarks of the available Qmath and IQmath functions for each device family.
The benchmarks are given with the following considerations:
The number of execution cycles and program memory usage provided assumes the Q14 or
Q15 formats for Qmath functions and the IQ29 or IQ30 format for IQmath functions. Execution
cycles may vary for inputs that are not within a normal input range and other Q and IQ formats.
Program memory usage may vary by a few bytes for other Q and IQ formats.
Some functions that are implemented as C preprocessor macros do not have benchmarks for
execution cycles or code size. These entries will be left empty.
The number of execution cycles provided in the table includes the call and return and assumes
that the library is running from internal flash or FRAM.
There are cross functional dependencies that may result in additional functions being included
into the application. The code size can vary based on application and functions used.
Some of the constant data tables are shared across functions. As a result the code size may
be less than the benchmarks indicate if multiple functions use the same constant data table.
Accuracy should always be tested and verified within the end application.
January 19, 2015 87
Benchmarks
6.1 MSP430 Software Multiply
These benchmarks have been run using MSP430G2553 with the following libraries:
libraries/IAR/MPYsoftware/QmathLib_IAR_MPYsoftware_CPU.lib
libraries/IAR/MPYsoftware/IQmathLib_IAR_MPYsoftware_CPU.lib
6.1.1 MSP430 Software Multiply Qmath Benchmarks
Function Accuracy (Bits) Execution Cycles Code Size Const Data
_atoQN 16 - 194 0
_QN 16 - - 0
_QNfrac 16 14 10 0
_QNint 16 - - 0
_QNtoa 16 - 324 0
_QNtoF 16 39 24 0
_Qdiv2 16 1 - 0
_Qdiv4 16 2 - 0
_Qdiv8 16 3 - 0
_Qdiv16 16 4 - 0
_Qdiv32 16 5 - 0
_Qdiv64 16 6 - 0
_Qmpy2 16 1 - 0
_Qmpy4 16 2 - 0
_Qmpy8 16 3 - 0
_Qmpy16 16 4 - 0
_Qmpy32 16 5 - 0
_Qmpy64 16 6 - 0
_QNdiv 14 366 162 256
_QNmpy 16 178 92 0
_QNmpyI16 16 - - 0
_QNmpyI16frac 16 - - 0
_QNmpyI16int 16 - - 0
_QNmpyQX 16 - - 0
_QNrmpy 16 177 114 0
_QNrsmpy 16 196 166 0
_QNacos 13 201 106 68
_QNasin 13 201 106 68
_QNatan 12 549 120 132
_QNatan2 12 549 120 132
_QNatan2PU 14 543 96 132
_QNcos 14 423 156 140
_QNcosPU 14 587 196 140
_QNsin 14 435 160 140
_QNsinPU 14 588 198 140
_QNexp 13 497 100 80
_QNlog 13 357 128 64
_QNsqrt 14 220 190 192
_QNisqrt 14 515 200 96
_QNmag 14 706 256 192
_QNimag 13 954 268 96
_QNabs 16 - - 0
_QNsat 16 - - 0
88 January 19, 2015
Benchmarks
6.1.2 MSP430 Software Multiply IQmath Benchmarks
Function Accuracy (Bits) Execution Cycles Code Size Const Data
_atoIQN 32 - 266 0
_IQN 23 - - 0
_IQNfrac 32 15 10 0
_IQNint 32 - - 0
_IQNtoa 32 - 412 0
_IQNtoF 23 50 116 0
_IQNtoIQ 32 - - 0
_IQtoIQN 32 - - 0
_IQtoQN 32 - - 0
_QNtoIQ 32 - - 0
_IQdiv2 32 2 - 0
_IQdiv4 32 4 - 0
_IQdiv8 32 6 - 0
_IQdiv16 32 8 - 0
_IQdiv32 32 10 - 0
_IQdiv64 32 12 - 0
_IQmpy2 32 2 - 0
_IQmpy4 32 4 - 0
_IQmpy8 32 6 - 0
_IQmpy16 32 8 - 0
_IQmpy32 32 10 - 0
_IQmpy64 32 12 - 0
_IQNdiv 30 2573 154 65
_IQNmpy 32 374 126 0
_IQNmpyI32 32 - - 0
_IQNmpyI32frac 32 - - 0
_IQNmpyI32int 32 - - 0
_IQNmpyIQX 32 - - 0
_IQNrmpy 32 374 156 0
_IQNrsmpy 32 413 238 0
_IQNacos 26 1658 216 340
_IQNasin 26 1658 216 340
_IQNatan 27 4113 188 528
_IQNatan2 27 4113 188 528
_IQNatan2PU 30 3706 184 528
_IQNcos 27 1697 326 208
_IQNcosPU 27 2078 342 208
_IQNsin 27 1690 330 208
_IQNsinPU 27 2081 346 208
_IQNexp 30 4401 268 132
_IQNlog 28 6229 260 60
_IQNsqrt 31 3551 368 192
_IQNisqrt 31 3217 362 192
_IQNmag 30 5469 484 192
_IQNimag 30 5154 480 192
_IQNabs 32 - - 0
_IQNsat 32 - - 0
January 19, 2015 89
Benchmarks
6.2 MSP430F4xx Family
These benchmarks have been run using MSP430F4794 with the following libraries:
libraries/IAR/MPY32/4xx/QmathLib_IAR_MPY32_4xx_CPU.lib
libraries/IAR/MPY32/4xx/IQmathLib_IAR_MPY32_4xx_CPU.lib
6.2.1 MSP430F4xx Family Qmath Benchmarks
Function Accuracy (Bits) Execution Cycles Code Size Const Data
_atoQN 16 - 216 0
_QN 16 - - 0
_QNfrac 16 14 10 0
_QNint 16 - - 0
_QNtoa 16 - 558 0
_QNtoF 16 39 24 0
_Qdiv2 16 1 - 0
_Qdiv4 16 2 - 0
_Qdiv8 16 3 - 0
_Qdiv16 16 4 - 0
_Qdiv32 16 5 - 0
_Qdiv64 16 6 - 0
_Qmpy2 16 1 - 0
_Qmpy4 16 2 - 0
_Qmpy8 16 3 - 0
_Qmpy16 16 4 - 0
_Qmpy32 16 5 - 0
_Qmpy64 16 6 - 0
_QNdiv 14 120 196 256
_QNmpy 16 52 48 0
_QNmpyI16 16 - - 0
_QNmpyI16frac 16 - - 0
_QNmpyI16int 16 - - 0
_QNmpyQX 16 - - 0
_QNrmpy 16 55 54 0
_QNrsmpy 16 63 90 0
_QNacos 13 88 138 68
_QNasin 13 88 138 68
_QNatan 12 187 150 132
_QNatan2 12 187 150 132
_QNatan2PU 14 182 126 132
_QNcos 14 102 194 140
_QNcosPU 14 137 234 140
_QNsin 14 114 202 140
_QNsinPU 14 140 238 140
_QNexp 13 118 142 80
_QNlog 13 111 168 64
_QNsqrt 14 102 214 192
_QNisqrt 14 134 248 96
_QNmag 14 163 300 192
_QNimag 13 184 328 96
_QNabs 16 - - 0
_QNsat 16 - - 0
90 January 19, 2015
Benchmarks
6.2.2 MSP430F4xx Family IQmath Benchmarks
Function Accuracy (Bits) Execution Cycles Code Size Const Data
_atoIQN 32 - 336 0
_IQN 23 - - 0
_IQNfrac 32 15 10 0
_IQNint 32 - - 0
_IQNtoa 32 - 706 0
_IQNtoF 23 50 116 0
_IQNtoIQ 32 - - 0
_IQtoIQN 32 - - 0
_IQtoQN 32 - - 0
_QNtoIQ 32 - - 0
_IQdiv2 32 2 - 0
_IQdiv4 32 4 - 0
_IQdiv8 32 6 - 0
_IQdiv16 32 8 - 0
_IQdiv32 32 10 - 0
_IQdiv64 32 12 - 0
_IQmpy2 32 2 - 0
_IQmpy4 32 4 - 0
_IQmpy8 32 6 - 0
_IQmpy16 32 8 - 0
_IQmpy32 32 10 - 0
_IQmpy64 32 12 - 0
_IQNdiv 30 319 150 65
_IQNmpy 32 69 68 0
_IQNmpyI32 32 - - 0
_IQNmpyI32frac 32 - - 0
_IQNmpyI32int 32 - - 0
_IQNmpyIQX 32 - - 0
_IQNrmpy 32 73 76 0
_IQNrsmpy 32 81 116 0
_IQNacos 26 225 300 340
_IQNasin 26 225 300 340
_IQNatan 27 515 268 528
_IQNatan2 27 515 268 528
_IQNatan2PU 30 480 248 528
_IQNcos 27 260 456 208
_IQNcosPU 27 286 478 208
_IQNsin 27 272 468 208
_IQNsinPU 27 296 482 208
_IQNexp 30 494 320 132
_IQNlog 28 629 318 60
_IQNsqrt 31 382 544 192
_IQNisqrt 31 364 520 192
_IQNmag 30 548 734 192
_IQNimag 30 530 710 192
_IQNabs 32 - - 0
_IQNsat 32 - - 0
January 19, 2015 91
Benchmarks
6.3 MSP430F5xx, MSP430F6xx and MSP430FRxx Family
These benchmarks have been run using MSP430F5529 with the following libraries:
libraries/IAR/MPY32/5xx_6xx/QmathLib_IAR_MPY32_5xx_6xx_CPUX_small_code_small_data.lib
libraries/IAR/MPY32/5xx_6xx/IQmathLib_IAR_MPY32_5xx_6xx_CPUX_small_code_small_data.lib
6.3.1 MSP430F5xx, MSP430F6xx and MSP430FRxx Family Qmath
Benchmarks
Function Accuracy (Bits) Execution Cycles Code Size Const Data
_atoQN 16 - 206 0
_QN 16 - - 0
_QNfrac 16 14 10 0
_QNint 16 - - 0
_QNtoa 16 - 532 0
_QNtoF 16 39 26 0
_Qdiv2 16 1 - 0
_Qdiv4 16 2 - 0
_Qdiv8 16 3 - 0
_Qdiv16 16 4 - 0
_Qdiv32 16 5 - 0
_Qdiv64 16 6 - 0
_Qmpy2 16 1 - 0
_Qmpy4 16 2 - 0
_Qmpy8 16 3 - 0
_Qmpy16 16 4 - 0
_Qmpy32 16 5 - 0
_Qmpy64 16 6 - 0
_QNdiv 14 103 184 256
_QNmpy 16 47 48 0
_QNmpyI16 16 - - 0
_QNmpyI16frac 16 - - 0
_QNmpyI16int 16 - - 0
_QNmpyQX 16 - - 0
_QNrmpy 16 50 54 0
_QNrsmpy 16 58 90 0
_QNacos 13 80 132 68
_QNasin 13 80 132 68
_QNatan 12 175 142 132
_QNatan2 12 175 142 132
_QNatan2PU 14 169 122 132
_QNcos 14 91 174 140
_QNcosPU 14 118 210 140
_QNsin 14 98 180 140
_QNsinPU 14 121 214 140
_QNexp 13 105 134 80
_QNlog 13 99 162 64
_QNsqrt 14 95 190 192
_QNisqrt 14 118 220 96
_QNmag 14 147 280 192
_QNimag 13 162 302 96
_QNabs 16 - - 0
_QNsat 16 - - 0
92 January 19, 2015
Benchmarks
6.3.2 MSP430F5xx, MSP430F6xx and MSP430FRxx Family IQmath
Benchmarks
Function Accuracy (Bits) Execution Cycles Code Size Const Data
_atoIQN 32 - 312 0
_IQN 23 - - 0
_IQNfrac 32 15 10 0
_IQNint 32 - - 0
_IQNtoa 32 - 676 0
_IQNtoF 23 50 116 0
_IQNtoIQ 32 - - 0
_IQtoIQN 32 - - 0
_IQtoQN 32 - - 0
_QNtoIQ 32 - - 0
_IQdiv2 32 2 - 0
_IQdiv4 32 4 - 0
_IQdiv8 32 6 - 0
_IQdiv16 32 8 - 0
_IQdiv32 32 10 - 0
_IQdiv64 32 12 - 0
_IQmpy2 32 2 - 0
_IQmpy4 32 4 - 0
_IQmpy8 32 6 - 0
_IQmpy16 32 8 - 0
_IQmpy32 32 10 - 0
_IQmpy64 32 12 - 0
_IQNdiv 30 278 136 65
_IQNmpy 32 62 68 0
_IQNmpyI32 32 - - 0
_IQNmpyI32frac 32 - - 0
_IQNmpyI32int 32 - - 0
_IQNmpyIQX 32 - - 0
_IQNrmpy 32 66 76 0
_IQNrsmpy 32 74 116 0
_IQNacos 26 194 282 340
_IQNasin 26 194 282 340
_IQNatan 27 445 256 528
_IQNatan2 27 445 256 528
_IQNatan2PU 30 417 238 528
_IQNcos 27 219 438 208
_IQNcosPU 27 241 460 208
_IQNsin 27 230 450 208
_IQNsinPU 27 250 464 208
_IQNexp 30 431 286 132
_IQNlog 28 556 294 60
_IQNsqrt 31 333 522 192
_IQNisqrt 31 318 498 192
_IQNmag 30 480 710 192
_IQNimag 30 464 686 192
_IQNabs 32 - - 0
_IQNsat 32 - - 0
January 19, 2015 93
Benchmarks
6.4 MSP432 Devices
These benchmarks have been run using MSP432P401R with the following libraries at 1.5 MHz and
0 wait-states:
libraries/IAR/MSP432/QmathLib_IAR_MSP432.lib
libraries/IAR/MSP432/IQmathLib_IAR_MSP432.lib
6.4.1 MSP432 Qmath Benchmarks
Function Accuracy (Bits) Execution Cycles Code Size Const Data
_atoQN 16 - 200 0
_QN 16 - - 0
_QNfrac 16 8 12 0
_QNint 16 - - 0
_QNtoa 16 - 492 0
_QNtoF 16 32 92 0
_Qdiv2 16 1 - 0
_Qdiv4 16 1 - 0
_Qdiv8 16 1 - 0
_Qdiv16 16 1 - 0
_Qdiv32 16 1 - 0
_Qdiv64 16 1 - 0
_Qmpy2 16 1 - 0
_Qmpy4 16 1 - 0
_Qmpy8 16 1 - 0
_Qmpy16 16 1 - 0
_Qmpy32 16 1 - 0
_Qmpy64 16 1 - 0
_QNdiv 14 61 154 256
_QNmpy 16 10 10 0
_QNmpyI16 16 - - 0
_QNmpyI16frac 16 - - 0
_QNmpyI16int 16 - - 0
_QNmpyQX 16 - - 0
_QNrmpy 16 10 14 0
_QNrsmpy 16 10 16 0
_QNacos 13 48 96 68
_QNasin 13 48 96 68
_QNatan 12 98 128 132
_QNatan2 12 98 128 132
_QNatan2PU 14 94 106 132
_QNcos 14 40 106 140
_QNcosPU 14 60 144 140
_QNsin 14 46 114 140
_QNsinPU 14 60 144 140
_QNexp 13 70 98 80
_QNlog 13 50 128 64
_QNsqrt 14 46 174 192
_QNisqrt 14 56 180 96
_QNmag 14 58 190 192
_QNimag 13 50 194 96
_QNabs 16 - - 0
_QNsat 16 - - 0
94 January 19, 2015
Benchmarks
6.4.2 MSP432 IQmath Benchmarks
Function Accuracy (Bits) Execution Cycles Code Size Const Data
_atoIQN 32 - 240 0
_IQN 23 - - 0
_IQNfrac 32 6 8 0
_IQNint 32 - - 0
_IQNtoa 32 - 546 0
_IQNtoF 23 36 104 0
_IQNtoIQ 32 - - 0
_IQtoIQN 32 - - 0
_IQtoQN 32 - - 0
_QNtoIQ 32 - - 0
_IQdiv2 32 1 - 0
_IQdiv4 32 1 - 0
_IQdiv8 32 1 - 0
_IQdiv16 32 1 - 0
_IQdiv32 32 1 - 0
_IQdiv64 32 1 - 0
_IQmpy2 32 1 - 0
_IQmpy4 32 1 - 0
_IQmpy8 32 1 - 0
_IQmpy16 32 1 - 0
_IQmpy32 32 1 - 0
_IQmpy64 32 1 - 0
_IQNdiv 30 117 260 65
_IQNmpy 32 8 12 0
_IQNmpyI32 32 - - 0
_IQNmpyI32frac 32 - - 0
_IQNmpyI32int 32 - - 0
_IQNmpyIQX 32 - - 0
_IQNrmpy 32 10 20 0
_IQNrsmpy 32 24 60 0
_IQNacos 26 92 194 340
_IQNasin 26 92 194 340
_IQNatan 27 166 184 528
_IQNatan2 27 166 248 528
_IQNatan2PU 30 156 170 528
_IQNcos 27 82 250 208
_IQNcosPU 27 86 248 208
_IQNsin 27 84 256 208
_IQNsinPU 27 90 258 208
_IQNexp 30 184 210 132
_IQNlog 28 220 194 60
_IQNsqrt 31 94 302 192
_IQNisqrt 31 98 304 192
_IQNmag 30 136 406 192
_IQNimag 30 132 402 192
_IQNabs 32 - - 0
_IQNsat 32 - - 0
January 19, 2015 95
IMPORTANT NOTICE
Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, modifications, enhancements, improvements,
and other changes to its products and services at any time and to discontinue any product or service without notice. Customers should
obtain the latest relevant information before placing orders and should verify that such information is current and complete. All products are
sold subject to TI’s terms and conditions of sale supplied at the time of order acknowledgment.
TI warrants performance of its hardware products to the specifications applicable at the time of sale in accordance with TI’s standard
warranty. Testing and other quality control techniques are used to the extent TI deems necessary to support this warranty. Except where
mandated by government requirements, testing of all parameters of each product is not necessarily performed.
TI assumes no liability for applications assistance or customer product design. Customers are responsible for their products and applications
using TI components. To minimize the risks associated with customer products and applications, customers should provide adequate design
and operating safeguards.
TI does not warrant or represent that any license, either express or implied, is granted under any TI patent right, copyright, mask work
right, or other TI intellectual property right relating to any combination, machine, or process in which TI products or services are used.
Information published by TI regarding third-party products or services does not constitute a license from TI to use such products or services
or a warranty or endorsement thereof. Use of such information may require a license from a third party under the patents or other intellectual
property of the third party, or a license from TI under the patents or other intellectual property of TI.
Reproduction of TI information in TI data books or data sheets is permissible only if reproduction is without alteration and is accompanied
by all associated warranties, conditions, limitations, and notices. Reproduction of this information with alteration is an unfair and deceptive
business practice. TI is not responsible or liable for such altered documentation. Information of third parties may be subject to additional
restrictions.
Resale of TI products or services with statements different from or beyond the parameters stated by TI for that product or service voids
all express and any implied warranties for the associated TI product or service and is an unfair and deceptive business practice. TI is not
responsible or liable for any such statements.
TI products are not authorized for use in safety-critical applications (such as life support) where a failure of the TI product would reasonably
be expected to cause severe personal injury or death, unless officers of the parties have executed an agreement specifically governing
such use. Buyers represent that they have all necessary expertise in the safety and regulatory ramifications of their applications, and
acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products
and any use of TI products in such safety-critical applications, notwithstanding any applications-related information or support that may be
provided by TI. Further, Buyers must fully indemnify TI and its representatives against any damages arising out of the use of TI products in
such safety-critical applications.
TI products are neither designed nor intended for use in military/aerospace applications or environments unless the TI products are specifi-
cally designated by TI as military-grade or “enhanced plastic.” Only products designated by TI as military-grade meet military specifications.
Buyers acknowledge and agree that any such use of TI products which TI has not designated as military-grade is solely at the Buyer’s risk,
and that they are solely responsible for compliance with all legal and regulatory requirements in connection with such use.
TI products are neither designed nor intended for use in automotive applications or environments unless the specific TI products are
designated by TI as compliant with ISO/TS 16949 requirements. Buyers acknowledge and agree that, if they use any non-designated
products in automotive applications, TI will not be responsible for any failure to meet such requirements.
Following are URLs where you can obtain information on other Texas Instruments products and application solutions:
Products
Amplifiers
Data Converters
DLP® Products
DSP
Clocks and Timers
Interface
Logic
Power Mgmt
Microcontrollers
RFID
RF/IF and ZigBee® Solutions
amplifier.ti.com
dataconverter.ti.com
www.dlp.com
dsp.ti.com
www.ti.com/clocks
interface.ti.com
logic.ti.com
power.ti.com
microcontroller.ti.com
www.ti-rfid.com
www.ti.com/lprf
Applications
Audio
Automotive
Broadband
Digital Control
Medical
Military
Optical Networking
Security
Telephony
Video & Imaging
Wireless
www.ti.com/audio
www.ti.com/automotive
www.ti.com/broadband
www.ti.com/digitalcontrol
www.ti.com/medical
www.ti.com/military
www.ti.com/opticalnetwork
www.ti.com/security
www.ti.com/telephony
www.ti.com/video
www.ti.com/wireless
Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265
Copyright © , Texas Instruments Incorporated
96 January 19, 2015
