MVWB450WQ0

User Manual: MVWB450WQ0

Open the PDF directly: View PDF .
Page Count: 9

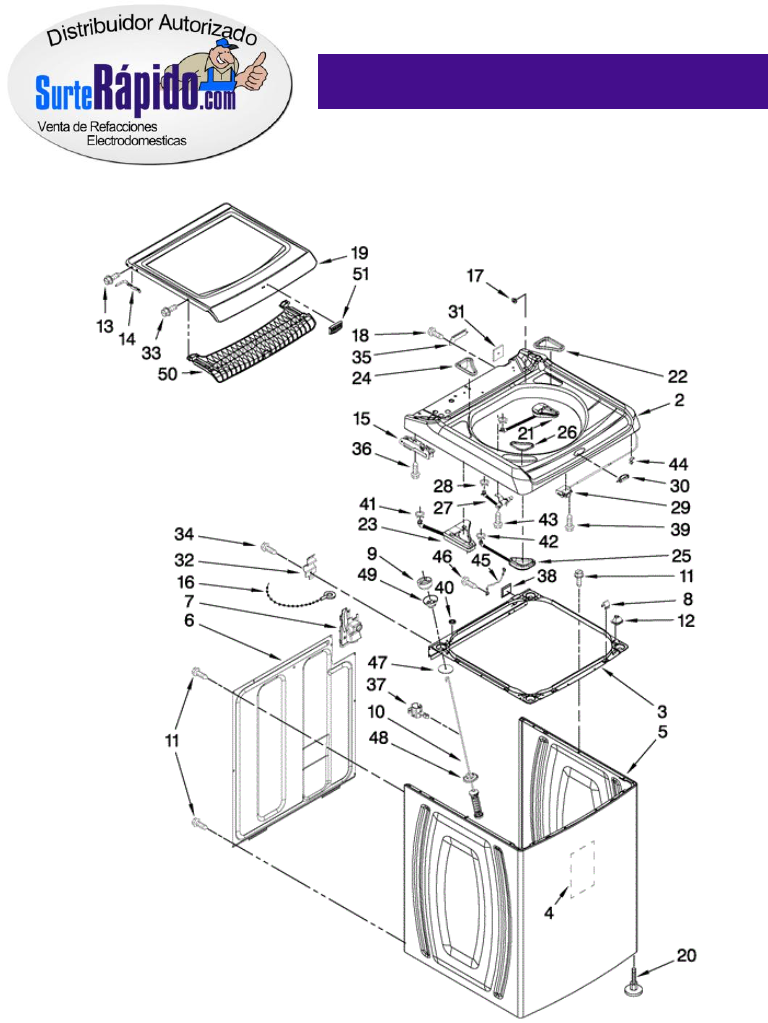

MVWB450WQ0 GABINETE

2

W10141678

TOP

3

W10162604

FRAME ASSEMBLY, CABINET TOP (INCLUDES 38)

4

W10177046

SOUND ABSORBER, CABINET

5

8566097

CABINET

6

8566090

PANEL, REAR

7

W10160572

RETAINER, DRAIN HOSE STORAGE

8

8563785

LOCK, TOP- FRONT (2)

9

W10111536

BALL, SUSPENSION (SET OF 4 - (INCLUDES ITEM 49)

10

W10256514

DAMPER ASS. TUB SUSPENSION (INC 9, 47, 48 & 49)

11

1157158

SCREW, 8-18 X 3/8

12

W10042120

LOCATOR, TOP (2)

13

W10119828

SCREW, LID HINGE MOUNTING (4)

14

8563964

HINGE ARM, LID (2)

15

W10141679

HINGE, SPRING ASSEMBLY (RIGHT)

15

W10141680

HINGE, SPRING ASSEMBLY (LEFT)

16

W10155270

CABLE TIE

17

W10119519

BEARING, LID HINGE (2)

18

3390647

SCREW,8-18 X 1/2

19

W10119497

LID ASSEMBLY

20

W10240448

FOOT ASSEMBLY, LEVELING (4)

21

W10172146

DISPENSER, FABRIC SOFTENER

22

W10136371

BEZEL, FABRIC SOFTENER DISPENSER

23

W10187307

DISPENSER, STAIN REMOVER

24

8563876

BEZEL, STAIN REMOVER DISPENSER

25

W10172154

DISPENSER, DETERGENT

26

8563877

BEZEL, DETERGENT DISPENSER

27

W10106990

NOZZLE ASSEMBLY, FRESH WATER

28

371503

CLAMP, HOSE

29

W10059230

LOCK ASSEMBLY, LID

30

8572019

BEZEL, LID LOCK

31

W10161707

TOP FOAM SEAL

32

8564456

HINGE, TOP (2)

33

8563892

SCREW (2)

MVWB450WQ0 GABINETE

34

343641

SCREW, 10-16 X 1/2 (2)

35

8563941

COVER, HARNESS

36

693995

SCREW,8-18 X 3/8

37

8543784

BRACKET, DRAIN HOSE

38

8578386

SHIELD, WIRE HARNESS

39

8281136

SCREW, 10-16 X 3/4

40

8576476

SPACER, REAR (CABINET/TOP)

41

370451

CLAMP, HOSE

42

371503

CLAMP, HOSE

43

3400061

SCREW, 10-16 X 9/16

44

90016

CLIP, HARNESS (5)

45

8281736

WIRE, GROUND JUMPER

46

3400076

SCREW, 10-32 X 5/8

47

8577896

WASHER, SUSPENSION UMBRELLA (4)

48

8564017

CUP, SUSPENSION (4)

49

W10167599

BUSHING, SUSPENSION (SET OF 4-INCLUDES ITEM 9)

50

W10119520

LINER, LID

51

W10153170

MEDALLION

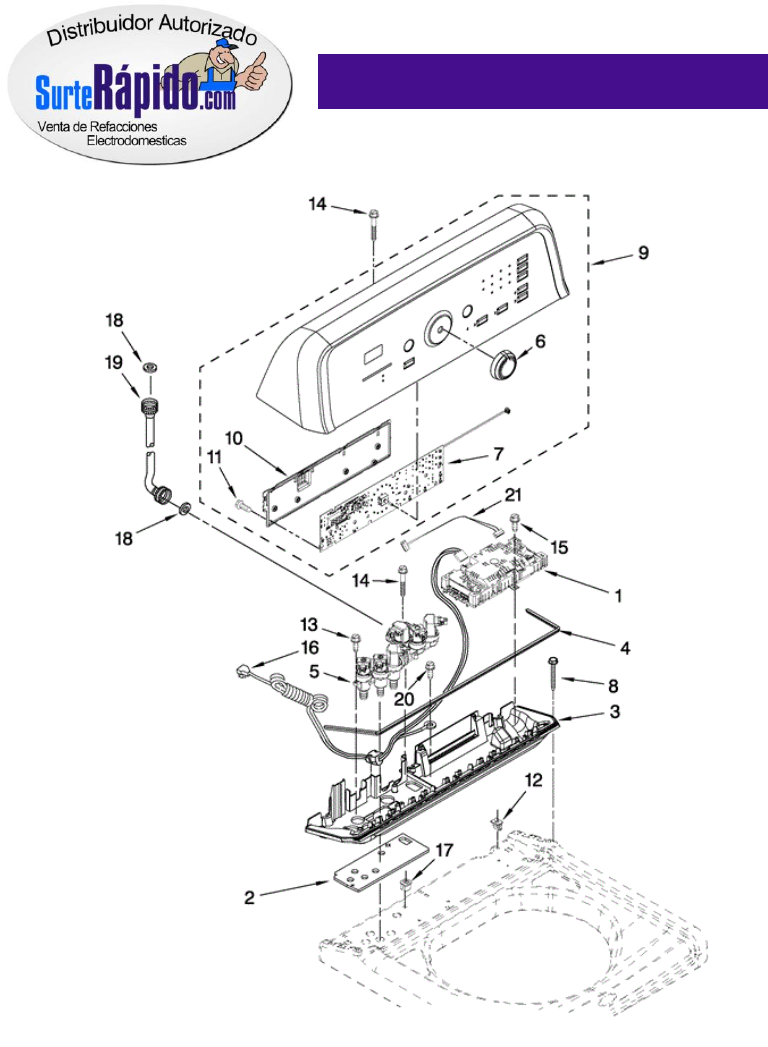

MVWB450WQ0 TABLERO

1

W10253697

CONTROL UNIT ASSEMBLY, MACHINE & MOTOR

2

W10141695

GASKET, VALVE TRAY

3

W10110213

TRAY ASSEMBLY, CONSOLE (INCLUDES ITEMS 2 & 4)

4

W10141693

GASKET, CONSOLE/TRAY

5

8577408

VALVE, LOG ASS. (INCLUDES ITEM 21) ASSEMBLY

6

W10051126

KNOB, CONTROL

7

W10260186

USER INTERFACE

8

W10004990

SCREW, 6-20 X 1.2

9

W10090757

CONSOLE

10

W10051124

COVER, REAR-USER INTERFACE

11

W10003770

SCREW, 6-19 X 1/2 (3)

12

W10022060

NUT, PUSH-IN (3)

13

W10052600

SCREW, 8-18 X 3/4

14

8565324

SCREW, 10-16 X 1.75

15

8281136

SCREW, 8-18 X 3/4

16

3407203

CORD ASSEMBLY, POWER

17

98460

NUT, PUSH-IN (2)

18

W10242307

WASHER, WATER INLET HOSE (1-1/16 X 5/8)(4)

19

8571378

HOSE, WATER INLET (HOT WATER)

19

W10194208

HOSE, WATER INLET (COLD WATER)

20

3351614

SCREW, POWER CORD GROUND

21

3407187

HARNESS, THERMISTOR

MVWB450WQ0 TABLERO

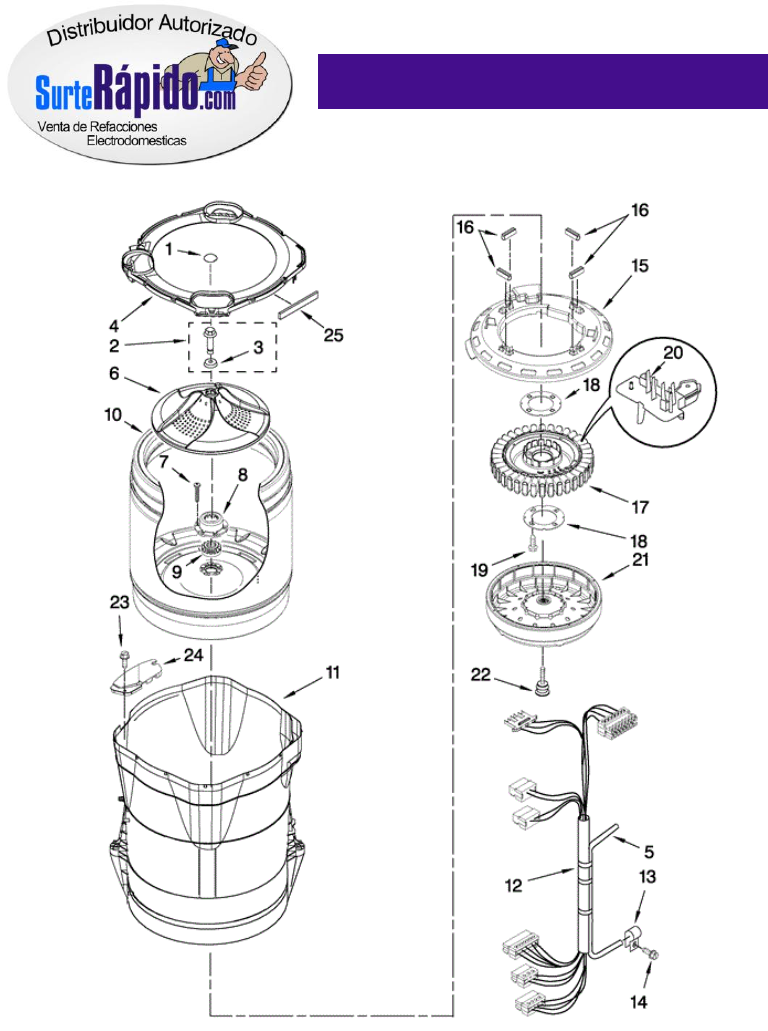

MVWB450WQ0 TINAS

1

W10149460

CAP, IMPELLER

2

W10076270

SCREW & WASHER ASSEMBLY

3

W10076260

WASHER

4

W10242338

TUB RING (INCLUDES ITEM 25)

5

8572540

HOSE PRESSURE SWITCH

6

W10141017

IMPELLER (WASHPLATE)

7

8533953

SCREW, 8-16 X 1.000 (6)

8

W10118114

HUB, BASKET-DRIVE (INCLUDES ITEM 9)

9

8545953

HUB, BASKET-DRIVE (INCLUDES ITEM 8)

10

W10118182

BASKET ASSEMBLY (INCLUDES ITEMS 7, 8, & 9)

11

W10128830

TUB & DRIVE SHAFT ASSEMBLY

12

W10137697

HARNESS, LOWER (INCLUDES ITEM 5)

13

W10005430

CLAMP, PRESSURE HOSE RETAINER

14

8533957

SCREW, 10-16 X 1/2 (2)

15

W10137698

SHIELD, DRIVE MOTOR (INCLUDES ITEM 16)

16

8565172

TUBE, BUFFER (SET OF 4)

17

8565170

STATOR, MOTOR (INCLUDES ITEM 18)

18

8557836

PLATE, STATOR (SET OF 2)

19

8534042

SCREW, 1/4-20 X .968 (4)

20

W10137685

RPS ASSEMBLY

21

8565177

ROTOR, MAIN DRIVE MOTOR (INCLUDES ITEM 22)

23

8533928

SCREW, 8-18 X 3/4 (2)

24

W10222008

FILTER, DUAL PUMP HOOD

25

W10205824

ABSORBER, IMPACT (4)

MVWB450WQ0 TINAS

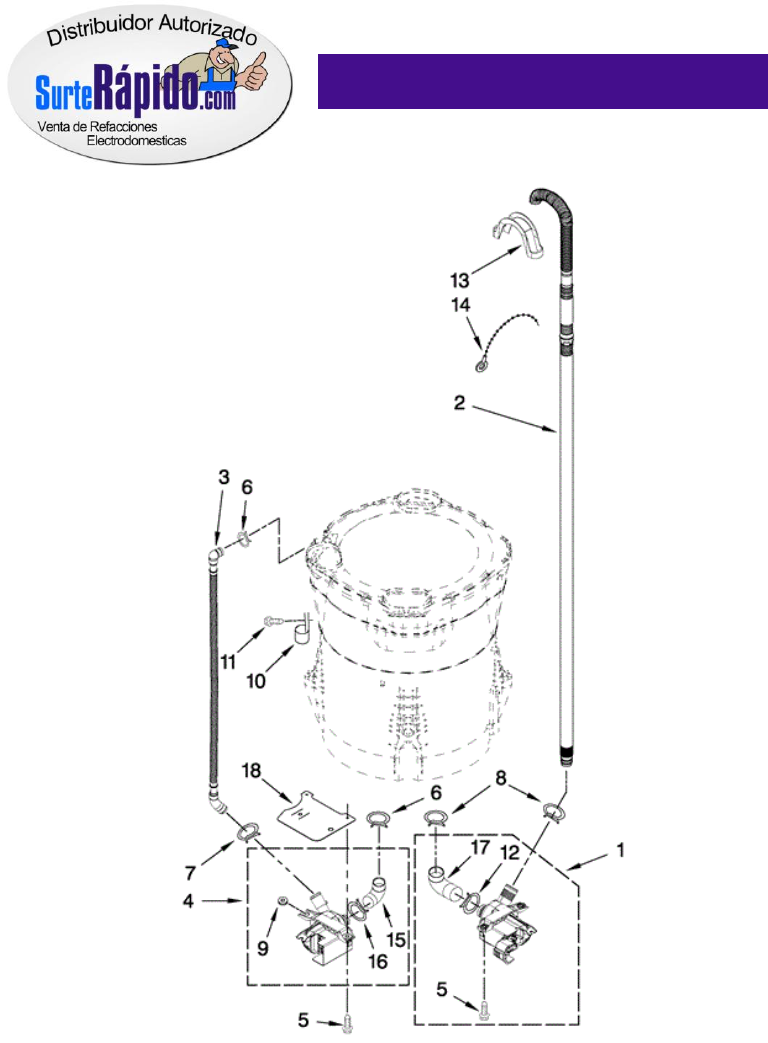

MVWB450WQ0 BOMBA

1

W10155921

PUMP ASSEMBLY, DRAIN

2

W10236686

HOSE, DRAIN

3

8543774

HOSE, RECIRC

4

W10049400

PUMP ASSEMBLY, RECIRC

5

W10004910

SCREW, 12-16 X 1-1/8

6

370449

CLAMP, HOSE

7

8269146

CLAMP, HOSE

8

8317496

CLAMP, HOSE

9

8182771

GROMMET, PUMP MOUNTING (2)

10

8534021

CLAMP, RECIRC HOSE RETAINER

11

8533943

SCREW, 10-16 X 3/4

12

8182768

CLAMP, DRAIN PUMP HOSE

13

8576642

RETAINER, DRAIN HOSE

14

3347868

CABLE TIE

15

8182769

HOSE, RECIRC PUMP

16

8182770

CLAMP, RECIRC PUMP HOSE

17

8182767

HOSE, DRAIN PUMP

18

8578572

SHIELD, RECIRC PUMP

MVWB450WQ0 BOMBA
