Macintosh LC 630 and Macintosh Quadra 630 Computers



Developer Press



Developer Note

Macintosh LC 630 and

Macintosh Quadra 630 Computers



Apple Computer, Inc.

No part of this publication may be

reproduced, stored in a retrieval system,

or transmitted, in any form or by any

means, mechanical, electronic,

photocopying, recording, or otherwise,

without prior written permission of

Apple Computer, Inc. Printed in the

United States of America.

The Apple logo is a trademark of

Apple Computer, Inc.

Use of the “keyboard” Apple logo

(Option-Shift-K) for commercial

purposes without the prior written

consent of Apple may constitute

trademark infringement and unfair

competition in violation of federal and

state laws.

No licenses, express or implied, are

granted with respect to any of the

technology described in this book.

Apple retains all intellectual property

rights associated with the technology

described in this book. This book is

intended to assist application

developers to develop applications only

for Apple Macintosh computers.

Every effort has been made to ensure

that the information in this manual is

accurate. Apple is not responsible for

printing or clerical errors.

Apple Computer, Inc.

1 Inﬁnite Loop

Cupertino, CA 95014

408-996-1010

Apple, the Apple logo, APDA,

AppleLink, Apple SuperDrive,

LaserWriter, Macintosh, Macintosh

Centris, Macintosh Quadra, Performa,

PlainTalk, PowerBook,and QuickTime

are trademarks of Apple Computer, Inc.,

registered in the United States and other

countries.

Apple Desktop Bus, Finder, Power

Macintosh, and QuickDraw are

trademarks of Apple Computer, Inc.

Adobe Illustrator and PostScript are

trademarks of Adobe Systems

Incorporated, which may be registered

in certain jurisdictions.

America Online is a registered service

mark of America Online, Inc.

CompuServe is a registered service

mark of CompuServe, Inc.

FrameMaker is a registered trademark

of Frame Technology Corporation.

Helvetica and Palatino are registered

trademarks of Linotype Company.

Internet is a trademark of Digital

Equipment Corporation.

ITC Zapf Dingbats is a registered

trademark of International Typeface

Corporation.

Motoroloa is a registered trademark of

Motorola Corporation.

NuBus is a trademark of Texas

Instruments.

Simultaneously published in the United

States and Canada.

LIMITED WARRANTY ON MEDIA AND

REPLACEMENT

If you discover physical defects in the

manual or in the media on which a software

product is distributed, APDA will replace

the media or manual at no charge to you

provided you return the item to be replaced

with proof of purchase to APDA.

ALL IMPLIED WARRANTIES ON THIS

MANUAL, INCLUDING IMPLIED

WARRANTIES OF MERCHANTABILITY

AND FITNESS FOR A PARTICULAR

PURPOSE, ARE LIMITED IN DURATION

TO NINETY (90) DAYS FROM THE DATE

OF THE ORIGINAL RETAIL PURCHASE

OF THIS PRODUCT.

Even though Apple has reviewed this

manual, APPLE MAKES NO WARRANTY

OR REPRESENTATION, EITHER EXPRESS

OR IMPLIED, WITH RESPECT TO THIS

MANUAL, ITS QUALITY, ACCURACY,

MERCHANTABILITY, OR FITNESS FOR A

PARTICULAR PURPOSE. AS A RESULT,

THIS MANUAL IS SOLD “AS IS,” AND

YOU, THE PURCHASER, ARE ASSUMING

THE ENTIRE RISK AS TO ITS QUALITY

AND ACCURACY.

IN NO EVENT WILL APPLE BE LIABLE

FOR DIRECT, INDIRECT, SPECIAL,

INCIDENTAL, OR CONSEQUENTIAL

DAMAGES RESULTING FROM ANY

DEFECT OR INACCURACY IN THIS

MANUAL, even if advised of the possibility

of such damages.

THE WARRANTY AND REMEDIES SET

FORTH ABOVE ARE EXCLUSIVE AND

IN LIEU OF ALL OTHERS, ORAL OR

WRITTEN, EXPRESS OR IMPLIED. No

Apple dealer, agent, or employee is

authorized to make any modiﬁcation,

extension, or addition to this warranty.

Some states do not allow the exclusion or

limitation of implied warranties or liability

for incidental or consequential damages, so

the above limitation or exclusion may not

apply to you. This warranty gives you

speciﬁc legal rights, and you may also have

other rights which vary from state to state.

iii

Contents

Figures and Tables vii

Preface

About This Note

Contents of This Note ix

Supplemental Reference Documents x

Information About Earlier Models x

For More Information xi

Conventions and Abbreviations xi

Typographical Conventions xi

Standard Abbreviations xii

Chapter 1

Introduction

Summary of Features 2

Comparison With Macintosh Quadra 605 Computer 3

Models and Conﬁgurations 4

Exterior Features 4

Front View 4

Back View 5

Access to the Logic Board 6

Sound Control Push Buttons 6

Power On and Off 6

Optional Modules 6

TV Tuner Module 6

Video Input Module 8

Video Output Module 9

Communications Modules 9

Compatibility Issues 9

Expansion Slot 10

Apple IIe Card for the Macintosh LC 10

IDE Hard Disk 10

Chapter 2

Architecture

Block Diagram and Main ICs 12

Microprocessor 12

Custom ICs 14

F108 IC 14

PrimeTime II IC 14

DFAC II IC 15

Cuda IC 16

Valkyrie IC 16

Bus Arbitration 17

Display RAM 17

Address Map 18

RAM Addresses 18

Display RAM Addresses 18

Addresses for I/O Expansion Cards 20

Chapter 3

I/O Features

Serial I/O Ports 22

ADB Port 23

Floppy Disk Drive 24

IDE Hard Disk 25

Hard Disk Speciﬁcations 25

Hard Disk Connectors 25

Pin Assignments 27

IDE Signal Descriptions 28

SCSI Bus 28

SCSI Connectors 29

SCSI Bus Termination 30

Sound 30

Sound Output Jacks 30

Sound Input Jack 30

Sound Input Speciﬁcations 31

Routing of the Sound Signals 31

Digitizing Sound 31

Sound Modes 31

Keyboard 32

External Video Monitors 33

Video Connector 33

Monitor Sense Codes 34

Video Timing Parameters 35

Chapter 4

Expansion Features

RAM Expansion 40

RAM Conﬁgurations 40

Signals on the RAM SIMM Slot 40

RAM Devices 44

Addressing RAM 44

RAM SIMM Mechanical Speciﬁcations 46

The I/O Expansion Slot 48

The I/O Expansion Connector 48

Connector Pin Assignments 48

Signal Descriptions 50

Bus Master on a Card 53

Incompatibility With Older Cards 53

Designing an I/O Expansion Card 54

Card Connectors 54

Power for the Card 54

Card Address Space 55

Card Select Signal 55

The DVA Connector 55

Pin Assignments 57

Signal Descriptions 58

Using the YUV Bus 58

Video Data Format 58

Chapter 5

Software Features

ROM Software 62

Machine Identiﬁcation 62

New Memory Map 62

New Video Controller 63

Push Button Interrupts 63

ADB and Soft Power Switch 63

Power Saver 64

System Software 64

System Enabler 64

Booting From a CD-ROM 65

Power Saver Control Panel 65

Video Input Digitizing Component 65

Chapter 6

Software for the IDE Hard Disk

Introduction to IDE Software 68

IDE Hard Disk Device Driver 69

ATA Manager 69

IDE Hard Disk Driver Reference 70

High-Level Device Manager Routines 70

IDE Hard Disk Driver Control Calls 73

Standard Control Calls 73

Power Management Control Calls 78

IDE Hard Disk Driver Status Calls 79

ATA Manager Reference 81

The ATA Parameter Block 82

Functions 86

Error Code Summary 100

Appendix

Foldout Drawings

103

Index

111

vii

Figures and Tables

Chapter 1

Introduction

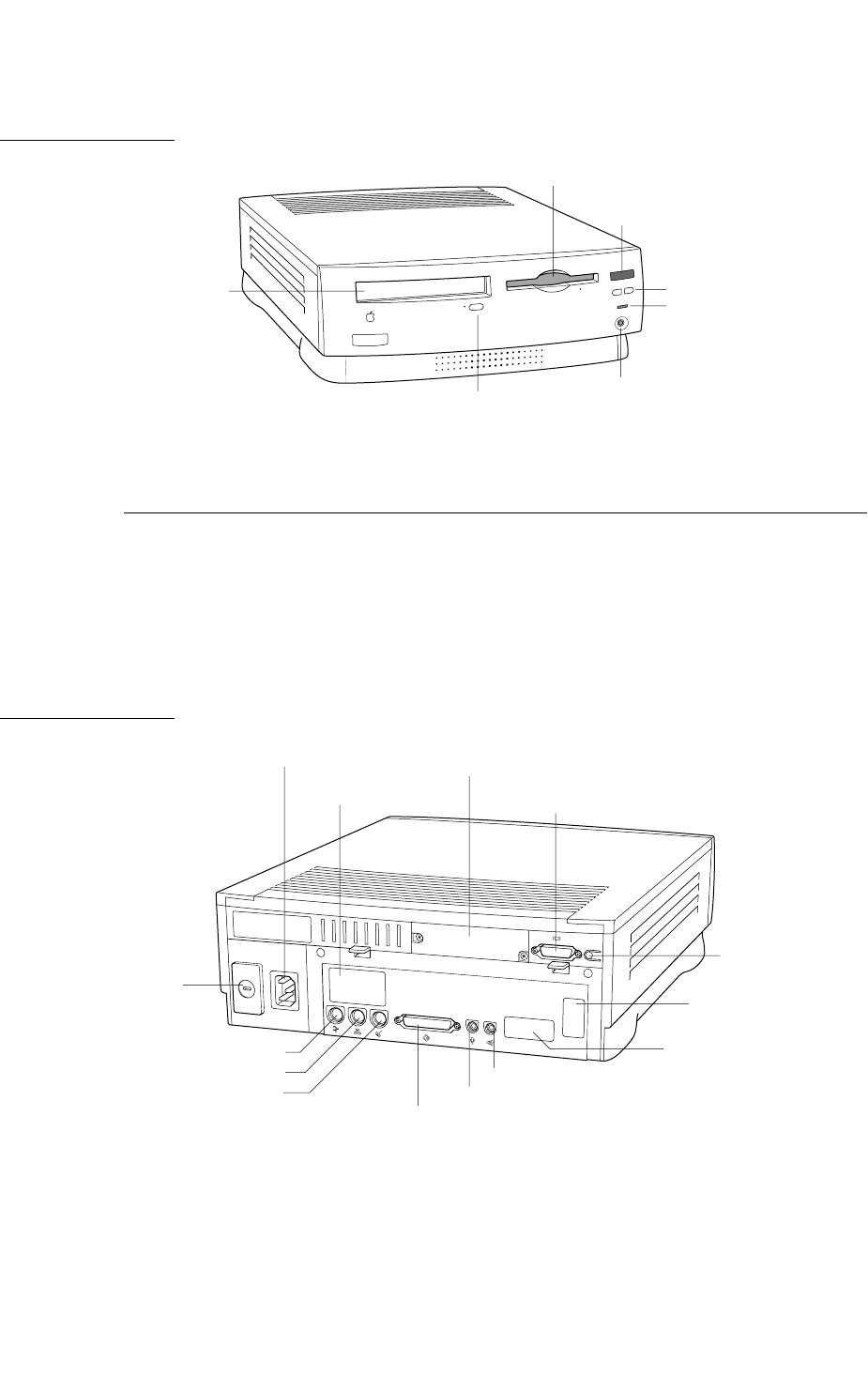

Figure 1-1

Front view of the computer 5

Figure 1-2

Back view of the computer 5

Table 1-1

Comparisons with the Macintosh Quadra 605 computer 3

Table 1-2

Conﬁgurations of the computers 4

Chapter 2

Architecture

Figure 2-1

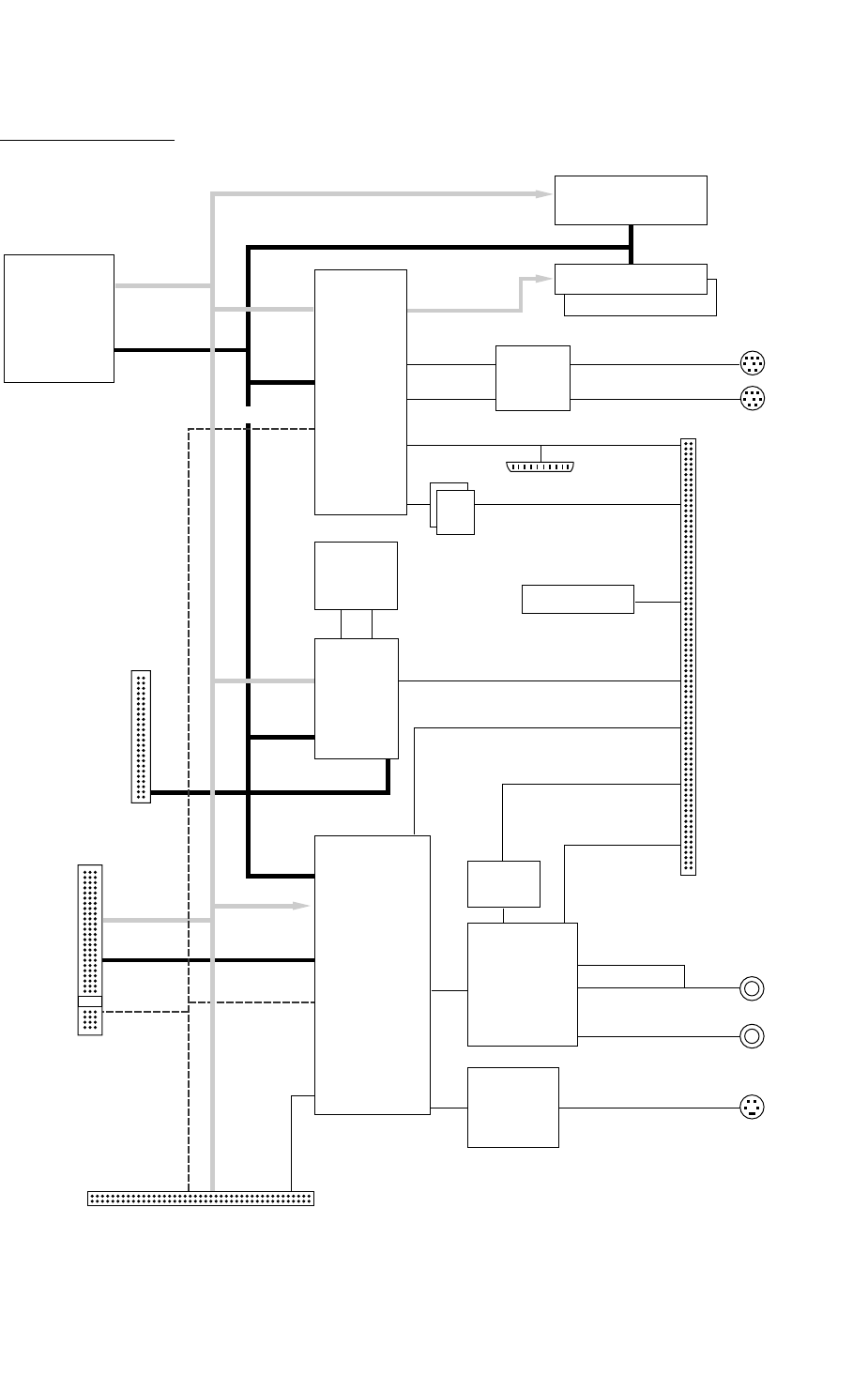

Block diagram 13

Figure 2-2

Simpliﬁed address map 19

Chapter 3

I/O Features

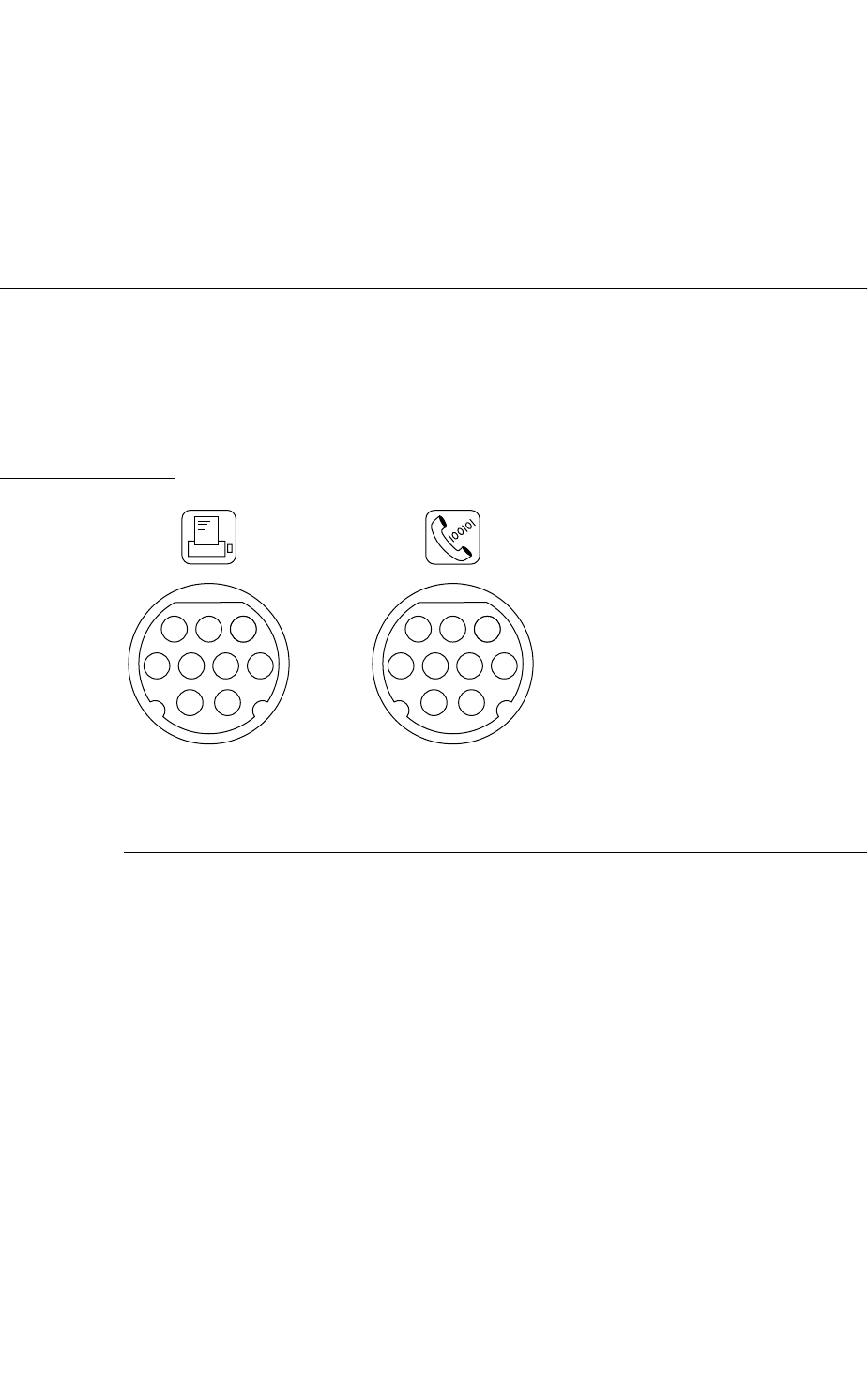

Figure 3-1

Serial port sockets 22

Figure 3-2

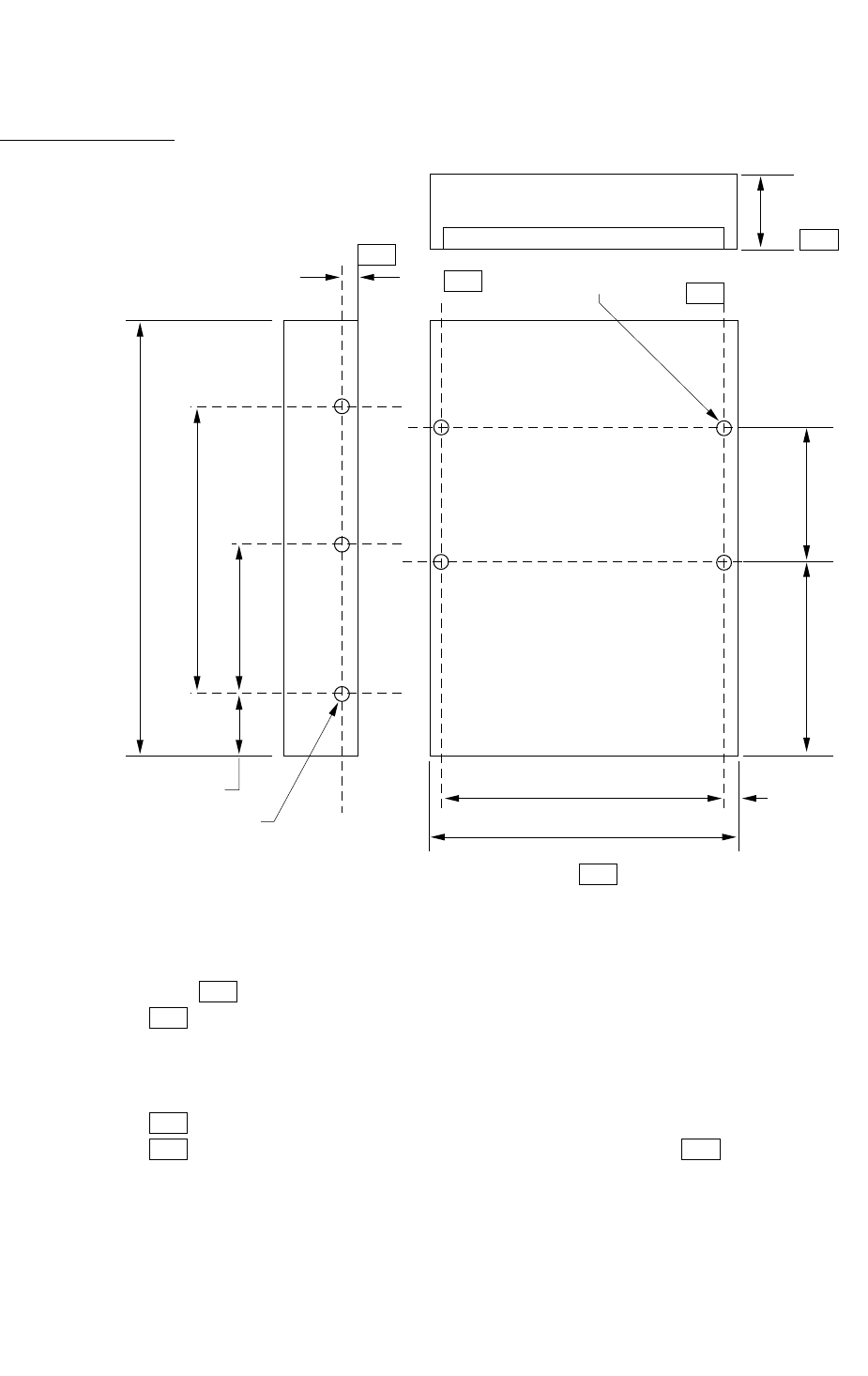

Maximum dimensions of the hard disk 26

Figure 3-3

Video timing diagram 36

Table 3-1

Serial port signals 22

Table 3-2

ADB connector pin assignments 23

Table 3-3

Pin assignments on the ﬂoppy disk connector 24

Table 3-4

Pin assignments on the IDE hard disk connector 27

Table 3-5

Signals on the IDE hard disk connector 28

Table 3-6

Pin assignments for the SCSI connectors 29

Table 3-7

Sound sources and routing 31

Table 3-8

Reset and NMI key combinations 32

Table 3-9

Maximum pixel depths for video monitors 33

Table 3-10

Pin assignments on the external video connector 33

Table 3-11

Monitor sense codes 34

Table 3-12

Monitors supported 35

Table 3-13

Video timing parameters for smaller monitors 37

Table 3-14

Video timing parameters for larger monitors 38

Chapter 4

Expansion Features

Figure 4-1

RAM conﬁgurations 41

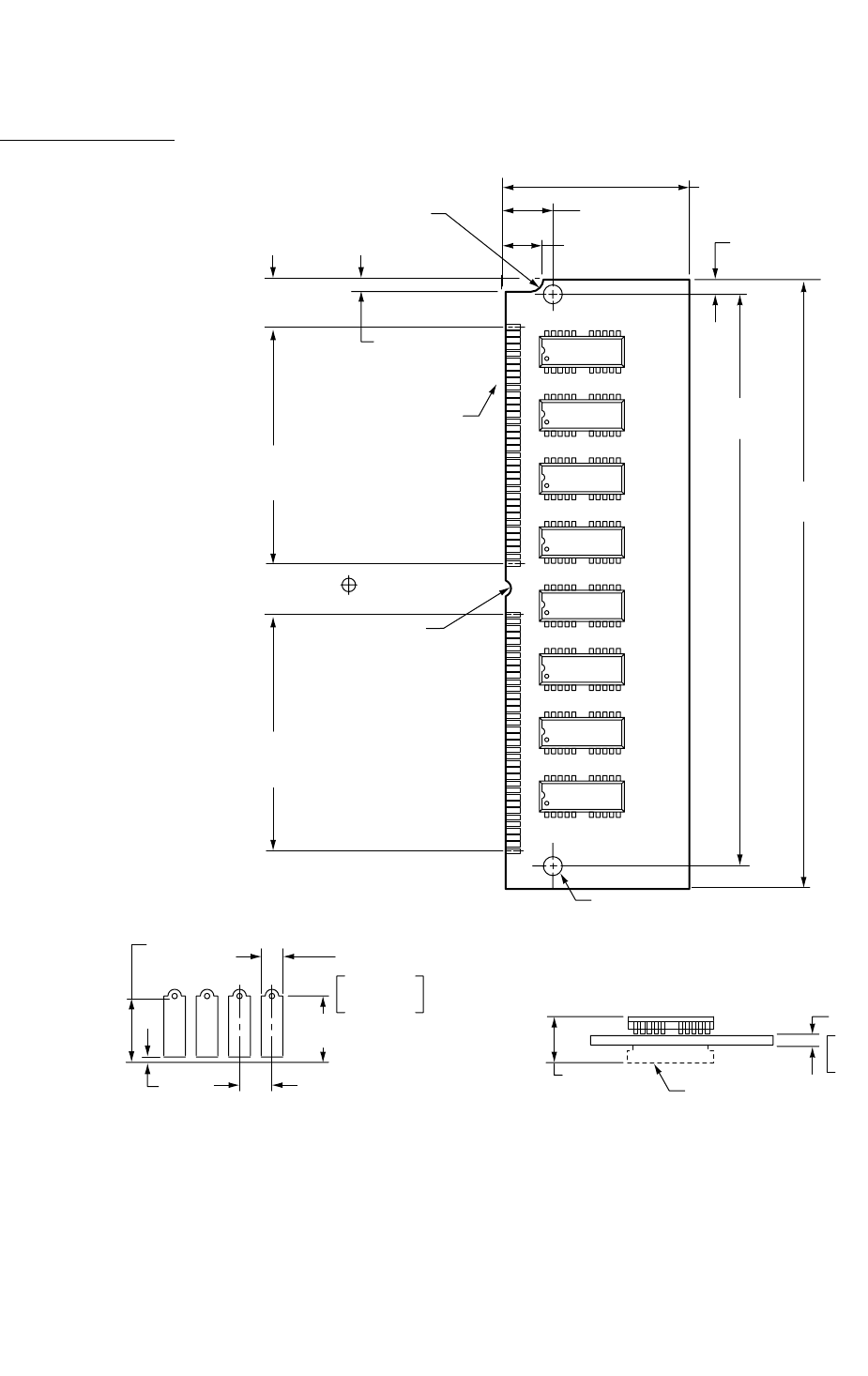

Figure 4-2

RAM expansion SIMM 47

Figure 4-3

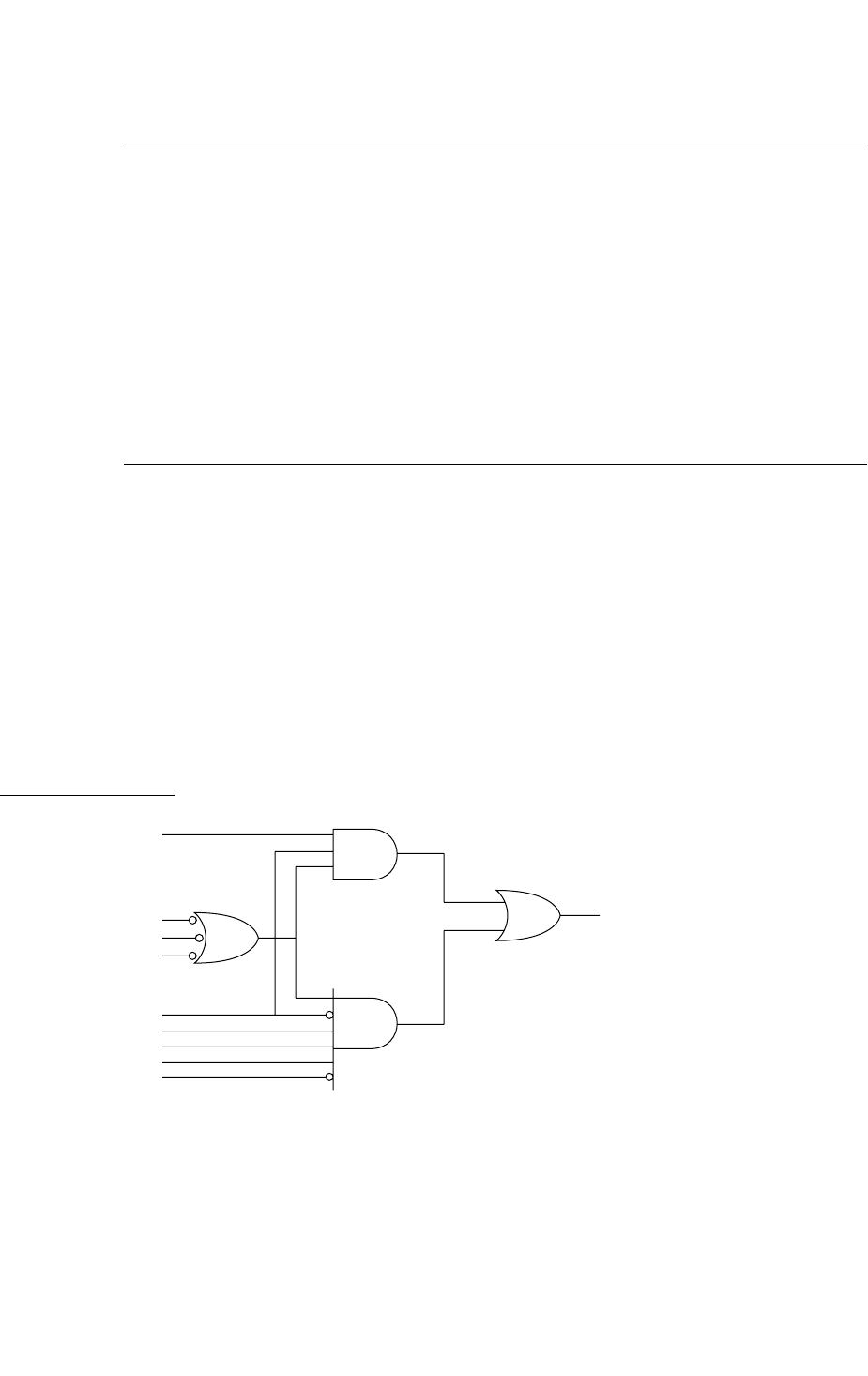

Generating the card select signal 55

Figure 4-4

Location of the DVA connector 56

Figure 4-5

Orientation of the DVA connector 56

Figure 4-6

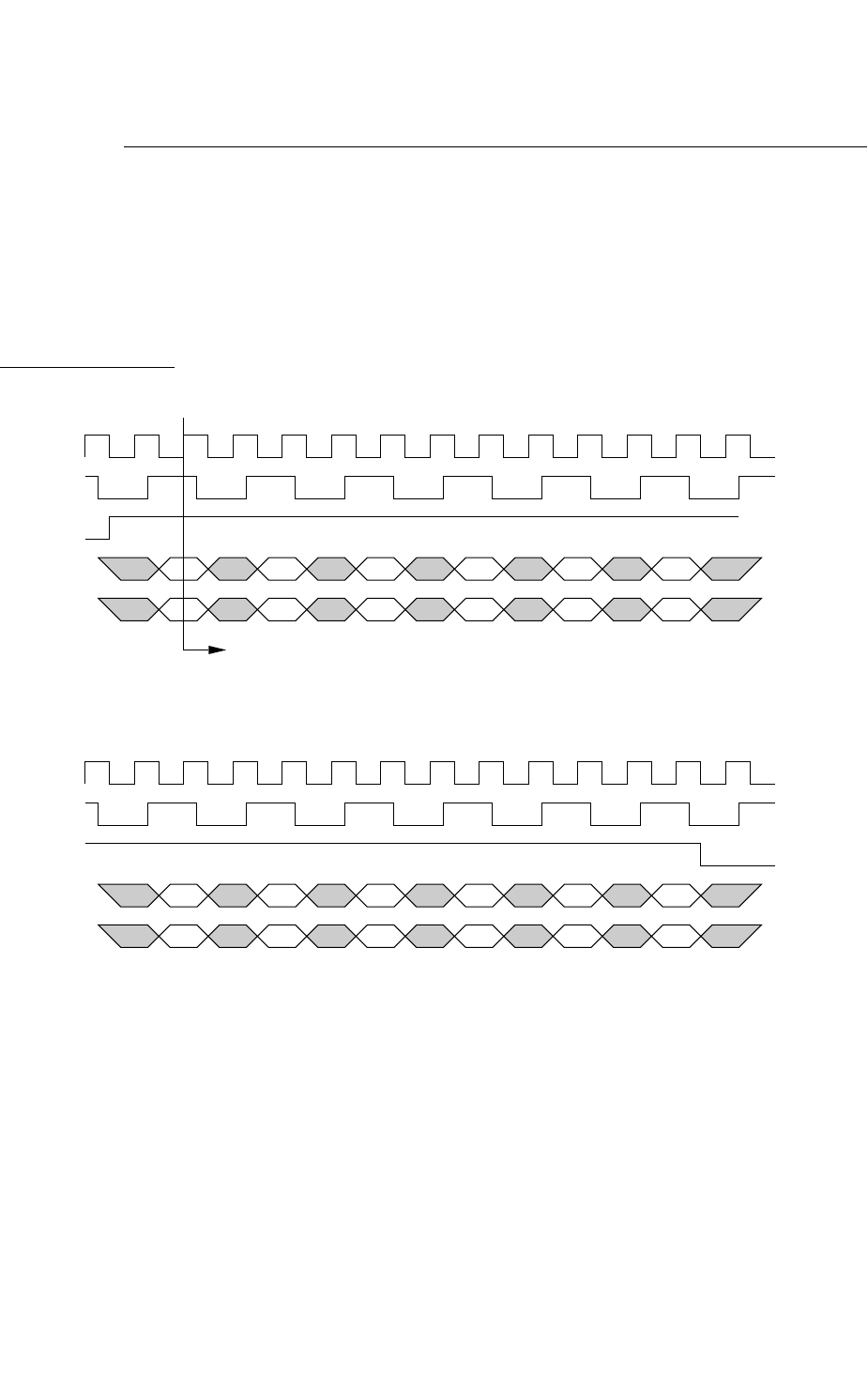

Video data timing 59

viii

Table 4-1

Signal assignments on the RAM SIMM slot 41

Table 4-2

Address multiplexing for DRAM devices 45

Table 4-3

Address modes for various DRAM devices 45

Table 4-4

Pin assignments for the expansion connector 49

Table 4-5

Descriptions of the signals on the I/O expansion connector 51

Table 4-6

Power available for the expansion card 54

Table 4-7

Pin assignments on the DVA connector 57

Table 4-8

Descriptions of the signals on the DVA connector 58

Chapter 5

Software Features

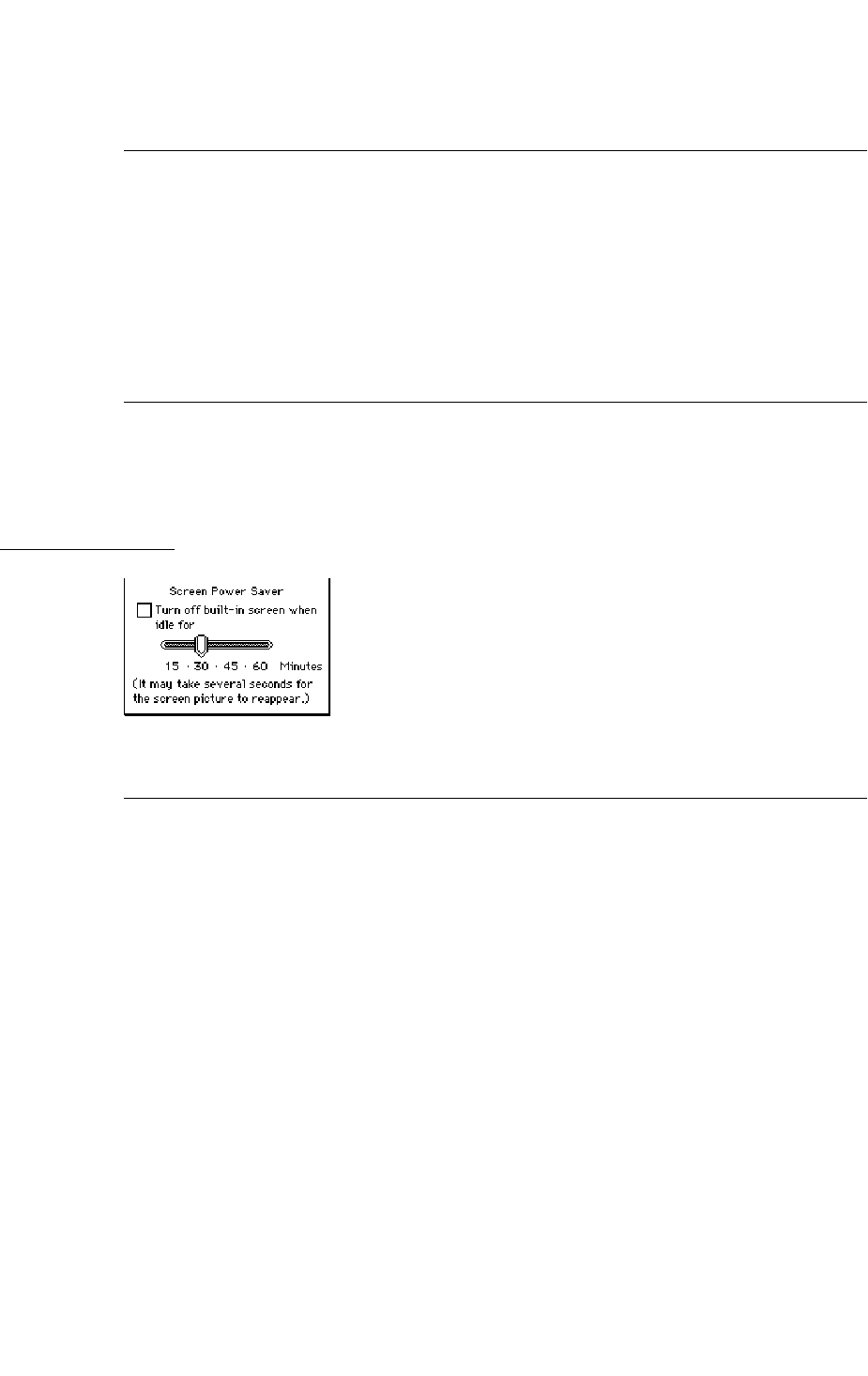

Figure 5-1

Power Saver control panel 65

Table 5-1

Maximum pixel depths for video monitors 63

Chapter 6

Software for the IDE Hard Disk

Figure 6-1

Relationship of the ATA Manager to the Macintosh system

architecture 68

Figure 6-2

IDE hard disk drive icon 75

Table 6-1

Status calls supported by the IDE hard disk driver 72

Table 6-2

IDE drive bus states 84

Table 6-3

Control bits in the

ataFlags

ﬁeld 85

Table 6-4

ATA Manager functions 87

Table 6-5

IDE register selectors 96

Table 6-6

IDE hard disk drive error codes 100

Appendix

Foldout Drawings

103

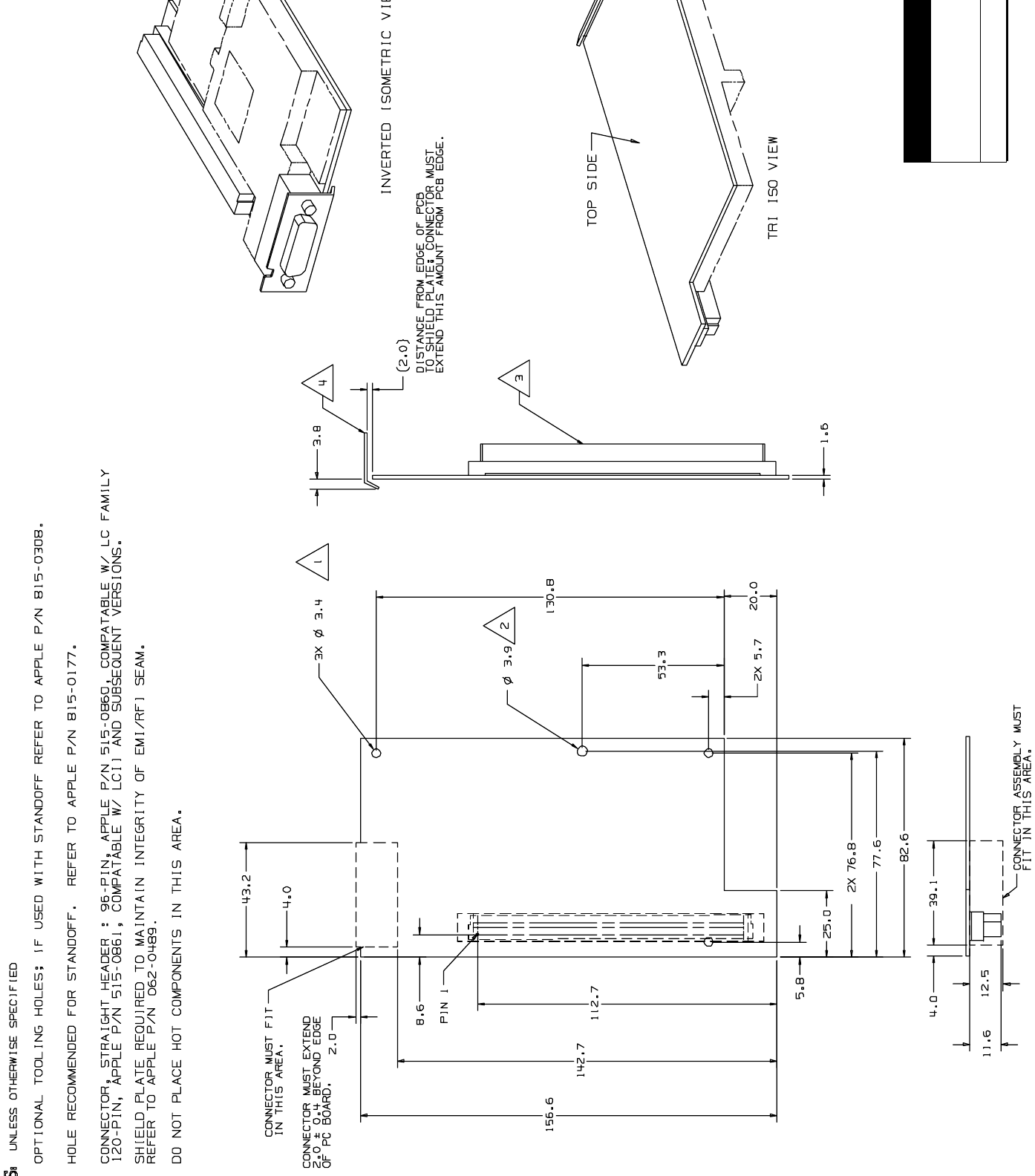

Foldout 1

Expansion card design guide

Foldout 2

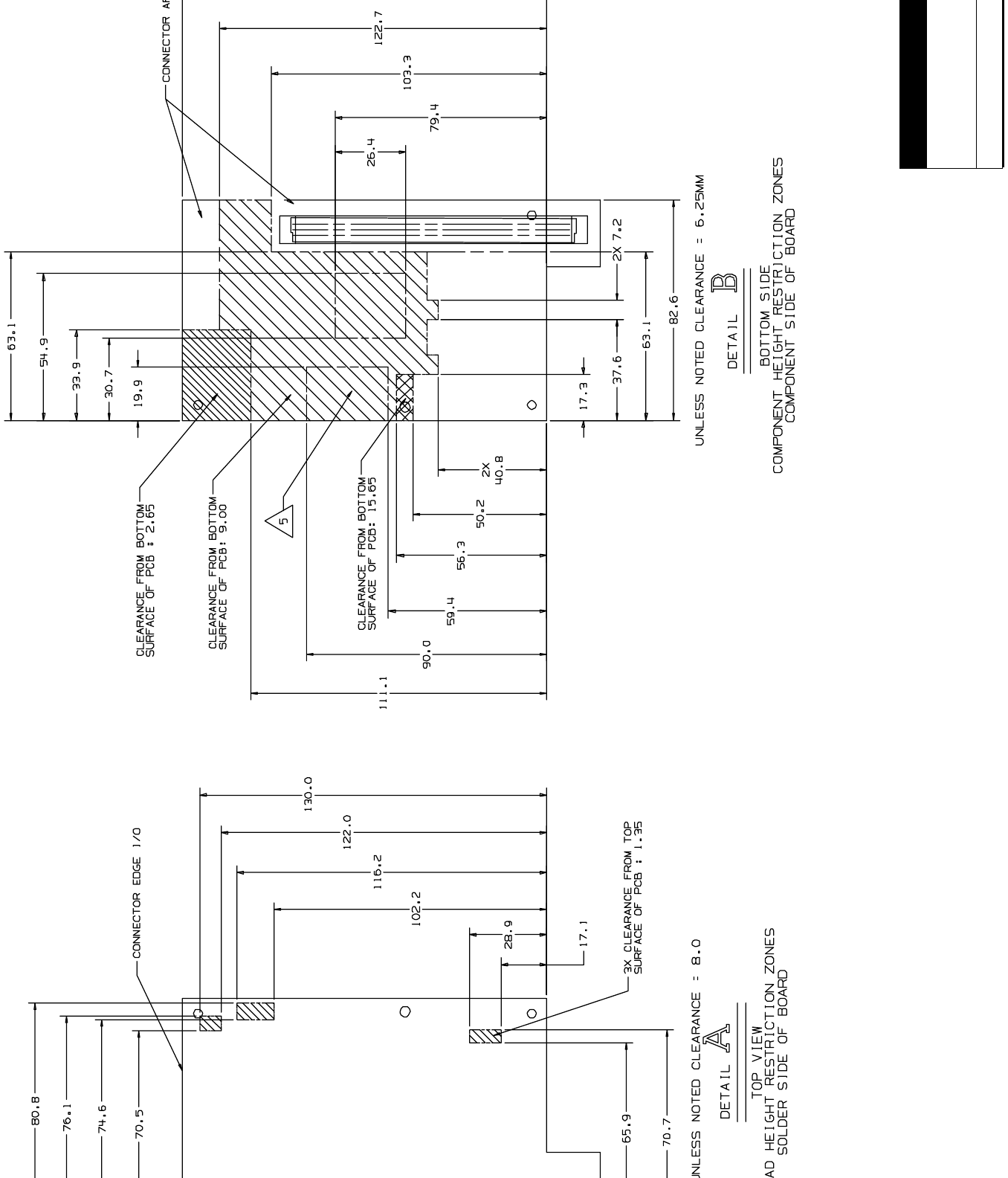

Expansion card component height restrictions

Foldout 3

Expansion card assembly guide

PREFACE

About This Note

This developer note describes the Macintosh LC 630 and Macintosh

Quadra 630 computers, pointing out their similarities to earlier models and

emphasizing the features that are new or different. It is intended to help

experienced Macintosh hardware and software developers design compatible

products. If you are unfamiliar with Macintosh computers or would simply

like more technical information, you may wish to read the related technical

manuals listed in the section “Supplemental Reference Documents.”

Contents of This Note 0

The information is arranged in six chapters, an appendix, and an index:

■

Chapter 1, “Introduction,” gives a summary of the features of the

Macintosh LC 630 and Macintosh Quadra 630 computers, describes their

appearance, and lists the available conﬁgurations and options.

■

Chapter 2, “Architecture,” describes the internal organization of the

computers. It includes a block diagram and descriptions of the main

components of the logic board.

■

Chapter 3, “I/O Features,” describes the built-in I/O devices and the

external I/O ports. It also describes the external video monitors that can be

used with the Macintosh LC 630 and Macintosh Quadra 630 computers.

■

Chapter 4, “Expansion Features,” describes the expansion slots of the

Macintosh LC 630 and Macintosh Quadra 630 computers. This chapter

provides guidelines for designing cards for the I/O expansion slot and brief

descriptions of the expansion modules for the other slots.

■

Chapter 5, “Software Features,” summarizes the new features of the ROM

software and the system software that accompany the Macintosh LC 630

and Macintosh Quadra 630 computers.

■

Chapter 6, “Software for the IDE Hard Disk,” gives the program interface

for the system software and the driver that support the internal IDE hard

disk drive.

■

The appendix includes foldout pages with mechanical drawings for the

I/O expansion card described in Chapter 4.

PREFACE

Supplemental Reference Documents 0

To supplement the information in this developer note, developers should have

copies of the appropriate Motorola reference books for the MC68040

microprocessor. Software developers should have a copy of Motorola’s

MC68040 Programmer’s Reference Manual.

Hardware developers should have

copies of Motorola’s

MC68030 User’s Manual, MC68040 User’s Manual,

and

MC68040 Designer’s Handbook.

For additional information about the digital data format used in the video

input module, refer to

Macintosh DAV Interface for NuBus Expansion Cards,

part

Macintosh Developer Note Number 8,

APDA catalog number R0566LL/A

For

information about the digital video interface, refer to the

SAA7194/6 Philips

Desktop Video Handbook

Developers may also need copies of the appropriate Apple reference books.

You should have the relevant books of the

Inside Macintos

h series, and

particularly

Inside Macintosh: QuickTime Components.

You should also have

Guide to the Macintosh Family Hardware,

second edition, and

Designing Cards

and Drivers for the Macintosh Family,

third edition. These books are available in

technical bookstores and through APDA.

Information About Earlier Models 0

Many features of the Macintosh LC 630 and Macintosh Quadra 630 computers

are similar to those of certain earlier Macintosh models, so you may wish to

have the developer notes that describe those earlier machines:

■

Macintosh Developer Note Number 3,

APDA catalog number R0461LL/A

■

Macintosh Developer Note Number 4,

APDA catalog number R0528LL/A

■

Macintosh Developer Note Number 6,

APDA catalog number R0550LL/A

Macintosh Developer Note Number 3

includes information about the

Macintosh LC III and the Macintosh Centris 610 and 650 computers.

Macintosh

Developer Note Number 4

includes information about the

Macintosh LC 520 computer.

Macintosh Developer Note Number 6

includes

information about the Macintosh LC 475 and Macintosh Quadra 605

computers.

The numbered developer notes are available from APDA. Developer notes for

individual models are also on the developer CDs.

PREFACE

For More Information 0

APDA is Apple’s worldwide source for hundreds of development tools,

technical resources, training products, and information for anyone interested

in developing applications on Apple platforms. Customers receive the

APDA

Tools Catalog

featuring all current versions of Apple development tools and the

most popular third-party development tools. APDA offers convenient

payment and shipping options, including site licensing.

To order products or to request a complimentary copy of the

APDA Tools

Catalog

, contact

APDA

Apple Computer, Inc.

P.O. Box 319

Buffalo, NY 14207-0319

Conventions and Abbreviations 0

This developer note uses the following typographical conventions and

abbreviations.

Typographical Conventions 0

New terms appear in

boldface

where they are ﬁrst deﬁned.

Computer-language text—any text that is literally the same as it appears in

computer input or output—appears in

Courier

font.

Hexadecimal numbers are preceded by a dollar sign ($). For example, the

hexadecimal equivalent of decimal 16 is written as $10.

Note

A note like this contains information that is interesting but not essential

for an understanding of the text.

◆

Telephone 1-800-282-2732 (United States)

1-800-637-0029 (Canada)

716-871-6555 (International)

Fax 716-871-6511

AppleLink APDA

America Online APDAorder

CompuServe 76666,2405

Internet APDA@applelink.apple.com

xii

PREFACE

IMPORTANT

A note like this contains important information that you should read

before proceeding.

▲

WARNING

A note like this directs your attention to something that could cause

damage or result in a loss of data.

▲

Standard Abbreviations 0

When unusual abbreviations appear in this book, the corresponding terms are

also spelled out. Standard units of measure and other widely used abbrevia-

tions are not spelled out. Here are the standard units of measure used in this

developer note:

Here are other abbreviations used in this developer note:

A amperes mA milliamperes

dB decibels µA microamperes

GB gigabytes MB megabytes

Hz hertz MHz megahertz

in. inches mm millimeters

k 1000 ms milliseconds

K 1024 µs microseconds

KB kilobytes ns nanoseconds

kg kilograms

Ω

ohms

kHz kilohertz sec. seconds

Ω

kilohms V volts

lb. pounds W watts

hexadecimal value

AC alternating current

ADB Apple Desktop Bus

CD-ROM compact-disk read-only memory

CLUT color lookup table

DESC digital video decoder and scaler

Sidebar

Sidebars are for digressions—information that is not

part of the main discussion. A sidebar may contain

background information that is interesting to know,

information about a related subject, or technical details

that are not required reading.

xiii

PREFACE

EMI electromagnetic interference

FPU ﬂoating-point unit

IC integrated circuit

IDE integrated device electronics

IIC inter-integrated circuit (an internal control bus)

I/O input/output

IR infrared

LS TTL low-power Schottky TTL (a standard type of device)

MMU memory management unit

MOS metal-oxide semiconductor

NTSC National Television Standards Committee (the standard system

used for broadcast TV in North America and Japan)

NMI nonmaskable interrupt

PAL Phase Alternating Line system (the standard for broadcast TV in

most of Europe, Africa, South America, and southern Asia)

PDS processor-direct slot

PWM pulse-width modulation

RAM random-access memory

RGB a video signal format with separate red, green, and blue

components

RMS root-mean-square

ROM read-only memory

SANE Standard Apple Numerics Environment

SCSI Small Computer System Interface

SCC serial communications controller

SECAM the standard system used for broadcast TV in France and the

former Soviet countries

SIMM single inline memory module

S-video a type of video connector that keeps luminance and

chrominance separate; also called a Y/C connector

SWIM Super Woz Integrated Machine, a custom IC that controls the

ﬂoppy disk interface

TTL transistor-transistor logic (a standard type of device)

VCR video cassette recorder

VLSI very large scale integration

VRAM video RAM; used for display buffers

Y/C a type of video connector that keeps luminance and

chrominance separate; also called an S-video connector

YUV a video signal format with separate luminance and

chrominance components

CHAPTER 1

Introduction 1

Figure 1-0

Listing 1-0

Table 1-0

CHAPTER 1

Introduction

Summary of Features

The Macintosh LC 630 and Macintosh Quadra 630 computers are low-priced Macintosh

models that incorporate Macintosh AV features (audio and video input and output) and

an optional built-in TV tuner. These new computers have a low-proﬁle case similar to

that of the Macintosh Quadra 610 and require an external video monitor.

Summary of Features 1

Here is a summary of the hardware features of the Macintosh LC 630 and Macintosh

Quadra 630 computers. Each feature is described more fully later in this note.

■

Microprocessor: Motorola MC68040 or MC68LC040 microprocessor running at

66/33 MHz.

■

RAM: 4 MB built in; expandable to 36 MB by means of one 72-pin SIMM.

■

ROM: 1 MB on the main logic board.

■

Case design: low-proﬁle, for an external video monitor.

■Video output: built-in video interface provides up to 16 bits per pixel on Apple

monitors up to 14-inch size plus the new 15-inch multiscan monitor.

■Video input: optional video card for real-time video display, capture, and overlay.

■TV receiver: optional internal TV tuner.

■Remote control: built-in remote control receiver for TV and audio CDs (TV tuner

option includes remote control).

■Hard disks: one internal 3.5-inch IDE hard disk with 250 MB, 350 MB, or 500 MB

capacity; external SCSI port for additional SCSI devices.

■Floppy disk: one internal 1.4 MB Apple SuperDrive.

■CD-ROM drive: optional internal double-speed CD-ROM player with tray loading.

■Standard Macintosh I/O ports: two serial ports, sound input and output jacks, a SCSI

port, and an ADB port.

■Communications port: optional internal module can provide either a modem or an

Ethernet interface.

■Sound: external jack for stereophonic sound in; front and rear jacks for stereophonic

sound out; single built-in speaker; integrated sound from CD-ROM player.

■Expansion slot: accepts PDS cards designed for the Macintosh LC series.

■Power switch: controlled from keyboard and remote control.

Processor Clock Speeds

The MC68040 and MC68LC040 use two processor

clocks: one for the system bus and another, at twice the

speed, for the internal processor. In the Macintosh

LC 630 and Macintosh Quadra 630 computers, the

system bus clock runs at 33 MHz and the internal

processor runs at 66 MHz.

CHAPTER 1

Introduction

Comparison With Macintosh Quadra 605 Computer 3

Comparison With Macintosh Quadra 605 Computer 1

Electrically, the Macintosh LC 630 and Macintosh Quadra 630 computers are similar to

the Macintosh Quadra 605. Table 1-1 compares the features of those computers.

Table 1-1 Comparisons with the Macintosh Quadra 605 computer

Features Macintosh Quadra 605

Macintosh LC 630 and

Macintosh Quadra 630

Processor type MC68LC040 MC68040 (in the Quadra 630)

MC68LC040 (in the LC 630)

Processor speed 50/25 MHz 66/33 MHz

Amount of RAM 4 MB–36 MB 4 MB–36 MB

RAM expansion 1 SIMM 1 SIMM

Video RAM 512 KB–1 MB (VRAM) 1 MB (DRAM)

Video input none optional module for video

input, capture, and overlay

Sound capabilities 8 bits/channel; stereo in,

mono record, stereo out 8 bits/channel; stereo in,

mono record, stereo out

Remote control none built-in IR receiver

Floppy disk drive 1, internal 1, internal

ADB ports 1 1

Internal hard disk 1 (SCSI) 1 (IDE)

Internal CD-ROM none optional

External SCSI ports 1 1

Communications slot none 1, for optional modem or

Ethernet interface

Expansion slot 1 I/O slot (accepts PDS

card for Macintosh LC

series)

1 I/O slot (accepts PDS card

for Macintosh LC series)

CHAPTER 1

Introduction

4Models and Conﬁgurations

Models and Conﬁgurations 1

The Macintosh LC 630 and Macintosh Quadra 630 computers are available in several

conﬁgurations, as shown inTable 1-2.

Note

A version of the Macintosh LC 630 will be sold in some regions as the

Macintosh Performa 630. ◆

Exterior Features 1

The Macintosh LC 630 and Macintosh Quadra 630 computers have a low-proﬁle case

with about the same footprint as the Macintosh Quadra 605 computer. Either computer

can function as a stand for any of the video monitors it can drive.

Front View 1

Figure 1-1 shows the front of a Macintosh LC 630 or Macintosh Quadra 630 computer.

The front panel includes the built-in speaker, the openings for the ﬂoppy disk and

CD-ROM drives, the CD-ROM open and close button, the sound control buttons, the

headphone jack, the power-on light, and the IR sensor for the remote control.

Table 1-2 Conﬁgurations of the computers

Model name

Amount of

RAM

Size of

hard disk

Built-in

CD-ROM

Video

input

tuner FPU

Macintosh LC 630 4 MB 250 MB

Macintosh LC 630 8 MB 250 MB √

Macintosh LC 630 8 MB 250 MB √√

Macintosh LC 630 8 MB 350 MB √

Macintosh LC 630 8 MB 350 MB √√√

Macintosh Quadra 630 4 MB 250 MB √

CHAPTER 1

Introduction

Exterior Features 5

Figure 1-1 Front view of the computer

Back View 1

The back panel includes the power socket, the monitor port, the reset button, the I/O

ports, and openings for I/O access to the expansion modules: the I/O expansion card,

the communications card, and the video input card.

Figure 1-2 shows the back view of a Macintosh LC 630 or Macintosh Quadra 630

computer.

Figure 1-2 Back view of the computer

Floppy disk drive

CD-ROM drive

(optional)

Sound control buttons

CD-ROM drive

open/close button

Power-on light

Headphone jack

Remote control sensor

Sound output port

Modem port

Printer port

ADB port

Sound input port

SCSI port

Security

lock port

Reset button

Power socket

Monitor port

Communications card

access cover

Expansion card

access cover

Video input card

access cover

TV tuner access cover

CHAPTER 1

Introduction

6Optional Modules

Access to the Logic Board 1

The logic board can be removed from the case so that the user can add expansion RAM or

plug in an I/O expansion card. The logic board plugs into a connector at the front so that

it can be removed by pulling it out the back.

Above the I/O connectors on the back of the computer are two screws and two projecting

tabs. After removing the screws, the user can remove the back cover by pressing down on

the tabs and pulling them outward. The user can then grasp the

wire loop on the logic board and pull the board straight out the back of the case.

Sound Control Push Buttons 1

The Macintosh LC 630 and Macintosh Quadra 630 computers have a pair of push buttons

on the front panel to control the sound volume: pressing the left button causes the

volume to decrease, and pressing the right button causes the volume to increase. If the

computer is playing a sound when the user presses one of the sound control push

buttons, the volume changes as long as the user continues to press the button. If no

sound is playing when the user presses a sound control push button, the computer plays

an alert sound to conﬁrm the new volume setting. The computer also allows the user to

select sound features and control the volume by means of the Sound control panel.

Power On and Off 1

The user can turn the power off and on by pressing one of two buttons:

■the Power key on the keyboard

■the Power key on the remote control

If ﬁles are still open when the user attempts to turn off the computer by using either

one of the Power keys or the Shut Down menu item, the system displays an alert box

warning the user that ﬁles are open and should be closed to avoid loss of data.

Optional Modules 1

Several features of the Macintosh LC 630 and Macintosh Quadra 630 computers are

implemented as plug-in modules available either as a conﬁguration option at the time of

purchase or as a later upgrade. The modules are designed so that they can be installed by

the user.

TV Tuner Module 1

The TV tuner module turns the computer into a television receiver, complete with remote

control. The features of the TV tuner module are similar to those of the TV tuner in the

earlier Macintosh TV computer, with two improvements: the TV picture is in its own

window on the desktop, and the TV signal is carried in YUV format for improved picture

clarity.

CHAPTER 1

Introduction

Optional Modules 7

The features of the TV tuner module in the Macintosh LC 630 and Macintosh Quadra 630

computers are

■ability to tune 181 broadcast and cable channels (US version)

■coaxial connector for TV antenna or cable input (F-type connector in US and Japanese

versions; IEC-type connector in Europe)

■TV picture in a resizable and movable window

■YUV format for improved clarity (see sidebar on next page)

■support for closed captioning and teletext

■software password protection

■automatic and manual channel programming

■single remote control for TV and for playback of audio CDs

The TV tuner module is available in versions for NTSC, PAL, and SECAM

television systems.

The TV picture appears in its own window. The default size of the window is 320 by

240 pixels. The user can resize the TV window up to a maximum size of 640 by 480 pixels

or down to a minimum size of 160 by 120 pixels. The resolution of the TV picture does

not increase at the larger window sizes; instead, the image is enlarged by doubling the

size of the pixels.

The TV tuner module works in conjunction with the video input module, which converts

the video data into digital YUV format and stores it in the display buffer.

The TV tuner comes with a remote control device similar to the one used with the

Macintosh TV computer. The user can switch channels either by using the remote control

or by typing the channel numbers on the keyboard. The user can toggle between the

current and previous channel by pressing the Tab key on the keyboard. Each time the

channel changes, the computer displays the channel name (assigned by the user) on the

picture in the video window.

The user can customize the operation of the TV tuner by adding or removing TV

channels that are unused or unwanted. The computer can program the channels

automatically, scanning through all available channels and disabling those that do not

Why YUV Looks Clearer

You may be wondering how the digital YUV format

used in the Macintosh LC 630 and Macintosh

Quadra 630 computers provides a clearer TV picture

than the RGB format used in the Macintosh TV

computer—after all, picture information can be freely

converted between the two formats. The difference is

due to the way the bits are allocated. The RGB format

used in the Macintosh TV is a 16-bit format using

5 bits each for red, green, and blue, with the remaining

bit unused. The YUV format used in the Macintosh

LC 630 and Macintosh Quadra 630 computers is also a

16-bit format, with 8 bits for the Y (luminance) channel

and 8 bits for the U and V (chrominance) channels to

share by multiplexing. The YUV format looks clearer

because the YUV format carries more levels of

luminance information.

CHAPTER 1

Introduction

8Optional Modules

have a valid signal. When the user then scans for the next channel by using the remote

control or the Tab key on the keyboard, the tuner skips the disabled channels.

The software that supports the TV tuner module is an application called Apple Video

Player. The application includes password protection for the disabled channels. Parents

might use this feature to prevent children from watching undesirable channels.

The software allows the user to capture or freeze a single frame of video or record a

segment of video as a QuickTime Movie. The TV window cannot be resized while the

computer is recording a movie.

Video Input Module 1

The video input module accepts video from an external source and dispays it in a

window on the computer’s display. The features of the video input module are

■accepts video input in NTSC, PAL, or SECAM format

■connectors for stereo sound, composite video, and S-video (Y/C)

■video display in a 320-by-240-pixel window

■pixel doubling for 640-by-480-pixel maximum display

■video overlay capability

■YUV format for digital video input

■a digital video connector for adding a video processor on an expansion card

The video input module provides AV features similar to those of the Macintosh

Quadra 660AV, with one key improvement. Whereas the Macintosh Quadra 660AV

digitizes color video using a 16-bit RGB format, the video input module uses a digital

YUV format. Because a standard television signal has more information in its

chrominance channel than in its luminance channels, digitizing the video signal as

YUV format results in a clearer picture.

The video input module can accept video input from either an external device such as a

VCR or camcorder, or from the internal TV tuner module. The external device can be

connected to the video input module either through the composite video connector or the

S-video connector.

The default window size is 320 by 240 pixels; the user can resize the window up to 640 by

480 pixels—the full screen on a 14-inch monitor. The large image uses pixel doubling of

the 320 by 240 pixel image.

Note

The video input module does not work on video monitors with screens

larger than 15-inch size. It will work with 800-by-600-pixel displays that

have a 60 Hz refresh rate, but not with that size display at a 72 Hz refresh

rate. ◆

The video input module plugs into a dedicated slot on the main logic board. The slot

connector is a 60-pin microchannel connector. The module ﬁts only its proper slot and

only in the proper orientation so that the user can safely install the video input module.

CHAPTER 1

Introduction

Compatibility Issues 9

The video input module has a separate connector called the DVA (digital video applica-

tion) connector. The DVA connector makes the digitized video data available to a card in

the I/O expansion slot. Such a card can contain a hardware video compressor or other

video processor. For more information, see the section “The DVA Connector” beginning

on page 56.

Video Output Module 1

The video output module is an external module that uses the 15-pin video output

connector and provides a video signal for a separate television display. The video

output can also be recorded on a VCR.

A standard television monitor has overscan: to ensure that the entire screen is ﬁlled,

the image is larger than the screen, causing the outer parts of the picture to be cut off

by the edges of the screen. The video output module provides a video signal with a

640-by-480-pixel display inside the safe display area so that no information is lost.

The video output module supports video mirror mode: in that mode, the image on the

television display is the same as that on the computer’s primary video monitor. That

mode of operation is appropriate, for example, for presentations, so that the audience and

the presenter can see the same displays.

Apple expects to provide separate video output modules for NTSC and PAL systems.

Communications Modules 1

The main logic board in the Macintosh LC 630 and Macintosh Quadra 630 computers has

a communications slot that is compatible with the communications slot ﬁrst introduced

in the Macintosh LC 575 computer. The slot allows the computer to support a communi-

cations module without occupying the expansion slot. A communications module can be

installed by either the user or the dealer.

The communications slot in the Macintosh LC 630 and Macintosh Quadra 630 computers

supports all communications cards developed for the Macintosh LC 575, including

■the 10BaseT (twisted pair) ethernet card

■the 10Base2 (thin coax) ethernet card

■the AAUI (Apple standard) ethernet card

■the 14.4 fax/data modem card

Compatibility Issues 1

The Macintosh LC 630 and Macintosh Quadra 630 computers incorporate several

changes from earlier desktop models. This section describes key issues you should be

aware of to ensure that your hardware and software work properly with these new

CHAPTER 1

Introduction

10 Compatibility Issues

models. The topics described here are covered in more detail in later parts of this

developer note.

Expansion Slot 1

The I/O expansion slot in the Macintosh LC 630 and Macintosh Quadra 630 computers is

compatible with the PDS slot in the Macintosh LC family of computers, but it is not a

PDS slot. Like the expansion slot in the Macintosh Quadra 610, the I/O expansion slot in

the Macintosh LC 630 and Macintosh Quadra 630 computers supports many PDS cards

designed to operate with the MC68030 bus, including both bus masters, such as Apple

Computer’s ethernet expansion card, and bus slaves, such as display cards.

While the I/O expansion slot accepts PDS cards designed for the Macintosh LC II and

LC III, some of those cards do not work. Cards that are incompatible with the I/O

expansion slot include

■cards designed to work as coprocessors with an MC68020 or an MC68030 or as

replacements for those microprocessors. Such cards include accelerators, 68882 FPU

cards, and cache cards. That type of card won’t work because the microprocessor is

different and because the slot signals are not connected directly to the microprocessor.

■cards with drivers that include incompatible code. Some drivers that do not follow

Apple Computer’s programming guidelines won’t work on machines that use the

MC68040 microprocessor. For example, some of those drivers write directly to the

cache control register in an MC68030. Such code won’t work on an MC68040.

■cards with drivers that include code to check the gestaltMachineType value and

refuse to run on a newer CPU. The idea is to protect users by refusing to run on a

machine that the cards haven’t been tested on. Such cards have compatibility problems

with all new Macintosh models.

Apple IIe Card for the Macintosh LC 1

The Macintosh LC 630 and Macintosh Quadra 630 computers operate only in 32-bit

addressing mode, so they do not support the Apple IIe card for the Macintosh LC.

IDE Hard Disk 1

The internal hard disk in the Macintosh LC 630 and Macintosh Quadra 630 computers is

an IDE drive, not a SCSI drive. This could cause compatibility problems for hard disk

utility programs.

CHAPTER 2

Architecture 2

Figure 2-0

Listing 2-0

Table 2-0

CHAPTER 2

Architecture

12 Block Diagram and Main ICs

This chapter describes the architecture of the Macintosh LC 630 and Macintosh

Quadra 630 computers. It describes the major components of the main logic board:

the microprocessor, the custom ICs, and the display RAM. It also includes a simpliﬁed

address map.

Block Diagram and Main ICs 2

The architecture of the Macintosh LC 630 and Macintosh Quadra 630 computers

is similar to the architecture of the Macintosh Quadra 605. Figure 2-1 shows the

block diagram.

The computer architecture has two internal buses. The system bus is connected directly

to the main processor and runs at the same clock rate. The I/O bus is partially buffered

from the main processor and runs at a 16 MHz clock rate. The PrimeTime II custom IC,

described later, buffers the data portion of the I/O bus and provides a compatible inter-

face for I/O devices and software designed for use with the MC68030 miroprocessor.

Microprocessor 2

The Macintosh Quadra 630 computer uses the Motorola MC68040 microprocessor. The

Macintosh LC 630 computer uses the Motorola MC68LC040, a low-cost version of the

MC68040 without the built-in FPU. The MC68LC040 has all the other features of the

MC68040; the performance of the MC68LC040 is the same as that of the MC68040 except

for ﬂoating-point operations.

The MC68040 and MC68LC040 microprocessors use two processor clocks: one for the

system bus and another, at twice the speed, for the internal circuits. In the Macintosh

Quadra 630 and Macintosh LC 630 computers, the system bus clock runs at 33 MHz and

the internal processor runs at 66 MHz.

The MC68LC040 microprocessor in the Macintosh LC 630 computer is installed in a

socket. That makes it possible to upgrade to an MC68040 by removing the MC68LC040

from its socket and replacing it with the MC68040.

IMPORTANT

An expansion board cannot provide an FPU coprocessor because the

MC68LC040 microprocessor does not support the coprocessor interface

and the signals on the expansion connector are not connected directly to

the CPU. ▲

CHAPTER 2

Architecture

Block Diagram and Main ICs 13

Figure 2-1 Block diagram

Processor-

direct slot

Address bus

A22–2

Apple

Desktop

Bus port

D31–0

A31–0

Microphone

audio input

jack

Sound

output jack

D7–0

A31–0

D31–0

Serial

ports

D31–0

A31–0

DMD31–0DMA8–0

ROM 1 MB

CPU

Motorola

MC68040 or

MC68LC040

Cuda

ADB

real-time

clock/PRAM

RAM SIMM

RAM

RA11–0

Sound

amplifier

DFAC II

IOA1–0

A31–2

Communication slot

A31–0

Data bus

D31–0Drivers

and

receivers

Channel A

Channel B

Port A (modem)

Port B (printer)

SCSI CD

245 buffer

IDE hard disk

Frame

buffer

1M DRAM

Valkyrie

DRAM

frame

buffer

controller

Video port

VID bus

Video-in

slot

IOA1–0

IOD31–16

F108

Memory

controller

bus

arbitrator

SCC

SCSI

IDE

IOD31–0

PrimeTime II

Includes

SWIM II,

VIA1, VIA2,

sound

controller,

and

I/O bus

adapter

IOD31–0 A31–0

Floppy drive interface

Right channel

Left channel

CD inputs

Internal

chassis

connector

TV tuner board

SCSI connector

CHAPTER 2

Architecture

14 Block Diagram and Main ICs

Custom ICs 2

The architecture of the Macintosh LC 630 and Macintosh Quadra 630 computers is

designed around ﬁve large custom VLSI integrated circuits:

■the F108 memory controller and I/O support IC

■the PrimeTime II I/O subsystem and buffer

■the DFAC II sound input processor

■the Cuda ADB controller

■the Valkyrie video CLUT and DAC

The computer also uses several standard ICs that are used in other Macintosh computers.

This section describes only the custom ICs.

F108 IC 2

The F108 IC performs the system memory control functions. It also includes circuitry

equivalent to the SCC and SCSI controller ICs. The functional blocks in the F108 include

the following:

■control logic for the system ROM and RAM

■SCSI controller

■SCC serial I/O controller

■IDE hard disk interface controller

The F108 IC is attached to the system bus and provides the control and timing signals for

the system ROM and RAM. The memory control logic supports byte, word, longword,

and line accesses to the system memory. If an access is not aligned to the appropriate

address boundary, that access requires multiple data transfers on the bus.

Note

The memory control logic in the F108 IC is similar to that in the MEMCjr

IC used in the Macintosh Quadra 605. ◆

The SCSI controller in the F108 IC is just like an NCR 53C96. PrimeTime II provides the

interface to the SCSI controller and also provides longword accumulation of SCSI data for

better performance. In the Macintosh LC 630 and Macintosh Quadra 630 computers the

clock signal to the SCSI controller is 16.5 MHz.

The SCC circuitry in the F108 IC is an 8-bit device just like the 8530 SCC. The PCLK signal

to the SCC is an 8 MHz clock.

PrimeTime II IC 2

The PrimeTime II IC supports the I/O bus. It combines functions performed by several

ICs in previous Macintosh designs. The PrimeTime II IC includes

■data bus buffers for the internal I/O bus

■address decoding for I/O devices

CHAPTER 2

Architecture

Block Diagram and Main ICs 15

■dynamic bus sizing and data routing for the I/O bus

■interface adapters VIA1 and VIA2

■interrupt controls

■a SWIM II ﬂoppy disk controller

■sound control logic and buffers

The PrimeTime II IC serves as a bridge between the system bus and the I/O bus.

The PrimeTime II IC provides the data bus features of the MC68030 that the MC68040

does not provide. Those features are byte steering, which allows 8-bit and 16-bit devices

to be connected to a ﬁxed byte lane, and dynamic bus sizing, which allows software to

read and write longwords to 8-bit and 16-bit devices. Those features allow the computer

to work with existing I/O software designed for the MC68030.

The PrimeTime II IC also contains the sound control logic and the sound input and

output buffers. There are three separate buffers—one for sound input and two for

stereo sound output—so the computer can record sound input and process sound

output simultaneously.

DFAC II IC 2

The DFAC II custom IC contains the sound input processing devices. The DFAC II

includes

■input AGC comparators

■antialias ﬁltering

■an A/D converter for input

■a PWM converter for output

The DFAC II IC does not include the sound countrol logic and the input and output

buffers; those are part of the PrimeTime II IC.

For sound input, the DFAC II processes the signal from the sound input jack through a

sound input ampliﬁer with automatic gain control, an input ﬁlter, an A/D converter, and

the necessary switching circuits. The DFAC II sends the resulting stream of digital sound

data to the PrimeTime II, which stores the data in its input buffer.

For sound output, circuits in the DFAC II take data from the sound output buffers and

generate stereo pulse-width-modulated (PWM) signals. The DFAC II merges the sound

playthrough signal with the PWM signals and sends the combined signals to an external

stereo PWM converter IC. After low-pass ﬁltering in the PWM converter, the signals go to

the sound output jacks and to a separate ampliﬁer for the built-in speaker. See the section

“Sound” beginning on page 30.

CHAPTER 2

Architecture

16 Block Diagram and Main ICs

Cuda IC 2

The Cuda IC is a custom version of the Motorola MC68HC05 microcontroller. It provides

several system functions, including

■the ADB interface

■parameter RAM

■the real-time clock

■program control of the power supply (soft power)

■the programming interface to devices on the IIC (inter-integrated circuit) bus

The devices on the IIC bus include the DFAC II sound IC, the digital video decoder and

scaler (DESC) on the video input module, and the Cyclops IC, which is the controller for

the remote control receiver. The computer reads and writes status and control

information to those devices by commands to the Cuda IC.

Valkyrie IC 2

The Valkyrie IC is a custom IC containing the logic for the video display. It includes the

following functions:

■display memory controller

■video CLUT (color lookup table)

■video DAC (digital-to-analog converter)

Note

The display memory controller in the Valkyrie IC is similar to the

DAFB IC used in the Macintosh Quadra 700 and 900 computers

and to the display portion of the MEMCjr IC used in the

Macintosh Quadra 605 computer. ◆

A separate data bus handles data transfers between the Valkyrie IC and the display

memory. The display memory data bus is 32 bits wide, and all data transfers consist of

32 bits at a time. The Valkyrie IC breaks each 32-bit data transfer into several pixels

of the appropriate size for the current display mode—1, 2, 4, 8, or 16 bits per pixel.

The Valkyrie IC does not support 24 bits per pixel.

To keep up with the large amount of data that must be transferred into and out of the

display memory, the Valkyrie IC has several internal buffers. Besides input and output

buffers for display data, the Valkyrie IC also has a buffer for both addresses and data

being sent from the main processor to the display. That buffer can hold up to four

transactions, allowing the main processor to complete a write instruction to the display

memory and continue processing without waiting for some other transaction that might

be taking place on the display memory bus.

The CLUT in the Valkyrie custom IC provides color palettes for 4-bit and 8-bit display

modes. In 16-bit display mode, the CLUT is used to provide gamma correction for the

stored color values. With a black-and-white or monochrome display mode, all three color

components (R, G, and B) are the same.

CHAPTER 2

Architecture

Block Diagram and Main ICs 17

The Valkyrie IC uses several clocks. Its transactions with the CPU are synchronized to the

CPU_BCLK signal. Data transfers from the frame-buffer DRAM are clocked by

the MEM_CLK signal, which runs at 60 MHz. Data transfers to the CLUT and the

video output are clocked by the dot clock, which has a different rate for different

display monitors.

For more information about the interaction between the Valkyrie IC, the display memory,

and the main processor, see the section “Display RAM” on this page.

Bus Arbitration 2

The system bus can support one or two bus masters, including the main processor and

one I/O bus master. The I/O master has higher priority. Either bus master can park on

the bus as long as no higher priority master requests the bus.

The bus request from the I/O bus master is initiated by the PrimeTime II IC and comes

from one of two sources: the I/O expansion card or the communications card. Devices on

those cards are not connected directly to the system bus; they arbitrate the bus by way of

the I/O bus and the PrimeTime II IC. See the section “Bus Master on a Card” beginning

on page 53.

Display RAM 2

The display memory in the Macintosh LC 630 and Macintosh Quadra 630 computers

is separate from the main memory. To reduce the cost of the computer, the display

memory is implemented with DRAM devices instead of more expensive VRAM devices.

The display memory consists of 1 MB of 60 ns DRAM devices conﬁgured to make a 32-bit

data bus. The display memory cannot be expanded.

The display memory contains three separate frame buffers. The ﬁrst frame buffer holds

the graphics data—the display that is generated by the computer. The other two frame

buffers hold video data from the video input module. The video data frame buffers are

used alternately: while one is supplying data to be sent to the video monitor, the other is

receiving the next frame of video input.

The display data generated by the computer can have pixel depths of 1, 2, 4, 8, or 16 bits

for monitors up to 640 by 480 pixels and 1, 2, 4, or 8 for larger monitors and the

800-by-600-pixel display on the multiscan monitor. Data from the video input module

is always stored and transferred at 16 bits per pixel. The video frame buffers support

live video in a 320-by-240-pixel frame at 30 frames per second.

Note

The Macintosh LC 630 and Macintosh Quadra 630 computers cannot

dispay live video from the video-in module on monitors larger than 800

by 600 pixels. Apple does not recommend the use of such monitors with

these computers. ◆

The Macintosh LC 630 and Macintosh Quadra 630 computers can display video in a

window inside the computer graphics display. The Valkyrie IC has registers that contain

CHAPTER 2

Architecture

18 Address Map

the starting location of the video window within the display, the starting address of the

video data in the video buffer, and the size of the video window.

Note

Because the Macintosh LC 630 and Macintosh Quadra 630 computers

operate only in 32-bit addressing mode, they do not support the

Apple IIe Card for the Macintosh LC. ◆

Address Map 2

The Macintosh LC 630 and Macintosh Quadra 630 computers support only 32-bit

addressing. Figure 2-2 shows a simpliﬁed address map.

Note

Developers should not use actual hardware addresses in applications;

they should always communicate with hardware devices by means of

system software. ◆

RAM Addresses 2

The ﬁrst 1 GB of the address space is reserved for RAM. The actual amount of RAM

installed can be from 4 MB to 36 MB. At startup time, a routine in the ROM determines

the amount of RAM available and stores the size in a low-memory global variable.

Display RAM Addresses 2

The Macintosh LC 630 and Macintosh Quadra 630 computers use separate DRAM to

store the display buffers. The display RAM occupies dedicated address space starting at

$F900 0000, as shown in Figure 2-2.

CHAPTER 2

Architecture

Address Map 19

Figure 2-2 Simpliﬁed address map

$FFFF FFFF

$F980 0000

$7000 0000

$53FF FFFF

$4000 0000

RAM

$0000 0000

$0400 0000

$5000 0000

$6000 0000

$4080 0000

$FE00 0000

Expansion slot

ROM

Expansion

super

slot

space

I/O

$F000 0000

$F900 0000

Video RAM

CHAPTER 2

Architecture

20 Address Map

Addresses for I/O Expansion Cards 2

The I/O expansion card uses address space from $FE00 0000 to $FEFF FFFF, corre-

sponding to NuBus slot $E, and from $E000 0000 to $EFFF FFFF, corresponding to

NuBus™ Super Slot $E. For more information, see the section “Card Address Space” on

page 54.

CHAPTER 3

I/O Features 3

Figure 3-0

Listing 3-0

Table 3-0

CHAPTER 3

I/O Features

22 Serial I/O Ports

This chapter describes both the built-in I/O devices and the interfaces for external I/O

devices. It also describes the types of video monitors that can be used with the

Macintosh LC 630 and Macintosh Quadra 630 computers.

Serial I/O Ports 3

The Macintosh LC 630 and Macintosh Quadra 630 computers have two serial ports, one

for a printer and one for a modem. Both serial ports have 9-pin mini-DIN sockets that

accept either 8-pin or 9-pin plugs. Figure 3-1 shows the mechanical arrangement of the

pins on the serial port sockets; Table 3-1 shows the signal assignments.

Figure 3-1 Serial port sockets

Table 3-1 Serial port signals

number Signal description

1 Handshake output

2 Handshake input

3 Transmit data –

4 Ground

5 Receive data –

6 Transmit data +

7 General-purpose input

8 Receive data +

9 +5 volts

Printer Modem

8 7

5 4

68 7

5 4

CHAPTER 3

I/O Features

ADB Port 23

Pin 9 on each serial connector provides +5 V power from the ADB power supply. An

external device should draw no more than 100 mA from that pin. The total current

available for all devices connected to the +5 V supply for the ADB and the serial ports is

500 mA. Excessive current drain will cause a fuse to interrupt the +5 V supply; the fuse

automatically resets when the load returns to normal.

Both serial ports include the GPi (general-purpose input) signal on pin 7. The GPi signal

for each port connects to the corresponding data carrier detect input on the SCC portion

of the F108 custom IC, described in Chapter 2. On serial port A (the modem port), the GPi

line can be connected to the receive/transmit clock (RTxCA) signal on the SCC. That

connection supports devices that provide separate transmit and receive data clocks, such

as synchronous modems. For more information about the serial ports, see Guide to the

Macintosh Family Hardware, second edition.

ADB Port 3

The Apple Desktop Bus (ADB) port on the Macintosh LC 630 and Macintosh Quadra 630

computers is functionally the same as on other Macintosh computers.

The ADB is a single-master, multiple-slave serial communications bus that uses an

asynchronous protocol and connects keyboards, graphics tablets, mouse devices, and

other devices to the computer. The custom ADB microcontroller drives the bus and reads

status from the selected external device. A 4-pin mini-DIN connector connects the ADB to

the external devices. Table 3-2 lists the ADB connector pin assignments. For more

information about the ADB, see Guide to the Macintosh Family Hardware, second edition.

Note

The total current available for all devices connected to the +5V pins

on the ADB and the modem port is 500 mA. Each device should use

no more than 100 mA. ◆

Table 3-2 ADB connector pin assignments

number Name Description

1 ADB Bidirectional data bus used for input and output. It is

an open-collector signal pulled up to +5 volts through a

470-ohm resistor on the main logic board.

2 PSW Power-on signal that generates reset and interrupt key

combinations.

3 +5V +5 volts from the computer.

4 GND Ground from the computer.

CHAPTER 3

I/O Features

24 Floppy Disk Drive

Floppy Disk Drive 3

The Macintosh LC 630 and Macintosh Quadra 630 computers have one internal

high-density ﬂoppy disk drive (Apple SuperDrive). The drive is connected to a

20-pin connector on a cable that is connected to the main logic board by the

internal chassis connector, as shown in Figure 2-1 on page 13. Table 3-3 shows

the pin assignments on the ﬂoppy disk connector.

Table 3-3 Pin assignments on the ﬂoppy disk connector

number Signal name Signal description

1 GND Ground

2 PH0 Phase 0: state control line

3 GND Ground

4 PH1 Phase 1: state control line

5 GND Ground

6 PH2 Phase 2: state control line

7 GND Ground

8 PH3 Phase 3: register write strobe

9 n.c. Not connected

10 /WRREQ Write data request

11 +5V +5 volts

12 SEL Head select

13 +12V +12 volts

14 /ENBL Drive enable

15 +12V +12 volts

16 RD Read data

17 +12V +12 volts

18 WR Write data

19 +12V +12 volts

20 n.c. Not connected

CHAPTER 3

I/O Features

IDE Hard Disk 25

IDE Hard Disk 3

The Macintosh LC 630 and Macintosh Quadra 630 computers have an internal hard

disk using the standard IDE interface. This interface, used for IDE drives on IBM

AT–compatible computers, is also referred to as the ATA interface. The implementation of

the ATA interface on the Macintosh LC 630 and Macintosh Quadra 630 computers is a

subset of the ATA interface speciﬁcation, ANSI proposal X3T9.2/90-143, Revision 3.1.

Hard Disk Speciﬁcations 3

Figure 3-2 on page 26 shows the maximum dimensions of the hard disk and the location

of the mounting holes. As the ﬁgure shows, the minimum clearance between conductive

components and the bottom of the mounting envelope is 0.5 mm.

Hard Disk Connectors 3

The internal hard disk has a standard 40-pin IDE connector and a separate 4-pin power

connector. The 40-pin connector cable is part of the cable harness attached to the main

logic board by the internal chassis connector, as shown in Figure 2-1 on page 13. The

power cable is attached directly to the power supply.

The exact locations of the IDE connector and the power connector are not speciﬁed, but

the relative positions must be as shown in Figure 3-2 so that the cables and connectors

will ﬁt.

CHAPTER 3

I/O Features

26 IDE Hard Disk

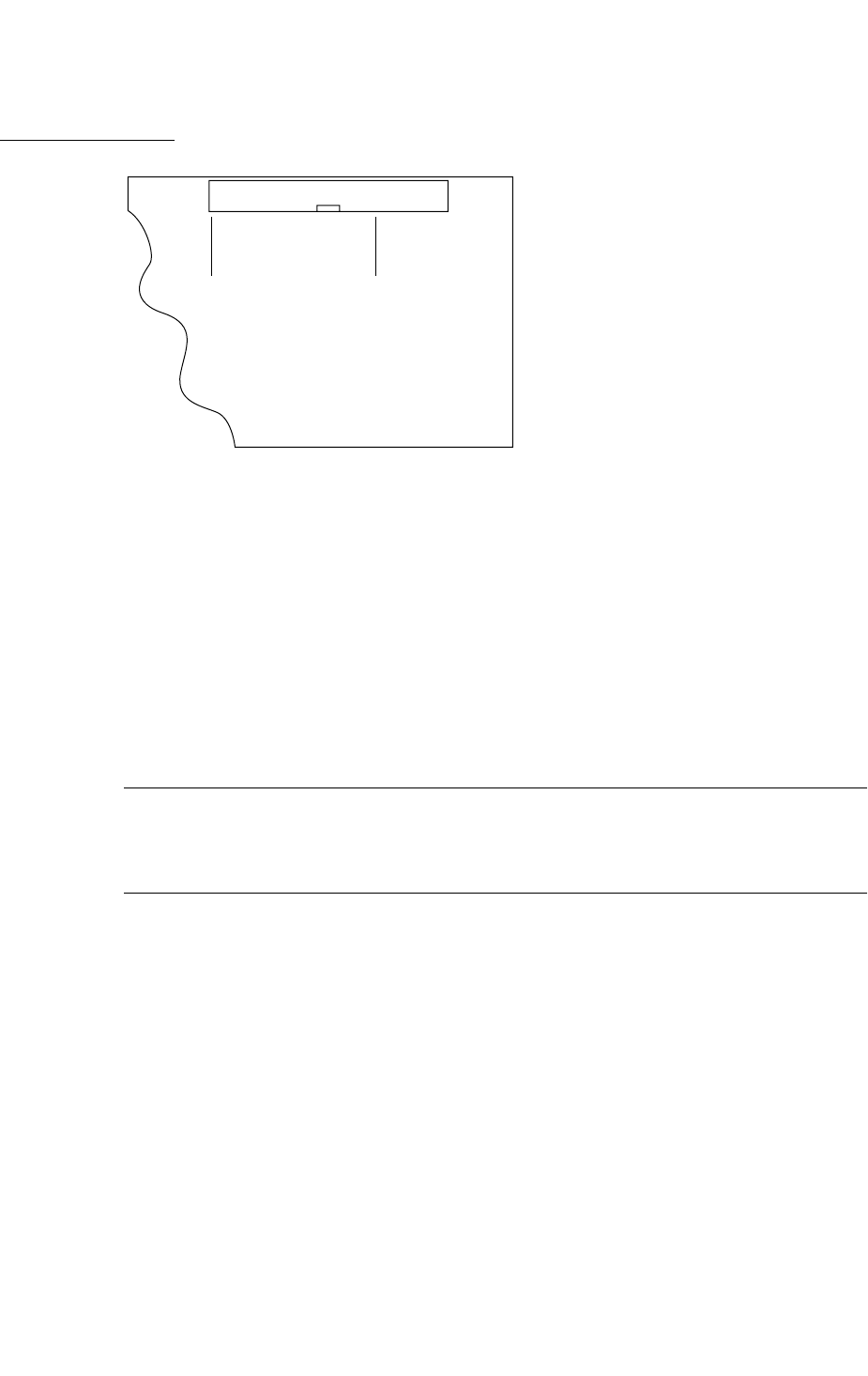

Figure 3-2 Maximum dimensions of the hard disk

6.40 (.252)2x 3

IDE connector Power

Mounting hole 6-32, .22"

min. full thread, 4X

101.6 (4.00)

95.25 (3.75) 3.20 (.125) 2x

60.30 (2.37) 44.40 (1.75)

60.00 (2.36) 2x

101.6 (4.00) 2x

146.0 (5.75)

25.4 (1.00)

16.00 (.63) 2x

Mounting hole

6-32, through 6x

Notes:

A Defined by plane of bottom mount holes

B Defined by center line of bottom mount holes

40-pin IDE and 4-pin power connector placement must not be reversed

All dimensions in MM (inch)

Drawing not to scale

Tolerances .X = + 0.50, .XX = + 0.25

Dimension to be measured at center line of side-mount holes

Minimum 0.5 MM clearance from any conductive PCB components to A

– –

CHAPTER 3

I/O Features

IDE Hard Disk 27

Pin Assignments 3

Table 3-4 shows the pin assignments on the 40-pin IDE hard disk connector. A slash (/) at

the beginning of a signal name indicates an active-low signal.

Note

The IDE data bus is connected to the I/O bus through bidirectional bus

buffers. To match the big-endian format of the MC68030-compatible bus,

the bytes are swapped. The lower byte of the IDE data bus, DD(0–7), is

connected to the high byte of the upper word of the I/O bus, IOD(24–31).

The higher byte of the IDE data bus, DD(8–15), is connected to the low

byte of the upper word of the I/O bus, IOD(16–23). ◆

Table 3-4 Pin assignments on the IDE hard disk connector

number Signal name

1 /RESET 2 GROUND

3 DD7 4 DD8

5 DD6 6 DD9

7 DD5 8 DD10

9 DD4 10 DD11

11 DD3 12 DD12

13 DD2 14 DD13

15 DD1 16 DD14

17 DD0 18 DD15

19 GROUND 20 KEY

21 Reserved 22 GROUND

23 DIOW 24 GROUND

25 DIOR 26 GROUND

27 IORDY 28 Reserved

29 Reserved 30 GROUND

31 INTRQ 32 /IOCS16

33 DA1 34 Reserved

35 DA0 36 DA2

37 /CS0 38 /CS1

39 Reserved 40 GROUND

CHAPTER 3

I/O Features

28 SCSI Bus

IDE Signal Descriptions 3

Table 3-5 describes the signals on the IDE hard disk connector.

SCSI Bus 3

The Macintosh LC 630 and Macintosh Quadra 630 computers have a SCSI bus for the

internal CD-ROM player and one or more external SCSI devices.

Table 3-5 Signals on the IDE hard disk connector

Signal name Signal description

DA(0–2) IDE device address; used by the computer to select one of the registers

in the IDE drive. For more information, see the descriptions of the CS0

and CS1 signals.

DD(0–15) IDE data bus; buffered from IOD(16–31) of the computer’s I/O bus.

DD(0–15) are used to transfer 16-bit data to and from the drive buffer.

DD(8–15) are used to transfer data to and from the internal registers

of the drive, with DD(0–7) driven high when writing.

/CS0 IDE register select signal. It is asserted low to select the main task ﬁle

registers. The task ﬁle registers indicate the command, the sector

address, and the sector count.

/CS1 IDE register select signal. It is asserted low to select the additional

control and status registers on the IDE drive.

IORDY IDE I/O ready; when driven low by the drive, signals the CPU to insert

wait states into the I/O read or write cycles.

/IOCS16 IDE I/O channel select; asserted low for an access to the data port. The

computer uses this signal to indicate a 16-bit data transfer.

/DIOR IDE I/O data read strobe.

/DIOW IDE I/O data write strobe.

INTRQ IDE interrupt request. This active high signal is used to inform the

computer that a data transfer is requested or that a command has

terminated.

/RESET Hardware reset to the drive; an active low signal.

Key This pin is the key for the connector.

CHAPTER 3

I/O Features

SCSI Bus 29

SCSI Connectors 3

The SCSI connector for the internal CD-ROM drive is a 50-pin connector with the

standard SCSI pin assignments. The external SCSI connector is a 25-pin D-type connector

with the same pin assignments as other Apple SCSI devices. Table 3-6 shows the pin

assignments on the internal and external SCSI connectors.

Table 3-6 Pin assignments for the SCSI connectors

Pin number

(internal 50-pin)

Pin number

(external 25-pin) Signal name Signal description

2 8 /DB0 Bit 0 of SCSI data bus

4 21 /DB1 Bit 1 of SCSI data bus

6 22 /DB2 Bit 2 of SCSI data bus

8 10 /DB3 Bit 3 of SCSI data bus

10 23 /DB4 Bit 4 of SCSI data bus

12 11 /DB5 Bit 5 of SCSI data bus

14 12 /DB6 Bit 6 of SCSI data bus

16 13 /DB7 Bit 7 of SCSI data bus

18 20 /DBP Parity bit of SCSI data bus

25 – n.c. Not connected

26 25 TPWR +5 V terminator power

32 17 /ATN Attention

36 6 /BSY Bus busy

38 5 /ACK Handshake acknowledge

40 4 /RST Bus reset

42 2 /MSG Message phase

44 19 /SEL Select

46 15 /C/D Control or data

48 1 /REQ Handshake request

50 3 /I/O Input or output

20, 22, 24, 28,

30, 34, and all

odd pins except

pin 25

7, 9, 14, 16, 18,

and 24 GND Ground

CHAPTER 3

I/O Features

30 Sound

SCSI Bus Termination 3

In the Macintosh LC 630 and Macintosh Quadra 630 computers, the internal end of the

bus is terminated by a 220/330 passive terminator. The terminator is located on the main

logic board near the portion of the internal chassis connector that contains the signals for

the internal CD-ROM drive. The internal CD-ROM drive does not include a terminator.

Sound 3

Like other Macintosh computers, the Macintosh LC 630 and Macintosh Quadra 630

computers can create sounds digitally and play the sounds through its internal speaker

or send the sound signals out through the sound output jacks. These computers can also

record sound from several sources: a microphone connected to the sound input jack, the

video input module, or a compact disc in the CD-ROM player.

Sound Output Jacks 3

The Macintosh LC 630 and Macintosh Quadra 630 computers have two sound output

jacks, one on the front and one on the back. Both output jacks are connected to the sound

ampliﬁer; the jack on the front is intended for ease of access when connected to a pair of

headphones. Inserting a plug into either jack disconnects the internal speaker.

Sound Input Jack 3

The Macintosh LC 630 and Macintosh Quadra 630 computers have a sound input jack on

the back for connecting an external microphone or other sound source. The sound input

jack accepts a standard 1/8-inch phone plug, either monophonic or stereophonic (two

signals plus ground).

The sound input jack accepts either the Apple PlainTalk line-level microphone or a pair of

line-level signals by way of a separate adapter. The internal circuitry mixes the

stereophonic signals into a monophonic signal for digitization.

Note

The Apple PlainTalk microphone requires power from the main

computer, which it obtains by way of an extra-long, 4-conductor plug

that makes contact with a 5-volt pin inside the sound input jack. ◆

IMPORTANT

The microphone for the Macintosh LC and LC II does not work with the

Macintosh LC 630 and Macintosh Quadra 630 computers; they require

the line-level signal provided by the Apple PlainTalk microphone. ▲

CHAPTER 3

I/O Features

Sound 31

Sound Input Speciﬁcations 3

The sound input jack has the following electrical characteristics:

■Input impedance: 100k ohms

■Average line level: 100 mV RMS

■Average microphone level: 70 mV RMS

■Maximum input level: 1.8 V RMS

Routing of the Sound Signals 3

Sound input signals on the Macintosh LC 630 and Macintosh Quadra 630 computers can

be routed in two ways: they can be recorded (digitized) or they can be sent directly to the

sound outputs and speakers, bypassing the sound IC. Table 3-7 lists the sound sources

and shows how each one can be routed.

Digitizing Sound 3

The Macintosh LC 630 and Macintosh Quadra 630 computers digitize and record sound

as 8-bit samples. The computers can use either of two sampling rates: 11k samples per

second and 22k samples per second. The sound circuits include input and output ﬁlters

with switchable cutoff (–3 dB) frequencies that correspond to the two sampling rates:

3.5 kHz cutoff for the 11k sample rate and 7 kHz cutoff for the 22k sample rate.

The sound system always plays samples at the 22k sampling rate; when playing

samples recorded at the 11k sampling rate, the software writes each sample to the

sound buffer twice.

Sound Modes 3

The sound mode is selected by a call to the Sound Manager. The sound circuitry normally

operates in one of three modes:

■Sound playback: computer-generated sound is sent to the speaker and the sound

output jacks.

■Sound playback with playthrough: computer sound and sound input are mixed and

sent to the speaker and the sound output jacks.

Table 3-7 Sound sources and routing

Sound source Record Bypass

Sound input jack √–

Modem √–

CD-ROM player √√

Video sound (video input module) √√

CHAPTER 3

I/O Features

32 Keyboard

■Sound record with playthrough: input sound is recorded and also fed through to the

speaker and the sound output jacks.

When recording from a microphone, applications should reduce the playthrough volume

to prevent possible feedback from the speaker to the microphone.

The PrimeTime II IC provides separate sound buffers for input and for stereo output, so

the computer can record and send digitized sound to the sound outputs simultaneously.

Keyboard 3

A keyboard is included with some models of the Macintosh LC 630 and Macintosh

Quadra 630 computers.

The keyboard has a Power key, identiﬁed by the symbol p. When the user chooses Shut

Down from the Special menu, a dialog appears telling the user that it is now safe to shut

off the computer. The user then turns off the power by pressing the Power key .

There are no programmer’s switches on the Macintosh LC 630 and Macintosh

Quadra 630 computers, so the user invokes the reset and NMI functions by pressing

Command key combinations while holding down the Power key, as shown in Table 3-8.

The Command key is identiﬁed by the symbols  and x.

Note

The user must hold down a key combination for at least 1 second to

allow the ADB microcontroller enough time to respond to the NMI

or hard-reset signal. ◆

Note

The NMI in the Macintosh LC 630 and Macintosh Quadra 630 computers

can always be activated from the keyboard. This is a change from the

Macintosh LC computer, where keyboard activation of the NMI function

can be disabled by the software. ◆

Table 3-8 Reset and NMI key combinations

Key combination Function

Command-Power (x-p) NMI (always active)

Control-Command-Power (Control-x-p) Reset

CHAPTER 3

I/O Features

External Video Monitors 33

External Video Monitors 3

The Macintosh LC 630 and Macintosh Quadra 630 computers require an external video

monitor. The computers can work with several sizes of video monitors.

Table 3-9 shows the monitor types supported and the maximum pixel depths available.

The pixel depth determines the maximum number of colors that can be displayed. The

maximum pixel depth available depends on the size of the monitor’s screen.

For more information about the video monitors, see “Video Timing Parameters” on

page 35.

Video Connector 3

The cable from the video monitor plugs into the computer’s DB-15 external video

connector; Table 3-10 shows the pin assignments.

Table 3-9 Maximum pixel depths for video monitors

Monitor type

Display size,

in pixels

Maximum

pixel depth, in

bits per pixel

Maximum number of

colors displayed

12-inch color 512 by 384 16 32,768

14-inch color 640 by 480 16 32,768

15-inch multiscan 800 by 600 8 256

VGA 640 by 480 8 256

SVGA 800 by 600 8 256

Table 3-10 Pin assignments on the external video connector

number Signal name Description

1 RED.GND Red video ground

2 RED.VID Red video signal

3 /CSYNC Composite synchronization signal

4 SENSE0 Monitor sense signal 0

5 GRN.VID Green video signal

6 GRN.GND Green video ground

continued

CHAPTER 3

I/O Features

34 External Video Monitors

Note

The video connector on the Macintosh LC 630 and Macintosh

Quadra 630 computers is the same as the one on the Macintosh LC III. ◆

Monitor Sense Codes 3

To identify the type of monitor connected, the Macintosh LC 630 and Macintosh

Quadra 630 computers use the Apple monitor sense codes and the extended sense codes.

Table 3-11 shows the sense codes for each of the monitors these computers can support.

Refer to the Macintosh Technical Note M.HW.SenseLines for a description of the sense

code system.

7 SENSE1 Monitor sense signal 1

8 n.c. Not connected

9 BLU.VID Blue video signal

10 SENSE2 Monitor sense signal 2

11 GND CSYNC and VSYNC ground

12 /VSYNC Vertical synchronization signal

13 BLU.GND Blue video ground

14 HSYNC.GND HSYNC ground

15 /HSYNC Horizontal synchronization signal

Shell SGND Shield ground

Table 3-11 Monitor sense codes

Monitor type

Standard

sense code Extended sense code

(SENSE2–0) (1,2) (0,2) (0,1)

12-inch RGB 0 1 0 — — —

14-inch RGB 1 1 0 — — —

VGA and SVGA 1 1 1 1 1 1 0 1 0

16-inch RGB 1 1 1 1 0 1 1 0 1

No monitor 1 1 1 1 1 1 1 1 1

Table 3-10 Pin assignments on the external video connector (continued)

number Signal name Description

CHAPTER 3

I/O Features

Video Timing Parameters 35

Note

Both VGA and SVGA monitors have the same sense code. The ﬁrst time

the user starts up with an SVGA monitor, the computer treats it as a

VGA monitor and shows a 640-by-480-pixel display. The user can switch

to the 800-by-600-pixel SVGA mode from the Monitors control panel;

when that happens, the computer changes the display to the

800-by-600-pixel display mode immediately, and continues to use that

mode the next time it is started up. ◆

Video Timing Parameters 3

The Macintosh LC 630 and Macintosh Quadra 630 computers require an external video

monitor. The monitor can be one of several different types and display sizes, as listed in

Table 3-9.

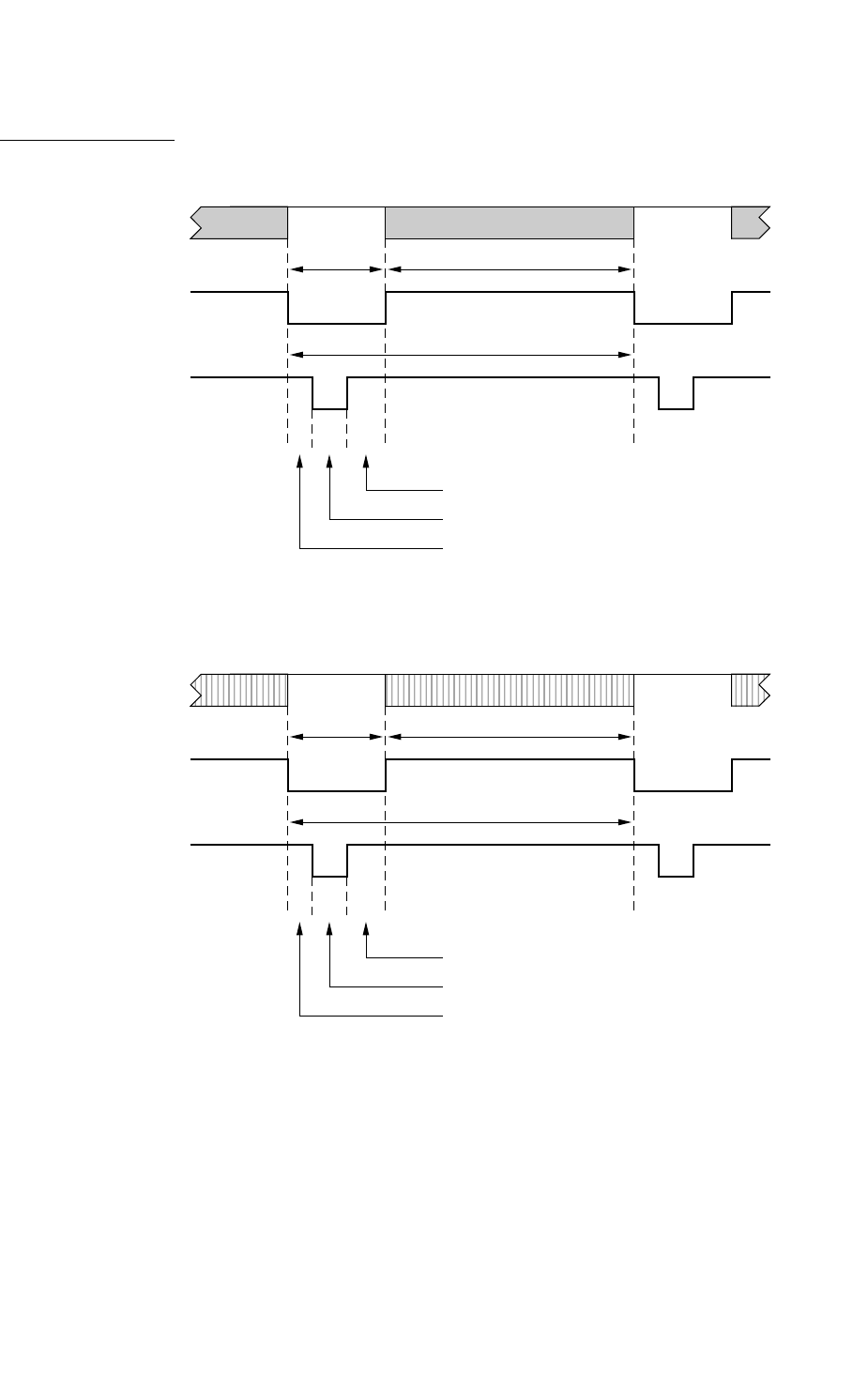

Figure 3-3 shows simpliﬁed timing diagrams and identiﬁes the horizontal and vertical

timing parameters in a video signal. Table 3-13 and Table 3-13 list the values of those

parameters for the different types of monitors.

Table 3-12 Monitors supported

Monitor type Display size (pixels)

12-inch color 512 by 384

12-inch monochrome 640 by 480

14-inch color 640 by 480

15-inch multiscan 800 by 600*

*The 15-inch multiscan monitor can also operate as a

640-by-480-pixel display.

NTSC or VGA 640 by 480

SVGA 800 by 600

CHAPTER 3

I/O Features

36 Video Timing Parameters

Figure 3-3 Video timing diagram

Video

H sync space H image space

H line length

H back porch

H sync pulse

H front porch

HBLANK

/HSYNC

Black

Horizontal timing

Video

V sync space V image space

V line length

V back porch

V sync pulse

V front porch

VBLANK

/VSYNC

Vertical timing

White

Black

White

CHAPTER 3

I/O Features

Video Timing Parameters 37

Table 3-13 lists the timing parameters for the smaller monitors listed: the 12-inch color

monitor, the 14-inch color monitor, and a standard VGA monitor.

Table 3-13 Video timing parameters for smaller monitors

Monitor type and dimensions

Parameter

12-inch color

(512 by 384)

14-inch color

(640 by 480)

VGA

(640 by 480)

Dot clock 15.67 MHz 30.24 MHz 25.18 MHz

Dot time 63.83 ns 33.07 ns 39.72 ns

Line rate 24.48 kHz 35.00 kHz 31.47 kHz

Line time 40.85 µs

(640 dots) 28.57 µs

(864 dots) 31.78 µs

(800 dots)

Horizontal active video 512 dots 640 dots 640 dots

Horizontal blanking 128 dots 224 dots 160 dots

Horizontal front porch 16 dots 64 dots 16 dots

Horizontal sync pulse 32 dots 64 dots 96 dots

Horizontal back porch 80 dots 96 dots 48 dots

Frame rate 60.15 Hz 66.72 Hz 59.94 Hz

Frame time 16.63 ms

(407 lines) 15.01 ms

(525 lines) 16.68 ms

(525 lines)

Vertical active video 384 lines 480 lines 480 lines

Vertical blanking 23 lines 45 lines 45 lines

Vertical front porch 1 line 3 lines 10 lines

Vertical sync pulse 3 lines 3 lines 2 lines

Vertical back porch 19 lines 39 lines 33 lines

CHAPTER 3

I/O Features

38 Video Timing Parameters

Table 3-13 lists the timing parameters for the SVGA monitor at 60 and 72 frames

per second.

Table 3-14 Video timing parameters for larger monitors

Monitor type and dimensions

Parameter

SVGA (800 by 600

at 60 ﬁelds/sec)

SVGA (800 by 600

at 72 ﬁelds/sec)

Dot clock 40.00 MHz 50.00 MHz

Dot time 25.00 ns 20.00 ns

Line rate 37.88 kHz 48.08 kHz

Line time 26.4 µs

(1056 dots) 20.80 µs

(1040 dots)

Horizontal active video 800 dots 800 dots

Horizontal blanking 256 dots 240 dots

Horizontal front porch 40 dots 56 dots

Horizontal sync pulse 128 dots 120 dots

Horizontal back porch 88 dots 64 dots

Frame rate 60.31 Hz 72.18 Hz

Frame time 16.58 ms

(628 lines) 13.85 ms

(666 lines)

Vertical active video 600 lines 600 lines

Vertical blanking 28 lines 66 lines

Vertical front porch 1 line 37 lines

Vertical sync pulse 4 lines 6 lines

Vertical back porch 23 lines 23 lines

CHAPTER 4

Expansion Features 4

Figure 4-0

Listing 4-0

Table 4-0

CHAPTER 4

Expansion Features

40 RAM Expansion

This chapter describes the expansion features of the Macintosh LC 630 and Macintosh

Quadra 630 computers: the RAM expansion slot, the I/O expansion slot, and the DVA

connector on the video input module.

Note

Apple does not support development of third-party

cards for the video input slot. ◆

RAM Expansion 4

The Macintosh LC 630 and Macintosh Quadra 630 computers come with 4 MB or 8 MB of

system RAM on the main logic board. The user can expand the RAM up to a maxi-

mum of 36 MB by plugging in a 72-pin SIMM.

Note

The video display buffer uses separate on-board DRAM.

The display DRAM cannot be expanded. ◆

RAM Conﬁgurations 4

Figure 4-1 shows the RAM conﬁgurations for different amounts of RAM. For more

information, see the section “RAM Addresses” on page 18.

Signals on the RAM SIMM Slot 4

Table 4-1 gives the signal assignments for the pins of the RAM SIMM slot.

IMPORTANT

RAM SIMMs used in Macintosh computers must meet the timing and

electrical standards of those machines. SIMMs designed for other

computers may not work. ▲

CHAPTER 4

Expansion Features

RAM Expansion 41

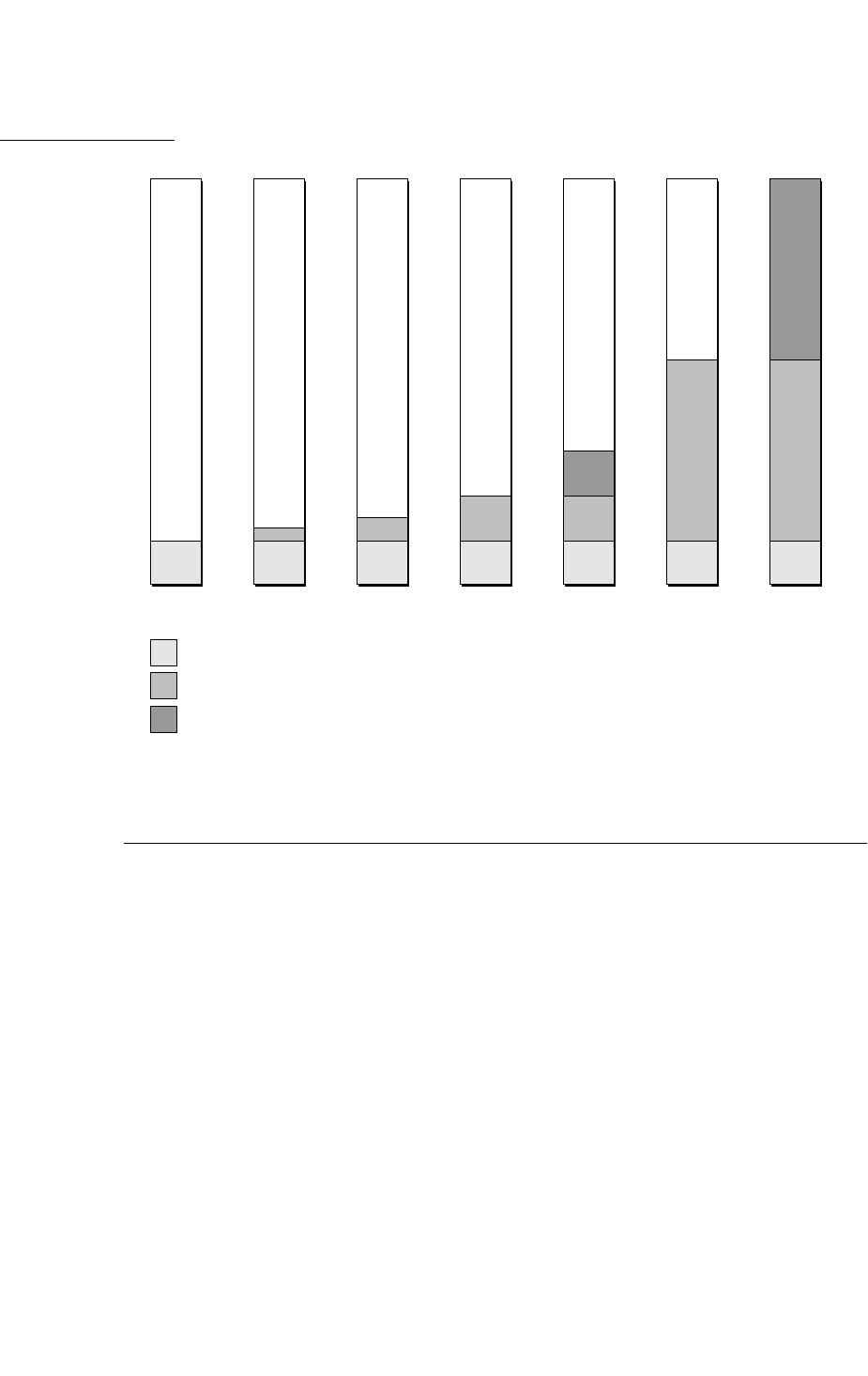

Figure 4-1 RAM conﬁgurations

Table 4-1 Signal assignments on the RAM SIMM slot

Pin Signal name Description

1 GND Ground

2 DQ0 Data input/output bus, bit 0

3 DQ16 Data input/output bus, bit 16

4 DQ1 Data input/output bus, bit 1

5 DQ17 Data input/output bus, bit 17

6 DQ2 Data input/output bus, bit 2

7 DQ18 Data input/output bus, bit 18

8 DQ3 Data input/output bus, bit 3

9 DQ19 Data input/output bus, bit 19

10 +5V +5 volts

continued

4 MB 5 MB 6 MB 8 MB 12 MB 20 MB 36 MB

Bank 1

Bank 2

Bank 3

CHAPTER 4

Expansion Features

42 RAM Expansion

11 n.c. Not connected

12 A0 Address bus, bit 0

13 A1 Address bus, bit 1

14 A2 Address bus, bit 2

15 A3 Address bus, bit 3

16 A4 Address bus, bit 4

17 A5 Address bus, bit 5

18 A6 Address bus, bit 6

19 A10 Address bus, bit 10

20 DQ4 Data input/output bus, bit 4

21 DQ20 Data input/output bus, bit 20

22 DQ5 Data input/output bus, bit 5

23 DQ21 Data input/output bus, bit 21

24 DQ6 Data input/output bus, bit 6

25 DQ22 Data input/output bus, bit 22

26 DQ7 Data input/output bus, bit 7

27 DQ23 Data input/output bus, bit 23

28 A7 Address bus, bit 7

29 A11 Address bus, bit 11

30 +5V +5 volts

31 A8 Address bus, bit 8

32 A9 Address bus, bit 9

33 /RAS3 Row address strobe 3

34 /RAS2 Row address strobe 2

35 — Reserved

36 — Reserved

37 — Reserved

38 — Reserved

39 GND Ground

40 /CAS0 Column address strobe 0

41 /CAS2 Column address strobe 2

continued

Table 4-1 Signal assignments on the RAM SIMM slot (continued)

Pin Signal name Description

CHAPTER 4

Expansion Features

RAM Expansion 43

42 /CAS3 Column address strobe 3

43 /CAS1 Column address strobe 1

44 /RAS0 Row address strobe 0

45 /RAS1 Row address strobe 1

46 n.c. Not connected

47 /W Write enable

48 n.c. Not connected

49 DQ8 Data input/output bus, bit 8

50 DQ24 Data input/output bus, bit 24

51 DQ9 Data input/output bus, bit 9

52 DQ25 Data input/output bus, bit 25

53 DQ10 Data input/output bus, bit 10

54 DQ26 Data input/output bus, bit 26

55 DQ11 Data input/output bus, bit 11

56 DQ27 Data input/output bus, bit 27

57 DQ12 Data input/output bus, bit 12

58 DQ28 Data input/output bus, bit 28

59 +5V +5 volts

60 DQ29 Data input/output bus, bit 29

61 DQ13 Data input/output bus, bit 13

62 DQ30 Data input/output bus, bit 30

63 DQ14 Data input/output bus, bit 14

64 DQ31 Data input/output bus, bit 31

65 DQ15 Data input/output bus, bit 15

66 n.c. Not connected

67 — Reserved

68 — Reserved

69 — Reserved

70 — Reserved

71 n.c. Not connected

72 GND Ground

Table 4-1 Signal assignments on the RAM SIMM slot (continued)

Pin Signal name Description

CHAPTER 4

Expansion Features

44 RAM Expansion

RAM Devices 4

The RAM controller in the F108 IC supports 1 MB, 4 MB, and 16 MB devices; it does not

support 64 MB devices.

A RAM SIMM can support either one or two banks. A one-bank SIMM using 1 Mbit,

4 Mbit, or 16 Mbit devices provides RAM expansion of 1 MB, 4 MB, or 16 MB,

respectively. A two-bank SIMM using the same devices provides 2 MB, 8 MB, or 32 MB.

IMPORTANT

You should not use 1-bit-wide DRAM devices in a RAM SIMM for the

Macintosh LC 630 and Macintosh Quadra 630 computers because the

required number of devices adds excessive capacitive loading to the

address and control buses. ▲

The access time of the DRAM devices must be 80 ns or less. The RAM controller in the

F108 IC performs the refresh function, using CAS before RAS refresh and refreshing the

DRAM devices within 15.6 µs. DRAM devices that require refreshing within 7.8 µs are

not supported.

The RAM controller in the F108 IC supports line burst transfers. The number of cycles for

system RAM accesses are:

■single read 6

■single write 5

■burst read 6-3-3-3

■burst write 5-2-2-2

The RAM controller does not support interleaved accesses.

Addressing RAM 4

Signals A[0–11] make up a 12-bit multiplexed address bus that can support several

different types of DRAM devices.

Depending on their internal design and size, different types of DRAM devices require

different row and column address multiplexing. The F108 custom IC provides for two

addressing modes, selected individually for each bank of DRAM. The system software

initializes the address mode bits as part of the process of determining the amount of

RAM installed in the computer.

CHAPTER 4

Expansion Features

RAM Expansion 45

Table 4-2 shows how the signals are multiplexed during the row and column address

phases for each of the addressing modes.

Table 4-3 shows the address modes used with several types of DRAM devices. The

devices are characterized by their bit dimensions: for example, a 256K by 4-bit device

has 256 addresses and stores 4 bits at a time.

Table 4-2 Address multiplexing for DRAM devices

Individual signals on DRAM_ADDR bus

A[11] A[10] A[9] A[8] A[7] A[6] A[5] A[4] A[3] A[2] A[1] A[0]

Address mode = 1

Row address bits A23 A22 A20 A19 A18 A17 A16 A15 A14 A13 A12 A11

Column address bits A24 A23 A21 A10 A9 A8 A7 A6 A5 A4 A3 A2

Address mode = 0

Row address bits A21 A20 A10 A19 A18 A17 A16 A15 A14 A13 A12 A11

Column address bits A24 A23 A25 A22 A9 A8 A7 A6 A5 A4 A3 A2

Table 4-3 Address modes for various DRAM devices

Device size Device type

Row

bits

Column

bits

Address

mode

1 megabit 1 M by 1 10 10 1

1 megabit 256K by 4 9 9 1

4 megabits 4 M by 1 11 11 1

4 megabits 1 M by 4 10 10 1

4 megabits 512K by 8 10 9 1

4 megabits 256K by 16 10 8 0

16 megabits 16 M by 1 12 12 0

16 megabits 4 M by 4 11 11 1

16 megabits 4 M by 4 12 10 1

16 megabits 2 M by 8 11 10 1

16 megabits 2 M by 8 12 9 0

16 megabits 1 M by 16 12 8 0

CHAPTER 4

Expansion Features

46 RAM Expansion

RAM SIMM Mechanical Speciﬁcations 4

The RAM SIMM for the Macintosh LC 630 and Macintosh Quadra 630 computers is

mechanically the same as the 72-pin RAM SIMMs used in the Macintosh LC III,

Macintosh LC 475, and Macintosh Quadra 605 and 610 computers. The mechanical

design of the 72-pin RAM SIMM is based on the industry standard design deﬁned in the

JEDEC Standard Number 21-C.

Figure 4-2 shows the mechanical speciﬁcations of the RAM SIMM. Pin contacts must be

tin, not gold or copper, and the circuit board must dedicate one layer to power and one to

ground.

CHAPTER 4

Expansion Features

RAM Expansion 47

Figure 4-2 RAM expansion SIMM

R 1.57 ± 0.1

[.062 ± .004]

10.16 ± 0.20

[.400 ± .008]

107.95 ± 0.20

[4.25 ± .008]

101.19 ± 0.20

[3.98 ± .008]

(6.35)

[.250]

6.35 ± 0.20

[.250 ± .008]

32.0 [1.26]

Max

1.27

.050

2X Ø3.18 ± 0.1

[.125 ± .004]

9.4 [.37]

Max

2.54 [.100]

Min

1.27 ± 0.10

[.050 ± .004]

0.25

[.010]

Max

Detail A

Rotated 90°CCW

35 X 1.27 [.050] =

44.45 ± 0.20

[1.75 ± .008]

6.35 ± 0.05

[.250 ± .002] 0.10 [.004] M A B

35 X 1.27 [.050] =

44.45 ± 0.20

[1.75 ± .008]

2.03 ± 0.20

[.080 ± .008]

See detail A

3.38

[.133]

2.03

[.080]

Min

R 1.57 ± 0.12

[.062 ± .005]

0.90 +0.17

- 0.08

+.003

- .003

.035

Device on this

side optional.

Note: Dimensions are in millimeters with inches in brackets.

CHAPTER 4

Expansion Features

48 The I/O Expansion Slot

The I/O Expansion Slot 4

The I/O expansion slot in the Macintosh LC 630 and Macintosh Quadra 630 computers

can accept either of two types of expansion cards: a 96-pin card similar to the PDS card

used in the Macintosh LC II or a 114-pin card similar to the PDS card used in the

Macintosh LC III.

IMPORTANT

The I/O expansion slot in the Macintosh LC 630 and Macintosh

Quadra 630 computers is not a PDS (processor-direct slot) because

it is not connected directly to the main processor. PDS cards designed

to interact with the main processor—to provide, for example, a RAM

cache or an FPU—will not work in the I/O expansion slot. ▲

The I/O Expansion Connector 4

The I/O expansion connector in the Macintosh LC 630 and Macintosh Quadra 630

computers is mechanically the same as the PDS connector in the Macintosh LC III. It is

essentially a 120-pin Euro-DIN connector with six pins removed to make a notch. The

notch divides the connector into two sections: a 96-pin section that accepts the 96-pin

connector used on PDS cards for the Macintosh LC II, and a separate 18-pin section for

additional signals. For more information see the section “Card Connectors” on page 54.

Connector Pin Assignments 4

Table 4-4 gives the pin assignments for the I/O expansion connector. Pins 1 through 32 in

all three rows (A, B, and C) correspond to the 96-pin section of the connector. Pins 33 and

34 in all three rows are missing—those pins correspond to the notch in the connector.

Pins 35 through 40 in all three rows make up the 18-pin section of the connector.

Except for one signal, 16MASTER (on pin B31 and described in Table 4-5 on page 51),

the pin assignments on the 96-pin section of the extended PDS are the same as those

on the PDS in the Macintosh LC II. On the Macintosh LC II, pin B31 is the Apple II

video clock input.

Note

Signal names starting with a slash (/) are active when

their signal lines are driven to a logical zero (0). ◆

IMPORTANT

Under no circumstances should you use the Analog GND pin (Pin 1,

Row B) for a digital ground on your expansion card. Doing so will cause

digital noise to be coupled into the audio system, resulting in degraded

sound quality. ▲

CHAPTER 4

Expansion Features

The I/O Expansion Slot 49

Table 4-4 Pin assignments for the expansion connector

number Row A Row B Row C

1 n. c. Analog GND /FPU.SEL

2 /SLOTIRQ /R/W /DS

3 /PDS.AS +5V /BERR

4 /PDS.DSACK1 +5V /PDS.DSACK0

5 /HALT SIZ1 SIZ0

6 FC2 GND FC1

7 FC0 CLK16M /RESET

8 /RMC GND /BG.SLOT

9 D31 D30 D29

10 D28 D27 D26

11 D25 D24 D23

12 D22 D21 D20

13 D19 D18 D17

14 D16 D15 D14

15 D13 D12 D11

16 D10 D9 D8

17 /BGACK /BR_SLOT A0

18 A1 A31 A27

19 A26 A25 A24

20 A23 A22 A21

21 A20 /IPL2 /IPL1

22 /IPL0 D3 D4

23 D2 D5 D6

24 D1 D0 D7

25 A4 A2 A3

26 A6 A12 A5

27 A11 A13 A7

28 A9 A8 A10

29 A16 A15 A14

30 A18 A17 A19

continued

CHAPTER 4

Expansion Features

50 The I/O Expansion Slot

All the signals on the expansion connector are capable of driving at least one TTL load

(1.6 mA sink, 400 µA source). Most of the signals are connected to other MOS devices on

the main logic board; for those signals, the DC load on the bus signals is small. All the

data lines (D0–D31) are connected to the PrimeTime II custom IC so they have CMOS-

type loads.

Signal Descriptions 4

The I/O expansion slot in the Macintosh LC 630 and Macintosh Quadra 630 computers is

intended to be compatible with expansion cards designed for computers that use the

MC68030 microprocessor (the Macintosh LC III and Macintosh LC 520 computers).

Because the bus protocols of the MC68040 microprocessor are not the same as those of the

MC68030, many of the signals on the I/O expansion slot are not connected directly to the

main processor . Instead, those signals are connected to the PrimeTime II custom IC,

which emulates the MC68030 control and data buses.

The upper 30 address lines (A31–2) are connected directly to the MC68040 microprocessor.

The I/O bus adapter logic in the PrimeTime II IC provides the buffered data bus

(IOD31–0) and the two lowest address lines (A1–0).

Table 4-5 describes the signals on the I/O expansion connector.

31 n. c. 16MASTER FC3

32 +12V GND –5V

33 (pin not present) (pin not present) (pin not present)

34 (pin not present) (pin not present) (pin not present)

35 A28 /BG.SLOT C16M

36 A29 +5V A30

37 /CIOUT /CPU.AS /STERM

38 /CBACK n. c. /CBREQ

39 n. c. /CPU.DSACK0 n. c.

40 n. c. GND /CPU.DSACK1

Table 4-4 Pin assignments for the expansion connector (continued)

number Row A Row B Row C

CHAPTER 4

Expansion Features

The I/O Expansion Slot 51

Table 4-5 Descriptions of the signals on the I/O expansion connector

Signal name Signal description

A0–A31 Address lines.

/BERR Bus error; bidirectional signal indicating that an error occurred

during the current bus cycle; when /HALT is also asserted,

/BERR causes the bus cycle to be retried.

/BGACK Bus grant acknowledge; input signal indicating that a device on the

card has become bus master.

/BG.SLOT Bus grant to the slot; signal that a device on the card can

become bus master following completion of current processor

bus cycle (when /PDS.AS, /BGACK, and all the /DSACK signals

are inactive).

/BR.SLOT Bus request from the slot; input signal indicating that a device on

the card is requesting to become bus master.

/CBACK CPU burst acknowledge; used with /STERM during a burst transfer

to indicate that an individual element of a burst transfer

is ready.

/CBREQ CPU burst request; used to initiate a quadruple longword burst

transfer; tied to a 4.7K pull-up resistor.

/CIOUT Cache inhibit out signal from main processor, indicating that a

second-level cache is allowed to participate in the current bus

transaction; tied to a 300 Ω pull-down resistor.

C16M Same signal as CLK16M.

CLK16M Independent clock running at 15.6672 MHz; provided for

compatibility with Macintosh LC and LC II PDS cards.

/CPU.AS Address strobe; three-state signal indicating that an active bus

transaction is occurring.

/CPU.DSACK0,

/CPU.DSACK1 Data strobe acknowledge signals; asserted by the addressed bus

slave to end a bus transaction; also used to inform the master of the

size of the slave’s data port. These signals are electrically connected

to the corresponding /PDS.DSACK signals.

D0–D31 Data lines.

/DS Data strobe. During a read operation, /DS is asserted when a device

on the card should place data on the data bus; during a write

operation, /DS is asserted when the main processor has put valid

data on the data bus.

FC0–FC2 Function code used to identify address space of current bus cycle;

tied to pull-up and pull-down resistors to indicate supervisor data

space accesses.

FC3 Additional function code bit, used to indicate that the software is

running in 32-bit address mode. (As in the Macintosh LC II, the

software always runs in 32-bit mode.)

continued

CHAPTER 4

Expansion Features

52 The I/O Expansion Slot

/FPU.SEL Select signal for an optional MC68881 or MC68882 FPU; tied

to a 4.7K pull-up resistor; never asserted by the logic board in

a Macintosh LC 475 or Macintosh Quadra 605 computer.

/HALT Used in conjunction with the /BERR signal to terminate a bus cycle

with a retry response; not used to stop processor execution.

/IPL0–IPL2 Interrupt priority-level lines.

/PDS.AS Address strobe; synchronized to 16 MHz regardless of the actual

processor speed; asserted only when a valid slot address is being

generated by the bus master. When the card is the active bus master,

the card may drive either this signal or /CPU.AS, but

not both.

/PDS.DSACK0,

/PDS.DSACK1 Data strobe acknowledge signals; asserted by the addressed bus

slave to end a bus transaction; also used to inform the master of the

size of the slave’s data port. These signals are electrically connected

to the corresponding /CPU.DSACK signals.

/RESET Bidirectional signal that initiates system reset.

/RMC Three-state output signal that identiﬁes the current bus cycle as part

of an indivisible bus cycle such as a read-modify-write operation.

/R/W Read/write; three-state output signal that deﬁnes the direction of

the bus transfer with respect to the current bus master; logical one

(1) indicates a bus-master read, zero (0) indicates bus-master write.

16MASTER Indicates the width of the data port when the card is alternate

bus master. A logical one (1) indicates a 16-bit port; logical zero (0)

indicates a 32-bit port. The signal is pulled high on the main

logic board.

SIZ0–SIZ1 Three-state output signals that work in conjunction with the

PrimeTime II IC’s dynamic bus sizing capabilities and indicate

the number of bytes remaining to be transferred during the

current bus cycle.

/SLOTIRQ Interrupt request line from the card; reported to the system by way

of the SLOT.E request; when low, generates a level-2 interrupt if the

slot interrupt enable bit is set.

/STERM Indicates termination of a synchronous transfer by a card using the

MC68030 synchronous cycle.

Table 4-5 Descriptions of the signals on the I/O expansion connector (continued)

Signal name Signal description

CHAPTER 4

Expansion Features

The I/O Expansion Slot 53

The /BG.SLOT signal appears on two pins; there is no separate CPU.BG signal. The

following signals on the expansion slot are permanently connected:

■/PDS.DSACK0 is connected to /CPU.DSACK0

■/PDS.DSACK1 is connected to /CPU.DSACK1

Unlike those signals, the /PDS.AS signal and the /CPU.AS signal are not connected

together. The /PDS.AS signal is used only for addresses in the slot $E address range; the

/CPU.AS signal is used for addresses in expansion slot and Super Slot spaces $6–$8,

$A–$D, and $F (the slot $9 address spaces are used for built-in video circuitry).

IMPORTANT

The I/O expansion slot does not support MC68040 bus transfers.

The expansion slot does not support a processor operating at a

clock frequency other than 16 MHz. ▲

Bus Master on a Card 4

The I/O expansion slot will support a card with an MC68020 or MC68030 bus master.

The PrimeTime II custom IC controls bus arbitration between the card’s bus master and

the MC68040 microprocessor so that either bus master will eventually obtain the bus. The

MC68020 or MC68030 will obtain the I/O data bus and the address bus. The MC68040

will obtain the processor data bus and the address bus. Because there is only one address

bus, there can be only one bus master at a time.

Asynchronous transfers are the preferred method for data transfers to and from an

I/O expansion card. When an I/O expansion card contains an active bus master, the

PrimeTime II IC terminates successful data transfers using the DSACK signals. A

slave on the expansion card can also terminate a transfer using DSACK signals.

The PrimeTime II IC can never be a synchronous slave on the I/O bus, so PrimeTime II

cannot terminate data tansfers as a slave using /STERM. On the other hand, a bus slave

on an expansion card can terminate a 32-bit wide synchronous transfer using /STERM.

PrimeTime II supports /STERM terminations as a master on the I/O bus, and all

transfers from PrimeTime II to the expansion slot are based on the 16 MHz clock.

Incompatibility With Older Cards 4

While the I/O expansion slot will accept PDS cards designed for the Macintosh LC II and

LC III, some of those cards do not work. Cards that are incompatible with the expansion

slot include

■cards designed to work as coprocessors with an MC68020 or an MC68030 or as

replacements for those microprocessors. Such cards include accelerators, 68882 FPU

cards, and cache cards. That type of card won’t work because the microprocessor is

different and because the slot signals are not connected directly to the microprocessor.

■cards with drivers that include incompatible code. Some drivers that do not follow

Apple Computer’s programming guidelines won’t work on machines that use the

CHAPTER 4

Expansion Features

54 The I/O Expansion Slot

MC68040 microprocessor. For example, some of those drivers write directly to the

cache control register in an MC68030. Such code won’t work on an MC68040.

■cards with drivers that include code to check the gestaltMachineType value and

refuse to run on a newer CPU. The idea is to protect users by refusing to run on a

machine that the cards haven’t been tested on. Such cards have compatibility problems

with all new Macintosh models.

Designing an I/O Expansion Card 4

The I/O expansion card for the Macintosh LC 630 and Macintosh Quadra 630 computers

is approximately 3 inches wide by 5 inches long. It ﬁts parallel to the main logic board

and reaches to an opening in the back of the case (normally ﬁlled by a snap-out cover).

The opening provides access to a 15-pin D-type connector on the card for external I/O.

For mechanical speciﬁcations of the I/O expansion card, see Appendix A.

The appendix “Foldout Drawings” contains drawings showing the recommended

mechanical design guidelines for the expansion card. Foldout 1 shows the maximum

dimensions of the expansion card and the location of the expansion connector. Foldout 2

provides component height restrictions for the expansion card. Foldout 3 shows how the

card is installed on the main logic board.

Note

The I/O expansion card is the same size and shape as the

PDS card for the Macintosh LC III computer. ◆

Card Connectors 4

The custom 114-pin PDS connector on the computer’s main logic board accepts either a

96-pin or 120-pin standard Euro-DIN connector. You can order connectors meeting Apple

speciﬁcations from Amp Incorporated, Harrisburg, PA 17105 or from Augat

Incorporated, Interconnect Products Division, P. O. Box 779, Attleboro, MA 02703. Refer

to Designing Cards and Drivers for the Macintosh Family, third edition, for more information

about those connectors.

Power for the Card 4

The maximum current available at each supply voltage is shown in Table 4-6. The card

must not dissipate more than 4 W total; for example, if the card uses the maximum

current at –5 V and +12 V, it must not use more than 300 mA from the +5 V supply.

▲

WARNING

Cards dissipating more than 4 watts may overheat and damage the

computer’s circuitry or cause it to become inoperable. ▲

Card Address Space 4

The address space for the I/O expansion card appears in physical address spaces

$E000 0000–$EFFF FFFF and $FE00 0000–$FEFF FFFF. To match the conventions used by

CHAPTER 4

Expansion Features

The I/O Expansion Slot 55

the Slot Manager, software should address the card as if it were in slot space $E: either

the 16 MB slot space $FE00 0000–$FEFF FFFF or the super slot space

$E000 0000–$EFFF FFFF.

Card Select Signal 4

The I/O expansion card must generate its own select signal from the address and

function code signals on the connector. The card select signal must be disabled when FC0,

FC1, and FC2 are all active; that condition corresponds to a function code of 111 (CPU

space). Figure 4-3 shows a typical logic circuit for generating the card select signal.

IMPORTANT

To ensure compatibility with future hardware and software, you should

minimize the chance of address conﬂicts by decoding all the address bits.

To ensure that the Slot Manager recognizes your card, the card’s

declaration ROM must reside at the upper address limit of the 16 MB

address space ($FE00 0000–$FEFF FFFF). ▲

Figure 4-3 Generating the card select signal

Table 4-6 Power available for the expansion card

Voltage Current

+5 800 mA

–5 20 mA

+12 200 mA

A31

FC0

FC1

FC2

FC3

A23

A22

A21

A20

Card

select

32-bit mode

select

24-bit mode

select

Disable selection

on interrupt

acknowledge

cycles

CHAPTER 4

Expansion Features

56 The DVA Connector

The DVA Connector 4

The video input module has a separate connector called the DVA (digital video applica-

tion) connector. The DVA connector provides access to the video input modules’s 4:2:2

unscaled YUV video input data bus and associated control signals. By means of a cable to

the DVA connector, an I/O expansion card can gain access to the digital video bus

on the video input card and use it to transfer real-time video data to the computer.

Such an I/O expansion card could contain a hardware video compressor or other

video processor.

The DVA connector is a 34-pin ﬂat ribbon connector located at the top edge of the video

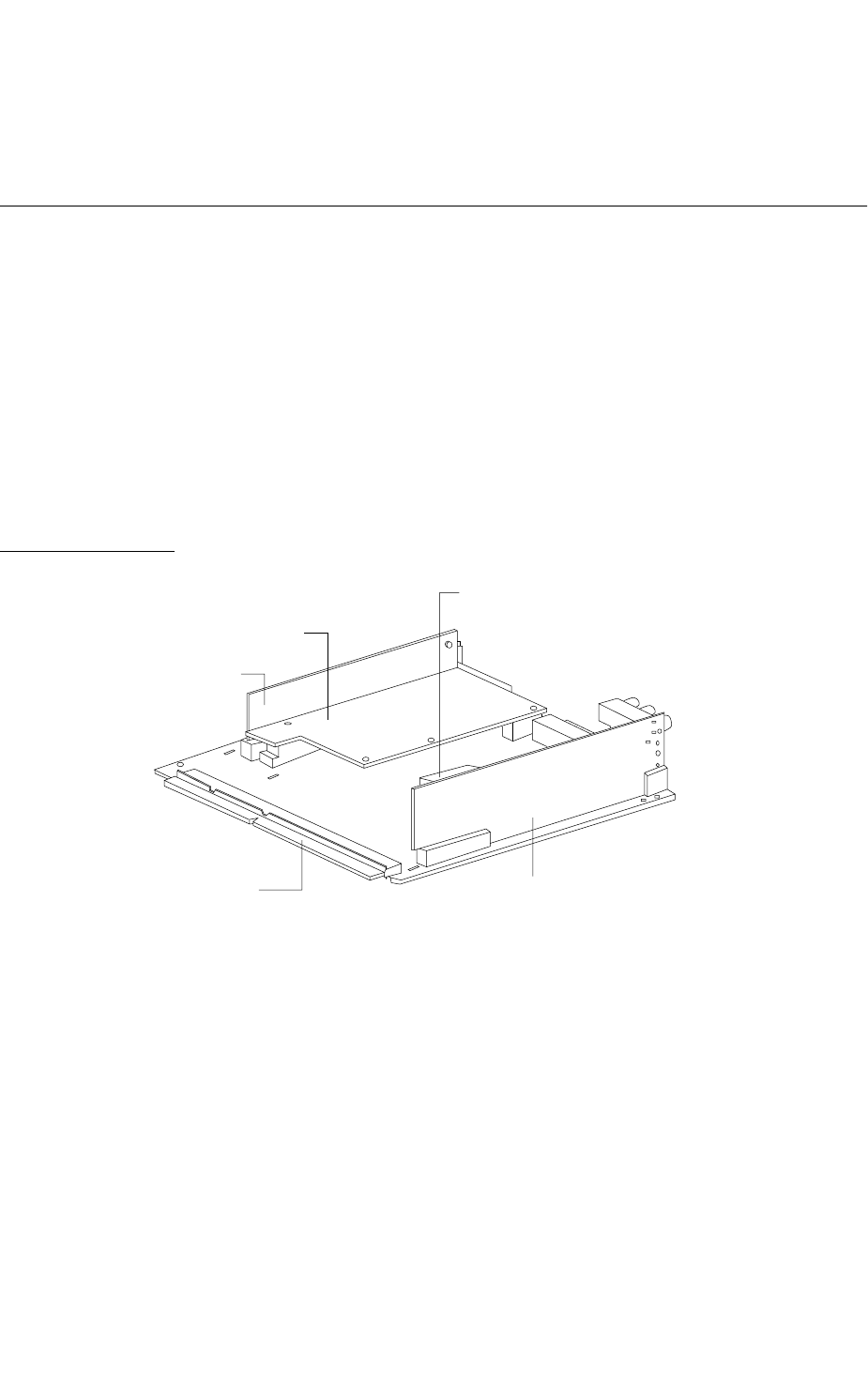

input module. Figure 4-4 is a view of the main logic board showing the I/O expansion

card and the location of the DVA connector on the video input module.

Figure 4-4 Location of the DVA connector

Figure 4-5 shows the orientation of the DVA connector on the video input module.

Communications

module

I/O expansion card

Internal chassis

DVA connector on

video input module

Video input module

CHAPTER 4

Expansion Features

The DVA Connector 57

Figure 4-5 Orientation of the DVA connector

The DVA connector accepts YUV video and analog sound from the expansion card but

does not itself generate YUV video output or audio output signals.

IMPORTANT

The DVA connector on the video input module in the Show provides

some of the functionality of the DAV connectors found on the Power

Macintosh models and the Macintosh Quadra AV models, but it is not

compatible with either of those connectors. Refer to Macintosh DAV

Interface for NuBus Expansion Cards in Developer Note Number 8 for

more information. ▲

Pin Assignments 4

Table 4-7 shows the pin assignments on the DVA connector.

Table 4-7 Pin assignments on the DVA connector

number Signal name

1 Y(7) 2 Y(6)

3 Y(5) 4 Y(4)

5 Y(3) 6 Y(2)

7 Y(1) 8 Y(0)

9 UV(7) 10 UV(6)

11 UV(5) 12 UV(4)

13 UV(3) 14 UV(2)

15 UV(1) 16 UV(0)

17 Ground 18 LLCB

Pin 1 DVA connector

CHAPTER 4

Expansion Features

58 The DVA Connector

Signal Descriptions 4

Table 4-5 gives descriptions of the signals on the DVA connector.

Using the YUV Bus 4

The video input module contains a digital video decoder and scaler (DESC) , the Philips

SAA7196 IC. Logic on the video input card uses the CVBS port on the DESC and pulls the

DIR signal low, disabling the YUV bus. For an expansion card to use the YUV bus, the

software associated with the card must set the DIR signal high so that the DESC will

accept data on the YUV bus. To do that, the software can use the Cuda Dispatch Manager

to issue an IIC command to write to register $E of the DESC. For information about using

the registers in the DESC IC, please refer to the SAA7194/6 Philips Desktop Video Handbook.

19 Ground 20 CREFB

21 Ground 22 VS

23 Ground 24 HS

25 Ground 26 HREF

27 Ground 28 DIR

29 Reserved 30 Reserved

31 Ground 32 YUV_SND_LEFT

33 YUV_RET 34 YUV_SND_RIGHT

Table 4-8 Descriptions of the signals on the DVA connector

Signal name Signal description

CREFB Clock reference signal

DIR YUV directional signal

HREF Horizontal reference signal

HS Horizontal sync signal

LLCB Line-locked clock signal

UV(0–7) Digital chrominance data bus

VS Vertical sync signal

Y(0–7) Digital luminance data bus

Table 4-7 Pin assignments on the DVA connector

number Signal name

CHAPTER 4

Expansion Features

The DVA Connector 59

Video Data Format 4

Digital video data is transmitted as lines and ﬁelds. Each line consists of an even number

of samples on the Y and UV buses as shown in Figure 4-6. HREF is high during a video

line and low during the horizontal blanking interval. The falling edge of the VS signal

indicates the beginning of a video ﬁeld. For more information about digital video data in

YUV format, see Macintosh DAV Interface for NuBus Expansion Cards in Developer Note

Number 8.

Figure 4-6 Video data timing

Y 0

LLCLK

vdcCREFB

HREF

Y 7–0

UV 7–0

Start of a video line

Y1 Y2 Y3 Y4 Y5

U 0 V0 U2 V2 U4 V4

Y and UV data valid on the rising edge of LLCLK

when HREF and CREFB are high

Yn-5

LLCLK

vdcCREFB

HREF

Y 7–0

UV 7–0

End of a video line

Yn-4 Yn-3 Yn-2 Yn-1 Yn

Un-5 Vn-4 Un-3 Vn-2 Un-1 Vn-1

CHAPTER 5

Software Features 5

Figure 5-0

Listing 5-0

Table 5-0

CHAPTER 5

Software Features

62 ROM Software

The ﬁrst part of this chapter describes the software in the ROM of the Macintosh LC 630

and Macintosh Quadra 630 computers. The second part describes the system software

that supports the new features of those computers.

For a description of the system software for the internal IDE hard disk, see Chapter 6,

“Software for the IDE Hard Disk.”

ROM Software 5

The ROM in the Macintosh LC 630 and Macintosh Quadra 630 computers is based on the

ROM for the Macintosh Quadra 610 and 650 models with the necessary changes to

support machine-speciﬁc hardware.

The sections that follow describe the following changes in the ROM:

■machine identiﬁcation

■new memory map

■new video controller

■push button interrupts

■ADB and soft power switch

■power saver

Machine Identiﬁcation 5

The ROM includes new tables and code for identifying the machine.

Applications can ﬁnd out which computer they are running on by using the Gestalt

Manager routines; see Inside Macintosh: Overview. The gestaltMachineType value

is 98 (hexadecimal $62).

New Memory Map 5

The ROM code has been modiﬁed to support the memory addressing used by the

Macintosh LC 630 and Macintosh Quadra 630 computers. ROM code determines the size

of RAM and sets up the MMU to make the RAM addresses contiguous. The ROM

includes descriptions of the memory space needed for setting up the MMU.

The ROM code also creates the physical-space tables the computer needs in order to run

virtual memory. The computer uses the 32-bit Memory Manager and runs in 32-bit mode.

CHAPTER 5

Software Features

ROM Software 63

New Video Controller 5

The video frame buffer controller in the Valkyrie custom IC is similar to the DAFB IC

used in the Macintosh Quadra models. The video driver code has been changed to

accommodate the differences between the Valkyrie IC and the previous IC and to support

a new video clock generator IC.

The video driver supports the video displays shown in Table 5-1.

Push Button Interrupts 5

The ROM includes routines for initializing the push button interrupt bits in the interrupt

enable and ﬂag registers and for initializing other new registers that support the

push buttons.

Pushing one of the two push buttons on the front of the case causes the computer to set a

bit in the push button register, which in turn causes a level-2 interrupt. The interrupt

handler disables the push button interrupt until the button that caused the interrupt

is released.

ADB and Soft Power Switch 5

The Cuda IC provides the ADB interface and the parameter RAM. The ROM code to

support the Cuda IC was originally developed for the Macintosh LC 520 computer.

The Cuda IC has a command and a signal line to support an LED on the front panel. That

LED is used to indicate that the power is on.

To reduce system overhead for reading the parameter RAM, the Cuda IC uses a

write-through cache. To maintain data integrity, data is written to both the cache and the

Cuda. The memory for the cache is located in the global storage for the Cuda Manager.

The ROM software provides the soft power-down capability, shutting down the

computer when the user presses one of the Power keys or selects Shut Down in the

Special menu of the Finder.

Table 5-1 Maximum pixel depths for video monitors

Monitor type

Display size,

in pixels

Pixel depths, in

bits per pixel

12-inch color 512 by 384 1, 2, 4, 8, 16

14-inch color 640 by 480 1, 2, 4, 8, 16

15-inch multiscan 800 by 600 1, 2, 4, 8

VGA 640 by 480 1, 2, 4, 8

SVGA 800 by 600 1, 2, 4, 8

CHAPTER 5

Software Features

64 System Software

Power Saver 5

The ROM software includes a screen control driver that reduces power consumption by

disabling the video clocks to the monitor whenever the computer is unused for a period

of time selected by the user. In addition to turning off the video clocks, the driver also

shuts down the internal hard disk drive. When the user moves the mouse or presses a

key, the driver turns the video clocks back on and spins up the hard disk drive.

During the time period while the video monitor is warming up, the driver periodically

sends a tone to the loudspeaker to let the user know that something is happening.

System Software 5

The Macintosh LC 630 and Macintosh Quadra 630 computers require System 7.1.2 or

a later version of system software. The disk labeled “Install Me First” includes a system

enabler ﬁle that contains the resources the system needs to start up and initialize

the computer.

The system disk includes an installer application to install the control panels for the new

features of the machine.

The system software includes the following new features:

■a system enabler for these machines

■a bootable CD-ROM

■Power Saver control panel

■video input digitizing component

The system disk also includes the application that controls the optional TV tuner: Apple

Video Player.

System Enabler 5

Starting with the international release of System 7.1, each reference release of the

Macintosh system software supports a new startup extension, the system enabler. A

system enabler is a software resource that is able to perform the correct startup process

for one or more Macintosh computers.

As soon as the system software on disk takes over the startup process, it searches for all

system enablers that can start up the particular machine. Each system enabler contains a

resource that speciﬁes which computers it is able to start up and the time and date of its

creation. If the system software ﬁnds more than one enabler for the particular computer,

it passes control to the one with the most recent time and date.

In general, the system enabler included in each reference release of system software

is able to start up all previous computers. The enablers for computers introduced

after a reference release may be independent or may use resources from the previous

reference release.

CHAPTER 5

Software Features

System Software 65

Booting From a CD-ROM 5

The Macintosh LC 630 and Macintosh Quadra 630 computers can start up (boot) from a

built-in CD-ROM drive. Starting up in this fashion is not recommended, because the

system software was not designed to operate from a locked storage device—one that the

software can’t write to. The system software that Apple Computer uses on the system

CD-ROM includes only one control panel ﬁle—for setting the startup disk—along with

installer software to install the system onto a hard disk. Developers may wish to use a

similar arrangement to distribute bulky software.

Power Saver Control Panel 5

The Macintosh LC 630 and Macintosh Quadra 630 computers have a Power Saver control

panel with a slider to set the idle time for the Power Saver. The user can adjust the slider

by dragging with the mouse. Figure 5-1 shows the Power Saver control panel.

Figure 5-1 Power Saver control panel

Video Input Digitizing Component 5

The Macintosh LC 630 and Macintosh Quadra 630 computers include a QuickTime

component to support digitization of video from the video input module. For

information about the use of digitizer components, refer to Inside Macintosh:

QuickTime Components.

CHAPTER 6

Software for the

IDE Hard Disk 6

Figure 6-0

Listing 6-0

Table 6-0

CHAPTER 6

Software for the IDE Hard Disk

68 Introduction to IDE Software

This chapter describes the system software that controls an IDE hard disk drive installed

in a Macintosh computer. To use the information in this chapter, you should already be

familiar with writing programs for the Macintosh computer that call device drivers to

manipulate devices directly. You should also be familiar with the ATA IDE speciﬁcation,

ANSI proposal X3T9.2/90-143, Revision 3.1.

Introduction to IDE Software 6

Support for IDE (integrated drive electronics) hard disk drives is incorporated in the

ROM software. System software for controlling IDE hard drives is included in a new IDE

hard disk drive device driver and the ATA Manager. The relationship of the IDE hard

disk drive device driver and the ATA Manager to the Macintosh system architecture is

shown in Figure 6-1.

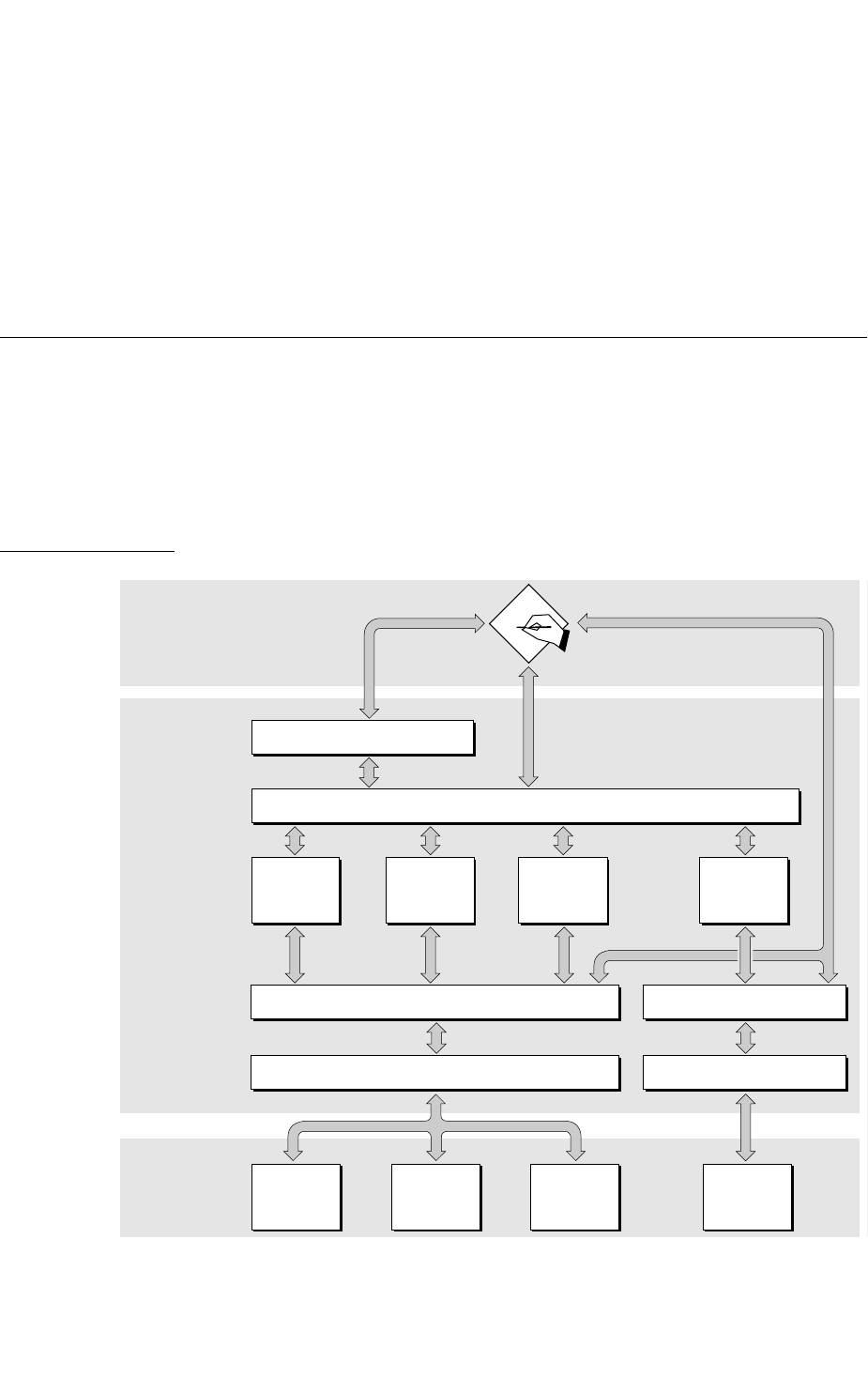

Figure 6-1 Relationship of the ATA Manager to the Macintosh system architecture

CD-ROM

driver

SCSI

hard disk

driver

File Manager

Device Manager

ATA/IDE

hard disk

driver

CD-ROM

SCSI

hard disk Other SCSI

devices

SCSI interface

Peripheral

devices

System

software

Application

SCSI Manager

ATA interface

ATA Manager

ATA/IDE

hard disk

Other SCSI

device

drivers

CHAPTER 6

Software for the IDE Hard Disk

Introduction to IDE Software 69

At the system level, the IDE device driver and ATA Manager work in the same way that

the SCSI Manager and associated SCSI device drivers work. The IDE hard disk device

driver provides drive partition, data management, and error-handling services for the

operating system as well as support for determining device capacity and controlling

device-speciﬁc features. The ATA Manager provides an interface to the IDE hard disk

drive for the IDE device driver.

IDE hard disk drives appear on the desktop the same way SCSI hard disk drives

currently do. Except for applications that perform low-level services, such as formatting

and partitioning utilities, applications interact with the IDE hard disk drives in a device-

independent manner through the File Manager or Printing Manager.

The IDE software for the Macintosh LC 630 and Macintosh Quadra 630 computers

supports only synchronous data transfers.

IDE Hard Disk Device Driver 6

The IDE hard disk device driver for the Macintosh LC 630 and Macintosh Quadra 630

computers provides operating system-dependent services through a set of driver

function calls required to interface with the Macintosh operating system. In addition, it

provides additional control and status calls that are speciﬁc to the IDE hard disk driver

driver implementation. The required driver calls, as speciﬁed in Inside Macintosh: Devices,

are open, close, prime, control, and status.

In addition to the required function calls, the IDE hard disk device driver provides

support for device-speciﬁc features. IDE hard disk device driver control and status calls

are deﬁned in “IDE Hard Disk Driver Reference” beginning on page 70.

At system startup time, if a RAM-based driver is not found on the IDE drive media, the

IDE device driver in the ROM is installed as one of the device drivers. Note that this is

different from the driver loading sequence for SCSI hard drive devices, which are RAM

based drivers that are always loaded from the device media.

The IDE hard disk device driver has a driver reference number of –54 (decimal) and a

driver name of .ATDrvr. Like all Macintosh device drivers, the IDE hard disk device

driver can be called by using either the refNum –54 or the driver name .ATDrvr.

The IDE hard disk device driver does not provide request queuing. All driver requests

are either completed immediately or are passed to the ATA Manager for further

processing. For further information about the control calls for the IDE hard disk device

driver, see “IDE Hard Disk Driver Reference.”

ATA Manager 6

The Macintosh ATA Manager schedules I/O requests from the IDE hard disk device

driver, the operating system, and from applications. It is also responsible for managing

the hardware interface to the IDE controller electronics.

When making calls to the ATA Manager you have to pass and retrieve parameter

information through a parameter block. The size and contents of the parameter block

CHAPTER 6

Software for the IDE Hard Disk

70 IDE Hard Disk Driver Reference

depends on the call being made. However, all calls to the ATA Manager have a common

parameter block header structure. The structure of the ataPBHdr parameter block is

common to all ATA parameter block data types. Several additional ATA parameter block

data types have been deﬁned for the various function calls to the ATA Manager. The

additional parameter block data types, which are speciﬁc to the function call being made,

are described in “ATA Manager Reference” beginning on page 81.

IDE Hard Disk Driver Reference 6

This section describes the Macintosh device driver services provided by the IDE hard

disk device driver. The information in this section assumes that you are already familiar

with how to use device driver services on the Macintosh computer. If you are not familiar

with Macintosh device drivers, refer to the chapter “Device Manager” in Inside Macintosh:

Devices for additional information.

High-Level Device Manager Routines 6

The IDE hard disk driver supports the required set of high-level Device Manager

routines, as deﬁned in the chapter “Device Manager” of Inside Macintosh: Devices. Those

routines are brieﬂy deﬁned here for convenience. Additional control functions supported

in the IDE hard disk driver are deﬁned in “IDE Hard Disk Driver Control Calls”

beginning on page 73.

open 6

The open routine opens the IDE hard disk device driver during the boot sequence after

the driver code is retrieved from the ROM. The open routine returns a reference number

to the driver; that number is used in subsequent calls to the driver.

The following operations take place at boot time:

■memory allocation and driver globals and internal variables initialization

■power-on drive diagnostics

■device detection and veriﬁcation

■device initialization

■device information uploading

■drive queue management and event posting

After booting, the driver responds with noErr to subsequent calls to the open routine,

and does not repeat the operations performed at boot time.

CHAPTER 6

Software for the IDE Hard Disk

IDE Hard Disk Driver Reference 71

RESULT CODES

close 6

The close routine deallocates the driver memory storage, removes the drive queue

entry point, and closes the IDE hard disk device driver.

RESULT CODES

prime 6

The prime routine performs either a read or write command as speciﬁed by the caller.

During this process the following operations take place:

■byte to block translation

■address translation

■update of the IOParameter block

■high-level error recovery and retry algorithm

■ATA Manager parameter block management

Refer to “ATA Manager” on page 69 for more information about the parameter block

structure for the ATA Manager.

RESULT CODES

status 6

The status routine returns status information about the IDE hard disk device driver.

The type of information returned is speciﬁed in the csCode ﬁeld and the information

itself is pointed to by the csParamPtr ﬁeld.

noErr 0 Successful completion, no error occurred

openErr –23 Could not open the driver

DRVRCantAllocate –1793 Global memory allocation error

ATABufFail –1796 Device buffer test failed

noErr 0 Successful completion, no error occurred

ioErr –36 I/O error

paramErr –50 Invalid parameter speciﬁed

nsDrvErr –56 No such drive installed

CHAPTER 6

Software for the IDE Hard Disk

72 IDE Hard Disk Driver Reference

The IDE hard disk device driver implements the same status calls supported by the SCSI

hard disk device driver. The status calls supported by the IDE hard disk driver are shown

in Table 6-1.

RESULT CODES

control 6

The control routine sends control information to the IDE hard disk device driver. The

type of control call is speciﬁed in csCode.

The IDE driver implements the same control calls supported by the SCSI hard disk

driver. The control calls are listed below and described in “IDE Hard Disk Driver Control

Calls” beginning on page 73.

Table 6-1 Status calls supported by the IDE hard disk driver

Value of

csCode Deﬁnition

8 Return drive status information

43 Return driver Gestalt information

70 Power mode status information

noErr 0 Successful completion, no error occurred

statusErr –18 Unimplemented status call; could not complete

requested operation

nsDrvErr –56 No such drive installed

Value of

csCode Deﬁnition

1 Kill I/O

5 Verify media

6 Format media

7 Eject media

21 Return drive icon

22 Return media icon

23 Return drive characteristics

65 Need time code

70 Power-mode status management control

CHAPTER 6

Software for the IDE Hard Disk

IDE Hard Disk Driver Reference 73

RESULT CODES

IDE Hard Disk Driver Control Calls 6

The IDE hard disk driver supports a standard set of control calls for accessing IDE hard

disk drive devices. The IDE hard disk driver also supports control calls for power

management.

Standard Control Calls 6

This section describes the standard control calls deﬁned within the IDE hard disk

device driver.

killIO 6

The killIO function returns a noErr result if the logical drive number is valid,

however, it performs no other operation on an IDE hard disk drive.

IMPORTANT

This function is not supported on the Macintosh LC 630 and

Macintosh Quadra 630 computers. A call to KillIO returns

a controlErr status. ▲

INPUT PARAMETERS

OUTPUT PARAMETERS

RESULT CODES

noErr 0 Successful completion, no error occurred

controlErr –17 Unimplemented control call; could not complete

requested operation

nsDrvErr –56 No such drive installed

csCode A value of 1

ioVRefNum The logical drive number

csParam[] None deﬁned

ioResult See result codes

controlErr The control call is not supported

CHAPTER 6

Software for the IDE Hard Disk

74 IDE Hard Disk Driver Reference

verify 6

The verify function requests a read veriﬁcation of the data on the IDE hard drive

media. This function performs no operation.

INPUT PARAMETERS

OUTPUT PARMETERS

RESULT CODES

format 6

The format function initializes the hard drive for use by the operating system. Because

IDE hard drives are low-level formatted at the factory, this function does not perform any

operation. The driver always returns noErr if the logical drive number is valid.

INPUT PARAMETERS

OUTPUT PARAMETERS

RESULT CODES

csCode A value of 5

ioVRefNum The logical drive number

csParam[] None deﬁned

ioResult See result codes

noErr 0 Successful completion, no error occurred

nsDrvErr –56 The speciﬁed logical drive number does not exist

csCode A value of 6

ioVRefNum The logical drive number

csParam[] None deﬁned

ioResult See result codes

noErr 0 Successful completion, no error occurred

nsDrvErr –56 The speciﬁed logical drive number does not exist

CHAPTER 6

Software for the IDE Hard Disk

IDE Hard Disk Driver Reference 75

ejectMedia 6

The ejectMedia function prepares and initiates an eject operation from the speciﬁed

drive. This function applies only to drives with removable media.

Note

The ejectMedia function is not supported in the Macintosh LC 630 and

Macintosh Quadra 630 computers; this function returns a noErr if the

logical drive number is valid. ◆

INPUT PARAMETERS

OUTPUT PARAMETERS

RESULT CODES

return drive icon 6

The return drive icon function returns a pointer to the device icon and the device

name string. The drive icon is the same as the media icon for IDE hard disk drives. The

drive icon for IDE hard disk devices is shown in Figure 6-2.

Figure 6-2 IDE hard disk drive icon

INPUT PARAMETERS

csCode A value of 7

ioVRefNum The logical drive number

csParam[] None deﬁned

ioResult See result codes

noErr 0 Successful completion, no error occurred

nsDrvErr –56 The speciﬁed logical drive number does not exist

csCode A value of 21

ioVRefNum The logical drive number

csParam[] None deﬁned

CHAPTER 6

Software for the IDE Hard Disk

76 IDE Hard Disk Driver Reference

OUTPUT PARAMETERS

RESULT CODES

return media icon 6

The return media icon function returns a pointer to the media icon and the name

string. The media icon is the same as the drive icon for IDE hard disk drives. The media

icon for IDE hard disk devices is shown in Figure 6-2.

INPUT PARAMETERS

OUTPUT PARAMETERS

RESULT CODES

Return Drive Characteristics 6

The return drive characteristics function returns information about the

characteristics of the speciﬁed drive as deﬁned in Inside Macintosh, Volume V.

csParam[0–1] Address of drive icon and name string (information is

in ICN# format)

ioResult See result codes

noErr 0 Successful completion, no error occurred

nsDrvErr –56 The speciﬁed logical drive number does not exist

csCode A value of 22

ioVRefNum The logical drive number

csParam[] None deﬁned

csParam[0–1] Address of media icon and name string (information is

in ICN# format)

ioResult See result codes

noErr 0 Successful completion, no error occurred

nsDrvErr –56 The speciﬁed logical drive number does not exist

CHAPTER 6

Software for the IDE Hard Disk

IDE Hard Disk Driver Reference 77

INPUT PARAMETERS

OUTPUT PARAMETERS

RESULT CODES

needTime code 6

The needTime code function provides time for the driver to perform periodic opera-

tions such as checking for media insertion or ejection events related to removable

cartridge drives. For additional information about how this function is used, see the

description of the driver ﬂag dNeedTime in the chapter “Device Manager” of Inside

Macintosh: Devices. This function performs no operation on the IDE hard disk drive in a

Macintosh LC 630 or Macintosh Quadra 630 computer.

INPUT PARAMETERS

OUTPUT PARAMETERS

RESULT CODES

csCode A value of 23

ioVRefNum The logical drive number

csParam[] None deﬁned

csParam[0–1] Drive information

$0601 = primary, ﬁxed, SCSI, internal

$0201 = primary, removable, SCSI, internal

ioResult See result codes

noErr 0 Successful completion, no error occurred

nsDrvErr –56 The speciﬁed logical drive number does not exist

csCode A value of 65

csParam[] None deﬁned

ioResult See result codes

noErr 0 Successful completion, no error occurred

nsDrvErr –56 The speciﬁed logical drive number does not exist

CHAPTER 6

Software for the IDE Hard Disk

78 IDE Hard Disk Driver Reference

Power Management Control Calls 6

Power management functions can be used to reduce drive power consumption and

decrease system noise levels by putting the hard drive into a standby state.

Note

Power management control calls are most useful on PowerBook

computers, where they can be used to reduce drive power

consumption and thereby extend useful battery life. ◆

Power Management 6

The power management function provides three modes of operation for IDE hard disk

drives: idle, standby, and sleep.

In the idle state, the non-essential electronics on the IDE hard drive are disabled. For

example, the read and write channels are disabled during the idle state. The spindle

motor remains enabled during the idle state, so the drive still responds immediately to

any commands requesting media access.

In the standby state, the head is parked and the spindle motor is disabled. The drive

interface remains active and is still capable of responding to commands. However, it can

take several seconds to respond to media access commands, because the drive’s spindle

motor must return to full speed before a media access can take place.

In the sleep state, the drive interface and spindle motor are disabled. To return the drive

to full operation after the sleep state has been enabled, the user must restart or reset

the computer.

INPUT PARAMETERS

OUTPUT PARAMETERS

csCode A value of 70

ioVRefNum The logical drive number

csParam[0] The most signiﬁcant byte contains one of the following codes:

0 = enable the active mode

1 = enable the standby mode

2 = enable the idle mode

3 = enable the sleep mode

ioResult See result codes

CHAPTER 6

Software for the IDE Hard Disk

IDE Hard Disk Driver Reference 79

RESULT CODES

IDE Hard Disk Driver Status Calls 6

This section describes three functions for retrieving status and error information from the

IDE hard disk device driver.

drive status info 6

The IDE hard disk device driver provides a drive status function for retrieving status

information from the drive. The drive status info function returns the same type of

information that disk drivers are required to return for the DriveStatus function,

as described in the chapter “Device Manager” in Inside Macintosh: Devices.

INPUT PARAMETERS

OUTPUT PARAMETERS

RESULT CODES

return driver gestalt 6

The return driver gestalt function provides the application information about the

IDE hard disk driver and the attached device. Several calls are supported under the

function. A Gestalt selector is used to specify a particular call.

noErr 0 Successful completion, no error occurred

controlErr –17 The power management information couldn’t be

returned due to a manager error

nsDrvErr –56 The speciﬁed logical drive number does not exist

csCode A value of 8

ioVRefNum The logical drive number

csParam[] None deﬁned

csParam[] The csParam ﬁeld contains status information about the

internal IDE disk drive

ioResult See result codes

noErr 0 Successful completion, no error occurred

nsDrvErr –56 The speciﬁed logical drive number does not exist

CHAPTER 6

Software for the IDE Hard Disk

80 IDE Hard Disk Driver Reference

The DriverGestaltParam data type deﬁnes the IDE Gestalt parameter block:

typedef struct DriverGestaltParam

{

ataPBHdr /* See definition on page 69 */

short ioVRefNum; /* refNum of device */

short csCode; /* Driver gestalt code */

OSType driverGestaltSelector; /* Gestalt selector */

driverGestaltInfo driverGestaltResponse; /* Returned result */

} DriverGestaltParam;

The ﬁelds driverGestaltSelector and driverGestaltResponse are 32-bit ﬁelds.

INPUT PARAMETERS

OUTPUT PARAMETERS

csCode A value of 43

ioVRefNum The logical drive number

driverGestaltSelector Gestalt function selector. This is a 32-bit ASCII ﬁeld

containing one of the following selectors:

sync Indicate synchronous or

asynchronous driver

devt Specify type of device the driver

is controlling

intf Specify the device interface

boot Specify PRAM value to designate this driver

or device

vers Specify the version number of the driver

driverGestaltResponse Returned result based on the driver gestalt selector.

The possible four-character return values are:

TRUE If the sync driver selector is speciﬁed, this

Boolean value indicates that the driver is

synchronous; a FALSE value indicates

asynchronous

disk If the devt driver selector is speciﬁed, this

value indicates a hard disk driver

ide If the intf driver selector is speciﬁed, this

value indicates the interface is IDE

0If the boot driver selector is speciﬁed, this

value indicates that this is the boot driver or

boot device

nnnn If the vers selector is speciﬁed, the current

version number of the driver is returned

ioResult See result codes

CHAPTER 6

Software for the IDE Hard Disk

ATA Manager Reference 81

RESULT CODES

power-mode status 6

The power-mode status call returns the current power mode state of the internal hard

disk.

INPUT PARAMETERS

OUTPUT PARAMETERS

RESULT CODES

ATA Manager Reference 6

This section deﬁnes the data structures and functions that are speciﬁc to the ATA

Manager. The section “The ATA Parameter Block” shows the data structure of the ATA

parameter block. The “Functions” section describes the functions for managing and

performing data transfers through the ATA Manager.

noErr 0 Successful completion, no error occurred

nsDrvErr –56 The speciﬁed logical drive number does not exist

statusErr –18 Unknown selector was speciﬁed

csCode A value of 70

ioVRefNum The logical drive number

csParam[] None deﬁned

csParam[] The most signiﬁcant byte of this ﬁeld contains one of the

following values:

1 = drive is in standby mode

2 = drive is in idle mode

3 = drive is in sleep mode

ioResult See result codes

noErr 0 Successful completion, no error occurred

nsDrvErr –56 The speciﬁed logical drive number does not exist

statusErr –18 The power management information couldn’t be

returned due to a manager error

CHAPTER 6

Software for the IDE Hard Disk

82 ATA Manager Reference

The ATA Parameter Block 6

This section deﬁnes the ﬁelds that are common to all ATA Manager functions that use the

ATA parameter block. The ﬁelds that are used for speciﬁc functions are deﬁned in the

description of the functions to which they apply. You use the ATA parameter block for all

calls to the ATA Manager. The ataPBHdr data type deﬁnes the ATA parameter block.

The parameter block includes a ﬁeld, MgrFCode, in which you specify the function

selector for the particular routine to be executed; you must specify a value for this ﬁeld.

Each ATA function may use different ﬁelds of the ATA parameter block for parameters

speciﬁc to that function.

An arrow preceding the comment indicates whether the parameter is an input parameter,

an output parameter, or both.

The ATA parameter block header structure is deﬁned as follows:

typedef unsigned char uchar;

typedef unsigned short ushort;

typedef unsigned long ulong;

typedef struct ataPBHdr /* ATA Manager parameter block

header structure */

{

Ptr ataLink; /* Reserved */

short ataQType; /* Type byte */

uchar ataPBVers; /* → Parameter block

version number */

uchar hdrReserved; /* Reserved */

Ptr hdrReserved2; /* Reserved */

ProcPtr ataCompletion; /* Completion routine */

short ataResult; /* ← Returned result */

uchar MgrFCode; /* → Manager function code */

uchar ataIOSpeed; /* → I/O timing class */

ushort ataFlags; /* → Control options */

short hdrReserved3; /* Reserved */

long deviceID; /* → Device ID */

ulong TimeOut; /* → Transaction timeout

value */

Ptr ataPtr1; /* Client storage Ptr 1 */

Ptr ataPtr2; /* Client storage Ptr 2 */

Arrow Meaning

→Input

←Output

↔Both

CHAPTER 6

Software for the IDE Hard Disk

ATA Manager Reference 83

ushort ataState; /* Reserved, init to 0 */

short hdrReserved4; /* Reserved */

long hdrReserved5; /* Reserved */

} ataPBHdr;

Field descriptions

ataLink This ﬁeld is reserved for use by the ATA Manager. It is used

internally for queuing I/O requests. It must be initialized to 0 before

calling the ATA Manager.

ataQType This ﬁeld is the queue type byte. It should be initialized to 0 before

calling the ATA Manager.

ataPBVers This ﬁeld contains the parameter block version number. A value of 1

is the only value currently supported. Any other value results in a

paramErr.

hdrReserved Field reserved for future use. To ensure future compatibility, all

reserved ﬁelds should be set to 0.

hdrReserved2 Field reserved for future use. To ensure future compatibility, all

reserved ﬁelds should be set to 0.

ataCompletion This ﬁeld contains the completion routine pointer that is to be called

upon completion of the request. When this ﬁeld is set to 0, it

indicates a synchronous I/O request; a non-zero value indicates an

asynchronous I/O request. The routine pointed by this ﬁeld is called

when the request has ﬁnished without error, or when the request has

terminated due to an error. This ﬁeld is valid for any manager

request. The completion routine is called as follows:

pascal void (*RoutinePtr) (ataIOPB *)

The completion routine is called with the associated manager

parameter block in the stack.

ataResult Completion status. This ﬁeld is returned by the ATA Manager after

the request has been completed. Refer to Table 6-6 on page 100 for a

list of the possible error codes returned in this ﬁeld.

MgrFCode This ﬁeld is the function selector for the ATA Manager. The

functions are deﬁned in Table 6-4 on page 87. An invalid code in this

ﬁeld results in an ATAFuncNotSupported error.

ataIOSpeed This ﬁeld speciﬁes the I/O cycle timing requirement of the speciﬁed

IDE drive. This ﬁeld should contain word 51 of the identify drive

data. Currently values 0 through3 are supported, as deﬁned in the

ATA speciﬁcation. See the ATA speciﬁcation for the deﬁnitions of the

timing values. If a timing value higher than one supported is

speciﬁed, the manager operates in the fastest timing mode

supported by the manager. Until the timing value is determined by

examining the identify drive data returned by the ATA_Identify

routine, the client should request operations using the slowest mode

(mode 0).

ataFlags This 16-bit ﬁeld contains control settings that indicate special

handling of the requested function. The control bits are deﬁned in

Table 6-3 on page 85.

CHAPTER 6

Software for the IDE Hard Disk

84 ATA Manager Reference

hdrReserved3 Field reserved for future use. To ensure future compatibility, all

reserved ﬁelds should be set to 0.

deviceID A short word that uniquely identiﬁes an IDE device. The ﬁeld

consists of the following structure:

typedef struct /* device ID structure */

{

ushort Reserved; /* The upper word is reserved */

ushort deviceNum; /* consists of device ID and

bus ID */

} deviceIdentification;

Bit 15 of deviceNum ﬁeld indicates master (=0) /slave (=1)

selection. Bits 14 through 0 contain the bus ID (for example, 0x0 =

master unit of bus 0, 0x80 = slave unit of bus 0). The present

implementation allows only one device in the master conﬁguration.

This value is always 0.

TimeOut This ﬁeld speciﬁes the transaction timeout value in milliseconds. A

value of zero disables the transaction timeout detection.

ataPtr1 This pointer ﬁeld is available for application use. It is not modiﬁed

by the ATA Manager.

ataPtr2 This pointer ﬁeld is available for application use. It is not modiﬁed

by the ATA Manager.

ataState This ﬁeld is used by the ATA Manager to keep track of the current

bus state. This ﬁeld must contain zero when calling the manager.

Bus states are deﬁned in Table 6-2.

hdrReserved4 Field reserved for future use. To ensure future compatibility, all

reserved ﬁelds should be set to 0.

Table 6-2 IDE drive bus states

Code Name Description

$00 Initial Parameter block processing started

$01 Started Command delivery state

$0F Data Data delivery state

$1F Status Status delivery state

$3F Complete Bus transaction complete state

$FF Idle Waiting to return state

CHAPTER 6

Software for the IDE Hard Disk

ATA Manager Reference 85

Table 6-3 Control bits in the ataFlags ﬁeld

Name Bit Deﬁnition

—0–2 Reserved.

RegUpdate 3 When set to 1 this bit indicates that a set of device

registers should be reported back upon completion of

the request. This bit is valid for the Execute I/O

function only. Refer to the description of

Execute I/O for details. The following device

registers are reported back:

Sector count register

Sector number register

Cylinder register(s)

SDH register

—4–7 Reserved.

SGType 8, 9 This 2-bit ﬁeld speciﬁes the type of scatter gather list

passed in. This ﬁeld is only valid for read/write

operations.

The following types are deﬁned:

00 = Scatter gather disabled

01 = Scatter gather type I enabled

10 = Reserved

11 = Reserved

When set to 0, this ﬁeld indicates that the ioBuffer

ﬁeld contains the host buffer address for this transfer,

and the ioReqCount ﬁeld contains the byte transfer

count.

When set to 1, this ﬁeld indicates that the ioBuffer

and the ioReqCount ﬁelds of the parameter block for

this request point to a host scatter gather list and the

number of scatter gather entries in the list, respectively.

The format of the scatter gather list is a series of the

following structure deﬁnition:

typedef struct /* SG entry structure */

{

uchar* ioBuffer; /* → Data buffer pointer */

ulong ioReqCount; /* → Byte count */

} IOBlock;

continued

CHAPTER 6

Software for the IDE Hard Disk

86 ATA Manager Reference

Functions 6

This section describes the ATA Manager services that are used to manage and perform

data transfers. Each service is requested through a parameter block speciﬁc to that

service. A request for an IDE service is speciﬁed by a function code within the parameter

block. The entry point for all the functions is the same.

The function names and ATA Manager function codes are shown in Table 6-4.

QLockOnError 10 When set to 0, this bit indicates that an error during the

transaction should not freeze the I/O queue for the

device. When an error occurs on an I/O request with

this bit set to 0, the next queued request is processed

following this request. When an error occurs on an

I/O request with this bit set to 1, the user must issue an

I/O Queue Release command to continue. A status

code of 717 hex is returned for subsequent

asynchronous I/O requests until the I/O Queue

Release command is issued.

Immediate 11 When this bit is set to 1, it indicates that the request is

executed as soon as possible and the status of the

request is returned. It forces the request to the head of

the I/O queue for immediate execution. When this bit

is set to 0, the request is queued in the order it is

received and is executed according to that order.

ATAioDirection 12, 13 This bit ﬁeld speciﬁes the direction of data transfer. Bit

values are binary and deﬁned as follows:

00 = No data transfer

10 = Data direction in (read)

01 = Data direction out (write)

11 = Reserved

—14 Reserved.

ByteSwap 15 When set to 1, this bit indicates that every byte of data

prior to transmission on write operations and upon

reception on read operations is to be swapped. When

this bit is set to 0, it forces bytes to go out in the

LSB-MSB format that is compatible with IBM clones.

Typically, this bit should be set to 0. Setting this bit has

performance implications because the byte swap is

performed by the software. Use this bit with caution.

Table 6-3 Control bits in the ataFlags ﬁeld (continued)

Name Bit Deﬁnition

CHAPTER 6

Software for the IDE Hard Disk

ATA Manager Reference 87

ATA_ExecI/O 6

You can use the ATA_ExecIO function to perform all data I/O transfers to or from an

IDE device. Your application must provide all of the parameters needed to complete the

transaction prior to calling the ATA Manager. Upon return, the parameter block contains

the result of the request.

A prior call to the ATA_MgrInit function to initialize the ATA Manager must be

performed before issuing the ATA_ExecIO function. See page 91 for information about

calling the ATA_MgrInit function.

The manager function code for the ATA_ExecIO function is 1.

The parameter block associated with the ATA_ExecIO function is deﬁned below:

typedef struct /* ATA_ExecIO structure */

{

ataPBHdr /* See definition on page 82 */

char ataStatusReg; /* ← Last device status register

image */

char ataErrorReg; /* ← Last device error register

image (valid if bit 0 of Status

Table 6-4 ATA Manager functions

Function name Code Description

ATA_NOP $00 No operation

ATA_ExecIO $01 Execute ATA I/O

ATA_BusInquiry $03 Bus inquiry

ATA_QRelease $04 I/O queue release

ATA_Abort $10 Terminate command

ATA_ResetBus $11 Reset IDE bus

ATA_RegAccess $12 ATA device register access

ATA_Identify $13 Get the drive identiﬁcation data

ATA_DrvrRegister $85 Register the drive reference number

ATA_FindRefNum $86 Lookup driver reference number

ATA_DrvrDeregister $87 Deregister the driver reference number

ATA_MgrInquiry $90 ATA Manager inquiry

ATA_MgrInit $91 Initialize ATA Manager

ATA_MgrShutDown $92 Shutdown ATA Manager

CHAPTER 6

Software for the IDE Hard Disk

88 ATA Manager Reference

field is set) */

short ataReserved; /* Reserved */

ulong BlindTxSize; /* → Data transfer size */

IOBlock IOBlk; /* → Data transfer

descriptor block */

ulong ataActualTxCnt; /* ← Actual number of bytes

transferred */

ulong ataReserved2; /* Reserved */

devicePB RegBlock; /* → Device register images */

uchar* packetCDBPtr; /* ATAPI packet command block

pointer */

ushort ataReserved3[6];/* Reserved */

} ATA_ExecIO;

Field descriptions

ataPBHdr See the deﬁnition of the ataPBHdr structure on page 82.

ataStatusReg This ﬁeld contains the last device status register image. See the ATA

speciﬁcation for status register bit deﬁnitions.

ataErrorReg This ﬁeld contains the last device error register image. This ﬁeld is

valid only if the error bit (bit 0) of the Status register is set. See the

ATA speciﬁcation for error register bit deﬁnitions.

ataReserved Reserved. All reserved ﬁelds are set to 0 for future compatibility.

BlindTxSize This ﬁeld speciﬁes the maximum number of bytes that can be

transferred per interrupt or detection of DRQ. Bytes are transferred

in blind mode (no byte level handshake). Once an interrupt or a

DRQ condition is detected, the manager transfers up to the number

of bytes speciﬁed in the ﬁeld from or to the selected device. The

typical number is 512 bytes.

IOBlk This ﬁeld contains either the host buffer address and the requested

transfer length, or the pointer to a scatter gather list and the number

of scatter gather entries. If the SGType bits of the ataFlags ﬁeld

are set, the IOBlk ﬁeld contains the scatter gather information. The

IOBlk ﬁeld is deﬁned as follows:

typedef struct

{

uchar* ioBuffer; /* ↔ Data buffer ptr */

ulong ioReqCount; /* ↔ Transfer length */

} IOBlk;

ioBuffer This ﬁeld contains the host buffer address for the

number of bytes speciﬁed in the ioReqCount ﬁeld.

Upon returning, the ioBuffer ﬁeld is updated to

reﬂect data transfers. When the SGType bits of the

CHAPTER 6

Software for the IDE Hard Disk

ATA Manager Reference 89

ataFlags ﬁeld are set, the ioBuffer ﬁeld points

to a scatter gather list. The scatter gather list consists

of a series of IOBlk entries.

ioReqCount This ﬁeld contains the number of bytes to transfer

either from or to the buffer speciﬁed in ioBuffer.

Upon returning, the ioReqCount ﬁeld is updated to

reﬂect data transfers (0 if successful; otherwise, the

number of bytes that remained to be transferred

prior to the error condition). When the SGType bits

of the ataFlags ﬁeld are set, the ioReqCount ﬁeld

contains the number of scatter gather entries in the

list pointed to by the ioBuffer ﬁeld.

ataActualTxCnt This field contains the total number of bytes transferred for this

request. Currently not supported.

ataReserved2 This ﬁeld is reserved.

RegBlock This ﬁeld contains the IDE device register image structure. Values

contained in this structure are written out to the device during the

command delivery state. The caller must provide the image prior to

calling the ATA Manager. The IDE device register image structure is

deﬁned as follows:

typedef struct /* Device register images */

{ uchar Features; /* → Features register

image */

uchar Count; /* ↔ Sector count */

uchar Sector; /* ↔ Sector start/finish */

uchar Reserved; /* Reserved */

ushort Cylinder; /* ↔ Cylinder 68000 format */

uchar SDH; /* ↔ SDH register image

uchar Command; /* → Command register image */

} Device_PB;

packetCDCPtr This ﬁeld contains the packet pointer for ATAPI. The current version

of the ATA Manager doesn’t support the ATAPI protocol. For ATA

commands, the packetCDCPtr ﬁeld should contain 0 in order to

ensure compatibility in the future.

ataReserved3[6] These ﬁelds are reserved.

RESULT CODES

noErr 0 Successful completion, no error occurred

nsDrvErr –56 Speciﬁed logical drive number does not exist

ATAMgrNotInitialized –1802 ATA Manager not initialized

ATABusyErr –1790 Selected device busy (BUSY bit set)

ATATransTimeOut –1806 Timeout: transaction timeout detected

AT_CorDataErr –1785 Data corrected bit set in status register

AT_ASeekErr –1783 Seek complete bit not set upon completion

AT_WrFltErr –1782 Write fault bit set in status register

CHAPTER 6

Software for the IDE Hard Disk

90 ATA Manager Reference

ATA_MgrInquiry 6

The ATA_MgrInquiry function gets information, such as the version number, about the

ATA Manager. This function may be called prior to the manager initialization, however

the system conﬁguration information may be invalid.

The manager function code for the ATA_MgrInquiry function is $90.

The parameter block associated with this function is deﬁned below:

typedef struct /* IDE inquiry structure */

{

ataPBHdr /* See definition on page 82 */

NumVersion MgrVersion

ushort MGRPBVers; /* ← Manager PB version number

supported */

ushort Reserved1; /* Reserved */

ushort ataBusCnt; /* ← Number of ATA buses in

system */

ushort ataDevCnt; /* ← Number of ATA devices

detected */

unchar ataMaxMode; /* ← Maximum I/O speed mode */

ushort Reserved2; /* Reserved */

ushort IOClkResolution; /* ← IO Clock in nsec */

ushort Reserved[17]; /* Reserved */

} ATA_MgrInquiry;

Field descriptions

ataPBHdr See the ataPBHdr parameter block deﬁnition on page 82.

MgrVersion Upon return, this ﬁeld contains the version number of the

ATA Manager.

AT_UncDataErr –1784 Uncorrected data bit set in error register

AT_IDNFErr –1788 ID not found bit set in error register

AT_DMarkErr –1787 Data mark not found bit set in error register

continued

AT_BadBlkErr –1786 Bad block bit set in error register

AT_RecalErr –1781 Track 0 not found bit set in error register

AT_AbortErr –1780 Command aborted bit set in error register

ATAUnknownState –1808 Device in unknown state

ATAPBInvalid –1803 Invalid device base address detected (= 0)

ATAQLocked –1809 I/O queue locked—cannot proceed

ATAReqInProg –1807 I/O channel in use—cannot proceed

CHAPTER 6

Software for the IDE Hard Disk

ATA Manager Reference 91

MGRPBVers This ﬁeld contains the number corresponding to the latest version of

the parameter block that is supported. A client may use any

parameter block deﬁnition up to this version.

Reserved Reserved. All reserved ﬁelds are set to 0 for future compatibility.

ataBusCnt Upon return, this ﬁeld contains the total number of ATA buses in the

system. This ﬁeld contains a zero if the ATA Manager has not been

initialized.

ataDevCnt Upon return, this ﬁeld contains the total number of ATA devices

detected on all ATA buses. The current architecture allows only one

device per bus. This ﬁeld will contain a zero if the ATA Manager has

not been initialized.

ataMaxMode This ﬁeld speciﬁes the maximum I/O speed mode that the ATA

Manager supports. Refer to the ATA speciﬁcation for information

on mode timing.

IOClkResolution This ﬁeld contains the I/O clock resolution in nanoseconds. The

current implementation doesn’t support the ﬁeld (returns 0).

RESULT CODES

ATA_MgrInit 6

You must call the ATA_MgrInit function prior to issuing ATA_ExecIO,

ATA_BusInquiry, ATA_QRelease, or ATA_Abort commands. Otherwise, an

IDEMgrNotInitialized error is returned. This call initializes internal variables

and IDE hard disk drive hardware. Consecutive initialization calls from either

the same or another application are ignored and the NoErr result is returned.

The manager function code for the ATA_MgrInit function is $91.

The parameter block associated with this function is deﬁned below:

typedef struct /* IDE Init structure */

{

ataPBHdr /* See definition on page 82 */

ushort Reserved[24] /* Reserved */

} ATA_MgrInit;

Field descriptions

ataPBHdr See the deﬁnition of the ataPBHdr parameter block on page 82.

noErr 0 Successful completion, no error occurred

CHAPTER 6

Software for the IDE Hard Disk

92 ATA Manager Reference

RESULT CODES

ATA_BusInquiry 6

The ATA_BusInquiry function gets information about a speciﬁc ATA bus. This call is

provided for possible future expansion of the Macintosh ATA architecture.

The manager function code for the ataBusInquiry function is $03.

The parameter block associated with this function is deﬁned below:

typedef struct /* IDE bus inquiry structure */

{

ataPBHdr /* See definition on page 82 */

ushort ataEngineCount; /* ← TBD; zero for now */

ushort ataReserved; /* Reserved */

ulong ataDataTypes; /* ← TBD; zero for now */

ushort ataIOpbSize; /* ← Size of ATA IO PB */

ushort ataMaxIOpbSize; /* ← TBD; zero for now */

ulong ataFeatureFlags; /* ← TBD */

uchar ataVersionNum; /* ← HBA Version number */

uchar ataHBAInquiry; /* ← TBD; zero for now

ushort ataReserved2; /* Reserved */

ulong ataHBAPrivPtr; /* ← Ptr to HBA private data */

ulong ataHBAPrivSize; /* ← Size of HBA private data */

ulong ataAsyncFlags; /* ← Capability for callback */

ulong ataReserved3[4]; /* Reserved */

ulong ataReserved4; /* Reserved */

char ataReserved5[16]; /* TBD */

char ataHBAVendor[16]; /* ← HBA Vendor ID */

char ataContrlFamily[16];/* ← Family of ATA controller */

char ataContrlType[16]; /* ← Model num of controller */

char ataXPTversion[4]; /* ← version number of XPT */

char ataReserved6[4]; /* Reserved */

char ataHBAversion[4]; /* ← version number of HBA */

uchar ataHBAslotType; /* ← type of slot */

uchar ataHBAslotNum; /* ← slot number of the HBA */

ushort ataReserved7; /* Reserved */

ulong ataReserved8; /* Reserved */

} ATA_BusInquiry;

noErr 0 Successful completion, no error occurred

ATAInitFail –1795 ATA Manager initialization failure

CHAPTER 6

Software for the IDE Hard Disk

ATA Manager Reference 93

Field descriptions

ataPBHdr See the deﬁnition of the ataPBHdr on page 82.

ataEngineCount Currently 0.

ataReserved Reserved. All reserved ﬁelds are set to 0.

ataDataTypes Not supported by current ATA architecture. Returns a bit map of

data types supported by this HBA. The data types are numbered

from 0 to 30; 0 through 15 are reserved for Apple deﬁnition and 16

through 30 are available for vendor use. Returns 0.

ataIOpbSize This ﬁeld speciﬁes the size of the parameter block supported. This

ﬁeld contains the size of the I/O parameter block.

ataMaxIOpbSize This ﬁeld speciﬁes the maximum I/O size for the HBA. This ﬁeld is

currently not supported and returns 0.

ataFeatureFlags This ﬁeld speciﬁes supported features. Not supported; returns 0.

ataVersionNum The version number of the HBA is returned. The current version

returns a 1.

ataHBAInquiry Reserved.

ataHBAPrivPtr This ﬁeld contains a pointer to the HBA’s private data area. Not

supported; returns 0.

ataHBAPrivSize This ﬁeld contains the byte size of the HBA’s private data area. Not

supported; returns 0.

ataAsyncFlags These ﬂags indicate which types of asynchronous events the HBA is

capable of generating. Not supported; returns 0.

ataHBAVendor This ﬁeld contains the vendor ID of HBA. This is an ASCII text ﬁeld.

Not supported.

ataContrlFamily Reserved.

ataContrlType This ﬁeld identiﬁes the speciﬁc type of ATA controller. Not

supported; returns 0.

ataXPTversion Reserved.

ataHBAversion This ﬁeld speciﬁes the version of the HBA. Not supported; returns 0.

ataHBAslotType This ﬁeld speciﬁes the type of slot. Not supported; returns 0.

ataHBAslotNum This ﬁeld speciﬁes the slot number of the HBA. Not supported;

returns 0.

RESULT CODES

ATA_QRelease 6

The ATA_QRelease function releases the frozen I/O queue of the selected device.

When the ATA Manager detects an I/O error and the QLockOnError bit of the

parameter block is set for the request, the ATA Manager freezes the queue for the selected

noErr 0 Successful completion, no error occurred

ATAMgrNotInitialized –1802 ATA Manager not initialized

CHAPTER 6

Software for the IDE Hard Disk

94 ATA Manager Reference

device. No pending or new requests are processed or receive status until the queue is

released through the ATA_QRelease command. Only those requests with

the Immediate bit set in the ATAFlags ﬁeld of the ataPBHdr parameter block are

processed. Consequently, for the ATA I/O queue release command to be processed, it

must be issued with the Immediate bit set in the parameter block. An ATA I/O queue

release command issued while the queue isn’t frozen returns the noErr status.

The manager function code for the ATA_QRelease function is $04.

There are no additional function-speciﬁc variations on ataPBHdr for this call.

RESULT CODES

ATA_NOP 6

The ATA_NOP function performs no operation across the interface and does not

change the state of either the manager or the device. It returns noErr if the drive number

is valid.

The manager function code for the ATA_NOP function is $00.

There are no additional function-speciﬁc variations on ataPBHdr for this call.

RESULT CODES

ATA_Abort 6

The ATA_Abort function terminates a speciﬁed queued I/O request. This function

applies to asynchronous I/O requests only. The ATA_Abort function searches through

the I/O queue associated with the selected device and aborts the matching I/O request.

The current implementation does not abort if the found request is in progress. If the

speciﬁed I/O request is not found or has started processing, an ATAUnableToAbort

status is returned. If aborted, the ATAReqAborted status is returned.

It is up to the application that called the ATA_Abort function to clean up the aborted

request. Clean up includes parameter block deallocation and O/S reporting.

The manager function code for the ATA_Abort function is $10.

noErr 0 Successful completion, no error occurred

nsDrvErr –56 Speciﬁed drive does not exist

ATAMgrNotInitialized –1802 ATA Manager not initialized

noErr 0 Successful completion, no error occurred

nsDrvErr –56 Speciﬁed drive does not exist

CHAPTER 6

Software for the IDE Hard Disk

ATA Manager Reference 95

The parameter block associated with this function is deﬁned as follows:

typedef struct /* IDE abort structure */

{

ataPBHdr /* See definition on page 82 */

ATA_PB* AbortPB /* Address of the parameter block of

the function to be aborted */

ushort Reserved /* Reserved */

} ATA_Abort;

Field descriptions

ataPBHdr See the deﬁnition of the ataPBHdr parameter block on page 82.

AbortPB This ﬁeld contains the address of the I/O parameter block to be

aborted.

RESULT CODES

ATA_RegAccess 6

The ATA_RegAccess function enables access to a particular device register of a selected

device. This function is used for diagnostic and error recovery processes.

The manager function code for the ATA_RegAccess function is $12.

The parameter block associated with this function is deﬁned below:

typedef struct /* Register access structure */

{

ataPBHdr /* See definition on page 82 */

ushort RegSelect; /* → Device register selector */

uchar RegValue; /* ↔ Register value

to read or to be written */

uchar Reserved; /* ↔ Used for data register

(LSB) only */

uchar Reserved[22] /* Reserved */

} ATA_RegAccess;

noErr 0 Successful completion, no error occurred

nsDrvErr –56 Speciﬁed drive does not exist

ATAMgrNotInitialized –1802 ATA Manager not initialized

ATAReqAborted –1810 The request was aborted

ATAUnableToAbort –1811 Request to abort couldn’t be honored

CHAPTER 6

Software for the IDE Hard Disk

96 ATA Manager Reference

Field descriptions

ataPBHdr See the deﬁnition of the ataPBHdr parameter block on page 82.

RegSelect This ﬁeld speciﬁes which of the device registers to access. The

selectors for the registers supported by the ATA_RegAccess

function are listed in Table 6-5.

RegValue This ﬁeld represents the value to be written (IDEioDirection =

01b) or the value read from the selected register (ATAioDirection

= 10 binary). For DataReg, it is assumed this ﬁeld is a 16-bit ﬁeld;

for other registers, an 8-bit ﬁeld.

RESULT CODES

ATA_Identify 6

The ATA_Identify function returns the device identiﬁcation data from the selected

device. The identiﬁcation data contains information necessary to perform I/O to the

device. Refer to the ATA Speciﬁcation for the format and the information description

provided by the data.

The manager function code for the ATA_Identify function is $13.

Table 6-5 IDE register selectors

Selector name Selector Register description

DataReg 0Data register (16-bit access only)

ErrorReg 1Error register (R) or features register (W)

SecCntReg 2Sector count register

SecNumReg 3Sector number Register

CylLoReg 4Cylinder low register

CylHiReg 5Cylinder high register

SDHReg 6SDH register

StatusReg

CmdReg

7Status register (R) or command register (W)

AltStatus

DevCntr

14 Alternate status (R) or device control (W)

AddrReg 15 Digital input register

noErr 0 Successful completion, no error occurred

nsDrvErr –56 Speciﬁed drive does not exist

CHAPTER 6

Software for the IDE Hard Disk

ATA Manager Reference 97

The parameter block associated with this function is deﬁned below:

typedef struct

{

ataPBHdr

ushort Reserved1[4]; /* Reserved */

uchar *DataBuf; /* ↔ Buffer for the data */

ushort Reserved2[18]; /* Reserved */

} ATA_Identify;

Field descriptions

ataPBHdr See the deﬁnition of the ataPBHdr parameter block on page 82.

DataBuf Pointer to the data buffer for the device identify data. The length of

the buffer must be at least 512 bytes.

RESULT CODES

ATA_ResetBus 6

The ATA_ResetBus function resets the speciﬁed IDE bus. This function performs a soft

reset operation to the selected IDE bus. The IDE interface doesn’t provide a way to reset

individual units on the bus. Consequently, all devices on the bus will be affected.

IMPORTANT

This function should be used with caution since it may terminate any

active requests to devices on the bus. ▲

The manager function code for the ATA_ResetBus function is $11.

The parameter block associated with this function is deﬁned below:

typedef struct /* IDE reset structure */

{

ataPBHdr /* See definition on page 82 */

char Status; /* ← Last ATA status register image */

char Reserved; /* Reserved */

ushort Reserved[23]; /* Reserved */

} ATA_ResetBus;

Field descriptions

ataPBHdr See the deﬁnition of the ataPBHdr parameter block on page 82.

Status This ﬁeld contains the last device status register image following the

bus reset. See the ATA speciﬁcation for deﬁntions of the status

noErr 0 Successful completion, no error occurred

nsDrvErr –56 Speciﬁed drive does not exist

CHAPTER 6

Software for the IDE Hard Disk

98 ATA Manager Reference

RESULT CODES

ATA_MgrShutDown 6

The ATA_MgrShutDown function shuts down the ATA Manager. It is the complement to

the ATA_MgrInit function. This function deallocates all of the global space currently in

use by the ATA Manager. After calling ATA_MgrShutDown, the ATA Manager must be

reinitialized before any IDE I/O requests can take place.

The ATA_MgrShutDown function always returns a status of noErr.

The manager function code for the ATA_MgrShutDown function is $92.

There are no additional function-speciﬁc variations on ataPBHdr for this call.

IMPORTANT

This function should be used with caution if

multiple client applications are present. ▲

RESULT CODES

ATA_DrvrRegister 6

The ATA_DrvrRegister function registers the driver reference number passed in for

the selected drive. The function doesn’t check for the existence of another driver.

The manager function code for the ATA_DrvrRegister function is $85.

The parameter block associated with this function is deﬁned below:

typedef struct /* Driver register structure */

{

ataPBHdr /* See definition on page 82 */

short drvrRefNum; /* → Driver reference number */

ushort FlagReserved; /* Reserved */

ushort deviceNextID; /* Not used */

short Reserved[21]; /* Reserved */

} ATA_DrvrRegister;

noErr 0 Successful completion, no error occurred

nsDrvErr –56 Speciﬁed drive does not exist

noErr 0 Successful completion, no error occurred

CHAPTER 6

Software for the IDE Hard Disk

ATA Manager Reference 99

Field descriptions

ataPBHdr See the ataPBHdr parameter block deﬁnition on page 82.

drvrRefNum This ﬁeld speciﬁes the driver reference number to be registered. This

value must be less than 0 to be valid.

FlagReserved Reserved.

deviceNextID Not used by this function.

RESULT CODES

ATA_DrvrDeregister 6

The ATA_DrvrDeRegister function deregisters the driver reference number passed in

for the selected drive. After successful completion of this function, the driver reference

number for the drive is set to 0, which indicates that there is no driver in control of

this device.

The manager function code for the ATA_DrvrDeRegister function is $87.

There are no additional function-speciﬁc variations on ataPBHdr for this call.

RESULT CODES

ATA_FindRefNum 6

The ATA_FindRefNum function allows an application to determine whether a driver has

been installed for a given device. You pass in a device ID and the function returns the

current driver reference number registered for the given device. A value of 0 indicates

that no driver has been registered. The deviceNextID ﬁeld contains a device ID of the

next device in the list. The end of the list is indicated with a value of 0xFF.

To create a list of all drivers for the attached devices, pass in 0xFF for deviceID. This

causes deviceNextID to be ﬁlled with the ﬁrst device in the list. Each successive driver

can be found by moving the value returned in deviceNextID into deviceID until the

function returns 0xFF in deviceNextID, which indicates the end of the list.

The manager function code for the ATA_FindRefNum function is $86.

noErr 0 Successful completion, no error occurred

nsDrvErr –56 Speciﬁed drive does not exist

noErr 0 Successful completion, no error occurred

nsDrvErr –56 Speciﬁed drive does not exist

CHAPTER 6

Software for the IDE Hard Disk

100 Error Code Summary

The parameter block associated with this function is deﬁned as follows:

typedef struct

{

ataPBHdr

short drvrRefNum; /* ← Contains the driver refNum */

ushort FlagReserved; /* Reserved */

ushort deviceNextID; /* ← Contains the next drive ID */

short Reserved[21]; /* Reserved */

} ATA_FindRefNum;

Field descriptions

ataPBHdr See the ataPBHdr parameter block deﬁnition on page 82.

drvrRefNum Upon return, this ﬁeld contains the reference number for the device

speciﬁed in the deviceID ﬁeld of the ataPBHdr data.

deviceNextID Upon return, this ﬁeld contains the deviceID of the next device on

the list.

RESULT CODES

Error Code Summary 6

A summary of the IDE hard disk drive error codes is provided in Table 6-6.

noErr 0 Successful completion, no error occurred

nsDrvErr –56 Speciﬁed drive does not exist

Table 6-6 IDE hard disk drive error codes

Error

code Name Description

0noErr No error detected on the request operation.

–17 controlErr Unimplemented control call. Requested control

operation could not complete.

–18 statusErr Unimplemented status call. Requested status

operation could not complete.

–23 openErr Unimplemented open call. Open operation

could not complete.

–36 ioErr An I/O error detected while processing

the request.

–50 paramErr Error in parameter block.

–56 nsDrvErr No such drive. No device attached to the

speciﬁed port. continued

CHAPTER 6

Software for the IDE Hard Disk

Error Code Summary 101

–65 offLinErr No disk in drive (removable media).

–1780 AT_AbortErr Command aborted by drive. Unsupported

command.

–1781 AT_RecalErr Recalibrate failure detected by device.

–1782 AT_WrFltErr Write fault detected by device.

–1783 AT_SeekErr Seek error detected by device.

–1784 AT_UncDataErr Unable to correct data (possibly bad data).

–1785 AT_CorDataErr Data was corrected (good data)— notiﬁcation.

–1786 AT_BadBlkErr Bad block detected by device.

–1787 AT_DMarkErr Data mark not found reported by device.

–1788 AT_IDNFErr Sector ID not found; error reported by device.

–1789 AT_DRQErr Timeout waiting for DRQ active.

–1790 AT_BusyErr Timeout waiting for BSY inactive.

–1791 AT_NRdyErr Drive ready condition not detected.

–1793 DRVRCantAllocate Driver memory allocation error during

driver open.

–1794 NoIDEMgr No ATA Manager installed in the system

(MgrInquiry failure).

–1795 IDEInitFail ATA Manager initialization failed.

–1796 IDEBufFail Power on device test failed. Device failure

detected. Interface communication error.

–1802 IDEMgrNotInitialized ATA Manager has not been initialized. The

request function cannot be performed until

initialized.

–1803 IDEPBInvalid Invalid IDE port address detected (manager

initialization problem).

–1804 IDEFuncNotSupported An unknown manager function code speciﬁed.

–1805 IDEBusy Selected device is busy. The device isn’t ready to

go to next phase yet.

–1806 IDETransTimeOut Timeout condition detected. The operation

hasn’t completed within the user speciﬁed

time limit.

–1807 IDEReqInProg Device busy; the device on the port is busy

processing another command.

–1808 IDEUnknownState The device status register reﬂects an

unknown state. continued

Table 6-6 IDE hard disk drive error codes (continued)

Error

code Name Description

CHAPTER 6

Software for the IDE Hard Disk

102 Error Code Summary

–1809 IDEQLocked I/O Queue for the port is locked due to a

previous I/O error (must be unlocked prior to

continuing).

–1810 IDEReqAborted The I/O queue entry was aborted due to an

abort command.

–1811 IDEUnableToAbort The I/O queue entry could not be aborted. Too

late to abort or the entry not found.

Table 6-6 IDE hard disk drive error codes (continued)

Error

code Name Description

APPENDIX

103

Foldout Drawings A

This appendix contains foldout pages with the mechanical drawings for the I/O expan-

sion card. Foldout 1 is a design guide showing the dimensions of the expansion card.

Foldout 2 shows the maximum component height permitted on the card. Foldout 3

is an assembly guide for the expansion card.

Figure A-0

Listing A-0

Table A-0

Expansion card design gu

062-0487-B

FOLDOUT 1

Expansion card componen

062-0487-B

FOLDOUT 2

Expansion card assembl

062-0487-B

FOLDOUT 3

111

Index

Numerals

10Base2 9

10BaseT 9

24-bit addressing not used 18

32-bit addressing 18, 62

abbreviations xii–xiii

ADB (Apple Desktop Bus) ports 23

ADB connector 23

ADB controller 16

address map 18–20

Apple IIe card incompatibility 10, 18

Apple SuperDrive 24

ATA_Abort function 94

ATA_BusInquiry function 92

ATA_DrvrDeregister function 99

ATA_DrvrRegister function 98

ATA_ExecIO function 87

ATA_FindRefNum function 99

ATA_Identify function 96

ATA_MgrInit function 91

ATA_MgrInquiry function 90

ATA_MgrShutDown function 98

ATA_NOP function 94

ATA_QRelease function 93

ATA_RegAccess function 95

ATA_ResetBus function 97

ATA IDE speciﬁcation 68

ATA interface 25

ATA Manager 68, 81–102

making calls to 82

parameter block 70

purpose of 69

ATA Manager functions

ATA_Abort 94

ATA_BusInquiry 92

ATA_DrvrDeregister 99

ATA_DrvrRegister 98

ATA_ExecIO 87

ATA_FindRefNum 99

ATA_Identify 96

ATA_MgrInit 91

ATA_MgrInquiry 90

ATA_MgrShutDown 98

ATA_NOP 94

ATA_QRelease 93

ATA_RegAccess 95

ATA_ResetBus 97

ATA parameter block header 82

ataPBHdr structure 82–86

.ATDrvr driver name 69

back view 5

block diagram 13

booting from CD-ROM 65

bus arbitration 17

bus masters 17

byte steering 15

CD-ROM, startup from 65

clock speed 12

close routine 71

color lookup table (CLUT) 16

communications modules 9

compatibility 9

Apple IIe card 10

IDE hard disk 10

PDS cards 10, 53

connectors

ADB 23

DVA connector 56, 57

ﬂoppy disk 24

hard disk 27

I/O, on I/O expansion card 54

for I/O expansion card 54

I/O expansion slot 48

SCSI 29

serial I/O 22

sound input jack 15, 30

sound output jacks 15, 30

video input 8

video output 33

control panels, Power Saver 65

control routine 72

Cuda IC 16

INDEX

112

custom ICs 14

Cuda 16

DFAC II 15

F108 14

PrimeTime II 14, 50

Valkyrie 16

DAV connector in other models 57

DFAC II custom IC 15

digital video scaler IC 58

display, shutting off 64

display memory 16, 18

display RAM 17

addresses for 18

driverGestalt parameter block 80

drive status info function 79

DVA connector 56–58

compared with DAV connector 57

pin assignments 57

signal descriptions 58

video data format 58

on video input module 56

dynamic bus sizing 15

ejectMedia function 75

ethernet card 9

expansion slot. See I/O expansion slot

features summary 2

ﬂoppy disk connector 24

ﬂoppy disk drive 24

F108 custom IC 14

format function 74

FPU coprocessor 12

front view 4

gestaltMachineType value 62

Gestalt Manager 62

GPi (general purpose input) signal 23

hard disk 10, 25

dimensions 25

IDE data bus 27

hard disk connector 27

pin assignments on 27

signals on 28

I, J

IDE disk interface 25

IDE hard disk 10, 25

connector 25

pin assignments on 27

data bus 27

dimensions 25

signals 28

IDE hard disk device driver 69, 70–81

close routine 71

control routine 72

Device Manager routines 70–73

driverGestalt parameter block 80

driver name 69

driver reference number 69

drive status info function 79

ejectMedia function 75

format function 74

killIO function 73

making calls to 69

needTime code function 77

open routine 70

power management control calls 78–79

power management function 78

prime routine 71

return drive characteristics function 76

return drive icon function 75

return driver gestalt function 79

return media icon function 76

standard control calls 73–77

status calls 79–81

status routine 71

verify function 74

IDE hard disk drives, compared with SCSI drives 69

IDE software

ATA Manager 68, 69

device driver 68

hard disk device driver 69

IDE speciﬁcation 68

interrupts, for the push buttons 63

I/O bus 12

INDEX

113

I/O expansion card 54–55

address space 20, 55

bus master on 53

card-select signal 55

connector for 54

design guidelines 54

I/O connector on 54

power 54

I/O expansion slot 48–55

compatibility with PDS cards 48, 53

connector 48

MC68030 compatibility 50

not a PDS 48

pin assignments 48

signal descriptions 50

signal loading 50

support for bus master 53

use of Analog GND pin 48

keyboard

Power key 6, 32

reset and NMI functions 32

killIO function 73

logic board, access to 6

low power mode 64

machine identiﬁcation 62

Macintosh Quadra 605 computer 3

MC68HC05 microcontroller 16

MC68LC040 microprocessor 2

clock speed 12

features of 12

upgrading to MC68040 12

memory control IC. See F108 custom IC

microphone 30

power for 30

mirror mode 9

modem card 9

modem port 22, 23

monitor sense codes 34

needTime code function 77

open routine 70

optional modules

communications 9

TV tuner 6

video input 8

video output 9

overscan 9

P, Q

parameter RAM 16

PDS cards, compatibility with 10, 53

PDS slot. See I/O expansion slot

power, for I/O expansion card 54

power, safe shut down 63

Power key, on keyboard 6, 32

Power key, on remote control 6

power management function 78

Power Saver control panel 65

prime routine 71

PrimeTime II custom IC 14

I/O bus adaptor in 50

processor clock speeds 2

push button interrupts 63

push button register 63

push buttons

interrupts for 63

sound level 6

RAM

address space 18

conﬁgurations 40

expansion 40–47

RAM SIMM 40–47

access cycles 44

access time 44

address lines 44

address multiplexing 44

devices 44–45

JEDEC speciﬁcation for 46

INDEX

114

RAM SIMM (continued)

mechanical speciﬁcations 46

signal assignments 40–43

sizes 44

remote control 7

return drive characteristics function 76

return drive icon function 75

return driver gestalt function 79

return media icon function 76

ROM software 62–64

changes in 62

new memory map 62

power saver 64

support for ADB 63

support for MMU 62

support for video ICs 63

safe shut down 6, 63

screen buffers 16

SCSI bus termination 30

SCSI connector 29

serial I/O ports 22

modem power 23

sound

buffers 15, 32

ﬁlters 31

input routing 31

modes of operation 31

playthrough feature 31

push buttons 6

routing of inputs 31

sample rates 31

sample size 31

sound circuits in the DFAC II IC 15

sound input jack 15, 30

sound output jacks 15, 30

standard abbreviations xii–xiii

status routine 71

summary of features 2

system bus 12

system enabler 64

system software 64–65

new features of 64

startup from CD-ROM 65

T, U

terminator, for SCSI bus 30

TV picture sizes 7

TV tuner module 6

picture sizes 7

TV channels 7

with video input module 8

V, W, X

Valkyrie IC 16

verify function 74

video connector 33

video data format 58

video input module 8

digitizing component for 65

DVA connector on 56

input connectors 8

input from TV tuner module 8

monitors supported 8

window size 8

video mirror mode 9

video monitors

colors displayed 33

sense codes 34

timing parameters 35–38

types and sizes 35

VGA and SVGA 35

video output module 9

video overscan 9

video RAM. See display memory

virtual memory 62

Y, Z

YUV digital video 56, 58

for clearer picture 7, 8

data format of 58

Writer Art Director

Prod. Editor Illustrator

# of Figures Draft stage

Figure # Path Name Caption Page #

April 6, 2000 4:14 pm 1

Art List

Figure 1-1 :S&T Art:S&T-L-02 Front view of the computer .....................................................................................5

Figure 1-2 :S&T Art:S&T-L-03 Back view of the computer ......................................................................................5

Figure 2-1 :S&T Art:S&T-L-04 Block diagram ....................................................................................................15

Figure 2-2 :S&T Art:S&T-L-06 Simplified address map..........................................................................................21

Figure 3-1 :S&T Art:S&T-L-09 Serial port sockets .................................................................................................24

Figure 3-2 :S&T Art:S&T-L-11 Maximum dimensions of the hard disk..................................................................28

Figure 3-3 :S&T Art:S&T-L-13 Video timing diagram ............................................................................................38

Figure 4-1 :S&T Art:S&T-L-07 RAM configurations .............................................................................................43

Figure 4-2 :S&T Art:S&T-L-08 RAM expansion SIMM ........................................................................................49

Figure 4-3 :S&T Art:S&T-L-14 Generating the card select signal ...........................................................................57

Figure 4-4 :S&T Art:S&T-L-21 Location of the DVA connector ............................................................................58

Figure 4-5 :S&T Art:S&T-L-22 Orientation of the DVA connector ........................................................................58

Figure 4-6 :S&T Art:S&T-L-20 Video data timing...................................................................................................61

Figure 6-1 :S&T Art:JEDI-L-02 Relationship of the ATA Manager to the Macintosh system architecture ............70

Figure 6-2 :S&T Art:S-1 IDE icon IDE hard disk drive icon ........................................................................................77

Allen Watson III

Wendy Krafft

Shawn Morningstar

final

Show & Tell Developer Note 0
