Mail Scanner Milter Guide

User Manual:

Open the PDF directly: View PDF .
Page Count: 14

MailScanner

5.1.2-1

Milter Configuration Guide

1.3

October 20th, 2018

Shawn Iverson

shawniverson@efa-project.org

Edition 1.1. This guide is based on the implementation of MailScanner as of Version 5.1.2.

I would like to gratefully acknowledge all the support and assistance

provided by the following organizations:

This guide is dedicated to the continuing persistence and dedication

of all people who fight bad email day in and day out worldwide.

Introduction

How the MailScanner Milter Works

Unlike previous versions of MailScanner, MailScanner 5.1.2

introduces a milter daemon for postfix.

MailScanner still functions normally for all Message Transfer

Agents (MTAs) and can run as it always has prior to this

version. This optional functionality for MailScanner provides a

Postfix compatible interface with MailScanner to process and

scan email, and it will likely evolve with additional functionality

in the future. Use of the milter decouples MailScanner from

Postfix, so the Postfix queues are untouched, and

MailScanner can operate independently with its own milter

queues.

This is MailScanner Milter version 1.1, second release. Use of

the MailScanner Milter is experimental for the time being, as

bugs may be discovered after this release, and additional

features will likely be added. This documentation will be

updated to reflect the current status of the MailScanner Milter.

As always, test it out before putting it into production.

On the next page you will find a diagram that demonstrates

the mail flow in the MailScanner Milter in conjunction with

MailScanner itself.

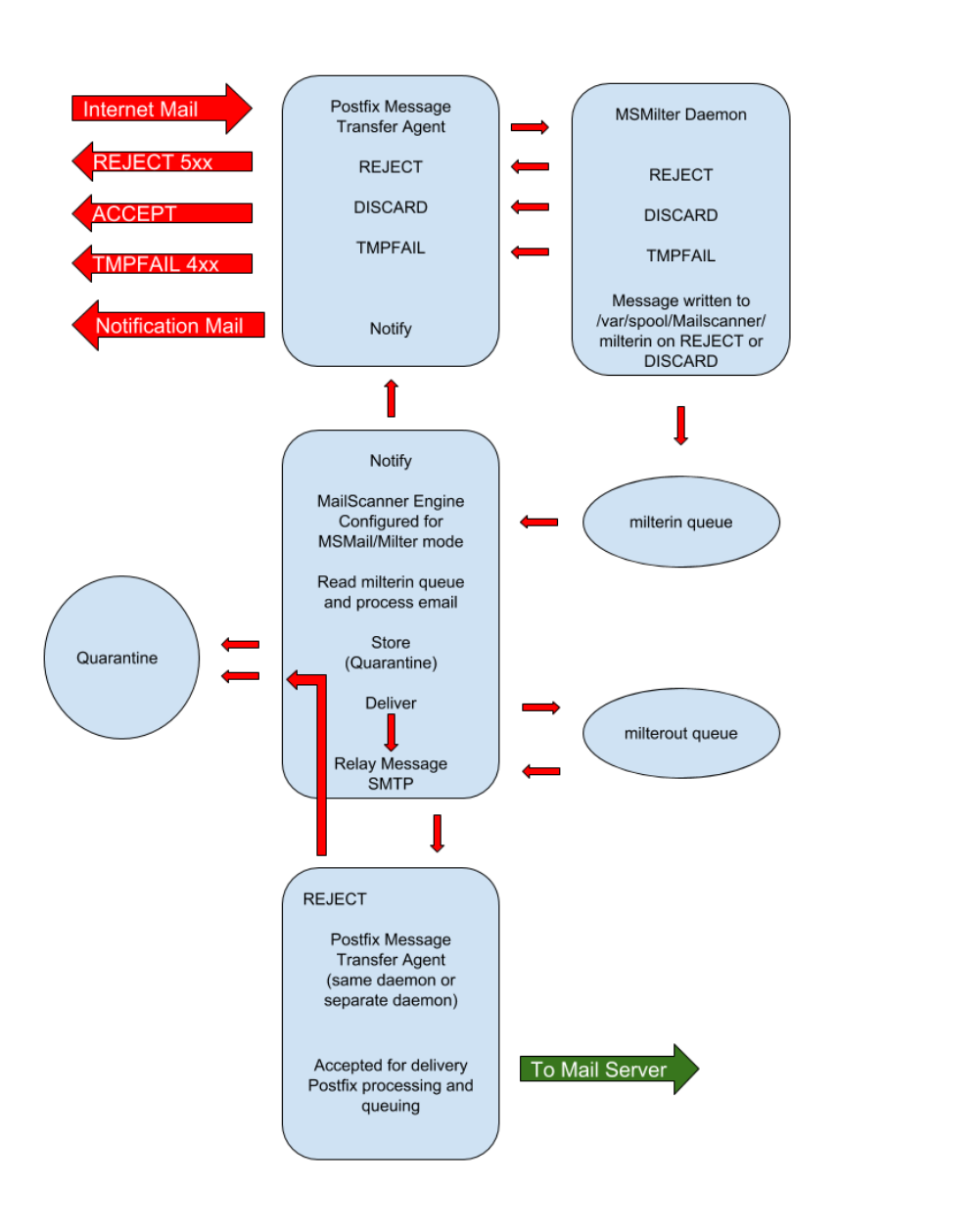

MailScanner Milter Process Diagram Fig. 1.

The milter interfaces with Postfix to capture the incoming

email conversation and either REJECT, DISCARD, TMPFAIL,

or ACCEPT. A REJECT can occur if the Milter Scanner is

enabled and an email is blacklisted. TMPFAIL may occur if

the milter cannot write to the disk (such as out of disk space or

an access denied). ACCEPT is fired upon a localhost

connection relaying email. A DISCARD, the most common

response, tells Postfix to ACCEPT but silently drop the

message. At the same time, the milter has written the

message to /var/spool/MailScanner/milterin.

The DISCARD technique supports large volumes of email for

bulk scanning, but it neglects to send any sort of REJECT

back along the pipeline as well as TMPFAIL in the event that

the internal destination is unavailable. A future version of the

milter may support “Full Milter Scanner” mode in which

traditional MailScanner is turned off and the Milter does all

scanning, returning REJECTS and TMPFAILS at the expense

of sacrificing bulk scanning for those who need this

functionality and have lighter workloads.

Installation and Configuration

Installing MailScanner

To obtain MailScanner Milter support, ensure your system

meets the minimum system requirements and that the

following is true:

MailScanner >= version 5.1.2-1

Postfix >= 2.3

Sendmail::PMilter perl module (compiled automatically from

CPAN if not installed)

Initial Configuration

If you just installed MailScanner, you need to configure from

scratch. Here’s what you need to set to get basic MailScanner

functional on your system.

/etc/MailScanner/defaults

/etc/MailScanner/MailScanner.conf

run_mailscanner=1

%org-name% = myorgname

%org-long-name% = my org name

Run As User = postfix | mail

Run As Group = postfix | mail

In additon to the configs, set the proper permisssions on the

spool directories (use Run As User and Run As Group set

above).

Configuring MailScanner for Milter Mode

To enable milter mode, edit

/etc/MailScanner/MailScanner.conf and change the following:

Use the queue type that matches postfix and choose whether

the Milter Scanner is enabled (REJECT blacklisted

emails).Ensure that the /var/spool/MailScanner/milterin and

/var/spool/MailScanner/milterout directories are present and

are owned by postfix (MailScanner Run As user). On debian-

based systems, the user may be mail instead of postfix.

Configuring Postfix for Milter Mode

Incoming Queue Dir = /var/spool/MailScanner/milterin

Outgoing Queue Dir = /var/spool/MailScanner/milterout

MTA = msmail

MSMail Queue Type = short | long

Milter Scanner = yes | no

# mkdir -p /var/spool/MailScanner/milterin

# mkdir -p /var/spool/MailScanner/milterout

# chown postfix:mtagroup /var/spool/MailScanner/milterin

# chown postfix:mtagroup /var/spool/MailScanner/milterout

# chown -R postfix:postfix /var/spool/postfix

# chown -R postfix:mtagroup /var/spool/MailScanner

If /etc/postfix/header_checks contains the following line,

remove it:

Add the following to /etc/postfix/header_checks to remove the

localhost received header that postfix adds during local relay

(optional). Replace <fqdn> with your host (without < >) as it

appears in the Received header after delivery. This is

important to ensure that you do not accidentally remove an

external Received header.

Add the following to /etc/postfix/main.cf:

(note, if you have multiple smtp milters, make sure this is the

last milter listed as it will interrupt other milters)

/^Received: / HOLD

smtpd_milters = inet:127.0.0.1:33333

/^Received:\ from\ <fqdn>\ \(localhost\ \[127.0.0.1/ IGNORE

/^Received:\ from\ <fqdn>\ \(localhost\ \[::1/ IGNORE

Enable and restart everything.

(systemd)

(init)

# systemctl enable postfix

# systemctl restart postfix

# systemctl enable mailscanner

# systemctl restart mailscanner

# systemctl enable msmilter

# systemctl restart msmilter

# chkconfig postfix on

# service postfix restart

# chkconfig mailscanner on

# service mailscanner restart

# chkconfig msmilter on

# service msmilter restart

Troubleshooting

Services are running, but incoming mail receives a

TMPFAIL.

Observe the maillog for incoming mail to see why the

TMPFAIL is occurring. Most likely causes are the following:

•/var/spool/MailScanner/milterin is not writable

•selinux or apparmor is enabled and not configured

properly to allow access to milterin

•Missing configuration parameters in MailScanner.conf

•Postfix misconfiguration

Services won’t start.

Examine the logs to determine the cause of failure. Most

common causes include:

•Missing required perl modules

•Typo or misconfiguration in MailScanner.conf

•/etc/MailScanner/defaults not configured and

run_mailscanner=1 not set

/var/spool/MailScanner/milterin is filling up, MailScanner

not processing the email.

Common causes:

•MailScanner is not running or misconfigured

◦Using “postfix” instead of “msmail” for the MTA

•selinux or apparmor aren’t allowing MailScanner to read

files

•Partial messages are being written to milterin (examine a

message file for completeness of headers and body)

◦MailScanner will report INVALID messages found if this

is occurring in the maillog.

◦Firewall or IDS upstream is ending the email

conversation prematurely and/or mangling the

messages

/var/spool/MailScanner/milterout is filling up but is not

being delivered

Again, examine the maillog for cause of failure. Ensure that

postfix is running, listening, and accepting messages (default

port is 25 on localhost). Ensure that MailScanner can read

and access the milterout directory.

Debugging the Milter

To enable debug mode, edit

/etc/MailScanner/MailScanner.conf:

Restart msmilter for debug mode to turn on and received

detailed milter logging to the mail log. Remember to set

Debug = no when done and restart msmilter again.

Debugging the MSMail MailScanner Processor

Debug = yes

After enabling debug mode, stop mailscanner, and run

/usr/sbin/MailScanner as root. MailScanner will process a

message and exit, writing detailed logging to the mail log.

Remember to set Debug = no before starting the mailscanner

daemon again.
