MetroSelect Configuration Guide

METROLOGIC INSTRUMENTS, INC.

MetroSelect®

Configuration Guide

LOCATIONS

CORPORATE HEADQUARTERS

North America Metrologic Instruments, Inc. Customer Service: 1-800-ID-METRO

90 Coles Road Tel: 856-228-8100

Blackwood, NJ 08012-4683 Fax: 856-228-6673

Email: info@metrologic.com

Internet: www.metrologic.com

EUROPEAN HEADQUARTERS

Germany, Metrologic Instruments GmbH Tel: +49 89 89019 0

Middle East and Africa Dornierstrasse 2 Fax: +49 89 89019 200

82178 Puchheim b. Email: info@europe.metrologic.com

Munich, Germany Germany Email: info@de.metrologic.com

Spain Metrologic Eria lbérica SL Tel: +34 913 272 400

Julián Camarillo 29, D-1 Fax: +34 913 273 829

Edificio Diapasón Email: info@es.metrologic.com

28037 Madrid

Italy Metrologic Instruments Italia srl Tel: +39 0 51 6511978

Via Emilia 70 Fax: +39 0 51 6521337

40064 Ozzano dell’Emilia (BO) Email: info@it.metrologic.com

France Metrologic Eria France SA Tel: +33 (0) 1 48.63.78.78

69 Rue de la Belle Etoile Fax: +33 (0) 1 48.63.24.94

ZI Paris Nord II, BP 50057 Email: info@fr.metrologic.com

95947 – ROISSY CDG CEDEX

United Kingdom Metrologic Instruments UK Limited Tel: +44 (0) 1256 365900

58 Tempus Business Centre Fax: +44 (0) 1256 365955

Kingsclere Road, Basingstoke Email: info@uk.metrologic.com

Hampshire RG21 6XG

Russia Metrologic Russia Tel: +7 095 5093 485

Bolshaya Novodmitrovskaya 14

RU-125015 Email: info@ru.metrologic.com

Moscow Russia

ASIA

Singapore Metrologic Asia (Pte) Ltd Tel: 65-6842-7155

No. 8 Kaki Bukit Place Fax: 65-6842-7166

4th Floor Email: info@sg.metrologic.com

Singapore 416186

China Metro (Suzhou) Technologies Co., Ltd. Tel: 86-512-62572511

221 Xing Hai Street Fax: 86-512-62571517

Suzhou Industrial Park Email: info@cn.metrologic.com

Suzhou, China

215021

Japan Metrologic Japan Co., Ltd. Tel: 81-03-3839-8511

Matsunoya Building, 6 Floor Fax: 81-03-3839-8519

3-14-8 Higashiueno Email: info@jp.metrologic.com

Taitou-Ku, Tokyo 110-0015 Japan

SOUTH AMERICA

Brazil Metrologic do Brasil Ltda. Tel: 55-11-5182-8226

Rua da Paz 2059 Fax: 55-11-5182-8315

CEP 04713-002 Email: info@br.metrologic.com

Chácara Santo Antônio

São Paulo, SP, Brasil

Outside Brazil Metrologic South America Tel: 55-11-5182-7273

Rua da Paz 2059 Fax: 55-11-5182-7198

CEP 04713-002 Email: info@sa.metrologic.com

Chácara Santo Antônio

São Paulo, SP, Brasil

in any form or by any means without prior written consent, except by reviewer, who may quote brief passages in a review,

or provided for in the Copyright Act of 1976.

Products and brand names mentioned in this document are trademarks of their respective companies.

Table of Contents iii

TABLE OF CONTENTS

Introduction

Symbol Key ................................................................................................. ix

Bar Code Configuration Methods

Single-Code Method.....................................................................................x

Multi-Code Method .......................................................................................x

Need to Start Over?

Recall Defaults ............................................................................................ xi

Section A: Code Types and Decode Rules

UPC/EAN......................................................................................................1

Code 128......................................................................................................3

Code 39........................................................................................................4

Interleaved 2 of 5..........................................................................................6

Standard 2 of 5.............................................................................................9

Other 2 of 5 Codes .....................................................................................10

Codabar......................................................................................................12

Code 93......................................................................................................13

Code 11......................................................................................................13

Telepen.......................................................................................................14

Plessey Codes............................................................................................15

Other Decode Features..............................................................................17

Configurable Code Lengths........................................................................18

RSS 14 Features........................................................................................21

RSS Limited Features ................................................................................23

RSS Expanded Features............................................................................25

Section B: Supplements

Two Digit Supplements/Redundancy ...........................................................1

Five Digit Supplements/Redundancy ...........................................................1

Supplements Required/Not Required...........................................................2

Remote Supplemental Requirement ............................................................2

Bookland (978) Supplement Required .........................................................3

Table of Contents iv

TABLE OF CONTENTS

Section B: Supplements (Continued)

977 (2 Digit) Supplement Required ..............................................................3

378/379 French Supplement Requirement...................................................3

434/439 German Supplement Required.......................................................4

414/419 German Supplement Required.......................................................4

# System 2 Requires Supplements ..............................................................4

# System 5 Requires Supplements ..............................................................5

Coupon Code 128 ........................................................................................5

Code 128 ‘]C1’ Extended Code Format........................................................5

Code 128 Group Separators ........................................................................6

100 msec to Find Supplemental...................................................................6

200 msec to Find Supplemental...................................................................6

400 msec to Find Supplemental...................................................................7

Code ID’s with Supplements ........................................................................7

Beep Once/Twice on Supplements ..............................................................8

ISBN Check Digit Transmission ...................................................................8

Bookland to ISBN Conversion ......................................................................9

ISBN Re-Formatting .....................................................................................9

Number System 4 Coupon Code 128.........................................................10

UPC Discard...............................................................................................10

Section C: Communications

Enable RS-232 .............................................................................................1

Load Keyboard Wedge Defaults...................................................................1

Enable Light Pen/Wand Communication......................................................1

Enable Keyboard Wedge Emulation.............................................................1

Enable Stand-Alone Keyboard Scanner.......................................................1

Load OCIA Defaults......................................................................................2

Enable OCIA Output.....................................................................................2

Load IBM 46xx Defaults ...............................................................................2

Enable IBM 46xx Communication ................................................................2

Low Speed USB ...........................................................................................3

Enable No Communication Mode.................................................................3

Reserved ......................................................................................................3

Table of Contents v

TABLE OF CONTENTS

Section D: Scanner Operation

Configuration Mode Options.........................................................................1

Scan Buffers.................................................................................................2

Redundant Scans.........................................................................................4

Miscellaneous Decode Features ..................................................................6

Depth of Field Adjustments ..........................................................................7

Same Symbol Time Outs..............................................................................8

LED Options ...............................................................................................10

Beeper Options...........................................................................................11

Inter-Character Data Transmission Delays ................................................15

Inter-Record Data Transmission Delays.....................................................16

Communication Time Out Options .............................................................17

Host Scanner Commands ..........................................................................19

Power Save Modes ....................................................................................24

Japanese Double Field Support .................................................................28

Test Modes.................................................................................................33

Section E: Prefixes/Suffixes

Configurable Prefixes, All Data.....................................................................1

Configurable ID Characters, Code Specific..................................................3

Identifiers Character ...........................................................................3

Standard Prefix Characters ..........................................................................8

Standard Suffix Characters ........................................................................14

Longitudinal Redundancy Check (LRC) .....................................................16

Configurable Suffixes, All Data...................................................................17

Special Formats..........................................................................................20

Character Replacements............................................................................21

Section F: Code Formatting

UPC/EAN......................................................................................................1

Codabar........................................................................................................5

Code 39........................................................................................................7

Code 11........................................................................................................9

Table of Contents vi

TABLE OF CONTENTS

Section F: Code Formatting (Continued)

Telepen.........................................................................................................9

Plessey.......................................................................................................10

2 of 5...........................................................................................................12

Section G: RS-232

Enable RS-232 Mode ...................................................................................1

Parity Features .............................................................................................2

Baud Rates...................................................................................................3

Data/Stop Bits...............................................................................................5

Hardware Handshaking................................................................................6

Software Handshaking .................................................................................9

Miscellaneous.............................................................................................12

Section H: Keyboard

Enable Keyboard Emulation.........................................................................1

Country/Scan Code Table Selects ...............................................................2

Keyboard/System Type ................................................................................4

Special Keyboard Features ..........................................................................5

Inter-Scan Code Delays ...............................................................................9

Control Sets................................................................................................10

3151 Terminal Keyboard ............................................................................12

Section I: OCIA

Load OCIA Defaults......................................................................................1

Enable OCIA.................................................................................................1

DTS/Siemens ...............................................................................................1

DTS/Nixdorf..................................................................................................1

NCR-S ..........................................................................................................1

NCR-F ..........................................................................................................1

Section J: Light Pen/Laser Emulation

Enable Light Pen Mode ................................................................................1

Space/Bar Height .........................................................................................1

Transmit Code 39.........................................................................................1

Table of Contents vii

TABLE OF CONTENTS

Section J: Light Pen/Laser Emulation (Continued)

Transmit as Scanned....................................................................................1

Poll Light Pen Source...................................................................................2

Light Pen Extra Toggle.................................................................................2

10x Narrow Element Border .........................................................................2

50x Narrow Element Border .........................................................................2

Set Narrow Element Width ...........................................................................3

Laser Emulation............................................................................................3

Section K: IBM 46xx Configuration

Enable IBM 46xx Communication ................................................................1

Load IBM 46xx Defaults ...............................................................................1

IBM Ports......................................................................................................1

IBM Reserve Codes .....................................................................................2

Section M: Code Bytes

Code Byte Usage .........................................................................................1

Code Bytes 0-5.............................................................................................2

Code Bytes 6-9.............................................................................................3

Reserved Codes...........................................................................................4

Code Byte/Code Type Table ........................................................................5

ASCII Reference Table.................................................................................6

Extended Key Code Reference Table........................................................11

Section N: Miscellaneous Features

Custom Defaults...........................................................................................1

Serial Program Mode....................................................................................3

Software Identification ..................................................................................4

StratosSchool ...............................................................................................4

Section O: Auxiliary Port Controls

Disable AUX Port..........................................................................................1

AUX Port and Secondary Device Data Formats

For the MS7220, MS7320, MS7600 and MS202x........................................1

When Using a Metrologic Device as a Secondary..............................1

When Using a non-Metrologic RS-232 Device as a Secondary .........3

Table of Contents viii

TABLE OF CONTENTS

Section O: Auxiliary Port Controls (Continued)

Additional AUX Port Data Formats...............................................................4

AUX Port Baud Rates...................................................................................6

AUX Port Parity ............................................................................................8

AUX Port Stop/Data Bits...............................................................................9

Enable/Disable RTS/CTS Handshaking .....................................................10

Message AUX RTS/CTS ............................................................................10

Character AUX RTS/CTS...........................................................................10

Enable/Disable D/E Commands .................................................................10

Enable/Disable F/L Commands..................................................................11

Enable/Disable M/O Commands ................................................................11

Enable/Disable XON/XOFF ........................................................................11

Enable/Disable ACK/NAK...........................................................................12

AUX CTS/RTS Polarity...............................................................................12

AUX Same Symbol Timeout.......................................................................13

Main Output Port Auxiliary Data Formats ...................................................14

Inter-Character Delays ...............................................................................16

Section P: USB

Full Speed USB............................................................................................1

Low Speed USB ...........................................................................................2

Introduction ix

INTRODUCTION

Your new scanner has been configured at the factory with a set of default communication

protocols. Since many host systems have unique formats and protocol requirements,

Metrologic provides a wide range of configurable features that may be selected with the

use of this bar code configuration guide.

Once the configuration is completed, the scanner stores the settings in nonvolatile

memory or NOVRAM. NOVRAM saves the settings when the power is turned off.

Symbol Key

* (asterisk) Default Feature

~ (tilde) Feature requires the Multi-Code Configuration Method,

see Bar Code Configuration Methods on page x.

Important!

Note

Bar Code Configuration Methods x

BAR CODE CONFIGURATION METHODS

Metrologic scanners can be bar code configured in two ways: the Single-Code Method

and the Multi-Code Method.

Single-Code Method

Most features can be enabled or disabled using the Single-Code Method.

1. Power up the scanner.

2. Scan the bar code(s) for the desired feature(s).

3. Observe a multi-toned, “save setting” beep that indicates the configuration has

been saved to NOVRAM.

Multi-Code Method

All features can be enabled or disabled using the Multi-Code Method.

A feature marked with a “~” requires the Multi-Code Method.

1. Power up the scanner.

2. Scan the Enter/Exit Configuration Mode bar code. [3 beeps]

3. Scan the bar code(s) for the desired feature(s). [1 beep]

4. Scan the Enter/Exit Configuration Mode bar code [3 beeps] and

save new configuration.

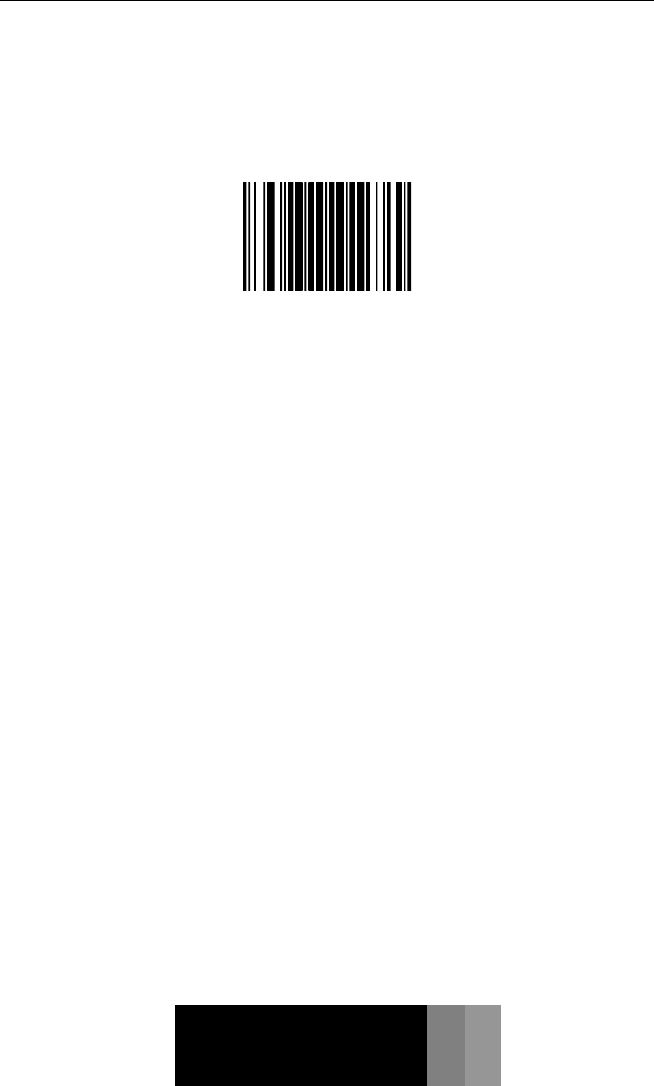

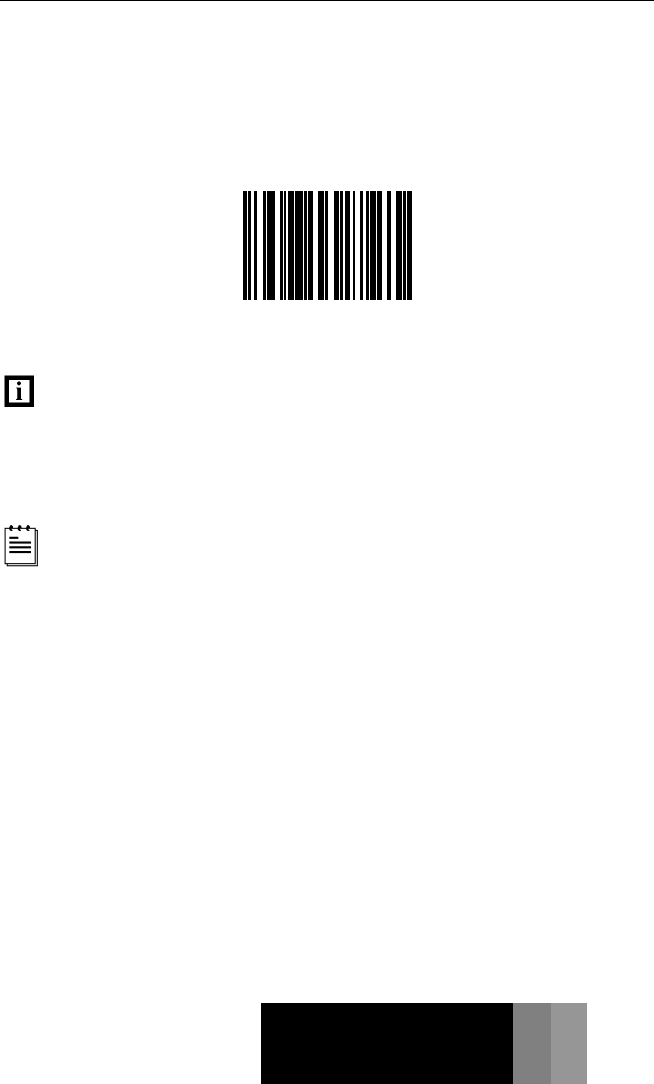

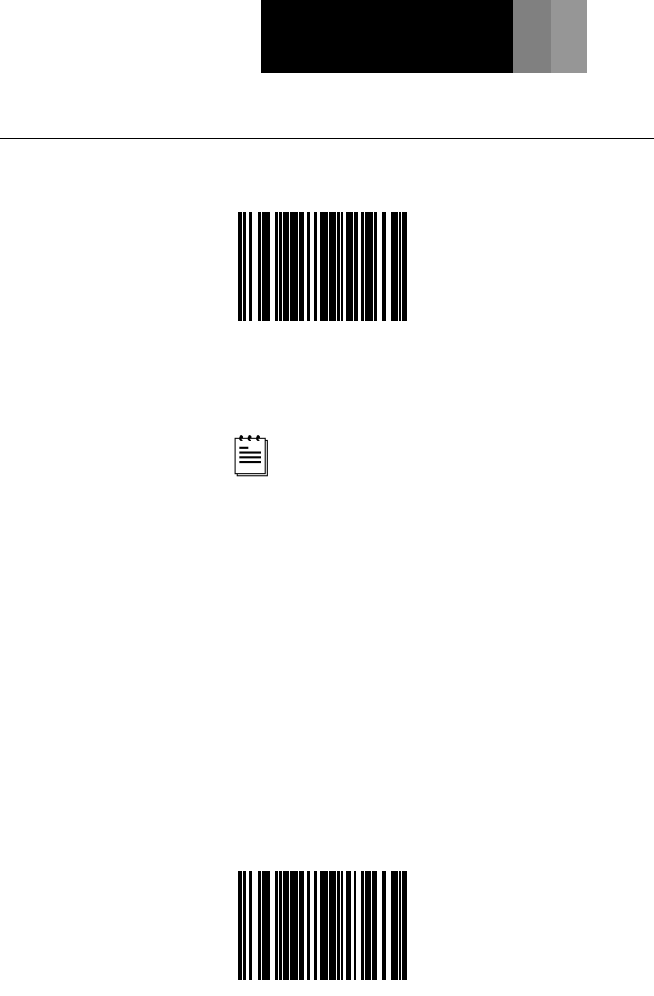

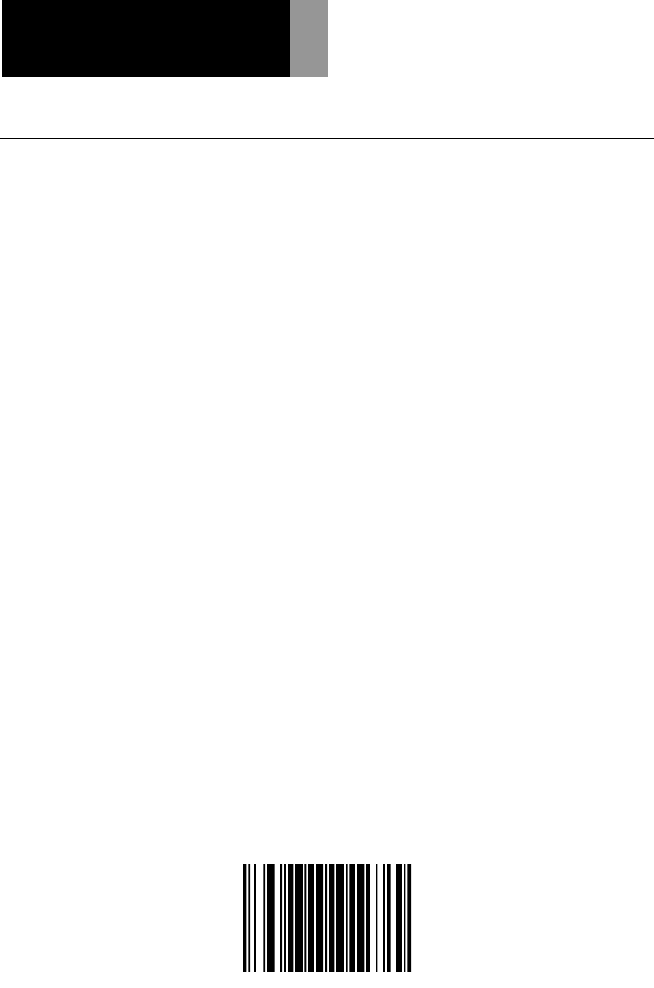

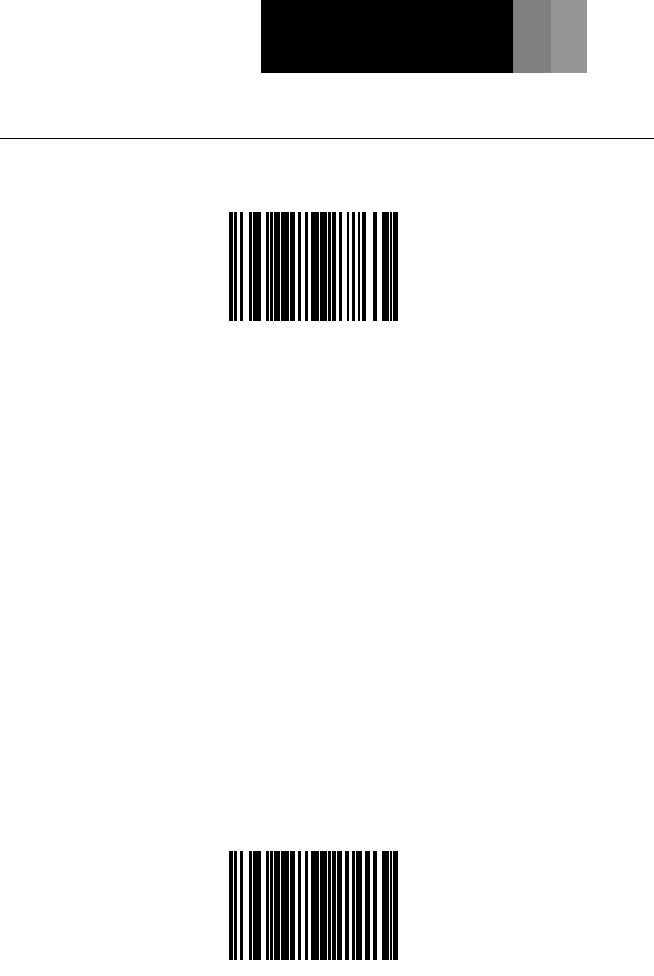

Enter/Exit Configuration Mode

³999999

To abort a configuration change, power off the scanner before scanning the

Enter/Exit Configuration Mode bar code.

Need to Start Over? xi

NEED TO START OVER?

Scan the Recall Default bar code. This will erase all previous settings and return to the

scanner’s default communications protocol.

• Keyboard Wedge interface scanners will load keyboard wedge defaults.

• All other scanners will load RS-232 defaults.

Metrologic manufactures custom OEM scanners, which load the OEM’s

defaults. For further information on the affects they have on Metrologic default

communications protocols refer to Section N, Custom Defaults.

Recall Defaults

³999998

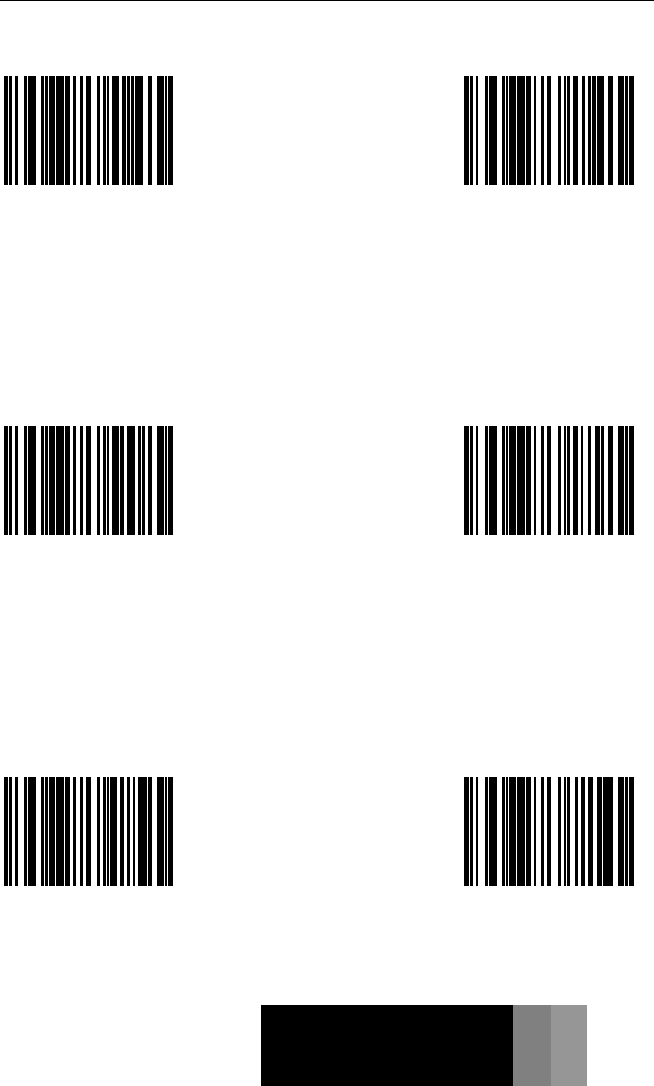

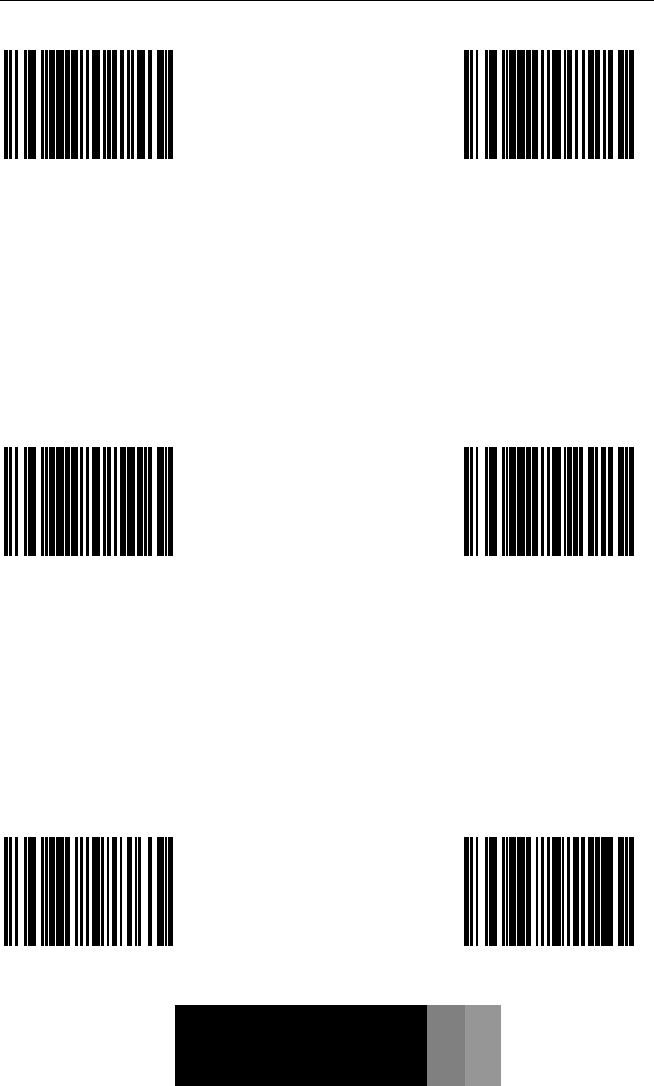

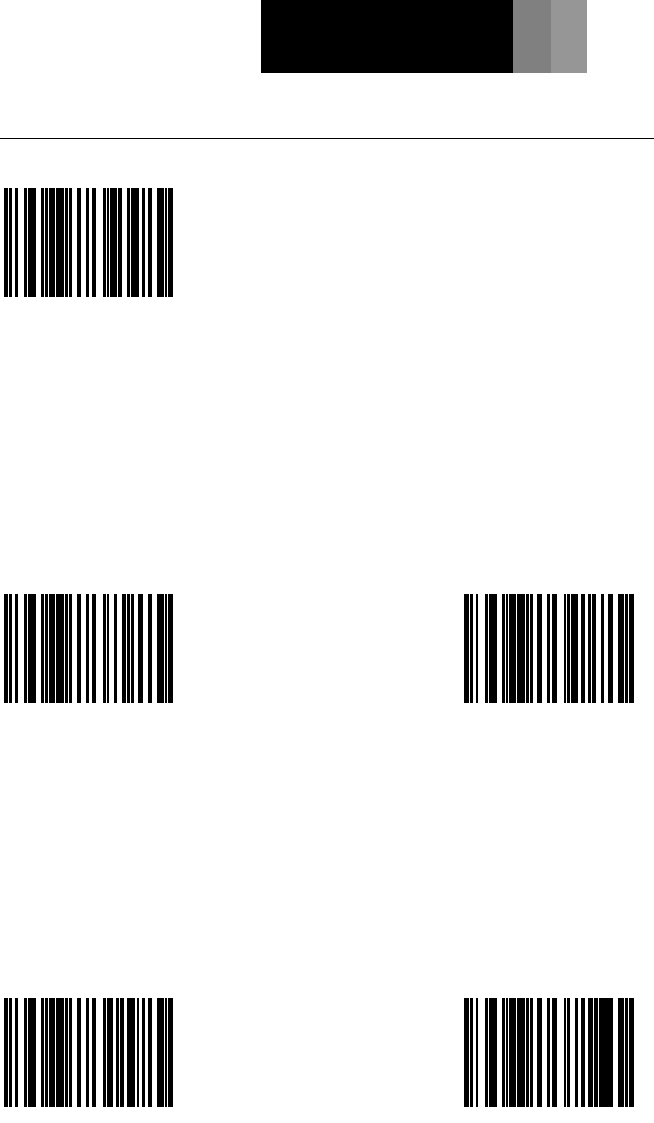

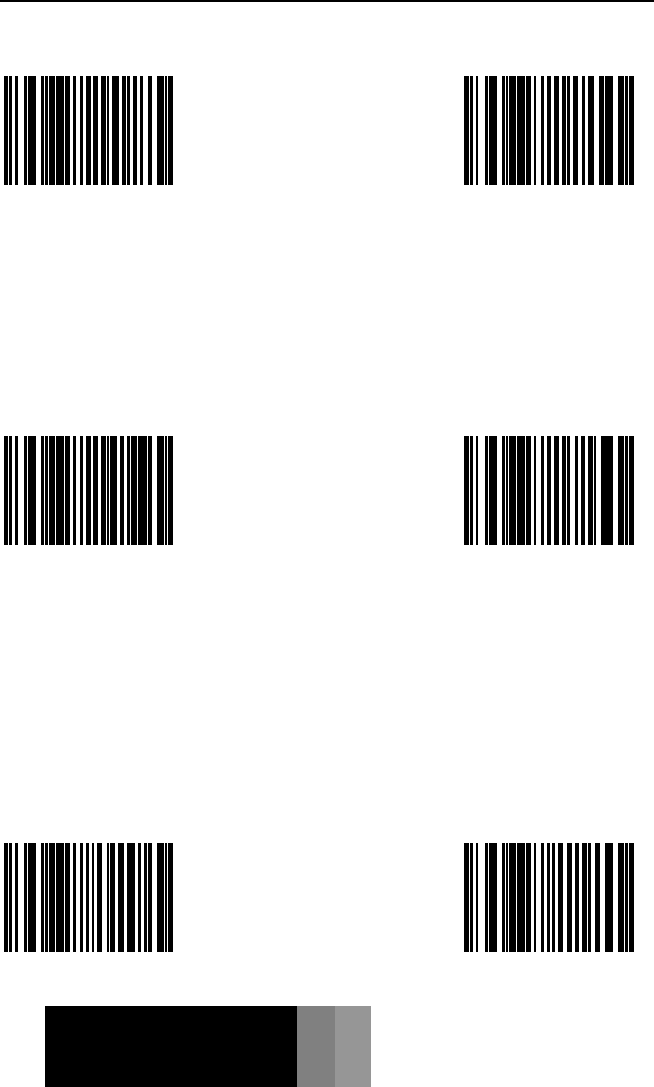

Code Types & Decode Rules A1

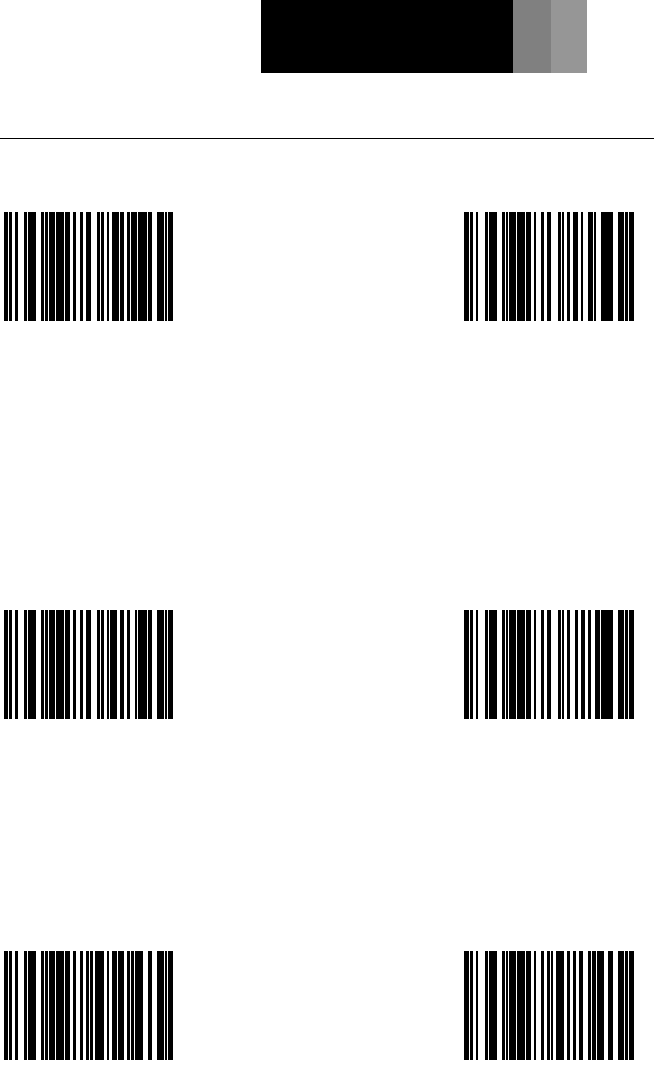

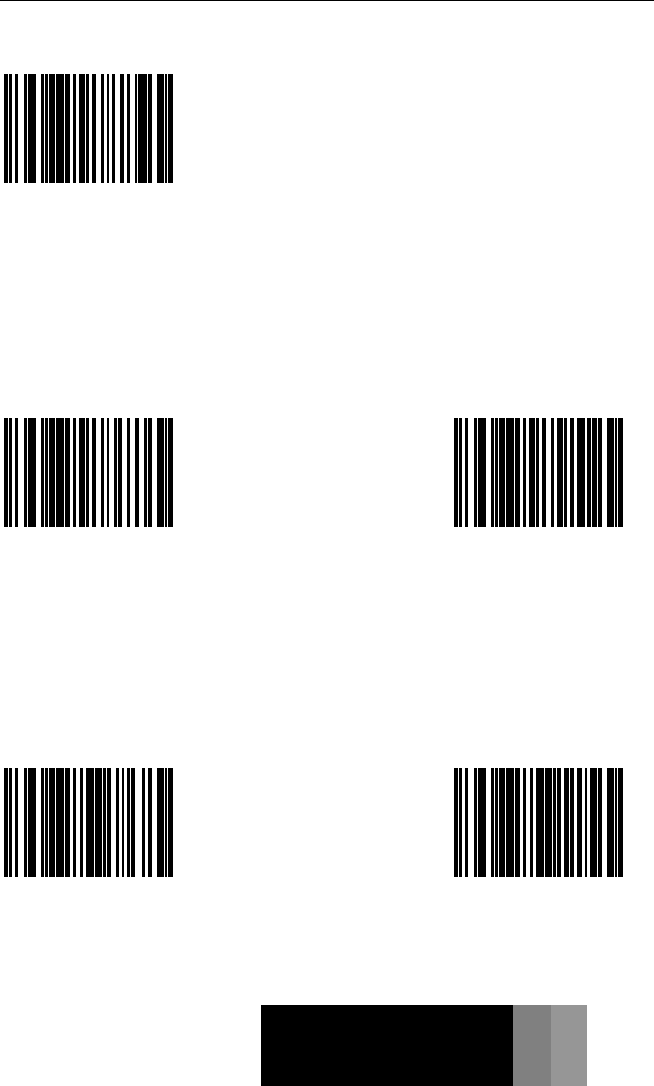

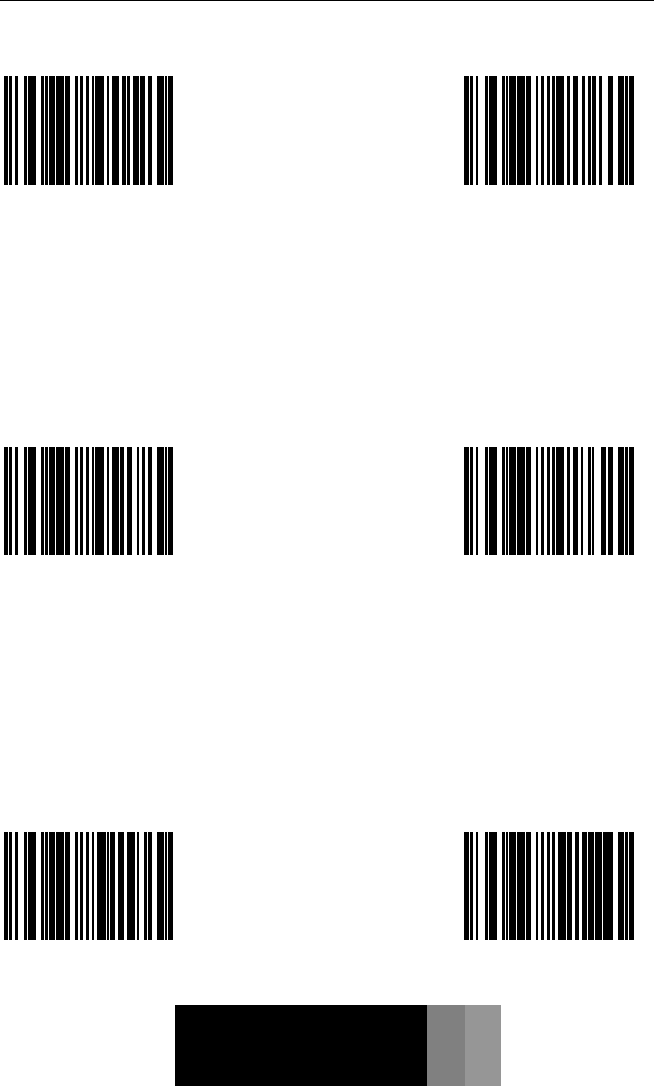

SECTION A UPC/EAN

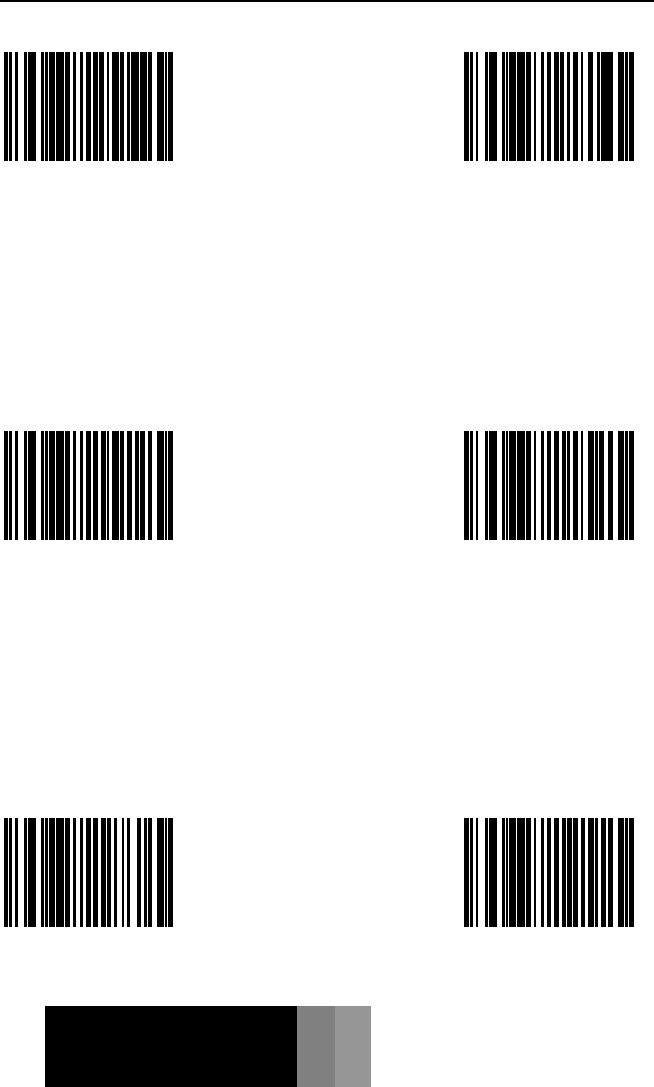

* Enable UPC/EAN Disable UPC/EAN

³100116 ³ 100106

* Enable UPC-A Disable UPC-A

³100216 ³ 100206

* Enable UPC-E Disable UPC-E

³100210 ³ 100200

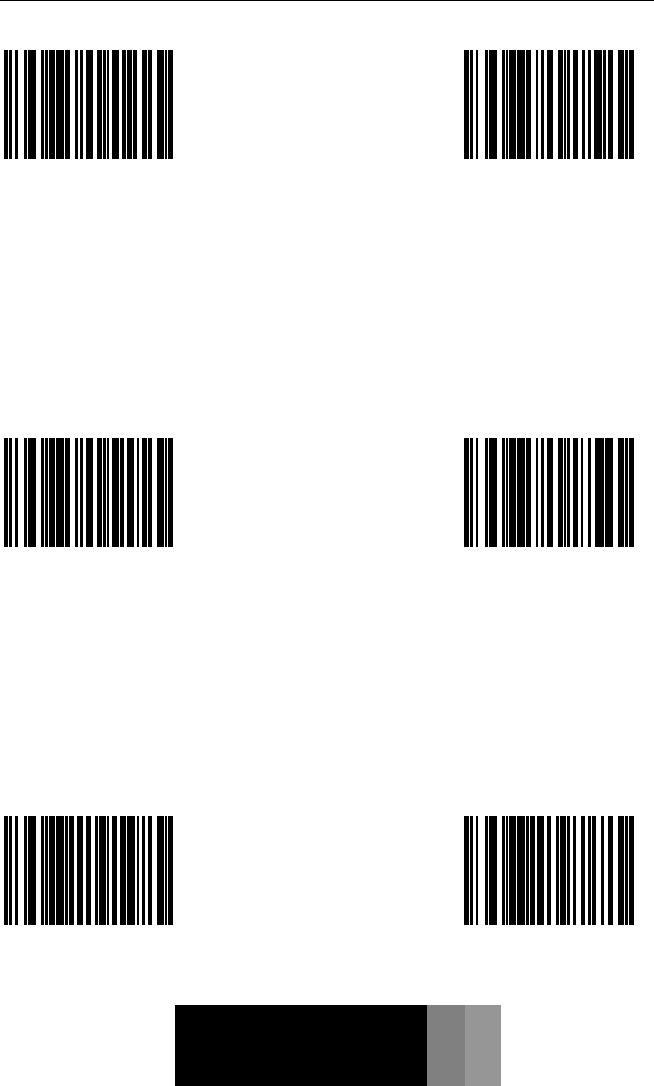

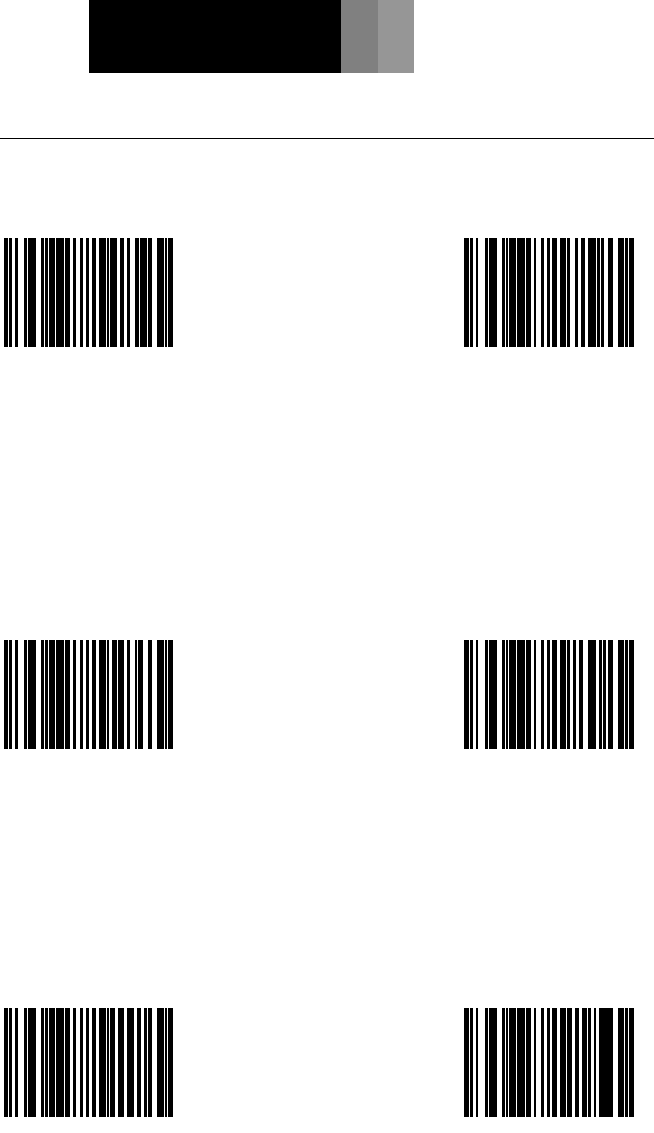

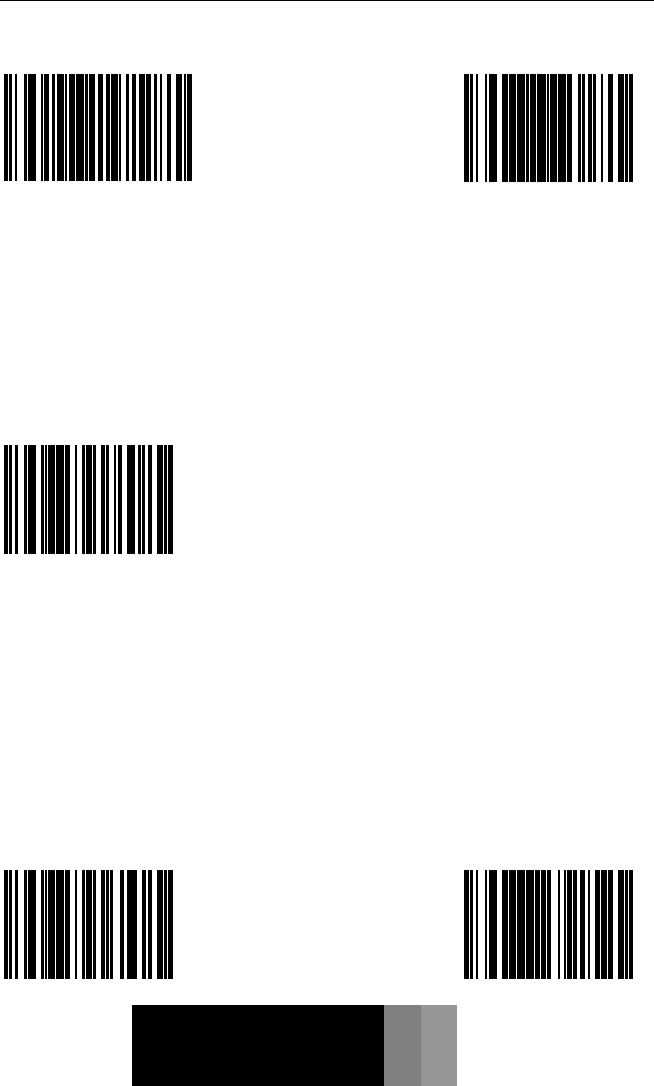

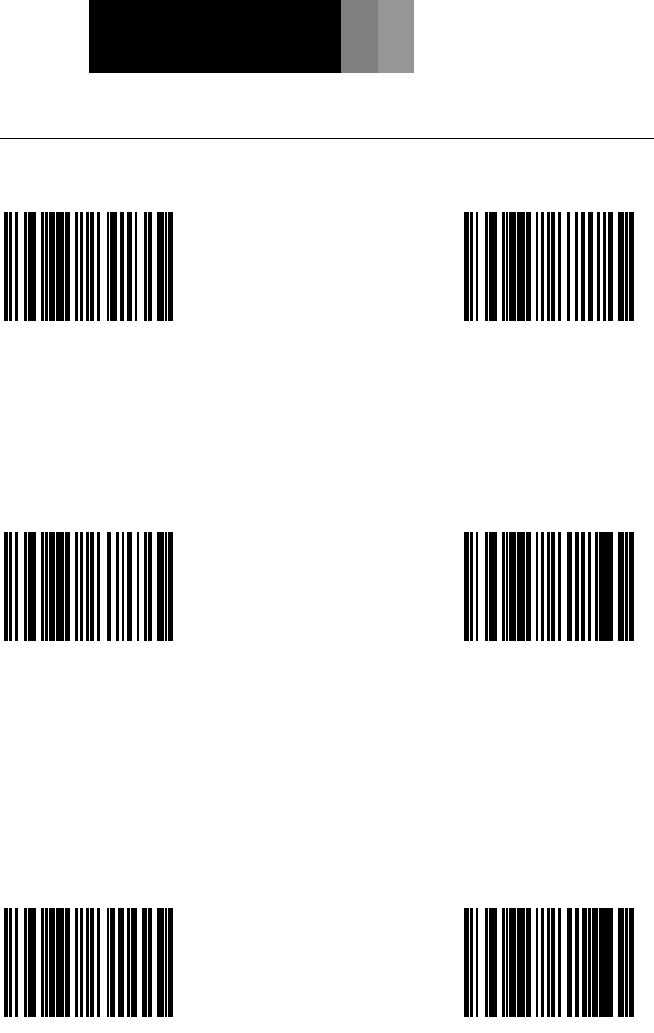

Code Types & Decode Rules A2

SECTION A UPC/EAN

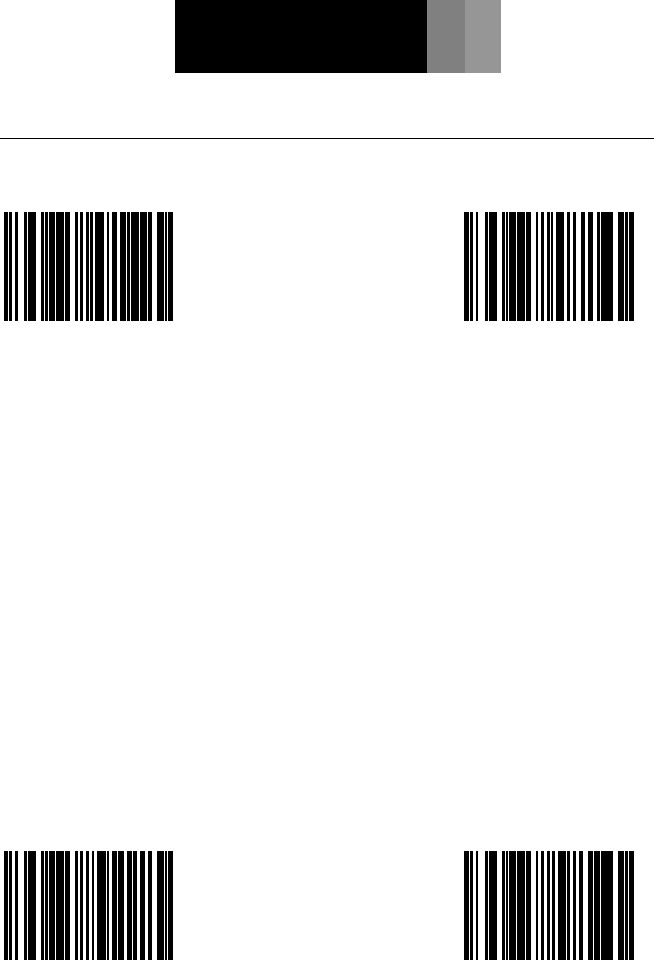

* Enable EAN-13 Disable EAN-13

³100211 ³ 100201

* Enable EAN-8 Disable EAN-8

³100214 ³ 100204

* Enable

Auto Redundancy UPC-E

Disable

Auto Redundancy UPC-E

³101104 ³ 101114

Code Types & Decode Rules A3

SECTION A CODE 128

* Enable Code 128 Disable Code 128

³100113 ³ 100103

Enable

UCC/EAN-28

‘]C1’ Code Formatting

Disable

UCC/EAN-128

‘]C1’ Code Formatting

³100314 ³ 100304

For Coupon Code 128, see Section B, page 5.

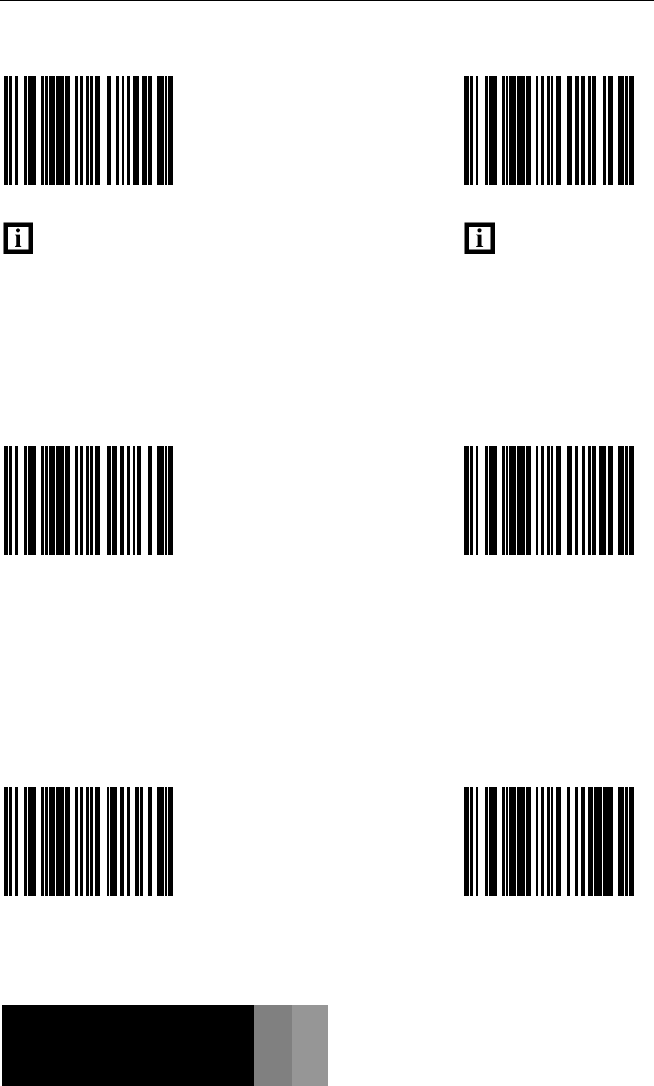

Code Types & Decode Rules A4

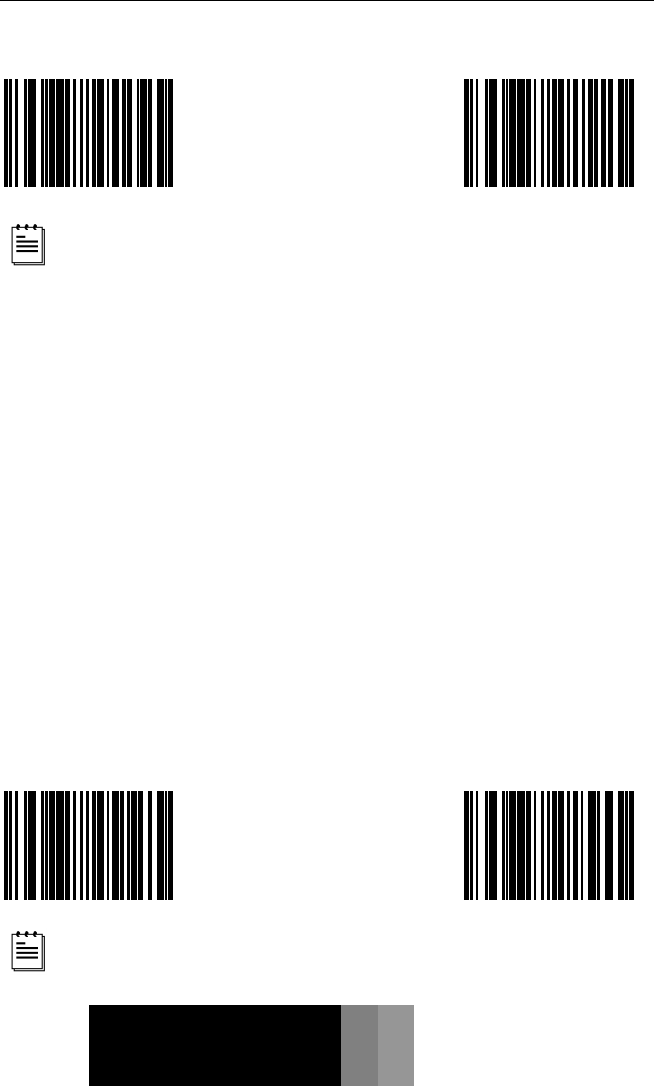

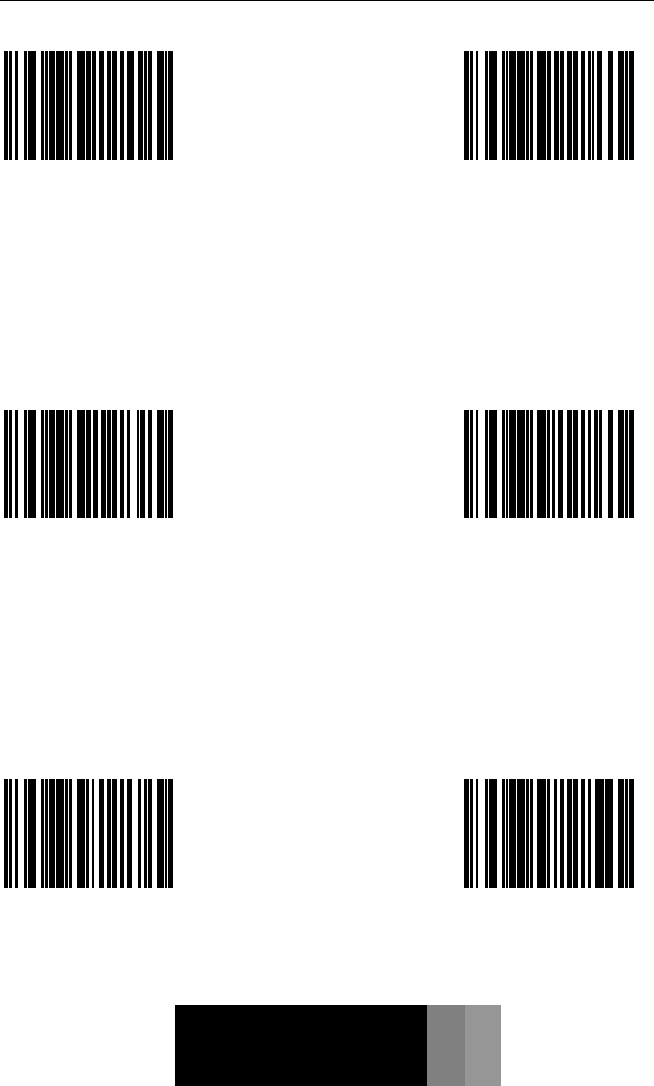

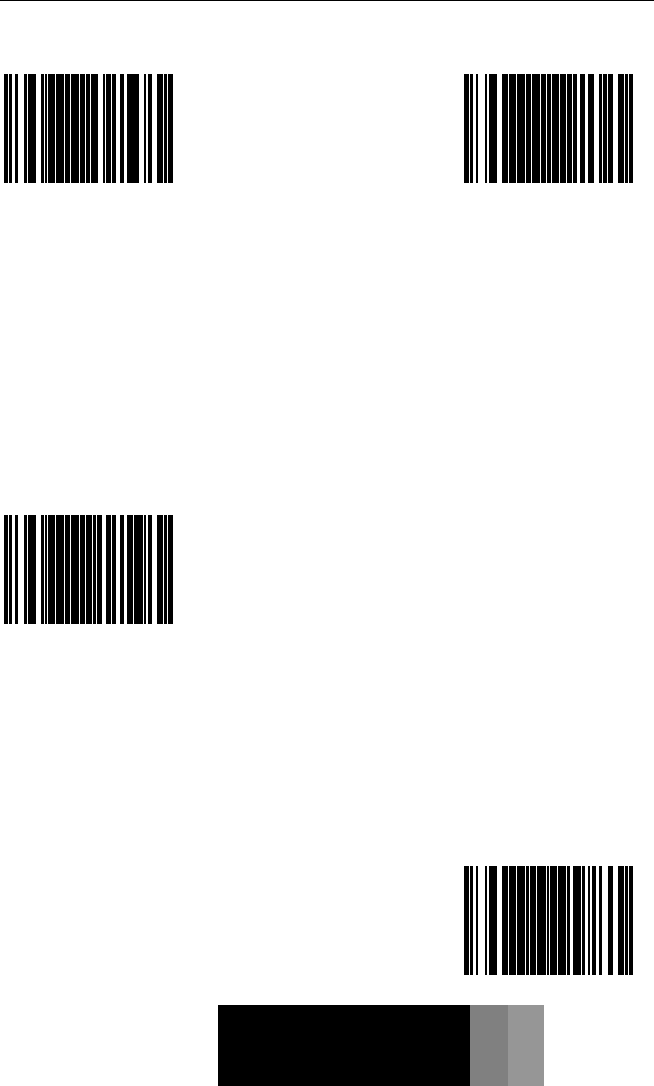

SECTION A CODE 39

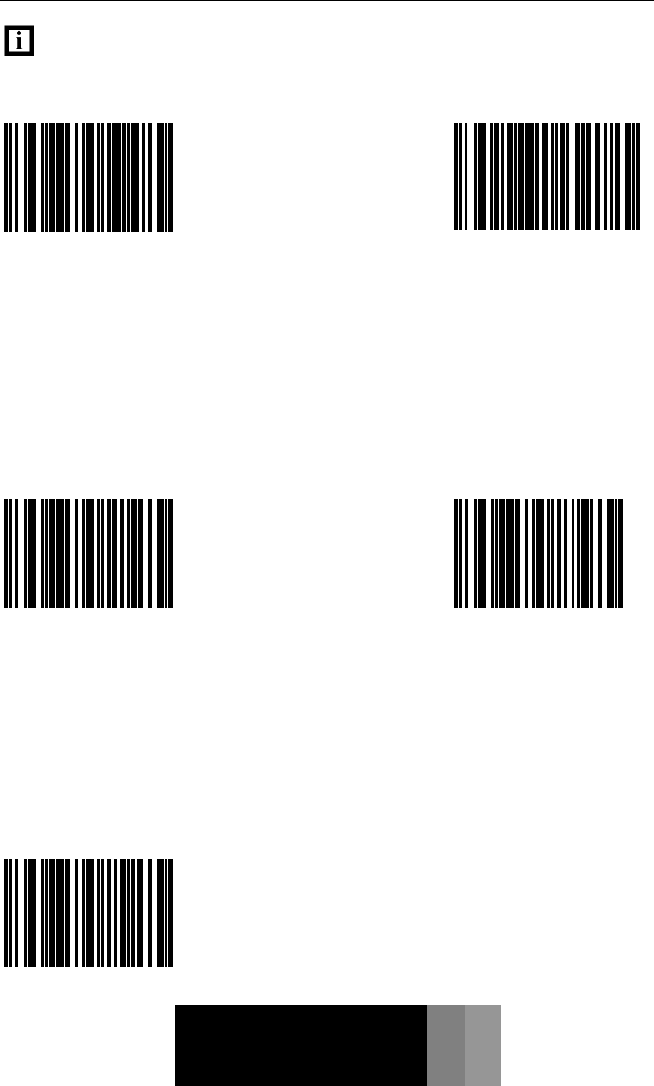

* Enable Code 39 Disable Code 39

³100111 ³ 100101

Enable MOD 43

Check on Code 39

* Disable MOD 43

Check on Code 39

³100213

The scanner will only scan

Code 39 bar codes that

have a valid Modulo 43

check digit.

³100203

The scanner will not test

Code 39 bar codes for a

modulo 43 check digit.

Transmit Mode 43 Check

Digit on Code 39

* Do Not Transmit Mode 43

Check Digit on Code 39

³107715

This feature works in

conjunction with Mode 43

Check on Code 39. Both

options must be enabled for

this feature to work.

³107705

This option will not transmit

Code 39’s Mod 43 check

character.

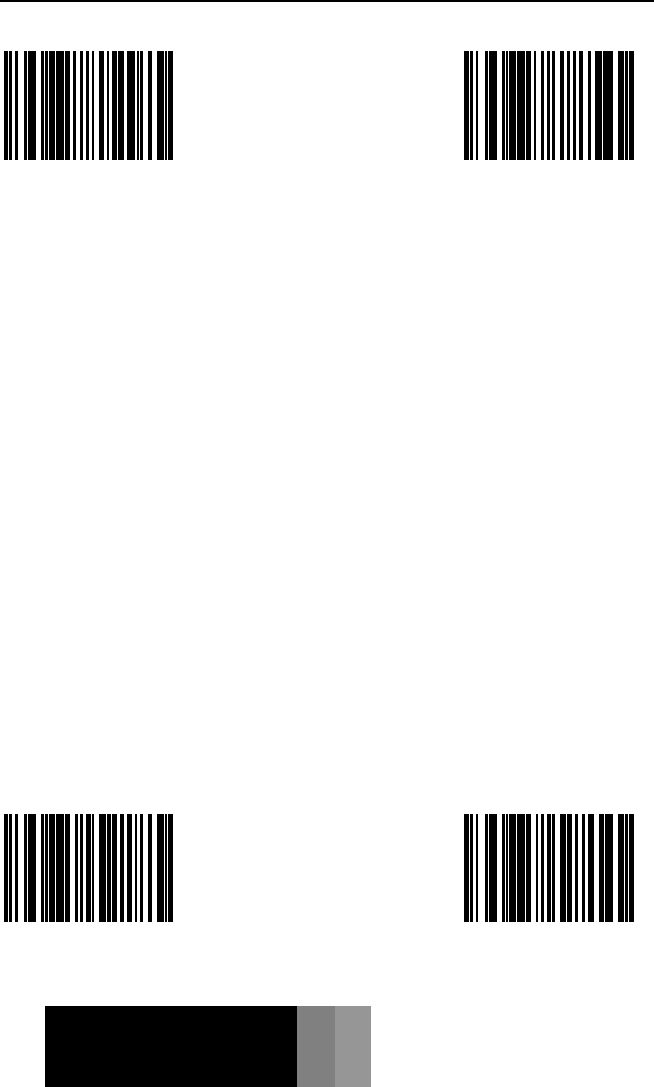

Code Types & Decode Rules A5

SECTION A CODE 39

Enable Full ASCII Code 39 * Disable Full ASCII

Code 39

³100217 ³ 100207

Enable PARAF Support

(Italian Pharmaceutical Codes) * Disable PARAF Support

³100215

The scanner will convert

Code 39 bar codes to

PARAF format.

³100205

The scanner will not convert

code 39 bar codes to

PARAF format.

Enable TRI-OPTIC Code * Disable TRI-OPTIC Code

³100312 ³ 100302

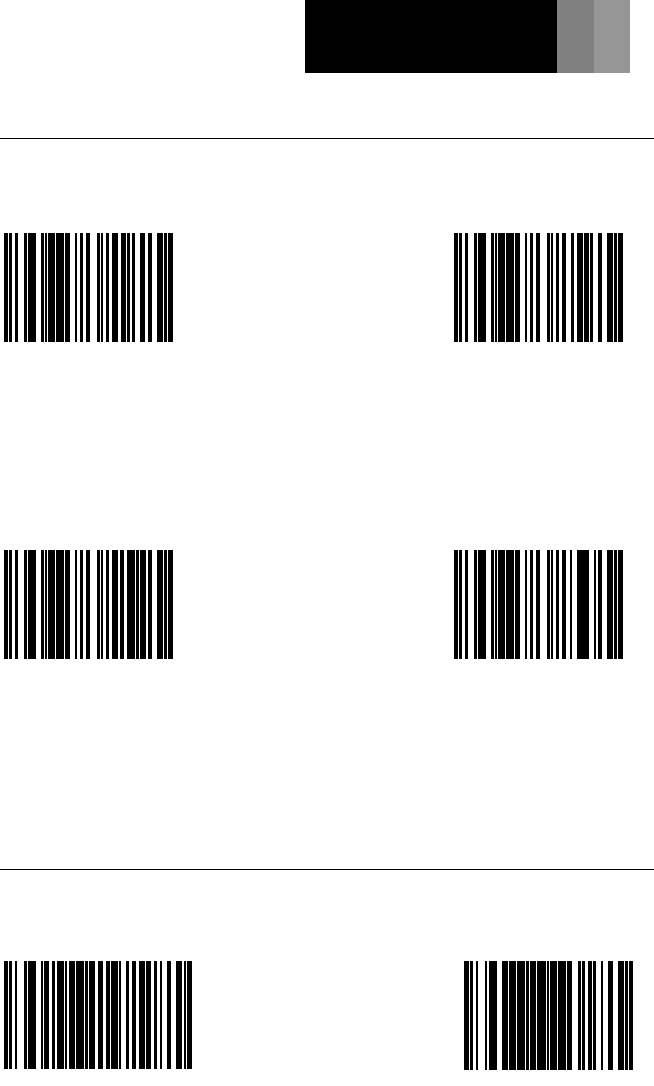

Code Types & Decode Rules A6

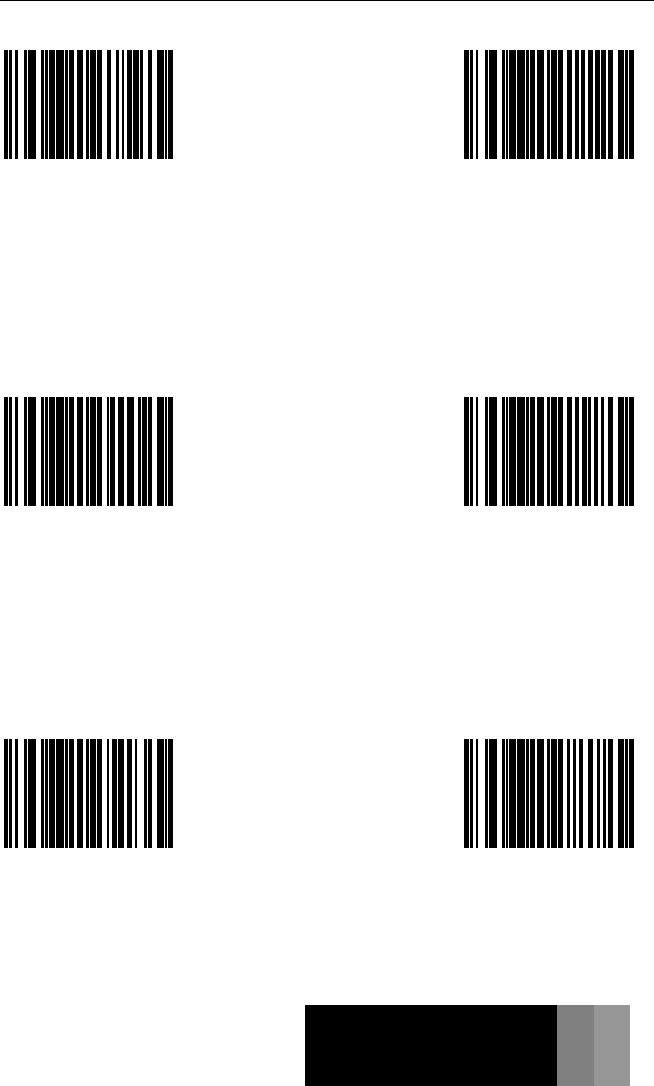

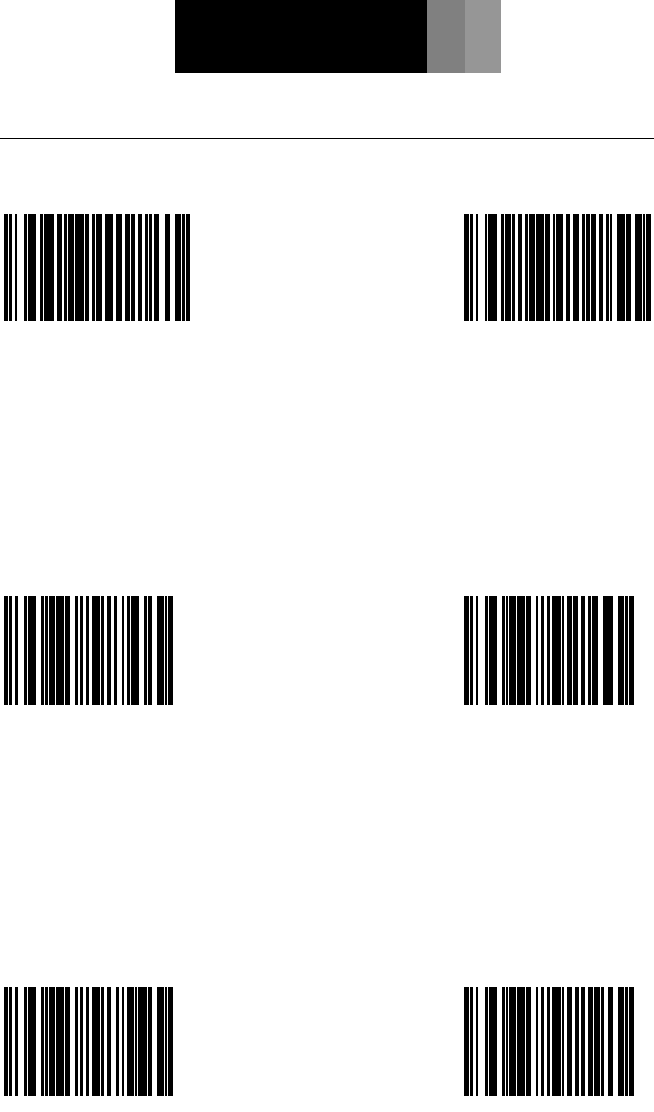

SECTION A INTERLEAVED 2 OF 5

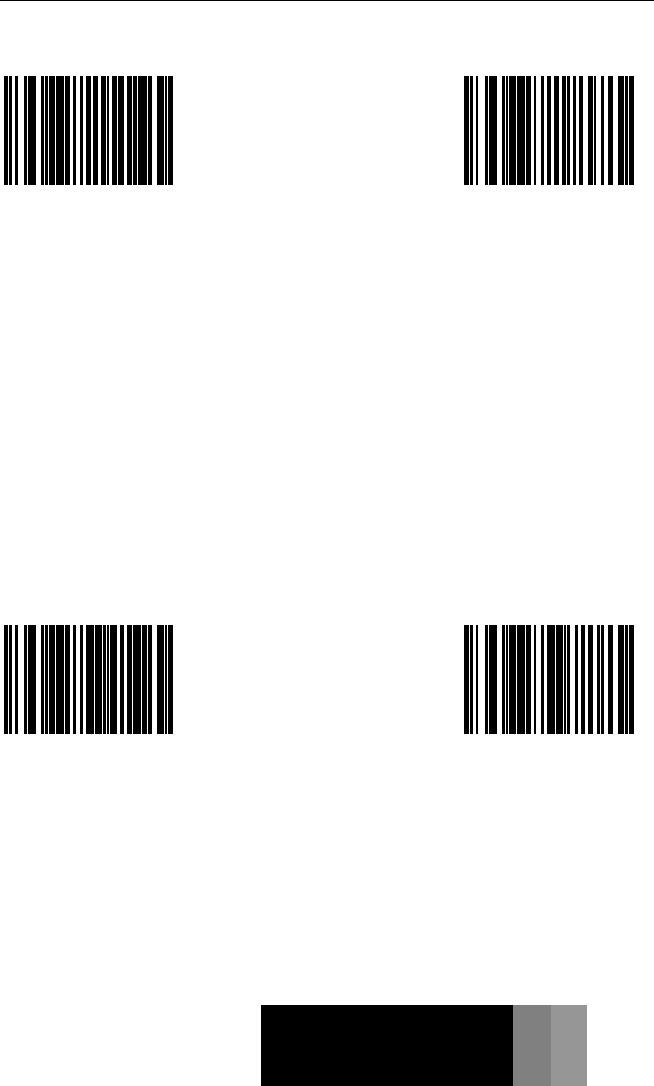

* Enable Interleaved

2 of 5 (ITF)

Disable Interleaved

2 of 5 (ITF)

³100115 ³ 100105

Enable MOD 10

Check on ITF

* Disable MOD 10

Check on ITF

³100310

The scanner will only scan

Interleaved 2 of 5 (ITF)

Bar codes that have a

Modulo 10 check digit.

³100300

The scanner will not test

Interleaved 2 of 5 (ITF)

bar codes for a Modulo 10

check digit.

Transmit MOD 10

Check Digit on ITF

* Do Not Transmit MOD 10

Check Digit on ITF

³107714

The scanner transmits

Interleaved 2 of 5 (ITF)

MOD 10 check character.

³107704

The scanner will not

transmit Interleaved 2 of 5

(ITF) MOD 10 check digit

characters. This feature

works in conjunction with

Mod 10 Check on ITF. Both

must be enabled for this

feature to work.

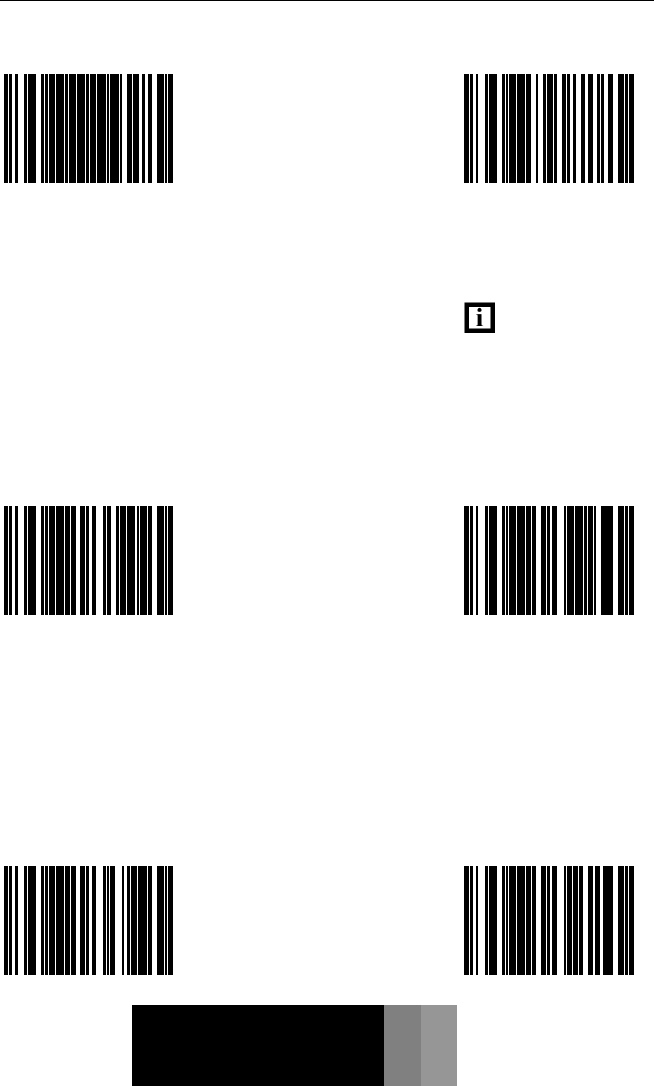

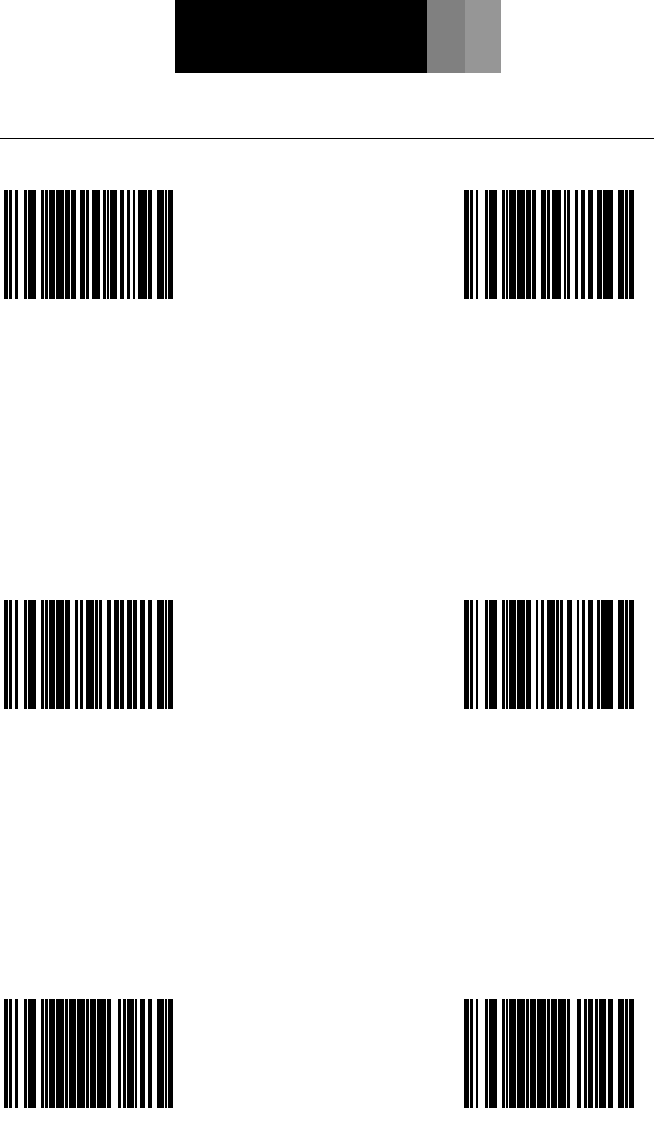

Code Types & Decode Rules A7

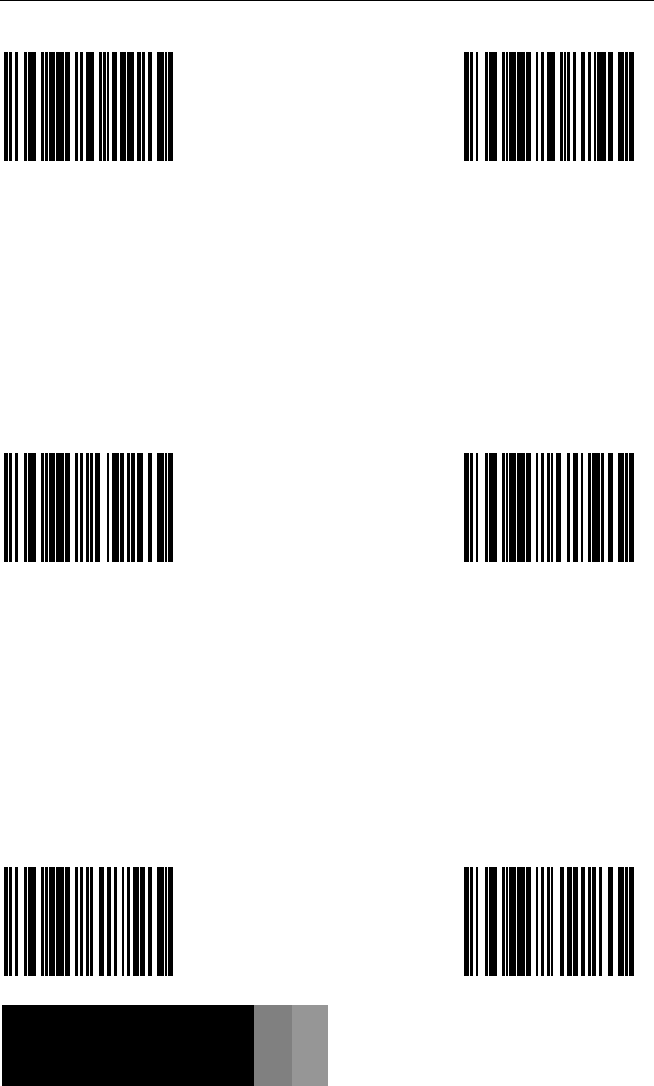

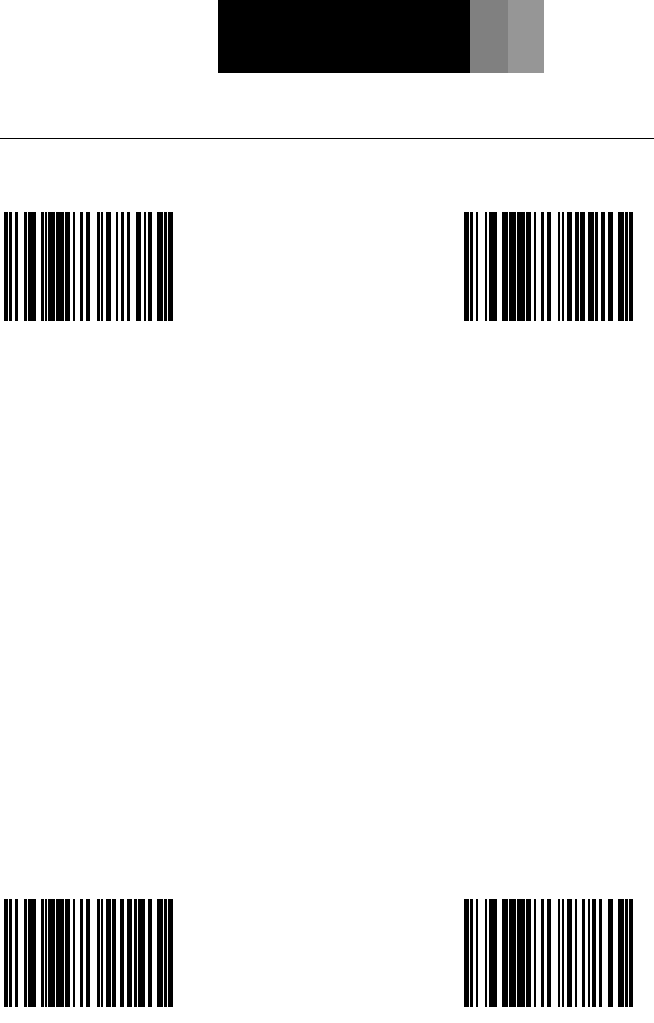

SECTION A INTERLEAVED 2 OF 5

Enable ALT

Check Digit ITF

* Disable ALT

Check Digit ITF

³100717 ³ 100707

Enable 12 Digit ITF

Check Digit at 1 * Normal Check Digit

³100910

This feature requires

MOD 10 ITF Check Digit to

be enabled. The 12-

character ITF check digit

calculation will start with 1

instead of 0.

³100900

Enable ITF/Code 39 Filter * Disable ITF/Code 39

Filter

³100416

Supports Code 39/ITF filters.

This feature may

adversely affect reading

of Codabar, Code 93 and

some other non-standard

symbologies.

³100406

Code Types & Decode Rules A8

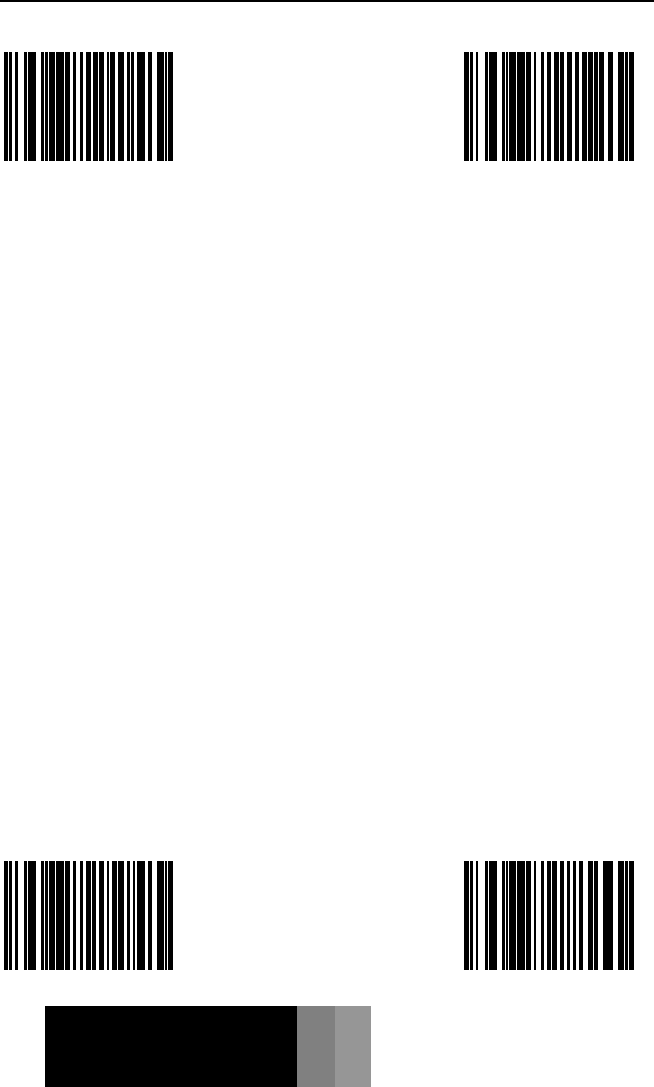

SECTION A INTERLEAVED 2 OF 5

~ ITF Symbol Length

Lock 1 †

~ ITF Symbol Length

Lock 2 †

³901600

To specify a 1st ITF symbol

length lock, scan the above

bar code and the

appropriate code bytes

located in Section M. †

³901700

To specify a 2nd ITF symbol

length lock, scan the above

bar code and the

appropriate code bytes

located in Section M. †

~ ITF Minimum

Symbol Length †

³903400

To specify a minimum

number of ITF characters to

be decoded, scan the above

bar code and the

appropriate code bytes

located in Section M.†

† Refer to the Multi-Code

Configuration Method on

page x.

Code Types & Decode Rules A9

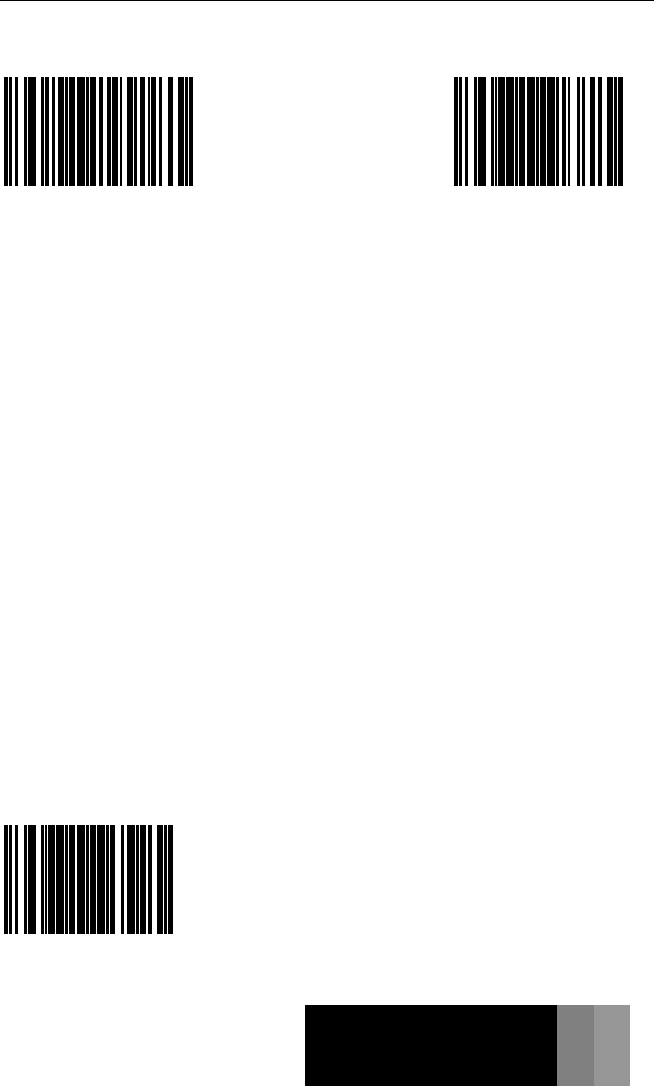

SECTION A STANDARD 2 OF 5

Enable

Standard 2 of 5

* Disable

Standard 2 of 5

³100110 ³ 100100

~ Standard 2 of 5

Symbol Length Lock

³901500

To specify a minimum

number of ITF characters to

be decoded, scan the above

bar code and the

appropriate code bytes

located in Section M.†

† Refer to the Multi-Code configuration

method on page x.

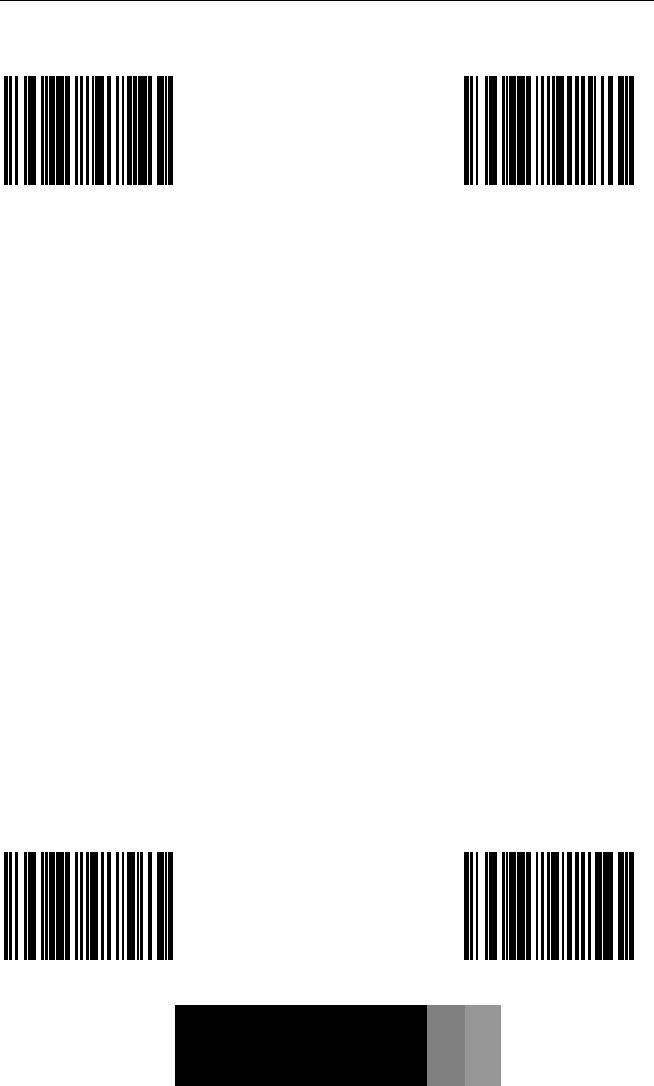

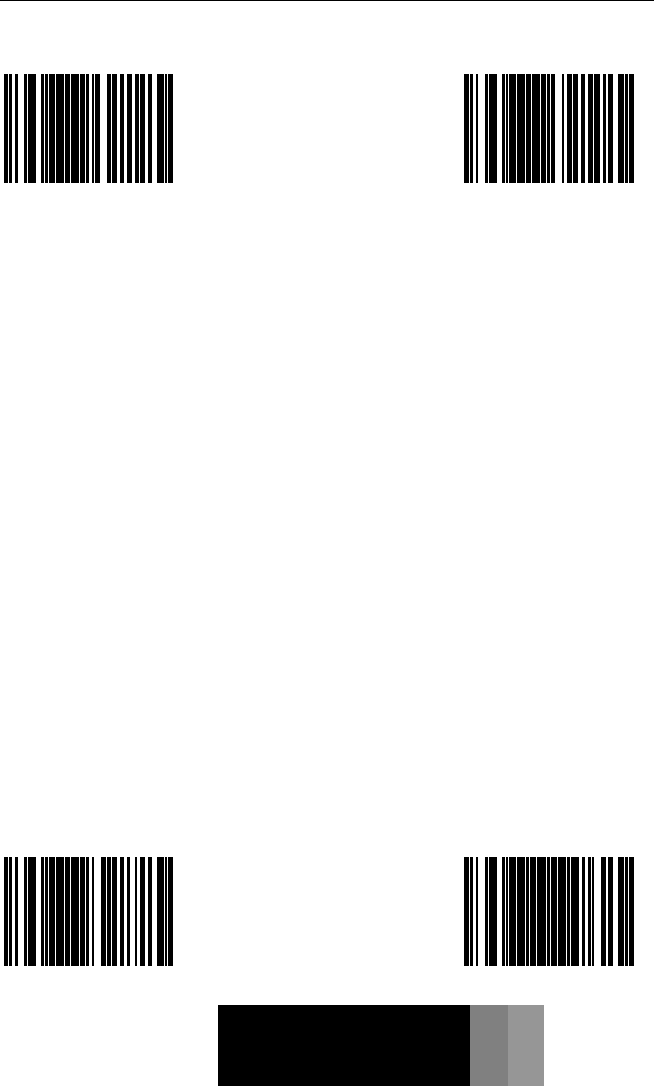

Code Types & Decode Rules A10

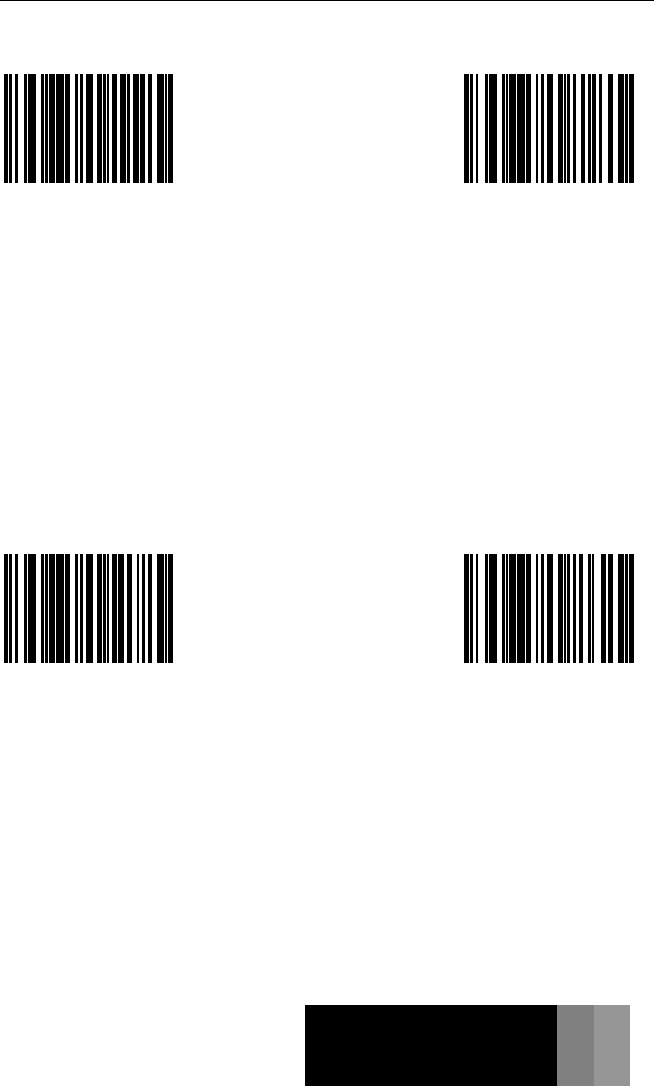

SECTION A OTHER 2 OF 5 CODES

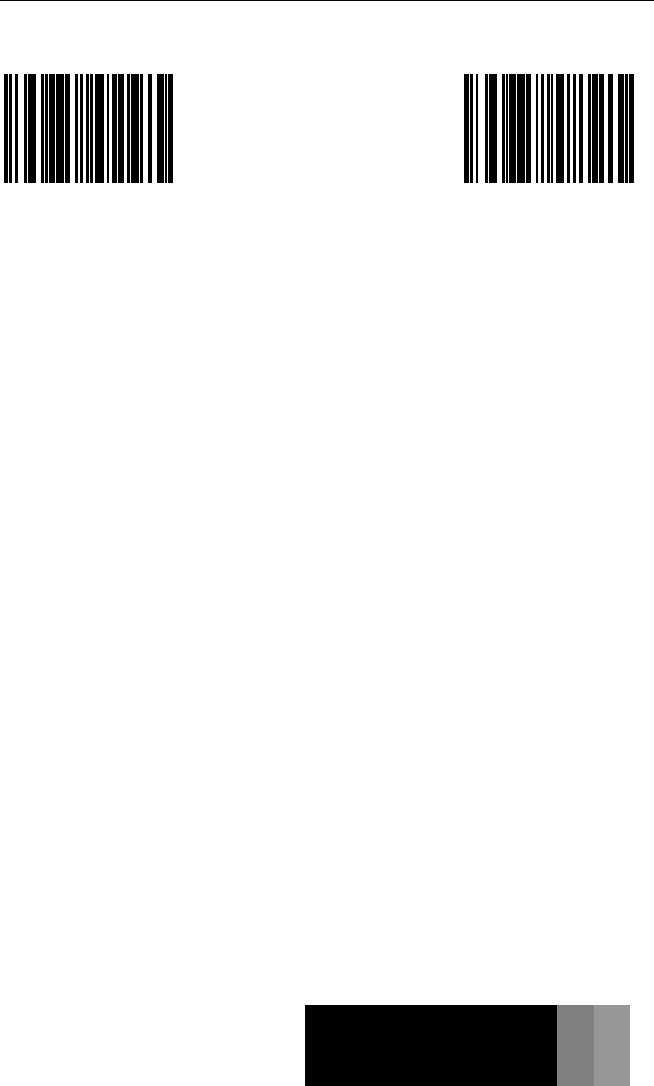

Enable Matrix 2 of 5 * Disable Matrix 2 of 5

³100015 ³ 100005

Enable 15 Digit

Airline 2 of 5

* Disable 15 Digit

Airline 2 of 5

³100014 ³ 100004

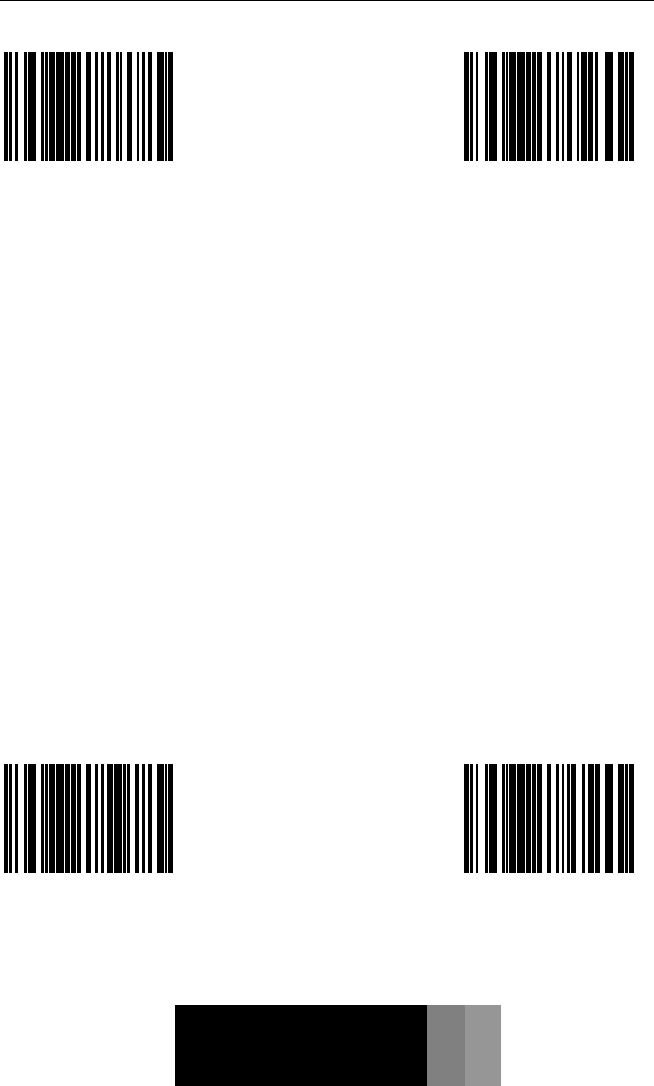

Code Types & Decode Rules A11

SECTION A OTHER 2 OF 5 CODES

Enable 13 Digit

Airline 2 of 5

* Disable 13 Digit

Airline 2 of 5

³100313 ³ 100303

Enable Hong Kong

2 of 5

* Disable Hong Kong

2 of 5

³100316 ³ 100306

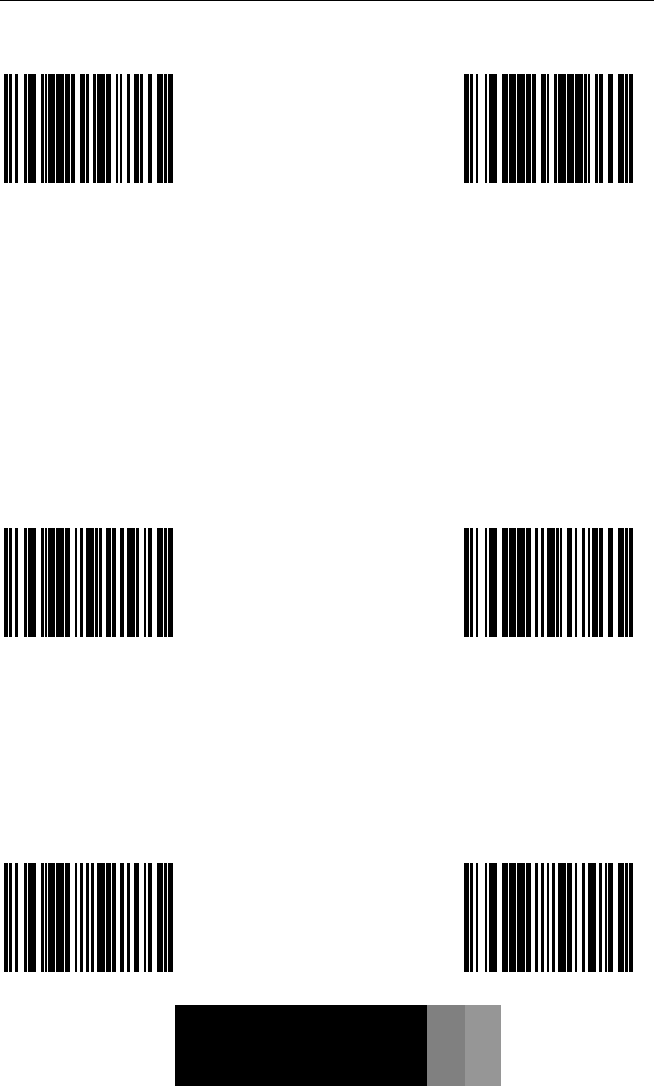

Code Types & Decode Rules A12

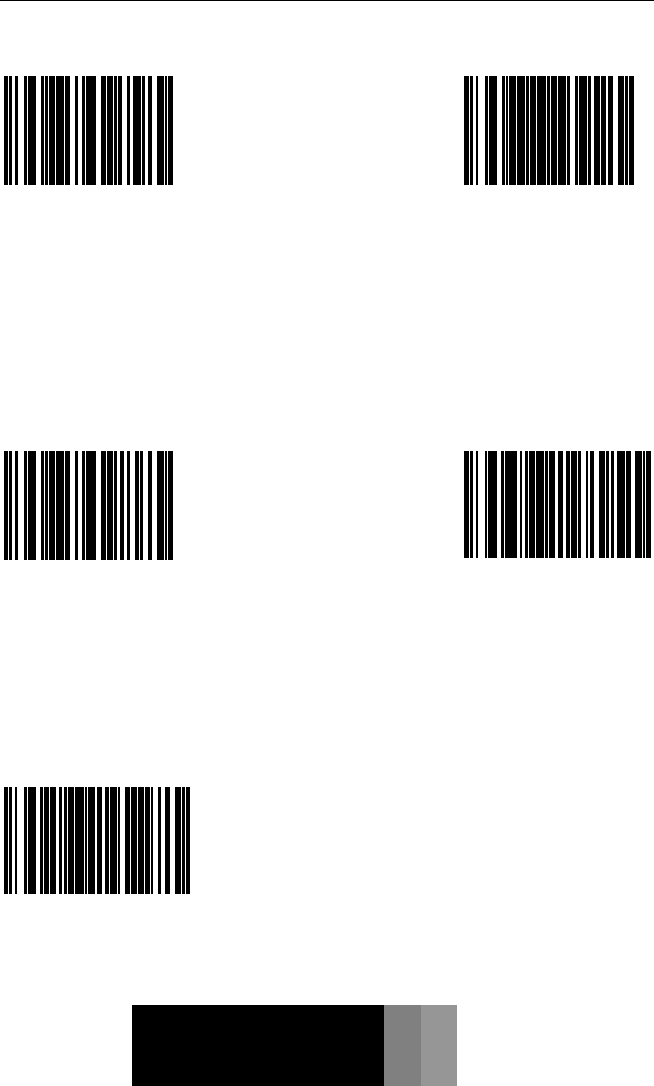

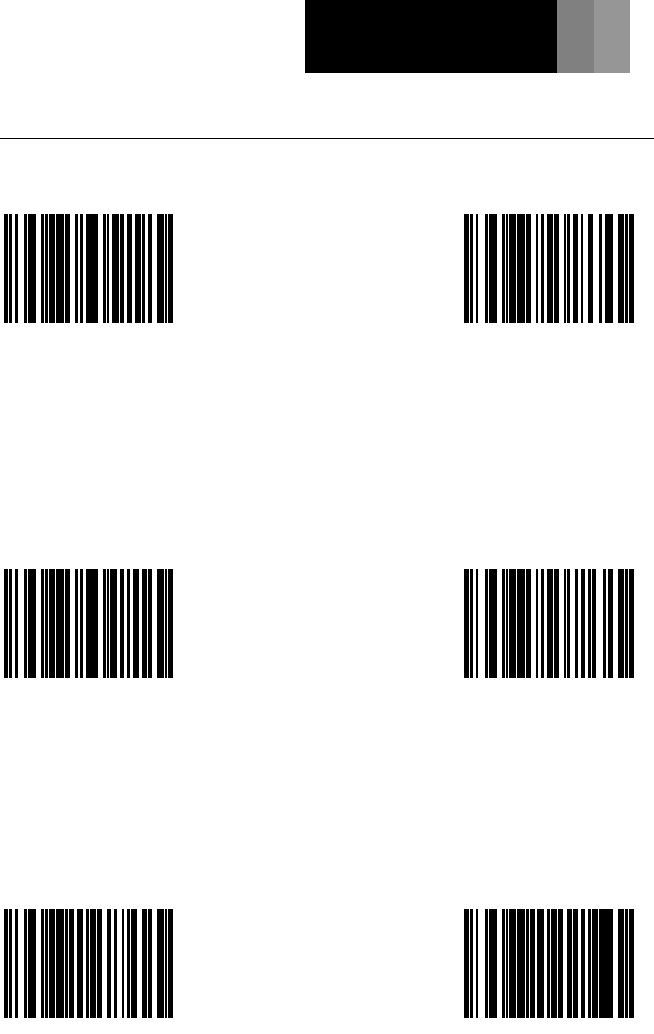

SECTION A CODABAR

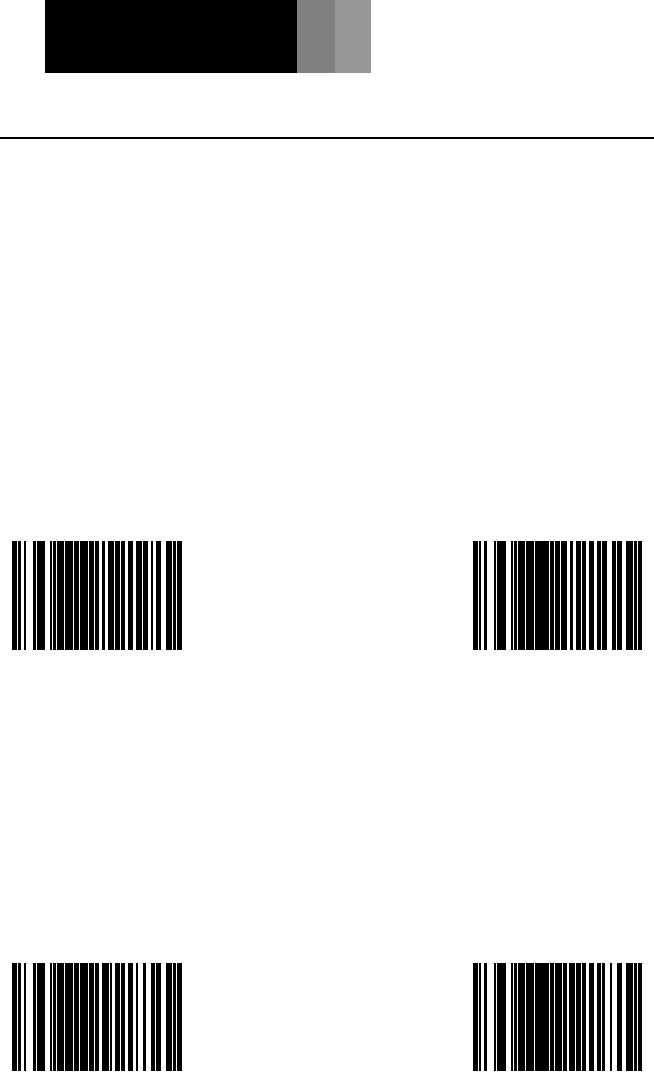

* Enable Codabar * Disable Codabar

³100114 ³ 100104

Enable

Dual Field Codabar

* Disable

Dual Field Codabar

³100012 ³ 100002

Enable

Tab in Dual Codabar

* Disable

Tab in Dual Codabar

³108012

This feature requires Dual

Field Codabar to be

enabled. The scanner will

insert a tab between the

fields of the dual field

Codabar.

³108002

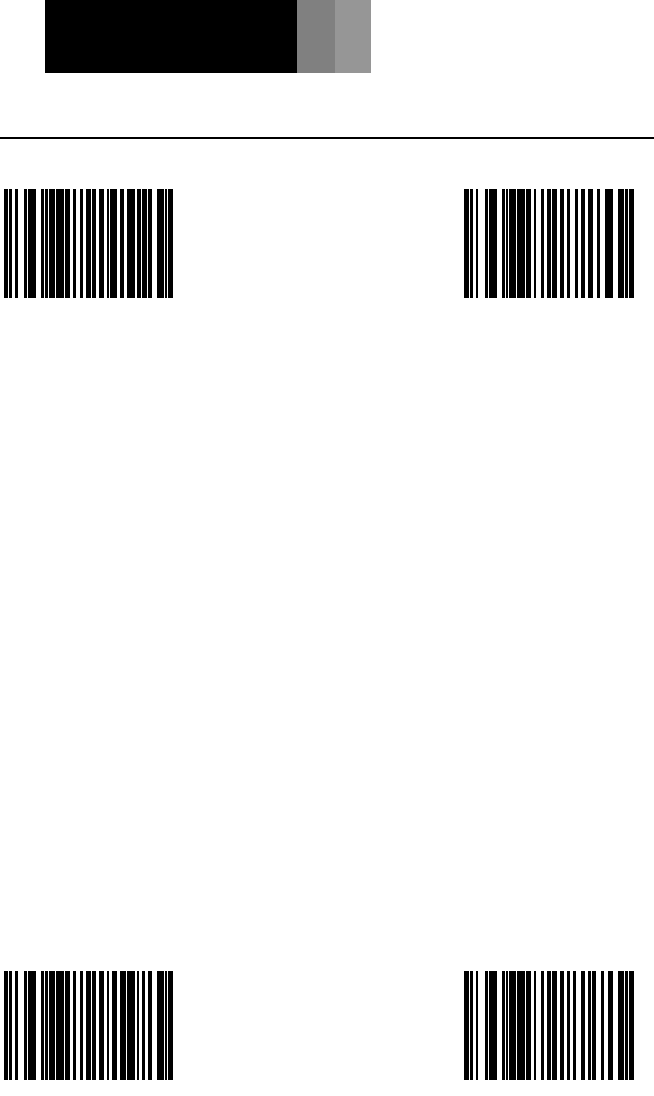

Code Types & Decode Rules A13

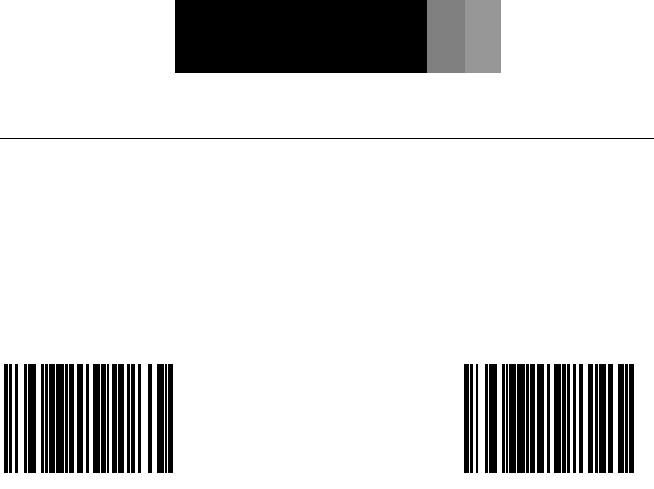

SECTION A CODE 93 AND CODE 11

* Enable Code 93 Disable Code 93

³100112 ³ 100102

Enable Code 11 * Disable Code 11

³100013 ³ 100003

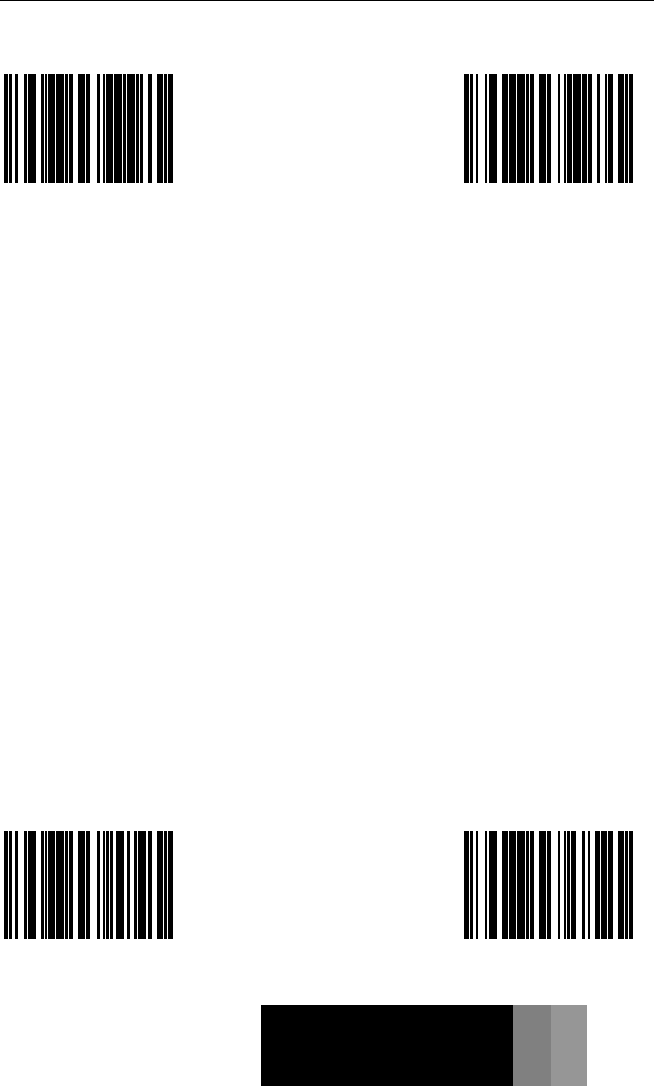

Code Types & Decode Rules A14

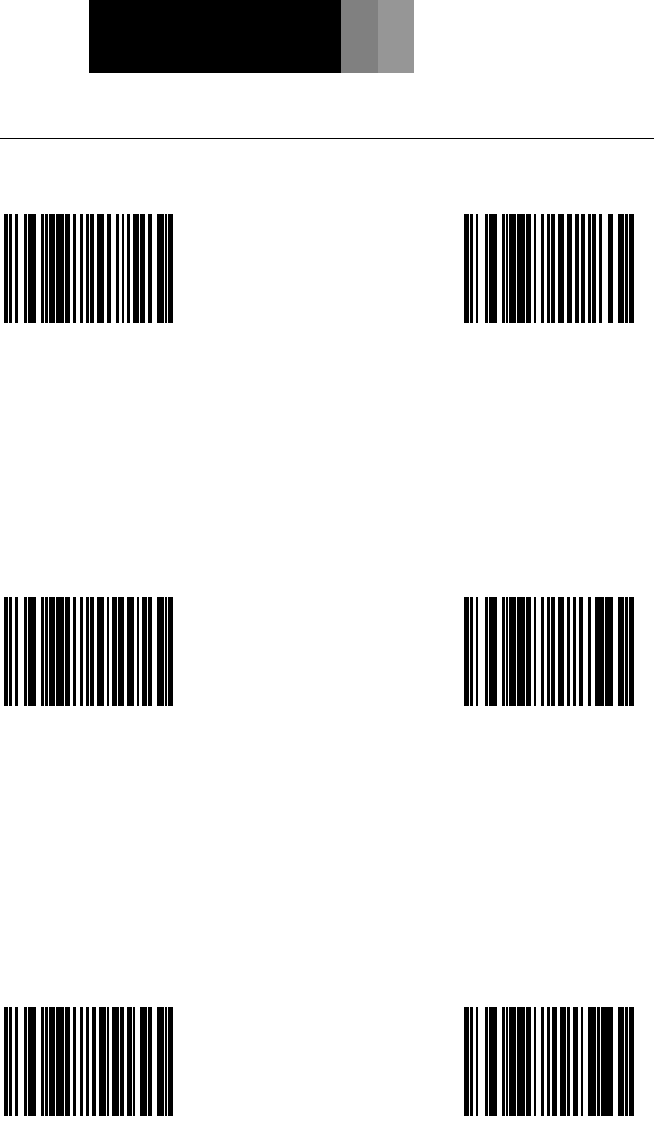

SECTION A TELEPEN

Enable Telepen * Disable Telepen

³100017 ³ 100007

Enable

ALPHA Telepen

* Disable

ALPHA Telepen

³100016 ³ 100006

Code Types & Decode Rules A15

SECTION A PLESSEY CODES

Enable MSI Plessey * Disable MSI Plessey

³100212 ³ 100202

* No MSI Plessey

Check Digit

³200704

The scanner will not test

MSI Plessey bar codes for a

check digit.

Enable MSI Plessey

MOD 10/10 Check Digit

* Enable MSI Plessey

MOD 10 Check Digit

³200734

The scanner will test MSI

Plessey bar codes for a

double Modulo 10 check

digit.

³200724

The scanner will test MSI

Plessey bar codes for a

single Modulo 10 check

digit.

Code Types & Decode Rules A16

SECTION A PLESSEY CODES

Transmit

MSI Plessey Check Digit

*Do Not Transmit

MSI Plessey Check Digit

³107711

This option works in

conjunction with one or both

of the Enabled MSI Plessey

Mode options.

³107701

The scanner will not

transmit MSI Plessey check

digit characters.

Enable UK Plessey * Disable UK Plessey

³100117 ³ 100107

Enable UK Plessey

A to X Conversion

* Disable UK Plessey

A to X Conversion

³100716 ³ 100706

Code Types & Decode Rules A17

SECTION A OTHER DECODE FEATURES

Enable Double Border

Required/Large

Inter-Character Space

* Disable Double Border

Required/Large

Inter-Character Space

³100011 ³ 100001

~ Minimum

Symbol Length †~ Symbol Length Lock

†

³901800

Omnidirectional default is 4.

Combine this code with the

proper Code Bytes, to

specify the minimum

number of characters in all

non-UPC/EAN bar codes.†

³901900

This code combined with the

proper Code Bytes, locks the

bar code’s length into place.†

† Refer to the Multi-Code Configuration Method on page x.

Code Types & Decode Rules A18

SECTION A CONFIGURABLE CODE LENGTHS

There are seven bar code lock lengths available. Specific code types can be assigned to

a lock length using the Multi-Code configuration method.

Example:

1. Scan the enter/exit configuration bar code.

2. Scan the code length lock #1 bar code.

3. Scan the three Code Bytes that represent the code length.

4. Scan the matching code type lock #1 bar code.

5. Scan the three code bytes that represent the code type.

Refer to the Code Type Table in Section M.

6. Repeat steps 2 through 5 for lock lengths 2 through 7 if desired.

7. Scan the enter/exit configuration bar code when finished to save settings.

~ Code Length

Lock #1

~ Code Type

Lock #1

³902000 ³ 902100

~ Code Length

Lock #2

~ Code Type

Lock #2

³902200 ³ 902300

Code Types & Decode Rules A19

SECTION A CONFIGURABLE CODE LENGTHS

~ Code Length

Lock #3

~ Code Type

Lock #3

³902400 ³ 902500

~ Code Length

Lock #4

~ Code Type

Lock #4

³902600 ³ 902700

~ Code Length

Lock #5

~ Code Type

Lock #5

³902800 ³ 902900

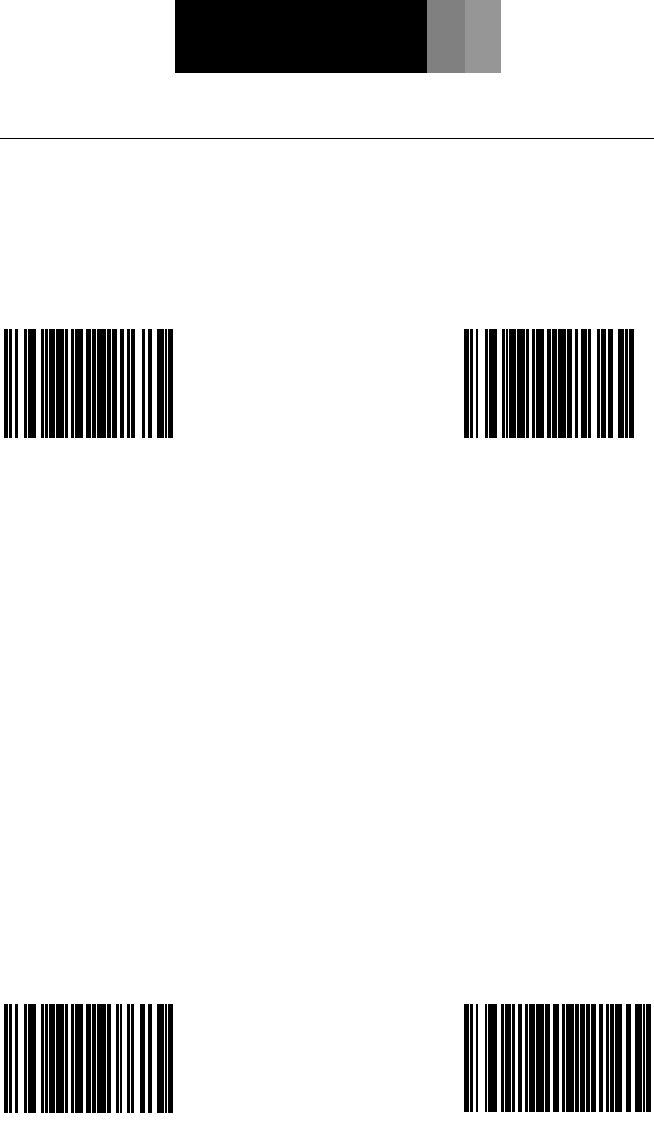

Code Types & Decode Rules A20

SECTION A CONFIGURABLE CODE LENGTHS

~ Code Length

Lock #6

~ Code Type

Lock #6

³903000 ³ 903100

~ Code Length

Lock #7

~ Code Type

Lock #7

³903200 ³ 903300

Code Types & Decode Rules A21

SECTION A RSS 14 FEATURES

Enable RSS 14 * Disable RSS 14

³100413 ³ 100403

* Transmit

RSS 14 Check Digit

Do Not Transmit

RSS 14 Check Digit

³114900 ³ 114910

Code Types & Decode Rules A22

SECTION A RSS 14 FEATURES

* Transmit

RSS 14 Application ID

Do Not Transmit

RSS 14 Application ID

³114901

Application identifier “01” is

transmitted by default.

³114911

* Transmit

RSS 14 Symbology ID

Do Not Transmit

RSS 14 Symbology ID

³114902

Symbology identifier “]e0” is

transmitted by default.

³114912

Code Types & Decode Rules A23

SECTION A RSS LIMITED FEATURES

Enable RSS Limited * Disable RSS Limited

³100414 ³ 100404

* Transmit

RSS Limited Check Digit

Do Not Transmit

RSS Limited Check Digit

³114903 ³ 114913

Code Types & Decode Rules A24

SECTION A RSS LIMITED FEATURES

* Transmit RSS Limited

Application ID

Do Not Transmit

RSS Limited Application ID

³114904

Application identifier “01” is

transmitted by default.

³114914

* Transmit RSS Limited

Symbology ID

Do Not Transmit

RSS Limited Symbology ID

³114905

Symbology identifier “]e0” is

transmitted by default.

³114915

Code Types & Decode Rules A25

SECTION A RSS EXPANDED FEATURES

Enable RSS Expanded * Disable RSS Expanded

³100415 ³ 100405

* Transmit RSS

Expanded Symbology ID

Do Not Transmit RSS

Expanded Symbology ID

³114906

Symbology identifier “]e0” is

transmitted by default.

³114916

Supplements B1

SECTION B SUPPLEMENTS/REDUNDANCY

Enable Two Digit

Supplements

* Disable Two Digit

Supplements

³101217 ³ 101207

* Enable Two Digit

Redundancy

Disable Two Digit

Redundancy

³101212

Twice before accepting

data, the scanner will scan

the bar code plus the two

digit add on.

³101202

When scanned, will not

implement the two digit

redundancy feature.

Enable Five Digit

Supplements

* Disable Five Digit

Supplements

³101216 ³ 101206

Supplements B2

SECTION B SUPPLEMENTS/REDUNDANCY

Enable Five Digit

Redundancy

* Disable Five Digit

Redundancy

³101211

Twice before accepting

data, the scanner will scan

the bar code plus the five

digit add on.

³101201

The scanner will not

implement the five digit

redundancy feature.

Supplements

are Required

* Supplements are

not Required

³101213

ll UPC/EAN labels that are

scanned must have a

supplement.

³101203

UPC/EAN labels do not

require a supplement to be

scanned.

Enable Remote

Supplemental Requirement

* Disable

Remote Supplemental

Requirement

³101416 ³ 101406

Supplements B3

SECTION B SUPPLEMENTS

Enable Bookland (978)

Supplement Requirement

* Disable Bookland (978)

Supplement Requirement

³101417 ³ 101407

Enable 977 (2 digit)

Supplemental Requirement

* Disable 977 (2 digit)

Supplemental

Requirement

³101314

The scanner will require a

2 digit supplement be

scanned when an EAN-13

code begins with 977.

³101304

The scanner will not

require a 2 digit supplement

be scanned whenever an

EAN-13 code begins with

977.

Enable 378/379 French

Supplement Requirement

* Disable 378/379 French

Supplemental Requiremen

³101313 ³ 101303

Supplements B4

SECTION BSUPPLEMENTS

Enable 434/439 German

Supplemental Requirement

* Disable 434/439

German Supplemental

Requirement

³101415 ³ 101405

Enable 414/419 German

Supplemental Requirement

* Disable 414/419 German

Supplemental Requirement

³101413 ³ 101403

Enable # System 2

Requires Supplements

* Disable # System 2

Requires Supplements

³101412 ³ 101402

Supplements B5

SECTION B SUPPLEMENTS

Enable # System 5

Requires Supplements

* Disable # System 5

Requires Supplements

³101215 ³ 101205

Enable Coupon

Code 128

* Disable Coupon

Code 128

³100315 ³ 100305

Enable Code 128 ‘]C1’

Extended Code Format

* Disable Code 128 ‘]C1’

Extended Code Format

³101411

The scanner will transmit a

‘]C1’ at the beginning of the

code 128 portion of the

coupon code.

³101401

The scanner will not

transmit a ‘]C1’ at the

beginning of the code 128

portion of the coupon code.

Supplements B6

SECTION B SUPPLEMENTS

Enable 128 Group

Separators

* Disable 128 Group

Separators

³101414

“GS” (1DH) character will be

transmitted with coupon

Code 128 codes.

³101404

“GS” (1DH) character will

not be transmitted with

coupon Code 128 codes.

* 100 msec to Find

Supplemental

200 msec to Find

Supplemental

³301310

The scanner will allot 100

milliseconds to “find” an add

on after a main UPC/EAN

bar code has been

scanned.

³301320

The scanner will allot 200

milliseconds to “find” an add

on after a main UPC/EAN

bar code has been

scanned.

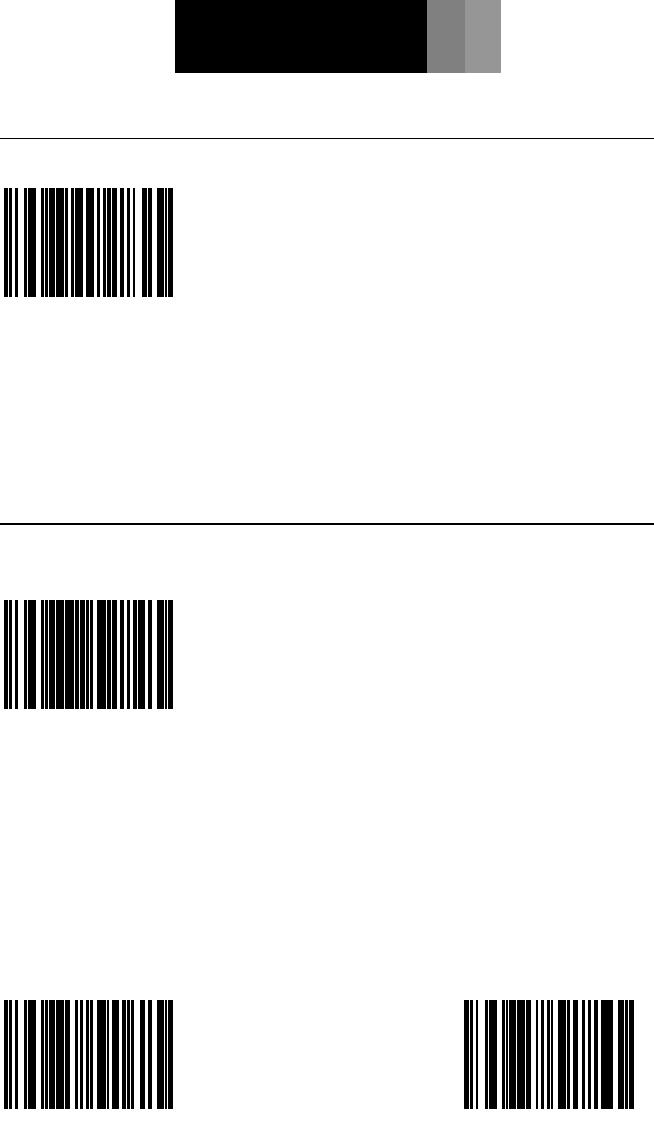

Supplements B7

SECTION B SUPPLEMENTS

400 msec to Find

Supplemental

³301340

The scanner will allot 400

milliseconds to “find” an add

on after a main UPC/EAN

bar code has been

scanned.

Enable Code ID’s with

Supplements

* Disable Code ID’s with

Supplements

³101214 ³ 101204

Supplements B8

SECTION B SUPPLEMENTS

* Beep Once on

Supplements

Beep twice on

Supplements

³118406 ³ 118416

Enable ISBN Check Digit

Transmission

Disable ISBN Check Digit

Transmission

³101315

This feature is not

available with all

models.

³101305

Supplements B9

SECTION B SUPPLEMENTS

Enable Bookland to

ISBN Conversion

* Disable Bookland to

ISBN Conversion

³101317

This feature is not

available with all

models.

³101307

Enable

ISBN Re-Formatting

* Disable

ISBN Re-Formatting

³101316

This feature is not

available with all

models.

³101306

Supplements B10

SECTION B SUPPLEMENTS

Enable Number System 4

Coupon Code 128

* Disable Number System

4 Coupon Code128

³101012

Supports Coupon Code 128

for Number System 4 bar

codes.

³101002

Enable UPC Discard * Disable UPC Discard

³101013

Supports UPC discard if the

Code 128 portion of the

Coupon Code 128 is

scanned.

³101003

Communications C1

SECTION C COMMUNICATIONS

* Enable RS-232 Load Keyboard Wedge

Defaults

³415554

The scanner will work with

RS-232 ±12V serial output.

³999994

Scan this before selecting

Normal or Stand Alone

Mode.

Enable Light Pen/Wand

Communication

Enable Keyboard Wedge

Emulation

³415524

Use this option if a scanner

is used in place of a light

pen.

³ 5155143

Select if the scanner

provides keyboard

emulation by converting the

scanned bar code data to

the PC keyboard scan code

equivalent.

Enable Stand-Alone

Keyboard Scanner

³ 5155153

Allows the scanner to be

used without an external

keyboard.

Communications C2

SECTION C COMMUNICATIONS

Load OCIA Defaults Enable OCIA Output

³999993

Scan this before selecting

Enable OCIA output.

³415544

Select this option if the

communications

requirement is an Optically

Coupled Interface Adapter

(OCIA). This is a docked

(by the host) serial

interface.

Load

IBM 46xx Defaults

Enable IBM 46xx

Communication

³999995

Scan this before selecting

Enable IBM 46xx

Communication

³415504

Select this option for IBM

46xx SIOC/RS485

communications.

Not all scanners

support this interface.

The correct interface

board is required.

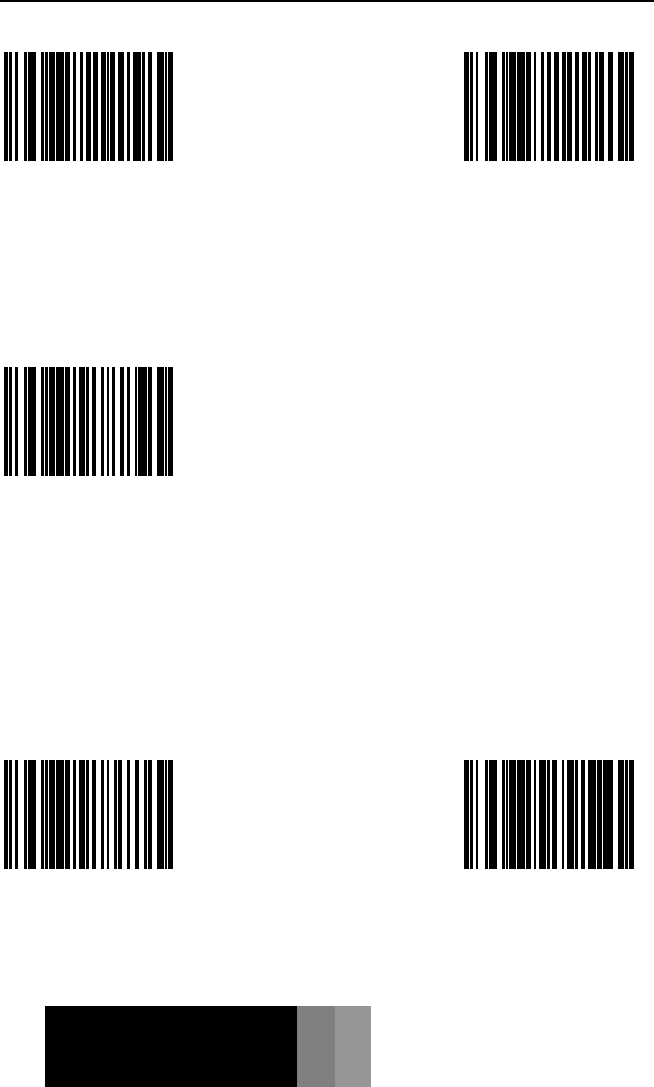

Communications C3

SECTION C COMMUNICATIONS

Enable

Low Speed USB †

Load

Low Speed USB Defaults †

³4155114

† Refer to Section P for

full speed USB options.

³999978

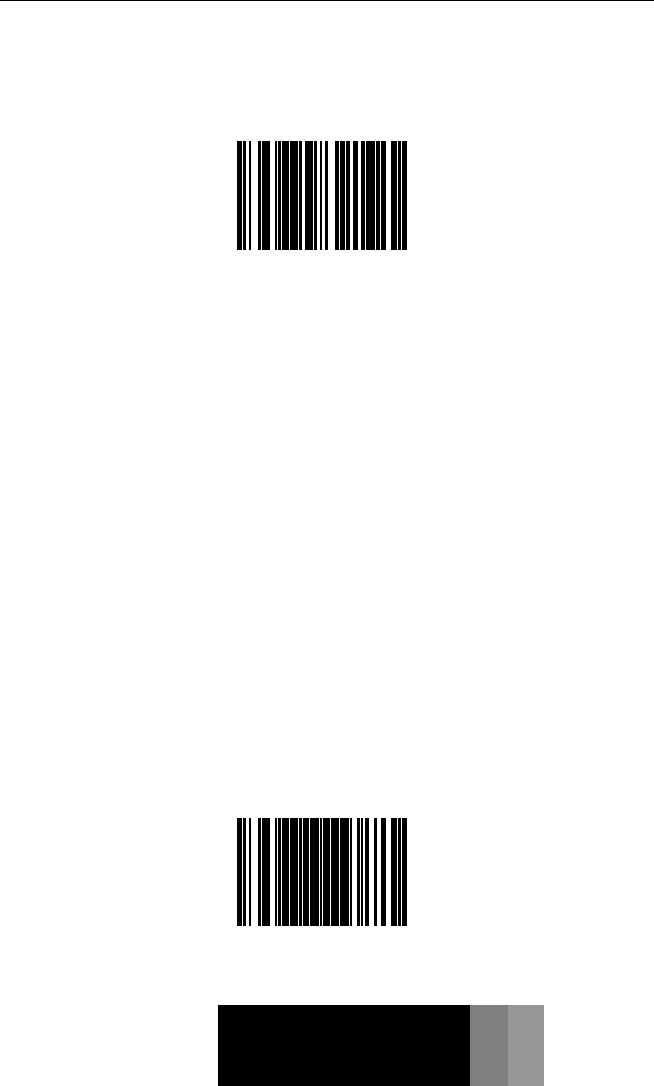

Enable

No Communication Mode

³415534

Select this option if the

scanner does not interface

with the host device.

Reserved Reserved

³415564 ³917500

Scanner Operation D1

SECTION D CONFIGURATION MODE OPTIONS

Allow Configuration Mode

on Power-Up

* Allow Configuration

Mode Anytime

³118117

The scanner can only enter

MetroSet® mode before any

bar codes are scanned.

³118107

Allow MetroSet®

configuration at any time.

Allow Configuration Codes

on Power Up

* Allow Configuration

Codes Anytime

³118116

Once a product bar code is

scanned after power-up, the

scanner will not accept

configuration bar codes.

³118106

Allows scanning of

configuration bar codes any

time.

Enable

Single Code Programming

Disable

Single Code Programming

³118212 ³ 118202

Scanner Operation D2

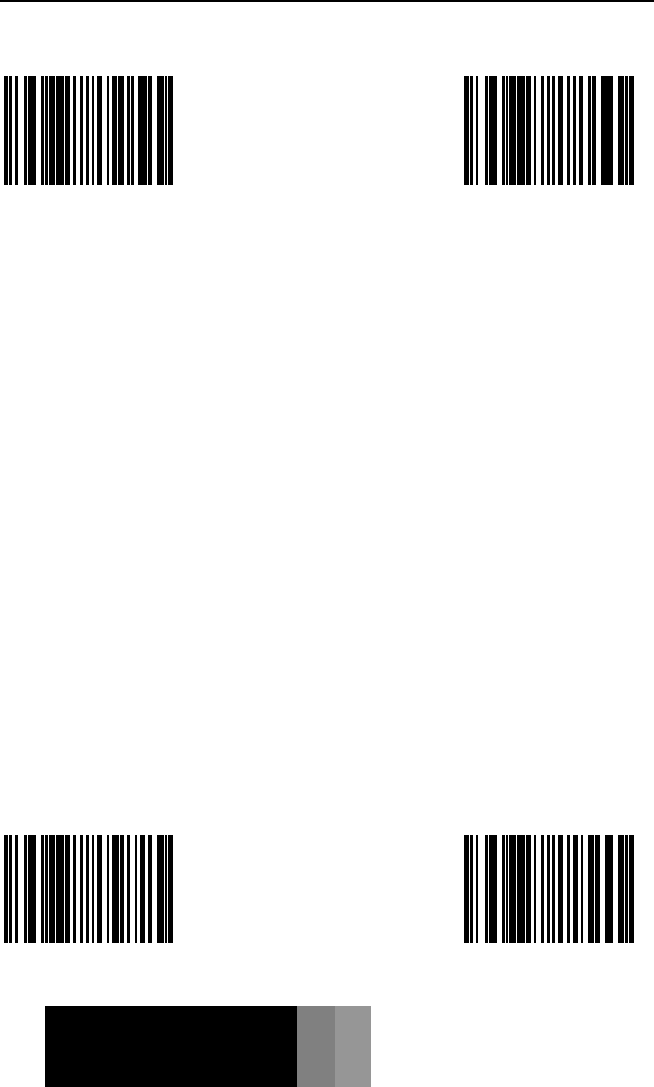

SECTION D SCAN BUFFERS

* 1 Scan Buffer 2 Scan Buffers

³318000

The scanner will scan one

bar code in the scan field

and not scan again until the

bar code is removed from

the scan field for the

duration of the same symbol

time out.

³318010

The scanner will scan 2 bar

codes in the scan field one

time each. These 2 bar

codes will not be scanned

again until they are

removed from the scan field

for the duration of the same

symbol time out.

3 Scan Buffers 4 Scan Buffers

³318020

Same function as 2 Scan

Buffers, but 3 bar codes are

in the scan field.

³318030

Same function as 2 Scan

Buffers, but 4 bar codes are

in the scan field.

Scanner Operation D3

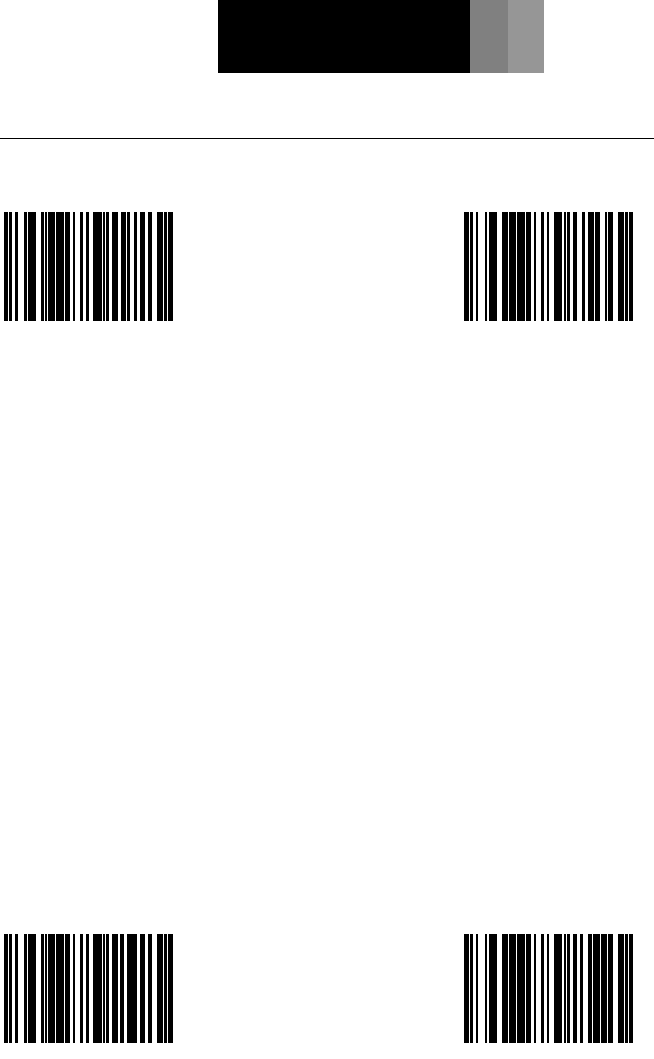

SECTION D SCAN BUFFERS

5 Scan Buffers 6 Scan Buffers

³318040

Same function as 2 Scan

Buffers, but 5 bar codes are

in the scan field.

³318050

Same function as 2 Scan

Buffers, but 6 bar codes are

in the scan field.

7 Scan Buffers 8 Scan Buffers

³318060

Same function as 2 Scan

Buffers, but 7 bar codes are

in the scan field.

³318070

Same function as 2 Scan

Buffers, but 8 bar codes are

in the scan field.

Scanner Operation D4

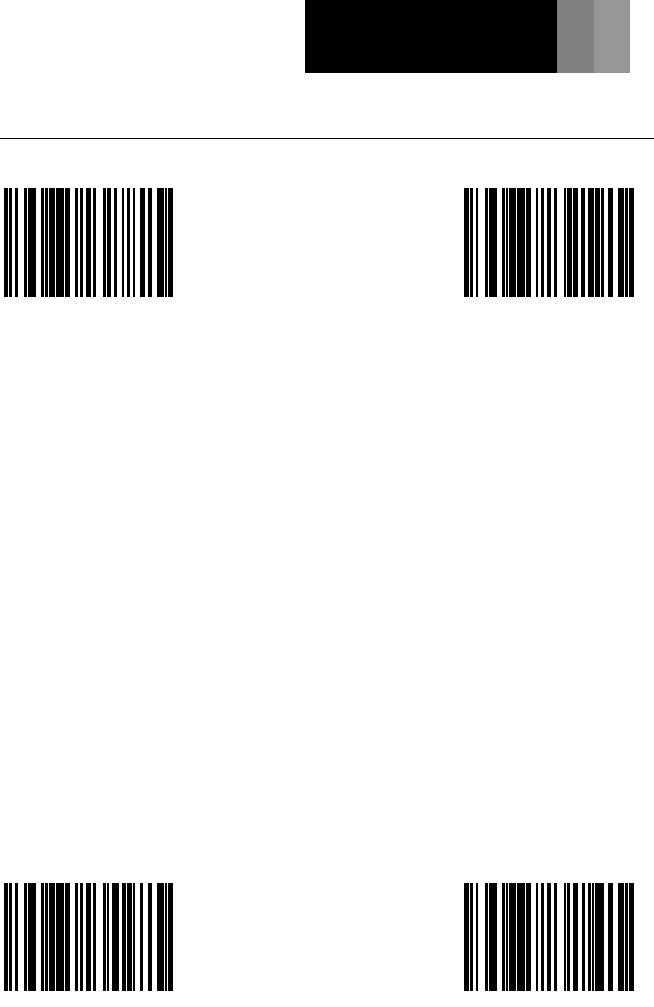

SECTION D REDUNDANT SCANS

* 0 Redundant Scans 1 Redundant Scans

³301100

Requires 1 good decode for

a “good scan”.

³301110

Requires 2 consecutive

decodes of the same bar

code data for a “good scan”.

2 Redundant Scans 3 Redundant Scans

³301120

Requires 3 consecutive

decodes of the same bar

code data for a “good scan”.

³301130

Requires 4 consecutive

decodes of the same bar

code data for a “good scan”.

Scanner Operation D5

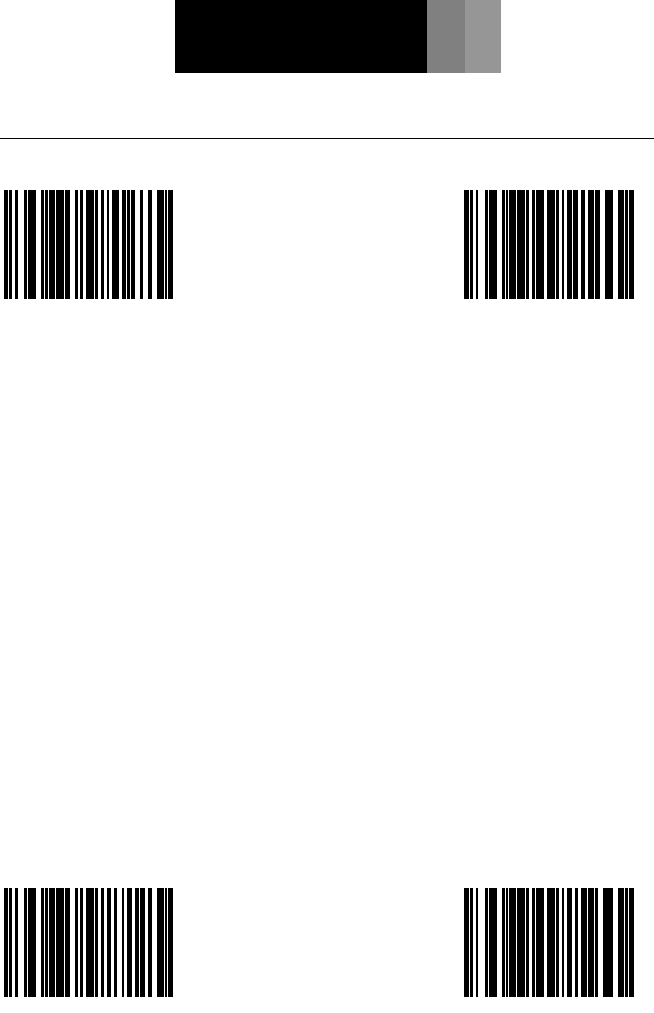

SECTION D REDUNDANT SCANS

4 Redundant Scans 5 Redundant Scans

³301140

Requires 5 consecutive

decodes of the same bar

code data for a “good scan”.

³301150

Requires 6 consecutive

decodes of the same bar

code data for a “good scan”.

6 Redundant Scans 7 Redundant Scans

³301160

Requires 7 consecutive

decodes of the same bar

code data for a “good scan”.

³301170

Requires 8 consecutive

decodes of the same bar

code data for a “good scan”.

Scanner Operation D6

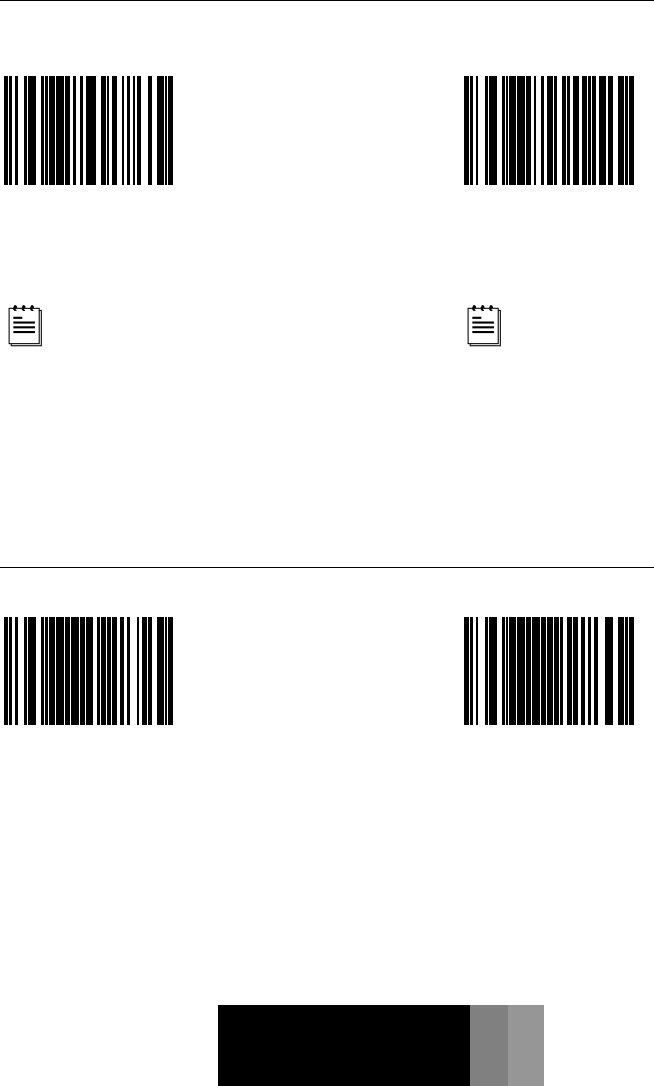

SECTION D MISCELLANEOUS DECODE FEATURES

* Enable MAJIC Disable MAJIC

³101113

The Metrologic Algorithm for

Joining Incomplete Codes

(MAJIC) aids in deciphering

damaged or incomplete bar

codes. Enable for more

aggressive decoding.

³101103

Disable this feature when

bar codes are in good

reading condition. This will

speed up decoding and

improve over all accuracy.

Optional

Same Symbol Check

* Normal

Same Symbol Check

³118113

Requires 1 different

character between

successive bar codes to

consider the bar code

“new”.

³118103

Requires 3 different

characters between

successive bar codes to

consider the bar code

“new”.

Scanner Operation D7

SECTION D DEPTH OF FIELD ADJUSTMENTS

Do not change these settings unless instructed by a Metrologic representative.

* Optimize for

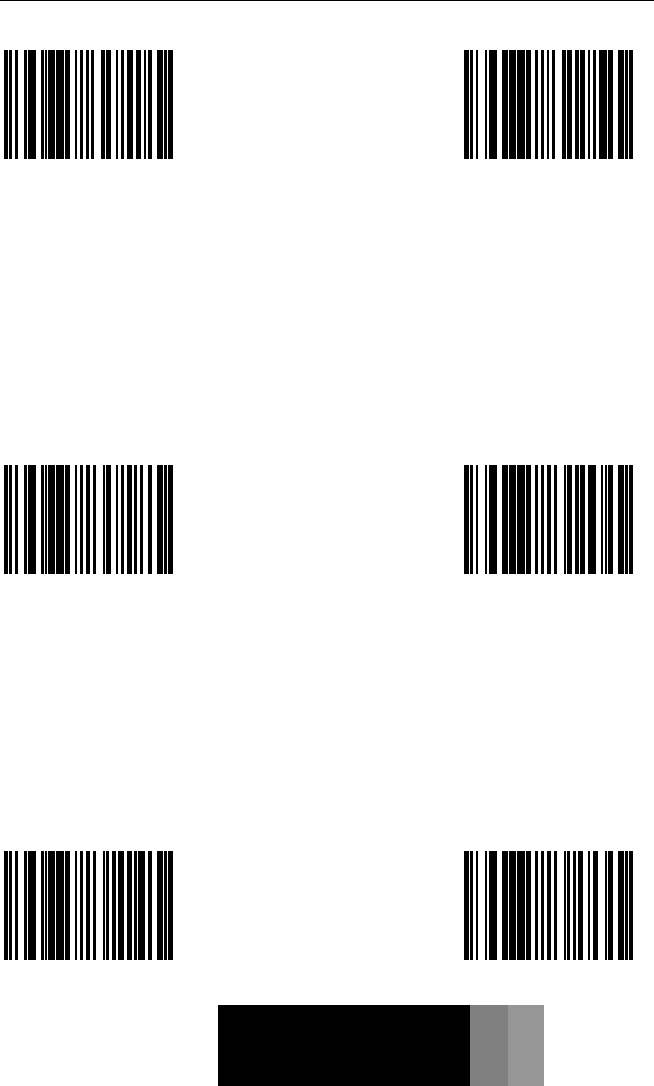

Low Density Codes †

Optimize for

High Density Codes †

³418790 ³ 4187130

Fixed for

High Density Codes †

Fixed for

Medium Density Codes †

³418700 ³ 418710

Fixed for

Low Density Codes †

³418720

† For use with

omnidirectional

scanners only.

Scanner Operation D8

SECTION D SAME SYMBOL TIME OUTS

These numbers determine the length of time before a bar code can be rescanned after it

is removed from the scan field. Single code fixed settings in msecs of No, 50, 100, 200,

500, 1200 (1.2 sec), 2000 (2.0 sec) and infinite are available. User configurable values

can be set in user-configurable increments of 50 msecs to 6350 msecs (6.35 sec).

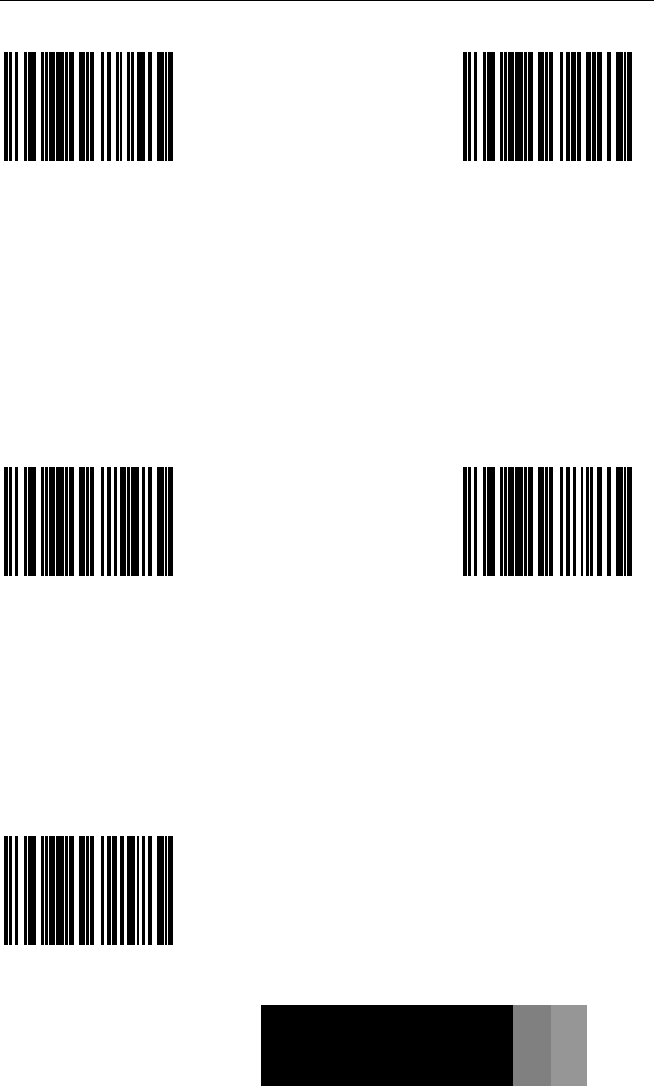

No Same Symbol Time Out Same Symbol Time Out

100 msecs

³818900 ³ 818920

Same Symbol Time Out

200 msecs

* Same Symbol Time Out

500 msecs

³818940 ³ 8189100

Scanner Operation D9

SECTION D SAME SYMBOL TIME OUTS

Same Symbol Time Out

1200 msecs

Same Symbol Time Out

2000 msecs

³ 8189240 ³ 8189400

Infinite

Same Symbol Time Out

~ Variable

Same Symbol Time Out

³118917

The scanner will not

repetitively scan the same

bar code.

This option

overrides the

symbol rescan

time-outs.

³918900

Using the Multi-Code

Method (page x), scan this

bar code and a code byte

sequence from Section M to

set the same symbol time-

out duration. Values range

from 001 to 127 (50 to 6350

msecs).

Scanner Operation D10

SECTION D LED OPTIONS

Flash Green LED if

Rescan Allowed

* Do not flash Green LED

if Rescan Allowed

³118313

This indicates same symbol

timeout has elapsed.

³118303

Reverse LED Functions * Normal LED Functions

³118312

Red = Laser On

Green = Good Read

³118302

Green = Laser On

Red = Good Read

Scanner Operation D11

SECTION D BEEPER OPTIONS

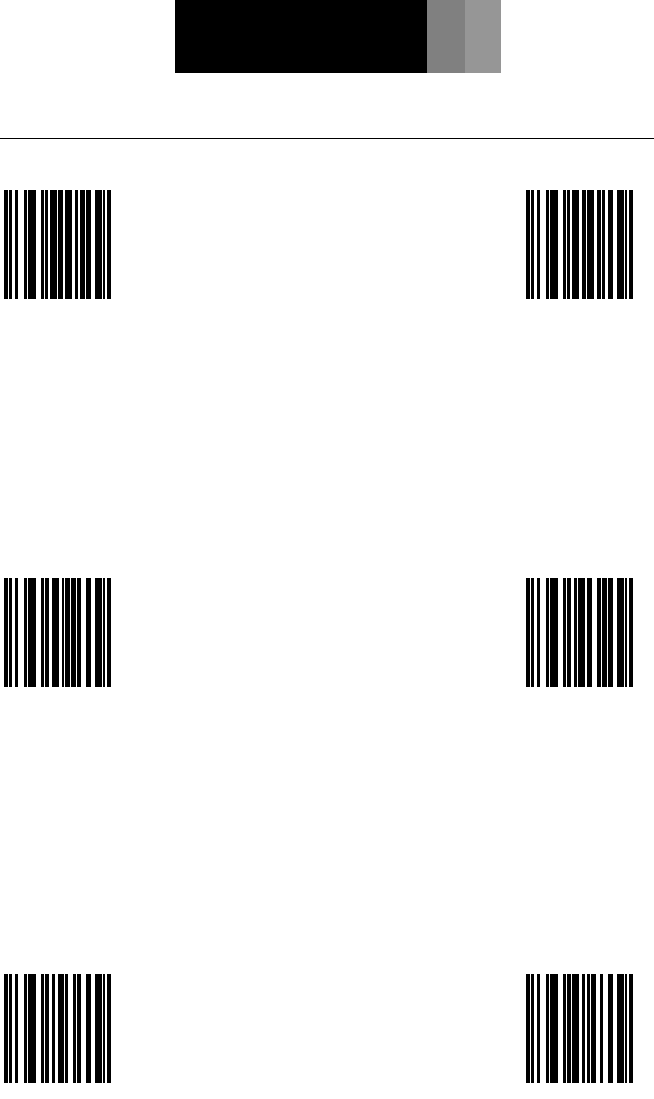

* Normal Tone Optional Tone 1

³318575 ³ 318565

Optional Tone 2 Optional Tone 3

³318555 ³ 318545

Optional Tone 4 Optional Tone 5

³318535 ³ 318525

Scanner Operation D12

SECTION D BEEPER OPTIONS

Optional Tone 6 No Beep

³318515 ³ 318505

* Enable Switch

Beep Tones †

† For MS7220 and MS7320

series scanners.

Disable Switch

Beep Tones †

³119701 ³ 119711

Next Beep Tone †† †† For MS7600 Series only. Next Volume ††

³999975 ³ 999974

Scanner Operation D13

SECTION D BEEPER OPTIONS

* Loudest Volume

†† †† For the MS7600 series only. 2nd Loudest Volume ††

³218500 ³ 218510

3rd Loudest Volume †† No Volume ††

³218520 ³ 218530

* Beep Once on

Supplements

Beep Twice on

Supplements

³118406 ³ 118416

Scanner Operation D14

SECTION D BEEPER OPTIONS

Enable Fast Beep * Disable Fast Beep

³118414 ³ 118404

Beep on BEL Command * Ignore BEL Command

³118417

The scanner beeps when it

receives a BEL character

from the host. If a number

is sent within 200 msecs

before the BEL character,

then the scanner will beep

that number of times.

³118407

Enable Light Pen Toggle

During Beep

* Disable Light Pen Toggle

During Beep

³116913

The scanner will beep and

toggle the light pen data line

on a successful decode.

This drives a “good read”

indicator.

³116903

Scanner Operation D15

SECTION D INTER-CHARACTER DATA TRANSMISSION DELAYS

Use these codes to select the amount of delay between sending data characters and

“Bar Code” records from the scanner to the host. This helps prevent the scanner from

overflowing host input buffers.

* 1 msec

Inter-Character Delay

10 msec

Inter-Character Delay

³818810 ³ 8188100

25 msec

Inter-Character Delay

~ Variable msec

Inter-Character Delay

³ 8188250 ³ 918800

Scan this bar code and a

sequence of code bytes in

Section M to set the delay

between characters sent to

the host system. Delay

range can be set from 1 to

255 msecs.

Refer to the Multi-Code

Configuration Method on

page x.

Scanner Operation D16

SECTION D INTER-CHARACTER DATA TRANSMISSION DELAYS

No Inter-Character Delay

³818800

INTER-RECORD DATA TRANSMISSION DELAYS

~ Variable

Inter-Record Delay

³919300

Turn Off Laser During

Inter-Record Delay

* Leave Laser On During

Inter-Record Delay

³119317 ³ 119307

Scanner Operation D17

SECTION D COMMUNICATION TIME OUT OPTIONS

Enable

Communications Time Outs

* Disable Communications

Time Outs

³118412 ³ 118402

* Beep Before Transmit Beep After Transmit

³118413

Scanner will beep before

each label is transmitted.

³118403

Scanner will beep after

each label is transmitted.

~ Variable Communications

Time Out

* Default Communications

Time Out (2 secs)

³919100 ³ 8191400

Scanner Operation D18

SECTION D COMMUNICATION TIME OUT OPTIONS

Short Communications

Time Out (1 sec)

Long Communications

Time Out (4 secs)

³ 8191200 ³ 8191800

Three Beeps on Time Out * No Beeps on Time Out

³118410 ³ 118400

Razzberry Tone on

Time Out

* No Razzberry Tone

on Time Out

³118411 ³ 118401

Scanner Operation D19

SECTION D HOST SCANNER COMMANDS

Enable “D/E” Disable

Command * Disable “D/E” Disable

³118015

The scanner will disable

scanning after it receives

and ASCII “D” from the host

device. It will enable

scanning when it receives

an ASCII “E”.

³118005

Do not monitor D/E

commands.

Enable “Z/R” Type

D/E Simulation

* No “Z/R” Type

D/E Simulation

³118211

The scanner will disable

scanning after it receives an

ASCII “Z” from the host

device. It will enable

scanning when it receives

an ASCII “R”.

³118201

Do not monitor Z/R

commands.

Scanner Operation D20

SECTION D HOST SCANNER COMMANDS

Enable “F/L” Laser Command * Disable “F/L” Laser

Command

³118014

The scanner will turn off the

laser after receiving an ASCII

“F” character. The laser will

turn on after it receives an

ASCII “L” character.

³118004

Do not monitor “F/L”

commands.

Motor “On/Off” Using

M/O Commands †

* Disable “M/O”

Commands

³118213

The scanner will turn the

motor OFF after it receives an

ASCII “O” character. The

motor will turn ON after the

scanner receives an ASCII

“M” character. †

† For use with omnidirectional

scanners only.

³118203

Do not monitor the M/O

commands.

Scanner Operation D21

SECTION D HOST SCANNER COMMANDS

Enable I Command Disable I Command

³115917 ³ 115907

Enable i Command Disable i Command

³115916 ³ 115906

Enable SI/SO Command Disable SI/SO Command

³125014 ³ 125004

Scanner Operation D22

SECTION D HOST SCANNER COMMANDS

Use

DTR Scan Disable

* Do not use

DTR Scan Disable

³118115

The scanner will monitor the

DTR input to determine if

scanning should be allowed.

A +12V “active” level enables

decoding. A -12V “inactive”

level disables decoding.

³118105

Do not monitor the DTR

input.

Enable Pass Through Disable Pass Through

³124711

The AUX scanner

must be configured for

the same Baud rate as

the host, with STX

prefix, Nixdorf ID

characters and CR

Terminator enabled.

³124701

Activate on DC2 Character

* Do Not Activate on DC2

Character

³118110 ³ 118100

Scanner Operation D23

SECTION D HOST SCANNER COMMANDS

Transmit “NO READ” if

DC2 Activated

Do Not Transmit “NO

READ” if DC2 Activated

³118111 ³ 118101

No Green LED During

“NO READ” Xmit

* Green LED During

“NO READ” Xmit

³118311 ³ 118301

Scanner Operation D24

SECTION D POWER SAVE MODES

Always Power Save Mode†No Power Save Mode†

³118617

The scanner enters power

save mode immediately

after power-up and after

each bar code scanned. †

³818600

The scanner will never enter

power save mode. †

† For use with omnidirectional scanners only.

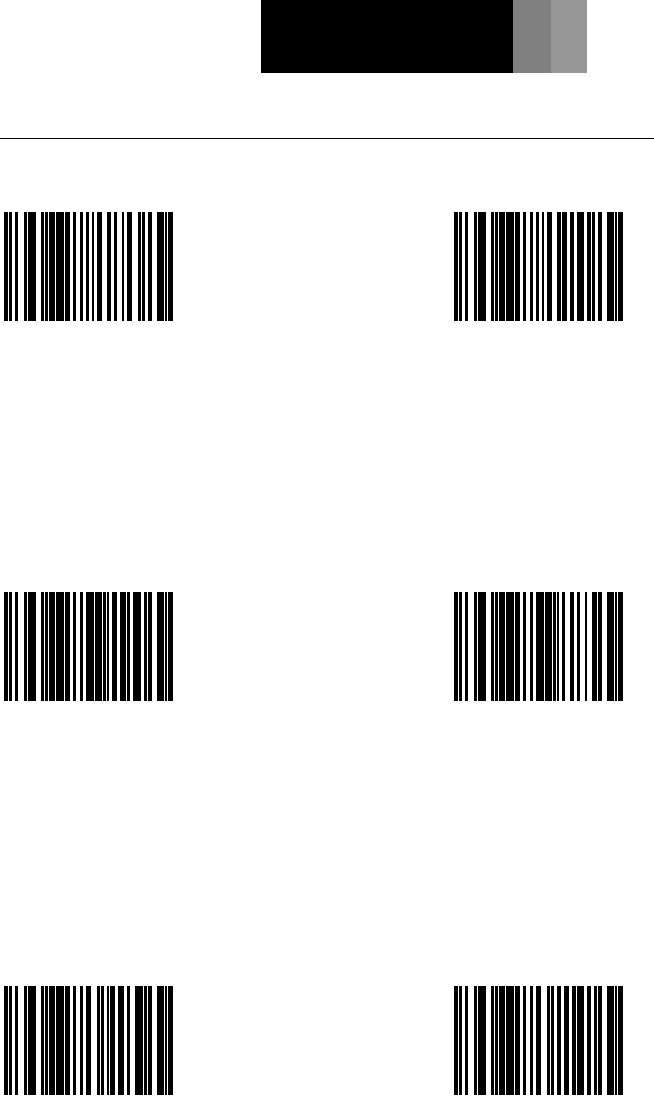

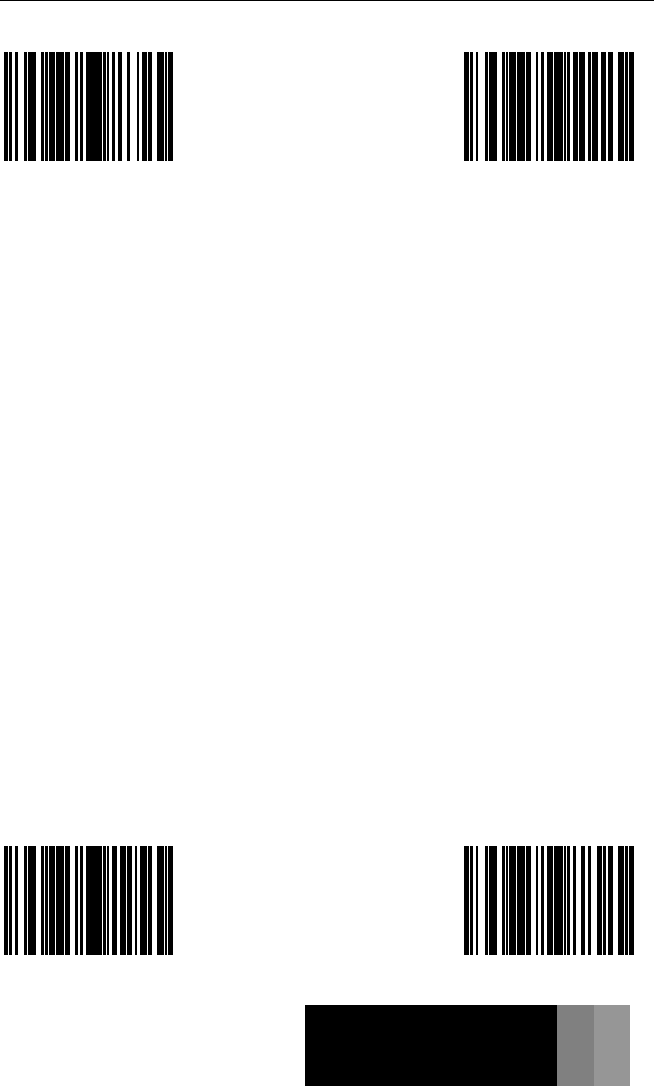

Power Save Mode in

1 minute †

Power Save Mode in

2 minutes †

³118610

The scanner enters power

save mode when the

scanner remains idle for 1

minute. †

³818620

The scanner enters power

save mode if the scanner

remains idle for 2 minutes. †

Scanner Operation D25

SECTION D POWER SAVE MODES

Power Save in 5 Minutes †Power Save in 10 Minutes †

³818650

The scanner enters power

save mode if the scanner

remains idle for 5 minutes. †

³ 8186100

The scanner enters power

save mode if the scanner

remains idle for 10 minutes.†

† For use with omnidirectional scanners only.

Power Save in 20 Minutes †Power Save in 30 Minutes †

³ 8186200

The scanner enters power

save mode if the scanner

remains idle for 20 min. †

³ 8186300

The scanner enters power

save mode if the scanner

remains idle for 30 min. †

Scanner Operation D26

SECTION D POWER SAVE MODES

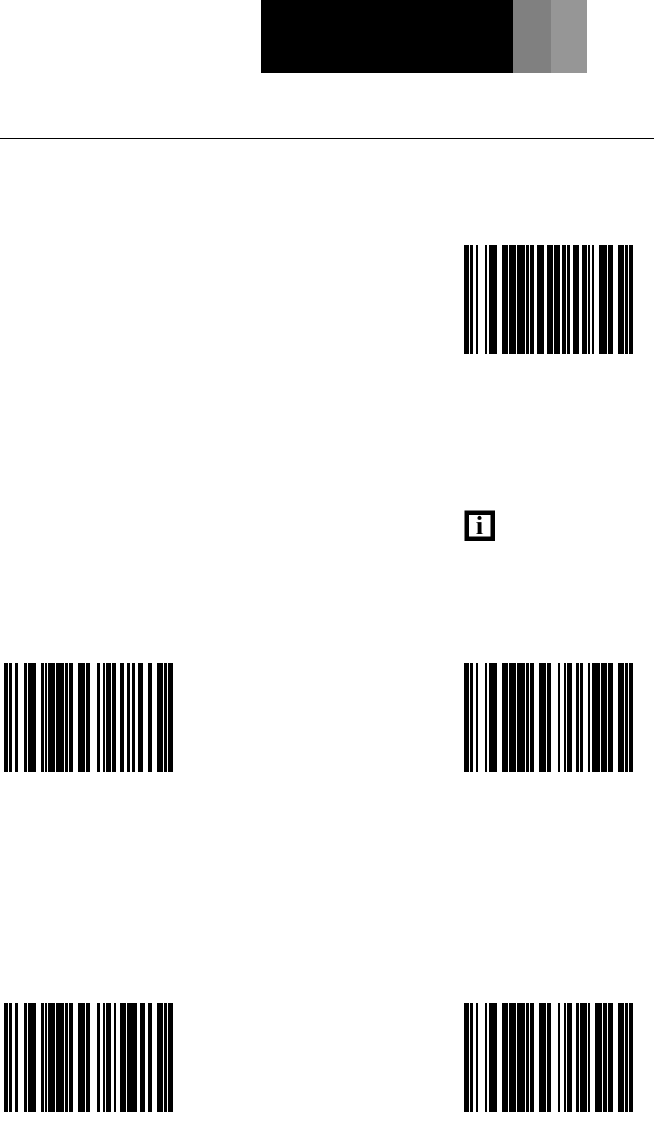

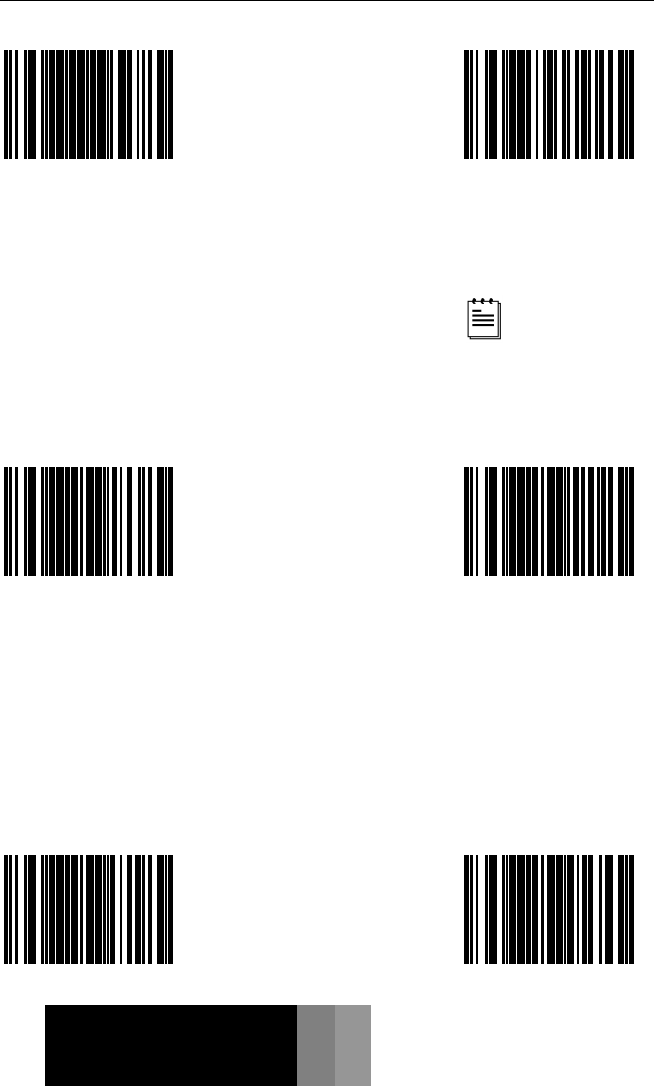

Default

Power Save Mode ††

Blink

Power Save Mode ††

³319400 ³319410

Blinks the laser OFF & ON

after a programmed period

of non-use.

When the scanner

recognizes a bar code it will

exit the Blink mode.

Laser OFF

Power Save Mode ††

Laser Motor OFF

Power Save Mode ††

³319420

Turns the laser OFF after a

programmed period of non-

use. ††

The MS7220 and MS7320

will “wake” when the Multi-

Function Button is pressed.

The MS7600 will “wake” if

the IR detects movement.

†† For MS7600, MS7220,

and MS7320 series

scanners only.

³319430

Turns the laser and motor

OFF after a programmed

period of non-use. ††

The MS7220 and MS7320

will “wake” when the Multi-

Function Button is pressed.

The MS7600 will “wake” if

the IR detects movement.

Scanner Operation D27

SECTION D POWER SAVE MODES

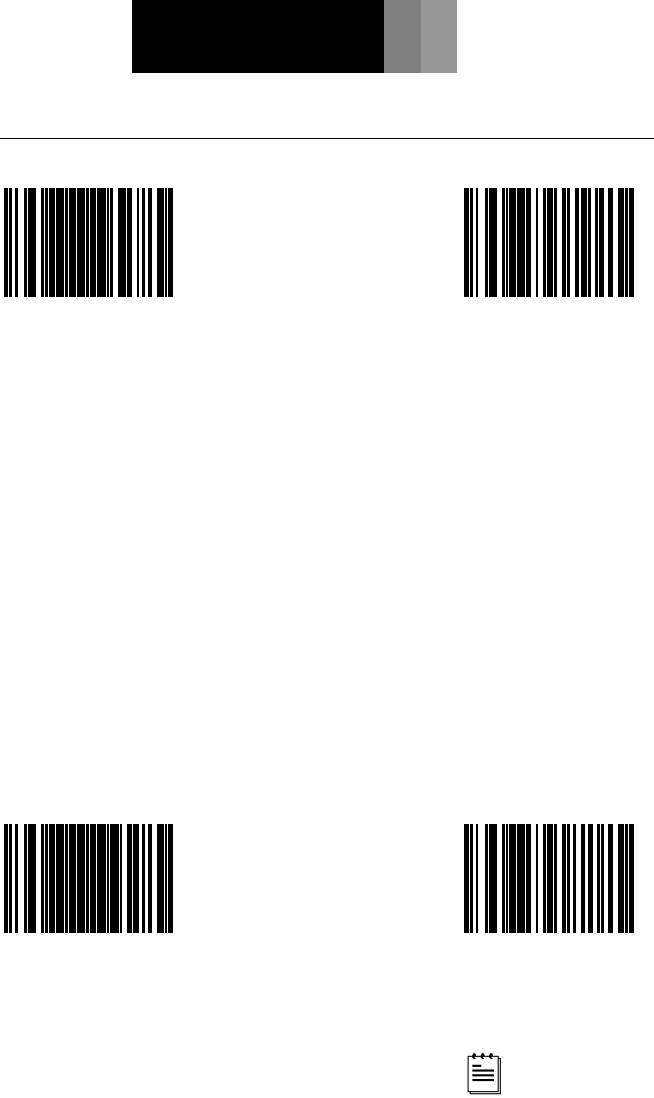

Dual #1

Power Save Mode ††

†† For MS7600, MS7220, and

MS7320 series scanners only.

Dual #2

Power Save Mode ††

³319440

“Blinks” the laser OFF & ON

after a programmed period

of non-use then turns the

laser and motor OFF at

thirty-minute intervals.

The MS7220 and MS7320

will “wake” when the Multi-

Function Button is pressed.

The MS7600 will “wake” if

the IR detects movement.

³319460

Turns the laser OFF after a

programmed period of non-

use then turns the motor

OFF after thirty-minute

intervals.

The MS7220 and MS7320

will “wake” when the Multi-

Function Button is pressed.

The MS7600 will “wake” if

the IR detects movement.

* Enable

Power Save Switch

Disable

Power Save Switch

³119700

For MS7220 and

MS7320 scanners only.

³119710

For MS7220 and

MS7320 scanners only.

* Enable Bar Code

Absence Detection

Disable Bar Code

Absence Detection

³118200 ³118210

Scanner Operation D28

SECTION D JAPANESE DOUBLE FIELD SUPPORT

To support Japanese Double Field Bar Codes, first make sure you have your scanner programmed

to the following settings.

• Disable segmented decoding

• Enable 2 scan buffers

• Disable bar code absence detection

• Enable normal code selects

Then, scan the Enable Japan 2 Field bar code.

Enable Japan 2 Field * Disable Japan 2 Field

³124713 ³ 124703

Next, select the matching bar codes that are used for double field symbols.

Note that only UPC/EAN bar codes are allowed in double field mode.

Select at least two characters for each bar code. The maximum is 4 upper and 4 lower bar codes.

EXAMPLE

To select 54 as the first two characters in the Upper Code pair 1:

1. Scan the Upper Code 1 Character 1 bar code (shown on page D-31)

2. Determine the correct Code Byte Value for the character 5 in 54

(Refer to Section M’s ASCII Reference Table on pages M-7 and M-8)

a. Scan Code Byte 0

b. Scan Code Byte 5

c. Scan Code Byte 3

3. Scan the Upper Code 1 Character 2 bar code (shown on page D-31)

4. Determine the correct Code Byte Value for the character 4 in 54.

a. Scan Code Byte 0

b. Scan Code Byte 5

c. Scan Code Byte 2

To select 18 as the first two characters in the Lower Code pair 1:

1. Scan the Lower Code 1 Character 1 bar code (shown on page D-31)

2. Determine the correct Code Byte Value for the character 1 in 18

(refer to Section M’s ASCII Reference Table)

a. Scan Code Byte 0

b. Scan Code Byte 4

c. Scan Code Byte 9

3. Scan the Lower Code 1 Character 2 bar code (shown on page D-31)

4. Determine the correct Code Byte Value for the character 8 in 18.

(Refer to Section M’s ASCII Reference Table on pages M-7 and M-8)

a. Scan Code Byte 0

b. Scan Code Byte 5

c. Scan Code Byte 6

Scanner Operation D29

SECTION D JAPANESE DOUBLE FIELD SUPPORT

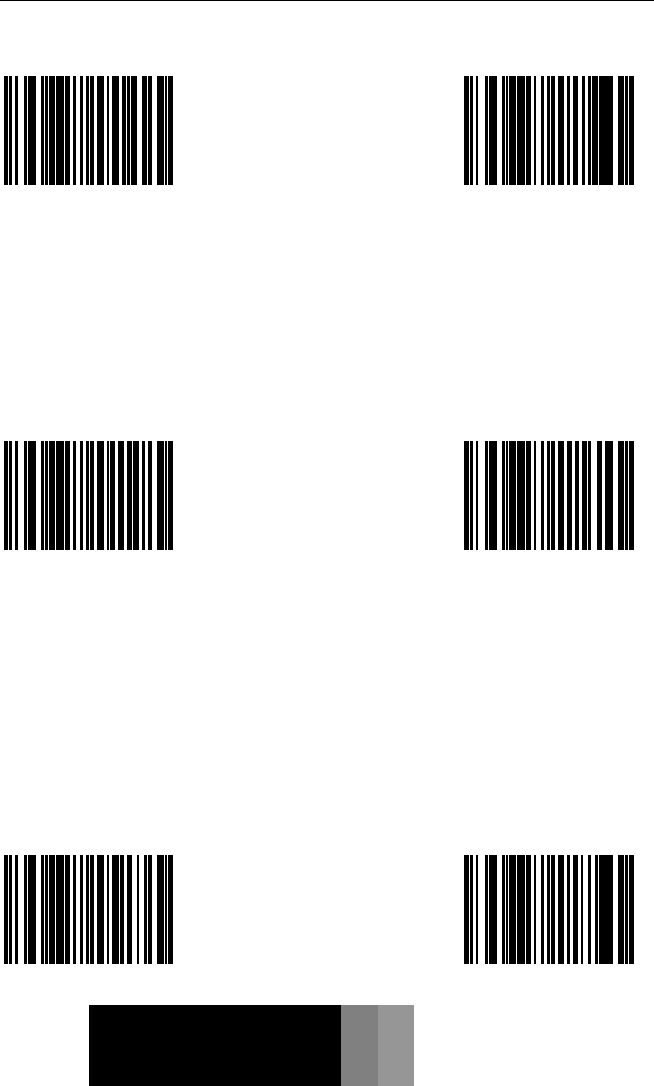

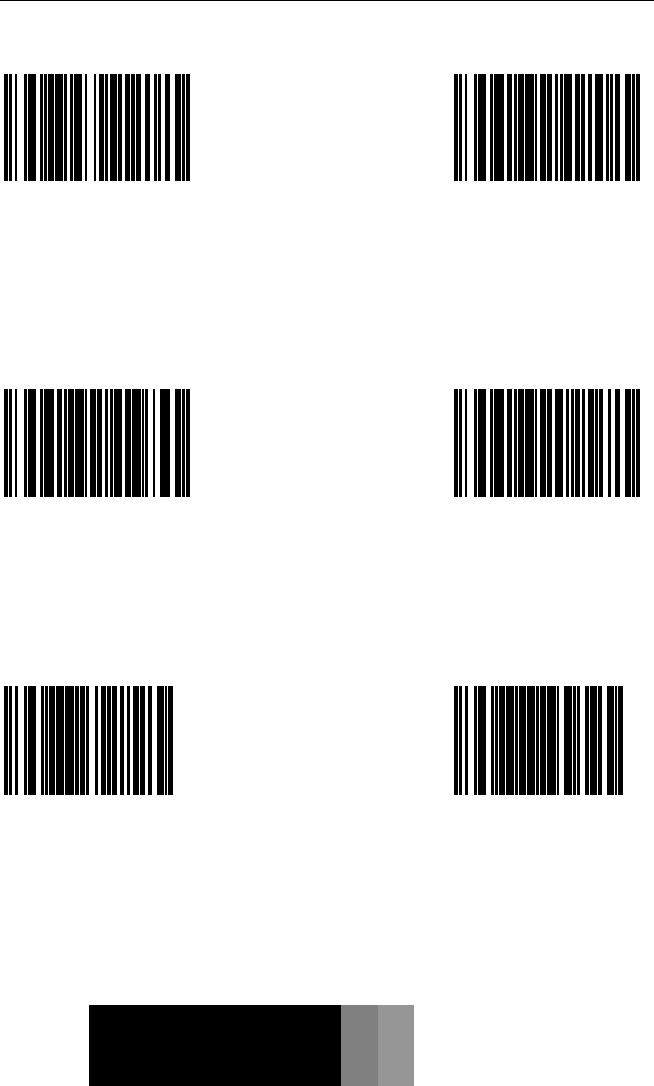

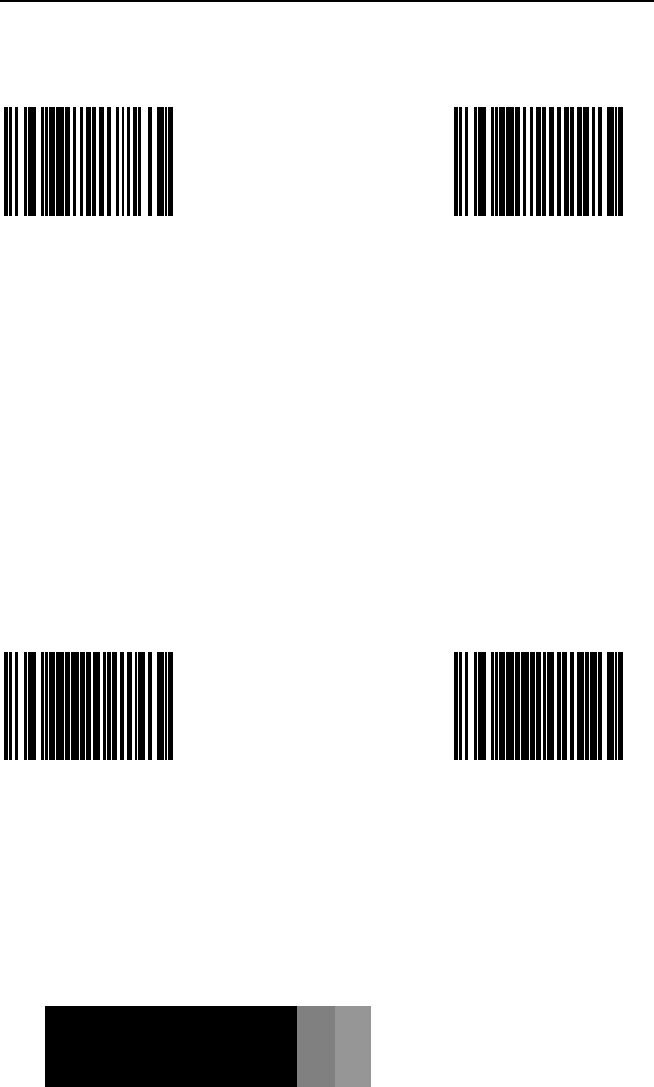

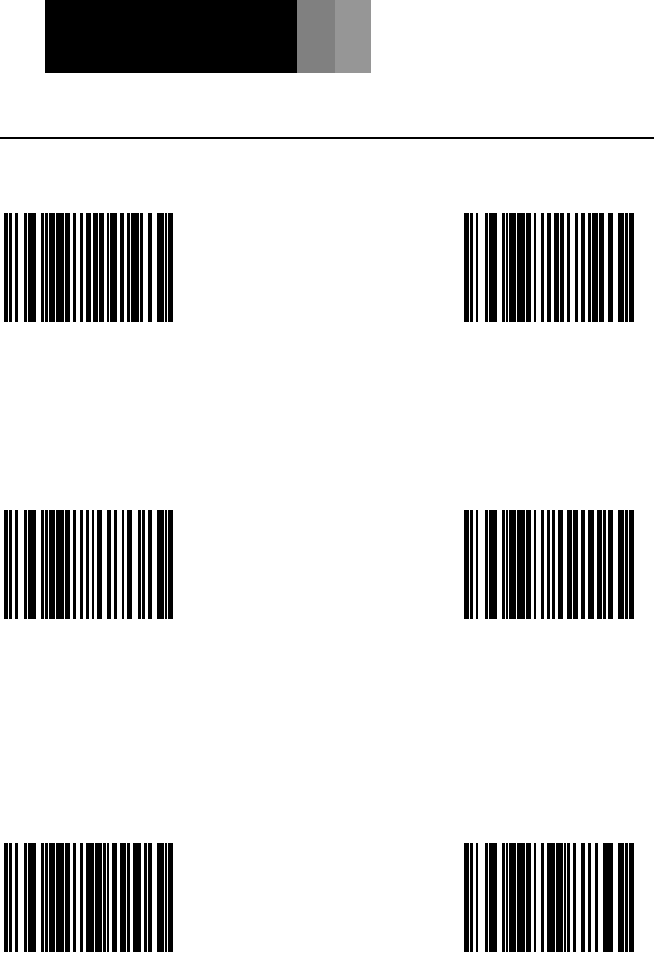

Upper Code 1 Character 1 Upper Code 1 Character 2

³930000 ³ 930100

Lower Code 1 Character 1 Lower Code 1 Character 2

³930200 ³ 930300

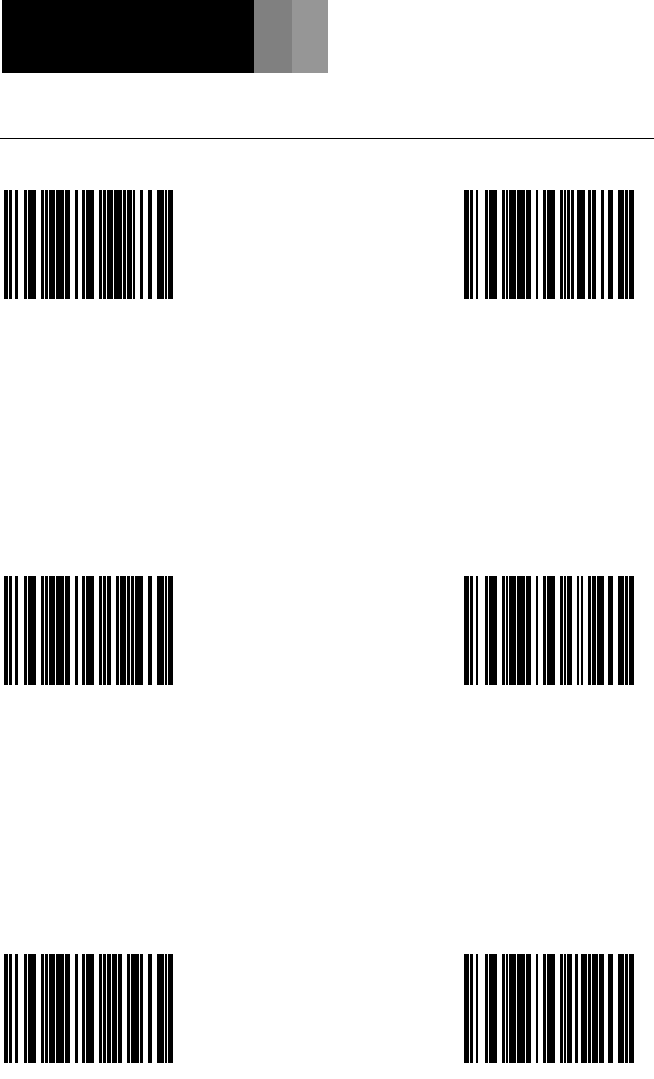

Upper Code 2 Character 1 Upper Code 2 Character 2

³930400 ³ 930500

Scanner Operation D30

SECTION D JAPANESE DOUBLE FIELD SUPPORT

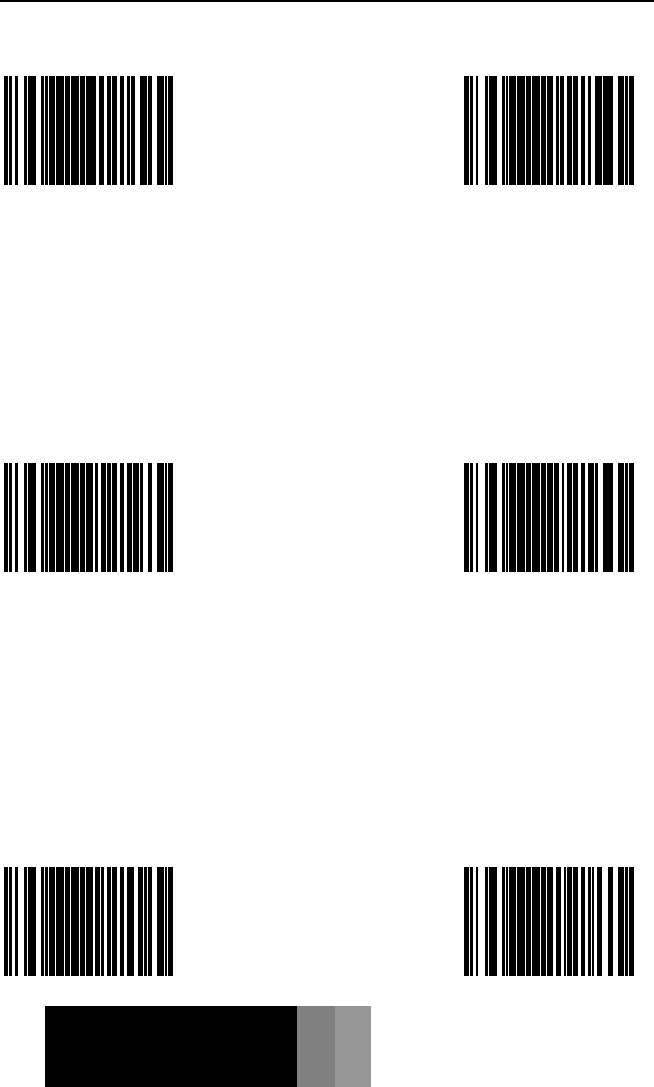

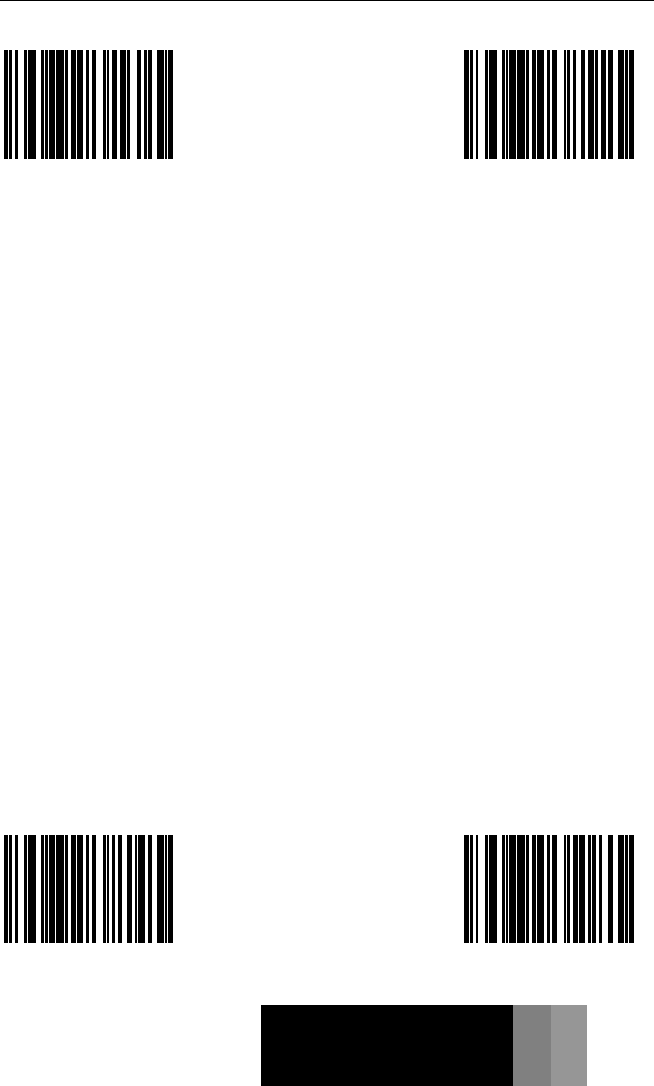

Lower Code 2 Character 1 Lower Code 2 Character 2

³930600 ³ 930700

Upper Code 3 Character 1 Upper Code 3 Character 2

³930800 ³ 930900

Lower Code 3 Character 1 Lower Code 3 Character 1

³931000 ³ 931100

Scanner Operation D31

SECTION D JAPANESE DOUBLE FIELD SUPPORT

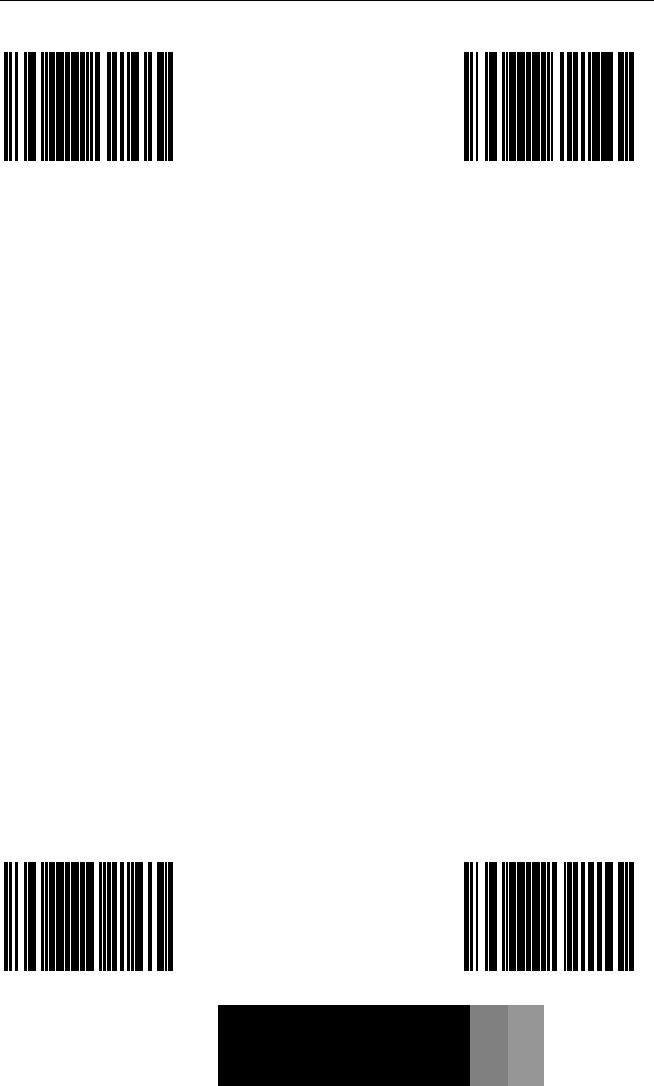

Upper Code 4 Character 1 Upper Code 4 Character 2

³931200 ³ 931300

Lower Code 4 Character 1 Lower Code 4 Character 2

³931400 ³ 931500

Scanner Operation D32

SECTION D JAPANESE DOUBLE FIELD SUPPORT

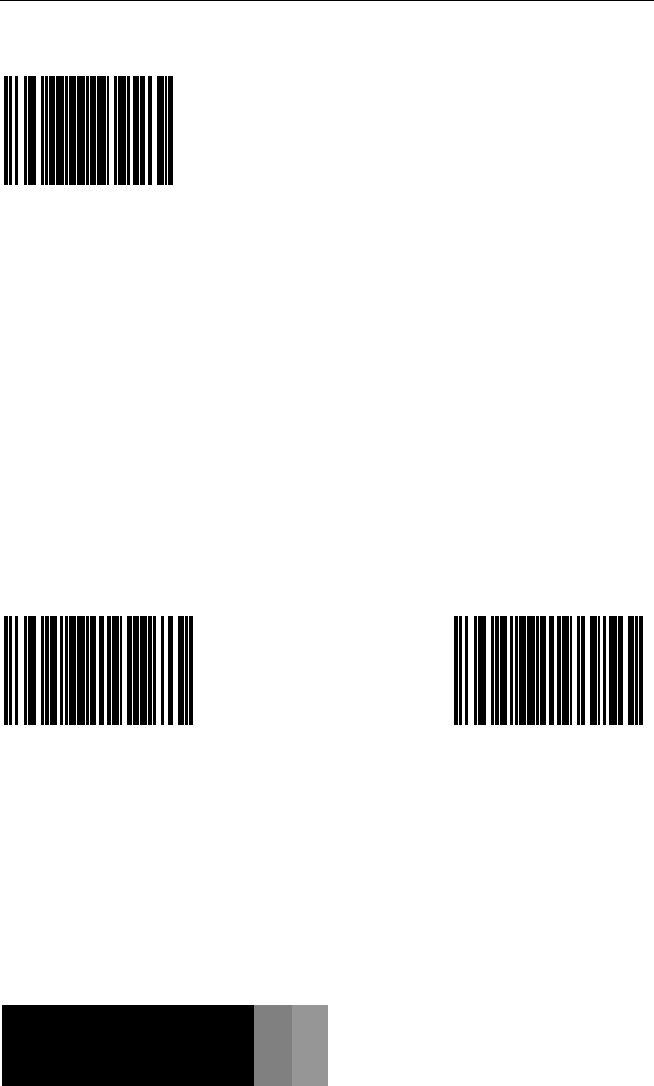

Japanese Trial Time Enable Code Selects

³938800

Scan the above bar code

followed by the 3 code bytes

in Section M that represent

the timeout value desired if in

special code select mode.

1 is equal to 100 milliseconds

Example:

If a 500 millisecond timeout

is desired, scan the above

code followed by

code byte 0, code byte 0

and code byte 5.

³ 1187217

Enable Error Tone * Disable Error Tone

³118513

Adds ability to sound RAZZ

error tone when special

code selects fail.

³118503

Scanner Operation D33

SECTION D TEST MODES

Scanability ON * Scanability OFF

³118017

The scanner will enter

scanability test mode.

Do not enable

unless instructed to

by a Metrologic

representative.

³118007

Scan Count Mode ON * Scan Count Mode OFF

³118016

The scanner will enter scan

count test mode and the

scanner’s firmware number

will transmit to the host.

Do not enable

unless instructed to

by a Metrologic

representative.

³118006

Temporary Symbologies

The Temporary Symbologies test

code enables all major types of bar

code symbologies, reduces the

minimum number of characters

required to 1, sets the minimum

ITF characters required to 2, and

adds the symbology name as a

prefix to the transmission. This

feature is disabled when power to

the scanner is cycled OFF and ON.

³998041

Do not enable

unless instructed to

by a Metrologic

representative

Prefixes/Suffixes E1

SECTION ECONFIGURABLE PREFIXES, ALL DATA

Scan the Enter/Exit Configuration Mode bar code before trying to set this

feature. Please refer to the Multi-Code method on page x.

Enter/Exit

Configuration Mode

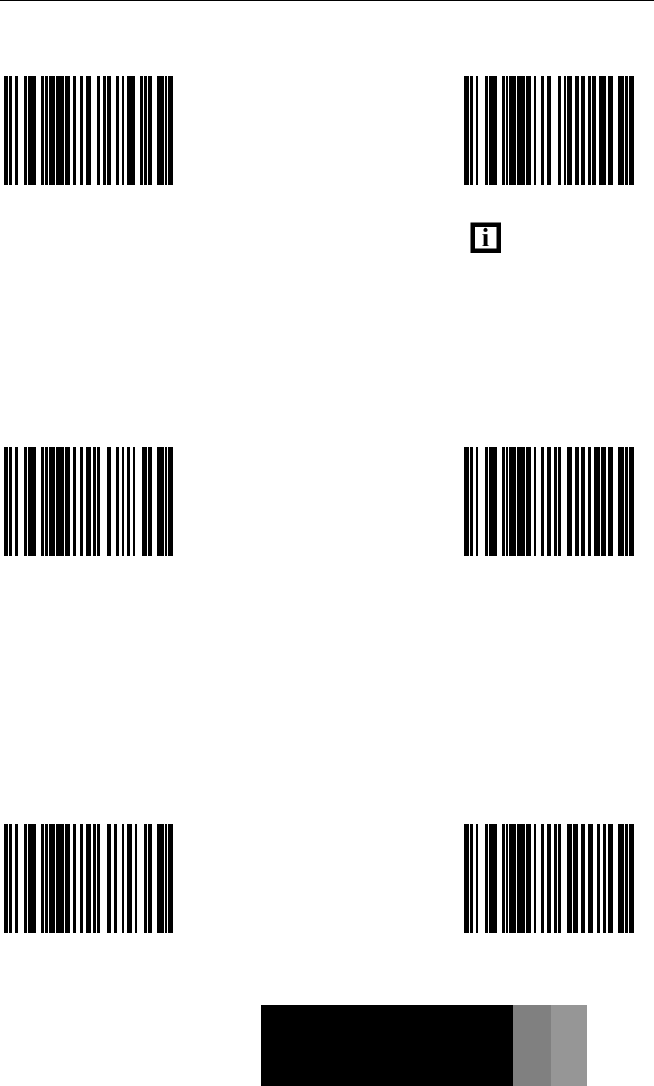

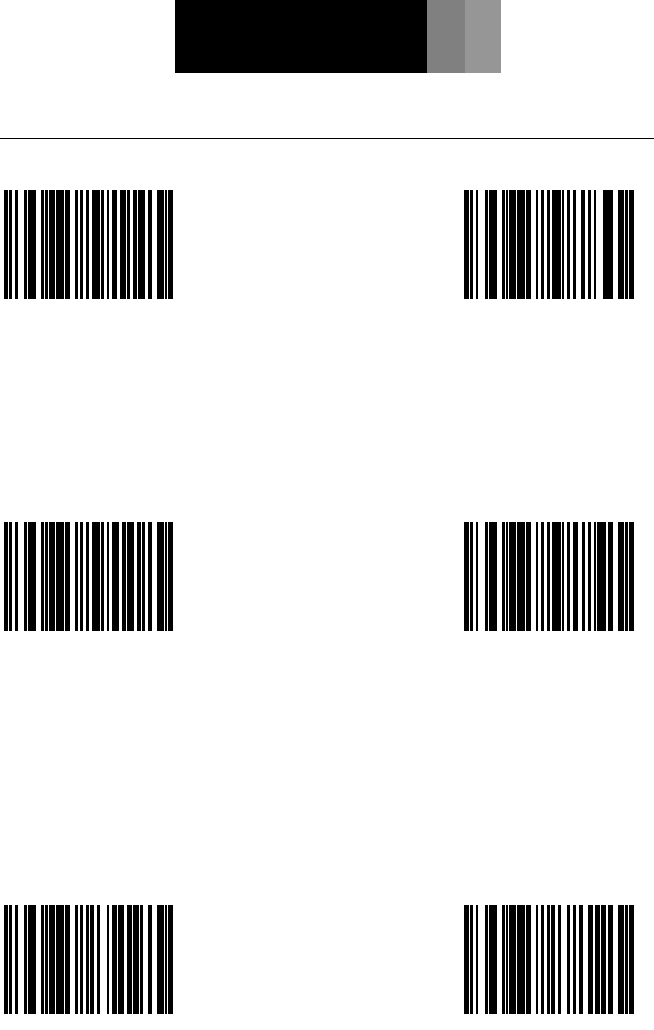

~ Configurable Prefix

Character #1

³999999 ³ 903500

A prefix ID can be added

and assigned for data

transmission. Use this code

with a 3-code byte

sequence from Section M

that represents the desired

character.

~ Configurable Prefix

Character #2

~ Configurable Prefix

Character #3

³903600

Assigns a 2nd configurable

prefix character.

³903700

Assigns a 3rd configurable

prefix character.

~ Configurable Prefix

Character #4

~ Configurable Prefix

Character #5

³903800

Assigns a 4th configurable

prefix character.

³903900

Assigns a 5th configurable

prefix character.

Prefixes/Suffixes E2

SECTION E CONFIGURABLE PREFIXES, ALL DATA

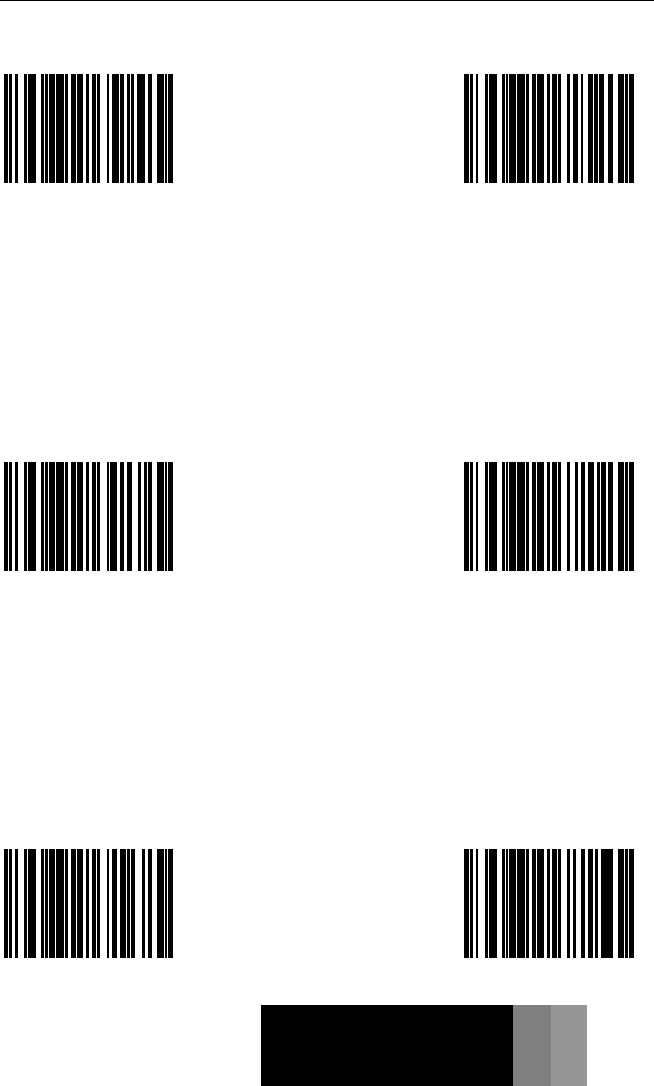

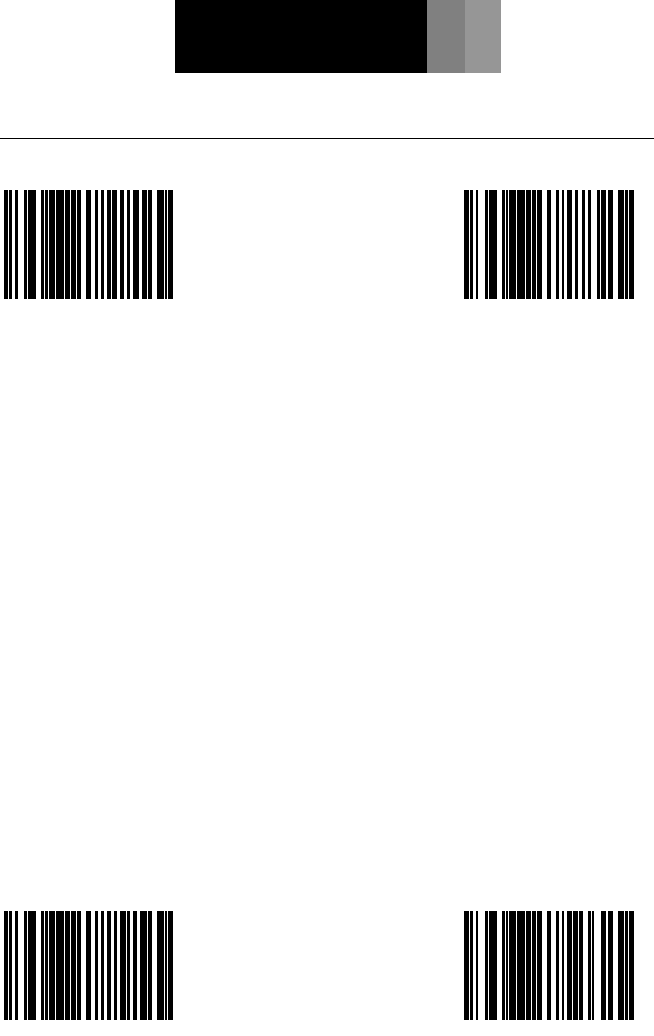

~ Configurable Prefix

Character #6

~ Configurable Prefix

Character #7

³904000

Assigns a 6th configurable

prefix character.

³904100

Assigns a 7th configurable

prefix character.

~ Configurable Prefix

Character #8

~ Configurable Prefix

Character #9

³904200

Assigns a 8th configurable

prefix character.

³904300

Assigns a 9th configurable

prefix character.

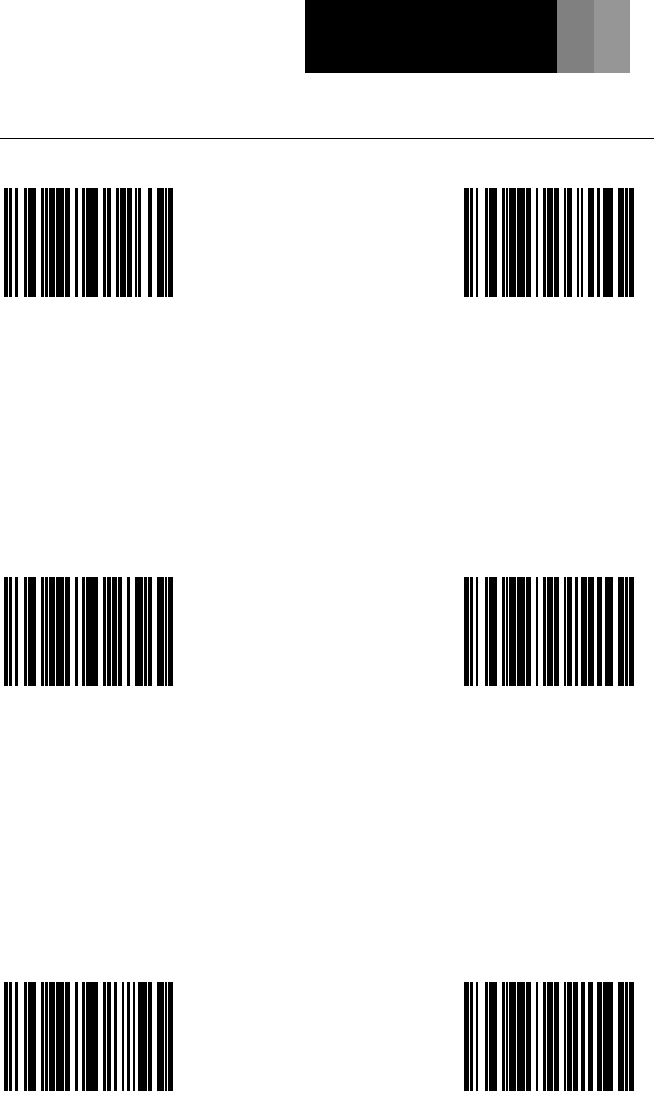

~ Configurable Prefix

Character #10

* Clear all User

Configurable Prefixes

³904400 ³ 999985

Prefixes/Suffixes E3

SECTION E CONFIGURABLE ID CHARACTERS, CODE SPECIFIC

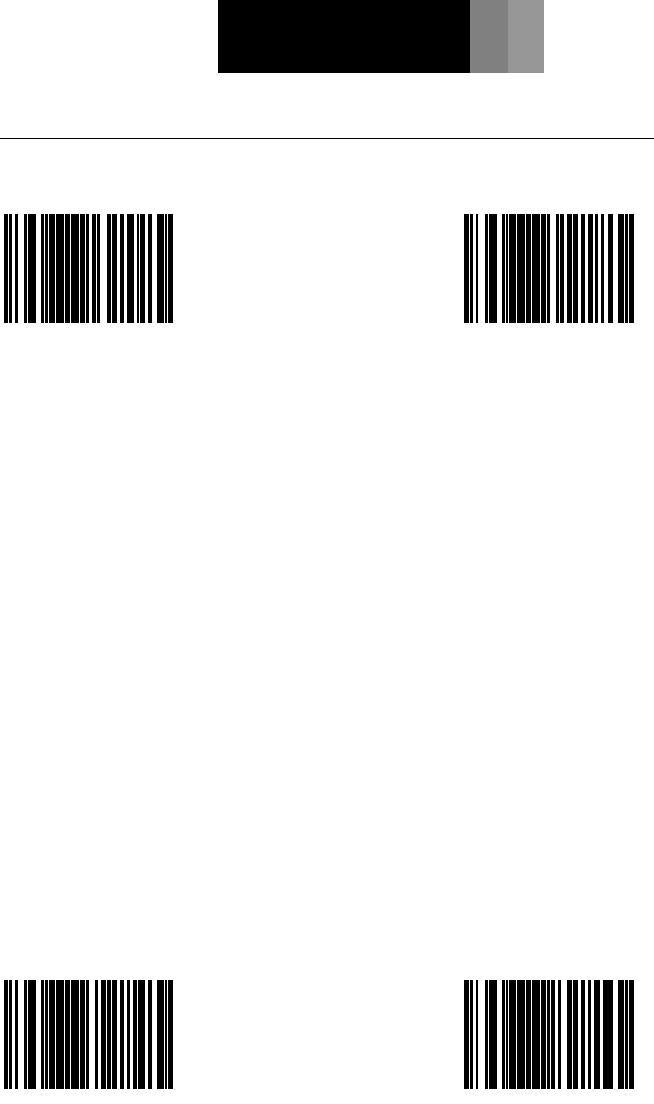

* Use Configurable Code

ID Bytes as Prefixes

Use Configurable Code ID

Bytes as Suffixes

³105507

User configured, code

specific ID bytes are

transmitted before the data.

If using prefixes, user

configured suffixes

can not be used.

³105517

User configured, code

specific ID bytes are

transmitted after the data.

If using suffixes, user

configured prefixes

can not be used.

IDENTIFIERS CHARACTER

~ Configurable UPC-A ID †~ Configurable UPC-E ID †

³905600 ³ 905700

† While using the Multi-Code method, scan this bar code followed by the 3 code byte bar

codes in Section M that represent a unique ID character to be associated with this bar code

type. (Refer to the Multi-Code Method on page x.)

Prefixes/Suffixes E4

SECTION E CONFIGURABLE ID CHARACTERS, CODE SPECIFIC

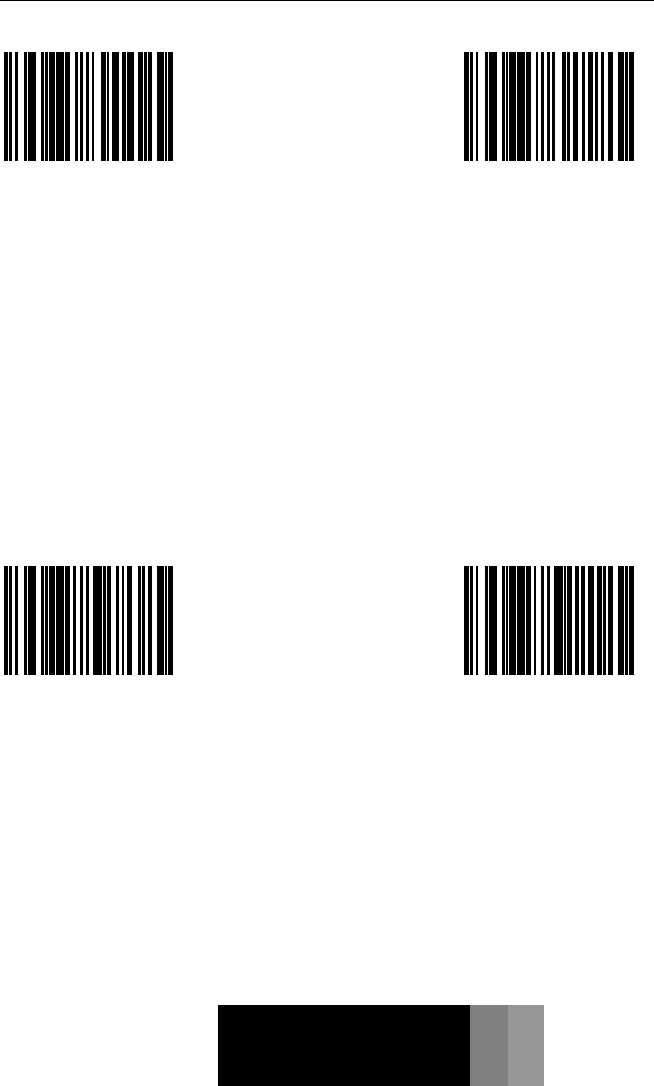

~ Configurable EAN-8 ID †~ Configurable EAN-13 ID †

³905800

† While using the Multi-Code method,

scan this bar code followed by the 3

code byte bar codes in Section M

that represent a unique ID character

to be associated with this bar code

type. (Refer to the Multi-Code

Method on page x.)

³905900

~ Configurable Code 39 ID †~ Configurable

Code 128 ID †

³906000 ³ 906100

Prefixes/Suffixes E5

SECTION E CONFIGURABLE ID CHARACTERS, CODE SPECIFIC

~ Configurable Code 93 ID †~ Configurable Code 11 ID †

³906300

† While using the Multi-Code method,

scan this bar code followed by the 3

code byte bar codes in Section M

that represent a unique ID character

to be associated with this bar code

type. (Refer to the Multi-Code

method on page x.)

³906400

~ Configurable Telepen ID †~ Configurable

TRI-OPTIC ID †

³906200 ³ 907200

Prefixes/Suffixes E6

SECTION E CONFIGURABLE ID CHARACTERS, CODE SPECIFIC

~ Configurable

Standard 2 of 5 ID †

~ Configurable

Interleaved 2 of 5 ID †

³907100

† While using the Multi-Code method,

scan this bar code followed by the 3

code byte bar codes in Section M

that represent a unique ID character

to be associated with this bar code

type. (Refer to the Multi-Code

method on page x.)

³906700

~ Configurable

Matrix 2 of 5 ID †

~ Configurable

Airline 2 of 5 ID †

³906800 ³ 906900

Prefixes/Suffixes E7

SECTION E CONFIGURABLE ID CHARACTERS CODE SPECIFIC

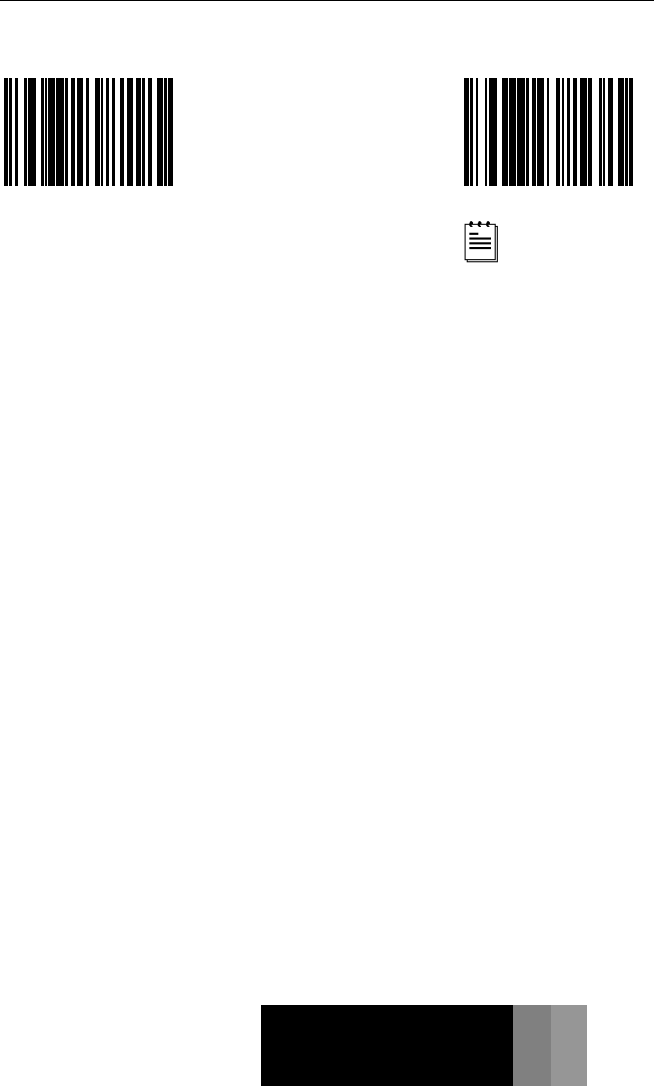

~ Configurable

MSI Plessey ID †

~ Configurable

UK Plessey ID†

³906500

† While using the Multi-Code method,

scan this bar code followed by the 3

code byte bar codes in Section M

that represent a unique ID character

to be associated with this bar code

type. (Refer to the Multi-Code

method on page x.)

³907000

~ Configurable

Codabar ID †

* Clear all Configurable

Code Specific ID’s †

³906600 ³ 999983

Prefixes/Suffixes E8

SECTION E STANDARD PREFIX CHARACTERS

Enable STX Prefix * Disable STX Prefix

³116615

The scanner will transmit a

Start of TeXt (ASCII 02H)

before each bar code.

³116605

Will not transmit a Start of

TeXt (ASCII 02H) before

each bar code.

Enable

Rockford-Thompson Mode

* Disable Rockford-

Thompson Mode

³105513 ³ 105503

Enable AIM ID Characters * Disable AIM ID

Characters

³107915

The scanner will transmit

IM symbology identifiers.

Some scanner

models may not

support this feature.

³107905

The scanner will not

transmit AIM symbology

identifiers.

Prefixes/Suffixes E9

SECTION E STANDARD PREFIX CHARACTERS

Enable UPC Prefix ID * Disable UPC Prefix ID

³116617

When enabled, the scanner

will transmit a prefix before

any UPC/EAN bar code.

The prefixes are as follows:

A (UPC-A),

E0 (UPC-E),

F (EAN-13), and

FF (EAN-8).

³116607

Do not send prefix ID

Characters with UPC/EAN

codes.

Enable NCR Prefix ID * Disable NCR Prefix ID

³107911

When enabled, the scanner

will transmit a prefix before

the following code types.

The prefixes are as follows:

³107901

A (UPC-A),

E0 (UPC-E),

FF (EAN-8),

F (EAN-13),

B1 (Code 39),

B2 (ITF) and

(

Code 128 & other codes

)

Prefixes/Suffixes E10

SECTION E STANDARD PREFIX CHARACTERS

Enable Nixdorf ID

Characters

* Disable Nixdorf ID

Characters

³107917

This option transmits code

identifiers before each bar

code for many

Siemens/Nixdorf registers.

³107907

This option will not transmit

Siemens/Nixdorf code

identifiers.

Enable SANYO ID

Characters

* Disable SANYO ID

Characters

³107916

Transmit Sanyo ID

Characters.

³107906

Do not transmit Sanyo ID

Characters.

Prefixes/Suffixes E11

SECTION E STANDARD PREFIX CHARACTERS

Enable TEC Register

Format ID Characters

Disable TEC Register

Format ID Characters

³124710 ³124700

Enable TEC MA1530

ID Characters

Disable TEC MA1530

ID Characters

³108010 ³108000

Enable Symbology Prefix Disable Symbology Prefix

³105514

This option adds a

symbology description in

front of the bar code

transmission.

³105504

Do not add a symbology

description in front of the

bar code transmission.

Prefixes/Suffixes E12

SECTION E STANDARD PREFIX CHARACTERS

Enable Manufacturer

ID Prefix

* Disable Manufacturer

ID Prefix

³105512

Transmits “METROLOGIC”

before all bar code data to

identify the scanner as a

Metrologic Scanner.

³105502

The scanner will not

transmit the manufacturer

identification string.

Enable “C” Prefix * Disable “C” Prefix

³105511 ³105501

Enable “$” Prefix ID

for UPC/EAN

* Disable “$” Prefix ID

for UPC/EAN

³105510 ³105500

Prefixes/Suffixes E13

SECTION E STANDARD PREFIX CHARACTERS

Enable Tab Prefix * Disable Tab Prefix

³116611

The scanner will transmit a

TAB (ASCII 09H) before

each bar code.

³116601

The scanner will not

transmit a TAB.

Enable SNI Beetle Mode * Disable SNI Beetle Mode

³116111 ³116101

Enable Cipher 1021 IDs * Disable Cipher 1021 IDs

³116113 ³116103

Prefixes/Suffixes E14

SECTION E STANDARD SUFFIX CHARACTERS

* Enable CR Suffix Disable CR Suffix

³116613

The scanner will transmit a

Carriage Return after each

bar code.

³116603

The scanner will not

transmit a Carriage Return

after each bar code.

* Enable LF Suffix Disable LF Suffix

³116612

The scanner will transmit a

Line Feed after each bar

code.

This feature is

Disabled when

keyboard wedge

defaults are loaded.

³116602

The scanner will not

transmit a Line Feed after

each bar code.

Enable Tab Suffix * Disable Tab Suffix

³116610

The scanner will transmit a

TAB (ASCII 09H) after each

bar code.

³116600

The scanner will not

transmit a TAB (ASCII 09H)

after each bar code.

Prefixes/Suffixes E15

SECTION E STANDARD SUFFIX CHARACTERS

Enable ETX Suffix * Disable ETX Suffix

³116614

The scanner will transmit

End of TeXt (ASCII 03H)

after the bar code data.

³116604

The scanner will not

transmit End of TeXt

(ASCII 03H).

Enable UPC Suffix ID * Disable UPC Suffix ID

³116616

The scanner will transmit a

suffix after any UPC/EAN

bar code.

The suffixes are as follows:

A (UPC-A),

E (UPC-E),

F (EAN-13) and

(

EAN-8

)

³116606

The scanner will not

transmit a suffix after

UPC/EAN bar codes.

Prefixes/Suffixes E16

SECTION E LONGITUDINAL REDUNDANCY CHECK (LRC)

Enable Transmit of

LRC Calculation

* Disable Transmit of

LCR Calculation

³107811

The scanner outputs an

LRC check character after

the bar code.

³107801

The scanner will not output

an LRC (check character)

after the bar code.

* Start LRC on First Byte Start LRC on Second Byte

³107800

The scanner will calculate

the LRC check digit starting

with the first character.

³107810

The scanner will calculate

the LRC check digit starting

with the second character.

Prefixes/Suffixes E17

SECTION E CONFIGURABLE SUFFIXES, ALL DATA

Scan the Enter/Exit Configuration Mode bar code before trying to set this feature.

Refer to the Multi-Code Method on page x.

Enter/Exit

Configuration Mode

~ Configurable Suffix

Character #1

³999999 ³904500

A suffix ID can be added

and assigned for data

transmission. Use this code

with a 3 code byte

sequence from Section M

that represents the desired

character.

~ Configurable Suffix

Character #2

~ Configurable Suffix

Character #3

³904600

Assigns a 2nd configurable

suffix character.

³904700

Assigns a 3rd configurable

suffix character.

Prefixes/Suffixes E18

SECTION E CONFIGURABLE SUFFIXES, ALL DATA

~ Configurable Suffix

Character #4 †

~ Configurable Suffix

Character #5 †

³904800

Assigns a 4th configurable

suffix character.

† While using the Multi-Code method,

scan this bar code followed by the 3

code byte bar codes in Section M

that represents the desired

character. (Refer to the Multi-Code

method on page x.)

³904900

Assigns a 5th configurable

suffix character.

~ Configurable Suffix

Character #6 †

~ Configurable Suffix

Character #7 †

³905000

Assigns a 6th configurable

suffix character.

³905100

Assigns 7th configurable

suffix character.

Prefixes/Suffixes E19

SECTION E CONFIGURABLE SUFFIXES, ALL DATA

~ Configurable Suffix

Character #8 †

~ Configurable Suffix

Character #9 †

³905200

Assigns a 8th configurable

suffix character.

³905300

Assigns a 9th configurable

suffix character.

~ Configurable Suffix

Character #10 †

³905400

Assigns a 10th configurable

suffix character.

† While using the Multi-

Code method, scan this

bar code followed by the

3 code byte bar codes in

Section M that represent

the desired character.

(Refer to the Multi-Code

method on page x.)

* Clear All User

Configurable Suffixes

³999984

Prefixes/Suffixes E20

SECTION E SPECIAL FORMATS

Enable SINEKO Mode * Disable SINEKO Mode

³107914 ³107904

Enable Newcode

Formatting Mode A

* Disable Newcode

Formatting Mode A

³116711 ³116701

Enable Newcode

Formatting Mode B

* Disable Newcode

Formatting Mode B

³116710 ³116700

Prefixes/Suffixes E21

SECTION E CHARACTER REPLACEMENTS

To replace a character:

1. Scan the Enter/Exit Configuration Mode bar code

(located on page x, at the front of this guide)

2. Scan the Character to Replace Code (shown below)

3. Scan the ASCII Code Byte value of the character you with to replace.

(refer to the ASCII reference table in Section M)

4. Scan the Replacement Character bar code

5. Scan the ASCII Code Byte value of the replacement character.

6. Scan the Enter/Exit Configuration Mode bar code.

(located on page x, at the front of this guide)

Character to Replace No Replacement

³938600 ³838600

Replacement Character

³938700

Code Formatting F1

SECTION F UPC/EAN

* Transmit UPC-A

Check Digit

Do not Transmit

UPC-A Check Digit

³107517 ³ 107507

Transmit UPC-E

Check Digit

* Do Not Transmit

UPC-E Check Digit

³107516 ³ 107506

Expand UPC-E to 12 Digits

* Do Not Expand

UPC-E To 12 Digits

³107515

Expand UPC-E bar codes to

the 12 digit equivalent,

UPC-A bar codes.

³107505

Do not expand UPC-E to

the 12 digit equivalent,

UPC-A bar code.

Code Formatting F2

SECTION F UPC/EAN

Convert UPC-A to EAN-13

* Do Not Convert

UPC-A to EAN-13

³107514

The scanner converts

UPC-A to EAN-13 by

transmitting a leading zero

before the bar code.

³107504

The scanner will not convert

UPC-A to EAN-13.

Transmit Lead Zero

on UPC-E

Do Not Transmit

Lead Zero on UPC-E

³107513

This option will transmit a

zero before each

UPC-E bar code.

³107503

This option will not transmit

a zero before each UPC-E

bar code.

Convert EAN-8 to EAN-13

* Do Not Convert

EAN-8 to EAN-13

³107512

The scanner will transmit

five zeros before the bar

code to convert EAN-8 to

EAN-13.

³107502

The scanner will not convert

EAN-8 to EAN-13.

Code Formatting F3

SECTION F UPC/EAN

* Transmit UPC-A

Number System

Do Not Transmit UPC-A

Number System

³107511 ³ 107501

Metrologic strongly

discourages using

this feature.

Duplicate numbers

may result in the

database.

* Transmit

UPC-A MFR #

Do Not Transmit

UPC-A MFR #

³107611 ³ 107601

* Transmit

UPC-A ITEM #

Do Not Transmit

UPC-A ITEM #

³107610 ³ 107600

Code Formatting F4

SECTION F UPC/EAN

* Transmit EAN-8

Check Digit

Do Not Transmit

EAN-8 Check Digit

³107910 ³ 107900

* Transmit EAN-13

Check Digit

Do Not Transmit

EAN-13 Check Digit

³107912 ³ 107902

GTIN-14 Format †No GTIN-14 Format †

³107510

† For MS7220, MS7320 and

MS7600 scanners only.

³107500

Code Formatting F5

SECTION F CODABAR

Transmit Codabar

Start/Stop Characters

³107717

Transmits Codabar’s

start/stop characters before

and after each bar code.

* Do Not Transmit Codabar

Start/Stop

³107707

Will not transmit Codabar’s

start/stop characters before

and after each bar code.

Code Formatting F6

SECTION F CODABAR

Enable

CLSI Editing

³107716

CLSI type editing will be done

before the information is

transmitted to the host.

This option will only

work with 14 digit

Codabar type lengths.

* Do Not Enable

CLSI Editing

³107706

This option will not perform

CLSI type editing before the

information is transmitted to

the host.

Code Formatting F7

SECTION F CODE 39

Enable MOD 43

Check on Code 39

* Disable MOD 43 Check

on Code 39

³100213

The scanner will only scan

Code 39 bar codes that

have a valid Modulo 43

Check Digit.

³100203

The scanner will not test

Code 39 bar codes for a

Modulo 43 Check Digit.

Transmit Mod 43

Check Digit on Code 39

* Do Not Transmit Mod 43

Check Digit on Code 39

³107715

This feature works in

conjunction with Mod 43

Check on Code 39. Both

must be enabled for this

feature to work.

³107705

This option will not transmit

Code 39’s Mod 43 check

character.

Code Formatting F8

SECTION F CODE 39

Transmit Code 39 Start/Stop

Characters

³107710

The scanner transmits Code

39’s start/stop characters before

and after each bar code.

* Do Not Transmit Code 39

Start/Stop Characters

³107700

The scanner will not transmit

Code 39’s start/stop characters

before and after each bar code.

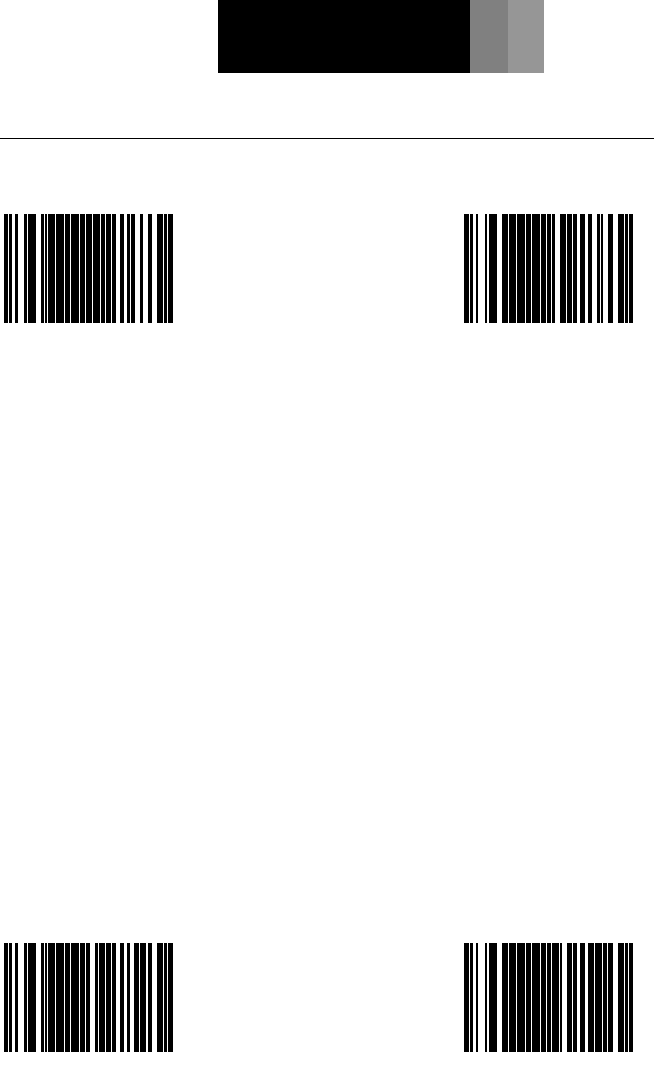

Code Formatting F9

SECTION F CODE 11 AND TELEPEN

Transmit

Code 11 Check Digit

*Do Not Transmit

Code 11 Check Digit

³107713

The scanner will transmit

Code 11 check characters

when used with the Enable

Code 11 feature in

Section A.

³107703

The scanner will not

transmit Code 11 check

characters.

Enable

Convert Telepen ^L to E

* Disable

Convert Telepen ^L to E

³107814 ³ 107804

Code Formatting F10

SECTION F PLESSEY

Transmit

UK Plessey Check Digit

* Do Not Transmit

UK Plessey Check Digit

³107816

The scanner will transmit

UK Plessey Check Digit

characters when used with

the Enable UK Plessey

feature in Section A.

³107806

Will not transmit UK Plessey

Check Digit characters.

Enable

UK Plessey Special Format

Disable

UK Plessey Special Format

³107815 ³ 107805

Handle Incorrect

UK Plessey Stop Character

* Normal UK Plessey Stop

Character Handling

³108013 ³ 108003

Code Formatting F11

SECTION F PLESSEY

* No MSI Plessey

Check Digit

³200704

The scanner will not test

MSI Plessey bar codes for a

check digit.

Enable MSI Plessey MOD

10/10 Check Digit

* Enable MSI Plessey MOD

10 Check Digit

³200734

The scanner will test MSI

Plessey bar codes for a

double Modulo 10 check

digit.

³200724

The scanner will test MSI

Plessey bar codes for a

single Modulo 10 check digit.

Transmit

MSI Plessey Check Digit

* Do Not Transmit

MSI Plessey Check Digit

³107711

This option works in

conjunction with one or both

of the Enabled MSI Plessey

Mode o

tions.

³107701

The scanner will not transmit

MSI Plessey’s check digit

characters.

Code Formatting F12

SECTION F 2 OF 5

Enable Mod 10

Check on ITF

* Disable MOD 10

Check on ITF

³100310

The scanner will only scan

Interleaved 2 of 5 (ITF) bar

codes that have a Modulo

10 check digit.

³100300

The scanner will not test

Interleaved 2 of 5 (ITF) bar

codes for a Modulo 10 check

digit.

Transmit Mod 10

Check Digit on ITF

* Do Not Transmit Mod 10

Check Digit on ITF

³107714

The scanner transmits

Interleaved 2 of 5 (ITF)

Mod 10 check character.

³107704

The scanner will not transmit

Interleaved 2 of 5 (ITF) Mod

10 check digit character. This

feature works in conjunction

with Mod 10 check on ITF.

Both must be enabled for this

feature to work.

Transmit Matrix 2 of 5

Check Digit

* Do Not Transmit

Matrix 2 of 5 Check Digit.

³107812 ³ 107802

RS-232 G1

SECTION G ENABLE RS-232 MODE

* Enable RS-232 Mode

³415554

When enabled the scanner

will work with RS-232 ±12V

serial output.

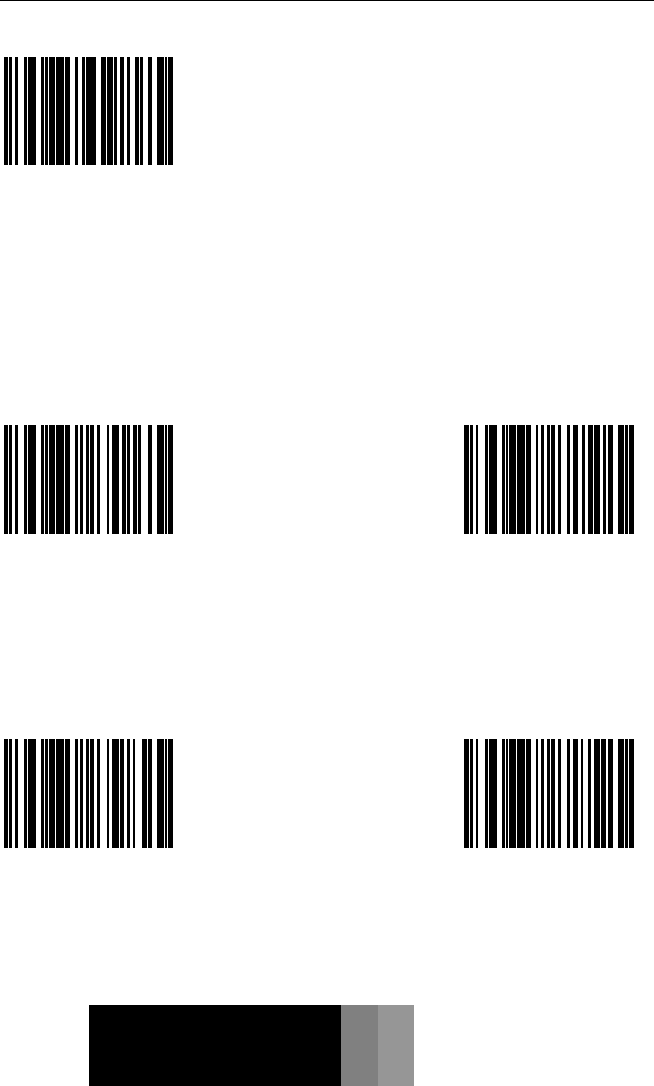

RS-232 G2

SECTION G PARITY FEATURES

No Parity

A parity bit is an extra data bit used to help

catch data transmission errors. The

scanner’s parity must match the host’s

parity.

³316045

Odd Parity * Space Parity

³316005

Select Odd Parity to set the

parity bit to either 1 or 0 to

ensure an odd number of

bits are 1’s.

³316015

Select to set the parity bit

always 0.

Even Parity Mark Parity

³316025

Select to set the parity bit to

either 1 or 0 to ensure an

even number of bits are 1’s.

³316035

Select to set the parity bit

always 1.

RS-232 G4

SECTION G BAUD RATES

* 9600 BAUD Rate 4800 BAUD Rate

³415850 ³ 415840

2400 BAUD Rate 1200 BAUD Rate

³415830 ³ 415820

600 BAUD Rate 300 BAUD Rate

³415810 ³ 415800

RS-232 G5

SECTION G DATA/STOP BITS

* 7 Data Bits 8 Data Bits

³116003

Number of data bits

transmitted for each

character.

³116013

1 Stop Bit * 2 Stop Bits

³116014 ³ 116004

RS-232 G6

SECTION GHARDWARE HANDSHAKING

Enable RTS/CTS

Handshaking

* Disable RTS/CTS

Handshaking

³115816

Output a Request to Send

(RTS) signal and wait for a

Clear To Send (CTS) signal

before transmitting data.

³115806

Do not use RTS/CTS

handshaking.

* Character RTS/CTS Message RTS/CTS

³115815

Activate/Deactivate RTS

signal for each character.

³115805

Activate RTS before

sending the first character

and leave it active until after

the last character has been

transmitted.

Invert RTS Polarity (RSV1) * Standard RTS Polarity

³124510

+12V = Inactive

-12V = Active

³124500

Use standard RTS polarity

-12V = Inactive

+12V = Active

RS-232 G7

SECTION G HARDWARE HANDSHAKING

Invert CTS Polarity (RSV2) * Standard CTS Polarity

³124511

+12V = Inactive, do not

send

-12V = Active, OK to send

³124501

-12V = Inactive, do not send

+12V = Active, OK to send

Activate RTS, Do Not wait

for CTS (RSV3)

* Activate RTS,

Wait for CTS

³124512

Activate RTS for

transmission but do not wait

for CTS to send.

³124502

Wait for CTS after activating

RTS.

Test CTS Not Present

Before RTS (RSV4)

* Do Not Test for CTS

Present Before RTS

³124513

Do not activate RTS if CTS

is already present.

³124503

ctivate RTS without testing

if CTS is already active.

RS-232 G8

SECTION G HARDWARE HANDSHAKING

Enable DTR Support * Disable DTR Support

³115817

The scanner will stop

scanning when the Data

Terminal Ready (DTR)

signal goes inactive.

³115807

Enable

RTS Counter Toggle

* Disable

RTS Counter Toggle

³115915

The scanner will toggle the

RTS line on a good decode.

³115905

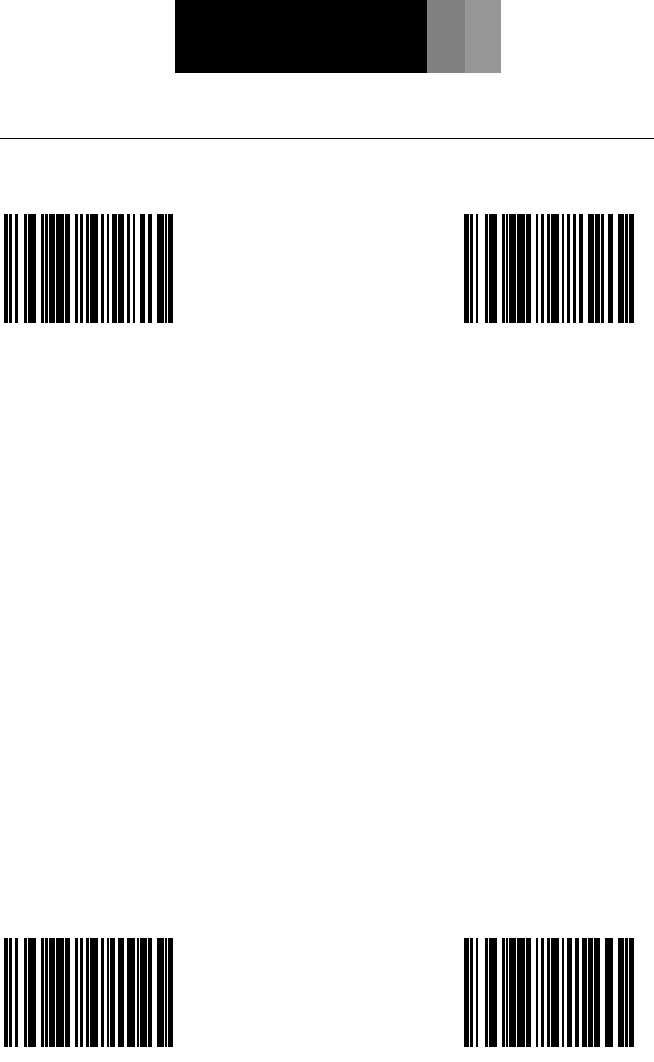

RS-232 G9

SECTION G SOFTWARE HANDSHAKING

Enable XON/XOFF

Handshaking

* Disable XON/XOFF

Handshaking

³115914

The scanner will stop

transmission whenever an

XOFF (ASCII 13H) is

received. Transmission will

resume after an XON

(ASCII 11H) is received.

³115904

The scanner will not test for

XON/XOFF.

Enable ACK/NAK * Disable ACK/NAK

³115913

After transmitting data, wait

for an ACK (06H) or a NAK

(15H) response from the

host.

If ACK is received, complete

the communications cycle

and look for more bar

codes.

If NAK is received,

retransmit the last set of bar

code data and wait for

ACK/NAK again.

³115903

Do not support ACK/NAK

handshaking.

RS-232 G10

SECTION G SOFTWARE HANDSHAKING

Enable O/N Handshaking Disable O/N Handshaking

³115912

ACK/NAK handshaking

(page G 9) must be enabled

for this feature to work.

³115902

Support BEL/CAN in

ACK/NAK

* Ignore BEL/CAN in

ACK/NAK

³115911

When BEL (07H) is received,

the scanner beeps 3 times and

exits the communications loop.

If a CAN (18H) is received,

then the scanner will exit the

communications loop, silently.

³115901

Ignore BEL/CAN characters

in communication loop.

Enable Razz Command Disable Razz Command

³118415

When a z is received, the

scanner will RAZZ once.

Multiple razzes can be

sounded if the character before

the z is a number and is sent

within 1 second of the z.

The normal BEL

commands must be

activated for feature.

³118405

Ignore z characters in

communication loop.

RS-232 G11

SECTION G SOFTWARE HANDSHAKING

Enable 5 Retries on

ACK/NAK Time Out

* Disable 5 Retries on

ACK/NAK Time Out

³118013

Allow up to 5 NAK

retransmissions of the data

before dropping out of the

communications loop.

³118003

Do not limit retransmission

to 5 NAK cycles.

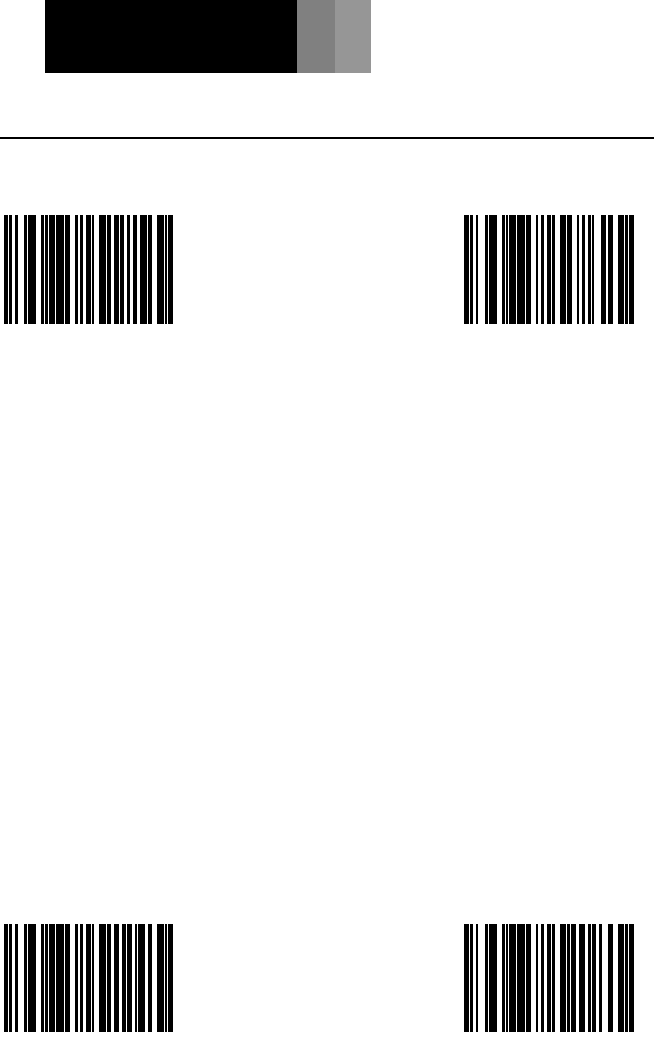

RS-232 G12

SECTION G MISCELLANEOUS

Enable French PC Term * Disable French PC Term

³116110

The scanner transmits PC

type make/break scan

codes instead of ASCII data

characters. The scan codes

match a WYSE French PC

Terminal Emulation.

³116100

Do not transmit in French

PC Term Mode.

Enable USA Wyse PC Disable USA Wyse PC

³116117

Enables USA Wyse PC

style keyboard PCTERM

mode.

³116107

Disables USA Wyse PC

style keyboard PCTERM

mode.

Keyboard H1

SECTION H ENABLE KEYBOARD EMULATION

Load Keyboard Wedge

Defaults

³999994

Loads default settings for

keyboard wedge mode.

Enable Stand-Alone Keyboard

Emulation

* Enable Keyboard Wedge

Emulation

³5155153

Use this with special stand-

alone models that are not

cabled for an external

keyboard. When the Stand-

Alone Mode is enabled, the

scanner will send keyboard

“power on” information and

configure hardware to simulate

a constant keyboard

connection.

³5155143

Use this with an external

keyboard. Transmit in wedge

mode to allow standard PC

keyboards to communicate

when no bar code data is

available.

Keyboard H2

SECTION H COUNTRY/SCAN CODE TABLE SELECTS

* USA Keyboard Switzerland Keyboard

³416260

Enable USA Keyboard.

³416280

Enable Swiss Keyboard

Spain Keyboard Italy Keyboard

³416250

Enable Spanish Keyboard

³416240

Enable Italian Keyboard

Germany Keyboard France Keyboard

³416230

Enable German Keyboard

³416220

Enable French Keyboard

Keyboard H3

SECTION H COUNTRY/SCAN CODE TABLE SELECTS

UK Keyboard Belgium Keyboard

³416210

Enable UK Keyboard.

³416200

Enable Belgium Keyboard

Japanese Keyboard IBM 4700 Financial Keyboard

³4162100

Enable Japanese Keyboard

³416270

Enable IBM 4700 Financial

Keyboard

Sweden/Finland Keyboard

³416290

Enable Sweden/Finland

Keyboard

Keyboard H4

SECTION HKEYBOARD/SYSTEM TYPE

* AT Keyboard XT Keyboard

³216215

If using an AT computer,

scan the above bar code.

(Includes IBM PS/2 and

compatible models 50, 55,

60, 80)

³216205

If using an XT computer,

scan the above bar code.

PS/2 Keyboard Terminal KB Emulation

³216225

Scan the above code for

PS/2 computer. (Includes

IBM PC and compatible

models 30, 70 and 8556)

³216235

Scan the above code to

enable terminal keyboard

emulation mode.

Keyboard H5

SECTION H SPECIAL KEYBOARD FEATURES

Transmit

Make Code Only

* Transmit

Make/Break Code

³116311

Do not scan unless

instructed by a

Metrologic

representative.

³116301

Do not scan unless

instructed by a

Metrologic

representative.

Do Not Transmit

F0H Break Code

* Transmit

F0H Break Code

³116300

The scanner will not

transmit the F0H in the

break-code sequence.

³116310

The scanner will transmit

the F0H in the break-code

sequence.

Transmit Cleanup Bit * Do Not Transmit

Cleanup Bit

³116315

Use for certain NEC

computers.

³116305

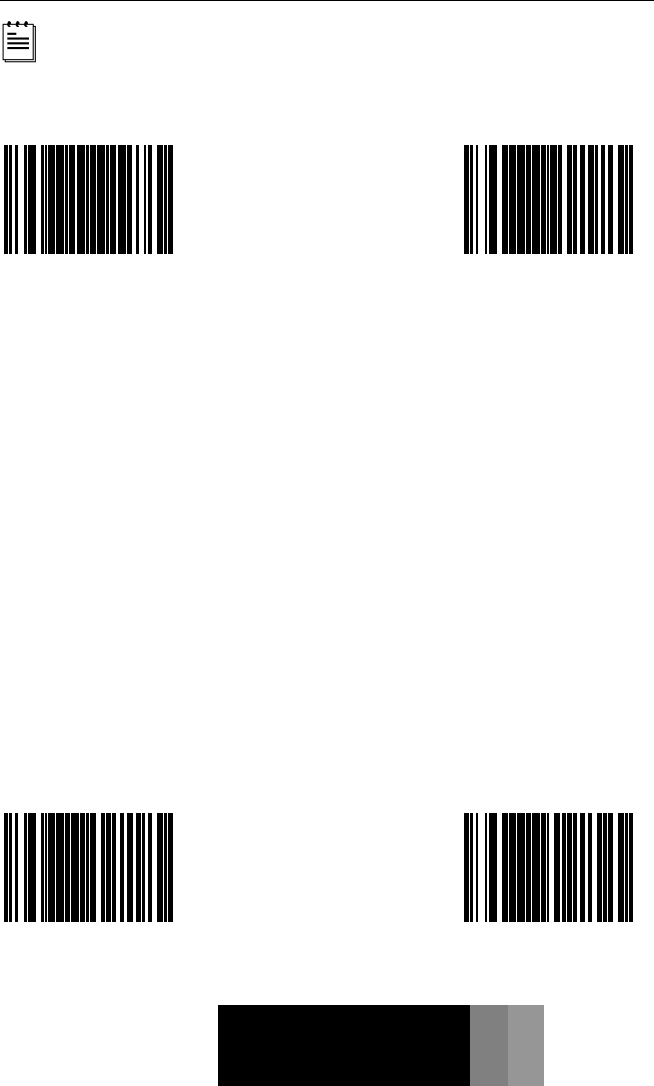

Keyboard H6

SECTION H SPECIAL KEYBOARD FEATURES

Enable Alt Mode * Disable Alt Mode

³116217

The scanner will duplicate

the following keyboard

sequence:

Hold down ALT key and

Type decimal number that

corresponds to the

appropriate character.

³116207

Caution: If the host

software application

uses the right ALT key

as a “Hot” key, ALT

mode must be

disabled.

Enable Auto Detect Mode

(AT/PS2)

* Disable Auto Detect

Mode (AT/PS2)

³116214

Automatically detects caps

lock status.

³116204

The Auto Detect Caps Lock

feature is not supported.

Keyboard H7

SECTION H SPECIAL KEYBOARD FEATURES

Enable Caps Lock (XT) * Disable Caps Lock (XT)

³116214 ³ 116204

The Caps Lock feature is

not supported.

Send Numbers as Keypad

Data

* Send Numbers as

Normal Data

³116316

All data is sent as if it has

been entered on a keypad.

³116306

Enable

Reserved Feature

* Disable Reserved

Feature

³116410 ³ 116400

Keyboard H8

SECTION H SPECIAL KEYBOARD FEATURES

* Use Extended ASCII to

Send Extended

Key Codes

Use Extended ASCII

Characters as Extended

ASCII

³116303

Use extended ASCII

characters to send PC

keyboard keys such as F1,

F2, etc…See section M for

details.

³116313

Transmit extended ASCII

codes via ALT mode.

* Character KB Inhibit Message KB Inhibit

³116304 ³ 116314

Keyboard H9

SECTION H INTER-SCAN CODE DELAYS

Inter-Scan Code Delay

800 Microseconds

Inter-Scan Code Delay

7.5 msec

³816580

The time specified represents

the amount of time between

individual 9 bit-scan codes.

This parameter may

need to be adjusted

for operation with

certain PC keyboard

BIOS.

³8165750

The time specified represents

the amount of time between

individual 9 bit-scan codes.

This parameter may

need to be adjusted

for operation with

certain PC keyboard

BIOS.

Inter-Scan Code Delay

15 msec

~ Variable Inter-Scan

Code Delay msec

³ 81651500

The time specified represents

the amount of time between

individual 9 bit-scan codes.

This parameter may

need to be adjusted

for operation with

certain PC keyboard

BIOS.

³916500

Refer to the Multi-Code

Configuration method on

page x.

Keyboard H10

SECTION H CONTROL SETS

In general, standard bar code symbologies will only encode the ASCII character set.

Function keys, arrow keys and many other “extended” keys on an IBM compatible

keyboard do not translate to ASCII characters. One method of “bar coding” the extended

keys is to substitute the extended key codes when a specific ASCII control character

found in the bar code stream. The Control Sets are specific translation of the ASCII

(HEX) set.

CONTROL SET #1

Enable Control Set #1

³416484

Disable Control Set #1

³416404

Keyboard H11

SECTION H CONTROL SET #1

ASCII (HEX) ASCII Control Extended Key

00H Null Numeric Keypad

01H SOH Num Lock

02H STX Down

03H ETX Numeric Keypad

04H EOT Insert

05H ENQ Delete

06H ACK System Request

07H BEL 

08H BS 

09H TAB Tab

0AH LF Caps Lock

0BH VT Shift Tab

0CH FF Alt

0DH CR Enter

0EH SO Control

0FH SI Up Arrow

10H DLE F1

11H DC1 F2

12H DC2 F3

13H DC3 F4

14H DC4 F5

15H NAK F6

16H SYN F7

17H ETB F8

18H CAN F9

19H EM F10

1AH SUB Home

1BH ESC Esc

1CH FS Page Up

1DH GS Page Down

1EH RS Print Screen

1FH US End

Keyboard H12

SECTION H 3151 TERMINAL KEYBOARD

* 3151 Terminal Keyboard

³316400

RS-232 G3

SECTION G BAUD RATES

115200 BAUD Rate

A “Baud” or “Baud Rate” is the speed at

which data is transmitted. Select a

Baud for the scanner that matches the

host device.

³ 4158100

57600 BAUD Rate 38400 BAUD Rate

³415890 ³ 415880

19200 BAUD Rate 14400 BAUD Rate

³415870 ³ 415860

OCIA I1

SECTION I OCIA

Load OCIA Defaults Enable OCIA

³999993 ³ 415544

Select this option if

communications require

OCIA (Optically Coupled

Interface Adapter).

This serial interface

is clocked by the

host.

Enable DTS/Siemens * Enable DTS/Nixdorf

³217706 ³ 217716

Enable NCR-S Enable NCR-F

³217736 ³ 217726

Light Pen/Laser Emulation J1

SECTION JLIGHT PEN

Enable Light Pen Mode

³415524

Select this option if the

scanner will be used in

place of a light pen. It

provides light pen emulation

of each bar code scanned.

* Bars High Spaces High

³116917 ³ 116907

Transmit Code 39 * Transmit as Scanned

³116916

All bar codes will be

decoded then transmitted

as code 39 bar codes.

³116906

All bar codes will be

decoded and transmitted in

their original symbology.

Light Pen/Laser Emulation J2

SECTION J LIGHT PEN/SET NARROW ELEMENT BORDER

Poll Light Pen Source * Do Not

Poll Light Pen Source

³116915

The scanner waits for an

active source voltage before

transmitting data.

³116905

The scanner will not wait for

an active source voltage

before transmitting data.

Enable Light Pen

Extra Toggle

* Disable Light Pen

Extra Toggle

³116911

The scanner beeps and

toggles the light pen data

line with an extra data pulse

to condition the decoder.

³116901

10x Narrow

Element Border

* 50x Narrow

Element Border

³116912

This bar code allows the

transmission of Light

Pen/Wand emulation using

a 10x border.

³116902

This bar code allows the

transmission of Light

Pen/Wand emulation using

a 50x border.

Light Pen/Laser Emulation J3

SECTION J SET NARROW ELEMENT WIDTH /LASER EMULATION

* 1 ms

Narrow Element Width

60 µs

Narrow Element Width

³ 81681630

This option allows the

transmission of Light/Pen

Wand emulation a 1 ms

narrow element width.

³ 8168100

This transmits at 60 µs

narrow element width.

100 µs

Narrow Element Width

500 µs

Narrow Element Width

³ 8168160

This transmits at

100 µs narrow element width.

³ 8168820

This transmits at

500 µs narrow element width.

~ Variable

Narrow Element Width †Laser Emulation

³916800

Sets the minimum

x-dimension in 6 µs

increments. Scan this code

followed by a 3 digit code

byte sequence found in

Section M. †

† Refer to the Multi-Code

Method on page x.

³999979

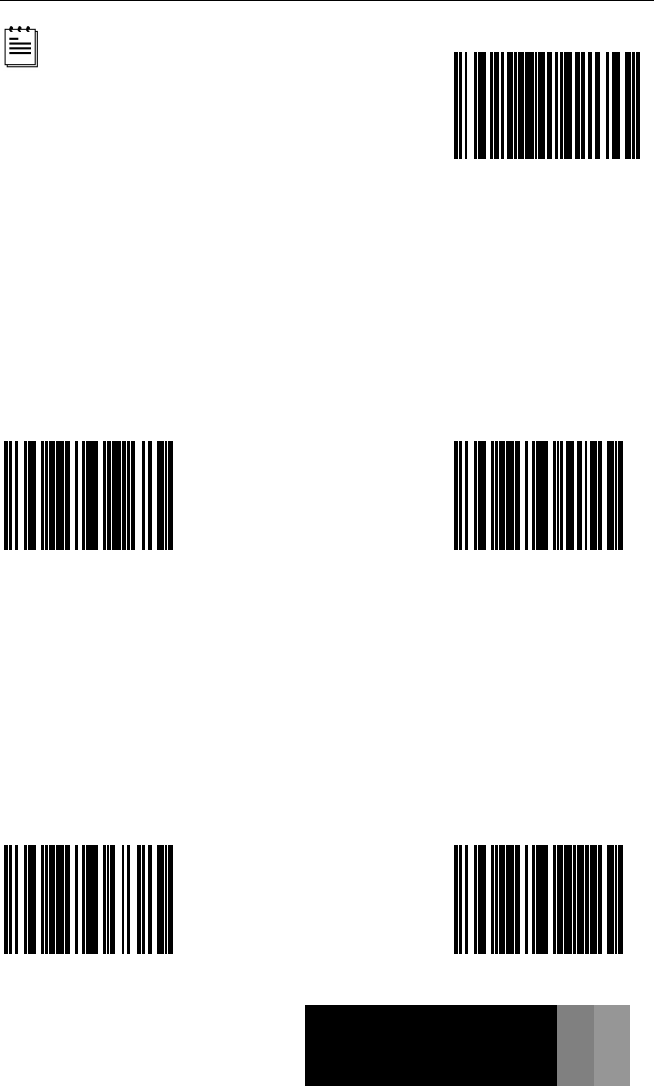

IBM 46xx Configuration K1

SECTION K IBM 46XX CONFIGURATION/IBM PORTS

Load

IBM 46xx Defaults

Enable IBM 46xx

Communication

³999995

Load default format settings

for IBM 46xx systems.

³415504

Select this option for IBM

46xx SIOC/RS485

communication.

Not all scanners

support this interface.

The correct interface

board is required.

IBM Port 17B

3687-2 In Counter

IBM Port 5B

1520 HH Laser

³317250 ³ 317260

* IBM Port 9B

4500 CCD HH BCR1

IBM Port 9B

4501 CCD HH BCR2

³317270 ³ 317230

IBM 46xx Configuration K2

SECTION K IBM RESERVE CODES

IBM Reserve #1 IBM Reserve #2

³317200 ³ 317210

IBM Reserve #3

³317220

IBM Reserve #5

³317240

Code Bytes M1

SECTION M CODE BYTE USAGE

User configurable prefixes, symbol length and other features that use these code bytes

for configuration, require that the scanner be in configuration mode. Scan the Enter/Exit

Configuration Mode bar code before starting the configuration cycle. Single code

configuration mode does not work for these multi-code sequences.

Enter/Exit Configuration Mode

³999999

EXAMPLE

User configurable prefix/suffix characters (Section E) can be saved into the

scanner by scanning the 3 digit decimal equivalent of the ASCII character into

the appropriate character location with the code byte bar codes.

To add an asterisk (*) as a prefix scan the following bar codes in order:

1. Enter/Exit Configuration Mode (3 beeps)

2. Configurable Prefix 1 (1 beep)

3. Code Byte 0 (1 beep)

4. Code Byte 4 (2 beeps)

5. Code Byte 2 (3 beeps)

6. Enter/Exit Configuration Mode (3 beeps)

Code Bytes M2

SECTION M CODE BYTES 0-5

Code Byte 0 Code Byte 1

³0 ³1

Code Byte 2 Code Byte 3

³2 ³3

Code Byte 4 Code Byte 5

³4 ³5

Code Bytes M3

SECTION M CODE BYTES 6-9

Code Byte 6 Code Byte 7

³6 ³7

Code Byte 8 Code Byte 9

³8 ³9

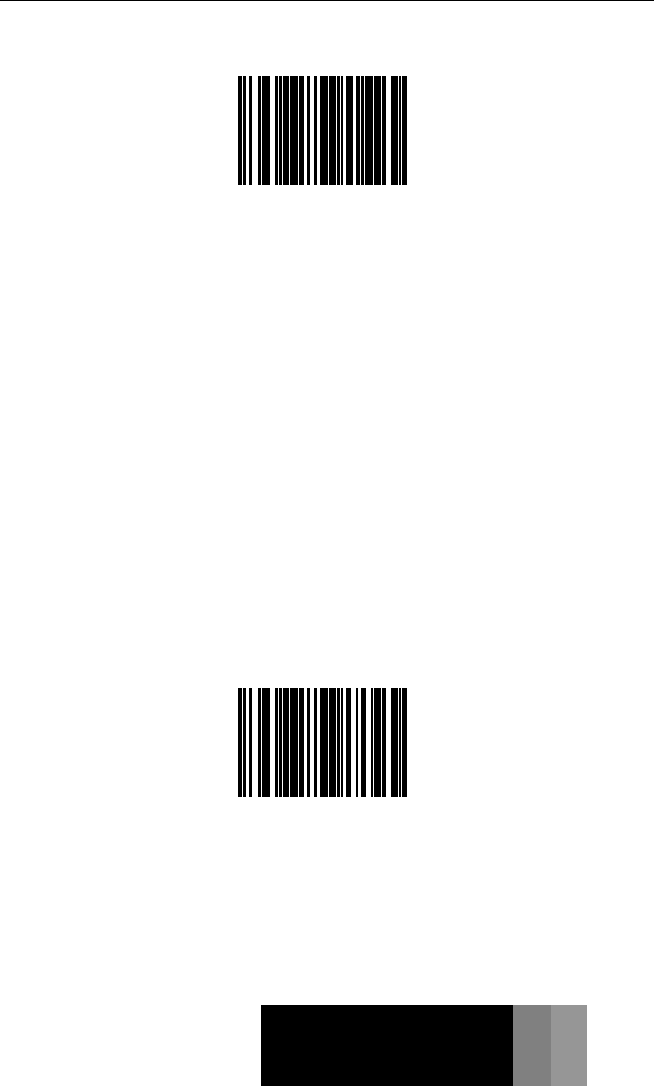

Code Bytes M4

SECTION M RESERVED CODES

~ Enable Reserved Code

³999988

Contact a Metrologic customer service

representative for additional details on

this feature.

~ Disable Reserved Code

³999987

Code Bytes M5

SECTION M CODE BYTE/CODE TYPE TABLE

CODE BYTE CODE TYPES

004 UPC-A

002 UPC-E

003 EAN-8

005 EAN-13

080 Code 39

081 Codabar

082 Interleaved 2 of 5

083 Code 128

084 Code 93

091 MSI Plessey

092 Code 11

093 Airline 2 of 5 (15 digits)

094 Matrix 2 of 5

095 Telepen

096 UK Plessey

098 Standard 2 of 5

097 Airline (13 digits)

099 TRI-OPTIC

Code Bytes M6

SECTION M ASCII REFERENCE TABLE

HEX VALUE DECIMAL VALUE/

CODE BYTE VALUE CHARACTER CONTROL KEYBOARD

EQUIVALENT

00 000 NUL @

01 001 SOH A

02 002 STX B

03 003 ETX C

04 004 EOT D

05 005 ENQ E

06 006 ACK F

07 007 BEL G

08 008 BS H

09 009 HT I

0A 010 LF J

0B 011 VT K

0C 012 FF L

0D 013 CR M

0E 014 SO N

0F 015 SI O

10 016 DLE P

11 017 DC1 Q

12 018 DC2 R

13 019 DC3 S

14 020 DC4 T

15 021 NAK U

16 022 SYN V

17 023 ETB W

18 024 CAN X

19 025 EM Y

1A 026 SUB Z

Code Bytes M7

SECTION M ASCII REFERENCE TABLE

HEX VALUE DECIMAL VALUE/

CODE BYTE VALUE CHARACTER CONTROL KEYBOARD

EQUIVALENT

1B 027 ESC [

1C 028 FS \

1D 029 GS ^

1E 030 RS _

1F 031 US

20 032 SP space, blank

21 033 !

22 034 “

23 035 #

24 036 $

25 037 %

26 038 &

27 039 ‘apostrophe

28 040 (

29 041 )

2A 042 *

2B 043 +

2C 044 , comma

2D 045 -minus

2E 046 . period

2F 047 /

30 048 0 number zero

31 049 1number one

32 050 2

33 051 3

34 052 4

35 053 5

Code Bytes M8

SECTION M ASCII REFERENCE TABLE

HEX VALUE DECIMAL VALUE/

CODE BYTE VALUE CHARACTER CONTROL KEYBOARD

EQUIVALENT

36 054 6

37 055 7

38 056 8

39 057 9

3A 058 :

3B 059 ;

3C 060 <less than

3D 061 +

3E 062 >greater than

3F 063 ?

40 064 @shift P

41 065 A

42 066 B

43 067 C

44 068 D

45 069 E

46 070 F

47 071 G

48 072 H

49 073 I letter l

4A 074 J

4B 075 K

4C 076 L

4D 077 M

4E 078 N

Code Bytes M9

SECTION M ASCII REFERENCE TABLE

HEX VALUE DECIMAL VALUE/

CODE BYTE VALUE CHARACTER CONTROL KEYBOARD

EQUIVALENT

4F 079 Oletter O

50 080 P

51 081 Q

52 082 R

53 083 S

54 084 T

55 085 U

56 086 V

57 087 W

58 088 X

59 089 Y

5A 090 Z

5B 091 [shift K

5C 092 \ shift L

5D 093 ]shift M

5E 094 ^ Ï, shift N

5F 095 _Í, shift 0, underscore

60 096 ‘ accent grave

61 097 a

62 098 b

63 099 c

64 100 d

65 101 e

66 102 f

67 103 g

68 104 h

69 105 i

Code Bytes M10

SECTION M ASCII REFERENCE TABLE

HEX VALUE DECIMAL VALUE/

CODE BYTE VALUE CHARACTER CONTROL KEYBOARD

EQUIVALENT

6A 106 j

6B 107 k

6C 108 l

6D 109 m

6E 110 n

6F 111 o

70 112 p

71 113 q

72 114 r

73 115 s

74 116 t

75 117 u

76 118 v

77 119 w

78 120 x

79 121 y

7A 122 z

7B 123 {

7C 124 |vertical slash

7D 125 } alt mode

7E 126 ~(alt mode)

7F 127 DEL delete, rubout

Code Bytes M11

SECTION M EXTENDED KEY CODE REFERENCE TABLE

KEY AT SCAN

CODE

PS2 SCAN

CODE 3151 PREFIX/SUFFIX VALUE HE

= DECIMAL

Ï75H 48H 63H 80H = 128

Ð72H 50H 60H 81H = 129

Î74H 4DH 6AH 82H = 130

Í6BH 4BH 61H 83H = 131

Insert 70H 52H 67H 84H = 132

Delete 71H 53H 64H 85H = 133

Home 6CH 47H 6EH 86H = 134

End 69H 4FH 00H 87H = 135

Page Up 7DH 49H 00H 88H = 136

Page Down 7AH 51H 00H 89H = 137

Right Alt 11H 38H 00H 8AH = 138

Right Ctrl 14H 1DH 39H 8BH = 139

Reserved 00H 00H 00H 8CH = 140

Reserved 00H 00H 00H 8DH = 141

Numeric Keypad

Enter 5AH 1CH 79H 8EH = 142

Numeric Keypad / 4AH 35H 00H 8FH = 143

F1 05H 3BH 07H 90H = 144

F2 06H 3CH 0FH 91H = 145

F3 04H 3DH 17H 92H = 146

F4 0CH 3EH 1FH 93H = 147

F5 03H 3FH 27H 94H = 148

F6 0BH 40H 2FH 95H = 149

F7 83H 41H 37H 96H = 150

F8 0AH 42H 3FH 97H = 151

F9 01H 43H 47H 98H = 152

Code Bytes M12

SECTION M EXTENDED KEY CODE REFERENCE TABLE

KEY AT SCAN

CODE

PS2 SCAN

CODE 3151 PREFIX/SUFFIX VALUE

HEX = DECIMAL

F10 09H 44H 4FH 99H = 153

F11 78H 57H 56H 9AH = 154

F12 07H 58H 5EH 9BH = 155

Numeric + 79H 4EH 00H 9CH = 156

Numeric - 7BH 4AH 7CH 9DH = 157

Numeric * 7CH 37H 00H 9EH = 158

Caps Lock 58H 3AH 14H 9FH = 159

Num Lock 77H 45H 00H A0H = 160

Left ALT 11H 38H 00H A1H = 161

Left CTRL 14H 1DH 11H A2H = 162

Left Shift 12H 2AH 12H A3H = 163

Right Shift 59H 36H 59H A4H = 164

Print Screen Multiple 00H 00H A5H = 165

Tab 0DH 0FH 0DH A6H = 166

Shift Tab 8DH 8FH 65H A7H = 167

Enter 5AH 1CH 5AH A8H = 168

ESC 76H 01H 08H A9H = 169

Left ALT Make 11H 36H 00H AAH = 170

Left ALT Break 11H B6H 00H ABH = 171

Left CTRL Make 14H 1DH 00H ACH = 172

Left CTRL Break 14H 9DH 00H ADH = 173

* Left ALT +

1 character 11H 36H 00H AEH = 174

* Left CTRL +

1 character 14H 1DH 00H AFH = 175

* Example:

1st Configurable Prefix = 174

2nd Configurable Prefix = 065

Scanner will transmit <left ALT Make> “A” <Left ALT Break>

Miscellaneous Features N1

SECTION N CUSTOM DEFAULTS

Metrologic manufactures several scanners for OEM applications. These scanners may

use a different set of defaults than the standard Metrologic factory defaults. Scanning

the following bar codes will restore the default factory settings.

Enable Factory Defaults

³846600

Scan this code followed by the “Recall

Defaults” code to enable and load

Metrologic factory defaults.

Recall Defaults

³999998

Miscellaneous Features N2

SECTION N CUSTOM DEFAULTS

Ruby Verifone Defaults RCH

³ 84661280

Scan this code followed by

the “Recall Defaults” code to

enable and load Ruby

Verifone Defaults.

³846610

Scan this code followed by the

“Recall Defaults” code to

enable and load RCH Defaults.

Sanyo Gilbarco

³ 8466020

Scan this code followed by

the “Recall Defaults” code to

enable and load Sanyo

Defaults.

³846630

Scan this code followed by the

“Recall Defaults” code to

enable and load Gilbarco

Defaults.

ALT Defaults MS6750 Defaults

³ 84660040

Scan this code followed by

the “Recall Defaults” code to

enable and load ALT

Defaults.

³84660080

Scan this code followed by the

“Recall Defaults” code to

enable and load MS6750

Defaults.

Miscellaneous Features N3

SECTION N CUSTOM DEFAULTS/SERIAL PROGRAM MODE

Custom Keyboard FR1

³997000

Custom Terminal FR1

³997001

For Serial Program Mode, all commands must be framed by an STX (02 Hex) and ETX (03 Hex).

To recall defaults:

1. Transmit <STX>999999<ETX> through the Serial Port. This will put the

scanner in serial program mode. Scanning will be suspended and the

scanner will respond with an

ACK (06 Hex).

2. Transmit <STX>999998<ETX> through the Serial Port. This is the Recall

Default bar code in the MetroSelect guide.

The scanner will respond with an ACK (06 Hex).

3. Transmit <STX>999999<ETX> through the Serial Port. This will cause

the scanner to exit program mode and save the new settings. The

scanner will beep 3 times and send an ACK (06 Hex).

If at anytime, the scanner cannot recognize a command, it will respond with a NAK (15 Hex).

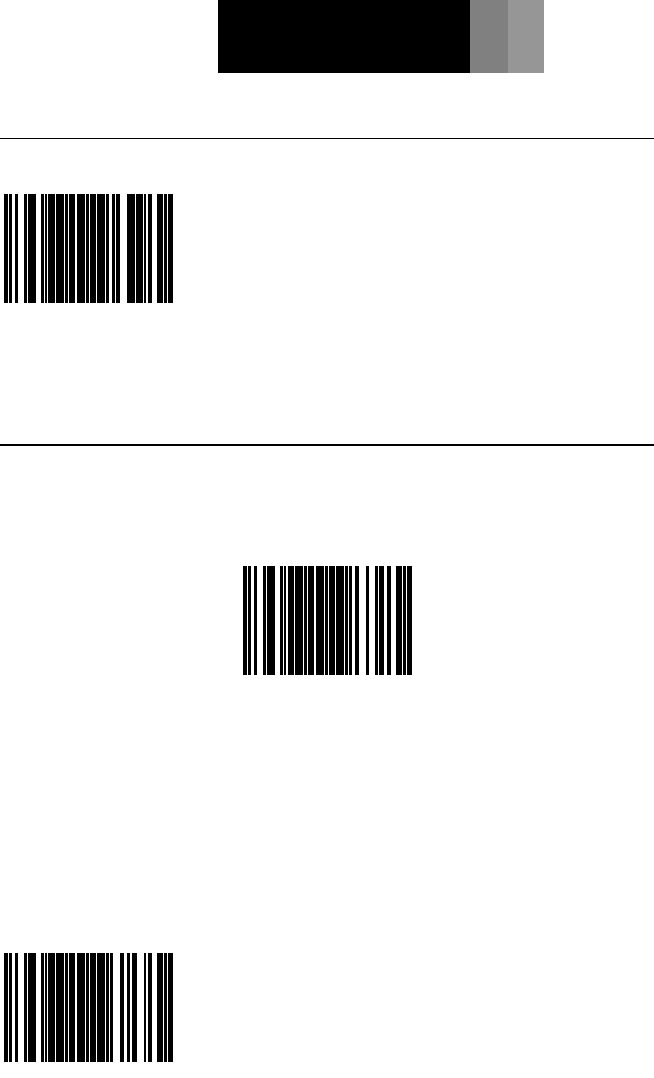

Miscellaneous Features N4

SECTION N SOFTWARE IDENTIFICATION

Software Number

³999965

The scanner will transmit its

software revision when this

feature is enabled.

STRATOSSCHOOL

‘StratosSchool’ refers to the MS202x’s ability to track, retain, and transmit the amount of scanning

taking place on each scan channel.

Sync Channel Counts

(Clear StratosSchool)

³999963

When scanned this code will

reset all counters to 00000.

Scan the Report Channel Counts bar code to request the

scanner to transmit all current scan counters.

Report Channel Counts

³999964

The data will be reported according to the following format:

AAAAA BBBBB CCCCC XXXXX

Where:

AAAAA = the scan count from the vertical channel.

BBBBB = the scan count from the first horizontal channel.

CCCCC = the scan count from the second horizontal channel.

XXXXX = the scan count from the auxiliary input channel.

Auxiliary Port Controls O1

SECTION O DISABLE AUXILIARY PORT

* Disable AUX Port

³437300

AUX PORT AND SECONDARY DEVICE DATA FORMATS

FOR THE MS7220, MS7320, MS7600 AND MS202X

Follow Step 1 to configure the auxiliary port to accept a Metrologic scanner as the

secondary scanner. Then follow Step 2 to configure the secondary scanner to match the

auxiliary port’s data format.

If the secondary scanner is not a Metrologic scanner go to page 3 and follow the

instructions under “When using a non-Metrologic RS-232 Device as a secondary”.

The auxiliary input port’s data format must match the main output format of the

secondary scanner.

Step 1: Scan the following bar code to enable the auxiliary port on the

MS7220/7320/7600.

AUX Port Data Format

³437330

Continued on next page.

Auxiliary Port Controls O2

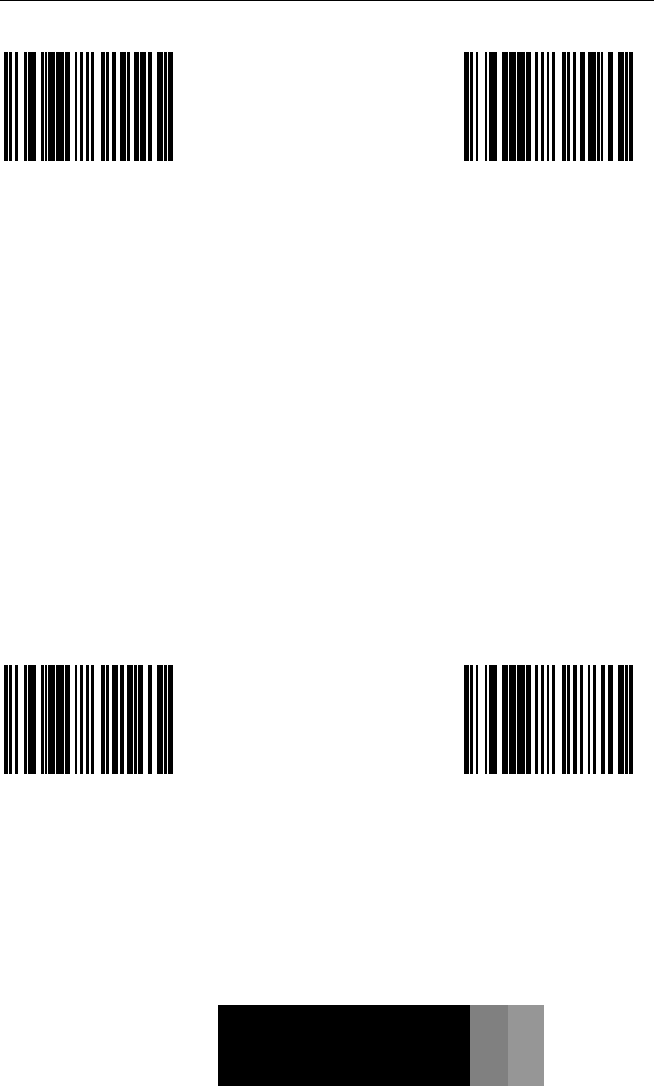

SECTION O AUX PORT AND SECONDARY DEVICE DATA FORMATS

FOR THE MS7220, MS7320, MS7600 AND MS202X

Step 2: Then scan the following bar codes, in order, to configure the secondary scanner.

1. Enable AUX Output 2. Secondary Scanner Data

Format

³124817 ³437530

3. Enable Comm Timeouts 4. Turn OFF Auxiliary

Scanner’s Beeper

(Optional)

³118412 ³318505

Auxiliary Port Controls O3

SECTION O AUX PORT AND SECONDARY DEVICE DATA FORMATS

FOR THE MS7220, MS7320, MS7600 AND MS202X

When using a non-Metrologic RS-232 device as a secondary:

Scan the following bar code to enable the auxiliary port on the MS7220/7320/7600/202x.

AUX Port General RS-232 Format

³437310

The auxiliary input port’s data format must match the main output format of the

secondary device. The secondary device must be capable of RTS/CTS

handshaking and have a carriage return (ASCII 0DH) terminator on the data.

The default settings for the AUX Port General RS-232 Format are:

• 38400 baud

• 7 data bits

• 2 stop bits

• Space parity

To change these settings refer to Section O, pages 5-8.

Auxiliary Port Controls O4

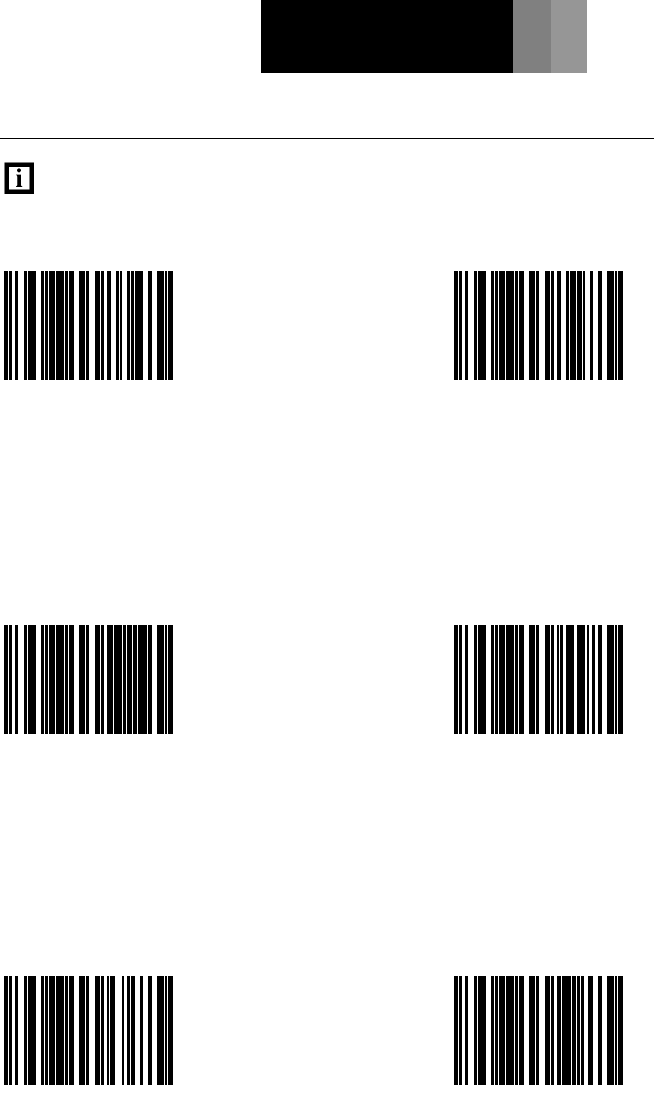

SECTION O ADDITIONAL AUXILIARY PORT DATA FORMATS

The auxiliary input port’s data format must match the main output format of the

secondary device.

Enable AUX Port with UPC

Supplemental Data Format

Enable AUX Port with Code

Select Data Format

³437340 ³ 437350

Enable AUX Port with Tech 7,

8 Data Format

Enable AUX Port with

Reserved 2 Data Format

³437360 ³ 437380

Enable AUX Port

with Reserved 3 Data Format

Enable AUX Port with

Reserved 1 Data Format

³437370 ³ 437390

Auxiliary Port Controls O5

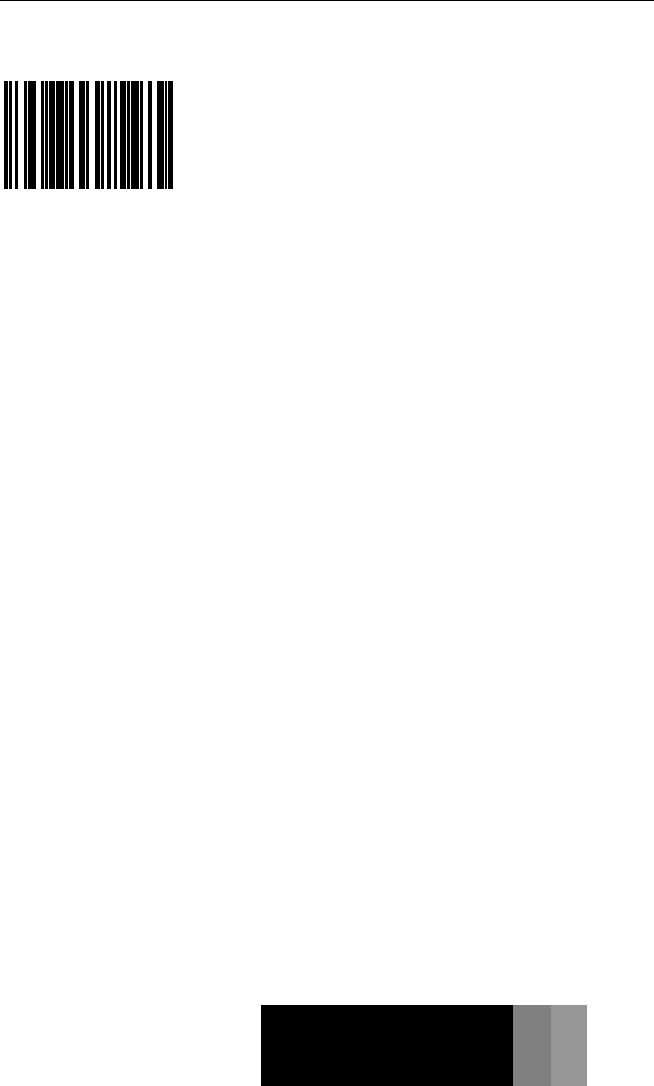

SECTION O ADDITIONAL AUXILIARY PORT DATA FORMATS

Enable AUX Port with Stratos

Decode Data Format

³437320

Auxiliary Port Controls O6

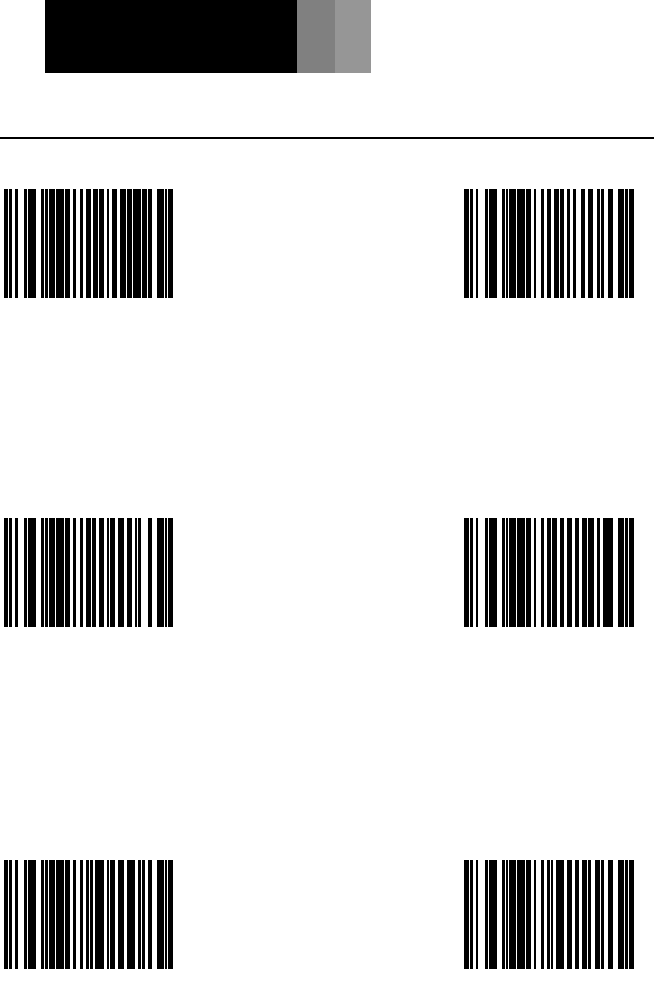

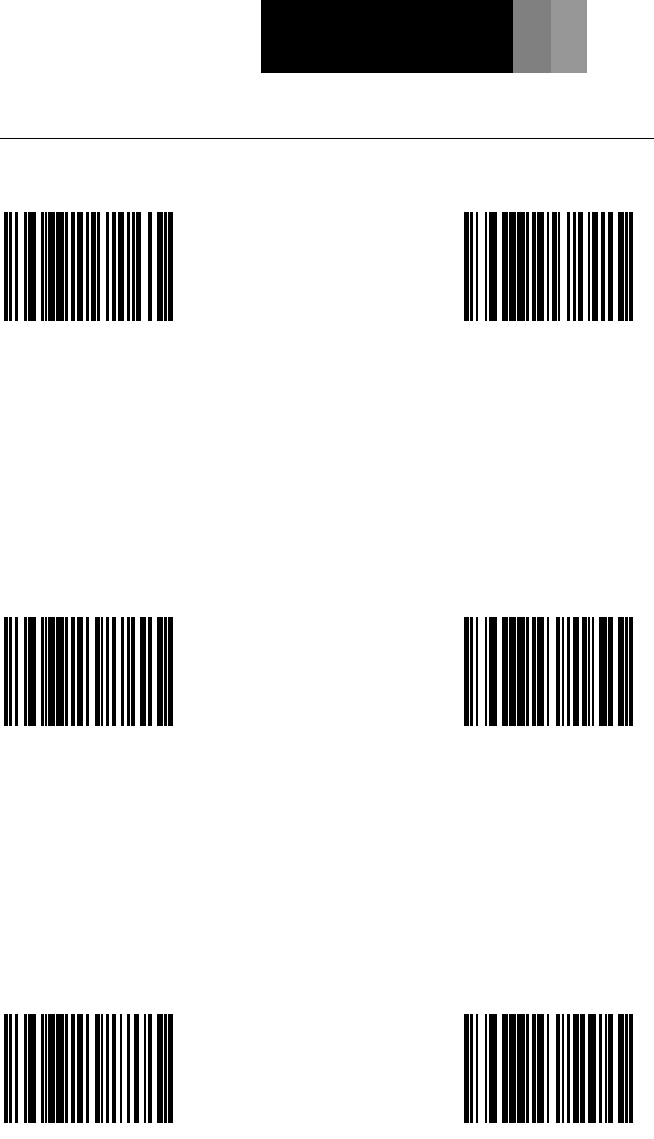

SECTION O AUXILIARY PORT BAUD RATES

AUX 115200 Baud Rate AUX 57600 Baud Rate

³ 4370100 ³ 437090

AUX 38400 Baud Rate AUX 19200 Baud Rate

³437080 ³ 437070

AUX 14400 Baud Rate AUX 9600 Baud Rate

³437060 ³ 437050

Auxiliary Port Controls O7

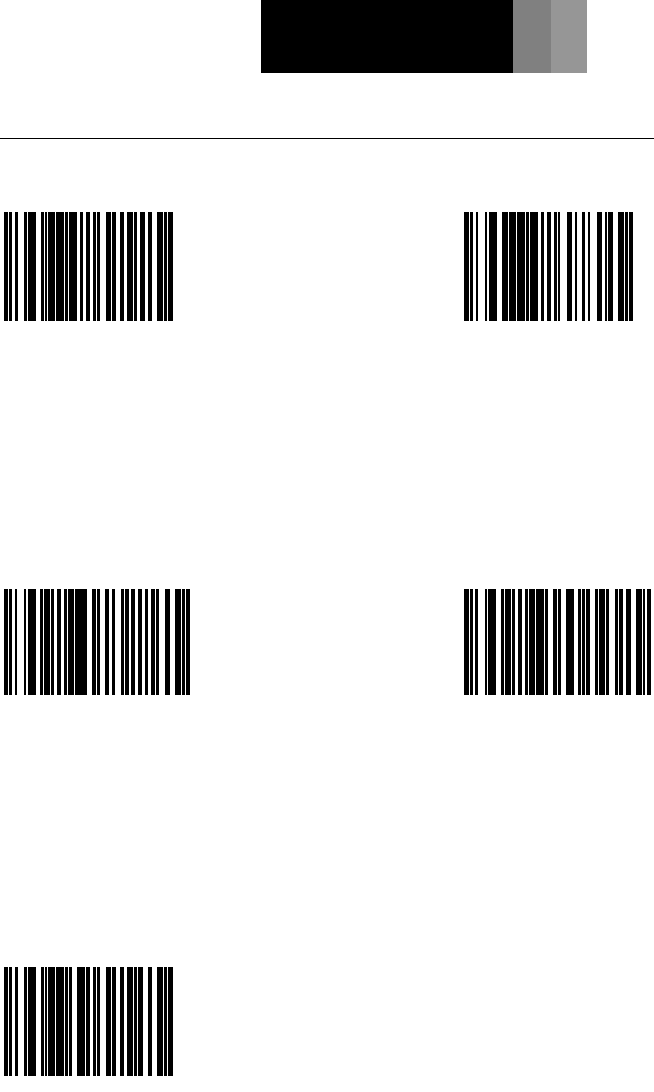

SECTION O AUXILIARY PORT BAUD RATES

AUX 4800 Baud Rate AUX 2400 Baud Rate

³437040 ³ 437030

AUX 1200 Baud Rate AUX 600 Baud Rate

³437020 ³ 437010

AUX 300 Baud Rate

³437000

Auxiliary Port Controls O8

SECTION O AUXILIARY PORT PARITY

AUX No Parity

³337245

AUX Mark Parity * AUX Space Parity

³337235 ³ 337215

AUX Even Parity AUX Odd Parity

³337225 ³ 337205

Auxiliary Port Controls O9

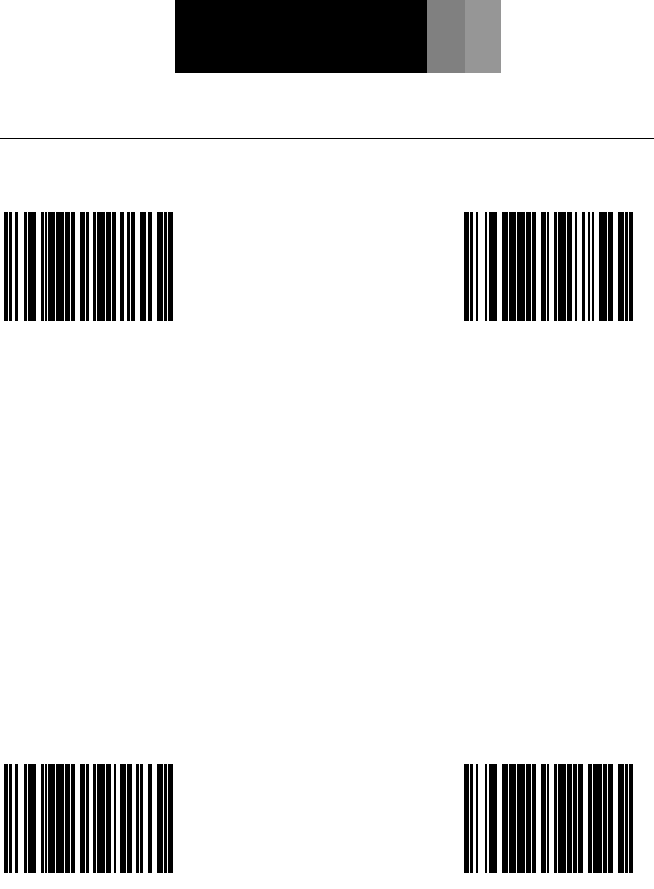

SECTION O AUXILIARY PORT STOP BITS/DATA BITS

AUX 1 Stop Bit * AUX 2 Stop Bits

³137214 ³ 137204

* AUX 7 Data Bits AUX 8 Data Bits

³137203 ³ 137213

Auxiliary Port Controls O10

SECTION O AUXILIARY RTS/CTS AND D/E

* Enable AUX RTS/CTS

Handshaking

Disable AUX RTS/CTS

Handshaking

³137016 ³ 137006

Message AUX RTS/CTS * Character AUX RTS/CTS

³137005 ³ 137015

Enable

AUX “D/E” Commands

* Disable

AUX “D/E” Commands

³137117 ³ 137107

Auxiliary Port Controls O11

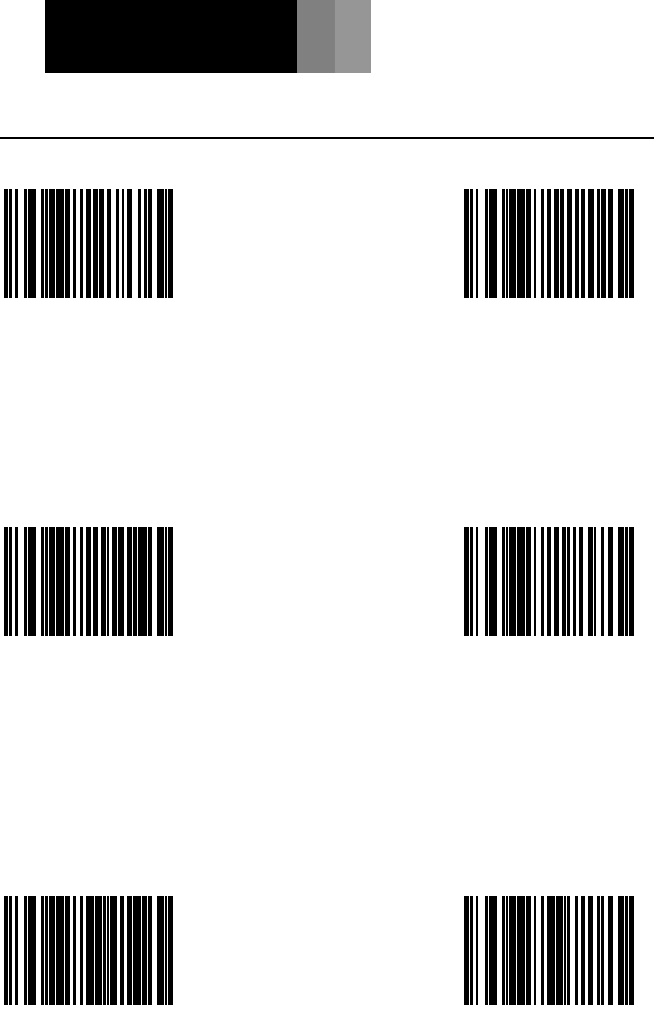

SECTION O AUXILIARY F/L, M/O, AND XON/XOFF

Enable AUX “F/L”

Commands

* Disable AUX “F/L”

Commands

³137116 ³ 137106

Enable AUX

“M/O” Commands

* Disable AUX

“M/O” Commands

³137115 ³ 137105

* Enable AUX XON/XOFF

Handshaking

Disable AUX XON/XOFF

Handshaking

³137114 ³ 137104

Auxiliary Port Controls O12

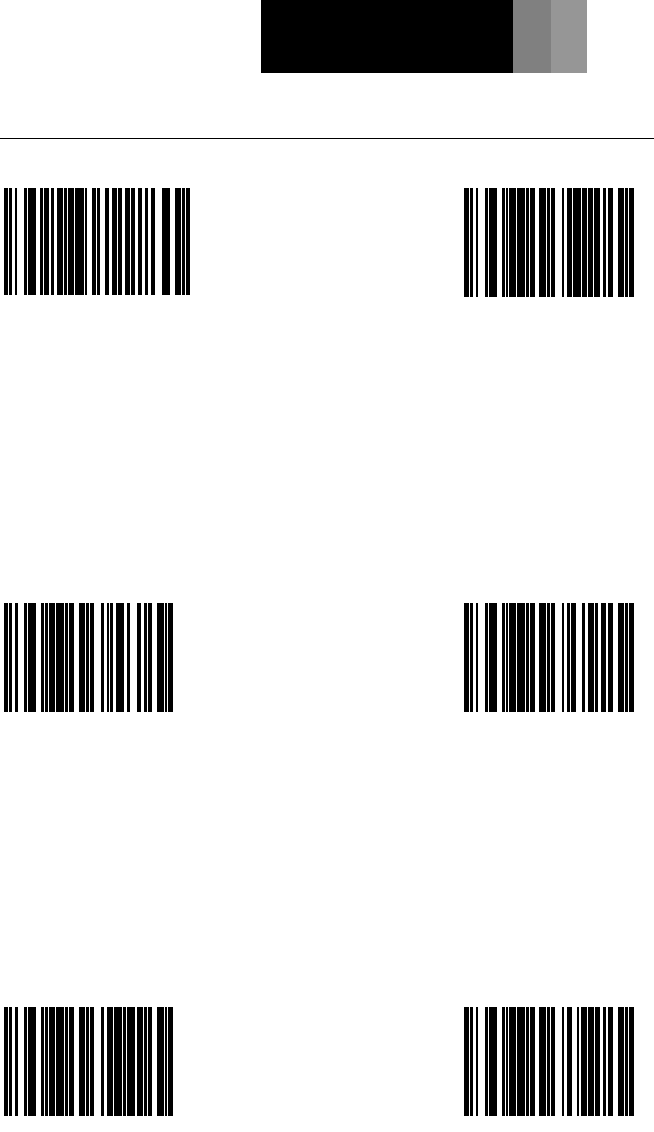

SECTION O AUXILIARY ACK/NAK, CTS AND RTS POLARITY

* Enable AUX

ACK/NAK Commands

Disable AUX

ACK/NAK Commands

³137113 ³137103

* Normal

AUX CTS Polarity

Flip

AUX CTS Polarity

³137307 ³137317

* Normal

AUX RTS Polarity

Flip

AUX RTS Polarity

³137306 ³137316

Auxiliary Port Controls O13

SECTION O AUXILIARY SAME SYMBOL TIMEOUT

* AUX has

Same Symbol Timeout

No AUX

Same Symbol Timeout

³137304

This feature skips the same

symbol timeout in the

master when the auxiliary

scanner scans (or repeats)

faster than the same symbol

timeout in the master

scanner.

³137314

Metrologic

recommends turning

off the auxiliary

scanner’s beep if the

AUX Same Symbol

Timeout feature is

disabled.

Auxiliary Port Controls O14

SECTION O MAIN OUTPUT PORT AUXILIARY DATA FORMATS

When a scanner is used as a secondary scanner to another scanner’s auxiliary input, the

output data can be in one of the following formats.

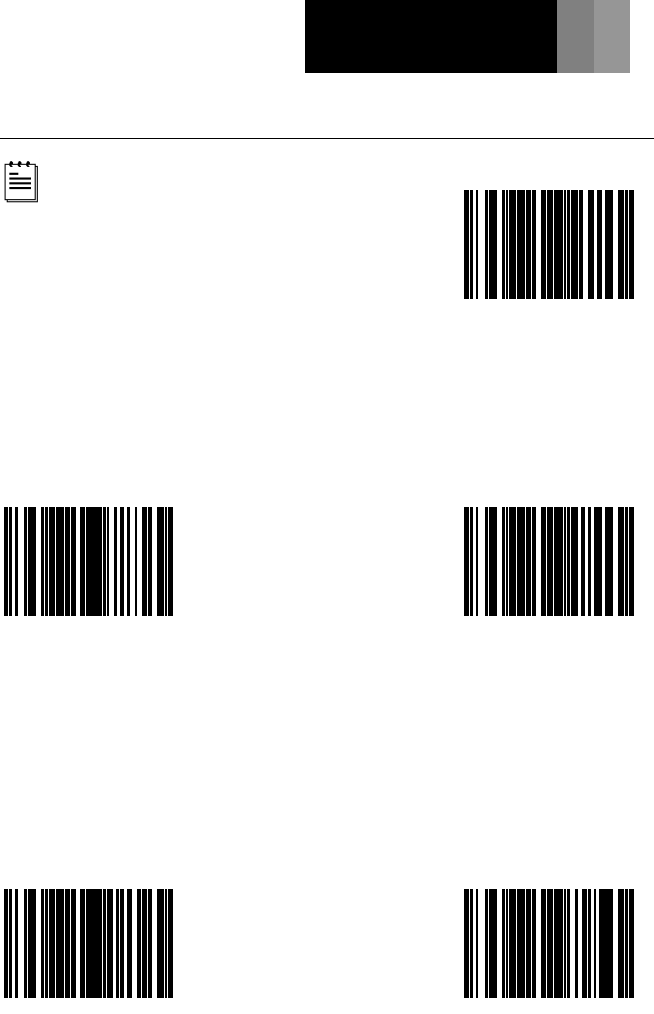

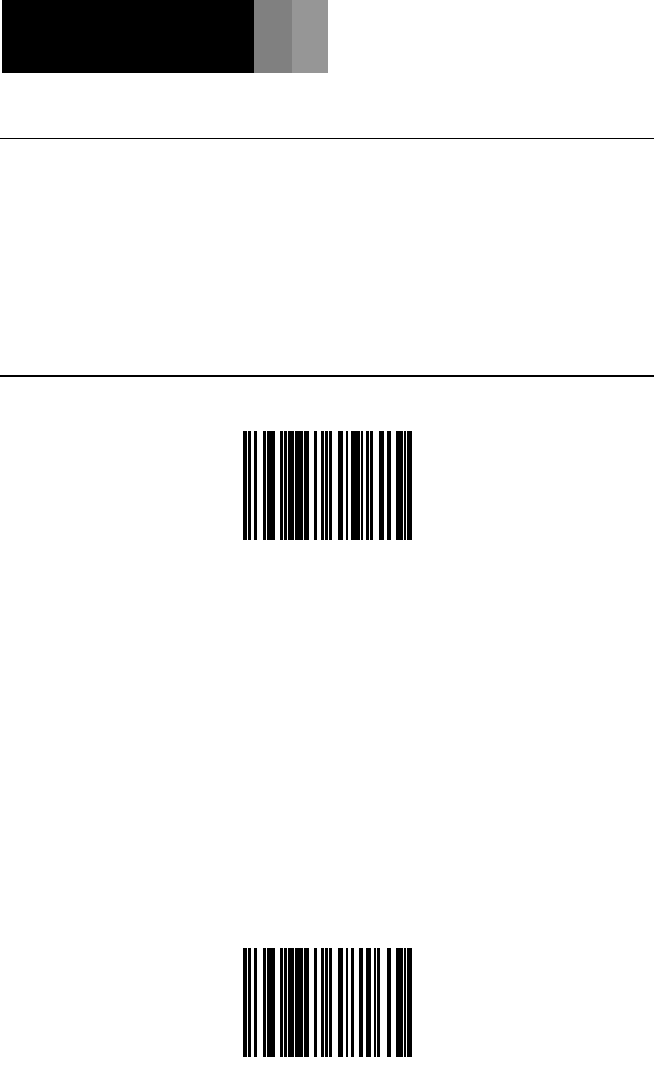

Reserve Code 32

³124817

This is a quick method for

setting reserve Code 32 in

the secondary scanner

using HoloTrak Decode

Data Format.

This code should

not be used for the

MS6720.

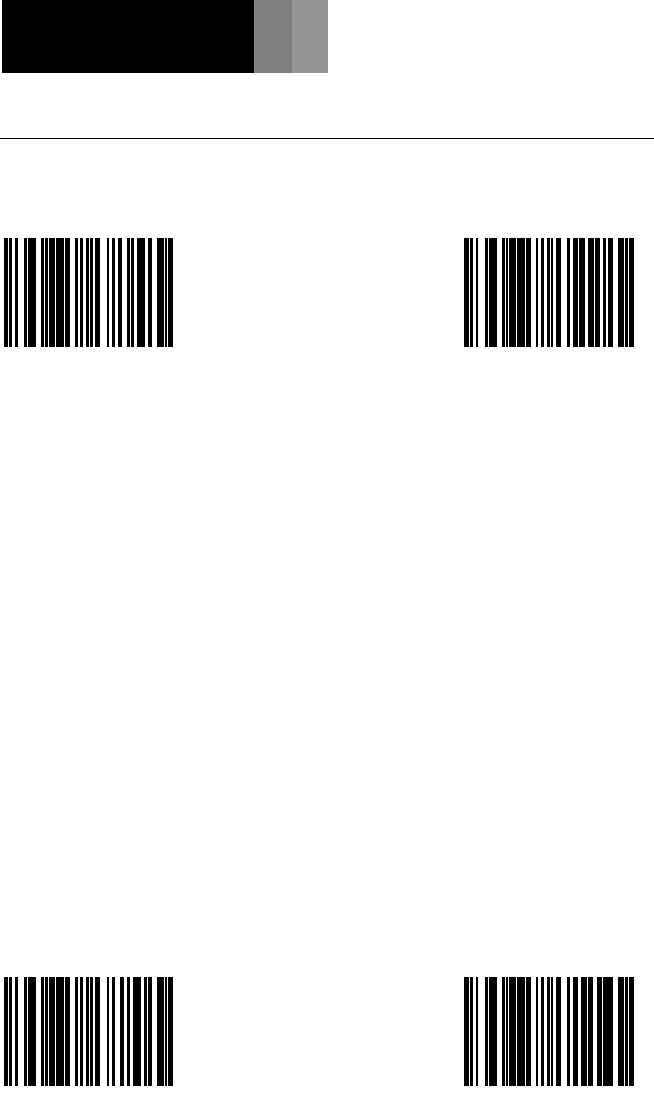

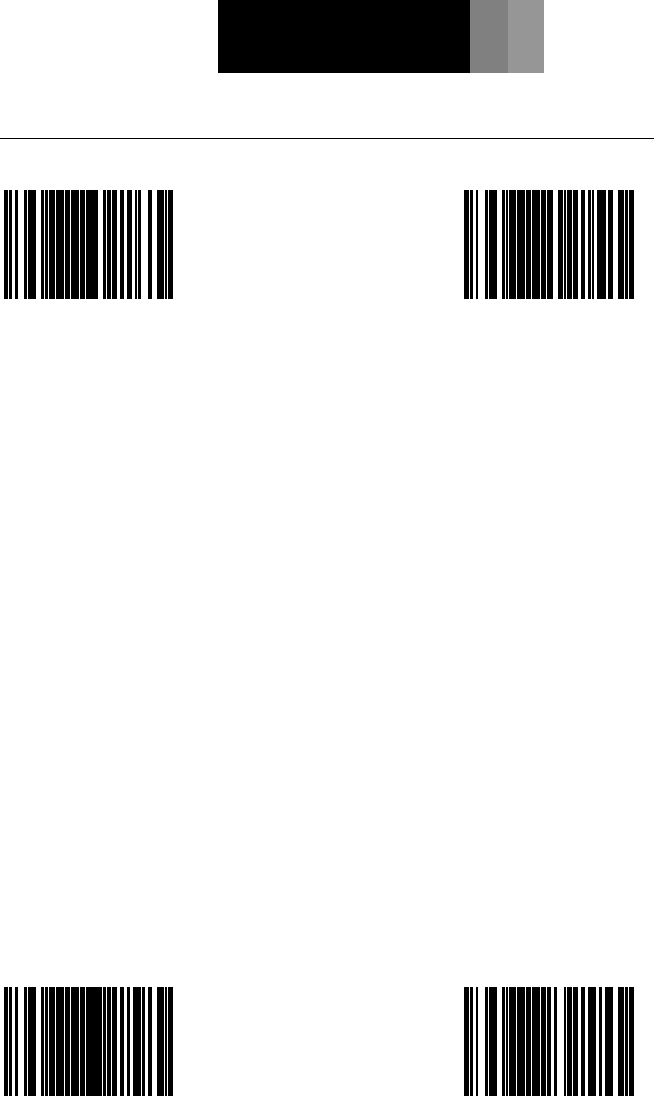

* HoloTrak Decode Output

AUX Data Format

UPC Supplemental Output

AUX Data Format

³437500 ³437540

Stratos Decode Output

AUX Data Format

Code Select Output

AUX Data Format

³437520 ³437550

Auxiliary Port Controls O15

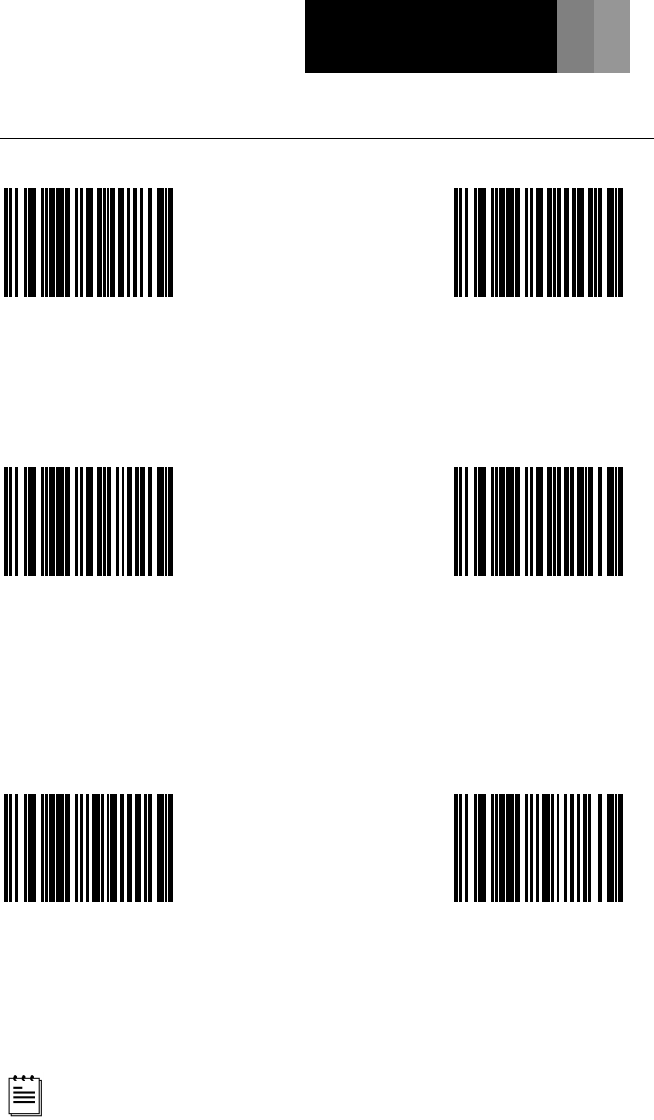

SECTION O MAIN OUTPUT PORT AUXILIARY DATA FORMATS

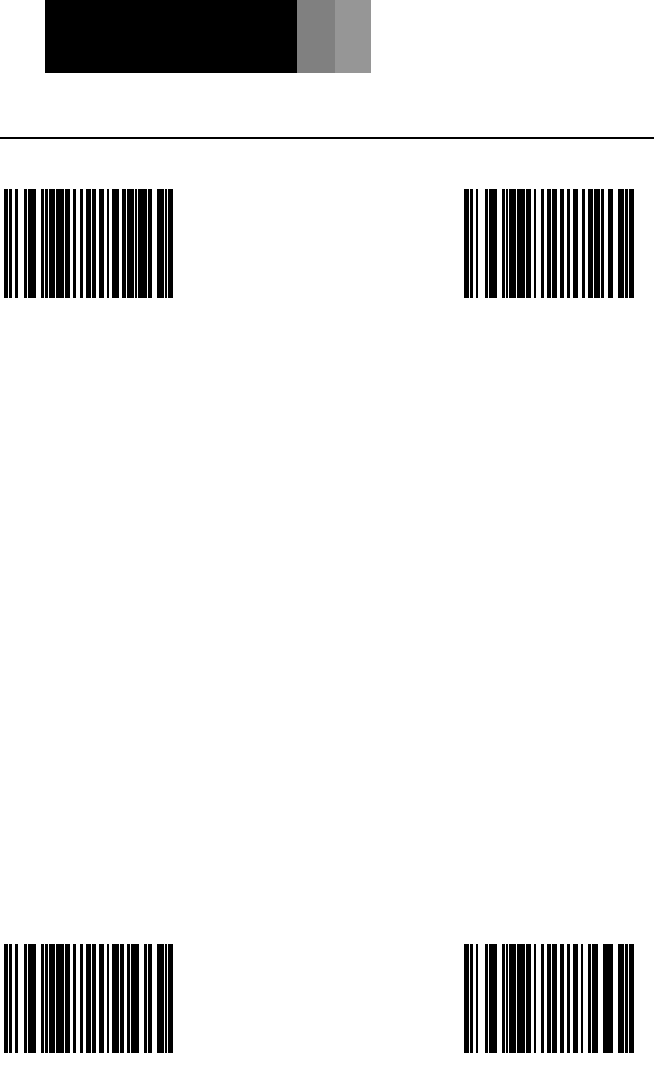

TECH 7 & 8 Output AUX

Data Format

Reserved 1 Output AUX

Data Format

³437560 ³437590

Reserved 2 Output

AUX Data Format

Reserved 3 Output

AUX Data Format

³437580 ³437570

Auxiliary Port Controls O16

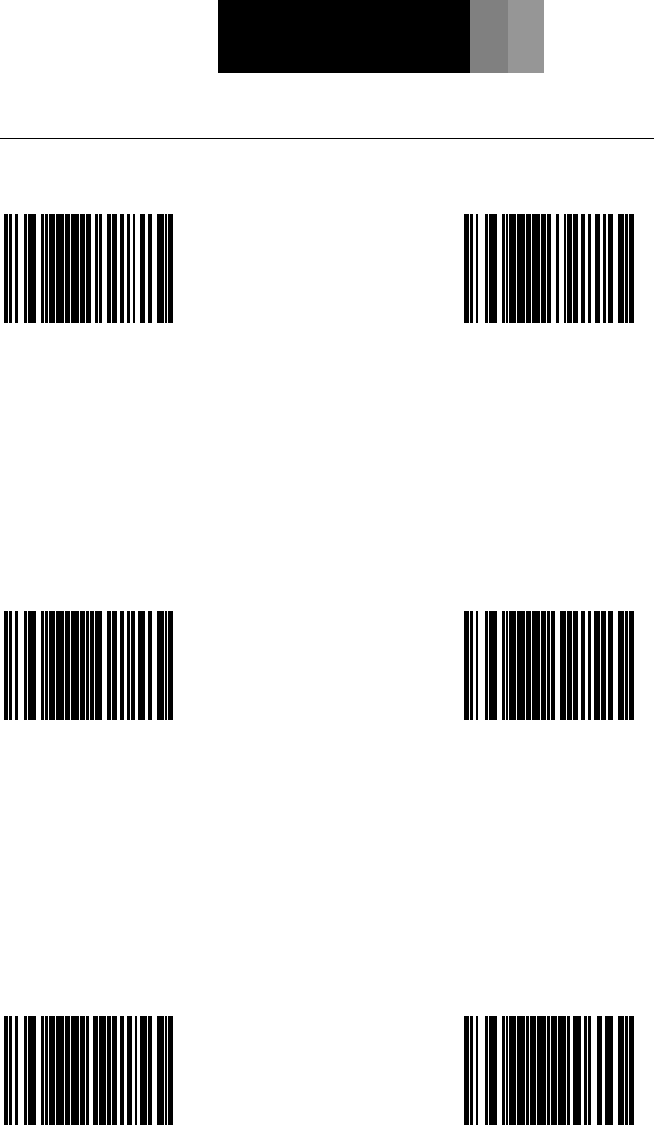

SECTION O INTER-CHARACTER DELAYS

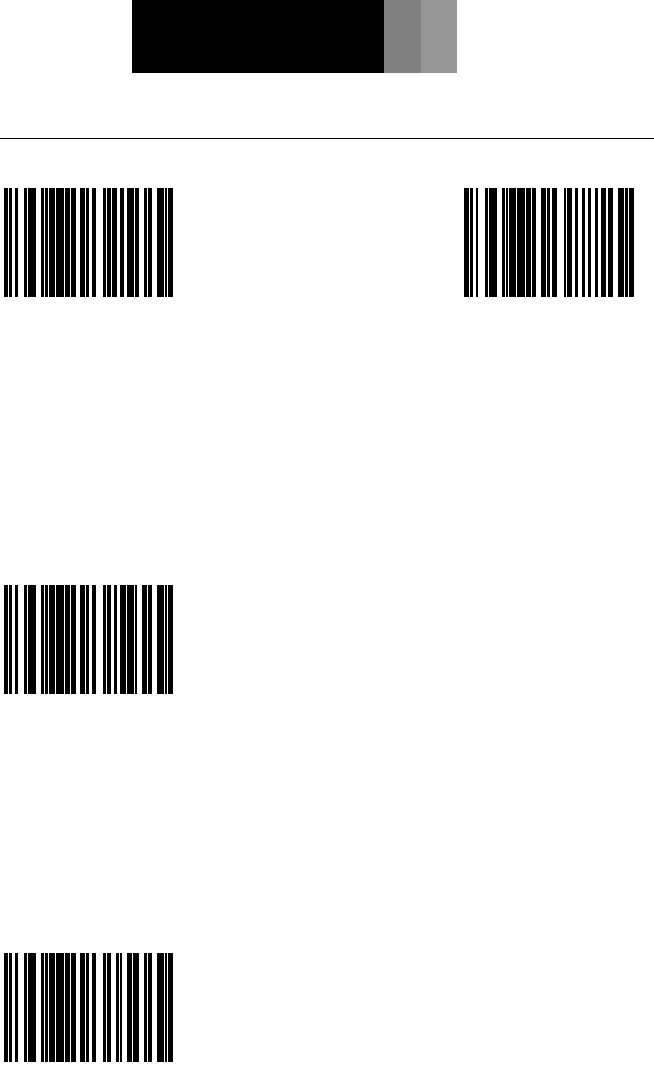

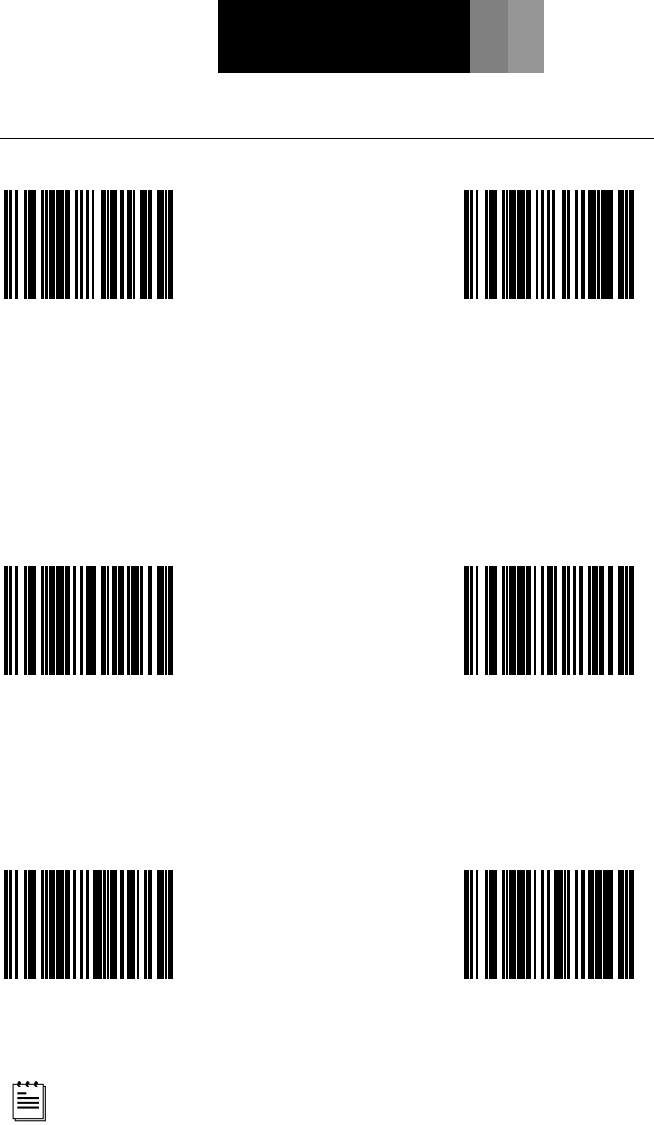

No AUX Port

Inter-Character Delays

* 1 msec AUX Port

Inter-Character Delay

³837600 ³837610

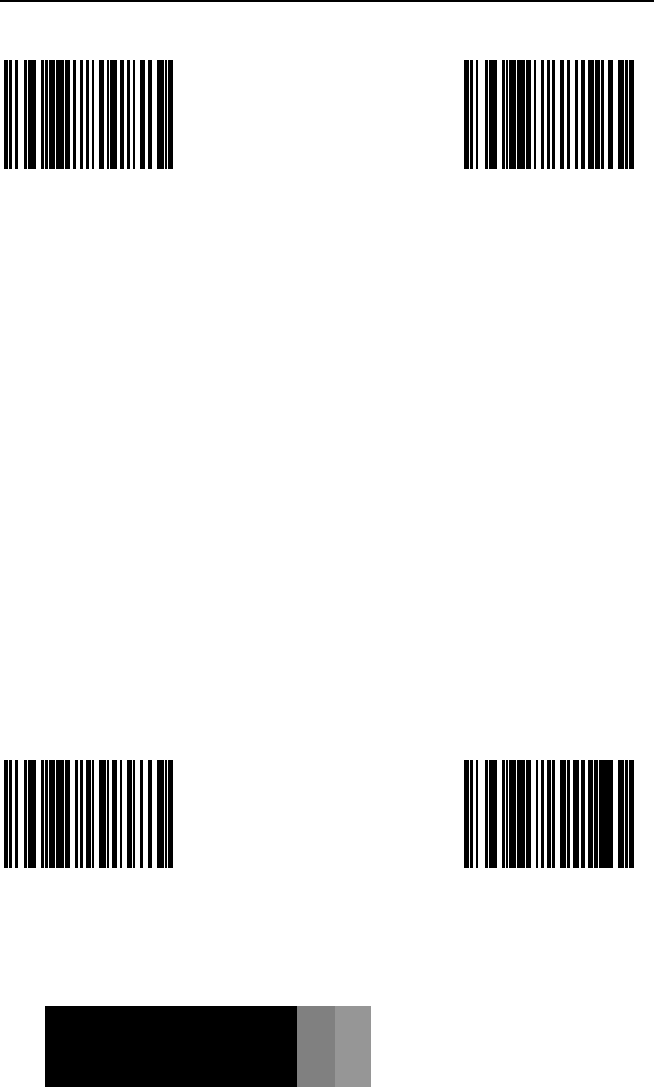

10 msec AUX Port

Inter-Character Delay

25 msec AUX Port

Inter-Character Delay

³ 8376100 ³ 8376250

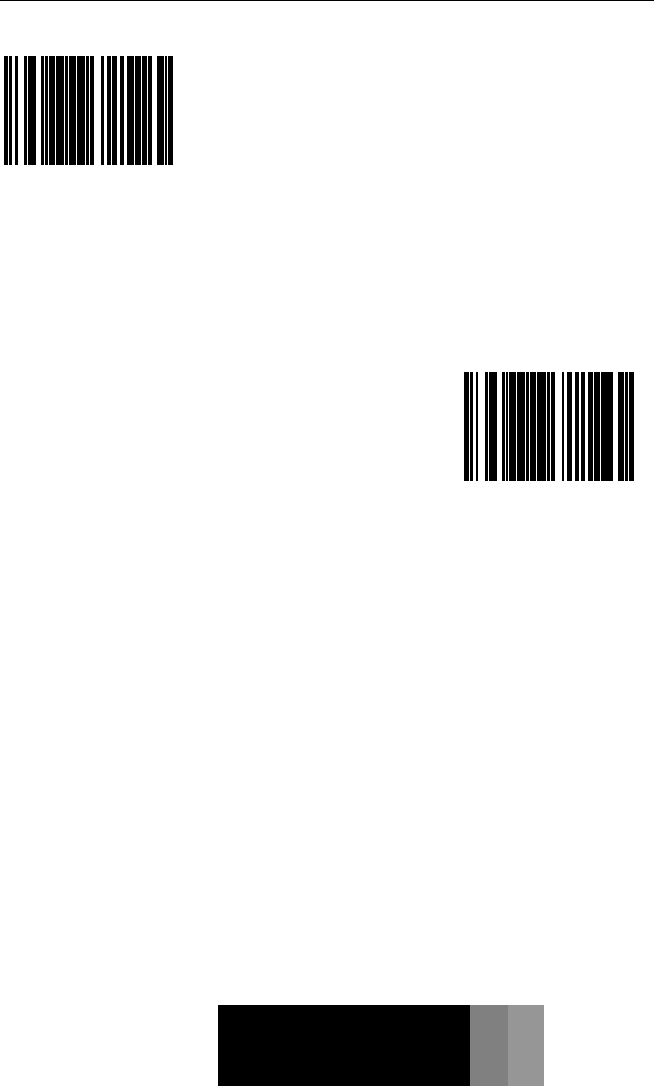

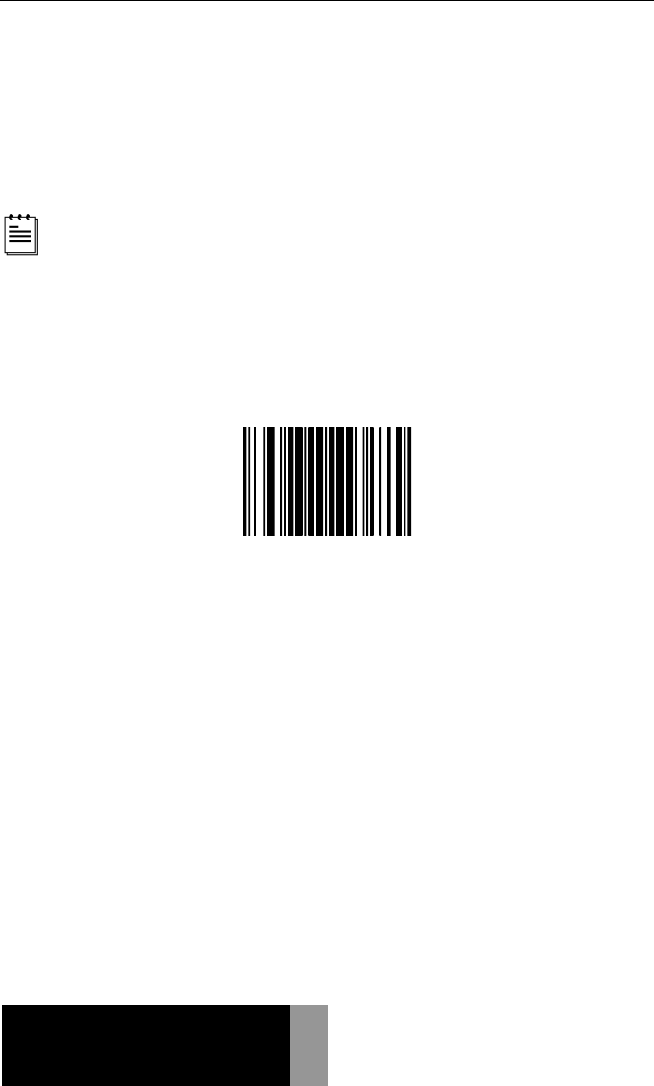

~ Variable AUX Port

Inter-Character Delay

³937600

The Delay between characters being sent out of the auxiliary port

can be set in 1 millisecond increments by scanning the Variable

UX Port Inter-characte

Dela

barcode followed by a 3 characte

sequence of code bytes that range from 001 to 255 milliseconds.

Refer to the Multi-Code Configuration Method on page x.

USB P1

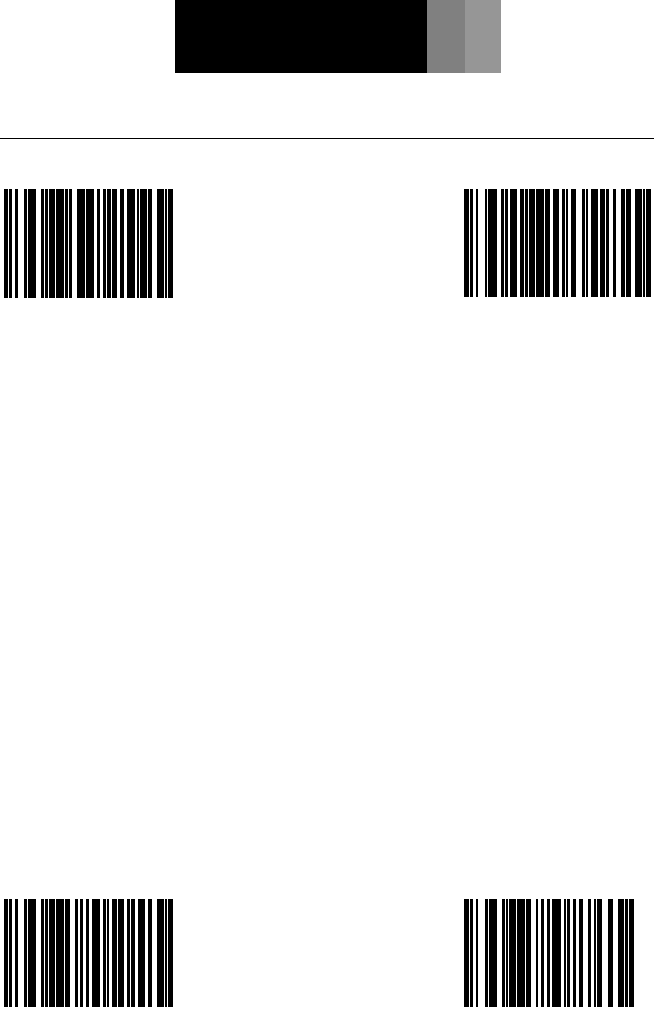

SECTION P FULL SPEED USB

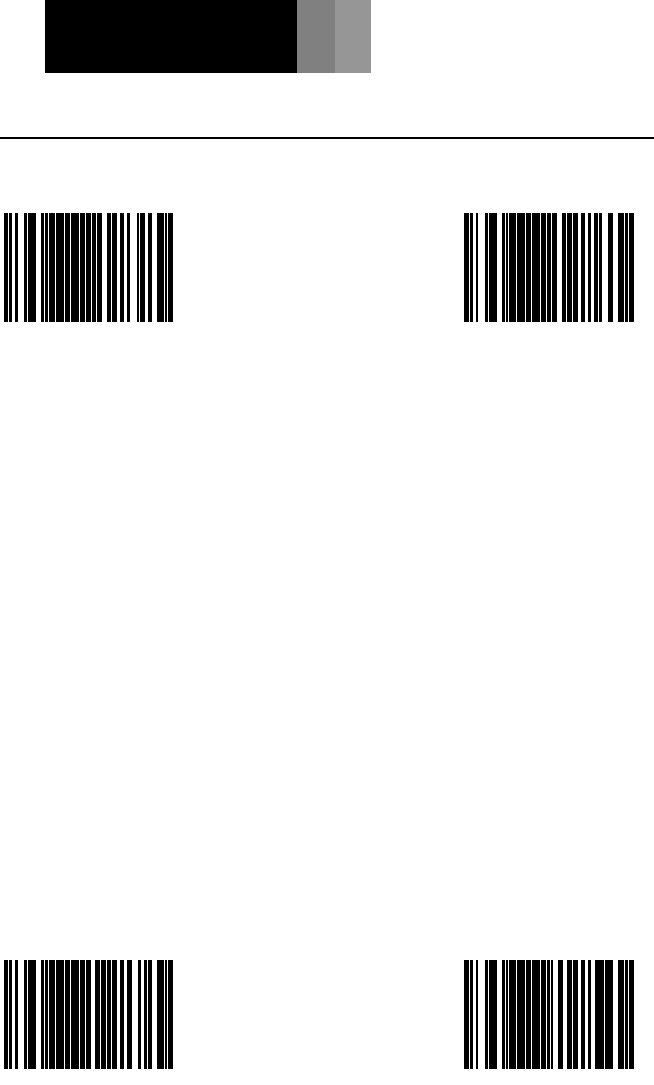

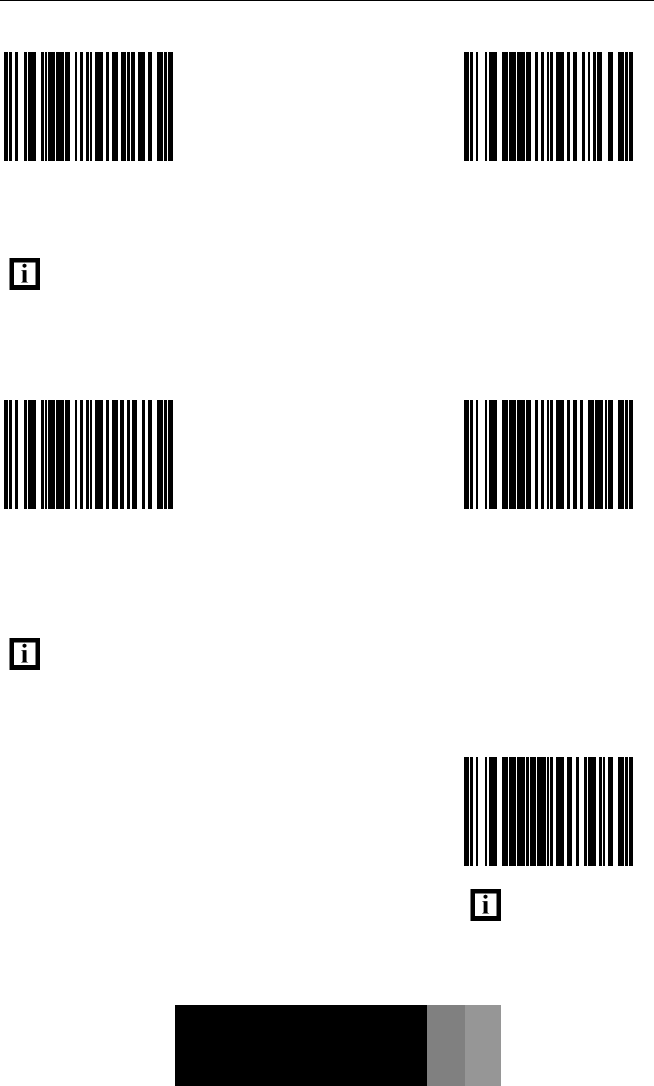

Enable Full Speed USB Full Speed USB Defaults

³ 4155124

Adds the ability to encode

scanner serial number in

NOVRAM.

³ 999971

Load Integrated

Full Speed USB Defaults

³ 999970

USB P2

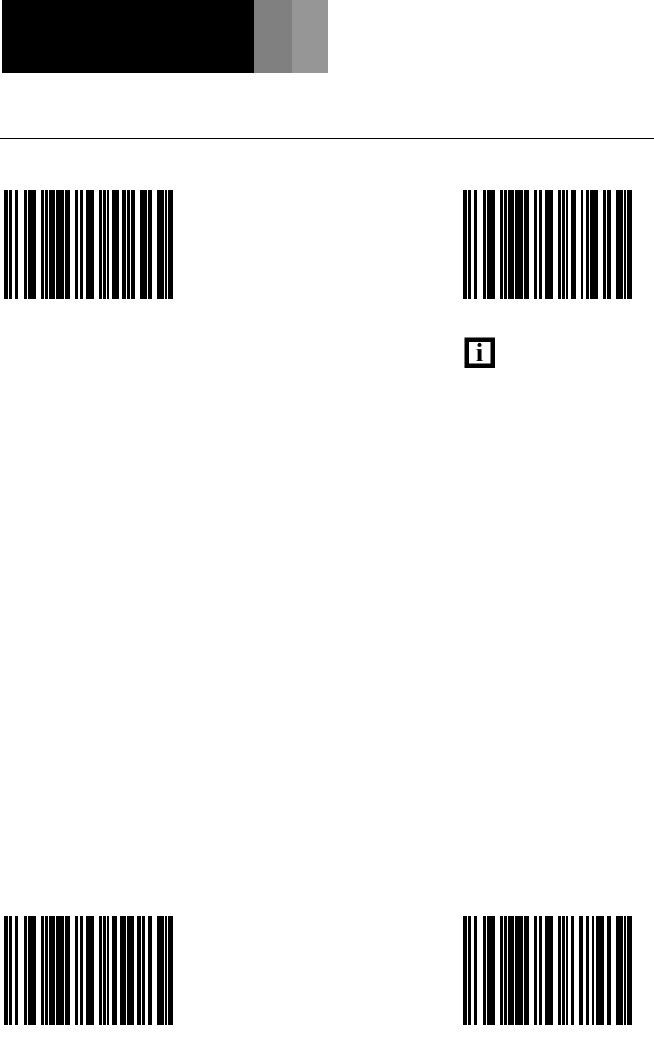

SECTION P FULL SPEED USB

The following codes can be used if the Full Speed USB Default bar code has not been scanned.

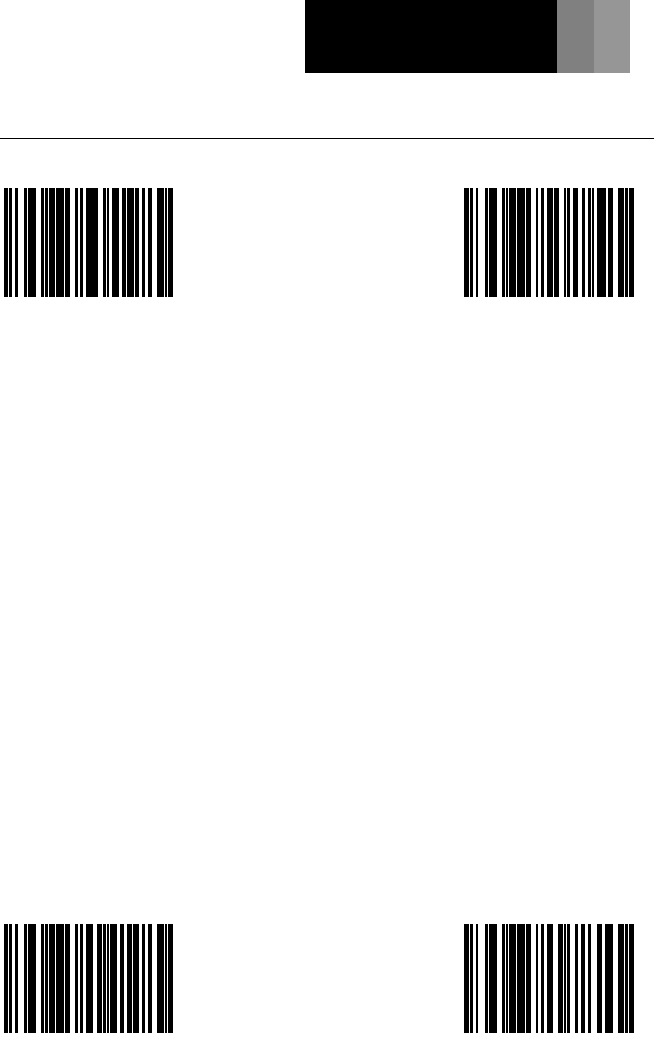

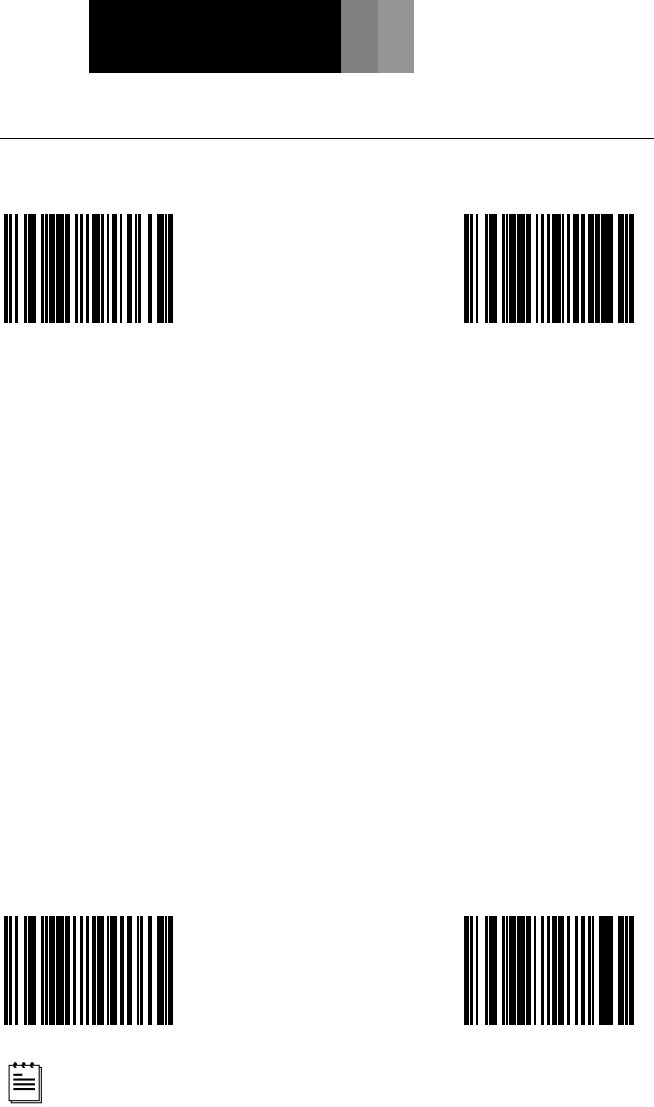

Enable USB IBM ID Disable USB IBM ID

³ 117817 ³ 117807

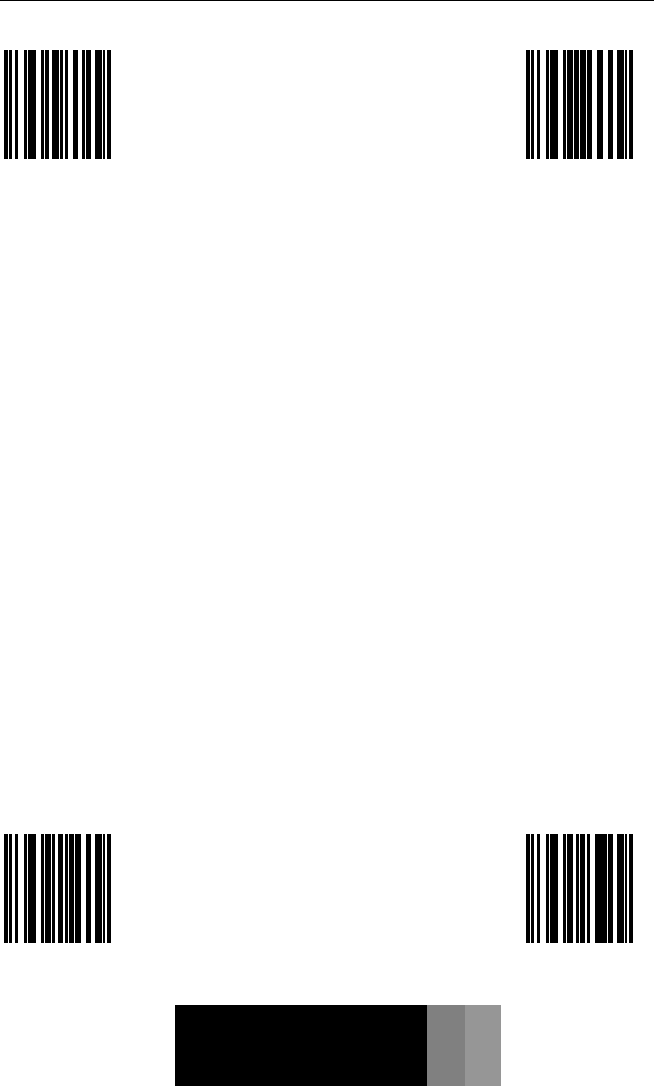

RS232 of USB Out Normal USB Out

³ 117816 ³ 117806

LOW SPEED USB

Enable

Low Speed USB

Load

Low Speed USB Defaults

³ 4155114 ³ 999978

July 2003

Printed in the USA

00 -02407C
