made in germany
Milos 32 S
Metz_milos32_S.indd 1 11/23/05 5:09:34 PM
TABLE BASE
curved or straight
metallic silver
curved:
Dimensions: w66,0 x h7,1 x d20,0 cm
Weight: 2,5 kg
straight:
Dimensions: w70,0 x h5,9 x d20,0 cm
Weight: 2,5 kg
WALL-MOUNTING KIT INCLUDED
Metz Milos 32 S
Screen diagonal 81 cm
Dimensions and weight:
w96,5 x h53,5 x d10,9 cm / 17 kg
metallic silver
Further colour finishes are currently being prepared
Metz LCD Flat Panel Television
Technical perfection
• LCD-TFT panel, screen diagonal 32” (81 cm) (16:9)
• High resolution: 1366 x 768 pixels
• 8 ms response time GtG
• 10 bit Digital Processing
• Dual video processors
• Optimised picture: mecavision+ technology for blur-free
rendition of movements, perfect contrast and pin-point
sharpness. Comb filter and cross-colour reduction for
brilliant colours
• LUX automatic contrast control to adapt the picture
settings to the surrounding light
• SRS WOW® sound system with full sound and spatial
sound realism
User friendliness
• Tri-Star menu concept – three operating levels to meet
your personal requirements
• Twin Tuner Picture-in-picture (PIP) function
• Top Teletext with 2000-page memory for instant access
• Integrated on-screen help function (Info-key)
• Plain text display for name of station or local time
Excellent quality
• Metz televisions meet the most stringent quality standards
• Quality: Made in Germany (ISO 9001)
A secure future
• Modular TV concept, ready for individual expansions
and future developments
• HD ready for high-definition TV of the future
• Already integrated: digital and analog reception via
cable and antenna (DVB-C/DVB-T)
• Module for digital satellite reception (DVB-S) optionally
available
• Connections:
-› HDMI
-› DVI
-› PC
-› Component
-› RGB Scart x 3
-› Digital audio in & outputs
-› RS232
-› Camera & games console
-› Headphones
Convenient service
• Benefit from the competent advice and service offered by
Authorised Metz specialist dealers
SRS WOW® is a registered trademark of SRS Labs, Inc
The HD ready logo is a registered trademark of EICTA
made in germany
Metz_milos32_S.indd 2 11/23/05 5:09:37 PM

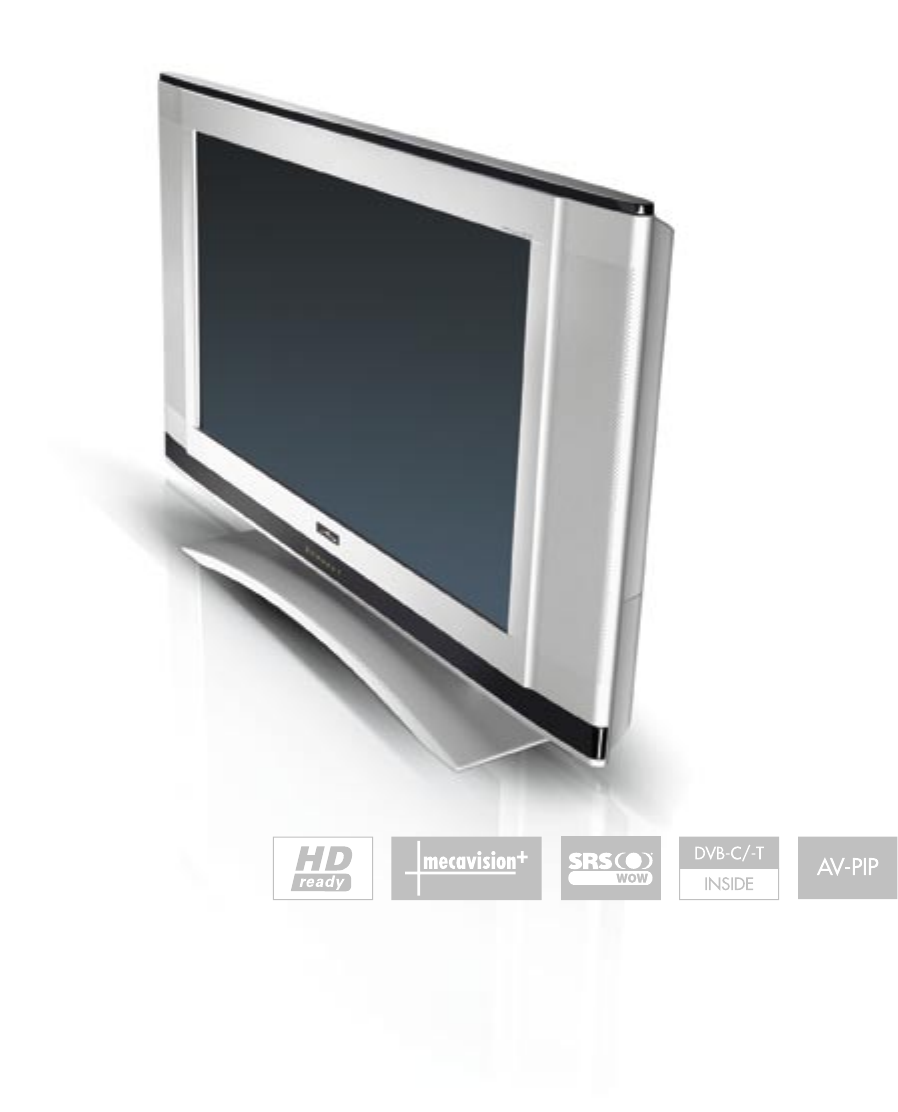

Metz Milos 32 S
TV 16.9 / 81 cm /32”
made in germany
Designed and engineered at Metz’s world class manufacturing facility in Zirndorf, Germany, the new Metz Milos LCD
television is an impressive union of elegant design and state-of-the-art technology. Metz’s engineers have developed a
set of leading edge technologies under the banner of mecavision+, which creates super-sharp, detailed pictures and
lifelike motion reproduction never seen before on a LCD television. Metz’s exclusive use of dual broadcast standard
video processors generates colours so natural it is like looking through a window. Built-in digital and analogue tuners
provide crisp, clean images for watching television, while HDMI and DVI inputs allow for connection to the latest High
Definition and DVD sources, which provide picture resolution that needs to be seen to be believed. The entire Milos
range is Made in Germany by the technology leader Metz and is built on the philosophy of “Quality as a matter of
principle”
Metz_milos32_S.indd 3 11/23/05 5:09:44 PM
made in germany
www.metz.com.au
SRS WOW® is a registered trademark of SRS Labs, Inc
ISO Pixel tolerance policy, “greater than or equal to 1 x bright pixel
and/or 4 x dark pixels grouped requires replacement”
Design and specifications are subject to change without notice
Your authorised dealer
TECHNICAL DATA
Milos LCD televisions at a glance
Milos 37 S Milos 32 S Milos 32 Milos 26
Metz Flat-TV
Picture Technology
Display technology LCD-TFT LCD-TFT LCD-TFT LCD-TFT
Screen diagonal (cm) 94 81 81 66
Aspect ratio 16:9 16:9 16:9 16:9
Physical resolution 1366 x 768 1366 x 768 1366 x 768 1366 x 768
Viewing angle, typical ° 176 176 176 176
Reaction time, typical, ms (GTG) 8 8 8 8
Brightness in cd/qm 500 500 500 500
Contrast ratio, typical 1600:1 1600:1 1600:1 800:1
mecavision+* • • • •
Panorama Mode / Zoom / Automatic zoom •/•/• •/•/• •/•/• •/•/•
Picture format switching 4:3 <> ext. 16:9 • • • •
PIP with second tuner (terr.) /AV-PIP • • --- ---
Sound Technology
Music power (W) 2 x 20 2 x 20 2 x 20 2 x 12
Loudspeakers 4 4 2 2
Bass-reflex system • • • --
Audio output: line/variable •/• •/• •/• •/•
Centre-loudspeaker input • • • •
Tone switch: normal/speech • • • •
Automatic volume adjustment (can be switched off) • • • •
SRS-WOW® audio enhancement • • • •
Headphone volume separately adjustable • • • •
Stereo and two-channel sound/digital NICAM sound •/• •/• •/• •/•
Operation
Front controls: function (P,L,K), plus-key, minus-key • • • •
IR remote control RM15 RM15 RM15 RM15
Mains switch • • • •
LED display for standby/on •/--- •/--- •/• •/•
Plain text display of programme position and time (8 digits) • • -- --
Satellite timer recording* with VPS support (*if Sat tuner fitted) • • • •
Sleep timer • • • •
Easy operation with TriStar menu and Info key • • • •
Child lock • • • •
Data Logic (data dialogue between TV set and video recorder) • • • •
T + A interface • • • •
Teletext
Hi/Top Teletext (max. 2000 pages) • • • •
NexTView (Electronic Programme Guide) • • • •
Reception
Terrestrial, analogue/digital •/• •/• •/• •/•
Wideband cable, analog/digital •/• •/• •/• •/•
Satellite, analog+A66/digital --/+ --/+ --/+ --/+
CA-slot integrated (Common Interface for DVB) 2 x 2 x 2 x 2 x
Station search and storage for automatic setting of TV stations (ascending order) • • • •
Direct input of channel/frequency •/• •/• •/• •/•
Maximum number of programme positions 2000 2000 2000 2000
Audio input/output, loudspeaker output •/• •/• •/• •/•
Colour standards via antenna: PAL, Secam • • • •
Colour standards via EURO-AV: PAL, Secam, NTSC, NTSC 4.43MHz • • • •
European TV reception standards via antenna: B/G/H.D/K.L/L.L • • • •
HD ready • • • •
Connection Facilities
1 S-video and 3 Cinch sockets + headphone socket on the side • • • •
Euro/AV sockets • • • •
1 HDMI socket (DVI-D, digital audio) / 1 DVH- socket (analogue/digital) •/• •/• •/• •/•
Component input, 5x Cinch (Y/U/V,L/R) • • • •
1 Cinch socket for audio input, centre channel •/• •/• •/• •/•
RS232 serial socket for software updates • • • •
SFDIF digital sound input/output (optical) • • • •
PC interface (analog/digital) • • • •
Expansion Modules
DVS-S module (tuner for digital satellite stations) +/+ +/+ +/-- +/--
Power Consumption
Mains voltage 230-240 / 50Hz
Power consumption in standby mode 2W
