Advanced Thermal Imaging Sight for Vehicle
Gunner and Commander
The M36 provides thermal night vision capability to the M1117
Armored Security Vehicle.
www.flir.com

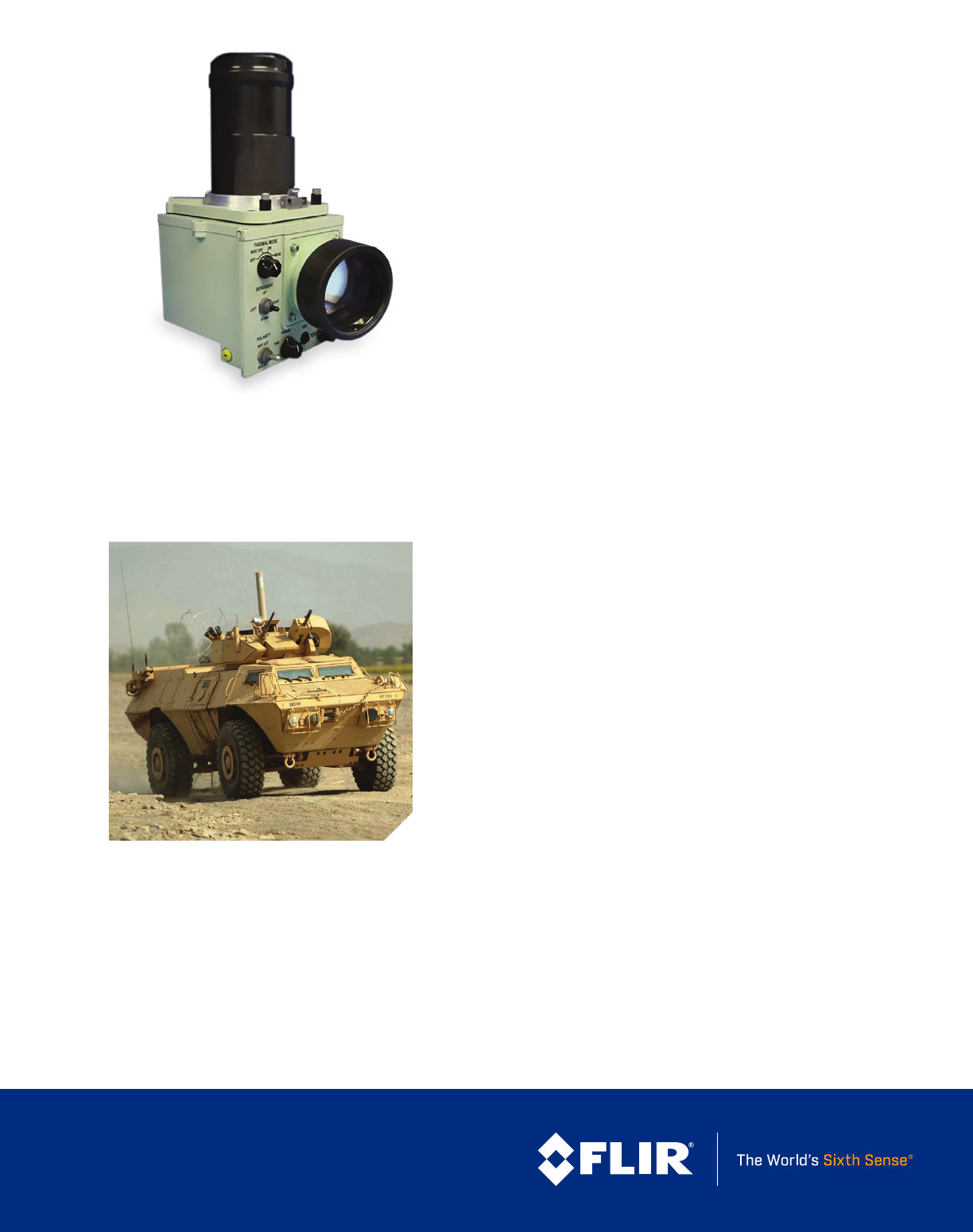

M1117 Armored Security Vehicle
FLIRM36
™
MilSight™ M36
APPLICATIONS
• Surveillance
• Reconnaissance
• Forward Observation
• Target Recognition
• Fire Control
KEY FEATURES BENEFITS
• Dual field of view
telescope with
digital zoom
Fields of view optimized for high performance in
detection, recognition and identification
• High resolution, large
format 640 x 480,
mid-wave InSb sensor
Delivers unmatched image quality with built-in
image processing that digitally sharpens, tunes and
enhances contrast for exceptional target detail
• Focus memory Eliminates the need to refocus when switching
between fields of view
• Compact, lightweight
and rugged
Compatible with M36T1 Sight in existing space claim
in 40/50 turret. Drop-in-solution
• Optical/sensor assembly Single module providing simple and accurate bore
sighting for increase target accuracy
• Maintenance Built-in-test enabled and easy access to purge ports,
tool free installation and removal
• It’s all FLIR Inside FLIR controls the entire supply chain on the critical
technology inside FCS thermal imager systems
ensuring fast service and long term support

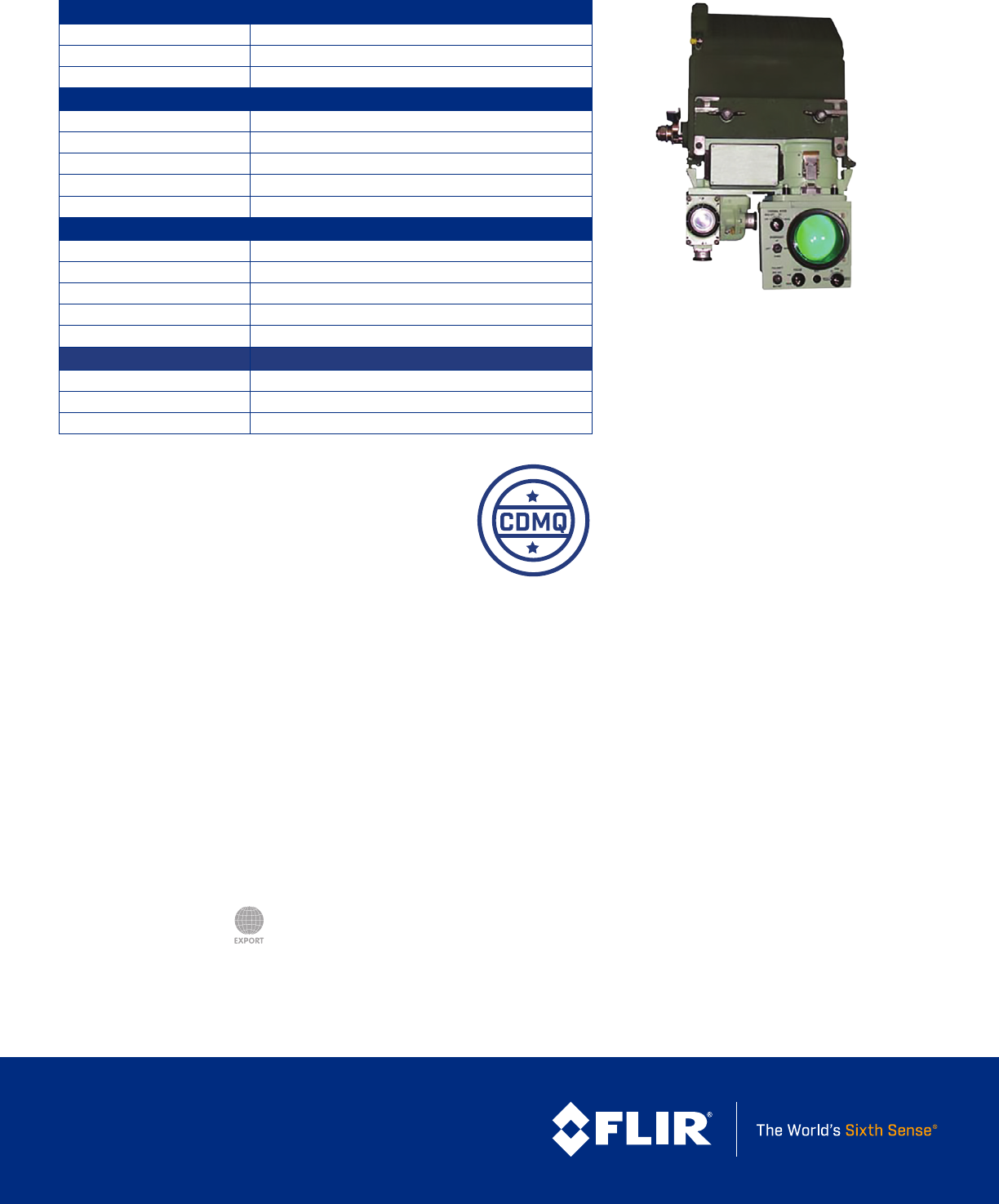

Specifications
www.flir.com
Thermal Imaging Performance
Sensor type MWIR, Indium Antimonide (InSb)
Detector Resolution 640x480
Spectral Band 3.4-5.1 μm
IR Telescope
F/Number 4.0
Wide FOV 9° h x 6.7° v
Narrow FOV 3° h x 2.2° v
Digital Zoom 2X
Automatic features Auto Gain/Level, Detail Digital Enhancement (DDE)
System Power Requirements
Power Source 9-28 VDC
Current Draw at Start-up 1.5 Amps @ 24Vdc
Current Draw at Steady State 0.7 Amps @ 24Vdc
Power at Steady State 36 Watts
Fuse System @ 2 Amps
Mechanical / Environmental
Weight 18 lbs.
Size (inches) 6.4 L x 13 H x 10 W
Operational Temp Range -40°C to 60°C
Equipment described herein is subject to US export regulations and may
require a license prior to export. Diversion contrary to US law is prohibited.
Imagery for illustration purposes only. Specications are subject to change
without notice. ©2016 FLIR Systems, Inc. All rights reserved. 11/22/2016
16-1074-SUR-LND-M36
