CONTENTS
1. RoHS PARTS LIST ············································ 2
SPLIT-TYPE AIR CONDITIONERS
PARTS CATALOG
INDOOR UNIT
SERVICE MANUAL (OBH623)
NOTE:
RoHS compliant products have <G> mark on the spec name plate.
No. OBB623
REVISED EDITION-A
Models
MSZ-FH25VE - E1
MSZ-FH35VE - E1
MSZ-FH50VE - E1
Please void OBB623.
Revision A:
•
MSZ-FH50VE-
E1
has been added.
3
RoHS PARTS LIST
1-1. INDOOR UNIT STRUCTURAL PARTS
No.
RoHS
Part No. Part name Symbol
in Wiring
Diagram
Q'ty/unit
Remarks
MSZ-FH
25VE-E1 35VE-E1 50VE-E1
1G E12 J44 234 BOX ASSEMBLY 1 1 For FH25/35VE only
G E12 J46 234 BOX ASSEMBLY 1 1 1 For FH25/35/50VE
2 G E12 J44 085 PANEL RIGHT ASSEMBLY 1 1 1
3 G E12 J44 086 PANEL LEFT ASSEMBLY 1 1 1
4 G E12 F95 142 CATCH 2 2 2 2 PCS/SET
5 G E12 J44 717 PANEL UNDER 1 1 1
6 G E12 J44 067 SCREW CAP 2 2 2 2 PCS/SET
7 G E12 J44 010 FRONT PANEL 1 1 1
8G
-
AIR CLEANING FILTER
(ELECTROSTATIC ANTI-ALLERGY ENZYME FILTER)
111
1 PC/SET
MAC-2330FT-E
G
-
AIR CLEANING FILTER
(DEODORIZING FILTER) 111
1 PC/SET
MAC-3000FT-E
9 G E12 J44 100 AIR FILTER 2 2 2 1 PC/SET
10 G E12 J44 775 AIR PURIFYING DEVICE SUPPORT 1 1 1
11 G E12 J44 774 AIR PURIFYING DEVICE 1 1 1
12 G E12 J44 975 CORNER BOX RIGHT 1 1 1
13 G E12 J44 976 CORNER BOX LEFT 1 1 1
14 G E12 J44 970 INSTALLATION PLATE 1 1 1
1-2. ACCESSORY AND REMOTE CONTROLLER
15 G E12 J44 426 REMOTE CONTROLLER 1 1 1 SG13A
16 G E12 F28 083 REMOTE CONTROLLER HOLDER 1 1 1
OBB623A
4
RoHS PARTS LIST

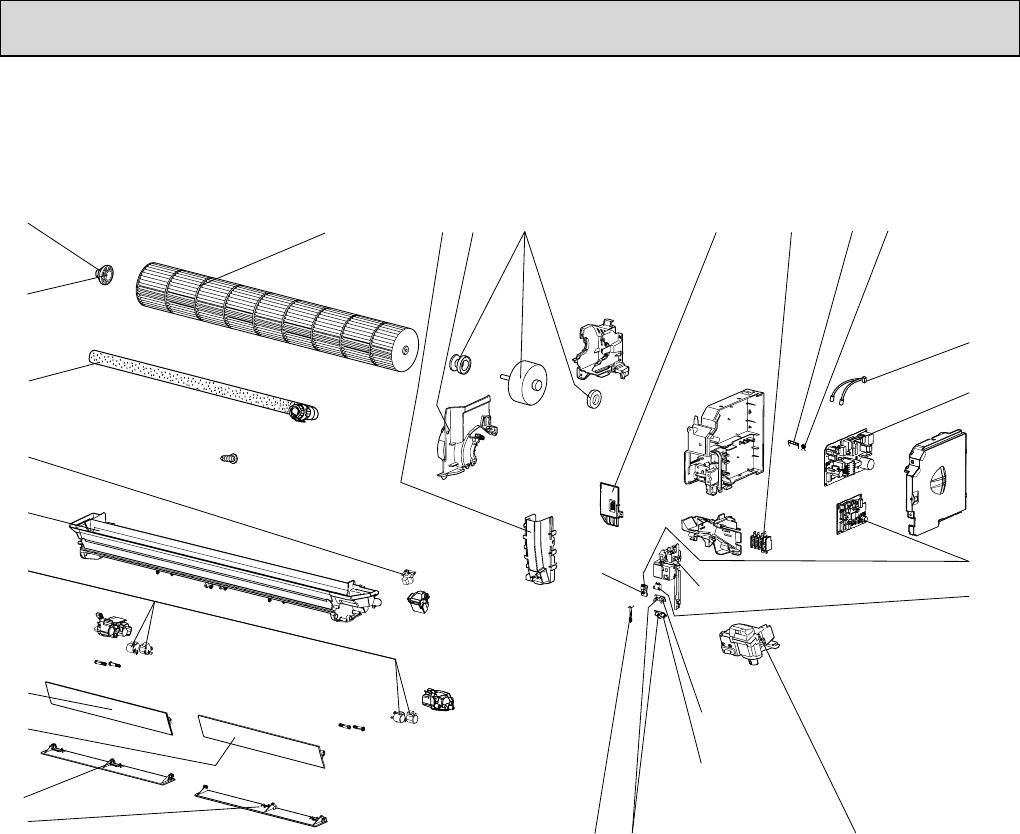

1-3. INDOOR UNIT ELECTRICAL PARTS AND FUNCTIONAL PARTS
MSZ-FH25VE MSZ-FH35VE MSZ-FH50VE
4
2
3
125
11 13
22
16
1821
5
SWITCH
BOARD
RECEIVER
BOARD
14
1923
6
9
10 12
15
17
2024
SWITCH
HOLDER
DISPLAY
BOARD
7
8
OBB623A
5
RoHS PARTS LIST
1-3. INDOOR UNIT ELECTRICAL PARTS AND FUNCTIONAL PARTS
No.
RoHS
Part No. Part name Symbol
in Wiring
Diagram
Q'ty/unit
Remarks
MSZ-FH
25VE-E1 35VE-E1 50VE-E1
1 G E12 751 509 BEARING MOUNT 1 1 1
2 G E12 001 504 SLEEVE BEARING 1 1 1
3 G E12 897 702 DRAIN HOSE 1 1 1
4 G E12 J44 303 VANE MOTOR (VERTICAL) MV2 1 1 1 RIGHT & LEFT
5 G E12 J44 235 NOZZLE ASSEMBLY 1 1 1
6 G E17 103 303 VANE MOTOR (HORIZONTAL) MV1 4 4 4
UP & DOWN, 1 PC/SET
7 G E12 J45 040 VANE UPPER (L) 1 1 1
8 G E12 J44 040 VANE UPPER (R) 1 1 1
9 G E12 J45 041 VANE LOWER (L) 1 1 1
10 G E12 J44 041 VANE LOWER (R) 1 1 1
11 G E12 J44 308 ROOM TEMPERATURE
THERMISTOR RT11 1 1 1
12 G E12 J44 468 DISPLAY AND RECEIVER P.C.
BOARD 111
13 G E12 J44 391
DISPLAY AND i-see SENSOR ASSEMBLY 1
111
14 G E12 J44 316 INTERLOCK SWITCH
(AIR PURIFYING DEVICE) 111
15
G E12 J50 452 ELECTRONIC CONTROL P.C.
BOARD 2
1
G E12 J51 452 1
G E12 J46 452 1
16 G E12 J44 440 POWER P.C. BOARD 1 1 1
17 G E12 J44 307 INDOOR COIL THERMISTOR
RT12,RT13
111
18 G E12 B75 385 VARISTOR NR11 1 1 1
19 G E12 A49 382 FUSE F11 1 1 1 T3.15AL250V
20 G E12 F95 375 TERMINAL BLOCK TB 1 1 1
21 G E12 F95 784 V.A. CLAMP 1 1 1
22 G E12 J44 300 INDOOR FAN MOTOR 3 MF 1 1 1 RC0J30-□□
23 G E12 J44 333 MOTOR BAND 1 1 For FH25/35VE only
G E12 J46 333 MOTOR BAND 1 1 1 For FH25/35/50VE
24 G E12 J44 541 WATER CUT 1 1 1
25 G E12 J44 302 LINE FLOW FAN 1 1 1
1 Including i-see SENSOR and i-see SENSOR MOTOR (MT).
2 Including SWITCH P.C. BOARD
3 Including FAN MOTOR RUBBER MOUNT (2 PCS/SET)
OBB623A
6
RoHS PARTS LIST
1

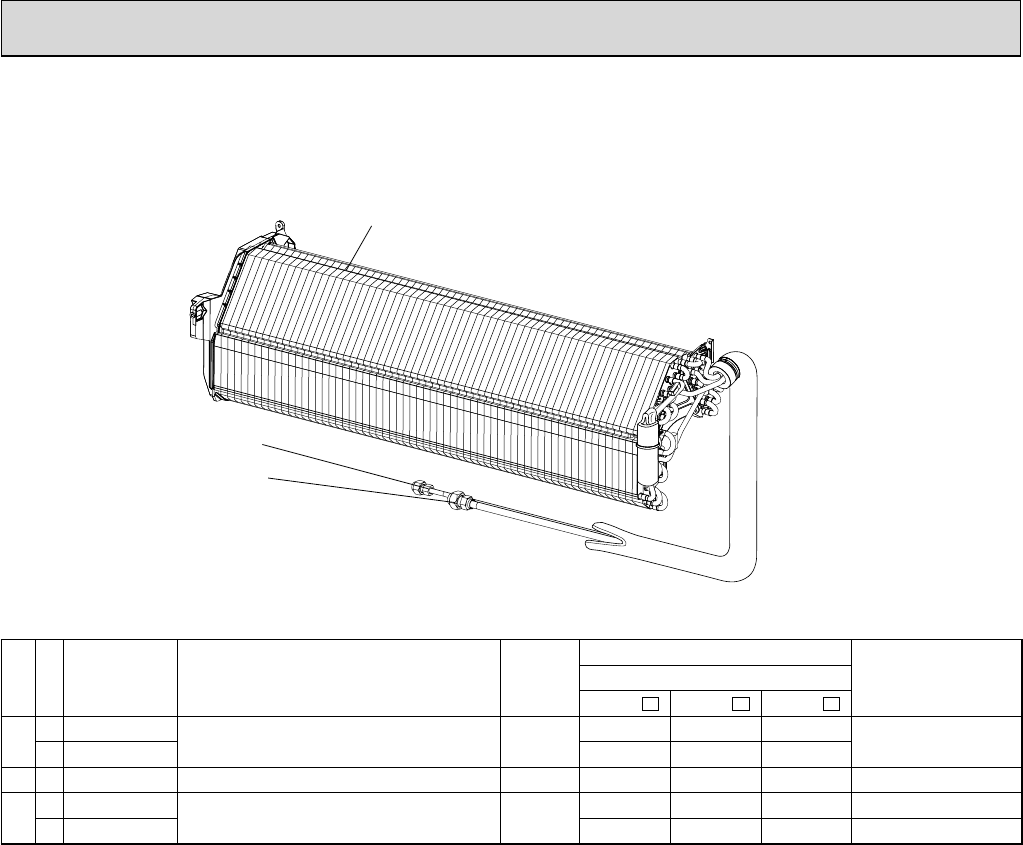

1-4. INDOOR UNIT HEAT EXCHANGER
3
2
No.
RoHS
Part No. Part name Symbol
in Wiring
Diagram
Q'ty/unit
Remarks
MSZ-FH
25VE-E1 35VE-E1 50VE-E1
1G E12 J44 620 INDOOR HEAT EXCHANGER 11
G E12 J46 620 1
2 G E12 151 667 UNION (LIQUID) 1 1 1 ø6.35
3G E12 815 666 UNION (GAS) 11 ø9.52
G E12 155 666 1 ø12.7
MSZ-FH25VE MSZ-FH35VE MSZ-FH50VE
OBB623A
7

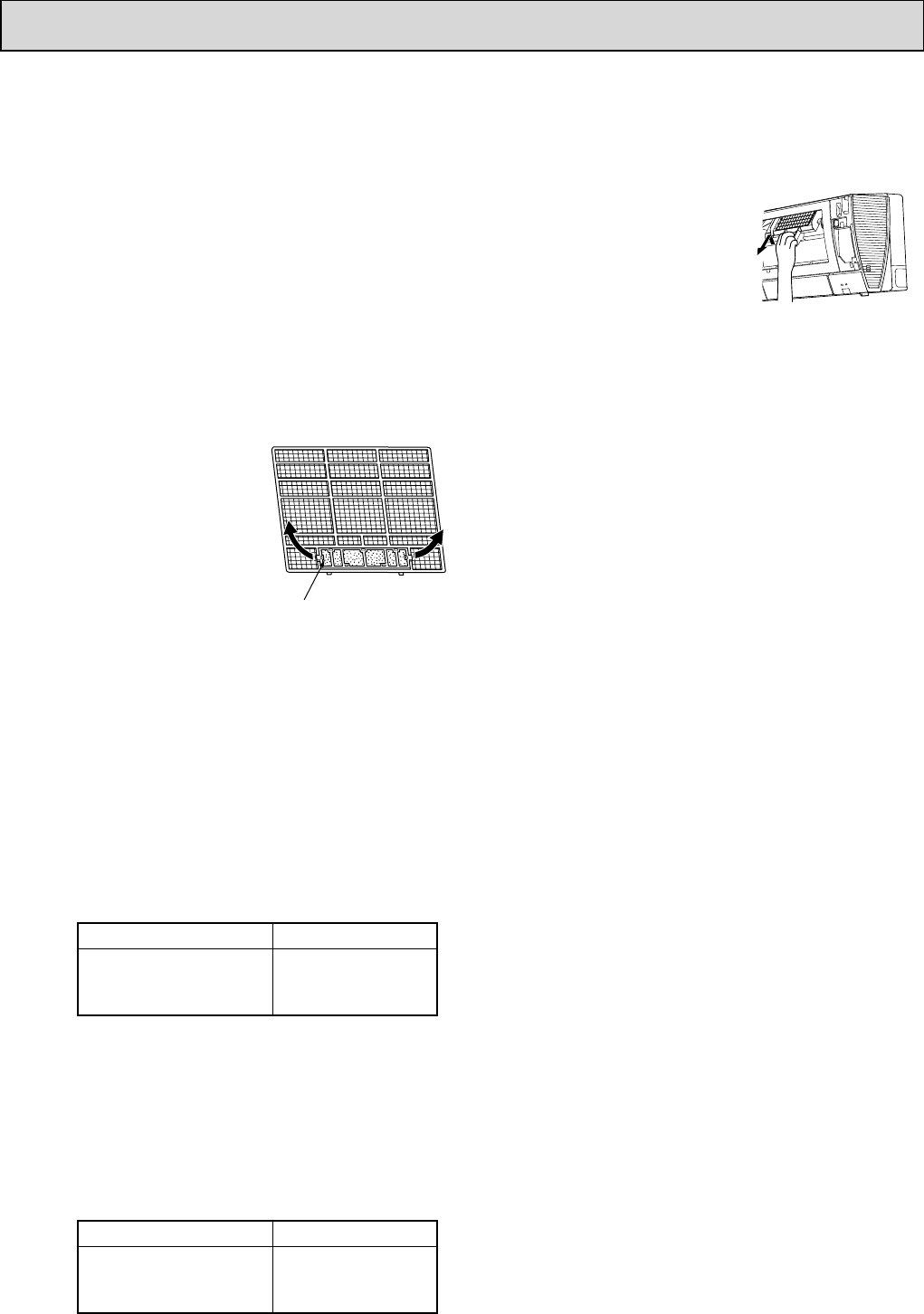

RoHS PARTS LIST
ELECTROSTATIC ANTI-ALLERGY ENZYME FILTER (BLUE)
Every 3 months:
● Remove dirt by a vacuum cleaner.
When dirt cannot be removed by vacuum cleaning:
● Soak the filter and its frame in lukewarm water before rinsing it.
● After washing, dry it well in shade. Install all tabs of the air filter.
Every year:
● Replace it with a new air cleaning filter for best performance.
NOTE 1: Clean the filters regularly for best performance and to reduce power consumption.
NOTE 2: Dirty filters cause condensation in the air conditioner which will contribute to the growth of fungi such as mold.
It is therefore recommended to clean air filters every 2 weeks.
Air cleaning filter
• Electrostatic anti-allergy enzyme filter (Blue)
• Deodorizing filter (Black)
Pull to remove from the air filter
Model Part No.
MSZ-FH25VE
MSZ-FH35VE
MSZ-FH50VE MAC-2330FT-E
DEODORIZING FILTER (BLACK)
Every 3 months:
● Remove dirt by a vacuum cleaner, or soak the framed filter in lukewarm water (30 to 40 ºC) for about 15 minutes.
Rinse well.
● After washing, dry it well in shade.
● Deodorizing feature recovers by cleaning the filter.
When dirt or smell cannot be removed by cleaning:
● Replace it with a new air cleaning filter.
Model Part No.
MSZ-FH25VE
MSZ-FH35VE
MSZ-FH50VE MAC-3000FT-E
1-5. AIR PURIFYING DEVICE
Every 3 months:
● Remove dirt by a vacuum cleaner.
When dirt cannot be removed by vacuum cleaning:
● Soak the filter together with its frame in lukewarm water and rinse it.
● After washing, dry it well in shade.
NOTE 1: The air purifying device does not function for safety for a couple minutes after the
operation starts or the front panel is opened/closed.
NOTE 2: Do not disassemble the air purifying device.
NOTE 3: Do not touch any parts other than the frame of the air purifying device.
1-6. AIR CLEANING FILTER
Air cleaning filter replacement
OBB623A
