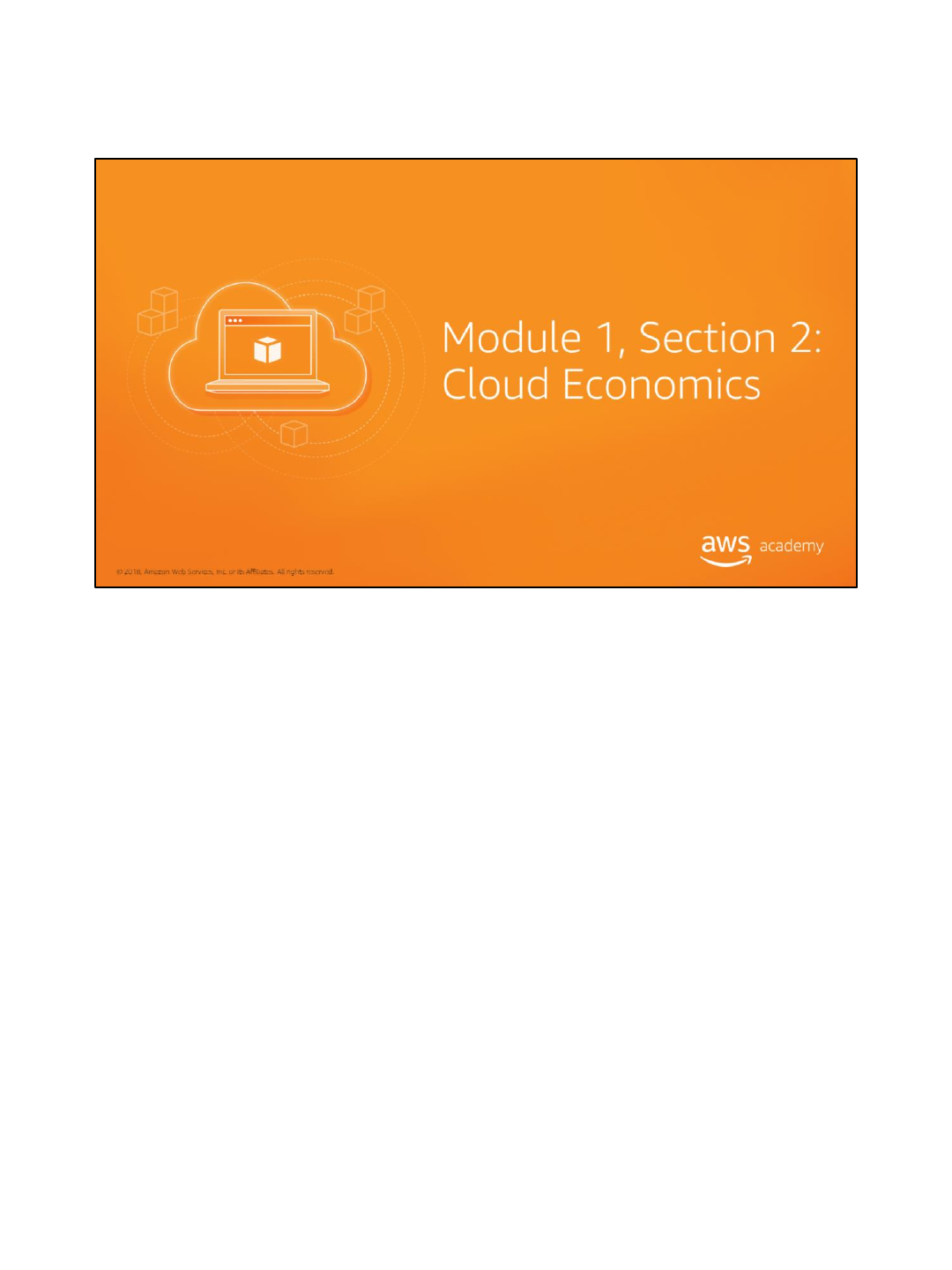

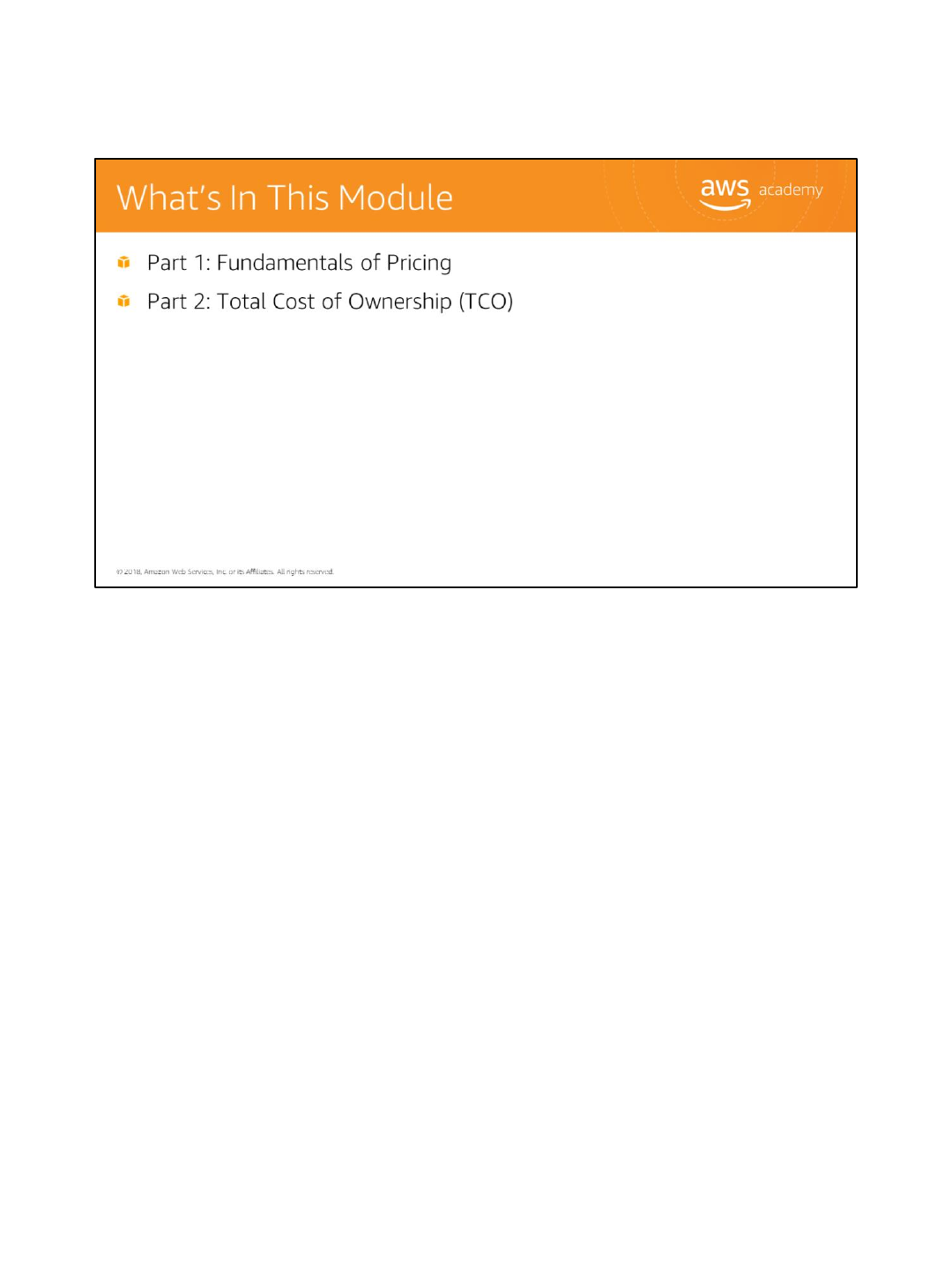

Module 1.2: Cloud Economics 57

Module 1.3: AWS Infrastructure Overview 97

AWS Academy Academy Cloud Foundations (ACF)

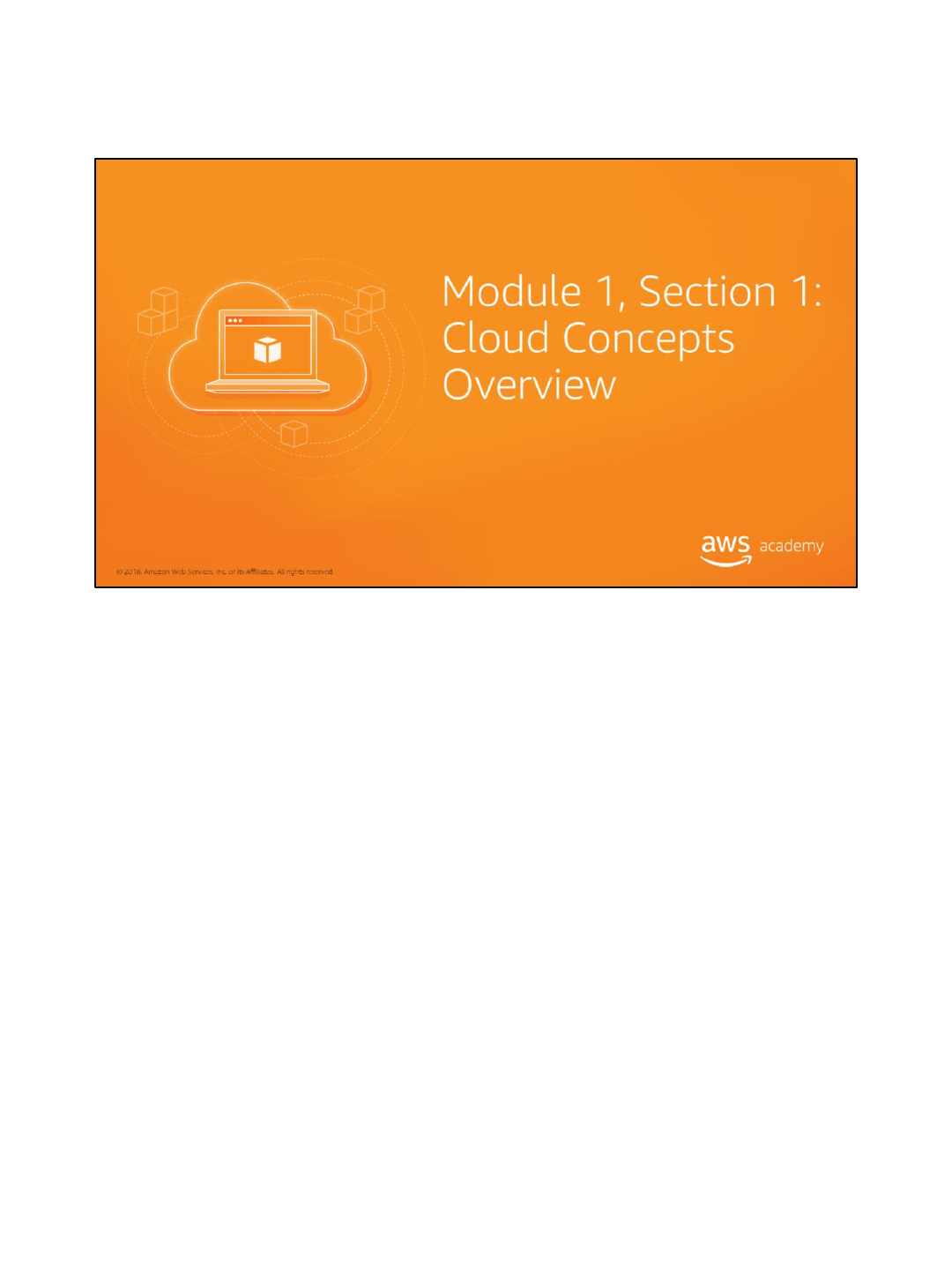

Welcome to Module 1, Section 1 –Cloud Concepts Overview.

AWS Academy Module 1.1: Cloud Concepts Overview

In this module, we are going to discuss the basics of cloud computing. In part one, you’ll learn

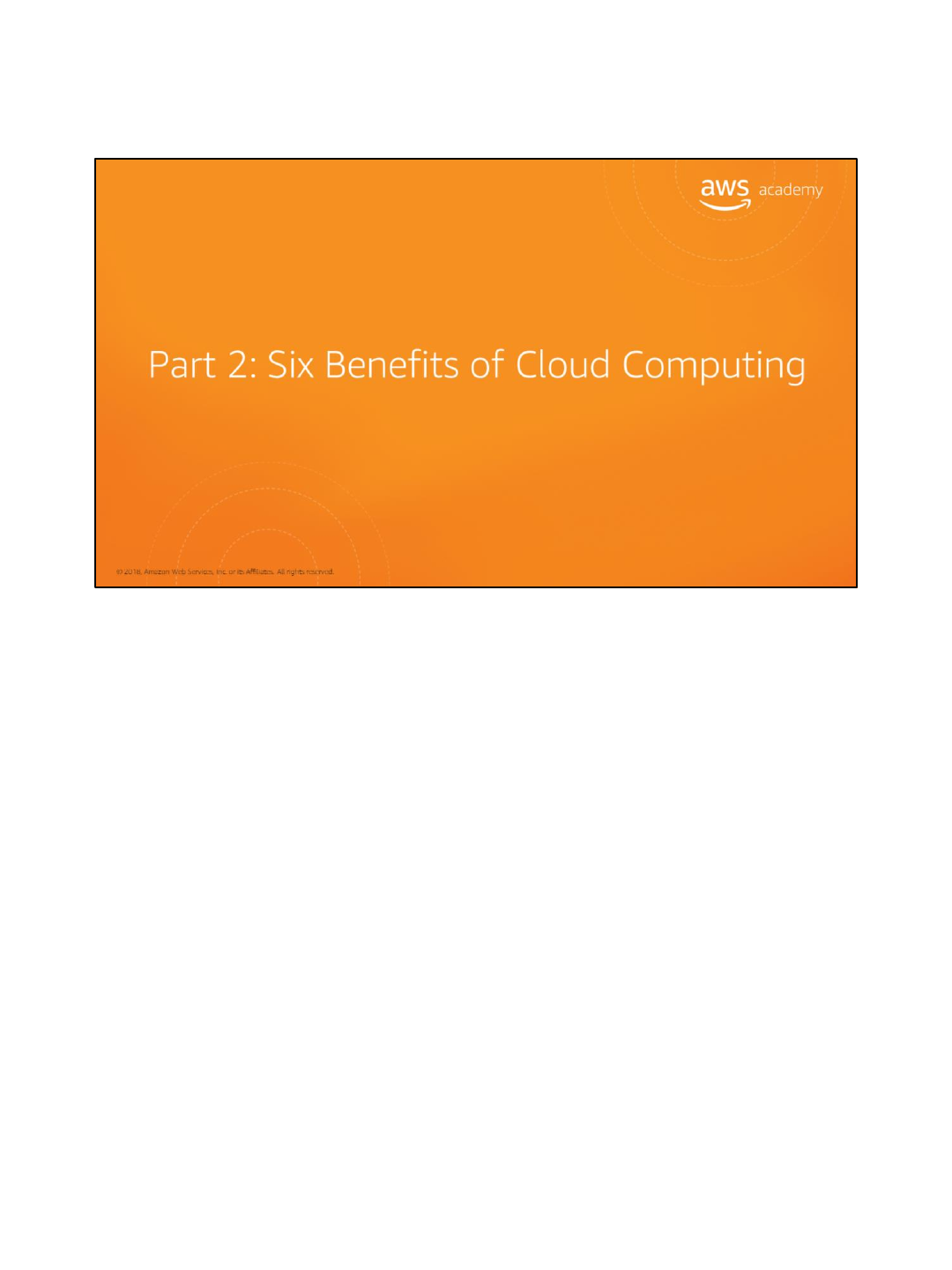

what cloud computing is. In part two, you’ll discover the six advantages of cloud computing.

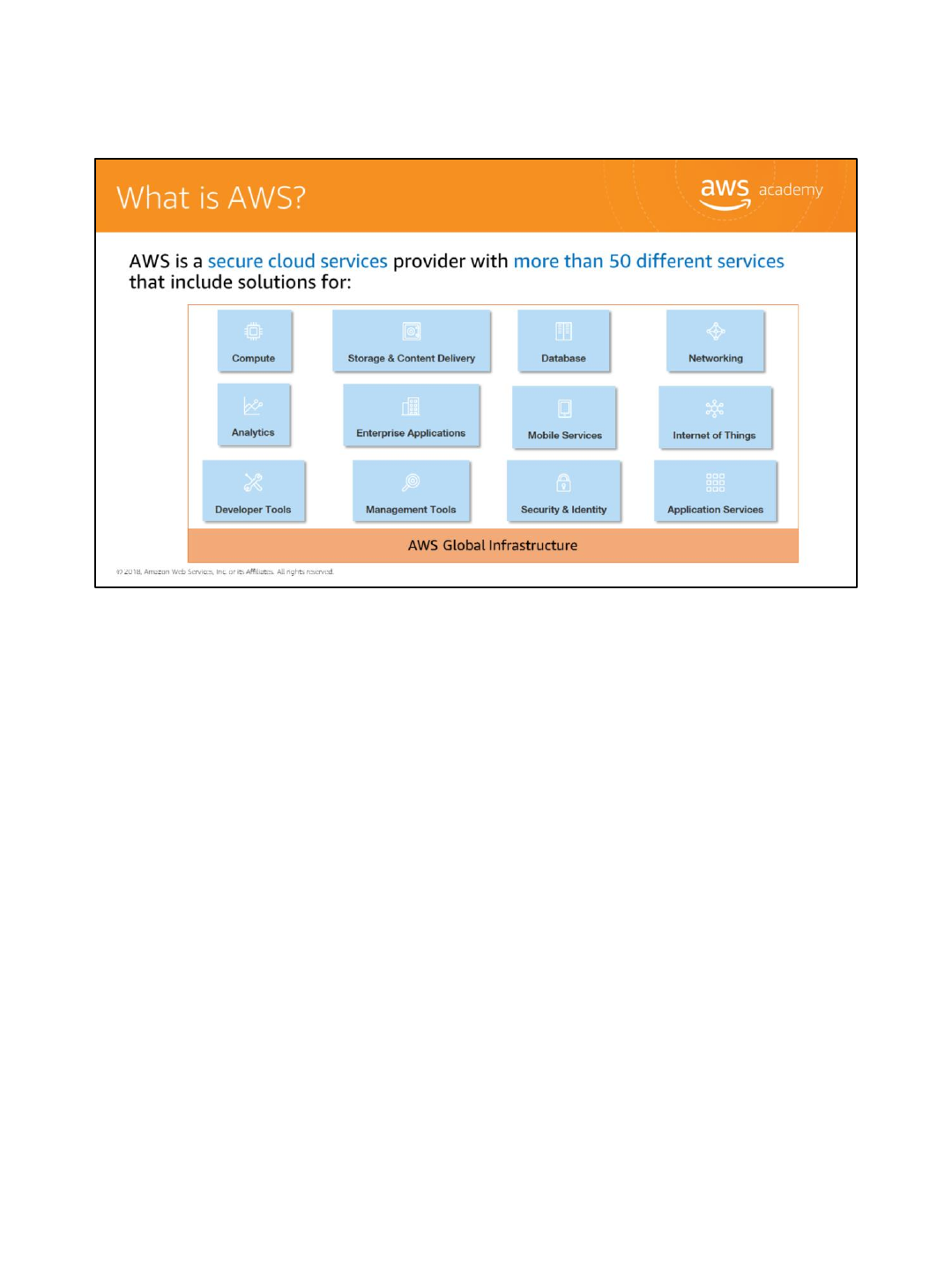

In part three, we’ll reveal what Amazon Web Services is, and in part four, you’ll discover the

AWS Cloud Adoption Framework.

This course assumes that you have a non-IT background, as it will not teach you how to build

applications in the cloud. This course will give you a general conceptual understanding about

the cloud and AWS.

AWS Academy Module 1.1: Cloud Concepts Overview

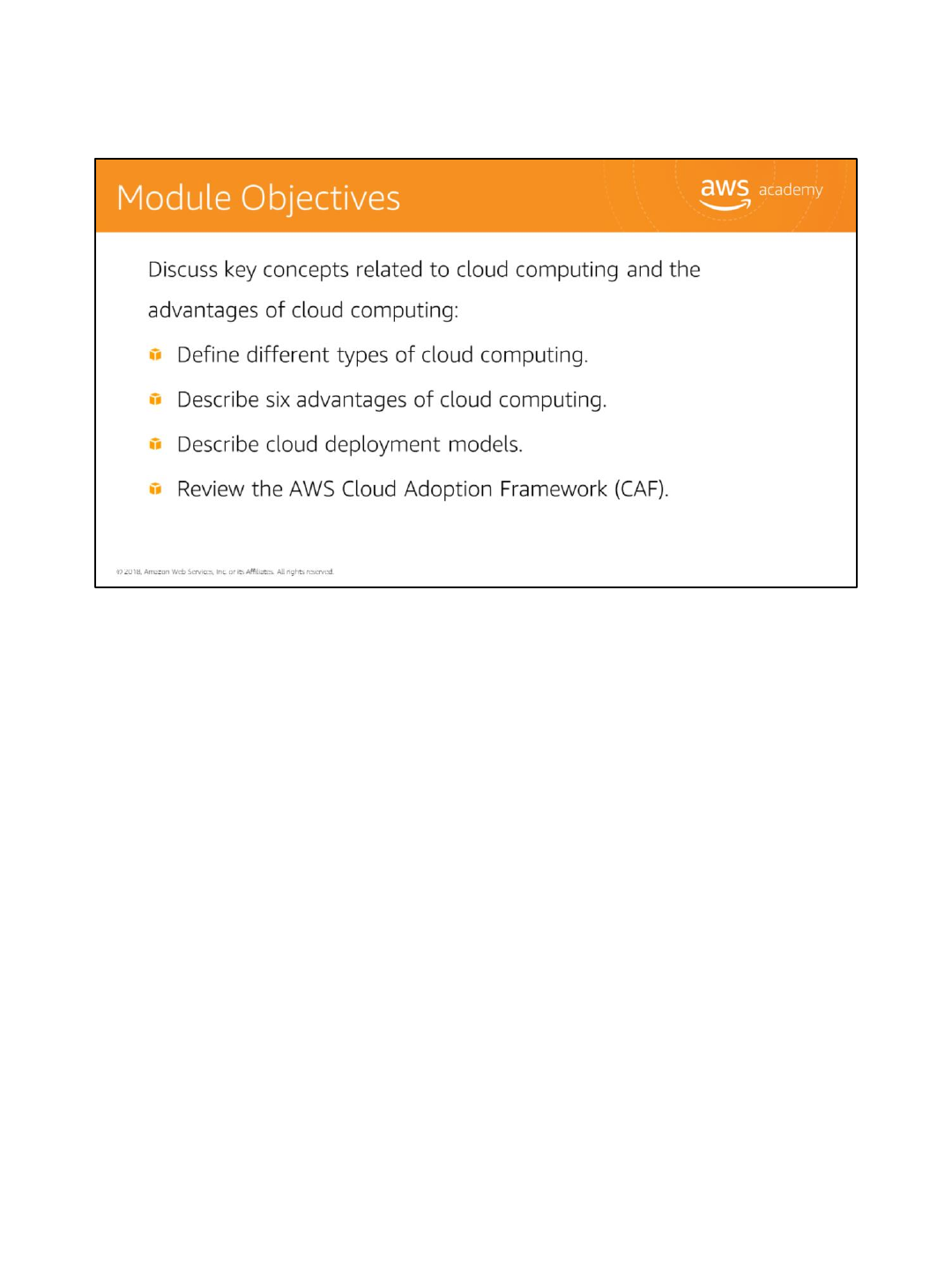

The goal of this module is to discuss key concepts related to cloud computing and the

advantages of cloud computing with Amazon Web Services.

We will:

• Define different types of cloud computing to understand internet-based computing and

three broad categories of cloud computing.

• Describe the six advantages of cloud computing that are helping organizations make the

decision to get out of the low-value parts of IT and focus on things that drive business

success.

• Describe three cloud deployment models to understand alternative models of cloud usage.

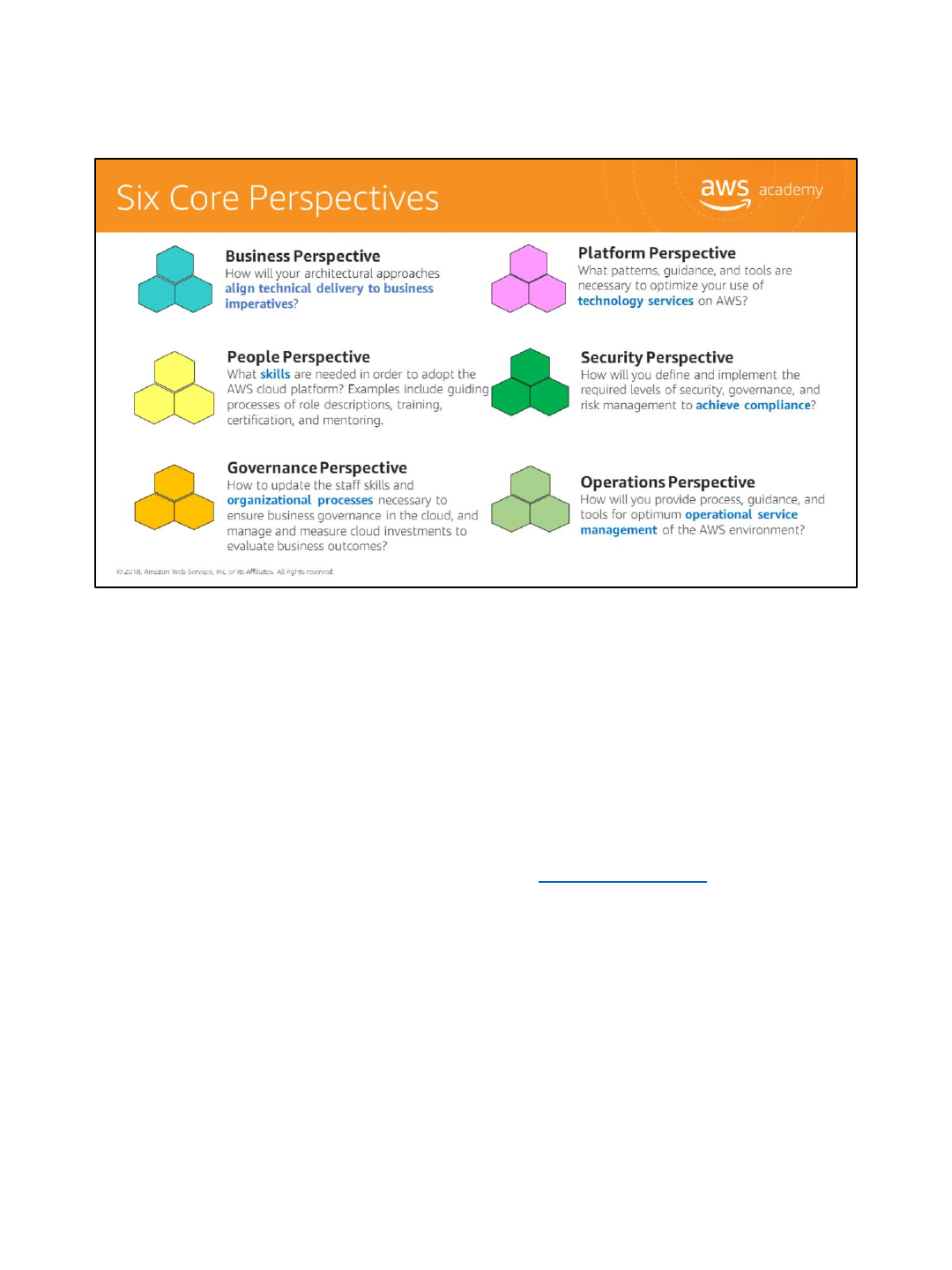

• Review the AWS Cloud Adoption Framework which helps organizations understand how

cloud adoption transforms the way they work.

After this overview, you will have the opportunity to complete a Knowledge Assessment.

3

AWS Academy Module 1.1: Cloud Concepts Overview

In part one, we’ll answer the question, “What is cloud computing?”

AWS Academy Module 1.1: Cloud Concepts Overview

What does cloud computing mean to you?

Take a moment to provide a quick sentence on what you understand cloud computing to be.

Note: There’s no wrong answer.

AWS Academy Module 1.1: Cloud Concepts Overview

Cloud computing is the on-demand delivery of compute power, database storage,

applications, and other IT resources through a cloud services platform via the internet, with

pay-as-you-go pricing.

The most basic way to define what the “cloud” is that it is a computer located somewhere

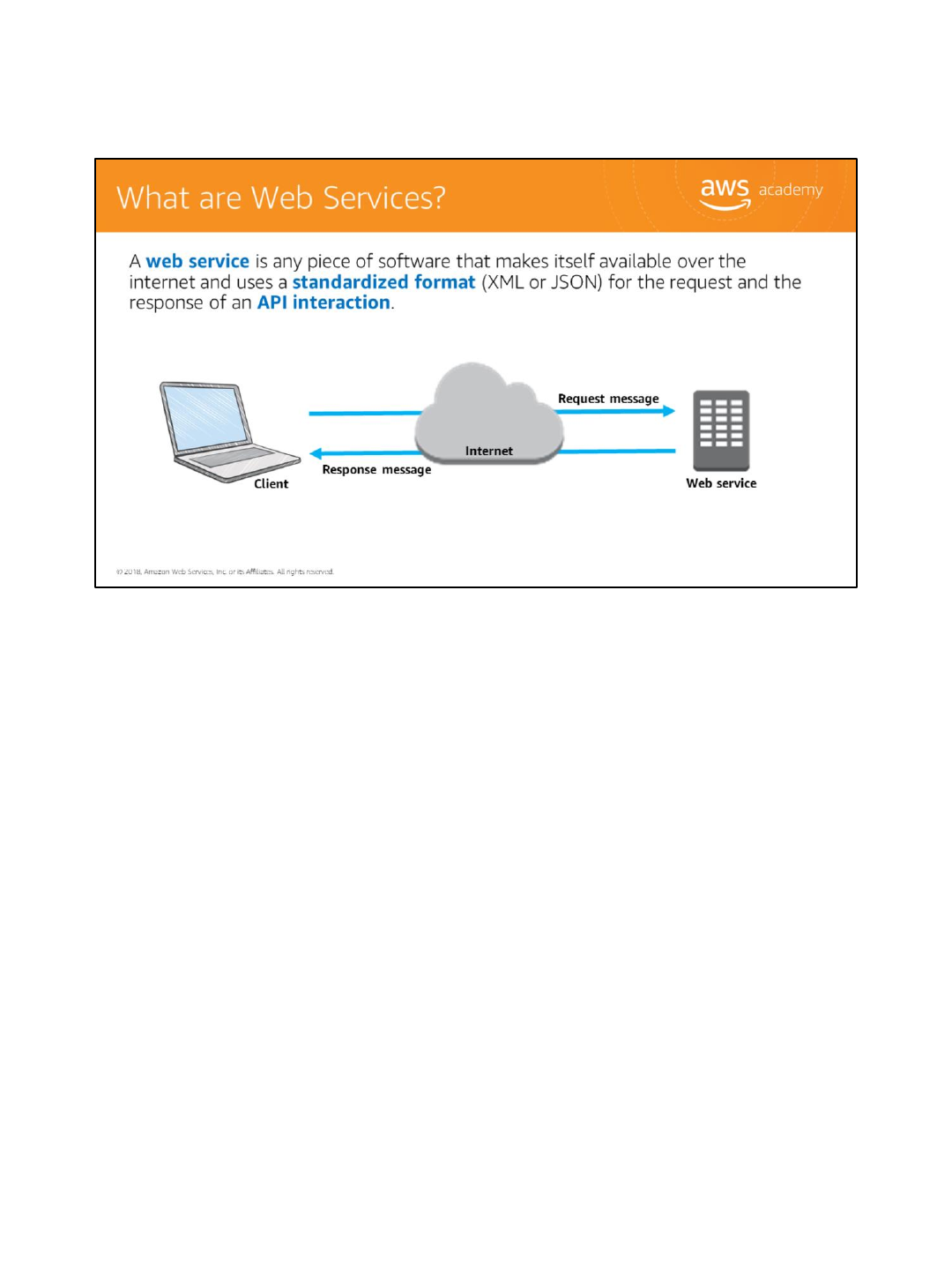

else that is accessed via the Internet and utilized in some way. Web services is also another

name for what people call the cloud.

The cloud is comprised of server computers located in large data centers in different

locations around the world. When you use a cloud service like Amazon Web Services (AWS),

you are utilizing the computers owned by AWS. AWS is a cloud services provider.

The computers contain various technology features and services, like building blocks, that can

be used to assemble solutions that help a user meet their business goals and technology

requirements. With cloud computing, organizations can consume on-demand computing and

storage resources rather than building, operating, and improving infrastructure on their own.

Visit the link to learn more

https://aws.amazon.com/what-is-cloud-computing/.

AWS Academy Module 1.1: Cloud Concepts Overview

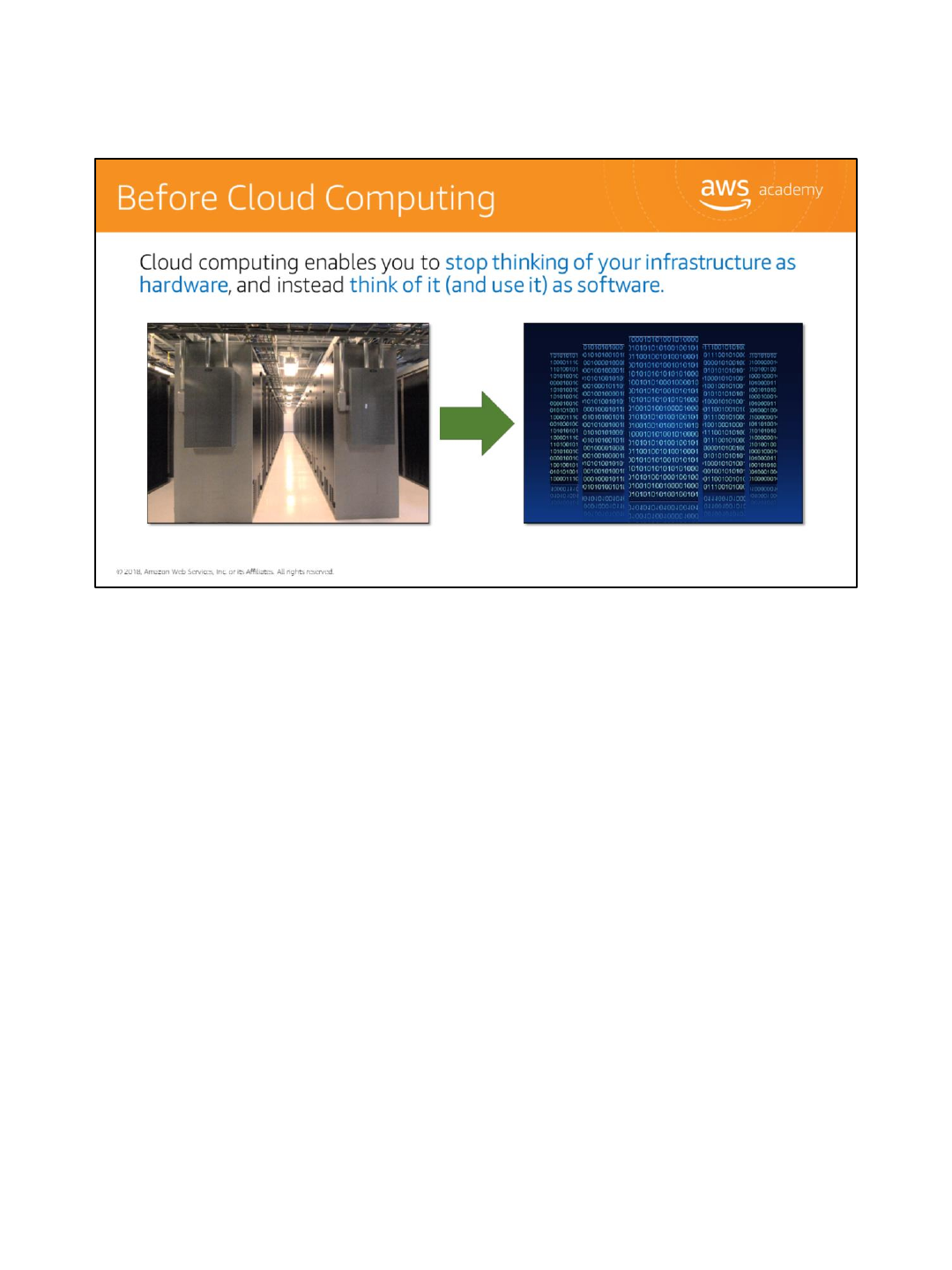

Cloud computing enables you to stop thinking of your infrastructure as hardware, and instead

think of it (and use it) as software. Before cloud computing, you would have to provision

capacity based on guessing theoretical maximum peaks. If you didn’t meet your projected

maximum peaks, or you exceeded them, you would be paying for expensive resources that

would stay idle or have insufficient capacity to meet your needs.

AWS Academy Module 1.1: Cloud Concepts Overview

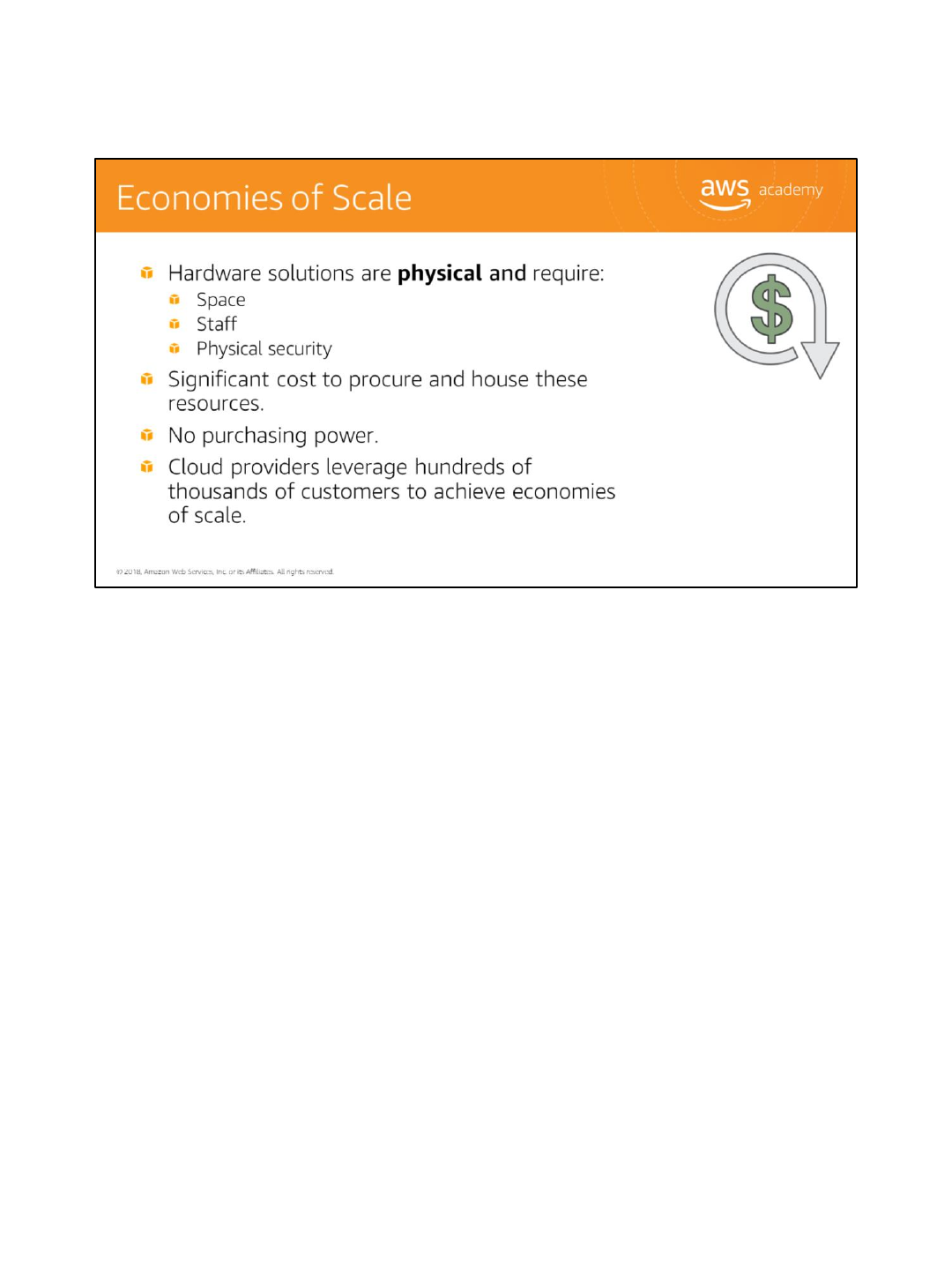

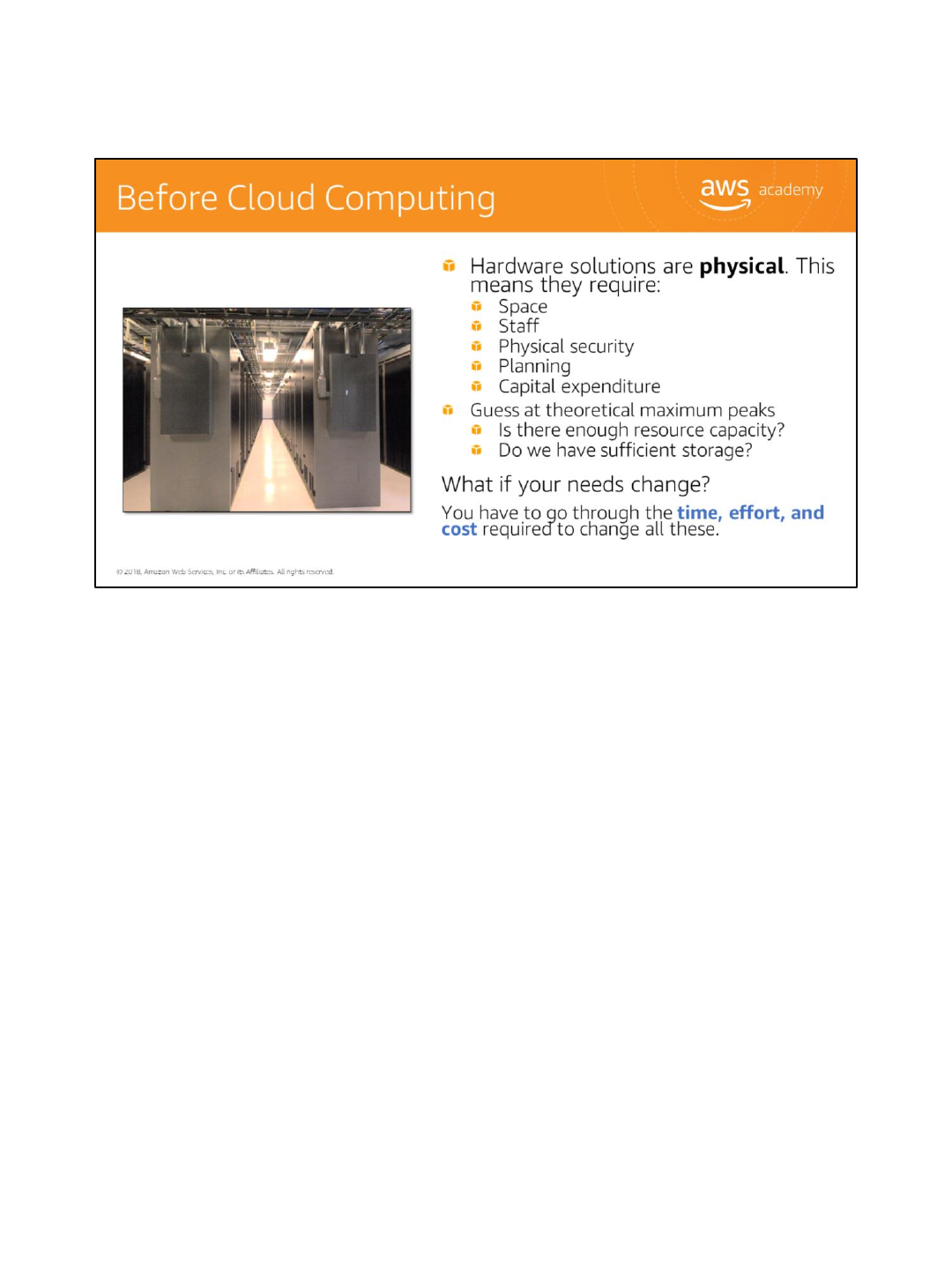

Managing hardware takes away time and resources you could be using to improve your

architecture and your application. Hardware solutions are physical. This means they require

space, staff, physical security, planning and capital expenditure.

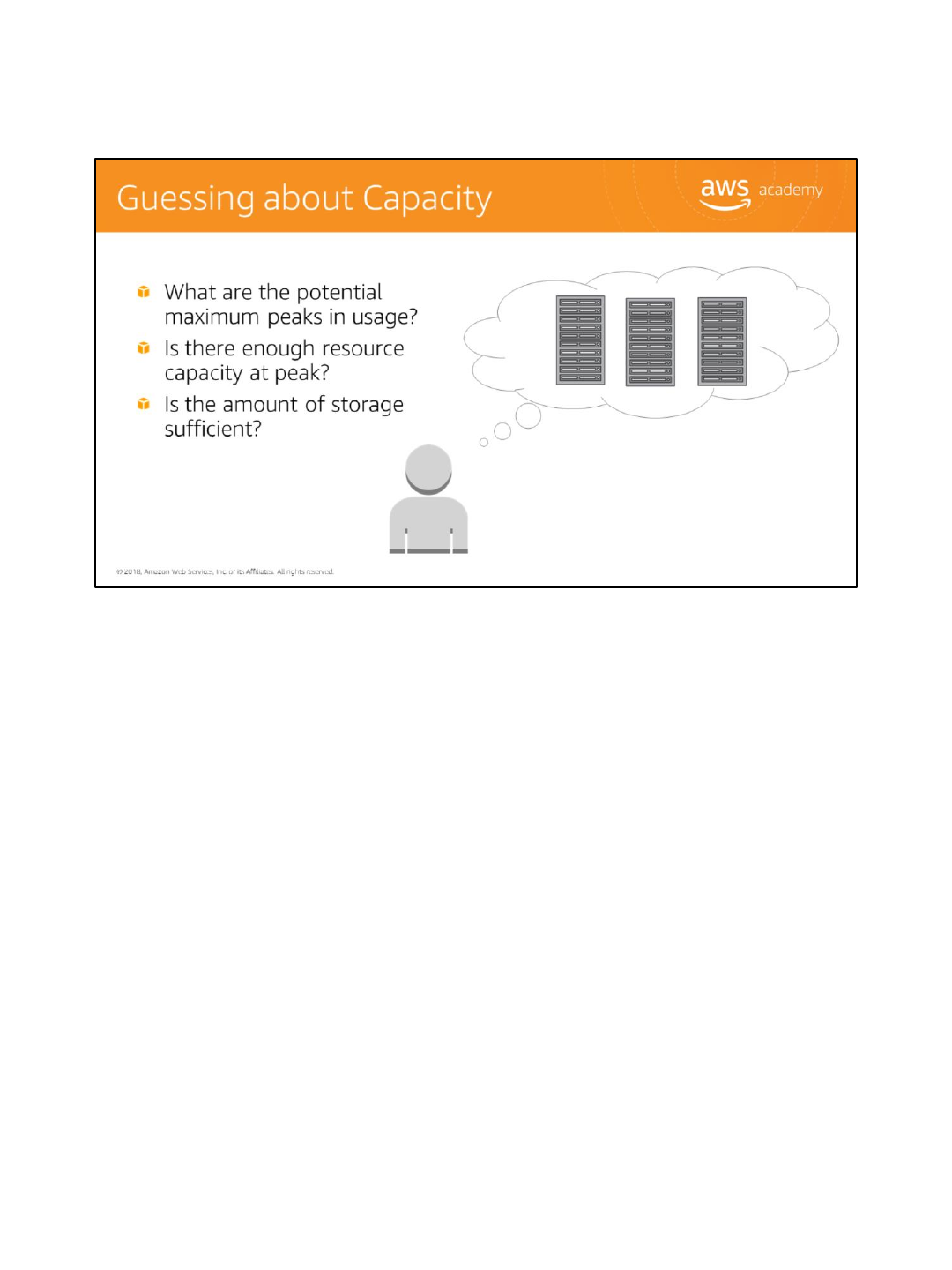

You have to guess at theoretical maximum peaks, asking if there is enough resource capacity

or if you have sufficient storage. What if your needs change? You have to go through the

time, effort, and cost required to change all of these.

For example, if you want to provision a new web site, you would have to go out and buy the

hardware, rack and stack it, put it in a data center, and then manage it or have someone else

manage it. This approach is very expensive.

Cloud computing addresses some of the issues in the traditional computing model. One of

the most prohibitive aspects of traditional computing is the significant up-front investment of

acquiring, provisioning, and maintaining on-premises infrastructure. Cloud computing can get

businesses up and running with a new solution in place quickly and with very low up-front

costs. Then, you can elastically scale up and down in an automated fashion so that you pay

only for what you use.

Cloud computing also allows you to select the services that best match your needs, giving you

AWS Academy Module 1.1: Cloud Concepts Overview

flexibility with a wide range of choices and the ability to change your configuration at will. All

of these services are provided on a secured infrastructure.

8

AWS Academy Module 1.1: Cloud Concepts Overview

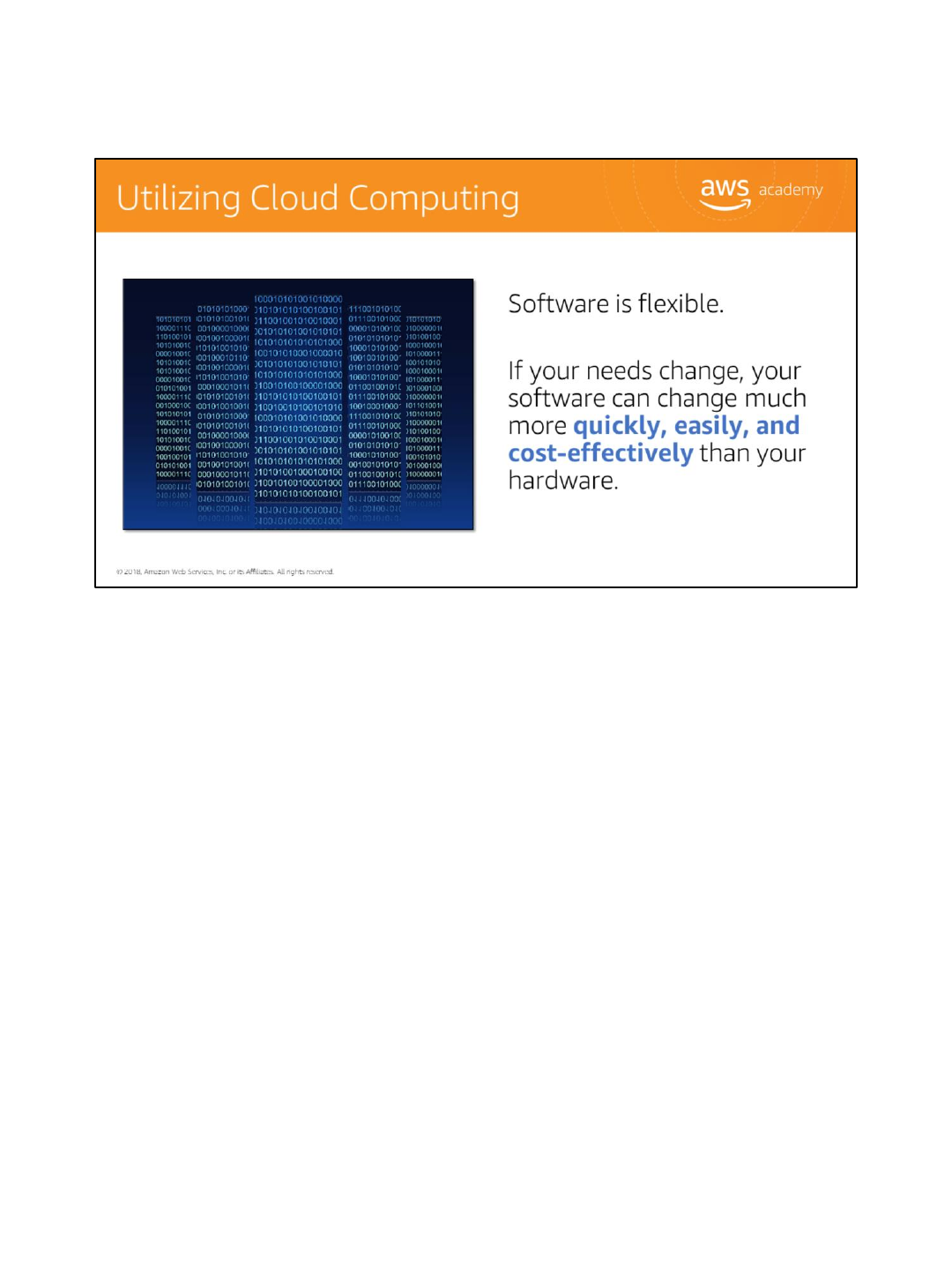

Accessing and using your infrastructure as software offers a number of benefits-flexibility in

particular. If your needs change, your software can change much more quickly, easily, and

cost-effectively than your hardware.

With a cloud services provider like AWS, you don't have to anticipate your hardware needs

ahead of time and then order, install, and set it up at your data center. You also don’t need to

undergo a long procurement cycle. With a few clicks, you can provision exactly what you

need-and it will be available to you in a few minutes.

That means you can provision and terminate resources as necessary on AWS, instead of

paying for hardware when you’re not using it. You can treat resources as temporary and

disposable resources, free from the inflexibility and constraints of a fixed and finite IT

infrastructure.

By harnessing the power of AWS, you can be more agile and efficient with change

management, testing, reliability, and capacity planning.

AWS Academy Module 1.1: Cloud Concepts Overview

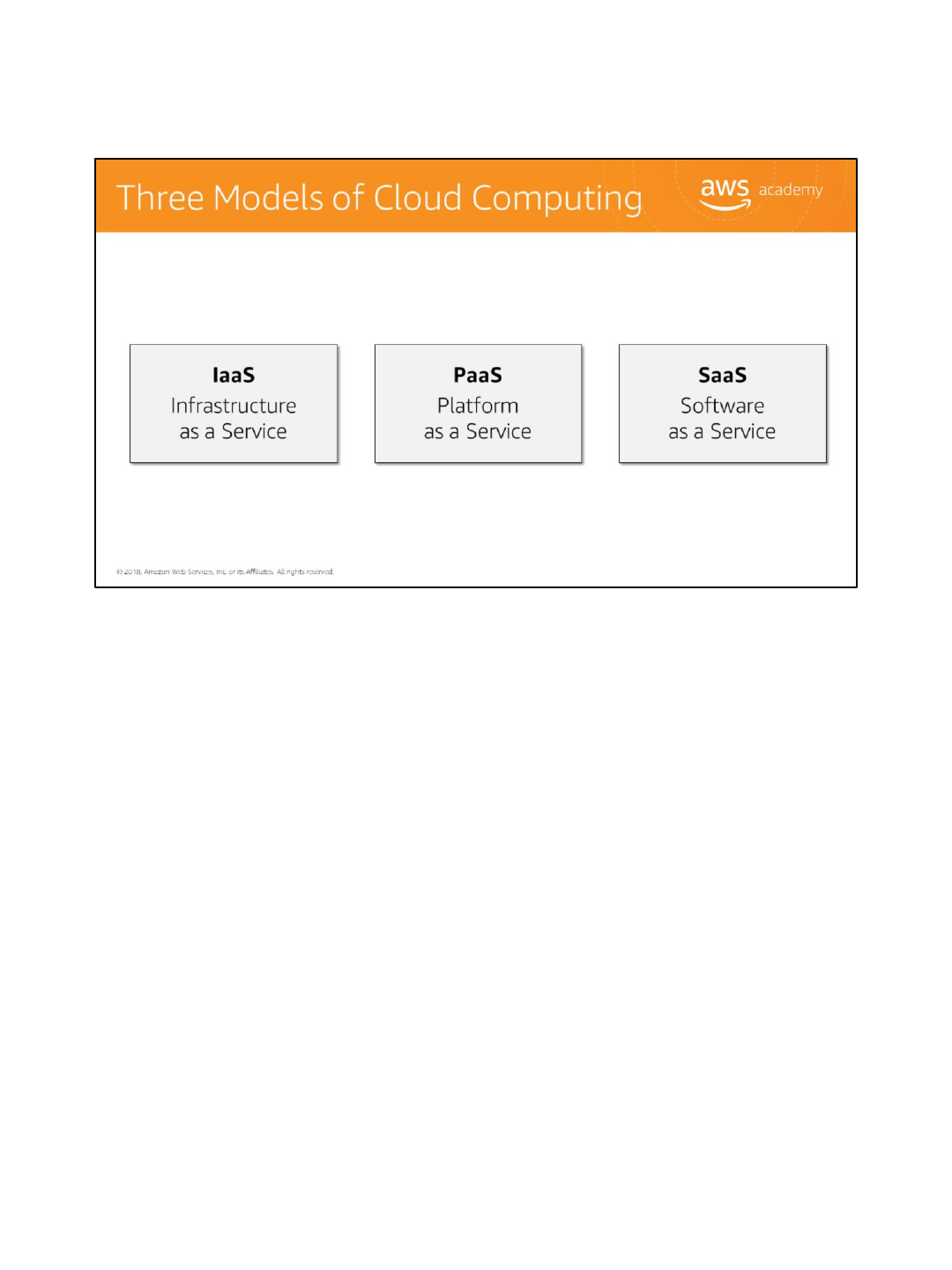

Cloud services can fall into one of three primary categories, based mainly around how much

control and responsibility you have over how the service is configured.

With IaaS (or Infrastructure as a Service), you manage the server, which can be

physical or virtual, as well as the operating system (Windows or Linux). In general, the

data center provider has no access to your server.

Basic building blocks for cloud IT include:

•Networking features

•Compute, and

•Data storage space

With PaaS (or Platform as a Service), someone else manages the underlying

hardware and operating systems. This enables you to run applications without

managing underlying infrastructure (for example -- patching, updates, maintenance,

hardware and operating systems). PaaS also provides a framework for developers

that they can build upon to create customized applications.

With SaaS (or Software as a Service), you manage your files, while the service

provider takes care of all of the data centers, servers, networks, storage,

AWS Academy Module 1.1: Cloud Concepts Overview

maintenance, patching, etc. All you worry about is the software and how you want to

use it. You are provided with a complete product that is run and managed by the

service provider. Facebook and Dropbox are examples of SaaS. You manage your

Facebook contacts and Dropbox files, and the service providers manage the systems.

10

AWS Academy Module 1.1: Cloud Concepts Overview

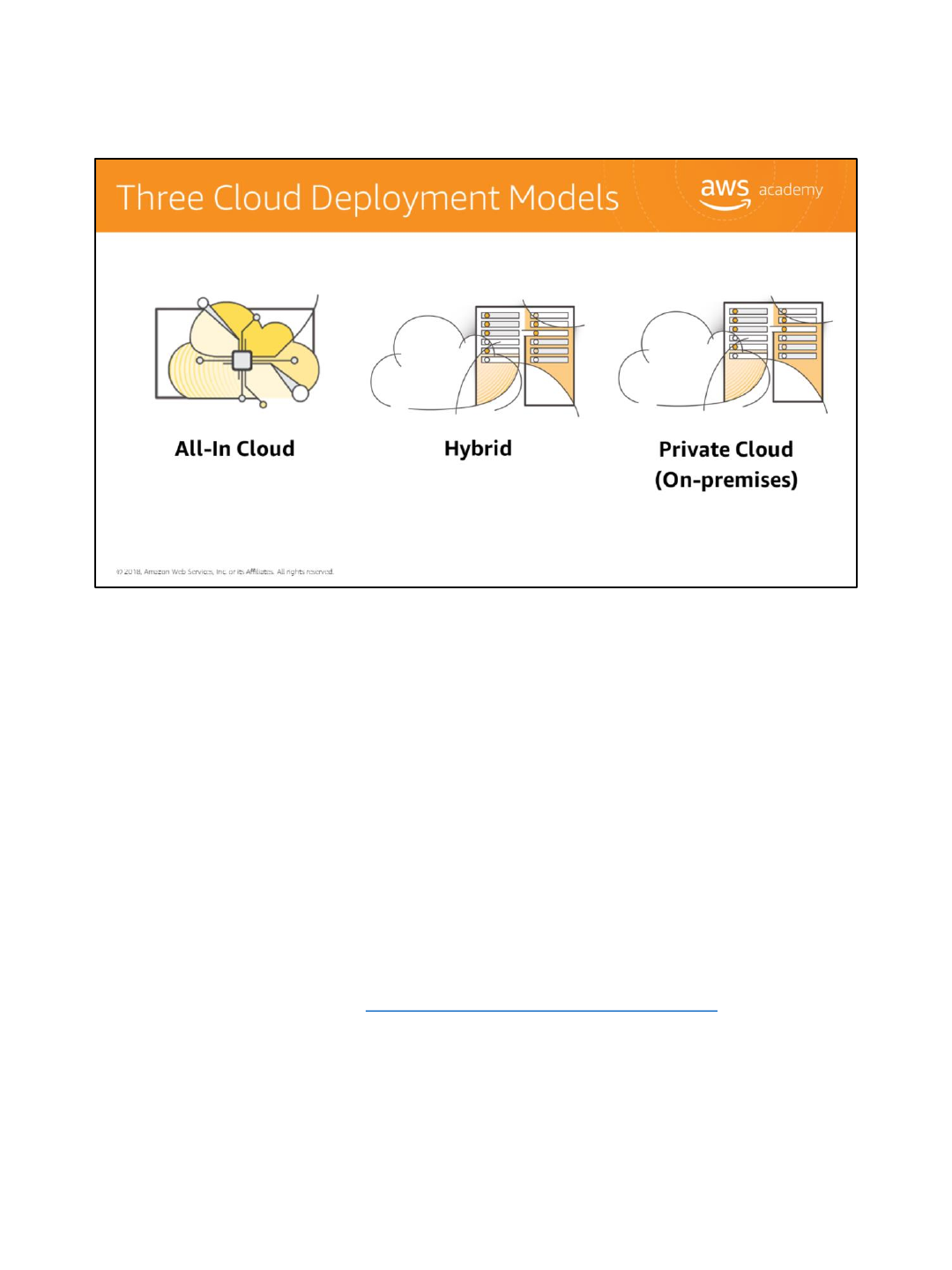

Now, let’s reveal the three cloud deployment models.

"All-In" Cloud is a cloud-based application that is fully deployed in the cloud, and all parts of

the application run in the cloud. Applications in the cloud have either been created in the

cloud or have been migrated from an existing infrastructure. Cloud-based applications can be

built on low-level infrastructure pieces (for example, networking, compute or storage) or can

use higher-level services that provide abstraction from the management, architecting, and

scaling requirements of core infrastructure.

A hybrid deployment is a way to connect infrastructure and applications between cloud-

based resources and existing resources that are not located in the cloud. The most common

method of hybrid deployment is between the cloud and existing on-premises infrastructure

(sometimes called on-prem). On-premises infrastructure is located within the physical

confines of an enterprise, often in the company's data center. A hybrid deployment model is

used to extend an organization's infrastructure into the cloud while connecting cloud

resources to an internal system. For more information on how AWS can help you with your

hybrid deployment, visit the link https://aws.amazon.com/enterprise/hybrid/.

When you run a cloud infrastructure from your own data center, that’s called on-premises or

private cloud. While this kind of deployment lacks many of the benefits of cloud computing, it

does provide dedicated resources and is a popular choice for organizations who need to meet

certain compliance standards. In most cases, this deployment model is the same as legacy IT

AWS Academy Module 1.1: Cloud Concepts Overview

infrastructure while using application management and virtualization to increase resource

utilization.

11

AWS Academy Module 1.1: Cloud Concepts Overview

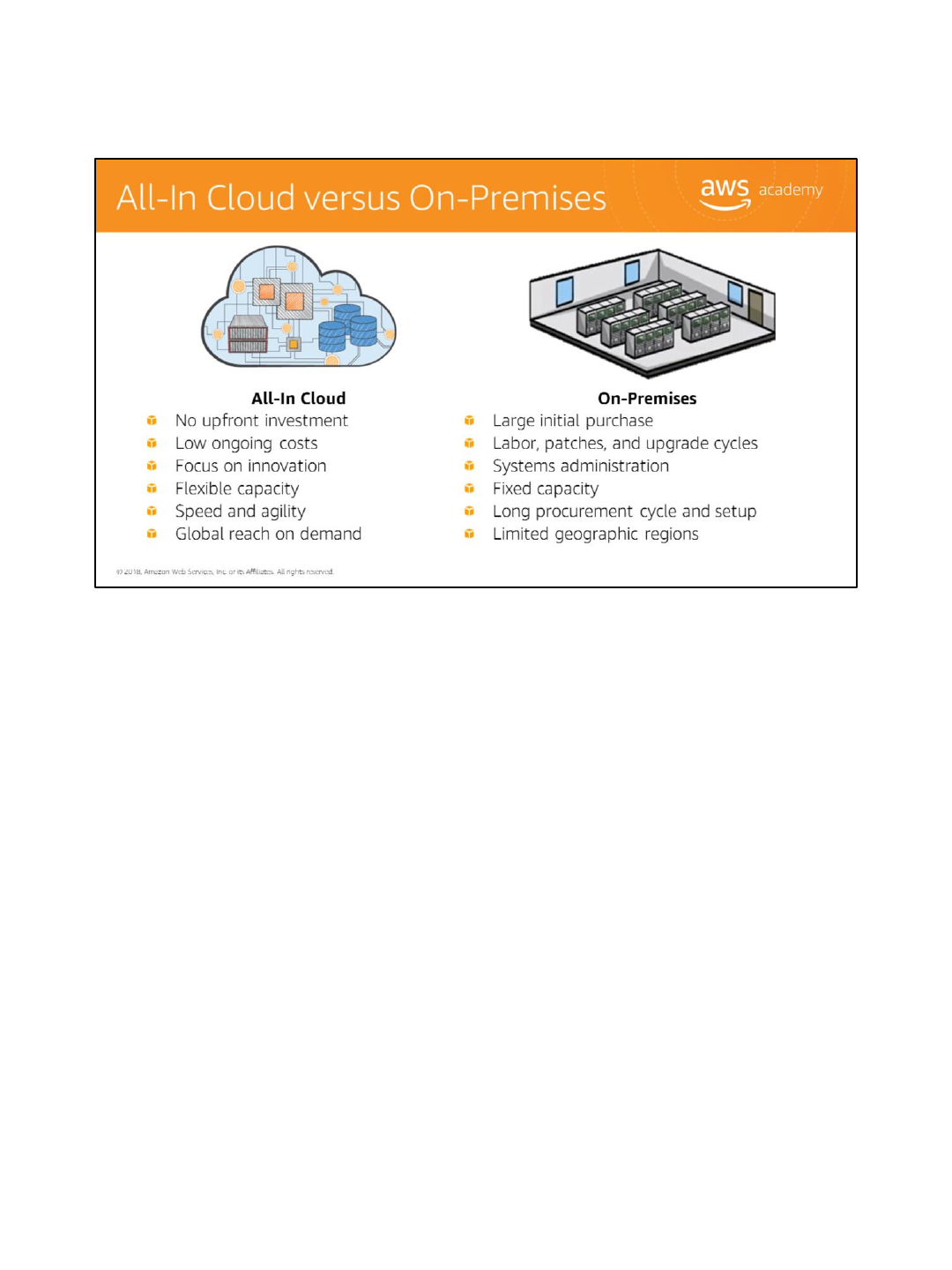

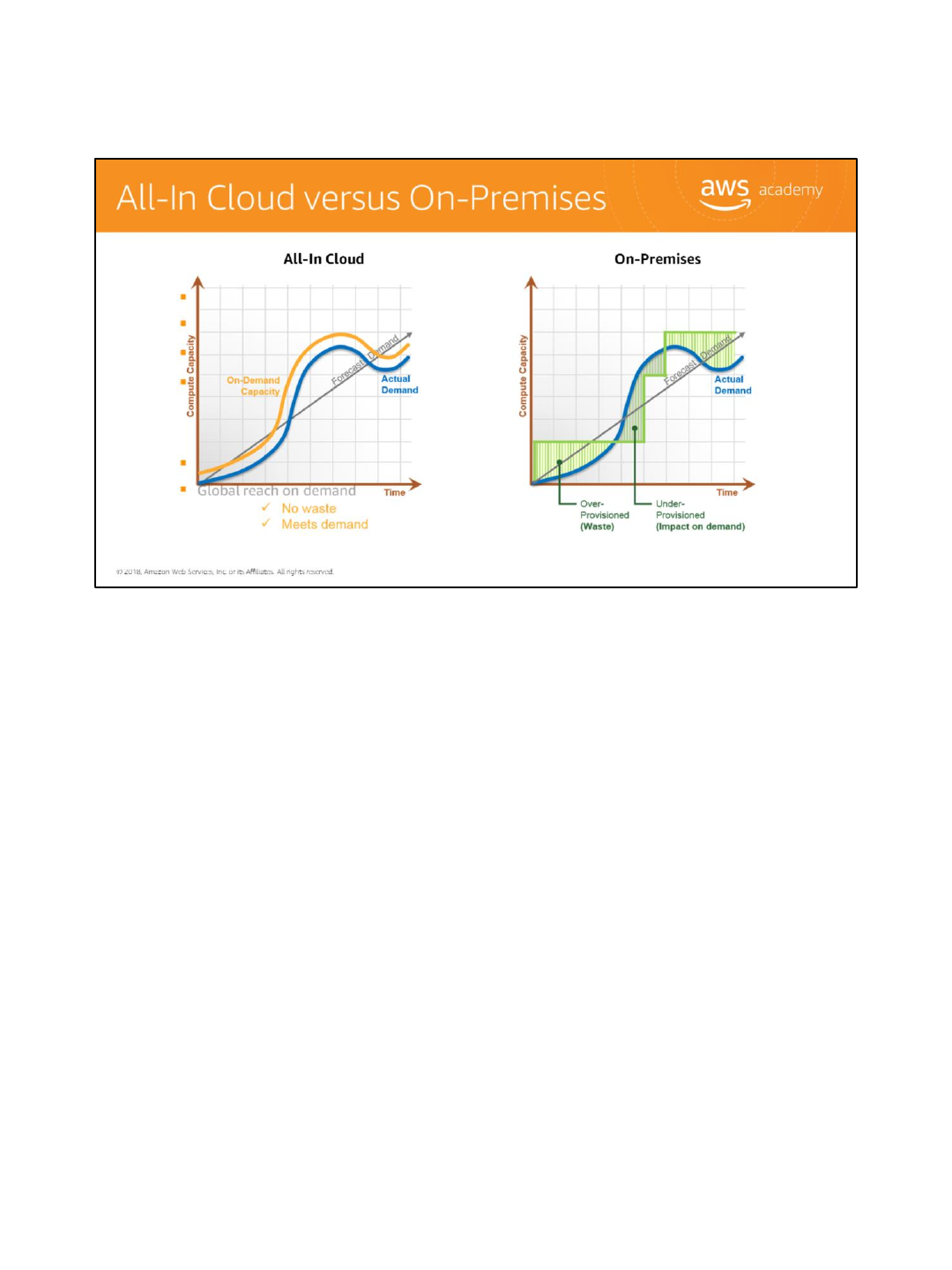

Let’s take a closer look at capacity in the All-In Cloud and On-Premises solutions.

In the “All In” solution, capacity is in sync with demand. Resources are provisioned and

decommissioned in response to demand with only a couple clicks.

In contrast, in “On-Premises” deployments, because you rely on physical hardware, you have

to forecast your capacity needs well in advance of the actual demand. Instead of resources

that expand and contract with demand, the on-premises solution results in idle, wasted

resources waiting for demand to catch up. If demand suddenly outpaces capacity, the

shortfall may result in unhappy customers. Your ability to respond quickly to this situation

can be limited by long procurement cycles or by constraints on where you house your IT

resources. Furthermore, building an on-premises infrastructure can be slow and expensive.

12

AWS Academy Module 1.1: Cloud Concepts Overview

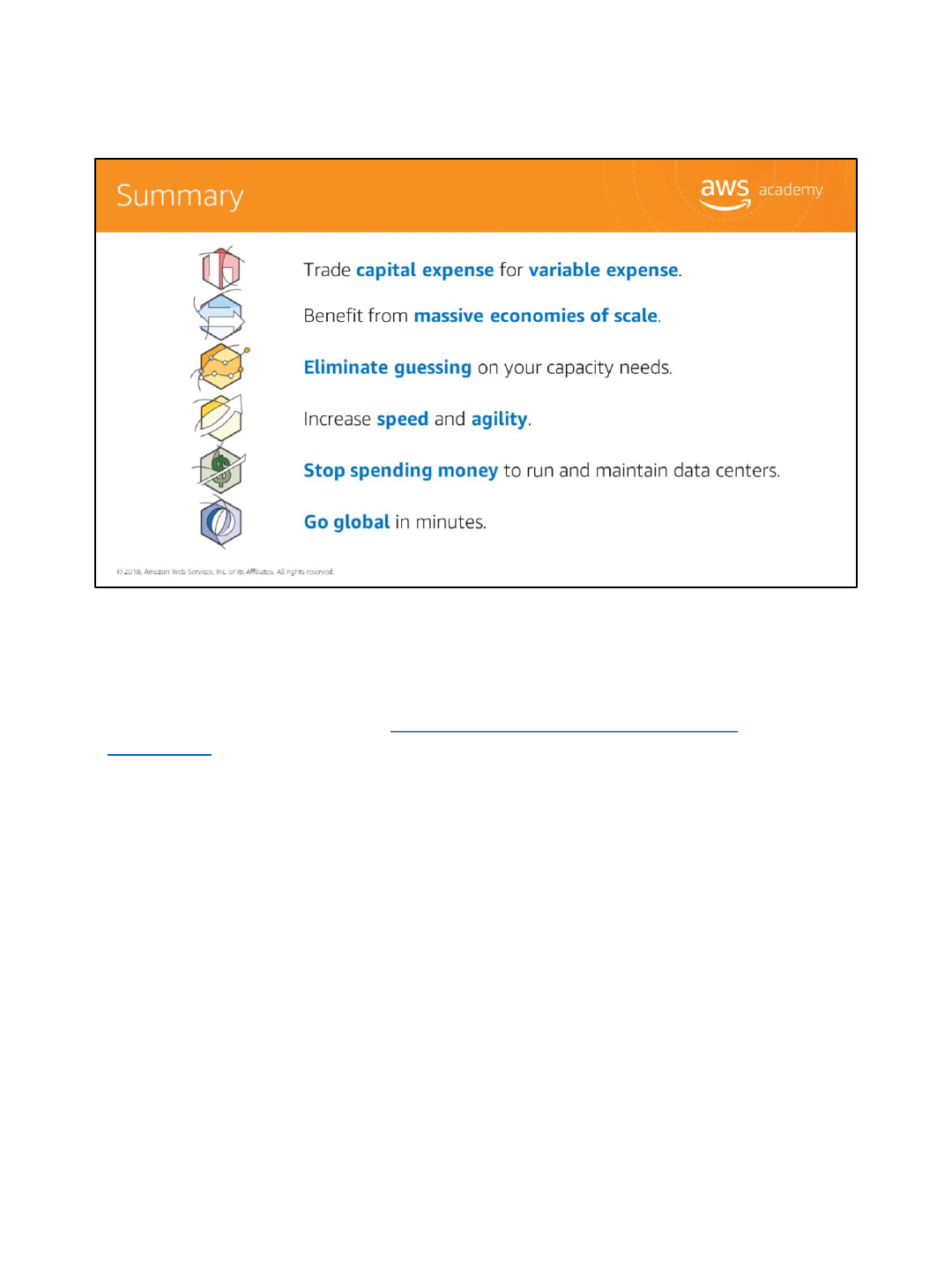

To summarize:

•With the All-In solution, there is no upfront investment, so you avoid the large capital purchases

required for an On-Premises solution. You have immediate access to resources without having to

procure, install, and configure cabling, racks, servers, and storage in a physical location with

appropriate facilities like cooling and power. Instead, you just click to order and pay for the

resources you need, which are available almost immediately.

•Cloud computing helps you reduce ongoing IT costs in multiple ways. AWS continually lowers prices

due to massive economies of scale and continual improvements. Multiple pricing options also help

you optimize costs based on your unique workloads. You pay only for what you use on a variable,

monthly basis. On-premises solutions typically require upgrades on 1-year, 3-year, or 5-year cycles.

•Cloud gives you managed IT resources on demand, at a fraction of the cost of traditional

infrastructure. This cost savings empowers organizations to shift resources toward innovative new

projects that grow their business by focusing on “apps not ops.”

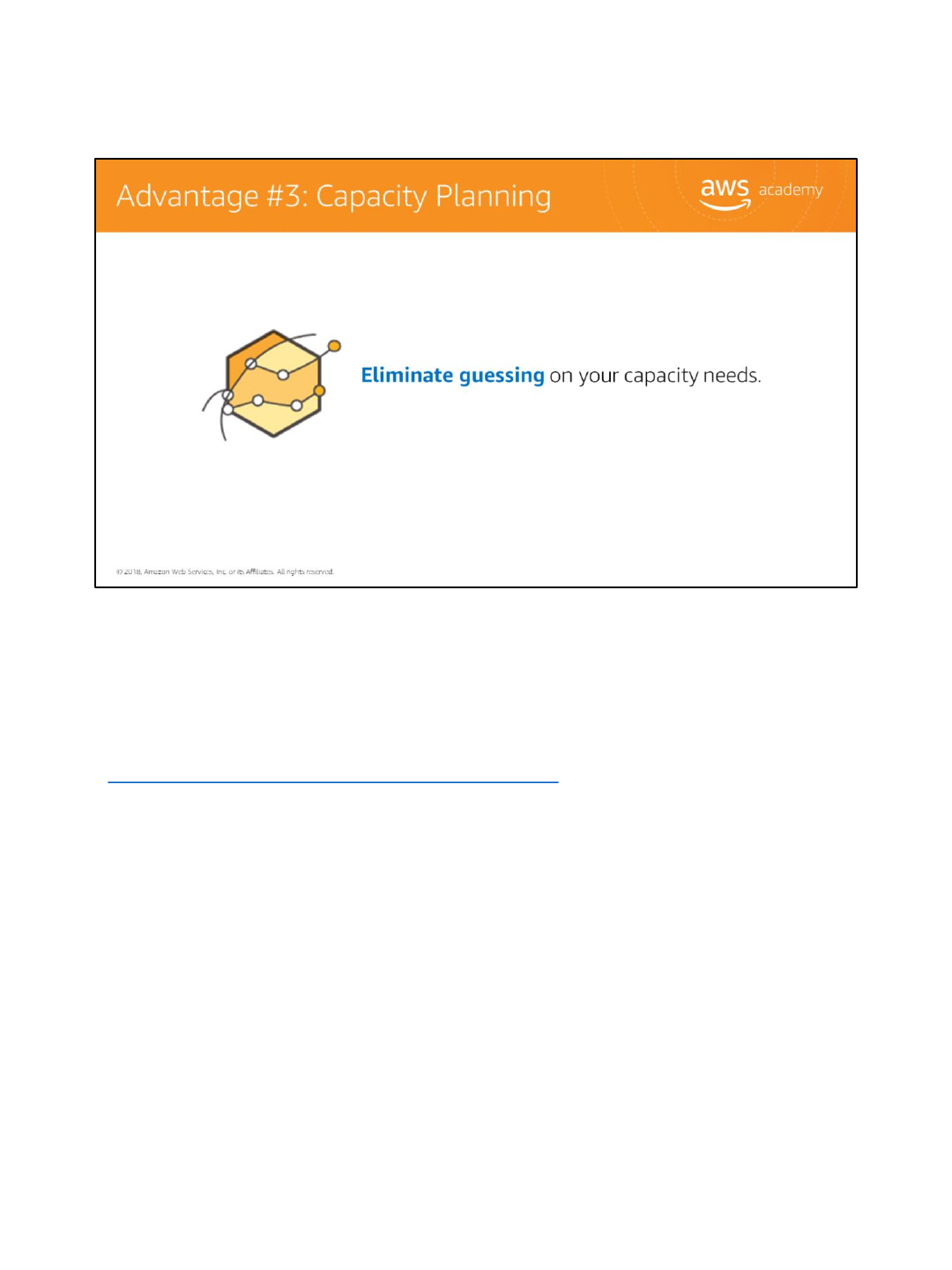

•Predicting how customers are going to adopt your new application is complex, making it difficult to

estimate your infrastructure capacity needs. Flexible capacity means that your resources are

dynamic. You can quickly provision resources as demand goes up and turn off what you don’t need

as demand declines.

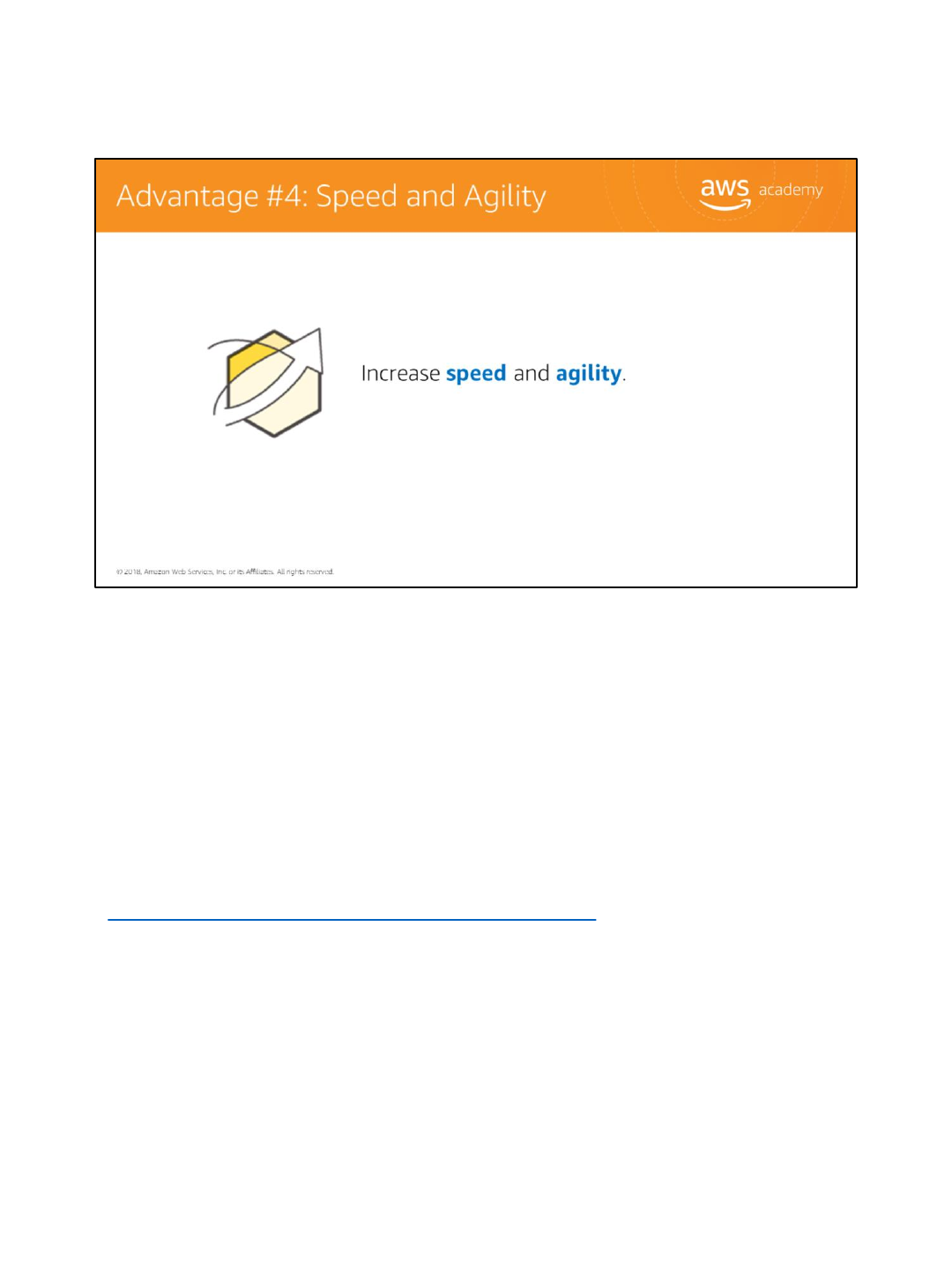

•Cloud computing’s speed and agility makes it possible for you to respond to changing market

conditions. With AWS, resources can be provisioned as needed. This self-service environment

changes how you develop and deploy applications, allowing your team to experiment more quickly

13

AWS Academy Module 1.1: Cloud Concepts Overview

and more frequently. The amount of time it takes to get a server procured, delivered, and

running limits this in a traditional infrastructure.

•With on-premises, it is hard to deliver great performance to a distributed user base. The

initial purchase is large, it’s labor intensive with patches, upgrade cycles and systems

administration with fixed capacity. There are long procurement cycles and setup, so

companies focus on one geographic region at a time to save costs and time. Without

geographical limitations, you can deploy your application in any of the AWS regions

around the world with lower latency and at minimal cost.

13

AWS Academy Module 1.1: Cloud Concepts Overview

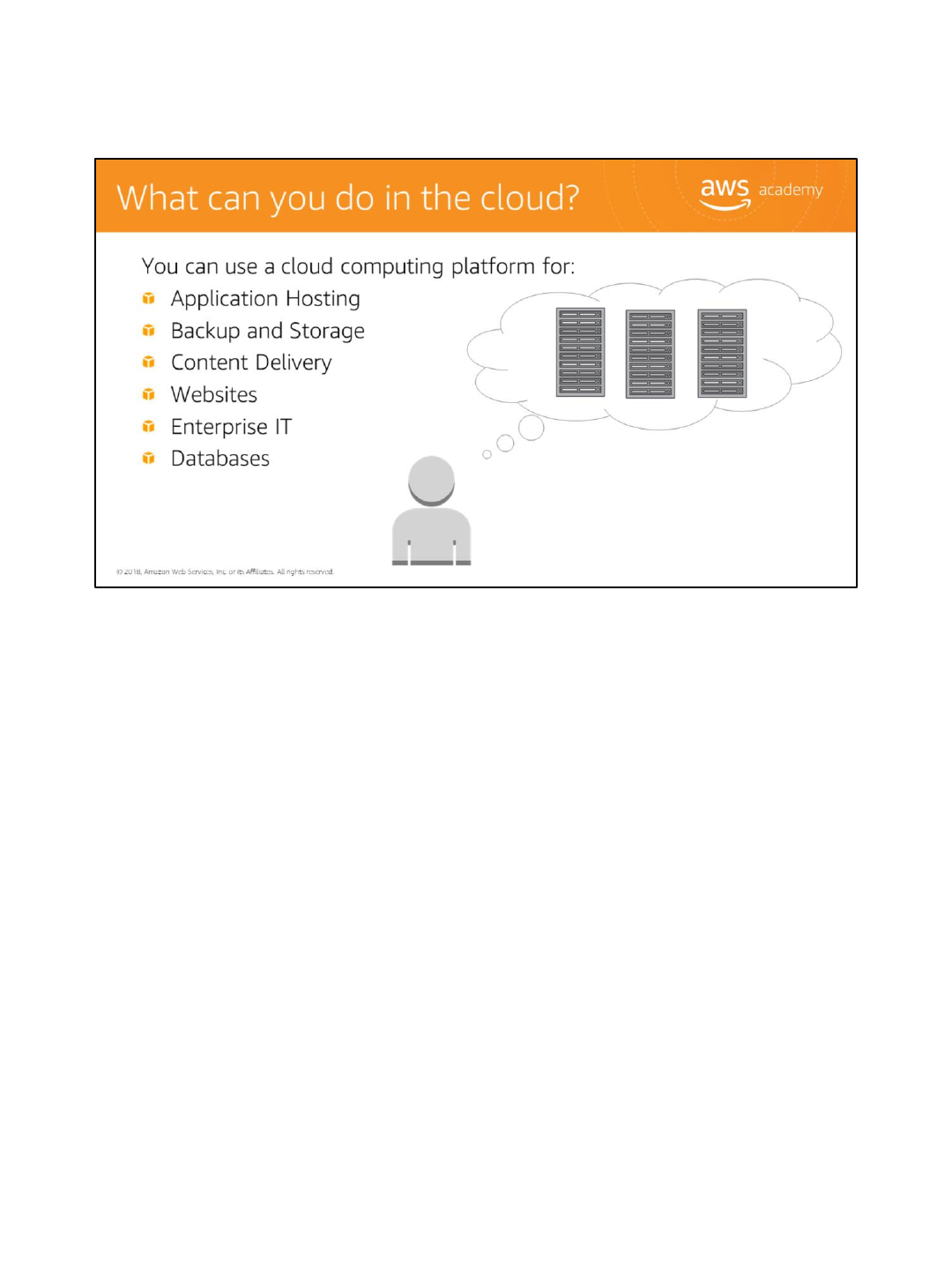

You can use a cloud computing platform for the following:

• Application Hosting for an on-demand infrastructure to host internal or SaaS applications.

• Backup and Storage to store data and build dependable backup solutions.

• Content Delivery to distribute content worldwide, with high data transfer speeds.

• Host static and dynamic websites.

• Enterprise IT to host internal- or external-facing IT applications in AWS's secure

environment.

• Use a variety of scalable database solutions, from hosted enterprise database software to

non-relational database solutions.

14

AWS Academy Module 1.1: Cloud Concepts Overview

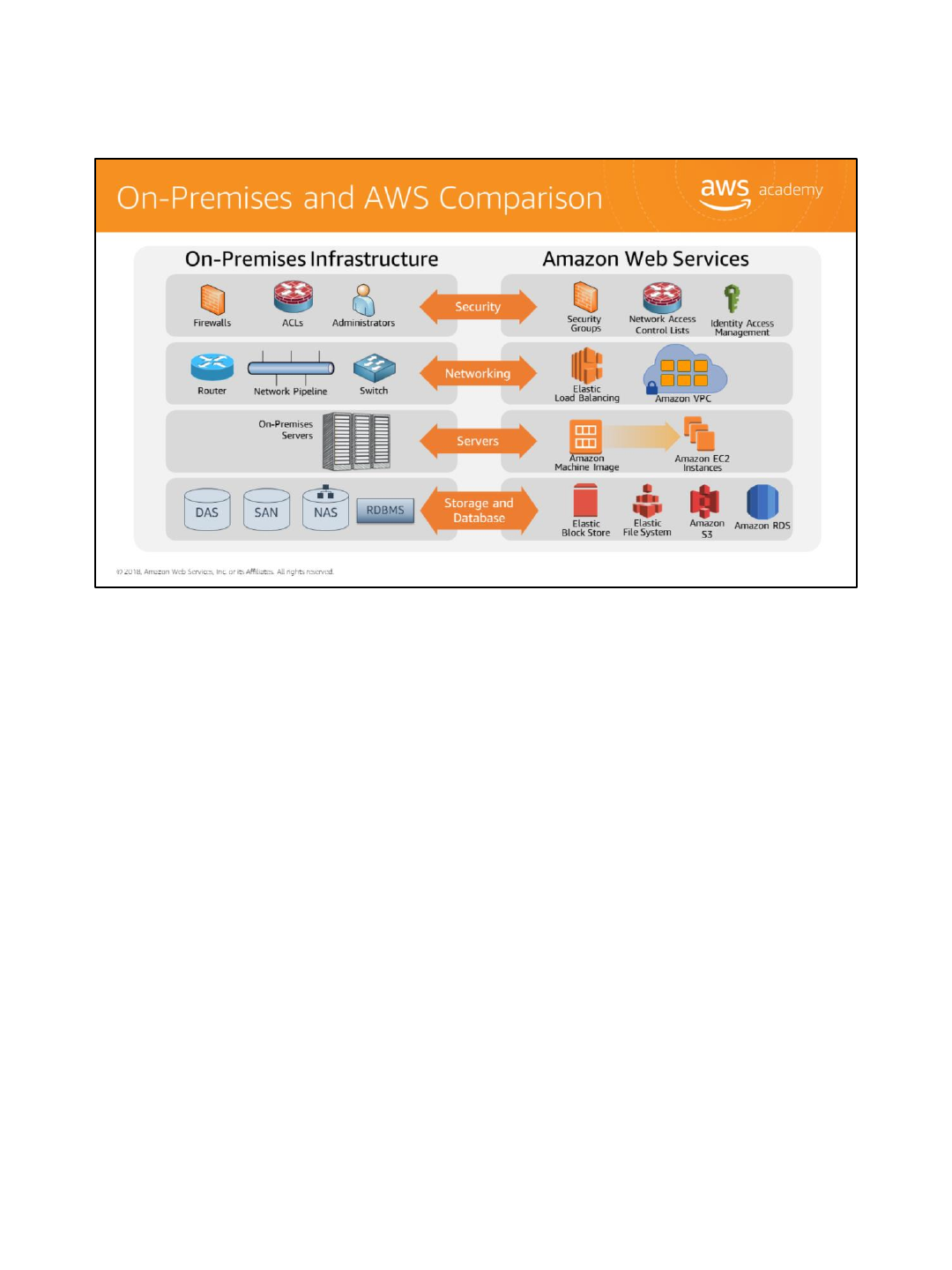

Many AWS services have analogs in the traditional IT space and terminology. This side-by-

side comparison shows how Amazon Web Services (AWS) products and services relate to a

traditional infrastructure. Pretty much everything you would want to do with a traditional

data center is available with AWS.

AWS Academy Module 1.1: Cloud Concepts Overview

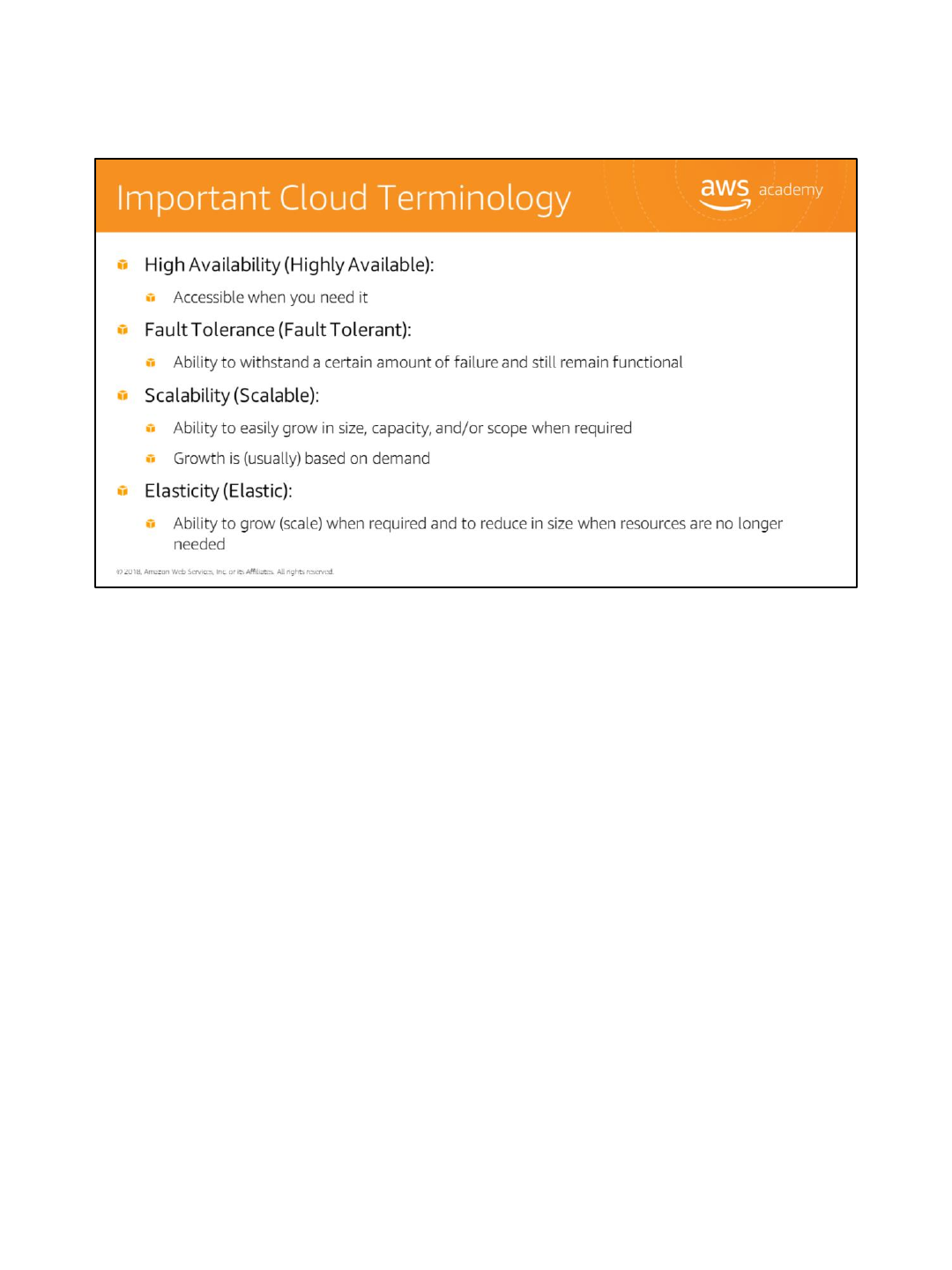

Now let’s review some important cloud terminology. High availability, fault tolerance,

scalability, and elasticity are four terms often used when discussing the cloud. These

concepts are the fundamental building blocks of AWS and will be referred to throughout the

course.

High availability refers to a resource that is accessible when you attempt to access it. For

example, if every time you go to the ATM to make a withdrawal it works as expected the

ATM is highly available; however, if you go to use it and there is a sign on the front that says

“Out of Order”, it is not highly available.

Fault tolerance is the ability to withstand a certain amount of failure and still remain

functional. It also refers to the ability of a system to be self-healing and return to full capacity

despite a failure. It is the ability of a system to fail in some way but still remain functional.

Scalability is the ability to easily grow in size, capacity, and/or scope when required

particularly in response to demand. If something cannot quickly grow in an easy manner it is

not scalable.

Elasticity is the ability to not only grow (or scale) when required, but also to reduce or

contract in size as needed. A system that is elastic can scale to grow as needed usually based

AWS Academy Module 1.1: Cloud Concepts Overview

on demand and contract as demand decreases.

16

AWS Academy Module 1.1: Cloud Concepts Overview

In summary, cloud computing is the on-demand delivery of IT resources online with pay-as-

you-go pricing.

The three models of cloud computing are:

Infrastructure as a Service (IaaS)

Platform as a Service (PaaS), and

Software as a Service (SaaS)

All-in cloud, hybrid, and private cloud, are three cloud deployment models.

Cloud services are available to replace traditional on-premises computing activities.

AWS Academy Module 1.1: Cloud Concepts Overview

Why are so many companies interested in moving to the cloud? Let’s take a look at the six

benefits companies can realize by moving to the cloud.

AWS Academy Module 1.1: Cloud Concepts Overview

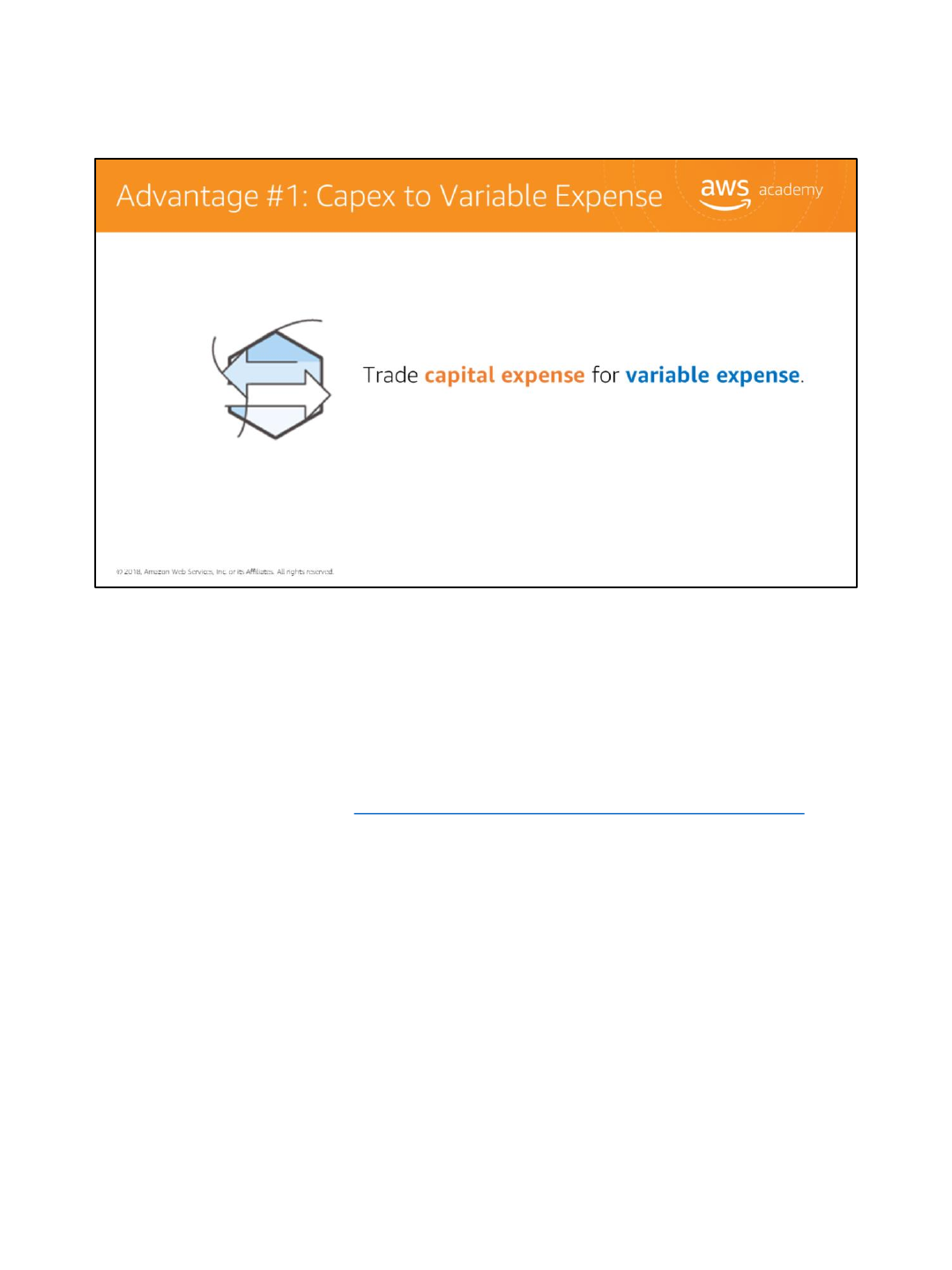

Advantage 1: Trade Capital Expense for Variable Expense

The first advantage is to trade capital expense for variable expense.

Instead of having to invest heavily in data centers and servers before you know how

you’re going to use them, you can pay only when you use computing resources, and

pay for how much you use.

Select the link to learn more https://d1.awsstatic.com/whitepapers/aws-overview.pdf.

AWS Academy Module 1.1: Cloud Concepts Overview

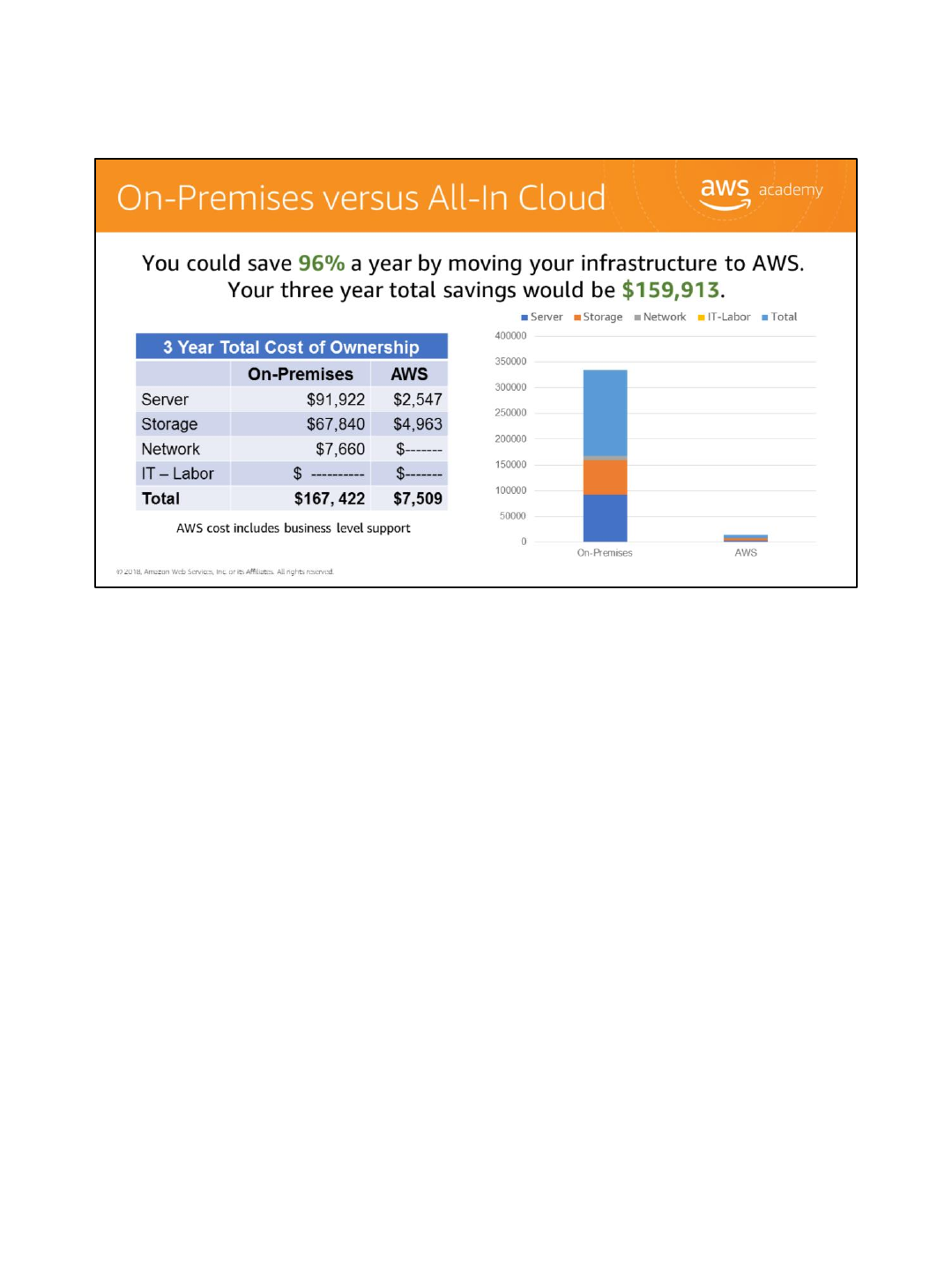

Capital expenses, or capex, are funds used by a company to acquire, upgrade, and maintain

physical assets such as property, industrial buildings, or equipment.

Remember the data center example where we racked and stacked the hardware and then

had to manage it all? You have to pay for everything in the data center whether you use it or

not. Furthermore, when you purchase a hardware solution, you cannot take advantage of the

same massive economies of scale that Amazon can.

A variable expense is an expense that is easily altered or avoided by the person bearing the

cost. By using the cloud, businesses won’t have to invest money into data centers and

servers, and can pay for only what they use in a pay-as-you-go fashion. This lets businesses

save money on technology and enables them to adapt to new applications with as much

space as needed in minutes, rather than weeks or days. Maintenance is reduced so the

business can spend more time focusing on the core goals of the business.

See the links to learn more.

Source:

https://www.investopedia.com/terms/c/capitalexpenditure.asp

Overview of Amazon Web Services: https://aws.amazon.com/whitepapers/overview-of-

amazon-web-services.

AWS Academy Module 1.1: Cloud Concepts Overview

Advantage 2: Benefit from massive economies of scale.

Advantage number two is that you can benefit from massive economies of scale.

By using cloud computing, you can achieve a lower variable cost than you can get on

your own.

Select the link to learn more

https://d1.awsstatic.com/whitepapers/aws-overview.pdf.

AWS Academy Module 1.1: Cloud Concepts Overview

Data centers require hardware solutions, which are physical, and require space, staff,

and physical security. Significant cost and time is associated with the procurement of

these resources. Additionally, purchasing power is limited to the size of their

individual purchases.

In contrast, with usage from hundreds of thousands of customers are aggregated in

the cloud, providers such as Amazon Web Services can achieve higher economies of

scale, which translates into lower pay as-you-go prices.

Sources:

AWS | What Is Cloud Computing - Benefits of the Cloud. Amazon Web Services, Inc.N.p.,

n.d.Web. 31 Aug. 2014.

AWS Academy Module 1.1: Cloud Concepts Overview

Advantage 3: Stop guessing about capacity.

Advantage number three is to eliminate guessing on your infrastructure capacity

needs.

Source:

https://d1.awsstatic.com/whitepapers/aws-overview.pdf

AWS Academy Module 1.1: Cloud Concepts Overview

Before cloud computing, we had to guess about how much resources would be

required to accommodate maximum usage peaks. That method also assumed that

you could accurately predict the usage peaks, if there’s enough resource capacity and

if the amount of storage is sufficient. When you guess, it is very likely that you will

probably either buy too much or too little. If you buy too much, you’ve wasted

money. If you buy too little, you will have downtime.

With cloud computing, these problems go away. You can access as much or as little as

you need, and scale up and down, scale in and out as required with only a few

minutes notice.

AWS Academy Module 1.1: Cloud Concepts Overview

Advantage 4: Increase speed and agility.

Advantage four is increased speed and agility.

In a cloud computing environment, new IT resources are only a click away, which

means you reduce the time it takes to make those resources available to your

developers from weeks to just minutes. This results in a dramatic increase in agility

for the organization, since the cost and time it takes to experiment and develop is

significantly lower.

Source:

https://d1.awsstatic.com/whitepapers/aws-overview.pdf

AWS Academy Module 1.1: Cloud Concepts Overview

Cloud services provide instant global reach and rapid availability of new resources

that enables you to quickly change or scale your technology in minutes, not weeks.

Organizational agility is a core differentiator in today’s rapidly changing business

environment. For organizations to succeed in a constantly changing world, they need

to improve their ability to change and adapt.

You can safely experiment with new ideas and encourage innovation at a very low

cost and leverage pre-fabricated functionality without requiring in-house expertise,

such as data warehousing and analytics.

You may even find success with ideas that simply weren’t feasible in the past due to

hardware or budget constraints. You’re able to explore new avenues of business with

minimal risk and expense, and can test with different configurations.

26

AWS Academy Module 1.1: Cloud Concepts Overview

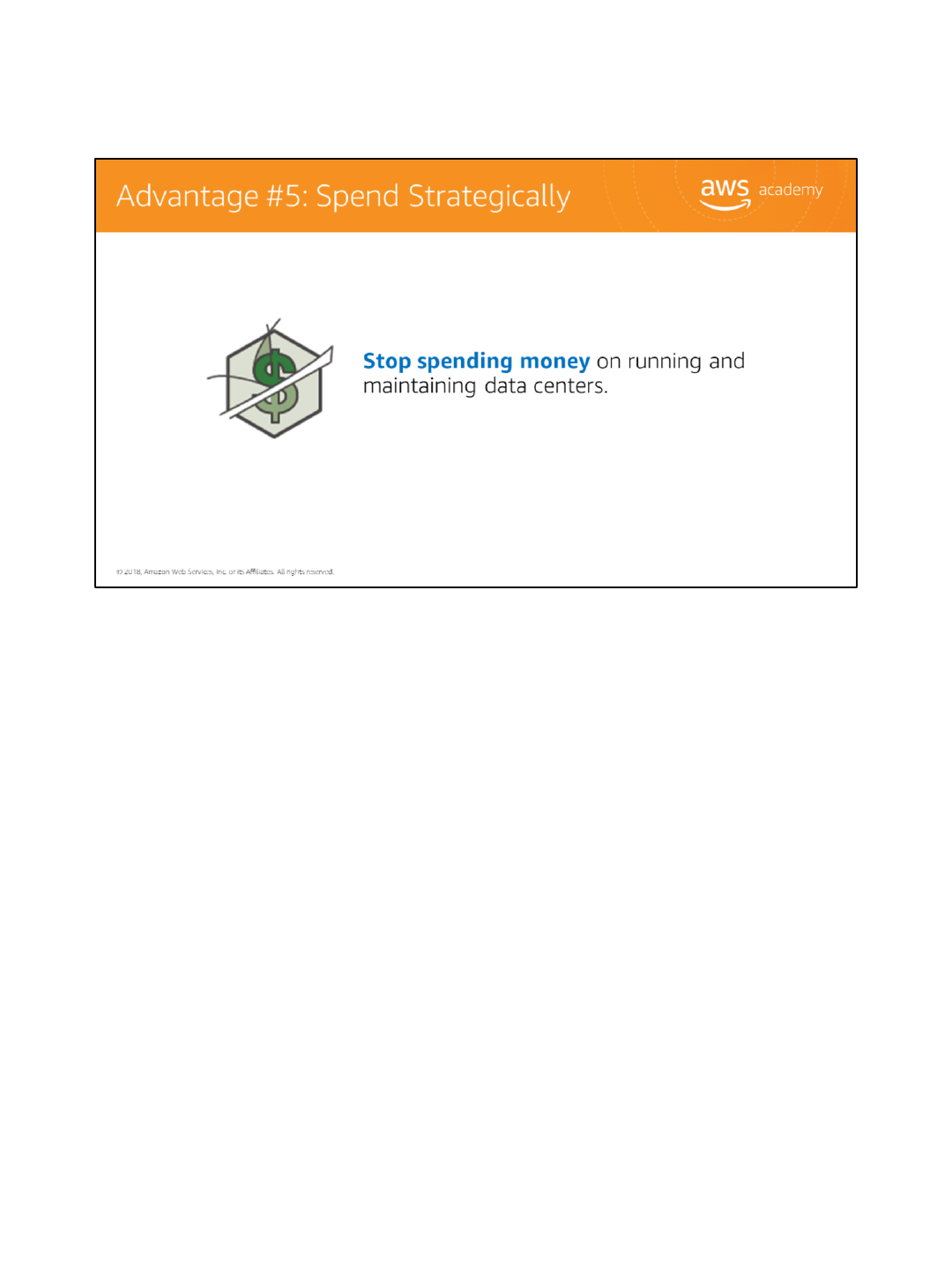

Advantage 5: Stop spending money running and maintaining data centers.

Advantage five is to stop spending money running and maintaining data centers.

Focus on projects that differentiate your business, not the infrastructure. Cloud

computing lets you focus on your own customers, rather than on the heavy lifting of

racking, stacking, and powering servers.

AWS Academy Module 1.1: Cloud Concepts Overview

Cloud computing allows you to focus on your customers and your core business -

what you are good at - rather than on managing infrastructure. Let someone else

manage that for you. Focus on projects that differentiate the business, not the

infrastructure. Delegate the racking, stacking and powering of servers to the cloud

provider!

28

AWS Academy Module 1.1: Cloud Concepts Overview

Advantage 6: Go global in minutes.

Advantage six is the ability to go global in minutes.

Easily deploy your application in multiple regions around the world with just a few

clicks. This means you can provide a lower latency and better experience for your

customers simply, and at minimal cost.

Select the link to learn more.

https://www.youtube.com/watch?v=JIQETrFC_SQ.

AWS Academy Module 1.1: Cloud Concepts Overview

You can be operating locally today and become available globally in minutes by

leveraging Amazon CloudFront and our global network of Edge Locations. Deploying

in the region where your customers are helps you provide lower latency and a better

experience at minimal cost.

To learn more about specific locations, visit the link.

https://aws.amazon.com/about-aws/global-infrastructure/.

30

AWS Academy Module 1.1: Cloud Concepts Overview

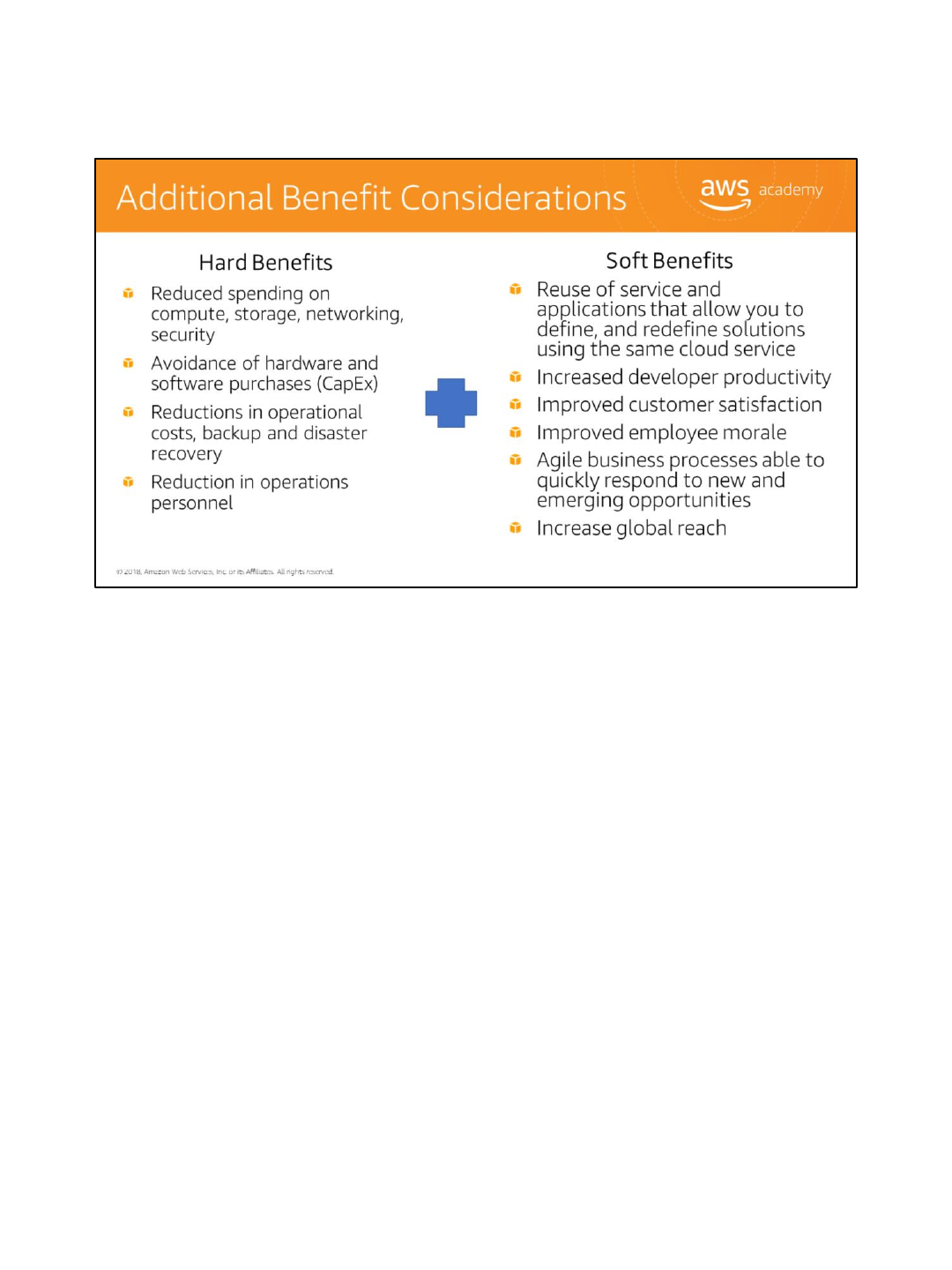

The six benefits discussed in this section provide a strong value proposition for moving to the

cloud. Each of these benefits should be considered when deciding between an on-premises

or cloud solution.

For more information, visit the link. https://d1.awsstatic.com/whitepapers/aws-

overview.pdf.

AWS Academy Module 1.1: Cloud Concepts Overview

In part three, we’ll learn what Amazon Web Services is.

AWS Academy Module 1.1: Cloud Concepts Overview

A web service is any piece of software that makes itself available over the Internet or

on private (intranet) networks. A web service uses a standardized format (such as

XML or JSON) for the request and the response of an API interaction. It is not tied to

any one operating system or programming language, it’s self-describing via an

interface definition file and is discoverable.

AWS Academy Module 1.1: Cloud Concepts Overview

AWS is a secure cloud services provider with more than fifty services to help businesses scale

and grow.

The AWS cloud provides a broad set of infrastructure services, such as compute power,

storage options, networking, and databases delivered as an on-demand utility that is

available in seconds, with pay-as-you-go pricing. All of these services reside on AWS global

infrastructure.

AWS Academy Module 1.1: Cloud Concepts Overview

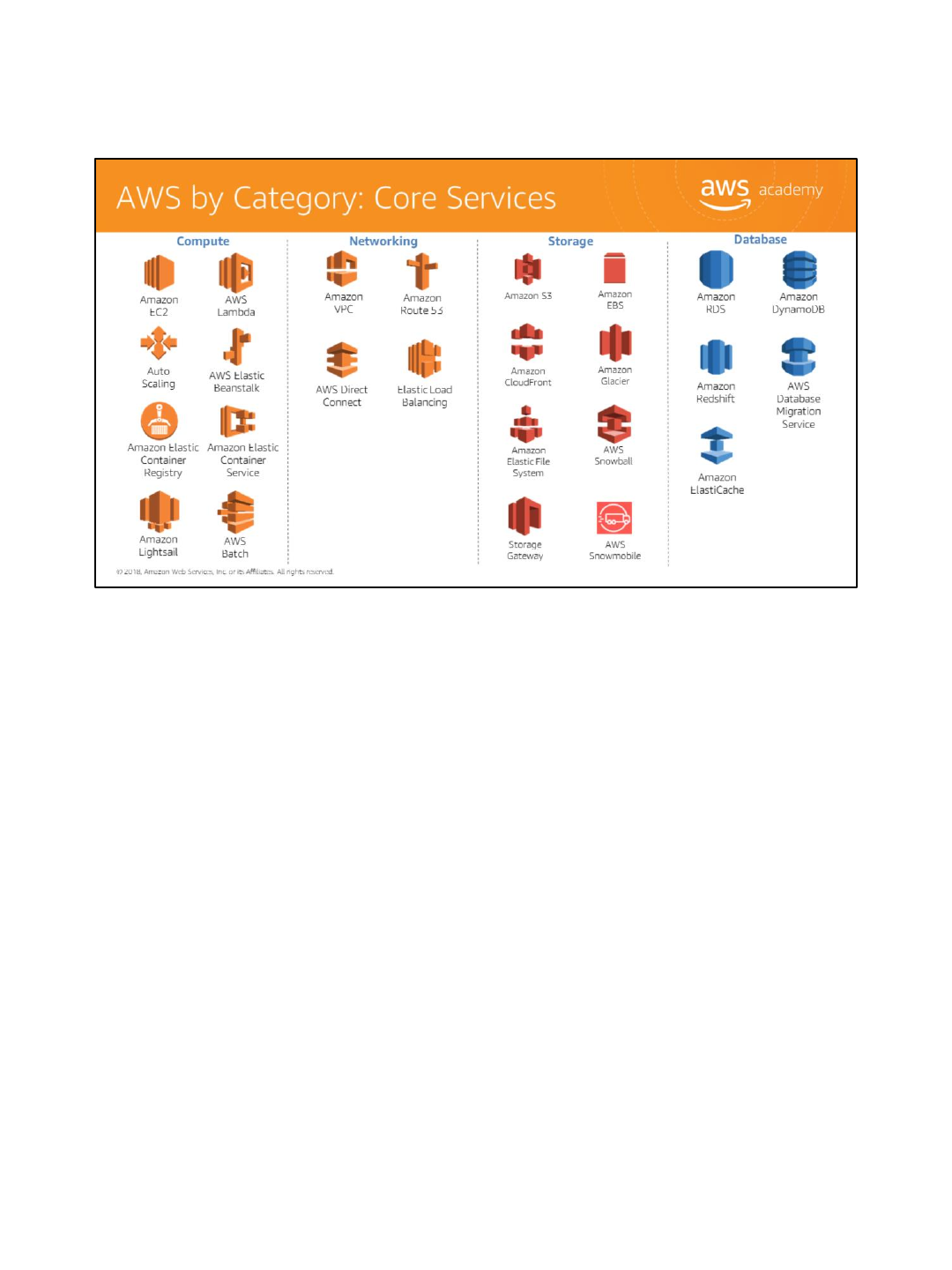

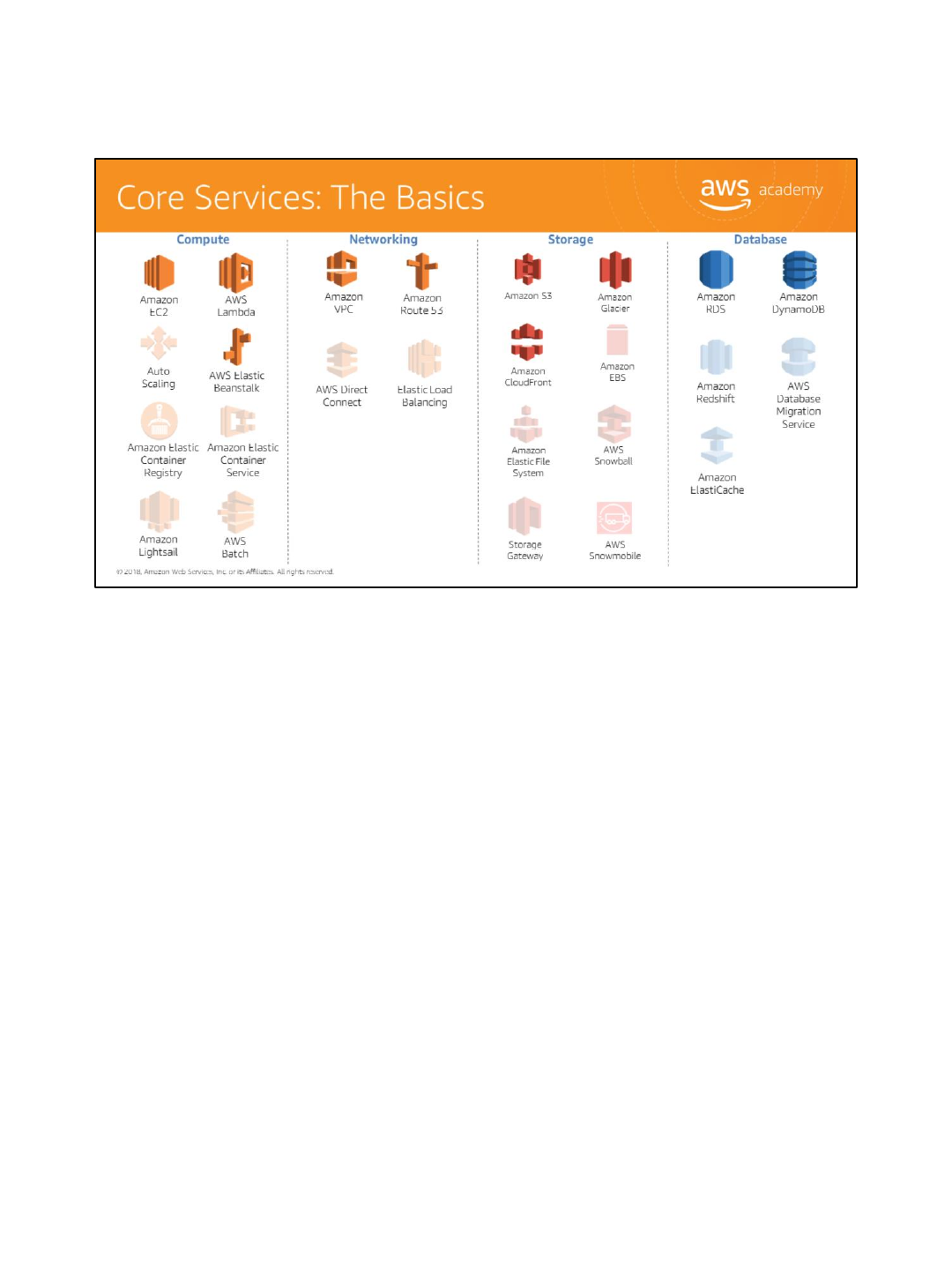

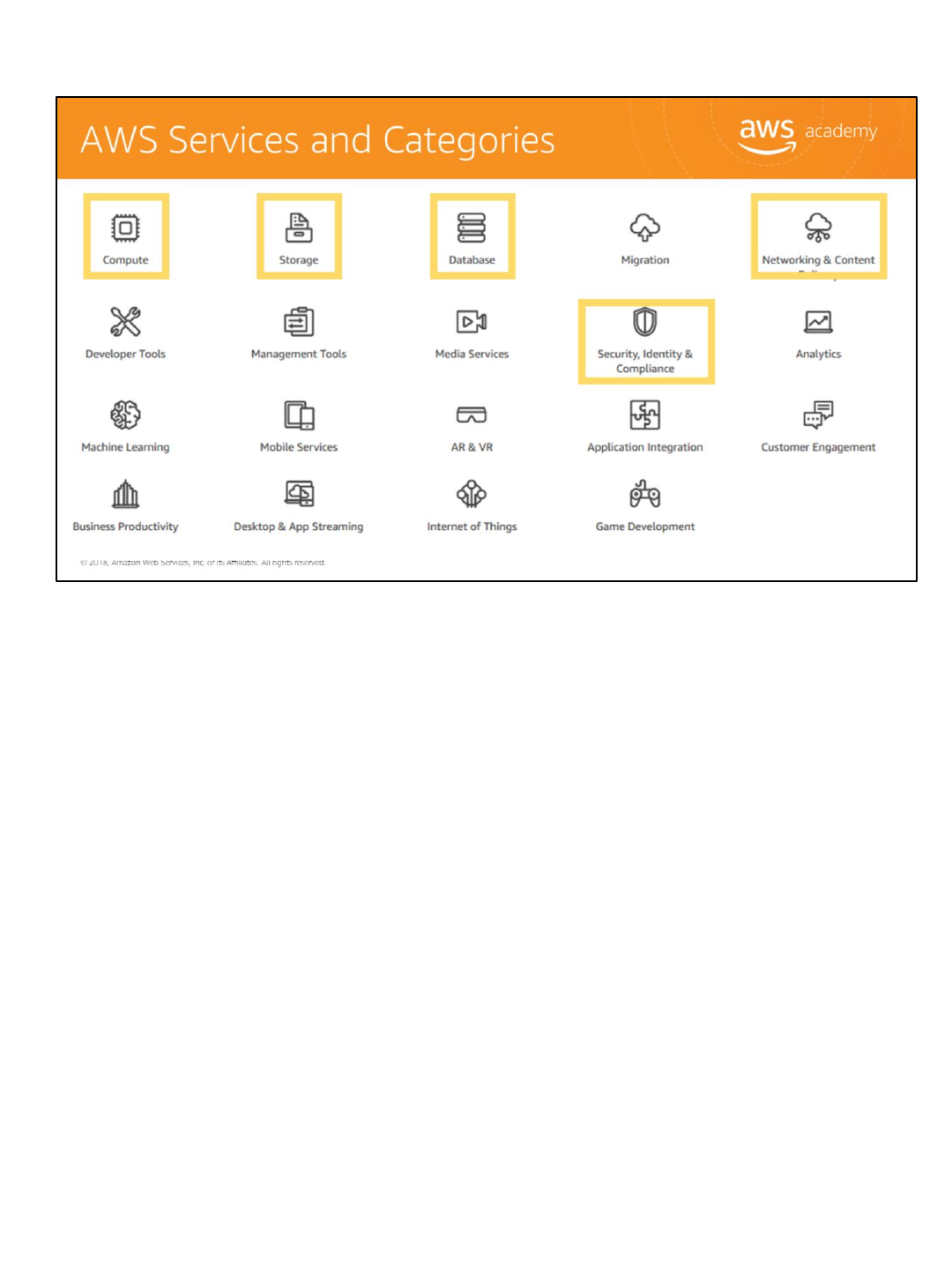

AWS offers many services. Core Services refers to a broad and deep group of core cloud

infrastructure services. The blue label denotes the service group category. Each of the

individual icons represents a service within that group.

AWS services are typically grouped into different categories like compute, networking,

storage, applications, databases, and analytics.

AWS Academy Module 1.1: Cloud Concepts Overview

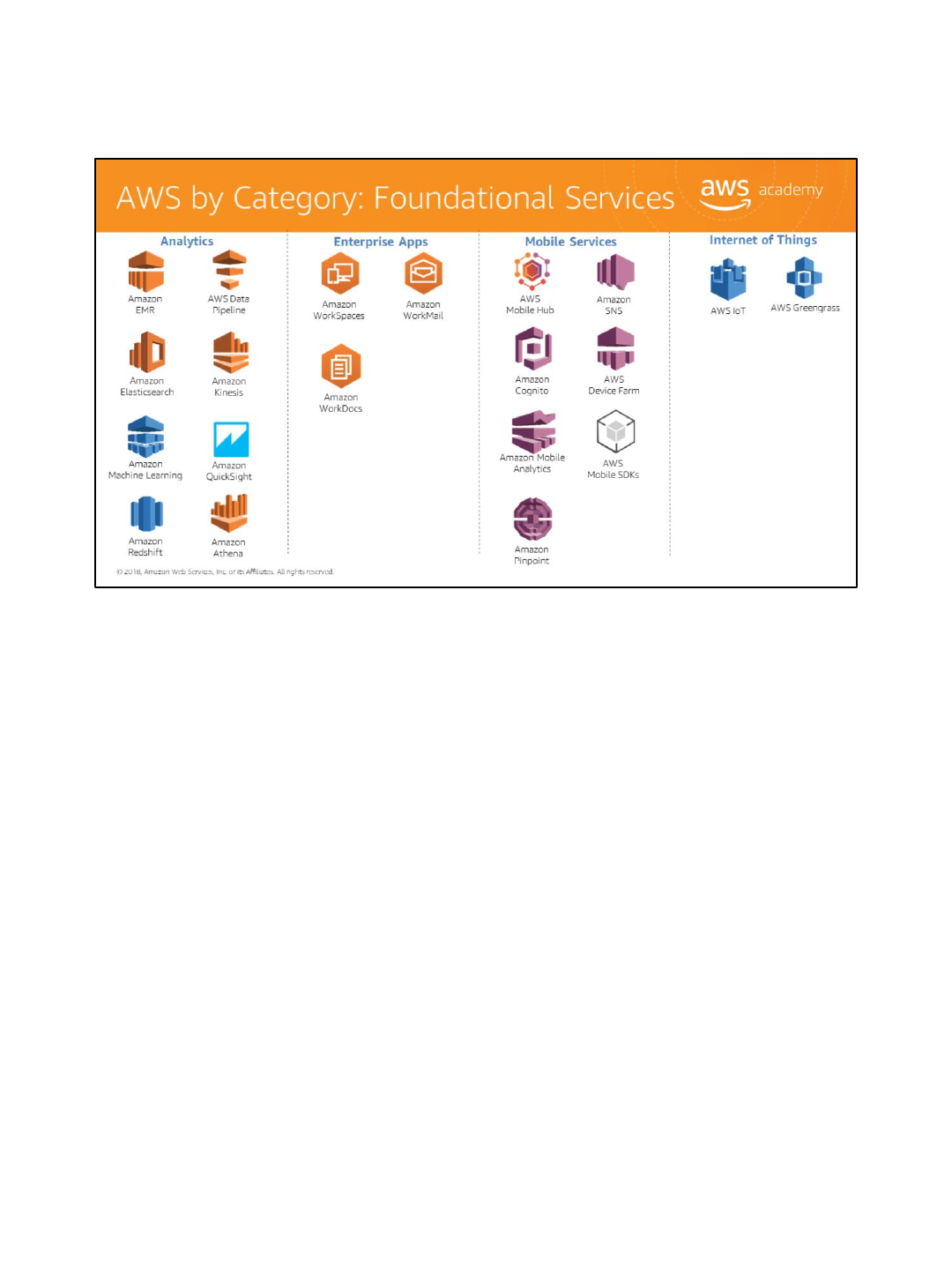

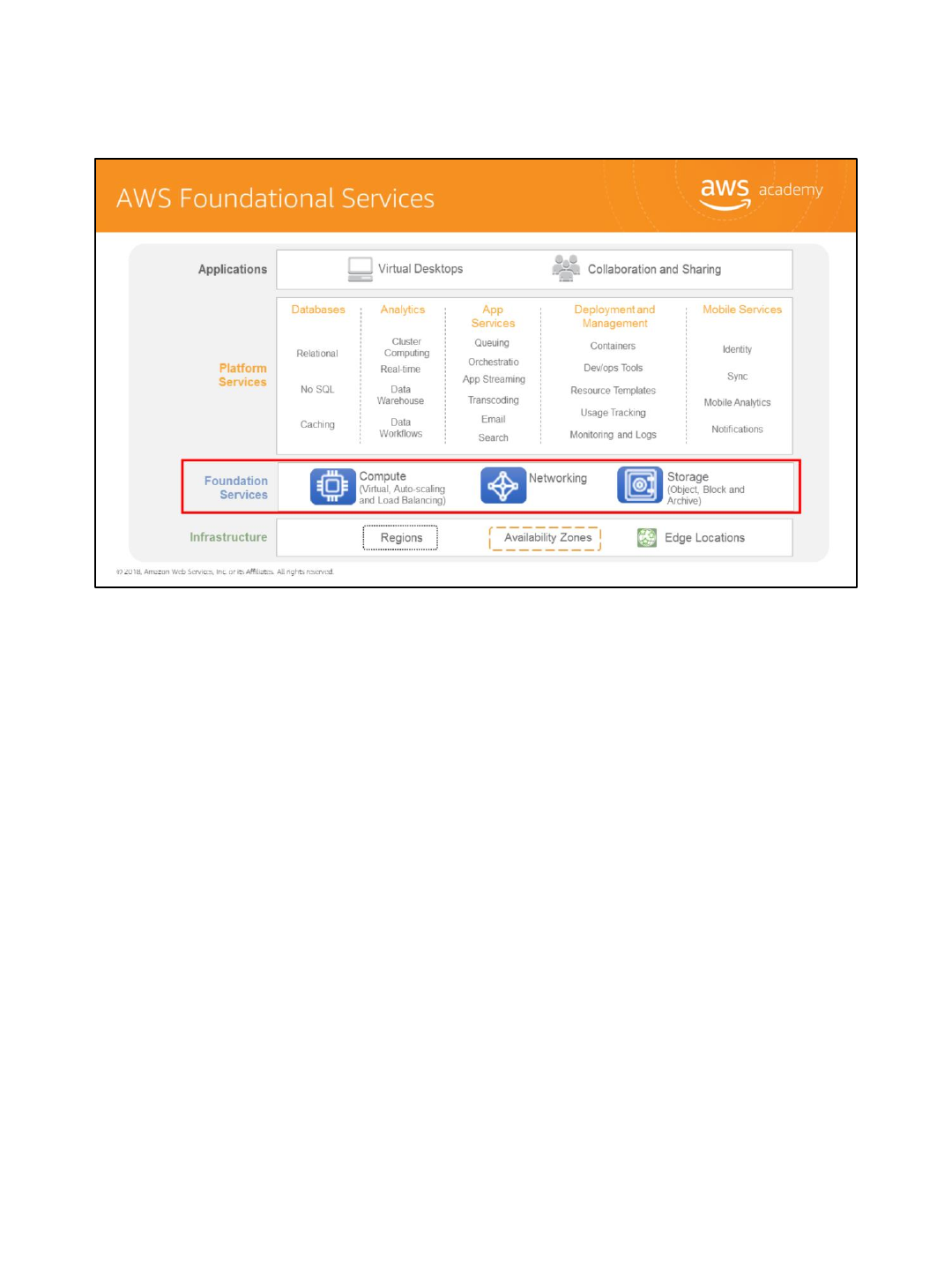

Foundational Services refers to groups of services that offer cloud-based solutions for the

analytics, enterprise, mobile, and Internet of Things (IoT) platforms.

AWS Academy Module 1.1: Cloud Concepts Overview

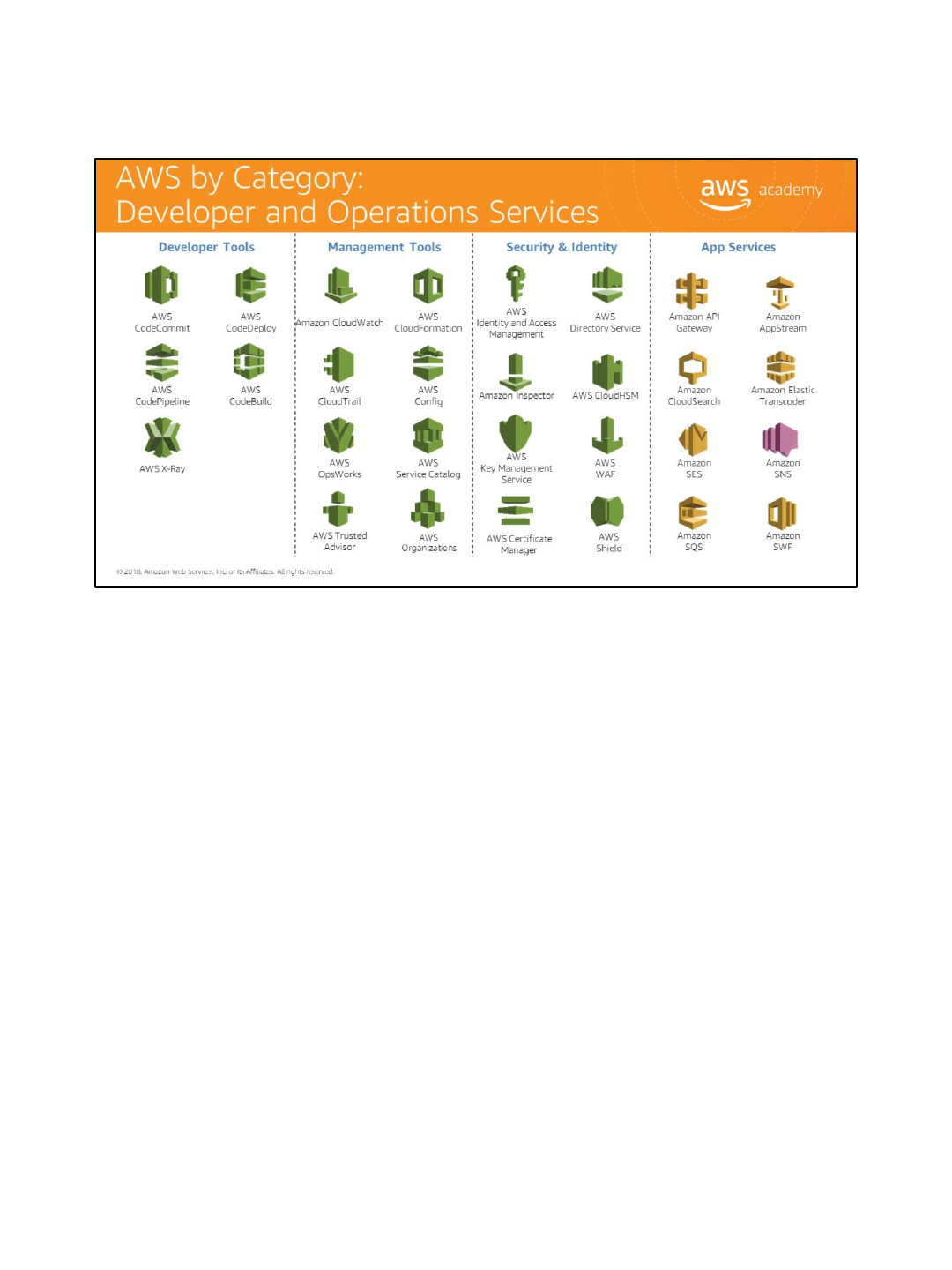

The AWS Developer Tools is a set of services designed to enable developers and IT

operations professionals practicing DevOps to rapidly and safely deliver software via

Management Tools, security and identify, and app services.

AWS Academy Module 1.1: Cloud Concepts Overview

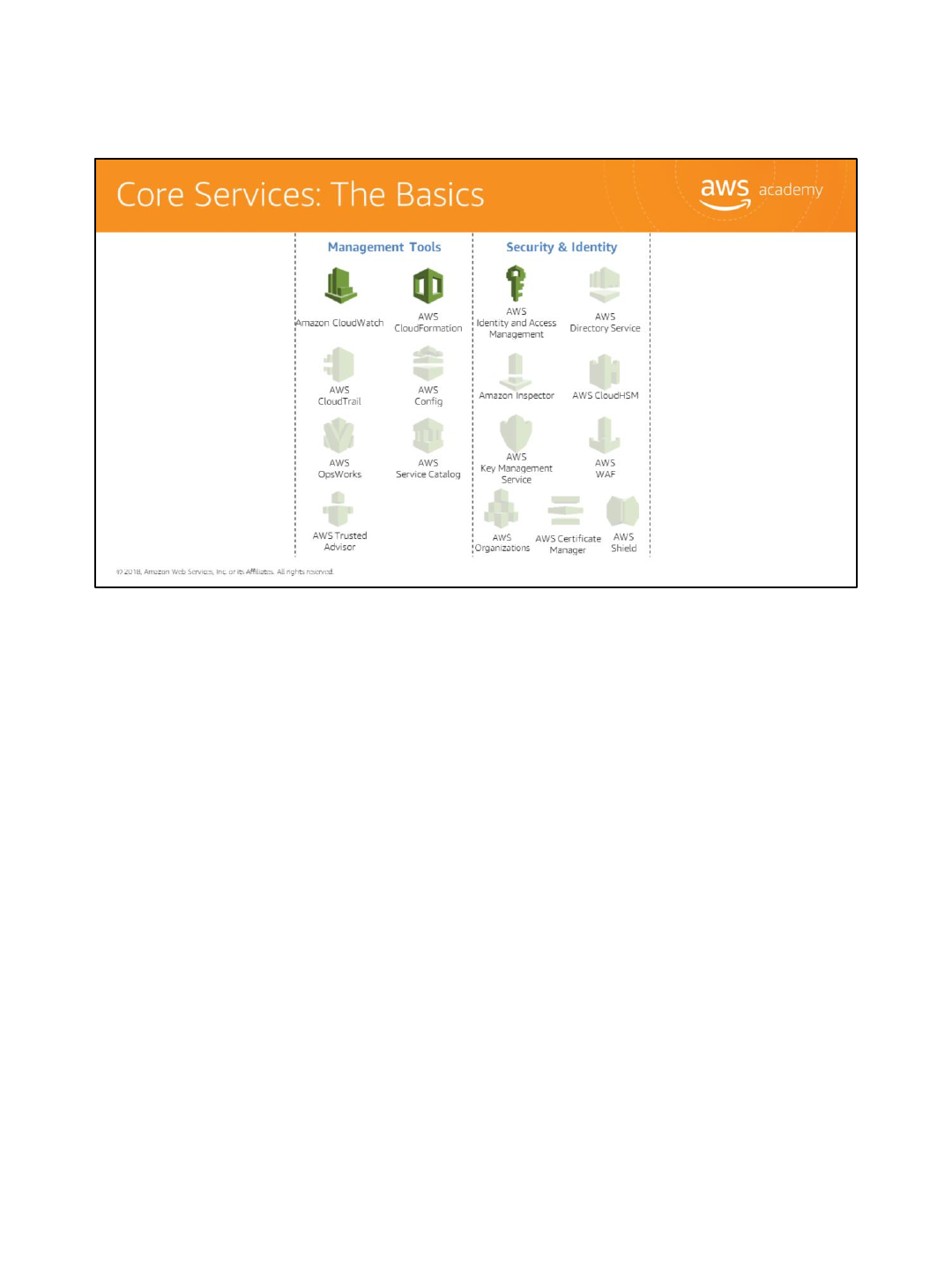

The array of AWS services can be intimidating as you start your journey into the

cloud. Initially, you only need to focus on a few ”core” services. You will need to

understand the AWS Global Infrastructure, several Compute services, Networking &

Content Delivery, Storage, Databases, Security & Identity Access Management, and,

finally, Management Tools. Specifically, you should understand the following services

from the core service group:

• Compute -- including Amazon Elastic Compute Cloud (or Amazon EC2), AWS

Lambda, and AWS Elastic Beanstalk.

• Networking -- including Amazon Virtual Private Cloud (or VPC), Amazon Route 53,

and Domain Name Services.

• Storage -- including Amazon S3 (or Simple Storage Service), and Amazon Glacier.

• Databases -- including Amazon RDS (or Relational Database Service), and Amazon

DynamoDB (or Non-Relational Database).

AWS Academy Module 1.1: Cloud Concepts Overview

From the Developer and Operations group, you should also understand the following:

• Management Tools including CloudWatch and AWS CloudFormation.

• Security and Identity -- including AWS Identity and Access Management (IAM)

AWS Academy Module 1.1: Cloud Concepts Overview

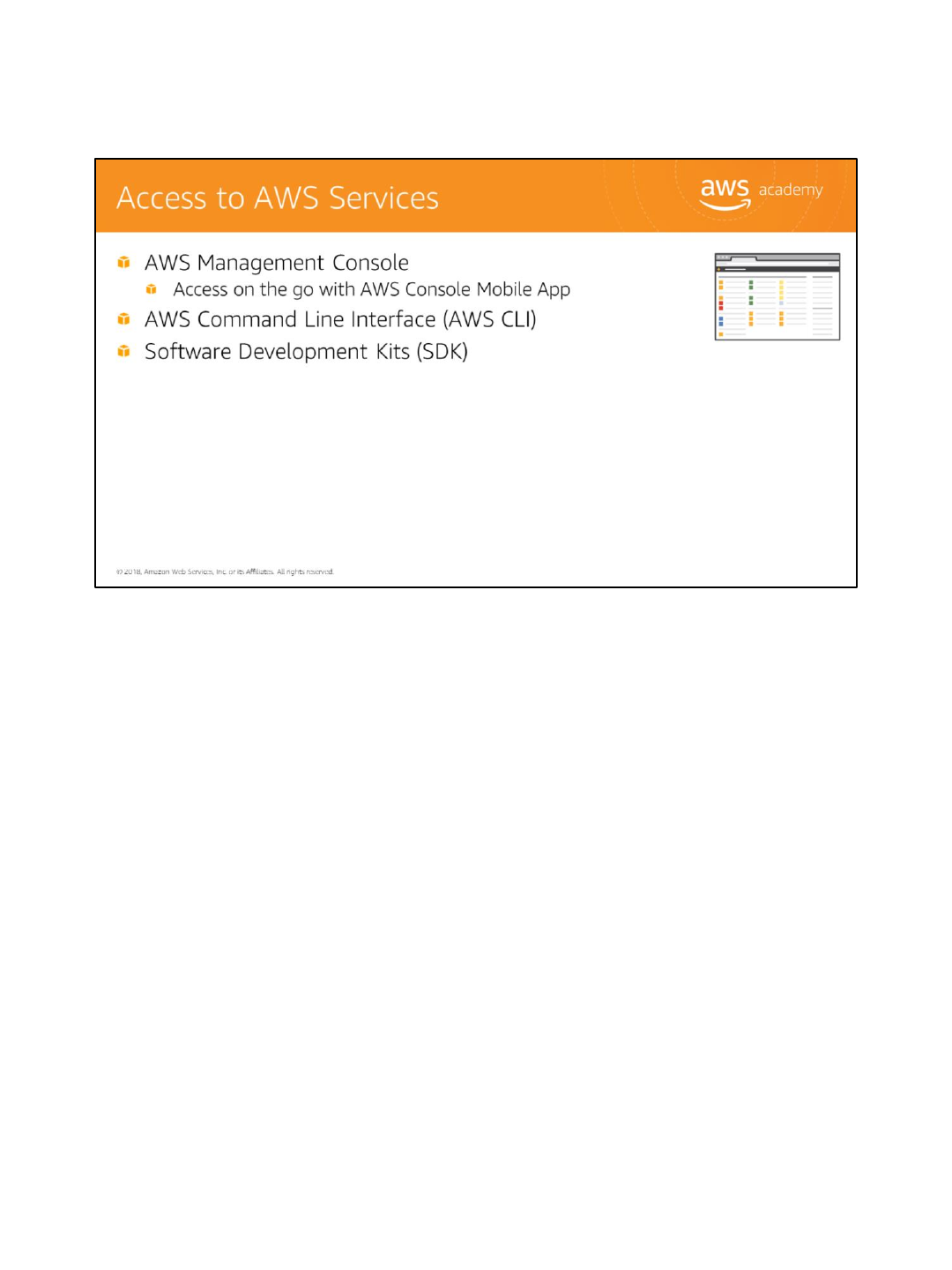

You may wonder how to access this broad array of services. You can access them in

any of three ways: using the AWS Management Console, the AWS Command Line

Interface (AWS CLI), and via Software Development Kits (SDKs). For access on the go,

you can use the AWS Console Mobile App to quickly view resources on the go.

The AWS Management console breaks down AWS services into separate categories,

like Compute, Management Tools, Mobile Services, etc. Each category has a number

of different services in it, and all of the services can be accessed from the console.

For example, the Compute category contains Amazon EC2, Amazon EC2 Container

Service, Amazon Lightsail, AWS Elastic Beanstalk, AWS Lambda, and AWS Batch.

The AWS CLI is a unified tool to manage your AWS services. With just one tool to

download and configure, you can control multiple AWS services from the CLI and

automate them through scripts. The CLI User Guide instructs you on how to install

and configure the tool. After that, you can begin making calls to your AWS services

from the CLI.

Simplify using AWS services in your applications with an Application Programming

Interface (or API) tailored to your programming language or platform.

AWS Academy Module 1.1: Cloud Concepts Overview

To learn more, visit the links.

https://aws.amazon.com/console/mobile/

https://docs.aws.amazon.com/cli/latest/userguide/cli-chap-welcome.html

https://aws.amazon.com/tools/

https://docs.aws.amazon.com/apigateway/latest/developerguide/welcome.html

40

AWS Academy Module 1.1: Cloud Concepts Overview

In part four, we’ll discuss the AWS Cloud Adoption Framework, which helps

organizations understand how cloud adoption transforms the way they work, and it

provides structure to identify and address gaps in skills and processes.

AWS Academy Module 1.1: Cloud Concepts Overview

AWS Professional Services created the AWS Cloud Adoption Framework (AWS CAF) to

help organizations develop efficient and effective plans for their cloud adoption

journey. The guidance and best practices provided by the framework help you build a

comprehensive approach to cloud computing across your organization, and

throughout your IT lifecycle.

The AWS CAF breaks down the complex process of planning a move to the cloud into

manageable pieces called perspectives. Perspectives represent essential areas of

focus that span people, processes, and technology. Capabilities within each

perspective identify which areas of your organization require attention. From that,

actions are organized into prescriptive work streams that support a successful cloud

journey.

The AWS Cloud Adoption Framework provides guidelines for establishing, developing,

and running AWS environments. You’ll receive guidance that supports each unit in

your organization so that each area understands how to update skills, adapt existing

processes, and introduce new processes to take maximum advantage of the services

provided by cloud computing.

AWS Academy Module 1.1: Cloud Concepts Overview

This provides a structure for business and IT teams to work together. Thousands of

organizations around the world have successfully migrated their businesses to the

cloud, relying on the AWS Cloud Adoption Framework to guide their efforts. AWS and

our partners provide tools and services that can help you every step of the way to

ensure complete understanding and transition.

42

AWS Academy Module 1.1: Cloud Concepts Overview

At the highest level, the AWS Cloud Adoption Framework (AWS CAF) organizes guidance

into six areas of focus, called perspectives.

Each perspective covers distinct responsibilities owned or managed by functionally

related stakeholders. In general, the Business, People, and Governance Perspectives

focus on business capabilities; while the Platform, Security, and Operations

Perspectives focus on technical capabilities.

For more information about the AWS CAF visit the link http://bit.ly/AWSCAF.

AWS Academy Module 1.1: Cloud Concepts Overview

In summary, we defined cloud computing and alternative implementation models.

We described the advantages of cloud computing, explored AWS services, and

discussed the AWS Cloud Adoption Framework.

To finish this module, complete the knowledge assessment.

AWS Academy Module 1.1: Cloud Concepts Overview

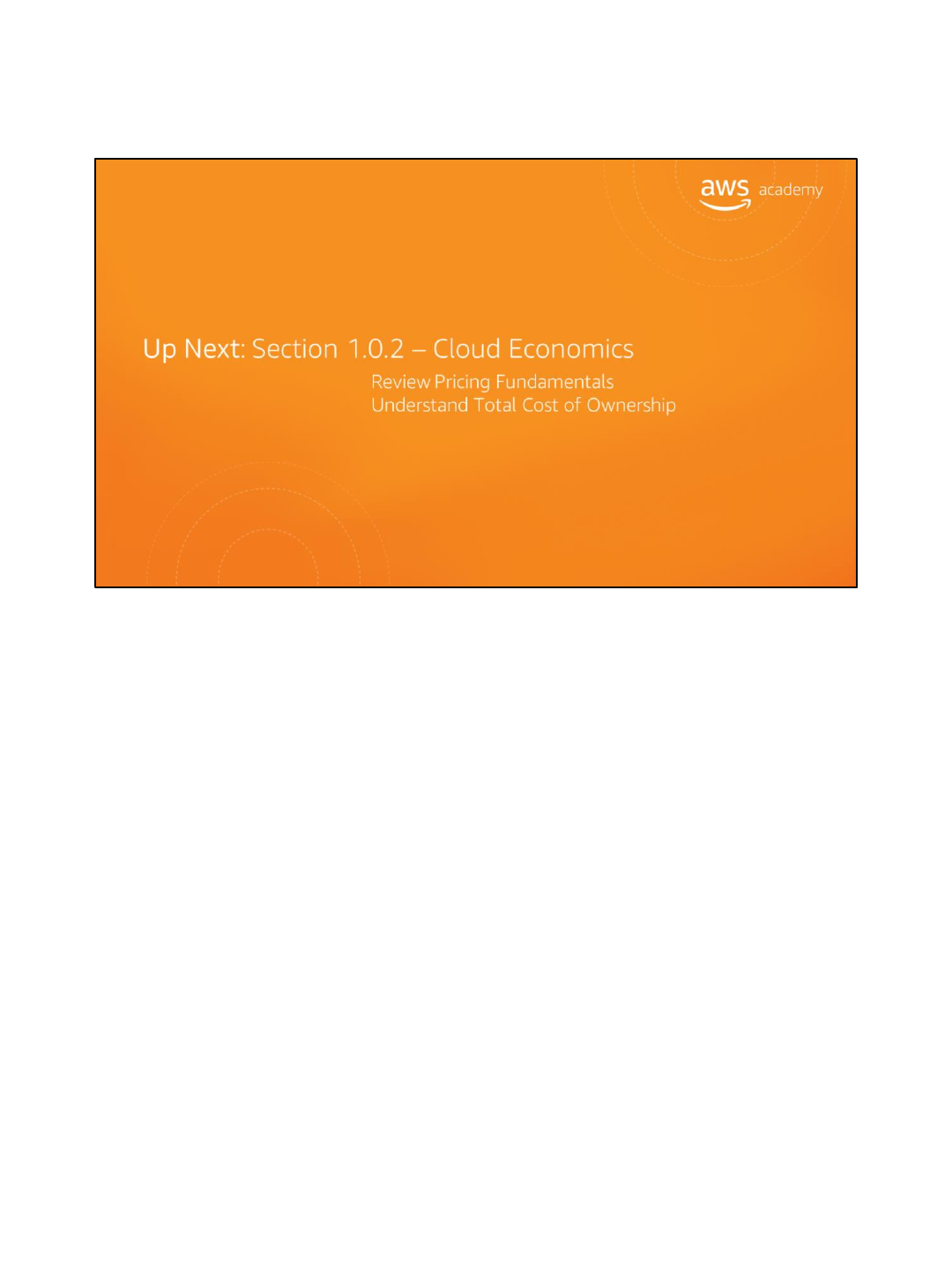

Up next, we will move on to Section 1.0.2 where we review the basics of cloud

economics.

We’ll review pricing fundamentals and understand the total cost of ownership.

45

AWS Academy Module 1.1: Cloud Concepts Overview

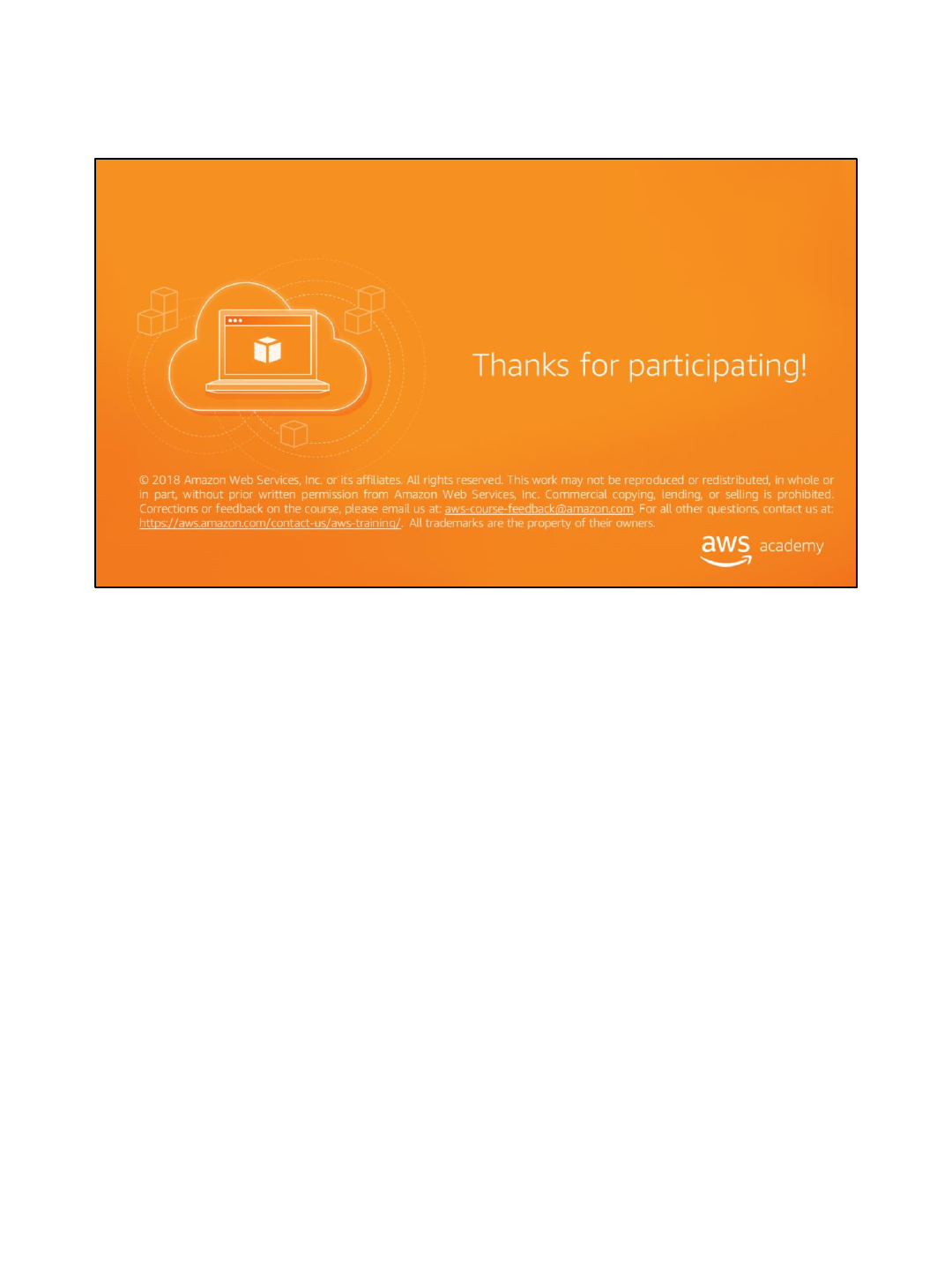

Thanks for participating!

AWS Academy Module 1.1: Cloud Concepts Overview

Welcome to Module 1, Section 2 –Cloud Economics.

AWS Academy Module 1.2: Cloud Economics

In this module, we are going to discuss the economics of cloud computing.

Part one will introduce you to the fundamentals of pricing, and in part two we’ll

review total cost of ownership.

AWS Academy Module 1.2: Cloud Economics

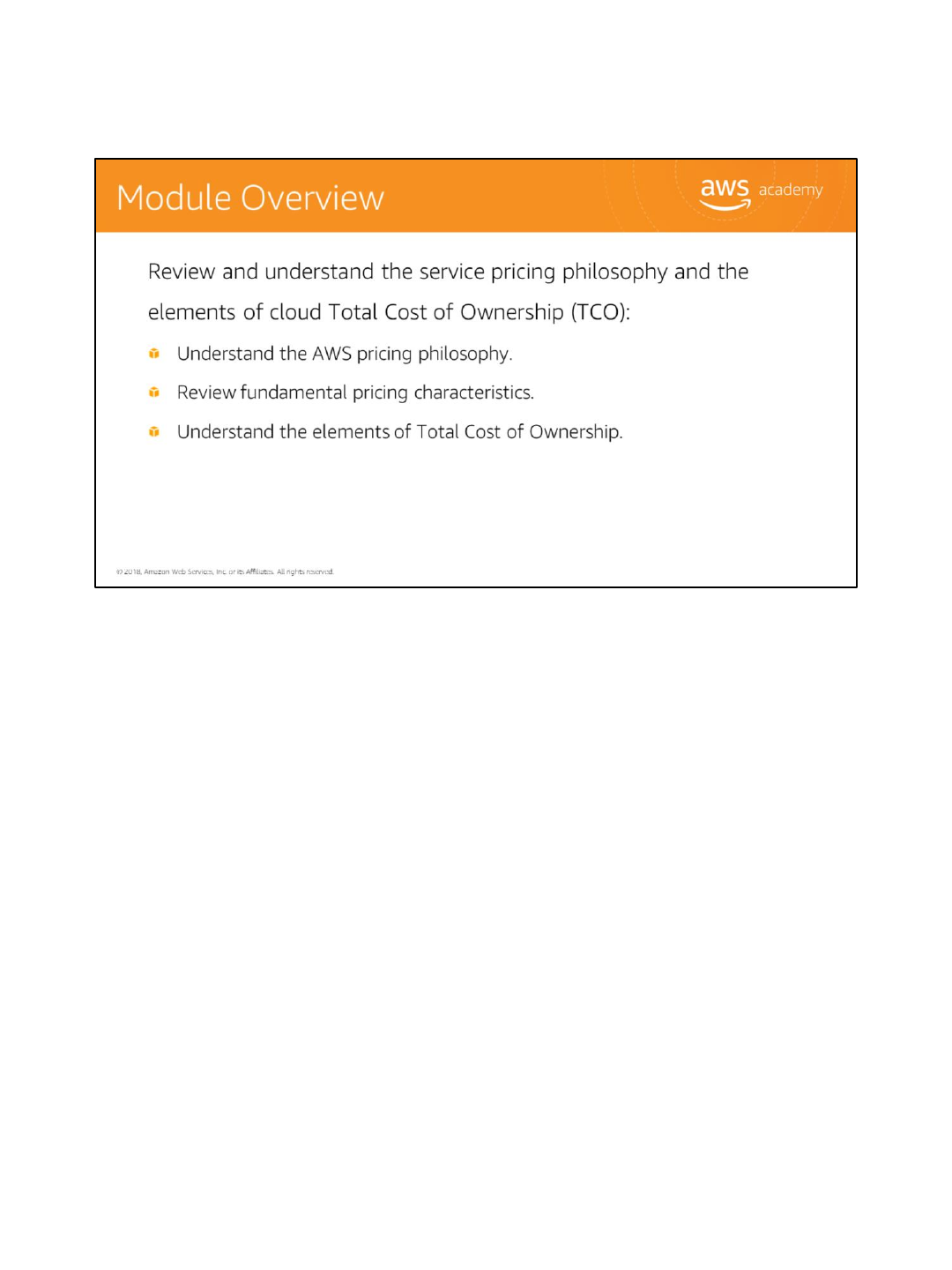

Upon completing this module, you’ll understand the Amazon Web Services pricing

philosophy, review fundamental pricing characteristics and understand the elements

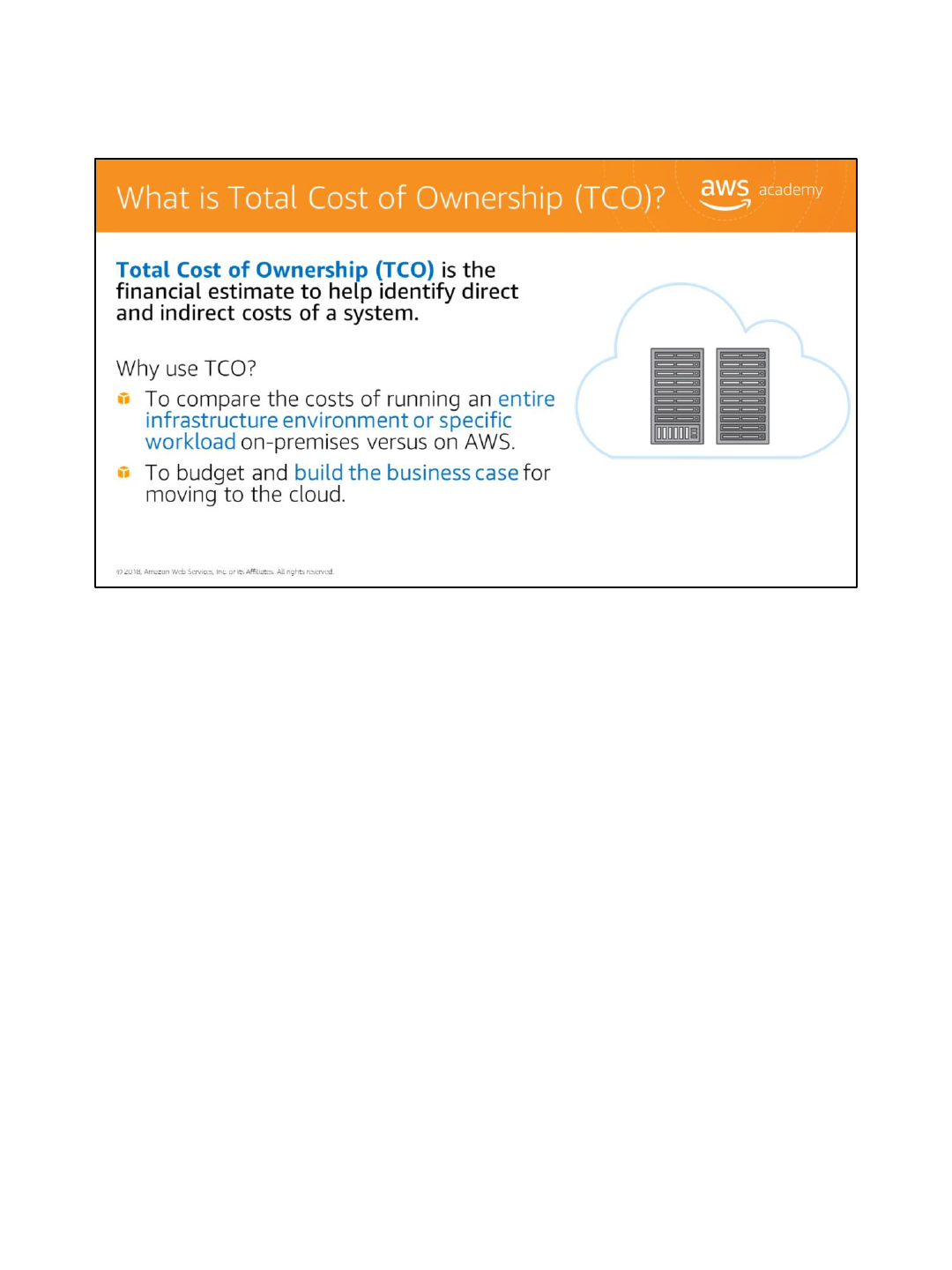

of total cost of ownership, which is used to calculate the total cost of purchasing and

operating a technology product during its useful life. Total cost of ownership gives

businesses a framework to evaluate competing solutions to a problem and will be

part of cloud conversations with your business partners.

3

AWS Academy Module 1.2: Cloud Economics

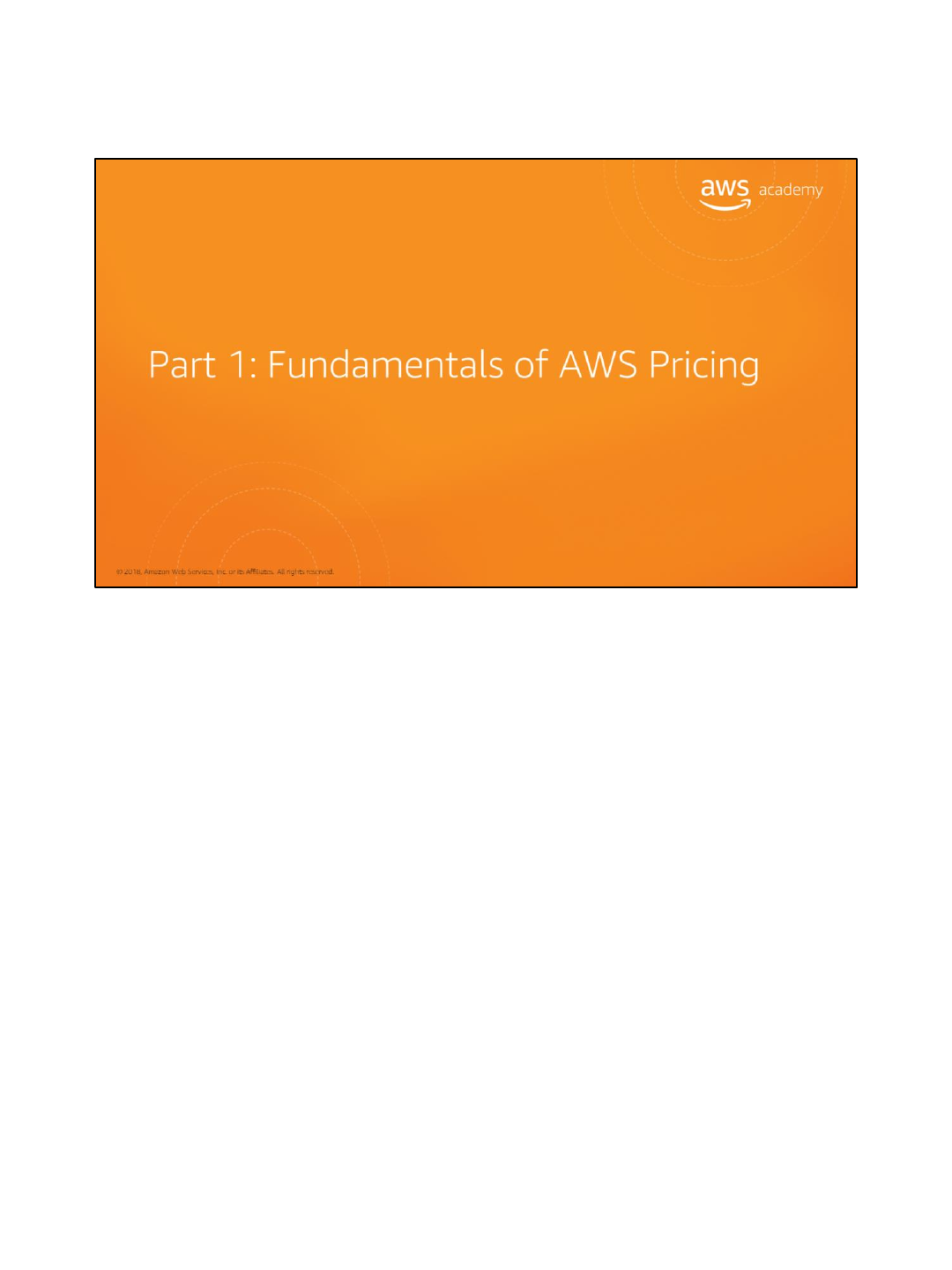

Introducing Part 1: Fundamentals of AWS Pricing.

AWS Academy Module 1.2: Cloud Economics

There are three fundamental characteristics you pay for with AWS: compute, storage,

and outbound data transfer. These characteristics vary slightly depending on the

AWS product you are using. However, these are the core characteristics that have the

greatest impact on cost.

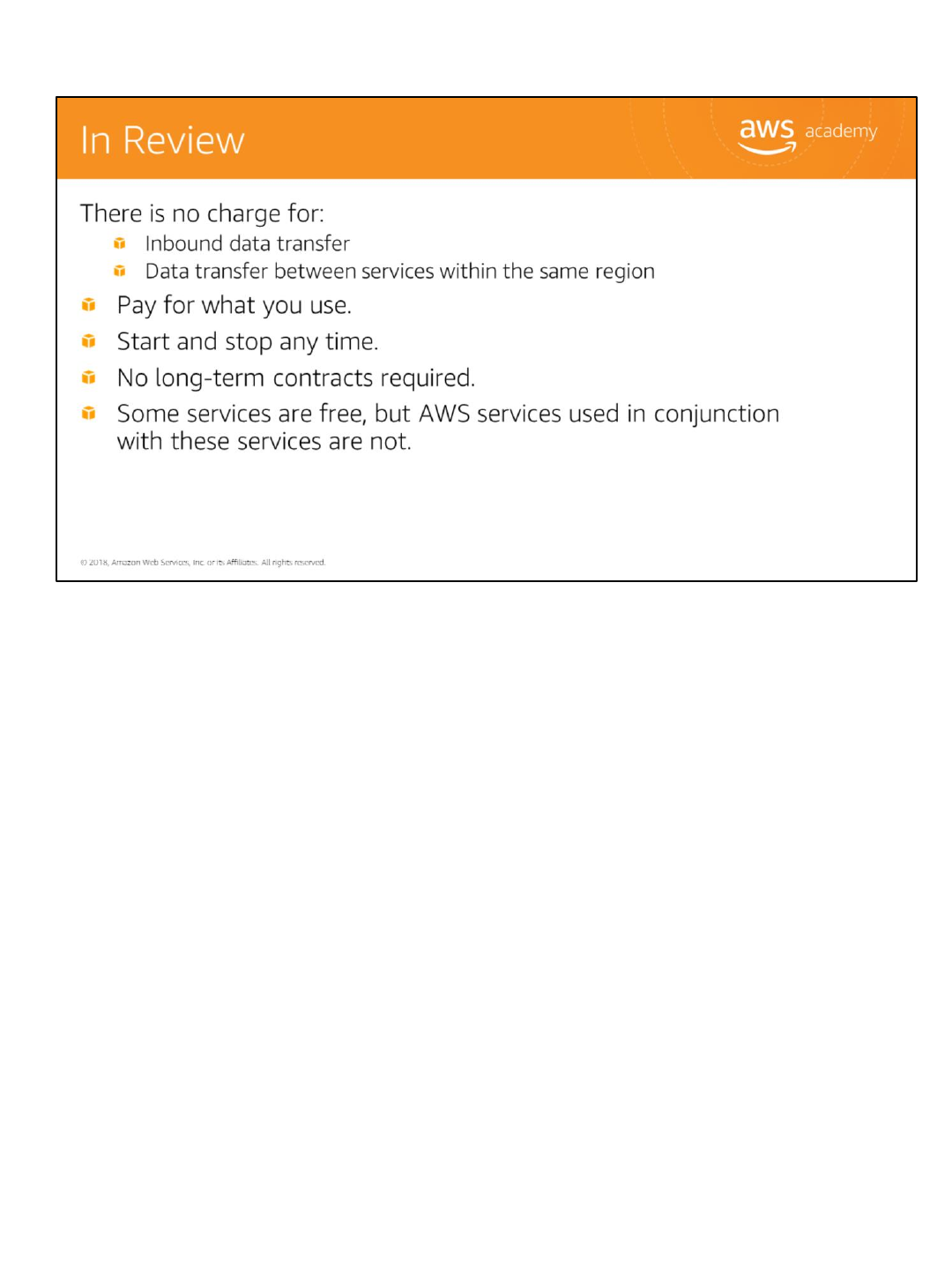

There is no charge for inbound data transfer or for data transfer between other AWS

services within the same AWS Region, although there is a charge for aggregated

outbound data transfer.

The outbound data transfer is aggregated across:

Amazon Elastic Compute Cloud (or Amazon EC2),

Amazon Simple Storage Service (or Amazon S3),

Amazon Relational Database Service (or Amazon RDS),

Amazon SimpleDB,

Amazon Simple Queue Service (or Amazon SQS),

Amazon Simple Notification Service (or Amazon SNS), and

Amazon Virtual Private Cloud (or Amazon VPC), and then charged at the outbound

data transfer rate. This charge appears on the monthly statement as AWS Data

Transfer Out.

AWS Academy Module 1.2: Cloud Economics

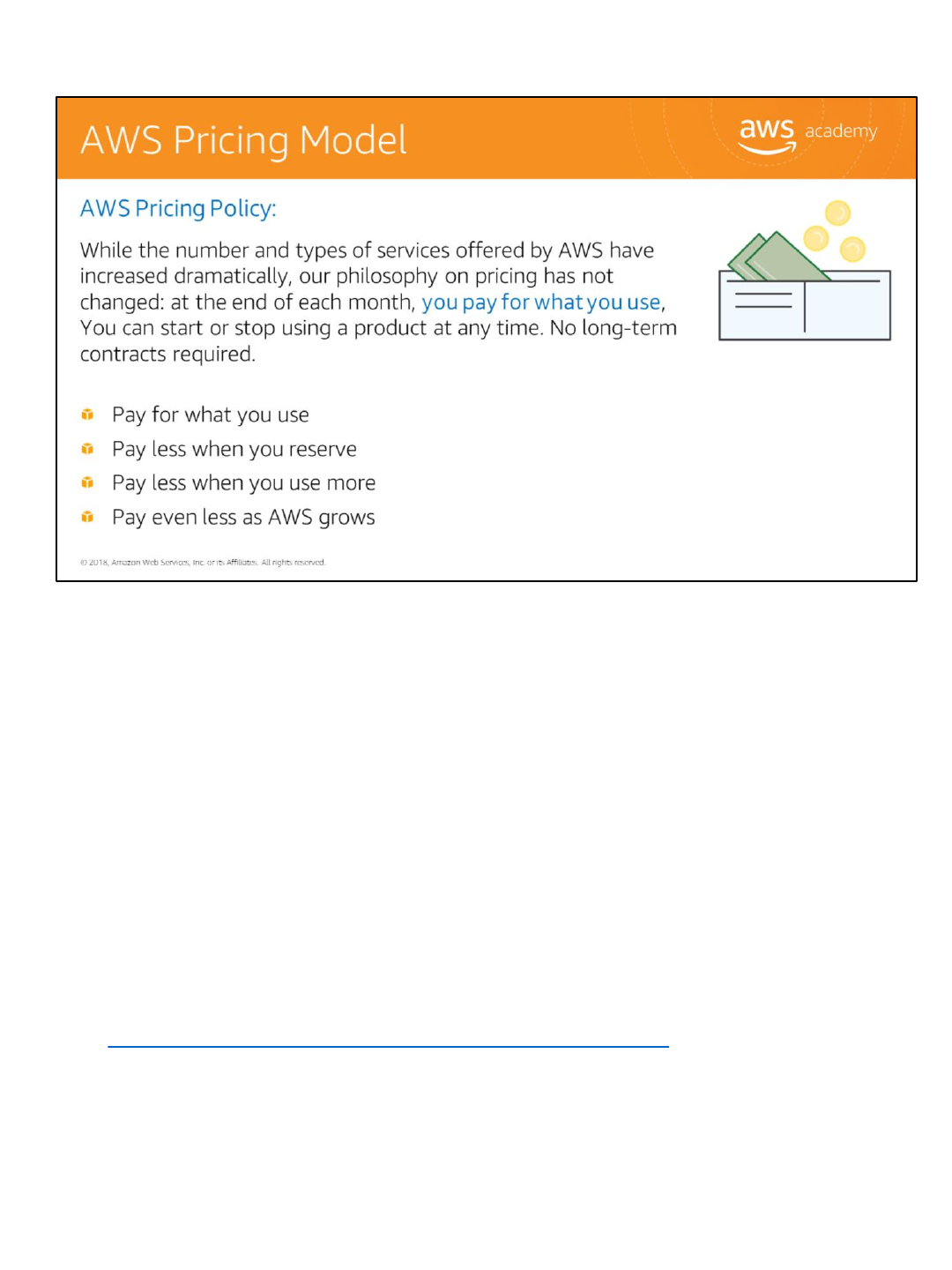

This philosophy is what underlies AWS pricing. While the number and types of

services offered by AWS have increased dramatically, our philosophy on pricing has

not changed. At the end of each month, you pay for what you use. You can start or

stop using a product at any time. No long-term contracts are required.

AWS offers a range of cloud computing services. For each service, you pay for exactly

the amount of resources you actually need. This utility-style pricing model includes:

•Pay for what you use,

•Pay less when you reserve,

•Pay less when you use more, and

•Pay even less as AWS grows

Let’s take a closer look at these core concepts of pricing.

Select the link to review the AWS pricing white paper.

https://d0.awsstatic.com/whitepapers/aws_pricing_overview.pdf

AWS Academy Module 1.2: Cloud Economics

Unless you build data centers for a living, you have likely spent too much time and

money building them. With AWS, you pay only for the services you consume with no

large upfront expenses. You’re able to lower variable costs, so you no longer need to

dedicate valuable resources to building costly infrastructure, including purchasing

servers, software licenses, or leasing facilities.

Quickly adapt to changing business needs and redirect your focus on innovation and

invention by paying only for what you use and for as long as you need it. All AWS

services are available on demand, require no long-term contracts, and have no

complex licensing dependencies.

7

AWS Academy Module 1.2: Cloud Economics

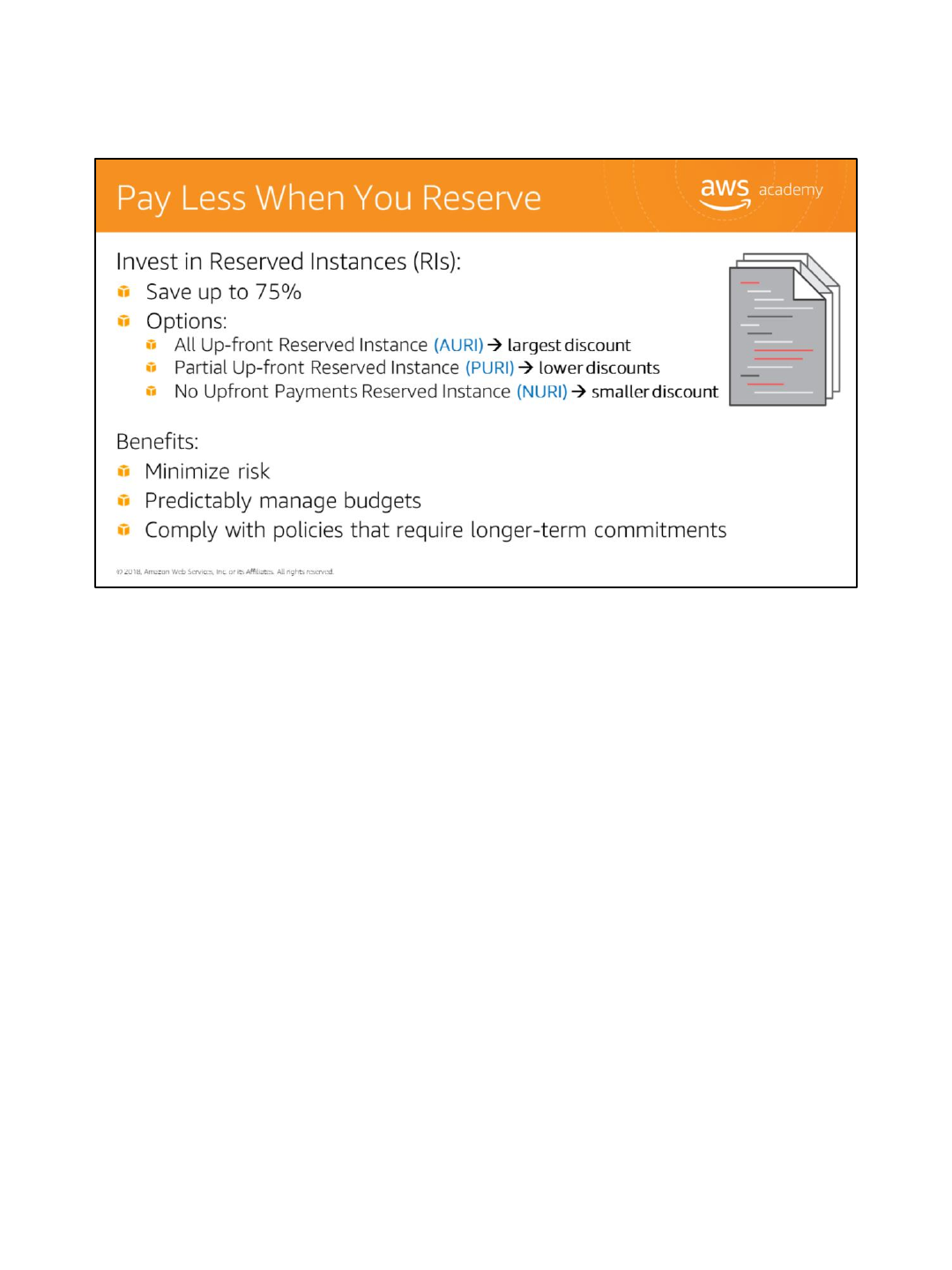

For certain services like Amazon EC2 and Amazon RDS, you can invest in reserved

capacity. With Reserved Instances, you can save up to 75 percent over equivalent on-

demand capacity. Reserved Instances are available in 3 options:

•All up-front reserved instance (or AURI)

•Partial up-front reserved instance (or PURI), and

•No upfront payments reserved instance (or NURI)

When you buy Reserved Instances, the larger the upfront payment, the greater the

discount. To maximize your savings, you can pay all up-front and receive the largest

discount. Partial up-front RIs offer lower discounts but give you the option to spend

less up front. Lastly, you can choose to spend nothing up front and receive a smaller

discount, allowing you to free up capital to spend in other projects.

By using reserved capacity, your organization can minimize risks, more predictably

manage budgets, and comply with policies that require longer-term commitments.

8

AWS Academy Module 1.2: Cloud Economics

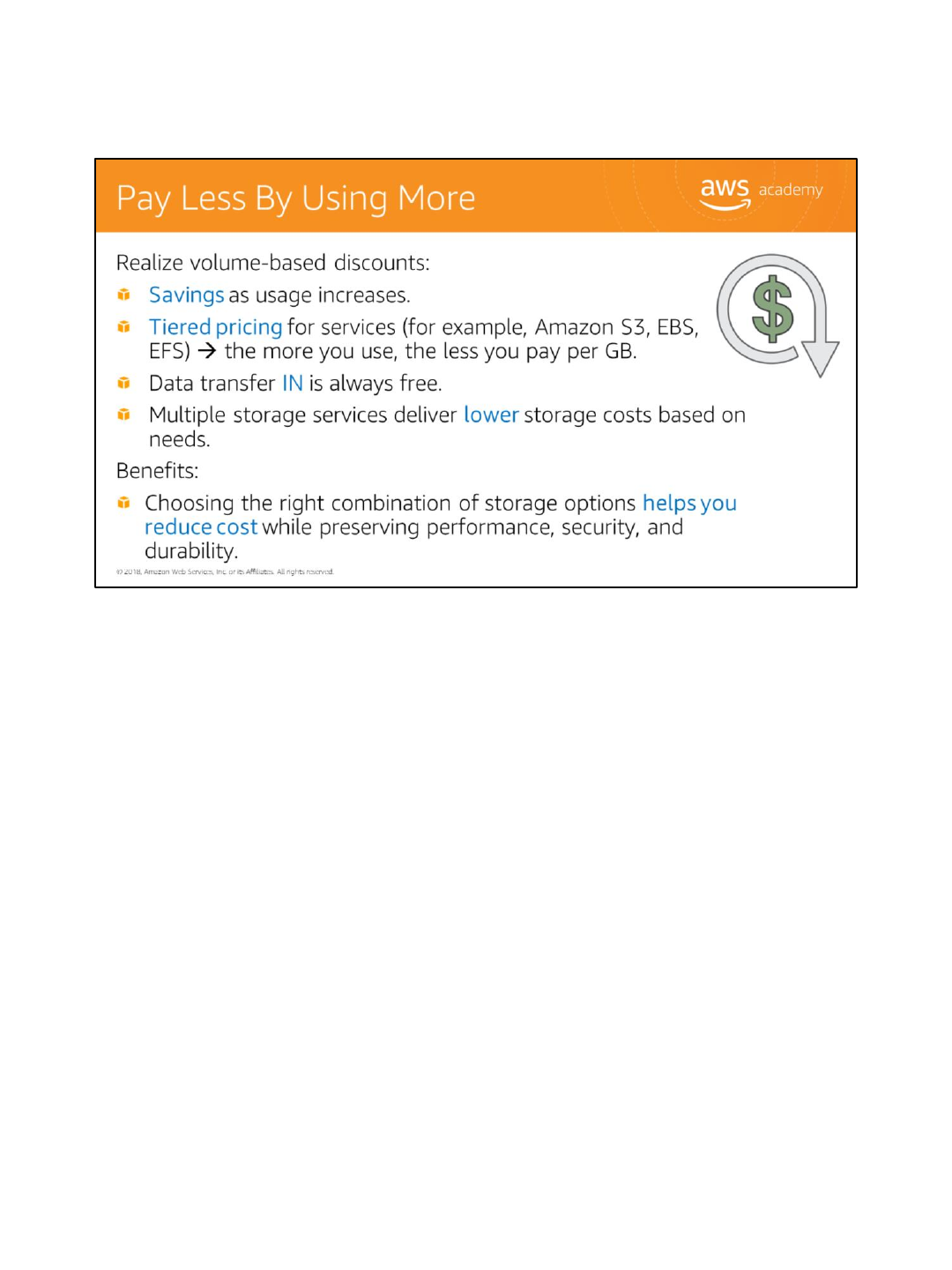

With AWS, you can get volume based discounts and realize important savings as your

usage increases. For services like Amazon S3, pricing is tiered, meaning the more you

use, the less you pay per GB. In addition, data transfer IN is always free of charge.

Multiple storage services deliver lower storage costs based on your needs. As a result,

as your AWS usage needs increase, you benefit from the economies of scale that

allow you to increase adoption and keep costs under control.

As your organization evolves, AWS also gives you options to acquire services that help

you address your business needs. For example, the AWS storage services portfolio

offers options to help you lower pricing based on how frequently you access data and

the performance you need to retrieve it. To optimize your savings, choose the right

combination of storage solutions that help you reduce costs while preserving

performance, security and durability.

9

AWS Academy Module 1.2: Cloud Economics

AWS is constantly focused on reducing data center hardware costs, improving

operational efficiencies, lowering power consumption, and generally lowering the

cost of doing business.

These optimizations and AWS’s substantial and growing economies of scale result in

passing savings back to you in the form of lower pricing. Since 2006, AWS has

lowered pricing 61 times!

Another benefit of AWS growth is that future, higher performing resources replace

current ones for no extra charge.

10

AWS Academy Module 1.2: Cloud Economics

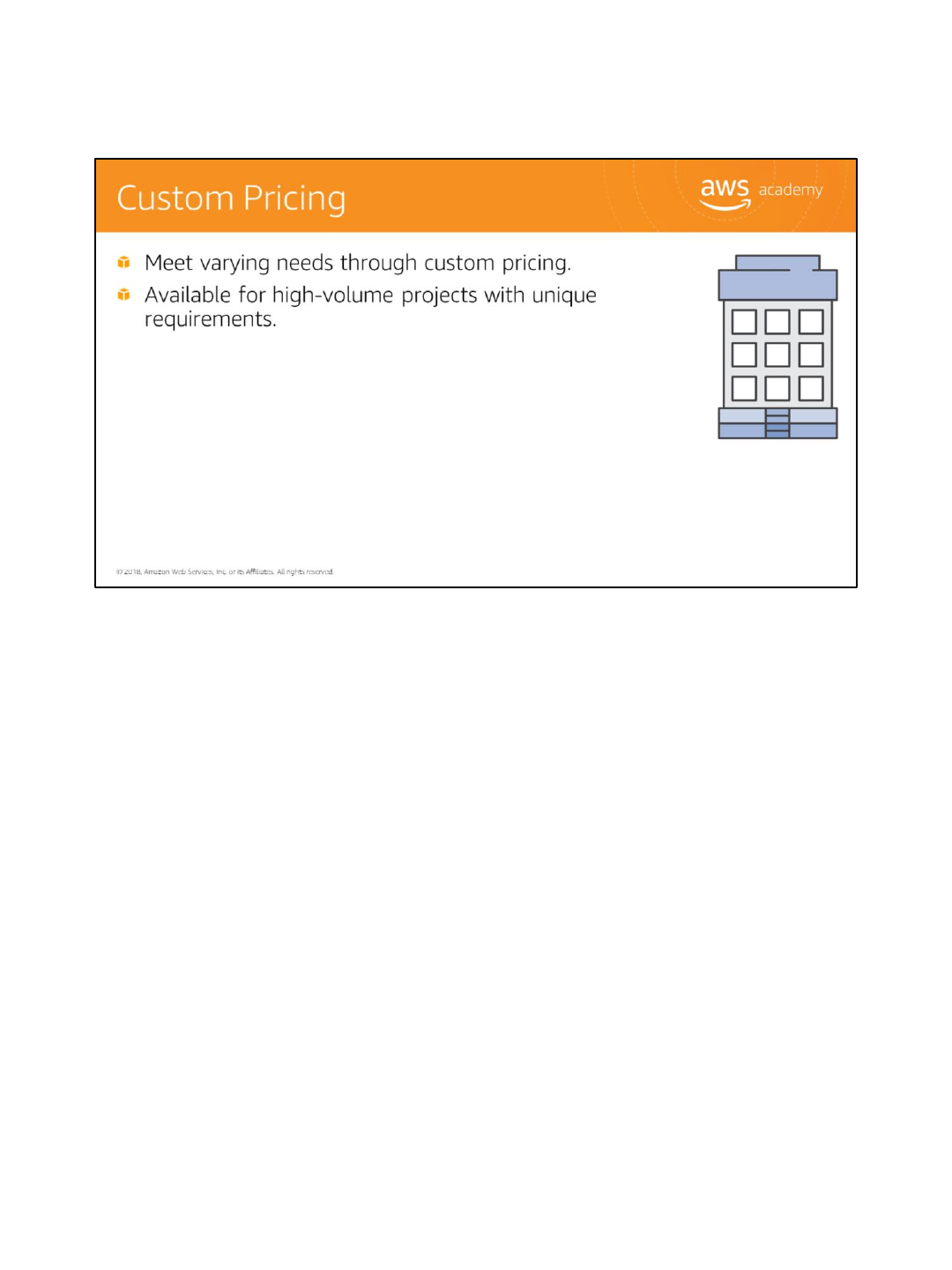

AWS realizes that every customer has different needs. If none of the AWS pricing

models work for your project, custom pricing is available for high-volume projects

with unique requirements.

11

AWS Academy Module 1.2: Cloud Economics

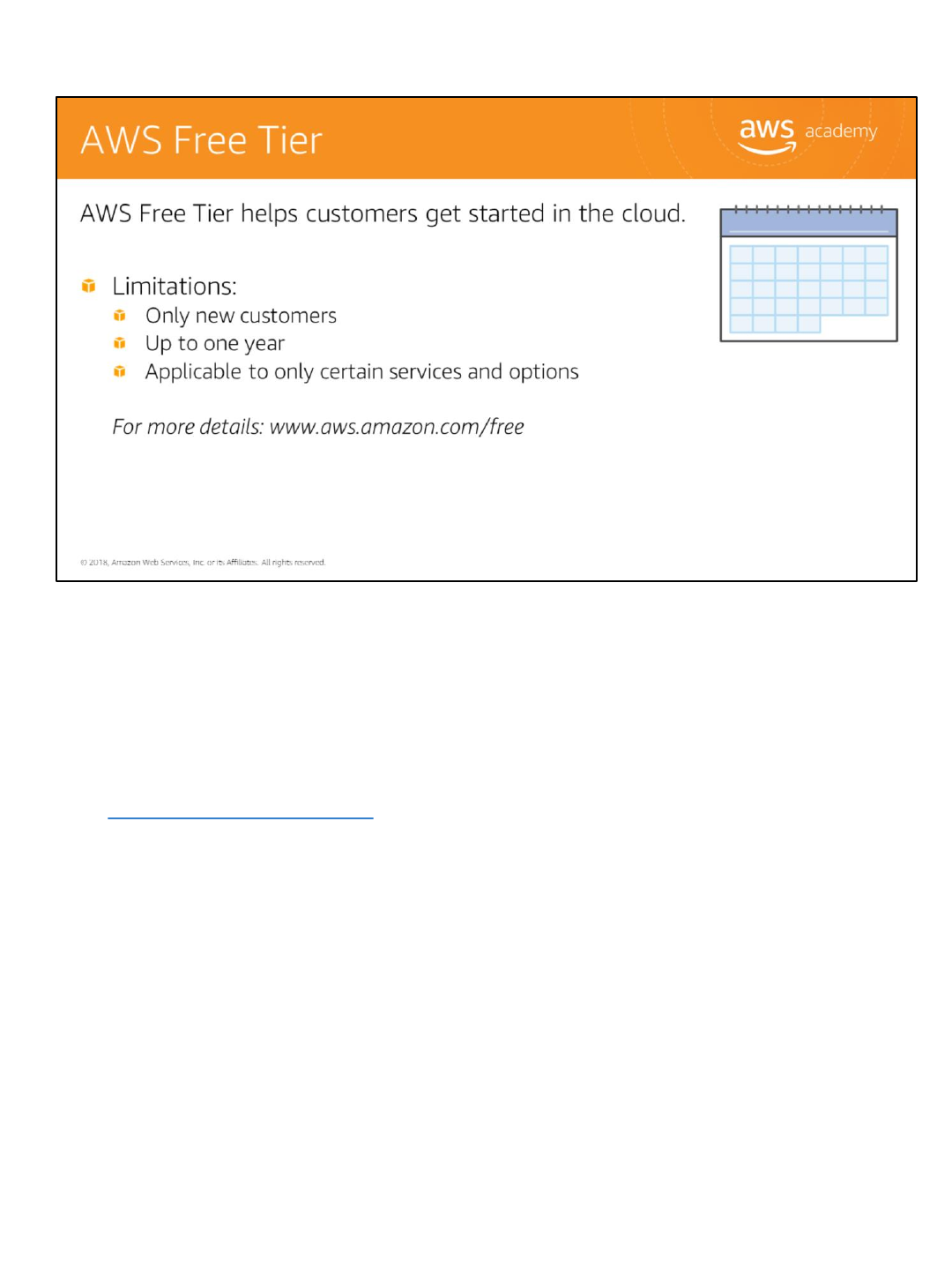

To help new AWS customers get started in the cloud, AWS offers a free usage tier for

new customers up to one year, applicable to certain services and options. If you’re a

new AWS customer, you can run a free Amazon EC2 T1 micro instance for a year,

while also leveraging a free usage tier for Amazon S3, Amazon Elastic Block Store,

Elastic Load Balancing, AWS data transfer, and other AWS services.

Select the link for more details.

https://aws.amazon.com/free/

AWS Academy Module 1.2: Cloud Economics

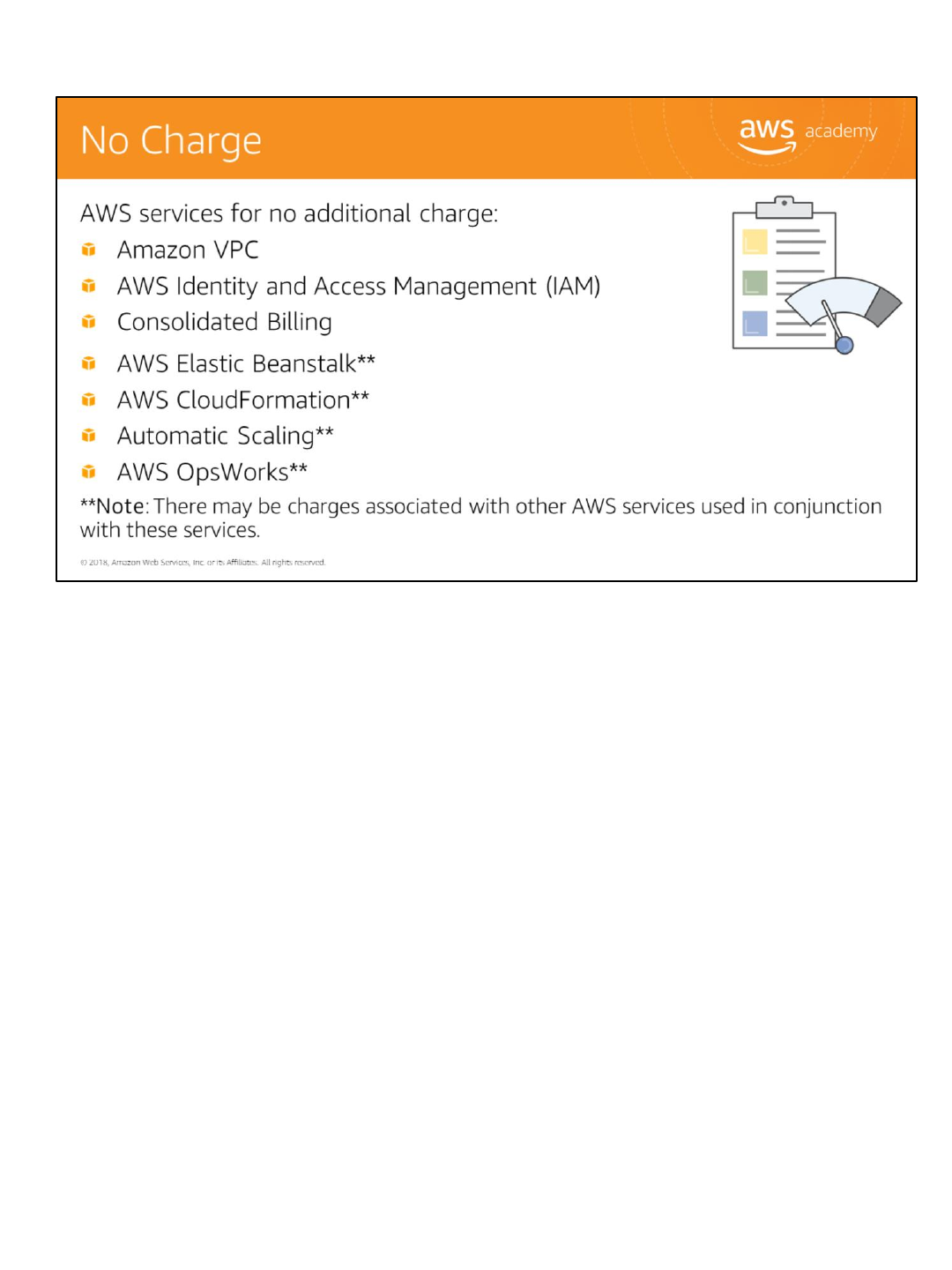

AWS also offers a variety of services for no additional charge.

•Amazon VPC lets you provision a logically isolated section of the AWS Cloud where you can launch

AWS resources in a virtual network that you define.

•AWS Identity and Access Management (or IAM) controls your users’ access to AWS services and

resources.

•Consolidated Billing is a billing feature in AWS Organizations to consolidate payment for multiple AWS

accounts or multiple AISPL accounts. Consolidated billing provides:

•One bill for multiple accounts.

•The ability to easily track each account’s charges.

•The opportunity to decrease charges as a result of volume pricing discounts from combined

usage.

•And you can consolidate all of your accounts using Consolidated Billing and get tiered benefits.

•AWS Elastic Beanstalk is an even easier way for you to quickly deploy and manage applications in the

AWS cloud.

•AWS CloudFormation gives developers and systems administrators an easy way to create a collection

of related AWS resources and provision them in an orderly and predictable fashion.

•Automatic Scaling automatically adds or removes resources according to conditions you define. The

resources you are using increase seamlessly during demand spikes to maintain performance and

decrease automatically during demand lulls to minimize costs.

AWS Academy Module 1.2: Cloud Economics

•AWS OpsWorks is an application management service that makes it easy to deploy and

operate applications of all shapes and sizes.

Note that although there is no charge for these services, there may be charges associated

with other AWS services used in conjunction with these services. For example, when auto

scaling additional EC2 instances, there will be charges for those instances.

13

AWS Academy Module 1.2: Cloud Economics

In summary, while the number and types of services offered by AWS have increased

dramatically, our philosophy on pricing has not changed. At the end of each month, you pay

only for what you use, and you can start or stop using a product at any time. No long-term

contracts are required.

The best way to estimate costs is to examine the fundamental characteristics for each AWS

service, estimate your usage for each characteristic, and then map that usage to the prices

posted on the website. The service pricing strategy gives you tremendous flexibility to choose

the services you need for each project and to pay only for what you use.

There are a number of free AWS services, including:

•Amazon VPC,

•Elastic Beanstalk,

•AWS CloudFormation,

•IAM,

•Automatic Scaling,

•AWS OpsWorks, and

•Consolidated Billing

While the services themselves are free, the resources that they provision are not.

Additionally, there is no charge for inbound data or data transfer between services within the

AWS Academy Module 1.2: Cloud Economics

same region; however, outbound data transfer costs are tiered.

Select the links to learn more.

http://aws.amazon.com/pricing/.

https://d0.awsstatic.com/whitepapers/aws_pricing_overview.pdf.

14

AWS Academy Module 1.2: Cloud Economics

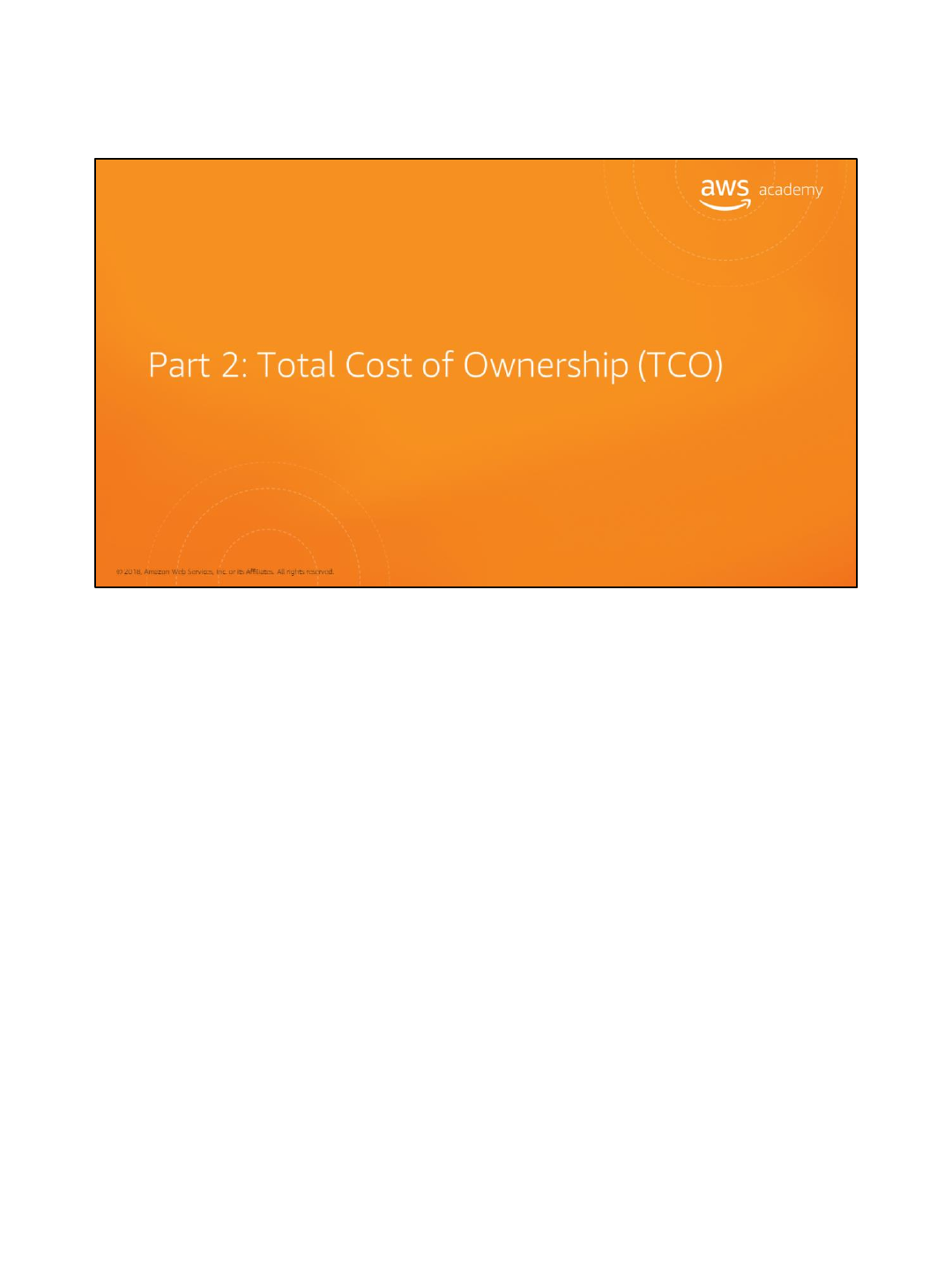

Now that you understand the AWS pricing philosophy and how different AWS services

are priced, let’s take a look at Part 2: Total Cost of Ownership.

In addition to prices, businesses often want to understand the total cost of

ownership, which is a financial estimate that helps buyers and owners determine the

direct and indirect costs of a product or system. It reflects the purchase price of an

asset plus the costs of operation. Total cost of ownership information is especially

helpful when you are making the decision of whether or not to deploy on Amazon

Web Services.

Let’s move forward to the final part of our economic discussion and review both TCO

and the TCO Calculator.

AWS Academy Module 1.2: Cloud Economics

On-premises versus cloud is a question being asked by many businesses. The difference

between these two options is how they are deployed.

An on-premises infrastructure is installed locally on a company’s own computers and servers.

There are several fixed costs, also known as capital expenses, associated with the traditional

infrastructure including facilities, hardware, licenses, and maintenance staff. Scaling up can

be expensive and time consuming. Scaling down does not reduce fixed costs.

A cloud infrastructure is purchased from a service provider who builds and maintains the

facilities, hardware, and maintenance staff. A customer pays for what is used. Scaling up or

down is simple. Costs are easy to estimate because they depend on service usage.

It is difficult to compare an on-premises IT delivery model with the AWS cloud. The two are

so very different that they use different languages.

On-premises IT is a discussion based on capital expenditure, long planning cycles, and

multiple components to buy, build, manage, and refresh over time.

AWS is a discussion about flexibility, agility, and consumption based costs.

So, how can we identify the best option?

AWS Academy Module 1.2: Cloud Economics

We can identify the best option by comparing the on-premises solution to a cloud solution.

Total Cost of Ownership (or TCO) is a tool that can be used for this comparison. TCO is a

financial estimate intended to help buyers and owners determine the direct and indirect

costs of a product or system. TCO includes the cost of a service plus all the costs associated

with owning the service.

In the cloud environment, TCO is used for comparing the costs of running an entire

infrastructure environment for a specific workload in an on-premises or co-location facility,

to the same workload running on a cloud-based infrastructure. This comparison is done for

budgeting purposes or to build a business case for business decisions regarding the optimal

deployment solution.

AWS Academy Module 1.2: Cloud Economics

So, what are some of the costs associated with data center management? These costs include:

•Server costs for both hardware and software, along and facilities costs to house the equipment.

•Storage costs are associated with the hardware, administration and facilities.

•Network costs are similar to the storage costs and include hardware, administration, and

facilities costs.

•And IT labor costs that are required to administer the entire solution.

When comparing an on-premises to cloud solution, it is important to accurately assess the true

costs of both options. With the Cloud, most costs are upfront and readily calculated. For example,

cloud providers give transparent pricing based on different usage metrics, such as RAM, storage,

and bandwidth, among others. Pricing is frequently fixed per unit of time.

Customers gain certainty over pricing and are then able to readily calculate costs based on several

different usage estimates.

Compare this to on-premise technology. Although they are sometimes difficult to determine,

calculations of in-house costs must take into account all:

•Direct costs that accompany running a server like power, floor space, storage, and IT

operations to manage those resources

•Indirect costs of running a server like network and storage infrastructure

AWS Academy Module 1.2: Cloud Economics

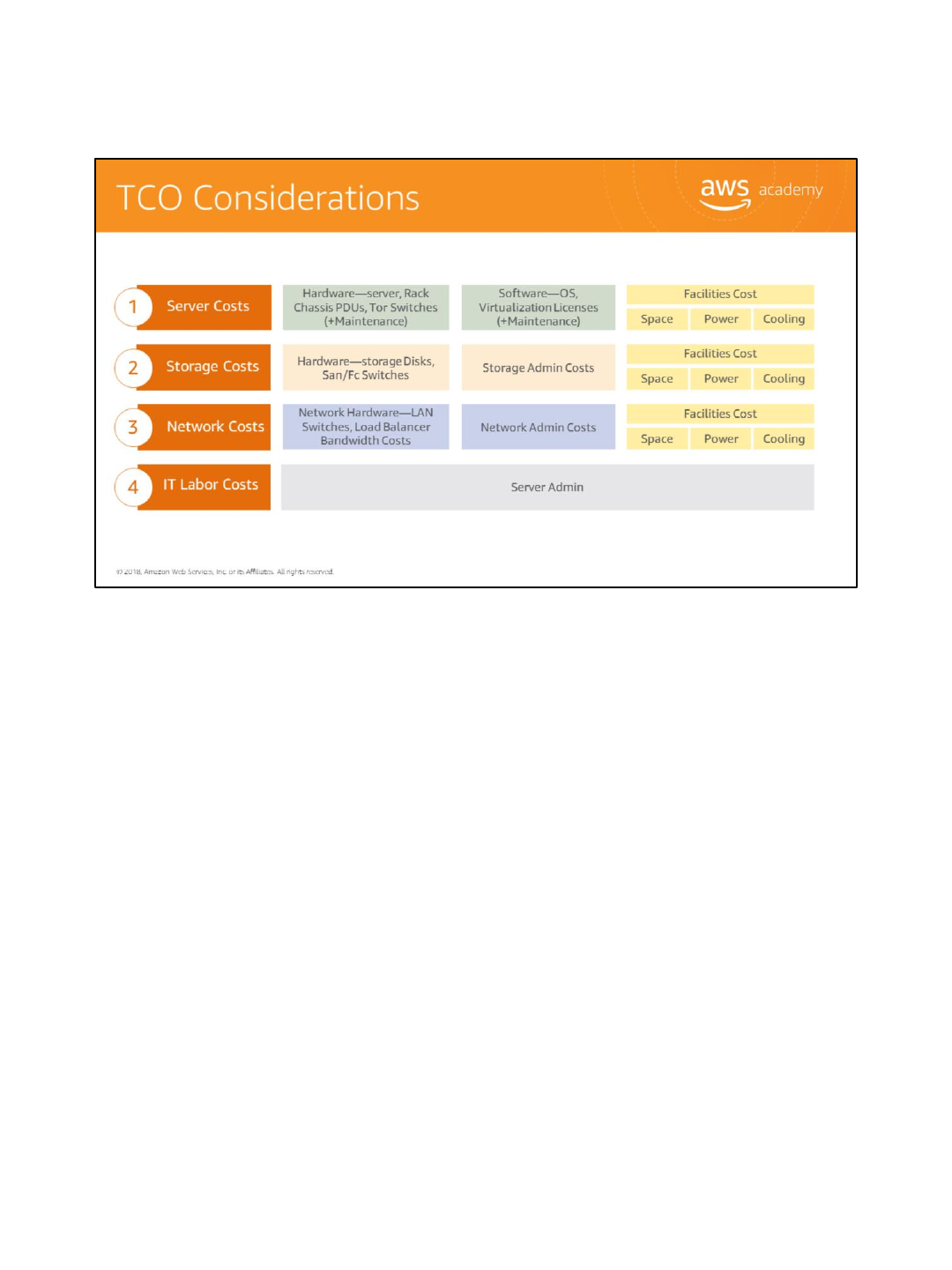

Please note that this diagram is conceptual and does not include every cost item. For

example, depending on the solution you are implementing, software costs can include

database, management, and middle-tier costs. Facilities costs can include upgrades,

maintenance, building security, taxes, and so on. IT labor costs can include security admin

and application admin costs. This is an abbreviated list to demonstrate the type of costs that

are involved in data center maintenance.

18

AWS Academy Module 1.2: Cloud Economics

Let’s take a look at a cost comparison. This example shows a cost comparison for an on-

premises and cloud solution over 3 years. For this comparison, two similar environments

were constructed to represent the on-premises and AWS environments. Note that additional

direct and indirect costs associated with the on-premises solution have not been included.

The components of the on-premises solution include:

•1 virtual machine with 4 CPUs, 16 GB of RAM, and a Linux operating system

•Average utilization is 100%

•Optimized by RAM

The components of a comparable AWS environment include:

•1 m4.xlarge instance with 4 CPUs, 16 GB of RAM,

•The Instance type is a 3 year partial upfront reserved instance

The cost difference between these solutions is significant - a 96% annual savings on cloud

infrastructure versus an on-premises solution. The three year total savings would be

$159,913!

The on-premise three year total solution cost is $502,266. The AWS Cloud three year total

solution cost is $22,537 for a 96% savings. This comparison helps a business clearly

understand the differences between the alternatives.

19

AWS Academy Module 1.2: Cloud Economics

So, what is the difference in the costs?

Remember, the on-premises solution is “predicted” and then continues to incur costs

whether or not the capacity is utilized.

In contrast, the AWS solution is commissioned when needed and decommissioned when the

resources are no longer in use, resulting in the lower overall costs.

19

AWS Academy Module 1.2: Cloud Economics

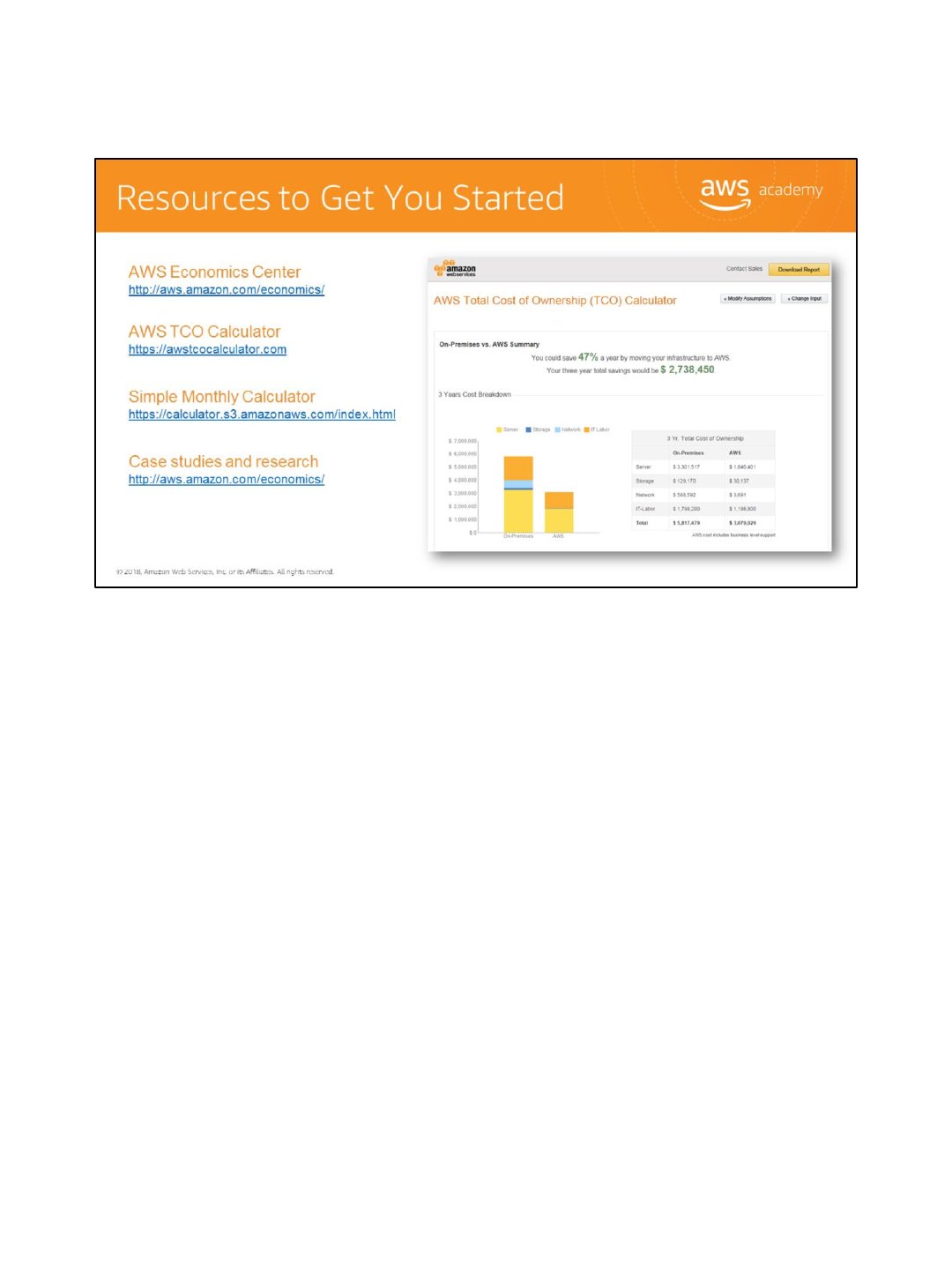

There are tools available to assist you with these comparisons. The AWS Simple Monthly

Calculator helps estimate a monthly AWS bill. Using this tool, you can add, modify and

remove services from your 'bill' and it will recalculate the estimated monthly charges

automatically.

The calculator incorporates a wide array of pricing calculations across all services in all

regions. It also shows a breakdown of features for each service in each region.

The Simple Monthly Calculator is a tool that helps you:

Estimate monthly services costs when using AWS

Identify opportunities for cost reduction

And use templates to model solutions to compare services and deployment models

The calculator also shows common customer samples and their usage. You can click on the

“Disaster Recovery and Backup” sample or “Web Application” sample and see the uses of

each service.

Select the link to launch the Simple Monthly calculator.

20

AWS Academy Module 1.2: Cloud Economics

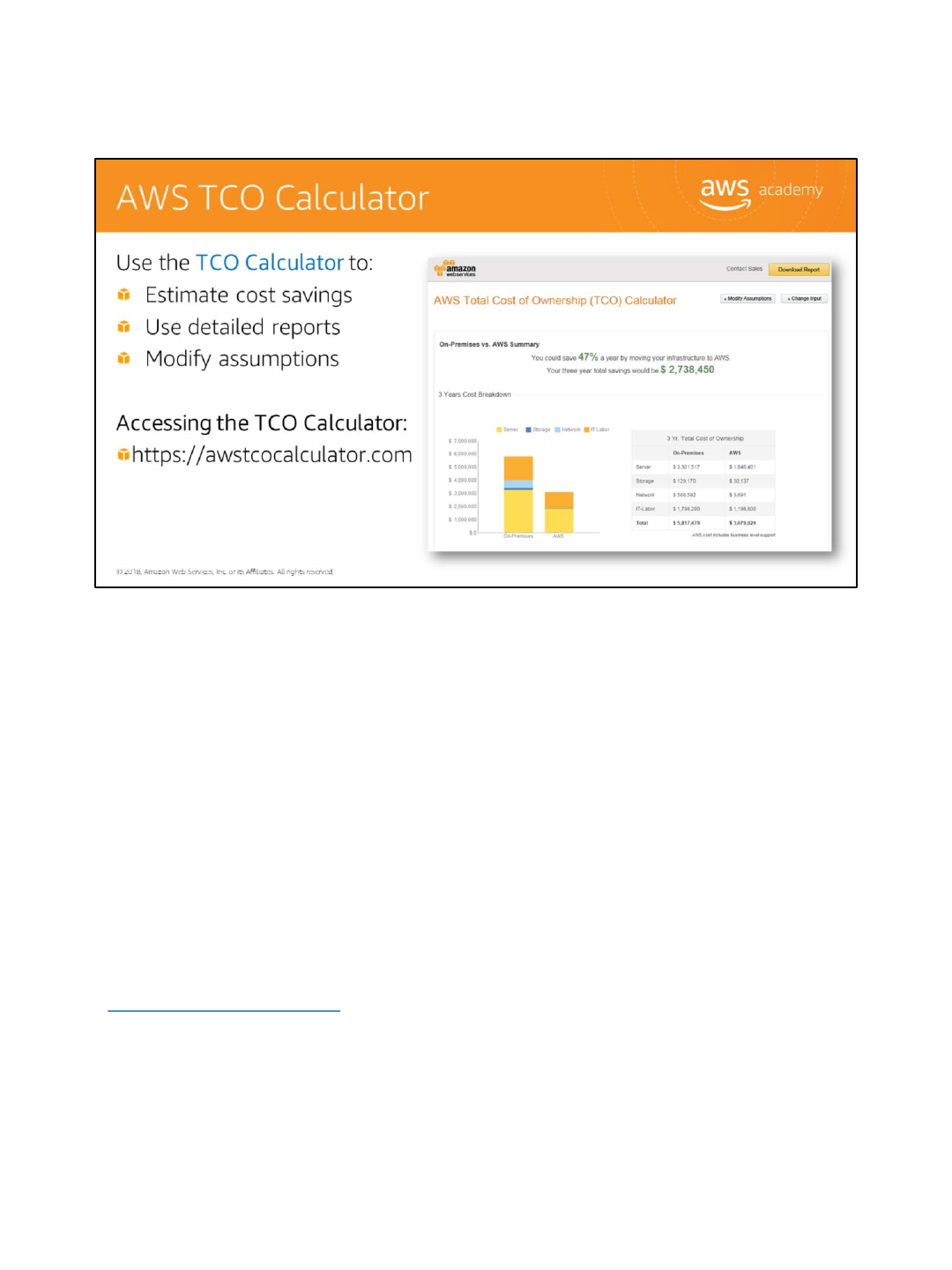

The AWS TCO Calculator helps you evaluate the total cost of ownership of a solution.

Eliminating the need to invest in large capital expenditures, or capex,and providing a pay-as-

you-go model that empowers you to invest in the capacity you need, and use it only when

you require it, helps reduce total cost of ownership.

The TCO calculator is a tool that helps you:

•Estimate cost savings when using AWS

•Uses a detailed set of reports, which can be used in executive presentations.

•And modify assumptions that best meets your needs.

An additional benefit of the calculator includes the ability to weigh the financial

considerations of owning and operating a data center versus using a cloud infrastructure.

Also, the TCO calculator explains the assumptions and the methodology behind the

calculations.

Select the link to launch the TCO calculator.

https://awstcocalculator.com

21

AWS Academy Module 1.2: Cloud Economics

Hard benefits include reduced spending on compute, storage, networking and security. Avoid

hardware and software purchases and reductions in operational costs, backup and disaster

recovery and a reduction in operations personnel.

Cloud Total Cost of Ownership defines what will be spent on the technology after adoption -

or what it costs to “run the engine”. Typically, a TCO analysis looks at the “as is” on-premises

infrastructure and compares this with the cost of the “to be” infrastructure state in the cloud.

While this is easy to calculate, it may only provide a narrow view of the total financial impact

of moving to the cloud.

A Return on Investment analysis can be used to determine the value generated while taking

spending and saving into consideration. This analysis starts by identifying the hard benefits in

terms of direct and visible cost reductions and efficiency improvements.

Next, soft savings are identified. Soft savings are value points that are challenging to

accurately quantify but can be more valuable than the hard savings. It is important for you to

understand both hard and soft benefits to understand the full value of cloud. Soft benefits

include:

•Reusing service and applications that allow you to define, and redefine solutions using the

same cloud service

22

AWS Academy Module 1.2: Cloud Economics

•Increased developer productivity

•Improved customer satisfaction

•Improved employee morale

•Agile business processes able to quickly respond to new and emerging opportunities, and

•Increased global reach

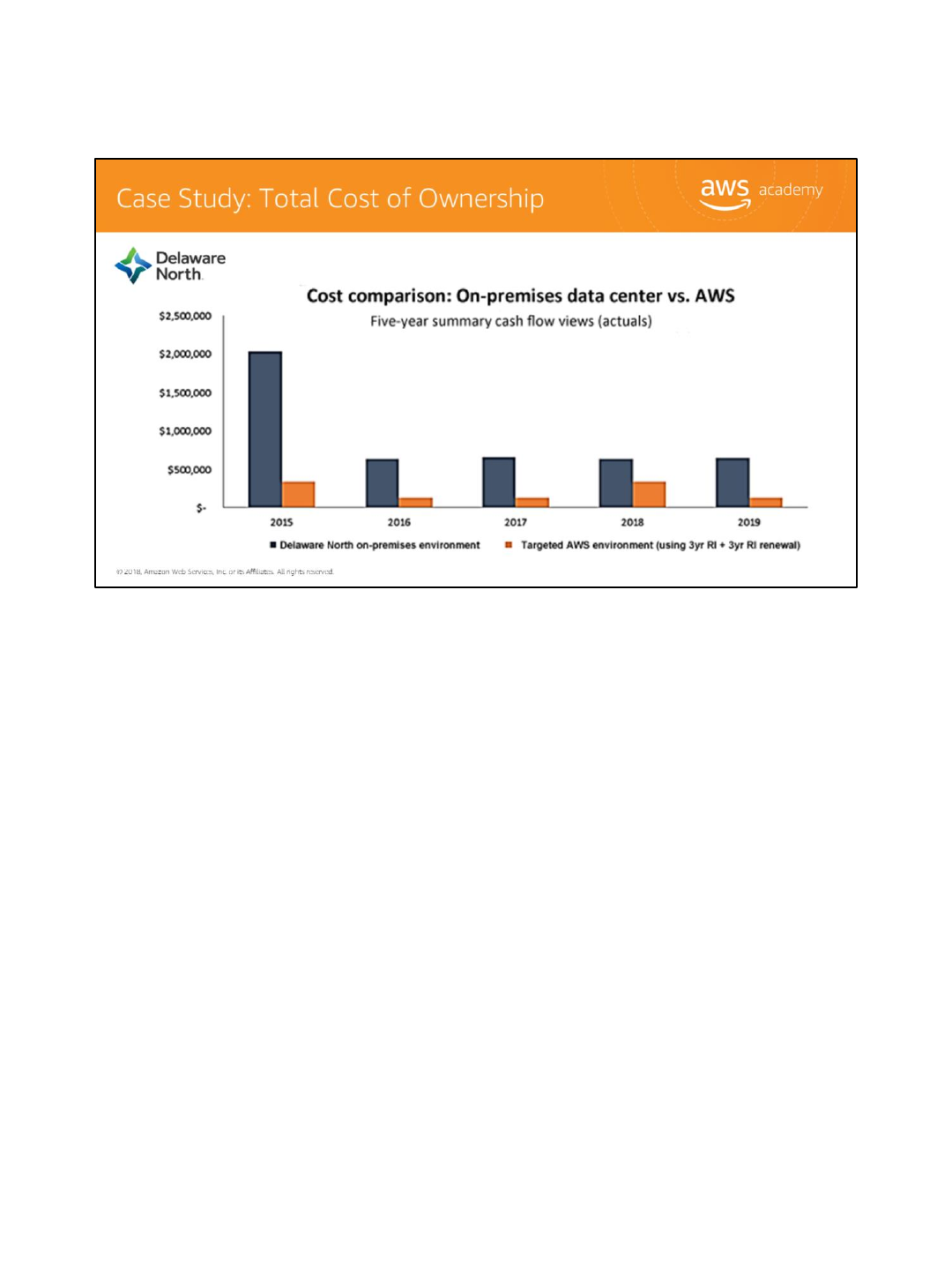

Now, let’s review a case study from Delaware North to see an actual TCO example.

22

AWS Academy Module 1.2: Cloud Economics

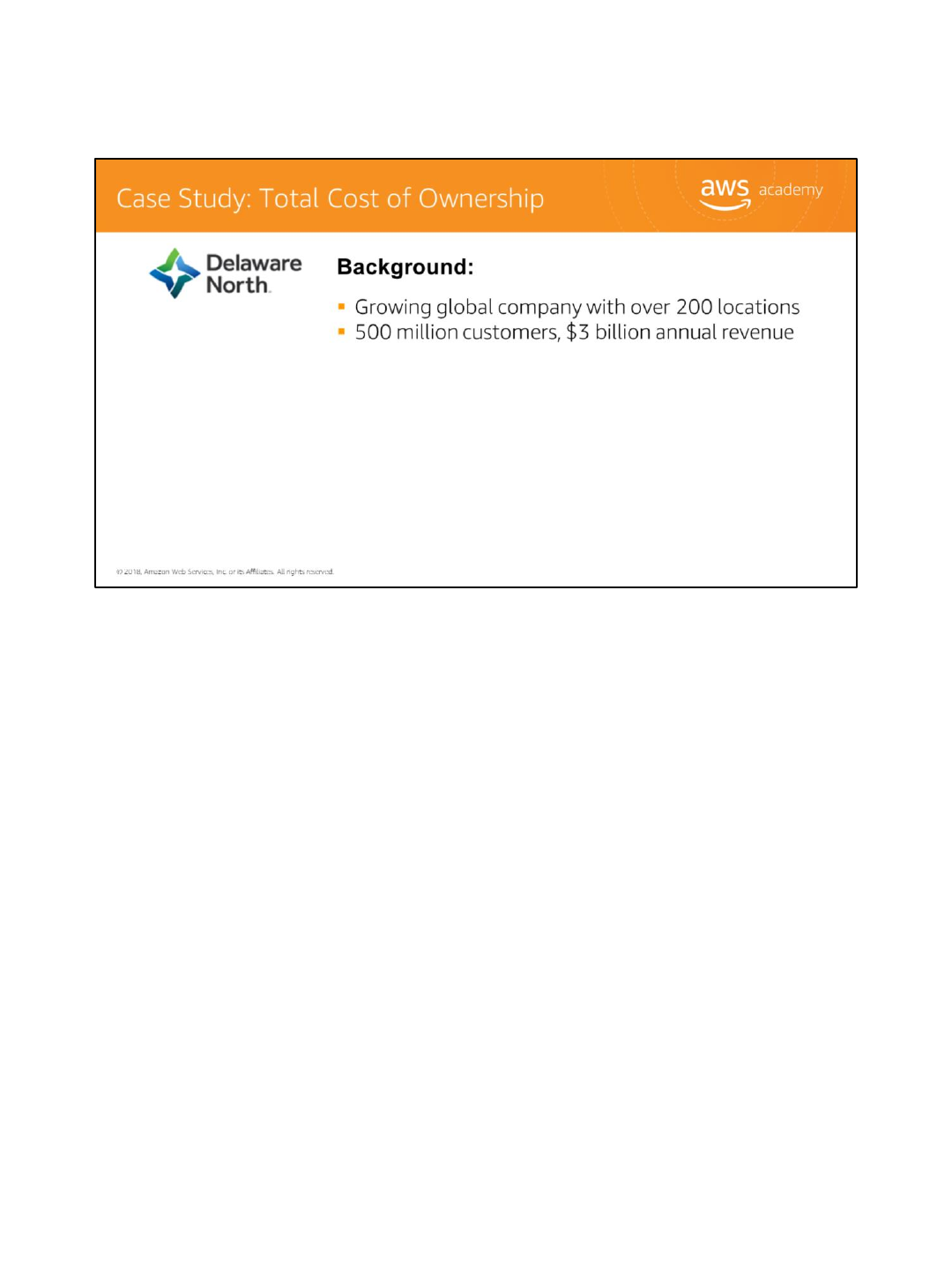

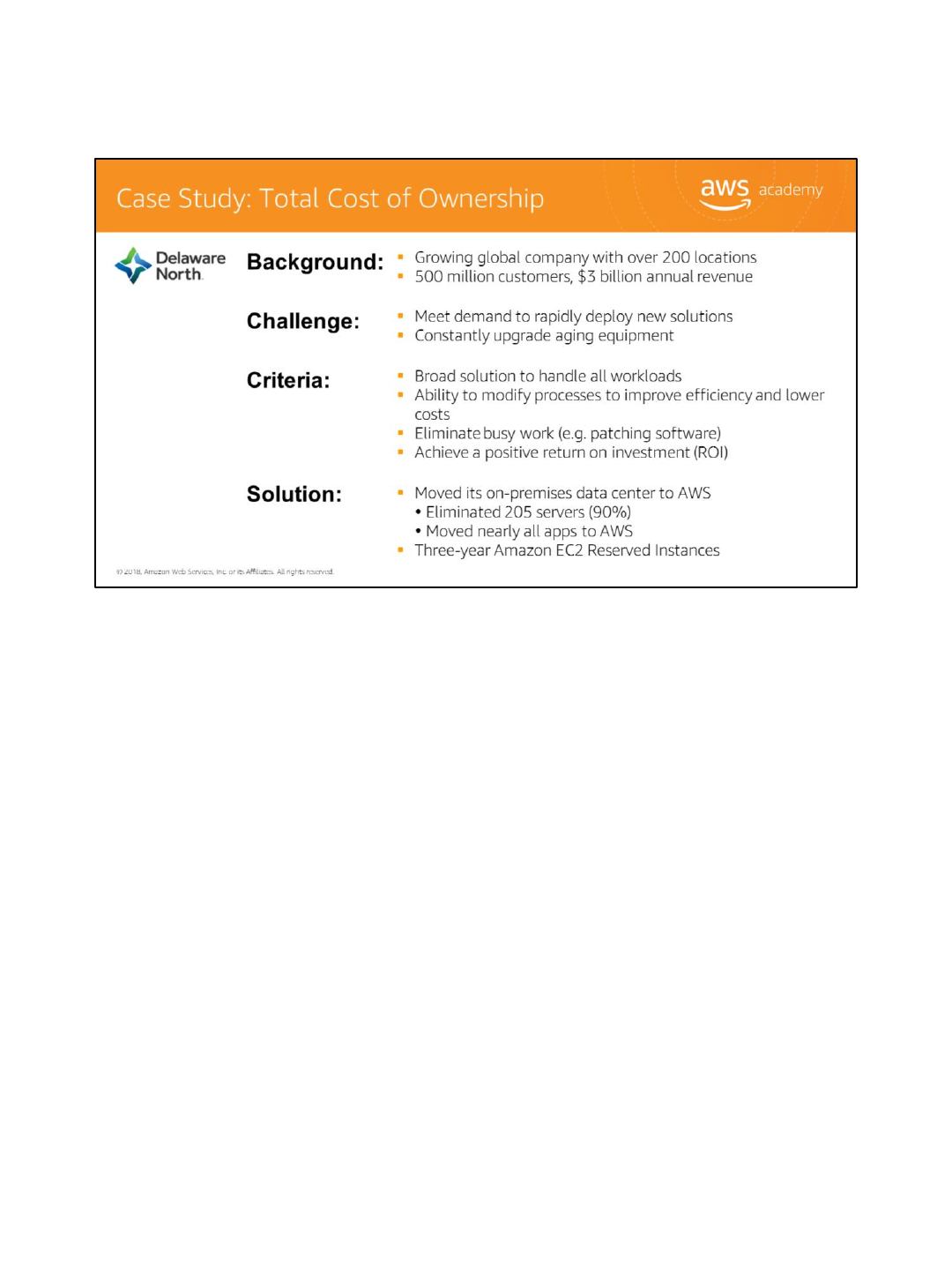

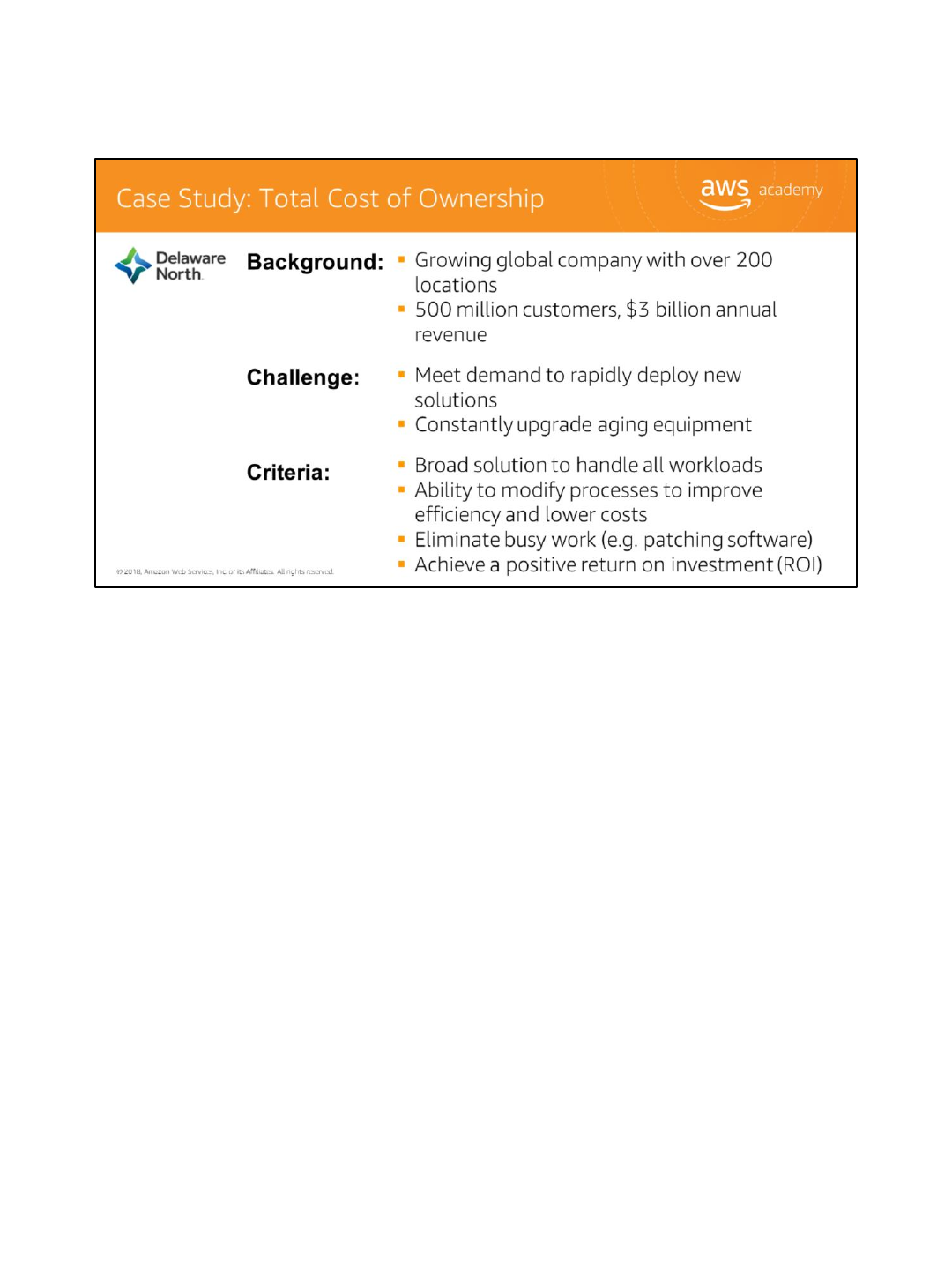

Background:

Delaware North originated in 1915 as a peanut and popcorn concessions vendor; today, it’s a

major food and hospitality company. Although the company deliberately keeps a low profile,

it is a leader in the food-service and hospitality industry.

Delaware North serves more than 500 million customers annually at more than 200

locations around the world, including venues as diverse as the Kennedy Space Center in

Florida, London Heathrow Airport, Kings Canyon Resort in Australia, and the Green Bay

Packers’ Lambeau Field in Wisconsin. This global presence has turned Delaware North into a

$3 billion enterprise.

AWS Academy Module 1.2: Cloud Economics

The company’s on-premises data center was becoming too expensive and inefficient to

support its global business operations.

Kevin Quinlivan, Delaware North’s Chief Information Officer, says, “As the company

continued to grow, the demand to rapidly deploy new solutions to meet customer

requirements increased as well. This fact, combined with the need to constantly upgrade

aging equipment, required an even greater commitment of resources on our part. We had to

find a better strategy.”

Delaware North turned to AWS for a solution.

AWS Academy Module 1.2: Cloud Economics

After a successful migration of about 50 websites to AWS in 2013, Delaware North evaluated

the cost benefit and total cost of ownership to move their IT infrastructure to AWS. Their

focus was to answer C-Suite level business demands for measurable benefits that could

convince an executive committee that the AWS cloud was the right approach.

The evaluation process centered on three criteria:

•First, a cloud solution needed a broad set of technologies that could handle all of

Delaware North’s enterprise workloads while delivering support for critical functions.

•From an operational perspective, Delaware North wanted the features and flexibility to

modify core IT processes to improve efficiencies and lower costs. This included

eliminating redundant or time-consuming tasks like patching software and pushing test

and development tasks through outdated systems that, in the past, added months to the

deployment of new services.

•Finally, financial requirements needed to demonstrate a return on investment with a

solid cost-benefit justification for moving away from their existing data center

environment.

AWS Academy Module 1.2: Cloud Economics

A cost comparison completed by Delaware North demonstrated that it could save 3.5 million dollars

based on a five-year run rate by moving its on-premises data center to AWS and using three-year

Amazon EC2 Reserved Instances and Reserved Instance renewals.

Quinlivan noted that the deep technology stack available on AWS was more than sufficient to meet the

company’s technical and operational requirements. The pricing structure of the AWS offerings, which

includes paying only for what is used, provided total cost of ownership benefits which was presented

to senior leaders.

Quinlivan stated, “We compared the costs of keeping our on-premises data center versus moving to

the AWS cloud, measuring basic infrastructure items such as hardware cost and maintenance.” He also

says “We estimate that moving to AWS will save us at least $3.5 million over five years by reducing our

server hardware by more than 90 percent. However, the cost savings will likely be greater due to

additional benefits, like the increased compute capacity we can get using AWS. That lets us continually

add more and larger workloads than we could using a traditional data center infrastructure, and

achieve savings by only paying for what we use.”

Delaware North moved almost all of its applications to AWS, including enterprise software such as its

Fiorano middleware, Crystal Reports and QLIK business intelligence solutions, its Citrix virtual desktop

system, and Microsoft System Center Configuration Manager, which is used to manage workstations.

AWS Academy Module 1.2: Cloud Economics

The most dramatic physical change was the elimination of 205 servers. Everything running

on that hardware was migrated to AWS. The IT department decided to keep about 20 servers

on-premises at the new headquarters building to run communications and file-and-print

tasks.

“We erred on the side of caution to ensure there is no latency with these tasks, but once we

reach a certain comfort level, we may move these to the cloud as well,” says Brian Mercer,

Senior Software Architect for the project.

26

AWS Academy Module 1.2: Cloud Economics

This chart displays the cost comparison done by Delaware North showing the costs of their

on-premises environment and the proposed AWS environment. The estimates showed a $3.5

million based on a five-year run rate by moving from an on-premises data center to AWS.

AWS Academy Module 1.2: Cloud Economics

Six months into its cloud migration, Delaware North was realizing benefits in addition to its

data center consolidation, including cost-effective security compliance, enhanced disaster

recovery, and faster deployment times for new services.

“Robust security in a retail environment is critical for us because of our many retail

operations, and AWS is enormously helpful for that,” says Brian Mercer, the senior software

architect for the project. “By leveraging the security best practices of AWS, we’ve been able

to eliminate a lot of compliance tasks that in the past took up valuable time and money.”

He adds that the company also has increased its disaster recovery capabilities at a lower cost

than what was available in its previous data center deployment. “It significantly improved our

business continuity capabilities, including seamless failovers,” he says.

The solution is also helping Delaware North operate with greater speed and agility. For

example, it can bring in new businesses - either through contracts or acquisitions - and get

them online much faster than in the past by eliminating the need for traditional IT

procurement and provisioning. It used to take between two and three weeks to provision

new business units; now it takes one day. The Delaware North IT team is also using AWS to

overhaul its operations by eliminating outdated and cumbersome processes, cleaning up

documentation, and leveraging the benefits of running test and development tasks in

AWS Academy Module 1.2: Cloud Economics

combination with rapid deployment of services through the cloud.

“Our DevOps team can now spin up the resources to push out a service in just minutes,

compared to the weeks it used to take,” says Brian Mercer. “With AWS, we can respond

much faster to business needs. And we can start repurposing time and resources to deliver

more value and services to our internal teams and to our customers.”

28

AWS Academy Module 1.2: Cloud Economics

If you are interested in learning more, there are a number of resources available. Here are

some links for you to look at later. Try out the simple online calculator, and access additional

resources.

AWS Academy Module 1.2: Cloud Economics

In summary, the total cost of ownership is a valuable tool that can be used to understand and

compare the costs associated to different deployments. AWS provides the AWS Simple

Monthly Calculator and the TCO Calculator to assist you with the calculations needed to

estimate cost savings.

Use the AWS Simple Monthly Calculator to:

•Estimate monthly costs

•Identify opportunities to reduce monthly costs, and

•Use templates to compare services and deployment models

Use the TCO Calculator to:

•Analyze detailed reports that show a 3-year TCO comparison by cost categories

•Reports that are appropriate for inclusion in executive presentations, and

•The ability to modify assumptions for business needs

30

AWS Academy Module 1.2: Cloud Economics

In review, we:

•Explored the fundamental of AWS pricing

•Reviewed the Total Cost of Ownership concepts, and

•Introduced the AWS Simple Monthly Calculator and the AWS TCO calculator.

To complete this module, complete the knowledge assessment.

AWS Academy Module 1.2: Cloud Economics

Next, we’ll review the AWS Global Infrastructure and understand managed versus

unmanaged services.

32

AWS Academy Module 1.2: Cloud Economics

Thanks for participating! You may now exit this module.

AWS Academy Module 1.2: Cloud Economics

Welcome to Module 1, Section 3: AWS Infrastructure Overview.

AWS Academy Module 1.3: AWS Infrastructure Overview

In part one, we will review the AWS Global Infrastructure, and in part two we’ll provide an

AWS service and service category overview.

AWS Academy Module 1.3: AWS Infrastructure Overview

The goal of this module is to understand the AWS global infrastructure and the types of

services that are available. We’ll examine the AWS Global Infrastructure to gain a clear

understanding of what the infrastructure includes and understand the differences between

AWS Regions, Availability Zones, and Edge Locations.

3

AWS Academy Module 1.3: AWS Infrastructure Overview

Introducing Part 1: AWS Global Infrastructure.

AWS Academy Module 1.3: AWS Infrastructure Overview

As we discussed earlier, AWS provides a broad set of services, such as compute power,

storage options, networking, and databases, delivered as an on-demand utility that is

available in seconds, with pay-as-you-go pricing. All of these services reside on the AWS

global infrastructure.

AWS’s global infrastructure can be broken down into three elements: Regions, Availability

Zones, and Edge Locations.

Let’s take a more in depth look at the AWS infrastructure and see what these are.

AWS Academy Module 1.3: AWS Infrastructure Overview

The foundation for the AWS infrastructure are the data centers. A data center is a location

where the actual physical data resides. AWS data centers are built in clusters in various global

regions.

Data centers are securely designed with several factors in mind.

Each location is carefully evaluated to mitigate environmental risk.

Data centers have a redundant design that anticipates and tolerates failure while maintaining

service levels.

To ensure availability, critical system components are backed up across multiple isolated

locations known as Availability Zones.

To ensure capacity, AWS continuously monitors service usage to deploy infrastructure to

support availability commitments and requirements.

Data center locations are not disclosed and all access to them is restricted.

In case of failure, automated processes move customer data traffic away from the affected

area.

A single data center typically houses 50,000 to 80,000 physical servers, as larger data centers

are undesirable.

AWS Academy Module 1.3: AWS Infrastructure Overview

All data centers are online and serving customers, so no data center is “cold.”

AWS utilizes custom, multi-ODM sourced network equipment. Original Design Manufacturer

(or ODM) designs and manufactures products based on specifications from a second

company. The second company then rebrands the products for sale.

Select the link to learn more.

https://aws.amazon.com/compliance/data-center/.

6

AWS Academy Module 1.3: AWS Infrastructure Overview

The AWS Cloud infrastructure is built around Regions and Availability Zones.

An AWS Region is a physical geographical location in the world where we have multiple

Availability Zones. To achieve fault tolerance and stability, Regions are isolated from one

another. Resources in one region are not automatically replicated to other regions. Each AWS

Region contains two or more Availability Zones. AWS has 18 regions worldwide.

When you store data in a specific region, it is not replicated outside that region. AWS never

moves your data out of the region you put it in. It is your responsibility to replicate data

across regions, if your business needs require that. AWS provides information about the

country, and, where applicable, the state where each region resides. You are responsible for

selecting the region to store data in, based on your compliance and network latency

requirements. When you distribute applications across multiple Availability Zones, be aware

of location-dependent privacy and compliance requirements, such as the EU Data Privacy

Directive. When selecting a Region, it is also important to consider which region will help you

optimize latency while minimizing costs and adhering to whatever regulatory requirements

you may have.

Let’s dive deeper on this point. If you are leveraging cloud computing services, you can easily

deploy your application in multiple regions. For instance, you can have an application in a

AWS Academy Module 1.3: AWS Infrastructure Overview

region nearest your headquarters, such as San Diego, and then also have a deployable

application in a region in the East Coast. Let’s say your largest customer base is located in

Virginia. With a few clicks, you can easily deploy in the US East region to provide a better

experience for your customers located there. You will be minimizing latency and increasing

agility for your organization within minutes and with minimal cost.

7

AWS Academy Module 1.3: AWS Infrastructure Overview

To see the regions currently available, navigate to the AWS homepage

(https://aws.amazon.com) and scroll down to the global network of regions and edge

locations. Edge Locations can be found by selecting the link

https://aws.amazon.com/cloudfront/details/).

8

AWS Academy Module 1.3: AWS Infrastructure Overview

AWS products and services are available by region, so you may not see all regions available

for a given service. AWS is steadily expanding its global infrastructure to help customers

achieve lower latency and higher throughput, and to ensure that your data resides only in the

Region you specify.

The AWS Cloud has announced plans to expand with 17 new Availability Zones in four new

geographic Regions: Bahrain, Hong Kong, Sweden, and a second AWS GovCloud Region in the

Eastern US.

The isolated GovCloud (US) Region is designed to allow US government agencies and

customers to move sensitive workloads into the cloud by addressing their specific regulatory

and compliance requirements.

For more information about global infrastructure, select the link.

http://aws.amazon.com/about-aws/globalinfrastructure/

9

AWS Academy Module 1.3: AWS Infrastructure Overview

Availability Zones consist of one or more discrete data centers designed for fault isolation,

each with redundant power, networking, and connectivity housed in separate facilities. They

are interconnected with other Availability Zones using high-speed private links. Some

Availability Zones have as many as six data centers; however, no data center can be part of

two Availability Zones.

Each Availability Zone is designed as an independent failure zone. This means that Availability

Zones are physically separated within a typical metropolitan region and are located in lower-

risk flood plains with specific flood-zone categorization that varies by region. In addition to

having a discrete uninterruptable power supply and onsite backup generation facilities, they

are each fed via different grids from independent utilities to further reduce single points of

failure. Availability Zones are all redundantly connected to multiple tier-1 transit providers.

Availability Zones in a region are connected through low-latency links.

You are responsible for selecting the Availability Zones where your systems will reside.

Systems can span across multiple Availability Zones. AWS recommends replicating across

Availability Zones for resiliency. You should design your systems to survive temporary or

prolonged failure of an Availability Zone if a disaster occurs. Distributing applications across

multiple Availability Zones allows them to remain resilient in most failure situations, including

natural disasters or system failures.

AWS Academy Module 1.3: AWS Infrastructure Overview

An Edge Location is where end users access AWS services.

It is a global network of 114 points of presence, with 103 Edge Locations and 11 regional

Edge Caches in 56 cities, across 24 countries. They are located in most of the major cities

around the world and serve requests for Amazon CloudFront and Amazon Route 53. Edge

Locations are currently located in North America, Europe, Asia, Australia, and South America.

AWS Edge locations offer CloudFront, Amazon Route 53, AWS Shield, and AWS Web

Application Firewall (or WAF) services.

CloudFront is a Content Delivery Network (or CDN) used to distribute content to end users to

reduce latency. Amazon Route 53 is a DNS service. Requests going to either one of these

services will be routed to the nearest Edge Location automatically.

Regional Edge Caches, used by default with Amazon CloudFront, are utilized when you have

content that is not accessed frequently enough to remain in an Edge Location. Regional Edge

Caches absorb this content and provide an alternative to that content having to be fetched

from the origin server.

AWS Academy Module 1.3: AWS Infrastructure Overview

The AWS Cloud infrastructure is built around Regions and Availability Zones. AWS Regions

provide multiple, physically separated, and isolated Availability Zones. An AWS Region

contains two or more Availability Zones.

An Availability Zone is a data center or collection of data centers that are connected with low

latency, high throughput, and highly redundant networking. Availability Zones are physically

distinct and each has equipment like Uninterruptible Power Supplies, cooling equipment,

backup generators, and security, to ensure uninterrupted operations.

This infrastructure has several valuable features:

•First, it is elastic and scalable. This means resources can dynamically adjust to increases or

decreases in capacity requirements. It can also rapidly adjust to accommodate growth.

•Second, this infrastructure is fault tolerant, which means it has built-in component

redundancy which enables it to continue operations despite a failed component.

•Finally, it requires minimal to no human intervention, while providing high availability with

minimal down time.

AWS Academy Module 1.3: AWS Infrastructure Overview

Introducing Part 2: AWS Service and Service Category Overview.

AWS offers a broad set of global cloud based products that can be used as building blocks for

common cloud architectures. Let’s look at how these cloud based products are organized.

AWS Academy Module 1.3: AWS Infrastructure Overview

As discussed previously, AWS’s global infrastructure can be broken down into three

elements: Regions, Availability Zones, and Edge Locations. This infrastructure provides the

platform for a broad set of services, such as networking, storage, compute power, and

databases delivered as an on-demand utility that is available in seconds, with pay-as-you-go

pricing.

Now, let’s shift our focus to the core services and take a more in-depth look at what these

are and what each offers you for building your cloud solution.

AWS Academy Module 1.3: AWS Infrastructure Overview

AWS offers a broad set of global cloud-based services that can be used as building blocks for

common cloud architectures. Some of the categories we will discuss in this module include

Compute, Storage, Database, Networking & Content Delivery and Security, Identity &

Compliance.

If you go to the AWS front page, aws.amazon.com, and scroll down to find the section that

allows you to explore the products. It places all of the products and services into different

categories. For example, click on Compute and you will see Amazon EC2 is first on the list.

There are also a lot of other products and services that appear in the compute category.

If you click Amazon EC2, it brings you to the Amazon EC2 main page. Select the link to review.

It gives you a detailed description of the product and lists some of the benefits. Additionally,

there are links for Product Details, Instance Types, Pricing, Getting Started, FAQs, and

Resources. When you click on Product Details there is more detailed information about

Amazon EC2.

Explore the different service groups to understand the categories and services within them.

Now that you know how to locate information about different services, let’s narrow our

discussion to the AWS Core Services.

AWS Academy Module 1.3: AWS Infrastructure Overview

In summary, we examined the AWS Global Infrastructure to understand Data Centers,

Regions, Availability Zones, and Edge Locations, and we reviewed different categories of AWS

service categories and their organization.

To finish this module, please complete the corresponding knowledge assessment.

AWS Academy Module 1.3: AWS Infrastructure Overview

In Unit 2, we will look at the core of Amazon Web Services to better understand the

specifics of each service. We will start in Module 2, Unit 1 with an introduction of

compute services.

17

AWS Academy Module 1.3: AWS Infrastructure Overview

Thanks for participating!

AWS Academy Module 1.3: AWS Infrastructure Overview

Academy Cloud Foundations (ACF) 1.0.5 (EN): Module 01 Student Guide 1

Navigation menu

Versions of this User Manual:

Views

Navigation
