IPL, McCulloch, Cabrio 291, 953900445, Prefix 02, 2003 05, Brush Cutter 953900445 Motorsense Mc Culloch,
User Manual: 953900445
Open the PDF directly: View PDF
.
Page Count: 4
The Electrolux Group.The world’s No.1 choice.
FIGURE 1
ELECTROLUX OUTDOOR PRODUCTS
brand MCCULLOCH date MAY/03 SHEET 1/4
Model Prefix Product number
CABRIO 291 02 953900445
www.ersatzteil-service.de
Ihr Ersatzteilspezialist im Internet
The Electrolux Group.The world’s No.1 choice.
A= ALTA ROTAZIONE A=HIGH MOVING A=HAUTE DEMANDE A=GROßE NACHFRAGE
B=MEDIA ROTAZIONE B=MEDIUM MOVING B=MOYENNE DEMANDE B=MITTELMAEßIGE
C=BASSA ROTAZIONE C=SLOW MOVING C=BASSE DEMANDE C=WENIGE NACHFRAGE
[
[
[
[
ELECTROLUX OUTDOOR PRODUCTS
FIGURE 1
pos P/N McC P/N ELX Q.ty DESCRIPTION
2 242703 538242703 1filter cover
B 3 242035 538242035 1air filter
4 235808 538235808 2screw 5x50
5 248485 538248485 1filter housing ass'y
6z241769 538241769 1choke lever
7z235822 538235822 1choke shutter spring
8z241622 538241622 1pastic spacer
9z227022 538227022 2spacer
10 z241602 538241602 1shutter choke
12 235248 538235248 2washer
B 13 236563 538236563 1fuel cap ass'y
A14z236564 538236564 1cap seal
C 15 FIGURE 4
A 16 241600 538241600 1spacer/gasket
17 235806 538235806 2screw M5x20
C 18 241750 538241750 1spacer
B 19 242034 538242034 1cilynder gasket
20 227568 538227568 4screw M4x20
21 235248 538235248 1washer
25 241963 538241963 2screw M4x22
27 242704 538242704 1engine cover
C 30 242131 538242131 1muffler
32 323760 538323760 1muffler shield
33 235642 538235642 2nut M5
B 34 242036 538242036 1muffler gasket
36 241963 538241963 3screw M4x20
C 38 242041 538242041 1starter ass'y
B42 z241620 538241620 1starter pulley
A43 z241746 538241746 1starter rope
B44 z241619 538241619 1starter spring
45 z235612 538235612 1washer
46 z241778 538241778 1starter handle
47 z241703 538241703 1washer
48 z240862 538240862 1screw M4x18
49 241624 538241624 1M8 nut
50 241784 538241784 1starter pawl ass'y
A 53 92879 538092879 1RDJ8J spare plug
C 54 242543 538242543 1cylinder
55 242037 538242037 2muffler stud bolt
B 58 241793 538241793 1clutch ass'y
59 z241789 538241789 1clutch hub
60 z241743 538241743 2clutch shoe
A61z241794 538241794 2spring
62 241604 538241604 1clutch dust shield
pos P/N McC P/N ELX Q.ty DESCRIPTION
63 241796 538241796 1flywheel
64 235806 538235806 2screw M5x20
65 241606 538241606 1ground wire
C 66 241749 538241749 1ignition coil
68 236322 538236322 1wire protection
71 241607 538241607 1fair lead
C 72 241725 538241725 1mount ass'y
73 z235803 538235803 1screw M5x25
74 z229524 538229524 1M5 nut
75 z235248 538235248 1washer
76 z228260 538228260 1pin
77 236981 538236981 1screw 3,5x9,5
94 242029 538242029 1engine side cover
95 242003 538242003 1crank shaft ass'y
C96z235742 538235742 1needle bearing
C 97 249179 538249179 1piston kit
B98 z242602 538242602 1piston ring
99 z241735 538241735 1piston pin
100 z235008 538235008 2snap ring
C 103 242030 538242030 2grommet/bearing ass'y
C 104 227631 538227631 1key
106 235803 538235803 4screw M5x25
C 109 242040 538242040 1fuel tank ass'y
B 110 z229717 538229717 1hose
B 111 z229743 538229743 1primer bulb hose
A 112 93720 538093720 1fuel pick up
114 242038 538242038 1tank gasket
115 242039 538242039 1gasket
116 235248 538235248 2washer
FIG.4 WALBRO WT 547
C - 241601 538241601 carb.
B1z324013 538324013 1K20 rep.kit
A 2 zz 324009 538324009 1D20 gasket kit
C3 z225834 538225834 1primer bulb
4z224466 538224466 1swivel kit
FIG.4 ZAMA C1Q M38
C - 241824 538241824 carb.
B1z300465 538300465 1RB-28 rep.kit
A 2 zz 300473 538300473 1diaph/gasket kit
C3 z246946 538246946 1primer bulb
brand MCCULLOCH date MAY/03 SHEET 2/4
Model Prefix Product number
CABRIO 291 02 953900445
www.ersatzteil-service.de
Ihr Ersatzteilspezialist im Internet

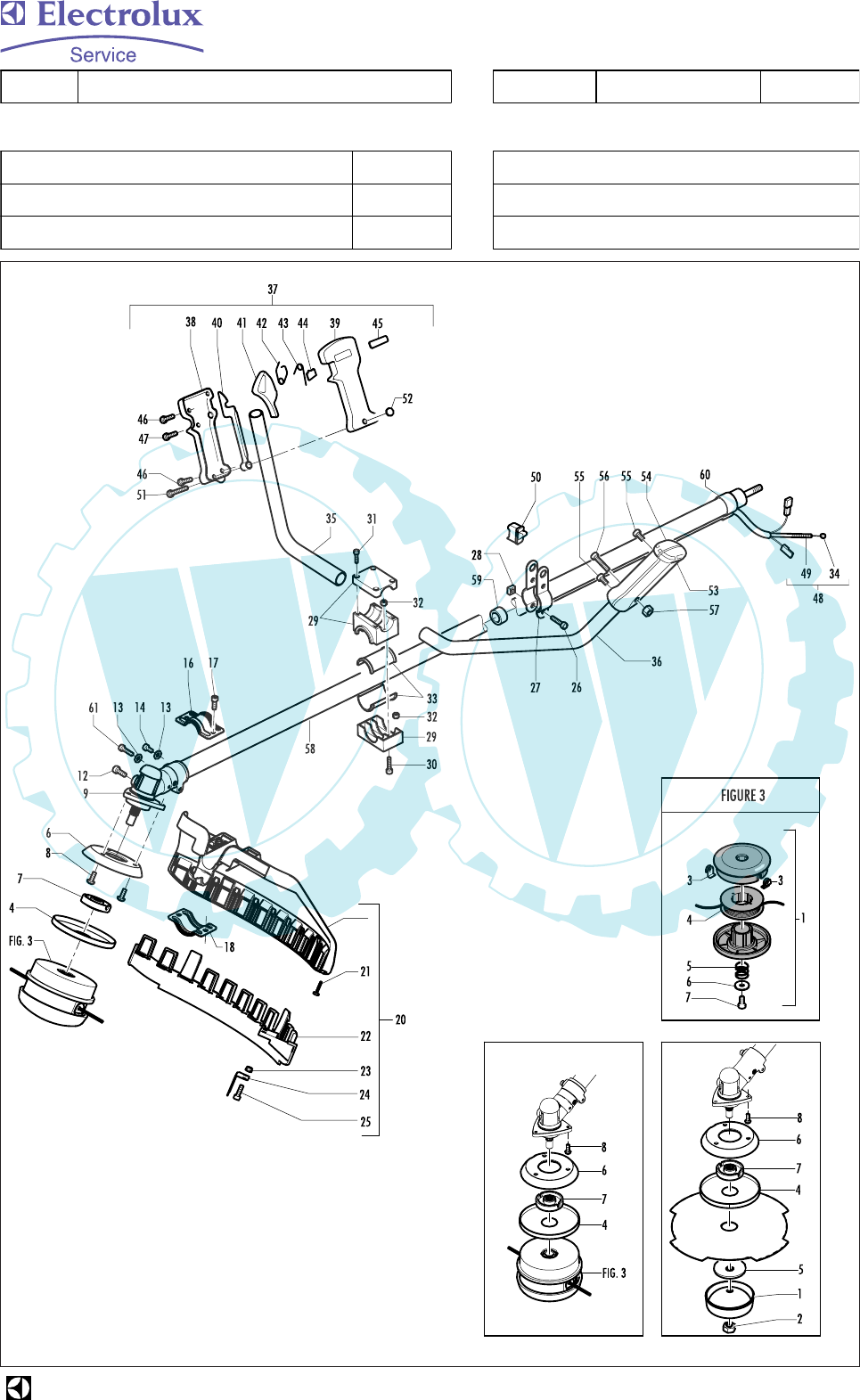

FIGURE 2
ELECTROLUX OUTDOOR PRODUCTS
The Electrolux Group.The world’s No.1 choice.
brand MCCULLOCH date MAY/03 SHEET 3/4
Model Prefix Product number
CABRIO 291 02 953900445
www.ersatzteil-service.de
Ihr Ersatzteilspezialist im Internet
The Electrolux Group.The world’s No.1 choice.
A= ALTA ROTAZIONE A=HIGH MOVING A=HAUTE DEMANDE A=GROßE NACHFRAGE
B=MEDIA ROTAZIONE B=MEDIUM MOVING B=MOYENNE DEMANDE B=MITTELMAEßIGE
C=BASSA ROTAZIONE C=SLOW MOVING C=BASSE DEMANDE C=WENIGE NACHFRAGE
[
[
[
[
ELECTROLUX OUTDOOR PRODUCTS
FIGURE 2
pos P/N McC P/N ELX Q.ty DESCRIPTION
1 236596 538236596 1hub
2 240481 538240481 1M10x1.25 nut
4 241155 538241155 1string head shield
5 241006 538241006 1plate
6 242729 538242729 1flange adapter
7 242753 538242753 1flange
8 240688 538240688 3screw/washer M5x14
9 242728 538242728 1gear box
10 FIGURE 3 1string head
12 z240151 538240151 1screw M8x10
13 236529 538236529 3split washer
14 235804 538235804 2M5x30 screw
16 242629 538242629 1upper clamp
17 227563 538227563 2screw M5x16
18 242752 538242752 1clamp lower
20 248959 538248959 1guard ass'y
21 240862 538240862 1screw M4x18
22 242644 538242644 1guard extension
23 229208 538229208 2nut
24 241973 538241973 1line cutter
25 227563 538227563 2screw M5x16
26 235911 538235911 2screw M6x12
27 228152 538228152 2hook
28 236642 538236642 2nut
29 241685 538241685 1handle clamp ass'y
30 z235921 538235921 2screw M6x30
31 z236558 538236558 4screw M6x40
32 z235912 538235912 6nut
33 z241684 538241684 21/2 bearing
34 235912 538235912 2nut
35 229831 538229831 1handle bar R (1/2)
36 229832 538229832 1handle bar L (1/2)
37 227089 538227089 1trigger ass'y
38 z241293 538241293 1right lever box
39 z241294 538241294 1left lever box
40 z229820 538229820 1safety trigger
41 z241295 538241295 1trigger
42 z240091 538240091 1spring
43 z229973 538229973 1spring
44 z229823 538229823 1cap
45 z229824 538229824 1trigger
46 z240618 538240618 2screw 3x16
pos P/N McC P/N ELX Q.ty DESCRIPTION
47 z240833 538240833 3screw 3x20
C48 z227082 538227082 1wires ass'y
C 49 zz 227054 538227054 1throttle
C 50 zz 236394 538236394 1switch
51 235804 538235804 1screw M5x30
52 235216 538235216 1nut
53 229984 538229984 1left handle 1/2
54 229985 538229985 1right handle 1/2
55 240833 538240833 2screw M3x20
56 235212 538235212 1screw 5x35
57 235216 538235216 1nut
58 242442 538242442 1outer shaft ass'y
59 z241536 538241536 5bushing ass'y
60 229850 538229850 2harness ring
61 236381 538236381 1M5x10 screw
FIGURE 3
A 1 538249174 538249174 string head
B3 z241154 538241154 2eyelet
B4 z248583B 538248583B 12 lines spool
5z240852 538240852 1spring
6z5210 538005210 1locking nut
7z229712 538229712 1screw 5x16
brand MCCULLOCH date MAY/03 SHEET 4/4
Model Prefix Product number
CABRIO 291 02 953900445
www.ersatzteil-service.de
Ihr Ersatzteilspezialist im Internet
