- SECTION A: PUMPS, PTO's, GEAR BOXES
- A041-HIN: PUMP - 603
- A050-HIN: PUMP - 600 FITTINGS
- A131-HIN: PUMP - 1203 W/MOUNTING BASE
- A170-HIN: PUMP - 1200/1202/1203 FITTINGS
- A191-HIN: PUMP - 1303 W/ MOUNTING BASE
- A220-HIN: PUMP - 1301/1302 FITTINGS
- A480-HIN: PTO SHAFTS - BONDIOLI DIAPH.
- A485-HIN: PTO SHAFTS - BONDIOLI CENT.

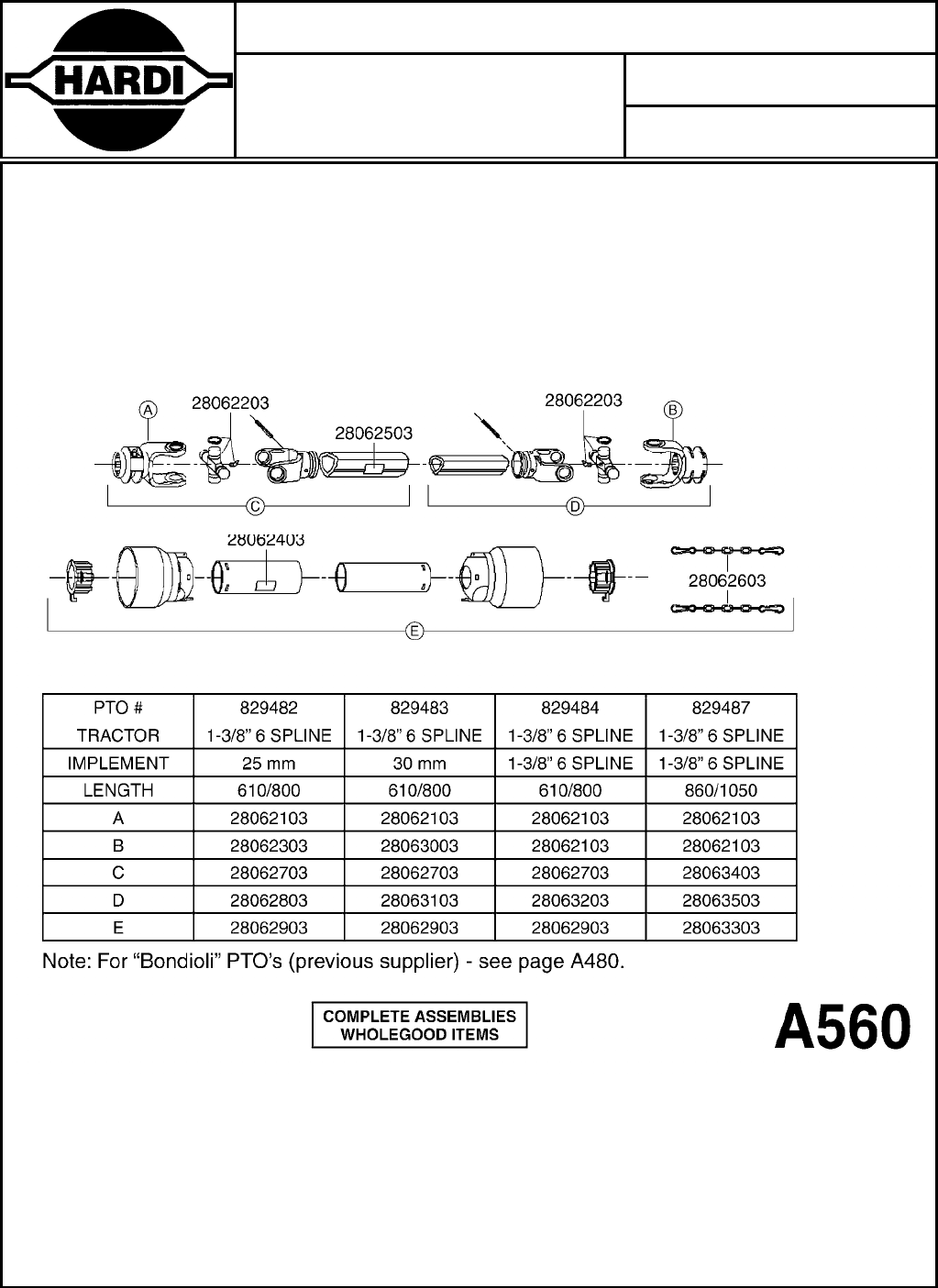

- A560-HIN: PTO SHAFTS - AMA DIAPHRAGM
- SECTION B: CONTROLS, SUCTION & S.C. FILTERS
- SECTION C: HYDRAULICS
- SECTION D: BOOMS, NOZZLE BODIES & TUBES

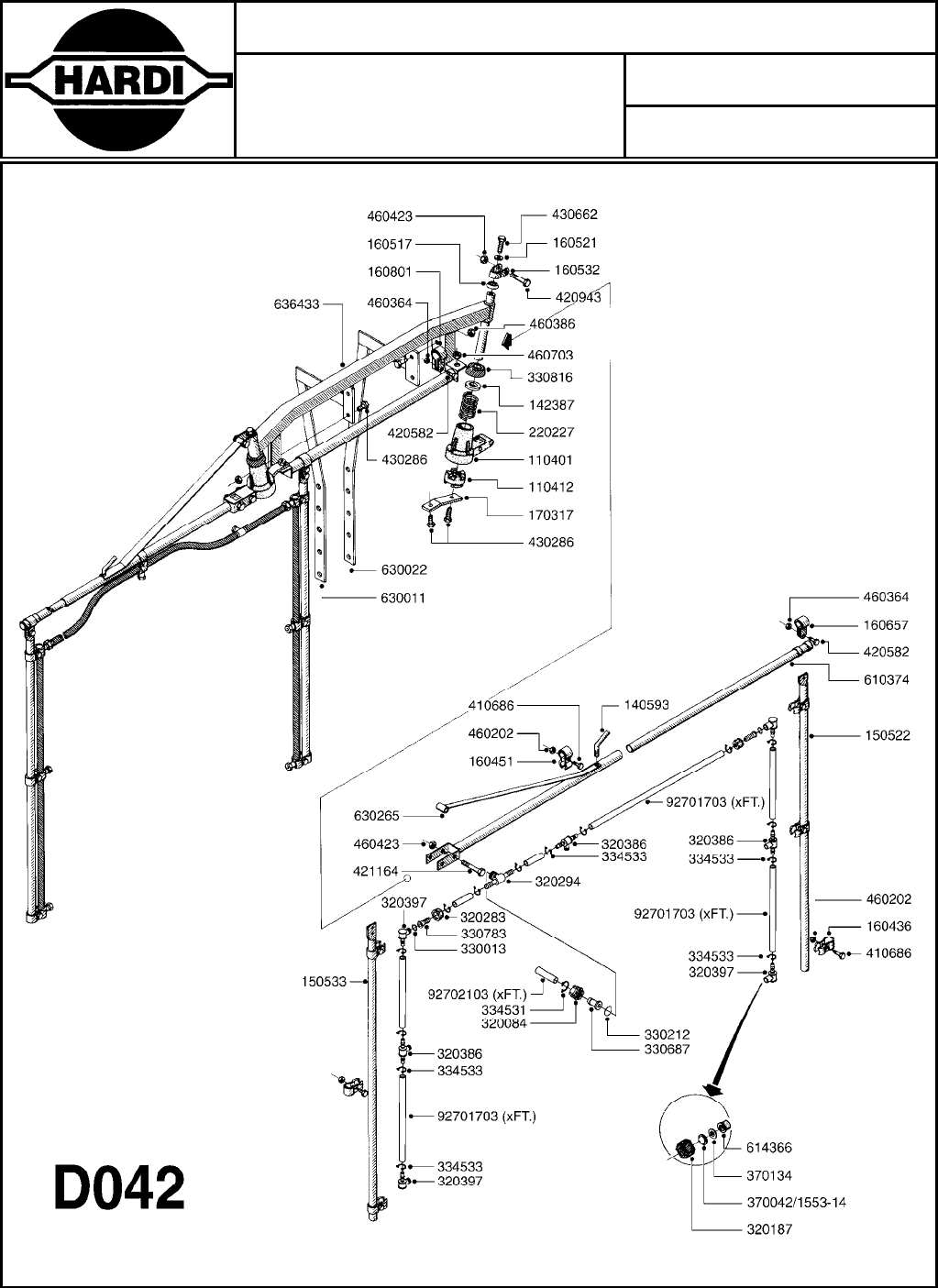

- D042-HIN: BOOM - V-II

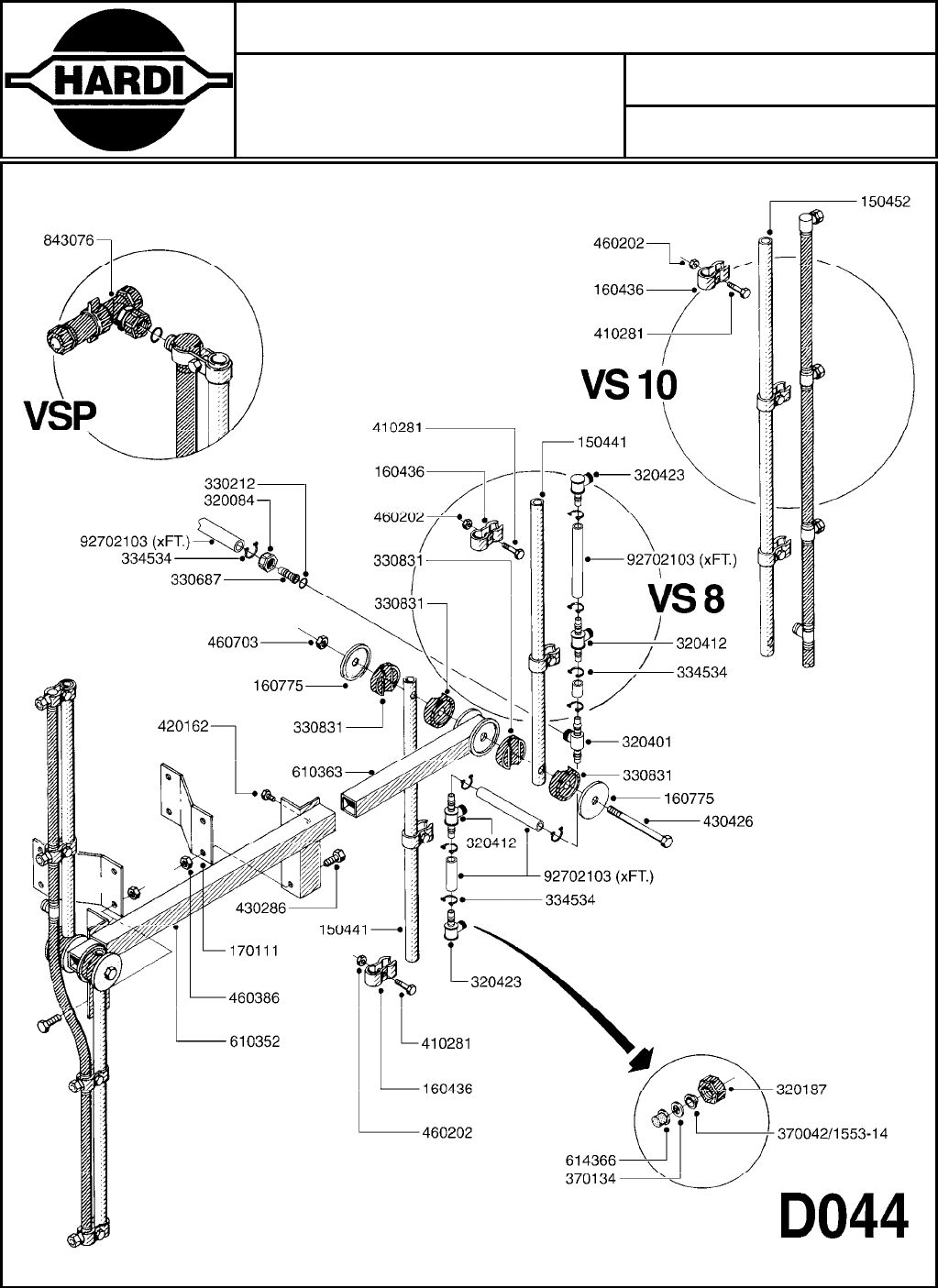

- D044-HIN: BOOM - VS-8 & VS-10
- D050-HIN: BOOM - SB 20' 26' 33'

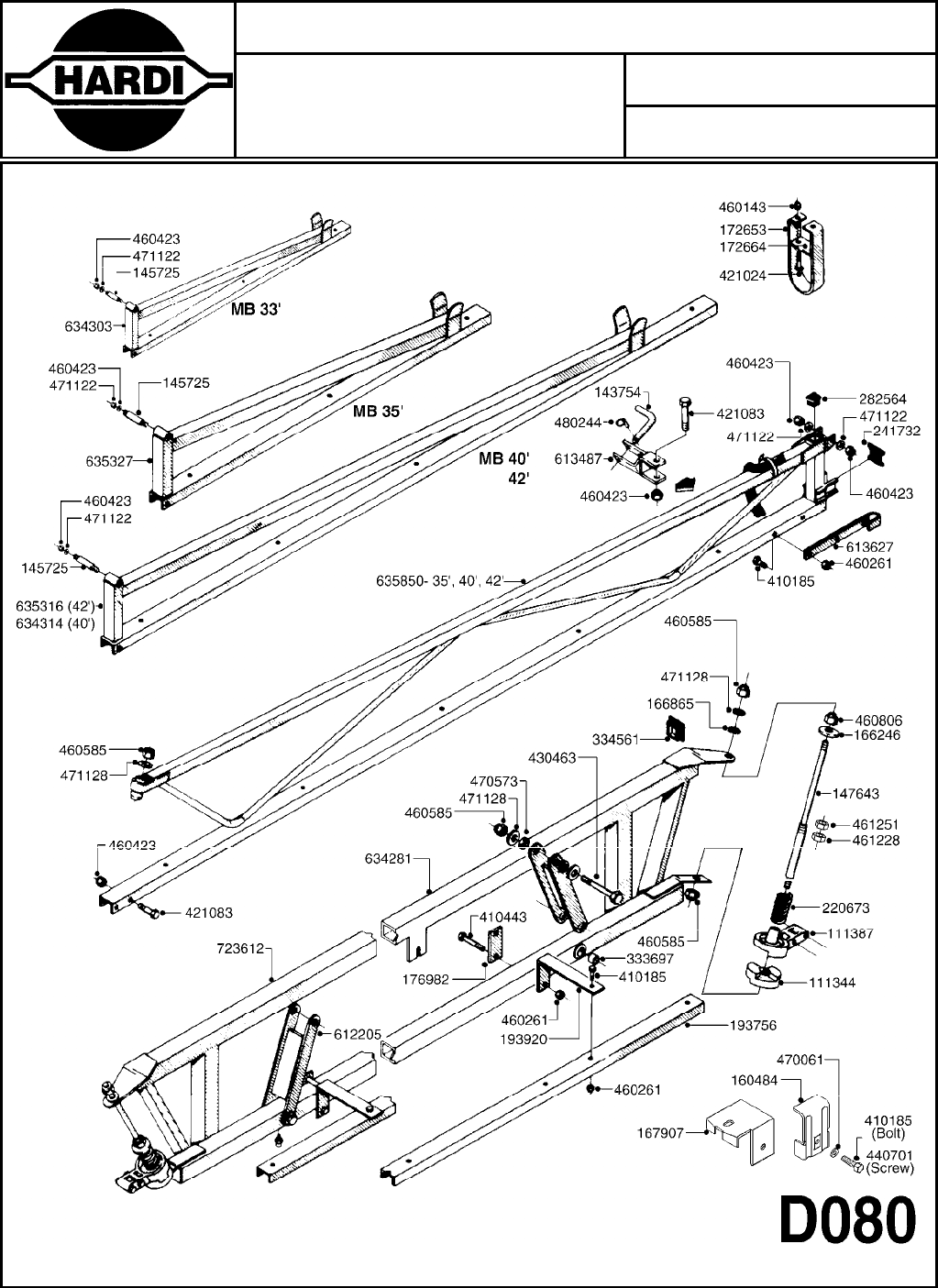

- D080-HIN: BOOM - MB 35' 40' 42'
- D130-HIN: BOOM - MB H-FRAME HL

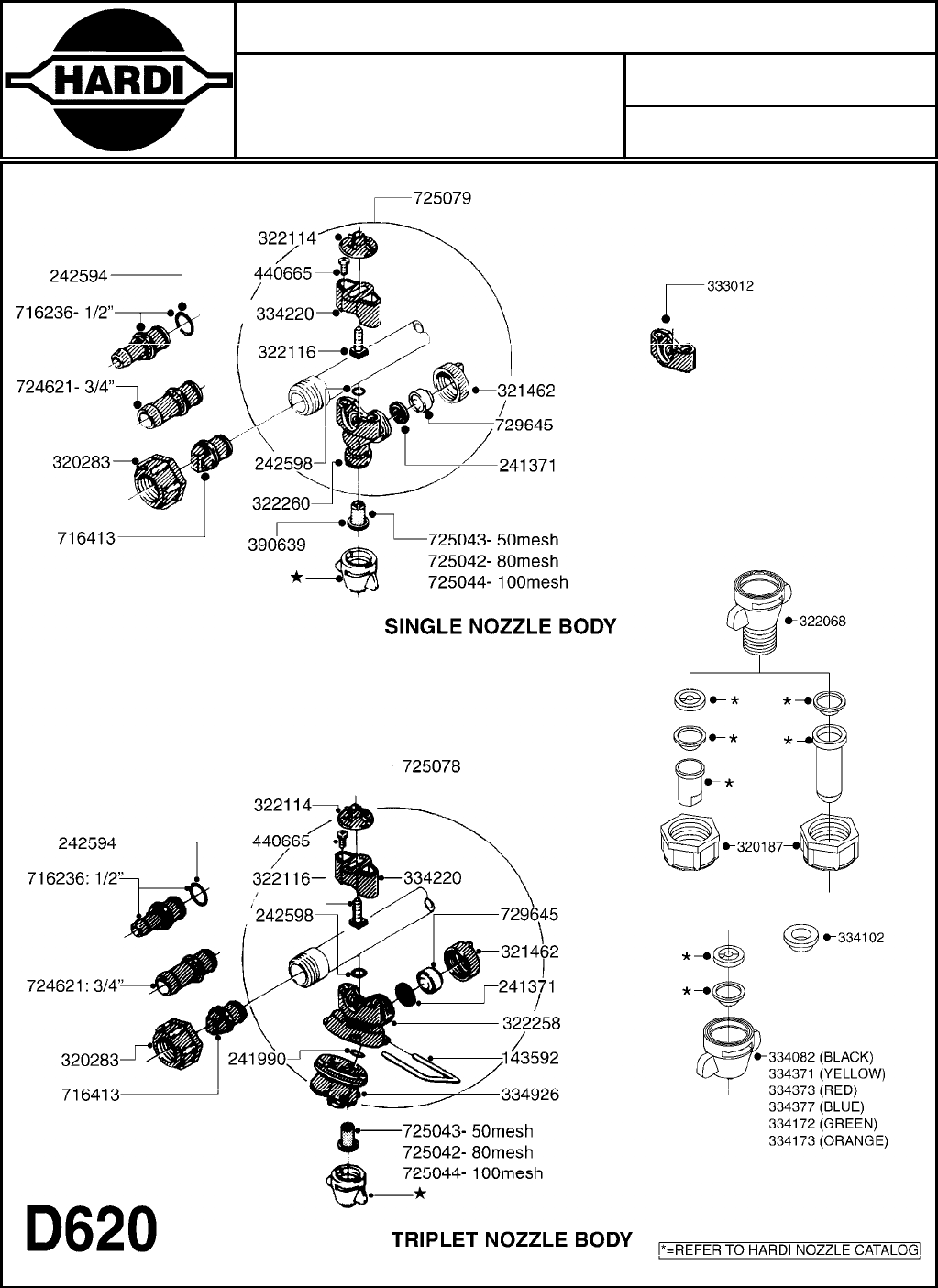

- D620-HIN: NOZZLE BODIES-SNAP FIT
- D625-HIN: DOUBLE NOZZLE HOLDER-SNAP FIT
- D630-HIN: NOZZLE TUBES & HOLDER-PLASTIC
- D645-HIN: PASTURE BOOM NOZZLE BRACKET

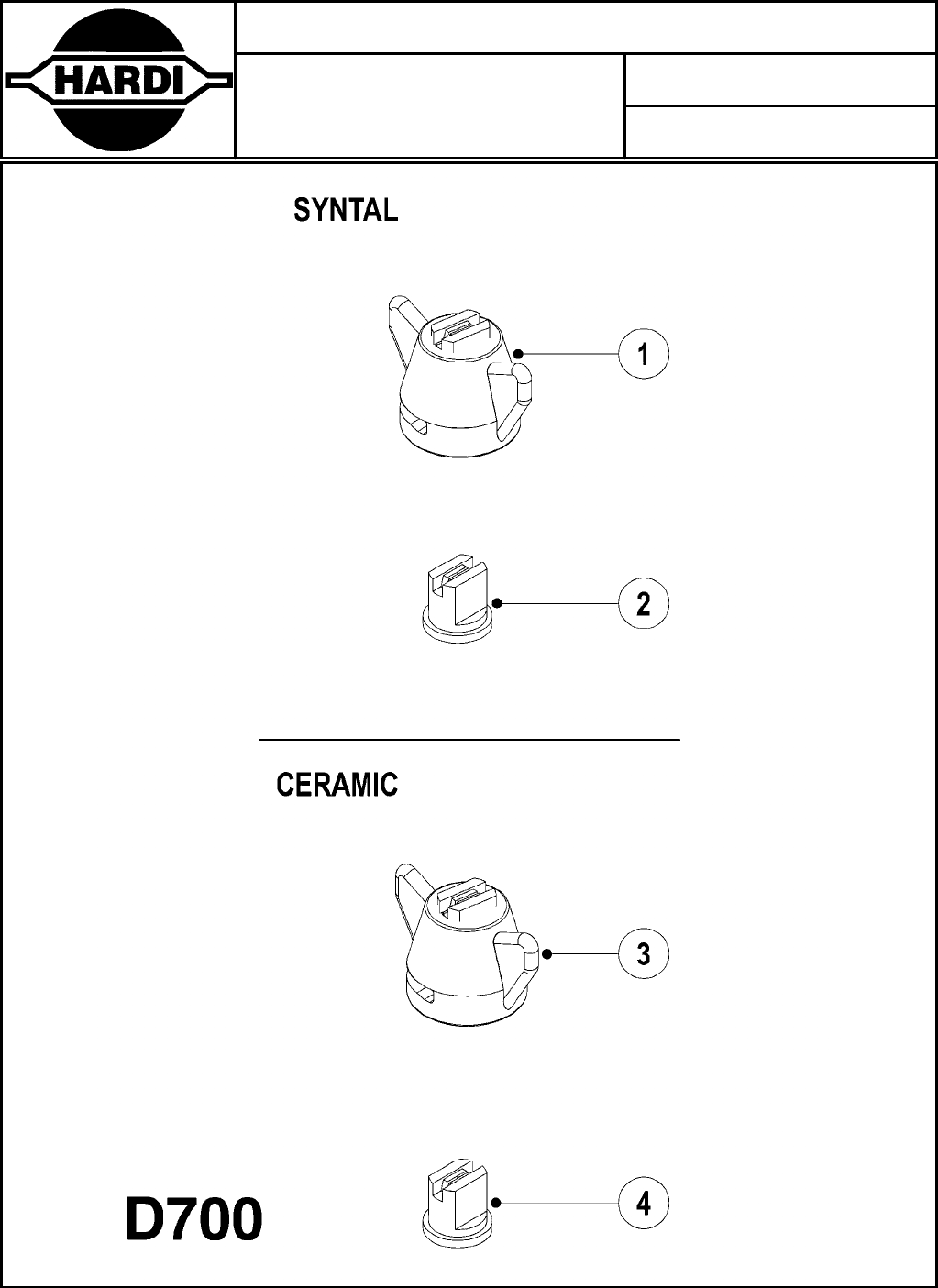

- D700-HIN: BOOM-NOZZLES 110° FLAT FAN ISO
- D701-HIN: BOOM-NOZZLES 110° LOWDRIFT ISO

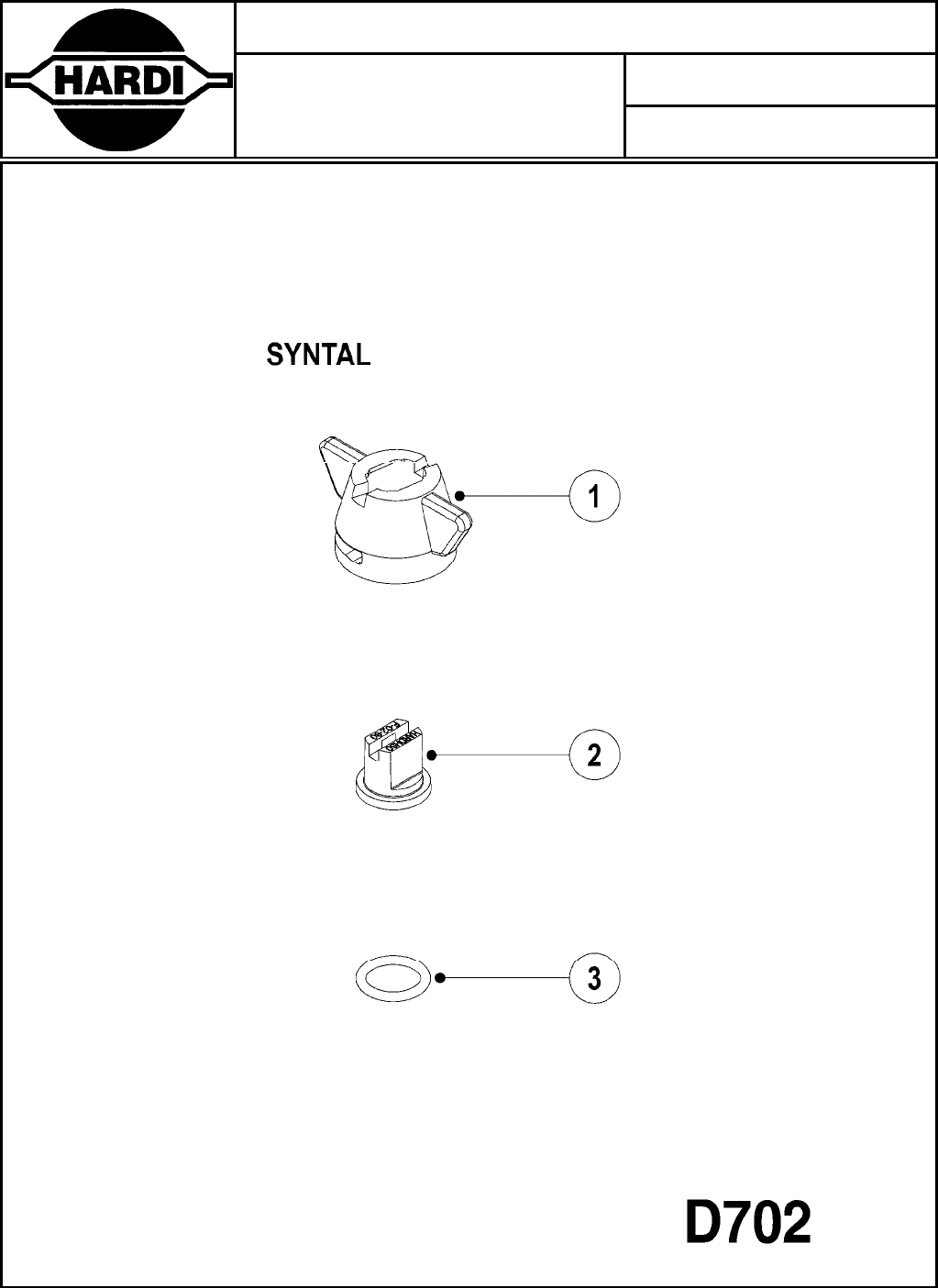

- D702-HIN: BOOM-NOZZLES 80° FLAT FAN ISO
- D703-HIN: BOOM-NOZZLE CAPS AND FILTERS
- D704-HIN: BOOM-NOZZLES INJET
- D705-HIN: BOOM-NOZZLES MINIDRIFT

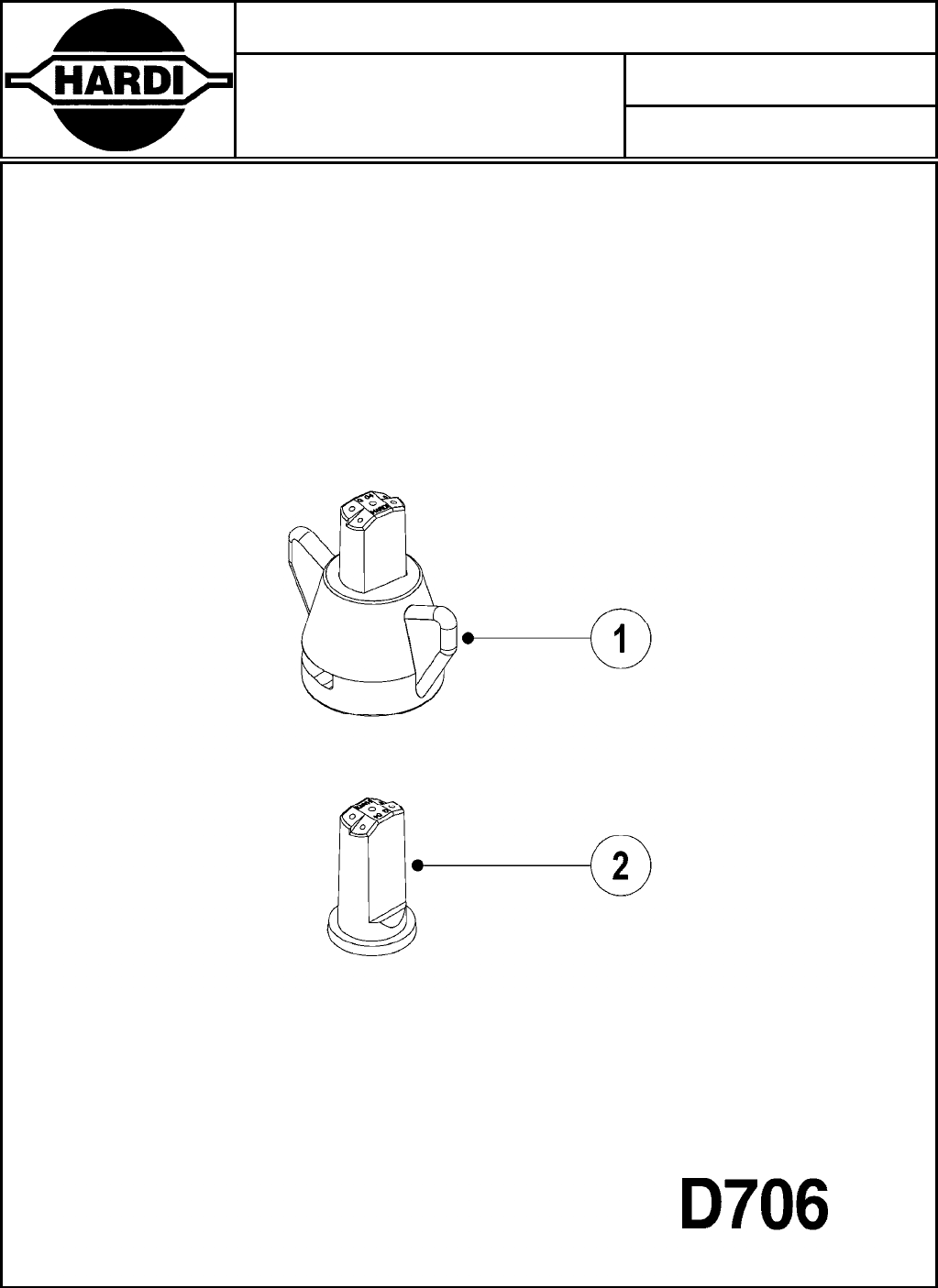

- D706-HIN: BOOM-NOZZLES QUINTASTREAM
- SECTION E: TANKS
- SECTION F: FRAMES, HUB ASSEMBLIES
- SECTION G: ACCESSORIES
- G050-HIN: CHEM.FILLER-MOUNTING BRACKETS

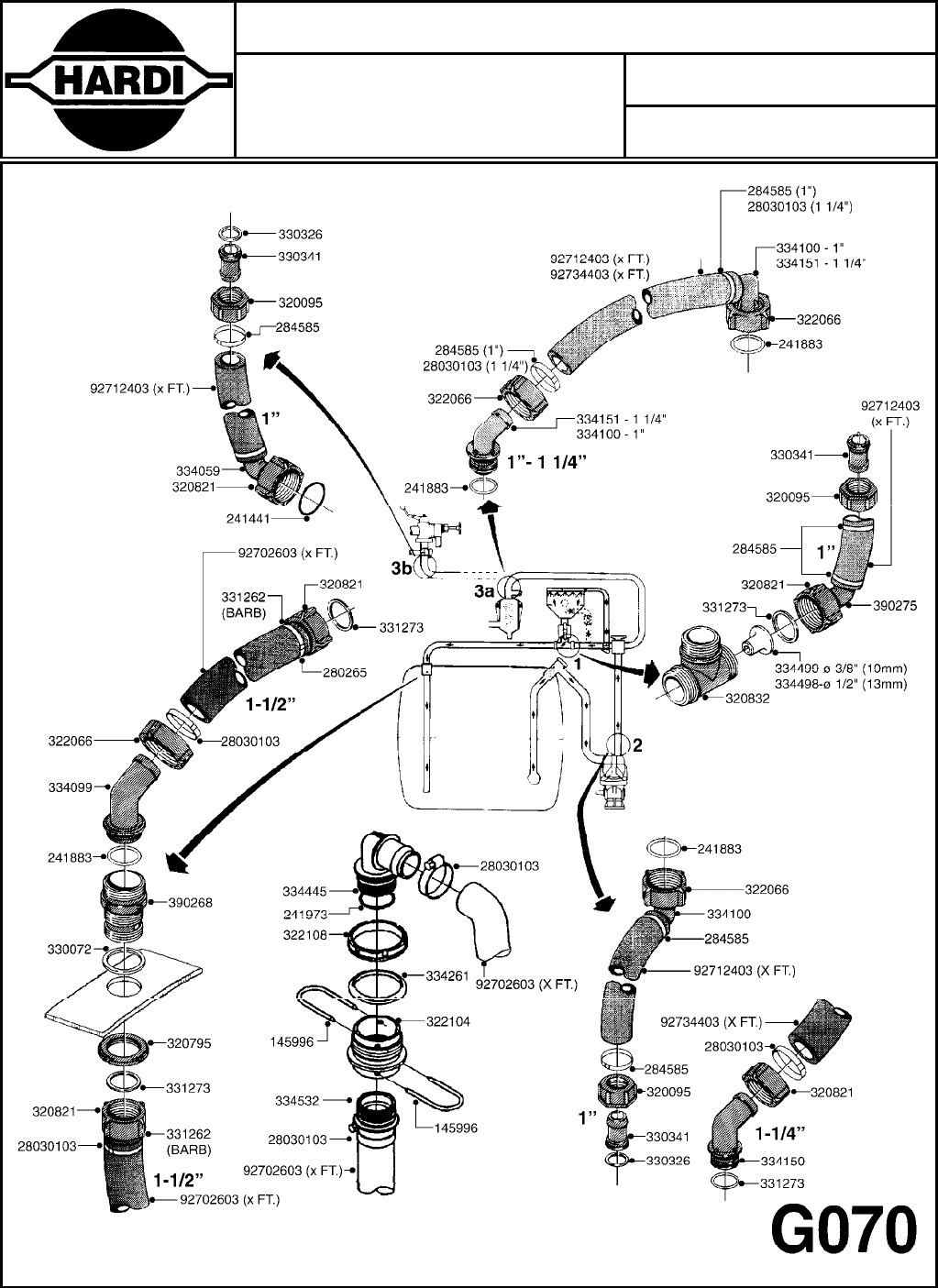

- G070-HIN: CHEM.FILLER-PLUMBING-STANDARD
- G080-HIN: CHEM.FILLER-STANDARD-PLUMBING
- G100-HIN: CHEMICAL FILLER-HOPPER(POST95)
- G110-HIN: CLEAN WATER TANK
- G190-HIN: END NOZZLE KIT

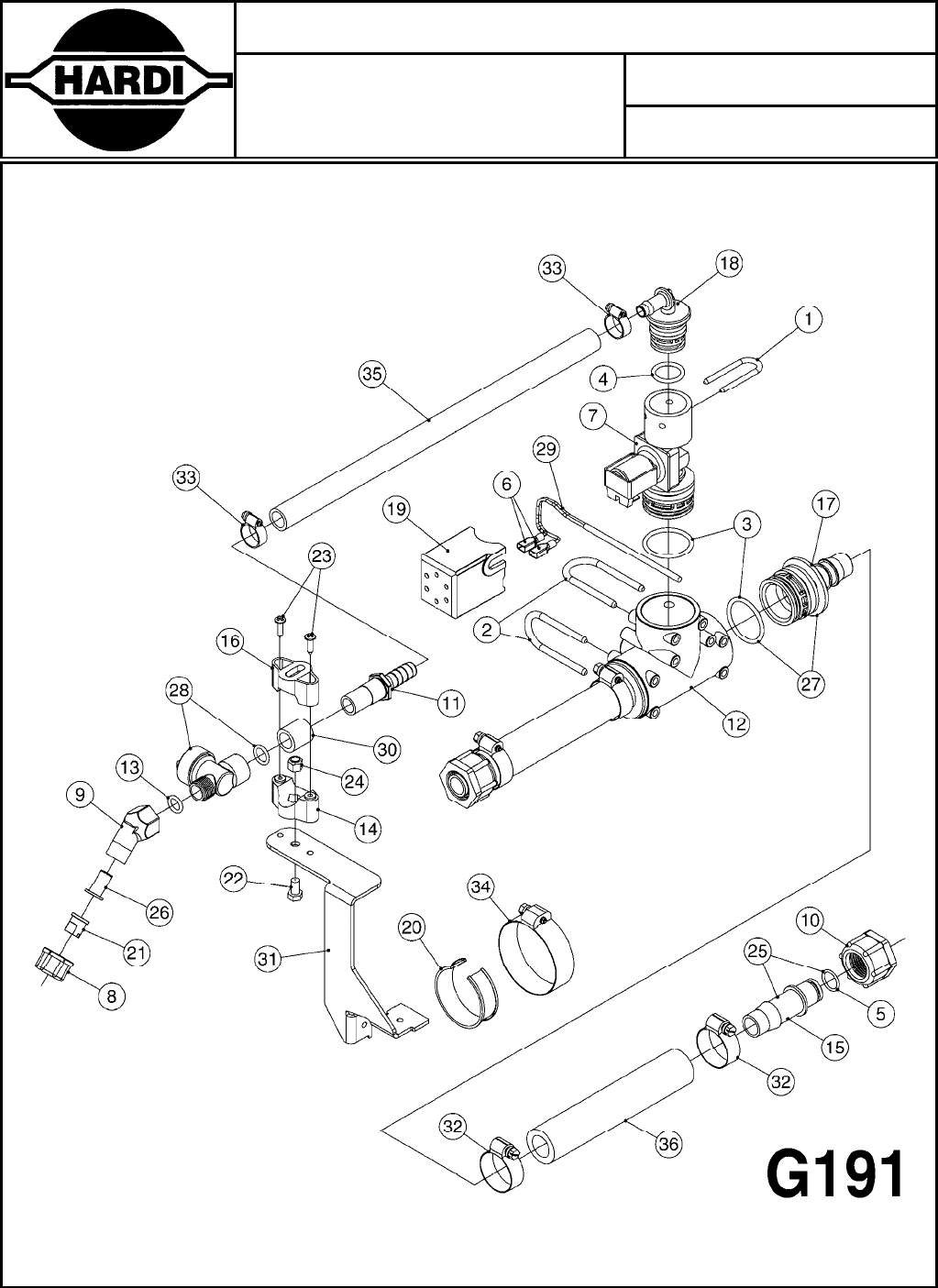

- G191-HIN: ELECTRIC END NOZZLE KIT '09
- G342-HIN: FOAM MARKER COMPRESSOR 2007

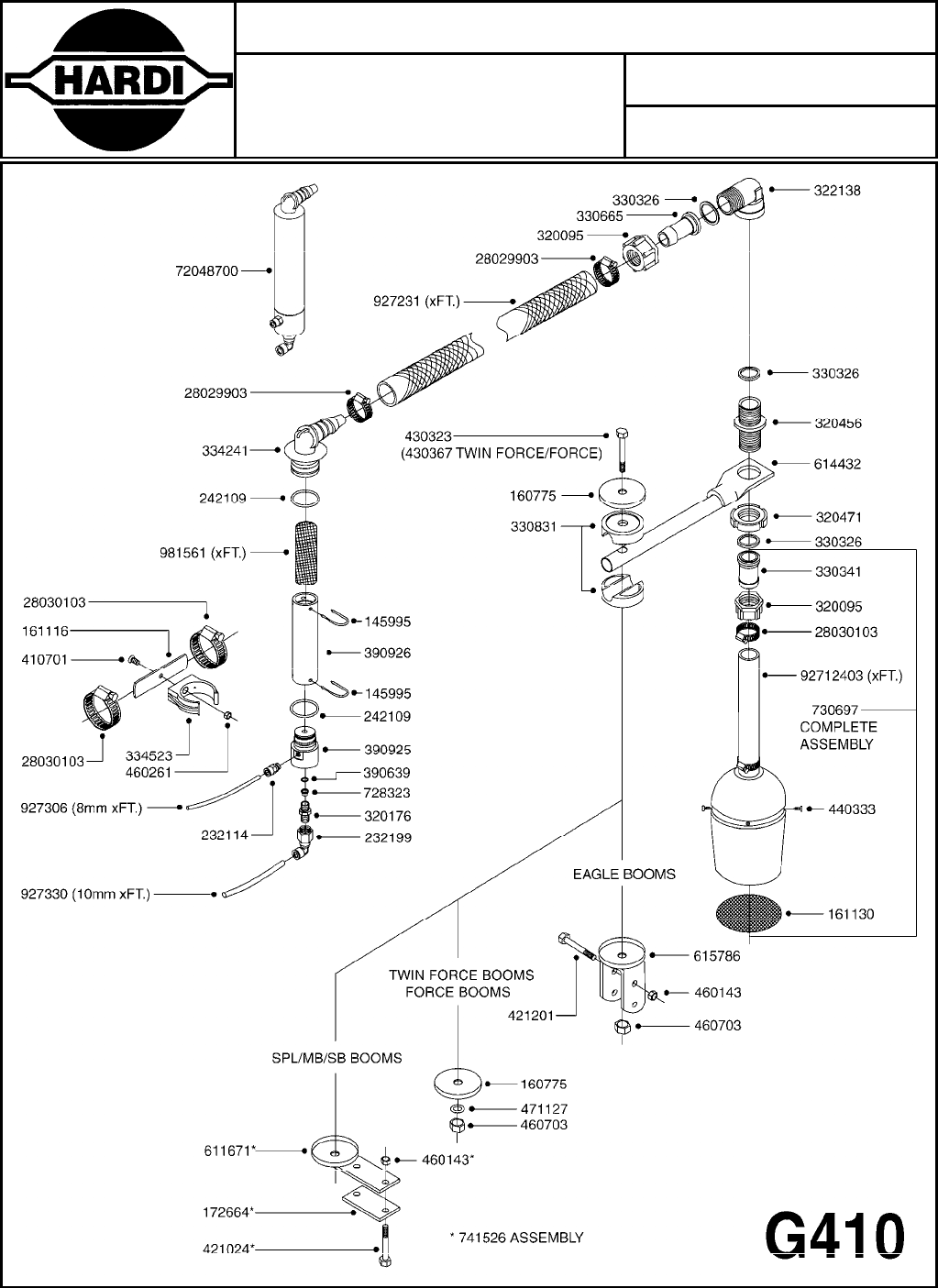

- G410-HIN: FOAMMARKER DROPPER UPDATE 2000

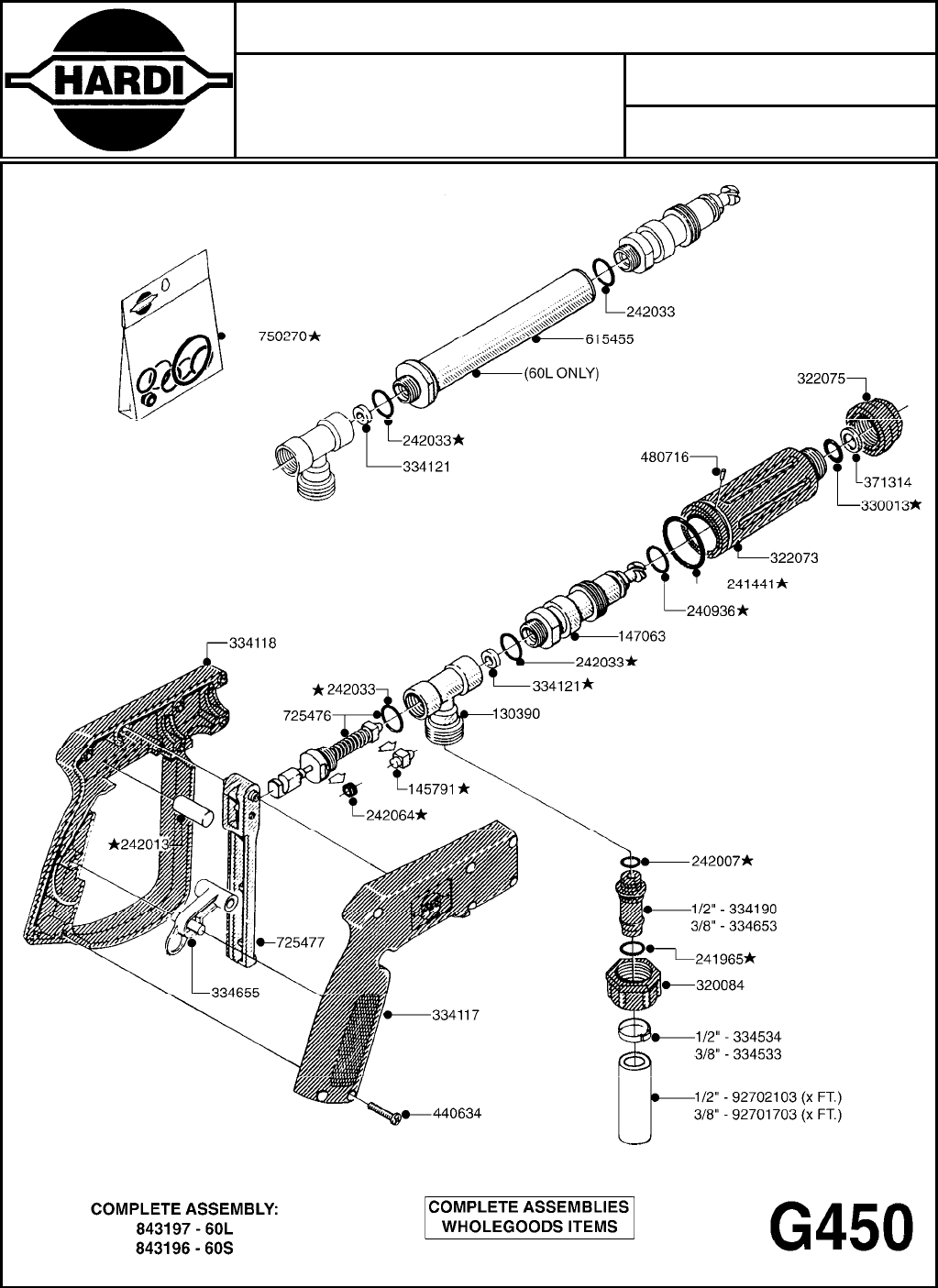

- G450-HIN: HANDGUN TYPE 60S/60L POST 95

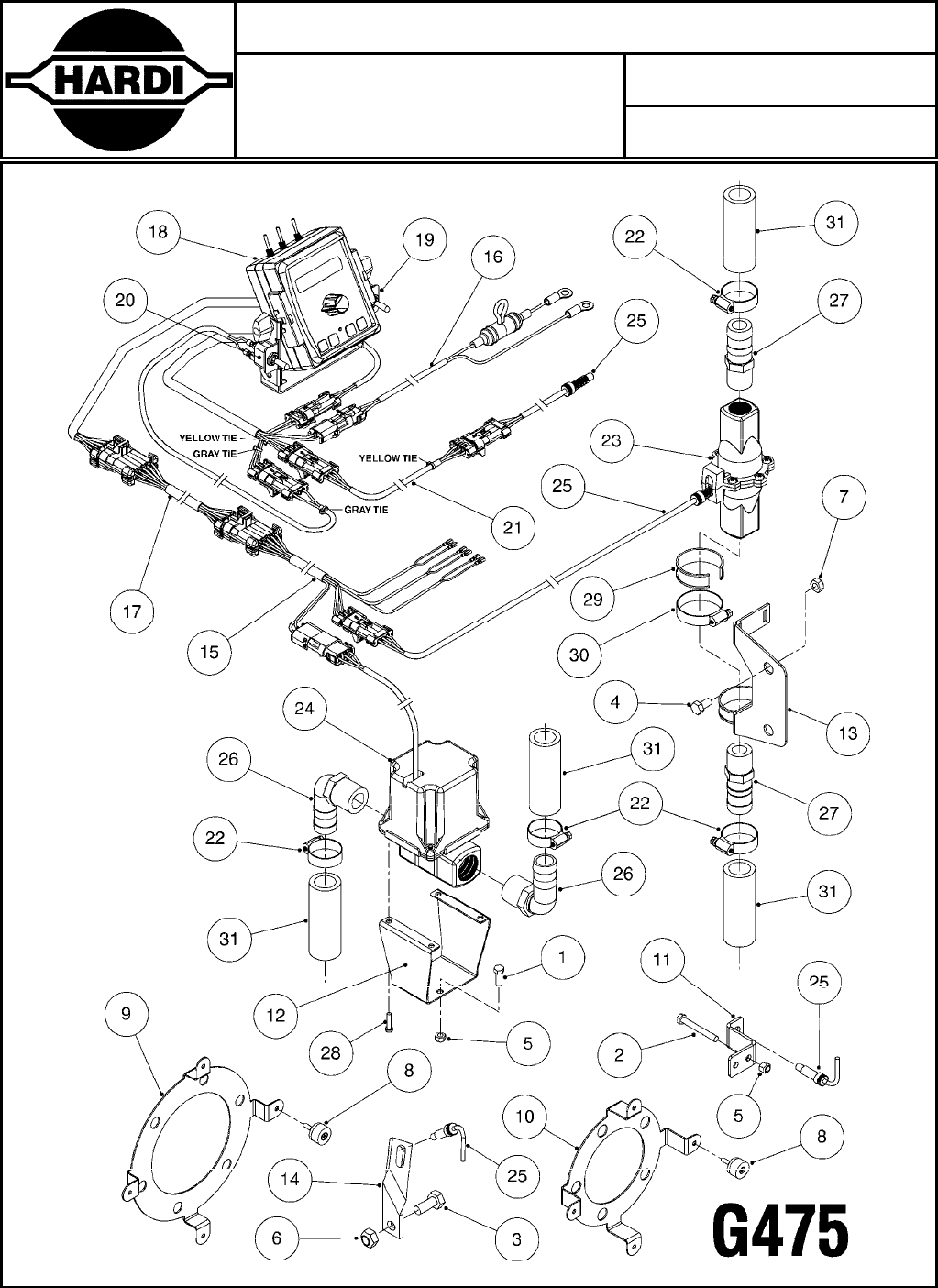

- G475-HIN: SPRAY MATE II CONTROLLER
- G510-HIN: HOSE WRAPS

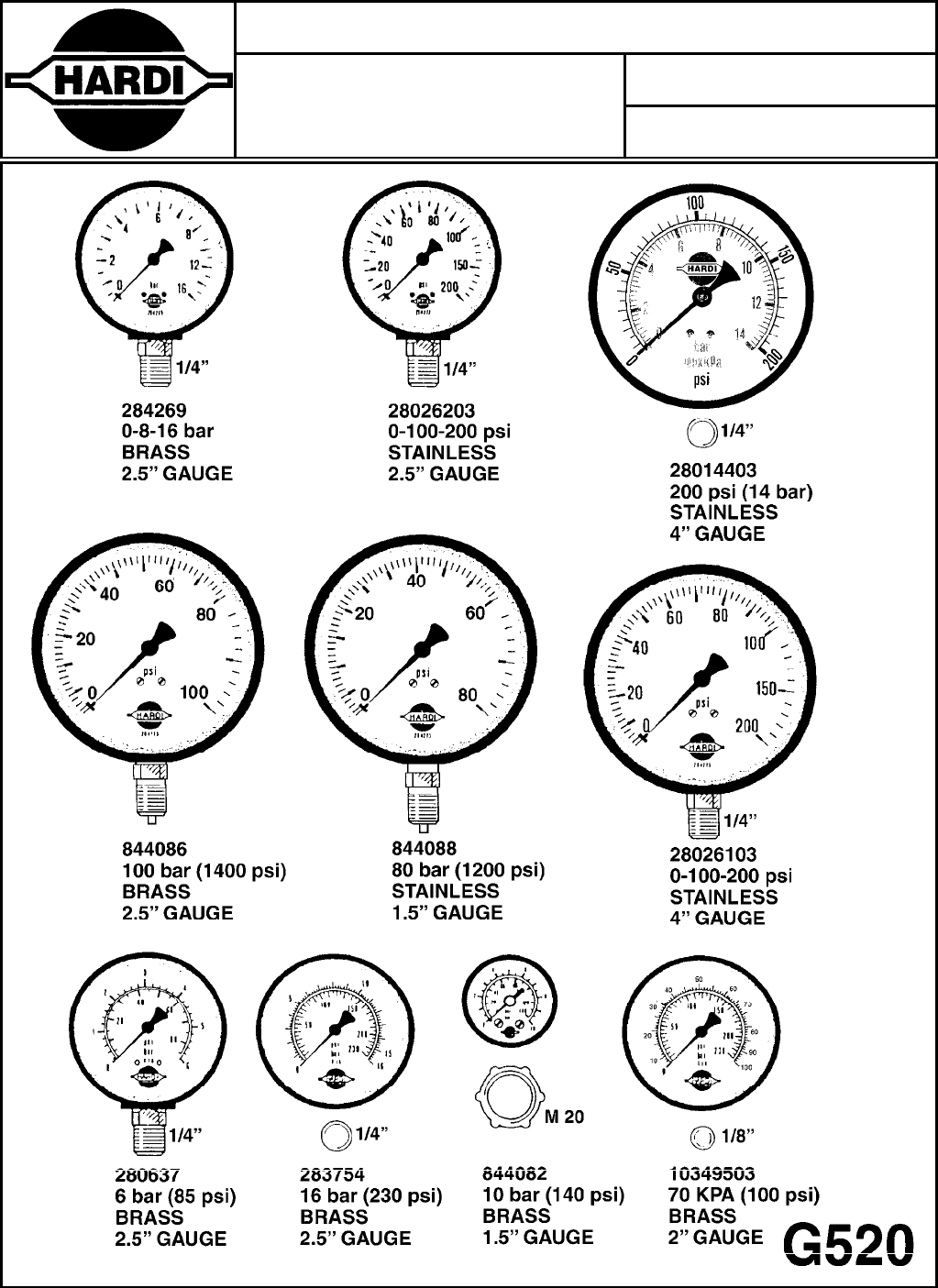

- G520-HIN: PRESSURE GAUGES
- G711-HIN: ELECTRIC END NOZZLE KIT
- SECTION H: FITTINGS, BULK HOSE & CLAMPS

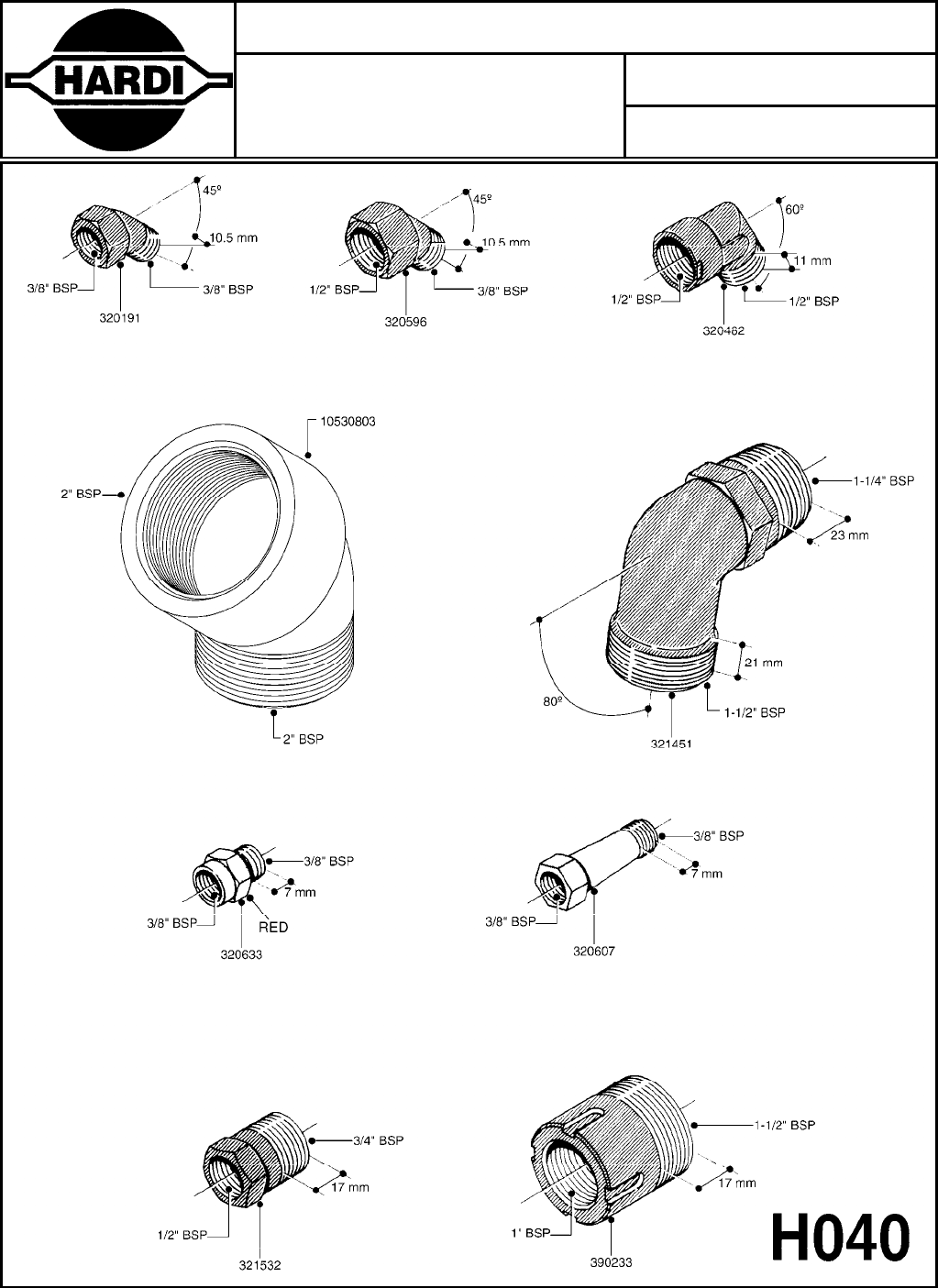

- H010-HIN: FITTINGS-CAP NUTS & HOSE BARBS
- H020-HIN: FITTNGS-T-PIECES,CAPS & ELBOWS

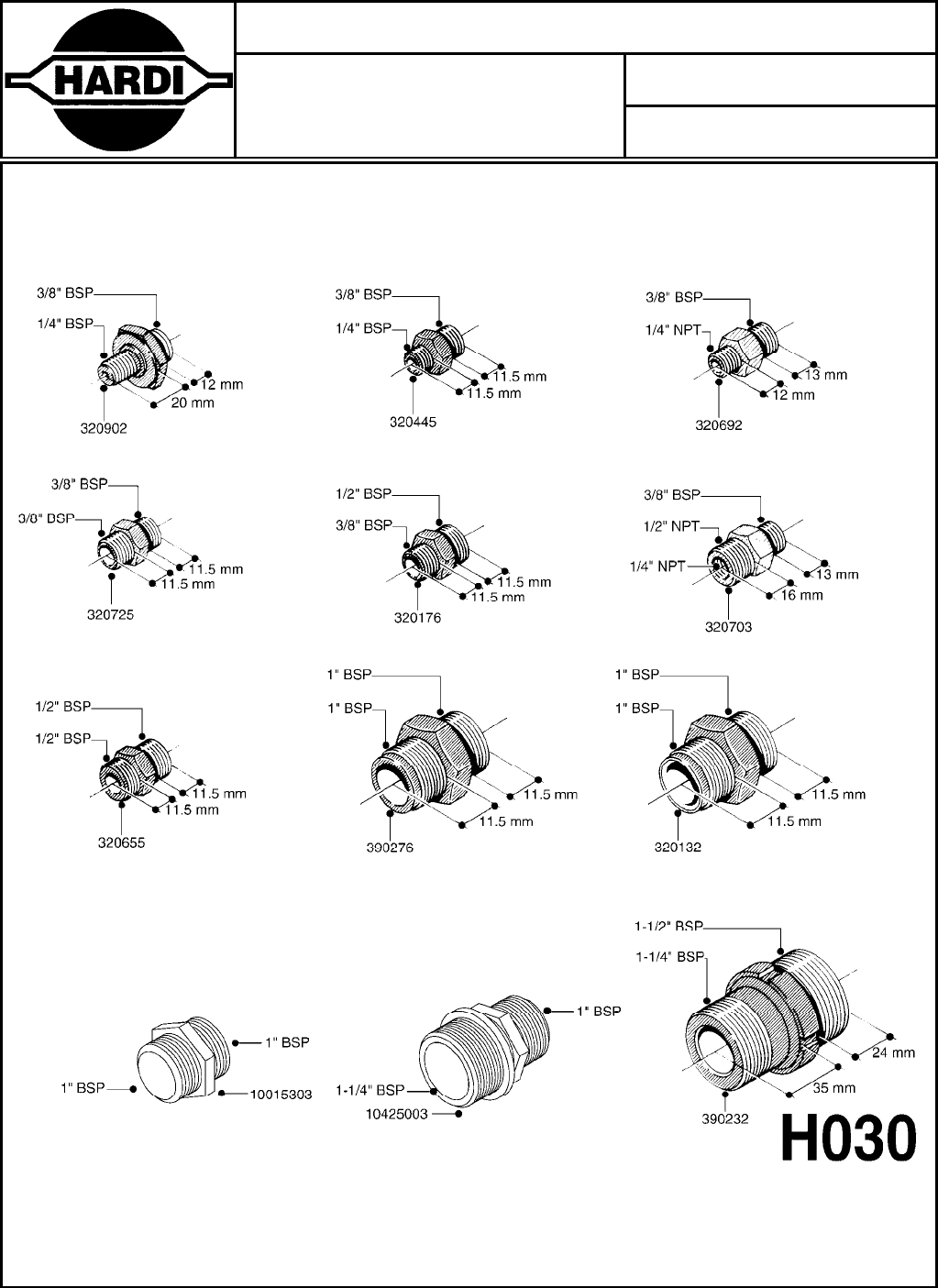

- H030-HIN: FITTINGS - HEXAGON NIPPLES
- H040-HIN: FITTINGS - NIPPLES & ELBOWS
- H050-HIN: FITTINGS - HOSE CONNECTORS
- H070-HIN: FITTINGS - S-40
- H080-HIN: FITTINGS - S-53

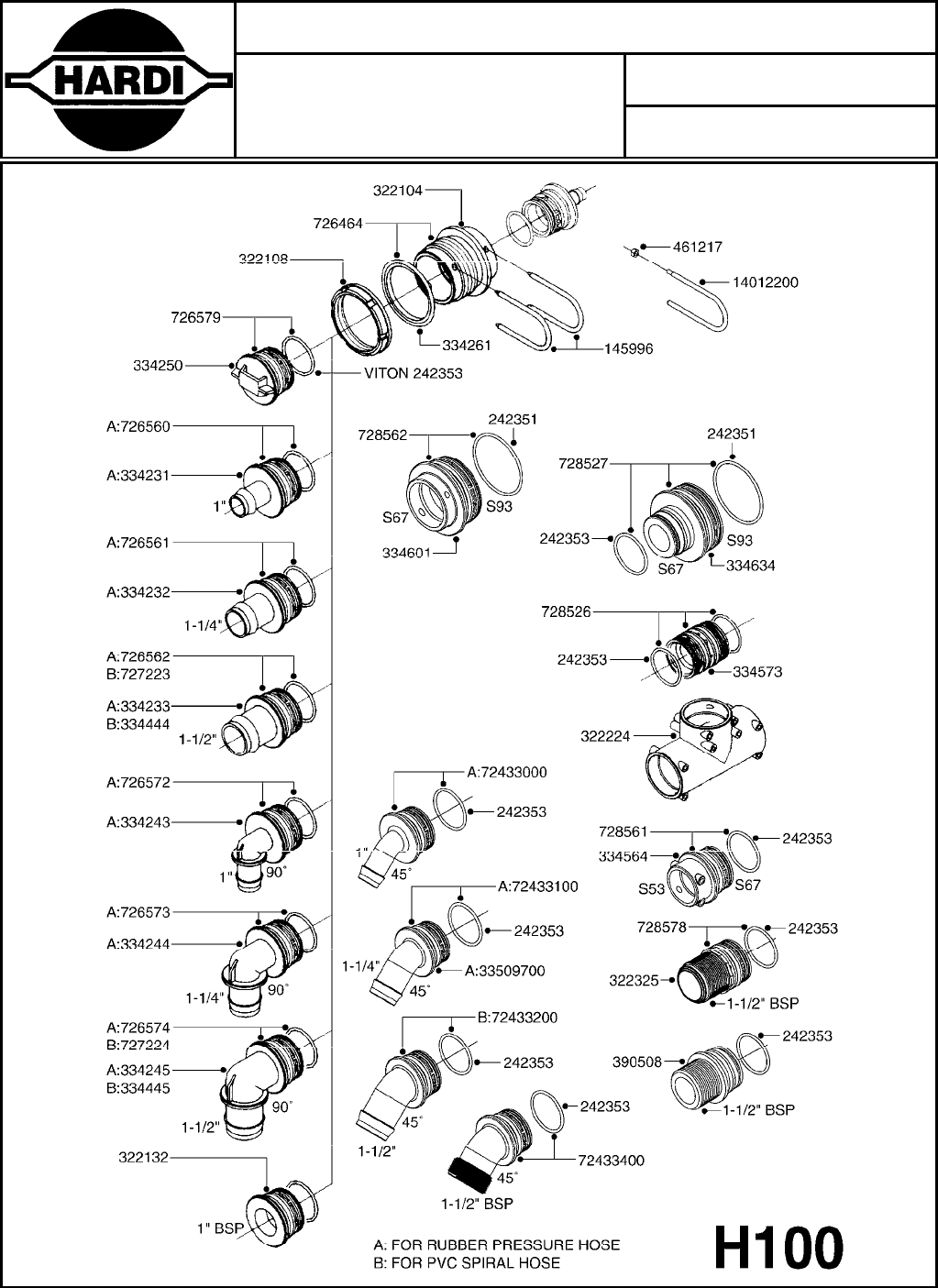

- H100-HIN: FITTINGS - S-67

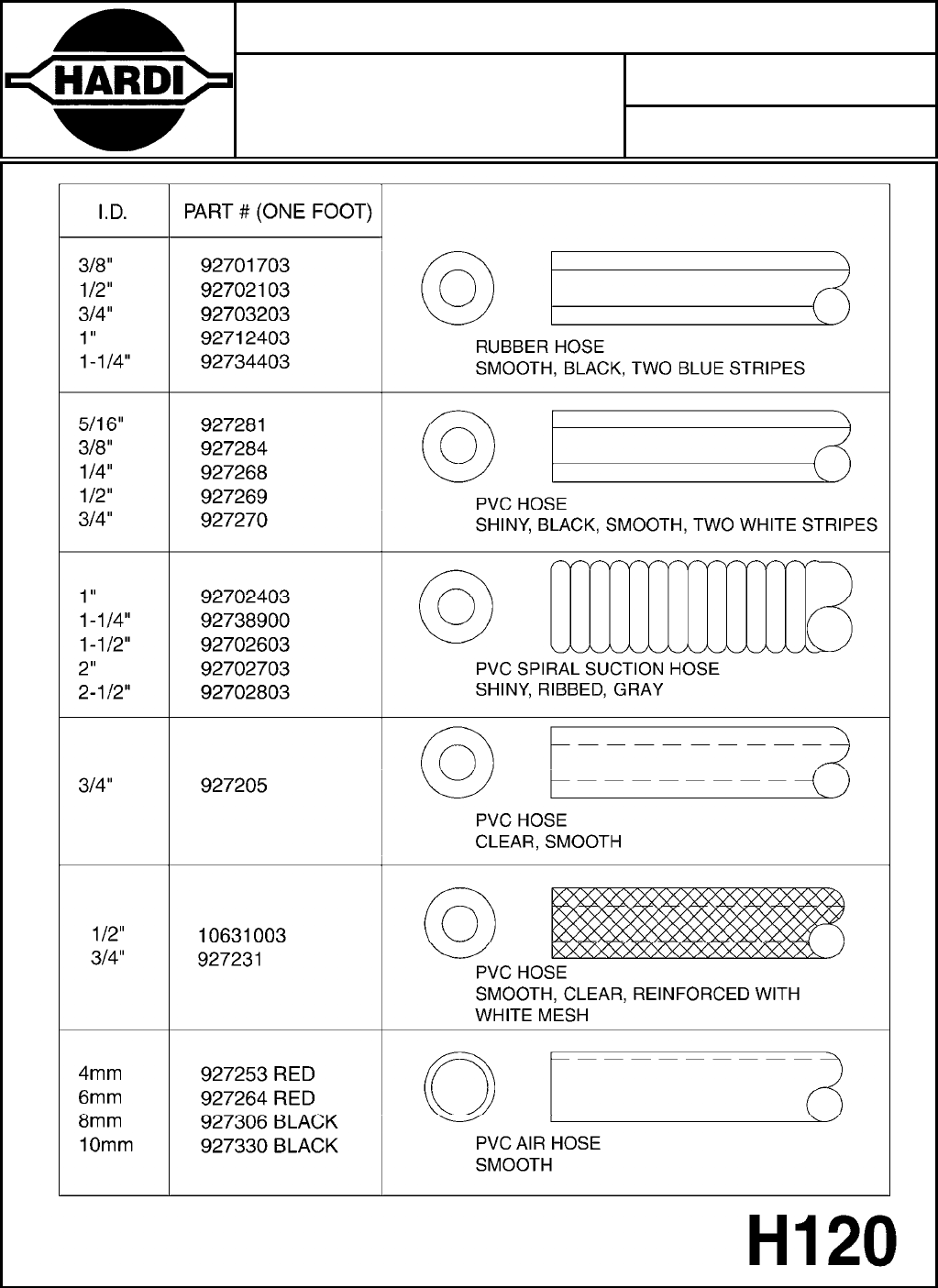

- H120-HIN: BULK HOSE
- H130-HIN: HOSE CLAMPS
Agroparts: www.HARDI-INTERNATIONAL.com
N-Series N-155 Gallon MB 20',
26',33',40'
Page 0.1
Date 18.03.2013 14:04
main group page-n° date description
Pumps, Pto's, Gear Boxes A041-HIN 01:11:11 PUMP - 603

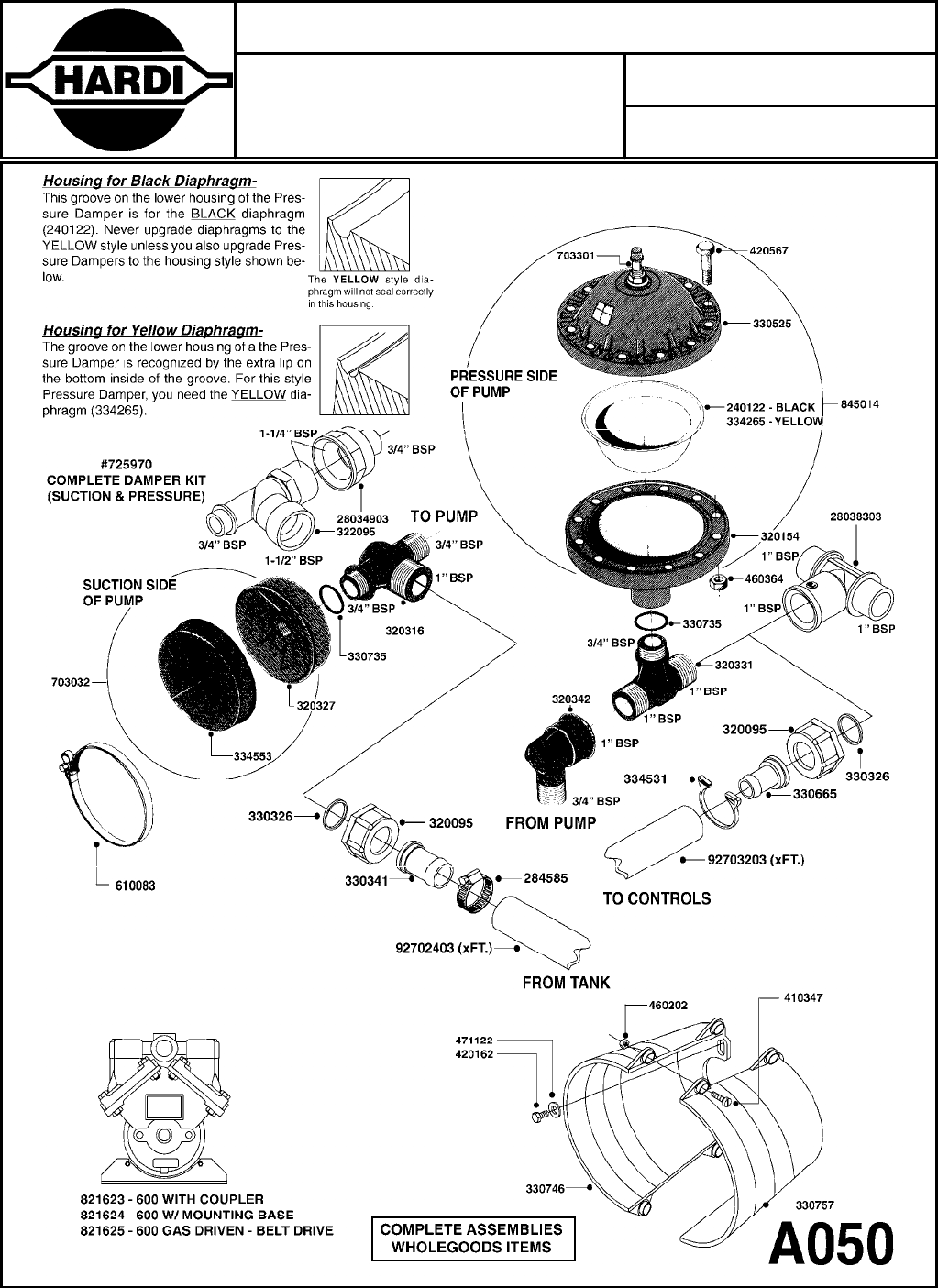

A050-HIN 16:12:08 PUMP - 600 FITTINGS

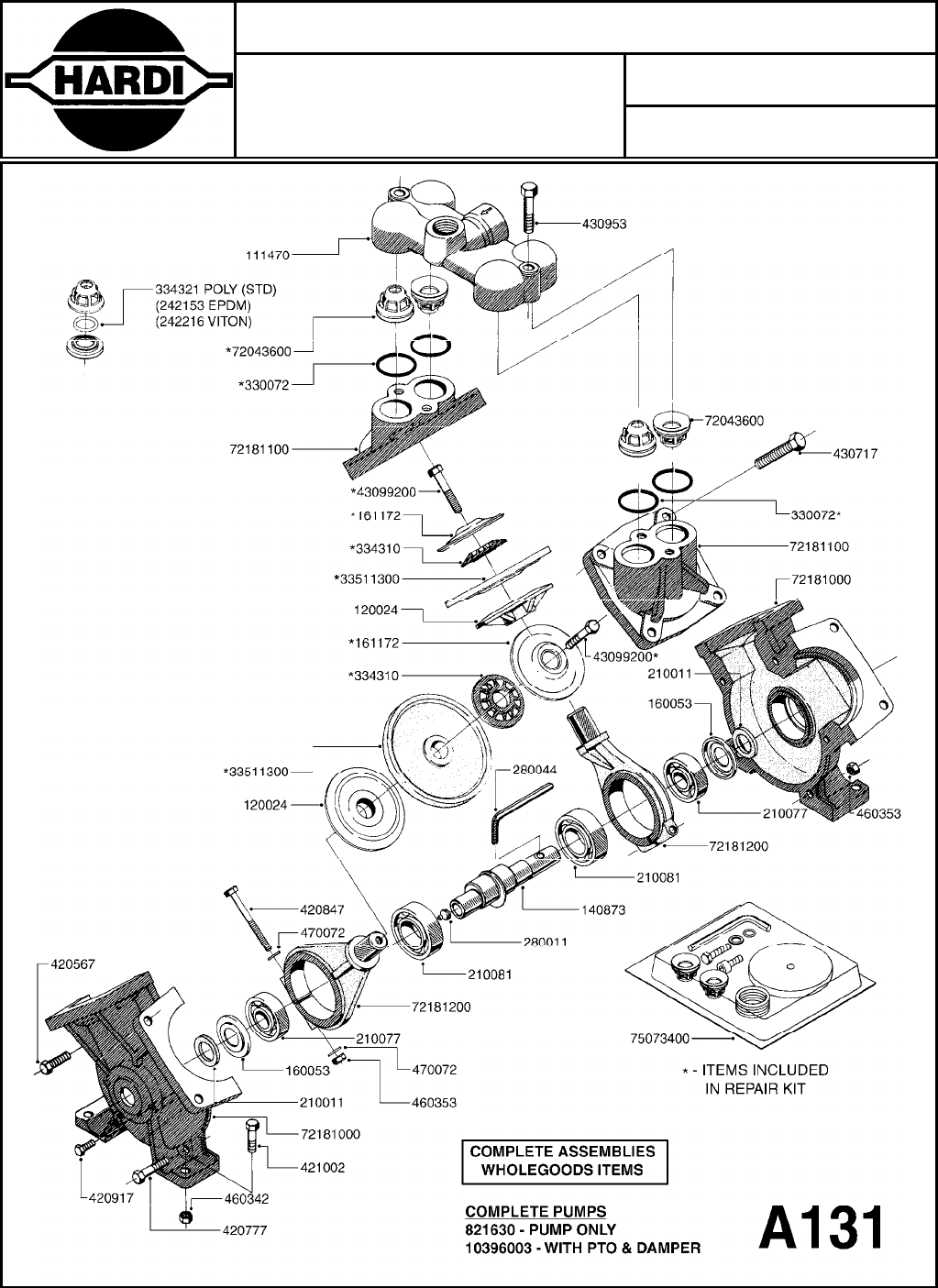

A131-HIN 08:11:11 PUMP - 1203 W/MOUNTING BASE
A170-HIN 08:12:09 PUMP - 1200/1202/1203 FITTINGS
A191-HIN 08:11:11 PUMP - 1303 W/ MOUNTING BASE
A220-HIN 08:12:09 PUMP - 1301/1302 FITTINGS
A480-HIN 13:12:11 PTO SHAFTS - BONDIOLI DIAPH.
A485-HIN 13:11:12 PTO SHAFTS - BONDIOLI CENT.
A560-HIN 22:12:11 PTO SHAFTS - AMA DIAPHRAGM
Controls, Suction & S.C. Filters B030-HIN 19:05:11 CONTROL-ET MANUAL-ES 30/50/80
B040-HIN 19:05:11 DISTRIBUTION VALVE - MANUAL
B045-HIN 28:06:06 CONTROL - ATV/N-SERIES

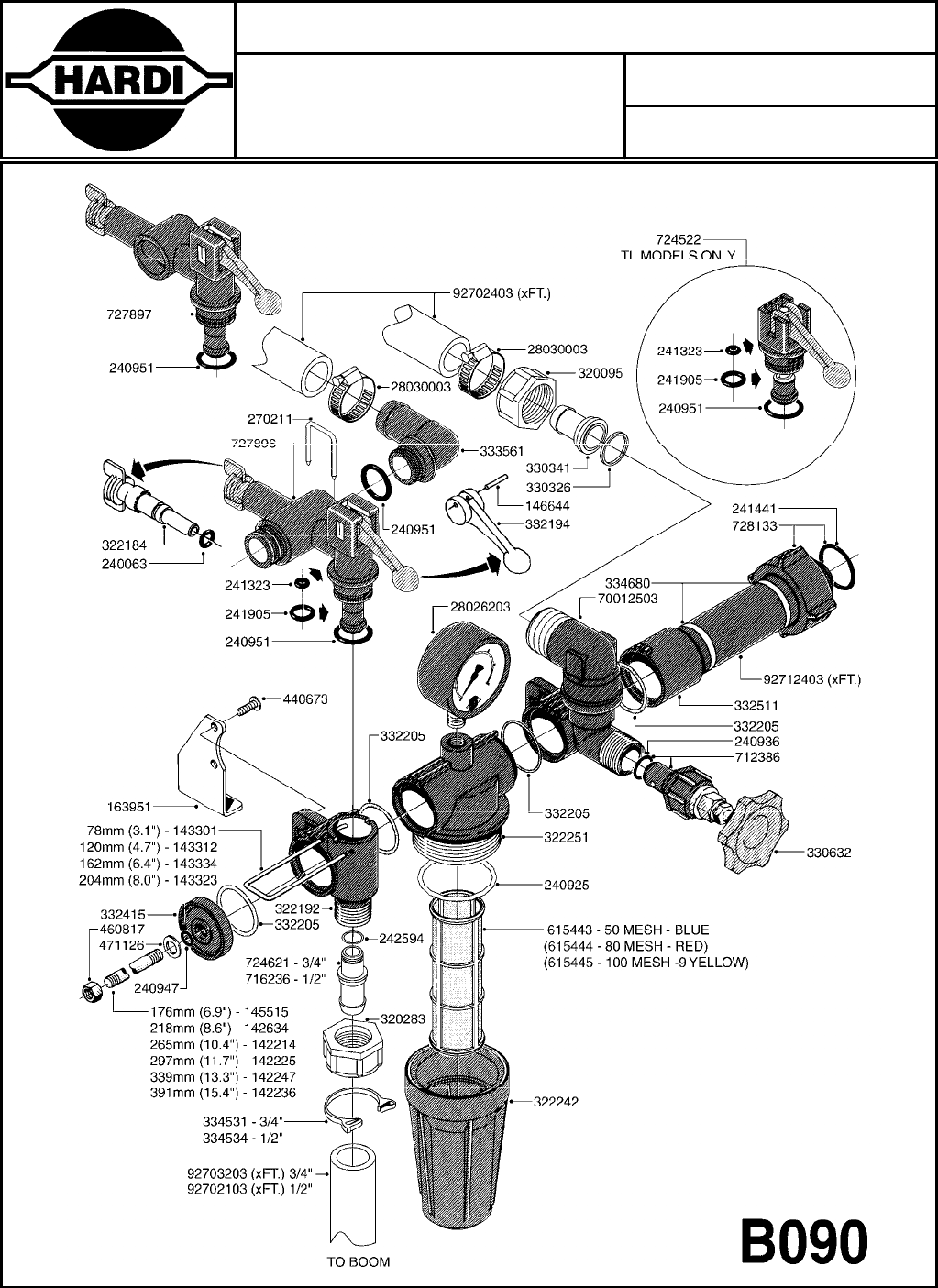

B090-HIN 19:05:11 BK-180 BOOM VALVES-MAN.POST 00
B110-HIN 01:01:01 BK-180 REMOTE CONTROL CABLE
B155-HIN 10:12:09 ELECTRIC SOLENOID ATV/N-SERIES
Hydraulics C025-HIN 15:08:12 HYDRAULICS - FAROIL CYLINDERS

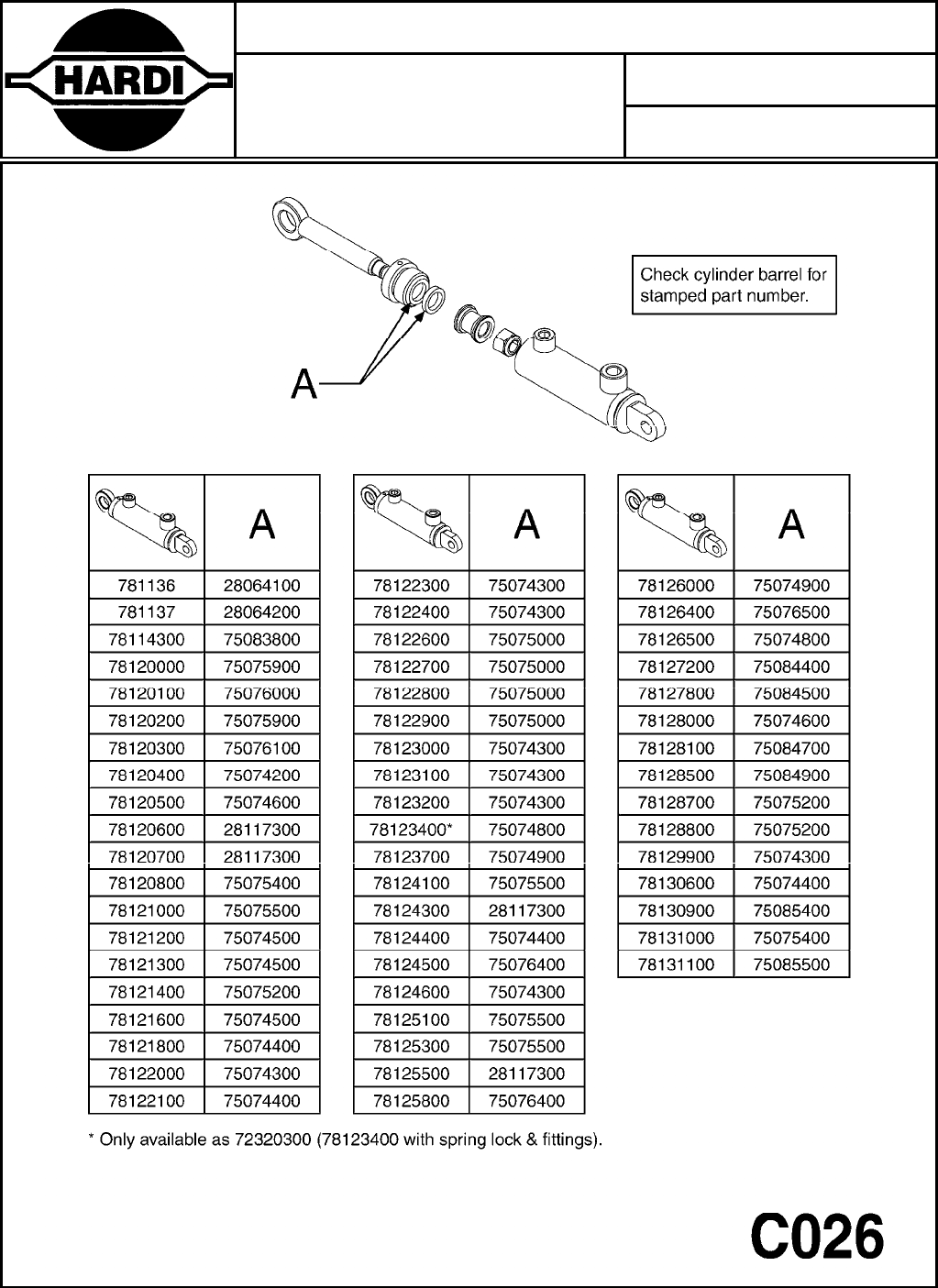

C026-HIN 15:08:12 HYDRAULICS - CYLINDERS (07)

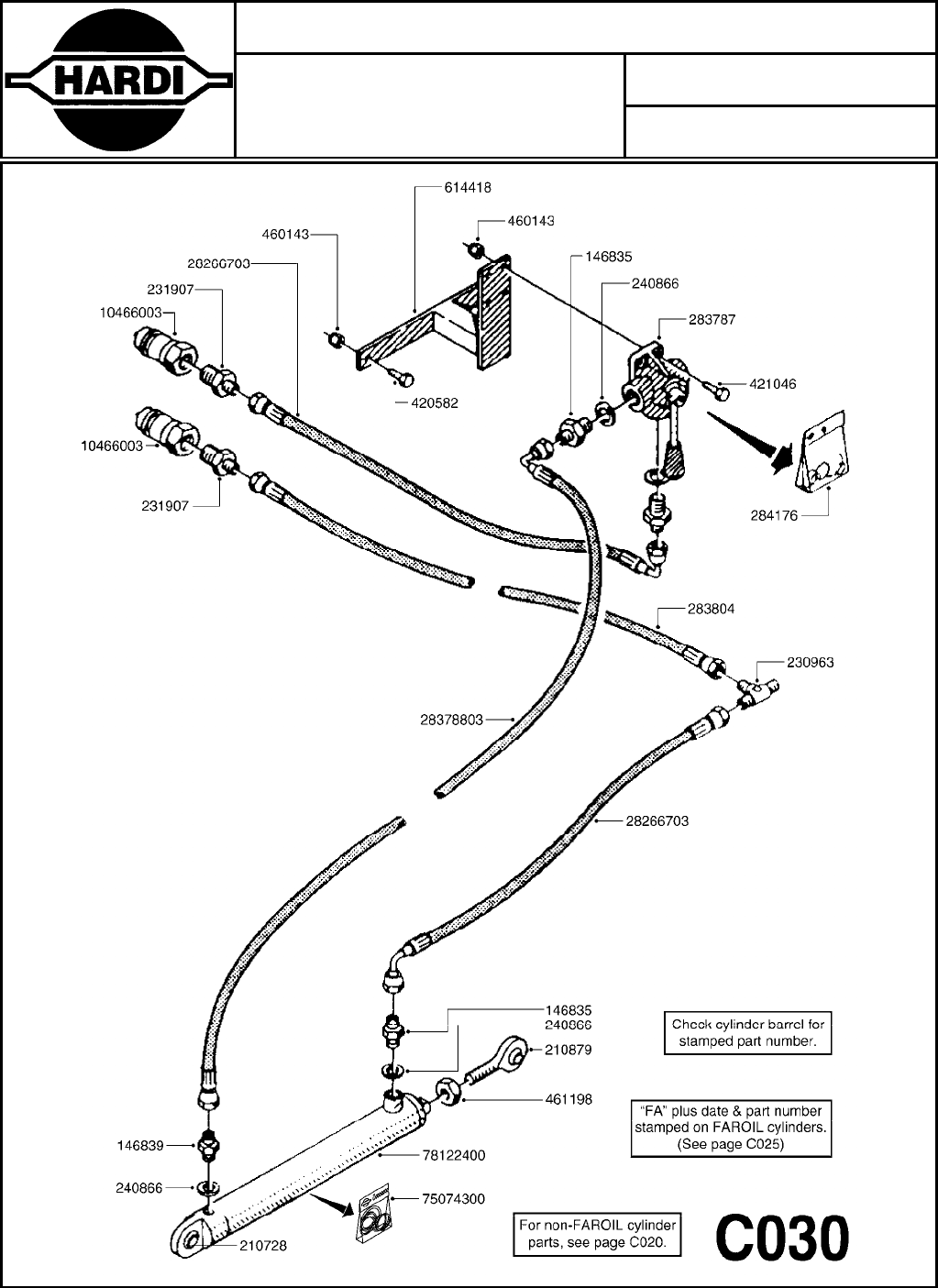

C030-HIN 14:12:07 HYDRAULICS - SB WING FOLD
C050-HIN 22:08:12 HYDRAULICS-MB BOOM WING TILT
Booms, Nozzle Bodies & Tubes D042-HIN 21:11:09 BOOM - V-II
D044-HIN 21:11:09 BOOM - VS-8 & VS-10
D050-HIN 01:01:01 BOOM - SB 20' 26' 33'
D080-HIN 12:12:05 BOOM - MB 35' 40' 42'
D130-HIN 05:12:09 BOOM - MB H-FRAME HL
D620-HIN 18:03:10 NOZZLE BODIES-SNAP FIT
D625-HIN 28:11:06 DOUBLE NOZZLE HOLDER-SNAP FIT
D630-HIN 08:04:10 NOZZLE TUBES & HOLDER-PLASTIC
D645-HIN 16:12:08 PASTURE BOOM NOZZLE BRACKET
D700-HIN 14:12:07 BOOM-NOZZLES 110° FLAT FAN ISO
D701-HIN 14:12:07 BOOM-NOZZLES 110° LOWDRIFT ISO
D702-HIN 14:12:07 BOOM-NOZZLES 80° FLAT FAN ISO
D703-HIN 14:12:07 BOOM-NOZZLE CAPS AND FILTERS
D704-HIN 14:12:07 BOOM-NOZZLES INJET
D705-HIN 14:12:07 BOOM-NOZZLES MINIDRIFT
D706-HIN 14:12:07 BOOM-NOZZLES QUINTASTREAM
Tanks E070-HIN 01:01:01 TANK - NL 155 (POST 92)
Frames, Hub Assemblies F041-HIN 13:10:11 FRAME - N-SERIES 155/210
Accessories G050-HIN 06:10:10 CHEM.FILLER-MOUNTING BRACKETS
G070-HIN 09:12:09 CHEM.FILLER-PLUMBING-STANDARD
G080-HIN 14:06:12 CHEM.FILLER-STANDARD-PLUMBING
G100-HIN 19:05:11 CHEMICAL FILLER-HOPPER(POST95)
G110-HIN 26:06:06 CLEAN WATER TANK
G190-HIN 28:11:06 END NOZZLE KIT
G191-HIN 21:05:12 ELECTRIC END NOZZLE KIT '09
G342-HIN 17:12:07 FOAM MARKER COMPRESSOR 2007
G410-HIN 12:12:05 FOAMMARKER DROPPER UPDATE 2000
G450-HIN 19:05:11 HANDGUN TYPE 60S/60L POST 95
G475-HIN 14:12:06 SPRAY MATE II CONTROLLER
G510-HIN 19:05:11 HOSE WRAPS
G520-HIN 13:06:08 PRESSURE GAUGES
G711-HIN 11:05:10 ELECTRIC END NOZZLE KIT
Agroparts: www.HARDI-INTERNATIONAL.com
N-Series N-155 Gallon MB 20',
26',33',40'
Page 0.2
Date 18.03.2013 14:04
main group page-n° date description
Fittings, Bulk Hose & Clamps H010-HIN 28:11:06 FITTINGS-CAP NUTS & HOSE BARBS
H020-HIN 01:01:01 FITTNGS-T-PIECES,CAPS & ELBOWS
H030-HIN 01:01:01 FITTINGS - HEXAGON NIPPLES
H040-HIN 01:01:01 FITTINGS - NIPPLES & ELBOWS
H050-HIN 31:03:09 FITTINGS - HOSE CONNECTORS
H070-HIN 01:02:12 FITTINGS - S-40
H080-HIN 01:02:12 FITTINGS - S-53
H100-HIN 08:11:12 FITTINGS - S-67
H120-HIN 11:05:10 BULK HOSE
H130-HIN 05:07:11 HOSE CLAMPS
Agroparts: www.HARDI-INTERNATIONAL.com

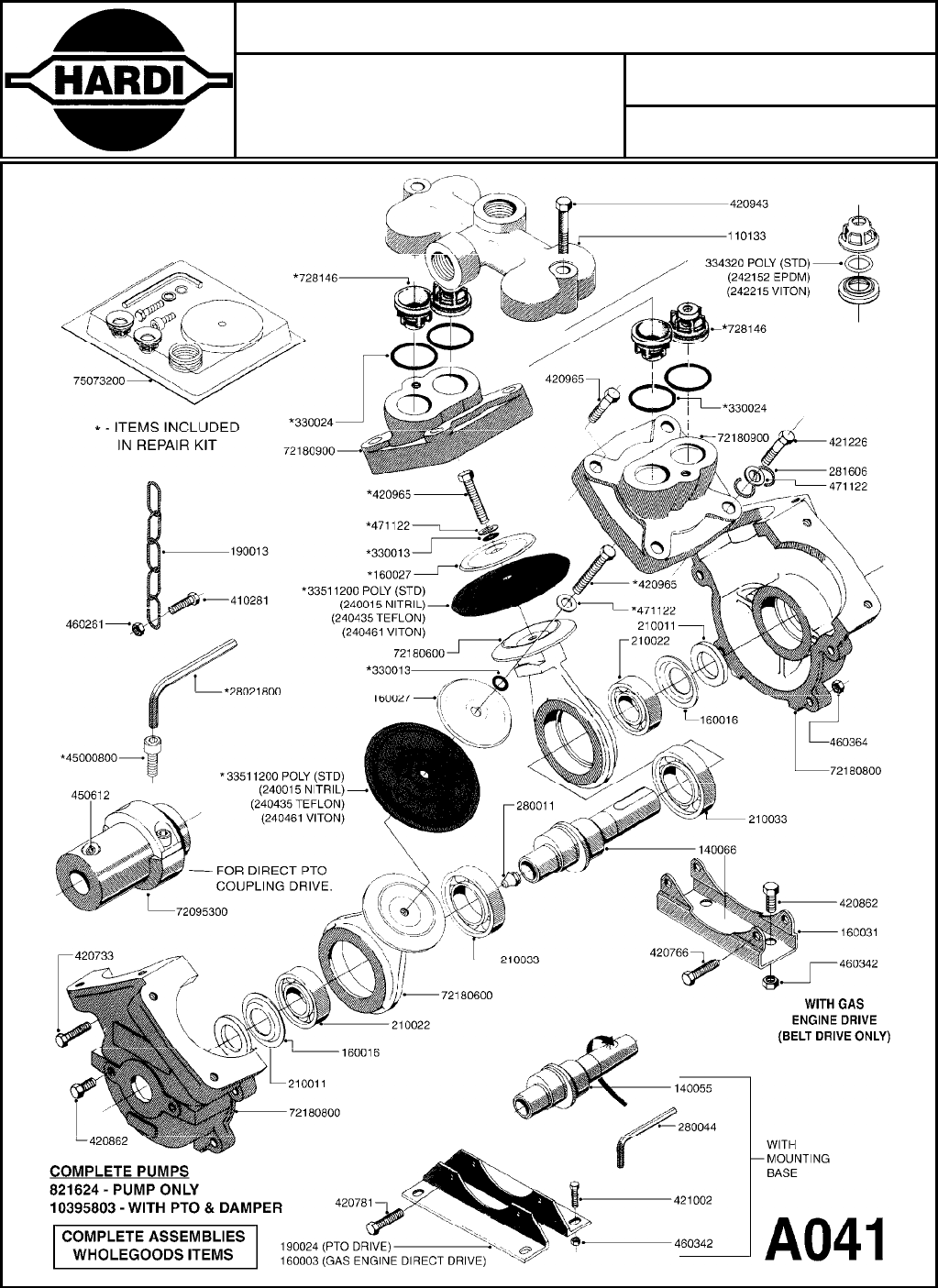

PUMP - 603
A041-HIN, 01:11:11
Page 0
Date 18.03.2013 14:04
Agroparts: www.HARDI-INTERNATIONAL.com
PUMP - 603
A041-HIN, 01:11:11
Page 1
Date 18.03.2013 14:04
parts-n° order
qty description
110133 1 VALVE CHAMBER MOD 600 PAINTED
140055 1 CRANK SHAFT, MODEL 600
140066 1 CRANK SHAFT, MODEL 600/4
160003 1 PUMP MOUNT PLATE TALL 500/600
160016 1 DUST PLATE
160027 1 DIAPHRAGM UPPER DISC 500-600
160031 1 BASE PLATE MODEL 500-600
190013 1 CHAIN 35XL=800
190024 1 ANGLE IRON FOOT, MODEL 500-600
210011 1 SEAL FELT D39/23 X 4
210022 1 BEARING BALL 6205
210033 1 BEARING BALL 6007
240015 1 DIAPHRAGM MODEL 500-600 NITRIL
240435 1 DIAP alts 332021PUR,240015NITR
240461 1 DIAPHRAGM MODEL 500-600 VITON
242152 1 O-RING D18.2X3 EPDM
242215 1 O-RING D18X3 VITON
280011 1 GREASE NIPPLE 1/8' H TR
280044 1 KEY HEXAGON W6 3/16'
281606 1 S-HOOK GALVANIZED
330013 1 O-RING D15/D10X2.5 F.3/8"NUT
330024 1 O-RING D41,1/D34.5 X 3,5
334320 1 O-RING D18X3 POLYURETHANE
410281 1 BOLT HEX 8.8 DEL M6X25
420733 1 BOLT HEX 8.8 DEL M8X40
420766 1 BOLT HEX 8.8 DEL M8X45
420781 1 BOLT HEX 8.8 DEL M8X50
420862 1 BOLT HEX 8.8 DEL M10X16 FT
420943 1 BOLT HEX 8.8 DEL M10X50
420965 1 BOLT HEX 8.8 DEL M10X40
421002 1 BOLT HEX 8.8 DEL M10X30 FT
421226 1 BOLT HEX 8.8 DEL M10X45
450612 1 SCREW M10X16 POINTED
460261 1 NUT HEX M6X1 LOCK
460342 1 NUT HEX M10
460364 1 NUT HEX M8 GALV.
471122 1 WASHER D20/D10.5X2 SS
728146 1 VALVE FOR 361(726890/707932)
821624 1 PUMP 603/7 W. FOOT
10395803 1 PUMP 603 C/W PTO 540 RPM
28021800 1 KEY HEXAGON 8MM FOR M10
33511200 1 DIAPHRAGM 503/603 PUR 2006
45000800 1 BOLT ROUND M10X25
72095300 1 COUPLING 1-3/8' X 25, PAINTED
72180600 1 CONNECTING ROD FOR 503-603 M10
72180800 1 PUMP HOUSING 603 RED W/BOLTS
72180900 1 DIAPHRAGM COVER MOD. 600
75073200 1 PUMP KIT 603mm 06
Agroparts: www.HARDI-INTERNATIONAL.com
PUMP - 600 FITTINGS
A050-HIN, 16:12:08
Page 0
Date 18.03.2013 14:04
Agroparts: www.HARDI-INTERNATIONAL.com
PUMP - 600 FITTINGS
A050-HIN, 16:12:08
Page 1
Date 18.03.2013 14:04
parts-n° order
qty description
240122 1 DIAPHRAGM FOR PRES.DAMP.(EPDM)
284585 1 CLAMP HOSE GEAR 1" MINI 020
320095 1 FITT.DK NUT 1" BSP
320154 1 AIR BOTTLE, BOTTOM PART
320316 1 FITT.DK TEE 3/4" X3/4" X1"BSP
320327 1 HOUSING F. SUCTION AIR BOTTLE
320331 1 FITT.DK TEE 1" - 1" - 3/4" BSP
320342 1 FITT.DK EL 3/4"M X 1"F BSP
322095 1 FITT.DK TEE 1-1/2 X1 X3/4" BSP
330326 1 O-RING D30/D24X2 F.1"NUT
330341 1 FITT.DK HB 1" F. 1" NUT
330525 1 AIR BOTTLE, TOP HALF
330665 1 FITT.DK HB 3/4"F.1" NUT
330735 1 O-RING D30/D26X2
330746 1 GUARD PTO LOWER PART
330757 1 GUARD PTO UPPER PART
334265 1 DIAPHRAGM F. PRESS DAMP.NITRIL
334531 1 CLAMP HOSE PLASTIC 3/4"
334553 1 DIAPHRAGM F.SUCTION AIR BOTTLE
410347 1 SCREW M6X20 8.8
420162 1 BOLT HEX 8.8 DEL 3/8"x15MM
420567 1 BOLT HEX 8.8 DEL M8X30 FT
460202 1 NUT HEX M6
460364 1 NUT HEX M8 GALV.
471122 1 WASHER D20/D10.5X2 SS
610083 1 RET. BAND FOR SUCT. AIR BOTTLE
703032 1 SUCTION AIR BOTTLE 3/4" COMPL.
703301 1 VALVE FOR AIR BOTTLE
725970 1 DAMPER KIT 600
821623 1 PUMP 603/7 W COUPLING
821624 1 PUMP 603/7 W. FOOT
821625 1 PUMP 603/4 800RPM
845014 1 AIR BOTTLE COMPLETE HJ73
28034903 1 FITTING, REDUCER, 1-1/4"-3/4"
28038303 1 FITTING, TEE 2X1"BSPM/1"BSPF
92702403 1 HOSE PVC SUCT GRAY 1"
92703203 1 HOSE R X3/4" X300PSI WP X0012"
Agroparts: www.HARDI-INTERNATIONAL.com
PUMP - 1203 W/MOUNTING BASE
A131-HIN, 08:11:11
Page 0
Date 18.03.2013 14:04
Agroparts: www.HARDI-INTERNATIONAL.com
PUMP - 1203 W/MOUNTING BASE
A131-HIN, 08:11:11
Page 1
Date 18.03.2013 14:04
parts-n° order
qty description
111470 1 VALVE CHAMBER 1202
120024 1 DIAPHRAGM BACK DISC 1200-1300
140873 1 CRANK SHAFT MODEL 1202-9MM
160053 1 DUST PLATE
161172 1 DIAPHRAGM DISC F. 1203/1303
210011 1 SEAL FELT D39/23 X 4
210077 1 BEARING BALL 6305
210081 1 BEARING BALL 6307
242153 1 O-RING D26X4 EPDM
242216 1 O-RING VITON F/1202/1302/462
280011 1 GREASE NIPPLE 1/8' H TR
280044 1 KEY HEXAGON W6 3/16'
330072 1 O-RING D53,5/D45,5X4
334310 1 NYLON WASHER 1202/1302/462
334321 1 O-RING POLY. 34.0x26.0x4.0
420567 1 BOLT HEX 8.8 DEL M8X30 FT
420777 1 BOLT HEX 8.8 RAW M8X50
420847 1 BOLT HEX 8.8 DEL M8X85
420917 1 BOLT HEX 8.8 RAW M8X12 FT
421002 1 BOLT HEX 8.8 DEL M10X30 FT
430717 1 BOLT HEX 8.8 RAW M12x40
430953 1 BOLT,M12 X 55 8.8
460342 1 NUT HEX M10
460353 1 NUT HEX M8 BLACK
470072 1 WASHER D15/D8X.5 LOCK
821630 1 PUMP 1203/9 540RPM
10396003 1 PUMP 1203 C/W PTO 540 RPM
33511300 1 DIAPHRAGM 1203/1302 POLY 2006
43099200 1 BOLT HEX SS M12 X 30 DIN933 A4
72043600 1 VALVE FOR 462/463
72181000 1 HOUSING, PUMP, 1203 RED
72181100 1 DIAPHRAGM COVER 1203/1303+BLTS
72181200 1 CONNECTING ROD FOR 1203 W/M12
75073400 1 PUMP KIT 1203 MM
Agroparts: www.HARDI-INTERNATIONAL.com

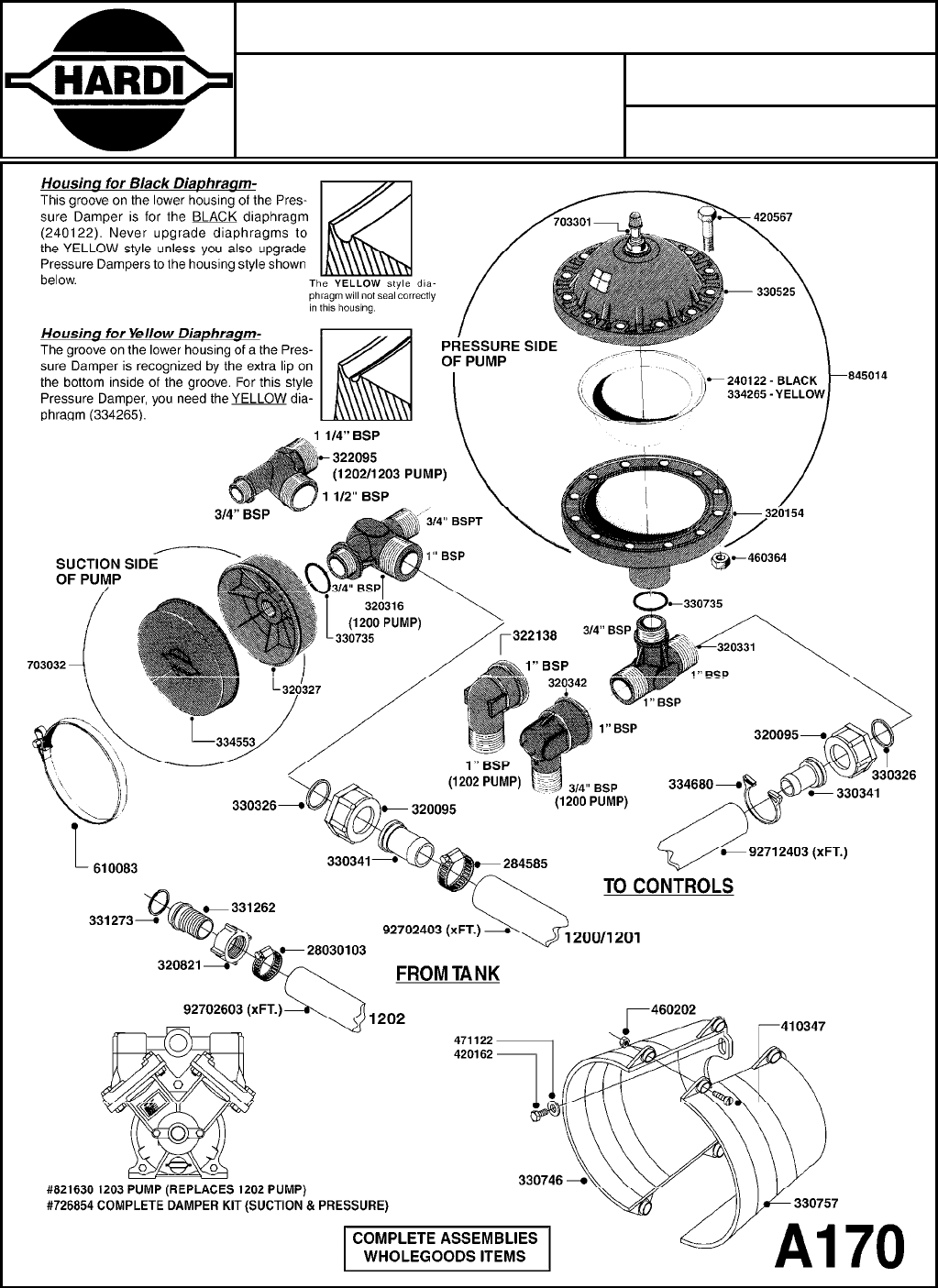

PUMP - 1200/1202/1203 FITTINGS
A170-HIN, 08:12:09
Page 0
Date 18.03.2013 14:04
Agroparts: www.HARDI-INTERNATIONAL.com
PUMP - 1200/1202/1203 FITTINGS
A170-HIN, 08:12:09
Page 1
Date 18.03.2013 14:04
parts-n° order
qty description
240122 1 DIAPHRAGM FOR PRES.DAMP.(EPDM)
284585 1 CLAMP HOSE GEAR 1" MINI 020
320095 1 FITT.DK NUT 1" BSP
320154 1 AIR BOTTLE, BOTTOM PART
320316 1 FITT.DK TEE 3/4" X3/4" X1"BSP
320327 1 HOUSING F. SUCTION AIR BOTTLE
320331 1 FITT.DK TEE 1" - 1" - 3/4" BSP
320342 1 FITT.DK EL 3/4"M X 1"F BSP
320821 1 FITT.DK NUT 1-1/2" BSP
322095 1 FITT.DK TEE 1-1/2 X1 X3/4" BSP
322138 1 FITT.DK ELB 1"M X 1"F BSP
330326 1 O-RING D30/D24X2 F.1"NUT
330341 1 FITT.DK HB 1" F. 1" NUT
330525 1 AIR BOTTLE, TOP HALF
330735 1 O-RING D30/D26X2
330746 1 GUARD PTO LOWER PART
330757 1 GUARD PTO UPPER PART
331262 1 FITT.DK HB 1-1/2" F. 1-1/2"NUT
331273 1 O-RING D44/D38X2 F.1-1/2"
334265 1 DIAPHRAGM F. PRESS DAMP.NITRIL
334553 1 DIAPHRAGM F.SUCTION AIR BOTTLE
334680 1 CLAMP HOSE PLASTIC 1"
410347 1 SCREW M6X20 8.8
420162 1 BOLT HEX 8.8 DEL 3/8"x15MM
420567 1 BOLT HEX 8.8 DEL M8X30 FT
460202 1 NUT HEX M6
460364 1 NUT HEX M8 GALV.
471122 1 WASHER D20/D10.5X2 SS
610083 1 RET. BAND FOR SUCT. AIR BOTTLE
703032 1 SUCTION AIR BOTTLE 3/4" COMPL.
703301 1 VALVE FOR AIR BOTTLE
726854 1 DAMPER KIT 1203/1303
821630 1 PUMP 1203/9 540RPM
845014 1 AIR BOTTLE COMPLETE HJ73
28030103 1 CLAMP HOSE GEAR P5/4-S1.5"6724
92702403 1 HOSE PVC SUCT GRAY 1"
92702603 1 HOSE PVC SUCT GRAY 1-1/2"
92712403 1 HOSE R X1" X300PSI WP X0012"
Agroparts: www.HARDI-INTERNATIONAL.com

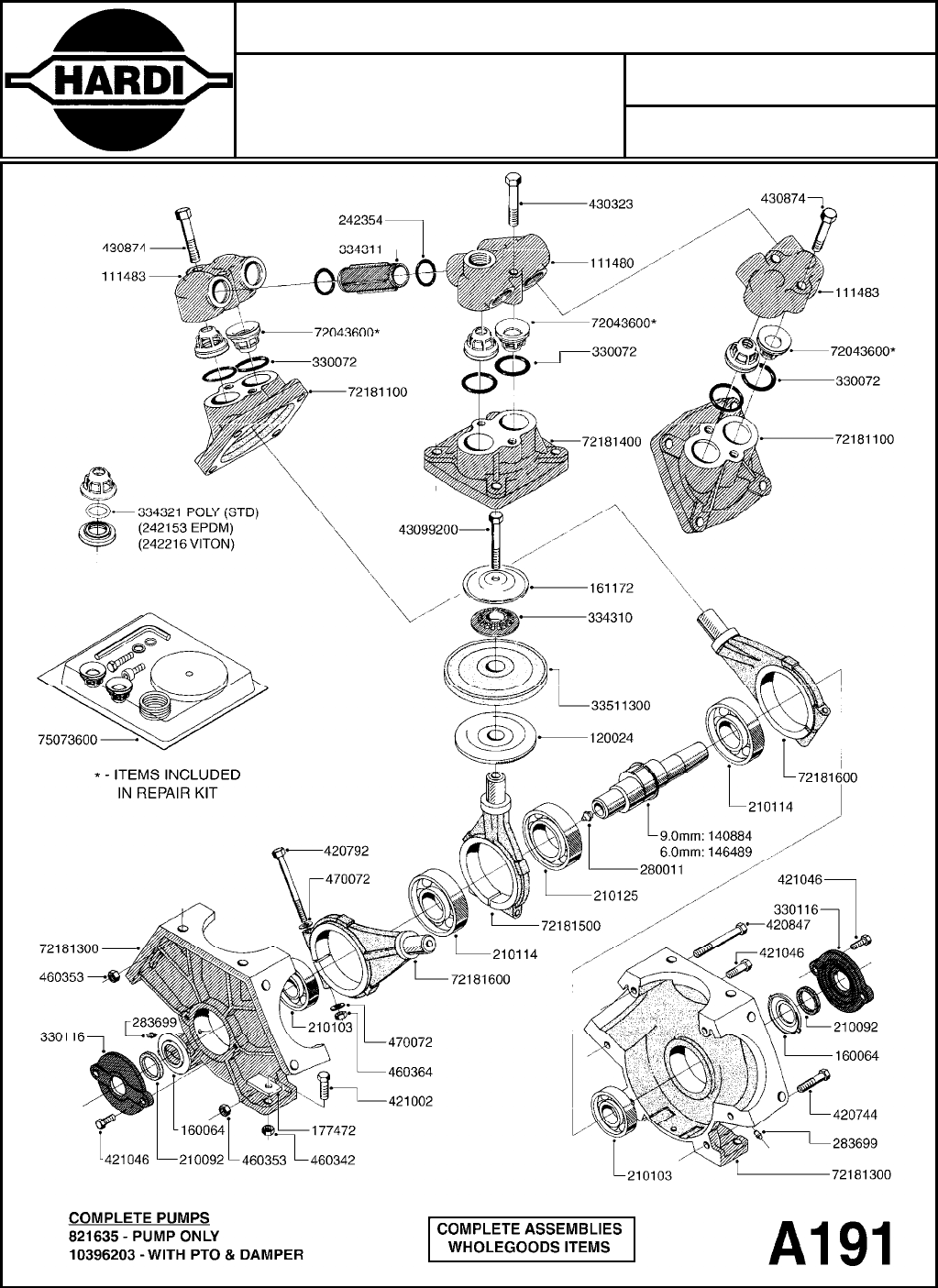

PUMP - 1303 W/ MOUNTING BASE
A191-HIN, 08:11:11
Page 0
Date 18.03.2013 14:04
Agroparts: www.HARDI-INTERNATIONAL.com
PUMP - 1303 W/ MOUNTING BASE
A191-HIN, 08:11:11
Page 1
Date 18.03.2013 14:04
parts-n° order
qty description
111480 1 VALVE HEAD 1302 CENTER
111483 1 VALVE HEAD SIDE 1302
120024 1 DIAPHRAGM BACK DISC 1200-1300
140884 1 CRANK SHAFT MODEL 1300-9
146489 1 CRANK SHAFT MODEL 1302-6MM
160064 1 DUST PLATE
161172 1 DIAPHRAGM DISC F. 1203/1303
177472 1 BRACKET 25 X 5
210092 1 SEAL FELT D43/30X5
210103 1 BEARING BALL 6306
210114 1 BEARING BALL 6308
210125 1 BEARING BALL 6210
242153 1 O-RING D26X4 EPDM
242216 1 O-RING VITON F/1202/1302/462
242354 1 O-RING D32.2X3.0 VITON F.S-53
280011 1 GREASE NIPPLE 1/8' H TR
283699 1 GREASE NIPPLE M6X1
330072 1 O-RING D53,5/D45,5X4
330116 1 SEAL RETAINER, MODEL 1300
334310 1 NYLON WASHER 1202/1302/462
334311 1 CONNECTION PIPE INLET MOD.1302
334321 1 O-RING POLY. 34.0x26.0x4.0
420744 1 BOLT HEX 8.8 DEL M8X40
420792 1 BOLT HEX 8.8 RAW M8X95
420847 1 BOLT HEX 8.8 DEL M8X85
421002 1 BOLT HEX 8.8 DEL M10X30 FT
421046 1 BOLT HEX 8.8 DEL M8X25 FT
430323 1 BOLT HEX 8.8 DEL M12X60
430874 1 SCREW SET 8.8 DEL M12X70 FT
460342 1 NUT HEX M10
460353 1 NUT HEX M8 BLACK
460364 1 NUT HEX M8 GALV.
470072 1 WASHER D15/D8X.5 LOCK
821635 1 PUMP 1303/9 540RPM
10396203 1 PUMP 1303 C/W PTO 540 RPM
33511300 1 DIAPHRAGM 1203/1302 POLY 2006
43099200 1 BOLT HEX SS M12 X 30 DIN933 A4
72043600 1 VALVE FOR 462/463
72181100 1 DIAPHRAGM COVER 1203/1303+BLTS
72181300 1 PUMP CASTING 1300 RED W/BOLTS
72181400 1 DIAPHRAGM COVER 1303 W/B0LTS
72181500 1 CONNECTING ROD, CENTER 1303
72181600 1 CONNECTING ROD, SIDE MOD.1300
75073600 1 PUMP KIT 1303MM
Agroparts: www.HARDI-INTERNATIONAL.com

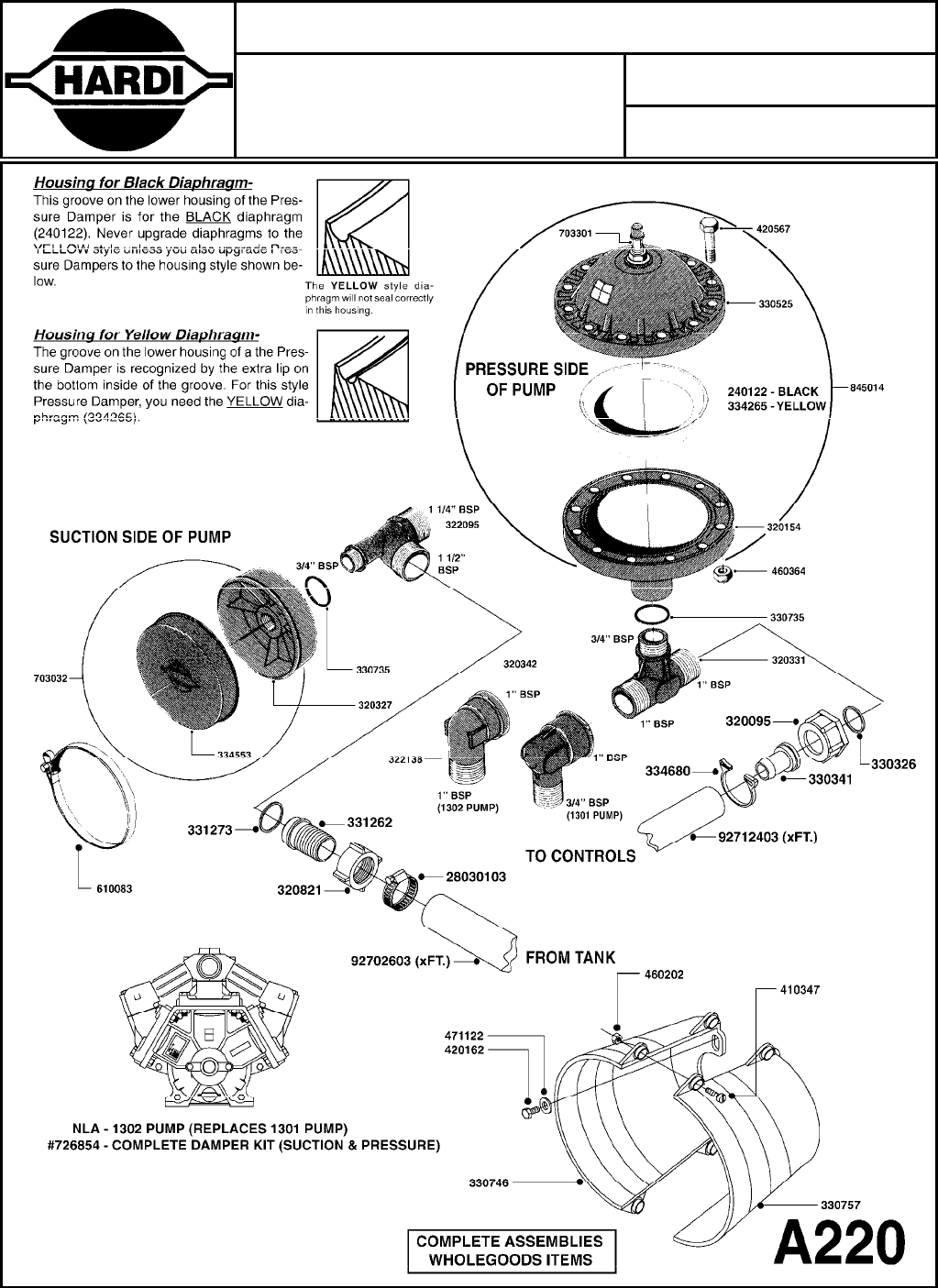

PUMP - 1301/1302 FITTINGS
A220-HIN, 08:12:09
Page 0
Date 18.03.2013 14:04
Agroparts: www.HARDI-INTERNATIONAL.com
PUMP - 1301/1302 FITTINGS
A220-HIN, 08:12:09
Page 1
Date 18.03.2013 14:04
parts-n° order
qty description
240122 1 DIAPHRAGM FOR PRES.DAMP.(EPDM)
320095 1 FITT.DK NUT 1" BSP
320154 1 AIR BOTTLE, BOTTOM PART
320327 1 HOUSING F. SUCTION AIR BOTTLE
320331 1 FITT.DK TEE 1" - 1" - 3/4" BSP
320342 1 FITT.DK EL 3/4"M X 1"F BSP
320821 1 FITT.DK NUT 1-1/2" BSP
322095 1 FITT.DK TEE 1-1/2 X1 X3/4" BSP
322138 1 FITT.DK ELB 1"M X 1"F BSP
330326 1 O-RING D30/D24X2 F.1"NUT
330341 1 FITT.DK HB 1" F. 1" NUT
330525 1 AIR BOTTLE, TOP HALF
330735 1 O-RING D30/D26X2
330746 1 GUARD PTO LOWER PART
330757 1 GUARD PTO UPPER PART
331262 1 FITT.DK HB 1-1/2" F. 1-1/2"NUT
331273 1 O-RING D44/D38X2 F.1-1/2"
334265 1 DIAPHRAGM F. PRESS DAMP.NITRIL
334553 1 DIAPHRAGM F.SUCTION AIR BOTTLE
334680 1 CLAMP HOSE PLASTIC 1"
410347 1 SCREW M6X20 8.8
420162 1 BOLT HEX 8.8 DEL 3/8"x15MM
420567 1 BOLT HEX 8.8 DEL M8X30 FT
460202 1 NUT HEX M6
460364 1 NUT HEX M8 GALV.
471122 1 WASHER D20/D10.5X2 SS
610083 1 RET. BAND FOR SUCT. AIR BOTTLE
703032 1 SUCTION AIR BOTTLE 3/4" COMPL.
703301 1 VALVE FOR AIR BOTTLE
726854 1 DAMPER KIT 1203/1303
845014 1 AIR BOTTLE COMPLETE HJ73
28030103 1 CLAMP HOSE GEAR P5/4-S1.5"6724
92702603 1 HOSE PVC SUCT GRAY 1-1/2"
92712403 1 HOSE R X1" X300PSI WP X0012"
Agroparts: www.HARDI-INTERNATIONAL.com

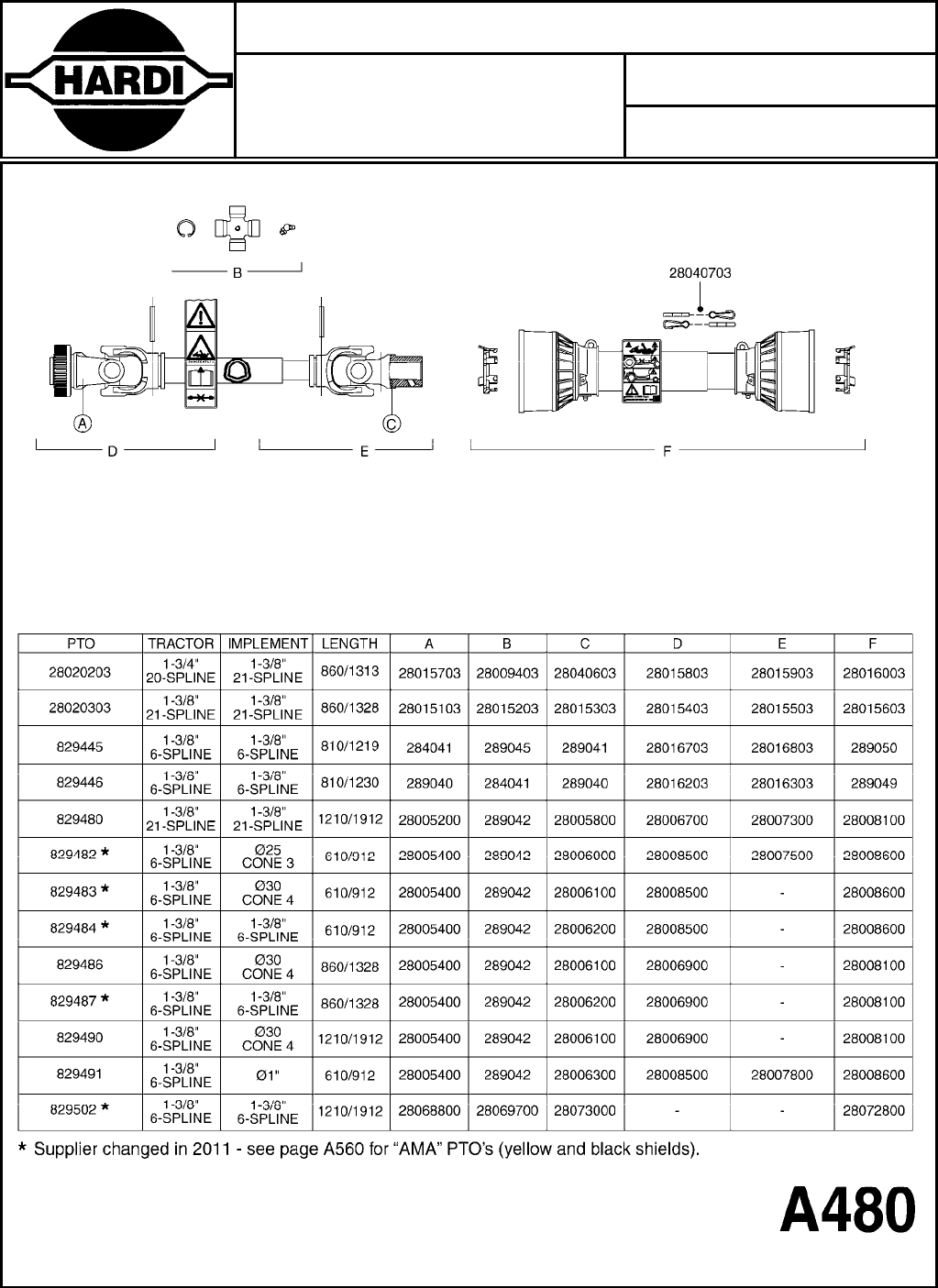

PTO SHAFTS - BONDIOLI DIAPH.
A480-HIN, 13:12:11
Page 0
Date 18.03.2013 14:04
Agroparts: www.HARDI-INTERNATIONAL.com
PTO SHAFTS - BONDIOLI DIAPH.
A480-HIN, 13:12:11
Page 1
Date 18.03.2013 14:04
parts-n° order
qty description
284041 1 UNIV. JOINT 27x70mm
289040 1 PTO YOKE 1-3/8" X 6 SPLINE
289041 1 PTO YOKE 1-3/8" X 6 SPLINE
289042 1 UNIV.CROSS F. PTO SHAFT 41201
289045 1 UNIV.CROSS F. PTO SHAFT TWIN
289049 1 PTO SHIELD COMPLETE F.829446
289050 1 PTO SHIELD COMPLETE F.829445
829445 1 PTO 1-3/8/6X1-3/8/6X810M AXIAL
829446 1 PTO SHAFT LE-SPV + LP ZE-P540
829480 1 PTO 1-3/8/21 x 1-3/8/21x1210MM
829482 1 PTO 1-3/8/6X25MM X 600MM 1202
829483 1 PTO 1-3/8/6X30MM x 600MM 1302
829484 1 PTO 1-3/8/6X1-3/8/6X575MM 361
829486 1 PTO 1-3/8/6X30MM X870MM 1302
829487 1 PTO 1-3/8/6X1-3/8/6X870MM 361
829490 1 PTO 1-3/8/6X30MM 1320MM 1302
829491 1 PTO 1-3/8/6X1' 610/913MM 9016
829502 1 PTO 3/8-1210/1745
28005200 1 PTO YOKE 1-3/8" X 21 SPLINE
28005400 1 PTO YOKE 1-3/8" X 6 SPLINE
28005800 1 PTO YOKE 1-3/8" X 21 SPLINE
28006000 1 PTO YOKE D25 CONE 3 DEG.
28006100 1 PTO YOKE D30 CONE 4 DEG.
28006200 1 PTO YOKE 1-3/8" X 6 SPLINE
28006300 1 PTO YOKE D1"
28006700 1 PTO OUTER 1-3/8"X21(NO SHIELD)
28006900 1 PTO OUTER 1-3/8"X21(NO SHIELD)
28007300 1 PTO INNER 1-3/8"X21(NO SHIELD)
28007500 1 PTO INNER 1-3/8"X21(NO SHIELD)
28007800 1 PTO INNER 1-3/8"X21(NO SHIELD)
28008100 1 TRACK RH 187" X 14" (30-1401)
28008500 1 PTO OUTER 1-3/8"X21(NO SHIELD)
28008600 1 PTO SHIELD ASSY COMPLETE
28009403 1 UNIV. JOINT 23.8x61.3mm
28015103 1 PTO YOKE 1-3/8"X21 TWST OLD
28015203 1 UNIV. JOINT 23.8x61.3mm
28015303 1 PTO YOKE 1-3/8"X21 BALL COLLAR
28015403 1 PTO OUTER 1-3/8"X21(NO SHIELD)
28015503 1 PTO INNER 1-3/8"X21(NO SHIELD)
28015603 1 PTO SHIELD COMPLETE F.28020303
28015703 1 PTO YOKE 1-3/4"X20 SPL OUTER
28015803 1 PTO OUTER 1-3/4"X20(NO SHIELD)
28015903 1 PTO INNER 1-3/8"X21(NO SHIELD)
28016003 1 PTO SHIELD COMPLETE F.10465803
28016203 1 PTO OUTER 1-3/8"X6(NO SHIELD)
28016303 1 PTO INNER 1-3/8"X6(NO SHIELD)
28016703 1 PTO OUTER 1-3/8"X6(NO SHIELD)
28016803 1 PTO INNER 1-3/8"X6(NO SHIELD)
28020203 1 PTO 1-3/4/20x1-3/8/21 BP L=860
28020303 1 PTO 1-3/8/21 x 1-3/8/21 B&P
28040603 1 PTO YOKE 1-3/8X21SPL BLACK
28040703 1 SAFETY CHAIN F.CV BLACK PTO
28068800 1 PTO YOKE 1-3/8" X 6 SPLINE
28069700 1 UNIV. JOINT STD1 SFT
28072800 1 PTO SHIELD COMPLETE L=1912 SFT
28073000 1 PTO YOKE 1-3/8" X 6 SPLINE
Agroparts: www.HARDI-INTERNATIONAL.com

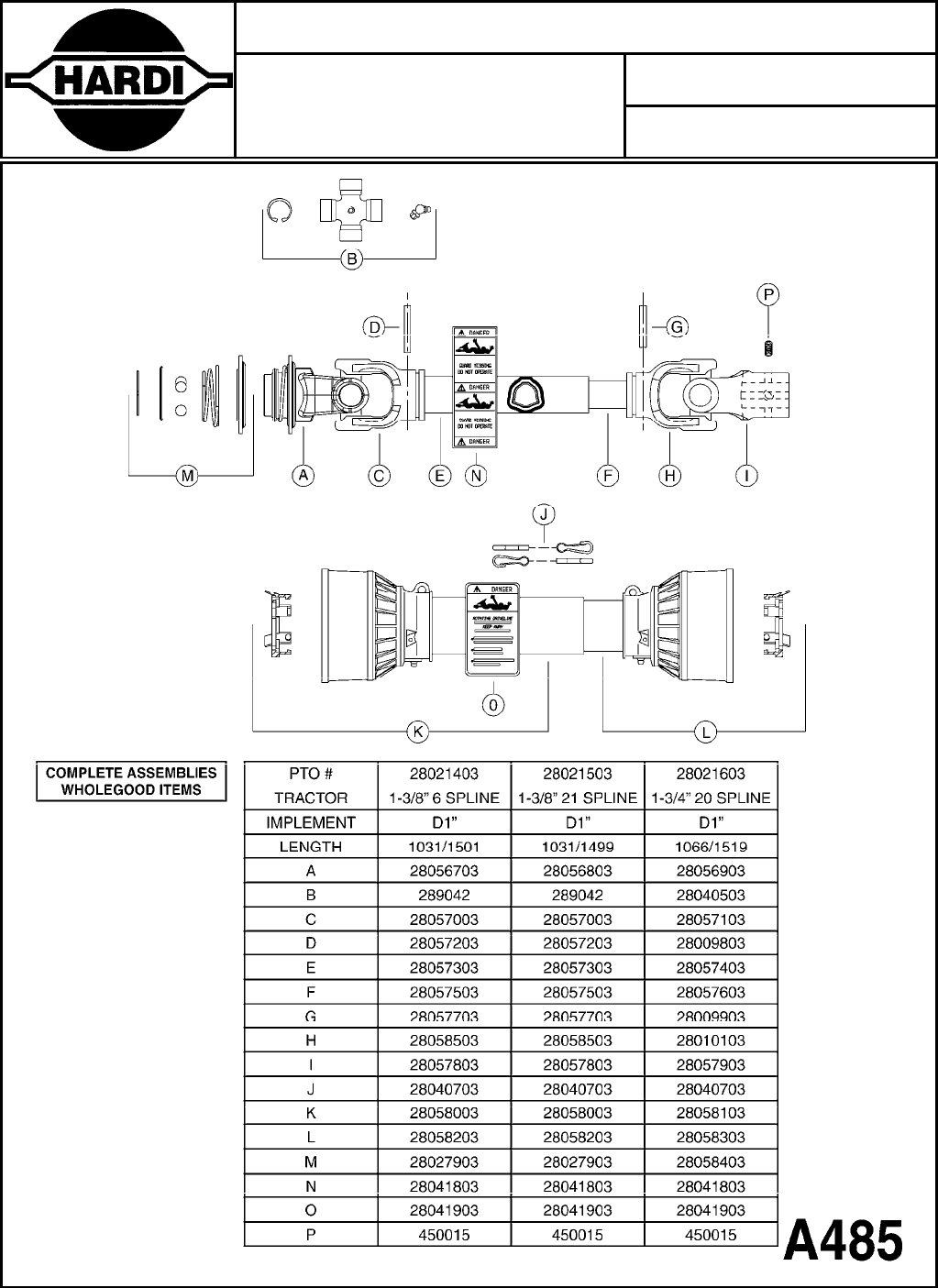

PTO SHAFTS - BONDIOLI CENT.
A485-HIN, 13:11:12
Page 0
Date 18.03.2013 14:05
Agroparts: www.HARDI-INTERNATIONAL.com
PTO SHAFTS - BONDIOLI CENT.
A485-HIN, 13:11:12
Page 1
Date 18.03.2013 14:05
parts-n° order
qty description
289042 1 UNIV.CROSS F. PTO SHAFT 41201
450015 1 SCREW ALLAN 3/8'X5/8' BLACK
28009803 1 PTO PIN TUBE RETAINER OUTER
28009903 1 PTO TUBE RETAINER INNER
28010103 1 PTO YOKE F.INNER TUBE CV PTO
28021403 1 PTO 1"STR/1-3/8" 6SPL B&P
28021503 1 PTO 1"STR/1-3/8" 21SPL B&P
28021603 1 PTO 1"STR/1-3/4" 20SPL B&P
28027903 1 PTO BALL LOCK.KIT F.1-3/8 YOKE
28040503 1 UNIV. JOINT 30.2x79.4mm F/BLK.
28040703 1 SAFETY CHAIN F.CV BLACK PTO
28041803 1 DECAL DANGER GUARD MISSING
28041903 1 DECAL DANGER ROT.DRIVELINE
28056703 1 PTO YOKE #1 1-3/8" X 6 SPLINE
28056803 1 PTO YOKE #1 1-3/8" X 21 SPLINE
28056903 1 PTO YOKE #4 1-3/8" X 20 SPLINE
28057003 1 PTO TUBE YOKE #1-G1 OUTER
28057103 1 PTO TUBE YOKE #4-G4 OUTER
28057203 1 PTO PIN TUBE RETAINER OUTER
28057303 1 PTO TUBE OUTER #1 745MM
28057403 1 PTO TUBE OUTER #4 720MM
28057503 1 PTO TUBE INNER #1 745MM
28057603 1 PTO TUBE INNER #4 720MM
28057703 1 PTO TUBE RETAINER INNER
28057803 1 PTO TUBE YOKE #1 Ø=1"
28057903 1 PTO TUBE YOKE #4 Ø=1"
28058003 1 PTO SHIELD COMPLETE
28058103 1 PTO SHIELD COMPLETE
28058203 1 TRACK LH 187" X 14" (30-1401)
28058303 1 TRACK LH 187" X 14" (30-1401)
28058403 1 PTO BALL LOCK.KIT F.1-3/4 YOKE
28058503 1 PTO TUBE YOKE #1-G1 INNER
Agroparts: www.HARDI-INTERNATIONAL.com
PTO SHAFTS - AMA DIAPHRAGM
A560-HIN, 22:12:11
Page 0
Date 18.03.2013 14:05
Agroparts: www.HARDI-INTERNATIONAL.com
PTO SHAFTS - AMA DIAPHRAGM
A560-HIN, 22:12:11
Page 1
Date 18.03.2013 14:05
parts-n° order
qty description
829482 1 PTO 1-3/8/6X25MM X 600MM 1202
829483 1 PTO 1-3/8/6X30MM x 600MM 1302
829484 1 PTO 1-3/8/6X1-3/8/6X575MM 361
829487 1 PTO 1-3/8/6X1-3/8/6X870MM 361
28062103 1 PTO YOKE 1-3/8X6 AMA
28062203 1 UNIV.JOINT CAT.1 AMA
28062303 1 PTO YOKE D25 AMA
28062403 1 DECAL - DANGER ROTATING SHAFT
28062503 1 DECAL - DANGER MISSING GUARD
28062603 1 SAFETY CHAIN F.PTO AMA
28062703 1 WHEEL, MID-ROLLER (1401,1402)
28062803 1 PTO INNER D25 (NO SHIELD)
28062903 1 PTO SHIELD COMPLETE
28063003 1 TRACK LH 187" X 14" (30-1401)
28063103 1 TRACK RH 187" X 14" (30-1401)
28063203 1 PTO INNER 1-3/8X6 (NO SHIELD)
28063303 1 PTO SHIELD COMPLETE
28063403 1 WHEEL, MID-ROLLER(45-1801)
28063503 1 TRACK RH 187" X 14" (30-1401)
Agroparts: www.HARDI-INTERNATIONAL.com

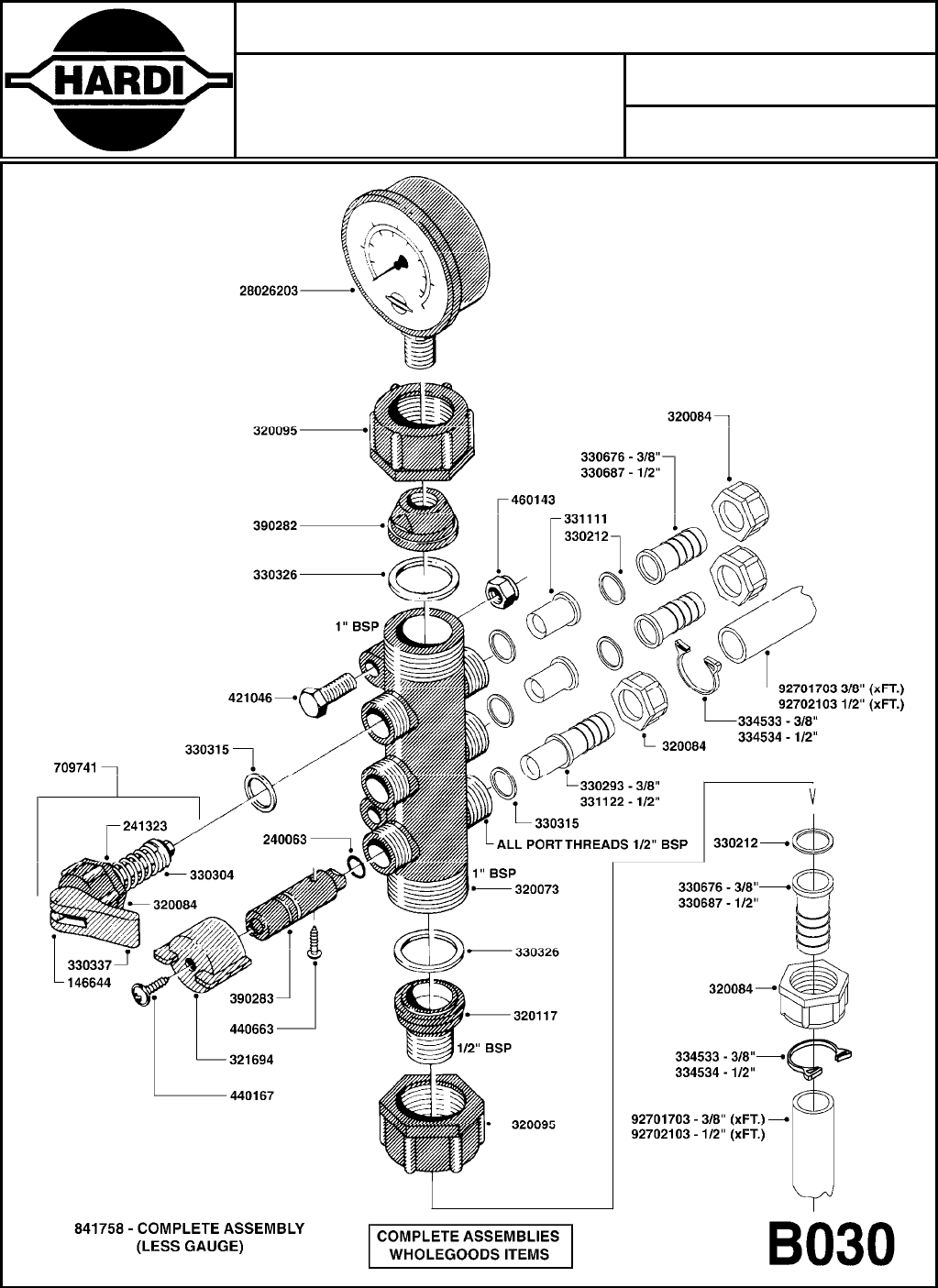

CONTROL-ET MANUAL-ES 30/50/80
B030-HIN, 19:05:11
Page 0
Date 18.03.2013 14:05
Agroparts: www.HARDI-INTERNATIONAL.com
CONTROL-ET MANUAL-ES 30/50/80
B030-HIN, 19:05:11
Page 1
Date 18.03.2013 14:05
parts-n° order
qty description
146644 1 PIN D3X19 STAINLESS
240063 1 O-RING D14,1/9,3 X 2,4
241323 1 O-RING D5.3X2.4 NITRIL
320073 1 DISTRIBUTOR HOUSING 1/2"
320084 1 FITT.DK NUT 1/2" BSP
320095 1 FITT.DK NUT 1" BSP
320117 1 FITT.DK CONN.1/2"BSP F. 1" CAP
321694 1 UNION NUT
330212 1 O-RING D19/D14X2.4 F.1/2"NUT
330293 1 VALVE SEAT WITH 3/8" HOSE TAIL
330304 1 VALVE CONE D14
330315 1 O-RING D18.4/D13X.6
330326 1 O-RING D30/D24X2 F.1"NUT
330337 1 HANDLE F. FLIP VALVE
330676 1 FITT.DK HB 3/8" F. 1/2" NUT
330687 1 FITT.DK HB 1/2" F. 1/2" NUT
331111 1 VALVE SEAT FOR 1/2" DISTRIBUT.
331122 1 VALVE SEAT WITH 1/2" HOSE TAIL
334533 1 CLAMP HOSE PLASTIC 3/8"
334534 1 CLAMP HOSE PLASTIC 1/2"
390282 1 STOPPER ATV 1/4"
390283 1 CONE FOR PRES CONTR ATV
421046 1 BOLT HEX 8.8 DEL M8X25 FT
440167 1 SCREW NO.8 1/4"
440663 1 SCREW 3/8" NR4 STAINLESS
460143 1 NUT HEX M8 LOCK
709741 1 VALVE ASSY. 1/2" FLIP LEVER
841758 1 ET CONTROL COMPLETE
28026203 1 GAUGE 200PSI/BR,2.5"1/4BSP-BTM
92701703 1 HOSE R X3/8" X300PSI WP X0012"
92702103 1 HOSE R X1/2" X300PSI WP X0012"
Agroparts: www.HARDI-INTERNATIONAL.com

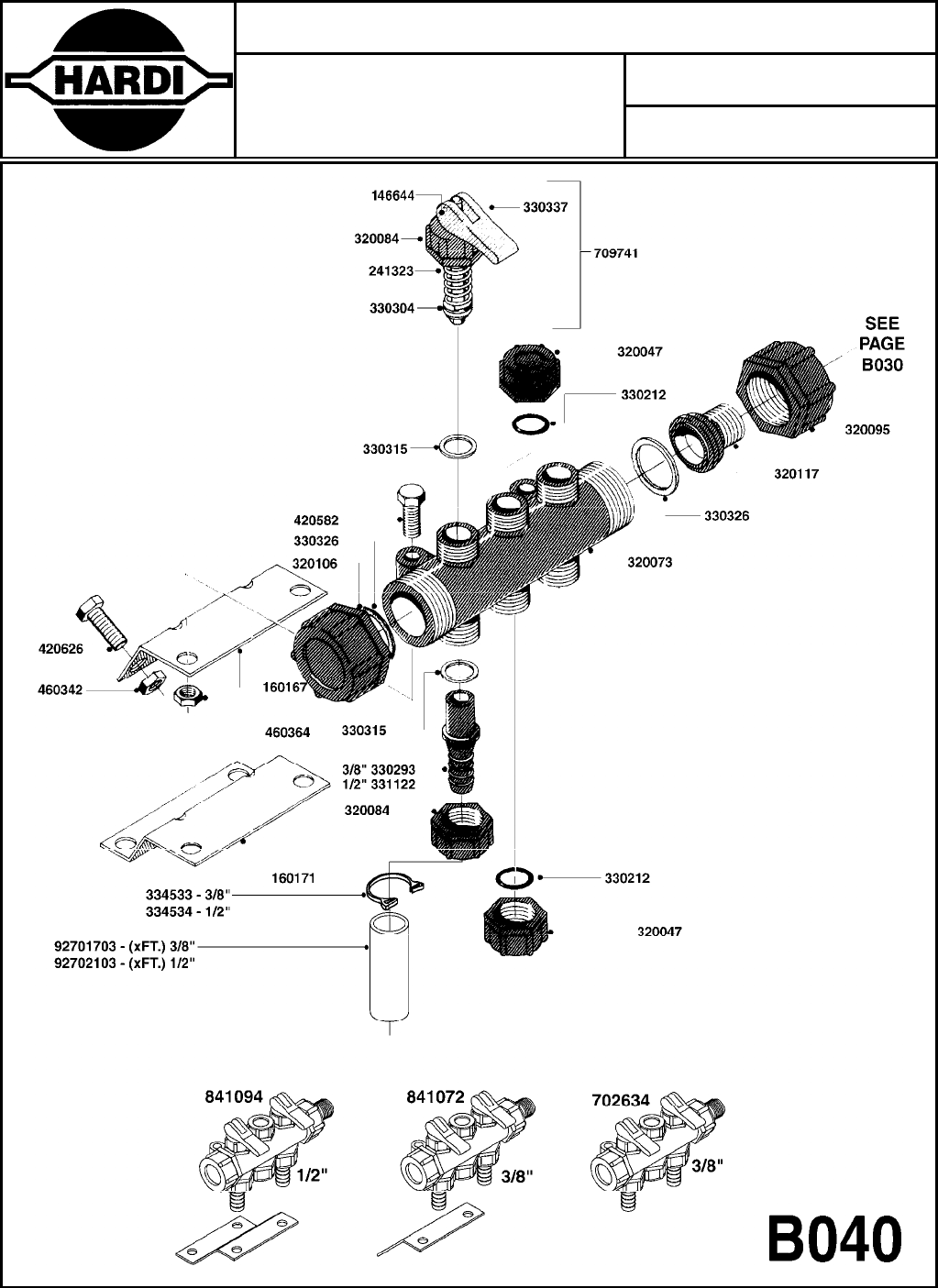

DISTRIBUTION VALVE - MANUAL
B040-HIN, 19:05:11
Page 0
Date 18.03.2013 14:05
Agroparts: www.HARDI-INTERNATIONAL.com
DISTRIBUTION VALVE - MANUAL
B040-HIN, 19:05:11
Page 1
Date 18.03.2013 14:05
parts-n° order
qty description
146644 1 PIN D3X19 STAINLESS
160167 1 MOUNTING PLATE LP
160171 1 MOUNTING PLATE NK
241323 1 O-RING D5.3X2.4 NITRIL
320047 1 FITT.DK CAPNUT 1/2" BSP
320073 1 DISTRIBUTOR HOUSING 1/2"
320084 1 FITT.DK NUT 1/2" BSP
320095 1 FITT.DK NUT 1" BSP
320106 1 FITT.DK CAPNUT 1" BSP
320117 1 FITT.DK CONN.1/2"BSP F. 1" CAP
330212 1 O-RING D19/D14X2.4 F.1/2"NUT
330293 1 VALVE SEAT WITH 3/8" HOSE TAIL
330304 1 VALVE CONE D14
330315 1 O-RING D18.4/D13X.6
330326 1 O-RING D30/D24X2 F.1"NUT
330337 1 HANDLE F. FLIP VALVE
331122 1 VALVE SEAT WITH 1/2" HOSE TAIL
334533 1 CLAMP HOSE PLASTIC 3/8"
334534 1 CLAMP HOSE PLASTIC 1/2"
420582 1 BOLT HEX 8.8 DEL M8X20 FT
420626 1 BOLT HEX 8.8 DEL M10X20 FT
460342 1 NUT HEX M10
460364 1 NUT HEX M8 GALV.
702634 1 DIST.HOUSING ASSEMBLY(2-VALVE)
709741 1 VALVE ASSY. 1/2" FLIP LEVER
841072 1 DISTRIBUT. VALVE 1/2" NK
841094 1 DISTRIBUT. VALVE 1/2" LP,BL
92701703 1 HOSE R X3/8" X300PSI WP X0012"
92702103 1 HOSE R X1/2" X300PSI WP X0012"
Agroparts: www.HARDI-INTERNATIONAL.com

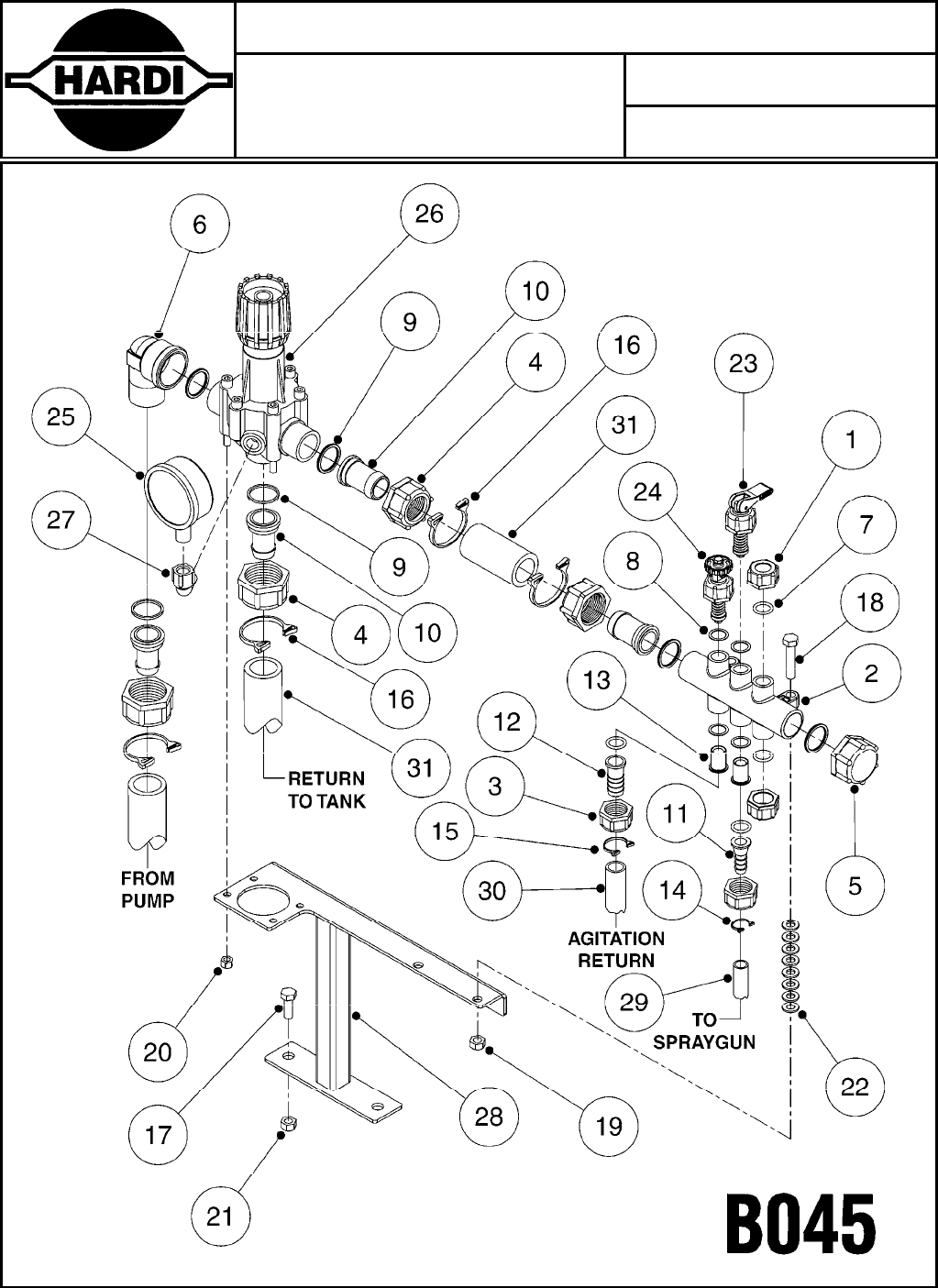

CONTROL - ATV/N-SERIES
B045-HIN, 28:06:06
Page 0
Date 18.03.2013 14:05
Agroparts: www.HARDI-INTERNATIONAL.com
CONTROL - ATV/N-SERIES
B045-HIN, 28:06:06
Page 1
Date 18.03.2013 14:05
parts-n° order
qty descriptionPos.
320047 1 FITT.DK CAPNUT 1/2" BSP1
320073 1 DISTRIBUTOR HOUSING 1/2"2
320084 1 FITT.DK NUT 1/2" BSP3
320095 1 FITT.DK NUT 1" BSP4
320106 1 FITT.DK CAPNUT 1" BSP5
322138 1 FITT.DK ELB 1"M X 1"F BSP6
330212 1 O-RING D19/D14X2.4 F.1/2"NUT7
330315 1 O-RING D18.4/D13X.68
330326 1 O-RING D30/D24X2 F.1"NUT9
330341 1 FITT.DK HB 1" F. 1" NUT10
330676 1 FITT.DK HB 3/8" F. 1/2" NUT11
330687 1 FITT.DK HB 1/2" F. 1/2" NUT12
331111 1 VALVE SEAT FOR 1/2" DISTRIBUT.13
334533 1 CLAMP HOSE PLASTIC 3/8"14
334534 1 CLAMP HOSE PLASTIC 1/2"16
334680 1 CLAMP HOSE PLASTIC 1"16
420604 1 BOLT HEX 8.8 DEL M10X25 FT17
420744 1 BOLT HEX 8.8 DEL M8X4018
460143 1 NUT HEX M8 LOCK19
460261 1 NUT HEX M6X1 LOCK20
460423 1 NUT HEX M10X1.5 LOCK21
471126 1 WASHER D16/D8.4X1.6 SS22
709741 1 VALVE ASSY. 1/2" FLIP LEVER23
724530 1 THUMB WHEEL FOR AGITATION24
28026203 1 GAUGE 200PSI/BR,2.5"1/4BSP-BTM25
28029103 1 VALVE PRESS CTRL 145PSI 1"MPT26
28033103 1 ELBOW, STREET, POLY 1/4"-18NPT27
63026203 1 CONTROL POST, ATV SPRAYER28
92701703 1 HOSE R X3/8" X300PSI WP X0012"29
92702103 1 HOSE R X1/2" X300PSI WP X0012"30
92712403 1 HOSE R X1" X300PSI WP X0012"31
Agroparts: www.HARDI-INTERNATIONAL.com
BK-180 BOOM VALVES-MAN.POST 00
B090-HIN, 19:05:11
Page 0
Date 18.03.2013 14:05
Agroparts: www.HARDI-INTERNATIONAL.com
BK-180 BOOM VALVES-MAN.POST 00
B090-HIN, 19:05:11
Page 1
Date 18.03.2013 14:05
parts-n° order
qty description
142214 1 STUD BOLT 8 X 265 - 5 MODULS
142225 1 STUD BOLT 8 X 299 - 6 MODULS
142236 1 STUD BOLT 8 X 381 - 8 MODULS
142247 1 STUD BOLT 8 X 341 - 7 MODULS
142634 1 STUD BOLT M8 X 213 - 4 MODULS
143301 1 LOCK CLAMP 78 MM
143312 1 LOCK CLAMP 120 MM
143323 1 LOCK CLAMP 204 MM
143334 1 LOCK CLAMP 162 MM
145515 1 STUD BOLT M8 X 176MM
146644 1 PIN D3X19 STAINLESS
163951 1 MOUNT BRACKET FOR BK180 SECTIO
240063 1 O-RING D14,1/9,3 X 2,4
240925 1 O-RING D49.5X3 NITRIL
240936 1 O-RING D13.3X2.4 NITRIL
240947 1 O-RING D7.3X2.4 NITRIL
240951 1 O-RING D21.2X3 NITRIL
241323 1 O-RING D5.3X2.4 NITRIL
241441 1 O-RING D29.3X3
241905 1 O-RING 12,3X2,4 VITON DKR.1,05
242594 1 O-RING D14 X 1.78 SCH.70-EPDM
270211 1 FITT.DK S25 FORK L=37.5
320095 1 FITT.DK NUT 1" BSP
320283 1 FITT.DK NUT 3/4"BSP
322184 1 SCREW F.ADJUSTING CONST.PRESS.
322192 1 HOUSING F.DISTRIBUTOR
322242 1 FILTER BOWL / IN-LINE
322251 1 HOUSING F.FILTER MOUNT BK/EC
330326 1 O-RING D30/D24X2 F.1"NUT
330341 1 FITT.DK HB 1" F. 1" NUT
330632 1 REGULATING HANDLE
332194 1 DISTRIBUTION HANDLE
332205 1 O-RING D43/39XD2
332415 1 COVER
332511 1 FITT.DK END CAP 1"HB F.BK180
333561 1 FITT.DK ELB.1" EC RETURN
334531 1 CLAMP HOSE PLASTIC 3/4"
334534 1 CLAMP HOSE PLASTIC 1/2"
334680 1 CLAMP HOSE PLASTIC 1"
440673 1 SCREW F.PLASTIC 5X12 SS
460817 1 NUT HEX M8 STAINLESS DIN 934
471126 1 WASHER D16/D8.4X1.6 SS
615443 1 FILTER ELEM.50 MESH BLUE
615444 1 FILTER ELEM.80 MESH RED
615445 1 FILTER ELEM.100 MESH YELLOW
712386 1 PRESSURE REGULATOR COMPL. H-M
716236 1 FITT.DK HB 1/2" ASSY. F. 3/4"
724522 1 DISTR.OVER PART W.OUV PR 83 BK
724621 1 FITT.DK HB 3/4"ASSY F.3/4" NUT
727896 1 HOUSING UPPER F.CONST.PRESS.
727897 1 HOUSING UPPER PART END PC.BK92
728133 1 CONNECTING PART F.BK OPR.UNIT
28026203 1 GAUGE 200PSI/BR,2.5"1/4BSP-BTM
28030003 1 CLAMP HOSE GEAR P1" 6716
70012503 1 HOUSING FOR HARDI-MATIC VALVE
92702103 1 HOSE R X1/2" X300PSI WP X0012"
92702403 1 HOSE PVC SUCT GRAY 1"
92703203 1 HOSE R X3/4" X300PSI WP X0012"
92712403 1 HOSE R X1" X300PSI WP X0012"
Agroparts: www.HARDI-INTERNATIONAL.com

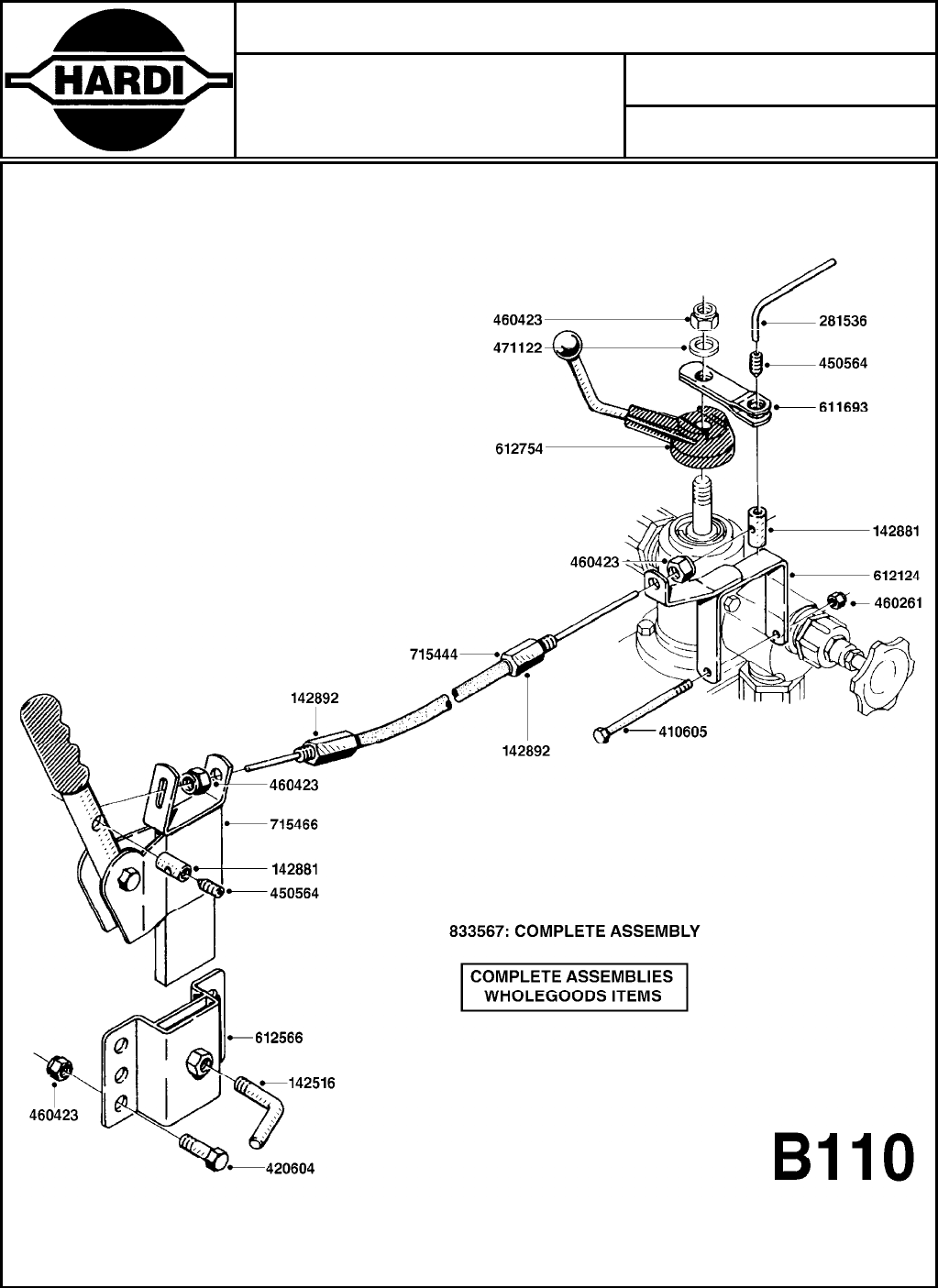

BK-180 REMOTE CONTROL CABLE
B110-HIN, 01:01:01
Page 0
Date 18.03.2013 14:05
Agroparts: www.HARDI-INTERNATIONAL.com
BK-180 REMOTE CONTROL CABLE
B110-HIN, 01:01:01
Page 1
Date 18.03.2013 14:05
parts-n° order
qty description
142516 1 SCREW SET M10 BENT F. LOCKING
142881 1 WIRE HOLDER FOR REMOTE CONTROL
142892 1 END NIPPLE F.REMOTE CABLE
281536 1 ALLEN WRENCH 3MM
410605 1 BOLT HEX 8.8 DEL M6X80
420604 1 BOLT HEX 8.8 DEL M10X25 FT
450564 1 SCREW M6X12 ALLEN
460261 1 NUT HEX M6X1 LOCK
460423 1 NUT HEX M10X1.5 LOCK
471122 1 WASHER D20/D10.5X2 SS
611693 1 ARM FOR REMOTE CONTROL BK180
612124 1 BRACKET FOR OP.UNIT F REM.CTR
612566 1 MOUNT BRACKET F.FAN CABLE ASSY
612754 1 HANDLE FOR REMOTE CONTROL
715444 1 REMOTE CONTROL CABLE COMPLETE
715466 1 MOUNTING PLATE
833567 1 REMOTE CONTROL ON/OFF BK 180
Agroparts: www.HARDI-INTERNATIONAL.com

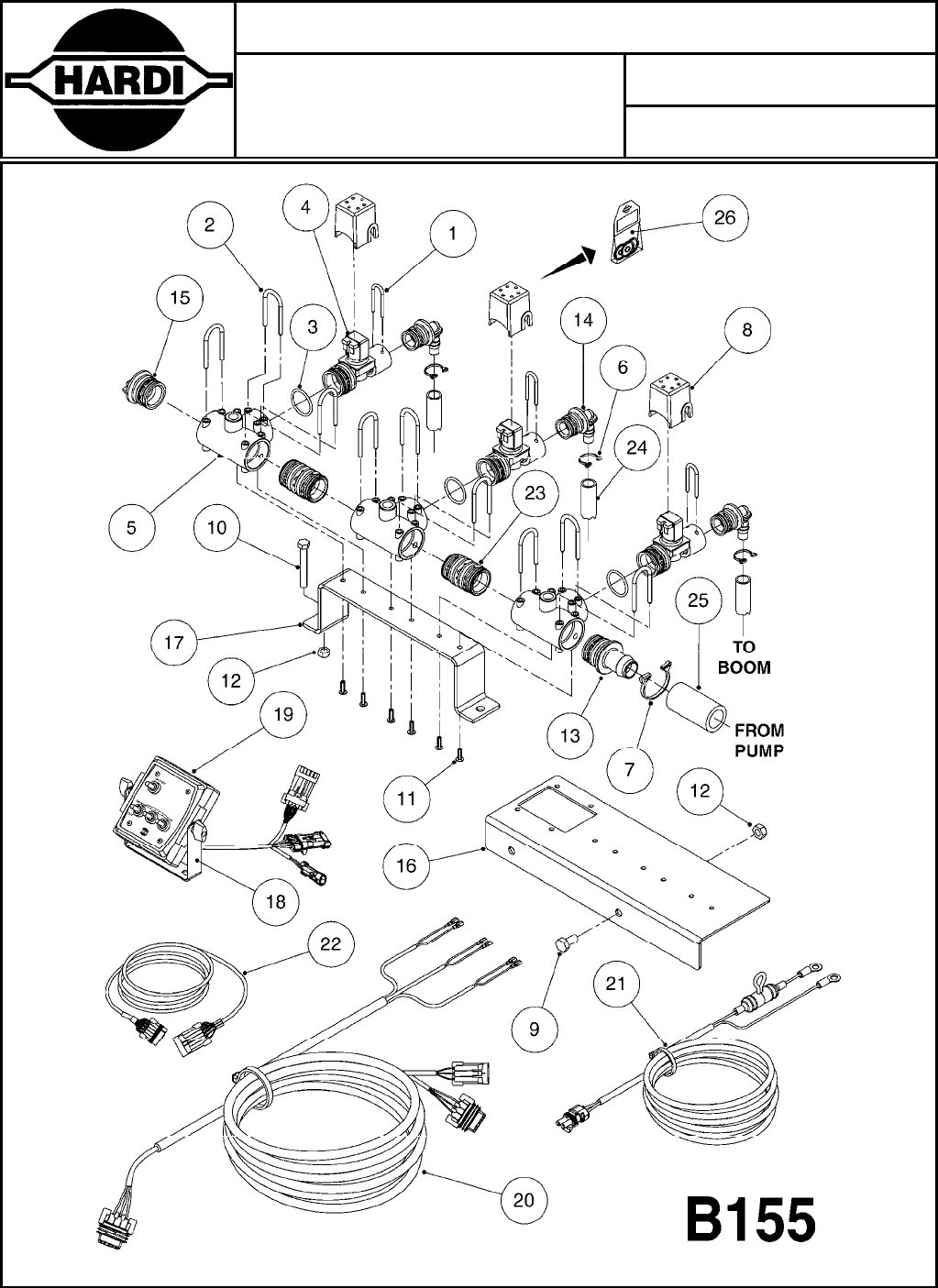

ELECTRIC SOLENOID ATV/N-SERIES
B155-HIN, 10:12:09
Page 0
Date 18.03.2013 14:05
Agroparts: www.HARDI-INTERNATIONAL.com
ELECTRIC SOLENOID ATV/N-SERIES
B155-HIN, 10:12:09
Page 1
Date 18.03.2013 14:05
parts-n° order
qty descriptionPos.
145994 1 FITT.DK S-40 FORK1
145995 1 FITT.DK S-53 FORK2
242109 1 O-RING D32.2x3.0 (USE 242354)3
262104 1 VALVE, SOLENOID, S53/S404
322352 1 FITT.DK S-53 TEE5
334534 1 CLAMP HOSE PLASTIC 1/2"6
334680 1 CLAMP HOSE PLASTIC 1"7
334965 1 COVER FOR S53 SOLENOID VALVE8
420626 1 BOLT HEX 8.8 DEL M10X20 FT9
421164 1 BOLT HEX 8.8 DEL M10X7010
440675 1 SCREW F. PLASTIC 5X16 SS11
460423 1 NUT HEX M10X1.5 LOCK12
726559 1 FITT DK. S-53 HB 1" W/O-RING13
726567 1 FITT.DK S-40 ELB.1/2" W.ORING14
726578 1 FITT.DK S53 PLUG WITH O-RING15
16107403 1 CONTROL BRACKET, SOLENOID
N-SERIES BRACKET
16
17009403 1 SOLENOID CONTROL BRACKET 3SECT
ATV BRACKET
17
26001503 1 HC FOAM MARKER CONSOLE MT.KIT18
26010503 1 HARDI 3-SEC VAL CONTR CONSOLE19
26010603 1 SPRAYMATE II HARDI BRANCH CABL20
26010703 1 SPRAYMATE II BATTERY CABLE21
26010803 1 SPRAYMATE II 15'10PIN M/P CABL22
72114300 1 FITT. DK S-53 MALE MALE W.ORIN23
92702103 1 HOSE R X1/2" X300PSI WP X0012"24
92712403 1 HOSE R X1" X300PSI WP X0012"25
750722 1 REPAIR KIT FOR 3S SC CONTROL26
Agroparts: www.HARDI-INTERNATIONAL.com

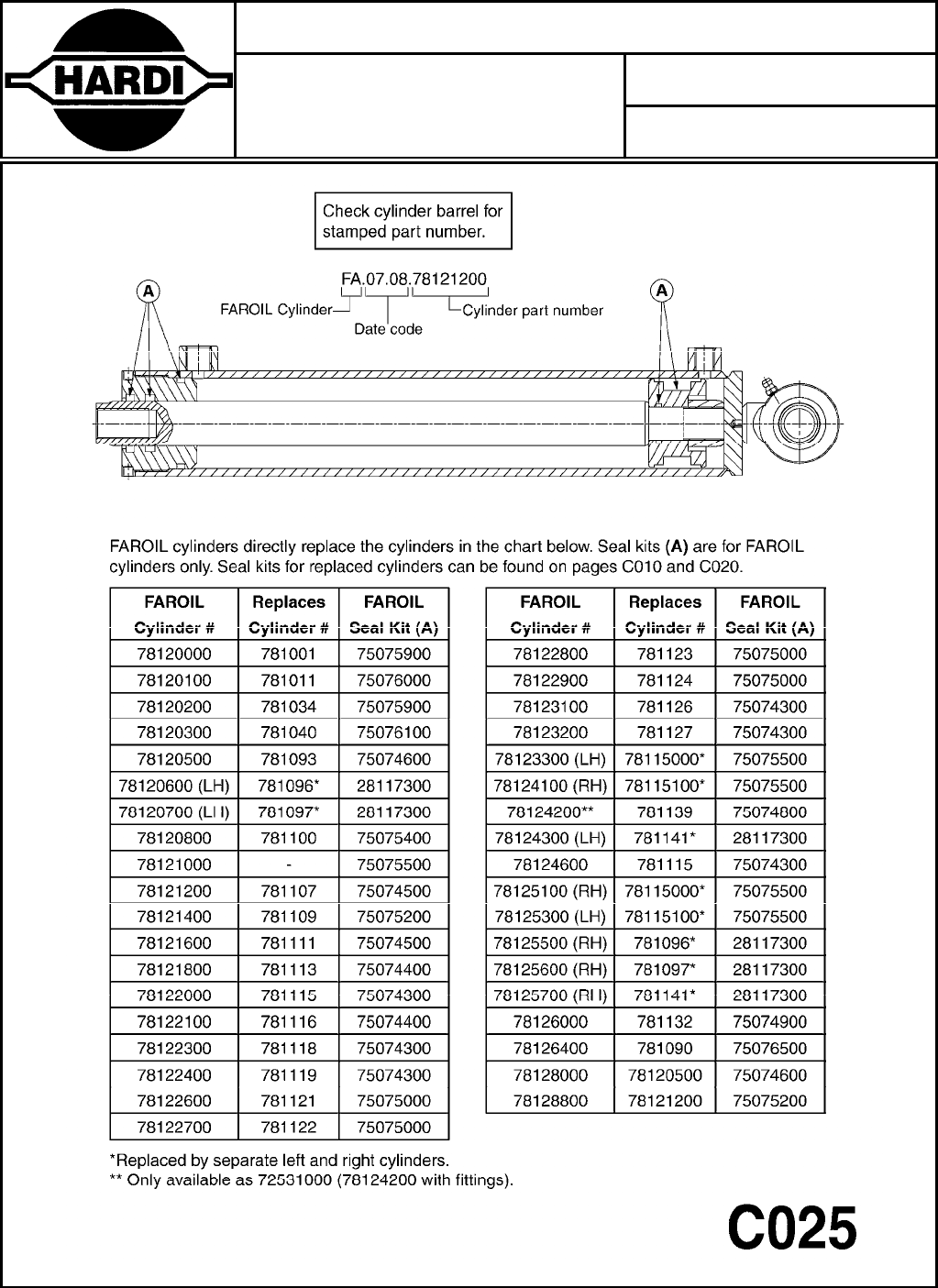

HYDRAULICS - FAROIL CYLINDERS
C025-HIN, 15:08:12
Page 0
Date 18.03.2013 14:05
Agroparts: www.HARDI-INTERNATIONAL.com
HYDRAULICS - FAROIL CYLINDERS
C025-HIN, 15:08:12
Page 1
Date 18.03.2013 14:05
parts-n° order
qty description
781001 1 CYLINDER TELESCOPING
781011 1 CYLINDER TELESC.70/60/40
781034 1 HY. CYLINDER D50/40/25 - 1200
781040 1 CYLINDER 60/50/30 1100MM
781090 1 CYLINDER DBLE D32/16-200 W.STP
781093 1 CYLINDER FOLD SPC D60/30 L=300
781096 1 CYLINDER 60/25 X 662 NAV PAR
781097 1 CYLINDER 60/25 X 725 CM PAR
781100 1 CYLINDER DOUBLE 60/30-300
781107 1 CYLINDER F.INNER WING FOLD
781109 1 DOUBLE CYLINDER D 50/30-300
781111 1 CYLINDER DOUBLE D50/30-300
781113 1 CYLINDER DOUBLE D50/25-300
781115 1 CYLINDER DOUBLE D40/20-300
781116 1 CYLINDER DOUBLE D50/25-298
781118 1 CYLINDER DOUBLE D40/20-180
781119 1 CYLINDER DOUBLE D40/20-300
781121 1 CYLINDER D40/22-300 BLACK
781122 1 CYLINDER D40/22X300MM
781123 1 CYLINDER D40/22-300 BLACK
781124 1 CYLINDER D40/22X300MM
781126 1 CYLINDER DOUBLE D40/20-120
781127 1 CYLINDER DOUBLE D40/20-120
781132 1 CYLINDER STABILIZER CM 1200 04
781139 1 CYLINDER D25/12-50
781141 1 CYLINDER 60/25 X 635 DELTA PAR
28117300 1 SEAL KIT 78120600/07/43
72531000 1 CYL. D25/12-50/78124200 W/FITT
75074300 1 SEALKIT78122000/23-25/30-32/46
75074400 1 SEAL KIT 78121800/21/44
75074500 1 SEALKIT78121100-13/15/16/36/48
75074600 1 SEAL KIT 78120500/49
75074800 1 SEAL KIT 78123400/42
75074900 1 SEAL KIT 78123700
75075000 1 SEAL KIT 78122600/27/28/29
75075200 1 SEAL KIT 78120900/14/50
75075400 1 SEAL KIT 78120800
75075500 1 SEAL KIT 78121000/33/41/51/53
75075900 1 SEAL KIT 78120000 & 78120200
75076000 1 SEAL KIT 78120100
75076100 1 SEAL KIT 78120300
75076500 1 SEAL KIT 78126400
78115000 1 DBL CYL D70/40-320 AIRING
78115100 1 CYL DOB.D70/40-265/INDB 502-UD
78120000 1 CYL.TELESCOPING Ø50/40/25_1100
78120100 1 CYLINDER TELESC.70/60/40
78120200 1 HY. CYLINDER D50/40/25 - 1200
78120300 1 CYLINDER 60/50/30 1100MM
78120500 1 CYLINDER FOLD SPC D60/30 L=300
NLA - REPLACED BY 78128000
78120600 1 CYLINDER 60/25 X 662 NAV PAR
78120700 1 CYLINDER 60/25 X 725 CM PAR
78120800 1 CYLINDER DOUBLE 60/30-300
78121000 1 CYLINDER DOUBLE D70/40-400
78121200 1 CYLINDER F.INNER WING FOLD
78121400 1 DOUBLE CYLINDER D 50/30-300
78121600 1 DOUBLE CYLINDER D 50/30-300
78121800 1 CYLINDER D50/25 L=300
78122000 1 CYLINDER DOUBLE Ø40/20-300
78122100 1 CYLINDER DOUBLE D50/25-298
78122300 1 CYLINDER DOUBLE D40/20-180
Agroparts: www.HARDI-INTERNATIONAL.com
HYDRAULICS - FAROIL CYLINDERS
C025-HIN, 15:08:12
Page 2
Date 18.03.2013 14:05
parts-n° order
qty description
78122400 1 DOUBLE CYLINDER D 40/20-300
78122600 1 CYLINDER D40/22-300 BLACK
78122700 1 CYLINDER D40/22X300MM RED
78122800 1 CYLINDER D40/22-300 BLACK
78122900 1 CYLINDER D40/22X300MM RED
78123100 1 CYLINDER DOUBLE D40/20-120
78123200 1 CYLINDER DOUBLE D40/20-120
78123300 1 DBL CYL D70/40-320 AIR INLET L
78124100 1 CYL DOB.D70/40-265 AIR INLET R
78124200 1 CYLINDER D25/12-50
78124300 1 CYLINDER 60/25 X 635 DELTA L
78124600 1 CYLINDER DOUBLE Ø40/20-300 90º
78125100 1 DBL CYL D70/40-320 AIR INLET R
78125300 1 CYL DOB.D70/40-265 AIR INLET L
78125500 1 CYLINDER 60/25 X 662 NAV PAR R
78125600 1 CYLINDER 60/25 X 725 CM PAR R
78125700 1 CYLINDER 60/25 X 635 DELTA R
78126000 1 CYLINDER,DAMPNER,LOCKING
78126400 1 CYLINDER DBLE D32/16-200 W.STP
78128000 1 CYLINDER DOUB. D60/30 L=300 09
78128800 1 CYL.INNER WING FOLD 50/30-500
Agroparts: www.HARDI-INTERNATIONAL.com
HYDRAULICS - CYLINDERS (07)
C026-HIN, 15:08:12
Page 0
Date 18.03.2013 14:05
Agroparts: www.HARDI-INTERNATIONAL.com
HYDRAULICS - CYLINDERS (07)
C026-HIN, 15:08:12
Page 1
Date 18.03.2013 14:05
parts-n° order
qty description
781136 1 HYDRAULIC SHOCK NCM4400 SUSP.
781137 1 HYDRAULIC SHOCK NCM6600 SUSP.
28064100 1 GASKET SET FOR CYL. 781136
28064200 1 GASKET SET FOR CYL. 781137
28117300 1 SEAL KIT 78120600/07/43
72320300 1 HYD. CYL. STEERING LOCK CM "05
75074200 1 SEAL KIT 78120400
75074300 1 SEALKIT78122000/23-25/30-32/46
75074400 1 SEAL KIT 78121800/21/44
75074500 1 SEALKIT78121100-13/15/16/36/48
75074600 1 SEAL KIT 78120500/49
75074800 1 SEAL KIT 78123400/42
75074900 1 SEAL KIT 78123700
75075000 1 SEAL KIT 78122600/27/28/29
75075200 1 SEAL KIT 78120900/14/50
75075400 1 SEAL KIT 78120800
75075500 1 SEAL KIT 78121000/33/41/51/53
75075900 1 SEAL KIT 78120000 & 78120200
75076000 1 SEAL KIT 78120100
75076100 1 SEAL KIT 78120300
75076400 1 SEAL KIT 78124500 & 78125800
75076500 1 SEAL KIT 78126400
75083800 1 SEAL KIT F.78114300
75084400 1 SEAL KIT FOR 78127200/7500
75084500 1 SEAL KIT FOR 78127800
75084700 1 SEAL KIT FOR 78128100
75084900 1 SEAL KIT FOR 78128500
75085400 1 SEAL KIT FOR 78130900
75085500 1 SEAL KIT F.HY CYL. 78131100
78114300 1 CYLINDER 70/30 X 662 LG PAR R
78120000 1 CYL.TELESCOPING Ø50/40/25_1100
78120100 1 CYLINDER TELESC.70/60/40
78120200 1 HY. CYLINDER D50/40/25 - 1200
78120300 1 CYLINDER 60/50/30 1100MM
78120400 1 CYLINDER DBLE D32/16-200 W.STP
78120500 1 CYLINDER FOLD SPC D60/30 L=300
78120600 1 CYLINDER 60/25 X 662 NAV PAR
78120700 1 CYLINDER 60/25 X 725 CM PAR
78120800 1 CYLINDER DOUBLE 60/30-300
78121000 1 CYLINDER DOUBLE D70/40-400
78121200 1 CYLINDER F.INNER WING FOLD
78121300 1 CYLINDER DBLE Ø50/30-600(700)
78121400 1 DOUBLE CYLINDER D 50/30-300
78121600 1 DOUBLE CYLINDER D 50/30-300
78121800 1 CYLINDER D50/25 L=300
78122000 1 CYLINDER DOUBLE Ø40/20-300
78122100 1 CYLINDER DOUBLE D50/25-298
78122300 1 CYLINDER DOUBLE D40/20-180
78122400 1 DOUBLE CYLINDER D 40/20-300
78122600 1 CYLINDER D40/22-300 BLACK
78122700 1 CYLINDER D40/22X300MM RED
78122800 1 CYLINDER D40/22-300 BLACK
78122900 1 CYLINDER D40/22X300MM RED
78123000 1 CYLINDER DOUBLE D40/20-120
78123100 1 CYLINDER DOUBLE D40/20-120
78123200 1 CYLINDER DOUBLE D40/20-120
78123400 1 CYLINDER FOR TRACK LOCK, NCM
78123700 1 CYLINDER,DAMPNER,LOCKING
78124100 1 CYL DOB.D70/40-265 AIR INLET R
78124300 1 CYLINDER 60/25 X 635 DELTA L
78124400 1 CYLINDER DOUBLE D50/25_250
Agroparts: www.HARDI-INTERNATIONAL.com
HYDRAULICS - CYLINDERS (07)
C026-HIN, 15:08:12
Page 2
Date 18.03.2013 14:05
parts-n° order
qty description
78124500 1 CYLINDER 70/30 X 662 LG PAR L
78124600 1 CYLINDER DOUBLE Ø40/20-300 90º
78125100 1 DBL CYL D70/40-320 AIR INLET R
78125300 1 CYL DOB.D70/40-265 AIR INLET L
78125500 1 CYLINDER 60/25 X 662 NAV PAR R
78125800 1 CYLINDER 70/30 X 662 LG PAR R
78126000 1 CYLINDER,DAMPNER,LOCKING
78126400 1 CYLINDER DBLE D32/16-200 W.STP
78126500 1 CYLINDER D25/12-50 FAROIL NNAV
78127200 1 CYLINDER DOUB. D40/25 L=455
78127800 1 HYDRAULIC CYLINDER 25-40
78128000 1 CYLINDER DOUB. D60/30 L=300 09
78128100 1 CYLINDER 70/30-300/TILT TDZ
78128500 1 CYLINDER DOUBLE PLUNGER D60X75
78128700 1 CYLINDER DOUBLE D50/30 500
78128800 1 CYL.INNER WING FOLD 50/30-500
78129900 1 CYLINDER DOUBLE D40/20 180 1/4
78130600 1 DOB.CYL.Ø50/25-240/M. SENSOR
78130900 1 CYLINDER, D70/40-500 TDZ FOLD
78131000 1 CYLINDER, 60/30X462, 120' SPC
78131100 1 HY. CYLINDER, 70/40X400
Agroparts: www.HARDI-INTERNATIONAL.com
HYDRAULICS - SB WING FOLD
C030-HIN, 14:12:07
Page 0
Date 18.03.2013 14:05
Agroparts: www.HARDI-INTERNATIONAL.com
HYDRAULICS - SB WING FOLD
C030-HIN, 14:12:07
Page 1
Date 18.03.2013 14:05
parts-n° order
qty description
146835 1 HEX NIPPLE 1/4"X3/8" BSP
146839 1 HEX NIPPLE 1/4"X3/8" BSP 0.7MM
210728 1 BEARING F.LINK HEAD M17
210879 1 LINK HEAD M16 x D17
230963 1 TEE 1/4"M X 1/4"M X 1/4"M BSP
231907 1 HEX NIPPLE 1/4"BSP X 1/2"NPT
240866 1 DOWTYSEAL 3/8"
283787 1 VALVE HY 3 WAY F.VARIANT
283804 1 HOSE HY X 1/4 X 090.5'
284176 1 O-RINGS KIT F/HY-VALVE 283787
420582 1 BOLT HEX 8.8 DEL M8X20 FT
421046 1 BOLT HEX 8.8 DEL M8X25 FT
460143 1 NUT HEX M8 LOCK
461198 1 NUT HEX M16 x 2 JAMB
614418 1 BRACKET HY-VALVE
10466003 1 COUPLER PIONEER 8010-04 1/2NPT
28266703 1 HOSE HY X1/4X029.50"STR+ELB
28378803 1 HOSE HY X1/4X85.0"STR+ELB
75074300 1 SEALKIT78122000/23-25/30-32/46
78122400 1 DOUBLE CYLINDER D 40/20-300
Agroparts: www.HARDI-INTERNATIONAL.com

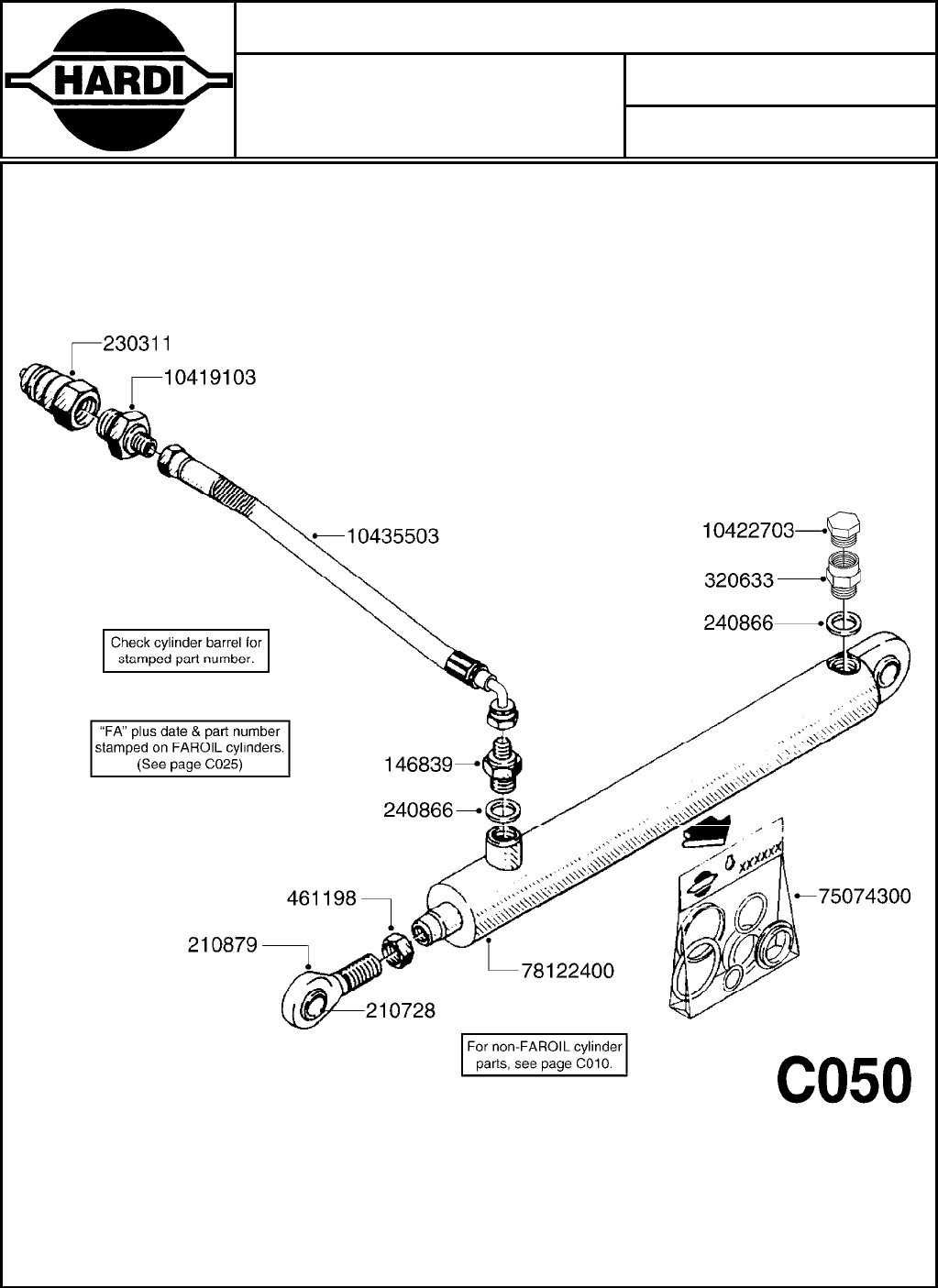

HYDRAULICS-MB BOOM WING TILT
C050-HIN, 22:08:12
Page 0
Date 18.03.2013 14:05
Agroparts: www.HARDI-INTERNATIONAL.com
HYDRAULICS-MB BOOM WING TILT
C050-HIN, 22:08:12
Page 1
Date 18.03.2013 14:05
parts-n° order
qty description
146839 1 HEX NIPPLE 1/4"X3/8" BSP 0.7MM
210728 1 BEARING F.LINK HEAD M17
210879 1 LINK HEAD M16 x D17
230311 1 QUICK COUPLING 1/2"
240866 1 DOWTYSEAL 3/8"
320633 1 FITT.DK HN 3/8"M X 3/8"F BSP
461198 1 NUT HEX M16 x 2 JAMB
10419103 1 FITT.HY HEX RED.3/8 X 1/2
10422703 1 BREATHER FOR HY CYLINDER
10435503 1 *HOSE HY X 1/4 X 270' WITH FIT
75074300 1 SEALKIT78122000/23-25/30-32/46
78122400 1 DOUBLE CYLINDER D 40/20-300
Agroparts: www.HARDI-INTERNATIONAL.com
BOOM - V-II
D042-HIN, 21:11:09
Page 0
Date 18.03.2013 14:05
Agroparts: www.HARDI-INTERNATIONAL.com
BOOM - V-II
D042-HIN, 21:11:09
Page 1
Date 18.03.2013 14:05
parts-n° order
qty description
110401 1 SPRING HOUSING STD BOOM
110412 1 CLUTCH STANDARD BOOM
140593 1 THUMB SCREW
142387 1 WASHER D40D23X5
150522 1 DROP TUBE WINE II
150533 1 DROP TUBE WINE II
160436 1 PIPE BRANCH HOLDER D22,2
160451 1 PIPE BRANCH HOLDER D25,4
160517 1 SPACER COLLAR, STANDARD BOM
160521 1 WASHER D30.5/D13X2
160532 1 CLAMP SWIVEL F. BOOM 14'H.D.
160657 1 CLIP FITTING FOT D22,2
160801 1 CLIP FITTINGS 31.7
170317 1 CROSSBAR FOR BOOM WINE II
220227 1 SPRING FOR PIVOT
320084 1 FITT.DK NUT 1/2" BSP
320187 1 FITT.DK CAP 3/8" BSP BLACK
320283 1 FITT.DK NUT 3/4"BSP
320294 1 FITT.DK TEE 3/8X3/8HB X1/2"BSP
320386 1 FITT.DK TEE 3/8X3/8HB X3/8"BSP
320397 1 FITT.DK ELB 3/8"HB X 3/8" BSP
330013 1 O-RING D15/D10X2.5 F.3/8"NUT
330212 1 O-RING D19/D14X2.4 F.1/2"NUT
330687 1 FITT.DK HB 1/2" F. 1/2" NUT
330783 1 FITT.DK HB 3/8"F.3/8" NUT
330816 1 DUST COVER PLASTIC/STD.BOOM
334531 1 CLAMP HOSE PLASTIC 3/4"
334533 1 CLAMP HOSE PLASTIC 3/8"
370042 1 NOZZLE CONE JET 1553-14
370134 1 NOZZLE SWIRL 1554-GREY
410686 1 BOLT HEX 8.8 DEL M6X30
420582 1 BOLT HEX 8.8 DEL M8X20 FT
420943 1 BOLT HEX 8.8 DEL M10X50
421164 1 BOLT HEX 8.8 DEL M10X70
430286 1 BOLT HEX 8.8 DEL M12X30 FT
430662 1 BOLT HEX 8.8 DEL M12X20 FT
460202 1 NUT HEX M6
460364 1 NUT HEX M8 GALV.
460386 1 NUT HEX M12X1.75
460423 1 NUT HEX M10X1.5 LOCK
460703 1 NUT HEX M12X1.75 LOCK
610374 1 BOOM WING OUT.SECTION (WINE11)
614366 1 FILTER 50 MESH F.NOZZLE
630011 1 BÆREARM F.VIN II VENST
630022 1 BÆREARM F.VIN II HØJRE
630265 1 BOOM WING 14' BOOM
636433 1 CENTER SECTION 14' BOOM D27.0
92701703 1 HOSE R X3/8" X300PSI WP X0012"
92702103 1 HOSE R X1/2" X300PSI WP X0012"
Agroparts: www.HARDI-INTERNATIONAL.com
BOOM - VS-8 & VS-10
D044-HIN, 21:11:09
Page 0
Date 18.03.2013 14:05
Agroparts: www.HARDI-INTERNATIONAL.com
BOOM - VS-8 & VS-10
D044-HIN, 21:11:09
Page 1
Date 18.03.2013 14:05
parts-n° order
qty description
150441 1 BOOM WING OUT.SEC. WINE S630MM
150452 1 BOOM WING OUT.SEC. WINE S930MM
160436 1 PIPE BRANCH HOLDER D22,2
160775 1 WASHER F. FRICTION PLATE
170111 1 SUPP. ARM VIN S
320084 1 FITT.DK NUT 1/2" BSP
320187 1 FITT.DK CAP 3/8" BSP BLACK
320401 1 FITT.DK TEE 1/2X1/2HB X1/2"BSP
320412 1 FITT.DK TEE 1/2X1/2HB X3/8'BSP
320423 1 FITT.DK ELB 1/2'HB X 3/8' BSP
330212 1 O-RING D19/D14X2.4 F.1/2"NUT
330687 1 FITT.DK HB 1/2" F. 1/2" NUT
330831 1 FRICTION PLATE
334534 1 CLAMP HOSE PLASTIC 1/2"
370042 1 NOZZLE CONE JET 1553-14
370134 1 NOZZLE SWIRL 1554-GREY
410281 1 BOLT HEX 8.8 DEL M6X25
420162 1 BOLT HEX 8.8 DEL 3/8"x15MM
430286 1 BOLT HEX 8.8 DEL M12X30 FT
430426 1 BOLT HEX 8.8 DEL M12X130
460202 1 NUT HEX M6
460386 1 NUT HEX M12X1.75
460703 1 NUT HEX M12X1.75 LOCK
610352 1 CENTER SECTION WINE S
610363 1 BOOM WING INNER SECTION
614366 1 FILTER 50 MESH F.NOZZLE
843076 1 SPR. PISTOL FOR BOOM (PLAST)
92702103 1 HOSE R X1/2" X300PSI WP X0012"
Agroparts: www.HARDI-INTERNATIONAL.com

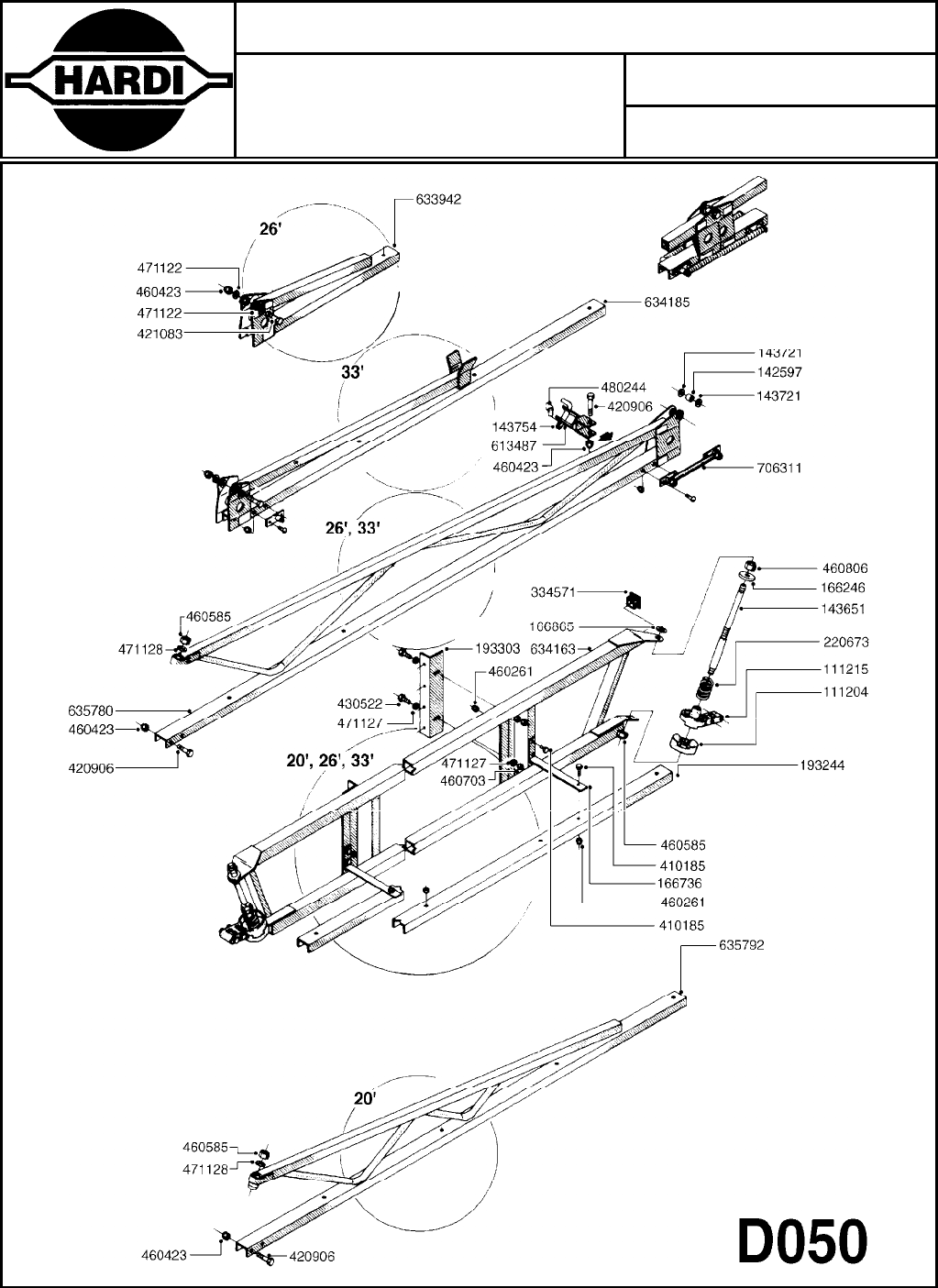

BOOM - SB 20' 26' 33'
D050-HIN, 01:01:01
Page 0
Date 18.03.2013 14:05
Agroparts: www.HARDI-INTERNATIONAL.com
BOOM - SB 20' 26' 33'
D050-HIN, 01:01:01
Page 1
Date 18.03.2013 14:05
parts-n° order
qty description
111204 1 CLAW CLUTCH/LOWER D80
111215 1 CLAW CLUTCH/UPPER D80
142597 1 DISTANCE TUBE
143651 1 AXLE M20/M16 L=355 F/BREAKAWAY
143721 1 FRICTION DISC FOR BOOM D30
143754 1 PIN D10 X 56
166246 1 WASHER CUP D53 F.SPRING
166736 1 YOKE FOR SB BOOM
166865 1 WASHER D35/D25X2
193244 1 NOZZLE TRACK 6-8-10 M SB
193303 1 SUPPORTING ARM FOR SB BOOM
220673 1 SPRING F.PIVOT 100 X 51
334571 1 PLUG 40X40X2 F.SQ.TUBE
410185 1 BOLT HEX 8.8 DEL M6X16
420906 1 BOLT HEX 8.8 DEL M10X60
421083 1 BOLT HEX 8.8 DEL M10X65
430522 1 BOLT HEX 8.8 DEL M12X25 FT
460261 1 NUT HEX M6X1 LOCK
460423 1 NUT HEX M10X1.5 LOCK
460585 1 NUT HEX M16X2 LOCK
460703 1 NUT HEX M12X1.75 LOCK
460806 1 NUT HEX M20X2.5 LOCK
471122 1 WASHER D20/D10.5X2 SS
471127 1 WASHER D24/D13X2.5 STAINLESS
471128 1 WASHER D30/D17X3
480244 1 PIN SNAP D4.5
613487 1 TRANSPORT FITTINGS FOR SB BOOM
633942 1 OUTER BOOM WING 26', 28' SB
634163 1 CENTER SECTION - 20',26',33'
634185 1 BOOM WING OUTER PART 33' SB
635780 1 INNER WING SEC. 26',28',33'SB
635792 1 BOOM WING - 20',21'SB-BOOM
706311 1 SPRING WITH HAND-GRIB
Agroparts: www.HARDI-INTERNATIONAL.com
BOOM - MB 35' 40' 42'
D080-HIN, 12:12:05
Page 0
Date 18.03.2013 14:05
Agroparts: www.HARDI-INTERNATIONAL.com
BOOM - MB 35' 40' 42'
D080-HIN, 12:12:05
Page 1
Date 18.03.2013 14:05
parts-n° order
qty description
111344 1 CLAW CLUTCH LOWER PART (21MM)
111387 1 CLAW CLUTCH D100 UPPER PART
143754 1 PIN D10 X 56
145725 1 PIN FOR 12 MB BOOM
147643 1 AXLE F.BOOM BREAKAWAY W. ZERT
160484 1 WIRE GUIDE FOR DROP-LEG
166246 1 WASHER CUP D53 F.SPRING
166865 1 WASHER D35/D25X2
167907 1 NOZZ. HOLD. KIT F/ADJ. BOOM
172653 1 WING TIP GUARD
172664 1 FLATBAR BACKING PLATE
176982 1 RETAINING PLATE
193756 1 TRACK MB 10,6/12,6M
193920 1 BRACKET F.NOZZLE TRACK
220673 1 SPRING F.PIVOT 100 X 51
241732 1 RUBBER STOP FOR MB
282564 1 PLUG 35MM SQ.BLACK
333697 1 BUSHING D22/D16x25
334561 1 PLUG 50x50x2 F.SQ.TUBE
410185 1 BOLT HEX 8.8 DEL M6X16
410443 1 BOLT HEX 8.8 DEL M6X70
421024 1 BOLT HEX 8.8 DEL M8X60
421083 1 BOLT HEX 8.8 DEL M10X65
430463 1 BOLT HEX 8.8 DEL M16X110
440701 1 SCREW NO.14 3/4" PLATED
460143 1 NUT HEX M8 LOCK
460261 1 NUT HEX M6X1 LOCK
460423 1 NUT HEX M10X1.5 LOCK
460585 1 NUT HEX M16X2 LOCK
460806 1 NUT HEX M20X2.5 LOCK
461228 1 NUT HEX M20
461251 1 NUT HEX M20 X 2.5 JAMB
470061 1 WASHER D11/D7X0.5 LOCK
470573 1 WASHER D29/D17X2 SPRING BLACK
471122 1 WASHER D20/D10.5X2 SS
471128 1 WASHER D30/D17X3
480244 1 PIN SNAP D4.5
612205 1 TRAPEZE ARM,WELDED
613487 1 TRANSPORT FITTINGS FOR SB BOOM
613627 1 LOCK STRAP FOR MB BOOM
634281 1 BOOM CENTER MB 35/40/42
634303 1 BOOM WING OUTER 33' MB L=47'
634314 1 BOOM WING OUTER 40', 45' MB
635316 1 BOOM WING OUTER MB42
635327 1 BOOM WING OUTER 35'MB L=58.5"
635850 1 BOOM WING INNER MB35/40/42
723612 1 CENTER PART MB BOOM
Agroparts: www.HARDI-INTERNATIONAL.com

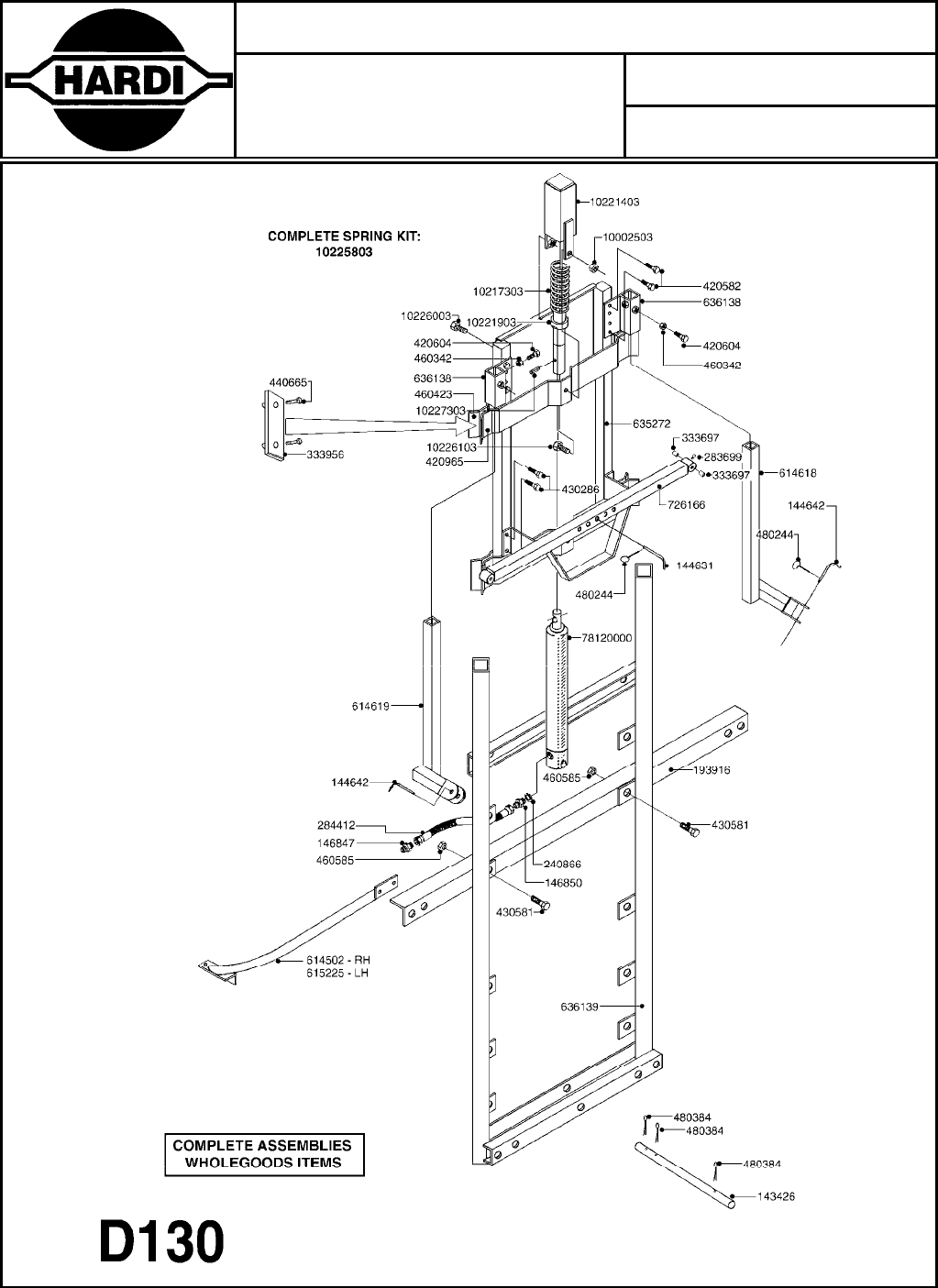

BOOM - MB H-FRAME HL
D130-HIN, 05:12:09
Page 0
Date 18.03.2013 14:05
Agroparts: www.HARDI-INTERNATIONAL.com
BOOM - MB H-FRAME HL
D130-HIN, 05:12:09
Page 1
Date 18.03.2013 14:05
parts-n° order
qty description
143426 1 PIN FOR HYD. CYL.
144631 1 LOCKING PAWL
144642 1 LOCKING PAWL D10X65MM
146847 1 HEX NIPPLE 1/2"X3/8"
146850 1 HEX NIPPLE 3/8"x3/8" - 1.2mm
193916 1 ANGLE IRON FOR MB BOOM BKTS.
240866 1 DOWTYSEAL 3/8"
283699 1 GREASE NIPPLE M6X1
284412 1 HOSE HY 3/8" X 315" STR+STR
333697 1 BUSHING D22/D16x25
333956 1 SLIDE SHOE 91X25X10
420582 1 BOLT HEX 8.8 DEL M8X20 FT
420604 1 BOLT HEX 8.8 DEL M10X25 FT
420965 1 BOLT HEX 8.8 DEL M10X40
430286 1 BOLT HEX 8.8 DEL M12X30 FT
430581 1 BOLT HEX 8.8 DEL M16X40 FT
440665 1 SCREW M4.2X16 STAINLESS
460342 1 NUT HEX M10
460423 1 NUT HEX M10X1.5 LOCK
460585 1 NUT HEX M16X2 LOCK
480244 1 PIN SNAP D4.5
480384 1 PIN COTTER D5X40
614502 1 INCLINED BRACE RIGHT CAN
614618 1 TRANS BRKT. F/MB BOOM (SHORT)
614619 1 TRANS BRKT. F/MB BOOM (LONG)
615225 1 SIDE BRACE LEFT 500 EAGLE
635272 1 SLIDE
636138 1 BRACKET
636139 1 H FRAME HY LIFT 300/500 MB
726166 1 TRAPEZE FRAME
10002503 1 NUT HEX NC 1/2"
10217303 1 SPRING FOR 45/50 MB HY LIFT
10221403 1 BOX W/M F.SPRING 45/50 MB HY
10221903 1 SLEEVE W/M F.45/50 MB HY
10225803 1 SPRING KIT FOR MB HYDRAULIC
10226003 1 BOLT HEX 3/8 NC GR.5 00.75"
10226103 1 BOLT HEX 1/2 NC GR.2 01.00"
10227303 1 PIN ROLL 3/16 X 1.25
78120000 1 CYL.TELESCOPING Ø50/40/25_1100
Agroparts: www.HARDI-INTERNATIONAL.com
NOZZLE BODIES-SNAP FIT
D620-HIN, 18:03:10
Page 0
Date 18.03.2013 14:05
Agroparts: www.HARDI-INTERNATIONAL.com
NOZZLE BODIES-SNAP FIT
D620-HIN, 18:03:10
Page 1
Date 18.03.2013 14:05
parts-n° order
qty description
143592 1 LOCK CLAMP FOR TRIPLET
241371 1 DIAPHRAGM F.NO-DRIP,VULC
241990 1 O-RING D9.3 X 2.4 VITON
242594 1 O-RING D14 X 1.78 SCH.70-EPDM
242598 1 O-RING D7.0 X 2.5 NITRIL
320187 1 FITT.DK CAP 3/8" BSP BLACK
320283 1 FITT.DK NUT 3/4"BSP
321462 1 CAP F.NO-DRIP ASSY.
322068 1 SNAP-FIT ADAPTER THREAD. HARDI
322114 1 NUT PLASTIC F.NOZZ.H
322116 1 BOLT PLASTIC F.NOZZ.H.
322258 1 HOUSING F.TRIPLET
322260 1 NOZZLE HOLDER UPPER PART
333012 1 NOZZLE HOLD. UPPER PART
334082 1 SNAP-FIT NOZZ.HOLD.CONE BLACK
334102 1 BLANK F.NOZZLE
334172 1 SNAP-FIT NOZZ.HOLD.CONE GREEN
334173 1 SNAP-FIT NOZZ.HOLD.CONE ORANGE
334220 1 NOZZLE BODY SING.SN.FT.UPPER
334371 1 SNAP-FIT NOZZLE HOLDER YELLOW
334373 1 SNAP-FIT NOZZLE HOLDER RED
334377 1 SNAP-FIT NOZZLE HOLDER BLUE
334926 1 SNAP-FIT TURN PLATE F TRIPLET
390639 1 O-RING F.NOZZLE FILTER
440665 1 SCREW M4.2X16 STAINLESS
716236 1 FITT.DK HB 1/2" ASSY. F. 3/4"
716413 1 FITT.DK PLUG ASSY. F.NOZ TUBE
724621 1 FITT.DK HB 3/4"ASSY F.3/4" NUT
725042 1 SCREEN 80 MESH W.GASKET, RED
725043 1 SCREEN 50 MESH W.GASKET,BLUE
725044 1 SCREEN 100 MESH W.GASKET,YELLO
725078 1 SNAP-FIT TRIPLET W/O NOZZ HOLD
725079 1 NOZZLE ASSY.SING.SNAP-FIT GREN
729645 1 NON-DRIP SPRING ASSY.GREEN 10
Agroparts: www.HARDI-INTERNATIONAL.com

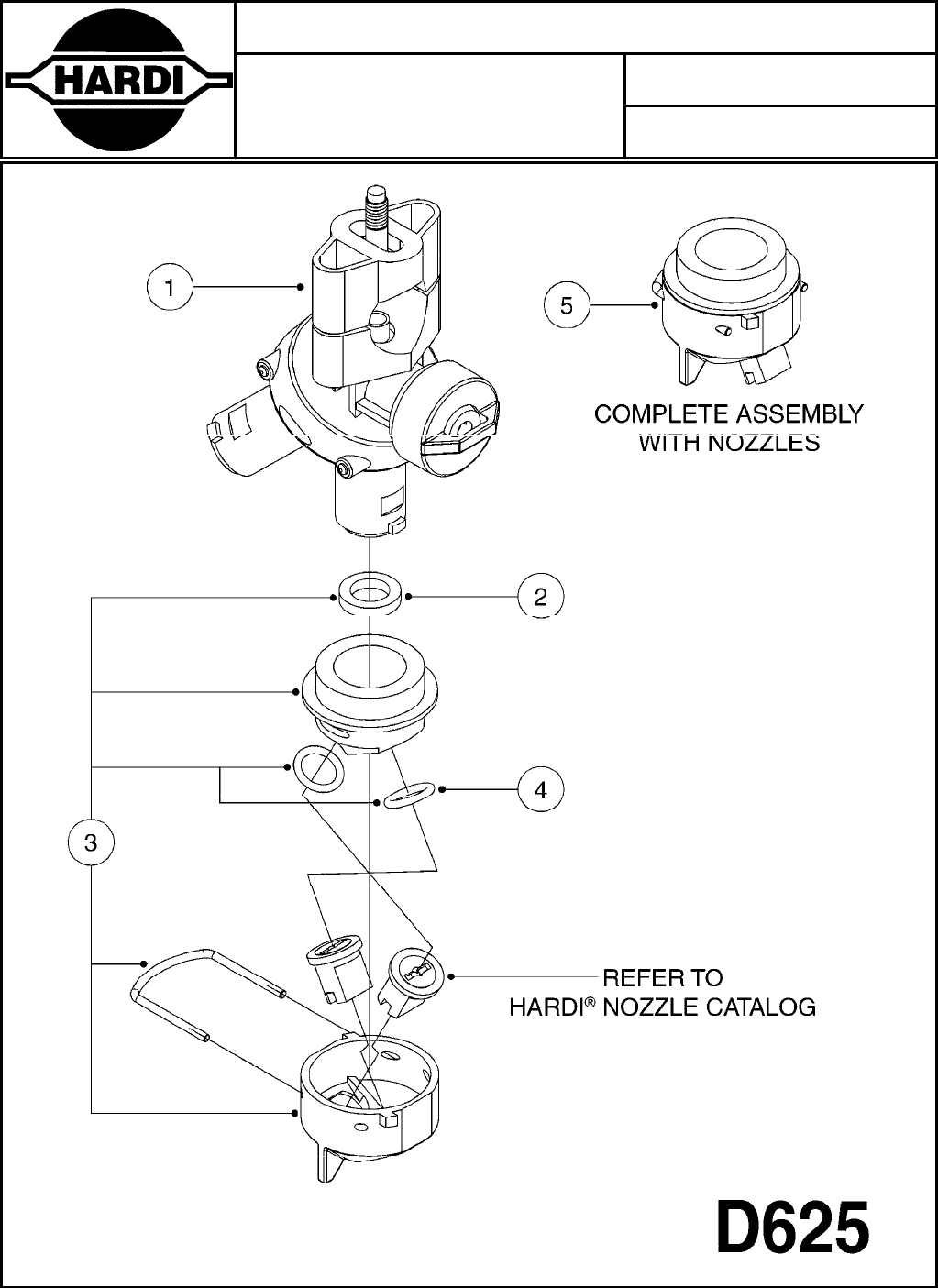

DOUBLE NOZZLE HOLDER-SNAP FIT
D625-HIN, 28:11:06
Page 0
Date 18.03.2013 14:05
Agroparts: www.HARDI-INTERNATIONAL.com
DOUBLE NOZZLE HOLDER-SNAP FIT
D625-HIN, 28:11:06
Page 1
Date 18.03.2013 14:05
parts-n° order
qty descriptionPos.
725078 1 SNAP-FIT TRIPLET W/O NOZZ HOLD1
10423503 1 O-RING 9.12x3.53 NITRIL2
28032503 1 DOUBLE NOZZLE HOLDER LD ISO3
28040103 1 O-RING F.DOUBLE NOZZLE HOLDER4
70056803 1 DOUBLE NOZZLE CAP ORANGE LD 015
70056903 1 DOUBLE NOZZLE CAP GREEN LD 0155
70057003 1 DOUBLE NOZZLE CAP YELLOW LD 025
70057103 1 DOUBLE NOZZLE CAP LILAC LD 0255
70057203 1 DOUBLE NOZZLE CAP BLUE LD 035
70057303 1 DOUBLE NOZZLE CAP RED LD 045
70057403 1 DOUBLE NOZZLE CAP BROWN LD 055
Agroparts: www.HARDI-INTERNATIONAL.com

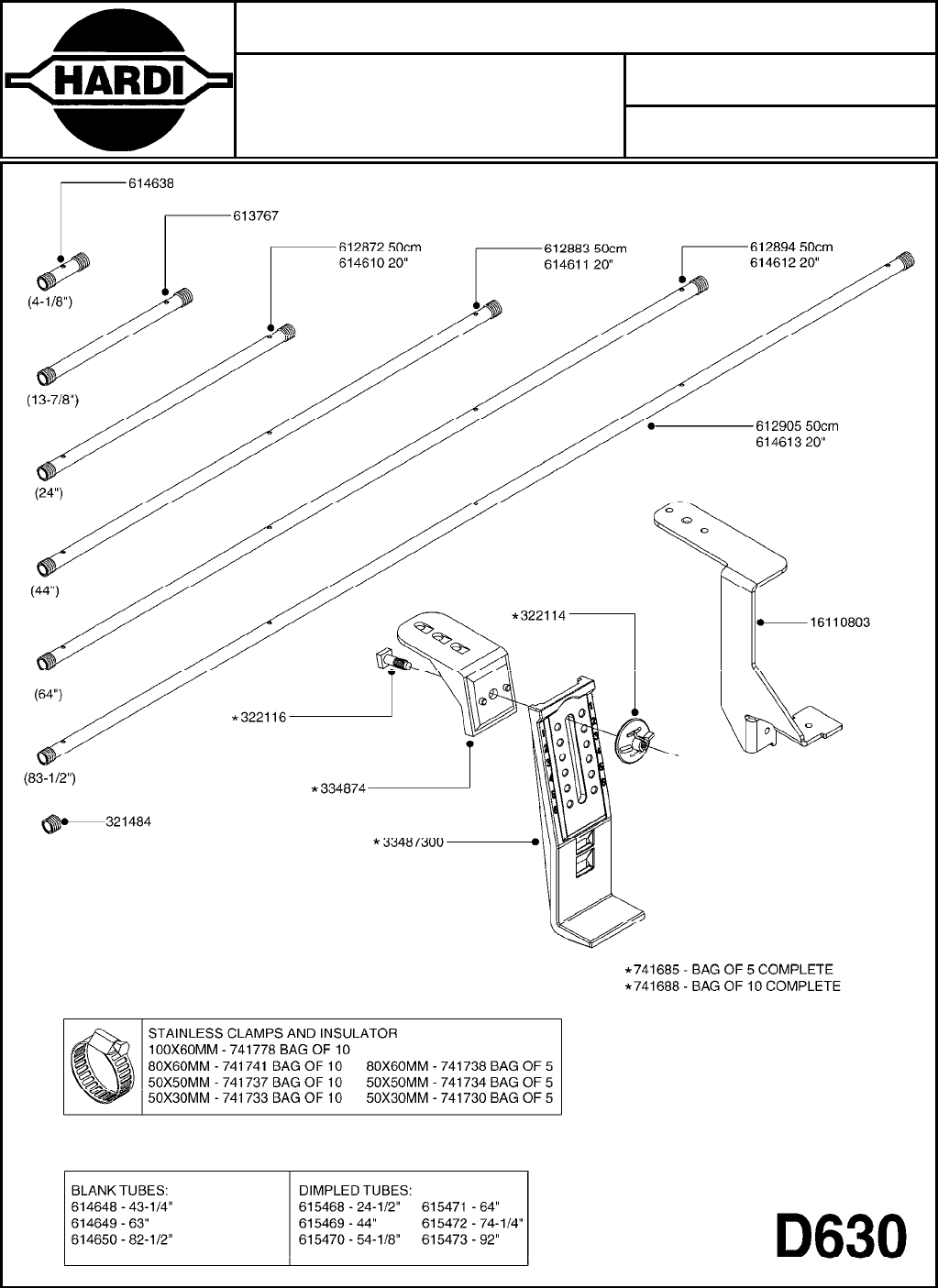

NOZZLE TUBES & HOLDER-PLASTIC
D630-HIN, 08:04:10
Page 0
Date 18.03.2013 14:05
Agroparts: www.HARDI-INTERNATIONAL.com
NOZZLE TUBES & HOLDER-PLASTIC
D630-HIN, 08:04:10
Page 1
Date 18.03.2013 14:05
parts-n° order
qty description
321484 1 BUSHING THREADED F.NOZZ.TUBE
322114 1 NUT PLASTIC F.NOZZ.H
322116 1 BOLT PLASTIC F.NOZZ.H.
334874 1 NOZZLE HOLDER - TOP HALF
612872 1 NOZZLE TUBE 2 HOLE 50CM
612883 1 NOZZLE TUBE 3 HOLE 50CM
612894 1 NOZZLE TUBE 4 HOLE 50CM
612905 1 NOZZLE TUBE 5 HOLE 50CM
613767 1 NOZZLE TUBE 1 HOLE
614610 1 NOZZLE TUBE 2 HOLE L-24"/SP20"
614611 1 NOZZLE TUBE 3 HOLE L-44"/SP20"
614612 1 NOZZLE TUBE 4 HOLE 20"
614613 1 NOZZLE TUBE 5 HOLE L-83.5"/20"
614638 1 NOZZLE TUBE 1 HOLE L-4.125"
614648 1 NOZZLE TUBE L=1100mm NO HOLES
614649 1 NOZZLE TUBE L=1600mm NO HOLES
614650 1 NOZZLE TUBE L=2100mm NO HOLES
615468 1 NOZZLE TUBE MARKED 1" 24"
615469 1 NOZZLE TUBE MARKED 1" 44"
615470 1 NOZZLE TUBE MARKED 1" 54"
615471 1 NOZZLE TUBE MARKED 1" 64"
615472 1 NOZZLE TUBE MARKED 1" 74"
615473 1 NOZZLE TUBE MARKED 1" 92"
741685 1 NOZZLE HOLDER COMPLETE/5 PCS
741688 1 NOZZLE HOLDER COMPLETE/10PCS
741730 1 CLAMP,NZLE BKT BAG OF 5 50X30
741733 1 CLAMP,NZLE BKT BAG OF 10 50X30
741734 1 CLAMP,NZLE BKT BAG OF 5 50X50
741737 1 CLAMP,NZLE BKT BAG OF 10 50X50
741738 1 CLAMP,NZLE BKT BAG OF 5 80X60
741741 1 CLAMP,NZLE BKT BAG OF 10 80x60
741778 1 CLAMP,NZL BKT BAG OF 10 100x60
16110803 1 NOZZLE BRACKET VAR SPACINGS
33487300 1 NOZZLE HOLDER - BOTTOM HALF
Agroparts: www.HARDI-INTERNATIONAL.com

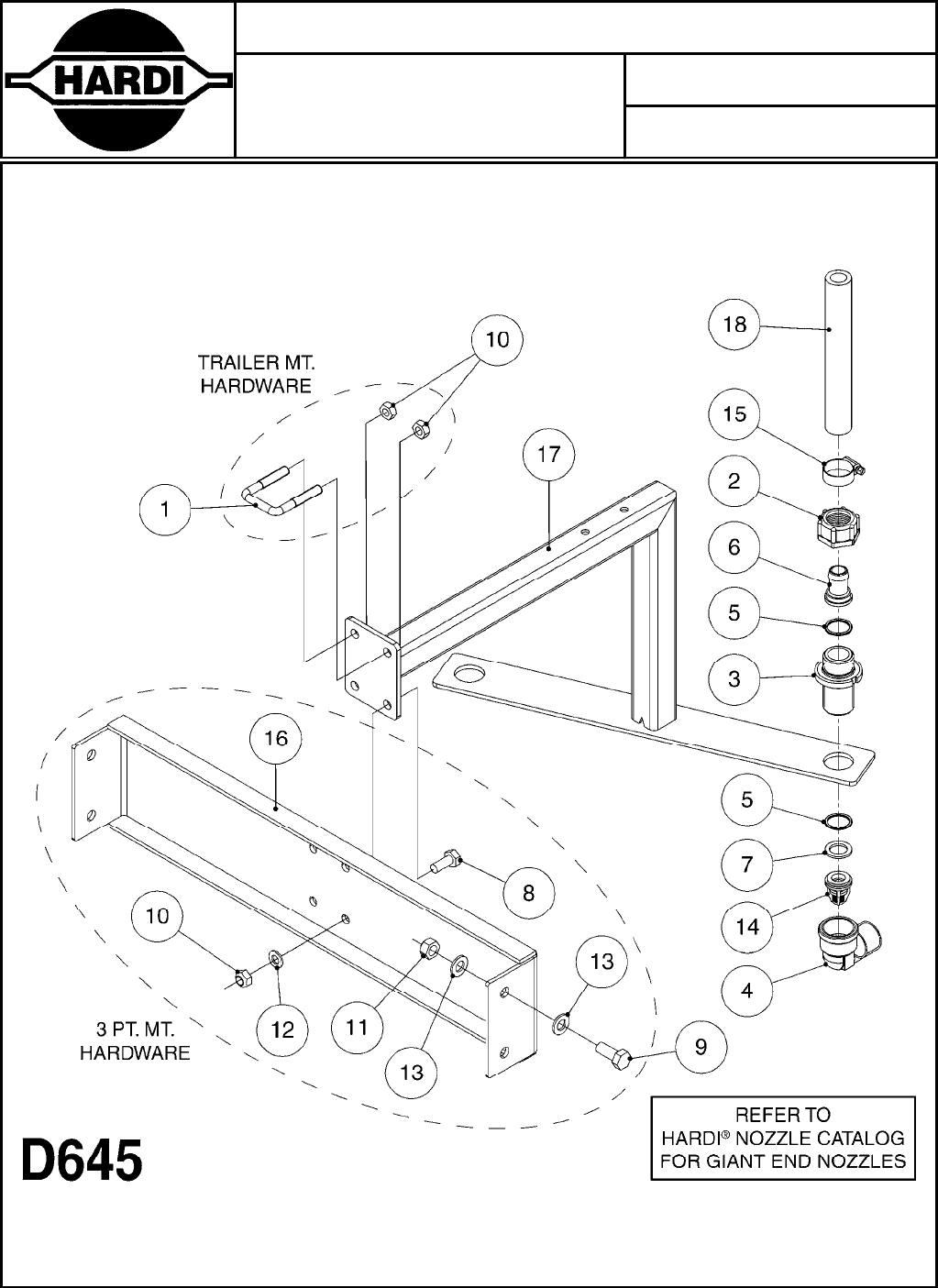

PASTURE BOOM NOZZLE BRACKET
D645-HIN, 16:12:08
Page 0
Date 18.03.2013 14:05
Agroparts: www.HARDI-INTERNATIONAL.com
PASTURE BOOM NOZZLE BRACKET
D645-HIN, 16:12:08
Page 1
Date 18.03.2013 14:05
parts-n° order
qty descriptionPos.
143161 1 BOLT U M10 40X401
320095 1 FITT.DK NUT 1" BSP2
320456 1 FITT.DK BULKHEAD 1"BSP DOUBLE3
322138 1 FITT.DK ELB 1"M X 1"F BSP4
330326 1 O-RING D30/D24X2 F.1"NUT5
330665 1 FITT.DK HB 3/4"F.1" NUT6
331483 1 WASHER RY-27
420604 1 BOLT HEX 8.8 DEL M10X25 FT8
430286 1 BOLT HEX 8.8 DEL M12X30 FT9
460423 1 NUT HEX M10X1.5 LOCK10
460703 1 NUT HEX M12X1.75 LOCK11
471122 1 WASHER D20/D10.5X2 SS12
471127 1 WASHER D24/D13X2.5 STAINLESS13
724144 1 COMPLETE VALVE F/BIII X/L14
28029903 1 CLAMP HOSE GEAR P3/4"-S1" 671215
61006603 1 BOOM SUPPORT BRACKET PS105/15516
63015303 1 NZL.BRKT.F.PASTURE SPRAYER17
92703203 1 HOSE R X3/4" X300PSI WP X0012"18
Agroparts: www.HARDI-INTERNATIONAL.com
BOOM-NOZZLES 110° FLAT FAN ISO
D700-HIN, 14:12:07
Page 0
Date 18.03.2013 14:05
Agroparts: www.HARDI-INTERNATIONAL.com
BOOM-NOZZLES 110° FLAT FAN ISO
D700-HIN, 14:12:07
Page 1
Date 18.03.2013 14:05
parts-n° order
qty descriptionPos.
371764 1 NOZZLE ISO CT F-01-110 ORANGE1
371765 1 NOZZLE ISO CT F-015-110 GREEN1
371766 1 NOZZLE ISO CT F-02-110 YELLOW1
371767 1 NOZZLE ISO CT F-03-110 BLUE1
371768 1 NOZZLE ISO CT F-04-110 RED1
371769 1 NOZZLE ISO CT F-05-110 BROWN1
371770 1 NOZZLE ISO CT F-06-110 GREY1
371771 1 NOZZLE ISO CT F-08-110 WHITE1
371950 1 NOZZLE ISO CT F-025-110 LILAC1
371964 1 NOZZLE ISO CT F-075-110 PINK1
371970 1 NOZZLE ISO CT F-10-110 LT BLUE1
371706 1 NOZZLE ISO F-01-110 ORANGE2
371707 1 NOZZLE ISO F-015-110 GREEN2
371708 1 NOZZLE ISO F-02-110 YELLOW2
371709 1 NOZZLE ISO F-03-110 BLUE2
371710 1 NOZZLE ISO F-04-110 RED2
371711 1 NOZZLE ISO F-05-110 BROWN2
371712 1 NOZZLE ISO F-06-110 GREY2
371713 1 NOZZLE ISO F-08-110 WHITE2
371946 1 NOZZLE ISO F-025-110 LILAC2
371963 1 NOZZLE ISO F-075-110 PINK2
371966 1 NOZZLE ISO F-10-110 LT BLUE2
371772 1 NOZZLE ISO CT F-015-110C GREEN3
371773 1 NOZZLE ISO CT F-02-110C YELLOW3
371774 1 NOZZLE ISO CT F-03-110C BLUE3
371775 1 NOZZLE ISO CT F-04-110C RED3
371776 1 NOZZLE ISO CT F-05-110C BROWN3
371777 1 NOZZLE ISO CT F-06-110C GREY3
371738 1 NOZZLE ISO F-015-110C GREEN4
371739 1 NOZZLE ISO F-02-110C YELLOW4
371740 1 NOZZLE ISO F-03-110C BLUE4
371741 1 NOZZLE ISO F-04-110C RED4
371742 1 NOZZLE ISO F-05-110C BROWN4
371743 1 NOZZLE ISO F-06-110C GREY4
Agroparts: www.HARDI-INTERNATIONAL.com

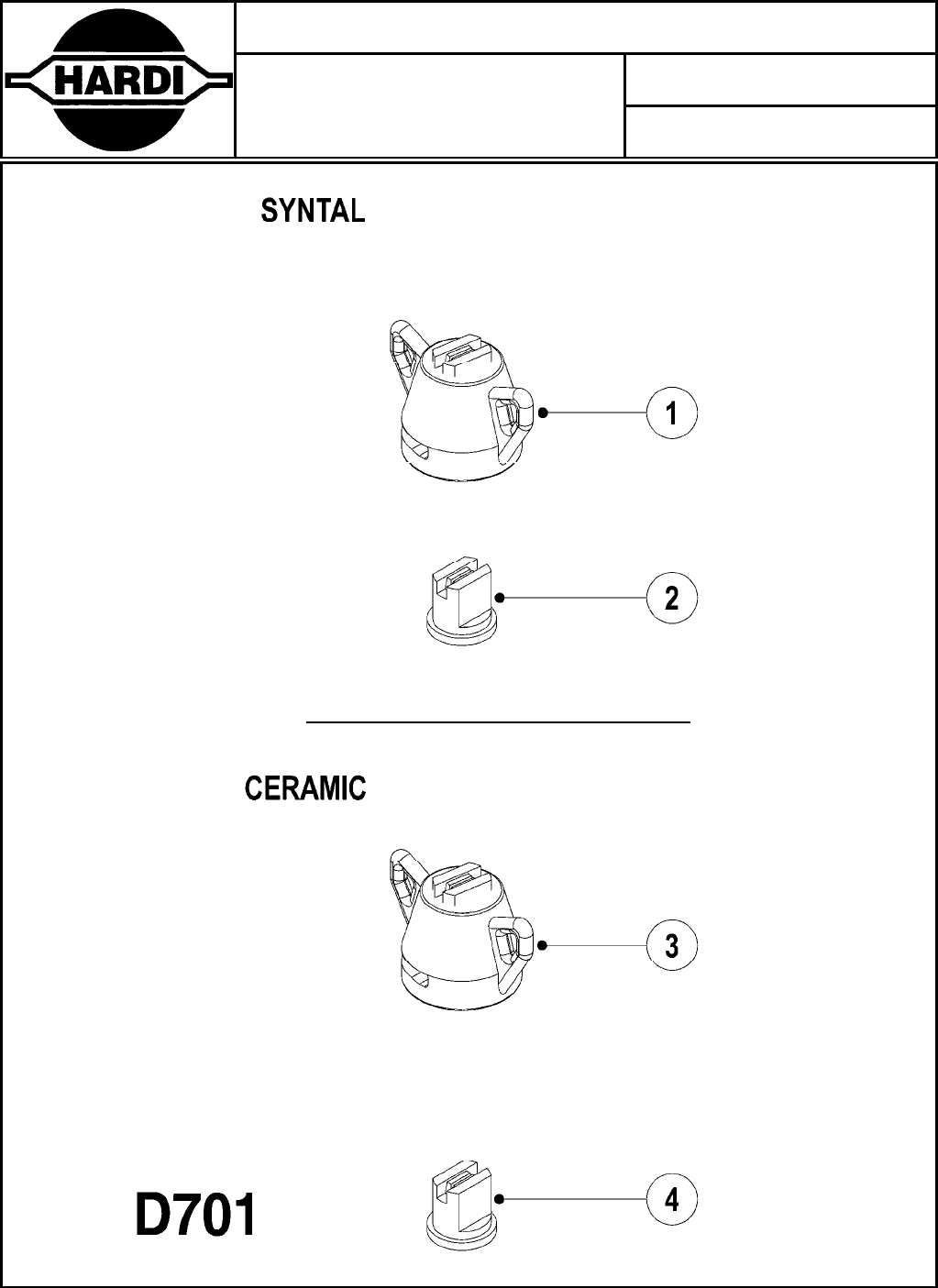

BOOM-NOZZLES 110° LOWDRIFT ISO
D701-HIN, 14:12:07
Page 0
Date 18.03.2013 14:05
Agroparts: www.HARDI-INTERNATIONAL.com
BOOM-NOZZLES 110° LOWDRIFT ISO
D701-HIN, 14:12:07
Page 1
Date 18.03.2013 14:05
parts-n° order
qty descriptionPos.
371837 1 NOZZLE ISO LD-01-110 ORANGE1
371838 1 NOZZLE ISO LD-015-110 GREEN1
371839 1 NOZZLE ISO LD-02-110 YELLOW1
371840 1 NOZZLE ISO LD-03-110 BLUE1
371841 1 NOZZLE ISO LD-04-110 RED1
371894 1 NOZZLE ISO CT LD-05-110 BROWN1
371958 1 NOZZLE ISO LD-025-110 LILAC1
371817 1 NOZZLE ISO LD-01-110 ORANGE2
371818 1 NOZZLE ISO LD-015-110 GREEN2
371819 1 NOZZLE ISO LD-02-110 YELLOW2
371820 1 NOZZLE ISO LD-03-110 BLUE2
371821 1 NOZZLE ISO LD-04-110 RED2
371893 1 NOZZLE ISO LD-05-110 BROWN2
371957 1 NOZZLE ISO LD-025-110 LILAC2
371842 1 NOZZLE ISO CT LD-01-110C ORANG3
371843 1 NOZZLE ISO CT LD-015-110C GRN3
371844 1 NOZZLE ISO CT LD-02-110C YELLO3
371845 1 NOZZLE ISO CT LD-03-110C BLUE3
371846 1 NOZZLE ISO CT LD-04-110C RED3
371897 1 NOZZLE ISO CT LD-05-110C BROWN3
371822 1 NOZZLE ISO LD-01-110C ORANGE4
371823 1 NOZZLE ISO LD-015-110C GREEN4
371824 1 NOZZLE ISO LD-02-110C YELLOW4
371825 1 NOZZLE ISO LD-03-110C BLUE4
371826 1 NOZZLE ISO LD-04-110C RED4
371896 1 NOZZLE ISO LD-05-110C BROWN4
Agroparts: www.HARDI-INTERNATIONAL.com
BOOM-NOZZLES 80° FLAT FAN ISO
D702-HIN, 14:12:07
Page 0
Date 18.03.2013 14:05
Agroparts: www.HARDI-INTERNATIONAL.com
BOOM-NOZZLES 80° FLAT FAN ISO
D702-HIN, 14:12:07
Page 1
Date 18.03.2013 14:05
parts-n° order
qty descriptionPos.
334083 1 SNAP-FIT NOZZLE HOLDER SS BLCK1
371931 1 SYNTAL ISO F-01-80 TIP ORNG2
371932 1 SYNTAL ISO F-015-80 TIP GREEN2
371933 1 SYNTAL ISO F-02-80 TIP YELLOW2
371934 1 SYNTAL ISO F-03-80 TIP BLUE2
10423503 1 O-RING 9.12x3.53 NITRIL3
Agroparts: www.HARDI-INTERNATIONAL.com

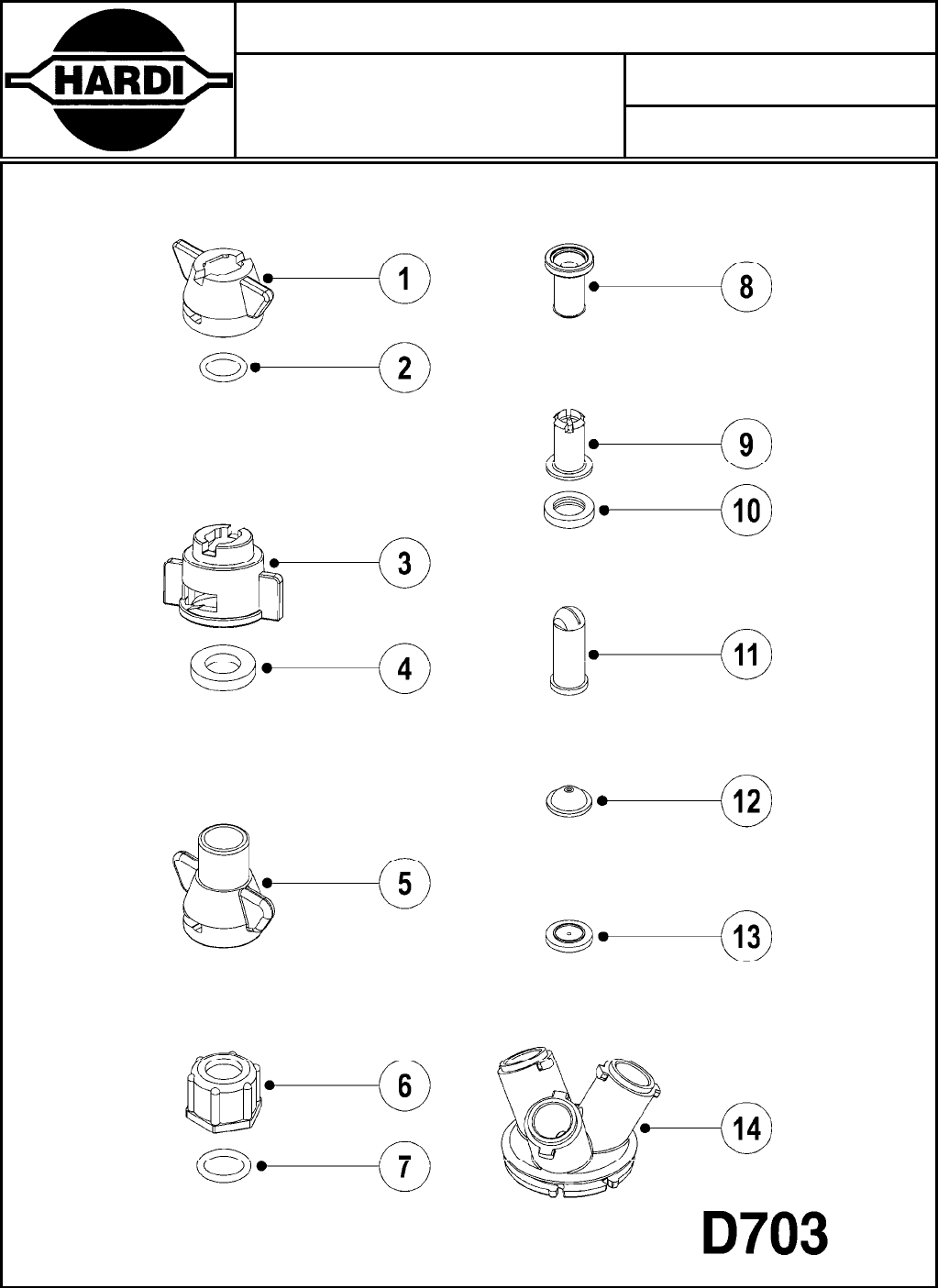

BOOM-NOZZLE CAPS AND FILTERS
D703-HIN, 14:12:07
Page 0
Date 18.03.2013 14:05
Agroparts: www.HARDI-INTERNATIONAL.com
BOOM-NOZZLE CAPS AND FILTERS
D703-HIN, 14:12:07
Page 1
Date 18.03.2013 14:05
parts-n° order
qty descriptionPos.
334083 1 SNAP-FIT NOZZLE HOLDER SS BLCK1
10423503 1 O-RING 9.12x3.53 NITRIL2
334862 1 NOZZLE CAP TJBLACK F.ISO/INJET3
242222 1 GASKET 19.0 X 10.0 X 3.3 EPDM4
322068 1 SNAP-FIT ADAPTER THREAD. HARDI5
320187 1 FITT.DK CAP 3/8" BSP BLACK6
321517 1 FITT.DK CAP 3/8" BSP WHITE
ALWAYS USE WITH ISO AND INJET NOZZLES
6
321797 1 FITT.DK CAP 3/8' BSP BLUE6
321801 1 FITT.DK CAP 3/8' BSP GREEN6
321812 1 FITT.DK CAP 3/8' BSP RED6
321823 1 FITT.DK CAP 3/8' BSP ORANGE6
321834 1 FITT.DK CAP 3/8' BSP YELLOW6
330013 1 O-RING D15/D10X2.5 F.3/8"NUT7
725042 1 SCREEN 80 MESH W.GASKET, RED8
725043 1 SCREEN 50 MESH W.GASKET,BLUE8
725044 1 SCREEN 100 MESH W.GASKET,YELLO8
614366 1 FILTER 50 MESH F.NOZZLE9
614367 1 FILTER 80 MESH F.NOZZLE9
614368 1 FILTER 100 MESH F.NOZZLE9
390639 1 O-RING F.NOZZLE FILTER10
371551 1 NOZZ LRG DROP FLAT SPRAY SINGL11
370016 1 NOZZLE CONE JET 1553-0812
370027 1 NOZZLE CONE JET 1553-1012
370031 1 NOZZLE CONE JET 1553-1212
370042 1 NOZZLE CONE JET 1553-1412
370053 1 NOZZLE CONE JET 1553-1612
370064 1 NOZZLE CONE JET 1553-1812
370075 1 NOZZLE CONE JET 1553-2012
370086 1 NOZZLE CONE JET 1553-2212
370097 1 NOZZLE CONE JET 1553-2412
370101 1 NOZZLE CONE JET 1553-3012
370112 1 NOZZLE CONE JET 1553-3512
370123 1 NOZZLE CONE JET 1553-4012
370134 1 NOZZLE SWIRL 1554-GREY13
370145 1 NOZZLE SWIRL 1554-BLACK13
370156 1 NOZZLE SWIRL 1554-BLUE13
370167 1 NOZZLE SWIRL 1554-1.3 WHITE13
334926 1 SNAP-FIT TURN PLATE F TRIPLET14
Agroparts: www.HARDI-INTERNATIONAL.com

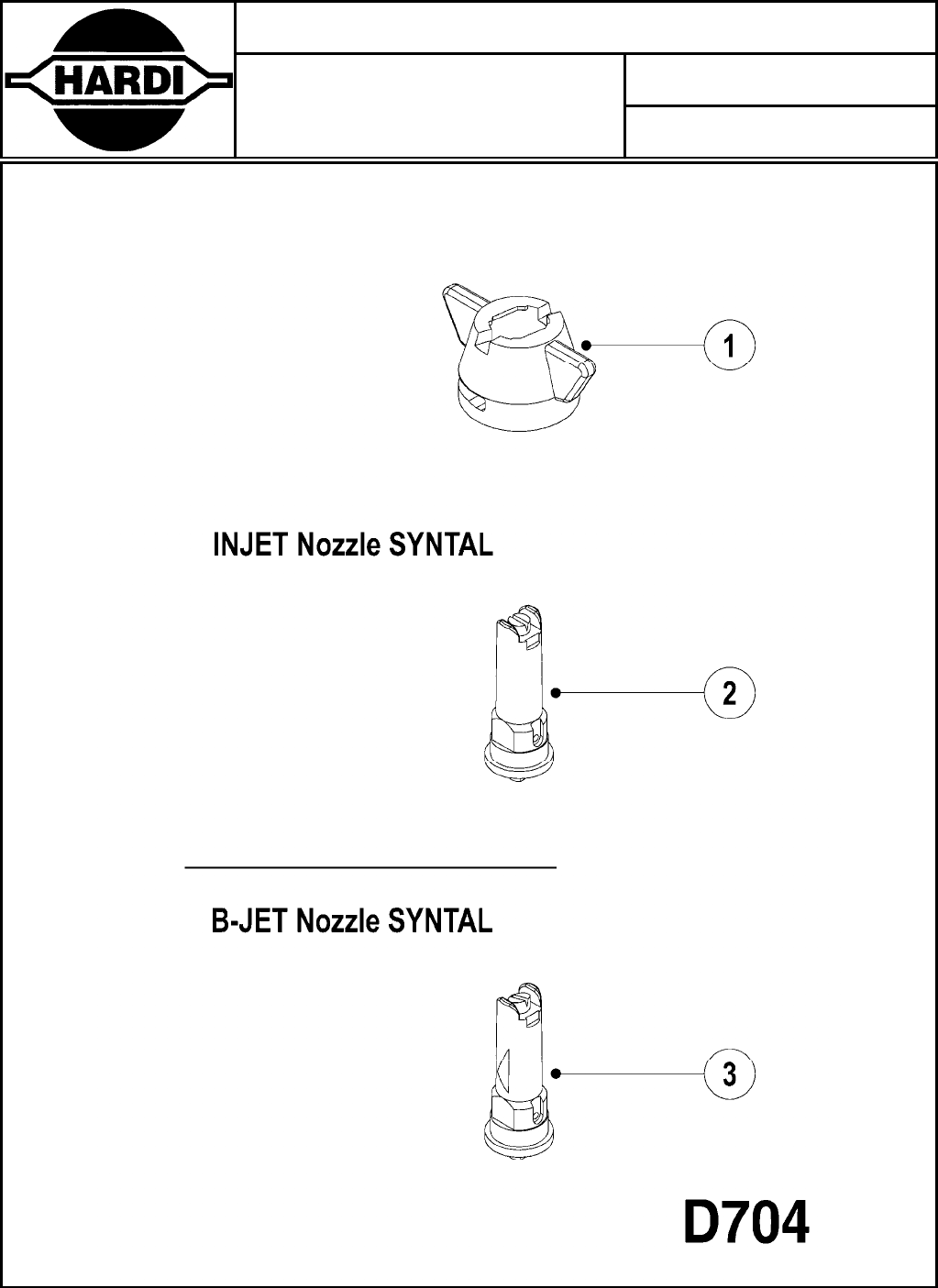

BOOM-NOZZLES INJET
D704-HIN, 14:12:07
Page 0
Date 18.03.2013 14:05
Agroparts: www.HARDI-INTERNATIONAL.com
BOOM-NOZZLES INJET
D704-HIN, 14:12:07
Page 1
Date 18.03.2013 14:05
parts-n° order
qty descriptionPos.
334083 1 SNAP-FIT NOZZLE HOLDER SS BLCK1
371872 1 NOZZLE INJET 015 GREEN SINGLE2
371873 1 NOZZLE INJET 02 YELLOW SINGLE2
371874 1 NOZZLE INJET 025 LILAC SINGLE2
371875 1 NOZZLE INJET 03 BLUE SINGLE2
371876 1 NOZZLE INJET 04 RED SINGLE2
371926 1 NOZZLE INJET 01 ORANGE SINGLE2
371927 1 NOZZLE INJET 05 BROWN SINGLE2
371928 1 NOZZLE INJET 06 GREY SINGLE2
371929 1 NOZZLE INJET 08 WHITE SINGLE2
371870 1 NOZZLE B-JET 03 BLUE3
371871 1 NOZZLE B-JET 04 RED3
371877 1 NOZZLE B-JET 025 LILAC3
371930 1 NOZZLE B-JET 02 YELLOW3
Agroparts: www.HARDI-INTERNATIONAL.com
BOOM-NOZZLES MINIDRIFT
D705-HIN, 14:12:07
Page 0
Date 18.03.2013 14:05
Agroparts: www.HARDI-INTERNATIONAL.com
BOOM-NOZZLES MINIDRIFT
D705-HIN, 14:12:07
Page 1
Date 18.03.2013 14:05
parts-n° order
qty descriptionPos.
372121 1 NOZZLE CT ISO MD-015-110 GREEN1
372122 1 NOZZLE CT ISO MD-02-110 YELLOW1
372123 1 NOZZLE CT ISO MD-025-110 LILAC1
372124 1 NOZZLE CT ISO MD-03-110 BLUE1
372125 1 NOZZLE CT ISO MD-04-110 RED1
372126 1 NOZZLE CT ISO MD-05-110 BROWN1
372111 1 NOZZLE ISO MD-015-110 GREEN2
372112 1 NOZZLE ISO MD-02-110 YELLOW2
372113 1 NOZZLE ISO MD-025-110 LILAC2
372114 1 NOZZLE ISO MD-03-110 BLUE2
372115 1 NOZZLE ISO MD-04-110 RED2
372116 1 NOZZLE ISO MD-05-110 BROWN2
Agroparts: www.HARDI-INTERNATIONAL.com
BOOM-NOZZLES QUINTASTREAM
D706-HIN, 14:12:07
Page 0
Date 18.03.2013 14:05
Agroparts: www.HARDI-INTERNATIONAL.com
BOOM-NOZZLES QUINTASTREAM
D706-HIN, 14:12:07
Page 1
Date 18.03.2013 14:05
parts-n° order
qty descriptionPos.
372011 1 NOZZLE ISO QS-015-5H GREEN1
372012 1 NOZZLE ISO QS-02-5H YELLOW1
372013 1 NOZZLE ISO QS-03-5H BLUE1
372014 1 NOZZLE ISO QS-04-5H RED1
372015 1 NOZZLE ISO QS-05-5H BROWN1
372016 1 NOZZLE ISO QS-06-5H GREY1
372017 1 NOZZLE ISO QS-08-5H WHITE1
372018 1 NOZZLE ISO QS-10-5H LT. BLUE1
372019 1 NOZZLE ISO QS-15-5H LT. GREEN1
372002 1 ISO QNTSTRM 015 S-GREEN2
372003 1 ISO QNTSTRM 02 S-YELLOW2
372004 1 ISO QNTSTRM 03 S-BLUE2
372005 1 ISO QNTSTRM 04 S-RED2
372006 1 ISO QNTSTRM 05 S-BROWN2
372007 1 ISO QNTSTRM 06 S-GREY2
372008 1 ISO QNTSTRM 08 S-WHITE2
372009 1 ISO QNTSTRM 10 S-LT.BLU2
372010 1 ISO QNTSTRM 15 S-LT.GRN2
Agroparts: www.HARDI-INTERNATIONAL.com

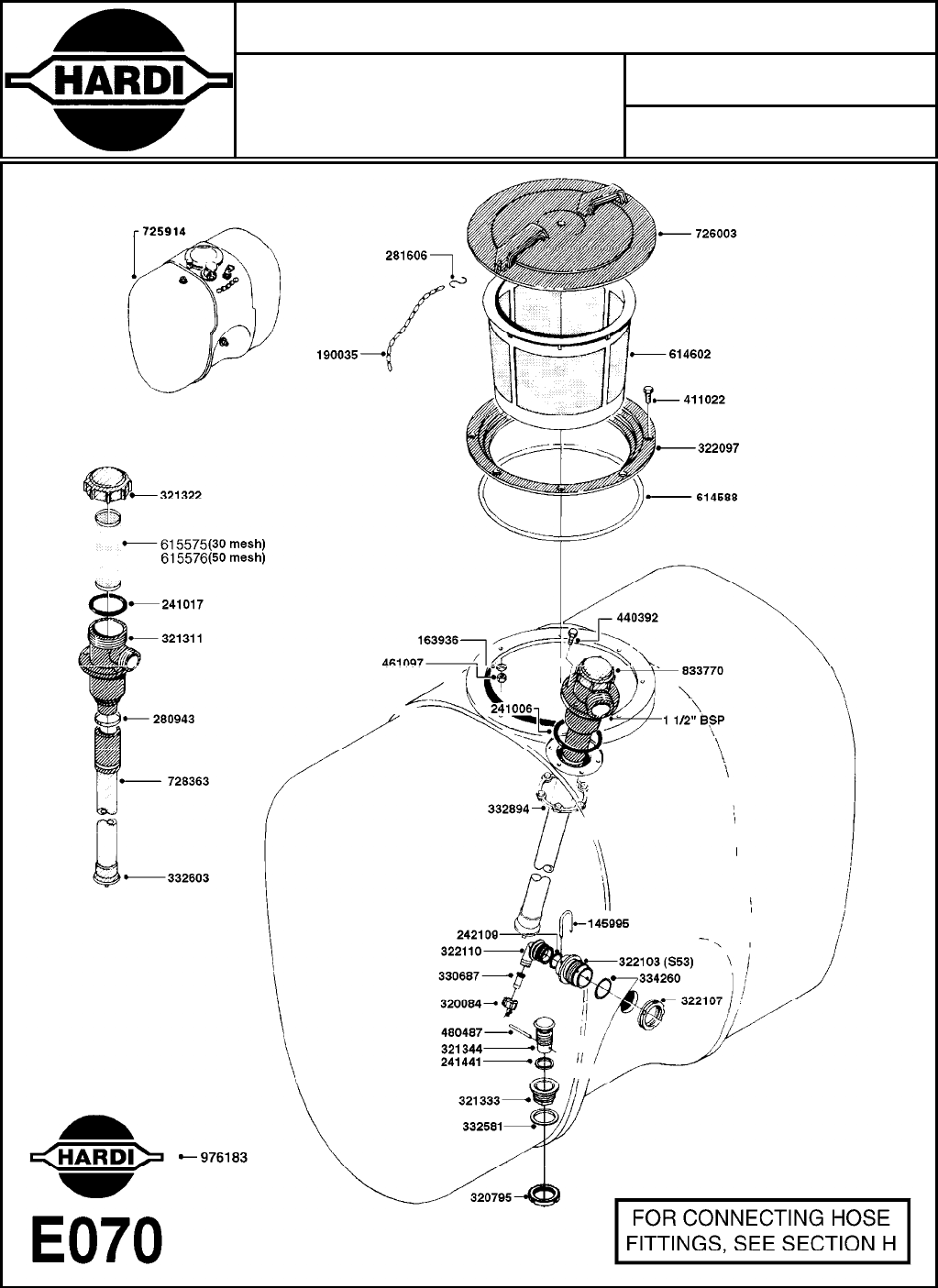

TANK - NL 155 (POST 92)
E070-HIN, 01:01:01
Page 0
Date 18.03.2013 14:05
Agroparts: www.HARDI-INTERNATIONAL.com
TANK - NL 155 (POST 92)
E070-HIN, 01:01:01
Page 1
Date 18.03.2013 14:05
parts-n° order
qty description
145995 1 FITT.DK S-53 FORK
163936 1 WASHER D15/D6.2X1
190035 1 CHAIN 365MM
241006 1 O-RING D79,2X5,7 NITRIL
241017 1 O-RING D74,5X3 NITRIL
241441 1 O-RING D29.3X3
242109 1 O-RING D32.2x3.0 (USE 242354)
280943 1 CLAMP HOSE GEAR 40-60
281606 1 S-HOOK GALVANIZED
320084 1 FITT.DK NUT 1/2" BSP
320795 1 FITT.DK NUT 1-1/2" BSP JAMB
321311 1 FILTER BODY S 80 X 4
321322 1 SCREW CAP F. S80 X 4
321333 1 FITT.DK BULK 1-1/2" X 1"F BSP
321344 1 DRAIN SCREW 1" BSP RED
322097 1 THREADED RING F. LID
322103 1 FITT.DK S-53 BULKHEAD
322107 1 FITT.DK S-53 BULKHEAD NUT
322110 1 FITT.DK S-53 ELB. 1/2" BSP
330687 1 FITT.DK HB 1/2" F. 1/2" NUT
332581 1 GASKET F. 1-1/2" BSP CAPNUT.
332603 1 CAP F. SUCTION TUBE
332894 1 RETAIN.RING FOR SUCTION FILTER
334260 1 GASKET F. S-53 BULKHEAD
411022 1 SCREW M.6X30 STAINLESS PHILLIP
440392 1 SCREW NO.14 1"
461097 1 NUT M6 STAINLESS SAFETY
480487 1 PIN M5X60 SLOTTED GALV
614588 1 SEAL F. LID
614602 1 FILTER BASKET
615575 1 FILTER F.TOP SUCT.30 MESH GRN.
615576 1 FILTER F.TOP SUCT.50 MESH BLUE
725914 1 TANK ASSY.COMPLETE NK 155 '92
726003 1 LID F. TANK
728363 1 SUCTION TUBE ASSY.L=72"
833770 1 TOP SUCTION KIT 300/500
976183 1 DECAL COMPANY 185 X 300
Agroparts: www.HARDI-INTERNATIONAL.com

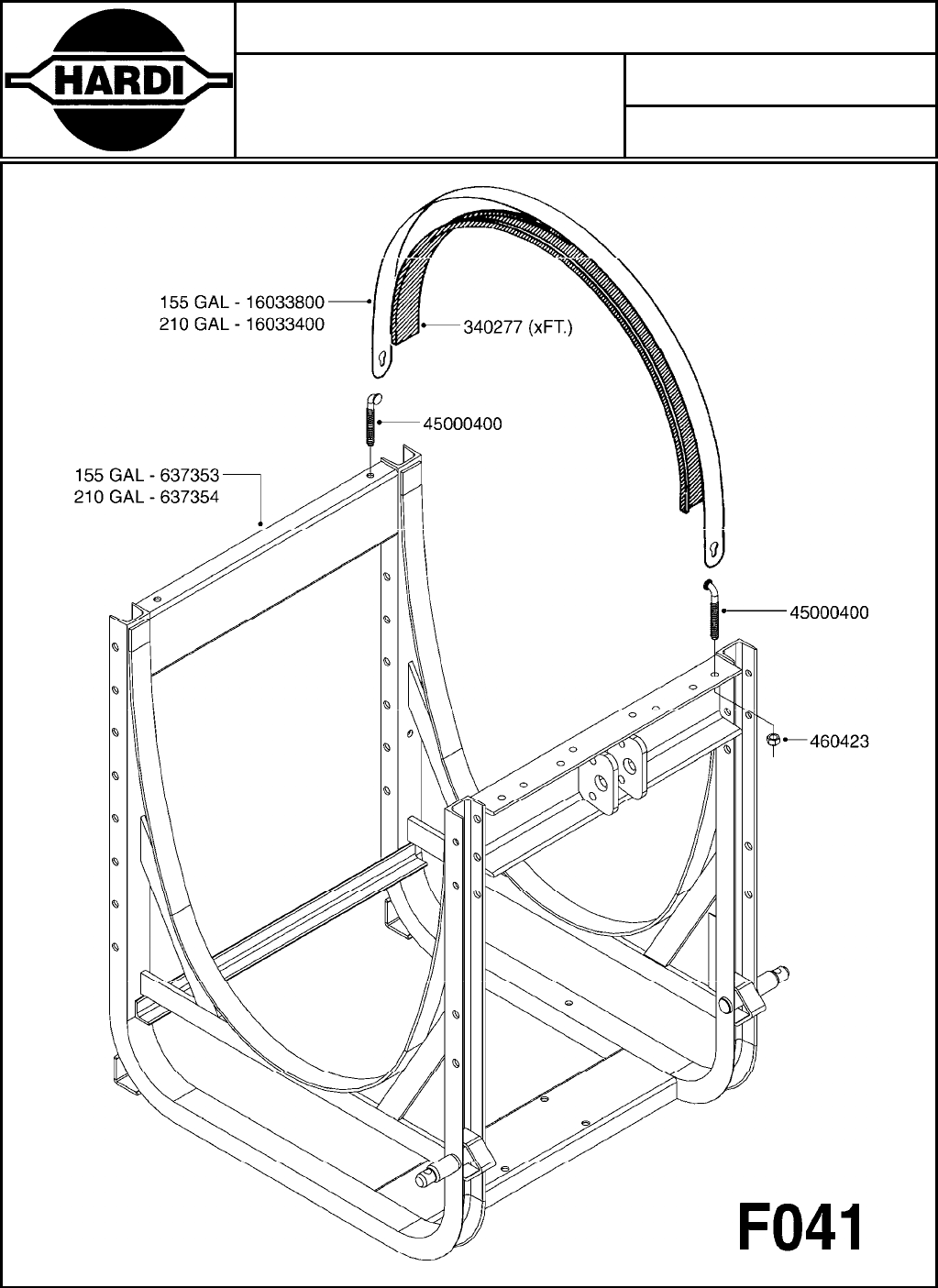

FRAME - N-SERIES 155/210
F041-HIN, 13:10:11
Page 0
Date 18.03.2013 14:05
Agroparts: www.HARDI-INTERNATIONAL.com
FRAME - N-SERIES 155/210
F041-HIN, 13:10:11
Page 1
Date 18.03.2013 14:05
parts-n° order
qty description
340277 1 TANK PACKING - 40mm WIDE x 12"
460423 1 NUT HEX M10X1.5 LOCK
637353 1 FRAME NK600
637354 1 FRAME NK800
16033400 1 TANK STRAP ES30/NK 80 '01
16033800 1 TANK STRAP NL155 L=1380MM '01
45000400 1 T-BOLT SPECIAL F.TANK STRAP ES
Agroparts: www.HARDI-INTERNATIONAL.com

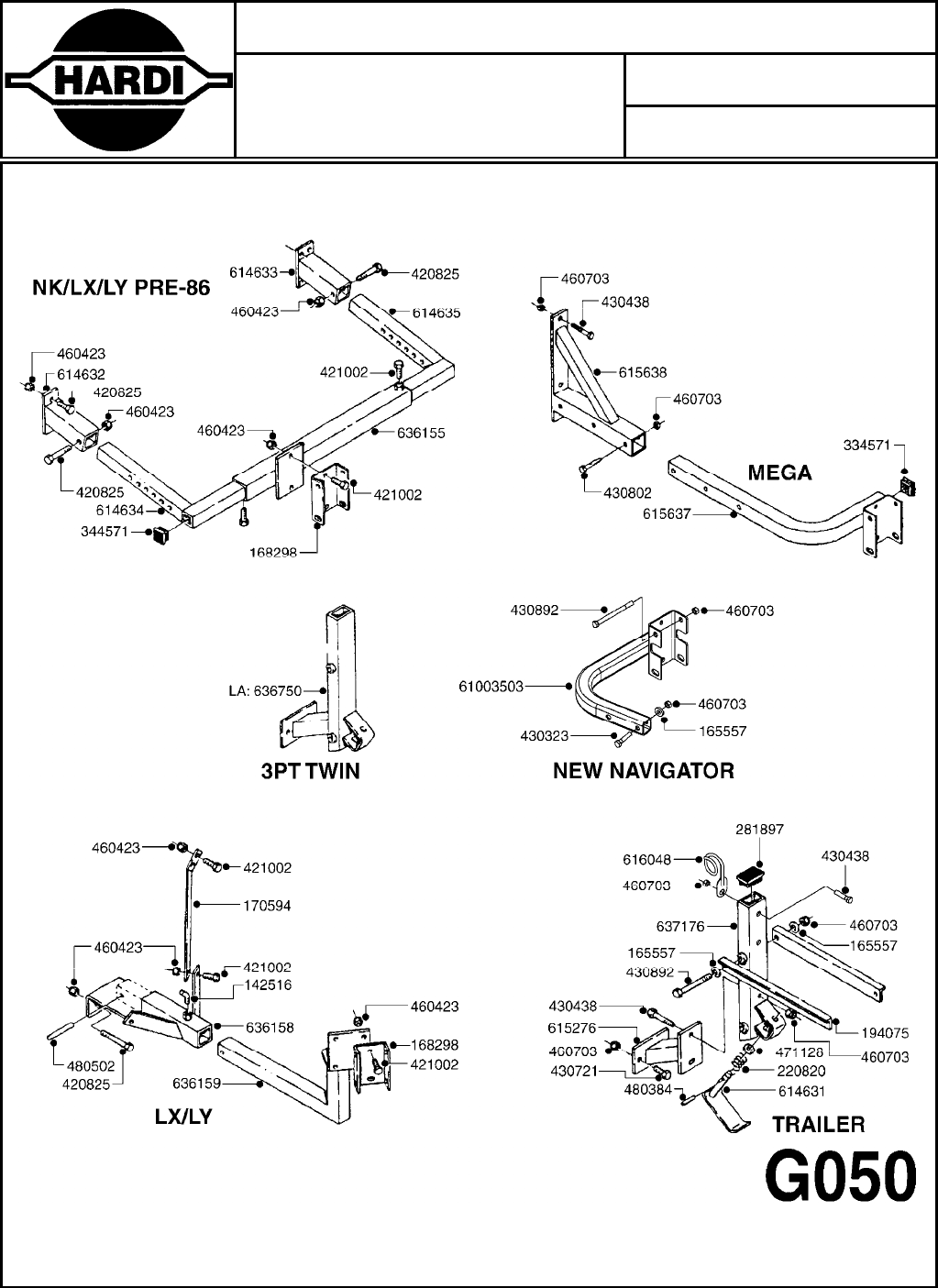

CHEM.FILLER-MOUNTING BRACKETS
G050-HIN, 06:10:10
Page 0
Date 18.03.2013 14:05
Agroparts: www.HARDI-INTERNATIONAL.com
CHEM.FILLER-MOUNTING BRACKETS
G050-HIN, 06:10:10
Page 1
Date 18.03.2013 14:05
parts-n° order
qty description
142516 1 SCREW SET M10 BENT F. LOCKING
165557 1 WASHER D28.0/D12.2X2.0 SS
168298 1 INTERM BRACKET
170594 1 FL.ST. 30X 6 L= 387/2XØ11+Ø7
194075 1 MOUNT ARM F.CHEM.FILL BRACKET
220820 1 SPRING D20.5/2.0 0-50MM
281897 1 COVER PLUG
334571 1 PLUG 40X40X2 F.SQ.TUBE
420825 1 BOLT HEX 8.8 DEL M10X65
421002 1 BOLT HEX 8.8 DEL M10X30 FT
430323 1 BOLT HEX 8.8 DEL M12X60
430438 1 BOLT HEX 8.8 DEL M12X65
430721 1 BOLT HEX 8.8 DEL M12X40 FT
430802 1 BOLT HEX 8.8 DEL M12X75
430892 1 BOLT HEX 8.8 DEL M12X110
460423 1 NUT HEX M10X1.5 LOCK
460703 1 NUT HEX M12X1.75 LOCK
471128 1 WASHER D30/D17X3
480384 1 PIN COTTER D5X40
480502 1 PIN RETAINING M10X50 DIN 1481
614631 1 FOOT PEDAL FOR FILLER
614632 1 SOCKET FOR SUSPENSION LEFT
614633 1 SOCKET FOR SUSPENSION RIGHT
614634 1 MOUNT BRACKET F.ACCESS. RIGHT
614635 1 MOUNT BRACKET F. ACCESS. LEFT
615276 1 BRACKET F.CHEM.FILL MOUNT
615637 1 MNT. BRKT. MEGA CHEM. FILLER
615638 1 MOUNT BKT.F.CHEM FILLER MEGA
616048 1 HOSE HOLDER
636155 1 CENTER-PCS. F.SUSPENSION
636158 1 TELESCOPE HOLDER
636159 1 TELESCOPE PIPE F.HARDI FILLER
636750 1 OPSPÆN.KONSOL T.TWINLIFT SVEJ.
637176 1 CONSOLE F. CHEMFILL BRACKET
Agroparts: www.HARDI-INTERNATIONAL.com
CHEM.FILLER-PLUMBING-STANDARD
G070-HIN, 09:12:09
Page 0
Date 18.03.2013 14:05
Agroparts: www.HARDI-INTERNATIONAL.com
CHEM.FILLER-PLUMBING-STANDARD
G070-HIN, 09:12:09
Page 1
Date 18.03.2013 14:05
parts-n° order
qty description
145996 1 FITT.DK S-67 FORK
241441 1 O-RING D29.3X3
241883 1 O-RING D39.2X3 NITRIL
241973 1 O-RING 44.2 x 3.0 (use-242353)
280265 1 CLMP HS GEAR1-1/2" alt28030103
284585 1 CLAMP HOSE GEAR 1" MINI 020
320095 1 FITT.DK NUT 1" BSP
320795 1 FITT.DK NUT 1-1/2" BSP JAMB
320821 1 FITT.DK NUT 1-1/2" BSP
320832 1 FITT.DK TEE 1-1/2x1-1/2x1-1/2
322066 1 FITT.DK S-56 NUT
322104 1 FITT.DK S-67 BULKHEAD
322108 1 FITT.DK S-67 BULKHEAD NUT
330072 1 O-RING D53,5/D45,5X4
330326 1 O-RING D30/D24X2 F.1"NUT
330341 1 FITT.DK HB 1" F. 1" NUT
331262 1 FITT.DK HB 1-1/2" F. 1-1/2"NUT
331273 1 O-RING D44/D38X2 F.1-1/2"
334059 1 FITT.DK EL 1" 110 DEG.F.1-1/2"
334099 1 FITT.DK S-61 ELB.1-1/2"110 DEG
334100 1 FITT.DK S-61 ELB.1" 110 DEG.
334150 1 FITT.DK HB 1-1/4" 110 F.1-1/2"
334151 1 FITT.DK S-61 ELB.1-1/4"110 DEG
334261 1 GASKET F. S-67 BULKHEAD
334445 1 FITT.DK S-67 ELB.1-1/2"
334498 1 NOZZLE INJECTOR 13MM/462 WHITE
334499 1 NOZZLE INJECTOR 10MM/361 BLACK
334532 1 FITT.DK S-67 STR.1-1/2' W/HOLE
390268 1 FITT.DK BULKHEAD 1-1/2' SPEC.
390275 1 FITT.DK ELB 1' SPECIAL F.CHEMF
28030103 1 CLAMP HOSE GEAR P5/4-S1.5"6724
92702603 1 HOSE PVC SUCT GRAY 1-1/2"
92712403 1 HOSE R X1" X300PSI WP X0012"
92734403 1 HOSE R X5/4" X200PSI WP X0012"
Agroparts: www.HARDI-INTERNATIONAL.com

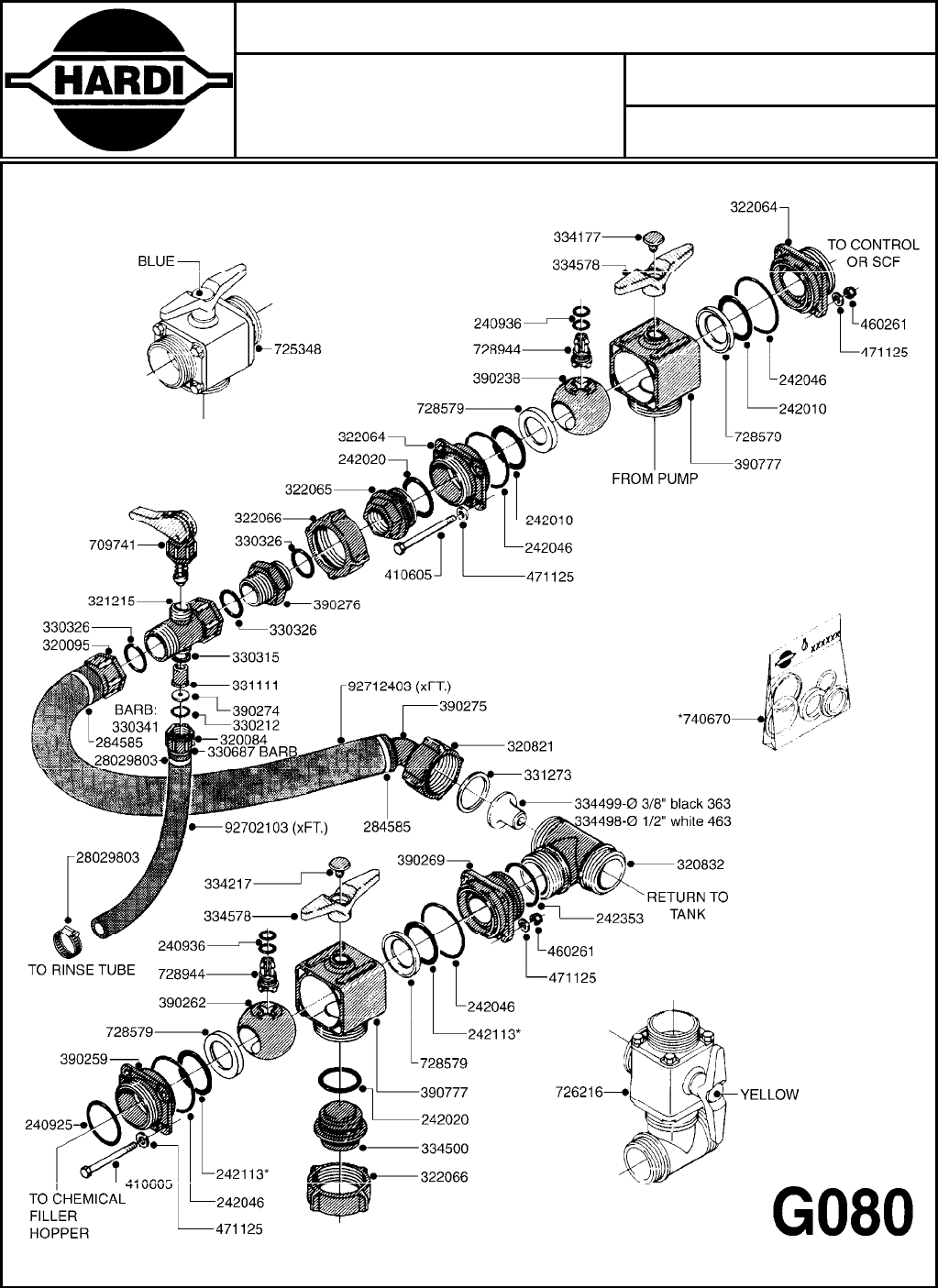

CHEM.FILLER-STANDARD-PLUMBING
G080-HIN, 14:06:12
Page 0
Date 18.03.2013 14:05
Agroparts: www.HARDI-INTERNATIONAL.com
CHEM.FILLER-STANDARD-PLUMBING
G080-HIN, 14:06:12
Page 1
Date 18.03.2013 14:05
parts-n° order
qty description
240925 1 O-RING D49.5X3 NITRIL
240936 1 O-RING D13.3X2.4 NITRIL
242010 1 O-RING D37.47X5.33
242020 1 O-RING 39.2 X 3 VITON
242046 1 O-RING D60X2
242113 1 O-RING D37.5X5.3 VITON
242353 1 O-RING D44.2X3.0 VITON F.S-67
284585 1 CLAMP HOSE GEAR 1" MINI 020
320084 1 FITT.DK NUT 1/2" BSP
320095 1 FITT.DK NUT 1" BSP
320821 1 FITT.DK NUT 1-1/2" BSP
320832 1 FITT.DK TEE 1-1/2x1-1/2x1-1/2
321215 1 FITT.DK HOUSING F. AGITATION
322064 1 END COVER W.S56
322065 1 FITT.DK UNION 1' BSP/S-56
322066 1 FITT.DK S-56 NUT
330212 1 O-RING D19/D14X2.4 F.1/2"NUT
330315 1 O-RING D18.4/D13X.6
330326 1 O-RING D30/D24X2 F.1"NUT
330341 1 FITT.DK HB 1" F. 1" NUT
330687 1 FITT.DK HB 1/2" F. 1/2" NUT
331111 1 VALVE SEAT FOR 1/2" DISTRIBUT.
331273 1 O-RING D44/D38X2 F.1-1/2"
334177 1 VALVE INDICATOR BLUE
334217 1 VALVE INDICATOR YELLOW
334498 1 NOZZLE INJECTOR 13MM/462 WHITE
334499 1 NOZZLE INJECTOR 10MM/361 BLACK
334500 1 FITT.DK S-56 PLUG W/ 4.2Ø Hole
334578 1 HANDLE FOR VALVE 'OLD' STYLE
390238 1 BALL F. 3 WAY PRESSURE VALVE
390259 1 END COVER S56 F.3 WAY VALVE
390262 1 BALL F. 2 WAY VALVE
390269 1 END COVER S56 1-1/2"F.3WAY VLV
390274 1 ORIFICE ID4.0/18/1.5
390275 1 FITT.DK ELB 1' SPECIAL F.CHEMF
390276 1 FITT.DK HN 1'BSP
390777 1 HOUSING F.BALL VALVE 3 WAY
410605 1 BOLT HEX 8.8 DEL M6X80
460261 1 NUT HEX M6X1 LOCK
471125 1 WASHER D12/D6.4x1.6 SS
709741 1 VALVE ASSY. 1/2" FLIP LEVER
725348 1 VALVE 3 WAY BLUE
726216 1 VALVE TWO WAY
728579 1 SEAL F BALL
728944 1 VALVE STEM & COLOURED CAPS
740670 1 SEAL KIT F. BALL VALVE VITON
28029803 1 CLAMP HOSE GEAR P1/2" 6708
92702103 1 HOSE R X1/2" X300PSI WP X0012"
92712403 1 HOSE R X1" X300PSI WP X0012"
Agroparts: www.HARDI-INTERNATIONAL.com

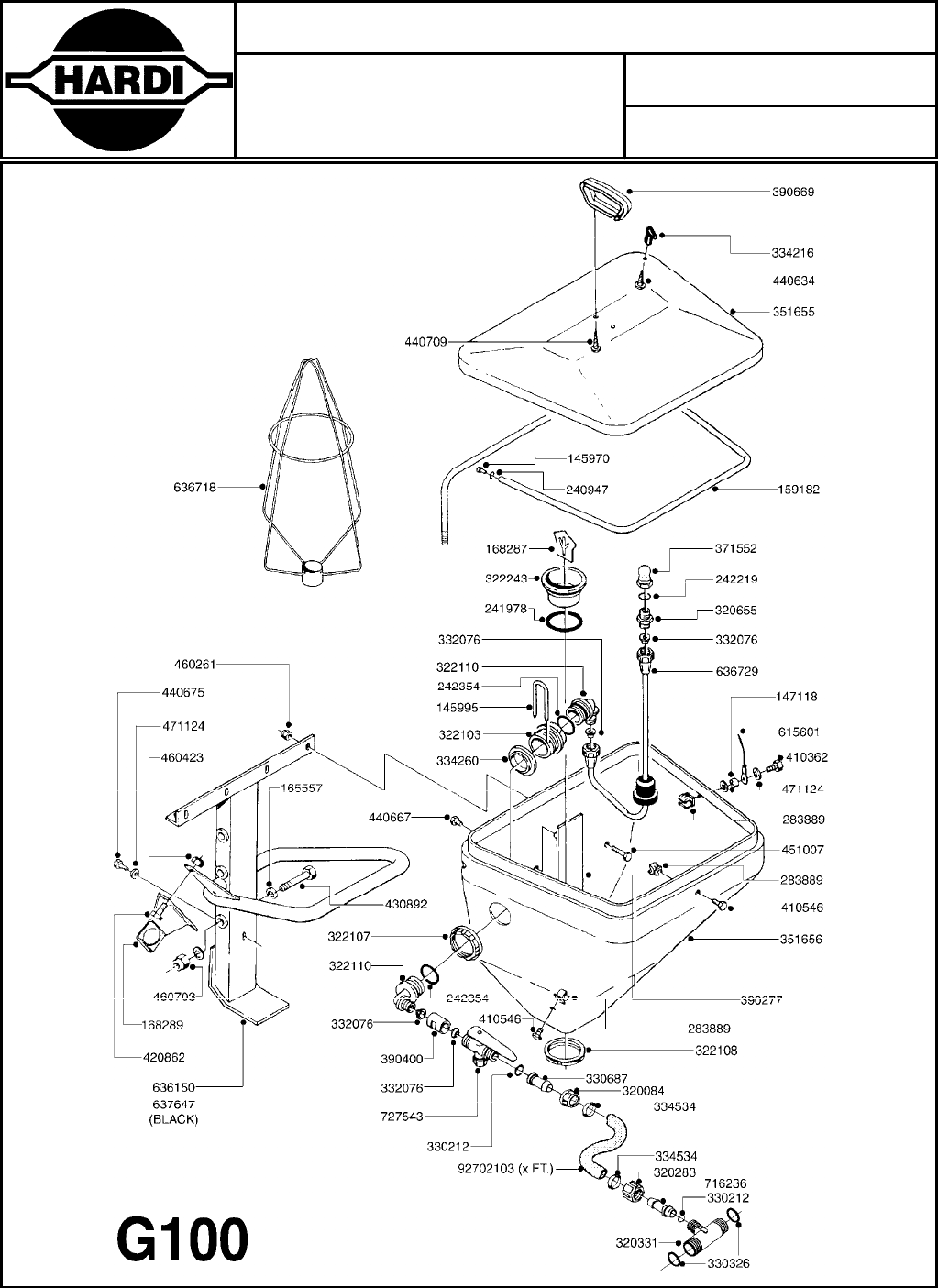

CHEMICAL FILLER-HOPPER(POST95)
G100-HIN, 19:05:11
Page 0
Date 18.03.2013 14:05
Agroparts: www.HARDI-INTERNATIONAL.com
CHEMICAL FILLER-HOPPER(POST95)
G100-HIN, 19:05:11
Page 1
Date 18.03.2013 14:05
parts-n° order
qty description
145970 1 PLUG MF 11 X 1
145995 1 FITT.DK S-53 FORK
147118 1 BUSHING 10,0/6,2 L=5 CHEM FILL
159182 1 RINSING TUBE CHEM.FILL
165557 1 WASHER D28.0/D12.2X2.0 SS
168287 1 PLATE ANTI-VORTEX F.CHEM FILL
168289 1 BRACKET F. 3-WAY VALVE
240947 1 O-RING D7.3X2.4 NITRIL
241978 1 O-RING 64.5X3,0
242219 1 O-RING D16.3X2.4 VITON
242354 1 O-RING D32.2X3.0 VITON F.S-53
283889 1 CLIP F.TUBE SUPPORT
320084 1 FITT.DK NUT 1/2" BSP
320283 1 FITT.DK NUT 3/4"BSP
320331 1 FITT.DK TEE 1" - 1" - 3/4" BSP
320655 1 FITT.DK HN 1/2"-1/2" BSP
322103 1 FITT.DK S-53 BULKHEAD
322107 1 FITT.DK S-53 BULKHEAD NUT
322108 1 FITT.DK S-67 BULKHEAD NUT
322110 1 FITT.DK S-53 ELB. 1/2" BSP
322243 1 DRAIN PIPE/CHEM FIL.S67/S56
330212 1 O-RING D19/D14X2.4 F.1/2"NUT
330326 1 O-RING D30/D24X2 F.1"NUT
330687 1 FITT.DK HB 1/2" F. 1/2" NUT
332076 1 CONE INSERT F. ALUMINUM LANCE
334216 1 RUBBER LATCH FOR CHEM.FILL
334260 1 GASKET F. S-53 BULKHEAD
334534 1 CLAMP HOSE PLASTIC 1/2"
351655 1 LID CHEM FILL.25L POST 95
351656 1 HOPPER F.CHEM FILL 25L POST'96
371552 1 NOZZLE F.RINSING
390277 1 SCALE PLATE FOR HARDI FILLER
390400 1 FITT.DK BULKHEAD 1/2'X1/2'
390669 1 HANDLE F.CHEM FILLER
410362 1 BOLT HEX 8.8 DEL M6X20 FT
410546 1 BOLT HEX 8.8 DEL M6X12 FT
420862 1 BOLT HEX 8.8 DEL M10X16 FT
430892 1 BOLT HEX 8.8 DEL M12X110
440634 1 SCREW 5/8"
440667 1 SCREW M12X35 SLOT STAINLESS
440675 1 SCREW F. PLASTIC 5X16 SS
440709 1 SCREW 60X12 CHEM.FILL HANDLE
451007 1 SCREW M6X20 STAINLESS
460261 1 NUT HEX M6X1 LOCK
460423 1 NUT HEX M10X1.5 LOCK
460703 1 NUT HEX M12X1.75 LOCK
471124 1 WASHER D18/D6.4x1.6
615601 1 BUNGEE CORD 21-1/4"
636150 1 FRAME FOR CHEM FILL TANK
636718 1 RINSE SUPPORT CHEM.FILL 25/35L
636729 1 TUBE F. RINSE CHEM FILL
637647 1 BRACKET F.CHEMFILL
716236 1 FITT.DK HB 1/2" ASSY. F. 3/4"
727543 1 VALVE F.CHEM FILL JUG RINSE
92702103 1 HOSE R X1/2" X300PSI WP X0012"
Agroparts: www.HARDI-INTERNATIONAL.com

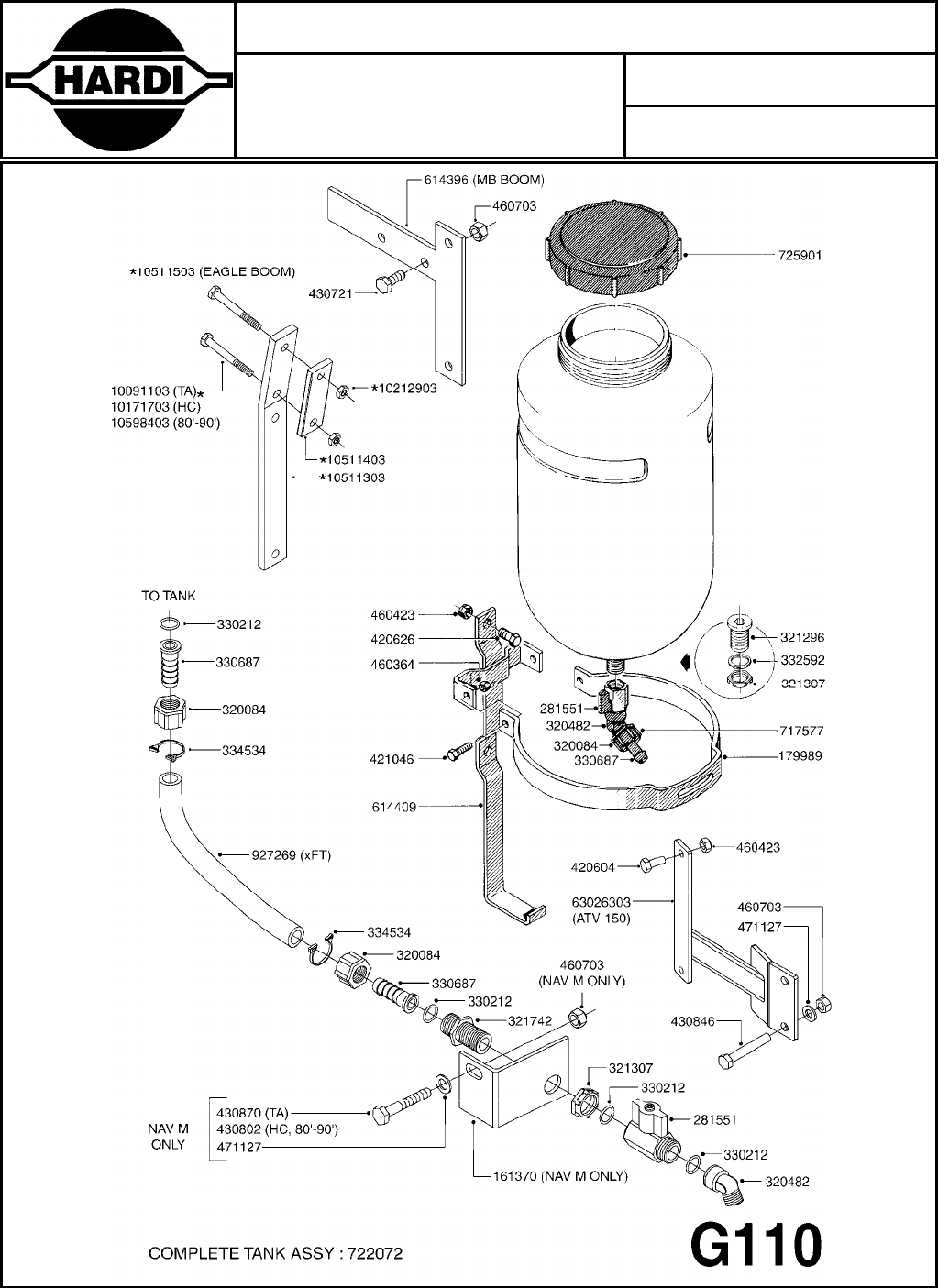

CLEAN WATER TANK
G110-HIN, 26:06:06
Page 0
Date 18.03.2013 14:05
Agroparts: www.HARDI-INTERNATIONAL.com
CLEAN WATER TANK
G110-HIN, 26:06:06
Page 1
Date 18.03.2013 14:05
parts-n° order
qty description
161370 1 BKT.CLEAN WATER BOTT. VALVE
179989 1 BRKT. F. 3 GAL. TANK
281551 1 BALL VALVE 1/2"
320084 1 FITT.DK NUT 1/2" BSP
320482 1 FITT.DK ELB. 1/2" BSP 60 DEG.
321296 1 FITT.DK BULKHEAD 1/2" BSP SING
321307 1 FITT.DK NUT 1/2" BSP JAMB
321742 1 FITT.DK BULKHEAD 1/2' BSP
330212 1 O-RING D19/D14X2.4 F.1/2"NUT
330687 1 FITT.DK HB 1/2" F. 1/2" NUT
332592 1 O-RING D26/D20X3
334534 1 CLAMP HOSE PLASTIC 1/2"
420604 1 BOLT HEX 8.8 DEL M10X25 FT
420626 1 BOLT HEX 8.8 DEL M10X20 FT
421046 1 BOLT HEX 8.8 DEL M8X25 FT
430721 1 BOLT HEX 8.8 DEL M12X40 FT
430802 1 BOLT HEX 8.8 DEL M12X75
430846 1 BOLT HEX 8.8 DEL M12X80
430870 1 BOLT HEX 8.8 DEL M12X55 FT
460364 1 NUT HEX M8 GALV.
460423 1 NUT HEX M10X1.5 LOCK
460703 1 NUT HEX M12X1.75 LOCK
471127 1 WASHER D24/D13X2.5 STAINLESS
614396 1 CLEAN WATER BRACKET MB
614409 1 BRACKET FOR FOAM MARKER
717577 1 VALVE F.CLEAN WATER TANK
722072 1 CLEAN WATER TANK W FRAME & TAP
725901 1 LID F.WATER BOTTLE VENTED
927269 1 HOSE R X PVC X 1/2 X 0012"
10091103 1 BOLT HEX 3/8 NC GR.2 03.00'
10171703 1 BOLT HEX 3/8 NC GR.2 03.50"
10212903 1 NUT HEX NC (NYLON LOCK) 3/8"
10511303 1 FLATBAR L350/17DEG.CLEAN WATER
10511403 1 FLATBAR 104MM CLEAN WATER
10511503 1 BKT.CLEAN WATER MOUNT EAGLE
10598403 1 BOLT HEX HCS3/8-16 X 4 Z 5
63026303 1 CLEAN WATER TANK BRKT, ATV
Agroparts: www.HARDI-INTERNATIONAL.com

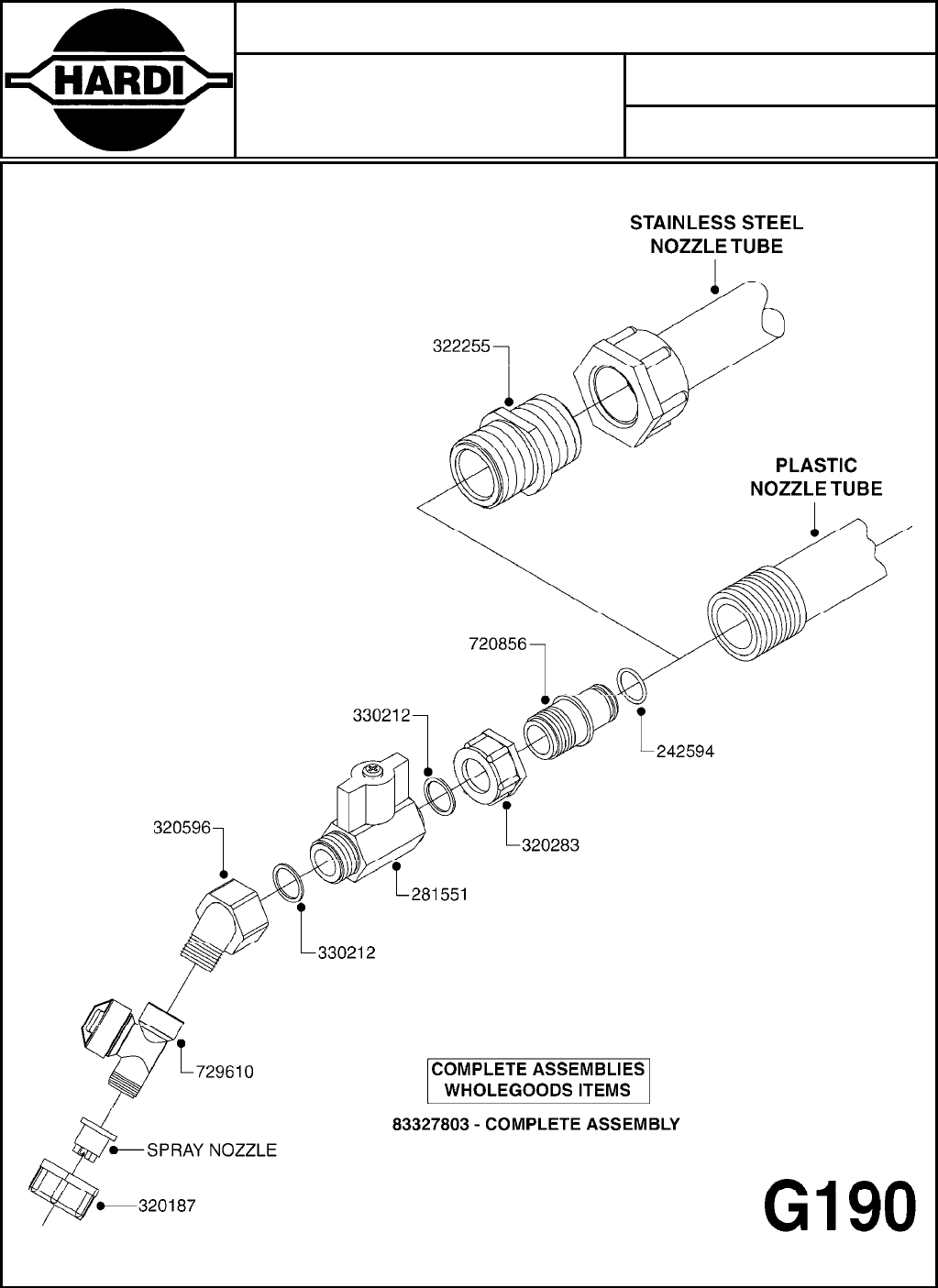

END NOZZLE KIT
G190-HIN, 28:11:06
Page 0
Date 18.03.2013 14:05
Agroparts: www.HARDI-INTERNATIONAL.com
END NOZZLE KIT
G190-HIN, 28:11:06
Page 1
Date 18.03.2013 14:05
parts-n° order
qty description
242594 1 O-RING D14 X 1.78 SCH.70-EPDM
281551 1 BALL VALVE 1/2"
320187 1 FITT.DK CAP 3/8" BSP BLACK
320283 1 FITT.DK NUT 3/4"BSP
320596 1 FITT.DK ELB 3/8'-1/2'BSP 45DEG
322255 1 FITT.DK NIPPLE 3/4'X 3/4'
330212 1 O-RING D19/D14X2.4 F.1/2"NUT
720856 1 FITT.DK 1/2'BSP ASSY.F.3/4'NUT
729610 1 NOZZLE ASSY. 3/8 THREAD
83327803 1 END NOZZLE KIT "04"
Agroparts: www.HARDI-INTERNATIONAL.com
ELECTRIC END NOZZLE KIT '09
G191-HIN, 21:05:12
Page 0
Date 18.03.2013 14:05
Agroparts: www.HARDI-INTERNATIONAL.com
ELECTRIC END NOZZLE KIT '09
G191-HIN, 21:05:12
Page 1
Date 18.03.2013 14:05
parts-n° order
qty descriptionPos.
145994 1 FITT.DK S-40 FORK1
145995 1 FITT.DK S-53 FORK2
242354 1 O-RING D32.2X3.0 VITON F.S-533
242355 1 O-RING D19.2X3.0 VITON F.S-404
242594 1 O-RING D14 X 1.78 SCH.70-EPDM5
261539 1 SPADE F.ELEC CONNEC BLUE INSUL6
262104 1 VALVE, SOLENOID, S53/S407
320187 1 FITT.DK CAP 3/8" BSP BLACK8
320191 1 FITT.DK ELB 3/8' BSP 45 DEGREE9
320283 1 FITT.DK NUT 3/4"BSP10
320891 1 FITT.DK HB 3/8'- 3/8' BSP11
322352 1 FITT.DK S-53 TEE12
330013 1 O-RING D15/D10X2.5 F.3/8"NUT13
333012 1 NOZZLE HOLD. UPPER PART14
334044 1 FITT.DK HB 3/4' F. 3/4' CAP15
334220 1 NOZZLE BODY SING.SN.FT.UPPER16
334229 1 FITT.DK S-53 STR.3/4"17
334237 1 FITT.DK S-40 ELB.3/8'18
334965 1 COVER FOR S53 SOLENOID VALVE19
341291 1 RUBBER HOSE CLAMP COVER 130MM20
370392 1 NOZZLE END FAN 1850-G 30021
410546 1 BOLT HEX 8.8 DEL M6X12 FT22
440665 1 SCREW M4.2X16 STAINLESS23
460261 1 NUT HEX M6X1 LOCK24
724621 1 FITT.DK HB 3/4"ASSY F.3/4" NUT25
725042 1 SCREEN 80 MESH W.GASKET, RED26
726558 1 FITT.DK S53 STR. 3/4" W.ORING27
729610 1 NOZZLE ASSY. 3/8 THREAD28
983087 1 ELEC. CABLE 2 WIRE X 0.75MM29
10631003 1 HOSE R X CLEAR BRAID.X 1/2 12"30
16110803 1 NOZZLE BRACKET VAR SPACINGS31
28029903 1 CLAMP HOSE GEAR P3/4"-S1" 671232
28044903 1 CLAMP HOSE GEAR P3/8" 670633
28047003 1 CLAMP HOSE GEAR 30 X 50 673234
92701703 1 HOSE R X3/8" X300PSI WP X0012"35
92703203 1 HOSE R X3/4" X300PSI WP X0012"36
Agroparts: www.HARDI-INTERNATIONAL.com

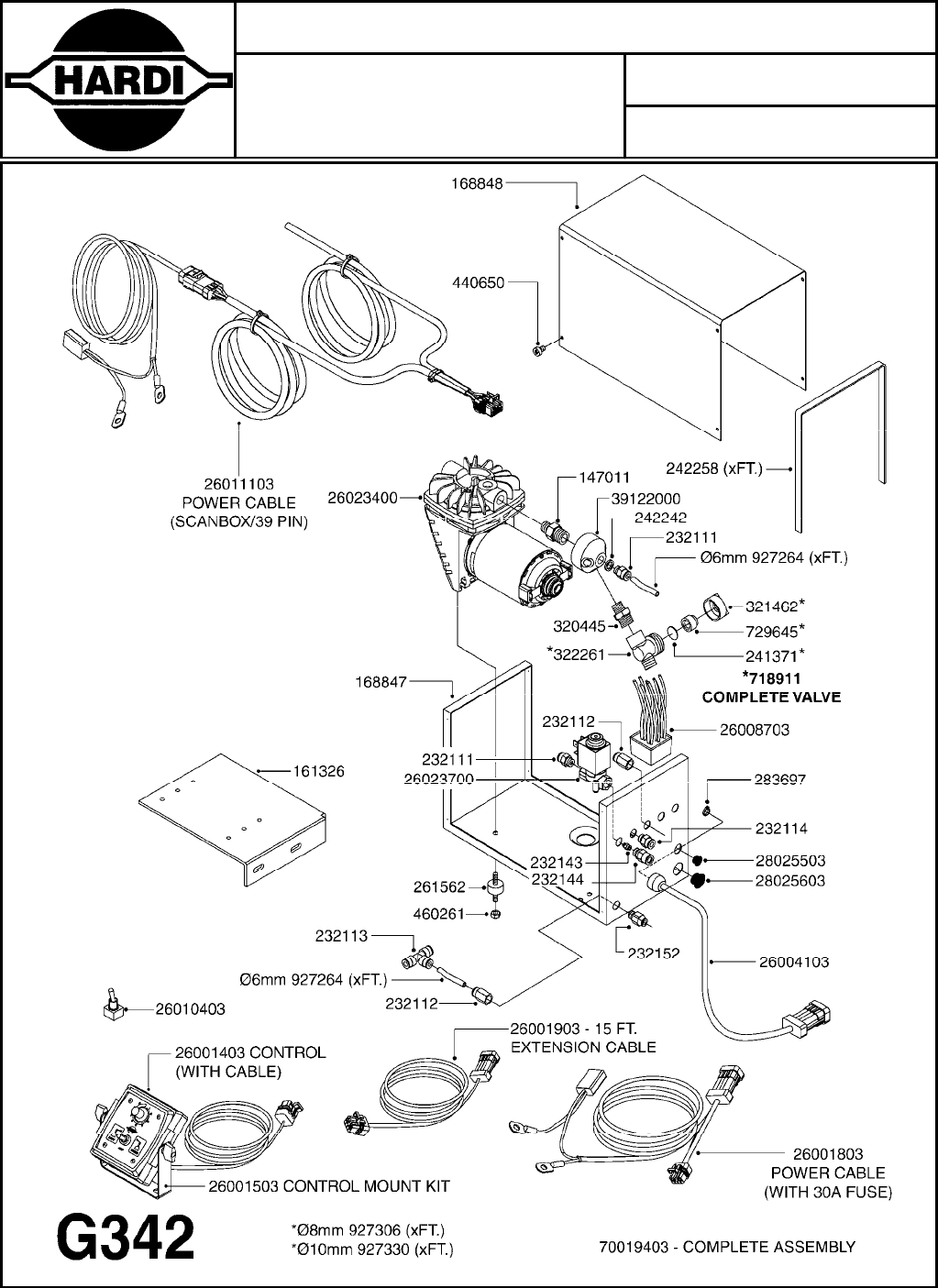

FOAM MARKER COMPRESSOR 2007
G342-HIN, 17:12:07
Page 0
Date 18.03.2013 14:05
Agroparts: www.HARDI-INTERNATIONAL.com
FOAM MARKER COMPRESSOR 2007
G342-HIN, 17:12:07
Page 1
Date 18.03.2013 14:05
parts-n° order
qty description
147011 1 HEX NIPPLE 3/8'X1/4'BSP BRASS
161326 1 MOUNT BKT. F. FOAM COMP.BOX 98
168847 1 ENCLOSURE LOWER F.MARKER
168848 1 COVER F. FOAM MARKER
232111 1 QUICK COUPLER 6MM X 1/8 EXT.
232112 1 QUICK COUPLER 6MM 1/8 INT.
232113 1 QUICK COUPLER 6MM T-PIECE
232114 1 COUPLER 1/8" THREADX8MM HOSE
232143 1 REDUCER 1/4'INT-1/8'EXT
232144 1 QUICK COUPLER 10MM X 1/4 EXT
232152 1 QUICK COUPLER 8MMX1/8 EXT.LONG
241371 1 DIAPHRAGM F.NO-DRIP,VULC
242242 1 O-RING F.AIR HOSE FITTING
242258 1 TRIM 3X10 SELF ADHESIVE 0012"
261562 1 RUBBER DAMPER 2XM6X25
283697 1 TIESTRAP 200MM
320445 1 FITT.DK HN 1/4"X3/8" BSP
321462 1 CAP F.NO-DRIP ASSY.
322261 1 HOUSING F.SAFETY VALVE 3/8"
440650 1 SCREW 3.5x13 STAINLESS
460261 1 NUT HEX M6X1 LOCK
718911 1 VALVE (SAFETY) F.MARKER
729645 1 NON-DRIP SPRING ASSY.GREEN 10
927264 1 HOSE R X PE D6/D4 X 0012"
927306 1 HOSE R X PE D8/D6 X 0012"BLACK
927330 1 HOSE R X PE D10/D8 X 012"BLACK
26001403 1 HC FOAM MARKR CONSOLE VS3.0.00
26001503 1 HC FOAM MARKER CONSOLE MT.KIT
26001803 1 POWER CABLE
26001903 1 15' 7-PIN EXTENSION CABLE
26004103 1 FOAM MARKER CNTRL MOD CABL STD
26008703 1 FOAM MARKER CONTROL SCII
26010403 1 TOGGLE SWITCH MICRO-TRAK F.M.
26011103 1 FOAMER POWER/CONTROL CABLE 39P
26023400 1 COMPRESSOR F.FOAM MARKER CM40
26023700 1 SOLENOID VAL 12V 1/8' FLO '07
28025503 1 PLUG F.DRILLED HOLE 1/2"
28025603 1 PLUG F.DRILLED HOLE 3/4"
39122000 1 DISTR.HOUSING F.FOAM MARKER'07
70019403 1 FOAM MARKER COMPRESSOR KIT STD
Agroparts: www.HARDI-INTERNATIONAL.com
FOAMMARKER DROPPER UPDATE 2000
G410-HIN, 12:12:05
Page 0
Date 18.03.2013 14:05
Agroparts: www.HARDI-INTERNATIONAL.com
FOAMMARKER DROPPER UPDATE 2000
G410-HIN, 12:12:05
Page 1
Date 18.03.2013 14:05
parts-n° order
qty description
145995 1 FITT.DK S-53 FORK
160775 1 WASHER F. FRICTION PLATE
161116 1 FLATBAR PLATE 3 X 25 X 110
161130 1 FILTER SCREEN F/FOAM DROPPER
172664 1 FLATBAR BACKING PLATE
232114 1 COUPLER 1/8" THREADX8MM HOSE
232199 1 COUPLER 3/8' BSP-90/10MM HOSE
242109 1 O-RING D32.2x3.0 (USE 242354)
320095 1 FITT.DK NUT 1" BSP
320176 1 FITT.DK HN 3/8"X1/2" BSP
320456 1 FITT.DK BULKHEAD 1"BSP DOUBLE
320471 1 FITT.DK NUT 1" BSP JAMB
322138 1 FITT.DK ELB 1"M X 1"F BSP
330326 1 O-RING D30/D24X2 F.1"NUT
330341 1 FITT.DK HB 1" F. 1" NUT
330665 1 FITT.DK HB 3/4"F.1" NUT
330831 1 FRICTION PLATE
334241 1 FITT.DK S-53 ELB.3/4"
334523 1 PIPE HOLDER D51.5
390639 1 O-RING F.NOZZLE FILTER
390925 1 FITTING F.FOAM MIX.CHAMB. STD
390926 1 TUBE,MIX CHAMB. FOAM MARK STD
410701 1 SCREW M6X16 GALV.
421024 1 BOLT HEX 8.8 DEL M8X60
421201 1 BOLT HEX 8.8 DEL M8X70
430323 1 BOLT HEX 8.8 DEL M12X60
430367 1 BOLT HEX 8.8 DEL M12X100
440333 1 SCREW 3.5 X 9.5 SS
460143 1 NUT HEX M8 LOCK
460261 1 NUT HEX M6X1 LOCK
460703 1 NUT HEX M12X1.75 LOCK
471127 1 WASHER D24/D13X2.5 STAINLESS
611671 1 BREAK AWAY HOLDER F-MARKER
614432 1 BREAK AWAY ARM F. FOAM MARKER
615786 1 MOUNT BKT. F.FOAM DROPPER 98
728323 1 VALVE NON-RETURN
730697 1 FOAM DROPPER COMP. BLACK '97
741526 1 FOAM DROPPER MT. KIT MB-SPL
927231 1 HOSE R X PVCX3/4 CLR/BRD 0012"
927306 1 HOSE R X PE D8/D6 X 0012"BLACK
927330 1 HOSE R X PE D10/D8 X 012"BLACK
981561 1 SPONGE MAT. MIX.CHAMBER-x0012"
28029903 1 CLAMP HOSE GEAR P3/4"-S1" 6712
28030103 1 CLAMP HOSE GEAR P5/4-S1.5"6724
72048700 1 MIXING CHAMBER,FOAM MARK. STD
92712403 1 HOSE R X1" X300PSI WP X0012"
Agroparts: www.HARDI-INTERNATIONAL.com
HANDGUN TYPE 60S/60L POST 95
G450-HIN, 19:05:11
Page 0
Date 18.03.2013 14:05
Agroparts: www.HARDI-INTERNATIONAL.com
HANDGUN TYPE 60S/60L POST 95
G450-HIN, 19:05:11
Page 1
Date 18.03.2013 14:05
parts-n° order
qty description
130390 1 TEE 3/8'X 1/2' BSP F.TYPE 60S
145791 1 CONE FOR ON/OFF
147063 1 SWIRL F.SPRAY GUN TYPE 60
240936 1 O-RING D13.3X2.4 NITRIL
241441 1 O-RING D29.3X3
241965 1 O-RING 12.1 X 1.6
242007 1 O-RING D9.1X1.6
242013 1 SPRING RUBBER F/TRIGGER
242033 1 O-RING
242064 1 SLEEVE RUBBER 3X8X4MM
320084 1 FITT.DK NUT 1/2" BSP
322073 1 HOUSING F.SWIRL TYPE 60S H.G.
322075 1 CASTING
330013 1 O-RING D15/D10X2.5 F.3/8"NUT
334117 1 HANDLE PIECE RIGHT F.60S/60L
334118 1 HANDLE PIECE LEFT F.60S/60L
334121 1 SEAT FOR ON/OFF
334190 1 FITT.DK HB 1/2' F. PISTOL 60S
334533 1 CLAMP HOSE PLASTIC 3/8"
334534 1 CLAMP HOSE PLASTIC 1/2"
334653 1 FITT.DK HB 3/8' F.HANDGUN
334655 1 TRIGGER SAFETY F.60S/60L GUN
371314 1 NOZZLE CERAMIC 1099-20
440634 1 SCREW 5/8"
480716 1 PIN D3X6 STAINLESS
615455 1 TUBE F.LANCE TYPE 60L
725476 1 SPINDLE
725477 1 TRIGGER
750270 1 GASKET KIT F.SPRAY GUN
843196 1 HANDGUN KIT TYPE 60 SHORT
843197 1 HANDGUN KIT TYPE 60 LONG
92701703 1 HOSE R X3/8" X300PSI WP X0012"
92702103 1 HOSE R X1/2" X300PSI WP X0012"
Agroparts: www.HARDI-INTERNATIONAL.com
SPRAY MATE II CONTROLLER
G475-HIN, 14:12:06
Page 0
Date 18.03.2013 14:05
Agroparts: www.HARDI-INTERNATIONAL.com
SPRAY MATE II CONTROLLER
G475-HIN, 14:12:06
Page 1
Date 18.03.2013 14:05
parts-n° order
qty descriptionPos.
410185 1 BOLT HEX 8.8 DEL M6X161
410561 1 BOLT HEX 8.8 DEL M6X50 FT2
420604 1 BOLT HEX 8.8 DEL M10X25 FT3
430522 1 BOLT HEX 8.8 DEL M12X25 FT
USE WITH N-SERIES
4
430846 1 BOLT HEX 8.8 DEL M12X80
USE WITH ATV
4
460261 1 NUT HEX M6X1 LOCK5
460423 1 NUT HEX M10X1.5 LOCK6
460703 1 NUT HEX M12X1.75 LOCK7
722525 1 MONITOR MAGNETS SET OF 8PCS8
16056203 1 MAG MNT F. SPEED SNS 6 BOLT
USE WITH ATV SINGLE AXLE
9
16097703 1 SPEED RING, 5 BOLT, 4.5" B.C.
USE WITH ATV TANDEM AXLE
10
16098003 1 SPEED SENSOR BRACKET, ATV TNDM
USE WITH ATV TANDEM AXLE
11
16098103 1 REGULATOR VAVLE BRKT, ATV
ATV ONLY
12
16108803 1 FLOW METER BRKT, SPRAYMATE13
16098903 1 SPD SNSR BRKT, ATV SINGLE AXLE
USE WITH ATV SINGLE AXLE
14
26010603 1 SPRAYMATE II HARDI BRANCH CABL15
26010703 1 SPRAYMATE II BATTERY CABLE16
26010803 1 SPRAYMATE II 15'10PIN M/P CABL17
26011203 1 SPRAYMATE II CONSOLE18
26011303 1 SPRAYMATE II POWER SWITCH KIT
INCLUDES SWITCH, BRACKET, WIRE
19
26011403 1 SPRAMAT II MAST.RN/HOLD SW KIT
INCLUDES SWITCH, BRACKET, WIRE
20
26011503 1 SPRAYMATE II 15'3-PIN M/P CABL21
28030003 1 CLAMP HOSE GEAR P1" 671622
28032803 1 FLOW METER, SM II, 2-40 GPM23
28032903 1 SPRAYMATE II 1"SERVOVALV 150M24
28033003 1 SPRAYMATEII 5'FLOW/SPEED SEN C25
28033803 1 FITTING, 1"X1"NPT 90° ELBOW26
28033903 1 FITTING, 1"X3/4"NPT STRAIGHT27
41000303 1 MACHINE SCREW #8-32x3/4" SS28
341291 1 RUBBER HOSE CLAMP COVER 130MM29
28030103 1 CLAMP HOSE GEAR P5/4-S1.5"672430
92712403 1 HOSE R X1" X300PSI WP X0012"31
Agroparts: www.HARDI-INTERNATIONAL.com

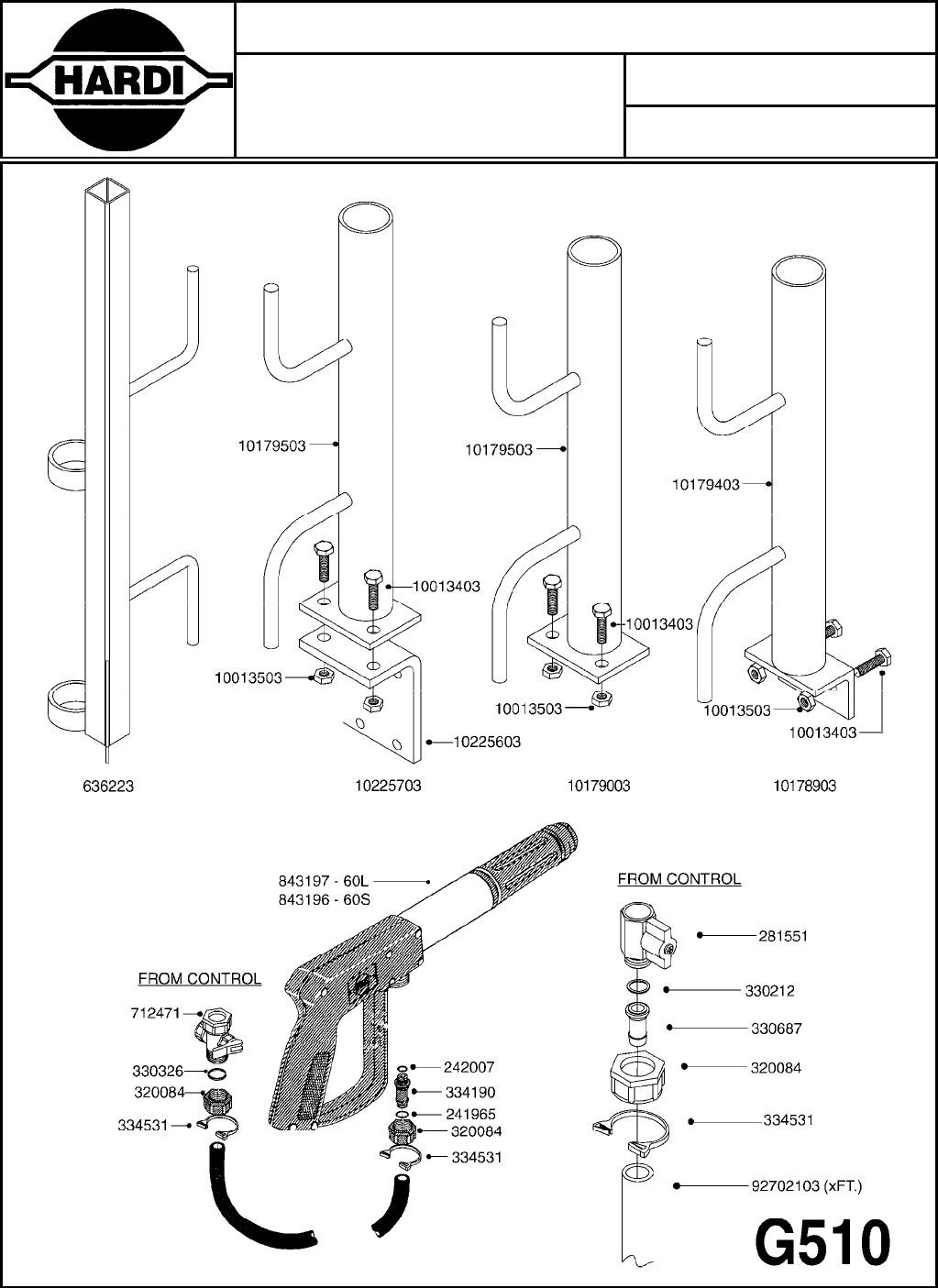

HOSE WRAPS
G510-HIN, 19:05:11
Page 0
Date 18.03.2013 14:05
Agroparts: www.HARDI-INTERNATIONAL.com
HOSE WRAPS
G510-HIN, 19:05:11
Page 1
Date 18.03.2013 14:05
parts-n° order
qty description
241965 1 O-RING 12.1 X 1.6
242007 1 O-RING D9.1X1.6
281551 1 BALL VALVE 1/2"
320084 1 FITT.DK NUT 1/2" BSP
330212 1 O-RING D19/D14X2.4 F.1/2"NUT
330326 1 O-RING D30/D24X2 F.1"NUT
330687 1 FITT.DK HB 1/2" F. 1/2" NUT
334190 1 FITT.DK HB 1/2' F. PISTOL 60S
334531 1 CLAMP HOSE PLASTIC 3/4"
636223 1 POST 12 VOLT TR30
712471 1 AGITATION VALVE ASSY. ON/OFF
843196 1 HANDGUN KIT TYPE 60 SHORT
843197 1 HANDGUN KIT TYPE 60 LONG
10013403 1 BOLT HEX 3/8-16X1 1/4 HCS Z5
10013503 1 NUT HEX NC 3/8"
10178903 1 WRAP HOSE SIDE MOUNT PLATE
10179003 1 WRAP HOSE BOTTOM PLATE MOUNT
10179403 1 WRAP WELDMENT FOR HI101789
10179503 1 WRAP WELDMENT FOR HI101790
10225603 1 BKT.FOR HOSE WRAP MOUNT NL NK
10225703 1 WRAP HOSE BDL.BOTTOM PLATE
92702103 1 HOSE R X1/2" X300PSI WP X0012"
Agroparts: www.HARDI-INTERNATIONAL.com
PRESSURE GAUGES
G520-HIN, 13:06:08
Page 0
Date 18.03.2013 14:05
Agroparts: www.HARDI-INTERNATIONAL.com
PRESSURE GAUGES
G520-HIN, 13:06:08
Page 1
Date 18.03.2013 14:05
parts-n° order
qty description
280637 1 GAUGE 2.5"BR BOTT.PSI85 BAR6
283754 1 GAUGE 2.5'BR REAR PSI200 BAR16
284269 1 GAUGE 2.5'BR BOTT.BAR16
844082 1 GAUGE 1.5'BR REAR PSI140BAR10
844086 1 GAUGE 2.5'BR BOTT.PSI1000BAR80
844088 1 GAUGE 2.5'BR BOTT PSI1200BAR80
10349503 1 GAUGE 2'BR REAR PSI100KP700
28014403 1 GAUGE 4"BR REAR PSI200
28026103 1 GAUGE 200PSI/BR,4",1/4"BSP-BTM
28026203 1 GAUGE 200PSI/BR,2.5"1/4BSP-BTM
Agroparts: www.HARDI-INTERNATIONAL.com

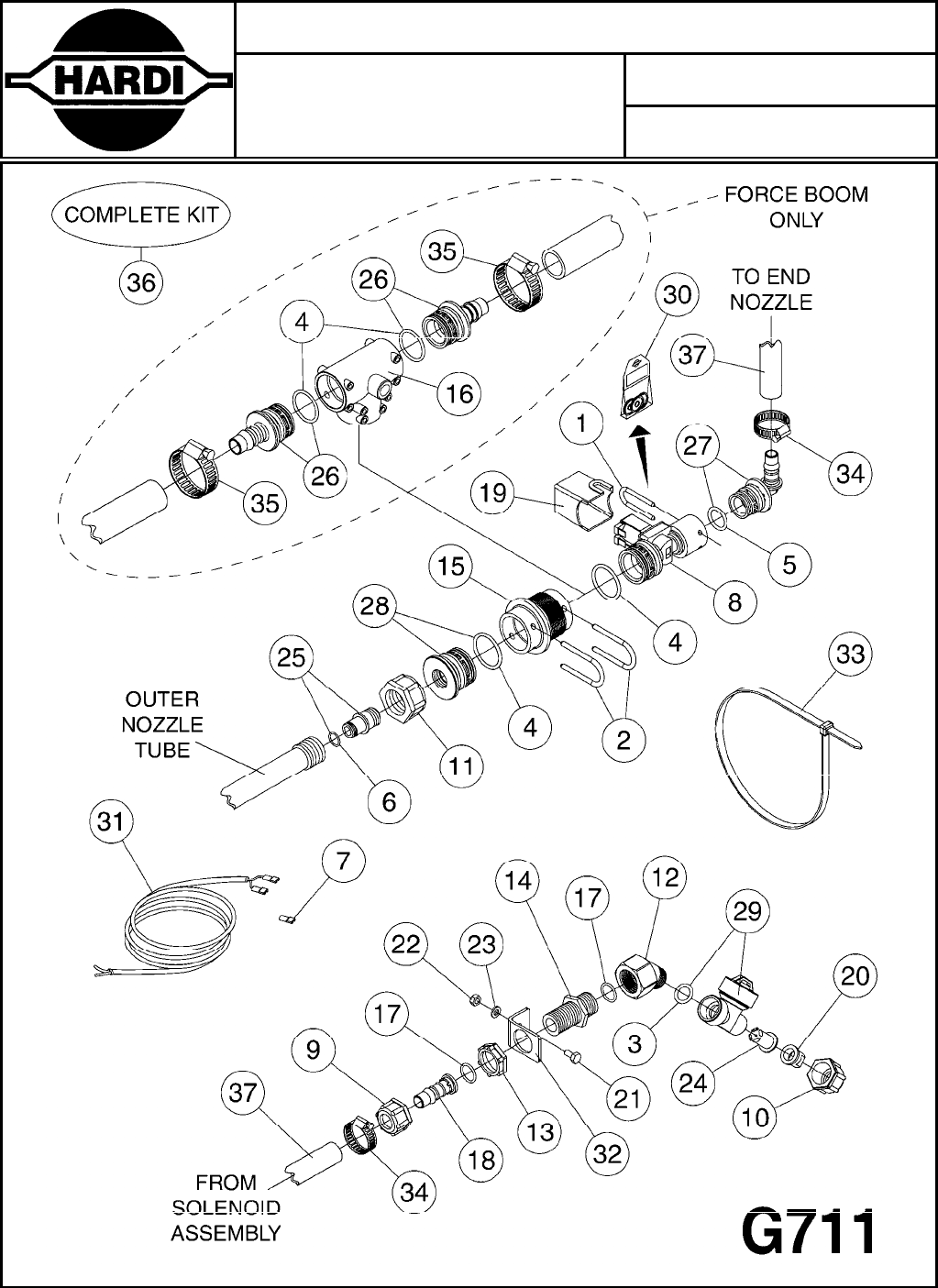

ELECTRIC END NOZZLE KIT
G711-HIN, 11:05:10
Page 0
Date 18.03.2013 14:05
Agroparts: www.HARDI-INTERNATIONAL.com
ELECTRIC END NOZZLE KIT
G711-HIN, 11:05:10
Page 1
Date 18.03.2013 14:05
parts-n° order
qty descriptionPos.
145994 1 FITT.DK S-40 FORK1
145995 1 FITT.DK S-53 FORK2
240177 1 O-RING D16, 1/11, 3 X 2,43
242354 1 O-RING D32.2X3.0 VITON F.S-534
242355 1 O-RING D19.2X3.0 VITON F.S-405
242594 1 O-RING D14 X 1.78 SCH.70-EPDM6
261539 1 SPADE F.ELEC CONNEC BLUE INSUL7
262104 1 VALVE, SOLENOID, S53/S408
320084 1 FITT.DK NUT 1/2" BSP9
320187 1 FITT.DK CAP 3/8" BSP BLACK10
320283 1 FITT.DK NUT 3/4"BSP11
320596 1 FITT.DK ELB 3/8'-1/2'BSP 45DEG12
321307 1 FITT.DK NUT 1/2" BSP JAMB13
321742 1 FITT.DK BULKHEAD 1/2' BSP14
322103 1 FITT.DK S-53 BULKHEAD15
322352 1 FITT.DK S-53 TEE16
330212 1 O-RING D19/D14X2.4 F.1/2"NUT17
330687 1 FITT.DK HB 1/2" F. 1/2" NUT18
334965 1 COVER FOR S53 SOLENOID VALVE19
370366 1 NOZZLE END FAN 1850-G 15020
410185 1 BOLT HEX 8.8 DEL M6X1621
460261 1 NUT HEX M6X1 LOCK22
471125 1 WASHER D12/D6.4x1.6 SS23
614366 1 FILTER 50 MESH F.NOZZLE24
614367 1 FILTER 80 MESH F.NOZZLE24
614368 1 FILTER 100 MESH F.NOZZLE24
720856 1 FITT.DK 1/2'BSP ASSY.F.3/4'NUT25
726558 1 FITT.DK S53 STR. 3/4" W.ORING26
726567 1 FITT.DK S-40 ELB.1/2" W.ORING27
726694 1 PLUG,S53,1/2"FBSP THD W.ORING28
729610 1 NOZZLE ASSY. 3/8 THREAD29
750722 1 REPAIR KIT FOR 3S SC CONTROL30
983087 1 ELEC. CABLE 2 WIRE X 0.75MM31
16180100 1 PLATE, END ROW NOZZLE32
28025203 1 TIE STRAP L=23" x W=1/2"33
28029803 1 CLAMP HOSE GEAR P1/2" 670834
28029903 1 CLAMP HOSE GEAR P3/4"-S1" 671235
82611603 1 ELEC.END NOZ.KIT. OBSOLETE36
92702103 1 HOSE R X1/2" X300PSI WP X0012"37
Agroparts: www.HARDI-INTERNATIONAL.com

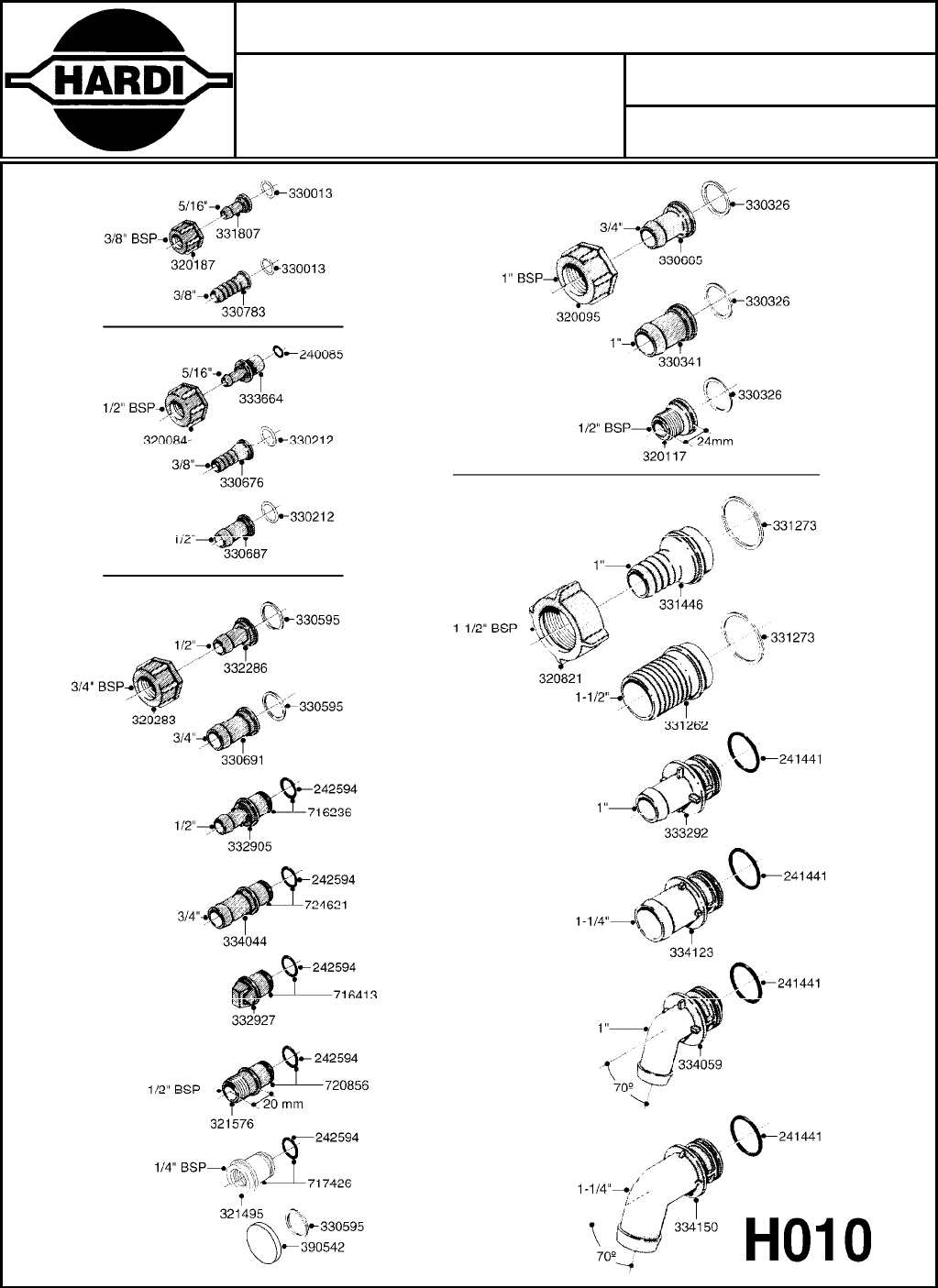

FITTINGS-CAP NUTS & HOSE BARBS
H010-HIN, 28:11:06
Page 0
Date 18.03.2013 14:05
Agroparts: www.HARDI-INTERNATIONAL.com
FITTINGS-CAP NUTS & HOSE BARBS
H010-HIN, 28:11:06
Page 1
Date 18.03.2013 14:05
parts-n° order
qty description
240085 1 O-RING D13,1/8,3X02,4 NITRIL
241441 1 O-RING D29.3X3
242594 1 O-RING D14 X 1.78 SCH.70-EPDM
320084 1 FITT.DK NUT 1/2" BSP
320095 1 FITT.DK NUT 1" BSP
320117 1 FITT.DK CONN.1/2"BSP F. 1" CAP
320187 1 FITT.DK CAP 3/8" BSP BLACK
320283 1 FITT.DK NUT 3/4"BSP
320821 1 FITT.DK NUT 1-1/2" BSP
321495 1 FITT.DK REDUC 1/4'BSP F.3/4'NT
321576 1 FITT.DK CONN 1/2"BSP F.3/4"NUT
330013 1 O-RING D15/D10X2.5 F.3/8"NUT
330212 1 O-RING D19/D14X2.4 F.1/2"NUT
330326 1 O-RING D30/D24X2 F.1"NUT
330341 1 FITT.DK HB 1" F. 1" NUT
330595 1 O-RING D24.6/D20X2.1 -3/4"
330665 1 FITT.DK HB 3/4"F.1" NUT
330676 1 FITT.DK HB 3/8" F. 1/2" NUT
330687 1 FITT.DK HB 1/2" F. 1/2" NUT
330691 1 FITT.DK HB 3/4'F.3/4' NUT
330783 1 FITT.DK HB 3/8"F.3/8" NUT
331262 1 FITT.DK HB 1-1/2" F. 1-1/2"NUT
331273 1 O-RING D44/D38X2 F.1-1/2"
331446 1 FITT.DK HB 1" F.1-1/2" NUT
331807 1 FITT.DK HB 5/16" F.3/8" NUT
332286 1 FITT.DK HB 1/2" F. 3/4" NUT
332905 1 FITT.DK HB 1/2" F. 3/4" CAP
332927 1 FITT.DK PL.F. NOZZLE TUBE
333292 1 FITT.DK HB 1"O'RING F.1-1/2"
333664 1 FITT.DK HB 5/16' F. 1/2' NUT
334044 1 FITT.DK HB 3/4' F. 3/4' CAP
334059 1 FITT.DK EL 1" 110 DEG.F.1-1/2"
334123 1 FITT.DK HB 1-1/4"O-RNG F.1-1/2
334150 1 FITT.DK HB 1-1/4" 110 F.1-1/2"
390542 1 PLUG WASHER FOR 3/4'CAP NUT
716236 1 FITT.DK HB 1/2" ASSY. F. 3/4"
716413 1 FITT.DK PLUG ASSY. F.NOZ TUBE
717426 1 FITT.DK REDUC 1/4"BSP F.3/4"N
720856 1 FITT.DK 1/2'BSP ASSY.F.3/4'NUT
724621 1 FITT.DK HB 3/4"ASSY F.3/4" NUT
Agroparts: www.HARDI-INTERNATIONAL.com

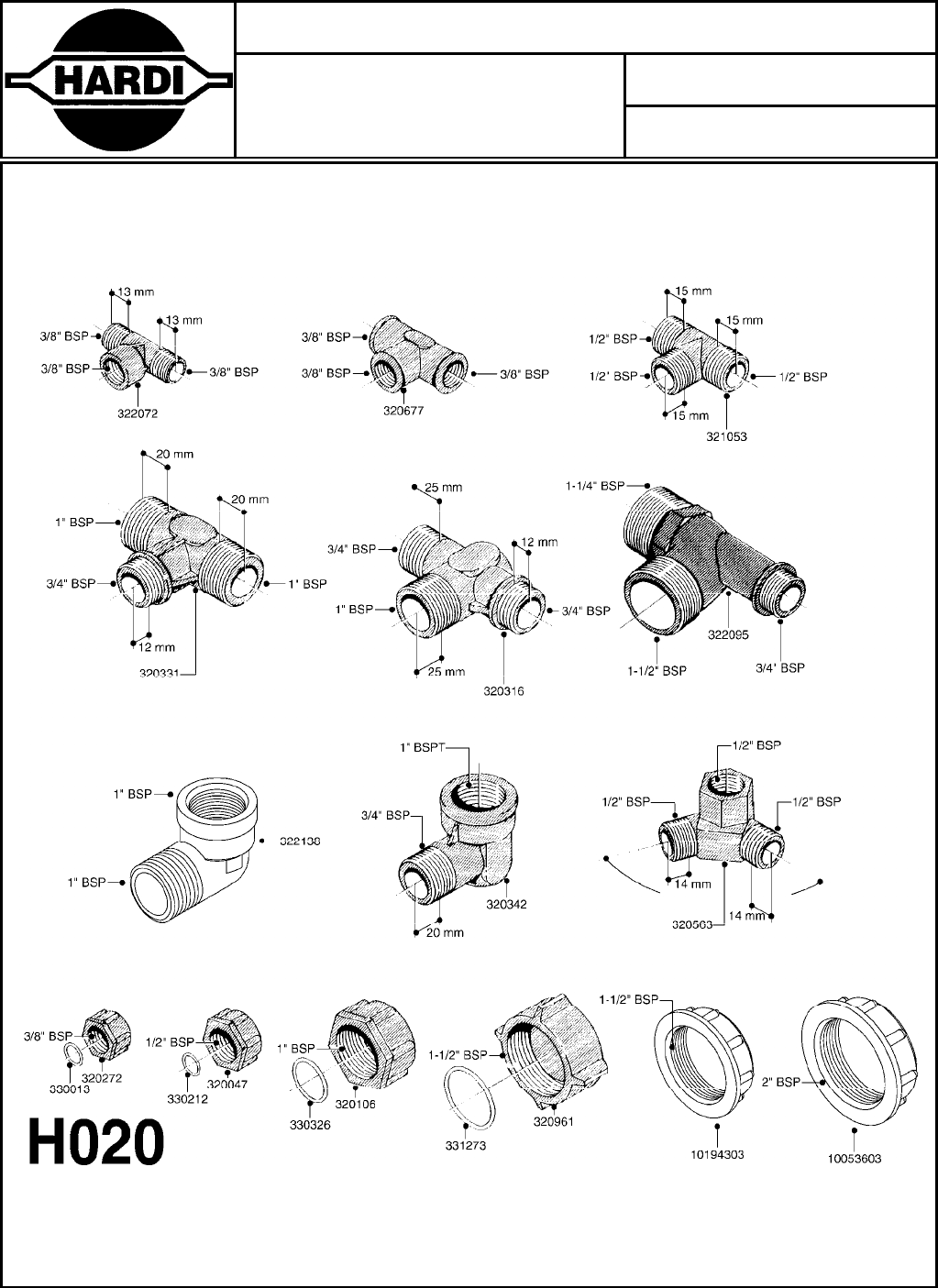

FITTNGS-T-PIECES,CAPS & ELBOWS
H020-HIN, 01:01:01
Page 0
Date 18.03.2013 14:05
Agroparts: www.HARDI-INTERNATIONAL.com
FITTNGS-T-PIECES,CAPS & ELBOWS
H020-HIN, 01:01:01
Page 1
Date 18.03.2013 14:05
parts-n° order
qty description
10053603 1 FITT. CAPNUT 2"BSP 5601
10194303 1 CAP BLANK 1 1/2 MCPHEE 210060
320047 1 FITT.DK CAPNUT 1/2" BSP
320106 1 FITT.DK CAPNUT 1" BSP
320272 1 FITT.DK CAPNUT 3/8' BSP
320316 1 FITT.DK TEE 3/4" X3/4" X1"BSP
320331 1 FITT.DK TEE 1" - 1" - 3/4" BSP
320342 1 FITT.DK EL 3/4"M X 1"F BSP
320563 1 FITT.DK 3 WAY 1/2" 110 DEG.
320677 1 NO LONGER AVAILABLE
320961 1 FITT.DK CAPNUT 1-1/2" BSP
321053 1 FITT.DK TEE 1/2 X1/2 X1/2" BSP
322072 1 FITT.DK TEE 3/8'X3/8'X3/8' BSP
322095 1 FITT.DK TEE 1-1/2 X1 X3/4" BSP
322138 1 FITT.DK ELB 1"M X 1"F BSP
330013 1 O-RING D15/D10X2.5 F.3/8"NUT
330212 1 O-RING D19/D14X2.4 F.1/2"NUT
330326 1 O-RING D30/D24X2 F.1"NUT
331273 1 O-RING D44/D38X2 F.1-1/2"
Agroparts: www.HARDI-INTERNATIONAL.com
FITTINGS - HEXAGON NIPPLES
H030-HIN, 01:01:01
Page 0
Date 18.03.2013 14:05
Agroparts: www.HARDI-INTERNATIONAL.com
FITTINGS - HEXAGON NIPPLES
H030-HIN, 01:01:01
Page 1
Date 18.03.2013 14:05
parts-n° order
qty description
10015303 1 FITT.PO.HN 1.00X1.00 M1000
10425003 1 FITT.PO.HN 1.25X1.00 MCPHEE
320132 1 FITT.DK HN 1" BSP
320176 1 FITT.DK HN 3/8"X1/2" BSP
320445 1 FITT.DK HN 1/4"X3/8" BSP
320655 1 FITT.DK HN 1/2"-1/2" BSP
320692 1 FITT.DK HN 3/8'BSPX1/4'NPT
320703 1 FITT.DK HN 3/8BSP X1/2 &1/4NPT
320725 1 FITT.DK NIPPLE 3/8"-3/8" BSP
320902 1 FITT.DK HN 3/8'X 1/4' BSP
390232 1 FITT.DK HN 1-1/2' X 1-1/4' BSP
390276 1 FITT.DK HN 1'BSP
Agroparts: www.HARDI-INTERNATIONAL.com
FITTINGS - NIPPLES & ELBOWS
H040-HIN, 01:01:01
Page 0
Date 18.03.2013 14:05
Agroparts: www.HARDI-INTERNATIONAL.com
FITTINGS - NIPPLES & ELBOWS
H040-HIN, 01:01:01
Page 1
Date 18.03.2013 14:05
parts-n° order
qty description
10530803 1 FITT.PO.SE 2.00X2.00 45 DEG.
320191 1 FITT.DK ELB 3/8' BSP 45 DEGREE
320482 1 FITT.DK ELB. 1/2" BSP 60 DEG.
320596 1 FITT.DK ELB 3/8'-1/2'BSP 45DEG
320607 1 FITT.DK HN 3/8M X 3/8F BSP LNG
320633 1 FITT.DK HN 3/8"M X 3/8"F BSP
321451 1 FITT.DK ELB.1-1/2 X1-1/4 80DEG
321532 1 FITT.DK REDUC 3/4' X 1/2' BSP
390233 1 FITT.DK REDUC 1-1/2" X 1" BSP
Agroparts: www.HARDI-INTERNATIONAL.com

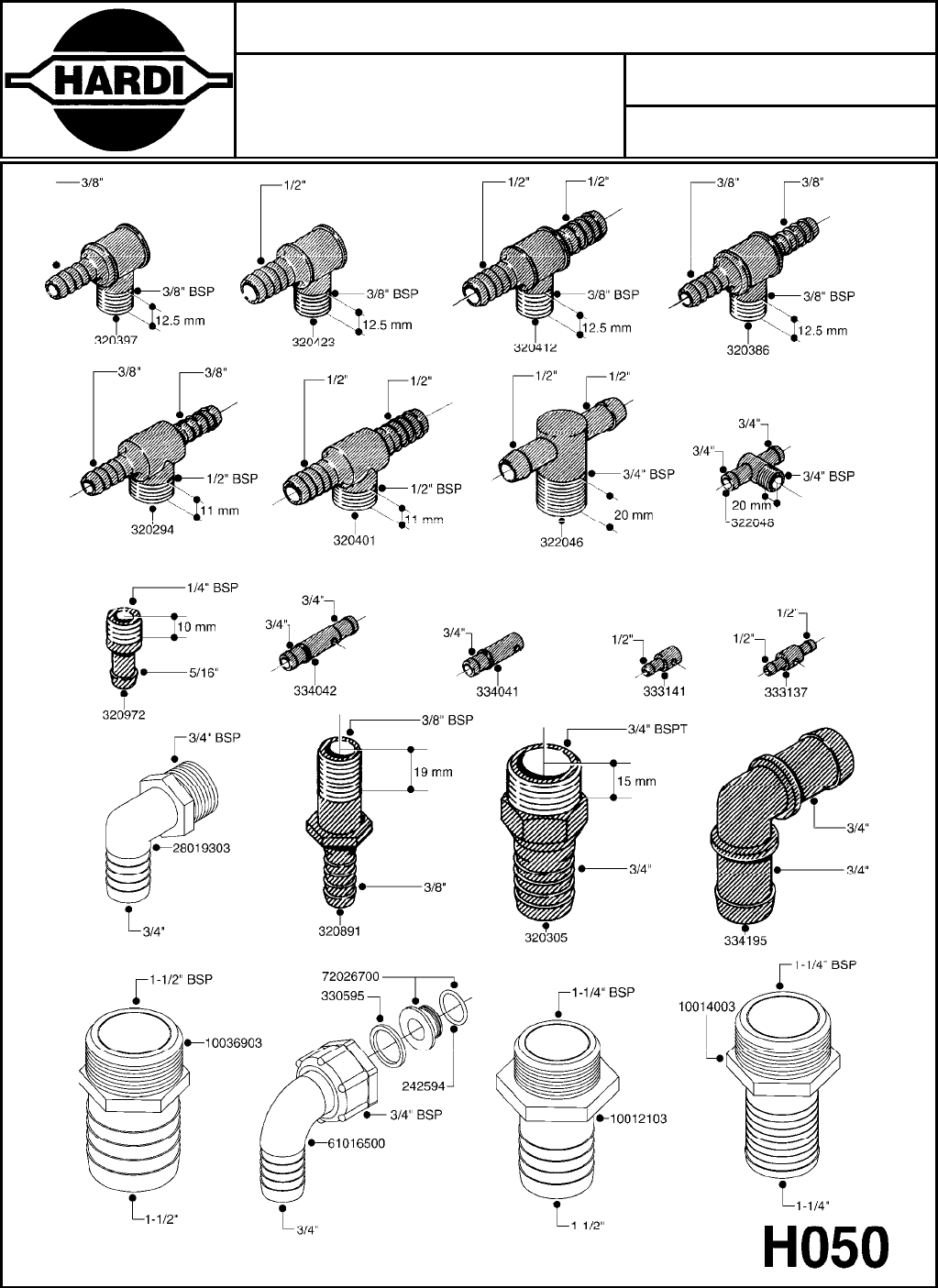

FITTINGS - HOSE CONNECTORS
H050-HIN, 31:03:09
Page 0
Date 18.03.2013 14:05
Agroparts: www.HARDI-INTERNATIONAL.com
FITTINGS - HOSE CONNECTORS
H050-HIN, 31:03:09
Page 1
Date 18.03.2013 14:05
parts-n° order
qty description
242594 1 O-RING D14 X 1.78 SCH.70-EPDM
320294 1 FITT.DK TEE 3/8X3/8HB X1/2"BSP
320305 1 FITT.DK HB 3/4'- 3/4' BSP
320386 1 FITT.DK TEE 3/8X3/8HB X3/8"BSP
320397 1 FITT.DK ELB 3/8"HB X 3/8" BSP
320401 1 FITT.DK TEE 1/2X1/2HB X1/2"BSP
320412 1 FITT.DK TEE 1/2X1/2HB X3/8'BSP
320423 1 FITT.DK ELB 1/2'HB X 3/8' BSP
320891 1 FITT.DK HB 3/8'- 3/8' BSP
320972 1 FITT.DK HB 5/16'- 1/4' BSP
322046 1 FITT.DK TEE 1/2X1/2HB X3/4'BSP
322048 1 FITT.DK TEE 3/4X3/4HB X3/4'BSP
330595 1 O-RING D24.6/D20X2.1 -3/4"
333137 1 FITT.DK CONN.1/2" F.NOZZ. DOUB
333141 1 FITT.DK CONN.1/2" F.NOZZ.SING
334041 1 FITT.DK CONN.3/4' F.NOZZ. SING
334042 1 FITT.DK CONN.3/4' F.NOZZ. DOUB
334195 1 FITT.DK ELB. 3/4"HB X 3/4"HB
10012103 1 FITT.PO.HB 1.25X1.50 IMB1012
10014003 1 FITT.PO.HB 1.25X1.25 IMB1010
10036903 1 FITT.PO.HB 1.50X1.50 IMB1212
28019303 1 FITTING HB ELB 3/4NPT-3/4HOSE
61016500 1 HOSE TAIL 3/4" 90°+RG CAP 3/4"
72026700 1 NOZZLE TUBE ADAPTER W/O-RING
Agroparts: www.HARDI-INTERNATIONAL.com

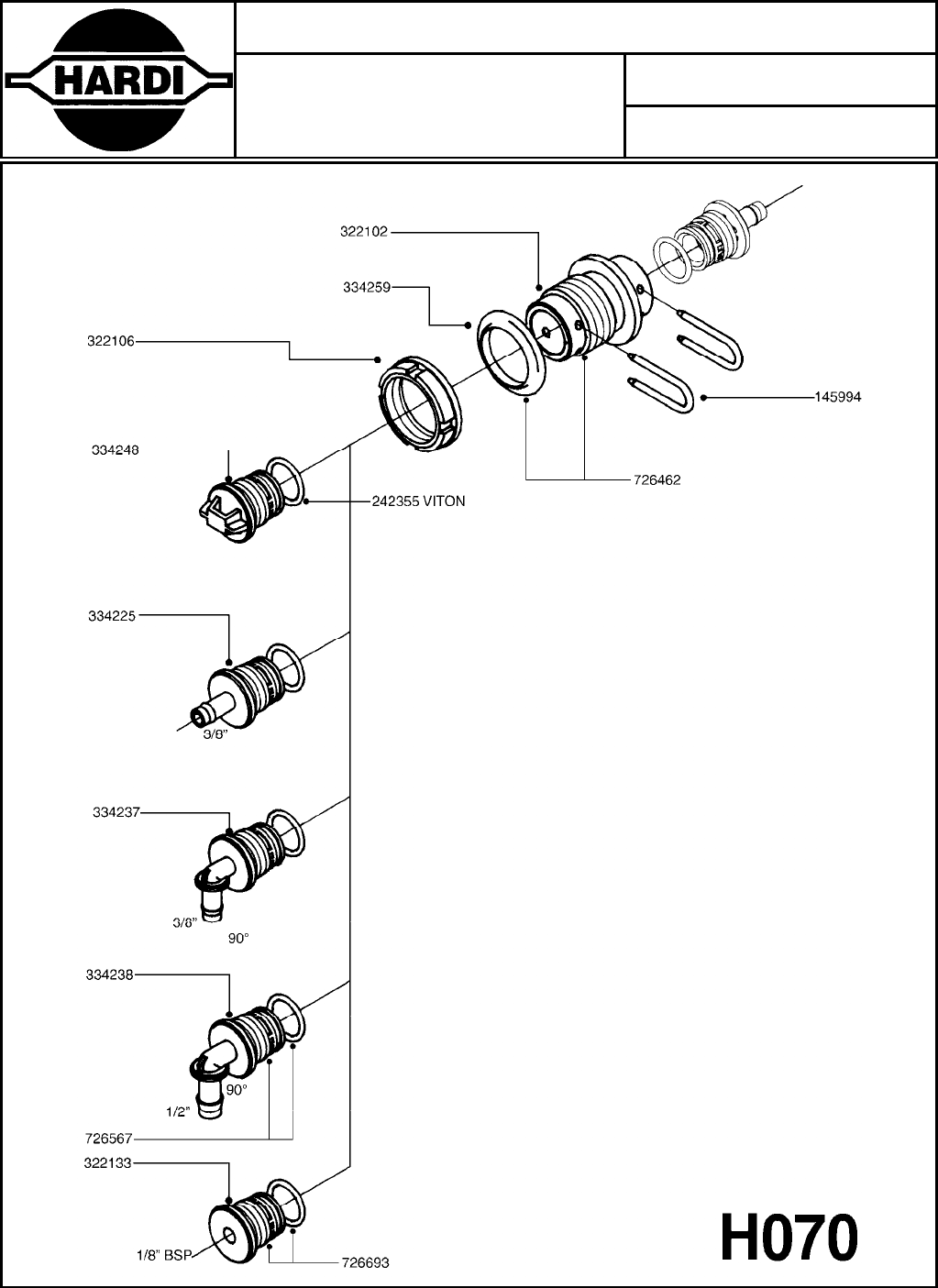

FITTINGS - S-40
H070-HIN, 01:02:12
Page 0
Date 18.03.2013 14:06
Agroparts: www.HARDI-INTERNATIONAL.com
FITTINGS - S-40
H070-HIN, 01:02:12
Page 1
Date 18.03.2013 14:06
parts-n° order
qty description
145994 1 FITT.DK S-40 FORK
242355 1 O-RING D19.2X3.0 VITON F.S-40
322102 1 FITT.DK S-40 BULKHEAD
322106 1 FITT.DK S-40 BULKHEAD NUT
322133 1 FITT.DK S-40 PLUG W 1/8 THREAD
334225 1 FITT.DK S-40 STR.3/8'
334237 1 FITT.DK S-40 ELB.3/8'
334238 1 FITT.DK S-40 ELB.1/2'
334248 1 FITT.DK S-40 PLUG
334259 1 GASKET F. S-40 BULKHEAD
726462 1 FITT. S40 BULHEAD W. GASKET
726567 1 FITT.DK S-40 ELB.1/2" W.ORING
726693 1 FITT.DK S-40 PLUG 1/8BSP ORING
Agroparts: www.HARDI-INTERNATIONAL.com

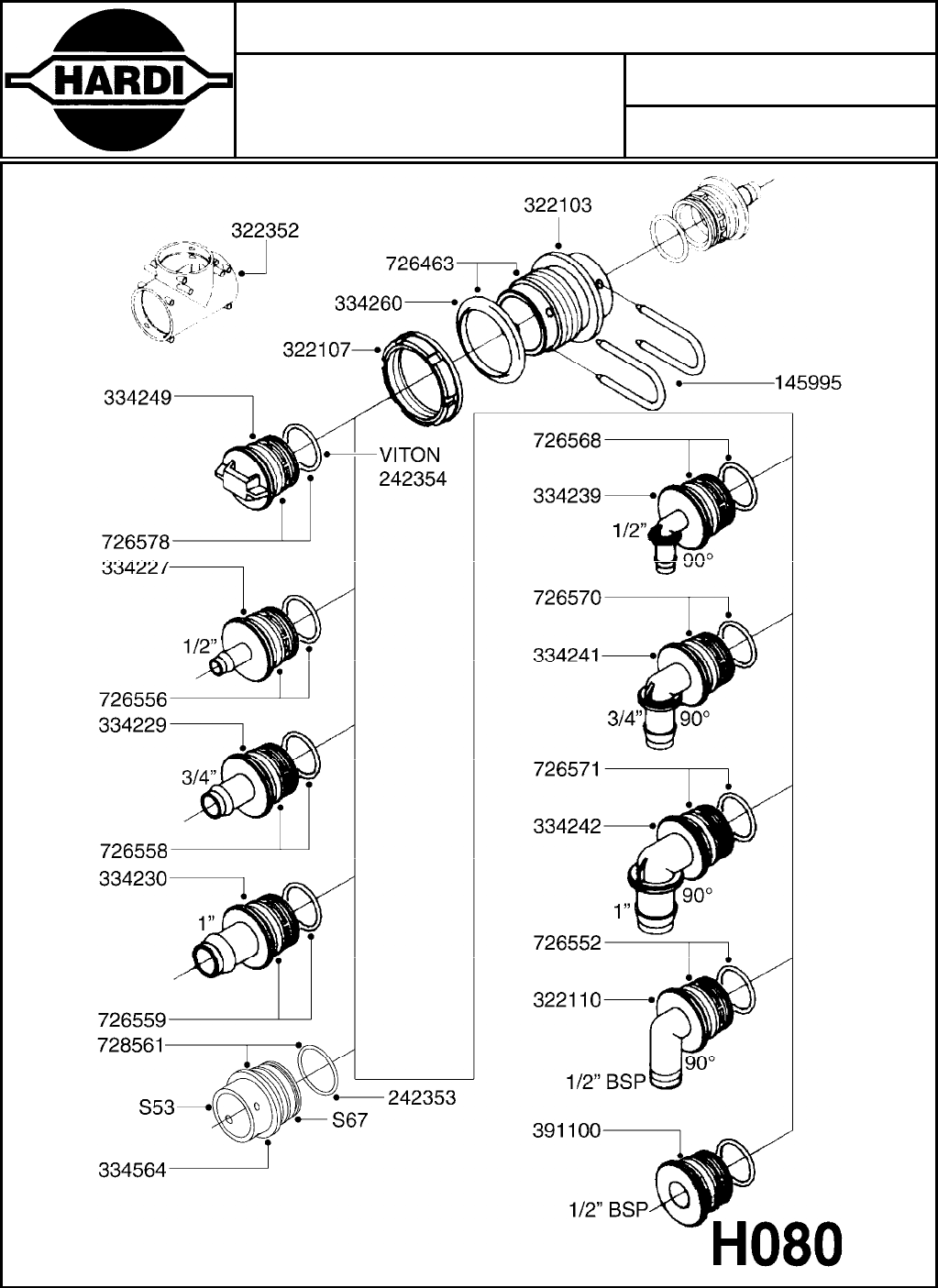

FITTINGS - S-53
H080-HIN, 01:02:12
Page 0
Date 18.03.2013 14:06
Agroparts: www.HARDI-INTERNATIONAL.com
FITTINGS - S-53
H080-HIN, 01:02:12
Page 1
Date 18.03.2013 14:06
parts-n° order
qty description
145995 1 FITT.DK S-53 FORK
242353 1 O-RING D44.2X3.0 VITON F.S-67
242354 1 O-RING D32.2X3.0 VITON F.S-53
322103 1 FITT.DK S-53 BULKHEAD
322107 1 FITT.DK S-53 BULKHEAD NUT
322110 1 FITT.DK S-53 ELB. 1/2" BSP
322352 1 FITT.DK S-53 TEE
334227 1 FITT.DK S-53 STR.1/2'
334229 1 FITT.DK S-53 STR.3/4"
334230 1 FITT.DK S-53 STR.1"
334239 1 FITT.DK S-53 ELB.1/2"
334241 1 FITT.DK S-53 ELB.3/4"
334242 1 FITT.DK S-53 ELB.1"
334249 1 FITT.DK S-53 PLUG
334260 1 GASKET F. S-53 BULKHEAD
334564 1 FITT.DK S-67 TO S-53 ADAPTER
391100 1 FITT.DK S-53THREAD INS.1/2"BSP
726463 1 FITT.DK S53 BULKHEAD W/GASKET
726552 1 FIT.DK S-53X90 1/2" BSP,O-RING
726556 1 FITT.DK S-53 HB 1/2" W/O-RING
726558 1 FITT.DK S53 STR. 3/4" W.ORING
726559 1 FITT DK. S-53 HB 1" W/O-RING
726568 1 FITT.DK.S-53 HB 1/2"90 W/ORING
726570 1 FITT.DK S-53 ELB.3/4" W.ORING
726571 1 FITT.DK S-53 ELB.1", W ORING
726578 1 FITT.DK S53 PLUG WITH O-RING
728561 1 FITT.DK. S67M - S53F REDUCER
Agroparts: www.HARDI-INTERNATIONAL.com
FITTINGS - S-67
H100-HIN, 08:11:12
Page 0
Date 18.03.2013 14:06
Agroparts: www.HARDI-INTERNATIONAL.com
FITTINGS - S-67
H100-HIN, 08:11:12
Page 1
Date 18.03.2013 14:06
parts-n° order
qty description
145996 1 FITT.DK S-67 FORK
242351 1 O-RING D69.5X3.0 VITON F.S-93
242353 1 O-RING D44.2X3.0 VITON F.S-67
322104 1 FITT.DK S-67 BULKHEAD
322108 1 FITT.DK S-67 BULKHEAD NUT
322132 1 FITT.DK S-67 THREAD INS.1'BSP
322224 1 FITT.DK S-67 TEE
322325 1 FITT.DK S-67 X 1-1/2"BSP LONG
334231 1 FITT.DK S-67 STR.1'
334232 1 FITT.DK S-67 STR.1-1/4'
334233 1 FITT.DK S-67 STR.1-1/2' RUBBER
334243 1 FITT.DK S-67 ELB.1"
334244 1 FITT.DK S-67 ELB.1-1/4"
334245 1 FITT.DK S-67 ELB. 1-1/2'RUBBER
334250 1 FITT.DK S-67 PLUG
334261 1 GASKET F. S-67 BULKHEAD
334444 1 FITT.DK S-67 STR.1-1/2" PVC
334445 1 FITT.DK S-67 ELB.1-1/2"
334564 1 FITT.DK S-67 TO S-53 ADAPTER
334573 1 FITT.DK S-67 CONNECTOR
334601 1 FITT.DK S-93 TO S67 ADAPTOR
334634 1 FITT.DK ADAPTER S-93M S67M
390508 1 FITT DK S67X1.5M BSPalt322325
461217 1 NUT HEX M5 LOCK
726464 1 FITT.DK S-67 BULKHEAD W/GASKET
726560 1 FITT.DK S-67 STR.1" W.O'RING
726561 1 FITT.DK S-67 STR.1-1/4" O'RING
726562 1 FITT.DK.S-67 HB 1-1/2"W.O-RING
726572 1 FITT.DK S-67 1" ELBOW 90 ASSY.
726573 1 FITT. S67 5/4" 90º W/O-RING
726574 1 FIT.DK S67X90,1.5HB W ORING
726579 1 FITT. S67 PLUG W/O-RING
727223 1 FITT.S67 1.5" STRAIT S W/ORING
727224 1 FITT.DK S-67 ELB.1-1/2"
728526 1 FITT.DK S-67 CONNECT W. ORINGS
728527 1 ADAPTER S67FE TO S93MALE W/ORI
728561 1 FITT.DK. S67M - S53F REDUCER
728562 1 FITT.DK S-93 TO S67 ADAPTOR
728578 1 FITT.DK S-67X1-1/2"BSP LG W/OR
14012200 1 FITT.DK S-67 FORK W/M5 THREADS
33509700 1 FITT.DK S-67 45° 1-1/4"
72433000 1 FITT.S67 1" 45º W/ORING
72433100 1 FITT.DK S-67 45° 1-1/4"W/ORING
72433200 1 FITT.S67 1-1/2" 45ºPVC W/ORING
72433400 1 FITT.S67 1-1/2" 45ºBSP W/ORING
Agroparts: www.HARDI-INTERNATIONAL.com
BULK HOSE
H120-HIN, 11:05:10
Page 0
Date 18.03.2013 14:06
Agroparts: www.HARDI-INTERNATIONAL.com
BULK HOSE
H120-HIN, 11:05:10
Page 1
Date 18.03.2013 14:06
parts-n° order
qty description
927205 1 HOSE R X CLEAR X 3/4 X 0012"
927231 1 HOSE R X PVCX3/4 CLR/BRD 0012"
927253 1 HOSE R X PE D4/D2 X 0012"RED
927264 1 HOSE R X PE D6/D4 X 0012"
927268 1 HOSE R X PVC X 1/4 X 0012"
927269 1 HOSE R X PVC X 1/2 X 0012"
927270 1 HOSE R X PVC X 3/4 X 0012"
927281 1 HOSE R X PVC X 5/16 X 0012"
927284 1 HOSE 3/8 PVC W/ INSERT
927306 1 HOSE R X PE D8/D6 X 0012"BLACK
927330 1 HOSE R X PE D10/D8 X 012"BLACK
10631003 1 HOSE R X CLEAR BRAID.X 1/2 12"
92701703 1 HOSE R X3/8" X300PSI WP X0012"
92702103 1 HOSE R X1/2" X300PSI WP X0012"
92702403 1 HOSE PVC SUCT GRAY 1"
92702603 1 HOSE PVC SUCT GRAY 1-1/2"
92702703 1 HOSE PVC SUCT GRAY 2"
92702803 1 HOSE PVC SUCT GRAY 2-1/2"
92703203 1 HOSE R X3/4" X300PSI WP X0012"
92712403 1 HOSE R X1" X300PSI WP X0012"
92734403 1 HOSE R X5/4" X200PSI WP X0012"
92738900 1 HOSE R X PVC X 1-1/4" 0012"
Agroparts: www.HARDI-INTERNATIONAL.com

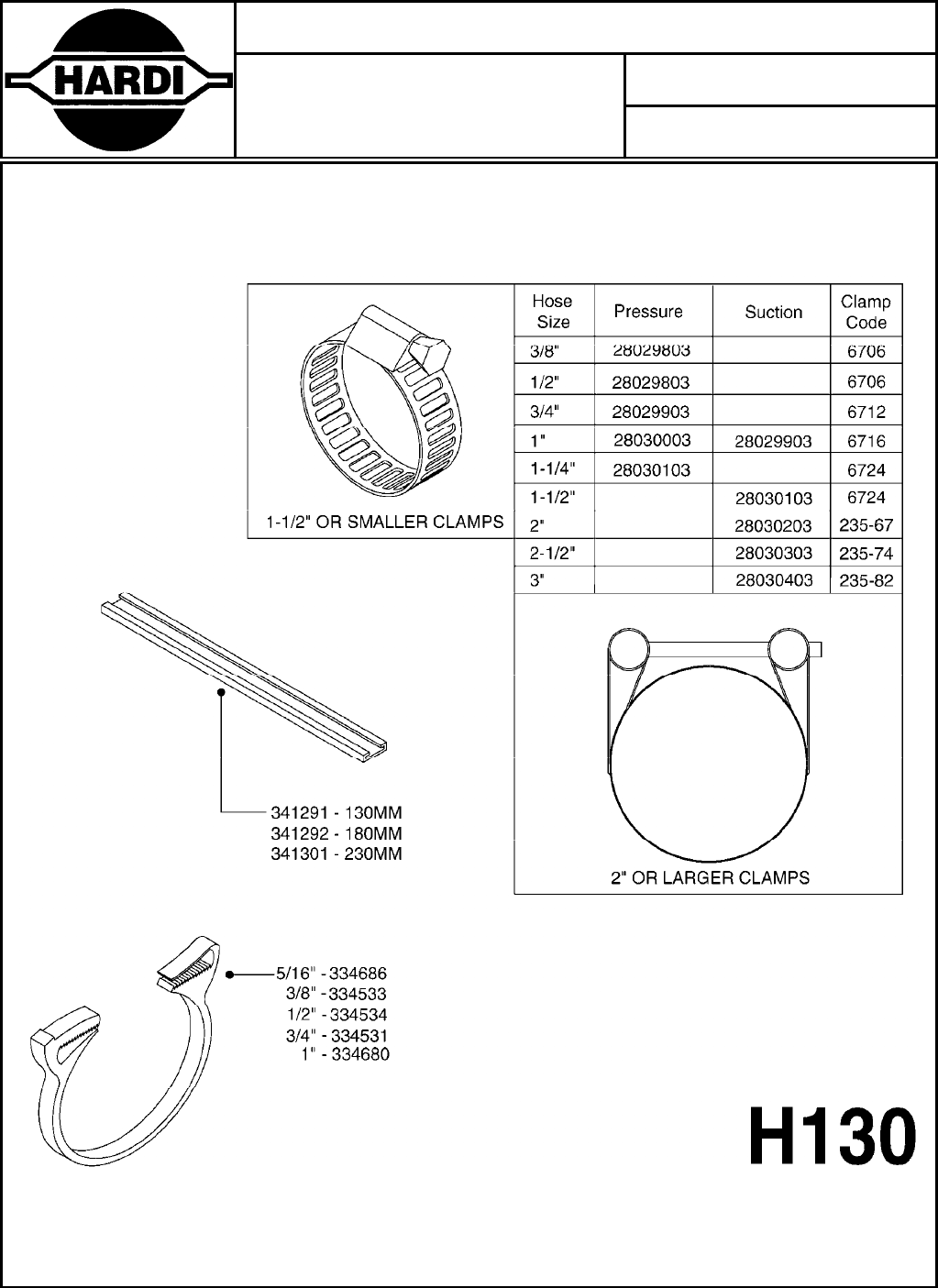

HOSE CLAMPS
H130-HIN, 05:07:11
Page 0
Date 18.03.2013 14:06
Agroparts: www.HARDI-INTERNATIONAL.com
HOSE CLAMPS
H130-HIN, 05:07:11
Page 1
Date 18.03.2013 14:06
parts-n° order
qty description
334531 1 CLAMP HOSE PLASTIC 3/4"
334533 1 CLAMP HOSE PLASTIC 3/8"
334534 1 CLAMP HOSE PLASTIC 1/2"
334680 1 CLAMP HOSE PLASTIC 1"
334686 1 CLAMP HOSE PLASTIC 5/16'
341291 1 RUBBER HOSE CLAMP COVER 130MM
341292 1 RUBBER HOSE CLAMP COVER 180MM
341301 1 RUBBER HOSE CLAMP COVER 230MM
28029803 1 CLAMP HOSE GEAR P1/2" 6708
28029903 1 CLAMP HOSE GEAR P3/4"-S1" 6712
28030003 1 CLAMP HOSE GEAR P1" 6716
28030103 1 CLAMP HOSE GEAR P5/4-S1.5"6724
28030203 1 CLAMP HOSE T-BOLT S2" 235-67
28030303 1 CLAMP HOSE T-BOLT S2.5" 235-76
28030403 1 CLAMP HOSE T-BOLT S3" 235-82
