Service Manual

ViewSonic N3752w-1M

Model No. VS11405-1M

37” LCD TV

(N3752w-1M_SM Rev. 1a Oct. 2006)

ViewSonic® 381 Brea Canyon Road, Walnut, California 91789 USA - (800) 888-8583

reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or

computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical,

manual or otherwise, without the prior written permission of ViewSonic Corporation.

Disclaimer

ViewSonic makes no representations or warranties, either expressed or implied, with respect to the contents

hereof and specifically disclaims any warranty of merchantability or fitness for any particular purpose. Further,

ViewSonic reserves the right to revise this publication and to make changes from time to time in the contents

hereof without obligation of ViewSonic to notify any person of such revision or changes.

Trademarks

Optiquest is a registered trademark of ViewSonic Corporation.

ViewSonic is a registered trademark of ViewSonic Corporation.

All other trademarks used within this document are the property of their respective owners.

Revision History

Revision SM Editing Date ECR Number Description of Changes Editor

1a 10/24/06 Initial Release Sophia Kao

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

TABLE OF CONTENTS

1. Precautions and Safety Notices.................................................................1

3. Front Panel Function Control Description................................................ 9

4. Circuit Description.......................................................................................20

5. Adjustment Procedure................................................................................24

6. Trouble Shooting Flow Chart................................................................ .....48

7. Block Diagram.............................................................................................52

8. Schematic Diagrams....................................................................................53

9. PCB Layout Diagrams.................................................................................79

10. Exploded Diagram And Exploded Parts List...........................................85

11. Recommend Spare Parts List...................................................................88

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

2. Specification.................................................................................................4

1. Precautions and Safety Notices

1. Appropriate Operation

(1) Turn off the product before cleaning.

(2) Use only a dry soft cloth when cleaning the LCD panel surface.

(3) Use a soft cloth soaked with mild detergent to clean the display housing.

(4) Disconnect the power plug from AC outlet if the product is not used for a long period of

time.

(5) If smoke, abnormal noise, or strange odor is present, immediately switch the LCD display

off.

(6) Do not touch the LCD panel surface with sharp or hard objects.

(7) Do not place heavy objects on the LCD display, video cable, or power cord.

(8) Do not use abrasive cleaners, waxes or solvents for your cleaning.

(9) Do not operate the product under the following conditions:

- Extremely hot, cold or humid environment.

- Areas susceptible to excessive dust and dirt.

- Near any appliance generating a strong magnetic field.

- Place in direct sunlight.

2. Caution

No modification of any circuit should be attempted. Service work should only be performed after

you are thoroughly familiar with all of the following safety checks and servicing guidelines.

3. Safety Check

Care should be taken while servicing this LCD display. Because of the high voltage used in the

inverter circuit, the voltage is exposed in such areas as the associated transformer circuits.

4. Power Supply Requirements

The external AC power operating range shall be from 90 to 264Vac

5. LCD Module Handling Precautions

5.1. Handling Precautions

(1) Since front polarizer is easily damaged, pay attention not to scratch it.

(2) Be sure to turn off power supply when inserting or disconnecting from input connector.

(3) Wipe off water drop immediately. Long contact with water may cause discoloration or

spots.

(4) When the panel surface is soiled, wipe it with absorbent cotton or other soft cloth.

(5) Since the panel is made of glass, it may break or crack if dropped or bumped on hard

surface.

(6) Since CMOS LSI is used in this module, take care of static electricity and insure human

earth when handling.

(7) Do not open nor modify the Module Assembly.

(8) Do not press the reflector sheet at the back of the module to any directions.

(9) In case if a Module has to be put back into the packing container slot after once it was

taken out from the container, do not press the center of the CCFL Reflector edge.

Instead, press at the far ends of the CFL Reflector edge softly. Otherwise the TFT

Module may be damaged.

(10) At the insertion or removal of the Signal Interface Connector, be sure not to rotate nor

tilt the Interface Connector of the TFT Module.

(11) After installation of the TFT Module into an enclosure (LCD monitor housing, for

example), do not twist nor bend the TFT Module even momentary. At designing the

enclosure, it should be taken into consideration that no bending/twisting forces are

applied to the TFT Module from outside. Otherwise the TFT Module may be damaged.

(12) Cold cathode fluorescent lamp in LCD contains a small amount of mercury. Please

follow local ordinances or regulations for disposal.

(13) Small amount of materials having no flammability grade is used in the LCD module.

The LCD module should be supplied by power complied with requirements of Limited

Power Source (IEC60950 or UL1950), or be applied exemption.

(14) The LCD module is designed so that the CFL in it is supplied by Limited Current

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

Circuit (IEC60950 or UL1950). Do not connect the CFL in Hazardous Voltage Circuit.

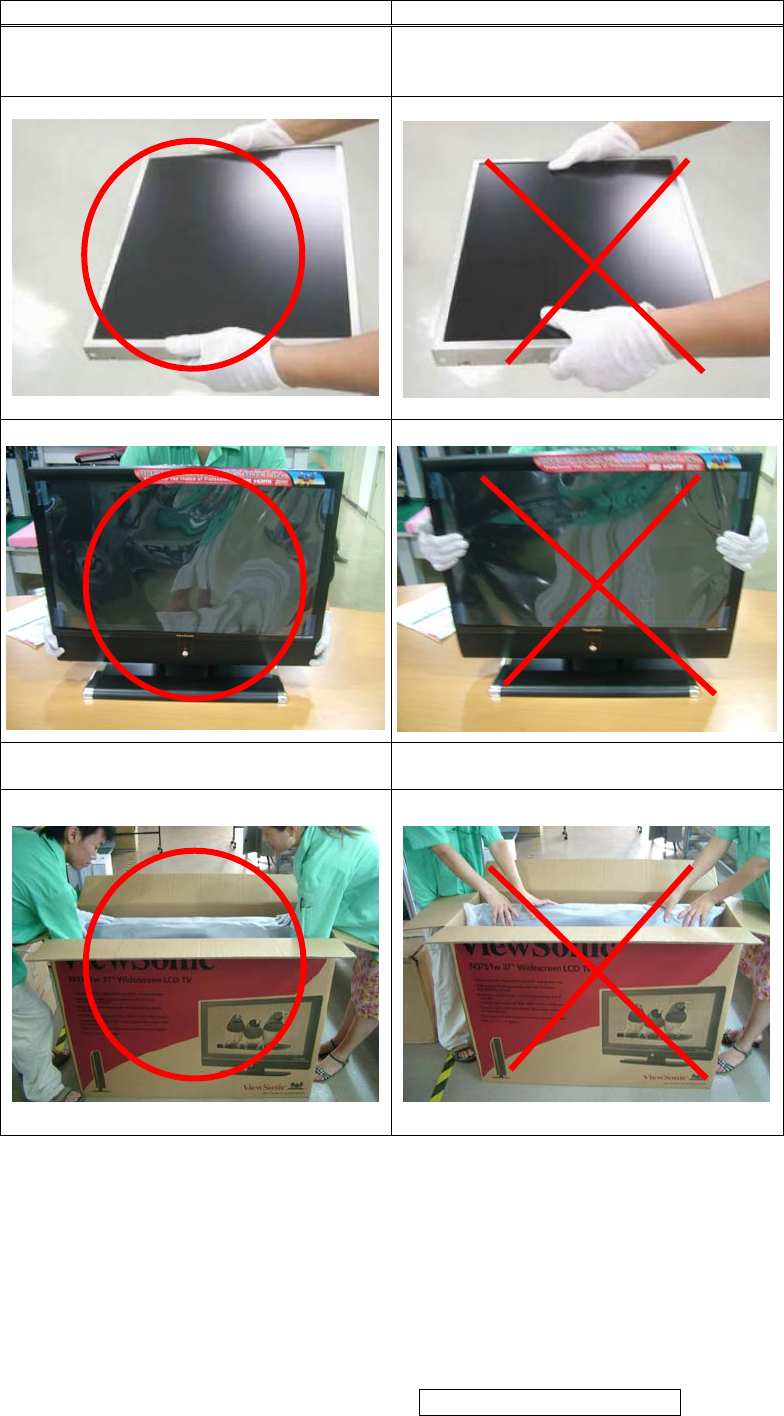

5.2. Handling and Placing Methods

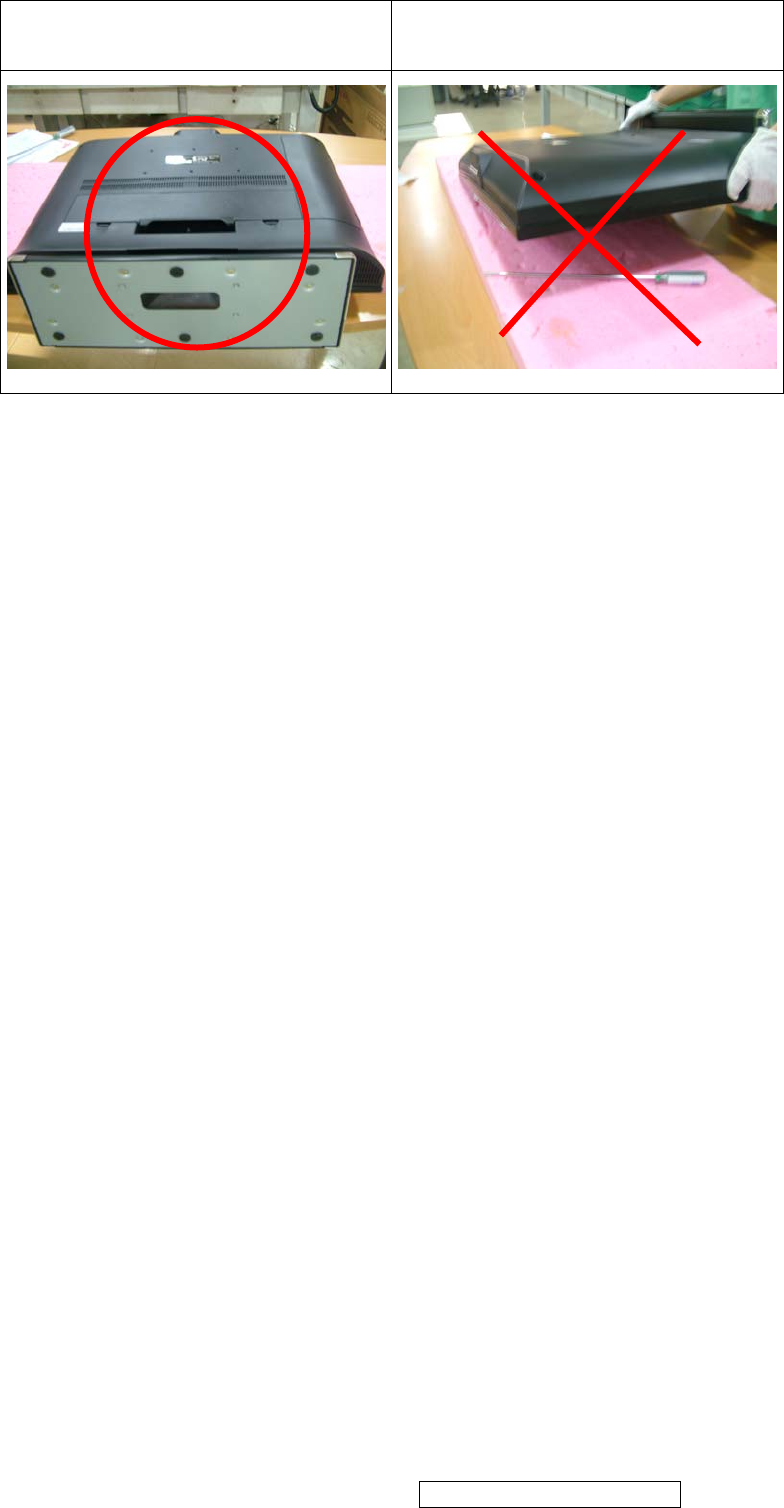

Correct Methods: Incorrect Methods:

Only touch the metal frame of the LCD panel

or the front cover of the monitor. Do not touch

the surface of the polarizer.

Surface of the LCD panel is pressed by fingers

and that may cause “Mura”

Take out the monitor with cushions Taking out the monitor by grasping the LCD

panel. That may cause “Mura”

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

Place the monitor on a clean and soft foam pad. Placing the monitor on foreign objects. That

could scratch the surface of the panel or cause

“Mura”

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

Parameter Specification

LCD Type a-Si TFT Active Matrix Wide Color, Transmissive Mode, Normally

Black

LCD Interface 1-Channel LVDS

Resolution (Native) WXGA, 1366 x 768

Display Area 37” diagonal; 819.6 (H) x 460.8 (V) mm

Pixel Pitch 0.6 (H) x 0.6 (V) mm

Viewing Angle H = +/- 85°, V = +/- 85° with CR≥20

Contrast Ratio 1000:1 (Typ); 800:1 (Min)

Brightness 500 nits (Typical), 450 nits(Min.);

Response Time TrR:10ms, TrD:6ms (Typ)

TrR:17ms, TrD:10 ms (max)

Response Time (Gray to

Gray) 8 ms (Typ), 10 ms(max)

Colors 16.7M (8-bit)

Surface Treatment Anti-Glare, 2H

Colors 16.7M (8-bit)

Surface Treatment Hard coating (3H)

Backlight 16 CCFLs

Preset Color Panel Default

Gray Scale 255

Rated Life (Backlight) > 50 KHrs* (Typ)

Front Screen Artifacts

VS Standard:

a.) No Visible Streaking, Sag or Smearing artifacts when driven by

the specified video cards (see 7.1 General Test Equipment) in the

primary mode (VGA & 60 Hz) and after user adjustment

b.) No image drift or lose fine-tune settings due to panel temperature

change.

Panel Acceptance Spec

Refer to the panel acceptance criteria specification.

Note: Intermittent and/or Display Pattern defects which result in

further bright or dark dots will be counted individually against the

above specification.

Note: Panel performance characteristics “ MUST BE” met in all display modes/inputs at

standard test conditions.

1. RF Tuner

RF tuner of this product shall be provided by “T Vision” TVF85P3-CF.

The following table defines this tuner specification.

Parameter Specification

RF Tuning Range NTSC & ATSC: 44.25 MHz to 863.25 MHz

covering for

RF Tuner Sensitivity (S/N Ratio at un-weight) 44 dB (min.)

Channel Bandwidth NTSC & ATSC: 8 MHz Max

0.7(min.)–1(max.) V

CVBS Characteristics:

Video Amplitude Signal

DC Level Sync Pulse Typical. 0.35 V

Audio Characteristics:

AF Output Level Measured via LP 20 kHz

Filter, RMS Decoder,

75us De-emphasis

THD

S/N

Typical. 0.35Vrms

10% (max.)

44 dB (min.)

2. Specification

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

2. Video

Built-in A/D converter shall provide analog to digital converter for this product.

Input Parameter Specification

CVBS Characteristics:

Video Amplitude Signal

DC Level Sync Pulse

0.7(min.) – 1.1(max.) V

Typical. 0.3 V

S-Video Characteristics:

Video Amplitude Signal

DC Level Sync Pulse

Y : 1.0Vp-p W / Neg. Sync (IN 75 Ω )

C : 0.285Vp-p (IN 75 Ω )

Y, Pb, Pr Characteristics:

Video Amplitude Signal

DC Level Sync Pulse

Y:1.0Vp-p (IN 75 Ω)

Pb:0.7 Vp-p(IN 75 Ω),Pr:0.7 Vp-p (IN 75 Ω)

Video Bandwidth NTSC/ATSC: 6 MHz Maximum

HDMI Characteristics Panel Link T.M.D.S HDMI-1.1

RGB Characteristics:

Signal Type

Sync Type

Input Signal Rating

Sync Level:

Frequency Range

Pixel Color

DDC Compliance

EDID Data Table

Analog VGA

TTL, Separate Sync, with 4.7KΩ pull-down resistors

1250Mv Max without damage to the product, 0-700 Mv Full

Range

2.5-5.25 V

Horizontal: 30-80K Hz, Vertical: 50-75 Hz

16 M

DDC2B Compliant, Rev 1.3

See Appendix B

3. Audio

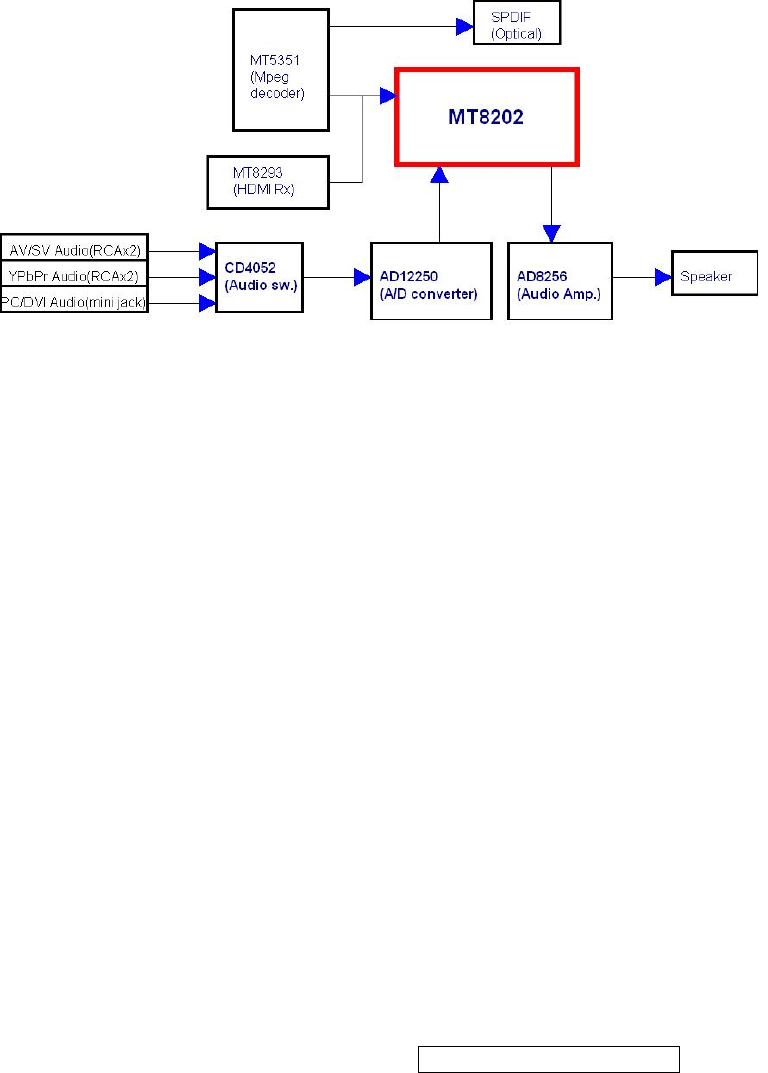

Audio amp of this product shall be provided by “ESMT” with a Model Number of 8256A “MTK”

MT8202 for N3752W shall be used as sound processor. In addition, a pair of speakers shall be

integrated within this product. The audio signals of this product shall comply with the specification

listed in the following table.

Parameter Specification

Phone Jack out

Tuner Input Base band Input

Speaker Power Output Max

Rating

10 W x 2 at 10% T.H.D

Distortion

10W x 2 at 10% T.H.D.

Distortion

Speaker Impedance main spk :3 Ω + 3 Ω

Treble spk :5.2 Ω

main spk :3 Ω + 3 Ω

Treble spk :5.2 Ω

Line In Per Tuner Spec

500 mV rms (Typ)

1.6 V rms (Max)

Impedance: 600 ohms

Line Out

500 mVrms +/- 10%

@1K Hz tone (with +/-25k Hz

deviation at input, volume

with non-attenuation and

loading with 47k Ohm)

500 mVrms +/- 10%

@1K Hz tone (with +/-25k Hz

deviation at input, volume

with non-attenuation and

loading with 47k Ohm)

Flatness of Amplitude Response

(100Hz ~ 10KHz) +/- 3 db (at 1KHz @1W) +/- 3 db (at 1KHz @1W)

Total Harmonic Distortion

(1KHz @1W) 2% 2%

Signal to Noise (1KHz @1W) 30 dB (40Hz to 15KHz) 40dB(400Hz to 20 kHz)

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

4. Electrical

The following table defines the electrical specification of this product.

ELECTRICAL SPECIFICATION

Power Input Voltage Range 100-240VAC +/- 10% Wide Range

Input Frequency Range 47-63 Hz

Input Current 3.0A @ 115VAC // 1.5A @ 230VAC

Power Supply Inrush

Max in < 150A (with fully loaded power supply) at

230Vac

Shall not result in permanent failure of power supply

(including blown fuse)

Power Consumption: Normal Normal:200 W (Max) // Stand by: < 3.0 W

Interference with RF and Video

There shall be no visible interference between power

supply, RF and video signals. This applies to all available

RF channels and video modes.

Electromagnetic Compatibility This product shall adhere to the compatibility and

immunity specifications in FCC.

Power Supply Transient Immunity

(Supply Transients and Outage)

Able to withstand an ANSI / IEEE C62.41 – 1980 2000V

ring wave with no damage.

Surge Immunity Test Able to withstand 1.25X nominal Line Voltage for one

cycle with no damage.

Power Supply Missing Cycle Immunity Function properly without reset or visible screen artifact

when 1/3 cycle of AC Power is randomly missing.

Power Supply Acoustics

Power supply shall not produce any audible noise during

startup and normal operation. Audible shall define to be

in compliance with ISO 7779 (DIN EN27779: 1991) .

Power Switch noise shall be Excluded.

Efficiency >= 80% @ full load, nominal line

Leakage Current <0.5mA @ 240VAC

Power Saving(DPMS) N/A

Recovery Time < 3 sec.

Power Factor Correction Compliant with EN61000-3-2

5. Firmware & OSD

The product firmware of VS11405-1M shall have a firmware version of 1.00 Any

changes/revisions afterward shall also be pre-approved by ViewSonic in written. For VS11405-1M,

its firmware shall have a built-in frequency table for PAL/SECAM, Teletext and with NICAM

implementation.

All audio/video and other output adjustments shall be performed by using an On Screen Display

(OSD) via a Remote Control Unit (RCU) in conjunction with the front panel adjustments. The

following tables list the OSD functions supported by VS11405-1M.

OSD Table for VS11405

OSD

Brightness Adjust the Black levels

Contrast Adjust the White levels

Sharpness Adjust the Sharpness levels

Color Adjust the Color levels

Tint Adjust the Tint levels

Color Temperature Selections on Normal, Warm, user, Cold

Back Light Adjust the Back Light levels

Aspect ratio Selections the Image Size on Full, Wide1, Wide2, Wide3, 4:3, 16:9, No

scale, Normal

Language Selections English, Spanish , French

By area have some difference

OSD Timeout Set OSD disappearing time

Memory recall Set user settings to factory preset value

Treble Adjust the Hi Frequency levels

Bass Adjust the Low Frequency levels

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

Balance Adjust the Spk output levels

Audio out Audio signal output On or Off

Surround Surround sound effect On or Off

Auto Scan TV program Auto Search

Tuner Mode Selections TV sources to Air or Cable

Channel Edit TV channel name edit

Channel Add/Del. TV channel Add or Delete

Parental TV program controlled by parents via password setting

RCU Key function

Sources Select input source

PIP* PIP:activate PIP feature

PIP Source:change PIP source

PIP Size:change PIP size

0 ~ 9, -100/ number Input channel number

Recall Return to previous channel

Guide Show electronic program guide (EPG)

Sleep* Set timer to turn off TV

CC Close caption

Mute Mute On or Off

VOL▲and VOL▼ Adjust volume

MTS/SAP Select Mono,Stereo or SAP sound

Power Power on/off

Device buttons Select desire device

Zoom Adjust window size

Wide* Change aspect ratio

Up/Down/Left/Right/

Enter

Up/Down for OSD function select and Left/Right for function adjust

Enter:Enter the function setting

Menu On screen display (OSD) menu ON/OFF

CH▲and CH▼ Change channel for TV only

Control buttons Play/Stop/Pause/Record/Forward/Rewind

▌▌buttun=freeze picture

Display Display current information

6. Remote Control Unit (RCU)

An IR remote control unit shall accompany this product along with battery. In addition, this

remote control unit shall have an operational distance of X meters and an operational angle of XX

degrees for both horizontal and vertical.

Parameter Specification

Range Direct distance: 6M-12M

Point distance: 4M-8M, angle : 30 degrees +/- 2 degrees

Life Testing

(Buttons)

100,000 cycle operations at a rate of 20~30 cycle / minute without load (with

battery)

Color

Painting Color – Silver DongBon painting MP1075-01

Power Key - Red Color (Pantone 032U)

Key Pads – Refer to standard

Texts Printed on Key Pads – White Color (Refer to standard)

For the shortcut keys of Teletext:

Red Key – Pantone 185U

Blue Key – Pantone 285U

Green Key – Pantone 335U

Yellow Key – Pantone 108U

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

7. Mechanical

The following table defines the mechanical specifications of this product for both chassis and

cabinet.

Parameter Specification

Dimension W=942mm, H=726mm and D=295mm

Net Weight 26.5 Kg

Gross Weight 31.4 Kg

Net weight *without* stand 22.7 Kg

Chassis Plastic Material ABS (CABS HB / ABS VO / PC+ABS)

External Plastic Chassis

Components

Plastic Chassis, Cover, Stand (Metal + Plastic), Len and

Button

Exterior Chassis

Color/Texture/Details

Refer to Figure 1 – Product ID

Chassis Component’s Color

Difference

Refer to Figure 1A – Color Guide

Chassis Color Drift Due to

UV-Light

The color drift due to UL-Light shall be less than 10 “Delta

E” in the 1976 CIE L*a*b color space. Testing shall be

performed according to the requirements of ASTM Test

Method D4459-93.

Molded Plastic Workmanship shall be inspected according to ViewSonic

Molded Plastic Parts Specification, VSCMPPSPEC001V1.2.

Screen Printed Parts, Bird Logo

Recess

Artwork shall be provided and confirmed by ViewSonic.

Rear Label A label identifying the product name, model/serial number

and FCC ID/Logo shall be placed into the rear label recess

located on the rear panel of the chassis.

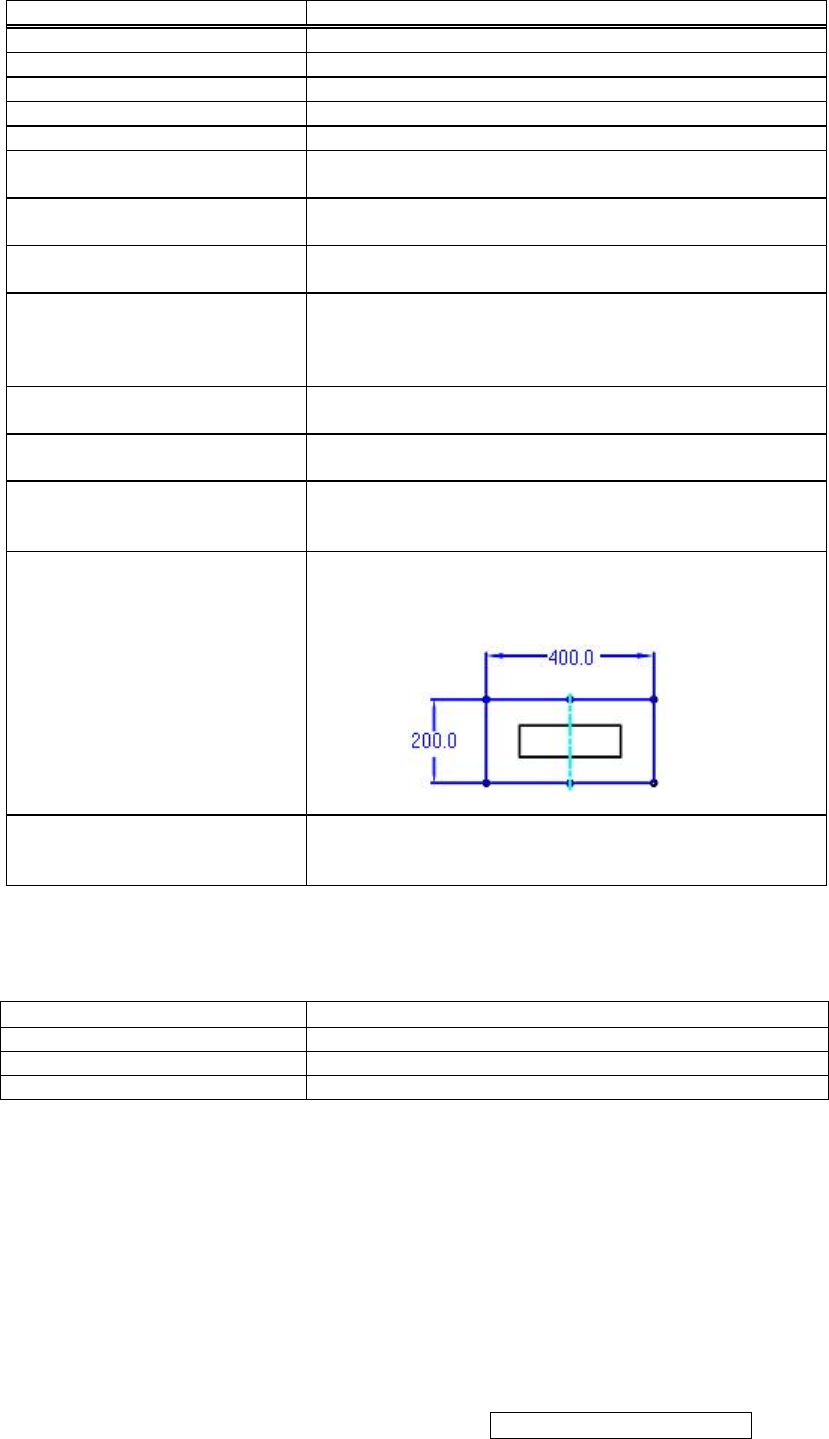

Wall- Mount 400mmx200mm VESA high hole (n=6),pattren 6mm,1.0

pitch x 10mm long screw mounting kit not imcluded.

(Figure 7)

Sample Sample of textured color chips, plastic material specification,

and Material Safety Data Sheets shall be submitted to

ViewSonic prior to Mass Production Release.

In addition, all exterior surfaces shall have uniform texture/color. The maximum acceptable

gap between the buckets to bezel plastic pieces shall be within 1.0 mm. The maximum

acceptable gap between LCD panel and bezel shall be within 2.5 mm.

8. Environmental

Operating Temperature 0°C to 40°C

Humidity 85% non-condensing

Storage Temperature Follow Panel spec

Humidity 85% non-condensing

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

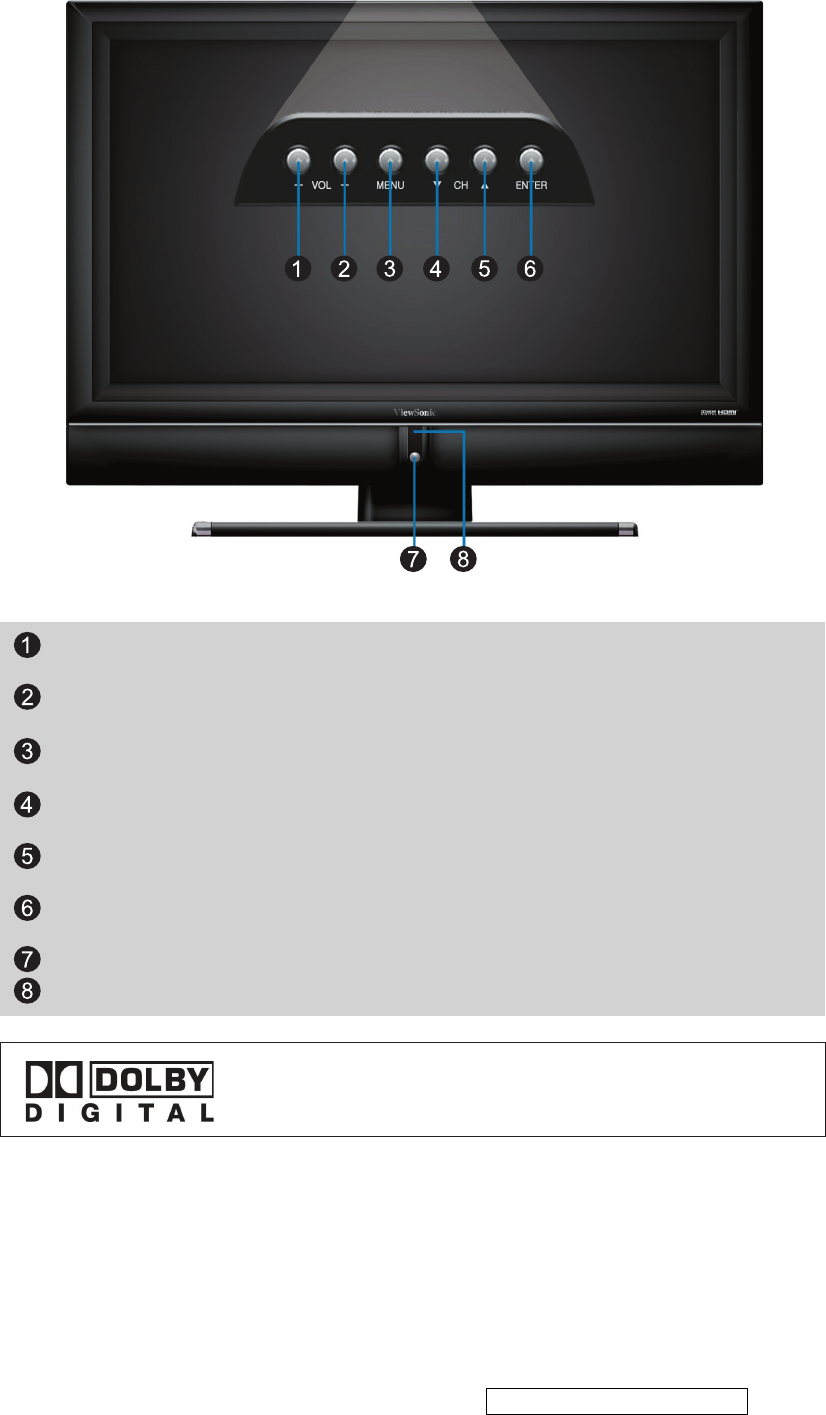

3. Front Panel Function Control Description

Front View of the Product

ENGLISH

Note:

1. Press VOL+ and MENU buttons at the same time to lock power button, and press

VOL+ and MENU buttons again to unlock it.

2. Press VOL- and VOL+ buttons at the same time to lock OSD menu, and press

VOL- and VOL+ buttons again to unlock it.

Manufactured under license from Dolby Laboratories.

Dolby and the double-D symbol are trademarks of Dolby

Laboratories.

(Only for DTV source in this model.)

Volume Down

Decrease sound volume or adjust a highlighted control while in OSD menu.

Volume Up

Increase sound volume or adjust a highlighted control while in OSD menu.

Turn OSD menu ON/OFF.

CH Down

Channel down when source is at TV or select a control while in OSD menu.

CH Up

Channel up when source is at TV or select a control while in OSD menu.

ENTER

To highlight a control in OSD menu.

Power ON/OFF button

Power LED Indicator / Remote Control Receiver

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

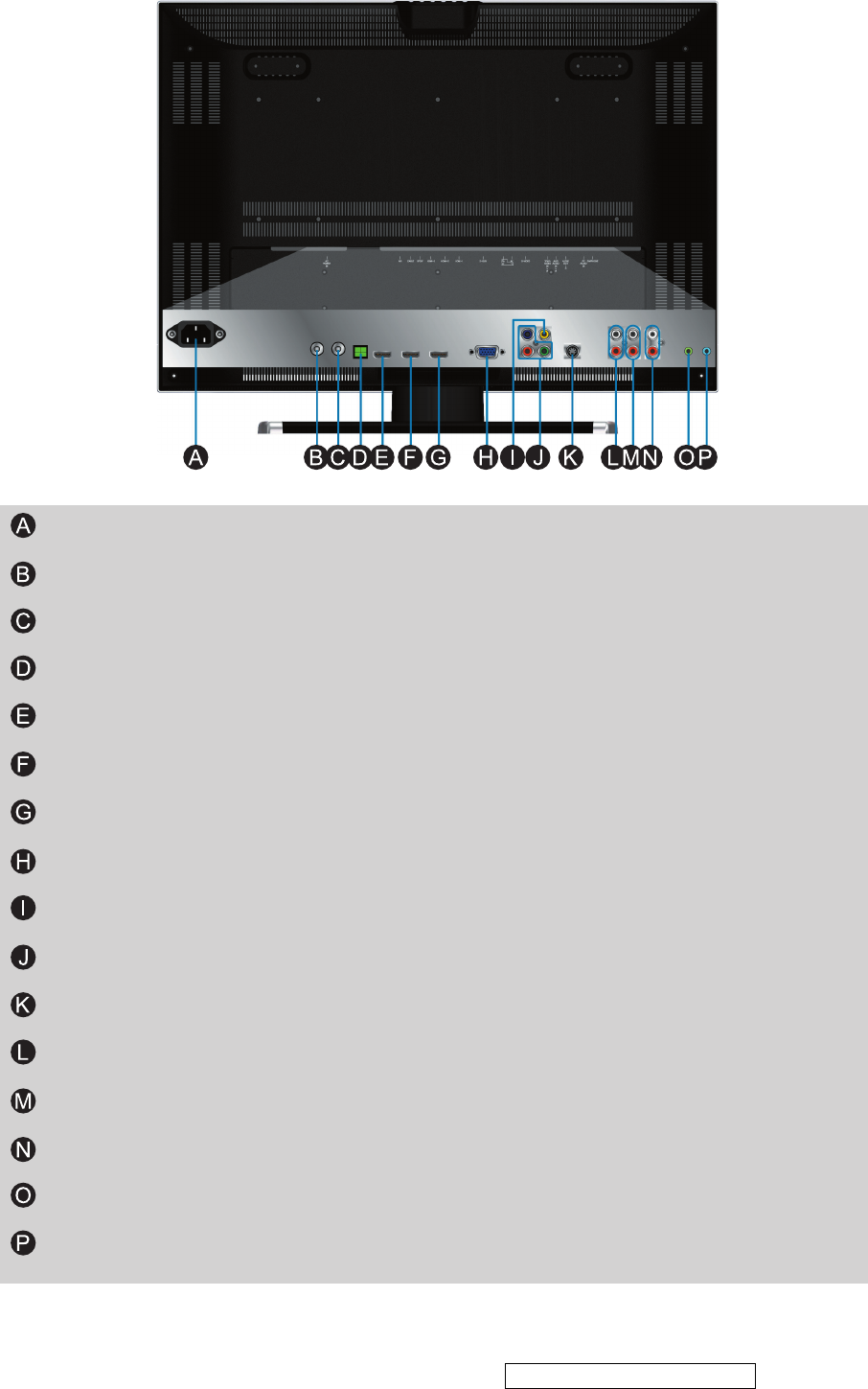

Power (AC input)

Using power cord provided, connect to a power source.

Air TV input

Connect to NTSC or ATSC TV source.

Cable TV input

Connect to Cable TV (CATV) or Digital Cable.

SPDIF Optical output

Connect this port to the SPDIF input of A/V device.

HDMI Input Terminal -3

Connect this port to the HDMI output of A/V device.

HDMI Input Terminal -2

Connect this port to the HDMI output of A/V device.

HDMI Input Terminal -1

Connect this port to the HDMI output of A/V device.

VGA signal input

Connect this port to the VGA output of your PC.

Composite Video input

Connect this port to the composite video output of A/V device.

YPbPr signal input

Connect this port to the YPbPr output of A/V device.

S-Video input

Connect this port to the S-Video output of A/V device.

YPbPr signal Audio input (left/right)

Connect this port to the RCA audio output connectors of your A/V device.

AV/ S-Video signal Audio input (left/right)

Connect this port to the RCA audio output connectors of your A/V device.

Audio output

Connect this port to your A/V device with audio in (RCA) connectors or to audio ampliﬁer.

PC Audio input

Connect this port to PC line out jack.

Headphone Jack

Connect this port to your headphone.

Rear View of the Product

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

Remote Control

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

ENGLISH

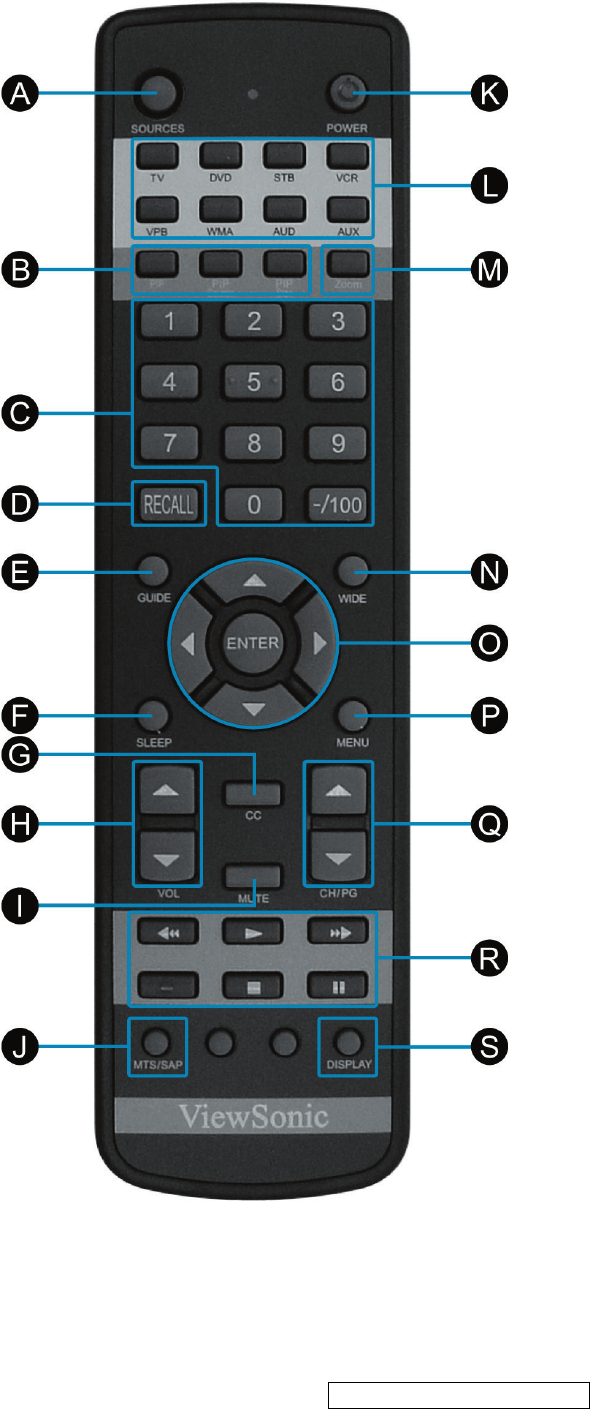

A SOURCES Select input source

BPIP * PIP: activate PIP feature

PIP Source: change PIP source

PIP Size: change PIP size

C0~9, -/100 number button Input channel number

DRECALL Return to previous channel

EGUIDE Show electronic program guide (EPG)

FSLEEP * Set timer to turn off TV

GCC Close Caption

HVOL▲ and VOL▼ Adjust volume

IMUTE Mute On/Off

JMTS/SAP Select Mono, Stereo or SAP sound

KPOWER Power On/Off

LDevice buttons Select desire device

MZoom Adjust window size

NWIDE *Change aspect ratio

OUP/ DOWN /LEFT/ RIGHT/

ENTER

UP/ DOWN for OSD function select and LEFT/ RIGHT for

function adjust

ENTER: Enter the function setting

PMENU On Screen Display (OSD) menu ON/OFF

QCH▲ and CH▼ Change channel for TV only

RControl buttons ** Play/ Stop/ Pause/ Record/ Forward/ Rewind

II button = freeze picture

SDISPLAY Display current information

Note: PIP means Picture In Picture.

* This feature may not be supported under all models.

** For use on other device.

Remote control button function as follow

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

ENGLISH

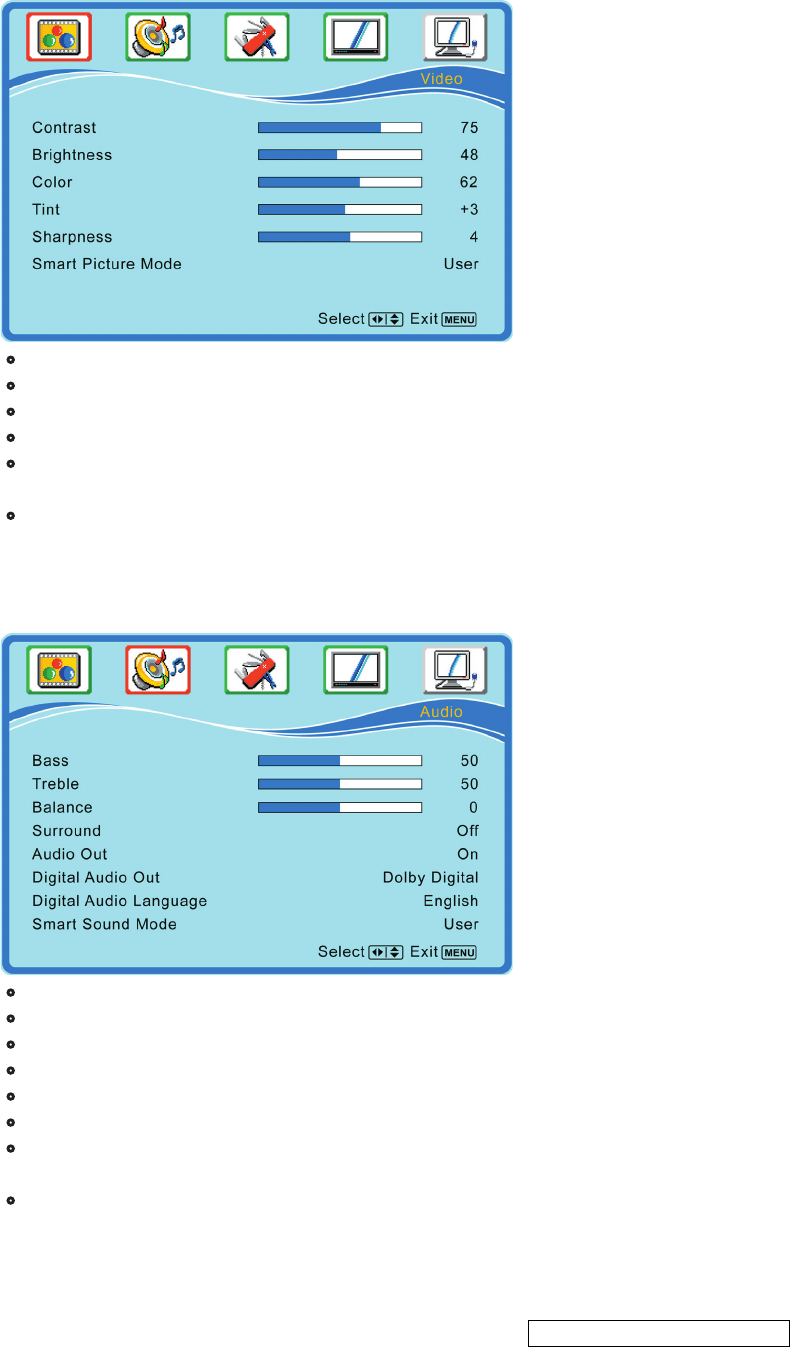

Video Menu — To adjust the picture quality

Video Menu is active in all except the VGA input source.

• Contrast: To adjust contrast of video. (right: Max, left: Min).

• Brightness: To adjust luminance of video. (right: Max, left: Min).

• Color: To adjust color. (right: brilliant color, left: pale color).

• Tint: To adjust tint level. (right: greenish tone, left: reddish tone).

• Sharpness: To adjust picture sharpness. (right: sharper, left: softer).

＊Note: To adjust the above controls in the Video settings, Smart Picture Mode must be set to “User”.

• Smart Picture Mode: To select picture mode between User, Cinema, Sport, Vivid, and Hi-Bright.

Audio Menu — To set the audio quality and status

Audio Menu is active in all input sources.

• Bass: To adjust bass.

• Treble: To adjust the treble

• Balance: To adjust left and right audio balance.

• Surround: To enjoy a concert hall effect, select On when stereo is playing.

• Audio Out: To control sound output ON/OFF from the RCA audio out connectors.

• Digital Audio Out: To select the sound format of the digital TV.

• Digital Audio Language: To select the audio language of the digital TV.

＊Note: To adjust the above controls in the Audio settings, Smart Sound Mode must be set to “User”.

• Smart Sound Mode: To select sound mode between User, Rock, POP, Live, Dance, Techno,

Classic, and Soft.

ADVANCED OPERATION — OSD MENU

OSD Functions

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

ENGLISH

Setup Menu — To set up OSD window

Setup Menu is active in all input sources.

(However, when in VGA input source, there is no “V-Chip” function in the menu.)

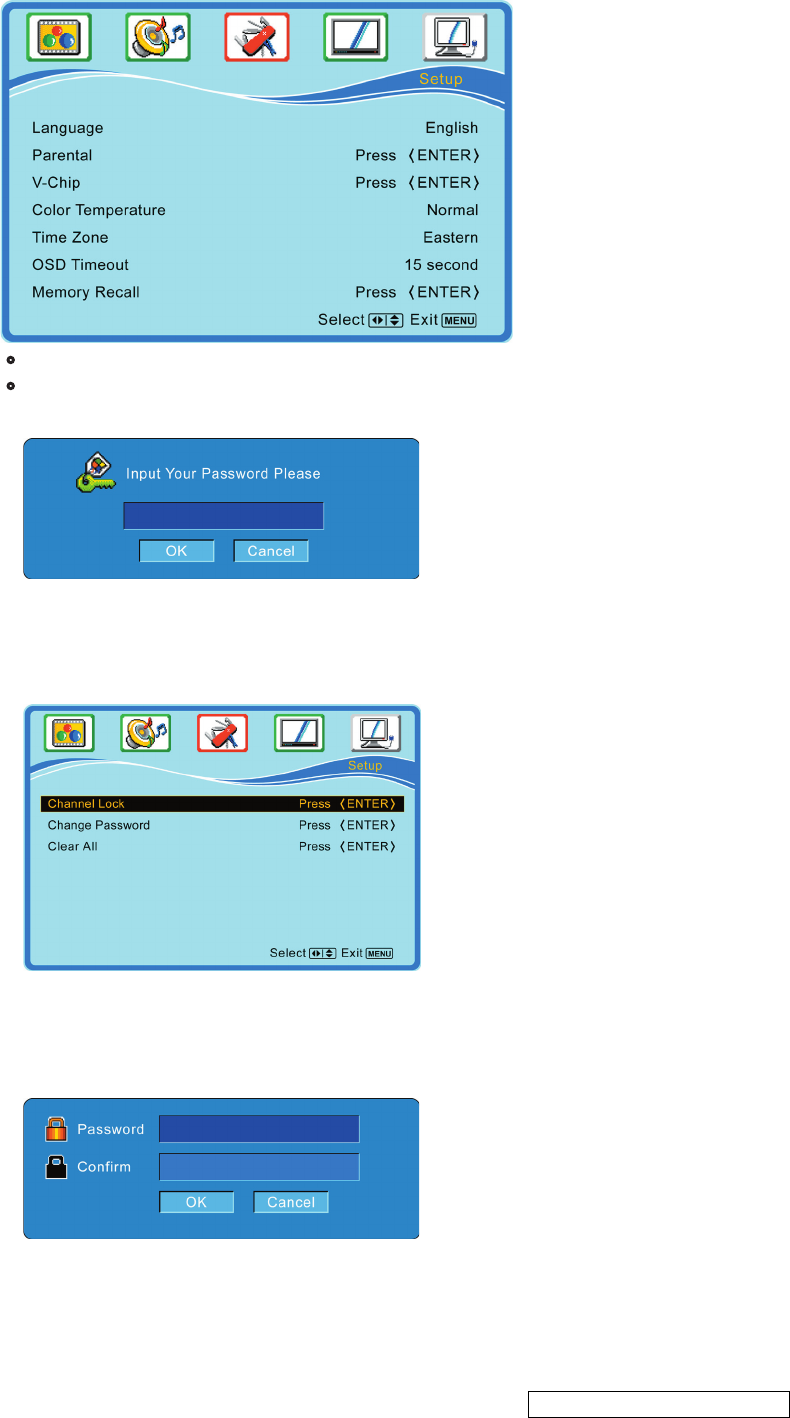

• Language: To select an OSD language from English, French or Spanish.

• Parental: To set up parental control.

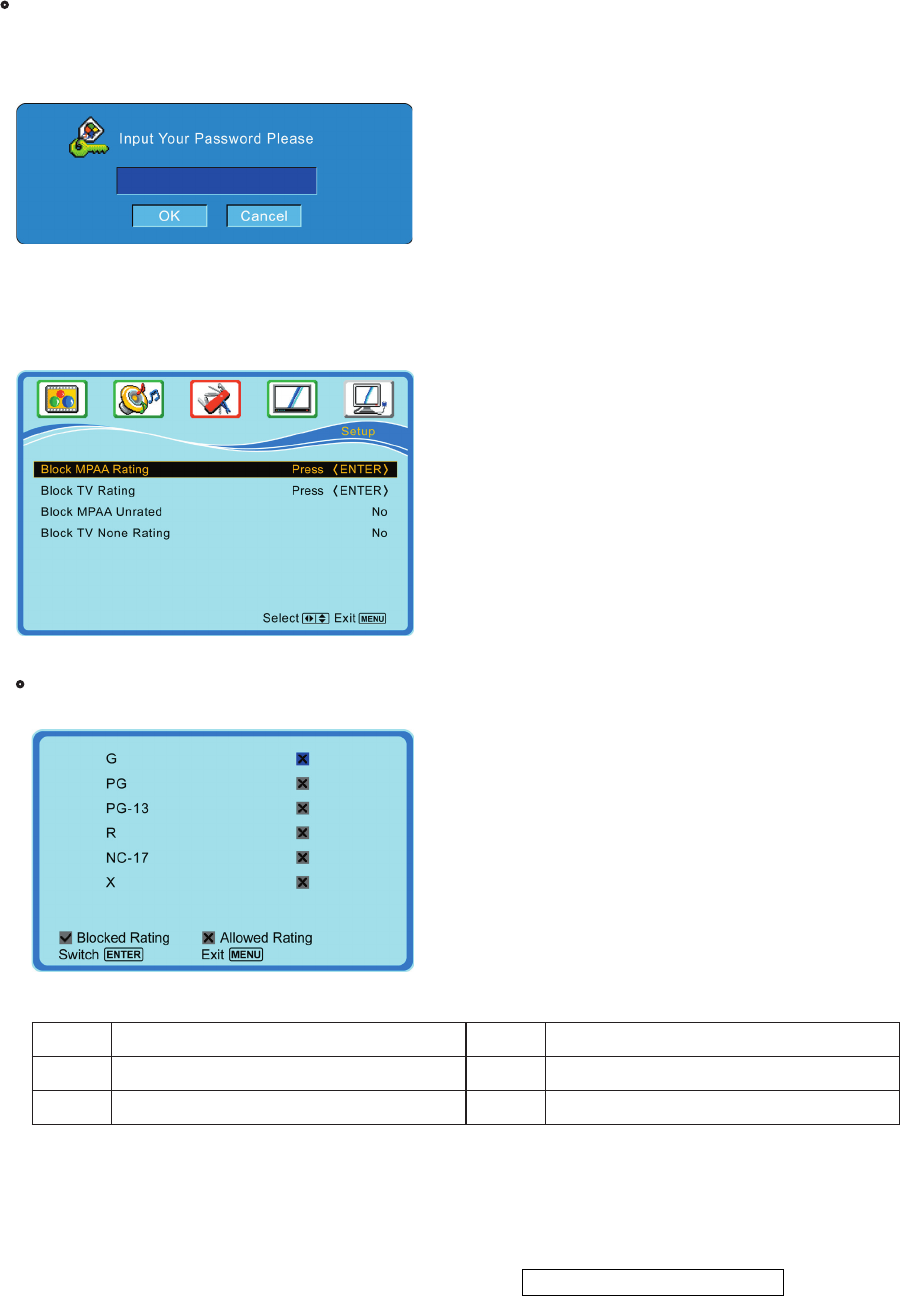

When you enter this control, the screen below will be displayed.

The factory default of the password is “0000”.

To enable parental control, input the password, press ▼ button to focus on OK key, and

then press ENTER. (Select Cancel if you want to exit.)

After entering, the following screen will be shown.

Channel Lock: To lock channels. Use ◄► to select the channel you want to lock, and then

press ENTER to lock or unlock it.

Change Password: To change the password, press ENTER and enter the password again.

Press ENTER, and the following screen appears.

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

ENGLISH

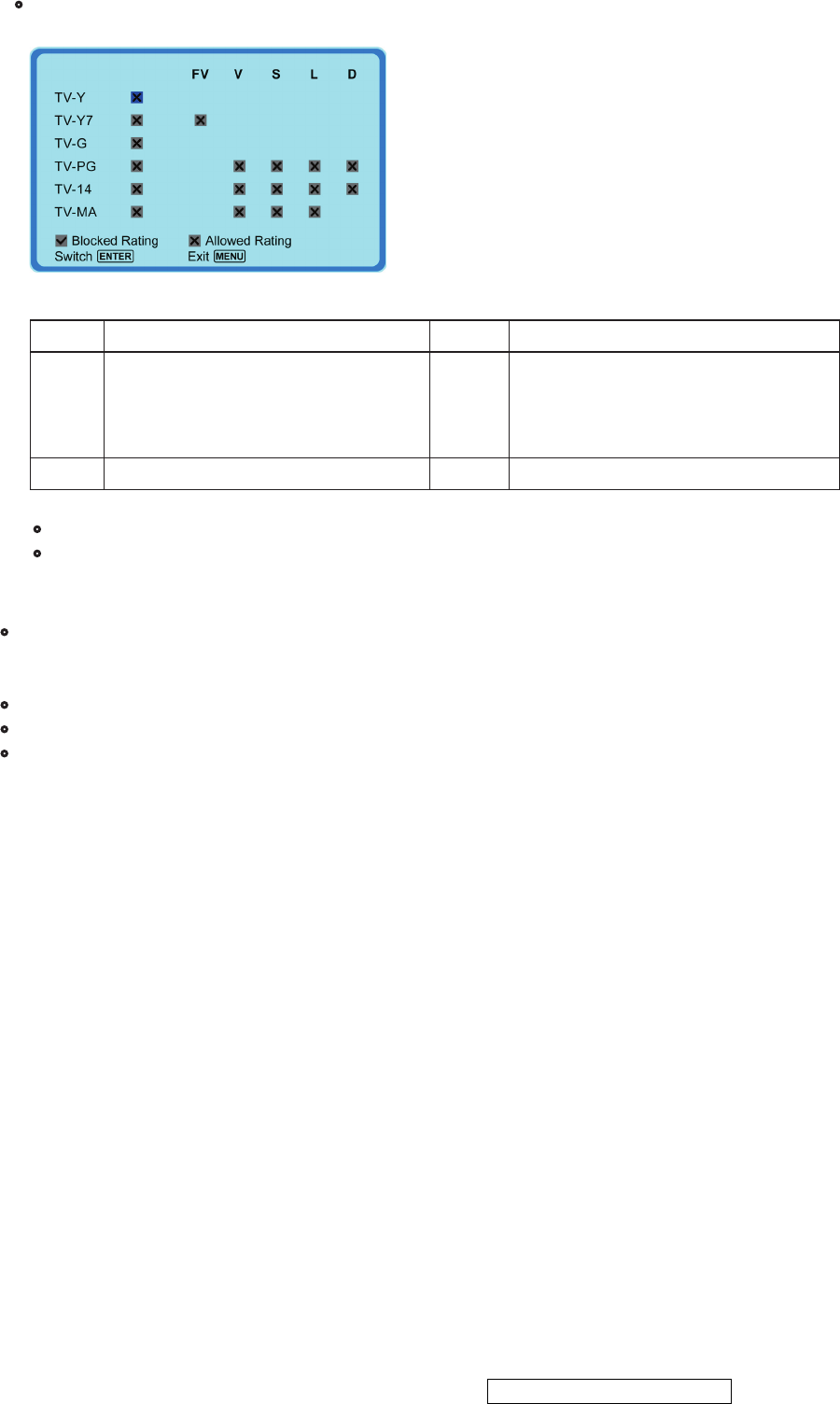

The movie Ratings in the US are deﬁned as following.

Use ENTER button to block or unblock the ratings, and use MENU to exit.

GGeneral audience RRestricted

PG Parental guidance suggested NC-17 No one 17 and under limited

PG-13 Parents strongly cautioned XAdult audience only

Enter the new password, use ▼ to move the cursor down, and then enter the new password

again, press OK to conﬁrm or Cancel to exit.

＊Note: Please make sure you remember your new password after changing. If the password

is forgotten or missing, please use the remote control to enter “8866” to clean the password

and reset a new one.

Clear All: To clear all the locks set before, press ENTER.

The factory default of the password is “0000”.

To enable parental control, input the password, press ▼ button to focus on OK key, and

then press ENTER. (Select Cancel if you want to exit.)

After entering, the following screen will be shown.

Press MENU to return to the previous page.

• V-Chip: Press ENTER, and the following screen appears.

V-Chip is transmitted from TV station to help parents monitor what their children watch.

According to the pre-set of factory, viewers can see all of the channels. However, setting

V-Chip can block the appointed channels.

Use ▲▼ to select your desired optional item, and press ENTER.

• Block MPAA Rating: To adjust movie blocking level in the US. You can select between

NONE, G, PG, PG-13, R, NC-17, or X.

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

ENGLISH

The TV Ratings in the US are deﬁned as following.

Use ENTER button to block or unblock the ratings, and use MENU to exit.

• Block MPAA Unrated: To block unrated movies.

• Block TV None Rating: To block unrated TV programs.

TV-Y All children TV-PG Parental guidance suggested

TV-Y7 Directed to older children: this

program is designed for children

age 7 and above

TV-14 Parents strongly cautioned: this

program contains some material

that is unsuitable for children under

14 years of age

TV-G General audience TV-MA Mature audience only

• Color Temperature: To select the color temperature from Warm, Cold, Normal or User.

(If you select User, you can adjust the degree of R, G, B in Color Temp. to suit your personal

preference.)

• Time Zone: To select Time Zones.

• OSD Timeout: To setup the display time of OSD. (5, 15, 45, and 60 seconds)

• Memory Recall: To restore the factory default settings.

• Block TV Rating: To adjust TV blocking level in the US. You can select between TV-Y,

TV-Y7, TV-G, TV-PG, TV-14, or TV-MA.

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

ENGLISH

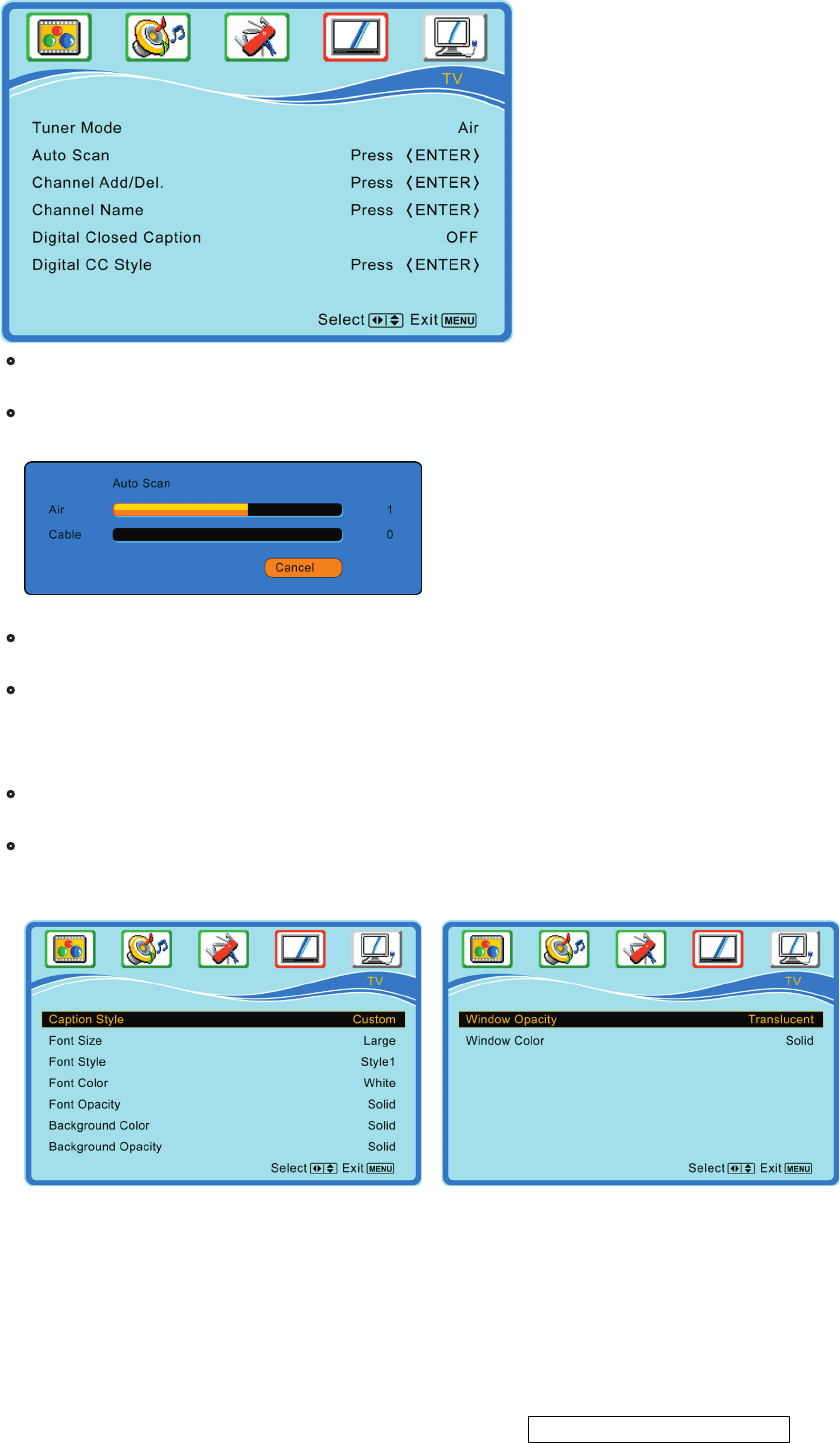

TV Menu — To set up for TV

It is only active in TV source.

• Tuner Mode: To select Cable or Air as the TV source. Select “Cable” if you want to watch

Cable TV channels, and select “Air” to watch Air TV channels.

• Auto Scan: To auto scan the TV and DTV channels. Press ENTER to start auto scanning TV

and DTV channels. Press ENTER again at any time to interrupt scanning.

• Channel Add/Del.: Select Delete to skip the channel appointed, or select Add to restore

the channel appointed by using ◄► or ENTER.

• Channel Name: Press ENTER to edit a name for the channel appointed. Use ▲▼◄► to

select the letters you want, and use BackSpace key to delete backwards. Move the cursor

to OK and then press ENTER to complete and save the channel name. To cancel editing,

choose Cancel or exit without pressing OK.

• Digital Closed Caption: To select closed caption signal formats and set up caption modes

for digital TV channels. (C1~C4, Service1~Service 6, or OFF)

• Digital CC Style: Press ◄► to select Caption Style from As Broadcaster or Custom.

When Custom is selected, use ▲▼ to select the desired controls, ◄► to adjust detailed

settings.

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

ENGLISH

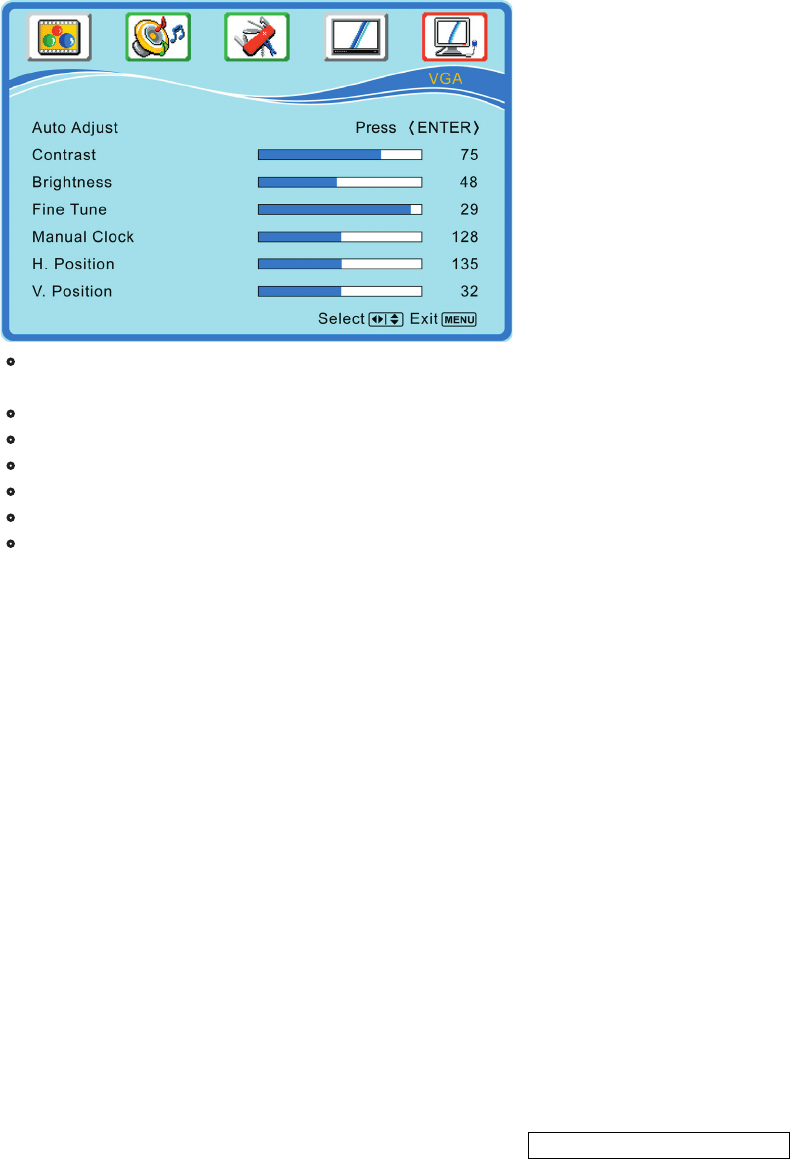

VGA Menu — To set up for computer

It is only active in VGA source.

• Auto Adjust: Press ENTER to auto adjust picture’s horizontal position, vertical position,

ﬁne tune and H-Size.

• Contrast: To adjust contrast of the video.

• Brightness: To adjust luminance of the video.

• Fine Tune: To adjust the delay time of data and clock to reduce noise in picture.

• Manual Clock: To adjust the horizontal pixel clock of the video.

• H. Position: To adjust the horizontal position of the picture.

• V. Position: To adjust the vertical position of the picture.

Font Size: To select a font size from Large, Small, or Medium.

Font Style: To select different font style from Style 1 to Style 7.

Font Color: To select a font color from Black, White, Green, Blue, Red, Cyan, Yellow, or

Magenta.

Font Opacity: To select font opacity from Solid, Translucent, or Transparent.

Background Color: To select background color.

Background Opacity: To select background opacity.

Window Opacity: To select window opacity.

Window Color: To select window color.

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

ENGLISH

ADVANCED OPERATION — REMOTE CONTROL

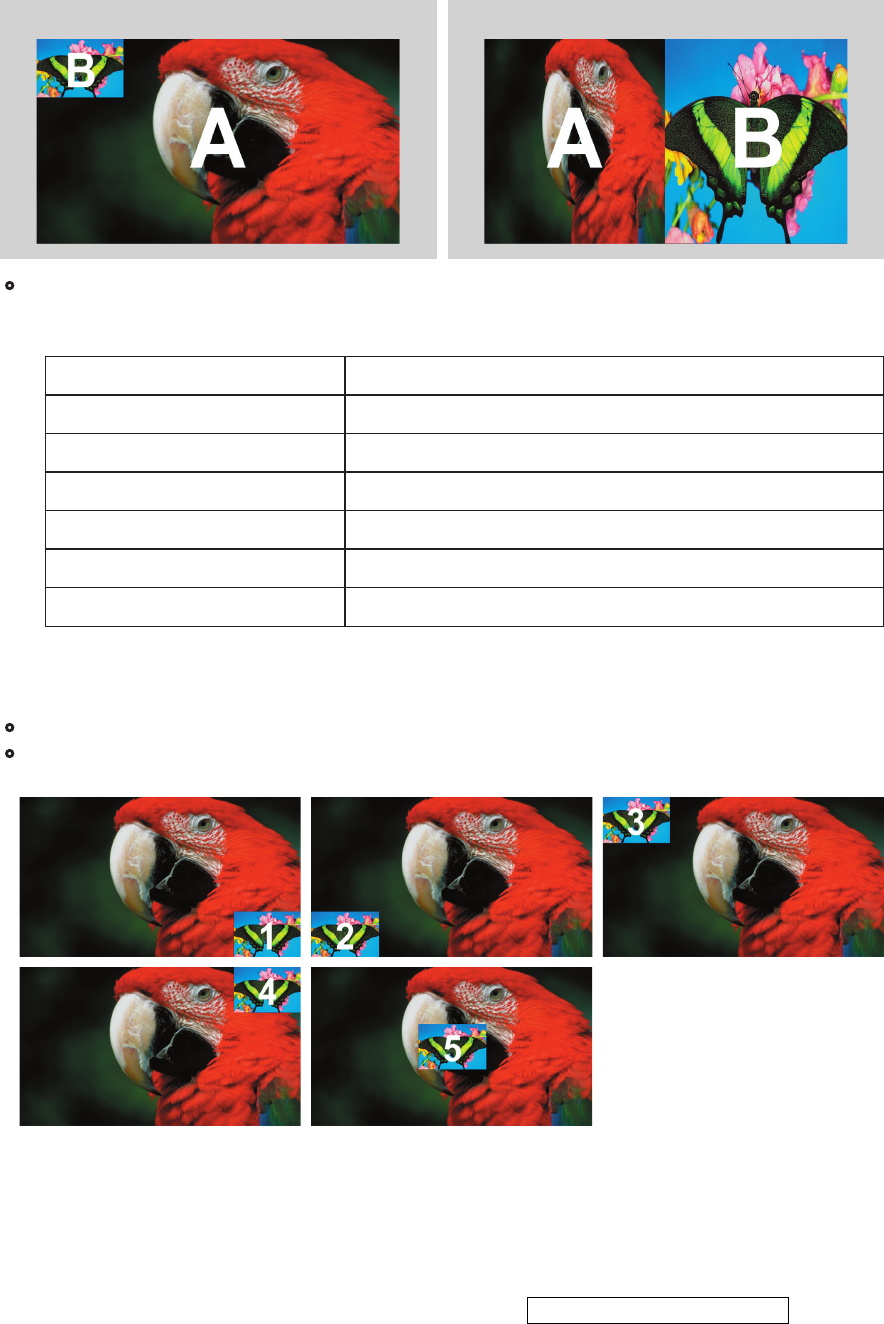

PIP/POP

PIP/POP button allows you to watch two screens from different sources at the same time.

(PIP is picture in picture; POP is picture out of picture.)

Press PIP on the remote control repeatedly.

The screen will change from normal screen → PIP screen → POP screen.

• PIP Input Source Select

1. Press PIP Source button to select input source for sub-screen as following.

(You must press PIP button ﬁrst.)

2. Use ◄► to select the sub-input source and press ENTER to conﬁrm.

Note: To select the input source for main screen, press SOURCES button.

• PIP Size Select: Press PIP Size to select the size of sub-screen. The function only acts on PIP.

• PIP Position Select: Press ▲ to select the position of sub-screen. The function only acts

on PIP.

Note that the screen indexed with the pink frame is the screen you select to set up.

Use ◄► to move the index between the main screen and the sub-screen.

PIP Screen POP Screen

Main Screen Available Sub-Screen Input Source

TV YPbPr / HDMI1 / HDMI2 / HDMI3 / VGA

AV YPbPr / HDMI1 / HDMI2 / HDMI3 / VGA

S-Video YPbPr / HDMI1 / HDMI2 / HDMI3 / VGA

YPbPr TV / AV / S-Video / HDMI1 / HDMI2 / HDMI3

HDMI1 / HDMI2 / HDMI3 AV / S-Video / YPbPr / VGA

VGA TV / AV / HDMI1 / HDMI2 / HDMI3

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

A. Analog Switch and Video input.

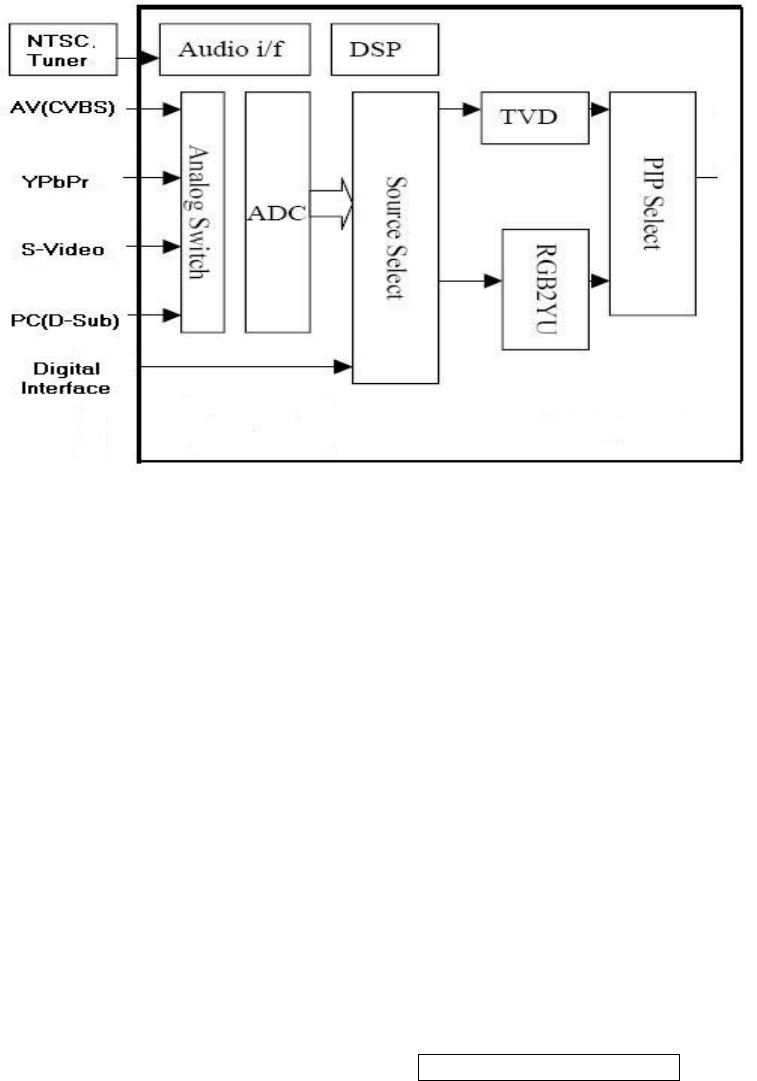

MT8202 is a highly integrated video and audio single chip processor for emerging

HDTV-Ready LCD TV. It includes one 3D/2D TV Decoder recovering the best image from

CVBS, and in addition, its analog input also support popular S-Video, Component, VGA video

source. On-chip advanced motion adaptive de-interlacer (MDDitm) converts accordingly the

interlace video into smooth non-flicking progressive motion pictures.

Analog switch is built in MT8202 and accept CVBS, YPbPr, S-Video, RGB signal directly to

internal video front end. For most system application, there is no need to add external

components to add analog video multiplexer on board.

The video ADC sample analog input signals. After ADC, all signal processing is digital

domain.The source select multiplex all inputs from digital and analog video ports and route

them into Main and PIP data path.

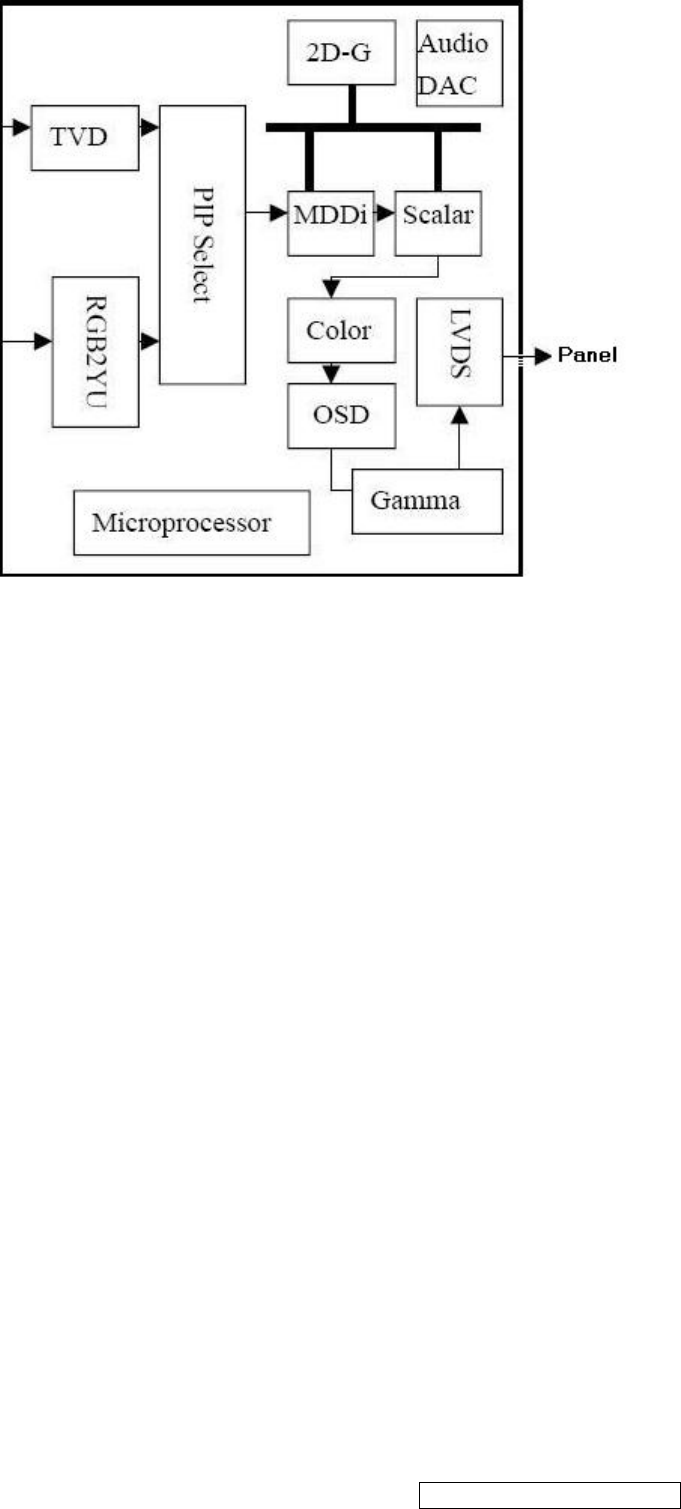

B. 3D comb filter, Video Decoder, Deinterlacer and Scaling controller.

MT8202 includes 3D comb filter TV decoder to retrieve the best image from popular

composite signals. Embedded HDTV/VGA decoders let the high bandwidth input signals

perfectly reproduced. 24/16/8 bits digital port may accept all kinds of external digital input

video source. New 2nd generation advanced motion adaptive de-interlacer converts

accordingly the interlace video into progressive one with overlay of a 2D Graphic processor.

Advanced full function color processing with fully 10-bit path provides high quality video

contents. Independent two Flexible scalers provide wide adoption to various LCD panels for

two of different video sources at the same time. MT8202 supports alpha blending for Video

and two OSD planes. It also supports 10bit gamma correction and advanced dithering

processing for LCD display with 6/8/10 bit output.

4. Circuit Description

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

C. DTV and HDMI.

MT5112 is a fully integrated single-chip 8-VSB and 64/256-QAM demodulator. The chip is

designed specifically for the digital terrestrial HDTV and CATV receivers. MT5112 includes a

10-bit A/D converter, 8-VSB/QAM demodulator, TCM (Trellis-Coded modulation) decoder,

and Reed- Solomon Forward Error Correction decoder. Moreover, an internal controller

handles the acquisition and tracking to ensure the best receiving performance.

The internal controller communicates with the external host controller via the I2C-compatible

interface, and also provides direct control to the RF tuner via the second I2C-compatible

interface.

MT5112 accepts either the direct IF signals and the IF signals are sampled by a 10-bit A/D

converter. Afterward, the digitized samples are further processed for adjacent channel

interference rejection. MT5112 measures the power level of the digitized sequence, and feeds

the control voltages back to the RF tuner and the IF amplifier respectively. The control

voltages are converted to analog signals through the on-chip 1-bit sigma-delta D/A converters

plus the off-chip R-C low-pass filters. The automatic gain control keeps the received power

level at a desired level and maximizes the received SNR.

The MT5351AG is a DTV Backend Decoder SOC which support flexible transport demux,

HD MPEG-2 video decoder, JPEG decoder, MPEG1,2, MP3, AC3 audio decoder, HD TV

encoder. It incorporates a processor for system control. The processor issues instructions to

control the peripheral via I²C and communicates with MT8202 via UART. DDR SDRAM is

externally connected to the MT5351AG, the unified memory allows all internal decoders can

share data,which reduces external memory types and capacities.

The MT5351AG receives bitstream input in TS format, and then separates the TS into audio

and video PES, analyzing the PES header, and transferring the PES to the audio and video

decoders.

MT8293 is fully HDMI-compliant receiver that fits directly into home theater products such as

LCD TVs, plasma TVs and HDTVs. The receiver is capable of supporting bandwidths up to

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

165 MHz and video resolutions up to 1080p and UXGA. The MT8293 supports the

DVD-Audio standard, including 7.1- surround audio at 96kHz and stereo audio at 192kHz.

The built-in High-bandwidth Digital Content Protection (HDCP) decryption engine secures the

digital link for transmission of valuable high-definition video and audio. Built-in HDCP

self-test engine simplifies manufacturing testing.

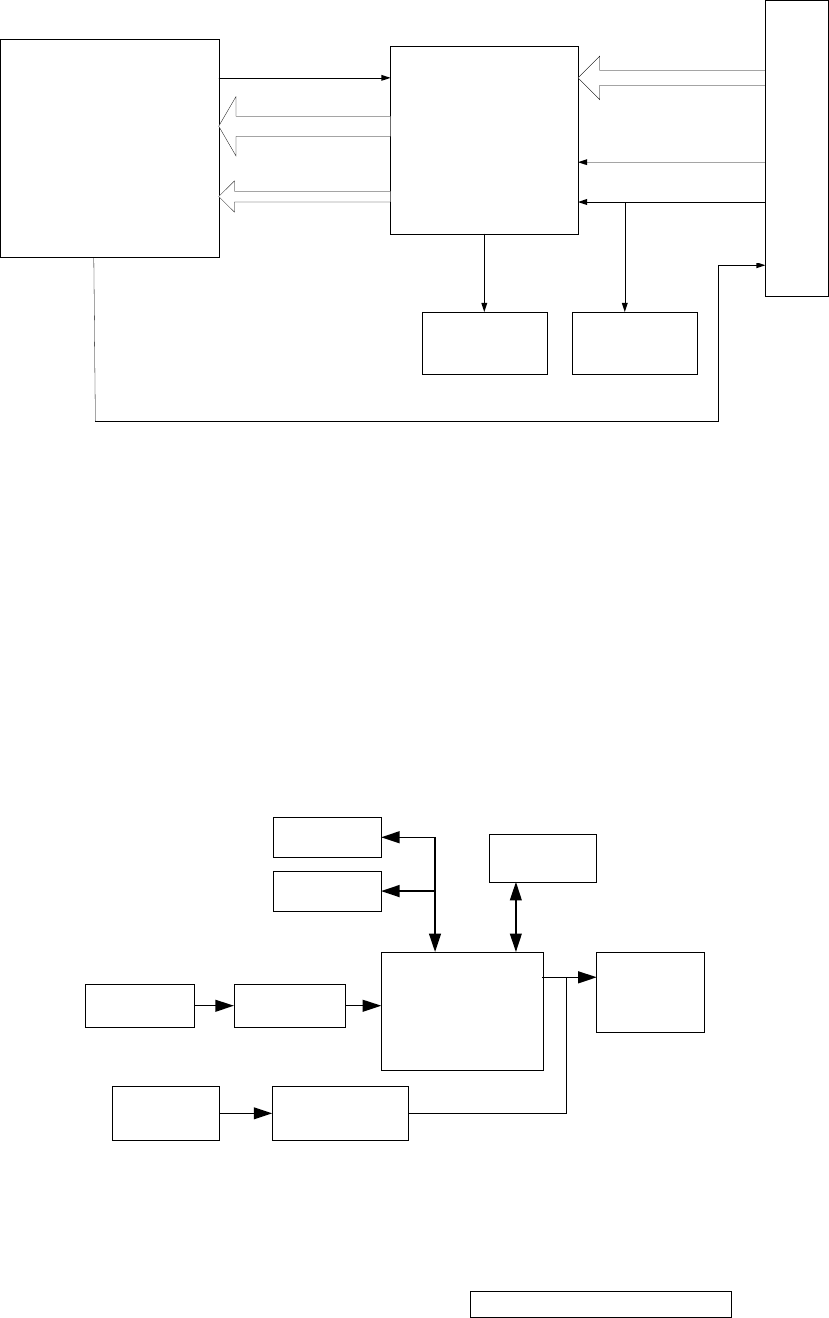

MT8202

LCD Controller IC MT8293

Digital audio interface

EEPROM for

EDID

EEPROM for

HDCP Key

HDMI

Conn

ector

12c interface

DVI

0~23,DE,Hsync,

Vsync,clk

CSDL,CSDA

PWR5V

DSDL,DSDA

KSDL,KSDA

12C interface 12C interface

CP10 interface

HDMI_HPD

TMDS0~3

HDMI_PLUG_POWER

MT8293 has 3 I2C interfaces.

LCD Controller IC use the CSDL/CSDA interface to access MT8293 registers.

MT8293 use KSDL/KSDA interface to read HDCP key from the EEPROM.

HDMI transmitter use DSDL/DSDA to access MT8293 HDCP related register.

HDMI Transmitter will pull high HDMI_PLUG_POWER (pin 18 in connector) when the

cable is connected. LCD Controller will pull high HDMI_HPD (pin 19 in connector) to info

the HDMI transmitter that the receiver is ready. The HDMI transmitter sends the video &

audio to MT8293 via 3 Data TMDS pairs & 1 CLOCK TMDS pairs.

Digital video signals are directly output from the MT5351AG and MT8293 and then transfer

them to the MT8202 for advanced processing.

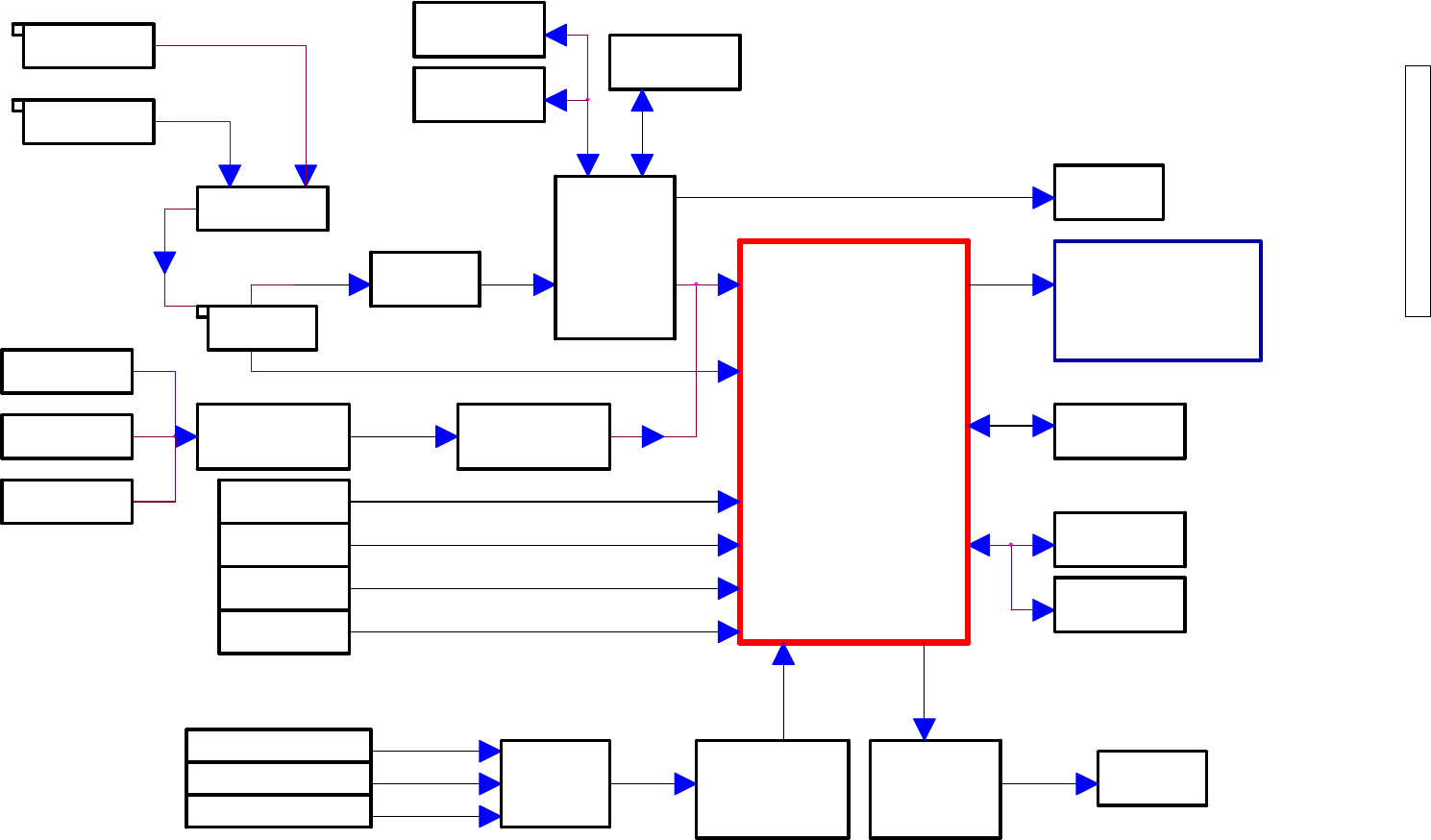

DDR

SDRAM FLASH

MT6351

(Mpegdecoder)

ATSC RF

TUNER MT5112

(Demod.)

HDMI MT8293

(HDMI Bx)

MT8202

DDR

SDRAM

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

D. Audio

MT8202 incorporates a on-chip audio processor decodes whole world standard audio signals

from tuner with lip sync control, delivering high quality post-processed sound effect to

customers. Audio interface accept analog audio signal from Tuner, e.g. SIF or AF. It also

includes preprocessing circuit to filter the noisy audio signals. Audio decoder will decode the

BTSC, and output best sound with enhanced 3D surround post-processing.

The AD12250 converts stereo single-ended analog input signals into 24-bit I2S digital audio

data through on-chip anti-aliasing filter, multi-bit Σ-Δ modulator, decimation filter and

high-pass filter which removes dc offsets. External analog audio signal , such as AV, S-video,

etc. is directly fed into AD12250 via a audio switch and converted to I2S digital audio data.

Digital audio, such as HDMI and DTV, have decoded by MT5351 and MT8293, is converted

to I2S digital audio already. The I2S digital audio data is decoded and processed by MT8202,

and then be delivered to AD8256 for audio amplifying.

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

1. Function Test

1.1. Product

- 37” LCD TV

1.2. Test Equipment

-PC signal generator: CHROMA 2525 CARD ,CHROMA 2327 or 2329,Pioneer

DV-S969AVi.

-TV and Video signal generator.

-Color analyzer: MINOLTA CA110.

-Power meter: CP-310A or CP-320A.

-AC power supply transformer: 110V/120V ±20% 60Hz ±5%.

-Digital ammeter

1.3. Test Condition

Before function test and alignment, each LCD TV should be run-in and warmed up for at

least 30 minutes with the following conditions:

(a) In room temperature,

(b) With full-white screen, and 16 grey scale,

1.4. Test Display Modes & Pattern

1.4.1 EEPROM INIT

A. Timing: 1360*768@60Hz

B. Pattern: 16*12 pane

C. Press ’POWER’, ‘▲’and ‘ENTER’ at the same time, then go into the FACTORY

MODE.

Fig. 1 Fig. 2

D. Figure 1,Select EEPROM INITIAL and press ENTER. The act of EEPROM

INITIAL is completed when EEPROM INIT disappeared.

1.4.2 COLOR TEMPERATURE ADJUSTING

PC MODE:

A. Timing: 1360*768@60Hz.

B. Pattern: 16 grey scale.

C. LCD TV should be run-in and warmed up for at least 30 minutes.

D. Make sure the distance between SENSOR of the CA110 and the LCD TV is about

20cm.

E. Color Temperature adjusting.

1.Fig. 1: under the picture 16 grey scale of VGA source, select WHITE

BALANCE and press ENTER, The color warm will auto adjust. The act of EHITE

BALANCEL is completed when the picture is steady.

2.After adjusting, switch to FULL WHITE and check the value of each color.

Preset color for N3752W

x=0.283±0.015 y=0.297±0.015

5. Adjusting Procedure

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

3.Under the picture NTSC color bar of YPbPr source, select WHITE BALANCE

and press ENTER, The color warm will auto adjust. The act of EHITE

BALANCEL is completed when EHITE BALANCEL disappeared.

4.After adjusting, switch to FULL WHITE and check the value of each color.

Preset color for N3752W

x=0.283±0.015 y=0.297±0.015

1.4.3 Power Consumption Check ( VGA MODE )

A. TIMING: 1360 x 768@60Hz

B. Pattern: 1010UPRIGHTNESS PATTERN

C. BRIGHTNESS=MAX, CONTRAST=MAX.

D. The power that each MODE consumed is shown in Chart 1.

MODE MAX POWER COMSUMED POWER LED COLOR

NORMAL 200W(max) GREEN

Stand-by 3 W (max) RED

Chart 1

1.4.4 Check the position of the picture displayed and phase auto adjusting (VGA MODE).

Depend on the TIMING of TIMING TABLE (TABLE 3) to switch MODE in order,

stay about 10 seconds each MODE, it can changed and stored automatically each

MODE. We can’t switch over to the next MODE until AUTO ADJUST disappears.

1.4.5 HDMI MODE FUNCTION TEST

A.DVI MODE: Depend on the TIMING of TIMING TABLE (TABLE 3 ) to check

MODE in order.

B.HDMI MODE: make sure the 480i, 480p, 720p, 1080i TIMING is right.

1.4.6 OSD FUNCTION TEST

A. Time: 1360x768@60Hz

B. Pattern: 16*12 pane

C. Make sure that Each FUNCTION has one right action.

1.4.7 DTV FUNCTION TEST

Make sure the power is OFF before installing your LCD TV.

A. Air TV: Connect the LCD TV to TV antenna with 75-ohm coaxial cable. Preset

the air TV channels into memory with AUTO SCAN function when using an

antenna TV system. This air input jack both support TV and DTV systems.

Besides, the TV system (NTSC) and DTV systems (ATSC) can be found by the

scanning of “AIR” in the AUTO SCAN function.

B. Cable TV: Connect the LCD TV to the cable with CATV and Digital cable. Preset

the cable TV channels into memory with AUTO SCAN function when using a

cable TV system. The cable input jack both support CATV and Digital cable

systems. Besides, the CATV system (cable TV) and Digital cable system (Clear

QAM) can be found by the scanning of “Cable” in the AUTO SCAN function.

1.4.8 YPbPr, S-VIDEO, AV, TV, DTV’S FUNCTION TEST

A. Input YPbPr, S-VIDEO, AV , TV, DTV’S signal and check.

B. Input USA air channel (TABLE 1) and USA CATV channel for TV channel.

C. Under YPbPr MODE, Make sure the 408i, 480P, 720P, 1080i is right.

1.4.9 AUDIO FUNCTION TEST

A. Audio input includes PC AUDIO IN, S-VIDEO/AV AUDIO IN and YPbPr AUDIO

IN.

B. Under PC MODE, input PC AUDIO signal, checks whether the action of AUDIO IN

is right.

C. Under S-VIDEO/AV MODE, input L/R AUDIO signal, checks whether the action of

AUDIO IN is right.

D. Under YPbPr MODE, input L/R AUDIO signal, checks whether the action of AUDIO

IN is right.

E. Under HDMI MODE, checks whether the action of AUDIO IN is right.

F. Under DTV MODE, checks whether the action of SPDIF is right.

G. AUDIO OUT FUNCTION TEST: Under all patterns except PC pattern, The Audio

output meets active extra speaker, examines whether the extra speaker makes the sound.

1.4.10 EARPHONE FUNCTION TEST

Under PC MODE, input PC AUDIO signal, determines whether the action of INT

SPEAKER output is right. Meets earphone with the EARPHONE, Determined whether

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

the action of EARPHONE output is normal.

1.4.11 All Modes Reset

After final QC step, we must to erase all saved changes again and restore the factory

defaults.

You should do “All Mode Reset” again.

Turn off the LCD TV by pressing “Power” button.

TV Frequency Table:

U.S.A Channel (TABLE 1)

VIF 45.75 MHz, SIF 41.25 MHz

(Unit：MHz)

Ch. Freq.range fp (picture) fs (sound) fosc Ch. Freq.range fp (picture) fs (sound) fosc

54 – 60

60 – 66

66 – 72

76 – 82

82 – 88

174 – 180

180 – 186

186 – 192

192 – 198

198 – 204

204 – 210

210 – 216

470 – 476

476 – 482

482 – 488

488 – 494

494 – 500

500 – 506

506 – 512

512 – 518

518 – 524

524 – 530

530– 536

536 – 542

542 – 548

548 – 554

554 – 560

560 – 566

566 – 572

572 – 578

578 – 584

584 – 590

590 – 596

596 – 602

602 – 608

608 – 614

614 – 620

620 – 626

626 – 632

632 – 638

639 – 644

55.25

61.25

67.25

77.25

83.25

175.25

181.25

187.25

193.25

199.25

205.25

211.25

471.25

477.25

483.25

489.25

495.25

501.25

507.25

513.25

519.25

525.25

531.25

537.25

543.25

549.25

555.25

561.25

567.25

573.25

579.25

585.25

591.25

597.25

603.25

609.25

615.25

621.25

627.25

633.25

639.25

59.75

65.75

71.75

81.75

87.75

179.75

185.75

191.75

197.75

203.75

209.75

215.75

475.75

481.75

487.75

493.75

499.75

505.75

511.75

517.75

523.75

529.75

535.75

541.75

547.75

553.75

559.75

565.75

571.75

577.75

583.75

589.75

595.75

601.75

607.75

613.75

619.75

625.75

631.75

637.75

643.75

101.00

107.00

113.00

123.00

129.00

221.00

227.00

233.00

239.00

245.00

251.00

257.00

517.00

523.00

529.00

535.00

541.00

547.00

553.00

559.00

565.00

571.00

577.00

583.00

589.00

595.00

601.00

607.00

613.00

619.00

625.00

631.00

637.00

643.00

649.00

655.00

661.00

667.00

673.00

679.00

685.00

644 – 650

650 – 656

656 – 662

662 – 668

668 – 674

674 – 680

680 – 686

686 – 692

692 – 698

698 – 704

704 – 710

710 – 716

716 – 722

722 – 728

728 – 734

734 – 740

740 – 746

746 – 752

752 – 758

758 – 764

764 – 770

770 – 776

776 – 782

782 – 788

788 – 794

794 – 800

800 – 806

645.25

651.25

657.25

663.25

669.25

675.25

681.25

687.25

693.25

699.25

705.25

711.25

717.25

723.25

729.25

735.25

741.25

747.25

753.25

759.25

765.25

771.25

777.25

783.25

789.25

795.25

801.25

649.75

655.75

661.75

667.75

673.75

679.75

685.75

691.75

697.75

703.75

709.75

715.75

721.75

727.75

733.75

739.75

745.75

751.75

757.75

763.75

769.75

775.75

781.75

787.75

793.75

799.75

805.75

691.00

697.00

703.00

709.00

715.00

721.00

727.00

733.00

739.00

745.00

751.00

757.00

763.00

769.00

775.00

781.00

787.00

793.00

799.00

805.00

811.00

817.00

823.00

829.00

835.00

841.00

847.00

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

U.S.A Channe2 (TABLE 2)

VIF45.75 MHz, SIF 41.25 MHz

(Unit：MHz)

Ch. Freq.range fp

(picture)

fs (sound) fosc Ch. Freq.range fp

(picture)

(sound)

fosc

A-5

A-4

A-3

A-2

A-1

54 – 60

60 – 66

66 – 72

72 – 78

76 – 82

82 – 88

90 – 96

96 – 102

102 – 108

108 – 114

114 – 120

120 – 126

126 – 132

132 – 138

138 – 144

144 – 150

150 – 156

156 – 162

162 – 168

168 – 174

174 – 180

180 – 186

186 – 192

192 – 198

198 – 204

204 – 210

210 – 216

216 – 222

222 – 228

228 – 234

234 – 240

240 – 246

246 – 252

252 – 258

258 – 264

264 – 270

270 – 276

276 – 282

282 – 288

288 – 294

294 – 300

300 – 306

306 – 312

312 – 318

318 – 324

324 – 330

330 – 336

336 – 342

342 – 348

348 – 354

55.25

61.25

67.25

73.25

77.25

83.25

91.25

97.25

103.25

109.25

115.25

121.25

127.25

133.25

139.25

145.25

151.25

157.25

163.25

169.25

175.25

181.25

187.25

193.25

199.25

205.25

211.25

217.25

223.25

229.25

235.25

241.25

247.25

253.25

259.25

265.25

271.25

277.25

283.25

289.25

295.25

301.25

307.25

313.25

319.25

325.25

331.25

337.25

343.25

349.25

59.75

65.75

71.75

77.75

81.75

87.75

95.75

101.75

107.75

113.75

119.75

125.75

131.75

137.75

143.75

149.75

155.75

161.75

167.75

173.75

179.75

185.75

191.75

197.75

203.75

209.75

215.75

221.75

227.75

233.75

239.75

245.75

251.75

257.75

263.75

269.75

275.75

281.75

287.75

293.75

299.75

305.75

311.75

317.75

323.75

329.75

335.75

341.75

347.75

353.75

101.00

107.00

113.00

119.00

123.00

129.00

137.00

143.00

149.00

155.00

161.00

167.00

173.00

179.00

185.00

191.00

197.00

203.00

209.00

215.00

221.00

227.00

233.00

239.00

245.00

251.00

257.00

263.00

269.00

275.00

281.00

287.00

293.00

299.00

305.00

311.00

317.00

323.00

329.00

335.00

341.00

347.00

353.00

359.00

365.00

371.00

377.00

383.00

389.00

395.00

AAA

BBB

CCC

DDD

EEE

354 – 360

360 – 366

366 – 372

372 – 378

378 – 384

384 – 390

390 – 396

396 – 402

402 – 408

408 – 414

414 – 420

420 – 426

426 – 432

432 – 438

438 – 444

444 – 450

450 – 456

456 – 462

462 – 468

468 – 474

474 – 480

480 – 486

486 – 492

492 – 498

498 – 504

504 – 510

510 – 516

516 – 522

522 – 528

528 – 534

534 – 540

540 – 546

546 – 552

552 – 558

558 – 564

564 – 570

570 – 576

576 – 582

582 – 588

588 – 594

594 – 600

600 – 606

606 – 612

612 – 618

618 – 624

624 – 630

630 – 636

636 – 642

642 – 648

355.25

361.25

367.25

373.25

379.25

385.25

391.25

397.25

403.25

409.25

415.25

421.25

427.25

433.25

439.25

445.25

451.25

457.25

463.25

469.25

475.25

481.25

487.25

493.25

499.25

505.25

511.25

517.25

523.25

529.25

535.25

541.25

547.25

553.25

559.25

565.25

571.25

577.25

583.25

589.25

595.25

601.25

607.25

613.25

619.25

625.25

631.25

637.25

643.25

359.75

365.75

371.75

377.75

383.75

389.75

395.75

401.75

407.75

413.75

419.75

425.75

431.75

437.75

443.75

449.75

455.75

461.75

467.75

473.75

479.75

485.75

491.75

497.75

503.75

509.75

515.75

521.75

527.25

533.75

539.75

545.75

551.75

557.75

563.75

569.75

575.75

581.75

587.75

593.75

599.75

605.75

611.75

617.75

623.75

629.75

635.75

641.75

647.75

401.00

407.00

413.00

419.00

425.00

431.00

437.00

443.00

449.00

455.00

461.00

467.00

473.00

479.00

485.00

491.00

497.00

503.00

509.00

515.00

521.00

527.00

533.00

539.00

545.00

551.00

557.00

563.00

569.00

575.00

581.00

587.00

593.00

599.00

605.00

611.05

617.00

623.00

629.00

635.00

641.00

647.00

653.00

659.00

665.00

671.00

677.00

693.00

689.00

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

1.5. TV receiving test:

1.5.1 TV SIGNAL TEST ITEM

CENTRALISM TRANSMITTING SIGNAL CHECK CONTENT

SET CONTENT

CHANNEL

ORDER FREQUENCY

(MHz) PATTERN SOUND P/S(dB)

CHECK

CONTENT

CHANNEL 2 55.25 MONO SCOPE SWEEP TONE -10 ELECTRIC

ABNORMITY SOUND

CHANNEL 6 83.25 COLOR BAR 400Hz -10 SOUND ,PICTURE

CHANNEL 7 175.25 Full White (100

IRE)

STEREO -10 STERO FUNCTION

CHANNEL 13 211.25 STAIR DUAL -10 SUB FUNCTION

CHANNEL 14 471.25 MULTIBURST MONO -16 IMAGE AND SOUND

DISTURB

CHANNEL 36 603.25 MULTIBURST MONO -10 TEST Close-caption T1

FUNCTION

CHANNEL 69 801.25 MONO SCOPE MONO(1KHz) -10 NOISE LIMMITTED

SENSITIVITY

TV TEST METHOD

A.CHANNEL2 Examines sound by ear, whether the sound does have mechanical resonation and

the electrical unusual sound, and image to sound disturbance.

B.CHANNEL6: Check sound and picture.

C.CHANNEL7: Examines whether the sound does receive the image disturbance, Judgment basis:

Whether there is unusual sound, input signal LEVEL<=36dBu,and STEREO SENSITIVITY is

normal.

D.CHANNEL13: Under main/sub/main-sub mode, check sub function.

E.CHANNEL14: Examines whether the sound does receive the image disturbance, Judgment basis:

Whether there is unusual sound.

F. CHANNEL 36:Check T1 of close-caption. Input signal level<=45dBu.

G.CHANNEL 69: Adjustment attenuator, If the critical point of the change of the image signal to

noise ratio is under LEVEL<=60dBu, regards as normally.

PRODUCTS OUTPUT CHECK ITEM.

A. The same as " CENTRALISM TRANSMITTING SIGNAL CHECK CONTENT"

B. saturation TEST, inputs the TV signal, the input signal LEVEL establishment most greatly is

90dBu,check whether CONTRAST of the image is normal; Whether appears the disturbance

phenomenon.

C.AFT CHECK,

(1) The frequency of the input TV signal is 211.25MHz (CH13), after confirmed the TV set

receives this signal, closure radio station; Then set frequency of the TV signal generator to be

212.25MHz, turn on the TV set and check whether the TV set receives the signal of CH13.

(2). The frequency of the input TV signal is 211.25MHz (CH13), after confirmed the TV set

receives this signal, closure radio station; Then set frequency of the TV signal generator to be

211.00MHz, turn on the TV set and check whether the TV set receives the signal of CH13.

(3). After all of FUNCTION TEST completed, we must erase all saved changes again and

restore the factory defaults.

1.6. DTV TEST ITEM

CHANNEL FREQUENCY SOUND dB PETTEN CHECK CONTENT

14 471.25MHz Y 50 Dynamic picture Picture

36 603.25MHz Y 50 Color bar Color

69 801.25MHz Y 75 Dynamic picture Sound and Picture

DTV CHECK METHOD

A.CHANNEL14: Check whether there are some pause or the mosaic phenomenon in the picture.

B.CHANNEL36: Check whether the color of the color bar is normal.

C.CHANNEL69: Turn RF attenuator and check the critical point of the change of the image’s

S/N is under LEVEL<45~85> dBu, regards as normally.

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

TIMING TABLE (FACTORY PRESET MODE) (TABLE 3)

ITEM 1 2 3 4

TIMING 640 ×480 60HZ 640 ×480 75HZ 800 ×600 60HZ 800 ×600 75HZ

Pixel Rate 25.175MHZ 31.500MHZ 40.000MHZ 49.500MHZ

H TOTAL 31.778us 26.667us 26.400us 21.333us

H DISPLAY 25.422us 20.317us 20.000us 16.162us

H B-Porch 1.907us 3.810us 2.200us 3.232us

H Width 3.813us 2.032us 3.200us 1.616us

H Border 0.318us 0.000us 0.000us 0.000us

V TOTAL 16.683ms 13.334ms 16.579ms 13.333ms

V DISPLAY 15.253ms 12.800ms 15.840ms 12.800ms

V B-Porch 1.049ms 0.427ms 0.607ms 0.448ms

Vs Width 0.064ms 0.080ms 0.106ms 0.064ms

V Border 0.254ms 0.000ms 0.000ms 0.000ms

H/V Sync -/- -/- +/+ +/+

Interlace No. No. No. No.

ITEM 5 6 7 8

TIMING 1024 ×768 60HZ 1024 ×768 75HZ 1280 ×720 60HZ 1280 ×768 60HZ

Pixel Rate 65.000MHZ 78.750MHZ 74.250MHZ 65.000MHZ

H TOTAL 20.677us 16.660us 22.222us 20.677us

H DISPLAY 15.754us 13.003us 17.239us 15.754us

H B-Porch 2.462us 2.235us 2.936us 2.462us

H Width 2.092us 1.219us 1.007us 2.092us

H Border 0.000us 0.000us 0.000us 0.000us

V TOTAL 16.666ms 13.328ms 16.667ms 16.666ms

V DISPLAY 15.880ms 12.795ms 16.000ms 15.880ms

V B-Porch 0.600ms 0.466ms 0.444ms 0.600ms

Vs Width 0.124ms 0.050ms 0.111ms 0.124ms

V Border 0.000ms 0.000ms 0.000ms 0.000ms

H/V Sync -/- +/+ -/- -/-

Interlace No. No. No. No.

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

TIMING TABLE (FACTORY PRESET MODE) (TABLE 3)

ITEM 9 10 11 12

TIMING 1360 ×768 60HZ 1280 ×1024 60HZ

Pixel Rate 85.5MHZ 108MHZ

H TOTAL 20.959us 15.630us

H DISPLAY 15.906us 11.852us

H B-Porch 2.994us 2.296us

H Width 1.310us 1.037us

H Border 0.000us 0.000us

V TOTAL 16.662ms 16.661ms

V DISPLAY 16.097ms 16.005ms

V B-Porch 0.377ms 0.594ms

Vs Width 0.126ms 0.047ms

V Border 0.00ms 0.00ms

H/V Sync +/+ +/+

Interlace No. No.

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

2. VGA DDC Key In Procedure

Note:

1. Every time after replacing the main board, you have to do the DDC key in.

2. If you find the DDC does not conform to the LCD TV, you have to do the DDC key in.

2.1 Equipment Needed

- N3752W LCD TV

- DDC Card

- PC

- RS-232 cable

- Barcode Reader

- VGA Cable

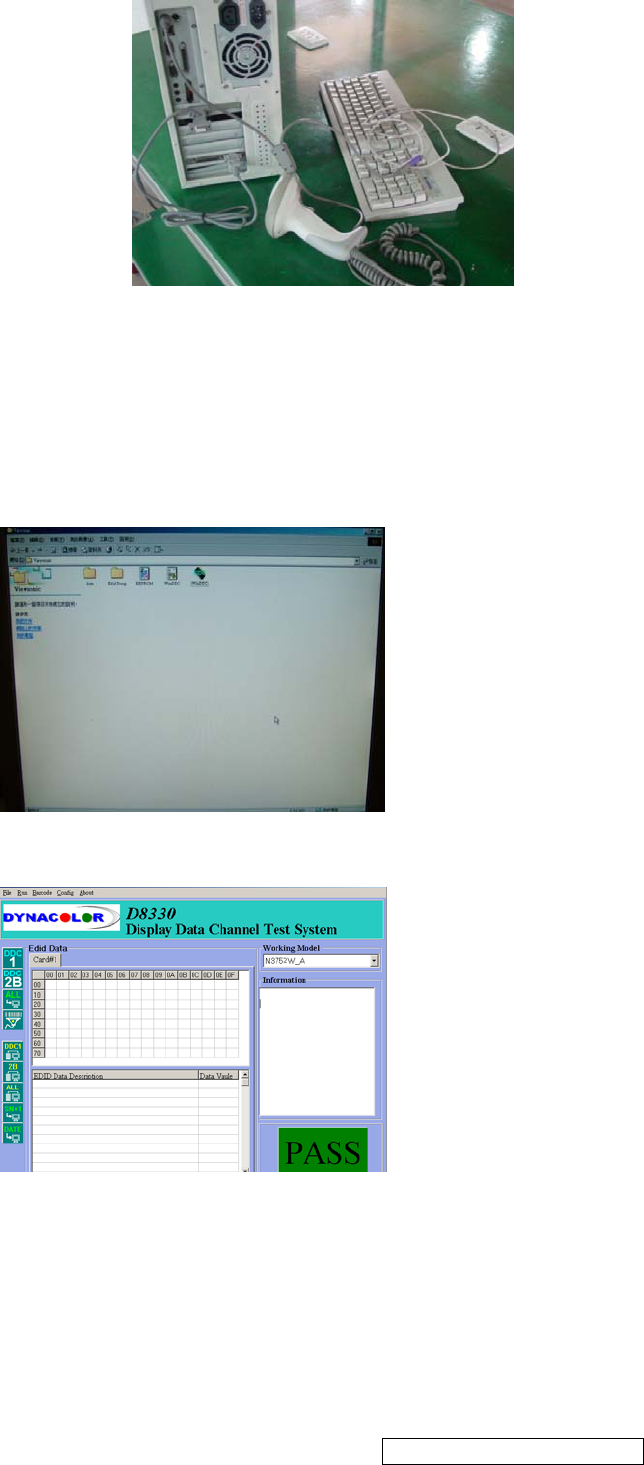

N3752W LCD TV DDC Card PC

RS-232 Cable VGA Cable Barcode Reader

2.2 Setup Procedure

2.2.1 Connect VGA Card and DDC Card with RS-232 cable.

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

2.2.2 Barcode Reader connects with keyboard and PC keyboard port.

2.2.3 Connect DDC Card and N3752W LCD TV with VGA Cable.

(when key in DVI DDC information, use VGA transform to DVI port )

2.2.4 Connect Power Cord to N3752W LCD TV.

2.3 DDC Key In Procedure

2.3.1 run DDC exe

2.3.2 Choose model number then

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

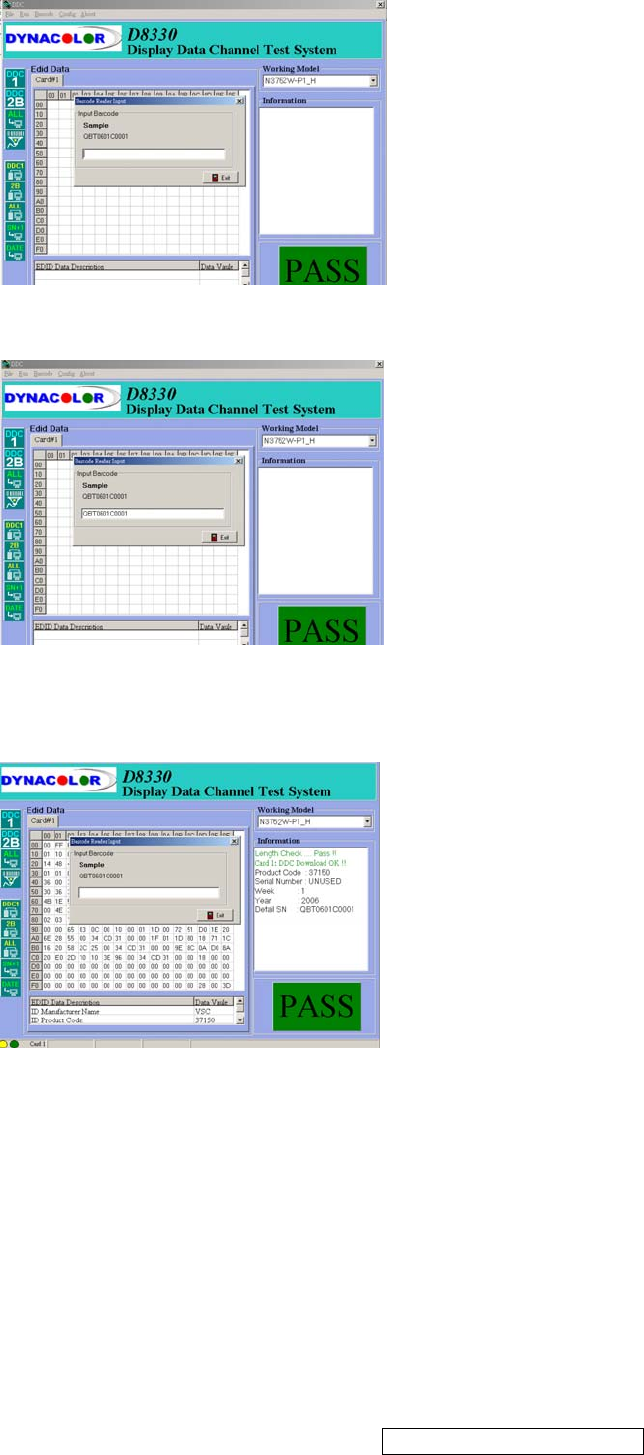

2.3.3 Press “ENTER” key.

2.3.4 Input bar code

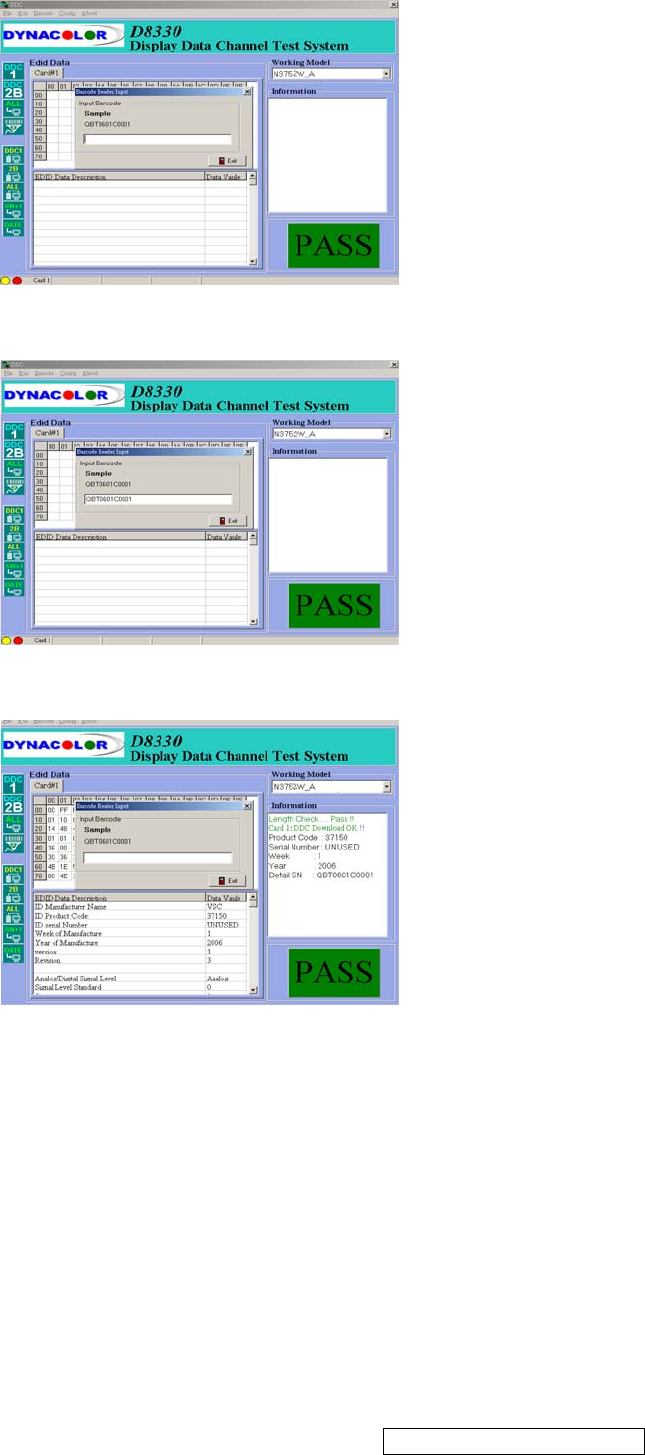

2.3.5 Press “ENTER” key, then the successful picture is as follows. “DDC DOWNLOED OK!

2.3.6 Exit program.

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

3. HDMI DDC Key In Procedure

There are three EDID files for the different HDMI connectors. So you must be download the

different EDID into each HDMI connector.

3.1 Equipment Needed

- N3752W LCD TV

- PC

- RS-232 cable

- Barcode Reader

- HDMI Cable

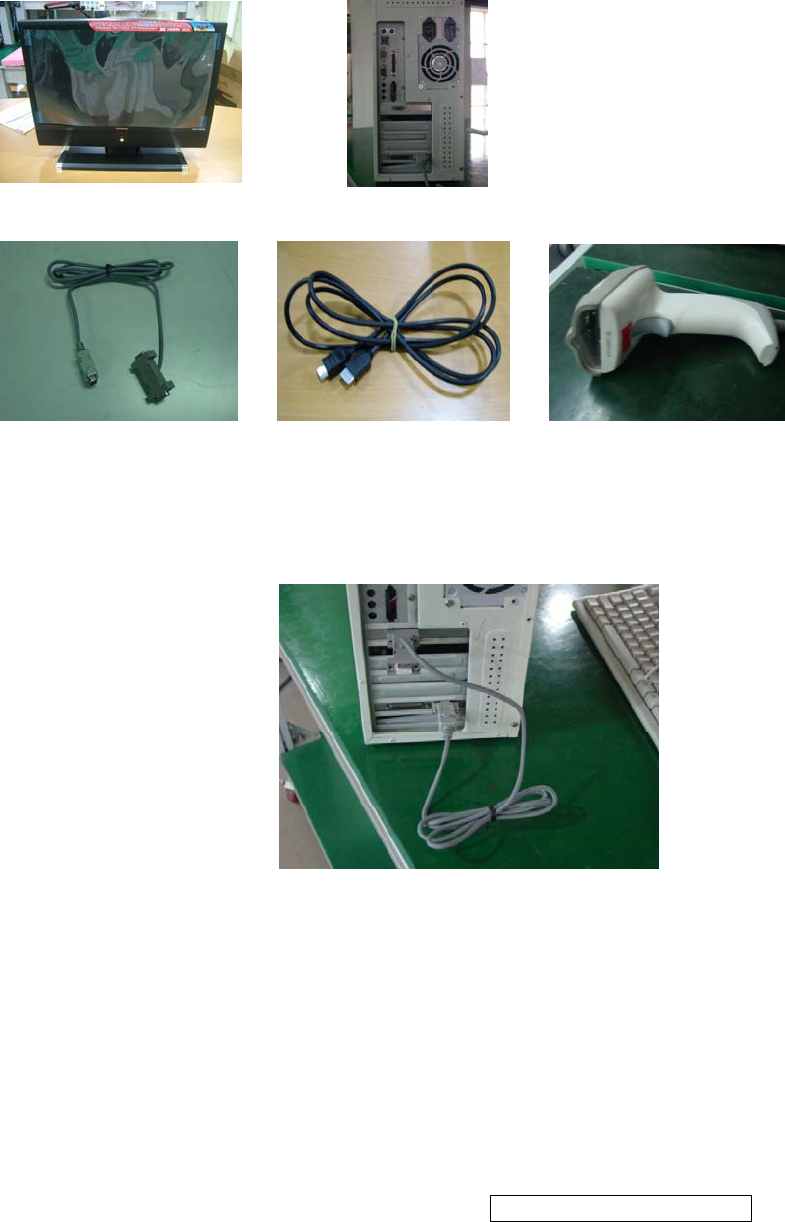

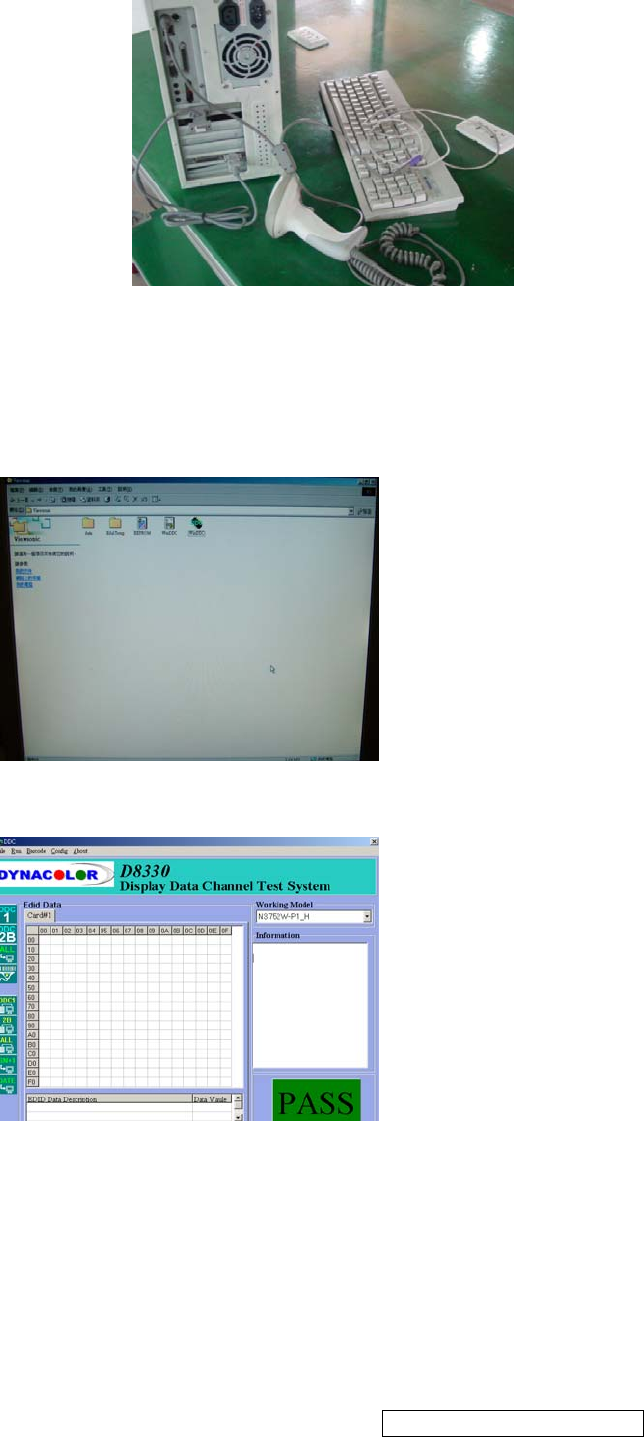

N3752W LCD TV PC

RS-232 Cable HDMI Cable Barcode Reader

3.2 Setup Procedure

3.2.1Connect HDMI Card and DDC Card with RS-232 cable.

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

3.2.2 Barcode Reader connects with keyboard and PC keyboard port.

3.2.3 Connect DDC Card and N3752W LCD TV with HDMI Cable.

3.2.4 Connect Power Cord to N3752W LCD TV.

3.3 DDC Key In Procedure

3.3.1 Run DDC.exe

3.3.2 Choose model number then

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

3.3.3 Press “ENTER” key.

3.3.4 Input bar code

3.3.5 Press “ENTER” key, then the successful picture is as follows. “DDC DOWNLOED

OK!

3.3.6 Exit program.

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

4. Firmware Upgrade Procedure

When you receive the returned LCD TV, please check whether the firmware version is

the latest. If not, please do the following procedures to upgrade it to the latest version.

4.1 Equipment Needed

- N3752W LCD TV

- Fixture for Firmware Upgrade

- VGA Cable

- PC (Personal Computer)

- Firmware Upgrade Program

- One additional LCD TV for checking the program execution

N3752W ISP FIXTURE PC

4.2 Installing the USB device driver. The USB driver will be upgraded if necessary.

"PL-2303 Driver

Installer.exe"

4.3 Insert the USB to RS232 Download Board to PC’s USB port. Then you can found

the USB Device detected and follow Windows comments to finish the Driver install.

4.4 Execute the Mtktool to start download the file. The Mtktool program will be

upgraded if necessary.

"MtkTool Auto

BaudRate.exe"

4.5 The Mtktool Operat

4.5.1 Select Platform : MT8105 , MT1389 ,MT8202 or MT8205.

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

4.5.2 Select COM port. Depends on the COM port assigned in System Device Manager (Refer

below right).

4.5.3 Select Baud Rate. 115200x 8 (Suggestion)

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

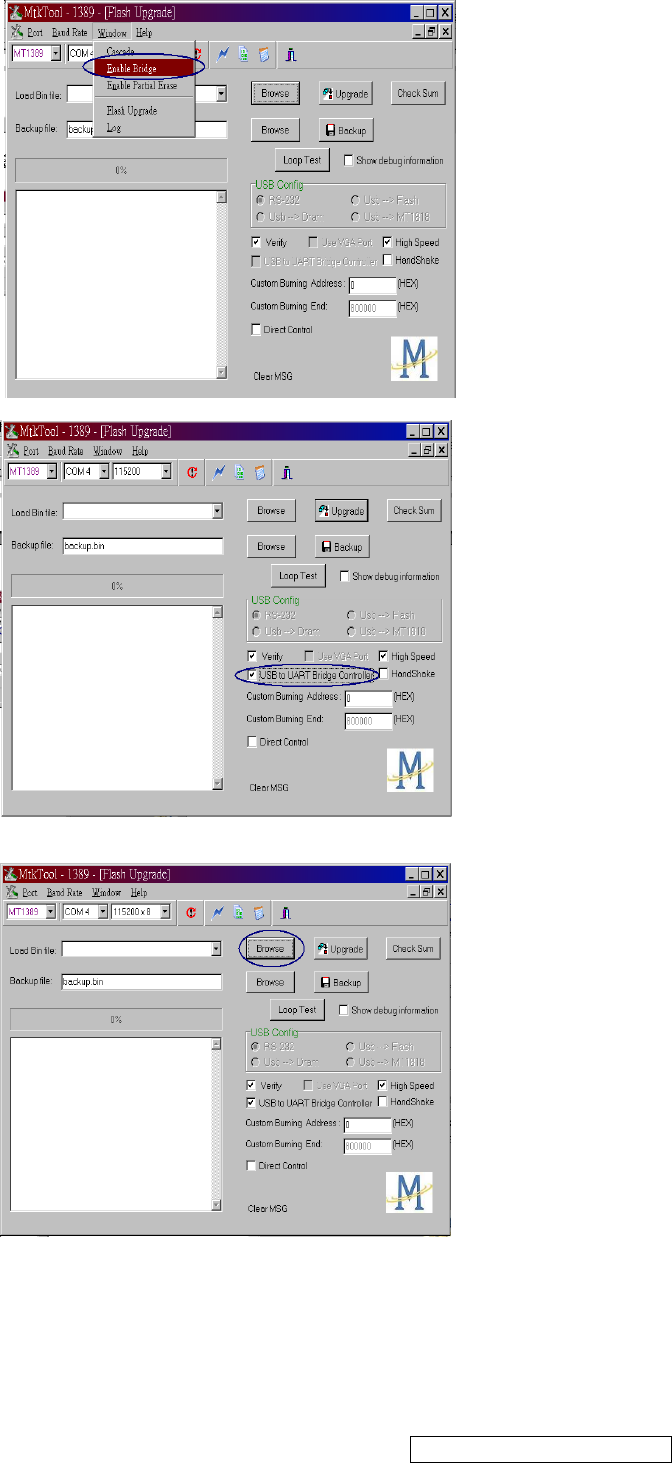

4.5.4 Enable the USB Bridge.

4.5.5 Browsing the File to download.

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

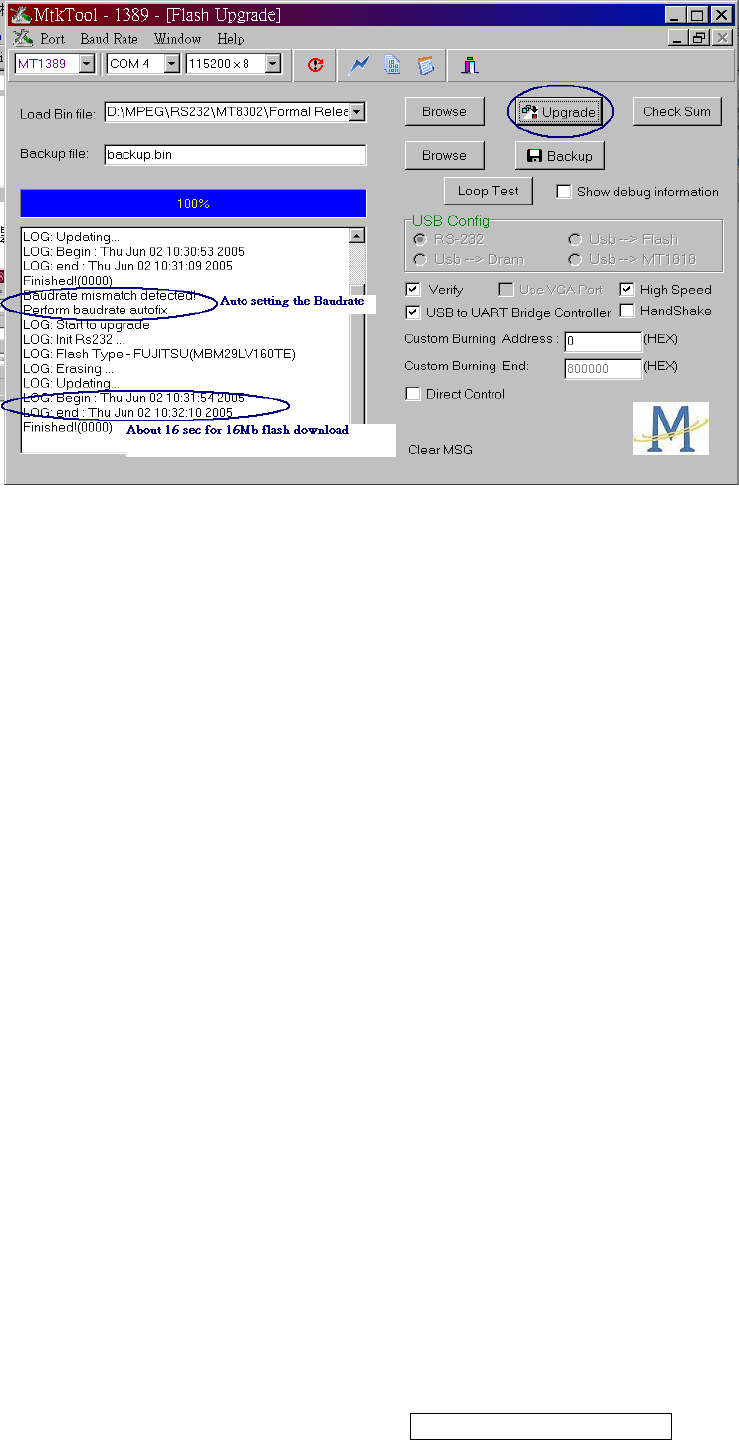

4.5.6 Press Upgrade to download file.

Note :

1. The Baud Rate is auto setting if mismatch found between your platform and Mtktool.

2. You can slow down the baud rate if some Flash memory can not works properly in high-speed

download.

3. Please call the MediaTek contact window if any problem found like unsupported Flash Type

or fail to download.

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

Packing For Shipping And Disassembly Procedure

Packing For Shipping

1. Packing Procedure

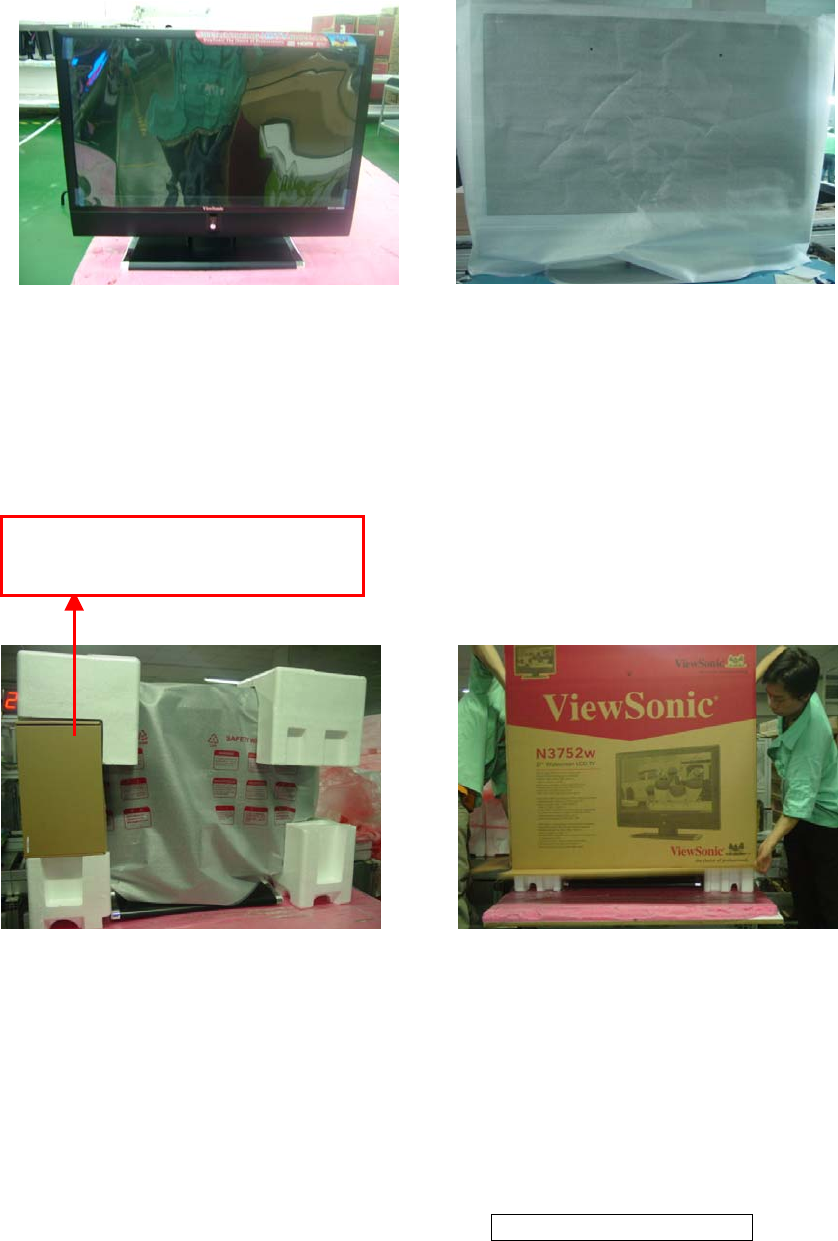

1.1 Paste protection film to protect the LCD TV. (Figure 1)

1.2 Put the LCD TV in the PE bag and seal the bag. (Figure 2)

1.3 Put the cushions on the LCD TV. (Figure 3)

1.4 Place the LCD TV into the carton and then Put the other cushions on the LCD TV,put all the

accessories into the carton. At last, close the carton and seal it with tape. (Figure 4)

Figure 4

Figure 3

Figure 1 Figure 2

1.Power Cord 2.VGA Cable 3.F/F Cable

4.RCA Cable 5.User’s Guide 6.Remote contrl

7.Guarant Card 8.Battery

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

ViewSonic Model Number: VS11405-1M

Rev: 1a

Item ViewSonic P/N Ref. P/N Location Q'ty

1 N/A N3752W monitor 1

2 P-00008063 2013054002P POLYETHY BAG 1

3 P-00006616 2012197900P POLYFOAM (T.L) 1

4 P-00006617 2012198000P POLYFOAM (T.R) 1

5 P-00006618 2012198100P POLYFOAM(B.L) 1

6 P-00006619 2012198200P POLYFOAM(B.R) 1

7 P-00008064 2013228807P POLYETHY BAG 1

8 DC-00008104 2001131664P OWNER GUIDE 1

9 DC-00008105 2002310614P GUARANT CARD(QSG) 1

10 A-00005362 2427130046P AC POWER CORD 1

11 CB-00003425 2427701893P RCA CABLE 1

12 N/A 2427704061P F/F CABLE 1

13 A-VC-0101-0386 2427501187P VGA CABLE 1

14 P-00004497 2011100017P CARTON BOX 1

15 P-00008102 2011137020P CARTON BOX 1

16 N/A 2055632240P LABEL 1

17 N/A 2005100400P BATTERY 2

18 A-00008027 2419200105P REMOTE CONTRL 1

PACKING PART LIST (N3752w-1M)

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

Disassembly Procedure

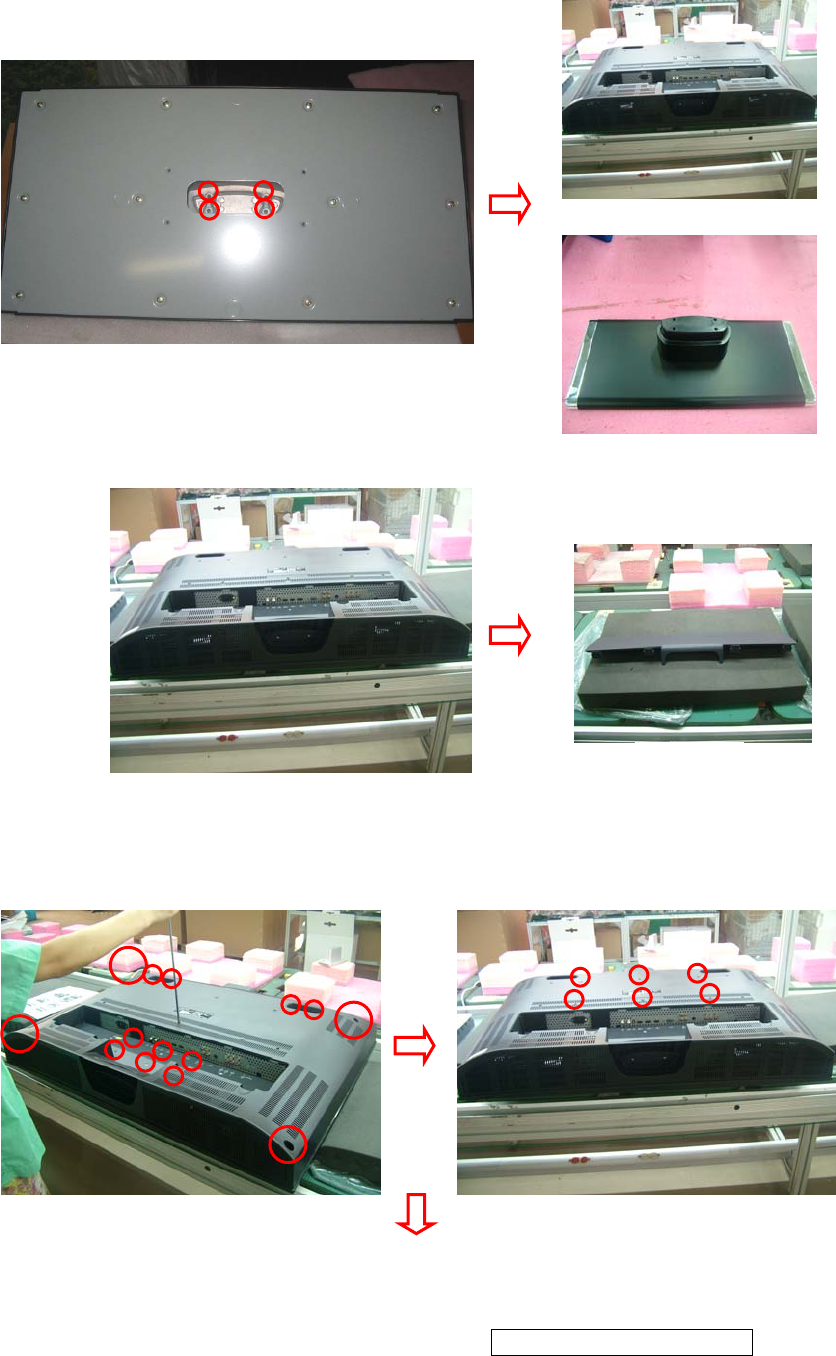

1. Disassembly of Stand and Dust Cover from LCD TV.

1.1 Unscrew 4 screws that secure Stand Unit and detach Dust Cover from the LCD TV.

2. Disassembly of Rear Cover.

2.1 Unscrew 20 screws to remove Rear Cover.

Stand

Dust Cover

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

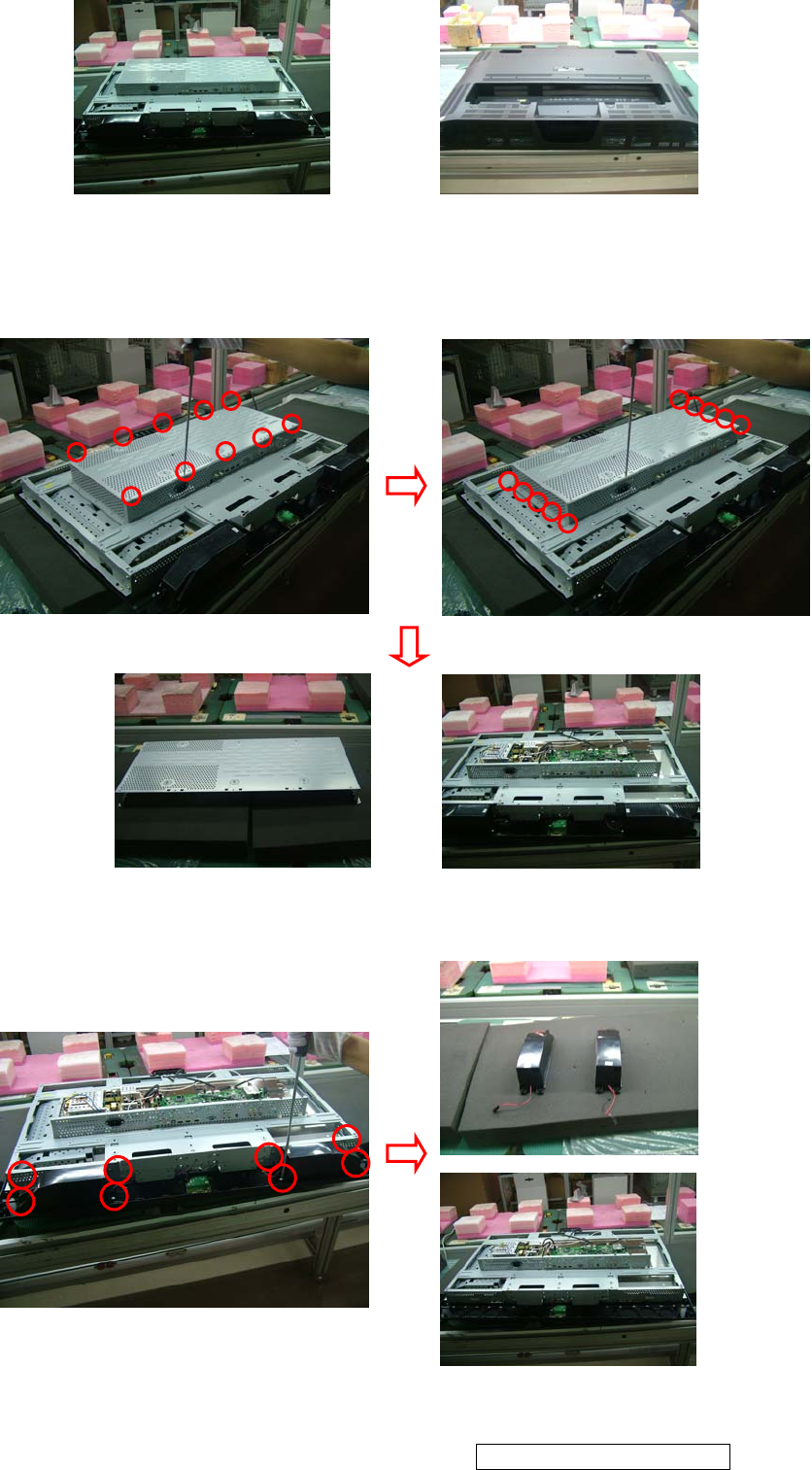

3. Disassembly of Main Board,Power Board,IR Board,Speaker,Front Cover

and Panel Unit.

3.1 Unscrew 20 screws to remove Shield Plate.

3.2. Unscrew 8 screws to remove Speaker.

Speaker

Rear Cover

Shield Plate

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

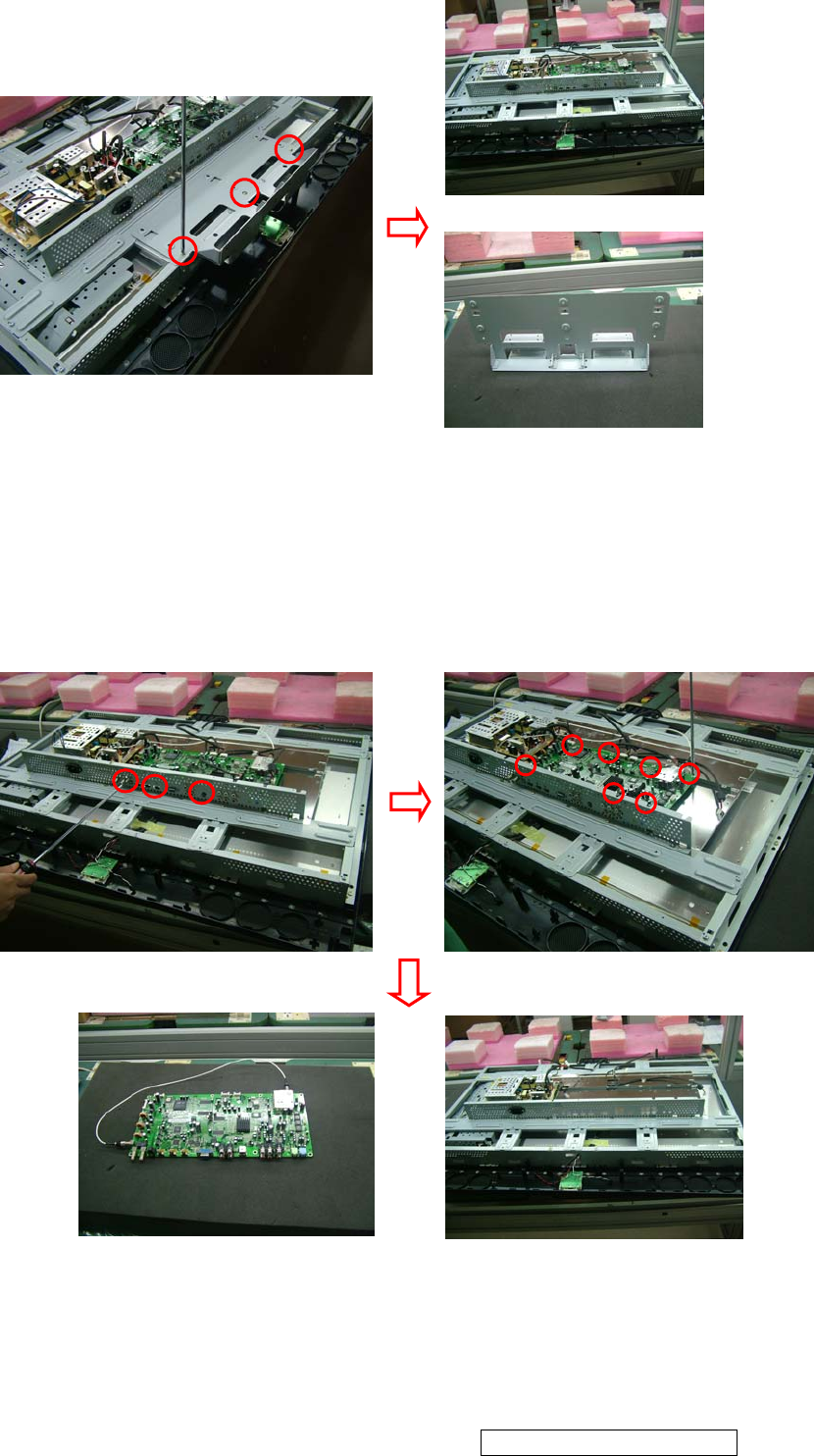

3.3. Unscrew 3 screws to remove Bracket.Fix.

3.4. Unscrew 10 screws and disconnect the wires to remove Main Board.

Main Board

Bracket,fix

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

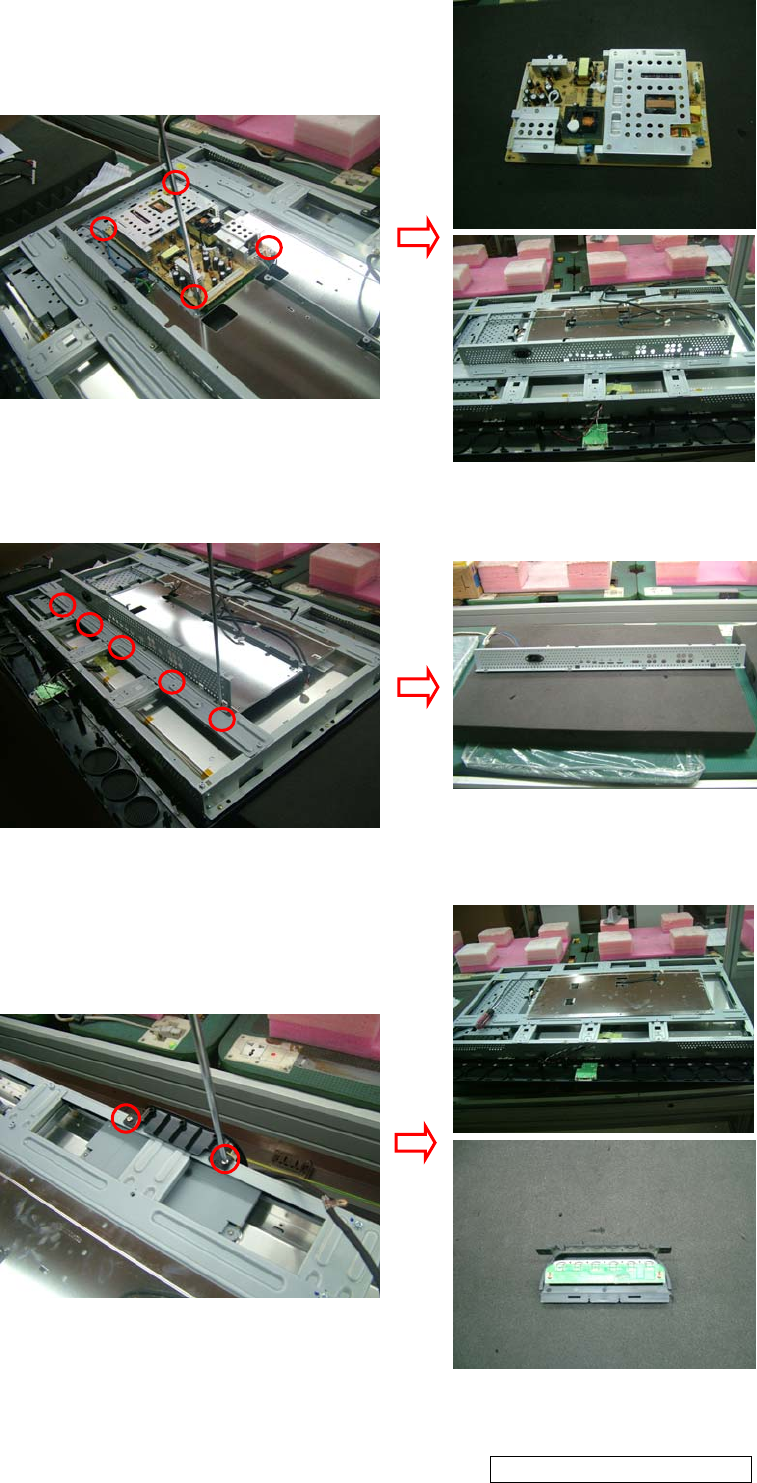

3.5. Unscrew 4 screws and disconnect the wires to remove Power Board.

3.6. Unscrew 5 screws to remove METAL FITTG.

3.7. Unscrew 2 screws and disconnect the wires to remove KeyPad Board.

Power Board

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

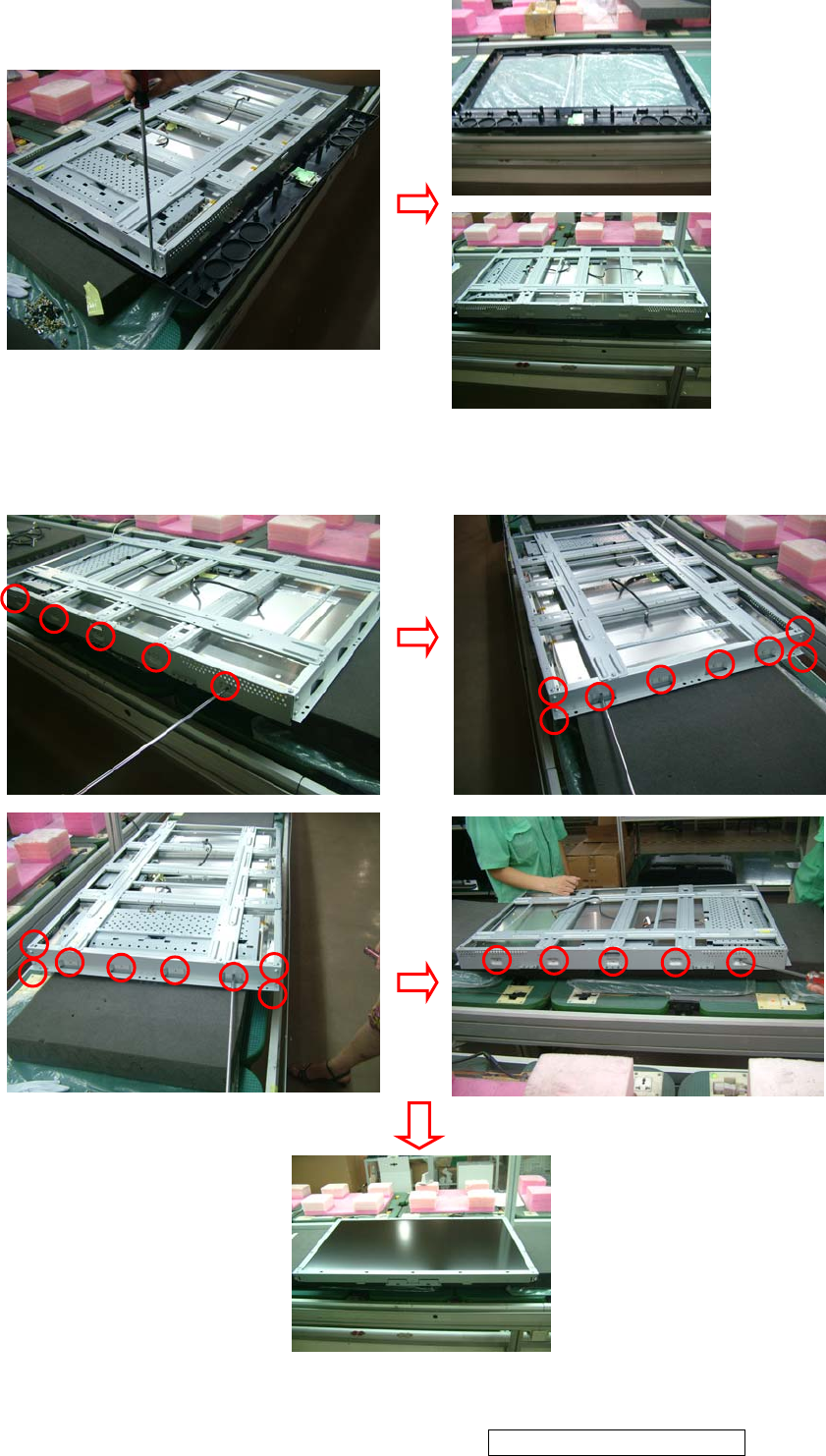

3.8. Unscrew 12 screws to remove Front Cover.

3.9. Lay Panel Unit facedown and unscrew 26 screws on its right,left,up and down sides, to remove

Panel Bracket.

Front Cover

Panel

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

6. Trouble Shooting Flow Chart

6.1. NO VOICE

Check I134 Pin3,13

has output signal? Replace I134

AV,S-VIDEO,YPbPr

Check I106 has I2S

signal output to I145?

Yes

Check I135 is

defective? Replace I135

Yes

Check I136 is

defective? Replace I136

Yes

Check Pin37 of I145 is

high?

Check Earphone

circuit

Yes

Check I145 is

defective? Replace I145

Yes

Check Speaker Wire

Replace I106

Yes

Check I804 Pin21 has

output signal? Replace I804

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

6.2. NO POWER

Chcek P805

5V,12V

Check 3.3V is on C113?

1.9V is on I102 Pin2?

Yes

Replace I106

& I107

START

Check X100 is OK?

Replace I101

Replace I102

Replace IR Board

Replace x100

Check Wire Connection on

power board is OK? Replace Power Board

Connect the wire

Yes

Check IR Board

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

NTSC

TV YPb Pr S-VIDEO

Replace I106

Replace LVDS Wire

Check inverter wire from

power board to panel is OK? Replace Inverter Wire

Replace Panel

No No

Yes

Check Video wave form is

on I804 Pin21 ?

Check Q802,C886 is OK?

Check I106 has output

signal at Pin13~22 of P803

Check the LVDS wire from

P803 to panel is OK?

Replace Q802 or C886

Replace I804

Check

L816,R172,R173,C332,C33

4 is OK?

Replace L816,R172

R173,C332,or C334

Check L821,R203,C335 is

OK?

Replace L821,R203, or

C335

Check L819,R197,C340 is

OK?

Replace L819,R197 or

C340

6.3. NO DISPLAY

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

DTV

Check Inner RF cable is

OK? Replace Inner RF cable Check HDMI Cable is well

connected ? Connect the cable

HDMI

Check I807 has output

signal at RP80~RP82 Replace I807

Check X801 has 27MHz

clock output Replace X801

Check I127 has output

signal at RP32~RP41? Replace I127

Yes

Check 27MHz is on Pin4 of

I115? Check I106

Check I114 is defective Replace I114

Yes

Check I115 has output

signal at RP25~RP30? Replace I115

Yes

Check I106 has output

signal at Pin11~16 and

Pin19~22 of P114 ?

Replace I106

Check the LVDS wire from

P803 to panel is OK? Replace LVDS Wire

Check inverter wire from

power board to panel is

OK?

Replace Inverter Wire

Replace Panel

Yes

Check +30V on Pin9 +5V

on Pin17 of I804?

Replace I804

or I119

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

SPDIF

(Optical)

CD4052

(Audio

sw.)

DDR

SDRAM

SWITCH

Flash

AIR

PC(D-Sub)

AD12250

(A/D

converter)

HDMI 2

AD8256

(Audio

Amp.)

MT5112

(Demod.)

LCD Module

NTSC

HDMI

SWITCH

AV(CVBS)

MT8202

COMBO Tuner

S-Video2

MT5351

(Mpeg

decoder)

CABLE

DDR

SDRAM

HDMI 1

Speaker

(10Wx2)

YPbPr

HDMI 3

Flash

AV/SV Audio(RCAx2)

MT8293

(HDMI

Rx)

DDR

SDRAM

PC Audio(mini jack)

DDR

SDRAM

YPbPr Audio(RCAx2)

7. Block Diagram

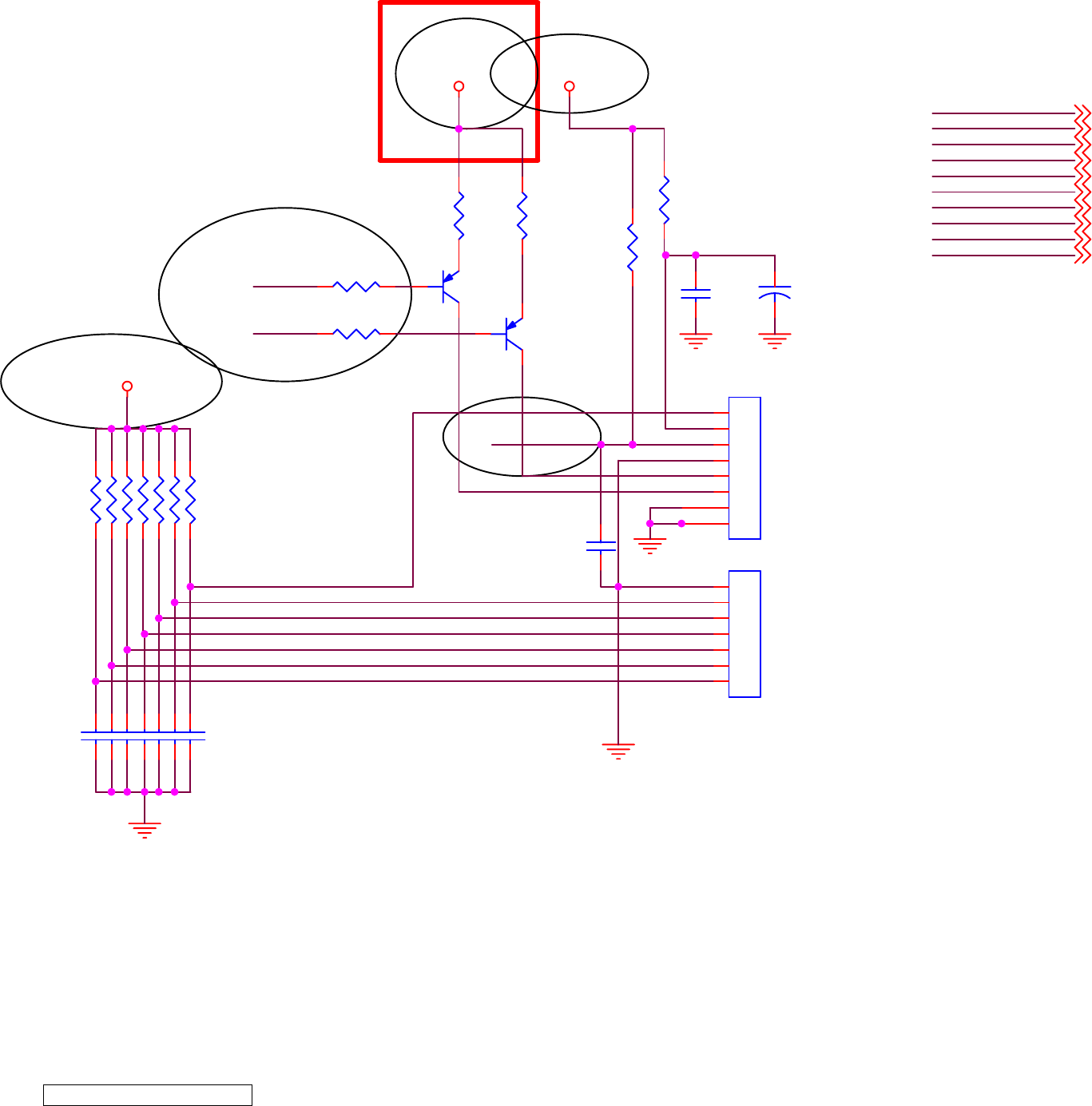

8.1. DC POWER

AUIO IN/OUT GND DIGITAL GND

Back Light circuit

Initial pull up

DC INPUT

BACK_LIGHT PWM

TURN OFF SIGNALS

Hi Enable

Enable

VDIM=5V IS THE BRIGHTEST

GNDA

IADJ

PWM0

PWM1

BL_ON_OFF

PWR_GND

BL_ON_OFF

IADJ

POWER_EN

PWR_GND

PWR_ON_OFF

PWM0 3

PWM1 3

PWR_ON_OFF 3

VCC

GNDP 12V_PANEL

5VSB

GNDP

VCC

GNDP

12V

GNDP

5VSB

GNDP

5VSB

GNDP

H100 HOLE/GND

H103 HOLE/GND

R106

R107

10K

L236

R121/0805 6A

C806

0.1U

H105 HOLE/GND

SOT

Q102

MMBT3904

R103

4.7K

C104

R102

10K

L234

R121/0805 6A

C805

4.7uF/50V

C105

1000U/16V/LowESR

C107

0.1U

L218

R121/0805 6A

R110

4.7K

H101 HOLE/GND

R111 1K

CSOT

Q103

MMBT3904

SOT

Q101

MMBT3904

R108 0

H104 HOLE/GND

R112

4.7K

P804

2.0MM

C106

1000U/16V/LowESR

L217

R121/0805 6A

H102 HOLE/GND

R109

4.7K

R101

10K

P805

2.0MM

R113

(NC)47K

8. Schematic Diagrams

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

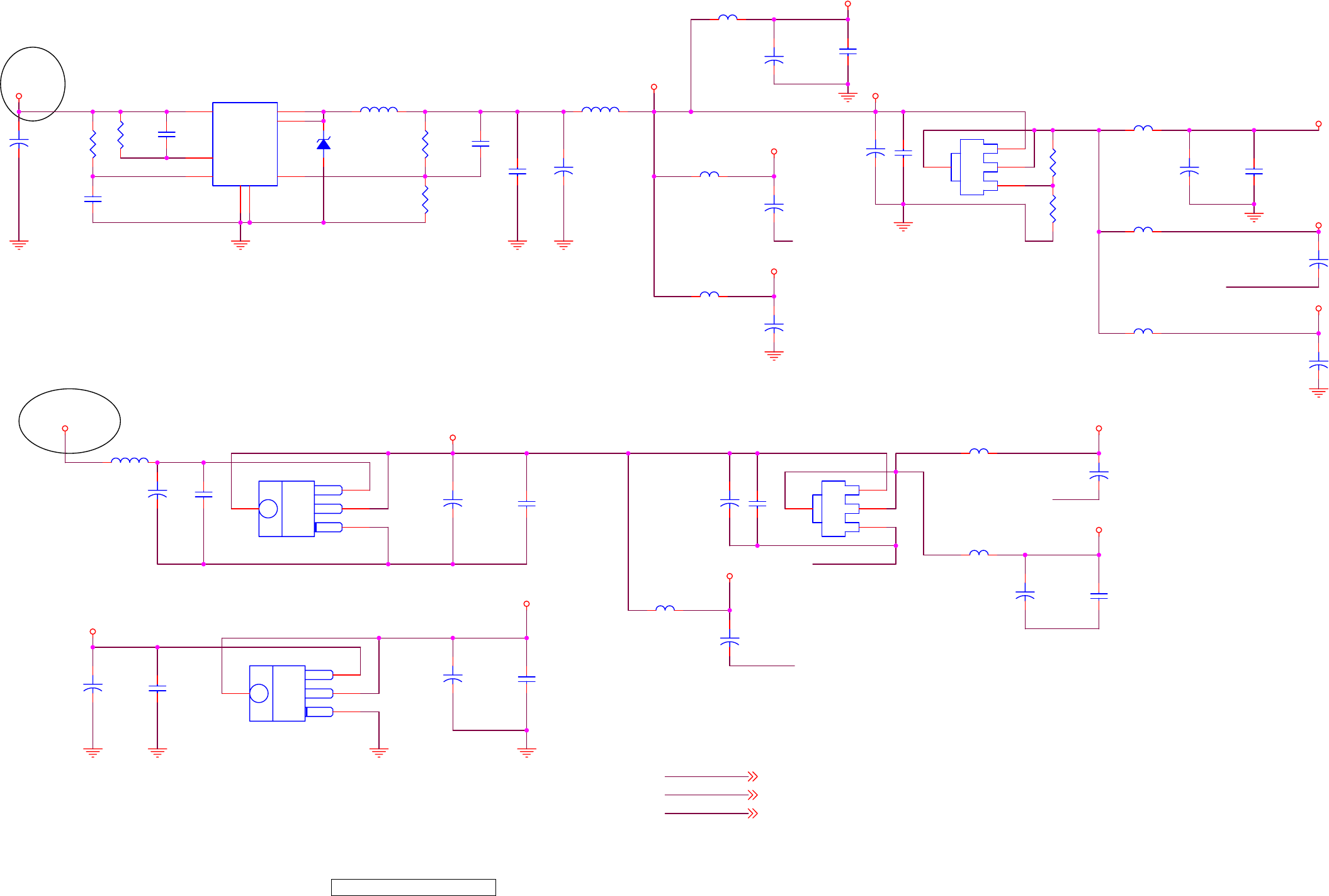

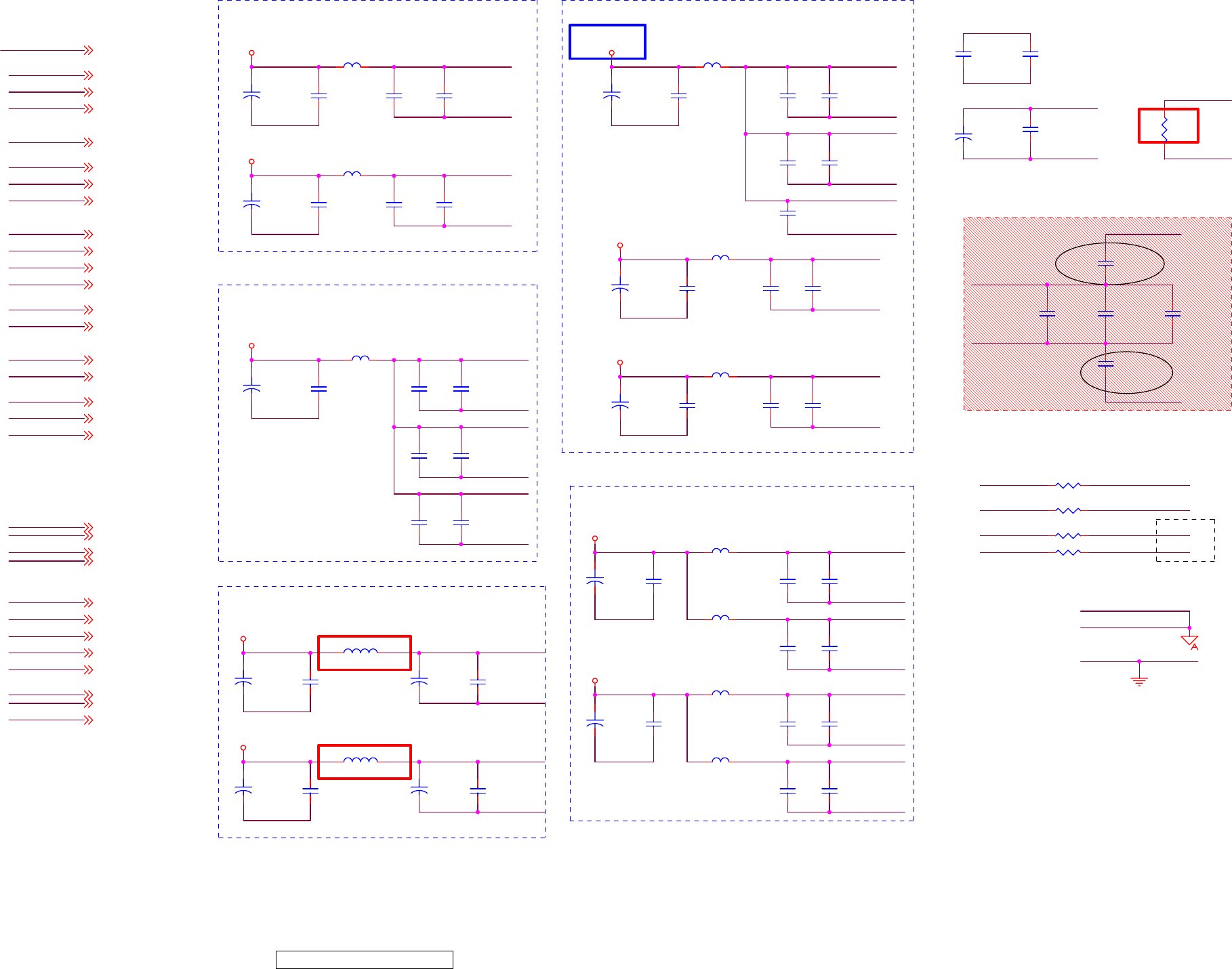

8.2. DC TO DC

This voltage must be arround 1.95v.

ADCV18A

VFE_GND1

VFE_GND

AV18A

AV33A

VFE_GND1

VFE_GND

LVDS_GND

DV18A

ASB33A

LVDS_GND

SB33A

LVDS_GND

ASB18A

SB18A

LVDS_GND

DV33A

LVDS_GND

SB18

ADCV33A

VFE_GND1 3,5,8,22

VFE_GND 3,5,8,22

LVDS_GND 3,5,25

ADCV18A

DV33B

VCC

AV18A

AV33A

SB18A

ASB18A

DV18A

ASB33A

DV33A

SB33A

ADCV33A

SB33

SB33B

5VSB

C113

100U/16V

CE025050

R518

1.15K 1%

OUT

ADJ

I105

AP1084K33

+3.3V Regulator TO-263

L111

R121/0603 3A

C125

100U/16V

C120

100U/16V

L102

R121/0805 6A

L105 R60/0603 300mA

L107

R121/0805 6A

C119

47U/16V

C128

100U/16V

ADJ

OUT

I102

AZ1117/adj

C121

100U/16V

C116

0.1U

L109

R121/0805 6A

I101

AP1510

VSS

OCSET

OutputVCC

Output

R515

3.9K R517

3.65K 1%

ADJ

OUT

I104

AIC117-1.8V/SOT223

R844

60.4 1%

C108

100U/16V

C127

0.1U

C134

0.1U

C129

0.1U

D152

SR54

1 2

C118

100U/16V

C122

220U/16V

L104

R121/0603 3A

C782

0.1U

C0603

C126

0.1U

C115

100U/16V

R527

110 / 1%

L108 R60/0603 300mA

C781

0.1U

C0603

C131

100U/16V

C117

47U/16V

C124

100U/16V

C109

0.1U

C112

0.1U

C0603

L219

30uH

0.7m/m

C780

0.1U

C0603

L103 R60/0603 300mA

L101 R121/0603 3A

C130

47U/16V

C133

0.1U

L106

R121/0805 6A

C111

47U/16V

R516

20K

C132

220U/16V

C114

0.1U

L110 R60/0603 300mA

OUT

ADJ

I103

AP1084K33

+3.3V Regulator TO-263

C110

220U/16V

CE050080

C123

0.1U

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

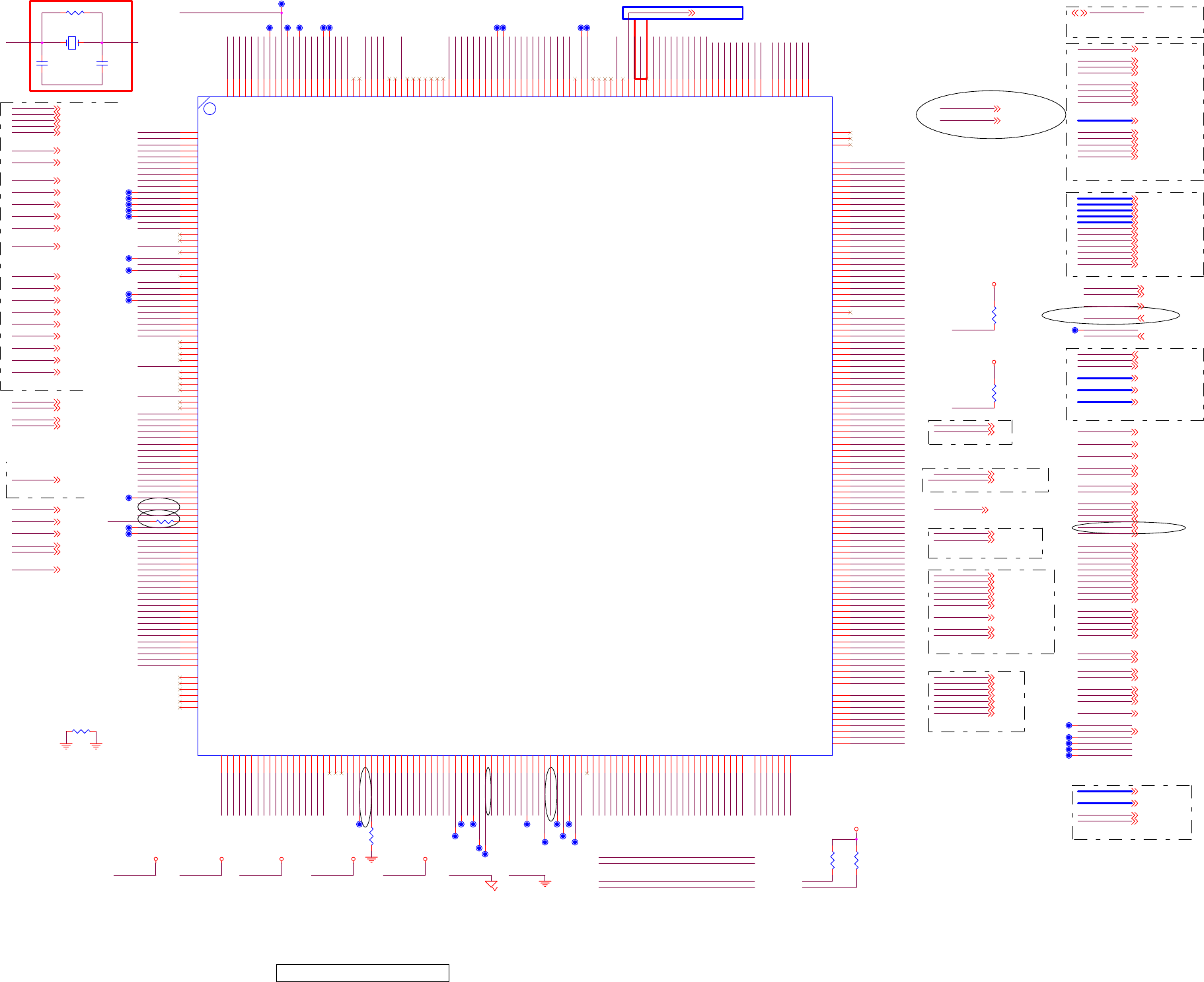

8.3. MT8202 PBGA 388

MTK modify

B+ & GND

AUTO_FINE_TUNE

LVDS DATA

VGA

YPbPr

NTSC

AUDIO OUT

I2S SWITCH

HDMI or ATSC AV

DDR

FLASH MEMORY

MTK modify

VGAHSYNC_1

F_D[0..7]

ADC_IN3

HDMIDE

GPIO16

SOY0

CVBS0

RED+

TESTP3

HDMICEN

SB33B

MPX1

HDMISD3

SB18A

LVDS_GND

XTALVDD

AUDIO_GND

GPIO11

GPIO7

VFE_GND

PR0+

CLK1+

VFE_GND1

SDV25A

INT0_1

IRRCVR

GPIO17

VPLLVDD1

PB0+

LVDDC

TXD1GPIO5

AVICM

HDMIODCK

UP3_0

SY0

A_WE_1

TESTN3

VREF

A_BA[0..1]

BLUE-

DV18A

PLLVDD2

ADCVDD

AOMCLK

GPIO8

VPLLVDD2

AP[0..3]

Y0-

PB0-

IOWR_1

ICE

AVDD_VAD1

LVDDB

ADIN

IOSCL

GREEN-

REFP

27MHZ

AVDD_VFE1

TXDUTXD

A_DQM[0..1]

PWM2VREF

SCL1

A_RAS_1

IOSDA

A_CLK

GPIO13

GPIO9

HDMISD0

PWM1

DV25A

TESTP4

RXD1

AOBCLK

HDMILRCK

AOSDATA2

A_CLK_1

REFN

RXD1

HDMIHSYNC

ADACVDD

DACFS

SDA1

CLK1-

AN[0..3]

A_DQS[0..3]

GPIO14

AOSDATA3

PLLVDD1

AOSDATA1

HDMISD1

HDMIBCLK

GPIO15

PLLVDD3

IOA[0..7]

RXD

GPIO3

GPIO2

TESTN4

LVDDA

F_OE_1

PWM0

A_CAS_1

AOLRCK

RED-

VGASOG

A_DQ[0..31]

HDMIVSYNC

CVBS1

IOCE_1

SC0

TXD1

A_CKE

GPIO10

HDMIMCLK

A_CS_1

PR0-

AOSDATA0

VI[0..23]

AADCVSS

BLUE+

F_A[8..21]

HDMISD2

INT0_1

AVDD_VAD0

VGAVSYNC_1

TXD

AVDD_VFE0

GREEN+

GPIO4

URST_1

A_RA[0..11]

AADCVDD

Y0+

RXD1GPIO6

RXDURXD

ERO3_GPIO

VIDEO_OUT

CCIR_GPIO_D

SDA0

SCL0

XTALI

AUD_CTRL

READY#

TUNER_SW

DCLK

RED_LED

GREEN_LED

SB33A

SC0

HDMILRCK

VI9

GND

PWM1

A_BA0

GND

A_CLK_1

A_DQ11

A_DQ31

A_DQ30

GND

F_D1

SB18A

AADCVSS

SDA1

TESTP3

REFP

VI6

A_DQ6

DACFS

F_A10

PLLVDD3

GND

A_RA0

A_DQ14

A_DQ4

LVDS_GND

AP1

SDV25A

IOA1

F_A20

F_A17

VFE_GND

GND

AADCVDD

CVBS1

REFN

SCL1

HDMISD3

GND

VI1

A_RA11

F_D6

F_A21

AN3

VREF

A_DQS1

LVDS_GND

GND

URXD

GND

MPX1

AVDD_VFE1

DV18A

VI19

VI7

VI4

HDMICEN

READY#

GPIO11

A_DQ9

GND

A_DQ22

ADCVDD

F_A15

IOA6

GPIO16

GPIO13

GPIO4

AOSDATA5

GND

SB33A

DCLK

VIDEO_OUT

GND

VFE_GND1

GND

ACENT

PR0-

Y0+

HDMISD1

HDMIMCLK

VI15

CLK1+

PLLVDD2

DV25A

A_DQ18

A_DQ26

LVDS_GND

ADC_IN2

ADC_IN4

F_D4

GPIO10

GND

GND VFE_GND1

PLLVDD1

TESTP1

BLUE+

HDMIODCK

AOLRCK

TESTN4

LVDS_GND

A_RA3

A_DQ12

A_DQ8

AN0

A_DQ23

A_DQ24

F_D0

IOA7

F_A9

AOSDATA0

UP3_4

URST_1

UTXD

ADACVDD

VFE_GND

VGAHSYNC_1

HDMISD0

VI5

A_DQ13

GPIO2

A_RA2

A_DQ0

A_CAS_1

GND

A_DQ29

F_A19

F_D3

AOSDATA1

DV25A

GND

LVDDB

AVDD_VFE0

VFE_GND1

Y0-

VI18

VI2

27MHZ

DV25A

LVDS_GND

A_DQ2

TESTP4

A_DQ28

F_A8

F_A16

GPIO3

INT0_1

A_DQ19

XTALO

GND

DV33A

IDT_OE

IOA2

A_DQ27

LVDS_GND

IOSCL

DV33A

XTALO

DACVDDA

GPIO6

GPIO5

A_RA7

DACVREF

F_D7

DV18A

GND

VFE_GND

VFE_GND1

TESTN2

MPX2

VFE_GND1

PB0-

CCIR_GPIO_D

AUD_CTRL

VI20

VPLLVDD1

GREEN+

DACVDDB

AOSDATA2

GND

AUDIO_GND

HDMISD2

VI14

GND

VI3

A_DQM0

A_RAS_1

AP3

A_DQ21

AP0

GND

GPIO8

A_RA9

A_RA5

LVDS_GND

TXD1

GND

AADCVSS

VGASOG

BLUE-

VI22

VI16

VI13

VI10

VI0

HDMIHSYNC

DV18A

AN2

LVDS_GND

A_WE_1

PWM0

ERO3_GPIO

GND

XTALI

IOA4

GND

GPIO14

A_RA4

AP2

TESTN3

SY0

AVDD_VAD1

RED+

VI23

VI17

GND

DV33A

SB18A

ADC_IN1

A_DQM1

F_OE_1

SB33A

IOA5

GPIO7

AOBCLK

GND

AOMCLK

VFE_GND

GND

PB0+

TESTN1

VI11

HDMIVSYNC

A_BA1

PWR_ON_OFF

DV25A

A_DQ17

DACVDDC

A_DQS2

AN1

LVDDC

A_DQ25

PWM2VREF

IOSDA

F_D5

TUNER_SW

IOA3

F_A12

LVDS_GND

AVICM

AVDD_VAD0

HDMIBCLK

VI12

VI8

A_DQS0

A_CKE

A_CLK

A_DQS3

IOWR_1

A_RA1

A_RA10

A_DQ7

F_A18

AOSDATA4

AOSDATA3

A_DQ16

A_RA6

VFE_GND1

GND

CVBS0

SOY0

RED-

VFE_GND

VGAVSYNC_1

GND

VI21

DV18A

HDMIDE

GND

F_A11

F_A13

CLK1-

A_CS_1

DV18A

A_DQ15

XTALVDD

LVDDA

VPLLVDD2

SDV25A

ADC_IN3

GREEN-

F_D2

DV18A

ADIN

IRRCVR

DV33A

PR0+

ICE

ADC_IN0

A_DQ10

GND

A_DQ20

SDV25A

IOCE_1

F_A14

GPIO9

A_RA8

LVDS_GND

IOA0

SCL0

A_DQ5

UP3_0

GREEN_LED

TESTP2

GPIO17

A_DQ3

GPIO15

A_DQ1

SDA0

PWR_ON_OFF

IDT_OE

RED_LED

HD_PON

TESTN3 5

HDMIVSYNC 10,12

HDMIHSYNC 10,12

IOSDA 10,13,23,26

F_A[8..21] 4

VPLLVDD2 5

BLUE+ 22

HDMIBCLK 12

GPIO10 24

A_CKE 4

AL 21

VGAVSYNC_1 22

TESTP3 5

CVBS1 8

GPIO15 24

HDMISD3 10

RXD1 12

VPLLVDD1 5

SDA1 12

HDMIMCLK 12

GPIO9 19

AR 21

VGAHSYNC_1 22

A_RA[0..11] 4

TESTN4 5

CLK1- 25

F_OE_1 4

HDMISD2 10

RED- 22

AOLRCK 20,23

SOY0 8

GPIO8 23

MPX1 8

TESTP4 5

LVDDB 5

HDMISD1 10

URST_1 26

PLLVDD2 5

GREEN- 22

A_BA[0..1] 4

PR0+ 8

GPIO7 19

Y0- 8

F_D[0..7] 4

27MHZ 10

LVDDC 5

AUDIO_GND 5,21,22

GPIO14 24

ADIN 20

AVDD_VAD0 5

GPIO4 26

PR0- 8

GPIO3 12

A_CLK_1 4

VI[0..23] 10,12

SDV25A 4

TXD 26

VGASOG 22

A_WE_1 4

PLLVDD1 5

Y0+ 8

GPIO2 25

DACFS 5

PWM2VREF 5

DV25A 4

AOMCLK 20,23

ADC_IN3 7

LVDS_GND 2,5,25

XTALVDD 5

ADCVDD 5

A_DQM[0..1] 4

PB0+ 8

AVICM 5

RXD 26

RED+ 22

A_CLK 4

VFE_GND 2,5,8,22

CLK1+ 25

ADACVDD 5

GPIO13 24

PB0- 8

SC0 8

IRRCVR 24

GPIO17 10

INT0_1 10

A_RAS_1 4

AVDD_VFE0 5

AOBCLK 20,23

IOWR_1 4

REFN 5

BLUE- 22

A_DQS[0..3] 4

AN[0..3] 25

AVDD_VFE1 5

AADCVDD 5

LVDDA 5

VREF 4

A_CAS_1 4

REFP 5

IOA[0..7] 4

HDMICEN 10

PWM1 1

A_DQ[0..31] 4

HDMIDE 10,12

AVDD_VAD1 5

IOSCL 10,13,23,26

IOCE_1 4

HDMISD0 12

GREEN+ 22

VFE_GND1 2,5,8,22

AOSDATA1 23

PWM0 1

GPIO16 24

AP[0..3] 25

HDMIODCK 10,12

CVBS0 8

PLLVDD3 5

TXD1 12

HDMILRCK 12

GPIO11 24

SCL1 12

AADCVSS 5,21,22

UP3_0 24

A_CS_1 4

SY0 8

ERO3_GPIO 20

VIDEO_OUT 21

CCIR_GPIO_D 10

SDA0 26

SCL0 26

AUD_CTRL12

TUNER_SW 13

READY# 7

RED_LED 24

GREEN_LED 24

PWR_ON_OFF 1

IDT_OE 13

HD_PON 11

SB33B

SB18A DV33A

SB33B

SB33B DV18A

SB33B

SB33A

TP34

TP07

TP38

TP14

TP11

TP20

R118

10K

TP15

TP31

TP16

TP79

R114

1M5

TP36

TP08

R116

(NC)10K

TP09

R870 0

X100

27MHz

TP17

R119

10K

TP18

TP01

TP80

TP27

R869 0

TP13

TP03

C136

27P

TP33

TP19

TP02

R117

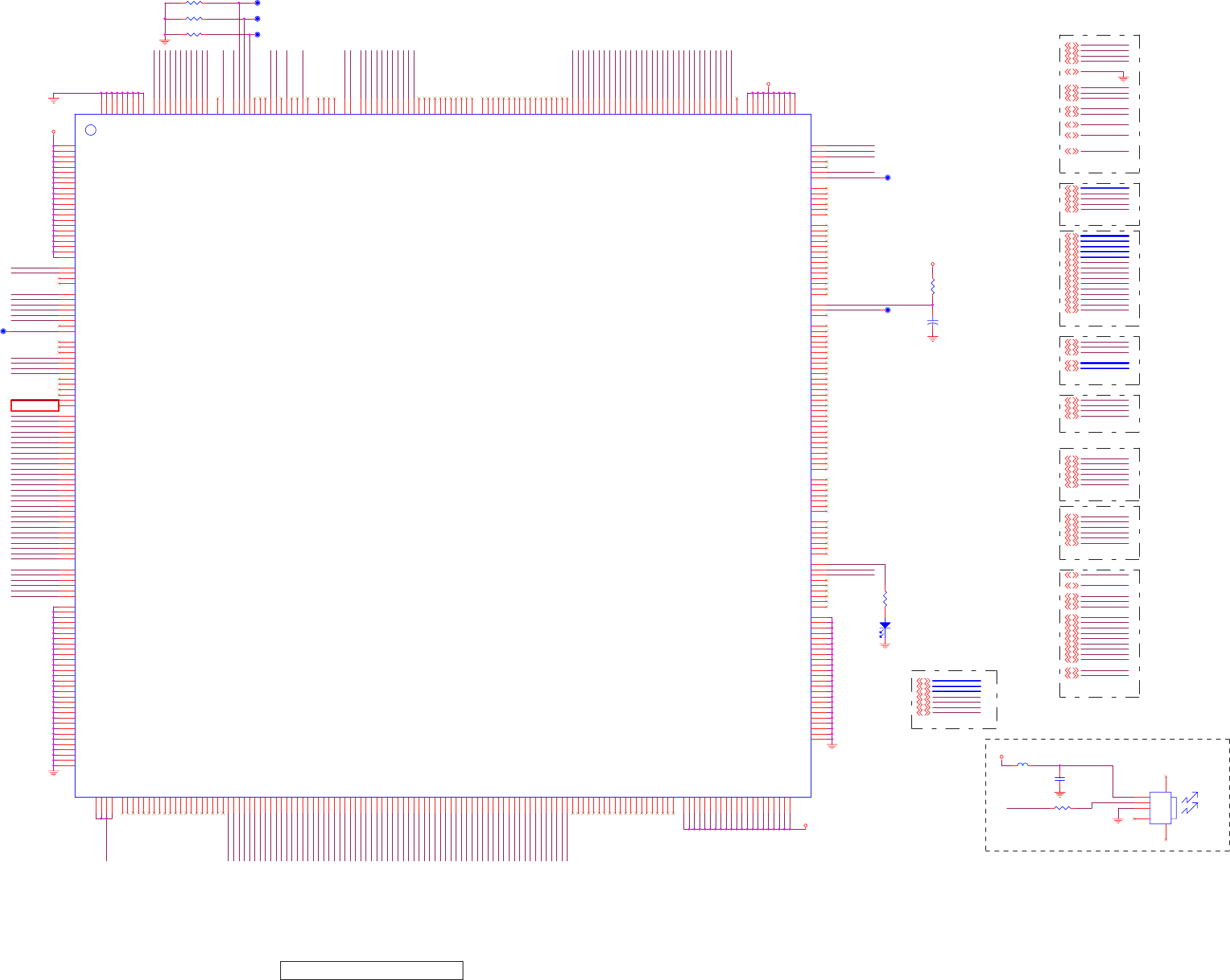

MT8202

SOCKET

I106

MT8202

BGA388/SOCKET

C10

D12

B16

A10

A14

R13

AF10

AC11

AD11

AC12

AE11

AF11

AF12

AE10

AC7

M11

N12

L12

M12

AA1

D18

A18

D20

A21

AE13

C18

T26

C20

B20

A23

C11 AC16

AC15

AD16

AC14

AD15

AF16

T14

AE15

AD14

AE14

B13

D16

C16

A17

C17

C12

A13

A15

D13

A22

A20

C19

D19

R14

AF14

AF13

AD13

T13

B22

AD17

AC17

AF17

AC13

AE17

AE12

AC1

AC4

AD5

AE1

AF1

AA2

AE5

AF4

AE4

AF3

R12

AE3

AF2

T25

AD3

P12

AC8

AF7

AF6

R11

AF5

AB3

AB2

AB1

AE8

AD8

AA4

AF9

AF8

AD9

T11

N11

AD7

AC18

C21

B21

A19

D21

B19

B18

B14

B12

B17

A12

D10

D11

D14

D15

B15

AC2

L11

C14

B10

B11

D17

C15

AD12

AC9

AE16

AF15

AD10

AE9

AC10

AE2

AD1

AC5

T12

AB4

A16

A11

AC6

AE7

AE6

AD2

AC3

P11

AD6

AD4

AD18

AE18

AF18

AF19

AD19

AC19

AF20

AE20

AD20

AD21

AF21

AE19

AE21

AF22

AC21

AC22

AE22

AD22

R15

AF23

T15

AE23

AD23

AF24

AE24

AD24

AF25

AF26

AE25

AE26

AC20

AD25

AC23

AD26

AC25

AC26

AB26

AB25

AC24

AA25

AA26

AA23

AA24

AB24

T16

W23

Y26

Y25

Y24

Y23

R16

W26

W25

W24

V24

V23

U23

U24

V26

V25

N24

U25

U26

T24

R25

R26

R23

R24

P23

M24

P24

P25

P26

N25

N26

M25

M26

L24

L25

L26

K25

K26

J25

J26

L23

G26

G25

F26

F25

H23

G23

G24

D25

D26

J23

E26

E25

F24

F23

E24

B26

C26

D24

C25

B25

C24

B24

A24

A26

A25

D23

C23

D22

C22

C13

B23

AB23

P13

N16

N15

N14

N13

M16

P16

P15

P14

E23

H24

H25

H26

K23

M23

N23

AA3

M15

L16

L13

M13

L14

L15

M14

J24

K24

T23

A5P/EBO1

DVDD18

RXD

TXD

AOMCLK

WR#

VSYNCO

HSYNCO

DE/GPIO

VCLK/GPIO

A17

IOA0

AD7

A6P/EBO3

A7N/EBO6

VREF

A2P/EGO1

A4P/EGO7

DVDD33A

LVSSC

DVSS25

RA8

RA7

RA6

DQ16

RA5

RA4

DQ19

RA9

DVDD25_CLK

RD#

IOA3

INT0

PRST#

UP3_4

AOBCK

LIN

DVSS18

AOSDATA0/GPIO

AOSDATA1/GPIO

AOSDATA2/GPIO

AOSDATA3/GPIO

DVSS33

GPIO0/AOSDATA4

GPIO3

GPIO1/AOSDATA5

FCICLK/GPIO

GPIO4

GPIO5/TXD

GPIO6/RXD

DVDD18

GPIO7

GPIO9

GPIO8

GPIO10

GPIO13

GPIO14

GPIO15

GPIO16

DVSS18

HIGHA1

DVSS18

IOA20

A16

IOA6

IOA5

DVDD33A

IOA4

DVDD18A

IOA18

IOA1

IOOE#

AD3

HIGHA6

HIGHA0

IOA7

IOCS#

AD0

HIGHA7

AD2

AD4

AD5

IOA19

AD1

SDA

ADCVDD

ADIN4/GPIO

XTALI

DQ22

PWM2VREF

ADIN3/GPIO

ADIN2/GPIO

PLLVSS3

CK2P/EBO5 DQ29

DVDD25OPT

DQ28

DVDD25OPT

DQ26

DVSS25

DQ25

DQ24

DQM1

IOALE

A0P/ERO5

A1P/ERO7

LVDDC

DACVDDB

DACVDDA

DACVSSB

A7P/EBO7

VPLLVDD2

TP4

A5N/EBO0

A1N/ERO6

LVDDA

XTALVDD

XTALO

ADIN1/GPIO

DACVSSA

DVSS18

DQS2

DQ23

DQ21

DVSS25

ERO3/GPIO

DVDD18A

A0N/ERO4

PLLVSS2

GPIO/PWM0

DVDD33I

DQ30

DQ20

DQ31

DQ18

DQ4

DQ7

DVDD25

DQS1

DQ8

SCL

RWE#

DQ15

DQ14

DQ12

DVSS18

DQ11

DQ10

RVREF

DVSS18

DVDD18

RA10

RCS#

DVSS25

CAS#

DQ2

DQ1

DQ0

RA1

RA0

DVDD33

RCLKB

RA2

RA3

DVSS25

BA0

GPIO/PWM1

PLLVDD2

PLLVDD3

XTALVSS

ADCVSS

ADIN0/GPIO

SVM

LVSSB

A3N/EGO4

A3P/EGO5

A6N/EBO2

CK2N/EBO4

VPLLVSS

VPLLVDD1

TN4

DQ5

IOA21

DVSS33

LVSSA

A2N/EGO0

CK1N/EGO2

DACVSSC

DACVDDC

HIGHA2

AD6

IOWR#

DQ17

DVDD18

DQ27

DQS3

RA11

RCLK

CKE

DQ9

DQS0

DVDD25

GPIO11

GPIO17

GPIO2

FCICMD/GPIO

IOA2

ERO2/UP3_5

HIGHA5

DVSS18

DQ3

CK1P/EGO3

DVDD25

BA1

RAS#

ICE

ERO1/UP3_1

HIGHA3

AOLRCK

DQM0

DQ6

DVSS25

GPIO18

FCIDAT/GPIO

DVDD25

GPIO12

DQ13

OUT_27MHZ/GPIO

DE_SOG/GPIO

CEN_DVI/GPIO

VSYNC_DVI

HSYNC_DVI

DE_DVI

VI0

VI1

VI2

VI5

VI3

VCLK_DVI

VI4

VI7

VI6

DVDD18

VI8

VI9

DVSS33I

VI10

DVSS18

VI11

VI12

VI13

VI14

VI15

VI16

VI17

VI18

VI19

DVDD33

VI20

DVDD18

VI21

VI22

VI23

HDMIMCLK/GPIO

HDMIBCLK/GPIO

HDMILRCK/GPIO

HDMISD0/GPIO

HDMISD1/GPIO

HDMISD2/GPIO

HDMISD3/GPIO

SCL1

DVSS33

CCIR_VCLK/GPIO

CCIR_V0/GPIO

CCIR_V1/GPIO

CCIR_V2/GPIO

CCIR_V3/GPIO

DVSS18

CCIR_V4/GPIO

CCIR_V5/GPIO

CCIR_V6/GPIO

CCIR_V7/GPIO

SDA0

SCL0

FAST_BLANK

HSYNC

VSYNC

AVSS_VFE1

SOG

AVDD_VFE1

TN1

TP1

AVSS_VAD1

SOY0

Y0P

Y0N

PB0P

PB0N

PR0P

PR0N

SOY1

Y1P

Y1N

PB1P

PB1N

PR1P

PR1N

AVDD_VAD1

SC1

SY1

SC0

SY0

AVSS_VFE0

AVSS_VAD0

REFN

CVBS1

CVBS0

AVDD_VFE0

CVBS3

CVBS2

REFP

AVDD_VAD0

AADCVDD

SIF

AADCVSS

TN2

TP2

ADACVDD

ACENT/AOSDAT2

AVICM

AR/AOSDAT1

AL/AOSDAT0

ADACVSS

TP3

TN3

PLLVDD1

LVDDB

ERO0/UP3_0

PLLVSS1

A4N/EGO6

SDA1

DGND/BALL

NC BALL

AADCVSS

VFE_GND1

VFE_GND

NC BALL

DGND/BALL

HIGHA4

DGND/BALL

NC BALL

TP10

TP29

TP22

TP04

C135

22P

TP30

TP25

TP12

TP21

TP05

TP26

TP24

TP81

TP32

TP23

TP06

TP37 TP35

R115

10K

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

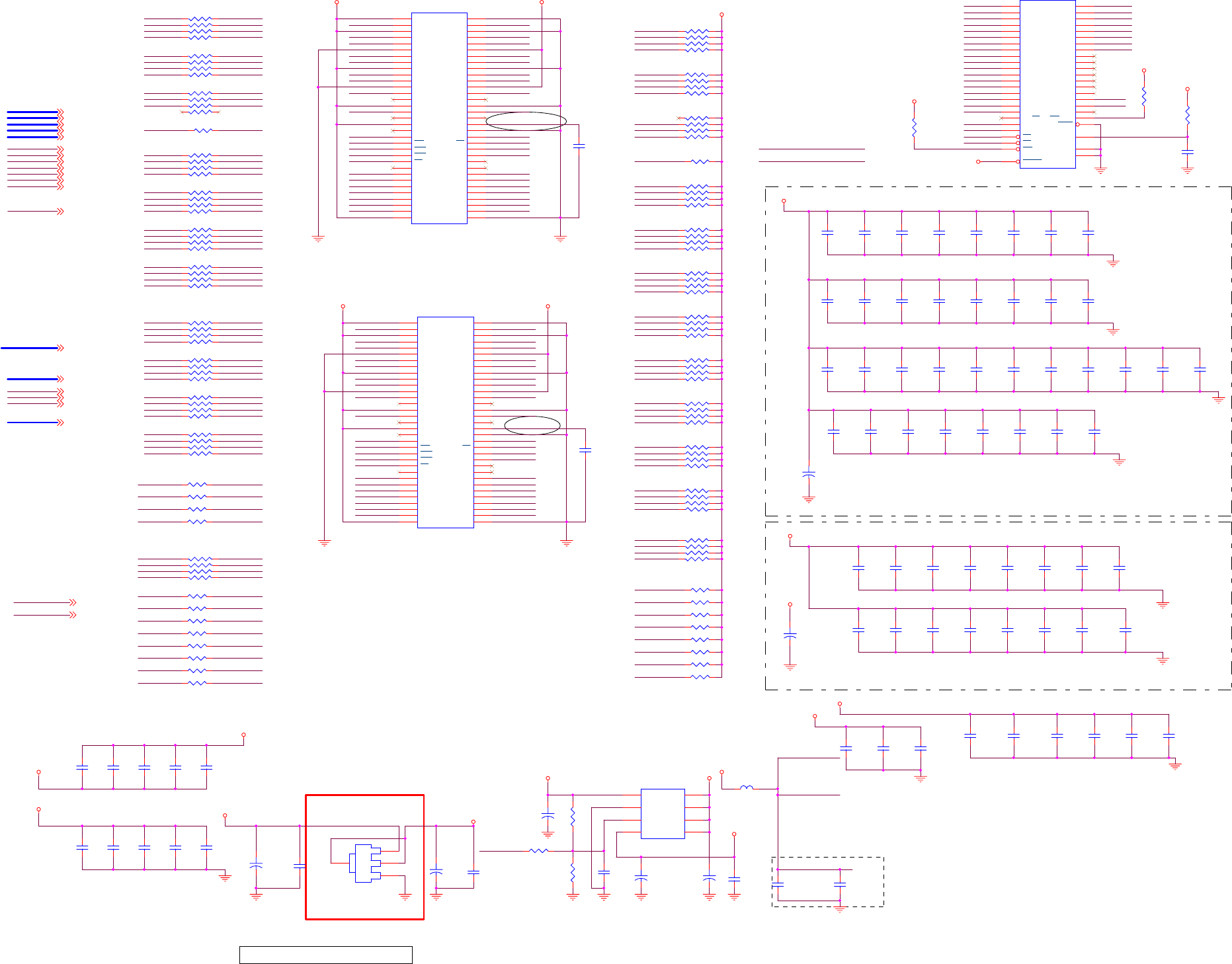

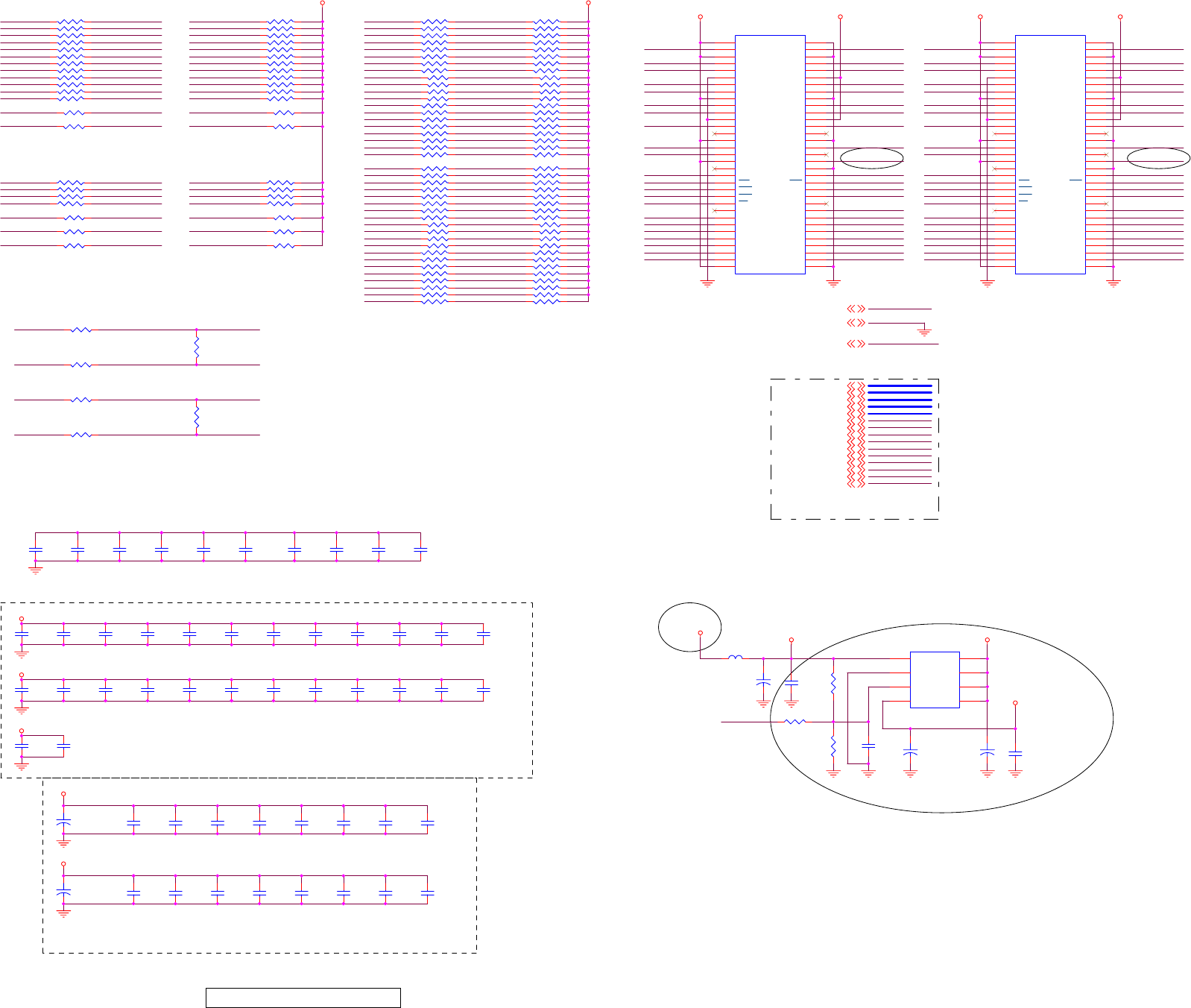

8.4. MT8202 DDR MEMORY & FLASH

TSOP 48 pin

VREF DECOUPLING

CLOSE TO 8202 PIN

PULL HIGH D1V25 ARRAY RESISTOR

DECOUPLING CAP ON THE BOTTOM SIDE.

DDR DECOUPLING CAP ON THE BOTTOM SIDE

MT8202 DECOUPLING CAP ON THE BOTTOM

SIDE.

DDR TOP SIDE

OTHER CAP DDR BITTOM SIDE.

D_RA7

D_DQS3

A_DQ2

D_CS_1

IOCE_1

A_RA1

D_DQ17

D_DQ26

D_DQ30

D_DQM0

D_RA11

D_DQ4

D_CLK

F_A15

D_DQ26

D_DQ20

IOA0

IOWR_1 PWR_1

D_DQM1

A_DQ12

D_BA0

D_RAS_1A_DQ0

D_DQ19

D_RA0

D_RA6

A_RA10

A_DQS2

D_DQ0

D_DQ13

F_D[0..7]

D_DQM0

D_DQ22

A_DQ25

IOA6

D_DQ30

A_RA9

A_CLK

D_CAS_1

D_RA11

D_DQ10

D_DQ26

D_DQ21

D_DQ29

D_CLK

D_DQS2

F_A16

F_A14

VREF

F_A[8..21]

A_DQ3

D_RA5

D_CAS_1

D_DQ14

D_WE_1

D_DQ5

D_RAS_1

D_DQ12

IOA7

D_DQ20

D_DQ13

D_DQ8

D_DQ7

A_DQ24

D_DQ5

D_CKE

A_DQM0

D_DQ20

D_DQ31

D_DQ21

D_DQ2

A_DQ16

D_DQ3

F_A8

D_RA4

A_DQ29

D_CLK

A_DQ17

A_BA[0..1]

A_CAS_1

D_DQS2

D_DQ1

D_RA11

D_DQS3

A_CKE

F_D5

F_D3

D_WE_1

D_DQ23

F_D7

D_RA4

D_BA1

IOA[0..7]

A_DQ[0..31]

D_CS_1

D_DQ0

D_BA0

D_DQ7

D_DQM1

A_DQ19

D_DQ5

A_DQS3

D_DQ0

VREF

D_DQ27

A_DQ8

A_DQ26

D_DQM0

D_BA0

D_CLK_1

A_DQS0

D_RA3

D_RA2

D_RA5

D_DQS0

IOA3

A_RA[0..11]

A_CS_1

VREF

D_DQ9

A_DQ13

D_DQ31

F_A11

D_CAS_1

D_RA1

A_DQ14

FLASHVCC

D_RA10

D_RA2

D_RA10

A_DQ20

D_RA6

D_CLK_1

F_A10

D_DQ25

D_DQ24

SDV25

A_CLK_1

D_RA8

D_DQ16

A_DQ22

D_DQ30

D_DQ28

D_DQ8

D_DQ18

D_DQ11

D_DQM1

A_RA5

D_CKE

D_DQ19

D_RA10

D_DQ27

D_RA5

F_D0

A_CS_1

D_CS_1

A_RA3

D_DQS3

A_DQM[0..1]

D_DQM0

D_RA7

D_DQ14

D1V25

D_DQ28

D_RA1

D_RA9

F_A9

D_BA1

D_RA8

D_DQ8

IOA4

D_RA9

D_DQ6

D_RA2

D_CLK

D_DQS1

A_DQS1

A_RA2

IOA2

D_DQ29

D_DQ24

D_RA1

D_DQ4

D_WE_1

D_DQ23

PWR_1

A_RAS_1

D_DQ19

A_DQ15

F_D2

D_RAS_1

D_DQ10

D_RA10

A_CLK_1

D_DQ15

D_RA8

D_DQ21

A_DQ28

D_DQ16

D_RA9

D_DQ29

A_RA6

D_DQ16

D_DQ2

F_OE_1

F_A13

D_DQ2

D_RA3

D_DQ13

A_DQ6

D_DQS2

F_D4

F_A17

D_RA0

D_DQ10

D_CLK_1

D_DQ18

D_RA3

D1V25

D_DQ11

D_BA1

F_D6

A_DQS[0..3]

A_WE_1

DV25A

D_DQ1

D_RAS_1

A_DQ18

D_DQ31

A_BA1

A_CAS_1

D_DQ23

A_DQM1

A_DQ4

F_A21

A_DQ7

IOA1

A_DQ9

D_RA7

D_CKE

A_RAS_1

D_RA4

D_DQ27

D_RA0

A_DQ11

D_RA1

A_DQ30

D_DQS1

F_D1

D_DQ17

DVREF

D_BA1

D_RA3

A_RA4

D_DQ9

D_RA4

D_RA8

A_RA0

A_DQ10

A_DQ1

D_DQ28

D_DQ22

SDV25A

DVREF

A_DQ27

PCE_1

IOCE_1 PCE_1

D_DQ25

D_RA9

D_DQ3

D_DQ9

F_OE_1

A_DQ5

D_DQ12

D_DQ17

A_WE_1

D_DQ14

D_DQ7

D_DQ15

D_DQ11

A_RA11

D_BA0

D_RA7

A_RA8

D_RA2

D_DQ12

D_CLK_1

A_RA7

D_DQ22

D_DQS1

D_RA6

A_DQ31

D_RA0

D_WE_1

D_RA5

D_DQ6

A_BA0

A_DQ21

D1V25

F_A19

F_A18

IOA5

D_DQ18

D_DQS0

D_DQM1

A_CKE

D_CAS_1

D_DQ24

D_DQ25

D_DQ15

F_A20

DV25A

D_RA11

D_DQ4

D_DQS0

F_A12

D_RA6

IOWR_1

A_DQ23

D_DQ1

D1V25

D_DQ3

D_DQ6

DV25A

VREFDVREF

SDV25A

DV25B

F_D[0..7] 3

A_CAS_1 3

A_BA[0..1] 3

A_RAS_1 3

IOA[0..7] 3

VREF 3

IOWR_1 3

A_CLK_1 3

SDV25A 3

A_WE_1 3

A_RA[0..11] 3

IOCE_1 3

A_DQM[0..1] 3

A_DQS[0..3] 3

A_CS_1 3

A_DQ[0..31] 3

A_CKE 3

A_CLK 3

DV25A 3

F_OE_1 3

F_A[8..21] 3

DV25B

SB33B

DV25A

VCC

D1V25

DV25B

VREF

DV25B

SB33B

D1V25

SDV25A

SB33B

DV25A

DV25B

VREF

DV25B

ATVDDR_2V5

DV33B

D1V25

DV25B

C208

0.1U

C0603

R124 75

R240

100K/1%

C155

0.1U

C143

0.1U

C152

0.1U

RP20

47x4

1 2

3 4

5 6

7 8

RP09

47x4

1 2

3 4

5 6

7 8

C218

0.1U

R138 75

C161

0.1U

RP24

22x4

1 2

3 4

5 6

7 8

C181

0.1U

C172

3300P

R140 75

R121

C163

0.1U

R143 150

C150

0.1U

C145

0.1U

RP18

47x4

1 2

3 4

5 6

7 8

C170

3300P

R144 75

C180

0.1U

C199

0.1U

C0603

R123 22

C184

0.1U

C137

0.1U

C151

0.1U

C188

0.1U

I107

29LV160

2711

17 13

A19

BYTE

A18

A20

D11

D12

D13

D14

D15

VCC

GND1WE

RY/BY

D10

GND2

A10

A12

A11

A13

A14

A15

A16

A17 NC

RESET

WP/ACC

C175

470UF/16V

C215

0.1U

RP07

47x4

1 2

3 4

5 6

7 8

R132 22

C164

0.1U

R137 22

C167

3300P

R145 150

C222

100U/16V

CE025063

C140

0.1U

C214

0.1U

C198

0.1U

C0603

RP12

47x4

1 2

3 4

5 6

7 8

L112

R121/0603 3A

C171

3300P

R126 47

C158

0.1U

C147

0.1U

RP14

75x4

1 2

3 4

5 6

7 8

C139

0.1U

R133

8M x 16

DDR

I109

M13L128168 8Mx16-5

VDD

DQ0

VDDQ

DQ1

DQ2

VSSQ

DQ3

DQ4

VDDQ

DQ5

DQ6

VSSQ

DQ7

VDDQ

LDQS

VDD

DNU

LDM

CAS

RAS

BA0

BA1

A10/AP

VDD

VSS

DQ15

VSSQ

DQ14

DQ13

VDDQ

DQ12

DQ11

VSSQ

DQ10

DQ9

VDDQ

DQ8

VSSQ

UDQS

VREF

VSS

UDM

CKE

A12

A11

VSS

C179

0.1U

C210

100U/16V

C220

220uF/16v

RP13

75x4

1 2

3 4

5 6

7 8

RP19

75x4

RP05

22x4

1 2

3 4

5 6

7 8

C189

0.1U

ADJ

OUT

I111

AMC7585-2.5V/TO252

R122

10K

C159

0.1U

C174

0.1U

R134 75

C207

0.1U

C0603

C148

0.1U

C212

1000U/16V

RP16

47x4

1 2

3 4

5 6

7 8

R142 75

C144

0.1U

C194

10U/16V/Y5V

C202

0.1U

R125 47

C178

0.1U

C223

0.1UF

C138

0.1U

C160

0.1U

R130 22

C204

0.1U

C209

0.1U

C0603

C219

100U/16V

R135 22

R128 47

C166

3300P

C185

0.1U

R120

10K

C177

0.1U

I149

RT9173

4 5

2 7

Vin

VCNTL

VOUT VCNTL

VREF

VCNTL

GND VCNTL

RP10

47x4

1 2

3 4

5 6

7 8

RP15

47x4

1 2

3 4

5 6

7 8

R131 75

C200

0.1U

C0603

C190

0.1U

C203

0.1U

C141

0.1U

C195

1uF

C176

0.1U

C201

0.1U

C0603

C142

0.1U

C216

0.1U

RP01

75x4

1 2

3 4

5 6

7 8

C168

3300P

C197

3300P

C0603

RP22

75x4

1 2

3 4

5 6

7 8

RP02

22x4

1 2

3 4

5 6

7 8

C165

0.1U

RP23

75x4

1 2

3 4

5 6

7 8

C169

3300P

RP04

75x4

C205

0.1U

C192

47uF/16v

RP08

75x4

1 2

3 4

5 6

7 8

C213

4.7u/16v 0805

C156

0.1U

C186

0.1U

C153

0.1U

C182

0.1U

R141 150

RP03

22x4

1 2

3 4

5 6

7 8

R239

100K/1%

C149

0.1U

RP21

75x4

1 2

3 4

5 6

7 8

C206

0.1U

R136 75

C183

0.1U

R127 47

C162

0.1U

C146

0.1U

C217

0.1U

C196

3300P

C0603

C193

220uF/16v

R129 75

RP11

75x4

1 2

3 4

5 6

7 8

C211

0.1U

8M x 16

DDR

I108

M13L128168 8Mx16-5

VDD

DQ0

VDDQ

DQ1

DQ2

VSSQ

DQ3

DQ4

VDDQ

DQ5

DQ6

VSSQ

DQ7

VDDQ

LDQS

VDD

DNU

LDM

CAS

RAS

BA0

BA1

A10/AP

VDD

VSS

DQ15

VSSQ

DQ14

DQ13

VDDQ

DQ12

DQ11

VSSQ

DQ10

DQ9

VDDQ

DQ8

VSSQ

UDQS

VREF

VSS

UDM

CKE

A12

A11

VSS

C157

0.1U

C191

0.1U

C173

3300P

RP17

75x4

R139 22

RP06

75x4

C187

0.1U

C154

0.1U

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

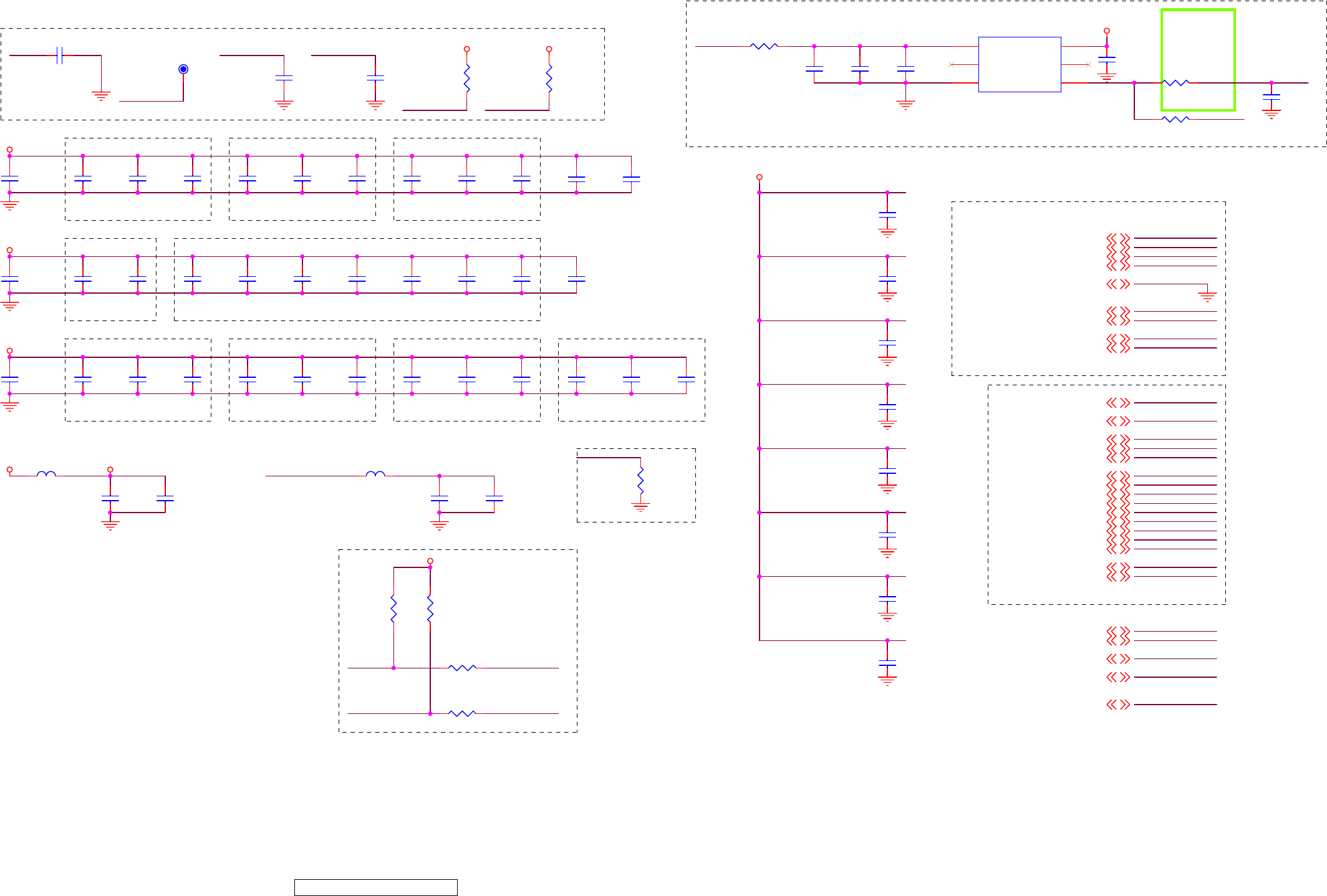

8.5. MT8202 ANALOG DECOUPLING

NORMAL ANALOG POWER

NORMAL AUDIO ADC / DAC POWER

STANDBY ANALOG POWER

NORMAL VIDEO ADC POWER

NORMAL VIDEO DAC POWER

MTK modify

LVDDA

AUDIO_GND

AVDD_VFE0

PWM2VREF

TESTN3

PLLVDD2

VPLLVDD2

AADCVSS

LVDDC

GNDA

AADCVDD

AVDD_VAD0

LVDDB

PLLVDD1 VFE_GND1

VPLLVDD2

TESTP3

TESTN4

ADACVDD

LVDS_GND

VPLLVDD1

AVDD_VFE1

AVDD_VFE0

XTALVDD

AUDIO_GND

LVDS_GND

AVDD_VAD1

PLLVDD2

TESTN3

LVDS_GND

DACFS

VPLLVDD1

AADCVDD

ADACVDD

AVICM

REFN

TESTN4

VFE_GND

VPLLVDD1

LVDS_GND

VPLLVDD1

AVDD_VFE1

TESTP4

LVDS_GND

PLLVDD1

TESTP3

AVICM

REFP

XTALVDD

TESTP4

VFE_GND1

VFE_GND

AVDD_VAD1

DACFS

AVDD_VAD0

ADCVDD

PLLVDD1

REFP

PLLVDD3

REFN

ADCVDD

LVDS_GND

LVDDB

LVDS_GND

LVDDC

LVDS_GND

LVDDA

AUDIO_GND

LVDS_GND

PLLVDD3

PLLVDD1

LVDS_GND

VFE_GND

PWM2VREF

LVDS_GND

VFE_GND

AADCVSS GNDA

AADCVSS

VFE_GND1

AUDIO_GND

VFE_GND1

AUDIO_GND

AADCVSS

VFE_GND1

VFE_GND

VFE_GND1

TESTN4 3

AVDD_VFE0 3

AVDD_VFE1 3

VPLLVDD2 3

AUDIO_GND 3,21,22

LVDDC 3

XTALVDD 3

AVICM 3

VFE_GND1 2,3,8,22

PWM2VREF 3

VFE_GND 2,3,8,22

AADCVSS 3,21,22

VPLLVDD1 3

PLLVDD2 3

LVDS_GND 2,3,25

TESTP3 3

ADACVDD 3

ADCVDD 3

LVDDB 3

REFP 3

PLLVDD3 3

TESTP4 3

AADCVDD 3

TESTN3 3

GNDA 3,21,22

LVDDA 3

REFN 3

PLLVDD1 3

AVDD_VAD0 3

DACFS 3

AVDD_VAD1 3

AV33A

ASB33A

ADCV33A

ADCV18A

ASB18A

ADCV33A

AV18A

C284

4.7U

L120 R60/0603 300mA

C265

R148

820

C251

10U/10V

C0805

C262

4.7U

C246

4.7U

C224

0.1U

C241

0.1U

C0603

C233

0.1U

C0603

L115 R60/0603 300mA

L122 R60/0603 300mA

C260

4.7U

C275

C243

10U/10V

C0805

C245

L121 47uH

0.45mm

C227

10U/50V

C273

0.1U

C0603

L116 R60/0603 300mA

C252

10U/50V

C267

0.1U

C0603

R151 49.9 1%

C259

0.1U

C0603

C280

10U/50V

C249

0.1U

C0603

C254

4.7U

C276

4.7U

C236

4.7U

C258

4.7U

C277

0.1U

C0603

C230

0.1U

C0603

C226

10U/50V

L123 47uH

0.45mm

C234

47U/16V

C253

C232

4.7U

C281

100U/16V

C256

10U/50V

C247

0.1U

C0603

R149 49.9 1%

C231

C240

4.7U

C250

0.01U

C0603

L113 R60/0603 300mA

C266

4.7U

C272

R152 49.9 1%

C255

0.1U

C0603 C257

C283

0.1U

C0603

C235

0.1U

C0603

C229

4.7U

L118 R60/0603 300mA

C242

0.1U

C0603

L124 R60/0603 300mA

C225

10U/10V

C0805

C282

C261

0.1U

C0603

C228

C269

0.1U

C0603

L117 R121/0603 3A

L0603

C271

100U/16V

C268

4.7U

L119 R60/0603 300mA

C264

10U/50V

C238

10U/50V

C274

10U/50V

C270

10U/50V

L114 R121/0603 3A

C248

10U/10V

C0805

C237

0.1U

C0603

C285

0.1U

C0603

R150 49.9 1%

C263

0.1U

C0603

C244

10U/50V

C239

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

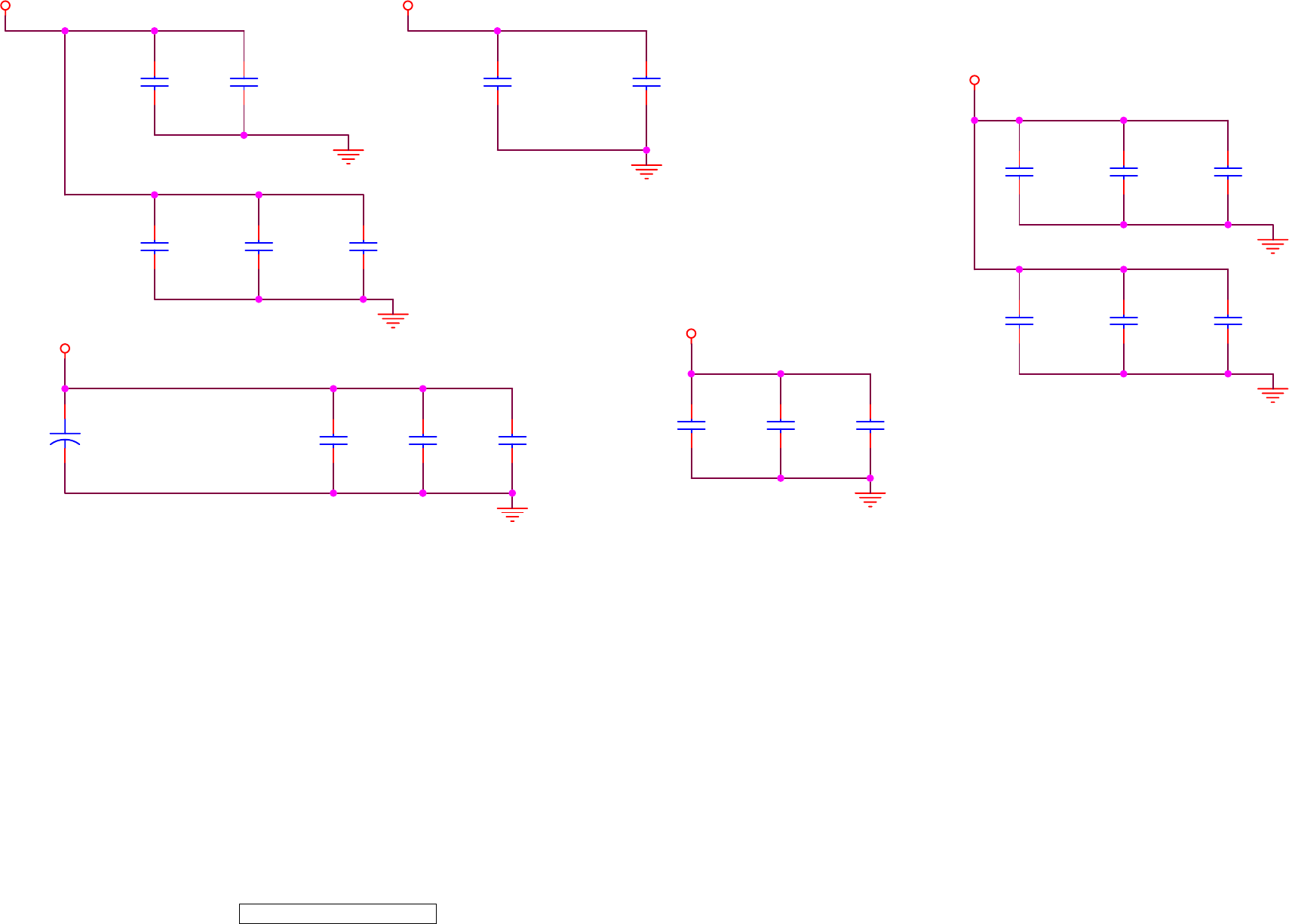

8.6. MT8202 DIGITAL DECOUPLING

MT8202 DIGITAL POWER & DECOUPLING

SB18A

5VSB

SB18A

DV18A

DV33A

SB33A

C293

0.1U

C0603

C289

0.1U

C0603

C288

3300P

C0603

C301

0.1U

C0603

C304

0.1U

C295

3300P

C0603

C290

0.1U

C0603

C296

3300P

C0603

C305

0.1U

C302

0.1U

C0603

C306

0.1U

C286

0.1U

C291

0.1U

C0603

C297

3300P

C0603

C287

0.1U

C294

0.01U

C0603

C298

3300P

C0603

C303

0.1U

C0603

C292

0.1U

C0603

C300

100U/16V

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

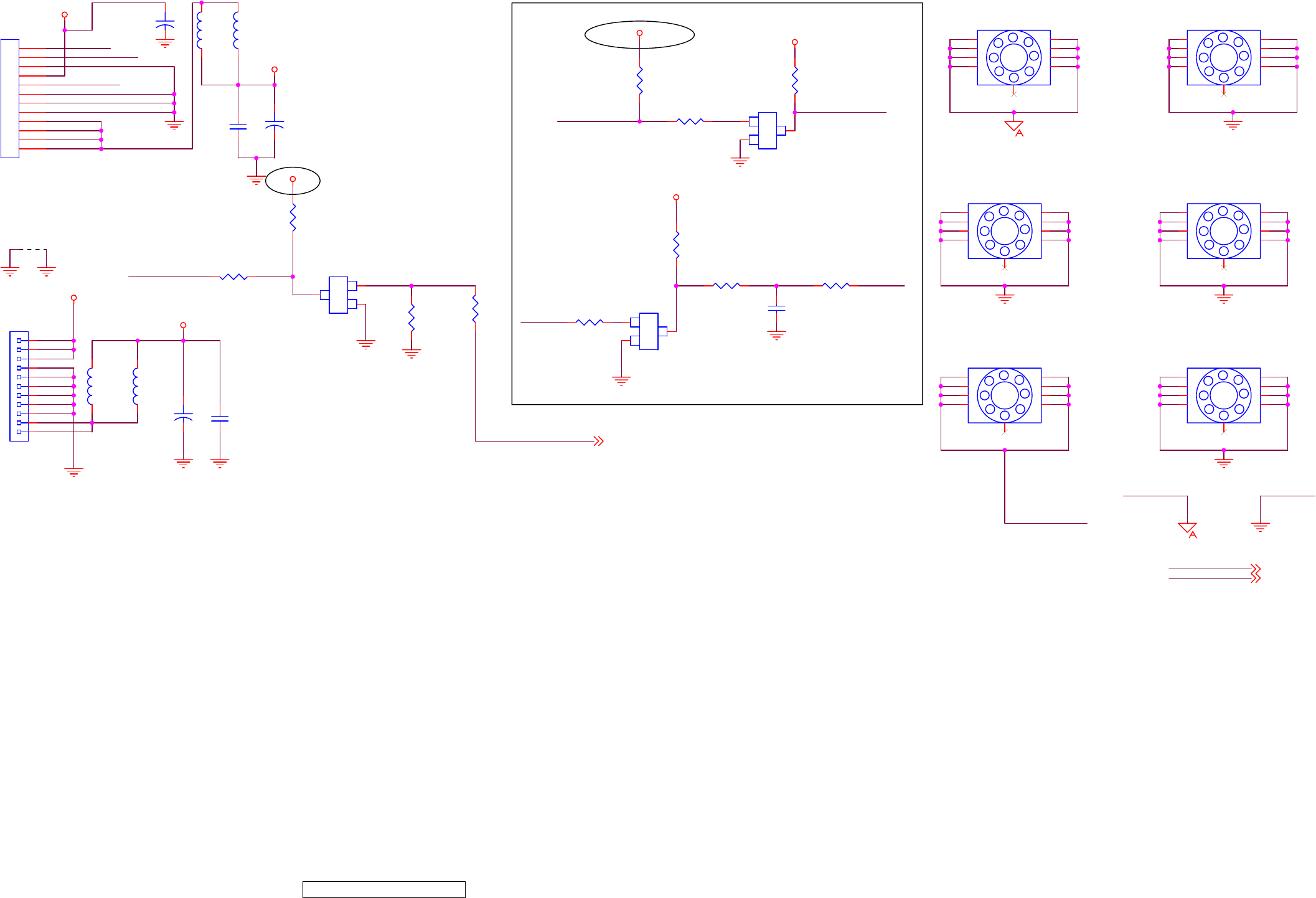

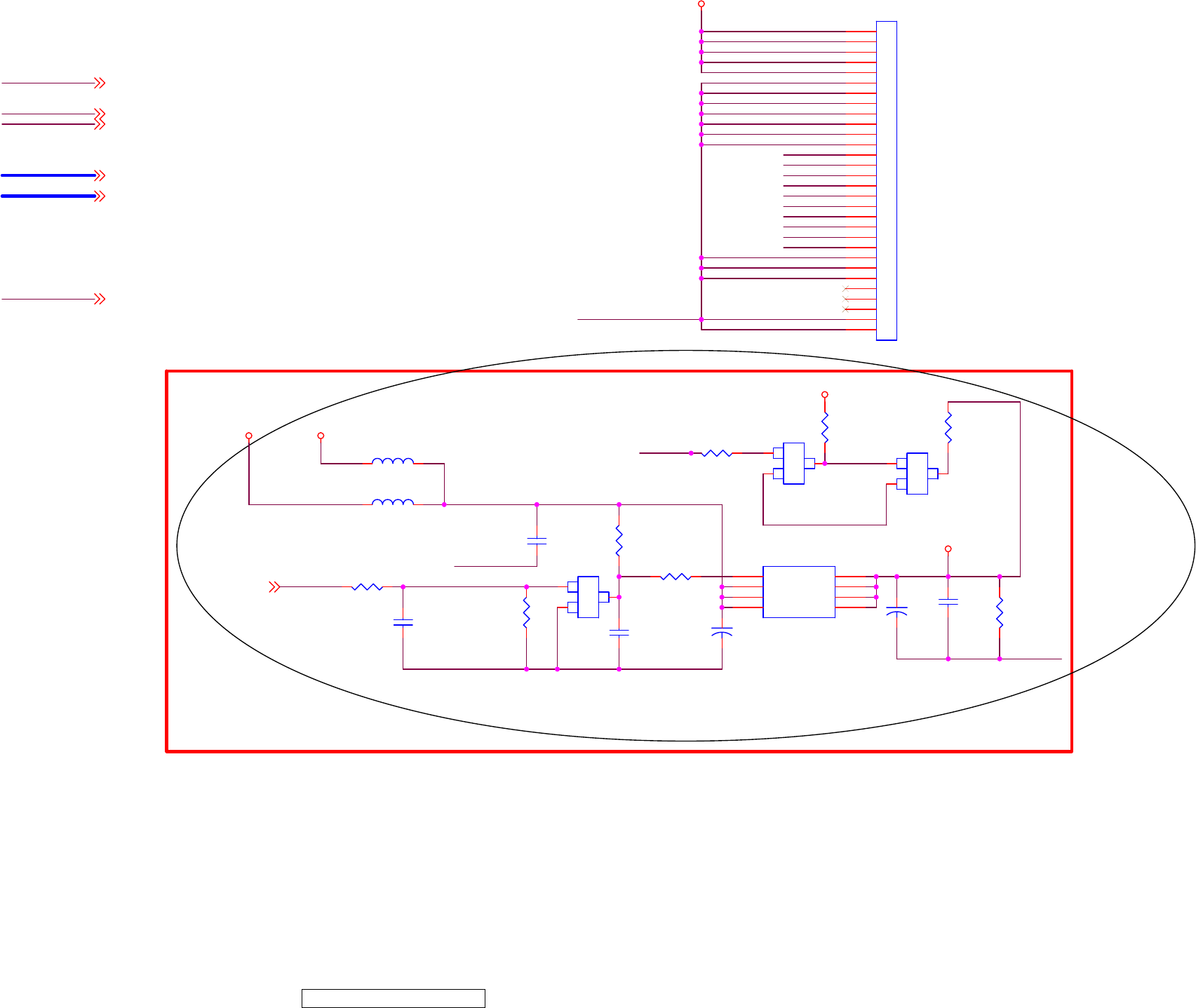

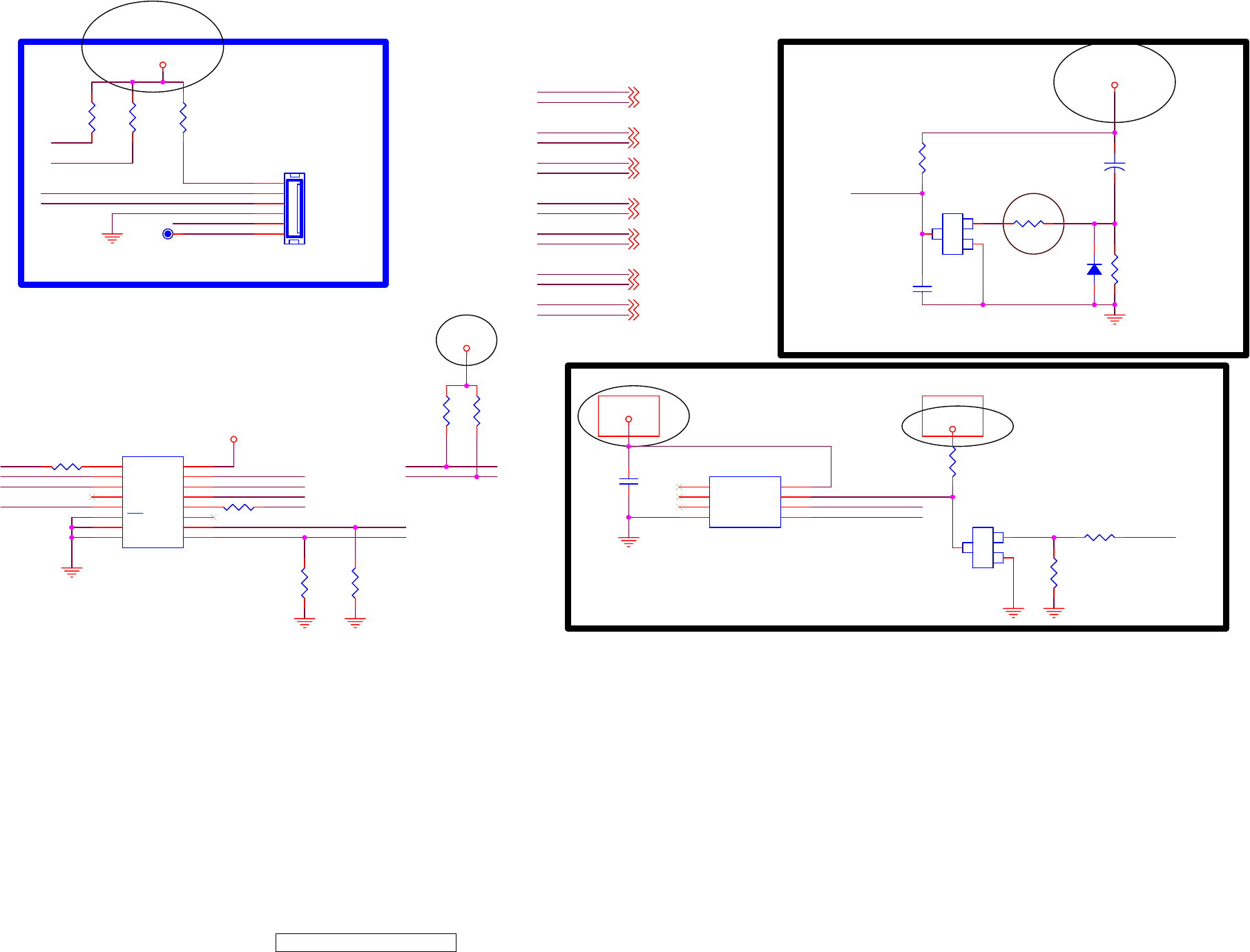

8.7. COMBO TUNER

GLOBAL SIGNAL

TUNER INTERFACE

ROUTE SYMMETRICALLY

Close to Tuner

NTSC CVBS

SIF (4.5MHz)

AIR INPUT

CABLE INPUT

TO DTVS205CH201A

TUNER ANALOG OUTPUT

RF_SWR Hi >>> CABLE INPUT

GND

+30V_TUNER

IF_AGC

FAT_IN-

FAT_IN+

TUNER_SCLO

TUNER_SDAO

IF_AGC

FAT_IN+

FAT_IN-

TUNER_SDAO

TUNER_SCLO

NTSC_CVBS

SIF

AFT

TUMPX1SIF

RF_SWR

DV33_DM

READY#

AFT

+5V_TUNER

ADC_IN3

TUMPX1

AVCVBS0

ADC_IN3

NTSC_CVBS

AVCVBS0

READY#

GND12,13,14,15,16,17,18

+30V_TUNER14

IF_AGC13

FAT_IN-13

FAT_IN+13

TUNER_SCLO13

TUNER_SDAO13

DV33_DM13,14

READY#3

+5V_TUNER14

ADC_IN33

TUMPX18

AVCVBS08

+5V_TUNER

+30V_TUNER

VCC

+5V_TUNER

R814

10K

R0603/SMD

I801

IC G6Y RELAY

POWER

SELECT

INA

GND

OUT

GND

INB

R818 100 R0603/SMD

R852

NS/0

R0603/SMD

P807

F-CON

F-CON/5P/DIP/P8.0/R

2 3

C824

15pF

C0603/SMD

C818

0.1uF

C0603/SMD

R815 4.7K

R0603/SMD

C819

10nF

C0603/SMD

C822

10nF

C0603/SMD

R819 100 R0603/SMD

R820

100K

R0603/SMD

L804

R121/0805 6A

BEAD/SMD/0805 2A

R817

4.7K

R0603/SMD

Q802

2SC2712

SOT23/SMD

3 2

C886

100uF/16v

C100UF16V/D6H5

R853

560

R0603/SMD

L801

R121/0805 6A

BEAD/SMD/0805

R851

R0603/SMD

P802

F-CON

F-CON/5P/DIP/P8.0/R 1

4 5

C816

10uF/50v

C10UF16V/D5H11

R824

4.7K

R0603/SMD

C823

10nF

C0603/SMD

I804

PORT TUNER DTVS205CH201A

TH1

TH2

TH3

TH4

TH5

TH6

TH7

TH8

GND

RG_AGC_TP

VT(+30V)

IF+

IF-

IF_AGC

TUNER_IF_TP

SCL

SDA

GND

BP(+5V)

AFT

SIF

CVBS

GND

C820

10uF/50v

C10UF16V/D5H11

R822

NS/75

R0603/SMD

R821

220K

R0603/SMD

C801

0.1uF

C0603/SMD

C821

0.1uF

C0603/SMD

CSOT

Q801

MMBT3904

R823

R0603/SMD

C892

0.1uF

C0603/SMD

C817

10uF/50v

C10UF50V/D5H11

R801

R0603/SMD

P808

F-CON

F-CON/5P/DIP/P8.0/R 1

4 5

R816

R0603/SMD

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

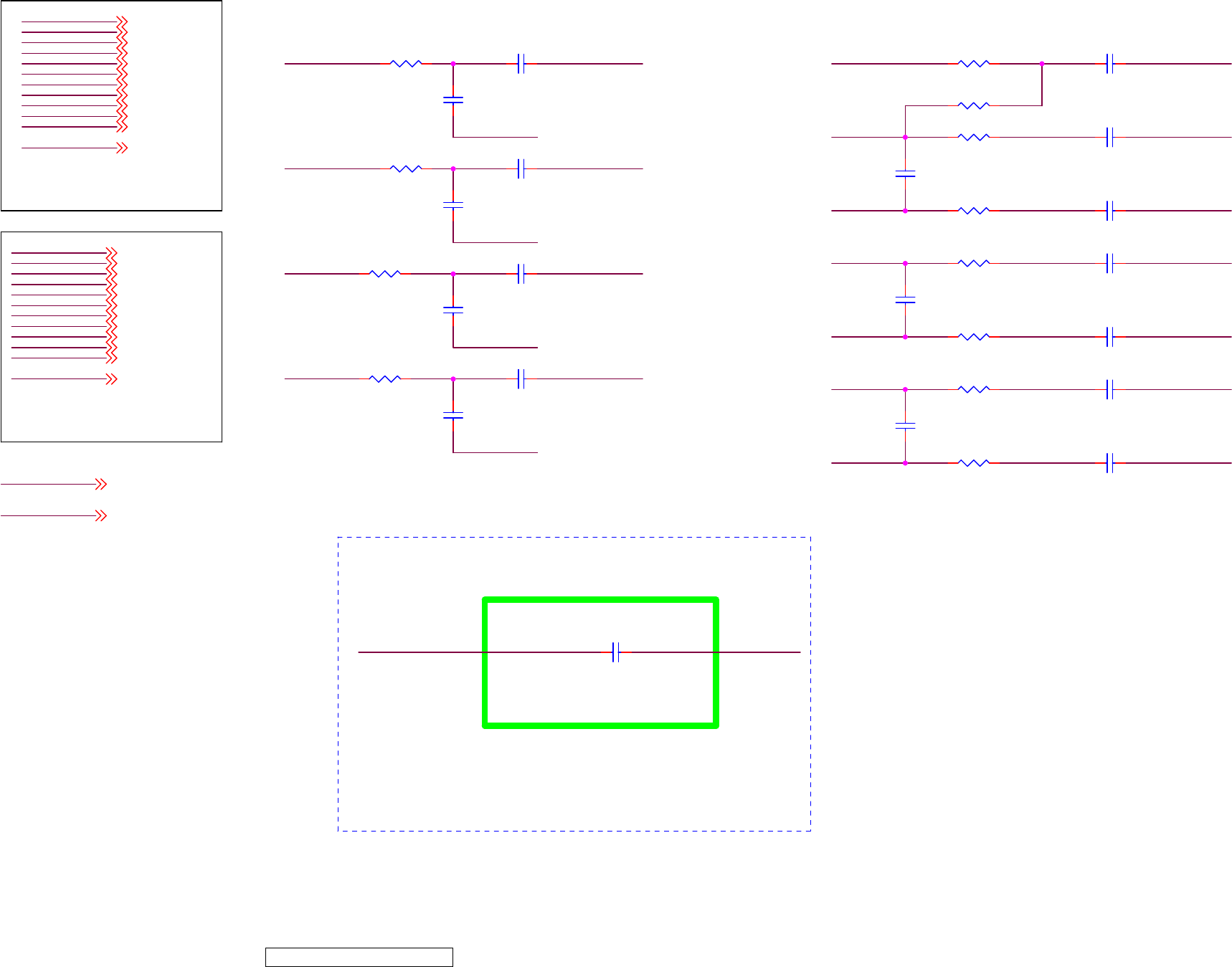

8.8. AUDIO/VIDEO IN CIRCUIT

FROM Tuner

FROM AV BOARD

THIS PAGE NEARLY IC

TO MT8202

DEL

AVPR0P

AVPB0P

VFE_GND1

AVCVBS1

TUMPX1

PR0+

Y0-

AVCVBS0

VFE_GND1

PR0-

CVBS1

AVSOY0

VFE_GND1

Y0+

CVBS1

AVSOY0

Y0+

AVSC0

CVBS0

PR0+

AVSC0

AVCVBS1

PB0-

MPX1

AVPB0N

AVY0N

CVBS0

VFE_GND1

PB0+

AVSY0

PB0+

MPX1

SC0

AADCVSS

AVPR0N

SY0

SOY0

AVPB0N

SOY0

PB0-

AVPR0P

AVY0P

Y0-

AVPB0P

AVSY0

AVCVBS0

PR0-

SC0

AVY0P

VFE_GND1

AVY0N

SY0

TUMPX1

Y0- 3

TUMPX1 7

MPX1 3

PR0+ 3

AADCVSS 3,5,21,22

SOY0 3

AVSY0 9

AVPR0P 9

VFE_GND1 2,3,5,22

AVPR0N 9

SY0 3

AVPB0N 9

CVBS0 3

SC0 3

PB0- 3

AVSOY0 9

CVBS1 3

PB0+ 3

AVY0P 9

AVCVBS1 9

Y0+ 3

AVPB0P 9

AVSC0 9

PR0- 3

AVY0N 9

AVCVBS0 7 C339 0.01U

R181 100

C340 0.047U

C334 0.01U

C343 0.01U

C341

15P

R179 0

R170 0

R178 100

C347

15P

R174 0

C346

330P

C333

330P

C349 56P

C338 0.01U

R180 68

C337

330P

C331 0.047U

C344 0.047U

R171 NC

R175 100

C345 0.01U

R173 68

R177 0

C335 0.047U

R172 0

R176 68

C342

330P

C348 0.01U

C336

15P

C332 4.7n

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

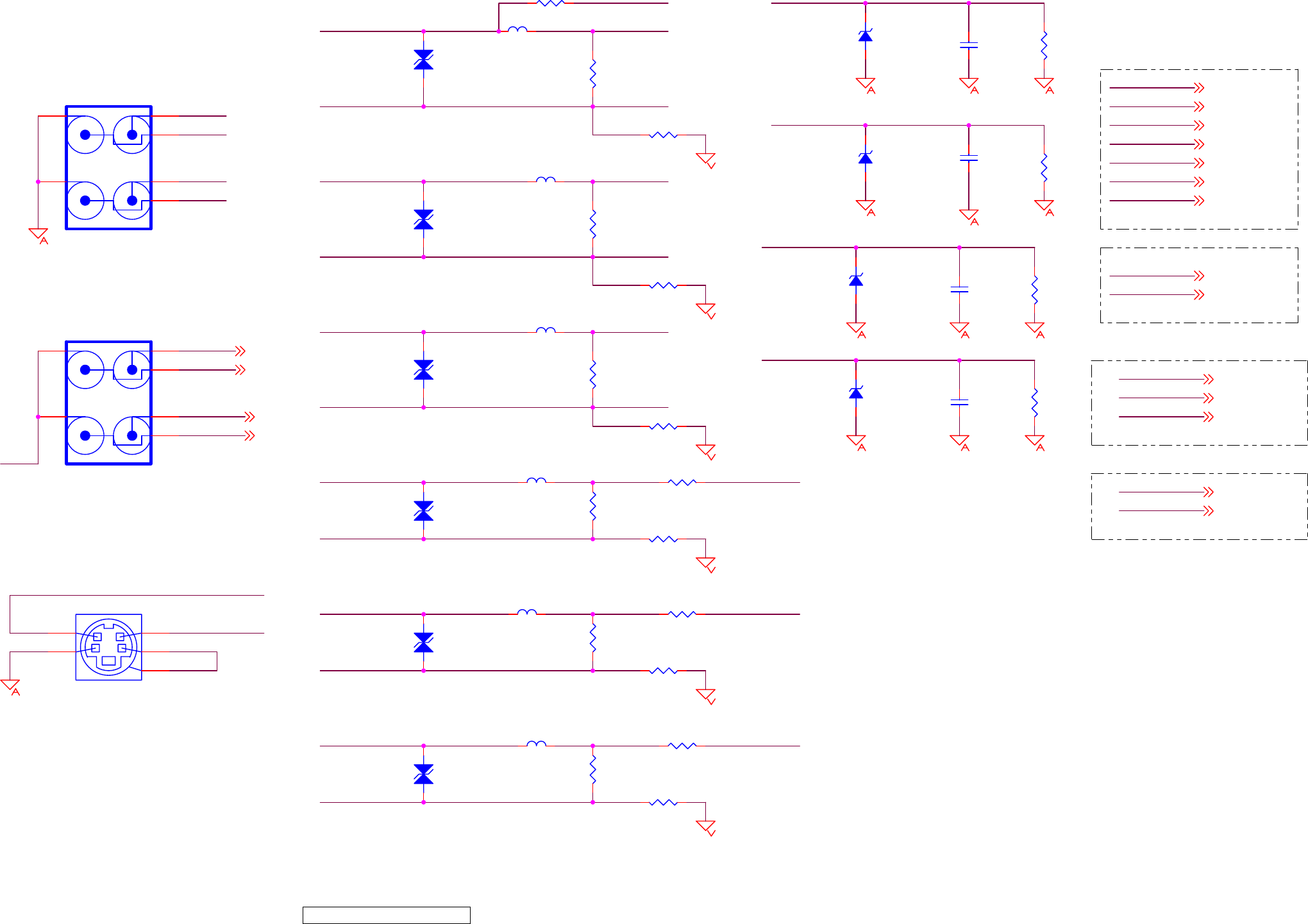

8.9. INPUT SOURCE

YPBPR AUDIO IN

S-VIDEO/AV IN

S-VIDEO/AV AUDIO IN

YPBPR/AV Input.

YPBPR VIDEO IN

YPBPR/AV/S

AUDIO Input.

SVIDEO Input.

SY0_IN

AVSC0

YPBPR0L_IN

AVSC0

AV0SY0R_IN

AVSOY0

AVPR0N

AVPB0P

YPBPR0R_IN

SC0_IN

AV0_GND

AVPR0P

PB_GND

AVPB0P

PR0_IN

AVCVBS1

AVPB0N

AVSOY0

SC0_GND

AVY0P

AVY0N

AVPB0N

AV0SY0L_IN

AVSY0

AVCVBS1

AVY0P

AVPR0P

AV0SY0R_IN

PB0_IN

YPBPR0R_IN

YPBPR0L_IN

PR0_IN

PB0_IN

Y0_IN

AV0_IN

GNDA

YPBPR0R_IN

YPBPR0L_IN

AV0_SY0R_IN

AV0_SY0L_IN

SY0_IN

SC0_IN

SY0_GND

AVY0NY_GND

Y0_IN

AVPR0NPR_GND

AV0_IN

AVSC0 8

AV0SY0R_IN 19

YPBPR0L_IN 19

AVPR0P 8

AVY0N 8

AVSY0 8

AVPB0N 8

AVCVBS1 8

YPBPR0R_IN 19

AV0SY0L_IN 19

AVPB0P 8

AVY0P 8

AVSOY0 8

AVPR0N 8

AV0SY0L_IN 19

AV0SY0R_IN 19

YPBPR0L_IN 19

YPBPR0R_IN 19

L817

2.2uH

R534 0

D810

10p

D104

(NC)5.6V

1 2

R194

P103

S_TERMINAL1

6/18/2

5 3

4/7

R185 0

R195

100K

R201

L816

2.2uH

R187

100K

R535 0

R189

100K

D809

10p

D102

(NC)5.6V

1 2

C354

0.01U

R536 0

L818

2.2uH

C355

0.01U

R188

R533 0

D101

(NC)5.6V

1 2

D808

10p

R537 0

L819 2.2uH

P101

AV1/YPbPr1

R204

R192

100K

C356

0.01U

D805

10p

L820 2.2uH

D807

10p

R538 0

R198

P102

AUDIO R/L_IN1

D806

10p

C357

0.01U

R197 27

D106

(NC)5.6V

1 2

R203 27L821 2.2uH

R191

R200 27

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

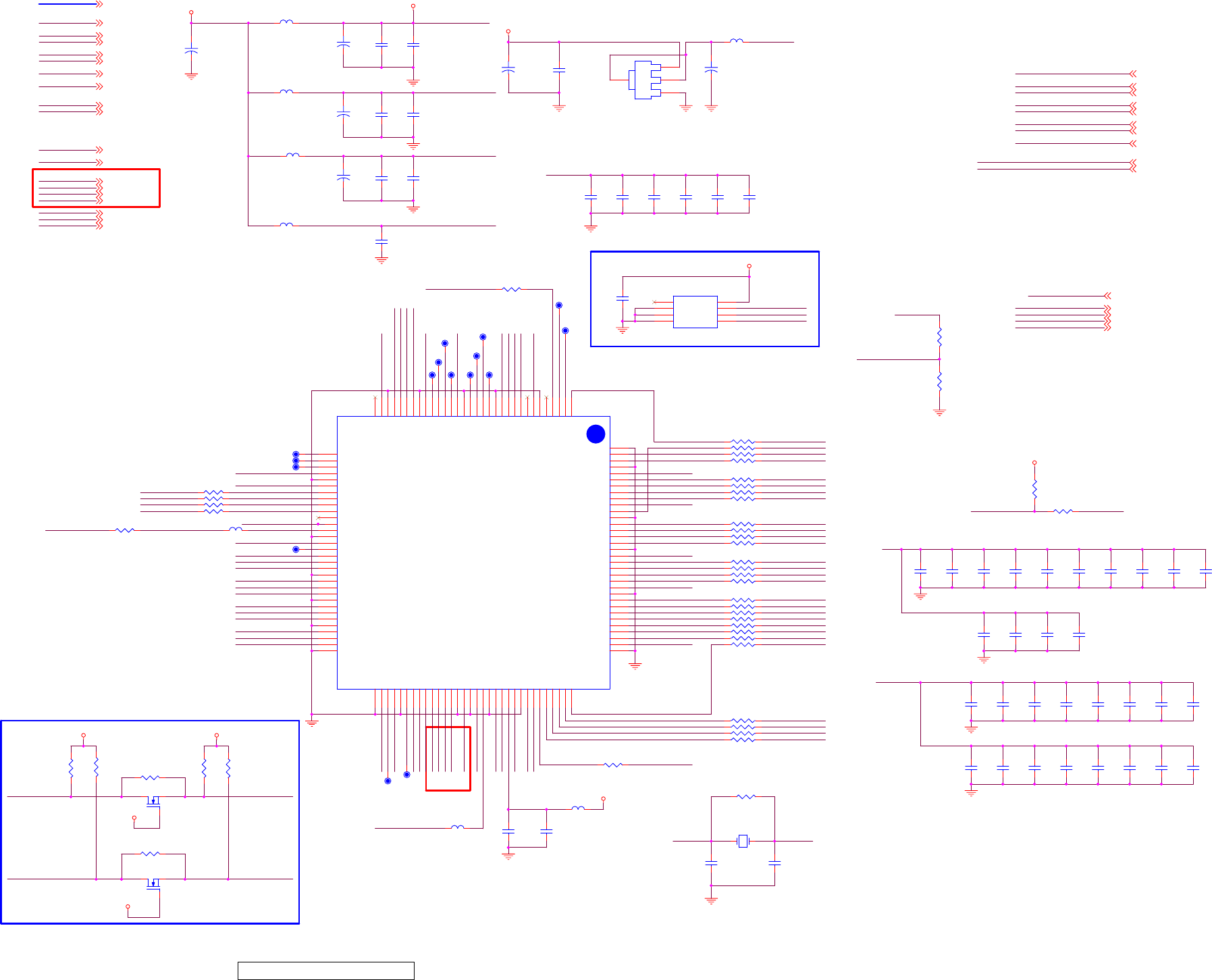

8.10. HDMI INPUT-MT8293

NC if AVCC18 from regulator

I106/Y25

ࢮࠩ

MTK modify

ACTIVE LOW

I2C ADDRESS

DATA2-

HDMISD2

VI8

VCC18

HDMICEN

HDMIHSYNC

VI14

CCIR_GPIO_D

IOVCC

9993_SCL

HDMICEN

VCC18

XTLO

AVCC

VI18

VCC18

IOVCC

VI3

CLOCK-

HDCP_SDA

VI23

DATA0+

DATA1+

SDA

VI13

PVCC

VI2

OSC_IN

AVCC

PVCC

HDMIVSYNC

HDCP_SCL

VI22

DDC_SCL

IOVCC

REGVCC

KWP

VCC18

VI12

VI7

SDA

VI1

HDMIODCK

HDMIRST_1

HDCP_SCL

VI21

VI17

DATA0-

SCL

AVCC VI11

HDMIDE

AVCC

VI0

GPIO17

VI20

CI2CA

9993_SCL

CLOCK+

HDMIDE

9993_SDA

IOVCC

VI[0..23]

IOVCC

AVCC

VI6

27MHZ

XTLO

VI10

IOVCC

VI16

HDMIVSYNC

IOVCC

INT0_1

VI19

27MHZ

XTLI

IOVCC

SCL

VCC18

IOVCC

HDMIODCK

VI5

DATA1-

CCIR_GPIO_D

VCC18 AVCC18

HDMIHSYNC

9993_SDA

REGVCC

HDMI_DECT

CI2CA

KWP

VCC18

IOVCC

VI15

INT0_1

VI9

HDCP_SDA

HDMIRST_1

VCC18

DATA2+

HDMISD1

AVCC18

HDMISD2

IOVCC

GPIO17

XTLI

VI4

VCC18

DATA2+

DATA2-

DATA1+

DATA1-

DATA0+

DATA0-

CLOCK+

CLOCK-

8293BCLK

8293SD0

8293MCLK

8293LRCK

8293MCLK

8293BCLK

8293LRCK

8293SD0

SRS_SEL3

SRS_SEL2

TMDS_/OE

SRS_SEL1

DDC_SDA

SRS_SEL3

SRS_SEL2

SRS_SEL1

TMDS_/OE

HDMISD3

SPDIF

HDMISD1

DDC_SDA

DDC_SCL

HDMI_DECT

HDMISD2 3

HDMIHSYNC 3,12

HDMIDE 3,12

GPIO17 3

INT0_1 3

HDMICEN 3

CCIR_GPIO_D 3

27MHZ 3

SCL 3,13,23,26

VI[0..23] 3,12

SDA 3,13,23,26

HDMIVSYNC 3,12

HDMIODCK 3,12

8293MCLK 12

8293BCLK 12

8293LRCK 12

8293SD0 12

DATA2+ 11

DATA2- 11

DATA1+ 11

DATA1- 11

DATA0+ 11

DATA0- 11

CLOCK+ 11

CLOCK- 11

DDC_SCL 11

DDC_SDA 11

SRS_SEL2 11

SRS_SEL1 11

TMDS_/OE 11

SRS_SEL3 11

HDMISD3 3

HDMISD1 3

HDMI_DECT 11

DV33B

AVCC

DV33B

AVCC

DV33B

AVCC

VCC

TP56

C388

1000P

R218 0

R216 0

X101

(NC)27MHz

XTAL

TP52

C379

0.1U

C410

0.1U

C368

10U/50V

R215 0

TP53

C412

(NC)18P

C370

1000P

C384

1000P

L145 R60/0603 300mA

TP57

R226

(NC)1M

R227 (NC)0

C378

0.1U

R212

4.7K

R222

C365

10U/50V

C407

1000P

R221

4K7

R210 0

R217 0

L140

R121/0603 3A

TP54

C387

0.1U

C394

1000P

C399

0.1U

TP58

C395

0.1U

L147

R60/0603 300mA

C385

0.1U

C400

1000P

C373

0.1U

C382

1000P

C408

0.1U

RP30 33x4

C363

100U/16V

TP47

TP61

C375

0.1U

TP59

C362

100U/16V

C391

0.1U

C380

1000P

RP29 33x4

L142

R121/0603 3A

L141

R121/0603 3A

C389

0.1U

C361

1000P

R223

C393

0.1U

TP44

RP31 33x4

C374

1000P

C402

0.1U

C403

1000P

TP60

TP41

C372

1000P

RP28 33x4

R220

4K7

C397

0.1U

Q108

MOSFET N 2SK2158

SOT23

32 L146

R60/0603 300mA

C406

0.1U

C358

10U/50V

TP55

RP27 33x4

C359

100U/16V

C367

1000P

C411

0.01U

C405

1000P

C369

0.1U

Q109

MOSFET N 2SK2158

SOT23

RP26 33x4

C371

0.1U

C409

1000P

L143

R121/0603 3A

I114

EEPROM 24C04

4 5

GND SDA

SCL

VCC

RP25 33x4

C383

0.1U

ADJ

OUT

I113

AIC117-1.8V/SOT223

C381

0.1U

R224 0

L144

R121/0603 3A

C413

(NC)18P

C398

1000P

TP48

C360

0.1U

R214

(NC)4.7K

R219 0

C386

1000P

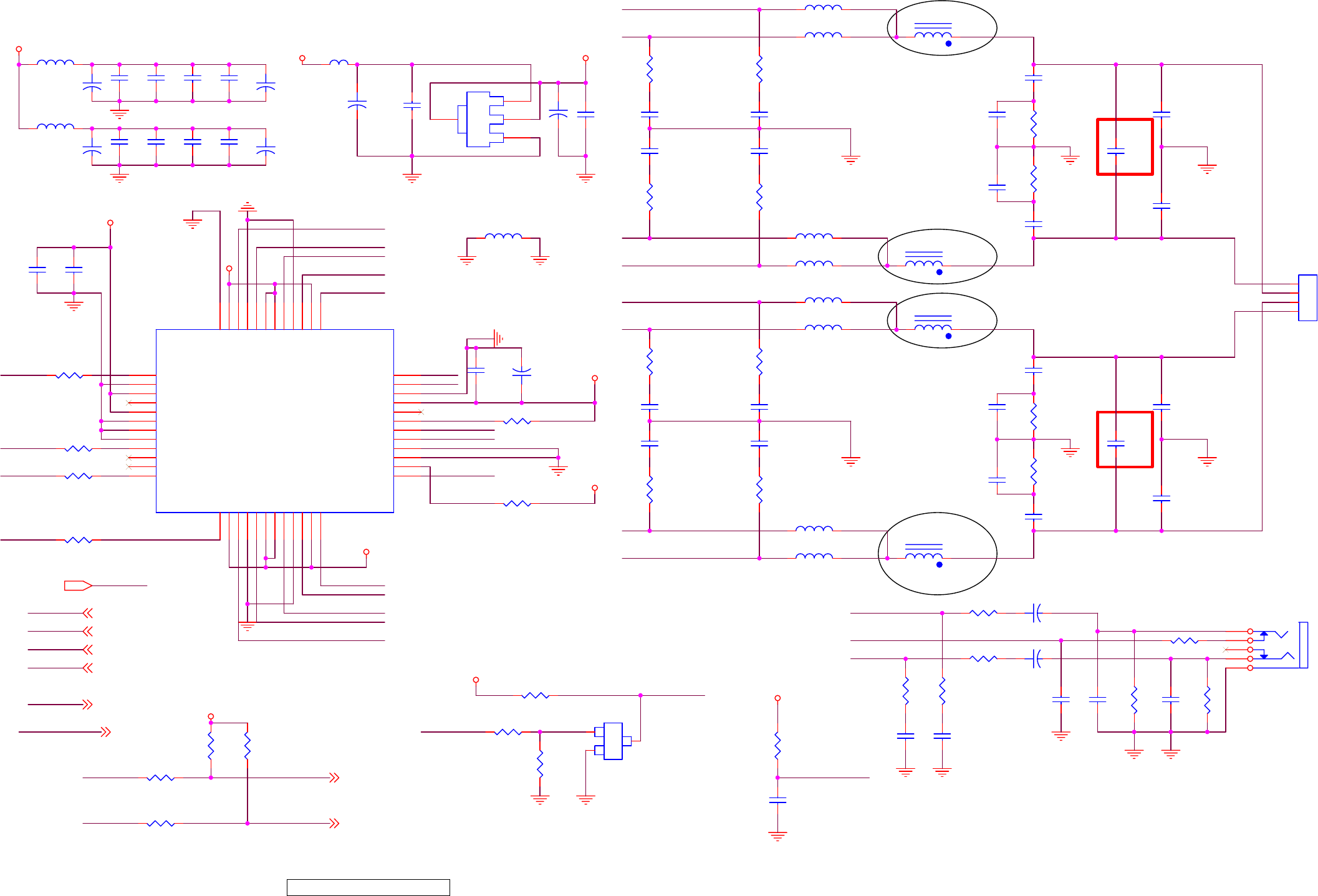

MT8293

I115

MT8293

LQFP128/SMD/8293

126

112

108

109

118

117

107

121

120

113

106

114

115

111

116

123

110

128

127

119

122

100

101

102

103

104

105

124

125

CVCC18

CGND18

RX2+

IOGND33

CVCC18

RX2-

AVCC

AGND

AVCC

AGND

RX0+

RX0-

AGND

RXC+

RXC-

AVCC

QE11

SD1

SPDIF

IOGND33

QE10

MCLK

CI2CA

IOGND33

XTALVCC

REGVCC

IOVCC33

QE4

MUTE

EXT_RES

CVCC18

IOGND33

IOVCC33

IOGND33

QE3

IOVCC33

CGND18

IOGND33

QE7

QE6

QE8

QE5

QE1

RX1-

RX1+

QE9

SCK

HSYNC

VSYNC

CEN

SOG_IN

OSC_IN

IOVCC33

IOGND33

KWP

KSDA

CGND18

ODCK

CVCC18

GPIO13

KSCL

GPIO14

GPIO12

GPIO11

GPIO10

GPIO9

IOVCC33

IOGND33

GPIO8

GPIO7

GPIO6

GPIO5

GPIO4

GPIO3

CVCC18

CGND18

CVCC18

GPIO2

GPIO1

GPIO0

INT

RESET#

TEST

SCDT

QE2

SD3

SD2

IOVCC33

PGND

PVCC

GPIO15

IOVCC33

AVCC

CSDA

CSCL

DSDA

DSCL

CEC

PWR5V

SD0

IOVCC33

CGND18

CVCC18

AUDPVCC18

AUDPGND

XTALOUT

XTALIN

QE23

QE22

QE21

QE20

QE19

QE18

QE17

QE16

QE15

QE14

QE13

QE12

QE0

CVCC18

ePad/GND

TP42

C377

0.1U

C364

0.1U

C390

1000P

C366

0.1U

C404

0.1U

C376

1000P

R213

TP45 R211

4.7K

C392

1000P

C396

1000P

R225 (NC)0

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

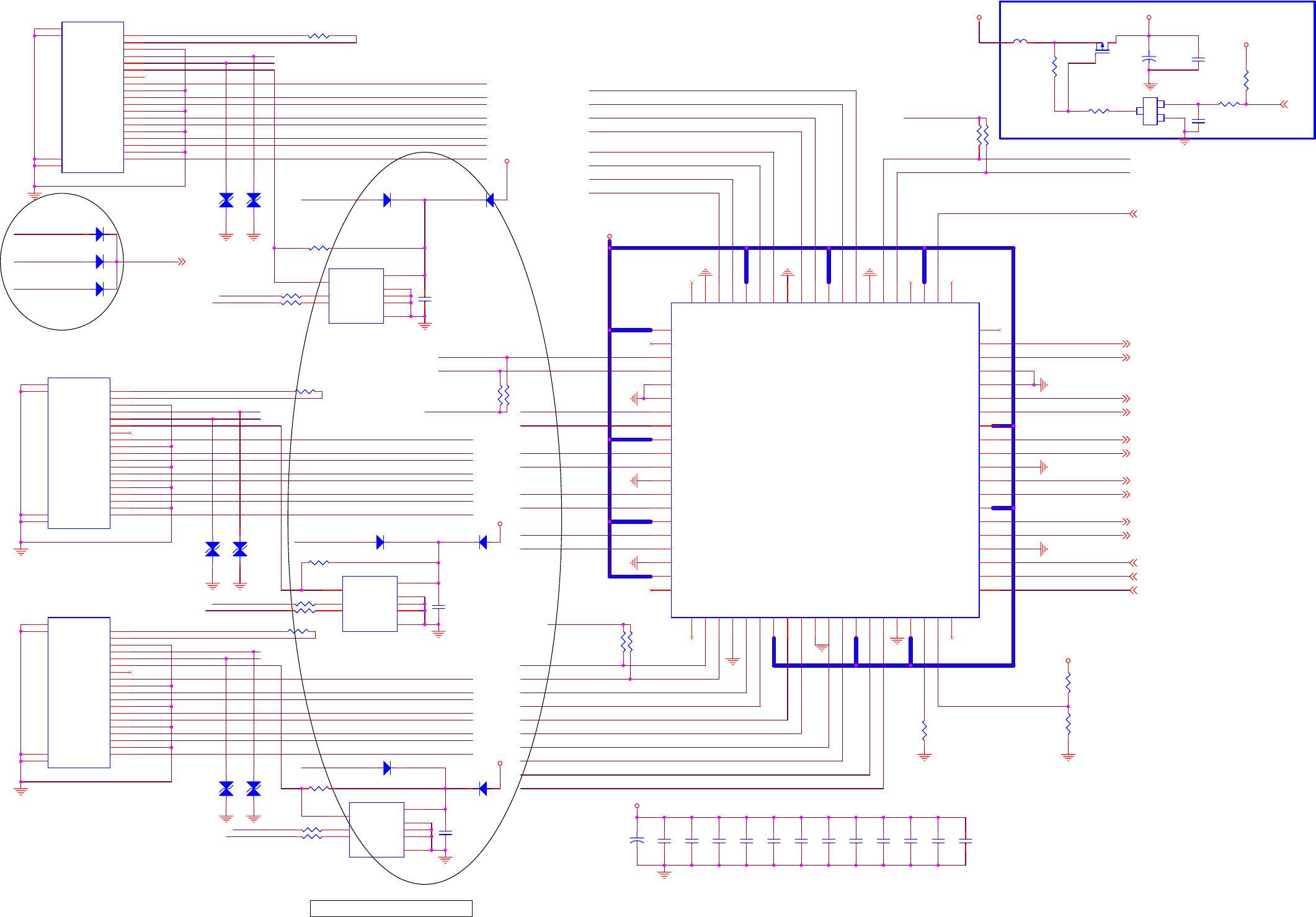

8.11. HDMI SWITCH

OUTPUT ENABLE ACTIVE LOW.

HDMI1

HDMI2

HDMI3

S1 S2 S3

HI XX XX

H1 H2 H3

XX HI XX

XX XX HI

HDMI_SRC1_TMDS_D2P

HDMI_SRC3_TMDS_D2P

HDMI_SRC1_5VPWR

HDMI_SRC1_TMDS_D2N

HDMI_SRC1_TMDS_D1N

HDMI_SRC3_TMDS_D0P HDMI_SRC3_TMDS_D0N

HDMI_SRC3_TMDS_D2P

HDMI_SRC1_TMDS_D0N

HDMI_SRC3_TMDS_D0P

HDMI_SRC3_TMDS_D1P

HDMI_SRC3_TMDS_CLKP

HDMI_SRC3_HPD

HDMI_SRC1_TMDS_D1P

HDMI_SRC1_TMDS_CLKN

HDMI_SRC2_TMDS_D0P

HDMI_SRC3_TMDS_CLKN

HDMI_SRC1_TMDS_D0P

HDMI_SRC1_TMDS_CLKP

HDMI_SRC2_TMDS_D1N

HDMI_SRC1_HPD

HDMI_SRC3_TMDS_CLKN

HDMI_SRC3_5VPWR

HDMI_SRC3_TMDS_D1P

HDMI_SRC2_HPD

HDMI_SRC3_TMDS_D2N

HDMI_SRC3_TMDS_D1N

HDMI_SRC1_TMDS_D2P8

HDMI_SRC1_TMDS_D1P6

HDMI_SRC1_TMDS_D1N5

HDMI_SRC1_TMDS_D0P4

HDMI_SRC2_TMDS_D2P

HDMI_SRC2_TMDS_D2N

HDMI_SRC2_TMDS_D1P

HDMI_SRC2_TMDS_D0N

HDMI_SRC3_TMDS_CLKP

HDMI_SRC3_TMDS_D1N

HDMI_SRC3_TMDS_D2N

HDMI_SRC3_SDA

PLUGPWR3

PLUGPWR2

PLUGPWR1

3 HDMI_SRC1_TMDS_D0N

HDMI_SRC1_SDA

1 HDMI_SRC1_TMDS_CLKN HDMI_SRC1_SCL

HDMI_SRC1_TMDS_CLKP2

7 HDMI_SRC1_TMDS_D2N

HDMI_SRC1_SDA

HDMI_SRC3_TMDS_D0N

TMDS_/OE

HDMI_SRC2_TMDS_CLKN

HDMI_SRC2_TMDS_CLKP

HDMI_SRC2_5VPWR

HDMI_SRC3_SDA

HDMI_SRC3_SCL

HDMI_SRC2_SCL

HDMI_SRC2_SDA

HDMI_SRC1_SDA

HDMI_SRC1_SCL

HDMI_SRC3_5VPWR

HDMI_SRC1_5VPWR

HDMI_SRC2_5VPWR PLUGPWR2

PLUGPWR1

PLUGPWR3

HDMI_SRC1_5VPWR

HDMI_SRC2_5VPWR

HDMI_SRC3_5VPWR

HMDI_DECT

HDMI_SRC2_TMDS_CLKP

HDMI_SRC2_TMDS_CLKN

HDMI_SRC2_TMDS_D1N

SRS_SEL1

HDMI_SRC2_SCL

DATA1+

HDMI_SRC2_SDA

HDMI_SRC2_TMDS_D2P

DDC_SCL

DATA0+

HDMI_SRC2_TMDS_D2N

HDMI_SRC2_SCL

DATA0-

SRS_SEL3

HDMI_SRC1_SCL

HDMI_SRC2_TMDS_D0P

DDC_SDA

HDMI_SRC3_SCL

HDMI_SRC2_TMDS_D1P

DATA1-

DATA2+

SRS_SEL2

HDMI_SRC3_SDA

DATA2-

HDMI_SRC2_TMDS_D0N

HDMI_SRC3_SCL

HDMI_SRC2_SDA

CLOCK-

CLOCK+

DV33C

HD_PON

SRS_SEL3 10

SRS_SEL1 10

SRS_SEL2 10

TMDS_/OE 10

CLOCK- 10

CLOCK+ 10

DATA0- 10

DATA0+ 10

DATA1+ 10

DATA2- 10

DATA2+ 10

DATA1- 10

DDC_SDA 10

DDC_SCL 10

HDMI_DECT 10

HD_PON 3

5VSB

DV33C

DV33B

DV33CDV33B

L815 R121/0603 3A

D821

SM17

C864

0.1U

C0603

C869

0.01U

C874

0.01U

R803

100K

R0603/SMD

C401

0.01U

Q806

APM2301-P

P809

HDMI_con

SHELL1

SHELL2

D2+

D2 Shield

D2-

D1+

D1 Shield

D1-

D0+

D0 Shield

D0-

CK+

CK Shield

CK-

CE Remote

DDC CLK

DDC DATA

GND

+5V

HP DET

SHELL3

SHELL4

R865 100

D813

SM17

1 2

C891

0.1U

D816

C890

0.1U

C876

0.01U

R855

R0603/SMD

C877

0.01U

P811

HDMI_con

SHELL1

SHELL2

D2+

D2 Shield

D2-

D1+

D1 Shield

D1-

D0+

D0 Shield

D0-

CK+

CK Shield

CK-

CE Remote

DDC CLK

DDC DATA

GND

+5V

HP DET

SHELL3

SHELL4

R864 100

C863

47U/16V

C866

0.01U

C868

0.01U

R836 1K

D811

R866 100

D817

R805

4.7K

R0603/SMD

I811

24C22/SMD/DIP

NC1

NC2

NC3

GND

SDA

SCL

VCLK

VCC

D822

SM17

R842

1K5

R0603/SMD

C871

0.01U

I812

24C22/SMD/DIP

NC1

NC2

NC3

GND

SDA

SCL

VCLK

VCC

R491 4.7K

C865

100uF/16V

C809

0.1U

C0603

CSOT

Q805

MMBT3904

I806

TMDS341

SDA1

SCL1

GND

B11

A11

VCC

B12

A12

GND

B13

A13

VCC

B14

A14

GND

VCC

VSADJ

PRE

GND

VCC

GND

VCC

GND

SCL_SINK

SDA_SINK

HPD_SINK

/OE

VCC

HPD3

SDA3

SCL3

GND

B31

A31

VCC

B32

A32

GND

B33

A33

VCC

B34

A34

GND

VCC

HPD2

SDA2

SCL2

GND

B21

A21

VCC

B22

A22

GND

B23

A23

VCC

B24

A24

GND

VCC

HPD1

D825

SM17

1 2

R867 100

R808

R0603/SMD

C867

0.01u

R835

1K5

R0603/SMD

D823

SM17

R854

10K

R0603/SMD

D801

SM17

1 2

R862 100

R840 1K

D818

C872

0.01U

P810

HDMI_con

SHELL1

SHELL2

D2+

D2 Shield

D2-

D1+

D1 Shield

D1-

D0+

D0 Shield

D0-

CK+

CK Shield

CK-

CE Remote

DDC CLK

DDC DATA

GND

+5V

HP DET

SHELL3

SHELL4

D826

SM17

1 2

R811

10K

R0603/SMD

C870

0.01U

D814

SM17

1 2

R860

4.7K

R863 100

R861 4.7K

D812

R843

4K64 1%

R0603/SMD

R8371K

R838

1K5

R0603/SMD

R834

1K5

R0603/SMD

I116

24C22/SMD/DIP

NC1

NC2

NC3

GND

SDA

SCL

VCLK

VCC

R839

1K5

R0603/SMD

C873

0.01U

D815

D824

SM17

1 2

C875

0.01U

R841

1K5

R0603/SMD

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

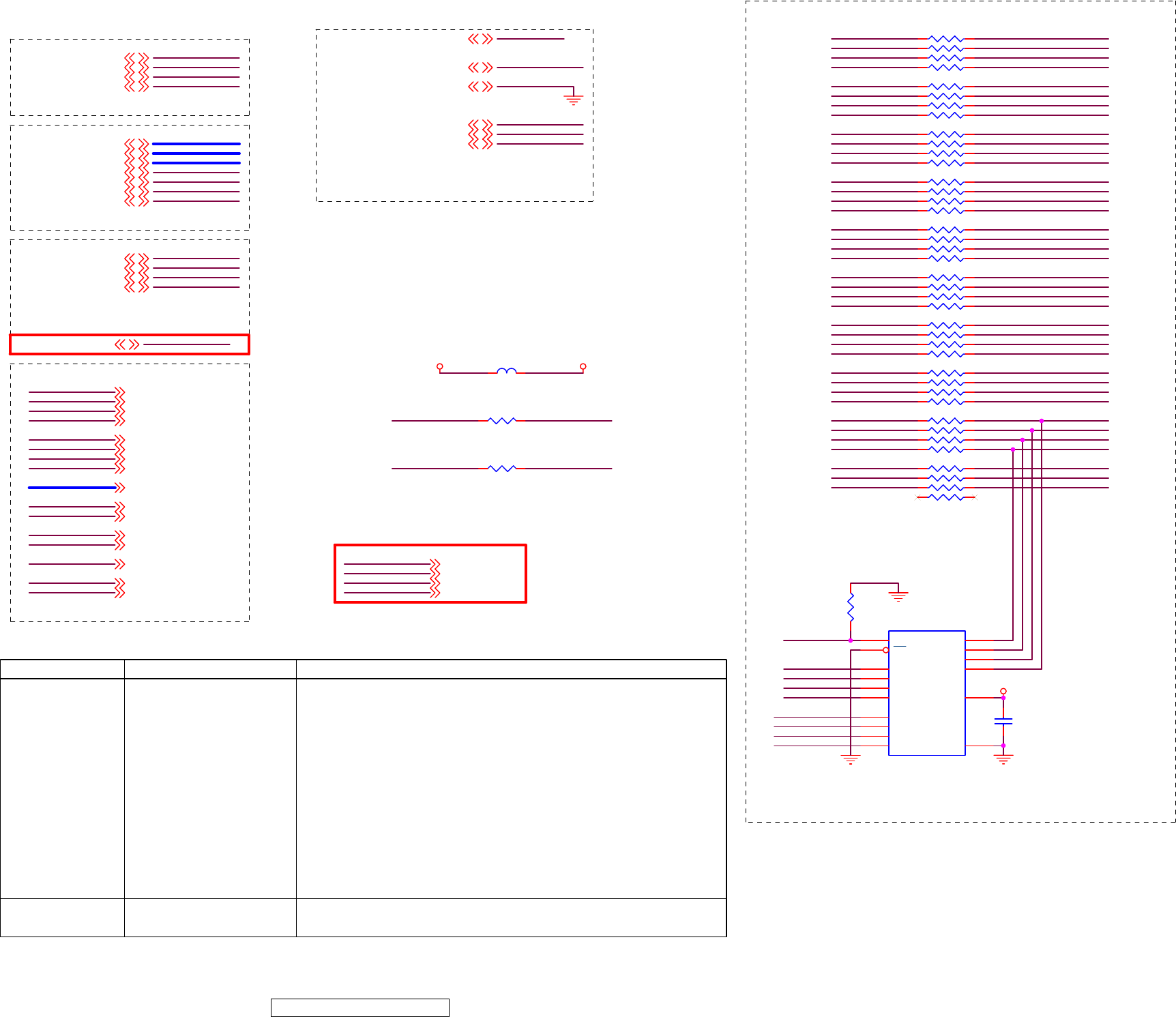

8.12. ATSC INDEX

GND

GLOBAL SIGNAL

POWER SUPPLY

TUNER POWER

MT5112 POWER

MT5351 POWER

MT5351 ANALOG POWER

MT5351 DDR POWER

MT5351 POWER

+12V

+5V

+5V_tuner

DV33_DM

DV18

DV33

AV33

DV25

DV12

DIGITAL AUDIO INTERFACE

DEVICE

POWER +12V

POWER +5V

POWER +3V3

POWER +1V8

POWER +3V3

POWER +2V5

POWER +1V2

UART (RS232)

GROUND

NAME

DIGITAL OUTPUT

DIGITAL VIDEO OUTPUT

GROUND

TYPE

MTK modify

HDMI AUDIO

ATSC AUDIO

AUD_CTRL 0

"Y"=ATSC

ORESET_1

VI5

DTVU2TX

DTVU0TX

SDA1

VI16

DTVU2RX

VOR5

VI23

U2TX

VI11

VOB3

HDMIMCLK

GPIO3

AO1LRCK

REQUEST_1

VI6

VOB7

HDMIODCK

VOG5

VODE

VOR[0..7]

VI12

U2TX

VOR3

SCL1

VI17

VOB2

VOG2

VI19

VOR4

DTVU0RX

ORESET_1

VOHSYNC

VI7

VI0

DTVU0RX

RXD1

VOVSYNC

HDMIDE

HDMILRCK

VOB6

VOG1

VOG4

VOPCLK

VI13

VI1

HDMIODCK

AO1MCLK

VOHSYNC

U2RX

VI8

VI20

VOR2

READY_1

DTVU0TX

HDMIVSYNC

VOB1

VODE

TXD1

VI2

VI14

HDMIBCLK

HDMIVSYNC

VOB5

DTVU2RX

HDMIHSYNC

VOVSYNC

VOG7

U0TX

VI9

VOG0

TXD1

U0RX

AO1SDATA0

VI3

VI21

VOR7

REQUEST_1

VOPCLK

HDMIHSYNC

VOB0

GND

DTVU2TX

VOR1

HDMISD0

VOB4

VI15

AO1LRCK

VOB[0..7]

HDMIDE

U0TX

U0RX

RXD1

VOR6

AO1BCK

VI4

VOG6

AO1BCK

READY_1

VOG[0..7]

VI22

VI[0..23]

GPIO3

SDA1

VI10

VOG3

U2RX

AO1SDATA0

DV33

VI18

SCL1

VOR0

AO1MCLK

8293LRCK

8293SD0

8293BCLK

8293MCLK

AO1LRCK

AO1SDATA0

AO1MCLK

AO1BCK

HDMISD0

HDMILRCK

HDMIMCLK

HDMIBCLK

AUD_CTRL

8293BCLK

8293MCLK

8293LRCK

8293SD0

5VDD

VOHSYNC15

AO1LRCK15

DTVU0RX 26

HDMIMCLK 3

VI[0..23] 3,10

AO1SDATA015

SDA1 3

REQUEST_115

VOVSYNC15

READY_115

SCL1 3

ORESET_113,15,17

HDMIVSYNC 3,10

GPIO3 3

VODE15

HDMIODCK 3,10

DV3314,15,17,18

U2TX15,17

HDMISD0 3

VOR[0..7]15

U2RX15,17 GND7,13,14,15,16,17,18

HDMIHSYNC 3,10

RXD1 3

U0RX15,17

TXD1 3

HDMILRCK 3

VOB[0..7]15

VOG[0..7]15

HDMIDE 3,10

U0TX15,17

VOPCLK15

DTVU0TX 26

HDMIBCLK 3

AO1MCLK15

AO1BCK15

AUD_CTRL3

8293LRCK 10

8293BCLK 10

8293MCLK 10

8293SD0 10

5VDD14,15

5VDD

VCC

DV33

RP35

33x4 RN 8P4R

1 2

3 4

5 6

7 8

R230

4.7K

R0603

RP40

(NC)33x4 RN 8P4R

1 2

3 4

5 6

7 8

RP32

33x4 RN 8P4R

1 2

3 4

5 6

7 8

RP39

33x4 RN 8P4R

1 2

3 4

5 6

7 8

RP33

33x4 RN 8P4R

1 2

3 4

5 6

7 8

RP41

33x4 RN 8P4R

1 2

3 4

5 6

7 8

R228

I117

IDTQS3VH257

TSSOP16

13 8

1 4

IA0

IB0

IC0

ID0

IA1

IB1

IC1

ID1 GND

VCC

SYA

RP34

33x4 RN 8P4R

1 2

3 4

5 6

7 8

RP37

33x4 RN 8P4R

1 2

3 4

5 6

7 8

RP36

33x4 RN 8P4R

1 2

3 4

5 6

7 8

R229

C416

0.1U

C0603

RP38

33x4 RN 8P4R

1 2

3 4

5 6

7 8

L802

R121/0805 6A

L0805

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

8.13. MT5112 ASIC

GLOBAL SIGNAL

CLOSE TO MT5112

Digital 3.3V Bypass Caps

Analog 3.3V Bypass Caps

Digital 1.8V Bypass Caps

TUNER INTERFACE

TS INPUT

MODIFIED IN V6

RESERVE HEAT-SINK SPACE

ATSC

NTSC

NOTE 3V3 LEVEL

TUNER_SW=0 Y=ATSC IDT_OE = 0 OUTPUT ENABLE

DV18

DV33_DM

REFTOP

XTAL2

DVDD18

XTAL1

AVDD33

DVDD33

IF_AGCIF_AGCIF_AGC

DVDD18

TS1DATA3

TS1DATA2

AVDD33

DVDD33

DVDD18

AVDD3

DVDD33

DVDD18

AVDD33

DVDD33

AVDD33

DVDD18

DVDD33

AVDD33

ADVDD33_2

MT5112_IF_AGC

TS1SYNC

TS1CLK

TS1VALID

FAT_IN-

FAT_IN+

DVDD18

AVDD33

TS1DATA1

TS1DATA0

OSDA_MST

ADVDD33_1

OSCL_MST

ORESET_1

DVDD18

AVDD5

AVDD33

TUNER_SDA

TUNER_SCL

MT5112_IF_AGC

DVDD33

REFBOT

VCMEXT

IF_AGC

FAT_IN-

FAT_IN+

TS1ERROR

TS1SYNC

TS1VALID

TS1DATA[0..7]

OSCL_MST

OSDA_MST

IF_AGCIF_AGCIF_AGC

TS1ERROR

TS1CLK

+5V_TUNER

TUNER_SCL

TUNER_SDA

TUNER_SCL1

ORESET_1

TUNER_SCLO

TUNER_SDAO

TUNER_SDA1

TUNER_SW TUNER_SDAO

TUNER_SCLO

TUNER_SDA1

TUNER_SCL1

IOSDA

IOSCL

TUNER_SW

SCLIOSCL

IOSDA SDA

SCL

IOSDA

SDA

IOSCL

GND

TS1DATA4

TS1DATA6

TS1DATA7

TS1DATA5

GND

IDT_OE

DV1814

GND7,12,14,15,16,17,18

DV33_DM14

IF_AGC7

FAT_IN-7

FAT_IN+7

TS1ERROR15

TS1SYNC15

TS1VALID15

TS1DATA[0..7]15

OSDA_MST18

OSCL_MST18

TS1CLK15

+5V_TUNER7,14

ORESET_112,15,17

TUNER_SCLO7

TUNER_SDAO7

TUNER_SW3

SDA 3,10,23,26

SCL 3,10,23,26

IOSDA 3,10,23,26

IOSCL 3,10,23,26

IDT_OE 3

DVDD33

DV18

DV33_DM

AVDD33DV33_DM AVDD33

DVDD18

DVDD33

DVDD18

AVDD33 AVDD3

AVDD33 AVDD5

AVDD33 ADVDD33_1

AVDD33 ADVDD33_2

DVDD33

DVDD18

DV33_DM

C830 0.1uF

C0603/SMD

L810

R60/0603 300mA

BEAD/SMD/0603

C853

0.1uF

C0603/SMD

L807

R121/0603 3A

L0603

C835

18pF

C0603/SMD

R827

R0603/SMD

RP80

33x4

RN0603/SMD

1 2

3 4

5 6

7 8

R833

4.7K

R0603/SMD

R802

R0603/SMD

L808

R121/0805 6A

BEAD/SMD/0805

I805

IDTQS3VH257

TSSOP16/SMD

1 4

I1B

I0A

I1A

SYA

I0B

GND

I0D

I1D

I0C

VCC

I1C

C859

0.1uF

C0603/SMD

C838

0.1uF

C0603/SMD

L812

R60/0603 300mA

BEAD/SMD/0603

C848

0.1uF

C0603/SMD

C841

0.1uF

C0603/SMD

C846

0.1uF

C0603/SMD

C857

0.1uF

C0603/SMD

C849

0.1uF

C0603/SMD

C862

0.1uF

C0603/SMD

R828

R0603/SMD

R831

4.7K

R0603/SMD

C860

0.1uF

C0603/SMD

C828

10nF

C0603/SMD

L811

R121/0805 6A

BEAD/SMD/0805

C845

0.1uF

C0603/SMD

R826 4.7K R0603/SMD

C861

0.1uF

C0603/SMD

RP81

33x4

RN0603/SMD

1 2

3 4

5 6

7 8

C837

0.1uF

C0603/SMD

L814

R60/0603 300mA

BEAD/SMD/0603

C833

0.1uF

C0603/SMD

C825

47nF

C0603/SMD

C836

10uF/50v

C10UF16V/D5H11

L813

R121/0805 6A

BEAD/SMD/0805

RP82

33x4

RN0603/SMD

1 2

3 4

5 6

7 8

R825 4.7K R0603/SMD

C843

0.1uF

C0603/SMD

C831

10uF/10v

C0805/SMD

C844

0.1uF

C0603/SMD

C858

0.1uF

C0603/SMD

R830

4.7K

R0603/SMD

MT5112AD/BD

TQFP-100

I807

MT5112AD_BD/TQFP100

100

AVDD2

AVSS9

AVDD9

AVSS5

AVDD5

ADVDD33

DGND33

DVDD33

DVDD18

DGND18

GPIO0(P1.0)

TS_DATA7

TS_DATA6

TS_DATA5

TS_DATA4

DVDD33

DGND33

TS_DATA3

TS_DATA2

DVDD18

DGND18

TS_DATA1

TS_DATA0

TS_SYNC

DVDD33

DGND33

TS_CLK

TS_VAL

TS_ERR

DVDD18

DGND18

DVDD33

DGND33

HOST_DATA

DVDD18

DGND18

HOST_CLK

RESET_

GPIO1(P1.1)

DVDD18

DGND18

RF_AGC

IF_AGC

DGND33

DVDD33

TUNER_CLK

TUNER_DATA

SA1

SA0

DGND18

DVDD18

DGND18

ANT_TX(POUT3.1)

DGND33

DVDD33

ANT_RX(PIN3.0)

ANT_DET(PIN3.1)

GPIO3(P1.3)

DGND18

DVDD18

GPIO2(P1.2)

DVDD33

DGND33

AVSS2

AVDD4

AVSS4

XTAL1

XTAL2

AVSS6

AVSS3

AVDD6

AVDD3

AVDD7

AVDD18

AVSS7

REFTOP

VCMEXT

REFBOT

AVSS1

AVDD1

IN+

IN-

AVDD8

AVSS8

ADVDD33

C827

47pF

C0603/SMD

C832 0.1uF

C0603/SMD

L806

220nH

L/IND/SMD/0805

R832

4.7K

R0603/SMD

C852

0.1uF

C0603/SMD

C850

0.1uF

C0603/SMD

C851

0.1uF

C0603/SMD

C847

10uF/50v

C10UF16V/D5H11

C856

0.1uF

C0603/SMD

X801

25MHz

CRYS/DIP/SMD

C855

10uF/50v

C10UF16V/D5H11

C826

10nF

C0603/SMD

C829 0.1uF

C0603/SMD

R829

4.7K

R0603/SMD

C840

0.1uF

C0603/SMD

C834

18pF

C0603/SMD

L809

R60/0603 300mA

BEAD/SMD/0603

C839

0.1uF

C0603/SMD

C842

0.1uF

C0603/SMD

C807

0.1uF

C0603/SMD

C854

0.1uF

C0603/SMD

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

8.14. ATSC POWER

POWER SUPPLY +3V3 FOR MT5112

1.25 x (1+0/100) = 1.25V

POWER SUPPLY +1V2 FOR MT5351

POWER SUPPLY +3V3 FOR MT5351 (ANALOG)

POWER SUPPLY +2V5 FOR MT5351 AND DDR

POWER SUPPLY +3V3 FOR MT5351

GLOBAL SIGNAL

POWER SUPPLY +30V FOR SAMSUNG TUNER

Vout = 1.25 x ( 1 + Rb / Ra )

POWER SUPPLY +1V8 FOR MT5112

SCHOTTKY DIODE

20V/3A

NOTES CURRENT RATING.

yc5d18

+5V_TUNER

DV12

DV33

AV33

DV18

5VDD

DV33_DM

+30V_TUNER

GND

DTVDDR_2V5

DV3312,15,17,18

DV1215,18

AV3315,18

DV1813

5VDD12,15

DV33_DM13

GND7,12,13,15,16,17,18

+5V_TUNER7

+30V_TUNER7

DTVDDR_2V516

DV12DV33

VCC

DV33_DM

DV33 AV33

+5V_TUNER

+30V_TUNER

DTVDDR_2V5

5VDD

DV18

+5V_TUNER

VCC

C432

0.1U

C0603

R416

11.5K1%

R0603

R423

267K1%

R0603

R522

1.15K 1%

C451

0.1U

C0603

C881

0.1uF

C420

0.1U

C0603

C431

100U/16V

CE025063

R520

20K

C437

100U/16V

CE025063

C439

0.1U

C0603

I808

AP1510

OCSET

VCC

VSS

OUTPUT

R850

1_3K

C783

0.1U

C0603

R232

R0603

C317

10U/50V

C880

0.01uF(NC)

L158

10uH SMD

DRWW9*12 0.6mm

C883

0.1U

C0603

I123

Regulator AP1522 SOT23-5/SMD

5SW

GND

FBSHDN

V_IN

C879

0.01uF(NC)

L153

R121/0603 3A

L0603

C785

220u/16v L_ESR

C427

100U/16V

CE025063

C784

0.1U

C0603

C429

0.1U

C0603

D151

SR36

C419

0.1U

R849 1k74

L828

30uH

0.7m/m

C786

4.7u/16v 0805

R231

100

R0603

C440

0.1U

C0603

R523

R0603

ADJ

OUT

I120

AMC7585-2.5V/TO252

I118

AP1510

VSS

OCSET

OutputVCC

Output

C318

0.1U

C0603

R847 100K

R848

3.3K

C450

220U/16V

CE050080

C310

0.1U

C0603

C803

470U/16V

CE050080

L150

R121/0805 6A

L0805

C804

470U/16V

CE050080

D819

SR54

D153

SR54

1 2

C438

100U/16V

CE025063

C878

0.1uF

L227

30uH

0.7m/m

C417

100U/16V

C426

0.1U

C0603

C882

470uF/16V

L829

10 UH SMD

I121

AZ1117/adj

SOT223

ADJ/GND

OUTIN

R521

3.65K 1%

R519

3.9K

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

8.15. MT5351 ASIC

DIGITAL VIDEO OUTPUT

FLASH INTERFACE

ANALOG PART

UART (RS232)

TEST PURPOSE

JTAG PORT

GLOBAL SIGNAL

TS INPUT

CLOSED TO MT5351

DDR MEMORY

AUDIO INTERFACE

OPTICAL

SPDIF CIRCUIT

MTK modify

ATSC AUDIO ONLY

VODE

REQUEST_1

RRAS_1

VCXO0

RA7

RDQ5

U1TX

VOG[0..7]

VOHSYNC

APLLCAP0

RDQ29

AVDDRKP

AVDD_APLL1

PDA4

RCLK1_1

RDQ10

READY_1

TS1VALID

AVDD_APLL0

RDQ1

JTMS

RDQ20

AO1BCK

VOR3

AVDDYKP

VOB4

PDA1

RBA0

RCS_1

RA12

OSDA0

VOB[0..7]

VOVSYNC

PDA12

U0TX

RCLK1

AO1BCK

AVDDRKP

AVDD_APLL0

RDQ16

GND

RRAS_1

POWE_1

U1TX

RDQ9

TS1DATA[0..7]

RDQS2

PDD5

JTDO

OXTALI

U1RX

VCXO0

PDD3

PDA7

VOR4

RCLK1_1

RA6

PDA19

PDA3

RDQ28

VOB5

REQUEST_1

CAPVPLL

VOPCLK

TS1ERROR

JTDI

APLLCAP1

RCS_1

VODE

RA2

RDQ12

AVDD_DMPLL0

PDA10

AO1LRCK

AVDDYKP

CAPVGND

DONE

RCLK0_1

PDA0

RDQ8

U2RX

VCXO1

JRTCK

VOR5

PDD2

VOB6

PDA11

POCE0_1

AO1SDATA0

TS1VALID

AO1LRCK

VOHSYNC

TS1CLK

VOR0

DV33

OPWM0

RDQ24

RA0

RDQ23

RVREF

POOE0_1

VOG0

PDD4

RBA[0..1]

VOB0

RA11

RA5

RDQ0

AVDDBGKP

CAPVGND

RCLK1

RDQ27

OSCL0

RA[0..13]

AVDD_APLL1

PDA18

U2TX

JTRST_1

RDQS1

TS1DATA5

RCKE

AO1MCLK

RA10

JTCK

VOB7

PDD1

POOE0_1

VOG4

TS1DATA2

TS1DATA0

TS1SYNC

OIRI

VOR[0..7]

PDD7

JTDO

VOG1

RWE_1

RCKE

VOB1

PDA22

PDA15

RA1

RCLK0_1

RDQ19

TS1DATA6

ATP2

AO1SDATA0

RDQM1

ORESET_1

POCE0_1

VOG5

TS1DATA1

RDQS3

RDQ22

JTMS

TS1DATA3

AVDDBGKP

PDD0

RDQM[0..3]

RA9

PDD[0..7]

RDQ31

RA4

RDQS0

APLLCAP0

PDA17

VOG2

AVDD_DMPLL0

DVDDKP

U0TX

VOB2

RA13

RDQ15

VOR6

RCAS_1

RDQ4

OSDA0

TS1DATA7

OPWM0

DVDDKP

U2RX

PDA9

RDQ26

RDQM0

RWE_1

VOG6

TS1DATA4

PDA2

JTDI

JRTCK

RDQS[0..3]

JTRST_1

PDA14

ATP1

PDA21

PDA5

RDQ7

VOG3

RDQ18

VOB3

AVDD_DMPLL1

VOR7

RDQM3

RDQ14

POWE_1

VOR1

TS1CLK

PDA[0..22]

RDQ3

RCLK0

RA8

RA3

VOG7

RDQ30

RCAS_1

TUNER_SWITCH

PDA16

U0RX

ATP2

U0RX

APLLCAP1

CAPVPLL

OSCL0

PDA6

RDQ21

U2TX

VOVSYNC

RDQ6

AO1MCLK

READY_1

ORESET_1

AVDD_VPLL

VOPCLK

TS1ERROR

OXTALI

RDQ25

RCLK0

PDD6

RDQ13

RDQ11

DV12

JTCK

RDQ[0..31]

AVDD_VPLL

RDQ2

RVREF

TS1SYNC

PDA20

PDA13

PDA8

RDQ17

ATP1

VOR2

U1RX

RDQM2

RBA1

ASPDIF

5VDD

DV25

RWE_116

RDQM[0..3]16

TS1VALID13

TS1SYNC13

REQUEST_112

U0TX12,17

AVDD_APLL114,18

JRTCK17

JTDI17

VOVSYNC12

U2RX12,17

RCKE16

RA[0..13]16

JTRST_117

VCXO018

AVDD_VPLL14,18

READY_112

TS1ERROR13

TS1CLK13

ORESET_112,13,17

ATP118

AVDD_APLL014,18

DVDDKP18

U1RX17

RBA[0..1]16

RCLK016

AO1MCLK12

TS1DATA[0..7]13

RDQS[0..3]16

AVDD_DMPLL114,18

APLLCAP018

OSDA018

RCLK116

VOR[0..7]12

AVDDRKP14,18

RCLK0_116

POWE_117

AO1BCK12

VOHSYNC12

AVDDBGKP14,18

RCLK1_116

POOE0_117

RCS_116

RDQ[0..31]16

APLLCAP118

AO1LRCK12

CAPVGND18

OPWM018

ATP218

PDA[0..22]17

RVREF18

AO1SDATA012

VOB[0..7]12

AVDD_DMPLL014,18

RRAS_116

JTDO17

OSCL018

VODE12

CAPVPLL18

POCE0_117

U1TX17

PDD[0..7]17

DV1214,18

JTMS17

OXTALI18

GND7,12,13,14,16,17,18

JTCK17

VOPCLK12

DV2516,18

RCAS_116

VOG[0..7]12

AVDDYKP14,18

U0RX12,17

U2TX12,17

DV3312,14,17,18

FS18

5VDD12,14

DV33

DV25

DV12

DV33

5VDD

C743

0.1U

D122

(NC)LED DIP2.54

R255 (NC)75

R0603

P116

S/PDIF OUT

RCA/SPDIF/DIP

VCC

GND

NCNC

R253 (NC)75

R0603

TP62

IOR_Y6

TP/SMD/D0.6

R254 (NC)75

R0603

R257

330

R0603

MT5351

I127

MT5351

BGA471/SMD/SOCKET

A14

A15

B24

A24

D23

C23

B23

A23

D22

C22

B22

A22

D21

C21

B21

A21

D20

C20

B20

A20

D19

C19

B19

A19

D18

C18

B18

A18

D17

C17

B17

A17

D16

C16

B16

A16

D15

C15

B15

B14

C14

D14

A13

B13

C13

D13

A12

B12

C12

D12

A11

B11

C11

D11

A10

B10

C10

D10

L11

L12

L13

M11

M12

M13

N11

N12

N13

A27

B26

A26

C25

B25

A25

D24

C24

A28

E10

E19

M24

N24

U24

AE14

AE15

E11

E12

E13

E14

E15

E16

E17

E18

P24

R24

R25

R26

R27

R28

T24

B27

B28

C26

C27

C28

D25

D26

L14

L15

L16

L17

L18

M14

M15

M16

M17

M18

N14

N15

N16

N17

N18

P11

P12

P13

P14

P15

P16

P17

P18

R11

R12

R13

R14

R15

R16

R17

R18

D27

D28

E25

E26

E27

E28

F25

F26

F27

F28

G25

G26

G27

G28

H25

H26

H27

H28

J25

J26

J27

J28

K25

K26

K27

K28

L25

L26

L27

L28

M25

M26

M27

M28

N25

N26

N27

N28

P25

P26

P27

P28

T28

T27

T26

T25

U28

U27

U26

U25

V28

V27

V26

V25

W28

W27

W26

W25

Y28

Y27

Y26

Y25

AA28

AA27

AA26

AA25

AB28

AB27

AB26

AB25

AC28

AC27

AC26

AC25

T11

T12

T13

T14

T15

T16

T17

T18

U11

U12

U13

U14

U15

U16

U17

U18

V11

V12

V13

V14

V15

V16

V17

V18

AE8

AE9

AE20

AE21

AA1

AA2

AA3

AB1

AB2

AB3

AC1

AC2

AC3

AD1

AD2

AD3

AE1

AE2

AE3

AF1

AF2

AF3

AG1

AG2

AH1

AH2

AH3

AG3

AH4

AG4

AF4

AH5

AG5

AF5

AH6

AG6

AF6

AH7

AG7

AF7

AH8

AG8

AF8

AH9

AG9

AF9

AH10

AG10

AF10

AH11

AG11

AF11

AH12

AG12

AF12

AH13

AG13

AF13

AH14

AG14

AF14

AH15

AG15

AF15

AH16

AG16

AF16

AH17

AG17

AF17

AH18

AG18

AF18

AH19

AG19

AF19

AH20

AG20

AF20

AH21

AG21

AF21

AH22

AG22

AF22

AH23

AG23

AF23

AH24

AG24

AF24

AH25

AG25

AF25

AH26

AG26

AH27

AH28

AG28

AG27

AF28

AF27

AF26

AE28

AE27

AE26

AD28

AD27

AD26

AA4

AB4

AC4

AD4

AE4

AE5

AE6

AE7

AE10

AE11

AE12

AE13

AE16

AE17

AE18

AE19

AE22

AE23

AE24

AE25

AD25

PDCD2#

PDIOIS16#

PDA0

PDA1

PDA2

PDA3

PDA4

PDA5

PDA6

PDA7

PDA8

PDA9

PDA10

PDA11

PDA12

PDA13

PDA14

PDA15

PDA16

PDA17

PDA18

PDA19

PDA20

PDA21

PDA22

PDA23

PDA24

PDA25

PDCE1#

PDCE2#

PDOE#

PDIORD#

PDIOWR#

PDWE#

PDIREQ#

PDRESET

PDWAIT#

PDINPACK#

PDREG#

PDENPOD

T0CLK

T0SYNC

T0VALID

T0DATA0

T0DATA1

T0DATA2

T0DATA3

T0DATA4

T0DATA5

T0DATA6

T0DATA7

T1CLK

T1SYNC

T1VALID

T1DATA0

T1DATA1

T1DATA2

T1DATA3

T1DATA4

T1DATA5

T1DATA6

T1DATA7

OPWM0

ORTCVDD

ORTCO

ORTCI

OPWM1

ORTCVSS

CIN_Y0

IOR_Y6

IOB_Y5

IOG_Y4

IOX_Y3

IOY_Y2

IOC_Y1

CAPVPLL

APLLCAP1

APLLCAP0

AGND

PDD0

PDD1

PDD2

PDD3

PDD4

PDD5

PDD6

PDD7

PDCD1#

CVDD

IOVDD

POWE#

POCE0#

POOE0#

POCE1#

POOE1#

POCE2#

POOE2#

OSDA0

OSCL0

OSDA1

OSCL1

U0TX

U0RX

U1TX

U1RX

U2TX

U2RX

U2CTS

U2RTS

AO1SDATA3

AO1SDATA2

AO1SDATA1

AO1SDATA0

AO1LRCK

AO1BCK

AO1MCLK

AO2SDATA0

AO2LRCK

AO2BCK

AO2MCLK

ASPDIF

ASPDIF2

VOB0

VOB1

VOB2

VOB3

VOB4

VOB5

VOB6

VOB7

VOG0

VOG1

VOG2

VOG3

VOG4

VOG5

VOG6

VOG7

VOR0

VOR1

VOR2

VOR3

VOR4

VOR5

VOR6

VOR7

VOPCLK

VOHSYNC

VOVSYNC

VODE

JTRST#

JTDI

JTMS

JTCK

JRTCK

JTDO

GND

PARB#

PARE#

PACE#

PACLE

PAALE

PAWE#

ELREQ

ECLK

ECNTL0

ECNTL1

EDATA0

EDATA1

EDATA2

EDATA3

EDATA4

EDATA5

EDATA6

EDATA7

ELPS

ELINKON

ORESET#

OIRI

OIRO

ICS1#

ICS0#

IDA2

IDA0

IDA1

IINTRQ

IDMACK#

IIORDY

IDIOR#

IDIOW#

IDMARQ

IDD15

IDD0

IDD14

IDD1

IDD13

IDD2

IDD12

IDD3

IDD11

IDD4

IDD10

IDD5

IDD9

IDD6

IDD8

IDD7

IRESET#

DDETECT

DCLK

DCMD

DDATA0

DDATA1

DDATA2

DDATA3

MDETECT

MCLK

MBS

MDATA0

MDATA1

MDATA2

MDATA3

STSCLK

STSDOUT

STSDIN

SPWRSEL

SDETECT

SCMDVCC

SRST

SCLK

SDATA

GND

DVREF2

DVREF0

DVREF1

DVREF3

RDQ32

RDQ33

RDQ34

RDQ35

RDQ36

RDQ37

RDQ38

RDQ39

RDQS4

RDQM4

RDQM5

RDQS5

RDQ40

RDQ41

RDQ42

RDQ43

RDQ44

RDQ45

RDQ46

RDQ47

RCLK0

RCLK0#

RDQ0

RDQ1

RDQ2

RDQ3

RDQ4

RDQ5

RDQ6

RDQ7

RDQS0

RDQM0

RDQM1

RDQS1

RDQ8

RDQ9

RDQ10

RDQ11

RDQ12

RDQ13

RDQ14

RDQ15

RWE#

RCAS#

RRAS#

RCS#

RBA0

RBA1

RA10

RA0

RA1

RA2

RA3

RA4

RA5

RA6

RA7

RA8

RA9

RA11

RA12

RA13

RCKE

RDQ16

RDQ17

RDQ18

RDQ19

RDQ20

RDQ21

RDQ22

RDQ23

RDQS2

RDQM2

RDQM3

RDQS3

RDQ24

RDQ25

RDQ26

RDQ27

RDQ28

RDQ29

RDQ30

RDQ31

RCLK1

RCLK1#

RDQ48

RDQ49

RDQ50

RDQ51

RDQ52

RDQ53

RDQ54

RDQ55

RDQS6

RDQM6

RDQM7

RDQS7

RDQ56

RDQ57

RDQ58

RDQ59

RDQ60

RDQ61

RDQ62

RDQ63

RVDD

ATP1

AVDD_APLL0

AVDD_APLL1

AVDD_VPLL

AVDD_DMPLL0

AVDDRKP

AVDDYKP

AVDDBGKP

DACVREF

DVDDKP

OXTALO

OXTALI

AVDD_DMPLL1

ATP2

CAPVGND

R493 33

TP67

TUNER_SWITCH

TP/SMD/D0.6

C489

(NC)10U/50V

CE025050

L198 R121/0603 3A

TP66

TP/SMD/D0.6

TP65

VCXO1

TP/SMD/D0.6

TP63

IOB_Y5

TP/SMD/D0.6

TP64

IOG_Y4

TP/SMD/D0.6

R256

10K

R0603

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

8.16. MT5351 DDR MEMORY

BYPASS CAP. FOR DDR

DDR#1 DDR#2

CLOSED TO DDR

DDR MEMORY

CLOSED TO MT5351

CLOSED TO DDR

CLOSED TO MT5351

FOR DDR#2

CLOSED TO MT5351

FOR DDR#1

GLOBAL SIGNAL

EQUAL LINE LENGTH

BYPASS CAP. FOR TERMINATOR

(EVERY 2 RESISTOR PUT 1

BYPASS CAP.)

MEM_BA0

RA13

MEM_DQ24

MEM_CLKEN

MEM_ADDR0

MEM_ADDR1

RDQ30

RDQS2

MEM_ADDR7

MEM_BA1

MEM_DQ17

MEM_ADDR8

MEM_DQM3

MEM_DQ5 MEM_DQ26

RDQ13

RDQ2

RDQM0

MEM_DQ10

MEM_DQ0

MEM_DQ31

MEM_ADDR4

MEM_ADDR5

MEM_ADDR11

MEM_WE_1

RBA0

RA11

MEM_ADDR3

RDQ26

RDQS3MEM_CLKEN

RDQ17

MEM_WE_1

MEM_DQS2

MEM_ADDR10

MEM_ADDR2

MEM_ADDR7

MEM_DQM2

MEM_DQ4

RBA[0..1]

MEM_DQM0

MEM_VREF

RDQM[0..3]

MEM_DQ11

MEM_ADDR13

MEM_CAS_1

RA1

RCLK1

MEM_DQ5

MEM_CLKA

MEM_DQ14

MEM_DQS2

MEM_DQ13

RBA1

RDQM3

RDQ6

MEM_DQ27

MEM_DQ1

MEM_BA0

RCKE

MEM_ADDR6

MEM_DQM3

RCLK0

MEM_DQ27

MEM_DQ4

MEM_ADDR5

RDQ8

MEM_DQ14

MEM_ADDR8

MEM_DQ3

MEM_DQ15

MEM_ADDR12

GND

RDQ22

MEM_DQ3

MEM_CS_1

RDQ23

RDQ18

RDQ4

MEM_CS_1

RA3

MEM_DQ1

MEM_WE_1

RCLK0_1

MEM_DQ8

MEM_ADDR3

MEM_DQ20

MEM_DQS1

MEM_DQ12

RDQ1

MEM_DQ2

RDQ16

MEM_CLKA_1

MEM_DQ23

RDQ29

MEM_ADDR9MEM_BA1

RCLK1

MEM_ADDR1

MEM_ADDR7

RDQS0

MEM_RAS_1

RDQ19

RA5

RA4

MEM_ADDR13

MEM_VREF

RDQM2

MEM_WE_1

MEM_DQS3

MEM_DQ28

MEM_ADDR5

MEM_CAS_1

RDQ28

RDQ11

RDQ0

MEM_ADDR7

MEM_ADDR2

MEM_CLKEN

MEM_DQ22

MEM_ADDR11

MEM_ADDR0

RDQM1

MEM_ADDR12

MEM_DQM1

MEM_DQ18

RDQ31

RDQ20

RCS_1

RA10 MEM_ADDR10

RA0

MEM_DQ13

DTVDDR_2V5

MEM_ADDR6

MEM_RAS_1

RA6

MEM_ADDR13

RDQ5

MEM_DQS0

MEM_ADDR2

MEM_BA0

MEM_ADDR9

MEM_BA1

RDQ15

RDQ21

MEM_ADDR11

MEM_ADDR4

MEM_DQ28

MEM_ADDR1

RDQ24

MEM_DQ2

MEM_DQ6

MEM_DQ17

MEM_ADDR0

MEM_CS_1

MEM_DQ16MEM_ADDR10

MEM_CLKEN

RA8

MEM_DQ11

MEM_DQ15

MEM_DQ7

MEM_DQS1

RDQ27

RDQ25

MEM_DQ24

MEM_ADDR0

RCAS_1

RA12

MEM_ADDR13

RCLK1_1

MEM_DQ29

MEM_ADDR3

MEM_ADDR8

RWE_1

MEM_ADDR4

RCLK0

RRAS_1

MEM_ADDR8

MEM_CLKB

MEM_DQ21

MEM_ADDR4

MEM_RAS_1

RCS_1

RA9

RDQ9

MEM_DQ25

RDQS[0..3]

RDQ10

MEM_BA0

MEM_VREF

MEM_DQ19

MEM_DQ22

MEM_DQ8MEM_DQ7

MEM_DQM1

MEM_DQ30

MEM_DQ0

RDQ12

RCKE

MEM_DQ18RRAS_1

MEM_ADDR9

MEM_ADDR2

MEM_BA1

MEM_DQ16

MEM_DQ21

MEM_DQ20

RCLK1_1

MEM_DQ30

RDQS1

MEM_ADDR10

MEM_ADDR12

MEM_DQM0

MEM_ADDR12

MEM_CAS_1

RDQ14

MEM_RAS_1

MEM_DQS3

MEM_DQS0

MEM_DQ25

MEM_ADDR3

MEM_DQ6

RA[0..13]

RCLK0_1

MEM_CS_1

MEM_ADDR5

MEM_DQ9

MEM_ADDR9

RA7

MEM_DQ31

RA2

MEM_ADDR1

MEM_DQ29

MEM_DQ12

MEM_DQ23

RDQ3

MEM_DQ19

MEM_DQ10

RDQ[0..31]

RDQ7

MEM_DQM2

MEM_DQ9

MEM_CLKB_1

MEM_ADDR6

MEM_ADDR11

RCAS_1

MEM_DQ26

MEM_CAS_1

MEM_CLKB

MEM_CLKB_1

MEM_CLKA

MEM_CLKA_1

DV25

MEM_VREF

RCLK115

RCLK015

RCAS_115

MEM_VREF18

RWE_115

RDQS[0..3]15

RCLK0_115

GND7,12,13,14,15,17,18

RCS_115

RCKE15

RCLK1_115

RDQ[0..31]15

RBA[0..1]15

RDQM[0..3]15

RA[0..13]15

RRAS_115

DTVDDR_2V514

DV2515,18

+1V25_DDR

+1V25_DDR+1V25_DDR

+1V25_DDR

DV25 DV25 DV25

DV25

DV33

DTVDDR_2V5

+1V25_DDR

DV25

R258 47

I150

RT9173

4 5

2 7

Vin

VCNTL

VOUT VCNTL

VREF

VCNTL

GND VCNTL

RP57 47x4

1 2

3 4

5 6

7 8

C496

0.1U

C0603

R282 47

C535

0.1U

C0603

C541

0.1U

C0603

C512

0.1U

C0603

C517

0.1U

C0603

RP51 47x4

1 2

3 4

5 6

7 8

C525

0.1U

C0603

RP48 75x4

1 2

3 4

5 6

7 8

RP68 75x4

1 2

3 4

5 6

7 8

C502

0.1U

C0603

C518

0.1U

C0603

C494

0.1U

C0603

R263 75

R275 75

R272 47

I128

16M x 16 DDR TSOP-66

TSOP66/SMD

33 34

VDD

DQ0

VDDQ

DQ1

DQ2

VSSQ

DQ3

DQ4

VDDQ

DQ5

DQ6

VSSQ

DQ7

VDDQ

LDQS

VDD

LDM

CAS

RAS

BS0

BS1

A10/AP

VDD VSS

A11

A12

CKE

CLK

UDM

VSS

VREF

UDQS

VSSQ

DQ8

VDDQ

DQ9

DQ10

VSSQ

DQ11

DQ12

VDDQ

DQ13

DQ14

VSSQ

DQ15

VSS

C498

0.1U

C0603

RP64 75x4

1 2

3 4

5 6

7 8

R146

C505

0.1U

C0603

RP67 47x4

1 2

3 4

5 6

7 8

C526

0.1U

C0603

RP60 75x4

1 2

3 4

5 6

7 8

C428

100uF/16v

R280 22

C515

0.1U

C0603

C530

0.1U

C0603

C508

0.1U

C0603

C278

10U/16V/Y5V

RP55 47x4

1 2

3 4

5 6

7 8

R261 75

RP59 47x4

1 2

3 4

5 6

7 8

RP62 75x4

1 2

3 4

5 6

7 8

RP49 22x4

1 2

3 4

5 6

7 8

C520

0.1U

C0603

C543

0.1U

C0603

R271 75

C509

0.1U

C0603

R265 75

C511

0.1U

C0603

RP46 75x4

1 2

3 4

5 6

7 8

C430

0.1U

C0603

R233

100K/1%

R278 47

R269 75

RP45 22x4

1 2

3 4

5 6

7 8

I129

16M x 16 DDR TSOP-66

TSOP66/SMD

33 34

VDD

DQ0

VDDQ

DQ1

DQ2

VSSQ

DQ3

DQ4

VDDQ

DQ5

DQ6

VSSQ

DQ7

VDDQ

LDQS

VDD

LDM

CAS

RAS

BS0

BS1

A10/AP

VDD VSS

A11

A12

CKE

CLK

UDM

VSS

VREF

UDQS

VSSQ

DQ8

VDDQ

DQ9

DQ10

VSSQ

DQ11

DQ12

VDDQ

DQ13

DQ14

VSSQ

DQ15

VSS

C546

0.1U

C0603

C510

0.1U

C0603

C516

100U/16V

CE025063

C527

0.1U

C0603

C495

0.1U

C0603

C500

0.1U

C0603

R283 75

C504

0.1U

C0603

RP47 47x4

1 2

3 4

5 6

7 8

R279 75

C492

47uF/16v

C531

0.1U

C0603

R277 75

C519

0.1U

C0603

R268 22

C540

0.1U

C0603

R281 (NC)75

C542

0.1U

C0603

C514

0.1U

C0603

R234

100K/1%

RP61 22x4

1 2

3 4

5 6

7 8

R274 22

R286

R0603

C507

0.1U

C0603

C499

0.1U

C0603

R270 22

C513

0.1U

C0603

R287

R0603

C536

0.1U

C0603

R284

R0603

R266 22

C545

0.1U

C0603

RP53 22x4

1 2

3 4

5 6

7 8

RP66 75x4

1 2

3 4

5 6

7 8

RP56 75x4

1 2

3 4

5 6

7 8

C529

0.1U

C0603

R288

R0603

C532

0.1U

C0603

RP50 75x4

1 2

3 4

5 6

7 8

C524

0.1U

C0603

C528

0.1U

C0603

R260 47

C533

0.1U

C0603

C544

0.1U

C0603

C521

0.1U

C0603

R273 75

R285

R0603

C491

1uF

RP52 75x4

1 2

3 4

5 6

7 8

RP58 75x4

1 2

3 4

5 6

7 8

R259 75

L152

R121/0603

L0603

C497

0.1U

C0603

C501

0.1U

C0603

C503

0.1U

C0603

C547

0.1U

C0603

R267 75

RP65 47x4

1 2

3 4

5 6

7 8

R262 47

C506

0.1U

C0603

C523

0.1U

C0603

RP63 47x4

1 2

3 4

5 6

7 8

R264 47

R290

R0603

C490

220uF/16v

C539

0.1U

C0603

C534

0.1U

C0603

C522

0.1U

C0603

C537

100U/16V

CE025063

C538

0.1U

C0603

RP54 75x4

1 2

3 4

5 6

7 8

R276 47

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

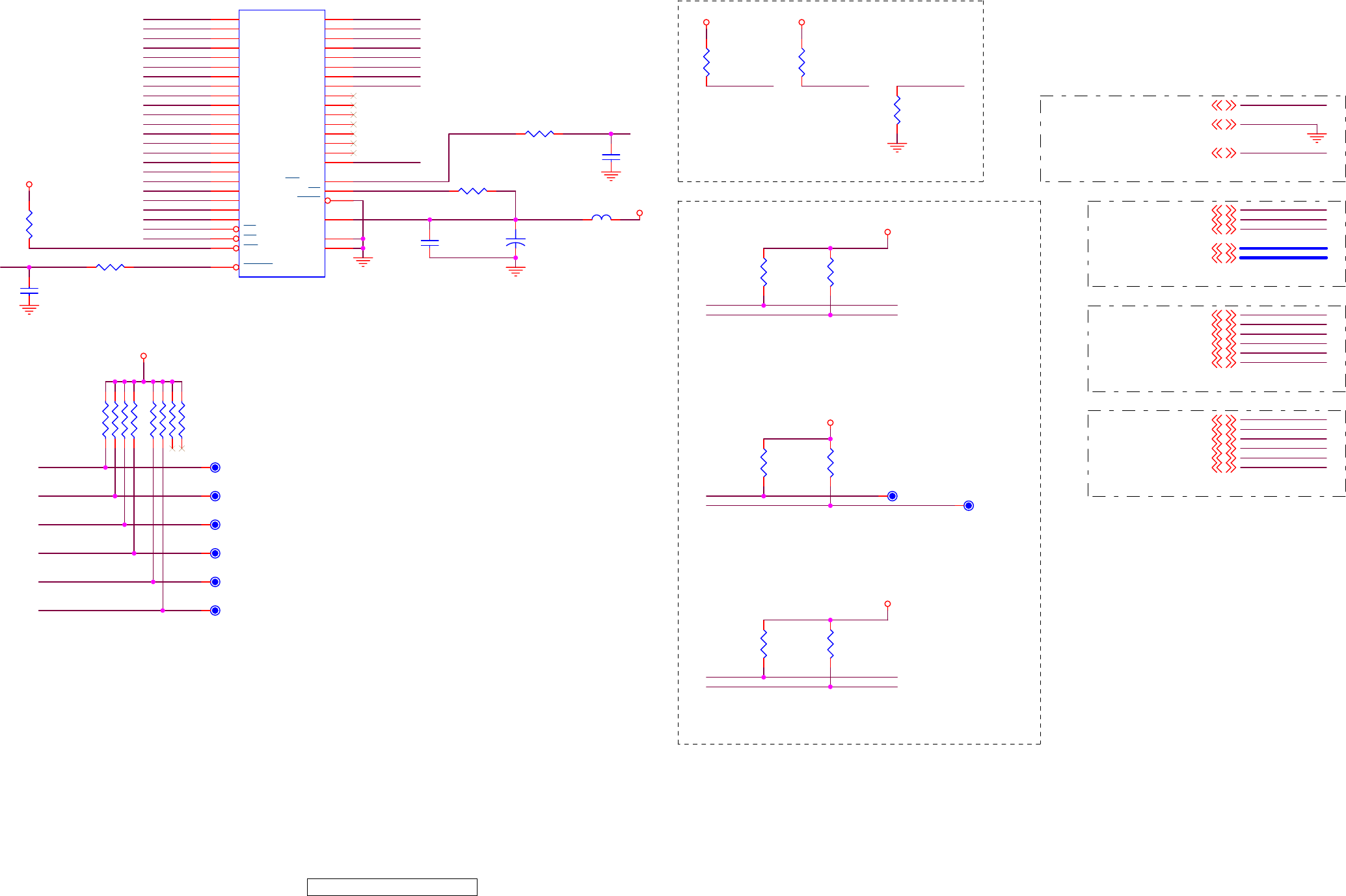

8.17. MT5351 FLASH

FOR SOFTWARE LINK

UART (RS232)

JTAG PORT

NOR FLASH #0

FLASH INTERFACE

GLOBAL SIGNALTRAP CIRCUIT

SOFTWARE DEBUG PORT

CLI OUTPUT

JTMS

PDA13

U2TX

GND

PDA3

PDA8

JRTCK

PDD1

PDA[0..22]

JTDI

PDA20

PDA14

U2RX

JTDI

PDA9

U1RX

ORESET_1

PDD0

JTCK

JTRST_1

U2TX

POOE0_1

PDD7

PDA15

U2RX

PDA1

PDA4

NOR_RST_1

JTDO

U0TX

PDA0

PDD6

PDA16

PDA22

PDA11

POCE0_1

U0TX

PDA5

JRTCK

PDA17

ORESET_1

PDD5

PDA10

POWE_1

U0RX

PDA6

NOR_WP_1PDA18

PDD4

PDA21

DV33

U0RX

U1TX

POOE0_1

PDA0

ORESET_1

U1TX

PDD3

PDA1

JTCK

PDA7

PDA12

POCE0_1

PDD[0..7]

NOR_RY_BY0_1

JTRST_1

PDD2

U1RX

PDA2

JTMS

JTDO

PDA19

JTDO15

U0TX12,15

JTRST_115

U1TX15

JRTCK15

U0RX12,15

DV3312,14,15,18

GND7,12,13,14,15,16,18

JTDI15

POOE0_115

U1RX15

JTMS15

POWE_115

POCE0_115

U2RX12,15

PDD[0..7]15

JTCK15

PDA[0..22]15

U2TX12,15

ORESET_112,13,15

DV33

DV33DV33

DV33

R303

4.7K

R0603

R295

(NC)4.7K

R0603

TP68

U1RX

TP/SMD/D0.6

C550

0.1U

C0603

R299

4.7K

R0603

TP78

JTDO

TP/SMD/D0.6

TP75

JTMS

TP/SMD/D0.6

L168

R121/0603 3A

L0603

RP83

10Kx4

RN0603/SMD

1 2

3 4

5 6

7 8

TP69

U1TX

TP/SMD/D0.6

R292

(NC)4.7K

R0603

R309

4.7K

R0603

R298

4.7K

R0603

TP73

JTRST_1

TP/SMD/D0.6

R294

R0603

TP76

JTCK

TP/SMD/D0.6

R296

4.7K

R0603

R293

(NC)4.7K

R0603

I131

IC FLASH MX29LV320 32Mb TSOP-48

TSOP48/SMD

A20

BYTE

A18

WP/ACC

D11

D12

D13

D14

D15/A-1

VCC

GND1

A19

D10

GND2

A10

A12

A11

A13

A14

A15

A16

A17

A21

RESET

RY/BY

R297

R0603

C548

(NC)10P

C0603

TP74

JTDI

TP/SMD/D0.6

R304

4.7K

R0603

RP84

10Kx4

RN0603/SMD

1 2

3 4

5 6

7 8

R310

4.7K

R0603

R291

(NC)4.7K

R0603

TP77

JRTCK

TP/SMD/D0.6

C551

10P

C0603

C549

10U/50V

CE025050

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

8.18. MT5351 PERIPHERAL

LEFT SIDE

TOP SIDE

BOTTOM SIDE

LEFT SIDE

RIGHT SIDE

GLOBAL SIGNAL

LEFT SIDE

ANALOG PART

RIGHT SIDE

TOP SIDE

ADD

MTK

MODIFIED

HIGH ===>> OPERATING

LOW ===>> HIGH IMPEDENCE

OSCL_MST

ATP2

AVDDBGKP

ATP1

OPWM0

APLLCAP1

MEM_VREF

OXTALI

DV12

ATP1

AVDDBGKP

AVDDRKP

OSDA0

APLLCAP0

OSCL0

AV33

RVREF

VCXO0

CAPVGND

AVDD_APLL1

DV33

OSCL0

APLLCAP1

AVDD_DMPLL1

OPWM0

AVDD_DMPLL0

RVREF

DV25

OSDA_MST

AVDD_APLL0

AVDDYKP

MEM_VREF

VCXO0

CAPVPLL

OSCL_MST

AVDD_APLL0

AVDD_DMPLL0

CAPVPLL

AVDDRKP

AVDD_VPLL

CAPVGND

AVDDYKP

AVDD_VPLL

OSDA0

ATP2

DVDDKP

AVDD_APLL1

AVDD_DMPLL1

APLLCAP0

GND

OXTALI

APLLCAP015

APLLCAP115

CAPVPLL15

VCXO015

OSDA015

FS15

OSCL015

DVDDKP15

OSCL_MST13

AV3314,15

OSDA_MST13

DV1214,15

CAPVGND15

DV3312,14,15,17

AVDD_DMPLL014,15

MEM_VREF16

AVDDYKP14,15

OPWM015

AVDD_VPLL14,15

OXTALI15

RVREF15

AVDD_DMPLL114,15

AVDDBGKP14,15

AVDD_APLL114,15

DV2515,16

AVDD_APLL014,15

GND7,12,13,14,15,16,17

AVDDRKP14,15

ATP215

ATP115

DV12

AV33

DVDDKP

DV33

DV25

DV33

AV33

DV33

DV12

C553

0.1U

C0603

C585

0.1U

C0603

C606

0.1U

C0603

C560

4.7U

C0805

C568

0.1U

C0603

R314

R0603

C603

0.1U

C0603

C582

0.1U

C0603

C588

0.1U

C0603

C557

1500P

C0603

C566

4.7U

C0805

C601

4.7U

C0805

C579

0.1U

C0603

C602

0.1U

C0603

C552

5600P

C0603

C555

C0603

C561

0.1U

C0603

C788

22P

C0603

C592

0.1U

C0603

R319

100

R0603

C596

0.1U

C0603

C590

0.1U

C0603

C587

0.1U

C0603

L170

R60/0603 300mA

L0603

C581

0.1U

C0603

C578

0.1U

C0603

R320

100

R0603

R315

(NC)10

R0603

R317

4.7K

R0603

R313

(NC)50

R0603

C574

4.7U

C0805

C565

0.1U

C0603

R311

8.2K

R0603

C595

0.1U

C0603

C604

0.1U

C0603

R312

(NC)50

R0603

L169

R60/0603 300mA

L0603

C598

0.1U

C0603

TP70

CAPVGND

TP/SMD/D0.6

R316

(NC)560

R0603

C559

10U/50V

CE025050

C573

0.1U

C0603

C569

0.1U

C0603

C591

0.1U

C0603

C586

0.1U

C0603

C599

4.7U

C0805

C556

47P

C0603

C580

0.1U

C0603

C571

10U/50V

CE025050

C562

0.1U

C0603

C583

0.1U

C0603

C570

0.1U

C0603

C584

10U/50V

CE025050

C572

4.7U

C0805

C558

1500P

C0603

C597

0.1U

C0603

X103

VCXO FR270003

OSC/6P/SMD/7X5

3 4

CVIN

TRI-STATE

GND OUT

VDD

C563

4.7U

C0805

C567

0.1U

C0603

C589

0.1U

C0603

C575

0.1U

C0603

C554

0.01U

C0603

R318

4.7K

R0603

C576

0.1U

C0603

C593

0.1U

C0603

C600

0.1U

C0603

C577

0.1U

C0603

C564

0.1U

C0603

C594

0.1U

C0603

C607

0.1U

C0603

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

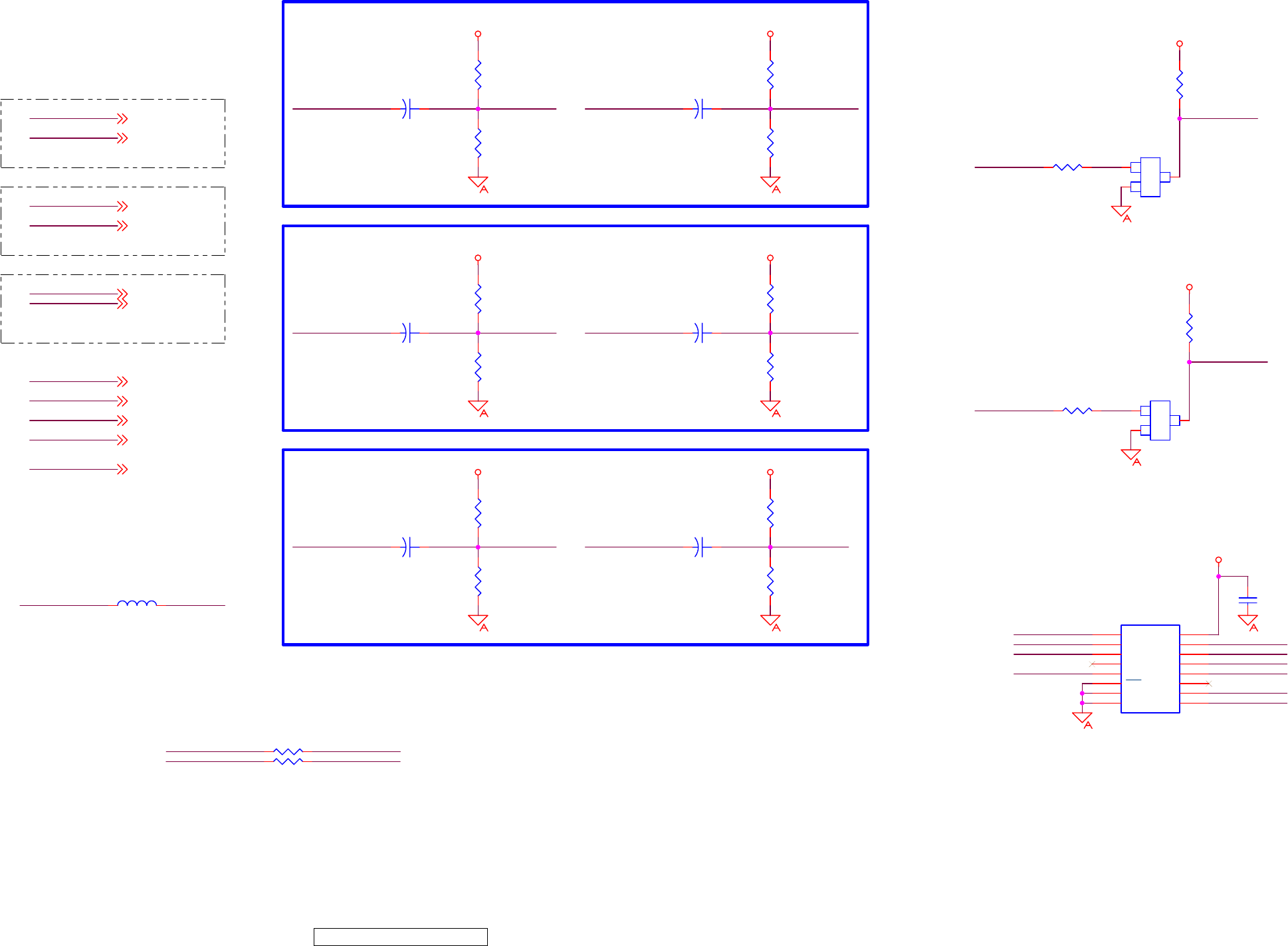

8.19. AUDIO SWITCH

S-VIDEO/AV AUDIO IN

YPBPR AUDIO IN

VGA AUDIO IN

AUSW1_2

YPBPR0_L

AV0SY0L_IN

YPBPR0L_IN

AUSW1_1

YPBPR0_L

AUINR

VGAL_IN

YPBPR0L_IN

SW1S2

VGA_R

AV0SY0_R

VGAR_IN

AV0SY0_L

VGAR_IN

SW1S2

VGA_L

AV0SY0_L

AV0SY0_R

YPBPR0R_IN

AUINR

VGA_LVGAL_IN

SW1S1

YPBPR0_R

AV0SY0L_IN

AV0SY0R_IN

YPBPR0_R

AUINL

SW1S1

YPBPR0R_IN

AUINL

VGA_R

AV0SY0R_IN

AUSW1_1

AUSW1_2 GPIO9

GPIO7

GPIO9

12V

12V SG_12V

VGAL_IN 22

AUINR 20

VGAR_IN 22

AUINL 20

YPBPR0L_IN 9

YPBPR0R_IN 9

AV0SY0L_IN 9

AV0SY0R_IN 9

GPIO7 3

GPIO9 3

12V 21,23

SG_12V SG_12V

SG_12V

R355

47K

R362

47K

R354 10K

C633

0.1U

C0603

C629 22U/50V

R353

47K

R351

47K

R359

47K

R350

47K

R356

47K

SOT

Q113

MMBT3904

SOT

Q112

MMBT3904

R365 33

R352

47K

C628 22U/50V

R360 10K

R363

47K

I134

HEF4052-12V

SOP16

8 9

INH

VEE

GND S1

VCC

C630 22U/50V

L232

R121/0805 6A

R366 33

R349

47K

R361

47K

R357

47K

R358

47K

C631 22U/50V

C627 22U/50V

C632 22U/50V

R364

47K

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

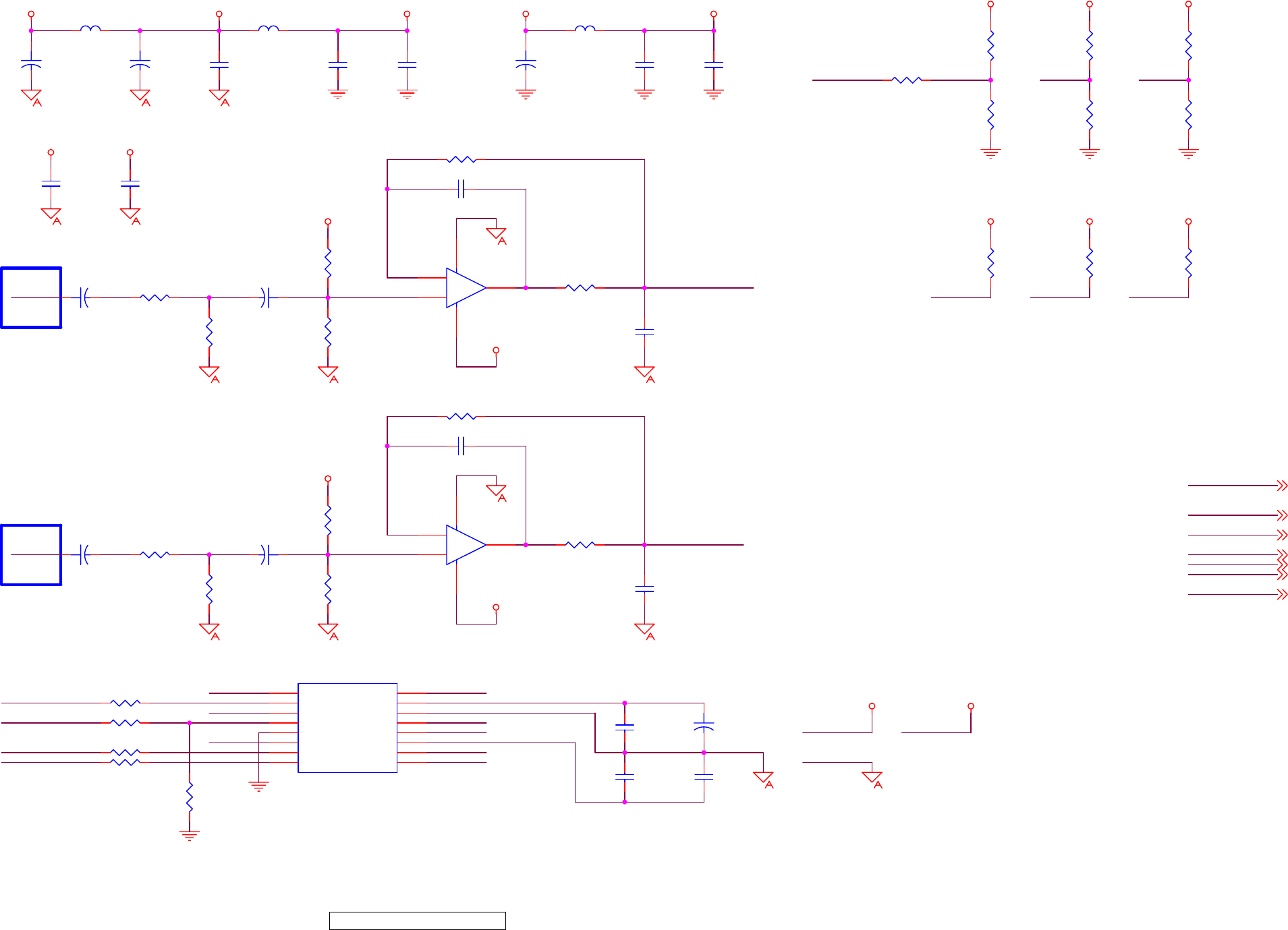

8.20. AUDIO ADC

AUDIO ADC

PULL DOWN FOR LJ

AOLRCK

A_IN_L

AUINL

AOBCLK

ADCM0

ADCVL

ADCM0

AOLRCK

ADCM1

ADCVL

AUINR

A_IN_R

ADCM1

AOMCLK

ADCRST_1

AOMCLK

AOBCLK

ADCVL

ADIN

GNDA

A_IN_L

A_IN_R

ADCVLADCVA ADCVD

VCC DV33B

AOMCLK

AOLRCK

ADIN

AOBCLK

AUINL

AUINR

ADCRST_1ERO3_GPIO

ERO3_GPIO

AOBCLK 3,23

AOMCLK 3,23

ADIN 3

AOLRCK 3,23

AUINL 19

AUINR 19

ERO3_GPIO 3

DV33B

ADCVA

ADCVL

ADCVLADCVL

ADCVA

ADCVL

ADCVA

ADCVL

ADCVA ADCVD

VCC

ADCVL

DV33B

ADCVA

R380

5.1K

R389 33

L180 R121/0603 3A

R378 90.9 1%

R388 33

C640

C645

10U/50V

C643

0.1U

C649

10U/50V

R379 10K

R383

100K

I136

AD12250

TSSOP16

8 9

MCLK

SDOUT

GND

SCLK

LRCK RST#

AINL

AINR

REF_GND

FILT+

C641

0.1U

L181

R121/0603 3A

C651

2200P

R368

10K

R385 10K

C635

10U/50V

R371

(NC)10K

C654

0.1U

R367

10K

R369

10K

R492 0

C637

0.1U

I135B

NJM4558 OPA

8 4

C634

10U/50V

C646 4.7U/50V

C638

C648 470P

R386

5.1K

C802

47U/16V

R376

(NC)10K

R375

(NC)10K

R390 33

R377

(NC)10K

C642

0.1U

C652

47U/16V

C647

2200P

L179

R121/0603 3A

R370

(NC)10K

R381

100K

C655

C650 4.7U/50V

C653

0.1U

R372

(NC)10K

R384 90.9 1%

R392

(NC)10K

C639

0.1U

R387

100K

R374

100K

I135A

NJM4558 OPA

8 4

R373 634 1%

C644 470P

R382 634 1%

R391 33

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

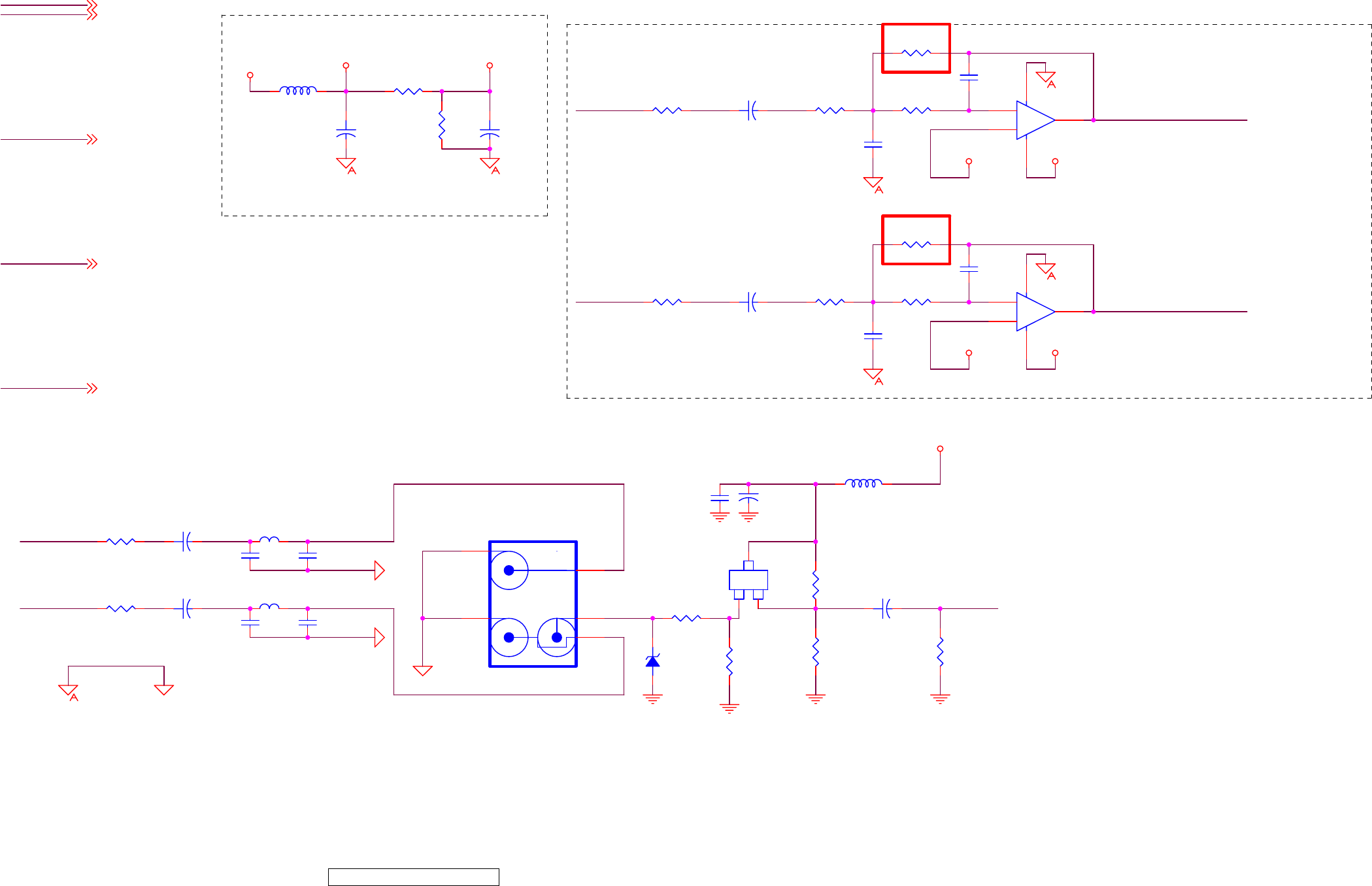

8.21. AUDIO DAC

BYPASS AUDIO OUTPUT

TO ERAPHONE OUTPUT

TP02

ࢮࠩ

ADD

MTK modify

RCA JACK 1*2 layo

GNDA

AUDIO_OUT2_L

AUDIO_OUT2_R

GNDA

OP1VREF

AU2AVL

AU2AVR VIDEO_OUT

AUDIO_OUT2_R

AUDIO_OUT2_L

VIDEO_OUT

12V

AL 3

AR 3

GNDA 3,5,22

VIDEO_OUT 3

12V 19,23

OP1VREF

OPA1V120

OP1VREF

OPA1V120 OP1VREF

VCC

12V

L211

R121/0805 6A

L199 (NC)R121/0603

I139B

NJM4558 OPA

8 4

R498

(NC)220

R430 100

R429 100

I139A

NJM4558 OPA

8 4

CSOT

Q125

(NC)MMBT3904

R497

(NC)10K

C692

1000P

L188 R121/0603 3A

R415 20K

C685

150P

C669

220U/16V

C687

820P

C688 22U/50V

R525 (NC)0

R419 0

C748 (NC)100U/16V

C686 10U/50V

R499

(NC)1K

R428 5.1K

C691 22U/50V

C678

150P

R426 0

R496

(NC)10K

R424 20K

C693

1000P

D141

(NC)5.6V

1 2

C665

10U/50V

R420 10K

L187 R121/0603 3A

C679 10U/50V

C747

(NC)22U/50V

C681

820P

C690

1000P

R427 10K

R524

47K

R406 47K

C689

1000P

P108

AUDIO OUT RL

R421 5.1K

C746

(NC)0.1U

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

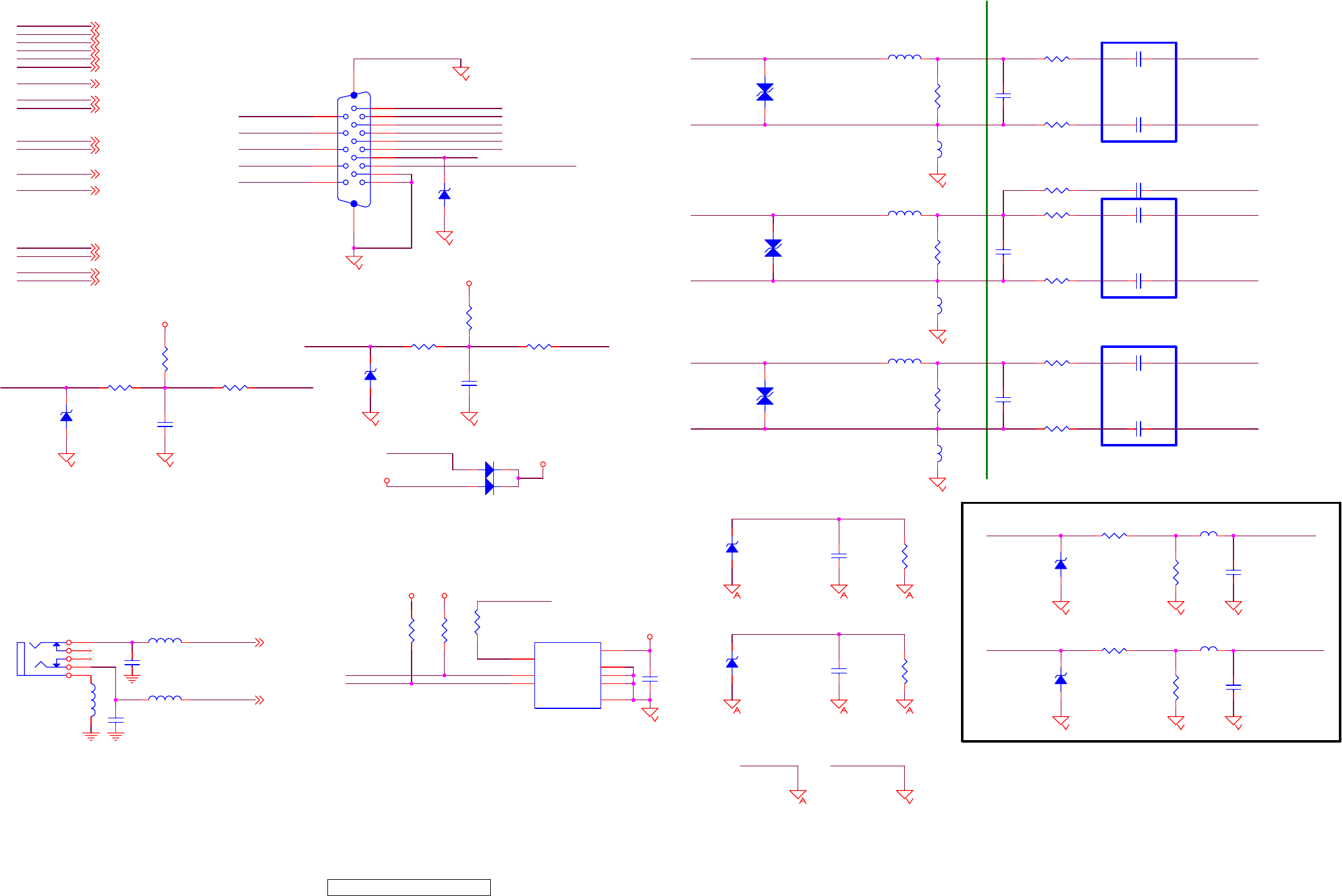

8.22. VGA IN & PC AUDIO IN

NEARLY VGA CON NEARLY IC

VGA IN

PC DDC

VGASOG

VGASCL_IN

GNDA

VGAVSYNC_1

GNDA

GREEN-

RED

PCRXD

VGAR_IN

VGA_PLUGPWR

DLSW1

RED

RED-

VGASCL_IN

VGASDA_IN

VGAVSYNC_1

VGAL_IN

BLUE+

PCTXD

BLUE

VSYNC_1

VGASDA

VSYNC_1

VGAHSYNC_1

BLU_GND

DLSW2

GREEN

PCTXD

BLUE-

BLU_GND

DLSW1

VGASCL

GREEN+

GREEN-

VGASDA_IN

RED-

VFE_GND

BLUE+

GREEN

VFE_GND

RED+

VGAR_IN

VSYNC_1

DLSW2

VGA_PLUGPWR

BLUE

BLUE-

HSYNC_1

GRN_GND

VGAL_IN

HSYNC_1

GREEN+

VGASOG

RED+

RED_GND

PCRXD

CVCK

VGASDA

VGASCL

VGAR_IN

VGAL_IN

RED_GND

VGAHSYNC_1

GRN_GND

VGAVSYNC_1 3

VFE_GND 2,3,5,8

RED+ 3

VGASOG 3

PCRXD 26

BLUE- 3

RED- 3

PCTXD 26

GREEN+ 3

VGAR_IN 19

GREEN- 3

BLUE+ 3

VGAHSYNC_1 3

DLSW1 26

GNDA 3,5,21

VGAL_IN 19

DLSW2 26

VGAL_IN 19

VGAR_IN 19

VGA_PLUGPWR

GVCC1 GVCC1

GVCC1

VGA_PLUGPWR

5VSB

R322 68

D134

5.6V

1 2

D132

5.6V

1 2

C610 0.01U

R340 510

R328

C623

0.01U

C615 0.01U

L824

R80/0603 200mA

C621

R348

R324 100

R333

(NC)10K

D133

(NC)5.6V

1 2

R327 68

I133

24C21/SMD/DIP

NC1

NC2

NC3

GND

SDA

SCL

VCLK

VCC

C619 0.01U

R343

100

R346 510

R347

100K

L827

0 OHM

L177

R60/0603 300mA

P107

PC AUDIO I/P

C609

R329 100

C622

100P

C626

100P

C624

0.01U

L822

R80/0603 200mA

D126

5.6V

1 2

L175

R121/0603 3A

L178

R121/0603 3A

D124

5.6V

1 2

D131

(NC)5.6V

1 2

L174

R221/0805 200mA

D128

5.6V

1 2

R338

R330

(NC)10K

C613

R337

C620

0.01U

C608 0.01U

R325 0

C625

C616

(NC)0.1U

R335 68

R344

3.3K

R336 100

C612 0.01U

L826

0 OHM

P106

D-SUB15 FEMALE

DSUB15/DIP/F

1617

R331 100

R332

D804

10p

D129

LL4148

1 2

C611 4.7n

R341

100K

L176

R221/0805 200mA

R339 100

R323

R342

L823

R80/0603 200mA

D130

LL4148

1 2

L825

0 OHM

C614 0.01U

C618

(NC)0.1U

R345

3.3K

C617

D802

10p

D803

10p

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

8.23. AUDIO AMP

POP NOISE HAVE TO DROP 3V3 FIRST THEN 12V DROP DOWN OK.

L+

L-

R+

R-

HI EARPHONE MODE

THEN MUTE AUDIO AMP.

YC124RT

HPL

HP-SPK

SLA

SRB

SLB

SRA

AD8256_RST

AD8256_PD

AD8256_DEF

SRB

SRA

SLA

SLB

HP-SPK

HPL

HPR

IOSCL

AD8256_SDA

AD8256_SCL

AD8256_SDA

AD8256_SCL

AOMCLK

AOSDATA1

AOLRCK

AOBCLK

AOSDATA1

AOLRCK

AOBCLK

AOMCLK

12V

GPIO8 GPIO8

AD8256_PD

IOSDA

HPR

VCC

VDDSUB

VDDLR

AOMCLK 3,20

AOSDATA1 3

AOLRCK 3,20

AOBCLK 3,20

12V 19,21

GPIO8 3

IOSDA 3,10,13,26

IOSCL 3,10,13,26

12V

VDDSUB

VDDLR

3_3AMP

GNDP

GNDP GNDP

GNDP

VCC

GNDP

C667

0.1U

C656

C0603

L182 R121/0603 3A

C753

C0603

P109

CON4 P=2.5mm

R+

R-

L+

L-

R449

R396 33

R505 0

R507 100K

C761

C0603

C449

47U/16V

C884

470U/16V

CE050080

C767

0.33U/50V 1206

C683

0.1U

C0603

R408

C682

0.1U

C0603

R394

C674

0.1U

L212

R121/0805 6A

L0805

C657

C0603

L207 15uH SMD

C764

C0603

C749

470U/16V

CE050080

R399 33

R402

C719

0.1U

C0603

R451 10K

L206 15uH SMD

L203 15uH SMD

R409

C756

C0603

C684

0.1U

C0603

R414

C658

C0603

L183 R121/0603 3A

C660

C0603

C758

C0603

R410

R508

C661

C0603

C762

C0603

L202 15uH SMD

C757

C0603

R404

4.7K

R400

C659

C0603

L185 R121/0603 3A

C675

0.1U

C0603

L209 R121/0603 3A

L200 R121/0805 6A

R241 47

R242

C744

C0603

C663

C0603

C677

0.1U

C0603

C680

0.1U

C0603

R422

R506 1M

C745

C0603

L186 R121/0603 3A

R397 33

I145

AD8256

HPL

HPR

AGND

AVDD

PWMSA

DEF

SDA

SCL

SA1

SA0

ERROR

MCLK

GND

PLLVDD

CLKOUT

DVDD

DGND

SDATA0

SDATA1

SDATA2

LRCIN

BCLK

VDDSLB

SLB

HGND

SLA

VDDSLA

VDDSRA

SRA

HGND

SRB

VDDSRB

Reset

PLL_Bye

VDDLB

HGND

VDDLA

VDDRA

HGND

VDDRB

HP-SPK

L184 R121/0603 3A

R395

C664

0.1u

R445 4.7K

L201 R121/0805 6A

C446

C0603

C759

C0603

R494

C448 47U/16V

R511 33K

L830 R60/0603 300mA

ADJ

OUT

I148

AIC117-3.3V/SOT223

C768

C0603

C755

0.1U

C0603

C673

47U/16V

R504 0

R393

C885

470U/16V

CE050080

C676

0.1U

C0603

SOT

Q118

MMBT3904

C750

470U/16V

CE050080

R398 0

R413

C447

C0603

C754

C0603

P110

Ear Phone_Jack

C671

47U/16V

CE0250050

L208 R121/0603 3A

C672

(NC)47U/16V

C763

C0603

R450

C668

0.1U

R417

L210 R121/0603 3A

C751

0.33U/50V 1206

R403

4.7K

C717

0.1U

C0603

C666

0.1U

C0603

C752

C0603

R401

R455

10K

C662

0.1U

VCC1,2,4,7,10,12,14,20,21,25

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

8.24. IR & KEYPAD

EXCHANGE

MTK modify

ױאޏֺለ൷२ऱ

standby 3.3V

DV33B stand

ழᄎ޲ሽ

RED_LED

GREEN_LED

GPIO15

GPIO11

GPIO14

GPIO16

GPIO13

GPIO10

GPIO14

GPIO13

GPIO11

UP3_0

GREEN_LED

GPIO10

RED_LED

GPIO16

GPIO15

IRRCVR

UP3_0

IRRCVR

LED_R

LED_G

GPIO10 3

GPIO14 3

GPIO13 3

UP3_0 3

RED_LED 3

GREEN_LED 3

GPIO11 3

GPIO15 3

GPIO16 3

IRRCVR 3

SB33B 5VSB

5VSB

Q121

MMBT3906

C7340.1U

R469

10K R468

10K R467

10K

R458

C728

0.1U

R466

10K

C7320.1U

R464

10K

R465

10K

C7300.1U

C7310.1U

C7330.1U

R462

4.7K

C7290.1U

R463

4.7K

R459

150

Q120

MMBT3906

R460

150

R461

P112

8P_2mm

C726

0.1U

P113

7P_2mm

C727

47U/16V

R470

10K

C309

470P

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

8.25. PANEL INTERFACE

CHANGE

ˉ˔

AN[0..3]

AP[0..3]

LVDS_GND

GPIO2

CLK1-

CLK1+

LVDS_GND

GPIO2

LVDS_GND

AP3

CLK1+

AN2

AN3

AN0

AP0

AP1

AP2

CLK1-

AN1

LVDS_GND

GPIO2

GPIO2 3

CLK1- 3

CLK1+ 3

AN[0..3] 3

LVDS_GND 2,3,5

AP[0..3] 3

GPIO23

PANELVCC

VCC

12V_PANEL

PANELVCC

VCC

R480

10K

R858

22K

P803

CON 2X15 2mm

C735

100U/16V

R859

180 0805

C740

0.1U

I142

AP9435M

1 8

2 7

3 6

4 5

SOT

Q122

MMBT3904

R526

10K

C737

1000U/16V

SOT

Q803

MMBT3904

R479

100K

SOT

Q804

MMBT3904

C808

4u7

C739

0.1U

L195

(NC)R121/0805

R481 100K

R807 100K

C787

L196

R121/0805 6A

R806

10K

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

8.26. SYSTEM EEPROM

SYSTEM EEPROM

RESET# Circuit

H : Normal Download

L : Write Protect EEPROM

SYSTEM EEPROM

NEW USB DOWNLOAD I/F

GPIO4

SYSROMWP

SCL

SDA

DLSW2

TXD

PCRXD

DTVU0RX

RXD

PCTXD

PCRXD

DLSW2

DLSW1

DTVU0TX

URST_1

GPIO4

RXD

TXD

PCRXD

PCTXD

DLSW2

DLSW1

DTVU0TX

DTVU0RX

SCL

SDA

PCTXD

SCL0

SDA0

SCL0

SDA0

RXD

TXD

SDA0

SCL0

URST_1

URST_1 3

GPIO4 3

TXD 3

RXD 3

PCRXD 22

PCTXD 22

DLSW1 22

DLSW2 22

DTVU0RX 12

DTVU0TX 12

SCL 3,10,13,23

SDA 3,10,13,23

SCL0 3

SDA0 3

SB33B

5VSB

SB33B

C741

100U/16V

R503

4.7K

R513 0

R846

10K

R484

10K

R489

47K

C742

0.1U

R487 10K

D137

LL4148

CSOT

Q123

MMBT3904

R485

10K

R490

47K

R486

20K

I144

EEPROM 24C16

SOP8/SMD

4 5

GND SDA

SCL

VCC

R488

(NC)10K

P115

(NC)6x1 W/HOUSING

6P200VM

R482

(NC)R

CSOT

Q124

MMBT3904

C791

R483

10K

TP72

R845

10K

R425

4.7K

I143

CD4052

SOP16/SMD

8 9

INH

VEE

GND S1

VCC

R512 0

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

9. PCB Layout Diagrams

9.1. MAIN PCB TOP VIEW

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

9.2. MAIN PCB BOTTOM VIEW

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

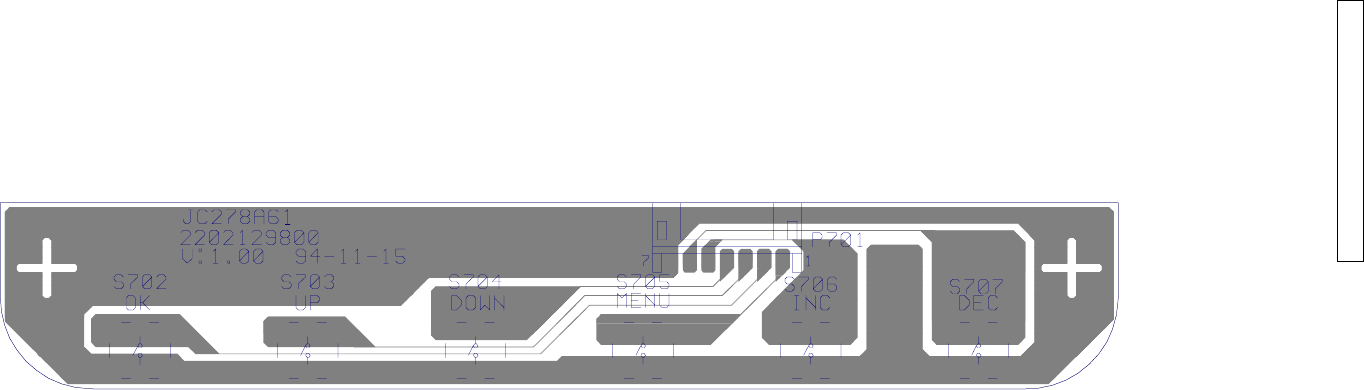

9.3. CON PCB TOP VIEW

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

9.4. CON PCB BOTTOM VIEW

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

9.5. IR PCB TOP VIEW

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

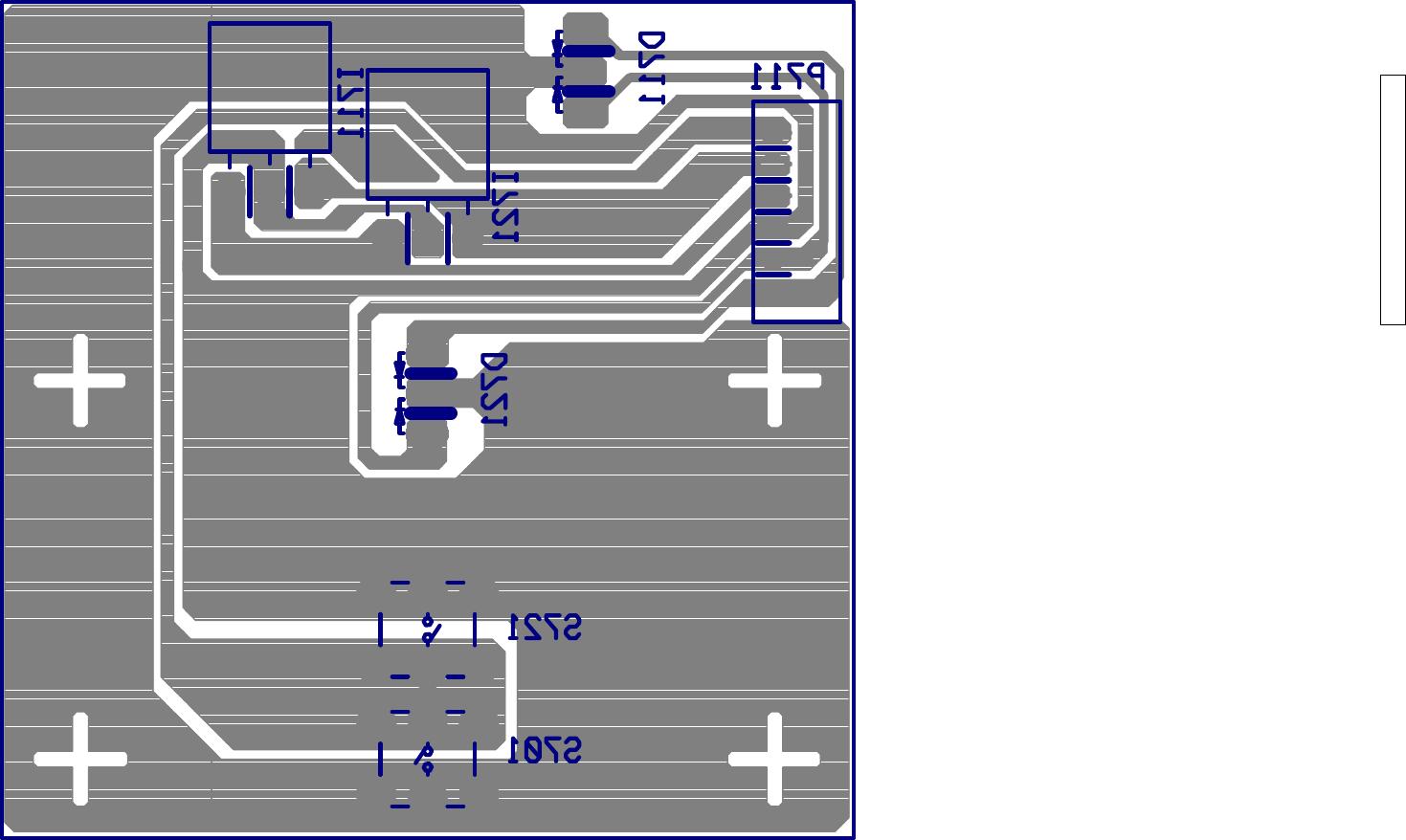

9.6. IR PCB BOTTOM VIEW

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

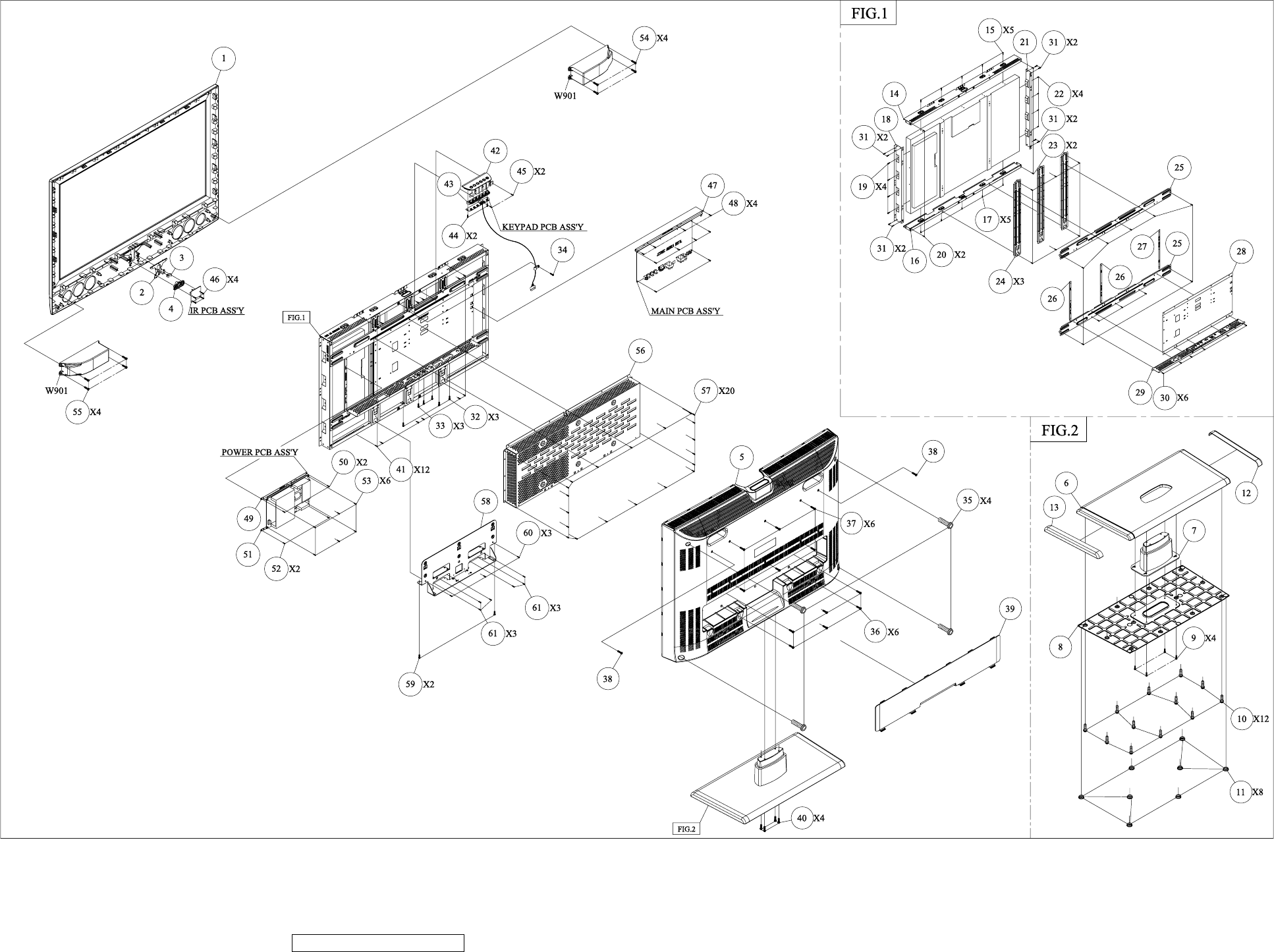

10. Exploded View And Exploded Parts List

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

ViewSonic Model Number: VS11405-1M

Rev: 1a

Serial No. Prefix: QFU

Item ViewSonic P/N Ref. P/N Q'ty

1 N/A 2024271106P FRONT BEZEL JC378UB ABS94HB BLACK 1

2 N/A 2033151400P IR COVER JC378UB PC LIMPID 476C 1

3 N/A 2053754201P LED INDIC.-PWR JC278UB PMMA LIMPID 1

4 N/A 2044266901P FUNCTION KEY JC278UB ABS 94V0 AL-PLATE PWR 1

5 C-00008082 2022265104P CABI BACK JC378EC UA DIGIT 94HB BLACK 1

6 PL-00008027 2028260602P STAND JC378UB ABS94HB BLACK 1

7 N/A 2071871701P BRACKET,FIX AL-BLACK ARM 1

8 HW-00008018 2071882200P BRACKET,FIX JC378UB STAND SECC 2.0T 1

9 N/A 2082340102P SCREW,CSK+ SCREW F M4X10 (CSK+) 4

10 M-SCW-0824-0123 2084740102P SCREW,BND T+ M4X10(BND T+) 12

11 N/A 2039819901P FOOT PAD RUBBERφ16*2.0+ SQUARE GRAIN 8

12 N/A 2054257101P ORNAMENT JC378UB BASE(L) 94HB AL-PLATE 1

13 N/A 2054257201P ORNAMENT JC378UB BASE(R) 94HB AL-PLATE 1

14 N/A 2071978100P METAL FITTG JC378EC CPT WA02 TOP SECC1.0T 1

15 N/A 2082740082P SCREW,BND+ M4X8(BND+) 5

16 N/A 2071978100P METAL FITTG JC378EC CPT WA02 TOP SECC1.0T 1

17 N/A 2082740082P SCREW,BND+ M4X8(BND+) 5

18 N/A 2071978200P METAL FITTG JC378EC CPT WA02 SIDE SECC1.0T 1

19 N/A 2082740082P SCREW,BND+ M4X8(BND+) 4

20 N/A 2081440082P SCREW,(WASH) M4X8 P=0.7(TOOTH WASHER) 2

21 N/A 2071978200P METAL FITTG JC378EC CPT WA02 SIDE SECC1.0T 1

22 N/A 2082740082P SCREW,BND+ M4X8(BND+) 4

23 N/A 2081440082P SCREW,(WASH) M4X8 P=0.7(TOOTH WASHER) 2

24 N/A 2071878000P BRACKET,FIX JC378EC FRAME VERT SECC1.0T 3

25 N/A 2071877900P BRACKET,FIX JC378EC FRAME HORI SECC1.0T 2

26 N/A 2071879600P BRACKET,FIX JC378EC FRAME SUB VERT SECC0.8 2

27 N/A 2071881600P BRACKET,FIX JC378EC POWER PCB(V) SECC 0.8T 1

28 N/A 2071675900P SHIELD PLATE JC378EC PCB BOTTOM SPTE 0.3T 1

29 N/A 2072052100P METAL FITTG-I/O JC378EC SECC1.0T AMERICA DIGIT 1

30 M-SCW-0824-6719 2082630062P SCREW M3X6 P=0.5 6

31 N/A 2081440082P SCREW,(WASH) M4X8 P=0.7(TOOTH WASHER) 8

32 M-SCW-0824-6719 2082630062P SCREW M3X6 P=0.5 3

33 M-SCW-0824-0285 2084730082P SCREW,BND T+ M3X8(BND T+) 3

34 M-SCW-0824-0811 2080003700P SCREW,SPE ISZZTER001A M3*6L MSWR17/FZMYI 1

35 N/A 2081440084P SCREW,(WASH) M4*8 P=0.7(TOOTH WASHER) BLACK 4

36 N/A 2082340102P SCREW,CSK+ SCREW F M4X10 (CSK+) 6

37 N/A 2080005900P SCREW,SPE M6*10MM TYPE""I"" BLACK ZN 6

38 N/A 2084740104P SCREW,BND T+ M4X10(BND T+) (BLK) 2

39 C-00006612 2027262502P DUST COVER JC378EC I/O ABS94HB BLACK 1

40 N/A 2082750402P SCREW,BND+ M5X40,M,P,ZN-CC 4

41 M-SCW-0824-0123 2084740102P SCREW,BND T+ M4X10(BND T+) 12

42 C-00006611 2027262402P DUST COVER JC378EC KEY ABS94HB BLACK 1

43 N/A 2044266601P FUNCTION KEY JC278 ABS 94V0 AL-PLATE FUNCTI 1

44 M-SCW-0824-0812 2084730062P SCREW,BND T+ M3X6(BND T+) 2

45 M-SCW-0824-6719 2082630062P SCREW M3X6 P=0.5 2

46 M-SCW-0824-0812 2084730062P SCREW,BND T+ M3X6(BND T+) 4

47 N/A 2071879801P BRACKET,FIX JC378EC MAIN PCB SECC0.8T A.D 1

48 M-SCW-0824-0811 2080003700P SCREW,SPE ISZZTER001A M3*6L MSWR17/FZMYI 4

49 N/A 2071879900P BRACKET,FIX JC378EC POWER PCB (T) SECC0.8T 1

50 M-SCW-0824-6719 2082630062P SCREW M3X6 P=0.5 2

51 N/A 2071880000P BRACKET,FIX JC378EC POWER PCB (B) SECC0.8T 1

52 M-SCW-0824-0811 2080003700P SCREW,SPE ISZZTER001A M3*6L MSWR17/FZMYI 2

53 M-SCW-0824-0811 2080003700P SCREW,SPE ISZZTER001A M3*6L MSWR17/FZMYI 6

54 N/A 2080006900P SCREW,SPE M4*10MM P TYPE:9.1MM 4

55 N/A 2080006900P SCREW,SPE M4*10MM P TYPE:9.1MM 4

56 N/A 2071977000P METAL FITTG JC378EC VESA SUPPORT SECC 1.0T 1

57 M-SCW-0824-6719 2082630062P SCREW M3X6 P=0.5 20

58 N/A 2071879700P BRACKET,FIX JC378EC STAND SUPPORT SECC2.0T 1

59 N/A 2081440082P SCREW,(WASH) M4X8 P=0.7(TOOTH WASHER) 2

60 N/A 2081440082P SCREW,(WASH) M4X8 P=0.7(TOOTH WASHER) 3

61 M-SCW-0824-0123 2084740102P SCREW,BND T+ M4X10(BND T+) 6

62 N/A 2427430034P WIRE HARNESS 30/30P H/H 1571#28 L=400mm 1

63 N/A 2427414011P WIRE HARNESS 10/14P H/H 1061#26 L=210mm 1

64 N/A 2427411003P WIRE HARNESS 11/11P H/H 1007#24 L=150mm 1

65 N/A 2427412012P WIRE HARNESS 12/12P H/H 1007#24 L=150mm 1

66 N/A 2427404025P WIRE HARNESS 4/2+2P H/A 1007#24 L=820mm 1

67 N/A 2427408014P WIRE HARNESS 6/8P H/H 1007#26 L=550mm 1

68 N/A 2427407009P WIRE HARNESS 7/7P H/H 1007#26 L=480mm 1

69 E-00008039 2391310062P SPEAKER ASS'Y 10W/6ohm L228*W65*H77mm D.L 2

EXPLODED PARTS LIST (N3752w-1M)

Description

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

Serial No. Prefix: QFU

Item ECR/ECN ViewSonic P/N Ref. P/N Location Universal number#

1Power Cord USA A-00005362 2427130046P P951

2Remote Control A-00008027 2419200105P H901

3Sub Board - SP271-5F01 SPI B-00006605 2200237018P U801

4Main Board B-00008055 6201-7037151101

5Control Board B-00008056 6202-7037151101

6Sub Board (Darfon) B-00008058 2200237015P U801

7Sub Board (IR Board) B-00008087 6206-7027146411

8Power Supply Board (Lienchen) B-00008088 2200237017P U801

9Back Cover (Black) C-00008082 2022265104P 2C01

10 Front Panel C-00008119 2603308138 2C01

11 Video IO Cable D15/D15 20276(4.5) 1.83M BLACK CB-00005507 2427501195P P961

12 Video Cable-Cable ,D15/D15 20276(3+6) 1.83M Black A-VC-0101-0386 2427501187P P961

13 User's Guide DC-00008104 2001131664P 6P80

14 Quick Start Guide DC-00008105 2002310614P 6P81

15 LCD Panel - (CLAA370WA02 CPT) E-00006614 2212009900P V901

16 Speaker 10W/60hm E-00008039 2391310062P W901

17 Integrated Circuit E-00008040 2365104000P I116

18 Hardware: Bracket 2.0T HW-00008018 2071882200P 5B03

19 Box (Carton 360X220X50mm (WXDXH) Box(B) P-00004497 2011100017P 6P85

20 Foam - EPE (TOP.LEFT) P-00006616 2012186100P 6P20

21 Foam - EPE (TOP.RIGHT) P-00006617 2012186200P 6P21

22 Foam - EPE (BOTTOM.LEFT) P-00006618 2012186300P 6P22

23 Foam - EPE (BOTTOM.RIGHT) P-00006619 2012186400P 6P23

24 Polybag P-00008063 2013054002P 6P60

25 Craft Box P-00008102 2011137020P 6P01

26 Plastics: [All Covers:

Dust, Cable, Hinge covers] Pedestal (Stand) PL-00008027 2028260602P 5B01

Remark 1: Above listed items are examples, supplier can expand the rows to add more necessary items.

Remark 2: All revised RSPLs with newly added items or any change made should be highlighted and correlated with the ECN/ECR approved by ViewSonic Corporation. This is

RECOMMENDED SPARE PARTS LIST (N3752w-1M)

Description

Accessories: [Adapter,

Remote Control]

PC Board Assembly: [All

PCBA]

Cabinets:

[Front Panel, Back Cover,

Base]

Cables: [All Cables]

Documentation: [Quick

Start Guide, CD Rom]

Electronic Components:

[CRT-EEPROM, Fly Back

Transformer, Microprocessor]

[LCD TV-Panel]

Packing Material: [Box,

Foam]

ViewSonic Model Number: VS11405-1M

11. Recommended Spare Parts List

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

Rev: 1a

Serial No. Prefix: QFU

Item ViewSonic P/N Ref. P/N Location Universal number# Q'ty

1 N/A 2346710596P CAP,CHIP 85'C CS 0603/Y5V/16V 1.0u Z T C104 1

2 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C107 1

3 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C109 1

4 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C112 1

5 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C114 1

6 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C116 1

7 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C123 1

8 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C126 1

9 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C129 1

10 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C133 1

11 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C134 1

12 E-C-0404-4423 2341122096P CAP,CHIP 125'C CS 0603/COG/50V 22p J T C135 1

13 N/A 2341127096P CAP,CHIP 125'C CS 0603/COG/50V 27p J T C136 1

14 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C137 1

15 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C138 1

16 N/A 2346710596P CAP,CHIP 85'C CS 0603/Y5V/16V 1.0u Z T C195 1

17 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C203 1

18 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C211 1

19 N/A 2347647596P CAP,CHIP 85'C CS 0805/Y5V/16V 4.7u Z T C213 1

20 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C215 1

21 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C223 1

22 N/A 2346710596P CAP,CHIP 85'C CS 0603/Y5V/16V 1.0u Z T C228 1

23 N/A 2346710596P CAP,CHIP 85'C CS 0603/Y5V/16V 1.0u Z T C231 1

24 N/A 2346710596P CAP,CHIP 85'C CS 0603/Y5V/16V 1.0u Z T C239 1

25 N/A 2347710696P CAP,CHIP 85'C CS 0805/Y5V/10V 10u Z T C243 1

26 N/A 2346710596P CAP,CHIP 85'C CS 0603/Y5V/16V 1.0u Z T C245 1

27 N/A 2347710696P CAP,CHIP 85'C CS 0805/Y5V/10V 10u Z T C248 1

28 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C249 1

29 N/A 2346110396P CAP,CHIP 125'C CS 0603/X7R/50V 0.01u K T C250 1

30 N/A 2347710696P CAP,CHIP 85'C CS 0805/Y5V/10V 10u Z T C251 1

31 N/A 2346710596P CAP,CHIP 85'C CS 0603/Y5V/16V 1.0u Z T C253 1

32 N/A 2346710596P CAP,CHIP 85'C CS 0603/Y5V/16V 1.0u Z T C257 1

33 N/A 2346710596P CAP,CHIP 85'C CS 0603/Y5V/16V 1.0u Z T C265 1

34 N/A 2346710596P CAP,CHIP 85'C CS 0603/Y5V/16V 1.0u Z T C272 1

35 N/A 2346710596P CAP,CHIP 85'C CS 0603/Y5V/16V 1.0u Z T C275 1

36 N/A 2346710596P CAP,CHIP 85'C CS 0603/Y5V/16V 1.0u Z T C282 1

37 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C286 1

38 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C287 1

39 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C304 1

40 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C305 1

41 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C306 1

42 N/A 2341147196P CAP,CHIP 125'C CS 0603/COG/50V 470p J T C309 1

43 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C310 1

44 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C318 1

45 N/A 2346147396P CAP,CHIP 125'C CS 0603/X7R/50V 0.047u K T C331 1

46 N/A 2346147296P CAP,CHIP 125'C CS 0603/X7R/50V 4700p K T C332 1

47 N/A 2341133196P CAP,CHIP 125'C CS 0603/COG/50V 330p J T C333 1

48 N/A 2346110396P CAP,CHIP 125'C CS 0603/X7R/50V 0.01u K T C334 1

49 N/A 2346147396P CAP,CHIP 125'C CS 0603/X7R/50V 0.047u K T C335 1

50 N/A 2341115096P CAP,CHIP 125'C CS 0603/COG/50V 15p J T C336 1

51 N/A 2341133196P CAP,CHIP 125'C CS 0603/COG/50V 330p J T C337 1

52 N/A 2346110396P CAP,CHIP 125'C CS 0603/X7R/50V 0.01u K T C338 1

53 N/A 2346110396P CAP,CHIP 125'C CS 0603/X7R/50V 0.01u K T C339 1

54 N/A 2346147396P CAP,CHIP 125'C CS 0603/X7R/50V 0.047u K T C340 1

55 N/A 2341115096P CAP,CHIP 125'C CS 0603/COG/50V 15p J T C341 1

56 N/A 2341133196P CAP,CHIP 125'C CS 0603/COG/50V 330p J T C342 1

57 N/A 2346110396P CAP,CHIP 125'C CS 0603/X7R/50V 0.01u K T C343 1

58 N/A 2346147396P CAP,CHIP 125'C CS 0603/X7R/50V 0.047u K T C344 1

59 N/A 2346110396P CAP,CHIP 125'C CS 0603/X7R/50V 0.01u K T C345 1

60 N/A 2341133196P CAP,CHIP 125'C CS 0603/COG/50V 330p J T C346 1

61 N/A 2341115096P CAP,CHIP 125'C CS 0603/COG/50V 15p J T C347 1

62 N/A 2346110396P CAP,CHIP 125'C CS 0603/X7R/50V 0.01u K T C348 1

63 N/A 2341156096P CAP,CHIP 125'C CS 0603/COG/50V 56p J T C349 1

64 N/A 2346110396P CAP,CHIP 125'C CS 0603/X7R/50V 0.01u K T C354 1

65 N/A 2346110396P CAP,CHIP 125'C CS 0603/X7R/50V 0.01u K T C355 1

66 N/A 2346110396P CAP,CHIP 125'C CS 0603/X7R/50V 0.01u K T C356 1

67 N/A 2346110396P CAP,CHIP 125'C CS 0603/X7R/50V 0.01u K T C357 1

68 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C364 1

69 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C378 1

70 N/A 2346110396P CAP,CHIP 125'C CS 0603/X7R/50V 0.01u K T C401 1

71 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C410 1

72 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C416 1

73 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C419 1

74 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C420 1

ViewSonic Model Number: VS11405-1M

BOM LIST (N3752w-1M)

Description

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

Item ViewSonic P/N Ref. P/N Location Universal number

Q't

Description

75 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C426 1

76 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C429 1

77 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C430 1

78 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C432 1

79 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C439 1

80 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C440 1

81 N/A 2341110296P CAP,CHIP 125'C CS 0603/COG/50V 1000p J T C446 1

82 N/A 2341110296P CAP,CHIP 125'C CS 0603/COG/50V 1000p J T C447 1

83 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C451 1

84 N/A 2346710596P CAP,CHIP 85'C CS 0603/Y5V/16V 1.0u Z T C491 1

85 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C550 1

86 E-C-0404-3898 2341110096P CAP,CHIP 125'C CS 0603/COG/50V 10 p J T C551 1

87 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C553 1

88 N/A 2346110396P CAP,CHIP 125'C CS 0603/X7R/50V 0.01u K T C554 1

89 N/A 2341110296P CAP,CHIP 125'C CS 0603/COG/50V 1000p J T C555 1

90 N/A 2341147096P CAP,CHIP 125'C CS 0603/COG/50V 47p J T C556 1

91 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C585 1

92 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C588 1

93 N/A 2347647596P CAP,CHIP 85'C CS 0805/Y5V/16V 4.7u Z T C599 1

94 N/A 2346110396P CAP,CHIP 125'C CS 0603/X7R/50V 0.01u K T C608 1

95 N/A 2341150996P CAP,CHIP 125'C CS 0603/COG/50V 5.0 p D T C609 1

96 N/A 2346110396P CAP,CHIP 125'C CS 0603/X7R/50V 0.01u K T C610 1

97 N/A 2346147296P CAP,CHIP 125'C CS 0603/X7R/50V 4700p K T C611 1

98 N/A 2346110396P CAP,CHIP 125'C CS 0603/X7R/50V 0.01u K T C612 1

99 N/A 2341150996P CAP,CHIP 125'C CS 0603/COG/50V 5.0 p D T C613 1

100 N/A 2346110396P CAP,CHIP 125'C CS 0603/X7R/50V 0.01u K T C614 1

101 N/A 2346110396P CAP,CHIP 125'C CS 0603/X7R/50V 0.01u K T C615 1

102 N/A 2341150996P CAP,CHIP 125'C CS 0603/COG/50V 5.0 p D T C617 1

103 N/A 2346110396P CAP,CHIP 125'C CS 0603/X7R/50V 0.01u K T C619 1

104 N/A 2346110396P CAP,CHIP 125'C CS 0603/X7R/50V 0.01u K T C620 1

105 N/A 2341150996P CAP,CHIP 125'C CS 0603/COG/50V 5.0 p D T C621 1

106 N/A 2341110196P CAP,CHIP 125'C CS 0603/COG/50V 100p J T C622 1

107 N/A 2346110396P CAP,CHIP 125'C CS 0603/X7R/50V 0.01u K T C623 1

108 N/A 2346110396P CAP,CHIP 125'C CS 0603/X7R/50V 0.01u K T C624 1

109 N/A 2341150996P CAP,CHIP 125'C CS 0603/COG/50V 5.0 p D T C625 1

110 N/A 2341110196P CAP,CHIP 125'C CS 0603/COG/50V 100p J T C626 1

111 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C633 1

112 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C637 1

113 N/A 2346710596P CAP,CHIP 85'C CS 0603/Y5V/16V 1.0u Z T C638 1

114 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C639 1

115 N/A 2346710596P CAP,CHIP 85'C CS 0603/Y5V/16V 1.0u Z T C640 1

116 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C641 1

117 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C642 1

118 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C643 1

119 N/A 2341147196P CAP,CHIP 125'C CS 0603/COG/50V 470p J T C644 1

120 N/A 2346122296P CAP,CHIP 125'C CS 0603/X7R/50V 2200p K T C647 1

121 N/A 2341147196P CAP,CHIP 125'C CS 0603/COG/50V 470p J T C648 1

122 N/A 2346122296P CAP,CHIP 125'C CS 0603/X7R/50V 2200p K T C651 1

123 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C653 1

124 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C654 1

125 N/A 2346710596P CAP,CHIP 85'C CS 0603/Y5V/16V 1.0u Z T C655 1

126 N/A 2341110296P CAP,CHIP 125'C CS 0603/COG/50V 1000p J T C658 1

127 N/A 2341110296P CAP,CHIP 125'C CS 0603/COG/50V 1000p J T C659 1

128 N/A 2341110296P CAP,CHIP 125'C CS 0603/COG/50V 1000p J T C660 1

129 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C662 1

130 N/A 2341110296P CAP,CHIP 125'C CS 0603/COG/50V 1000p J T C663 1

131 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C664 1

132 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C667 1

133 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C668 1

134 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C674 1

135 N/A 2341115196P CAP,CHIP 125'C CS 0603/COG/50V 150p J T C678 1

136 N/A 2341182196P CAP,CHIP 125'C CS 0603/COG/50V 820p J T C681 1

137 N/A 2341115196P CAP,CHIP 125'C CS 0603/COG/50V 150p J T C685 1

138 N/A 2341182196P CAP,CHIP 125'C CS 0603/COG/50V 820p J T C687 1

139 N/A 2341110296P CAP,CHIP 125'C CS 0603/COG/50V 1000p J T C689 1

140 N/A 2341110296P CAP,CHIP 125'C CS 0603/COG/50V 1000p J T C690 1

141 N/A 2341110296P CAP,CHIP 125'C CS 0603/COG/50V 1000p J T C692 1

142 N/A 2341110296P CAP,CHIP 125'C CS 0603/COG/50V 1000p J T C693 1

143 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C717 1

144 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C719 1

145 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C726 1

146 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C728 1

147 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C729 1

148 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C730 1

149 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C731 1

150 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C732 1

151 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C733 1

152 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C734 1

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

Item ViewSonic P/N Ref. P/N Location Universal number

Q't

Description

153 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C739 1

154 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C740 1

155 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C742 1

156 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C743 1

157 N/A 2341110296P CAP,CHIP 125'C CS 0603/COG/50V 1000p J T C744 1

158 N/A 2349133496P CAP CHIP CS 1206/X7R/50V 0.33u K T C751 1

159 N/A 2341110296P CAP,CHIP 125'C CS 0603/COG/50V 1000p J T C753 1

160 N/A 2341110296P CAP,CHIP 125'C CS 0603/COG/50V 1000p J T C754 1

161 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C755 1

162 N/A 2341110296P CAP,CHIP 125'C CS 0603/COG/50V 1000p J T C762 1

163 N/A 2349133496P CAP CHIP CS 1206/X7R/50V 0.33u K T C767 1

164 N/A 2341110296P CAP,CHIP 125'C CS 0603/COG/50V 1000p J T C768 1

165 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C780 1

166 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C781 1

167 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C782 1

168 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C783 1

169 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C784 1

170 N/A 2347647596P CAP,CHIP 85'C CS 0805/Y5V/16V 4.7u Z T C786 1

171 E-C-0404-4423 2341122096P CAP,CHIP 125'C CS 0603/COG/50V 22p J T C788 1

172 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C801 1

173 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C806 1

174 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C807 1

175 N/A 2347647596P CAP,CHIP 85'C CS 0805/Y5V/16V 4.7u Z T C808 1

176 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C809 1

177 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C818 1

178 E-C-0404-4424 2346110396P CAP,CHIP 125'C CS 0603/X7R/50V 0.01u K T C819 1

179 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C821 1

180 E-C-0404-4424 2346110396P CAP,CHIP 125'C CS 0603/X7R/50V 0.01u K T C822 1

181 E-C-0404-4424 2346110396P CAP,CHIP 125'C CS 0603/X7R/50V 0.01u K T C823 1

182 N/A 2341115096P CAP,CHIP 125'C CS 0603/COG/50V 15p J T C824 1

183 N/A 2346147396P CAP,CHIP 125'C CS 0603/X7R/50V 0.047u K T C825 1

184 E-C-0404-4424 2346110396P CAP,CHIP 125'C CS 0603/X7R/50V 0.01u K T C826 1

185 N/A 2341147096P CAP,CHIP 125'C CS 0603/COG/50V 47p J T C827 1

186 E-C-0404-4424 2346110396P CAP,CHIP 125'C CS 0603/X7R/50V 0.01u K T C828 1

187 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C829 1

188 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C830 1

189 N/A 2347710696P CAP,CHIP 85'C CS 0805/Y5V/10V 10u Z T C831 1

190 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C832 1

191 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C833 1

192 N/A 2341118096P CAP,CHIP 125'C CS 0603/COG/50V 18p J T C834 1

193 N/A 2341118096P CAP,CHIP 125'C CS 0603/COG/50V 18p J T C835 1

194 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C837 1

195 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C838 1

196 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C839 1

197 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C840 1

198 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C841 1

199 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C842 1

200 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C843 1

201 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C844 1

202 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C845 1

203 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C846 1

204 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C848 1

205 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C849 1

206 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C850 1

207 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C851 1

208 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C852 1

209 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C853 1

210 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C854 1

211 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C856 1

212 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C857 1

213 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C858 1

214 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C859 1

215 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C860 1

216 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C861 1

217 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C862 1

218 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C864 1

219 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C878 1

220 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C881 1

221 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C883 1

222 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C890 1

223 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C891 1

224 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C892 1

225 E-D-0403-1779 2364503996P DIODE,ZENER SMD BZV55-C5V6 5% SOD-80C PHILIPS D124 RA 1

226 E-D-0403-2808 2364505616P DIODE,ZENER SMD TZMC5V6 SOD-80 5.2-6.0V VISHAY D124 RB 1

227 N/A 2364500396P DIODE,ZENER SMD RLZ5.6B 5.45-5.73V LL-34 ROHM D124 RC 1

228 E-D-0403-1779 2364503996P DIODE,ZENER SMD BZV55-C5V6 5% SOD-80C PHILIPS D126 RA 1

229 E-D-0403-2808 2364505616P DIODE,ZENER SMD TZMC5V6 SOD-80 5.2-6.0V VISHAY D126 RB 1

230 N/A 2364500396P DIODE,ZENER SMD RLZ5.6B 5.45-5.73V LL-34 ROHM D126 RC 1

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

Item ViewSonic P/N Ref. P/N Location Universal number

Q't

Description

231 E-D-0403-1779 2364503996P DIODE,ZENER SMD BZV55-C5V6 5% SOD-80C PHILIPS D128 RA 1

232 E-D-0403-2808 2364505616P DIODE,ZENER SMD TZMC5V6 SOD-80 5.2-6.0V VISHAY D128 RB 1

233 N/A 2364500396P DIODE,ZENER SMD RLZ5.6B 5.45-5.73V LL-34 ROHM D128 RC 1

234 N/A 2364600496P DIODE,SWITCH SMD MM4148 SOD80C GRANDE D129 RA 1

235 E-00003534 2363600696P DIODE,SWITCH RLS4148-T11 SOD80C ROHM D129 RB 1

236 E-D-0403-1892 2364200896P DIODE,RECT(SMD) BAS32L SOD80C PHILIPS D129 RC 1

237 E-00003830 2364601396P DIODE,SWITCH SMD 1N4148W-7-F SOD-123 DIODES D129 RD 1

238 N/A 2364600496P DIODE,SWITCH SMD MM4148 SOD80C GRANDE D130 RA 1

239 E-00003534 2363600696P DIODE,SWITCH RLS4148-T11 SOD80C ROHM D130 RB 1

240 E-D-0403-1892 2364200896P DIODE,RECT(SMD) BAS32L SOD80C PHILIPS D130 RC 1

241 E-00003830 2364601396P DIODE,SWITCH SMD 1N4148W-7-F SOD-123 DIODES D130 RD 1

242 E-D-0403-1779 2364503996P DIODE,ZENER SMD BZV55-C5V6 5% SOD-80C PHILIPS D132 RA 1

243 E-D-0403-2808 2364505616P DIODE,ZENER SMD TZMC5V6 SOD-80 5.2-6.0V VISHAY D132 RB 1

244 N/A 2364500396P DIODE,ZENER SMD RLZ5.6B 5.45-5.73V LL-34 ROHM D132 RC 1

245 E-D-0403-1779 2364503996P DIODE,ZENER SMD BZV55-C5V6 5% SOD-80C PHILIPS D134 RA 1

246 E-D-0403-2808 2364505616P DIODE,ZENER SMD TZMC5V6 SOD-80 5.2-6.0V VISHAY D134 RB 1

247 N/A 2364500396P DIODE,ZENER SMD RLZ5.6B 5.45-5.73V LL-34 ROHM D134 RC 1

248 N/A 2364600496P DIODE,SWITCH SMD MM4148 SOD80C GRANDE D137 RA 1

249 E-00003534 2363600696P DIODE,SWITCH RLS4148-T11 SOD80C ROHM D137 RB 1

250 E-D-0403-1892 2364200896P DIODE,RECT(SMD) BAS32L SOD80C PHILIPS D137 RC 1

251 E-00003830 2364601396P DIODE,SWITCH SMD 1N4148W-7-F SOD-123 DIODES D137 RD 1

252 N/A 2364302196P DIODE,SCHOTTKY(SMD) SR36(3A/60V) DO-214AA MOSPEC D151 1

253 N/A 2364302396P DIODE,SCHOTTKY(SMD) SR54 DO-214AA MOSPEC D152 1

254 N/A 2364302396P DIODE,SCHOTTKY(SMD) SR54 DO-214AA MOSPEC D153 1

255 N/A 2364302496P DIODE,SCHOTTKY(SMD) SM17 DO-214AC MOSPEC D801 1

256 N/A 2349900996P CAP,CHIP SPEC 0603V-PORT 10P+-10% INPAQ D802 1

257 N/A 2349900996P CAP,CHIP SPEC 0603V-PORT 10P+-10% INPAQ D803 1

258 N/A 2349900996P CAP,CHIP SPEC 0603V-PORT 10P+-10% INPAQ D804 1

259 N/A 2349900996P CAP,CHIP SPEC 0603V-PORT 10P+-10% INPAQ D805 1

260 N/A 2349900996P CAP,CHIP SPEC 0603V-PORT 10P+-10% INPAQ D806 1

261 N/A 2349900996P CAP,CHIP SPEC 0603V-PORT 10P+-10% INPAQ D807 1

262 N/A 2349900996P CAP,CHIP SPEC 0603V-PORT 10P+-10% INPAQ D808 1

263 N/A 2349900996P CAP,CHIP SPEC 0603V-PORT 10P+-10% INPAQ D809 1

264 N/A 2349900996P CAP,CHIP SPEC 0603V-PORT 10P+-10% INPAQ D810 1

265 N/A 2349901396P CAP,CHIP SPEC EGA10603V05A1-B INPAQ D811 1

266 N/A 2349901396P CAP,CHIP SPEC EGA10603V05A1-B INPAQ D812 1

267 N/A 2364302496P DIODE,SCHOTTKY(SMD) SM17 DO-214AC MOSPEC D813 1

268 N/A 2364302496P DIODE,SCHOTTKY(SMD) SM17 DO-214AC MOSPEC D814 1

269 N/A 2349901396P CAP,CHIP SPEC EGA10603V05A1-B INPAQ D815 1

270 N/A 2349901396P CAP,CHIP SPEC EGA10603V05A1-B INPAQ D816 1

271 N/A 2349901396P CAP,CHIP SPEC EGA10603V05A1-B INPAQ D817 1

272 N/A 2349901396P CAP,CHIP SPEC EGA10603V05A1-B INPAQ D818 1

273 N/A 2364302396P DIODE,SCHOTTKY(SMD) SR54 DO-214AA MOSPEC D819 1

274 N/A 2365425376P DIGITAL IC AP1510SA SOT-8L AnaChip I101 1

275 N/A 2365814296P IC,LINEAR(SMD) AP1117ELA SOT-223 AnaChip I102 RA 1

276 N/A 2365335096P LINEAR IC AIC1117APY SOT-223 AIC I102 RB 1

277 N/A 2365809396P IC,LINEAR(SMD) CM1117CM-ADJ SOT223 CHAMPION I102 RC 1

278 N/A 2365810796P IC,LINEAR(SMD) AP1084K33LA TO-263 ATC I103 RA 1

279 N/A 2365807496P IC,LINEAR(SMD) AIC1084-33PM TO-263 AIC I103 RB 1

280 N/A 2365809196P IC,LINEAR(SMD) CM1084SCN263 TO263 CHAMPION I103 RC 1

281 N/A 2365813696P IC,LINEAR(SMD) AP1117E18LA SOT-223 AnaChip I104 RA 1

282 N/A 2365335086P LINEAR IC AIC1117A-18PY SOT223 AIC I104 RB 1

283 N/A 2365335076P LINEAR IC CM1117GDCM223 SOT223 CHAMPION I104 RC 1

284 N/A 2365810796P IC,LINEAR(SMD) AP1084K33LA TO-263 ATC I105 RA 1

285 N/A 2365807496P IC,LINEAR(SMD) AIC1084-33PM TO-263 AIC I105 RB 1

286 N/A 2365809196P IC,LINEAR(SMD) CM1084SCN263 TO263 CHAMPION I105 RC 1

287 N/A 2365425786P DIGITAL IC MT8202AG-BD-L BGA-388 MTK I106 1

288 N/A 2365107096P MEMORY IC EN29LV160AT-70TCP TSOP-48 EON I107 1

289 N/A 2365107396P MEMORY IC (SDRAM) M13S128168A-5TG TSOP-66 ESMT I108 1

290 N/A 2365107396P MEMORY IC (SDRAM) M13S128168A-5TG TSOP-66 ESMT I109 1

291 N/A 2365335446P LINEAR IC AP1084D25LA TO-252 ANACHIP I111 RA 1

292 N/A 2365335456P LINEAR IC AIC1084-25PE TO-252 AIC I111 RB 1

293 N/A 2365335466P LINEAR IC AMC7585-2.5SJFT TO-252 ADD I111 RC 1

294 N/A 2365813696P IC,LINEAR(SMD) AP1117E18LA SOT-223 AnaChip I113 RA 1

295 N/A 2365335086P LINEAR IC AIC1117A-18PY SOT223 AIC I113 RB 1

296 N/A 2365335076P LINEAR IC CM1117GDCM223 SOT223 CHAMPION I113 RC 1

297 N/A 2365904096P IC,DIGITAL SMD 24LC04B/SN SO-8 MICROCHIP I114 RA 1

298 N/A 2365903996P IC,DIGITAL SMD AT24C04N-10SU-2.7 SO8 ATMEL I114 RB 1

299 N/A 2365425346P DIGITAL IC MT8293AE-L QFP-128 MTK I115 1

300 N/A 2365425396P DIGITAL IC IDTQS3VH257PAG8 TSSOP-16 IDT I117 RA 1

301 N/A 2365425516P DIGITAL IC 74LCX257MTCX TSSOP16 FAIRCHILD I117 RB 1

302 N/A 2365425376P DIGITAL IC AP1510SA SOT-8L AnaChip I118 1

303 N/A 2365335446P LINEAR IC AP1084D25LA TO-252 ANACHIP I120 RA 1

304 N/A 2365335456P LINEAR IC AIC1084-25PE TO-252 AIC I120 RB 1

305 N/A 2365335466P LINEAR IC AMC7585-2.5SJFT TO-252 ADD I120 RC 1

306 N/A 2365814296P IC,LINEAR(SMD) AP1117ELA SOT-223 AnaChip I121 RA 1

307 N/A 2365335096P LINEAR IC AIC1117APY SOT-223 AIC I121 RB 1

308 N/A 2365809396P IC,LINEAR(SMD) CM1117CM-ADJ SOT223 CHAMPION I121 RC 1

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

Item ViewSonic P/N Ref. P/N Location Universal number

Q't

Description

309 N/A 2365425386P DIGITAL IC AP1522WA SOT23-5L AnaChip I123 1

310 N/A 2365425366P DIGITAL IC MT5351AG-L BGA-471 MTK I127 1

311 N/A 2365107196P MEMORY IC (SDRAM) NT5DS16M16CS-5T TSSOP66 NANYA I128 1

312 N/A 2365107196P MEMORY IC (SDRAM) NT5DS16M16CS-5T TSSOP66 NANYA I129 1

313 N/A 2365106996P MEMORY IC (FLASH) EN29LV320T-70TCP TSOP-48 EON I131 1

314 N/A 2365814796P IC,LINEAR(SMD) HEF4052BTR SO-16 PHILIPS I134 1

315 N/A 2365425416P DIGITAL IC NJM4558M DMP8 JRC I135 1

316 N/A 2365425536P DIGITAL IC AD12250A TSSOP-16 ESMT I136 1

317 N/A 2365425416P DIGITAL IC NJM4558M DMP8 JRC I139 1

318 E-00000915 2360501196P FET,P-CH SMD AP9435GM SO-8 APEC I142 RA 1

319 E-00003529 2360501796P FET,P-CH SMD APM9435KC SO-8 Anpec I142 RB 1

320 E-00000916 2360501596P FET,P-CH SMD AO4405 SO-8 AOS I142 RC 1

321 N/A 2365425436P DIGITAL IC 74HC4052D SO-16 PHILIPS I143 1

322 N/A 2365425446P DIGITAL IC AD8256A QFN-48L Advanic I145 1

323 E-IC-0401-2924 2365808196P IC,LINEAR(SMD) AP1117E33LA SOT-223 AnaChip I148 RA 1

324 N/A 2365808396P IC,LINEAR(SMD) AIC1117-33PY SOT-223 AIC I148 RB 1

325 N/A 2365809496P IC,LINEAR(SMD) CM1117SCM-3.3V SOT223 CHAMPION I148 RC 1

326 N/A 2365807196P IC,LINEAR(SMD) AMC1117-3.3 SOT-223 ADD I148 RD 1

327 N/A 2365425856P DIGITAL IC RT9173PS SOP-8 RICHTEK I149 1

328 N/A 2365425856P DIGITAL IC RT9173PS SOP-8 RICHTEK I150 1

329 N/A 2365425396P DIGITAL IC IDTQS3VH257PAG8 TSSOP-16 IDT I805 1

330 N/A 2365425816P DIGITAL IC TMDS341A QFPD-80 TEXAS I806 1

331 N/A 2365425796P DIGITAL IC MT5112BD-L TQFP-100 MTK I807 1

332 N/A 2365425376P DIGITAL IC AP1510SA SOT-8L AnaChip I808 1

333 N/A 2379512106P BEAD,HI-CURRENT Z= 120 ohm 0603 I=3.0A L101 1

334 N/A 2379500296P BEAD,HI-CURRENT Z= 120 ohm 0805 I=6.0A L102 1

335 N/A 2379360006P BEAD,HI-IMPEDANCE Z= 60 ohm(200MHZ~) 0603 300mA L103 1

336 N/A 2379512106P BEAD,HI-CURRENT Z= 120 ohm 0603 I=3.0A L104 1

337 N/A 2379360006P BEAD,HI-IMPEDANCE Z= 60 ohm(200MHZ~) 0603 300mA L105 1

338 N/A 2379500296P BEAD,HI-CURRENT Z= 120 ohm 0805 I=6.0A L106 1

339 N/A 2379500296P BEAD,HI-CURRENT Z= 120 ohm 0805 I=6.0A L107 1

340 N/A 2379360006P BEAD,HI-IMPEDANCE Z= 60 ohm(200MHZ~) 0603 300mA L108 1

341 N/A 2379500296P BEAD,HI-CURRENT Z= 120 ohm 0805 I=6.0A L109 1

342 N/A 2379360006P BEAD,HI-IMPEDANCE Z= 60 ohm(200MHZ~) 0603 300mA L110 1

343 N/A 2379512106P BEAD,HI-CURRENT Z= 120 ohm 0603 I=3.0A L111 1

344 N/A 2379512106P BEAD,HI-CURRENT Z= 120 ohm 0603 I=3.0A L112 1

345 N/A 2379360006P BEAD,HI-IMPEDANCE Z= 60 ohm(200MHZ~) 0603 300mA L113 1

346 N/A 2379512106P BEAD,HI-CURRENT Z= 120 ohm 0603 I=3.0A L114 1

347 N/A 2379360006P BEAD,HI-IMPEDANCE Z= 60 ohm(200MHZ~) 0603 300mA L115 1

348 N/A 2379360006P BEAD,HI-IMPEDANCE Z= 60 ohm(200MHZ~) 0603 300mA L116 1

349 N/A 2379512106P BEAD,HI-CURRENT Z= 120 ohm 0603 I=3.0A L117 1

350 N/A 2379360006P BEAD,HI-IMPEDANCE Z= 60 ohm(200MHZ~) 0603 300mA L118 1

351 N/A 2379360006P BEAD,HI-IMPEDANCE Z= 60 ohm(200MHZ~) 0603 300mA L119 1

352 N/A 2379360006P BEAD,HI-IMPEDANCE Z= 60 ohm(200MHZ~) 0603 300mA L120 1

353 N/A 2379360006P BEAD,HI-IMPEDANCE Z= 60 ohm(200MHZ~) 0603 300mA L122 1

354 N/A 2379360006P BEAD,HI-IMPEDANCE Z= 60 ohm(200MHZ~) 0603 300mA L124 1

355 N/A 2379512106P BEAD,HI-CURRENT Z= 120 ohm 0603 I=3.0A L140 1

356 N/A 2379512106P BEAD,HI-CURRENT Z= 120 ohm 0603 I=3.0A L141 1

357 N/A 2379512106P BEAD,HI-CURRENT Z= 120 ohm 0603 I=3.0A L142 1

358 N/A 2379512106P BEAD,HI-CURRENT Z= 120 ohm 0603 I=3.0A L143 1

359 N/A 2379360006P BEAD,HI-IMPEDANCE Z= 60 ohm(200MHZ~) 0603 300mA L145 1

360 N/A 2379360006P BEAD,HI-IMPEDANCE Z= 60 ohm(200MHZ~) 0603 300mA L146 1

361 N/A 2379360006P BEAD,HI-IMPEDANCE Z= 60 ohm(200MHZ~) 0603 300mA L147 1

362 N/A 2379500296P BEAD,HI-CURRENT Z= 120 ohm 0805 I=6.0A L150 1

363 N/A 2379512106P BEAD,HI-CURRENT Z= 120 ohm 0603 I=3.0A L152 1

364 N/A 2379512106P BEAD,HI-CURRENT Z= 120 ohm 0603 I=3.0A L153 1

365 N/A 2370101696P COIL CHOKE SMD YC5D18T100M 10uH YOUTH L158 1

366 N/A 2379512106P BEAD,HI-CURRENT Z= 120 ohm 0603 I=3.0A L168 1

367 N/A 2379360006P BEAD,HI-IMPEDANCE Z= 60 ohm(200MHZ~) 0603 300mA L169 1

368 N/A 2379360006P BEAD,HI-IMPEDANCE Z= 60 ohm(200MHZ~) 0603 300mA L170 1

369 N/A 2379822106P BEAD,HI-IMPEDANCE Z= 220 ohm(200MHZ~) 0805 200mA L174 1

370 N/A 2379512106P BEAD,HI-CURRENT Z= 120 ohm 0603 I=3.0A L175 1

371 N/A 2379822106P BEAD,HI-IMPEDANCE Z= 220 ohm(200MHZ~) 0805 200mA L176 1

372 N/A 2379360006P BEAD,HI-IMPEDANCE Z= 60 ohm(200MHZ~) 0603 300mA L177 1

373 N/A 2379512106P BEAD,HI-CURRENT Z= 120 ohm 0603 I=3.0A L178 1

374 N/A 2379512106P BEAD,HI-CURRENT Z= 120 ohm 0603 I=3.0A L179 1

375 N/A 2379512106P BEAD,HI-CURRENT Z= 120 ohm 0603 I=3.0A L180 1

376 N/A 2379512106P BEAD,HI-CURRENT Z= 120 ohm 0603 I=3.0A L181 1

377 N/A 2379512106P BEAD,HI-CURRENT Z= 120 ohm 0603 I=3.0A L182 1

378 N/A 2379512106P BEAD,HI-CURRENT Z= 120 ohm 0603 I=3.0A L183 1

379 N/A 2379512106P BEAD,HI-CURRENT Z= 120 ohm 0603 I=3.0A L184 1

380 N/A 2379512106P BEAD,HI-CURRENT Z= 120 ohm 0603 I=3.0A L185 1

381 N/A 2379512106P BEAD,HI-CURRENT Z= 120 ohm 0603 I=3.0A L186 1

382 N/A 2379512106P BEAD,HI-CURRENT Z= 120 ohm 0603 I=3.0A L187 1

383 N/A 2379512106P BEAD,HI-CURRENT Z= 120 ohm 0603 I=3.0A L188 1

384 N/A 2379500296P BEAD,HI-CURRENT Z= 120 ohm 0805 I=6.0A L196 1

385 N/A 2379512106P BEAD,HI-CURRENT Z= 120 ohm 0603 I=3.0A L198 1

386 N/A 2379500296P BEAD,HI-CURRENT Z= 120 ohm 0805 I=6.0A L200 1

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

Item ViewSonic P/N Ref. P/N Location Universal number

Q't

Description

387 N/A 2379500296P BEAD,HI-CURRENT Z= 120 ohm 0805 I=6.0A L201 1

388 N/A 2370115016P COIL CHOKE SMD 15uH 12.3*12.3*4.5 YOUTH L202 1

389 N/A 2370115016P COIL CHOKE SMD 15uH 12.3*12.3*4.5 YOUTH L203 1

390 N/A 2370115016P COIL CHOKE SMD 15uH 12.3*12.3*4.5 YOUTH L206 1

391 N/A 2370115016P COIL CHOKE SMD 15uH 12.3*12.3*4.5 YOUTH L207 1

392 N/A 2379512106P BEAD,HI-CURRENT Z= 120 ohm 0603 I=3.0A L208 1

393 N/A 2379512106P BEAD,HI-CURRENT Z= 120 ohm 0603 I=3.0A L209 1

394 N/A 2379512106P BEAD,HI-CURRENT Z= 120 ohm 0603 I=3.0A L210 1

395 N/A 2379500296P BEAD,HI-CURRENT Z= 120 ohm 0805 I=6.0A L211 1

396 N/A 2379500296P BEAD,HI-CURRENT Z= 120 ohm 0805 I=6.0A L212 1

397 N/A 2379500296P BEAD,HI-CURRENT Z= 120 ohm 0805 I=6.0A L217 1

398 N/A 2379500296P BEAD,HI-CURRENT Z= 120 ohm 0805 I=6.0A L218 1

399 N/A 2379500296P BEAD,HI-CURRENT Z= 120 ohm 0805 I=6.0A L232 1

400 N/A 2379500296P BEAD,HI-CURRENT Z= 120 ohm 0805 I=6.0A L234 1

401 N/A 2379500296P BEAD,HI-CURRENT Z= 120 ohm 0805 I=6.0A L236 1

402 N/A 2379500296P BEAD,HI-CURRENT Z= 120 ohm 0805 I=6.0A L801 1

403 N/A 2379500296P BEAD,HI-CURRENT Z= 120 ohm 0805 I=6.0A L802 1

404 N/A 2379500296P BEAD,HI-CURRENT Z= 120 ohm 0805 I=6.0A L804 1

405 N/A 2377522896P INDUCTOR CHIP MULTI-LAYER 0.22uH/0805 K T L806 1

406 N/A 2379512106P BEAD,HI-CURRENT Z= 120 ohm 0603 I=3.0A L807 1

407 N/A 2379500296P BEAD,HI-CURRENT Z= 120 ohm 0805 I=6.0A L808 1

408 N/A 2379360006P BEAD,HI-IMPEDANCE Z= 60 ohm(200MHZ~) 0603 300mA L809 1

409 N/A 2379360006P BEAD,HI-IMPEDANCE Z= 60 ohm(200MHZ~) 0603 300mA L810 1

410 N/A 2379500296P BEAD,HI-CURRENT Z= 120 ohm 0805 I=6.0A L811 1

411 N/A 2379360006P BEAD,HI-IMPEDANCE Z= 60 ohm(200MHZ~) 0603 300mA L812 1

412 N/A 2379500296P BEAD,HI-CURRENT Z= 120 ohm 0805 I=6.0A L813 1

413 N/A 2379360006P BEAD,HI-IMPEDANCE Z= 60 ohm(200MHZ~) 0603 300mA L814 1

414 N/A 2379512106P BEAD,HI-CURRENT Z= 120 ohm 0603 I=3.0A L815 1

415 N/A 2377422996P INDUCTOR CHIP MULTI-LAYER 2.2uH/0603 K T L816 1

416 N/A 2377422996P INDUCTOR CHIP MULTI-LAYER 2.2uH/0603 K T L817 1

417 N/A 2377422996P INDUCTOR CHIP MULTI-LAYER 2.2uH/0603 K T L818 1

418 N/A 2377422996P INDUCTOR CHIP MULTI-LAYER 2.2uH/0603 K T L819 1

419 N/A 2377422996P INDUCTOR CHIP MULTI-LAYER 2.2uH/0603 K T L820 1

420 N/A 2377422996P INDUCTOR CHIP MULTI-LAYER 2.2uH/0603 K T L821 1

421 N/A 2379380006P BEAD,HI-IMPEDANCE Z= 80 ohm(200MHZ~) 0603 200mA L822 1

422 N/A 2379380006P BEAD,HI-IMPEDANCE Z= 80 ohm(200MHZ~) 0603 200mA L823 1

423 N/A 2379380006P BEAD,HI-IMPEDANCE Z= 80 ohm(200MHZ~) 0603 200mA L824 1

424 E-R-0405-6600 2253200096P RES CHIP 1/10W RC 0603 1/10W 0 ohm J T L825 1

425 E-R-0405-6600 2253200096P RES CHIP 1/10W RC 0603 1/10W 0 ohm J T L826 1

426 E-R-0405-6600 2253200096P RES CHIP 1/10W RC 0603 1/10W 0 ohm J T L827 1

427 N/A 2370101696P COIL CHOKE SMD YC5D18T100M 10uH YOUTH L829 1

428 N/A 2379360006P BEAD,HI-IMPEDANCE Z= 60 ohm(200MHZ~) 0603 300mA L830 1

429 N/A 2407640219P SOCKET,SMD HDMI HMR47-19P ACON P809 RA 1

430 N/A 2407640419P SOCKET,SMD HDMI 908DA2F19FCND03 COXOC P809 RB 1

431 N/A 2407640219P SOCKET,SMD HDMI HMR47-19P ACON P810 RA 1

432 N/A 2407640419P SOCKET,SMD HDMI 908DA2F19FCND03 COXOC P810 RB 1

433 N/A 2407640219P SOCKET,SMD HDMI HMR47-19P ACON P811 RA 1

434 N/A 2407640419P SOCKET,SMD HDMI 908DA2F19FCND03 COXOC P811 RB 1

435 E-Q-0402-1624 2360301696P XISTOR,NPN R SMD PMBS3904 SOT-23 PHILIPS Q101 RA 1

436 E-Q-0402-1608 2360300896P XISTOR,NPN R SMD MMBT3904K SOT-23 FAIRCHILD Q101 RB 1

437 E-Q-0402-1087 2360301896P XISTOR,NPN R SMD MMBT3904LT1 SOT23 LRC Q101 RC 1

438 E-Q-0402-1624 2360301696P XISTOR,NPN R SMD PMBS3904 SOT-23 PHILIPS Q101 RD 1

439 E-Q-0402-1624 2360301696P XISTOR,NPN R SMD PMBS3904 SOT-23 PHILIPS Q102 RA 1

440 E-Q-0402-1608 2360300896P XISTOR,NPN R SMD MMBT3904K SOT-23 FAIRCHILD Q102 RB 1

441 E-Q-0402-1087 2360301896P XISTOR,NPN R SMD MMBT3904LT1 SOT23 LRC Q102 RC 1

442 E-Q-0402-1624 2360301696P XISTOR,NPN R SMD PMBS3904 SOT-23 PHILIPS Q102 RD 1

443 E-Q-0402-1624 2360301696P XISTOR,NPN R SMD PMBS3904 SOT-23 PHILIPS Q103 RA 1

444 E-Q-0402-1608 2360300896P XISTOR,NPN R SMD MMBT3904K SOT-23 FAIRCHILD Q103 RB 1

445 E-Q-0402-1087 2360301896P XISTOR,NPN R SMD MMBT3904LT1 SOT23 LRC Q103 RC 1

446 E-Q-0402-1624 2360301696P XISTOR,NPN R SMD PMBS3904 SOT-23 PHILIPS Q103 RD 1

447 N/A 2360609796P FET,N-CH(SMD) 2SK2158 SOT-23 NEC Q108 1

448 N/A 2360609796P FET,N-CH(SMD) 2SK2158 SOT-23 NEC Q109 1

449 E-Q-0402-1624 2360301696P XISTOR,NPN R SMD PMBS3904 SOT-23 PHILIPS Q112 RA 1

450 E-Q-0402-1608 2360300896P XISTOR,NPN R SMD MMBT3904K SOT-23 FAIRCHILD Q112 RB 1

451 E-Q-0402-1087 2360301896P XISTOR,NPN R SMD MMBT3904LT1 SOT23 LRC Q112 RC 1

452 E-Q-0402-1624 2360301696P XISTOR,NPN R SMD PMBS3904 SOT-23 PHILIPS Q112 RD 1

453 E-Q-0402-1624 2360301696P XISTOR,NPN R SMD PMBS3904 SOT-23 PHILIPS Q113 RA 1

454 E-Q-0402-1608 2360300896P XISTOR,NPN R SMD MMBT3904K SOT-23 FAIRCHILD Q113 RB 1

455 E-Q-0402-1087 2360301896P XISTOR,NPN R SMD MMBT3904LT1 SOT23 LRC Q113 RC 1

456 E-Q-0402-1624 2360301696P XISTOR,NPN R SMD PMBS3904 SOT-23 PHILIPS Q113 RD 1

457 E-Q-0402-1624 2360301696P XISTOR,NPN R SMD PMBS3904 SOT-23 PHILIPS Q118 RA 1

458 E-Q-0402-1608 2360300896P XISTOR,NPN R SMD MMBT3904K SOT-23 FAIRCHILD Q118 RB 1

459 E-Q-0402-1087 2360301896P XISTOR,NPN R SMD MMBT3904LT1 SOT23 LRC Q118 RC 1

460 E-Q-0402-1624 2360301696P XISTOR,NPN R SMD PMBS3904 SOT-23 PHILIPS Q118 RD 1

461 E-Q-0402-1607 2360100596P XISTOR,PNP R SMD MMBT3906-NL SOT23 FAIRCHILD Q120 RA 1

462 N/A 2360100696P XISTOR,PNP R SMD PMBS3906 SOT-23 PHILIPS Q120 RB 1

463 E-Q-0402-1607 2360100796P XISTOR,PNP R SMD MMBT3906-F SOT-23 DIODES Q120 RC 1

464 E-Q-0402-1607 2360100596P XISTOR,PNP R SMD MMBT3906-NL SOT23 FAIRCHILD Q121 RA 1

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

Item ViewSonic P/N Ref. P/N Location Universal number

Q't

Description

465 N/A 2360100696P XISTOR,PNP R SMD PMBS3906 SOT-23 PHILIPS Q121 RB 1

466 E-Q-0402-1607 2360100796P XISTOR,PNP R SMD MMBT3906-F SOT-23 DIODES Q121 RC 1

467 E-Q-0402-1624 2360301696P XISTOR,NPN R SMD PMBS3904 SOT-23 PHILIPS Q122 RA 1

468 E-Q-0402-1608 2360300896P XISTOR,NPN R SMD MMBT3904K SOT-23 FAIRCHILD Q122 RB 1

469 E-Q-0402-1087 2360301896P XISTOR,NPN R SMD MMBT3904LT1 SOT23 LRC Q122 RC 1

470 E-Q-0402-1624 2360301696P XISTOR,NPN R SMD PMBS3904 SOT-23 PHILIPS Q122 RD 1

471 E-Q-0402-1624 2360301696P XISTOR,NPN R SMD PMBS3904 SOT-23 PHILIPS Q123 RA 1

472 E-Q-0402-1608 2360300896P XISTOR,NPN R SMD MMBT3904K SOT-23 FAIRCHILD Q123 RB 1

473 E-Q-0402-1087 2360301896P XISTOR,NPN R SMD MMBT3904LT1 SOT23 LRC Q123 RC 1

474 E-Q-0402-1624 2360301696P XISTOR,NPN R SMD PMBS3904 SOT-23 PHILIPS Q123 RD 1

475 E-Q-0402-1624 2360301696P XISTOR,NPN R SMD PMBS3904 SOT-23 PHILIPS Q124 RA 1

476 E-Q-0402-1608 2360300896P XISTOR,NPN R SMD MMBT3904K SOT-23 FAIRCHILD Q124 RB 1

477 E-Q-0402-1087 2360301896P XISTOR,NPN R SMD MMBT3904LT1 SOT23 LRC Q124 RC 1

478 E-Q-0402-1624 2360301696P XISTOR,NPN R SMD PMBS3904 SOT-23 PHILIPS Q124 RD 1

479 E-Q-0402-1624 2360301696P XISTOR,NPN R SMD PMBS3904 SOT-23 PHILIPS Q801 RA 1

480 E-Q-0402-1608 2360300896P XISTOR,NPN R SMD MMBT3904K SOT-23 FAIRCHILD Q801 RB 1

481 E-Q-0402-1087 2360301896P XISTOR,NPN R SMD MMBT3904LT1 SOT23 LRC Q801 RC 1

482 E-Q-0402-1624 2360301696P XISTOR,NPN R SMD PMBS3904 SOT-23 PHILIPS Q801 RD 1

483 N/A 2360302596P XISTOR,NPN R SMD 2SC2712 SC-59 TOSHIBA Q802 1

484 E-Q-0402-1624 2360301696P XISTOR,NPN R SMD PMBS3904 SOT-23 PHILIPS Q803 RA 1

485 E-Q-0402-1608 2360300896P XISTOR,NPN R SMD MMBT3904K SOT-23 FAIRCHILD Q803 RB 1

486 E-Q-0402-1087 2360301896P XISTOR,NPN R SMD MMBT3904LT1 SOT23 LRC Q803 RC 1

487 E-Q-0402-1624 2360301696P XISTOR,NPN R SMD PMBS3904 SOT-23 PHILIPS Q803 RD 1

488 E-Q-0402-1624 2360301696P XISTOR,NPN R SMD PMBS3904 SOT-23 PHILIPS Q804 RA 1

489 E-Q-0402-1608 2360300896P XISTOR,NPN R SMD MMBT3904K SOT-23 FAIRCHILD Q804 RB 1

490 E-Q-0402-1087 2360301896P XISTOR,NPN R SMD MMBT3904LT1 SOT23 LRC Q804 RC 1

491 E-Q-0402-1624 2360301696P XISTOR,NPN R SMD PMBS3904 SOT-23 PHILIPS Q804 RD 1

492 E-Q-0402-1624 2360301696P XISTOR,NPN R SMD PMBS3904 SOT-23 PHILIPS Q805 RA 1

493 E-Q-0402-1608 2360300896P XISTOR,NPN R SMD MMBT3904K SOT-23 FAIRCHILD Q805 RB 1

494 E-Q-0402-1087 2360301896P XISTOR,NPN R SMD MMBT3904LT1 SOT23 LRC Q805 RC 1

495 E-Q-0402-1624 2360301696P XISTOR,NPN R SMD PMBS3904 SOT-23 PHILIPS Q805 RD 1

496 N/A 2360502396P FET,P-CH SMD APM2301AAC SOT-23 ANPEC Q806 1

497 N/A 2259275008P RES,CHIP NETWORKS 8P4R 1/16W 75 ohm J P=0.8 RP01 1

498 N/A 2259222008P RES,CHIP NETWORKS 8P4R 1/16W 22 ohm J P=0.8 RP02 1

499 N/A 2259222008P RES,CHIP NETWORKS 8P4R 1/16W 22 ohm J P=0.8 RP03 1

500 N/A 2259275008P RES,CHIP NETWORKS 8P4R 1/16W 75 ohm J P=0.8 RP04 1

501 N/A 2259222008P RES,CHIP NETWORKS 8P4R 1/16W 22 ohm J P=0.8 RP05 1

502 N/A 2259275008P RES,CHIP NETWORKS 8P4R 1/16W 75 ohm J P=0.8 RP06 1

503 N/A 2259247008P RES,CHIP NETWORKS 8P4R 1/16W 47 ohm J P=0.8 RP07 1

504 N/A 2259275008P RES,CHIP NETWORKS 8P4R 1/16W 75 ohm J P=0.8 RP08 1

505 N/A 2259247008P RES,CHIP NETWORKS 8P4R 1/16W 47 ohm J P=0.8 RP09 1

506 N/A 2259247008P RES,CHIP NETWORKS 8P4R 1/16W 47 ohm J P=0.8 RP10 1

507 N/A 2259275008P RES,CHIP NETWORKS 8P4R 1/16W 75 ohm J P=0.8 RP11 1

508 N/A 2259247008P RES,CHIP NETWORKS 8P4R 1/16W 47 ohm J P=0.8 RP12 1

509 N/A 2259275008P RES,CHIP NETWORKS 8P4R 1/16W 75 ohm J P=0.8 RP13 1

510 N/A 2259275008P RES,CHIP NETWORKS 8P4R 1/16W 75 ohm J P=0.8 RP14 1

511 N/A 2259247008P RES,CHIP NETWORKS 8P4R 1/16W 47 ohm J P=0.8 RP15 1

512 N/A 2259247008P RES,CHIP NETWORKS 8P4R 1/16W 47 ohm J P=0.8 RP16 1

513 N/A 2259275008P RES,CHIP NETWORKS 8P4R 1/16W 75 ohm J P=0.8 RP17 1

514 N/A 2259247008P RES,CHIP NETWORKS 8P4R 1/16W 47 ohm J P=0.8 RP18 1

515 N/A 2259275008P RES,CHIP NETWORKS 8P4R 1/16W 75 ohm J P=0.8 RP19 1

516 N/A 2259247008P RES,CHIP NETWORKS 8P4R 1/16W 47 ohm J P=0.8 RP20 1

517 N/A 2259275008P RES,CHIP NETWORKS 8P4R 1/16W 75 ohm J P=0.8 RP21 1

518 N/A 2259275008P RES,CHIP NETWORKS 8P4R 1/16W 75 ohm J P=0.8 RP22 1

519 N/A 2259275008P RES,CHIP NETWORKS 8P4R 1/16W 75 ohm J P=0.8 RP23 1

520 N/A 2259222008P RES,CHIP NETWORKS 8P4R 1/16W 22 ohm J P=0.8 RP24 1

521 N/A 2259233008P RES,CHIP NETWORKS 8P4R 1/16W 33 ohm J P=0.8 RP25 1

522 N/A 2259233008P RES,CHIP NETWORKS 8P4R 1/16W 33 ohm J P=0.8 RP26 1

523 N/A 2259233008P RES,CHIP NETWORKS 8P4R 1/16W 33 ohm J P=0.8 RP27 1

524 N/A 2259233008P RES,CHIP NETWORKS 8P4R 1/16W 33 ohm J P=0.8 RP28 1

525 N/A 2259233008P RES,CHIP NETWORKS 8P4R 1/16W 33 ohm J P=0.8 RP29 1

526 N/A 2259233008P RES,CHIP NETWORKS 8P4R 1/16W 33 ohm J P=0.8 RP30 1

527 N/A 2259233008P RES,CHIP NETWORKS 8P4R 1/16W 33 ohm J P=0.8 RP31 1

528 N/A 2259233008P RES,CHIP NETWORKS 8P4R 1/16W 33 ohm J P=0.8 RP32 1

529 N/A 2259233008P RES,CHIP NETWORKS 8P4R 1/16W 33 ohm J P=0.8 RP33 1

530 N/A 2259233008P RES,CHIP NETWORKS 8P4R 1/16W 33 ohm J P=0.8 RP34 1

531 N/A 2259233008P RES,CHIP NETWORKS 8P4R 1/16W 33 ohm J P=0.8 RP35 1

532 N/A 2259233008P RES,CHIP NETWORKS 8P4R 1/16W 33 ohm J P=0.8 RP36 1

533 N/A 2259233008P RES,CHIP NETWORKS 8P4R 1/16W 33 ohm J P=0.8 RP37 1

534 N/A 2259233008P RES,CHIP NETWORKS 8P4R 1/16W 33 ohm J P=0.8 RP38 1

535 N/A 2259233008P RES,CHIP NETWORKS 8P4R 1/16W 33 ohm J P=0.8 RP39 1

536 N/A 2259233008P RES,CHIP NETWORKS 8P4R 1/16W 33 ohm J P=0.8 RP41 1

537 N/A 2259222008P RES,CHIP NETWORKS 8P4R 1/16W 22 ohm J P=0.8 RP45 1

538 N/A 2259275008P RES,CHIP NETWORKS 8P4R 1/16W 75 ohm J P=0.8 RP46 1

539 N/A 2259247008P RES,CHIP NETWORKS 8P4R 1/16W 47 ohm J P=0.8 RP47 1

540 N/A 2259275008P RES,CHIP NETWORKS 8P4R 1/16W 75 ohm J P=0.8 RP48 1

541 N/A 2259222008P RES,CHIP NETWORKS 8P4R 1/16W 22 ohm J P=0.8 RP49 1

542 N/A 2259275008P RES,CHIP NETWORKS 8P4R 1/16W 75 ohm J P=0.8 RP50 1

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

Item ViewSonic P/N Ref. P/N Location Universal number

Q't

Description

543 N/A 2259247008P RES,CHIP NETWORKS 8P4R 1/16W 47 ohm J P=0.8 RP51 1

544 N/A 2259275008P RES,CHIP NETWORKS 8P4R 1/16W 75 ohm J P=0.8 RP52 1

545 N/A 2259222008P RES,CHIP NETWORKS 8P4R 1/16W 22 ohm J P=0.8 RP53 1

546 N/A 2259275008P RES,CHIP NETWORKS 8P4R 1/16W 75 ohm J P=0.8 RP54 1

547 N/A 2259247008P RES,CHIP NETWORKS 8P4R 1/16W 47 ohm J P=0.8 RP55 1

548 N/A 2259275008P RES,CHIP NETWORKS 8P4R 1/16W 75 ohm J P=0.8 RP56 1

549 N/A 2259247008P RES,CHIP NETWORKS 8P4R 1/16W 47 ohm J P=0.8 RP57 1

550 N/A 2259275008P RES,CHIP NETWORKS 8P4R 1/16W 75 ohm J P=0.8 RP58 1

551 N/A 2259247008P RES,CHIP NETWORKS 8P4R 1/16W 47 ohm J P=0.8 RP59 1

552 N/A 2259275008P RES,CHIP NETWORKS 8P4R 1/16W 75 ohm J P=0.8 RP60 1

553 N/A 2259222008P RES,CHIP NETWORKS 8P4R 1/16W 22 ohm J P=0.8 RP61 1

554 N/A 2259275008P RES,CHIP NETWORKS 8P4R 1/16W 75 ohm J P=0.8 RP62 1

555 N/A 2259247008P RES,CHIP NETWORKS 8P4R 1/16W 47 ohm J P=0.8 RP63 1

556 N/A 2259275008P RES,CHIP NETWORKS 8P4R 1/16W 75 ohm J P=0.8 RP64 1

557 N/A 2259247008P RES,CHIP NETWORKS 8P4R 1/16W 47 ohm J P=0.8 RP65 1

558 N/A 2259275008P RES,CHIP NETWORKS 8P4R 1/16W 75 ohm J P=0.8 RP66 1

559 N/A 2259247008P RES,CHIP NETWORKS 8P4R 1/16W 47 ohm J P=0.8 RP67 1

560 N/A 2259275008P RES,CHIP NETWORKS 8P4R 1/16W 75 ohm J P=0.8 RP68 1

561 N/A 2259233008P RES,CHIP NETWORKS 8P4R 1/16W 33 ohm J P=0.8 RP80 1

562 N/A 2259233008P RES,CHIP NETWORKS 8P4R 1/16W 33 ohm J P=0.8 RP81 1

563 N/A 2259233008P RES,CHIP NETWORKS 8P4R 1/16W 33 ohm J P=0.8 RP82 1

564 N/A 2259210308P RES,CHIP NETWORKS 8P4R 1/16W 10Kohm J P=0.8 RP83 1

565 N/A 2259210308P RES,CHIP NETWORKS 8P4R 1/16W 10Kohm J P=0.8 RP84 1

566 N/A 2253210396P RES CHIP 1/10W RC 0603 1/10W 10Kohm J T R101 1

567 N/A 2253210396P RES CHIP 1/10W RC 0603 1/10W 10Kohm J T R102 1

568 E-R-0405-6419 2253247296P RES CHIP 1/10W RC 0603 1/10W 4.7Kohm J T R103 1

569 E-R-0405-6410 2253210296P RES CHIP 1/10W RC 0603 1/10W 1.0Kohm J T R106 1

570 N/A 2253210396P RES CHIP 1/10W RC 0603 1/10W 10Kohm J T R107 1

571 E-R-0405-6600 2253200096P RES CHIP 1/10W RC 0603 1/10W 0 ohm J T R108 1

572 E-R-0405-6419 2253247296P RES CHIP 1/10W RC 0603 1/10W 4.7Kohm J T R109 1

573 E-R-0405-6419 2253247296P RES CHIP 1/10W RC 0603 1/10W 4.7Kohm J T R110 1

574 E-R-0405-6410 2253210296P RES CHIP 1/10W RC 0603 1/10W 1.0Kohm J T R111 1

575 E-R-0405-6419 2253247296P RES CHIP 1/10W RC 0603 1/10W 4.7Kohm J T R112 1

576 N/A 2253215596P RES CHIP 1/10W RC 0603 1/10W 1.5Mohm J T R114 1

577 N/A 2253210396P RES CHIP 1/10W RC 0603 1/10W 10Kohm J T R115 1

578 E-R-0405-6410 2253210296P RES CHIP 1/10W RC 0603 1/10W 1.0Kohm J T R117 1

579 N/A 2253210396P RES CHIP 1/10W RC 0603 1/10W 10Kohm J T R118 1

580 N/A 2253210396P RES CHIP 1/10W RC 0603 1/10W 10Kohm J T R119 1

581 N/A 2253210396P RES CHIP 1/10W RC 0603 1/10W 10Kohm J T R120 1

582 E-R-0405-6600 2253200096P RES CHIP 1/10W RC 0603 1/10W 0 ohm J T R121 1

583 N/A 2253210396P RES CHIP 1/10W RC 0603 1/10W 10Kohm J T R122 1

584 N/A 2253222096P RES CHIP 1/10W RC 0603 1/10W 22 ohm J T R123 1

585 N/A 2253275096P RES CHIP 1/10W RC 0603 1/10W 75 ohm J T R124 1

586 N/A 2253247096P RES CHIP 1/10W RC 0603 1/10W 47 ohm J T R125 1

587 N/A 2253247096P RES CHIP 1/10W RC 0603 1/10W 47 ohm J T R126 1

588 N/A 2253247096P RES CHIP 1/10W RC 0603 1/10W 47 ohm J T R127 1

589 N/A 2253247096P RES CHIP 1/10W RC 0603 1/10W 47 ohm J T R128 1

590 N/A 2253275096P RES CHIP 1/10W RC 0603 1/10W 75 ohm J T R129 1

591 N/A 2253222096P RES CHIP 1/10W RC 0603 1/10W 22 ohm J T R130 1

592 N/A 2253275096P RES CHIP 1/10W RC 0603 1/10W 75 ohm J T R131 1

593 N/A 2253222096P RES CHIP 1/10W RC 0603 1/10W 22 ohm J T R132 1

594 E-R-0405-6600 2253200096P RES CHIP 1/10W RC 0603 1/10W 0 ohm J T R133 1

595 N/A 2253275096P RES CHIP 1/10W RC 0603 1/10W 75 ohm J T R134 1

596 N/A 2253222096P RES CHIP 1/10W RC 0603 1/10W 22 ohm J T R135 1

597 N/A 2253275096P RES CHIP 1/10W RC 0603 1/10W 75 ohm J T R136 1

598 N/A 2253222096P RES CHIP 1/10W RC 0603 1/10W 22 ohm J T R137 1

599 N/A 2253275096P RES CHIP 1/10W RC 0603 1/10W 75 ohm J T R138 1

600 N/A 2253222096P RES CHIP 1/10W RC 0603 1/10W 22 ohm J T R139 1

601 N/A 2253275096P RES CHIP 1/10W RC 0603 1/10W 75 ohm J T R140 1

602 E-R-0405-6602 2253215196P RES CHIP 1/10W RC 0603 1/10W 150 ohm J T R141 1

603 N/A 2253275096P RES CHIP 1/10W RC 0603 1/10W 75 ohm J T R142 1

604 E-R-0405-6602 2253215196P RES CHIP 1/10W RC 0603 1/10W 150 ohm J T R143 1

605 N/A 2253275096P RES CHIP 1/10W RC 0603 1/10W 75 ohm J T R144 1

606 E-R-0405-6602 2253215196P RES CHIP 1/10W RC 0603 1/10W 150 ohm J T R145 1

607 E-R-0405-6600 2253200096P RES CHIP 1/10W RC 0603 1/10W 0 ohm J T R146 1

608 N/A 2253282196P RES CHIP 1/10W RC 0603 1/10W 820 ohm J T R148 1

609 N/A 2251249996P RES CHIP 1/10W RC 0603 1/10W 49.9 ohm F T R149 1

610 N/A 2251249996P RES CHIP 1/10W RC 0603 1/10W 49.9 ohm F T R150 1

611 N/A 2251249996P RES CHIP 1/10W RC 0603 1/10W 49.9 ohm F T R151 1

612 N/A 2251249996P RES CHIP 1/10W RC 0603 1/10W 49.9 ohm F T R152 1

613 E-R-0405-6600 2253200096P RES CHIP 1/10W RC 0603 1/10W 0 ohm J T R170 1

614 E-R-0405-6600 2253200096P RES CHIP 1/10W RC 0603 1/10W 0 ohm J T R172 1

615 N/A 2253268096P RES CHIP 1/10W RC 0603 1/10W 68 ohm J T R173 1

616 E-R-0405-6600 2253200096P RES CHIP 1/10W RC 0603 1/10W 0 ohm J T R174 1

617 N/A 2253210196P RES CHIP 1/10W RC 0603 1/10W 100 ohm J T R175 1

618 N/A 2253268096P RES CHIP 1/10W RC 0603 1/10W 68 ohm J T R176 1

619 E-R-0405-6600 2253200096P RES CHIP 1/10W RC 0603 1/10W 0 ohm J T R177 1

620 N/A 2253210196P RES CHIP 1/10W RC 0603 1/10W 100 ohm J T R178 1

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

Item ViewSonic P/N Ref. P/N Location Universal number

Q't

Description

621 E-R-0405-6600 2253200096P RES CHIP 1/10W RC 0603 1/10W 0 ohm J T R179 1

622 N/A 2253268096P RES CHIP 1/10W RC 0603 1/10W 68 ohm J T R180 1

623 N/A 2253210196P RES CHIP 1/10W RC 0603 1/10W 100 ohm J T R181 1

624 E-R-0405-6600 2253200096P RES CHIP 1/10W RC 0603 1/10W 0 ohm J T R185 1

625 N/A 2253210496P RES CHIP 1/10W RC 0603 1/10W 100Kohm J T R187 1

626 N/A 2253275096P RES CHIP 1/10W RC 0603 1/10W 75 ohm J T R188 1

627 N/A 2253210496P RES CHIP 1/10W RC 0603 1/10W 100Kohm J T R189 1

628 N/A 2253275096P RES CHIP 1/10W RC 0603 1/10W 75 ohm J T R191 1

629 N/A 2253210496P RES CHIP 1/10W RC 0603 1/10W 100Kohm J T R192 1

630 N/A 2253275096P RES CHIP 1/10W RC 0603 1/10W 75 ohm J T R194 1

631 N/A 2253210496P RES CHIP 1/10W RC 0603 1/10W 100Kohm J T R195 1

632 N/A 2253227096P RES CHIP 1/10W RC 0603 1/10W 27 ohm J T R197 1

633 N/A 2253275096P RES CHIP 1/10W RC 0603 1/10W 75 ohm J T R198 1

634 N/A 2253227096P RES CHIP 1/10W RC 0603 1/10W 27 ohm J T R200 1

635 N/A 2253275096P RES CHIP 1/10W RC 0603 1/10W 75 ohm J T R201 1

636 N/A 2253227096P RES CHIP 1/10W RC 0603 1/10W 27 ohm J T R203 1

637 N/A 2253275096P RES CHIP 1/10W RC 0603 1/10W 75 ohm J T R204 1

638 E-R-0405-6600 2253200096P RES CHIP 1/10W RC 0603 1/10W 0 ohm J T R210 1

639 E-R-0405-6419 2253247296P RES CHIP 1/10W RC 0603 1/10W 4.7Kohm J T R211 1

640 E-R-0405-6419 2253247296P RES CHIP 1/10W RC 0603 1/10W 4.7Kohm J T R212 1

641 E-R-0405-6600 2253200096P RES CHIP 1/10W RC 0603 1/10W 0 ohm J T R215 1

642 E-R-0405-6600 2253200096P RES CHIP 1/10W RC 0603 1/10W 0 ohm J T R216 1

643 E-R-0405-6600 2253200096P RES CHIP 1/10W RC 0603 1/10W 0 ohm J T R217 1

644 E-R-0405-6600 2253200096P RES CHIP 1/10W RC 0603 1/10W 0 ohm J T R218 1

645 E-R-0405-6419 2253247296P RES CHIP 1/10W RC 0603 1/10W 4.7Kohm J T R220 1

646 E-R-0405-6419 2253247296P RES CHIP 1/10W RC 0603 1/10W 4.7Kohm J T R221 1

647 E-R-0405-6600 2253200096P RES CHIP 1/10W RC 0603 1/10W 0 ohm J T R224 1

648 E-R-0405-6600 2253200096P RES CHIP 1/10W RC 0603 1/10W 0 ohm J T R228 1

649 E-R-0405-6600 2253200096P RES CHIP 1/10W RC 0603 1/10W 0 ohm J T R229 1

650 E-R-0405-6419 2253247296P RES CHIP 1/10W RC 0603 1/10W 4.7Kohm J T R230 1

651 N/A 2253210196P RES CHIP 1/10W RC 0603 1/10W 100 ohm J T R231 1

652 E-R-0405-6600 2253200096P RES CHIP 1/10W RC 0603 1/10W 0 ohm J T R232 1

653 N/A 2251210496P RES CHIP 1/10W RC 0603 1/10W 100Kohm F T R233 1

654 N/A 2251210496P RES CHIP 1/10W RC 0603 1/10W 100Kohm F T R234 1

655 N/A 2251210496P RES CHIP 1/10W RC 0603 1/10W 100Kohm F T R239 1

656 N/A 2251210496P RES CHIP 1/10W RC 0603 1/10W 100Kohm F T R240 1

657 N/A 2253247096P RES CHIP 1/10W RC 0603 1/10W 47 ohm J T R241 1

658 N/A 2253247096P RES CHIP 1/10W RC 0603 1/10W 47 ohm J T R242 1

659 N/A 2253210396P RES CHIP 1/10W RC 0603 1/10W 10Kohm J T R256 1

660 N/A 2253233196P RES CHIP 1/10W RC 0603 1/10W 330 ohm J T R257 1

661 N/A 2253247096P RES CHIP 1/10W RC 0603 1/10W 47 ohm J T R258 1

662 N/A 2253275096P RES CHIP 1/10W RC 0603 1/10W 75 ohm J T R259 1

663 N/A 2253247096P RES CHIP 1/10W RC 0603 1/10W 47 ohm J T R260 1

664 N/A 2253275096P RES CHIP 1/10W RC 0603 1/10W 75 ohm J T R261 1

665 N/A 2253275096P RES CHIP 1/10W RC 0603 1/10W 75 ohm J T R263 1

666 N/A 2253247096P RES CHIP 1/10W RC 0603 1/10W 47 ohm J T R264 1

667 N/A 2253275096P RES CHIP 1/10W RC 0603 1/10W 75 ohm J T R265 1

668 N/A 2253222096P RES CHIP 1/10W RC 0603 1/10W 22 ohm J T R266 1

669 N/A 2253275096P RES CHIP 1/10W RC 0603 1/10W 75 ohm J T R267 1

670 N/A 2253222096P RES CHIP 1/10W RC 0603 1/10W 22 ohm J T R268 1

671 N/A 2253275096P RES CHIP 1/10W RC 0603 1/10W 75 ohm J T R269 1

672 N/A 2253222096P RES CHIP 1/10W RC 0603 1/10W 22 ohm J T R270 1

673 N/A 2253275096P RES CHIP 1/10W RC 0603 1/10W 75 ohm J T R271 1

674 N/A 2253247096P RES CHIP 1/10W RC 0603 1/10W 47 ohm J T R272 1

675 N/A 2253275096P RES CHIP 1/10W RC 0603 1/10W 75 ohm J T R273 1

676 N/A 2253222096P RES CHIP 1/10W RC 0603 1/10W 22 ohm J T R274 1

677 N/A 2253275096P RES CHIP 1/10W RC 0603 1/10W 75 ohm J T R275 1

678 N/A 2253275096P RES CHIP 1/10W RC 0603 1/10W 75 ohm J T R277 1

679 N/A 2253275096P RES CHIP 1/10W RC 0603 1/10W 75 ohm J T R279 1

680 N/A 2253222096P RES CHIP 1/10W RC 0603 1/10W 22 ohm J T R280 1

681 N/A 2253247096P RES CHIP 1/10W RC 0603 1/10W 47 ohm J T R282 1

682 N/A 2253275096P RES CHIP 1/10W RC 0603 1/10W 75 ohm J T R283 1

683 N/A 2253247096P RES CHIP 1/10W RC 0603 1/10W 47 ohm J T R284 1

684 N/A 2253247096P RES CHIP 1/10W RC 0603 1/10W 47 ohm J T R286 1

685 N/A 2253247096P RES CHIP 1/10W RC 0603 1/10W 47 ohm J T R287 1

686 N/A 2253247096P RES CHIP 1/10W RC 0603 1/10W 47 ohm J T R290 1

687 E-R-0405-6600 2253200096P RES CHIP 1/10W RC 0603 1/10W 0 ohm J T R294 1

688 E-R-0405-6419 2253247296P RES CHIP 1/10W RC 0603 1/10W 4.7Kohm J T R296 1

689 E-R-0405-6600 2253200096P RES CHIP 1/10W RC 0603 1/10W 0 ohm J T R297 1

690 E-R-0405-6419 2253247296P RES CHIP 1/10W RC 0603 1/10W 4.7Kohm J T R298 1

691 E-R-0405-6419 2253247296P RES CHIP 1/10W RC 0603 1/10W 4.7Kohm J T R299 1

692 E-R-0405-6419 2253247296P RES CHIP 1/10W RC 0603 1/10W 4.7Kohm J T R303 1

693 E-R-0405-6419 2253247296P RES CHIP 1/10W RC 0603 1/10W 4.7Kohm J T R304 1

694 E-R-0405-6419 2253247296P RES CHIP 1/10W RC 0603 1/10W 4.7Kohm J T R309 1

695 E-R-0405-6419 2253247296P RES CHIP 1/10W RC 0603 1/10W 4.7Kohm J T R310 1

696 N/A 2253282296P RES CHIP 1/10W RC 0603 1/10W 8.2Kohm J T R311 1

697 N/A 2253247096P RES CHIP 1/10W RC 0603 1/10W 47 ohm J T R314 1

698 N/A 2253210196P RES CHIP 1/10W RC 0603 1/10W 100 ohm J T R319 1

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

Item ViewSonic P/N Ref. P/N Location Universal number

Q't

Description

699 N/A 2253210196P RES CHIP 1/10W RC 0603 1/10W 100 ohm J T R320 1

700 N/A 2253268096P RES CHIP 1/10W RC 0603 1/10W 68 ohm J T R322 1

701 N/A 2253275096P RES CHIP 1/10W RC 0603 1/10W 75 ohm J T R323 1

702 N/A 2253210196P RES CHIP 1/10W RC 0603 1/10W 100 ohm J T R324 1

703 E-R-0405-6600 2253200096P RES CHIP 1/10W RC 0603 1/10W 0 ohm J T R325 1

704 N/A 2253268096P RES CHIP 1/10W RC 0603 1/10W 68 ohm J T R327 1

705 N/A 2253275096P RES CHIP 1/10W RC 0603 1/10W 75 ohm J T R328 1

706 N/A 2253210196P RES CHIP 1/10W RC 0603 1/10W 100 ohm J T R329 1

707 N/A 2253210196P RES CHIP 1/10W RC 0603 1/10W 100 ohm J T R331 1

708 E-R-0405-6600 2253200096P RES CHIP 1/10W RC 0603 1/10W 0 ohm J T R332 1

709 N/A 2253268096P RES CHIP 1/10W RC 0603 1/10W 68 ohm J T R335 1

710 N/A 2253210196P RES CHIP 1/10W RC 0603 1/10W 100 ohm J T R336 1

711 E-R-0405-6600 2253200096P RES CHIP 1/10W RC 0603 1/10W 0 ohm J T R337 1

712 N/A 2253275096P RES CHIP 1/10W RC 0603 1/10W 75 ohm J T R338 1

713 N/A 2253210196P RES CHIP 1/10W RC 0603 1/10W 100 ohm J T R339 1

714 N/A 2253251196P RES CHIP 1/10W RC 0603 1/10W 510 ohm J T R340 1

715 N/A 2253210496P RES CHIP 1/10W RC 0603 1/10W 100Kohm J T R341 1

716 E-R-0405-6413 2253220296P RES CHIP 1/10W RC 0603 1/10W 2.0Kohm J T R342 1

717 N/A 2253210196P RES CHIP 1/10W RC 0603 1/10W 100 ohm J T R343 1

718 N/A 2253233296P RES CHIP 1/10W RC 0603 1/10W 3.3Kohm J T R344 1

719 N/A 2253233296P RES CHIP 1/10W RC 0603 1/10W 3.3Kohm J T R345 1

720 N/A 2253251196P RES CHIP 1/10W RC 0603 1/10W 510 ohm J T R346 1

721 N/A 2253210496P RES CHIP 1/10W RC 0603 1/10W 100Kohm J T R347 1

722 E-R-0405-6413 2253220296P RES CHIP 1/10W RC 0603 1/10W 2.0Kohm J T R348 1

723 E-00003527 2253247396P RES CHIP 1/10W RC 0603 1/10W 47Kohm J T R349 1

724 E-00003527 2253247396P RES CHIP 1/10W RC 0603 1/10W 47Kohm J T R350 1

725 E-00003527 2253247396P RES CHIP 1/10W RC 0603 1/10W 47Kohm J T R351 1

726 E-00003527 2253247396P RES CHIP 1/10W RC 0603 1/10W 47Kohm J T R352 1

727 E-00003527 2253247396P RES CHIP 1/10W RC 0603 1/10W 47Kohm J T R353 1

728 N/A 2253210396P RES CHIP 1/10W RC 0603 1/10W 10Kohm J T R354 1

729 E-00003527 2253247396P RES CHIP 1/10W RC 0603 1/10W 47Kohm J T R355 1

730 E-00003527 2253247396P RES CHIP 1/10W RC 0603 1/10W 47Kohm J T R356 1

731 E-00003527 2253247396P RES CHIP 1/10W RC 0603 1/10W 47Kohm J T R357 1

732 E-00003527 2253247396P RES CHIP 1/10W RC 0603 1/10W 47Kohm J T R358 1

733 E-00003527 2253247396P RES CHIP 1/10W RC 0603 1/10W 47Kohm J T R359 1

734 N/A 2253210396P RES CHIP 1/10W RC 0603 1/10W 10Kohm J T R360 1

735 E-00003527 2253247396P RES CHIP 1/10W RC 0603 1/10W 47Kohm J T R361 1

736 E-00003527 2253247396P RES CHIP 1/10W RC 0603 1/10W 47Kohm J T R362 1

737 E-00003527 2253247396P RES CHIP 1/10W RC 0603 1/10W 47Kohm J T R363 1

738 E-00003527 2253247396P RES CHIP 1/10W RC 0603 1/10W 47Kohm J T R364 1

739 N/A 2253233096P RES CHIP 1/10W RC 0603 1/10W 33 ohm J T R365 1

740 N/A 2253233096P RES CHIP 1/10W RC 0603 1/10W 33 ohm J T R366 1

741 N/A 2253210396P RES CHIP 1/10W RC 0603 1/10W 10Kohm J T R367 1

742 N/A 2253210396P RES CHIP 1/10W RC 0603 1/10W 10Kohm J T R368 1

743 N/A 2253210396P RES CHIP 1/10W RC 0603 1/10W 10Kohm J T R369 1

744 N/A 2251263406P RES CHIP 1/10W RC 0603 1/10W 634 ohm F T R373 1

745 N/A 2253210496P RES CHIP 1/10W RC 0603 1/10W 100Kohm J T R374 1

746 N/A 2251290996P RES CHIP 1/10W RC 0603 1/10W 90.9 ohm F T R378 1

747 N/A 2253210396P RES CHIP 1/10W RC 0603 1/10W 10Kohm J T R379 1

748 N/A 2253251296P RES CHIP 1/10W RC 0603 1/10W 5.1Kohm J T R380 1

749 N/A 2253210496P RES CHIP 1/10W RC 0603 1/10W 100Kohm J T R381 1

750 N/A 2251263406P RES CHIP 1/10W RC 0603 1/10W 634 ohm F T R382 1

751 N/A 2253210496P RES CHIP 1/10W RC 0603 1/10W 100Kohm J T R383 1

752 N/A 2251290996P RES CHIP 1/10W RC 0603 1/10W 90.9 ohm F T R384 1

753 N/A 2253210396P RES CHIP 1/10W RC 0603 1/10W 10Kohm J T R385 1

754 N/A 2253251296P RES CHIP 1/10W RC 0603 1/10W 5.1Kohm J T R386 1

755 N/A 2253210496P RES CHIP 1/10W RC 0603 1/10W 100Kohm J T R387 1

756 N/A 2253233096P RES CHIP 1/10W RC 0603 1/10W 33 ohm J T R388 1

757 N/A 2253233096P RES CHIP 1/10W RC 0603 1/10W 33 ohm J T R389 1

758 N/A 2253233096P RES CHIP 1/10W RC 0603 1/10W 33 ohm J T R390 1

759 N/A 2253233096P RES CHIP 1/10W RC 0603 1/10W 33 ohm J T R391 1

760 N/A 2253210096P RES CHIP 1/10W RC 0603 1/10W 10 ohm J T R393 1

761 N/A 2253210096P RES CHIP 1/10W RC 0603 1/10W 10 ohm J T R394 1

762 N/A 2253210096P RES CHIP 1/10W RC 0603 1/10W 10 ohm J T R395 1

763 N/A 2253233096P RES CHIP 1/10W RC 0603 1/10W 33 ohm J T R396 1

764 N/A 2253233096P RES CHIP 1/10W RC 0603 1/10W 33 ohm J T R397 1

765 E-R-0405-6600 2253200096P RES CHIP 1/10W RC 0603 1/10W 0 ohm J T R398 1

766 N/A 2253233096P RES CHIP 1/10W RC 0603 1/10W 33 ohm J T R399 1

767 N/A 2253210096P RES CHIP 1/10W RC 0603 1/10W 10 ohm J T R401 1

768 N/A 2253210096P RES CHIP 1/10W RC 0603 1/10W 10 ohm J T R402 1

769 E-R-0405-6419 2253247296P RES CHIP 1/10W RC 0603 1/10W 4.7Kohm J T R403 1

770 E-R-0405-6419 2253247296P RES CHIP 1/10W RC 0603 1/10W 4.7Kohm J T R404 1

771 E-00003527 2253247396P RES CHIP 1/10W RC 0603 1/10W 47Kohm J T R406 1

772 N/A 2253210096P RES CHIP 1/10W RC 0603 1/10W 10 ohm J T R408 1

773 N/A 2253210096P RES CHIP 1/10W RC 0603 1/10W 10 ohm J T R410 1

774 N/A 2253210096P RES CHIP 1/10W RC 0603 1/10W 10 ohm J T R414 1

775 E-00003527 2253247396P RES CHIP 1/10W RC 0603 1/10W 47Kohm J T R415 1

776 N/A 2251211526P RES,CHIP 1/10 RC 0603 1/10W 11.5Kohm F T R416 1

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

Item ViewSonic P/N Ref. P/N Location Universal number

Q't

Description

777 E-R-0405-6600 2253200096P RES CHIP 1/10W RC 0603 1/10W 0 ohm J T R419 1

778 N/A 2253210396P RES CHIP 1/10W RC 0603 1/10W 10Kohm J T R420 1

779 N/A 2253251296P RES CHIP 1/10W RC 0603 1/10W 5.1Kohm J T R421 1

780 N/A 2253210096P RES CHIP 1/10W RC 0603 1/10W 10 ohm J T R422 1

781 N/A 2251226736P RES CHIP 1/10W RC 0603 1/10W 267Kohm F T R423 1

782 E-00003527 2253247396P RES CHIP 1/10W RC 0603 1/10W 47Kohm J T R424 1

783 E-R-0405-6419 2253247296P RES CHIP 1/10W RC 0603 1/10W 4.7Kohm J T R425 1

784 E-R-0405-6600 2253200096P RES CHIP 1/10W RC 0603 1/10W 0 ohm J T R426 1

785 N/A 2253210396P RES CHIP 1/10W RC 0603 1/10W 10Kohm J T R427 1

786 N/A 2253251296P RES CHIP 1/10W RC 0603 1/10W 5.1Kohm J T R428 1

787 N/A 2253210196P RES CHIP 1/10W RC 0603 1/10W 100 ohm J T R429 1

788 N/A 2253210196P RES CHIP 1/10W RC 0603 1/10W 100 ohm J T R430 1

789 E-R-0405-6419 2253247296P RES CHIP 1/10W RC 0603 1/10W 4.7Kohm J T R445 1

790 E-R-0405-6410 2253210296P RES CHIP 1/10W RC 0603 1/10W 1.0Kohm J T R449 1

791 E-R-0405-6410 2253210296P RES CHIP 1/10W RC 0603 1/10W 1.0Kohm J T R450 1

792 N/A 2253210396P RES CHIP 1/10W RC 0603 1/10W 10Kohm J T R451 1

793 N/A 2253210396P RES CHIP 1/10W RC 0603 1/10W 10Kohm J T R455 1

794 N/A 2253247096P RES CHIP 1/10W RC 0603 1/10W 47 ohm J T R458 1

795 E-R-0405-6602 2253215196P RES CHIP 1/10W RC 0603 1/10W 150 ohm J T R459 1

796 E-R-0405-6602 2253215196P RES CHIP 1/10W RC 0603 1/10W 150 ohm J T R460 1

797 E-R-0405-6410 2253210296P RES CHIP 1/10W RC 0603 1/10W 1.0Kohm J T R461 1

798 E-R-0405-6419 2253247296P RES CHIP 1/10W RC 0603 1/10W 4.7Kohm J T R462 1

799 E-R-0405-6419 2253247296P RES CHIP 1/10W RC 0603 1/10W 4.7Kohm J T R463 1

800 N/A 2253210396P RES CHIP 1/10W RC 0603 1/10W 10Kohm J T R464 1

801 N/A 2253210396P RES CHIP 1/10W RC 0603 1/10W 10Kohm J T R465 1

802 N/A 2253210396P RES CHIP 1/10W RC 0603 1/10W 10Kohm J T R466 1

803 N/A 2253210396P RES CHIP 1/10W RC 0603 1/10W 10Kohm J T R467 1

804 N/A 2253210396P RES CHIP 1/10W RC 0603 1/10W 10Kohm J T R468 1

805 N/A 2253210396P RES CHIP 1/10W RC 0603 1/10W 10Kohm J T R469 1

806 N/A 2253210396P RES CHIP 1/10W RC 0603 1/10W 10Kohm J T R470 1

807 N/A 2253210496P RES CHIP 1/10W RC 0603 1/10W 100Kohm J T R479 1

808 N/A 2253210396P RES CHIP 1/10W RC 0603 1/10W 10Kohm J T R480 1

809 N/A 2253210496P RES CHIP 1/10W RC 0603 1/10W 100Kohm J T R481 1

810 N/A 2253210396P RES CHIP 1/10W RC 0603 1/10W 10Kohm J T R483 1

811 N/A 2253210396P RES CHIP 1/10W RC 0603 1/10W 10Kohm J T R484 1

812 N/A 2253210396P RES CHIP 1/10W RC 0603 1/10W 10Kohm J T R485 1

813 N/A 2253220396P RES CHIP 1/10W RC 0603 1/10W 20Kohm J T R486 1

814 N/A 2253210396P RES CHIP 1/10W RC 0603 1/10W 10Kohm J T R487 1

815 E-00003527 2253247396P RES CHIP 1/10W RC 0603 1/10W 47Kohm J T R489 1

816 E-00003527 2253247396P RES CHIP 1/10W RC 0603 1/10W 47Kohm J T R490 1

817 E-R-0405-6419 2253247296P RES CHIP 1/10W RC 0603 1/10W 4.7Kohm J T R491 1

818 E-R-0405-6600 2253200096P RES CHIP 1/10W RC 0603 1/10W 0 ohm J T R492 1

819 N/A 2253233096P RES CHIP 1/10W RC 0603 1/10W 33 ohm J T R493 1

820 N/A 2253210096P RES CHIP 1/10W RC 0603 1/10W 10 ohm J T R494 1

821 E-R-0405-6419 2253247296P RES CHIP 1/10W RC 0603 1/10W 4.7Kohm J T R503 1

822 E-R-0405-6600 2253200096P RES CHIP 1/10W RC 0603 1/10W 0 ohm J T R504 1

823 E-R-0405-6600 2253200096P RES CHIP 1/10W RC 0603 1/10W 0 ohm J T R505 1

824 N/A 2253210596P RES CHIP 1/10W RC 0603 1/10W 1.0Mohm J T R506 1

825 N/A 2253210496P RES CHIP 1/10W RC 0603 1/10W 100Kohm J T R507 1

826 N/A 2253210596P RES CHIP 1/10W RC 0603 1/10W 1.0Mohm J T R508 1

827 N/A 2253233396P RES CHIP 1/10W RC 0603 1/10W 33Kohm J T R511 1

828 E-R-0405-6600 2253200096P RES CHIP 1/10W RC 0603 1/10W 0 ohm J T R512 1

829 E-R-0405-6600 2253200096P RES CHIP 1/10W RC 0603 1/10W 0 ohm J T R513 1

830 N/A 2253239296P RES CHIP 1/10W RC 0603 1/10W 3.9Kohm J T R515 1

831 N/A 2253220396P RES CHIP 1/10W RC 0603 1/10W 20Kohm J T R516 1

832 N/A 2251236516P RES CHIP 1/10W RC 0603 1/10W 3.65Kohm F T R517 1

833 N/A 2251211516P RES,CHIP 1/10 RC 0603 1/10W 1.15Kohm F T R518 1

834 N/A 2253239296P RES CHIP 1/10W RC 0603 1/10W 3.9Kohm J T R519 1

835 N/A 2253220396P RES CHIP 1/10W RC 0603 1/10W 20Kohm J T R520 1

836 N/A 2251236516P RES CHIP 1/10W RC 0603 1/10W 3.65Kohm F T R521 1

837 N/A 2251211516P RES,CHIP 1/10 RC 0603 1/10W 1.15Kohm F T R522 1

838 E-R-0405-6600 2253200096P RES CHIP 1/10W RC 0603 1/10W 0 ohm J T R523 1

839 E-00003527 2253247396P RES CHIP 1/10W RC 0603 1/10W 47Kohm J T R524 1

840 N/A 2253210396P RES CHIP 1/10W RC 0603 1/10W 10Kohm J T R526 1

841 N/A 2251211006P RES,CHIP 1/10 RC 0603 1/10W 110 ohm F T R527 1

842 E-R-0405-6600 2253200096P RES CHIP 1/10W RC 0603 1/10W 0 ohm J T R533 1

843 E-R-0405-6600 2253200096P RES CHIP 1/10W RC 0603 1/10W 0 ohm J T R534 1

844 E-R-0405-6600 2253200096P RES CHIP 1/10W RC 0603 1/10W 0 ohm J T R535 1

845 E-R-0405-6600 2253200096P RES CHIP 1/10W RC 0603 1/10W 0 ohm J T R536 1

846 E-R-0405-6600 2253200096P RES CHIP 1/10W RC 0603 1/10W 0 ohm J T R537 1

847 E-R-0405-6600 2253200096P RES CHIP 1/10W RC 0603 1/10W 0 ohm J T R538 1

848 E-R-0405-6600 2253200096P RES CHIP 1/10W RC 0603 1/10W 0 ohm J T R801 1

849 E-R-0405-6410 2253210296P RES CHIP 1/10W RC 0603 1/10W 1.0Kohm J T R802 1

850 N/A 2253210496P RES CHIP 1/10W RC 0603 1/10W 100Kohm J T R803 1

851 E-R-0405-6419 2253247296P RES CHIP 1/10W RC 0603 1/10W 4.7Kohm J T R805 1

852 N/A 2253210396P RES CHIP 1/10W RC 0603 1/10W 10Kohm J T R806 1

853 N/A 2253210496P RES CHIP 1/10W RC 0603 1/10W 100Kohm J T R807 1

854 N/A 2253210396P RES CHIP 1/10W RC 0603 1/10W 10Kohm J T R811 1

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

Item ViewSonic P/N Ref. P/N Location Universal number

Q't

Description

855 N/A 2253210396P RES CHIP 1/10W RC 0603 1/10W 10Kohm J T R814 1

856 E-R-0405-6419 2253247296P RES CHIP 1/10W RC 0603 1/10W 4.7Kohm J T R815 1

857 E-R-0405-6600 2253200096P RES CHIP 1/10W RC 0603 1/10W 0 ohm J T R816 1

858 E-R-0405-6419 2253247296P RES CHIP 1/10W RC 0603 1/10W 4.7Kohm J T R817 1

859 N/A 2253210196P RES CHIP 1/10W RC 0603 1/10W 100 ohm J T R818 1

860 N/A 2253210196P RES CHIP 1/10W RC 0603 1/10W 100 ohm J T R819 1

861 N/A 2253210496P RES CHIP 1/10W RC 0603 1/10W 100Kohm J T R820 1

862 N/A 2253222496P RES CHIP 1/10W RC 0603 1/10W 220Kohm J T R821 1

863 E-R-0405-6600 2253200096P RES CHIP 1/10W RC 0603 1/10W 0 ohm J T R823 1

864 E-R-0405-6419 2253247296P RES CHIP 1/10W RC 0603 1/10W 4.7Kohm J T R824 1

865 E-R-0405-6419 2253247296P RES CHIP 1/10W RC 0603 1/10W 4.7Kohm J T R825 1

866 E-R-0405-6419 2253247296P RES CHIP 1/10W RC 0603 1/10W 4.7Kohm J T R826 1

867 E-R-0405-6410 2253210296P RES CHIP 1/10W RC 0603 1/10W 1.0Kohm J T R827 1

868 N/A 2253210596P RES CHIP 1/10W RC 0603 1/10W 1.0Mohm J T R828 1

869 E-R-0405-6419 2253247296P RES CHIP 1/10W RC 0603 1/10W 4.7Kohm J T R829 1

870 E-R-0405-6419 2253247296P RES CHIP 1/10W RC 0603 1/10W 4.7Kohm J T R830 1

871 E-R-0405-6419 2253247296P RES CHIP 1/10W RC 0603 1/10W 4.7Kohm J T R831 1

872 E-R-0405-6419 2253247296P RES CHIP 1/10W RC 0603 1/10W 4.7Kohm J T R832 1

873 E-R-0405-6419 2253247296P RES CHIP 1/10W RC 0603 1/10W 4.7Kohm J T R833 1

874 N/A 2253215296P RES CHIP 1/10W RC 0603 1/10W 1.5Kohm J T R834 1

875 N/A 2253215296P RES CHIP 1/10W RC 0603 1/10W 1.5Kohm J T R835 1

876 E-R-0405-6410 2253210296P RES CHIP 1/10W RC 0603 1/10W 1.0Kohm J T R836 1

877 E-R-0405-6410 2253210296P RES CHIP 1/10W RC 0603 1/10W 1.0Kohm J T R837 1

878 N/A 2253215296P RES CHIP 1/10W RC 0603 1/10W 1.5Kohm J T R838 1

879 N/A 2253215296P RES CHIP 1/10W RC 0603 1/10W 1.5Kohm J T R839 1

880 E-R-0405-6410 2253210296P RES CHIP 1/10W RC 0603 1/10W 1.0Kohm J T R840 1

881 N/A 2253215296P RES CHIP 1/10W RC 0603 1/10W 1.5Kohm J T R841 1

882 N/A 2253215296P RES CHIP 1/10W RC 0603 1/10W 1.5Kohm J T R842 1

883 N/A 2251246416P RES CHIP 1/10W RC 0603 1/10W 4.64Kohm F T R843 1

884 N/A 2251260496P RES,CHIP 1/10 RC 0603 1/10W 60.4 ohm F T R844 1

885 N/A 2253210396P RES CHIP 1/10W RC 0603 1/10W 10Kohm J T R845 1

886 N/A 2253210396P RES CHIP 1/10W RC 0603 1/10W 10Kohm J T R846 1

887 N/A 2253210496P RES CHIP 1/10W RC 0603 1/10W 100Kohm J T R847 1

888 N/A 2253233296P RES CHIP 1/10W RC 0603 1/10W 3.3Kohm J T R848 1

889 N/A 2251217416P RES CHIP 1/10W RC 0603 1/10W 1.74Kohm F T R849 1

890 N/A 2251213016P RES,CHIP 1/10 RC 0603 1/10W 1.3Kohm F T R850 1

891 E-R-0405-6600 2253200096P RES CHIP 1/10W RC 0603 1/10W 0 ohm J T R851 1

892 N/A 2253256196P RES CHIP 1/10W RC 0603 1/10W 560 ohm J T R853 1

893 N/A 2253210396P RES CHIP 1/10W RC 0603 1/10W 10Kohm J T R854 1

894 N/A 2253222396P RES CHIP 1/10W RC 0603 1/10W 22Kohm J T R858 1

895 N/A 2253318196P RES CHIP 1/8W RC 0805 1/8 W 180 ohm J T R859 1

896 E-R-0405-6419 2253247296P RES CHIP 1/10W RC 0603 1/10W 4.7Kohm J T R860 1

897 E-R-0405-6419 2253247296P RES CHIP 1/10W RC 0603 1/10W 4.7Kohm J T R861 1

898 N/A 2253210196P RES CHIP 1/10W RC 0603 1/10W 100 ohm J T R862 1

899 N/A 2253210196P RES CHIP 1/10W RC 0603 1/10W 100 ohm J T R863 1

900 N/A 2253210196P RES CHIP 1/10W RC 0603 1/10W 100 ohm J T R864 1

901 N/A 2253210196P RES CHIP 1/10W RC 0603 1/10W 100 ohm J T R865 1

902 N/A 2253210196P RES CHIP 1/10W RC 0603 1/10W 100 ohm J T R866 1

903 N/A 2253210196P RES CHIP 1/10W RC 0603 1/10W 100 ohm J T R867 1

904 E-R-0405-6600 2253200096P RES CHIP 1/10W RC 0603 1/10W 0 ohm J T R869 1

905 N/A 2202524600P PCB MULTILAYER JC378AB11UA M/B FR4*4 357*150 U101 1

906 N/A 2369104701P XTAL,OSC 27.000MHZ/49US 0.1mW/20pF X100 1

907 N/A 2369502706P XTAL OSC SMD 27.0000MHZ 3.3V/25ppm 5*7 X103 1

908 N/A 2369104001P XTAL,OSC 25.000MHZ/49US 0.1mW/20pF X801 1

909 N/A 2336310713P CAP,MINI ELE 105'C EC 100u/ 16V 6.3*7 P=2.5 T C108 1

910 N/A 2336322791P CAP,MINI ELE 105'C EC 220u/ 16V 8*7 P=5.0 T C110 1

911 E-00000999 2336347613P CAP,MINI ELE 105'C EC 47u/ 16V 5*7 P=2.5 T C111 1

912 N/A 2336310713P CAP,MINI ELE 105'C EC 100u/ 16V 6.3*7 P=2.5 T C113 1

913 N/A 2336310713P CAP,MINI ELE 105'C EC 100u/ 16V 6.3*7 P=2.5 T C115 1

914 E-00000999 2336347613P CAP,MINI ELE 105'C EC 47u/ 16V 5*7 P=2.5 T C119 1

915 N/A 2336310713P CAP,MINI ELE 105'C EC 100u/ 16V 6.3*7 P=2.5 T C120 1

916 N/A 2336310713P CAP,MINI ELE 105'C EC 100u/ 16V 6.3*7 P=2.5 T C121 1

917 N/A 2336322791P CAP,MINI ELE 105'C EC 220u/ 16V 8*7 P=5.0 T C122 1

918 N/A 2336310713P CAP,MINI ELE 105'C EC 100u/ 16V 6.3*7 P=2.5 T C124 1

919 N/A 2336310713P CAP,MINI ELE 105'C EC 100u/ 16V 6.3*7 P=2.5 T C125 1

920 N/A 2336310713P CAP,MINI ELE 105'C EC 100u/ 16V 6.3*7 P=2.5 T C128 1

921 E-00000999 2336347613P CAP,MINI ELE 105'C EC 47u/ 16V 5*7 P=2.5 T C130 1

922 N/A 2336310713P CAP,MINI ELE 105'C EC 100u/ 16V 6.3*7 P=2.5 T C131 1

923 N/A 2336322791P CAP,MINI ELE 105'C EC 220u/ 16V 8*7 P=5.0 T C132 1

924 N/A 2336047713P HI-LIFE LOW ESR E.CAP (4000HR) EC 470u/ 16V 8*12 P=5.0 T C175 1

925 E-00000999 2336347613P CAP,MINI ELE 105'C EC 47u/ 16V 5*7 P=2.5 T C192 1

926 N/A 2336022713P HI-LIFE LOW ESR E.CAP (4000HR) EC 220u/ 16V 8*7 P=5.0 T C193 1

927 N/A 2336310713P CAP,MINI ELE 105'C EC 100u/ 16V 6.3*7 P=2.5 T C210 1

928 N/A 2336022713P HI-LIFE LOW ESR E.CAP (4000HR) EC 220u/ 16V 8*7 P=5.0 T C220 1

929 N/A 2336310713P CAP,MINI ELE 105'C EC 100u/ 16V 6.3*7 P=2.5 T C222 1

930 N/A 2336610613P CAP,MINI ELE 105'C EC 10u/ 50V 5*7 P=2.5 T C238 1

931 N/A 2336610613P CAP,MINI ELE 105'C EC 10u/ 50V 5*7 P=2.5 T C244 1

932 N/A 2336610613P CAP,MINI ELE 105'C EC 10u/ 50V 5*7 P=2.5 T C256 1

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

100

Item ViewSonic P/N Ref. P/N Location Universal number

Q't

Description

933 N/A 2336610613P CAP,MINI ELE 105'C EC 10u/ 50V 5*7 P=2.5 T C270 1

934 N/A 2336310713P CAP,MINI ELE 105'C EC 100u/ 16V 6.3*7 P=2.5 T C271 1

935 N/A 2336610613P CAP,MINI ELE 105'C EC 10u/ 50V 5*7 P=2.5 T C280 1

936 N/A 2336310713P CAP,MINI ELE 105'C EC 100u/ 16V 6.3*7 P=2.5 T C300 1

937 N/A 2333610613P CAP ELE 105'C EC 10u/ 50V 5*11 P=2.5 T C317 1

938 N/A 2336310713P CAP,MINI ELE 105'C EC 100u/ 16V 6.3*7 P=2.5 T C359 1

939 N/A 2336310713P CAP,MINI ELE 105'C EC 100u/ 16V 6.3*7 P=2.5 T C362 1

940 N/A 2336310713P CAP,MINI ELE 105'C EC 100u/ 16V 6.3*7 P=2.5 T C363 1

941 N/A 2336610613P CAP,MINI ELE 105'C EC 10u/ 50V 5*7 P=2.5 T C368 1

942 N/A 2336310713P CAP,MINI ELE 105'C EC 100u/ 16V 6.3*7 P=2.5 T C417 1

943 N/A 2336310713P CAP,MINI ELE 105'C EC 100u/ 16V 6.3*7 P=2.5 T C427 1

944 N/A 2336310713P CAP,MINI ELE 105'C EC 100u/ 16V 6.3*7 P=2.5 T C428 1

945 N/A 2336310713P CAP,MINI ELE 105'C EC 100u/ 16V 6.3*7 P=2.5 T C431 1

946 N/A 2336310713P CAP,MINI ELE 105'C EC 100u/ 16V 6.3*7 P=2.5 T C437 1

947 N/A 2336310713P CAP,MINI ELE 105'C EC 100u/ 16V 6.3*7 P=2.5 T C438 1

948 N/A 2336322791P CAP,MINI ELE 105'C EC 220u/ 16V 8*7 P=5.0 T C450 1

949 N/A 2336310713P CAP,MINI ELE 105'C EC 100u/ 16V 6.3*7 P=2.5 T C516 1

950 N/A 2336310713P CAP,MINI ELE 105'C EC 100u/ 16V 6.3*7 P=2.5 T C537 1

951 N/A 2336610613P CAP,MINI ELE 105'C EC 10u/ 50V 5*7 P=2.5 T C549 1

952 N/A 2336610613P CAP,MINI ELE 105'C EC 10u/ 50V 5*7 P=2.5 T C584 1

953 N/A 2333622613P CAP ELE 105'C EC 22u/ 50V 5*11 P=2.5 T C627 1

954 N/A 2333622613P CAP ELE 105'C EC 22u/ 50V 5*11 P=2.5 T C628 1

955 N/A 2333622613P CAP ELE 105'C EC 22u/ 50V 5*11 P=2.5 T C629 1

956 N/A 2333622613P CAP ELE 105'C EC 22u/ 50V 5*11 P=2.5 T C630 1

957 N/A 2333622613P CAP ELE 105'C EC 22u/ 50V 5*11 P=2.5 T C631 1

958 N/A 2333622613P CAP ELE 105'C EC 22u/ 50V 5*11 P=2.5 T C632 1

959 N/A 2336610613P CAP,MINI ELE 105'C EC 10u/ 50V 5*7 P=2.5 T C634 1

960 N/A 2336610613P CAP,MINI ELE 105'C EC 10u/ 50V 5*7 P=2.5 T C635 1

961 N/A 2336610613P CAP,MINI ELE 105'C EC 10u/ 50V 5*7 P=2.5 T C645 1

962 N/A 2333647513P CAP ELE 105'C EC 4.7u/ 50V 5*11 P=2.5 T C646 1

963 N/A 2336610613P CAP,MINI ELE 105'C EC 10u/ 50V 5*7 P=2.5 T C649 1

964 N/A 2333647513P CAP ELE 105'C EC 4.7u/ 50V 5*11 P=2.5 T C650 1

965 E-00000999 2336347613P CAP,MINI ELE 105'C EC 47u/ 16V 5*7 P=2.5 T C652 1

966 N/A 2336610613P CAP,MINI ELE 105'C EC 10u/ 50V 5*7 P=2.5 T C665 1

967 N/A 2336322791P CAP,MINI ELE 105'C EC 220u/ 16V 8*7 P=5.0 T C669 1

968 E-00000999 2336347613P CAP,MINI ELE 105'C EC 47u/ 16V 5*7 P=2.5 T C671 1

969 E-00000999 2336347613P CAP,MINI ELE 105'C EC 47u/ 16V 5*7 P=2.5 T C673 1

970 N/A 2336610613P CAP,MINI ELE 105'C EC 10u/ 50V 5*7 P=2.5 T C679 1

971 N/A 2333622613P CAP ELE 105'C EC 22u/ 50V 5*11 P=2.5 T C688 1

972 N/A 2333622613P CAP ELE 105'C EC 22u/ 50V 5*11 P=2.5 T C691 1

973 N/A 2336310713P CAP,MINI ELE 105'C EC 100u/ 16V 6.3*7 P=2.5 T C735 1

974 N/A 2336310713P CAP,MINI ELE 105'C EC 100u/ 16V 6.3*7 P=2.5 T C741 1

975 N/A 2335347713P CAP,ELE LOW ESR 105'C EC 470u/ 16V 8*12 P=5.0 T C749 1

976 N/A 2335347713P CAP,ELE LOW ESR 105'C EC 470u/ 16V 8*12 P=5.0 T C750 1

977 N/A 2336022713P HI-LIFE LOW ESR E.CAP (4000HR) EC 220u/ 16V 8*7 P=5.0 T C785 1

978 N/A 2335347713P CAP,ELE LOW ESR 105'C EC 470u/ 16V 8*12 P=5.0 T C803 1

979 N/A 2335347713P CAP,ELE LOW ESR 105'C EC 470u/ 16V 8*12 P=5.0 T C804 1

980 N/A 2333647513P CAP ELE 105'C EC 4.7u/ 50V 5*11 P=2.5 T C805 1

981 N/A 2336610613P CAP,MINI ELE 105'C EC 10u/ 50V 5*7 P=2.5 T C816 1

982 N/A 2336610613P CAP,MINI ELE 105'C EC 10u/ 50V 5*7 P=2.5 T C817 1

983 N/A 2336610613P CAP,MINI ELE 105'C EC 10u/ 50V 5*7 P=2.5 T C820 1

984 N/A 2336610613P CAP,MINI ELE 105'C EC 10u/ 50V 5*7 P=2.5 T C847 1

985 N/A 2336610613P CAP,MINI ELE 105'C EC 10u/ 50V 5*7 P=2.5 T C855 1

986 N/A 2336310713P CAP,MINI ELE 105'C EC 100u/ 16V 6.3*7 P=2.5 T C865 1

987 N/A 2335347713P CAP,ELE LOW ESR 105'C EC 470u/ 16V 8*12 P=5.0 T C882 1

988 N/A 2335347713P CAP,ELE LOW ESR 105'C EC 470u/ 16V 8*12 P=5.0 T C884 1

989 N/A 2335347713P CAP,ELE LOW ESR 105'C EC 470u/ 16V 8*12 P=5.0 T C885 1

990 N/A 2371130101P COIL,CHOKE T50-52 30uH 0.7mm/24Ts L219 1

991 N/A 2371130101P COIL,CHOKE T50-52 30uH 0.7mm/24Ts L227 1

992 N/A 2371130101P COIL,CHOKE T50-52 30uH 0.7mm/24Ts L828 1

993 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C127 1

994 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C139 1

995 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C140 1

996 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C141 1

997 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C142 1

998 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C143 1

999 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C144 1

1000 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C145 1

1001 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C146 1

1002 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C147 1

1003 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C148 1

1004 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C149 1

1005 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C150 1

1006 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C151 1

1007 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C152 1

1008 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C153 1

1009 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C154 1

1010 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C155 1

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

101

Item ViewSonic P/N Ref. P/N Location Universal number

Q't

Description

1011 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C156 1

1012 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C157 1

1013 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C158 1

1014 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C159 1

1015 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C160 1

1016 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C161 1

1017 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C162 1

1018 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C163 1

1019 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C164 1

1020 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C165 1

1021 N/A 2346133296P CAP,CHIP 125'C CS 0603/X7R/50V 3300p K T C166 1

1022 N/A 2346133296P CAP,CHIP 125'C CS 0603/X7R/50V 3300p K T C167 1

1023 N/A 2346133296P CAP,CHIP 125'C CS 0603/X7R/50V 3300p K T C168 1

1024 N/A 2346133296P CAP,CHIP 125'C CS 0603/X7R/50V 3300p K T C169 1

1025 N/A 2346133296P CAP,CHIP 125'C CS 0603/X7R/50V 3300p K T C170 1

1026 N/A 2346133296P CAP,CHIP 125'C CS 0603/X7R/50V 3300p K T C171 1

1027 N/A 2346133296P CAP,CHIP 125'C CS 0603/X7R/50V 3300p K T C172 1

1028 N/A 2346133296P CAP,CHIP 125'C CS 0603/X7R/50V 3300p K T C173 1

1029 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C174 1

1030 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C176 1

1031 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C177 1

1032 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C178 1

1033 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C179 1

1034 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C180 1

1035 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C181 1

1036 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C182 1

1037 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C183 1

1038 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C184 1

1039 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C185 1

1040 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C186 1

1041 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C187 1

1042 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C188 1

1043 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C189 1

1044 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C190 1

1045 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C191 1

1046 N/A 2347710696P CAP,CHIP 85'C CS 0805/Y5V/10V 10u Z T C194 1

1047 N/A 2346133296P CAP,CHIP 125'C CS 0603/X7R/50V 3300p K T C196 1

1048 N/A 2346133296P CAP,CHIP 125'C CS 0603/X7R/50V 3300p K T C197 1

1049 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C198 1

1050 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C199 1

1051 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C200 1

1052 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C201 1

1053 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C202 1

1054 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C204 1

1055 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C205 1

1056 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C206 1

1057 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C207 1

1058 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C208 1

1059 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C209 1

1060 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C214 1

1061 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C216 1

1062 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C217 1

1063 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C218 1

1064 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C224 1

1065 N/A 2347710696P CAP,CHIP 85'C CS 0805/Y5V/10V 10u Z T C225 1

1066 N/A 2347647596P CAP,CHIP 85'C CS 0805/Y5V/16V 4.7u Z T C229 1

1067 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C230 1

1068 N/A 2347647596P CAP,CHIP 85'C CS 0805/Y5V/16V 4.7u Z T C232 1

1069 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C233 1

1070 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C235 1

1071 N/A 2347647596P CAP,CHIP 85'C CS 0805/Y5V/16V 4.7u Z T C236 1

1072 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C237 1

1073 N/A 2347647596P CAP,CHIP 85'C CS 0805/Y5V/16V 4.7u Z T C240 1

1074 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C241 1

1075 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C242 1

1076 N/A 2347647596P CAP,CHIP 85'C CS 0805/Y5V/16V 4.7u Z T C246 1

1077 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C247 1

1078 N/A 2347647596P CAP,CHIP 85'C CS 0805/Y5V/16V 4.7u Z T C254 1

1079 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C255 1

1080 N/A 2347647596P CAP,CHIP 85'C CS 0805/Y5V/16V 4.7u Z T C258 1

1081 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C259 1

1082 N/A 2347647596P CAP,CHIP 85'C CS 0805/Y5V/16V 4.7u Z T C260 1

1083 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C261 1

1084 N/A 2347647596P CAP,CHIP 85'C CS 0805/Y5V/16V 4.7u Z T C262 1

1085 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C263 1

1086 N/A 2347647596P CAP,CHIP 85'C CS 0805/Y5V/16V 4.7u Z T C266 1

1087 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C267 1

1088 N/A 2347647596P CAP,CHIP 85'C CS 0805/Y5V/16V 4.7u Z T C268 1

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

102

Item ViewSonic P/N Ref. P/N Location Universal number

Q't

Description

1089 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C269 1

1090 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C273 1

1091 N/A 2347647596P CAP,CHIP 85'C CS 0805/Y5V/16V 4.7u Z T C276 1

1092 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C277 1

1093 N/A 2347710696P CAP,CHIP 85'C CS 0805/Y5V/10V 10u Z T C278 1

1094 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C283 1

1095 N/A 2347647596P CAP,CHIP 85'C CS 0805/Y5V/16V 4.7u Z T C284 1

1096 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C285 1

1097 N/A 2346133296P CAP,CHIP 125'C CS 0603/X7R/50V 3300p K T C288 1

1098 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C289 1

1099 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C290 1

1100 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C291 1

1101 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C292 1

1102 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C293 1

1103 E-C-0404-4424 2346110396P CAP,CHIP 125'C CS 0603/X7R/50V 0.01u K T C294 1

1104 N/A 2346133296P CAP,CHIP 125'C CS 0603/X7R/50V 3300p K T C295 1

1105 N/A 2346133296P CAP,CHIP 125'C CS 0603/X7R/50V 3300p K T C296 1

1106 N/A 2346133296P CAP,CHIP 125'C CS 0603/X7R/50V 3300p K T C297 1

1107 N/A 2346133296P CAP,CHIP 125'C CS 0603/X7R/50V 3300p K T C298 1

1108 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C301 1

1109 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C302 1

1110 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C303 1

1111 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C360 1

1112 N/A 2341110296P CAP,CHIP 125'C CS 0603/COG/50V 1000p J T C361 1

1113 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C366 1

1114 N/A 2341110296P CAP,CHIP 125'C CS 0603/COG/50V 1000p J T C367 1

1115 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C369 1

1116 N/A 2341110296P CAP,CHIP 125'C CS 0603/COG/50V 1000p J T C370 1

1117 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C371 1

1118 N/A 2341110296P CAP,CHIP 125'C CS 0603/COG/50V 1000p J T C372 1

1119 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C373 1

1120 N/A 2341110296P CAP,CHIP 125'C CS 0603/COG/50V 1000p J T C374 1

1121 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C375 1

1122 N/A 2341110296P CAP,CHIP 125'C CS 0603/COG/50V 1000p J T C376 1

1123 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C377 1

1124 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C379 1

1125 N/A 2341110296P CAP,CHIP 125'C CS 0603/COG/50V 1000p J T C380 1

1126 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C381 1

1127 N/A 2341110296P CAP,CHIP 125'C CS 0603/COG/50V 1000p J T C382 1

1128 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C383 1

1129 N/A 2341110296P CAP,CHIP 125'C CS 0603/COG/50V 1000p J T C384 1

1130 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C385 1

1131 N/A 2341110296P CAP,CHIP 125'C CS 0603/COG/50V 1000p J T C386 1

1132 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C387 1

1133 N/A 2341110296P CAP,CHIP 125'C CS 0603/COG/50V 1000p J T C388 1

1134 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C389 1

1135 N/A 2341110296P CAP,CHIP 125'C CS 0603/COG/50V 1000p J T C390 1

1136 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C391 1

1137 N/A 2341110296P CAP,CHIP 125'C CS 0603/COG/50V 1000p J T C392 1

1138 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C393 1

1139 N/A 2341110296P CAP,CHIP 125'C CS 0603/COG/50V 1000p J T C394 1

1140 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C395 1

1141 N/A 2341110296P CAP,CHIP 125'C CS 0603/COG/50V 1000p J T C396 1

1142 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C397 1

1143 N/A 2341110296P CAP,CHIP 125'C CS 0603/COG/50V 1000p J T C398 1

1144 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C399 1

1145 N/A 2341110296P CAP,CHIP 125'C CS 0603/COG/50V 1000p J T C400 1

1146 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C402 1

1147 N/A 2341110296P CAP,CHIP 125'C CS 0603/COG/50V 1000p J T C403 1

1148 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C404 1

1149 N/A 2341110296P CAP,CHIP 125'C CS 0603/COG/50V 1000p J T C405 1

1150 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C406 1

1151 N/A 2341110296P CAP,CHIP 125'C CS 0603/COG/50V 1000p J T C407 1

1152 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C408 1

1153 N/A 2341110296P CAP,CHIP 125'C CS 0603/COG/50V 1000p J T C409 1

1154 N/A 2346110396P CAP,CHIP 125'C CS 0603/X7R/50V 0.01u K T C411 1

1155 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C494 1

1156 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C495 1

1157 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C496 1

1158 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C497 1

1159 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C498 1

1160 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C499 1

1161 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C500 1

1162 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C501 1

1163 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C502 1

1164 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C503 1

1165 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C504 1

1166 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C505 1

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

103

Item ViewSonic P/N Ref. P/N Location Universal number

Q't

Description

1167 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C506 1

1168 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C507 1

1169 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C508 1

1170 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C509 1

1171 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C510 1

1172 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C511 1

1173 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C512 1

1174 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C513 1

1175 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C514 1

1176 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C515 1

1177 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C517 1

1178 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C518 1

1179 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C519 1

1180 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C520 1

1181 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C521 1

1182 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C522 1

1183 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C523 1

1184 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C524 1

1185 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C525 1

1186 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C526 1

1187 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C527 1

1188 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C528 1

1189 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C529 1

1190 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C530 1

1191 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C531 1

1192 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C532 1

1193 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C533 1

1194 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C534 1

1195 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C535 1

1196 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C536 1

1197 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C538 1

1198 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C539 1

1199 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C540 1

1200 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C541 1

1201 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C542 1

1202 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C543 1

1203 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C544 1

1204 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C545 1

1205 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C546 1

1206 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C547 1

1207 N/A 2346156296P CAP,CHIP 125'C CS 0603/X7R/50V 5600p K T C552 1

1208 N/A 2346115296P CAP,CHIP 125'C CS 0603/X7R/50V 1500p K T C557 1

1209 N/A 2346115296P CAP,CHIP 125'C CS 0603/X7R/50V 1500p K T C558 1

1210 N/A 2347647596P CAP,CHIP 85'C CS 0805/Y5V/16V 4.7u Z T C560 1

1211 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C561 1

1212 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C562 1

1213 N/A 2347647596P CAP,CHIP 85'C CS 0805/Y5V/16V 4.7u Z T C563 1

1214 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C564 1

1215 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C565 1

1216 N/A 2347647596P CAP,CHIP 85'C CS 0805/Y5V/16V 4.7u Z T C566 1

1217 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C567 1

1218 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C568 1

1219 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C569 1

1220 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C570 1

1221 N/A 2347647596P CAP,CHIP 85'C CS 0805/Y5V/16V 4.7u Z T C572 1

1222 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C573 1

1223 N/A 2347647596P CAP,CHIP 85'C CS 0805/Y5V/16V 4.7u Z T C574 1

1224 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C575 1

1225 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C576 1

1226 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C577 1

1227 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C578 1

1228 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C579 1

1229 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C580 1

1230 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C581 1

1231 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C582 1

1232 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C583 1

1233 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C586 1

1234 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C587 1

1235 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C589 1

1236 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C590 1

1237 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C591 1

1238 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C592 1

1239 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C593 1

1240 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C594 1

1241 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C595 1

1242 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C596 1

1243 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C597 1

1244 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C598 1

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

104

Item ViewSonic P/N Ref. P/N Location Universal number

Q't

Description

1245 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C600 1

1246 N/A 2347647596P CAP,CHIP 85'C CS 0805/Y5V/16V 4.7u Z T C601 1

1247 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C602 1

1248 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C603 1

1249 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C604 1

1250 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C606 1

1251 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C607 1

1252 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C666 1

1253 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C675 1

1254 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C676 1

1255 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C677 1

1256 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C680 1

1257 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C682 1

1258 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C683 1

1259 N/A 2346110496P CAP,CHIP 125'C CS 0603/X7R/50V 0.1u K T C684 1

1260 N/A 2346110396P CAP,CHIP 125'C CS 0603/X7R/50V 0.01u K T C866 1

1261 N/A 2346110396P CAP,CHIP 125'C CS 0603/X7R/50V 0.01u K T C867 1

1262 N/A 2346110396P CAP,CHIP 125'C CS 0603/X7R/50V 0.01u K T C868 1

1263 N/A 2346110396P CAP,CHIP 125'C CS 0603/X7R/50V 0.01u K T C869 1

1264 N/A 2346110396P CAP,CHIP 125'C CS 0603/X7R/50V 0.01u K T C870 1

1265 N/A 2346110396P CAP,CHIP 125'C CS 0603/X7R/50V 0.01u K T C871 1

1266 N/A 2346110396P CAP,CHIP 125'C CS 0603/X7R/50V 0.01u K T C872 1

1267 N/A 2346110396P CAP,CHIP 125'C CS 0603/X7R/50V 0.01u K T C873 1

1268 N/A 2346110396P CAP,CHIP 125'C CS 0603/X7R/50V 0.01u K T C874 1

1269 N/A 2346110396P CAP,CHIP 125'C CS 0603/X7R/50V 0.01u K T C875 1

1270 N/A 2346110396P CAP,CHIP 125'C CS 0603/X7R/50V 0.01u K T C876 1

1271 N/A 2346110396P CAP,CHIP 125'C CS 0603/X7R/50V 0.01u K T C877 1

1272 N/A 2364302496P DIODE,SCHOTTKY(SMD) SM17 DO-214AC MOSPEC D821 1

1273 N/A 2364302496P DIODE,SCHOTTKY(SMD) SM17 DO-214AC MOSPEC D822 1

1274 N/A 2364302496P DIODE,SCHOTTKY(SMD) SM17 DO-214AC MOSPEC D823 1

1275 N/A 2364302496P DIODE,SCHOTTKY(SMD) SM17 DO-214AC MOSPEC D824 1

1276 N/A 2364302496P DIODE,SCHOTTKY(SMD) SM17 DO-214AC MOSPEC D825 1

1277 N/A 2364302496P DIODE,SCHOTTKY(SMD) SM17 DO-214AC MOSPEC D826 1

1278 N/A 2379512106P BEAD,HI-CURRENT Z= 120 ohm 0603 I=3.0A L144 1

1279 E-R-0405-6600 2253200096P RES CHIP 1/10W RC 0603 1/10W 0 ohm J T R213 1

1280 E-R-0405-6600 2253200096P RES CHIP 1/10W RC 0603 1/10W 0 ohm J T R219 1

1281 N/A 2253247096P RES CHIP 1/10W RC 0603 1/10W 47 ohm J T R262 1

1282 N/A 2253247096P RES CHIP 1/10W RC 0603 1/10W 47 ohm J T R276 1

1283 N/A 2253247096P RES CHIP 1/10W RC 0603 1/10W 47 ohm J T R278 1

1284 E-R-0405-6419 2253247296P RES CHIP 1/10W RC 0603 1/10W 4.7Kohm J T R317 1

1285 E-R-0405-6419 2253247296P RES CHIP 1/10W RC 0603 1/10W 4.7Kohm J T R318 1

1286 E-R-0405-7116 2253400096P RES CHIP 1/4W RC 1206 1/4 W 0 ohm J T R870 1

1287 E-C-0404-3096 2335310812P CAP,ELE LOW ESR 105'C EC 1000u/ 16V 10*20 P=5.0 K C105 1

1288 E-C-0404-3096 2335310812P CAP,ELE LOW ESR 105'C EC 1000u/ 16V 10*20 P=5.0 K C106 1

1289 N/A 2336347611P CAP,MINI ELE 105'C EC 47u/ 16V 5*7 P=2.0 C C117 1

1290 N/A 2336310701P CAP,MINI ELE105'C EC 100u/ 16V 6.3*7 P=2.5 C C118 1

1291 E-C-0404-3096 2335310812P CAP,ELE LOW ESR 105'C EC 1000u/ 16V 10*20 P=5.0 K C212 1

1292 N/A 2336310711P CAP,MINI ELE 105'C EC 100u/ 16V 6.3*7 P=2.5 C C219 1

1293 N/A 2336610611P CAP,MINI ELE 105'C EC 10u/ 50V 5*7 P=2.0 C C226 1

1294 N/A 2336610611P CAP,MINI ELE 105'C EC 10u/ 50V 5*7 P=2.0 C C227 1

1295 N/A 2336347611P CAP,MINI ELE 105'C EC 47u/ 16V 5*7 P=2.0 C C234 1

1296 N/A 2336610611P CAP,MINI ELE 105'C EC 10u/ 50V 5*7 P=2.0 C C252 1

1297 N/A 2336610611P CAP,MINI ELE 105'C EC 10u/ 50V 5*7 P=2.0 C C264 1

1298 N/A 2336610611P CAP,MINI ELE 105'C EC 10u/ 50V 5*7 P=2.0 C C274 1

1299 N/A 2336310711P CAP,MINI ELE 105'C EC 100u/ 16V 6.3*7 P=2.5 C C281 1

1300 N/A 2336610611P CAP,MINI ELE 105'C EC 10u/ 50V 5*7 P=2.0 C C358 1

1301 N/A 2336610611P CAP,MINI ELE 105'C EC 10u/ 50V 5*7 P=2.0 C C365 1

1302 N/A 2336347611P CAP,MINI ELE 105'C EC 47u/ 16V 5*7 P=2.0 C C448 1

1303 N/A 2336347611P CAP,MINI ELE 105'C EC 47u/ 16V 5*7 P=2.0 C C449 1

1304 N/A 2336022711P HI-LIFE LOW ESR ELE CAP EC 220u/ 16V 8*7 P=3.5 C C490 1

1305 N/A 2336347611P CAP,MINI ELE 105'C EC 47u/ 16V 5*7 P=2.0 C C492 1

1306 N/A 2336610611P CAP,MINI ELE 105'C EC 10u/ 50V 5*7 P=2.0 C C559 1

1307 N/A 2336610611P CAP,MINI ELE 105'C EC 10u/ 50V 5*7 P=2.0 C C571 1

1308 N/A 2336610611P CAP,MINI ELE 105'C EC 10u/ 50V 5*7 P=2.0 C C686 1

1309 N/A 2336347611P CAP,MINI ELE 105'C EC 47u/ 16V 5*7 P=2.0 C C727 1

1310 E-C-0404-3096 2335310812P CAP,ELE LOW ESR 105'C EC 1000u/ 16V 10*20 P=5.0 K C737 1

1311 N/A 2336347611P CAP,MINI ELE 105'C EC 47u/ 16V 5*7 P=2.0 C C802 1

1312 N/A 2336610611P CAP,MINI ELE 105'C EC 10u/ 50V 5*7 P=2.0 C C836 1

1313 N/A 2336347611P CAP,MINI ELE 105'C EC 47u/ 16V 5*7 P=2.0 C C863 1

1314 N/A 2336310711P CAP,MINI ELE 105'C EC 100u/ 16V 6.3*7 P=2.5 C C886 1

1315 E-00008040 2365104000P MEMORY IC 24LC22A-I/P PDIP-8 MICROCHIP I116 1

1316 N/A 2365412600P DIGITAL IC 24LC21A/P PSDIP-8 MICROCHIP I133 1

1317 N/A 2365328600P LINEAR IC AT24C16A-10PI-2.7 PDIP-8 ATMEL I144 RA 1

1318 N/A 2365316200P LINEAR IC 24LC16B-I/PG DIP-8 MICROCHIP I144 RB 1

1319 N/A 2413103600P RELAY,DC G6Y-1 5VDC OMRON I801 1

1320 N/A 2416903000P UV TUNER DTVS205CH201A SAMSUNG I804 1

1321 E-00008040 2365104000P MEMORY IC 24LC22A-I/P PDIP-8 MICROCHIP I811 1

1322 E-00008040 2365104000P MEMORY IC 24LC22A-I/P PDIP-8 MICROCHIP I812 1

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

105

Item ViewSonic P/N Ref. P/N Location Universal number

Q't

Description

1323 N/A 2438000001P SOFTWARE HDCP KEY CODE KC01 1

1324 N/A 2371147101P COIL,CHOKE 47uH L121 1

1325 N/A 2371147101P COIL,CHOKE 47uH L123 1

1326 N/A 2405322201P RCA JACK 2*2P (4P BLU/YEL/RED/GRN) P101 1

1327 N/A 2405324201P RCA JACK 2*2P (WHITE/RED) P102 1

1328 N/A 2407442900P SOCKET MINI DIN 4P SIDE BLACK P103 1

1329 N/A 2407430900P SOCKET DHSB-15FTF7 BLUE(661C) LEOCO P106 1

1330 N/A 2405106000P EARPHONE JACK 2SJ-P520-A04 (577C) SINGATRON P107 1

1331 N/A 2405322202P RCA JACK RCA JACK 2P (WHT/RED) P108 1

1332 N/A 2404300003P CONNECTOR JST XH 4P TOP P=2.5 OR EQUAL P109 1

1333 N/A 2405105900P EARPHONE JACK ERR 3.5∮ SIDE 284C(BLUE) P110 1

1334 N/A 2404301107P CONNECTOR JST PH 8P SIDE P=2.0 OR EQUAL P112 1

1335 N/A 2404301106P CONNECTOR JST PH 7P SIDE P=2.0 OR EQUAL P113 1

1336 N/A 2405900100P OTHERS JACK (OPTICAL) 2OJ-0104-001 SINGATRON P116 1

1337 N/A 2405800400P RF PLUG F-C056 CRF P802 1

1338 N/A 2404312130P CONNECTOR 2R1L TOP P=2.0mm 2046P**V*** P803 1

1339 N/A 2404301111P CONNECTOR JST PH 12P SIDE P=2.0 OR EQUAL P804 1

1340 N/A 2404301110P CONNECTOR JST PH 11P SIDE P=2.0 OR EQUAL P805 1

1341 N/A 2405800400P RF PLUG F-C056 CRF P807 1

1342 N/A 2405800400P RF PLUG F-C056 CRF P808 1

1343 N/A 2072259900P HEAT SINK AL 6063 T5 11*11*10(H) 9H01 1

1344 N/A 2072257200P HEAT SINK JP166K AL28*28*8H 9H02 1

1345 N/A 2404301106P CONNECTOR JST PH 7P SIDE P=2.0 OR EQUAL P701 1

1346 M-SW-0815-0182 2403702200P TACT SWITCH TSAA-2 HUAJIE S702 1

1347 M-SW-0815-0182 2403702200P TACT SWITCH TSAA-2 HUAJIE S703 1

1348 M-SW-0815-0182 2403702200P TACT SWITCH TSAA-2 HUAJIE S704 1

1349 M-SW-0815-0182 2403702200P TACT SWITCH TSAA-2 HUAJIE S705 1

1350 M-SW-0815-0182 2403702200P TACT SWITCH TSAA-2 HUAJIE S706 1

1351 M-SW-0815-0182 2403702200P TACT SWITCH TSAA-2 HUAJIE S707 1

1352 N/A 2202129800P PC BOARD JC278 KEY/B CEM1 120*20 V1.00 U701 1

1353 N/A 2363705101P LED L-3WEGW KINGBRIGHT D721 1

1354 N/A 2419301400P RECEIV BLOCK ECM-A38-3VS28 ECEL I721 1

1355 M-MS-0808-6354 2404301105P CONNECTOR JST PH 6P SIDE P=2.0 OR EQUAL P711 1

1356 M-SW-0815-0182 2403702200P TACT SWITCH TSAA-2 HUAJIE S721 1

1357 N/A 2202129901P PC BOARD JC278 IR/B CEM1 54*53 V2.01 U702 1

1358 B-00006605 2200237018P PC BOARD ASS'Y FSP271-5F01 SPI U801 RA 1

1359 B-00008058 2200237015P PC BOARD ASS'Y DARFON U801 RB 1

1360 B-00008088 2200237017P PC BOARD ASS'Y LIENCHEN U801 RC 1

1361 N/A 2024271102P FRONT BEZEL JC378UB HDMI ABS94HB BLACK 1F01 1

1362 N/A 2054257003P ORNAMENT JC378EC FRONT BAR 94HB BLACK C 1F02 1

1363 N/A 2031151400P DOOR PANEL VE800 PVC 15*8mm t=0.6mm 1F03 1

1364 N/A 2053754201P LED INDIC.-PWR JC278UB PMMA LIMPID 1F04 1

1365 N/A 2044266901P FUNCTION KEY JC278UB ABS 94V0 AL-PLATE PWR 1F06 1

1366 N/A 2051355700P NAME PLATE 57*9.1MM ELECTOR LABEL N3251W 1F08 1

1367 N/A 2427430034P WIRE HARNESS 30/30P H/H 1571#28 L=400mm P507 1

1368 N/A 2427414011P WIRE HARNESS 10/14P H/H 1061#26 L=210mm P508 1

1369 N/A 2427411003P WIRE HARNESS 11/11P H/H 1007#24 L=150mm P509 1

1370 N/A 2427412012P WIRE HARNESS 12/12P H/H 1007#24 L=150mm P510 1

1371 N/A 2427704061P CABLE F/F RG-179 L=600mm P511 1

1372 N/A 2427404025P WIRE HARNESS 4/2+2P H/A 1007#24 L=820mm P605 1

1373 N/A 2427408014P WIRE HARNESS 6/8P H/H 1007#26 L=550mm P712 1

1374 N/A 2427407009P WIRE HARNESS 7/7P H/H 1007#26 L=480mm P713 1

1375 N/A 2407002100P SOCKET,ASSY INLET/5P L=240/60mm P801 1

1376 E-00006614 2212009900P LCD PANEL CLAA370WA-02 CPT V901 1

1377 N/A 2071978100P METAL FITTG JC378EC CPT WA02 TOP SECC1.0T 5F01 1

1378 N/A 2082740082P SCREW,BND+ M4X8(BND+) 5F02 5

1379 N/A 2071978100P METAL FITTG JC378EC CPT WA02 TOP SECC1.0T 5F03 1

1380 N/A 2082740082P SCREW,BND+ M4X8(BND+) 5F04 5

1381 N/A 2071978200P METAL FITTG JC378EC CPT WA02 SIDE SECC1.0T 5F05 1

1382 N/A 2082740082P SCREW,BND+ M4X8(BND+) 5F06 4

1383 N/A 2081440082P SCREW,(WASH) M4X8 P=0.7(TOOTH WASHER) 5F07 2

1384 N/A 2071978200P METAL FITTG JC378EC CPT WA02 SIDE SECC1.0T 5F08 1

1385 N/A 2082740082P SCREW,BND+ M4X8(BND+) 5F09 4

1386 N/A 2081440082P SCREW,(WASH) M4X8 P=0.7(TOOTH WASHER) 5F10 2

1387 N/A 2071878000P BRACKET,FIX JC378EC FRAME VERT SECC1.0T 5F11 3

1388 N/A 2081440082P SCREW,(WASH) M4X8 P=0.7(TOOTH WASHER) 5F12 3

1389 N/A 2071877900P BRACKET,FIX JC378EC FRAME HORI SECC1.0T 5F13 2

1390 N/A 2071879600P BRACKET,FIX JC378EC FRAME SUB VERT SECC0.8 5F14 2

1391 N/A 2071881600P BRACKET,FIX JC378EC POWER PCB(V) SECC 0.8T 5F15 1

1392 N/A 2081440082P SCREW,(WASH) M4X8 P=0.7(TOOTH WASHER) 5F16 6

1393 N/A 2071675900P SHIELD PLATE JC378EC PCB BOTTOM SPTE 0.3T 5F17 1

1394 N/A 2072052100P METAL FITTG-I/O JC378EC SECC1.0T AMERICA DIGIT 5F18 1

1395 N/A 2082630062P SCREW M3X6 P=0.5 5F19 6

1396 N/A 2081440082P SCREW,(WASH) M4X8 P=0.7(TOOTH WASHER) 5F20 8

1397 N/A 2082630062P SCREW M3X6 P=0.5 5F21 3

1398 M-SCW-0824-0285 2084730082P SCREW,BND T+ M3X8(BND T+) 5F22 3

1399 M-SCW-0824-0811 2080003700P SCREW,SPE ISZZTER001A M3*6L MSWR17/FZMYI 5F23 1

1400 E-00008039 2391310062P SPEAKER ASS'Y 10W/6ohm L228*W65*H77mm D.L W901 2

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

106

Item ViewSonic P/N Ref. P/N Location Universal number

Q't

Description

1401 M-SCW-0824-0123 2084740102P SCREW,BND T+ M4X10(BND T+) 6F01 12

1402 C-00006611 2027262402P DUST COVER JC378EC KEY ABS94HB BLACK 6F02 1

1403 N/A 2044266601P FUNCTION KEY JC278 ABS 94V0 AL-PLATE FUNCTI 6F03 1

1404 M-SCW-0824-0812 2084730062P SCREW,BND T+ M3X6(BND T+) 6F04 2

1405 N/A 2082630062P SCREW M3X6 P=0.5 6F05 2

1406 M-SCW-0824-0812 2084730062P SCREW,BND T+ M3X6(BND T+) 6F06 4

1407 N/A 2071879801P BRACKET,FIX JC378EC MAIN PCB SECC0.8T A.D 6F07 1

1408 N/A 2082630062P SCREW M3X6 P=0.5 6F08 2

1409 M-SCW-0824-0811 2080003700P SCREW,SPE ISZZTER001A M3*6L MSWR17/FZMYI 6F09 4

1410 M-SCW-0824-0811 2080003700P SCREW,SPE ISZZTER001A M3*6L MSWR17/FZMYI 6F10 2

1411 N/A 2071879900P BRACKET,FIX JC378EC POWER PCB (T) SECC0.8T 6F11 1

1412 N/A 2082630062P SCREW M3X6 P=0.5 6F12 2

1413 N/A 2071880000P BRACKET,FIX JC378EC POWER PCB (B) SECC0.8T 6F13 1

1414 M-SCW-0824-0811 2080003700P SCREW,SPE ISZZTER001A M3*6L MSWR17/FZMYI 6F14 2

1415 M-SCW-0824-0811 2080003700P SCREW,SPE ISZZTER001A M3*6L MSWR17/FZMYI 6F15 6

1416 N/A 2083630068P SCREW FMS+ M3X6,M,S-TITE,F,NI 6F16 2

1417 N/A 2080006900P SCREW,SPE M4*10MM P TYPE:9.1MM 6F28 4

1418 N/A 2080006900P SCREW,SPE M4*10MM P TYPE:9.1MM 6F30 4

1419 N/A 2071977000P METAL FITTG JC378EC VESA SUPPORT SECC 1.0T 6F31 1

1420 N/A 2082630062P SCREW M3X6 P=0.5 6F32 20

1421 N/A 2071879700P BRACKET,FIX JC378EC STAND SUPPORT SECC2.0T 6F33 1

1422 N/A 2081440082P SCREW,(WASH) M4X8 P=0.7(TOOTH WASHER) 6F34 2

1423 N/A 2081440082P SCREW,(WASH) M4X8 P=0.7(TOOTH WASHER) 6F35 3

1424 M-SCW-0824-0123 2084740102P SCREW,BND T+ M4X10(BND T+) 6F36 6

1425 N/A 2081440082P SCREW,(WASH) M4X8 P=0.7(TOOTH WASHER) 6F37 1

1426 C-00008082 2022265104P CABI BACK JC378EC UA DIGIT 94HB BLACK 2C01 1

1427 N/A 2055636069P LABEL N3752W VS11405-1M SMALL LABEL 6P05 1

1428 M-LB-0813-0530 2055617101P LABEL 10*20 HI-POT TESTED OK 6P13 1

1429 N/A 2055135189P LABEL N3752W VS11405-1M USA CPT 6P50 1

1430 PL-00008027 2028260602P STAND JC378UB ABS94HB BLACK 5B01 1

1431 N/A 2071871701P BRACKET,FIX AL-BLACK ARM 5B02 1

1432 HW-00008018 2071882200P BRACKET,FIX JC378UB STAND SECC 2.0T 5B03 1

1433 N/A 2082340102P SCREW,CSK+ SCREW F M4X10 (CSK+) 5B04 4

1434 N/A 2084740082P SCREW,BND T+ M4X8(BND T+) 5B05 12

1435 N/A 2039819901P FOOT PAD RUBBERφ16*2.0+ SQUARE GRAIN 5B06 8

1436 N/A 2054257101P ORNAMENT JC378UB BASE(L) 94HB AL-PLATE 5B07 1

1437 N/A 2054257201P ORNAMENT JC378UB BASE(R) 94HB AL-PLATE 5B08 1

1438 N/A 2081440084P SCREW,(WASH) M4*8 P=0.7(TOOTH WASHER) BLACK 6B01 4

1439 N/A 2082340102P SCREW,CSK+ SCREW F M4X10 (CSK+) 6B02 6

1440 N/A 2080005900P SCREW,SPE M6*10MM TYPE"I" BLACK ZN 6B03 6

1441 N/A 2084740104P SCREW,BND T+ M4X10(BND T+) (BLK) 6B04 2

1442 C-00006612 2027262502P DUST COVER JC378EC I/O ABS94HB BLACK 6B05 1

1443 N/A 2082750402P SCREW,BND+ M5X40,M,P,ZN-CC 6B06 4

1444 N/A 2005100400P BATTERY,DRY R6PGS 1.5V (AA) CHINA TOSHIBA B901 2

1445 A-00008027 2419200105P CONT BLOCK N3751W UBRC-120 SMK H901 1

1446 A-00005362 2427130046P AC POWER CORD USA WALL 1.83M BLACK P951 1

1447 A-VC-0101-0386 2427501187P I/O CABLE D15/D15 20276(3+6) 1.83M BLACK P961 RA 1

1448 CB-00005507 2427501195P I/O CABLE D15/D15 20276(4.5) 1.83M BLACK P961 RB 1

1449 CB-00003425 2427701893P CABLE RCA 3P(Y/R/W) 2562#26 1.8M BLK P965 1

1450 DC-00008104 2001131664P OWNER GUIDE N3752W-1M VS11405-1M USA 6P80 1

1451 DC-00008105 2002310614P GUARANT CARD VIEWSONIC N3752W (M) QSG 6P81 1

1452 P-00004497 2011100017P CARTON BOX 360X220X50mm (WXDXH) BOX(B) 6P85 1

1453 P-00008064 2013228807P POLYETHY BAG 200X350X0.03T mm LDPE B5 6P86 1

1454 P-00008102 2011137020P CARTON BOX VIEWSONIC N3752W VS11405-1M 6P01 1

1455 N/A 2055632240P LABEL N3752W VS11405-1M (M) CPT 6P02 1

1456 N/A 2055613503P LABEL VIEWSONIC POP STICKER 406.5X34 6P03 1

1457 N/A 2055613508P LABEL DOLBY/HDMI STICKER 50*8MM 6P04 1

1458 N/A 2055613379P LABEL VIEWSONIC CONTAINER LABEL 6P11 1/6

1459 M-LB-0813-0959 2055613392P LABEL VSC HIGH VOLTAGE WARNING LABEL 6P14 1

1460 P-00006616 2012186100P POLYFOAM JC378EC EPE (T.L) 6P20 1

1461 P-00006617 2012186200P POLYFOAM JC378EC EPE (T.R) 6P21 1

1462 P-00006618 2012186300P POLYFOAM JC378EC EPE (B.L) 6P22 1

1463 P-00006619 2012186400P POLYFOAM JC378EC EPE (B.R) 6P23 1

1464 N/A 2063302500P PROTECTOR 873*513*0.09MM JC378 6P30 1

1465 P-00008063 2013054002P POLYETHY BAG 1150X800mm HDPE 6P60 1

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

107

* Reader’s Response*

Dear Readers:

Thank you in advance for your feedback on our Service Manual, which allows continuous improvement

of our products. We would appreciate your completion of the Assessment Matrix below, for return to

ViewSonic Corporation.

Assessment

A. What do you think about the content of this Service Manual?

Unit Excellent Good Fair Bad

1. Precautions and Safety Notices

2. Specification

3. Front Panel Function Control Description

4. Circuit Description

5. Adjustment Procedure

6. Trouble Shooting Flow Chart

7. Block Diagram

8. Schematic Diagrams

9. PCB Layout Diagrams

10. Exploded Diagram And Exploded Parts List

11. Recommended Spare Parts List

B. Are you satisfied with this Service Manual?

Item Excellent Good Fair Bad

1. Service Manual Content

2. Service Manual Layout

3. The form and listing

C. Do you have any other opinions or suggestions regarding this service manual?

Reader’s basic dada:

Name: Title:

Company:

Add:

Tel: Fax:

E-mail:

After completing this form, please return it to ViewSonic Quality Assurance in the USA at facsimile

1-909-839-7943. You may also e-mail any suggestions to the Director, Quality Systems & Processes

(marc.maupin@viewsonic.com)

ViewSonic Corporation Confidential - Do Not Copy N3752w-1M

108

N3752w 1 (VS11405 1M) Service Manual, M Region N3752

Navigation menu

Versions of this User Manual:

Views

Navigation
