N$13.80 WINDHOEK - 21 July 2003 No.3025
GOVERNMENT GAZETTE
OF THE
REPUBLIC OF NAMIBIA
CONTENTS
Page
GOVERNMENT NOTICE
No. 159 Namibia Civil Aviation Technical Standards: NAM-CATS-AR “Certification proce-
dures for products and parts and aircraft airworthiness” ........................................... 1
_________________
MINISTRY OF WORKS, TRANSPORT AND COMMUNICATION
No. 159 2003
NAMIBIA CIVIL AVIATION TECHNICAL STANDARDS
NAM-CATS-AR “CERTIFICATION PROCEDURES FOR PRODUCTS AND
PARTS AND AIRCRAFT AIRWORTHINESS”
The Director: Civil Aviation has under regulation 11.03.5 of the Namibian Civil Aviation
Regulations, 2001 and in consultation with the Civil Aviation Regulations Committee
issued the technical standards in the Schedule. These technical standards shall come into
operation on 1 August 2003.
Government Notice
![](asset-2.png)
2Government Gazette 21 July 2003 No. 3025
REPUBLIC OF NAMIBIA
CIVIL AVIATION
DOCUMENT NAM-CATS-AR
(AIRWORTHINESS REQUIREMENTS)
![](asset-3.png)
No. 3025 3
Government Gazette 21 July 2003
NAMIBIAN CIVIL AVIATION TECHNICAL STANDARDS RELATING TO
CERTIFICATION PROCEDURES FOR PRODUCTS AND PARTS AND
AIRCRAFT AIRWORTHINESS
1. GENERAL
Section 22A of the Aviation Act, 1962 (as amended by section 5 of the Aviation
Amendment Act, 1998) empowers the Director: Civil Aviation to issue technical standards
for civil aviation on the matters which are prescribed by regulation.
The Director: Civil Aviation has pursuant to the empowerment mentioned above, on
1 August 2003 issued technical standards relating to airworthiness requirements to be
known as Document NAM-CATS-AR.
2. PURPOSE
Document NAM-CATS-AR contains the standards, rules, requirements, methods,
specifications, characteristics and procedures which are applicable in respect of
airworthiness requirements.
Each reference to a technical standard in this document, is a reference to the corresponding
regulation in the Namibian Civil Aviation Regulations, 2001, for example, technical
standard 21.02.2 refers to regulation 2 of Subpart 2 of Part 21 of the Regulations.
The abbreviation “CAR” is used throughout this document when referring to a regulation.
The abbreviation “ATS” refers to any technical standard.
3. SCHEDULES AND NOTES
Guidelines and recommendations in support of any particular technical standard, are
contained in schedules to, and/or notes inserted through-out the technical standards.
LIST OF TECHNICAL STANDARDS
21.01.3 REPORTING OF FAILURES, MALFUNCTIONS AND DEFECTS
1. Occurrences
2. Exceptions
21.02.2 APPLICATION FOR TYPE CERTIFICATE OR AMENDMENT
THEREOF
1. Form of application
21.02.3 AIRWORTHINESS DESIGN STANDARDS
1. Gliders and motor gliders
2. Microlight aeroplanes
3. Aeroplanes
4. Rotorcraft
5. Manned free balloons
6. Non-rigid airships
7. Rigid airships
8. Remotely piloted aircraft
9. Engines
10. Propellers
11. Avionics
12. Equipment
13. Amateur-built aircraft
14. Production-built aircraft
15. Power-driven aeroplanes (recreational)
16. Gliders and motor gliders (recreational)
![](asset-4.png)
4Government Gazette 21 July 2003 No. 3025
17. Microlight aeroplanes (recreational)
18. Rotorcraft (recreational)
19. Gyroplanes (recreational)
20. Manned free balloons (recreational)
21. Non-rigid airships (recreational)
22. Gas turbine-powered aircraft (recreational)
21.02.7 FLIGHT TESTS
1. Requirements
21.02.9 FORM OF TYPE CERTIFICATE
1. Form of certificate
21.04.2 APPLICATION FOR TYPE ACCEPTANCE CERTIFICATE
1. Form of application
21.04.4 DATA REQUIREMENTS
1. Standards for flight manual
21.04.6 FORM OF TYPE ACCEPTANCE CERTIFICATE
1. Form of certificate
21.05.2 APPLICATION FOR SUPPLEMENTAL TYPE CERTIFICATE
1. Form of application
21.05.4 FORM OF SUPPLEMENTAL TYPE CERTIFICATE
1. Form of certificate
21.06.2 PRODUCTION INSPECTION SYSTEM
1. Procedures for making determinations
2. Materials Review Board
21.06.3 TESTS FOR AIRCRAFT
1. Production flight test procedure
21.06.4 TESTS FOR AIRCRAFT ENGINES
1. Test run
21.07.2 APPLICATION FOR PRODUCTION CERTIFICATE OR
AMENDMENT THEREOF
1. Form of application
21.07.4 FORM OF PRODUCTION CERTIFICATE
1. Form of certificate
21.08.2 APPLICATION FOR CERTIFICATE OF AIRWORTHINESS OR
AMENDMENT THEREOF
1. Application for issuing of standard or restricted certificate of
airworthiness
2. Application for issuing of experimental certificate
3. Application for issuing of special flight permit
21.08.7 FORM OF CERTIFICATE OF AIRWORTHINESS
1. Standard or restricted certificate of airworthiness
2. Experimental certificate
3. Special flight permit
21.08.11 RENEWAL OF CERTIFICATE OF AIRWORTHINESS
1. Form of application
![](asset-5.png)
No. 3025 5
Government Gazette 21 July 2003
21.08.12 VALIDATION OF CERTIFICATE OF AIRWORTHINESS ISSUED
BY APPROPRIATE AUTHORITY
1. Form of application
2. Requirements and conditions
3. Form of validation
4. Renewal of validation
21.09.2 INSPECTIONS AND TEST
1. Manufacturing inspection system
21.09.3 APPLICATION FOR NAM-PMA
1. Form of application
21.11.2 APPLICATION FOR EXPORT AIRWORTHINESS APPROVAL
1. Form of application
2. Mass and balance documentation
21.11.4 FORM OF EXPORT AIRWORTHINESS APPROVAL
1. Export certificate of airworthiness
2. Export airworthiness approval tag
21.12.1 NAM-TSO MARKING
1. NAM-TSO performance standards
21.12.2 APPLICATION FOR NAM-TSO AUTHORISATION
1. Form of application
21.12.8 NAM-TSO DESIGN APPROVAL FOR APPLIANCES : IMPORT
SCHEDULES

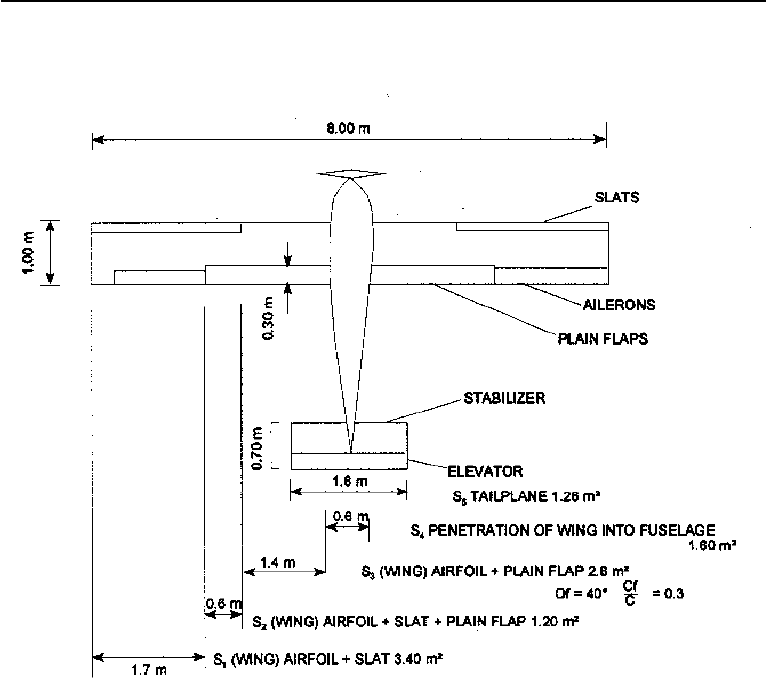

SCHEDULE 1 : MICROLIGHT MINIMUM SPEED
ANNEXURES
ANNEXURE A : APPLICATION FOR THE ISSUING OF A TYPE
CERTIFICATE
APPLICATION FOR THE AMENDMENT OF A TYPE
CERTIFICATE
ANNEXURE B : TYPE CERTIFICATE
ANNEXURE C : APPLICATION FOR THE ISSUING OF A TYPE
ACCEPTANCE CERTIFICATE
ANNEXURE D : TYPE ACCEPTANCE CERTIFICATE
ANNEXURE E : APPLICATION FOR THE ISSUING OF A SUPPLEMENTAL
TYPE CERTIFICATE
ANNEXURE F : SUPPLEMENTAL TYPE CERTIFICATE
ANNEXURE G : APPLICATION FOR THE ISSUING OF A PRODUCTION
CERTIFICATE
APPLICATION FOR THE AMENDMENT OF A
PRODUCTION CERTIFICATE
ANNEXURE H : PRODUCTION CERTIFICATE
ANNEXURE I : APPLICATION FOR THE ISSUING OF A STANDARD OR
RESTRICTED CERTIFICATE OF AIRWORTHINESS
![](asset-6.png)
6Government Gazette 21 July 2003 No. 3025
APPLICATION FOR THE AMENDMENT OF A
STANDARD OR RESTRICTED CERTIFICATE OF
AIRWORTHINESS
APPLICATION FOR THE RENEWAL OF A STANDARD
OR RESTRICTED CERTIFICATE OF AIRWORTHINESS
ANNEXURE J : APPLICATION FOR THE ISSUING OF AN
EXPERIMENTAL CERTIFICATE
APPLICATION FOR THE AMENDMENT OF AN
EXPERIMENTAL CERTIFICATE
APPLICATION FOR THE RENEWAL OF AN
EXPERIMENTAL CERTIFICATE
ANNEXURE K : APPLICATION FOR THE ISSUING OF A SPECIAL FLIGHT
PERMIT
APPLICATION FOR THE AMENDMENT OF A SPECIAL
FLIGHT PERMIT
APPLICATION FOR THE RENEWAL OF A SPECIAL
FLIGHT PERMIT
ANNEXURE L : CERTIFICATE OF AIRWORTHINESS
ANNEXURE M : EXPERIMENTAL CERTIFICATE
ANNEXURE N : SPECIAL FLIGHT PERMIT
ANNEXURE O : APPLICATION FOR THE VALIDATION OF A FOREIGN
CERTIFICATE OF AIRWORTHINESS
ANNEXURE P : VALIDATION OF A FOREIGN CERTIFICATE OF
AIRWORTHINESS
ANNEXURE Q : APPLICATION FOR THE ISSUING OF A NAM-PMA
ANNEXURE R : APPLICATION FOR THE ISSUING OF AN EXPORT
AIRWORTHINESS APPROVAL
ANNEXURE S : EXPORT CERTIFICATE OF AIRWORTHINESS (FOR
CLASS I PRODUCTS)
ANNEXURE T : EXPORT AIRWORTHINESS APPROVAL TAG (FOR
CLASS II PRODUCTS)
ANNEXURE U : APPLICATION FOR THE ISSUING OF A NAM-TSO
AUTHORISATION
21.01.3 REPORTING OF FAILURES, MALFUNCTIONS AND DEFECTS
1. Occurrences
The occurrences referred to in CAR 21.01.3(1)(a), which must be reported, are the
following:
(1) Fires caused by a system or equipment failure, malfunction, or defect.
(2) An engine exhaust system failure, malfunction, or defect which causes
damage to the engine, adjacent aircraft structure, equipment or components.
(3) The accumulation or circulation of toxic or noxious gases in the crew
compartment or passenger cabin.
![](asset-7.png)
No. 3025 7
Government Gazette 21 July 2003
(4) A malfunction, failure or defect of a propeller control system.
(5) A propeller or rotorcraft hub or blade structural failure.
(6) Flammable fluid leakage in areas where an ignition source normally exists.
(7) A brake system failure caused by structural or material failure during
operation.
(8) A significant aircraft primary structural defect or failure caused by any
autogenous condition (fatigue, understrength, corrosion, etc.).
(9) Any abnormal vibration or buffeting caused by a structural or system
malfunction, defect or failure.
(10) An engine failure.
(11) Any structural or flight control system malfunction, defect or failure which
causes an interference with normal control of the aircraft or which derogates
the flying qualities.
(12) A complete loss of more than one electrical power generating system or
hydraulic power system during a given operation of the aircraft.
(13) A failure or malfunction of more than one attitude, airspeed or altitude
instrument during a given operation of the aircraft.
2. Exceptions
The provisions of CAR 21.01.3 do not apply to the following:
(1) Failures, malfunctions or defects which the holder of a type certificate,
production certificate, supplemental type certificate, NAM-PMA or NAM-
TSO authorisation -
(a) determines were caused by improper maintenance, or improper usage;
(b) knows were reported to the Director by another person; or
(c) has already reported in terms of Part 12 of the CARs.
(2) Failures, malfunctions or defects in products, parts or appliances
manufactured by a foreign manufacturer under a type acceptance certificate
issued in terms of Part 21 of the CARs.
21.02.2 APPLICATION FOR TYPE CERTIFICATE OR AMENDMENT
THEREOF
1. Form of application
The form referred to in CAR 21.02.2(1)(a), in which application must be made for the
issuing of a type certificate for a Class I product, or an amendment thereof, is contained
in Annexure A.
21.02.3 AIRWORTHINESS DESIGN STANDARDS
1. Gliders and motor gliders
(1) Gliders and motor gliders must be designed to and comply with the following
standards for the issuing of a type certificate:
![](asset-8.png)
8Government Gazette 21 July 2003 No. 3025
Joint Airworthiness Requirements Part 22 : Sailplanes and powered
sailplanes.
(2) Gliders and motor gliders imported from a foreign country and assembled
here must meet the above requirements or similar requirements prescribed
by an appropriate authority and have been certified and released for export
by an appropriate authority as such to qualify for the issuing of a type
acceptance certificate.
2. Microlight aeroplanes
(1) Microlight Aeroplanes must be designed to and comply with the following
standards for the issuing of a type certificate:
Joint Airworthiness Requirements - Very light aeroplanes.
(2) Microlight aeroplanes imported from a foreign country and assembled in
Namibia must meet the above requirements or its equivalent and have been
certified and released for export by an appropriate authority as such to qualify
for the issuing of a certificate of airworthiness.
3. Aeroplanes
(1) Compliance for type certification must be shown with the Federal Aviation
Administration (FAA) airworthiness requirements as stated in FAR Part 23
or FAR Part 25, as the case may be (as amended on the date of application
for certification).
(2) Aeroplanes imported from a foreign country and assembled there must meet
at least FAR Part 23 or FAR Part 25, or equivalent, and have been certified
by an appropriate authority and released for export as such.
4. Rotorcraft
(1) Compliance for type certification must be shown with the Federal Aviation
Administration (FAA) airworthiness requirements as stated in FAR Part 27
or FAR Part 29, as the case may be (as amended on the date of application
for certification).
(2) Rotorcraft imported from a foreign country must meet at least the FARs as
stated above or equivalent and have been certified by an appropriate authority
and release for export as such.
5. Manned free balloons
(1) Manned free balloons must be designed to and comply with the following
standards:
Federal Aviation Administration FAR Part 31 : Airworthiness Standards:
Manned free balloons, for the issuing of a type certificate.
(2) Manned free balloons imported from a foreign country must meet the above
or its equivalent and have been certified and released for export by an
appropriate authority as such to qualify for the issuing of a certificate of
airworthiness.
6. Non-rigid airships
(1) Non-rigid airships must be designed to and comply with the following
standards:
![](asset-9.png)
No. 3025 9
Government Gazette 21 July 2003
(a) FAR 21 - Design Handbook;
(b) British Civil Airworthiness Requirements : Section Q, Non-rigid
airships (Gust requirements),
for the issuing of a type certificate.
(2) Non-rigid airships imported from a foreign country must meet the above
standard or its equivalent and have been certified and released for export by
an appropriate authority as such as to qualify for the issuing of a certificate
of airworthiness.
7. Rigid airships
(Reserved.)
8. Remotely piloted aircraft
(Reserved.)
9. Engines
(1) Compliance for type certification must be shown with the Joint Airworthiness
Requirements JAR E (Engines) or Federal Aviation Administration (FAA)
Airworthiness Requirements as stated in FAR Part 33. (as amended on the
date of application for certification).
(2) Engines imported from a foreign country and assembled in Namibia must
meet at least the JARs as stated above or equivalent and have been certified
by an appropriate authority and released as such. Engines manufactured to
requirements other than the JARs may be accepted by the Director, if
considered practical as regards language, standard, etc.
10. Propellers
(1) Compliance for type certification must be shown with the Federal Aviation
Administration (FAA) Airworthiness Requirements as stated in FAR Part
35 or Joint Airworthiness Requirements JAR-P (Propellers) (as amended
on the date of application for certification).
(2) Propellers imported from a foreign country and assembled in Namibia must
meet at least the FARs as stated above or equivalent and have been certified
by an appropriate authority and released as such. Propellers manufactured
to requirements other than the FARs may be accepted by the Director, if
considered practical as regards language, standard, etc.
11. Avionics
(1) Compliance for type certification must be shown with the Federal Aviation
Administration (FAA) Airworthiness Requirements as stated in FAR Part
21 (as amended on the date of application for certification).
(2) Avionics imported from a foreign country must meet at least the FARs as
stated above or equivalent and have been certified by an appropriate authority
and released as such.
(3) Radio equipment to be installed in an aircraft must be of a type approved by
appropriate authority in the State of Design.
![](asset-a.png)
10 Government Gazette 21 July 2003 No. 3025
12. Equipment
(1) Any other component, instrument, appliance, material, etc. installed or
intended to be installed or used in or on an aircraft is considered as equipment.
Note that Unit Load Devices (ULD) are included in this group.
(2) Compliance must be shown with FAA standards and test procedures as stated
in FAR Part 21 or Joint Airworthiness Requirements JAR 21 (as amended
on the date of application for certification).
(3) Equipment imported from a foreign country and assembled in Namibia must
meet at least the FARs as stated above or Joint Airworthiness Requirements
and have been certified by an appropriate authority and released as such.
13. Amateur-built aircraft
(1) Design criteria
In the design of an aircraft, the following conditions must be met:
(a) The aircraft must be able to withstand the maximum loads to be
expected in service without any permanent deformation or any
deformation which may interfere with the safe operation of the aircraft.
See sub-paragraph (5) Static tests.
(b) The aircraft structure must be designed to be able to withstand ultimate
loads, that is the limit loads multiplied with a safety factor as specified
in the subgroups.
(c) The aircraft must not have any apparent unsatisfactory features of
design and construction and the use of unsuitable materials shall be
avoided.
(d) Approved aircraft components such as engines, propellers, wheels
and similar items, should be used wherever possible and structural
components of other aircraft that are still airworthy, may also be used.
(e) The constructor is fully responsible for the integrity of the aircraft.
Any inspections made, are done to determine at the time of the
inspection and with the information given by the constructor to the
inspector, as well as by careful study of the relevant drawings, that
such component/aircraft has been built from acceptable materials and
in accordance with normal aircraft construction procedures.
(f) The materials used in the primary structure, in control systems and in
any stressed part must be suitable in all respects for the purpose for
which they are intended. Where materials not normally acceptable
for aircraft construction are used, the constructor must prove that
they have characteristics which make them suitable in all respects
for the purpose for which they are intended.
(g) Protrusions, knobs, sharp corners and other objects likely to cause
serious injury to the pilot or passenger in the event of an accident,
must be reduced to a minimum. Where removal is impracticable,
consideration should be given to the use of padding.
(h) Approved types of safety belts or harnesses for each seat, must be
installed in accordance with FAA AC 43-13.2A.
![](asset-b.png)
No. 3025 11
Government Gazette 21 July 2003
(i) Suitable means, consistent with the size and complexity of the aircraft,
must be provided to minimize fire hazards. A fireproof bulkhead
(firewall) must be provided for isolating the engine compartment from
the remainder of the aircraft.
(j) Any engine or propeller may be used, provided no adverse
characteristics of the engine, propeller or engine-propeller
combination are evident.
(k) Suitable means should be provided to minimize the possibility of
carburettor icing.
(l) The complete powerplant installation, including the propeller as
installed in the aircraft, must satisfactorily undergo at least one hour
of ground operation from idling to full power prior to the first flight.
Any time interval at the various speeds may be used.
(m) Only fuel of a grade which will not cause destructive detonation and
will minimize the possibility of vapour locks, must be used.
(n) A prospective builder of a new design must first submit the plans and
the substantiation data (design specifications and stress analysis that
show compliance with items (a) and (b) to the Director, or body or
institution designated in terms of Part 149 of the CARs, for evaluation
and approval. The applicant must submit the letter of approval from
the Director or the body or institution designated in terms of Part 149
of the CARs, as well as a copy of the plans and substantiation data
together with all the required documentation when registering such
an aircraft.
(2) Construction
(a) The materials used in the construction of the aircraft must be those
normally accepted for aircraft use or their equivalents. If other
materials are used, the constructor must be satisfied that they are in
all respect satisfactory for the purpose for which they are intended
and such constructor shall supply information to the Director on their
qualities if called upon to do so. When wood is used, careful selection
of quality is essential and particular attention should be paid to the
direction of the grain.
(b) The workmanship used in the construction of the aircraft must be of
the highest standard and constructors must use recognised aeronautical
workshop practices. Refer to AC 43-13.
(c) All welding must be done by appropriately qualified person. The
welder’s particulars must be noted in the aircraft logbook.
(d) The builder/owner of the aircraft shall keep during the construction
process, full details of the process, the materials used and the
dimensions of the parts and components. This is called the build
standard of the aircraft.
(3) Instruments, equipment and placards
The following placards must be installed, except where exempted by the
Director.
(a) In a prominent position in full view of the pilot and all passengers,
and in capital letters of not less than 3 mm high:
![](asset-c.png)
12 Government Gazette 21 July 2003 No. 3025
“AMATEUR-BUILT AIRCRAFT”.
(b) On the instrument panel/s:
(i) OPERATE UNDER VMC ONLY
(ii) MAXIMUM PERMISSIBLE AIRSPEED mph/kts IAS
(iii) MAXIMUM PERMISSIBLE ENGINE SPEEDrpm
(iv) MAXIMUM PERMISSIBLE MASS kg
(v) Any additional limitation indication such as temperature,
pressure, which the Director deems necessary.
(c) A fireproof plate on the instrument panel, containing the following
information:
(i) Name of the constructor;
(ii) aircraft type and model;
(iii) aircraft registration letters and serial number.
(4) Determining the mass of the aircraft
The empty mass of the aircraft (including the mass of equipment and
instruments necessary for the safe operation of the aircraft) and its centre of
gravity must be determined and recorded. The maximum allowable mass
and centre of gravity range must also be recorded before any appropriate
certificate of airworthiness will be issued by the Director.
(5) Static tests
(a) Static tests must be carried out on the aircraft before the aircraft may
be flown.
(b) The aircraft structure must be tested to the limit loads after the aircraft
has been registered.
(c) The owner/builder must submit a test plan to the Director for approval
before commencing with the static test. The test plan must include
the method of testing the structure for aerodynamic loads, tail bending
loads, occupants and baggage loads.
(d) The static test must be witnessed by a person for the purpose by the
Director designated.
(e) The aircraft may not have any detrimental permanent deformation or
any deformation during and after the static test which may interfere
with the safe operation of the aircraft. In addition, there must be full
and free movement of the controls while under maximum limit loads.
(f) A static test report must be submitted to the Director with the relevant
documentation for the application of an appropriate special certificate
of airworthiness referred to in CAR 21.08.1 (4). The witnesses must
endorse the test report.
(6) Performance, handling and strength substantiation tests
![](asset-d.png)
No. 3025 13
Government Gazette 21 July 2003
(a) On conclusion of the proving flight program, each aircraft must
undergo performance, handling and strength substantiation tests to
the extent outlined below.
(b) Such flight tests must be carried out by the holder of at least an
appropriately rated commercial pilot licence, or by the holder of an
appropriately rated private pilot licence whose experience is
considered satisfactory by the Director.
(c) The tests must be conducted with the aircraft loaded to within 2% of
the aircraft's proposed MAUM in order to determine the following:
(i) The climb performance;
(ii) the altitude at which the rate of climb falls to 50 feet per minute.
For multi-engined aircraft, firstly with all engines operating
and then with the critical engine feathered or stopped, as the
case may be;
(iii) lateral, longitudinal and directional stability and stalling
characteristics;
(iv) the maximum level flight speed attainable;
(v) the engine operating conditions (temperatures, carburettor icing
tendencies);
(vi) the accuracy of the airspeed indicating system; and
(vii) such other factors as the Director considers necessary.
(d) The results obtained above must be entered in the airframe logbook.
This information must be as complete as possible in order to provide
sufficient data to the new owner in case of a change of ownership.
(e) A final flight test must be carried out at the maximum airspeed (Vne)
for which the owner wants the aircraft to be approved. The aircraft
structure must then be subjected to the maximum acceleration forces
(limit loads), for which it was designed.
(f) For these tests, the following must be carried out:
(i) A recording accelerometer to be installed.
(ii) The aircraft must be loaded to within 2% of its MAUM.
(iii) As the tests make severe demands on the aircraft, the pilot
must wear a parachute.
(iv) Arrangements must also be made to permit easy evacuation of
the aircraft in the case of a mishap.
(v) The Director may insist on the installation of a ballistic
parachute for the aircraft in certain cases.
(g) The maximum airspeed may be chosen by the owner but must at
least be 10% in excess of the maximum level flight speed attainable.
(h) The maximum acceleration chosen varies with the type of operation
to be conducted, and the minimum acceptable to the Director will be
in accordance with the limit loads as stated for each subgroup of
aircraft.
![](asset-e.png)
14 Government Gazette 21 July 2003 No. 3025
There are several ways of doing these tests. Probably the most
common is to nose the aircraft down slightly to pick up a little excess
speed and then pull up. Another method is to use a steep turn of
spiral, keeping the nose just low enough to maintain the desired speed.
This is faster than the nosedive method, as the load can be increased
or decreased at will.
It is recommended that instead of attempting to reach maximum G
loads the first time, the load be applied gradually; e.g. suppose the
desired load is + 3,8 G, start with + 2,5 G first attempt, then + 3, then
+ 3,5 and finally + 3,8 G.
(7) Imported amateur-built aircraft
Note: This paragraph will apply where the owner requests Namibian
registration.
(a) Prospective owners must first consult the Director and obtain approval
before importing such an aircraft.
(b) Only aircraft which have been registered and issued with an
appropriate certificate of airworthiness from the appropriate authority
of country of registration, may be imported into Namibia.
(c) Proof of the above must be submitted to the Director with the
documents required for Namibian registration.
(d) The proving flight hours required, are at the discretion of the Director,
but will not be less than 20 hours.
Note: Typical documentation required to show compliance with the above
will be the foreign certificates of registration and other certificates
as well as the standards and substantiation to which the aircraft
was built and approved.
14. Production-built aircraft
(1) General
(a) Only aircraft of which the type, the local/foreign manufacturing
organisation and local assembling organisation or agent has been
approved by the Director may be built or imported and flown within
Namibia.
(b) Kits or components, locally manufactured or imported, are included
in the definition of production-built aircraft.
(c) The cost incurred by the DCA for approving local or foreign
organisations i.e. travel, accommodation and subsistence, will be at
the expense of the applicant/manufacturer/agent.
(d) Production-built aircraft may not be delivered to the public by a
manufacturer/agent unless the aircraft has been registered in the name
of the new owner.
Note: The Director may consider a foreign manufacturing organisation
as Director approved if that facility was approved by an appropriate
authority.
(2) Aircraft/Kit/Component type approval
![](asset-f.png)
No. 3025 15
Government Gazette 21 July 2003
(a) The aircraft must be designed and built in accordance with the
acceleration and gust loads as specified in the paragraphs of each
sub-group of aircraft.
(b) The requirements for the construction, design, flight performance,
powerplant, operational and continued airworthiness must be based
on either the FAR, the BCAR, or the JAR requirements as listed in
each subgroup. Equivalent requirements will also be acceptable.
(c) A complete build standard (complete manufacturing drawings,
processes, specifications) of an imported unit must be submitted with
the documents for registration of the aircraft. This build standard is
considered confidential information and the foreign manufacturer may
send it directly to the Director.
(d) Static tests of the unit must be carried out where applicable, to the
ultimate loads and especially to structural and ground resonance loads.
(e) The unit must be evaluated for a period of 50 hours or as prescribed by
the Director. Proving flights as prescribed by Feder Aviation
Administration (FAA) Advisory Circular AC 90-89 must be carried out.
(f) The complete built standard of a local manufactured unit and possible
revisions to the built standard of an imported unit must be submitted
after the evaluation period.
(g) An inspection of the unit must be carried out in accordance with the
build standard. Depending on the outcome of the inspection a final
satisfactory flight test must be carried out by an independent
appropriately rated pilot.
Note: Use of an aircraft for self protection by owners is considered as
operation in category "f" (private category).
(3) Aircraft documentation
(a) The manufacturer must submit to the Director for approval, aircraft
documentation in the form of an aircraft flight manual, maintenance
manual and a repair manual. These must be submitted after all static
and flight tests were carried out satisfactorily.
(b) A copy of the approved manuals together with the aircraft logbooks
must accompany the aircraft on its delivery to the customer.
(c) The flight manual must describe the flight control and flight
characteristics of the aircraft and will cover both normal and
emergency procedures. Performance specifications and flight
limitations must be included. The contents should be in the following
order:
(i) General
(ii) Limitations
(iii) Normal procedures
(iv) Emergency procedures
(v) Performance data
(vi) Mass and balance
![](asset-10.png)
16 Government Gazette 21 July 2003 No. 3025
(vii) Optional equipment and changes to above sections due to
incorporation of optional equipment.
(d) The general section must contain a colour photo of the particular
aircraft showing the nationality and registration marks, and the
following information as well:
(i) Aircraft make
(ii) Aircraft model
(iii) Aircraft serial number
(iv) Aircraft registration number
(v) Original constructor of the aircraft.
(e) The maintenance manual must contain an illustrated part list,
inspection procedures, service life of the parts, acceptable repair
methods as well as detailed drawings of the aircraft showing the
various components and items to be inspected during preflight and
annual inspections.
15. Power-driven aeroplanes (recreational)
(1) General
(a) Fixed-wing aeroplanes must comply with either the provisions of
amateur-built aircraft or production-built aircraft.
(b) The words "amateur-built aeroplane" or "production-built aeroplane"
must be substituted for the words "amateur-built aircraft".
(2) Design loads
(a) The load conditions and requirements of FAR 23 Subpart C - Structure
(or its equivalent) must be considered in the design of the aircraft.
(b) FAR Part 23 paragraphs 23.303, 23.333, 23.335, 23.337 and 23.341
must be complied with. The words “semi-aerobatic aeroplane” must
be substituted for the words “utility category airplanes”.
16. Gliders and motor gliders (recreational)
(1) General
(a) Gliders must comply with either the provisions of amateur-built
aircraft or production-built aircraft.
(b) The word “amateur-built glider” or “production-built glider” must
be substituted for the words “amateur-built aircraft”.
(c) The proving flight period must be at least for 25 hours. The powerplant
of a motor glider must be operative for 5% of this period in addition
to the ground round period of the powerplant.
(2) Design loads
(a) The load conditions and requirements of JAR-22 Subpart C : Structure
(or its equivalent) must be considered in the design of the aircraft.
![](asset-11.png)
No. 3025 17
Government Gazette 21 July 2003
(b) JAR-22 paragraphs 22.333, 22.335, 22.337 and 22.341 must be
complied with except that the words “semi-aerobatic aeroplane” must
be substituted for the words “utility category airplanes”.
17. Microlight aeroplanes (recreational)
(1) General
(a) Microlights must comply with either the standards for amateur-built
aircraft or production-built aircraft.
(b) The word “amateur-built microlight” or “production-built microlight”
must be substituted for the words “amateur-built aircraft”.
(c) In addition to the annual inspection, microlights in the training
category (e) will have an inspection equivalent to the annual
inspections every 50 flying hours where training is for the registered
owners only and every 25 flying hours where the microlight is being
used in an approved aviation training organisation.
(2) Mass shift microlights
Applicants with mass shift microlights must provide the centre of gravity
and the height difference or angle between the front wheel and the main
gear. This is usually done by hanging the aeroplane using the attachment
point between wing and the rest of the fuselage.
(3) Design loads
(a) The load conditions and requirements of BCAR section S (or its
equivalent) must be considered in the design of the microlight.
(b) The owner/builder must approach the Director to determine the
maximum flight loads that may be expected in service which will
depend on the type of microlight.
(c) During flight testing, the maximum acceleration forces obtainable at
Vne must exceed the calculated limit loads.
Note: 1. The Director may still approve the amateur-built microlight
if it has no permanent deformation after the flight test.
2. The Director may still approve the production-built microlight
if it can be shown through the ultimate static test that the
safety factor still equals or exceeds 1.5.
(4) Equipment
Equipment and instruments for the safe operation of the microlight and/or
as required by the Director must be installed. All required equipment must
be calibrated before installation and calibrated annually thereafter.
18. Rotorcraft (recreational)
(1) General
(a) Only rotorcraft that comply with the provisions of either paragraph
15 or 16 are allowed to be registered and flown in Namibia.
(b) The words “amateur-built rotorcraft” or “production-built rotorcraft”
must be substituted for the words “amateur-built aircraft”.
![](asset-12.png)
18 Government Gazette 21 July 2003 No. 3025
(2) Design loads
(a) The load conditions and requirements of FAR 27 Subpart C - Strength
requirements (or its equivalent) must be considered in the design of
the aircraft.
(b) FAR Part 27 paragraphs 27.301, 27.309, 27.321, 27.337, 27.339,
27.344, 27.361, 27.547 and 27.549 must be complied with.
(3) Equipment
Paragraph 19(4) is applicable in addition to paragraph 15(3).
19. Gyroplanes (recreational)
(1) General
(a) Gyroplanes must comply with either the provisions of paragraph 15
or 16.
(b) The words “amateur-built aircraft” or “production-built gyroplanes”
must be substituted for the words “amateur-built aircraft”.
(c) A rotor brake and rotor RPM gauge must be installed.
(2) Design loads
Design load requirements shall be specified by the Director.
(3) Equipment
Equipment requirements shall be specified by the Director.
20. Manned free balloons (recreational)
(1) General
(a) Balloons must comply with either the provisions of amateur-built
aircraft or production-built aircraft.
(b) The words “amateur-built balloon” or “production-built balloon” must
be substituted for the words “amateur-built aircraft”.
(2) Design loads
The load conditions and requirements of FAR 31 Subpart C : Strength
requirements (or its equivalent) must be complied with.
(3) Equipment
(a) The following equipment is required as standard equipment for all
flights:
(i) Approved sensitive altimeters;
(ii) a rate of climb indicator;
(iii) a fire extinguisher.
(b) In addition for hot air balloons the following are required:
![](asset-13.png)
No. 3025 19
Government Gazette 21 July 2003
(i) A fuel quantity gauge;
(ii) an envelope temperature indicator.
(c) The applicable equipment must be calibrated before first installation
and calibrated annually thereafter.
21. Non-rigid airships (recreational)
(1) Reserved.
22. Gas turbine-powered aircraft (recreational)
(1) The requirements of paragraph 15 or 16, depending on the specific aircraft
type, must be complied with.
(2) The Director may prescribe any other additional requirements that he/she
deems necessary to ensure satisfactory airworthiness and safety. The
prospective builder/owner(s) should first obtain these additional
requirements before considering building or importing this type of aircraft.
21.02.7 FLIGHT TESTS
1. Requirements
The requirements referred to in CAR 21.02.7(3), according to which flight tests must be
carried out, are the following:
1.1 Flight tests
(1) Each applicant for an aircraft type certificate must take the tests listed in
subparagraph (2) of this paragraph. Before making the tests the applicant
must show -
(a) compliance with the applicable structural requirements;
(b) completion of necessary ground inspections and tests;
(c) that the aircraft conforms with the type design; and
(d) that the Director received a flight test report from the applicant
containing the results of the tests.
(2) Upon showing compliance with subparagraph (1) the applicant must make
all flight tests that the Director finds necessary -
(a) to determine compliance with the applicable requirements; and
(b) to determine whether there is reasonable assurance that the aircraft,
its components, and its equipment are reliable and function properly.
(3) Each applicant must show for each flight test (except in the case of a glider
or a manned free balloon) that adequate provision is made for the flight test
crew for emergency egress and the use of parachutes.
(4) Except in gliders and manned free balloons, an applicant must discontinue
flight tests until the applicant shows that corrective action has been taken,
whenever -
(a) the applicant’s test pilot is unable or unwilling to make any of the
required flight tests; or
![](asset-14.png)
20 Government Gazette 21 July 2003 No. 3025
(b) items of non-compliance with requirements are found that may make
additional test data meaningless or that would make further testing
unduly hazardous.
(5) The flight tests prescribed in subparagraph (2)(b) must include -
(a) for aircraft incorporating turbine engines of a type not previously used
in a type certificated aircraft, at least 300 hours of operation with a full
complement of engines that conform to a type certificate; and
(b) for all other aircraft, at least 150 hours of operation.
1.2 Flight test pilot
Each applicant for normal, utility, aerobatic or transport category aircraft type
certificate must provide a person holding an appropriate pilot licence and rating to
make the flight tests required.
1.3 Flight test instrument calibration and correction report
(1) Each applicant for a normal, utility, aerobatic or transport category aircraft
type certificate must submit a report to the Director showing the computations
and tests required in connection with the calibration of instruments used for
test purposes and in the correction of test results to standard atmospheric
conditions.
(2) Each applicant must allow the Director to conduct any flight tests that he or
she finds necessary to check the accuracy of the report submitted under
subparagraph (1).
21.02.9 FORM OF TYPE CERTIFICATE
1. Form of certificate
The form referred to in CAR 21.02.9, on which a type certificate is issued, is contained
in Annexure B.
21.04.2 APPLICATION FOR TYPE ACCEPTANCE CERTIFICATE
1. Form of application
The form referred to in CAR 21.04.2(a), in which application must be made for the
issuing of a type acceptance certificate for a Class I product, is contained in Annexure C.
21.04.4 DATA REQUIREMENTS
1. Standards for flight manual
(Reserved.)
21.04.6 FORM OF TYPE ACCEPTANCE CERTIFICATE
1. Form of certificate
The form referred to in CAR 21.04.6, on which a type acceptance certificate is issued, is
contained in Annexure D.
21.05.2 APPLICATION FOR SUPPLEMENTAL TYPE CERTIFICATE
1. Form of application
![](asset-15.png)
No. 3025 21
Government Gazette 21 July 2003
The form referred to in CAR 21.05.2(a), in which application must be made for the
issuing of a supplemental type certificate, is contained in Annexure E.
21.05.4 FORM OF SUPPLEMENTAL TYPE CERTIFICATE
1. Form of certificate
The form referred to in CAR 21.05.4, on which a supplemental type certificate is issued,
is contained in Annexure F.
21.06.2 PRODUCTION INSPECTION SYSTEM
1. Procedures for making determinations
The procedures for making determinations referred to in CAR 21.06.2(2), must provide
a means for determining at least the following:
(1) Incoming materials, and bought or subcontracted parts, used in the finished
product, must be specified in the type design data, or must be suitable
equivalents.
(2) Incoming materials, and bought or subcontracted parts, must be properly
identified if their physical or chemical properties cannot be readily and
accurately determined.
(3) Materials subject to damage and deterioration must be suitably stored and
adequately protected.
(4) Processes affecting the quality and safety of the finished product must be
accomplished in accordance with acceptable industry specifications.
(5) Parts and components in process must be inspected for conformity with the
type design data at points in production where accurate determinations can
be made.
(6) Current design drawings must be readily available to manufacturing and
inspection personnel, and used when necessary.
(7) Design changes, including material substitutions, must be controlled and
approved before being incorporated in the finished product.
(8) Rejected materials and parts must be segregated and identified in a manner
that precludes installation in the finished product.
(9) Materials and parts that are withheld because of departures from design
data or specifications, and that are to be considered for installation in the
finished product, must be processed through the Materials Review Board.
Those materials and parts determined by the Board to be serviceable, must
be properly identified and re-inspected if rework of repair is necessary.
Materials and parts rejected by the Board must be marked and disposed of
to ensure that they are not incorporated in the final product.
2. Materials Review Board
(1) The Materials Review Board referred to in CAR 21.06.2(3), must include
representatives from the inspection and engineering departments of the
manufacturing organisation.
(2) All records of Materials Review Board action must be maintained by the
manufacturing organisation for a period of two years.
![](asset-16.png)
22 Government Gazette 21 July 2003 No. 3025
(3) All inspection records must be maintained, identified with the completed
product where practicable, and retained by the manufacturing organisation
for a period of at least two years.
21.06.3 TESTS FOR AIRCRAFT
1. Production flight test procedure
The production flight test procedure referred to in CAR 21.06.3, must include the
following:
(1) An operational check of the trim, controllability, or other flight characteristics
to establish that the production aircraft has the same range and degree of
control as the prototype aircraft.
(2) An operational check of each part or system operated by the flight crew
while in flight to establish that, during flight, instrument readings are within
normal range.
(3) A determination that all instruments are properly marked, and that all placards
and required flight manuals are installed after flight test.
(4) A check of the operational characteristics of the aircraft on the ground.
(5) A check on any other items peculiar to the aircraft being tested that can best
be done during the ground or flight operation of the aircraft.
21.06.4 TESTS FOR AIRCRAFT ENGINES
1. Test run
(1) The test run referred to in CAR 21.06.4, must include the following:
(a) Break-in runs that include a determination of fuel and oil consumption
and a determination of power characteristics at the rated maximum
continuous power or thrust and, if applicable, at rated take-off power
or thrust;
(b) at least five hours of operation at rated maximum continuous power
or thrust. For engines having a rated take-off power or thrust higher
than rated maximum continuous power or thrust, the five-hour run
must include 30 minutes at rated take-off power or thrust.
(2) The test run may be made with the engine appropriately mounted and using
current types of power and thrust measuring equipment.
21.07.2 APPLICATION FOR PRODUCTION CERTIFICATE OR AMEND-
MENT THEREOF
1. Form of application
The form referred to in CAR 21.07.2(a), in which application must be made for the issuing
of a production certificate, or an amendment thereof, is contained in Annexure G.
21.07.4 FORM OF PRODUCTION CERTIFICATE
1. Form of certificate
The form referred to in CAR 21.07.4, on which a production certificate is issued, is
contained in Annexure H
![](asset-17.png)
No. 3025 23
Government Gazette 21 July 2003
21.08.2 APPLICATION FOR CERTIFICATE OF AIRWORTHINESS OR
AMENDMENT THEREOF
1. Application for issuing of standard or restricted certificate of airworthiness
The form referred to in CAR 21.08.2(2)(a), in which application must be made for the
issuing of a standard or restricted certificate of airworthiness, or an amendment thereof,
is contained in Annexure I.
2. Application for issuing of experimental certificate
The form referred to in CAR 21.08.2(3)(a), in which application must be made for the issuing
of an experimental certificate, or an amendment thereof, is contained in Annexure J.
3. Application for issuing of special flight permit
The form referred to in CAR 21.08.2(4)(a), in which application must be made for the
issuing of a special flight permit, or an amendment thereof, is contained in Annexure K.
21.08.7 FORM OF CERTIFICATE OF AIRWORTHINESS
1. Standard or restricted certificate of airworthiness
The form referred to in CAR 21.08.7, on which a standard or restricted certificate of
airworthiness is issued, is contained in Annexure L.
2. Experimental certificate
The form referred to in CAR 21.08.7, on which an experimental certificate is issued, is
contained in Annexure M.
3. Special flight permit
The form referred to in CAR 21.08.7, on which a special flight permit is issued, is contained
in Annexure N.
21.08.11 RENEWAL OF CERTIFICATE OF AIRWORTHINESS
1. Form of application
The form referred to in CAR 21.08.11(1)(a), in which an application for the renewal of a
certificate of airworthiness must be made, is -
(1) in the case of the renewal of a standard or restricted certificate of
airworthiness, contained in Annexure I;
(2) in the case of the renewal of an experimental certificate, contained in
Annexure J; and
(3) in the case of the renewal of a special flight permit, contained in Annexure K.
21.08.12 VALIDATION OF CERTIFICATE OF AIRWORTHINESS ISSUED
BY APPROPRIATE AUTHORITY
1. Form of application
The form referred to in CAR 21.08.12(1), in which application must be made for the
validation of a foreign certificate of airworthiness, is contained in Annexure O.
![](asset-18.png)
24 Government Gazette 21 July 2003 No. 3025
2. Requirements and conditions
(Reserved.)
3. Form of validation
The form referred to in CAR 21.08.12(3)(c), on which a foreign certificate of airworthiness
is validated, is contained in Annexure P.
4. Renewal of validation
The form in which application must be made for the renewal of a validation, is contained
in Annexure O.
21.09.2 INSPECTIONS AND TESTS
1. Manufacturing inspection system
The manufacturing inspection system referred to in CAR 21.09.2(3), must include the
following:
(1) Incoming materials used in the finished part must be as specified in the
design data.
(2) Incoming materials must be properly identified if their physical and chemical
properties cannot otherwise be readily and accurately determined.
(3) Materials subject to damage and deterioration must be suitably stored and
adequately protected.
(4) Processes affecting the quality and safety of the finished product must be
accomplished in accordance with acceptable specifications.
(5) Parts in process must be inspected for conformity with the design data at
points in manufacturing where accurate determination can be made.
Statistical quality assurance procedures may be employed where it is shown
that a satisfactory level of quality will be maintained for the particular part
involved.
(6) Current design drawings must be readily available to manufacturing and
inspection personnel, and used when necessary.
(7) Major changes to the basic design must be adequately controlled and
approved before being incorporated in the finished part.
(8) Rejected materials and components must be segregated and identified in
such a manner as to preclude their use in the finished part.
(9) Records produced under the manufacturing inspection system shall be
maintained, identified with the completed product or part and are held at
the disposal of the Director and retained by the manufacturer in order to
provide the information necessary to ensure continued airworthiness.
21.09.3 APPLICATION FOR NAM-PMA
1. Form of application
The form referred to in CAR 21.09.3(2)(a), in which application must be made for the
issuing of a NAM-PMA, is contained in Annexure O.
![](asset-19.png)
No. 3025 25
Government Gazette 21 July 2003
21.11.2 APPLICATION FOR EXPORT AIRWORTHINESS APPROVAL
1. Form of application
The form referred to in CAR 21.11.2(3)(a), in which application must be made for the
issuing of an export airworthiness approval, is contained in Annexure Q.
2. Mass and balance documentation
(1) The mass and balance documentation referred to in CAR
21.11.2(3)(b)(ii)(bb), must include at least the following information:
(a) Aircraft nationality and registration letters, make, model and serial
number;
(b) the date on which the mass was determined and centre of gravity
computed;
(c) the datum point used; and
(d) the necessary calculations.
(2) Specimen mass and balance documentation is contained in FAA Advisory
Circular AC 43.13-1A.
21.11.4 FORM OF EXPORT AIRWORTHINESS APPROVAL
1. Export certificate of airworthiness
The form referred to in CAR 21.11.4(1), on which an export certificate of airworthiness
is issued, is contained in Annexure S.
2. Export airworthiness approval tag
The form referred to in CAR 21.11.4(2), on which an export airworthiness approval tag
is issued, is contained in Annexure T.
21.12.1 NAM-TSO MARKING
1. NAM-TSO performance standards
The appropriate NAM-TSO performance standards with which an article must comply,
is contained in FAA Advisory Circular AC 20-110.
21.12.2 APPLICATION FOR NAM-TSO AUTHORISATION
1. Form of application
The form referred to in CAR 21.12.2(2)(a), in which application must be made for the
issuing of a NAM-TSO authorisation, is contained in Annexure U.
21.12.8 NAM-TSO DESIGN APPROVAL FOR APPLIANCES: IMPORT
(Reserved.)
SCHEDULE 1: MICROLIGHT MINIMUM SPEED
Any aeroplane qualifies as a microlight when its maximum gross mass, useful load and
minimum speed complies with the requirements as stated below.
1. A one or two seat aeroplane whose minimum speed at gross mass is less than 65
km/h (or 35.1 knots or 40.39 mph) and having a maximum gross mass of:
![](asset-1a.png)
26 Government Gazette 21 July 2003 No. 3025
- 300 kg for a landplane, single-seater
- 350 kg for an amphibian, or a pure seaplane, single-seater
- 450 kg for a landplane, two-seater
- 500 kg for an amphibian or a pure seaplane, two-seater.
2. The minimum speed will be calculated by taking into account the wing area, the
possible presence of high-lift devices and the gross weight, according to the
provisions of paragraph 6.
3. The aeroplane may also qualify as a microlight by a flight demonstration of
minimum level speed at gross weight (in this case, it must fly over a 500 m course).
The measured speed will be the average of the timed speed in both directions. The
component of the wind perpendicular to the course must not exceed 10 km/h. The
measured speed will be corrected for air density (150C, 1013.2 mb, Om).
4. The useful weight to be considered must be at least equal to 90 kg per seat and
- a full charge of fuel or 15 kg, whichever is less, for a single-seater, or
- a full charge of fuel or 22 kg, whichever is less, for a two-seater.
The useful weight as defined in the present paragraph will be called “nominal FAI
useful weight”.
5. If the real useful weight of an aeroplane is less than the nominal FAI useful weight,
the aeroplane may qualify as a microlight if its minimum speed is less than the
following:
Min speed limit =
empty weight + real useful weight x 65km / h
empty + nominal FAI useful weight
(Weights in kg).
6. CALCULATED MINIMUM SPEED
Min speed =
(km / h)
207.6 x gross weight
CL X 2
(weights in kg - area in m5).
7. CALCULATION FOR CL FOR COMBINATIONS OF HIGH-LIFT
DEVICES
FLAP
To be considered, flap chord should be such that
0.05 ≤ Cf ≤ 0.025
C
SLAT
To be considered, slat chord Cs should be such that
0.04 ≤ Cs ≤ 0.15
C
of considered
300 max for a normal flap
200 max if flap is also used for roll control (“flaperon”)
![](asset-1b.png)
No. 3025 27
Government Gazette 21 July 2003
SCHEDULE 1: MICROLIGHT MINIMUM SPEED
Lifting surface CLMaximum value
Airfoil alone 1.45 1.45
Airfoil + plain flap 1.45 + 0.0875 Cf X Of2.10
C
Airfoil + split flap 1.45 + 0.1125 Cf X Of2.29
C
Airfoil + slotted flap 1.45 + 0.1000 Cf X Of2.20
C
Slat + airfoil 1.95 1.95
Slat + airfoil + plain flap 1.45 + 0.10635 Cf X Of2.75
C
Slat + airfoil + split flap 1.45 + 0.0875 Cf X Of2.61
C
Slat + airfoil + sloeted flap 1.45 + 0.1250 Cf X Of2.89
C
8. DETERMINATION OF CL X S
8.1 Aeroplanes with no aerodynamic devices for pitch control (this includes
weight-shift aeroplanes)
S = horizontal projection of all lifting surfaces (m5)
CL = 1.45.
8.2 Other aeroplanes (including canard, tandem, flying wings, “classical”, ...)
- All calculations are done on the horizontal projections of all lifting surfaces,
(lift being positive or negative). The global projection will be divided into
elements (S1, S2, ..... Sn) according to the presence or not of high-lift devices
(see example). CL for all possible combinations are defined in paragraph 7.
- The surface affected by a high-lift device is the lifting surface directly
comprised within the span of this high-lift device.
- Moving surface used for pitch control will not be considered as high-lift
devices.
- Relative chord of flaps (Cf/C) will not be considered higher than 0.25.
- Deflection of flaps (Of) will not be considered more than 300C.
- In case of flaperons (flaps used for roll control), only symmetrical deflection
up to 200 will be considered.
CL X S = 0.80 (CL1 X S1 + CL2 X S2 + ... + CLn X SN).
8.3 About the wing area
There are so many different and interesting ways to design a flying machine that it
is almost impossible to define a special rule for each.
![](asset-1c.png)
28 Government Gazette 21 July 2003 No. 3025
It should be noted that some parts of the total wing area produce no additional lift
but add manoeuvrability and stability.
This is the reason for the 0.80 factor in the formula for DL X s.
9. EXAMPLES
9.1 Trike (weight shifts), single-seater
wing area 10,0 m5
empty weight, equipped 110 kg
fuel tank 25 litres
gross weight 200 kg
(a) Minimum speed limit (see paragraph 5)
110 + 90 x 65 = 0.964 x 65 = 62.7 km / h
110 + 105t
(b) Calculated minimum speed (see paragraph 6)
207.6 + 200
V mini = = 53.5 km / h
1.45 x 10
accepted as microlight
9.2 Classical aircraft, two-seater, no high-lift devices
wing area 12,2 m5
empty weight, equipped 250 kg
fuel tank 28 litres
declared gross weight 360 kg
minimum speed 65 km/h (calculated)
(a) Minimum speed limited
250 + 110 x 65 = 58.14 Km / h
250 + 200
(b) Calculated minimum speed
207.6 + 360
V mini = = 65 km / h
1.45 x 12.2
NOT accepted as microlight
This aircraft is a “false’ two-seater, as the declared gross weight will obviously be
exceeded in flight. Any attempt of exaggerated empty weight versus gross weight
will be discouraged by the provisions of paragraphs 5 and 6.
9.3 Classical aircraft, single-seater
wing area (total) 9,26 m5
empty weight, equipped 160 kg
fuel tank 30 litres
useful weight 105 kg
gross weight 265 kg
![](asset-1d.png)
No. 3025 29
Government Gazette 21 July 2003
(a) Minimum speed limit
160 + 105 x 65 = 65 km / h
160 + 105
(b) Calculated minimum speed (see illustration)
elements of area S1 area CL1DL1 X S1
S1: wing + slat 3.40 1.95 6.630
S2: wing + slat + plain flap (*) 1.20 2.75 3.300
S3: wing + plain flap (*) 2.80 2.1 5.880
S4: wing into fuselage 0.6 1.45 0.870
S5: tailplane 1.26 1.45 1.827
9.26
(*) Cf = 0.30 (0.25 considered)
C
Of = 400 (300 considered)
CL X S = 0.80 (6.63 + 3.39 + 5.88 + 0.87 + 1.827) = 14.806 m5
207.6 + 265
V mini = = 61 km / h
14.806
accepted as microlight.
![](asset-1e.png)
30 Government Gazette 21 July 2003 No. 3025
