NAX970HD

- 1 -

Service Manual

Published by Service Dept.

Printed in Japan

Clarion Co., Ltd.

50 Kamitoda, Toda-shi, Saitama 335-8511 Japan

Service Dept.: 5-66 Azuma , Kitamoto-shi, Saitama 364-0007 Japan

Tel: +81-48-541-2335 / 2432 FAX: +81-48-541-2703

298-6399-00 Nov.2006

Model

HDD Navigation System

(QY-5001B-A)

SPECIFICATIONS

Navigation System

GPS receiving frequency:

1575.42 MHz, C/A Code

Sensibility: -130 dBm or better

Number of GPS channels:

15 channels

Voice synthesis: ADPCM,

Sampling frequency;11.025 kHz

Power supply voltage: DC 14V

Ground: Negative

Current consumption: less than 3.0A

Dimensions(mm): 205(W)x29.5(H)x169(D)

GPS antenna

Mode: Microstrip flat antenna

Dimensions(mm): 30.4(W)x11.7(H)x35.5(D)

Impedance: 50 ohm

NOTES

About the hard disk drive

* Data saved to the hard disk drive may get lost in case of

a breakdown, malfunction, or other trouble of this unit.

Importing Data via USB Port

* Data may be broken when using USB memory device in

the following situation: When disconnecting the USB

memory device or turning the power off during writing or

reading data. When affected by static electricity or elec-

tric noises.

* Music files (MP3, WMA, etc.) stored in the USB memory

device cannot be played back.

("Data" : Including the stored locations and their data,

route data, data stored in the Favourite & Frequent List,

setting data set from the Setting menu, and data imported

from the USB memory device (Wallpapers, etc.)

* The special equipment is necessary to replace IC103

and IC400.

* We cannot supply PWB with component parts in prin-

ciple. When a circuit on PWB has failure, please repair it

by component parts base.

Parts which are not mentioned in service manual are

not supplied.

* Specifications and design are subject to change without

notice for further improvement.

CAUTION

Use of controls,adjustment,or performance of procedures

other than those specified herein,may result in hazardous

radiation exposure.

The compact disc player should not be adjusted or repaired

by anyone except properly qualified service personnel.

Bottom view of unit

NAX970HD - 2 -

To engineers in charge of repair or

inspection of our products.

Before repair or inspection, make sure to follow the

instructions so that customers and Engineers in charge

of repair or inspection can avoid suffering any risk or

injury.

1. Use specified parts.

The system uses parts with special safety features against fire

and voltage. Use only parts with equivalent characteristics

when replacing them.

The use of unspecified parts shall be regarded as remodeling

for which we shall not be liable. The onus of product liability

(PL) shall not be our responsibility in cases where an accident

or failure is as a result of unspecified parts being used.

2. Place the parts and wiring back in their original positions after

replacement or re-wiring.

For proper circuit construction, use of insulation tubes, bond-

ing, gaps to PWB, etc, is involved. The wiring connection and

routing to the PWB are specially planned using clamps to keep

away from heated and high voltage parts. Ensure that they are

placed back in their original positions after repair or inspec-

tion.

If extended damage is caused due to negligence during re-

pair, the legal responsibility shall be with the repairing com-

pany.

3. Check for safety after repair.

Check that the screws, parts and wires are put back securely

in their original position after repair. Ensure for safety reasons

there is no possibility of secondary ploblems around the re-

paired spots.

If extended damage is caused due to negligence of repair, the

legal responsibility shall be with the repairing company.

4. Caution in removal and making wiring connection to the parts

for the automobile.

Disconnect the battery terminal after turning the ignition key

off. If wrong wiring connections are made with the battery con-

nected, a short circuit and/or fire may occur. If extensive dam-

age is caused due to negligence of repair, the legal responsi-

bility shall be with the repairing company.

5. Cautions in soldering

Please do not spread liquid flux in soldering.

Please do not wash the soldering point after soldering.

6. Cautions in soldering for chip capacitors

Please solder the chip capacitors after pre-heating for replace-

ment because they are very weak to heat.

Please do not heat the chip capacitors with a soldering iron

directly.

7. Cautions in handling for chip parts.

Do not reuse removed chips even when no abnormality is ob-

served in their appearance. Always replace them with new

ones. (The chip parts include resistors, capacitors, diodes, tran-

sistors, etc).

Please make an operation test after replacement.

8. Cautions in handling flexible PWB

Before working with a soldering iron, make sure that the iron

tip temperature is around 270 . Take care not to apply the

iron tip repeatedly(more than three times)to the same patterns.

Also take care not to apply the tip with force.

9. Turn the unit OFF during disassembly and parts replacement.

Recheck all work before you apply power to the unit.

1 2 3

4 5

6-1 6-2 6-3

6-4 6-5 6-6

6-7 6-8

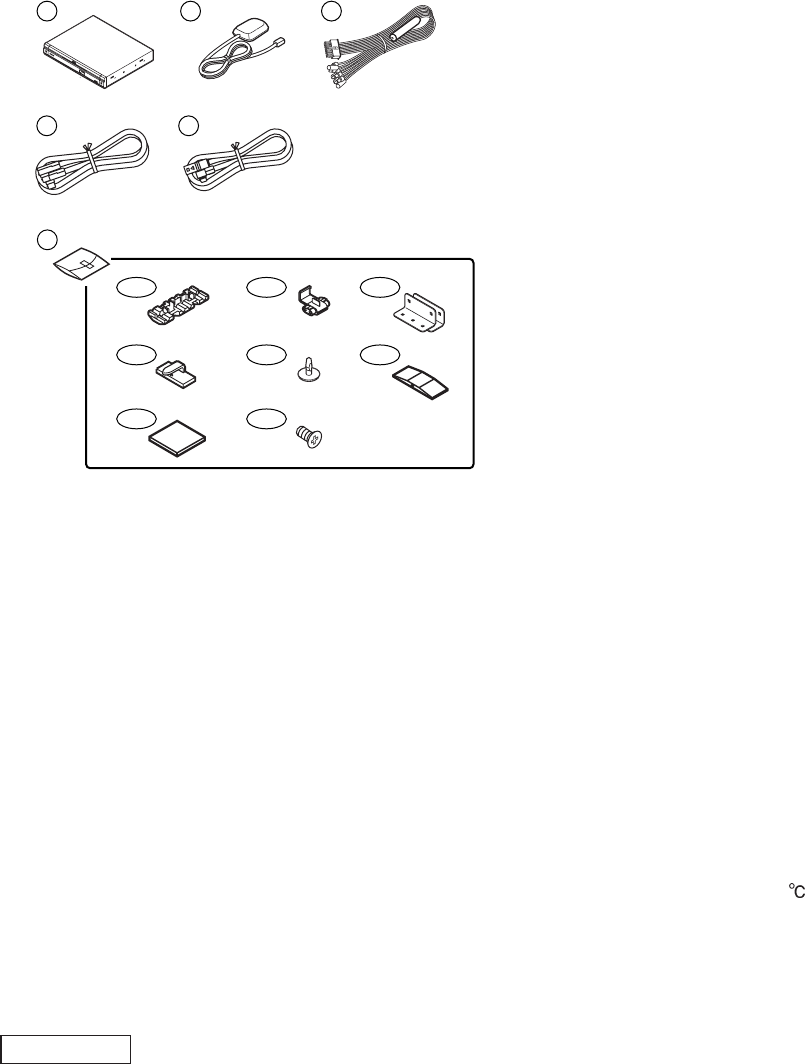

COMPONENTS

QY-5001B-A

1. Main unit ----------- 1

2. GPS antenna 096-0147-00 1

3. Power supply lead 854-6451-50 1

(5A Fuse 120-0050-00 1)

4. RGB cable 855-2433-02 1

5. CeNET cable(2.5m) 855-3421-01 1

6. Accessory bag ----------- 1

6-1. Electro-tap(for speed sensor) 060-0018-00 2

6-2. Electro-tap 060-0305-00 1

6-3. Mounting bracket 300-7362-03 2

6-4. Cord holder 321-1026-01 10

6-5. Canoe clip 335-2515-00 4

6-6. Waterproof rubber 345-7473-00 1

6-7. Double-sided tape for fastening the antenna

347-6369-00 1

6-8. Inatallation bolt(M4x6) 714-4006-8B 4

NAX970HD

- 3 -

Error Message Cause Remedy

USB memory

device ACCESS ERROR

USB memory device access failed. The USB memory is not

connected correctly. Connect the USB memory again.

The USB memory is not recognised. Connect another USB memory.

Hard Disk Drive HIGH TEMP ERROR

Please wait until

temperature becomes normal again.

The HDD cannot be accessed

because the temperature in the

vehicle is extremely high

Please wait until the temperature

becomes appropriate.

LOW TEMP ERROR

Please wait until

temperature becomes normal again.

The HDD cannot be accessed

because the temperature in the

vehicle is extremely low

Please wait until the temperature

becomes appropriate.

ACCESS ERROR

HDD access failed. The HDD cannot be accessed.

The sectors or clusters of the

HDD may be damaged.

Problem Check point Remedy

Connection of power cable

Connection of RGB cable

Output of RGB signal

Output level of RGB signal

Dot clock

Connect power cable properly.

Confirm the frequency of the dot clock. (TP534)

Connect RGB cable properly.

Connect GPS antenna properly.

Connect internal wiring (ANT700,ANT701) properly.

Connect speed pulse cable properly.

Connection of CeNET cable Connect CeNET cable properly.

Power supply circuit Confirm the output voltage of the power properly.

TP1000 HDD_5V

TP1001 D_5V

TP1003 D_3.3V

TP1008 DDR_2.5V

TP1004 VCC 1.22V

Confirm the output of RGB signal.

TP1115 R

TP1116 G

TP1114 R

Confirm the output level of RGB signal.

TP1115 R

TP1116 G

TP1114 R

Confirm collector voltage of Q803.

0V : MUTE-ON

3.3V : MUTE-OFF

Confirm collector voltage of Q801.

0V : MUTE-ON

3.3V : MUTE-OFF

Confirm an output signal of TP1108(ECC).

Measure pin1(VOUT) of Gyro(IC702) with the

tester. Confirm the voltage.

At geostationary: about 2.5V

When sets are rotatedand: voltage moves.

Confirm IC801.

pin1(LRCK):11.025KHz

pin18(MCLK):8.46MHz

pin19(BCLK):705KHz

pin20(DIN):Data input

Confirm an analog aoudio signal output of pin12 of

IC801.

HDD Insert HDD, and put protecting.

Adjust the volume properly.

The color of the screen is defective.

Guide voice doesn't sound. Volume level of guide voice

Clock and data input of DAC(IC801)

Output of DAC(IC801)

MUTE setting

Connection of speed pulse

Connection of GPS antenna

Connection of internal wiring

Wave form of speed pulse

Gyro sensor

Power indicator doesn't light.

(The power supply doesn't enter).

Screen is not displayed.

Map is not displayed.

The car position doesn't move.

GPS reception is defective.

TROUBLESHOOTING

ERROR MESSAGES

NAX970HD - 4 -

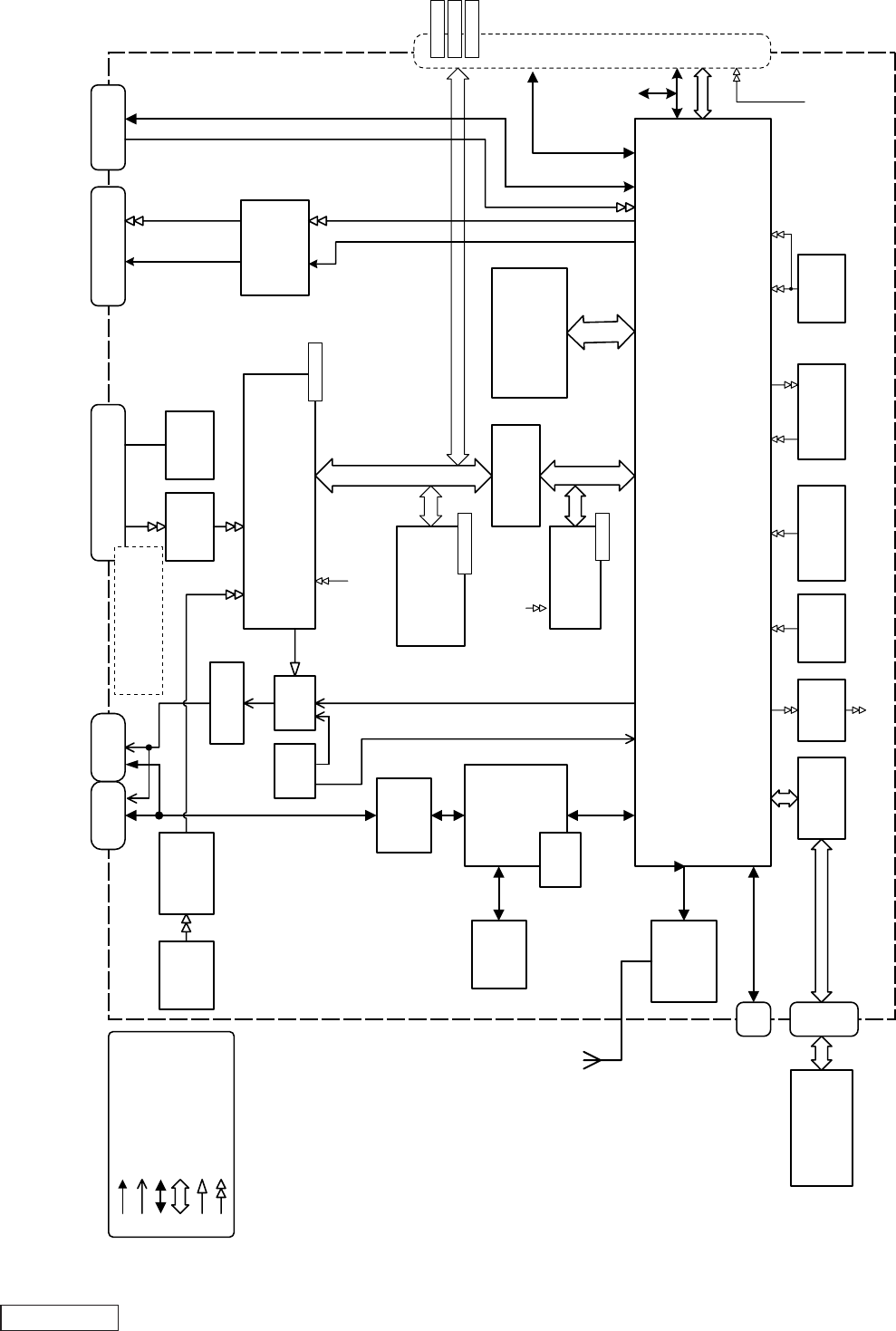

BLOCK DIAGRAM

Video/Audio/Control block

IC403

SRAM

512KB

IC200,IC201,

IC202,IC203

DDR-SDRAM

128MB(256Mbx4)

IC400

DISK ON CHIP

64MB

IC800

ADC

SENSOR

I/F

J1102 J1103 P701

(Connector for production)

IC700

ADC

BL700

GPS

Tuner Pack

J701

IC702

GYRO

SENSOR

R/G/B

IC401

BUS BUFER

16 64

IC501

FPGA

CSYNC

IC103

CPU

IC602

BUS

BUFFER

2.5inch 30GB

HARD DISK DRIVE

SCIF5

SCIF0

USB Host

ATAPI

RGB

DDR I/FEX-BUS

SSI0 SSI1

CS0

EX_CS0

H-UDI

JTAG

IC801

DAC

Control

IR IN

(96MHz)

(32MHz)

IC1102,IC1103

RGB

BUFFER

GUIDE

SIG.

TTS/WAVE (GUIDE VOICE)

VOICE RECOGNITION

16 X101

OSC

48MHz

X100

OSC

14.31818MHz

EXTALDOTCLKIN USBCLKAUDIO_CLK

CLKOUT

(CKIO)

32MHz

- FPGA

- DOC

- DEBUG CN

CLKIN(CKIO)

From SH7770

32MHz

EX_CS2

IC909

MICOM

IC912

IE-BUS

DRIVER

AUDIO

CLOCK

X900

XTAL

10MHz

IC802,IC804

BUFFER

SCIF2 UART

J500(Unmounting)

DEBUG CONNECTOR for Development

X102

OSC

8.46MHz

UART

SCIF7

16 EX_CS4

EX_CS7

EX_CS1

From SH7770

32MHz

From SH7770

32MHz

IC908

EEPROM

1Kbit

Note Main PWB Block J1100 J1101

Control signal

Other signal

Video signal

Audio signal

㪧㪸㫉㪸㫃㫃㪼㫃㩷BUS

㪪㪼㫉㫀㪸㫃㩷㪺㫆㫄㫄㫌㫅㫀㪺㪸㫋㫀㫆㫅

CSYNC

IC505

PLL

(9.1101MHz㪄10.085663MHz)

PDOUT4FSCEXCLK

SCIF4

GPS

ANT

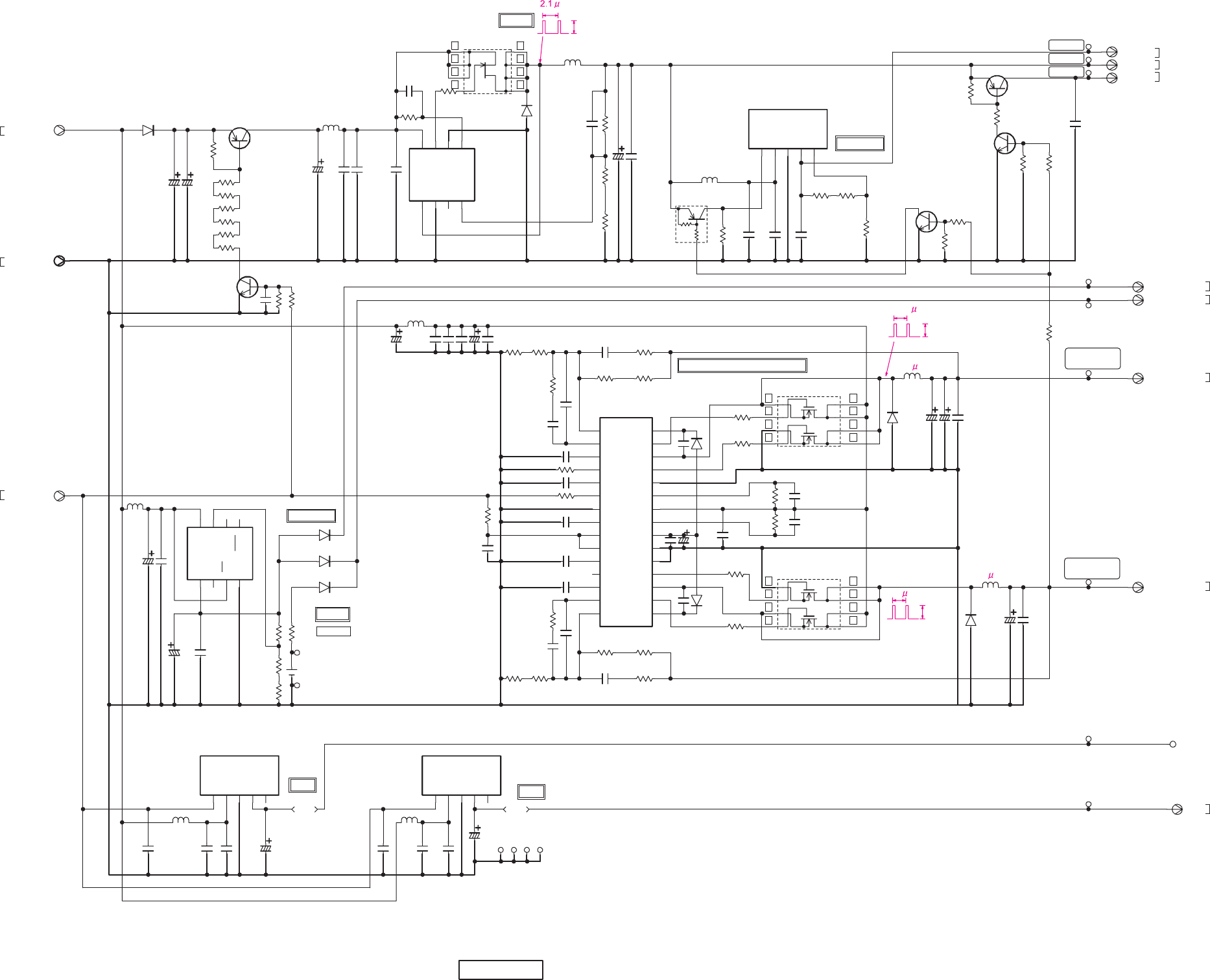

POWER

SUPPLY

BLOCK

Q1100,Q1101,IC1100,IC1101

SENSOR I/F:

PKB,BACK,ECC

B/U

12V

IC502

BUFFER

CeNET

CONN. CeNET

CONN.

HDD

CONNECT. USB

CON.

BU12V, PKB/BACK/ECC

CONNECTOR RGB

CONNECTOR SERIAL

CONNECTOR

NAX970HD

- 5 -

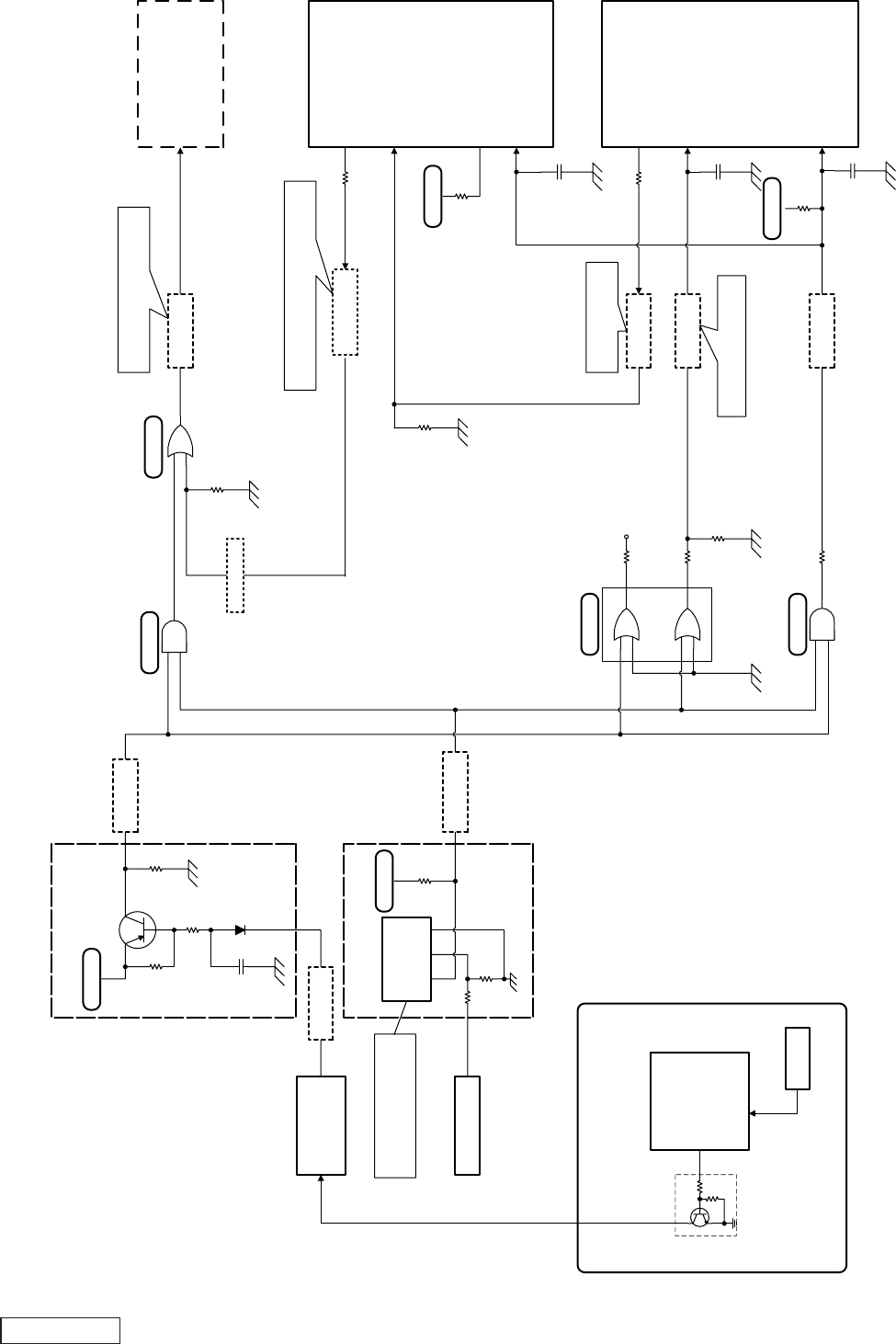

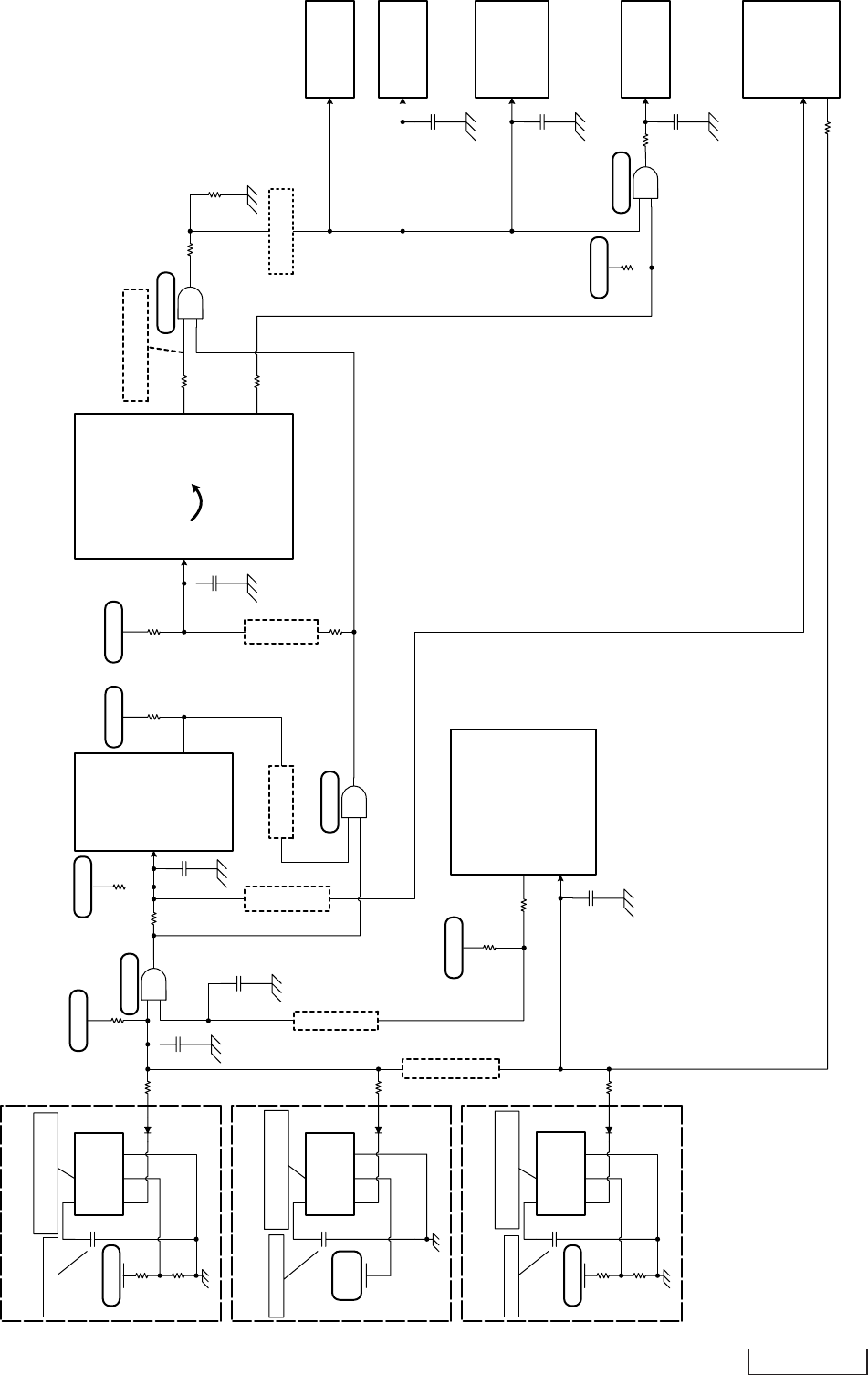

Reset block

Debug

Connector

Reset Block

IC103

CPU

SH Navi1

/RESET /RESET_OUT

SRAM

FPGA

HDD

ADC

(AK5357)

IC904

Detector

R3112N211A

IC900

Detector

R3112N211A

IC901

Detector

R3112N211A

HDD_5V DET.

10K

3.9K

3.3K

D_5V

DET VOLT(high):4.81V

DET VOLT(Low):4.58V

0.033uF

100

DDR_2.5V DET.

D_3.3V DET.

DDR

2.5V

0.033uF

100

Disk On Chip

/BUSY

/RSTIN

D_3.3V

D_3.3V D_3.3V

Delay:150ms

1000pF1000pF

/PERI _RESET

47K

D_3.3V

D_5V

1000pF

100

D_3.3V

IC909

SUB

Micon

/RESET

/CPU_RST

100

1000pF

100

10K

/IDE_RST 82

100

/RESET_OUT

/RESET_IN

D_3.3V

100

16K

39K

D_3.3V

0.033uF

100

/NAVI_RESET

100

1000pF

47K

D_3.3V

100

1000pF

SN74ALVC08

(2/4)

SN74ALVC08

(3/4)

SN74ALVC08

(4/4)

SN74ALVC08

47K

10K

/BASE_RESET

/SH_RESET_OUT

/DOC_RST IN

/NAVI_RESET

/DOC_BUSY

1000pF

Delay:150ms

DET VOLT(high):2.20V

DET VOLT(Low):2.10V

DET VOLT(high):3.11V

DET VOLT(Low):2.96V

NAX970HD - 6 -

Power detect block

Power Detect Block

Micro

Controller

B/U 12V

IC903

Detector

R3111N271A

ACC_DET

BU_9V_DET

ACC DET.

/SYS-ACC

B/U DET.

/P_OFF

NAVI_PON

/BU-DET

Power supply ON/OFF SW

on Mian PWB

Power-OFF signal

from SH

B/U-VOLT watch signal

to SH

SN74LVC2G32

TC7S32FU

SN74LVC1G08

47K

4.7K

56K

24.7K

47K10K

10K

0.1u

Q900

2SA1586

47K

100

B/U_3.3V

B/U_3.3V B/U_3.3V

D_3.3V

Power supply

(Power circuit block)

B/U

DET. VOLT(high):9.26V

DET. VOLT(Low):8.82V

1SS355

1000pF

100

S-TV

Ce-net

Connector

ACC

IC103

SH-Navi1

NMI

IC909

SUB

Micro

Controller

/SHUTDOWN 100

47K

Shout down signal

by compulsion from microcomputer

1000pF

/P_OFF_B

/NMI_MONI

/SHUTDOWN

/BU_DET

1000pF

NMI

100

D_3.3V

SN74ALVC08(1/4)

GPIO2A20/TX9

GPIO2A22/CSK9

/NAVI_MONI

10K

D_3.3V

10K

D_3.3V

NAX970HD

- 7 -

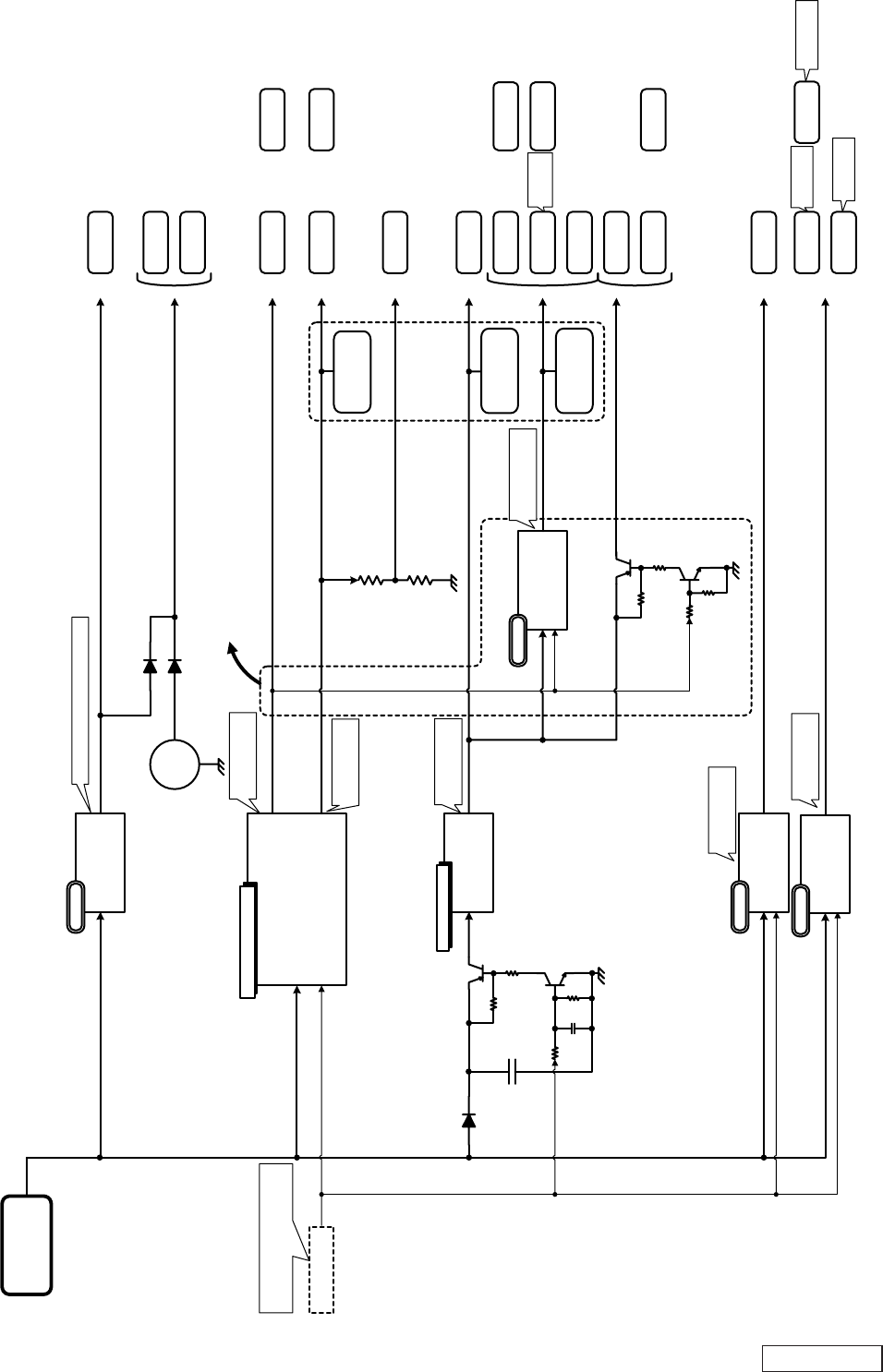

Power circuit block

Power Circuit Block

CAR

BATTERY

Max. permissible current:150mA

Max. permissible

current:3000mA

[D_3.3V] , [D_5V] ON/OFF SW by VCC_1.22V

* Setting of timing for core power of [Navi core-FPGA] and I/O power.

* [D_5V] ON/OFF SW for protection of [Navi core] and [FPGA].

IC1000

B/U_3.3V

LM2954

IC1005

VCC_1.22V

DDR_2.5V

TPS5120

IC1003

HDD_5V

LM3485

IC1001 A_9V

BA09CC0WFP

10k

3.9k

10k

2SD1306

2SA2096

4700uF x 2

100(1/4W) x6

NAVI_P_ON

Detector

2.20V Release

2.10V Det.

Detector

4.81V Release

4.58V Det.

Detector

3.11V Release

2.96V Det.

1.22V

2.5V

IC1006 D_3.3V

BD00KA5WFP

Coin

Battery

DC/DC (200kHz)

DC/DC (100kHz)

Linear

IC1004 A_5V

BA05CC0WFP

Vref

Logic

SRAM

GPS

Receiver

SHNavi1 FPGA

SHNavi1 DDR

DDR

HDD

SHNavi1 FPGA

Audio

DAC/ADC

USB

Sub Micon

GPS

Receiver Gyro

Analog

circuit

Audio

DAC/ADC

RGB

Encoder

Logic

Max. permissible

current:3000mA

Max. permissible

current:500mA

Max. permissible

current:1000mA

Max. permissible

current:1000mA

Max. permissible

current:3000mA

10k

470

10k

2SC4081

2SB1188

220

Power supply circuit ON/OFF

SW on Navi PWB

8.5uA typ.

120uA max.

85mA typ.

95mA max.

GPS

Receiver

500mA max.

40mA max.

20mA max.

(DataSheet)

13.5mA max.

(DataSheet)

30mA max.

(DataSheet)

30mA max.

(DataSheet)

2.2u

15k

(F)

15k

(F)

Linear

NAX970HD - 8 -

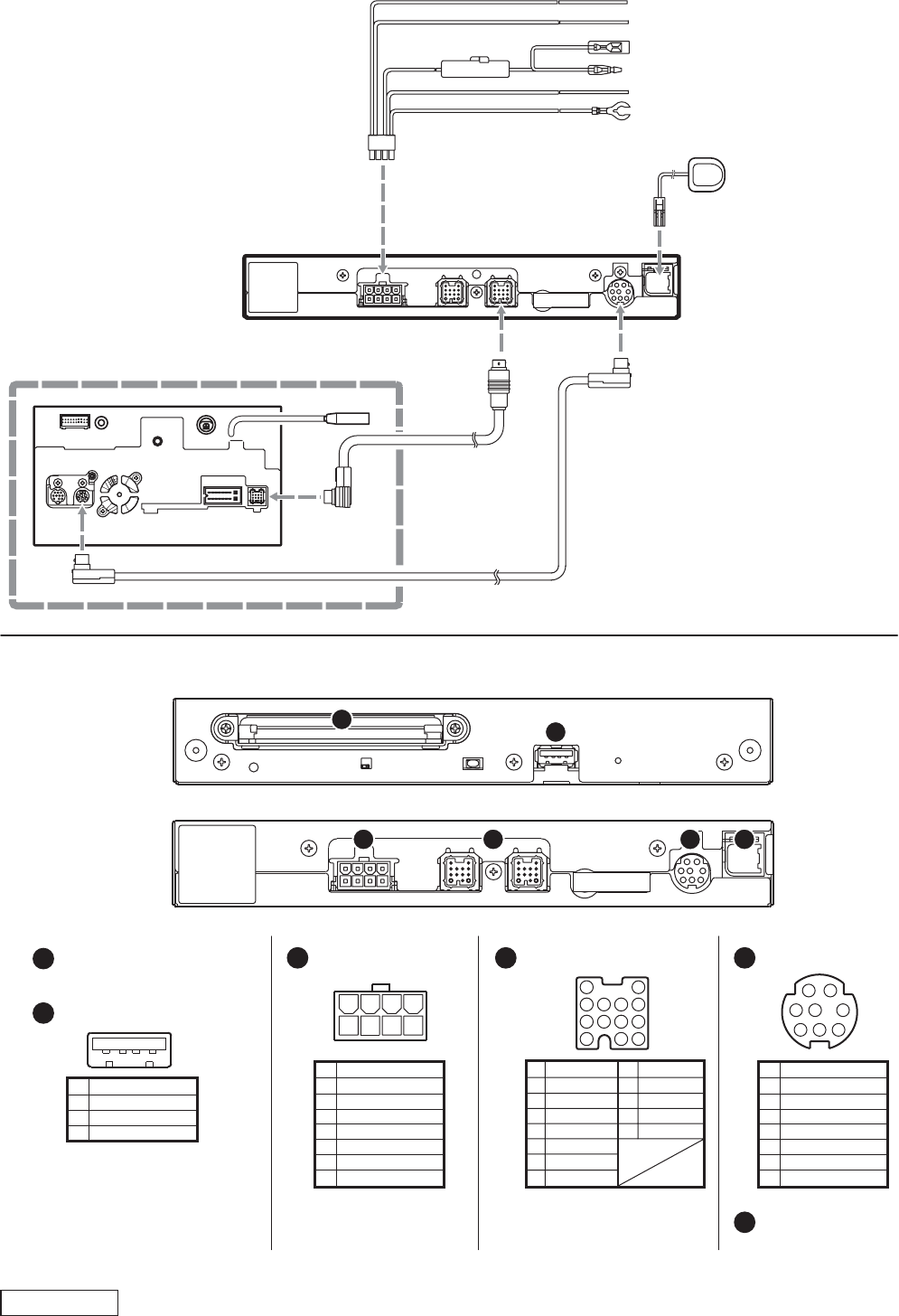

WIRE CONNECTION

5A Fuse

(120-0050-00) Main power supply (Yellow)

Speed sensor (Pink)

Reverse gear signal (Purple/white)

Ground (Black)

NAX970HD

Front view

(inside of Escutcheon)

Rear view

MAX675VD

GPS antenna

(096-0147-00)

Power supply lead

(854-6451-50)

RGB cable

(855-2433-02)

CeNET cable

(855-3421-01)

Handbrake (Green)

Connectors

Example of connecting to the MAX675VD

HDD

GPS antenna recept.

456

Power supply connector

2468

1357

N.C.

PARKING BRAKE

N.C.

SPEED SENSOR

GROUND

REVERSE SIG.

BATTERY (+)

N.C.

RGB connector

C-SYNC

N.C.

1234

USB connector

D-

D+

GND

CeNET connector

11 12

78910

3456

1132

GND

SYS B/U

L-CH(+)

EXT(+)

EXT(-)

GUS(+)

R-CH(+)

R-CH(-)

SYS ACC

BUS(-)

L-CH(-)

ILLUMI.

N.C.

NAX970HD

- 9 -

NO. PART NO. DESCRIPTION Q'TYNO. PART NO. DESCRIPTION Q'TY

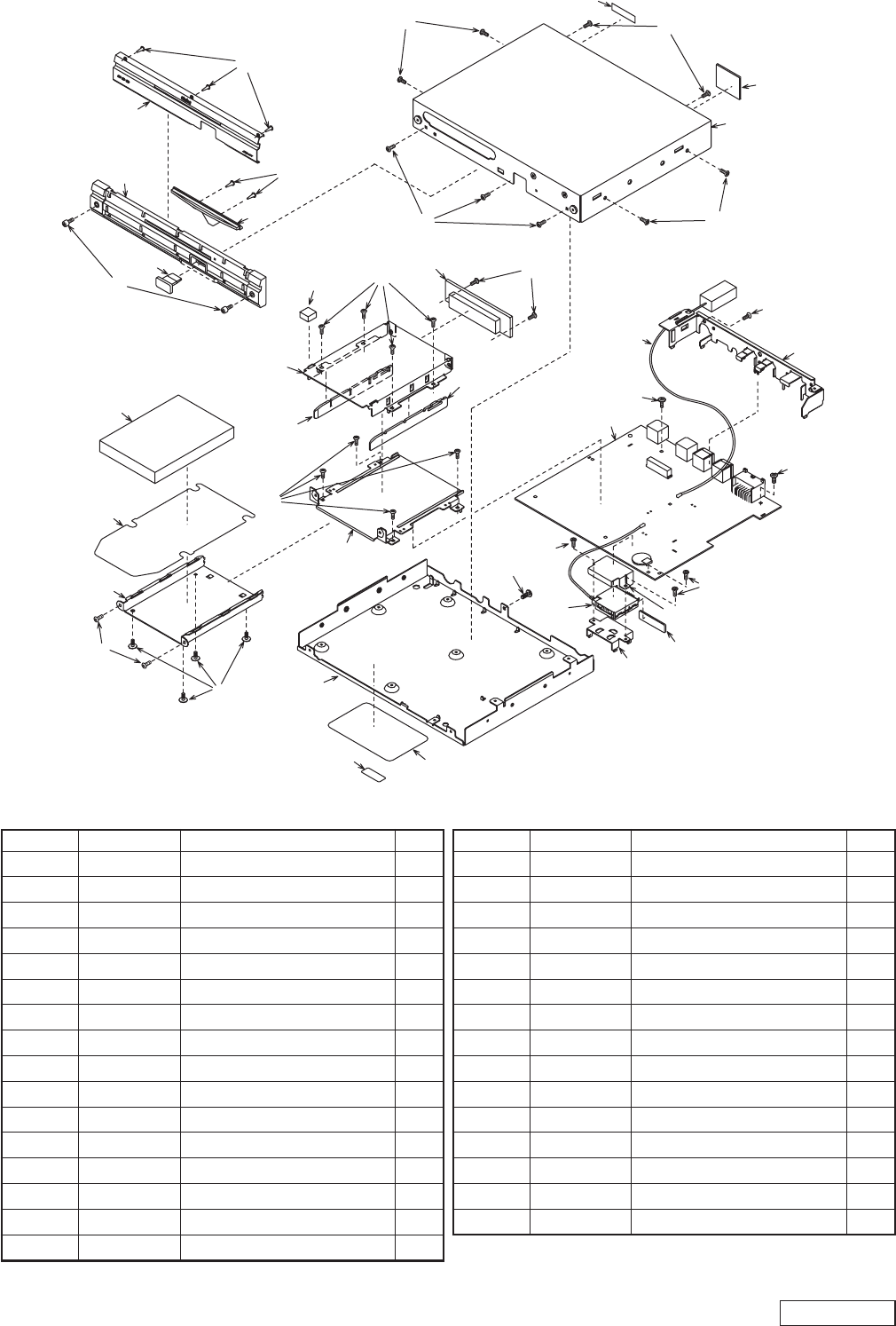

EXPLODED VIEW/PARTS LIST

1 372-3232-01 ALUMI FACE 1

2 370-6928-00 ESCUTCHEON 1

3 335-7799-00 ILLUMI 1

4 ----------- MAIN PWB 1

5 331-4188-00 GPS-PLATE 1

6 311-1922-00 LOWER CASE 1

7 331-4192-00 HDD-HOLDER 1

8 335-7798-00 USB-CVR 1

9 780-2607-00 SCREW(M2.6x7) 2

10 331-4189-00 GPS-HOLDER 1

11 310-1830-01 UPPER CASE 1

12 347-8187-00 INSULATOR 1

13 780-2604-03 SCREW(M2.6x4) 10

14 331-4191-00 HDD-PLATE 1

15 276-0157-00 SETPLATE 1

16 ----------- HARD DISC DRIVE(30GB) 1

17 331-3660-01 HDD BRKT 1

18 716-0878-50 SCREW(M2.6x5) 17

19 335-7016-00 HDD GUIDE-R 1

20 335-7017-00 HDD GUIDE-L 1

21 347-7963-00 HDD PULL SHEET 1

22 345-8524-01 CUSION 1

23 331-4186-00 C-PLATE 1

24 716-3490-50 SCREW(M1.7x3) 3

25 716-3503-50 SCREW(M3x4) 4

26 716-0872-52 PAD SCREW(M1.7x5) 2

27 290-0103-00 COA LABEL 1

28 092-2206-01 ANT-RECEPT 1

29 714-3006-8B MACHINE SCREW(M3x6) 1

30 060-8059-00 GPS-RECEIVER 1

31 347-8183-00 INSULATOR 1

NAX970HD - 10 -

REF No. PART No. DESCRIPTION REF No. PART No. DESCRIPTION REF No. PART No. DESCRIPTION

ELECTRICAL PARTS LIST

Main PWB(B1) section

ANT700 075-0380-01 JACK

ANT701 075-0380-01 JACK

BAT1000 088-0034-11 CR2032-HE4

BL700 060-8059-00 GPS-RECEIVER

C100 042-0423-20 10V 10uF

C101 046-1042-78 0.1uF

C102 046-1042-78 0.1uF

C103 046-1042-78 0.1uF

C104 178-1052-78 1uF

C105 046-1042-78 0.1uF

C106 042-1726-90 6.3V 100uF

C107 178-1052-78 1uF

C108 042-1726-90 6.3V 100uF

C109 042-1726-90 6.3V 100uF

C110 178-1052-78 1uF

C111 178-1052-78 1uF

C112 042-0423-20 10V 10uF

C113 046-1042-78 0.1uF

C114 046-1042-78 0.1uF

C115 046-1042-78 0.1uF

C116 046-1042-78 0.1uF

C117 166-1011-50 100pF CH

C118 046-1042-78 0.1uF

C119 046-1042-78 0.1uF

C120 166-1011-50 100pF CH

C121 046-1042-78 0.1uF

C122 042-1726-90 6.3V 100uF

C123 178-1052-78 1uF

C124 046-1042-78 0.1uF

C125 046-1042-78 0.1uF

C126 046-1042-78 0.1uF

C127 046-1042-78 0.1uF

C128 046-1042-78 0.1uF

C129 046-1042-78 0.1uF

C130 046-1042-78 0.1uF

C131 046-1042-78 0.1uF

C132 046-1042-78 0.1uF

C133 046-1042-78 0.1uF

C134 046-1042-78 0.1uF

C135 166-1011-50 100pF CH

C136 168-1022-55 1000pF K

C137 046-1042-78 0.1uF

C138 046-1042-78 0.1uF

C139 046-1042-78 0.1uF

C140 046-1042-78 0.1uF

C141 046-1042-78 0.1uF

C142 166-1011-50 100pF CH

C143 046-1042-78 0.1uF

C144 046-1042-78 0.1uF

C145 046-1042-78 0.1uF

C146 166-1011-50 100pF CH

C147 166-1011-50 100pF CH

C148 046-1042-78 0.1uF

C149 046-1042-78 0.1uF

C150 046-1042-78 0.1uF

C151 166-2201-50 22pF CH

C152 046-1042-78 0.1uF

C153 046-1042-78 0.1uF

C154 042-0423-20 10V 10uF

C155 046-1042-78 0.1uF

C156 046-1042-78 0.1uF

C157 046-1042-78 0.1uF

C158 046-1042-78 0.1uF

C159 046-1042-78 0.1uF

C160 166-1011-50 100pF CH

C161 046-1042-78 0.1uF

C162 046-1042-78 0.1uF

C163 046-1042-78 0.1uF

C164 046-1042-78 0.1uF

C165 046-1042-78 0.1uF

C166 166-1011-50 100pF CH

C167 046-1042-78 0.1uF

C168 046-1042-78 0.1uF

C169 046-1042-78 0.1uF

C170 046-1042-78 0.1uF

C171 046-1042-78 0.1uF

C172 046-1042-78 0.1uF

C173 046-1042-78 0.1uF

C174 046-1042-78 0.1uF

C175 046-1042-78 0.1uF

C176 046-1042-78 0.1uF

C177 046-1042-78 0.1uF

C178 046-1042-78 0.1uF

C179 046-1042-78 0.1uF

C180 046-1042-78 0.1uF

C181 046-1042-78 0.1uF

C182 046-1042-78 0.1uF

C183 046-1042-78 0.1uF

C184 166-1011-50 100pF CH

C185 166-1011-50 100pF CH

C186 166-1011-50 100pF CH

C187 042-0423-20 10V 10uF

C188 168-1022-55 1000pF K

C189 168-1045-56 0.1uF Z

C200 178-1052-78 1uF

C201 042-0423-20 10V 10uF

C202 042-0423-20 10V 10uF

C203 046-1042-78 0.1uF

C204 166-1011-50 100pF CH

C205 046-1042-78 0.1uF

C206 166-1011-50 100pF CH

C207 046-1042-78 0.1uF

C208 166-1011-50 100pF CH

C209 046-1042-78 0.1uF

C210 166-1011-50 100pF CH

C211 166-1011-50 100pF CH

C212 046-1042-78 0.1uF

C213 166-1011-50 100pF CH

C214 046-1042-78 0.1uF

C215 046-1042-78 0.1uF

C216 166-1011-50 100pF CH

C217 046-1042-78 0.1uF

C218 166-1011-50 100pF CH

C219 166-1011-50 100pF CH

C220 046-1042-78 0.1uF

C221 166-1011-50 100pF CH

C222 046-1042-78 0.1uF

C223 046-1042-78 0.1uF

C224 166-1011-50 100pF CH

C225 046-1042-78 0.1uF

C226 166-1011-50 100pF CH

C227 046-1042-78 0.1uF

C228 046-1042-78 0.1uF

C229 046-1042-78 0.1uF

C230 166-1011-50 100pF CH

C231 046-1042-78 0.1uF

C232 166-1011-50 100pF CH

C233 046-1042-78 0.1uF

C234 046-1042-78 0.1uF

C235 046-1042-78 0.1uF

C236 166-1011-50 100pF CH

C237 046-1042-78 0.1uF

C238 166-1011-50 100pF CH

C239 042-0423-20 10V 10uF

C240 042-0423-20 10V 10uF

C241 046-1042-78 0.1uF

C242 166-1011-50 100pF CH

C243 046-1042-78 0.1uF

C244 166-1011-50 100pF CH

C245 046-1042-78 0.1uF

C246 166-1011-50 100pF CH

C247 046-1042-78 0.1uF

C248 166-1011-50 100pF CH

C249 166-1011-50 100pF CH

C250 046-1042-78 0.1uF

C251 166-1011-50 100pF CH

C252 046-1042-78 0.1uF

C253 046-1042-78 0.1uF

C254 166-1011-50 100pF CH

C255 046-1042-78 0.1uF

C256 166-1011-50 100pF CH

C257 166-1011-50 100pF CH

C258 046-1042-78 0.1uF

C259 166-1011-50 100pF CH

C260 046-1042-78 0.1uF

C261 046-1042-78 0.1uF

C262 166-1011-50 100pF CH

C263 046-1042-78 0.1uF

C264 166-1011-50 100pF CH

C265 046-1042-78 0.1uF

C266 046-1042-78 0.1uF

C267 046-1042-78 0.1uF

C268 166-1011-50 100pF CH

C269 046-1042-78 0.1uF

C270 166-1011-50 100pF CH

C271 046-1042-78 0.1uF

C272 046-1042-78 0.1uF

C273 046-1042-78 0.1uF

C274 166-1011-50 100pF CH

C275 046-1042-78 0.1uF

C276 166-1011-50 100pF CH

C277 042-1726-90 6.3V 100uF

C278 046-1042-78 0.1uF

C400 042-0423-20 10V 10uF

C401 046-1042-78 0.1uF

C402 168-6832-78 0.068uF K

C403 168-6832-78 0.068uF K

C404 042-0423-20 10V 10uF

C405 168-4745-79 0.47uF Z

C406 166-1011-50 100pF CH

C407 046-1042-78 0.1uF

C408 046-1042-78 0.1uF

C409 046-1042-78 0.1uF

C410 046-1042-78 0.1uF

C411 046-1042-78 0.1uF

C412 042-0423-20 10V 10uF

C413 168-4745-79 0.47uF Z

C414 166-1011-50 100pF CH

C415 046-1042-78 0.1uF

C416 046-1042-78 0.1uF

C417 046-1042-78 0.1uF

C419 046-1042-78 0.1uF

C420 166-1011-50 100pF CH

C421 166-1011-50 100pF CH

C422 166-1011-50 100pF CH

C423 166-1011-50 100pF CH

C424 166-1011-50 100pF CH

C425 166-1011-50 100pF CH

C426 168-1022-55 1000pF K

C427 166-1011-50 100pF CH

C428 166-1011-50 100pF CH

C429 168-1022-55 1000pF K

C502 046-1042-78 0.1uF

C503 046-1042-78 0.1uF

C504 046-1042-78 0.1uF

C505 046-1042-78 0.1uF

C506 046-1042-78 0.1uF

C507 046-1042-78 0.1uF

C508 046-1042-78 0.1uF

C509 046-1042-78 0.1uF

C510 046-1042-78 0.1uF

C511 046-1042-78 0.1uF

C512 046-1042-78 0.1uF

NAX970HD

- 11 -

REF No. PART No. DESCRIPTION REF No. PART No. DESCRIPTION REF No. PART No. DESCRIPTION

C513 046-1042-78 0.1uF

C514 046-1042-78 0.1uF

C515 046-1042-78 0.1uF

C516 046-1042-78 0.1uF

C517 046-1042-78 0.1uF

C518 046-1042-78 0.1uF

C520 042-0573-50 6.3V 47uF TAN

C521 046-1042-78 0.1uF

C522 042-0416-57 10V 47uF M TAN

C523 046-1042-78 0.1uF

C525 042-0416-57 10V 47uF M TAN

C526 046-1042-78 0.1uF

C527 166-4701-50 47pF CH

C528 046-1042-78 0.1uF

C529 168-1022-55 1000pF K

C531 166-1011-50 100pF CH

C532 166-1011-50 100pF CH

C533 166-1011-50 100pF CH

C534 166-1011-50 100pF CH

C535 166-1011-50 100pF CH

C536 166-1011-50 100pF CH

C537 166-1011-50 100pF CH

C538 166-1011-50 100pF CH

C539 166-1011-50 100pF CH

C540 166-1011-50 100pF CH

C541 166-1011-50 100pF CH

C542 166-1011-50 100pF CH

C543 166-1011-50 100pF CH

C544 166-1011-50 100pF CH

C545 166-1011-50 100pF CH

C546 166-1011-50 100pF CH

C547 166-1011-50 100pF CH

C548 166-1011-50 100pF CH

C549 166-1011-50 100pF CH

C550 166-1011-50 100pF CH

C551 166-1011-50 100pF CH

C552 166-1011-50 100pF CH

C553 166-1011-50 100pF CH

C554 042-0423-97 16V 10uF

C555 168-1045-56 0.1uF Z

C556 166-3901-50 39pF CH

C557 168-1042-78 16V 0.1uF

C558 046-1042-78 0.1uF

C559 046-1042-78 0.1uF

C560 046-1042-78 0.1uF

C561 168-2232-55 0.022uF K

C600 168-1045-56 0.1uF Z

C601 168-1045-56 0.1uF Z

C602 046-1042-78 0.1uF

C603 046-1042-78 0.1uF

C604 042-0423-20 10V 10uF

C605 046-1042-78 0.1uF

C606 046-1042-78 0.1uF

C607 042-0403-55 16V 33uF

C608 168-1045-56 0.1uF Z

C609 168-1045-56 0.1uF Z

C610 042-0403-55 16V 33uF

C611 168-1022-55 1000pF K

C700 168-1045-56 0.1uF Z

C701 168-4745-79 0.47uF Z

C702 042-0423-97 16V 10uF

C703 168-1045-56 0.1uF Z

C704 168-1045-56 0.1uF Z

C705 168-1045-56 0.1uF Z

C706 163-1063-35 16V 10uF

C707 168-1045-56 0.1uF Z

C708 168-1045-56 0.1uF Z

C709 168-1032-55 0.01uF K

C710 168-1032-55 0.01uF K

C711 163-1063-35 16V 10uF

C712 168-1032-55 0.01uF K

C713 168-1032-55 0.01uF K

C715 168-1045-56 0.1uF Z

C716 168-1045-56 0.1uF Z

C717 046-1042-78 0.1uF

C718 042-0638-50 16V 68uF

C719 168-1032-55 0.01uF K

C720 166-2701-50 27pF CH

C721 166-2701-50 27pF CH

C722 166-1011-50 100pF CH

C723 166-1011-50 100pF CH

C724 163-1063-35 16V 10uF

C726 168-1022-55 1000pF K

C727 166-1011-50 100pF CH

C729 042-0638-50 16V 68uF

C800 043-0548-50 2.2uF

C801 046-1042-78 0.1uF

C802 046-1042-78 0.1uF

C803 042-0423-97 16V 10uF

C805 046-1042-78 0.1uF

C806 046-1042-78 0.1uF

C807 046-1042-78 0.1uF

C808 042-0423-20 10V 10uF

C809 042-0423-97 16V 10uF

C811 042-0423-97 16V 10uF

C812 168-4745-79 0.47uF Z

C813 046-1042-78 0.1uF

C815 163-1063-35 16V 10uF

C816 168-2222-55 2200pF K

C817 168-1045-56 0.1uF Z

C818 168-1032-55 0.01uF K

C819 042-0423-97 16V 10uF

C820 168-2212-55 220pF K

C821 043-0548-50 2.2uF

C826 043-0548-50 2.2uF

C829 166-1011-50 100pF CH

C831 166-1011-50 100pF CH

C832 168-1045-56 0.1uF Z

C833 046-1042-78 0.1uF

C834 163-1063-35 16V 10uF

C835 163-1063-35 16V 10uF

C839 163-1063-35 16V 10uF

C840 163-1063-35 16V 10uF

C841 168-2212-55 220pF K

C842 168-2212-55 220pF K

C843 168-2212-55 220pF K

C900 168-1032-55 0.01uF K

C901 046-1042-78 0.1uF

C902 168-3332-78 0.033uF K

C903 168-1032-55 0.01uF K

C904 046-1042-78 0.1uF

C905 046-1042-78 0.1uF

C906 168-3332-78 0.033uF K

C907 168-1032-55 0.01uF K

C908 046-1042-78 0.1uF

C909 168-1032-55 0.01uF K

C910 046-1042-78 0.1uF

C911 046-1042-78 0.1uF

C912 168-3332-78 0.033uF K

C914 046-1042-78 0.1uF

C915 168-1045-56 0.1uF Z

C916 046-1042-78 0.1uF

C917 168-1045-56 0.1uF Z

C918 163-1073-15 6.3V 100uF

C919 168-1045-56 0.1uF Z

C920 168-1045-56 0.1uF Z

C921 046-1042-78 0.1uF

C922 168-1022-55 1000pF K

C924 046-1042-78 0.1uF

C926 168-1032-55 0.01uF K

C927 168-1032-55 0.01uF K

C928 168-1022-55 1000pF K

C929 168-1022-55 1000pF K

C931 168-1022-55 1000pF K

C932 168-1022-55 1000pF K

C1000 163-1063-35 16V 10uF

C1001 168-1045-56 0.1uF Z

C1004 168-1022-55 1000pF K

C1005 042-0423-20 10V 10uF

C1007 168-1045-56 0.1uF Z

C1008 166-1211-50 120pF CH

C1010 163-1073-35 16V 100uF

C1013 163-1063-35 16V 10uF

C1015 168-1045-56 0.1uF Z

C1016 163-1063-35 16V 10uF

C1017 168-1032-55 0.01uF K

C1018 168-1045-56 0.1uF Z

C1020 168-1022-55 1000pF K

C1021 166-1211-50 120pF CH

C1023 163-1073-35 16V 100uF

C1024 168-3322-55 3300pF K

C1025 168-3322-55 3300pF K

C1026 168-6812-55 680pF K

C1027 168-1032-55 0.01uF K

C1028 166-6801-50 68pF CH

C1029 168-1045-56 0.1uF Z

C1030 168-1045-56 0.1uF Z

C1031 168-1032-55 0.01uF K

C1032 168-6812-55 680pF K

C1033 168-3922-55 3900pF K

C1034 168-2222-55 2200pF K

C1035 168-1222-55 1200pF K

C1036 042-1726-90 6.3V 100uF

C1037 043-0548-50 2.2uF

C1038 046-1042-78 0.1uF

C1039 168-1045-56 0.1uF Z

C1040 046-1042-78 0.1uF

C1041 168-1045-56 0.1uF Z

C1042 168-1045-56 0.1uF Z

C1043 168-1045-56 0.1uF Z

C1045 166-1211-50 120pF CH

C1048 042-1726-90 6.3V 100uF

C1049 042-1726-90 6.3V 100uF

C1050 043-0548-50 2.2uF

C1051 043-0548-50 2.2uF

C1058 189-4783-31 16V 4700uF

C1059 189-4783-31 16V 4700uF

C1061 043-0566-90 50V 2.2uF K

C1062 168-1022-55 1000pF K

C1063 043-0566-90 50V 2.2uF K

C1064 043-0566-90 50V 2.2uF K

C1065 178-1052-78 1uF

C1066 168-1045-56 0.1uF Z

C1067 043-0576-90 50V 10uF

C1068 043-0576-90 50V 10uF

C1069 043-0576-90 50V 10uF

C1070 043-0576-90 50V 10uF

C1071 042-1726-90 6.3V 100uF

C1072 178-1052-78 1uF

C1073 043-0548-50 2.2uF

C1074 042-0423-97 16V 10uF

C1075 163-1073-35 16V 100uF

C1100 168-1045-56 0.1uF Z

C1101 189-1083-41 25V 1000uF

C1102 043-0540-00 6.3V 10uF

C1103 043-0540-00 6.3V 10uF

C1104 043-0540-00 6.3V 10uF

C1105 046-1042-78 0.1uF

C1106 046-1042-78 0.1uF

C1107 042-1726-90 6.3V 100uF

C1108 046-1042-78 0.1uF

C1109 046-1042-78 0.1uF

C1110 168-1045-56 0.1uF Z

C1111 042-3373-15 6.3V 330uF

C1112 042-3373-15 6.3V 330uF

C1113 042-3373-15 6.3V 330uF

NAX970HD - 12 -

REF No. PART No. DESCRIPTION REF No. PART No. DESCRIPTION REF No. PART No. DESCRIPTION

C1114 046-1042-78 0.1uF

C1115 046-1042-78 0.1uF

C1116 046-1042-78 0.1uF

C1117 163-1073-15 6.3V 100uF

C1118 043-0540-00 6.3V 10uF

CCT100 050-0140-57 1/32W 10k ohm x4J

CCT101 050-0140-57 1/32W 10k ohm x4J

CCT102 050-0140-57 1/32W 10k ohm x4J

CCT104 050-0140-51 1/32W 22 ohm x4J

CCT105 050-0140-51 1/32W 22 ohm x4J

CCT106 050-0140-51 1/32W 22 ohm x4J

CCT107 050-0140-51 1/32W 22 ohm x4J

CCT108 050-0140-51 1/32W 22 ohm x4J

CCT109 050-0140-51 1/32W 22 ohm x4J

CCT110 050-0140-51 1/32W 22 ohm x4J

CCT111 050-0140-51 1/32W 22 ohm x4J

CCT112 050-0140-51 1/32W 22 ohm x4J

CCT113 050-0140-51 1/32W 22 ohm x4J

CCT114 050-0140-57 1/32W 10k ohm x4J

CCT115 050-0140-57 1/32W 10k ohm x4J

CCT116 050-0140-71 1/32W 82 ohm x4J

CCT117 050-0140-71 1/32W 82 ohm x4J

CCT118 050-0140-57 1/32W 10k ohm x4J

CCT119 050-0140-56 1/32W 4.7k ohm x4J

CCT120 050-0140-56 1/32W 4.7k ohm x4J

CCT121 050-0140-53 1/32W 0 ohm x4J

CCT300 050-0140-66 1/32W 47 ohm x4J

CCT301 050-0140-66 1/32W 47 ohm x4J

CCT302 050-0140-66 1/32W 47 ohm x4J

CCT303 050-0140-66 1/32W 47 ohm x4J

CCT304 050-0140-66 1/32W 47 ohm x4J

CCT305 050-0140-66 1/32W 47 ohm x4J

CCT306 050-0140-66 1/32W 47 ohm x4J

CCT307 050-0140-66 1/32W 47 ohm x4J

CCT308 050-0140-66 1/32W 47 ohm x4J

CCT309 050-0140-66 1/32W 47 ohm x4J

CCT310 050-0140-66 1/32W 47 ohm x4J

CCT311 050-0140-66 1/32W 47 ohm x4J

CCT312 050-0140-66 1/32W 47 ohm x4J

CCT313 050-0140-66 1/32W 47 ohm x4J

CCT314 050-0140-66 1/32W 47 ohm x4J

CCT315 050-0140-66 1/32W 47 ohm x4J

CCT332 050-0140-51 1/32W 22 ohm x4J

CCT333 050-0140-51 1/32W 22 ohm x4J

CCT334 050-0140-51 1/32W 22 ohm x4J

CCT335 050-0140-51 1/32W 22 ohm x4J

CCT336 050-0140-51 1/32W 22 ohm x4J

CCT501 050-0140-71 1/32W 82 ohm x4J

CCT700 050-0140-69 1/32W 56 ohm x4J

CCT701 050-0140-69 1/32W 56 ohm x4J

CCT703 050-0140-57 1/32W 10k ohm x4J

CCT800 050-0140-59 1/32W 33 ohm x4J

CCT801 050-0140-59 1/32W 33 ohm x4J

D600 001-7078-90 NSCW505T

D701 001-0529-32 MA8056-M

D702 001-9207-50 EZJZSV171AA

D703 001-0529-32 MA8056-M

D704 001-0529-32 MA8056-M

D705 001-0529-32 MA8056-M

D706 001-0529-32 MA8056-M

D800 001-0529-27 MA8047H

D801 001-1305-90 DAN217U-T106

D802 001-1305-90 DAN217U-T106

D900 001-0517-90 1SS355

D901 001-0529-46 MA8091-L

D903 001-7038-91 CL-221FG FRE-GRN

D905 001-2630-90 1SS420-TPL3,F

D906 001-2630-90 1SS420-TPL3,F

D907 001-2630-90 1SS420-TPL3,F

D1000 001-2629-90 D1FM3-5063

D1001 001-2630-90 1SS420-TPL3,F

D1002 001-2630-90 1SS420-TPL3,F

D1003 001-2630-90 1SS420-TPL3,F

D1004 001-2629-90 D1FM3-5063

D1005 001-2630-90 1SS420-TPL3,F

D1006 001-2630-90 1SS420-TPL3,F

D1007 001-2629-90 D1FM3-5063

D1008 001-2629-90 D1FM3-5063

D1100 001-4311-00 ST70-27F-7072

D1101 001-1305-90 DAN217U-T106

D1102 001-1305-90 DAN217U-T106

FIL1103 060-3114-52 LFA20-2A1

FIL1104 060-3114-52 LFA20-2A1

FIL1105 060-3114-52 LFA20-2A1

FIL1106 060-3116-53 CKD510JB1H221ST

IC100 051-7222-48 SN74AHC1G08

DCKR

IC101 051-7522-08 SN74LVC1G32

DCKR

IC102 051-7522-08 SN74LVC1G32

DCKR

IC103 ----------- R8A77700ADA01

BGV

IC105 051-7522-08 SN74LVC1G32

DCKR

IC106 051-7272-08 TC7SZ125F

IC107 051-7526-08 SN74LVC1G12

6DCKR

IC200 051-9333-60 K4H561638H-UIB3

IC201 051-9333-60 K4H561638H-UIB3

IC202 051-9333-60 K4H561638H-UIB3

IC203 051-9333-60 K4H561638H-UIB3

IC400 ----------- MD4832-d512-

V3Q18-X-P

IC401 051-7503-78 SN74LVCHR16245

AGR

IC402 051-7520-08 SN74LVC1G04

DCKR

IC403 051-9125-70 R1LV0416CSB-7LI

IC404 051-7534-90 SN74LVC1G97

DCKR

IC405 051-7505-18 SN74ALVC08PWR

IC501 051-6834-00 XC3S50-4VQG100I-

0985

IC502 051-6650-90 NB2305AT1HDR2G

IC504 051-7522-08 SN74LVC1G32

DCKR

IC505 051-7289-90 MC74HC4046ADT

IC506 051-7524-08 SN74LVC1G08

DCKR

IC507 051-7243-48 SN74AHCT1G08

DCKR

IC508 051-7243-48 SN74AHCT1G08

DCKR

IC600 051-7243-48 SN74AHCT1G08

DCKR

IC601 051-7539-90 SN74LVC3G34

DCTR

IC602 051-7503-78 SN74LVCHR16245

AGR

IC700 051-6923-08 ADCS7476AIMF

IC701 051-7222-48 SN74AHC1G08

DCKR

IC702 948-0683-02 GYRO-SENSOR

IC704 051-6921-90 TPS2041BDGNR

IC705 051-7529-90 SN74LVC541APW

IC707 051-7539-90 SN74LVC3G34

DCTR

IC800 051-6718-90 AK5357VT-E2

IC801 051-6731-90 WM8718SEDS/R

IC802 051-3054-90 HA17558ATEL

IC804 051-3054-90 HA17558ATEL

IC805 051-7255-38 TC7W66FU-TE12L

IC900 051-5408-38 R3112N211A-TR

IC901 051-5408-38 R3112N211A-TR

IC902 051-7222-48 SN74AHC1G08

DCKR

IC903 051-5418-28 R3111N271A-TR-FA

IC904 051-5408-38 R3112N211A-TR

IC905 051-7202-58 SN74AHC1G32

DCKR

IC907 051-7540-90 SN74LVC2G32

DCTR

IC908 051-9400-29 BR93L46F-W

IC909 052-7086-00 M30620MCP-D16GP

IC910 051-7505-08 SN74LV08APWR

IC911 051-7222-48 SN74AHC1G08

DCKR

IC912 051-6600-58 HA12187FP

IC1000 051-3304-90 LP2954IMX

IC1001 051-3337-90 BA09CC0WFP

IC1003 051-3377-90 LM3485MM

IC1004 051-3342-90 BA05CC0WFP-

004EL

IC1005 051-3380-90 TPS5120DBTRG4

IC1006 051-3356-90 BDOOKA5WFP

IC1100 051-3402-90 NJM2406F

IC1101 051-7537-90 SN74LVC1G14

DCKR

IC1102 051-5344-90 NJM2267V-TE2

IC1103 051-5344-90 NJM2267V-TE2

J701 074-1311-00 USB

J702 074-0881-07 7P

J1100 074-1194-00 13P CE-NET

J1101 074-1194-00 13P CE-NET

J1102 074-1125-08 8P

J1103 074-1231-08 8P MIN

J1200 076-0713-00 50P

L100 010-3105-58 120 ohm/100MHz

L101 010-3104-53 220 ohm/100MHz

L102 010-3104-53 220 ohm/100MHz

L103 010-3104-53 220 ohm/100MHz

L104 010-3104-54 600 ohm/100MHz

L105 010-3104-54 600 ohm/100MHz

L106 010-3104-54 600 ohm/100MHz

L107 010-3105-58 120 ohm/100MHz

L108 010-3104-54 600 ohm/100MHz

L200 010-3104-53 220 ohm/100MHz

L400 010-3104-54 600 ohm/100MHz

L401 010-3104-54 600 ohm/100MHz

L402 010-3104-54 600 ohm/100MHz

L502 010-3104-54 600 ohm/100MHz

L509 010-3104-53 220 ohm/100MHz

L510 010-3104-53 220 ohm/100MHz

L511 010-3104-53 220 ohm/100MHz

L512 010-3104-54 600 ohm/100MHz

L600 010-3104-54 600 ohm/100MHz

L601 010-3104-53 220 ohm/100MHz

L602 010-3104-53 220 ohm/100MHz

L700 010-3104-54 600 ohm/100MHz

L701 010-3104-54 600 ohm/100MHz

L702 010-3104-54 600 ohm/100MHz

L703 010-3104-53 220 ohm/100MHz

L704 010-3040-90 PLP3216S55/SLZT1

L705 010-3104-54 600 ohm/100MHz

L706 010-3105-58 120 ohm/100MHz

L707 010-3105-58 120 ohm/100MHz

L708 010-3104-54 600 ohm/100MHz

L709 010-3105-58 120 ohm/100MHz

L710 010-3104-54 600 ohm/100MHz

L801 010-3104-54 600 ohm/100MHz

L802 010-3104-54 600 ohm/100MHz

L804 010-3104-54 600 ohm/100MHz

L807 010-3105-62 1k ohm/100MHz

L808 010-3105-62 1k ohm/100MHz

L900 010-3104-54 600 ohm/100MHz

NAX970HD

- 13 -

REF No. PART No. DESCRIPTION REF No. PART No. DESCRIPTION REF No. PART No. DESCRIPTION

L901 010-3104-54 600 ohm/100MHz

L1000 010-3104-54 600 ohm/100MHz

L1001 010-3104-50 30 ohm/100MHz

L1002 010-3104-50 30 ohm/100MHz

L1003 010-3500-92 10uH

L1004 010-3104-54 600 ohm/100MHz

L1005 010-3500-92 10uH

L1006 010-3500-92 10uH

L1007 010-3104-54 600 ohm/100MHz

L1008 010-3104-53 220 ohm/100MHz

L1010 010-3105-58 120 ohm/100MHz

L1011 010-3105-58 120 ohm/100MHz

L1100 010-3105-58 120 ohm/100MHz

L1101 010-3104-54 600 ohm/100MHz

L1102 010-3104-54 600 ohm/100MHz

L1104 010-3105-62 1k ohm/100MHz

L1105 010-3105-62 1k ohm/100MHz

L1106 010-3105-62 1k ohm/100MHz

L1107 010-3105-62 1k ohm/100MHz

L1108 010-3104-54 600 ohm/100MHz

L1109 010-3104-54 600 ohm/100MHz

L1110 010-3104-54 600 ohm/100MHz

P600 074-1323-00 9828S-50Y

P701 076-0526-07 7P

P702 076-0353-07 7P

P1200 074-1322-00 50P

Q700 125-2027-91 DTC114EUA

Q800 125-0021-91 DTA114EUA

Q801 192-4116-00 2SC4116

Q802 193-1306-00 2SD1306

Q803 125-2027-91 DTC114EUA

Q900 190-1586-00 2SA1586 O,Y,G

Q902 125-2027-91 DTC114EUA

Q903 125-2027-91 DTC114EUA

Q904 125-2027-91 DTC114EUA

Q1000 193-1306-00 2SD1306

Q1001 190-2096-00 2SA2096

Q1002 125-7006-90 RSS075P03 TB

Q1003 125-0021-91 DTA114EUA

Q1004 125-8017-90 SP8K4-TB

Q1005 125-8017-90 SP8K4-TB

Q1009 192-4116-00 2SC4116

Q1010 131-1188-50 2SB1188PQR

Q1011 192-4116-00 2SC4116

Q1100 125-0021-97 DTA113ZU

Q1101 192-4116-00 2SC4116

Q1102 192-4116-00 2SC4116

R100 119-1021-15 1/10W 1k ohm

R101 119-1001-15 1/10W 10 ohm

R102 119-1031-15 1/10W 10k ohm

R103 119-3301-15 1/10W 33 ohm

R104 119-1031-15 1/10W 10k ohm

R107 119-1011-15 1/10W 100 ohm

R108 119-3301-15 1/10W 33 ohm

R110 119-1031-15 1/10W 10k ohm

R114 119-1031-15 1/10W 10k ohm

R115 119-1031-15 1/10W 10k ohm

R116 119-1031-15 1/10W 10k ohm

R118 119-1031-15 1/10W 10k ohm

R119 119-1001-15 1/10W 10 ohm

R120 119-3301-15 1/10W 33 ohm

R121 119-2201-15 1/10W 22 ohm

R122 119-1001-15 1/10W 10 ohm

R123 119-3301-15 1/10W 33 ohm

R124 032-0140-83 1/10W 150 ohm F

R125 119-3301-15 1/10W 33 ohm

R126 119-3301-15 1/10W 33 ohm

R127 119-2211-15 1/10W 220 ohm

R128 032-0140-83 1/10W 150 ohm F

R129 032-0140-83 1/10W 150 ohm F

R130 119-1011-15 1/10W 100 ohm

R131 032-0140-57 1/10W 5.6k ohm F

R132 119-1031-15 1/10W 10k ohm

R133 119-1031-15 1/10W 10k ohm

R134 119-1031-15 1/10W 10k ohm

R135 119-1031-15 1/10W 10k ohm

R136 032-0140-68 1/10W 680 ohm F

R137 119-2201-15 1/10W 22 ohm

R139 119-0000-05 1/10W 0 ohm JW

R140 119-4731-15 1/10W 47k ohm

R141 119-4731-15 1/10W 47k ohm

R142 119-2221-15 1/10W 2.2k ohm

R143 119-2221-15 1/10W 2.2k ohm

R144 119-3301-15 1/10W 33 ohm

R146 119-4731-15 1/10W 47k ohm

R147 119-1031-15 1/10W 10k ohm

R148 119-1031-15 1/10W 10k ohm

R150 119-3301-15 1/10W 33 ohm

R151 119-1031-15 1/10W 10k ohm

R152 119-1031-15 1/10W 10k ohm

R153 119-1031-15 1/10W 10k ohm

R154 119-3301-15 1/10W 33 ohm

R156 119-8201-15 1/10W 82 ohm

R157 119-1011-15 1/10W 100 ohm

R158 119-1021-15 1/10W 1k ohm

R160 119-4731-15 1/10W 47k ohm

R161 119-1011-15 1/10W 100 ohm

R162 119-1031-15 1/10W 10k ohm

R163 119-4721-15 1/10W 4.7k ohm

R164 119-4721-15 1/10W 4.7k ohm

R165 119-4721-15 1/10W 4.7k ohm

R166 119-1031-15 1/10W 10k ohm

R167 119-1031-15 1/10W 10k ohm

R168 119-1031-15 1/10W 10k ohm

R169 119-1031-15 1/10W 10k ohm

R170 119-8201-15 1/10W 82 ohm

R171 119-8201-15 1/10W 82 ohm

R172 119-8201-15 1/10W 82 ohm

R173 119-1031-15 1/10W 10k ohm

R174 119-1031-15 1/10W 10k ohm

R175 119-1031-15 1/10W 10k ohm

R176 119-1031-15 1/10W 10k ohm

R177 119-1011-15 1/10W 100 ohm

R178 119-1031-15 1/10W 10k ohm

R179 119-1041-15 1/10W 100k ohm

R181 032-0140-51 1/10W 15k ohm F

R182 032-0140-51 1/10W 15k ohm F

R183 119-1031-15 1/10W 10k ohm

R184 119-1031-15 1/10W 10k ohm

R185 119-1031-15 1/10W 10k ohm

R300 119-0000-05 1/10W 0 ohm JW

R301 119-0000-05 1/10W 0 ohm JW

R302 119-1511-15 1/10W 150 ohm

R303 119-2201-15 1/10W 22 ohm

R305 119-4701-15 1/10W 47 ohm

R306 119-4701-15 1/10W 47 ohm

R307 119-4701-15 1/10W 47 ohm

R308 119-4701-15 1/10W 47 ohm

R309 119-4701-15 1/10W 47 ohm

R310 119-4701-15 1/10W 47 ohm

R311 119-4701-15 1/10W 47 ohm

R312 119-4701-15 1/10W 47 ohm

R313 119-4701-15 1/10W 47 ohm

R314 119-4701-15 1/10W 47 ohm

R315 119-4701-15 1/10W 47 ohm

R316 119-4701-15 1/10W 47 ohm

R317 119-4701-15 1/10W 47 ohm

R318 119-4701-15 1/10W 47 ohm

R319 119-4701-15 1/10W 47 ohm

R320 119-4701-15 1/10W 47 ohm

R400 119-1031-15 1/10W 10k ohm

R401 119-1031-15 1/10W 10k ohm

R402 119-1031-15 1/10W 10k ohm

R403 119-1031-15 1/10W 10k ohm

R404 119-0000-05 1/10W 0 ohm JW

R405 119-0000-05 1/10W 0 ohm JW

R406 119-8201-15 1/10W 82 ohm

R407 119-0000-05 1/10W 0 ohm JW

R408 119-0000-05 1/10W 0 ohm JW

R409 119-1031-15 1/10W 10k ohm

R410 119-0000-05 1/10W 0 ohm JW

R415 119-3301-15 1/10W 33 ohm

R416 119-3301-15 1/10W 33 ohm

R417 119-3301-15 1/10W 33 ohm

R418 119-3301-15 1/10W 33 ohm

R500 119-3311-15 1/10W 330 ohm

R501 119-3301-15 1/10W 33 ohm

R502 119-1011-15 1/10W 100 ohm

R503 119-4721-15 1/10W 4.7k ohm

R504 119-2211-15 1/10W 220 ohm

R505 119-1211-15 1/10W 120 ohm

R506 119-1801-15 1/10W 18 ohm

R507 119-2211-15 1/10W 220 ohm

R508 119-5601-15 1/10W 56 ohm

R512 119-0000-05 1/10W 0 ohm JW

R514 032-0140-89 1/10W 47k ohm F

R515 032-0140-50 1/10W 10k ohm F

R516 119-1041-15 1/10W 100k ohm

R517 032-0140-22 1/10W 68k ohm F

R518 032-0140-04 1/10W 8.2k ohm F

R519 119-1511-15 1/10W 150 ohm

R520 119-3301-15 1/10W 33 ohm

R521 119-1511-15 1/10W 150 ohm

R522 119-1511-15 1/10W 150 ohm

R524 119-0000-05 1/10W 0 ohm JW

R600 119-2201-15 1/10W 22 ohm

R601 119-4731-15 1/10W 47k ohm

R602 119-2201-15 1/10W 22 ohm

R603 119-2201-15 1/10W 22 ohm

R604 119-1011-15 1/10W 100 ohm

R605 119-0000-05 1/10W 0 ohm JW

R607 119-5621-15 1/10W 5.6k ohm

R608 119-1021-15 1/10W 1k ohm

R609 119-8201-15 1/10W 82 ohm

R610 119-8201-15 1/10W 82 ohm

R611 119-8201-15 1/10W 82 ohm

R612 119-1031-15 1/10W 10k ohm

R613 119-0000-05 1/10W 0 ohm JW

R614 119-1511-15 1/10W 150 ohm

R700 119-1531-15 1/10W 15k ohm

R701 119-1031-15 1/10W 10k ohm

R702 119-1041-15 1/10W 100k ohm

R703 119-1031-15 1/10W 10k ohm

R704 119-2201-15 1/10W 22 ohm

R705 119-2201-15 1/10W 22 ohm

R706 119-1031-15 1/10W 10k ohm

R711 119-0000-05 1/10W 0 ohm JW

R712 119-2701-15 1/10W 27 ohm

R713 119-2701-15 1/10W 27 ohm

R715 119-1021-15 1/10W 1k ohm

R716 119-1021-15 1/10W 1k ohm

R717 119-1531-15 1/10W 15k ohm

R718 119-1531-15 1/10W 15k ohm

R719 119-1031-15 1/10W 10k ohm

R722 119-1031-15 1/10W 10k ohm

R723 119-0000-05 1/10W 0 ohm JW

R724 119-0000-05 1/10W 0 ohm JW

R727 119-1041-15 1/10W 100k ohm

R812 119-3311-15 1/10W 330 ohm

R813 119-4721-15 1/10W 4.7k ohm

R814 119-2221-15 1/10W 2.2k ohm

R815 119-1031-15 1/10W 10k ohm

R816 119-1531-15 1/10W 15k ohm

R817 119-0000-05 1/10W 0 ohm JW

R818 119-1021-15 1/10W 1k ohm

R819 119-3311-15 1/10W 330 ohm

NAX970HD - 14 -

REF No. PART No. DESCRIPTION REF No. PART No. DESCRIPTION REF No. PART No. DESCRIPTION

R820 119-4711-15 1/10W 470 ohm

R821 119-1031-15 1/10W 10k ohm

R822 119-1031-15 1/10W 10k ohm

R826 119-2231-15 1/10W 22k ohm

R830 119-1031-15 1/10W 10k ohm

R831 119-1031-15 1/10W 10k ohm

R834 119-1031-15 1/10W 10k ohm

R835 119-1031-15 1/10W 10k ohm

R836 119-3311-15 1/10W 330 ohm

R837 119-3311-15 1/10W 330 ohm

R838 119-1041-15 1/10W 100k ohm

R839 119-1041-15 1/10W 100k ohm

R842 119-5611-15 1/10W 560 ohm

R843 119-5611-15 1/10W 560 ohm

R844 119-1041-15 1/10W 100k ohm

R845 119-1041-15 1/10W 100k ohm

R849 119-2231-15 1/10W 22k ohm

R850 119-4721-15 1/10W 4.7k ohm

R900 119-1031-15 1/10W 10k ohm

R901 119-1031-15 1/10W 10k ohm

R902 119-4731-15 1/10W 47k ohm

R903 032-0140-99 1/10W 39k ohm F

R904 032-0140-00 1/10W 56k ohm F

R905 032-0140-54 1/10W 22k ohm F

R906 032-0140-79 1/10W 2.7k ohm F

R907 032-0140-69 1/10W 16k ohm F

R908 119-4721-15 1/10W 4.7k ohm

R909 119-1011-15 1/10W 100 ohm

R910 119-1011-15 1/10W 100 ohm

R911 119-1011-15 1/10W 100 ohm

R912 119-1011-15 1/10W 100 ohm

R913 032-0140-67 1/10W 3.3k ohm F

R914 119-4731-15 1/10W 47k ohm

R915 032-0140-81 1/10W 3.9k ohm F

R916 119-1031-15 1/10W 10k ohm

R918 119-4731-15 1/10W 47k ohm

R920 119-1031-15 1/10W 10k ohm

R921 119-1211-15 1/10W 120 ohm

R922 119-1031-15 1/10W 10k ohm

R924 119-1011-15 1/10W 100 ohm

R926 119-4731-15 1/10W 47k ohm

R927 119-1031-15 1/10W 10k ohm

R928 119-4731-15 1/10W 47k ohm

R929 119-1011-15 1/10W 100 ohm

R930 119-1011-15 1/10W 100 ohm

R931 119-3321-15 1/10W 3.3k ohm

R939 119-1011-15 1/10W 100 ohm

R940 119-4731-15 1/10W 47k ohm

R941 119-1011-15 1/10W 100 ohm

R942 119-1011-15 1/10W 100 ohm

R943 119-1011-15 1/10W 100 ohm

R944 119-1011-15 1/10W 100 ohm

R945 119-4731-15 1/10W 47k ohm

R948 119-4731-15 1/10W 47k ohm

R949 119-4731-15 1/10W 47k ohm

R950 119-0000-05 1/10W 0 ohm JW

R951 119-1021-15 1/10W 1k ohm

R952 119-1021-15 1/10W 1k ohm

R953 119-1031-15 1/10W 10k ohm

R955 119-1031-15 1/10W 10k ohm

R1000 119-1031-15 1/10W 10k ohm

R1004 119-1031-15 1/10W 10k ohm

R1005 119-3921-15 1/10W 3.9k ohm

R1006 032-0140-03 1/10W 220k ohm F

R1007 032-0140-88 1/10W 100k ohm F

R1008 032-0140-63 1/10W 27k ohm F

R1009 119-1021-15 1/10W 1k ohm

R1010 119-2241-15 1/10W 220k ohm

R1011 119-2201-15 1/10W 22 ohm

R1012 119-0000-05 1/10W 0 ohm JW

R1013 032-0140-51 1/10W 15k ohm F

R1014 032-0140-05 1/10W 82k ohm F

R1015 032-0140-67 1/10W 3.3k ohm F

R1016 119-0000-05 1/10W 0 ohm JW

R1017 119-1031-15 1/10W 10k ohm

R1018 119-3321-15 1/10W 3.3k ohm

R1019 119-0000-05 1/10W 0 ohm JW

R1020 119-0000-05 1/10W 0 ohm JW

R1021 032-0140-52 1/10W 33k ohm F

R1022 032-0140-52 1/10W 33k ohm F

R1023 032-0140-05 1/10W 82k ohm F

R1024 032-0140-63 1/10W 27k ohm F

R1025 119-0000-05 1/10W 0 ohm JW

R1026 032-0140-62 1/10W 1k ohm F

R1027 032-0140-79 1/10W 2.7k ohm F

R1028 032-0140-79 1/10W 2.7k ohm F

R1029 032-0140-62 1/10W 1k ohm F

R1030 119-0000-05 1/10W 0 ohm JW

R1031 119-0000-05 1/10W 0 ohm JW

R1032 119-0000-05 1/10W 0 ohm JW

R1033 119-0000-05 1/10W 0 ohm JW

R1034 119-9121-15 1/10W 9.1k ohm

R1035 119-7521-15 1/10W 7.5k ohm

R1036 119-1031-15 1/10W 10k ohm

R1040 119-0000-05 1/10W 0 ohm JW

R1044 116-1011-15 1/4W 100 ohm

R1045 116-1011-15 1/4W 100 ohm

R1046 116-1011-15 1/4W 100 ohm

R1047 116-1011-15 1/4W 100 ohm

R1048 116-1011-15 1/4W 100 ohm

R1049 116-1011-15 1/4W 100 ohm

R1050 119-4721-15 1/10W 4.7k ohm

R1051 119-1031-15 1/10W 10k ohm

R1052 119-1031-15 1/10W 10k ohm

R1053 119-2211-15 1/10W 220 ohm

R1054 119-1021-15 1/10W 1k ohm

R1055 119-1031-15 1/10W 10k ohm

R1056 032-0140-94 1/10W 30k ohm F

R1057 032-0140-88 1/10W 100k ohm F

R1058 032-0140-93 1/10W 2k ohm F

R1100 117-2211-15 1/8W 220 ohm

R1101 117-2211-15 1/8W 220 ohm

R1102 119-3331-15 1/10W 33k ohm

R1103 119-1031-15 1/10W 10k ohm

R1104 119-1031-15 1/10W 10k ohm

R1105 119-1021-15 1/10W 1k ohm

R1106 119-5641-15 1/10W 560k ohm

R1108 119-4721-15 1/10W 4.7k ohm

R1109 119-1011-15 1/10W 100 ohm

R1110 116-3321-15 1/4W 3.3k ohm

R1111 032-0106-79 1/10W 75 ohm D

R1112 032-0106-79 1/10W 75 ohm D

R1113 032-0106-79 1/10W 75 ohm D

R1114 119-1231-15 1/10W 12k ohm

R1115 119-2231-15 1/10W 22k ohm

R1116 117-2231-15 1/8W 22k ohm

R1117 119-3321-15 1/10W 3.3k ohm

R1118 119-4731-15 1/10W 47k ohm

R1119 117-2231-15 1/8W 22k ohm

R1120 119-3321-15 1/10W 3.3k ohm

R1121 119-4731-15 1/10W 47k ohm

R1122 119-1041-15 1/10W 100k ohm

R1123 119-1041-15 1/10W 100k ohm

R1124 119-1041-15 1/10W 100k ohm

R1126 119-1051-15 1/10W 1M ohm

R1127 119-1051-15 1/10W 1M ohm

R1128 119-1051-15 1/10W 1M ohm

R1132 032-0140-62 1/10W 1k ohm F

R1133 032-0140-83 1/10W 150 ohm F

R1134 032-0140-83 1/10W 150 ohm F

R1135 119-1051-15 1/10W 1M ohm

R1136 119-1041-15 1/10W 100k ohm

R1137 032-0106-79 1/10W 75 ohm D

R1138 119-1531-15 1/10W 15k ohm

S900 013-6102-00 SKHLLF

S901 013-6312-50 SKRP-ABE-010

T1100 009-0621-07 CHOKE 1.4mH

TM1000 073-0766-90 TERMINAL

TM1004 073-0766-90 TERMINAL

TM1013 073-0766-90 TERMINAL

TM1014 073-0766-90 TERMINAL

X100 061-4531-90 14.31818MHz

X101 061-4539-90 48MHz 2725T

X102 061-4538-90 8.46MHz

X900 060-1533-90 CSTCE10M0G52-

PWB 039-2935-00 PWB(WITHOUT

COMPONENTS)

3.3V

0V0V

3.3V 0V

3.3V

1.25V

2.5V

1.25V

8.46MHZ

3.3VP-P

705KHZ

11.015625KHZ

SSI_BCK0

SSI_LRCK0

3.3VP-P

32MHZ

3.3VP-P

9.5979MHZ

14.31818MHZ

3.3VP-P

48MHZ

- 15 - NAX970HD

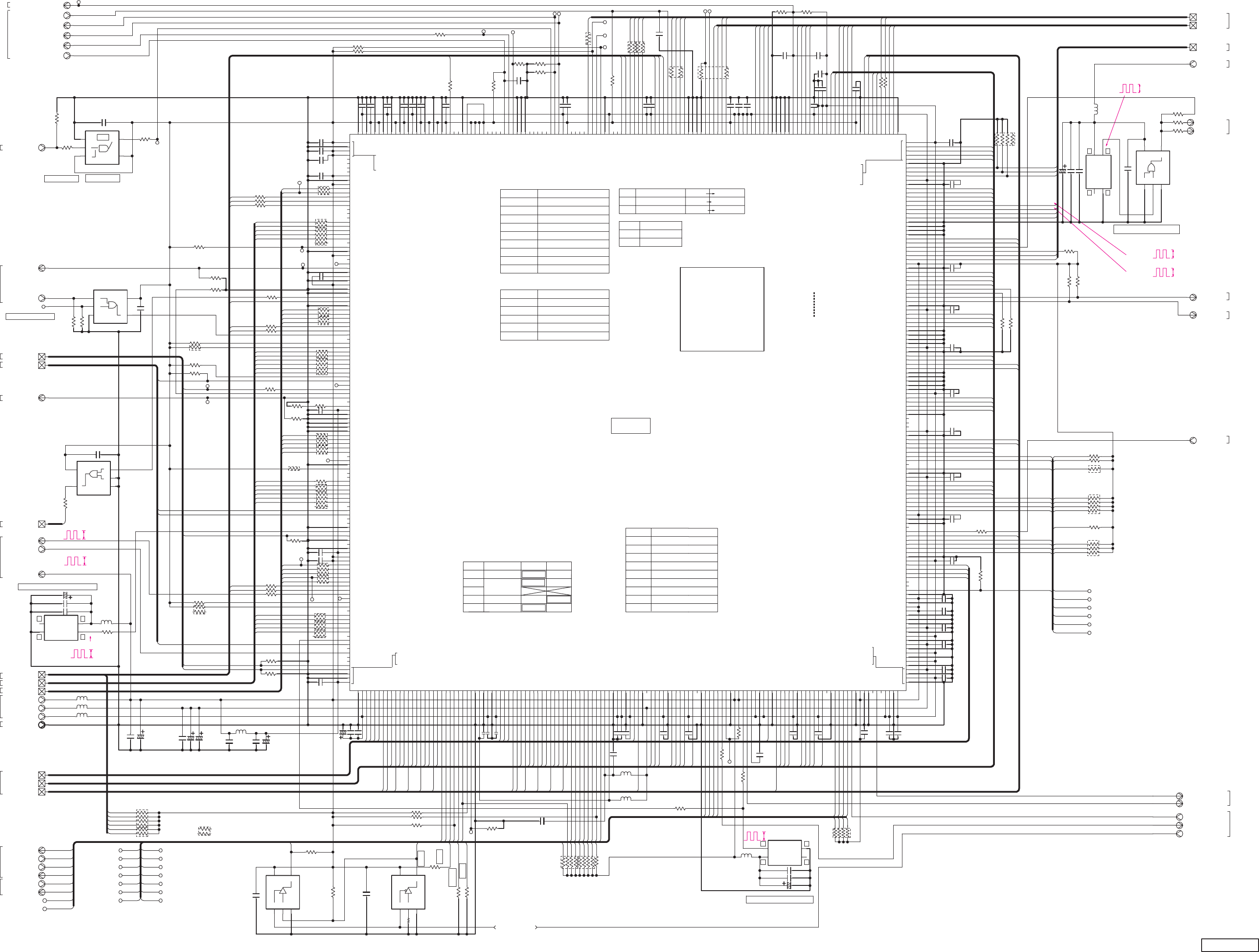

CIRCUIT DIAGRAM

Main PWB(B1) section 1/12

[ Navi microcomputer ]

2/12

7/12

5/12

11/12

7/12

5/12

4/12 5/12 (1/12)

5/12

4/12 5/12

4/12

11/12

10/12

3/12

7/12

9/12

1 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 115 120 125 130 131

135

140

145

150

155

160

165

170

175

180

185

190

195

200

205

210

215

220

225

230

235

240

245

250

255

260

261265270275280285290295300305310315320325330335340345350355360365370375380385

390

391

395

400

405

410

415

420

425

430

435

440

445

450

455

460

465

470

475

480

485

490

495

500

505

510

515

520

GND OUT

VDD

123

GND

OUT

VDD OE

123

GND OUT

VDD

TP130

TP100

TP101

TP102

TP103

R100

TP105

TP106

TP107

TP108

TP109

TP110

TP111

TP112

TP113

TP114

C104

C107

R114

R115

C111

C117

R146

C135

C136

R147

C142

C146

C147

R151

C160

C166

R158

CCT118

R160

CCT119

CCT120

R163

R164

R165

TP120

TP122

TP126

R148

C185

C186

C188

R153

R175 TP140

R177

R110

CCT102

CCT104

CCT105

CCT106

CCT107

CCT110

CCT111

CCT112

CCT113

R108

R178

R173

C112

TP141

TP142

TP143

TP144

TP145

TP146

R154

R103

R176

R174

R167

R166

R162

R161

R157

R156

R152

R150

R144

R143

R142

R140

R137

R136

R135

R134

R133

R132

R130

R129

R128

R126

R125

R124

R123

R122

R121

R120

R119

R107

R104

R102

R101

CCT117

CCT116

CCT115

CCT109

CCT108

CCT101

C187

C184

C151

C189

R183

R184

R116

R181 R182

TP1009

R141

C113

C114

C115

C116

C118

C119

C121

C125

C126

C127

C128

C129

C130

C131

C132

C133

C134

C137

C138

C139

C140

C141

C143

C144

C145

C148

C149

C150

C152

C153

C155

C156

C157

C158

C159

C161

C162

C163

C164

C165

C183

C182

C181

C180

C179

C178

C177

C176

C175

C174

C173

C105

C103

C102

C101

R185

R170

R171

R172

R127

R179

CCT121

IC103

IC101

IC102

IC100

X100

TP127

C110

C109

C108

C106

L101

L102

L103

C100

L100

L104

IC107

IC106

R139

L107

X101

L105

L106

CCT114

TP147

C123

C124

C122

C154

C171

C170

C169

C168

C167

C172

IC105

X102

L108

TP136 TP137

TP133

TP134

TP135

TP132TP131

TP139

TP129

C120

TP115

TP148

TP149

TP138 R131

CCT102

TP128

TP150 TP118

CCT102

R118

R168

R169

10K

4.7K

GPIO_2A23

100p

4.7K

4.7Kx4

10Kx4

RX1

TX1

RX3

TX3

RX8

TX8

CTS8

RTS8

47K

10K

4.7K

10K

47K

1000p

TX4

RX4

TX6

RX6

CTS7

RTS7

100p

REMO_IN

10K

100p

1000p

10K

HSYNC

100

10K

10Kx4

22x4

10K

10V

TAN

/ASEBRK

TCK

TMS

/TRST

TDI

TDO

10K

100

10K

2.2K

47K

680 (F)

10K

100

150 (F)

100

10K

82x4

10Kx4

22x4

10Kx4

CCT100

10Kx4

10 10VTAN

100p

22p

0.1

10K

15K(F) 15K(F)

DDR_VREF

47K

0.1

10K

220

100K

0x4

R8A77700ADA01BGV

SN74LVC1G32DCKR

SN74AHC1G08DCKR

14.31818MHz

100

6.3V

100

6.3V

100

6.3V

mPZ1608S221AT

10V

TAN

mPZ1608S601AT

SN74LVC1G

126DCKR

TC7SZ125F

mmZ1608S121CT

48.00M

mPZ1608S601AT

10Kx4

0.1

100 6.3V

10 10V TAN

MAIN CLOCK/USB CLOCK

0.1

SN74LVC1G32DCKR

2725Y-8.46M

Audio Master Clock

100p

5.6K (F)

10Kx4

10K

/PERI_RESET

DSDQ_63:0

DSA_13:0

IDED_15:0

EXA_25:0

DSCK

/DSCK

IDE_CONT

CKIO

DDR_IF

SH_CONT

SH_USB

/PERI_RESET

SSI

D_GND

SH_CONT

RGB

/FPGA_RDY

GPS-SH

SH-GPS

SH-RDS

MICOM-SH

SH-MICOM

LED1

D3.3V

D1.22V

DDR2.5V

EXD_15:0

MCLK_ADC

MCLK_DAC

D3.3V

LAT_WR

/EXT_RDY

/SH_RESET_OUT

/CPU_RESET

/P_OFF

REMOCON

LAT_RD

NMI

RDS-SH

/BU_DET

SEISAN-SH

SH-SEISAN

PDOUT1

PDOUT2

DCLKIN

LED2

DDR_VREF

D3.3V_B

DSA9

DSA8

DSA12

DSA11

DSA10

DSA5

DSA1

DSA3

DSA7

DSA0

DSA2

DSA4

DSA6

DSDQ36

DSDQ39

DSDQ45

DSDQ46

DSDQ52

DSDQ55

DSDQ61

DSDQ63

DSDQ32

DSDQ35

DSDQ41

DSDQ42

DSDQ48

DSDQ51

DSDQ57

DSDQ59

DSDQ37

DSDQ38

DSDQ44

DSDQ47

DSDQ53

DSDQ54

DSDQ60

DSDQ62

DSDQ33

DSDQ34

DSDQ40

DSDQ43

DSDQ49

DSDQ50

DSDQ56

DSDQ58

DSDQ30

DSDQ26

DSDQ31

DSDQ27

DSDQ29

DSDQ25

DSDQ23

DSDQ19

DSDQ28

DSDQ24

DSDQ22

DSDQ18

DSDQ20

DSDQ16

DSDQ21

DSDQ17

DSDQ14

DSDQ10

DSDQ15

DSDQ11

DSDQ12

DSDQ8

DSDQ13

DSDQ9

DSDQ6

DSDQ2

DSDQ7

DSDQ3

DSDQ5

DSDQ1

DSDQ4

DSDQ0

DSDM5

DSDM4

DSDM6

DSDM7

DSDM0

DSDM1

DSDM2

DSDM3

DSDQS4

DSDQS5

DSDQS6

DSDQS7

IDED7

IDED8

IDED5

IDED10

IDED6

IDED9

IDED3

IDED12

IDED4

IDED11

IDED1

IDED14

IDED2

IDED13

IDED0

IDED15

EXD4

EXD0

EXD11

EXD8

EXD5

EXD1

EXD14

EXD12

EXD9

EXD6

EXD2

EXD15

EXD13

EXD10

EXD7

EXD3

EXA7

EXA8

EXA15

EXA19

EXA6

EXA9

EXA14

EXA18

EXA22

EXA1

EXA5

EXA11

EXA13

EXA17

EXA21

EXA10

EXA12

EXA16

EXA20

/DSRAS

/DSCAS

DSBA0

/DSWE

DSBA1

/DSCS0

DSCKE

DSDQS3

DSDQS2

DSDQS1

DSDQS0

AUDCK

/ASEBRK

/AUDSYNC

AUDATA3

AUDATA2

AUDATA1

AUDATA0

/ASEBRK

/AUDSYNC

AUDATA3

AUDATA2

AUDATA1

AUDATA0

TCK

TDO

TDI

TMS

TCK

TDI

TMS

TX1

TX3

TX5

RTS7

RTS8

RX0

RX1

RX3

RX5

CTS7

CTS8

TX2

TX4

TX7

TX8

RX2

RX4

RX7

RX8

SSI_SDATA1

SSI_SDATA0

/EX_CS1

/EX_CS0

/EX_CS2

A_GREEN

A_RED

A_BLUE

OVC

PENC

RX2

RX4

RX7

RX8

CTS8

CTS7

RX5

RX3

TX2

RX1

RX0

/IDE_DACK

IDE_DREQ

/IDE_CS0

IDEA2

IDEA0

IDEA1

IDE_IORDY

/IDE_IORD

/IDE_CS1

IDE_INT

/IDE_IOWR

SSI_LRCK0

SSI_BCK0

TDO

MD10/TX6

RX5

TX5

RX7

TX7

RTS7

CTS7

/WE1

RDWR

/WE0

/CS0

/RDB

RX1

TX1

RX3

TX3

RX8

TX8

RTS8

CTS8

AUDCK

RX0

TX0

/IRQ2

/TRST

DIRECTION

/IDE_RST

/IRQ4

/IRQ1

/IRQ0

/IRQ3

/IRQ2

/IRQ4

/IRQ3

/IRQ1

/IRQ0

RX4

TX4RX6

/EX_CS4

EXA2

EXA3

EXA4

/EX_CS7

RX6

MD10/TX6

CSYNC

TX1

MD10/TX6

TX3

RX6

TDO

TDI

/TRST

TMS

TCK

/ASEBRK

TX0/MD2

TX0

RX4

TX4

TX0/MD2

SSI_SDATA2

SSI_BCK23

SSI_LRCK23

SSI_BCK0

SSI_LRCK0

DSA6

DSA4

DSA2

DSA0

DSDQ36

DSDM4

VSSQ25

VCCQ25

/DSRAS

/DSCAS

DSDQ39

DSDQ45

DSDQ46

DSDM5

DSDQ52

DSDM6

DSDQ55

DSDQ61

DSDM7

DSDQ63

DSBA0

/DSWE

DSA1

DSA3

DSA7

DSDQ32

DSDQS4

DSDQ35

DSDQ41

DSDQS5

DSDQ42

DSDQ48

DSDQS6

DSDQ51

DSDQ57

DSDQS7

DSDQ59

TOP_VIEW

A1=1PIN

A2=2PIN

AL AL

BGA520

AL30=519PIN

AL31=520PIN

TX0/MD2

TX1/MD3

TX3/IRDA_TX/MD5

TX5/HSPI0_CLK

RTS7/HSPI1_CLK

RTS8

I2C_SCL

VDDPLL1

VSSDLL

VSSPLL1

VCCQ25

VSSQ25

VCCQ25

RX0

RX1

RX3/IRDA_RX

RX5/HSPI0_CS#

CTS7/HSPI1_CS#

CTS8

ISC_SDA/RX6

MD10/TX6

VDDDLL

VSSPLL2

VCCQ25

VSSQ25

VCCQ25

DSA5

DSBA1

VSSQ25

DSDQ37

DSDQ38

DSDQ44

VCCQ25

VSSQ25

DSDQ47

DSDQ53

DSDQ54

DSDQ60

VCCQ25

DSDQ62

VSSQ25

TX2/MD4

TX4/HSPI0_TX

TX7/HSPI1_TX

TX8

VSSQ

VCCQ

EXTAL

DSCK#

DSCAP

VCCQ25

VSSQ25

VCCQ25

DSA10

VSSQ25

DSDQ33

DSDQ34

DSDQ40

VCCQ25

VSSQ25

DSDQ43

DSDQ49

DSDQ50

DSDQ56

VCCQ25

DSDQ58

VSSQ25

RX2

RX4/HSPI0_RX

RX7/HSPI1_RX

RX8

VSSQ

VCCQ

VSSQ

XTAL

DSCK

VCCQ25

VSSQ25

VCCQ25

IDEA2

IDEA0

IDEA1

/IDECS0

VDD

/IDEIORD

IDEIORDY

/IODACK

IDEINT

VSSQ

VSS

SDBUP

SDSELF

IDED15

IDED0

IODREQ

/IDEIOWR

VCCQ

VDD

IDED13

IDED2

IDED14

IDED1

VSS

DSVREF

IDED11

IDED4

IDED12

IDED3

VDD

VCCQ25

DSDQ0

DSDQ4

IDED9

IDED6

IDED10

IDED5

VCCQ

VSS25

DSDQS0

DSDM0

DSDQ1

DSDQ5

DIRECTION

/IDERST

IDED8

IDED7

VSSQ

VDDPLL2

/NMI

/IRQ4//EX_CS6

/IRQ5//EX_CS7

/IRQ0

CAN_RX

CAN_TX

/CAN_ERR

/IDECS1

EXD30

EXD31

VDD

VSS

EXD26

EXD27

EXD28

EXD29

VCCQ

VDD

AD_DO/GPIO_3A27

AD_DI/GPIO_3A28

IRREC

AD_CLK

EXD22

EXD23

EXD24

EXD25

VSSQ

VSS

VSSRTC

AD_NCS/GPIO_3A29

/RESOUT

/RESET

EXD18

EXD19

EXD20

EXD21

VCCQ

/XRTCPRST

/XRTCSTB

RTCXTAL

RTCEXTAL

EXD16

EXD17

/EX_CS4

VCCQ

VSSQ

VCCQ

VSSQ

VSS

VDD

VSSQ

VCCQ

VSSQ

VCCQ

VSS

VDD

VSSQ

VCCQ

VSSQ

VCCQ

VSS

VDD

VSSQ

VCCQ

VSSQ

VCCQ

VSSQ

VCCQ

VSSQ

VCCQ

VSSA

VSSQ

VCCQ

VSSA

VSSQ

VSSA

VSSQ

VCCA

VCCQ

VSSQ

MD2

MD3

MD4

MD5

MD10

Clock Mode

CSO BUS Width

endian

Processor Mode

EXTAL XTAL

16bit 32bit

Big Little

Single Multi

3.3V Power supply for I/O VCCQ

VDD

2.5V DDR I/O power VCCQ25

SCIF0

SCIF2

SCIF4

SCIF5

SCIF6

SCIF7

SCIF8

SCIF9

GPS

/IRQ3

/IRQ1

/DSCS0

SCK9/GPIO_2A22

TX9/GPIO_2A20

RX9/GPIO_2A21

SCIF_CLK/GPIO_2A23

SSI0

SSI1

SSI2&3

TTS/WAVE

Voice recognition

N.U

/CS0

/CS1

/EX_CS0

/EX_CS1

/EX_CS2

/EX_CS3

/EX_CS4

DDR_2.5

D_3.3V

/EX_CS5

/EX_CS6

/EX_CS7

(impossible to use)

/IRQ0

/IRQ1

/IRQ2

/IRQ3

/IRQ4

/IRQ5

(impossible to use)

SCIF1

SCIF3

GPIO

AND

5V Tolerant

REMOCON

RESERVE

SRAM

ETHERNET

FPGA

RESERVE(DSP)

RESERVE(PC CARD)

RESCUE DOC

DOC

CF CARD

*/CS0 and /EXCS4:possible to swap.

ETHERNET

FPGA

CF CARD

RESERVE

DEBUG

RDS-TMC microcomputer

Sub microcomputer

RESERVE

1.22V CPU core power VCC_1.22V

H:WAIT / L:RDY

GND

VCC

GND

VCC

GND

MD5

MD3

MD2

MD10

NCNC

NC NC

VCC

GND

VIDEO CLOCK REFERENCE

For production

1 2

SH NAVI-1

USBCLK

VI_DATA0

VI_DATA1

VI_DATA2

VI_DATA3

VI_DATA4

VI_DATA5

VI_DATA6

VI_DATA7

VI_CLK

AUDATA0

AUDATA1

AUDATA2

AUDATA3

/AUDSYNC

/ASEBRK

AUDCK

DSDQ20

DSDQ16

DSDQ21

DSDQ17

DSDQ14

DSDQ10

DSDQ15

DSDQ11

VDD

VSSQ25

DSDQ18

DSDQ22

DSDQS2

DSDM2

VSS

VCCQ25

DSDQ24

DSDQ28

DSDQ19

DSDQ23

VDD

VSS

DSDQS3

DSDM3

DSDQ25

DSDQ29

VSS

VDD

DSDQ27

DSDQ31

DSDQ26

DSDQ30

VCCQ

VSSQ25

DSA13

/BKPRSET

DSCKE

TCK

TDO

TDI

TMS

VSSQ

VCCQ25

DSA9

DSA8

DSA12

DSA11

/TRST

VSSQ

VCCQ

VSSQ

VCCQ

VSSQ

VSS

VSSQ25

VDD

VSSQ25

VCCQ25

VSS

VDD

VSSQ25

VCCQ25

VSSQ25

VCCQ25

VSS

VDD

VSSQ25

VCCQ25

VSSQ25

VDD

VSSQ

GPSIN

GPSCLK

VSS

VCCQ

SSI_SDATA1

SSI_SDATA0

WDTEN

AUDIO_CLK

DSDM1

DSDQS1

VSS

SSI_WS0

SSI_SCK0

SSI_WS1

SSI_SCK1

DSDQ12

DSDQ13

DSDQ8

DSDQ9

VSSQ25

VDD

SSI_WS23

SSI_SCK23

SSI_SDATA2

SSI_SDATA3

VCCQ25

DSDQ3

DSDQ7

DSDQ2

DSDQ6

VCCRTC

/WE2

/WE3

EXD4

EXD0

/WE1

/EX_CS1

RDWR

/BS

DACK2

EXA3

EXA7

EXA8

EXA15

EXA19

EXA23

TCLK0/PWM

GPIO_3A25/PDOUT1

CBU

AN3

/RD

EXD11

EXD8

EXD5

EXD1

/WE0

/EX_CS0

EX_WAIT0

DACK4

/DREQ2

EXA2

EXA6

EXA9

EXA14

EXA18

EXA22

SPEED/TCLK1

OVC

EXVSYNC/VSYNC/CSYNC

DISP/CSYNC/DE

GPIO_3A24/MFSC

GPIO_3A26/PDOUT2

REXT

VCCA

AN1

AN2

EXD14

EXD12

EXD9

EXD6

EXD2

/EX_CS3

/CS1

CLKIN

/DREQ4

DACK3

EXA1

EXA5

EXA11

EXA13

EXA17

EXA21

EXA25

PENC

ODDF/CLAMP

NC1

NC3/4FSCEXCLK

EXD15

EXD13

EXD10

EXD7

EXD3

/EX_CS2

/CS0

CLKOUT

/DREQ3

EXA0

EXA4

EXA10

EXA12

EXA16

EXA20

EXA24

DOTCLKIN

NC2/4FSCCLK

AN0

VCCA

SPDIF_OUT/LAT_WR

SPDIF_IN/LAT_RD

DOTCLKOUT/GPIO3A1

AUDATA4/VI_CLKENB

AUDATA5/VI_FIELD

AUDATA6/VI_VSYNC

AUDATA7/VI_HSYNC

/IRQ2

EXHSYNC/CSYNC/HSYNC

DACK0/GPIO_2A7

DACK1/GPIO_2A8

/DREQ1/GPIO_2A6

DRACK0/GPIO_2A10

/DREQ0/GPIO_2A5

GPIO_3A2/CDE

9/12

3/12

10/12

5/12

8/12

10/12

8/12

6/12

7/12

3.3V

0V 0V

3.3V

3.3V 3.3V

3.3V

0V 0V

0V0V

3.3V

3.28V

3.3V

1.25V

2.5V

1.25V

0V 2.5V

2.5V

1.25V

2.5V

1.25V

0V 2.5V

2.5V

1.25V

96MHZ

2VP-P

- 16 -

NAX970HD

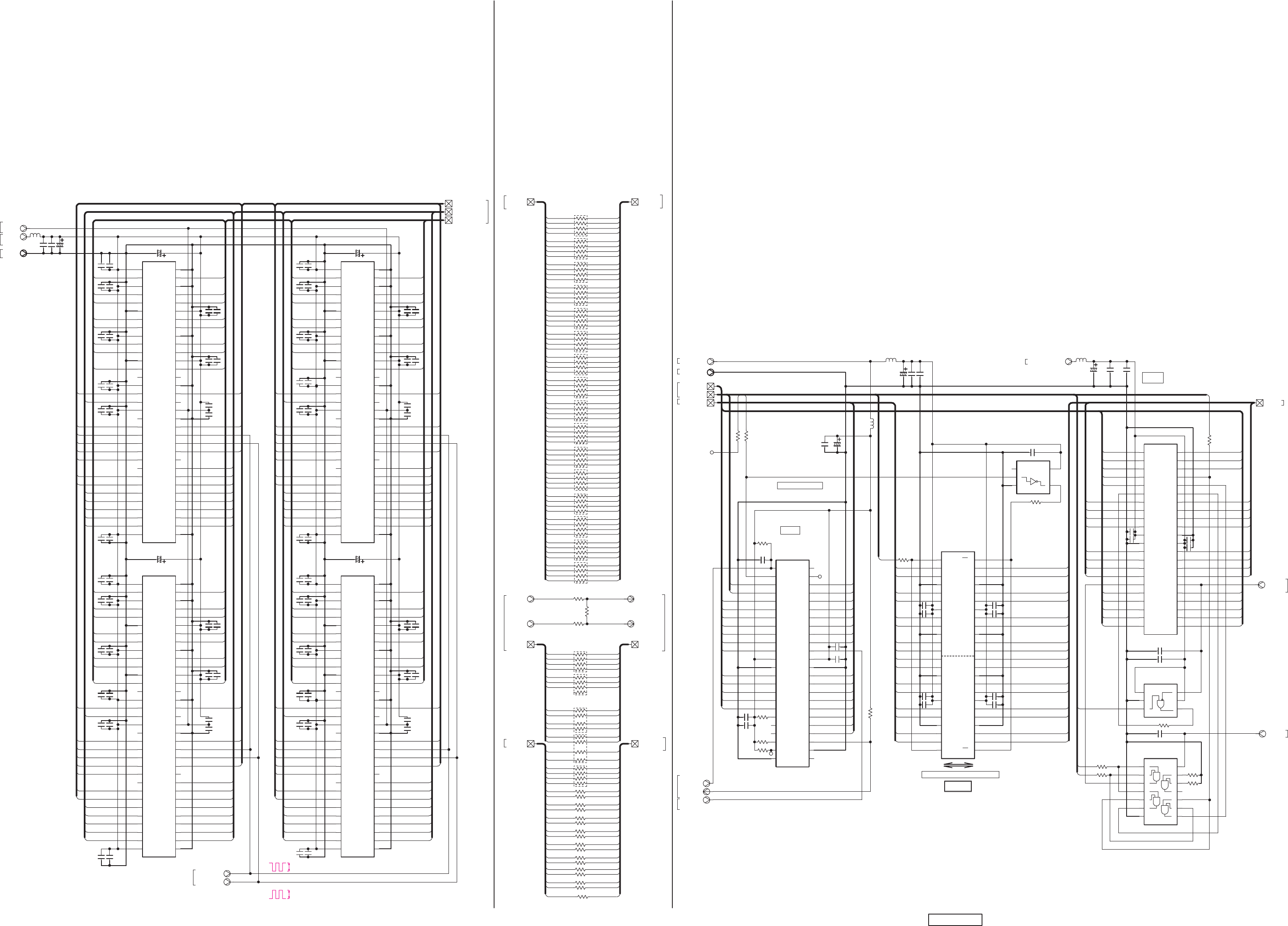

Main PWB(B1) section 2/12

[ DDR SDRAM ] Main PWB(B1) section 3/12

[ RS block ] Main PWB(B1) section 4/12

[ DOC / SRAM block ]

1/12

10/12

11/12

456

25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48

23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44

8910 11 12 13 14

R415 C428

C427

TP400

R403

C429

R416

R417

R406

C412

C413

C414

R418

TP401

R407

R408

C415

C416

C417

C419

R410

R405

C401

C404

C405

C406

C409

C410

C411

R404

R402

C424

C425

IC403

IC404

IC401

IC402

L400

IC400

L401

C400

C402

R401

C420 R400

C421

C403

L402

C423

C408

C422

C407

C426

IC405

R409

33 100p

100p

10K

1000p

10V

TAN

0.47

100p

/IRQ

0.1

10V

TAN

0.47

100p

0.1

10K

100p

R1LV 0416CSB-7LI

SN74LVC1G97

DCKR

SN74LVCHR

16245AGR

SN74LVC1G04DCKR

mPZ1608S601AT

MD4832D512V3Q18

-X-P

mPZ1608S601AT

10V

TAN

0.068

10K

100p

10K

100p

0.068

mPZ1608S601AT

100p

0.1

100p

0.1

1000p

SN74ALVC08PWR

10K

EXA_25:0

DATA

/PERI_

RESET

SH_CONT

D3.3V

EXD_15:0

BATT_BU3V

CKIO_

DOC

/DOC_

RSTIN

/DOC_

BUSY

/EXT_

DOC_CS

D14

D13

D12

D11

D10

D15

EXA5

EXA4

EXA3

EXA2

EXA1

EXA6

EXA7

EXA8

EXA9

EXA10

EXA11

EXA12

EXA18

EXA16

EXA15

EXA14

EXA13

EXA17

EXD0

EXD1

EXD2

EXD3

EXD4

EXD5

EXD6

EXD7

EXD8

EXD9

EXD10

EXD11

EXD12

EXD13

EXD14

EXD15

D10

D11

D12

D13

D14

D15

/RDB

RDWR

/EX_CS0

/WE0

/WE1

/CS0

/EX_CS4

EXA1

EXA2

EXA3

EXA4

EXA5

EXA6

EXA7

EXA8

EXA9

EXA10

EXA11

EXA12

EXD0

EXD1

EXD2

EXD3

EXD4

EXD5

EXD6

EXD7

EXD8

EXD9

EXD10

EXD11

EXD12

EXD13

EXD14

EXD15

/RDB

/WE1

VDD

GND

VDD

GND

/LB

/UB

/OE

/CE

IO2

IO1

IO3

IO4

IO5

IO6

IO7

IO8

R/W

A15

A14

A13

A12

A16

IO16

IO15

IO14

IO13

IO12

IO11

IO10

IO9

A10

A11

A17

SRAM

DIR

GND

VCCVCC

DIR

GND

GNDGND

GND

VCCVCC

BUFFER

With 26ohm damping resistor

VCC

GND

RSTIN#

CE#

WE#

OE#

A12

A11

A10

VCC

VSS

RSRVD

DMARQ#

IF_CFG

LOCK#

ID0

RSRVD

ID1

BUSY#

VSS

VCCQ

CLK

D10

D11

D12

D13

D14

D15

IRQ#

RSRVD

64MB

BOOT FLASH SW

R301

R300

CCT300

CCT301

CCT302

CCT303

CCT304

CCT305

CCT306

CCT307

CCT308

CCT309

CCT310

CCT311

CCT312

CCT313

CCT314

CCT315

R302

CCT332

CCT334

CCT335

CCT336

R303

R305

R306

R307

R309

R310

R315

R316

R319

R320

R318

R317

R314

R313

R312

R311

R308

CCT333

47x4

150

22x4

DSDQ

_63:0

DSA_

13:0

DDR

_D63:0

DDR

_A13:0

DDR_IF DDR_

CONT

DSCK

/DSCK

DDR_CK

/DDR_CK

DSDQ58

DSDQ59

DSDQ63

DSDQ62

DSDQ49

DSDQ53

DSDQ52

DSDQ48

DSDQ43

DSDQ47

DSDQ42

DSDQ46

DSDQ38

DSDQ39

DSDQ35

DSDQ34

DSDQ27

DSDQ26

DSDQ30

DSDQ31

DSDQ24

DSDQ28

DSDQ29

DSDQ25

DSDQ11

DSDQ14

DSDQ10

DSDQ15

DSDQ33

DSDQ37

DSDQ32

DSDQ36

DSDQ9

DSDQ13

DSDQ8

DSDQ12

DSDQ55

DSDQ51

DSDQ54

DSDQ50

DSDQ57

DSDQ60

DSDQ56

DSDQ41

DSDQ45

DSDQ40

DSDQ44

DDR_D58

DDR_D59

DDR_D63

DDR_D62

DDR_D49

DDR_D53

DDR_D52

DDR_D48

DDR_D27

DDR_D26

DDR_D30

DDR_D31

DDR_D24

DDR_D28

DDR_D29

DDR_D25

DDR_D11

DDR_D14

DDR_D10

DDR_D15

DDR_D9

DDR_D13

DDR_D8

DDR_D12

DDR_D55

DDR_D51

DDR_D54

DDR_D50

DDR_D57

DDR_D60

DDR_D56

DSA0

DSA1

DSA2

DSA3

DSA4

DSA7

DSA6

DSA12

DSA11

DSA9

DSA8

DSA5

DSA10

DDR_A0

DDR_A1

DDR_A2

DDR_A3

DDR_A4

DDR_A7

DDR_A6

DDR_A12

DDR_A11

DDR_A9

DDR_A8

DDR_A5

DDR_A10

DSBA1

/DSCS0

/DSCAS

/DSRAS

DSBA0

DSDM0

DSDQS0

DSDM1

DSDQS1

DSDM2

DSDQS2

DSDM3

DSDQS3

DSDM4

DSDQS4

DSDM5

DSDQS5

DSDM6

DSDQS6

DSDM7

DSDQS7

DSCKE

DDR_BA1

/DDR_CS

/DDR_CAS

/DDR_WE

/DDR_RAS

DDR_BA0

/DDR_DQM0

DDR_DQS0

/DDR_DQM1

DDR_DQS1

/DDR_DQM2

DDR_DQS2

/DDR_DQM3

DDR_DQS3

/DDR_DQM4

DDR_DQS4

/DDR_DQM5

DDR_DQS5

/DDR_DQM6

DDR_DQS6

/DDR_DQM7

DDR_DQS7

DDR_CKE

/DSWE

DSDQ61

DSDQ5

DSDQ1

DSDQ4

DSDQ0

DSDQ3

DSDQ7

DSDQ2

DSDQ6

DSDQ18

DSDQ19

DSDQ23

DSDQ22

DSDQ20

DSDQ16

DSDQ21

DSDQ17

DDR_D5

DDR_D1

DDR_D4

DDR_D0

DDR_D3

DDR_D7

DDR_D2

DDR_D6

DDR_D18

DDR_D19

DDR_D23

DDR_D22

DDR_D20

DDR_D16

DDR_D21

DDR_D17

DDR_D40

DDR_D44

DDR_D41

DDR_D45

DDR_D36

DDR_D32

DDR_D37

DDR_D33

DDR_D35

DDR_D39

DDR_D34

DDR_D38

DDR_D46

DDR_D42

DDR_D47

DDR_D43

DDR_D61

NCNC

34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64

65 66

34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64

65 66

34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64

65 66

34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64

65 66

C240 C239

C227

C233

C265

C271

C272

C266 C234

C228

C278

C200

C201

C202

C212

C211

C220

C219

C203

C204

C207

C208

C215

C216

C223

C224

C229

C230

C235

C236

C250

C249

C258

C257

C241

C242

C245

C246

C253

C254

C262

C261

C267

C268

C252

C251

C260

C259

C243

C244

C247

C248

C255

C256

C263

C264

C269

C270

C213

C214

C222

C221

C237

C238

C231

C232

C225

C226

C217

C218

C209

C210

C205

C206

IC203

L200

C277

C276

C275

IC202

C274

C273

IC201 IC200

10 10V TAN 10 10V TAN

0.1

0.1 0.1 0.1

0.1

10 10V TAN

0.1

100p

0.1

100p

0.1

100p

0.1

100p

0.1

100p

0.1

100p

0.1

100p

0.1

100p

0.1

100p

0.1

100p

0.1

100p

0.1

100p

0.1

100p

0.1

100p

0.1

100p

0.1

100p

0.1

100p

0.1

100p

0.1

100p

0.1

100p

0.1

100p

0.1

100p

0.1

100p

0.1

100p

0.1

100p

0.1

100p

0.1

100p

0.1

100p

mPZ1608S221AT

100 6.3V

100p

0.1

100p

0.1

K4H561638H-UIB3

DDR_CONT

DDR_D63:0

DDR_A13:0

DDR_CK

/DDR_CK

DDR_

VREF

D_GND

DDR

2.5V

DDR_D9

DDR_D13

DDR_D8

DDR_D12

DDR_D11

DDR_D14

DDR_D10

DDR_D15

DDR_D24

DDR_D28

DDR_D29

DDR_D25

DDR_D27

DDR_D26

DDR_D30

DDR_D31

DDR_A13

DDR_A12

DDR_A11

DDR_A10

DDR_A9

DDR_A8

DDR_A7

DDR_A6

DDR_A5

DDR_A4DDR_A3

DDR_A2

DDR_A1

DDR_A0

DDR_CKE

/DDR_DQM1

DDR_DQS1

DDR_DQS3

/DDR_DQM3

/DDR_WE

/DDR_CAS

/DDR_RAS

/DDR_CS

DDR_BA0

DDR_BA1

DDR_D49

DDR_D53

DDR_D52

DDR_D48

DDR_D55

DDR_D51

DDR_D54

DDR_D50

DDR_A12

DDR_A11

DDR_A9

DDR_A8

DDR_A7

DDR_A6

DDR_A4DDR_A3

DDR_A2

DDR_A1

DDR_A0

DDR_A10

DDR_CKE

/DDR_DQM4

DDR_DQS4

DDR_BA1

DDR_BA0

/DDR_CS

/DDR_RAS

/DDR_CAS

/DDR_WE

/DDR_DQM6

DDR_A13

DDR_DQS6

DDR_D18

DDR_D19

DDR_D23

DDR_D22

DDR_D20

DDR_D16

DDR_D21

DDR_D17

DDR_D3

DDR_D7

DDR_D2

DDR_D6

DDR_D5

DDR_D1

DDR_D4

DDR_D0

DDR_A12

DDR_A11

DDR_A9

DDR_A8

DDR_A7

DDR_A6

DDR_A5

DDR_A4DDR_A3

DDR_A2

DDR_A1

DDR_A0

DDR_A10

DDR_A13

DDR_CKE

/DDR_DQM2

DDR_DQS2

DDR_BA1

DDR_BA0

/DDR_CS

/DDR_RAS

/DDR_CAS

/DDR_WE

/DDR_DQM0

DDR_DQS0

DDR_D58

DDR_D59

DDR_D63

DDR_D62

DDR_D61

DDR_D57

DDR_D60

DDR_D56

DDR_A12

DDR_A11

DDR_A9

DDR_A8

DDR_A7

DDR_A6

DDR_A5

DDR_A4DDR_A3

DDR_A2

DDR_A1

DDR_A0

DDR_A10

DDR_A13

DDR_BA1

DDR_BA0

/DDR_CS

/DDR_RAS

/DDR_CAS

/DDR_WE

/DDR_DQM5

DDR_DQS5

DDR_CKE

/DDR_DQM7

DDR_DQS7

DDR_A5

DDR_D40

DDR_D44

DDR_D41

DDR_D45 DDR_D36

DDR_D32

DDR_D37

DDR_D33

DDR_D35

DDR_D39

DDR_D34

DDR_D38

DDR_D46

DDR_D42

DDR_D47

DDR_D43

VSS

A11

A12

CKE

/CK

UDM

VSS

VREF

UDQS

VSSQ

DQ8

VDDQ

DQ9

DQ10

VSSQ

DQ11

DQ12

VDDQ

DQ13

DQ14

VSSQ

DQ15

VSS

A11

A12

CKE

/CK

UDM

VSS

VREF

UDQS

VSSQ

DQ8

VDDQ

DQ9

DQ10

VSSQ

DQ11

DQ12

VDDQ

DQ13

DQ14

VSSQ

DQ15

VSS

A11

A12

CKE

/CK

UDM

VSS

VREF

UDQS

VSSQ

DQ8

VDDQ

DQ9

DQ10

VSSQ

DQ11

DQ12

VDDQ

DQ13

DQ14

VSSQ

DQ15

VSS

A11

A12

CKE

/CK

UDM

VSS

VREF

UDQS

VSSQ

DQ8

VDDQ

DQ9

DQ10

VSSQ

DQ11

DQ12

VDDQ

DQ13

DQ14

VSSQ

DQ15

VSS

VDD

DQ0

VDDQ

DQ1

DQ2

VSSQ

DQ3

DQ4

VDDQ

DQ5

DQ6

VSSQ

DQ7

VDDQ

LDQS

VDD

LDM

BA0

BA1

VDD

/WE

/CAS

/RAS

/CS

A10/AP

VDD

DQ0

VDDQ

DQ1

DQ2

VSSQ

DQ3

DQ4

VDDQ

DQ5

DQ6

VSSQ

DQ7

VDDQ

LDQS

VDD

LDM

BA0

BA1

VDD

/WE

/CAS

/RAS

/CS

A10/AP

VDD

DQ0

VDDQ

DQ1

DQ2

VSSQ

DQ3

DQ4

VDDQ

DQ5

DQ6

VSSQ

DQ7

VDDQ

LDQS

VDD

LDM

BA0

BA1

VDD

/WE

/CAS

/RAS

/CS

A10/AP

VDD

DQ0

VDDQ

DQ1

DQ2

VSSQ

DQ3

DQ4

VDDQ

DQ5

DQ6

VSSQ

DQ7

VDDQ

LDQS

VDD

LDM

BA0

BA1

VDD

/WE

/CAS

/RAS

/CS

A10/AP

NC NC NC

NC NC

NC NC NC

NC NC

3/12

1/12

10/12

D_GND

11/12

1/12 5/12

1/12

5/12

9/12

1/12

2/12

10/12

5/12

7/12

9/12

10/12

K4H561638H-UIB3

3.3V

2.5V

1.22V

3.3V

2.5V

3.3V

2.5V

1.22V

3.3V

2.5V

1.22V

3.3V

2.5V

1.22V

3.3V

2.5V

0V2.5V

48MHZ

2.5VP-P

48MHZ 3.3VP-P

1.22V

2.5V

3.3V

48MHZ

3.3VP-P

15.734KHZ

3.3VP-P

9.5979MHZ

0.83V

3.19V

0.834V

0.818V

0.883V

2.86V

15.734KHZ

5VP-P

3.3V

9.5979MHZ

5VP-P

15.734KHZ

5VP-P

- 17 - NAX970HD

Main PWB(B1) section 5/12

[ FPGA ]

1/12 4/12

1/12

5/12

1/12 4/12

4/12 7/12

7/12

8/12

11/12

7/12

1/12

9/12

5678

10 11 13 14 15 16

912

123

12345678910 11 12 13 14 15 16 17 18 19 20 21 22 23 24

100 26

123

TP500

TP501

TP503

TP505

TP506

TP507

TP508

R506

R501

C538

C539

C540

C541

C542

C544

C549

C550

C551

C552

C553

TP504

TP525

TP526

TP527

TP528

TP529

R508

TP510

TP511

TP512

TP513

TP530

TP531

CCT501

C529

C531

C555

R500

R516

R512

TP534

R520

C528

C526

C517

C516

C515

C514

C513

C512

C511 C510

C507

C506

C505

C504

C503

C502

R521

R522

C558

C559

C560

C556

C557

R504 R507

R505

R502

C554

R524

R514

R515

R517

IC504

IC501

C545

C543

C508

TP509

R503

L502

L512

IC507

IC508

IC505

IC506

C548

C547

C546

C509

L509

L511

L510

IC502

C561

R519

R518

C518

C520

C521

C522

C523

C525

C527

CLOCK BUFFER

P64

P75

P37

P36

100p

P40

P55

P59

P60

P61

P63

TDO

TDI

TCK

TMS

2.5V

GND

82x4

1000p

100p

0.1

330

100K

0.1

0.1 0.1

0.1

150

0.1

39p

0.1

220 220

120

100

16V

TAN

47K (F)

10K (F)

68K (F)

SN74LVC1G32DCKR

XC3S50-4VQG100I-0985

100p

0.1

4.7K

mPZ1608S601AT

SN74AHCT1G08DCKR

SN74AHCT1G08DCKG

MC74HC4046ADT

SN74LVC1G08DCKR

100p

0.1

mPZ1608S221AT

NB2305AI1HDR2G

0.022

150

8.2K (F)

0.1

47 6.3V TAN

0.1

47 10V TAN

0.1

47 10V TAN

47p

PROG_B

CCLK

48MHZ

D_GND

SH_CONT

EXA_25:0

DATA

SENSOR

/FPGA_RDY

CKIO

CKIO_FPGA

CKIO_DOC

CKIO_CCLK

CKIO_DEBUG

CKIO_FPGA

CKIO_CCLK

LAT_WR

FPGA_DONE

FPGA_INIT

DAC_CNT

EXTCONT

/GUIDE_MUTE

ADC_IF

D3.3V

D1.22V

DDR2.5V

/PERI_RESET

DCLKIN

PDOUT2

PDOUT1

A-MUTE

A-SW

A5V

D3.3V_B

D10

D11

D12

D13

D14

D15

/BACK

/ILL

/WE0

/WE1

/RDB

/IRQ1

/WE0

/EX_CS2

PKB

ECC

AD_CLK

/AD_CS

GYRO_DATA

EXA1

EXA2

EXA3

EXA4

EXA5

EXA18

EXA19

EXA20

EXA21

EXA22

TDO

TDI

TCK

TMS

TDO

TCK

TMS

TDI

DAC_DATA

DAC_

CLK

DAC_

LATCH

A20

A21

A22

D15

D14

D13

D12

D11

D10

N_CS_FPGA

CKIO

VOL_CLK

N_SH_RDY

N_WE1

N_RD

VOL_CS

VOL_DATA

ALE

N_RD_J1850

N_WR_J1850

N_EIRQ1

N_INT_J1850

N_MUTE

ADC_CS

N_ILL

PKB

N_BACK

N_RESETI

A18

A19

GND

VCCO

VCCAUX

GND

VCCINT

VCCO

GND

VCCO

VCCAUX

GND

VCCINT

VCCO

N_WE0

CCLK

DONE

GND

VCCO

VCCAUX

(IO_L40P_2/VREF_2)

GND

VCCINT

VCCO

GND

(IO_L01N_2/VRP_2)

TDO

TCK

TMS

GND

VCCO

VCCAUX

VCCINT

VCCO

GND

HSWAP_EN

PROG_B

TDI

INIT_B

RDWR_B

CS_B

N_EXT_BEN

GND

CLK3

VDD

CLK4

CLKOUT

REF

CLK2

CLK1

3.3V tolerant

EXTCONT

ADC_CLK

SPEED_IN

(IO_L32P_1/GCLK4)

(IO_L32N_1/GCLK5)

(IO_L32P_0/GCLK6)

(IO_L31N_0)

GYRO_DATA

FPGA

(Tpd=4.4nsec max)

VCC

GND

IO_L31P_4/DOUT/BUSY

INH

C1A

C1B

GND

VCOIN

VCC

DEMOUT

VCOOUT

SIGIN

COMPIN

PC3OUT

PC1OUT

PCPOUT

PC2OUT

DOTCLOCK_PLL

NC NC

VCC

GND

VCC

GND

TTL_INPUT

5V tolerant -input

5/12

1/12

5/12

4/12

1/12

11/12

10/12

3.3V

- 18 - NAX970HD

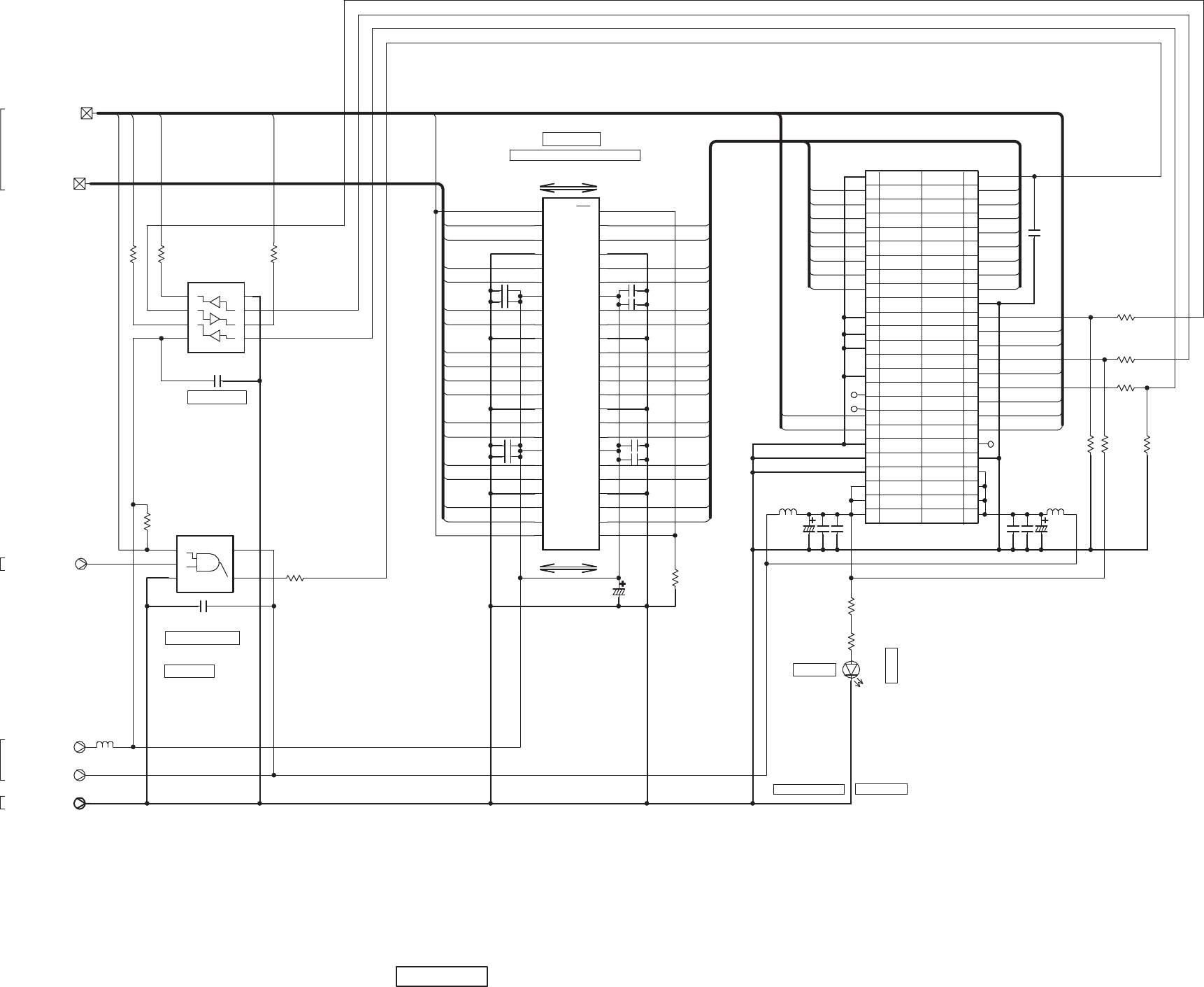

Main PWB(B1) section 6/12

[ ATAPJ ]

1/12

9/12

10/12

11/12

C C

1234

25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48

R601

R604

C604

R605

TP600

TP601

TP602

C611

C532

C533 C534

C535

C537

C609

C600

C601

R612

R611

R610

R609

R608

R607

R603

R602

R600

R614 R613

C606

C605

C603

C602

C607

C610

C608

C536

To J1200 of Main PWB(page 23)

P600

D600

L602

L601

IC601

IC600

L600

IC602

10V

TAN

47K

HDD_/DASP

HDD_/IOIS16

HDD_/PDIOG

1000p

100

100p

100p 100p

100p

0.1

10K

5.6K

150 0

0.1

16V

TAN

16V

TAN

0.1

100p

NSCW505CT

mPZ1608S221AT

SN74LVC3G34DCTR

SN74AHCT

1G08DCKR

mPZ1608S601AT

SN74LVCHR16245AG

IDE_CONT

IDED_15:0

/PERI_RESET

D_GND

D3.3V

HDD5V

/IDE_IOWR

/IDE_IORD

IDEA0

IDEA1

IDEA2

/IDE_CS0/IDE_CS1

/IDE_DACK

IDED0

IDED1

IDED2

IDED3

IDED4

IDED5

IDED6

IDED7

IDED8

IDED9

IDED10

IDED11

IDED12

IDED13

IDED14

IDED15

DIRECTION

HD8

HD9

HD10

HD11

HD12

HD13

HD14

HD15

HD7

HD6

HD5

HD4

HD3

HD2

HD1

HD0

HD1

HD2

HD3

HD4

HD5

HD6

HD7

HD8

HD9

HD10

HD11

HD12

HD13

HD14

HD15

IDE_INT

IDE_IORDY

IDE_DREQ

/IDE_RST

VCC

GND

VCC=5V

/RESET

DD7

DD6

DD8

DD9

DD5DD10

DD4DD11

DD3DD12

DD2DD13

DD1DD14

DD0DD15

GND

DMARQGND

/DIOW

GND

/DIOR

GND

IORDYCSEL

/DMACK

GND

INTRQ

DA1/PDIAG

DA0DA2

/CS0/CS1

/DASP

GND

KEY

/IOIS16

GND

GND GND

GND 5VMOT

5VLOG

5VMOT

GND

VCC

1OE

1DIR

2DIR2OE

GND

GNDGND

GND

VCCVCC

5V tolerant

VCC

GND

Power ON:9mA

TTL INPUT

WHITE

VF=4Vmax

with 26ohm damping register

POWER

3.3V

3.28V

3.3V

3.28V

3.3V

3.28V

2.5V

0V3.3V

3.3V 5V

3.3VP-P

3.3V

- 19 - NAX970HD

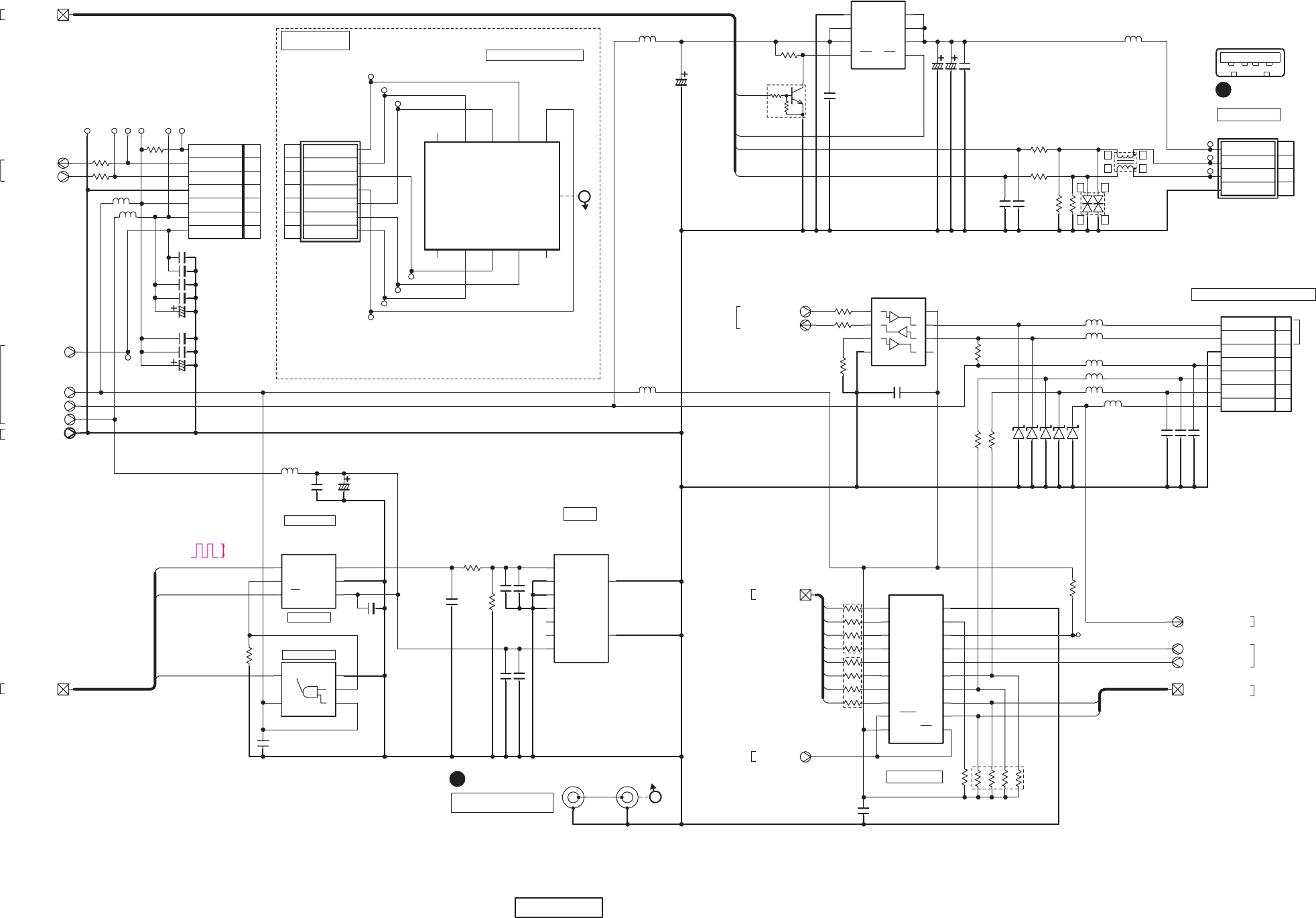

Main PWB(B1) section 7/12

[ GPS / GYO/USB ]

1/12

10/12

11/12

5/12

123456789

5678

123

102

5678

R701 R712

R713

C709

C712

R700

R702

R703

R706

R719

C702

L706

L707

R715

R716

TP712

TP708

TP710

TP709

TP711

TP713

TP707

TP714

TP715

TP716

C701

R722

CCT700

CCT701

C703

C705

C715

C716

C700

C843

C842

C841

R705

R704

C727

C723

C722

C717

C711

C706

CCT703

R711

R723

R724

C708

C704

C707

R727

P702 J702

GPS block

BL700

L710

L701

L702

L700

IC700 IC702

IC701

ANT700

GPS-ANT CONNECT.

ANT701

IC705

D701

D705

D706

D704

D703

L709

L808

L807

L708

P701

PRODUCT. JIG CONNECT.

IC707

L705

J701

L704

D702

IC704

Q700

L703

C719

C729

C718

C710

C713

TP702

TP701

TP700

TP705

TP704

TP703

TP706

C724

C720

C721

R717

R718

10K

0.01

15K

100K

10K

16V

TAN

mmZ1608S121CT

BU3V

TXD0

3.3V

RXD1

GND

RXD0

D-

D+

0.47

10K

56x4

0.1

220p

100p

0.1

1016V

10Kx4

0.1

100K

CCA482C

mPZ

1608S601AT

mPZ1608S601AT

ADCS7476AIMF EWTS86NA11

SN74AHC1G08DCKR

H.FL-R-SMT H.FL-R-SMT

SN74LVC541APW

MA8056M

mmZ1608S121CT

mPZ1608A102AT

mPZ1608S601AT

SN74LVC3G34DCTR

mPZ1608S601AT

DLP3216S55

EZJZSV171AA

TPS2041BDGN

DTC114EUA

mPZ1608S221AT

0.01

68 10V

0.01

3.3V

TXD0_B

RXD1B

RXD0_B

BU3V

GND

10 16V

27p

15K

GPS-SH

SH-GPS

SH_USB

ADC_IF

D5V

A5V

D3.3V

D_GND

BATT_BU3V

REMOCON

FPGA_DONE

FPGA_INIT

DEBUG_CARD_DET

LAT_RD

DATA

BOOT

SH-SEISAN

SEISAN-SH

OVC

PENC

AD_CLK

/AD_CS

GYRO_DATA

TB_2

TB_1

VIH=2.4V

TXDO

RXDO

GND

+5V

B/U 3.3V

RXD1

+3.3V

(MAX 500mA)

GND

OUT

D+

D-

GND

VCC

VOUT

GND

GND GND

GND

123456

VDD

SDATA

SCLK VIN

GND

VCC

5V tolerant

GYRO

12bit ADC

USB-HOST

GND

3.3V

GND

3.3V

GND

BU3V BU3V

GNDY8

OE2

VCC

EXT_GPI

JRC GPS RECEIVER

7RXD1RXD1

TXD0

RXD0

TXD0

RXD0

TEST4

TEST3

SH-SEISAN

SEISAN-SH

VCC

GND

3.3V I/F

3 4

1 2

9/12

1/12

4/12

5/12

1/12

5/12

1/12

1234

USB connector

GPS antenna

recept.

3.3V

2.5V

3.3V

2.5V

3.3V

4.9V

2.5V

2.45V

4.78V

MUTE ON=5V

MUTE OFF=0V

4.78V

4.78V 9V

MUTE ON=0V

MUTE OFF=3.3V

MUTE OFF=0V

MUTE ON=3.3V

MUTE ON=0V

MUTE OFF=3.3V

- 20 - NAX970HD

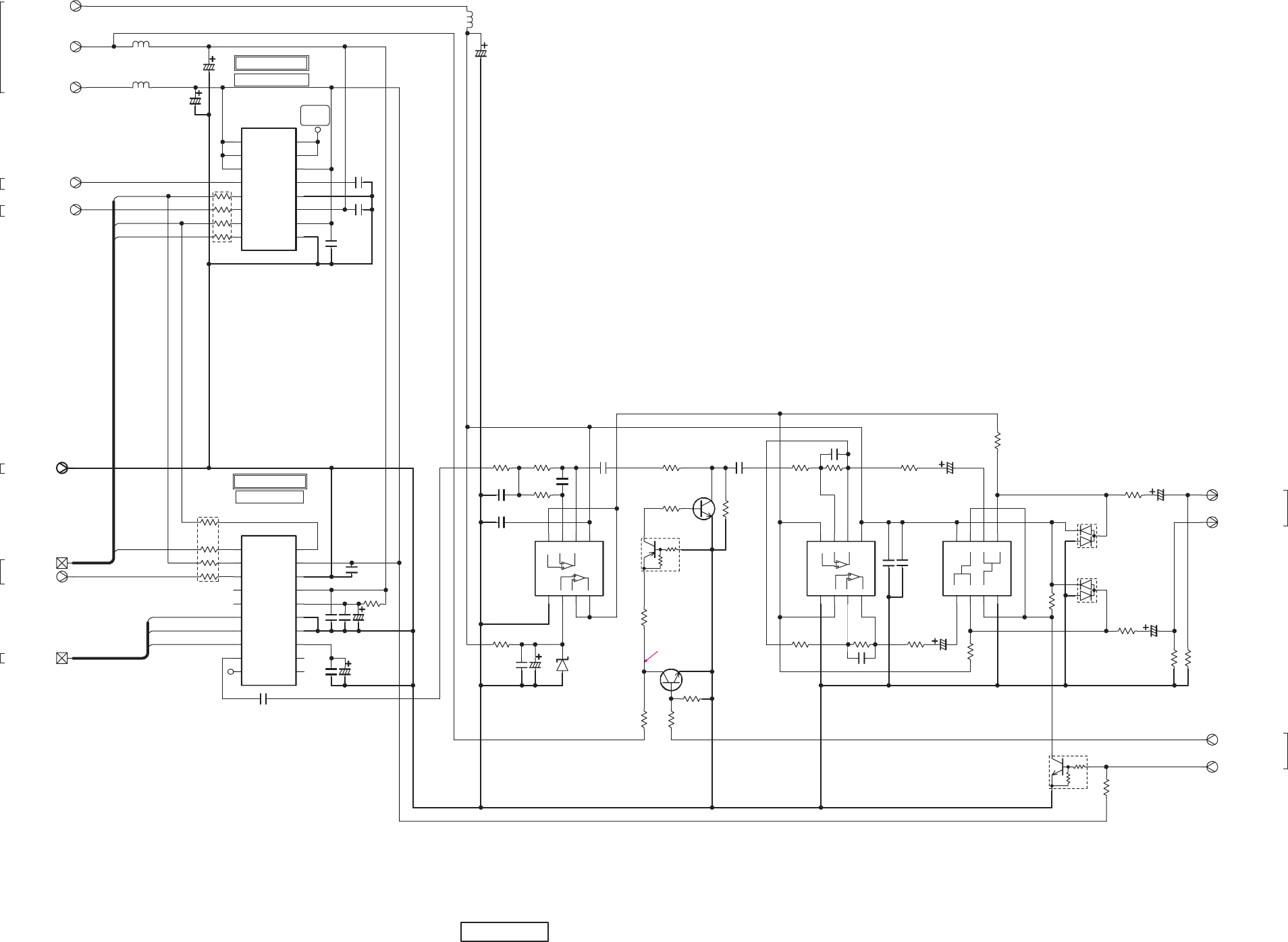

Main PWB(B1) section 8/12

[ Guide ]

10/12

9/12

1/12

11/12

1/12

5/12

10 11 13 14 15 16

912

11 12 13 14 15 16 17 18 19 20

1234

5678

1234

5678

1234

5678

R812

C815

R817

R818

R821

R822

C834

C835

C839

C840

R836

R837

R844

R845

TP800

TP801

C832

R843

R842

R839

R838

R835R831

R826

R820

C831

C812

C811

C809

C808

C803

C801

C802 C805 C806

C807

C813

C833

R813

R816

R815

R814

C820

C816

C817

C819

C818

R850

R849

R834

R830

R819 C829

CCT801

CCT800

Q801

Q802

Q800

IC804

IC805

D801

D802

C826

C821

D800

IC802

L804

IC801

Q803

C800

L801

L802

IC800

330

16V

10K

16V

330

100K

L-

AD_IN

0.1

560

100K

10K

22K

470

100p

0.47

16V

TAN

16V

TAN

10V

TAN

16V

TAN

0.1

0.1 0.1 0.1

0.1

4.7K

15K

10K

2.2K

220p

2200p

0.1

16V

TAN

0.01

4.7K

22K

10K

330 100p

33x4

2SC4116

2SD1306

DTA114EUA

HA17558ATEL

TC7W66FU-TE12L

DAN217

2.2

MA8047H

HA17558ATEL

mPZ1608S601AT

WM8718SEDS/R

DTC114EUA

2.2

mPZ1608S601AT

AK5357VT-E2

I2S FORMAT

MASTER MODE

I2S FORMAT

SLAVE MODE

/PERI_RESET

SSI

DAC_CNT

D_GND

CENET_EXT+

CENET_EXT-

A9V

D3.3V

MCLK_ADC

MCLK_DAC

EXTCONT

/GUIDE_MUTE

D5V

SSI_SDATA0

SSI_LRCK0

SSI_BCK0

DAC_CLK

DAC_DATA

DAC_LATCH

SSI_SDATA1 DIN

BCLK

MCLK

ZEROL

ZEROR

SCLK

SDIN

LATCH

L+

L-

LRCK

DVDD

DGND

AVDD

VREFP

VREFN

AGND

VMID

R+

R-

AINR

AINL

CKS1

VCOM

AGND

DGND

CKS0

CKS2

DIF

PDN

SCLK

MCLK

LRCK

SDTO

VCC

GND

VCC

GND

L:MUTE

H:MUTE

VCC

GND

11/12

5/12

3.3V

3.1V

3.3V

3.1V

3.3V

0V 0V

3.1V

3.3V

3.29V

3.1V 3.1V

3.091V

3.1V

2.48V

0.5V

3.3V

- 21 - NAX970HD

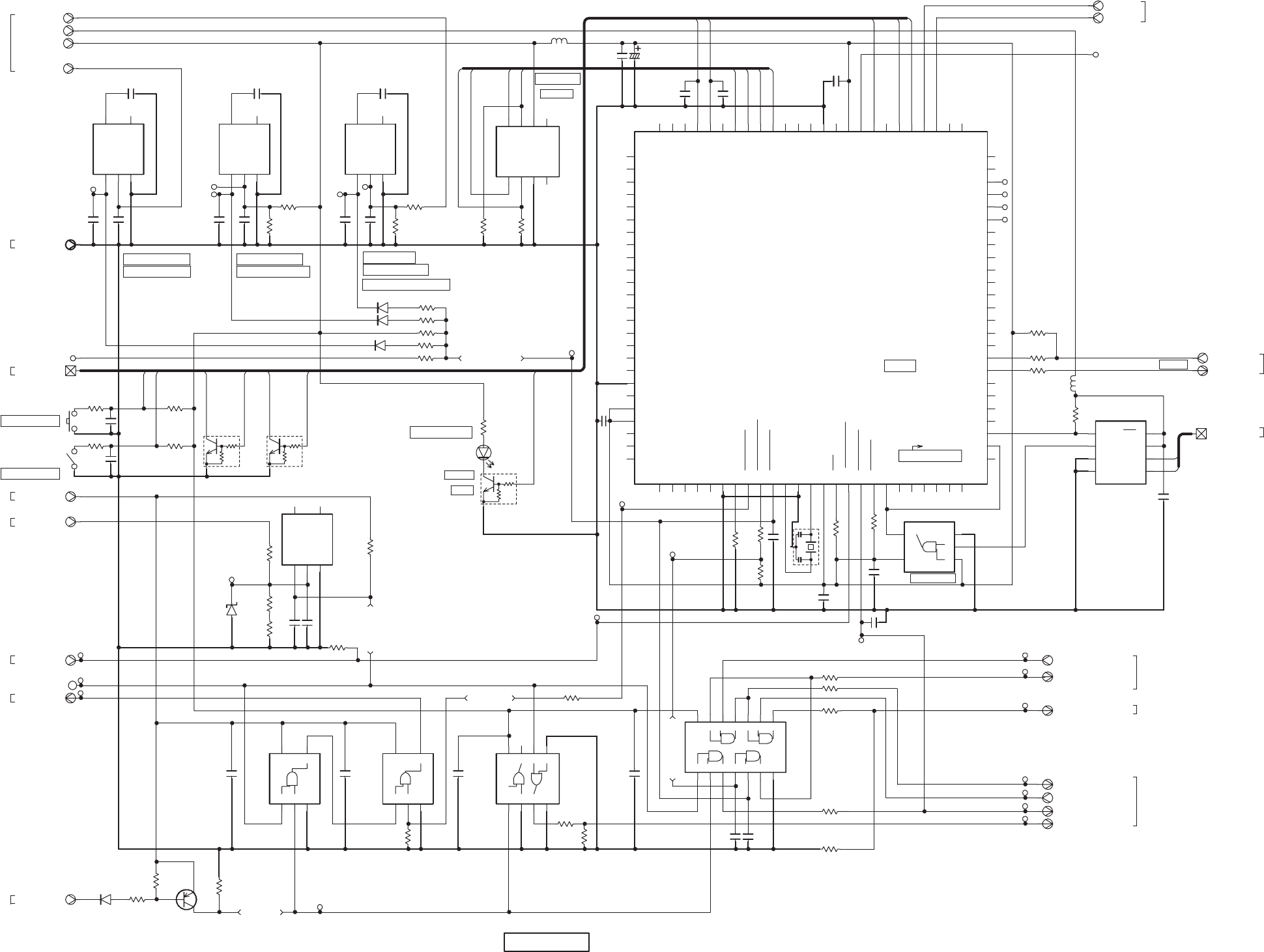

Main PWB(B1) section 9/12

[ Microcomputer / Reset ]

10/12

11/12

7/12

10/12

11/12

1/12

11/12

10/12

1/12

11/12

4/12

1/12

1 2 3 4 5 6 7 8 9 101112131415161718192021222324

565758596061626364

6566676869707172737475

100 26

5152535455

123

1234

5678

1234567

891011121314

123

1234

5678

123

R900

R901

D901

C907

R951

R952

TP908

TP911

C918

R921

TP920

TP921

TP922

TP923

TP924

TP925

C917

C915

C919

R953

R950

R944

R943

R941

R939

R931

R928

R927

R926

R924

R922

R920

R918

R916

R915

R914

R913

R912

R911

R910

R909

R907

R906 R905 R904

R903

R902

C932

C931

C929

C928

C927 C926

C922

TP907

C904

C905

C908

C910 C911

C914

C916

C921

C924

R908

C912

C906C902

Q900

TP909

R955

C920

IC900

IC901

IC904

IC908

IC909

IC903

TP915

C901

C900

C903

TP916

TP917

C909

TP919

TP918

L900

L901

R929

R930

IC912

TP904

TP900

TP901

TP902

TP906

X900

IC911

Q902

D903

MONITOR LE

D905

D906

D907

S901 S900

Q903

Q904

IC902

IC905

IC907

IC910

D900

R948

R949

R945

R940

C726

TP910

TP912

TP914

TP913

0.01

MA8091L

10K

/SHDWN

/NAVIRST

100

6.3V

120

BU9_DETIN

/BASE_RST

P4_4

P4_5

P4_6

P4_7

0.1

10K

100

3.3K

47K

10K

47K

100

10K

47K

10K

3.9K (F)

47K

3.3K (F)

100

16K

(F)

2.7K

(F) 22K

(F) 56K(F)

39K

(F)

47K

1000p

0.01 0.01

1000p

ACC_DET

0.1

0.1 0.1

0.1

4.7K

0.033 (P)0.033 (P)0.033 (P)

2SA1586

/NMIMONI

10K

0.1

R3112N211A-TR-FA

BR93L46F-W

M30620MCP-D16GP

R3111N

271A-TR-FA

VDET2.1

0.1

0.01

3.3DET

3.3DETIN

0.01

D5_DETIN

D5_DET

mPZ1608S601AT

100

HA12187FP

10M

SN74AHC1G08DCKR

DTC114EUA

CL-221FG-C-TS

1SS420

DTC114EUA

SN74AHC1G08DCKR

SN74AHC1G32DCKR

SN74LVC2G32DCTR

SN74LV08APWR

1SS355

47K

1000p

/NAVIMONI

BU_9VDET

/BASE_RESET

/NAVI_RESET

/P_OFF_B

ACC_DET

CENET

SH-MICOM

MICOM-SH

/SYS_ACC

D3.3V

DDR2.5V

D5V

D_GND

BU12V

NAVI_PON

/BU_DET

/P_OFF

BU3.3V

NMI

/DEBUG_RESET_IN

/DOC_BUSY

/CPU_RESET

/SH_RESET_OUT

LED1

LED2

BOOT

HDD5V

BU_9VDET

TESTMODE

1/12,4/12-6/12,8/12

TP905 /PERI_RESET

TP903 /DOC_RSTIN

R942 100

CENET_BUS+

CENET_BUS-

E2P_CE

E2P_CLK

E2P_DO

E2P_DI

E2P_DO

E2P_CLK

E2P_CE

LED_ON

MODE1

MODE0

LED_ON

MODE0

MODE1

TB_2

TEST_BOOT_2

TB_1

TEST_BOOT_1

TEST_BOOT_2

BUS_WATCH

CNVSS

SH-MICOM

MICOM-SH

E2P_DI

E2P_DO

E2P_CLK

E2P_CE

VCC1

VSS

XIN

XOUT

BYTE

VSS

AVSS

VREF

AVCC

VCC2

1K Bit

NMI

UART

NAVI_RESET

NAVI_MONI

BU_DET

SHUTDOWN

OUT

IN2

GND

BUS-

BUS+

VCC

STB

IN1

GND

VCC

VIN=6.5VMAX

EEPROM

SCIF7

VDET=2.1V

VOUT

VDD

GND N.C

C.T

DDR PWR DET D3.3V DET D5V DET

HDD VOL DET

VOUT

VDD

GND N.C

C.T

(DELAY=150mS)

VOUT

VDD

GND N.C

C.T

VCC

GND

VCC

GND

VCC

GND

RESET_IN

VCC

GND

5V Tolerant

LED1

LED2

VDET=2.96V

LED_ON

MODE1

MODE0

Rewriting SW-1

Rewriting SW-2

NC NC

TEST_BOOT_1

TEST_BOOT_2

NCNC

10mA

(FL_CE)

(FL_EPM)

(FL_SCLK)

(FL_RX)

(FL_TX)

CENET_RX

(O.D.)CENET_TX

GREEN

(NC)

(ROM:128K+4K/RAM:10K)

VDET=4.5818V

(DELAY=150mS)

TEST

NMI_MONI

13.96V 13.68V 13.62V

13V

0.665V

1.25V

11.9V

12.1V

5V 5V

0.6V

3.3V

0.752V 0V

0V 0.729V

4.29V

5V5V

3.38V

13.96V

1.24V

13.96V

3.115V

3.278V

3.0V

13.96V

0.85V

0.544V

0.8V

3.1V

0.85V

3.1V

0.5V

0.85V 6.1V

1.64V

1.24V

4.3V

13.85V

13.96V

13.87V

3.9V

2.5V

3.28V

7.3V

2.51V

2.5V

1.22V

14.6VP-P

sec.(approximately 470kHz)

sec.(220kHz)

4.54

14.8VP-P

- 22 - NAX970HD

Main PWB(B1) section 10/12

[ Power supply ]

1234

5678

1234

5678

12345

16 21 27 28 29 30

22 23 24 25 26

17 18 19 20

12345

R1006

R1007

R1008

C1024

C1025

C1026

C1028

C1029

C1030

C1032

R1024

C1039

R1030

R1031

R1032

R1033

R1034

R1035

C1042 C1043

TP1002

TP1004

TP1005

TP1006

TP1007

TP1008

R1000

R1014

R1016

C1066

R1055

R1053

R1052

R1051

R1050

R1040

R1036

R1028

R1027

R1022

R1021

R1020

R1019

R1015

R1013

R1012

R1011

R1010

R1009

C1062

C1045

C1041

C1020

C1017

C1015

C1008

C1004

C1016

TP1012

TP1011

R1058 R1057

R1056

R1029

R1026

R1018 R1017

C1072

C1035

C1034

C1031

C1027

R1004

R1054

C1010

C1023

C1018

C1075

C1065

C1074

C1040 C1038

D1000 Q1001 L1001

C1067

C1068

Q1000

L1002

IC1003

D1004

Q1002

L1003

10uH

C1037

Q1003

L1004

IC1006

Q1009

Q1011

Q1010

L1005

10 H

4.54 sec.(220kHz)

D1007

Q1004

L1006

10 H

Q1005

D1005

IC1005

C1061

C1070

C1069

L1008 IC1000

D1001

D1002

D1003

IC1001

L1000

C1063

L1007

D1006

BAT1000

R1025

C1033

R1023

C1036

C1071

C1048

C1050

C1073

R1005

C1000

C1001

C1005

C1007

C1021

TM1000

TM1004

TM1013

TM1014

IC1004

C1064

C1049

C1051

D1008

TP1000

TP1001

TP1003

C1013

R1044

R1045

R1046

R1047

R1048

R1049

C1059

C1058

680p

3300p

68p

0.1

680p

3300p

0.1

9.1K

27K (F)

27K

(F) 100K

(F)

220K

(F)

7.5K

BU_3.3V

VCC_1.22V

A_9V

BATT_BU3.3V

A_5V

DDR_2.5V

10K

82K (F)

0.1

10K

220

10K

4.7K

10K

2.7K (F)

33K(F)

33K (F)

3.3K (F)

15K (F)

220K

1000p

120p

0.1

1000p

0.01

0.1

120p

1000p

10 16V

(F) 100K

(F)

30K

(F)

1K (F)

3.3K 10K

1200p

2200p

0.01

10K

100 16V

0.1

100 16V

16V

TAN

0.1 0.1

D1FM3-5063 2SA2096 mPZ1608S300AT

10 50V

2SD1306

mPZ1608S300AT

LM3485MM

D1FM3-5063

RSS075P03

2.2 10V

DTA114EUA

mPZ1608S601AT

BDOOKA5WFP

2SC4116

2SB1188

D1FM3-5063

SP8K4

1SS420

TPS5120DBTR4

2.2 50V

10 50V

mPZ1608S221AT LP2954IMX

1SS420

BA09CC0WFP

mPZ1608S601AT

2.2

50V

mPZ1608S601AT

1SS420

CR2032-HE4

3900p

82K (F)

100 6.3V

2.2 10V

3.9K

10 16V

0.1

10 10V TAN

0.1

120p

BA05CC0WFP-004EL

2.2 50V

100 6.3V

2.2 10V

D1FM3-5063

10 16V

100 1/4W

4700 16V

A9V A5V

D_GND

NAVI_PON

A9V

A5V

D3.3V

BU3.3V

DDR2.5V

D1.22V

BU12V

BATT_BU3V

HDD5V

D5V

D_5V

GND

ADJ

PGND

VIN

PGATE

ISENSE

CTL

VCC

OUT

GND

INV1

FB1

SSTART1

5V_STBY

GND

REF

STBY1

STBY2

SCP

PGOOD

SSTART2

FB2

INV2

PWM/SKIP

LH2

OUT2_U

LL2

OUT2_D

OUTGND2

VREF5

TRIP2

VCC

TRIP1

LL1

OUT1_U

LH1

REG5V_IN

OUTGND1

OUT1_D

GND ERR

TAP

VIN

220mAh

BATT

D_3.3V

CTL

VCC

OUT

CTL

VCC

OUT

SENSE

VOUT

A9V A5V

NCNC

DDR2.5V/VCC_1.22V

ADJ

4 5

BU_3.3V

6/12,9/12

9/12

4/12,7/12

1/12,2/12

5/12,9/12

1/12,5/12

5/12,7/12,11/12

7/12-9/12,11/12

1/12,4/12-9/12,11/12

11/12

9/12

5V 0V

5V5V

14V 0V 5V

2.5V

3.3V

PKB-ON:0V

PKB-OFF:14V

BACK SIG-ON:14V

BACK SIG-OFF:0V

2.5V

13.92V

ILL-ON:13.93V

ILL-OFF:0V

ILL-ON:13.93V

ILL-OFF:0V

ILL-ON:0V

ILL-OFF:3.3V

ON:0V

OFF:3.3V

ON:3V

OFF:0V

2.1V

2.4V

2.68V

0.7VP-P

3.3VP-P

0.7VP-P

- 23 - NAX970HD

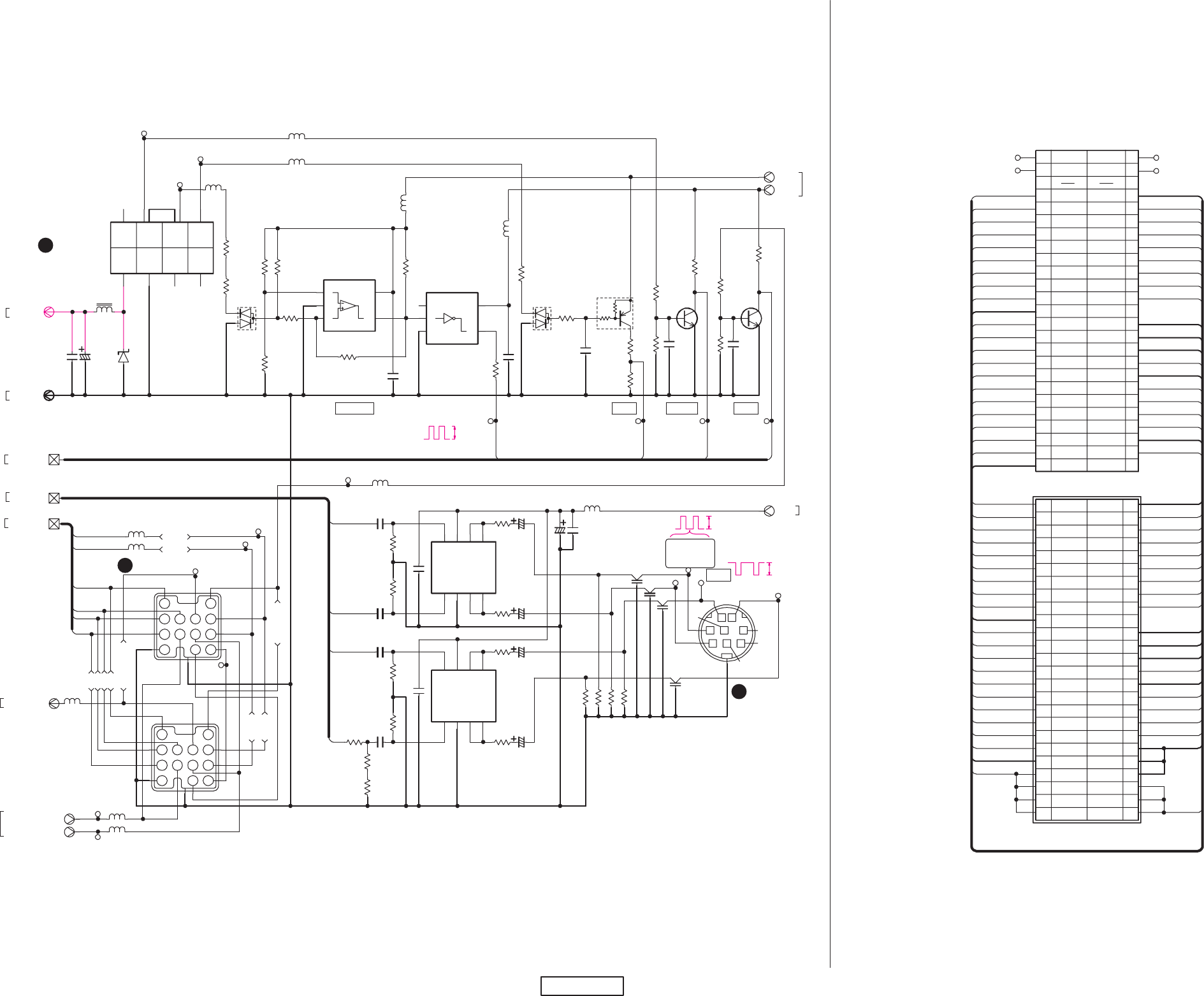

Main PWB(B1) section 11/12

[ CeNET,RGB,Power connect. ] Main PWB(B1) section 12/12

[ HDD connect. ]

TP1200

TP1201TP1202

TP1203

J1200

P1200

J1 J2

J3 J4

RESET

DD07

DD06

DD05

DD04

DD03

DD02

DD01

DD00

GND

DMARQ

DIOR

DIOW

IORDY

DMACK

INTRQ

DA01

DA00

CS0

DASP

5VLOG

GND

RESET

DD07

DD06

DD05

DD04

DD03

DD02

DD01

DD00

GND

DMARQ

DIOW

DIOR

IORDY

DMACK

INTRQ

DA01

DA00

CS0

DASP

5VMOT

GND

DD08

DD09

DD10

DD11

DD12

DD13

DD14

DD15

DD10

DD11

DD12

DD13

DD14

DD15

GND

CSEL

GND

IOCS16

PDIAG

DA02

CS1

GND

5VMOT

5VLOG

GND

CS1

DA02

PDIAG

RESET GND

DD07 DD08

DD06 DD09

DD05 DD10

DD04 DD11

DD03 DD12

DD02 DD13

DD01 DD14

DD00 DD15

GND KEY

DMARQ GND

GND

DIOR

DIOW

GND

IORDY CSEL

DMACK GND

INTRQ IOCS16

DA01 PDIAG

DA00 DA02

CS0 CS1

DASP GND

GND

44RESERV

5VMOT5VLOG

J1 J2

J3 J4

GND

DD08

DD09

DD10

DD11

DD12

DD13

DD14

DD15

KEY

GND

CSEL

GND

IOCS16

PDIAG

DA02

CS1

GND

5VLOG

45 46

47 48

49 50

GND

5VLOG

RESET

DD07

DD06

DD05

DD04

DD03

DD02

DD01

DD00

GND

DMARQ

DIOR

DIOW

IORDY

DMACK

INTRQ

DA01

DA00

CS0

DASP

5VMOT

GND

5VMOT

NCNC

1234

5678

1234

5678

R1102

R1103

R1104

R1105

R1106

R1108

R1110

R1114

R1115

R1117

R1118

TP1108

TP1114

TP1115

TP1116

TP1117

C1100

C1110

R1128 R1127 R1126

R1124

R1123

R1122

R1121

R1119

R1113

R1111

R1109

R1101 R1100

C1105

C1108

C1109

C1114

C1115

C1116

Q1101 Q1102

R1135

C1106

R1138

R1134 R1133

R1132

R1112

J1103

C1112

C1111

C1113

IC1102

IC1103

J1102

D1100

C1101

T1100

L1101

IC1101

L1110

D1102

Q1100

TP1120

TP1118

TP1119

D1101

IC1100

R1116

R1120

L1010

L1011

J1101

L1104 J1100

TP1104

TP1101

TP1105

TP1103

TP1102

L1105

L1106

C1118

C1104

C1103

C1102

R1137 C1117

C1107

L1102

FIL1103

FIL1104

FIL1105

FIL1106

TP1100

TP1106

L1108

L1100

L1109

TP1110 TP1111

TP1109

L1107

R1136

3.3K

47K

22K

33K

10K

560K

4.7K

12K

3.3K

1/4W

ECC

CSYNC

0.1

1M 1M 1M

100K

47K

22K

1/8W

75 1/10W(D)

100

220

1/8W 220

1/8W

0.1

2SC4116 2SC4116

0.1

15K

150

(D) 150

(D)

75 1/10W(D)

RGB

330

6.3V

330

6.3V

330

6.3V

NJM2267V-TE2

ST70-27F

1000

25V

mPZ1608S601AT

SN74LVC1G14DCKR

mPZ1608S601AT

DAN217

DTA113ZUA

PKB_IN

ECC_IN

BACK_IN

DAN217

NJM2406F

22K 1/8W

3.3K

mPZ1608A102AT

BUS-

SYS_ACC

BUS+

EXT+

EXT-

6.3V

10 6.3V

1/10W

(D)

100

6.3V

100

6.3V

mPZ1608S601AT

SYS_ILL

mPZ1608S601AT

mmZ1608S121CT

mPZ1608S601AT

BACK ILL

PKB

mPZ1608A102AT

100K

BUS-

BUS+

SYS_ILL

/SYS_ACC

BUS+

BUS-

L-

R-

R+

L+

D_GND

D5V

D3.3V

/SYS_ACC

CENET

SENSOR

A5V

RGB

BU12V

CENET_EXT+

CENET_EXT-

CENET_BUS-

CENET_BUS+

ECC

PKB

/BACK

/ILL

A_RED

A_GREEN

A_BLUE

CSYNC

L-

R-

R+

L+

BACKPKBSPEED ILL

3456

789

11 12

3456

78910

11 12

345

678

BC-SYNC

GND

RGB

VIN1

GND VCC

VIN2

VSAG1

VSAG2

VOUT2

VOUT1

VIN1

GND VCC

VIN2

VSAG1

VSAG2

VOUT2

VOUT1

531

2468

7GND

BACK ECC+ PKB

B/U

N.C.

NC NC

10/12

5/12

9/12

8/12

1/12

2/12

4/12-10/12

To P600 of Man PWB (page 18)

To HDD

Power

connector

10/12

RGB

connector

CeNET

connector

- 24 - NAX970HD

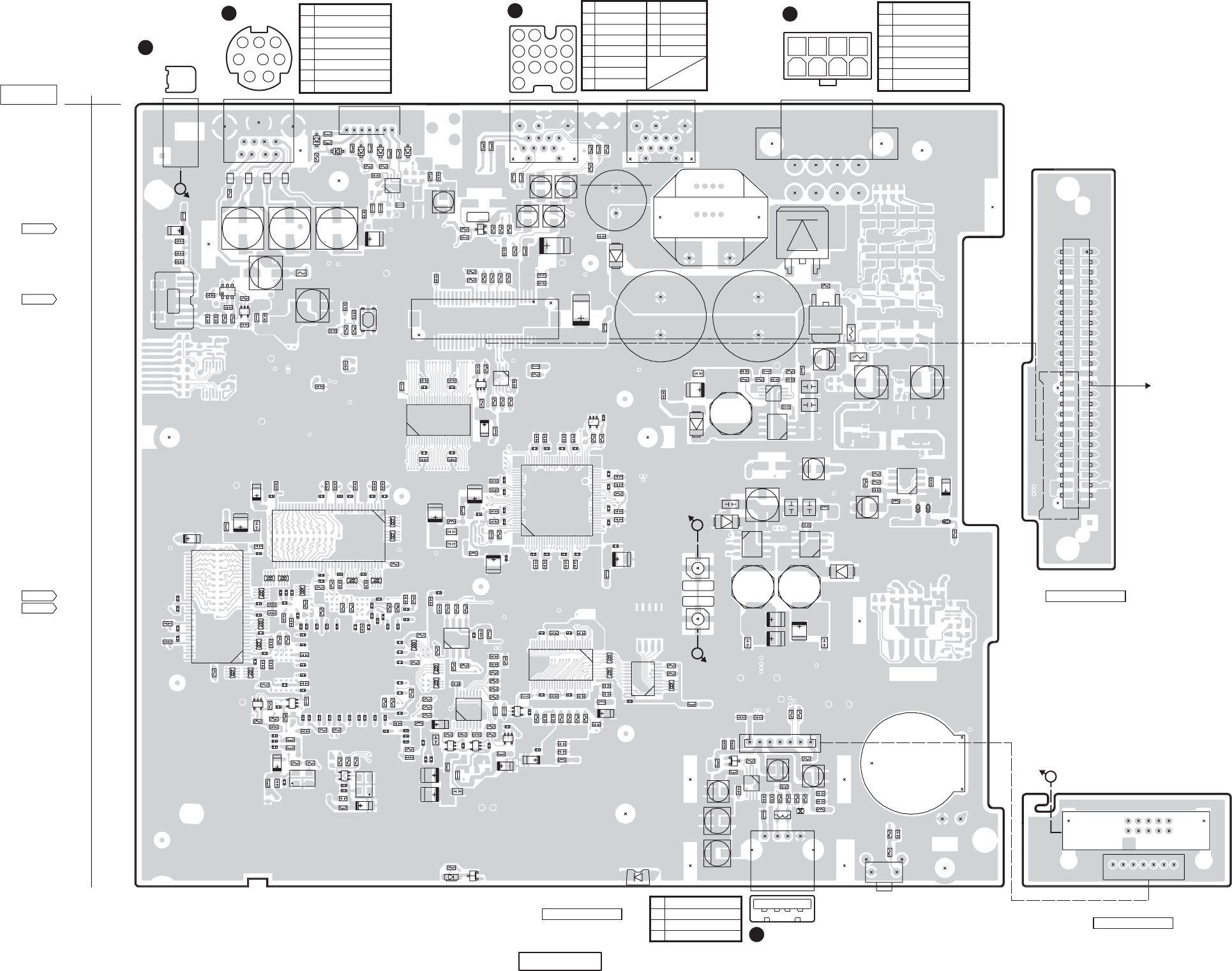

PRINTED WIRING BOARD

Main PWB(B1) section 1/2

IC1101

IC1100

IC912

IC911

IC910

IC908

IC907

IC905

IC903

IC904

IC902

IC901

IC900

IC804

IC801

IC802

IC800

Q800

Q900

Q802

Q903

Q904

Q1003

Q1100

Q1101

Q1009

Q1102

IC1001

IC1102

IC400

IC805

IC404

Q1010

IC1006

IC909

IC1103

Q1011

IC1004

IC403

IC200

IC1005

IC100

IC103

IC101

IC202

IC102

Q1304

Q803

IC405

Q1000

L801

C1073

L802

TP602

TP601

TP600

IC1101

IC1100

IC912

IC911

IC910

IC908

IC907

IC905

IC903 IC904

IC902

IC901

IC900

IC804

C1106

IC801

IC802

D1102

TP922

L901

IC800

L1000

L1007

R1124

TP1210

L1101

L1102

D1101

D801

L1110

D1005

D901

D900

D802

D800

R1004

Q800

Q900

Q802

Q903

Q904

Q1003

Q1100

Q1101

Q1009

C1020

R1026

R1018

C1027

R1013

C1026

C1032

C1028

R1011

TM1000

R1027

R1028

C920

C1118

R1021

Q1102

C1034

R1029

R1014

R1032

R1033

R1035

C1043

TP923

R1113

C1103

C1004

C1115

R1112

L1100

C1114

C1109

C1105

C1116

C1065

C1063

C1062

C1045

R1017

C1021

IC1001

C1008

IC1102

C929

IC400

C928

C924

IC805

C922

C921

C916

C914

C911

C912

C909

C910

C907

C908

C905

C906 C903

C902

C901

C904

C843

C842

C841

L1108

C833

C831

C829

C826

C1039

C821

C820

IC404

C819

TM1004

C818

C813

C816

D905

C812

C811

C809

C807

110

C806

C805

C808

C802 C801

C803

C800

C726

C277

R1134

R1133

R1132

R812

TP924

R813

R814

R815

Q1010

R816

R819

R820

R826

R830

R831

TP925

R834

R835

R838

R839

R842

R900 R901

R843

R902

R903

R904

R905

R906

R907

R908

R909

R910

R911

R912

R913

R914

R915

R916

R918

R928

R920

R922

R924

R926

R953

R927

R929

R930

R931

R939

R940

R941

R942

R943

R944

R945

R1054

R1005

R1046

R950

R1034

C1040

L1109

R1030

R1036

TP534

C1041

R1040

C1042

R1031

D1006

IC1006

C1035

R1015

C1025

R1022

C1031

C1029

R1020

R1019

C1024

C1030

TP401

R1047

C1102

R1048

R1049

R1050

R1051

R1055

R1100

R1102

R1103

R1104

R1105

R1106

R1108

R1114

C900

IC909

R1115

R1119

R1126 R1127

R1128

R1117

R1118

R1053

TP914

R1052

R1109

R1120

D907

R1122

IC1103

R1123

C1104

C1108

R1121

Q1011

TP916

TP801

TP707

TP708

TP709

TP710

IC1004

TP711

TP712

TP713

TP714

TP715

TP716

TP800

TP900

TP901

TP902

TP903 TP904 TP905

TP906

TP907

TP908

TP909

TP910

TP911

TP912

TP913

TP1000

TP1001

TP1002

TP1003

TP1004

TP1005 X900

TP915

D906

R1111

TP921

L1004

TP920

TP919

TP918

TP917

R1016

TP1211

C200

TP1209

TP1208

TP1207

TP1206

TP1205

TP1204

TP1120

TP1119

TP1118

TP1117

TP1114

TP1115

TP1111

TP1110

TP1109

TP1108

TP1106

TP1105

TP1103

TP1102

R418

TP1010

TP1009

14 8

TP1008

TP1007

TP1006

R416

R415

R179

C105

C101

TP138

X100

C102

TP531

TP529

TP528

TP527

TP526

C103

C151

C184

TP525

C201

C239

IC403

C203

C204

C207

C208

C211

C212

C215

C216

C219

C220

TP524

TP523

C223

C224

C227

C229

C230

C233

C235

C236

C241

C242

C245

C246

C249

C250

C253

C254

C257

C258

C261

C262

TP522 TP521

TP520

TP530

TP513

TP512

TP511

TP509

TP508

TP507

TP506

TP505

TP504

TP503

TP501

TP500

TP400

TP146

TP145

TP144

TP143

TP142

TP141

TP140

TP139

TP137

TP136

C265

TP135

C267

C268

TP134 TP133

TP132TP131

C271

C273

C274

TP130

TP129

TP128

C412

C413

C414

C415

C417

C416

C419

TP150

C426

C427

C428

C529

C100

C608

TP149

TP127

TP126

TP147

TP122

TP120

TP118

C1064

TP115

TP114

TP113 TP112 TP111

TP110

TP109

TP108

TP107 TP106

TP105

TP103

TP102

TP101

TP100

IC200

R406

IC1005

R318

R317

R314

R313

R312

R311

R308

R417

R176

R302

IC100

R301

R300

IC103

R174

R166

R169

R168

R161

R165

R164

R163

R157

R158

R156

R152

R144

R148

R147

R146

R143

R142

R141

R140

R137

R136

R135

R134

R133

R132

R131

R130

R129

R128

R126

R125

R124

R123

R122

R121 R120

R119

R107

R108

R104

IC101

TP148

R102

R103

R101

R100

L402

CCT100

CCT104

CCT105

CCT106

CCT114

CCT107

IC202

133

CCT110

L200

CCT111

CCT112

CCT113

CCT115

CCT116

CCT117

CCT118

CCT119

CCT120

CCT301

CCT501

CCT303

CCT304

CCT305

CCT306

CCT307

CCT308

CCT309

L100

CCT333

R955 1

CCT801

C1074

CCT800

CCT121

TM1015

IC102

TM1014

TP510

C278

C1072

CCT101

Q803

TM1013

R405

R410

C1038

TP1116

TP1100

R849

R850

R1056R1057

R1058

IC405

Q1000

R1135

C536

R1138

TP702

TP703

TP705 TP701

TP700

TP706

TP704

TP1203

TP1202 TP1201

TP1200

J1200

IC Q CHECK POINT

(cf. page3)

Main PWB (B1)

SOLDER SIDE

Main PWB -GPS- (B1)

SOLDER SIDE

Main PWB -HDD- (B1)

SOLDER SIDE

16 30

520

122

23 44

117

14 8

125

75 51

100

76 1

J1103

J1102

J701

J1101 J1100

2468

1357

67 8

11 12

78910

3456

113 2

11 12

78910

3456

113 2

Caution:

COMPONENT SIDE: Parts on the component side seen

from the component side are indicated.

SOLDER SIDE: Parts on the solder side seen

from the solder side are indicated.

R1116

R1101

R1110

IC801

TP1000

TP1001

TP1003

TP1004

TP1008

Q803

TP1105

TP1115

TP1114

TP1116

TP534

- 25 - NAX970HD

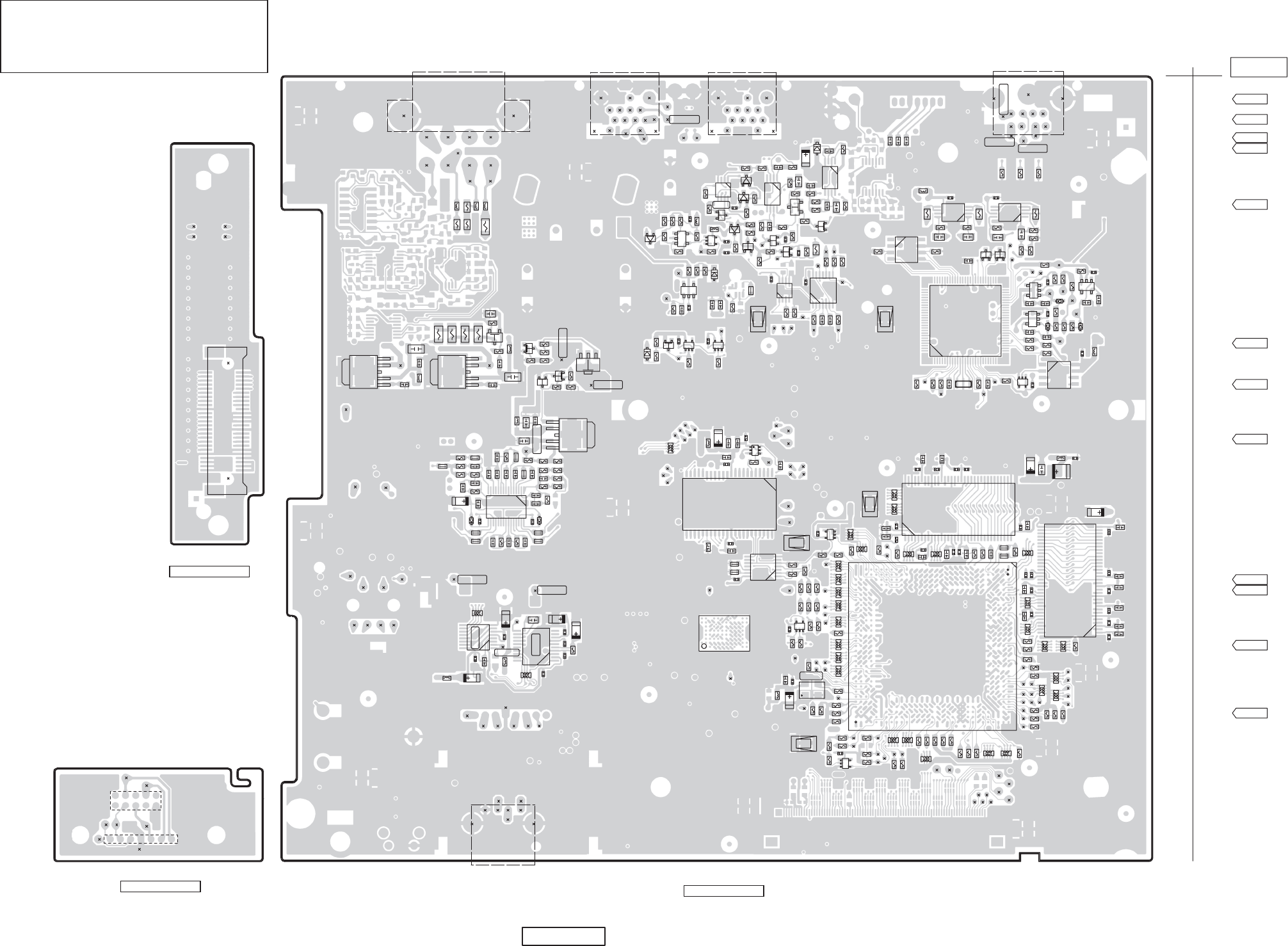

Main PWB(B1) section 2/2

Q700

Q801

Q902

Q1002

IC701

IC201

IC203

IC505

IC704

Q1004

IC700

IC1000

Q1005

IC1003

Q1001

IC705

IC702

IC508

IC602

IC507

IC401

IC501

IC402

IC601

IC600

IC707

ICQ

IC506

IC504

IC106

IC105

IC502

IC107

L703

L706

L707

L708

L709 17

C704

L804

C558

C701

C1070

C1069

R727

L807

L808

L900

C1066

L1008

FIL1104

FIL1106

FIL1103

L1104

L1107

L1011

D903

D1003

D706

D705

D704

D703

D702

D701

Q700

Q801

Q902

C1036

R1025

C1013

L1002

C1048

R1000

L1106

C1033

R1023

R1024

R1012

L1006

R1010

Q1002

D1100

IC701

R701

R702

R703

C712

R706

L704

R712

R713

R715

R716

C700

C1110

C915

C1107

C1100

IC201

IC203

C723

C1117

C729

C1007

C1001

C1000

C932

C1050

C931

C927

R524

C601

C918

IC505

IC704

L1105

C919

C702

C1051

R717

R718

R719

C835 C834

J1103

C724

Q1004

L1005

L1010

D1000

C817

C815

C715

C707

C711

C721

C720

C719

C717

C709

C713

ANT700

L701

FIL1105

L702

C706

C705

R704

R1136

L700

IC700

C710

R700

L1001

C722

R1137

R817

R818

T1100

R821

R822

R836 R837

R844

R845

R948

R949

R951

R952

C1101

R722

C1018

C1016 R1006

R1007

R1008

C926

C716

IC1000

R521

D1004

C1015

R1044

ANT701

D1007

R1045

C1017

Q1005

IC1003

C1061

S901

Q1001

C1023

L1003

C1111

C1112

C1113

C840 C839

L705

R522

C718

C1049

D1001

C607

R1009

C1067

C832

J1102

P701(N.C.)

IC705

110

J701

P702

S900

BAT1000

J1101

J1100

IC702

C1059

C1058

D1002

TP1011

CCT701

R182

R181

X101

C113

X102

R303

IC508

CCT108

P600

C104

C107

C106

C110

C108

C109

C111

C112

C114

C115

C116

C118

C117

C119

C121

C120

C124 C123

C122

C125

C126 C127

C128

C129

C130

C131

C132

C133

C134

C137

C135

C136

C138

C139

C140

C141

C143

C142

C144

C145

C148

C146

C147

C149 C150

C152

C153

C154

C155

C156

C157

C158

C159

C161

C160

C162

C163

C164

C165

C167

C166

C168

C169

C170

C171

C172

C173

C174

C175

C176

C177

C178 C179

C180

C181

C187

C182

C183

C185

C186

C205

C188

C202

C209

C206

C214

C210

C213

C217

C222

C218

C221

C225

C228

C226

C231

C234

C232

C237

C243

C238

C405

C240

C247

C244

C252

C248

C251

C255

C260

C256

C259

C263

C266

C264

C1005

C269

C272

C270

C275

C276

C400

C401 C402

C403

C406

C407C408

C409C410

C411

C422C423

C420

C421

C424

C425

R404

C429

C502

C503C504

C505

C506

C507

C508

C509

C510

C511

C512

C513

C514

C515C516C517 C518

C521

C520

C523

C522

C526

C525

C527

C528

C531

C532 C533

C534C535

C537

C538

C539

C540

C541

C542

C543

C544

C545

C546

C547

C548

C549

C550

C551

C552

C553

C605

C600

C606

C602

C604

R184

C603

C609

C703

R613

C611

IC602

124

48 25

R612

R614

R611

TP1012

R610

R609

R608

R607

R603

R605

R604

R602

R600

R601

R307

R512

R508

R507

R506

R505

R504

R503

R502

R501

R500

IC507

R409

R408

R407

IC401

R403

R402

R401

R400

R320

R319

R316

R315

R310

R309

IC501

R306

R305

R167

R178

L401

R177

R175

R173

R172

R171

R170

R162

R160

R150R154 R153

R151

C1010

CCT102

R139

R127

R118

R116

R115

R114

R110

L602

L601

L600

L511

L510

L509

L502

L107

CCT109

CCT300

IC402

CCT302

CCT332

L400

L108

L106

CCT310

L105

L104

L103

L102

L101

CCT311

CCT312

CCT313

CCT314

CCT315

CCT336

CCT334

R921

CCT335

CCT700

IC601

IC600

IC707

IC506

C561

C560

C559

IC504

C610

C1075

IC106

IC105

D600

C917

CCT703

L512

C556

C557

IC502

C1071

C1037

D1008

C404

R711

C189 R519

C555

R183

IC107

R514

R515

R516

R517

R518

R705

C554

R520

R723

R724

L710

C708

C727

P1200

J702

10 BL700

Power supply

connector

CeNET

connector

RGB

connector

2468

1234

357

2468

1357

3456

HDD

USB connector

GPS antenna

recept.

N.C.

PARKING BRAKE

N.C.

SPEED SENSOR

GND

REVERSE SIG.

B/U

N.C.

C-SYNC

N.C.

D-

D+

GND

SYS B/U

L-CH(+)

EXT(+)

EXT(-)

GUS(+)

R-CH(+)

R-CH(-)

SYS ACC

BUS(-)

L-CH(-)

ILLUMI.

N.C.

Main PWB (B1)

COMPONENT SIDE

Main PWB -GPS- (B1)

COMPONENT SIDE

Main PWB -HDD- (B1)

COMPONENT SIDE

133

34 66

124

25 48

916

125

100

76 75 51

44 43

J1200

CHECK POINT

(cf. page3)

Q801

IC702

ANT701

ANT700

Qy5001ba_02 NAX970

Navigation menu

Versions of this User Manual:

Views

Navigation
