NE40E Series Universal Service Routers

Data Sheet

NE40E Series Universal

Service Routers

Product Overview

Huawei ® NetEngine40E Universal Service Router (NE40E) Series routers are high-end network products

developed by Huawei. The NE40E Series routers are usually deployed at core nodes on enterprise wide area

networks (WANs), access nodes on large-scale enterprise networks, interconnection and aggregation nodes on

campus networks, and edge nodes on large-scale Internet Data Center (IDC) networks. The NE20E, NE40E, and

NE5000E can work together to provide a complete hierarchical IP network solution.

The NE40E Series includes the NE40E-X3, NE40E-X8, NE40E-X16, NE40E-X3A, NE40E-X8A and NE40E-X16A, as

shown in Figure 1.

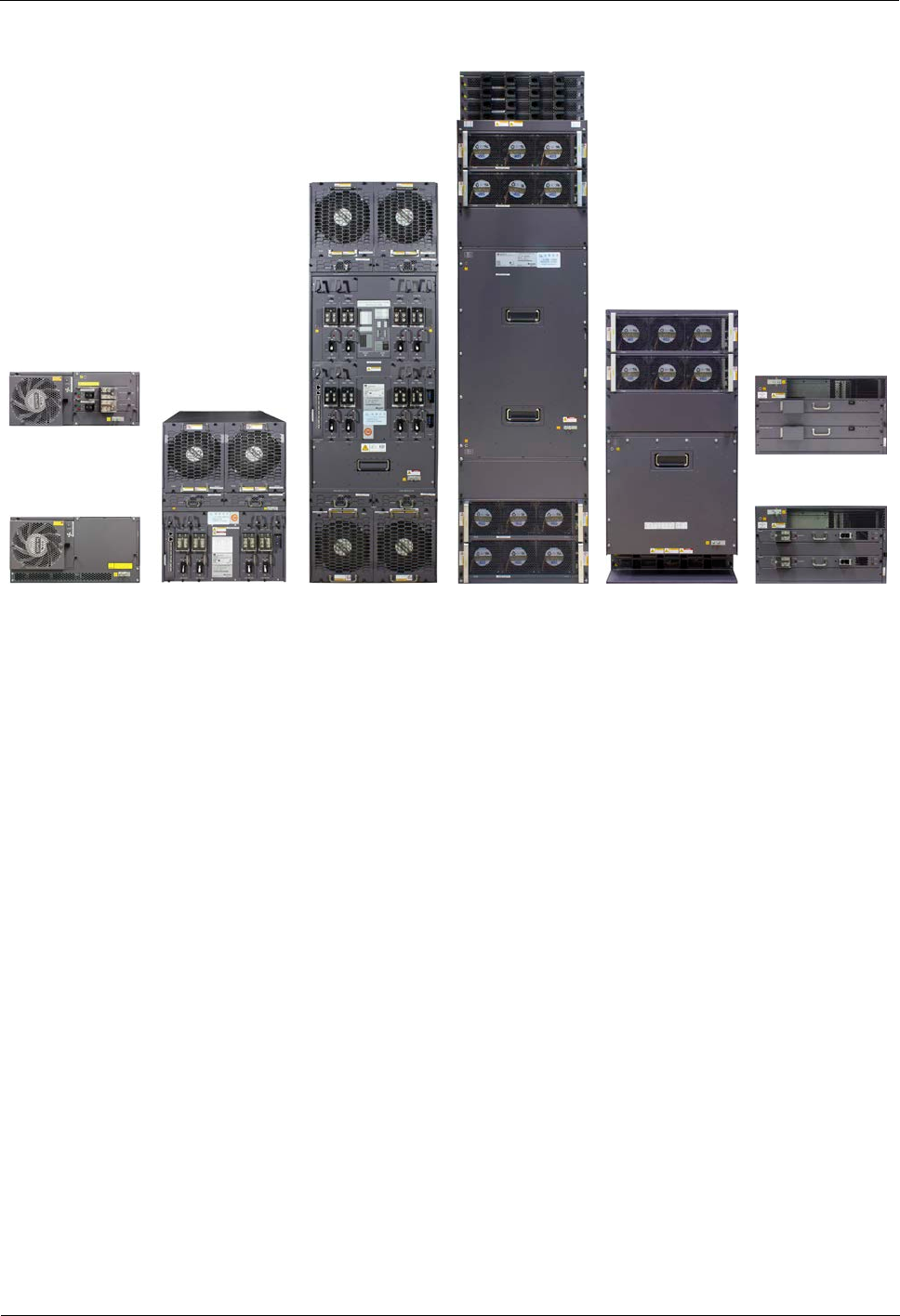

Figure 1 Huawei NE40E Series routers (Front)

NE40E-X3 (DC)

NE40E-X3 (AC)

NE40E-X8

NE40E-X16

NE40E-X16A

NE40E-X8A

NE40E-X3A (DC)

NE40E-X3A (AC)

NE40E Series Universal Service Routers

Data Sheet

Figure 2 Huawei NE40E Series routers (Back)

NE40E-X3 (DC)

NE40E-X3 (AC)

NE40E-X8

NE40E-X16

NE40E-X16A

NE40E-X8A

NE40E-X3A (AC)

NE40E-X3A (DC)

The NE40E Series routers run on the Versatile Routing Platform (VRP ®) operating system and use

Huawei-developed NP chips and hardware-based forwarding and non-blocking switching technologies. Based on

distributed hardware forwarding, non-blocking switching technologies, distributed Clos architecture, and

industry-leading 2T bps platform, the NE40E Series routers have the following features:

- Support for 1T routing line cards in each slot, with excellent compatibility with currently used line cards to

protect carriers' investments to the largest extent.

- Line speed forwarding capabilities, industry-leading reliability, excellent scalability, a well-designed quality of

service (QoS) mechanism, and strong service processing capabilities.

- Powerful service access and aggregation capabilities and various features, such as Layer 2 virtual private

network (L2VPN), L3VPN, multicast, multicast VPN (MVPN), and Multiprotocol Label Switching - Traffic

Engineering (MPLS-TE).

- Various service features, such as IP Security (IPSec), Network Address Translation (NAT), and NetStream.

- Support for IPv6 and smooth transition from IPv4 to IPv6.

The NE40E can be flexibly deployed at the edge or core of IP or MPLS networks, simplifying network structure.

With its ability to provide an extensive range of services and reliable service quality, the NE40E is driving IP and

MPLS bearer networks to develop greater broadband capacity and to become more secure, more intelligent, and

more service-oriented.

Product Features

Table 1 lists the features of the Huawei NE40E Series Routers.

NE40E Series Universal Service Routers

Data Sheet

Table 1. Features of Huawei NE40E Series Routers

Features

Description

Powerful Service Support

Comprehensive access and

aggregation capabilities

The NE40E supports various interface types (E1, POS, CPOS, ATM, FE, GE, 10GE, 40GE, and

100GE) and high-density fixed ports to provide access and aggregation WAN services as well

as Ethernet multi-service transmission platform (MSTP) aggregation services, satisfying various

service requirements.

ATM

physical interface is supported in V600R008 and not supported in V800R008.

Powerful routing capabilities The NE40E supports various routing protocols, such as Routing Information Protocol (RIP),

Open Shortest Path First (OSPF), Intermediate System-to-Intermediate System (IS-IS), Border

Gateway Protocol version 4 (BGP4), and multicast routing protocols. The NE40E supports

plaintext and ciphertext authentication as well as fast convergence. These features ensure

network stability and security in complex routing environments.

Strong service bearer

capabilities

The NE40E can have L2VPN, L3VPN, and MVPN deployed at the same time, as networks

require. The NE40E supports various interface types (IMA E1, TDM, POS, Ethernet, etc.). The

NE40E also supports TE, selective 802.1Q-in-802.1Q (QinQ), Dynamic Host Configuration

Protocol (DHCP)/IP over Ethernet (IPoE), IPSec,NAT, GRE, BRAS broadband service access, and

1588v2, meeting the integrated service bearer requirement. In addition, the NE40E provides

the NetStream function to meet conventional access requirements and new service

requirements.

Powerful and expansible

multicast capabilities

The NE40E supports IPv4/IPv6 multicast protocols, such as Protocol Independent Multicast -

Sparse Mode (PIM-SM), PIM - Source Specific Multicast (PIM-SSM), Multicast Listener

Discovery Version 1 (MLDv1), MLDv2, Internet Group Membership Protocol Version 3

(IGMPv3), and IGMP snooping. The NE40E has the flexibility to carry video services, such as

Internet Protocol Television (IPTV), and satisfy multicast service requirements on networks of

any scale.

Future-Oriented

IPv6-Compatible Solutions

The NE40E supports a variety of IPv6 features, such as IPv6 leased line, dual stack, tunneling,

etc. The NE40E supports Next Hop Separation to optimize the IPv6 convergence time and

larger IPv6 FIB to improve the scalability. All of them help to provide comprehensive solutions

based on the high performance for transition from IPv6 to IPv4. And owing to the variety of

technologies and different situations of provider networks, each provider will certainly select a

conservative, reposeful, or aggressive transition technology that is the most suitable for its

own network.

High Availability

Equipment-level reliability The NE40E

provides redundancy backup for key components. These key components support

hot swap and hot backup. The NE40E also uses technologies, such as Non-Stop Routing

(NSR), Non-Stop Forwarding (NSF), and In-Service Software Upgrade (ISSU), to ensure

uninterrupted service forwarding.

Network-level reliability The NE40E uses the following technologies to provide network-level reliability: IP fast reroute

(FRR), Label Distribution Protocol (LDP) FRR, TE FRR, VPN FRR, hot standby, fast convergence

of Interior Gateway Protocols (IGP), BGP, and multicast routes, Virtual Router Redundancy

Protocol (VRRP), Rapid Ring Protection Protocol (RRPP), trunk load balancing and backup,

hardware-based Bidirectional Forwarding Detection (BFD) of 3.3 ms, MPLS OAM, and

Ethernet OAM. The NE40E provides an end-to-end protection switching speed of 200 ms

with no service interruption.

NE40E Series Universal Service Routers

Data Sheet

Features

Description

VRRP is supported in V600R008 and not supported in V800R008.

Service-level reliability The NE40E uses the following technologies to provide service-level reliability for L2VPNs and

L3VPNs: VPN FRR, E-VRRP, VLL FRR, Ethernet OAM, PW redundancy, E-trunk and E-APS.

These technologies ensure stable and reliable service operation with no service interruption.

High Security

Device security The NE40E supports multiple security mechanisms to ensure that the packets sent for central

processing (CP) conform to the configured specifications. The NE40E can filter the spoofing

and malformed packets sent for CP through unicast reverse path forwarding (URPF) on an

interface and TCP/IP attack defense, discard packets with invalid TTLs through Generalized TTL

Security Mechanism (GTSM) detection of TTLs of packets sent for CP, classify packets sent for

CP according to protocol granularities and restrict the bandwidth, protect management

interfaces and service interfaces through management plane protection.

The NE40E also supports Management Plane Access Control (MPAC) function to protect

devices from attacks. MPAC enables devices to filter packets destined for the CPU based on

rules specified in an MPAC policy and discard unnecessary packets, which helps prevent

attacks to the CPU.

Service security The NE40E supports IPSec tunnel to provide high quality, interoperable and cryptology-based

security for IP protocol packets.

The NE40E supports Unicast Reverse Path Forwarding (URPF) to defend a network against

attacks that are based on source address spoofing.

The NE40E supports Layer 2 loop detection, which is a security mechanism used to detect

loops on a Layer 2 Ethernet network.

The NE40E supports Keychain to provide authentication functionality to the applications such

as Routing Protocol Application (RPA), Transmission Control Protocol (TCP), and signaling

protocols (such as LDP). It also provides dynamic change of authentication keys to all required

applications. Keychain supports Message Digest 5 (MD5), Secure Hash Algorithm-1

(SHA-1)-12, Hash Message Authentication Code for Message Digest 5 (HMAC-MD5),

HMAC-SHA1-12, HMAC-SHA1-20, SHA2-256, and HMAC-HA2-256 as authentication

algorithms.

Flexible VS technologies The NE40E supports flexible virtual system (VS) technologies. A physical router can be divided

into multiple logical routers between which resources are separated. Services can be deployed

on different VSs to form a multi-service network with service separation. The use of VSs

enhances security and reliability.

VS is supported in V800R008 and not supported in V600R008.

QoS

Well-designed QoS mechanism The NE40E provides high-quality QoS. With an advanced queue scheduling algorithm and

congestion control algorithm, the NE40E can carry out accurate multi-level scheduling for

data flows. This meets the quality requirements of different users and different levels of

services.

The well-designed traffic scheduling mechanism of the NE40E provides the following

functions to ensure QoS:

- Five-level HQoS scheduling for the access side to satisfy the service requirements of access

users at different levels in a differentiated and diversified manner.

- MPLS HQoS for the network side to provide QoS for MPLS VPN, VLL, and PWE3

NE40E Series Universal Service Routers

Data Sheet

Features

Description

- TE-based MPLS DS-TE to combine the use of MPLS TE and the DiffServ model. DS-TE

supports Eight class types (CTs) and two bandwidth constraint models: maximum allocation

model (MAM) and russian dolls model (RDM).

DS-TE is supported in V600R008 and not supported in V800R008.

Flexible and Scalable, Investment Protection

Industry-leading 2T platform Based on the industry-leading 2T platform, each slot of the NE40E supports a maximum of 2

Tbit/s bandwidth to achieve large-capacity service bearer, meeting future bandwidth increase

requirements. Based on the existing VRP operating system, the NE40E is compatible with line

cards currently in use, protecting carriers' investments to the largest extent. With high port

density and compact design, the NE40E significantly reduces the required installation space.

Commercial-ready SDN

capabilities

With the innovative SDN architecture, the NE40E helps resolve various problems on

conventional networks, such as load imbalance, low bandwidth usage, and low network

convergence efficiency caused by repeated network topology calculation in the case of a

fault.

The SDN-based AtomEngine developed by Huawei supports OAM technologies, such as RFC

2544, IP FPM, Two-Way Active Measurement Protocol (TWAMP), and Y.1731, implementing

real-time service measurement and fast fault locating. The AtomEngine uses

Huawei-developed chips. It is the smallest router in the industry. It supports plug-and-play

and can be inserted into any network node of any vendor.

Currently, Huawei has provided multiple SDN solutions, such as PCE+, IP+optical, etc.

SDN is supported in V800R008 and not supported in V600R008.

Flexible VS technologies The NE40E supports flexible virtual system (VS) technologies. A physical router can be divided

into multiple logical routers between which resources are separated. Services can be deployed

on different VSs to form a multi-service network with service separation. The use of VSs

enhances security and reliability.

VS is supported in V800R008 and not supported in V600R008.

Control- and forwarding-plane

separation

The NE40E adopts a centralized routing engine and a distributed forwarding architecture,

which helps to provide rich and flexible service and to perform large-capacity forwarding. In

addition, the NE40E has a monitoring plane, which helps ensure stable addressing and

forwarding performance. The data plane, control plane, and monitoring plane are separated

and you can upgrade each plane separately.

Huawei-developed chips, service

on demand

The NE40E uses in-built Huawei-developed NP chips that allow the NE40E to have a flexible

programmable architecture. Microcode programming can be used for new service

deployment, without the need to replace hardware, which saves investments. In addition, this

architecture drastically shortens the technological innovation cycle and accelerates new

service launch speed, helping customers build flexible and scalable networks.

OAM

OAM The NE40E supports IP FPM developed by Huawei to measure IP network performance. IP

FPM directly measures IP service packets and monitors service changes online for fast fault

locating. IP FPM provides highly-accurate measurements. It can be flexibly deployed and has

no impact on services.

The NE40E supports RFC 2544, Two-Way Active Measurement Protocol (TWAMP), and

NE40E Series Universal Service Routers

Data Sheet

Features

Description

Y.1731, implementing real-time service measurement and fast fault locating.

Energy Saving Design

Regulation Compliance The NE40E complies with the following energy conservation and emission reduction

regulations:

- Directive 2002/95/EC on the Restriction of the Use of certain Hazardous Substances in

Electrical and Electronic Equipment (RoHS).

- Regulation (EC) No 1907/2006 concerning the Registration, Evaluation, Authorization and

Restriction of Chemicals (REACH).

- Directive 2002/96/EC on waste electrical and electronic equipment (WEEE).

- ATIS-0600015.03.2009 Energy Efficiency for Telecommunications Equipment:

Methodology for Measurement and Reporting for Router and Ethernet Switch Products.

- Directive 2009/125/EC establishing a framework for the setting of ecodesign requirements

for energy-related products (recast).

Dynamic energy-saving design The NE40E uses Huawei-developed NP chips and can dynamically change the number of

forwarding chip processing cores, frequency, and bus bandwidth to compensate for service

traffic changes, reducing boards' power consumption. The NE40E also supports dynamic

frequency adjustment and intelligent fan speed adjustment, which significantly reduces

power consumption, with less than 0.9 W for each gigabit, lowest in the industry.

Product Specifications

Table 2 lists the specifications of Huawei NE40E Series Routers.

Table 2. Specifications of Huawei NE40E Series Routers

Item

NE40E-X3

NE40E-X3A

NE40E-X8

NE40E-X8A

NE40-X16

NE40-X16A

Switching

capacity

1.08 Tbps 2.79 Tbps 7.08 Tbps 25.16Tbps 12.58Tbps 50.32Tbps

Forwarding

performance

540 Mpps 900Mpps 2880 Mpps 5760Mpps 5760 Mpps 11520Mpps

Number of slots

supported

5 5 11 12 22 22

MPU support 1:1 1:1 1:1 1:1 1:1 1:1

SFU support NA NA 2+1 backup 3+1 backup 3+1 backup 3+1 backup

Number of

interface board

slots supported

3 3 8 8 16 16

MTBF

(year) 27.44 22.85 21.91 22.32 21.66 22.33

NE40E Series Universal Service Routers

Data Sheet

Item

NE40E-X3

NE40E-X3A

NE40E-X8

NE40E-X8A

NE40-X16

NE40-X16A

MTTR

(hour) 0.5 0.5 0.5 0.5 0.5 0.5

System reliability 0.99999792 0.999997502 0.999997395 0.999997443 0.999997365 0.9999974444

Physical

dimensions

(Note 1)

- DC (4U)

Height: 175mm

Width: 442mm

Depth: 650mm

- AC (5U)

Height: 220mm

Width: 442mm

Depth: 650mm

Height:

264mm (6U)

Width: 442mm

Depth: 664mm

Height:

620mm (14U)

Width: 442mm

Depth: 650mm

Height:

930mm (21U)

Width: 442mm

Depth: 650mm

Height:

1420mm(32U)

Width: 442mm

Depth: 650mm

Height:

1778mm (40U)

Width: 442mm

Depth: 650mm

Weight (in

empty

configuration)

12kg (DC)

20kg (AC)

26 kg (DC)

26 kg (AC) 25.8 kg 68.1 kg (DC)

63.7 kg (AC)

69.6 kg 120.5 kg (DC)

111.7 kg (AC)

Weight (in full

configuration)

42 kg

(DC)(120G)

52 kg

(AC)(120G)

72.1 kg

(DC)(200G)

74.7 kg

(AC)(200G)

136 kg (240G)

186.1 kg

(DC)(480G)

184.3 kg

(AC)(480G)

279 kg (240G)

356 kg

(DC)(480G)

350.7 kg

(AC)(480G)

Redundant

power supply 1+1 1+1 2+2

N+1 (DC)

N+N (AC)

Up to 8 powers

4+4

N+1 (DC)

N+N (AC)

Up to 16

powers

Power

consumption (in

full

configuration)

1070 W

(AC)(120G)

920 W

(DC)(120G)

1180 W

(AC)(200G)

1120 W

(DC)(200G)

2340 W (120G)

3220 W (240G) 4770 W (480G) 6210 W (240G) 9040 W (480G)

Heat dissipation

3471.5

BTU/hour

(AC)(120G)

2984.9

BTU/hour

(DC)(120G)

3828.4

BTU/hour

(AC)(200G)

3633.8

BTU/hour

(DC)(200G)

7591.9

BTU/hour

(120G)

10447.0

BTU/hour

(120G)

15475.9

BTU/hour

(480G)

20147.8

BTU/hour

(240G)

29329.6

BTU/hour

(480G)

Power input

AC: 180 to

264V (200 to

240V rated)

DC: -38.4 to

-72V

(-48V/-60V

rated)

AC: 180 to

264V (200 to

240V rated)

DC: -

40 to

-72V

(-48V/-60V

rated)

AC: 180 to

264V (200 to

240V rated)

DC: -38.4 to

-72V

(-48V/-60V

rated)

AC: 180 to

264V (200 to

240V rated)

DC: -40 to

-72V (-48 to

-60V rated)

AC: 180 to

264V (200 to

240V rated)

DC: -38.4 to

-72V (-48 to

-60V rated)

AC: 180 to

264V (200 to

240V rated)

DC: -40 to

-72V (-48 to

-60V rated)

Airflow Left-to-back Left-to-back Front-to-back Front-to-back Front-to-back Front-to-back

NE40E Series Universal Service Routers

Data Sheet

Item

NE40E-X3

NE40E-X3A

NE40E-X8

NE40E-X8A

NE40-X16

NE40-X16A

Operating

temperature

(nominal) (Note

2, Note 3, Note

4, Note 5)

0 to 45°C (32 to 113°F)

Operating

temperature

(short-term)

(Note 2, Note 3,

Note 4, Note 5)

-5 to 55°C (23 to 131°F)

Operating

humidity

(nominal)

(relative

humidity) (Note

2, Note 5)

5 to 85%, non-condensing

Operating

humidity

(short-term)

(relative

humidity) (Note

2, Note 5)

5 to 95%, non-condensing

Storage

temperature

(Note 2, Note 3)

-40 to 70°C (-40 to 158°F)

Storage humidity

(relative

humidity) (Note

5 to 95%, non-condensing

Long-term

operating

altitude

≤4000 m (13123.4 feet) (If the altitude is between 1800 meters and 4000 meters, the operating temperature

of the device must decrease by 1°C for every 220 meters increase in altitude.)

Storage altitude ≤5000 m (16404 feet)

Regulatory

compliance

EMC

- CISPR 22 Class A

- EN 55022 Class A

- EN 55032 Class A

- AS/NZS CISPR22 Class A

- FCC Part 15 Subpart B Class A

- ICES 003 Class A

- VCCI Class A

- IEC 61000-6-4 Class A

- EN 61000-6-4 Class A

- IEC 61000-3-2

NE40E Series Universal Service Routers

Data Sheet

Item

NE40E-X3

NE40E-X3A

NE40E-X8

NE40E-X8A

NE40-X16

NE40-X16A

- EN 61000-3-2

- GB 17625.1

- IEC 61000-3-3

- EN 61000-3-3

- GB 17625.2

- CISPR24

- EN 55024

- ETSI EN 300 386

- ETSI ES 201 468

- EN 61000-6-2

- IEC 61000-6-2

- CE marking

Safety

- IEC 60950-1

- EN 60950-1

- UL 60950-1

- CSA C22.2 No 60950-1

- AS/NZS 60950.1

- IEC 60825-1

- IEC 60825-2

- EN 60825-1

- EN 60825-2

- 21 CFR 1040.10 and Laser Notice 50

Grounding

- ITU-T K.27

- ETSI EN 300 253

EMC: electromagnetic compatibility

CISPR: International Special Committee on Radio Interference

EN: European Standard

ETSI: European Telecommunications Standards Institute

CFR: Code of Federal Regulations

FCC: Federal Communication Commission

IEC: International Electrotechnical Commission

AS/NZS: Australian/New Zealand Standard

VCCI: Voluntary Control Council for Interference

CNS: Chinese National Standard

UL: Underwriters Laboratories

NE40E Series Universal Service Routers

Data Sheet

Item

NE40E-X3

NE40E-X3A

NE40E-X8

NE40E-X8A

NE40-X16

NE40-X16A

CSA: Canadian Standards Association

BS: British Standard

IEEE: Institute of Electrical and Electronics Engineers

RoHS: restriction of the use of certain hazardous substances

Note 1: In the physical dimensions shown in the table, the width (W) does not include the rack-mounting ears.

Note 2: Temperature and humidity are measured at 1.5 m (4.92 ft.) above the floor and 0.4 m (1.31 ft.) in front of the cabinet.

There should be no protection board on the front or back of the cabinet.

Note 3: Temperature change rate limit: 30°C/hour (86°F/hour).

Note 4: The use of optical components may limit the ambient temperature range.

Note 5: "Short-term" refers to continuous working time that does not exceed 96 hours and accumulated working time per year

that does not exceed 15 days. If the working time exceeds either of these values, it is considered "nominal" or "long-term".

Ordering Information

To place an order, visit the UniSTAR SCT Workspace.

Basic Hardware Configurations

Table 3. NE40E-X3 V600R008 Basic Configuration Bundle

BOM Number

Order Name

Description

Remarks

02358577 CR5P03BASD73 NE40E-X3 Basic Configuration (Include NE40E-X3

Chassis,2 MPUs, 2 DC Power,without Software Charge

and Document)

Basic configuration for

DC.

02358578 CR5P03BASA73 NE40E-X3 Basic Configuration (Include NE40E-X3

Chassis,2 MPUs, 2 AC Power(2200W),without Software

Charge and Document)

Basic configuration for

AC.

02354367 CR5P03BASD71 NE40E-X3 Basic Configuration (Include NE40E-X3

Chassis,2 MPUs, 2 DC Power,without Software Charge

and Document)

Basic configuration for

DC.

02354368 CR5P03BASA71 NE40E-X3 Basic Configuration (Include NE40E-X3

Chassis,2 MPUs, 2 AC Power,without Software Charge

and Document)

Basic configuration for

AC.

02355251 CR5P03BASA72 NE40E-X3 Basic Configuration (Include NE40E-X3

Chassis,2 MPUs, 2 AC Power(2200W),without Software

Charge and Document)

Basic configuration for

AC.

NE40E Series Universal Service Routers

Data Sheet

Table 4. NE40E-X3 V600R008 Basic Components

BOM Number

Order Name

Description

Remarks

02351596 CR52-BKPE-4U-DC Integrated DC Chassis

Components(NE40E-X3)-4U,Including Dual DC

Power

Include: chassis, fan box and

dual DC powers.

02351597 CR52-BKPE-5U-AC Integrated AC Chassis

Components(NE40E-X3)-5U,Including Dual AC Power

02355250 CR5B0BKP0370 NE40E-X3 Integrated AC Chassis Components,

(Including Dual AC Power)

Include: chassis, fan box and

dual AC powers.

03054206 CR5D0MPUD170 Main Processing Unit D2 (Including 2G Memory and

2G USB)

03055705 CR5D0MPUD270 Main Processing Unit D3(Including 4G Memory and

2G USB)

Recommended quantity: two

for each chassis.

02120529 CR52-PEMA 48V DC Power Entry Module Recommended quantity: two

for each chassis.

02130865 CR52-PWRD-AC AC/DC

Rectifier,-10degC-55degC,90V-280V,48V/30A

Recommended quantity: two

for each chassis.

02310MKG CR5MPWRBX070 Box Module,AC

power,548.9mm*217.6mm*41.2mm,sheet metal

To be used with the rectifier

order named

CR5MPWRAC070.

02310MDH CF-2G 2G CF Module To be purchased only when it

is used as a spare part.

02120514 CR5M000FBX61 Fan Box -

Table 5. NE40E-X3A V800R008 Basic Configuration Bundle

BOM Number

Order Name

Description

Remarks

02350FWN CR5P03BASD75 NE40E-X3A Basic Configuration (Including NE40E-X3A

Chassis,2 MPUs, 2 DC Power,without Software Charge

and Document)

Basic configuration for

DC.

02350FWP CR5P03BASA75 NE40E-X3A Basic Configuration (Including NE40E-X3A

Chassis,2 MPUs, 2 AC Power,without Software Charge

and Document)

Basic configuration for

AC.

Table 6. NE40E-X3A V800R008 Basic Components

BOM Number

Order Name

Description

Remarks

02350FMK CR5B0BKP0373 NE40E-X3A Integrated DC Chassis Components,

Including Dual DC Power

Include: chassis, fan box and

dual DC power.

NE40E Series Universal Service Routers

Data Sheet

BOM Number

Order Name

Description

Remarks

02350FML CR5B0BKP0374 NE40E-X3A Integrated AC Chassis Components,

Including Dual AC Power

Include: chassis, fan box and

dual AC power.

03057248 CR5D0MPUD471 Main Processing Unit D4(16G Memory) Recommended quantity: two

for each chassis.

02121615 CR5B0PWRDC71 48V DC Power Entry Module Recommended quantity: two

for each chassis.

02310WTG E008DDR10 8GB 240pin Memory Module To be purchased only when it

is used as a spare part.

Table 7. NE40E-X8 V600R008 Basic Configuration Bundle

BOM Number

Order Name

Description

Remarks

S4017407 CR5P08BASD73 NE40E-X8 Basic Configuration (Including NE40E-X8

Chassis, 2+1 Redundant 100G SRU/SFU, 4 DC Power,

without Software Charge and Document)

100G Bundle

S4017408 CR5P08BASA73 NE40E-X8 Basic Configuration (Including NE40E-X8

Chassis, 2+1 Redundant 100G SRU/SFU, 4 AC Power,

without Software Charge and Document)

100G Bundle

S4017147 CR5P08BASD71 NE40E-X8 Basic Configuration (Including NE40E-X8

Chassis, 2+1 Redundant 200G SRU/SFU, 4 DC Power,

without Software Charge and Document)

200G Bundle

S4017148 CR5P08BASA71 NE40E-X8 Basic Configuration (Including NE40E-X8

Chassis, 2+1 Redundant 200G SRU/SFU,4 AC Power,

without Software Charge and Document)

200G Bundle

Table 8. NE40E-X8 V600R008 Basic Components

BOM Number

Order Name

Description

Remarks

02351930 CR5B0BKP0870 NE40E-X8 Integrated Chassis Components (Including

4 DC Power)

03053549 CR5D0SRUA570 Switch and Route Processing Unit A5 200G MPU, 4G Memory

03054207 CR5D0SRUA770 Switch and Route Processing Unit A7 50G/100G MPU, 4G Memory

03053548 CR5DSFUIE07C 200Gbps Switch Fabric Unit C (SFUI-200-C) -

03054230 CR5DSFUIA07D 100Gbps Switch Fabric Unit D (SFUI-100-D) -

S4017416 CR5P08SFUA71 NE40E-X8 100G SFU Bundle Configuration(Including

2*SRUs,1*SFU)

Upgraded from 40G to 100G

Bundle

02120560 CR5M000PEM60 48V DC Power Entry Module Required quantity: four for

each chassis

NE40E Series Universal Service Routers

Data Sheet

BOM Number

Order Name

Description

Remarks

02400376 CR5B0PWRBX60 Power Distribution

Cabinet,220V,50/60HZ,72000mA,EPS200-4850A

AC-to-DC power distribution

cabinet.

Required quantity: one for

each chassis.

02130872 WPSU50A00

Power

module--33degC-65degC-90VAC-290VAC-(-53.5)VD

C/54.2A-AC/DC rectifier

To be used with AC-to-DC

power distribution cabinets.

Required quantity: four for

each chassis.

02316431 MEM-2G-240pin 2GB 240pin Memory Module To be purchased only when it

is used as a spare part.

02317806 CR5M000CMU60 Centralized Monitor Unit To be purchased only when it

is used as a spare part.

02120562 CR5M000FBX60 Fan Box To be purchased only when it

is used as a spare part.

Table 9. NE40E-X8 V800R008 Basic Configuration Bundle

BOM Number

Order Name

Description

Remarks

02350REH CR5P08BASD79 NE40E-X8 Basic Configuration (Including NE40E-X8

Chassis, 2+1 Redundant 200G SRU/SFU, 4 DC Power,

without Software Charge and Document)

02350REJ CR5P08BASA75 NE40E-X8 Basic Configuration (Including NE40E-X8

Chassis, 2+1 Redundant 200G SRU/SFU,4 AC Power,

without Software Charge and Document)

02351AFJ CR5P08BASA7H NE40E-X8 Basic Configuration (Including NE40E-X8

Chassis, 2+1 Redundant 200G SRU/SFU,4 AC

Power(Power Cords Cable), without Software Charge

and Document)

16G Memory

Table 10. NE40E-X8 V800R008 Basic Components

BOM Number

Order Name

Description

Remarks

02351930 CR5B0BKP0870 NE40E-X8 Integrated Chassis Components (Including

4 DC Power)

03057054 CR5D0SRUB570 Switch and Route Processing Unit B5 200G MPU, 16G Memory

03053548 CR5DSFUIE07C 200Gbps Switch Fabric Unit C (SFUI-200-C) -

02120560 CR5M000PEM60 48V DC Power Entry Module Required quantity: eight for

each chassis

NE40E Series Universal Service Routers

Data Sheet

BOM Number

Order Name

Description

Remarks

02400376 CR5B0PWRBX60 Power Distribution

Cabinet,220V,50/60HZ,72000mA,EPS200-4850A

AC-to-DC power distribution

cabinet.

Required quantity: two for

each chassis.

02310FJD R4850G Rectifier Module, R4850, 2U, 3000W, High Efficiency -

02400739 CR5B0PWRBX62 Embedded Power, EPS200, 220Vac Single-Phase,

200A, Back Cabling, Width 19inch, Height 2U -

02310MDH CF-2G 2G CF Module -

02316431 MEM-2G-240pin 2GB 240pin Memory Module -

02317806 CR5M000CMU60 Centralized Monitor Unit -

02120562 CR5M000FBX60 Fan Box To be purchased only when it

is used as a spare part.

Table 11. NE40E-X8A V800R008 Basic Configuration Bundle

BOM Number

Order Name

Description

Remarks

02350AUE CR5P08BASD76 NE40E-X8A Basic Configuration (Including

NE40E-X8A Chassis,2 SRUs,2 SFUs(480G),4 DC

Power,2 Fan Tray, without Software Charge and

Document)

Basic configuration for 480G

with DC

02350AUF CR5P08BASA76 NE40E-X8A Basic Configuration (Including

NE40E-X8A Chassis,2 SRUs,2 SFUs(480G),6 AC

Power,2 Fan Tray,without Software Charge and

Document)

Basic configuration for 480G

with AC

02350AUG CR5P08BASD77 NE40E-X8A Basic Configuration (Including

NE40E-X8A Chassis,2 SRUs,2 SFUs(1T),6 DC Power,3

Fan Tray,without Software Charge and Document)

Basic configuration for 1T

with DC

02350AUH CR5P08BASA77 NE40E-X8A Basic Configuration (Including

NE40E-X8A Chassis,2 SRUs,2 SFUs(1T),8 AC Power,3

Fan Tray,without Software Charge and Document)

Basic configuration for 1T

with AC

Table 12. NE40E-X8A V800R008 Basic Components

BOM Number

Order Name

Description

Remarks

02350AFW CR5B0BKP0871 NE40E-X8A Integrated Chassis DC Components

(Including 2 Fan Tray)

Includes: chassis and fan box.

Not includes: DC power.

02350AFX CR5B0BKP0872 NE40E-X8A Integrated Chassis AC Components

(Including 2 Fan Tray)

Includes: chassis and fan box.

Not includes: AC power.

NE40E Series Universal Service Routers

Data Sheet

BOM Number

Order Name

Description

Remarks

03057257 CR5D0SRUA871 Switch and Route Processing Unit A8(16G Memory) 480G main control board,

which cannot be used with

any 1T main control board or

SFU.

Recommended quantity: two

for each chassis.

03057261 CR5D0SRUA971 Switch and Route Processing Unit A9(16G Memory) 1T main control board, which

cannot be used with any

480G main control board or

SFU.

Recommended quantity: two

for each chassis.

03056095 CR5DSFUIM07C 480Gbps Switch Fabric Unit C (SFUI-480-C) To be configured as needed.

03056094 CR5DSFUIU07C 1Tbps Switch Fabric Unit C(SFUI-1T-C) To be purchased only when it

is used as a spare part.

02311CNP PDC-2200WB PSU-PDC-2200WB-PM2200W DC Power Supply To be configured as needed.

02310VMA PHD-3000WA 3000W AC Power Module To be configured as needed.

02310WTG E008DDR10 8GB 240pin Memory Module To be purchased only when it

is used as a spare part.

02120866 CR5M000FBX61 Fan Box To be purchased only when it

is used as a spare part.

Table 13. NE40E-X16 V600R008 Basic Configuration Bundle

BOM Number

Order Name

Description

Remarks

S4017144 CR5P16BASD71 NE40E-X16 Basic Configuration (Including

NE40E-X16 Chassis, 2 MPUs, 4 SFUs(200G), 8 DC

Power, without Software Charge and Document)

S4017145 CR5P16BASA71 NE40E-X16 Basic Configuration (Including

NE40E-X16 Chassis, 2 MPUs, 4 SFUs(200G), 8 AC

Power, without Software Charge and Document)

Table 14. NE40E-X16 V600R008 Basic Components

BOM Number

Order Name

Description

Remarks

02351931 CR5B0BKP1670 NE40E-X16 Integrated Chassis Components

(Including 8 DC Power)

Includes: chassis and fan box.

Not includes: DC power.

03030JTW CR5D0MPUB460 Main Processing Unit B4 -

S4017146 CR5P16SFUE70 NE40E-X16 200G SFU Bundle -

NE40E Series Universal Service Routers

Data Sheet

BOM Number

Order Name

Description

Remarks

Configuration(Including 4*SFUs)

03053547 CR5DSFUIE07B 200Gbps Switch Fabric Unit B (SFUI-200-B) -

02120560 CR5M000PEM60 48V DC Power Entry Module Required quantity: eight for

each chassis

02400376 CR5B0PWRBX60 Power Distribution

Cabinet,220V,50/60HZ,72000mA,EPS200-4850A

AC-to-DC power distribution

cabinet.

Required quantity: two for

each chassis.

02130872 WPSU50A00

Power

module--33degC-65degC-90VAC-290VAC-(-53.5)VD

C/54.2A-AC/DC rectifier

To be used with AC-to-DC

power distribution cabinets.

Required quantity: eight for

each chassis.

02310MDH CF-2G 2G CF Module To be purchased only when it

is used as a spare part.

02316431 MEM-2G-240pin 2GB 240pin Memory Module To be purchased only when it

is used as a spare part.

02317806 CR5M000CMU60 Centralized Monitor Unit To be purchased only when it

is used as a spare part.

02120562 CR5M000FBX60 Fan Box To be purchased only when it

is used as a spare part.

Table 15. NE40E-X16 V800R008 Basic Configuration Bundle

BOM Number

Order Name

Description

Remarks

02359180 CR5P16BASD74 NE40E-X16 Basic Configuration (Including

NE40E-X16 Chassis, 2 MPUs, 4 SFUs(200G), 8 DC

Power, without Software Charge and Document)

Basic configuration for 200G

with DC.

02359181 CR5P16BASA74 NE40E-X16 Basic Configuration (Including

NE40E-X16 Chassis, 2 MPUs, 4 SFUs(200G), 8 AC

Power, without Software Charge and Document)

Basic configuration for 200G

with AC.

02351AFK CR5P16BASA7H NE40E-X16 Basic Configuration (Including

NE40E-X16 Chassis, 2 MPUs, 4 SFUs(200G), 8 AC

Power(Power Cords Cable), without Software Charge

and Document)

16G Memory

Table 16. NE40E-X16 V800R008 Basic Components

BOM Number

Order Name

Description

Remarks

02351931 CR5B0BKP1670 NE40E-X16 Integrated Chassis Components

(Including 8 DC Power) Includes: chassis and fan box.

NE40E Series Universal Service Routers

Data Sheet

BOM Number

Order Name

Description

Remarks

Not includes: DC power.

03057244 CR5D0MPUB571 Main Processing Unit B5(16G Memory) -

03053547 CR5DSFUIE07B 200Gbps Switch Fabric Unit B (SFUI-200-B) -

02120560 CR5M000PEM60 48V DC Power Entry Module Required quantity: eight for

each chassis

02400376 CR5B0PWRBX60 Power Distribution

Cabinet,220V,50/60HZ,72000mA,EPS200-4850A

AC-to-DC power distribution

cabinet.

Required quantity: two for

each chassis.

02310FJD R4850G Rectifier Module, R4850, 2U, 3000W, High Efficiency -

02400739 CR5B0PWRBX62 Embedded Power, EPS200, 220Vac Single-Phase,

200A, Back Cabling, Width 19inch, Height 2U -

02310MDH CF-2G 2G CF Module -

02316431 MEM-2G-240pin 2GB 240pin Memory Module -

02310WTG E008DDR10 8GB 240pin Memory Module To be purchased only when it

is used as a spare part.

02317806 CR5M000CMU60 Centralized Monitor Unit -

02120562 CR5M000FBX60 Fan Box To be purchased only when it

is used as a spare part.

Table 17. NE40E-X16A V800R008 Basic Configuration Bundle

BOM Number

Order Name

Description

Remarks

02350AQQ CR5P16BASD76 NE40E-X16A Basic Configuration (Including

NE40E-X16A Chassis, 2 MPUs, 4 SFUs(480G),7 DC

Power,4 Fan Tray, without Software Charge and

Document)

Basic configuration for 480G

with DC

02350AQR CR5P16BASA76 NE40E-X16A Basic Configuration (Including

NE40E-X16A Chassis, 2 MPUs, 4 SFUs(480G), 10 AC

Power,4 Fan Tray, without Software Charge and

Document)

Basic configuration for 480G

with AC

02350AUC CR5P16BASD77 NE40E-X16A Basic Configuration (Including

NE40E-X16A Chassis, 2 MPUs, 4 SFUs(1T), 10 DC

Power,6 Fan Tray,without Software Charge and

Document)

Basic configuration for 1T

with DC

02350AUD CR5P16BASA77 NE40E-X16A Basic Configuration (Including

NE40E-X16A Chassis, 2 MPUs, 4 SFUs(1T), 14 AC

Power,6 Fan Tray, without Software Charge and

Document)

Basic configuration for 1T

with AC

NE40E Series Universal Service Routers

Data Sheet

Table 18. NE40E-X16A V800R008 Basic Components

BOM Number

Order Name

Description

Remarks

02359914 CR5B0BKP1673 NE40E-X16A Integrated DC Chassis Components

(Including 4 Fan Tray)

Includes: chassis and fan box.

Not includes: DC power.

02359915 CR5B0BKP1674 NE40E-X16A Integrated AC Chassis Components

(Including 4 Fan Tray)

Includes: chassis and fan box.

Not includes: AC power.

03057244 CR5D0MPUB571 Main Processing Unit B5(16G Memory) Recommended quantity: two

for each chassis.

03055780 CR5DSFUIM07B 480Gbps Switch Fabric Unit B(SFUI-480-B) To be configured as needed.

To be purchased only when it

is used as a spare part.

03056091 CR5DSFUIU07B 1Tbps Switch Fabric Unit B(SFUI-1T-B) To be configured as needed.

To be purchased only when it

is used as a spare part.

02311CNP PDC-2200WB PSU-PDC-2200WB-PM2200W DC Power Supply To be configured as needed.

02310VMA PHD-3000WA 3000W AC Power Module To be configured as needed.

02310WTG E008DDR10 8GB 240pin Memory Module To be purchased only when it

is used as a spare part.

02120866 CR5M000FBX61 Fan Box To be purchased only when it

is used as a spare part.

Service Interface Boards

NE40E Series routers support 100GE, 40GE, 10GE, GE (SFP/RJ-45) interface boards, and 10Gbps, 2.5Gbps,

622Mbps and 155Mbps POS interface boards, and 155Mbps channelized POS and Channelized E1 interface

boards.

Table 19. Compatible LPUF-480 Series in NE40E Series Routers ("●" indicates "support", and "-" indicates "not

support")

BOM

Number

Order Name

Description

-X3

-X8

-X16

-X3A

-X8A

-X16A

Remarks

03055820 CR5DLPUFM070 Flexible Card Line

Processing Unit(LPUF-480) - - - - ● ●

03057035 CR5DLPUFM07B

Flexible Card Line

Processing Unit

B(LPUF-480-B)

- - - - ● ●

03030SWH CR5D00E2NC72 2-Port 100GBase-CFP2

Flexible Card A(P480-A) - - - - ● ●

03030SWL CR5D00LFXF74

24-Port 10GBase

LAN/WAN-SFP+ Flexible

Card A(P480-A)

- - - - ● ●

NE40E Series Universal Service Routers

Data Sheet

Table 20. Compatible LPUF-240 Series in NE40E Series Routers ("●" indicates "support", and "-" indicates "not

support")

BOM

Number

Order Name

Description

-X3

-X8

-X16

-X3A

-X8A

-X16A

Remarks

03055720 CR5DLPUFF07E

Flexible Card Line

Processing

Unit(LPUF-240-E)

- ● ● - ● ●

03054690 CR5DLPUFF070

Flexible Card Line

Processing Unit(LPUF-240)

- ● ● - ● ●

03054698 CR5DLPUFF07B

Flexible Card Line

Processing

Unit(LPUF-240-B)

- ● ● - ● ●

03030QDF CR5D00E1NC74 1-Port 100GBase-CFP

Flexible CardA (P240-A) - ● ● - ● ●

03030QDD CR5D00LBXF71

12-Port 10GBase

LAN/WAN-

SFP+ Flexible

Card A(P240-A)

- ● ● - ● ●

03030WGT CR5D0E3MFA70

3-Port 40GBase-QSFP+

Flexible Card(P240-A)

- ● ● - ● ●

03030TUQ CR5D0LAXFE70

10-Port 10GBase

LAN/WAN-

SFP+ Flexible

Card E(P240-E)

- ● ● - ● ●

Table 21. Compatible LPUF-200 Series in NE40E Series Routers ("●" indicates "support", and "-" indicates "not

support")

BOM

Number

Order Name

Description

-X3

-X8

-X16

-X3A

-X8A

-X16A

Remarks

03056598 CR5DLPUFE070

Flexible Card Line

Processing Unit(LPUF-200) - - - ● - -

03030QDF CR5D00E1NC74 1-Port 100GBase-CFP

Flexible Card A(P240-A) - - - ● - -

03030TUL CR5D00LAXF70

10-Port 10GBase

LAN/WAN-SFP+ Flexible

Card A(P240-A)

- - - ● - -

Table 22. Compatible LPUF-120 Series in NE40E Series Routers ("●" indicates "support", and "-" indicates "not

support")

BOM

Number

Order Name

Description

-X3

-X8

-X16

-X3A

-X8A

-X16A

Remarks

03054628 CR5DLPUFB07E

Flexible Card Line

Processing Unit(LPUF-120)

● ● ● ● ● ●

NE40E Series Universal Service Routers

Data Sheet

BOM

Number

Order Name

Description

-X3

-X8

-X16

-X3A

-X8A

-X16A

Remarks

03054679 CR5DLPUFB070 Flexible Card Line

Processing Unit(LPUF-120) ● ● ● ● ● ●

The total

bandwidth of

flexible cards

installed cannot

exceed 120

Gbps.

Otherwise, the

flexible card

installed later

fails to register.

03054680 CR5DLPUFB07B

Flexible Card Line

Processing Unit(LPUF-120)

● ● ● ● ● ●

03030PYU CR5D00E1NC75 1-Port 100GBase-CFP

Flexible Card A(P120-A) ● ● ● ● ● ●

Only one can be

installed in each

LPUF-120 Series

line processing

unit.

03030PMQ CR5D00E1MC70 1-Port 40GBase LAN-CFP

Flexible Card A (P101-A) ● ● ● ● ● ●

03030NVF CR5D00LBXF72

12-Port 10G Base

LAN/WAN-SFP+ Flexible

Card A(P120-A)

● ● ● ● ● ●

Only one can be

installed in each

LPUF-120 Series

line processing

unit.

03030QDE CR5D0L6XFA70

6-Port 10GBase

LAN/WAN-SFP+ Flexible

Card A(P120-A)

● ● ● ● ● ●

03030PMK CR5D0L5XFA72

5-Port 10GBase

LAN/WAN-SFP+ Flexible

Card A(P101-A)

● ● ● ● ● ●

03030PMN CR5D0EFGFA71

24-Port

100/1000Base-X-SFP

Flexible Card A(P101-A)

● ● ● ● ● ●

03030QKM CR5D0L5XFE71

5-Port 10GBase

LAN/WAN-SFP+ Flexible

Card E(P101-E)

● ● ● - - -

Supports eTM

card.

Only applicable

in LPUF-120-E

boards.

Supported in

V600R008;

Not supported

in V800R008.

03030PYE CR5D0EFGFE70 24-Port 1000Base-X-SFP

Flexible Card E(P51-E) ● ● ● - - -

Supports eTM

card.

Only applicable

in LPUF-120-E

boards.

Supported in

V600R008;

Not supported

in V800R008.

03031LUU CR5D00P2XX72

2-Port OC-192c/STM-64c

POS-XFP Flexible

Card(P51-A)

- ● ● ● ● ●

Supported in

V800R008;

Not supported

in V600R008.

03030RXS CR5D00P8UF70

8-Port OC-48c/STM-16c

POS-SFP Flexible

Card(P120)

- ● ● ● ● ●

Can used as 8 x

622Mbps.

Supported in

V800R008;

Not supported

in V600R008.

NE40E Series Universal Service Routers

Data Sheet

Table 23. Compatible LPUF-51 Series in NE40E Series Routers ("●" indicates "support", and "-" indicates "not support")

BOM

Number

Order Name

Description

-X3

-X8

-X16

-X3A

-X8A

-X16A

Remarks

03055189 CR5DLPUF517E

Flexible Card Line

Processing Unit(LPUF-51,2

sub-slots) E

● ● ● ● ● ●

03054483 CR5DLPUF517B

Flexible Card Line

Processing Unit(LPUF-51,2

sub-slots) B

● ● ● ● ● ●

The total

bandwidth of

any two flexible

cards installed

cannot exceed

61 Gbps.

Otherwise, the

flexible card

ins

talled later

fails to register.

03030QKN CR5D0EEGEA70

20-Port

10/100/1000Base-RJ45

Flexible Card A(P51-A)

● ● ● ● ● ●

03030PMC CR5D0L5XFA70

5-Port 10GBase

LAN/WAN-SFP+ Flexible

Card A(P51-A, Occupy two

slots)

● ● ● ● ● ●

03030PME CR5D0L2XFA71

2-Port 10GBase

LAN/WAN-SFP+ Flexible

Card A(P51-A)

● ● ● ● ● ●

03030PMA CR5D0EFGFA70

24-Port

100/1000Base-X-SFP

Flexible Card A(P51-A)

● ● ● ● ● ●

03030PYE CR5D0EFGFE70 24-Port 1000Base-X-SFP

Flexible Card E(P51-E) ● ● ● - - -

Only applicable

in LPUF-51-E

boards.

Supported in

V600R008;

Not supported

in V800R008.

03030PYG CR5D0L5XFE70

5-Port 10GBase

LAN/WAN-SFP+ Flexible

Card E(P51-E, Occupy two

sub-slots)

● ● ● - - -

Only applicable

in LPUF-51-E

boards.

Supported in

V600R008;

Not supported

in V800R008.

03030PYF CR5D0L2XFE70

2-Port 10GBase

LAN/WAN-SFP+ Flexible

Card E(P51-E)

● ● ● - - -

Only applicable

in LPUF-51-E

boards.

Supported in

V600R008;

Not supported

in V800R008.

03031LUU CR5D00P2XX72

2-Port OC-192c/STM-64c

POS-XFP Flexible

Card(P51-A)

- ● ● ● ● ●

Only applicable

in LPUF-51-E

boards

, not

applicable in

LPUF-51-B.

Supported in

V800R008;

Not supported

in V600R008.

NE40E Series Universal Service Routers

Data Sheet

Table 24. Compatible LPUF-50 Series in NE40E Series Routers ("●" indicates "support", and "-" indicates "not support")

BOM

Number

Order Name

Description

-X3

-X8

-X16

-X3A

-X8A

-X16A

Remarks

03054447 CR5DLPUF5070

Flexible Card Line

Processing

Unit(LPUF-50,four slots)

● ● ● ● ● ●

Does not

support E3, T3,

and ATM.

03030NSK CR5D0L2XFA70

2-Port 10GBase

LAN/WAN-SFP+ Flexible

Card A(P50-A,Occupy one

sub-slot)

● ● ● ● ● ●

Only supports

slot 0 and slot

03030KNE CR5M0E8GFA30

8-Port

100/1000Base-X-SFP

Flexible Card

A(P10-A,Supporting

1588v2)

● ● ● ● ● ●

03030JUA

CR53-P10-8xPOS/

STM1-SFP

8-port OC-3c/STM-1c

POS-SFP Flexible Card

● ● ● ● ● ●

03030JTY CR53-P10-4xPOS/

STM1-SFP

4-port OC-3c/STM-1c

POS-SFP Flexible Card - ● ● ● ● ●

Supported in

V800R008;

Not supported

in V600R008.

03031JYH CR5D00P2CF70 2-Port OC-3c/STM-1c

POS-SFP Flexible Card - ● ● ● ● ●

Supported in

V800R008;

Not supported

in V600R008.

03030PTB CR5D00C8CF71

8-Port Channelized STM-1c

POS-SFP Flexible Card(P50)

● ● ● ● ● ●

03030PVG CR5D00C4CF70

4-Port Channelized STM-1c

POS-SFP Flexible Card(P50)

● ● ● ● ● ●

03031JYK CR5D00C2CF70 2-Port Channelized STM-1c

POS-SFP Flexible Card(P50) - ● ● ● ● ●

Supported in

V800R008;

Not supported

in V600R008.

03030KHP CR53-P10-24xcE1

/cT1-DB100

24-Port Channelized

E1/T1-DB100 Flexible Card ● ● ● ● ● ●

T1 is not

supported in

V800R008.

03030FSL CR53-P10-1xPOS/

STM64-XFP

1-Port OC-192c/STM-64c

POS-XFP Flexible

Card(Occupy two slots)

● ● ● ● ● ●

03030JCX

CR53-P10-4xPOS/

STM16-SFP

4-port OC-48c/STM-16c

POS-SFP Flexible Card

● ● ● ● ● ●

03030HNJ

CR53-P10-2xPOS/

STM16-SFP

2-port OC-48c/STM-16c

POS-SFP Flexible Card

● ● ● ● ● ●

03030JUB

CR53-P10-8xPOS/

STM4-SFP

8-port OC-12c/STM-4c

POS-SFP Flexible Card

● ● ● ● ● ●

03030JCY CR53-P10-4xPOS/

STM4-SFP

4-port OC-12c/STM-4c

POS-SFP Flexible Card ● ● ● - - -

Supported in

V600R008;

Not supported

in V800R008.

03030UVV CR5M00C1HF50 1-Port Channelized STM-4

POS-SFP Flexible Card(P50) ● ● ● - - -

Supported in

V600R008;

Not supported

in V800R008.

03030KBB CR53-P10-2xcPOS

/STM1-SFP

2-Port Channelized

OC-3c/STM-1c POS-SFP

Flexible Card

● ● ● - - -

Supported in

V600R008;

Not supported

in V800R008.

NE40E Series Universal Service Routers

Data Sheet

Table 25. Compatible LPUI-480 Series in NE40E Series Routers ("●" indicates "support", and "-" indicates "not

support")

BOM

Number

Order Name

Description

-X3

-X8

-X16

-X3A

-X8A

-X16A

Remarks

03056318 CR5D00E4NC70

4-Port 100GBase-CFP2

Integrated Line Processing

Unit (LPUI-480)

- - - - ● ●

03055821 CR5D00LMXF70

48-Port 10GBase

LAN/WAN-SFP+ Integrated

Line Processing Unit

(LPUI-480)

- - - - ● ●

03055838 CR5DE2NLFX70

2-Port 100GBase-CFP2 +

24-Port 10GBase

LAN/WAN-SFP+ Integrated

Line Processing Unit

(LPUI-480)

- - - - ● ●

03057036 CR5D00LMXF7B

48-Port 10GBase

LAN/WAN-SFP+ Integrated

Line Processing Unit

B(LPUI-480-B)

- - - - ● ●

03057037 CR5DE2NLFX7B

2-Port 100GBase-CFP2 +

24-Port 10GBase

LAN/WAN-SFP+ Integrated

Line Processing Unit

B(LPUI-480-B)

- - - - ● ●

03057039 CR5D00E4NC7B

4-Port 100GBase-CFP2

Integrated Line Processing

Unit B(LPUI-480-B)

- - - - ● ●

Table 26. Compatible LPUI-240 Series in NE40E Series Routers ("●" indicates "support", and "-" indicates "not

support")

BOM

Number

Order Name

Description

-X3

-X8

-X16

-X3A

-X8A

-X16A

Remarks

03054691 CR5D00E2NC70

2-Port 100GBase-CFP

Integrated Line Processing

Unit (LPUI-240)

- ● ● - ● ●

03054694 CR5D00E2NC73

2-Port 100GBase LAN-CFP

Integrated Line Processing

Unit B(LPUI-240-B)

- ● ● - ● ●

03054693 CR5DE2NLBX70

1-Port 100GBase-CFP +

12-Port 10GBase

LAN/WAN-SFP+ Integrated

Line Processing Unit

(LPUI-240)

- ● ● - ● ●

03054696 CR5DE2NLBX73

1-Port 100GBase-CFP +

12-Port 10GBase

LAN/WAN-SFP+ Integrated

Line Processing Unit

B(LPUI-240-B)

- ● ● - ● ●

03054692 CR5D00LFXF70

24-Port 10GBase

LAN/WAN-SFP+ Integrated

Line Processing Unit

(LPUI-240)

- ● ● - ● ●

NE40E Series Universal Service Routers

Data Sheet

BOM

Number

Order Name

Description

-X3

-X8

-X16

-X3A

-X8A

-X16A

Remarks

03054695 CR5D00LFXF73

24-Port 10GBase

LAN/WAN-SFP+ Integrated

Line Processing Unit

B(LPUI-240-B)

- ● ● - ● ●

03056105 CR5D0E6MFA70

6-Port 40GBase-QSFP+

Integrated Line Processing

Unit (LPUI-240)

- ● ● - ● ●

03056106 CR5D0E6MFA71

6-Port 40GBase-QSFP+

Integrated Line Processing

Unit (LPUI-240-B)

- ● ● - ● ●

Table 27. Compatible LPUI-200 Series in NE40E Series Routers ("●" indicates "support", and "-" indicates "not

support")

BOM

Number

Order Name

Description

-X3

-X8

-X16

-X3A

-X8A

-X16A

Remarks

03056862 CR5D00E2NC76

2-Port 100GBase-CFP

Integrated Line Processing

Unit(LPUI-200)

- - - ● - -

03056863 CR5D00LEXF76

20-Port 10GBase

LAN/WAN-SFP+ Integrated

Line Processing

Unit(LPUI-200)

- - - ● - -

03056864 CR5DE1NLAX76

1-Port 100GBase-CFP +

10-Port 10GBase

LAN/WAN-SFP+ Integrated

Line Processing

Unit(LPUI-200)

- - - ● - -

Table 28. Compatible LPUI-120 Series in NE40E Series Routers ("●" indicates "support", and "-" indicates "not

support")

BOM

Number

Order Name

Description

-X3

-X8

-X16

-X3A

-X8A

-X16A

Remarks

03054683 CR5D00E1NC76

1-Port 100GBase-CFP

Integrated Line Processing

Unit (LPUI-120)

● ● ● ● ● ●

03054686 CR5D00E1NC7B

1-Port 100GBase-CFP

Integrated Line Processing

Unit B(LPUI-120-B)

● ● ● ● ● ●

03054681 CR5D0LBXFA70

12-Port 10GBase

LAN/WAN-SFP+ Integrated

Line Processing

Unit(LPUI-120)

● ● ● ● ● ●

03054684 CR5D0LBXFA7B

12-Port 10GBase

LAN/WAN-SFP+ Integrated

Line Processing Unit

B(LPUI-120-B)

● ● ● ● ● ●

03054682 CR5D0E2MCA70

2-Port 40GBase LAN-CFP

Integrated Line Processing

Unit(LPUI-120)

● ● ● ● ● ●

03054685 CR5D0E2MCA7B

2-Port 40GBase LAN-CFP

Integrated Line Processing

Unit B(LPUI-120-B)

● ● ● ● ● ●

NE40E Series Universal Service Routers

Data Sheet

BOM

Number

Order Name

Description

-X3

-X8

-X16

-X3A

-X8A

-X16A

Remarks

03054627 CR5DLAXFAJ7E

10-Port 10GBase

LAN/WAN-SFP+ Integrated

Line Processing Unit

E(LPUI-102-E)

● ● ● - - -

Table 29. Compatible LPUI-51/21 Series in NE40E Series Routers ("●" indicates "support", and "-" indicates "not

support")

BOM

Number

Order Name

Description

-X3

-X8

-X16

-X3A

-X8A

-X16A

Remarks

LPUI-51

03055051 CR5D0L5XFA7J

5-Port 10GBase

LAN/WAN-SFP+ Integrated

Line Processing Unit

E(LPUI-51-E)

● ● ● ● ● ●

03054485 CR5D0L5XFA7B

5-Port 10GBase

LAN/WAN-SFP+ Integrated

Line Processing Unit

B(LPUI-51-B)

● ● ● ● ● ●

03054486 CR5D0L4XFA7B

4-Port 10GBase

LAN/WAN-SFP+ Integrated

Line Processing Unit

B(LPUI-51-B)

● ● ● ● ● ●

03055052 CR5DL2XEFG7J

2-Port 10GBase

LAN/WAN-SFP+ + 24-Port

100/1000Base-X-SFP

Integrated Line Processing

Unit E(LPUI-51-E)

● ● ● ● ● ●

03054489 CR5DL2XEFG7B

2-Port 10GBase

LAN/WAN-SFP+ + 24-Port

100/1000Base-X-SFP

Integrated Line Processing

Unit B(LPUI-51-B)

● ● ● ● ● ●

03055053 CR5D0EMGFA7J

48-Port

100/1000Base-X-SFP

Integrated Line Processing

Unit E(LPUI-51-E)

● ● ● ● ● ●

03054488 CR5D0EMGFA7B

48-Port

100/1000Base-X-SFP

Integrated Line Processing

Unit B(LPUI-51-B)

● ● ● ● ● ●

03054626 CR5D0L5XFA7E

5-Port 10GBase

LAN/WAN-SFP+ Integrated

Line Processing Unit

E(LPUI-51-E,Enhanced

HQos)

● ● ● - - -

Supports eTM

card.

Supported in

V600R008;

Not supported

in V800R008.

03054625 CR5DL2XEFG7E

2-Port 10GBase

LAN/WAN-SFP+ + 24-Port

1000Base-X-SFP Integrated

Line Processing Unit

E(LPUI-51-E,Enhanced

HQos)

● ● ● - - -

Supports eTM

card.

Supported in

V600R008;

Not supported

in V800R008.

03054993 CR5DL3XEFG7C

3-Port 10GBase

LAN/WAN-SFP+ + 24-Port

100/1000Base-X-SFP

Integrated Line Processing

Unit E(LPUI-51-E)

● ● ● - - -

Supported in

V600R008;

Not supported

in V800R008.

LPUI-51-L

Note: LPUI-51-L does not support L2TPv3, and can not used as an

LNS of L2TP, and it is not recommended to installed in the chassis deployed L2TP service.

LPUI-51-L cannot function as a virtual cluster interconnection board.

NE40E Series Universal Service Routers

Data Sheet

BOM

Number

Order Name

Description

-X3

-X8

-X16

-X3A

-X8A

-X16A

Remarks

03054520 CR5D0L5XFA7L

5-Port 10GBase

LAN/WAN-SFP+ Integrated

Line Processing Unit

L(LPUI-51-L)

● ● ● - - -

Supported in

V600R008;

Not supported

in V800R008.

03054528 CR5D0EMGFA7L

48-Port

100/1000Base-X-SFP

Integrated Line Processing

Unit L(LPUI-51-L)

● ● ● - - -

Supported in

V600R008;

Not supported

in V800R008.

03054525 CR5DL2XEIG7L

2-Port 10GBase

LAN/WAN-SFP+ + 32-Port

100/1000Base-X-SFP

Integrated Line Processing

Unit L(LPUI-51-L)

● ● ● - - -

Supported in

V600R008;

Not supported

in V800R008.

03055716 CR5DL4XEBG7L

4-Port 10GBase

LAN/WAN-SFP+ + 12-Port

100/1000Base-X-SFP

Integrated Line Processing

Unit L(LPUI-51-L)

● ● ● - - -

Supported in

V600R008;

Not supported

in V800R008.

LPUI-21-L

Note: LPUI-21-L can not be used as an LNS of L2TP, and It is not recommended to install LPUI-21-L in the chassis deployed L2TP service.

03054535 CR5DL1XEDG70

1-Port 10GBase

LAN/WAN-SFP+ + 16-Port

100/1000Base-X-SFP

Integrated Line Processing

Unit L(LPUI-21-L)

● ● ● - - -

Supported in

V600R008;

Not supported

in V800R008.

03054532 CR5D0EFGFA73

24-Port

100/1000Base-X-SFP

Integrated Line Processing

Unit L(LPUI-21-L)

● ● ● - - -

Supported in

V600R008;

Not supported

in V800R008.

Versatile Service Boards

Table 30. Compatible Service Boards ("●" indicates "support", and "-" indicates "not support")

BOM

Number

Order Name

Integrated Line Processing Units

V600R008

V800R008

X16

X3A

X8A

X16

X16A

0305G062 CR5DVSUI201A Integrated Versatile Service

Unit(VSUI-20-A) ● ● ● - - - - -

03054425 CR5DVSUF8010 Flexible Card Versatile Service Unit

80(VSUF-80) ● ● ● ● ● ● ● ●

03054421 CR5DVSUFD010 Flexible Card Versatile Service Unit

160(VSUF-160) - ● ● - ● ● ● ●

03030PLN CR5D00SP8010 Versatile Service Flexible Card(SP80) ● ● ● ● ● ● ● ●

03030PTF CR5D00SPD010 Versatile Service Flexible Card(SP160) - ● ● - ● ● ● ●

NE40E Series Universal Service Routers

Data Sheet

Optical/Electrical Transceivers

Table 31. Compatible 100G CFP/CFP2 Optical Transceiver ("●" indicates "support", and "-" indicates "not support")

BOM Number

Order Name

Integrated Line Processing Units

V600R008

V800R008

X16

X3A

X8A

X16

X16A

02310WUR OSN010N09

High Speed

Transceiver,CFP2,4*25Gb/s(1310nm

Band),103.125Gb/s,-2.5dBm,4.5dBm

,-8.6dBm,LC straight,SMF,10km

- - - - - ● - ●

S4017456 OSN010N04

Optical

transceiver,CFP,1295/1300/1304/130

9nm,103.125Gbps,-4.3dBm,4.5dBm,

-8.6dBm,LC,SMF,10km

● ● ● ● ● ● ● ●

02310WUS OSN040N02

High Speed Transceiver,CFP,1310nm

Band,103.125Gb/s,-2.9dBm,2.9dBm,

-21.4dBm,Straight

LC,SMF,40km,OMA OPTICAL

POWER,100GBASE-ER4

● ● ● ● ● ● ● ●

S4017457 OSN010003

Optical

Transceiver,CFP,850nm,10*10.3125G

b/s,-7.6dBm,2.4dBm,-5.4dBm,mpo,

MM,0.1km

● ● ● ● ● ● ● ●

02311JNT OSN080N10

High Speed

Transceiver,CFP,1310nm,103.125Gb/

s,2.0dBm,7.0dBm,-30.0dBm,Stright

LC,SMF,80km

- - - ● ● ● ● ●

Table 32. Compatible 40G CFP Optical Transceiver ("●" indicates "support", and "-" indicates "not support")

BOM Number

Order Name

Integrated Line Processing Units

V600R008

V800R008

X16

X3A

X8A

X16

X16A

02310WUV OSMD10N02

High Speed

Transceiver,CFP,850nm,4*10.3125Gb

/s,-7.6dBm,2.4dBm,-9.5dBm,MPO,M

M,0.1km

● ● ● - - - - -

34060636 OSM010C01

High Speed

Transceiver,CFP,1271~1331nm

CWDM,41.25Gb/s,-4dBm,3.5dBm,-1

1.5dBm,LC,SM,10km

● ● ● - - - - -

34060799 OSM040C00

High Speed

Transceiver,CFP,4*10Gb/s(1310 NM

BAND),41.25Gb/s,-1.1dBm,3.8dBm,-

18dBm,straight LC,SMF,40km,OMA

OPTICAL POWER,40GBASE-ER4

● ● ● - - - - -

02311AYS OSX080N05

High Speed

Transceiver,CFP,4*10Gb/s(1550 NM

BAND),41.25Gb/s,-0dBm,4.5dBm,-22

dBm,straight LC,SMF,80km

- - - ● ● ● ● ●

S4017471 OSM010C02

High Speed

Transceiver,CFP,1271~1331nm

CWDM-41.25Gb/s--1dBm-3dBm--11.

5dBm-LC-SM-10km

- - - ● ● ● ● ●

NE40E Series Universal Service Routers

Data Sheet

BOM Number

Order Name

Integrated Line Processing Units

V600R008

V800R008

X16

X3A

X8A

X16

X16A

02311BLM OSM040C01

High Speed

Transceiver,CFP,4*10Gb/s(1310 NM

BAND),41.25Gb/s,-1.1dBm,3.8dBm,-

18dBm,straight LC,SMF,40km,OMA

OPTICAL POWER,40GBASE-ER4

- - - ● ● ● ● ●

Table 33. Compatible 40G QSFP+ Optical Transceiver ("●" indicates "support", and "-" indicates "not support")

BOM Number

Order Name

Integrated Line Processing Units

V600R008

V800R008

X16

X3A

X8A

X16

X16A

02310WUT OMXD30009

Optical

Transceiver,QSFP+,1310nm,41.25Gb

ps,-7dBm,2.3dBm,-11.5dBm,LC,SMF,

10km

● ● ● - ● ● ● ●

02310WUU OMXD30010

Optical

Transceiver,QSFP+,850nm,41.25Gbps

,-7.6dBm,-1dBm,-9.5dBm,MPO,MMF

,0.15km

● ● ● - ● ● ● ●

Table 34. Compatible 10G XFP Optical Transceiver ("●" indicates "support", and "-" indicates "not support")

BOM

Number

Order Name

Integrated Line Processing Units

V600R008

V800R008

X16

X3A

X8A

X16

X16A

S4015798 XFP-850-FC10G/10

GbE-0.3km

Optical

Transceiver(XFP,850nm,10.3Gb/s,-7

.3dBm~-1.3dBm,-7.5dBm,LC,Multi

mode,0.3Km)

● ● ● ● ● ● ● ●

S4015772 OSX010N08

Optical

Transceiver(XFP,1310nm,9.95~10.7

1Gb/s,-6dBm~-1dBm,-14.4dBm,Sin

glemode,LC,10km)

● ● ● ● ● ● ● ●

S4015776 OSX040N09

Optical

Transceiver(XFP,1550nm,9.95Gb/s

11.1Gb/s,-1dBm~2dBm,-15dBm,LC

,Singlemode,40km)

● ● ● ● ● ● ● ●

S4015794 OSX080N06

Optical

transceiver(XFP,1550nm,9.95Gb/s

11.1Gb/s,0~4dBm,-24dBm,LC,Singl

emode,80km)

● ● ● ● ● ● ● ●

34060554 XFP-LH70-SM1611

Optical

Transceiver-XFP-1611nm-9.95~11.

1Gb/s-0dBm-3dBm--21dBm-LC-SM

-70km

● ● ● - ● - ● -

34060553 XFP-LH70-SM1591

Optical

Transceiver-XFP-1591nm-9.95~11.

1Gb/s-0dBm-3dBm--21dBm-LC-SM

-70km

● ● ● - ● - ● -

NE40E Series Universal Service Routers

Data Sheet

BOM

Number

Order Name

Integrated Line Processing Units

V600R008

V800R008

X16

X3A

X8A

X16

X16A

34060552 XFP-LH70-SM1571

Optical

Transceiver-XFP-1571nm-9.95~11.

1Gb/s-0dBm-4dBm--22dBm-LC-SM

-70km

● ● ● - ● - ● -

34060551 XFP-LH70-SM1551

Optical

Transceiver-XFP-1551nm-9.95~11.

1Gb/s-0dBm-4dBm--23dBm-LC-SM

-70km

● ● ● - ● - ● -

34060550 XFP-LH70-SM1531

Optical

Transceiver-XFP-1531nm-9.95~11.

1Gb/s-0dBm-4dBm--23dBm-LC-SM

-70km

● ● ● - ● - ● -

34060549 XFP-LH70-SM1511

Optical

Transceiver-XFP-1511nm-9.95~11.

1Gb/s-0dBm-4dBm--23dBm-LC-SM

-70km

● ● ● - ● - ● -

34060548 XFP-LH70-SM1491

Optical

Transceiver-XFP-1491nm-9.95~11.

1Gb/s-0dBm-4dBm--23dBm-LC-SM

-70km

● ● ● - ● - ● -

34060547 XFP-LH70-SM1471

Optical

Transceiver-XFP-1471nm-9.95~11.

1Gb/s-0dBm-4dBm--23dBm-LC-SM

-70km

● ● ● - ● - ● -

34060515 XFP-LH80-195.90

Optical

Transceiver,XFP,1530.33nm,9.95G

~11.1Gbps,-1~3dBm,-24.0dBm,LC,

SM,80km

● ● ● - ● - ● -

34060501 XFP-LH80-193.30

Optical

Transceiver,XFP,1550.92nm,9.95G

~11.1Gbps,-1~3dBm,-24.0dBm,LC,

SM,80km

● ● ● - ● - ● -

34060687 OSX070002

Optical

Transceiver-SFP+-1471nm-9.95~11.

1Gb/s-0dBm-4dBm--23dBm-LC-SM

-70km

● ● ● ● ● ● ● ●

34060688 OSX070003

Optical

Transceiver-SFP+-1491nm-9.95~11.

1Gb/s-0dBm-4dBm--23dBm-LC-SM

-70km

● ● ● ● ● ● ● ●

34060686 OSX070001

Optical

Transceiver-SFP+-1511nm-9.95~11.

1Gb/s-0dBm-4dBm--23dBm-LC-SM

-70km

● ● ● ● ● ● ● ●

34060689 OSX070004

Optical

Transceiver-SFP+-1531nm-9.95~11.

1Gb/s-0dBm-4dBm--23dBm-LC-SM

-70km

● ● ● ● ● ● ● ●

34060690 OSX070005

Optical

Transceiver-SFP+-1551nm-9.95~11.

1Gb/s-0dBm-4dBm--23dBm-LC-SM

-70km

● ● ● ● ● ● ● ●

34060691 OSX070006

Optical

Transceiver-SFP+-1571nm-9.95~11.

1Gb/s-0dBm-4dBm--22dBm-LC-SM

-70km

● ● ● ● ● ● ● ●

34060692 OSX070007

Optical

Transceiver-SFP+-1591nm-9.95~11.

1Gb/s-0dBm-3dBm--21dBm-LC-SM

-70km

● ● ● ● ● ● ● ●

NE40E Series Universal Service Routers

Data Sheet

BOM

Number

Order Name

Integrated Line Processing Units

V600R008

V800R008

X16

X3A

X8A

X16

X16A

34060693 OSX070008

Optical

Transceiver-SFP+-1611nm-9.95~11.

1Gb/s-0dBm-3dBm--21dBm-LC-SM

-70km

● ● ● ● ● ● ● ●

Table 35. Compatible 10G SFP+ Optical Transceiver ("●" indicates "support", and "-" indicates "not support")

BOM

Number

Order Name

Integrated Line Processing Units

V600R008

V800R008

X16

X3A

X8A

X16

X16A

S4017482 OSX040N03

Optical

Transceiver(SFP+,850nm,10Gb/s,-7.3~-

1dBm,-11.1dBm,LC, MM,0.3km)

● ● ● ● ● ● ● ●

S4017483 OSX001002

Optical

Transceiver(SFP+,1310nm,10Gb/s,-8.2~

0.5dBm,-12.6dBm,LC,SM,10km)

● ● ● ● ● ● ● ●

S4017484 OMXD30002

Optical

Transceiver(SFP+,1550nm,9.95~11.1Gb

/s,-4.7~4dBm,-14.1dBm,LC,SM,40km)

● ● ● ● ● ● ● ●

02310PVU OSX080N04

Optical

Transceiver(SFP+,1550nm,9.953~10.31

25Gb/s,0~4dBm,-24dBm,LC,SM,80km)

● ● ● ● ● ● ● ●

34060686 OSX070001

Optical

Transceiver-SFP+-1511nm-9.95~11.1G

b/s-0dBm-4dBm--23dBm-LC-SM-70km

● ● ● ● ● ● ● ●

34060687 OSX070002

Optical

Transceiver-SFP+-1471nm-9.95~11.1G

b/s-0dBm-4dBm--23dBm-LC-SM-70km

● ● ● ● ● ● ● ●

34060688 OSX070003

Optical

Transceiver-SFP+-1491nm-9.95~11.1G

b/s-0dBm-4dBm--23dBm-LC-SM-70km

● ● ● ● ● ● ● ●

34060689 OSX070004

Optical

Transceiver-SFP+-1531nm-9.95~11.1G

b/s-0dBm-4dBm--23dBm-LC-SM-70km

● ● ● ● ● ● ● ●

34060690 OSX070005

Optical

Transceiver-SFP+-1551nm-9.95~11.1G

b/s-0dBm-4dBm--23dBm-LC-SM-70km

● ● ● ● ● ● ● ●

34060691 OSX070006

Optical

Transceiver-SFP+-1571nm-9.95~11.1G

b/s-0dBm-4dBm--23dBm-LC-SM-70km

● ● ● ● ● ● ● ●

34060692 OSX070007

Optical

Transceiver-SFP+-1591nm-9.95~11.1G

b/s-0dBm-4dBm--23dBm-LC-SM-70km

● ● ● ● ● ● ● ●

34060693 OSX070008

Optical

Transceiver-SFP+-1611nm-9.95~11.1G

b/s-0dBm-4dBm--23dBm-LC-SM-70km

● ● ● ● ● ● ● ●

NE40E Series Universal Service Routers

Data Sheet

Table 36. Compatible 2.5G eSFP Optical Transceiver ("●" indicates "support", and "-" indicates "not support")

BOM Number

Order Name

Integrated Line Processing Units

V600R008

V800R008

X16

X3A

X8A

X16

X16A

34060484

eSFP-1310nm

-155M-2.5G-

LC-SM-2km

Optical

Transceiver,eSFP,1310nm,155M~2.6

7G,-10~-3dBm,-18dBm,LC,SM,2km

● ● ● ● ● ● ● ●

34060485

eSFP-SM1310

-155M~2.5G-

15km

Optical

Transceiver,eSFP,1310nm,155M~2.6

7G,-5~0dBm,-21dBm,LC,SM,15km

● ● ● ● ● ● ● ●

34060289 eSFP-1310nm

-L-16.1

Optical

Transceiver,eSFP,1310nm,STM16,-2~

3dBm,-29dBm,LC,SM,40km

● ● ● ● ● ● ● ●

34060488 eSFP-1550nm

-L-16.2

Optical

Transceiver,eSFP,1550nm,STM16,-2~

3dBm,-30dBm,LC,SM,80km

● ● ● ● ● ● ● ●

Table 37. Compatible 1G SFP/eSFP Optical/Electrical Transceiver ("●" indicates "support", and "-" indicates "not

support")

BOM Number

Order Name

Integrated Line Processing Units

V600R008

V800R008

X16

X3A

X8A

X16

X16A

02310RAV OEGD01N01

Optical Functional

Module,1000BASE-T-SFP

Module,RJ45 Electrical Module,Auto

Negotiate,Longest Transimission

Distance 100m,-40~85

● ● ● ● ● ● ● ●

34060286

eSFP-850nm-

1000Base-Sx/

FC200 MM

Optical

Transceiver,eSFP,850nm,2.125Gb/s(

Multi

rate) ,-9.5~-2.5dBm,-17dBm,LC,MM,

0.5km

● ● ● ● ● ● ● ●

S4016067 OSG010N05

Optical

transceiver,eSFP,1310nm,1.25Gb/s,-9

~-3dBm,-20dBm,LC,Single

Mode,10km

● ● ● ● ● ● ● ●

S4016954 OSG040002

Optical

Transceiver(eSFP,1310nm,1.25Gb/s,-

5~0dBm,-23dBm,LC,SM,40km)

● ● ● ● ● ● ● ●

34060360

eSFP-1550nm

-1000Base-Zx

/FC100

Optical

Transceiver,eSFP,1550nm,1.25Gb/s,-

2~5dBm,-23dBm,LC,SM,80km

● ● ● ● ● ● ● ●

34060295 eSFP-GE-ZX10

0-SM1550

Optical

Transceiver,eSFP,1550nm,1.25Gb/s,0

~5dBm,-30dBm,LC,SM,100km

● ● ● ● ● ● ● ●

34060483 eSFP-LH80-S

M1471

Optical

Transceiver,eSFP,1471nm,100M~2.6

7Gbps,5dBm,0dBm,-28dBm,LC,80K

● ● ● ● ● ● ● ●

34060481 eSFP-LH80-S

M1491

Optical

Transceiver,eSFP,1491nm,100M~2.6

7Gbps,5dBm,0dBm,-28dBm,LC,80K

● ● ● ● ● ● ● ●

34060479 eSFP-LH80-S

M1511

Optical

Transceiver,eSFP,1511nm,100M~2.6

7Gbps,5dBm,0dBm,-28dBm,LC,80K

● ● ● ● ● ● ● ●

NE40E Series Universal Service Routers

Data Sheet

BOM Number

Order Name

Integrated Line Processing Units

V600R008

V800R008

X16

X3A

X8A

X16

X16A

34060482 eSFP-LH80-S

M1531

Optical

Transceiver,eSFP,1531nm,100M~2.6

7Gbps,5dBm,0dBm,-28dBm,LC,80K

● ● ● ● ● ● ● ●

34060478 eSFP-LH80-S

M1551

Optical

Transceiver,eSFP,1551nm,100M~2.6

7Gbps,5dBm,0dBm,-28dBm,LC,80K

● ● ● ● ● ● ● ●

34060476 eSFP-LH80-S

M1571

Optical

Transceiver,eSFP,1571nm,100M~2.6

7Gbps,5dBm,0dBm,-28dBm,LC,80K

● ● ● ● ● ● ● ●

34060477 eSFP-LH80-S

M1591

Optical

Transceiver,eSFP,1591nm,100M~2.6

7Gbps,5dBm,0dBm,-28dBm,LC,80K

● ● ● ● ● ● ● ●

34060480 eSFP-LH80-S

M1611

Optical

Transceiver,eSFP,1611nm,100M~2.6

7Gbps,5dBm,0dBm,-28dBm,LC,80K

● ● ● ● ● ● ● ●

Table 38. Compatible 622M SFP/eSFP Optical/Electrical Transceiver ("●" indicates "support", and "-" indicates "not

support")

BOM Number

Order Name

Integrated Line Processing Units

V600R008

V800R008

X16

X3A

X8A

X16

X16A

S4015760 OSH015N05

Optical

Transceiver(eSFP,1310nm,STM4,-15d

Bm~-8dBm,-30dBm,Singlemode,LC,1

5Km)

● ● ● ● ● ● ● ●

34060280 eSFP-1310nm

-L-4.1

Optical

Transceiver,eSFP,1310nm,STM4,-3~2

dBm,-30dBm,LC,SM,40km

● ● ● ● ● ● ● ●

34060284 eSFP-1550nm

-L-4.2

Optical

Transceiver,eSFP,1550nm,STM4,-3~2

dBm,-30dBm,LC,SM,80km

● ● ● ● ● ● ● ●

Table 39. Compatible 155M SFP/eSFP Optical/Electrical Transceiver ("●" indicates "support", and "-" indicates "not

support")

BOM Number

Order Name

Integrated Line Processing Units

V600R008

V800R008

X16

X3A

X8A

X16

X16A

S4015731 SFP-FE-SX-M

M1310

Optical

Transceiver(SFP,1310nm,STM1,-19dB

m~-14dBm,-30dBm,Multimode,LC,2k

● ● ● ● ● ● ● ●

S4015755 eSFP-FE-LX-S

M1310

Optical

Transceiver(eSFP,1310nm,STM1,-15d

Bm~-8dBm,-31dBm,Singlemode,LC,1

5Km)

● ● ● ● ● ● ● ●

NE40E Series Universal Service Routers

Data Sheet

BOM Number

Order Name

Integrated Line Processing Units

V600R008

V800R008

X16

X3A

X8A

X16

X16A

S4015715 eSFP-FE-LH40

-SM1310

Optical

Transceiver(eSFP,1310nm,STM1,-5dB

m~0dBm,-37dBm,Singlemode,LC,40

Km)

● ● ● ● ● ● ● ●

34060282 eSFP-FE-LH80

-SM1550

Optical

Transceiver,eSFP,1550nm,STM1,-5~0

dBm,-37dBm,LC,SM,80km

● ● ● ● ● ● ● ●

Table 40. Compatible BIDI eSFP Optical/Electrical Transceiver ("●" indicates "support", and "-" indicates "not support")

BOM Number

Order Name

Integrated Line Processing Units

V600R008

V800R008

X16

X3A

X8A

X16

X16A

34060525 O00CSFP25

Integrated Optical Transmitting and

Receiving

Module,CSFP,Transmitting:1490nm,R

eceiving:1310nm,1.25Gb/s,-9.0dBm,-

3.0dBm,-19.5dBm,LC,10km

- ● ● - ● - ● -

02310QNG OSC015B01

Optical transceiver,eSFP,Tx

1310nm/Rx

1550nm,155M,-8dBm,-15dBm,-32dB

m,LC/PC,SM,15km

● ● ● ● ● ● ● ●

02310QNH OSC015B02

Optical transceiver,eSFP,Tx

1550nm/Rx

1310nm,STM1,-8dBm,-15dBm,-32dB

m,LC/PC,SM,15km

● ● ● ● ● ● ● ●

34060470 SFP-GE-LX-S

M1310-BIDI

BiDi

Transceiver,eSFP,Tx1310nm/Rx1490n

m,1.25Gb/s,-9dBm,-3dBm,-19.5dBm,

LC,SM,10km

● ● ● ● ● ● ● ●

34060475 SFP-GE-LX-S

M1490-BIDI

BiDi

Transceiver,eSFP,Tx1490nm/Rx1310n

m,1.25Gb/s,-9dBm,-3dBm,-19.5dBm,

LC,SM,10km

● ● ● ● ● ● ● ●

34060638 eSFP-1310/15

50-L1.1-BIDI

BiDi

Transceiver,eSFP,Tx1310nm/Rx1550n

m,0.1~1.25Gb/s,-3~2dBm,-25dBm,L

C,SM,40km

● ● ● ● ● ● ● ●

34060639 eSFP-1550/13

10-L1.1-BIDI

BiDi

Transceiver,eSFP,Tx1550nm/Rx1310n

m,0.1~1.25Gb/s,-3~2dBm,-25dBm,L

C,SM,40km

● ● ● ● ● ● ● ●

34060539 OGEBIDI41

Optical

Transceiver,eSFP,1310nm(Tx)/1490n

m(Rx),1.25Gb/s,-2dBm,3dBm,-23dBm

,LC,SM,40km

● ● ● ● ● ● ● ●

34060540 OGEBIDI40

Optical

Transceiver,eSFP,1490nm(Tx)/1310n

m(Rx),1.25Gb/s,-2dBm,3dBm,-23dBm

,LC,SM,40km

● ● ● ● ● ● ● ●

34060595 OGEBIDI80

BiDi

Transceiver,eSFP,1570nm(Tx)/1490n

m(Rx),1.25Gbps,-2dBm,4dBm,-26dB

m,LC,SM,80km

● ● ● ● ● ● ● ●

NE40E Series Universal Service Routers

Data Sheet

BOM Number

Order Name

Integrated Line Processing Units

V600R008

V800R008

X16

X3A

X8A

X16

X16A

34060596 OGEBIDI81

BiDi

Transceiver,eSFP,1490nm(Tx)/1570n

m(Rx),1.25Gbps,-2dBm,4dBm,-26dB

m,LC,SM,80km

● ● ● ● ● ● ● ●

34060544-002 OSX010B10

BiDi

Transceiver,SFP+,1270nm(Tx)/1330n

m(Rx),2.5~11.3Gb/s,-8.2dBm,0.5dBm

,-14.4dBm,LC,SM,10km

● ● ● ● ● ● ● ●

34060546-002 OSX010B11

BiDi

Transceiver,SFP+,1330nm(Tx)/1270n

m(Rx),2.5~11.3Gb/s,-8.2dBm,0.5dBm

,-14.4dBm,LC,SM,10km

● ● ● ● ● ● ● ●

Power Distribution Box

Table 41. NE40E Series Power Distribution Box ("●" indicates "support", and "-" indicates "not support")

BOM

Number

Order Name

Power Distribution Box

V600R008

V800R008

X16

X3A

X8A

X16

X16A

02120641 CR5MDPD30000 DPD300-4-12 Power Distribution

Box, Dual-Two Inputs - ● ● - ● - ● -

Telescopic Slide

Table 42. NE40E Series Telescopic Side ("●" indicates "support", and "-" indicates "not support")

BOM

Number

Order Name

Telescopic Slide

V600R008

V800R008

X16

X3A

X8A

X16

X16A

21242246 E00TSLD00

Chassis General

Accessories-Telescopic slide-Square

hole range-500mm~850mm

● ● ● ● ● ● ● ●

Software Configuration

The NE40E Series Routers provide software license charging policies. The general principle is base packages +

feature licenses + upgrade fees.

- Base package: mandatory for each version and must be purchased for a new site.

- Feature license: optional and can be purchased based on requirements to implement certain functions.

- Software version upgrade fee: The software version upgrade fee is required if a current version needs to be

upgraded to a later version to support new features.

NE40E Series Universal Service Routers

Data Sheet

Table 43. NE40E Series Routers V800R008 Software Configuration List

BOM

Number

Order Name

Description

Remarks

88033HLV CR5S40BS8800 NetEngine40E Base SW,VRP8,V800R008 Required at new sites

81400475 CR5S400EPT00 NetEngine40E Ethernet Performance Test License (Optional) one for each chassis only

when the RFC 2544 feature is used.

82400313 CR5S40L3VN01

NetEngine40E&80E L3VPN Function License for

LPUF-51-B

(Optional) one for each LPUF-51-B

board.

82400314 CR5S40L3VN02

NetEngine40E&80E L3VPN Function License for

LPUI-51-B

(Optional) one for each LPUI-51-B

board.

82400378 CR5S40L3VN07

NetEngine40E L3VPN Function License for

LPUI-120-B

(Optional) one for each LPUI-120-B

board.

82400379 CR5S40L3VN08

NetEngine40E L3VPN Function License for

LPUF-120-B

(Optional) one for each LPUF-120-B

board.

82400380 CR5S40L3VN05

NetEngine40E L3VPN Function License for

LPUI-240-B

(Optional) one for each LPUI-240-B

board.

82400381 CR5S40L3VN06 NetEngine40E L3

VPN Function License for

LPUF-240-B

(Optional) one for each LPUF-240-B

board.

82400798 CR5S40L3VN0A

NetEngine40E L3VPN Function License for

LPUI-480-B

(Optional) one for each LPUI-480-B

board.

82400799 CR5S40L3VN0B NetEngine40E L3VPN Function License for

LPUF-480-B

(Optional) one for each LPUF-480-B

board.

81400189 CR5S40CLCK00 NetEngine40E&80E 1588v2 Function License (Optional) one for each chassis.

81400474 CR5S400FPM00

NetEngine40E&80E IP Performance Measure

License(IP FPM)

(Optional) one for each chassis.

81400537 CR5S4000VS00 NetEngine40E Virtual System Function License (Optional) one for each chassis.

88030BUW CR5S40EF0000 NetEngine40E&80E Software Release

Entitlement from Rn to R(n+1)

Version upgrade fees. O

ne for each

chassis.

82400852 CR5S4IPSEC00 NetEngine40E IPSec Function License for VSU

Series Units

(Optional) one for each VSU board.

82400802 CR5S40IPTQ00 NetEngine40E IPSec Tunnels Quantity(500)

(Optional)

You can configure one or

more licenses, which are shared by all

boards on one chassis.

81400370 CR5S40BRAS02 NetEngine40E PPPoE/IPoE Function License (Optional) one for each chassis.

82400206 CR5S40QS0100 NetEngine40E Subscribers Quantity(1k

Subscribers)

(Optional)

You can configure one or

more licenses, which are shared by all

boards on one chassis.

81400210 CR5S40L2TP00 NetEngine40E&80E L2TP Function License (Optional) one for each chassis.

82400240 CR5S40NATS00 NetEngine40E&80E 2M NAT Session License (Optional)

You can configure one or

more licenses, which are shared by all

NE40E Series Universal Service Routers

Data Sheet

BOM

Number

Order Name

Description

Remarks

boards on one chassis.

88031QNW CR5S00NATS01 NetEngine40E&80E 16M NAT session License for

VSU Series Units

(Optional)

You can configure one or

more licenses, which are shared by all

boards on one chassis.

82400341 CR5S4020GC00 NetEngine40E&80E 20Gbps capacity License for

VSU Series Units

(Optional) One for VSUF-80, and One

or Two for VSUF-160.

81400709 CR5S40XLAN00 NetEngine40E VxLAN Function License (Optional) one for each chassis.

81400712 CR5S40GMLS00 NetEngine40E GMPLS UNI Function License (Optional) one for each chassis.

Table 44. NE40E Series Routers V600R008 Software Configuration List

BOM

Number

Order Name

Description

Remarks

88032HBE CR5S40BS6800 NetEngine40E&80E Base SW,VRP5,V600R008 Required at new sites.

81400370 CR5S40BRAS02 NetEngine40E&80E PPPoE/IPoE Function License (Optional) one for each chassis.

81400475 CR5S400EPT00

NetEngine40E&80E Ethernet Performance Test

License

(Optional) one for each chassis.

81400189 CR5S40CLCK00 NetEngine40E&80E 1588v2 Function License

(Optional) LPUF-40/LPUF-50: o

ne for

each chassis. Other boards:

one for

each board.

81400135 SWP-CR53LIC-V3R

3Update NetEngine80E/40E V3R3 Update Version upgrade fees. O

ne for each

chassis.

88030BUW CR5S40EF0000

NetEngine40E&80E Rn To R(n+1) Software

Enhanced Fee

Version upgrade fees. O

ne for each

chassis.

81400208 CR5S40MHAG00 NetEngine40E&80E Cross-chassis HAG Function

License

(Optional) one for each chassis.

81400279 CR5S400DAA00 NetEngine40E&80E DAA Function License (Optional) one for each chassis.

81400210 CR5S40L2TP00 NetEngine40E&80E L2TP Function License (Optional) one for each chassis.

This license controls the LNS function.

81400285 CR5S400MDI00

NetEngine40E&80E Video Monitoring Function

License

(Optional) one for each chassis.

82400206 CR5S40QS0100 NetEngine40E&80E Sub

scribers Quantity(1k

Subscribers)

(Optional)

You can configure one or

more licenses, which are shared by all

boards on one chassis.

82400313 CR5S40L3VN01

NetEngine40E L3VPN Function License for

LPUF-51-B

(Optional) one for each board.

82400314 CR5S40L3VN02

NetEngine40E L3VPN Function License for

LPUI-51-B

(Optional) one for each board.

NE40E Series Universal Service Routers

Data Sheet

BOM

Number

Order Name

Description

Remarks

82400380 CR5S40L3VN05

NetEngine40E L3VPN Function License for

LPUI-240-B

(Optional) one for each board.

82400381 CR5S40L3VN06

NetEngine40E L3VPN Function License for

LPUF-240-B

(Optional) one for each board.

82400378 CR5S40L3VN07

NetEngine40E L3VPN Function License for

LPUI-120-B

(Optional) one for each board.

82400379 CR5S40L3VN08

NetEngine40E L3VPN Function License for

LPUF-120-B

(Optional) one for each board.

82400317 CR5S40CLCK01 NetEngine40E 1588v2 Function License for 51

Series Units

(Optional) one for each board.

82400318 CR5S40CLCK04 NetEngine40E 1588v2 Function License for 101

Series Units

(Optional) one for each board.

82400404 CR5S40CLCK03 NetEngine40E 1588v

2 Function License for 120

Series Units

(Optional) one for each board.

82400405 CR5S40CLCK05 NetEngine40E 1588v2 Function License for 240

Series Units

(Optional) one for each board.

82400631 CR5S400FPM02 NetEngine40E IP Performance Measure License

(IP FPM) for 50G Series Units

(Optional) one for each board.

82400632 CR5S400FPM03 NetEngine40E IP Performance Measure License

(IP FPM) for 100G Series Units

(Optional) one for each board.

82400633 CR5S400FPM04 NetEngine40E IP Performance Measure License

(IP FPM) for 200G Series Units

(Optional) one for each board.

81400554 CR5SRADPXY00 NetEngine40E Radius-proxy Function License (Optional) one for each chassis.

82400240 CR5S40NATS00 NetEngine40E&80E 2M NAT Session License (Optional) one for each chassis.

81400588 CR5S40WIFI00 NetEngine40E Wifi Gateway Enhance Function

License

(Optional) one for each chassis.

88032PGT CR5S40SGTN04 NetEngine40E SoftGRE 4k Tunnel License (Optional) one for each chassis.

81400661 CR5S40SNCF00 NetEngine40E SNC Function Management

License

(Optional) one for each chassis.

82400666 CR5S40NEMA00 NetEngine40E Network Element Management

License for 100 AtomEngines

(Optional) one for each chassis.

82400667 CR5S40TFMA00 NetEngine40E TWAMP Function Management

License for 100 AtomEngines

(Optional) one for each chassis.

81400662 CR5S40RFMA00 NetEngine40E RFC2544 Function Management

License for AtomEngines

(Optional) one for each chassis.

82400668 CR5S40FFMA00 NetEngine40E IP FPM Function Management

License for 100 AtomEngines

(Optional) one for each chassis.

NE40E Series Universal Service Routers

Data Sheet

Documents

Table 45. Documents for NE40E Series ("●" indicates "support", and "-" indicates "not support")

BOM

Number

Order Name

Description

V600R008

V800R008

X16

X3A

X8A

X16

X16A

31189120 CR5I88DOCE10

HUAWEI NetEngine40E Universal

Service Router Product

Documentation

● ● ● - - - - -

31187785 CR5I68DOCE10 HUAWEI NetEngine40E&80E

Router Product Documentation - - - ● ● ● ● ●

Software Upgrade Paths

Visit Software Upgrade Paths to get VRP software release version or patches.

For More Information

For more information about the Huawei NE40E Series Routers, visit http://e.huawei.com or contact us in the

following ways:

- Global service hotline: http://e.huawei.com/en/service-hotline

- Logging into the Huawei Enterprise technical support web: http://support.huawei.com/enterprise/

- Sending an email to the customer service mailbox: support_e@huawei.com

No part of this document may be reproduced or transmitted in any form or by any means without prior written consent of Huawei

Technologies Co., Ltd.

Trademark Notice

, HUAWEI and are trademarks or registered trademarks of Huawei Technologies Co., Ltd.

Other trademarks, product, service and company names mentioned are the property of their respective owners.

NE40E Series Universal Service Routers

Data Sheet

General Disclaimer

The information in this document may contain predictive statements

including, without limitation, statements regarding the future financial and

operating results, future product portfolio, new technology, etc. There are a

number of factors that could cause actual results and developments to differ

materially from those expressed or implied in the predictive statements.

Therefore, such information is provided for reference purpose only and

constitutes neither an offer nor an acceptance. Huawei may change the

information at any time without notice.

HUAWEI TECHNOLOGIES CO., LTD.

Huawei Industrial Base

Bantian, Longgang

Shenzhen 518129, P.R. China

Tel: +86-755-28780808

www.huawei.com

ACL Special Topic (V1.0) NE40E Series Universal Service Routers Data Sheet

Navigation menu

Versions of this User Manual:

Views

Navigation
