AUSPEX
NP (ATM Release 2)
Manager’s Guide
ii
▲
Preliminary and Confidential USPEXA
Copyright
Copyright ©1998, Auspex Systems, Inc. All rights reserved. Printed in the United States of
America. Part Number 850479-001.
No part of this publication may be reproduced, in any form or by any means, without the
prior written consent of Auspex Systems, Inc. Auspex Systems, Inc., reserves the right to
revise this publication and make changes in content from time to time without obligation
on the part of Auspex Systems to provide prior notification of such revision or change.
Portions of this documentation incorporated by permission of FORE Systems, Inc.
U.S. GOVERNMENT RIGHTS: As specified in 48 C.F.R.12.212 of the FAR and in 48.C.F.R
227-7202-1 of the DFARS, the use, duplication or disclosure of licensed commercial
software and documentation is subject to the Auspex System's license. Such rights and
restrictions are similar to those set forth in FAR 52.227-19(c)(1)&(c)(2).
Trademarks
Auspex, the Auspex logo, Functional Multiprocessor, Functional Multi-processor,
Functional Multi-processing, Functional Multiprocessing Kernel, FMK, and FMP are
registered trademarks of Auspex Systems, Inc. NS 7000, NS 6000, NS 6002, NS 5500,
NS 5502, NS 5000, NS 3000, NetServer, DataGuard, ServerGuard, Functional
Multiprocessing, NeTservices, and Thrive Carefully are trademarks of Auspex Systems,
Inc.
AT&T is a registered trademark of AT&T Corporation. Microsoft, MS, MS-DOS, Windows,
Windows NT, and Backoffice are either registered trademarks or trademarks of Microsoft
Corporation. Sun, Sun Microsystems, the Sun Logo, Solaris, SunOS, ONC, ONC/NFS, and
NFS are trademarks or registered trademarks of Sun Microsystems, Inc. All SPARC
trademarks are used under license and are the trademarks or registered trademarks of
SPARC International, Inc. in the United States and other countries. UNIX is a registered
trademark in the United States and other countries of The Open Group. VMEbus is a
trademark of VMEbus Manufacturers Group. DEC and VT 510 are trademarks of Digital
Equipment Corp. ForeRunner is a trademark of FORE Systems, Inc. Acrobat is a trademark
of Adobe Systems, Inc.
Auspex NetServer
System Software is derived from UNIX® licensed from The Santa
Cruz Operation, Inc. and SunOs™ 4.1.4 and ONC
/NFS
4.1 licensed from Sun
Microsystems, Inc. Auspex NetServer System Software Version 1.10 incorporates AT&T’s
Advanced Server for UNIX
Systems. Auspex Optional Products Premier Software Series
for NeTservices
incorporates AT&T’s Advanced Server for UNIX Systems and
NETBIOS/ix
. NETBIOS/ix is a registered U.S. trademark of Micro Computer Systems,
Inc.
Microsoft may have patents or pending patent applications, trademarks, copyrights, or
other intellectual property rights covering subject matter in this document. The furnishing
of this document does not give you any license to these patents, trademarks, copyrights,
or other intellectual property rights except as expressly provided in any written license
agreement from Microsoft.
Auspex Systems, Inc.
2300 Central Expressway
Santa Clara, California 95050
Phone: (408) 566-2000
Fax: (408) 566-2020
Internet: info@auspex.com
World Wide Web: http://www.auspex.com
Preliminary and Confidential
▲
iii
USPEXA
Protection Against Electrostatic Discharge
To prevent damage to the system due to electrostatic discharge, always wear the antistatic
wrist strap provided with your network server when you come in contact with the system.
Publication Change Record
The following table records all revisions to this publication. The first entry is always the
publication’s initial release. Each entry indicates the date of the release and the number of
the system release to which the revision corresponds.
Part Number Date Description
850479-001 March 1998 Release 1.10, first release
Preface
▲
v
Preliminary and Confidential
USPEXA
Preface
About This Guide
This guide provides information on how to operate and manage NP (ATM Release 2)
software. It assumes you are familiar with the ATM network environment and
terminology.
Information in this guide was derived in part from the
ForeRunner™ SBA-200 ATM SBus
Adapter User’s Manual
dated March 1996.
Applicable Documentation
The following is a list of documents you will find useful when installing or operating
NP (ATM Release 2):
▲
Software Release Note, Auspex Systems, Inc.
▲
System Manager’s Guide,
Auspex Systems, Inc.
▲
Hardware Release Note, Auspex Systems, Inc.
▲
Hardware manual for your server model
Typographical Conventions
In this guide, different typefaces indicate different kinds of information. The following
table explains these typographical conventions.
Hexadecimal values in the text are preceded with “0x,” and leading zeros are not always
shown. For example, the notation 0x68 is used to indicate the hexadecimal address
00000068.
Font Meaning
Typewriter
Indicates a literal screen message.
Bold
In a command line, indicates information to be entered exactly as shown.
In text, indicates a command name or device name.
Italics
In a command line, indicates a nonliteral item or variable for which you
substitute an appropriate value. In text, indicates a path name or a special
term.
vi
▲
NP (ATM Release 2) Manager’s Guide
Preliminary and Confidential USPEXA
Special Messages
The following special messages are used in this guide:
Warning:
Warnings alert you to the danger of personal injury and call
attention to instructions you must follow for your personal safety.
Caution:
Cautions call attention to instructions you must follow to prevent
damage to system hardware or software or loss of system data.
Note:
Notes call attention to important information you should be aware of as
you follow the procedures described in this guide.
Recommendation:
Recommendations call attention to an item or procedure
that is not required but might help improve performance, ease of use, and ease
of installation or configuration.
Tools
The tools icon identifies the tools you need to complete a task.
Preliminary and Confidential
Preface
▲
vii
USPEXA
Getting Help
Customer support is described in this section.
North America Telephone Support
Customers in North America can reach Auspex customer service at any time by dialing 1-
800-3-AUSPEX or 1-800-328-7739.
International Telephone Support
Customers within the countries and territory listed as follows can reach Auspex customer
service at any time by dialing the appropriate telephone number.
International customers who purchase Auspex products from an authorized distributor or
reseller should contact that distributor or reseller for support
Email Support
Customer support through email is available to both North America and International
customers at the following address:
support@corp.auspex.com
Country or territory Telephone number Country or territory Telephone number
Australia 1-800-121-194 Luxembourg 0800-2721
Austria 0-660-7912 Malaysia 800-4509
Belgium 0800-1-0180 Netherlands 06-0222158
Denmark 80-01-03-60 Norway 800-1-1294
France 0800-91-21-32
(0800-26-38-22)
*
* France has two toll-free numbers. The number in () is directed to the Paris office during the working day.
Philippines 1-800-116-0005
Germany 0130-81-8306 Poland 00-800-441-1220
Hong Kong 800-4803 Spain 900-95-4445
Ireland 1800 55 3343 Sweden 020-797326
Israel 177 440 9285 Switzerland 0800-55-1339
Italy 1678-73541 Taiwan 0080-14-9580
Japan 0044-22-12-2414 United Kingdom 0800-28-7739
Korea 0038-13-0374
viii
▲
NP (ATM Release 2) Manager’s Guide
Preliminary and Confidential USPEXA
Customer Feedback
To comment on the content of this publication, send email to Auspex Technical
Publications at the following address:
techpubs@corp.auspex.com
World Wide Web
For more information about Auspex Systems, Inc. and its products, use the following
resource location on the World Wide Web:
http://www.auspex.com
▲
ix
Preliminary and Confidential
USPEXA
Contents
Chapter 1 Overview of NP (ATM Release 2)
About This Chapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
FORE IP Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
Classical IP Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
Logical IP Subnets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
LANE Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
Address Registration and ILMI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7
ATM Addresses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7
Operating with ILMI Support. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7
ATMARP Server Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8
NP (ATM Release 2) Limitations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-10
Chapter 2 Installing NP (ATM Release 2)
About This Chapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
Hardware Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
Package Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
Software Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4
About This Chapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
NP (ATM Release 2) Network Interface Numbering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
Configuring FORE IP Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3
Configuring Classical IP Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4
Configuring LEC Interfaces. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5
Chapter 3 Configuring Network Interfaces
About This Chapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
Maintenance Utilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
ax_adinfo(8C) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
ax_atmarp(8C) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
ax_atmconfig(8C) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
ax_atmlooptest(8C). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
ax_atmstat(8C) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
ax_elarp(8C) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3
ax_elconfig(8C) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3
ax_elcreate(8C). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3
NP (ATM Release 2) and ax_perfmon . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
Operating Without ILMI Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5
Configuring the NetServer as an ATMARP Server. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6
Load Balancing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6
Removing NP (ATM Release 2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-7
▲
xi
Preliminary and Confidential
USPEXA
Figures
Single LANE network 1-6

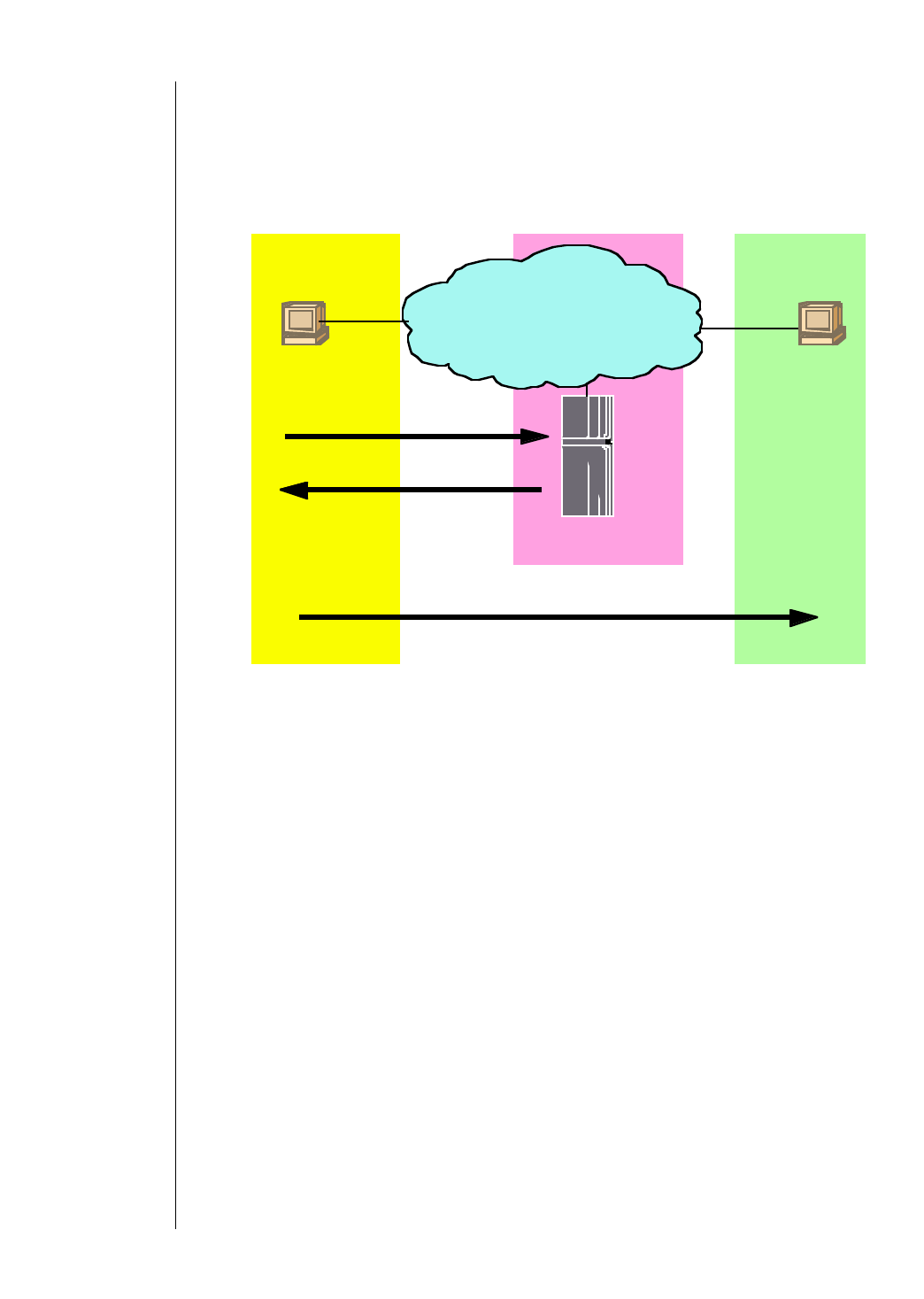

ATMARP server operation 1-9
Example of an NP (ATM Release 2) entry in an ax_perfmon display 4-4
xii
▲
Figures
Preliminary and Confidential USPEXA
▲
xiii
Preliminary and Confidential
USPEXA
Tables
Table 1-1. NP (ATM Release 2) features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
Table 1-2. NP (ATM Release 2) limitations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-10
Example of NP (ATM Release 2) network interface numbering 3-2
xiv
▲
Tables
Preliminary and Confidential USPEXA
Overview of NP (ATM Release 2)
▲
1-1
USPEXA
1
Overview of
NP (ATM Release 2)
About This Chapter
This chapter describes NP (ATM Release 2) software and features.
The following topics are covered in this chapter:
▲
Overview
▲
FORE IP Interface
▲
Classical IP Interface
▲
Address Registration and ILMI
▲
ATMARP Server Operation
▲
NP (ATM Release 2) Limitations
1-2
▲
NP (ATM Release 2) Manager’s Guide
USPEXA
Overview
NP (ATM Release 2) is Auspex’s Network Processor (NP)-resident implementation of
Asynchronous Transfer Mode (ATM). The Auspex implementation, with hardware and
software supported directly on the NP, results in improved throughput and response time.
NP (ATM Release 2) is based on FORE Systems’ SBA-200 Series ATM adapter hardware
and software. NP (ATM Release 2) provides connectivity to compatible ATM switches
through multi-mode fiber-optic (OC-3) cables with SC and ST-type connectors, or
unshielded twisted pair category 5 (UTP5) cables with RJ-45 connectors at 155 megabits
per second.
Auspex supports up to 3 adapters per NP and up to 15 adapters per system. Each NP
supports up to 1024 active virtual connections. Each adapter provides up to 21 IP interfaces
(1 FORE IP interface, 4 Classical IP interfaces, and 16 LEC interfaces), allowing you to
configure up to 21 IP subnets per adapter.
Table 1-1 lists the features available with NP (ATM Release 2).
Table 1-1. NP (ATM Release 2) features
▲
LAN Emulation (LANE) over ATM
▲
LAN Emulation Client (LEC) support for Ethernet LANs
▲
SPANS Switched Virtual Circuit (SVC) signalling protocol
▲
Permanent Virtual Circuits (PVC)
▲
Supports up to 1024 Virtual Circuit Identifiers (VCIs)
▲
Supports UNI 3.0 signalling
▲
Supports Interim Local Management Interface (ILMI)
▲
Supports up to 21 virtual Internet Protocol (IP) interfaces per adapter
(1 FORE IP, 4 Classical IP, and 16 LEC)
FORE IP Interface
▲
1-3
FORE IP Interface
The FORE IP interface supports the Single Protocol for ATM Network Signalling (SPANS)
protocol and enables communication using ATM Adaptation Layer 4 or 5 (AAL4 or AAL5)
without encapsulation. FORE IP uses a broadcast ATMARP server for SPANS signalling
and supports direct communication of all hosts on a physical ATM network without the
use of IP routers. Since SPANS and UNI 3.0 use different virtual connections to establish
network communication, a host can simultaneously support both FORE IP over SPANS
and Classical IP over UNI 3.0 on the same ATM adapter.
As a result of standard IP routing, all traffic sent through an
afa
interface will use FORE IP,
while all traffic sent through an
aqa
interface will use Classical IP.
Note:
Both the
afa
and
aqa
interfaces can be configured simultaneously, but
they must reside on separate subnets. Classical IP specific configuration
changes can only be made with the
aqa
devices, while SPANS specific
configuration changes can only be made with
afa
devices.
1-4
▲
NP (ATM Release 2) Manager’s Guide
USPEXA
Classical IP Interface
The term classical indicates that the ATM network has the same properties as the existing
legacy LANs. That is, even though ATM technology allows for large globally connected
networks, for example, it is only used in the LAN environment as a direct replacement of
existing LAN technology. The classical model of LANs connected through IP routers is
maintained in ATM networks.
Classical IP over ATM is different than IP in legacy LANs in that ATM provides a virtual
connection environment through the use of permanent virtual circuits (PVCs) and/or
switched virtual circuits (SVCs). SVC management is performed via UNI 3.0 signalling.
UNI 3.0 is a broadband signalling protocol designed to establish connections dynamically.
On an Auspex NetServer, each Classical IP interface name begins with
aqa
.
Once a Classical IP connection has been established, IP datagrams are encapsulated using
IEEE 802.3 LLC/SNAP and are segmented into ATM cells using AALS.
Note:
There is currently no support for IP broadcast or IP multicast datagrams
in Classical IP network environments.
RFC-1577 is the standard specification for Classical IP over ATM.
Logical IP Subnets
An important concept in Classical IP networks is that of a Logical IP Subnet (LIS). An LIS
is a group of hosts configured to be members of the same IP subnet (that is, they have the
same IP network and subnetwork numbers). In this sense, one LIS can be equated to one
legacy LAN. In a Classical IP ATM network, placing a host on a specific subnet is a logical
choice rather than a physical one.
The number of LISs, and the division of hosts into each LIS, is purely an administrative
issue. Limitations of IP addressing, IP packet filtering, and administrative boundaries may
guide a network manager into establishing several LISs into a single ATM network.
Note:
Communication between LISs must occur through IP routers.
LANE Services
▲
1-5
LANE Services
Auspex’s NP (ATM Release 2) software is compliant with the ATM Forum’s
LAN Emulation
over ATM Version 1.0
specification, and supports LAN Emulation (LANE) of Ethernet (IEEE
802.3) LANs only. LANE allows higher level protocols and LAN applications to
interoperate, without modifications, in an ATM network. The components of LANE work
together to emulate an emulated LAN (ELAN), resolve MAC to ATM addresses, replace
the connectionless operation of legacy LANs with point-to-point connections, and provide
broadcast and multicast services.
An ELAN has the following components:
▲
LANE Clients (LECs)
▲
LANE Configuration Server (LECS)
▲
LANE Server (LES)
▲
Broadcast and Unknown Server (BUS)
Each of these components is described as follows.
LEC The LEC runs on each end station in the ELAN. LECs communicate with
other ELAN components (LES and BUS) to resolve MAC addresses into
ATM addresses.
LECS The LECS runs on a SunOS workstation or a FORE Systems ATM switch.
It maintains information about all ELANs within the administrative
domain. When the LEC successfully communicates with the LECS, the
LECS provides a list of ELANs that the LEC can join.
LES The LES runs on a SunOS workstation or a FORE Systems ATM switch. It
maintains information about the LECs within a single ELAN and performs
address resolution.
BUS The BUS runs on a SunOS workstation or a FORE Systems switch. It
provides services within a single ELAN allowing broadcasts, multicast,
and unknown unicasts within a single ELAN.
Note:
Auspex currently supports Ethernet LECs only. The LECS and LES
should be configured either on an ATM switch or an external host.
1-6
▲
NP (ATM Release 2) Manager’s Guide
USPEXA

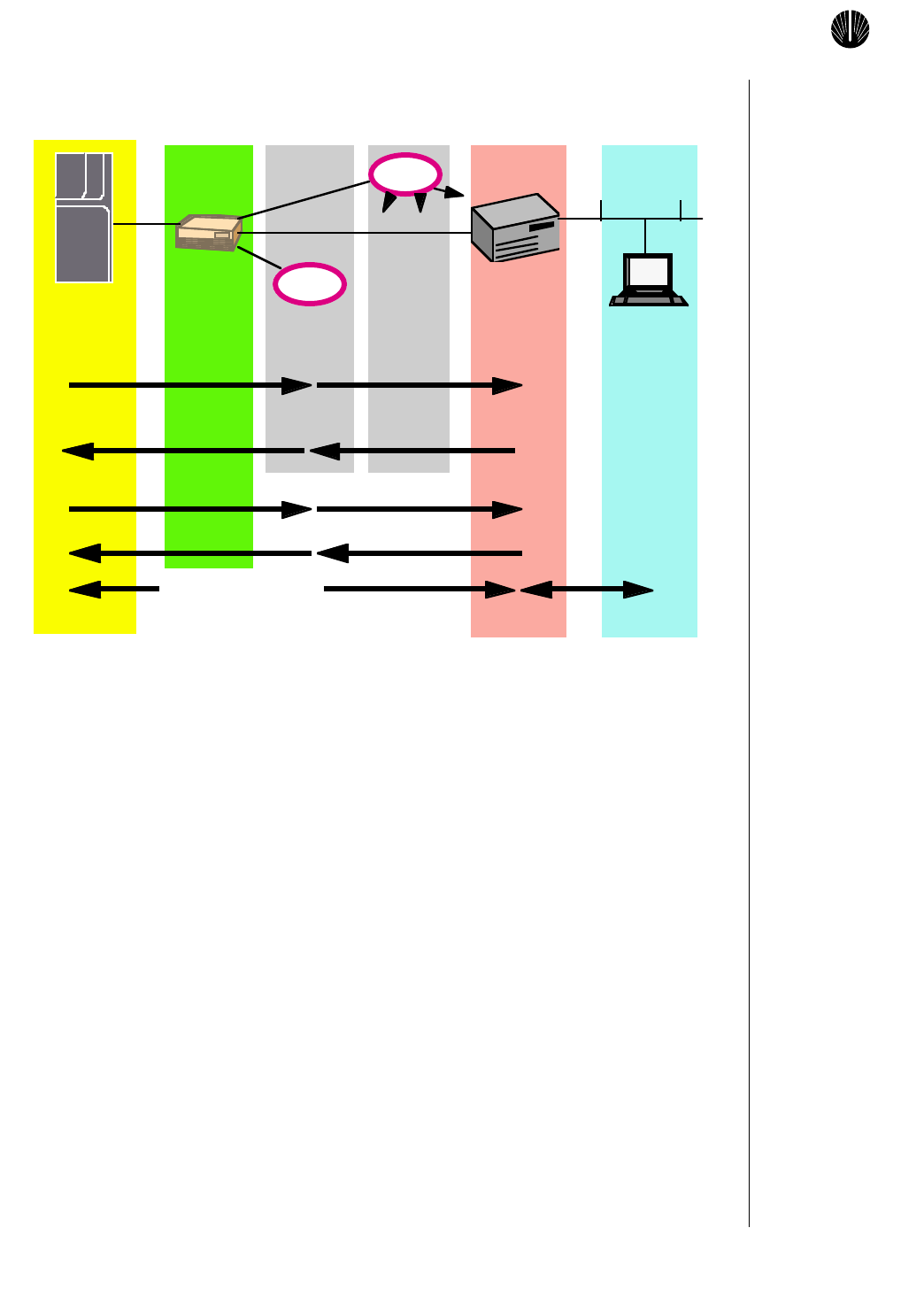

Figure 1-1 shows an example of a single LANE network in which the NetServer
(workstation A) attempts to initiate data transfers to workstation B.
Figure 1-1. Single LANE network
ATM
Switch
LAN
Switch
BUS
LES
1. Address request sent to LES and BUS
2. If LAN Switch knows MAC address the of B,
it sends its own ATM address to A
AB
3. Connection Request Connection Indication
Connection Received Connection Sent
Data Transmission
Address Registration and ILMI
▲
1-7
Address Registration and ILMI
Before a host can establish connections over a physical interface, the host must know the
ATM address for that interface. The primary purpose of the Interim Local Management
Interface (ILMI) is to discover and register these ATM addresses dynamically. ATM
addresses and ILMI support are discussed in the following sections.
ATM Addresses
For private ATM networks, addresses uniquely identify ATM endpoints. The UNI 3.0
address format is modeled after that of an OSI Network Service Access Point (NSAP).
Since ATM does not have the concept of MAC addresses, ATM uses NSAP addresses,
which are 20 bytes long.
An ATM address consists of the following:
▲
13-byte network-side prefix. The prefix is the ATM prefix of the switch to which the
host is attached.
▲
7-byte user-side portion consisting of the following:
– 6-byte End System Identifier (ESI). The ESI is the unique IEEE MAC address of
the interface.
– 1-byte selector. Although each virtual interface for a given physical interface uses
the same prefix and ESI, the selector field identifies a specific virtual interface. For
example:
0x47.0005.80.ffe100.0000.f21a.1d25.002048062f8b.00
In the example,
0x47.0005.80.ffe100.0000.f21a.1d25.
is the ATM switch prefix,
002048062f8b
is the MAC portion, and
.00
is the selector field that identifies the
number of the adapter interface.
Operating with ILMI Support
If ILMI is supported on all of the switches and hosts in a given network, when a switch
boots up, ILMI enables the switch to discover all of the hosts attached to it and to send its
ATM prefix associated with the port to those hosts dynamically. In return, the host
prepends that prefix to its ESI and selector fields, forming a complete ATM address.
If a host changes network ports after an ATM address has been registered for its interface,
all existing connections will be closed. If the new port is on a different switch, a new ATM
address (with a different network address prefix) will be registered. The host can then
establish new connections.
Auspex NetServers support ILMI by default. Instructions for using NP (ATM Release 2)
without ILMI support are in Chapter 4. There is one instance of the ILMI (
ax_ilmid
)
daemon running per adapter. See the
ax_ilmid
man page for more information.
1-8
▲
NP (ATM Release 2) Manager’s Guide
USPEXA
ATMARP Server Operation
Auspex supports the ATM Address Resolution Protocol (ATMARP) operation for
customers who want to obtain the ATM to IP address resolution from the NetServer.
In order for a host to establish a connection to another host, it must first determine the
other host’s ATM address. ATMARP is the procedure used to resolve an IP address into an
ATM address. Since the ATM standards do not currently support broadcast on an
ATM/Classical IP interface, address resolution is performed by direct communication
with a special ARP server, rather than broadcasting ARP requests as is done in legacy
LANs.
Each host in an LIS must be configured with the ATM address of the host providing ARP
service for its LIS. On a host ATMARP server, the ATM address of the ARP server can be
obtained by running
ax_atmarp -z
(remember to use the interface associated with the
given LIS). The ARP server address is normally configured into each host at installation
time (the appropriate commands are placed in the script
rc.ax_sba200
in the directory
/usr/etc/fore
or the user specified directory), but it may be done at any time by running
ax_atmarp -p
. If the ATMARP server address is configured in the firmware download
script, it will be persistent across reboots, but if it is configured using
ax_atmarp -p
, it will
not be persistent across reboots.
Since only one ATMARP server can function at a time in a given LIS, and since the
ATMARP server’s address is manually configured into each host, it is not possible to use
multiple, redundant ATMARP servers to improve robustness. If an ATMARP server
becomes nonfunctional, a new ATMARP server must be configured, and each host within
the LIS must be configured to use the new ATMARP server. A new ATMARP server
address can be configured on a host by running the ax_atmarp -p command to set the new
address and the ifconfig command to mark the appropriate interface UP or DOWN for the
change to take effect. For example:
# ax_atmarp -p <ATMaddress device>
# ifconfig aqax down; ifconfig aqax up
In the example, x represents the number of the interface.
ATMARP Server Operation ▲1-9
Figure 1-2 shows an Auspex NetServer configured as an ARP server. In the figure,
workstation A is attempting to make a connection to workstation B on LIS 1. Workstation
A sends an ARP request containing the IP address to be resolved to the ATMARP server.
When workstation A receives the ATMARP reply from the ATMARP server, workstation
A creates an ATMARP cache to store the IP to ATM address map and begins data
transmission to workstation B.
Figure 1-2. ATMARP server operation
A
ATM Network /
LIS 1
B
ARP
Server
1. ARP Request with B’s IP address
2. ARP Reply with B’s ATM address
3. Data Transmission
1-10 ▲NP (ATM Release 2) Manager’s Guide
USPEXA
NP (ATM Release 2) Limitations
Table 1-2 lists limitations in the NP (ATM Release 2) software architecture.
Table 1-2. NP (ATM Release 2) limitations
▲Up to 1,024 connections per adapter
▲Up to 16 LECs supported per adapter (Ethernet only)
▲No UNI 3.1 support
▲No support for LES, BUS, or LECS
▲No Token Ring support
▲No support for IP multicasting
Installing NP (ATM Release 2) ▲2-1
USPEXA
2Installing
NP (ATM Release 2)
About This Chapter
This chapter describes how to install and configure NP (ATM Release 2) software. The
procedures described in this chapter assume that your NetServer is already installed at
your site.
The following topics are covered in this chapter:
▲Hardware Configuration
▲Package Tools
▲Software Installation
2-2 ▲NP (ATM Release 2) Manager’s Guide
Preliminary and Confidential USPEXA
Hardware Configuration
NP (ATM Release 2) uses ForeRunner SBA-200 Series ATM adapters. Each NP can have up
to 3 adapters for a maximum of 15 adapters per NetServer.
To display your NetServer’s hardware configuration, enter the ax_config command; for
example:
# ax_config -d
Information regarding your NetServer’s hardware configuration is displayed. Here is an
example:
60-0028 ? 84383FORE ATM/OC3SC Module SBA-200E (4.0.0)
60-0047 ? 84383FORE ATM/UTP5 Module SBA-200E (4.0.0)
Contact your Auspex sales representative to purchase ATM adapters, or your Auspex
service representative to install ATM adapters.
Preliminary and Confidential
Package Tools ▲2-3
USPEXA
Package Tools
Package tools allow you to install NP (ATM Release 2) from the Auspex Premier Software
Series CD-ROM shipped with your system. Package tools are the standard SVR4 package
utilities, which are shipped as part of the Auspex system software. The tools allow you to
add, check, remove, and display information about NP (ATM Release 2). The basic
commands are as follows:
▲pkgadd(1M) – Transfers the contents of a software package from the distribution
medium, and installs it onto a system. Messages from this command display on the
console and are written to the file /var/log/pkgadd.log on the target drive and
/tmp/pkgadd.log on the current root drive.
Note: pkgadd(1M) sets userid to install, if it exists; otherwise, it sets userid to
root. If you have a userid of install set up, it must have superuser permission or
the pkgadd will fail. Either remove or rename the install userid, or give the
install userid superuser permissions.
▲pkgchk(1M) – Checks the accuracy of installed files or, by using the -l option,
displays information about package files.
▲pkgrm(1M) – Removes a previously or partially installed package from the system.
Messages from this command display on the console and are written to the file
/var/log/pkgrm.log on the target drive and /tmp/pkgrm.log on the current root drive.
▲pkginfo(1M) – Displays information about software packages installed on the
system.
For more information, refer to the UNIX man pages for these commands: pkgadd(1M),
pkgchk(1M), pkgrm(1M), and pkginfo(1M).
2-4 ▲NP (ATM Release 2) Manager’s Guide
Preliminary and Confidential USPEXA
Software Installation
This section provides procedures for installing the NP (ATM Release 2) software.
Recommendation: After completing the installation, test the new software to
verify that the updated root drive is usable (for example, it boots, runs, and
the newly added features work). If everything works correctly, clone the entire
root disk to an alternate root disk using the ax_sputil(8) command with the
copy option. Alternatively, copy each file system on the root disk to an
alternate root disk using the ax_clonefs(8) command on each file system.
To install NP (ATM Release 2)
1. Mount the Premier Software Series CD. For example:
# mount -rt hsfs /dev/acd1 /cdrom
This command mounts the CD in drive slot 1 on /cdrom.
2. Mount /usr with read/write privilege:
# mount -o remount,rw /usr
3. Add the software package to the server by entering the following command:
# pkgadd -d /cdrom
The system prompts you to select a software package from a list similar to the
following.
pkgadd session stated on Mar 2 10:45:05 PST 1998
The following packages are available:
1 AXatm2 ATM 2
(HP-VII,HP-VIII) 1.10
2 AXbackup FastBackup
(HP-VII,HP-VIII) 1.10
3 AXdguard DataGuard
(HP-VII,HP-VIII) 1.10
4 AXdocs Auspex System Documentation
(HP-VII,HP-VIII) 1.10
5 AXdrvgrd DriveGuard
(HP-VII,HP-VIII) 1.10
6 AXftp NP Resident FTP
(HP-VII,HP-VIII) 1.10
7 AXsrvgrd ServerGuard
(HP-VII,HP-VIII) 1.10
8 AXEC1 EtherChannel
(HP-VII,HP-VIII) 1.10
9 AXNeTsrv NeTservices Products
(HP-VII,HP-VIII) 1.10
10 AXNTadmin NeTservices Administration
(HP-VII,HP-VIII) 1.10
11 AXNTBios NeTservices Concepts and Planning
(HP-VII,HP-VIII) 1.10
Select package(s) you wish to process (or 'all' to process
all packages). (default: all) [?,??,q]:
Preliminary and Confidential
Software Installation ▲2-5
USPEXA
where ? is a one-digit entry, and ?? is a two-digit entry.
4. Type 3 for the NP (ATM Release 2) package.
The system responds with:
Processing package instance <AXatm2> from /cdrom
ATM 2
(HP-VII,HP-VIII) 1.10
pkgadd installs NP (ATM Release 2) on the NetServer. The system then responds with
the following message:
Do you want to activate ATM 2 immediately after installation?[y/n]
5. Enter y to activate NP (ATM Release 2) immediately after installation. Enter n if you
do not wish to activate NP (ATM Release 2) immediately after installation.
Note: If you choose not to activate the NP (ATM Release 2) software
immediately after installation, use the ax_enable(8) command to activate the
software at a later time.
The installation process continues with the following messages:
## Processing package information.
## Processing system information.
## Verifying package dependencies.
## Verifying disk space requirements.
## Checking for conflicts with packages already installed.
## Checking for setuid/setgid programs.
This package contains scripts which will be executed with
superuser permission during the process of installing this
package.
Do you want to continue with the installation of this package?
[y,n]
6. Enter y to continue with the installation.
Installing ATM 2 as <AXatm2>
## Executing preinstall script.
## Installing part 1 of 1.
[ verifying class <none> ]
/usr/etc/fore/ax_adinfo
/usr/etc/fore/ax_atmarp
/usr/etc/fore/ax_atmconfig
/usr/etc/fore/ax_atmlooptest
/usr/etc/fore/ax_atmstat
/usr/etc/fore/ax_elarp
/usr/etc/fore/ax_elconfig
/usr/etc/fore/ax_elcreate
/usr/etc/fore/ax_ilmid
/usr/etc/fore/ax_ncomm
/usr/etc/fore/ax_objcopy
/usr/etc/fore/ax_sba200.ucode1
/usr/etc/fore/ax_sba200.ucode2
/usr/etc/fore/ax_sba200e.ucode1
/usr/etc/fore/ax_sba200e.ucode2
/usr/etc/fore/rc.ax_sba200
/usr/man/man4/afa.4
/usr/man/man4/aqa.4
/usr/man/man8/ax_adinfo.8c
/usr/man/man8/ax_atmarp.8c
/usr/man/man8/ax_atmconfig.8c
/usr/man/man8/ax_atmlooptest.8c
/usr/man/man8/ax_atmstat.8c
/usr/etc/fore/ax_elarp.8c
/usr/etc/fore/configuration.lane
/usr/etc/fore/ax_elconfig.8c
/usr/etc/fore/ax_elcreate.8c
/usr/man/man8/ax_ilmid.8c
/usr/man/man8/ax_ncomm.8c
Installation of <AXatm2> was successful.
The following packages are available:
1 AXatm2 ATM 2
(HP-VII,HP-VIII) 1.10
2 AXbackup FastBackup
(HP-VII,HP-VIII) 1.10
3 AXdguard DataGuard
(HP-VII,HP-VIII) 1.10
4 AXdocs Auspex System Documentation
(HP-VII,HP-VIII) 1.10
5 AXdrvgrd DriveGuard
(HP-VII,HP-VIII) 1.10
6 AXftp NP Resident FTP
(HP-VII,HP-VIII) 1.10
7 AXsrvgrd ServerGuard
(HP-VII,HP-VIII) 1.10
8 AXEC1 EtherChannel
(HP-VII,HP-VIII) 1.10
9 AXNeTsrv NeTservices Products
(HP-VII,HP-VIII) 1.10
10 AXNTadmin NeTservices Administration
(HP-VII,HP-VIII) 1.10
11 AXNTBios NeTservices Concepts and Planning
(HP-VII,HP-VIII) 1.10
Select package(s) you wish to process (or 'all' to process
all packages). (default: all) [?,??,q]:
7. Enter q to quit the pkgadd routine.
pkgadd session finished on Mar 2 17 10:58:50 PST 1998
A log of this session of pkgadd is at /tmp/pkgadd.log on the
current root disk, and at /var/log/pkgadd.log on the target disk.
8. Verify the installation using the pkgchk command; for example:
# pkgchk -l AXatm2
This completes NP (ATM Release 2) installation.
Configuring Network Interfaces ▲3-1
Preliminary and Confidential
USPEXA
3Configuring Network
Interfaces
About This Chapter
This chapter provides procedures for configuring FORE IP, Classical IP, and LEC
interfaces.
The following topics are covered in this chapter:
▲NP (ATM Release 2) Network Interface Numbering
▲Configuring FORE IP Interfaces
▲Configuring Classical IP Interfaces
▲Configuring LEC Interfaces
The procedures in this chapter assume that ILMI is running and the NSAP addresses are
automatically configured for each interface. See Chapter 4 for procedures on manually
configuring NSAP addresses on the Classical IP interfaces.
3-2 ▲NP (ATM Release 2) Manager’s Guide
Preliminary and Confidential USPEXA
NP (ATM Release 2) Network Interface
Numbering
This section describes NP (ATM Release 2) network interface numbering.
After installing the NP (ATM Release 2) software, you need to configure the network
interface s. Each network interface must be configured with a unique IP address that is
within the subnet assigned to the ELAN.
NP (ATM Release 2) allows you to configure three types of ATM network interfaces:
1 FORE IP primary (afa) interface, 4 Classical IP virtual (aqa) interfaces, and 16 LEC (ael)
interfaces.
Table 3-1 shows an example of the NP (ATM Release 2) network interface numbering for
an Auspex NetServer with two NP boards (NP0 and NP1), each having two ATM adapters
(0, 1 and 2, 3).
In the example, FORE IP primary interfaces are named afa0 – afa3, depending on the
number of ATM adapters installed in the server. Classical IP virtual interfaces are named
aqa0 – aqa15, depending on the number of FORE IP primary interfaces configured. Each
Classical IP interface has its virtual interface number as a suffix. LEC interfaces are named
ael0 – ael63, depending on the number of ELANs configured.
Table 3-1. Example of NP (ATM Release 2) network interface numbering
NP
board no. ATM
adapter no. FORE IP
primary interfaces Classical IP
virtual interfaces LEC
interfaces
0 0 afa0 aqa0, aqa1, aqa2, aqa3 ael0 – ael15
0 1 afa1 aqa4, aqa5, aqa6, aqa7 ael16 – ael31
1 2 afa2 aqa8, aqa9, aqa10, aqa11 ael32 – ael47
1 3 afa3 aqa12, aqa13, aqa14, aqa15 ael48 – ael63
Preliminary and Confidential
Configuring FORE IP Interfaces ▲3-3
USPEXA
Configuring FORE IP Interfaces
This section provides the procedures for configuring FORE IP primary interfaces.
Each ATM adapter in the NetServer must be configured with a FORE IP address. Auspex
system software recognizes FORE IP primary interfaces as afa in commands and displays.
To configure the FORE IP primary interface addresses
1. Run NSconfig(8) to edit the network information for each afa interface, then execute
NSconfig with Ctrl-F.
Note: NSconfig executes ifconfig’s of network interfaces whether you are
running in single or multi-user mode.
Caution: Do not alter the ifconfig command lines in the file /etc/rc.boot.
NSconfig relies on these command lines to function properly.
For example, the following NSconfig form shows entries for five ATM adapters
installed in an Auspex NetServer:
ATM FORE SPANS Intf
afa0 >UP [host-afa0__] [100.00.00.0_] [ffffff00_______]>0
. afa0 on-net afa0 off-net
.
.
afa1 >UP [host-afa1__] [100.00.00.1_] [ffffff00_______]>0
. afa1 on-net afa1 off-net
.
.
afa2 >UP [host-afa2__] [100.00.00.2_] [ffffff00_______]>0
. afa2 on-net afa2 off-net
.
.
afa3 >Dwn
.
.
.
afa4 >UP [host-afa4__] [100.00.00.3_] [ffffff00_______]>0
afa4 on-net afa4 off-net
In this example, interfaces afa0, afa1, afa2, and afa4 are marked UP, and interface afa3
is marked DWN.
2. If you changed the IP address or netmask of a network interface, or if the NIS type is
changed to master or slave, reboot the server after running NSconfig. This creates
entries in the /etc/rc.boot file.
This completes the procedure for configuring the FORE IP primary interface addresses.
3-4 ▲NP (ATM Release 2) Manager’s Guide
Preliminary and Confidential USPEXA
Configuring Classical IP Interfaces
This section provides the procedures for configuring Classical IP virtual interfaces.
Each ATM adapter in the NetServer can be configured with a Classical IP virtual interface
address. Auspex system software recognizes Classical IP virtual interfaces as aqa in
commands and displays.
To configure the Classical IP virtual interface addresses
1. Run NSconfig(8) to edit the network information for each aqa interface, and execute
NSconfig using Ctrl-F.
Note: NSconfig executes the ifconfig’s of network interfaces whether you are
running in single or multi-user mode.
Caution: Do not alter the ifconfig command lines in the file /etc/rc.boot.
NSconfig relies on these command lines to function properly.
For example, the following NSconfig form shows entries for five ATM adapters
installed in an Auspex NetServer:
ATM Classical IP Intf
aqa0 >UP [host-aqa0__] [100.00.00.0_] [ffffff00_______]>0
. aqa0 on-net aqa0 off-net
.
.
aqa4 >UP [host-aqa4__] [100.00.00.1_] [ffffff00_______]>0
. aqa4 on-net aqa4 off-net
.
.
aqa8 >UP [host-aqa8__] [100.00.00.2_] [ffffff00_______]>0
. aqa8 on-net aqa8 off-net
.
.
aqa12 >Dwn
.
.
.
aqa16 >UP [host-aqa16__] [100.00.00.3_] [ffffff00_______]>0
aqa16 on-net aqa16 off-net
In this example, interfaces aqa0, aqa4, aqa8, and aqa16 are marked UP, and interface
aqa12 is marked DWN.
The NSAP address for each interface is automatically determined by the ILMI
daemon (ax_ilmid).
2. If you changed the IP address or netmask of a network interface, or if the NIS type is
changed to master or slave, reboot the server after running NSconfig.
This completes the procedure for configuring Classical IP virtual interface addresses.
Preliminary and Confidential
Configuring LEC Interfaces ▲3-5
USPEXA
Configuring LEC Interfaces
This section provides the procedures for configuring LEC interfaces.
Note: NP (ATM Release 2) does not support the LAN Emulation
Configuration Server (LECS) and LAN Emulation Server (LES) features of
LANE. This guide does not provide procedures for these features.
Auspex system software recognizes the LEC interfaces as ael in commands and displays.
Setting LEC interface addresses requires a few simple steps including, running the
NSconfig(8) command.
Note: NSconfig executes the ifconfig’s of network interfaces whether you are
running in single or multi-user mode.
Caution: Do not alter the ifconfig command lines in the file /etc/rc.boot.
NSconfig relies on these command lines to function properly.
A reboot after running NSconfig is only required if you are running in multi-user mode,
changing the IP address or netmask of a network interface, or the NIS type is changed to
master or slave.
To configure LEC interfaces
1. Using vi(1) or other editor, edit the /usr/etc/fore/configuration.lane file. Using the
following examples as guidelines. Note that “UNIT” means ATM adapter.
Example 1:
#
ELAN=Marketing UNIT=0 (which will create ael0)
#
In the example, the ELAN name is specified as “Marketing”. Since the UNIT number
is not set, it defaults to zero, and the LECS defaults to “-well-known”.
Example 2:
#
ELAN=Finance -1 UNIT=1 (which creates ael16)
#
ELAN=Finance -2 UNIT=2 (which creates ael32)
#
ELAN=Finance -3 UNIT=3 (which creates ael48)
#
In the example, three ELAN names are specified as “Finance”. The UNIT numbers are
set to 1, 2, and 3. The LECS defaults to “-well-known”.
Example 3:
#
ELAN=Engineering -3 UNIT=3 (which creates ael49)
#
3-6 ▲NP (ATM Release 2) Manager’s Guide
Preliminary and Confidential USPEXA
In the example, the ELAN name is specified as “Engineering”. Since Engineering is
being configured on the same UNIT, the UNIT number is set to 3 and the LECS
defaults to “-well-known”.
2. Run NSconfig(8) to edit the network information for each ael interface, then execute
NSconfig with Ctrl-F.
The following NSconfig form displays the entries for the LEC interface examples
described in step 1:
ATM LANE Intf
ael0 >UP [host-ael0_] [100.00.00.0_] [ffffff00_______]>0
ael0 on-net ael0 off-net
.
.
.
ael16 >UP [host-ael16_] [100.00.00.1_] [ffffff00_______]>0
ael16 on-net ael16 off-net
.
.
.
ael32>UP [host-ael32_] [100.00.00.2_] [ffffff00_______]>0
ael32on-net ael32 off-net
.
.
.
ael48 >Dwn
.
.
.
ael49 >UP [host-ael49_] [100.00.00.3_] [ffffff00_______]>0
ael49 on-net ael49 off-net
In the example, interfaces ael0, ael16, ael32, and ael49 are marked UP; interface ael48
is marked DWN.
NSconfig automatically launches the ax_elcreate command to create the ael entries
from the configuration.lane file. The NSAP address for each interface is automatically
determined by ILMI daemon (ax_ilmid).
3. Edit the /usr/kvm/sys/aushp/conf/<config file> file to tune “net interfaces” to create more
than 60 LEC addresses.
4. Run the ax_elconfig(8C) command to view the configured interfaces. The server
displays the ELAN information for each ael interface; for example:
# ax_elconfig show -configured -unit 0
# ax_elconfig show -configured -unit 1
# ax_elconfig show -configured -unit 2
# ax_elconfig show -configured -unit 3
This completes the procedure for configuring LEC interfaces.
Maintenance ▲4-1
Preliminary and Confidential
USPEXA
4Maintenance
About This Chapter
This chapter provides maintenance information for NP (ATM Release 2).
The following topics are covered in this chapter:
▲Maintenance Utilities
▲NP (ATM Release 2) and ax_perfmon
▲Operating Without ILMI Support
▲Configuring the NetServer as an ATMARP Server
▲Load Balancing
▲Removing NP (ATM Release 2)
4-2 ▲NP (ATM Release 2) Manager’s Guide
Preliminary and Confidential USPEXA
Maintenance Utilities
This section describes the maintenance utilities available with the NP (ATM Release 2)
software. See the man pages for complete information on these utilities.
ax_adinfo(8C)
This command displays the hardware and firmware versions of the ATM adapter, media
type, and slot number. If the firmware release is 0.0.0, the ATM firmware is not
downloaded.
ax_atmarp(8C)
This command is used for MAC/NSAP address mapping. It has the following functions:
▲Displays translation table entries
▲Deletes translation table entries
▲Routes IP traffic to particular destinations over PVCs. Deleting and routing features
have numerous options for fine-tuning NP (ATM Release 2) operations.
ax_atmconfig(8C)
This configuration tool command for NP (ATM Release 2) devices and has the following
functions:
▲Displays an NP (ATM Release 2) device’s current configuration
▲Sets the MTU on an interface
▲Enables and disables IP load balancing
▲Enables and disables SPANS on a device
▲Enables and disables IP multicasting on an interface
ax_atmlooptest(8C)
This command is a diagnostic tool that tests an ATM interface for cell reception and
transmission functionality. The test uses the FORE ATM user-level Application
Programming Interface (API), which requires configuring the FORE IP interface. The ATM
interface needs SPANS signalling turned by using the ax_atmconfig(8C) command.
ax_atmstat(8C)
This command displays numerous FORE ATM device driver statistics. You can choose to
display statistics from the physical layer (TAXI, OC-3), ATM layer, ATM adaptation layer,
or the NP (ATM Release 2) device drivers. It also allows you to select an interval to use
when gathering the statistics.
Preliminary and Confidential
Maintenance Utilities ▲4-3
USPEXA
ax_elarp(8C)
This command removes dynamic table entries for LECs in the router.
ax_elconfig(8C)
This command allows the user to manually create LANE client (ael) interfaces.
ax_elcreate(8C)
This command interprets the definitions from the file /usr/etc/fore/configuration.lane, and
automatically creates LANE client interfaces.
4-4 ▲NP (ATM Release 2) Manager’s Guide
Preliminary and Confidential USPEXA
NP (ATM Release 2) and ax_perfmon
The performance monitoring tool ax_perfmon(8) displays specific information for NP
(ATM Release 2) connections. Refer to the ax_perfmon man page for more information.
Figure 4-1 displays a portion of the ax_perfmon screen. The NP (ATM Release 2) entry is
designated as a00.
1.0 System SummarySrvA Sun Mar 1 15:26:20 1998
CPU Util NFS Bytes/sec HP CPU Util NP1:Bytes/sec SP0:OPs/sec
NP0 2%[ ] [ 4524] 33% usr a00[ 211] (0~ 80 bar)
NP1 1%[ ] [ 11211] 20% sys f00[ 2081] R1[ ]
NP2 0%[ ] [ 3365] 66% idle H00[ 0] [ ]
Figure 4-1. Example of an NP (ATM Release 2) entry in an ax_perfmon display
Preliminary and Confidential
Operating Without ILMI Support ▲4-5
USPEXA
Operating Without ILMI Support
If ILMI is not supported on a particular switch or host in a given network, then the ATM
addresses must be manually configured. If a given switch does not support ILMI, it cannot
supply an ATM prefix to the hosts. Therefore, the user must assign a unique, valid prefix
to the switch. Additionally, the same prefix should be used for all the hosts in the LIS.
Once a network interface ATM address is set, it can be changed by running the
ax_atmarp(8C) command to set the new address, and then bringing the interface down
and back up (ifconfig aqaxx down; ifconfig aqaxx up) for the ATM address change to take
effect.
To manually configure ATM addresses for systems without ILMI support
1. Get the network prefix from your ATM switch.
2. Get the network address from your ATM adapter.
This can be done by logging in as “root” and running the ifconfig command to obtain
the “ether” portion of the display. You can add any selector byte you choose.
3. On the NetServer, run the ax_atmarp command to configure the ATM address for
each specified interface. For example:
# ax_atmarp -n 0x47.0000.00.ffe100.0000.f21a.1d25.002048062f8b.00
aqa16
In the example, 0x47.0000.00.ffe100.0000.f21a.1d25. is the ATM switch
prefix, 002048062f8b is the MAC portion, and .00 is any selector byte you choose.
The switch directly attached to this interface is then informed of the address through
adapter software and the NetServer can then begin signalling.
When ILMI is not supported, you need to manually configure the LEC NSAP addresses
while creating the LEC interfaces. See the /usr/etc/fore/configuration.lane file for more
information.
This completes the procedure for manually configuring ATM addresses for systems
without ILMI support.
4-6 ▲NP (ATM Release 2) Manager’s Guide
Preliminary and Confidential USPEXA
Configuring the NetServer as an ATMARP Server
With NP (ATM Release 2), the NetServer can be configured as an ATMARP server. The
ATMARP server address is configured using the ax_atmarp -p command. Set up the
ATMARP to IP address translations by using the ax_atmarp -o command.
Use NSconfig to UP the interfaces and ifconfig to set the IP address and netmask.
Load Balancing
ATM adapters on an NP can be configured for load balancing.
Note: FORE IP interfaces on the same NP must be configured with the same IP
address for load balancing. See the NSconfig(8C) or ifconfig(8C) man page for
more information.
Load balancing can be turned off by using the ax_atmconfig -b off afax command, where
x represents the number of the interface. This command turns off load balancing for the NP
on which the interface resides.
Preliminary and Confidential
Removing NP (ATM Release 2) ▲4-7
USPEXA
Removing NP (ATM Release 2)
This section describes how to use the pkgrm(1M) command for removing the
NP (ATM Release 2) software from the NetServer. Refer to the pkgrm man page for
additional information on how to use this command.
To remove the NP (ATM Release 2) package
1. Type the pkgrm command at the system prompt as follows:
# pkgrm
The system lists installed packages and then prompts you for removing a package.
pkgrm session started on Sun Mar 1 15:28:47 PST 1998
The following packages are available:
.
.
Select package(s) you wish to process (or ‘all’ to process all
packages). (default: all) [?,??,q]:
2. Type the number of the package you want to remove. The system responds with:
The following package is currently installed:
AXatm2 ATM 2
HP-VII,HP-VIII) 1.10
Do you want to remove this package?
3. Enter y to remove the NP (ATM Release 2) package.
The system responds with:
## Removing installed package instance <AXatm2>
This package contains scripts which will be executed with
super-user permission during the process of removing this package.
Do you want to continue with the removal of this package [y,n,?,q]
The system responds with:
## Removing installed package instance <AXatm2>
This package contains scripts which will be executed with
super-user permission during the process of removing this package.
Do you want to continue with the removal of this package [y,n,?,q]
4. Enter y to continue removing NP (ATM Release 2).
The system responds with:
## Verifying package dependencies.
## Processing package information.
## Executing preremove script.
## Removing pathnames in class <none>
/usr/etc/fore/ax_adinfo
/usr/etc/fore/ax_atmarp
/usr/etc/fore/ax_atmconfig
/usr/etc/fore/ax_atmlooptest
/usr/etc/fore/ax_atmstat
/usr/etc/fore/ax_elarp
/usr/etc/fore/ax_elconfig
/usr/etc/fore/ax_elcreate
/usr/etc/fore/ax_ilmid
/usr/etc/fore/ax_ncomm
/usr/etc/fore/ax_objcopy
/usr/etc/fore/ax_sba200.ucode1
/usr/etc/fore/ax_sba200.ucode2
/usr/etc/fore/ax_sba200e.ucode1
/usr/etc/fore/ax_sba200e.ucode2
/usr/etc/fore/rc.ax_sba200
/usr/man/man4/afa.4
/usr/man/man4/aqa.4
/usr/man/man8/ax_adinfo.8c
/usr/man/man8/ax_atmarp.8c
/usr/man/man8/ax_atmconfig.8c
/usr/man/man8/ax_atmlooptest.8c
/usr/man/man8/ax_atmstat.8c
/usr/etc/fore/ax_elarp.8c
/usr/etc/fore/configuration.lane
/usr/etc/fore/ax_elconfig.8c
/usr/etc/fore/ax_elcreate.8c
/usr/man/man8/ax_ilmid.8c
/usr/man/man8/ax_ncomm.8c
## Removing pathnames in class <none>
## Updating system information.
Removal of <AXatm2> was successful.
5. Type q to exit the pkgrm routine.
pkgrm session finished on Sun Mar 1 15:28:50 PST 1998
A log of this session of pkgrm is at /tmp/pkgrm.log on the current
root disk, and at /var/log/pkgrm.log on the target disk.
This completes NP (ATM Release 2) package removal.
