- Push-in fittings NPQP
- Features
- Technical data
- Push-in fittings NPQP
Push-in fittings NPQP
Subject to change – 2017/04
2è Internet: www.festo.com/catalogue/...
Push-in fittings NPQP
Features
Application
Effortless selection of the right fitting.
Festo offers a secure solution for every
connection. The convenient push-in
fitting system includes well over 1000
types of standard and function fit
tings.
Summary of tubing/fitting combinations
Applications Fitting Tubing Description
Standard QS PEN Suitable for a wide range of tasks and attractively priced. Flexible thanks to highly resistant
materials, easy to install thanks to optimised bending radii. High level of abrasion resistance in
dynamic applications.
QS PUN Maximum flexibility in standard applications thanks to an extremely wide range of options for
combining the different types.
QS PAN Meets all requirements, even for standard applications with increased pressure and
temperature ranges.
High pressures NPQM PAN-MF Meets DIN standard 73378: ideal for use in mobile pneumatics. Suitable for increased
temperature ranges combined with high pressure ranges.
NPQH PAN-R Powerful in pressure ranges up to 20 bar, for example in applications with the pressure booster
DPA.
Resistant to chemicals,
food safe and hydrolysis
resistant
NPQP PLN Resistant to cleaning agents, FDA compliant and economical. Can be used instead of the
combination with stainless steel fittings.
NPKA PUN-H Hydrolysis resistant and suitable for water applications. Combination suitable for use in clean
rooms, FDA compliant and corrosion resistant thanks to 100% polymer construction. Very easy
to install thanks to the “one click principle”.
NPQH PFAN/PTFEN For high temperatures up to 150 °C. Suitable for use in the food industry, FDA compliant and
resistant to cleaning agents.
NPCK PFAN/PTFEN Easy to clean thanks to the union nut’s edge-free design. Maximum resistance to corrosion
(CRC 4) and FDA compliant. Suitable for a wide range of media.
CRQS PFAN/PTFEN Maximum resistance to corrosion (CRC 4) and to aggressive acids and lyes.
Anti-static NPQM PUN-CM Anti-static tubing plus solid metal fitting: maximum protection for electrical and electronic
components.
Flame retardant NPQM PUN-V0 Very safe in areas where there is a risk of fire thanks to flame-retardant properties. The tubing
has been tested to DIN 5510-2.
Resistant to welding
spatter
NPQH PUN-V0-C Ideal for applications involving welding spatter. Reliable thanks to a tubing wall thickness of
2 mm for all diameters.
QS-V0 PAN-V0 Safe even in the mediate vicinity of welding spatter thanks to the double-walled tubing with
special fitting.
2017/04 – Subject to change 3
è Internet: www.festo.com/catalogue/...
Push-in fittings NPQP
Features

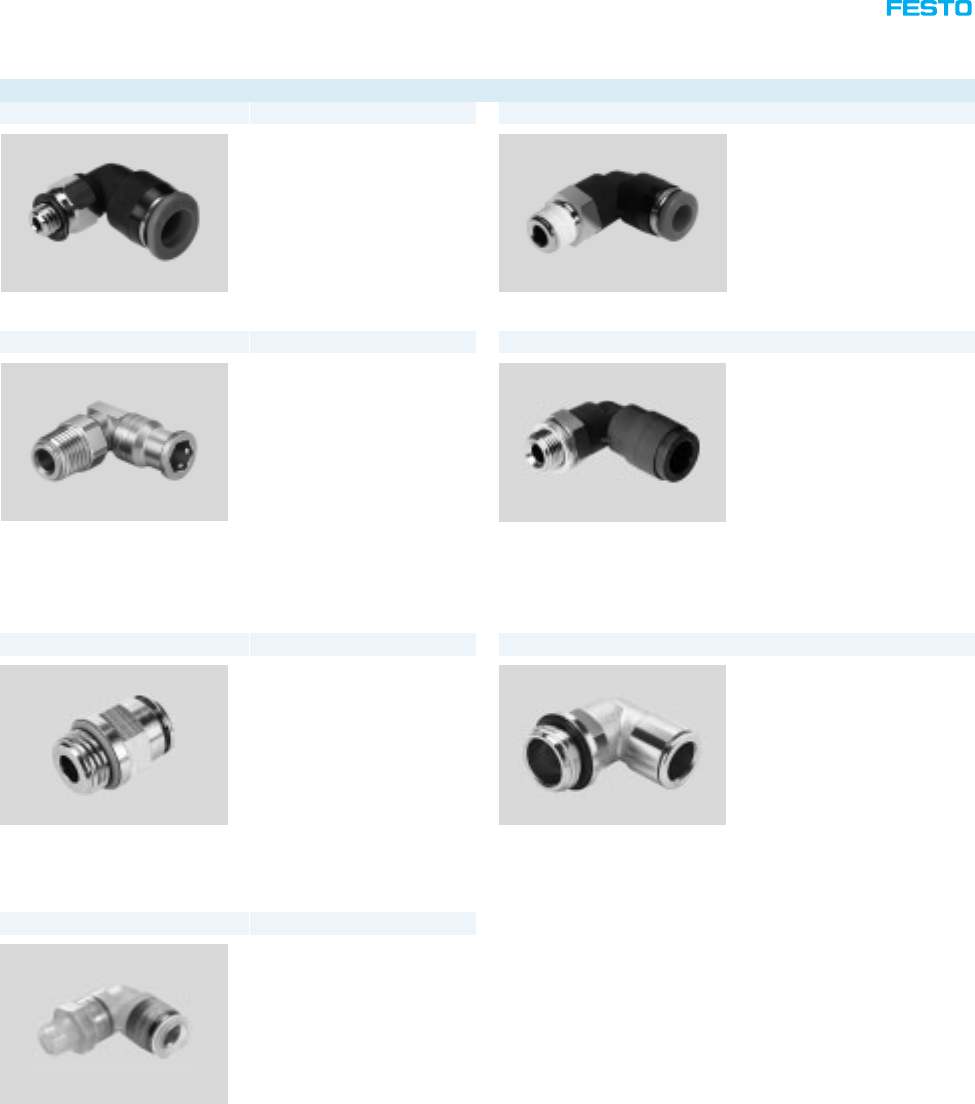

Push-in fittings product range
QSM, mini series Technical data è Internet: qsm QS, standard series Technical data è Internet: qs
Miniature push-in fittings for max
imum component density in confined
spaces. For pneumatic applications
with a temperature range up to 80 °C
and a pressure range up to 14 bar.
Tubing O.D. of 2, 3, 4 and 6 mm
with connecting threads M3, M5, M6,
M7, Rx and Gx.
Wide selection of push-in fittings for
pneumatic applications with a
temperature range up to 80 °C and a
pressure range up to 14 bar.
Tubing O.D. of 4, 6, 8, 10, 12, 16
and 22 mm with connecting threads
Rx … R½ and Gx … G¾.
CRQS, stainless steel Technical data è Internet: crqs QS-V0, weld spatter resistant Technical data è Internet: qs-v0
Stainless steel push-in fitting. High
corrosion resistance (CRC4) and
chemical resistance with approval for
use in the food and packaging
industry. For pneumatic applications
with a temperature range up to
120 °C and a pressure range up to
10 bar.
Tubing O.D. of 4, 6, 8, 10, 12 and
16 mm with connecting threads M5
and Rx … R½ .
Flame-retardant push-in fitting for use
in all areas where there is a risk of
fire, for example welding systems in
the automotive industry and in the
construction industry. For pneumatic
applications with a temperature range
up to 60 °C and a pressure range up
to 10 bar.
Tubing O.D. of 4, 6, 8, 10 and
12 mm with connecting threads
Rx … R½ and Gx … G½ .
NPQH Technical data è Internet: npqh NPQM Technical data è Internet: npqm
All metal push-in fitting made of
chemically nickel-plated brass. High
corrosion resistance (CRC3) and
chemical resistance. For pneumatic
applications with a temperature range
up to 150 °C and a pressure range up
to 20 bar.
Tubing O.D. of 4, 6, 8, 10, 12 and
14 mm with connecting threads M5,
M7 and Gx … G½ .
Attractively priced metal push-in
fitting for pneumatic applications with
a temperature range up to 70 °C and
a pressure range up to 16 bar.
Tubing O.D. of 3, 4, 6, 8, 10, 12 and
14 mm with connecting threads M5,
M7 and Gx … G½ .
NPQP Technical data è Internet: npqp
Polypropylene fitting for use in
applications with extreme media in
fluences. For pneumatic applications
with a temperature range up to 60 °C
and a pressure range up to 10 bar.
Tubing O.D. of 4, 6, 8, 10 and
12 mm with connecting threads
Rx … R½.
Subject to change – 2017/04
4è Internet: www.festo.com/catalogue/...
Push-in fittings NPQP
Features
Functional push-in fittings product range
QSK, self-sealing push-in fitting Technical data è Internet: qsk QSR, rotary push-in fitting Technical data è Internet: qsr
Push-in fitting that blocks the air flow
after the tubing is disconnected. For
pneumatic applications with a
temperature range up to 60 °C and a
pressure range up to 14 bar.
Tubing O.D. of 4, 6, 8, 10 and
12 mm with connecting threads M5,
Rx … R½ and Gx … G½.
Push-in fitting with swivel connection,
rotatable by 360°. The ball bearing
enables rotating movements in the
application up to max. 500 rpm. For
pneumatic applications with a
temperature range up to 60 °C and a
pressure range up to 14 bar.
Tubing O.D. of 4, 6, 8, 10 and
12 mm with connecting threads M5,
Rx … R½ and Gx … G½.
Quick connectors product range Click fittings product range
NPCK Technical data è Internet: npck NPKA Technical data è Internet: npka
Stainless steel fitting for use in areas
subject to intensive cleaning. Highest
level of corrosion resistance (CRC 4).
For pneumatic applications with a
temperature range up to 120 °C and a
pressure range up to 12 bar.
Tubing O.D. of 4, 6, 8 and 10 mm
with connecting thread M5 and
Gx … Gy.
Plastic fitting for easy installation with
one-hand operation. Hydrolysis
resistant, FDA compliant and easy to
clean. For pneumatic applications
with a temperature range up to 60 °C
and a pressure range up to 10 bar.
Tubing O.D. 6 mm with connecting
thread Gx.
2017/04 – Subject to change 5
è Internet: www.festo.com/catalogue/...
Push-in fittings NPQP
Technical data
General technical data
Size Standard
Design Push-pull principle
Operating and environmental conditions
Temperature-dependent
operating pressure
[bar] –0.95 … +10
Operating medium Compressed air in accordance with ISO 85731:2010 [7:–:–]
Note on operating/pilot medium Lubricated operation possible
Ambient temperature [°C] –20 … +60
Extended temperature range on request
Corrosion resistance class CRC1) 4
Food-safe2) See supplementary material information
1) CRC4: Corrosion resistance class to Festo standard 940 070
Components with very heavy corrosion exposure. Components in contact with aggressive media, e.g. in food or chemical industries. These applications must, if necessary, be verified by special tests with the media
concerned.
2) Additional information www.festo.com/sp è Certificates.
Materials
Housing PP
Tube retaining claw High-alloy stainless steel
Note on materials RoHS-compliant
Contains PWIS (paint-wetting impairment substances)

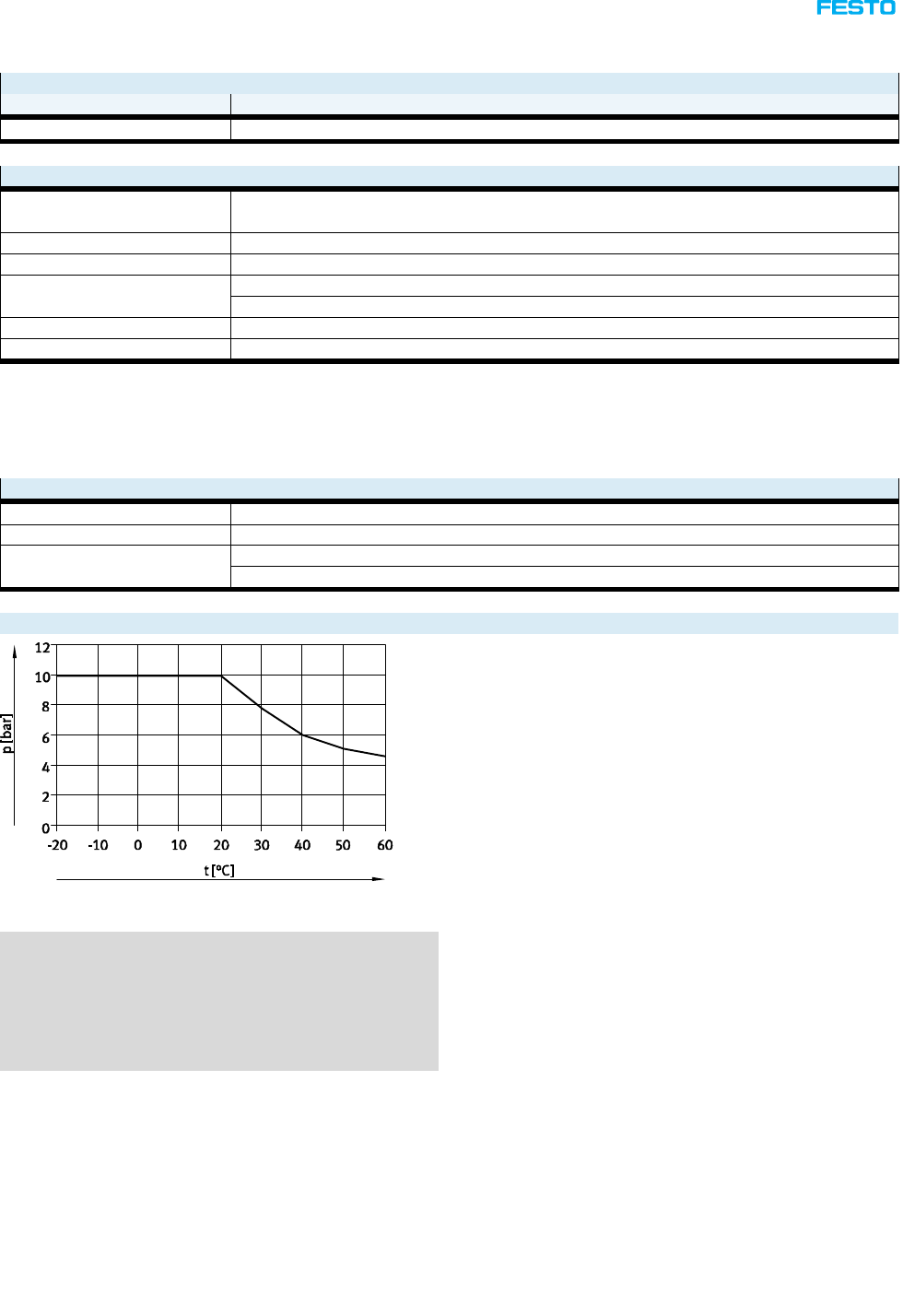

Operating pressure p as a function of temperature t
-H- Note
Leaks can occur with large tempera
ture fluctuations due to the high ex
pansion coefficient of polypropylene
in combination with the R thread.
To avoid this it is recommended to
seal the thread with Loctite® 55 pipe
sealing cord.
Loctite® is a registered trademark of the respective trademark owners in certain countries.
Subject to change – 2017/04
6è Internet: www.festo.com/catalogue/...
Push-in fittings NPQP

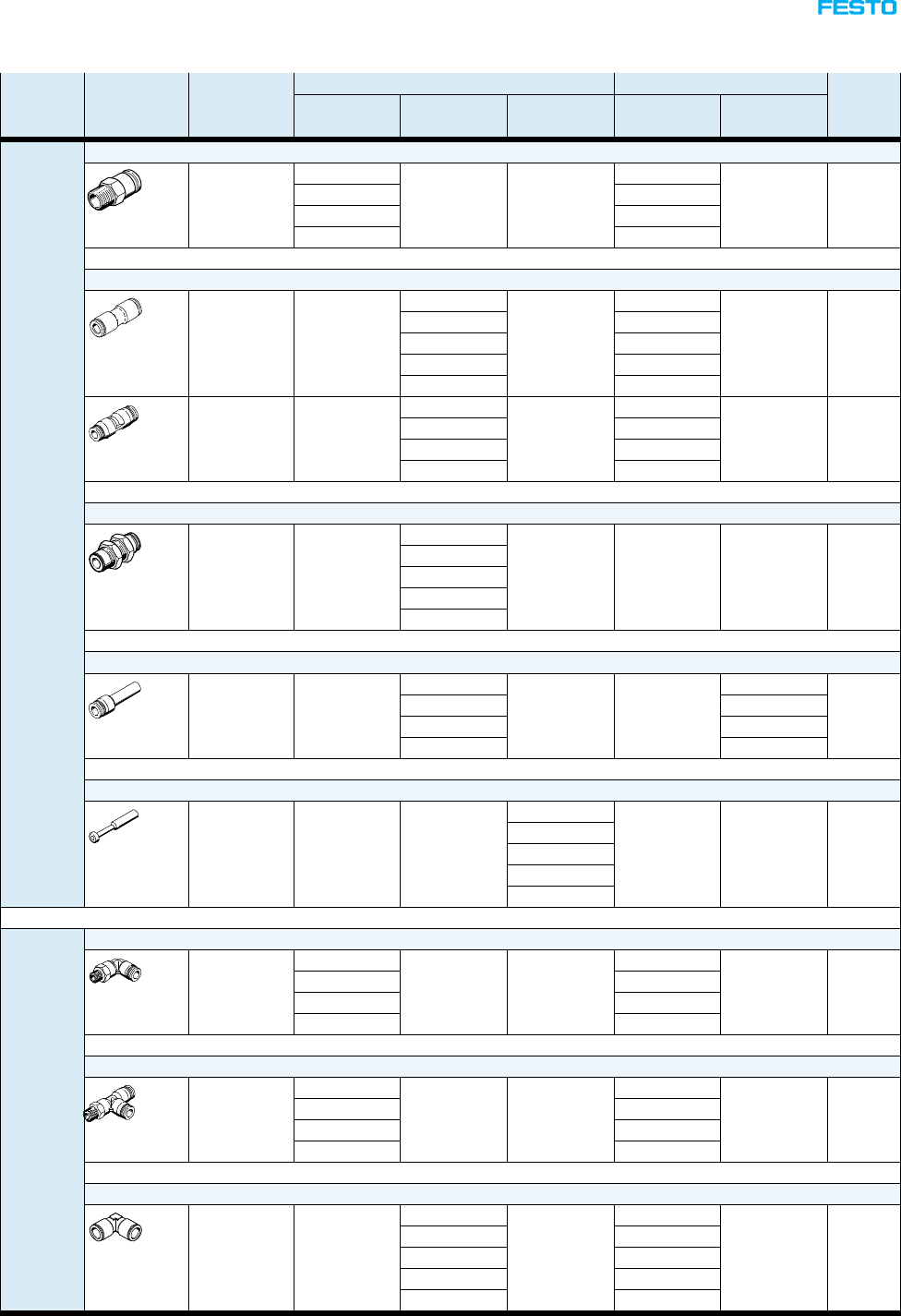

Product range overview
Design Version Type Connection D1 Connection D2 è Page/
Internet
R thread Tubing O.D. Push-in sleeve
j
Tubing O.D. Push-in sleeve
j
Inline Push-in fitting – Male thread with external hex
NPQP-D Rx––4, 6, 8 – 8
R¼4, 6, 8, 10
Ry10, 12
R½12
Push-in connector
NPQP-D – 4 – 4 – 9
6 6
8 8
10 10
12 12
NPQP-D
reducing
– 6 – 4 – 9
8 6
10 8
12 10

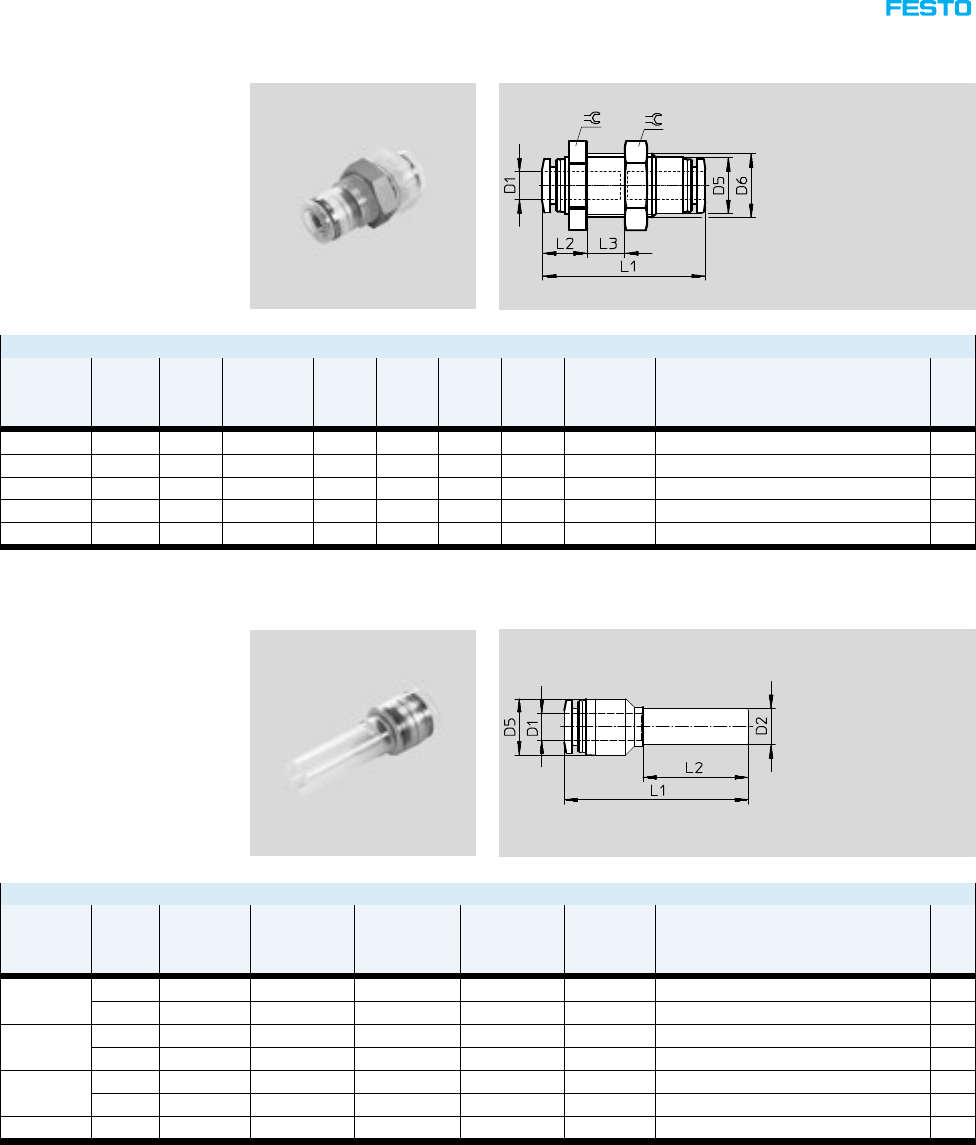

Push-in bulkhead connector
NPQP-H –4–––10
6
8
10
12
Push-in connector with push-in sleeve
NPQP-D-…-S –4––6, 8 10
68, 10
810, 12
10 12

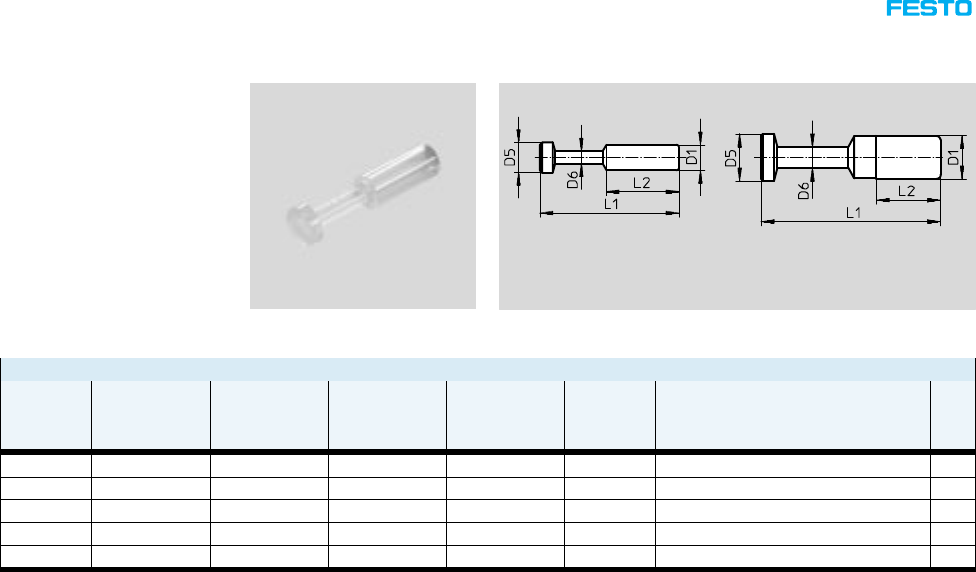

Blanking plug
NPQP-P ––4––11
6
8
10
12
L-shape Push-in L-fitting – Male thread with external hex
NPQP-L Rx––4, 6, 8 – 12
R¼4, 6, 8, 10
Ry10, 12
R½12
Push-in L-fitting – Male thread with external hex
NPQP-LQ Rx––4, 6, 8 – 12
R¼4, 6, 8, 10
Ry10, 12
R½12

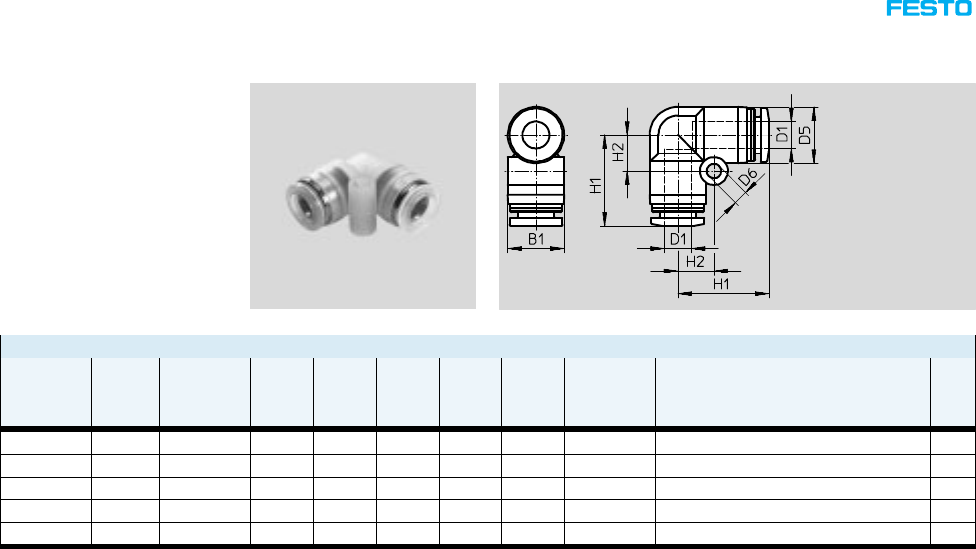

Push-in L-connector
NPQP-L – 4 – 4 – 13
6 6
8 8
10 10
12 12
2017/04 – Subject to change 7
è Internet: www.festo.com/catalogue/...
Push-in fittings NPQP
Product range overview
Design Version Type Connection D1 Connection D2 è Page/
Internet
R thread Tubing O.D. Push-in sleeve
j
Tubing O.D. Push-in sleeve
j

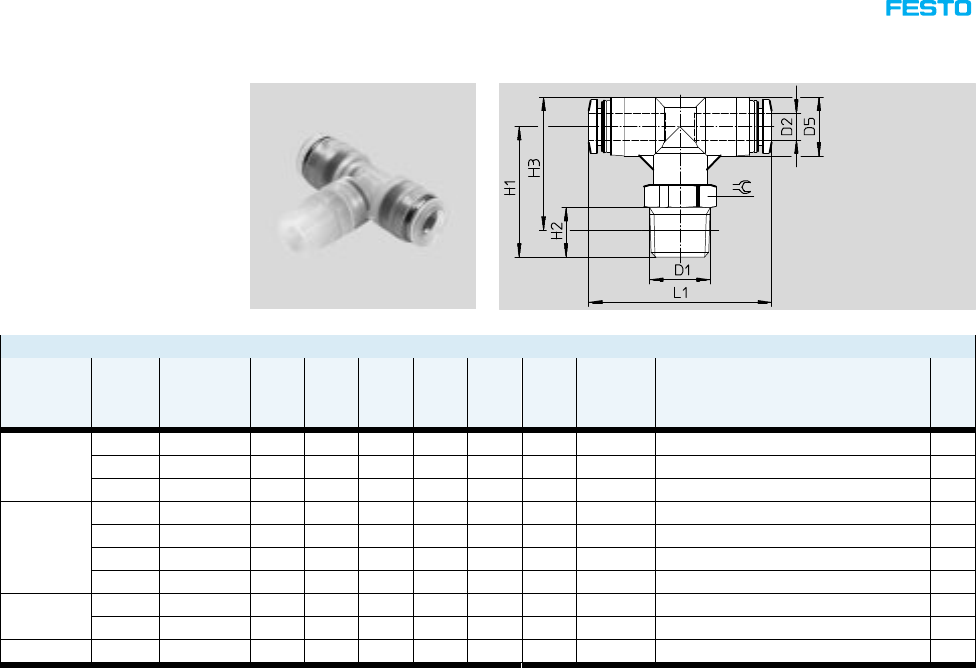

T-shape Push-in T-fitting – Male thread with external hex
NPQP-T Rx––4, 6, 8 – 14
R¼4, 6, 8, 10
Ry10, 12
R½12

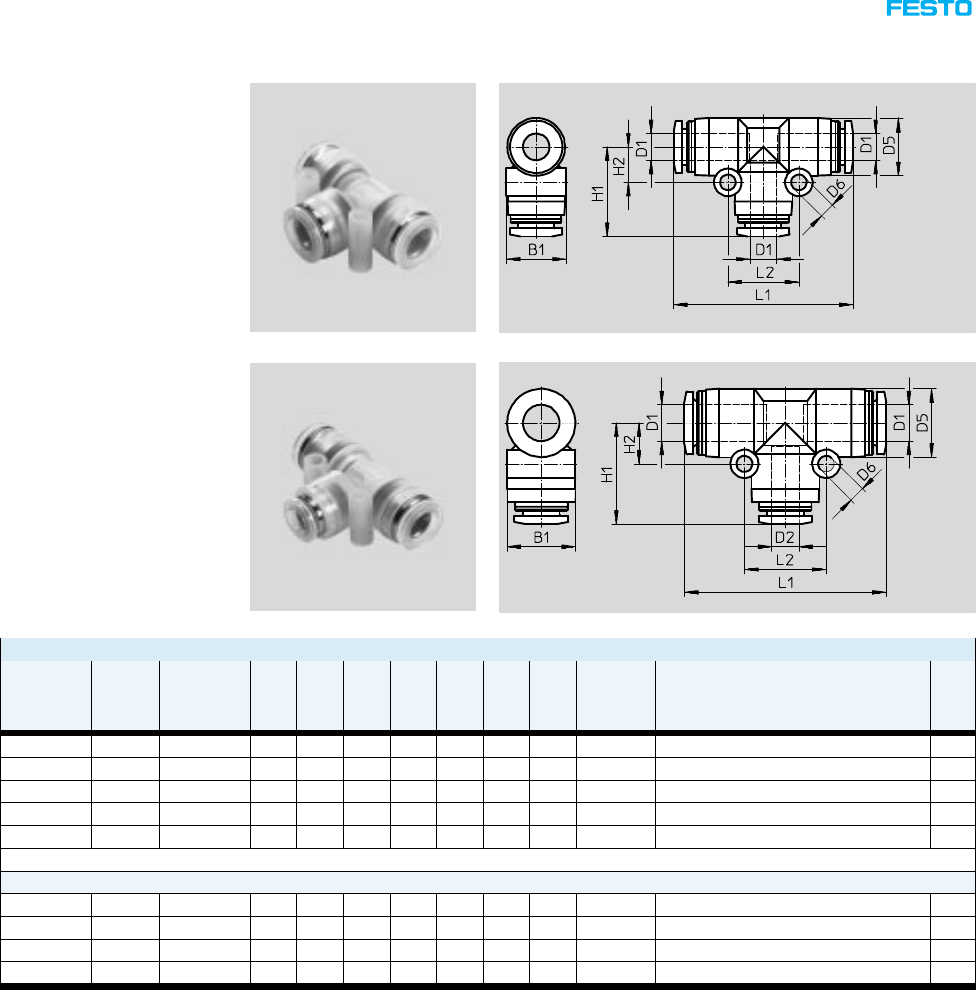

Push-in T-connector
NPQP-T – 4 – 4 – 15
6 6
8 8
10 10
12 12
NPQP-T
reducing
– 6 – 4 – 15
8 6
10 8
12 10

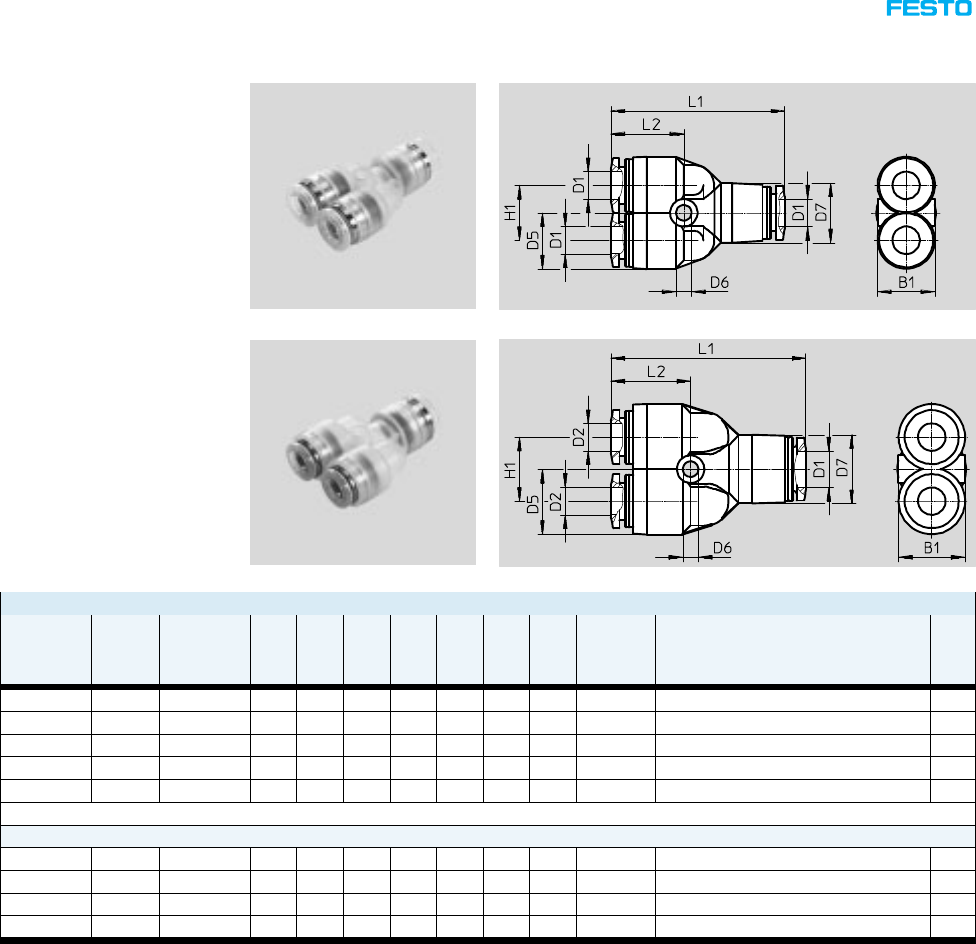

Y-shape Push-in Y-fitting – Male thread with external hex
NPQP-Y Rx––4, 6, 8 – 16
R¼4, 6, 8, 10
Ry10, 12
R½12
Push-in Y-connector
NPQP-Y – 4 – 4 – 17
6 6
8 8
10 10
12 12
NPQP-Y
reducing
– 6 – 4 – 17
8 6
10 8
12 10
Subject to change – 2017/04
8è Internet: www.festo.com/catalogue/...
Push-in fittings NPQP
Technical data

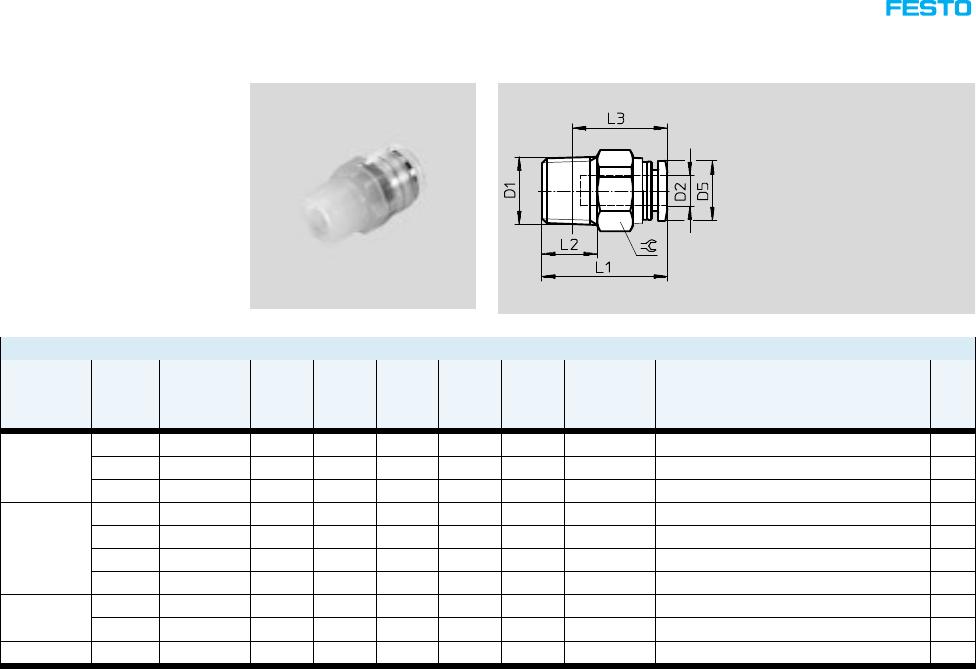

Push-in fitting NPQP-D
Male thread
with external hex
QS-y-16
Dimensions and ordering data
Connection Nominal
size
Tubing O.D. D5 L1 L2 L3 ßWeight/piece Part No. Type PU1)
D1 [mm] D2 [g]
Rx2.1 4 9.9 21.1 8 17.1 12 2.5 133041 NPQP-D-R18-Q4-FD-P10 10
3.4 6 11.8 22.8 8 18.8 14 3.0 133043 NPQP-D-R18-Q6-FD-P10 10
5.3 8 13.8 27.9 8 23.9 17 4.5 133045 NPQP-D-R18-Q8-FD-P10 10
R¼2.1 4 9.9 22.3 11 16.3 14 3.5 133042 NPQP-D-R14-Q4-FD-P10 10
3.4 6 11.8 24.8 11 18.8 14 3.5 133044 NPQP-D-R14-Q6-FD-P10 10
5.3 8 13.8 26.6 11 20.6 17 4.5 133046 NPQP-D-R14-Q8-FD-P10 10
6.2 10 16.8 32.6 11 26.6 19 7.0 133047 NPQP-D-R14-Q10-FD-P10 10
RÅ6.2 10 16.8 33.6 12 27.3 19 8.0 133048 NPQP-D-R38-Q10-FD-P10 10
7.2 12 19.8 37.6 12 31.3 22 12.0 133049 NPQP-D-R38-Q12-FD-P10 10
R½7.2 12 19.8 34.1 15 25.9 22 12.0 133050 NPQP-D-R12-Q12-FD 1
1) Packaging unit
2017/04 – Subject to change 9
è Internet: www.festo.com/catalogue/...
Push-in fittings NPQP
Technical data

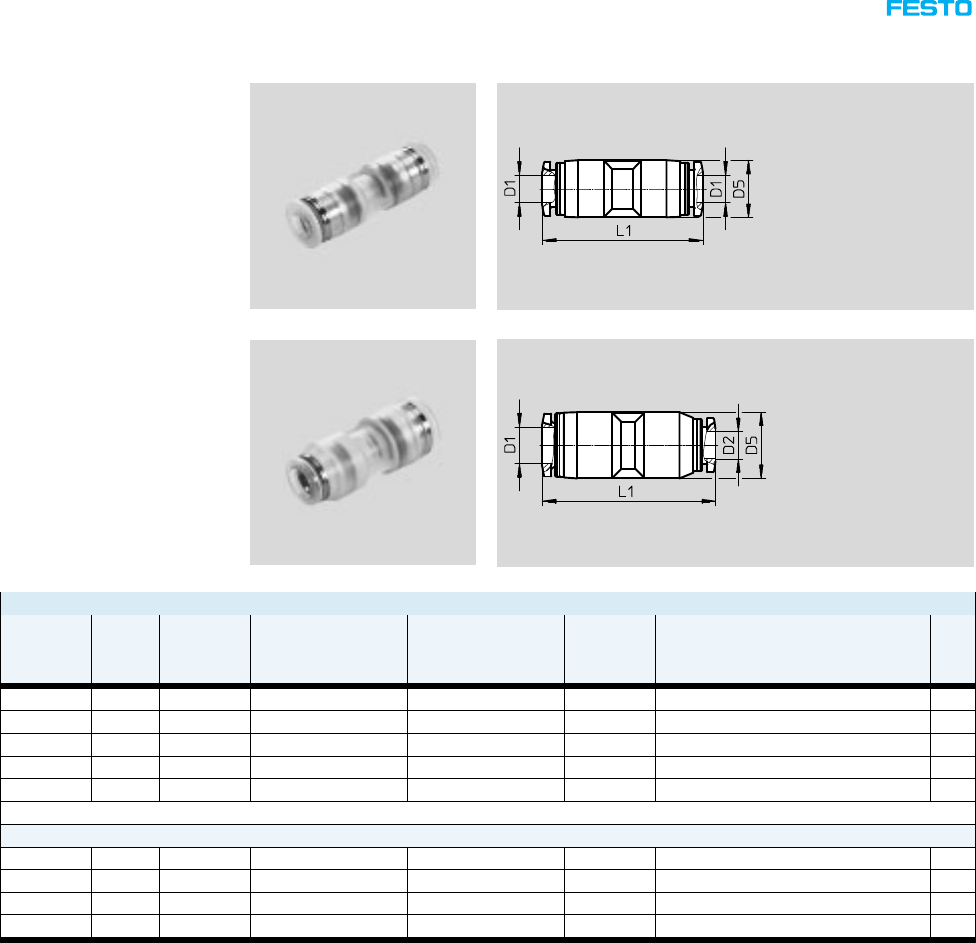

Push-in connector NPQD-D
Reducing
Dimensions and ordering data
Tubing O.D. Nominal
size
Tubing O.D. D5
L1 Weight/piece Part No. Type PU1)
D1 [mm] D2 [g]
4 2.6 – 10.0 31.0 4.0 133091 NPQP-D-Q4-E-FD-P10 10
6 4.0 – 12.5 35.2 5.5 133092 NPQP-D-Q6-E-FD-P10 10
8 5.0 – 14.5 37.8 8.0 133093 NPQP-D-Q8-E-FD-P10 10
10 6.7 – 17.5 41.8 13.0 133094 NPQP-D-Q10-E-FD-P10 10
12 8.7 – 21.0 48.2 19.0 133095 NPQP-D-Q12-E-FD-P10 10
Reducing
6 2.6 4 12.5 34.6 5.5 133096 NPQP-D-Q6-Q4-FD-P10 10
8 4.0 6 14.5 38.0 7.0 133097 NPQP-D-Q8-Q6-FD-P10 10
10 5.0 8 17.5 41.3 12.0 133098 NPQP-D-Q10-Q8-FD-P10 10
12 6.7 10 21.0 48.0 18.0 133099 NPQP-D-Q12-Q10-FD-P10 10
1) Packaging unit
Subject to change – 2017/04
10 è Internet: www.festo.com/catalogue/...
Push-in fittings NPQP
Technical data
Push-in bulkhead connector NPQP-H
Dimensions and ordering data
Tubing O.D. Nominal
size
D5
D6 L1 L2 L3
max.
ßWeight/piece Part No. Type PU1)
D1 [mm] [g]
4 2.3 10 M12x1.5 31.6 9.3 6.5 14 7.2 133100 NPQP-H-Q4-E-FD 1
6 3.7 12.3 M14x1.5 35.8 9.9 9.5 17 10.2 133101 NPQP-H-Q6-E-FD 1
8 4.9 14.2 M16x1.5 38.4 10.7 9 19 14.3 133102 NPQP-H-Q8-E-FD 1
10 7.1 17.5 M20x2 43.4 13.2 12 24 24.4 133103 NPQP-H-Q10-E-FD 1
12 7.8 21 M24x2 48.8 13.4 14 27 30.4 133104 NPQP-H-Q12-E-FD 1
1) Packaging unit
Push-in connector NPQP-D
with push-in sleeve
Dimensions and ordering data
Tubing O.D. Nominal
size
Push-in
sleeve
D5
L1 L2 Weight/piece Part No. Type PU1)
D1 [mm] D2 [g]
4 2.5 6 10.0 37.8 22.3 2.4 133133 NPQP-D-Q4-S6-FD-P10 10
2.4 8 12.5 40.3 23.3 3.0 133134 NPQP-D-Q4-S8-FD-P10 10
6 3.8 8 12.5 40.9 23.3 3.2 133135 NPQP-D-Q6-S8-FD-P10 10
3.8 10 12.5 43.9 28.3 3.6 133136 NPQP-D-Q6-S10-FD-P10 10
8 5.4 10 14.5 43.7 24.8 4.7 133137 NPQP-D-Q8-S10-FD-P10 10
5.4 12 14.5 49.7 33.5 5.4 133138 NPQP-D-Q8-S12-FD-P10 10
10 6.3 12 17.5 50.2 28.8 7.9 133139 NPQP-D-Q10-S12-FD-P10 10
1) Packaging unit
2017/04 – Subject to change 11
è Internet: www.festo.com/catalogue/...
Push-in fittings NPQP
Technical data
Blanking plug NPQP-P
NPQP-P-S4/S6/S8 NPQP-P-S10/S12
Dimensions and ordering data
Push-in
sleeve
D5
D6
L1 L2 Weight/piece Part No. Type PU1)
D1 [g]
4 5 3 27.5 15.0 0.5 133128 NPQP-P-S4-FD-P10 10
6 7 3 32.5 17.0 0.5 133129 NPQP-P-S6-FD-P10 10
8 9 4 36.5 18.1 1.0 133130 NPQP-P-S8-FD-P10 10
10 11 5 42.0 20.2 2.0 133131 NPQP-P-S10-FD-P10 10
12 13 6 44.0 23.4 2.5 133132 NPQP-P-S12-FD-P10 10
1) Packaging unit
Subject to change – 2017/04
12 è Internet: www.festo.com/catalogue/...
Push-in fittings NPQP
Technical data

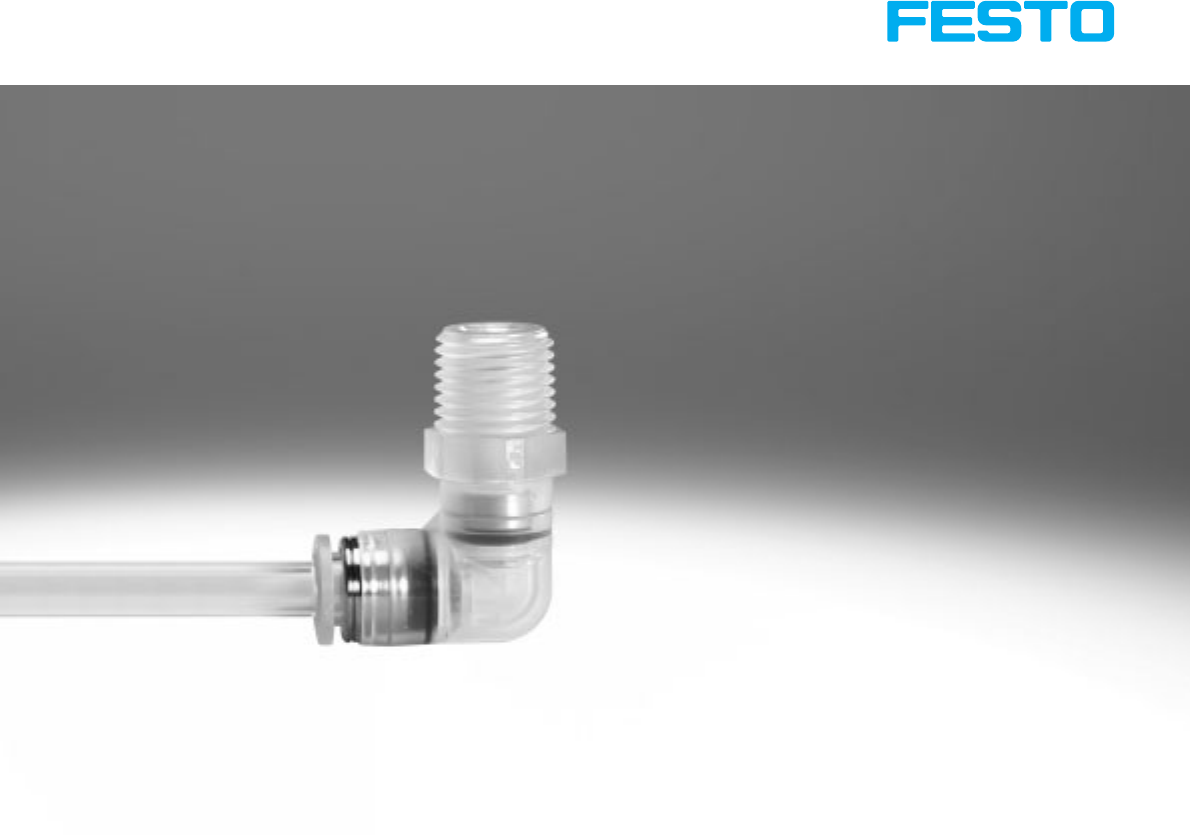

Push-in L-fitting NPQP-L
Male thread
with external hex
Dimensions and ordering data
Connection Nominal
size
Tubing O.D. D5 H1 H2 H3 L1 ßWeight/piece Part No. Type PU1)
D1 [mm] D2 [g]
RÁ2.1 4 10.0 23.3 8 24.3 18.1 10 4.0 133051 NPQP-L-R18-Q4-FD-P10 10
3.3 6 12.5 25.0 8 27.3 19.9 12 5.0 133053 NPQP-L-R18-Q6-FD-P10 10
4.7 8 14.5 28.0 8 31.3 22.7 14 7.0 133055 NPQP-L-R18-Q8-FD-P10 10
R¼2.1 4 10.0 26.3 11 25.3 18.1 14 4.5 133052 NPQP-L-R14-Q4-FD-P10 10
3.3 6 12.5 28.0 11 28.2 19.9 14 5.5 133054 NPQP-L-R14-Q6-FD-P10 10
4.7 8 14.5 31.0 11 32.2 22.7 14 7.5 133056 NPQP-L-R14-Q8-FD-P10 10
5.7 10 17.5 36.0 11 38.7 26.4 17 12.0 133057 NPQP-L-R14-Q10-FD-P10 10
RÅ5.7 10 17.5 37.0 12 39.4 26.4 17 13.0 133058 NPQP-L-R38-Q10-FD-P10 10
6.9 12 21.0 39.0 12 43.2 29.6 22 18.0 133059 NPQP-L-R38-Q12-FD-P10 10
R½6.9 12 21.0 42.0 15 44.3 29.6 22 19.0 133060 NPQP-L-R12-Q12-FD 1
1) Packaging unit
Push-in L-fitting NPQP-LQ
Male thread
with external hex
Dimensions and ordering data
Connection Nominal
size
Tubing O.D. D5 H1 H2 H3 H4 L1 ßWeight/
piece
Part No. Type PU1)
D1 [mm] D2 [g]
RÁ2.0 4 10.0 40.2 8 36.2 19.2 17.0 10 6.0 133061 NPQP-LQ-R18-Q4-FD-P10 10
3.3 6 13.0 46.3 8 42.3 22.0 20.2 12 8.0 133063 NPQP-LQ-R18-Q6-FD-P10 10
4.8 8 15.0 50.4 8 46.4 24.2 22.2 14 11.0 133065 NPQP-LQ-R18-Q8-FD-P10 10
R¼2.0 4 10.0 43.2 11 37.2 20.2 17.0 14 6.5 133062 NPQP-LQ-R14-Q4-FD-P10 10
3.3 6 13.0 49.3 11 43.3 23.0 20.2 14 8.5 133064 NPQP-LQ-R14-Q6-FD-P10 10
4.8 8 15.0 53.4 11 47.4 25.2 22.2 14 12.0 133066 NPQP-LQ-R14-Q8-FD-P10 10
5.8 10 17.5 61.4 11 55.4 30.0 25.4 17 18.0 133067 NPQP-LQ-R14-Q10-FD-P10 10
RÅ5.8 10 17.5 62.4 12 56.1 30.7 25.4 17 19.0 133068 NPQP-LQ-R38-Q10-FD-P10 10
6.9 12 21.0 67.8 12 61.5 32.9 28.4 22 26.0 133069 NPQP-LQ-R38-Q12-FD-P10 10
R½6.9 12 21.0 70.8 15 62.6 34.0 28.4 22 28.0 133070 NPQP-LQ-R12-Q12-FD 1
1) Packaging unit
2017/04 – Subject to change 13
è Internet: www.festo.com/catalogue/...
Push-in fittings NPQP
Technical data
Push-in L-connector NPQP-L
Dimensions and ordering data
Tubing O.D. Nominal
size
Tubing O.D. D5
D6 B1 H1 H2 Weight/piece Part No. Type PU1)
D1 [mm] D1 [g]
4 2.3 4 10.0 3.2 10.0 17.0 6.5 4.5 133105 NPQP-L-Q4-E-FD-P10 10
6 3.6 6 12.5 3.2 12.5 20.2 8.0 6.0 133106 NPQP-L-Q6-E-FD-P10 10
8 4.6 8 15.0 4.2 15.6 22.4 10.0 9.0 133107 NPQP-L-Q8-E-FD-P10 10
10 6.2 10 17.5 4.2 18.2 26.4 12.0 14.0 133108 NPQP-L-Q10-E-FD-P10 10
12 7.7 12 21.0 4.2 21.7 29.6 14.0 20.0 133109 NPQP-L-Q12-E-FD-P10 10
1) Packaging unit
Subject to change – 2017/04
14 è Internet: www.festo.com/catalogue/...
Push-in fittings NPQP
Technical data
Push-in T-fitting NPQP-T
Dimensions and ordering data
Connection Nominal
size
Tubing O.D. D5 H1 H2 H3 L1 ßWeight/
piece
Part No. Type PU1)
D1 [mm] D2 [g]
Rx2.0 4 10.0 23.2 8 24.2 34.0 10 6.0 133071 NPQP-T-R18-Q4-FD-P10 10
3.2 6 13.0 26.0 8 28.5 40.6 12 8.0 133073 NPQP-T-R18-Q6-FD-P10 10
4.7 8 15.0 26.3 8 29.8 44.8 14 11.0 133075 NPQP-T-R18-Q8-FD-P10 10
R¼2.0 4 10.0 26.2 11 25..2 34.0 14 6.5 133072 NPQP-T-R14-Q4-FD-P10 10
3.2 6 13.0 29.0 11 29.5 40.6 14 8.5 133074 NPQP-T-R14-Q6-FD-P10 10
4.7 8 15.0 29.3 11 30.8 44.8 14 12.0 133076 NPQP-T-R14-Q8-FD-P10 10
5.8 10 17.5 36.0 11 38.7 50.8 17 18.0 133077 NPQP-T-R14-Q10-FD-P10 10
Ry5.8 10 17.5 37.0 12 39.4 50.8 17 19.0 133078 NPQP-T-R38-Q10-FD-P10 10
6.9 12 21.0 39.0 12 43.2 57.2 22 26.0 133079 NPQP-T-R38-Q12-FD-P10 10
R½6.9 12 21.0 42.0 15 44.3 57.2 22 28.0 133080 NPQP-T-R12-Q12-FD 1
1) Packaging unit
2017/04 – Subject to change 15
è Internet: www.festo.com/catalogue/...
Push-in fittings NPQP
Technical data
Push-in T-connector NPQP-T
Reducing
Dimensions and ordering data
Tubing O.D. Nominal
size
Tubing O.D. D5
D6 B1 H1 H2 L1 L2 Weight/
piece
Part No. Type PU1)
D1 [mm] D2 [g]
4 2.6 – 10.0 3.2 10.4 17.3 6.5 34.6 13.0 6.5 133110 NPQP-T-Q4-E-FD-P10 10
6 4.0 – 13.0 3.2 13.5 20.2 8.0 40.4 16.0 9.0 133111 NPQP-T-Q6-E-FD-P10 10
8 5.0 – 15.0 3.2 15.6 22.2 9.0 44.4 18.0 13.0 133112 NPQP-T-Q8-E-FD-P10 10
10 6.7 – 17.5 4.2 18.2 25.4 12.0 50.8 24.0 21.0 133113 NPQP-T-Q10-E-FD-P10 10
12 8.7 – 21.0 4.2 21.7 28.4 14.0 57.2 28.0 30.0 133114 NPQP-T-Q12-E-FD-P10 10
Reducing
6 2.3 4 13.0 3.2 13.5 19.6 8.0 40.4 16.0 9.0 133115 NPQP-T-Q6-Q4-FD-P10 10
8 3.6 6 15.0 3.2 15.6 22.4 9.0 44.4 18.0 12.0 133116 NPQP-T-Q8-Q6-FD-P10 10
10 5.0 8 17.5 4.2 18.2 24.9 12.0 50.8 24.0 19.5 133117 NPQP-T-Q10-Q8-FD-P10 10
12 6.4 10 21.0 4.2 21.7 28.2 14.0 57.2 28.0 28.0 133118 NPQP-T-Q12-Q10-FD-P10 10
1) Packaging unit
Subject to change – 2017/04
16 è Internet: www.festo.com/catalogue/...
Push-in fittings NPQP
Technical data
Push-in Y-fitting NPQP-Y
Dimensions and ordering data
Connection Nominal
size
Tubing O.D. D5 D6 B1 H1 L1 L2 L3 L4 ßWeight/
piece
Part No. Type PU1)
D1 [mm] D2 [g]
R thread
Rx2.0 4 10.0 3.2 10.4 11 40.7 8 14.2 36.7 10 6.5 133081 NPQP-Y-R18-Q4-FD-P10 10
2.8 6 12.5 3.4 13.5 12 44.5 8 15.9 40.5 12 8.0 133083 NPQP-Y-R18-Q6-FD-P10 10
4.5 8 14.5 3.4 14.5 14 48.7 8 17.2 44.7 14 12.0 133085 NPQP-Y-R18-Q8-FD-P10 10
R¼2.0 4 10.0 3.2 10.4 11 43.7 11 14.2 37.7 14 7.0 133082 NPQP-Y-R14-Q4-FD-P10 10
2.8 6 12.5 3.4 13.5 12 47.5 11 15.9 41.5 14 8.5 133084 NPQP-Y-R14-Q6-FD-P10 10
4.5 8 14.5 3.4 14.5 14 51.7 11 17.2 45.7 14 12.0 133086 NPQP-Y-R14-Q8-FD-P10 10
5.3 10 18.0 4.5 18.0 18 58.5 11 19.7 52.5 17 20.0 133087 NPQP-Y-R14-Q10-FD-P10 10
Ry5.3 10 18.0 4.5 18.0 18 59.5 12 19.7 53.2 17 21.0 133088 NPQP-Y-R38-Q10-FD-P10 10
6.2 12 21.0 4.2 21.0 20 64.7 12 22.4 58.4 22 28.0 133089 NPQP-Y-R38-Q12-FD-P10 10
R½6.2 12 21.0 4.2 21.0 20 67.7 15 22.4 59.5 22 30.0 133090 NPQP-Y-R12-Q12-FD 1
1) Packaging unit
2017/04 – Subject to change 17
è Internet: www.festo.com/catalogue/...
Push-in fittings NPQP
Technical data
Push-in Y-connector NPQP-Y
Reducing
Dimensions and ordering data
Tubing O.D. Nominal
size
Tubing O.D. D5
D6 D7 B1 H1 L1 L2 Weight/
piece
Part No. Type PU1)
D1 [mm] D2 [g]
4 2.3 – 10.0 3.2 10.0 10.4 11.0 33.0 14.2 6.5 133119 NPQP-Y-Q4-E-FD-P10 10
6 3.6 – 12.5 3.4 13.0 13.5 12.0 38.0 15.9 9.0 133120 NPQP-Y-Q6-E-FD-P10 10
8 4.6 – 14.5 3.4 15.0 14.5 14.0 42.4 17.2 13.0 133121 NPQP-Y-Q8-E-FD-P10 10
10 5.9 – 17.5 4.2 17.5 18.2 18.0 48.8 19.7 22.0 133122 NPQP-Y-Q10-E-FD-P10 10
12 7.0 – 21.0 4.2 21.0 21.7 20.0 55.2 22.4 31.0 133123 NPQP-Y-Q12-E-FD-P10 10
Reducing
6 2.3 4 12.5 3.4 13.0 13.5 12.0 37.4 15.3 8.5 133124 NPQP-Y-Q6-Q4-FD-P10 10
8 3.6 6 12.5 3.4 14.5 15.1 14.0 42.6 17.4 11.5 133125 NPQP-Y-Q8-Q6-FD-P10 10
10 4.7 8 14.5 4.5 17.5 18.2 18.0 48.3 19.2 18.5 133126 NPQP-Y-Q10-Q8-FD-P10 10
12 5.9 10 17.5 4.5 21.0 21.7 20.0 55.0 22.2 28.5 133127 NPQP-Y-Q12-Q10-FD-P10 10
1) Packaging unit
