NetworX™ Series

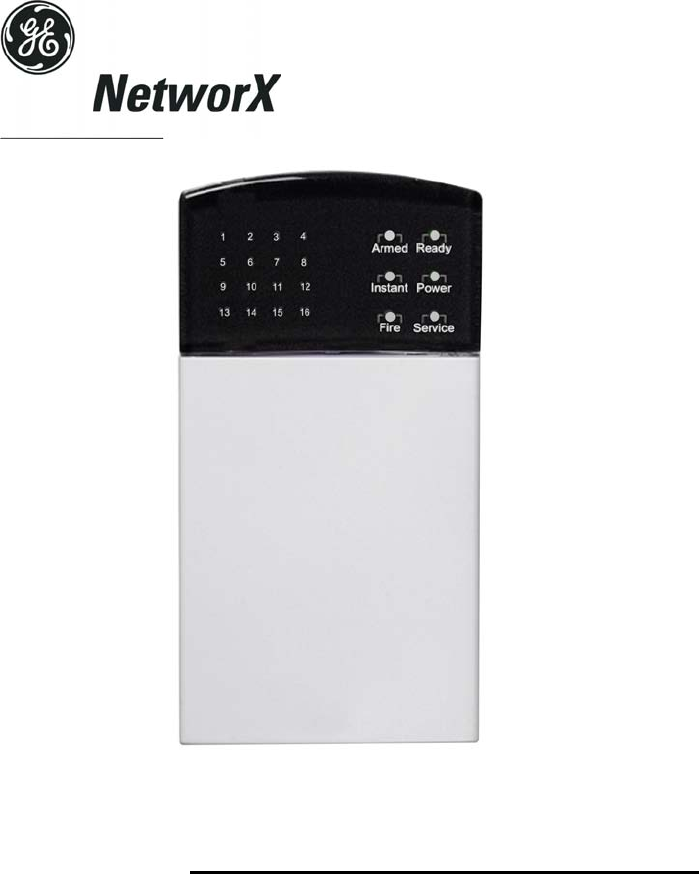

NX-1500E LED Keypad
User Manual
SECURITY SYSTEM NOTES
Installing/Service Company _________________________________
For Service Call __________________________________________
Central Station ___________________________________________
Duress Code ____________________
FUNCTION CODES
Function Code Controls Function
This system is is not partitioned.
EMERGENCY ACTIVATION KEYS (check if enabled)
Fire Auxiliary Emergency Police
PROGRAMMED FUNCTIONS
Abort Delay Cancel Alarm Forced Arming
Auto Bypass Change Partitions Group Bypass
Auto Instant Chime Quick Arm
Battery Test Communicator Test Re Exit
Siren Test
ENTRY / EXIT DELAY TIMES
Exit Delay Time __________ Secondary Exit Delay Time ________
Entry Delay Time _________ Secondary Entry Delay Time _______
ZONE DESCRIPTIONS
01 __________________________ 09 __________________________
02 __________________________ 10 __________________________
03 __________________________ 11 __________________________
04 __________________________ 12 __________________________
05 __________________________ 13 __________________________
06 __________________________ 14 __________________________
07 __________________________ 15 __________________________
08 __________________________ 16 __________________________
Page 1
THIS MANUAL IS FURNISHED TO HELP YOU UNDERSTAND YOUR
SECURITY SYSTEM AND BECOME PROFICIENT IN ITS OPERATION.
ALL USERS OF YOUR SECURITY SYSTEM SHOULD READ AND FOLLOW
THE INSTRUCTIONS AND PRECAUTIONS IN THIS BOOKLET AND, IF
POSSIBLE, PRACTICE ON THE KEYPAD CONTROL WHILE YOUR
PROFESSIONAL INSTALLER IS ON SITE. FAILURE TO DO SO COULD
RESULT IN THE SECURITY SYSTEM NOT WORKING PROPERLY. THIS
BOOKLET SHOULD BE KEPT IN AN ACCESSIBLE LOCATION FOR THE
LIFE OF THE SECURITY SYSTEM. IF YOU DO NOT UNDERSTAND ANY
PART OF THIS MANUAL YOU SHOULD NOTIFY YOUR INSTALLING
COMPANY SHOWN ON PAGE 1.
The SECURITY CONTROL can be turned on (ARMED) and off (DISARMED) by
entering a 4 or 6 digit code into the Keypad Control, which is similar to a
telephone keypad. If your Security Control has been so programmed, you
may be able to turn on (ARM) your System by simply pressing the[STAY] or
[EXIT] key. The system must always be disarmed using a 4 or 6 digit code.

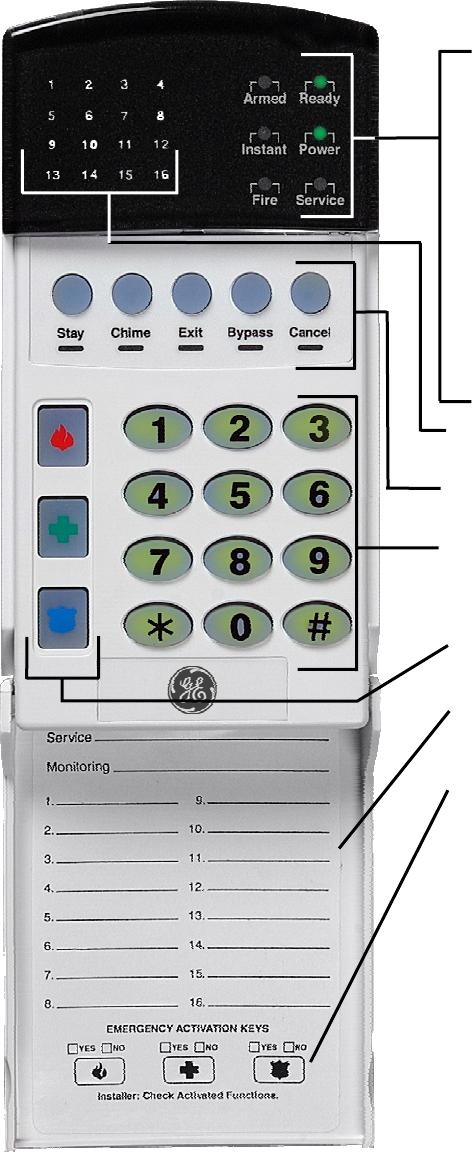

The LED keypad includes up to 35 lights and a built-in electronic sounder.
These provide specific information relating to the status of the security
system which is described in the booklet. Understanding what the lights and
sounds mean will help you to easily operate your system.
Keep in mind, the level of security you will obtain with this system
relates specifically with two major factors:
1. The quantity, quality and placement of security devices attached to
this system.
2. The knowledge you have of the security system and how that
knowledge is utilized in a weekly test of the complete system.
You should be aware of the following facts when preparing a
safety/security plan for your home/business.
Your security system is an electronic device and is subject to failure or
malfunction. Do not rely on it as your single source of security.
Your system should be tested weekly.
Your system will not work without power.
Warning devices will need to be loud enough, wired correctly, and
properly placed to provide notification of an alarm event.
Smoke and heat detectors may not detect heat and smoke in all
situations.
Use qualified security professionals to install and maintain your security
system.
It may be possible to arm the security system without the backup battery
connected. Your periodic test should be done with AC Power removed to
verify the battery is connected and adequately charged.
Care should be taken to plug in and restrain the AC Transformer after
testing.
Please read the following information and instructions carefully
before operating your security control system.
Page 2
TABLE OF CONTENTS
TABLE OF CONTENTS.......................................................3
GLOSSARY OF TERMS......................................................4
UNDERSTANDING THE LIGHTS ......................................5
ARMED LIGHT................................................................................ 5
BYPASS LIGHT............................................................................... 5
CANCEL LIGHT............................................................................... 5
CHIME LIGHT ................................................................................ 5
EXIT LIGHT ................................................................................... 5
FIRE LIGHT ................................................................................... 5
INSTANT LIGHT ............................................................................. 6
POWER LIGHT ............................................................................... 6
READY LIGHT ................................................................................ 6
STAY LIGHT .................................................................................. 6
ZONE LIGHT.................................................................................. 6
EMERGENCY ACTIVATION KEYS.....................................7
KEYPAD FUNCTIONS .......................................................7
ARMING YOUR SYSTEM IN THE “AWAY” MODE................................... 7
ARMING YOUR SYSTEM IN THE “STAY” MODE.................................... 8
USING THE QUICK ARM (Optional, see page 1)................................. 9
CHANGING MODES WHILE SYSTEM IS ARMED................................... 9
DISARMING THE SYSTEM................................................................ 9
CANCEL / ABORT FEATURE (Optional, see page 1) ............................ 9
BYPASSING ZONES .......................................................................12
GROUP BYPASS ............................................................................12
UNBYPASSING..............................................................................12
TURNING THE DOOR CHIME ON AND OFF ........................................12
ADDING AND CHANGING USER CODES.......................13
ASSIGNING USER CODE AUTHORITY LEVELS ............13
OTHER KEYPAD FUNCTIONS.........................................15
SETTING THE KEYPAD TONE...........................................................15
VIEW ALARM MEMORY...................................................................15
TEST FUNCTION – Optional ............................................................15
RESET FUNCTION..........................................................................16
SET SYSTEM DATE ........................................................................16
SETTING THE SYSTEM CLOCK.........................................................16
SETTING THE KEYPAD LIGHTING ....................................................17
KEYPAD CONTROL TONES (BEEPS) .............................18
EMERGENCY EVACUATION PLANS ...............................19
Page 3
GLOSSARY OF TERMS
Abort Delay An option that allows a delay in reporting to the
central station.
Authority Level The level of access an individual has when using an
alarm panel.
Central Station The location where alarm data is sent during an
alarm report.
Chime Feature An option that allows the keypad to sound a ding-
dong whenever an entry/exit door is opened.
Codes Can be either User Codes (relating to a person) or
Function Codes (a toggle switch to turn specific
functions on/off). NOTE: A system may have either
99 four-digit codes or 66 six-digit codes, but not a
mixture of the two.
Duress Code An option that allows a special code to be sent to the
central station that indicates the alarm system is
being operated under duress.
Forced Arming An option that allows the system to be turned on
(ARMED) with one or more zones open. A system
that is ready to be “force armed” will flash the ready
light. (Note: Those zones that are not ready will not
create an alarm.)
Function Code A Function Code is either a four- (4) or six- (6) digit
code that has been programmed by the installer to
operate a device.
Group Bypass An option that allows the user to bypass multiple
zones with a single operation.
Instant/Delay An option that allows an instant alarm condition for
Entry/Exit doors, or grants a delay to allow someone
to enter/exit the building without an alarm, or before
entering a user code to disarm.
Master Code A master arm/disarm code that can program other
user codes.
Partitioned System A system divided into multiple areas in which its own
user or users control each area.
Perimeter The outer edge of the protected area.
Page 4
Quick Arm An option that allows you to turn on (ARM) the
security system by pressing either the [STAY] or
[EXIT] key on the keypad control (for ARMING only)
as programmed by the installing company.
User Code A four- (4) or six- (6) digit entry code used to arm or
disarm the system.
UNDERSTANDING THE LIGHTS
ARMED LIGHT
The armed light is “on” when the system is armed. The armed light is
“off” when it is disarmed. The armed light will flash when there has been
an alarm during the previous arm cycle.
BYPASS LIGHT
The bypass light is “on” when any zone in this keypad’s partition is
bypassed. The zone(s) that is bypassed will also be illuminated. If the
bypass light is “off”, no zones are bypassed.
CANCEL LIGHT
The cancel light will flash during an abort delay time. If a code is entered
followed by the [CANCEL] key while this light is flashing, all abortable
reports will stop the communication process. Note: The abort feature
must be enabled. Entering a code followed by the [CANCEL] key during
or after an alarm report to the central station will cause the cancel light to
come on. It will stay on until the central station has received the cancel
report. Note: The cancel feature must be enabled.
CHIME LIGHT
The chime light is “on” when the chime feature is “on”; “off” otherwise.
EXIT LIGHT
The exit light is “on” during the exit delay. Please note that the light will
flash during the last 10 seconds of the exit delay as a warning that the
time is running out. (The user may want to disarm the system if the exit
light is flashing in order to prevent an alarm. The user may then re-arm
the system and exit before the delay expires.)
FIRE LIGHT
A steady fire light means a fire zone has been faulted. A rapidly flashing
fire light means that a fire zone is in a trouble condition.
Page 5
INSTANT LIGHT
The instant light is “on” when there is no delay on your entry/exit door(s).
Any time the instant light is “on” and the exit delay has expired,
the opening of an entry/exit door will produce an immediate
alarm. The instant light can be toggled on or off by pressing the [Stay]
key while the system is armed. When the instant light is “off”, the
entry/exit door(s) is delayed.
POWER LIGHT
The power light is on if the primary power is on. The power light will flash
if the system has a low battery condition.
READY LIGHT
The ready light is “on” when the system is ready to arm and “flashes” if
ready to force arm. The ready light is off when the system is not ready to
arm because of a zone(s) being faulted.
STAY LIGHT
The stay light is “on” when the all interior (motion detector) zones are
bypassed.
ZONE LIGHT
The zone lights are “off” when everything is normal. A zone light will be
“on” if the zone has been bypassed. If a zone light is “flashing”, that zone
is in alarm or has been faulted. If a zone light is “flashing” rapidly, it
means that the zone is in a trouble condition. Trouble conditions are:
Tamper Hardware Low Battery Loss of Supervision
(A combination of Alarm/Fault and Tamper/Trouble will produce a rapid
“flashing” light for a short period of time, followed by a slow “flashing”
light.)
Page 6
EMERGENCY ACTIVATION KEYS
NOTES: You must hold these keys for 2 seconds to activate these
functions. Your system may not be programmed for these activation
keys (see page 1). You should press these keys only in an emergency
situation that requires response by emergency personnel. If your system is
programmed for these functions, the following reports can be sent.
Fire Key – This key can activate the fire alarm when pressed for two
seconds. If your system is connected to a monitoring center, an emergency
report could be sent to that center.
Auxiliary Emergency Key – This key can activate the auxiliary alarm when
pressed for two seconds. If your system is connected to a monitoring
center, an emergency report could be sent to that center.
Police (Panic/Hold-Up) Key - This key can sound a local audible alarm
when pressed for two seconds. If your system is connected to a monitoring
center, an emergency report could be transmitted to that center. NOTE:
Some Panic/Hold-Up alarms are programmed to be silent at the protected
site while reporting an alarm to the monitoring center. Check with your
installing company to determine how your security system will respond to
the Panic/Hold-Up activation.
KEYPAD FUNCTIONS
ARMING YOUR SYSTEM IN THE “AWAY” MODE
AWAY is used when the user is away from the premise and wants the
interior protected. Listed below are the steps to arm in the AWAY Mode:
Close all protected doors and windows. Step 1
• Ready light will be on or flashing when all protected zones and
sensors are secure. NOTE: If any zones are bypassed, a senso
r
in that zone can be violated without affecting the ready light.
• The security system will not arm if the ready light is not on o
r
flashing.
• If the power light is off, you have no AC power. Restore power i
f
possible. If not, contact your installing company listed on page 1
of this booklet for service.
Page 7
Step 2 • Enter your 4 or 6 digit user code to arm the system.
• The armed and exit lights will illuminate.
• You may now leave the building.
NOTE: The exit light will flash rapidly for the last 10 seconds of the exit
delay as a warning to the user that the exit time is about to expire. The user
may wish to disarm and rearm the system if more time is needed.
ARMING YOUR SYSTEM IN THE “STAY” MODE
STAY is used when the user is inside the premise and wants protection
around the perimeter. Listed below are the steps to arm in the STAY Mode:
Close all protected doors and windows. Step 1
• Ready light must be on or flashing when all protected zones and
sensors are secure. NOTE: If any zones are bypassed, a sensor in
that zone can be violated without affecting the ready light.
• The security system will not arm if the ready light is not on or
flashing.
• If the power light is off, you have no AC power. Restore power if
possible. If not, contact your installing company listed on page 1 of
this booklet for service.
Step 2 • Enter your 4 or 6 digit user code.
• If “Auto Bypass” is enabled, all interior zones will be bypassed if you
do not leave through a designated entry/exit door. If Auto Bypass is
enabled, omit Step 3.
• When “Auto Instant” is enabled, if you do not leave through a
designated entry/exit door the instant light will illuminate indicating
that the entry/exit doors no longer have an entry delay. If “Auto
Instant” is enabled, omit Step 4.
Step 3 • Press the [STAY] key.
• The stay light will illuminate indicating that all interior zones are
bypassed. (All interior devices will bypass automatically, giving the
user freedom of movement within the interior area.)
• The bypass light will illuminate if any zone(s) are bypassed. If any
zone(s) have been bypassed previously by the user, the light(s)
corresponding to the bypassed zone(s) will illuminate, alerting the
user that a zone(s) may be unprotected and can be faulted without
an alarm.
Step 4 • To toggle from a “delayed entry” mode to an “Instant” mode, press
the [STAY] key again.
• The instant light will illuminate indicating that the entry/exit doors
have no entry delay.
Page 8
USING THE QUICK ARM (Optional, see page 1)
The Quick Arm feature may be used if it is enabled. Quick Arm will allow the
user to arm the security system in the AWAY mode by pressing the [EXIT]
key, or arm in the STAY mode by pressing the [STAY] key. This feature is
used for ARMING ONLY, and will not disarm the security system. This is
ideal for a maid or baby sitter code, etc.
CHANGING MODES WHILE SYSTEM IS ARMED
Pressing the [STAY] key will turn on/off (toggle) a delay on entry/exit
doors and turn on/off (toggle) the instant light.
(Optional) Press the [BYPASS] key at this time to turn on/off (toggle)
all designated interior zones.
(Optional) When armed, pressing the [EXIT] key will start the exit
delay, enabling you to leave the building.
IMPORTANT!
The instant light needs to be off at this time if you plan on re-
entering the building; otherwise you will create an alarm. You may
restore an entry delay by pressing the [STAY] key again.
DISARMING THE SYSTEM
When you enter the protected area through one of the designated Entry/Exit
doors, the keypad control will sound a continuous tone for the duration of
the entry delay time, or until you enter a valid code. The red armed light
will go off and the tone will stop. The security system is now DISARMED. If
a valid code is not entered before the end of the entry delay, an alarm will
occur. (NOTE: If the red armed light is flashing during the entry
delay, the alarm system has been activated in your absence. Leave
the building immediately and call your alarm company and/or the
police from a safe location.)
CANCEL / ABORT FEATURE (Optional, see page 1)
The cancel light will flash during an abort delay time. If a code is entered
followed by the [CANCEL] key while this light is flashing, all abortable
reports will stop the communication process. Entering a code followed by
the [CANCEL] key during or after an alarm report to the central station will
cause the cancel light to come on. It will stay on until the central station has
received the cancel report.
Page 9
NX-1500E LED Keypad
includes NX-1508E and NX-1516E
ARMED Light is "on" when armed, "off" when
disarmed. Flashes to indicate a previous alarm.
READY Light is "on" when the system is ready to arm,
flashes if ready to "force arm".
POWER Light is "on" when AC power is present,
flashes to indicate a low battery condition.
INSTANT Light is "on" when there is no entry delay.
SERVICE Light is "on" to indicate a trouble condition
with your system.
FIRE Light is "on" to indicate fire alarm, flashes to
indicate a trouble condition with your fire system.
ZONE LIGHTS are on steady to indicate bypass, slow
flash for zone fault, fast flash for service condition.
5 FUNCTION KEYS perform various functions.
NUMERIC CODE ENTRY KEYS
3 PROGRAMMABLE EMERGENCY
ACTIVATION KEYS
The door is detachable and can be removed or
replaced when desired.
The appropriate boxes should be marked on the door
of your keypad for the Emergency Activation keys that
are programmed to work with your system.
This system is is not partitioned.
Your System is programmed for the functions
checked below:
Fire Emergency Siren Test
Chime Feature Abort Delay
Group Bypass Re Exit Feature
Aux Emergency Cancel Alarm
Quick Arm Battery Test
Police Emergency Forced Arming
NOTE: Some of the features described above mayor may
not be available for your system. Check with your
installation company to find out how your system is
programmed.
BYPASSING ZONES
If you wish to bypass one or more zones, this must be done while the
system is in the disarmed state. The following steps are used for bypassing
zones:
Step 1 Press the [BYPASS] key.
Step 2 Enter user code, if required (optional). The bypass light flashes.
Step 3 Enter 1 or 2 digits indicating the zone you wish to bypass, i.e.
press the [1] key for zone 1, press [1]-[2] for zone 12.
Step 4 Press the [BYPASS] key again.
Step 5 The corresponding zone light will illuminate indicating the zone
has been bypassed. Repeat steps 3 and 4 for any other zone(s)
that need to be bypassed.
Step 6 Press the [BYPASS] key again -or- press the [#] key to exit the
Bypass Mode. The bypass light will stop flashing upon exiting the
Bypass Mode.
GROUP BYPASS
By pressing the [BYPASS] key, followed by the [0] key, then the [BYPASS]
key again, all zones that are designated as group bypass zones will be
bypassed. Press the [BYPASS] key again to exit group bypassing.
UNBYPASSING
To manually unbypass zones, perform the bypassing procedure on a zone
that is already bypassed. The corresponding light for that zone will go off
when unbypassed. NOTE: All zones will automatically be unbypassed
each time the system is disarmed.
TURNING THE DOOR CHIME ON AND OFF
The door chime is turned on or off by pressing the [CHIME] key while the
system is in the disarmed state. If the chime is on the chime light will be
illuminated. If the chime is off, the chime light will be off. Each press of the
[CHIME] key will toggle the chime feature on/off and produce a momentary
ding-dong sound.
Page 12
ADDING AND CHANGING USER CODES
Your system must be Disarmed to change user codes.
Step 1 Press [r]-[5]-[“Master Arm/Disarm” Code].
NOTE: For partitioned systems, someone changing the code of
another person must have access to all or more partitions
than the user being changed.
Step 2 The ready light will flash.
Step 3 Enter the 2 digit “user number” (always enter 2 digit such as [0]-
[3] for user 3, or [5]-[2] for user 52).
Step 4 The zone lights will illuminate specifying the first digit of the “user
code”. (Lights 1-8 on = code is blank, lights 1-8 off = “0”, lights 1
and 8 = “9”).
NOTE: To delete a user code, enter [r]-[r]-[r]-[r] for a 4-digit code, or
[r]-[r]-[r]-[r]-[r]-[r] for a 6-digit code.
Step 5 The ready light will flash indicating you are back at Step 2 above. If
the code is rejected, the sounder will beep 3 times.
Step 6 If another “user code” needs to be programmed, return to Step 3.
Step 7 Press the [#] key while the ready light is flashing to exit the User
Code Programming Mode.
ASSIGNING USER CODE AUTHORITY LEVELS
Assign authority levels to users by following the steps below. Assign user
codes before assigning authority levels.
Step 1 Press [r]-[6]-[“Master Arm/Disarm Code”].
NOTE: Someone changing the authority of another person can only
add or remove partition authorization for partitions to which
they have access.
Step 2 The ready light will flash.
Step 3 Enter the 2 digit “user number” to be assigned authority (The ready
light is constant and the instant light will flash).
Step 4 Lights illuminated indicate the authority levels assigned to this
code. An explanation of the lights is listed in the following table.
Page 13
You may toggle (turn on/off) the authority level by pressing the
number for that authority level.
LIGHT AUTHORITY LEVELS IF LIGHT 8 IS OFF
1 Reserved (Note: Do not change if on.)
2 Arm Only
3 Arm Only After Closing Time
4 Master Arm/Disarm (can program other codes)
5 Arm/Disarm
6 Bypass Zones
7 Open / Close Reporting
8 If this light is on, this code is programmed as a
function code. Do not change! Press [#] - [#] to exit.
Step 5 Press the [r] key. The ready light will flash. This moves you to the
partition enable. (The user has access in partitions that are
illuminated.)
Step 6 The illuminated numbers indicate each partition where the user has
access. To change any of the partitions where the user has access,
press numbers corresponding to areas where you want to give the
user access or deny access. (Example: If zone light #2 is lit, then
the user is assigned access to partition #2. By pressing the [2]
key, the light will go off, denying access to partition #2. Refer to
chart shown below.
LIGHT PARTITIONS ASSIGNED
1 Partition 1
2 Partition 2
3 Partition 3
4 Partition 4
5 Partition 5
6 Partition 6
7 Partition 7
8 Partition 8
Step 7 When the partitions are assigned, press the [r] key. This returns
you to Step 2 previously mentioned. At this point you may enter
another user number to assign authority level. Repeat Steps 3 - 7
until you have assigned authority levels to all user numbers.
Step 8 Press the [#] key to exit the Assigning Authority Level Program.
Page 14
OTHER KEYPAD FUNCTIONS
SETTING THE KEYPAD TONE
Step 1 Press [r]-[0]. Keypad is now in the “Adjust Tone” mode.
Step 2 Pressing the [1] key will make the keypad sounder go to higher
tones, pressing the [2] key will make the keypad sounder go to
lower tones.
Step 3 When the desired tone is reached, press the [#] key to set this
tone and exit from the “Adjust Tone” mode.
CHANGE PARTITION – Optional
Step 1 Press [r]-[1].
Step 2 Press a NUMBER key between 1 and 8 to change partitions
momentarily.
Step 3 If no other key is pressed, it will go back to its standard partition
in ten seconds.
Step 4 If another key is pressed, the system will remain in the new
partition until no keys have been pressed for 60 seconds.
VIEW ALARM MEMORY
Step 1 Press [r]-[3]. The zone(s) that created the last alarm will be
displayed on the keypad.
Step 2 The ALARM MEMORY feature will flash those zones that created
alarms and will light steady those zones that were bypassed
during the last alarm.
TEST FUNCTION – Optional
If programmed, this function will perform a battery test, communicator test,
and/or a siren test. Alarms and reports will not be sent, unless a
communicator test is performed at which time a test signal will be sent.
Step 1 Press [r]-[4]. The test will be performed as programmed.
Step 2 If the siren test is performed, enter a user code to silence the
siren.
Page 15
RESET FUNCTION
This function is used to reset Smoke Detectors, Zone Troubles, and Zone
Tampers. Your system must be Disarmed to use the Reset function.
Step 1 Press [r]-[7]. Resets have now been performed.
Step 2 If the keypad begins beeping, the reset did not execute properly.
Enter your code to silence the keypad. Wait a few minutes and
repeat step 2 to attempt another reset. If the keypad still beeps
after repeated attempts, please contact your installer.
SET SYSTEM DATE
Step 1 Press the [r]-[9]-[6]-[“Master Code”].
Step 2 Enter the “Day of Week “
1=Sunday 3=Tuesday 5=Thursday 7=Saturday
2=Monday 4=Wednesday 6=Friday
Step 3 Enter the “Month Code”. Must always be two (2) digits.
01 = January 05 = May 09 = September
02 = February 06 = June 10 = October
03 = March 07 = July 11 = November
04 = April 08 = August 12 = December
Step 4 Enter the “Day Code”. Must always be two (2) digits.
Example: The 5th would be entered as [0]–[5].
Step 5 Enter the last two digits of the “Year Code”.
Example: For 1997 enter [9]–[7].
SETTING THE SYSTEM CLOCK
Step 1 Press [r]-[9]-[7]-[“Master Code”].
Step 2 Enter the “hour code” which must be two (2) digits. Note: The
clock is a 24-hour clock. Refer to the following table.
Step 3 Enter the “minutes code” which must be two (2) digits.
Example: 7 minutes after would be entered [0]–[7].
Page 16
Time Hour Code
Time Hour Code
Time Hour Code
12:00
Midnight 00 8:00 AM 08 4:00 PM 16
1:00 AM 01 9:00 AM 09 5:00 PM 17
2:00 AM 02 10:00 AM 10 6:00 PM 18
3:00 AM 03 11:00 AM 11 7:00 PM 19
4:00 AM 04 12:00
Noon 12 8:00 PM 20
5:00 AM 05 1:00 PM 13 9:00 PM 21
6:00 AM 06 2:00 PM 14 10:00 PM 22
7:00 AM 07 3:00 PM 15 11:00 PM 23
SETTING THE KEYPAD LIGHTING
Step 1 Press [r]-[9]-[1]. The service light will flash.
Step 2 Press the [1] key to lighten, or press the [2] key to darken the
illumination behind the buttons. It is usually easier to set this
adjustment in a darkened room.
SERVICE MENU
The service light will be “on” if the security system requires service. If the
service light is “on”, press the [r] key followed by the [2] key to determine
the service condition. One or more zone lights will illuminate indicating
what service(s) is required. Call your service provider immediately for these
problems. Below is a listing of what each light means in a service condition.
TO EXIT THE SERVICE LIGHT MODE - PRESS THE [#] KEY.
LIGHT PROBLEM
1
SYSTEM FAULT - Press the [1] key. The zone light(s) that is
illuminated corresponds to the system fault(s) below:
1 Over Current Fault
2 Siren Trouble
3 Box Tamper
4 Expander Power
5 Expander Low Battery
6 Expander Box Tamper
7 Expander Trouble
8 Ground Fault
Note: Faults 1 & 2 are global in nature and will affect all
partitions of a multi-partition system. Press the [#] key to
return to the 1 of 8 service lights.
2
ZONE TAMPER - Press the [2] key and the zone light(s) will
illuminate showing the zone(s) that are tampered. Press the [#]
key to return to the 1 of 8 service lights.
Page 17
3 ZONE LOW BATTERY - Press the [3] key. The zone light(s) will
illuminate showing which zone(s) has a low battery. This only
applies to wireless zones. Press the [#] key to return to the 1 of 8
service lights.
4 ZONE LOSS OF SUPERVISION - Press the [4] key and the zone
light(s) will illuminate showing which zone(s) has loss of
supervision. This only applies to wireless zones. Press [#] key to
return to the 1 of 8 service lights.
5 ZONE TROUBLE - Press the [5] key and the zone light(s) will
illuminate showing which zone(s) has a trouble condition. Press the
[#] key to return to the 1 of 8 service lights.
TELEPHONE LINE TROUBLE/LINE CUT – Press the [6] key. The
zone light(s) will illuminate as they correspond to these service
conditions:
1-5 = Reserved 6 = Telephone Line Trouble / Line Cut
7 = Aux communication device failure
6
The service light will remain lit until the trouble clears and a user
code is entered. * SEE NOTE.
7 FAILURE TO COMMUNICATE - This light will illuminate when
there is a failure to communicate between your system and the
central station. * SEE NOTE.
8 LOSS OF SYSTEM TIME - This light will illuminate when there
has been a loss of power and your system clock needs to be reset.
Instructions are on page 16. * SEE NOTE.
* NOTE to Lights 6,7,8: This fault is global in nature and will affect
all partitions of a multi-partition system.
KEYPAD CONTROL TONES (BEEPS)
A sounder is built into the keypad. If programmed, your system keypad
may sound for any of the following reasons:
Beeps for all keypresses.
Sounds a continuous tone during the Entry delay time.
Pulses when a day zone is violated while the system is disarmed.
Pulses when a FIRE zone has a trouble condition.
Beeps 3 times for trying to arm with the “Ready” light off, if “Force
Arming” has not been selected.
Page 18
Beeps for 1 second or emits a “ding-dong” sound for the “Chime”
feature.
Beeps during an exit delay; beeps rapidly for the last 10 seconds of an
exit delay; and beeps 1 second at the end of the exit delay.
Pulses when the armed status changes and the AC power is off.
Pulses when the armed status changes and any zone(s) are bypassed.
Pulses when the armed status changes and a low battery is detected.
Pulses when the armed status changes and a Tamper condition is
detected.
Beeps to indicate Telephone Line Cut, if selected.
Pulses when one or more of the following conditions are detected: Zone
or Box Tamper, Low Battery, AC Power Fail, or Expander trouble.
Entering a valid code will silence the keypad sounder when it is pulsing. The
arm/disarm state of your system will not change when entering a code to
silence a pulsing keypad sounder. Please contact your installer if a trouble
condition exists.
EMERGENCY EVACUATION PLANS
An emergency evacuation plan should be established for an actual fire alarm
condition. For example, the following steps are recommended by the
National Fire Protection Association and can be used as a guide in
establishing an evacuation plan for your building.
Draw up a floor plan of your home. Show windows, doors, stairs, and
rooftops that can be used for escape. Indicate each occupant's escape
routes. Always keep these routes free from obstruction. Determine two
means of escape from each room. One will be the normal exit from the
building. The other may be a window that opens easily. An escape ladder
may have to be located near the window if there is a long drop to the
ground below. Set a meeting place outdoors for a headcount of the building
occupants.
Practice escape procedures. In a home, sleep with bedroom door closed;
this will increase your escape time. If you suspect fire, test the door for
heat. If you think it is safe, brace your shoulder against the door and open
it cautiously. Be ready to slam the door if smoke or heat rush in. Practice
escaping to the outdoors and meeting in an assigned spot. Call the Fire
Department from a neighbor's phone. NOTE: After the installation of your
Security System has been completed, notify your local Fire and Police
Departments to give them your name and address for their records. Early
Page 19
warning fire detection is best achieved by the installation of fire detection
equipment in all rooms. This equipment should be installed in accordance
with the National Fire Protection Association's Standard 72. For additional
information write the National Fire Protection Association, Batterymarch

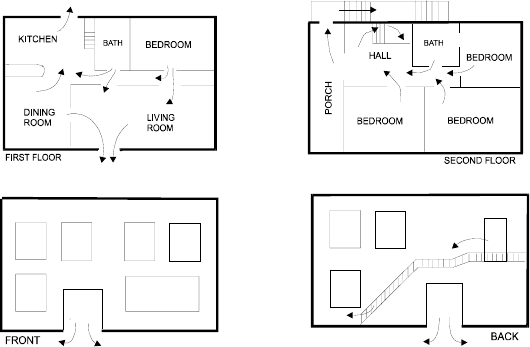

Park, Quincy, MA 02269.The following are examples of evacuation plans. A
plan unique to your home or business should be drawn and memorized by
each occupant.
Page 20
SYSTEM NOTES
Page 21
NX1500E SERIES USER’S MANUAL
NX1500EUC04 REV C (DEC 2004)

Navigation menu
