POWER TAKE-OFF DRIVELINE PRODUCTS CATALOG
Welcome to Neapco Power Take-Off (P.T.O.) Driveline Products Catalog. The goal of
this publication is to provide trouble free identification of a sometimes complex and/or
unfamiliar product line. In this issue there are improvements in the series information,
a major consolidation of Category I series, and an entirely new Auxiliary P.T.O. section.
Our plan is to expand the coverage of this catalog in future issues while continuing to
improve the content from a user’s perspective.
There are five (5) major areas of interest (sections) in this book.
GENERAL INFORMATION – Contains important introductory information including
“How To Use This Catalog”, identification, maintenance, lubrication details and more.
STANDARD SERIES – Features domestic (primarily North American) design Agricul-
tural P.T.O. driveline products dimensioned in inches.
METRIC SERIES – Covers both Tri-lobe and Lemon-shape European-style Agricultural
P.T.O. driveline products with metric dimensions.
AUXILIARY P.T.O. – Focused products for truck mounted and industrial power take off
applications with Neapco’s exclusive Safety Shielding System.
INTERCHANGE – Part number interchange to key competitor product lines for easy
reference.
TECHNICAL SUPPORT
Neapco understands that accurate catalogs and quality products are only pieces of a
complete program. We provide full line technical support on all of our product lines.
Call 800-821-2374 to talk to a Customer Service Representative with questions on
catalog information or a Technical Support Specialist with in-depth product knowledge
regarding application problems.
THE DRIVELINE COMPANY . . . FOUNDED 1921
Toll Free 800-821-2374 U.S. & Canada
4
3
2
1
0
(¹⁵⁄₁₆") 1-0170
1-1475 (³¹⁄₃₂")
(1") 1-1875
1-1275 (1¹⁄₁₆")
(1¹⁄₈") 1-2075
2-2275 (1¹⁄₄")
(1⁵⁄₁₆") 3-0044
3-0188 (1³⁄₈")
(1¹⁷⁄₃₂") 3-0045
(³⁵⁄₆₄")
1-1475, 1-0170
(³⁷⁄₆₄")
1-1875
(⁴¹⁄₆₄")
1-1275
(1¹⁄₆₄")
3-0045
(⁵⁷⁄₆₄")
3-0188
(²³⁄₃₂")
1-2075
(²⁷⁄₃₂")
2-2275
3-0044
(4¹⁄₆₄") 3-0045
(3⁷⁄₈") 3-0188 (3³⁄₄") 3-0044
(2¹⁵⁄₁₆") 2-2275
(2⁷⁄₈") 1-1875
(2¹³⁄₃₂") 1-2075
(2⁵⁄₁₆")
1-1275
(2¹⁄₁₆")
1-0170
(1³¹⁄₃₂")
1-1475
J.L. (JOURNAL LENGTH WITH BEARINGS REMOVED) B.D. (BEARING DIAMETER)
J.D. (JOURNAL DIAMETER)
TABLE OF CONTENTS
Warranty .......... 1
How to Read Catalog .......2-3
Selection of Proper Series...... 3
Identification of Series L600-N1000 ... 3
Driveshaft Safety Information .....4-5
Maintenance and Lubrication Instructions .6
Competitor Interchangeability Chart ...7-8
Standard Series........ 7
Metric Series ........ 8
Cross and Bearing Kit Specification:
Standard and Metric ...... 9
Standard Series Listings ..... 10-59
AG Rack ........ 10-11
L600 Series ....... 12-16
N1000 Series ....... 17-24
1200 Series ....... 25-31
1800 Series ....... 32-36
2000 Series ....... 37-41
2200 Series ....... 42-48
2200 Series CV ..... 47-48
N44 Series ....... 49-53
N44 Series CV ..... 52-53
2600 Series ....... 54-56
N55 Series ....... 57-59
World ShieldTM / Shield Bearing Kits ...60
Q.D. Repair Kits ........61
Old Style Replacement Shield Components .61
Hanger Bearings, Pillow Block Bearings
and Set Screws .......62
Square, Step and Woodruff Keys ....63
Shafting and Tubing .......64-65
Metric Series Listings ...... 66-96
Metric AG Rack ....... 66-67
1 Series (Bondioli & Pavesi) . . . 68-69
2 Series (Bondioli & Pavesi) . . . 70-71
3 Series (Bondioli & Pavesi) . . . 72-73
4 Series (Bondioli & Pavesi) . . . 74-75
5 Series (Bondioli & Pavesi) . . . 76-77
6 Series (Bondioli & Pavesi) . . . 78-79
7 Series (Bondioli & Pavesi) . . . 80-81
8 Series (Bondioli & Pavesi) . . . 82-83
9 Series (Bondioli & Pavesi) ....84
10 Series (Bondioli & Pavesi) ....84
2100 Series (Walterscheid) . . . 85-86
2200 Series (Walterscheid) . . . 87-88
1 Series (Walterscheid) . . . 89-90
2300 Series (Walterscheid) . . . 91-92
2400 Series (Walterscheid) . . . 93-94
2500 Series (Walterscheid) . . . 95-96
Auxiliary PTO Driveshafts & Components 97-127
Companion Flanges ......121-122
Interchange ........128-138
Warranty
We warrant to the original purchaser all new parts to be free of defects in material and workmanship when
such parts are used on applications which have been approved by our Engineering Department, but not
against damage caused by negligence or abuse.
Our obligations and liabilities under this Warranty shall be limited to replacing or repairing such parts if found
upon inspection by us to be defective.
OUR WARRANTIES ARE STRICTLY LIMITED TO THOSE JUST STATED. WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE AND ALL IMPLIED WARRANTIES
ARISING FROM A COURSE OF DEALING, USAGE OR TRADE, BY STATUE OR OTHERWISE ARE
HEREBY DISCLAIMED, and in the event of breach of any warranty or any legal action brought by buyer based
on alleged negligence or other tortious conduct of us, buyer's sole and exclusive remedy will be replacement
of defective material as stated above. WE WILL NOT BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL
OR CONTINGENT DAMAGES OF ANY KIND. We make no warranty whatsoever with respect to component
parts or accessories not supplied by us.
1
Copyright ©2001 Neapco, Inc.
Pottstown, Pennsylvania
All rights reserved. No part of this book may be reproduced in any form without specific written
permission from the copyright owner. Manufactured in The United States of America.
HOW TO READ THIS CATALOG
HOW TO READ THIS CATALOG
BY SERIES—Locate the replacement component
Each yoke and/or component lists the appropriate dimensional
information needed to match your replacement component to
the appropriate part number.
1st KNOW YOUR SERIES
Neapco offers several methods to identify the series of the
replacement component; use this information to identify the
Neapco series:
1.) Interchange by competitor part number (Pages 128-138)
2.) Dimensional check (Page 9)
3.) Size comparison templates for standard series only
(Inside Back cover)
Shield systems are available and their use is required for each
series. C.V. joints, clutches, and other special add-on
components are located in each available series. Service
parts for shields, Q.D. yokes, and other hardware are located
in the back of the catalog. (See Table of Contents.)
2
ABBREVIATIONS
Max. Maximum
Min. Minimum
mm Millimeters
MP Male Pilot
N/A Not Available
No. Number
NPT National Pipe Tap
O.D. Outside Diameter
pc. Piece
PTO Power Take-Off
Q.D. Quick Disconnect
RD Round
RECT Rectangular
RPM Revolutions per minute
SPL Spline
SQ Square
ASAE American Society of
Agricultural Engineers
BC Bolt Circle
Brg. Bearing
L Centerline
C.V. Constant Velocity
D.T. Drill Thru
DBL Double
Dia. Diameter
Dim. Dimension
Dist. Distance
GA Gauge
HEX Hexagon
HP Horsepower
I.D. Inside Diameter
in. Inches
Loc. Location
Set Screw or Pin Hole
Keyway Distance Part
Bore Length Width Location Hole Size Location to End Number
⁵⁄₈"2¹⁄₂"³⁄₁₆" GAP ³⁄₈"-16 EAR ⁵⁄₈" 10-4373
³⁄₄"1¹¹⁄₁₆"³⁄₁₆" GAP ³⁄₈"-16 EAR ⁷⁄₁₆" 10-4693
c
HOW TO READ THIS CATALOG
HOW TO READ THIS CATALOG
In order to select the correct series PTO universal joint to satisfy your needs, you need
only answer three (3) simple questions.
1. What size is the yoke? Measure the
size of the hole in the ear section, and
determine the lock-up type.
2. What are the bore and keyway sizes? Keyway locations? What type
of bore: square, rectangular, spline?
3. What is the length of the yoke?
Identification of Series
L600-N1000
There are three major Category 1 PTO series: Neapco, Rockwell, and Dana/Spicer.
We have a complete range of components for the L6 and 1000 series. Our yokes
have identification chamfers and marks in the critical fit dimension areas. Use the
proper universal joint kit for the respective series.
Round Spline Square Hexagon
Outside
Lockup
Ear Hole
Inside
Lockup
Ear Hole
Outside Lockup Inside Lockup
L
1.45
Broached
Goove
L600 N1000
.969
1.50
.937
Notch
3
Danger
Rotating Driveline
Applicable safety standards require a
warning label be affixed to the outer section
of the driveline safety shield, to remind the
operator that it should not be in operation
until the following conditions have been
met.
1. All Driveline, Tractor and Equipment
Shields are in place
2. The Driveline is properly and securely
attached at both ends.
3. The Driveline Shields turn freely. Any
deviation from this standard could result
in a serious injury or death.
The label, part number NA-7232, should
be affixed to the outer shield with the top
one (1") inch from the bell as shown in the
diagram below.
Note: Applicable safety standards
require that all drivelines be
shielded with legible label in place.
When maintaining and repairing
PTO drivelines, use the
designated label part numbers to
purchase replacements.
SAFETY INFORMATION
SAFETY INFORMATION
READ CAREFULLY and ADHERE TO
Part Number
NA-7232
Unguarded portion of
PTO must be shielded
by tractor master
shield.
Unguarded portion of
PTO must be shielded
by implement shield
furnished by equip-
ment manufacturer.
4

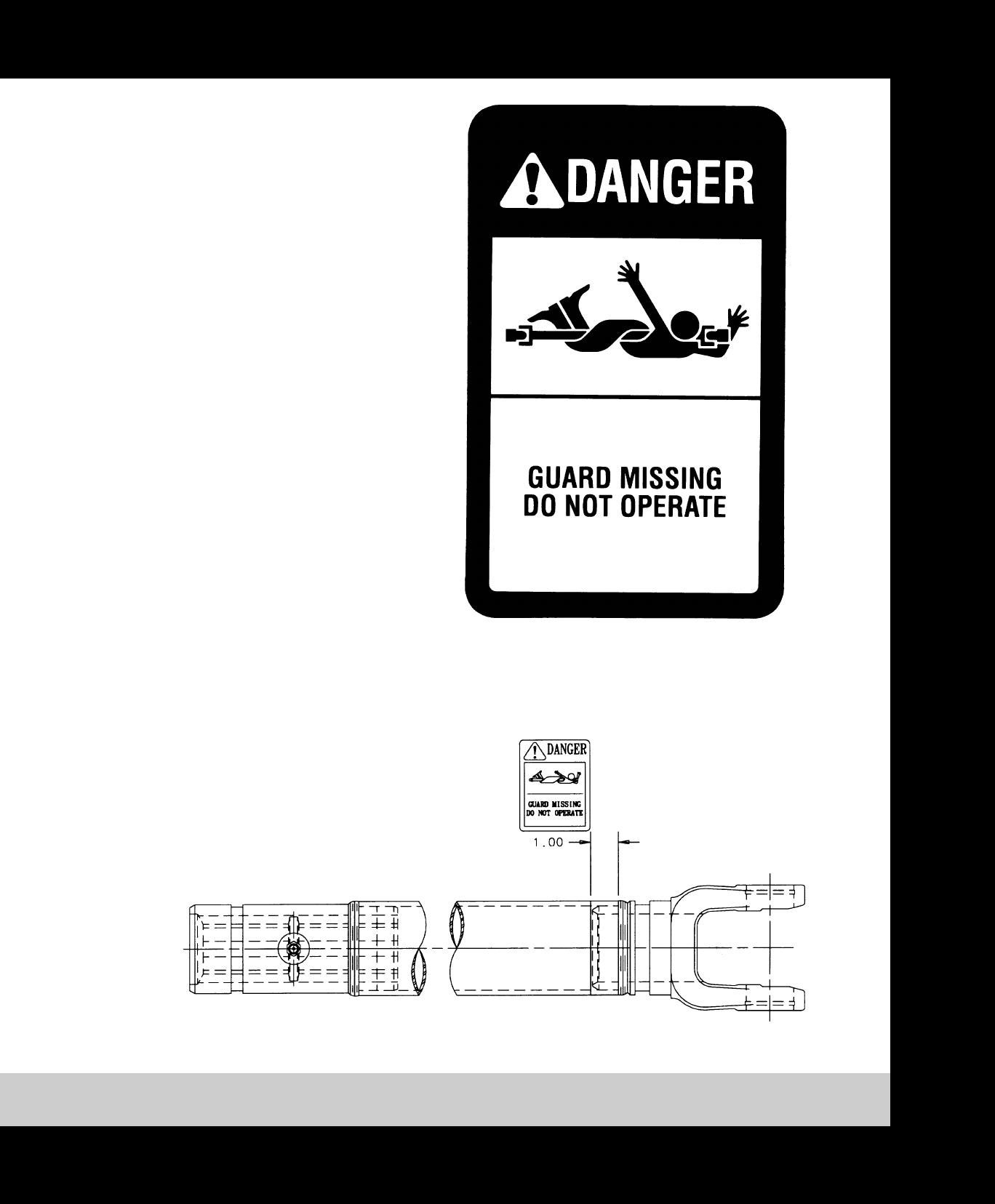

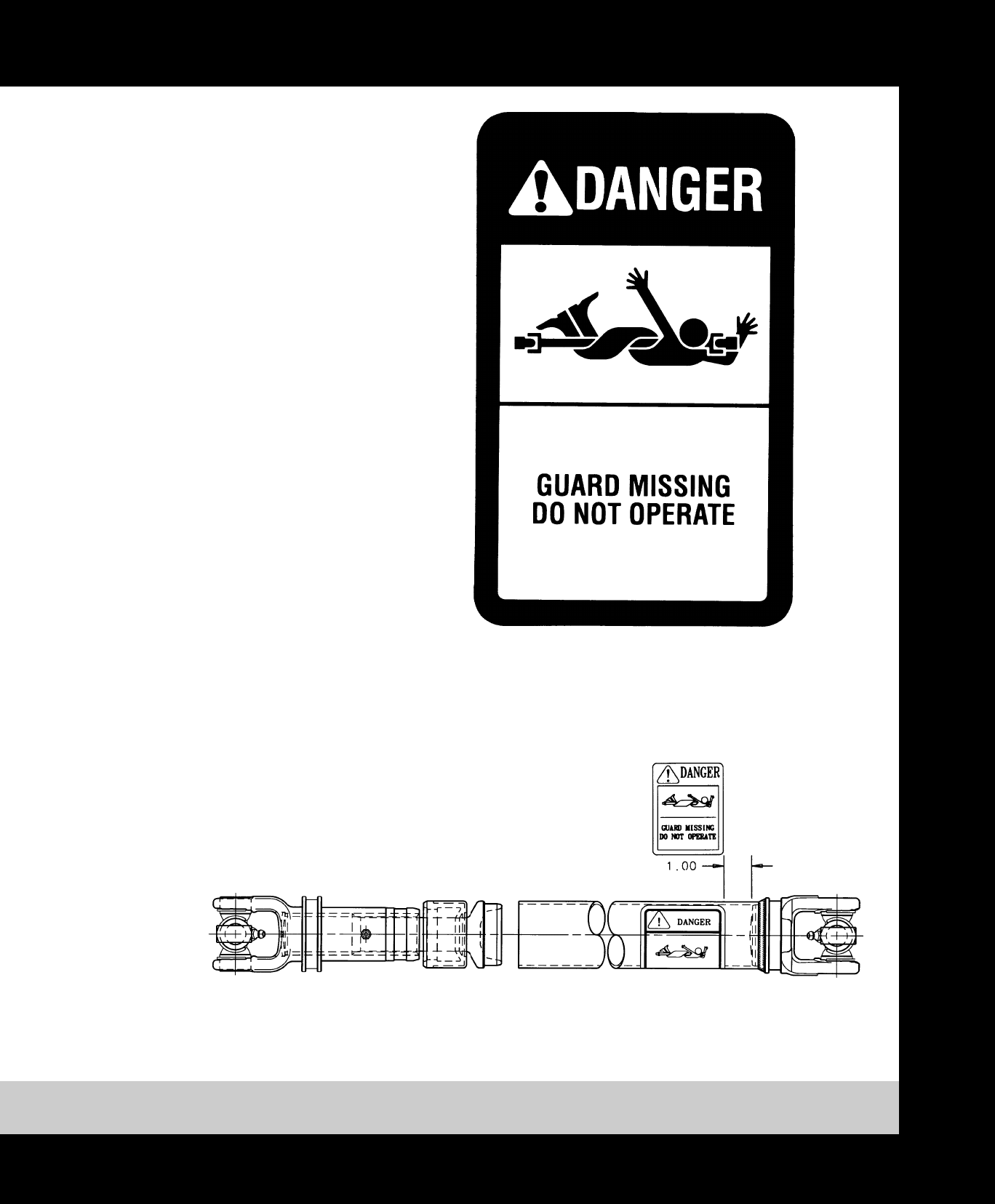

Danger
Guard Missing
DO NOT OPERATE
Applicable safety standards require the
use of warning labels on the driveshaft
when the safety shields have been
removed. We recommend that label part
number NA-10666 be adhered to the tube
end of the driveshaft, one (1") inch from
the edge of the yoke, with the side of the
label toward the yoke. (See diagram
below) At this point, the label will be
readily visible at all times.
Serious injury or even death can result by
operating equipment without the proper
safety shield in place. DO NOT operate
your equipment without safety shields
being installed on the driveshaft.
Note: A high percentage of all
driveline injuries occur when safety
shielding is missing or not
functional. It is necessary for the
user to maintain proper shielding
and safety labels on the drivelines.
SAFETY INFORMATION
SAFETY INFORMATION
READ CAREFULLY and ADHERE TO
Part Number
NA-10666
5
6
Lubricants for Universal Joints and Slip Sleeves
Use
only
a good quality lithium soap base E.P. grease meeting or exceeding N.L.G.I. grade 2 specifications. This
same grease may also be used for shield bearing grooves and Q.D. pin lubrication.
*Maintenance
After prolonged periods of disuse such as off-season storage, inspect as follows.
1. Shielding for damage and freedom of rotation
2. Legibility of shield warning decal
3. Lubrication:
Carefully adhere to applicable lubrication instructions
4. PTO end connections:
Check that both the tractor and implement end connections have been made properly and are securely
locked
5. Safety Precautions:
Use
only
shielded drivelines and make sure tractor master shield and implement PTO shield are in place
and cover driveline end connections.
6. Insure shaft and shield labels are in place. (Refer to pages 4 and 5 for proper location)
*It is recommended that this inspection be performed before each use of machine.
Shield Bearing Shield Bearing
Q.D. Pins & Collars
Cross and
Bearing Kit
Cross and
Bearing Kit
Minimum Recommended Lubrication Schedule
20 hrs.
40 hrs.
8 hrs.
40 hrs.
8 hrs.
40 hrs.
Sleeve
Maintenance and Lubrication
Instructions for PTO Driveline
7
Supplier
ASAE HP @
HP @ Walterscheid
540 RPM 1000 RPM Neapco AgMaster G & G Rockwell Weasler
Standard Series
Series N1000 1000
Kit No. 1-0170 5-170X
Series L600 6N L6N 6
Kit No. 1-1475 302-0600 CPL6R-40 200-0600
Series 1200 1140 12N L12N 12
Kit No. 1-1275 5-242X 302-1200 CPL12R 200-1200
Series 1800 1800
Kit No. 1-1875 200-1875
Series 2000 1240 14N L14N 14
Kit No. 1-2075 5-129X 302-1400 CPL14R 200-1400
Series 2200 1340 35N 35N 35
Kit No. 2-2275 5-243X 302-3500 CP35R 200-3500
Series N44 44R 44R 44
Kit No. 3-0044 302-4400 CP44R 200-4400
Series 2600 1480 2600
Kit No. 3-0188 5-188x 200-2600
Series N55 5N 55N 55
Kit No. 3-0045 302-5500 CP55N 200-5500
11630
11630
22548
33548
33556
45893
5 80 120
6 100 150
6 100 150
Supplier
ASAE
Walterscheid
Category Number
Neapco Precision Rockwell Spicer AgMaster Weasler
1Series N1000 1500/1700 10N 1000 1000
1Series L600 1900 L6N 6
2Series 1200 1200 L12N 1140 1140 12
3Series 1800 1800
3Series 2000 1300 L14N 1240 1240 14
4Series 2200 1800 L16S/3N/35N 1340 1340 35
5Series N44 1400 44R 1440 1440 44
6Series 2600 1480 1480 2600
6Series N55 1100 55N 55
IMPORTANT NOTICE
The data listed above is correct to the best of our knowledge, having been
compiled from sources of information which we believe to be reliable.
However, we cannot assume any responsibility for possible error.
COMPETITOR INTERCHANGEABILITY CHART
8
Metric Series
ASAE Supplier
Category Number Neapco Bondioli & Pavesi Walterscheid Weasler
IMPORTANT NOTICE
The data listed above is correct to the best of our knowledge, having been
compiled from sources of information which we believe to be reliable.
However, we cannot assume any responsibility for possible error.
1
1
2
2
3
3
3
3
4
4
5
5
5
6
Series 11
Kit No. 1-0121 1.41 200-6154
Series 2100 2100
Kit No. 1-1001 10.01.00 200-7155
Series 22
Kit No. 1-0221 2.41 200-8261
Series 2200 2200
Kit No. 1-0221 20.00.00 200-8261
Series 33
Kit No. 1-0321 3.41 200-8370
Series II
Kit No. 1-0321 11.03.00 200-8370
Series 2300 2300
Kit No. 1-0421 21.00.00 200-8474
Series 44
Kit No. 1-0421 4.41 200-8474
Series 55
Kit No. 2-0521 5.41 200-6580
Series 2400 2400
Kit No. 2-2421 35.00.00 200-7676
Series 66
Kit No. 3-0621 6.41 200-8692
Series 2500 2500
Kit No. 3-2521 36.00.00 200-7989
Series 77
Kit No. 3-0721 7.81 200-6794
Series 88
Kit No. 3-0821 8.41 200-6806
Series 99
Kit No. 3-0921 9.81
Series 10 10
Kit No. 3-1021 10.41
COMPETITOR INTERCHANGEABILITY CHART
9
Standard Series
Bearing Lock-Up Overall Journal Journal Neapco Page Part
Diameter Dimension Length Length Diameter Type Series Number Number
³¹⁄₃₂"1²⁹⁄₆₄"2⁵⁄₁₆"2¹⁄₁₆"³⁵⁄₆₄" 1 L600 12 1-0616
³¹⁄₃₂"1²⁹⁄₆₄"2⁵⁄₁₆"1³¹⁄₃₂"³⁵⁄₆₄" 1 L600 12 1-1475
¹⁵⁄₁₆"1¹⁄₂"2⁵⁄₁₆"2¹⁄₁₆"³⁵⁄₆₄" 1 N1000 17 1-0170
¹⁵⁄₁₆"1¹⁄₂"2⁵⁄₁₆"2¹⁄₁₆"³⁵⁄₆₄" 1 N1000 17 1-0171
¹⁵⁄₁₆"1¹⁄₂"2⁵⁄₁₆"2¹⁄₁₆"³⁵⁄₆₄" 1 N1000 17 1-0172
1¹⁄₁₆"1¹³⁄₁₆"2⁹⁄₁₆"2⁵⁄₁₆"⁴¹⁄₆₄" 1 1200 25 1-1275
1"2¹¹⁄₃₂"3¹⁄₈"2⁷⁄₈"³⁷⁄₆₄" 1 1800 32 1-1875
1¹⁄₈"2⁵⁄₈"2⁵⁄₈"2¹³⁄₃₂"²³⁄₃₂" 2 2000 37 1-2075
1¹⁄₄"3⁷⁄₃₂"3⁷⁄₃₂"2¹⁵⁄₁₆"²⁷⁄₃₂" 2 2200 42 2-2275
1¹⁄₄"3⁷⁄₃₂"3⁷⁄₃₂"2¹⁵⁄₁₆"²⁷⁄₃₂" 2 2200 42 2-2276
1⁵⁄₁₆"2⁵¹⁄₆₄"4¹⁄₃₂"3³⁄₄"²⁷⁄₃₂" 1 44 49 3-0044
1³⁄₈"4³⁄₁₆"4³⁄₁₆"3⁷⁄₈"⁵⁷⁄₆₄" 2 2600 54 3-0188
1¹⁷⁄₃₂"4⁵⁄₁₆"4⁵⁄₁₆"4¹⁄₆₄"1¹⁄₆₄" 2 55 57 3-0045
Metric Series: All Type 2
22.0(.866) 54.0(2.126) Bondioli & Pavesi 1 68 1-0121
22.0(.866) 55.0(2.165) Walterscheid 2100 85 1-1001
23.8(.937) 61.3(2.413) 1-0221
27.0(1.063) 70.0(2.756) 1-0321
27.0(1.063) 74.6(2.937) 1-0421
30.2(1.188) 80.0(3.150) Bondioli & Pavesi 5 76 2-0521
32.0(1.260) 76.0(2.992) Walterscheid 2400 93 2-2421
30.2(1.188) 92.0(3.622) Bondioli & Pavesi 6 78 3-0621
36.0(1.417) 89.0(3.500) Walterscheid 2500 95 3-2521
35.0(1.377) 94.0(3.700) Bondioli & Pavesi 7 80 3-0721
35.0(1.377) 106.5(4.193) Bondioli & Pavesi 8 82 3-0821
41.0(1.614) 108.0(4.250) Bondioli & Pavesi 9 84 3-0921
41.0(1.614) 118.0(4.646) Bondioli & Pavesi 10 84 3-1021
{
{
{
Overall
Length
Brg.
Dia.
Journal
Length
Journal
Dia.
Bearing Overall
Diameter Length Page Part
mm(in.) mm(in.) Style Series Number Number
}
}
}
✝ Non-Greasable. ✝✝ Greasable thru one (1) bearing. ★ Greasable thru two (2) bearings.
Type 1
(Snap Ring Grooves
in Bearings)
Type 2
(Snap Ring Grooves
in Yokes)
Bondioli & Pavesi 2 70
Walterscheid 2200 87
Bondioli & Pavesi 3 72
Walterscheid I 89
Bondioli & Pavesi 4 74
Walterscheid 2300 91
✝
✝✝
★
CROSS AND BEARING KITS
10
Series Quantity Part Number
Cross & Bearing Kits
L600 6 1-1475
1200 8 1-1275
2000 8 1-2075
2200 8 2-2275
Quick Disconnect Yokes
L600 6 Spline 4 16-6409-AR
L600 21 Spline 1 16-0621-AR
1200 6 Spline 4 12-1190-AR
1200 21 Spline 1 12-1193-AR
2000 6 Spline 4 20-9309-AR
2000 21 Spline 2 20-9325-AR
2200 6 Spline 3 22-2312-AR
2200 21 Spline 1 22-2317-AR
Series Description Quantity Part Number
STANDARD AG RACK
For additional shaft and shield safety
labels, please refer to pages 4 and 5.
Shield Safety label
Part Number NA-7232
Shaft Safety label
Part Number NA-10666
Services Popular Traditional North American Drivelines
11
Series Description Quantity Part Number
Series Description Quantity Part Number
Retrofit Shield Kits
(Includes Shield Bearings)
L600 1 69-0640-AR
1200, 2000 1 69-1240-AR
2200 1 69-2240-AR
1³⁄₁₆" Shaft 1 73-1188
³⁄₄" X ⁷⁄₈" Shaft 2 73-0750
1" X 1 ¹⁄₈" Shaft 2 73-1001
1" X 1¹⁄₈" Tube 2 70-1001
1¹⁄₄" X 1³⁄₈" Tube 2 70-1250
2" X 14GA(.083) Tube 1 70-2000
2¹⁄₈" X 11GA(.120) Tube 1 70-2125
PTO Series Identifier 1 99-0001-AR
Shaft & Tube Selection - 72" lengths
(Included with Full Assortment Only)
Shaft Weld Yokes
L600 2 16-6129-AR
1200 2 12-1340-AR
2000 2 20-9126-AR
2200 1 22-1344-AR
L600 2 16-6131-AR
1200 2 12-1318-AR
2000 2 20-9131-AR
2200 1 22-1325-AR
Tube Weld Yokes
Sleeves
2000 1 53-2034-AR
2200 1 53-2435-AR
Half Shafts
L600 Yoke & Shaft 1 65-1639-AR
L600 Yoke & Tube 1 64-1639-AR
1200 Yoke & Shaft 1 65-2839-AR
1200 Yoke & Tube 1 64-2739-AR
2000 Yoke & Shaft 1 65-2840-AR
2000
Yoke, Tube & Sleeve
1 64-2740-AR
2200 Yoke & Shaft 1 65-2639-AR
2200
Yoke, Tube & Sleeve
1 64-2539-AR
L600 ³⁄₄" Rd. Bore 1 16-6111-AR
L600 ⁷⁄₈" Rd. Bore 1 16-6213-AR
L600 ¹⁵⁄₁₆" Rd. Bore 1 16-6114-AR
L600 1" Rd. Bore 4 16-6215-AR
L600 1¹⁄₈" Rd. Bore 1 16-6216-AR
L600 1¹⁄₄" Rd. Bore 2 16-6218-AR
1200 1" Rd. Bore 4 12-1115-AR
1200 1¹⁄₈" Rd. Bore 2 12-1326-AR
1200 1¹⁄₄" Rd. Bore 2 12-1176-AR
1200 1³⁄₈" Rd. Bore 1 12-1120-AR
2000 1" Rd. Bore 1 20-9115-AR
2000 1¹⁄₈" Rd. Bore 2 20-9117-AR
2000 1¹⁄₄" Rd. Bore 2 20-9119-AR
2000 1³⁄₈" Rd. Bore 2 20-9120-AR
2200 1¹⁄₈" Rd. Bore 1 22-1132-AR
2200 1¹⁄₄" Rd. Bore 2 22-1218-AR
2200 1³⁄₈" Rd. Bore 2 22-1219-AR
2200 1⁷⁄₁₆" Rd. Bore 1 22-1178-AR
2200 1¹⁄₂" Rd. Bore 2 22-1120-AR
End Yokes
AG Rack (Full Assortment) 99-0192
AG Rack (Limited Assortment) 99-0191
AG Rack and Hardware Only 99-0190
Complete Displays
STANDARD AG RACK
Services Popular Traditional North American Drivelines
12
L600 SERIES
Replaces Rockwell® L6 Series - Replaces Weasler® 6 Series
Lock-Up Overall
Bearing Dia. Dim. Length Part Number
³¹⁄₃₂"1²⁹⁄₆₄"2⁵⁄₁₆" 1-1475
2⁵⁄₁₆" 1-0616*
*Conversion Kit: 1000 to L600
Cross and Bearing Kit: Inside Lock-Up
Tractor Yokes: Quick Disconnect
Pin Type Q.D.
(L) Pin Repair Kit
Bore Length Part Number Part Number
1³⁄₈"-6 SPL 3⁹⁄₁₆" 56-1857 16-6409
1³⁄₈"-21 SPL 3⁹⁄₁₆" 56-1857 16-0621
Note: Tractor end use only
Lawn and Garden Yoke
Slide Collar Q.D.
(L) Collar Repair Kit
Bore Length Part Number Part Number
1"-15 SPL 2¹³⁄₁₆" 56-0615 16-0615
¹⁵⁄₁₆"1³¹⁄₆₄"
³¹⁄₃₂"1²⁹⁄₆₄"
Collar Type Q.D.
(L) Collar Repair Kit
Bore Length Part Number Part Number
1³⁄₈"-6 SPL 4¹⁄₁₆" 56-3001 16-0606
1²⁹⁄₆₄"2⁵⁄₁₆"
³¹⁄₃₂"
L
L
L
w
®
ASAE
Category 1
13
(L)
Stub Length Part Number
Lawn and Garden Yoke
Stub Yoke
L
⁵⁄₈"2¹⁄₂"³⁄₁₆" GAP ³⁄₈"-16 EAR ¹⁄₂" 16-6210
³⁄₄"2¹⁄₂"³⁄₁₆" GAP ³⁄₈"-16 EAR ¹⁄₂" 16-6111
¹³⁄₁₆"2¹⁄₂"¹⁄₄" GAP ³⁄₈"-16 EAR ¹⁄₂" 16-6112
⁷⁄₈"2¹⁄₂"¹⁄₄" GAP ³⁄₈"-16 EAR ¹⁄₂" 16-6213
¹⁵⁄₁₆"2¹⁄₂"¹⁄₄" GAP ³⁄₈"-16 EAR ¹⁄₂" 16-6114
1"2¹⁄₂"¹⁄₄" GAP ³⁄₈"-16 EAR ¹⁄₂" 16-6215
1¹⁄₈"2¹⁄₂"⁵⁄₁₆" GAP ³⁄₈"-16 EAR ¹⁄₂" 16-6216
1³⁄₁₆"2¹⁄₂"⁵⁄₁₆" GAP ³⁄₈"-16 EAR ¹⁄₂" 16-6217
1¹⁄₄"2¹⁄₂"⁵⁄₁₆" GAP ³⁄₈"-16 EAR ¹⁄₂" 16-6218
Round
Set Screw
(L) Keyway Dist. Part
Bore Length Width Loc. Hole Size Loc. to End Number
Round-Double Keyway
⁷⁄₈"2¹⁄₂"³⁄₈"-16 EAR ¹⁄₂" 16-6213
1"2¹⁄₂"³⁄₈"-16 EAR ¹⁄₂" 16-6215
1¹⁄₈"2¹⁄₂"³⁄₈"-16 EAR ¹⁄₂" 16-6216
1³⁄₁₆"2¹⁄₂"³⁄₈"-16 EAR ¹⁄₂" 16-6217
1¹⁄₄"2¹⁄₂"³⁄₈"-16 EAR ¹⁄₂" 16-6218
³⁄₁₆" GAP
¹⁄₄" GAP
³⁄₁₆" GAP
¹⁄₄" GAP
¹⁄₄" GAP
⁵⁄₁₆" GAP
¹⁄₄" GAP
⁵⁄₁₆" GAP
¹⁄₄" GAP
⁵⁄₁₆" GAP
L
L
Set Screw
(L) Keyway Dist. Part
Bore Length Width Loc. Hole Size Loc. to End Number
1"-15 SPL 5³⁄₈" 16-1615
Implement Yokes
Pin Type Q.D.
(L) Pin Repair Kit
Bore Length Part Number Part Number
1³⁄₈"-6 SPL 3⁹⁄₁₆" 56-1857 16-6407
Note: Implement end use only
L
L600 SERIES
Replaces Rockwell® L6 Series - Replaces Weasler® 6 Series
14
L600 SERIES
Implement Yokes
1" RD 2³⁄₄"¹³⁄₃₂"⁷⁄₁₆" 16-6616*
*Also has ¹⁄₄" keyway and set screw hole
Clamp
(L) Drill Thru
Bore Length Hole Size Bolt Fit Part Number
Drill Thru
(L) Distance
Bore Length Hole Size Loc. to End Part Number
1"2¹⁄₂"²⁵⁄₆₄" GAP ⁵⁄₈" 16-6516
1¹⁄₈"2¹⁄₂"²⁵⁄₆₄" GAP ⁵⁄₈" 16-6518
1¹⁄₄"2¹⁄₂"²⁵⁄₆₄" GAP ⁵⁄₈" 16-6165
Shear
Drill Thru
(L) Distance
Bore Length Hole Size Loc. to End Part Number
1¹⁄₈"-6 SPL 2¹⁄₂"²¹⁄₆₄" EAR ⁵⁄₈" 16-6134
1³⁄₈"-6 SPL 2¹⁄₂"²¹⁄₆₄" EAR ³⁄₈" 16-6187
Spline
Set Screw
(L) Distance
Bore Length Hole Size Loc. to End Part Number
³⁄₄"2¹⁄₂"³⁄₈"-16 EAR ¹⁄₂" 16-6171
⁷⁄₈"2¹⁄₂"³⁄₈"-16 EAR ¹⁄₂" 16-6302
⁷⁄₈" X 1"* 2¹⁄₂"³⁄₈"-16 EAR ¹⁄₂" 16-6302
1" 2¹⁄₂"³⁄₈"-16 EAR ¹⁄₂" 16-6302
1¹⁄₈"2¹⁄₂" — — — 16-6138
1¹⁄₄"2¹⁄₂"³⁄₈"-16 EAR ¹⁄₂" 16-6127
*Double Square
Square
L
L
L
L
Set Screw
(L) Distance
Bore Length Hole Size Loc. to End Part Number
⁷⁄₈"2¹⁄₂"³⁄₈"-16 GAP ⁵⁄₈" 16-6303
Hexagon
L
Replaces Rockwell® L6 Series - Replaces Weasler® 6 Series
15
L600 SERIES
Square
Set Screw
(L) Distance
Bore Length Hole Size Loc. to End Part Number
³⁄₄"5¹⁄₂"¹⁄₈" NPT GAP 2" 16-6176
⁷⁄₈"5¹⁄₂"(2)¹⁄₈" NPT GAP 2" 16-6178
Implement Slip Yokes
Double Pivot Yoke
(L) Maximum
L to L Static Angle Operating Angle Part Number
2¹⁄₂"20O18O16-8600
cc
L
L
Shaft Weld Yoke
(L) Use W/Shaft
Bore Length Part Number Part Number
³⁄₄" X ⁷⁄₈"2¹⁄₂" 73-0750 16-7600*
³⁄₄" X ⁷⁄₈"2¹⁄₂" 73-0750 16-6129**
Shield Brg. Groove Style: *0600 **L600
L
Tube Weld Yoke
(L) Use W/Tube
Bore Length Part Number For Tube Part Number
1" X 1¹⁄₈"2³⁄₄" 70-1001 1 X 1¹⁄₈" 16-3600*
1" X 1¹⁄₈"2³⁄₄" 70-1001 1" X 1¹⁄₈" 16-6131**
1³⁄₁₆" RD 3" 70-1625 1⁵⁄₈" X 16GA 16-6132*
Shield Brg. Groove Style: *0600 **L600
L
Rectangular and Round Tube
(L) Wall Use W/Weld
O.D. Length Thickness Yoke Number Part Number
1" X 1¹⁄₈" 72" .125 16-3600 70-1001
1" X 1¹⁄₈" 72" .125 16-6131 70-1001
1⁵⁄₈" RD 72" .065 (16GA) 16-6132 70-1625
L
Replaces Rockwell® L6 Series - Replaces Weasler® 6 Series
16
L600 SERIES
(L) Lube Shield Part
I.D. Length Fitting For Tube Brg. No. Number
Slip Sleeve
³⁄₄" X ⁷⁄₈"4"NO
1⁵⁄₈" X .065(16GA)
— 53-0635
³⁄₄" X ⁷⁄₈"4"NO
1¹⁄₂" X .065(16GA)
— 53-0635
Yoke and Shaft Assembly
Overall Driveline (L)
Length L to End Part Number
c
36" 24" 65-1627
48" 36" 65-1639
60" 48" 65-1651
Yoke and Tube Assembly
Overall Driveline (L)
Length L to End Part Number
36" 24" 64-1627
48" 36" 64-1639
60" 48" 64-1651
World ShieldTM Plastic
Overall Driveline (L)
Length Length Bell O.D. Part Number
60"51"5¹⁄₄" 69-0648
Shield Bearings are not included. Please order part number 56-1600
Note: Shield can be cut shorter to fit 36" and 48" drives.
Drive Shaft with World ShieldTM
Overall Driveline (L) (L)
Length Min. L to L Max. L to L Part Number
36"26³⁄₄"38" 58-1627
48"38³⁄₄"62" 58-1639
60"50³⁄₄"86" 58-1651
Shield Bearing
Bearing Use W/Shield
Bearing I.D. Width Part Number Part Number
1¹³⁄₁₆"⁵⁄₁₆" 69-0648 56-1600
Note: Two (2) Bearings per box
L
L
L
L
L
cc cc
c
Replaces Rockwell® L6 Series - Replaces Weasler® 6 Series
17
N1000 SERIES
¹⁵⁄₁₆"
1¹⁄₂"2⁵⁄₁₆"
Collar Type Q.D.
(L) Collar Repair Kit
Bore Length Part Number Part Number
1³⁄₈"-6 SPL 4¹⁄₁₆" 56-3001 10-5430
Lawn and Garden Yoke
Slide Collar Q.D.
(L) Collar Repair Kit
Bore Length Part Number Part Number
1"-15 SPL 2¹³⁄₁₆" 56-0615 10-5366
L
L
Tractor Yokes: Quick Disconnect
Pin Type Q.D.
(L) Pin Repair Kit
Bore Length Part Number Part Number
1³⁄₈"-6 SPL 3⁹⁄₁₆" 56-1857 10-4139
1³⁄₈"-21 SPL 3⁹⁄₁₆" 56-1857 10-5411
Note: Tractor end use only
L
Stub Yoke
L
1"-15 SPL 5³⁄₈" 10-0615
(L)
Stub Length Part Number
Lock-Up Overall
Bearing Dia. Dim. Length Part Number
¹⁵⁄₁₆"1¹⁄₂"2⁵⁄₁₆" 1-0170
¹⁵⁄₁₆"1¹⁄₂"2⁵⁄₁₆" 1-0172*
¹⁵⁄₁₆"1¹⁄₂"2⁵⁄₁₆" 1-0171**
*Non-Greaseable **Greaseable thru 1 Bearing
Cross and Bearing Kit: Inside Lock-Up
Replaces Neapco 0600 Series - Interchangeble with Spicer® 1000 Series
ASAE
Category 1
18
Implement Yokes
Pin Type Q.D.
(L) Pin Repair Kit
Bore Length Part Number Part Number
1³⁄₈"-6 SPL 3⁹⁄₁₆" 56-1857 10-4137
1³⁄₈"-21 SPL 3⁹⁄₁₆" 56-1857 10-5412
Note: Implement end use only
L
N1000 SERIES
Set Screw or Drill Thru
(L) Keyway Dist. Part
Bore Length Width Loc. Hole Size Loc. to End Number
⁵⁄₈"2¹⁄₂"³⁄₁₆" GAP ³⁄₈"-16 EAR ¹⁄₂" 10-4373
³⁄₄"1¹¹⁄₁₆"³⁄₁₆" GAP ³⁄₈"-16 EAR ⁷⁄₁₆" 10-4693
³⁄₄"2¹⁄₂"³⁄₁₆" GAP ³⁄₈"-16 EAR ¹⁄₂" 10-0413
³⁄₄"2¹⁄₂"³⁄₁₆" GAP (2)³⁄₈"-16 EAR ¹⁄₂" 10-4133
³⁄₄"2¹⁄₂"¹⁄₄" GAP ³⁄₈"-16 GAP ¹⁄₂" 10-0423
¹³⁄₁₆"2¹⁄₂"³⁄₁₆" GAP ³⁄₈"-16 GAP ⁵⁄₈" 10-0433
¹³⁄₁₆"2¹⁄₂"¹⁄₄" GAP ³⁄₈"-16 GAP ⁵⁄₈" 10-0443
¹³⁄₁₆"2¹⁄₂"¹⁄₄" GAP ³⁄₈"-16 EAR ¹⁄₂" 10-4173
⁷⁄₈"2¹⁄₂"³⁄₁₆" GAP ³⁄₈"-16 EAR ¹⁄₂" 10-4943
⁷⁄₈"1¹¹⁄₁₆"¹⁄₄" GAP ³⁄₈"-16 EAR ⁷⁄₁₆" 10-1703
⁷⁄₈"1¹¹⁄₁₆"¹⁄₄" EAR ³⁄₈"-16 GAP ⁷⁄₁₆" 10-4703
⁷⁄₈"2¹⁄₂"³⁄₁₆" GAP ³⁄₈"-16 GAP ⁵⁄₈" 10-0453
⁷⁄₈"2¹⁄₂"¹⁄₄" GAP ³⁄₈"-16 EAR ¹⁄₂" 10-5113
⁷⁄₈"2¹⁄₂"¹⁄₄" GAP ³⁄₈"-16 GAP ¹⁄₂" 10-0463
⁷⁄₈"2¹⁄₂"¹⁄₄" GAP ³⁄₈"-16 GAP ¹⁄₂" 10-4453
¹⁵⁄₁₆"2¹⁄₄"¹⁄₄" GAP ³⁄₈"-16 EAR ¹⁄₂" 10-0473
1"1¹¹⁄₁₆"¹⁄₄" GAP ³⁄₈"-16 EAR ⁷⁄₁₆" 10-1705
1"2¹⁄₂"³⁄₁₆" GAP ³⁄₈"-16 GAP ⁵⁄₈" 10-0483
1"2¹⁄₂"¹⁄₄" GAP ³⁄₈"-16 EAR ¹⁄₂" 10-4573
1"2¹⁄₂"¹⁄₄" GAP ³⁄₈"-16 GAP ¹⁄₂" 10-0493
1"2¹⁄₂"—— ³⁄₈" DT EAR ¹⁄₂" 10-4443
1" 2¹⁄₂"¹⁄₄" GAP ³⁄₈"-16 EAR ¹⁄₂" 10-4493
1¹⁄₁₆"2¹⁄₂"¹⁄₄" GAP ³⁄₈"-16 EAR ¹⁄₂" 10-4163
1¹⁄₈"2¹⁄₂"⁵⁄₁₆" GAP ³⁄₈"-16 EAR ¹⁄₂" 10-4473
1¹⁄₈"2¹⁄₂"¹⁄₄" GAP ³⁄₈"-16 EAR ¹⁄₂" 10-4143
1¹⁄₈"2¹⁄₂"⁵⁄₁₆" GAP ³⁄₈"-16 GAP ¹⁄₂" 10-4113
1¹⁄₈"2¹⁄₂"¹⁄₄" GAP ³⁄₈"-16 GAP ²⁹⁄₆₄" 10-4103
1³⁄₁₆"2¹⁄₂"⁵⁄₁₆" GAP ³⁄₈"-16 EAR ¹⁄₂" 10-4153
1¹⁄₄"2¹⁄₂"⁵⁄₁₆" GAP ³⁄₈"-16 EAR ¹⁄₂" 10-4193
Round
L
Replaces Neapco 0600 Series - Interchangeable with Spicer® 1000 Series
19
Implement Yokes
Set Screw
(L) Keyway Dist. Part
Bore Length Width Loc. Hole Size Loc. to End Number
Round-Double Keyway
¹³⁄₁₆"2¹⁄₂"³⁄₈"-16 EAR ¹⁄₂" 10-5313
⁷⁄₈"2¹⁄₂"³⁄₈"-16 EAR ¹⁄₂" 10-5213
1"2¹⁄₂"³⁄₈"-16 EAR ¹⁄₂" 10-5215
1¹⁄₈"2¹⁄₂"³⁄₈"-16 EAR ¹⁄₂" 10-5216
1³⁄₁₆"2¹⁄₂"³⁄₈"-16 EAR ¹⁄₂" 10-1574
1¹⁄₄"2¹⁄₂"³⁄₈"-16 EAR ¹⁄₂" 10-5218
³⁄₁₆" GAP
¹⁄₄" GAP
³⁄₁₆" GAP
¹⁄₄" GAP
³⁄₁₆" GAP
¹⁄₄" GAP
¹⁄₄" GAP
⁵⁄₁₆" GAP
¹⁄₄" GAP
⁵⁄₁₆" GAP
¹⁄₄" GAP
⁵⁄₁₆" GAP
L
N1000 SERIES
⁴⁷⁄₆₄"-16 SPL 2¹⁄₄"¹⁵⁄₃₂"⁷⁄₁₆" 10-4611
⁴⁷⁄₆₄"-16 SPL 2³⁄₄"²⁹⁄₆₄"⁷⁄₁₆" 10-5352
1" RD 2³⁄₄"¹⁵⁄₃₂"⁷⁄₁₆" 10-5322*
*Also has ¹⁄₄" keyway and set screw hole
Clamp
(L) Drill Thru
Bore Length Hole SIze Bolt Fit Part Number
L
EAR
GAP
Set Screw or Drill Thru
(L) Keyway Dist. Part
Bore Length Width Loc. Hole Size Loc. to End Number
1¹⁄₄"2¹₂"⁵⁄₁₆" GAP ³⁄₈"-16 GAP ¹⁄₂" 10-4123
1¹⁄₄"2¹⁄₂"¹⁄₄" GAP ³⁄₈"-16 ¹⁄₂" 10-5156
1¹⁄₄"2¹⁄₂"¹⁄₄" GAP ³⁄₈"-16 EAR ¹⁄₂" 10-4183
1¹⁄₄"2¹⁄₂"-- ³⁄₈"-D.T. EAR ⁵⁄₈" 10-4363
1³⁄₈"2¹⁄₂"⁵⁄₁₆" GAP ³⁄₈"-16 EAR ⁵⁄₈" 10-4293
Round
L
Replaces Neapco 0600 Series - Interchangeable with Spicer® 1000 Series
20
N1000 SERIES
Hexagon
Implement Slip Yokes
L
⁷⁄₈"5¹⁄₂" GAP 1³⁄₄" 10-3162*
1¹⁄₈"5¹⁄₂" GAP 1³⁄₄" 10-0332*
* Grease fitting assembled in yoke
Grease Fitting
(L) Distance
Bore Length Loc. to End Part Number
Implement Yokes
Set Screw or Drill Thru
(L) Distance
Bore Length Hole Size Loc. to End Part Number
³⁄₄"1¹¹⁄₁₆"³⁄₈"-16 EAR ⁷⁄₁₆" 10-5354
³⁄₄"2¹⁄₂"³⁄₈"-16 EAR ¹⁄₂" 10-0422
³⁄₄"2¹⁄₂"⁵⁄₁₆" D.T. GAP ¹⁄₂" 10-5149
⁷⁄₈"1¹¹⁄₁₆"³⁄₈"-16 EAR ⁷⁄₁₆" 10-1707
⁷⁄₈"2¹⁄₂"³⁄₈"-16 EAR ¹⁄₂" 10-0412
⁷⁄₈" X 1"* 2¹⁄₂"³⁄₈"-16 EAR ¹⁄₂" 10-1580
1"2¹⁄₂"³⁄₈"-16 EAR ¹⁄₂" 10-0452
1¹⁄₈"2¹⁄₂" — — — 10-1557
*Double Square
Square
L
Set Screw
(L) Distance
Bore Length Hole Size Loc. to End Part Number
Hexagon
⁷⁄₈"2¹⁄₂"³⁄₈"-16 GAP ⁵⁄₈" 10-4282
1¹⁄₈"2¹⁄₂"³⁄₈"-16 GAP ¹⁄₂" 10-0432 L
Drill Thru
(L) Distance
Bore Length Hole Size Loc. to End Part Number
⁷⁄₈"-13 SPL 2¹⁄₂"³⁄₈"-16 EAR ¹⁄₂" 10-4481
⁷⁄₈"-13 SPL 2¹⁄₂" — — — 10-4333
1"-6 SPL 2¹⁄₂" — — — 10-5158
1¹⁄₈"-6 SPL 2¹⁄₂"²¹⁄₆₄" D.T. EAR ¹⁄₂" 10-0411
1³⁄₈"-6 SPL 2¹⁄₂"²¹⁄₆₄" D.T. EAR ³⁄₈" 10-0431
Spline
L
Replaces Neapco 0600 Series - Interchangeable with Spicer® 1000 Series
21
N1000 SERIES
Round
Grease Fitting
(L) Keyway Distance
Bore Length Width Loc. Loc. to End Part Number
L
³⁄₄"5¹⁄₂"³⁄₁₆" GAP GAP 2" 10-0313*
¹³⁄₁₆"5¹⁄₂"¹⁄₄" GAP GAP 1³⁄₄" 10-0323*
⁷⁄₈"5¹⁄₂"¹⁄₄" GAP
GAP
1³⁄₄" 10-0333*
¹⁵⁄₁₆"5¹⁄₂"¹⁄₄" GAP GAP 2" 10-3203*
1"5¹⁄₂"¹⁄₄" GAP GAP 1³⁄₄" 10-0383*
1¹⁄₈"5¹⁄₂"⁵⁄₁₆" GAP GAP 1³⁄₄" 10-3183*
1¹⁄₄"5¹⁄₂"⁵⁄₁₆" GAP
GAP
1³⁄₄" 10-3163*
1¹⁄₄"5¹⁄₂"¹⁄₄" GAP
GAP
2" 10-3173*
* Grease fitting assembled in yoke
Grease Fitting
(L) Distance
Bore Length Loc. to End Part Number
Spline Slip
L
1¹⁄₈"-10 SPL 5¹⁄₂" GAP 1³⁄₄" 10-0381*
1¹⁄₈"-10 SPL 5¹⁄₂" GAP 3¹⁄₂" 11-1075*
1¹⁄₈"-10 SPL 5¹⁄₂" GAP 3¹⁄₂" 10-5275*
1¹⁄₄"-6 SPL 5¹⁄₂" GAP 2" 10-1765*
* Grease fitting assembled in yoke
Set Screw
(L) Distance
Bore Length Hole Size Loc. to End Part Number
³⁄₄" X ⁷⁄₈"5¹⁄₂"¹⁄₈" NPT EAR 1" 10-1769
Rectangular
L
Implement Slip Yokes
Square
Grease Fitting
(L) Distance
Bore Length Loc. to End Part Number
L
³⁄₄"5¹⁄₂" GAP 2" 10-1758*
³⁄₄"5¹⁄₂" GAP 1³⁄₄" 10-0312*
⁷⁄₈"5¹⁄₂" GAP 1³⁄₄" 10-0322*
1" 5¹⁄₂" GAP 1³⁄₄" 10-3122*
* Grease fitting assembled in yoke
Implement Yokes
Replaces Neapco 0600 Series - Interchangeable with Spicer® 1000 Series
22
—2"RD3¹⁄₂"2³⁄₄" BC* ¹¹⁄₃₂"446-6900
2¹⁄₄" MP 1³⁹⁄₆₄"RD3¹⁄₂"2³⁄₄" BC* ¹¹⁄₃₂"446-6902
—1⁴³⁄₆₄"RD3¹⁄₂"2³⁄₄"¹¹⁄₃₂" 4 10-1022
Flange Yokes
(L) Flange Bolt Hole No. of Part
Bore Length Type Dia. Circle Dia. Holes Number
L
* Uneven bolt hole spacing
Tube Weld Yoke
(L) Use W/Tube
Bore Length Part Number For Tube Part Number
1" X 1¹⁄₈"2³⁄₄" 70-1001 1" X 1¹⁄₈" 10-5131
1³⁄₁₆" RD 3" 70-1625 1⁵⁄₈" X 16GA 10-5132
1¹⁄₄" RD 2¹⁄₂"—1¹⁄₄" X 13GA 10-5174
—2¹⁄₂" 70-2000 2"
X 14GA
10-1005
L
N1000 SERIES
Double Pivot Yoke
(L) Maximum
L to L Static Angle Operating Angle Part Number
1¹¹⁄₁₆"7O5O10-5303
2¹⁄₂"20O18O10-5361
3³⁄₁₆"90O45O10-5331
cc
L
Shaft Weld Yoke
(L) Use W/Shaft
Bore Length Part Number Part Number
³⁄₄" X ⁷⁄₈"2¹⁄₂" 73-0750 10-5129
L
Rectangular Shaft
(L) Use W/Weld Yoke
Size Length Part Number Part Number
³⁄₄" X ⁷⁄₈" 72" 10-5129 73-0750
L
Replaces Neapco 0600 Series - Interchangeable with Spicer® 1000 Series
23
Rectangular and Round Tube
(L) Wall Use W/Weld
O.D. Length Thickness Yoke Number Part Number
1" X 1¹⁄₈" 72" .125 15-5131 70-1001
1⁵⁄₈" RD 72" .065(16GA) 15-5132 70-1625 L
(L) Lube Shield Part
I.D. Length Fitting For Tube Brg. No. Number
Slip Sleeve
³⁄₄" X ⁷⁄₈"4"NO
1⁵⁄₈" X .065(16GA)
— 53-0634
Yoke and Shaft Assembly
Overall Driveline (L)
Length L to End Part Number
c
36" 24" 65-0627
48" 36" 65-0639
60" 48" 65-0651
Yoke and Tube Assembly
Overall Driveline (L)
Length L to End Part Number
36" 24" 64-0627
48" 36" 64-0639
60" 48" 64-0651
c
Drive Shaft with World ShieldTM
Overall Driveline (L) (L)
Length Min. L to L Max. L to L Part Number
36"26³⁄₄"38" 58-0627
48"38³⁄₄"62" 58-0639
60"50³⁄₄"86" 58-0651
L
L
L
L
cc cc
N1000 SERIES
Replaces Neapco 0600 Series - Interchangeable with Spicer® 1000 Series
24
N1000 SERIES
Shield Bearing
Bearing Use W/Shield
Bearing I.D. Width Part Number Part Number
1¹⁄₂"⁵⁄₁₆" 69-0648 56-0600
Note: Two (2) Bearings per box
World ShieldTM Plastic
Overall Driveline (L)
Length Length Bell O.D. Part Number
L
60"51"5¹⁄₄" 69-0648
Shield Bearings are not included. Please order part number 56-0600
Note: Shields can be cut to fit 36" and 48" drives.
Replaces Neapco 0600 Series - Interchangeable with Spicer® 1000 Series
The products in this section of the Catalog were designed specifically for the Agricultural Power
Take-Off (PTO) and Lawn & Garden replacement market.
Please refer to pages 97-127 for Auxiliary PTO truck mounted and industrial applications
Notes
25
1200 SERIES
Lock-Up Overall
Bearing Dia. Dim. Length Part Number
1¹⁄₁₆"1¹³⁄₁₆"2⁹⁄₁₆" 1-1275
Cross and Bearing Kit: Inside Lock-Up
Tractor Yokes: Quick Disconnect
Pin Type Q.D.
(L) Pin Repair Kit
Bore Length Part Number Part Number
1³⁄₈"-6 SPL 4¹⁄₁₆" 56-1857 12-1190
1³⁄₈"-21 SPL 4¹⁄₁₆" 56-1857 12-1193
Note: Tractor end use only
Collar Type Q.D.
(L) Collar Repair Kit
Bore Length Part Number Part Number
1³⁄₈"-6 SPL 4¹⁄₂" 56-3001 12-2330
1³⁄₈"-21 SPL 4¹⁄₂" 56-3001 12-2321
1¹³⁄₁₆"
1¹⁄₁₆"
2⁹⁄₁₆"
L
L
Lawn and Garden Yoke
Slide Collar Q.D.
(L) Collar Repair Kit
Bore Length Part Number Part Number
1"-15 SPL 3¹⁄₄" 56-0615 12-2300
L
Replaces Rockwell® L12N Series - Replaces Weasler® 12 Series
ASAE
Category 2
26
1200 SERIES
(L) Pin Repair Kit
Bore Length Part Number Part Number
1³⁄₈"-6 SPL 4¹⁄₁₆" 56-1857 12-1300
1³⁄₈"-21 SPL 4¹⁄₁₆" 56-1857 12-1350
Note: Implement end use only
L
Implement Yokes
Pin Type Q.D.
Set Screw
(L) Keyway Dist. Part
Bore Length Width Loc. Hole Size Loc. to End Number
³⁄₄"2³⁄₄"³⁄₁₆" EAR ³⁄₈"-16 GAP ⁵⁄₈" 12-1312
¹³⁄₁₆"3¹⁄₂"¹⁄₄" EAR ³⁄₈"-16 GAP ⁷⁄₈" 12-1112
⁷⁄₈"2³⁄₄"¹⁄₄" EAR ³⁄₈"-16 GAP ⁵⁄₈" 12-1133
⁷⁄₈"3¹⁄₂"¹⁄₄" EAR ³⁄₈"-16 GAP ⁷⁄₈" 12-1113
¹⁵⁄₁₆"2³⁄₄"¹⁄₄" EAR ³⁄₈"-16 GAP ⁵⁄₈" 12-1134
1"2³⁄₄"¹⁄₄" EAR ³⁄₈"-16 GAP ⁷⁄₈" 12-1135
1"2³⁄₄"¹⁄₄" EAR ³⁄₈"-16 EAR ⁵⁄₈" 12-1155
1"3¹⁄₂"¹⁄₄" EAR ³⁄₈"-16 GAP ⁷⁄₈" 12-1115
1¹⁄₈"2³⁄₄"⁵⁄₁₆" EAR ³⁄₈"-16 GAP ⁷⁄₈" 12-1137
1¹⁄₈"2³⁄₄"¹⁄₄" EAR ³⁄₈"-16 EAR ⁵⁄₈" 12-1162
1¹⁄₈"3¹⁄₂"⁵⁄₁₆" EAR ³⁄₈"-16 GAP ⁷⁄₈" 12-1117
1¹⁄₈"3¹⁄₂"¹⁄₄" EAR (2)³⁄₈"-16 ⁷⁄₈" 12-1326
1³⁄₁₆"3¹⁄₂"⁵⁄₁₆" EAR ³⁄₈"-16 GAP ⁷⁄₈" 12-1118
1¹⁄₄"2³⁄₄"⁵⁄₁₆" EAR ³⁄₈"-16 GAP ⁷⁄₈" 12-1139
1¹⁄₄"2³⁄₄"⁵⁄₁₆" EAR ³⁄₈"-16 EAR ⁵⁄₈" 12-1169
1¹⁄₄"3¹⁄₂"⁵⁄₁₆" EAR ³⁄₈"-16 GAP ⁷⁄₈" 12-1119
1¹⁄₄"3¹⁄₂"¹⁄₄" EAR (2)³⁄₈"-16 ⁵⁄₈" 12-1176
1³⁄₈"3¹⁄₂"⁵⁄₁₆" EAR ³⁄₈"-16 GAP ⁷⁄₈" 12-1120
1¹⁄₂"2³⁄₄"³⁄₈" GAP (2)³⁄₈"-16 ⁵⁄₈" 12-1175
Round
L
EAR
GAP
EAR
GAP
EAR
GAP
Replaces Rockwell® L12N Series - Replaces Weasler® 12 Series
27
1200 SERIES
Drill Thru
(L) Distance
Bore Length Hole Size Loc. to End Part Number
1" X 1¹⁄₈"3¹⁄₂"²⁵⁄₆₄" GAP 1" 12-1197
Rectangular
Drill Thru
(L) Distance
Bore Length Hole Size Loc. to End Part Number
1"3"²¹⁄₆₄" EAR ⁵⁄₈" 12-1319
1¹⁄₈"3¹⁄₂"⁵⁄₁₆" GAP ⁵⁄₈" 12-1302
1¹⁄₄"3"²⁵⁄₆₄" EAR ⁵⁄₈" 12-1330
1³⁄₈"3¹⁄₄"¹⁷⁄₃₂" GAP ¹⁄₂" 12-1320
Shear
Drill Thru
(L) Distance
Bore Length Hole Size Loc. to End Part Number
1¹⁄₈"-6 SPL 3¹⁄₂"²¹⁄₆₄" GAP 1¹⁄₄" 12-1181
1³⁄₈"-6 SPL 3¹⁄₂"²¹⁄₆₄" GAP ¹⁵⁄₁₆" 12-1172
1³⁄₈"-21 SPL 3¹⁄₂" — — — 12-1315
Spline
L
L
L
Set Screw
(L) Keyway Dist. Part
Bore Length Width Loc. Hole Size Loc. to End Number
1"3¹⁄₂" EAR ³⁄₈"-16 GAP ⁷⁄₈" 12-1215
1¹⁄₈"3¹⁄₂" EAR ³⁄₈"-16 GAP ⁷⁄₈" 12-1216
1¹⁄₄"3¹⁄₂" EAR ³⁄₈"-16 GAP ⁷⁄₈" 12-1218
³⁄₁₆"
¹⁄₄"
¹⁄₄"
⁵⁄₁₆"
¹⁄₄"
⁵⁄₁₆"
L
Implement Yokes
Round-Double Keyway
Set Screw
(L) Distance
Bore Length Hole Size Loc. to End Part Number
1¹⁄₈"2³⁄₄"³⁄₈"-16 GAP ⁵⁄₈" 12-1168
1¹⁄₈"3¹⁄₂"³⁄₈"-16 GAP ⁷⁄₈" 12-1328
Hexagon
L
Replaces Rockwell® L12N Series - Replaces Weasler® 12 Series
28
1200 SERIES
Implement Yokes
Set Screw or Drill Thru
(L) Distance
Bore Length Hole Size Loc. to End Part Number
⁷⁄₈"2³⁄₄"³⁄₈"-16 EAR ⁵⁄₈" 12-1170
⁷⁄₈" X 1"* 3¹⁄₂"³⁄₈"-16 EAR ⁷⁄₈" 12-1301
1"2³⁄₄"³⁄₈"-16 EAR ⁵⁄₈" 12-1159
1" 3¹⁄₂"³⁄₈"-16 EAR ⁷⁄₈" 12-1163
1¹⁄₈"3¹⁄₂"²⁵⁄₆₄" D.T. GAP ⁵⁄₈" 12-1148
1¹⁄₄"2³⁄₄"¹¹⁄₃₂" D.T. GAP ⁵⁄₈" 12-1321
*Double Square
Square
Hexagon
Set Screw
(L) Distance
Bore Length Hole Size Loc. to End Part Number
1¹⁄₈"5¹⁄₄"¹⁄₈" NPT GAP 1³⁄₄" 12-1173
Implement Slip Yokes
Set Screw
(L) Keyway Dist. Part
Bore Length Width Loc. Hole Size Loc. to End Number
1"5¹⁄₄"¹⁄₄" EAR ¹⁄₈" NPT EAR 1³⁄₄" 12-1316
1¹⁄₄"5¹⁄₄"⁵⁄₁₆" EAR ¹⁄₈" NPT EAR 1³⁄₄" 12-1174
Round
Spline
Set Screw
(L) Distance
Bore Length Hole Size Loc. to End Part Number
1¹⁄₄"-6 SPL 5¹⁄₄"¹⁄₈" NPT GAP 1³⁄₄" 12-1171
1³⁄₈"-16 SPL 5¹⁄₄"¹⁄₄"-28 GAP 3³⁄₈" 12-2322
Square
Set Screw
(L) Distance
Bore Length Hole Size Loc. to End Part Number
1"5¹⁄₄"¹⁄₈" NPT GAP 1³⁄₄" 12-1314
L
L
L
L
L
Replaces Rockwell® L12N Series - Replaces Weasler® 12 Series
29
1200 SERIES
Double Pivot Yoke
(L) Maximum
L to L Static Angle Operating Angle Part Number
2³⁄₈"10O7O12-1410
3³⁄₈"37O35O12-1400
cc
L
Shaft Weld Yoke
(L) Use W/Shaft
Bore Length Part Number Part Number
1" X 1¹⁄₈"2¹⁵⁄₁₆" 73-1001 12-1340
Rectangular Shaft
(L) Use W/Weld Yoke
Bore Length Part Number Part Number
1" X 1¹⁄₈"72" 12-1340 73-1001
Tube Weld Yoke
(L) Use W/Tube
Bore Length Part Number For Tube Part Number
1⁹⁄₃₂" X 1¹³⁄₃₂"2¹⁵⁄₁₆" 70-1250 1¹⁄₄" X 1³⁄₈" 12-1318
1¹⁄₂" RD 3³⁄₄" 70-2000 2" X .083(14GA) 12-1334
Rectangular and Round Tube
(L) Wall Use W/Weld Yoke
O.D. Length Thickness Part Number Part Number
1¹⁄₄" X 1³⁄₈" 72" .125 12-1318 70-1250
2" 72" .083(14GA) 12-1334 70-2000
L
L
L
L
(L) Lube Shield Part
I.D. Length Fitting For Tube Brg. No. Number
Slip Sleeve
1" X 1¹⁄₈"5" YES 2" X .083(14GA) 53-2034
56-2294
56-2295 L
Replaces Rockwell® L12N Series - Replaces Weasler® 12 Series
30
1200 SERIES
Yoke and Shaft Assembly
Overall Driveline (L)
Length L to End Part Number
c
36" 24" 65-2827
48" 36" 65-2839
60" 48" 65-2851
Yoke and Tube Assembly
Overall Driveline (L)
Length L to End Part Number
36" 24" 64-2727
48" 36" 64-2739
60" 48" 64-2751
c
World ShieldTM Plastic
Overall Driveline (L)
Length Length Bell O.D. Part Number
60"51"6¹⁄₈" 69-1248
Shield Bearings are not included. Please order part number 56-2000
Note: Shield can be cut shorter to fit 36" and 48" drives.
Drive Shaft with World ShieldTM
Overall Driveline (L) (L)
Length Min. L to L Max. L to L Part Number
36"27¹⁄₄"38" 58-1227
48"39¹⁄₄"62" 58-1239
60"51¹⁄₄"86" 58-1251
Shield Bearing
Bearing Use W/Shield
Bearing I.D. Width Part Number Part Number
2¹⁄₁₆"¹¹⁄₃₂" 69-1248 56-2000
Note: Two (2) Bearings per box
L
L
L
L
cc cc
Replaces Rockwell® L12N Series - Replaces Weasler® 12 Series
31
1200 SERIES
Friction Clutch
2 Plate
(L) Friction Disc Repair
Bore Length Flange O.D. Part Number Part Number
L
1³⁄₈"-6 SPL 5³⁄₄"7¹⁄₈" 61-1200* 80-1202
* Two (2) per Box
Shear Bolt: Collar Type Q.D.
(L) Collar Repair Kit
Bore Length Part Number Part Number
1³⁄₈"-6 SPL 6³⁄₈" 56-3001 12-2506
1³⁄₈"-21 SPL 6³⁄₈" 56-3001 12-2521 L
Unwelded Driveshaft
(L)
Max. Length Part Number
55¹⁄₄" 63-1254
67¹⁄₄" 63-1266
L
Note: The speed and length combination should not exceed the critical
speed of the driveshaft.
Unwelded slip assemblies can be furnished in lengths up to the maximum
shown in the table. One end of the driveshaft is supplied unwelded and may
be cut to the desired length by the customer.
Slip Yoke and Stub Assembly
(L) (L)
Min. L to End Max. L to End Part Number
6¹⁄₄"7³⁄₄" 51-2322
Yoke and Tube Assembly
(L)
L to End Part Number
L
L
cc
48" 52-4600
60" 52-5800
c
Replaces Rockwell® L12N Series - Replaces Weasler® 12 Series
32
1800 SERIES
Lock-Up Overall
Bearing Dia. Dim. Length Part Number
1"2¹¹⁄₃₂"3¹⁄₈" 1-1875
Cross and Bearing Kit: Inside Lock-Up
Tractor Yokes: Quick Disconnect
Pin Type Q.D.
(L) Pin Repair Kit
Bore Length Part Number Part Number
1³⁄₈"-6 SPL 4¹⁄₄" 56-1857 18-7403
1³⁄₈"-21 SPL 4¹⁄₄" 56-1857 18-7406
Note: Tractor end use only
Collar Type Q.D.
(L) Collar Repair Kit
Bore Length Part Number Part Number
1³⁄₈"-6 SPL 4¹¹⁄₃₂" 56-3001 18-7330
1³⁄₈"-21 SPL 4¹¹⁄₃₂" 56-3001 18-7339
Implement Yokes
Pin Type Q.D.
(L) Pin Repair Kit
Bore Length Part Number Part Number
1³⁄₈"-6 SPL 4¹⁄₄" 56-1857 18-7404
1³⁄₈"-21 SPL 4¹⁄₄" 56-1857 18-7405
Note: Implement end use only
3¹⁄₈"
1"
2¹¹⁄₃₂"
L
L
L
Replacement Category 3 Series
ASAE
Category 3
33
1800 SERIES
Implement Yokes
Round
Set Screw or Drill Thru
(L) Keyway Dist. Part
Bore Length Width Loc. Hole Size Loc. to End Number
1"3³⁄₄"¹⁄₄" EAR ³⁄₈"-16 GAP ⁷⁄₈" 18-7115
1¹⁄₈"3³⁄₄"⁵⁄₁₆" EAR ³⁄₈"-16 GAP ⁷⁄₈" 18-7117
1¹⁄₄"3³⁄₄"⁵⁄₁₆" EAR ³⁄₈"-16 GAP ⁷⁄₈" 18-7119
1³⁄₈"3¹⁄₂"—— ¹⁷⁄₃₂" D.T. GAP ¹⁄₂" 18-7315
1³⁄₈"3³⁄₄"⁵⁄₁₆" EAR ³⁄₈"-16 GAP ⁷⁄₈" 18-7120
1¹⁄₂"3¹⁄₄"³⁄₈" EAR ⁵⁄₈" 18-7313
³⁄₈"-16 EAR
³⁄₈"-16 GAP
Set Screw
(L) Distance
Bore Length Hole Size Loc. to End Part Number
1¹⁄₈"3³⁄₄"³⁄₈"-16 EAR ⁷⁄₈" 18-7128
Hexagon
Drill Thru
(L) Distance
Bore Length Hole Size Loc. to End Part Number
1³⁄₈"-6 SPL 3³⁄₄"²¹⁄₆₄" GAP ¹⁵⁄₁₆" 18-7132
Spline
Set Screw or Drill Thru
(L) Distance
Bore Length Hole Size Loc. to End Part Number
1"3⁵⁄₈" — — — 18-7125
1¹⁄₄"3¹⁄₄" — — — 18-7127
Square
(L) Flange Bolt Hole No. of
Bore Length Type Dia. Circle Dia. Holes Part Number
1¹⁄₁₆"4⁵⁄₁₆" RECT 8"7¹⁄₄"¹¹⁄₃₂"448-7202
Torque Limiter
L
L
L
L
L
Replacement Category 3 Series
34
1800 SERIES
Double Pivot Yoke
(L) Maximum
L to L Static Angle Operating Angle Part Number
2¹⁄₈"10
O7O18-1800
2⁷⁄₈"24O22O18-1805
3³⁄₈"34
O31O18-1810
cc
Shaft Weld Yoke
(L) Use W/Shaft
Bore Length Part Number Part Number
1" X 1¹⁄₈"3³⁄₈" 73-1001 18-7327
Rectangular Shaft
(L) Use W/Weld
Bore Length Part Number Part Number
1" X 1¹⁄₈"72" 18-7327 73-1001
Tube Weld Yoke
(L) Use W/Tube
Bore Length Part Number For Tube Part Number
1⁹⁄₃₂" X 1¹³⁄₃₂"3³⁄₈" 70-1250 1¹⁄₄" X 1³⁄₈" 18-7328
1¹⁄₂" RD 3¹⁄₂" 70-2000 2" X .083(14GA) 18-7305
Rectangular and Round Tube
(L) Wall Use W/Weld
O.D. Length Thickness Yoke Number Part Number
56-2294
56-2295
Slip Sleeve
1" X 1¹⁄₈"5" YES 2" X .083(14GA) 53-2034
(L) Lube Shield Part
I.D. Length Fitting For Tube Brg. No. Number
1¹⁄₄" X 1³⁄₈" 72" .125 18-7328 70-1250
2" 72" .083(14GA) 18-7305 70-2000
L
L
L
L
L
L
Replacement Category 3 Series
35
1800 SERIES
Yoke and Shaft Assembly
Overall Driveline (L)
Length L to End Part Number
c
36" 24" 65-1828
48" 36" 65-1840
60" 48" 65-1852
Yoke and Tube Assembly
Overall Driveline (L)
Length L to End Part Number
36" 24" 64-1828
48" 36" 64-1840
60" 48" 64-1852
c
World ShieldTM Plastic
Overall Driveline (L)
Length Length Bell O.D. Part Number
60"52"6¹⁄₈" 69-1248
Shield Bearings are not included. Please order part number 56-2000
Note: Shield can be cut shorter to fit 36" and 48" drives.
Drive Shaft with World ShieldTM
Overall Driveline (L) (L)
Length Min. L to L Max. L to L Part Number
36"28"38" 58-1828
48"40"62" 58-1840
60"52"86" 58-1852
Shield Bearing
Bearing Use W/Shield
Bearing I.D. Width Part Number Part Number
2¹⁄₁₆"¹¹⁄₃₂" 69-1248 56-2000
Note: Two (2) Bearings per box
L
L
L
L
cc cc
Replacement Category 3 Series
36
1800 SERIES
Friction Clutch
2 Plate
(L) Friction Disc Repair
Bore Length Flange O.D. Part Number Part Number
L
1³⁄₈"-6 SPL 5⁷⁄₈"7¹⁄₈" 61-1200* 80-1802
* Two (2) per box
Shear Bolt: Collar Type Q.D.
(L) Collar Repair Kit
Bore Length Part Number Part Number
L
1³⁄₈"-6 SPL 6³⁄₈" 56-3001 18-7506
Replacement Category 3 Series
Notes
37
2000 SERIES
Lock-Up Overall
Bearing Dia. Dim. Length Part Number
1¹⁄₈"2⁵⁄₈"2⁵⁄₈" 1-2075
Cross and Bearing Kit: Outside Lock-Up
Tractor Yokes: Quick Disconnect
Pin Type Q.D.
(L) Pin Repair Kit
Bore Length Part Number Part Number
1³⁄₈"-6 SPL 4¹⁄₄" 56-1857 20-9309
1³⁄₈"-21 SPL 4¹⁄₄" 56-1857 20-9325
Note: Tractor end use only
Collar Type Q.D.
(L) Collar Repair Kit
Bore Length Part Number Part Number
1³⁄₈"-6 SPL 4³⁄₄" 56-3001 20-9330
1³⁄₈"-21 SPL 4³⁄₄" 56-3001 20-9321
Implement Yokes
Pin Type Q.D.
(L) Pin Repair Kit
Bore Length Part Number Part Number
1³⁄₈"-6 SPL 4¹⁄₄" 56-1857 20-9319
1³⁄₈"-21 SPL 4¹⁄₄" 56-1857 20-9324
Note: Implement end use only
1¹⁄₈"
2⁵⁄₈"
L
L
L
Replaces Rockwell® L14N Series - Replaces Weasler® 14 Series
ASAE
Category 3
38
2000 SERIES
Implement Yokes
Round
Set Screw or Drill Thru
(L) Keyway Dist. Part
Bore Length Width Loc. Hole Size Loc. to End Number
1"3³⁄₄"¹⁄₄" EAR ³⁄₈"-16 GAP ⁷⁄₈" 20-9115
1¹⁄₈"3³⁄₄"⁵⁄₁₆" EAR ³⁄₈"-16 GAP ⁷⁄₈" 20-9117
1³⁄₁₆"3³⁄₄"⁵⁄₁₆" EAR ³⁄₈"-16 GAP ⁷⁄₈" 20-9118
1¹⁄₄"3³₄"¹⁄₄" EAR ³⁄₈"-16 GAP ⁷⁄₈" 20-9302
1¹⁄₄"3³⁄₄"⁵⁄₁₆" EAR ³⁄₈"-16 GAP ⁷⁄₈" 20-9119
1³⁄₈"3³⁄₄"⁵⁄₁₆" EAR ³⁄₈"-16 GAP ⁷⁄₈" 20-9120
1³⁄₈"3³⁄₄"—— ⁷⁄₁₆" D.T. GAP ¹³⁄₁₆" 20-9189
1⁷⁄₁₆"3³⁄₄"³⁄₈" EAR ³⁄₈"-16 GAP ⁷⁄₈" 20-9154
1¹⁄₂"3³⁄₄"³⁄₈" GAP ⁷⁄₈" 20-9307
³⁄₈"-16 EAR
³⁄₈"-16 GAP
¹⁄₄"
⁵⁄₁₆"
¹⁄₄"
⁵⁄₁₆"
¹⁄₄"
⁵⁄₁₆"
Set Screw
(L) Keyway Dist. Part
Bore Length Width Loc. Hole Size Loc. to End Number
Round-Double Keyway
1¹⁄₈"3³⁄₄" EAR ³⁄₈"-16 GAP ⁷⁄₈" 20-9216
1³⁄₁₆"3³⁄₄" EAR ³⁄₈"-16 GAP ⁷⁄₈" 20-9217
1¹⁄₄"3³⁄₄" EAR ³⁄₈"-16 GAP ⁷⁄₈" 20-9218
Hexagon
Set Screw
(L) Distance
Bore Length Hole Size Loc. to End Part Number
1¹⁄₄"4"¹⁄₄"-28 GAP 1¹⁄₂" 20-9191
Drill Thru
(L) Distance
Bore Length Hole Size Loc. to End Part Number
1¹⁄₈"3³⁄₄"¹⁄₄" GAP ⁷⁄₈" 20-9318
1¹⁄₄"3³⁄₄"¹⁄₄" GAP ⁷⁄₈" 20-9317
1³⁄₈"3¹⁄₂"¹⁷⁄₃₂" GAP ¹⁄₂" 20-9160
1¹⁄₂"3³⁄₄"¹⁄₄" GAP ⁷⁄₈" 20-9320
Shear
L
L
L
L
Replaces Rockwell® L14N Series - Replaces Weasler® 14 Series
39
2000 SERIES
Set Screw or Drill Thru
(L) Distance
Bore Length Hole Size Loc. to End Part Number
1¹⁄₈"-6 SPL 3⁷⁄₁₆"²¹⁄₆₄" GAP 1¹⁄₁₆" 20-9180
1¹⁄₄"-6 SPL 2³⁄₄"¹¹⁄₃₂" GAP 1" 20-9311
1¹⁄₄"-6 SPL 3¹⁄₂"¹⁄₂"-20 GAP 1¹⁄₁₆" 20-9306*
1³⁄₈"-6 SPL 3³⁄₄"²¹⁄₆₄" GAP ¹⁵⁄₁₆" 20-9132
1³⁄₈"-21 SPL 3³⁄₄"²¹⁄₆₄" GAP ⁷⁄₈" 20-9193
*Note: For use with part number 53-2047
Spline
Implement Yokes
L
Set Screw
(L) Distance
Bore Length Hole Size Loc. to End Part Number
⁷⁄₈" X 1"* 3³⁄₄"³⁄₈"-16 EAR ⁷⁄₈" 20-9310
1¹⁄₈"3³⁄₄"³⁄₈"-16 GAP ⁷⁄₈" 20-9183
1¹⁄₄"3⁹⁄₁₆"³⁄₈"-16 GAP ³⁄₄" 20-9127
*Double Square
Square
Torque Limiter
1¹⁄₁₆"4⁵⁄₁₆" RECT 8"7¹⁄₁₆"¹¹⁄₃₂"448-9202
(L) Flange Bolt Hole No. of
Bore Length Type Dia. Circle Dia. Holes Part Number
L
L
Shaft Weld Yoke
(L) Use W/Shaft
Bore Length Part Number Part Number
1" X 1¹⁄₈"3³⁄₁₆" 73-1001 20-9126
1" X 1¹⁄₈"3³⁄₁₆" 73-1001 20-9129*
*Common phasing for Weasler® manufactured drives
Weasler® drives are phased 90° off from Neapco drives and therefore are
not interchangeable in half-shaft sub-assemblies.
L
Rectangular Shaft
(L) Use W/Weld
Bore Length Part Number Part Number
1" X 1¹⁄₈"72" 20-9126 73-1001 L
Replaces Rockwell® L14N Series - Replaces Weasler® 14 Series
40
2000 SERIES
Round and Rectangular Tube Weld Yoke
(L) Use W/Tube
Bore Length Part Number For Tube Part Number
1¹⁄₂" RD 4" 70-2000
2" X .083(14GA)
20-9131
1⁹⁄₃₂" X 1¹³⁄₃₂" RECT 3³⁄₁₆" 70-1250 1¹⁄₄"X1³⁄₄" 20-9313
Round and Rectangular Tube
(L) Wall Use W/Weld Yoke
O.D. Length Thickness Part Number Part Number
2" 72" .083(14GA) 20-9131 70-2000
1¹⁄₄" X 1³⁄₈" 72" .125 20-9313 70-1250
(L) Lube Shield Part
I.D. Length Fitting For Tube Brg. No. Number
Slip Sleeve
1" X 1¹⁄₈"5" YES 2" X .083(14GA) 53-2034
56-2294
56-2295
L
L
L
Drive Shaft with World ShieldTM
Overall Driveline (L) (L)
Length Min. L to L Max. L to L Part Number
36"28³⁄₁₆"44³⁄₁₆" 58-2028
48"40"68⁵⁄₁₆" 58-2040
60"52"80¹⁄₄" 58-2052
L
Bearing (L) Use W/Tube Part
Diameter Diameter End to Weld Part Number Number
Bearing Stub
1¹⁄₄"-6 SPL 1³⁄₈"4¹⁄₂" 70-2000 53-2047*
*Note: For use with part number 20-9306
Drilled for cone pointed set screw
L
Yoke and Shaft Assembly
Overall Driveline (L)
Length L to End Part Number
c
36" 23⁵⁄₈" 65-2828
48", 60" 35³⁄₄ " 65-2840 L
cc cc
Replaces Rockwell® L14N Series - Replaces Weasler® 14 Series
41
2000 SERIES
Yoke, Tube, and Sleeve Assembly
Overall Driveline (L)
Length L to End Part Number
36" 24³⁄₄" 64-2728
48" 36⁹⁄₁₆" 64-2740
60" 48⁹⁄₁₆" 64-2752
c
World ShieldTM Plastic
Overall Driveline (L)
Length Length Bell O.D. Part Number
60"52"6¹⁄₈" 69-1248
Shield Bearings are not included. Please order part number 56-2000
Note: Shield can be cut shorter to fit 36" and 48" drives.
Shield Bearing
Bearing Use W/Shield
Bearing I.D. Width Part Number Part Number
2¹⁄₁₆"¹¹⁄₃₂" 69-1248 56-2000
Note: Two (2) Bearings per box
L
L
Shear Bolt: Collar Type Q.D.
(L) Collar Repair Kit
Bore Length Part Number Part Number
L
1³⁄₈"-6 SPL 6¹⁄₃₂" 56-3001 20-9506
1³⁄₈"-21 SPL 6¹⁄₃₂" 56-3001 20-9521
Replaces Rockwell® L14N Series - Replaces Weasler® 14 Series
Notes
42
2200 SERIES
Lock-Up Overall
Bearing Dia. Dim. Length Part Number
1¹⁄₄"3⁷⁄₃₂"3⁷⁄₃₂" 2-2275
1¹⁄₄"3⁷⁄₃₂"3⁷⁄₃₂" 2-2276*
*Greaseable Thru (2) Bearings
Cross and Bearing Kit: Outside Lock-Up
1¹⁄₄"1¹⁄₄"
Tractor Yokes: Quick Disconnect
Pin Type Q.D.
(L) Pin Repair Kit
Bore Length Part Number Part Number
1³⁄₈"-6 SPL 4¹³⁄₁₆" 56-1857 22-2312
1³⁄₈"-21 SPL 4¹³⁄₁₆" 56-1857 22-2317
Note: Tractor end use only
Collar Type Q.D.
(L) Collar Repair Kit
Bore Length Part Number Part Number
1³⁄₈"-6 SPL 5" 56-3001 22-2330
1³⁄₈"-21 SPL 5" 56-3001 22-3521
1³⁄₄"-20 SPL 6" 56-2669 22-1319
L
Implement Yokes
Pin Type Q.D.
(L) Pin Repair Kit
Bore Length Part Number Part Number
1³⁄₈"-6 SPL 4¹³⁄₁₆" 56-1857 22-2315
1³⁄₈"-21 SPL 4¹³⁄₁₆" 56-1857 22-2316
Note: Implement end use only
L
L
3⁷⁄₃₂"
Replaces Rockwell® L35N Series - Replaces Weasler® 35 Series
ASAE
Category 4
43
2200 SERIES
Implement Yokes
Set Screw or Drill Thru
(L) Keyway Dist. Part
Bore Length Width Loc. Hole Size Loc. to End Number
Set Screw
(L) Keyway Dist. Part
Bore Length Width Loc. Hole Size Loc. to End Number
Round-Double Keyway
1"4³⁄₁₆"¹⁄₄" EAR ³⁄₈"-16 GAP ⁷⁄₈" 22-1131
1¹⁄₈"4³⁄₁₆"¹⁄₄" EAR ³⁄₈"-16 GAP ⁷⁄₈" 22-1132
1³⁄₁₆"4³⁄₁₆"¹⁄₄" EAR ³⁄₈"-16 GAP ⁷⁄₈" 22-1129
1¹⁄₄"4³⁄₁₆"¹⁄₄" EAR ³⁄₈"-16 GAP ⁷⁄₈" 22-1133
1¹⁄₄"4³⁄₁₆"⁵⁄₁₆" EAR ³⁄₈"-16 GAP ⁷⁄₈" 22-1116
1³⁄₈"4³⁄₁₆"⁵⁄₁₆" EAR ³⁄₈"-16 GAP ⁷⁄₈" 22-1118
1³⁄₈"4³⁄₁₆"³⁄₈" EAR ³⁄₄" 22-1155
1³⁄₈"4¹⁄₈"³⁄₈" EAR ²¹⁄₆₄"-D.T. GAP 1¹⁄₄" 22-1158
1⁷⁄₁₆"4³⁄₁₆"⁵⁄₁₆" EAR ³⁄₈"-16 GAP ⁷⁄₈" 22-1119
1⁷⁄₁₆"4³⁄₁₆"³⁄₈" EAR 1" 22-1178
1¹⁄₂"4³⁄₁₆"³⁄₈" EAR ³⁄₈"-16 GAP ⁷⁄₈" 22-1120
1¹⁄₂"4³⁄₁₆"³⁄₈" EAR ⁷⁄₈" 22-1154
1⁵⁄₈"4³⁄₈"³⁄₈" EAR ³⁄₈"-16 EAR ⁵⁄₈" 22-1338
1³⁄₄"4³⁄₈"³⁄₈" EAR 22-1316
1¹⁄₄"4³⁄₁₆" EAR ³⁄₈"-16 GAP ⁷⁄₈" 22-1218
1³⁄₈"4³⁄₁₆" EAR ³⁄₈"-16 GAP ⁷⁄₈" 22-1219
¹⁄₄"
⁵⁄₁₆"
⁵⁄₁₆"
³⁄₈"
Round
L
L
³⁄₈"-16 EAR
²⁵⁄₆₄"-D.T. GAP
³⁄₈"-16 EAR
⁷⁄₁₆"-D.T. GAP
³⁄₈"-16 EAR
³⁄₈"-16 GAP
³⁄₈"-16 EAR ⁷⁄₈"
¹⁷⁄₆₄"-D.T. GAP 1³⁄₈"
Replaces Rockwell® L35N Series - Replaces Weasler® 35 Series
44
2200 SERIES
Set Screw or Drill Thru
(L) Distance
Bore Length Hole Size Loc. to End Part Number
Implement Yokes
Spline
(L) Drill Thru Distance
Bore Length Hole Size Loc. to End Part Number
Shear
1¹⁄₄"4³⁄₁₆"¹⁄₄" GAP ⁷⁄₈" 22-1145
1³⁄₈"4³⁄₁₆"¹⁷⁄₃₂" GAP ³⁄₄" 22-1337
1¹⁄₂"4³⁄₁₆"¹⁄₂" GAP ¹¹⁄₁₆" 22-1162
1¹⁄₈"-6 SPL 4³⁄₁₆"²¹⁄₆₄" D.T. GAP 1¹⁄₄" 22-1142
1³⁄₈"-6 SPL 4³⁄₁₆"²¹⁄₆₄" D.T. GAP 1¹⁄₄" 22-1134
1³⁄₈"-6 SPL 4³⁄₁₆"²¹⁄₆₄" D.T. GAP ¹⁵⁄₁₆" 22-1138
1³⁄₈"-6 SPL 4¹⁄₈"¹⁄₂"-20 GAP 1¹⁄₁₆" 22-1226*
1³⁄₈"-21 SPL 4³⁄₁₆"²¹⁄₆₄" D.T. GAP 1¹⁄₄" 22-1330
*Note: For use with Part Number 53-2247
L
L
Square
1³⁄₈"-6 SPL 4³⁄₄"²¹⁄₆₄"⁵⁄₁₆" 22-1140
1³⁄₈"-21 SPL 4³⁄₄"¹⁷⁄₃₂"¹⁄₂" 22-1105
1³⁄₄"-20 SPL 4¹³⁄₁₆"¹⁷⁄₃₂"¹⁄₂" 22-2275
Set Screw or Drill Thru
(L) Distance
Bore Length Hole Size Loc. to End Part Number
1"4³⁄₁₆"³⁄₈"-16 EAR ⁷⁄₈" 22-1125
1¹⁄₈"4³⁄₁₆"³⁄₈"-16 EAR ⁷⁄₈" 22-1124
1³⁄₁₆"4¹⁄₂"¹³⁄₃₂" D.T. GAP ¹¹⁄₃₂" 22-1190
1¹⁄₄"4¹⁄₈"³⁄₈"-16 GAP ⁷⁄₈" 22-1128
1¹⁄₂"4¹⁄₈" — — — 22-1130
1⁵⁄₈"4¹⁄₈" — — — 22-1126
Clamp
(L) Drill Thru
Bore Length Hole Size Bolt Fit Part Number
L
L
Replaces Rockwell® L35N Series - Replaces Weasler® 35 Series
45
2200 SERIES
Implement Yokes
Torque Limiter
(L) Maximum
L to L Static Angle Operating Angle Part Number
Double Pivot Yoke
L
L
2¹⁄₈"16O14O22-2200
7¹⁄₄"90
O45O22-2205
Shaft Weld Yoke
(L) Use W/Shaft
Bore Length Part Number Part Number
L
1³⁄₁₆" SQ 3⁵⁄₈" 73-1188 22-1344
L
(L) Use W/Weld Yoke
Size Length Part Number Part Number
Square Shaft
1³⁄₁₆" 72" 22-1344 73-1188
Tube Weld Yoke
(L) Use W/Tube Part
Bore Length
Part Number
For Tube Number
1⁵⁄₈" RD 4¹⁄₂" 70-2250 2¹⁄₄"
X .120(11GA)
22-1343
1⁵⁄₈" RD 4¹⁄₂" 70-2125 2¹⁄₈"
X .120(11GA)
22-1325
1⁵⁄₈" RD 4¹⁄₂"2¹⁄₈"
X .083(14GA)
22-1307
Round Tube
(L) Wall Use W/Weld Yoke Part
O.D. Length Thickness Part Number Number
2¹⁄₈"72" .120 (11GA) 22-1325 70-2125
2¹⁄₈"72" .083 (14GA) 22-1307 —
2¹⁄₄"72" .120 (11GA) 22-1343 70-2250
L
L
cc
1¹⁄₁₆"4⁵⁄₁₆" RECT 8"¹¹⁄₃₂" D.T. 448-1181
(L) Flange No. of
Bore Length Type Dia. Hole Size Holes Part Number
Replaces Rockwell® L35N Series - Replaces Weasler® 35 Series
46
2200 SERIES
(L) Lube Shield Part
Bore Length Fitting For Tube Brg. No. Number
Slip Sleeve
L
56-2294
56-2295
56-2294
56-2295
1³⁄₁₆" SQ 5" YES 2¹⁄₄"
X .120(11GA)
53-2434
1³⁄₁₆" SQ 5" YES 2¹⁄₈"
X .120(11GA)
53-2435
1³⁄₁₆" SQ 5" YES 2¹⁄₈"
X .083(14GA)
— 53-3500
Bearing (L) Use W/Tube Part
Diameter Diameter End to Weld Part Number Number
Bearing Stub
1³⁄₈"-6 SPL 1³⁄₈"4¹⁄₂" 70-2250 53-2247*
*Note: For use with part number 22-1226
Drilled for cone pointed set screw
Yoke and Shaft Assembly
Drive Shaft with World ShieldTM
Overall Driveline (L) (L)
Length Min. L to L Max. L to L Part Number
36"28¹⁄₂"44¹⁄₂" 58-2229
48"39"65" 58-2239
60"51"77" 58-2251
Overall Driveline (L)
Length L to End Part Number
36"23⁷⁄₈" 65-2629
48", 60"33⁷⁄₈" 65-2639
c
L
L
L
cc cc
Yoke, Tube, and Sleeve Assembly
Overall Driveline (L)
Length L to End Part Number
c
36" 24⁵⁄₈" 64-2529
48" 35¹⁄₈" 64-2539
60" 47¹⁄₈" 64-2551
L
Replaces Rockwell® L35N Series - Replaces Weasler® 35 Series
47
2200 SERIES
World ShieldTM Plastic
Overall Driveline (L)
Length Length Bell O.D. Part Number
60"51"7¹⁄₁₆" 69-2248
Shield Bearings are not included. Please order part number 56-2200
Note: Shield can be cut shorter to fit 36" and 48" drives.
L
Shield Bearing
Bearing Use W/Shield
Bearing I.D. Width Part Number Part Number
2¹⁄₁₆"¹¹⁄₃₂" 69-2248 56-2200
Note: Two (2) Bearings per box
Friction Clutch
Light Duty
(L) Friction Disc Repair
Bore Length Flange O.D. Part Number Part Number
L
Heavy Duty
L
80O CV Driveshaft
Tractor (L) (L)
Yoke Min. L to L Max. L to L Part Number
1³⁄₈"-6 SPL 48"65⁷⁄₁₆" 80-3506
1³⁄₈"-21 SPL 48" 65⁷⁄₁₆" 80-3521
Repair parts found on page 64.
1³⁄₈"-6 SPL 7¹¹⁄₁₆"8¹⁄₄" 61-2200* 80-3502
* Two (2) per box
(L) Friction Disc Repair
Bore Length Flange O.D. Part Number Part Number
1³⁄₈"-6 SPL 7¹¹⁄₁₆"8¹⁄₄" 61-2200* 80-3504
* Two (2) per box
cc cc
L
Shear Bolt: Collar Type Q.D.
(L) Collar Repair Kit
Bore Length Part Number Part Number
L
1³⁄₈"-6 SPL 6⁷⁄₈" 56-3001 22-9506
1³⁄₈"-21 SPL 6⁷⁄₈" 56-3001 22-9521
Replaces Rockwell® L35N Series - Replaces Weasler® 35 Series
48
C.V. REPAIR PARTS
Bearing Overall Journal
Diameter Length Length Part Number
1¹⁄₄"3¹⁄₂"3¹³⁄₁₆" 2-2475
Cross and Bearing Kit
(L) Collar Repair Kit
Bore Length Part Number Part Number
Collar Type Q.D.
L
1³⁄₈"-6 SPL 5¹¹⁄₃₂" 56-3001 24-2406
1³⁄₈"-21 SPL 5¹¹⁄₃₂" 56-3001 24-2421
1³⁄₄"-20 SPL 5¹⁹⁄₃₂" 56-2669 24-2420
(L)
L to L Part Number
C.V. Housing
(L)
Length Part Number
Shaft Weld Yoke
(L)
Size Length Part Number
Spline Shaft
Bearing (L) Lube Shield Brg.
Diameter Length Fitting For Tube Number Part Number
1⁵⁄₈"-10 SPL 6"Yes
2¹⁄₄" X .120(11GA)
56-2295 53-2415
Sleeve
Overall Length Part Number
Shield Set
58"
Shield Set includes yoke and sleeve bearings.
68-2244
Overall Length Part Number
Shield Set
7¹⁄₁₆ "
Housing Shield set includes cone, bearing, and ring.
68-2245
L
L
L
L
4³⁄₃₂"1¹⁄₄"
1⁵⁄₈"-10 SPL 27⁷⁄₈ " 72-2231
2⁵⁄₈" 24-2401
4¹⁄₄" 24-2400
cc
2200 / N44 Series
49
N44 SERIES
Lock-Up Overall
Bearing Dia. Dim. Length Part Number
1⁵⁄₁₆"2⁵¹⁄₆₄"4¹⁄₃₂" 3-0044
Cross and Bearing Kit: Inside Lock-Up
Tractor Yokes: Quick Disconnect
Pin Type Q.D.
(L) Pin Repair Kit
Bore Length Part Number Part Number
1³⁄₈"-6 SPL 4⁷⁄₈" 56-1857 44-2220
1³⁄₈"-21 SPL 4⁷⁄₈" 56-1857 44-2201
1³⁄₄"-20 SPL 4⁷⁄₈" 56-2446 44-6300
Note: Tractor end use only
Collar Type Q.D.
(L) Collar Repair Kit
Bore Length Part Number Part Number
1³⁄₈"-6 SPL 5⁷⁄₃₂" 56-3001 44-4406
1³⁄₈"-21 SPL 5⁷⁄₃₂" 56-3001 44-4421
Implement Yokes
Round
Set Screw
(L) Keyway Dist. Part
Bore Length Width Loc. Hole Size Loc. to End Number
1⁷⁄₁₆"4¹⁄₈"³⁄₈" EAR ³⁄₈"-16 GAP ³⁄₄" 44-2360
1¹⁄₂"4¹⁄₈"³⁄₈" EAR ⁷⁄₈" 44-2460
1⁵⁄₈"4¹⁄₈"³⁄₈" EAR ³⁄₈"-16 EAR ⁷⁄₈" 44-2610
1³⁄₄"4¹⁄₈"³⁄₈" EAR ⁷⁄₈" 44-2820
2"4¹⁄₈"¹⁄₂" EAR ³⁄₈"-16 GAP ⁷⁄₈" 44-3200
³⁄₈"-16 EAR
³⁄₈"-16 GAP
³⁄₈"-16 EAR
³⁄₈"-16 GAP
L
L
L
2⁵¹⁄₆₄"
1⁵⁄₁₆"
4¹⁄₃₂"
Replaces Rockwell® 44R Series - Replaces Weasler® 44 Series
ASAE
Category 5
50
N44 SERIES
Implement Yokes
¹⁄₄"
⁵⁄₁₆"
¹⁄₄"
⁵⁄₁₆"
⁵⁄₁₆"
³⁄₈"
Set Screw
(L) Keyway Dist. Part
Bore Length Width Loc. Hole Size Loc. to End Number
Round-Double Keyway
1¹⁄₄"4¹⁄₈" EAR ³⁄₈"-16 GAP ⁷⁄₈" 44-2045
1³⁄₈"4¹⁄₈" EAR ³⁄₈"-16 GAP ⁷⁄₈" 44-2256
1¹⁄₂"4¹⁄₈" EAR ³⁄₈"-16 GAP ⁷⁄₈" 44-2456
Drill Thru
(L) Distance
Bore Length Hole Size Loc. to End Part Number
1³⁄₈"-6 SPL 4¹⁄₈"²¹⁄₆₄" GAP ⁷⁄₈" 44-2206
1³⁄₈"-21 SPL 4¹⁄₈"²¹⁄₆₄" GAP ⁷⁄₈" 44-2221
Spline
Set Screw
(L) Distance
Bore Length Hole Size Loc. to End Part Number
1¹⁄₈"4¹⁄₈"³⁄₈"-16 EAR ⁷⁄₈" 44-1826
Square
L
L
L
(L) Drill Thru
Bore Length Hole Size Bolt Fit Part Number
Clamp
L
Shaft Weld Yoke
(L) Use W/Shaft
Bore Length Part Number Part Number
1⁵⁄₁₆" SQ 4¹⁄₈" 73-1313 44-2100
Square Shaft
(L) Use W/Weld
Bore Length Part Number Part Number
1⁵⁄₁₆" SQ 72" 44-2100 73-1313 L
L
1³⁄₄"-20 SPL 5"⁴¹⁄₆₄"⁵⁄₈" 44-4475
Replaces Rockwell® 44R Series - Replaces Weasler® 44 Series
51
N44 SERIES
1⁷⁄₈" RD 4⁷⁄₈" 70-2500
2¹⁄₂" X .134(10GA)
44-2200
Tube Weld Yoke
(L) Use W/Tube
Bore Length Part Number For Tube Part Number
L
Round Tube
(L) Wall Use W/Weld Yoke
O.D. Length Thickness Part Number Part Number
2¹⁄₂" 72" .134(10GA) 44-2200 70-2500 L
Slip Sleeve
1³⁄₁₆"5" YES 2¹⁄₄" X .120(11GA) 56-2295 53-2434
1⁵⁄₁₆"5" YES 2¹⁄₂" X .134(10GA) — 53-2643
1⁵⁄₁₆"5" YES 2³⁄₄" X .109(12GA) 56-2646 53-2644
L
(L) Lube Shield Part
I.D. Length Fitting For Tube Brg. No. Number
Drive Shaft with World ShieldTM
Overall Driveline (L) (L)
Length Min. L to L Max. L to L Part Number
36" 28¹⁄₂"41¹⁵⁄₁₆" 58-4429
48" 39" 65" 58-4439
60" 50⁷⁄₁₆"76⁷⁄₁₆" 58-4451
L
cc cc
Yoke and Shaft Assembly
Overall Driveline (L)
Length L to End Part Number
c
36" 22⁷⁄₈" 65-4423
48", 60" 35³⁄₈" 65-4435
L
Yoke, Tube, and Sleeve Assembly
Overall Driveline (L)
Length L to End Part Number
36" 24¹⁄₈" 64-4424
48" 34⁵⁄₈" 64-4435
60" 46¹⁄₈" 64-4447
c
L
Replaces Rockwell® 44R Series - Replaces Weasler® 44 Series
52
N44 SERIES
World ShieldTM Plastic
Overall Driveline (L)
Length Length Bell O.D. Part Number
60"51"8" 69-2648
Shield Bearings are not included. Please order part number 56-0844
Note: Shield can be cut shorter to fit 36" and 48" drives. L
Shield Bearing
Bearing Use W/Shield
Bearing I.D. Width Part Number Part Number
2⁵⁄₈"¹³⁄₃₂" 69-2648 56-0844
Note: Two (2) Bearings per box
4 Plate
(L) Friction Disc Repair
Bore Length Flange O.D. Part Number Part Number
Friction Clutch
2 Plate
L
L
1³⁄₈"-6 SPL 6¹³⁄₁₆"8¹⁄₈" 61-1200* 80-4402
* Two (2) per box
(L) Friction Disc Repair
Bore Length Flange O.D. Part Number Part Number
1³⁄₈"-6 SPL 7¹¹⁄₁₆"8¹⁄₈" 61-1200* 80-4404
* Two (2) per box
80O CV Driveshaft
Tractor (L) (L)
Yoke Min. L to L Max. L to L Part Number
1³⁄₈"-6 SPL 48"64 " 80-4406
1³⁄₈"-21 SPL 48" 64" 80-4421
Repair parts found on page 59.
cc cc
L
Replaces Rockwell® 44R Series - Replaces Weasler® 44 Series
53
C.V. REPAIR PARTS
Bearing Overall Journal
Diameter Length Length Part Number
1¹⁄₄"3¹⁄₂"3¹³⁄₁₆" 2-2475
Cross and Bearing Kit
(L) Collar Repair Kit
Bore Length Part Number Part Number
Collar Type Q.D.
L
1³⁄₈"-6 SPL 5¹¹⁄₃₂" 56-3001 24-2406
1³⁄₈"-21 SPL 5¹¹⁄₃₂" 56-3001 24-2421
1³⁄₄"-20 SPL 5¹⁹⁄₃₂" 56-2669 24-2420
(L)
L to L Part Number
C.V. Housing
(L)
Length Part Number
Shaft Weld Yoke
(L)
Size Length Part Number
Spline Shaft
Bearing (L) Lube Shield Brg.
Diameter Length Fitting For Tube Number Part Number
1⁵⁄₈"-10 SPL 6"Yes
2¹⁄₄" X .120(11GA)
56-2295 53-2415
Sleeve
Overall Length Part Number
Shield Set
58"
Shield Set includes yoke and sleeve bearings.
68-2244
Overall Length Part Number
Shield Set
7¹⁄₁₆"
Housing Shield set includes cone, bearing, and ring.
68-2245
L
L
L
L
1¹⁄₄"
1⁵⁄₈"-10 SPL 27⁷⁄₈" 72-2231
2⁵⁄₈" 24-2401
4¹⁄₄" 24-2400
cc
2200 / N44 Series
4³⁄₃₂"
54
2600 SERIES
Lock-Up Overall
Bearing Dia. Dim. Length Part Number
1³⁄₈"4³⁄₁₆"4³⁄₁₆" 3-0188
Cross and Bearing Kit: Outside Lock-Up
Tractor Yokes: Quick Disconnect
Pin Type Q.D.
(L) Pin Repair Kit
Bore Length Part Number Part Number
1³⁄₈"-6 SPL 5¹⁄₄" 56-1857 26-5321
1³⁄₈"-21 SPL 5¹⁄₁₆" 56-1857 26-5319
Note: Tractor end use only
Collar Type Q.D.
(L) Collar Repair Kit
Bore Length Part Number Part Number
1³⁄₈"-6 SPL 5⁷⁄₁₆" 56-3001 26-5306
1³⁄₈"-21 SPL 5⁷⁄₁₆" 56-3001 26-5325
1³⁄₄"-20 SPL 6" 56-2669 26-5163
Implement Yokes
Pin Type Q.D.
(L) Pin Repair Kit
Bore Length Part Number Part Number
1³⁄₈"-6 SPL 5¹⁄₄" 56-1857 26-5324
1³⁄₈"-21 SPL 5¹⁄₁₆" 56-1857 26-5323
Note: Implement end use only
1³⁄₈"
L
L
L
4³⁄₁₆"
Replaces Walterscheid AgMaster® 1480 Series
ASAE
Category 6
55
2600 SERIES
Implement Yokes
Round
Set Screw
(L) Keyway Dist. Part
Bore Length Width Loc. Hole Size Loc. to End Number
1³⁄₈"4¹⁄₂"⁵⁄₁₆" EAR ³⁄₈"-16 GAP ⁷⁄₈" 26-5118
1¹⁄₂"4¹⁄₂"³⁄₈" EAR ³⁄₈"-16 GAP ⁷⁄₈" 26-5119
1³⁄₄"4¹⁄₁₆"³⁄₈" EAR ³⁄₈"-16 GAP ³⁄₄" 26-5131
Drill Thru
(L) Distance
Bore Length Hole Size Loc. to End Part Number
1³⁄₈"-6 SPL 4¹⁄₂"²¹⁄₆₄" GAP ¹⁵⁄₁₆" 26-5138
Spline
L
L
Shaft Weld Yoke
(L) Use W/Shaft
Bore Length Part Number Part Number
1⁵⁄₁₆" SQ 4⁵⁄₈" 73-1313 26-5148
Square Shaft
(L) Use W/Yoke
Bore Length Part Number Part Number
1⁵⁄₁₆"72" 26-5148 73-1313
Tube Weld Yoke
(L) Use W/Tube
Bore Length Part Number For Tube Part Number
2" RD 5¹⁄₄" 70-2750
2³⁄₄" X .109(12GA)
26-5155
L
L
L
Round Tube
(L) Wall Use W/Weld Yoke
O.D. Length Thickness Part Number Part Number
2³⁄₄" 72" .109(12GA) 26-5155 70-2750 L
Replaces Walterscheid AgMaster® 1480 Series
56
2600 SERIES
(L) Lube Shield Part
I.D. Length Fitting For Tube Brg. No. Number
Slip Sleeve
1⁵⁄₁₆"5" YES
2³⁄₄" X .109(12GA)
56-2646 53-2644
Yoke and Shaft Assembly
Overall Driveline (L)
Length L to End Part Number
36" 23⁵⁄₈" 65-6629
60" 34¹⁄₄ " 65-6639
Yoke and Tube Assembly
Overall Driveline (L)
Length L to End Part Number
36" 24" 64-6529
48" 33³⁄₈" 64-6539
60" 46¹⁄₈" 64-6551
World ShieldTM Plastic
Overall Driveline (L)
Length Length Bell O.D. Part Number
60"51"8" 69-2648
Shield Bearings are not included. Please order part number 56-2600
Note: Shield can be cut shorter to fit 36" and 48" drives.
Drive Shaft with World ShieldTM
Overall Driveline (L) (L)
Length Min. L to L Max. L to L Part Number
36"28⁷⁄₈"42⁵⁄₈" 58-2629
48"38¹⁄₄"62⁵⁄₈" 58-2639
60"51"75³⁄₈" 58-2651
L
L
L
L
L
c
c
Shield Bearing
Bearing Use W/Shield
Bearing I.D. Width Part Number Part Number
2⁷⁄₈"¹¹⁄₃₂" 69-2648 56-2600
Note: Two (2) Bearings per box
cc cc
Replaces Walterscheid AgMaster® 1480 Series
57
N55 SERIES
Lock-Up Overall
Bearing Dia. Dim. Length Part Number
1¹⁷⁄₃₂"4⁵⁄₁₆"4⁵⁄₁₆" 3-0045
Cross and Bearing Kit: Outside Lock-Up
Tractor Yokes: Quick Disconnect
Pin Type Q.D.
(L)
Bore Length Part Number
1³⁄₈"-6 SPL 5¹⁄₈" 55-9306
1³⁄₈"-21 SPL 5¹⁄₈" 55-9321
1³⁄₄"-20 SPL 6¹⁄₈" 55-9320
Note: Tractor end use only
Set Screw or Drill Thru
(L) Keyway Dist. Part
Bore Length Width Loc. Hole Size Loc. to End Number
Implement Yokes
Round
1¹⁄₂"4⁵⁄₈"³⁄₈" EAR ³⁄₈"-16 EAR 1" 55-2410
1⁵⁄₈"4¹⁄₂"³⁄₈" EAR ³⁄₈"-16 EAR 1" 55-2600
1³⁄₄"4¹⁄₁₆"³⁄₈" EAR ³⁄₈"-16 EAR ³⁄₄" 55-2800
2"5⁵⁄₈"¹⁄₂" EAR ¹⁄₂"-13 EAR 1¹⁄₁₆" 55-3240
Clamp
4⁵⁄₁₆"
1¹⁷⁄₃₂"
L
L
1³⁄₄"-20 SPL 5⁵⁄₈"⁴¹⁄₆₄"⁵⁄₈" 55-2836
(L) Drill Thru
Bore Length Hole Size Bolt Fit Part Number
L
Replaces Rockwell® 55N Series - Replaces Weasler® 55 Series
ASAE
Category 6
58
N55 SERIES
Implement Yokes
Drill Thru
(L) Distance
Bore Length Hole Size Loc. to End Part Number
1³⁄₈"-6 SPL 5⁵⁄₈"²¹⁄₆₄" GAP 1" 55-2229
Spline
L
Shaft Weld Yoke
(L) Use W/Shaft
Bore Length Part Number Part Number
1⁵⁄₁₆" SQ 4¹⁄₈" 73-1313 55-2130
—4⁵⁄₈" 70-2500
2¹⁄₂" X .134(10GA)
55-3640
Square Shaft
(L) Use W/Weld
Bore Length Part Number Part Number
1⁵⁄₁₆"72" 55-2130 73-1313
Tube Weld Yoke
(L) Use W/Tube
Bore Length Part Number For Tube Part Number
L
L
L
Round Tube
(L) Wall Use W/Weld Yoke
O.D. Length Thickness Part Number Part Number
2¹⁄₂" 72" .134(10GA) 55-3640 70-2500
(L) Lube Shield Part
I.D. Length Fitting For Tube Brg. No. Number
Slip Sleeve
1⁵⁄₁₆"5" YES
2¹⁄₂" X .134(10GA)
— 53-2643
L
L
World ShieldTM Plastic
Overall Driveline (L)
Length Length Bell O.D. Part Number
60"51"8" 69-2648
Shield Bearings are not included. Please order part number 56-0844
Note: Shield can be cut shorter to fit 36" and 48" drives. L
Replaces Rockwell® 55N Series - Replaces Weasler® 55 Series
59
N55 SERIES
Shield Bearing
Bearing Use W/Shield
Bearing I.D. Width Part Number Part Number
2⁵⁄₈"¹³⁄₃₂" 69-2648 56-0844
Note: Two (2) Bearings per box
Replaces Rockwell® 55N Series - Replaces Weasler® 55 Series
Notes
60
WORLD SHIELD
TM
Shield Part Number 69-0648 69-1248 69-2248 69-2648
Important Shield Dimensions
Overall Shield Length (in.) 51"51"51"51"
Shield Bell O.D (in.) 5¹⁄₄"6¹⁄₈"7¹⁄₁₆ "8"
Inner Tube O.D. (in.) 2¹⁄₁₆"2¹⁄₂"2³⁄₄ "3⁷⁄₁₆"
Outer Tube O.D. (in.) 2⁵⁄₁₆"2³⁄₄"3"3¹¹⁄₁₆"
PTO Groove Groove
PTO Manufacturer's Bearing O.D. Width Shield
Manufacturer Series Part Number (in.)* (in.) Part Number
Indexed by PTO Manufacturer and Series
AgMaster 1140, 1240 56-2000 2¹⁄₁₆"¹¹⁄₃₂" 69-1248
(Walterscheid) 1340 56-2200 2¹⁄₁₆"¹¹⁄₃₂" 69-2248
1440 56-0844 2⁵⁄₈"¹³⁄₃₂" 69-2648
1480 56-2600 2⁷⁄₈"¹¹⁄₃₂" 69-2648
Bondioli & Pavesi 1 56-2101 1¹⁹⁄₃₂"⁵⁄₃₂" 69-0648
(1¹¹⁄₃₂")
2 56-2102 1⁷⁄₈"⁵⁄₃₂" 69-0648
(1¹⁹⁄₃₂")
3, 4 56-4103 2³⁄₃₂"⁵⁄₃₂" 69-1248
(1¹³⁄₃₂")
5 56-6105 2¹⁵⁄₃₂"⁵⁄₃₂" 69-2248
(2³⁄₃₂")
6 56-6106 2¹¹⁄₁₆"⁵⁄₃₂" 69-2248
(2¹¹⁄₃₂")
7 56-6106 2¹⁸⁄₃₂"⁵⁄₃₂" 69-2248
(2¹¹⁄₁₆")
8 56-8108 2¹¹⁄₁₆"¹⁄₄" 69-2648
(3³⁄₁₆")
G & G 6N 56-1600 1¹³⁄₁₆"⁵⁄₁₆" 69-0648
12N, 14N 56-2000 2¹⁄₁₆"³⁄₈" 69-1248
35N 56-2200 2¹⁄₁₆"³⁄₈" 69-2248
44N 56-0844 2⁵⁄₈"⁷⁄₁₆" 69-2648
Neapco N1000 56-0600 1¹⁄₂"⁵⁄₁₆" 69-0648
L600 56-1600 1¹³⁄₁₆"⁵⁄₁₆" 69-0648
1200, 1800, 2000 56-2000 2¹⁄₁₆"¹¹⁄₃₂" 69-1248
2200 56-2200 2¹⁄₁₆"¹¹⁄₃₂" 69-2248
2600 56-2600 2⁷⁄₈ ¹¹⁄₃₂" 69-2648
N44, N55 56-0844 2⁵⁄₈"¹³⁄₃₂" 69-2648
Rockwell 6R 56-1600 1¹³⁄₁₆"⁵⁄₁₆" 69-0648
12R, 14R 56-2000 2¹⁄₁₆"¹¹⁄₃₂" 69-1248
35R 56-2200 2¹⁄₁₆"¹¹⁄₃₂" 69-2248
44R 56-0844 2⁵⁄₈"¹³⁄₃₂" 69-2648
Walterscheid 2100 56-2122 1⁵⁄₈"⁵⁄₃₂" 69-0648
2200, I, 2300 56-2223 1³¹⁄₃₂"⁷⁄₃₂" 69-1248
2400 56-2324 2¹⁵⁄₃₂"⁷⁄₃₂" 69-2248
2500 56-2324 2¹⁵⁄₃₂"⁷⁄₃₂" 69-2248
Weasler 6 56-1600 1¹³⁄₁₆"⁵₁₆" 69-0648
12, 14 56-2000 2¹⁄₁₆"¹¹⁄₃₂" 69-1248
35 56-2200 2¹⁄₁₆"¹¹⁄₃₂" 69-2248
44, 55 56-0844 2⁵⁄₈"¹³⁄₃₂" 69-2648
*Dimensions in parenthesis() denote bearing groove O.D. of inner yoke/tube assembly versus bearing groove O.D. of outer
yoke/tube assembly.
Shield
Length
Shield
Bell O.D.
Bearing Width
Bearing I.D. Groove
O.D.
Groove Width
World Shield
TM
Bearing
World Shield
TM
Shield PTO Yoke
Universal Fit Shield System
61
Bore Part Number
Collar Type
1"-15 SPL 56-0615
1³⁄₈"-6 SPL & 21 SPL 56-3001
1³⁄₄"-20 SPL 56-2669
Bore Part Number
Trailing Pin Type
1³⁄₈"-6 SPL & 21 SPL 56-1857
1³⁄₄"-20 SPL 56-2446
Style Series O.D. I.D. Width Part Number
Bearings for Rigid Plastic Shields
2pc Nylon N1000 — — ⁹⁄₃₂" 56-0604
3pc Nylon 1200,1800,2000,2200 — — ⁹⁄₃₂" 56-2004
Sleeve 2000,2200 2⁹⁄₃₂"2" ¹⁄₄" 56-2295
Sleeve2 pc. 3 pc.
2pc N1000 2⁷⁄₆₄"1¹⁄₂"⁵⁄₁₆" 56-0666
1pc
1200,1800,2000,2200
2¹³⁄₁₆"2⁵⁄₆₄"³⁄₈" 56-2300
4pc Nylon 2600 — — ⁹⁄₃₂" 56-2604
Sleeve
1200,1800,2000,2200
2³⁄₈"2"¹⁄₄" 56-2294
Sleeve 2600 3⁵⁄₃₂"2³⁵⁄₆₄"¹⁄₄" 56-2646
Note: Shield components also service some competitor drivelines referenced on the competitor
interchangeability chart found on page 7.
Style Series O.D. I.D. Width Part Number
Bearings for Steel Shields
2 pc. 1 pc. 4 pc. Sleeve
QUICK DISCONNECT REPAIR KITS
OLD STYLE SHIELD BEARING
REPLACEMENT COMPONENTS
62
Shaft Size Part Number
⁷⁄₈" 76-0013
1" 76-0015
1¹⁄₈" 76-0017
1³⁄₁₆" 76-0018
1¹⁄₄" 76-0019
Shaft Size Part Number
³⁄₄" 78-0011
¹³⁄₁₆" 78-0012
¹⁵⁄₁₆" 78-0014
1¹⁄₈" 78-0017
1³⁄₁₆" 78-0018
1¹⁄₄" 78-0019
Type
Diameter Length Head Point Part Number
³⁄₈"-16 ¹⁄₂" Allen Cup 50-2501
³⁄₈"-16 ³⁄₄" Square Cup 50-2502
¹⁄₄"-20 ¹⁄₂" Allen Cup 50-2503
* Packaged 25 per Box
Set Screws*
Hanger Bearings: Plain Bearing
Pillow Block Bearings: Plain Bearing
MISCELLANEOUS PTO PARTS
64
Rectangular ³⁄₄" X ⁷⁄₈" N1000, L600 73-0750
Rectangular 1" X 1¹⁄₈" 1200, 1800, 2000 73-1001
Square 1³⁄₁₆" 2200 73-1188
Square 1⁵⁄₁₆" 44, 2600, 55 73-1313
Type Dimensions Series Part Number
Standard Series Shafting—72" Lengths
Type Dimensions Series Part Number
Standard Tubing—72" Lengths
Rectangular 1" X 1¹⁄₈" N1000, L600 70-1001
Rectangular 1¹⁄₄" X 1³⁄₈" 1200, 1800, 2000 70-1250
Round 1⁵⁄₈" X .065(16 GA) N1000, L600 70-1625
Round 2" X .083(14 GA)
1000, 1200, 1800, 2000
70-2000
Round 2¹⁄₈" X .120(11 GA) 2200 70-2125
Round 2¹⁄₄" X .120(11 GA) 2200, 44 70-2250
Round 2¹⁄₂" X .134(10 GA) 44, 55 70-2500
Round 2³⁄₄" X .109(12 GA) 44, 2600 70-2750
Round Rectangular
Rectangular Square
³⁄₄" RD ³⁄₁₆" 71-0750
¹³⁄₁₆" RD ¹⁄₄" 71-0813
⁷⁄₈" RD ¹⁄₄" 71-0875
1" RD ¹⁄₄" 71-1000
1¹⁄₄" RD ⁵⁄₁₆" 71-1250
Type Dimensions Part Number
Solid Shafting—72" Full Length Keyway
Solid Shafting—72" Lengths
Shaft Size Part Number
Square Hexagon
³⁄₄" SQ 72-0750
⁷⁄₈" SQ 72-0875
1" SQ 72-1000
1¹⁄₄" SQ 73-1250
⁷⁄₈" HEX 72-0888
1" HEX 72-1002
1¹⁄₈" HEX 72-1125
Round
SHAFTING & TUBING
66
2 1-0221
4 1-0421
Series Quantity Part Number
Cross & Bearing Kits
1 2 1-0121
2100 2 1-1001
2400 2 2-2421
2
2200
3 2 1-0321
4
2300
5 2 2-0521
Quick Disconnect Yokes (6 spline)
{}
{}
1 8-2012-AR
1 8-4012-AR
Series Quantity Part Number
1 1 8-1012-AR
2100 1 8-2112-AR
2400 1 8-2412-AR
2
2200
3 1 8-3012-AR
4
2300
5 1 8-5012-AR
{}
{}
METRIC AG RACK
Bondioli & Pavesi Series: 1 - 5 Walterscheid Series: 2100,2200,I,2300,2400
For additional shaft and shield safety
labels, please refer to pages 4 and 5.
Shield Safety label
Part Number NA-7232
Shaft Safety label
Part Number NA-10666
Services Popular Bondioli & Pavesi and Walterscheid Style Drivelines
67
Series Quantity Part Number Series Description Quantity Part Number
1 1 8-1030-AR
2 1 8-2030-AR
3 1 8-3030-AR
4 1 8-4030-AR
5 1 8-5030-AR
2100 1 8-2130-AR
2200 1 8-2230-AR
I1 8-0130-AR
2300 1 8-2330-AR
2400 1 8-2430-AR
Inner Profile Tubes—59" Lengths
1 1 70-0105
2 1 70-0205
3 1 70-0305
4 1 70-0405
5 1 70-0505
2100 1 70-2105
2200 1 70-2205
2400 1 70-2405
Inner Profile Yokes End Yokes
1 1" RD Bore 1 8-1008-AR
11¹⁄₄" RD Bore 1 8-1010-AR
2
2200
2
2200
I
3
31¹⁄₄" RD Bore 1 8-3010-AR
4
2300
4
2300
51¹⁄₄" RD Bore 1 8-5010-AR
51³⁄₈" RD Bore 1 8-5011-AR
2100 1" RD Bore 1 8-2108-AR
2100 1¹⁄₄" RD Bore 1 8-2110-AR
2400 1³⁄₈" RD Bore 1 8-2411-AR
Tube Pin—10 per box
8mm X 50mm 1 50-0112
8mm X 60mm 1 50-0412
8mm X 65mm 1 50-2212
10mm X 65mm 1 50-2312
10mm X 75mm 1 50-0512
Outer Profile Tubes—59" Lengths
1 1 70-0104
2 1 70-0305
3 1 70-0304
5 1 70-0504
2100 1 70-2104
2200 1 70-2204
2400 1 70-2404
1 1 8-1020-AR
2 1 8-2020-AR
3 1 8-3020-AR
4 1 8-4020-AR
5 1 8-5020-AR
2100 1 8-2120-AR
2200 1 8-2220-AR
I1 8-0120-AR
2300 1 8-2320-AR
2400 1 8-2420-AR
Outer Profile Yokes
{}
{}
1" RD Bore 1 8-2008-AR
1¹⁄₄" RD Bore 1 8-2010-AR
{}
{}
1¹⁄₄" RD Bore 1 8-4010-AR
1³⁄₈" RD Bore 1 8-4011-AR
{}1" RD Bore 1 8-3011-AR
Plastic Shields
1,2,2100 1 69-0640-MR
3,4,2200,I,2300
1 69-1240-MR
5,6,2400 1 69-2240-MR
Shield Bearings
1 1 56-2101
2 1 56-2102
3,4 1 56-4103
5 1 56-6105
6 1 56-6106
2100 1 56-2122
2200,I,2300 1 56-2223
2400 1 56-2324
Metric AG Rack 99-0195
Complete Display
Bondioli & Pavesi Series: 1 - 5
Walterscheid Series: 2100,2200,I,2300,2400
METRIC AG RACK
Services Popular Bondioli & Pavesi and Walterscheid Style Drivelines
Services Popular Bondioli & Pavesi and Walterscheid Style Drivelines
68
1 SERIES
Bearing Diameter Overall Length
mm inches mm inches Part Number
22.0 ⁷⁄₈" 54.0 2¹⁄₈" 1-0121
Cross and Bearing Kit: Outside Lock-Up
Tractor Yokes: Pin Type Quick Disconnect
(L)
Bore Length Use W/Tube
mm inches mm inches Part Number Part Number
Inner Profile Yoke
O.D. Wall Thickness Use W/Yoke Part
mm inches mm inches Part Number Number
26.6 1³⁄₆₄" 3.5 ⁹⁄₆₄" 8-1030 70-0105
Inner Profile Tube—59" Lengths(L)
22.0
54.0
L
L
L
L
(L)
Bore Length Use W/Tube
mm inches mm inches Part Number Part Number
Outer Profile Yoke
L
26.5 1¹⁄₃₂" 79.0 3³⁄₃₂" 70-0105 8-1030
32.5 1⁹⁄₃₂" 80.0 3⁵⁄₃₂" 70-0104 8-1020
O.D.
(L)
Length QD
Bore mm inches Pin Kit Part Number
1³⁄₈"-6 SPL 92.0 3⁵⁄₈" 56-0040 8-1012
1³⁄₈"-21 SPL 92.0 3⁵⁄₈" 56-0040 8-1021
Note: Tractor end use only
Replaces Bondioli & Pavesi® Design Series 1
ASAE
Category 1
METRIC
69
(L)
Diameter Length
mm inches mm inches Part Number
Tube Pin
(L)
Bore Length Hole
mm inches mm inches Keyway SIze Part Number
Implement Yokes
1 SERIES
L
L
O.D. Wall Thickness Use W/Yoke Part
mm inches mm inches Part Number Number
32.4 1⁹⁄₃₂" 2.475 ³⁄₃₂" 8-1020 70-0104
Outer Profile Tube—59" Lengths(L)
L
8.0 ⁵⁄₁₆" 60.3 2³⁄₈" 50-0412
Note: Fits both inner and outer profile yokes - packaged 10 per box
25.4 1" 79.0 3⁹⁄₃₂"¹⁄₄"³⁄₈"-16 8-1008
31.75 1¹⁄₄" 79.0 3⁹⁄₃₂"¹⁄₄"³⁄₈"-16 8-1010
Overall Length Bell O.D. Part Number
51" 5¹⁄₄" 69-0648
Shield Bearings are not included
World ShieldTM Plastic
Shield Bearing
Bearing Use W/Shield
Bearing I.D. Width Part Number Part Number
1¹⁹⁄₃₂"⁵⁄₃₂"
1¹¹⁄₃₂"⁵⁄₃₂"
Note: Two (2) Bearings per box
69-0648 56-2101
L
O.D.
O.D.
Replaces Bondioli & Pavesi® Design Metric Series 1
70
2 SERIES
Bearing Diameter Overall Length
mm inches mm inches Part Number
23.8 ¹⁵⁄₁₆" 61.3 2¹³⁄₃₂" 1-0221
Cross and Bearing Kit: Outside Lock-Up
Tractor Yokes: Pin Type Quick Disconnect
(L)
Bore Length Use W/Tube
mm inches mm inches Part Number Part Number
Inner Profile Yoke
O.D. Wall Thickness Use W/Yoke Part
mm inches mm inches Part Number Number
29.0 1⁹⁄₆₄" 4.0 ⁵⁄₃₂" 8-2030 70-0205
Inner Profile Tube—59" Lengths(L)
23.8
61.3
L
L
L
L
(L)
Bore Length Use W/Tube
mm inches mm inches Part Number Part Number
Outer Profile Yoke
L
29.0 1⁹⁄₆₄" 82.0 3⁷⁄₃₂" 70-0205 8-2030
36.0 1¹³⁄₃₂" 84.0 3⁵⁄₁₆" 70-0305 8-2020
O.D.
(L)
Length QD
Bore mm inches Pin Kit Part Number
1³⁄₈"-6 SPL 97.0 3¹³⁄₁₆" 56-0040 8-2012
1³⁄₈"-21 SPL 97.0 3¹³⁄₁₆" 56-0040 8-2021
Note: Tractor end use only
Replaces Bondioli & Pavesi® Design Series 2
ASAE
Category 2
METRIC
71
2 SERIES
Tube Pin
(L)
Bore Length Hole
mm inches mm inches Keyway Size Part Number
Implement Yokes
L
L
O.D. Wall Thickness Use W/Yoke Part
mm inches mm inches Part Number Number
36.1 1²⁷⁄₆₄" 3.1 ¹⁄₈" 8-2020 70-0305
Outer Profile Tube—59" Lengths(L)
L
8.0 ⁵⁄₁₆" 60.3 2³⁄₈" 50-0412
Note: Fits both inner and outer profile yokes - packaged 10 per box
(L)
Diameter Length
mm inches mm inches Part Number
25.4 1" 82.0 3¹⁵⁄₆₄"¹⁄₄"³⁄₈"-16 8-2008
31.75 1¹⁄₄" 82.0 3¹⁵⁄₆₄"¹⁄₄"³⁄₈"-16 8-2010
Overall Length Bell O.D. Part Number
51" 5¹⁄₄" 69-0648
Shield Bearings are not included
World ShieldTM Plastic
Shield Bearing
Bearing Use W/Shield
Bearing I.D. Width Part Number Part Number
1⁷⁄₈"⁵⁄₃₂"
1¹⁹⁄₃₂"⁵⁄₃₂"
Note: Two (2) Bearings per box
69-0648 56-2102
L
O.D.
O.D.
Replaces Bondioli & Pavesi® Design Metric Series 2
72
3 SERIES
Bearing Diameter Overall Length
mm inches mm inches Part Number
27.0 1¹⁄₁₆" 70.0 2³⁄₄" 1-0321
Cross and Bearing Kit: Outside Lock-Up
Tractor Yokes: Pin Type Quick Disconnect
(L)
Bore Length Use W/Tube
mm inches mm inches Part Number Part Number
Inner Profile Yoke
O.D. Wall Thickness Use W/Yoke Part
mm inches mm inches Part Number Number
36.1 1²⁷⁄₆₄" 3.1 ¹⁄₈" 8-3030 70-0305
Inner Profile Tube—59" Lengths(L)
27.0
70.0
L
L
L
(L)
Bore Length Use W/Tube
mm inches mm inches Part Number Part Number
Outer Profile Yoke
L
36.0 1²⁷⁄₆₄" 85.0 3³⁄₈" 70-0305 8-3030
43.5 1¹¹⁄₁₆" 80.0 3⁵⁄₃₂" 70-0304 8-3020
O.D.
(L)
Length QD
Bore mm inches Pin Kit Part Number
1³⁄₈"-6 SPL 102.0 4¹⁄₆₄" 56-0040 8-3012
1³⁄₈"-21 SPL 102.0 4¹⁄₆₄" 56-0040 8-3021
Note: Tractor end use only
Replaces Bondioli & Pavesi® Design Series 3
ASAE
Category 3
METRIC
73
3 SERIES
(L)
Diameter Length
mm inches mm inches Part Number
Tube Pin
(L)
Bore Length Hole
mm inches mm inches Keyway Size Part Number
Implement Yokes
L
L
O.D. Wall Thickness Use W/Yoke Part
mm inches mm inches Part Number Number
43.4 1⁴⁵⁄₆₄" 3.325 ¹⁄₈" 8-3020 70-0304
Outer Profile Tube—59" Lengths(L)
L
8.0 ⁵⁄₁₆" 60.3 2³⁄₈" 50-0412
Note: Fits both inner and outer profile yokes - packaged 10 per box
25.4 1" 85.0 3¹¹⁄₃₂"¹⁄₄"³⁄₈"-16 8-3011
31.75 1¹⁄₄" 85.0 3¹¹⁄₃₂"¹⁄₄"³⁄₈"-16 8-3010
34.93 1³⁄₈" 85.0 3¹¹⁄₃₂"—¹⁷⁄₃₂" D.T. 8-3016
Overall Length Bell O.D. Part Number
51" 6¹⁄₈" 69-1248
Shield Bearings are not included
World ShieldTM Plastic
Shield Bearing
Bearing Use W/Shield
Bearing I.D. Width Part Number Part Number
2³⁄₃₂"⁵⁄₃₂"
1¹³⁄₁₆"⁵⁄₃₂"
Note: Two (2) Bearings per box
69-1248 56-4103
L
O.D.
O.D.
Replaces Bondioli & Pavesi® Design Metric Series 3
74
4 SERIES
Bearing Diameter Overall Length
mm inches mm inches Part Number
27.0 1¹⁄₁₆" 74.6 2¹⁵⁄₁₆" 1-0421
Cross and Bearing Kit: Outside Lock-Up
Tractor Yokes: Pin Type Quick Disconnect
(L)
Bore Length Use W/Tube
mm inches mm inches Part Number Part Number
Inner Profile Yoke
O.D. Wall Thickness Use W/Yoke Part
mm inches mm inches Part Number Number
36.1 1²⁷⁄₆₄" 4.45 ¹¹⁄₆₄" 8-4030 70-0405
Inner Profile Tube—59" Lengths(L)
27.0
74.6
L
L
L
(L)
Bore Length Use W/Tube
mm inches mm inches Part Number Part Number
Outer Profile Yoke
L
36.0 1²⁷⁄₆₄" 98.0 3⁵⁵⁄₆₄" 70-0405 8-4030
43.5 1¹¹⁄₁₆" 93.5 3¹¹⁄₁₆" 70-0304 8-4020
O.D.
(L)
Length QD
Bore mm inches Pin Kit Part Number
1³⁄₈"-6 SPL 109.0 4⁹⁄₃₂" 56-0040 8-4012
1³⁄₈"-21 SPL 109.0 4⁹⁄₃₂" 56-0040 8-4021
Note: Tractor end use only
Replaces Bondioli & Pavesi® Design Series 4
ASAE
Category 3
METRIC
75
4 SERIES
(L)
Diameter Length
mm inches mm inches Part Number
Tube Pin
(L)
Bore Length Hole
mm inches mm inches Keyway Size Part Number
Implement Yokes
L
L
O.D. Wall Thickness Use W/Yoke Part
mm inches mm inches Part Number Number
43.4 1⁴⁵⁄₆₄" 3.4 ¹⁄₈" 8-4020 70-0304
Outer Profile Tube—59" Lengths(L)
L
8.0 ⁵⁄₁₆" 60.3 2³⁄₈" 50-0412
Note: Fits both inner and outer profile yokes - packaged 10 per box
31.75 1¹⁄₄" 98.0 3⁵⁵⁄₆₄"¹⁄₄"³⁄₈"-16 8-4010
34.93 1³⁄₈" 98.0 3⁵⁵⁄₆₄"⁵⁄₁₆"³⁄₈"-16 8-4011
34.93 1³⁄₈" 98.0 3⁵⁵⁄₆₄"—¹⁷⁄₃₂" D.T. 8-4016
Overall Length Bell O.D. Part Number
51" 6¹⁄₈" 69-1248
Shield Bearings are not included
World ShieldTM Plastic
Shield Bearing
Bearing Use W/Shield
Bearing I.D. Width Part Number Part Number
2³⁄₃₂"⁵⁄₃₂"
1¹³⁄₁₆"⁵⁄₃₂"
Note: Two (2) Bearings per box
69-1248 56-4103
L
O.D.
O.D.
Replaces Bondioli & Pavesi® Design Metric Series 4
76
5 SERIES
Bearing Diameter Overall Length
mm inches mm inches Part Number
30.2 1³⁄₁₆" 80.0 3⁵⁄₃₂" 2-0521
Cross and Bearing Kit: Outside Lock-Up
Tractor Yokes: Pin Type Quick Disconnect
(L)
Bore Length Use W/Tube
mm inches mm inches Part Number Part Number
Inner Profile Yoke
O.D. Wall Thickness Use W/Yoke Part
mm inches mm inches Part Number Number
44.7 1⁴⁹⁄₆₄" 4.0 ⁵⁄₃₂" 8-5030 70-0505
Inner Profile Tube—59" Lengths(L)
30.2
80.0
L
L
L
(L)
Bore Length Use W/Tube
mm inches mm inches Part Number Part Number
Outer Profile Yoke
L
45.0 1²⁵⁄₃₂" 96.0 3²⁵⁄₃₂" 70-0505 8-5030
51.6 2¹⁄₃₂" 98.5 3⁷⁄₈" 70-0504 8-5020
O.D.
(L)
Length QD
Bore mm inches Pin Kit Part Number
1³⁄₈"-6 SPL 112.0 4¹³⁄₃₂" 56-0040 8-5012
1³⁄₈"-21 SPL 112.0 4¹³⁄₃₂" 56-0040 8-5021
Note: Tractor end use only
Replaces Bondioli & Pavesi® Design Series 5
ASAE
Category 4
METRIC
77
5 SERIES
(L)
Diameter Length
mm inches mm inches Part Number
Tube Pin
(L)
Bore Length Hole
mm inches mm inches Keyway Size Part Number
Implement Yokes
L
L
O.D. Wall Thickness Use W/Yoke Part
mm inches mm inches Part Number Number
51.3 2¹⁄₆₄" 3.0 ⁷⁄₆₄" 8-5020 70-0504
Outer Profile Tube—59" Lengths(L)
L
10.0 ²⁵⁄₆₄" 70.0 2³⁄₄" 50-0612
Note: Fits both inner and outer profile yokes - packaged 10 per box
31.75 1¹⁄₄" 96.0 3²⁵⁄₃₂"¹⁄₄"³⁄₈"-16 8-5010
34.93 1³⁄₈" 96.0 3²⁵⁄₃₂"⁵⁄₁₆"³⁄₈"-16 8-5011
34.93 1³⁄₈" 96.0 3²⁵⁄₃₂"—¹⁷⁄₃₂" D.T. 8-5016
Overall Length Bell O.D. Part Number
51" 7¹⁄₁₆" 69-2248
Shield Bearings are not included
World ShieldTM Plastic
Shield Bearing
Bearing Use W/Shield
Bearing I.D. Width Part Number Part Number
2¹⁵⁄₃₂"⁵⁄₃₂"
2³⁄₃₂"⁵⁄₃₂"
Note: Two (2) Bearings per box
69-2248 56-6105
L
O.D.
O.D.
Replaces Bondioli & Pavesi® Design Metric Series 5
78
6 SERIES
Bearing Diameter Overall Length
mm inches mm inches Part Number
30.2 1³⁄₁₆" 92.0 3⁵⁄₈" 3-0621
Cross and Bearing Kit: Outside Lock-Up
Tractor Yokes: Pin Type Quick Disconnect
(L)
Bore Length Use W/Tube
mm inches mm inches Part Number Part Number
Inner Profile Yoke
O.D. Wall Thickness Use W/Yoke Part
mm inches mm inches Part Number Number
44.7 1⁴⁹⁄₆₄" 4.0 ⁵⁄₃₂" 8-6030 70-0505
Inner Profile Tube—59" Lengths(L)
30.2
92.0
L
L
L
(L)
Bore Length Use W/Tube
mm inches mm inches Part Number Part Number
Outer Profile Yoke
L
45.0 1²⁵⁄₃₂" 105.0 4¹⁄₈" 70-0505 8-6030
54.0 2¹⁄₈" 107.0 4⁷⁄₃₂" 70-0704 8-6020
O.D.
(L)
Length QD
Bore mm inches Pin Kit Part Number
1³⁄₈"-6 SPL 122.0 4¹³⁄₁₆" 56-0040 8-6012
1³⁄₈"-21 SPL 122.0 4¹³⁄₁₆" 56-0040 8-6021
Note: Tractor end use only
Replaces Bondioli & Pavesi® Design Series 6
ASAE
Category 5
METRIC
79
6 SERIES
(L)
Diameter Length
mm inches mm inches Part Number
Tube Pin
(L)
Bore Length Hole
mm inches mm inches Keyway Size Part Number
Implement Yokes
L
L
O.D. Wall Thickness Use W/Yoke Part
mm inches mm inches Part Number Number
53.6 2⁷⁄₆₄" 3.775 ⁵⁄₃₂" 8-6020 70-0704
Outer Profile Tube—59" Lengths(L)
L
10.0 ²⁵⁄₆₄" 70.0 2³⁄₄" 50-0612
Note: Fits both inner and outer profile yokes - packaged 10 per box
31.75 1¹⁄₄" 105.0 4⁹⁄₆₄"¹⁄₄"³⁄₈"-16 8-6010
34.93 1³⁄₈" 105.0 4⁹⁄₆₄"⁵⁄₁₆"³⁄₈"-16 8-6011
34.93 1³⁄₈" 110.0 4¹¹⁄₃₂"—¹⁷⁄₃₂" D.T. 8-6016
Overall Length Bell O.D. Part Number
51" 7¹⁄₁₆" 69-2248
Shield Bearings are not included
World ShieldTM Plastic
Shield Bearing
Bearing Use W/Shield
Bearing I.D. Width Part Number Part Number
69-2248 56-6106
L
O.D.
O.D.
2¹¹⁄₁₆"⁵⁄₃₂"
2¹¹⁄₃₂"⁵⁄₃₂"
Note: Two (2) Bearings per box
Replaces Bondioli & Pavesi® Design Metric Series 6
80
7 SERIES
Bearing Diameter Overall Length
mm inches mm inches Part Number
35.0 1³⁄₈" 94.0 3¹¹⁄₁₆" 3-0721
Cross and Bearing Kit: Outside Lock-Up
Tractor Yokes: Pin Type Quick Disconnect
(L)
Bore Length Use W/Tube
mm inches mm inches Part Number Part Number
Inner Profile Yoke
O.D. Wall Thickness Use W/Yoke Part
mm inches mm inches Part Number Number
44.7 1³⁄₄" 5.5 ⁷⁄₃₂" 8-7030 70-0705
Inner Profile Tube—59" Lengths(L)
35.0
94.0
L
L
L
(L)
Bore Length Use W/Tube
mm inches mm inches Part Number Part Number
Outer Profile Yoke
L
45.0 1³⁄₄" 105.0 4¹⁄₈" 70-0705 8-7030
54.0 2¹⁄₈" 107.0 4⁷⁄₃₂" 70-0704 8-7020
O.D.
1³⁄₈"-6 SPL 122.0 4¹³⁄₁₆" 56-0040 8-7012
1³⁄₈"-21 SPL 122.0 4¹³⁄₁₆" 56-0040 8-7021
1³⁄₄"-20 SPL 122.0 4¹³⁄₁₆" 56-0940 8-7014
Note: Tractor end use only
(L)
Length QD
Bore mm inches Pin Kit Part Number
Replaces Bondioli & Pavesi® Design Series 7
ASAE
Category 5
METRIC
81
7 SERIES
(L)
Diameter Length
mm inches mm inches Part Number
Tube Pin
(L)
Bore Length
mm inches mm inches Keyway Set Screw Part Number
Implement Yokes
L
L
O.D. Wall Thickness Use W/Yoke Part
mm inches mm inches Part Number Number
53.6 2⁷⁄₆₄" 3.775 ⁵⁄₃₂" 8-7020 70-0704
Outer Profile Tube—59" Lengths(L)
L
10.0 ²⁵⁄₆₄" 80.0 3⁵⁄₃₂" 50-1080
Note: Fits both inner and outer profile yokes - packaged 10 per box
35.0 1³⁄₈" 105.0 4¹⁄₈"⁵⁄₁₆"³⁄₈"-16 8-7011
Overall Length Bell O.D. Part Number
51" 8" 69-2248
Shield Bearings are not included
World ShieldTM Plastic
Shield Bearing
Bearing Use W/Shield
Bearing I.D. Width Part Number Part Number
2¹¹⁄₁₆"⁵⁄₃₂"
2¹¹⁄₃₂"⁵⁄₃₂"
Note: Two (2) Bearings per box
69-2248 56-6106
L
O.D.
O.D.
Replaces Bondioli & Pavesi® Design Metric Series 7
82
8 SERIES
Bearing Diameter Overall Length
mm inches mm inches Part Number
35.0 1³⁄₈" 106.5 4³⁄₁₆" 3-0821
Cross and Bearing Kit: Outside Lock-Up
Tractor Yokes: Pin Type Quick Disconnect
(L)
Bore Length Use W/Tube
mm inches mm inches Part Number Part Number
Inner Profile Yoke
O.D. Wall Thickness Use W/Yoke Part
mm inches mm inches Number Number
53.6 2⁷⁄₆₄" 3.775 ⁵⁄₃₂" 8-8030 70-0704
Inner Profile Tube—59" Lengths(L)
35.0
106.5
L
L
L
(L)
Bore Length Use W/Tube
mm inches mm inches Part Number Part Number
Outer Profile Yoke
L
54.0 2¹⁄₈" 120.0 4²³⁄₃₂" 70-0704 8-8030
63.0 2¹⁄₂" 120.0 4²³⁄₃₂" 70-0804 8-8020
O.D.
1³⁄₈"-6 SPL 125.0 4⁵⁹⁄₆₄" 56-0040 8-8012
1³⁄₈"-21 SPL 125.0 4⁵⁹⁄₆₄" 56-0040 8-8021
1³⁄₄"-20 SPL 125.0 4⁵⁹⁄₆₄" 56-0940 8-8014
Note: Tractor end use only
(L)
Length QD
Bore mm inches Pin Kit Part Number
Replaces Bondioli & Pavesi® Design Series 8
ASAE
Category 6
METRIC
83
8 SERIES
(L)
Diameter Length
mm inches mm inches Part Number
Tube Pin
L
O.D. Wall Thickness Use W/Yoke Part
mm inches mm inches Part Number Number
63.0 2¹⁄₂" 4.0 ⁵⁄₃₂" 8-8020 70-0804
Outer Profile Tube—59" Lengths(L)
L
12.0 ¹⁵⁄₃₂" 80.0 3⁵⁄₃₂" 50-1280
Note: Fits both inner and outer profile yokes - packaged 10 per box
O.D.
O.D.
(L)
Bore Length
mm inches mm inches Keyway Set Screw Part Number
Implement Yokes
L
35.0 1³⁄₈" 120.0 4²³⁄₃₂"⁵⁄₁₆"³⁄₈"-16 8-8011
38.0 1¹⁄₂" 120.0 4²³⁄₃₂"⁵⁄₁₆"³⁄₈"-16 8-8015
44.5 1³⁄₄" 120.0 4²³⁄₃₂"³⁄₈"³⁄₈"-16 8-8016
Overall Length Bell O.D. Part Number
51" 8" 69-2648
Shield Bearings are not included
World ShieldTM Plastic
Shield Bearing
Bearing Use W/Shield
Bearing I.D. Width Part Number Part Number
2¹¹⁄₁₆"¹⁄₄"
3³⁄₁₆"¹⁄₄"
Note: Two (2) Bearings per box
69-2648 56-8108
L
Replaces Bondioli & Pavesi® Design Metric Series 8
84
9 SERIES
Bearing Diameter Overall Length
mm inches mm inches Part Number
41.0 1³⁹⁄₆₄" 108.0 4¹⁄₄" 3-0921
Cross and Bearing Kit: Outside Lock-Up
10 SERIES
Bearing Diameter Overall Length
mm inches mm inches Part Number
41.0 1³⁹⁄₆₄" 118.0 4⁵⁄₈" 3-1021
Cross and Bearing Kit: Outside Lock-Up
41.0
41.0
108.0
118.0
Replaces Bondioli & Pavesi® Design Series 9
METRIC
Replaces Bondioli & Pavesi® Design Series 10
METRIC
85
2100 SERIES
Bearing Diameter Overall Length
mm inches mm inches Part Number
22.0 ⁷⁄₈" 54.8 2⁵⁄₃₂" 1-1001
Cross and Bearing Kit: Outside Lock-Up
Tractor Yokes: Pin Type Quick Disconnect
(L)
Bore Length Use W/Tube
mm inches mm inches Part Number Part Number
Inner Profile Yoke
O.D. Wall Thickness Use W/Yoke Part
mm inches mm inches Part Number Number
23.5 ⁵⁹⁄₆₄" 3.6 ⁹⁄₆₄" 8-2130 70-2105
Inner Profile Tube—59" Lengths(L)
55.0
22.0
L
L
O.D.
L
(L)
Bore Length Use W/Tube
mm inches mm inches Part Number Part Number
Outer Profile Yoke
L
O.D.
23.5 ⁵⁹⁄₆₄" 79.0 3⁷⁄₆₄" 70-2105 8-2130
30.0 1³⁄₁₆" 79.0 3⁷⁄₆₄" 70-2104 8-2120
(L)
Length QD
Bore mm inches Pin Kit Part Number
1³⁄₈"-6 SPL 92.0 3⁵⁄₈" 56-0040 8-2112
1³⁄₈"-21 SPL 92.0 3⁵⁄₈" 56-0040 8-2121
Note: Tractor end use only
Replaces Walterscheid® Design Series 2100
ASAE
Category 1
METRIC
86
2100 SERIES
(L)
Diameter Length
mm inches mm inches Part Number
Tube Pin
(L)
Bore Length
mm inches mm inches Hole Size Part Number
Implement Yokes
O.D.
L
L
30.0 1³⁄₁₆" 2.85 ⁷⁄₆₄" 8-2120 70-2104
L
O.D. Wall Thickness Use W/Yoke Part
mm inches mm inches Part Number Number
Outer Profile Tube—59" Lengths(L)
8.0 ⁵⁄₁₆" 50.0 1³¹⁄₃₂" 50-0112
Note: Fits both inner and outer profile yokes - packaged 10 per box
25.4 1" 79.0 3⁷⁄₆₄"⁵⁄₁₆" D.T. 8-2108
31.75 1¹⁄₄" 79.0 3⁷⁄₆₄"³⁄₈" D.T. 8-2110
Overall Length Bell O.D. Part Number
51" 5¹⁄₄" 69-0648
Shield Bearings are not included
World ShieldTM Plastic
Shield Bearing
Bearing Use W/Shield
Bearing I.D. Width Part Number Part Number
1²¹⁄₃₂"⁵⁄₃₂" 69-0648 56-2122
Note: Two (2) Bearings per box
L
Replaces Walterscheid® Design Metric Series 2100
87
2200 SERIES
Bearing Diameter Overall Length
mm inches mm inches Part Number
23.8 ¹⁵⁄₁₆" 61.3 2¹³⁄₃₂" 1-0221
Cross and Bearing Kit: Outside Lock-Up
Tractor Yokes: Pin Type Quick Disconnect
(L)
Bore Length Use W/Tube
mm inches mm inches Part Number Part Number
Inner Profile Yoke
O.D. Wall Thickness Use W/Yoke Part
mm inches mm inches Part Number Number
34.5 1²³⁄₆₄" 3.95 ⁵⁄₃₂" 8-2230 70-2205
Inner Profile Tube—59" Lengths(L)
61.3
23.8
L
L
L
(L)
Bore Length Use W/Tube
mm inches mm inches Part Number Part Number
Outer Profile Yoke
L
34.5 1²³⁄₆₄" 82.0 3¹⁵⁄₆₄" 70-2205 8-2230
41.25 1⁵⁄₈" 82.0 3¹⁵⁄₆₄" 70-2204 8-2220
O.D.
O.D.
(L)
Length QD
Bore mm inches Pin Kit Part Number
1³⁄₈"-6 SPL 97.0 3¹³⁄₁₆" 56-0040 8-2012
1³⁄₈"-21 SPL 97.0 3¹³⁄₁₆" 56-0040 8-2021
Note: Tractor end use only
Replaces Walterscheid® Design Series 2200
ASAE
Category 2
METRIC
88
2200 SERIES
(L)
Diameter Length
mm inches mm inches Part Number
Tube Pin
(L)
Bore Length Hole
mm inches mm inches Keyway Size Part Number
Implement Yokes
L
L
O.D. Wall Thickness Use W/Yoke Part
mm inches mm inches Part Number Number
41.25 1⁵⁄₈" 2.85 ⁷⁄₆₄" 8-2220 70-2204
Outer Profile Tube—59" Lengths(L)
L
10.0 ¹³⁄₃₂" 65.0 2²³⁄₆₄" 50-2212
Note: Fits both inner and outer profile yokes - packaged 10 per box
25.4 1" 82.0 3¹⁵⁄₆₄"¹⁄₄"³⁄₈"-16 8-2008
31.75 1¹⁄₄" 82.0 3¹⁵⁄₆₄"¹⁄₄"³⁄₈"-16 8-2010
Overall Length Bell O.D. Part Number
51" 6¹⁄₈" 69-1248
Shield Bearings are not included
World ShieldTM Plastic
Shield Bearing
Bearing Use W/Shield
Bearing I.D. Width Part Number Part Number
2"⁵⁄₃₂" 69-1248 56-2223
Note: Two (2) Bearings per box
L
O.D.
Replaces Walterscheid® Design Metric Series 2200
89
I
SERIES
Bearing Diameter Overall Length
mm inches mm inches Part Number
27.0 1¹⁄₁₆" 70.0 2³⁄₄" 1-0321
Cross and Bearing Kit: Outside Lock-Up
Tractor Yokes: Pin Type Quick Disconnect
(L)
Bore Length Use W/Tube
mm inches mm inches Part Number Part Number
Inner Profile Yoke
O.D. Wall Thickness Use W/Yoke Part
mm inches mm inches Part Number Number
34.5 1²³⁄₆₄" 3.95 ⁵⁄₃₂" 8-0130 70-2205
Inner Profile Tube—59" Lengths(L)
70.0
27.0
L
L
L
(L)
Bore Length Use W/Tube
mm inches mm inches Part Number Part Number
Outer Profile Yoke
L
34.5 1²³⁄₆₄" 85.0 3¹¹⁄₃₂" 70-2205 8-0130
41.25 1⁵⁄₈" 85.0 3¹¹⁄₃₂" 70-2204 8-0120
O.D.
O.D.
(L)
Length QD
Bore mm inches Pin Kit Part Number
1³⁄₈"-6 SPL 102.0 4¹⁄₆₄" 56-0040 8-3012
1³⁄₈"-21 SPL 102.0 4¹⁄₆₄" 56-0040 8-3021
Note: Tractor end use only
Replaces Walterscheid® Design Series I
ASAE
Category 3
METRIC
90
I
SERIES
(L)
Diameter Length
mm inches mm inches Part Number
Tube Pin
(L)
Bore Length Hole
mm inches mm inches Keyway Size Part Number
Implement Yokes
L
L
O.D. Wall Thickness Use W/Yoke Part
mm inches mm inches Part Number Number
41.25 1⁵⁄₈" 2.85 ⁷⁄₆₄" 8-0120 70-2204
Outer Profile Tube—59" Lengths(L)
L
10.0 ¹³⁄₃₂" 65.0 2⁹⁄₁₆" 50-2312
Note: Fits both inner and outer profile yokes - packaged 10 per box
25.4 1" 85.0 3¹¹⁄₃₂"¹⁄₄"³⁄₈"-16 8-3011
31.75 1¹⁄₄" 85.0 3¹¹⁄₃₂"¹⁄₄"³⁄₈"-16 8-3010
35.0 1³⁄₈" 85.0 3¹¹⁄₃₂"—³⁄₈" D.T. 8-3016
Overall Length Bell O.D. Part Number
51" 6¹⁄₈" 69-1248
Shield Bearings are not included
World ShieldTM Plastic
Shield Bearing
Bearing Use W/Shield
Bearing I.D. Width Part Number Part Number
2"⁵⁄₃₂" 69-1248 56-2223
Note: Two (2) Bearings per box
L
O.D.
Replaces Walterscheid® Design Metric Series I
91
2300 SERIES
Bearing Diameter Overall Length
mm inches mm inches Part Number
27.0 1¹⁄₁₆" 74.6 2¹⁵⁄₁₆" 1-0421
Cross and Bearing Kit: Outside Lock-Up
Tractor Yokes: Pin Type Quick Disconnect
(L)
Bore Length Use W/Tube
mm inches mm inches Part Number Part Number
Inner Profile Yoke
O.D. Wall Thickness Use W/Yoke Part
mm inches mm inches Part Number Number
34.5 1²³⁄₆₄" 3.95 ⁵⁄₃₂" 8-2330 70-2205
Inner Profile Tube—59" Lengths(L)
27.0
74.6
L
(L)
Bore Length Use W/Tube
mm inches mm inches Part Number Part Number
Outer Profile Yoke
34.5 1²³⁄₆₄" 98.0 3⁵⁵⁄₆₄" 70-2205 8-2330
41.25 1⁵⁄₈" 98.0 3⁵⁵⁄₆₄" 70-2204 8-2320
L
L
L
O.D.
O.D.
(L)
Length QD
Bore mm inches Pin Kit Part Number
1³⁄₈"-6 SPL 109.0 4⁹⁄₃₂" 56-0040 8-4012
1³⁄₈"-21 SPL 109.0 4⁹⁄₃₂" 56-0040 8-4021
Note: Tractor end use only
Replaces Walterscheid® Design Series 2300
ASAE
Category 3
METRIC
92
2300 SERIES
(L)
Diameter Length
mm inches mm inches Part Number
Tube Pin
(L)
Bore Length Hole
mm inches mm inches Keyway Size Part Number
Implement Yokes
L
L
O.D. Wall Thickness Use W/Yoke Part
mm inches mm inches Part Number Number
41.25 1⁵⁄₈" 2.85 ⁷⁄₆₄" 8-2320 70-2204
Outer Profile Tube—59" Lengths(L)
10.0 ¹³⁄₃₂" 65.0 2⁹⁄₁₆" 50-2312
Note: Fits both inner and outer profile yokes - packaged 10 per box
31.75 1¹⁄₄" 98.0 3⁵⁵⁄₆₄"¹⁄₄"³⁄₈"-16 8-4010
34.93 1³⁄₈" 98.0 3⁵⁵⁄₆₄"⁵⁄₁₆"³⁄₈"-16 8-4011
Overall Length Bell O.D. Part Number
51" 6¹⁄₈" 69-1248
Shield Bearings are not included
World ShieldTM Plastic
Shield Bearing
Bearing Use W/Shield
Bearing I.D. Width Part Number Part Number
2"⁵⁄₃₂" 69-1248 56-2223
Note: Two (2) Bearings per box
L
O.D.
L
Replaces Walterscheid® Design Metric Series 2300
93
2400 SERIES
Bearing Diameter Overall Length
mm inches mm inches Part Number
32.0 1¹⁷⁄₆₄" 76.0 3" 2-2421
Cross and Bearing Kit: Outside Lock-Up
Tractor Yokes: Pin Type Quick Disconnect
(L)
Bore Length Use W/Tube
mm inches mm inches Part Number Part Number
Inner Profile Yoke
O.D. Wall Thickness Use W/Yoke Part
mm inches mm inches Part Number Number
39.5 1⁹⁄₁₆" 4.5 ¹¹⁄₆₄" 8-2430 70-2405
Inner Profile Tube—59" Lengths(L)
76.0
32.0
L
L
O.D.
L
(L)
Bore Length Use W/Tube
mm inches mm inches Part Number Part Number
Outer Profile Yoke
L
39.5 1⁹⁄₁₆" 96.0 3²⁵⁄₃₂" 70-2405 8-2430
48.0 1⁵⁷⁄₆₄" 96.0 3²⁵⁄₃₂" 70-2404 8-2420
O.D.
(L)
Length QD
Bore mm inches Pin Kit Part Number
1³⁄₈"-6 SPL 112.0 4¹³⁄₃₂" 56-0040 8-2412
1³⁄₈"-21 SPL 112.0 4¹³⁄₃₂" 56-0040 8-2421
Note: Tractor end use only
Replaces Walterscheid® Design Series 2400
ASAE
Category 4
METRIC
94
2400 SERIES
(L)
Diameter Length
mm inches mm inches Part Number
Tube Pin
(L)
Bore Length Hole
mm inches mm inches Keyway Size Part Number
Implement Yokes
L
L
O.D. Wall Thickness Use W/Yoke Part
mm inches mm inches Part Number Number
48.0 1⁵⁷⁄₆₄" 3.8 ⁵⁄₃₂" 8-2420 70-2404
Outer Profile Tube—59" Lengths(L)
L
10.0 ¹³⁄₃₂" 75.0 ⁶¹⁄₆₄" 50-0512
Note: Fits both inner and outer profile yokes - packaged 10 per box
31.75 1¹⁄₄" 96.0 3²⁵⁄₃₂"¹⁄₄"³⁄₈"-16 8-2410
34.93 1³⁄₈" 96.0 3²⁵⁄₃₂"—¹⁄₂" D.T. 8-2411
Overall Length Bell O.D. Part Number
51" 7¹⁄₁₆" 69-2248
Shield Bearings are not included
World ShieldTM Plastic
Shield Bearing
Bearing Use W/Shield
Bearing I.D. Width Part Number Part Number
2¹⁄₂"³⁄₁₆" 69-2248 56-2324
Note: Two (2) Bearings per box
L
O.D.
Replaces Walterscheid® Design Metric Series 2400
95
2500 SERIES
Bearing Diameter Overall Length
mm inches mm inches Part Number
36.0 1.417" 89.0 3¹⁄₂" 3-2521
Cross and Bearing Kit: Outside Lock-Up
Tractor Yokes: Pin Type Quick Disconnect
89.0
36.0
(L)
Bore Length Use W/Tube
mm inches mm inches Part Number Part Number
Inner Profile Yoke
O.D. Wall Thickness Use W/Yoke Part
mm inches mm inches Part Number Number
51.0 2" — — 8-2530 70-2505
Inner Profile Tube—59" Lengths(L)
L
(L)
Bore Length Use W/Tube
mm inches mm inches Part Number Part Number
Outer Profile Yoke
51.0 2" 105.0 4¹⁄₈" 70-2505 8-2530
61.0 2¹³⁄₃₂" 105.0 4¹⁄₈" 70-2504 8-2520
L
O.D.
L
O.D.
L
O.D.
(L)
Length QD
Bore mm inches Pin Kit Part Number
1³⁄₈"-6 SPL 122.0 4¹³⁄₁₆" 56-0040 8-2512
1³⁄₈"-21 SPL 122.0 4¹³⁄₁₆" 56-0040 8-2521
1³⁄₄"-20 SPL 122.0 4¹³⁄₁₆" 56-0940 8-2514
Note: Tractor end use only
Replaces Walterscheid® Design Series 2500
ASAE
Category 5
METRIC
96
2500 SERIES
(L)
Diameter Length
mm inches mm inches Part Number
Tube Pin
(L)
Bore Length Hole
mm inches mm inches Keyway Size Part Number
Implement Yokes
L
L
(L)
Bore Length
mm inches mm inches Drill Thru Part Number
Shear Pin Yokes
O.D. Wall Thickness Use W/Yoke Part
mm inches mm inches Part Number Number
61.0 2¹³⁄₃₂" 4.5 ¹¹⁄₆₄" 8-2520 70-2504
Outer Profile Tube—59" Lengths(L)
10.0 ¹³⁄₃₂" 90.0 3¹⁄₂" 50-1090
Note: Fits both inner and outer profile yokes - packaged 10 per box
34.93 1³⁄₈" 105.0 4¹⁄₈"³⁄₈"³⁄₈"-16 8-2511
38.1 1¹⁄₂" 105.0 4¹⁄₈"³⁄₈"³⁄₈"-16 8-2515
35.0 1³⁄₈" 105.0 4¹⁄₈"¹⁄₂" D.T. 8-2525
38.1 1¹⁄₂" 105.0 4¹⁄₈"¹⁄₂" D.T. 8-2535
Overall Length Bell O.D. Part Number
51" 8" 69-2248
Shield Bearings are not included
World ShieldTM Plastic
Shield Bearing
Bearing Use W/Shield
Bearing I.D. Width Part Number Part Number
2¹⁄₂"³⁄₁₆" 69-2248 56-2324
Note: Two (2) Bearings per box
L
L
O.D.
L
O.D.
Replaces Walterscheid® Design Metric Series 2500
97
AUXILIARY POWER TAKE-OFF
DRIVESHAFTS AND COMPONENTS
For
Truck Mounted and Industrial
Applications
98
GENERAL SAFETY INFORMATION
To prevent injury to yourself and/or damage to the
equipment:
➤Read all owner’s manuals, service manuals,
and/or other instructions
➤Always follow proper procedures and use
proper tools and safety equipment
➤Be sure to receive proper training
➤Never work alone while under a vehicle or
while repairing or maintaining equipment
➤Always use proper components in
applications for which they are approved
➤Be sure to assemble components properly
➤Never use worn-out or damaged components
➤Always block any raised or moving device that may
injure a person working on or under a vehicle
➤Never operate the controls of the power take-off or
other driven equipment from any position that could
result in getting caught in the moving machinery
➤Rotating auxiliary driveshafts are dangerous. You
can snag clothes, skin, hair, hands, etc. This can
cause serious injury or death.
➤Do not go under vehicle when the engine is
running.
➤Do not work on or near an exposed shaft when the
engine is running.
➤Shut off engine before working on power take-off or
driven equipment.
➤Exposed rotating driveshafts must be guarded.
▲
!WARNING: ROTATING AUXILIARY
DRIVESHAFTS
Auxiliary driveshafts may be installed with either
recessed or protruding set screws. If you choose a
square head set screw, you should be aware that it will
protrude above the hub of the yoke and may be a point
where clothes, skin, hair, hands, etc. could be
snagged. A socket head set screw, which may not
protrude above the hub of the yoke, does not permit
the same amount of torquing as does a square head
set screw. Also, a square head set screw, if used with
a lock wire, will prevent loosening of the screw caused
by vibration. Regardless of the choice made with
respect to a set screw, an exposed rotating auxiliary
driveshaft must be guarded.
If an auxiliary driveshaft is used and remains exposed
after installation, it is the responsibility of the vehicle
designer and P.T.O. installer to install a guard.
Auxiliary Power Take-Off Safety shielding systems are
available in this catalog. Shields must be used if the
driveshaft is not covered in its location.
▲
!WARNING: GUARDING AUXILIARY
DRIVESHAFTS ▲
!WARNING: USING SET SCREWS
This symbol warns of possible personal injury
▲
!
SAFETY INFORMATION
1
©2001 Neapco Inc.
AUXILIARY POWER TAKE-OFF TECHNICAL INFORMATION
POWER-TAKE-OFF (P.T.O.) BASICS
An auxiliary power-take-off shaft transmits power from the source to the driven accessory. The
shaft must be capable of transmitting the peak torque and maximum R.P.M. required by the
accessory, while withstanding any shock loads. The information in this publication is focused on
N1000 and N1310 series auxiliary power-take-off products.
An auxiliary power shaft operates through constantly changing angles between the power
source and the driven accessory. Chassis twisting and power train deflections due to torque
contribute to these changes in operating angles. This deflection also will cause changes in the
length of the auxiliary power shaft. Including a slip member (slip yoke and spline stub shaft) in
the driveline system accommodates this.
Joint operating angles are very important considerations in the configuration of an auxiliary
power-take-off application. The service life of the universal joint is directly affected by the
operating angles experienced in the completed system. Guidelines for permissible operating
angles are identified in the accompanying chart.
SPECIFYING SHAFT TYPE
Applications in auxiliary PTO use either solid shafting or tubular driveshaft assemblies.
Neapco tubular auxiliary PTO shaft kits are manufactured using 2” diameter by .083” wall
(2” x .083) tubing. These unwelded assemblies are convenient for fabricating different length
driveshaft requirements as needed. Neapco recommends using tubular auxiliary PTO shafts
whenever possible. Neapco tubular shafts are designed to reduce vibration as a dynamically
balanced assembly. Minimizing vibration increases the service life of the driveshaft, universal
joints, bearings in the driving and driven units and helps keep end connections secure.
Solid shafting should only be used in auxiliary power-take-off applications designed for 1,000
R.P.M. or less intermittent service.
INSTALLING A P.T.O. DRIVELINE
When installing a remote-mount PTO, one requiring a propeller shaft (driveline), please observe
that there is a slight angle of inclination to the engine, and that you must install the driven shaft
of the pump parallel to the PTO output shaft. In addition, the yokes of the PTO driveshaft should
be in line, in phase, and in the same plane.
UNIVERSAL JOINT OPERATING ANGLES
SHAFT RPM MAXIMUM NORMAL SHAFT RPM MAXIMUM NORMAL
OPERATING ANGLE OPERATING ANGLE
500 17° 2500 7°
1000 17° 3000 6°
1500 11° 3500 5°
2000 8° 4000 4°
2©2001 Neapco Inc.
AUXILIARY POWER TAKE-OFF TECHNICAL INFORMATION
Some light-duty under body hoist applications use a pump and tank combination, and there
are many large tank trucks which have pneumatic blowers. Both require a level horizontal
installation, making parallel input and output shafts difficult to configure. The correct remedy
for this common driveline problem is to use a two-piece driveshaft. In close-coupled applica-
tions a center yoke assembly may be necessary to provide correct phasing and angularity.
To properly measure the driveline angle, use an inclinometer, or bubble protractor to deter-
mine TRUE JOINT ANGLE, which is a composite of vertical and horizontal components. This
can also be calculated by measuring and using trigonometry. We recommend that you install
with at least a two-degree angle, to insure that oscillations will properly rotate the needle
bearings in the u-joints.
If a long driveshaft is necessary then critical speed problems must be taken into consideration.
The solution is to use more than one driveshaft, installed with center support bearing assem-
blies, and design the driveshaft lengths to avoid critical and half-critical speeds. Usually the
best solution is to install 60% of the driveline closest to the source of power, or the driving end,
with the remaining 40% toward the driven end. Pillow blocks, flange bearings or hanger bear-
ings used in two-piece driveshafts must be mounted solidly to the chassis.
WHERE TO INSTALL THE SLIP JOINTS
The purpose of the slip joint (slip yoke and spline stub shaft) is to allow proper flexing of the
universal joints as they rotate through the entire circle of operation. If a slip joint is not installed,
or if it is corroded from lack of lubricant, then severe stresses are imposed upon the bearings
and seals in the PTO and pump. An additional purpose of the slip joint is to allow flexing of the
chassis without putting lateral loads on the bearings and seals. Bearing and seal damage in
PTOs and pumps, and overheating is nearly always attributable to driveline problems.
Our recommendation is that if you have enough space,
the slip joint should be installed on
the end closest to the PTO.
If the PTO is inadvertently left in gear, the slip joint may leave
the shaft during overspeeding, or operating above critical speed. The shorter shaft is less
likely to destroy the entire underside of the vehicle.
CAUSES OF DRIVELINE FAILURES
To review u-joint and driveline problems, most failures will be a result of one or more of the
following:
· TOO MUCH TORQUE OR HP REQUIREMENT
· LACK OF LUBRICANT OR DIRTY LUBRICANT
· HIGH DEGREE OF ANGULARITY
· U-JOINTS NOT IN PHASE
· U-JOINTS NOT PARALLEL
· DRIVELINE NOT ALLOWED TO SLIP
· DRIVELINE OUT OF BALANCE
If you must use a driveline, it is our recommendation that you use tubular assemblies, and that
you purchase from a certified driveline specialist.
3
©2001 Neapco Inc.
DIRECTION OF ROTATION
NEAPCO AUXILIARY P.T.O. DRIVESHAFT SHIELDING SYSTEM
Neapco, Inc. has developed an Auxiliary P.T.O. Driveshaft shield System that is
compatible with many 1000 and 1310 Series power-take-off applications. The system consists
of four (4) basic components that combine to form a total driveline enclosure system.
1) A series of Bearing Races (collars) for installation on the driveshaft assembly by tack
welding.
2) Flex Bell™ Yoke Enclosures with over 8” of coverage featuring fluted construction for easy
length adjustment by cutting, providing custom installations.
3) Inner (2.75” O.D.) and Outer (3.00” O.D.) Telescoping Plastic Shield Tubes complete with
bearing slots (4) and Danger Label. Designed for easy length adjustment by cutting to
desired length with bearing slots aligned with bearing races (collars) mounted on the
driveshaft. These shields must overlap (telescope) at least 5” or more, if design allows. To
accomplish this the shield tube should be cut at least 2 1/2” past the center of the driveshaft
with the bearing slots aligned with the bearing race (collars) on the driveshaft.
4) Inner (4) and Outer (4) Shield Bearing Sets. These bearing sets lock the Flex Bell™ Yoke
Enclosure to the mating shield tube through the aligned slots and ride in the bearing races
on the driveshaft collars.
Assembly is easily accomplished after a short orientation to the system. Disassembly (for
service work or lubrication) takes only a few minutes with a blade screwdriver.
Shield Bearings must be installed properly in regards to the rotation of the driveline. This pre-
vents the Shield Bearings from loosening or popping out of the Bearing slots.
102
Consists of:
1) FB-275-SP Bell
4) FN-275 Shield Bearing
Consists of:
1) FB-300-SP Bell
4) FN-300 Shield Bearing
FB-275-SP Replacement Bell Kit FB-300-SP Replacement Bell Kit
FB-300-SP FN-300-4
PT-3.00-60.00
2294-4
PT-2.75-60.00
FN-275-4 FB-275-SP
68-0275 68-0300
FB-N1000 Shield Kit
68-1000
3.00
2.75
10.22
8.28
4.00
5.00
3.25
3.00
10.22
8.22
4.00
5.00
FN-275-4 FN-300-4
Consists of:
1) FB-275-SP Bell
1) FB-300-SP Bell
1) PT-2.75-60.00" Inner Shield Tube
1) PT-3.00-60.00" Outer Shield Tube
4) FN-275 Shield Bearing
4) FN-300 shield Bearing
1) 2294-4 Shield Support Bearing
1) FBIS-99.6 Instruction Sheet
AUXILIARY P.T.O. DRIVESHAFT SHIELDING SYSTEM
103
N10270-SF
N10271-SF
7.48 COLLAPSED
YOKE & STUB SHAFT ASSEMBLY
59.91
YOKE & TUBE ASSEMBLY
10-0699
Midship Stub Shaft 1" Diameter
Midship Stub w/ 1/4" Key for
2" X 0.83 Tubing
Unwelded Driveshaft Assembly
N1000 Series w/ 2" Tubing
Unwelded Driveshaft Midship
Application N1000 Series w/ 2" Tubing
10-0493
YOKE
.25 KEYWAY
1.00
.50
2.50
10-0699
STUB SHAFT
5.13
5.88 59.91
11-5914 YOKE &
TUBE ASSEMBLY
.252
.852
.998
2.13
FULL KEYWAY
4.13
5.13
5.88
2.25 BAR STOCK
Mounting Collars
2.25
.59 A
1.010
1.000
1.135
1.125
1.280
1.270
1.615
1.605
1.770
1.760
1.905
1.895
2.030
2.020
2-1000
2-1125
2-1250
2-1625*
2-1750
2-1880**
2-2030
BOXED
PART NUMBER
A
* Fits N10-0318
** Fits N2-3-128KX
AUXILIARY P.T.O. DRIVESHAFT SHIELDING SYSTEM
104
Danger
Rotating Driveline
Applicable safety standards require a
warning label be affixed to the outer section
of the driveline safety shield, to remind the
operator that it should not be in operation
until the following conditions have been
met.
1. All Driveline, and Equipment Shields
are in place
2. The Driveline is properly and securely
attached at both ends.
3. The Driveline Shields turn freely. Any
deviation from this standard could result
in a serious injury or death.
The label, part number NA-7232, should
be affixed to the outer shield with the top
one (1") inch from the bell as shown in the
diagram below.
Note: Applicable safety standards
require that all drivelines be
shielded with legible label in place.
When maintaining and repairing
Auxiliary PTO drivelines, use the
designated label part numbers to
purchase replacements.
SAFETY INFORMATION
SAFETY INFORMATION
READ CAREFULLY and ADHERE TO
Part Number
NA-7232
104
Flex Bells™ should be cut to
length that will provide complete
coverage of end yoke connection
105
Danger
Guard Missing
DO NOT OPERATE
Applicable safety standards require the
use of warning labels on the driveshaft
when the safety shields have been
removed. We recommend that label part
number NA-10666 be adhered to the tube
end of the driveshaft, one (1") inch from the
edge of the yoke, with the side of the label
toward the yoke. (See diagram below) At
this point, the label will be readily visible at
all times.
Serious injury or even death can result by
operating equipment without the proper
safety shield in place. DO NOT operate
your equipment without safety shields being
installed on the driveshaft.
Note: A high percentage of all
driveline injuries occur when safety
shielding is missing or not
functional. It is necessary for the
user to maintain proper shielding
and safety labels on the drivelines.
SAFETY INFORMATION
SAFETY INFORMATION
READ CAREFULLY and ADHERE TO
Part Number
NA-10666
105
106
CD
Centerline Set Screw
Square to End Hub Distance to End Yoke
Bore of Hub Diameter Hole Size Location End of Hub Part Number
N1000 Series use Kit No. 1-0170 A-2.312 B-.938 L-1.500 (Replaces Spicer® 5-170X)
.750 2.500 1.625 .375-16 GAP .500 10-0422
.875 1.688 1.625 .375-16 EAR .438 10-1707
.875 2.500 1.625 .375-16 GAP .625 10-0412
1.000 2.500 2.250 .375-16 GAP .625 10-0452
replaces Spicer
®
10-4-52
CD
Centerline Set Screw
Hexagon to End Hub Distance to End Yoke
Bore of Hub Diameter Hole Size Location End of Hub Part Number
N1000 Series use Kit No. 1-0170 A-2.312 B-.938 L-1.500 (Replaces Spicer® 5-170X)
.875 2.500 2.250 .375-16 GAP .625 10-4282
replaces Spicer
®
10-4-282
1.125 2.500 2.250 .375-16 GAP .500 10-0432
replaces Spicer
®
10-4-32
AL
B
DC
CD
Centerline Set Screw
Rectangular
to End Hub Distance to End Yoke
Bore of Hub Diameter Hole Size Location End of Hub Part Number
N1000 Series use Kit No. 1-0170 A-2.312 B-.938 L-1.500 (Replaces Spicer® 5-170X)
1.000X1.125 2.500 2.250 —— —N10-1559
AL
B
DC
C
AL
B
D
C
END YOKES
Inside Snap Ring
107
CD
Set Screw
Centerline Distance
Round to End Hub Keyway to End End Yoke
Bore of Hub Diameter Width Location Hole Size Location of Hub Part Number
N1000 Series use Kit No. 1-0170 A-2.312 B-.938 L-1.500 (Replaces Spicer® 5-170X)
.625 1.688 1.625 .188 GAP .37516 EAR .438 10-1708
.625 2.500 1.625 .188 GAP .375-16 EAR .500 N10-4373
.750 1.688 1.625 .188 GAP .375-16 EAR .438 10-1700
.750 2.500 1.625 .250 GAP .375-16 GAP .500 10-0423
replaces Spicer
®
10-4-23
.750 2.500 1.625 .188 GAP (2).375-16 EAR .500 10-4133
replaces Spicer
®
10-4-133
.750 2.500 1.625 .188 GAP .375-16 GAP .500 10-0413
replaces Spicer
®
10-4-13
.812 1.688 1.625 .250 GAP .375-16 EAR .438 10-1702
.812 2.500 1.625 .188 GAP .375-16 GAP .500 10-0433
replaces Spicer
®
10-4-33
.812 2.500 1.625 .250 GAP .375-16 EAR .500 10-4173
replaces Spicer
®
10-4-173
.812 2.500 1.625 .250 GAP .375-16 GAP .500 10-0443
replaces Spicer
®
10-4-43
.875 1.688 1.625 .250 EAR .375-16 GAP .438 10-4703
replaces Spicer
®
10-4-703
.875 2.500 1.625 .250 GAP .375-16 EAR .500 10-4453
replaces Spicer
®
10-4-453
.875 2.500 1.625 .188 GAP .375-16 GAP .500 10-0453
replaces Spicer
®
10-4-53
.875 2.500 1.625 .250 GAP .375-16 GAP .500 10-0463
replaces Spicer
®
10-4-63
.938 2.500 1.625 .250 EAR .375-16 EAR .500 10-0473
replaces Spicer
®
10-4-73
1.000 1.688 1.625 .250 GAP .375-16 EAR .438 10-1705
1.000 2.500 1.625 .250 GAP .375-16 EAR .500 10-4573
replaces Spicer
®
10-4-573
1.000 2.500 1.625 .250 GAP .375-16 GAP .500 10-0493
replaces Spicer
®
10-4-93
1.000 2.500 1.625 .188 GAP .375-16 GAP .500 10-0483
replaces Spicer
®
10-4-83
AL
B
D
C
END YOKES
Inside Snap Ring
108
CD
Set Screw
Centerline Distance
Round to End Hub Keyway to End End Yoke
Bore of Hub Diameter Width Location Hole Size Location of Hub Part Number
AL
B
D
C
N1000 Series use Kit No. 1-0170 A-2.312 B-.938 L-1.500 (Replaces Spicer® 5-170X)
1.000 2.500 1.625 ——(2).375DT EAR .500 10-4443
replaces Spicer
®
10-4-443
1.063 2.500 2.250 .250 GAP .375-16 EAR .500 N10-4163
1.125 2.500 2.250 .312 GAP .375-16 GAP .500 10-4473
1.125 2.500 2.250 .250 GAP .375-16 EAR .500 10-4143
replaces Spicer
®
10-4-143
1.125 2.500 2.250 .312 GAP .375-16 GAP .500 10-4113
replaces Spicer
®
10-4-113
1.125 2.500 2.250 .250 GAP .375-16 EAR .500 10-4103
replaces Spicer
®
10-4-103
1.188 2.500 2.250 .312 GAP .375-16 EAR .500 N10-4153
1.188 2.500 2.250 .250/.312 GAP .375-16 EAR .500 10-1574
1.250 2.500 2.250 .312 GAP .375-16 EAR .500 10-4193
replaces Spicer
®
10-4-193
1.250 2.500 2.250 .312 GAP .375-16 GAP .500 10-4123
replaces Spicer
®
10-4-123
1.250 2.500 2.250 ——(2).375-16 EAR .500 10-4363
1.250 2.500 2.250 .250 GAP .375-16 EAR .500 10-4183
replaces Spicer
®
10-4-183
1.375 2.500 2.000 .312 GAP .375-16 EAR .500 N10-4293
1.500 2.500 2.000 —— .281 EAR .500 N10-1532
END YOKES
Inside Snap Ring
109
N1000 Series use Kit No. 1-0170 A-2.312 B-.938 L-1.500 (Replaces Spicer® No. 5-170X)
.875 - 13 Involute Spline
.878/.875 .758/.753 1.625 2.500 2.030 .375-16 EAR .500 10-4481
replaces Spicer
®
10-4-481
1.125 - 6 Spline
1.125/1.124 .956/.955 1.625 2.500 2.030 .330DT EAR .375 N10-0411
1.375 - 6 Spline
1.375/1.374 1.169/1.167 2.000 2.500 2.030 .330DT EAR .375 N10-0431
1.377/1.374 1.173/1.168 3.562 3.500 3.030 —— — 10-4137
Implement end trailing pin quick disconnect
1.377/1.374 1.173/1.168 3.562 3.500 3.030 —— — 10-4139
Tractor end trailing pin quick disconnect
Spline Data D C
E F Bottom of Set Screw or Drill Thru
Major Minor Centerline Crosshole Distance
Diameter Diameter Hub to End to End Hole to End End Yoke
Max/Min Max/Min Diameter of Spline of Spline Size Location of Hub Part Number
AL
B
D
C
F
E
END YOKES
Inside Snap Ring
110
FECD
Centerline
Round Keyway Set Screw Hub Length Thru to End Joint End Yoke
Bore Width Thread Diameter Bore of Hub Angle Part Number
N1310 Series use Kit No. 1-0153 A-3.469 B-1.062 (Replaces Spicer® 5-153X)
.750 Bore Blank 2.000 1.625 2.563 17ON2-4-177
.875 .250 .375-16 UNC 2.000 1.625 2.563 17ON2-4-583
1.000 .250 .375-16 UNC 2.000 1.625 2.563 17ON2-4-473
1.125 .250 .375-16 UNC 2.000 1.625 2.563 17ON2-4-503
1.250 .312 .375-16 UNC 2.000 1.625 2.563 17ON2-4-533
1.250 Bore Blank 2.000 1.625 2.563 17ON2-4-533-1
1.375 .375 .375-16 UNC 2.000 1.625 2.563 17ON2-4-803
1.375 Bore Blank 2.000 1.625 2.563 17ON2-4-803-1
A
B
D
C
E
F
END YOKES
Outside Snap Ring
111
Spline Data G C D
EF
Major Minor Ground Centerline
Diameter Diameter Set Screw Hub Length Thru to End Joint End Yoke
Max/Min Max/Min Thread Diameter Bore of Hub Angle Part Number
N1310 Series use Kit No. 1-0153 A-3.469 B-1.062 (Replaces Spicer
®
No. 5-153X)
.875 - 13 Involute Spline
.878/.875 .758/.753 .375-16UNC 2.125 1.562 2.562 17
O
N2-4-3331
D
CF
E
B
AG
1.000 - 15 Involute Spline
1.026 .875 —2.000 1.265 2.313 17
O
N2-4-4921
END YOKES with SPLINED BORE
Outside Snap Ring
112
CD E K
Circle
Flange Diameter
or or Number of Pilot Diameter Flange Face
Swing Bolt Bolt Bolt M—Male Joint to Flange Yoke
Diameter Pattern Size Holes F—Female Angle Centerline Part Number
N1000 Series use Kit No. 1-0170 A-2.312 B-.938 L-1.500 (Replaces Spicer® 5-170X)
3.500 2.750 .344 4 M-2.250 — 1.690 10-1022
replaces Spicer
®
10-2-29
AL
B
K
E
C
D
FLANGE YOKES
Inside Snap Ring
113
CD E K
Circle
Flange Diameter
or or Number of Pilot Diameter Flange Face
Swing Bolt Bolt Bolt M—Male Joint to Flange Yoke
Diameter Pattern Size Holes F—Female Angle Centerline Part Number
B
E
DC
A
K
N1310 Series use Kit No. 1-0153 A-3.469 B-1.062 (Replaces Spicer® 5-153X)
3.600 2.750 8mm 4 M-2.250 15O1.625 N2-2-899-1
(.315)
fits Datsun applications
3.625 2.875 .375 4 M-3.625 20O1.375 N2-2-349
3.875 3.125 .375 4 M-2.375 20O1.375 N2-2-329
4.250 3.125 .375 4 M-2.375 30O1.625 N2-2-459
4.625 3.750 .438 4 M-2.750 20O1.375 N2-2-479
fits 1350 Series Flange
4.750 3.500 .500 4 F-2.000 20O1.625 N2-2-939
5.875 4.750 .500 4 M-3.750 20O1.375 N2-2-579
fits 1310/1480 Series Conversion Flange
FLANGE YOKES
Outside Snap Ring
114
CD
Centerline Lube Fitting Slip Yoke
Rectangular to End Distance to Assembly
Bore of Hub Location End of Hub Part Number Part Number
N1000 Series use Kit No. 1-0170 A-2.312 B-.938 L-1.500(Replaces Spicer® 5-170X)
.750X.875 5.500 GAP 1.750 0641-B N10-1769
AL
B
D
C
N1000 Series use Kit No. 1-0170 A-2.312 B-.938 L-1.500(Replaces Spicer® 5-170X)
.875 5.500 GAP 1.750 0641-B 10-3162
replaces Spicer
®
10-3-162X
1.125 5.500 GAP 1.750 0641-B 10-0332
replaces Spicer
®
10-3-32X
AL
B
D
C
C
CD
Centerline Lube Fitting Slip Yoke
Hexagon to End Distance to Assembly
Bore of Hub Location End of Hub Part Number Part Number
SLIP YOKE ASSEMBLIES
Inside Snap Ring
115
CD
Centerline Lube Fitting Slip Yoke
Round to End Keyway Distance to Assembly
Bore of Hub Location Width Location End of Hub Part Number Part Number
N1000 Series use Kit No. 1-0170 A-2.312 B-.938 L-1.500 (Replaces Spicer® 5-170X)
.750 5.500 GAP .188 GAP 1.750 0641-B N10-0313X
.813 5.500 GAP .250 GAP 1.750 0641-B 10-0323
replaces Spicer
®
10-3-23X
.875 5.500 GAP .250 GAP 1.750 0641-B 10-0333
replaces Spicer
®
10-3-33X
1.000 5.500 GAP .250 GAP 1.750 0641-B 10-0383
replaces Spicer
®
10-3-83X
1.125 5.500 GAP .312 GAP 1.750 0641-B 10-3183
replaces Spicer
®
10-3-183X
1.125 5.500 GAP .250 GAP 1.750 0641-B N10-1767
1.250 5.500 GAP .312 GAP 1.750 0641-B 10-3163
replaces Spicer
®
10-3-163X
AL
B
D
C
CD
Centerline Lube Fitting Slip Yoke
Square to End Distance to Assembly
Bore of Hub Location End of Hub Part Number Part Number
N1000 Series use Kit No. 1-0170 A-2.312 B-.938 L-1.500(Replaces Spicer® 5-170X)
.750 5.500 GAP 1.750 0641-B 10-0312
replaces Spicer
®
10-3-12X
.875 5.500 GAP 1.750 0641-B 10-0322
replaces Spicer
®
10-3-22X
1.000 5.500 GAP 1.750 0641-B 10-3122
replaces Spicer
®
10-3-122X
L
B
A
D
C
SLIP YOKE ASSEMBLIES
Inside Snap Ring
116
Spline Data G C
EF W
Major Minor Space Centerline Centerline Slip Yoke
Diameter Diameter Width to End to Face Joint Lube Dust Assembly
Max/Min Max/Min Max/Min of Spline of Washer Angle Fitting Cap Part Number
N1000 Series use Kit No. 1-0170 A-2.312 B-.938 L-1.500 (Replaces Spicer® 5-170X)
1.125 - 10 Spline
1.125/1.124 .938/.937 .176/.174 5.500 1.470 —0641-B —10-0381
replaces Spicer
®
10-3-81X
1.125/1.124 .938/.937 .176/.174 5.500 1.470 —0641-B 11-1075
includes metal washer and cork seal
1.250 - 6 Spline
1.251/1.249 1.065/1.062 .313/.311 5.500 1.470 —0641-B —N10-1765
1.250 - 16 Spline
1.250/1.249 1.062/1.057 .115/.114 5.500 1.470 —0641-B 280196 N10-0318
AL
B
C
GF
E
W
SLIP YOKE ASSEMBLIES
Inside Snap Ring
117
Spline Data G C
EF W
Major Minor Space Centerline Centerline Slip Yoke
Diameter Diameter Width to End to Face Joint Lube Dust Assembly
Max/Min Max/Min Max/Min of Spline of Washer Angle Fitting Cap Part Number
N1310 Series use Kit No. 1-0153 A-3.469 B-1.062 (Replaces Spicer® 5-153X)
1.250 - 16 Spline
1.250/1.249 1.062/1.057 .115/.114 6.562 1.430 30O0641-B ND2K N2-3-4441KX
1.375 - 16 Spline
1.375/1.374 1.187/1.182 .135/.133 5.375 1.050 15O0641-B 280194 N2-3-128KX
1.375/1.374 1.187/1.182 .135/.133 6.000 1.050 20O0641-B 280195 N2-3-4951KX
1.375/1.374 1.187/1.182 .135/.133 6.000 1.050 20O0641-B 280194 N2-3-7981KX
1.375/1.374 1.187/1.182 .135/.133 6.875 1.530 30O0641-B 280195 N2-3-5221KX
1.375/1.374 1.187/1.182 .135/.133 6.875 1.530 30O0641-B 280194 N2-3-8001KX
1.375/1.374 1.187/1.182 .135/.133 7.875 1.530 30O0641-B 280195 N2-3-5821KX
1.375/1.374 1.187/1.182 .135/.133 7.875 1.530 30O0641-B 280194 N2-3-8021KX
B
C
GE
F
W
A
SLIP YOKE ASSEMBLIES
Outside Snap Ring
118
Sub Assemblies Components
1623 45
Yoke &
Stub Shaft, Yoke & Tube,
Cross & Cross &
Bearing Kit Bearing Kit Slip Yoke Cross & Complete
Assembly Assembly Assembly Stub Shaft Bearing Kit Tube Yoke Driveshaft
Part Part Part Part Part Part Part
Series Number Number Number Number Number Tube Size Number Number
N1000 N10-18-1741 11-5914 10-0318 N2-40-1741 1-0170 2.000X.083 10-1005 N10270-SF
DRIVESHAFT COMPONENT
Part Numbers
ABC D
Complete
Max. Ext. Compressed Yoke & Tube Yoke & Stub Shaft Assembly Driveshaft
Series Length Length Tube Size Length Min. Length Max. Length Part Number
N1000 69.39 10.00 2.000X.083 59.91 7.48 9.48 N10270-SF
61
23B/4 5
D
A
C
N1000 SERIES AUXILIARY
POWER TAKE-OFF
Unwelded Driveshaft Assembly
119
ABC D
Complete
Max. Ext. Compressed Yoke & Tube Yoke & Stub Shaft Assembly Driveshaft
Series Length Length Tube Size Length Min. Length Max. Length Part Number
N1310 55.75 9.50 2.000X.083 49.44 6.25 8.25 N9553-SF
Components
12 34
Slip Yoke Cross & Complete
Assembly Stub Shaft Bearing Kit Tube Yoke Driveshaft
Part Part Part Part Part
Series Number Number Number Tube Size Number Number
DRIVESHAFT COMPONENT
Part Numbers
N1310 N2-3-128KX N2-40-1031 1-0153 2.000X.083 N2-28-357 N9553-SF
124
B / 3
C
A
D
N1310 SERIES AUXILIARY
POWER TAKE-OFF
Unwelded Driveshaft Assembly
120
1.375-16 Spline 24.000 2.500 280194 1.375 N2-4-803-1 N2-40-138-2
without Dura-Slip
®
on spline
AC F
Overall Length of Mating Butt Mating
Spline data Length Spline Dust Cap Diameter End Yoke Part Number
Welded Application
A
C
F
SLIP STUB SHAFTS
for auxiliary Power Take-off
AB C D
Slip Yoke
Assembly Stub Shaft Cross & Bearing Kit End Yoke Driveshaft Kit
Series Part Number Part Number Part Number Part Number Part Number
N1310 N2-3-7981KX N2-40-138-2 1-0153 N2-4-803-1 N91382-SF
* Used primarily in crank driven front mount hydraulic pump applications.
Also suitable for clutch connection drives.
Maximum operating speed—2800 R.P.M.
(Not recommended for vehicular propeller shaft applications.)
DRIVESHAFT COMPONENT
Part Numbers
D
CBC
A
N1310 SERIES AUXILIARY
POWER TAKE-OFF KIT
for Close Coupled applications*
(Assembly and Welding required)
121
S E R I E S
SLFSF
SF - Standard Flange
SLF - Special Large Flange
Keyway
Bore Width/Depth N1310 N1350-N1410 N1480-N1550 N1610 N1710 N1810
Std. Rough Bore N2-1-1313 N3-1-1013 N4-1-1133 N5-1-873 N6-1-1253 N6.5-1-533
1.000 .250 X .125 N2-1-1313-1 N3-1-1013-1
1.125 .250 X .125 N2-1-1313-2 N3-1-1013-2
1.250 .250 X .125 N2-1-1313-3 N3-1-1013-3
1.250 .313 X .156 N2-1-1313-4 N3-1-1013-4
1.375 .313 X .156 N2-1-1313-5 N3-1-1013-5
1.375 .375 X .188 N2-1-1313-6 N3-1-1013-6
1.438 .375 X .188 N2-1-1313-7 N3-1-1013-7
1.500 .375 X .188 N2-1-1313-8 N3-1-1013-8 N4-1-1133-1
1.625 .375 X .188 N2-1-1313-9 N3-1-1013-9 N4-1-1133-2
1.750 .375 X .188 N2-1-1323-1 N3-1-1013-10 N4-1-1133-3
1.875 .375 X .188 N2-1-1323-2 N3-1-1013-11 N4-1-1133-4
1.875 .500 X .250 N2-1-1323-3 N3-1-1013-12 N4-1-1133-5
2.000 .500 X .250 N2-1-1323-4 N3-1-1023-1 N4-1-1133-6 N5-1-873-1 N6-1-1253-9
2.125 .500 X .250 N2-1-1323-5 N3-1-1023-2 N4-1-1133-7 N5-1-873-2 N6-1-1253-10
2.250 .500 X .250 N2-1-1323-8 N3-1-1023-10 N4-1-1133-13
2.250 .625 X .313 N2-1-1323-6 N3-1-1023-3 N4-1-1133-8 N5-1-873-3 N6-1-1253-11
2.375 .625 X .313 N2-1-1323-7 N3-1-1023-4 N4-1-1133-9 N5-1-873-4 N6-1-1253-12
2.438 .625 X .313 N3-1-1023-5 N4-1-1133-10 N5-1-873-5 N6-1-1253-1 N6.5-1-533-1
2.500 .625 X .313 N3-1-1023-6 N4-1-1143-1 N5-1-873-6 N6-1-1253-2 N6.5-1-533-2
2.750 .625 X .313 N3-1-1023-7 N4-1-1143-2 N5-1-873-7 N6-1-1253-3 N6.5-1-533-3
2.938 .750 X .375 N4-1-1143-3 N5-1-873-8 N6-1-1253-4 N6.5-1-533-4
3.000 .750 X .375 N4-1-1143-4 N5-1-873-9 N6-1-1253-5 N6.5-1-533-5
3.500 .875 X .438 N4-1-1143-5 N5-1-883-1 N6-1-1253-6 N6.5-1-533-6
3.938 1.00 X .500 N5-1-883-2 N6-1-1253-7 N6.5-1-533-7
4.000 1.00 X .500 N5-1-883-3 N6-1-1253-8 N6.5-1-533-8
Large Rough Bore N2-1-1323 N3-1-1023 N4-1-1143 N5-1-883 N6-1-1263 N6.5-1-543
Standard Flange
Rough Bore Diameter .750 1.000 1.250 1.250 1.250 1.250
Max. Bore and Kw. 1.688 X .375 1.875 X .500 2.438 X .625 3.00 X .750 4.00 X 1.00 4.00 X 1.00
Special Large Flange
Rough Bore Diameter 1.375 1.750 2.375 3.00 3.500 3.500
Max. Bore and Kw. 2.375 X .625 3.00 X .750 3.750 X 1.00 4.500 X 1.00 5.500 X 1.250 5.500 X 1.250
Bore
OAL
E
BC
OD
Tapped
Keyway
Drilled
Tapped
Keyway
Bore
Tapped
OAL
E
OD
BC
Companion Flange
122
S E R I E S
SLFSF
N1310 N1350-N1410 N1480-N1550 N1610 N1710 N1810
NO. OF BOLTS 4 4 4 8 8 12
THREAD SIZE ³⁄₈-24 ⁷⁄₁₆-20 ¹⁄₂-20 ³⁄₈-24 ³⁄₈-24 ⁷⁄₁₆-20
BOLT CIRCLE 3.12 3.75 4.75 6.12 7.25 7.25
E PILOT DIA. 2.375 2.750 3.750 6.625 7.750 7.750
O.D. 3.88 4.56 5.88 6.88 8.00 8.00
O.A.L. SF 2.00 2.00 2.50 3.50 4.00 4.00
SLF 2.50 3.00 3.50 5.00 6.00 6.00
BORE DIA. SF 1.69 1.88 2.44 3.12 4.00 4.00
(MAX.) SLF 2.38 2.75 3.75 4.50 5.50 5.50
BORE DIA. SF 0.75 1.00 1.25 1.25 1.25 1.25
(ROUGH) SLF 1.38 1.75 2.38 3.12 3.50 3.50
KEYWAY SF ³⁄₈ X ³⁄₁₆ ¹⁄₂ X ¹⁄₄ ⁵⁄₈ X ⁵⁄₁₆ ³⁄₄ X ³⁄₈ 1 X ¹⁄₂ 1 X ¹⁄₂
(MAX.) SLF ³⁄₈ X ³⁄₁₆ ³⁄₄ X ³⁄₈ ⁷⁄₈ X ⁷⁄₁₆ 1¹⁄₈ X ⁹⁄₁₆ 1¹⁄₄ X ⁵⁄₈ 1¹⁄₄ X ⁵⁄₈
Bore
OAL
E
BC
OD
Tapped
Keyway
Drilled
Tapped
Keyway
Bore
Tapped
OAL
E
OD
BC
Companion Flanges—Specifications
Notes
123
Shaft Size Part Number
⁷⁄₈" 76-0013
1" 76-0015
1¹⁄₈" 76-0017
1³⁄₁₆" 76-0018
1¹⁄₄" 76-0019
Shaft Size Part Number
³⁄₄" 78-0011
¹³⁄₁₆" 78-0012
¹⁵⁄₁₆" 78-0014
1¹⁄₈" 78-0017
1³⁄₁₆" 78-0018
1¹⁄₄" 78-0019
Type
Diameter Length Head Point Part Number
³⁄₈"-16 ¹⁄₂" Allen Cup 50-2501
³⁄₈"-16 ³⁄₄" Square Cup 50-2502
¹⁄₄"-20 ¹⁄₂" Allen Cup 50-2503
³⁄₈"-16 .750 Square Drilled — 50-0449
for Lock Wire
* Packaged 25 per Box
Set Screws*
Hanger Bearings: Plain Bearing
Pillow Block Bearings: Plain Bearing
MISCELLANEOUS PTO PARTS
124
Woodruff
Width Length Number Part Number
³⁄₁₆"1" 13 50-1504
¹⁄₄"1" 15 50-1505
⁵⁄₁₆"1" B 50-1506
* Packaged 25 per Box
Woodruff Keys*
Width Length Part Number
³⁄₁₆" X ³⁄₁₆" 1" 50-1501*
¹⁄₄" X ¹⁄₄" 1" 50-1502*
⁵⁄₁₆" X ⁵⁄₁₆" 1" 50-1503*
³⁄₁₆" X ³⁄₁₆" 12" 50-3501
¹⁄₄" X ¹⁄₄" 12" 50-3502
⁵⁄₁₆" X ⁵⁄₁₆" 12" 50-3503
* Packaged 25 per Box
Square Keys
⁵⁄₁₆"¹⁄₄"1¹⁄₄" 50-1511*
¹⁄₄"³⁄₁₆"1¹⁄₄" 50-1512*
³⁄₈"⁵⁄₁₆"1¹⁄₂" 50-1513*
⁵⁄₁₆"¹⁄₄" 12" 50-3511
¹⁄₄"³⁄₁₆" 12" 50-3512
³⁄₈"⁵⁄₁₆" 12" 50-3513
* Packaged 25 per Box
Step Keys
"A" "B" Length Part Number
—A—
—B—
MISCELLANEOUS PTO PARTS (Cont.)
125
Rectangular ³⁄₄" X ⁷⁄₈" L600 73-0750
Rectangular 1" X 1¹⁄₈" 1200, 1800, 2000 73-1001
Square 1³⁄₁₆" 2200 73-1188
Square 1⁵⁄₁₆" 44, 2600, 55 73-1313
Type Dimensions Series Part Number
Standard Series Shafting—72" Lengths
Type Dimensions Series Part Number
Standard Tubing—72" Lengths
Rectangular 1" X 1¹⁄₈" L600 70-1001
Rectangular 1¹⁄₄" X 1³⁄₈" 1200, 1800, 2000 70-1250
Round 1⁵⁄₈" X .065(16 GA) L600 70-1625
Round 2" X .083(14 GA)
1000, 1200, 1800, 2000
70-2000
Round 2¹⁄₈" X .120(11 GA) 2200 70-2125
Round 2¹⁄₄" X .120(11 GA) 2200, 44 70-2250
Round 2¹⁄₂" X .134(10 GA) 44, 55 70-2500
Round 2³⁄₄" X .109(12 GA) 44, 2600 70-2750
Round Rectangular
Rectangular Square
³⁄₄" RD ³⁄₁₆" 71-0750
¹³⁄₁₆" RD ¹⁄₄" 71-0813
⁷⁄₈" RD ¹⁄₄" 71-0875
1" RD ¹⁄₄" 71-1000
1¹⁄₄" RD ⁵⁄₁₆" 71-1250
Type Dimensions Part Number
Solid Shafting—72" Full Length Keyway
Solid Shafting—72" Lengths
Shaft Size Part Number
Square Hexagon
³⁄₄" SQ 72-0750
⁷⁄₈" SQ 72-0875
1" SQ 72-1000
1¹⁄₄" SQ 73-1250
⁷⁄₈" HEX 72-0888
1" HEX 72-1002
1¹⁄₈" HEX 72-1125
Round
SHAFTING & TUBING
126
3. Align the groove in the yoke with the slots in the
bell and tube.
1. Position tube and bell so that slots are in line.
Push tube into bell, position so that slots in the
bell are in line with the slots in the tube.
2. Slide driveline into bell end. Bell and tube can move during
installation; and can be realigned after driveline is positioned.
By supporting the shield by hand the driveline is easy to move
into the correct operating position.
4. Be sure you have the correct shield bearing for the end you
are mounting. The large 3” O.D. outer tube uses the large
bearing. The smaller 2 3/4” inner tube uses the small bearing.
5. Insert bearing into slot in bell and tube and into groove
in the yoke. Push with thumb until bearing is in place.
6. The bearings must be inserted in the same direction in order
to fit properly. The first three bearings go in easily due to the
large amount of clearance.
7. The last bearing to be installed will take up the
clearance and require slightly more effort to push
into place. Be certain all four bearings are seated
in the shield correctly. Do not allow the heel of the
bearing to stick out of the tube. The correct installed
position is shown in this picture. Shield Bearings
must be installed properly in regards to the rotation
of the driveline. This prevents the Shield Bearings
from loosening or popping out of the Bearing slots.
NOTE: Before installing shield bearings, it is beneficial to apply some
standard grease onto the bearing groove of the yoke to prolong bearing life.
INSTALLATION OF FLEX BELL SHIELDS
Thicker Section
For 3” OD
Tubes
Thinner Section
For 2 3/4”
Tubes
DIRECTION OF ROTATION
FLEX BELL SYSTEM INSTRUCTION SHEET
™
127
Neapco Inc. 740 Queen St. Pottstown PA 19464 Telephone: (800) 821-2374
8. This picture shows a bearing and the slot in
the bearing tab that permits removal by use
of a screwdriver.
9. Insert screwdriver into bearing and twist. If the
bearing does not readily lift in the slot, twist in the
other direction. Twist only enough to raise the heel
of the bearing clear of the flex bell. Then, pull the
bearing directly away from the shield. Remove all
bearings this way.
10. Driveline can be pulled out of shield bell and tube.
1. Insert
screwdriver
(PHOTO 9)
2. Twist until
heel clears
(PHOTO 9)
3. Pull away from the
direction the bearing
was installed.
(PHOTO 9)
NOTE: Small arrow on bearing indicates
direction to twist for removal
We recommend only tack welding the collar to the slip yoke. Two or three spots
of weld is sufficient. Welding all-the-way around may cause the splined I.D. to
distort or shrink, due to the build up of heat.
We recommend a minimum of 5.00 inches of shield engagement for shafts up
to 36.00 inches centerline to centerline. Any shafts over 36.00 inches centerline
to centerline should have a minimum of 8.00 to 10.00 inches of shield overlap.
We recommend the use of the shield support bearing to eliminate vibration or
whipping.
We do not recommend the use of this shielding system on applications
exceeding 2500 RPM.
★★
★★
★
★★
★★
★
★★
★★
★
★★
★★
★
REMOVAL OF FLEX BELL SHIELDS
NEAPCO
PART NO. PART NO.
NEAPCO
PART NO. PART NO.
NEAPCO
PART NO. PART NO.
NEAPCO
PART NO. PART NO.
128
INTERCHANGE
AEC 43093 10-5215
43113 10-5216
43123 10-5218
43125 10-1574
44011 50-1511
44012 50-1512
44013 50-1513
44N 3-0044
44R22 44-2256
44R24 44-2460
44S22 44-2206
44S22 44-2220
570 1-0170
576 1-0170
576 1-0616
588 3-0188
6H14 16-6303
6Q12 16-6176
6R15 16-6114
6R10 16-6210
6R12 16-6111
6R14 16-6213
6R16 16-6215
6R18 16-6216
6R19 16-6217
6R20 16-6218
6S18 16-6134
6Q12 16-6171
6Q18 16-6138
6S22Q6 16-6409
12P16W 12-1340
12P20W 12-1318
12Q14 12-1170
12Q16 12-1159
12Q18 12-1148
12R14 12-1133
12R15 12-1134
12R16 12-1155
12R18 12-1162
12R22 12-1120
12S20 12-1181
14N 1-2075
14Q16 20-9310
14Q20 20-9127
14R16 20-9115
14R19 20-9217
14R20 20-9218
14R22 20-9120
3532W 22-1325
35N 2-2275
35Q18 22-1124
35Q20 22-1128
35R18 22-1132
35R19 22-1129
35R20 22-1218
35R22 22-1219
35R23 22-1178
35S18 22-1142
35S22 22-1134
40012 10-0412
40013 10-0413
40022 10-0422
40023 10-5319
40023 10-1557
40043 10-4173
40053 10-4943
40073 10-0473
40081 10-0411
40093 10-0493
40095 10-4163
40103 10-4143
40113 10-4473
40115 10-5334
40115 10-4183
40123 10-4193
40150 10-0452
41103 10-3163
41112 10-0312
41112 10-1758
41113 10-0313
41122 10-0322
41122 10-0431
41123 10-0323
41132 10-0332
41133 10-0333
41150 10-3122
41153 10-0383
41173 10-0312
41181 10-0381
41183 10-3203
41193 10-3183
42013 10-4693
42063 10-1703
42093 10-1705
43063 10-5213
002556082 3-0188
053120 1-1475
081058 1-1475
11020 2-2275
1124585 1-0172
1174981 1-1275
13113 2-2275
1323723 2-2275
224890 1-1475
255608 3-0188
2556082 3-0188
26726 2-2275
26727 2-2275
26728 2-2275
3011020 2-2275
3026726 2-2275
3026726-4 2-2275
3026727 2-2275
3026727-2 2-2275
339981 1-1275
4020 2-2275
517311 1-2075
517312 2-2275
521720 1-2075
526299 1-2075
530538 2-2275
531220 1-2075
542862 1-1275
546945 1-1275
548982 2-2275
617909 1-0170
6179097 1-0170
61805 2-2275
ALLIS
CHALMERS
618805 2-2275
618805-6 2-2275
645053 1-0170
6450530 1-0172
645110 1-0170
6451108 1-0170
648366 1-1275
648366-3 1-1275
6483663 1-1275
653811 1-1475
665611 2-2275
666878 1-1475
70053120 1-1475
70081058 1-1475
70617909 1-0170
70618805 2-2275
70645053 1-0170
70645110 1-0170
70648366 1-1275
71174981 1-1275
73011020 2-2275
73026726 2-2275
73026727 2-2275
7842779 1-1475
823456 1-2075
BONDIOLI &
PAVESI
1.03 70-0104
1.04 70-0105
1.05.07 8-1012
1.05.53 8-1008
1.05.54 8-1010
1.06 8-1020
1.07 8-1030
1.13 50-0112
1.41 1-0121
10.41 3-1021
125113000 70-0705
125223000 70-0804
2.03 70-0305
2.04 70-0205
2.05.07 8-2012
2.06 8-2020
2.07 8-2030
2.41 1-0221
204086860 8-8020
204086861 8-8030
204176851 8-7020
204176852 8-7030
3.03 70-0304
3.05.07 8-3012
3.05.50 8-3016
3.06 8-3020
3.07 8-3030
3.41 1-0321
4.04 70-0405
4.05.07 8-4012
4.05.50 8-4016
4.06 8-4020
4.07 8-4030
4.13 50-0312
4.41 1-0421
5.03 70-0504
5.04 70-0505
5.05.07 8-5012
5.05.54 8-5010
5.05.55 8-5011
5.06 8-5020
5.07 8-5030
5.41 2-0521
507080351 8-8012
507083751 8-8021
507083851 8-8014
507170351 8-7012
507173751 8-7021
507173851 8-7014
6.03 70-0704
6.05.07 8-6012
6.05.44 8-6016
6.06 8-6020
6.07 8-6030
6.33.46 8-2008
6.33.48 8-2010
6.33.51 8-3010
6.33.52 8-3011
6.33.54 8-4010
6.33.55 8-4011
6.41 3-0621
7.81 3-0721
8.41 3-0821
9.81 3-0921
BUSH HOG
119 2-2275
1294 3-0044
137 3-0044
138 1-2075
139 1-2075
199 2-2275
595 2-2275
62454 56-0666
62457 56-0626
63415 1-1875
65111 3-0188
7-39-576 1-0170
7-39-943 1-1275
87436 56-1857
BWD
100-103 10-0423
100-103 10-4143
100-113 10-4473
100-115 10-4183
100-12 10-0412
100-123 10-4193
100-13 10-0413
100-22 10-0422
100-23 10-0423
100-43 10-0443
100-43 10-4173
100-53 10-0453
100-63 10-0463
100-73 10-0473
100-83 10-0483
100-93 10-0493
101-12 10-0312
101-22 10-0322
101-23 10-0323
101-32 10-0332
101-33 10-0333
101-53 10-0383
101-83 10-0381
NEAPCO
PART NO. PART NO.
NEAPCO
PART NO. PART NO.
NEAPCO
PART NO. PART NO.
NEAPCO
PART NO. PART NO.
129
INTERCHANGE
101-93 10-3183
114-1004 1-1475
114-103 1-1275
114-104 1-2075
114-105 2-2275
114-148 1-0171
114-151 3-0044
114-2101 1-1875
114-503 1-0172
114-572 1-0170
114-575 1-0170
60072 11-1750
60088 50-2501
60100 64-6551
60100 56-0666
60104 56-2604
60448 63-1254
60715 63-0642
60824 52-4618
61112 12-1112
61113 12-1113
61115 12-1115
61117 12-1117
61118 12-1118
61119 12-1218
61120 12-1120
61133 12-1133
61134 12-1134
61135 12-1135
61148 12-1148
61155 12-1155
61159 12-1159
61162 12-1162
61163 12-1163
61168 12-1168
61169 12-1169
61170 12-1170
61171 12-1171
61172 12-1172
61173 12-1173
61174 12-1174
61175 12-1175
61176 12-1176
61181 12-1181
61197 12-1197
61228 12-1308
61252 12-1314
61255 12-1316
61263 12-1320
61471 12-1301
61768 58-0627
61774 58-0639
61775 58-0651
61965 46-6900
62101 22-2312
62112 56-2300
62116 22-1218
62118 22-1219
62119 22-1119
62120 22-1120
62124 22-1124
62125 22-1125
62126 22-1126
62128 22-1128
62129 22-1129
62130 22-1130
62131 22-1131
62132 22-1132
62133 22-1133
62134 22-1134
62138 22-1138
62140 22-1140
62142 22-1142
62155 22-1155
62158 22-1158
62178 22-1178
62190 22-1190
62228 22-1307
62940 56-2294
63074 73-0750
63112 73-1001
63204 51-0175
63241 50-1501
63242 50-1502
63243 50-1503
63244 50-1504
63245 50-1505
63246 50-1506
63311 50-1511
63312 50-1512
63313 50-1513
63620 52-5800
63682 50-2502
64118 26-5118
64119 22-1316
64119 26-5119
64131 26-5131
64138 26-5138
64353 53-2434
64602 63-1266
65101 10-4139
65111 10-0413
65112 10-4173
65113 10-5113
65114 10-0473
65115 10-4573
65116 10-4473
65118 10-4193
65123 10-5123
65124 10-0493
65125 10-4123
65129 10-5129
65131 10-5131
65134 10-0411
65136 10-4943
65138 10-1557
65141 10-5213
65148 10-1758
65149 10-5149
65154 10-4443
65157 10-0323
65159 10-0381
65164 10-4493
65169 10-1765
65171 10-0422
65172 10-0432
65173 10-0332
65174 10-5174
65175 11-1075
65176 10-0312
65178 10-0322
65183 10-0313
65184 10-0333
65185 10-3203
65186 10-0383
65187 10-0431
65189 10-0412
65191 10-4163
65193 10-0452
65196 10-4143
65197 10-4113
65199 10-3183
65213 10-5303
65217 10-3122
65261 10-5313
65263 10-0463
65268 10-0423
65323 10-5334
65342 10-5334
65342 10-4183
65344 10-4373
65347 10-3163
65348 10-4103
65354 10-1769
65371 10-4693
65373 10-1703
65375 10-1705
65384 10-5354
65385 10-1707
65421 10-5361
65432 10-1580
65499 10-4293
65527 10-3173
65528 10-3162
65919 10-4282
66000 10-5275
66141 10-5213
66187 10-5215
66210 10-5216
66233 10-1574
66233 10-1574
66256 10-5218
66341 53-0634
66460 56-2646
66740 56-0647
67034 64-0627
67035 64-0639
67036 56-0626
67036 64-0651
67040 64-1828
67041 64-1840
67042 65-2851
67042 64-1852
67052 65-0627
67053 65-0639
67054 56-1857
67054 65-0651
67058 65-1828
67059 65-1840
67060 65-1852
67065 64-2752
67065 65-2629
67066 65-2639
67067 70-1001
67068 70-1250
67069 70-1625
67070 70-2000
67071 70-2250
67072 70-2750
67076 73-1188
67101 18-7404
67115 18-7115
67117 18-7117
67119 18-7119
67120 18-7120
67125 18-7125
67127 18-7127
67128 18-7128
67132 18-7132
67136 18-7406
67140 18-7403
67238 18-7313
67238 20-9307
67922 52-3418
68052 63-0654
68482 52-5818
68702 63-0666
68800 71-0750
68801 71-0813
68802 71-0875
68803 71-1000
68804 71-1250
68810 72-0750
68811 72-0875
68812 72-1000
68813 72-1125
69101 20-9309
69115 20-9115
69117 20-9117
69118 20-9217
69118 20-9118
69119 20-9119
69120 20-9120
69127 20-9127
69132 20-9132
69149 20-9126
69154 20-9154
69214 20-9218
69214 20-9302
69302 20-9310
7009J 16-6216
7654J 16-6171
1S678 1-1475
2H861 1-1475
2R960 3-0188
3H6263 1-1475
3H8257 1-1475
3H8262 1-1475
3H8263 1-1475
5F2426 2-2275
5F2476 2-2275
5F6332 2-2275
5S7579 1-1475
6F2426 2-2275
6F4339 2-2275
6F4341 2-2275
6F4342 2-2275
6F4343 2-2275
6F9741 2-2275
7F3679 2-2275
8D1508 1-0172
8D2909 1-1475
CATERPILLAR
NEAPCO
PART NO. PART NO.
NEAPCO
PART NO. PART NO.
NEAPCO
PART NO. PART NO.
NEAPCO
PART NO. PART NO.
130
INTERCHANGE
AA-6537 10-4473
AA-6539 10-0493
AA-6540 10-4193
AB-705 1-0170
AB-706 51-5275
PHA3790 51-2322
DEMPSTER
FEDERAL MOGUL
TRW
21016 10-4153
21017 10-5218
21018 10-0431
21019 10-4139
21020 10-5411
21021 10-0312
21022 10-0323
21023 10-0381
21024 10-0383
21025 10-0412
21026 10-0413
21027 10-0422
21028 10-4453
21029 10-0443
21030 10-0452
21031 10-0453
21032 10-0473
21033 10-0483
21034 10-1005
21035 10-1022
21036 10-3122
21037 10-3162
21038 10-3183
21039 10-4113
21040 10-4137
21041 10-4139
21042 10-4173
21043 10-4183
21044 10-4282
21045 10-4363
21046 10-4443
21047 10-4473
21048 10-4481
21049 10-4573
21050 16-6210
21051 16-6111
21052 16-6112
21053 16-6213
21054 16-6303
21055 16-6114
21056 16-6215
21057 16-6302
21058 16-6216
21059 16-6138
21060 16-6134
21061 16-6217
21062 16-6218
21063 16-6141
21064 16-6187
21065 16-6409
21066 10-4611
21067 10-4703
21068 11-1075
21069 11-1750
21070 11-1753
21071 11-2701
21072 11-2702
21073 11-4714
21074 11-5914
21075 11-9553
21076 12-1112
21077 12-1117
21078 12-1119
21079 12-1133
21080 12-1134
21081 12-1135
21082 12-1139
21083 12-1155
21084 12-1159
21085 12-1162
21086 12-1169
21087 12-1170
21088 12-1171
21089 12-1173
21090 12-1174
21091 12-1175
21092 12-1176
21093 12-1193
21094 12-1197
21095 12-1215
21096 12-1216
21097 12-1300
21098 12-1302
21099 12-1312
21100 12-1113
21101 12-1115
21102 12-1301
21103 12-1163
21104 12-1326
21105 12-1148
21106 12-1181
21107 12-1118
21108 12-1308
21109 12-1218
21110 12-1120
21111 12-1172
21112 12-1190
21113 12-1168
21114 12-1314
21115 12-1315
21116 12-1316
21117 12-1318
21118 12-1319
21119 12-1320
21120 12-1321
21121 12-1328
21122 12-1330
21123 12-1334
21124 12-1340
21125 12-1350
21126 12-2321
21127 12-2322
21128 12-2330
21129 12-2506
21130 12-2521
21131 10-0615
21132 10-4573
21133 10-5123
21134 10-5132
21135 10-4943
21136 10-5149
21137 10-1765
21138 10-5174
21139 11-1075
21140 10-3203
21141 10-4113
21142 10-1574
21143 10-5275
21144 10-5303
21145 10-5322
21146 10-5331
21147 10-5334
21148 10-4103
21149 10-1769
21150 18-7115
21151 18-7120
21152 18-7404
21153 10-1705
21154 10-5352
21155 10-5354
21156 10-1707
21157 10-5361
21158 10-1580
21159 10-5366
21160 10-5412
21161 10-5430
21162 16-0606
21163 16-0615
21164 16-0621
21165 16-1615
21166 16-3600
21167 16-6127
21168 16-6129
21169 16-6131
21170 16-6132
21171 16-6165
21172 16-6171
21173 16-6176
21174 16-6178
21175 10-5158
21176 16-6516
21177 16-6518
21178 16-6616
21179 18-7117
21180 18-7119
21181 18-7125
21182 18-7127
21183 18-7128
21184 18-7132
21185 18-7305
21186 18-7313
21187 18-7315
21188 18-7327
21189 18-7328
21190 18-7330
21191 18-7339
21192 18-7403
21193 18-7405
21194 18-7406
21195 18-7506
21196 20-9119
21197 20-9160
21198 20-9180
21199 20-9183
21200 20-9310
21201 20-9115
21202 20-9117
21203 20-9217
21204 20-9218
21205 20-9127
21206 20-9120
21207 20-9132
21208 20-9321
21209 20-9325
21210 20-9154
21211 20-9307
21212 20-9189
21213 20-9191
21214 20-9193
21215 20-9302
21216 20-9311
20001 1-1475
20007 1-1875
20017 1-0170
20018 1-0170
20019 1-0172
20036 1-1275
20037 1-2075
20038 2-2275
20038E 2-2276
20057 3-0188
20203 3-0044
20204 3-0045
20328 1-0171
20329 1-0616
20330 1-0321
20331 1-0421
20425 1-0121
20426 1-0221
20427 2-0521
20428 2-2421
20429 3-0621
20430 1-1001
20431 3-0821
20602 10-0413
20603 10-0422
20604 10-0423
20609 10-0473
20615 10-5156
20630 10-0312
20631 10-0313
20632 10-0322
20633 10-0323
20634 10-0332
20635 10-0333
20636 10-0383
20637 10-0381
20638 10-3163
20645 10-4693
20647 10-1703
21000 10-4373
21001 10-5313
21002 10-5213
21003 10-0412
21004 10-4282
21005 10-3162
21007 10-5215
21008 10-1758
21009 10-0452
21010 10-3122
21011 10-4163
21012 10-5216
21013 10-3183
21014 10-0432
21015 10-0411
NEAPCO
PART NO. PART NO.
NEAPCO
PART NO. PART NO.
NEAPCO
PART NO. PART NO.
NEAPCO
PART NO. PART NO.
131
INTERCHANGE
21217 20-9313
21218 20-9317
21219 20-9318
21220 20-9319
21221 20-9320
21222 20-9321
21223 20-9324
21224 20-9330
21225 20-9506
21226 20-9521
21227 22-1105
21228 22-1126
21229 22-1130
21230 22-1133
21231 22-1140
21232 22-1145
21233 22-1154
21234 22-1155
21235 22-1158
21236 22-1162
21237 22-1190
21238 22-1307
21239 22-1319
21240 22-1325
21241 22-1330
21242 22-1337
21243 22-1338
21244 22-2330
21245 22-3521
21246 22-9506
21247 22-9521
21248 26-5131
21249 26-5138
21250 22-1131
21251 22-1125
21252 22-1132
21253 22-1124
21254 22-1142
21255 22-1129
21256 22-1218
21257 22-1128
21258 22-1219
21259 22-2316
21260 22-1134
21261 22-1138
21262 22-2312
21263 22-1178
21264 22-1119
21265 22-1120
21266 22-1316
21267 26-5148
21268 26-5155
21269 26-5163
21270 26-5306
21271 26-5323
21272 26-5324
21273 26-5325
21274 44-1826
21275 44-2045
21276 44-2100
21277 44-2200
21278 44-2206
21279 44-2221
21280 44-2256
21281 44-2360
21282 44-2456
21283 44-2460
21284 44-2610
21285 44-2820
21286 44-3200
21287 44-4406
21288 44-4421
21289 44-6300
21290 46-6900
21291 46-6902
21292 48-1181
21293 48-7202
21294 48-9202
21295 50-0112
21296 50-0312
21297 50-0512
21298 50-0412
21299 50-0612
21300 26-5118
21301 26-5319
21302 26-5321
21303 26-5119
21304 10-0463
21305 10-4443
21306 10-4493
21307 10-4143
21308 10-4123
21309 10-3173
21310 10-4293
21311 10-5129
21312 10-5131
21313 16-7600
21314 10-0423
21315 10-4133
21316 10-0463
21317 10-0333
21318 10-0493
21319 10-4143
21320 10-4193
21321 10-4123
21322 10-3163
21323 10-0322
21324 10-4103
21325 10-0332
21326 20-9118
21327 20-9309
21328 20-9126
21329 20-9131
21330 22-2315
21331 22-2312
21332 22-2317
21333 22-1344
21334 22-1343
21335 44-2220
21336 44-2201
21337 10-4137
21338 56-2669
21339 10-4193
21340 10-4473
21341 10-0493
21342 10-1557
21343 10-4183
21344 50-1501
21345 50-1502
21346 50-1503
21347 50-1504
21348 50-1505
21349 50-1506
21350 56-0626
21351 56-1857
21353 50-1511
21354 50-1512
21355 50-1513
21356 50-2212
21357 50-2312
21358 50-2501
21359 50-2503
21360 50-3501
21361 50-3502
21362 50-3503
21363 50-3511
21364 50-3512
21365 50-3513
21366 51-0175
21367 51-2322
21368 11-1750
21369 52-3418
21370 52-4600
21371 52-4618
21372 52-5800
21373 52-5818
21374 53-0634
21375 53-0635
21376 53-1834
21377 53-2034
21378 53-2415
21379 53-2434
21380 53-2435
21381 53-2643
21382 53-2644
21383 53-3500
21384 55-2130
21385 55-2410
21386 55-2600
21387 55-2800
21388 55-2836
21389 55-3240
21390 55-3640
21391 55-9306
21392 55-9320
21393 55-9321
21394 56-0600
21395 56-0604
21396 56-0615
21398 56-0844
21399 56-1600
21401 64-0651
21402 65-0651
21403 69-0651
21405 56-1804
21406 56-2000
21407 56-2004
21408 56-2101
21409 56-2102
21410 56-2122
21411 56-2200
21412 56-2223
21413 56-2294
21414 56-2295
21416 64-2751
21417 65-2851
21418 69-2551
21420 56-2324
21421 56-2442
21422 56-2600
21423 56-2646
21424 56-3001
21425 56-4103
21426 56-6105
21427 56-6106
21428 58-0627
21429 58-0639
21431 64-1852
21432 65-1852
21433 69-1852
21435 58-0651
21436 58-1227
21437 58-1239
21438 58-1251
21439 58-1627
21440 58-1639
21441 58-1651
21442 58-1828
21443 58-1840
21444 58-1852
21445 58-2028
21447 64-2728
21448 65-2828
21449 69-2628
21452 64-2740
21453 65-2840
21457 64-2752
21459 16-6407
21461 64-2529
21462 65-2629
21466 64-2539
21467 65-2639
21471 64-2551
21473 22-1116
21474 22-1118
21476 64-6529
21477 65-6629
21481 64-6539
21482 65-6639
21486 64-6551
21488 50-2502
21489 70-2000
21490 58-2040
21491 58-2052
21492 58-2229
21493 58-2239
21494 58-2251
21495 58-2639
21496 58-4451
21500 56-0666
21502 56-2300
21503 56-2604
21523 63-0642
21524 63-0654
21525 63-0666
21526 63-1254
21527 63-1266
21529 64-0627
21530 64-0639
21531 64-1627
21532 64-1639
21533 64-1651
21534 64-1828
21535 64-1840
21536 64-2727
21537 64-2739
21538 64-4447
21539 65-0627
NEAPCO
PART NO. PART NO.
NEAPCO
PART NO. PART NO.
NEAPCO
PART NO. PART NO.
NEAPCO
PART NO. PART NO.
132
INTERCHANGE
21540 65-0639
21541 65-1627
21542 65-1639
21543 65-1651
21544 65-1828
21545 65-1840
21546 65-2827
21547 65-2839
21548 65-4423
21549 67-0627
21564 69-0640
21565 69-0648
21566 69-1240
21567 69-1248
21568 69-1828
21569 69-1840
21570 69-2240
21571 69-2248
21572 69-2527
21573 69-2539
21574 70-0104
21575 70-0105
21576 70-0205
21577 70-0304
21578 70-0305
21579 70-0405
21580 70-0504
21581 70-0505
21582 70-0704
21583 70-1001
21584 70-1250
21585 70-1625
21586 70-2104
21587 70-2105
21588 70-2125
21589 70-2204
21590 70-2205
21591 70-2250
21592 70-2256
21593 70-2404
21594 70-2405
21595 70-2500
21596 70-2750
21597 71-0750
21598 71-0813
21599 71-0875
21600 71-1000
21601 71-1250
21602 72-0750
21603 72-0875
21604 72-0888
21605 72-1000
21606 72-1002
21607 72-1125
21608 72-2231
21609 73-0750
21610 73-1001
21611 73-1188
21612 73-1250
21613 73-1313
21614 8-0120
21615 8-0130
21616 8-1008
21617 8-1010
21618 8-1012
21619 8-1020
21620 8-1021
21621 8-1030
21622 8-2008
21623 8-2010
21624 8-2012
21625 8-2020
21626 8-2021
21627 8-2030
21628 8-2108
21629 8-2110
21630 8-2112
21631 8-2120
21632 8-2121
21633 8-2130
21634 8-2220
21635 8-2230
21636 8-2320
21637 8-2330
21638 8-2410
21639 8-2411
21640 8-2420
21641 8-2421
21642 8-2430
21643 8-3010
21644 8-3011
21645 8-3012
21646 8-3015
21647 8-3016
21648 8-3020
21649 8-3021
21650 8-3030
21651 8-4010
21652 8-4011
21653 8-4012
21654 8-4015
21655 8-4016
21656 8-4020
21657 8-4021
21658 8-4030
21659 8-5010
21660 8-5011
21661 8-5012
21662 8-5015
21663 8-5016
21664 8-5020
21665 8-5021
21666 8-5030
21667 8-6010
21668 8-6011
21669 8-6012
21670 8-6015
21671 8-6016
21672 8-6020
21673 8-6021
21674 8-6030
21675 69-2648
21676 10-5113
21677 20-9216
21678 8-2412
21679 50-1080
21680 50-1090
21681 50-1280
21682 56-8108
21683 70-0705
21684 70-0804
21685 8-2511
21686 8-2512
21687 8-2514
21688 8-2515
21689 8-2520
21690 8-2521
21691 8-2530
21693 8-2535
21694 8-7011
21695 8-7012
21696 8-7014
21697 8-7020
21698 8-7021
21699 8-7030
21700 8-8011
21701 8-8012
21702 8-8014
21703 8-8015
21704 8-8016
21705 8-8020
21706 8-8021
21707 8-8030
21708 10-0432
21709 10-0433
21710 12-1400
21711 12-1410
21712 16-8600
21713 18-1800
21714 18-1802
21715 18-1805
21716 18-1810
21717 20-9306
21719 22-1226
21720 22-2200
21721 22-2205
21722 22-2275
21723 24-2400
21724 24-2401
21725 24-2406
21726 24-2420
21727 24-2421
21728 44-4475
21729 53-0600
21730 53-2047
21731 53-2247
21732 56-2446
21733 61-1200
21734 64-4424
21735 64-4435
21736 65-4435
21737 68-2244
21738 68-2245
21739 80-1202
21740 80-3502
21741 80-3504
21742 80-3506
21743 80-3521
21744 80-4402
21745 80-4404
21746 80-4406
21747 80-4421
21748 10-4173
21749 55-2229
21750 58-4429
21751 58-4439
21752 58-4451
21753 12-2300
21750 58-4429
21751 58-4439
21752 58-4451
21753 12-2300
FIAT ALLIS
70645053 1-0172
70645110 1-0170
70648366 1-1275
FMC
1261563 1-0170
1263637 12-1190
1263638 1-1275
1263644 12-1326
140-7114 12-1190
140-7717 1-1275
16602 3-0188
171-4208 1-0170
2241763 1-1875
2284721 1-1275
230-8780 1-1875
230-8788 18-7403
LV00612 1-0170
FORD
107854 1-1475
145421 2-2275
148357 1-1275
171333 1-1475
175423 1-2075
221613 1-2075
291971 1-1475
309575 1-1475
C1TT-4724A 3-0188
C1TZ-4635A 3-0188
C3TZ-3815A 1-1475
C5TZ-3815A 1-1475
C6TZ-3815B 1-1475
CBPN-3250A 1-1475
CBPN-3350B 1-1475
G & G
128-1200 56-2004
134-1214 70-1001
134-1618 70-1250
136-1200 72-0750
136-1400 72-0875
136-1900 73-1188
136-2000 73-1250
136-2100 73-1313
138-1214 73-0750
138-1618 73-1001
140-1400 70-2000
140-3500 70-2125
142-1400 72-0888
142-1600 72-1002
142-1800 72-1125
144-1200 71-0750
144-1300 71-0813
144-1400 71-0875
144-1600 71-1000
144-2000 71-1250
177-0600 16-6129
177-1200 12-1340
NEAPCO
PART NO. PART NO.
NEAPCO
PART NO. PART NO.
NEAPCO
PART NO. PART NO.
NEAPCO
PART NO. PART NO.
133
INTERCHANGE
177-1400 20-9126
177-3500 22-1344
177-4400 44-2100
180-0600 16-6131
180-1200 12-1318
181-1400 20-9131
181-1200 12-1334
181-3500 22-1325
181-4400 44-2200
182-0606 16-6409
182-0621 16-0621
182-1206 12-1190
182-1221 12-1193
182-1222 12-1172
182-1406 20-9309
182-1421 20-9321
182-3506 22-2312
182-3521 22-2317
182-4406 44-2220
182-4421 44-2201
18230606 16-0606
18231206 12-2330
18231221 12-2321
18231406 20-9330
18233506 22-2330
183-0616 16-6302
183-0620 16-6127
183-1216 12-1163
183-3526 22-1126
184-0615 16-6114
184-0513 10-4173
184-0514 10-5213
184-0516 10-4573
184-0518 10-4143
184-0520 10-4193
184-0521 10-4183
184-0610 16-6210
184-0612 16-6111
184-0614 16-6213
184-0616 16-6215
184-0618 16-6216
184-0620 16-6218
184-1216 12-1115
184-1218 12-1117
184-1220 12-1176
184-1222 12-1120
184-1416 20-9115
184-1418 20-9117
184-1420 20-9218
184-1422 20-9120
184-1423 20-9154
184-1424 20-9307
184-3516 22-1131
184-3518 22-1132
184-3519 22-1129
184-3520 22-1133
184-3520 22-1218
184-3522 22-1219
184-3523 22-1119
184-3524 22-1120
184-3528 22-1316
184-4422 44-2256
184-4424 44-2460
184-4426 44-2610
184-4428 44-2820
184-51220 12-1119
18451420 20-9119
185-3520 22-1128
19100612 16-6176
19100614 16-6178
192-0618 16-6134
192-0622 16-6187
192-1218 12-1181
192-1422 20-9132
192-3522 22-1134
194-0600 53-0635
194-1400 53-2034
194-3500 53-2434
194-3500 53-2435
196-1216 12-1319
196-1218 12-1302
196-1220 12-1330
196-3520 22-1145
196-3522 22-1337
196-3524 22-1162
302-0600 1-1475
302-0675 1-0170
302-1200 1-1275
302-1400 1-2075
302-1875 1-1875
302-3500 2-2275
302-4400 3-0044
302-5500 3-0045
804-1216 12-1159
GMB
GEHL
510004 1-1475
510007 1-2075
510036 2-2275
510114 1-2075
CPL35N 2-2275
GN100W 1-2075
G5-170X 1-0170
G5-188X 3-0188
GGPL-6R 1-1475
GGPL-12R 1-1275
GGPL-14R 1-2075
GGPL-35R 2-2275
GGPL-44R 3-0044
GGPL-55N 3-0045
GUA-7 1-0321
GUA-8 1-0421
GUA-11 2-0521
GUA-14 2-2421
HESSTON
700708365 20-9309
750182 1-0170
750208 10-4153
751255 1-1275
753111 1-1275
753772 1-2075
754184 1-2075
754465 20-9309
755157 10-5322
756817 1-0170
756924 1-2075
756999 1-1875
757443 1-1275
800854 1-0170
801449 3-0188
802496 3-0044
806240 2-2275
807420 2-2275
814566 22-2312
845180 22-2312
845198 2-2275
8803819 56-1857
933356 1-0172
IHC
124348R91 1-0170
139764H1 1-1475
147511H1 1-1475
147512H1 1-1475
150635R91 1-1475
150635R92 1-1475
150965R91 1-1475
154073H1 3-0188
174980C91 2-2275
179867H1 3-0045
197035R91 1-1475
200464C91 1-2075
202347C91 1-1475
202348C91 1-1475
208959R91 1-0170
210786R91 1-1475
222431C91 1-0170
222434C1 56-0666
240204R91 3-0188
337439R91 1-1475
347960R91 2-2275
350254R91 1-1475
357439R91 1-1475
357606R91 1-1475
363308R91 1-1475
363312R91 1-1475
363313R91 1-1475
366312R91 1-1475
366313R91 1-1475
368730R91 1-1475
387097R91 3-0188
399040C91 1-1475
432473C91 1-1475
447797C91 1-0170
470077R91 3-0045
474793R91 1-1875
476674R91 1-1475
480486R91 1-1275
493849R91 3-0044
509047R91 1-2075
511644R91 1-1475
568102R91 18-7403
569047R91 1-2075
569262R91 1-1275
581954R91 1-1875
607917R91 1-2075
609144R91 1-1275
613471R91 2-2275
627211C1 1-1475
656224R91 2-2275
656225R91 1-2075
659262R91 1-1275
660116R91 2-2275
661372R91 1-1475
661677R91 1-1475
663120R91 1-1475
667496R91 1-2075
667558R91 1-2075
669564R91 1-1275
826057C1 10-4611
913774R91 3-0188
975663R92 1-0170
983268R91 1-1475
1175-FHA 2-2275
1963-CHA 2-2275
2417-CHA 2-2275
753772 1-2075
A20684 1-1475
A30408 1-1475
A30425 1-1475
A30435 1-1475
A40106 2-2275
A40435 1-1475
B13270 1-2075
B13272 1-1275
B13275 1-1275
B15275 1-1275
B18132 1-1475
C12319 1-0170
F50537 1-1475
F61290 18-7403
F85470 1-2075
F95847 56-0626
FH756924 1-2075
FH845032 1-1275
H582437 1-0172
H658179 56-0626
H71167 1-1875
R14744 2-2275
T27790 2-2275
T27791 22-1190
T36575 1-1475
T37173 1-1475
T37895 2-2275
T37922 3-0188
T40106 2-2275
T41672 2-2275
VTA3227 1-1475
J. I. CASE
JACOBSEN
354749 1-0170
500736 56-0666
500737 1-0170
500919 1-0170
JOHN DEERE
AE-11027 1-1875
AE-11033W 1-2075
AE-14978E 1-1475
AE-20831 22-2317
AE-21122 2-2275
AE-22753 1-2075
AE-23516 2-2275
AE-23716 1-1275
AE-26238 16-6409
AE-30034 3-0045
AE-679E 1-1475
AE-793E 1-1475
AH-18327 1-1475
AH-79074 1-1475
AH-83541 1-1475
NEAPCO
PART NO. PART NO.
NEAPCO
PART NO. PART NO.
NEAPCO
PART NO. PART NO.
NEAPCO
PART NO. PART NO.
134
INTERCHANGE
AJ-5729H 1-0170
AJ-7330H 1-1475
AJ-7331H 1-1475
AJ-8815N 1-0170
AL-1564N 1-1475
AM-2568E 2-2275
AM-2871E 1-1275
AM-37004 1-1475
AM-37184 1-0170
AM-793E 1-1475
AP-24580 1-2075
AP-24580H 1-2075
AR-21101R 1-1475
AU-13093U 2-2275
AW-13174 1-1475
ND-1915D 1-1475
XAG-63796H 1-1475
LILLISTON
01-61-019 20-9309
01-61-021 1-2075
04-61-121 1-1875
04-61-160 22-2312
04-61-168 2-2275
10-61-033 2-2275
11-61-011 1-0170
17-61-004 1-1275
23-61-007 2-2275
29-61-002 1-2075
149143 20-9309
221613 1-2075
720424 2-2275
729010 3-0188
729013 26-5321
732324 1-1475
737100 1-0170
745121 10-4443
745234 1-0172
747247 56-0666
747250 10-4573
747251 10-4139
747252 1-0170
774268 56-2604
LONG
1037427M91 10-4139
1037433M91 12-1190
1506100M91 2-2275
1508762M91 2-2275
195379M91 3-0045
30516E1 1-0121
30517E1 1-0321
30518E1 1-0421
30673E1 10-5174
30674E1 10-5129
30675E1 10-5131
30679E1 16-6129
30680E1 16-6131
30681E1 12-1340
30683E1 12-1318
30688E1 44-2100
30691E1 20-9126
MASSEY
FERGUSON
30692E1 20-9131
30695E1 22-1344
30698E1 22-1343
30699E1 22-1325
30703E1 26-5155
30707E1 44-2200
30710E1 56-2295
30711E1 56-2646
315726M91 1-1475
665137M91 1-2075
784489M91 1-1475
830962M91 1-1275
835501M918 2-2275
835771M91 1-0170
835790M91 1-2075
835799M91 1-2075
835991M91 2-2275
836459M91 1-0170
836461M91 1-1275
836514M91 1-1475
836891M91 1-1475
840676M91 2-2275
840824M91 1-1475
840824M92 1-1475
840899M91 2-2275
840899M92 2-2275
841193M91 1-1475
841193M92 1-1475
841235M91 3-0045
841236M91 1-1275
841237M91 1-2075
841603M91 1-1275
841604M91 1-2075
MCQUAY-NORRIS
6R12 16-6111
U03-1 1-1475
U03-11 1-1275
U03-12 2-2275
U03-44 1-2075
U03-45 3-0045
UO-52 10-0463
UO3-101 22-1120
UO3-103 16-6171
UO3-105 12-1162
UO3-106 20-9115
UO3-107 12-1135
UO3-109 16-6302
UO3-111 12-1170
UO3-47 10-4133
UO3-48 10-0423
UO3-49 10-0443
UO3-51 10-0453
UO3-54 10-0452
UO3-56 10-0493
UO3-58 10-4143
UO3-59 10-4473
UO3-61 10-4183
UO3-62 10-4193
UO3-65 10-0322
UO3-66 10-0333
UO3-67 10-0383
UO3-68 10-0332
UO3-70 10-1705
UO3-73 22-1219
UO3-77 16-6112
UO3-78 16-6215
UO3-79 16-6216
UO3-80 16-6218
UO3-82 12-1115
UO3-83 16-6409
UO3-85 12-1218
UO3-87 20-9132
UO3-88 20-9120
UO3-89 16-6114
UO3-90 16-6134
UO3-91 16-6187
UO3-92 22-1218
UO3-94 64-2739
UO3-95 12-1308
UO3-98 20-9119
1587A 1-1475
2060D 1-1875
2107A 1-0616
2207A 1-0170
2207C 1-0172
2207E 1-0170
2525A 1-1275
2537A 1-2075
2593A 2-2275
2593ELB 2-2276
3287A 3-0188
3287C 2-0521
3575B 3-0044
4502A 3-0045
MY1-150 10-3122
MY1-83 10-3203
MY1-93 10-3183
MY2-13 10-4133
MY2-93 10-1705
MYI-12 10-0312
MYI-22 10-0322
MYI-23 10-0323
MYI-32 10-0332
MYI-33 10-0333
MYI-53 10-0383
MYI-81 10-0381
MYO-103 10-0423
MYO-113 10-4473
MYO-115 10-4183
MYO-12 10-0412
MYO-123 10-4123
MYO-124 10-1574
MYO-13 10-0413
MYO-150 10-0452
MYO-22 10-0422
MYO-23 10-0423
MYO-43 10-0443
MYO-53 10-0453
MYO-63 10-0463
MYO-73 10-0473
MYO-81 10-0411
MYO-83 10-0483
MYO-8393 10-4573
MYO-93 10-0493
MYO-95 10-4163
MYO103113 10-5216
MYO124125 10-1574
MYO81 10-0432
MYO8393 10-5215
MOTORMASTER
NEW HOLLAND
126761 3-0188
129437 1-2075
131894 26-5321
139842 1-0170
142105 10-4573
143984 26-5319
167563 1-0171
222361 1-1475
244947 1-0172
27993 1-1475
29214 2-2275
33661 1-0170
34754 20-9309
34761 1-2075
34780 22-2312
39360 1-1275
47612 18-7403
47621 1-1875
48263 1-1475
512629 1-1475
52495 1-1475
578805 3-0044
625086 12-1172
66316 10-4139
687115 2-2276
709315 1-0172
850616 18-7330
850617 20-9330
855141 22-2330
856190 10-5430
856192 12-2330
9601705 18-7403
9601706 12-1190
010530 1-1275
011070 2-2275
012014 1-2075
012324 1-1475
012716 1-1275
0777HSA 1-1475
K-2550A 1-1475
K-2964A 22-2312
K-2980A 2-2275
K-3339A 12-1190
K-3347A 1-1275
K-3410A 1-2075
K-3591A 1-2075
K-3595A 1-2075
K-3803A 1-1875
K-4680A 12-1190
NEW IDEA
PRECISION
1000 8-1012
1002 8-2012
1004 8-3012
1006 8-4012
1008 8-5012
1010 8-6012
1011 8-6021
1020 8-1008
1021 8-1010
NEAPCO
PART NO. PART NO.
NEAPCO
PART NO. PART NO.
NEAPCO
PART NO. PART NO.
NEAPCO
PART NO. PART NO.
135
INTERCHANGE
1022 8-2008
1023 8-2010
1024 8-3010
1026 8-4010
1027 8-4011
1028 8-5010
1029 8-5011
1030 8-6011
1033 8-3016
1034 8-4016
1035 8-5016
1036 8-6016
1041 8-1030
1042 8-2030
1043 8-3030
1044 8-4030
1045 8-5030
1046 8-6030
1051 8-1020
1052 8-2020
1053 8-3020
1054 8-4020
1055 8-5020
1056 8-6020
1061 70-0105
1062 70-0205
1064 70-0405
1065 70-0505
1071 70-0104
1072 70-0305
1073 70-0304
1075 70-0504
1076 70-0704
1081 50-0112
1082 50-0412
1085 50-0512
1106 55-9306
1120 55-9320
1121 55-9321
1124 55-2410
1126 55-2600
1128 55-2800
1132 55-3240
1154 55-3640
1155 55-2130
1177 73-1313
1187 70-2500
1190 53-2643
1200 12-1312
1203 12-1133
1206 12-1134
1209 12-1155
1211 12-1115
1216 12-1162
1219 12-1117
1221 12-1118
1224 12-1139
1226 12-1119
1229 12-1120
1230 12-1175
1231 12-1218
1241 65-2851
1242 12-1170
1243 12-1159
1244 12-1163
1247 12-1168
1249 64-2751
1254 12-1181
1257 12-1172
1259 12-2321
1263 12-1316
1265 12-1174
1266 12-2330
1272 12-1314
1275 12-1173
1277 73-1001
1287 70-1250
1291 12-1190
1292 12-1193
1293 12-1318
1294 12-1340
1300 20-9115
1305 20-9318
1308 20-9317
1310 20-9302
1312 20-9120
1313 20-9307
1314 20-9154
1316 20-9217
1317 20-9218
1319 20-9310
1322 20-9127
1326 20-9160
1347 65-2840
1349 64-2752
1352 20-9132
1353 20-9193
1366 20-9330
1367 20-9321
1374 20-9126
1375 20-9131
1387 70-2000
1390 53-2034
1408 44-2460
1412 44-2820
1414 44-2045
1426 26-5118
1428 26-5119
1442 44-2206
1447 65-4423
1449 64-4447
1450 44-6300
1452 44-2220
1453 44-2201
1454 44-2100
1455 44-2200
1460 44-4406
1461 44-4421
1472 26-5321
1473 26-5319
1485 70-2750
1501 1-0170
1502 1-0172
1504 56-1857
1511 10-4133
1512 10-0413
1513 10-0443
1516 10-4453
1518 10-0463
1519 10-0473
1521 10-4573
1524 10-0493
1526 10-4473
1527 10-4143
1529 10-4193
1530 10-4123
1534 10-0422
1537 10-0412
1539 10-0452
1544 11-2702
1546 10-0453
1548 10-0483
1549 11-5914
1551 11-1753
1552 10-4183
1560 10-4282
1566 10-4139
1576 71-0875
1577 71-1000
1579 71-1250
1581 72-0750
1582 72-0875
1583 72-1000
1584 71-0750
1585 72-1002
1587 72-1125
1588 50-2502
1589 50-2501
1600 8-2112
1630 8-2108
1631 8-2110
1632 8-2410
1636 8-2411
1641 8-2130
1642 8-2230
1643 8-0130
1644 8-2330
1646 8-2430
1651 8-2120
1652 8-2220
1653 8-0120
1654 8-2320
1656 8-2420
1661 70-2105
1662 70-2205
1666 70-2405
1671 70-2104
1672 70-2204
1676 70-2404
1703 10-4703
1751 10-0323
1752 10-0333
1754 10-0383
1755 10-3183
1756 10-3163
1759 10-0312
1760 10-0322
1761 10-3122
1763 10-0381
1772 10-3162
1800 22-1131
1801 22-1132
1803 22-1129
1805 22-1133
1806 22-1145
1811 22-1178
1812 22-1120
1813 22-1338
1814 22-1218
1815 22-1219
1820 22-1125
1825 22-1124
1827 22-1128
1842 22-1134
1843 22-1330
1847 65-2639
1849 64-2539
1852 22-2312
1852 22-2312
1853 22-2317
1857 22-1319
1870 22-2330
1871 22-3521
1877 73-1188
1887 70-2125
1900 16-6111
1904 16-6114
1916 16-6302
1921 16-6409
1921 16-6407
1923 16-6213
1924 16-6215
1926 16-6218
1927 16-6217
1935 16-6131
1949 64-1651
1952 16-0615
1960 16-0606
1977 73-0750
1987 70-1001
331AG 3-0621
338 1-0170
341AG 1-0221
344AG 1-0421
351 3-0188
507 1-1875
811 1-0121
812 1-1001
813 1-0321
814 2-2421
815 2-0521
860 1-1475
880 1-2075
888 3-0044
889 3-0045
964 2-2275
995 1-1275
3NYR16-4 22-1131
3NYS22-8 22-1140
44RYQ21-1 44-2100
44RYR22-1 44-2256
44RYR24-4 44-2460
44RYR26-1 44-2610
44RYR28-2 44-2820
44RYS22-1A 44-2220
44RYS22-2 44-2206
44RYS22-21A 44-2201
55NY36-4 55-3640
55NYQ21-3 55-2130
55NYR24-1 55-2410
55NYR28 55-2800
55NYR32-4 55-3240
55NYS22-56A 55-9321
55NYS28-36 55-2836
907-10-1 63-1254
ROCKWELL
NEAPCO
PART NO. PART NO.
NEAPCO
PART NO. PART NO.
NEAPCO
PART NO. PART NO.
NEAPCO
PART NO. PART NO.
136
INTERCHANGE
907-11-1 63-1266
907-50-4 58-1227
907-51-4 58-1239
909-50-3 65-2828
909-50-4 58-2028
922-50-4 58-2229
922-51-6 65-2639
CP170X 1-0170
CP188X 3-0188
CP35R 2-2275
CP44R 3-0044
CP55N 3-0045
CPL12R 1-1275
CPL14N 1-2075
CPL6R 1-1475
L12NY30-23 12-1308
L12NYH18 12-1168
L12NYH18-2 12-1173
L12NYP16-20 12-1340
L12NYP16-27 12-1197
L12NYP20-9 12-1318
L12NYQ14-1 12-1113
L12NYQ14-2 12-1170
L12NYQ16-16 12-1314
L12NYQ16-3 12-1159
L12NYQ18-1 12-1163
L12NYQ18-3 12-1148
L12NYR12 12-1312
L12NYR14-1 12-1133
L12NYR16-13 12-1316
L12NYR16-23 12-1135
L12NYR16-8 12-1115
L12NYR16-9 12-1155
L12NYR18-30 12-1162
L12NYR19-3 12-1118
L12NYR20 12-1218
L12NYR20-15 12-1169
L12NYR20-3 12-1174
L12NYR22 12-1120
L12NYR24-7 12-1175
L12NYS18-1 12-1181
L12NYS20-7 12-1171
L12NYS22-12 12-1172
L12NYS22-16A 12-1193
L14SY30-43 20-9131
L14SYQ16-8 20-9310
L14SYQ18 20-9183
L14SYQ20 20-9127
L14SYR16-6 20-9115
L14SYR18-16 20-9117
L14SYR19-3 20-9118
L14SYR20-17 20-9119
L14SYR20-174 20-9218
L14SYR20-47 20-9302
L14SYR22-24A 20-9309
L14SYR22-7 20-9120
L14SYR23-4 20-9154
L14SYR24-10 20-9307
L14SYS22-16 20-9132
L16SYQ16-1 22-1125
L16SYQ18-1 22-1190
L16SYQ19-19 22-1344
L16SYQ20-3 22-1128
L16SYQ24 22-1130
L16SYR-18-12 22-1132
L16SYR19-2 22-1129
L16SYR20-10 22-1218
L16SYR20-6 22-1133
L16SYR22-10 22-1219
L16SYR22-15 22-1155
L16SYR23 22-1138
L16SYR23 22-1178
L16SYS18-1 22-1142
L16SYS22-36 22-2317
L16SYS22-3A 22-2312
L16SYS22-46 22-1105
L6NYH14-3 16-6303
L6NYQ12-3 16-6171
L6NYQ18 16-6138
L6NYR12-4 16-6111
L6NYR13-6 16-6112
L6NYR14-21 16-6213
L6NYR15-12 16-6114
L6NYR16-66 16-6215
L6NYR18-8 16-6216
L6NYR19-1 16-6217
L6NYR20-38 16-6218
L6NYS18 16-6134
L6NYS22-1A 16-6409
RT2-14 70-2000
RT2125-11 70-2125
RT225-11 70-2250
RT275-12 70-2750
SH-Q12-16-72 73-0750
SH-Q16-7-72 73-1001
SQS100-72 72-1000
SQS1187-72 73-1188
SQS125-72 73-1250
SQS13125-72 73-1313
SQS75-72 72-0750
T-25-10-72 70-2500
TU-Q16-4-72 70-1001
TU-Q20-28-72 70-1250
SEALED POWER
838-12 1-1275
838-14 1-2075
838-2127 1-1875
838-35 2-2275
838-40012 10-0412
838-40013 10-0413
838-40023 10-1557
838-40043 10-5313
838-40063 10-5213
838-40103 10-4143
838-40113 10-4473
838-40115 10-4183
838-41103 10-3163
838-41122 10-0322
838-41132 10-0332
838-41133 10-0333
838-41153 10-0383
838-43093 10-5215
838-43123 10-5218
838-44 3-0044
838-503 1-0170
838-55 3-0045
838-570 1-0170
838-588 3-0188
838-68 1-1475
SPICER
10-97 50-1503
102701SF 11-2701
102702SF 11-2702
1075XS 11-1075
12-91-72 71-0750
14-91-72 71-0875
16-91-72 71-1000
1630627200 70-2000
175-3 11-1753
2-28-1127 20-9131
2-28222706 65-2828
2-4-102 20-9126
2-4-1263 20-9115
2-4-1363 20-9117
2-4-1413 20-9302
2-4-1423 20-9119
2-4-1463 20-9307
2-4-1623 20-9154
2-4-172 20-9127
2-4-1873 20-9120
2-4-192 20-9310
2-4-3041X 20-9309
2-4-3101 20-9132
2-4-3681 20-9180
2-4-4271 20-9311
2-4-6451X 20-9330
2-55-62 53-2034
2-82-83-3714X 65-2840
20-91-72 71-1250
208565-4 58-1227
208565-4 58-1239
228217-3316X 64-2539
2282173316 65-2639
228226-3502X 64-2740
228397X 56-2004
228397X 56-2300
229291X 56-1857
230565-72 73-1001
230566-72 72-1000
230575-72 72-0875
230579-72 73-0750
230590-72 72-0750
230591 72-1125
278269-72 73-1188
278635-72 73-1313
278814-72 70-1001
3-16-203 56-2646
3-26-467 22-1325
3-26-587 26-5155
3-28-667 22-1319
3-4-1003 22-1178
3-4-10391X 22-2312
3-4-10411X 22-2316
3-4-1143 22-1162
3-4-1173 26-5119
3-4-12 22-1344
3-4-1323 26-5118
3-4-1353 22-1155
3-4-182 26-5148
3-4-32 22-1190
3-4-4-131X 44-2220
3-4-4-91 44-2206
3-4-5071 22-1142
3-4-5101 22-1134
3-4-5131X 22-1105
3-4-52 22-1125
3-4-5501 22-1330
1-28-277 12-1308
1-28-277 12-1334
1-4-1011X 12-1193
1-4-1091 12-1181
1-4-162 12-1340
1-4-182 12-1301
1-4-222 12-1163
1-4-242 12-1197
1-4-262 12-1318
1-4-2923 12-1312
1-4-2983 12-1134
1-4-3003 12-1115
1-4-3043 12-1326
1-4-3063 12-1117
1-4-3083 12-1118
1-4-3093 12-1176
1-4-3113 12-1119
1-4-3133 12-1120
1-4-3153 12-1175
1-4-861 12-1171
1-4-881X 12-1190
1-4-981 12-1172
1-60-34-3519X 64-2751
10-191 50-1501
10-2-29 10-1022
10-3-122X 10-3122
10-3-12X 10-0312
10-3-162X 10-3162
10-3-163X 10-3163
10-3-183X 10-3183
10-3-22X 10-0322
10-3-23X 10-0323
10-3-32X 10-0332
10-3-33X 10-0333
10-3-81X 10-0381
10-3-83X 10-0383
10-4-103 10-4103
10-4-113 10-4113
10-4-12 10-0412
10-4-123 10-4123
10-4-13 10-0413
10-4-133 10-4133
10-4-1363 10-4363
10-4-143 10-4143
10-4-173 10-4173
10-4-183 10-4183
10-4-193 10-4193
10-4-22 10-0422
10-4-23 10-0423
10-4-282 10-4282
10-4-43 10-0443
10-4-443 10-4443
10-4-453 10-4453
10-4-473 10-4473
10-4-481 10-4481
10-4-52 10-0452
10-4-53 10-0453
10-4-573 10-4573
10-4-611SX 10-4611
10-4-63 10-0463
10-4-73 10-0473
10-4-83 10-0483
10-4-93 10-0493
10-8 50-1502
NEAPCO
PART NO. PART NO.
NEAPCO
PART NO. PART NO.
NEAPCO
PART NO. PART NO.
NEAPCO
PART NO. PART NO.
137
INTERCHANGE
3-4-6171 26-5138
3-4-6481X 26-5321
3-4-6511X 22-2317
3-4-6771X 26-5319
3-4-72 22-1128
3-4-723 22-1131
3-4-743 22-1132
3-4-783 22-1133
3-4-793 22-1218
3-4-813 22-1219
3-4-833 22-1120
3-55-182 53-2644
3.4-4-12 44-2100
3.4-4-173 44-2256
3.4-4-183 44-2460
3.4-4-193 44-2820
3.4-4-23 44-2610
3.4-4-41X 44-2201
4714X 11-4714
5-103X 1-0170
5-110X 1-0172
5-129X 1-2075
5-170X 1-0170
5-188X 3-0188
5-2011X 1-1875
5-242X 1-1275
5-243-1X 2-2276
5-243X 2-2275
5-430X 1-0616
5-431X 3-0044
5-432X 3-0045
5-88X 2-0521
5-92X 1-1475
500007-22 50-1504
500007-24 50-1505
500541-7 50-2501
500570-6 50-2502
5914X 11-5914
TOWMOTOR
6D2529 1-1875
8D1508 1-0170
TRW
(See Federal Mogul/TRW)
WABCO
404645 1-1275
427271 1-1475
474804 1-2075
723741 1-1275
SR-6109 1-1475
TG-4614 1-1475
VA-1775 1-1475
WALTERSCHEID
AGMASTER
1-4-262 12-1318
1-4-2923 12-1312
1-4-3003 12-1115
1-4-3043 12-1326
1-4-3063 12-1117
1-4-3083 12-1148
1-4-3083 12-1118
1-4-3093 12-1176
1-4-3113 12-1119
1-4-3133 12-1120
1-4-3153 12-1175
1-4-861 12-1171
1-4-881X 12-1190
1-4-981 12-1172
10.01.00 1-1001
10-3-122X 10-3122
10-3-163X 10-3163
10-3-183X 10-3183
10-3-22X 10-0322
10-3-23X 10-0323
10-3-32X 10-0332
10-3-33X 10-0333
10-3-81X 10-0381
10-3-83X 10-0383
10-4-103 10-0423
10-4-12 10-0412
10-4-123 10-4123
10-4-13 10-0413
10-4-133 10-4133
10-4-1363 10-4363
10-4-143 10-4143
10-4-173 10-4173
10-4-183 10-4183
10-4-193 10-4193
10-4-22 10-0422
10-4-23 10-0423
10-4-282 10-4282
10-4-43 10-0443
10-4-453 10-4453
10-4-473 10-4473
10-4-481 10-4481
10-4-52 10-0452
10-4-53 10-0453
10-4-573 10-4573
10-4-63 10-0463
10-4-73 10-0473
10-4-93 10-0493
11.03.00 1-0321
16-30-62 70-2000
16-91-72 71-1000
2-28-1127 20-9131
2-4-102 20-9126
2-4-1263 20-9115
2-4-1363 20-9117
2-4-1413 20-9302
2-4-1423 20-9119
2-4-1463 20-9307
2-4-1623 20-9154
2-4-172 20-9127
2-4-1873 20-9120
2-4-192 20-9310
2-4-2663 20-9160
2-4-3041X 20-9309
2-4-3101 20-9132
20-91-72 71-1250
20.00.00 1-0221
21.00.00 1-0421
22-30-32 70-2750
229381X0 12-2330
229382X0 20-9330
229383X0 22-2330
229387X0 12-2321
229389X0 22-3521
230566-72 72-1000
230591 72-1125
278635-72 73-1313
278814-72 70-1001
3-16-203 56-2646
3-26-467 22-1325
3-26-587 26-5155
3-4-1003 22-1178
3-4-10391X 22-2312
3-4-1143 22-1162
3-4-1173 26-5119
3-4-12 22-1344
3-4-1323 26-5118
3-4-1773 22-1337
3-4-182 26-5148
3-4-32 22-1190
3-4-4-12 44-2100
3-4-4-131X 44-2220
3-4-4-183 44-2460
3-4-4-41X 44-2201
3-4-5071 22-1142
3-4-5101 22-1134
3-4-5131X 22-1105
3-4-52 22-1125
3-4-5501 22-1330
3-4-6171 26-5138
3-4-6481X 26-5321
3-4-6511X 22-2317
3-4-6771X 26-5319
3-4-72 22-1128
3-4-723 22-1131
3-4-743 22-1132
3-4-783 22-1133
3-4-793 22-1218
3-4-813 22-1219
3-4-833 22-1120
3-55-182 53-2644
35.00.00 2-2421
36.00.00 3-2521
36.10.00 8-2512
36.10.02 8-2521
36.13.100 8-2530
36.14.100 8-2520
36.18.02 8-2514
36.22.101 8-2525
36.24.100 8-2515
36.24.102 8-2535
36.24.106 8-2511
5-430X 1-0616
HM129 1-2075
HM188 3-0188
HM242 1-1275
HM243 2-2275
HM431 3-0044
026740 3-2521
1-28-277 12-1334
1-4-1011X 12-1193
1-4-1091 12-1181
1-4-162 12-1340
1-4-182 12-1301
1-4-222 12-1163
1-4-242 12-1197
10001448 65-2840
10003548 65-2639
10004448 65-4423
101-3506 22-2330
101-3521 22-3521
101-4406 44-4406
102-0606 16-6409
102-0621 16-0621
102-1006 10-4139
102-1206 12-1190
102-1221 12-1193
102-1406 20-9309
102-1421 20-9325
102-3506 22-2312
102-3521 22-2317
102-4406 44-2220
102-4420 44-6300
102-4421 44-2201
102-5506 55-9306
102-5521 55-9321
102-6106 8-1012
102-6121 8-1021
102-6506 8-5012
102-6521 8-5021
102-6706 8-7012
102-6720 8-7014
102-6721 8-7021
102-6806 8-8012
102-6820 8-8014
102-6821 8-8021
102-7106 8-2112
102-7121 8-2121
102-7621 8-2421
102-7906 8-2512
102-7920 8-2514
102-7921 8-2521
102-8206 8-2012
102-8221 8-2021
102-8306 8-3012
102-8321 8-3021
102-8406 8-4012
102-8421 8-4021
102-8606 8-6012
102-8621 8-6021
104-1206 12-2506
104-3506 22-9506
105-0615 16-0615
106-0615 16-1615
11000648 65-1651
11001248 64-2739
11001448 64-2740
11001460 64-2752
11003548 64-2551
11004448 64-4447
13002006 56-1857
200-0600 1-1475
200-0675 1-0170
200-1000 1-0170
200-1200 1-1275
200-1400 1-2075
200-1875 1-1875
200-2600 3-0188
200-3500 2-2275
200-4400 3-0044
200-5500 3-0045
200-6154 1-0121
200-6580 2-0521
200-6794 3-0721
WEASLER
100-0606 16-0606
100-1206 12-2330
100-1221 12-2321
100-1406 20-9330
100-1421 20-9321
10000648 65-1651
10001248 65-2851
NEAPCO
PART NO. PART NO.
NEAPCO
PART NO. PART NO.
NEAPCO
PART NO. PART NO.
NEAPCO
PART NO. PART NO.
138
INTERCHANGE
200-6806 3-0821
200-7155 1-1001
200-7676 2-2421
200-7989 3-2521
200-8261 1-0221
200-8370 1-0321
200-8474 1-0421
200-8692 3-0621
300-0600 16-6129
300-1200 12-1340
300-1400 20-9126
300-3500 22-1344
300-4400 44-2100
300-5500 55-2130
300-6126 8-1030
300-6229 8-2030
300-6336 8-3030
300-6436 8-4030
300-6545 8-5030
300-6645 8-6030
300-6745 8-7030
300-6854 8-8030
300-7123 8-2130
300-7234 8-2230
300-7334 8-0130
300-7434 8-2330
300-7639 8-2430
300-7957 8-2530
400-7284 70-2205
400-0012 72-0750
400-0016 72-1000
400-0019 73-1188
400-0020 73-1250
400-0021 73-1313
400-1214 73-0750
400-1618 73-1001
400-6126 70-0105
400-6229 70-0205
400-6436 70-0405
400-6545 70-0505
400-6745 70-0705
400-7123 70-2105
400-7539 70-2405
500-1400 53-2034
500-3500 53-2435
500-4400 53-2643
501-3500 53-3500
508-1080 50-1080
508-1090 50-1090
508-1280 50-1280
510-0600 53-0635
600-1618 70-1001
600-2022 70-1250
600-6133 70-0104
600-6236 70-0305
600-6343 70-0304
600-6552 70-0504
600-6654 70-0704
600-6863 70-0804
600-7130 70-2104
600-7241 70-2204
600-7548 70-2404
602-3500 70-2125
602-4400 70-2500
700-0600 16-6131
700-1200 12-1318
700-1400 20-9313
700-6133 8-1020
700-6236 8-2020
700-6343 8-3020
700-6443 8-4020
700-6552 8-5020
700-6654 8-6020
700-6754 8-7020
700-6863 8-8020
700-7130 8-2120
700-7241 8-2220
700-7341 8-0120
700-7441 8-2320
700-7648 8-2420
700-7961 8-2520
701-0600 16-6132
701-1200 12-1334
701-1400 20-9131
701-3500 22-1325
701-4400 44-2200
701-5500 55-3640
702-3500 22-1307
703-3500 22-1343
800-0510 10-4373
800-0512 10-0413
800-0610 16-6210
800-0612 16-6111
800-0613 16-6112
800-0614 16-6213
800-0615 16-6114
800-0616 16-6215
800-0619 16-6217
800-0620 16-6218
800-1212 12-1312
800-1213 12-1112
800-1214 12-1113
800-1216 12-1115
800-1218 12-1326
800-1219 12-1118
800-1220 12-1176
800-1222 12-1120
800-1416 20-9115
800-1418 20-9117
800-1419 20-9118
800-1420 20-9119
800-1422 20-9120
800-1423 20-9154
800-1424 20-9307
800-2622 26-5118
800-2624 26-5119
800-2628 26-5131
800-3516 22-1131
800-3518 22-1132
800-3519 22-1129
800-3520 22-1133
800-3522 22-1118
800-3523 22-1178
800-3524 22-1120
800-3526 22-1338
800-3528 22-1316
800-4422 44-2256
800-4423 44-2360
800-4424 44-2460
800-4426 44-2610
800-4428 44-2820
800-4432 44-3200
800-5524 55-2410
800-5526 55-2600
800-5528 55-2800
800-5532 55-3240
800-6108 8-1008
800-6110 8-1010
800-6510 8-5010
800-6511 8-5011
800-6722 8-7011
800-6822 8-8011
800-6824 8-8015
800-6828 8-8016
800-7610 8-2410
800-7922 8-2511
800-7924 8-2515
800-8208 8-2008
800-8210 8-2010
800-8310 8-3010
800-8410 8-4010
800-8411 8-4011
800-8610 8-6010
800-8611 8-6011
801-0506 10-0431
801-0518 10-0411
801-0606 16-6187
801-0618 16-6134
801-1206 12-1172
801-1218 12-1181
801-1221 12-1315
801-1406 20-9132
801-1418 20-9180
801-1420 20-9311
801-1421 20-9193
801-3506 22-1134
801-3506 22-1138
801-3518 22-1132
801-3521 22-1330
801-4406 44-2206
801-4421 44-2221
802-0616 16-6516
802-0618 16-6518
802-0620 16-6165
802-1216 12-1319
802-1218 12-1302
802-1220 12-1330
802-1222 12-1320
802-1418 20-9318
802-1420 20-9317
802-1422 20-9160
802-1424 20-9320
802-3520 22-1145
802-3522 22-1337
802-3524 22-1162
802-6535 8-5016
802-7108 8-2108
802-7110 8-2110
802-7611 8-2411
802-7922 8-2525
802-7924 8-2535
802-8335 8-3016
802-8435 8-4016
802-8611 8-6016
803-1400 48-9202
803-3500 48-1181
804-0512 10-0422
804-0514 10-0412
804-0516 10-0452
804-0612 16-6171
804-0614 16-6302
804-0616 16-6302
804-0618 16-6138
804-0620 16-6127
804-1012 10-0422
804-1014 10-0412
804-1016 10-0452
804-1214 12-1170
804-1216 12-1163
804-1218 12-1148
804-1220 12-1321
804-1414 20-9310
804-1418 20-9183
804-1420 20-9127
804-3516 22-1125
804-3518 22-1124
804-3519 22-1190
804-3520 22-1128
804-3526 22-1126
804-4418 44-1826
805-1014 10-3162
805-1018 10-0332
805-1218 12-1328
805-1420 20-9191
806-0514 10-5213
806-0516 10-5215
806-0518 10-5216
806-0520 10-5218
806-0614 16-6213
806-0616 16-6215
806-0618 16-6216
806-0620 16-6218
806-1216 12-1215
806-1218 12-1216
806-1220 12-1218
806-1418 20-9216
806-1420 20-9218
806-3520 22-1218
806-3522 22-1219
806-4420 44-2045
806-4424 44-2456
807-0616 16-6616
807-5520 55-2836
808-0612 16-6176
808-0614 16-6178
900-0648 69-0648
900-1248 69-1248
900-2648 69-2648
900-3548 69-2248
920-1200 56-2004
WOODS
10938 22-2317
110 2-2275
115 22-2312
14061 26-5155
14065 26-5321
14066 3-0188
14105 3-0188
148 20-9309
154 1-2075
2437 1-1275
28920 12-1190
30550 56-1857
31753 12-1181
32424 44-2220
32429 44-2201
65334 12-2330
65335 56-3001
65689 1-0170
N10-28-17 Use 10-2817
N10-3-1769X Use 10-1769
N10-3-18KX Use 10-0318
N10-4-1532 Use 10-1532
N10-4-1559 Use 10-1559
N10-4-373 Use 10-4373
15-0615 Use 10-0615
15-5111 Use 10-0413
15-5112 Use 10-4173
15-5113 Use 10-5113
15-5114 Use 10-0473
15-5115 Use 10-4573
15-5116 Use 10-4473
15-5117 Use 10-4153
15-5118 Use 10-4193
15-5123 Use 10-5123
15-5124 Use 10-0493
15-5125 Use 10-4123
15-5129 Use 10-5129
15-5131 Use 10-5131
15-5132 Use 10-5132
15-5134 Use 10-0411
15-5136 Use 10-4943
15-5138 Use 10-1557
15-5148 Use 10-1758
15-5149 Use 10-5149
15-5154 Use 10-4443
15-5156 Use 10-5156
15-5157 Use 10-0323
15-5158 Use 10-5158
15-5159 Use 10-0381
15-5164 Use 10-4493
15-5169 Use 10-1765
15-5171 Use 10-0422
15-5172 Use 10-0432
15-5173 Use 10-0332
15-5174 Use 10-5174
15-5175 Use 11-1075
15-5176 Use 10-0312
15-5178 Use 10-0322
15-5183 Use 10-0313
15-5184 Use 10-0333
15-5185 Use 10-3203
15-5186 Use 10-0383
15-5187 Use 10-0431
15-5189 Use 10-0412
15-5191 Use 10-4163
15-5193 Use 10-0452
15-5196 Use 10-4143
15-5197 Use 10-4113
15-5199 Use 10-3183
15-5213 Use 10-5213
15-5215 Use 10-5215
15-5216 Use 10-5216
15-5217 Use 10-1574
15-8218 Use 10-5218
15-5275 Use 10-5275
15-5303 Use 10-5303
15-5305 Use 10-3122
15-5313 Use 10-5313
15-5315 Use 10-0463
15-5319 Use 10-0423
15-5322 Use 10-5322
15-5331 Use 10-5331
15-5334 Use 10-5334
15-5335 Use 10-4183
15-5336 Use 10-4373
15-5338 Use 10-3163
15-5339 Use 10-4103
15-5341 Use 10-1769
15-5345 Use 10-4693
15-5347 Use 10-1703
15-5349 Use 10-1705
15-5352 Use 10-5352
15-5354 Use 10-5354
15-5355 Use 10-1707
15-5361 Use 10-5361
15-5363 Use 10-1580
15-5366 Use 10-5366
15-5373 Use 10-4282
15-5374 Use 10-4293
15-5377 Use 10-3162
15-5407 Use 10-4137
15-5409 Use 10-4139
15-5411 Use 10-5411
15-5412 Use 10-5412
15-5430 Use 10-5430
51-5275 Use 11-1750
1-0675 Use 1-0170
1-0676 Use 1-0172
1-0677 Use 1-0171
Neapco 0600 to N1000 Universal Joint Supersession Listing
Neapco 0600 to N1000 PTO Yoke Supersession Listing

Navigation menu
