Notion Ink ADAM User Manual: Device
Know Your ADAM
1. Search:
On Single Tap, the Search feature is enabled for the app, if there is any. Logn
pressing the the search button will controls the Back lit LCD. If the device has a transreective
screen, switching off the back lit LCD screen will enable the PixelQi screen. If the device has a
normal LCD screen, switching off the LCD will turn the display off.
2. Home:
Tapping the ‘Home‘ button will bring up the panel system. Long pressing the but-
ton will enable the ‘Panel Select Mode‘ which will display all the running panels to select a panel
to view it.
3. Menu:
Tapping on the ‘Menu‘ will bring up the options menu for apps and panels. Long
pressing it will bring up the keyboard (except when in panel system).
4. Back:
Tapping on ‘Back‘ will take you to the previous screen or level depending on the
app and app state.
5. 3.2mp Auto Focus Swivel Camera:
A rotatable 3.2 mega-pixel auto-focus camera is
placed.
6. Light Sensor:
The light sensor is placed here, which controls the brightness of the dis-
play, if it is set to Auto Brightness under Display Settings.
Pg:2
Notion Ink ADAM User Manual: Device
7. Power Port:
This port is for the Adapter to be plugged in to charge the device.
8. CPU Indicator Icon:
This icon represents the power port.
9. CPU Indicator LED:
The CPU indicator LED blinks in Orange while processing. When
the CPU indicator and the Power indicator are in solid orange and red the Adam is in Recovery
Mode.
10. Battery Indicatior Icon:
This icon represents the power indicator.
11. Battery Indicator LED:
This power indicator LED indicates the 4 states of the battery.
Purple when fully charged, blinkinh blue while charging, blinking red when low on power (less
than 15%).
12. Headphone Jack:
The head phone jack can be used to plug-in any 3.5mm or 2.55 m au-
dio jack to be used. Plugging in a audio jack will disable audio output from the built in speakers.
13. Back Button:
The ‘Back‘ button is similar to the Touch snesitive Back Button on the face
of the display. This is a tactile button with the same functionality as the touch back button.
14. USB Port:
This is a USB 2.0 port. Devices like USB Drives, Speakers, Keyboard or mouse
can be connected.
15. HDMI Port:
This is a HDMI out port. Through a HDMI cable Adam can be connected to
a HD TV or Monitor or any display with a HDMI in port.
16. Power ON/OFF:
Sliding the Power button will lock the screen and switch of the display.
Sliding and holding it will swithch OFF the device if the device is ON and will switch it ON if the
device is OFF.
17. Right Speaker:
This is the right side speaker. The audio from the device is outputed
through speakers while there is no audio jack plugged in.
Pg:3
Notion Ink ADAM User Manual: Device
18. Left Speaker:
This is the left side speaker. The audio from the device is outputed
through speakers while there is no audio jack plugged in.
19. Volume Up/Down:
The volume up/down buttons can be used to adjest the volume of
the audio output. Long pressing the ‘+‘ will adjust volume to its maximum level, while long press-
ing ‘-‘ will mute the device audio output.
20. USB Port:
This is a USB 2.0 port. Devices like USB Drives, Speakers, Keyboard or mouse
can be connected.
21. Mini USB Port:
This is the Mini-USB port used to connect the device to a computer.
22. Microphone:
This is the microphone, which can be used for audio input while using
apps like Viceo Recorder and other voice chat features.
23. Reset Button:
This is the reset button, this can be pressed with a tiny pin. Pressing this
button will reset the device to factory settings. Caution: This might erase all data in Adam Memo-
ry.
24. SIM Card Slot:
This is the SIM card slot, and is present only on 3G capable devices. This
will allow a SIM Card provided by a mobile carier can be used to access internet after enabling
the Mobile Data under Wireless Settings.
25. microSD Slot:
This is the microSD slot, where microSD cards upto 64GB can be placed
to store and access data.
Safety Precautions:
1. DO NOT press or touch the LCD Screen too hard. DO NOT place the Adam with small items,
they may scratch LCD Screen or enter the Adam.
2. DO NOT expose the Adam to dirty or dusty environment. Keep Adam in clean and
dry environment.
3. DO NOT place the Adam on uneven or unstable surface.
4. DO NOT place or drop objects on the top of the Adam. DO NOT shove any foreign objects
into the Adam. DO NOT cover the LCD Screen strongly.
5. DO NOT expose the Adam to strong magnetic or electrical elds; DO NOT place the oppy
disk near or on the Adam, that may cause loss of data on the oppy disk.
6. DO NOT leave the Adam facing the sun as it can damage the LCD Screen, especially in the
car.
7. SAFE TEMP: The Adam should only be used in environments with ambient temperatures
between 5°C(41°F) and 35°C(95°F).
8. DO NOT expose the Adam or use it near liquids, rain, or moisture.
9. Caution: risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries
according to the instructions.
10. DO NOT throw the Adam in municipal waste. Check local regulations for disposal of elec-
tronic products. Please recycle the Battery Pack, and check with your Local Authority or retailer
for recycling advice.
11. The Adam and the Adapter might get heated during operating or charging. DO NOT
leave the Adam on your lap or any part of the body in order to prevent discomfort or injury
from heat exposure.
12. INPUT RATING: Refer to the rating label on the Adam and be sure that the Power Adapter
complies with the rating. Only use attachments or accessories specied by the manufacturer.
13. Checking the connections between the main unit and attachments before turning on the Tab
let PC.
14. DO NOT use the Adam during eating food avoid dirtying the Adam.
15. DO NOT insert anything into the Adam that may result in short circuit or damage the circuit.
16. Powering off the Adam, if you want install or remove some external devices, which are not
support hot-plug.
17. Disconnect the Adam from the electrical outlet. And Keep it away from children.
18. DO NOT disassemble the Adam, only a certied service technician should perform repairs
on your computer. Otherwise, problem may result and the manufacturer should not hold re
sponsibility for the damage.
19. The Adam has some little metal ake to disperse heat. DO NOT place the Adam on soft
objects (e.g.: bed, sofa, your lap), or else the Adam may become hot and halt the system
operating.
Pg:4
Notion Ink ADAM User Manual: Snier
Pg:5
Notion Ink ADAM User Manual: Care
Caring for the Adam
The Adam is a precision device; the error operation may damage the device. LCD Screen is
the most delicate component of the Adam and comprised of thin glass. It may be broken up by
external abrupt force. DO NOT scratch the cover of the Adam, or the scrape on the cover cannot
remove.
• DO NOT cover the LCD Screen strongly, or else damage may occur.
• DO NOT place objects on the keyboard to avoid damaging the screen and keyboard
when you cover the LCD Screen.
• Place the Adam in carrying case to protect it from dirt, water, shock and scratches be
fore traveling.
• DO NOT drop or place heavy objects on the LCD Screen.
• DO NOT scratch the LCD Screen with your ngernails or any hard objects.
• Use a soft and lint-free cloth to wipe your Adam and wipe it gently in order to avoid
damaging the LCD Screen.
• Shut down the LCD Screen, if the Adam will not be used for a long time.
• DO NOT clean the LCD Screen with chemical cleaners.
• The LCD Screen DOES NOT come into contact with hard objects (E.g.: cloth button,
watchband).
• Use a soft and lint-free dry cloth to wipe the LCD Screen smoothly. DO NOT use your
hand to wipe the LCD Screen directly.
• DO NOT spill liquid into the Adam as it can damage the components of the Adam.
• Cover the LCD Screen smoothly in order to avoid moving the hinges and ashing the
LCD Screen.
• DO NOT clean the Touch Pad with acidic cleaner or spray cleaning solution directly on
the Adam.
Other Notes
• DO NOT expose the Adam in hot environment for a long time, especially in the car. Or
the parts of the Adam will be metamorphic.
• Keep the data for future possible use termly.
• Renew the hardware or software termly in order to keep the Adam compatible and
steady.
Traveling with the Adam
Turn off the Adam and disconnect all lines before moving it. Following the below steps, if
you want to travel with your Adam.
Attention
1. Turn off the Adam and disconnect from the wall outlets.
2. Shut down the LCD Screen completely and smoothly.
3. Disconnect the AC lines.
4. Disconnect all lines.
5. Place the Adam in carrying case to protect it from dirt, water, shock and scratches be
fore traveling.
6. Check that you have taken the AC Adapter, power lines, manual and warranty card.
7. DO NOT forget the passwords of the Adam if you set-up.
8. Find out the voltage type in the countries you will visit. Your Adam comes with a uni
versal AC-DC adapter, so you only need to buy the different power cords to connect the
different outlets or the hotel may provide universal outlets to support your power cord
as well as voltages.
Pg:6
Notion Ink ADAM User Manual: Care
If you drive your car with the Adam, DO NOT leave the Adam facing the sun. Place it in the
shady and cool area.
The connection between Internet and your Adam will be interrupted when the system enter the
hibernation mode
How to
Charge your Device:
The Adam comes with a universal AC-DC adapter and the allowable input voltage of adapt-
er is from 100V to 240V.
Following the below steps to connect the adapter:
1. Take the adapter and the plug, then push the plug into the socket till a click sounds.
2. Plug the DC end of adapter into the power jack of the Adam.
3. Insert the AC end to the wall outlet
4. Check the connections above correctly before turning on the Adam.
Your Adam and the accessory may differ from the pictures shown.
Slide the POWER button towards “ON” to turn on the Adam; Slide POWER button towards ‘Off’,
hold for 4 seconds and select “Power off” in the pop-up menu to turn off the Adam.
The rst time you turn on the Adam, you need to unlock by dragging the lock icon towards the
top-corner of screen and enter the Home Screen, which makes it easy for you to access frequent-
ly used functions.
Enable NI Keyboard:
The NI Soft Keyboard is enabled by default. In case another soft keyboard is replaced as
default keyboard, the NI Soft Keyboard can be made default by long pressing on a text eld se-
lecting the option ‘Input Method’, and then selecting ‘NI Keyboard‘ in the resulting options.
Adjusting the Brightness of the Screen
The screen brightness can be set by tapping on the Brightness option under the Display
Settings. Checking the ‘Automatic Brightness’ option, will set the brightness of the display auto-
matically depending on the surrounding light.
Connecting to Internet
Internet can be accessed in two ways.
1. SIM Card – If your device has a SIM card slot, you can access internet by inserting a SIM
Card provided by a Mobile Service Provider. Make sure you have a Data Plan with the SIM. Af-
ter Inserting the Data Plan enabled SIM, Under Settings – Wireless & network Settings – Mobile
Network Settings – APNs; Tap ‘New APN’ under ‘Options’. Now ll in the details, provided by your
Mobile Service Provider and create the New APN. Once done save the details and Restart the
Device. Also, make sure ‘Data Enabled’ is checked under ‘Mobile network settings’.
2. WiFi – Adam can access internet over WiFi. First enable ‘Wi-Fi’ under ‘Wireless & network
Settings’ in Settings and tap on, ‘Wi-Fi settings’. Now this displays the available Wi-Fi networks in
the range. Choose your network by tapping on it and enter any password or security key re-
quired to connect to the network. For details about the network password or security key contact
Network Admin or your Network Service Provider.
Bluetooth
Bluetooth can be enabled by checking the ‘Bluetooth’ option under ‘Wireless & Network
Settings’. Tap on ‘Bluetooth Settings’ to get connected to other Bluetooth devices. Make the
device discoverable by checking the ‘Discoverable’ option for other devices to connect to ADAM.
Once the desired device is in the list of Scanned Bluetooth Devices, tap on the device name to get
paired. Once paired images, les can be shared through Bluetooth with the device.
Pg:8
Notion Ink ADAM User Manual: Panel System

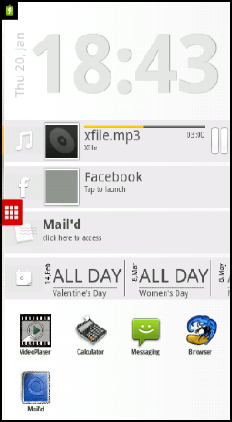

The rst panel is called the home panel; the position of this cannot be changed. Also, it can
never be closed. There is no full screen version for this panel. The Home Panel has the current
time, weather, and other notications.
Weather:
The Default city set in the weather app is shown followed by the temperature of
the city in Celsius and the weather conditions.
Time:
The day, date and month are displayed vertically to the left of the time. The time is
displayed in 24hrs format.
Notications:
All notications have the app logo to the left of its notication bar, followed
by the content. Tapping on the App Logo launches the panel view if there is one. If there is no
panel view the full-screen app opens. The notications in the home panel are limited to the apps
provided by Notion Ink for ADAM.
Music Player Notications:
The music player notication bar displays the currently playing
album art, progress bar, Track name, Artists’ Names and Play / Pause icon. The whole bar is inter-
active and resumes playing if paused and pauses if playing. As the music player doesn’t have panel
view the full-screen view is launched when tapped on the App Logo.
Facebook Notications:
The Facebook notication bar displays notication details which
include the prole image of the notication sender, the Prole Name and notication content. The
type of Notications sent are friend requests and wall post, likes or comments notications.
Mail’d:
The Mail’d notication bar displays the details of the most recent email received.
The details include, From (name if contact exists in address book email if contact doesn’t exist in
address book), Subject of the email and the unread mail count from the account.

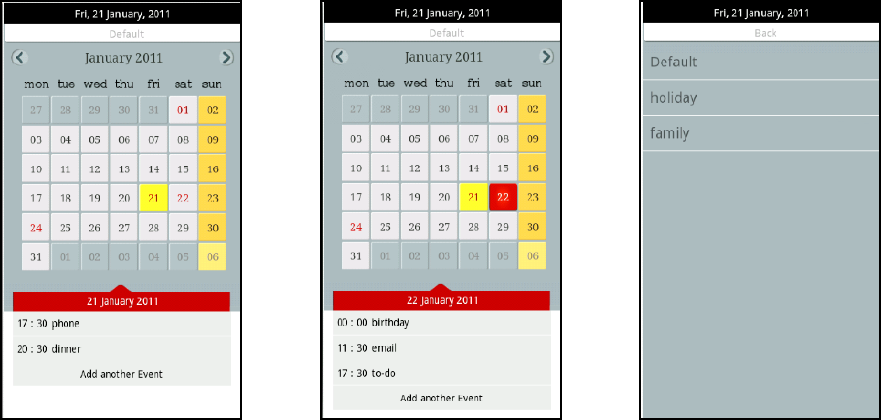

Calendar:
The calendar notication bar displays ve upcoming event details. The details
include, date (DT), month (Month) followed by start time and event title. If the event is an all-day
event, the start time is replaced by the text ‘All Day’.
Recently Opened Apps:
The bottom section of the Home Panel displays, recently opened
apps in two rows with four apps in each row. Tapping on any app will launch the full-screen app.
Panel system
Home Panel
Pg:9
Notion Ink ADAM User Manual: Panel System
The launcher icon is always displayed on the left edge of the display at the center. Tapping
on the launcher icon will display the launcher listing all the apps installed. The rst few apps rep-
resent the order of the opened panels if any panels are open.
Launching a Panel:
From the launcher, drag and drop an app to launch the panel if it exists.
If there is no panel for the desired app, the launcher prompts the user to choose between the op-
tions to launch full-screen app or cancel the action.
Searching for an App:
Tapping on the launcher icon displays the launcher with all the apps.
Below the launcher is a search bar and typing the app name in the search bar lters the list of apps
in the launcher to display apps whose names match the search text.
(Re-)Ordering a Panel:
Dragging an app on to a panel will load the panel app in that position
pushing all the panels on the left to the next panel position. If the panel app is already running it
reorders the panels to load the panel in the desired position.
Launching Full-Screen App:
The FullScreen app can be launched from the launcher by single
tapping on the app logo. If the panel for an app exists and is running, then tapping on ‘Launch Ap-
plication’ under the menu will launch the full-screen application.
Launcher
Panel Select Mode
Pressing and holding the Home button brings up the Panel Select mode which displays
the screenshots of the opened panels. There are a minimum of eight panels listed. If the opened
panels are less than eight, the remaining panels display a generic image. Six panels are displayed
at one time. The list can be scrolled horizontally to view other panels. Tapping on any of the rst
three panels will display the panel system with the selected panel in focus. Tapping on the last
three panels in the display will scroll the panel to the left.
Bringing Focus to a Panel:
A panel can be brought to focus by tapping on the panel or by
tapping on the app in the launcher or by selecting the panel in Panel Select Mode.
Closing a Panel:
A panel can be closed by tapping on the ‘Close Panel’ under the menu.
Pg:10
Notion Ink ADAM User Manual: Panel System
The Desktop can be accessed by doing a two-nger swipe on the panel system while a panel is in
focus. Tapping on the “time” shown on the Home Panel will also display the desktop. When the
desktop is displayed, the panels are all minimized. Tapping on any of the minimized panels or do-
ing a two nger swipe up will re-launch the panel system, hiding the desktop. The desktop displays
all the apps installed on the device in a grid view. Tapping an app will launch the app in full-screen
mode.
Desktop
Pg:11
Notion Ink ADAM User Manual: Browser
Initial view:
The initial view provides various web search options (Google, Yahoo, Bing and
Ask). Tapping on any of the options loads the respective search website onto the panel.
Back/Forward:
To navigate between previously accessed pages, use the backward and for-
ward icons which are displayed as soon as a page loads.
Refresh:
A web page can be refreshed by tapping on the refresh button, located at the top
of the panel.
Scrolling:
To scroll a page vertically, gesture accordingly. Most sites which have a mobile
version will open the mobile version of the site, if a web page doesn’t have a mobile version it is
displayed in full view and can be scrolled horizontally by using the two arrow buttons located at
either ends of the screen.
View More:
Currently running tabs & Bookmarks: Currently running tabs and Bookmarks
can be accessed by dragging the ‘View More’ tab towards the top of the panel. This will bring up
the options which display the list of the current tabs open on the full screen browser and the list
of bookmarks. Tapping on an item in the list will load that page in the full screen Browser App.
Launching the full-screen Browser:
The full-screen Browser app can be launched from the
options menu, by tapping on the link ‘Launch Application’. Also, by long-pressing on a link on the
panel, the link opens as a new tab in the full-screen browser with the current page from the panel
as another tab.
BROWSER
Panel View
Pg:12
Notion Ink ADAM User Manual: Browser
Entering the URL:
The left side of the browser houses a sidebar with the rst icon being
the Toggle switch for the URL / Address Bar. Tapping on the url will bring up the keyboard. The
standard ‘http’ and ‘www’ protocol representations can be omitted while typing as they are pre-
xed automatically where needed. The address bar will show up while loading a page (when a link
is tapped on or when refresh is tapped on) and will be hidden once the page is fully loaded. The
loading is indicated by a progress bar under the URL. The loading process can be canceled by tap-
ping on the cross(x) icon located towards the end of the URL / Address Bar.
Refresh:
A page can be refreshed by tapping on the ‘Refresh’ icon located beneath the URL
icon on the left side of the browser in the landscape mode. In the portrait mode, the ‘Refresh’ but-
ton will be located below the ‘Switch Tabs’ button.
Back and Forward:
The back and forward buttons are located under the refresh icon and
are separated by the switch tabs icon in the landscape mode. In portrait mode, these buttons are
located below the refresh button. The back and forward buttons will provide the ability to get back
to a previous page or move to a page which was accessed after the currently displayed page.
Switch Tabs:
Tabs can be switched by tapping on the ‘Switch Tabs’ icon which is located
between the back and forward icons. The total number of running tabs is displayed on the icon.
Clicking on the icon will bring up the list of all tabs that have been opened, which can be scrolled
to select a tab. Also, holding down the ’Switch Tabs’ icon will bring up the tabs list and gesturing
the nger up and down along that area will scroll the focus through the list of tabs. Releasing the
’Switch tabs’ icon with a tab in focus will load that tab.
Opening a New Tab & Re-opening the Most Recently Closed Tab:
The list of opened tabs is
followed by a link to open a ‘New Tab’ and a link to Re-open the most recently closed tab. Tapping
on or bringing focus to the links will perform the necessary action. A maximum of eight tabs can be
running at any time. A link can be opened in a new tab with a long press which brings up the op-
tions menu for the link. These options include ‘Open in New Tab’ which opens the link in new tab.
If there are already eight tabs open, choosing to open a link in a new tab is not possible and any
other running tab has to be closed by the user to open the link in a new tab. The same information
is displayed in a dialog box when the situation arises.
Bookmarking a Page:
A page can be bookmarked by tapping on the ‘Bookmark’ icon located
at the bottom of the bar to the left. This brings up an overlay with the title of the page pre-populat-
ed as the name of the bookmark (tapping on this will bring up the keyboard to edit) and the URL.
Tapping on the ‘Ok’ button on this overlay will bookmark the page
Full-Screen View
Pg:13
Notion Ink ADAM User Manual: Browser
Bookmarks can be accessed by tapping on the Bookmarks icon under the options
menu. This brings up the list of Bookmarks. Tapping on History icon under the options menu,
brings up the history. Tapping on any of the links will open the link in a new tab.
Tapping on the Crop icon under the options menu will bring up a box overlay over the cur-
rent page, the dimension of the box can be adjusted to t the content to be cropped by moving
each edge to the desired place. The box itself can be moved around the display to crop content
anywhere on the display. The cropped image is saved to the clipboard by default.
Tapping on ‘Find on Page’ will bring up a text box to enter the text. Then, the matching text
is highlighted across the web page.
Text on a webpage can be selected by tapping on the ‘Select Text’ option under the options
menu. Tap and slide along the desired text to select it. Once the text is selected, the content is
automatically copied to the clipboard.
Tapping on ‘Downloads’ under options menu will display the list of all downloads that took
place. Tapping on any download will open the downloaded le.
Tapping on ‘Page Info’ will display the details of the page in an overlay. The details include,
Title of the page and the URL.
Tapping on ‘Kill Browser’ will close all open tabs and kill the full-screen browser app.
Bookmarks & History
Menu Options
Crop
Find on Page
Select Text
Downloads
Page Info
Kill Browser
Long Press a Link
When a link is pressed for long, an overlay is displayed to perform actions that include,
Open, Open in new tab, Bookmark Link, Save Link, Share Link, Copy Link Url.
Pg:14
Notion Ink ADAM User Manual: Browser
The Settings option is available under the options menu. Tapping on the Settings icon will
bring up the settings for the browser.
Setting Text Size:
Tapping on the text size will display the size options which vary from tiny
to Huge. By default, ‘Normal’ is selected.
Setting Zoom sensitivity:
Tapping on Default Zoom will display options to set the sensitivity
of the zoom level which include Far, Medium and Close. By default, Medium is selected.
Change Text Encoding:
Tapping on ‘Text Encoding’ will display the options available to
choose a different text encoding.
Block/Unblock pop-up Windows:
To block pop-up windows check the option ‘Block pop-up
windows’.
Load Images:
Checking the option ‘Load Images’ will allow the browser to load the images
present on the webpages. Unchecking will prevent display of images present on the webpages by
the browser. By default, this option is checked.
Auto-t Pages:
Checking the option ‘Auto-t Pages’ will t the pages to the display size of
the device (to avoid horizontal scroll). Unchecking this option will display the webpages in its
original dimensions.Thi might need a horizontal scroll. By default, this option is checked.
Landscape only Display:
Checking the ‘Landscape-only Display’ option will lock the screen
orientation to landscape. By default, this option is unchecked.
Enable/Disable JavaScript:
Checking the ‘Enable JavaScript’ option will allow the browser to
run any JavaScript present on the webpages. Unchecking will prevent the running of any JavaS-
cript. By default, this option is checked.
Enable/Disable Plug-ins:
Tapping on the option ‘Enable Plug-ins’ will display the options
Always on, On Demand and Off. By default, the option is set to Always On.
Open in background:
Checking the ‘Open in background’ checkbox will instruct the brows-
er to open any new tabs in the background and to not switch focus to the newly operned tab.
Unchecking this option will cause the browser to open the browser in a new tab and switch focus
to it.
Set Home Page:
Tapping on the option ‘Set Home Page’ will prompt the user to enter the
new Home page URL or tap on ‘Set Current Page’ to set the current page as home page.
Clear Cache:
Tapping on ‘Clear Cache’ option will prompt the user for conrmation to de-
lete locally cached content and databases.
Clear History:
Tapping on ‘Clear History’ option will prompt the user for conrmation to
delete all browser history.
Enable/Disable Cookies:
Checking the ‘Accept Cookies’ option will allow websites to create
and read from cookies. By default, this option is checked.
Settings
Pg:15
Notion Ink ADAM User Manual: Browser
Clear Cookies:
Tapping on ‘Clear all cookie data’ will prompt the user for conrmation to
clear all cookies.
Enable/Disable Locations:
Checking this option will allow websites to access the user’s
location. Unchecking this option will prevent websites from accessing the user’s location. By de-
fault, this check box is checked.
Remember Passwords:
Checking this option will prompt users on webpages where user-
name and password are entered to choose if their login details are to be saved for future logins.
By default, this option is checked.
Clear Passwords:
Tapping on this option will prompt the user for conrmation before de-
leting all saved login details.
Show Security Warnings:
Checking this option will let the user know when a site fails secu-
rity terms, and warns the user. By default, this option is checked.
Reset to Default:
Tapping this option will prompt the user for conrmation before reset-
ting the settings to default.
Note: Gmail works best in portrait mode. In landscape mode, you will have to zoom in to be able
to scroll.
Pg:16
Notion Ink ADAM User Manual: Mail’d
A new account can be set-up from the panel view if no other account exists. A New account
overlay will also show up when the full screen app is opened for the rst time, when no account is
set-up or when the link 'Add New Account' is tapped on in the Accounts Panel.
MAIL’D
Setting up a New Account
Panel View
Default Set-up:
The 'set-up new account' feature will prompt the user for the email address
and password of the account to sync with. Upon authentication, Mail’d prompts the user for an
Account Name to be used on the accounts panel and the Full Name to be shown on any outgoing
mail.
Manual Set-up:
This is advised for advanced users or needs to be set-up with some techni-
cal details at hand. For further details, please contact your email service provider. For Manual Set-
up to be active, you must type in your email id rst in the email eld.
This view can be launched from the Launcher or the Apps list on the home panel by drag-
ging and dropping the Mail’d icon from the panels list. In this view, Mail’d displays the list of emails
in the default account’s Inbox. All unread emails are marked with a green strip on either side. Tap-
ping on an email will open it in the panel. This view allows for basic operations like Reply, Reply
All, Forward and Delete. Attachments can also be opened or saved by scrolling to the bottom of
the email. When viewing an email, the link 'Back to Inbox' at the bottom of the panel will load the
email list. Reply, Reply All and Forward will open an overlay to edit an email. Tapping on the mail
icon at the top of the panel will list all the accounts. The user can select any account by tapping on
the account icon. This will display the emails from the selected account's inbox.
Pg:17
Notion Ink ADAM User Manual: Mail’d
Accounts Panel:
The rst Panel is the Accounts Panel. This panel lists all the accounts that
have been set-up with Mail’d. This panel allows adding a new account by clicking on the ‘Add New
Account’ link at the bottom of the accounts list. The accounts are listed in the order in which they
are set-up except for the default mail account which is always displayed at the top of the list. The
accounts start with the email service provider logo if available or the generic logo. The logo is fol-
lowed by the unread email count in the Inbox followed by the Account Name given while the ac-
count was set-up. If no name was provided, the email address of the account will be displayed. By
default, the ‘Default Account’ is selected. A selected account will have a different background along
with an arrow at the right end pointing towards the labels panel.
Labels Panel:
The second panel is the Labels Panel. This panel lists all the labels available
for an account. The top portion reects the details of the account from the Accounts Panel. The
‘Compose Email’ link is above the Labels list. The list shows the default labels provided by the email
service provider. Any further labels are hidden under the ‘More’ Link. Tapping on the ’More’ link ex-
poses all the labels and tapping on the ‘Less’ link hides all the extra labels. All labels having unread
mails will be displayed in bold text with the unread mail count at the end of the label in brackets.
The second line of the label displays the status of sync and the time stamp of the latest sync. If
not synced, the option ‘Click to Sync’ is displayed. By default, the Inbox is selected for all emails.
The selected label will have a different background along with an arrow at the right end pointing
towards the Emails panel.
Emails Panel:
The emails panel lists all the emails under the selected label. This panel lists
the emails in chronological order. The top of the panel contains the search bar. Entering the text
in the search box will lter the list of emails present under that label that match the text entered.
The unread emails have a green strip on either side of the email. Clicking on the check-box of an
email will select it and multiple emails can be selected to perform actions like move, copy and de-
lete. Tapping on the star icon will list the email under the ‘starred’ label [available only for Gmail
or Google App Mail]. Twenty-Five emails are loaded by default. Tapping on the ‘Load More’ at the
bottom of the emails panel will load the next set of emails. A selected email will have a different
background along with an arrow at the right end pointing towards the Email View panel.
Email View Panel:
The email view panel opens a selected email. The email view panel takes
up two-thirds of the screen space (displaying the emails for better readability). This panel displays
the entire email along with the header, which is displayed by tapping on the ‘Show Details’ at the
top of the email. Any images in an HTML email are displayed upon tapping on the ‘Show Images’
button. The top of the email view panel houses the buttons which allow the user to Reply, Reply
All, Forward, Archive, Delete and Mark Unread. ‘Full Screen’ button on Message View Enables the
user to View the Email in Full Screen Mode with the Subject of the mail.
Full Screen View
Panels
Pg:18
Notion Ink ADAM User Manual: Mail’d
Reply, Reply All, Forward and Compose brings up a new overlay over the screen. The over-
lay will have the To, Subject, Message, Signature Fields. The elds To, Subject and Message are
pre-populated if the user taps on Reply, Reply All or Forward. The signature eld is always lled
with the signature that has been set for the account; this can be edited at any time before sending
the mail. Attachments can be added by clicking on the Paper clip icon at the top of the compose
overlay. This brings up the Sniffer app to choose the les to be attached. An attached le is then
shown under the subject with an option to remove the attachment. CC and BCC can be added by
clicking on the +CC and +BCC links under the 'To' eld. The User is alerted when keywords like
PFA, Attachment are used in email without any attachments and the ‘Send’ button is clicked.
This feature allows the user to recall or stop a recently sent email from being sent. Immedi-
ately after clicking on the Send button on the compose email overlay a note pops up. Tapping on
the note stops the email from being sent and opens up the compose overlay with the same mes-
sage details. This note will remain only for a few seconds after which the email cannot be recalled.
Every Email when opened has a set of options on the top which include ‘Archive’, ‘Delete’
and ‘Mark as Unread’. Clicking on ‘Mark as Unread’ will perform the respective action and close
the email view panel. For 'Archive' or 'Delete', respective actions will be performed and the next
Email in the email list will be displayed. Once one of these changes is made, it is synced with the
server except ‘Delete’, which depends on a setting. This setting, when set to ‘Delete from Server’,
will cause email to be deleted from the server and will prevent email from being deleted from the
server if set to ‘Don’t Delete on the Server’.
Reply/Reply All/Forward/Compose
Undo Sent E-mail
Archiving/Deleting/Marking as Unread
Pg:19
Notion Ink ADAM User Manual: Mail’d
To move or copy email(s) under a label, select the email(s) in the emails panel by tapping on
the check-box of the email(s). This will bring up the buttons Move, Copy and Delete in place of the
search bar at the top of the panel. Once Move/Copy is tapped, a label can be tapped on to move/
copy the selected email(s) to that Label.
Using the search bar at the top of the emails panel, a selected label can be searched. Enter
the text in the search box and tap on the search icon. This will lter the emails from the selected
label, matching with the search term.
An account is synced automatically when an email is sent or is synced based on time inter-
vals. A label is synced whenever it is tapped on. The time when the label was last synced is dis-
played below the label title. The current status of the sync is also shown.
Move/Copy
Searching E-mail
Synching Account/Label
Pg:20
Notion Ink ADAM User Manual: Mail’d
Change Account Name:
Tapping on the option Account Name will prompt for a new Account
name. Once a new account name is given, Mail’d uses the new name as default for the account.
Making an Account Default:
Checking the option ‘Default Account’ will set the current ac-
count as Default Account. By default, the rst account is set as default. Unchecking this option will
remove the current account as default. In this case, the rst added account is set to default.
Adjust the number of Messages to display:
Tapping on the option ‘Number of messages to
display’ will prompt the user to select number of messages to be displayed from a set of seven
different options (10,25, 50, 100, 250, 500, 1000).By default, 25 messages are displayed.
Customizing Default Composition Settings:
Tapping on the option, ‘Composition Defaults’
will display the Compositions View where the details are pre-populated, if any. The user can set
the Name to appear on sent emails, the default BCC message, Signature and an option to include
the signature before or after the quoted message.
Auto Reply:
Checking this option will enable the auto reply feature. Tapping on the ‘Auto
Reply Message’ option prompts for the Auto Reply Message. Once entered, all the incoming emails
are automatically replied with this message.
Show/Hide Picture in Emails:
Tapping on the option ‘Show Pictures Automatically’ will dis-
play options – Never, Only from Contacts, Always. Choosing an option will perform the action. By
default, this option is set to Never.
Folder Sync Frequency:
Tapping on the option ‘Folder Sync frequency’ will display various
time intervals to choose from. Once selected, all the folders of the account will be synced based
on the set time interval.
Download limit for messages:
Tapping on the option ‘Download Messages up to’ will display
options of various sizes to set the limit to. Once set, only the messages under the set limit will be
downloaded.
Deleting a Message:
Tapping on the option ‘When I delete a Message’ will display the op-
tions to not delete from server, delete from server, and mark as read on server.
Settings
General Account Settings
Synching Folders
Pg:21
Notion Ink ADAM User Manual: Mail’d
Auto Expand Folder:
Clicking on this option will lead the user to a list of all the Mail category
folders in Mail'd (ex: Inbox, All Mail, Important,etc.). Upon selecting one option, any future syncing
will only download the category of mail selected and will populate only the selected folder.
Sync Remote Deletions:
When this option is set, the checked message, when deleted from
the server, will also be deleted on Mail’d. By default, this option is checked.
Enable/Disable Notications:
Checking the option ‘New Mail notications’ will display noti-
cations for new mail for the selected account. Unchecking this option will prevent display of any
notications for new email.
Setting a Ringtone for Notications:
Tapping on the option ‘New Mail Ringtone’ will display
all the ringtones available. Selecting a ringtone will set the tone for notications for the selected
account.
Notications
Network Settings
Advanced
Incoming Server:
To set-up or edit the incoming server, tap on the option ‘Incoming Server’.
This displays the Incoming Server Settings View. The details can be edited and saved in this view.
Outgoing Server:
To set-up or edit the outgoing server, tap on the option ‘Outgoing Server’.
This displays the Outgoing Server Settings View. The details can be edited and saved in this view.
Setting Prex for Quoted Text:
Tapping on the option ‘Prex for Quoted Text’ prompts the
user to enter the desired character for prexing to the quoted text. Once entered, the character is
used as prex for the quoted text. By default, the prex character is set to ‘>’.
Removing an Account:
To remove an account, tap on ‘Remove account’. This prompts the
user for conrmation before deleting the account from Mail’d.
Compress Account:
Tapping on ‘Compress’ will minimize the memory being used by the
account by compressing the messages.
Clear Emails:
To empty messages on Adam of a selected account, tap ‘Clear Messages’.
This will remove all emails from the selected account.
Clear Trash:
Tapping on ‘Empty trash’ will delete all messages of the selected account from
the trash.
Pg:22
Notion Ink ADAM User Manual: Snier
The panel view displays all the storage options. Tapping on a storage option will display the con-
tents of that storage option along with a back link on the top of the list allowing you to get back to
the storage options. Similarly, selecting a folder will display the contents of the folder in the same
panel, with a back button at the top of the panel that displays the parent folder contents. The top
of the panel always displays the current storage option and a graphic representation of its used
and free memory. Tapping on a le will display a preview of the panel along with a list of options
to open the le.
Panel View
Adam supports three storage options out of the box. The rst one is the internal
memory of 8GB, while 2GB is reserved for application installation; the remaining 6GB is free to be
used. This memory cannot be removed. The second one is the micro SD card memory. The memo-
ry slot is located on the bottom rim of the device beside the SIM card slot. The maximum memory
of the card should be no more than 128GB. The third one is the USB Drive; two USB slots are avail-
able on either side of the device. At one time, Sniffer can only recognize the rst USB Drive, when
two drives are simultaneously inserted. Only Drives with FAT32 le system are supported.
SNIFFER
Storage Options

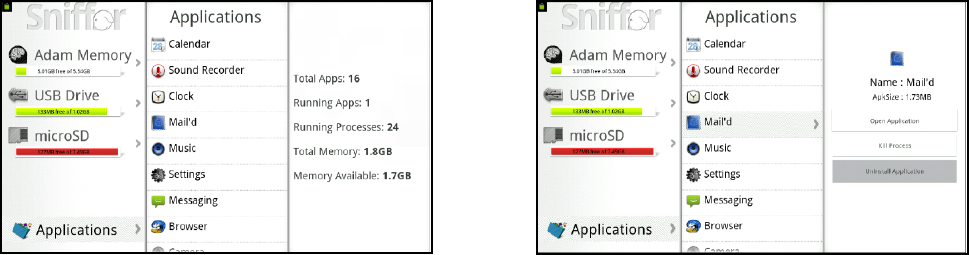

The Applications link is located at the bottom of the storage options panel. This will display the list
of all installed applications in the panel. The list will display the App Logo, the name of the App and
if the app is running, ‘Running’ is displayed. Tapping on an app will display the details of the app
like the name of the app, the size occupied by the app. Also provides options to open the app kill
the app and uninstall the app.
Pg:23
Notion Ink ADAM User Manual: Snier
The full-screen view will have storage options (Adam Memory, USB Drive, mi-
croSD) listed in the left panel, along with Applications link at the bottom of the panel. Ini-
tially, Sniffer will show the break-down of Adam Memory, in the space available to the
right of the storage options panel. This break down will graphically show the memory oc-
cupied by Audio, Video, Images and other les along with the free memory available. Tap-
ping on Audio, Video, Images and Others will open a panel with all the les of that category.
Selecting a Storage option will open the contents of the storage in the panel towards its
right. Similarly, selecting a folder will open the contents of the folder in a panel towards
the right. Any number of panels can be opened basing on the number of sub-folders. Only
three panels can be displayed at one time. So as new panels keep coming, the older panels
keep getting pushed towards the left, these older panels or folders can be accessed by drag-
ging the panels towards the right and vice-versa for accessing the panels towards the right.
Full-Screen View
Browsing through Folders:
Pg:24
Notion Ink ADAM User Manual: Snier
The Panels will list all the les and folders. Tapping on a le will open a new panel towards the
right which is the Preview Panel. On the top section of the panel, the le preview is displayed. The
preview is available only if there is an app installed which can read the le. It also displays the
size of the le. The bottom of the preview panel will provide the list of all installed apps that can
open the le. Clicking on any of these apps will open the le. The Preview can be displayed only
for few le formats. For Images, the preview panel has an option to set the image as wallpaper.
Previewing and Opening Files
Sorting
Creating New Folder
To sort the les, folders, tap on the red token at the top of the panel in focus. This opens a rib-
bon that contains options to sort by Size, Alphabetical order or by Date Modied. The red token
will appear only on the panel which is in focus. To bring a panel into focus, tap on the panel.
To create a new folder, Tap on the Create New Folder Icon on the top right side of the focus panel.
This prompts for a folder name, once given a new folder in the focus panel with the given name
will be created.
Pg:25
Notion Ink ADAM User Manual: Snier
Creating New Folder
Delete, Info
Tapping on the menu button will allow multiple selections of the les and folders.
Once the desired le(s) or folder(s) is selected (to unselect a selected le or folder tap on
it again), tap on the copy/cut this enables the paste icon. Now choosing a destination fold-
er and tapping the paste icon will paste the selected content(s) into the destination folder.
Tapping on the options button and tapping on the delete icon will delete the se-
lected le(s)/folder(s) in the panel currently in focus. Similarly, clicking on the Info
icon will give the details of the le(s) or folder(s) selected in the panel that is in focus.
Pg:26
Notion Ink ADAM User Manual: Snier
Rename a Folder
Searching Folders / Files
Applications
To rename a le or folder, select the desired le or folder and tap on the ‘Rename’ Icon
under the menu. This prompts for a new le or folder name, once given the le or folder is re-
named with the new name.
Tapping on the search button or the search icon under the options menu will open a new
panel to the right of the last panel. The search panel has a search box along with options to lter
the search results based on le types as well as options to search across all folders or to restrict
the search to the current folder.
The Applications link is located at the bottom of the storage options panel. The list
will display the App Logo, the name of the App and if the app is running, ‘Running’ is displayed.
The list will display the App Logo and the name of the App. Tapping on an app will display the
details of the app like the name of the app, the size occupied by the app. Also provides options
to open the app kill the app and uninstall the app.
Pg:27
Notion Ink ADAM User Manual: Calendar
The top of the panel displays the current day in DAY, DATE MONTH, YEAR. Below the current
day, the currently selected calendar name is displayed. By default, the default calendar is loaded.
Month View:
Over the month view is the currently displayed month in MONTH YYYY format.
Also, two arrow icons are provided on either sides to display the previous and next months. The
month view has the day of the week on the top with each cell having the date. The current month’s
weekdays are represented with a light grey background. The weekdays from the previous and the
next month are represented in dark grey cells and with grey text for the date. The current month's
Sundays are displayed in orange and the next and previous months' Sundays are displayed in light
orange with grey text for the date. The currently selected day is displayed in a red colored cell. By
default, the current day is selected. The current day, when not selected, is displayed in a yellow
colored cell. Days with events are represented with the dates in red color and others in black color.
Agenda View:
Below the month view, the agenda view is displayed for a selected day in the
month view. The top row of the agenda view displays the selected day followed by the list of events
if any for that day of the selected calendar along with a link ‘add new event’ at the bottom of the
list. The event start time followed by event title are displayed for each event.
Switching between Calendars:
To switch between calendars, tap on the currently selected
calendar name. This loads the list of calendars available with the Calendar App. Tap on the desired
calendar name to select it. To get back to the calendar view, tap on the ‘Back’ button located on the
top of this view.
Selecting a Day:
To select a day of a month, use the arrow icons located above the month
view to navigate to the desired month. Now tap on the desired day to select it.
View Agenda of a Day:
Tapping on the desired day in the month view will display the agenda
(the list of events for that day) if any for the selected day of the selected calendar.
Add an Event:
To add an event on a particular day, select the day and tap on the ‘Add an
Event’ link located at the bottom of the agenda view. This launches the full-screen app displaying
the ‘Add Event’ View where a new event can be added on the selected date.
Select an Event:
Tapping on an event will open the full-screen view in the agenda mode dis-
playing the selected event’s details.
CALENDAR
Panel View
Pg:28
Notion Ink ADAM User Manual: Calendar
The full screen view will display the 12 months of the year and 5 days of a week beneath the
list of months horizontally. The current year is displayed to the extreme left over the months list
and the next year is displayed to the extreme right in the same row. If launched from the ‘Launch
Application’ link, no day is selected but the current day is in the center of the display. Each Date will
have the events on that day listed to the right of the day. The maximum number of events would
be limited to two. If more than two events exist for a day, the count of the rest of the events is
displayed. The top of the view houses an icon to add a new event, current date, selected calendar
name and a link to switch to month view.
Current Day:
The current year, month and day are always displayed in yellow color.
Selected Day:
The selected year and month are displayed in red while the selected day is
always at the center of the display with the agenda view below it.
Viewing Agenda:
Selecting the desired day by scrolling through the list of days and tapping
on a day will display the list of events if any for the day under the calendar that has been selected.
If there are no events for the selected day, a button ‘Add an Event’ is displayed. If there are events,
the start time and event title are displayed.
Viewing Event Details:
Upon selecting the desired day, the agenda view displays the list of
events for the day of the selected calendar. Tapping on the desired event will select the event. This
displays the expanded view of the event with a red colored background; the selected event dis-
plays 'start time', 'event title' followed by 'event description' and 'Location'. The selected event also
provides options to 'Edit' or 'Delete the Event' with icons to the right of the expanded event view.
Pg:29
Notion Ink ADAM User Manual: Calendar
Add/Edit Event View:
This view displays columns to choose the details from the lists in the
columns to create the event. The order of the columns is ‘Event title’, ‘Contacts’, ‘Year’, ‘Month’,
‘Day’, ‘Reminder’ option, ‘Event Timings’, ‘Notes’, ‘List of calendars to sync with’ and options to ‘cre-
ate the event’, ‘cancel’ or ‘switch to standard view’.
Selecting an Event Title:
By default, there are 13 event tiles listed which can be selected by
tapping on or scrolling the list to bring the desired event title to focus. At the bottom of the list is a
‘+’ button. Tapping on it will prompt the user to add a custom event title. Such custom event titles
can be edited or deleted by long pressing the event title.
Selecting Contacts:
If there is any account that is already setup with ‘Sync Accounts’ under
settings, contacts from that account will be displayed. If there are no synced accounts, no contacts
are displayed. Tapping on the ‘+’ icon at the bottom will bring up the ‘Add New Contact’ view. When
new contact details are added, the contact is displayed in the contacts list. Multiple contacts can
be chosen by tapping on the desired contacts to select them.
Setting Reminder:
The reminder option is defaulted to 15 minutes before the event starts.
This can be changed by tapping on the drop-down menu which displays an overlay to choose the
desired time before the event to set the reminder for.
Setting Event Time:
Event time can be set by tapping on the ‘From’ and ‘To’. This displays the
time picker which is set by default to the current time for ‘from’ and an hour past the start time
for ‘to’. The time picker displays time in 24hrs format. Setting the ‘All Day Event’ option will set the
time as from 00:00 to 23:59. By default, if no time is selected and the ‘Create’ button is tapped on,
the event timings are set from 09:00 to 10:00.
Adding Event Details:
Any event details can be added in the notes section by tapping on
the note which brings up the keyboard to type in any event details.
Selecting Calendars to Sync with:
List of all the calendars added are displayed and multiple
selection can be done by tapping on the desired calendars one after the other. Sync-able calen-
dars are displayed in yellow color while local calendars are displayed in grey color. By default,
the selected calendar from the ‘Agenda’ View will be selected. On selecting a sync-able calendar,
options to make the event private and send emails to the invitees are displayed.
Adding an Event:
To add a new event, the user can select the desired day and click on the
‘Add an Event’ link at the bottom of the agenda view. This displays the ‘Add Event’ View with the
year, month and day already set to the details of the chosen day from the agenda view. Also,
tapping on the ‘Add an Event’ icon located at the top left corner of the display brings up the ‘Add
an Event’ View with the year, month and day set to the details of the current day. Tapping on the
‘Create’ button will create the event. Tapping on ‘Cancel’ will cancel the event creation.
Pg:30
Notion Ink ADAM User Manual: Calendar
Editing an Event:
To edit an event, choose the event and tap on the 'Edit' icon. This brings
up the 'Add Event' View with the details of the event pre-populated. Now any desired changes
can be made to edit the event and tapping on ‘Update’ will make changes to the event.
Deleting an Event:
Once the desired event is selected, tapping on the 'Delete' icon will
prompt the user for conrmation to delete the event. Once conrmed, the event will be deleted.
Navigating to Current Day:
Tapping on the current day at the top of the 'Agenda View' will
automatically display the agenda for the current day.
Switching between Calendars:
To switch between calendars, tap on the currently displayed
calendar. This brings up the list of calendars with a link 'Add a new Calendar'. Tapping on a calen-
dar will display the calendar. The synced calendars are displayed in yellow.
Adding/Deleting Local Calendar:
Tapping on the ‘Add new calendar’ link at the bottom
of the list of calendars will prompt the user for the calendar name. Once the calendar name is
given, a new local calendar is created. Any local calendar, except the ‘Default’ calendar, can be
edited or deleted by long pressing on the calendar name.
Adding/Deleting Sync-able Calendar:
Creation or deletion of a new sync-able calendar can
only be done from Accounts and Sync under Settings.
Switching to Month View:
Tapping on the month view icon at the top right corner of the
display will bring up the month view. The current selected month in the Agenda view will be
displayed. Using the two arrow button at either ends of the month view will display the previous
or next month. The current selected month’s weekday cells are colored white, while the rest are
colored in grey. The weekends are colored in light grey. The current day cell is colored in yellow.
Selecting a day:
Tapping on the desired day selects the day, this is reected with a color
change of thee cell to red. If there any events on the selected day an overlay displays the list of
events which are scrollable.
Selecting an Event:
Upon selecting a desired day with events, tap on the desired event.
This switches to the Agenda view with the selected day and event from the Month View.
Switching to Month View:
Tapping on the link ‘Switch to Agenda View’ will display the
agenda view.
Pg:31
Notion Ink ADAM User Manual: Calendar
Setting up Syncable Calendar
To set-up a syncable calendar, the account has to be added manually under ‘Accounts &
Sync Settings‘. Tap on ‘Add Account‘ and select ‘Corporate‘ (Any email account can be added includ-
ing free email service providers like Gmail and Yahoo)and enter the email address and password.
Submitting the details is followed by Server Settings, where details of the Domain\Username,
Password and Server are pre-populated. If the email is hosted by a free email service provider like
Gmail or Yahoo, do not make any changes to the ‘Domain\Username’ eld. If the domain is not
from a free email service provider, input the domain address. For the ‘Sever‘ eld please enter the
email server or contact your email service provider or the IT Technician for the server address. On
the next screen choose what items are to be synced from the account. To nish the set-up, enter
the name of the account. The syncable calendars are displayed in yellow on the calendar.
Pg:32
Notion Ink ADAM User Manual: Canvas
The Panel View will have an Easel with the board on the easel displaying the most recently
edited image. Clicking on this image will open Canvas in full-screen mode with the image dis-
played. At the bottom of the panel, the options ‘New’ and ‘Load’ are provided. Clicking on ‘New’
opens the Canvas in full-screen view with a new empty white canvas. Tapping on ‘Load’ will display
options to select an image either from ‘Gallery’ or from ‘Sniffer’. Upon selecting an image, the full-
screen view opens with the selected image.
Canvas
Panel View
Full-Screen View
The bottom of the display houses the ‘Tool Bar’. In the full-screen view, initially a mode
has to be chosen from ‘Paint’, ‘Edit’ and ‘Text’. Also, a ‘Menu’ option is provided at the extreme
left of the screen. Selecting this menu will display the options - ‘Set As Wallpaper’, ‘Save’, ‘New’
and ‘Load’.
Pg:33
Notion Ink ADAM User Manual: Canvas
Tapping on menu at any point will bring up four options – Save, Load, New, Set as Wallpaper.
Save:
Tapping ‘Save’ will prompt for a File name. Once the le name is given the image
will be saved. This action also checks if all the layers are merged with the background image and
prompts the user for permission to merge before saving.
Load:
Tapping on ‘Load’ will prompt the user to choose an image le through ‘Gallery’ or
‘Sniffer’. Upon selecting a le, the image is loaded onto the canvas and the modes menu is dis-
played to choose a mode.
New:
Tapping on ‘New’ will load a new empty white canvas.
Set as Wallpaper:
Tapping on ‘Set as Wallpaper’ will set the current image as a wallpaper.
This action also checks if all the layers of the image are merged with the background image and
prompts the user for permission to merge before setting as wallpaper.
Menu
Tool bar
Switching Modes
The tool bar has ‘Menu’ button to the extreme left and ‘Color Palette’ to the extreme right
(except for ‘Edit” mode). At the center, the current mode is displayed.
To switch between modes, tap on the current mode. This brings up the modes list to choose
from with the current mode marked by a black dot. Tapping on one of the modes will enable that
mode. There are three modes – ‘Paint’, ‘Edit’ and ‘Text’.
Pg:34
Notion Ink ADAM User Manual: Canvas
There are three editable layers, namely Layer 1, Layer 2 and Layer 3. The image layer is at
the bottom of all the editable layers. This is not editable and when any changes are merged they
become part of the image layer and then cannot be edited.
Selected Layer:
A selected layer is represented with an orange background. Selecting an
invisible layer will make it visible automatically.
Toggle Visibility of a Layer:
Each editable layer can be made visible or invisible by tapping
on the eye icon to the right of a layer. A grayed-out eye icon represents an invisible layer while a
normal eye icon represents visible layer. When an invisible layer is selected, it is automatically set
to visible.
Setting Order of Layers:
The order of the layers is Layer 3, Layer 2, and Layer 1 from top to
bottom. The ‘Up’ and ‘Down’ arrows provided in the Layers layout allows the user to set the order
of the layers on the canvas. Moving a layer to the top places that layer over the other layers on
the canvas. Similarly, moving a layer to the bottom places that layer the below other layers on the
canvas.
Merging 2 Layers:
The ‘Merge’ option located on the Layers layout will merge the selected
layer into the layer below it. To merge a layer into another layer, make sure that the destination
layer is below the source layer. To merge a layer with the background image, bring the layer below
the other layers and tap on merge. This action will merge the selected layer with the background
image and no more changes can be made to the content in the selected layer.
Merging all Layers:
The ‘Merge All’ option located on the Layers layout, will merge all layers
into the bottom layer. This also selects the bottom layer. To merge all layers with the background
image, tap ‘Merge All’ (merges all layers into the bottom layer). Tap on ‘Merge’ to merge the bottom
layer with the background image.
Deleting a Layer:
Tapping on the ‘Delete’ icon located on the Layer Label will delete the con-
tent present in the Layer.
Layers
Toolbar:
In paint mode, the tool bar displays ‘Current Layer’, ‘Undo button’, ‘Erase button’,
‘Fill button’ options between the ‘Menu’ and the ‘Mode’ buttons. Between the ‘Paint’ and the ‘Color
Palette’, three different brushes, ‘Opacity’ and ‘Size’ options are provided.
Paint
Pg:35
Notion Ink ADAM User Manual: Canvas
Brushes:
There are three types of brushes provided - ‘Circle’, ‘Square’ and ‘Blur’. These
brushes can be used to ‘Paint’, ‘Fill’ or ‘Erase’. Tapping on a brush will select the brush; this is indi-
cated by an orange background.
Opacity:
Tapping on the ‘Opacity’ option will bring up a slider allowing you to set the opacity
of the brush. The selected opacity is displayed over the Opacity link.
Size:
The size of a brush can be set by tapping on the ‘Size’ link. This brings up a slider to set
the size of the brush. The selected brush size is displayed over the Size link.
Color Palette:
The color palette shows four quick access colors. The color of the color pal-
ette is set to the currently selected color.
Switching Colors:
Tapping on the ‘Color Palette’ will display four quick access colors to
choose from. Tapping on a color will set the color. The selected color is represented with a border
around it. To change or select a new quick access color, tap on the ‘<’ icon. This will open a color
picker to choose a color. Now set the desired color by setting the white circle to the desired color
on the color picker. This color is replaced by the currently selected quick access color.
Draw:
To draw, choose a brush from the three brushes provided and make sure the desired
opacity, size and color are set. To ll space with a color, tap the ‘Fill’ button and make sure the de-
sired brush, size and color are selected. This draws on the selected Layer.
Erase:
To erase content, make sure the layer with that content is selected and choose the
desired brush type and set the size of the brush; choose ‘Fill’ if necessary. Now tap the ‘Erase’ icon
which enables the erase mode, this is indicated by an orange background. Now, the content can
be erased. To disable erase mode, click on the ‘Erase’ icon once again. This also erases any text
present in the selected layer.
Undo:
Tapping on ‘Undo’ will undo the most recent action in the selected layer.
When the ‘Text’ mode is chosen, by default the ‘Add Text’ option is active.
Toolbar:
In the text mode, the tool bar displays the ‘Current Layer’ and the ‘Erase’ buttons
between the ‘Menu’ and ‘Mode’ buttons. Between the ‘Text’ and the ‘Color Palette’ buttons, ‘Text’,
‘Text Effects’, ‘Opacity’ and ‘Size’ options are provided.
Text
Pg:36
Notion Ink ADAM User Manual: Canvas
Locked and Unlocked Text:
To ‘Lock text’, tap on the ‘√’ icon. This will lock all the text across
all layers. Any text that is not locked is unlocked. Once locked, no text can be unlocked.
Adding/Editing Text:
To add text to a selected layer, there should be no unlocked text on
that layer. To lock the text, tap the ‘√’ icon (Warning: This locks the text in all layers and cannot be
undone). Now tap the ‘Text’ link to bring up a text box to enter the text to be added to the canvas.
Options are also provided to choose font from ‘Droid Serif’ or ‘Droid Sans’ and to make the text
‘bold’, ‘italicized’, ‘underlined’ and ‘strike through’. The text is added to the canvas after tapping on
‘Done’. To edit unlocked text in a selected layer, tap on ‘Text’. This brings up a text box with the font
and style options. The text box is pre-populated with the text in that layer to edit.
Positioning Text:
While text is not Locked and the respective layer is selected, it can be lo-
cated anywhere on the canvas by tapping on the desired location.
Text Effects:
While the text is not Locked and the respective layer is selected, tapping on the
‘Text Effects’ will bring up four effects that can be applied to the text. To add an effect, tap on the
required effect. This action is reected on the text immediately. The selected effect is indicated by
an orange background. To make the text normal, click on the ‘Normal’ effect option. When there is
no unlocked text in the layer, any effect chosen will be applied to the text that is added next.
Opacity:
While the text is not Locked and the respective layer is selected, tapping on the
‘Opacity’ brings up the slider. Adjusting the slider to the desired level of opacity reects the chang-
es on the text available in the selected layer. When there is no unlocked text in the layer, any
change in opacity will be applied to the text that is added next.
Size:
While the text is not Locked and the respective layer is selected, tapping on the ‘Size’
brings up the slider. Adjusting the slider to the desired level reects the changes on the text avail-
able in the selected layer. By default, the size is set to 2px. When there is no unlocked text in the
layer, any change in the size will be applied to the text that is added next.
Erase:
Locked or unlocked text in a selected layer can be erased by choosing the ‘Erase’ icon,
and erasing. This erases any paint content present in the layer.
Color Palette:
The color palette shows four quick access colors. The color of the ‘Color Pal-
ette’ is set to the currently selected color.
Switching Colors:
Tapping on the ‘Color Palette’ will display the four quick access colors to
choose from. Tapping on a color will set the color. The selected color is represented with a border
around it. To change or select a new quick access color, tap on the ‘<’ icon. This will open a color
picker to choose a color. Now set the desired color by setting the white circle to the desired color
on the color picker. This color is replaced with the currently selected quick access color. To mini-
mize the color picker tap on the ‘>’ icon.
Deleting Text:
Tapping on the ‘X’ icon will delete the unlocked text in the selected layer. The
Locked text cannot be deleted.
Pg:37
Notion Ink ADAM User Manual: Canvas
Tapping on ‘Edit’ when mode options are displayed will merge all visible layers with the
background.
Toolbar:
The toolbar houses ‘Vertical Flip’, ‘Horizontal Flip’, ‘Crop’ and also ‘Revert’ between
‘Menu’ and ‘Edit’. The ‘Effects’, ‘Appearance’, ‘Adjustment’ and ‘Auto Correct’ options are provided
after ‘Edit’.
Edit
Flip Vertically: Tapping on the Vertical Flip icon will ip the image vertically.
Flip Horizontally: Tapping on the Horizontal Flip icon will ip the image horizontally.
Crop: To crop an image, tap on the ‘Crop button’, this hides the ‘Toolbar’ and displays the
crop box whose dimensions can be adjusted to the desired cropped content by tapping on an edge
and dragging it accordingly. This crop box also allows zooming in if the size of the box is reduced
to help crop smaller content more perfectly. Similarly, increasing the box dimensions will cause
zoom out. The position of the crop box can also be adjusted by holding the box and moving it to
the desired position. Once the crop box is set to the desired content, tapping on the ‘Done’ button
will crop the image. Tapping on the ‘Discard’ button will cancel the crop action.
Revert: The ‘Revert’ option will discard all edits made to the image.
Effects: Tapping on ‘Effects’ will bring up the effects that can be applied to the image. These
effects include – ‘Warm’, ‘Cool’, ‘Temperature’, ‘Colorize’, ‘Black and White’, ‘Grey Scale’, ‘Tint’ and
‘Sepia’. This list can be closed by tapping on the ‘Back’ icon present at the center of the list or by
tapping anywhere on the display. For ‘Temperature’, ‘Colorize’ and ‘Tint’, a horizontal slider is dis-
played to set the respective levels and the changes are reected on the image. The rest of the ef-
fects reect the change immediately upon tapping. To apply another effect, the current effect has
to be conrmed or canceled. To conrm the action, tap on the ‘Conrm’ icon. Similarly, to cancel
the action tap on the ‘Cancel’ icon.
Pg:38
Notion Ink ADAM User Manual: Canvas
Appearance:
Tapping on ‘Appearance’ will bring up three options – ‘Invert’, ‘Spotlight’ and
‘Emboss’. Tapping on ‘Invert’ inverts the colors on the image. Tapping on ‘Spotlight’ will display a
circular spot on the image with the rest of the image shaded. Also, a horizontal slider is provided
to adjust the diameter of the circular spotlight. The position of the spotlight can be adjusted by
holding the spotlight and dragging it to the desired position. Tapping on the ‘Emboss’ option will
emboss the edges of the image. Once any of the appearance options are made, they have to be
conrmed before applying any other change.
Adjustments:
Tapping on ‘Adjustments’ will bring up four options – ‘Contrast’, ‘Brightness’,
‘Sharpen’, and ‘Saturation’. Tapping on any of the options will display its current level of adjust-
ment on the horizontal slider. The horizontal slider can be used to adjust the level. By default, all
are set to 50. The changes can be conrmed by tapping on the ‘Conrm’ icon. The changes can be
discarded by tapping on the ‘Discard’ icon.
Auto Contrast:
Tapping on ‘Auto Contrast’ will automatically set the contrast level for best
visibility.
Pg:39
Notion Ink ADAM User Manual: Calculator
Calculator
Panel View
Full-Screen View
The Panel view allows for basic mathematical operations which include addition,
subtraction, multiplication and division. It also supports square, square root, and additive inverse
of a number. It includes other basic functions like clear display and backspace. The memory or
previous calculations are displayed on the top right side of the panel along with an option to clear
memory. Clicking on any result will copy the result to the clipboard. Just above the display on the
left is a button to open the full-screen calculator app.

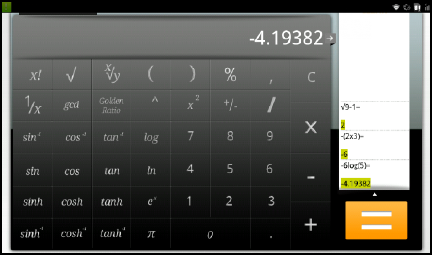

The full-screen calculator app supports more advanced calculations than the panel
app. These include factorial (X!, Ex: 6!), multiplicative inverse (1/X), trigonometric functions, loga-
rithmic functions, roots, exponential etc. Constants like pi and golden ratio are also included. The
right side of the screen displays the previous calculations and the list is scrollable. Clicking on any
result will copy the result to the clipboard. The ability to place the cursor anywhere will allow for
easier calculations. Other keys like ‘(‘, ’)’ and ‘,’ are provided for supporting functions. Other func-
tions like exponential (^) are also included.
Trigonometric Functions:
Tap on the desired trigonometric function and enter the value
for which the trigonometric function has to be applied.Close the bracket and press ‘=’, to view the
result. Ex: Cos (45) = 070710677
GCD:
Tap on the ‘GCD’, enter the two numbers separated by a comma and end it with a clos-
ing bracket before tapping on ‘=’ to view the result. Ex: GCD(7,4) = 1
Factorial:
Enter the number, tap on X! and press ‘=’ to view the result. Ex: 7! = 5040
Square Root:
Tap on the square root ‘√’ button and enter the number. Tap on ‘=’ to view re-
sult. Ex: √625 = 25
Xth root Y:
Enter the root (x) value, tap the X√Y and then enter the base (Y) value. Tap ‘=’ to
view result. Ex:4√5 = 1.4953488
Pg:40
Notion Ink ADAM User Manual: Calculator
Percentage:
Enter the value for which percentage has to be calculated, tap on the Percent-
age (%) button and enter the value to which the percentage has to be calculated. Now tap ‘=’ to
view results. Tapping on ‘=’ without entering the value to which the percentage has to be calculated
takes a default value of 100. Upon Tapping on the ‘%’ icon rst, the cursor can be placed at the
desired positions to enter the values. Ex: 75%90 = 67.5; 38% = 0.38
Multiplicative Inverse:
Enter the value, tap on multiplicative inverse (1/x) and tap on ‘=’ to
display the result. Also, tapping on the multiplicative inverse button rst and placing the cursor in
between the brackets will allow the user to enter the value. Close the bracket and tap ‘=’ to display
the result.
Logarithmic Functions:
Tap on a logarithmic function (Log or ln) and enter the value fol-
lowed by a closed bracket. Tap on ‘=’ to view the result.
Power:
Enter the base followed by the power button (^) and the power value. Tap on the ‘=’
button to view the result. Ex: 5^8 = 390625
Exponential:
Tap on the exponential (ex) button which is displayed as e^ and now enter the
‘X’ value. Tap on ‘=’ to view the result. Ex: e^4 = 54.59815
Nan:
Nan stands for Not A Number, when out of bound values or indeterminate forms are
entered Nan is shown.
Innity:
For operations which hit innity text ‘Innity’ is displayed.
Invalid or Incomplete Operations
: For invalid or incomplete operations a toast is displayed.
Error Handling
