January 2015 DocID025833 Rev 7 1/63
1
UM1724
User manual
STM32 Nucleo boards
Introduction
The STM32 Nucleo board (NUCLEO-F030R8, NUCLEO-F070RB, NUCLEO-F072RB,
NUCLEO-F091RC, NUCLEO-F103RB, NUCLEO-F302R8, NUCLEO-F303RE, NUCLEO-
F334R8, NUCLEO-F401RE, NUCLEO-F411RE, NUCLEO-L053R8, NUCLEO-L073RZ,
NUCLEO-L152RE, NUCLEO-L476RG) provides an affordable and flexible way for users to
try out new ideas and build prototypes with any STM32 microcontroller lines, choosing from
the various combinations of performance, power consumption and features. The Arduino™
connectivity support and ST Morpho headers make it easy to expand the functionality of the
Nucleo open development platform with a wide choice of specialized shields. The STM32
Nucleo board does not require any separate probe as it integrates the ST-LINK/V2-1
debugger/programmer. The STM32 Nucleo board comes with the STM32 comprehensive
software HAL library together with various packaged software examples, as well as direct
access to mbed online resources at mbed.org.
Figure 1. STM32 Nucleo board (1)
1. Picture not contractual.
www.st.com
Contents UM1724
2/63 DocID025833 Rev 7
Contents
1 Ordering information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2 Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3 Quick start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3.1 Getting started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3.2 System requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
4 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
4.1 Hardware configuration variants . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
5 Hardware layout and configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
5.1 Cutable PCB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
5.2 Embedded ST-LINK/V2-1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
5.2.1 Drivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
5.2.2 ST-LINK/V2-1 firmware upgrade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
5.2.3 Using the ST-LINK/V2-1 to program/debug the STM32 on board . . . . 15
5.2.4 Using ST-LINK/V2-1 to program/debug an external STM32 application 15
5.3 Power supply and power selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
5.3.1 Power supply input from the USB connector . . . . . . . . . . . . . . . . . . . . . 16
5.3.2 External power supply inputs: VIN and EV5 . . . . . . . . . . . . . . . . . . . . . 17
5.3.3 External power supply input: + 3V3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
5.3.4 External power supply output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
5.4 LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
5.5 Push buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
5.6 JP6 (IDD) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
5.7 OSC clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
5.7.1 OSC clock supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
5.7.2 OSC 32 kHz clock supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
5.8 USART communication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
5.9 Solder bridges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
5.10 Extension connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
5.11 Arduino connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
DocID025833 Rev 7 3/63
UM1724 Contents
3
5.12 STMicroelectronics Morpho connector . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
6 Mechanical drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
7 Electrical schematics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
8 References . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
9 Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
List of tables UM1724
4/63 DocID025833 Rev 7
List of tables
Table 1. Ordering information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Table 2. ON/OFF conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Table 3. Jumper states . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Table 4. Debug connector CN4 (SWD) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Table 5. JP1 configuration table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Table 6. External power sources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Table 7. Power-related jumper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Table 8. +3.3V eternal power source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Table 9. Solder bridges. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Table 10. Arduino connectors on
NUCLEO-F030R8, NUCLEO-F070RB, NUCLEO-F072RB, NUCLEO-F091RC. . . . . . . . . 33
Table 11. Arduino connectors on NUCLEO-F103RB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Table 12. Arduino connectors on NUCLEO-F302R8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Table 13. Arduino connectors on NUCLEO-F303RE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Table 14. Arduino connectors on NUCLEO-F334R8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Table 15. Arduino connectors on NUCLEO-F401RE, NUCLEO-F411RE . . . . . . . . . . . . . . . . . . . . . 40
Table 16. Arduino connectors on NUCLEO-L053R8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Table 17. Arduino connectors on NUCLEO-L073RZ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Table 18. Arduino connectors on NUCLEO-L152RE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Table 19. Arduino connectors on NUCLEO-L476RG . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Table 20. STMicroelectronics Morpho connector on NUCLEO-F030R8 . . . . . . . . . . . . . . . . . . . . . . 47
Table 21. STMicroelectronics Morpho connector on NUCLEO-F070RB . . . . . . . . . . . . . . . . . . . . . . 48
Table 22. STMicroelectronics Morpho connector on
NUCLEO-F072RB, NUCLEO-F091RC, NUCLEO-F303RE, NUCLEO-F334R8. . . . . . . . . 49
Table 23. STMicroelectronics Morpho connector on NUCLEO-F103RB . . . . . . . . . . . . . . . . . . . . . . 50
Table 24. STMicroelectronics Morpho connector on NUCLEO-F302R8 . . . . . . . . . . . . . . . . . . . . . . 51
Table 25. STMicroelectronics Morpho connector on NUCLEO-F401RE,
NUCLEO-F411RE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Table 26. STMicroelectronics Morpho connector on
NUCLEO-L053R8, NUCLEO-L073RZ, NUCLEO-L152RE . . . . . . . . . . . . . . . . . . . . . . . . . 53
Table 27. STMicroelectronics Morpho connector on NUCLEO-L476RG . . . . . . . . . . . . . . . . . . . . . . 54
Table 28. Document revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
DocID025833 Rev 7 5/63
UM1724 List of figures
5
List of figures
Figure 1. STM32 Nucleo board (1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

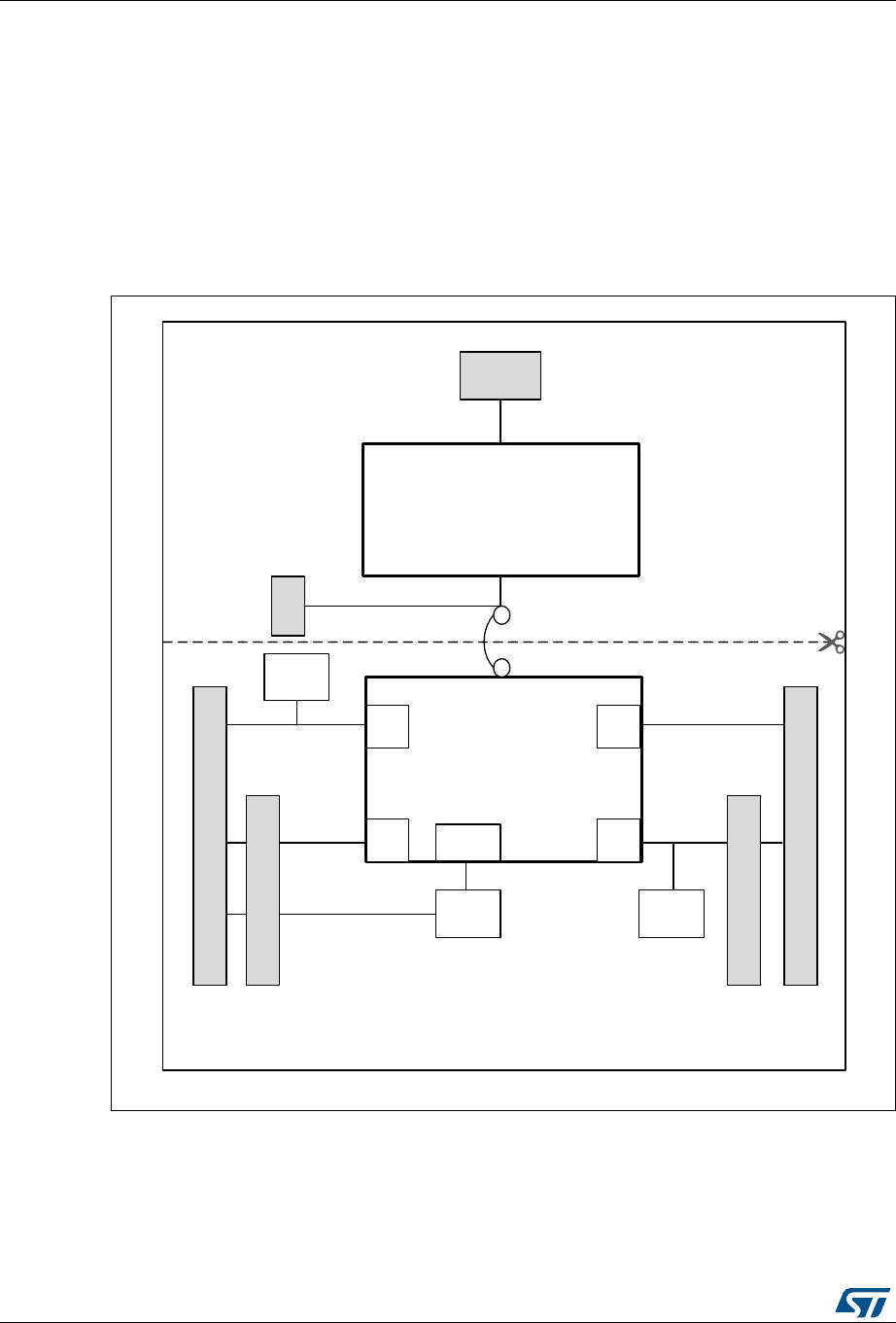

Figure 2. Hardware block diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

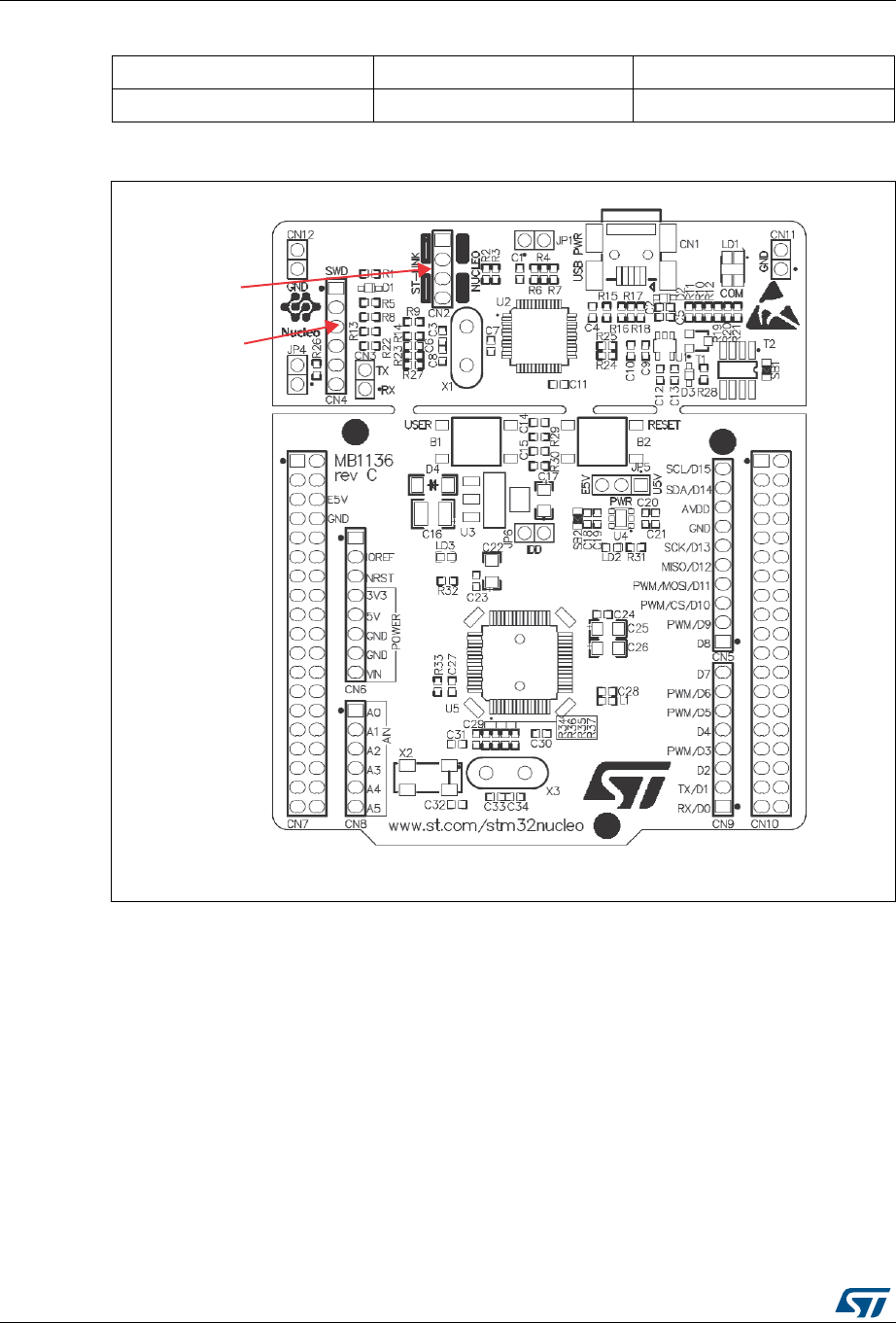

Figure 3. Top layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Figure 4. Bottom layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Figure 5. Typical configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Figure 6. Updating the list of drivers in Device Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Figure 7. Connecting the STM32 Nucleo board to program the on-board STM32 . . . . . . . . . . . . . . 15
Figure 8. Using ST-LINK/V2-1 to program the STM32 on an external application . . . . . . . . . . . . . . 16

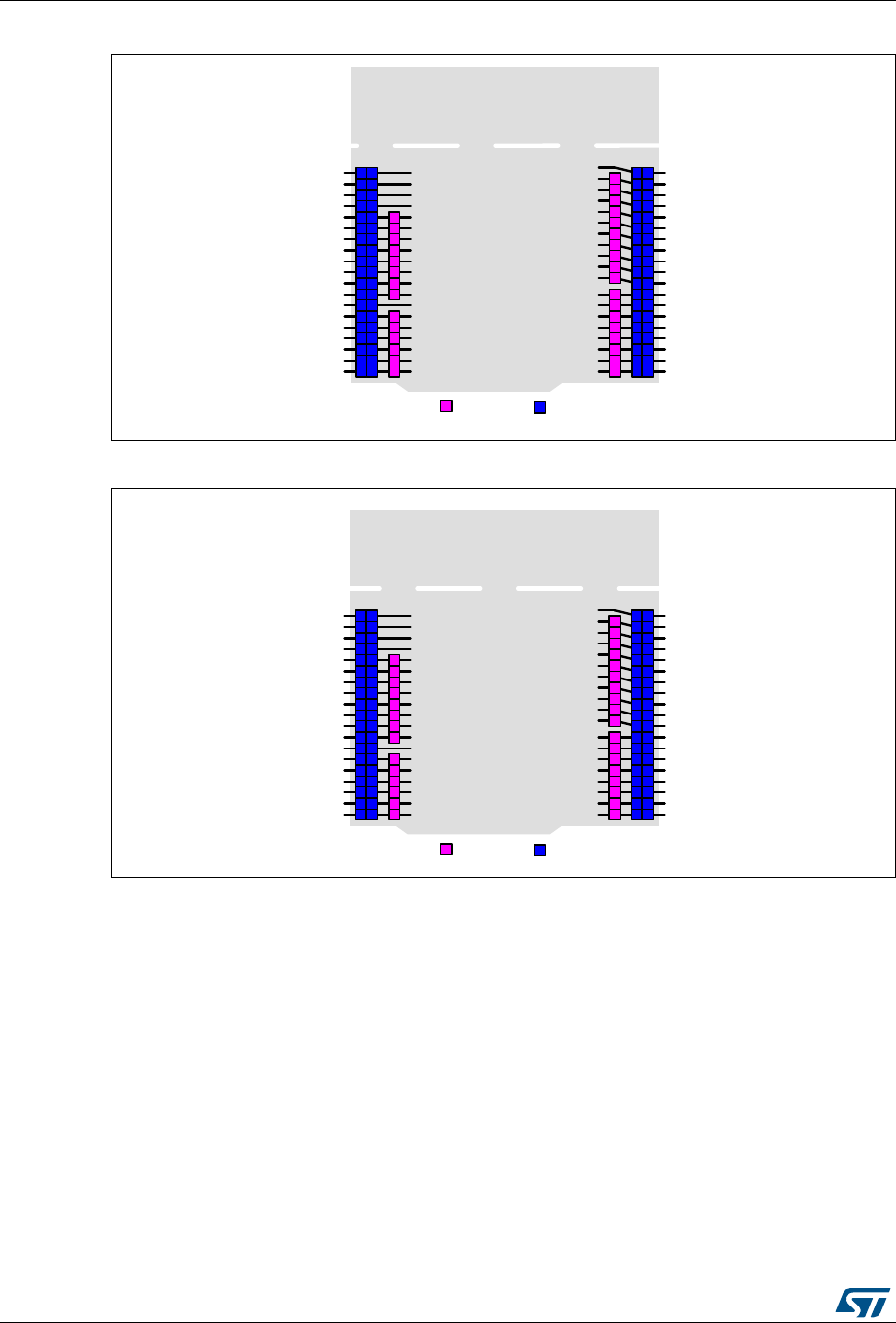

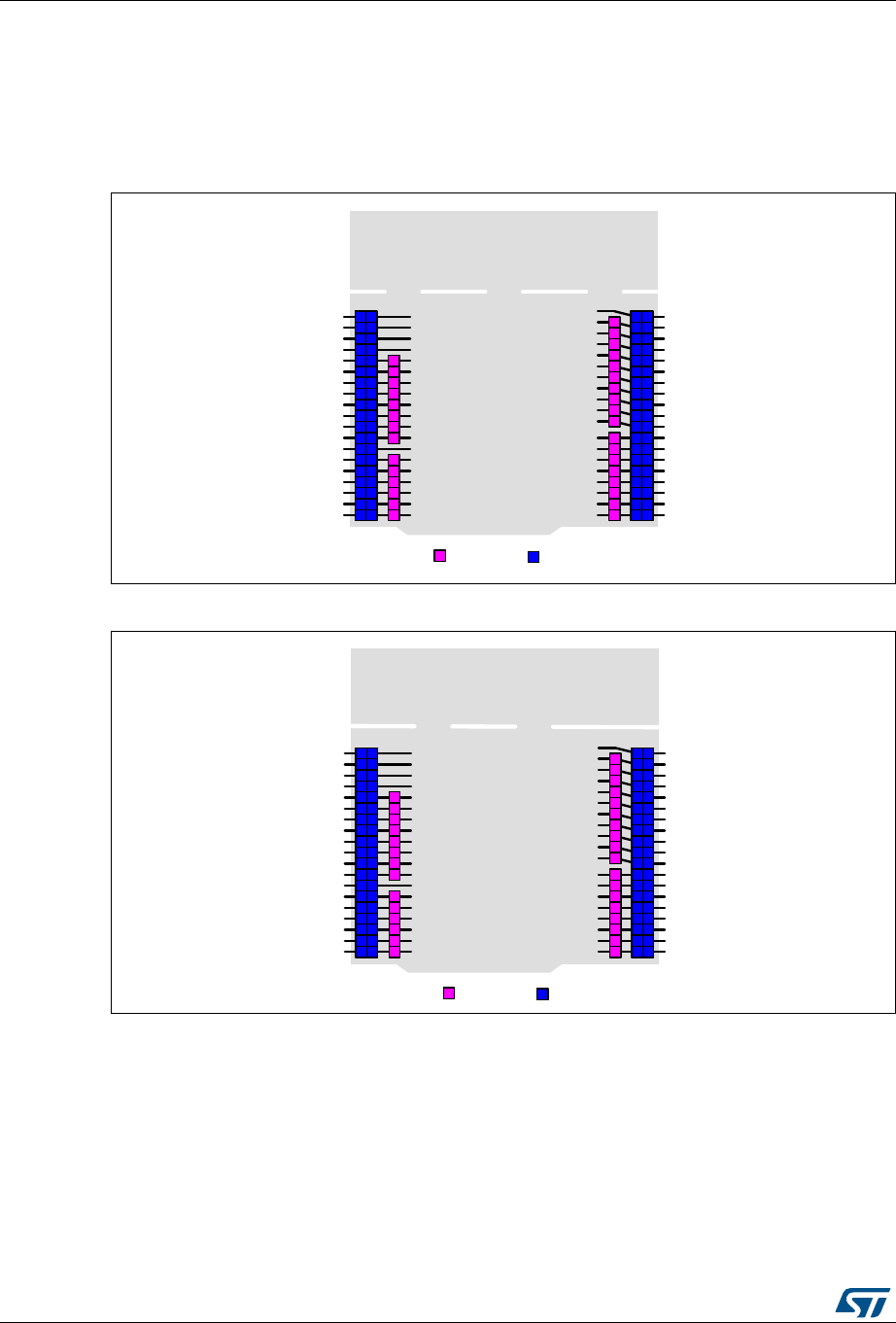

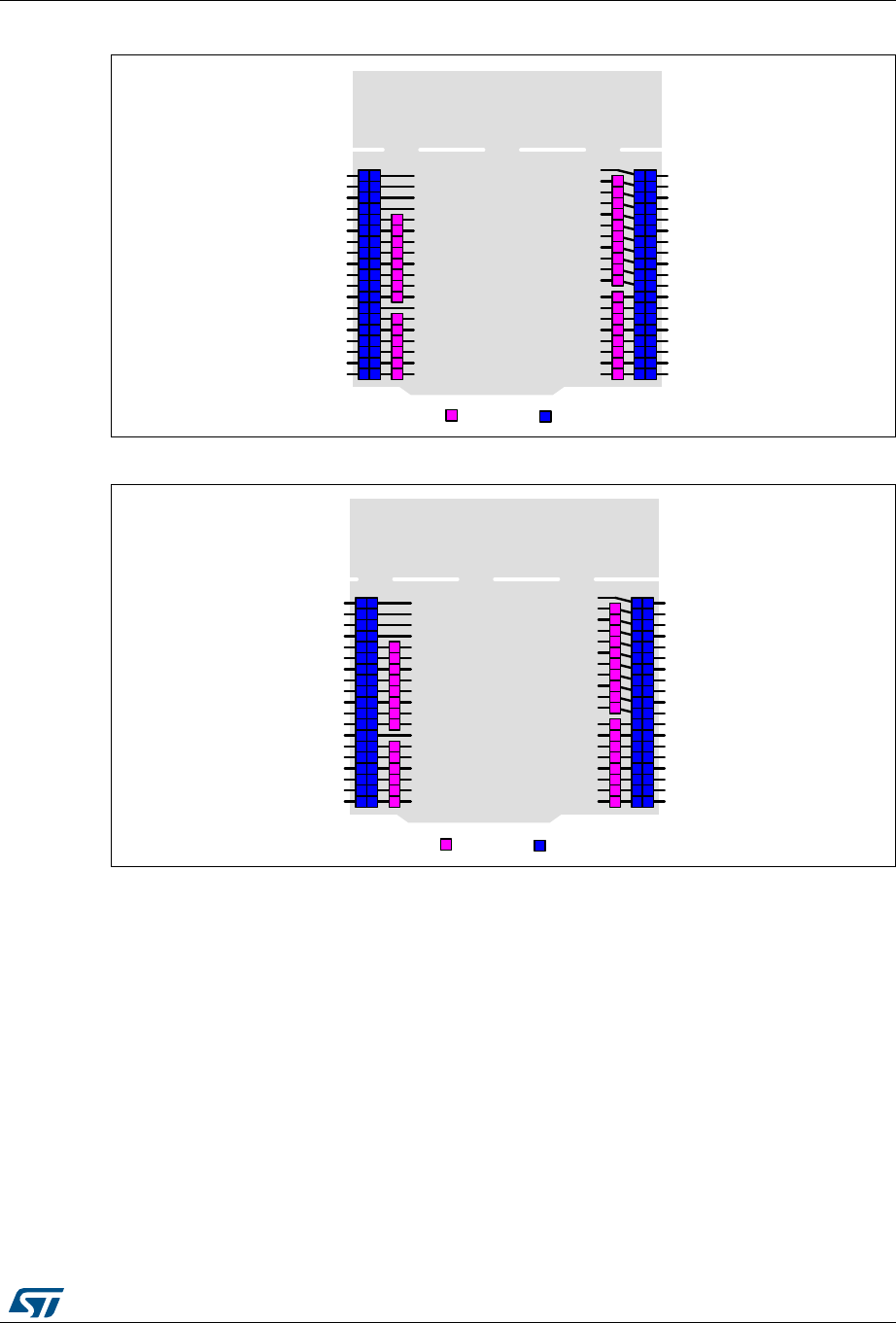

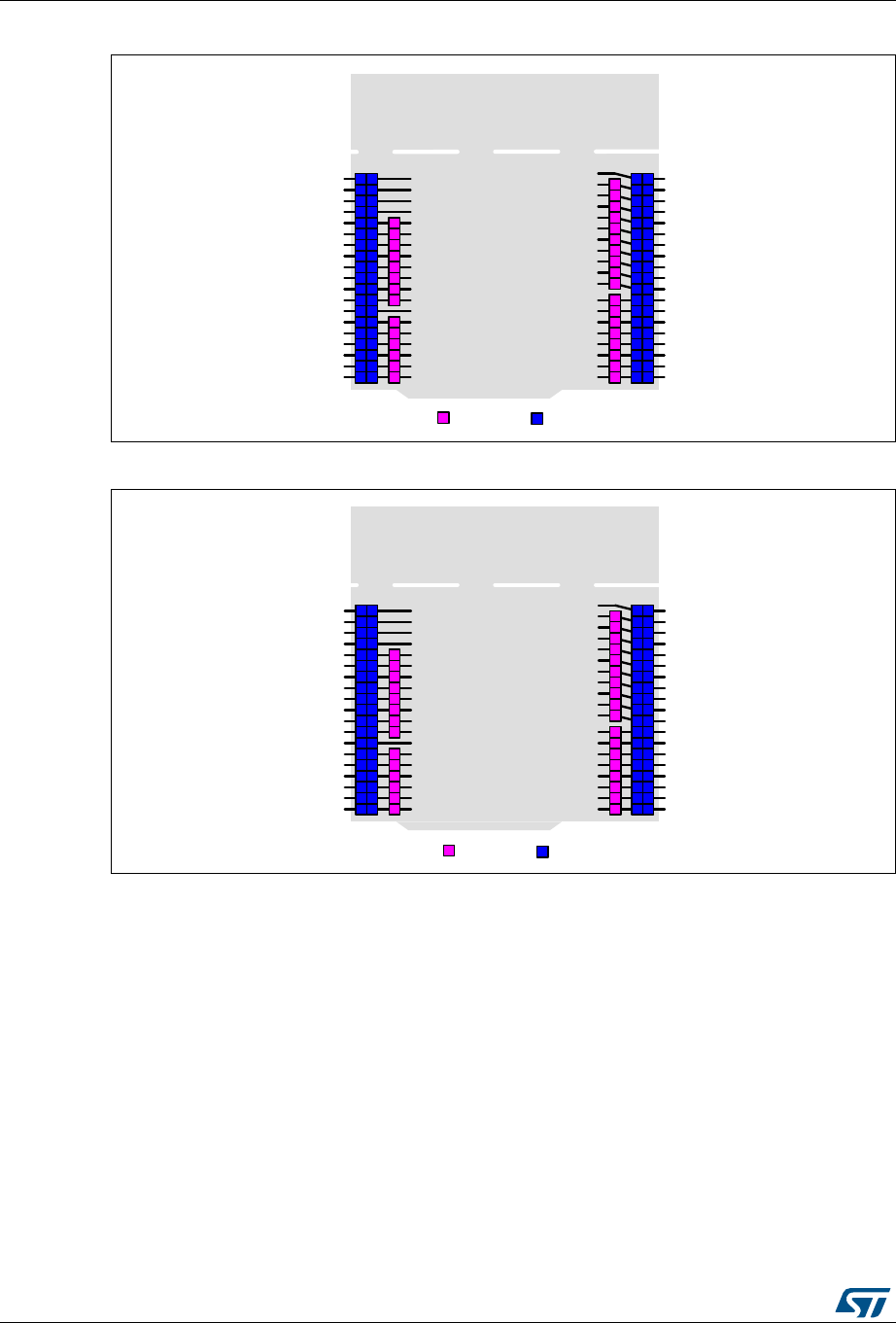

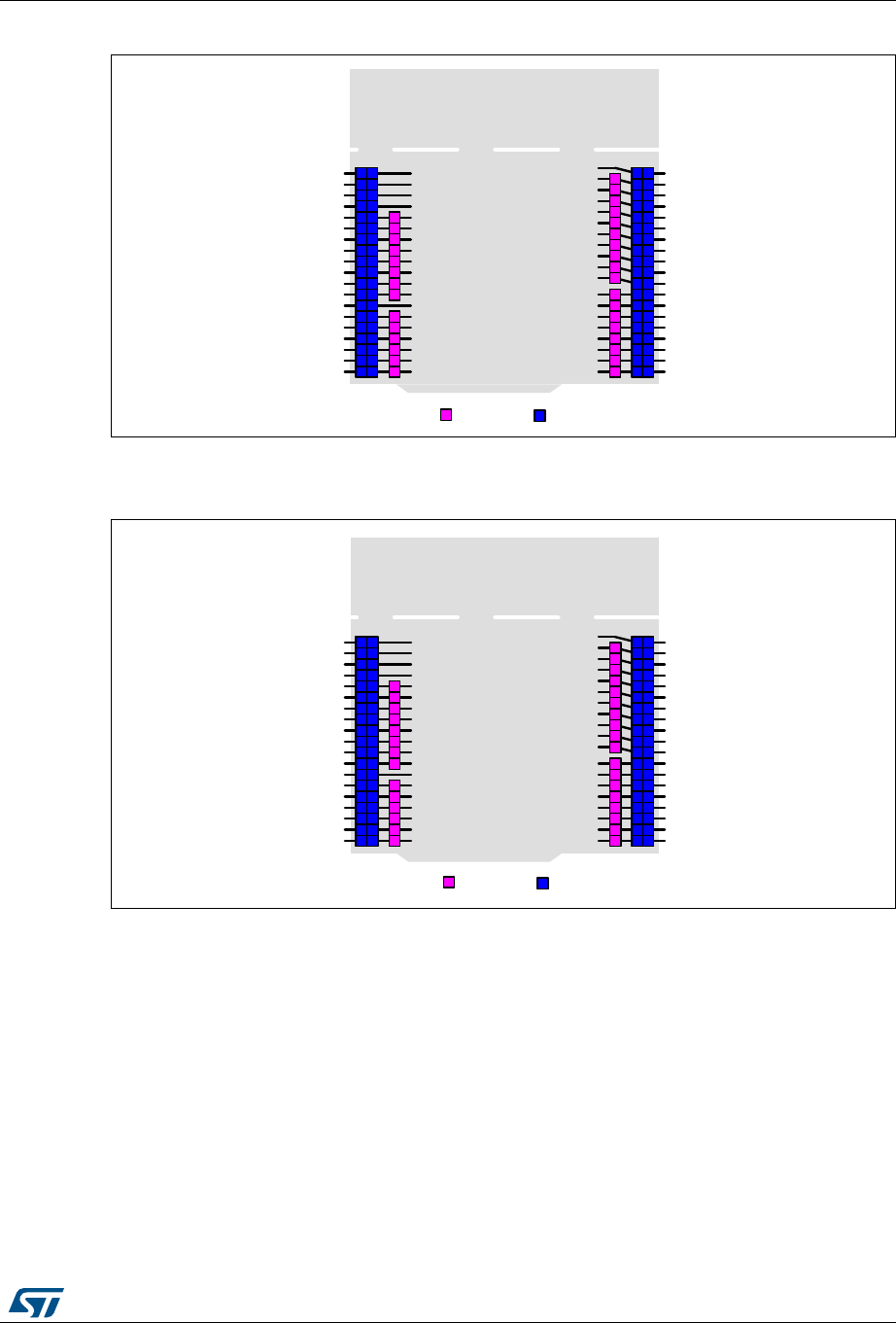

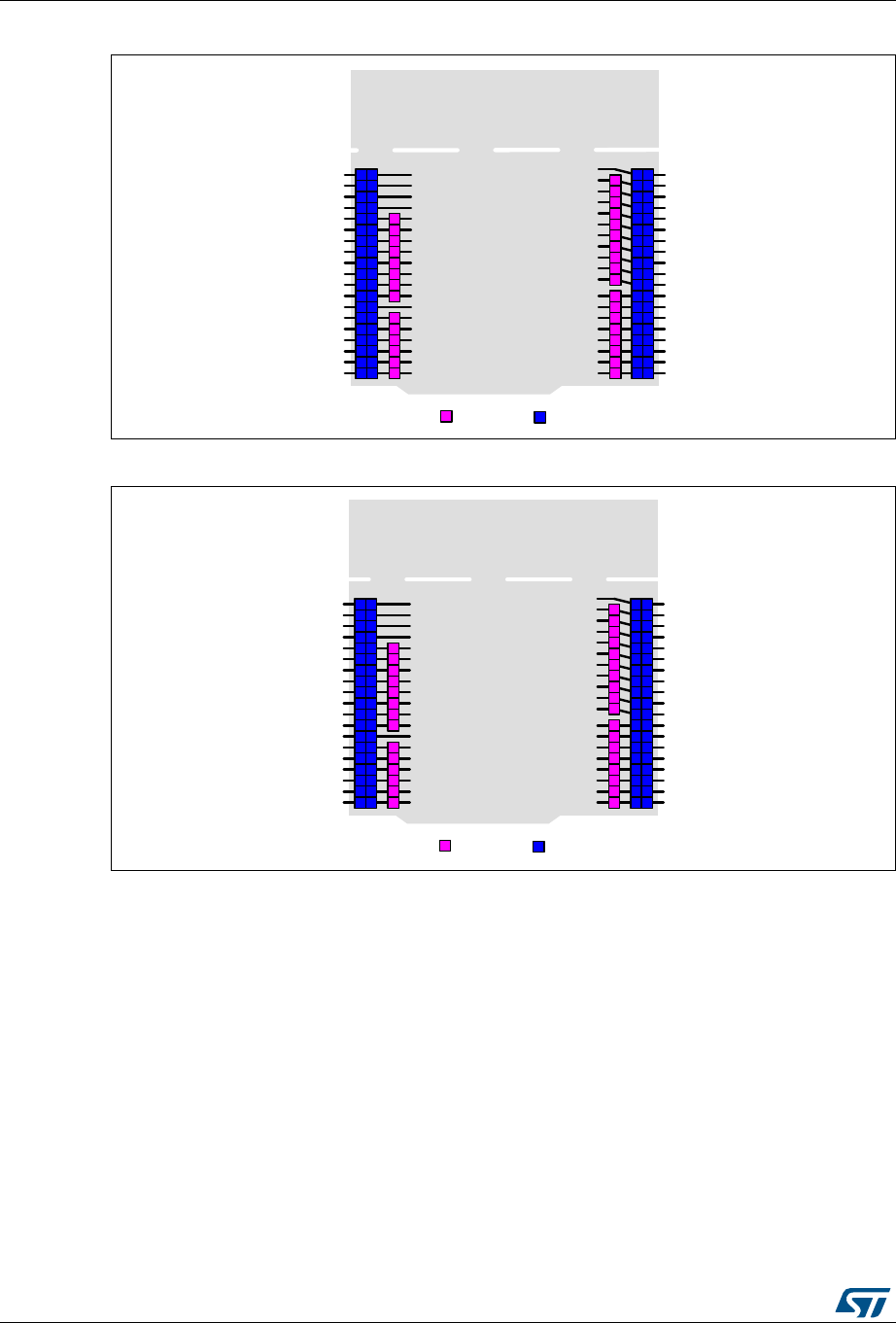

Figure 9. NUCLEO-F030R8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Figure 10. NUCLEO-F070RB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Figure 11. NUCLEO-F072RB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Figure 12. NUCLEO-F091RC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Figure 13. NUCLEO-F103RB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Figure 14. NUCLEO-F302R8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Figure 15. NUCLEO-F303RE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Figure 16. NUCLEO-F334R8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Figure 17. NUCLEO-F401RE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Figure 18. NUCLEO-F411RE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Figure 19. NUCLEO-L053R8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Figure 20. NUCLEO-L073RZ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Figure 21. NUCLEO-L152RE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Figure 22. NUCLEO-L476RG . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Figure 23. STM32 Nucleo board mechanical drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

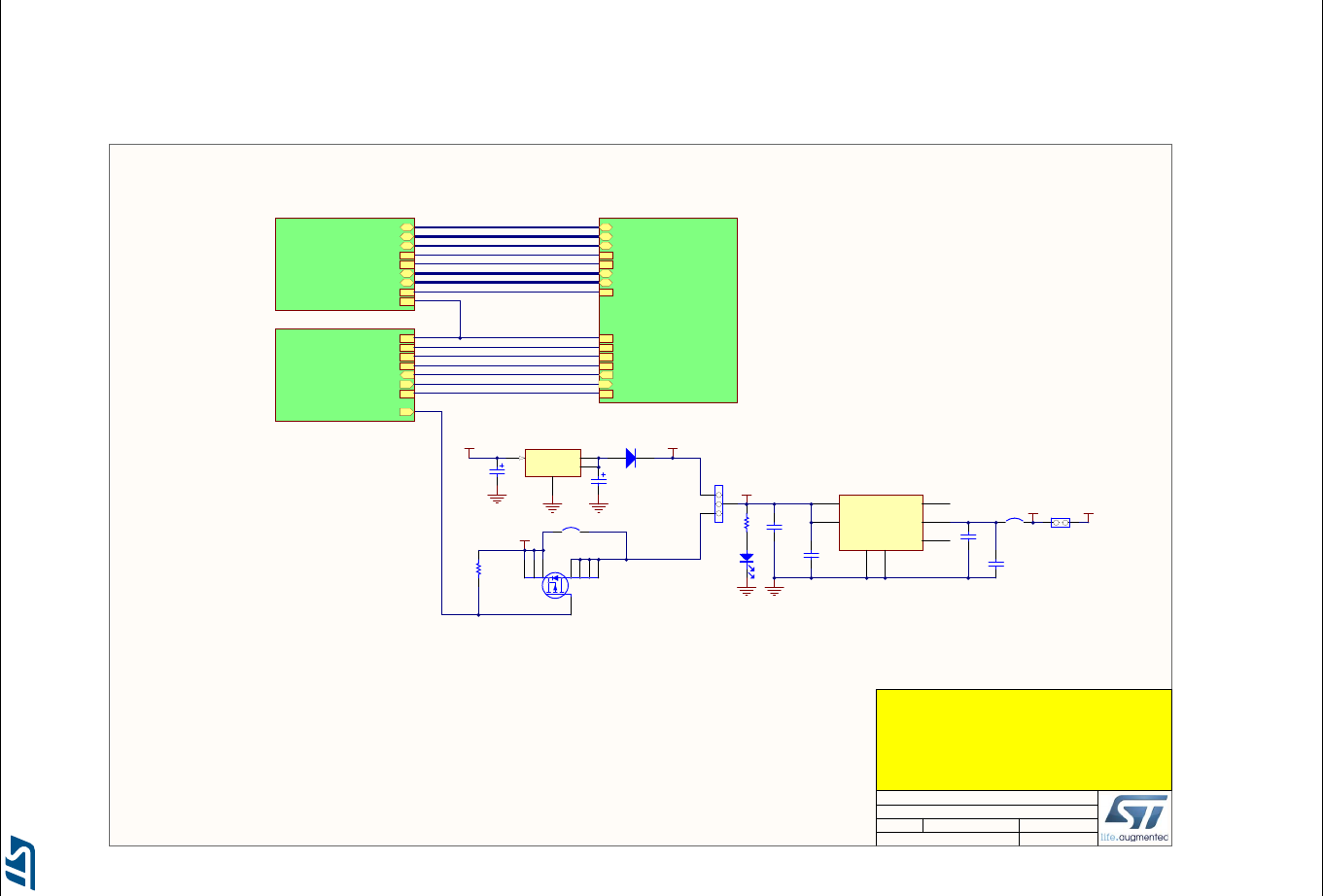

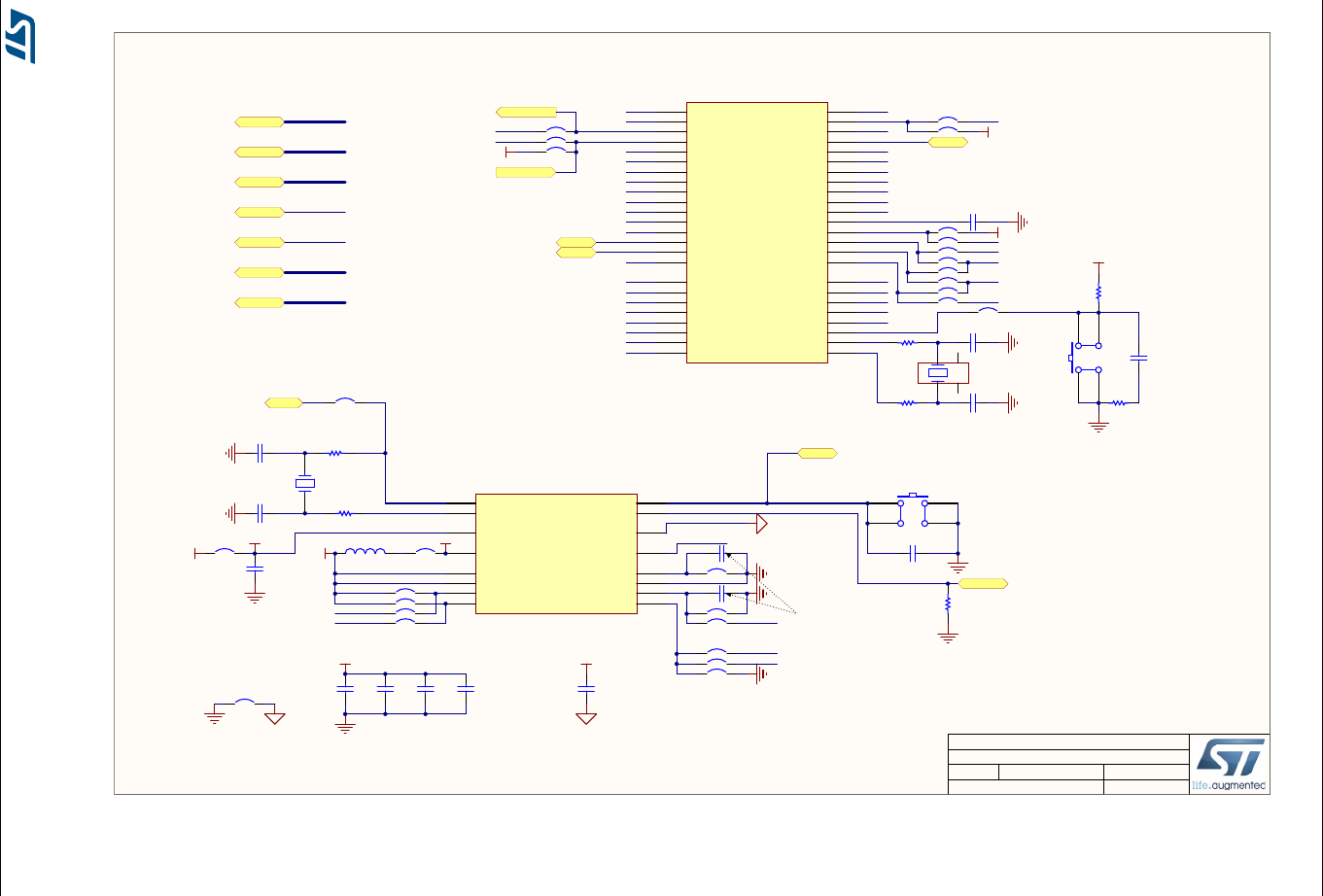

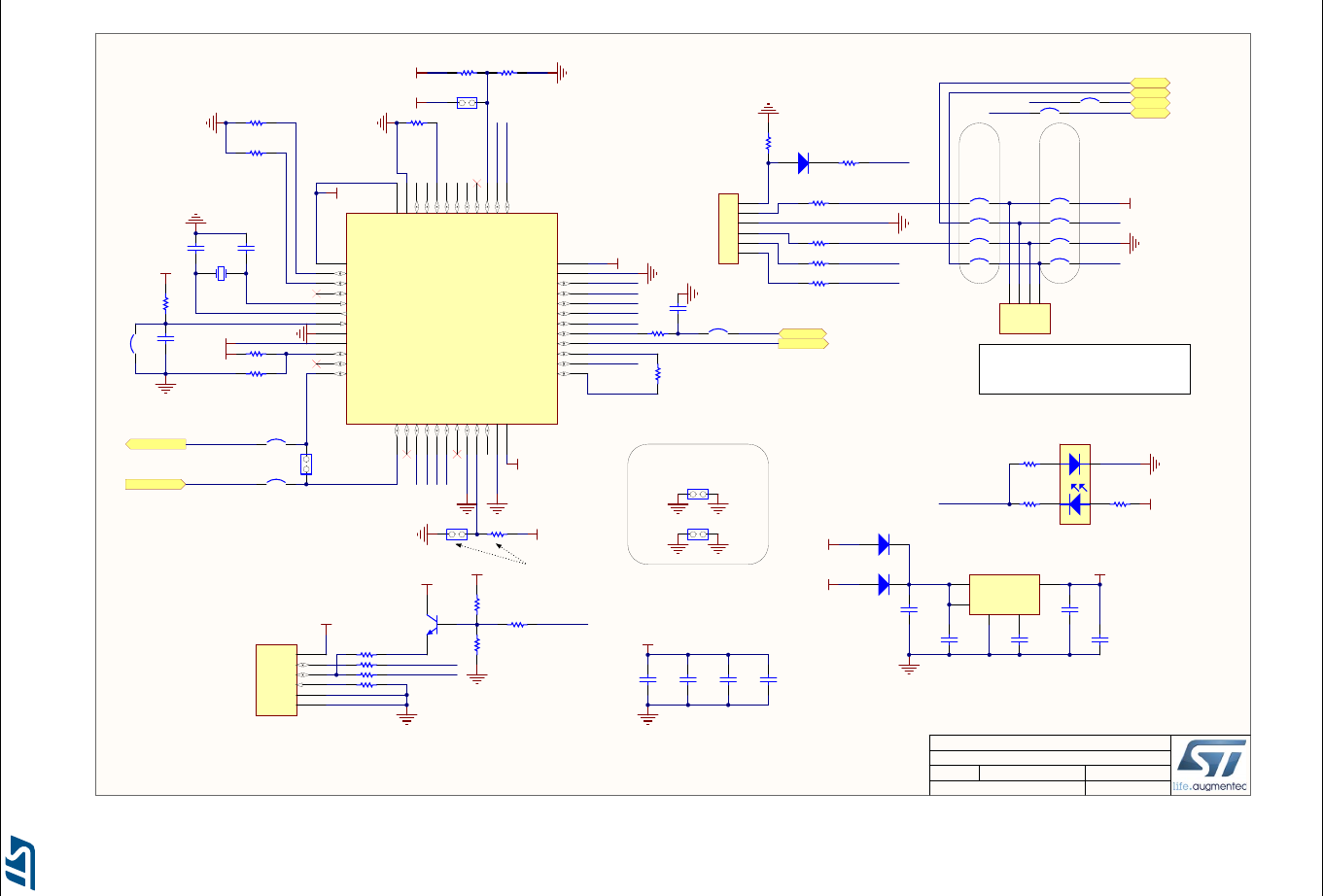

Figure 24. Electrical schematics (1/4) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Figure 25. Electrical schematics (2/4) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Figure 26. Electrical schematics (3/4) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Figure 27. Electrical schematics (4/4) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Ordering information UM1724
6/63 DocID025833 Rev 7
1 Ordering information
Table 1 lists the order codes and the respective targeted MCU.
The meaning of NUCLEO-TXXXRY codification is as follows:
•TXXX describes the STM32 MCU product line
•R describes the pin count (R for 64 pins)
•Y describes the code size (8 for 64K, B for 128K, C for 256K, E for 512K, G for 1MB, Z
for 192K)
The order code is printed on a sticker placed at the top or bottom side of the board.
Table 1. Ordering information
Order code Targeted MCU
NUCLEO-F030R8 STM32F030R8T6
NUCLEO-F070RB STM32F070RBT6
NUCLEO-F072RB STM32F072RBT6
NUCLEO-F091RC STM32F091RCT6
NUCLEO-F103RB STM32F103RBT6
NUCLEO-F302R8 STM32F302R8T6
NUCLEO-F303RE STM32F303RET6
NUCLEO-F334R8 STM32F334R8T6
NUCLEO-F401RE STM32F401RET6
NUCLEO-F411RE STM32F411RET6
NUCLEO-L053R8 STM32L053R8T6
NUCLEO-L073RZ STM32L073RZT6
NUCLEO-L152RE STM32L152RET6
NUCLEO-L476RG STM32L476RGT6
DocID025833 Rev 7 7/63
UM1724 Conventions
62
2 Conventions
Table 2 provides the conventions used for the ON and OFF settings in the present
document.
We refer to “STM32 Nucleo board” and “STM32 Nucleo boards” in this document for all
information that is common to all sale types.
Table 2. ON/OFF conventions
Convention Definition
Jumper JP1 ON Jumper fitted
Jumper JP1 OFF Jumper not fitted
Solder bridge SBx ON SBx connections closed by solder or 0 ohm resistor
Solder bridge SBx OFF SBx connections left open
Quick start UM1724
8/63 DocID025833 Rev 7
3 Quick start
The STM32 Nucleo board is a low-cost and easy-to-use development platform used to
quickly evaluate and start a development with an STM32 microcontroller in LQFP64
package.
Before installing and using the product, please accept the Evaluation Product License
Agreement from www.st.com/epla.
For more information on the STM32 Nucleo boards and to access the demonstration
software, visit www.st.com/stm32nucleo.
3.1 Getting started
Follow the sequence below to configure the STM32 Nucleo board and launch the demo
software:
1. Check the jumper position on the board, JP1 off, JP5 (PWR) on U5V, JP6 on (IDD),
CN2 on (NUCLEO) selected.
2. For correct identification of all device interfaces from the host PC, install the Nucleo
USB driver available on www.st.com/stm32nucleo, prior to connecting the board
3. Connect the STM32 Nucleo board to a PC with a USB cable ‘type A to mini-B’ through
USB connector CN1 to power the board. The red LED LD3 (PWR) and LD1 (COM)
should light up. LD1 (COM) and green LED LD2 should blink.
4. Press button B1 (left button).
5. Observe how the blinking of the green LED LD2 changes according to clicks on button
B1.
6. The demo software and several software examples on how use the STM32 Nucleo
board features are available on www.st.com/stm32nucleo.
7. Develop your own application using the available examples.
3.2 System requirements
•Windows PC (XP, 7, 8)
•USB type A to Mini-B USB cable
DocID025833 Rev 7 9/63
UM1724 Features
62
4 Features
The STM32 Nucleo boards offer the following features:
•STM32 microcontroller with LQFP64 package
•Two types of extension resources
– Arduino Uno Revision 3 connectivity
– STMicroelectronics Morpho extension pin headers for full access to all STM32 I/Os
•mbed-enabled(a)
•On-board ST-LINK/V2-1 debugger/programmer with SWD connector
– selection-mode switch to use the kit as a standalone ST-LINK/V2-1
•Flexible board power supply
– USB VBUS
– External VIN (7V<VIN<12V) supply voltage from Arduino connectors or ST
Morpho connector
– External 5V (E5V) supply voltage from ST Morpho connector
– External +3.3V supply voltage from Arduino connector or ST Morpho connector
•Three LEDs
– USB communication (LD1), user LED (LD2), power LED (LD3)
•Two push buttons: USER and RESET
•LSE crystal:
– 32.768kHz crystal oscillator (depending on board version)
•USB re-enumeration capability: three different interfaces supported on USB
– Virtual Com port
– Mass storage
– Debug port
•Comprehensive free software HAL library including a variety of software examples
•Supported by wide choice of Integrated Development Environments (IDEs) including IAR,
Keil, GCC-based IDEs
4.1 Hardware configuration variants
The board can be delivered with different configurations of the oscillator of the target MCU.
For all the details concerning High Speed oscillator configurations refer to Section 5.7.1. For
all the details concerning Low speed oscillator configurations refer to Section 5.7.2.
a. See http://mbed.org/
Hardware layout and configuration UM1724
10/63 DocID025833 Rev 7
5 Hardware layout and configuration
The STM32 Nucleo board is designed around the STM32 microcontrollers in a 64-pin LQFP
package.
Figure 2 shows the connections between the STM32 and its peripherals (ST-LINK/V2-1,
pushbutton, LED, Arduino connectors and STMicroelectronics Morpho connector).
Figure 3 and Figure 4 show the location of these features on the STM32 Nucleo board.
Figure 2. Hardware block diagram
5(6(7
0LQL
86%
,2
,2 ,2
,2
67/,1.SDUW
(PEHGGHG
67/,1.9
670
0LFURFRQWUROOHU
%
86(5
%
5(6(7
/('
/'
0&8SDUW
6:'
0RUSKRH[WHQVLRQKHDGHU
$UGXLQRFRQQHFWRU
$UGXLQRFRQQHFWRU
0RUSKRH[WHQVLRQKHDGHU
069
DocID025833 Rev 7 11/63
UM1724 Hardware layout and configuration
62
Figure 3. Top layout
1. Crystal may be present or not depending on board version, refer to Section 5.7.2
8
670
PLFURFRQWUROOHU
/'
*UHHQ/('
6%
9UHJXODWRURXWSXW
&1
670RUSKRFRQQHFWRU
&1
$UGXLQRFRQQHFWRU
&1
$UGXLQRFRQQHFWRU
&1
67/,1.86%
PLQL%FRQQHFWRU
/'
5HG*UHHQ/('
&20
%
5(6(7EXWWRQ
&1
$UGXLQR
FRQQHFWRU
&1
670RUSKR
FRQQHFWRU
&1
$UGXLQR
FRQQHFWRU
/'
5HG/('
SRZHU
-3,''
PHDVXUHPHQW
%86(5
EXWWRQ
&1
6:'FRQQHFWRU
&1
67/,1.1XFOHR
VHOHFWRU
069
.+]
FU\VWDO
Hardware layout and configuration UM1724
12/63 DocID025833 Rev 7
Figure 4. Bottom layout
5.1 Cutable PCB
The STM32 Nucleo board is divided into two parts: ST-LINK part and target MCU part. The
ST-LINK part of the PCB can be cut out to reduce the board size. In this case the remaining
target MCU part can only be powered by VIN, E5V and 3.3V on STMicroelectronics Morpho
connector CN7 or VIN and 3.3V on Arduino connector CN6. It is still possible to use the ST-
LINK part to program the main MCU using wires between CN4 and SWD signals available
on STMicroelectronics Morpho connector (SWCLK CN7 pin 15 and SWDIO CN7 pin 13).
4#4#4#4#
3&4&37&%
4#4#4#4#
%&'"6-5
.47
6%
86(5EXWWRQ
6%
67/,1.
5(6(7
6%
86(5/('
4#4#
45-*/,64"35
4#
45-*/,480
4#
45-*/,.$0
6%
67/,1.0&2
DocID025833 Rev 7 13/63
UM1724 Hardware layout and configuration
62
5.2 Embedded ST-LINK/V2-1
The ST-LINK/V2-1 programming and debugging tool is integrated in the STM32 Nucleo
boards.
The ST-LINK/V2-1 makes the STM32 Nucleo boards mbed enabled.
The embedded ST-LINK/V2-1 supports only SWD for STM32 devices. For information about
debugging and programming features refer to UM1075 - ST-LINK/V2 in-circuit
debugger/programmer for STM8 and STM32, User manual, which describes in detail all the
ST-LINK/V2 features.
The changes versus ST-LINK/V2 version are listed below.
•New features supported on ST-LINK/V2-1:
– USB software re-enumeration
– Virtual com port interface on USB
– Mass storage interface on USB
– USB power management request for more than 100 mA power on USB
•Features not supported on ST-LINK/V2-1:
–SWIM interface
– Minimum supported application voltage limited to 3 V
•Known limitation:
– Activating the readout protection on ST-Link/V2-1 target prevents the target
application from running afterwards. The target readout protection must be kept
disabled on ST-Link/V2-1 boards.
There are two different ways to use the embedded ST-LINK/V2-1 depending on the jumper
states (see Table 3 and Figure 5):
•Program/debug the MCU on board (Section 5.2.2),
•Program/debug an MCU in an external application board using a cable connected to
SWD connector CN4 (Section 5.2.4).
Table 3. Jumper states
Jumper state Description
Both CN2 jumpers ON ST-LINK/V2-1 functions enabled for on board programming (default)
Both CN2 jumpers OFF ST-LINK/V2-1 functions enabled for external CN4 connector (SWD
supported)
Hardware layout and configuration UM1724
14/63 DocID025833 Rev 7
Figure 5. Typical configuration
5.2.1 Drivers
The ST-LINK/V2-1 requires a dedicated USB driver, which can be found on www.st.com for
Windows XP, 7, 8. On Windows XP the ST-LINK/V2-1 driver requires WinUsb to be installed
before using the ST-LINK/V2-1 (either available from Microsoft website or included in the
USB driver for ST-LINK/V2 for XP).
In case the STM32 Nucleo board is connected to the PC before the driver is installed, some
Nucleo interfaces may be declared as “Unknown” in the PC device manager. In this case
the user must install the driver files (Figure 6), and from the device manager update the
driver of the connected device.
Note: Prefer using the “USB Composite Device” handle for a full recovery.
Figure 6. Updating the list of drivers in Device Manager
5.2.2 ST-LINK/V2-1 firmware upgrade
The ST-LINK/V2-1 embeds a firmware upgrade mechanism for in-situ upgrade through the
USB port. As the firmware may evolve during the life time of the ST-LINK/V2-1 product (for
example new functionality, bug fixes, support for new microcontroller families), it is
recommended to visit www.st.com before starting to use the STM32 Nucleo board and
periodically, in order to stay up-to-date with the latest firmware version.
069
+DUGZDUHUHTXLUHPHQWV
86%FDEOHW\SH$WRPLQL%
FRPSXWHUZLWK:LQGRZV;3
'HYHORSPHQWWRROFKDLQ
,$5(:$50
.HLO0'.$50
*&&EDVHG,'(
DocID025833 Rev 7 15/63
UM1724 Hardware layout and configuration
62
5.2.3 Using the ST-LINK/V2-1 to program/debug the STM32 on board
To program the STM32 on the board, plug in the two jumpers on CN2, as shown in red in
Figure 7. Do not use the CN4 connector as this could disturb the communication with the
STM32 microcontroller of the STM32 Nucleo board.

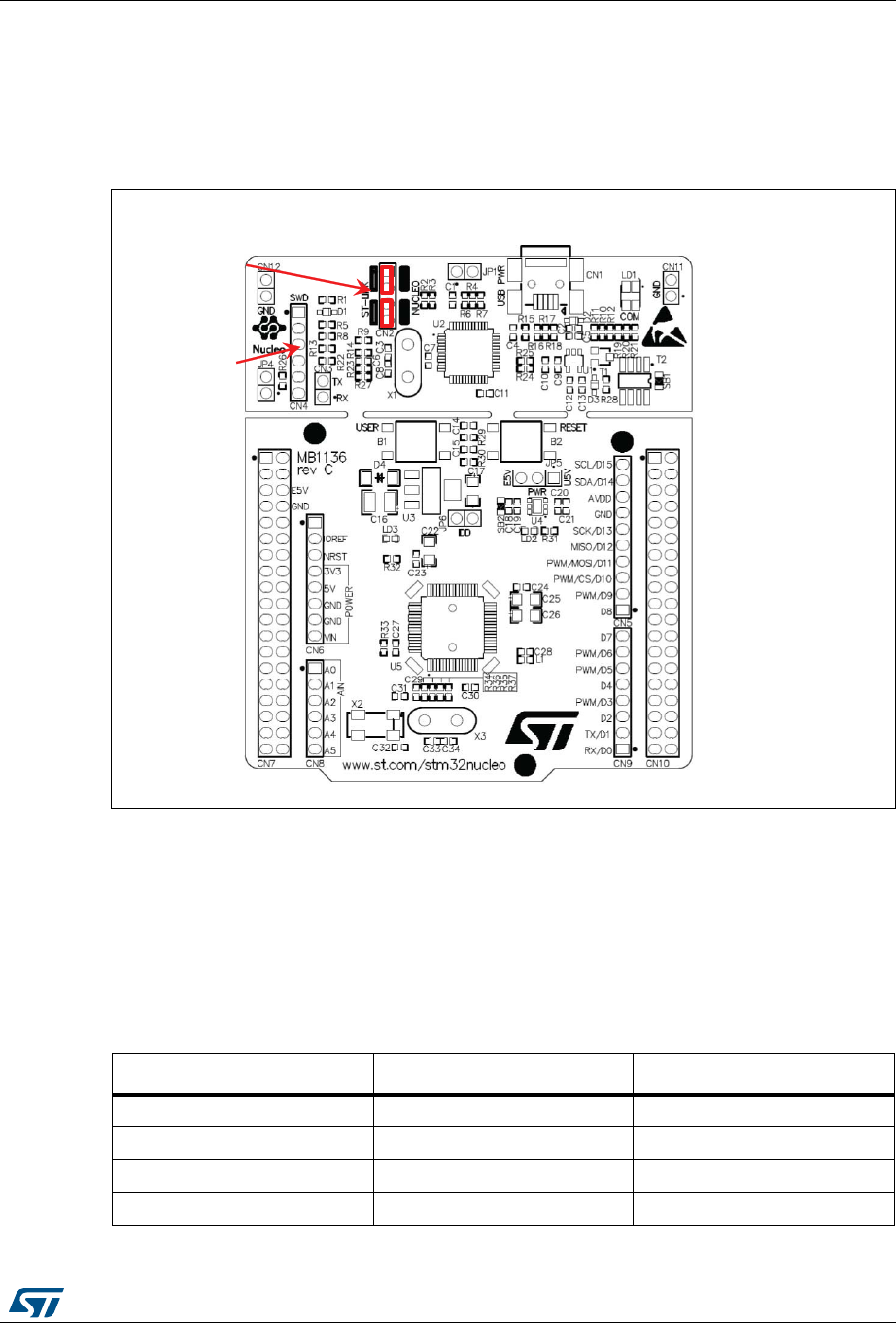

Figure 7. Connecting the STM32 Nucleo board to program the on-board STM32
5.2.4 Using ST-LINK/V2-1 to program/debug an external STM32 application
It is very easy to use the ST-LINK/V2-1 to program the STM32 on an external application.
Simply remove the two jumpers from CN2 as illustrated in Figure 8, and connect your
application to the CN4 debug connector according to Table 4.
Note: SB12 NRST (target MCU RESET) must be OFF if you use CN4 pin 5 in your external
application.
069
EϮũƵŵƉĞƌƐKE
Eϰ^t
ĐŽŶŶĞĐƚŽƌ
Table 4. Debug connector CN4 (SWD)
Pin CN4 Designation
1 VDD_TARGET VDD from application
2 SWCLK SWD clock
3 GND Ground
4 SWDIO SWD data input/output
Hardware layout and configuration UM1724
16/63 DocID025833 Rev 7
Figure 8. Using ST-LINK/V2-1 to program the STM32 on an external application
5.3 Power supply and power selection
The power supply is provided either by the host PC through the USB cable, or by an
external Source: VIN (7V-12V), E5V (5V) or +3V3 power supply pins on CN6 or CN7. In
case VIN, E5V or +3V3 is used to power the Nucleo board, using an external power supply
unit or an auxiliary equipment, this power source must comply with the standard EN-60950-
1: 2006+A11/2009, and must be Safety Extra Low Voltage (SELV) with limited power
capability.
5.3.1 Power supply input from the USB connector
The ST-LINK/V2-1 supports USB power management allowing to request more than
100 mA current to the host PC.
5 NRST RESET of target MCU
6 SWO Reserved
Table 4. Debug connector CN4 (SWD) (continued)
.47
$/KVNQFST0''
$/
48%DPOOFDUPS
DocID025833 Rev 7 17/63
UM1724 Hardware layout and configuration
62
All parts of the STM32 Nucleo board and shield can be powered from the ST-LINK USB
connector CN1 (U5V or VBUS). Note that only the ST-LINK part is power supplied before
the USB enumeration as the host PC only provides 100 mA to the board at that time. During
the USB enumeration, the STM32 Nucleo board requires 300 mA of current to the Host PC.
If the host is able to provide the required power, the targeted STM32 microcontroller is
powered and the red LED LD3 is turned ON, thus the STM32 Nucleo board and its shield
can consume a maximum of 300 mA current, not more. If the host is not able to provide the
required current, the targeted STM32 microcontroller and the MCU part including the
extension board are not power supplied. As a consequence the red LED LD3 remains
turned OFF. In such case it is mandatory to use an external power supply as explained in
the next chapter.
When the board is power supplied by USB (U5V) a jumper must be connected between pin
1 and pin 2 of JP5 as shown in Table 7.
JP1 is configured according to the maximum current consumption of the board when
powered by USB (U5V). JP1 jumper can be set in case the board is powered by USB and
maximum current consumption on U5V doesn’t exceed 100mA (including an eventual
extension board or Arduino Shield). In such condition USB enumeration will always succeed
since no more than 100mA is requested to the PC. Possible configurations of JP1 are
summarized in Table 5.
Warning: If the maximum current consumption of the NUCLEO and its
extension boards exceeds 300 mA, it is mandatory to power
the NUCLEO using an external power supply connected to
E5V or VIN.
Note: In case the board is powered by an USB charger, there is no USB enumeration, so the led
LD3 remains set to OFF permanently and the target MCU is not powered. In this specific
case the jumper JP1 needs to be set to ON, to allow target MCU to be powered anyway.
5.3.2 External power supply inputs: VIN and EV5
The external power sources VIN and EV5 are summarized in the Table 6. When the board is
power supplied by VIN or E5V, the jumpers configuration must be the following:
Jumper on JP5 pin 2 and pin 3
Jumper removed on JP1
Table 5. JP1 configuration table
Jumper state Power supply Allowed current
JP1 jumper OFF
USB power through CN1
300 mA max
JP1 jumper ON 100 mA max
Hardware layout and configuration UM1724
18/63 DocID025833 Rev 7
Using VIN or E5V as external power supply
VIN or E5V can be used as external power supply in case the current consumption of
NUCLEO and extensions boards exceeds the allowed current on USB. In this condition it is
still possible to use the USB for communication, for programming or debugging only, but it is
mandatory to power supply the board first using VIN or E5V then connect the USB cable to
the PC. Proceeding this way ensures that the enumeration occurs thanks to the external
power source.
The following power sequence procedure must be respected:
1. Connect the jumper between pin 2 and pin 3 of JP5.
2. Check that JP1 is removed.
3. Connect the external power source to VIN or E5V.
4. Power on the external power supply 7 V< VIN < 12 V to VIN, or 5 V for E5V.
5. Check that LD3 is turned ON.
6. Connect the PC to USB connector CN1.
If this order is not respected, the board may be supplied by VBUS first then by VIN or E5V,
and the following risks may be encountered:
Table 6. External power sources
Input power
name
Connectors
pins Voltage range Max
current Limitation
VIN CN6 pin 8
CN7 pin 24 7 V to 12 V 800 mA
From 7 V to 12 V only and input current capability
is linked to input voltage:
800 mA input current when Vin=7 V
450 mA input current when 7 V<Vin (< or =) 9 V
250 mA input current when 9 V<Vin (< or =) 12 V
E5V CN7 pin 6 4.75 V to 5.25 V 500 mA -

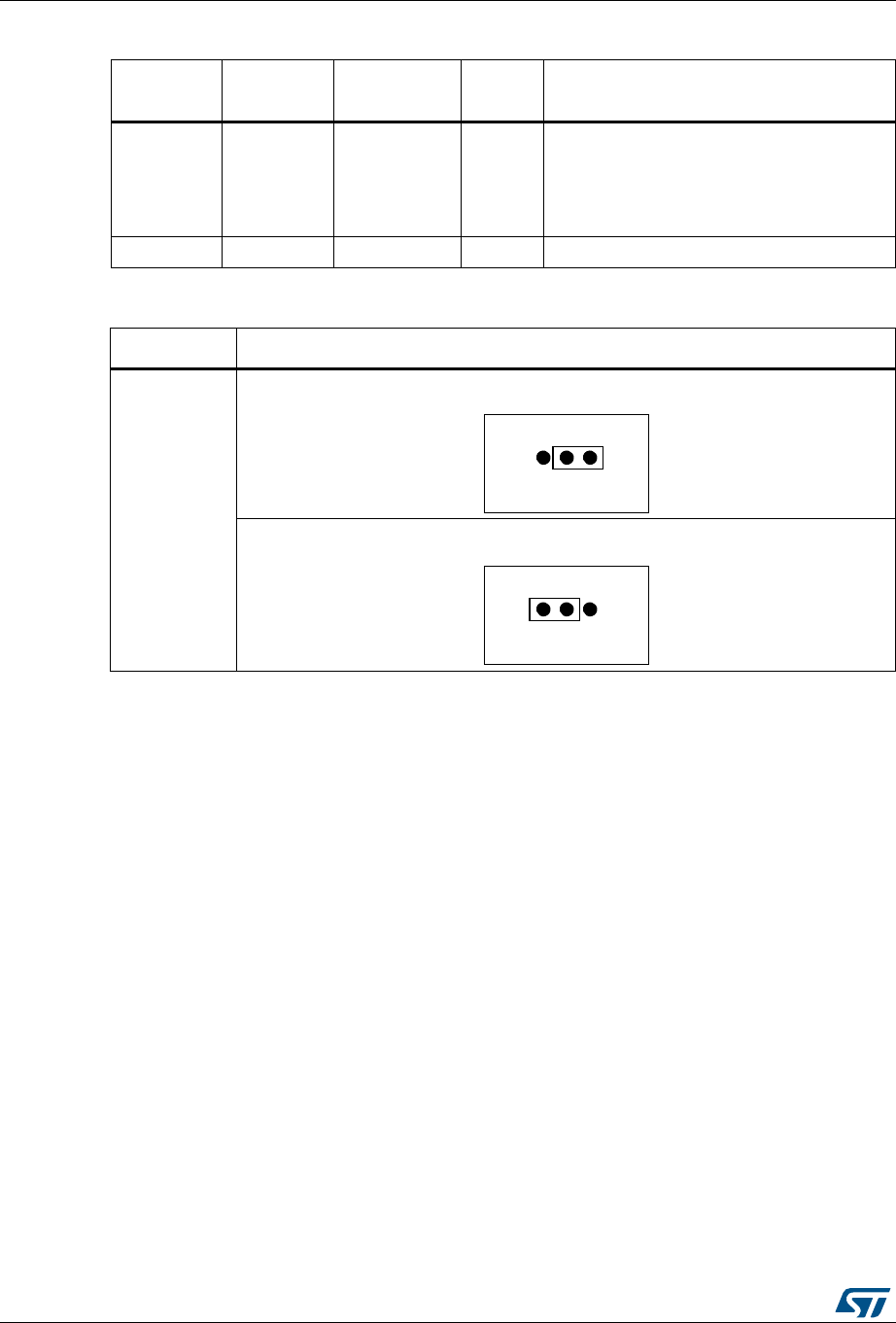

Table 7. Power-related jumper
Jumper Description
JP5
U5V (ST-LINK VBUS) is used as power source when JP5 is set as shown below (Default
setting)
VIN or E5V is used as power source when JP5 is set as shown below.
(9
89
(9
89
DocID025833 Rev 7 19/63
UM1724 Hardware layout and configuration
62
1. If more than 300 mA current is needed by the board, the PC may be damaged or the
current supply can be limited by the PC. As a consequence the board is not powered
correctly.
2. 300 mA is requested at enumeration (since JP1 must be OFF) so there is risk that the
request is rejected and the enumeration does not succeed if the PC cannot provide
such current. Consequently the board is not power supplied (LED LD3 remains OFF).
Hardware layout and configuration UM1724
20/63 DocID025833 Rev 7
5.3.3 External power supply input: + 3V3
It can be of interest to use the +3V3 (CN6 pin 4 or CN7 pin 12 and pin 16) directly as power
input for instance in case the 3.3 V is provided by an extension board. When NUCLEO is
power supplied by +3V3, the ST-LINK is not powered thus the programming and debug
features are unavailable. The external power sources +3.3V is summarized in the Table 8.
Two different configurations are possible to use +3V3 to power the board:
•ST-LINK is removed (PCB cut), or
•SB2 (3V3 regulator) & SB12 (NRST) are OFF.
5.3.4 External power supply output
When powered by USB, VIN or E5V, the +5V (CN6 pin 5 or CN7 pin 18) can be used as
output power supply for an Arduino shield or an extension board. In this case, the maximum
current of the power source specified in Table 6 needs to be respected.
The +3.3 V (CN6 pin 4 or CN7 pin 12 & 16) can be used also as power supply output. The
current is limited by the maximum current capability of the regulator U4 (500 mA max).
5.4 LEDs
The tricolor LED (green, orange, red) LD1 (COM) provides information about ST-LINK
communication status. LD1 default color is red. LD1 turns to green to indicate that
communication is in progress between the PC and the ST-LINK/V2-1, with the following
setup:
•Slow blinking Red/Off: at power-on before USB initialization
•Fast blinking Red/Off: after the first correct communication between the PC and ST-
LINK/V2-1 (enumeration)
•Red LED On: when the initialization between the PC and ST-LINK/V2-1 is complete
•Green LED On: after a successful target communication initialization
•Blinking Red/Green: during communication with target
•Green On: communication finished and successful.
•Orange On: Communication failure
User LD2: the green LED is a user LED connected to Arduino signal D13 corresponding to
MCU I/O PA5 (pin 21) or PB13 (pin 34) depending on the STM32 target. Please refer to
Table 10 to Table 19.
•When the I/O is HIGH value, the LED is on.
•When the I/O is LOW, the LED is off.
LD3 PWR: the red LED indicates that the MCU part is powered and +5V power is available.
Table 8. +3.3V eternal power source
Input power
name Connectors pins Voltage range Limitation
+3V3 CN6 pin 4
CN7 pin 12 and pin 16 3 V to 3.6 V Used when ST-LINK part of PCB is cut or
SB2 and SB12 OFF
DocID025833 Rev 7 21/63
UM1724 Hardware layout and configuration
62
5.5 Push buttons
B1 USER: the user button is connected to the I/O PC13 (pin 2) of the STM32
microcontroller.
B2 RESET: this push button is connected to NRST, and is used to RESET the STM32
microcontroller.
Note: The blue and black plastic hats that are placed on the push buttons can be removed if
necessary, for example when a shield or when an application board is plugged on top of
NUCLEO. This will avoid pressure on the buttons and consequently a possible permanent
target MCU RESET.
5.6 JP6 (IDD)
Jumper JP6, labeled IDD, is used to measure the STM32 microcontroller consumption by
removing the jumper and by connecting an ammeter.
•Jumper ON: STM32 microcontroller is powered (default).
•Jumper OFF: an ammeter must be connected to measure the STM32 microcontroller
current. If there is no ammeter, STM32 microcontroller is not powered.
Hardware layout and configuration UM1724
22/63 DocID025833 Rev 7
5.7 OSC clock
5.7.1 OSC clock supply
There are four ways to configure the pins corresponding to external high-speed clock
external high-speed clock (HSE):
•MCO from ST-LINK: MCO output of ST-LINK MCU is used as input clock. This
frequency cannot be changed, it is fixed at 8 MHz and connected to PF0/PD0/PH0-
OSC_IN of STM32 microcontroller.
The following configuration is needed:
– SB54 and SB55 OFF
– SB16 and SB50 ON
– R35 and R37 removed
•HSE oscillator on-board from X3 crystal (not provided): for typical frequencies and
its capacitors and resistors, please refer to STM32 microcontroller datasheet. Please
refer to the AN2867 for oscillator design guide for STM32 microcontrollers.The X3
crystal has the following characteristics: 8 MHz, 16 pF, 20 ppm, and DIP footprint. It’s
recommended to use 9SL8000016AFXHF0 manufactured by Hong Kong X'tals
Limited.
The following configuration is needed:
– SB54 and SB55 OFF
– R35 and R37 soldered
– C33 and C34 soldered with 20 pF capacitors
– SB16 and SB50 OFF
•Oscillator from external PF0/PD0/PH0: from an external oscillator through pin 29 of
the CN7 connector.
The following configuration is needed:
–SB55 ON
–SB50
OFF
– R35 and R37 removed
•HSE not used: PF0/PD0/PH1 and PF1/PD1/PH1 are used as GPIO instead of Clock
The following configuration is needed:
– SB54 and SB55 ON
– SB16 and SB50 (MCO) OFF
– R35 and R37 removed
There are two possible default configurations of the HSE pins depending on the version of
NUCLEO board hardware.
The board version MB1136 C-01 or MB1136 C-02 is mentioned on sticker placed on bottom
side of the PCB.
The board marking MB1136 C-01 corresponds to a board, configured for HSE not used.
The board marking MB1136 C-02 (or higher) corresponds to a board, configured to use ST-
LINK MCO as clock input.
DocID025833 Rev 7 23/63
UM1724 Hardware layout and configuration
62
Note: For NUCLEO-L476RG the ST-Link MCO output is not connected to OSCIN to reduce power
consumption in low power mode. Consequently NUCLEO-L476RG configuration
corresponds HSE not used.
5.7.2 OSC 32 kHz clock supply
There are three ways to configure the pins corresponding to low-speed clock (LSE):
•On-board oscillator: X2 crystal. Please refer to the AN2867 for oscillator design guide
for STM32 microcontrollers.with the following characteristics: 32.768 kHz, 6 pF,
20 ppm, and SM308 footprint. It is recommended to use ABS25-32.768KHZ-6-T
manufactured by Abracon corporation.
•Oscillator from external PC14: from external oscillator through the pin 25 of CN7
connector.
The following configuration is needed:
– SB48 and SB49 ON
– R34 and R36 removed
•LSE not used: PC14 and PC15 are used as GPIOs instead of low speed Clock.
The following configuration is needed:
– SB48 and SB49 ON
– R34 and R36 removed
There are two possible default configurations of the LSE depending on the version of
NUCLEO board hardware.
The board version MB1136 C-01 or MB1136 C-02 is mentioned on sticker placed on bottom
side of the PCB.
The board marking MB1136 C-01 corresponds to a board configured as LSE not used.
The board marking MB1136 C-02 (or higher) corresponds to a board configured with on-
board 32kHz oscillator.
The board marking MB1136 C-03 (or higher) corresponds to a board using new LSE crystal
(ABS25) and C26, C31 & C32 value update.
5.8 USART communication
The USART2 interface available on PA2 and PA3 of the STM32 microcontroller can be
connected to ST-LINK MCU, STMicroelectronics Morpho connector or to Arduino connector.
The choice can be changed by setting the related solder bridges. By default the USART2
communication between the target MCU and ST-LINK MCU is enabled in order to support
Virtual Com Port for mbed (SB13 and SB14 ON, SB62 and SB63 OFF). If the
communication between the target MCU PA2 (D1) or PA3 (D0) and shield or extension
board is required, SB62 and SB63 should be ON, SB13 and SB14 should be OFF. In such
case it possible to connect another USART to ST-LINK MCU using flying wires between
Morpho connector and CN3. For instance on NUCLEO-F103RB it is possible to use
USART3 available on PC10 (TX) & PC11 (RX). Two flying wires need to be connected as
follow:
•PC10 (USART3_TX) available on CN7 pin 1 to CN3 pin RX
•PC11 (USART3_RX) available on CN7 pin 2 to CN3 pin TX
Hardware layout and configuration UM1724
24/63 DocID025833 Rev 7
5.9 Solder bridges
Table 9. Solder bridges
Bridge State
(1) Description
SB54, SB55 (X3 crystal)(2)
OFF X3, C33, C34, R35 and R37 provide a clock as shown in Chapter 7: Electrical
schematics PF0/PD0/PH0, PF1/PD1/PH1 are disconnected from CN7.
ON PF0/PD0/PH0, PF1/PD1/PH1 are connected to CN12. (R35, R37 and SB50
must not be fitted).
SB3,5,7,9 (DEFAULT) ON Reserved, do not modify.
SB4,6,8,10 (RESERVED) OFF Reserved, do not modify.
SB48,49
(X2 crystal)(3)
OFF X2, C31, C32, R34 and R36 deliver a 32 kHz clock. PC14, PC15 are not
connected to CN7.
ON PC14, PC15 are only connected to CN7. Remove only R34, R36
SB17
(B1-USER)
ON B1 push button is connected to PC13.
OFF B1 push button is not connected to PC13.
SB12 (NRST)
ON The NRST signal of the CN4 connector is connected to the NRST pin of the
STM32 MCU.
OFF The NRST signal of the CN4 connector is not connected to the NRST pin of
the STM MCU.
SB15 (SWO)
ON The SWO signal of the CN4 connector is connected to PB3.
OFF The SWO signal is not connected.
SB11 (STM_RST)
OFF No incidence on STM32F103CBT6 (ST-LINK MCU) NRST signal.
ON STM32F103CBT6 (ST-LINK MCU) NRST signal is connected to GND.
SB1 (USB-5V)
OFF USB power management is functional.
ON USB power management is disabled.
SB2 (3.3 V)
ON Output of voltage regulator LD39050PU33R is connected to 3.3V.
OFF Output of voltage regulator LD39050PU33R is not connected.
SB21 (LD2-LED)
ON Green user LED LD2 is connected to D13 of Arduino signal.
OFF Green user LED LD2 is not connected.
SB56,SB51 (A4 and A5)
ON
PC1 and PC0 (ADC in) are connected to A4 and A5 (pin 5 and pin 6) on
Arduino connector CN8 and ST Morpho connector CN7. Thus SB46 and
SB52 should be OFF.
OFF PC1 and PC0 (ADC in) are disconnected to A4 and A5 (pin 5 and pin 6) on
Arduino connector CN8 and ST Morpho connector CN7.
SB46,SB52
(I2C on A4 and A5)
OFF PB9 and PB8 (I2C) are disconnected to A4 and A5 (pin 5 and pin 6) on
Arduino connector CN8 and ST Morpho connector CN7.
ON
PB9 and PB8 (I2C) are connected to A4 and A5 (pin 5 and pin 6) on Arduino
connector CN8 and ST Morpho connector CN7 as I2C signals. Thus SB56
and SB51 should be OFF.
DocID025833 Rev 7 25/63
UM1724 Hardware layout and configuration
62
All the other solder bridges present on the STM32 Nucleo board are used to configure
several IOs and power supply pins for compatibility of features and pinout with STM32 MCU
supported.
All STM32 Nucleo boards are delivered with the solder-bridges configured according to the
target MCU supported.
SB45 (VBAT/VLCD)
ON VBAT or VLCD on STM32 MCU is connected to VDD.
OFF VBAT or VLCD on STM32 MCU is not connected to VDD.
SB57 (VREF+)
ON VREF+ on STM32 MCU is connected to VDD.
OFF VREF+ on STM32 MCU is not connected to VDD and can be provided from
pin 7 of CN10
SB62, SB63 (USART)
ON
PA2 and PA3 on STM32 MCU are connected to D1 and D0 (pin 7 and pin 8)
on Arduino connector CN9 and ST Morpho connector CN10 as USART
signals. Thus SB13 and SB14 should be OFF.
OFF PA2 and PA3 on STM32 MCU are disconnected to D1 and D0 (pin 7 and pin
8) on Arduino connector CN9 and ST Morpho connector CN10.
SB13, SB14
(ST-LINK-USART)
OFF PA2 and PA3 on STM32F103CBT6 (ST-LINK MCU) are disconnected to PA3
and PA2 on STM32 MCU.
ON
PA2 and PA3 on STM32F103CBT6 (ST-LINK MCU) are connected to PA3
and PA2 on STM32 MCU to have USART communication between them.
Thus SB61,SB62 and SB63 should be OFF.
SB16,SB50(MCO)(2)
OFF MCO on STM32F103CBT6 (ST-LINK MCU) are disconnected to
PF0/PD0/PH0 on STM32 MCU.
ON MCO on STM32F103CBT6 (ST-LINK MCU) are connected to PF0/PD0/PH0
on STM32 MCU.
1. The default SBx state is shown in bold.
2. Default configuration depends on board version. Please refer to chapter 5.7.1 for details
3. Default configuration depends on board version. Please refer to chapter 5.7.2 for details.
Table 9. Solder bridges (continued)
Bridge State
(1) Description
Hardware layout and configuration UM1724
26/63 DocID025833 Rev 7
5.10 Extension connectors

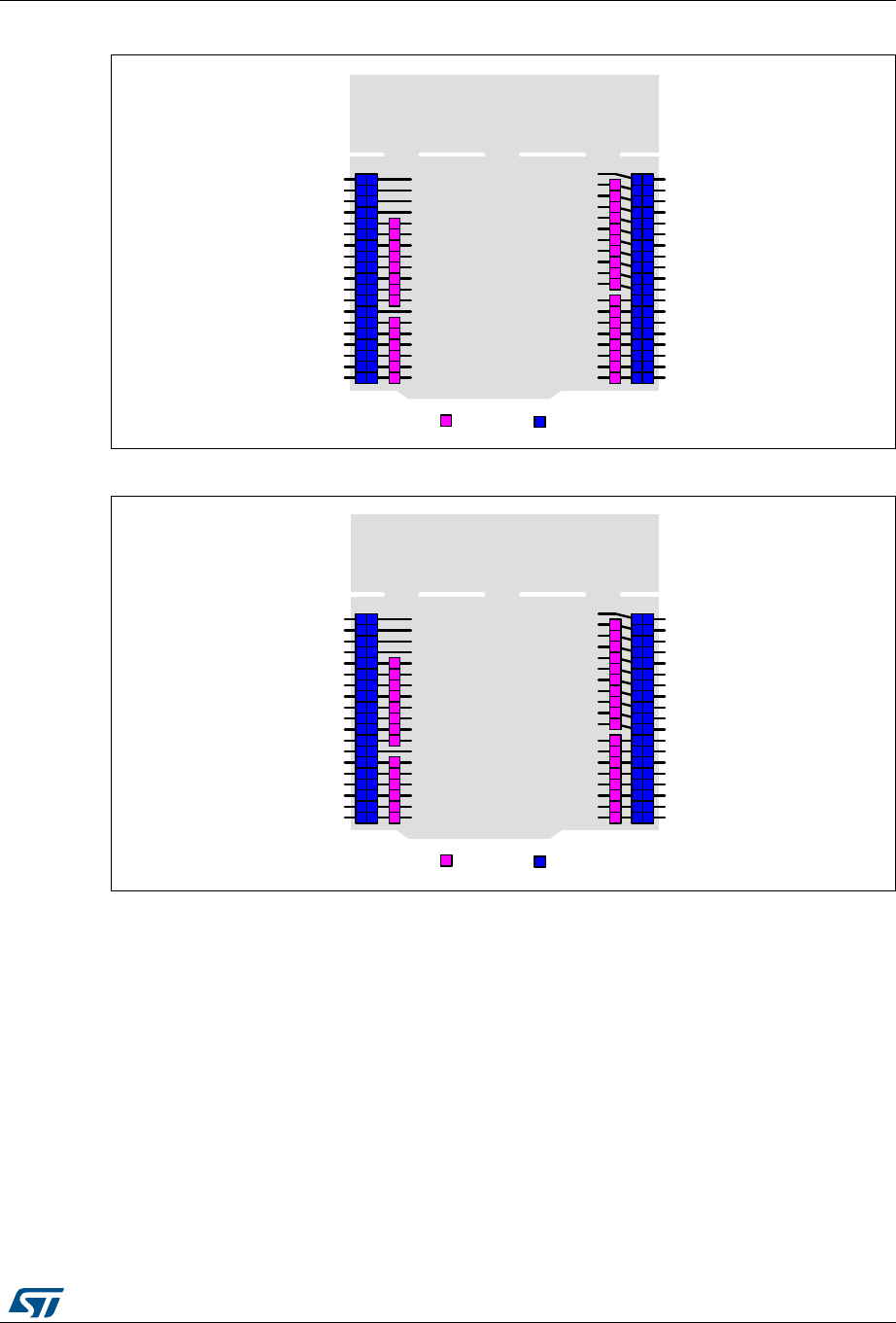

The following figures show the signals connected by default to Arduino Uno Revision 3
connectors (CN5, CN6, CN8, CN9) and to STMicroelectronics Morpho connector (CN7 and
CN10), for each STM32 Nucleo board.
Figure 9. NUCLEO-F030R8
Figure 10. NUCLEO-F070RB
06Y9
3&
3&
3%
3$
3$
3$
1&
9,1
*1'
*1'
9
9
5(6(7
,25()
1&
*1'
(9
3'
3&
3&
3&
9%$7
3)
3)
3&
3&
3&
3%
*1'
3$
3$
3$
3)
3)
%227
9''
3&
18&/(2)5
3)
3)
3&
$*1'
3%
3%
3%
3%
3%
*1'
3%
3%
3$
3$
1&
89
3&
3&
3&
3$
3&
3%
3$
3$
3$
*1'
$9''
3%
3%
3&
3$
3$
3$
3%
3%
3%
3%
3$
'
'
'
'
'
'
*1'
$9''
'
'
'
'
'
'
'
'
'
'
$
$
$
$
$
$
9,1
*1'
*1'
9
9
5(6(7
,25()
1&
$UGXLQR 0RUSKR
3&
&1 &1&1
&1
&1
&1
3&
3&
3%
3$
3$
3$
1&
9,1
*1'
*1'
9
9
5(6(7
,25()
1&
*1'
(9
3'
3&
3&
3&
9''
3)
3)
3&
3&
3&
3%
*1'
3$
3$
3$
1&
1&
%227
9''
3&
18&/(2)5%
1&
1&
3&
$*1'
3%
3%
3%
3%
3%
*1'
3%
3%
3$
3$
1&
89
3&
3&
3&
3$
3&
3%
3$
3$
3$
*1'
$9''
3%
3%
3&
3$
3$
3$
3%
3%
3%
3%
3$
'
'
'
'
'
'
*1'
$9''
'
'
'
'
'
'
'
'
'
'
$
$
$
$
$
$
9,1
*1'
*1'
9
9
5(6(7
,25()
1&
$UGXLQR 0RUSKR
3&
&1 &1&1
&1
&1
&1
06Y9
DocID025833 Rev 7 27/63
UM1724 Hardware layout and configuration
62
Figure 11. NUCLEO-F072RB
Figure 12. NUCLEO-F091RC
06Y9
3&
3&
3%
3$
3$
3$
1&
9,1
*1'
*1'
9
9
5(6(7
,25()
1&
*1'
(9
3'
3&
3&
3&
9%$7
3)
3)
3&
3&
3&
3%
*1'
3$
3$
3$
1&
1&
%227
9''
3&
18&/(2)5%
1&
1&
3&
$*1'
3%
3%
3%
3%
3%
*1'
3%
3%
3$
3$
1&
89
3&
3&
3&
3$
3&
3%
3$
3$
3$
*1'
$9''
3%
3%
3&
3$
3$
3$
3%
3%
3%
3%
3$
'
'
'
'
'
'
*1'
$9''
'
'
'
'
'
'
'
'
'
'
$
$
$
$
$
$
9,1
*1'
*1'
9
9
5(6(7
,25()
1&
$UGXLQR 0RUSKR
3&
&1 &1&1
&1
&1
&1
06Y9
3&
3&
3%
3$
3$
3$
1&
9,1
*1'
*1'
9
9
5(6(7
,25()
1&
*1'
(9
3'
3&
3&
3&
9%$7
3)
3)
3&
3&
3&
3%
*1'
3$
3$
3$
1&
1&
3)%227
9''
3&
18&/(2)5&
1&
1&
3&
$*1'
3%
3%
3%
3%
3%
*1'
3%
3%
3$
3$
1&
89
3&
3&
3&
3$
3&
3%
3$
3$
3$
*1'
$9''
3%
3%
3&
3$
3$
3$
3%
3%
3%
3%
3$
'
'
'
'
'
'
*1'
$9''
'
'
'
'
'
'
'
'
'
'
$
$
$
$
$
$
9,1
*1'
*1'
9
9
5(6(7
,25()
1&
$UGXLQR 0RUSKR
3&
&1 &1&1
&1
&1
&1
Hardware layout and configuration UM1724
28/63 DocID025833 Rev 7
Figure 13. NUCLEO-F103RB
Figure 14. NUCLEO-F302R8
06Y9
1&
5(6(7
1&
18&/(2)5%
$UGXLQR 0RUSKR
3&
3&
9%$7
3'
3'
3&
3&
3&
3%
*1'
3$
3$
3$
1&
1&
%227
9''
3&
3&
3&
3&
3%
3$
3$
3$
9,1
*1'
*1'
9
9
,25()
*1'
(9
3'
3&
$
$
$
$
$
$
9,1
*1'
*1'
9
9
5(6(7
,25()
1&
'
'
'
'
'
'
*1'
$9''
'
'
'
'
'
'
'
'
'
'
3$
3&
3%
3$
3$
3$
*1'
$9''
3%
3%
3&
3$
3$
3$
3%
3%
3%
3%
3$
1&
1&
3&
$*1'
3%
3%
3%
3%
3%
*1'
3%
3%
3$
3$
1&
89
3&
3&
3&
&1 &1&1
&1
&1
&1
06Y9
3&
3&
3%
3$
3$
3$
1&
9,1
*1'
*1'
9
9
5(6(7
,25()
1&
*1'
(9
3'
3&
3&
3&
9%$7
3)
3)
3&
3&
3&
3%
*1'
3$
3$
3$
1&
1&
%227
9''
3&
18&/(2)5
1&
1&
3&
$*1'
3$
3$
3$
3%
3%
*1'
3%
3%
3$
3$
1&
89
3&
3&
3&
3$
3&
3%
3%
3%
3%
*1'
$9''
3%
3%
3&
3$
3$
3$
3%
3%
3%
3%
3$
'
'
'
'
'
'
*1'
$9''
'
'
'
'
'
'
'
'
'
'
$
$
$
$
$
$
9,1
*1'
*1'
9
9
5(6(7
,25()
1&
$UGXLQR 0RUSKR
3&
&1 &1&1
&1
&1
&1
DocID025833 Rev 7 29/63
UM1724 Hardware layout and configuration
62
Figure 15. NUCLEO-F303RE
Figure 16. NUCLEO-F334R8
06Y9
3&
3&
3%
3$
3$
3$
1&
9,1
*1'
*1'
9
9
5(6(7
,25()
1&
*1'
(9
3'
3&
3&
3&
9%$7
3)
3)
3&
3&
3&
3%
*1'
3$
3$
3$
1&
1&
%227
9''
3&
18&/(2)5(
1&
1&
3&
$*1'
3%
3%
3%
3%
3%
*1'
3%
3%
3$
3$
1&
89
3&
3&
3&
3$
3&
3%
3$
3$
3$
*1'
$9''
3%
3%
3&
3$
3$
3$
3%
3%
3%
3%
3$
'
'
'
'
'
'
*1'
$9''
'
'
'
'
'
'
'
'
'
'
$
$
$
$
$
$
9,1
*1'
*1'
9
9
5(6(7
,25()
1&
$UGXLQR 0RUSKR
3&
&1 &1&1
&1
&1
&1
06Y9
3&
3&
3%
3$
3$
3$
1&
9,1
*1'
*1'
9
9
5(6(7
,25()
1&
*1'
(9
3'
3&
3&
3&
9%$7
3)
3)
3&
3&
3&
3%
*1'
3$
3$
3$
1&
1&
%227
9''
3&
18&/(2)5
1&
1&
3&
$*1'
3%
3%
3%
3%
3%
*1'
3%
3%
3$
3$
1&
89
3&
3&
3&
3$
3&
3%
3$
3$
3$
*1'
$9''
3%
3%
3&
3$
3$
3$
3%
3%
3%
3%
3$
'
'
'
'
'
'
*1'
$9''
'
'
'
'
'
'
'
'
'
'
$
$
$
$
$
$
9,1
*1'
*1'
9
9
5(6(7
,25()
1&
$UGXLQR 0RUSKR
3&
&1 &1&1
&1
&1
&1
Hardware layout and configuration UM1724
30/63 DocID025833 Rev 7
Figure 17. NUCLEO-F401RE
Figure 18. NUCLEO-F411RE
06Y9
3&
3&
3%
3$
3$
3$
1&
9,1
*1'
*1'
9
9
5(6(7
,25()
1&
*1'
(9
3'
3&
3&
3&
9%$7
3+
3+
3&
3&
3&
3%
*1'
3$
3$
3$
1&
1&
%227
9''
3&
18&/(2)5(
1&
1&
3&
$*1'
3%
3%
3%
3%
3%
*1'
1&
3%
3$
3$
1&
89
3&
3&
3&
3$
3&
3%
3$
3$
3$
*1'
$9''
3%
3%
3&
3$
3$
3$
3%
3%
3%
3%
3$
'
'
'
'
'
'
*1'
$9''
'
'
'
'
'
'
'
'
'
'
$
$
$
$
$
$
9,1
*1'
*1'
9
9
5(6(7
,25()
1&
$UGXLQR 0RUSKR
3&
&1 &1&1
&1
&1
&1
06Y9
3&
3&
3%
3$
3$
3$
1&
9,1
*1'
*1'
9
9
5(6(7
,25()
1&
*1'
(9
3'
3&
3&
3&
9%$7
3+
3+
3&
3&
3&
3%
*1'
3$
3$
3$
1&
1&
%227
9''
3&
18&/(2)5(
1&
1&
3&
$*1'
3%
3%
3%
3%
3%
*1'
1&
3%
3$
3$
1&
89
3&
3&
3&
3$
3&
3%
3$
3$
3$
*1'
$9''
3%
3%
3&
3$
3$
3$
3%
3%
3%
3%
3$
'
'
'
'
'
'
*1'
$9''
'
'
'
'
'
'
'
'
'
'
$
$
$
$
$
$
9,1
*1'
*1'
9
9
5(6(7
,25()
1&
$UGXLQR 0RUSKR
3&
&1 &1&1
&1
&1
&1
DocID025833 Rev 7 31/63
UM1724 Hardware layout and configuration
62
Figure 19. NUCLEO-L053R8
Figure 20. NUCLEO-L073RZ
06Y9
3&
3&
3%
3$
3$
3$
1&
9,1
*1'
*1'
9
9
5(6(7
,25()
1&
*1'
(9
3'
3&
3&
3&
9/&'
3+
3+
3&
3&
3&
3%
*1'
3$
3$
3$
1&
1&
%227
9''
3&
18&/(2/5
1&
1&
3&
$*1'
3%
3%
3%
3%
3%
*1'
3%
3%
3$
3$
1&
89
3&
3&
3&
3$
3&
3%
3$
3$
3$
*1'
$9''
3%
3%
3&
3$
3$
3$
3%
3%
3%
3%
3$
'
'
'
'
'
'
*1'
$9''
'
'
'
'
'
'
'
'
'
'
$
$
$
$
$
$
9,1
*1'
*1'
9
9
5(6(7
,25()
1&
$UGXLQR 0RUSKR
3&
&1 &1&1
&1
&1
&1
3&
3&
3%
3$
3$
3$
1&
9,1
*1'
*1'
9
9
5(6(7
,25()
1&
*1'
(9
3'
3&
3&
3&
9/&'
3+
3+
3&
3&
3&
3%
*1'
3$
3$
3$
1&
1&
%227
9''
3&
1&
1&
3&
$*1'
3%
3%
3%
3%
3%
*1'
3%
3%
3$
3$
1&
89
3&
3&
3&
3$
3&
3%
3$
3$
3$
*1'
$9''
3%
3%
3&
3$
3$
3$
3%
3%
3%
3%
3$
'
'
'
'
'
'
*1'
$9''
'
'
'
'
'
'
'
'
'
'
$
$
$
$
$
$
9,1
*1'
*1'
9
9
5(6(7
,25()
1&
$UGXLQR 0RUSKR
3&
&1 &1&1
&1
&1
&1
18&/(2/5=
06Y9
Hardware layout and configuration UM1724
32/63 DocID025833 Rev 7
Figure 21. NUCLEO-L152RE
Figure 22. NUCLEO-L476RG
06Y9
3&
3&
3%
3$
3$
3$
1&
9,1
*1'
*1'
9
9
5(6(7
,25()
1&
*1'
(9
3'
3&
3&
3&
9/&'
3+
3+
3&
3&
3&
3%
*1'
3$
3$
3$
1&
1&
%227
9''
3&
18&/(2/5(
1&
1&
3&
$*1'
3%
3%
3%
3%
3%
*1'
3%
3%
3$
3$
1&
89
3&
3&
3&
3$
3&
3%
3$
3$
3$
*1'
$9''
3%
3%
3&
3$
3$
3$
3%
3%
3%
3%
3$
'
'
'
'
'
'
*1'
$9''
'
'
'
'
'
'
'
'
'
'
$
$
$
$
$
$
9,1
*1'
*1'
9
9
5(6(7
,25()
1&
$UGXLQR 0RUSKR
3&
&1 &1&1
&1
&1
&1
3&
3&
3%
3$
3$
3$
1&
9,1
*1'
*1'
9
9
5(6(7
,25()
1&
*1'
(9
3'
3&
3&
3&
9%$7
3+
3+
3&
3&
3&
3%
*1'
3$
3$
3$
1&
1&
%227
9''
3&
18&/(2/5*
1&
1&
3&
$*1'
3%
3%
3%
3%
3%
*1'
3%
3%
3$
3$
1&
89
3&
3&
3&
3$
3&
3%
3$
3$
3$
*1'
$9''
3%
3%
3&
3$
3$
3$
3%
3%
3%
3%
3$
'
'
'
'
'
'
*1'
$9''
'
'
'
'
'
'
'
'
'
'
$
$
$
$
$
$
9,1
*1'
*1'
9
9
5(6(7
,25()
1&
$UGXLQR 0RUSKR
3&
&1 &1&1
&1
&1
&1
06Y9
DocID025833 Rev 7 33/63
UM1724 Hardware layout and configuration
62
5.11 Arduino connectors
CN5, CN6, CN8 and CN9 are female connectors compatible with Arduino standard. Most
shields designed for Arduino can fit to the STM32 Nucleo boards.
The Arduino connectors on STM32 Nucleo board support the Arduino Uno Revision 3.
For compatibility with Arduino Uno Revision 1, apply the following modifications:
•SB46 and SB52 should be ON,
•SB51 and SB56 should be OFF to connect I2C on A4 (pin 5) and A5 (pin 6 of CN8).
Caution: The IOs of STM32 microcontroller are 3.3 V compatible instead of 5 V for Arduino Uno.
Table 10 to Table 19 show the pin assignment of each main STM32 microcontroller on
Arduino connectors.
Table 10. Arduino connectors on
NUCLEO-F030R8, NUCLEO-F070RB, NUCLEO-F072RB, NUCLEO-F091RC
CN No. Pin No. Pin name MCU pin Function
Left connectors
CN6
power
1NC - -
2 IOREF - 3.3V Ref
3 RESET NRST RESET
4 +3V3 - 3.3V input/output
5 +5V - 5V output
6 GND - Ground
7 GND - Ground
8 VIN - Power input
CN8
analog
1 A0 PA0 ADC_IN0
2 A1 PA1 ADC_IN1
3 A2 PA4 ADC_IN4
4 A3 PB0 ADC_IN8
5 A4 PC1 or PB9(1) ADC_IN11 (PC1) or I2C1_SDA (PB9)
6 A5 PC0 or PB8(1) ADC_IN10 (PC0) or I2C1_SCL (PB8)
Hardware layout and configuration UM1724
34/63 DocID025833 Rev 7
Right connectors
CN5
digital
10 D15 PB8 I2C1_SCL
9 D14 PB9 I2C1_SDA
8 AREF - AVDD
7 GND - Ground
6 D13 PA5 SPI1_SCK
5 D12 PA6 SPI1_MISO
4 D11 PA7 TIM17_CH1 or SPI1_MOSI
3 D10 PB6 TIM16_CH1N or SPI1_CS
2 D9 PC7 TIM3_CH2
1D8 PA9 -
CN9
digital
8D7 PA8 -
7 D6 PB10 TIM2_CH3(2)
6 D5 PB4 TIM3_CH1
5 D4 PB5 -
4 D3 PB3 TIM2_CH2(3)
3D2 PA10 -
2 D1 PA2 USART2_TX
1 D0 PA3 USART2_RX
1. Please refer to Table 9: Solder bridges for details.
2. Warning: PWM is not supported by D6 on STM32F030 and STM32F070 since the timer is not available on
PB10.
3. Warning: PWM is not supported by D3 on STM32F030 and STM32F070 since timer is not available on
PB3.
Table 10. Arduino connectors on
NUCLEO-F030R8, NUCLEO-F070RB, NUCLEO-F072RB, NUCLEO-F091RC (continued)
CN No. Pin No. Pin name MCU pin Function
DocID025833 Rev 7 35/63
UM1724 Hardware layout and configuration
62
Table 11. Arduino connectors on NUCLEO-F103RB
CN No. Pin No. Pin name MCU pin Function
Left connectors
CN6
power
1NC - -
2 IOREF - 3.3V Ref
3 RESET NRST RESET
4 +3V3 - 3.3V input/output
5 +5V - 5V output
6 GND - Ground
7 GND - Ground
8 VIN - Power input
CN8
analog
1 A0 PA0 ADC_0
2 A1 PA1 ADC_1
3 A2 PA4 ADC_4
4 A3 PB0 ADC_8
5 A4 PC1 or PB9(1)
1. Please refer to Table 9: Solder bridges for detail.
ADC_11 (PC1) or I2C1_SDA (PB9)
6 A5 PC0 or PB8(1) ADC_10 (PC0) or I2C1_SCL (PB8)
Right connectors
CN5
digital
10 D15 PB8 I2C1_SCL
9 D14 PB9 I2C1_SDA
8 AREF - AVDD
7 GND - Ground
6 D13 PA5 SPI1_SCK
5 D12 PA6 SPI1_MISO
4 D11 PA7 TIM3_CH2 or SPI1_MOSI
3 D10 PB6 TIM4_CH1 or SPI1_CS
2 D9 PC7 TIM3_CH2
1D8 PA9 -
CN9
digital
8D7 PA8 -
7 D6 PB10 TIM2_CH3
6 D5 PB4 TIM3_CH1
5 D4 PB5 -
4 D3 PB3 TIM2_CH2
3D2 PA10 -
2 D1 PA2 USART2_TX
1 D0 PA3 USART2_RX
Hardware layout and configuration UM1724
36/63 DocID025833 Rev 7
Table 12. Arduino connectors on NUCLEO-F302R8
CN No. Pin No. Pin name MCU pin Function
Left connectors
CN6
Power
1NC - -
2 IOREF - 3.3V Ref
3 RESET NRST RESET
4 +3V3 - 3.3V input/output
5 +5V - 5V output
6 GND - Ground
7 GND - Ground
8 VIN - Power input
CN8
Analog
1 A0 PA0 ADC_IN1
2 A1 PA1 ADC_IN2
3 A2 PA4 ADC_IN5
4 A3 PB0 ADC_IN11
5 A4 PC1 or PB9(1)
1. Please refer to Table 9: Solder bridges for details.
ADC_IN7 (PC1) or I2C1_SDA (PB9)
6 A5 PC0 or PB8(1) ADC_IN6 (PC0) or I2C1_SCL (PB8)
Right connectors
CN5
digital
10 D15 PB8 I2C1_SCL
9 D14 PB9 I2C1_SDA
8 AREF - AVDD
7 GND - Ground
6 D13 PB13 SPI2_SCK
5 D12 PB14 SPI2_MISO
4 D11 PB15 TIM15_CH2 or SPI2_MOSI
3 D10 PB6 TIM16_CH1N or SPI2_CS
2D9 PC7 -
1D8 PA9 -
CN9
digital
8D7 PA8 -
7 D6 PB10 TIM2_CH3
6 D5 PB4 TIM16_CH1
5 D4 PB5 -
4 D3 PB3 TIM2_CH2
3D2 PA10 -
2 D1 PA2 USART2_TX
1 D0 PA3 USART2_RX
Hardware layout and configuration UM1724
38/63 DocID025833 Rev 7
Table 13. Arduino connectors on NUCLEO-F303RE
CN No. Pin No. Pin name MCU pin Function
Left connectors
CN6
Power
1NC - -
2 IOREF - 3.3V Ref
3 RESET NRST RESET
4 +3V3 - 3.3V input/output
5 +5V - 5V output
6 GND - Ground
7 GND - Ground
8 VIN - Power input
CN8
Analog
1 A0 PA0 ADC1_IN1
2 A1 PA1 ADC1_IN2
3 A2 PA4 ADC2_IN1
4 A3 PB0 ADC3_IN12
5 A4 PC1 or PB9(1)
1. Please refer to Table 9: Solder bridges or details.
ADC12_IN7 (PC1) or I2C1_SDA (PB9)
6 A5 PC0 or PB8(1) ADC12_IN6 (PC0) or I2C1_SCL (PB8)
Right connectors
CN5
Digital
10 D15 PB8 I2C1_SCL
9 D14 PB9 I2C1_SDA
8 AREF - AVDD
7 GND - Ground
6 D13 PA5 SPI1_SCK
5 D12 PA6 SPI1_MISO
4 D11 PA7 TIM17_CH1 or SPI1_MOSI
3 D10 PB6 TIM4_CH1 or SPI1_CS
2 D9 PC7 TIM3_CH2
1D8 PA9 -
CN9
Digital
8D7 PA8 -
7 D6 PB10 TIM2_CH3
6 D5 PB4 TIM3_CH1
5 D4 PB5 -
4 D3 PB3 TIM2_CH2
3D2 PA10 -
2 D1 PA2 USART2_TX
DocID025833 Rev 7 39/63
UM1724 Hardware layout and configuration
62
Table 14. Arduino connectors on NUCLEO-F334R8
CN No. Pin No. Pin name MCU pin Function
Left connectors
CN6
power
1NC - -
2 IOREF - 3.3V Ref
3 RESET NRST RESET
4 +3V3 - 3.3V input/output
5 +5V - 5V output
6 GND - Ground
7 GND - Ground
8 VIN - Power input
CN8
analog
1 A0 PA0 ADC1_IN1
2 A1 PA1 ADC1_IN2
3 A2 PA4 ADC2_IN1
4 A3 PB0 ADC1_IN11
5 A4 PC1 or PB9(1)
1. Please refer to Table 9: Solder bridges for details.
ADC_IN7 (PC1) or I2C1_SDA (PB9)
6 A5 PC0 or PB8(1) ADC_IN6 (PC0) or I2C1_SCL (PB8)
Right connectors
CN5
digital
10 D15 PB8 I2C1_SCL
9 D14 PB9 I2C1_SDA
8 AREF - AVDD
7 GND - Ground
6 D13 PA5 SPI1_SCK
5 D12 PA6 SPI1_MISO
4 D11 PA7 TIM17_CH1 or SPI1_MOSI
3 D10 PB6 TIM16_CH1N or SPI1_CS
2 D9 PC7 TIM3_CH2
1D8 PA9 -
CN9
digital
8D7 PA8 -
7 D6 PB10 TIM2_CH3
6 D5 PB4 TIM3_CH1
5 D4 PB5 -
4 D3 PB3 TIM2_CH2
3D2 PA10 -
2 D1 PA2 USART2_TX
1 D0 PA3 USART2_RX
Hardware layout and configuration UM1724
40/63 DocID025833 Rev 7
Table 15. Arduino connectors on NUCLEO-F401RE, NUCLEO-F411RE
CN No. Pin No. Pin name MCU pin Function
Left connectors
CN6
power
1NC - -
2 IOREF - 3.3V Ref
3 RESET NRST RESET
4 +3V3 - 3.3V input/output
5 +5V - 5V output
6 GND - Ground
7 GND - Ground
8 VIN - Power input
CN8
analog
1 A0 PA0 ADC1_0
2 A1 PA1 ADC1_1
3 A2 PA4 ADC1_4
4 A3 PB0 ADC1_8
5 A4 PC1 or PB9(1)
1. Please refer to Table 9: Solder bridges for details.
ADC1_11 (PC1) or I2C1_SDA (PB9)
6 A5 PC0 or PB8(1) ADC1_10 (PC0) or I2C1_SCL (PB8)
Right connectors
CN5
digital
10 D15 PB8 I2C1_SCL
9 D14 PB9 I2C1_SDA
8 AREF - AVDD
7 GND - Ground
6 D13 PA5 SPI1_SCK
5 D12 PA6 SPI1_MISO
4 D11 PA7 TIM1_CH1N or SPI1_MOSI
3 D10 PB6 TIM4_CH1 or SPI1_CS
2 D9 PC7 TIM3_CH2
1D8 PA9 -
CN9
digital
8D7 PA8 -
7 D6 PB10 TIM2_CH3
6 D5 PB4 TIM3_CH1
5 D4 PB5 -
4 D3 PB3 TIM2_CH2
3D2 PA10 -
2 D1 PA2 USART2_TX
1 D0 PA3 USART2_RX
DocID025833 Rev 7 41/63
UM1724 Hardware layout and configuration
62
Table 16. Arduino connectors on NUCLEO-L053R8
Connect
or No. Pin No. Pin name MCU pin Function
Left connectors
CN6
power
1NC - -
2 IOREF - 3.3V Ref
3 RESET NRST RESET
4 +3V3 - 3.3V input/output
5 +5V - 5V output
6 GND - Ground
7 GND - Ground
8 VIN - Power input
CN8
analog
1 A0 PA0 ADC_IN0
2 A1 PA1 ADC_IN1
3 A2 PA4 ADC_IN4
4 A3 PB0 ADC_IN8
5 A4 PC1 or PB9(1)
1. Please refer to Table 9: Solder bridges for details.
ADC_IN11 (PC1) or I2C1_SDA (PB9)
6 A5 PC0 or PB8(1) ADC_IN10 (PC0) or I2C1_SCL (PB8)
Right connectors
CN5
digital
10 D15 PB8 I2C1_SCL
9 D14 PB9 I2C1_SDA
8 AREF - AVDD
7 GND - Ground
6 D13 PA5 SPI1_SCK
5 D12 PA6 SPI1_MISO
4 D11 PA7 TIM12_CH2 or SPI1_MOSI
3 D10 PB6 SPI1_CS
2 D9 PC7 TIM12_CH2
1D8 PA9 -
CN9
digital
8D7 PA8 -
7 D6 PB10 TIM2_CH3
6 D5 PB4 TIM12_CH1
5 D4 PB5 -
4 D3 PB3 TIM2_CH2
3D2 PA10 -
2 D1 PA2 USART2_TX
1 D0 PA3 USART2_RX
DocID025833 Rev 7 43/63
UM1724 Hardware layout and configuration
62
Table 17. Arduino connectors on NUCLEO-L073RZ
CN No. Pin No. Pin name MCU pin Function
Left connectors
CN6
power
1NC - -
2 IOREF - 3.3V Ref
3 RESET NRST RESET
4 +3V3 - 3.3V input/output
5 +5V - 5V output
6 GND - Ground
7 GND - Ground
8 VIN - Power input
CN8
analog
1 A0 PA0 ADC_IN0
2 A1 PA1 ADC_IN1
3 A2 PA4 ADC_IN4
4 A3 PB0 ADC_IN8
5 A4 PC1 or PB9(1)
1. Please refer to Table 9: Solder bridges for details.
ADC_IN11 (PC1) or I2C1_SDA (PB9)
6 A5 PC0 or PB8(1) ADC_IN10 (PC0) or I2C1_SCL (PB8)
Right connectors
CN5
digital
10 D15 PB8 I2C1_SCL
9 D14 PB9 I2C1_SDA
8 AREF - AVDD
7 GND - Ground
6 D13 PA5 SPI1_SCK
5 D12 PA6 SPI1_MISO
4 D11 PA7 TIM22_CH2 or SPI1_MOSI
3 D10 PB6 SPI1_CS
2 D9 PC7 TIM3_CH2
1D8 PA9 -
CN9
digital
8D7 PA8 -
7 D6 PB10 TIM2_CH3
6 D5 PB4 TIM3_CH1
5 D4 PB5 -
4 D3 PB3 TIM2_CH2
3D2 PA10 -
2 D1 PA2 USART2_TX
1 D0 PA3 USART2_RX
DocID025833 Rev 7 45/63
UM1724 Hardware layout and configuration
62
Table 18. Arduino connectors on NUCLEO-L152RE
CN No. Pin No. Pin name MCU pin Function
Left connectors
CN6
power
1NC - -
2 IOREF - 3.3V Ref
3 RESET NRST RESET
4 +3V3 - 3.3V input/output
5 +5V - 5V output
6 GND - Ground
7 GND - Ground
8 VIN - Power input
CN8
analog
1 A0 PA0 ADC_IN0
2 A1 PA1 ADC_IN1
3 A2 PA4 ADC_IN4
4 A3 PB0 ADC_IN8
5 A4 PC1 or PB9(1)
1. Please refer to Table 9: Solder bridges for details.
ADC_IN11 (PC1) or I2C1_SDA (PB9)
6 A5 PC0 or PB8(1) ADC_IN10 (PC0) or I2C1_SCL (PB8)
Right connectors
CN5
digital
10 D15 PB8 I2C1_SCL
9 D14 PB9 I2C1_SDA
8 AREF - AVDD
7 GND - Ground
6 D13 PA5 SPI1_SCK
5 D12 PA6 SPI1_MISO
4 D11 PA7 TIM11_CH1 or SPI1_MOSI
3 D10 PB6 TIM4_CH1 or SPI1_CS
2 D9 PC7 TIM3_CH2
1D8 PA9 -
CN9
digital
8D7 PA8 -
7 D6 PB10 TIM2_CH3
6 D5 PB4 TIM3_CH1
5 D4 PB5 -
4 D3 PB3 TIM2_CH2
3D2 PA10 -
2 D1 PA2 USART2_TX
1 D0 PA3 USART2_RX
Hardware layout and configuration UM1724
46/63 DocID025833 Rev 7
Table 19. Arduino connectors on NUCLEO-L476RG
CN No. Pin No. Pin name MCU pin Function
Left connectors
CN6
power
1NC - -
2 IOREF - 3.3V Ref
3 RESET NRST RESET
4 +3V3 - 3.3V input/output
5 +5V - 5V output
6 GND - Ground
7 GND - Ground
8 VIN - Power input
CN8
analog
1 A0 PA0 ADC12_IN5
2 A1 PA1 ADC12_IN6
3 A2 PA4 ADC12_IN9
4 A3 PB0 ADC12_IN15
5 A4 PC1 or PB9(1)
1. Please refer to Table 9: Solder bridges for details.
ADC123_IN2 (PC1) or I2C1_SDA (PB9)
6 A5 PC0 or PB8(1) ADC123_IN1 (PC0) or I2C1_SCL (PB8)
Right connectors
CN5
digital
10 D15 PB8 I2C1_SCL
9 D14 PB9 I2C1_SDA
8 AREF - AVDD
7 GND - Ground
6 D13 PA5 SPI1_SCK
5 D12 PA6 SPI1_MISO
4 D11 PA7 TIM17_CH1 or SPI1_MOSI
3 D10 PB6 TIM4_CH1 or SPI1_CS
2 D9 PC7 TIM3_CH2
1D8 PA9 -
CN9
digital
8D7 PA8 -
7 D6 PB10 TIM2_CH3
6 D5 PB4 TIM3_CH1
5 D4 PB5 -
4 D3 PB3 TIM2_CH2
3D2 PA10 -
2 D1 PA2 USART2_TX
1 D0 PA3 USART2_RX
DocID025833 Rev 7 47/63
UM1724 Hardware layout and configuration
62
5.12 STMicroelectronics Morpho connector
The STMicroelectronics Morpho connector consists in male pin headers (CN7 and CN10)
accessible on both sides of the board. They can be used to connect the STM32 Nucleo
board to an extension board or a prototype/wrapping board placed on top or on bottom side
of the STM32 Nucleo board. All signals and power pins of the MCU are available on
STMicroelectronics Morpho connector. This connector can also be probed by an
oscilloscope, logical analyzer or voltmeter.
Table 20 to Table 26 show the pin assignment of each main MCU on STMicroelectronics
Morpho connector.
Table 20. STMicroelectronics Morpho connector on NUCLEO-F030R8
CN7 odd pins CN7 even pins CN10 odd pins CN10 even pins
Pin No. Name Name Pin No. Pin No. Name Name Pin No.
1 PC10 PC11 2 1 PC9 PC8 2
3 PC12 PD2 4 3 PB8 PC6 4
5 VDD E5V 6 5 PB9 PC5 6
7BOOT0
(1)
1. Default state of BOOT0 is 0. It can be set to 1 when a jumper is on pin5-7 of CN7.Two unused
jumpers are available on CN11 and CN12 (bottom side of the board).
GND 8 7 AVDD U5V(2)
2. U5V is 5 V power from ST-LINK/V2-1 USB connector and it rises before +5V.
8
9PF6-109GND-10
11 PF7 IOREF 12 11 PA5 PA12 12
13 PA13 RESET 14 13 PA6 PA11 14
15 PA14 +3V3 16 15 PA7 PB12 16
17 PA15 +5V 18 17 PB6 PB11 18
19 GND GND 20 19 PC7 GND 20
21 PB7 GND 22 21 PA9 PB2 22
23 PC13(3)
3. PA13 and PA14 share with SWD signals connected to ST-LINK/V2-1, it is not recommend to
use them as IO pins if ST-LINK part is not cut.
VIN 24 23 PA8 PB1 24
25 PC14(3) - 26 25 PB10 PB15 26
27 PC15 PA0 28 27 PB4 PB14 28
29 PF0 PA1 30 29 PB5 PB13 30
31 PF1 PA4 32 31 PB3 AGND 32
33 VBAT PB0 34 33 PA10 PC4 34
35 PC2 PC1 or
PB9(4)
4. Please refer to Table 9: Solder bridges for detail
36 35 PA2 PF5 36
37 PC3 PC0 or
PB8(4) 38 37 PA3 PF4 38
Hardware layout and configuration UM1724
48/63 DocID025833 Rev 7
Table 21. STMicroelectronics Morpho connector on NUCLEO-F070RB
CN7 odd pins CN7 even pins CN10 odd pins CN10 even pins
Pin No. Name Name Pin No. Pin No. Name Name Pin No.
1 PC10 PC11 2 1 PC9 PC8 2
3 PC12 PD2 4 3 PB8 PC6 4
5 VDD E5V 6 5 PB9 PC5 6
7BOOT0
(1)
1. Default state of BOOT0 is 0. It can be set to 1 when a jumper is on pin5-7 of CN7.
GND 8 7 AVDD U5V(2)
2. U5V is 5 V power from ST-LINK/V2-1 USB connector and it rises before +5V.
8
9--109GND-10
11 - IOREF 12 11 PA5 PA12 12
13 PA13(3)
3. PA13 and PA14 share with SWD signals connected to ST-LINK/V2-1, it is not recommend to
use them as IO pins if ST-LINK part is not cut.
RESET 14 13 PA6 PA11 14
15 PA14(3) +3V3 16 15 PA7 PB12 16
17 PA15 +5V 18 17 PB6 PB11 18
19 GND GND 20 19 PC7 GND 20
21 PB7 GND 22 21 PA9 PB2 22
23 PC13 VIN 24 23 PA8 PB1 24
25 PC14 - 26 25 PB10 PB15 26
27 PC15 PA0 28 27 PB4 PB14 28
29 PF0 PA1 30 29 PB5 PB13 30
31 PF1 PA4 32 31 PB3 AGND 32
33 VDD PB0 34 33 PA10 PC4 34
35 PC2 PC1 or
PB9(4)
4. Please refer to Table 9: Solder bridges for detail
36 35 PA2 - 36
37 PC3 PC0 or
PB8(4) 38 37 PA3 - 38
DocID025833 Rev 7 49/63
UM1724 Hardware layout and configuration
62
Table 22. STMicroelectronics Morpho connector on
NUCLEO-F072RB, NUCLEO-F091RC, NUCLEO-F303RE, NUCLEO-F334R8
CN7 odd pins CN7 even pins CN10 odd pins CN10 even pins
Pin No. Name Name Pin No. Pin No. Name Name Pin No.
1 PC10 PC11 2 1 PC9 PC8 2
3 PC12 PD2 4 3 PB8 PC6 4
5 VDD E5V 6 5 PB9 PC5 6
7 BOOT0(1)(2)
1. Default state of BOOT0 is 0. It can be set to 1 when a jumper is on pin5-7 of CN7.Two unused
jumpers are available on CN11 and CN12 (bottom side of the board).
2. CN7 pin 7 (BOOT0) can be configured by engi byte as PF11 on NUCLEO-F091RC.
GND 8 7 AVDD U5V(3)
3. U5V is 5 V power from ST-LINK/V2-1 USB connector and it rises before +5V.
8
9--109GND-10
11 - IOREF 12 11 PA5 PA12 12
13 PA13(4)
4. PA13 and PA14 share with SWD signals connected to ST-LINK/V2-1, it is not recommended to
use them as IO pins if ST-LINK part is not cut.
RESET 14 13 PA6 PA11 14
15 PA14(4) +3V3 16 15 PA7 PB12 16
17 PA15 +5V 18 17 PB6 PB11 18
19 GND GND 20 19 PC7 GND 20
21 PB7 GND 22 21 PA9 PB2 22
23 PC13 VIN 24 23 PA8 PB1 24
25 PC14 - 26 25 PB10 PB15 26
27 PC15 PA0 28 27 PB4 PB14 28
29 PF0 PA1 30 29 PB5 PB13 30
31 PF1 PA4 32 31 PB3 AGND 32
33 VBAT PB0 34 33 PA10 PC4 34
35 PC2 PC1 or
PB9(5)
5. Please refer to Table 9: Solder bridges for detail.
36 35 PA2 - 36
37 PC3 PC0 or
PB8(5) 38 37 PA3 - 38
Hardware layout and configuration UM1724
50/63 DocID025833 Rev 7
Table 23. STMicroelectronics Morpho connector on NUCLEO-F103RB
CN7 odd pins CN7 even pins CN10 odd pins CN10 even pins
Pin No. Name Name Pin No. Pin No. Name Name Pin No.
1 PC10 PC11 2 1 PC9 PC8 2
3 PC12 PD2 4 3 PB8 PC6 4
5 VDD E5V 6 5 PB9 PC5 6
7BOOT0
(1)
1. The default state of BOOT0 is 0. It can be set to 1 when a jumper is on pin5-7 of CN7.Two
unused jumpers are available on CN11 and CN12 (bottom side of the board).
GND 8 7 AVDD U5V(2)
2. U5V is 5 V power from ST-LINK/V2-1 USB connector and it rises before +5 V
8
9- -109GND-10
11 - IOREF 12 11 PA5 PA12 12
13 PA13(3)
3. PA13 and PA14 share with SWD signals connected to ST-LINK/V2-1, it is not recommended to
use them as IO pins if ST-LINK part is not cut.
RESET 14 13 PA6 PA11 14
15 PA14(3) +3V3 16 15 PA7 PB12 16
17 PA15 +5V 18 17 PB6 PB11 18
19 GND GND 20 19 PC7 GND 20
21 PB7 GND 22 21 PA9 PB2 22
23 PC13 VIN 24 23 PA8 PB1 24
25 PC14 - 26 25 PB10 PB15 26
27 PC15 PA0 28 27 PB4 PB14 28
29 PD0 PA1 30 29 PB5 PB13 30
31 PD1 PA4 32 31 PB3 AGND 32
33 VBAT PB0 34 33 PA10 PC4 34
35 PC2 PC1 or
PB9(4)
4. Please refer to Table 9: Solder bridges for detail
36 35 PA2 - 36
37 PC3 PC0 or
PB8(4) 38 37 PA3 - 38
DocID025833 Rev 7 51/63
UM1724 Hardware layout and configuration
62
Table 24. STMicroelectronics Morpho connector on NUCLEO-F302R8
CN7 odd pins CN7 even pins CN10 odd pins CN10 even pins
Pin No. Name Name Pin No. Pin No. Name Name Pin No.
1 PC10 PC11 2 1 PC9 PC8 2
3 PC12 PD2 4 3 PB8 PC6 4
5 VDD E5V 6 5 PB9 PC5 6
7BOOT0
(1)
1. Default state of BOOT0 is 0. It can be set to 1 when a jumper is on pin5-7 of CN7.Two unused
jumpers are available on CN11 and CN12 (bottom side of the board).
GND 8 7 AVDD U5V(2)
2. U5V is 5V power from ST-LINK/V2-1 USB connector and it rises before +5V.
8
9--109GND-10
11 - IOREF 12 11 PB13 PA12 12
13 PA13(3)
3. PA13 and PA14 share with SWD signals connected to ST-LINK/V2-1, it is not recommend to
use them as IO pins if ST-LINK part is not cut.
RESET 14 13 PB14 PA11 14
15 PA14(3) +3V3 16 15 PB15 PB12 16
17 PA15 +5V 18 17 PB6 PB11 18
19 GND GND 20 19 PC7 GND 20
21 PB7 GND 22 21 PA9 PB2 22
23 PC13 VIN 24 23 PA8 PB1 24
25 PC14 - 26 25 PB10 PA7 26
27 PC15 PA0 28 27 PB4 PA6 28
29 PF0 PA1 30 29 PB5 PA5 30
31 PF1 PA4 32 31 PB3 AGND 32
33 VBAT PB0 34 33 PA10 PC4 34
35 PC2 PC1 or
PB9(4)
4. Please refer to Table 9: Solder bridges for details.
36 35 PA2 - 36
37 PC3 PC0 or
PB8(4) 38 37 PA3 - 38
Hardware layout and configuration UM1724
52/63 DocID025833 Rev 7
Table 25. STMicroelectronics Morpho connector on NUCLEO-F401RE,
NUCLEO-F411RE
CN7 odd pins CN7 even pins CN10 odd pins CN10 even pins
Pin No. Name Name Pin No. Pin No. Name Name Pin No.
1 PC10 PC11 2 1 PC9 PC8 2
3 PC12 PD2 4 3 PB8 PC6 4
5 VDD E5V 6 5 PB9 PC5 6
7BOOT0
(1)
1. Default state of BOOT0 is 0. It can be set to 1 when a jumper is on pin5-7 of CN7.Two unused
jumpers are available on CN11 and CN12 (bottom side of the board).
GND 8 7 AVDD U5V(2)
2. U5V is 5 V power from ST-LINK/V2-1 USB connector and it rises before +5V
8
9--109GND-10
11 - IOREF 12 11 PA5 PA12 12
13 PA13(3)
3. PA13 and PA14 share with SWD signals connected to ST-LINK/V2-1, it is not recommend to
use them as IO pins if ST-LINK part is not cut.
RESET 14 13 PA6 PA11 14
15 PA14(3) +3V3 16 15 PA7 PB12 16
17 PA15 +5V 18 17 PB6 - 18
19 GND GND 20 19 PC7 GND 20
21 PB7 GND 22 21 PA9 PB2 22
23 PC13 VIN 24 23 PA8 PB1 24
25 PC14 - 26 25 PB10 PB15 26
27 PC15 PA0 28 27 PB4 PB14 28
29 PH0 PA1 30 29 PB5 PB13 30
31 PH1 PA4 32 31 PB3 AGND 32
33 VBAT PB0 34 33 PA10 PC4 34
35 PC2 PC1 or
PB9(4)
4. Please refer to Table 9: Solder bridges for detail
36 35 PA2 - 36
37 PC3 PC0 or
PB8(4) 38 37 PA3 - 38
DocID025833 Rev 7 53/63
UM1724 Hardware layout and configuration
62
Table 26. STMicroelectronics Morpho connector on
NUCLEO-L053R8, NUCLEO-L073RZ, NUCLEO-L152RE
CN7 odd pins CN7 even pins CN10 odd pins CN10 even pins
Pin No. Name Name Pin No. Pin No. Name Name Pin No.
1 PC10 PC11 2 1 PC9 PC8 2
3 PC12 PD2 4 3 PB8 PC6 4
5 VDD E5V 6 5 PB9 PC5 6
7BOOT0
(1)
1. Default state of BOOT0 is 0. It can be set to 1 when a jumper is on pin5-7 of CN7.Two unused
jumpers are available on CN11 and CN12 (bottom side of the board).
GND 8 7 AVDD U5V(2)
2. U5V is 5 V power from ST-LINK/V2-1 USB connector and it rises before +5V.
8
9--109GND-10
11 - IOREF 12 11 PA5 PA12 12
13 PA13(3)
3. PA13 and PA14 share with SWD signals connected to ST-LINK/V2-1, it is not recommend to
use them as IO pins if ST-LINK part is not cut.
RESET 14 13 PA6 PA11 14
15 PA14(3) +3V3 16 15 PA7 PB12 16
17 PA15 +5V 18 17 PB6 PB11 18
19 GND GND 20 19 PC7 GND 20
21 PB7 GND 22 21 PA9 PB2 22
23 PC13 VIN 24 23 PA8 PB1 24
25 PC14 - 26 25 PB10 PB15 26
27 PC15 PA0 28 27 PB4 PB14 28
29 PH0 PA1 30 29 PB5 PB13 30
31 PH1 PA4 32 31 PB3 AGND 32
33 VLCD PB0 34 33 PA10 PC4 34
35 PC2 PC1 or
PB9(4)
4. Please refer to Table 9: Solder bridges for detail
36 35 PA2 - 36
37 PC3 PC0 or
PB8(4) 38 37 PA3 - 38
Hardware layout and configuration UM1724
54/63 DocID025833 Rev 7
Table 27. STMicroelectronics Morpho connector on NUCLEO-L476RG
CN7 odd pins CN7 even pins CN10 odd pins CN10 even pins
Pin No. Name Name Pin No. Pin No. Name Name Pin No.
1 PC10 PC11 2 1 PC9 PC8 2
3 PC12 PD2 4 3 PB8 PC6 4
5 VDD E5V 6 5 PB9 PC5 6
7BOOT0
(1)
1. Default state of BOOT0 is 0. It can be set to 1 when a jumper is on pin5-7 of CN7.
GND 8 7 AVDD U5V(2)
2. U5V is 5 V power from ST-LINK/V2-1 USB connector and it rises before +5V.
8
9--109GND-10
11 - IOREF 12 11 PA5 PA12 12
13 PA13(3)
3. PA13 and PA14 share with SWD signals connected to ST-LINK/V2-1, it is not recommend to
use them as IO pins if ST-LINK part is not cut.
RESET 14 13 PA6 PA11 14
15 PA14(3) +3V3 16 15 PA7 PB12 16
17 PA15 +5V 18 17 PB6 PB11 18
19 GND GND 20 19 PC7 GND 20
21 PB7 GND 22 21 PA9 PB2 22
23 PC13 VIN 24 23 PA8 PB1 24
25 PC14 - 26 25 PB10 PB15 26
27 PC15 PA0 28 27 PB4 PB14 28
29 PH0 PA1 30 29 PB5 PB13 30
31 PH1 PA4 32 31 PB3 AGND 32
33 VBAT PB0 34 33 PA10 PC4 34
35 PC2 PC1 or
PB9(4)
4. Please refer to Table 9: Solder bridges for detail
36 35 PA2 - 36
37 PC3 PC0 or
PB8(4) 38 37 PA3 - 38
Electrical schematics UM1724
56/63 DocID025833 Rev 7
7 Electrical schematics
Figure 24 to Figure 27 show the electrical schematics of the STM32 Nucleo board.
Figure 24. Electrical schematics (1/4)
14
TOP & POWER
MB1136 C.3
12/9/2014
Title:
Size: Reference:
Date: Sheet: of
A4 Revision:
NUCLEO-XXXXRX
Project:
R28
4K7
U5V
+3V3
C18
1uF_X5R_0603
C20
100nF C19
100nF
VIN
+5V
VDD
JP6
TMS
TCK
MCO
NRST
STLK_RX
STLK_TX
SWO
PWR_ENn
U_ST_LINK_V2-1
ST_LINK_V2-1.SCHDOC
LD3
RED
R32
1K
4
3
5
G
S
D
6
7
8
2
1
T2
STS7PF30L
C16
10uF(25V) C17
10uF
Vin
3Vout 2
1
Tab 4
U3
LD1117S50TR
PA[0..15]
PB[0..15]
PC[0..15]
PF[4..7]
PD2
PD8
PF[0..1]
NRST
BOOT0
U_Connectors
Connectors.SchDoc
NRST
MCO
USART_RX
USART_TX
PA[0..15]
PB[0..15]
PC[0..15]
PF[4..7]
PD2
TCK
TMS
SWO
PD8
PF[0..1]
BOOT0
U_MCU_64
MCU_64.SchDoc
SB1
SB2
EN
1
GND
2
VO 4
NC 5
GND
0
VI
6PG 3
U4 LD39050PU33R
Note1: Text in italic placed on a wire doesn’ t correspond to net name. It just
helps to identify rapidly Arduino's signal related to this wire.
Note2: Remove [N/A] on R34, R36, C31, C32 , X2 from C.1 to C.2
Note3: Add “ default open” on SB48, SB49, SB55 from C.1 to C.2
Note4: Replace “ default open” by “ default closed” on SB16 & SB50 from C.1 to
C.2
Note5: C31&C32 value changed from 10pF to 4.3pF to fit with new 32K crystal
A
BS25-32.768KHZ-6-T from C.2 to C.3
Note6: C26's value changed from 2.2uF to 4.7uF from C.2 to C.3
Note7: SB16 & SB50 default open and SB55 defult closed for L476RG from C.2
to C.3
Default: open
3
2
1
JP5
C21
1uF_X5R_0603
E5V
D4
STPS2L30A
UM1724 Electrical schematics
DocID025833 Rev 7 57/63
Figure 25. Electrical schematics (2/4)
24
MCU
MB1136 C.3
12/9/2014
Title:
Size: Reference:
Date: Sheet: of
A4 Revision:
NUCLEO-XXXXRX
Project:
C23
100nF
C28
100nF
C24
100nF
C34
20pF[N/A]
C33
20pF[N/A]
X3
8MHz(16pF)[N/A]
R37
[N/A]
C27
100nF
PC13 2
PC14 - OSC32_IN 3
PC15 - OSC32_OUT 4
PC0
8
PC1
9
PC2
10
PC3
11
PA0
14
PA1
15
PA2
16
PA3/SAR_VREF+
17
PA4
20
PA5
21
PA6
22
PA7
23
PC4
24
PC5
25
PB0 26
PB1/VREF+ 27
PB2 28
PB10/PE8 29
PB11/VCAP1 30
PB12/SD_VREF+ 33
PB13/PB14 34
PB14/PB15 35
PB15/PD8 36
PC6
37
PC7
38
PC8 39
PC9 40
PA8
41
PA9
42
PA10
43
PA11
44
PA12
45
PA13
46
PA14
49
PA15
50
PC10 51
PC11 52
PC12 53
PB3 55
PB4 56
PB5 57
PB6 58
PB7 59
PB8 61
PB9 62
U5A
MCU_LQFP64
VBAT/VLCD/VDD
1
PF0/PD0/PH0 - OSC_IN
5
PF1/PD1/PH1 - OSC_OUT
6NRST 7
VSSA 12
VDDA/VREF+
13
VSS/PF4/PA3 18
VDD/PF5
19
VSS/VCAP1 31
VDD
32
VSS/VCAP2/PF6 47
VDD/VUSB/VSA/PF7
48
BOOT0 60
VSS 63
VDD
64
PD2 54
U5B
MCU_LQFP64
4 1
3 2
X2
ABS25-32.768KHZ-6-T
C32
4.3pF
C31
4.3pF
R36 0
R34 0
1
43
2
B2
TD-0341 [RESET/Black]
C14
100nF
R33
10K
R30
4K7
1
4 3
2
B1
USER (Blue)
C15
100nF
R29
100
PA4
PA5
PA6
PA7
PA11
PA12
PA9
PA10
PA0
PA1
PA15
PA3
PA13
PA14
PA2
PA8
NRST
PB5
PB6
PB7
PB14
PB15
PB10
PB8
PB9
PB1
PB2
PB3
PB0
PB4
PB11
PB12
PB13
PC0
PC1
PC2
PC3
PC4
PC5
PC6
PC7
PC8
PC9
PC10
PC11
PC12
PC13
PC14
PC15
A0
A1
A2
A3
A4
A5
D0
D1
D12
D11
D13
D14
D15
PA3 D0
PD8
PF4
PF6
PF7
PF5
NRST
MCO
USART_RX
USART_TX
VDD
VDD
VDD L1
BEAD
AVDD
SB17
PA[0..15]
PA[0..15]
PB[0..15]
PB[0..15]
PC[0..15]
PC[0..15]
PF[4..7]
PF[4..7]
PD2 PD2
TCK
TMS
SWO
AVDD
/PE9
/PE8
AVDD
PD2
PD8 PD8
PF0
PF1
/PD0/PH0
/PD1/PH1
PF[0..1]
PF[0..1]
F373:SAR_VREF+
F373:PA3 & F303:PF4
F051/F030:PF5
F373:PE8
F373:PE9 & F401/F411:VCAP1
F200/F429:VCAP1
F373:SD_VREF+
F373:PB14
F373:PB15
F373:PD8
F051/F030/F373:PF6 & F200/F429:VCAP2
F051/F030/F373:PF7
AGND
AVDD
C30
100nF
AGND
R35 [N/A]
C29
1uF_X5R_0603
SB45
VDD
VBAT/VLCD/VDD
Ceramic capacitor (Low ESR)
Ceramic capacitor (Low ESR, ESR<1ohm)
BOOT0
C26 4.7uF
C25 2.2uF
C22 2.2uF
SB60
AGND
SB63
SB62
SB61
SB34
SB27
SB26
SB23
SB22
SB19
SB18
SB31
SB43
SB30
SB47
SB38
SB33
SB32
SB59
SB58
SB53
SB57
SB37
SB50
F302:D12
F302:D11
F302:D13
D2
D4
D3
D5
D6
D7
D8
D9
D10
SB64
SB65 AVDD
Default open
SB62,SB63
Default open
SB65
Default: closed
Open for L476RG
Electrical schematics UM1724
58/63 DocID025833 Rev 7
Figure 26. Electrical schematics (3/4)
34
STLINK/V2-1
MB1136 C.3
12/9/2014
Title:
Size: Reference:
Date: Sheet: of
A4 Revision:
NUCLEO-XXXXRX
Project:
1 2
X1
8MHz(12pF)
USB_DM
USB_DP
STM_RST
T_JTCK
T_JTCK
T_JTDO
T_JTDI
T_JTMS
STM_JTMS
STM_JTCK
OSC_IN
OSC_OUT
T_NRST
AIN_1
USB ST-LINK
U5V
COM
PWR
Jumpers ON --> NUCLEO Selected
Jumpers OFF --> ST-LINK Selected
Board Ident: PC13=0
T_JTCK
T_JTMS
SWD
1
2
3
4
CN2
SB3 SB4
SB5 SB6
SB7 SB8
SB9 SB10
STM_JTMS
STM_JTCK SWCLK
SWDIO
SWD
RESERVED
DEFAULT
T_SWDIO_IN
LED_STLINK
LED_STLINK
TMS
TCK
TCK/SWCLK
TMS/SWDIO
MCO MCO
T_JRST
AIN_1
T_NRST
T_SWO
NRST
SB12
T_NRST
SB11
D1
BAT60JFILM
CN3
TX
RX
STLINK_RX
Not Fitted
SB14
SB13
STLK_RX
STLK_TX
STLINK_TX
USB_DM
USB_DP
VCC 1
D- 2
D+ 3
ID 4
GND 5
SHELL 6
CN1
5075BMR-05-SM
T_SWO
SWO
SB15
T_SWO
Red
_Green
2 1
3 4
LD1
LD_BICOLOR_CMS
R16 1K5
R18 0
R17 0
R15 100K
R21
100
R20
100
R19
0
R9 100[N/A]
R5 22
R8 22
R13 22
R22 22
R25 100
R24
100
R1
10K
R2 10K[N/A]
R14
100K
R6
100K
R3 10K
R23 4K7
R27 4K7
C11
100nF
C4
100nF
C1
100nF
C7
100nF
C10
20pF[N/A]
C3
20pF
C8
20pF
C6
100nF
1
2
3
4
5
6
CN4
Header 6X1
U5V
USB_RENUMn
USB_RENUMn
PWR_ENn
R7
2K7
R4
4K7
+3V3_ST_LINK
+3V3_ST_LINK
+3V3_ST_LINK
+3V3_ST_LINK
+3V3_ST_LINK
+3V3_ST_LINK
+3V3_ST_LINK
JP1
+3V3_ST_LINK
PWR_EXT
+3V3_ST_LINK
+3V3
SB16
D2
BAT60JFILM
D3
BAT60JFILM
C2
1uF_X5R_0603
C9
10nF_X7R_0603
C13
1uF_X5R_0603
51
2
GND
3
4
BYPASS
INH
Vin Vout
U1 LD3985M33R
C5
100nF
C12
100nF
+3V3_ST_LINK
3
2
1
T1
9013
R12
10K
R10
36K
U5V
R11 100
+3V3_ST_LINK
CN11
Wired on Solder Side
CN12
E5V
E5V
+3V3_ST_LINK
JP4
R26 [N/A]
VBAT
1
PA7
17
PC13
2
PA12 33
PC14
3
PB0
18
PC15
4JTMS/SWDIO 34
OSCIN
5
PB1
19
OSCOUT
6
VSS_2 35
NRST
7
PB2/BOOT1
20
VSSA
8
VDD_2 36
VDDA
9
PB10
21
PA0
10
JTCK/SWCLK 37
PA1
11
PB11
22
PA2
12
PA15/JTDI 38
PA3
13
VSS_1
23
PA4
14
PB3/JTDO 39
PA5
15
VDD_1
24
PA6
16
PB4/JNTRST 40
PB12 25
PB5 41
PB13 26
PB6 42
PB14 27
PB7 43
PB15 28
BOOT0 44
PA8 29
PB8 45
PA9 30
PB9 46
PA10 31
VSS_3 47
PA11 32
VDD_3 48
U2
STM32F103CBT6
Default: closed
Open for L476RG
UM1724 Electrical schematics
DocID025833 Rev 7 59/63
Figure 27. Electrical schematics (4/4)
44
Extension connectors
MB1136 C.3
12/9/2014
Title:
Size: Reference:
Date: Sheet: of
A4 Revision:
NUCLEO-XXXXRX
Project:
Extension connectors
+3V3+5V
A0
A1
A2
A3
A4
A5
D0
D1
D2
D4
D3
D5
D6
D7
D8
D9
D10
D12
D11
D13
D14
D15
PA0
PA2
PA4
PA5
PA6
PA7
PA10
PA3
PB0
PB1
PB3
PB4
PB8
PB9
PA11
PA12
PA9
PA1
PA15
PA13
PA14
PA8
PC0
PC1
PC2
PC3
PC4
PC5
PC6
PC7
PB5
PB6
PB7
PB14
PB15PB2
PB11
PB12
PB13
PC8PC9PC10 PC11
PC12
PC13
PC14
PC15
PB10
PD8
PF4
PF6
PF7
1
2
3
4
5
6
CN8
Header 6X1_Female
1
2
3
4
5
6
7
8
CN6
Header 8X1_Female
1
2
3
4
5
6
7
8
CN9
Header 8X1_Female
1
2
3
4
5
6
7
8
9
10
CN5
Header 10X1_Female
NRST
VIN
/PE9
/PE8
PD2
PF0
PF1
PA[0..15]
PA[0..15]
PB[0..15]
PB[0..15]
PC[0..15]
PC[0..15]
PD2 PD2
PD8 PD8
PF[0..1]
PF[0..1]
AGND
NRST NRST
SB48
SB49
SB55
SB54
AVDD
U5V
VDD BOOT0
BOOT0 BOOT0
PF[4..7]
PF[4..7]
PF5
SB56
SB51
SB52
SB46
PB8
PB9
SB29SB42
SB41 SB24
SB40 SB20
D13
D12
D11
PB13
PB15
PB14
SB25
SB36
SB28
SB39
SB35
SB44PA5
PA6
PA7
MCU
Close only for I2C on A4/A5
SB46,SB52
Arduino Connector Arduino Connector
Arduino Connector
1 2
3 4
5 6
7 8
9 10
11 12
13 14
15 16
17 18
19 20
21 22
23 24
25 26
27 28
29 30
31 32
33 34
35 36
37 38
CN7
Header 19X2
1 2
3 4
5 6
7 8
9 10
11 12
13 14
15 16
17 18
19 20
21 22
23 24
25 26
27 28
29 30
31 32
33 34
35 36
37 38
CN10
Header 19X2
Arduino
Connector
12
LD2
Green
R31
510 SB21
E5V
PD0/PH0/
PD1/PH1/
Close only for F302
SB20,SB24,SB29
Open only for F302
SB25,SB28,SB35
Morpho connector Morpho connector
SB55:Default open
Default: open
Default: open
VBAT/VLCD/VDD
Closed for L476RG
DocID025833 Rev 7 61/63
UM1724 Revision history
62
9 Revision history
Table 28. Document revision history
Date Revision Changes
10-Feb-2014 1 Initial release.
13-Feb-2014 2 Updated Figure 1, Chapter 4 and Table 9.
11-Apr-2014 3
Extended the applicability to NUCLEO-F302R8. Updated Table 1:
Ordering information, Section 5.11: Arduino connectors and
Section 5.12: STMicroelectronics Morpho connector.
Updated Figure 1
10-June-2014 4
Updated the board figure: Figure 1.
Updated HSE and LSE configuration description: Section 5.7.1,
Section 4 and Section 5.7.2. Extended the applicability to
NUCLEO-F334R8, NUCLEO-F411RE and NUCLEO-L053R8.
20-June-2014 5
Updated the electrical schematics figures: Figure 24, Figure 25,
Figure 26 and Figure 27.
Refer to the AN2867 for oscillator design guide for STM32
microcontrollers in Section 5.7.1: OSC clock supply and
Section 5.7.2: OSC 32 kHz clock supply.
Revision history UM1724
62/63 DocID025833 Rev 7
30-Sept-2014 6
Extended the applicability to NUCLEO-F091RC and NUCLEO-
F303RE;
Updated Table 1: Ordering information;
Updated Table 10: Arduino connectors on NUCLEO-F030R8,
NUCLEO-F070RB, NUCLEO-F072RB, NUCLEO-F091RC;
Updated Table 22: STMicroelectronics Morpho connector on
NUCLEO-F072RB, NUCLEO-F091RC, NUCLEO-F303RE,
NUCLEO-F334R8;
Updated Figure 5: Typical configuration;
Added Figure 12: NUCLEO-F091RC;
Added Figure 15: NUCLEO-F303RE;
Updated Section 5.7.2: OSC 32 kHz clock supply;
Updated Figure 24: Electrical schematics (1/4) ,Figure 25:
Electrical schematics (2/4);
19-Jan-2015 7
Extended the applicability to NUCLEO-F070RB, NUCLEO-
L073RZ and NUCLEO-L476RG;
Updated Table 1: Ordering information;
Updated Section 5.2: Embedded ST-LINK/V2-1;
Updated Section 5.7.1: OSC clock supply;
Added Figure 10: NUCLEO-F070RB;
Added Figure 20: NUCLEO-L073RZ;
Added Figure 22: NUCLEO-L476RG
Updated Table 10: Arduino connectors on NUCLEO-F030R8,
NUCLEO-F070RB, NUCLEO-F072RB, NUCLEO-F091RC
Added Table 17: Arduino connectors on NUCLEO-L073RZ
Added Table 19: Arduino connectors on NUCLEO-L476RG
Added Table 21: STMicroelectronics Morpho connector on
NUCLEO-F070RB
Updated Table 26: STMicroelectronics Morpho connector on
NUCLEO-L053R8, NUCLEO-L073RZ, NUCLEO-L152RE
Added Table 27: STMicroelectronics Morpho connector on
NUCLEO-L476RG
Updated schematics from Figure 24: Electrical schematics (1/4) to
Figure 27: Electrical schematics (4/4)
Table 28. Document revision history
Date Revision Changes
DocID025833 Rev 7 63/63
UM1724
63
IMPORTANT NOTICE – PLEASE READ CAREFULLY
STMicroelectronics NV and its subsidiaries (“ST”) reserve the right to make changes, corrections, enhancements, modifications, and
improvements to ST products and/or to this document at any time without notice. Purchasers should obtain the latest relevant information on
ST products before placing orders. ST products are sold pursuant to ST’s terms and conditions of sale in place at the time of order
acknowledgement.
Purchasers are solely responsible for the choice, selection, and use of ST products and ST assumes no liability for application assistance or
the design of Purchasers’ products.
No license, express or implied, to any intellectual property right is granted by ST herein.
Resale of ST products with provisions different from the information set forth herein shall void any warranty granted by ST for such product.
ST and the ST logo are trademarks of ST. All other product or service names are the property of their respective owners.
Information in this document supersedes and replaces information previously supplied in any prior versions of this document.
© 2015 STMicroelectronics – All rights reserved
