Operating Instructions
WARNING
Getting Started
Radio
CD/MP3/WMA/AAC
Sound Setting
Other Functions
- Displaying the Text
- Displaying Time
SETUP
SAT Radio Receiver (Optional)
USB memory (Optional)
- Controlling USB memory (Optional)
- Playing MP3/WMA/AAC Files with the USB memory (Optional)
iPhone/iPod (Optional)
IMPRINT Operation (Optional)
Changer (Optional)
Information
- In Case of Difficulty
- Specifications
Installation and Connections
LIMITED WARRANTY

68-09359Z78-A

MP3/WMA/AAC CD Receiver

CDA-105

• OWNER’S MANUAL

Please read before using this equipment.

• MODE D’EMPLOI

Veuillez lire avant d’utiliser cet appareil.

• MANUAL DE OPERACIÓN

Léalo antes de utilizar este equipo.

ALPINE ELECTRONICS MARKETING, INC.

1-1-8 Nishi Gotanda,

Shinagawa-ku,

Tokyo 141-0031, Japan

Phone 03-5496-8231

ALPINE ELECTRONICS OF AMERICA, INC.

19145 Gramercy Place, Torrance,

California 90501, U.S.A.

Phone 1-800-ALPINE-1 (1-800-257-4631)

ALPINE ELECTRONICS OF CANADA, INC.

777 Supertest Road, Toronto,

Ontario M3J 2M9, Canada

Phone 1-800-ALPINE-1 (1-800-257-4631)

ALPINE ELECTRONICS OF AUSTRALIA PTY. LTD.

161-165 Princes Highway, Hallam

Victoria 3803, Australia

Phone 03-8787-1200

ALPINE ELECTRONICS GmbH

Frankfurter Ring 117, 80807 München, Germany

Phone 089-32 42 640

ALPINE ELECTRONICS OF U.K. LTD.

Alpine House

Fletchamstead Highway, Coventry CV4 9TW, U.K.

Phone 0870-33 33 763

ALPINE ELECTRONICS FRANCE S.A.R.L.

(RCS PONTOISE B 338 101 280)

98, Rue de la Belle Etoile, Z.I. Paris Nord Il,

B.P. 50016, 95945 Roissy Charles de Gaulle

Cedex, France

Phone 01-48638989

ALPINE ITALIA S.p.A.

Viale C. Colombo 8, 20090 Trezzano

Sul Naviglio (MI), Italy

Phone 02-484781

ALPINE ELECTRONICS DE ESPAÑA, S.A.

Portal de Gamarra 36, Pabellón, 32

01013 Vitoria (Alava)-APDO 133, Spain

Phone 945-283588

ALPINE ELECTRONICS (BENELUX) GmbH

Leuvensesteenweg 510-B6,

1930 Zaventem, Belgium

Phone 02-725-13 15

ENGLISH

1-EN

Contents

Operating Instructions

WARNING

WARNING ................................................. 3

CAUTION .................................................. 3

PRECAUTIONS ........................................ 3

Getting Started

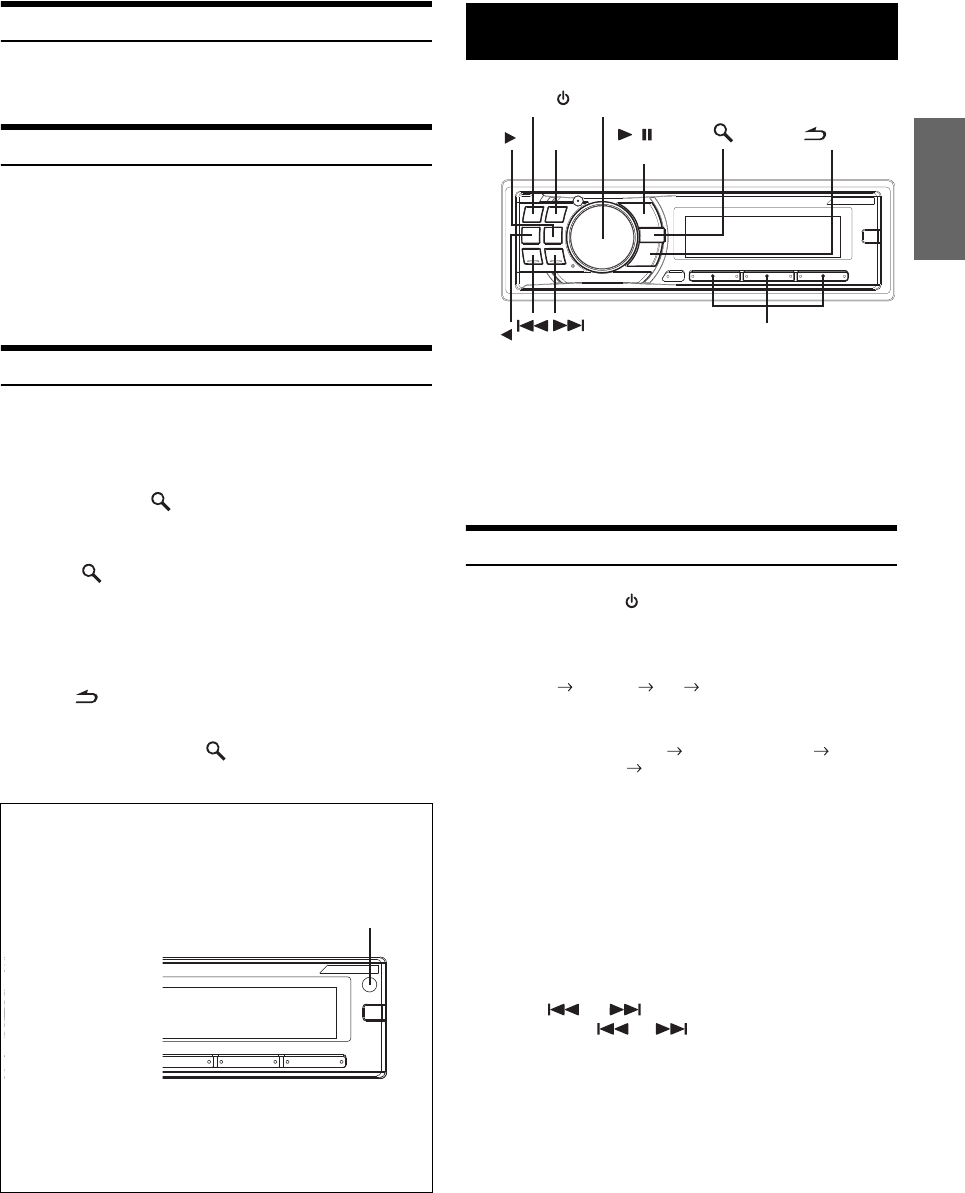

Accessory List .................................................. 6

Turning Power On and Off ............................... 6

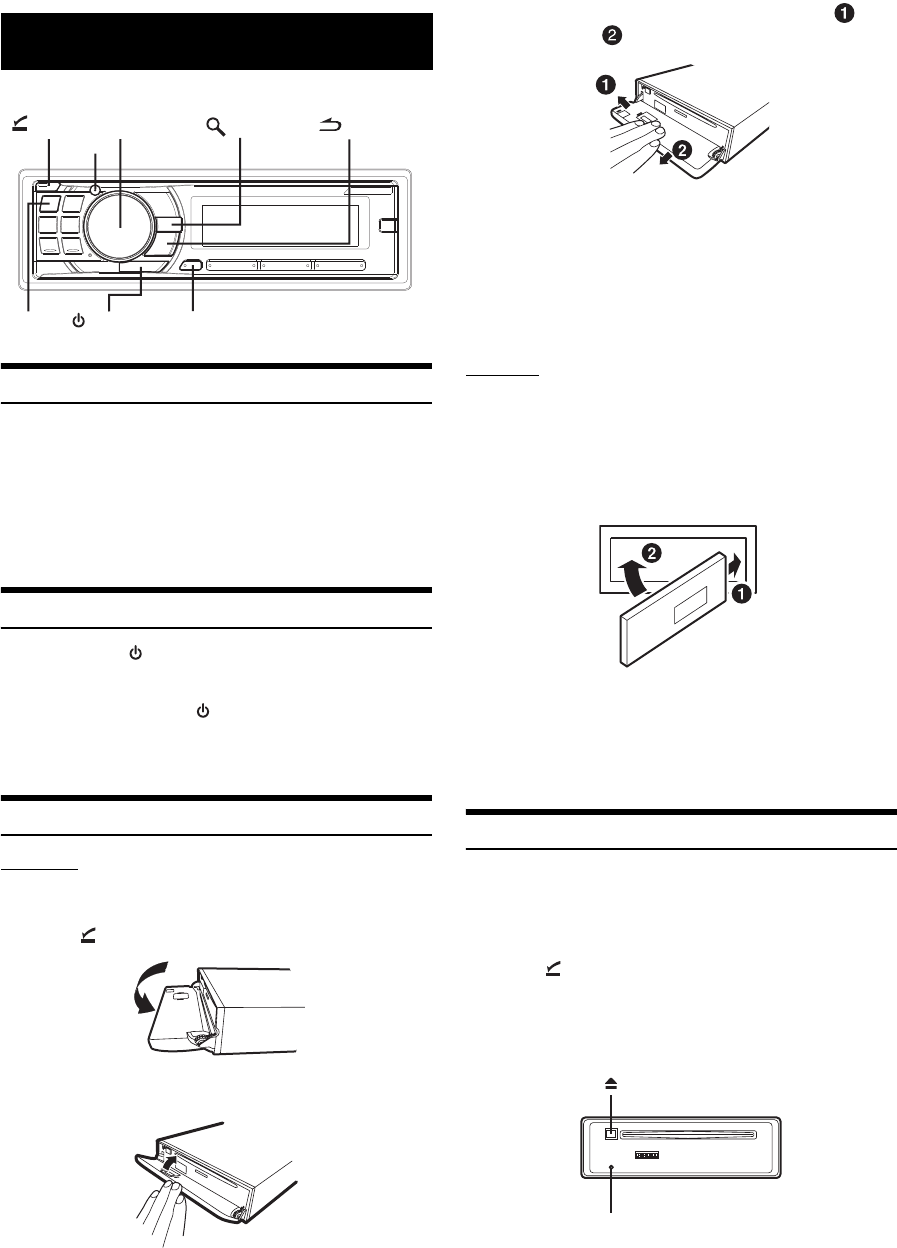

Detaching and Attaching the Front Panel ........ 6

Initial System Start-Up ..................................... 6

Adjusting Volume ............................................. 7

Lowering Volume Quickly ............................... 7

Setting the Time ............................................... 7

Radio

Listening to Radio ............................................ 7

Presetting Stations Manually ............................ 8

Presetting Stations Automatically .................... 8

Tuning to Preset Stations .................................. 8

Frequency Search Function .............................. 8

Receiving a Multicast Station (HD Radio™

Reception) (HD Radio mode only) ............... 8

CD/MP3/WMA/AAC

Playback ........................................................... 9

Repeat Play ....................................................... 9

M.I.X. (Random Play) .................................... 10

Searching for CD Text .................................... 10

File/Folder Name Search

(Concerning MP3/WMA/AAC) .................. 10

Quick Search .................................................. 11

About MP3/WMA/AAC ................................ 11

Sound Setting

Adjusting Subwoofer Level/Bass Level/Treble

Level/Balance (Between Left and Right)/Fader

(Between Front and Rear)/Defeat ............... 12

Setting the Subwoofer Level .......................... 13

Setting the Bass Control .................................13

Setting the Bass Center Frequency .............. 13

Setting the Bass Bandwidth .........................13

Setting the Bass Level ................................. 13

Setting the Treble Control ............................... 13

Setting the Treble Center Frequency ...........13

Setting the Treble Level .............................. 13

Adjusting the High Pass Filter ........................14

Turning Loudness On/Off ...............................14

Turning Subwoofer ON/OFF ..........................14

Setting the Subwoofer System ........................ 14

Other Functions

Displaying the Text ......................................... 15

Displaying Time .............................................16

SETUP

BLUETOOTH IN

Setting the Bluetooth Connection ....................17

Visual Customizing

Changing Lighting Color .................................17

Adjusting Display Contrast ..............................17

Dimmer Control ...............................................17

Scroll Type Setting ...........................................17

Scroll Setting (TEXT SCROLL) ......................17

Setting the Language Font ................................17

Demonstration ..................................................17

MP3/WMA/AAC

Playing MP3/WMA/AAC Data

(PLAY MODE) .............................................17

External Device

Connecting to an External Amplifier ...............17

Turning Mute Mode On/Off (INT MUTE) ......18

Setting the AUX+ SETUP Mode .....................18

Setting the AUX+ Level (AUX IN GAIN) .......18

Setting the External Digital Input .....................18

Setting the AUX Mode (V-Link) ......................18

Changer Name Setting .....................................18

HD Radio Reception (only when HD Radio

Tuner module is connected)

HD Radio Station Call Setting

(STATION CALL) ........................................18

Digital Seek ON/OFF Setting ..........................18

SAT Radio Receiver (Optional)

Receiving Channels with the SAT Radio

Receiver (Optional) .....................................19

Checking the SAT Radio ID Number .............19

2-EN

Storing Channel Presets .................................. 19

Receiving Stored Channels ............................. 20

Storing the desired Sports Team

(SIRIUS only) ............................................. 20

Storing while receiving a game broadcast ... 20

Game Alert Setup ........................................ 20

Storing the desired Song/Artist

(SIRIUS only) ............................................. 20

Recalling the stored information

(SIRIUS only) ............................................. 21

If more than 2 Alerts are found

(Blinking ALERT indicator) .................... 21

Canceling the stored Alert Memory

(SIRIUS only) ............................................. 21

Search Function .............................................. 21

Category Search mode ................................ 21

Channel/Artist/Song Search mode .............. 21

Quick Search Function ...................................21

Receiving Weather or Traffic Information from

SAT Radio ................................................... 21

Instant Replay Function (SIRIUS only) ......... 22

Changing the Display ..................................... 22

Setting the Auxiliary Data Field Display

(XM only) .................................................... 22

USB memory (Optional)

Controlling USB memory (Optional) ............. 23

Playing MP3/WMA/AAC Files with the USB

memory (Optional) ...................................... 23

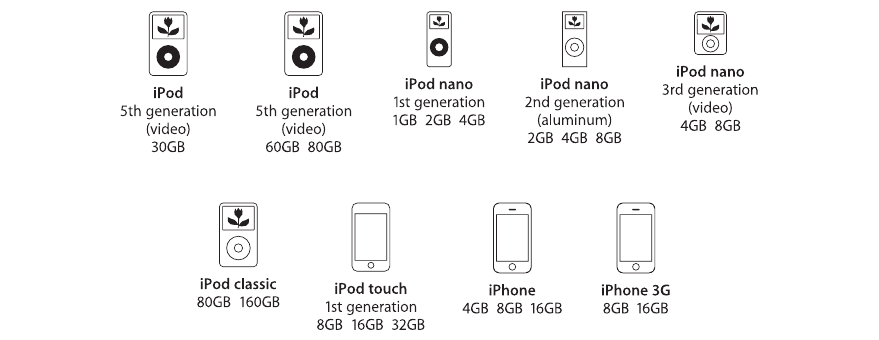

iPhone/iPod (Optional)

Playback .......................................................... 24

Searching for a desired Song .......................... 24

Quick Search ................................................... 25

Direct Search Function ...................................25

Select Playlist/Artist/Album/Genre/

Composer .................................................... 25

Alphabet Skip Function .................................. 25

Random Play Shuffle (M.I.X.) ....................... 26

Repeat Play ..................................................... 26

Displaying the Text ......................................... 26

IMPRINT Operation (Optional)

Changing MultEQ mode ................................. 27

Adjusting Subwoofer Level/Bass Level/Treble

Level/Fader (Between Front and Rear)/

Balance (Between Left and Right) in MultEQ

mode ............................................................ 27

Adjusting Sound Setting in Manual Mode ......28

Turning Subwoofer ON/OFF .......................28

Setting the Subwoofer System .....................28

Setting the Subwoofer Phase .......................28

Setting the Subwoofer Channel

(SUBW CHANNEL) ................................28

Equalizer Presets (FACTORY’S EQ) ..........28

Setting the Response Slope for the High

Range Speaker (TW SETUP) ...................28

Setting the Filter type ...................................29

Turning Media Xpander ON/OFF ...............29

Setting the MX Level ...................................29

Setting EQ mode ..........................................29

Setting the Time Correction Unit

(T.CORR PARA) ......................................29

Sound Field Adjustment

(SOUND ADJUST) ..................................29

Adjusting the Parametric Equalizer Curve .......29

Adjusting the Graphic Equalizer Curve ...........30

Adjusting the Time Correction .........................30

Adjusting the Crossover Settings .....................30

Storing the Sound Field Adjustment

Settings .........................................................31

Recalling the Stored Sound Field Adjustment

Settings .........................................................31

About Time Correction ...................................32

About the Crossover ........................................33

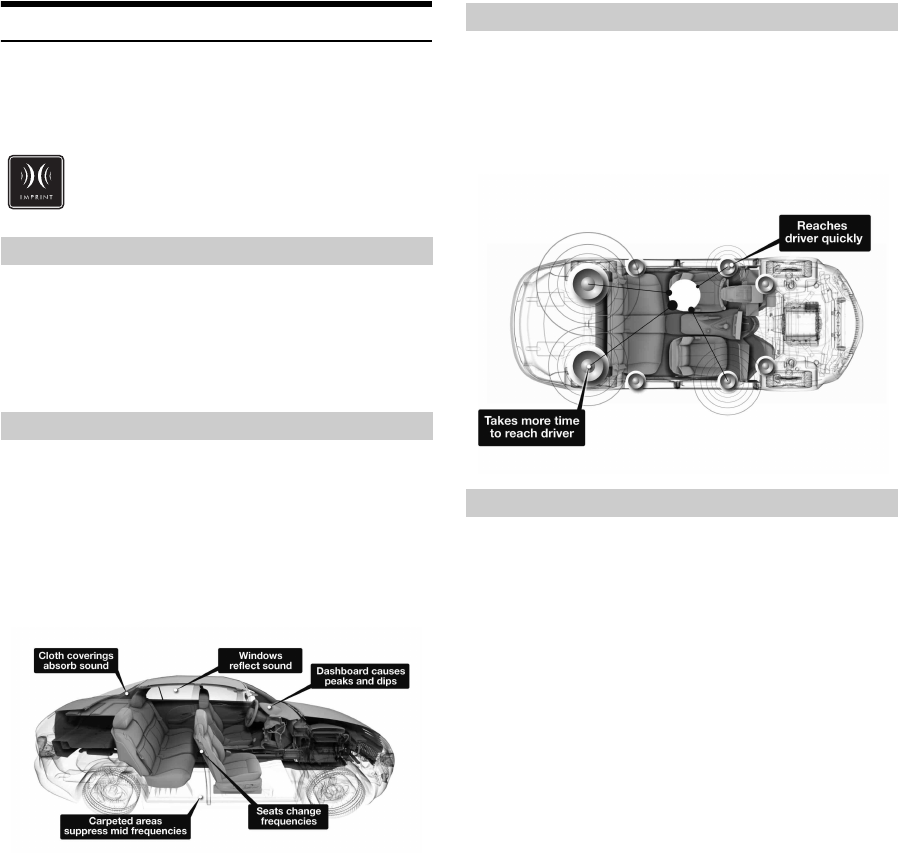

About IMPRINT .............................................34

Changer (Optional)

Controlling CD Changer (Optional) ...............35

Playing MP3 Files with the CD Changer

(Optional) .....................................................35

Multi-Changer Selection (Optional) ...............35

Information

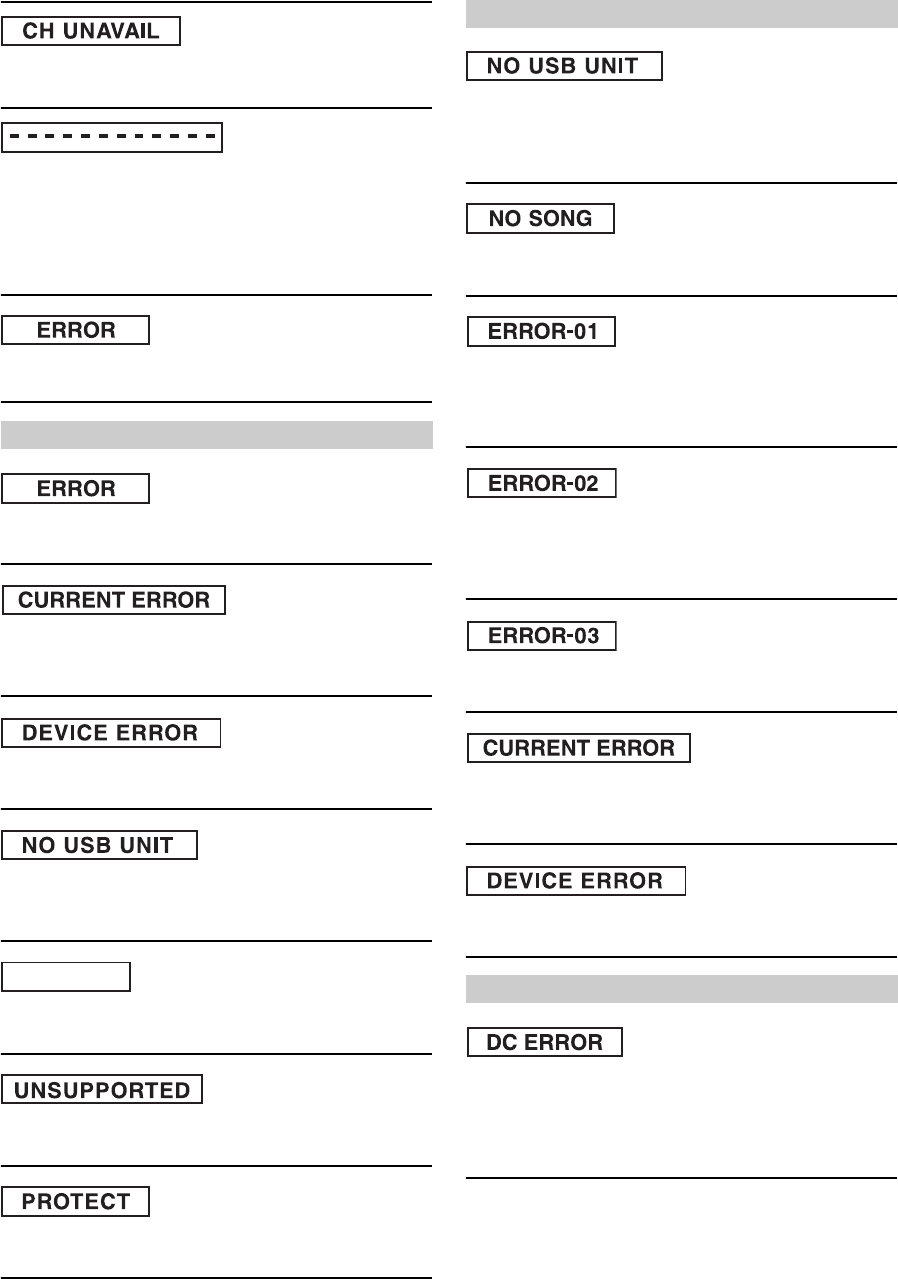

In Case of Difficulty ........................................36

Specifications ..................................................39

Installation and Connections

Warning ...................................................40

Caution ...................................................40

Precautions ............................................40

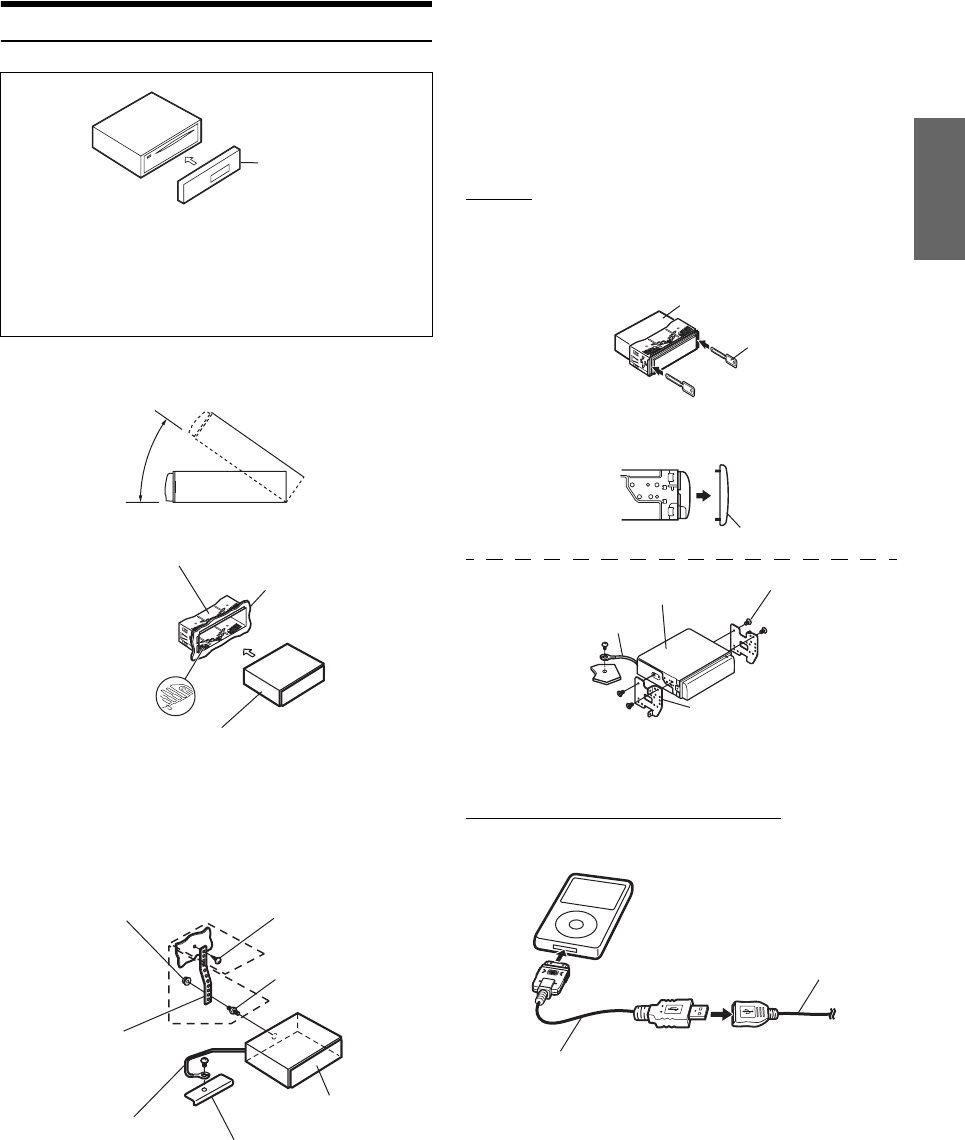

Installation .......................................................41

Connections .....................................................43

LIMITED WARRANTY

3-EN

Operating Instructions

DO NOT OPERATE ANY FUNCTION THAT TAKES YOUR

ATTENTION AWAY FROM SAFELY DRIVING YOUR VEHICLE.

Any function that requires your prolonged attention should only be

performed after coming to a complete stop. Always stop the vehicle

in a safe location before performing these functions. Failure to do

so may result in an accident.

KEEP THE VOLUME AT A LEVEL WHERE YOU CAN STILL

HEAR OUTSIDE NOISES WHILE DRIVING.

Excessive volume levels that obscure sounds such as emergency

vehicle sirens or road warning signals (train crossings, etc.) can be

dangerous and may result in an accident. LISTENING AT LOUD

VOLUME LEVELS IN A CAR MAY ALSO CAUSE HEARING

DAMAGE.

MINIMIZE DISPLAY VIEWING WHILE DRIVING.

Viewing the display may distract the driver from looking ahead of

the vehicle and cause an accident.

DO NOT DISASSEMBLE OR ALTER.

Doing so may result in an accident, fire or electric shock.

USE ONLY IN CARS WITH A 12 VOLT NEGATIVE GROUND.

(Check with your dealer if you are not sure.) Failure to do so may

result in fire, etc.

KEEP SMALL OBJECTS SUCH AS BATTERIES OUT OF THE

REACH OF CHILDREN.

Swallowing them may result in serious injury. If swallowed,

consult a physician immediately.

USE THE CORRECT AMPERE RATING WHEN REPLACING

FUSES.

Failure to do so may result in fire or electric shock.

DO NOT BLOCK VENTS OR RADIATOR PANELS.

Doing so may cause heat to build up inside and may result in fire.

USE THIS PRODUCT FOR MOBILE 12V APPLICATIONS.

Use for other than its designed application may result in fire,

electric shock or other injury.

DO NOT PLACE HANDS, FINGERS OR FOREIGN OBJECTS IN

INSERTION SLOTS OR GAPS.

Doing so may result in personal injury or damage to the product.

HALT USE IMMEDIATELY IF A PROBLEM APPEARS.

Failure to do so may cause personal injury or damage to the

product. Return it to your authorized Alpine dealer or the nearest

Alpine Service Center for repairing.

PRECAUTIONS

Product Cleaning

Use a soft dry cloth for periodic cleaning of the product. For more

severe stains, please dampen the cloth with water only. Anything

else has the chance of dissolving the paint or damaging the plastic.

Temperature

Be sure the temperature inside the vehicle is between +60°C

(+140°F) and –10°C (+14°F) before turning your unit on.

Moisture Condensation

You may notice the CD playback sound wavering due to

condensation. If this happens, remove the disc from the player and

wait about an hour for the moisture to evaporate.

Damaged Disc

Do not attempt to play cracked, warped, or damaged discs. Playing

a bad disc could severely damage the playback mechanism.

Maintenance

If you have problems, do not attempt to repair the unit yourself.

Return it to your Alpine dealer or the nearest Alpine Service

Station for servicing.

WARNING

This symbol means important instructions.

Failure to heed them can result in serious injury

or death.

CAUTION

This symbol means important instructions.

Failure to heed them can result in injury or

material property damage.

4-EN

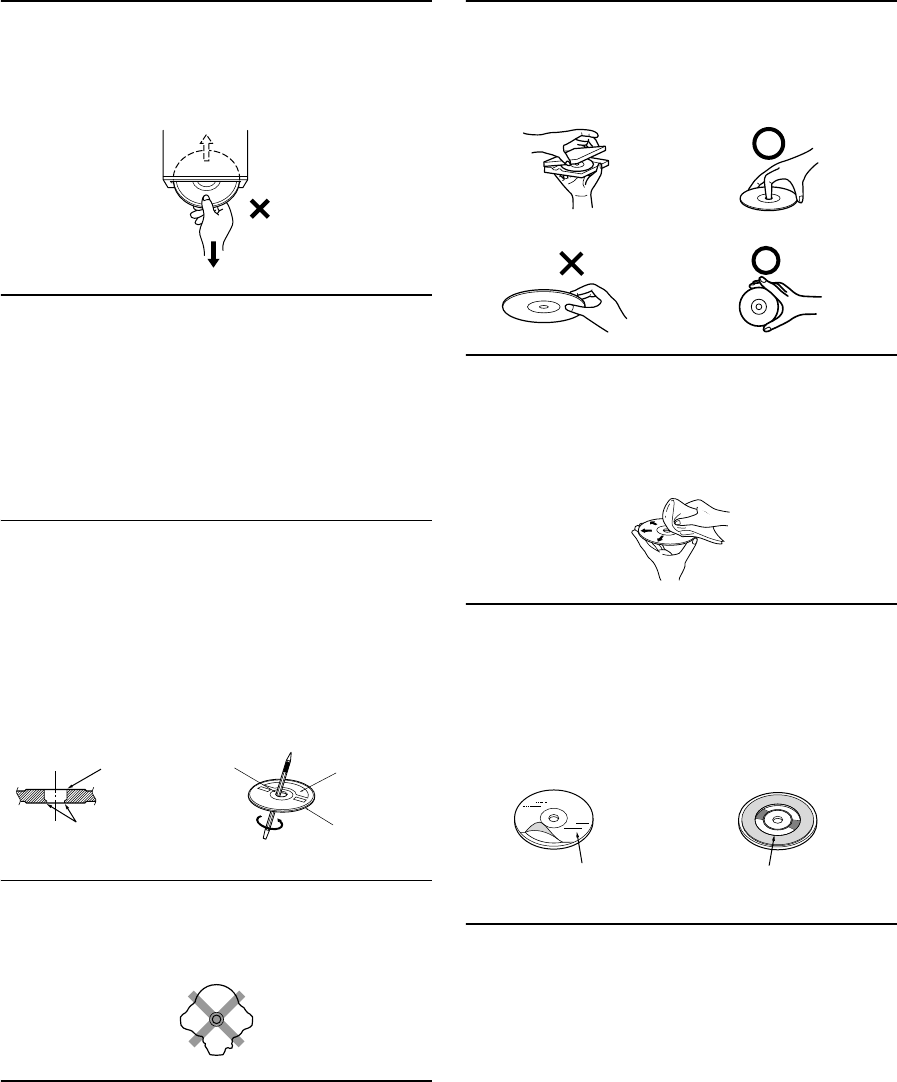

Never Attempt the Following

Do not grip or pull out the disc while it is being pulled back into the

player by the automatic reloading mechanism.

Do not attempt to insert a disc into the unit when the unit power is

off.

Inserting Discs

Your player accepts only one disc at a time for playback. Do not

attempt to load more than one disc.

Make sure the label side is facing up when you insert the disc.

“ERROR” will be displayed on your player if you insert a disc

incorrectly. If “ERROR” continues to be displayed even though the

disc has been inserted correctly, push the RESET switch with a

pointed object such as a ballpoint pen.

Playing a disc while driving on a very bumpy road may result in

skips, but this will not scratch the disc or damage the player.

New Discs

To prevent the CD from jamming, “ERROR” is displayed if discs

with irregular surfaces are inserted or if discs are inserted

incorrectly. When a new disc is ejected immediately after initial

loading, use your finger to feel around the inside of the center hole

and outside edge of the disc. If you feel any small bumps or

irregularities, this could inhibit proper loading of the disc. To

remove the bumps, rub the inside edge of the hole and outside edge

of the disc with a ballpoint pen or other such instrument, then insert

the disc again.

Irregular Shaped Discs

Be sure to use round shape discs only for this unit and never use

any special shape discs.

Use of special shape discs may cause damage to the mechanism.

Installation Location

Make sure this unit will not be installed in a location subjected to:

• Direct sun and heat

• High humidity and water

• Excessive dust

• Excessive vibrations

Correct Handling

Do not drop the disc while handling. Hold the disc so you will not

leave fingerprints on the surface. Do not affix tape, paper, or

gummed labels to the disc. Do not write on the disc.

Disc Cleaning

Fingerprints, dust, or soil on the surface of the disc could cause the

CD player to skip. For routine cleaning, wipe the playing surface

with a clean, soft cloth from the center of the disc to the outer edge.

If the surface is heavily soiled, dampen a clean, soft cloth in a

solution of mild neutral detergent before cleaning the disc.

Disc Accessories

There are various accessories available on the market for protecting

the disc surface and improving sound quality. However, most of

them will influence the thickness and/or diameter of the disc. Using

such accessories can cause the disc to be out of standard

specifications and may create operational problems. We

recommend not using these accessories on discs played in Alpine

CD players.

On handling Compact Discs (CD/CD-R/CD-RW)

• Do not touch the surface.

• Do not expose the disc to direct sunlight.

• Do not affix stickers or labels.

• Clean the disc when it is dusty.

• Make sure that there are no bumps around the disc.

• Do not use commercially available disc accessories.

Do not leave the disc in the car or the unit for a long time. Never

expose the disc to direct sunlight. Heat and humidity may damage

the CD and you may not be able to play it again.

To customers using CD-R/CD-RW

• If a CD-R/CD-RW cannot be played back, make sure the last

recording session was closed (finalized).

• Finalize the CD-R/CD-RW if necessary, and attempt playback

again.

Center Hole

Bumps

Center Hole

New Disc

Outside

(Bumps)

CORRECT

INCORRECT CORRECT

Transparent Sheet Disc Stabilizer

5-EN

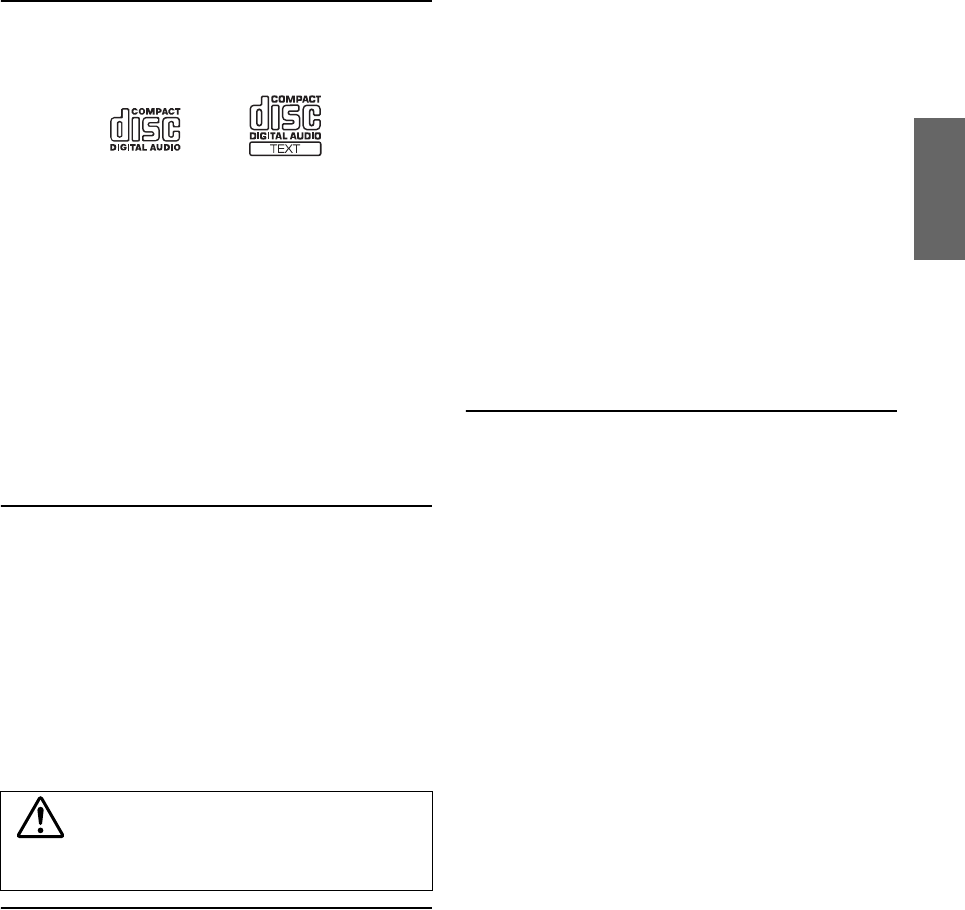

About media that can be played

Use only compact discs with the label side showing the CD logo

marks below.

If you use unspecified compact discs, correct performance cannot

be guaranteed.

You can play CD-Rs (CD-Recordables)/CD-RWs (CD-ReWritables)

which have been recorded only on audio devices. You can also play

CD-Rs/CD-RWs containing MP3/WMA/AAC formatted audio files.

• Some of the following CDs may not play on this unit:

Flawed CDs, CDs with fingerprints, CDs exposed to extreme

temperatures or sunlight (e.g., left in the car or this unit), CDs

recorded under unstable conditions, CDs on which a recording

failed or a re-recording was attempted, copy-protected CDs

which do not conform to the audio CD industry standard.

• Use discs with MP3/WMA/AAC files written in a format

compatible with this unit. For details, see pages 11-12.

• ROM data other than audio files contained in a disc will not

produce sound when played back.

Protecting the USB connector

• Only a USB memory iPhone/iPod can be connected to the USB

connector on this unit. Correct performance using other USB

products cannot be guaranteed.

• If the USB connector is used, be sure to connect it to the unit by

using a USB extension cable (sold separately). A USB hub is not

supported.

• Depending on the connected USB memory device, the unit may

not function or some functions may not be performed.

• The audio file format that can be played back on the unit is

MP3/WMA/AAC.

• Artist/song name, etc., can be displayed, however characters

may not be correctly displayed.

On Handling USB Memory

• To prevent malfunction or damage, note the following points.

Read the USB memory Owner’s Manual thoroughly.

Do not touch the terminals by hand or metal.

Do not subject USB memory to excessive shock.

Do not bend, drop, disassemble, modify or soak in the water.

• Avoid usage or storage in the following locations:

Anywhere in the car exposed to direct sunlight or high

temperatures.

Anywhere the possibility of high humidity or corrosive

substances are present.

• Fix the USB memory in a location where driver operation will

not be hindered.

• USB memory may not function correctly at high or low

temperature.

• Use only certified USB memory. Note that even certified USB

memory, may not function correctly depending on its type or

state.

• USB memory function is not guaranteed. Use USB memory

according to the terms of agreement.

• Depending on the settings of the USB memory type, memory

state or encoding software, the unit may not play back or display

properly.

• A file that is copy-protected (copyright protection) cannot be

played back.

• USB memory may take time to start playback. If there is a

particular file other than audio in the USB memory, it may take

considerable time before the file is played back or searched.

• The unit can play back “mp3”, “wma” or “m4a” file extensions.

• Do not add the above extensions to a file other than audio data.

This non-audio data will not be recognized. The resulting

playback may contain noise that can damage speakers and/or

amplifiers.

• It is recommended to back up important data on a personal

computer.

• Do not remove the USB device while playback is in progress.

Change SOURCE to something other than USB, then remove the

USB device to prevent possible damage to its memory.

•Windows Media and the Windows logo are trademarks, or

registered trademarks of Microsoft Corporation in the United

States and/or other countries.

•iPod and iTunes are trademarks of Apple Inc., registered in the

U.S. and other countries.

•iPhone is a trademark of Apple Inc.

•“Made for iPod” means that an electronic accessory has been

designed to connect specifically to iPod and has been certified by

the developer to meet Apple performance standards.

•“Works with iPhone” means that an electronic accessory has

been designed to connect specifically to iPhone and has been

certified by the developer to meet Apple performance standards.

•Apple is not responsible for the operation of this device or its

compliance with safety and regulatory standards.

•The Bluetooth word mark and logos are owned by the Bluetooth

SIG, Inc. and any use of such marks by Alpine Electronics, Inc. is

under license. Other trademarks and trade names are those of

their respective owners.

•HD Radio™ and the HD and HD Radio Ready logos are

proprietary trademarks of iBiquity Digital Corp.

•“MPEG Layer-3 audio coding technology licensed from

Fraunhofer IIS and Thomson.”

•“Supply of this product only conveys a license for private, non-

commercial use and does not convey a license nor imply any

right to use this product in any commercial (i.e. revenue-

generation) real time broadcasting (terrestrial, satellite, cable

and/or any other media), broadcasting/streaming via internet,

intranets and/or other networks or in other electronic content

distribution systems, such as pay-audio or audio-on-demand

applications. An independent license for such use is required.

For details, please visit http://www.mp3licensing.com”

•Audyssey MultEQ XT is a registered trademark of Audyssey

laboratories Inc.

CAUTION

Alpine accepts no responsibility for lost data, etc., even if data, etc.,

is lost while using this product.

6-EN

Accessory List

•Head unit ............................................................................1

•Power cable ........................................................................1

•Mounting sleeve.................................................................1

•Carrying case.....................................................................1

•Bracket key.........................................................................2

•Screw (M5 × 8)....................................................................4

•Owner’s Manual .......................................................... 1 set

Turning Power On and Off

Press SOURCE/ to turn on the unit.

•The unit can be turned on by pressing any other button except VIEW.

Press and hold SOURCE/ for at least 2 seconds to turn

off the unit.

•The first time power is turned on, the volume will start from level 12.

Detaching and Attaching the Front Panel

Detaching

Turn off the unit power.

Press (OPEN) to open the front panel.

To close the front panel, press the left side until it locks as

shown in the figure below.

Grasp the front panel firmly, slide to the left ,

and then pull to remove.

•The front panel may become hot in normal usage (especially the

connector terminals on the back of the front panel). This is not a

malfunction.

•To protect the front panel, place it in the supplied carrying case.

•When detaching the front panel, do not apply excessive force as it

may result in malfunction.

•Do not leave the front panel open, or drive the car with the panel

open as it may result in an accident or malfunction.

Attaching

Insert the right side of the front panel into the main

unit. Align the groove on the front panel with the

projections on the main unit.

Push the left side of the front panel until it locks

firmly into the main unit.

•Before attaching the front panel, make sure that there is no dirt or

dust on the connector terminals and no foreign object between the

front panel and the main unit.

•Attach the front panel carefully, holding the sides of the front panel to

avoid pushing buttons by mistake.

Initial System Start-Up

Be sure to press the RESET switch when using the unit for the first

time, after changing the car battery, etc.

Turn off the unit power.

Press (OPEN) to open the front panel, and then

remove it.

Press RESET with a ballpoint pen or similar pointed

object.

Getting Started

Rotary encoder

(OPEN)

F/SETUP

SOURCE/

MUTE

/ENT /ESC

VIEW

RESET switch

7-EN

Adjusting Volume

Turn the Rotary encoder until the desired sound is

obtained.

Lowering Volume Quickly

Activating the Audio Mute function will instantly lower the volume

level by 20 dB.

Press MUTE to activate the MUTE mode.

The audio level will decrease by about 20 dB.

Pressing MUTE again will bring the audio back to its

previous level.

Setting the Time

Press and hold

F/SETUP

for at least 2 seconds to

activate the SETUP selection mode

Turn the

Rotary encoder

to select CLOCK ADJUST,

and then press /

ENT

Turn the Rotary encoder to set hour.

Press /ENT.

Repeat steps 3 and 4 above to set minute.

Press and hold

F/SETUP

for at least 2 seconds to

return to normal mode.

•Pressing /ESC returns to the previous SETUP mode.

•If no operation is performed for 60 seconds, SETUP is canceled.

•To synchronize the clock to another clock/watch or radio time

announcement, press and hold /ENT for at least 2 seconds after

setting the “hour.” Minutes will reset to 00. If the display shows over

“30” minutes when you do this, the time will advance one hour.

This unit cannot receive HD Radio signals (digital terrestrial radio). In

order to activate the digital radio functions described below, an optional

HD Radio Tuner module must be connected through the Ai-NET bus.

If the unit is connected to a Tagging compatible device, you can use the

iTunes Tagging function. For details, refer to the Owner’s Manual of the

Tagging compatible device.

Listening to Radio

Press SOURCE/ to select TUNER mode.

Press BAND repeatedly until the desired radio band

is displayed.

F1 (FM1) F2 (FM2) AM F1 (FM1)

Press TUNE/A.ME to select the tuning mode.

DX SEEK (Distance mode) SEEK (Local mode)

OFF (Manual mode) DX SEEK (Distance mode)

•The initial mode is Distance mode.

Distance mode:

Both strong and weak stations will be automatically tuned in

(Automatic Seek Tuning).

Local mode:

Only strong stations will be automatically tuned in (Automatic

Seek Tuning).

Manual mode:

The frequency is manually tuned in steps (Manual tuning).

Press or to tune in the desired station.

Holding down or will change the frequency

continuously.

•If DIGITAL SEEK is set to ON, the SEEK UP/DOWN functions only

stop on digital station frequencies while receiving an HD Radio

broadcast. Refer to “Digital Seek ON/OFF Setting” (page 18).

Controllable with Remote Control

This unit can be controlled with an optional Alpine remote

control. For details, consult your Alpine dealer.

Point the optional remote control transmitter at the remote

control sensor.

Connectable to Remote Control Interface Box

This unit may be controlled from the vehicle’s audio controls.

An optional Alpine Remote Control Interface Box must be

used. For details, contact your Alpine dealer.

Remote control sensor

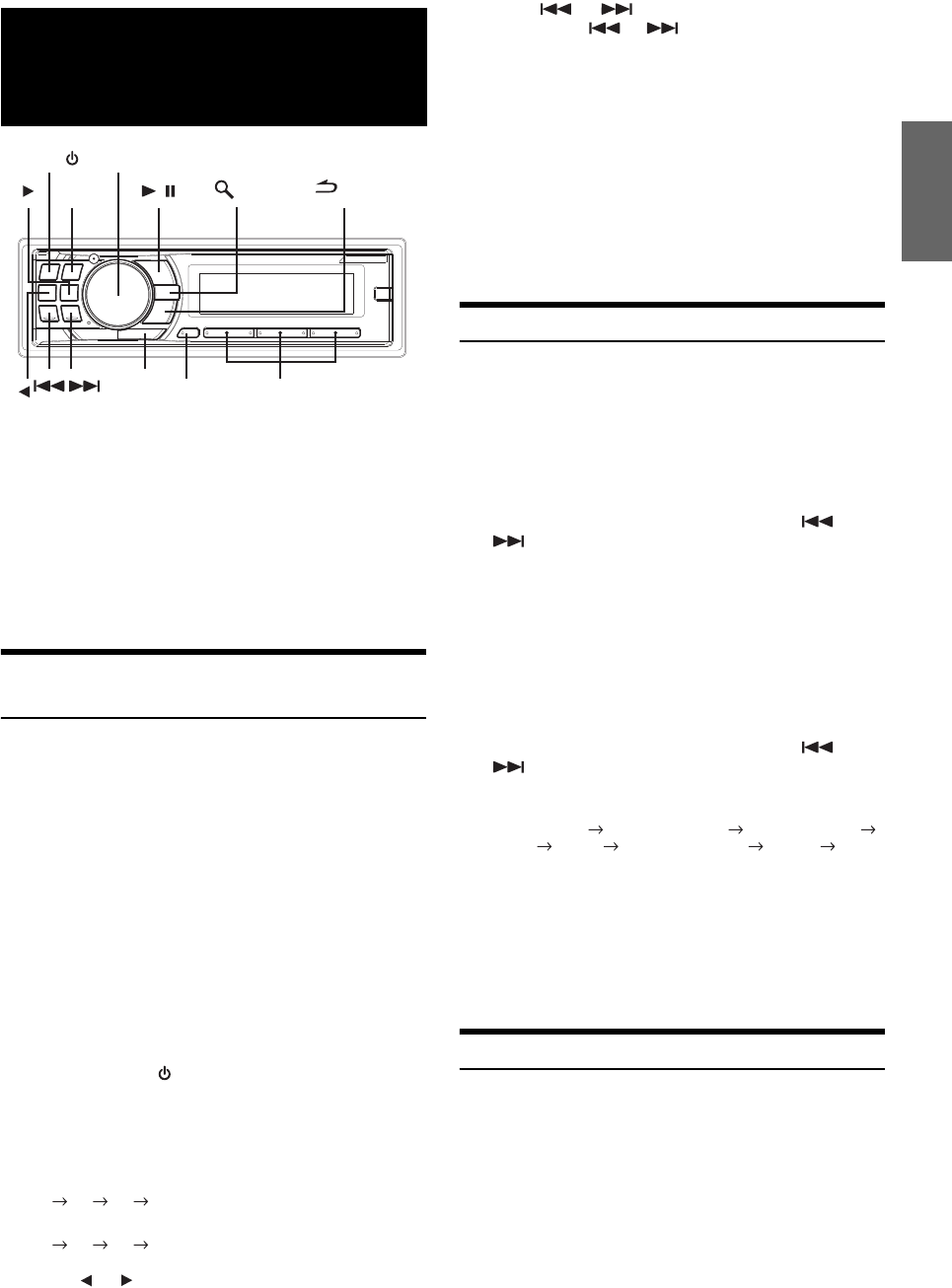

Radio

BAND //

TUNE/A.ME

Rotary encoder

/ENT

Preset buttons

(1 through 6)

/ESC

SOURCE

8-EN

Presetting Stations Manually

Select the radio band and tune in a desired radio

station you wish to store in the preset memory.

Press and hold, for at least 2 seconds, any one of the

preset buttons (1 through 6) into which you wish

to store the station.

The selected station is stored.

The display shows the band, preset number and station

frequency memorized.

•A total of 18 stations can be stored in the preset memory (6 stations

for each band; FM1, FM2 and AM).

•If you store a station in a preset memory which already has a station,

the current station will be cleared and replaced with the new station.

Presetting Stations Automatically

Press BAND repeatedly until the desired radio band

is displayed.

Press and hold TUNE/A.ME for at least 2 seconds.

The frequency on the display continues to change while the

automatic memory is in progress. The tuner will

automatically seek and store 6 strong stations in the

selected band. They will be stored into preset buttons 1 to 6

in order of signal strength.

When the automatic memory has been completed, the tuner

goes to the station stored in preset location No.1.

•If no stations are stored, the tuner will return to the original station

you were listening to before the auto memory procedure began.

Tuning to Preset Stations

Press BAND repeatedly until the desired band is

displayed.

Press any one of the station preset buttons

(1 through 6) that has your desired radio station in

memory.

The display shows the band, preset number and frequency

of the station selected.

Frequency Search Function

You can search for a radio station by its frequency.

Press and hold /ENT for at least 2 seconds in

Radio mode to activate Frequency search mode.

Turn the Rotary encoder to select the desired

frequency.

*Press /ENT to receive the selected frequency.

* Operation is not required during HD Radio reception.

•Press /ESC in the search mode to cancel. Or, the search mode

will be canceled if no operation is performed for 10 seconds.

Receiving a Multicast Station (HD

Radio™ Reception) (HD Radio mode

only)

Multicasting is the Ability to broadcast multiple program streams over a

single FM frequency. This increases the amount and diversity of content

choices. A maximum of eight multicast station channels can be selected

on this unit.

When multicast station is received, the program number

and the SPS indicator lights up. Press or to select

the desired program service.

Receiving the Multicast Station Program Service.

Program Service example:

Multicast Radio Station Program No. Program Service

90.3 MHz No.1

MPS

: Main Program Service

90.3 MHz No.2 SPS: Sub-program Service

90.3 MHz No.3 SPS: Sub-program Service

90.3 MHz No.8 SPS: Sub-program Service

F 1 - 3

90.3MHz

BAND No.

Multicast No.

SPS indicator

9-EN

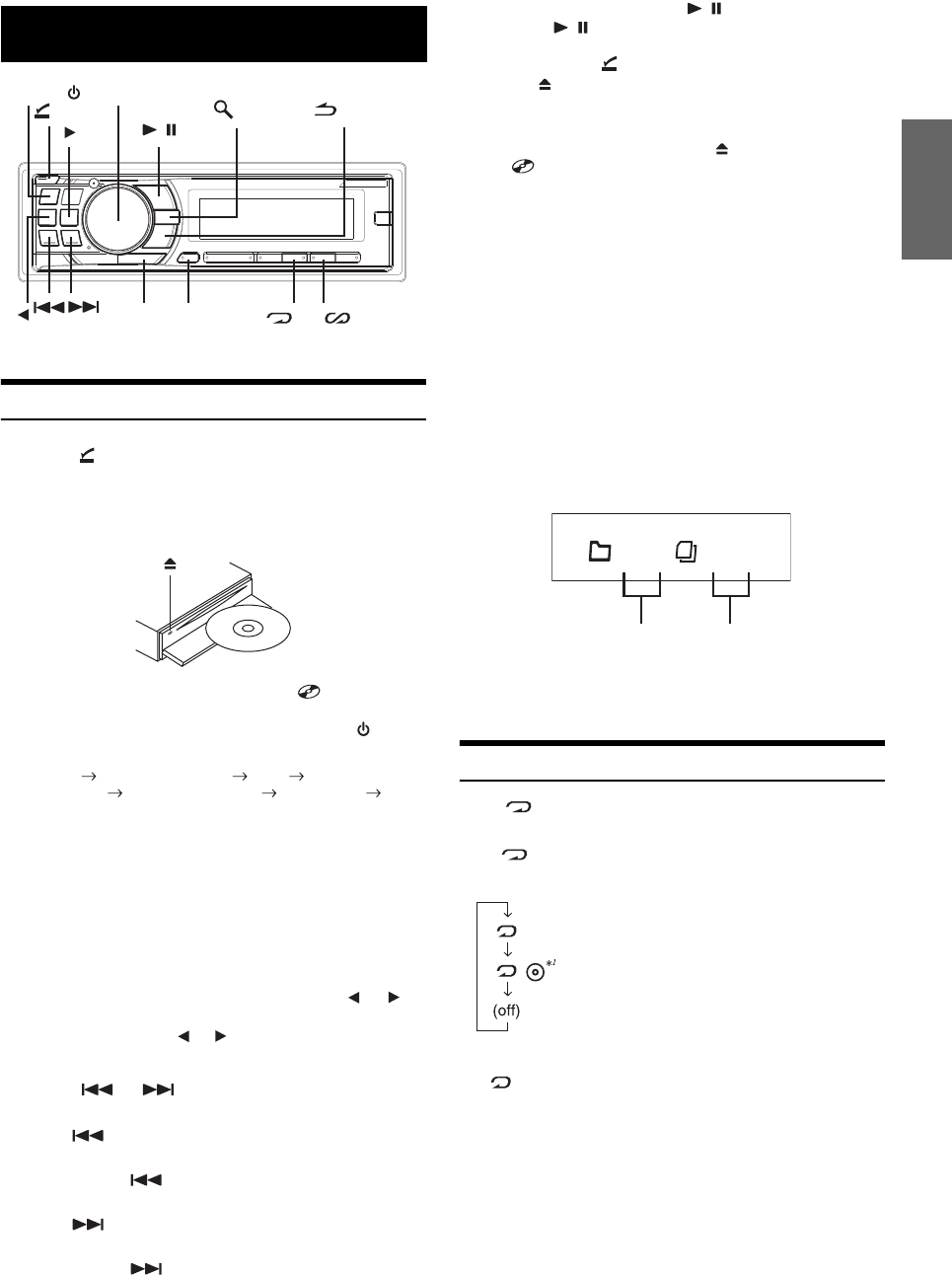

Playback

Press (OPEN).

The front panel will open.

Insert a disc with the label side facing up.

The disc will be pulled into the unit automatically.

Close the front panel manually and the “ ” indicator

lights up.

When a disc is already inserted, press SOURCE/ to

switch to the DISC mode.

TUNER XM RADIO/SIRIUS*1 DISC USB AUDIO*2/

USB iPod*3 BT AUDIO*4/AUX+*5 CHANGER*6

TUNER

*1Only when XM Radio or SIRIUS Radio is connected.

*2Displayed only when no iPhone/iPod is connected.

*3Displayed only when the iPhone/iPod is connected.

*4Displayed only when BLUETOOTH IN is set to ADAPTE, refer to

“Setting the Bluetooth Connection” (page 17).

*5Displayed only when the AUX+ SETUP is set to ON, refer to “Setting

the AUX+ SETUP Mode” (page 18).

*6Only when the CD changer is connected.

While playing back MP3/WMA/AAC, press or to

select the desired folder.

Pressing and holding or will change folders

continuously.

Press or to select the desired track (file).

Returning to the beginning of the current track (file):

Press .

Fast backward:

Press and hold .

Advancing to the beginning of the next track (file):

Press .

Fast forward:

Press and hold .

To pause playback, press / .

Pressing / again will resume playback.

After pressing (OPEN) to open the front panel,

press to eject the disc.

•Do not remove a CD during its eject cycle. Do not load more than

one disc at a time. A malfunction may result from doing either.

•If the CD does not eject, press and hold for at least 2 seconds.

•The “ ” indicator lights up when a disc is inserted.

•Three-inch (8 cm) CDs cannot be used.

•The CD-player can play discs containing audio data, MP3 data,

WMA data and AAC data.

•“MP3” is displayed during MP3 playback.

•“WMA” is displayed during WMA playback.

•“AAC” is displayed during AAC playback.

•WMA format files that are protected by DRM (Digital Rights

Management), AAC format files that have been purchased from

iTunes Store and files that are copy-protected (copyright protection)

cannot be played back on this unit.

•The track display for MP3/WMA/AAC data playback is the file

numbers recorded on the disc.

•The playback time may not be correctly displayed when a VBR

(Variable Bit Rate) recorded file is played back.

MP3/WMA/AAC Play Display

The folder number and file number will be displayed as

described below.

•Press VIEW to switch the display. See “Displaying the Text”

(page 15) for information about display switching.

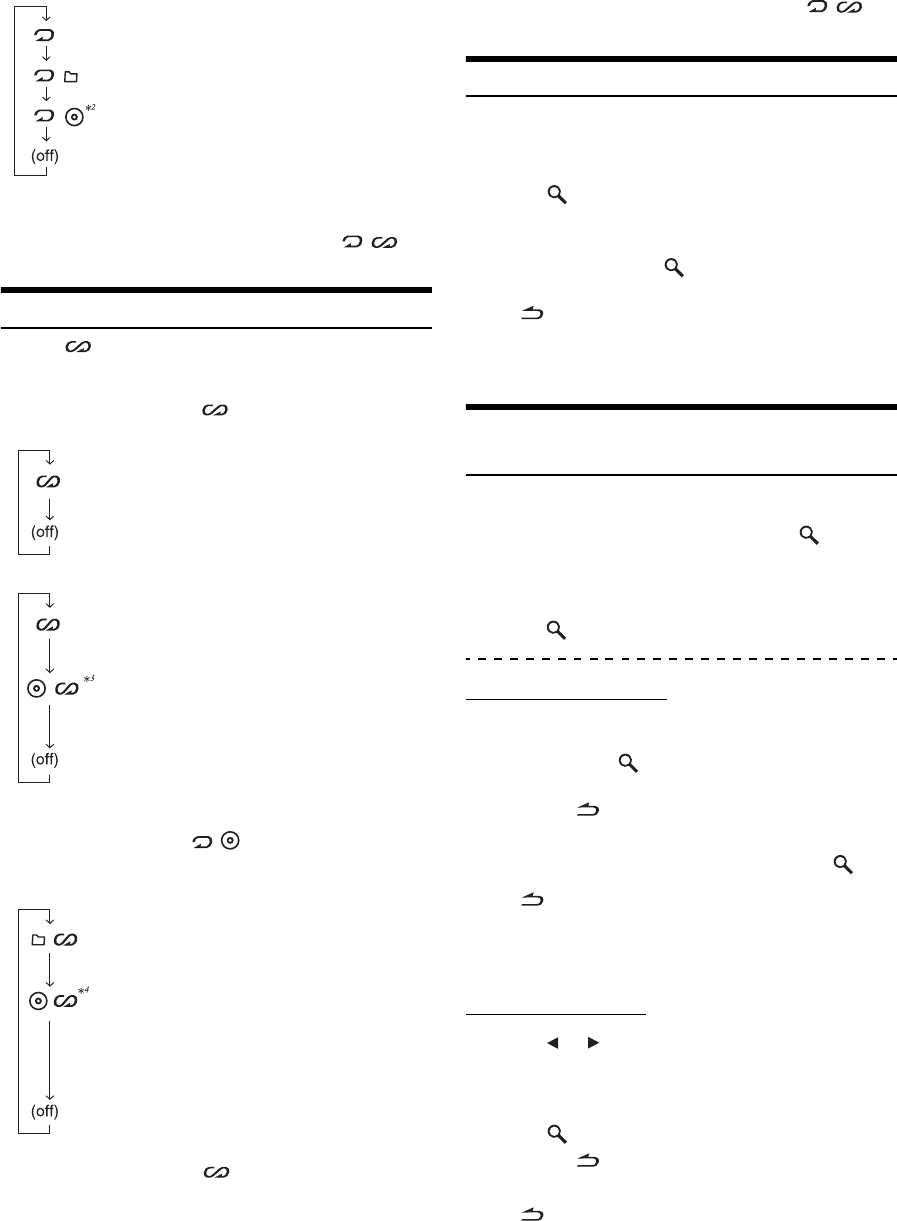

Repeat Play

Press

to play back repeatedly the track being played.

The track (file) will be played repeatedly.

Press 4 again and select off to deactivate repeat play.

CD mode :

*1When a CD changer is connected.

•If is set to ON during M.I.X. play in CD changer mode, M.I.X.

will apply to the current disc only.

CD/MP3/WMA/AAC

4 5

(OPEN)

F/SETUP

SOURCE/

Rotary encoder

/ENT /ESC

VIEW

101 103

Folder number

display

File number

display

: Only a track is repeatedly played back.

: A disc is repeatedly played back.

10-EN

MP3/WMA/AAC mode :

*2When an MP3 compatible CD changer is connected.

•If a CD changer or an MP3 compatible CD changer is connected:

After pressing F/SETUP to select the function mode ( /),

perform the operation within 10 seconds.

M.I.X. (Random Play)

Press 5 in the play or pause mode.

The tracks (files) on the disc will be played back in random

sequence.

To cancel M.I.X. play, press 5 again.

Internal CD mode :

CD Changer mode :

*3When a CD changer equipped with the ALL M.I.X. function is

connected.

•If M.I.X. is set to ON during (REPEAT ALL) play in CD

changer mode, M.I.X. will apply to the current disc only.

MP3/WMA/AAC mode :

*4In the USB mode, all files stored in the USB memory are played back

in random sequence, and the “ ” indicator lights up.

•When a song is played back during Random (M.I.X.) play in the USB

mode, the song can be played back again randomly even if not all

songs on the USB Memory have been played back.

•If a CD changer or an MP3 compatible CD changer is connected:

After pressing F/SETUP to select the function mode ( /),

perform the operation within 10 seconds.

Searching for CD Text

On discs utilizing CD Text, songs can be searched and played by using

their recorded titles. For discs without CD Text, searches are made

using the track numbers associated with each song.

Press /ENT during play.

This will set the search mode.

Turn the Rotary encoder to select the desired

track, and then press /ENT.

This will play the selected track.

•Press /ESC in the search mode to cancel. Or, the search mode is

canceled if no operation is performed for 30 seconds.

•When CD Text Search is made during M.I.X. play, the M.I.X. play

mode will be canceled.

File/Folder Name Search

(Concerning MP3/WMA/AAC)

Folder and file names may be searched and displayed during playback.

During MP3/WMA/AAC playback, press /ENT to

activate the search mode.

Turn the Rotary encoder to select Folder Name

Search mode or File Name Search mode, and then

press /ENT.

Folder Name Search mode

Turn the

Rotary encoder

to select the desired folder.

Press and hold /ENT for at least 2 seconds to

play back the first file in the selected folder.

•Press and hold /ESC for at least 2 seconds in the search mode to

cancel. Or, the search mode is canceled if no operation is performed

for 30 seconds.

•To search for files in the Folder Name Search mode, press /ENT.

Files in the folder may be searched.

•Press /ESC to exit Folder Name Search mode in step 3 in order

to select File Name Search mode.

•The root folder is displayed as “– – – – – – – – – – – –”.

•When Folder Name Search is made during M.I.X. play, the M.I.X.

play mode will be canceled.

File Name Search mode

Press or to select another Folder.

Select the desired file by turning the Rotary

encoder.

Press /ENT to play back the selected file.

•Press and hold /ESC for at least 2 seconds in the search mode to

cancel. Or, the search mode is canceled if no operation is performed

for 30 seconds.

•Press /ESC in the search mode to return to the previous mode.

•When File Name Search is made during M.I.X. play, the M.I.X. play

mode will be canceled.

: Only a file is repeatedly played back.

: Only files in a folder are repeatedly played

back.

: A disc is repeatedly played back.

: The tracks are played back in random

sequence.

: The tracks are played back in random

sequence.

: The tracks on all the CDs in the current

magazine will be included in the random

playback sequence.

: Only files in a folder are played back in

random sequence.

: Files are played back in random sequence.

If an MP3 compatible CD changer is

connected, all files in a disc are played back

in random sequence, and playback shifts to

the next disc.

11-EN

Quick Search

You can search for tracks (files).

Press and hold /ENT for at least 2 seconds in the

CD/Changer/MP3/WMA/AAC mode to activate Quick

Search mode.

Turn the Rotary encoder to select a desired track

(file).

The selected track is played back immediately.

•Press /ESC in the search mode to cancel. Or, the search mode is

canceled if no operation is performed for 10 seconds.

About MP3/WMA/AAC

What is MP3?

MP3, whose official name is “MPEG-1 Audio Layer 3,” is a

compression standard prescribed by the ISO, the International

Standardization Organization and MPEG which is a joint activity

institution of the IEC.

MP3 files contain compressed audio data. MP3 encoding is

capable of compressing audio data at extremely high ratios,

reducing the size of music files to as much as one-tenth their

original size. This is achieved while still maintaining near CD

quality. The MP3 format realizes such high compression ratios

by eliminating the sounds that are either inaudible to the human

ear or masked by other sounds.

What is AAC?

AAC is the abbreviation for “Advanced Audio Coding”, and is a

basic format of audio compression used by MPEG2 or MPEG4.

What is WMA?

WMA, or “Windows Media™ Audio,” is compressed audio data.

WMA is similar to MP3 audio data and can achieve CD quality

sound with small file sizes.

Method for creating MP3/WMA/AAC files

Audio data is compressed using software with MP3/WMA/AAC

codecs. For details on creating MP3/WMA/AAC files, refer to the

user’s manual for that software.

MP3/WMA/AAC files that are playable on this device have the

file extensions.

MP3: “mp3”

WMA: “wma” (ver. 7.1, 8 and 9 are supported)

AAC: “m4a”

There are many different versions of the AAC format. Confirm

that the software being used conforms to the acceptable

formats listed above. It’s possible that the format may be

unplayable even though the extension is valid.

Playback of AAC files encoded by iTunes is supported.

Supported playback sampling rates and bit rates

MP3

WMA

AAC

This device may not play back correctly depending on sampling

rates.

In the USB mode, the playback time may not be correctly

displayed when a VBR (Variable Bit Rate) recorded file is played

back.

ID3 tags/WMA tags

This device supports ID3 tag v1 and v2, and WMA tag.

If tag data is in an MP3/WMA/AAC file, this device can display

the title (track title), artist name, and album name ID3 tag/WMA

tag data.

This device can only display single-byte alphanumeric

characters (up to 30 for ID3 tags and up to 15 for WMA tags)

and the underscore. For non-supported characters, the display

is NO SUPPORT.

If information contains characters other than ID3 tag information,

the audio file may not be played back.

The tag information may not be correctly displayed, depending

on the contents.

Playing back MP3/WMA/AAC

MP3/WMA/AAC files are prepared, then written to a CD-R,

CD-RW using CD-R writing software or stored to a USB memory.

A disc can hold up to 510 files/folders (including Root Folders),

and the maximum number of folders is 255. This unit can

recognize at least 100 folders (including root folder) and

100 files per folder stored in USB memory.

Playback may not be performed if a disc or USB memory

exceeds the limitations described above.

Do not make a file’s playback time more than 1 hour.

Media supported

The media that this device can play back are CD-ROMs, CD-Rs,

and CD-RWs.

This device also can play back USB memory media.

Corresponding File Systems

This device supports discs formatted with ISO9660 Level 1 or

Level 2.

This device also can play back discs in Joliet, Romeo, etc., and

other standards that conform to ISO9660. However, sometimes

the file names, folder names, etc., are not displayed correctly.

This device also supports FAT 12/16/32 for USB memory device.

Formats supported

This device supports CD-ROM XA, Mixed Mode CD, Enhanced

CD (CD-Extra) and Multi-Session.

This device cannot correctly play back discs recorded with

Track At Once or packet writing.

CAUTION

Except for private use, duplicating audio data (including MP3/

WMA/AAC data) or distributing, transferring, or copying it,

whether for free or for a fee, without permission of the copyright

holder is strictly prohibited by the Copyright Act and by

international treaty.

Sampling rates: 48 kHz, 44.1 kHz, 32 kHz, 24 kHz, 22.05 kHz,

16 kHz, 12 kHz, 11.025 kHz, 8 kHz

Bit rates: 8 - 320 kbps

Sampling rates: 48 kHz, 44.1 kHz, 32 kHz

Bit rates: 48 - 192 kbps

Sampling rates: 48 kHz, 44.1 kHz, 32 kHz, 24 kHz, 22.05 kHz,

16 kHz, 12 kHz, 11.025 kHz, 8 kHz

Bit rates: 16 - 320 kbps

Under the ISO9660 standard, there are some restrictions to

remember.

The maximum nested folder depth is 8 (including the root

directory). The number of characters for a folder/file name is

limited.

Valid characters for folder/file names are letters A-Z (all caps),

numbers 0-9, and ‘_’ (underscore).

12-EN

Order of files

Files are played back in the order that the writing software writes

them to the disc. Therefore, the playback order may not be what

is expected. Verify the writing order in the software’s

documentation. The playback order of the folders and files is as

follows.

* The folder No./ folder Name will not be displayed if no file is

contained in the folder.

Bit rate

This is the “sound” compression rate specified for encoding. The

higher the bit rate, the higher the sound quality, but also the larger

the files.

Sampling rate

This value shows how many times per second the data is sampled

(recorded). For example, music CDs use a sampling rate of 44.1 kHz,

so the sound is sampled (recorded) 44,100 times per second. The

higher the sampling rate, the higher the sound quality, but also the

larger the volume of data.

Encoding

Converting music CDs, WAVE (AIFF) files, and other sound files into

the specified audio compression format.

Tag

Song information such as track titles, artist names, album names,

etc., written into MP3/WMA/AAC files.

Root folder

The root folder (or root directory) is found at the top of the file

system. The root folder contains all folders and files. It is created

automatically for all burned discs.

Adjusting Subwoofer Level/Bass Level/

Treble Level/Balance (Between Left and

Right)/Fader (Between Front and Rear)/

Defeat

Press Rotary encoder (AUDIO) repeatedly to

choose the desired mode.

Each press changes the mode as follows:

SUBW LEVEL* BASS LEVEL TREBLE LEVEL

BALANCE FADER DEFEAT VOLUME

SUBW LEVEL

Subwoofer level: 0 ~ +15

Bass level: –7 ~ +7

Treble level: –7 ~ +7

Balance: L15 ~ R15

Fader: R15 ~ F15

Defeat: ON/OFF

Volume: 0 ~ 35

•If no operation is performed for 5 seconds after selecting the SUBW

LEVEL, BASS LEVEL, TREBLE LEVEL, BALANCE, FADER or

DEFEAT mode, the unit automatically returns to normal mode.

* When the subwoofer mode is set to OFF, its level cannot be adjusted.

Refer to “Turning Subwoofer ON/OFF” (page 14).

Turn the Rotary encoder until the desired sound is

obtained in each mode.

By setting DEFEAT ON, previously adjusted settings of

BASS and TREBLE will return to the factory defaults.

•Depending on the connected devices, some functions and display

indications do not work.

Terminology

Root folder

Folder MP3/WMA/AAC File

Sound Setting

/ENT

BAND

Rotary encoder (AUDIO/LOUD)

SOURCE/

SOUND SETUP

/ESC

13-EN

Setting the Subwoofer Level

You can change the Subwoofer Level to create your own tonal

preference.

Press SOUND SETUP to activate the Sound Setting

mode.

Turn the Rotary encoder to select the SUBW

LEVEL Adjustment mode, and then press

/ENT.

SUBW LEVEL*1 BASS*2 TREBLE*2 HPF*2

SUBW LEVEL

Turn the Rotary encoder to select the desired

subwoofer level (0~+15).

•If no operation is performed for 15 seconds, the unit will return to

normal mode automatically.

•When subwoofer is set to OFF and DEFEAT is set to ON, pressing

the SOUND SETUP button momentarily will not be functional.

*1When the subwoofer mode is set to OFF, its level cannot be adjusted,

refer to “Turning Subwoofer ON/OFF” (page 14).

The adjustment can also be made by pressing Rotary encoder

(AUDIO). Refer to “Adjusting Subwoofer Level/Bass Level/Treble

Level/Balance (Between Left and Right)/Fader (Between Front and

Rear)/Defeat” (page 12).

*2The function is inoperable when DEFEAT is set to ON.

Setting the Bass Control

You can change the Bass Frequency emphasis to create your own tonal

preference.

Press SOUND SETUP to activate the Sound Setting

mode.

Turn the Rotary encoder to select the BASS

Adjustment mode, and then press /ENT.

SUBW LEVEL*3 BASS*4 TREBLE*4 HPF*4

SUBW LEVEL

-1 Press BAND to select the desired bass center

frequency.

80 Hz 100 Hz 200 Hz 60 Hz 80 Hz

Emphasizes the displayed bass frequency ranges.

-2 Press SOURCE/ to select the desired bass

bandwidth.

Changes the boosted bass bandwidth to wide or narrow. A

wider setting will boost a wide range of frequencies above

and below the center frequency. A narrower setting will

boost only frequencies near the center frequency.

-3*5Turn the Rotary encoder to select the desired

bass level (–7~+7).

You can emphasize or weaken the bass level.

Press and hold /ESC for at least 2 seconds to

return to normal mode.

•If no operation is performed for 15 seconds, the unit will return to

normal mode automatically.

•The bass level settings will be individually memorized for each

source (FM, AM, CD, etc.) until the setting is changed. The bass

frequency and bass bandwidth settings adjusted for one source are

effective for all other sources (FM, AM, CD, etc.).

•Depending on the connected devices, some functions and display

indications do not work. However, Bass Level is still adjustable if an

audio processor with the Bass function is connected.

•When subwoofer is set to OFF and DEFEAT is set to ON, pressing

the SOUND SETUP button momentarily will not be functional.

*3When the subwoofer mode is set to OFF, its level cannot be adjusted.

Refer to “Turning Subwoofer ON/OFF” (page 14).

*4The function is inoperable when DEFEAT is set to ON.

*5The adjustment can also be made by pressing Rotary encoder

(AUDIO). Refer to “Adjusting Subwoofer Level/Bass Level/Treble

Level/Balance (Between Left and Right)/Fader (Between Front and

Rear)/Defeat” (page 12).

Setting the Treble Control

You can change the Treble Frequency emphasis to create your own tonal

preference.

Press SOUND SETUP to activate the Sound Setting

mode.

Turn the Rotary encoder to select the TREBLE

Adjustment mode, and then press /ENT.

SUBW LEVEL*6 BASS*7 TREBLE*7 HPF*7

SUBW LEVEL

-1 Press BAND to select the desired treble center

frequency.

10.0 kHz 12.5 kHz 15.0 kHz 17.5 kHz 10.0 kHz

Emphasizes the displayed treble frequency ranges.

-2*8Turn the Rotary encoder to select the desired

treble level (–7~+7).

You can emphasize or weaken the treble level.

Press and hold /ESC for at least 2 seconds to

return to normal mode.

•If no operation is performed for 15 seconds, the unit will return to

normal mode automatically.

•The treble level settings will be individually memorized for each

source (FM, AM, CD, etc.) until the setting is changed. The Treble

frequency settings adjusted for one source are effective for all other

sources (FM, AM, CD, etc.).

Setting the Bass Center Frequency

Setting the Bass Bandwidth

12 34

Setting the Bass Level

Setting the Treble Center Frequency

Setting the Treble Level

14-EN

•Depending on the connected devices, some functions and display

indications do not work. However, Treble Level is still adjustable if

an audio processor with the Treble function is connected.

•When subwoofer is set to OFF and DEFEAT is set to ON, pressing

the SOUND SETUP button momentarily will not be functional.

*6When the subwoofer mode is set to OFF, its level cannot be adjusted.

Refer to “Turning Subwoofer ON/OFF” (page 14).

*7The function is inoperable when DEFEAT is set to ON.

*8The adjustment can also be made by pressing Rotary encoder

(AUDIO). Refer to “Adjusting Subwoofer Level/Bass Level/Treble

Level/Balance (Between Left and Right)/Fader (Between Front and

Rear)/Defeat” (page 12).

Adjusting the High Pass Filter

The High Pass Filter on this unit can be adjusted to suit your personal

taste.

Press SOUND SETUP to activate the Sound Setting

mode.

Turn the Rotary encoder to select the High Pass

Filter (HPF) Adjustment mode, and then press

/ENT.

SUBW LEVEL*9 BASS*10 TREBLE*10 HPF*10

SUBW LEVEL

Turn the Rotary encoder to select the High Pass

Filter frequency.

OFF 60 Hz 80 Hz 100 Hz

Press and hold /ESC for at least 2 seconds to

return to normal mode.

•If no operation is performed for 15 seconds, the unit will return to

normal mode automatically.

•When an external audio processor is connected, this setting cannot

be made.

•When subwoofer is set to OFF and DEFEAT is set to ON, pressing

the SOUND SETUP button momentarily will not be functional.

*9When the subwoofer mode is set to OFF, its level cannot be adjusted.

Refer to “Turning Subwoofer ON/OFF” (page 14).

*10The function is inoperable when DEFEAT is set to ON.

Turning Loudness On/Off

Loudness introduces a special low-and high-frequency emphasis at low

listening levels. This compensates for the ear’s decreased sensitivity to

bass and treble sound.

Press and hold

Rotary encoder

(

LOUD

) for at least 2

seconds to activate or deactivate the loudness mode.

•When an external audio processor is connected, this setting cannot

be made.

•The function is inoperable when DEFEAT is set to ON.

Turning Subwoofer ON/OFF

When the subwoofer is on, you can adjust the subwoofer output level

(refer to page 13).

Press and hold SOUND SETUP for at least 2

seconds to activate the Subwoofer selection mode.

Turn the Rotary encoder to select the

SUBWOOFER mode, and then press /ENT.

SUBWOOFER SUBW SYSTEM*11 SUBWOOFER

Turn the Rotary encoder to select SUBW ON/OFF,

and then press /ENT.

SUBW ON (Initial setting) SUBW OFF

Press and hold /ESC for at least 2 seconds to

return to normal mode.

•If no operation is performed for 15 seconds, the unit will return to

normal mode automatically.

*11Displayed only when SUBWOOFER is set to ON.

Setting the Subwoofer System

When the subwoofer is on, you can select either System1 or System2

for the desired subwoofer effect.

Press and hold SOUND SETUP for at least 2

seconds to activate the Subwoofer selection mode.

Turn the Rotary encoder to select the SUBW

SYSTEM mode, and then press /ENT.

SUBWOOFER SUBW SYSTEM SUBWOOFER

Turn the Rotary encoder to select SUBW SYS 1 or

SUBW SYS 2, and then press /ENT.

Select either SYS 1 or SYS 2 for the desired subwoofer

effect.

SUBW SYS 1 (Initial setting) SUBW SYS 2

Press and hold /ESC for at least 2 seconds to

return to normal mode.

•If no operation is performed for 15 seconds, the unit will return to

normal mode automatically.

•This function is inoperable when SUBWOOFER is set to OFF.

SUBW SYS 1: Subwoofer level changes according to the

main volume setting.

SUBW SYS 2: Subwoofer level change is different from the

main volume setting. For example, even at

low volume settings, the subwoofer is still

audible.

15-EN

Displaying the Text

Text information, such as the disc name and the track name, will be

displayed if playing a CD text compatible disc. It is also possible to

display the folder name, the file name, and the tag, etc., while playing

MP3/WMA/AAC files.

Press VIEW.

The display will change every time the button is pressed.

•When the TEXT SCROLL is set to SCROLL MANU, press and hold

VIEW for at least 2 seconds, the current text will be scrolled one

time (except Radio mode).

The display in Radio mode:

FREQUENCY CLOCK RADIO STATION NAME*1/2

ARTIST NAME*1 ALBUM NAME*1 SONG NAME*1

FREQUENCY

The display in CD mode:

TRACK NO./ELAPSED TIME TRACK NO./CLOCK

TEXT (DISC NAME)*3 TEXT (TRACK NAME)*3

TRACK NO./ELAPSED TIME

The display in MP3/WMA/AAC mode:

FILE NO./ELAPSED TIME FOLDER NO./FILE NO.

FILE NO./CLOCK FOLDER NAME*4 FILE NAME

ARTIST NAME*5 ALBUM NAME*5 SONG NAME*5

FILE NO./ELAPSED TIME

The display in Bluetooth Audio mode:

The Following display will be shown only when a telephone or

Bluetooth Streaming device with Metadata capabilities is

correctly connected with a Bluetooth INTERFACE (KCE-400BT).

For details, refer to the Owner’s Manual of the Bluetooth

INTERFACE (KCE-400BT).

BT AUDIO CLOCK ARTIST NAME*6 ALBUM NAME*6

SONG NAME*6 BT AUDIO

*1When an HD signal is received, text information such as radio

station, artist, etc., is displayed.

If there is no text information, “ARTIST”/“ALBUM”/“SONG”/

“STATION” will be displayed.

*2RADIO STATION NAME can be switched between “LONG” and

“SHORT” in “HD Radio Station Call Setting (STATION CALL)”

(page 18).

*3Displayed during playback of a disc with CD Text.

If there is no Text (Disc Name or Track Name), “DISC TEXT”/

“TRACK TEXT” is displayed. “DISC TEXT”/“TRACK TEXT” is

displayed for changer.

*4The root folder of disc is displayed as “FOLDER”. The root folder of

USB memory is displayed as “ROOT”.

*5ID3 tag/WMA tag

If an MP3/WMA/AAC file contains ID3 tag/WMA tag information,

the ID3 tag/WMA tag information is displayed (e.g., song name,

artist name, and album name). All other tag data is ignored.

If the Scroll Setting (page 17) is set to “SCROLL AUTO,” the tag

information will scroll automatically.

If there is no tag information, “ARTIST”/“ALBUM”/“SONG” is

displayed.

*6When a BT AUDIO signal is received, text information such as artist,

album, song is displayed.

If there is no text information, “ARTIST”/“ALBUM”/“SONG” will

be displayed.

Other Functions

VIEW

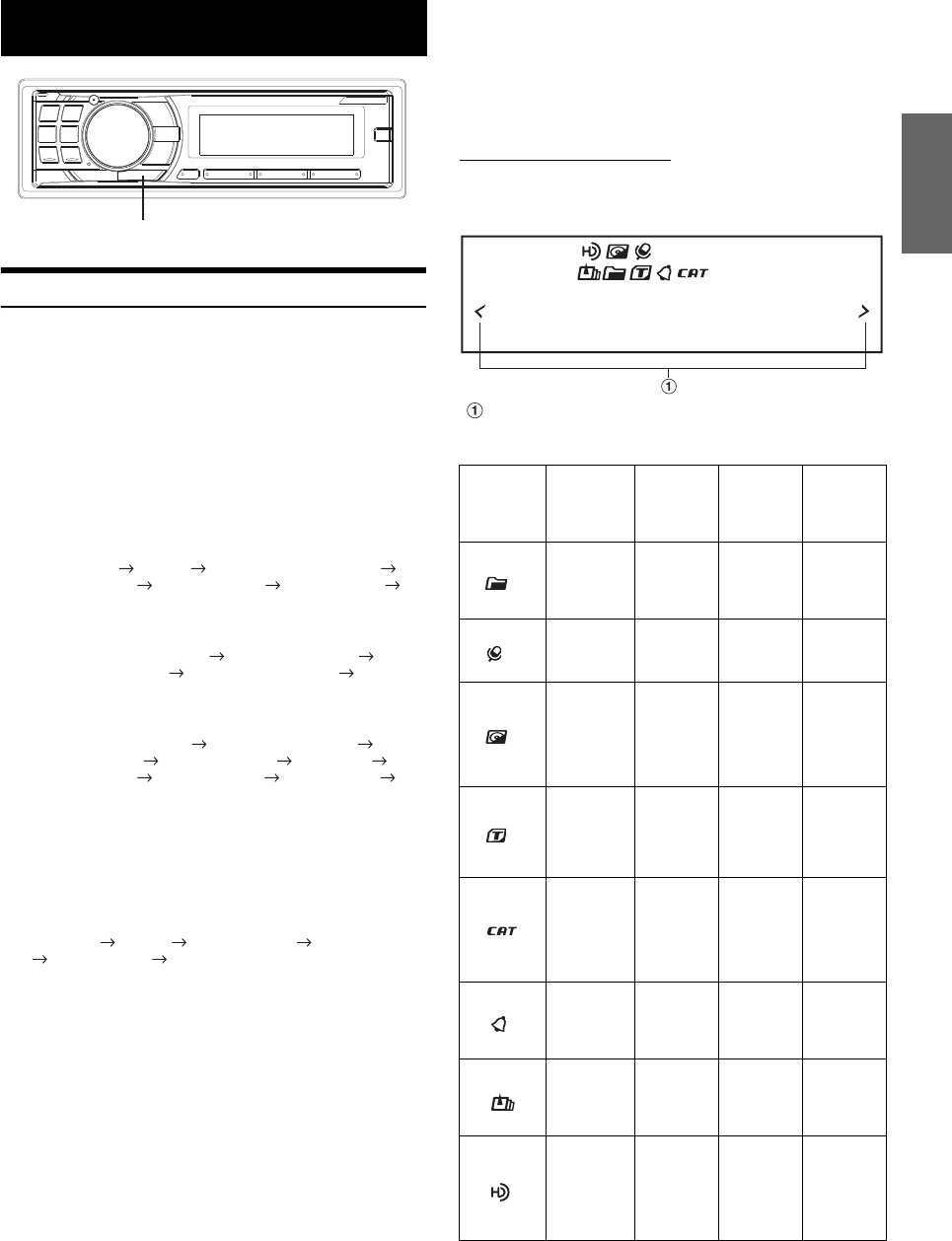

About the indication display

When displaying Text, the following indicators are lit according

to the mode.

Indicator/

Mode CD Mode

MP3/WMA/

AAC/USB

AUDIO

Mode

SAT RADIO/

HD RADIO

Mode

iPhone/

iPod/BT

AUDIO

Mode

—

Folder

Name

being

displayed

— —

—

Artist Name

being

displayed

Artist Name

being

displayed

Artist Name

being

displayed

Text (Disc

Name) being

displayed

Album

Name

being

displayed

Album

Name

being

displayed

(HD Radio

mode only)

Album

Name

being

displayed

Text (Track

Name) being

displayed

Song

Name/

File Name

being

displayed

Song Title/

Channel

Name

being

displayed

Song Name

being

displayed

— —

CATEGORY

* SIRIUS Only.

Turn the Rotary encoder to select the desired

Category, and then press /ENT.

Turn the Rotary encoder to select the desired

Channel Name, and then press /ENT.

•While in Category Search mode, press /ESC to return to the

selecting search mode.

•The Search mode is canceled if you press and hold /ESC for at

least 2 seconds, or no operation is performed for 10 seconds in

Category Search mode.

•If ALERT interruption occurs in the search mode, the search mode is

canceled.

Turn the Rotary encoder to select the desired

Channel/Artist/Song Name, and then press

/ENT.

•While in Channel Search mode, press or to select another

Category.

•While in Channel/Artist/Song Search mode, press /ESC to return

to the selecting search mode.

•The Search mode is canceled if you press and hold /ESC for at

least 2 seconds, or no operation is performed for 10 seconds in

Channel/Artist/Song Search mode.

•If ALERT interruption occurs in the search mode, the search mode is

canceled.

Quick Search Function

You can search for all channels in numerical order.

Press and hold /ENT for at least 2 seconds in XM

or SIRIUS mode to activate Quick Search mode.

Turn the Rotary encoder to select the desired

Channel within 10 seconds.

The selected Channel is received.

Receiving Weather or Traffic Information

from SAT Radio

Select the SAT Radio Channel for your local traffic/

weather information.

Press and hold / for at least 2 seconds in the

SAT mode.

The received weather or traffic channel is stored.

Press and hold BAND for at least 2 seconds.

The stored Weather or Traffic channel will be recalled.

Press and hold BAND for at least 2 seconds.

Returns to normal mode.

•Stored channels can also be recalled by pressing and holding BAND

for at least 2 seconds.

•

Channel other than Weather or Traffic can also be stored and recalled.

(ALERT) indicator lights: one Alert found.

(ALERT) indicator blinks: more than 2 Alerts found.

If more than 2 Alerts are found

(Blinking ALERT indicator)

MEMORY DELETE MEMORY

DELETE NO DELETE YES

Category Search mode

Channel/Artist/Song Search mode

22-EN

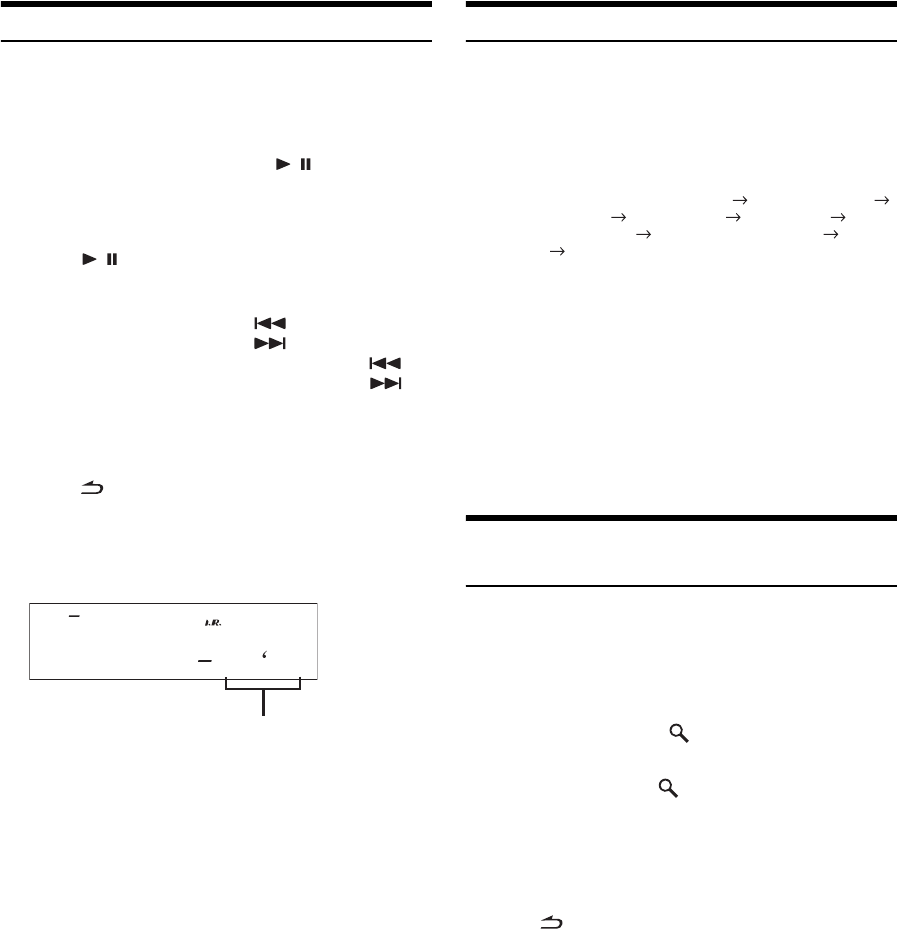

Instant Replay Function (SIRIUS only)

In SIRIUS mode, the current channel is saved using the Instant Replay

memory function. Use this function to pause the channel content at any

time. When playback is continued, it will begin at the position it was

paused. This function can be used to store up to 44 minutes of audio.

During SIRIUS reception, press / to select the

Instant Replay mode.

“REPLAY MODE” is displayed, and the received station is

stored.

Press / again to activate the play mode.

The stored contents are played back.

•If you continue to press Fast forward until the end, the INSTANT

REPLAY mode is canceled, and the unit will change to usual

reception.

Press /

ESC

for at least 2 seconds to cancel the

INSTANT REPLAY mode.

The unit returns to usual SIRIUS broadcasting mode.

Time display example during REPLAY playback (Instant

Replay Mode only)

Changing the Display

Text information, such as the channel name, artist name/feature and

song/program title, is available with each XM or Sirius channel. The

unit can display this text information as explained below.

In XM or SIRIUS mode, press VIEW.

Each time you press this button, the display changes as shown

below.

CHANNEL No./(REMAINING TIME)*1 CATEGORY NAME

CHANNEL NAME ARTIST NAME SONG TITLE

COMPOSER NAME*2 AUXILIARY DATA FIELD*3

CLOCK CHANNEL No./(REMAINING TIME)

*1Displayed only during instant replay.

*2SIRIUS mode only.

*3XM mode only:

When ADF is turned OFF, this information is not displayed (see

“Setting the Auxiliary Data Field Display (XM only)” on page 22).

•When the “Scroll Setting (TEXT SCROLL)” (page 17) is set to

“SCROLL AUTO”, the display scrolls continuously. When the Scroll

Setting is set to “SCROLL MANU”, the display scrolls only once

after any function is performed (PRESET, BAND, SEARCH, etc.).

“CHANNEL No.” and “CLOCK” displays do not scroll.

•Depending on the model, the display may differ from the one shown

above.

Setting the Auxiliary Data Field Display

(XM only)

The XM Auxiliary Data Field (ADF) display can be switched on or off.

There is no ADF function for the SIRIUS receiver.

Press and hold F/SETUP for at least 2 seconds to

select the SETUP selection mode.

Turn the Rotary encoder to select the XM ADF

mode, and then press /ENT.

Turn the Rotary encoder to select XM ADF ON/

OFF, and then press /ENT.

When setting to ON, Auxiliary Data Field is displayed by

pressing VIEW (Refer to the “Changing the Display” section

on page 22.).

Press and hold F/SETUP for at least 2 seconds to

return to normal mode.

•Pressing /ESC returns to the previous SETUP mode.

•If no operation is performed for 60 seconds, SETUP is canceled.

During REPLAY playback:

Fast rewind: Press and hold .

Fast forward: Press and hold .

Returning to the beginning of the current song: Press .

Advancing to the beginning of the next song: Press .

4359CH184

Play Time

(Remaining time for

INSTANT REPLAY)

23-EN

Controlling USB memory (Optional)

A USB memory device may be connected to this unit. With a USB

memory device connected to this unit, the audio files will be playable

from this unit.

•The controls on this unit for USB memory operation are operative

only when a USB memory is connected.

Playing MP3/WMA/AAC Files with the

USB memory (Optional)

If you connect a USB memory device containing MP3/WMA/AAC,

these files are playable on this unit.

Press SOURCE/ to switch to the USB AUDIO

mode.

TUNER XM RADIO/SIRIUS*1 DISC USB AUDIO*2/

USB iPod*3 BT AUDIO*4/AUX+*5 CHANGER*6

TUNER

*1Only when XM Radio or SIRIUS Radio is connected.

*2Displayed only when no iPhone/iPod is connected.

*3Displayed only when the iPhone/iPod is connected.

*4Displayed only when BLUETOOTH IN is set to ADAPTE, refer to

“Setting the Bluetooth Connection” (page 17).

*5Displayed only when the AUX+ SETUP is set to ON, refer to “Setting

the AUX+ SETUP Mode” (page 18).

*6Only when the CD changer is connected.

To pause playback, press / .

Pressing / again will resume the playback.

•The root folder is displayed as “ROOT” in the Folder Name Search

mode.

•This unit plays back files in the USB memory with the same controls

and modes as playback of CDs containing MP3/WMA/AAC. For

details, refer to “CD/MP3/WMA/AAC” on page 9 to 12.

•Before disconnecting USB memory, be sure to change to another

source or set to pause.

•The playback time may not be correctly displayed when a VBR

(Variable Bit Rate) recorded file is played back.

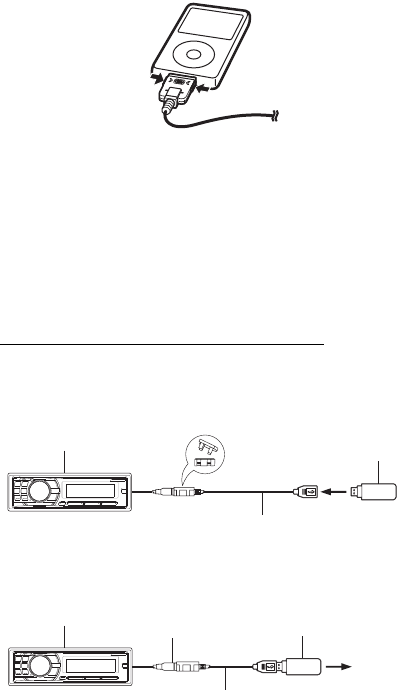

An iPhone/iPod can be connected to this unit by using the Interface

cable for iPod (KCU-440i, sold separately). When this unit is connected

by using the cable, the controls on the iPod are not functional.

•Internet and telephone functions of iTouch or iPhone, ect., can also

be used when connecting to the unit. However, using these functions

will stop or pause the playing songs, at this time do not operate the

unit to avoid a malfunction.

•If you connect an iPhone to this unit, it can be used as an iPod. If you

use iPhone as a hands-free phone, you need the optional Bluetooth

INTERFACE (KCE-400BT).

iPhones/iPods usable with this unit

•The unit can be used with the fifth generation and above

iPod, iPhone 3G, iPhone, iPod touch, iPod classic, the first

generation iPod nano, the second generation iPod nano or

the third generation iPod nano only. iPod Shuffle cannot be

used, however.

•Touch wheel or scroll wheel type iPods without the dock

connector cannot be connected to the unit.

•The unit can be used with the following iPhones/iPods.

iPhone 3G (version 2.0)

iPhone (version 1.1.4)

iPod touch (version 1.0.4)

iPod classic (version 1.1.1)

iPod nano (3rd generation) (version 1.1)

iPod nano (2nd generation) (version 1.1.3)

iPod with video (version 1.2.3)

iPod nano (1st generation) (version 1.3.1)

•For clarity in identifying your model of iPod, please see

Apple’s own document “Identifying iPod models” at

http://support.apple.com/kb/HT1353

•This unit does not support iPhone/iPod’s video playback

function, even using a video-compatible cable.

•If the unit is used with versions of iTunes earlier than 7.6,

correct function and performance are not guaranteed.

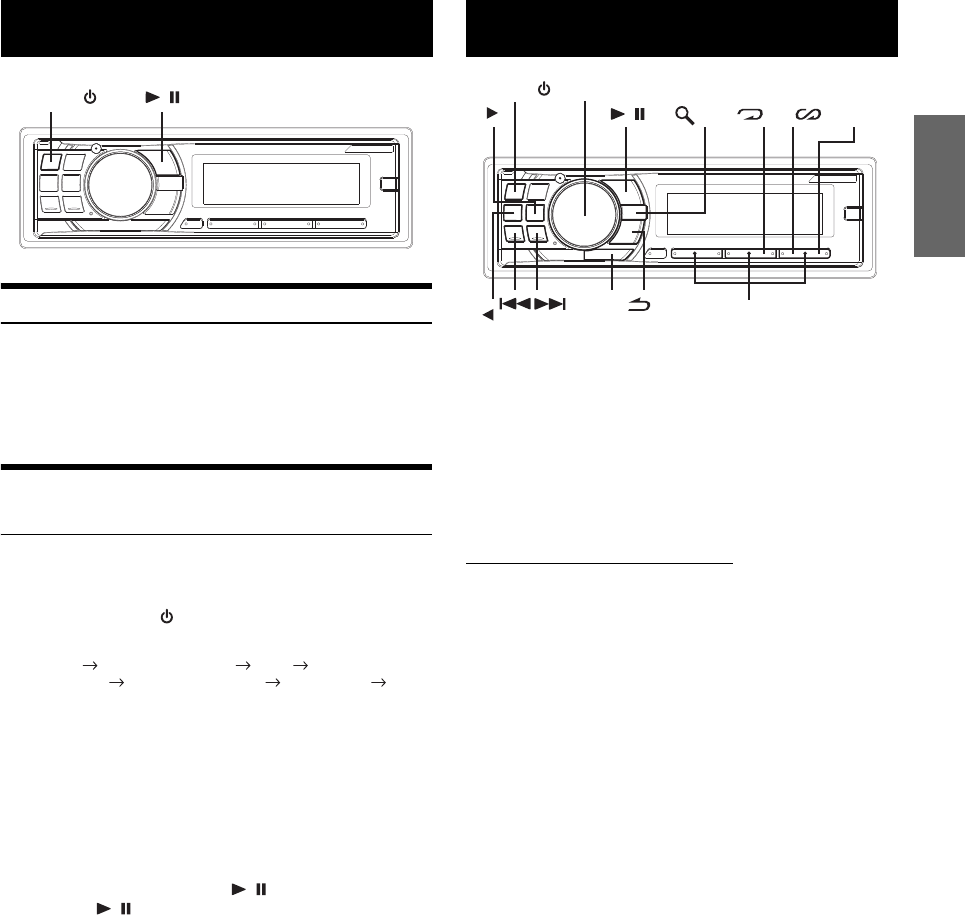

USB memory (Optional)

SOURCE/ /

iPhone/iPod (Optional)

Rotary encoder

SOURCE/

Preset buttons

(1 through 6)

5 6

/ENT

VIEW /ESC

24-EN

Playback

Press SOURCE/ to switch to the USB iPod mode.

TUNER XM RADIO/SIRIUS*1 DISC USB AUDIO*2/

USB iPod*3 BT AUDIO*4/AUX+*5 CHANGER*6

TUNER

*1Only when XM Radio or SIRIUS Radio is connected.

*2Displayed only when no iPhone/iPod is connected.

*3Displayed only when the iPhone/iPod is connected.

*4Displayed only when BLUETOOTH IN is set to ADAPTE, refer to

“Setting the Bluetooth Connection” (page 17).

*5Displayed only when the AUX+ SETUP is set to ON, refer to “Setting

the AUX+ SETUP Mode” (page 18).

*6Only when the CD changer is connected.

Press or to select the desired song.

To pause playback, press / .

Pressing / again will resume playback.

•A song playing on the iPhone/iPod while it is connected to this unit

will continue to play from where it was paused after disconnection.

•If you listen to an episode from a selected podcast or audiobook, the

episode can be changed by pressing or .

•An episode may have several chapters. The chapter can be changed

by pressing or .

Searching for a desired Song

An iPhone/iPod can contain hundreds of songs. By using file tag

information and keeping these songs organized in playlists, this unit’s

search functions will ease song searches.

Each music category has its own individual hierarchy. Use the

PLAYLIST/ARTIST/ALBUM/SONG/PODCAST/GENRE/

COMPOSER/AUDIOBOOK search mode to narrow searches based on

the table below.

For example: Searching by Artist name

The following example explains how an ARTIST search is performed.

Another search mode can be used for the same operation, although the

hierarchy differs.

Press

/ENT to activate the search selection

mode.

Turn the Rotary encoder to select the Artist search

mode, and then press

/ENT.

PLAYLIST ARTIST ALBUM SONG

PODCAST GENRE COMPOSER AUDIOBOOK

PLAYLIST

Turn the Rotary encoder to select the desired

Artist, and then press

/ENT.

Turn the Rotary encoder to select an album, and

then press

/ENT.

Turn the Rotary encoder to select a song and

press

/ENT.

The selected song is played back.

•After pressing and holding

/ENT for at least 2 seconds while in

each hierarchy (except SONG and AUDIOBOOK hierarchy), all

songs of the selected hierarchy are played back.

•After selecting [ALL] in the search mode with “*”, press and hold

/ENT for at least 2 seconds to play back all songs in the iPhone/

iPod or selected search mode.

•While in the search mode, if you press and hold /ESC for at least

2 seconds, or no operation is performed for 30 seconds, the search

mode is canceled.

•In the search mode, pressing /ESC will return to the previous

mode.

•When search is made during M.I.X. play, the M.I.X. play mode will be

canceled.

•“NO SONG” will be displayed if there is no song in the selected

playlist in the PLAYLIST search mode.

•“NO PODCAST” will be displayed if there is no podcast data in the

iPhone/iPod in the PODCAST search mode.

•“NO AUDIOBOOK” will be displayed if there is no audiobook data

in the iPhone/iPod in the AUDIOBOOK search mode.

•If “iPod name” stored in the iPhone/iPod is selected in the desired

playlist search mode and

/ENT is pressed, you can search for all

songs in the iPhone/iPod. Also, if you press and hold

/ENT for at

least 2 seconds, all songs in the iPhone/iPod are played back.

•Depending on the iPhone/iPod, podcast search is not supported.

•If Alphabet Skip Function is activated in the search mode, a search

can be made quickly by Alphabet skip function to find the desired

artist or song, etc. For details, refer to “Alphabet Skip Function” on

page 25.

•If any one of the preset buttons (1 through 6) is pressed in the search

mode, a search can be made quickly by skipping to the specified

location. For details, refer to “Direct Search Function” on page 25.

•If no operation is performed for 30 seconds during search mode, the

unit will return to normal mode.

Return to the beginning of the current song:

Press .

Fast backward through current song:

Press and hold .

Advance to the beginning of the next song:

Press .

Fast forward through current song:

Press and hold .

Hierarchy 1 Hierarchy 2 Hierarchy 3 Hierarchy 4

PLAYLIST SONG — —

ARTIST*ALBUM*SONG —

ALBUM*SONG — —

SONG ———

PODCAST EPISODE — —

GENRE*ARTIST*ALBUM*SONG

COMPOSER*ALBUM*SONG —

AUDIOBOOK ———

25-EN

Quick Search

You can search a song from all songs in the iPhone/iPod without

selecting an album, artist, etc.

Press and hold

ENT

for at least 2 seconds to

activate the Quick Search mode.

Turn the Rotary encoder to select a desired song.

The selected song is played back immediately.

•While in the search mode, if you press /ESC, or no operation is

performed for 10 seconds, the search mode is canceled.

•If many songs are in iPhone/iPod, it takes time to search for songs.

•If any one of the preset buttons (1 through 6) is pressed in the search

mode, a search can be made quickly by skipping to the specified

location. For details, refer to “Direct Search Function” on page 25.

•This function is inactive during repeat ( ) playback.

Direct Search Function

The unit’s direct search function can be used to search for an album,

song, etc., more efficiently. In Playlist/Artist/Album/Song/Podcast/

Genre/Composer/Audiobook mode, you can quickly target any song.

In the search mode, press any one of the preset

buttons (1 through 6) to quickly skip over a

designated percent of your song content.

Song search example:

If there are 100 songs in your iPhone/iPod, they are divided into

6 groups using percentages (shown below). These groups are

assigned to preset buttons 1 through 6.

Example 1:

Suppose the song you are searching for is located at

around the middle (50%) of your library: press button 4 to

jump to the 50th song and turn the Rotary encoder to find

the desired song.

Example 2:

Suppose the song you are searching for is located near the

end (83%) of your library: press button 6 to jump to the 83rd

song and turn the Rotary encoder to find the desired song.

Select Playlist/Artist/Album/Genre/

Composer

Playlist/Artist/Album/Genre/Composer can be easily changed.

For example, if you listen to a song from a selected album, the album

can be changed.

Press or select the desired Playlist/Artist/Album/

Genre/Composer.

•If the song search mode was used to select a song, this function is

inactive.

•If an album is selected during an artist search, other albums by that

artist are searchable.

•This function is inactive during shuffle (M.I.X.) playback.

Alphabet Skip Function

The initial skip function is skipped to the next number, symbol or letter

such as from A to B, B to C.

You can skip in reverse order such as B to A by pressing .

During search mode, press or to perform the

Alphabet Skip Function.

A list is skipped to the next number, symbol or letter.

•If the or is pressed and held, the display continuously changes.

All 100 songs (100%)

0% 17% 33% 50% 67% 83%

Preset

buttons 123456

Songs First

song

17th

song

33rd

song

50th

song

67th

song

83rd

song

26-EN

Random Play Shuffle (M.I.X.)

The Shuffle function of the iPhone/iPod is displayed as on this unit.

Shuffle Albums:

The songs on each album are played back in proper order. Upon

completion of all the songs on the album, the next album is

selected randomly. This continues until all albums have been

played.

Shuffle Songs:

Song shuffle randomly plays back songs within a selected

category (playlist, album, etc.). The songs within the category

are played just once until all songs have been played.

Press 5 .

The songs are played back in random sequence.

To cancel M.I.X. play, select (off) with the above

procedure.

•If a song is selected in the album search mode before selecting M.I.X.

play, the songs will not play back randomly even when Shuffle

Albums is selected.

Shuffle ALL:

Shuffle ALL plays all songs in the iPhone/iPod randomly. Any one

song does not play back again until all songs have been played

back.

Press 6.

The songs are played back in random sequence.

To cancel M.I.X. play, select (off) with the above

procedure.

•If Shuffle ALL is selected, the selected songs being played back in the

search mode are canceled.

Repeat Play

Only Repeat One is available for the iPhone/iPod.

Repeat One:

A single song is repeatedly played back.

Press 4.

The song is played back repeatedly.

To cancel repeat play, select (off) with the above

procedure.

•During repeat playback, no other songs are selectable by pressing

or .

Displaying the Text

You can display the tag information of a song in the iPhone/iPod.

Press VIEW.

Each press changes the display.

•When the TEXT SCROLL is set to MANU, press and hold VIEW for

at least 2 seconds, the current text will be scrolled one time.

*TAG information

“ARTIST”/“ALBUM”/“SONG” is displayed if there is no tag

information.

•Only alphanumeric characters (ASCII) can be displayed.

•If the artist, album or song name, created in iTunes, has too many

characters, songs may not be played back when connected to the

adapter. Therefore, a maximum of 70 characters is recommended.

The maximum number of characters for the head unit is 70

(70 byte).

•Some characters may not be correctly displayed.

•“NO SUPPORT” is displayed if text information is not supported by

the unit.

(off)

(Shuffle Albums) (Shuffle Songs)

(off)

(Shuffle ALL)

(off)

(Repeat One)

TRACK NO./ELAPSED TIME TRACK NO./CLOCK

ARTIST NAME* ALBUM NAME* SONG NAME*

TRACK NO./ELAPSED TIME

27-EN

Alpine introduces IMPRINT - the world’s first technology that

thoroughly eliminates in-car acoustic problems that normally degrade

sound quality, which enables us to experience music the way the artist

intended, refer to “About IMPRINT” (page 34).

When the IMPRINT audio processor (PXA-H100) (sold separately) is

connected to this unit, MultEQ and the following sound adjustment can

be performed.

Changing MultEQ mode

MultEQ, developed by Audyssey Labs, automatically corrects the audio

for the listening environment. The system is optimized for selected

positions in the vehicle. To accomplish this, MultEQ must take

measurements of the vehicles response characteristics. For details on the

set up procedure, consult your authorized Alpine dealer.

Press and hold IMPRINT for at least 2 seconds to

change MultEQ mode.

MULTEQ OFF (Manual Mode) CURVE 1 (MultEQ-1)

CURVE 2 (MultEQ-2) MULTEQ OFF (Manual Mode)

•The Curve mode can be selected only when curve 1 and curve 2 are

stored.

•When using MultEQ, MEDIAXPANDER, MX LEV MODE,

CROSSOVER, T.CORR PARA, FACTORY’S EQ. SUBW PHASE,

SUBW CHANNEL, TW SETUP, EQ MODE, FILTER TYPE and

PARAMETER EQ/GRAPHIC EQ are set automatically. They are no

longer user adjustable.

•When an external audio processor is connected, the MultEQ function

cannot be used.

Adjusting Subwoofer Level/Bass Level/

Treble Level/Fader (Between Front and

Rear)/Balance (Between Left and Right)

in MultEQ mode

You can change these settings to create your own preference in MultEQ

(CURVE 1 or CURVE 2) mode.

Press IMPRINT to activate the MultEQ adjustment

mode.

Turn the Rotary encoder to select the desired item,

and then press /ENT.

SUBW LEVEL*1 BASS LEVEL TREBLE LEVEL

FADER*2 BALANCE SUBW LEVEL

Turn the Rotary encoder to change the setting as

below, and then press /ENT.

Subwoofer level: 0 ~ +15

Bass level: -7~+7

Treble level: -7~+7

Fader: R15 ~ F15

Balance: L15 ~ R15

•If no operation is performed for 60 seconds after selecting the

SUBW LEVEL, BASS LEVEL, TREBLE LEVEL, FADER or

BALANCE mode the unit automatically returns to normal mode.

*1When the SUBWOOFER mode is set to OFF, its level cannot be

adjusted, and the SUBWOOFER ON/OFF cannot be adjusted in

MultEQ (CURVE 1 or CURVE 2) mode.

*2If you set the 2.2ch (3WAY)/4.2ch (FRONT/REAR/SUBW.) switch of

the IMPRINT audio processor (PXA-H100) to 2.2ch (3WAY), you

cannot adjust the FADER mode. For details, refer to the Owner’s

Manual of PXA-H100.

•Depending on the connected devices, some functions and display

indications do not work.

IMPRINT Operation

(Optional)

BAND

SOURCE/

/ESC Preset buttons

(1 through 6)

IMPRINT

Rotary encoder

/ENT

28-EN

Adjusting Sound Setting in Manual Mode

You can change these sound settings to create your own preference

when the MultEQ mode is set to MULTEQ OFF (Manual Mode).

Press IMPRINT to activate the Sound menu

selection mode.

Turn the Rotary encoder to select the desired item,

and then press /ENT.

SUBWOOFER SUBW SYSTEM

SUBW PHASE

SUBW CHANNEL

FACTORY’S EQ TW SETUP

FILTER TYPE MEDIAXPANDER MX LEV MODE

EQ MODE T.CORR PARA SOUND ADJUST

SUBWOOFER

(e.g. Select SUBWOOFER)

*1These functions are inoperable when SUBWOOFER is set to OFF.

*2This function can be operable only when PXA-H100 (sold

separately) is connected and 2.2ch (3WAY) mode is set. For details,

refer to the Owner’s Manual of PXA-H100.

*3This function is inoperable when MEDIAXPANDER is set to OFF.

*4In step 2, three sound adjustment items (PARAMETER EQ/

GRAPHIC EQ, T.CORRECTION, CROSSOVER) can be selected in

SOUND ADJUST mode, turn the Rotary encoder to select the

desired item, and then press /ENT to continue to step 3.

Turn the Rotary encoder to change the setting,

and then press /ENT.

(e.g. Select SUBW ON or SUBW OFF)

Press and hold /ESC for at least 2 seconds to

return to normal mode.

•MEDIAXPANDER FACTORY’S EQ, PARAMETER EQ/GRAPHIC

EQ, EQ MODE and MX LEV MODE Adjustment are inoperable

when DEFEAT is set to ON.

•Pressing /ESC returns to the previous Sound menu mode.

•If no operation is performed for 60 seconds, Sound menu mode is

canceled.

When the subwoofer is on, you can adjust the subwoofer output level

(refer to page 13).

SUBW OFF SUBW ON (Initial setting)

When the subwoofer is on, you can select either System1 or System2

for the desired subwoofer effect.

SUBW SYS 1 (Initial setting) SUBW SYS 2

NORMAL (Initial setting) REVERSE

The subwoofer output phase is toggled SUBWOOFER NORMAL (0°)

or SUBWOOFER REVERSE (180°). To adjust the level, turn the

Rotary encoder.

You can set the subwoofer output to stereo or monaural. Make sure to

set the correct output for your subwoofer type.

STEREO (Initial setting) MONO

10 typical equalizer settings are preset at the factory for a variety of

musical source material.

FLAT POPS ROCK NEWS JAZZ&BLUES

ELEC DANCE HIP HOP&RAP EASY LISTEN

COUNTRY CLASSICAL USER 1 USER 2

USER 3 USER 4 USER 5 USER 6

•By selecting USER 1 to 6, you can recall the stored preset number in

“Adjusting the Graphic Equalizer Curve” (page 30) or “Adjusting

the Parametric Equalizer Curve” (page 29).

“Setting the response characteristic of tweeter to FLAT in 2.2ch

(3WAY) mode could damage the speaker. Make sure the Crossover

cut-off is appropriate for the tweeter being used (see “Adjusting the

Crossover Settings” on page 30).”

MAKER’S (Initial setting) USER’S

Use steps 1 to 4 to select one of the Sound menu

modes to modify. See the applicable section below for

details about the selected item.

Turning Subwoofer ON/OFF

Setting the Subwoofer System

SUBW SYS 1 : Subwoofer level changes according to the main

volume setting.

SUBW SYS 2 : Subwoofer level change is different from the

main volume setting. For example, even at low

volume settings, the subwoofer is still audible.

Setting the Subwoofer Phase

Setting the Subwoofer Channel

(SUBW CHANNEL)

STEREO: Subwoofer stereo (L/R) output

MONO: Subwoofer monaural output

Equalizer Presets (FACTORY’S EQ)

Setting the Response Slope for the High

Range Speaker (TW SETUP)

MAKER’S: As protection from possible speaker damage, FLAT

cannot be set for the response slope of the high

range speaker in 2.2ch (3WAY) mode.

USER’S: The FLAT setting is possible in 2.2ch (3WAY) mode.

29-EN

NORMAL (Initial setting) INDIVIDUAL

When the Media Xpander is on, you can adjust the Media Xpander level

(refer to page 29).

MX OFF (Initial setting) MX ON

MX (MEDIAXPANDER) makes vocals or instruments sound distinct

regardless of the music source. The FM radio, CD, USB memory and

iPhone/iPod, will be able to reproduce the music clearly even in cars

with a lot of road noise.

Changing the source to which you want to apply Media

Xpander.

FM (MX level 1 to 3):

The medium to high frequencies become clearer, and produces

well balanced sound at all frequencies.

CD (MX level 1 to 3):

CD mode processes a large amount of data during playback.

MX takes advantage of this large data quantity to reproduce a

more clear, clean output.

CMPM/SAT (MX level 1 to 3):

This corrects information that was lost at the time of

compression. This reproduces a well-balanced sound close to

the original.

DVD (Video CD)

(MOVIE MX level 1 to 2):

The dialogue portion of a video is reproduced more clearly.

(DVD MUSIC):

A DVD or Video CD contains a large quantity of data such as

music clip. MX uses this data to reproduce the sound

accurately.

AUX (MX level 1):

Choose the MX mode (CMPM, MOVIE, or MUSIC) that

corresponds to the media connected.

•Each music source, such as FM radio, CD, and MP3/WMA/AAC can

have its own MX setting.

•On disks with both MP3/WMA/AAC and CD-DA, when the source

changes from “MP3/WMA/AAC to CD-DA” or “CD-DA to

MP3/WMA/AAC”, MX-mode switching may delay playback slightly.

•Setting to EFFECT OFF sets MX mode of each music source to OFF.

•The function is inoperable when DEFEAT is set to ON.

•There is no MX mode for AM radio.

•If an audio processor with the MX function (PXA-H701, etc.) is

connected, its own MX processing is applied to the music source.

Since the processor MX settings may not match the head unit, the

audio processor needs to be adjusted. For details, refer to the

Owner’s Manual of the audio processor.

•“CMPM” is applied for MP3/WMA/AAC and iPhone/iPod.

•“SAT”is applied for XM radio and SIRIUS radio.

This setting gives you a choice of 5-band parametric, or 7-band graphic

equalizer.

PARAMETER EQ (Initial setting) GRAPHIC EQ

PEQ:

5-band Parametric EQ

GEQ:

7-band Graphic EQ

You can change the unit, (cm or inch) of time correction.

CM (Initial setting) INCH

The setting of PARAMETER EQ/GRAPHIC EQ, T.CORRECTION

and CROSSOVER can be adjusted in this mode.

Adjusting the Parametric Equalizer Curve

You can modify the Equalizer settings to create a response curve more

appealing to your personal taste. To adjust the Parametric Equalizer

Curve, set the EQ MODE to PARAMETER EQ. For details, refer to

“Setting EQ mode” (page 29).

After selecting PARAMETER EQ from the SOUND

ADJUST mode, press BAND to select the band to be

adjusted.

B 1 B 2 B 3 B 4 B 5 B 1

Press or to select frequency bands.

Adjustable frequency bands:

20 Hz to 20 kHz (in 1/3 octave steps)

Band-1: 20 Hz~80 Hz (63 Hz)

Band-2: 50 Hz~200 Hz (150 Hz)

Band-3: 125 Hz~3.2 kHz (400 Hz)

Band-4: 315 Hz~8 kHz (1 kHz)

Band-5: 800 Hz~20 kHz (2.5 kHz)

Turn the Rotary encoder to adjust the level.

Adjustable level: -6 to +6 dB

Press SOURCE/ to set the bandwidth (Q).

Adjustable bandwidth: 1, 1.5, 3

To adjust another band, repeat steps 1 to 4 and

adjust all bands.

•The frequencies of adjacent bands cannot be adjusted within 4 steps.

•While adjusting the PARAMETER EQ, you should consider the

frequency response of the connected speakers.

Setting the Filter type

NORMAL (L=R): Left and right speakers are adjusted

equally.

INDIVIDUAL (L/R): Left and right speakers are individually

adjusted.

Turning Media Xpander ON/OFF

Setting the MX Level

Setting EQ mode

Setting the Time Correction Unit (T.CORR

PARA)

Sound Field Adjustment (SOUND ADJUST)

30-EN

Adjusting the Graphic Equalizer Curve

You can modify the equalizer settings to create a response curve more

appealing to your personal taste. To adjust the graphic equalizer curve,

set the EQ MODE to GRAPHIC EQ. For details, refer to “Setting EQ

mode” (page 29).

After selecting GRAPHIC EQ from the SOUND

ADJUST mode, press BAND to select the band to be

adjusted.

B 1 B 2 B 3 B 4 B 5 B 6 B 7 B 1

Band-1 (63 Hz) / Band-2 (150 Hz) / Band-3 (400 Hz) /

Band-4 (1 kHz) / Band-5 (2.5 kHz) / Band-6 (6.3 kHz) /

Band-7 (17.5 kHz)

Turn the Rotary encoder to adjust the level.

Adjustable output level: -6 to +6 dB

To adjust another band, repeat steps 1 and 2, and

then adjust all bands.

Adjusting the Time Correction

Before performing the following procedures, refer to “About Time

Correction” (page 32).

After selecting T.CORRECTION from the SOUND

ADJUST mode, press BAND to select a speaker to

be adjusted.

2.2ch (3WAY) System

4.2ch (FRONT/REAR/SUBW.) System

Turn the Rotary encoder to adjust the distance

correction value. (0.0 to 336.6cm).

L = (distance to farthest speaker) – (distance to other

speakers)

Refer to “Time Correction Value List” on page 32.

Repeat steps 1 and 2 to set another speaker.

By setting these values to make its sound reach the

listening position at the same time as the sound of other

speakers.

Adjusting the Crossover Settings

Before performing the following procedures, refer to “About the

Crossover” (page 33).

2.2ch (3WAY) System

After selecting CROSSOVER from the SOUND

ADJUST mode, press BAND to select the band to be

adjusted.

2.2ch (3WAY) System / NORMAL (L=R)

Setting items:

LOW / M-L / M-H / HIGH

2.2ch (3WAY) System / INDIVIDUAL (L/R)

Setting items:

L-L / L-R / ML-L / ML-R / MH-L / MH-R / H-L / H-R

Press or to select the desired cut-off frequency

(Crossover Point).

Adjustable frequency bands:

2.2ch (3WAY) System

Setting items:

LOW / M-L 20 Hz~200 Hz

M-H 20 Hz~20 kHz

HIGH (1 kHz~20 kHz)*1/(20 Hz~20 kHz)*2

*1When MAKER’S is selected, refer to “Setting the Response Slope for

the High Range Speaker (TW SETUP)” (page 28).

*2When USER’S is selected, refer to “Setting the Response Slope for

the High Range Speaker (TW SETUP)” (page 28).

Press SOURCE/ to adjust the slope.

Adjustable slope: FLAT*, 6 dB/oct., 12 dB/oct., 18 dB/oct.,

24 dB/oct.

* FLAT can be set for the HIGH slope only when USER’S is selected in

“Setting the Response Slope for the High Range Speaker (TW

SETUP)” (page 28). Depending on the response characteristics of

the speaker, care should be taken when setting the response slope to

FLAT, as speaker damage may result. With this unit, a message is

displayed when the response slope for the high range speaker is set

to FLAT.

Turn the Rotary encoder to adjust the output level.

Adjustable output level: -12 to 0 dB.

Repeat steps 1 to 4 to make adjustment to the other

bands.

F-L (Initial setting)

F-R R-L R-R

(Mid-L) (Mid-R) (High-L ) (High-R)

SW-L SW-R F-L

(Mid-L)

F-L (Initial setting)

F-R R-L R-R

(Front-L) (Front-R) (Rear-L) (Rear-R)

SW-L SW-R F-L

(Front-L)

31-EN

4.2ch (FRONT/REAR/SUBW.) System

After selecting CROSSOVER from the SOUND

ADJUST mode, press BAND to select the band to be

adjusted.

4.2ch (FRONT/REAR/SUBW.) System / NORMAL (L=R)

setting items:

LOW (SUB-W) / MID (REAR) / HIGH (FRONT)

4.2ch (FRONT/REAR/SUBW.) System / INDIVIDUAL (L/R)

setting items:

L (SUB-W)-L / L (SUB-W)-R / M (REAR)-L /

M (REAR)-R / H (FRONT)-L / H (FRONT)-R

Press or to select the desired cut-off

frequency

(Crossover Point).

Adjustable frequency bands:

4.2ch (FRONT/REAR/SUBW.) System

Setting items:

20 Hz~200 Hz

Press SOURCE/ to adjust the slope.

Adjustable slope: FLAT, 6 dB/oct., 12 dB/oct., 18 dB/oct.,

24 dB/oct.

Turn the Rotary encoder to adjust the output level.

Adjustable output level: -12 to 0 dB.

Repeat steps 1 to 4 to make adjustment to the other

bands.

•While adjusting the CROSSOVER, you should consider the frequency

response of the connected speakers.

•About the 2.2ch (3WAY)/4.2ch (FRONT/REAR/SUBW.) system

You can switch to 2.2ch (3WAY)/4.2ch (FRONT/REAR/SUBW.)

system mode with the 2.2ch (3WAY)/4.2ch (FRONT/REAR/SUBW.)

switch on the PXA-H100. For details, refer to the Owner’s Manual of

PXA-H100.

Storing the Sound Field Adjustment Settings

The SOUND ADJUST Settings containing PARAMETER EQ/

GRAPHIC EQ, T.CORRECTION and CROSSOVER settings can be

stored in the preset memory.

When the settings of SOUND ADJUST have been

completed, select any one of the preset buttons

(1 through 6) in any item of the SOUND ADJUST

mode (e.g. CROSSOVER), press and hold the

desired preset buttons for at least 2 seconds.

Turn the Rotary encoder to select PROTECT

YES/NO, and then press /ENT to store the

adjusted contents.

PROTECT YES

(Initial setting)

PROTECT NO

•If YES is selected, the adjusted contents are protected and stored into

the preset buttons. When you want to store the parameter into a

protected preset button, “REPLACE NO/YES” can be selected.

•If NO is selected, the preset is stored.

•While perform this operation, all adjusted contents of PARAMETER

EQ/GRAPHIC EQ, T.CORRECTION and CROSSOVER will be

stored in the preset buttons.

•The stored contents are not deleted even when resetting the unit or

disconnecting the battery.

•The stored contents can be recalled by performing operation in

“Recalling the Stored Sound Field Adjustment Settings” (page 31).

Recalling the Stored Sound Field Adjustment

Settings

The stored SOUND ADJUST Settings contain PARAMETER EQ/

GRAPHIC EQ, T.CORRECTION and CROSSOVER settings that are

stored in the preset memory.

After selecting any item of the SOUND ADJUST

mode (e.g. CROSSOVER), press any one of the

preset buttons (1 through 6) that has your

desired characteristic in memory to recall the stored

settings.

Press the preset buttons again to return to the

SOUND ADJUST mode.

•While performing this operation, all adjustment contents of

PARAMETER EQ/GRAPHIC EQ, T.CORRECTION and

CROSSOVER stored in the preset buttons will be recalled.

32-EN

About Time Correction

The distance between the listener and the speakers in a car vary widely

due to the complex speaker placement. This difference in the distances

from the speakers to the listener creates a shift in the sounds image and

frequency characteristics. This is caused by the time delay between the

sound reaching the listener’s right versus the left ear.

To correct this, this unit is able to delay the audio signal to the speakers

closest to the listener. This effectively creates a perception of increased

distance for those speakers. The listener can be placed at an equal

distance between the left and right speakers for optimum staging.

The adjustment will be made for each speaker in 3.4cm steps.

Adjust the time correction level of the front left speaker to a high value

and the rear right to zero or a low value.

The sound is not balanced because the distance between the

listening position and the various speakers is different.

The difference in distance between the front left speaker and the rear

right speaker is 1.75 m (68-7/8").

Here we calculate the time correction value for the front left speaker

in the diagram on the above.

Conditions:

Farthest Speaker – listening position : 2.25 m (88-9/16")

Front left speaker – listening position : 0.5 m (19-11/16")

Calculation: L = 2.25 m – 0.5 m = 1.75 m (68-7/8")

Time correction = 1.75 ÷ 343*1 × 1000 = 5.1 (ms)

*1Speed of sound: 343 m/s (765 mph) at 20°C

In other words, giving the front left speaker a time correction value of

5.1 ms makes it seem as if its distance from the listener is the same

as the distance to the farthest speaker.

Time correction eliminates the differences in the time required for the

sound to reach the listening position.

The time of the front left speaker is corrected by 5.1 ms so that its

sound reaches the listening position at the same time as the sound of

other speakers.

Adjust the time correction level of each speaker to almost the same level.

Sit in the listening position (driver’s seat, etc.) and

measure the distance (in meters) between your head

and the various speakers.

Calculate the difference between the distance

correction value to the farthest speaker and the

other speakers.

L = (distance to farthest speaker) – (distance to other

speakers)

These values are the time correction values for the different

speakers. Setting these values to make each sound reach the

listening position at the same time as the sound of other speakers.

Time Correction Value List

Example 1. Listening Position: Front Left Seat

Example 2. Listening Position: All Seats

5.1ms

2.25m

0.5m

Delay

Number

Time

Difference

(ms)

Distance

(cm)

Distance

(inch)

Delay

Number

Time

Difference

(ms)

Distance

(cm)

Distance

(inch)

00.0 0.0 0.0 51 5.1 173.4 68.3

10.1 3.4 1.3 52 5.2 176.8 69.7

20.2 6.8 2.7 53 5.3 180.2 71.0

30.3 10.2 4.0 54 5.4 183.6 72.4

40.4 13.6 5.4 55 5.5 187.0 73.7

50.5 17.0 6.7 56 5.6 190.4 75.0

60.6 20.4 8.0 57 5.7 193.8 76.4

70.7 23.8 9.4 58 5.8 197.2 77.7

80.8 27.2 10.7 59 5.9 200.6 79.1

90.9 30.6 12.1 60 6.0 204.0 80.4

10 1.0 34.0 13.4 61 6.1 207.4 81.7

11 1.1 37.4 14.7 62 6.2 210.8 83.1

12 1.2 40.8 16.1 63 6.3 214.2 84.4

13 1.3 44.2 17.4 64 6.4 217.6 85.8

14 1.4 47.6 18.8 65 6.5 221.0 87.1

15 1.5 51.0 20.1 66 6.6 224.4 88.4

16 1.6 54.4 21.4 67 6.7 227.8 89.8

17 1.7 57.8 22.8 68 6.8 231.2 91.1

18 1.8 61.2 24.1 69 6.9 234.6 92.5

19 1.9 64.6 25.5 70 7.0 238.0 93.8

20 2.0 68.0 26.8 71 7.1 241.4 95.1

21 2.1 71.4 28.1 72 7.2 244.8 96.5

22 2.2 74.8 29.5 73 7.3 248.2 97.8

23 2.3 78.2 30.8 74 7.4 251.6 99.2

24 2.4 81.6 32.2 75 7.5 255.0 100.5

25 2.5 85.0 33.5 76 7.6 258.4 101.8

26 2.6 88.4 34.8 77 7.7 261.8 103.2

27 2.7 91.8 36.2 78 7.8 265.2 104.5

28 2.8 95.2 37.5 79 7.9 268.6 105.9

29 2.9 98.6 38.9 80 8.0 272.0 107.2

30 3.0 102.0 40.2 81 8.1 275.4 108.5

31 3.1 105.4 41.5 82 8.2 278.8 109.9

32 3.2 108.8 42.9 83 8.3 282.2 111.2

33 3.3 112.2 44.2 84 8.4 285.6 112.6

34 3.4 115.6 45.6 85 8.5 289.0 113.9

35 3.5 119.0 46.9 86 8.6 292.4 115.2

36 3.6 122.4 48.2 87 8.7 295.8 116.6

37 3.7 125.8 49.6 88 8.8 299.2 117.9

38 3.8 129.2 50.9 89 8.9 302.6 119.3

39 3.9 132.6 52.3 90 9.0 306.0 120.6

40 4.0 136.0 53.6 91 9.1 309.4 121.9

41 4.1 139.4 54.9 92 9.2 312.8 123.3

42 4.2 142.8 56.3 93 9.3 316.2 124.6

43 4.3 146.2 57.6 94 9.4 319.6 126.0

44 4.4 149.6 59.0 95 9.5 323.0 127.3

45 4.5 153.0 60.3 96 9.6 326.4 128.6

46 4.6 156.4 61.6 97 9.7 329.8 130.0

47 4.7 159.8 63.0 98 9.8 333.2 131.3

48 4.8 163.2 64.3 99 9.9 336.6 132.7

49 4.9 166.6 65.7

50 5.0 170.0 67.0

33-EN

About the Crossover

Crossover (X-OVER):

This unit is equipped with an active crossover. The crossover limits the

frequencies delivered to the outputs. Each channel is controlled

independently. Thus, each speaker pair can be driven by the frequencies

for which they have been optimally designed.

The crossover adjusts the HPF (high pass filter) or LPF (low pass filter)

of each band, and also the slope (how fast the filter rolls off the highs or

lows).

Adjustments should be made according to the reproduction

characteristics of the speakers. Depending on the speakers, a passive

network may not be necessary. If you are unsure about this point,

consult your authorized Alpine dealer.

4.2ch (FRONT/REAR/SUBW.) mode

2.2ch (3WAY) mode

* Only when selecting USER’S in “Setting the Response Slope for the

High Range Speaker (TW SETUP)” (page 28).

•HPF (high pass filter): Cuts the lower frequencies and allows the

higher frequencies to pass.

•LPF (low pass filter): Cuts the higher frequencies and allows the

lower frequencies to pass.

•Slope: The level change (in dB) for a frequency change of one octave.

•The higher the slope value, the steeper the slope becomes.

•Adjust the slope to FLAT to bypass the HP or LP filters.

•Do not use a tweeter without the HPF on or set to a low frequency, as

it may cause damage to the speaker due to the low frequency content.

•You cannot adjust the crossover frequency higher than the HPF or

lower than the LPF.

•Adjustment should be made according to the recommended crossover

frequency of the connected speakers. Determine the recommended

crossover frequency of the speakers. Adjusting to a frequency range

outside that recommended may cause damage to the speakers.

For the recommended crossover frequencies of Alpine speakers, refer

to the respective Owner’s Manual.

We are not responsible for damage or malfunction of speakers caused

by using the crossover outside the recommended value.

Cut-off frequency

(1/3 octave steps) Slope Level

HPF LPF HPF LPF

Low range

speaker ---- 20 Hz -

200 Hz ----

FLAT, 6,

12, 18,

24 dB/oct.

0 to

-12 dB

Rear high

range

speaker

20 Hz -

200 Hz ----

FLAT, 6,

12, 18,

24 dB/oct.

---- 0 to

-12 dB

Front high

range

speaker

20 Hz -

200 Hz ----

FLAT, 6,

12, 18,

24 dB/oct.

---- 0 to

-12 dB

Cut-off frequency

(1/3 octave steps) Slope Level

HPF LPF HPF LPF

Low

range

speaker

---- 20 Hz -

200 Hz ----

FLAT, 6,

12, 18,

24 dB/oct.

0 to

-12 dB

Mid range

speaker

20 Hz -

200 Hz

20 Hz -

20 kHz

FLAT, 6,

12, 18,

24 dB/oct.

FLAT, 6,

12, 18,

24 dB/oct.

0 to

-12 dB

High

range

speaker

1 kHz -

20 kHz,

(20 Hz ~

20 kHz)*

----

FLAT*

6, 12, 18,

24 dB/oct.

---- 0 to

-12 dB

Low range High range

(Different from actual display)

Low range Mid range High range

(Different from actual display)

Level adjusting

(0 to -12 dB) Output frequency range

Slope FLAT

Slope adjusting

20 Hz

HPF cut-off

frequency

LPF cut-off

frequency

(Different from actual display)

34-EN

About IMPRINT

Alpine introduces IMPRINT - the world’s first technology that

thoroughly eliminates in-car acoustic problems that normally degrade

sound quality, which enables us to experience music the way the artist

intended.

All good music starts as an artist’s vision. After countless hours of

rehearsing, recording and mixing, that vision is ready for us to hear on

discs, radio and other media. But do we hear it as the artist created it?

Unfortunately, the reality is that we are almost never able to listen to it

in the exact way the artist intended. Especially when we are listening in

a car.

Car interiors are full of materials that obstruct and degrade sound

quality. For example, windows amplify and reflect high frequencies.

Seat and dashboard coverings change certain frequencies. Carpets

absorb and suppress mid frequencies. Graphic and parametric EQs are

only partial remedies for these problems. In addition, the speakers are

not located at equal distances from listeners, creating an unbalanced,

uncentred sound stage. Time correction can help fix this, but only for

one listening position.

These acoustical problems are so severe that no correction system has

been able to overcome them. Until now, with the introduction of

IMPRINT, Alpine provides a hardware/software combination that not

only solves these problems, it actually improves the sound stage, tonal

balance and definition - and does it automatically, in a matter of

minutes!

IMPRINT using MultEQ is superior to other equalization systems in

five ways.

•It is the only system that measures the entire listening area,

capturing time domain information from each listening

location and applying a proprietary method for processing it

to represent all seat locations. This gives the people in each

seat the optimal listening experience.

•It corrects both time and frequency problems, for an

improved soundstage and smoother, more natural sound.

•It uses dynamic frequency allocation to apply hundreds of

points of correction to those areas where the sound problems

are greatest.

•It determines optimized blending points for low frequency

crossovers.

•It provides, in minutes, vehicle sound tuning that generally

takes skilled professionals days to accomplish.

VISION VS. REALITY

CARS ARE TERRIBLE LISTENING SPACES

INTRODUCING IMPRINT

HOW IMPRINT IS DIFFERENT

35-EN

Controlling CD Changer (Optional)

An optional 6-disc or 12-disc CD Changer may be connected to this unit

if it is Ai-NET compatible. With a CD Changer connected to the

Ai-NET input of this unit, the CD Changer will be controllable from

this unit.

Using the KCA-400C (Multi-Changer Switching device) or the

KCA-410C (Versatile Link Terminal) multiple changers can be

controlled by this unit.

See “Multi-Changer Selection (Optional)” on page 35 for selecting the

CD Changers.

•The controls on this unit for CD Changer operation are operative

only when a CD Changer is connected.

•The DVD changer (optional) is controllable from this unit as well as

the CD changer.

Press SOURCE/ to activate the CHANGER mode.

•The source indicator varies depending on the connected source.

•Press BAND to switch the Disc mode in the Changer mode.

Press F/SETUP to activate Disc Select mode.

Press the disc select buttons (1 through 6)

corresponding to one of the discs loaded in the CD

Changer.

The selected disc number appears in the display and

CD/MP3 playback starts.

•After selecting the desired disc, you can operate in the same way as

for the CD player of this unit. For details, see the CD/MP3/WMA/

AAC section.

*When a 12-disc CD changer is connected.

Playing MP3 Files with the CD Changer

(Optional)

If you connect a changer compatible with MP3, you can play

CD-ROMs, CD-Rs, and CD-RWs containing MP3 files on this unit.

Press SOURCE/ to switch to the MP3 Changer

mode.

Press any one of the disc select buttons

(1 through 6) corresponding to one of the discs

loaded in the CD Changer.

To pause playback, press / .

Pressing / again will resume playback.

•The unit can play discs containing both audio data and MP3 data.

•For operating MP3 with an MP3 compatible CD Changer, refer to

“CD/MP3/WMA/AAC” page 9 to 12.

Multi-Changer Selection (Optional)

Alpine’s Ai-NET system will support up to 6 CD Changers. When

operating two or more changers, the KCA-400C (Multi-Changer

Switching device) must be used. If you use 1 Switching device, you can

connect up to 4 CD Changers. If you use 2 Switching devices, you can

connect up to 6 CD Changers. When using KCA-410C (Versatile Link

Terminal), you can connect two changers and two external outputs

(AUX).

Press SOURCE/ on this unit to activate the CD

Changer mode.

Alternatively, press SOURCE on the remote control

(RUE-4202) to activate the CD Changer mode.

Press BAND on this unit or the RUE-4202 to activate

the CD Changer Selection mode.

The CD Changer Selection mode remains active for a few

seconds.

Press BAND until the desired CD Changer indicator

appears on the display.

Alternatively press BAND on the Remote Control until the

desired changer indicator appears on the display.

•If the selected CD Changer is not connected, the display will show

“NO CHANGER-(No.)”.

•To operate the selected changer, see “CD/MP3/WMA/AAC” (pages 9

to 12).

•For further details about the external input (AUX) when using

KCA-410C, see “Setting the AUX Mode (V-Link)” on page 18.

Changer (Optional)

F/SETUP

BAND

SOURCE/

Select buttons

(1 through 6)

Disc Select Mode

(Disc No.1~6)

Disc Select Mode *

(Disc No.7~12)

RPT/M.I.X. Mode Disc Select Mode

(Disc No.1~6)

SOURCE

BAND

36-EN

In Case of Difficulty

If you encounter a problem, turn the power off, then on again. If the unit

is still not functioning normally, review the items in the following

checklist. This guide will help you isolate the problem if the unit is at

fault. Otherwise, make sure the rest of your system is properly

connected or consult your authorized Alpine dealer.

No function or display.

• Vehicle’s ignition is off.

- If connected following instructions, the unit will not operate

with the vehicle’s ignition off.

• Improper power lead (Red) and battery lead (Yellow)

connections.

- Check power lead and battery lead connections.

•Blown fuse.

- Check the fuse of the unit; replace with the proper value if

necessary.

• Internal micro-computer malfunctioned due to interference noise

etc.

- Press the RESET switch with a ballpoint pen or other pointed

article.

Unable to receive stations.

• No antenna or open connection in cable.

- Make sure the antenna is properly connected; replace the

antenna or cable if necessary.

Unable to tune stations in the seek mode.

• You are in a weak signal area.

- Make sure the tuner is in the DX mode.

• If the area you are in is a primary signal area, the antenna may

not be grounded and connected properly.

- Check your antenna connections; make sure the antenna is

properly grounded at its mounting location.

• The antenna may not be the proper length.

- Make sure the antenna is fully extended; if broken, replace the

antenna with a new one.

Broadcast is noisy.

• The antenna is not the proper length.

- Extend the antenna fully; replace it if it is broken.

• The antenna is poorly grounded.

- Make sure the antenna is grounded properly at its mounting

location.

CD Player/Changer not functioning.

• Out of operating temperature range +50°C (+120°F) for CD.

- Allow the vehicle’s interior (or trunk) temperature to cool.

CD playback sound is wavering.

• Moisture condensation in the CD Module.

- Allow enough time for the condensation to evaporate (about 1

hour).

CD insertion not possible.

• A CD is already in the CD player.

- Eject the CD and remove it.

• The CD is being improperly inserted.

- Make sure the CD is being inserted following instructions in

the CD Player Operation section.

Unable to fast forward or backward the CD.

• The CD has been damaged.

- Eject the CD and discard it; using a damaged CD in your unit

can cause damage to the mechanism.

CD playback sound skips due to vibration.

• Improper mounting of the unit.

- Securely re-mount the unit.

• The disc is very dirty.

- Clean the disc.

• The disc has scratches.

- Change the disc.

• The pick-up lens is dirty.

- Do not use a commercially available lens cleaner disc. Consult

your nearest Alpine dealer.

CD playback sound skips without vibration.

• The disc is dirty or scratched.

- Clean the disc; damaged disc should be replaced.

Error displays (built-in CD player only).

• Mechanical error.

- Press . After the error indication disappears, insert the disc

again. If the above-mentioned solution does not solve the

problem, consult your nearest Alpine dealer.

CD-R/CD-RW playback not possible.

• Close session (finalization) has not been performed.

- Perform finalization and attempt playback again.

MP3, WMA or AAC is not played back.

• Writing error occurred. The CD format is not compatible.

- Make sure the CD has been written in a supported format.

Refer to “About MP3/WMA/AAC” (pages 11-12), then rewrite

in the format supported by this device.

The sound is not output from the speakers.

• Unit has no output signal of the internal amplifier.

- POWER IC is switched to “ON” (page 17).

iPod does not play and no sound is output.

• The iPod has not been recognized.

- Reset this unit and the iPod. Refer to “Initial System Start-Up”

(page 6). To reset the iPod, refer to the Owner’s Manual of the

iPod.

Information

Basic

Radio

MP3/WMA/AAC

Audio

iPod

37-EN

• No CD is inserted.

- Insert a CD.

• Although a disc is inserted, “NO DISC” is displayed and the unit

does not start to play or eject the disc.

- Remove the disc by following these steps:

Press the button again for at least 2 seconds.

If the disc still does not eject, consult your Alpine dealer.

• Mechanism error.

1) Press the button and eject the CD.

If not ejecting, consult your Alpine dealer.

2) When the error indication remains after ejecting, press the

button again.

If the error indication still does not turn off after pressing the

button for a few times, consult your Alpine dealer.

•When “ERROR” is displayed:

If the disc cannot be ejected by pressing , press the RESET switch

(refer to page 6) and press again.

If the disc still cannot be ejected, consult your Alpine dealer.

• A copy-protected WMA file was played back.

- You can only play back non-copy-protected files.

• A sampling rate/bit rate not supported by the unit is used.

- Use a sampling rate/bit rate that is supported by the unit.

• Protective circuit is activated due to high temperature.

- The indication will disappear when the temperature returns to

normal operating range.

• Malfunction in the CD Changer.

Consult your Alpine dealer. Press the magazine eject button and

pull out the magazine.

Check the indication. Insert the magazine again.

If the magazine cannot be pulled out, consult your Alpine

dealer.

• Magazine ejection not possible.

- Press the magazine eject button. If the magazine does not eject,

consult your Alpine dealer.

• A disc is left inside the CD Changer.

- Press the eject button to activate the eject function. When the

CD Changer finishes the eject function, insert an empty CD

magazine into the CD Changer to receive the disc left inside

the CD Changer.

• No magazine is loaded into the CD Changer.

- Insert a magazine.

• No indicated disc.

- Choose another disc.

• The XM or SIRIUS antenna is not connected to the XM or

SIRIUS radio module.

- Check whether the XM or SIRIUS antenna cable is attached

securely to the XM or SIRIUS radio module.

• Radio is being updated with latest encryption code.

- Wait until encryption code is being updated. Channels 0 and 1

should function normally.

• XM or SIRIUS signal is too weak at the current location.

- Wait until the car reaches a location with a stronger signal.

• Radio is acquiring audio or program information.

- Wait until the radio has received the information.

• The channel currently selected has stopped broadcasting.

- Select another channel.

Indication for CD Player

Indication for CD Changer

Indication for SAT Receiver Mode

(SIRIUS mode)

(XM mode)

(SIRIUS mode)

(XM mode)

38-EN

• The selected channel is not functional.

- Change channels.

• The user has selected a channel number that does not exist or is

not subscribed to.

- The unit will revert back to the previously selected channel.

• There is no artist name/feature, song/program title, or additional

information associated with the channel at that time.

- No action needed.

• If an error or other problem occurs.

- Change channels or consult your Alpine dealer.

• Communication error

- Turn the ignition key off, and then set to ON again.

• Abnormal current is run to the USB connector device.

- You can solve the problem by switching the source, turning the

unit power off, or ACC to the OFF position.

• A USB device that is not supported by the unit is connected.

- Connect a USB device that is supported by the unit.

• A USB memory is not connected.

- Make sure the USB memory device is correctly connected and

the cable is not excessively bent.

• No song (file) is stored in the USB memory.

- Connect the USB memory device after storing songs (files).

• A sampling rate/bit rate not supported by the unit is used.

- Use a sampling rate/bit rate that is supported by the unit.

• A copy-protected WMA file was played back.

- You can only play back non-copy-protected files.

• The iPhone/iPod is not connected.

- Make sure the iPhone/iPod is correctly connected (refer to

“Connections” on page 43).

Make sure the cable is not bent excessively.

• There are no songs in the iPhone/iPod.

- Download songs to the iPhone/iPod and connect to this unit.

• Communication error

- Turn the ignition key off, and then set to ON again.

- Check the display by reconnecting between the iPhone/iPod

and this unit, using the iPod cable.

• Caused by the iPhone/iPod Software Version not being

compatible with this unit.

- Update the iPhone/iPod Software Version to be compatible

with this unit.

• The iPhone/iPod is not verified.

- Change another iPhone/iPod.

• Abnormal current is run to the USB connector device.

- You can solve the problem by switching the source, turning the

unit power off, or ACC to the OFF position.

• A USB device that is not supported by the unit is connected.

- Connect a USB device that is supported by the unit.

• Malfunction occurred as a result of the speaker cable shorting on

the car chassis.

- Route the cable correctly, and set POWER IC to ON (page 17).

If the above solution does not work, consult your nearest

dealer.

Indication for USB memory

NO FILE

Indication for iPod Mode

Indication for all Modes

(XM mode)

39-EN

Specifications

FM TUNER SECTION

AM TUNER SECTION

CD PLAYER SECTION

USB SECTION

PICKUP

GENERAL

CHASSIS SIZE

NOSEPIECE SIZE

•Due to continuous product improvement, specifications and design

are subject to change without notice.

Tuning Range 87.7-107.9 MHz

Mono Usable Sensitivity 9.3 dBf (0.8 µV/75 ohms)

50 dB Quieting Sensitivity 13.5 dBf (1.3 µV/75 ohms)

Alternate Channel Selectivity 80 dB

Signal-to-Noise Ratio 65 dB

Stereo Separation 35 dB

Capture Ratio 2.0 dB

Tuning Range 530-1,710 kHz

Sensitivity (IEC Standard) 22.5 µV/27 dB

Frequency Response 5-20,000 Hz (±1 dB)

Wow & Flutter (% WRMS) Below measurable limits

Total Harmonic Distortion 0.008% (at 1 kHz)

Dynamic Range 95 dB (at 1 kHz)

Signal-to-Noise Ratio 105 dB

Channel Separation 85 dB (at 1 kHz)

USB requirements USB 1.1/2.0

Max. Power Consumption 500 mA

USB Class Mass Storage

File System FAT 12/16/32

MP3 Decoding MPEG-1/2 AUDIO Layer-3

WMA Decoding Windows Media™ Audio

AAC Decoding AAC-LC format “.m4a” file

Number of Channels 2-Channel (Stereo)

Frequency Response* 5-20,000 Hz (±1 dB)

Total Harmonic Distortion 0.008% (at 1 kHz)

Dynamic Range 95 dB (at 1 kHz)

Signal-to-Noise Ratio 105 dB

Channel Separation 85 dB (at 1 kHz)

*Frequency response may differ depending on the encoder

software/bit rate.

Wave length 795 nm

Laser power CLASS I

Power Requirement 14.4 V DC

(11-16 V allowable)

Power Output 18 W RMS × 4*

*Primary amplifier ratings per CEA-2006 Standard

• Power output: measured at 4 Ohms and 1% THD+N

• S/N: 80 dBA (reference: 1 W into 4 Ohms)

Maximum Pre-Output Voltage 2 V/10 k ohms

Bass ±14 dB at 100 Hz

Treble ±14 dB at 10 kHz

Weight 1.6 kg (3 lbs. 8 oz)

Width 178 mm (7")

Height 50 mm (2")

Depth 160 mm (6-1/4")

Width 170 mm (6-3/4")

Height 46 mm (1-13/16")

Depth 24 mm (15/16")

40-EN

Installation and Connections

Before installing or connecting the unit, please read the

following and pages 3 to 5 of this manual thoroughly for

proper use.

Warning

MAKE THE CORRECT CONNECTIONS.

Failure to make the proper connections may result in fire or product

damage.

USE ONLY IN CARS WITH A 12 VOLT NEGATIVE GROUND.

(Check with your dealer if you are not sure.) Failure to do so may

result in fire, etc.

BEFORE WIRING, DISCONNECT THE CABLE FROM THE

NEGATIVE BATTERY TERMINAL.

Failure to do so may result in electric shock or injury due to

electrical shorts.

DO NOT SPLICE INTO ELECTRICAL CABLES.

Never cut away cable insulation to supply power to other

equipment. Doing so will exceed the current carrying capacity of

the wire and result in fire or electric shock.

DO NOT DAMAGE PIPE OR WIRING WHEN DRILLING HOLES.

When drilling holes in the chassis for installation, take precautions

so as not to contact, damage or obstruct pipes, fuel lines, tanks or

electrical wiring. Failure to take such precautions may result in fire.

DO NOT USE BOLTS OR NUTS IN THE BRAKE OR STEERING

SYSTEMS TO MAKE GROUND CONNECTIONS.

Bolts or nuts used for the brake or steering systems (or any other

safety-related system), or tanks should NEVER be used for

installations or ground connections. Using such parts could disable

control of the vehicle and cause fire etc.

KEEP SMALL OBJECTS SUCH AS BATTERIES OUT OF THE

REACH OF CHILDREN.

Swallowing them may result in serious injury. If swallowed,

consult a physician immediately.

DO NOT INSTALL IN LOCATIONS WHICH MIGHT HINDER

VEHICLE OPERATION, SUCH AS THE STEERING WHEEL OR

GEARSHIFT.

Doing so may obstruct forward vision or hamper movement etc.

and results in serious accident.

DO NOT ALLOW CABLES TO BECOME ENTANGLED IN

SURROUNDING OBJECTS.

Arrange wiring and cables in compliance with the manual to

prevent obstructions when driving. Cables or wiring that obstruct or

hang up on places such as the steering wheel, gear lever, brake

pedals, etc. can be extremely hazardous.

Caution

HAVE THE WIRING AND INSTALLATION DONE BY EXPERTS.

The wiring and installation of this unit requires special technical

skill and experience. To ensure safety, always contact the dealer

where you purchased this product to have the work done.

USE SPECIFIED ACCESSORY PARTS AND INSTALL THEM

SECURELY.

Be sure to use only the specified accessory parts. Use of other than

designated parts may damage this unit internally or may not

securely install the unit in place. This may cause parts to become

loose resulting in hazards or product failure.

ARRANGE THE WIRING SO IT IS NOT CRIMPED OR

PINCHED BY A SHARP METAL EDGE.

Route the cables and wiring away from moving parts (like the seat

rails) or sharp or pointed edges. This will prevent crimping and

damage to the wiring. If wiring passes through a hole in metal, use

a rubber grommet to prevent the wire’s insulation from being cut by

the metal edge of the hole.

DO NOT INSTALL IN LOCATIONS WITH HIGH MOISTURE OR

DUST.

Avoid installing the unit in locations with high incidence of

moisture or dust. Moisture or dust that penetrates into this unit may

result in product failure.

Precautions

• Be sure to disconnect the cable from the (–) battery post before

installing your CDA-105. This will reduce any chance of

damage to the unit in case of a short-circuit.

• Be sure to connect the color coded leads according to the

diagram. Incorrect connections may cause the unit to

malfunction or damage to the vehicle’s electrical system.

• When making connections to the vehicle’s electrical system, be

aware of the factory installed components (e.g. on-board

computer). Do not tap into these leads to provide power for this

unit. When connecting the CDA-105 to the fuse box, make sure

the fuse for the intended circuit of the CDA-105 has the

appropriate amperage. Failure to do so may result in damage to

the unit and/or the vehicle. When in doubt, consult your Alpine

dealer.

• The CDA-105 uses female RCA-type jacks for connection to

other units (e.g. amplifier) having RCA connectors. You may

need an adaptor to connect other units. If so, please contact your

authorized Alpine dealer for assistance.

• Be sure to connect the speaker (–) leads to the speaker (–)

terminal. Never connect left and right channel speaker cables to

each other or to the vehicle body.

IMPORTANT

Please record the serial number of your unit in the space provided

below and keep it as a permanent record. The serial number or the

engraved serial number is located on the bottom of the unit.

SERIAL NUMBER:

INSTALLATION DATE:

INSTALLATION TECHNICIAN:

PLACE OF PURCHASE:

41-EN

Installation

•The main unit must be mounted within 35 degrees of the horizontal

plane, back to front.

Removal

1. Remove the detachable front panel.

2. Insert the bracket keys into the unit, along the guides

on either side. The unit can now be removed from the

mounting sleeve.

3. Pull the unit out, keeping it unlocked as you do so.

•Secure the ground lead of the unit to a clean metal spot using a

screw (*3) already attached to the vehicle’s chassis.

iPhone/iPod Connection (sold separately)

Connect USB cable to an iPhone/iPod with Interface cable for

iPod (KCU-440i, sold separately).

Caution

When you install this unit in your car, do not remove the

detachable front panel.

If the detachable front panel is removed during installation, you

might press too hard and warp the metal plate that holds it in

place.

* If the installed mounting sleeve is loose in the dashboard, the

pressure plates may be bent slightly to remedy the problem.

Remove the mounting sleeve from the main unit

(see “Removal” on page 41).

Reinforce the head unit with the metal mounting

strap (not supplied). Secure the ground lead of the

unit to a clean metal spot using a screw (*1) already

attached to the vehicle’s chassis.

•For the screw marked “*2”, use an appropriate screw for the chosen

mounting location.

Detachable Front

Panel

Less than 35°

Mounting Sleeve

(Included)

Dashboard

This unit

Pressure Plates*

Hex Nut (M5) Screw

Bolt Stud

This unit

Chassis

Ground Lead

Metal

Mounting

Strap

Connect each input lead coming from an amplifier or

equalizer to the corresponding output lead coming

from the left rear of the CDA-105. Connect all other

leads of the CDA-105 according to details described

in the CONNECTlONS section.

Slide the CDA-105 into the dashboard until it clicks.

This ensures that the unit is properly locked and will

not accidentally come out from the dashboard.

This unit

Bracket keys

(Included)

Front Frame

Screws (M5 × 8)

(Included)

Mounting Bracket

Ground Lead

This unit

Interface cable for iPod (KCU-440i, sold separately)

USB cable

42-EN

Remove the iPhone/iPod

Remove the iPhone/iPod from Interface cable for iPod

(KCU-440i, sold separately).

•After changing the unit to a source other than the iPhone/iPod,

remove the iPhone/iPod. If the iPhone/iPod is removed in the iPod

mode, data may cause damage.

•If sound is not output or the iPhone/iPod is not recognised even when

the iPhone/iPod is connected, remove the iPhone/iPod once, then

connect it again, or reset the iPod.

•Do not leave the iPhone/iPod in a vehicle for a long time. Heat and

humidity may damage the iPhone/iPod and you may not be able to

play it again.

USB memory Connection (sold separately)

Connect USB memory

Connect USB memory to USB cable.

Remove USB memory

Pull out USB memory squarely from the USB cable.

•When removing USB memory, pull it out straight.

•If sound is not output or USB memory is not recognized even when

USB memory is connected, remove USB memory once, then connect

it again.

•Change to a source other than the USB memory mode, then remove

the USB memory. If the USB memory is removed in the USB memory

mode, data may be damaged.

•Route the USB cable away from another cables, etc.

Cable (sold separately)

USB memory

(sold separately)

This unit

Lock case

(Included with cable)

This unit USB connector

Cable (sold separately)

USB memory

(sold separately)

43-EN

Connections

Antenna

Blue POWER ANT

Blue/White

Orange ILLUMINATION

Red IGNITION

Yellow BATTERY

Black GND

Gray

SPEAKER

RIGHT FRONT

White

To power antenna

To amplifier or equalizer

To vehicle phone

Ignition Key

Battery

Speakers

Front right

Rear right

Rear left

Front left

CD Changer

(Sold Separately) Speakers

Amplifier

Rear Left

Rear Right

Front Left

Front Right

Subwoofers

To Bluetooth INTERFACE (KCE-400BT)

(sold separately)

Gray/Black

Violet/Black

Violet

Green

Green/Black

White/Black

SPEAKER

RIGHT REAR

SPEAKER

LEFT REAR

SPEAKER

LEFT FRONT

REMOTE TURN-ON

To the instrument cluster illumination

lead

Pink/Black AUDIO INTERRUPT IN

To USB memory or iPhone/iPod

*1The system switch is located on the bottom of the unit.

44-EN

Antenna Receptacle

Power Antenna Lead (Blue)

Connect this lead to the +B terminal of your power antenna,

if applicable.

•This lead should be used only for controlling the vehicle’s power

antenna. Do not use this lead to turn on an amplifier, or a signal

processor, etc.

Remote Turn-On Lead (Blue/White)

Connect this lead to the remote turn-on lead of your

amplifier or signal processor. When an IMPRINT audio

processor PXA-H100 (sold separately) is connected, use

the Remote Turn-on lead of PXA-H100 to connect to your

amplifier or signal processor. For details, refer to the

Owner’s Manual of PXA-H100.

Audio Interrupt In Lead (Pink/Black)

Connect this lead to the Audio interface output of a cellular

phone which provides ground shorting when a call is

received.

Illumination Lead (Orange)

This lead may be connected to the vehicle’s instrument

cluster illumination lead. This will allow the backlighting of

the CDA-105 to dim whenever the vehicle’s lights are turned

on.

Switched Power Lead (Ignition) (Red)

Connect this lead to an open terminal on the vehicle’s fuse

box or another unused power source which provides (+)12V

only when the ignition is turned on or in the accessory

position.

Battery Lead (Yellow)

Connect this lead to the positive (+) post of the vehicle’s

battery.

Ground Lead (Black)

Connect this lead to a good chassis ground on the vehicle.

Make sure the connection is made to bare metal and is

securely fastened using the sheet metal screw provided.

Power Supply Connector

Right Front (+) Speaker Output Lead (Gray)

Right Front (–) Speaker Output Lead (Gray/Black)

Right Rear (–) Speaker Output Lead (Violet/Black)

Right Rear (+) Speaker Output Lead (Violet)

Left Rear (+) Speaker Output Lead (Green)

Left Rear (–) Speaker Output Lead (Green/Black)

Left Front (–) Speaker Output Lead (White/Black)

Left Front (+) Speaker Output Lead (White)

Fuse Holder (10A)

Ai-NET Connector

Connect this to the output or input connector of another

device (CD Changer, IMPRINT audio processor, Equalizer,

HD Radio TUNER MODULE, etc.) equipped with Ai-NET.

•Interface adapter for iPod (KCA-420i) is not recommended for use

with this product.

•You can input TV/video sound by connecting an optional Ai-NET/

RCA Interface cable (KCA-121B) to this component.

•Be sure to set “Setting the Connected Head Unit (MODEL SETUP)”

to “CD CHG”, when the DHA-S690 is connected.

Steering Remote Control Interface Connector

To steering Remote control interface box.

Rear Output/Input RCA Connectors

It can be used as Rear Output or Input RCA Connectors.

RED is right and WHITE is left.

Front Output/Input RCA Connectors

It can be used as Front Output or Input RCA Connectors.

RED is right and WHITE is left.

Subwoofer RCA Connectors

RED is right and WHITE is left.

Ai-NET Cable (Included with CD Changer)

RCA Extension Cable (sold separately)

Bluetooth interface connector

Connect this to an optional Bluetooth INTERFACE

(KCE-400BT). To use a hands-free mobile phone, an

optional Bluetooth INTERFACE (KCE-400BT) connection is

required. For details on connection, refer to the Owner’s

Manual of the Bluetooth INTERFACE (KCE-400BT). You can

also connect this to an external device (such as a portable

player) by using conversion cable (KCE-237B) for building

up the AUX IN (sold separately).

*Refer to “Setting the AUX+ SETUP Mode” (page 18).

KCE-400BT Connection Cable (Included with

KCE-400BT)

System Switch

When connecting a processor or divider using Ai-NET,

place the two switches in the EXT AP position. When no

device is connected, leave the switch in the NORM position.

•Do not make the two switches to different settings.

•Be sure to turn the power off to the unit before changing the switch

position.

USB Connector

Connect this to an USB memory or to an iPhone/iPod. To

use an iPhone/iPod, Interface cable for iPod (KCU-440i,

sold separately) connection is required.

•Route the USB cable away from other cables.

AUX+ ON : When the external device is connected.

AUX+ OFF : When set to OFF, AUX+ source cannot be

selected.

To prevent external noise from entering the audio system.

• Locate the unit and route the leads at least 10 cm away from the car harness.

• Keep the battery power leads as far away from other leads as possible.

• Connect the ground lead securely to a bare metal spot (remove any paint, dirt or grease if necessary) of the car chassis.

• If you add an optional noise suppressor, connect it as far away from the unit as possible. Your Alpine dealer carries various noise

suppressors, contact them for further information.

• Your Alpine dealer knows best about noise prevention measures so consult your dealer for further information.

LIMITED WARRANTY

ALPINE ELECTRONICS OF AMERICA, INC. AND ALPINE OF CANADA INC. (“Alpine”), are dedicated to quality craftsmanship and

are pleased to offer this Warranty. We suggest that you read it thoroughly. Should you have any questions, please contact your Dealer

or contact Alpine at one of the telephone numbers listed below.

PRODUCTS COVERED:

This Warranty covers Car Audio Products and Related

Accessories (“the product”). Products purchased in the Canada

are covered only in the Canada. Products purchased in the

U.S.A. are covered only in the U.S.A.

LENGTH OF WARRANTY:

This Warranty is in effect for one year from the date of the first

consumer purchase.

WHO IS COVERED:

This Warranty only covers the original purchaser of the product,

who must reside in the United States, Puerto Rico or Canada.

WHAT IS COVERED:

This Warranty covers defects in materials or workmanship (parts

and labor) in the product.

WHAT IS NOT COVERED:

This Warranty does not cover the following:

ADamage occurring during shipment of the product to Alpine

for repair (claims must be presented to the carrier).

BDamage caused by accident or abuse, including burned

voice coils caused by over-driving the speaker (amplifier level

is turned up and driven into distortion or clipping). Speaker

mechanical failure (e.g. punctures, tears or rips). Cracked or

damaged LCD panels. Dropped or damaged hard drives.

CDamage caused by negligence, misuse, improper operation

or failure to follow instructions contained in the Owner’s

manual.

DDamage caused by act of God, including without limitation,

earthquake, fire, flood, storms or other acts of nature.

Any cost or expense related to the removal or reinstallation of

the product.

EService performed by an unauthorized person, company or

association.

FAny product which has the serial number defaced, altered or

removed.

GAny product which has been adjusted, altered or modified

without Alpine’s consent.

HAny product not distributed by Alpine within the United

States, Puerto Rico or Canada.

IAny product not purchased from an Authorized Alpine

Dealer.

HOW TO OBTAIN WARRANTY SERVICE:

AYou are responsible for delivery of the product to an

Authorized Alpine Service Center or Alpine for repair and for

payment of any initial shipping charges. Alpine will, at its

option, repair or replace the product with a new or

reconditioned product without charge. If the repairs are

covered by the warranty, and if the product was shipped to an

Authorized Alpine Service Center or Alpine, Alpine will pay

the return shipping charges.

BYou should provide a detailed description of the problem(s)

for which service is required.

CYou must supply proof of your purchase of the product.

DYou must package the product securely to avoid damage

during shipment. To prevent lost packages it is

recommended to use a carrier that provides a tracking

service.

HOW WE LIMIT IMPLIED WARRANTIES:

ANY IMPLIED WARRANTIES INCLUDING FITNESS FOR USE

AND MERCHANTABILITY ARE LIMITED IN DURATION TO

THE PERIOD OF THE EXPRESS WARRANTY SET FORTH

ABOVE AND NO PERSON IS AUTHORIZED TO ASSUME FOR

ALPINE ANY OTHER LIABILITY IN CONNECTION WITH THE

SALE OF THE PRODUCT.

HOW WE EXCLUDE CERTAIN DAMAGES:

ALPINE EXPRESSLY DISCLAIMS LIABILITY FOR

INCIDENTAL AND CONSEQUENTIAL DAMAGES CAUSED BY

THE PRODUCT. THE TERM “INCIDENTAL DAMAGES”

REFERS TO EXPENSES OF TRANSPORTING THE

PRODUCT TO THE ALPINE SERVICE CENTER, LOSS OF

THE ORIGINAL PURCHASER’S TIME, LOSS OF THE USE OF

THE PRODUCT, BUS FARES, CAR RENTALS OR OTHERS

COSTS RELATING TO THE CARE AND CUSTODY OF THE

PRODUCT. THE TERM “CONSEQUENTIAL DAMAGES”

REFERS TO THE COST OF REPAIRING OR REPLACING

OTHER PROPERTY WHICH IS DAMAGED WHEN THIS

PRODUCT DOES NOT WORK PROPERLY. THE REMEDIES

PROVIDED UNDER THIS WARRANTY ARE EXCLUSIVE AND

IN LIEU OF ALL OTHERS.

HOW STATE/PROVINCIAL LAW RELATES TO THE

WARRANTY:

This Warranty gives you specific legal rights, and you may also

have other rights which vary from state to state and province to

province. In addition, some states/provinces do not allow

limitations on how long an implied warranty lasts, and some do

not allow the exclusion or limitation of incidental or

consequential damages. Accordingly, limitations as to these

matters contained herein may not apply to you.

IN CANADA ONLY:

This Warranty is not valid unless your Alpine car audio product

has been installed in your vehicle by an Authorized Installation

Center, and this warranty stamped upon installation by the

installation center.

HOW TO CONTACT CUSTOMER SERVICE:

Should the product require service, please call the following

number for your nearest Authorized Alpine Service Center.

Or visit our website at; http://www.alpine-usa.com

CAR AUDIO 1-800-ALPINE-1 (1-800-257-4631)

NAVIGATION 1-888-NAV-HELP (1-888-628-4357)

ALPINE ELECTRONICS OF AMERICA, INC., 19145 Gramercy Place, Torrance, California 90501, U.S.A.

ALPINE ELECTRONICS OF CANADA, INC., 777 Supertest Road, Toronto, Ontario M3J 2M9, Canada

Do not send products to these addresses.

Call the toll free telephone number or visit the website to locate a service center.
