OFFICE OF STATEWIDE HEALTH PLANNING AND DEVELOPMENT

FACILITIES DEVELOPMENT DIVISION

“Access to Safe, Quality Healthcare Environments that Meet California’s Diverse and Dynamic Needs”

STATE OF CALIFORNIA – HEALTH AND HUMAN SERVICES AGENCY

OSH-FD-759 (REV 12/16/15) Page 1 of 3

APPLICATION FOR OSHPD SPECIAL SEISMIC

CERTIFICATION PREAPPROVAL (OSP)

OFFICE USE ONLY

APPLICATION #:

OSP – 0235-10

OSHPD Special Seismic Certification Preapproval (OSP)

Type:

New

Renewal

Manufacturer Information

Manufacturer:

Schneider Electric IT Division

Manufacturer’s Technical Representative:

Jose Muniz

Mailing Address:

Via de la Innovacion #408, Parque PIIT Apodaca, NL. CP 66628 Mexico

Telephone:

+52 81 4739 2000 x82869

Email:

Jose.Muniz@schneider-electic.com

Product Information

Product Name:

InfraStructure (ISX) PDU

Product Type:

Power Distribution Unit

Product Model Number:

See Certified Product Table attached

(List all unique product identification numbers and/or part numbers)

General Description:

Infrastructure (ISX) power distribution units ranging from 20kVA to 175kVA. Seismic enhancements

made to the UUTs & modifications required to address anomalies observed during the tests shall be incorporated into the

production units.

Mounting Description:

Rigidly floor mounted

Applicant Information

Applicant Company Name:

Schneider Electric IT Division

Contact Person:

Jose Muniz

Mailing Address:

Via de la Innovacion #408, Parque PIIT Apodaca, NL. CP 66628 Mexico

Telephone:

+52 81 4739 2000 x82869

Email:

Jose.Muniz@schneider-electic.com

I hereby agree to reimburse the Office of Statewide Health Planning and Development review fees in

accordance with the California Administrative Code, 2016.

Signature of Applicant:

Date:

12/8/2016

Title:

Regulatory Compliance Engineer

Company Name:

Schneider Electric IT Division

03/10/2017

OSP-0235-10

Page 1 of 13

OFFICE OF STATEWIDE HEALTH PLANNING AND DEVELOPMENT

FACILITIES DEVELOPMENT DIVISION

“Access to Safe, Quality Healthcare Environments that Meet California’s Diverse and Dynamic Needs”

California Licensed Structural Engineer Responsible for the Engineering and Test Report(s)

Company Name:

Forell/Elsesser Engineers, Inc.

Name:

Marco Scanu, SE

California License Number:

S4454

Mailing Address:

160 Pine St., 6

th

Flr., San Francisco, CA 94111

Telephone:

(415) 837-0700

Email:

m.scanu@forell.com

Supports and Attachments Preapproval

Supports and attachments are preapproved under OPM-

(Separate application for OSHPD Preapproval of Manufacturer’s Certification (OPM) of Supports and attachments is required)

Supports and attachments are not preapproved

Certification Method

Testing in accordance with:

ICC-ES AC156

Other (Please Specify):

Testing Laboratory 1

Company Name:

Wyle Laboratories

Contact Name:

Rod Thornberry

Mailing Address:

7800 Hwy 20, Huntsville AL 35806

Telephone:

(256) 837-4411

Email:

Testing Laboratory 2

Company Name:

Dynamic Certification Laboratories

Contact Name:

Kelly Laplace

Mailing Address:

1315 Greg Street, Suite 109, Sparks, NV 89431

Telephone:

(775) 358-5085

Email:

kelly@shaketest.com

STATE OF CALIFORNIA – HEALTH AND HUMAN SERVICES AGENCY

OSH-FD-759 (REV 12/16/15) Page 2 of 3

03/10/2017

OSP-0235-10

Page 2 of 13

OFFICE OF STATEWIDE HEALTH PLANNING AND DEVELOPMENT

FACILITIES DEVELOPMENT DIVISION

“Access to Safe, Quality Healthcare Environments that Meet California’s Diverse and Dynamic Needs”

STATE OF CALIFORNIA – HEALTH AND HUMAN SERVICES AGENCY

OSH-FD-759 (REV 12/16/15) Page 3 of 3

Seismic Parameters

Design in accordance with ASCE 7-10 Chapter 13:

Yes

No

Design Basis of Equipment or Components (Fp/Wp) =

1.04

SDS (Design spectral response acceleration at short period, g) =

1.39

ap (In-structure equipment or component amplification factor) =

2.5

Rp (Equipment or component response modification factor) =

6.0

Ω0 (System overstrength factor) =

2.0

Ip (Importance factor) = 1.5

z/h (Height factor ratio) =

1.0

Equipment or Component Natural Frequencies (Hz) =

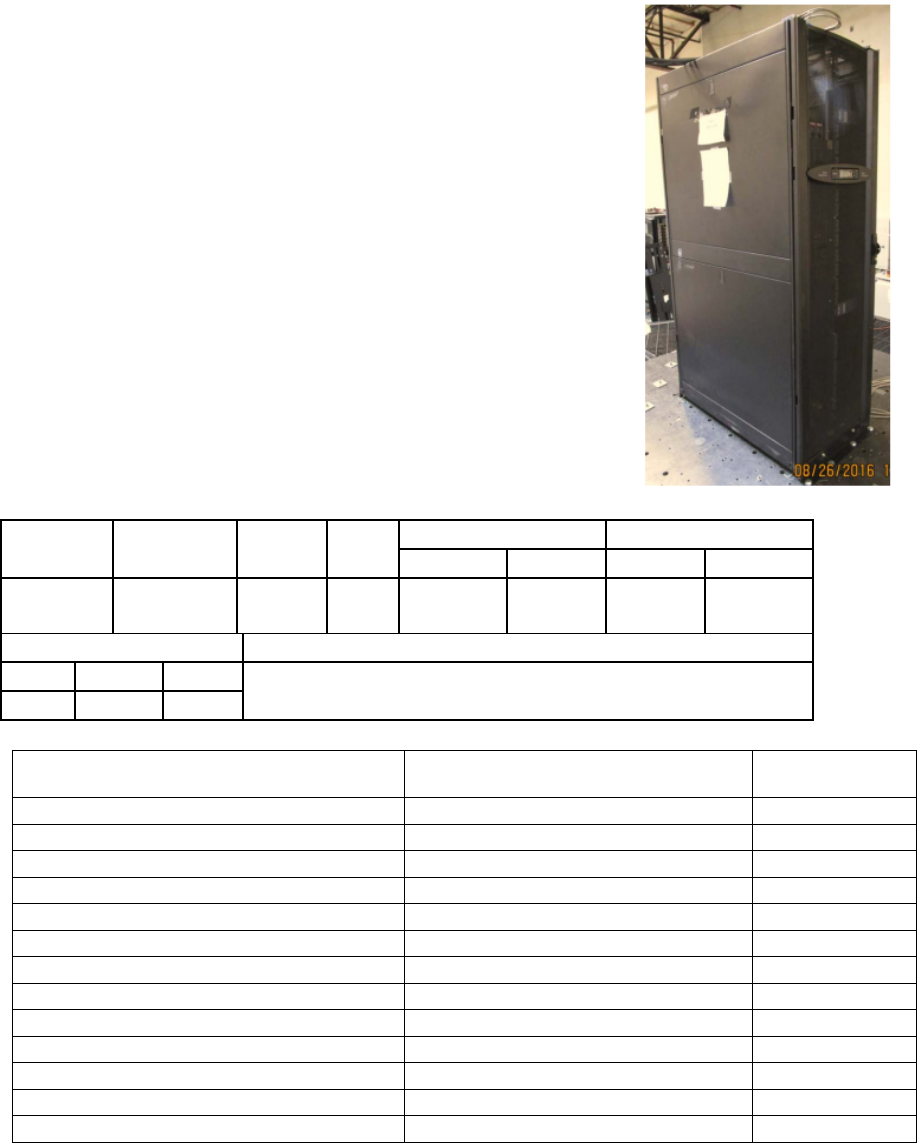

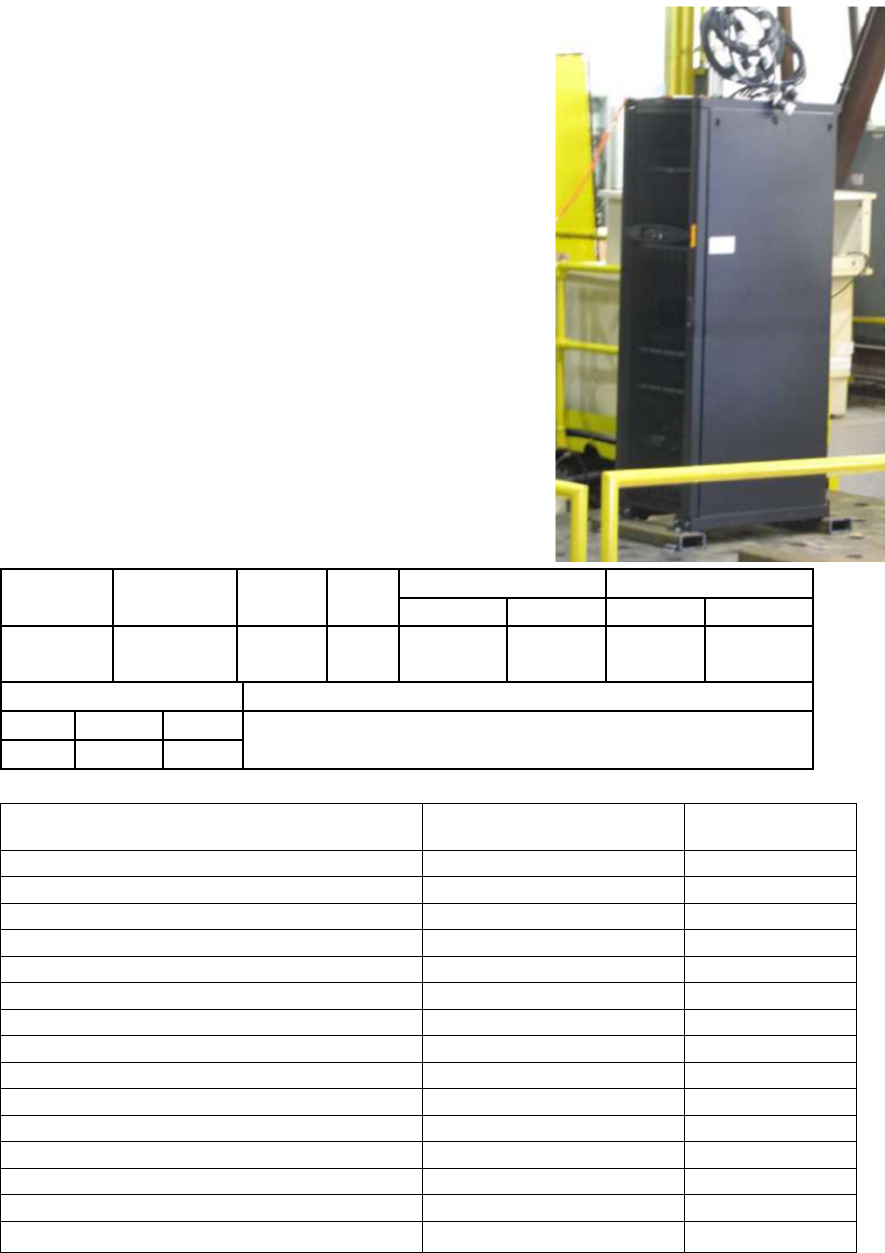

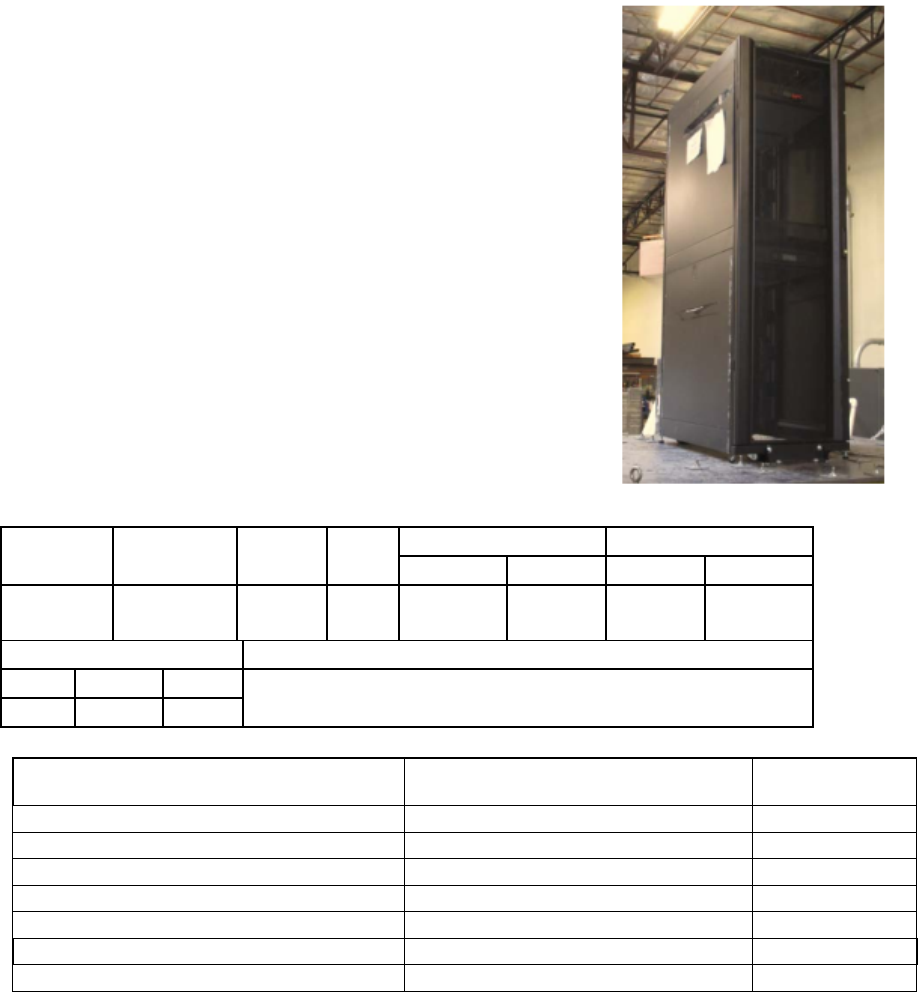

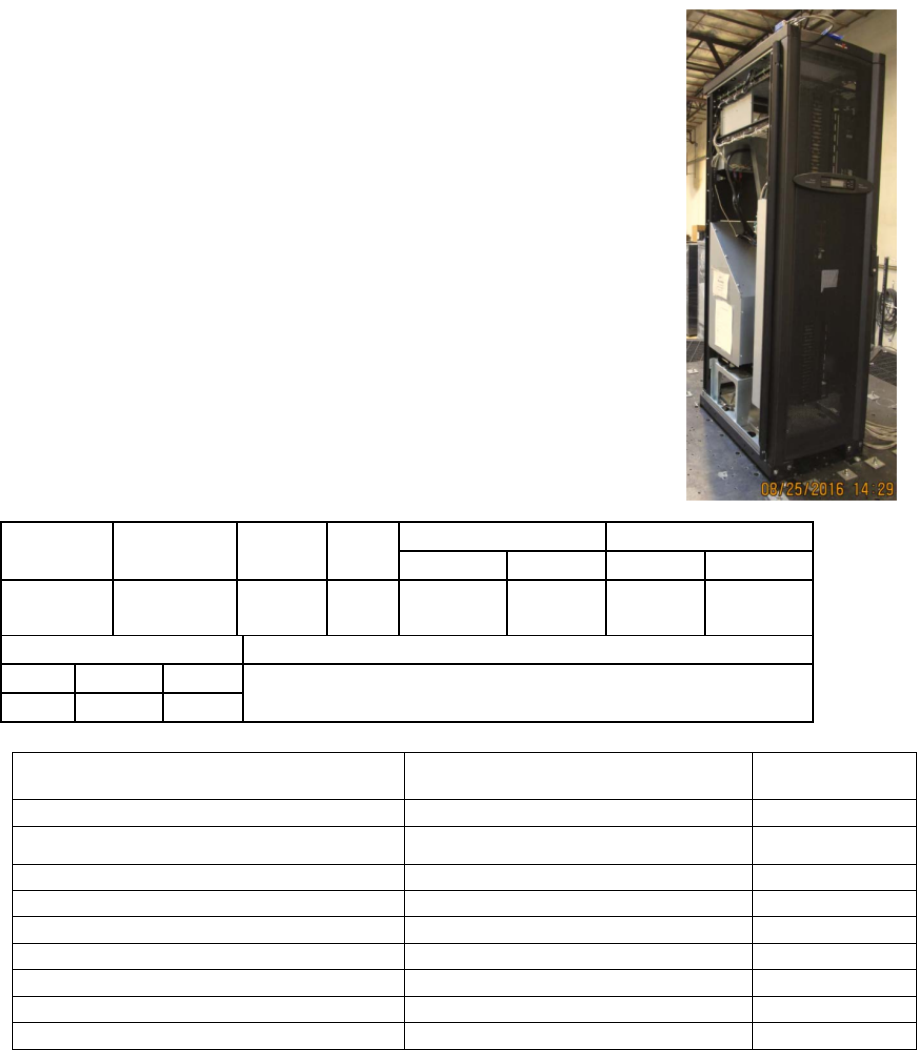

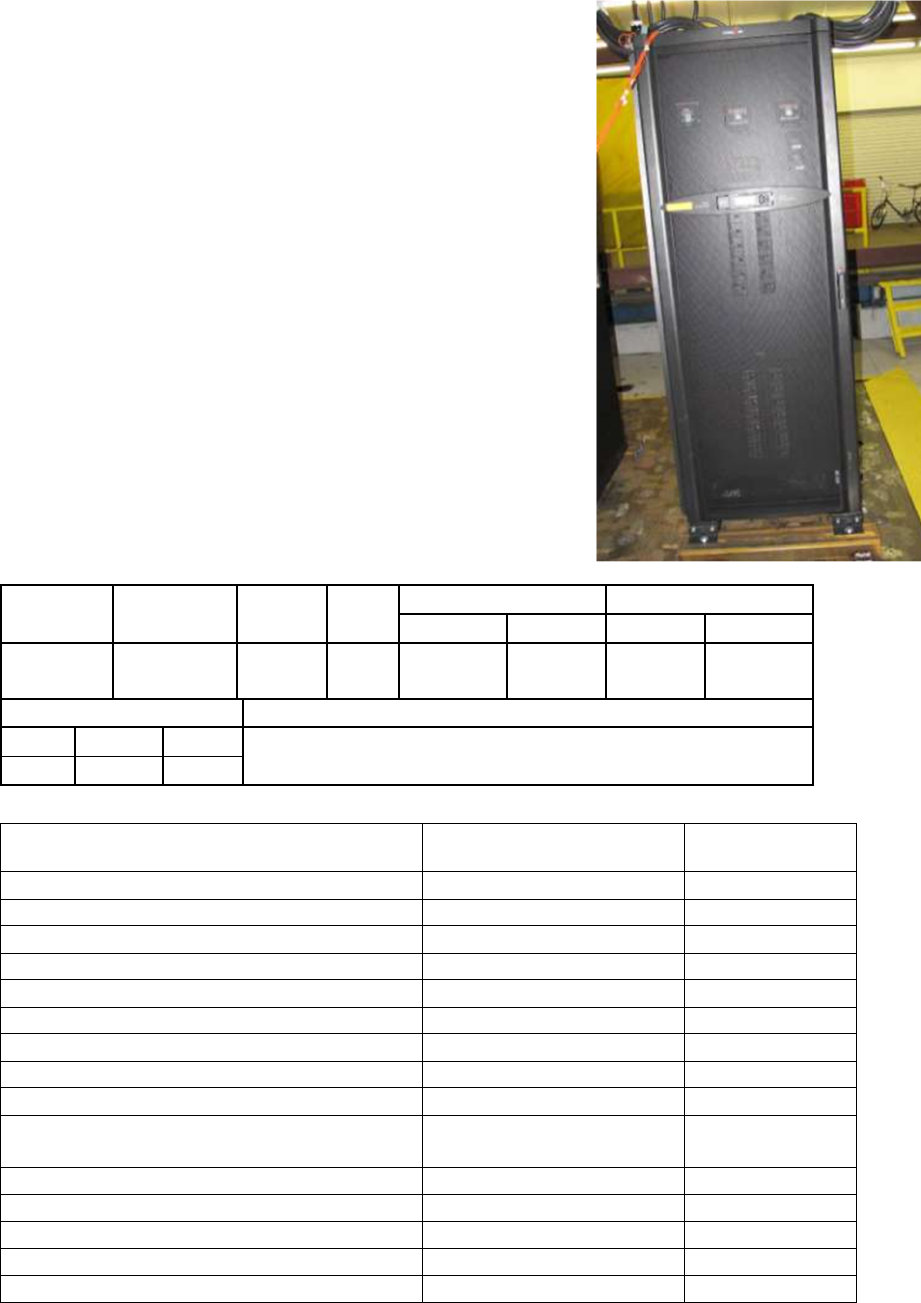

See attachment, UUT Summary Sheets

Overall dimensions and weight (or range thereof) =

See attachment, Certified Products Table

Equipment or Components @ grade designed in accordance with ASCE 7-10 Chapter 15:

Yes

No

Design Basis of Equipment or Components (V/W) =

SDS (Design spectral response acceleration at short period, g) =

SD1 (Design spectral response acceleration at 1 second period, g) =

R (Response modification coefficient ) =

Ω0 (System overstrength factor) =

Cd (Deflection amplification factor) =

Ip (Importance factor) =

1.5

Height to Center of Gravity above base =

Equipment or Component Natural Frequencies (Hz) =

Overall dimensions and weight (or range thereof) =

Tank(s) designed in accordance with ASME BPVC, 2015:

Yes

No

List of Attachments Supporting Special Seismic Certification

Test Report(s)

Drawings

Calculations

Manufacturer’s Catalog

Other(s) (Please Specify):

Certified Products Table, Certified Subcomponents Table, UUT Summary Sheets

OSHPD Approval (For Office Use Only) – Approval Expires on December 31, 2022

Signature:

Date:

3/10/17

Print Name:

M. R. Karim

Title:

SHFR

Special Seismic Certification Valid Up to :

SDS (g) =

1.39

z/h =

1.00

Condition of Approval (if applicable):

03/10/2017

OSP-0235-10

Page 3 of 13

System Units Width Depth Height

Max.

Weight

Construction

Material

1

SKU #

Testing

Status

ISX PX 20kVA 23.5in 35.6in 81.5in 1188lb

16 - 14 GA CFS,

NEMA 1 ISX20K20F 58640R11-5 UUT-1

ISX 10U RDP, 28.8kVA, 208 V 23.5in 34.5in 81.5in 600lb

16 - 14 GA CFS,

NEMA 1 PDRDPF10U-R Interpolated

ISX PDU 40kVA, 208:208V, MBP 23.5in 34.5in 81.5in 1188lb

16 - 14 GA CFS,

NEMA 1 PD40F6FK1-M 58640R11-3 UUT1

ISX PDU 40kVA, 208:208V, MBP 23.5in 34.5in 81.5in 1580lb

16 - 14 GA CFS,

NEMA 1 PD40F6FK1-M Interpolated

ISX PDU 40kVA, 208:208V, MBP, No Xfmr 23.5in 34.5in 81.5in 1150lb

16 - 14 GA CFS,

NEMA 1 PDRPPNX10-M Interpolated

ISX PDU 40kVA, 480:208V, MBP 23.5in 34.5in 81.5in 1580lb

16 - 14 GA CFS,

NEMA 1 PD40G6FK1-M Interpolated

ISX PDU 40kVA, 600:208V, MBP 23.5in 34.5in 81.5in 1580lb

16 - 14 GA CFS,

NEMA 1 PD40L6FK1-M Interpolated

ISX PDU 60kVA, 208:208V 23.5 in 34.5in 81.5in 1070lb

16 - 14 GA CFS,

NEMA 1 PD60F6FK1 31152-1601 UUT-2

ISX PDU 60kVA, 208:208V 23.5 in 34.5in 81.5in 1225lb

16 - 14 GA CFS,

NEMA 1 PD60F6FK1 Interpolated

ISX PDU 60kVA, 208:208V, No Xfmr 23.5 in 34.5in 81.5in 775lb

16 - 14 GA CFS,

NEMA 1 PDRPPNX10 Interpolated

ISX PDU 60kVA, 480:208V 23.5 in 34.5in 81.5in 1225lb

16 - 14 GA CFS,

NEMA 1 PD60G6FK1 Interpolated

ISX PDU 60kVA, 600:208V 23.5 in 34.5in 81.5in 1225lb

16 - 14 GA CFS,

NEMA 1 PD60L6FK1 Interpolated

Schneider Electric - InfraStructure (ISX) PDU

I. Certified Product Table

1. CFS=Cold Formed Carbon Steel

03/10/2017

OSP-0235-10

Page 4 of 13

System Units Width Depth Height

Max.

Weight

Construction

Material

1

SKU #

Testing

Status

Schneider Electric - InfraStructure (ISX) PDU

I. Certified Product Table

ISX 5U Modular RDP, 72kVA, 208V 24.0 in 42in 78in 327lb

16 - 14 GA CFS,

NEMA 1 PDPM72F-5U Interpolated

ISX PX MBP, 100kVA, 208V 12.0 in 42.0 in 78.0 in 380lb

16 - 14 GA CFS,

NEMA 1 SYMBP100F Interpolated

ISX Modular PDU, 144kVA, 480:208V 24.0 in 42.0 in 78.0 in 2150lb

16 - 14 GA CFS,

NEMA 1 PDPM150G6F Interpolated

ISX Modular PDU, 144kVA, 600:208V 24.0 in 42.0 in 78.0 in 2150lb

16 - 14 GA CFS,

NEMA 1 PDPM150L6F Interpolated

ISX PDU, 150kVA, 84 pole 24.0 in 42.0 in 78.0 in 2150lb

16 - 14 GA CFS,

NEMA 1 PDPB150G6F Interpolated

ISX Modular PDU, 175kVA, 480:415V 24.0 in 42.0 in 78.0 in 2000lb

16 - 14 GA CFS,

NEMA 1 PDPM175G6H 31152-1601 UUT-1

ISX Modular PDU, 175kVA, 480:415V 24.0 in 42.0 in 78.0 in 2150lb

16 - 14 GA CFS,

NEMA 1 PDPM175G6H Interpolated

ISX PDU 150kVA, 480:208V 29.5 in 35.4 in 81 in 2150lb

16 - 14 GA CFS,

NEMA 1 PD150G6F 58640R11-4 UUT-1

1. CFS=Cold Formed Carbon Steel

03/10/2017

OSP-0235-10

Page 5 of 13

12"Wx42"Dx78"H Schneider Electic

0M-815185A

Interpolated

0G-AR3100

Interpolated

0M-814974 31152-1601 UUT-1

0M-11465 Interpolated

0M-10702 Interpolated

0M-11082A Interpolated

0M-1326B

58640R11-5 UUT-1,

58640R11-3 UUT-1,

31152-1601 UUT-2

0M-3106D

Interpolated

29.5"Wx34.5"Dx81"H Schneider Electic

AR2381BLKX311

58640R11-4 UUT-1

530-0355

58640R11-5 UUT-1

530-2023

58640R11-3 UUT-1

530-2189 31152-1601 UUT-2

530-4000 58640R11-3 UUT-1

Panel Board 42-Poles, 400A Square D 530-0364 58640R11-4 UUT-1

Busbar 200A (5U) Schneider Electric 0M-9684 31152-1601 UUT-3

0M-9744

Interpolated

0M-8747

31152-1601 UUT-1

Disconnect Switch, 3P, 100A ABB 560-0205 58640R11-5 UUT-1

Disconnect Switch, 3P, 150A ABB 540-0159 Interpolated

530-4018A

Interpolated

540-0083A

58640R11-3 UUT-1,

31152-1601 UUT-2

Circuit Breaker, 4P, 150A ABB 530-4014A 58640R11-3 UUT-1

Circuit Breaker, 3P, 175A ABB 530-0306 31152-1601 UUT-2

530-0632A

58640R11-4 UUT-1

530-4013A 58640R11-3 UUT-1,

Circuit Breaker, 3P, 225A ABB 530-0439 58640R11-4 UUT-1

Circuit Breaker, 3P, 400A ABB 530-0679A 58640R11-4 UUT-1

Branch Breaker, 1P, 20A Square D PD1P20ABBSD 58640R11-5 UUT-1,

58640R11-4 UUT-1

Branch Breaker, 2P, 20A Square D PD2P20ABBSD 58640R11-4 UUT-1

Branch Breaker, 3P, 20A Square D PD3P20ABBSD

58640R11-3 UUT-1,

58640R11-4 UUT-1

Branch Breaker, 2P, 30A Square D PD2P30ABBSD 58640R11-4 UUT-1

Branch Breaker, 3P, 50A Square D PD3P50ABBSD 58640R11-4 UUT-1

Branch Breaker, 3P, 80A Square D PD3P80ABBSD 58640R11-5 UUT-1

Branch Breaker, 3P, 150A Square D 530-2215 Interpolated

530-2454

Interpolated

530-2235 Interpolated

530-2237 Interpolated

530-2386 58640R11-5 UUT-1

530-2452

31152-1601 UUT-1

530-2552 Interpolated

530-1913 Interpolated

530-2236 Interpolated

Circuit Breaker, 4P, 400A Square D 530-2551 Interpolated

Circuit Breaker, 3P, 600A Square D 530-2549 31152-1601 UUT-1

Circuit Breaker, 3P, 250A

Disconnect Switch, 3P, 225A

ABB

Power Distribution

Square D

Internal Components Manufacturer Part #

Testing

Status

Frame

24"Wx42"Dx78"H Schneider Electic

Protection and Disconnections

Panel Board 42-Poles, 225A

Square D

Schneider Electric

Busbar 400A (RPP)

Schneider Electric - InfraStructure (ISX) PDU

II. Certified Subcomponents Table

Circuit Breaker, 3P, 400A

Square D

Circuit Breaker, 3P, 200A ABB

23.5"Wx34.5"Dx81.5"H Schneider Electic

03/10/2017

OSP-0235-10

Page 6 of 13

Internal Components Manufacturer Part #

Testing

Status

Frame

Schneider Electric - InfraStructure (ISX) PDU

II. Certified Subcomponents Table

Circuit Breaker, 4P, 600A Square D 530-2550 31152-1601 UUT-1

LVT, 208:208, 60kVA Philippine Electric Corporation (PhEC) 430-4106B 58640R11-3 UUT-1

LVT, 480:208, 60kVA Philippine Electric Corporation (PhEC) 430-4105B Interpolated

LVT, 600:208, 60kVA Philippine Electric Corporation (PhEC) 430-4107B Interpolated

LVT, 208:208, 150kVA Philippine Electric Corporation (PhEC) 430-0664 Interpolated

430-0663

Interpolated

430-0361A 58640R11-4 UUT-1

LVT, 600:208, 150kVA Philippine Electric Corporation (PhEC) 430-0662 Interpolated

LVT, 480:415, 175kVA Philippine Electric Corporation (PhEC) 430-0796 Interpolated

LVT, 208:208, 60kVA Schneider Electric 430-10064 31152-1601 UUT-2

LVT, 480:208, 60kVA Schneider Electric 430-10066 Interpolated

LVT, 600:208, 60kVA Schneider Electric 430-10065 Interpolated

LVT, 208:208, 150kVA Schneider Electric 430-10067 Interpolated

LVT, 480:208, 150kVA Schneider Electric

430-10063

Interpolated

LVT, 600:208, 150kVA Schneider Electric 430-92022 Interpolated

LVT, 480:415, 175kVA Schneider Electric 430-10068 31152-1601 UUT-1

0G-SYBTU1 58640R11-5 UUT-1

0G-SYBTU2 Extrapolated1

0G-SYPM10KF

58640R11-5 UUT-1

0G-SYPM10KF2 Extrapolated1

Static Bypass Switch Schneider Electric 0G-SYSW40KF 58640R11-5 UUT-1

Assembly for Static Bypass Switch Schneider Electric 0M-4069 58640R11-5 UUT-1

Display Assy. (20char X 4lines)

Schneider Electric 0G-9215RM-A

58640R11-5 UUT-1,

58640R11-4 UUT-1,

58640R11-3 UUT-1,

31152-1601 UUT-2

Display Assy. (122 X 32 dot) Schneider Electric 0G-9233 31152-1601 UUT-1,

31152-1601 UUT-3

PCB Type XPDU MR1 + PS

Schneider Electric 0M-5103

58640R11-4 UUT-1,

58640R11-3 UUT-1,

31152-1601 UUT-2

PCB Type XRDP MR1 Schneider Electric 0G-9354-01 31152-1601 UUT-3

PCB Type XRDP MR2 Schneider Electric 0G-9357 31152-1601 UUT-1

PCB Type X84P MR2 Schneider Electric 0G-9357-01 Interpolated

PCB Metering + PS Schneider Electric 0G-SY2CSPS 58640R11-5 UUT-1

PCB Type ISX Schneider Electric 0G-SYCDCI 58640R11-5 UUT-1

Intelligence Module Schneider Electric 0G-SYMIM4 58640R11-5 UUT-1

1Pole, 15A Control Breaker Airpax

530-0039-001

58640R11-3 UUT-1,

58640R11-4 UUT-1,

31152-1601 UUT-2

3Pole, 5A Control Breaker Schneider 530-1136 31152-1601 UUT-3

1Pole, 5A Control Breaker Schneider 530-1497 31152-1601 UUT-1

24VDC (3200rpm) Fan NMB 490-1020 58640R11-5 UUT-1

120VAC, 50/60Hz (2800-3300rpm) Fan EBM 490-0180 Interpolated

240VAC, 50/60Hz (2800-3300rpm) Fan EBM 490-0181 31152-1601 UUT-1

240VAC, 50/60Hz (2650-3100rpm) Fan

EBM

490-1050B

58640R11-4 UUT-1

Note 1: Structurally identical to tested unit except for branding.

Miscellaneous (Control)

Power Module 10kVA Schneider Electric

Transformers

LVT, 480:208, 150kVA Philippine Electric Corporation (PhEC)

Miscellaneous (Power)

Battery unit Schneider Electric

03/10/2017

OSP-0235-10

Page 7 of 13

OSP APPLICATION Date: 2/18/2017

Schneider Electric– InfraStructure (ISX) PDU

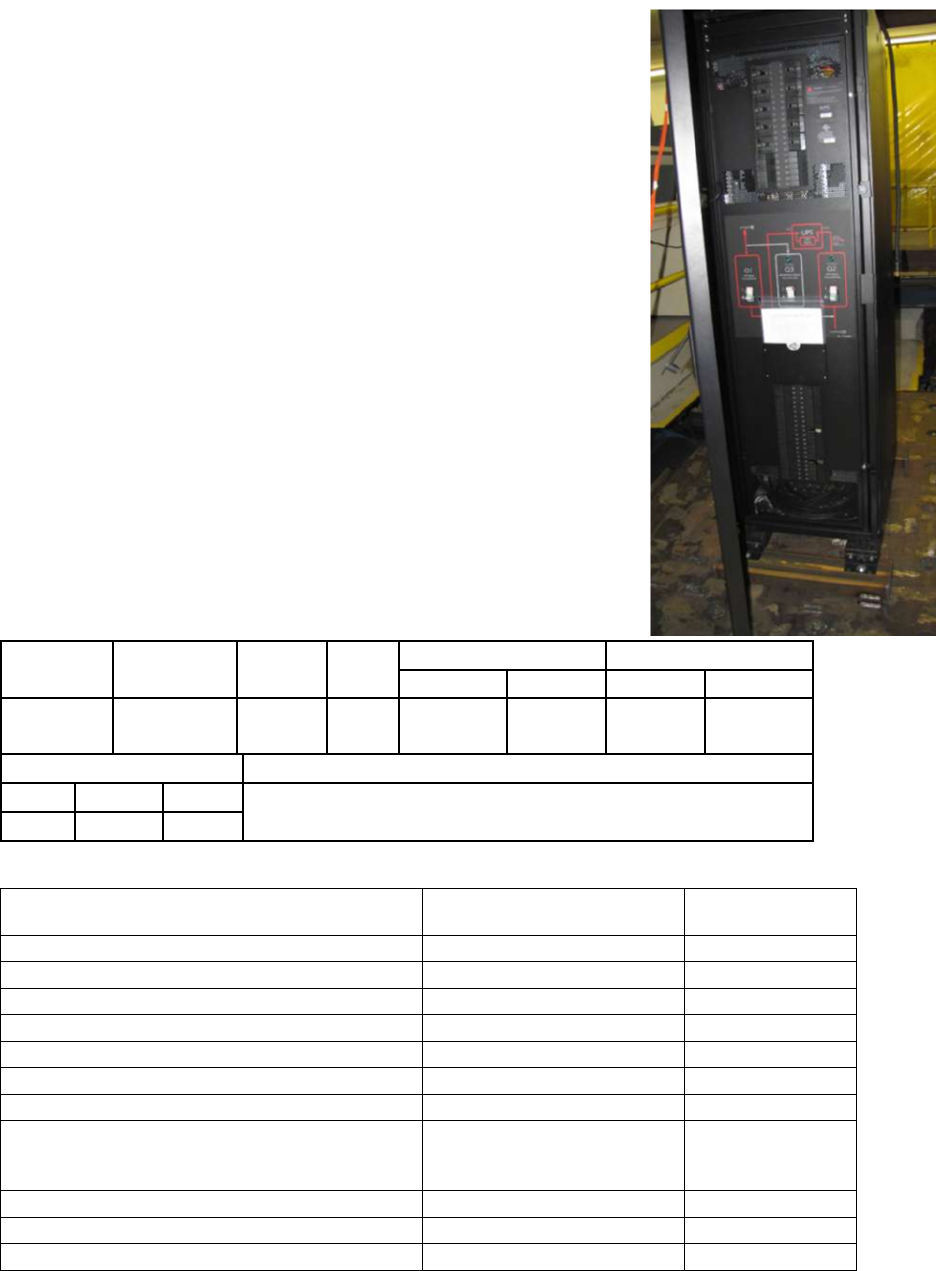

III. UUT Summary Sheets

Test Report 58640R11-5 UUT-1

InfraStructure ISX PX 20kVA PDU

16 - 14 ga Cold Formed Steel, NEMA 1

24”W x 36”D x 82”H 1,188 lbs

Floor mounted using (4) ½” – 13 Grade 5 bolts

Subcomponents Manufacturer

Part #

23.5"X34.5"x81.5"H Frame Schneider Electric 0M-1326B

Panel Board 42-Poles, 225A Square D 530-0355

Disconnect Switch, 3P, 100A ABB 560-0205

Branch Breaker, 3P, 80A Square D PD3P80ABBSD

Circuit Breaker, 3P, 250A Square D 530-2386

Battery unit Schneider Electric 0G-SYBTU1

Power Module 10kVA Schneider Electric 0G-SYPM10KF

Static Bypass Switch Schneider Electric 0G-SYSW40KF

Assy for Static Bypass Switch Schneider Electric 0M-4069

Display Assy. (20char X 4lines) Schneider Electric 0G-9215RM-A

Intelligence Module Schneider Electric 0G-SYMIM4

PCB Metering + PS Schneider Electric 0G-SY2CSPS

PCB Type ISX Schneider Electric 0G-SYCDCI

Branch Breaker, 1P, 20A Square D PD1P20ABBSD

24VDC (3200rpm) Fan NMB 490-1020

Building

Test

S

DS

z/h

Horizontal

Vertical

Code

Criteria

(g)

A

FLX-H

(g)

A

RIG-H

(g)

A

FLX-V

(g)

A

RIG-H

(g)

CBC 2016

ICC

-

ES

AC 156 1.94 1 3.10 2.33 1.30 0.52

Natural Frequencies

Test Results

F

-

B

S

-

S

V

The UUT maintained structural integrity and functionality

after the AC156 test. UUT full of contents during testing.

5.1

3.9

21.5

03/10/2017

OSP-0235-10

Page 8 of 13

OSP APPLICATION Date: 2/18/2017

Schneider Electric– InfraStructure (ISX) PDU

III. UUT Summary Sheets

Test Report 58640R11-4 UUT-1

InfraStructure ISX PDU 150kVA

16- 14 ga Cold Formed Steel, NEMA 1

29.5”W x 35”D x 82”H 2,150 lbs

Floor mounted using (4) ½” – 13 Grade 5 bolts

Subcomponents Manufacturer

Part #

29.5"Wx34.5"Dx81"H Frame Schneider Electric AR2381BLKX311

Panel Board 42-Poles, 400A Square D 530-0364

Circuit Breaker, 3P, 200A ABB 530-0632A

Circuit Breaker, 3P, 225A ABB 530-0439

Circuit Breaker, 3P, 400A ABB 530-0679A

Branch Breaker, 3P, 20A SQUARE D PD3P20ABBSD

Branch Breaker, 3P, 50A SQUARE D PD3P50ABBSD

Branch Breaker, 2P, 20A SQUARE D PD2P20ABBSD

Branch Breaker, 2P, 30A SQUARE D PD2P30ABBSD

XFMR LVT, 480:208, 150kVA

PHILIPPINE

ELECTRIC CORPORATION

430-0361A

Display Assy. (20char X 4lines) Schneider Electric 0G-9215RM-A

PCB Type XPDU MR1 + PS Schneider Electric 0M-5103

1Pole, 15A Control Breaker AIRPAX 530-0039-001

Branch Breaker, 1P, 20A Square D PD1P20ABBSD

240VAC, 50/60Hz (2650-3100rpm) Fan EBM 490-1050B

Building

Test

S

DS

z/h

Horizontal

Vertical

Code

Criteria

(g)

A

FLX-H

(g)

A

RIG-H

(g)

A

FLX-V

(g)

A

RIG-H

(g)

CBC 2016

ICC

-

ES

AC 156 2.13 1 3.41 2.56 1.43 0.57

Natural Frequencies

Test Results

F

-

B

S

-

S

V

The UUT maintained structural integrity and functionality

after the AC156 test. UUT full of contents during testing.

4.7

4.0

18.0

03/10/2017

OSP-0235-10

Page 9 of 13

OSP APPLICATION Date: 2/18/2017

Schneider Electric– InfraStructure (ISX) PDU

III. UUT Summary Sheets

Test Report 58640R11-3 UUT-1

InfraStructure ISX PDU 40kVA

16- 14 ga Cold Formed Steel, NEMA 1

24”W x 36”D x 82”H, 1,188 lbs

Floor mounted using (4) ½” – 13 Grade 5 bolts

Subcomponents Manufacturer

Part #

23.5"X34.5"x81.5"H Frame Schneider Electric 0M-1326B

Panel Board 42-Poles, 225A SQUARE D 530-2023

Panel Board 42-Poles, 225A SQUARE D 530-4000

Disconnect Switch, 3P, 225A ABB 540-0083A

Circuit Breaker, 3P, 200A ABB 530-4013A

Circuit Breaker, 4P, 150A ABB 530-4014A

Branch Breaker, 3P, 20A SQUARE D PD3P20ABBSD

XFMR LVT, 208:208, 60kVA

PHILIPPINE

ELECTRIC

CORPORATION 430-4106B

1Pole, 15A Circuit Breaker AIRPAX 530-0039-001

Display Assy. (20char X 4lines) Schneider Electric 0G-9215RM-A

PCB Type XPDU MR1 + PS Schneider Electric 0M-5103

Building

Test

S

DS

z/h

Horizontal

Vertical

Code

Criteria

(g)

A

FLX-H

(g)

A

RIG-H

(g)

A

FLX-V

(g)

A

RIG-H

(g)

CBC 2016

ICC

-

ES

AC 156 2.13 1 3.41 2.56 1.43 0.57

Natural Frequencies

Test Results

F

-

B

S

-

S

V

The UUT maintained structural integrity and functionality

after the AC156 test. UUT full of contents during testing.

3.9

3.9

24.0

03/10/2017

OSP-0235-10

Page 10 of 13

OSP APPLICATION Date: 2/18/2017

Schneider Electric– InfraStructure (ISX) PDU

III. UUT Summary Sheets

Test Report 31152-1601 – UUT1

Power Distribution Unit 175kVA PDPM175G6H

24”W x 42”D x 79” H, 2000 lbs.

Floor mounted using: (8) ½” diameter Grade 5 bolts

Subcomponents Manufacturer

Part #

24"X42"x78"H Frame Schneider Electric 0M-814974

Busbar assembly Schneider Electric 0M-8747

Circuit breaker 600A Schneider Electric 530-2550

Circuit breaker 400A Schneider Electric 530-2452

Circuit breaker 600A Schneider Electric 530-2549

Xfmr 175kVA 480D 415Y Schneider Electric 430-10068

Display assembly Schneider Electric 0G-9233

PCB Type XRDP MR2 Schneider Electric 0G-9357

Circuit breaker 1Pole, 5A Schneider Electric 530-1497

Fan 240VAC, 50/60Hz (2800-3300rpm) EBM Industries, Inc 490-0181

PDM 20A Schneider Electric PDM3520

PDM 20A Schneider Electric PDM1320

Seismic kit Schneider Electric SYOPT600

Building

Test

S

DS

z/h

Horizontal

Vertical

Code

Criteria

(g)

A

FLX-H

(g)

A

RIG-H

(g)

A

FLX-V

(g)

A

RIG-H

(g)

CBC 2016

ICC

-

ES

AC 156 1.39 1 2.22 1.67 0.93 0.37

Natural Frequencies

Test Results

F

-

B

S

-

S

V

The UUT maintained structural integrity and functionality

after the AC156 test. UUT full of contents during testing.

11.5

5.5

27

03/10/2017

OSP-0235-10

Page 11 of 13

OSP APPLICATION Date: 2/18/2017

Schneider Electric– InfraStructure (ISX) PDU

III. UUT Summary Sheets

Test Report 31152-1601 – UUT2

Power Distribution Unit 60kVA PD60F6FK1

24”W x 36”D x 81” H, 1070 lbs.

Floor mounted using: (4) ½” diameter Grade 5 bolts

Subcomponents Manufacturer

Part #

23.5"X34.5"x81.5"H Frame Schneider Electric 0M-1326B

Panel board 42-poles, 225A Schneider Electric 530-2189

Xfmr 60kVA 208D 208Y Schneider Electric 430-10064

Circuit breaker 175A ABB 530-0306

Switch 225A ABB 540-0083A

Display assembly Schneider Electric 0G-9215RM-A

Circuit breaker 1Pole, 15A Airpax 530-0039-001

PCB Type XPDU MR1 + PS Schneider Electric 0M-5103

Seismic kit Schneider Electric SYOPT015

Building

Test

S

DS

z/h

Horizontal

Vertical

Code

Criteria

(g)

A

FLX-H

(g)

A

RIG-H

(g)

A

FLX-V

(g)

A

RIG-H

(g)

CBC 2016

ICC

-

ES

AC 156 1.98 1 3.17 2.38 1.33 0.53

Natural Frequencies

Test Results

F

-

B

S

-

S

V

The UUT maintained structural integrity and functionality

after the AC156 test. UUT full of contents during testing.

4.5

4.5

19.5

03/10/2017

OSP-0235-10

Page 12 of 13

OSP APPLICATION Date: 2/18/2017

Schneider Electric– InfraStructure (ISX) PDU

III. UUT Summary Sheets

Test Report 31152-1601 – UUT3

Power Distribution Unit 72kVA PDPM72F-R

24”W x 43”D x 78” H, 420 lbs.

Floor mounted using: (8) ½” diameter Grade 5 bolts

Subcomponents Manufacturer

Part #

Enclosure Netshelter SX Schneider Electric 0G-AR3100

Enclosure 5URDP Schneider Electric 0G-PDP72F-5U

Busbar 200A Schneider Electric 0M-9684

Display assembly Schneider Electric 0G-9233

PCB Type XRDP MR1 Schneider Electric 0G-9354-01

Circuit breaker 3Pole, 5A Schneider Electric 530-1136

Seismic kit Schneider Electric AR7701-S

Building

Test

S

DS

z/h

Horizontal

Vertical

Code

Criteria

(g)

A

FLX-H

(g)

A

RIG-H

(g)

A

FLX-V

(g)

A

RIG-H

(g)

CBC 2016

ICC

-

ES

AC 156 1.94 1 3.10 2.33 1.30 0.52

Natural Frequencies

Test Results

F

-

B

S

-

S

V

The UUT maintained structural integrity and functionality

after the AC156 test. UUT full of contents during testing.

6.0

2.5

>

33

03/10/2017

OSP-0235-10

Page 13 of 13
