Oil/gas boilers for medium and high output
![](asset-2.png)
![](asset-3.png)
Futureproof and ecient
heating technology for all requirements
In Western industrial nations, heat generation for residential and commercial buildings
accounts for the largest proportion of energy consumption – at the same time this sector
oers the greatest savings potential. Advanced and energy ecient heating systems from
Viessmann are in use around the world, not only in many private households, but also in
numerous major projects. There, they make an important contribution to the sustainable
protection of finite energy reserves.
Advanced heating technology has certainly been put to the test in these projects, which
involved working with historical buildings, impressive industrial complexes and large scale
industrial and commercial buildings. Viessmann’s innovative solutions always successfully
rose to the challenge, however.
The comprehensive range of medium and industrial/commercial boilers does not only include
Viessmann products, but also heat generators and air conditioning units produced by the
extended branches of the Viessmann Group, that is Köb, Mawera, KWT, ESS, BIOFerm and
Schmack. Strong brands that meet all requirements made of powerful and reliable heating
technology in the sector using sustainable fuels.
2/3

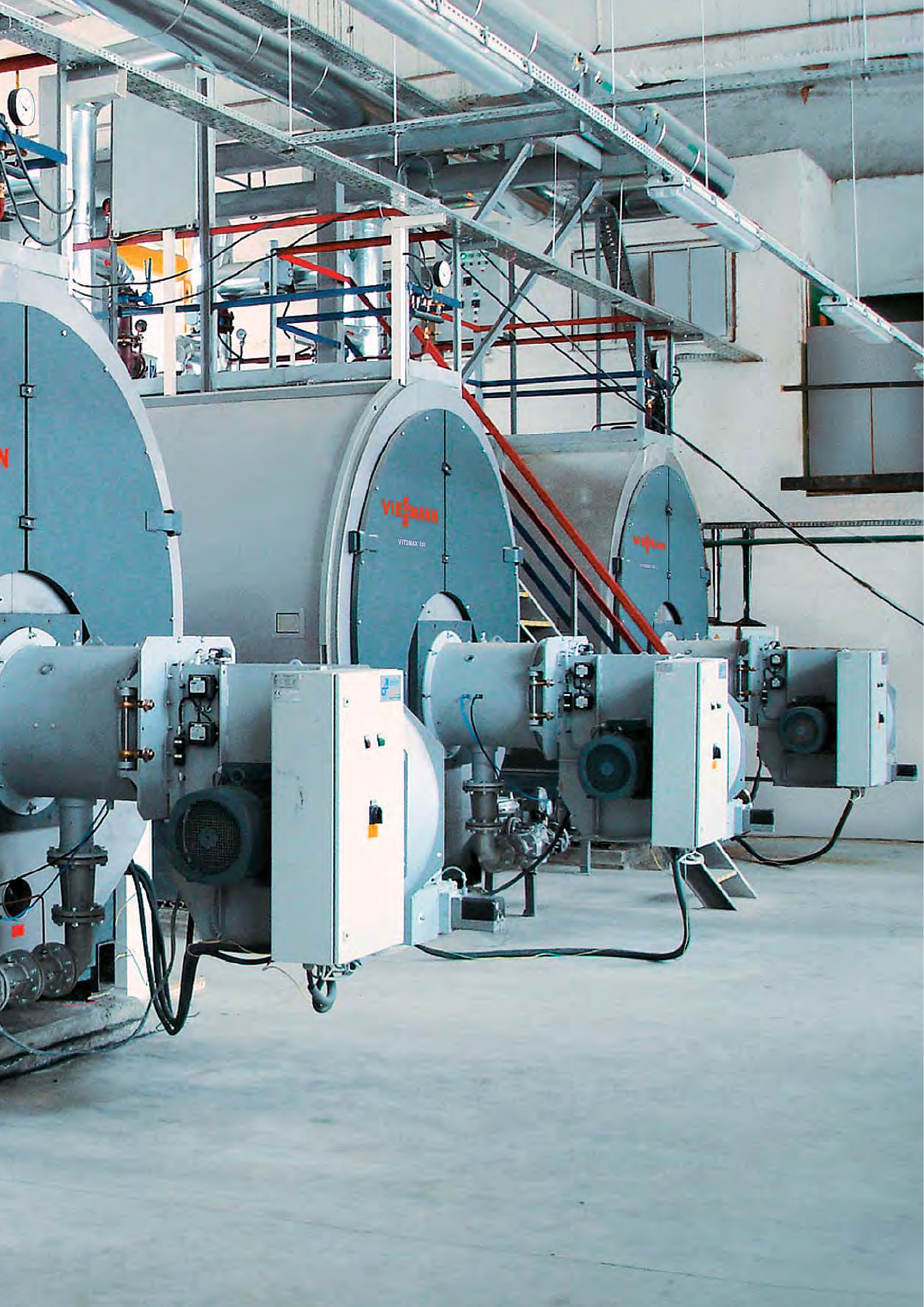

![](asset-4.png)
Contents
![](asset-5.png)
Overview
Viessmann oers innovative heating solutions for residential complexes, municipal buildings,
and industrial/commercial buildings. Take a closer look at the many options available.
Introduction from page 6
Saving energy and protecting the climate. Innovative solutions
from Viessmann help you to do this, because using highly ecient
heating technology not only reduces energy costs, but it is also an
active form of environmental protection.
Products from page 8
Highly ecient and futureproof. Here, you can find detailed
information regarding powerful and futureproof heating systems
with output up to 20,000 kW.
Comprehensive product range – individual solutions from page 62
The complete range at a glance. Futureproof heating systems
for oil, gas, biomass and natural heat, as well as solar thermal
systems for DHW heating and central heating backup – all from
a single source.
Impressive oers for our trade partners from page 56
Find out more about engineering aids and training oers,
our customer service and online systems.
System technology from page 42
Everything from one source. Perfectly matching system
technology from Viessmann oers maximum reliability, flexibility
and eciency.
The company from page 66
The power of innovation. Viessmann has been a family
business for three generations and it continues to develop
leading technology with responsibility.
4/5
![](asset-6.png)
Introduction
![](asset-7.png)
Saving energy and protecting the climate
Viessmann is aware of its responsibility for the sustained protection of the environment.
Its company philosophy and products focus on this.
"Nothing is so good that it cannot be
improved". This maxim is at the heart of the
Viessmann company's principles. In this
industry, Viessmann can rightfully claim to be
the leader in quality and technology, and as
such, aims to continually set new standards.
Of course, this applies in particular to
the company's product range, which is
consistently geared towards significantly
lowering the consumption of fossil fuels,
and gradually replacing them with renewable
sources of energy.
At around 40 %, the heating market actually
accounts for the largest proportion of energy
consumption. The rest is shared by goods
transport, personal transport and power, at
20 % each. These are values that can also be
applied, to some extent, to other industrial
countries. Rising energy costs mean the
emphasis is on reducing the consumption of
fossil fuels as quickly as possible.
Condensing technology oers the
greatest energy eciency
Taking the overall investment and current
energy prices into consideration, condensing
technology is the most economical
alternative. Viessmann condensing boilers
convert up to 98 % of the energy used
into heat. At the same time, condensing
technology is also futureproof, as biofuels can
already be mixed with conventional fuels.
An investment in advanced condensing
technology enables substantial savings
to be achieved that have a positive eect
particularly on tight commercial and municipal
budgets.
Users will also make an eective contribution
towards the sustained protection of the
environment by preventing unnecessary
CO2 emissions.
Viessmann always oers the right solution –
with its comprehensive range of medium
and industrial/commercial boilers as well as
its powerful heating systems for sustainable
fuels, particularly biomass.
6/7
Viessmann works consistently on new,
environmentally responsible solutions.
The result is environmentally friendly,
cost eective and ecient heating
systems.
Viessmann oers ecient and
energy-saving heating systems
for oil and gas in the medium
and industrial/commercial
segment. Systems for
renewables like solar, biomass
and natural heat complete the
comprehensive product range.
![](asset-8.png)
Oil/gas condensing
boilers
Oil/gas condensing boilers
101 to 335 kW
![](asset-9.png)

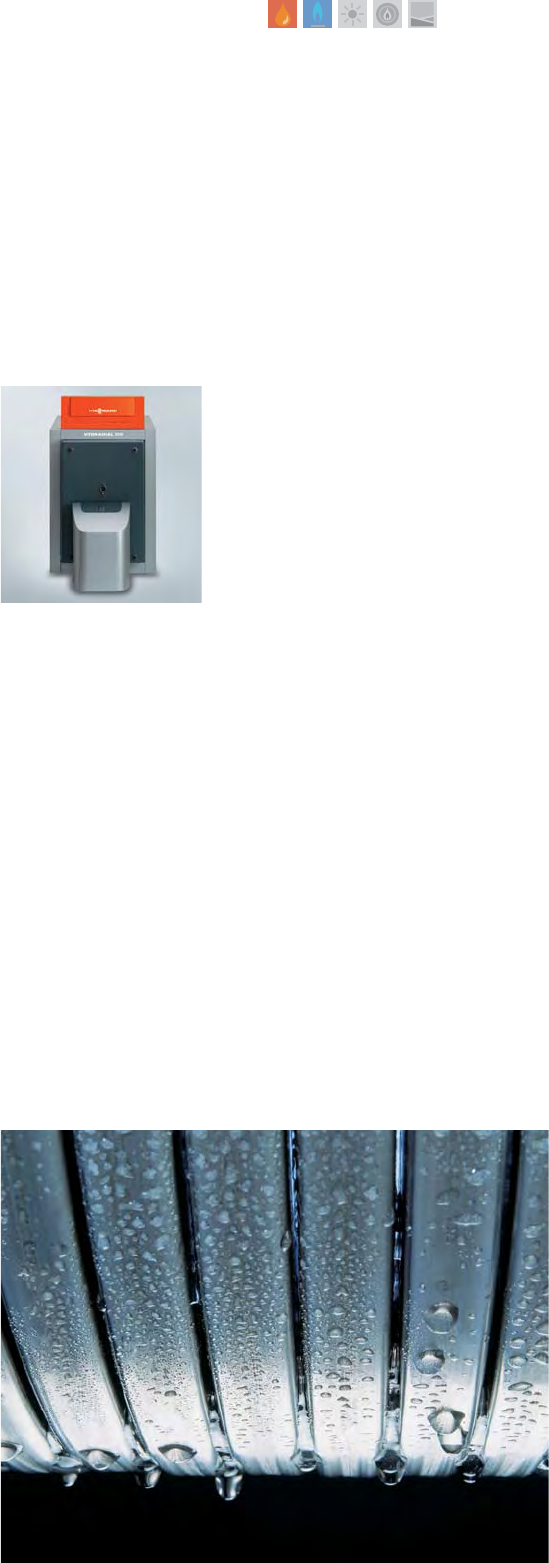

Compact oil/gas condensing boiler
Vitoradial 300-T
The Vitoradial 300-T oil condensing boiler
is extremely compact and is supplied as
a Unit with a downstream flue gas/water
heat exchanger and the new Vitoflame 100
pressure-jet burner.
High eciency with two-stage
heat generation
The Vitoradial 300-T condensing boiler is an
innovative combination of the Vitoplex 300
low temperature boiler with an Inox-Radial
heat exchanger directly attached to the boiler
for utilising condensing technology.
The proven multi-layered convection heating
surfaces combined with the corrosion-
resistant Inox-Radial heat exchanger, fitted
downstream of the boiler, enable highly
ecient two-stage heat generation and
recovery. The Vitoradial 300-T is suitable for
operation with all commercially available EL
fuel oils or natural gas.

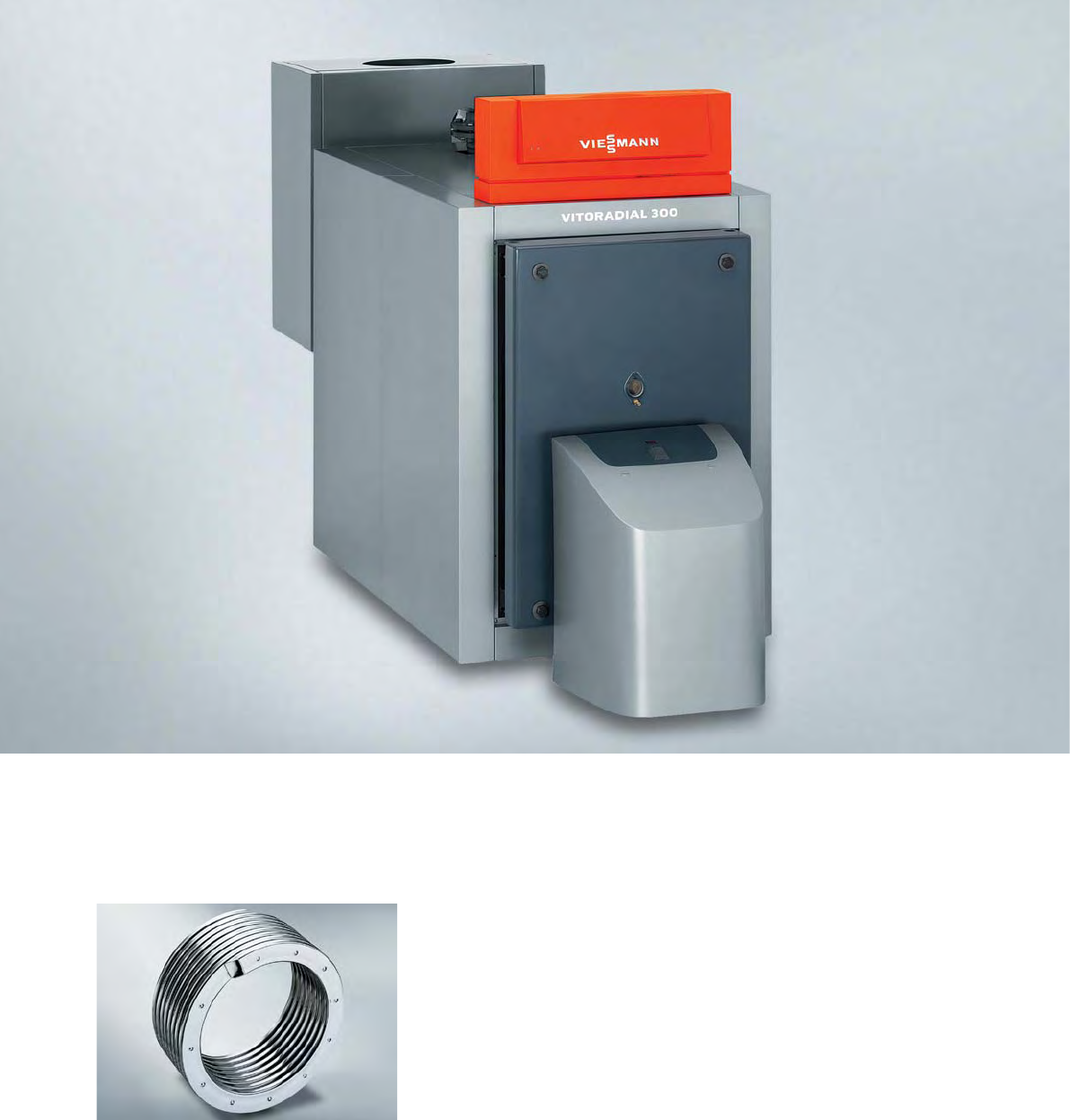

VITORADIAL 300-T
The Inox-Radial guarantees the
highest eciency and a long
service life.
Condensing technology with proven Inox-Radial heat exchanger
for ecient heating operation.

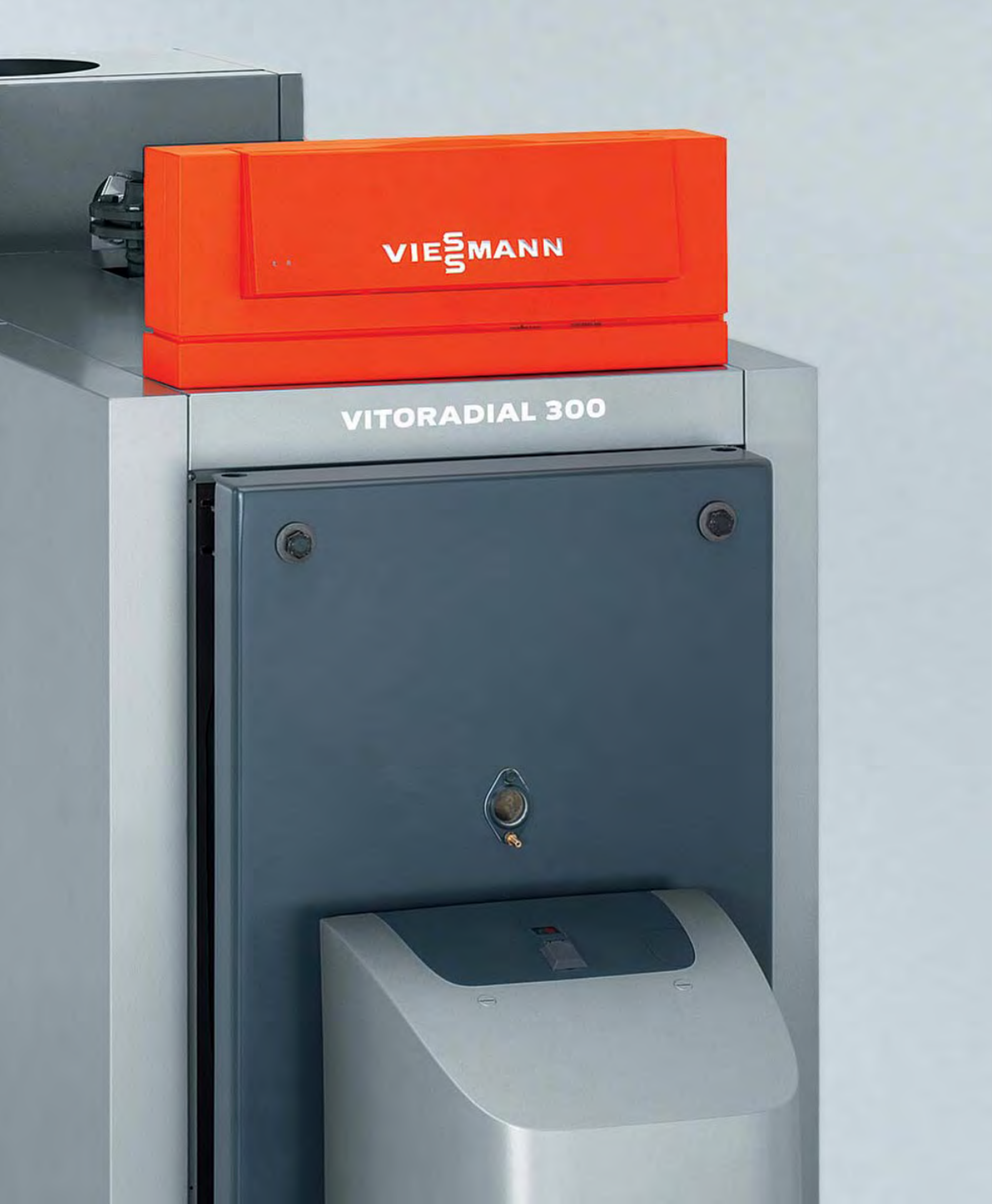

Vitoradial 300-T
Compact design for easy
handling and low build
height – an important
pre-requisite for
modernisation projects.
8/9
![](asset-a.png)
Oil/gas condensing
boilers
Vitoradial 300-T
101 to 335 kW
Vitoradial 300-T

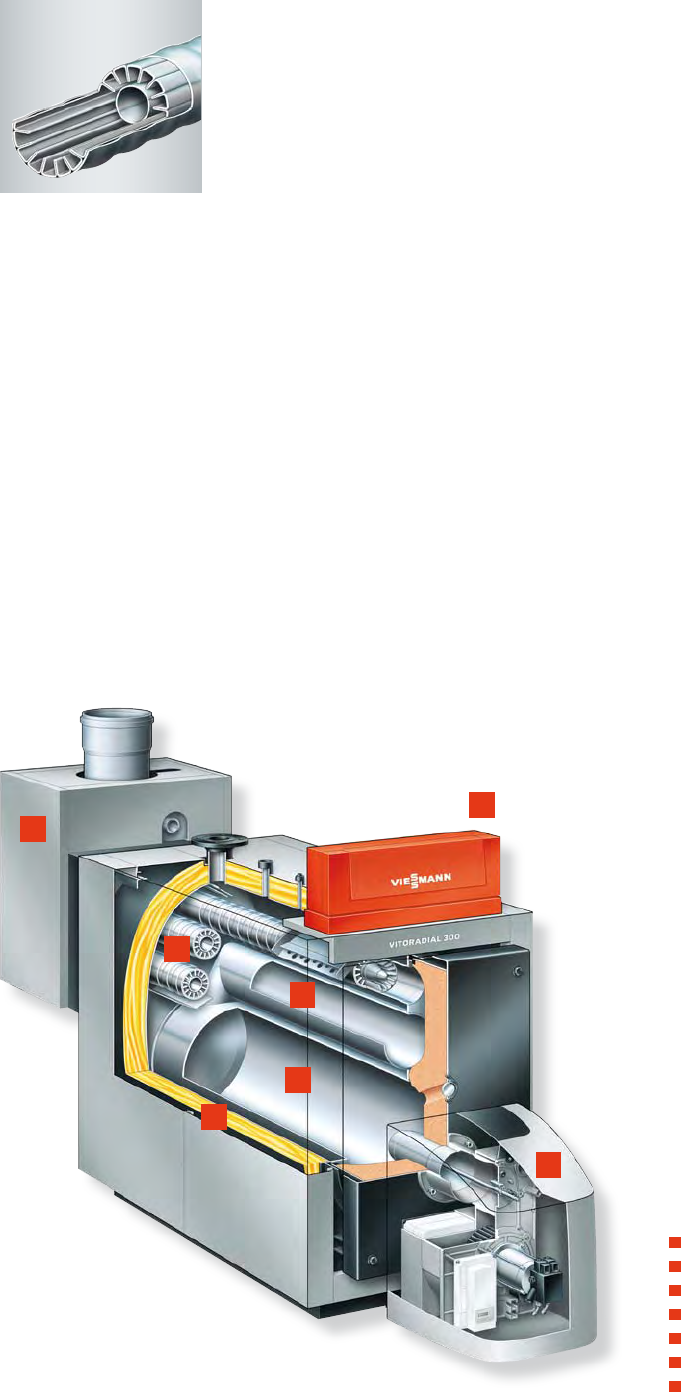

1 Inox-Radial heat exchanger
2 Multi-layered convection heating surface
3 Second hot gas flue
4 Combustion chamber (first pass)
5 Vitotronic control unit
6 Vitoflame 100 Unit pressure-jet burner
7 Highly eective thermal insulation
1
2
3
4
5
6
7
Compact yet powerful
The compact design with low build height
makes the Vitoradial 300-T an ideal choice
when modernising heating centres. It is
supplied as a unit with the downstream
flue gas/water heat exchanger and the
Vitoflame 100 pressure-jet burner.
Triplex pipes for 2.5-times larger
heating surface
The multi-layered convection heating surfaces
of the Vitoradial 300-T are comprised of
telescopically arranged steel pipes pressed
into each other for ideal heat transfer.
The internal tube with its folded linear
ribs provides a heating surface 2.5-times
larger than that of smooth pipes. The heat
throughput is metered by the dierent
intervals between the press points so that the
back area of the triplex tubes, through which
slightly less hot combustion gases circulate,
transfers less heat to the boiler water. This
way, the surface temperature remains above
the dew point, the formation of condensate
is counteracted and corrosion damage is
prevented.
Utilising condensing technology with the
Inox-Radial heat exchanger
The downstream Inox-Radial heat exchanger
makes it feasible to utilise highly ecient
condensing technology, even with
medium-sized boiler system, such as the
Vitoradial 300-T. The seasonal eciency
[to DIN] is raised by 8 % to 97 % (Hs).
This principle ensures that combustion and
condensation occur in physically separate
locations, so the combustion gases condense
in a location which is free of deposits. In
practice, this means standard service intervals
for cleaning the combustion chamber and low
maintenance costs.
The new Vitoradial 300-T is available up to
335 kW output. The stainless steel Inox-
Radial heat exchanger is highly ecient. This
prevents the danger of corrosion through
acidic condensate.
Multi-layered convection
heating surface
![](asset-b.png)
Take advantage of these benefits
n Oil/gas condensing boilers, 101 to 335 kW
n Standard eciency for operation with fuel oil: 97 % (Hs) / 103 % (Hi)
n Inox-Radial heat exchanger for condensing hot gases, matched to the compact
oil/gas boiler
n Complete with heat exchanger pipework and pump, matched to the respective
boiler output
n New pressure-jet oil burner, Vitoflame 100
n Long burner runtimes and fewer switching intervals, due to large water content,
protect the environment
n Economical and safe operation of heating systems through the digital Vitotronic
control system with communication capability
n Integral Therm-Control start-up system for easy hydraulic connection –
no shunt pump or return temperature raising facility are required
n No low water indicator required, you save even more
n Compact design for easy handling and low build height – important for
modernisation
For specification see page 20
Vitoradial 300-T, 101 to 335 kW
The Inox-Radial heat exchanger guarantees the highest
levels of eciency and a long service life.
10/11
![](asset-c.png)
Low temperature
oil/gas boilers
90 to 2000 kW
110 to 2000 kW
125 to 1080 kW
![](asset-d.png)

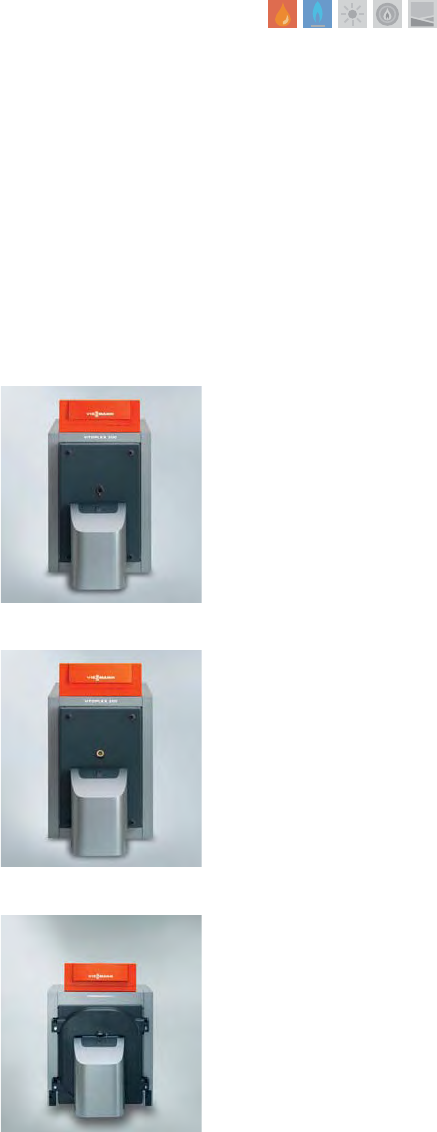

VITOPLEX
VITOROND
The comprehensive range from Viessmann
covers every demand for innovative heating
technology. Here you can find the exact
solution for your needs in terms of building
services, convenience and budgetary
constraints.
The versatility of the Vitoplex range, which is
technically and in terms of price categorised
into stages 300 and 200, ensures that the
perfect solution is available for every demand
and any budget. All have in common the top
quality for which Viessmann is renowned.
The Vitorond 200 comes into its own, where
dicult local conditions dictate that the boiler
needs to be brought to the installation location
in sections.
Proven Viessmann quality up to 2000 kW for oil and gas and
high seasonal eciency.
Vitoplex 300
Top three-pass boiler for
particularly economical,
clean and reliable
operation.
Vitoplex 200
Vitoplex 200 up to 350 kW
fit through standard
doorways with 80 cm
openings.
Vitorond 200
Where space is tight, the
Vitorond 200 is the right
choice – sections can be
brought into the boiler
room individually.
12/13
![](asset-e.png)
Low temperature
oil/gas boilers

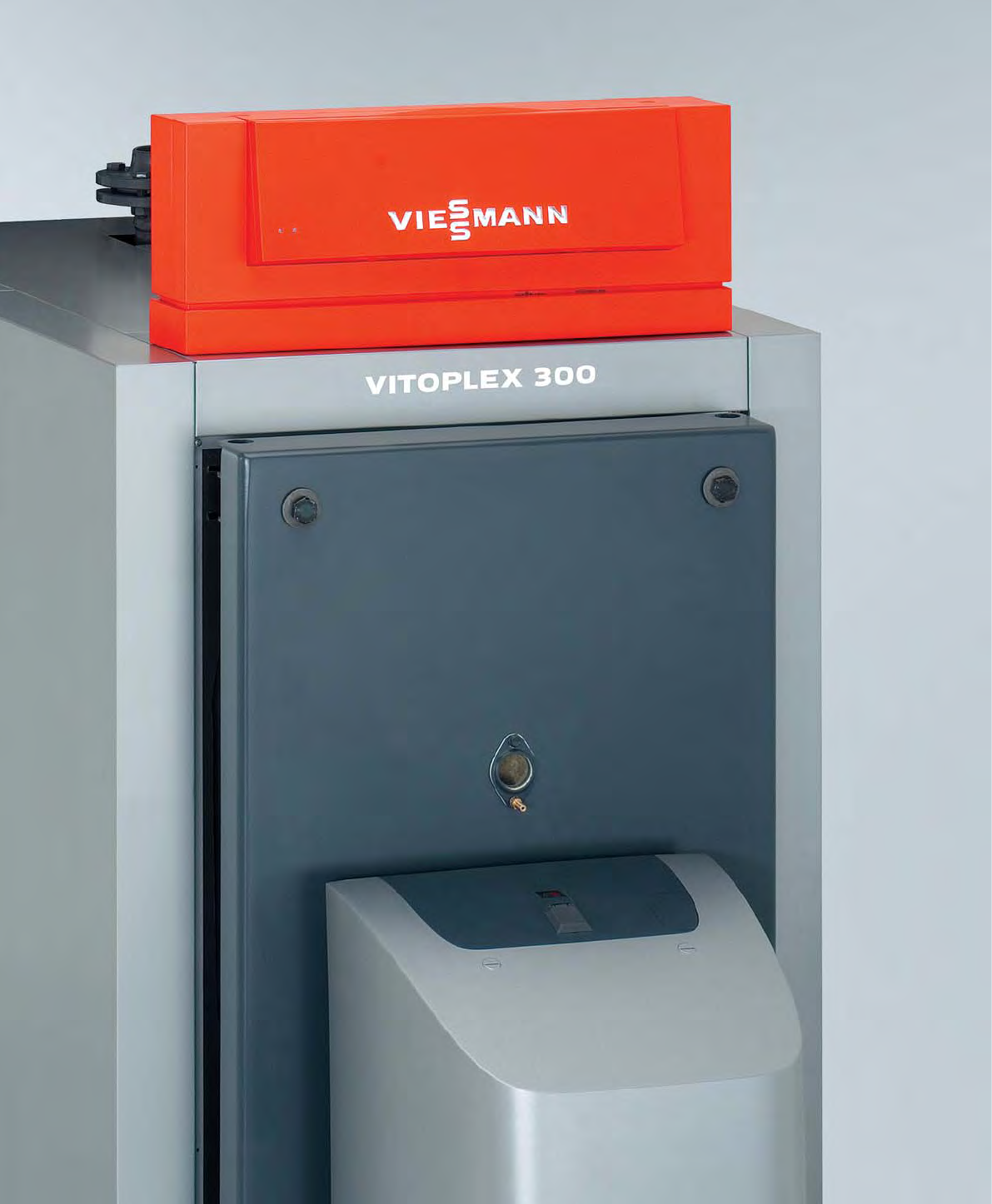

Vitoplex 300
90 to 2000 kW
Three-pass boiler with integral
start-up control
The three-pass Vitoplex 300 boiler, with its
proven multi-layered convection heating
surfaces, oers a particularly economical,
clean and reliable operation. The integral
start-up system, Therm-Control, makes a
separate return temperature raising facility
unnecessary.
Multi-layered convection heating surfaces
made from Triplex tubes
The multi-layered convection heating
surfaces of the Vitoplex 300 are comprised
of telescopically arranged steel pipes pressed
into each other for ideal heat transfer. The
internal tube with its folded linear ribs
provides a heating surface 2.5-times larger
than that of smooth pipes.
The heat throughput is metered by the
dierent intervals between the press points
so that the back area of the triplex tubes,
through which slightly less hot combustion
gases circulate, transfers less heat to
the boiler water. This way, the surface
temperature remains above the dew point,
the formation of condensate is counteracted
and corrosion damage is prevented.
Convenient and powerful control units
An economical and safe operation of your
heating system is ensured by the digital
Vitotronic control system with communication
capability.
The Vitotronic 300-K is a particularly powerful
version for operating multi-boiler systems
comprising up to four individual boilers with
modulating boiler water temperature. Heating
systems with one and two heating circuits
and optional mixer can be controlled.
The integral diagnostic system and the
programming unit with plain text user prompts
and backlit display make for an exceptionally
convenient operation. External appliances
and devices are connected easily via system
plugs.

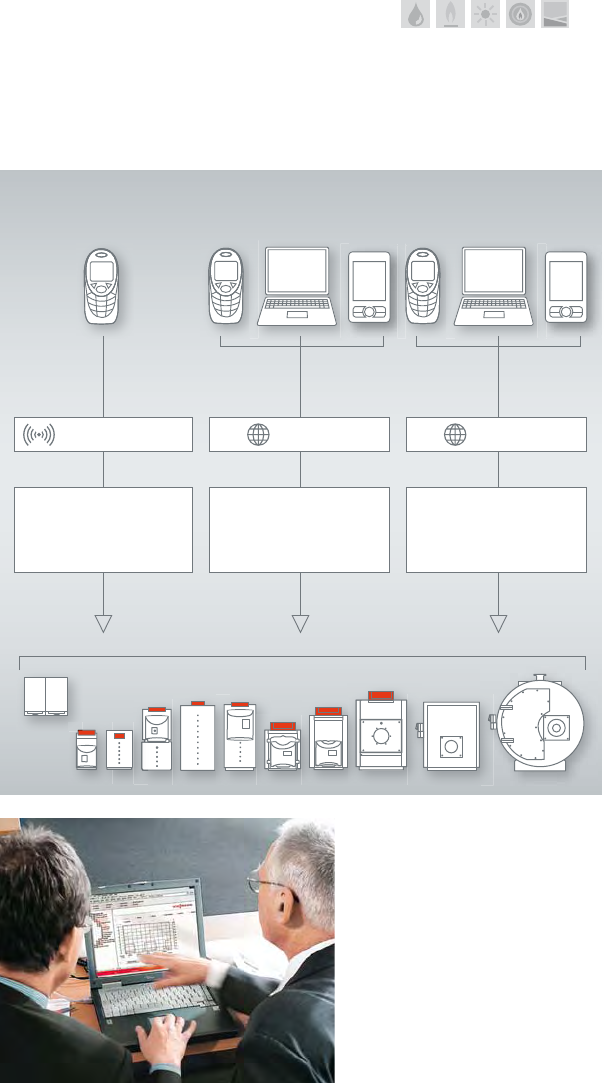

Standardised LON for complete integration
into building management systems. Remote
monitoring anytime via Internet TeleControl
with Vitocom and Vitodata as option.

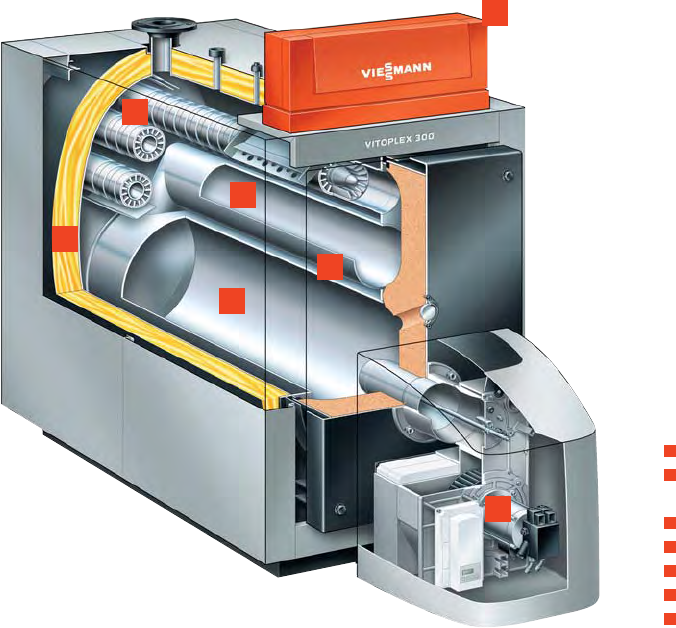

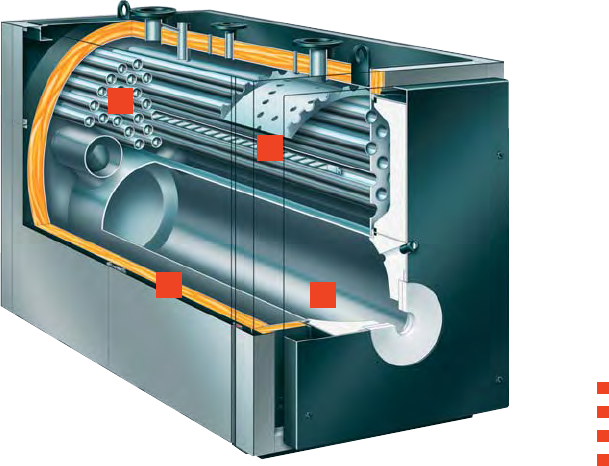

Vitoplex 300, 90 to 500 kW
1 Boiler and heating circuit control
2 Third hot gas pass (as multi-layered
convection heating surface)
3 Second hot gas flue
4 Wide water galleries
5 Combustion chamber (first pass)
6 Highly eective thermal insulation
7 Vitoflame 100 Unit pressure-jet oil burner
1
2
3
4
5
6
7
![](asset-f.png)
The triplex pipes oer a heating surface that is 2.5-times
that of standard pipes.
The Vitoplex 300 low temperature
boilers are persuasive in design
and quality.
Take advantage of these benefits
Multi-layered convection heating surfaces for high operational reliability and
a long service life
Seasonal eciency [to DIN] using fuel oil: 90 % (Hs) / 96 % (Hi)
No low water indicator required up to 300 kW
Optimum and clean combustion through matching pressure-jet oil/gas burners
up to 2000 kW
Simple and rapid installation with Divicon heating circuit distributor up to
300 kW and safety equipment block up to 180 kW
Compact design for easy handling and low build height – important for
modernisation
Long burner runtimes and fewer switching intervals, due to large water content,
protect the environment
From 620 kW with walk-on boiler covers for easier installation and maintenance
For specification see page 20
14/15
![](asset-10.png)
Low temperature
oil/gas boilers
Vitoplex 200
90 to 1950 kW
Versatile – suitable for many
dierent burners
The compact Vitoplex 200 steel boiler is
now also available from 90 to 1950 kW.
Over the entire output range, this three-
pass boiler oers the right conditions for
an environmentally responsible and clean
combustion. A wide range of burners can be
easily adapted to be used with this boiler. The
Vitoplex 200 is a genuine three-pass boiler
with low combustion chamber loading and,
therefore, clean combustion with particularly
low nitrogen oxide emissions.
Optimum combustion and low emissions
Factory-fitted with the two-stage
Vitoflame 100 pressure-jet oil burner up to
270 kW and the two stage Vitoflame 100
pressure-jet gas burner up to 200 kW,
adjusted to the boiler output and tested at
operating temperature. This ensures optimum
combustion with low emissions. For the
output range 270 to 1950 kW, pressure-jet
oil/gas burners by Elco and Weishaupt are
already fully adjusted and wired.
Therm-Control saves installation time
and costs
No minimum heating water flow rate required
because of wide water galleries. This
simplifies the hydraulic connections.
Therm-Control in the output range 90 to
560 kW even makes a return temperature
raising facility superfluous. That saves
installation time and additional costs.
Convenient and powerful control units
An economical and safe operation of your
heating system is ensured by the digital
Vitotronic control system with communication
capability. The Vitotronic 300-K is a
particularly powerful version for operating
multi-boiler systems comprising up to four
individual boilers with modulating boiler water
temperature. Heating systems with one and
two heating circuits and optional mixer can be
controlled.
The integral diagnostic system and the
programming unit with plain text user prompts
and backlit display make for an exceptionally
convenient operation. External appliances
and devices are connected easily via system
plugs.
Standardised LON for complete integration
into building management systems. Remote
monitoring anytime via Internet TeleControl
with Vitocom and Vitodata as option.
Can cope even when space is tight
The Vitoplex 200 three-pass boiler is easy
to handle, saves space, and the walk-on
boiler cover (from 700 kW) ensures easier
installation and maintenance. The compact
three-pass boiler, up to 350 kW, fits through
any standard doorway (80 cm), making
handling much easier.
Vitoplex 200
1 Third hot gas flue
2 Second hot gas flue (both sides)
3 Combustion chamber (first pass)
4 Highly eective thermal insulation
1
2
3
4
![](asset-11.png)

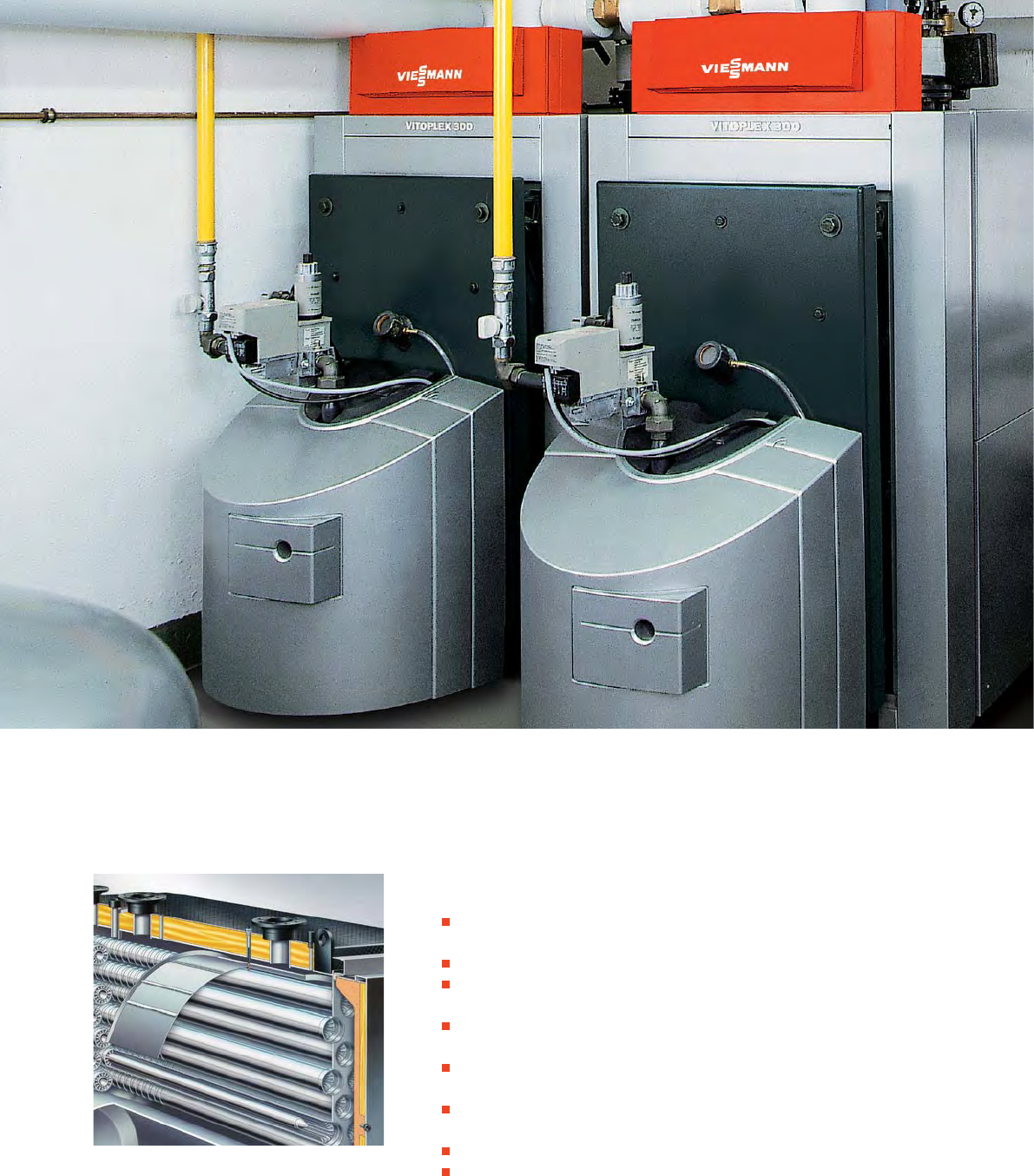

Vitoplex 200: 90 to 1950 kW

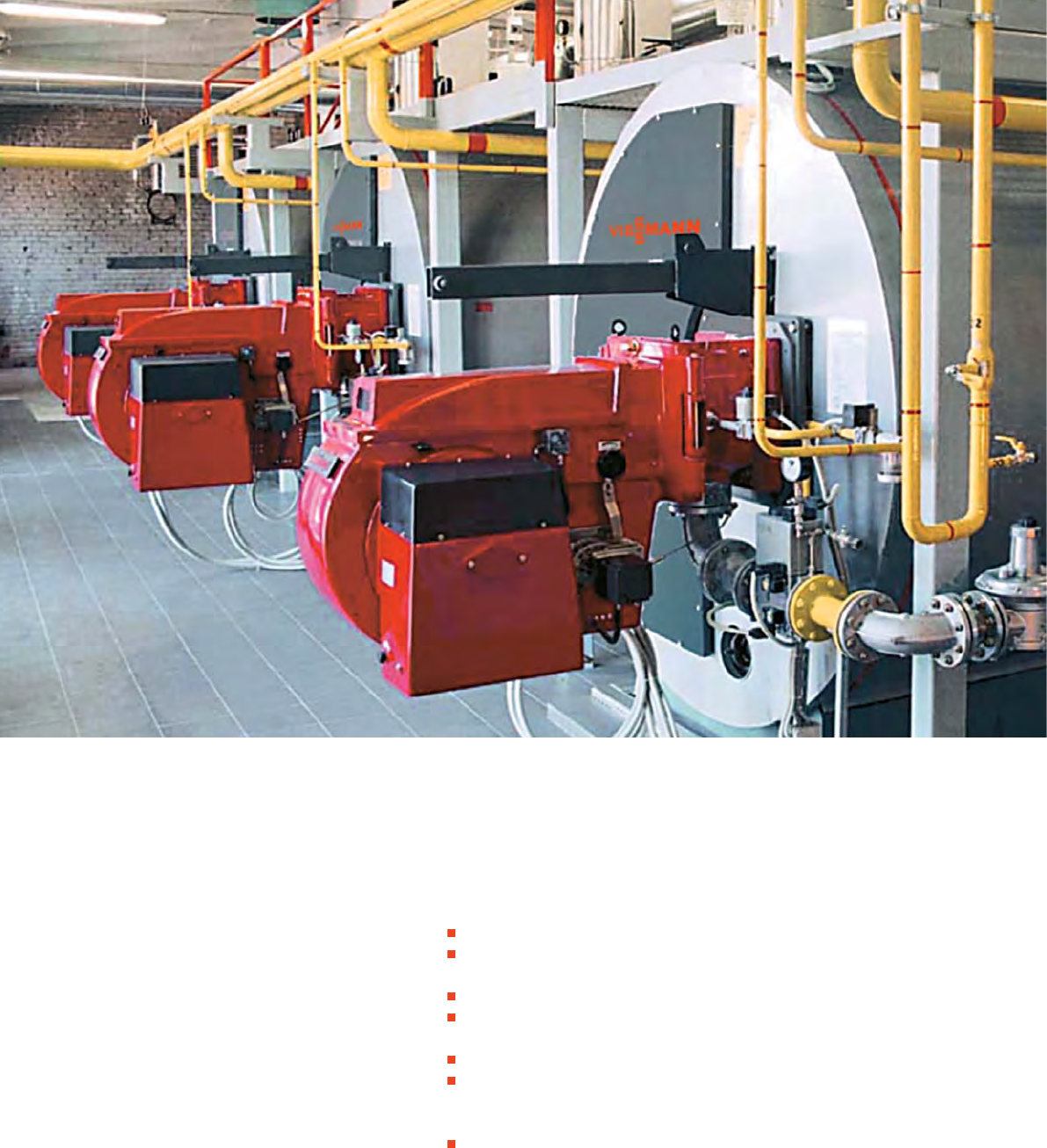

Heating centre with two Vitoplex 200
for output up to 1950 kW
Take advantage of these benefits
Economical and environmentally friendly through modulating boiler water
temperature
Seasonal eciency [to DIN] using fuel oil: 88 % (Hs) / 94 % (Hi)
Optional stainless steel flue gas/water heat exchanger for higher seasonal
eciency [to DIN] through condensing technology
Three-pass boiler with low combustion chamber loading, therefore, clean
combustion with low emissions
Wide water galleries and large water content provide excellent natural
circulation and safe heat transfer
Time-saving during the installation of the boiler casing and control unit through
the Fastfix system for medium and industrial/commercial boilers
From 700 kW with walk-on boiler covers for easier installation and maintenance
Long burner runtimes and fewer switching intervals, due to large water content,
protect the environment
For specification see page 21
16/17
![](asset-12.png)
Low temperature
oil/gas boilers
Vitorond 200
125 to 1080 kW
the hot gases in the high reaction temperature
range. Resulting in reduced nitrogen oxide
emissions.
Therm-Control saves installation time
and costs
Therm-Control in the output range 125 to
270 kW makes a return temperature raising
facility superfluous. This simplifies the
hydraulic connections, saving installation time
and costs.
Convenient and powerful control units
An economical and safe operation of your
heating system is ensured by the digital
Vitotronic control system with communication
capability.
The Vitotronic 300-K is a particularly powerful
version for operating multi-boiler systems
comprising up to four individual boilers with
modulating boiler water temperature. Heating
systems with one and two heating circuits
and optional mixer can be controlled.
The integral diagnostic system and the
programming unit with plain text user prompts
and backlit display make for an exceptionally
convenient operation. External appliances
and devices are connected easily via system
plugs.
Standardised LON for complete integration
into building management systems. Remote
monitoring anytime via Internet TeleControl
with Vitocom and Vitodata as option.

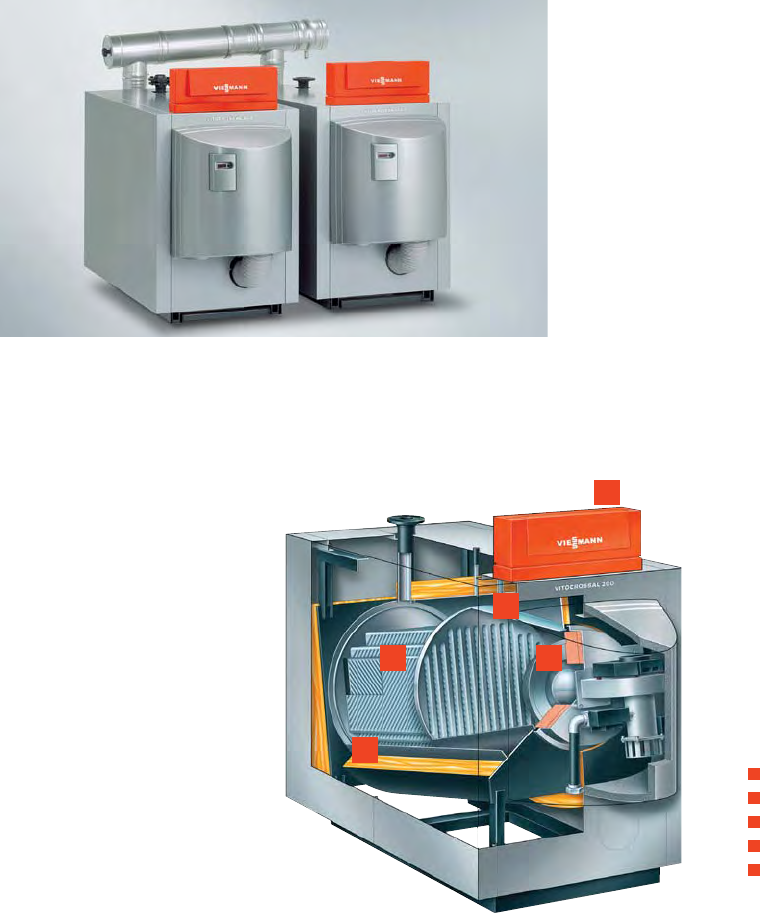

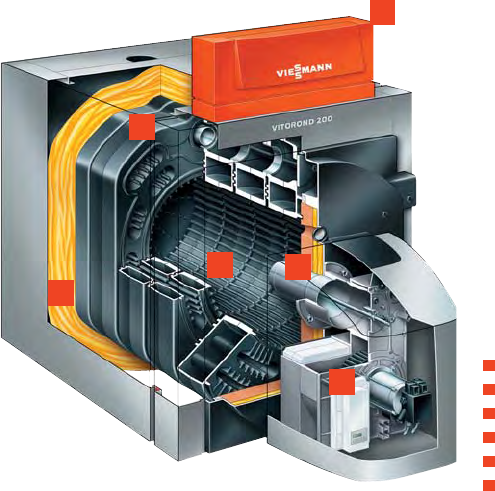

Vitorond 200, 125 to 270 kW
1 Boiler and heating circuit control
2 Third hot gas flue
3 Second hot gas flue
4 Combustion chamber (first pass)
5 Highly eective thermal insulation
6 Vitoflame 100 Unit pressure-jet oil burner

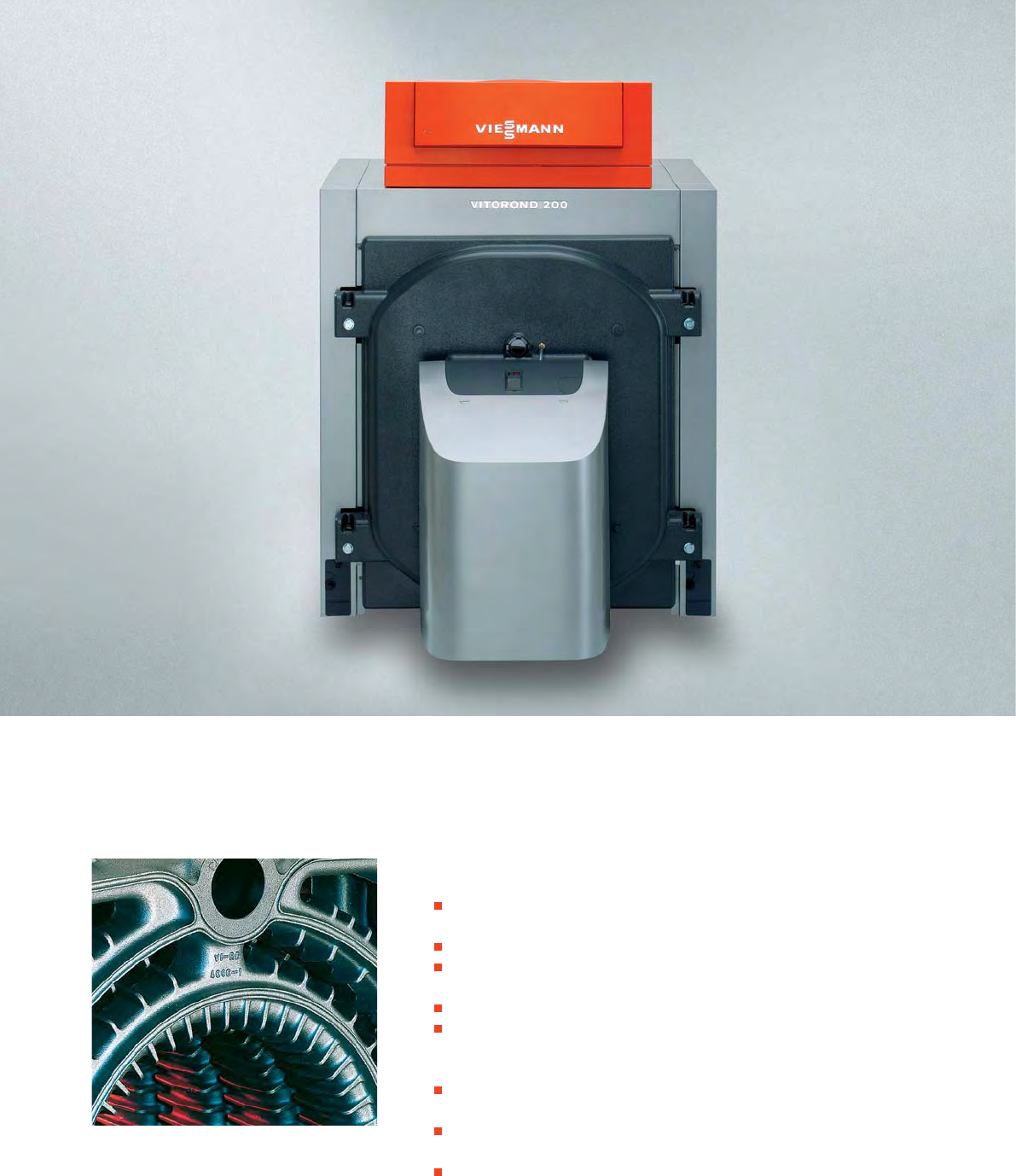

Fits through most doors: Vitorond 200
Older buildings, in particular, can give rise
to diculties when introducing new boilers
because they suer from tight spaces. With
the Vitorond 200 sectional cast iron boiler,
sections can be brought into the boiler
room individually, where they can be easily
assembled in situ with a compression tool.
Eutectoplex heating surfaces for high
operational reliability and a long service
life
The cast sections of Vitorond 200 boilers are
made from special eutectic cast iron with
homogeneous structure. The fine design of
the graphite fins and the high level of material
purity of the low phosphorous special cast
iron increase its elasticity. Material, shape
and geometry of the cast sections provide
even cooling during production. This prevents
structural stresses right from the start.
Result: high operational reliability and a long
service life.
Three-pass boiler with low emissions
At the end of the combustion chamber, the
hot gases flow forward through four hot
gas flues arranged symmetrically around
the combustion chamber and enter the four
collectors of the third hot gas flue via the
front section. At the back of the boiler, the
four cooled hot gas flues are channelled via
the flue gas connection to the chimney. The
three-pass design reduces the dwell time of
1
2
3
4
5
6
![](asset-13.png)
Take advantage of these benefits
Economical and environmentally friendly through modulating boiler water
temperature
Seasonal eciency [to DIN] using fuel oil: 88 % (Hs) / 94 % (Hi)
Seasonal eciency [to DIN] improved by up to 12 % due to condensing
technology with stainless steel Vitotrans 300 flue gas/water heat exchanger
Therm-Control in the output range 125 to 270 kW
Fast and straightforward assembly of individual cast iron sections through
double groove system and resilient packing cord for permanent hot gas
tightness
For cleaning, pivoting the burner door makes the combustion chamber and hot
gas flues easily accessible from the front
Standardised LON BUS for optional complete integration into building
management systems
Remote monitoring via the internet with Vitocom and Vitodata
For specification see page 21
18/19
Cast iron section of the Vitorond 200, 320 to 1080 kW
Vitorond 200, 125 to 270 kW
![](asset-14.png)

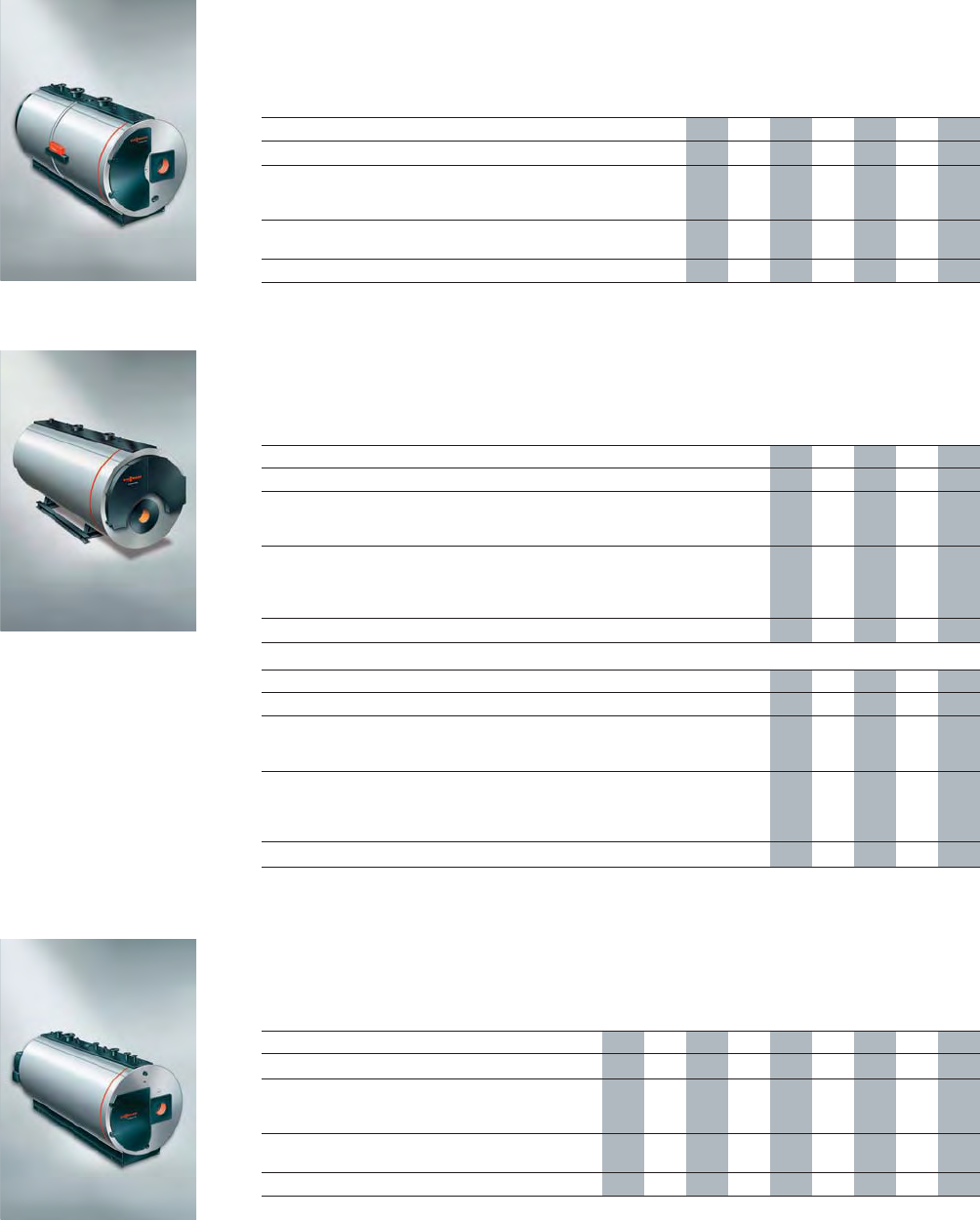

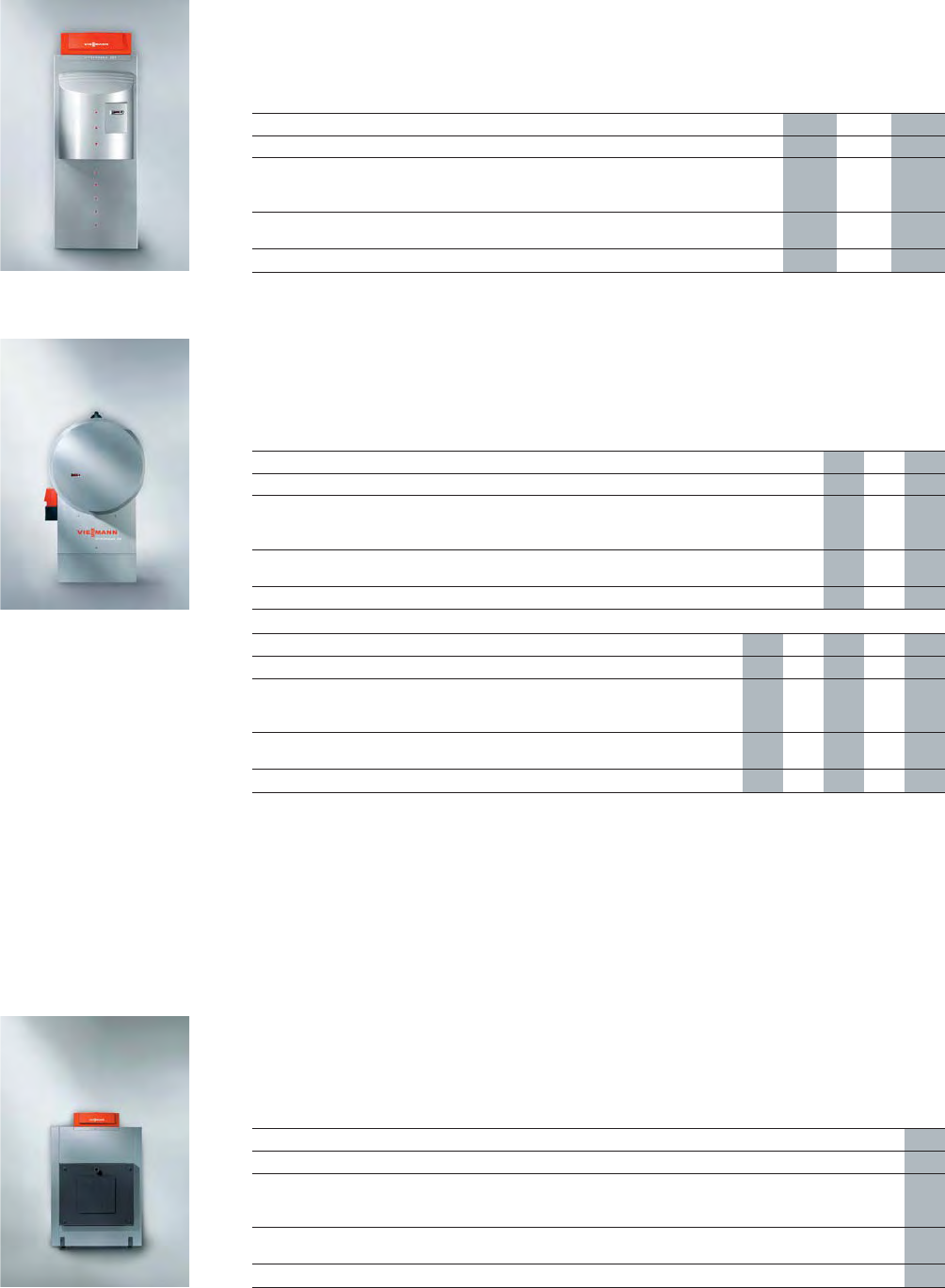

Specification
Oil/gas boiler VITOPLEX 300
Oil/gas condensing boiler VITORADIAL 300-T
Pages 14/15
Pages 10/11
Rated output kW 90 115 140 180 235 300 390 500
Dimensions* Length mm 1700 1905 1910 2110 1905 2330 2330 2070
(total) Width mm 755 755 825 825 905 905 1040 1040
Height mm 1315 1315 1350 1350 1460 1460 1625 1625
Weight (incl. thermal insulation, kg 440 475 540 600 790 890 1085 120 0
burner and boiler control unit)
Boiler water content l 170 210 250 290 470 430 600 650
*) Details excluding burner and hood for 390 and 500 kW
Rated output at 50/30 °C kW 101 129 157 201 263 335
Rated output at 80/60 °C kW 94 120 146 188 245 313
Dimensions Length mm 2145 2345 2335 2680 2900 2900
(total) Width mm 755 755 825 825 905 905
Height mm 1315 1315 1350 1350 1460 1460
Weight (incl. thermal insulation, kg 510 545 610 680 870 970
burner and boiler control unit)
Boiler water content l 185 225 265 310 490 450
Oil/gas boiler VITOPLEX 300
Pages 14/15
Rated output kW 620 780 1000 1250 1600 2000
Dimensions* Length mm 2320 2320 2570 2570 3220 3220
(total) Width mm (incl. control unit) 1460 1460 1555 1555 1660 1660
Height mm 1695 1695 1955 1955 2145 2140
Weight (incl. thermal insulation kg 1800 1900 2645 2815 3780 4080
and boiler control unit)
Boiler water content l 965 900 1510 1440 2475 2315
*) Details excluding burner and hood

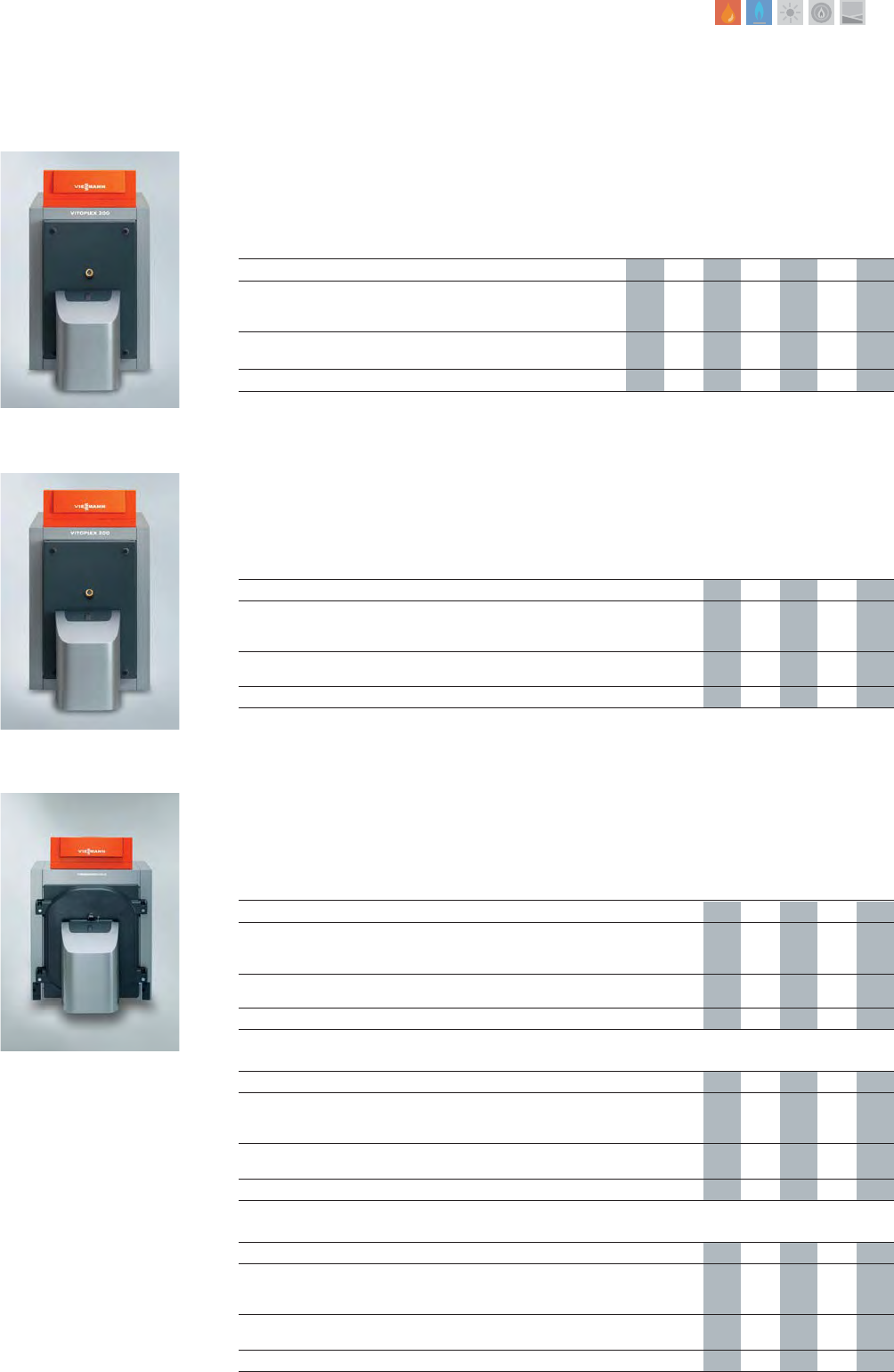

![](asset-15.png)
Oil/gas boiler VITOPLEX 200
Pages 16/17
Rated output kW 90 120 150 200 270 310 440 560
Dimensions* Length mm 1660 1860 1865 2060 2085 1875 1895 2040
(total) Width mm 755 755 825 825 905 905 1040 1040
Height mm 1315 1315 1350 1350 1460 1460 1625 1625
Weight** (incl. thermal insulation, kg 375 420 485 535 710 760 990 1095
burner and boiler control unit)
Boiler water content l 180 210 255 300 400 445 600 635
*) Details for 310 to 560 kW excl. burner **) Details for 310 to 560 kW excl. burner and hood
Oil/gas boiler VITOPLEX 200
Pages 16/17
Rated output kW 700 900 1100 1300 1600 1950
Dimensions* Length mm 2310 2610 1560 1780 3203 3205
(total) Width mm 1460 1460 1555 1555 1660 1660
Height mm 1690 1690 1920 1920 2140 2140
Weight (incl. thermal insulation, kg 1640 1780 2285 2475 3065 3410
burner and boiler control unit)
Boiler water content l 935 1325 1525 1690 3210 3370
*) Details excluding burner and hood
20/21
Cast iron oil/gas boiler VITOROND 200
Pages 18/19
Rated output kW 125 160 195 230 270
Dimensions* Length mm 1325 1475 1660 1830 1900
(total) Width mm 860 860 860 860 860
Height mm 1210 1210 1210 1210 1210
Weight (incl. thermal insulation, kg 575 685 790 880 995
burner and boiler control unit)
Boiler water content l 122 154 186 217 249
Rated output kW 320 380 440 500 560 630
Dimensions* Length mm 1490 1620 1750 1880 2010 2140
(total) Width mm 1090 1090 1090 1090 1090 1090
Height mm 1480 1480 1480 1480 1480 1480
Weight (incl. thermal insulation, kg 1780 1950 2110 2260 2430 2580
burner and boiler control unit)
Boiler water content l 247 275 303 331 359 387
Rated output kW 700 780 860 950 1080
Dimensions* Length mm 2270 2400 2530 2660 2790
(total) Width mm 1090 1090 1090 1090 1090
Height mm 1480 1480 1480 1480 1480
Weight (incl. thermal insulation, kg 2740 2910 3070 3220 3380
burner and boiler control unit)
Boiler water content litres 415 443 471 499 527
*) Details for 350 to 560 kW excluding burner and hood
![](asset-16.png)

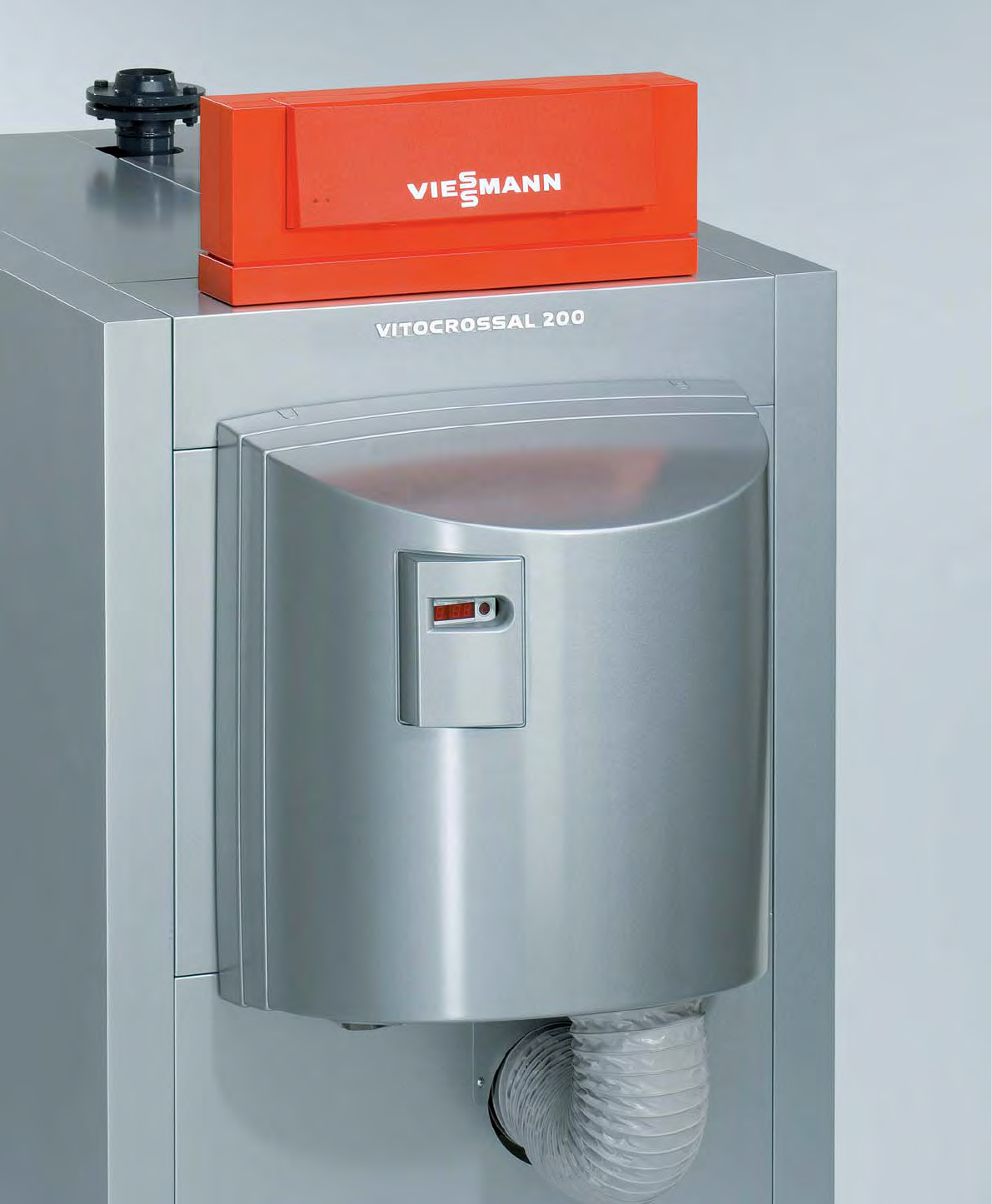

Gas condensing
boilers
Vitocrossal 300
Vitocrossal 200
87 to 978 kW
![](asset-17.png)
VITOCROSSAL
The Vitocrossal product range, from 87 to
978 kW, oers a perfect solution for every
application – from heating apartment blocks,
public or commercial buildings and also for
generating heat in a local heating network.
Advanced condensing technology
Its stainless steel Inox-Crossal heating surface
oers the ideal pre-requisite for utilising
condensing technology. The smooth stainless
steel heating surface allows the condensate
created by the condensing process to simply
run o downwards. Combined with the
smooth stainless steel surface, this creates a
permanent self-cleaning eect, thus ensuring
a permanently high utilisation of condensing
technology, resulting in a longer service life
whilst reducing maintenance eort.
The Vitocrossal 300 boiler is available
with a factory-fitted MatriX radiant burner
or prepared for fitting Elco or Weishaupt
pressure-jet gas burners.
The highly eective heat transfer and the
high condensation rate enable seasonal
eciencies [to DIN] up to 98 % (Hs) /
109 % (Hi) to be achieved. These high levels
of standard eciency are the result of the
countercurrent principle of hot gases and
boiler water, along with intensive turbulence
of the hot gases as they pass over the heating
surface.
Advanced condensing technology makes the Vitocrossal a frugal boiler
suitable for many dierent applications.
Vitocrossal 200
High grade condensing
technology from 87 to
311 kW, as two-boiler
system up to 622 kW.
Vitocrossal 300
Top condensing technology
up to 635 kW, up to
314 kW with Inox-Crossal
heating surfaces and
MatriX burner.
Vitocrossal 200
Condensing boiler from
404 to 628 kW, with
MatriX cylinder burner, as
two-boiler system up to
1256 kW.
Vitocrossal 300
Condensing boiler with
787 and 978 kW for Elco or
Weishaupt pressure-jet gas
burners.
Vitocrossal 300
The top model amongst
floorstanding condensing
boilers with 87 to 142 kW.
22/23
![](asset-18.png)
Gas condensing
boilers
Vitocrossal 300
87 to 978 kW
Vitocrossal 300, 87 to 142 kW
Vitocrossal 300, 187 to 635 kW
Vitocrossal 300 – the flag ship
The Vitocrossal 300 is a leading product
amongst floorstanding gas condensing boilers
in the output range 87 to 978 kW. It's design
allows it to utilise the condensing energy in
the hot gases with exceptional intensity.
The Inox-Crossal heating surface in the
Vitocrossal 300 was combined with another
milestone of Viessmann heating technology:
the MatriX radiant burner. That saves heating
costs and ensures clean combustion without
compromise.
Vitocrossal 300, 87 to 142 kW
Vitocrossal 300, 187 to 635 kW

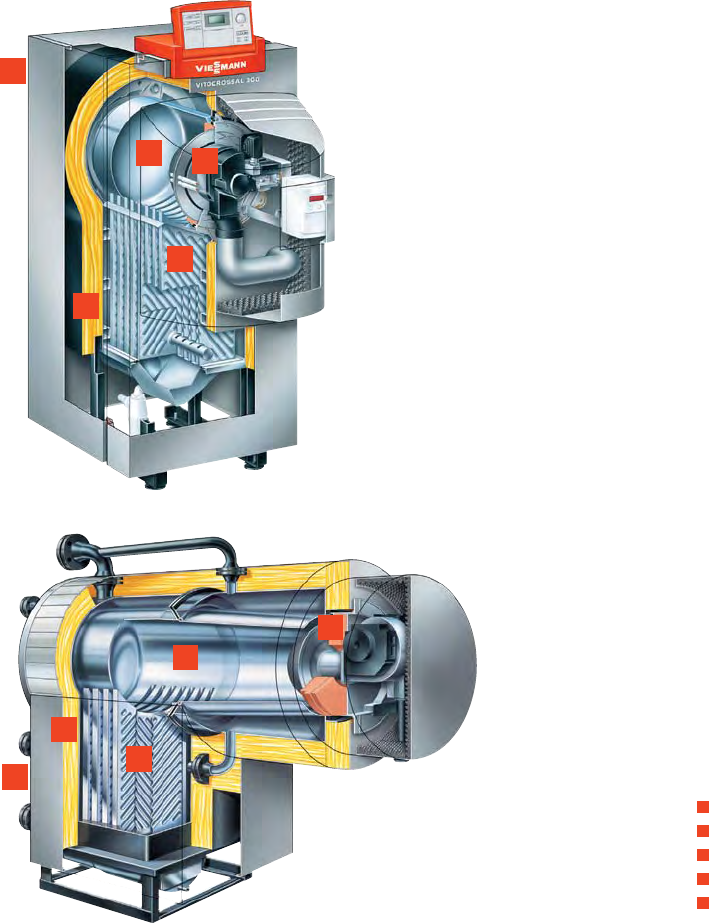

1 Stainless steel combustion chamber
2 MatriX radiant burner (up to 314 kW)
3 Inox-Crossal heating surface
4 Highly eective thermal insulation
5 Two return connectors
The proven Vitocrossal 300 range (type
CT3) has been extended by two additional
sizes (187 and 314 kW). Up to 314 kW, the
Vitocrossal 300 is available as a Unit boiler
with a MatriX radiant burner. Finally, there is
the type CR3 with output of 787 and 978 kW.
This enables Viessmann to oer the perfect
solution for every demand – for apartment
blocks, local heating networks and public or
commercial buildings alike.
Highly eective heat transfer through the
Inox-Crossal heating surfaces
The design of the Inox-Crossal heating
surfaces allows the Vitocrossal condensing
boilers to utilise the condensation energy
in their hot gases with particular intensity.
The second return connector of the
Vitocrossal 300 enables a union that is
particularly beneficial to the utilisation of
condensing technology.
Convenient and powerful control units
An economical and safe operation of your
heating system is ensured by the digital
Vitotronic control system with communication
capability.
The Vitotronic 300-K is a particularly powerful
control unit for operating multi-boiler systems
comprising up to four individual boilers with
modulating boiler water temperature. Heating
systems with one and two heating circuits
and optional mixer can be controlled.
The integral diagnostic system and the
programming unit with plain text user prompts
and backlit display make for an exceptionally
convenient operation. External appliances
and devices are connected easily via system
plugs.
Standardised LON for complete integration
into building management systems. Remote
monitoring anytime via Internet TeleControl
with Vitocom and Vitodata as option.
2
3
4
5
1
2
3
4
5
1
![](asset-19.png)

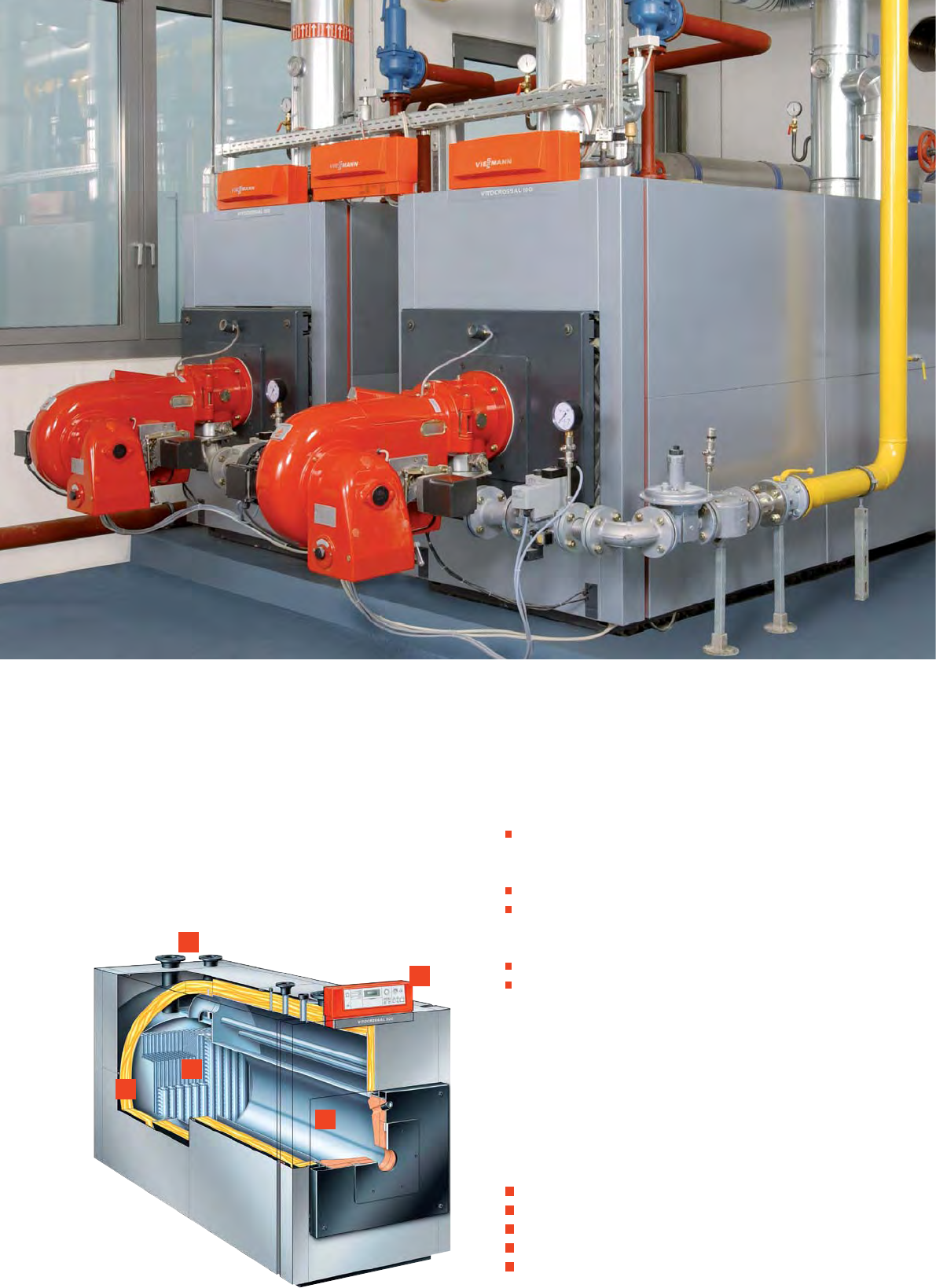

Vitocrossal 300, 787 and 978 kW
Vitocrossal 300, 787 and 978 kW
1 Vitotronic control unit
2 Stainless steel combustion chamber
3 Inox-Crossal heating surface
4 Highly eective thermal insulation
5 Two return connectors
Take advantage of these benefits
Compact boiler body with large water content and Inox-
Crossal heating surfaces made from stainless steel for the
ecient utilisation of condensing technology
Self-cleaning eect through smooth stainless steel surfaces
MatriX radiant burner for particularly quiet and
environmentally responsible operation with a wide
modulation range (up to 314 kW)
Seasonal eciency [to DIN]: up to 98 % (Hs) / 109 % (Hi)
Second return connector for low return temperature resulting
in an especially intensive utilisation of condensing technology
For specification see page 30
24/25
2
3
4
5
1
![](asset-1a.png)
Gas condensing
boilers
Vitocrossal 200
87 to 628 kW

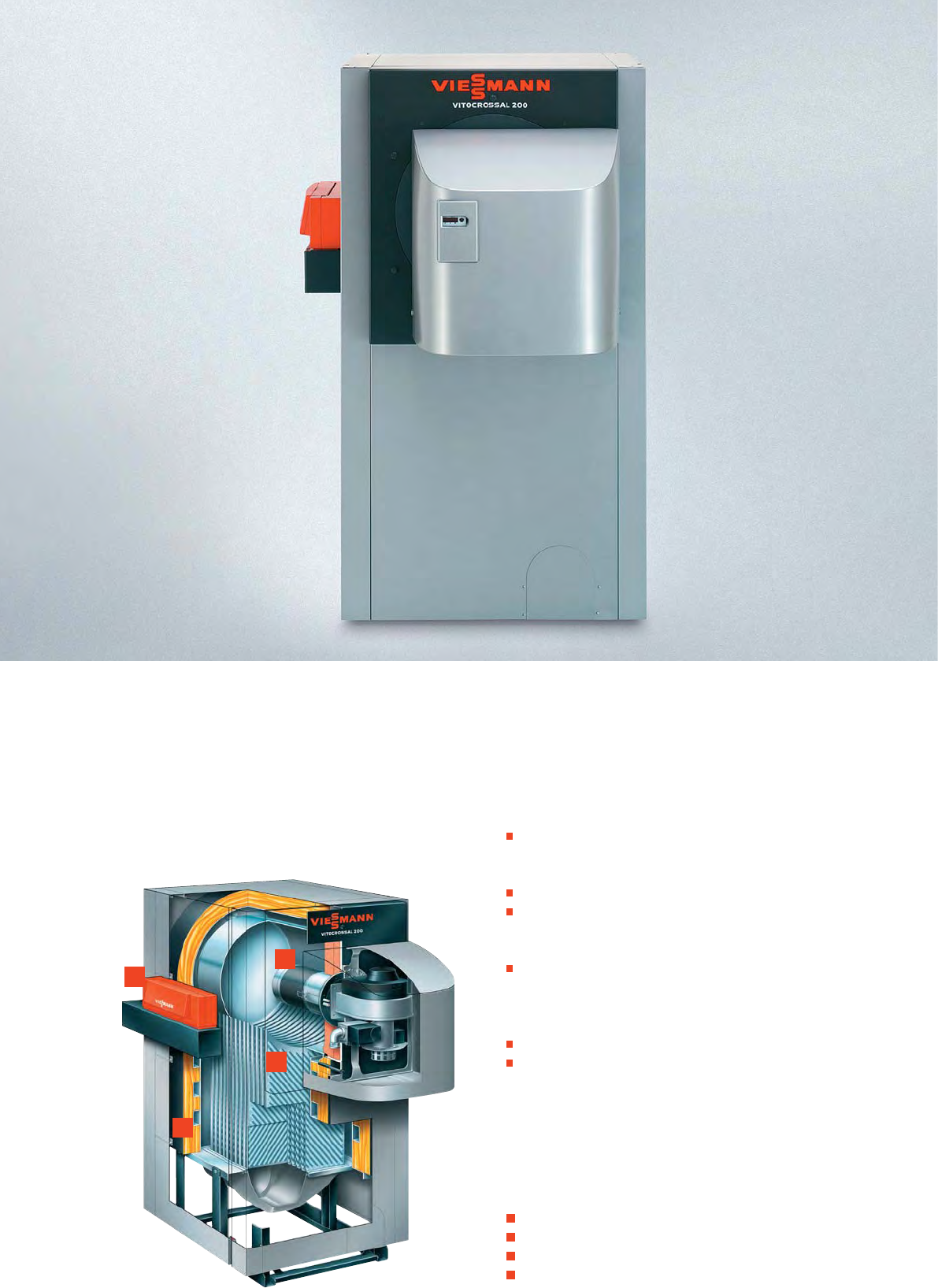

Vitocrossal 200, type CM2
1 Vitotronic control unit
2 MatriX radiant burner
3 Inox-Crossal heating surface
4 Highly eective thermal insulation
5 Wide water galleries for good
natural circulation
Very attractively priced – Vitocrossal 200
With the Vitocrossal 200, Viessmann oers
high-grade condensing technology from
87 to 628 kW with an outstanding price/
performance ratio.
The Vitocrossal 200 is comprised of
proven Viessmann condensing technology
components and, like the Vitocrossal 300,
also features the Inox-Crossal heating surface
with the MatriX radiant burner.
The Vitocrossal 200 is suitable for open and
balanced flue operation across its entire
output spectrum.
Twin-boiler system with
Vitocrossal 200 up to 622 kW
Twin-boiler system up to 1256 kW
For output from 87 kW, two Vitocrossal 200
can also be operated as a cascade with
the same control unit and a single flue. For
twin-boiler systems, Viessmann supplies
specifically designed flue gas headers made
from stainless steel, as well as the hydraulic
system pipework.
Convenient and powerful control units
An economical and safe operation of your
heating system is ensured by the digital
Vitotronic control system with communication
capability.
The Vitotronic 300-K is a particularly powerful
version for operating multi-boiler systems
comprising up to four individual boilers with
modulating boiler water temperature. Heating
systems with one and two heating circuits
and optional mixer can be controlled.
The integral diagnostic system and the
programming unit with plain text user prompts
and backlit display make for an exceptionally
convenient operation. External appliances
and devices are connected easily via system
plugs.
Standardised LON for complete integration
into building management systems. Remote
monitoring anytime via Internet TeleControl
with Vitocom and Vitodata as option.
1
23
4
5
![](asset-1b.png)
26/27
Take advantage of these benefits
Compact boiler body with large water content and Inox-
Crossal heating surfaces made from stainless steel for the
ecient utilisation of condensing technology
Self-cleaning eect through smooth stainless steel surfaces
MatriX radiant burner or MatriX cylinder burner for particularly
quiet and environmentally responsible operation with a wide
modulation range
Seasonal eciency [to DIN], type CM2:
up to 97 % (Hs) / 108 % (Hi)
Seasonal eciency [to DIN], type CT2:
up to 98 % (Hs) / 109 % (Hi)
Optional open flue or balanced flue operation
All hydraulic connections can be fitted from above
For specification see page 31
Vitocrossal 200
404 to 628 kW
1
2
3
4
Vitocrossal 200, type CT2
1 Vitotronic control unit
2 MatriX cylinder burner
3 Inox-Crossal heating surface
4 Highly eective thermal insulation
![](asset-1c.png)

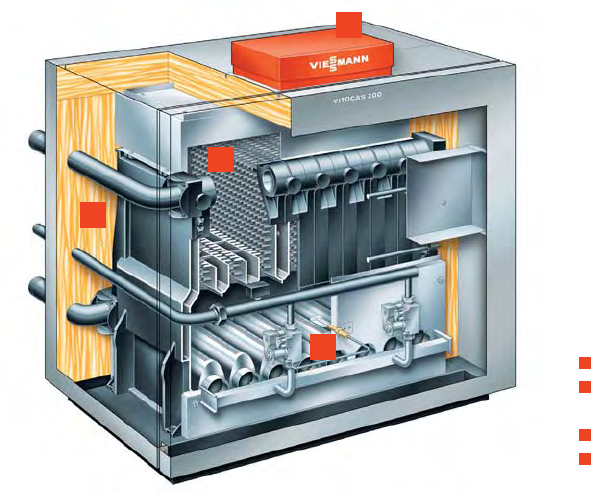

Low temperature
gas boilers
Vitogas 200-F
72 to 144 kW
Vitogas 200-F
1 Vitotronic control unit
2 Heating surface made from special cast
iron with lamellar graphite
3 Highly eective thermal insulation
4 Atmospheric premix burner
Higher output, lower emissions

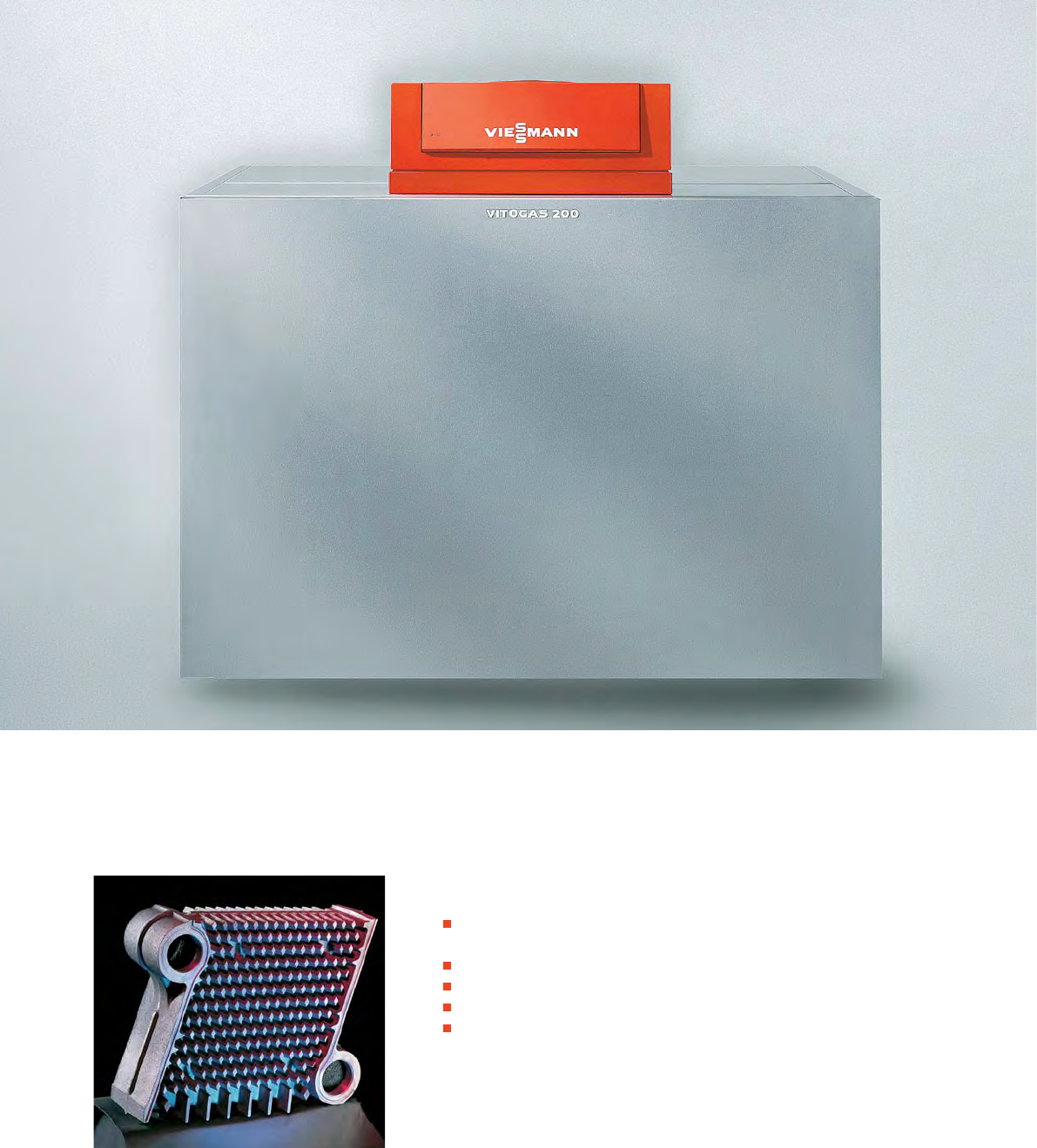

The Vitogas 200-F is not only miserly in its
space requirements, but also where outlay
and energy consumption are concerned.
This boiler is characterised by clean
combustion and low energy consumption.
Subject to the outside temperature, the boiler
water temperature modulates to match the
actual heat demand. A definite plus, where
budget and the environment are concerned.
Bank on Viessmann quality
The heating surfaces of this boiler are
made from proven special cast iron and the
dimensions have been chosen to provide the
lowest possible load on the heating surfaces,
even when temperatures fluctuate, so you can
enjoy your new gas boiler for longer. This way,
you benefit from high operational reliability
and a long service life.
Supplied assembled or in sections
Subject to the available space, the
Vitogas 200-F for sizes 72 to 144 kW can
be supplied either with a fully assembled
body or in individual sections. This option
is particularly valuable when modernising
existing systems in older buildings, where a
new heating centre needs to be transported
through narrow stairwells and narrow
passages.
Convenient and powerful control units
An economical and safe operation of your
heating system is ensured by the digital
Vitotronic control system with communication
capability.
The integral diagnostic system and the
programming unit with plain text user prompts
and backlit display make for an exceptionally
convenient operation. External appliances
and devices are connected easily via system
plugs.
Standardised LON for complete integration
into building management systems. Remote
monitoring anytime via Internet TeleControl
with Vitocom and Vitodata as option.
1
2
3
4
![](asset-1d.png)
28/29
Take advantage of these benefits
High operational reliability and a long service life because of heating surfaces
made from special cast iron with lamellar graphite and low heating surface load
Clean combustion through atmospheric premix burner
Seasonal eciency [to DIN] up to 84 % (Hs) / 93 % (Hi)
Highly reliable and gentle low-noise ignition through intermittent ignition system
Boiler body available fully assembled as block or in separate cast sections
For specification see page 31
Heating surface made from special
cast iron with lamellar graphite
Vitogas 200-F, 72 to 144 kW
![](asset-1e.png)
Gas condensing and
low temperature
boilers
Specification
Gas condensing boiler VITOCROSSAL 300, type CM3
Page 24
Gas condensing boiler VITOCROSSAL 300, type CT3
Page 24
Gas condensing boiler VITOCROSSAL 300, type CR3
Page 25
Rated output at 50/30 °C kW 29–87 38–115 47–142
Rated output at 80/60 °C kW 27–80 35–105 43–130
Dimensions (total) Length mm 1025 1025 1025
Width mm 690 690 690
Height mm 1865 1865 1865
Weight (incl. thermal insulation, kg 253 258 26
burner and boiler control unit)
Boiler water content l 116 113 110
Rated output at 50/30 °C kW 187 248 314
Rated output at 80/60 °C kW 170 225 285
Dimensions (total) Length mm 1840 1915 1995
Width mm 1012 1012 1012
Height mm 1959 2009 2032
Weight (incl. thermal insulation, kg 601 658 705
burner and boiler control unit)
Boiler water content l 270 296 330
Rated output at 50/30 °C kW 787 978
Rated output at 80/60 °C kW 720 895
Dimensions Length mm 2653 2853
(total) Width mm 1160 1160
Height mm 1792 1792
Weight (incl. thermal insulation, kg 1367 1467
burner and boiler control unit)
Boiler water content l 1050 1190
Rated output at 50/30 °C kW 187 248 314 408 508 635
Rated output at 80/60 °C kW 170 225 285 370 460 575
Dimensions* Length mm 16 36 1714 1795 1871 1949 2105
Width mm 1012 1012 1012 1128 1128 1128
Height mm 1959 2009 2032 2290 2290 2290
Weight (incl. thermal insulation kg 557 613 660 890 936 1 053
and boiler control unit)
Boiler water content l 270 296 330 490 533 570
*) Details excluding burner and hood
![](asset-1f.png)

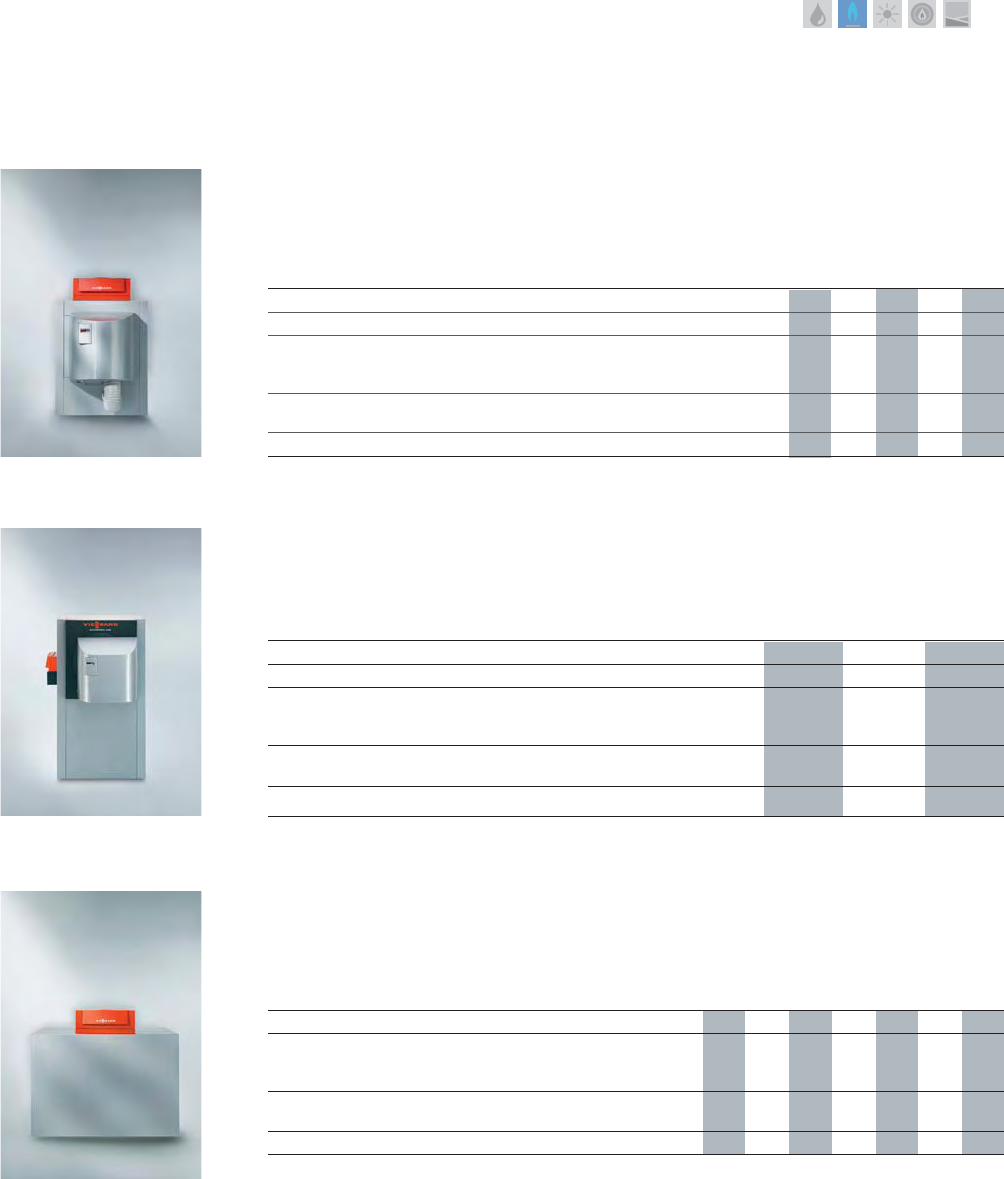

Gas condensing boiler VITOCROSSAL 200, type CM2
Page 26
Gas condensing boiler VITOCROSSAL 200, type CT2
Page 27
Rated output at 50/30 °C kW 135–404 168–503 209–628
Rated output at 80/60 °C kW 123–370 153–460 192–575
Dimensions (total) Length mm 1820 1900 2055
Width mm 1200 1200 1200
Height mm 1985 1985 1985
Weight (incl. thermal insulation, kg 736 790 928
burner and boiler control unit)
Boiler water content l 260 324 405
Low temperature gas boiler VITOGAS 200-F
Page 28
Rated output kW 72 84 96 108 120 132 144
Dimensions Length mm 1007 1007 1057 1057 1057 1057 1057
(total) Width mm 1010 1120 1220 1330 1430 1540 1640
Height mm 1050 1050 1050 1050 1050 1050 1050
Weight (incl. thermal insulation, kg 388 435 483 533 585 631 679
burner and boiler control unit)
Boiler water content l 37.6 43.0 48.3 53.6 59.0 64.3 69.6
Rated output at 50/30 °C kW 87 115 142 186 246 311
Rated output at 80/60 °C kW 80 105 130 170 225 285
Dimensions (total) Length mm 1760 1760 1760 179 0 179 0 179 0
Width mm 815 815 815 915 915 915
Height mm 1350 1350 1350 1450 1450 1450
Weight (incl. thermal insulation, kg 270 280 285 330 345 360
burner and boiler control unit)
Boiler water content l 229 225 221 306 292 279
30/31
![](asset-20.png)
Industrial/
commercial boilers
Hot water boilers
Large steel hot water boilers
0.5 to 20 MW
![](asset-21.png)
VITOMAX
The energy-ecient and clean provision of
heat, as well as high operational safety and
reliability, are essential requirements for
central heating systems in large buildings
and industrial plants. This requires competent
consultation, a comprehensive range of
services and heat generators systems,
the characteristics of which should permit
economical and heat generation, now and in
future.

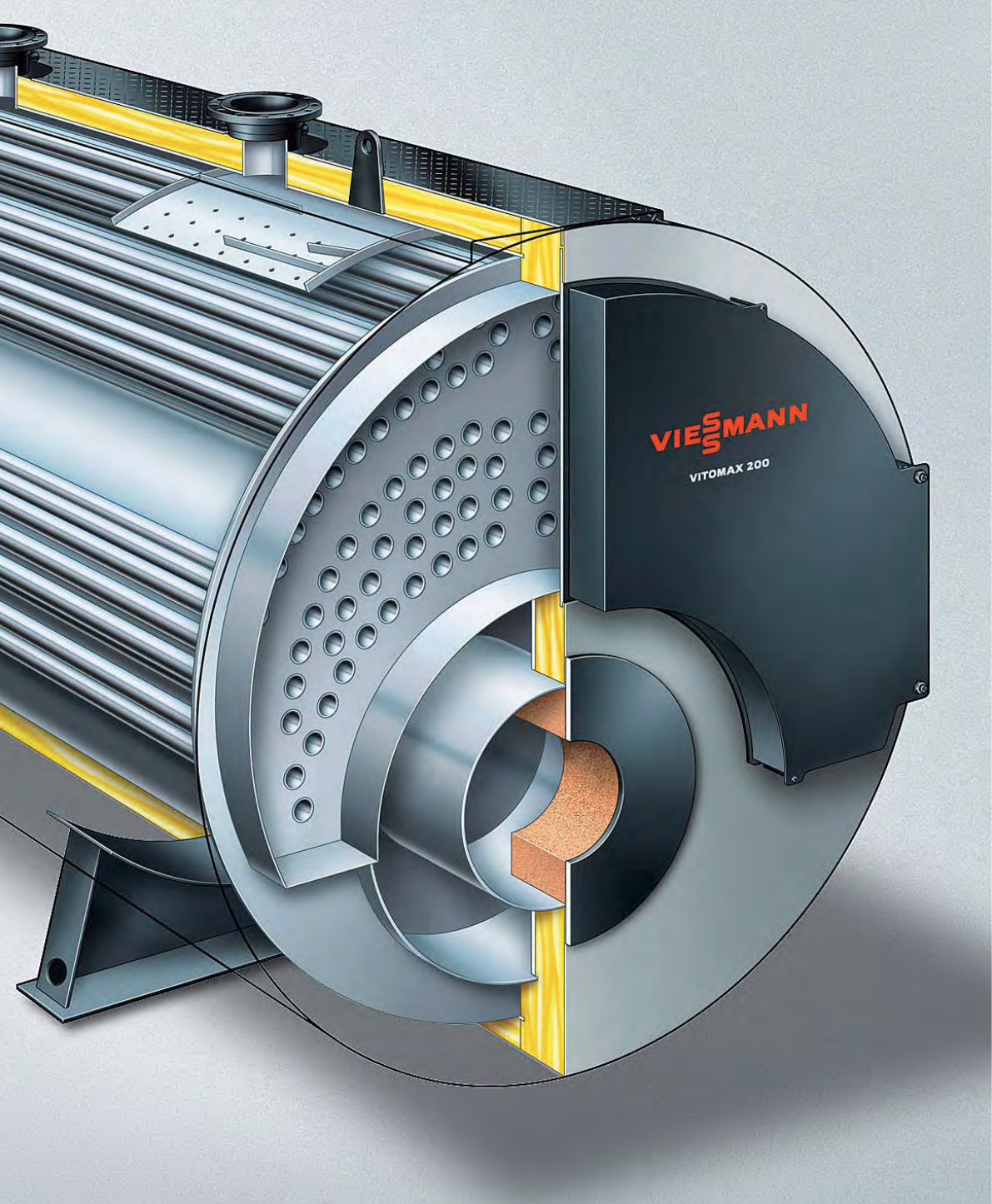

The design and equipment of our large Vitomax
boilers oer optimum pre-requisites to meet
individual customer requirements in a broad
range of applications. Many design details of
the Vitomax boilers and the experience gained
over many years of building industrial boilers
ensure their superior quality and provide
customers with high operational reliability and
ensure a long service life. The comprehensive
product range from Viessmann includes hot
water boilers up to 20 MW.
Viessmann commercial and industrial boilers
are the product of perfectly coordinated
system technology, that includes:
Control and monitoring systems
Measuring and control equipment
Pumps and valves
Combustion systems with fuel supply
Pressure maintaining systems
Water treatment
Pipeline systems and flue gas systems
System solutions for economical hot water generation.

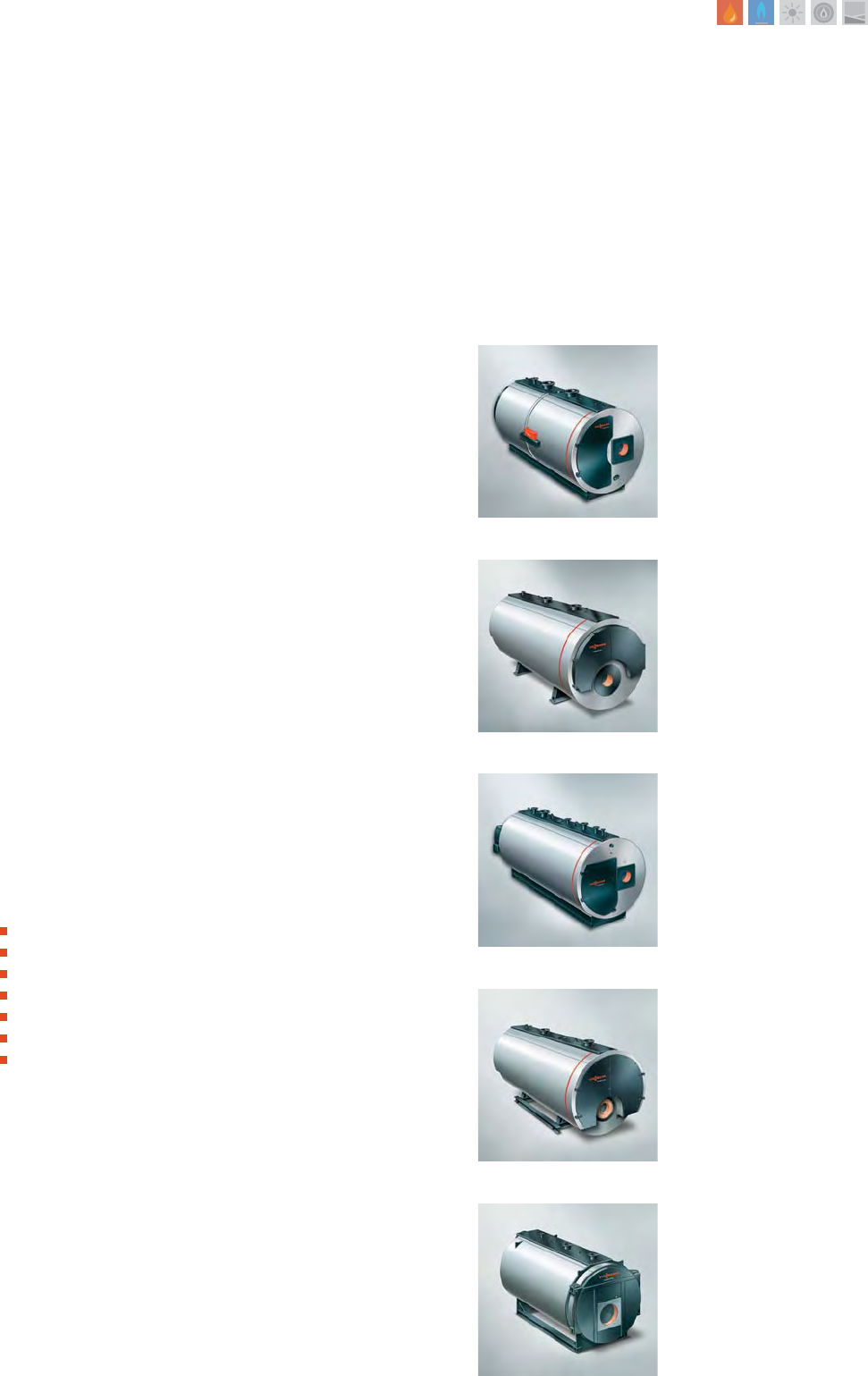

Vitomax 300-LT
This boiler is characterised
by high standard eciency
and low emissions as well
as a high serviceability.
Vitomax 200-HW
A typical boiler for use in
district heating systems and
industrial plants.
Vitomax 200-WS
This low pressure hot
water oil/gas boiler was
specifically developed
for the demands of
commercial nurseries.
Vitomax 100-LW
Low pressure hot water
oil/gas boiler for
permissible flow
temperatures up to 110 °C
with reversing three-pass
combustion chamber.
Vitomax 200-LW
A low pressure hot
water oil/gas boiler
for permissible flow
temperatures up to
110/120 °C.
32/33
![](asset-22.png)
Large steel boilers
Hot water boilers
Vitomax 300-LT
1.86 to 5.9 MW
Sets new standards: Vitomax 300-LT
The Vitomax 300-LT sets a new standard in
this output range: as a low temperature three-
pass boiler with multi-layered convection
heating surfaces made from Duplex pipes;
with low combustion chamber load. This
boiler is characterised by high standard
eciency and low emissions, as well as high
serviceability.
One typical application would be heating
an apartment block where the system is
operated in modulating mode, subject to
outside temperature.

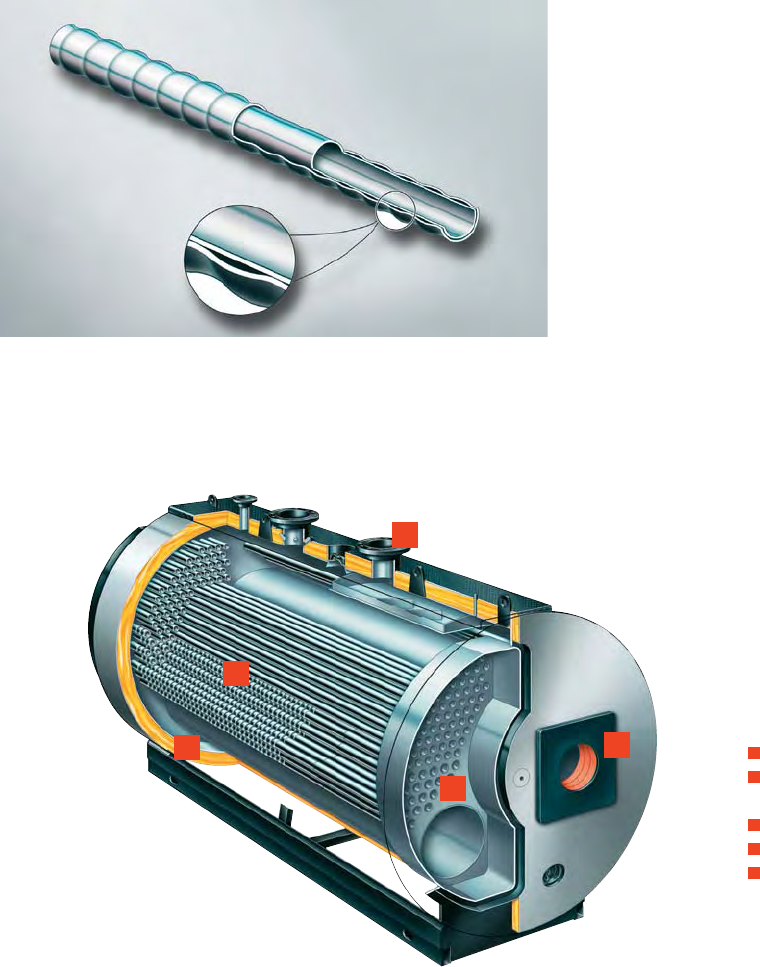

Duplex pipe with multi-layered
convection heating surface for high
operational reliability and a long
service life
Vitomax 300 LT

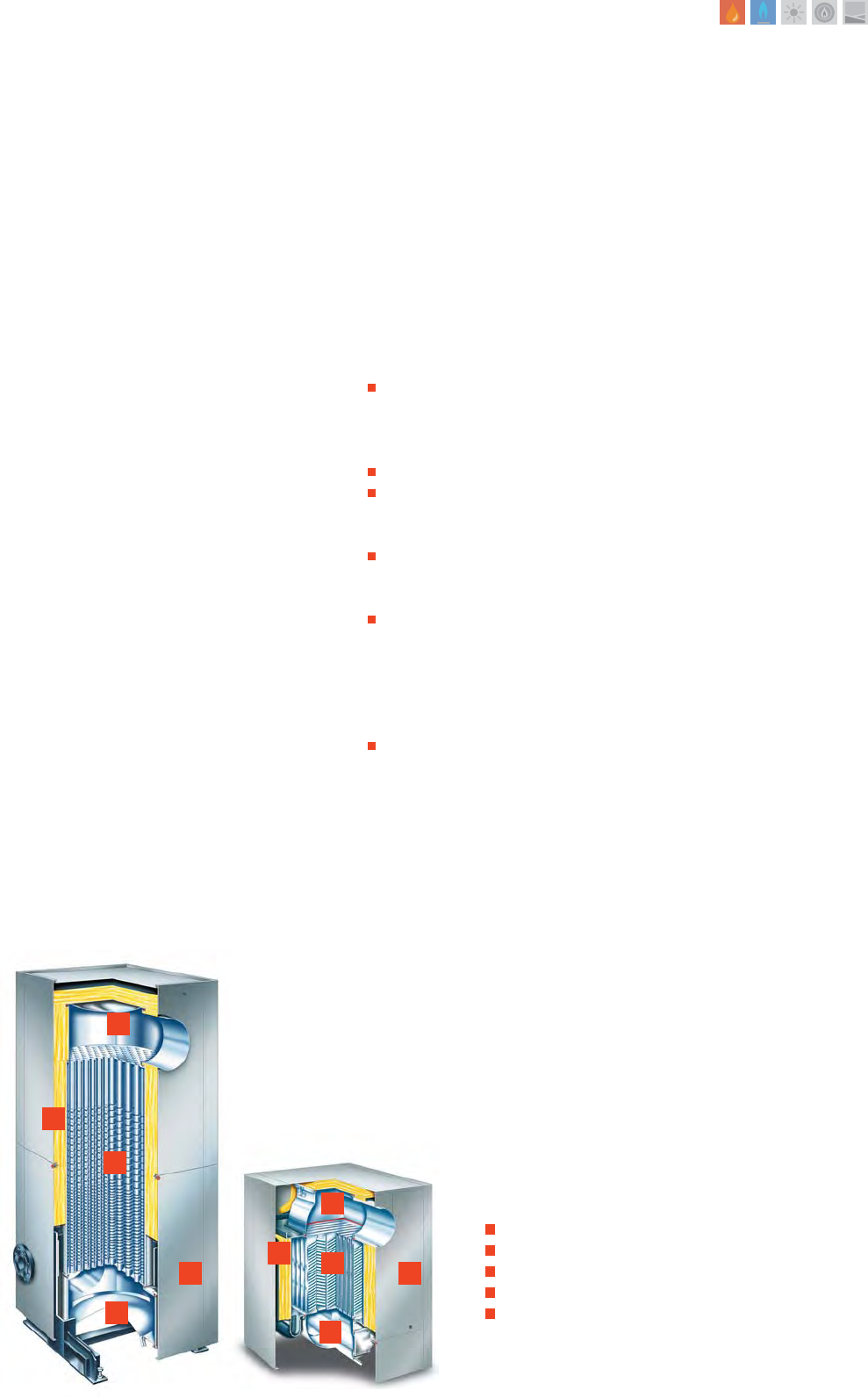

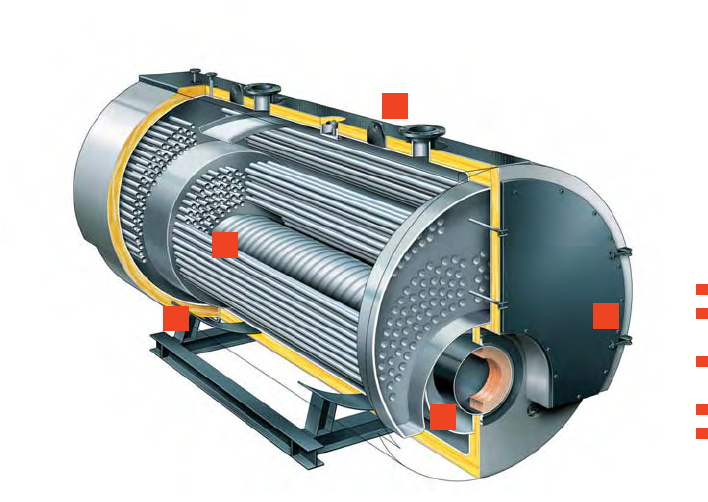

1 Boiler with load-bearing cover
2 Duplex pipe with multi-layer convection heating
surface
3 Water-cooled front hot gas reversing chamber
4 Large flame tube for clean combustion
5 Wide water galleries for good natural circulation
and low thermal load
1
2
3
4
5
Finely honed technology
This boiler requires no minimum heating
water flow rate – wide water galleries and
large water content provide excellent natural
circulation and a safe heat transfer. This
simplifies the hydraulic boiler connections.
No additional intermediate flow piece is
required. All necessary connections for a
safety temperature of 110 °C are already fitted
to the boiler.
Further characteristics of this finely honed
boiler technology are the low pressure drop
on the hot gas side as a result of convection
heating surfaces with large hot gas pipes;
low radiation losses through a 120 mm thick
compound thermal insulation and the water-
cooled front and rear reversing chambers.
![](asset-23.png)
34/35
Vitomax 300-LT, low temperature
hot water boiler
Take advantage of these benefits
Seasonal eciency [to DIN]: 96 % (Hi)
Standard eciency improved by up to 10 % due to condensing technology with
stainless steel flue gas/water heat exchanger Vitotrans 300
Low energy consumption through modulating boiler water temperature
Low minimum return temperature of 38 °C when using fuel oil and 45 °C when
using gas
High level of serviceability through large cleaning door
Load-bearing cover on top of the boiler as part of the standard delivery – this
simplifies installation and maintenance and protects the thermal insulation
against accidental damage
Economical and safe operation of heating systems through the digital Vitotronic
control system with communication capability
For specification see page 40
![](asset-24.png)
Large steel boilers
Hot water boilers
Vitomax 200-LW, -WS, -HW
0.52 to 20 MW
Vitomax 200-LW
The Vitomax 200-LW is a hot water boiler for
permissible flow temperatures up to 120 °C,
a permissible operating pressure of 6, 10 and
16 bar and a rated output from 2.3 to 20 MW.
For commercial nurseries:
Vitomax 200-WS
The Vitomax 200-WS as three-pass
boiler with low combustion chamber load
(< 1.0 MW/m³) was developed specifically for
commercial nurseries. This hot water boiler
operates in compliance with TRD 702 for a
permissible flow temperature up to 110 °C
and a maximum operating pressure of 3.0 bar.
With a boiler eciency of 94 %, this boiler is
both economical and ecient.
The additional circulation line in the lower
boiler section is designed for the internal
circulation of the boiler water providing
optimum heat distribution inside the boiler.
All connections required for facilitating a
safety temperature of 110 °C are already
provided on both boilers. No additional
intermediate flow piece is required.
Easy to service and with
high load capacity
Exceptional operational reliability and a long
service life mark out the Vitomax 200-WS.
These are assured through wide water
galleries and a large water content with
excellent natural circulation for a reliable heat
transfer. The additional circulation pipe in the
lower boiler area (shunt pipe) is designed
for the internal circulation of the boiler water
providing an optimum heat distribution inside
the boiler.
In continuous operation in commercial
nurseries, this hot water boiler scores highly
through its easy serviceability on account of
the water-cooled reversing chambers without
lining.
Finally, the large cleaning door contributes
to low maintenance costs. The load-bearing
cover on top of the boiler is part of the
standard delivery; it simplifies installation
and maintenance and protects the thermal
insulation against accidental damage.
Vitomax 200-HW
The Vitomax 200-HW is a high pressure
oil/gas hot water boiler for permissible flow
temperatures up to 205 °C and permissible
operating pressures of 6 to 25 bar – a typical
boiler for use in district heating networks and
industrial operations.
Reliable technology
No minimum heating water flow rate is
required for the Vitomax. Wide water galleries
and large water content provide excellent
natural circulation and reliable heat transfer –
this makes the hydraulic connection easier.
Finally, the Vitomax features a low pressure
drop on the hot gas side through convection
heating surfaces with large hot gas pipes.
Quick commissioning through
pre-assembled containerised systems
Time is money – particularly for industrial and
commercial enterprises, where new central
heating systems often have to be operational
Vitomax 200
1 Boiler with load-bearing cover
2 Duplex pipe with multi-layer convection
heating surface
3 Water-cooled burner entry for low nitrogen
oxide emissions
4 Large and light cleaning doors
5 Wide water galleries for good natural
circulation and low thermal load
1
2
3
4
5
![](asset-25.png)
36/37
Take advantage of these benefits
Clean combustion with low nitrogen oxide emissions
No minimum heating water flow rate required – wide water galleries and large
water content provide excellent natural circulation and a reliable heat transfer –
simplified hydraulic connection
No additional intermediate flow piece required. All necessary connections for a
safety temperature of 110 °C are already fitted to the boiler
Low pressure drop on the hot gas side through convection heating surfaces
with large hot gas pipes
Low radiation losses through thick composite thermal insulation
The Vitocontrol control panel enables the regulation of all boiler-related control
equipment
Approval in accordance with the European Pressure Equipment Directive
97/23/EC or the Gas Appliances Directive 90/396/EEC
For the specification, see pages 40/41
in the shortest possible time, so that heat
for production can be supplied on time. For
speedy installation and commissioning,
Viessmann now also oers complete Vitomax
hot water systems as pre-assembled
container solutions that are compact and easy
to transport.
Saving time during installation
Alongside the Vitomax boilers, systems of
similar magnitude are comprised of a range
of further essential components, such as
facilities to analyse and treat the boiler water,
to distribute heat, pressure maintaining
systems and a control centre. The various
assemblies are each precisely tailored to the
customer's specific requirements.

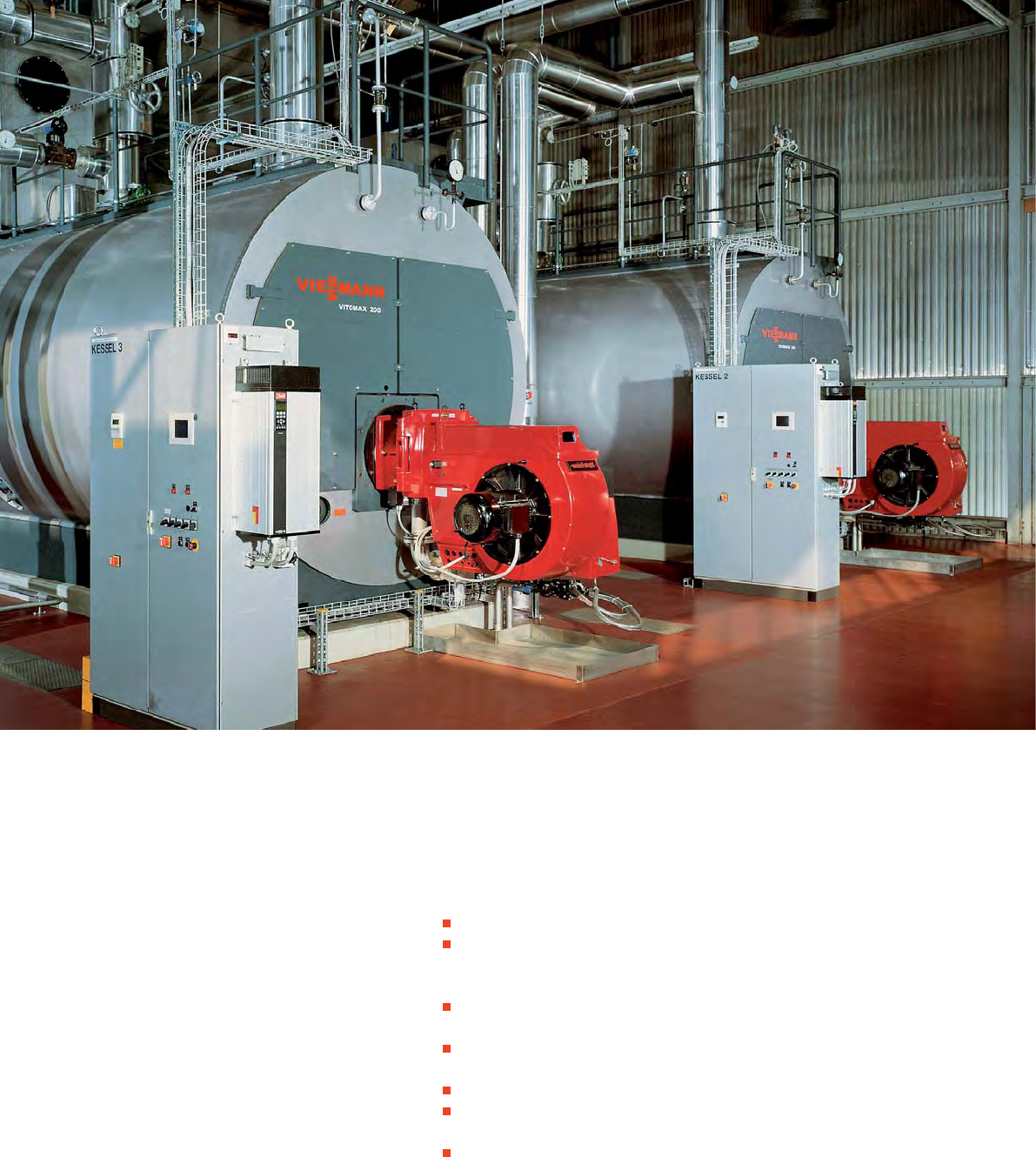

Vitomax 200-HW
![](asset-26.png)
Large steel boilers
Hot water boilers
Vitomax 100-LW
0.65 to 6 MW
Vitomax 100-LW,
Low pressure hot water boiler
Well insulated: Vitomax 100-LW
The Vitomax 100-LW is a hot water boiler for
permissible flow temperatures up to 110 °C
and for a constant temperature operation.
The permissible operating pressure spans 6
to 10 bar; the rated output lies between 0.65
and 6 MW. This boiler stands out through its
robust design.
Benefits for installation and maintenance
The load-bearing cover at the top of the
boiler is part of the standard delivery. It
makes installation and maintenance easier
and protects the thermal insulation against
damage.
A large and light inspection door with hinge
on the left or right makes cleaning the boiler
easier.
Vitomax 100-LW system pack
Any system is only as good as its
components. That principle motivates
Viessmann during the selection of the
available system components. Apart from the
demand for the highest quality and flexibility,
ensuring a perfect match amongst individual
components is of vital importance.
The system pack Vitomax 100-LW (type
M148) meets these requirements fully. It
stands out through a uniform appearance in
the Viessmann design.
Ordering the system with only one part
number could not be easier and can be
expanded easily with matching options. These
include, for example, the heat exchanger,
flue gas damper and flue silencer. Finally, the
dimensions of this system pack are tailored to
road transport requirements.

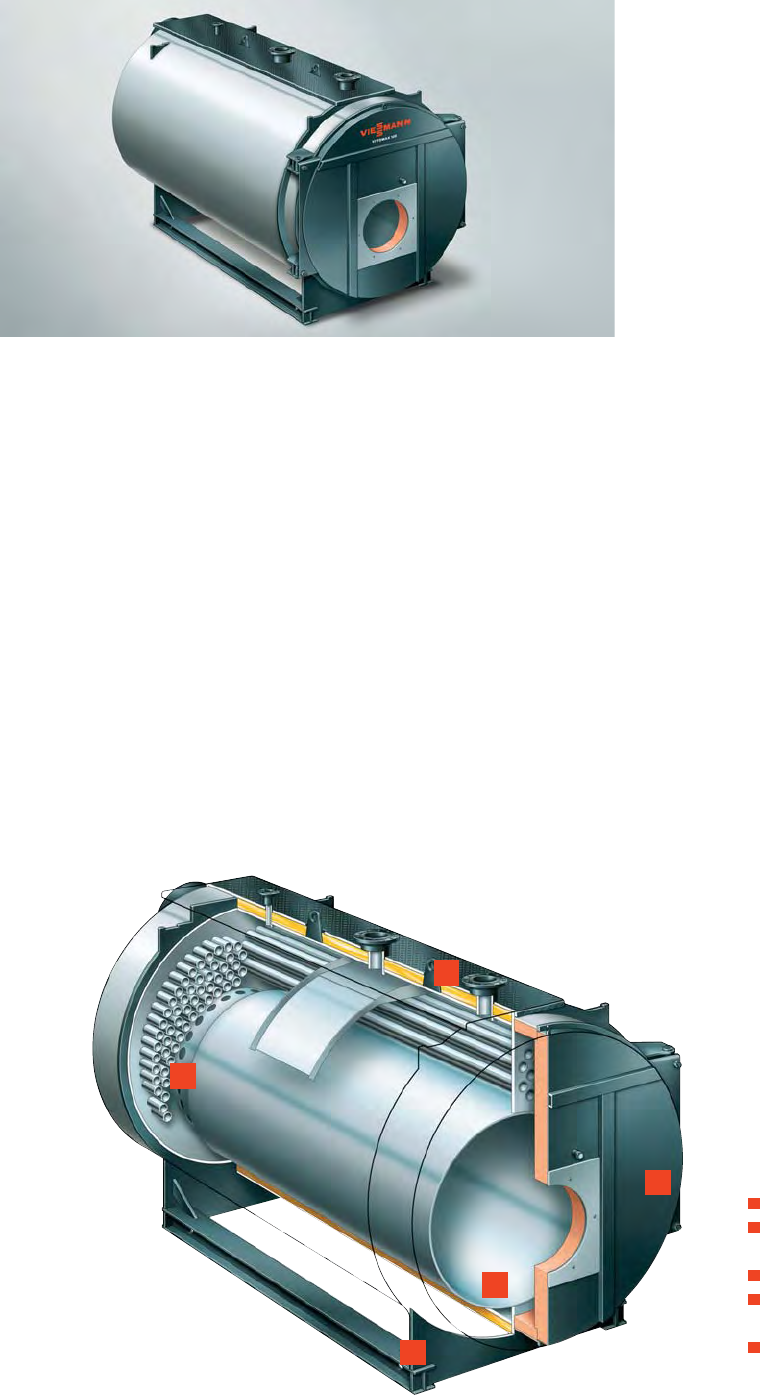

Vitomax 100-LW
1 Boiler with load-bearing cover
2 Wide water galleries for good natural
circulation and low thermal load
3 Large reversing combustion chamber
4 Light boiler door for hinging on the
left or right
5 Solid base frame with longitudinal supports
1
2
3
4
5
![](asset-27.png)
38/39
Take advantage of these benefits
Economical fuel consumption – boiler eciency: 91.5 %
Boiler with reversing combustion chamber and low combustion chamber
loading (≤ 1.2 MW/m3) – clean combustion with low nitrogen oxide emissions
No minimum heating water flow rate required – wide water galleries and large
water content provide excellent natural circulation and a reliable heat transfer –
simplified hydraulic connection
No additional intermediate flow piece required. All necessary connections for a
safety temperature of 110 °C are already fitted to the boiler
Low pressure drop on the hot gas side through convection heating surfaces
with large hot gas pipes
High level of serviceability through water-cooled rear reversing chamber without
lining plus large cleaning door
The Vitocontrol control panel enables the regulation of all boiler-related control
equipment
Approval in accordance with the European Pressure Equipment Directive 97/23/
EC or the Gas Appliances Directive 90/396/EEC
For specification see page 41

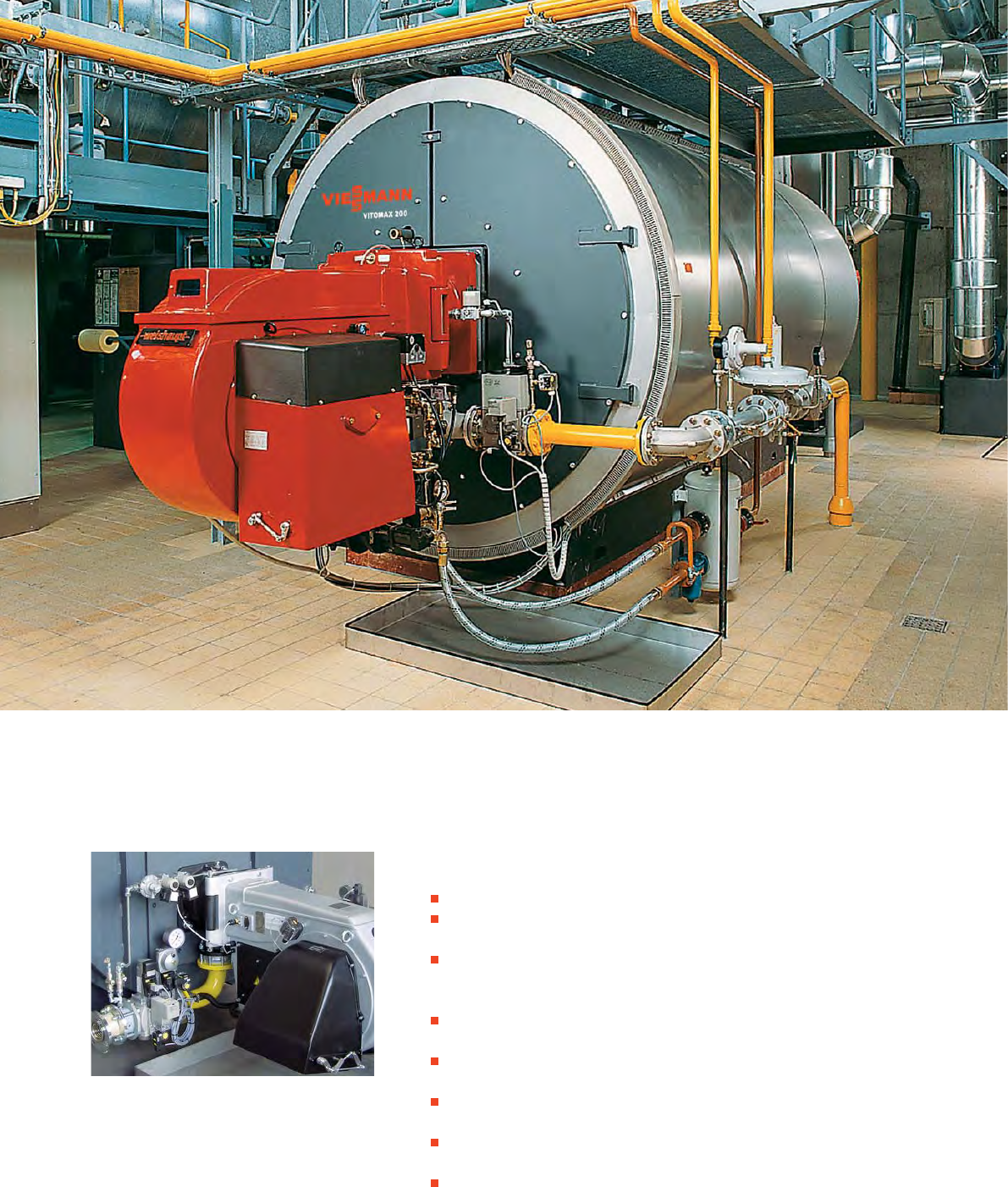

Vitomax 100-LW, type M148
Burner in the Viessmann design (made by Elco) at the
Vitomax 100-LW
![](asset-28.png)

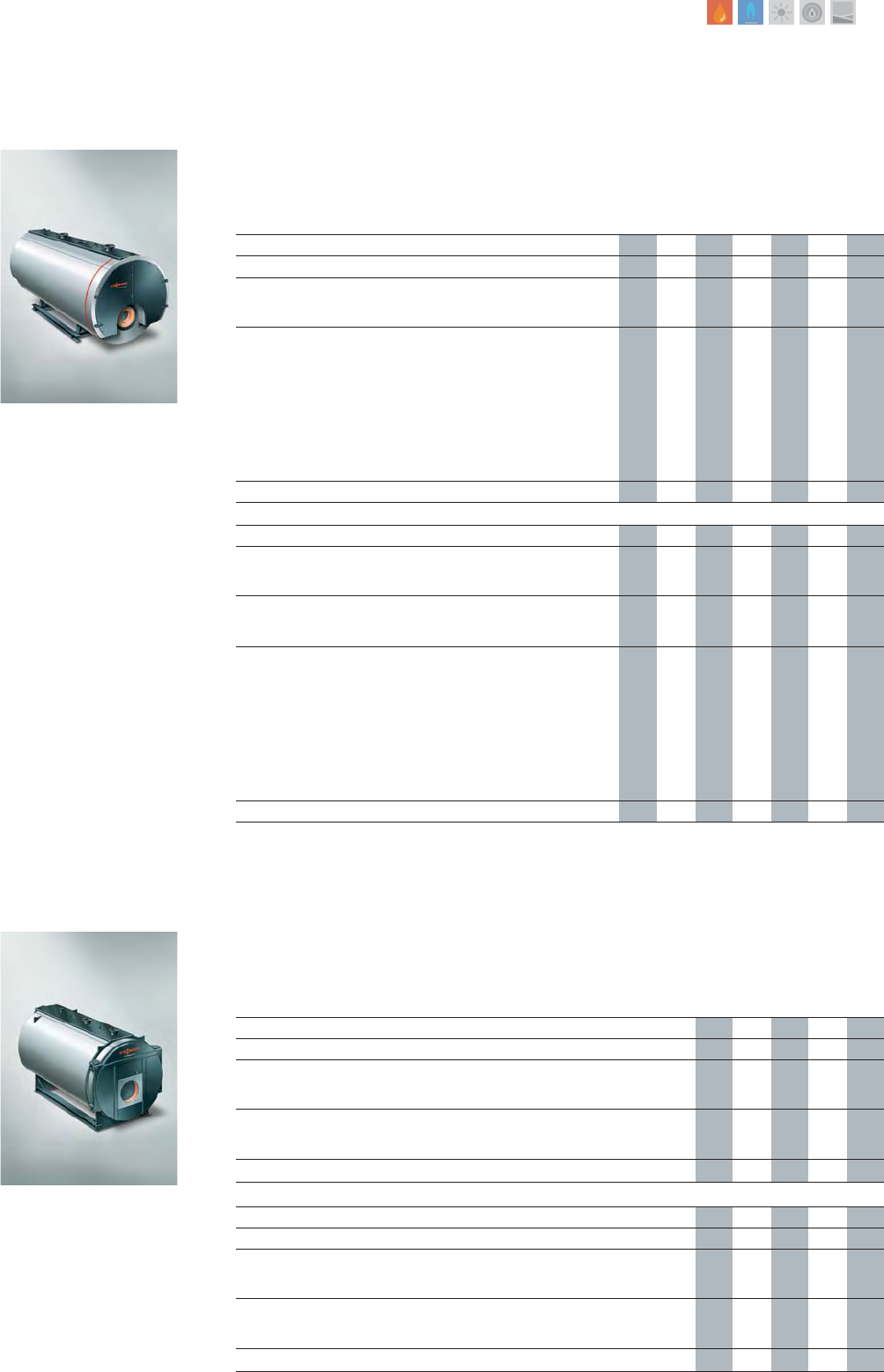

Specification Vitomax
Boiler type M343 Size 1 2 3 4 5 6 7
Rated output MW 1.86 2.30 2.90 3.50 4.10 4.70 5.90
Dimensions Length m 3.9 4.1 4.4 4.6 4.9 5.1 5.6
(total) Width m 2.1 2.2 2.3 2.4 2.5 2.6 2.8
Height m 2.4 2.5 2.6 2.7 2.8 2.9 3.1
Weight
t 5.3 6.3 7 .3 8.2 9.6 10.6 13.3
incl. thermal insulation
Boiler water content m
3 5.0 5.5 6.4 8.2 9.3 10.5 13.0
Hot water boiler VITOMAX 300-LT
Page 34
Hot water boiler VITOMAX 200-LW
Page 36
Hot water boiler VITOMAX 200-WS
Page 36
Boiler type M64 Size 1 2 3 4 5 6
Rated output MW 8.0 10.0 12.0 14.2 16.5 20.0
Dimensions Length m 6.6 7.1 7.7 8.2 8.7 9.5
(total) Width m 2.7 2.9 3.0 3.3 3.5 3.7
Height m 3.1 3.3 3.5 3.7 4.0 4.2
Weight incl. thermal insulation
permissible operating pressure: 6 bar t 15.1 19.2 22.8 27.8 35.8 40.1
permissible operating pressure: 10 bar t 17.7 22.7 24.8 31.4 39.8 48.0
permissible operating pressure: 16 bar t 20.5 26.0 30.2 38.4 46.4 56.3
Boiler water content m
3 15.3 18.7 22.2 26.6 33.8 39.8
Boiler type M62 Size 1 2 3 4 5
Rated output MW 2.3 2.8 3.5 4.5 6.0
Dimensions Length m 4.2 4.5 4.9 5.3 5.9
(total) Width m 2.0 2.0 2.2 2.3 2.4
Height m 2.3 2.3 2.5 2.5 2.8
Weight incl. thermal insulation
permissible operating pressure: 6 bar t 4.9 5.6 6.6 8.0 9.8
permissible operating pressure: 10 bar t 5.6 6.4 7.6 9.2 11.6
permissible operating pressure: 16 bar t 6.7 7.6 9.1 11.0 14.0
Boiler water content m
3 4.9 5.6 7.0 8.7 10.5
Boiler type M250 Size 1 2 3 4 5 6 7 8 9 A
Rated output MW 1.75 2.33 2.91 3.49 4.65 5.82 6.98 8.14 9.30 11.63
Dimensions Length m 4.6 4.6 4.6 5.4 5.6 6.1 6.3 7.1 7.2 7.3
(total) Width m 2.0 2.2 2.4 2.5 2.7 2.9 3.1 3.2 3.3 3.7
Height m 2.4 2.6 2.8 2.9 3.1 3.3 3.5 3.6 3.7 4.1
Weight
t 5.1 5.7 6.8 8.6 10.7 12.5 16.4 18.9 22.0 27.2
incl. thermal insulation
Boiler water content m
3 6.1 7.6 8.7 11.1 14.0 15.9 18.7 22.5 25.5 31.4
![](asset-29.png)
40/41
Boiler type M238 Size 1 2 3 4 5 6 7 8
Combustion output
with natural gas MW 4.00 5.10 6.80 9.05 11.30 13.55 15.75 18.20
for fuel oil EL MW 4.00 5.10 6.80 8.90 9.80 11.00 12.80 14.00
Dimensions Length m 5.2 5.7 6.4 7.2 7.7 8.3 8.8 9.3
(total) Width m 2.6 2.7 2.8 3.1 3.3 3.4 3.6 3.8
Height m 2.9 3.1 3.2 3.5 3.6 3.8 4.0 4.2
Weight incl. thermal insulation
permissible operating pressure: 6 bar t 9.1 11.1 14.0 19.1 22.8 28.1 32.0 38.0
permissible operating pressure: 8 bar t 10.2 12.3 15.6 21.2 25.3 31.3 35.6 42.2
permissible operating pressure: 10 bar t 11.2 13.5 17.1 23.3 27.9 34.4 39.2 46.4
permissible operating pressure: 13 bar t 12.2 14.8 18.7 25.4 30.4 37.5 42.7 50.6
permissible operating pressure: 16 bar t 13.2 16.0 20.2 27.5 32.9 40.6 46.3 54.9
permissible operating pressure: 18 bar t 14.2 17.2 21.8 29.7 35.5 43.8 49.8 59.1
permissible operating pressure: 20 bar t 15.2 18.5 23.4 31.8 38.0 46.9 53.4
permissible operating pressure: 22 bar t 16.2 19.7 24.9 33.9 40.5 50.0
permissible operating pressure: 25 bar t 17.3 20.9 26.5 36.0
Boiler water content m
3 10.5 12.8 16.0 22.0 26.0 30.0 35.0 40.0
Hot water boiler VITOMAX 200-HW
Page 36
Boiler type M236 Size 1 2 3 4 5 6 7 8
Combustion output MW 0.52 0.67 0.85 1.04 1.30 1.70 2.16 2.84
Dimensions Length m 2.7 2.9 3.2 3.2 3.4 3.7 4.0 4.4
(total) Width m 1.6 1.6 1.7 1.8 1.9 2.0 2.1 2.3
Height m 1.8 1.9 2.0 2.1 2.1 2.3 2.4 2.6
Weight incl. thermal insulation
permissible operating pressure: 6 bar t 2.1 2.3 2.6 3.0 3.5 4.3 5.3 6.9
permissible operating pressure: 8 bar t 2.2 2.4 2.7 3.5 3.7 5.0 5.5 7.0
permissible operating pressure: 10 bar t 2.3 2.5 3.0 3.7 3.9 5.2 6.2 7.5
permissible operating pressure: 13 bar t 2.4 2.6 3.2 3.8 4.5 5.4 6.5 8.5
permissible operating pressure: 16 bar t 2.7 2.8 3.5 4.1 4.9 5.9 7.2 9.0
permissible operating pressure: 18 bar t 3.0 3.2 3.7 4.4 5.1 6.2 7.5 9.0
permissible operating pressure: 20 bar t 3.4 3.6 4.0 5.0 6.0 7.0 8.0
permissible operating pressure: 22 bar t 3.8 4.0 4.4 5.5 6.5 7.5
permissible operating pressure: 25 bar t 4.2 4.5 5.0 6.0 7.0
Boiler water content m
3 1.7 2.0 2.5 2.9 3.4 4.6 5.5 7.3
Hot water boiler VITOMAX 100-LW
Page 38
Boiler type M148 Size 1 2 3 4 5
Rated output MW 0.65 0.85 1.1 1.4 1.8
Dimensions Length m 2.3 2.5 2.7 2.9 3.1
(total) Width m 1.4 1.5 1.6 1.7 1.8
Height m 1.65 1.6 1.75 1.8 1.95
Weight incl. thermal insulation
permissible operating pressure: 6 bar t 1.5 1.8 2.1 2.6 3.2
permissible operating pressure: 10 bar t 1.7 2.0 2.4 3.0 3.8
Boiler water content m
3 1.1 1.3 1.5 1.8 2.2
Boiler type M148 Size 6 7 8 9 A B
Rated output MW 2.3 2.9 3.5 4.2 5.0 6.0
Dimensions Length m 3.4 3.6 3.9 4.4 4.5 4.9
(total) Width m 1.9 2.0 2.1 2.3 2.4 2.5
Height m 2.1 2.2 2.3 2.4 2.5 2.6
Weight incl. thermal insulation
permissible operating pressure: 6 bar t 3.7 4.3 5.3 6.4 7.3 8.6
permissible operating pressure: 10 bar t 4.4 5.3 6.2 7.8 8.9 10.4
Boiler water content m
3 2.3 2.9 3.4 4.5 4.9 5.6
![](asset-2a.png)
All components for a highly capable heating system are supplied from a single source –
Viessmann. They are all perfectly matched to each other.
Today, medium as well as commercial
and industrial boiler technology demands
not only the most advanced technology,
reliability, system-specific solutions, optimum
adjustments and environmental responsibility,
but also many services around the boiler
operation.
Viessmann system design and accessories
ensure that everything matches perfectly.
Viessmann system technology ensures the
highest operational reliability and eciency
All of our heating technology components
ensure the smooth operation of the entire
heating system – from boiler, via burner,
control unit and DHW cylinder, right down
to the connections and radiators. Matching
system solutions ensure the highest possible
operational reliability with optimised eciency
for any heating system.
System technology

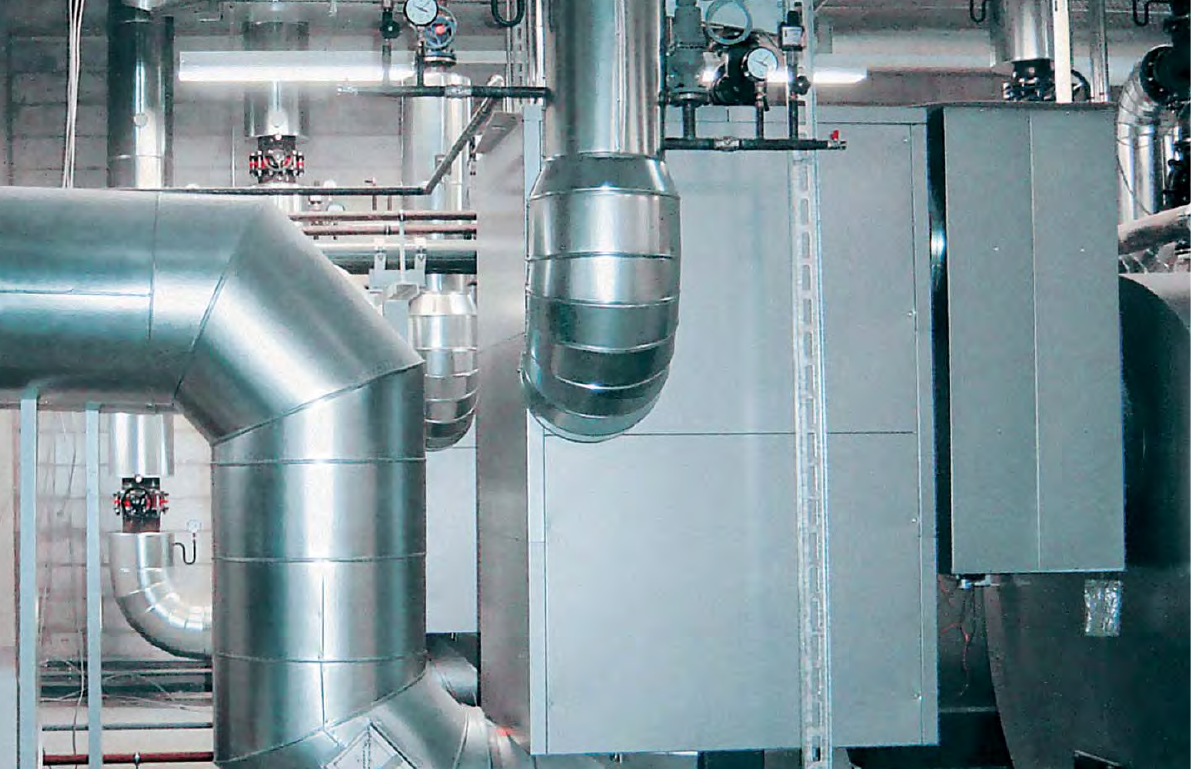

Downstream Vitotrans heat
exchanger fitted to a Vitomax boiler
![](asset-2b.png)

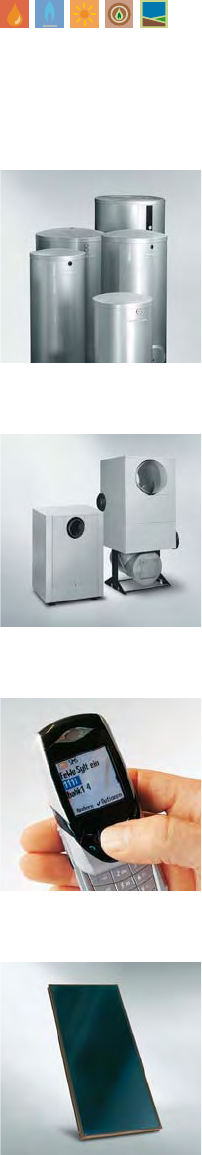

Vitotrans heat exchanger
DHW cylinder
Solar thermal systems
Perfect control
42/43
DHW cylinders
The Vitocell range of DHW cylinders is
perfectly matched to our heat sources. This
is an advantage during installation, although
benefits also extend to heating and DHW
convenience. The wide range of DHW and
buer cylinders enables Viessmann to meet
every demand and aspiration for convenience
in DHW heating and central heating backup.
Condensing technology for medium and
industrial/commercial boilers
The Vitotrans 300 heat exchanger oers the
option of being able to utilise the economic
benefits of condensing technology, even with
medium and industrial/commercial boilers.

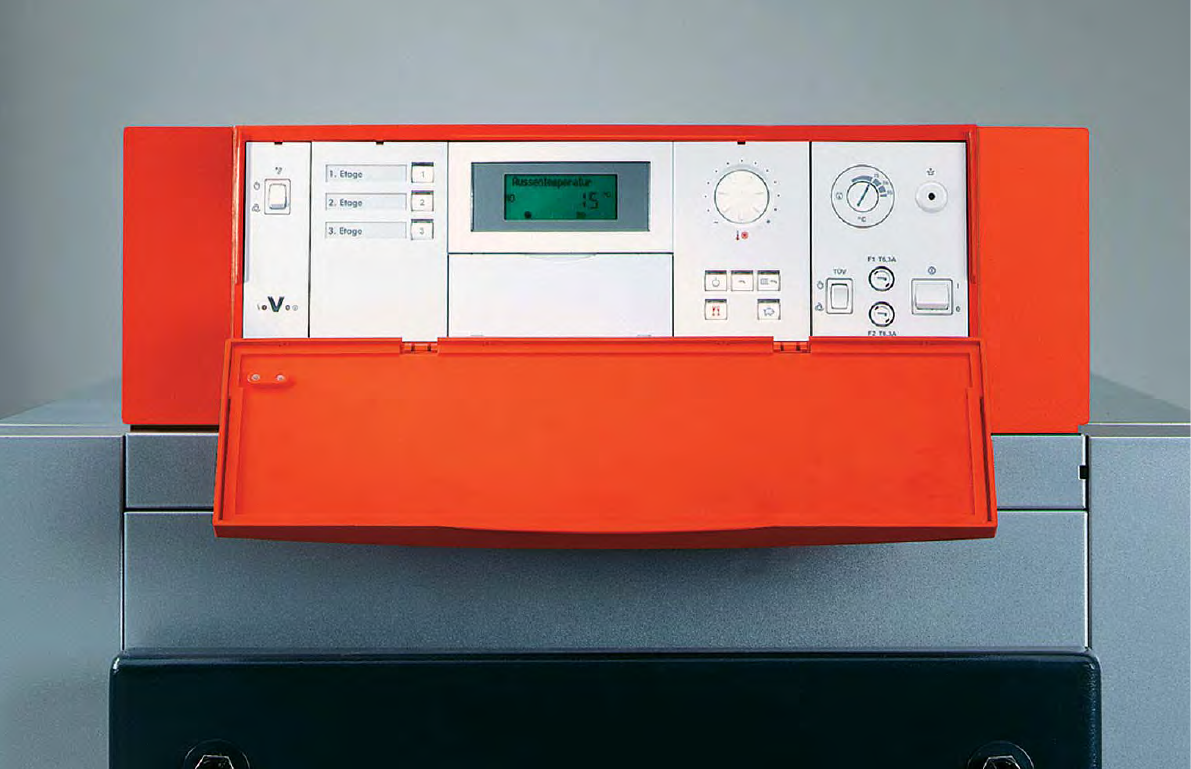

Control technology
All Viessmann boilers are regulated by a
Vitotronic – a digital control system with
communication capability. This means that the
entire range of boilers utilises many standard
components, identical installation steps and
only a few common spare parts. This results
in considerably easier installation, operation,
maintenance and service.
Data communication TeleControl,
service, building automation
Whether holiday home or large residential
complex – the Viessmann TeleControl
range oers intelligent solutions for data
communication with heating systems and
building services. The Vitohome is a wireless-
based home automation system that oers
greater convenience and also assists in saving
energy.

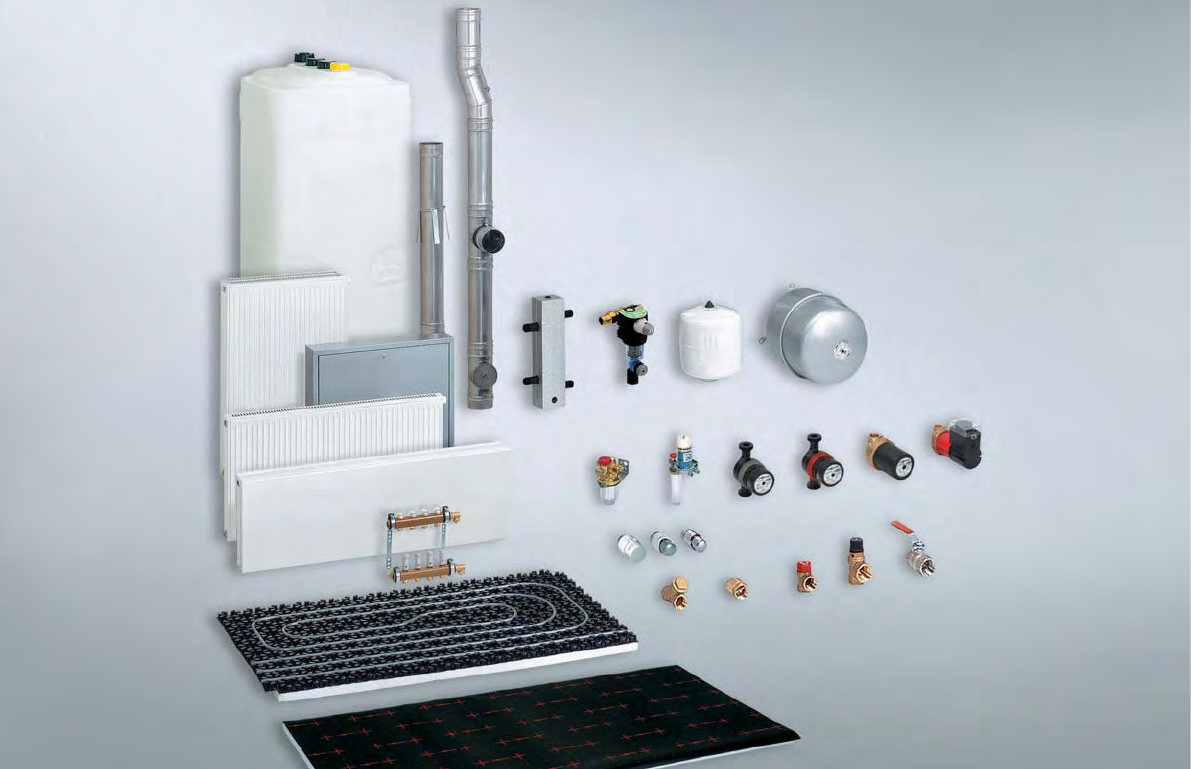

System-integrated accessories
Vitoset makes the entire performance
potential oered by innovative heating
technology accessible, resulting in the perfect
synergy between all integrated system
components.
Solar thermal and photovoltaic collectors
Each boiler can be operated in conjunction
with a solar thermal system, thereby saving
valuable energy. For commercial applications,
Viessmann oers suitable systems for
harvesting the free heat and power from solar
energy.
![](asset-2c.png)

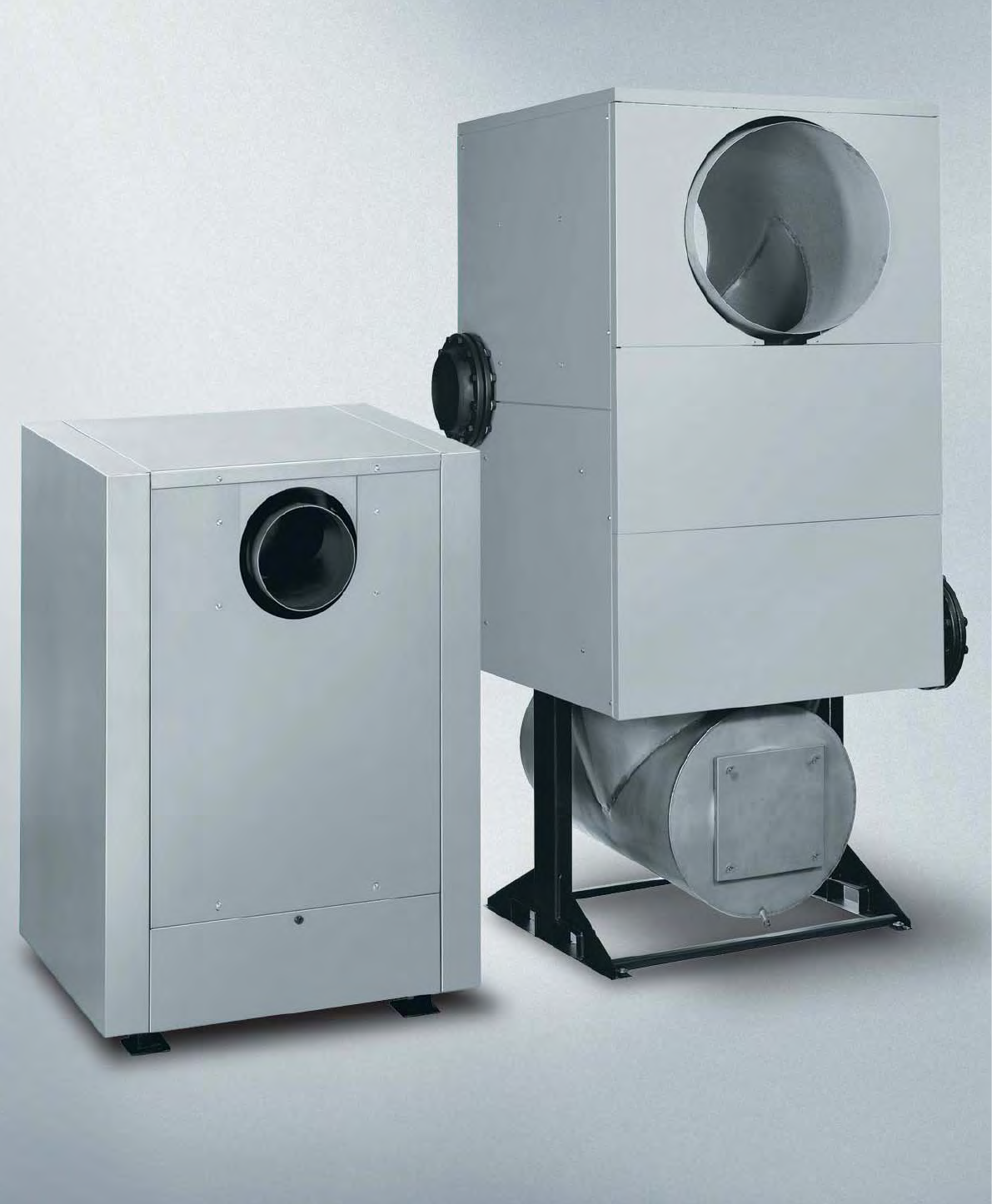

System technology Vitotrans 300
![](asset-2d.png)
Take advantage of these benefits
High operational reliability and a long service life due to corrosion-resistant
stainless steel. Stainless steel grade 1.4571 is suitable for gas operation and
short-term use with fuel oil EL; stainless steel grade 1.4539 is suitable for
continuous operation with fuel oil EL
Compact design – space-saving for installation immediately behind the boiler
Easy hydraulic connection – either the entire flow rate or, to optimise the
utilisation of condensing technology, a part of the water volume may be routed
through the Vitotrans 300
Vitotrans 300 flue gas/water heat exchanger with
– Inox-Crossal heating surface for boilers from 80 to 1750 kW
– Inox-Tubal heating surface for boilers from 1860 to 6600 kW
Vertical Inox-Crossal and Inox-Tubal heating surfaces for high operational
reliability and a long service life
– Vertically arranged hot gas flues let condensate drain easily downwards and
out. This prevents condensate concentrations through re-evaporation
– Improved self-cleaning eect through smooth stainless steel surface
– Highly eective heat transfer and high condensation rate
Neutralising systems matched to the Vitotrans 300 flue
gas/water heat exchangers
44/45
VITOTRANS 300
Rising fuel costs are of particular concern
to users of medium and industrial boiler
systems. The utilisation of condensing
technology has a particularly high impact on
the operating costs of medium and industrial
boiler systems. Energy-conscious condensing
technology has, therefore, increased in
significance.
Separate flue gas/water heat exchangers are
used for larger systems or when retrofitting
existing systems. There, flue gases are further
cooled so that water vapour condenses. The
yielded latent condensation heat and the low
flue gas temperatures provide a significant
increase in eciency.
Vitotrans 300
The Vitotrans 300 is a flue gas/water heat
exchanger for the utilisation of condensing
technology with boilers from 80 to 6600 kW.
With downstream installation this can raise
the seasonal eciency of the boiler by up to
12 % for natural gas and up to 7 % for fuel oil.
Utilising condensing technology with medium and industrial/commercial boilers
through downstream installation of heat exchangers promotes lower operating costs.
Vitotrans 300
1 Large flue gas inlet
2 High grade thermal insulation
3 Flue outlet
4 Sheet steel casing in Vitosilver
5 Inox-Crossal heating surface
1
1
2
2
3
3
44 5
5
![](asset-2e.png)
System technology Solar thermal and
photovoltaics
All medium and industrial/commercial boilers can be combined with suitable solar
technology. In such cases, the free solar energy provides the DHW heating.
Solar thermal – free solar energy
Particularly on commercial buildings, the wide
expanse of flat roofs oers an ideal base for
the installation of collector arrays.
The principle is quite simple
Of course, the utilisation of solar energy
requires innovative technology and lots
of experience: Solar thermal systems
"harvest" solar energy in the flat-plate or tube
collectors. In these, a heat transfer medium
is heated by the insolation and routed into a
DHW cylinder. There, the heat is transferred
to the potable water to be heated via internal
A new heating system and a solar thermal
system simply go hand in hand. There are
good reasons for this. In the summer, the
majority of the energy demand for DHW
heating can be covered by solar collectors.
Subject to system sizing, the system can also
provide central heating backup.
Calculated over the year, 60 % of energy can
be saved on DHW heating alone. After all,
solar energy is free, and daylight is converted
into heat by the collector even when the sun
is not shining directly onto the roof.

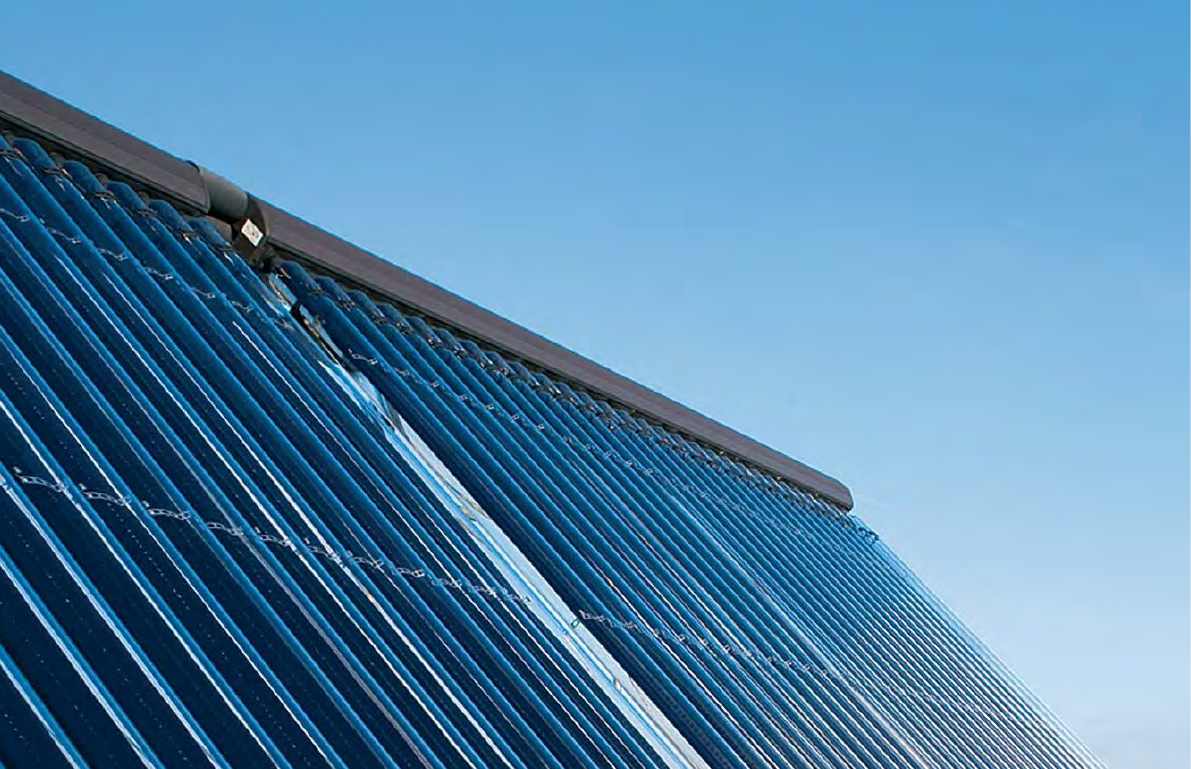

Vacuum tube collectors can be
installed anywhere, and in new
build also make for an attractive
architectural feature.
![](asset-2f.png)
46/47
indirect coils, alternatively to the heating
circuit via heat exchangers. Thereafter, the
cooled liquid is returned to the collector, and
the cycle begins again. If the insolation is
insucient, e.g. in winter, the boiler provides
reheating.
The Vitosol range oers solar collectors for
every aspiration and every budget. Installation
on the roof or wall opens up a variety of
design options.

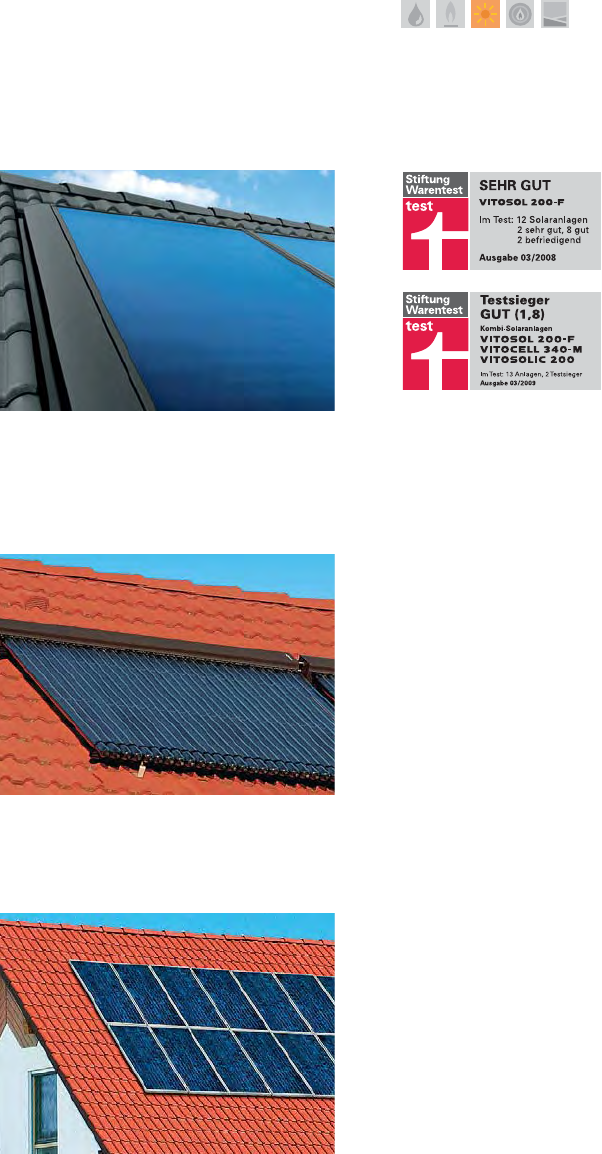

Flat-plate and tube collectors
The Vitosol 200-F flat-plate collector stands
out because of its high quality, lasting
operational reliability and high eciency. With
its extremely translucent anti-reflex glass and
highly selectively coated copper absorber,
the high performance Vitosol 300-F flat-plate
collector utilises the intensive solar radiation
particularly eciently.
The Vitosol 200-T vacuum tube collector
is characterised by its particularly eective
thermal insulation and high eciency resulting
from its Sol-titanium coating. It can be
installed anywhere.
The Vitosol 300-T meets the highest
demands. This top quality, high-performance
collector is designed around the heat pipe
principle.
Generate your own power with Vitovolt
The Vitovolt 200 and Vitovolt 100 photovoltaic
modules generate electrical energy right in
the solar cell, which is fed straight into the
public grid via an inverter.
Benefit from public subsidies
Your Viessmann trade partner is well-informed
about current subsidy programmes and will
give you the most important contact details to
obtain information and application forms.
Or simply take a look on the internet:
www.viessmann.de/foerderprogramme
The Vitosol 200-T and Vitosol 300-T vacuum tube collectors
are marked out by their superior reliability and long service
life.
The Vitosol 200-F flat-plate collector features frost and hail-
proof safety glass as well as corrosion-proof components
made from steel and aluminium. The frames are available on
request in any RAL colour.
Vitovolt photovoltaic modules from Viessmann also provide a
high yield of power generation in partially shaded areas.
Outstanding quality you can rely on.
More information at www.test.de
![](asset-30.png)
DHW cylindersSystem technology
The demand for hot water is completely
dierent in every household. One factor is
the number of draw-o points, and another is
the use of hot water. For example, in hotels
or large residential complexes, particularly in
the morning plenty of hot water for showers
needs to be available.
After all, the DHW cylinder should also
provide sucient water if hot water is
drawn from dierent points of the building
simultaneously.
The Vitocell DHW cylinders fulfil these
requirements in every respect and can also
meet every aspiration where equipment levels
are concerned. In all instances, the installation
of a solar thermal system is recommended to
save energy and heat the water without cost.
With the Vitocell DHW cylinders, Viessmann oers the convenient solution for the supply
of domestic hot water.

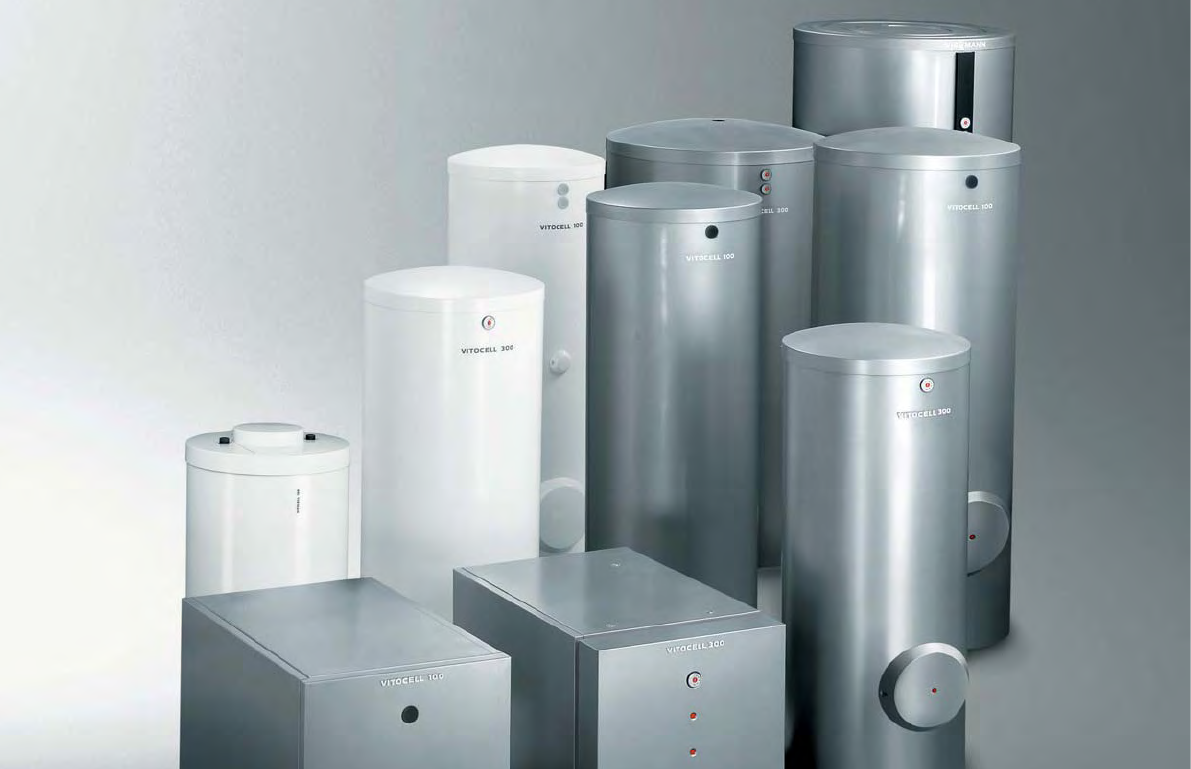

The Vitocell range from Viessmann
oers the right DHW cylinder for
every demand.
DHW convenience for every demand
![](asset-31.png)
48/49

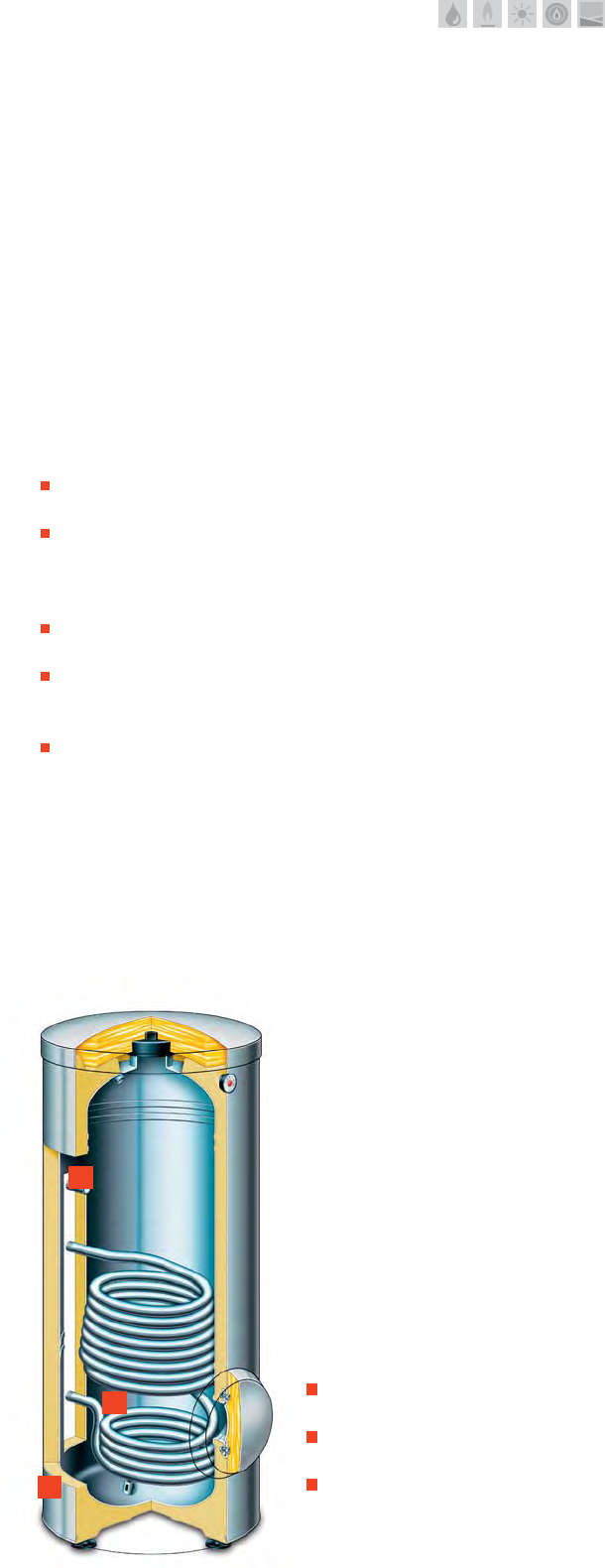

1
2
3
The right DHW cylinder for every demand
The Vitocell range of cylinders meet all
requirements for a suitable DHW cylinder. For
commercial applications, floorstanding DHW
cylinders are the first choice.
Hygienic DHW provision
The quality of the inner surface of the
DHW cylinder is crucial to providing DHW
hygienically. For this reason, Viessmann relies
on two high quality materials: Ceraprotect
enamel coating for safe, lasting protection
against corrosion for the Vitocell 100 range,
and stainless steel for the Vitocell 300 range
for the highest of hygiene standards.
The indirect coils inside Vitocell DHW
cylinders reach right down to the cylinder
floor. This enables them to heat the entire
water content, making them very economical.
Vitocell 300 made of stainless steel
Vitocell 300 DHW cylinders made from
corrosion-resistant stainless steel meet
some of the most stringent hygiene
standards. Stainless steel is used for good
reason in kitchens, laboratories, hospitals
and the food processing industry – because
it oers excellent hygiene properties.
Its homogeneous surface retains its
characteristics even after many years in use.
Vitocell 300
1 Vitocell 300 made from stainless steel.
Capacity: 130 to 500 litres
2 Indirect coils drawn right into the bottom
of the cylinder
3 Highly eective thermal insulation
Vitocell 100 with Ceraprotect
enamel coating
Vitocell 100 with Ceraprotect enamel coating
meets all requirements for convenient,
economic heating of DHW and are amongst
the top selling enamelled DHW cylinders.
The Ceraprotect enamel coating provides
the DHW cylinder with secure and lasting
protection against corrosion.
Take advantage of these benefits
Vitocell 300 made from stainless steel.
Capacity: 130 to 500 litres
Dual mode and multi-mode DHW cylinders
for the integration of solar thermal systems
for DHW heating and central heating
backup
Vitocell 100 with Ceraprotect enamel
coating. Capacity: 80 to 1000 litres
Internal indirect coils stretching right to
the cylinder floor heat up the entire water
content
Low heat losses through highly eective
thermal insulation
![](asset-32.png)
Viessmann TeleControl are innovative systems for the data connection between heating
systems and all common communication systems – by cable, wireless and in IP networks.
Everything under control – from wherever you are
From large residential complexes, utility
buildings to holiday homes – the Viessmann
TeleControl range oers intelligent solutions
for data communication with heating systems
and building services that are a perfect match
to the dierent requirements of heating
system operators, contractors or heat supply
utilities. This applies to all available heating
systems: oil or gas condensing boilers,
medium and industrial/commercial oil/gas
boilers, solar thermal systems as well as
pellet boilers and heat pumps.
In addition, technical equipment such as
pumps, ventilation systems, air conditioning
systems or leak detectors can be checked via
the data communication system.
The Viessmann TeleControl operates easily
and aordably with Vitocom and Vitodata,
utilising an infrastructure that is available
practically everywhere, subject to operation
via mobile phone, PC or smartphone.
This kind of control can be exercised from
anywhere in the world.
Data communication
TeleControl – remote monitoring and remote control
System technology
![](asset-33.png)
TeleControl from Viessmann is
the ideal choice for the remote
monitoring and control of heating
systems – regardless of whether for
a detached house, holiday home or
a large residential complex.
Vitocom 200
Vitodata 100
Internet
Vitocom 300
Vitodata 300
Internet
Vitocom 100
Mobile networks
Private
users
Specialist contractors,
property management
Commercial
enterprises
Vitocom 300 with Vitodata 300
The internet data communication Vitocom 300
with Vitodata 300 is ideal for the professional
monitoring of larger residential projects or
utility buildings. It is designed with heat
supply utilities, contractors or municipal
services in mind that value a quick and reliable
inspection, maintenance and optimisation of
the heating operation.
Amongst the many control functions available
are the setting of switching times, operating
and holiday programs, specifying set values
(level/slope), scanning operating states and
temperatures, as well as setting codes.
In addition, the system can display energy
consumption and can be used for billing.
Faults may be issued via SMS, fax or email
to the responsible service engineer using the
integral service schedule.
Vitocom 300 LAN
The LAN version of the Vitocom 300 enables
data transfer via DSL/Ethernet networks at
speeds of up to 100 MB/s. Access via a VPN
connection ensures an optimum level of data
security.
Vitocom 200 with Vitodata 100
The Vitocom 200 is an attractively priced
solution for private houses and smaller utility
buildings, as well as public facilities, such
as nurseries and schools. The Vitodata 100
with integral web-based user interface oers
ideal conditions for convenient and user-
friendly operation. Amongst the many control
functions available are the setting of switching
times, operating and holiday programs,
specifying set values (level/slope), scanning
operating states and temperatures.
Messages are sent directly to the responsible
contractor by SMS or email. This enables
maintenance and service to be carried out
eciently.
Vitocom 100
50/51
The Vitocom 100 provides remote monitoring
for detached houses and two-family homes
or of buildings that are not permanently
occupied, such as holiday homes. Ideal
for homeowners who want to combine
convenience with security. On request, the
heating system may also be monitored by a
heating contractor.
Messages are sent to the system operator or
contractor via SMS.
![](asset-34.png)
Vitotronic
Regulating and control system
System technology
Vitotronic control units, with
their well thought-out electronic
management system, ensure
the economical operation of your
heating system.
From single boiler to multi-boiler systems with central control panels, Viessmann supplies
perfectly matching solutions.
Vitotronic – economic energy management for
systems of every size
The digital control system, Vitotronic, with
communication capability is the electronic
management system for the economical and
safe operation of heating systems. Exemplary
installation, operation and maintenance.
The modular design makes the essential
functions of the Vitotronic control units for
small boilers also suitable for medium and
industrial/commercial boilers. The relevant
components are all based on a platform
strategy. Some of its common features
include: standardised operation and simple
installation, commissioning and maintenance
with our Rast-5 connection system, Plug
& Work functionality and Optolink laptop
interface.
The Vitotronic control unit for medium and
industrial/commercial boilers oers sucient
space for clear and tidy wiring. All Vitotronic
control units are VDE tested in conjunction
with the Viessmann boiler. As an alternative to
heating DHW by controlling the DHW cylinder
temperature, a primary store system with a
three-way valve can also be used.
![](asset-35.png)
52/53
Vitocontrol control panel
Integration into building management
systems
Vitotronic 300 is a weather-compensated
digital cascade control unit for operating up to
four boilers with the Vitotronic 100, incl. the
control of two mixer circuits.
Communication within the control system is
achieved via a LON. This enables the easy
integration into building management systems
without an additional interface. Vitotronic 300
can be boiler or wall mounted or be integrated
into the Vitocontrol control panel and enables
the central operation of the whole system.
Convenient heating circuit controls
Vitotronic 200 is designed as a weather-
compensated digital boiler control unit for
single boiler systems with system circuit
and burners with stepped or modulating
operation. For more than two heating circuits
with mixer, a maximum of 32 Vitotronic 200
heating circuit control units can be connected
up using the LON communication module.
The Vitotronic 100 is a digital boiler control
unit for operating with a constant boiler water
temperature in single boiler systems or for the
first to fourth boiler in multi-boiler systems
(in conjunction with the cascade control unit
Vitotronic 300-K).

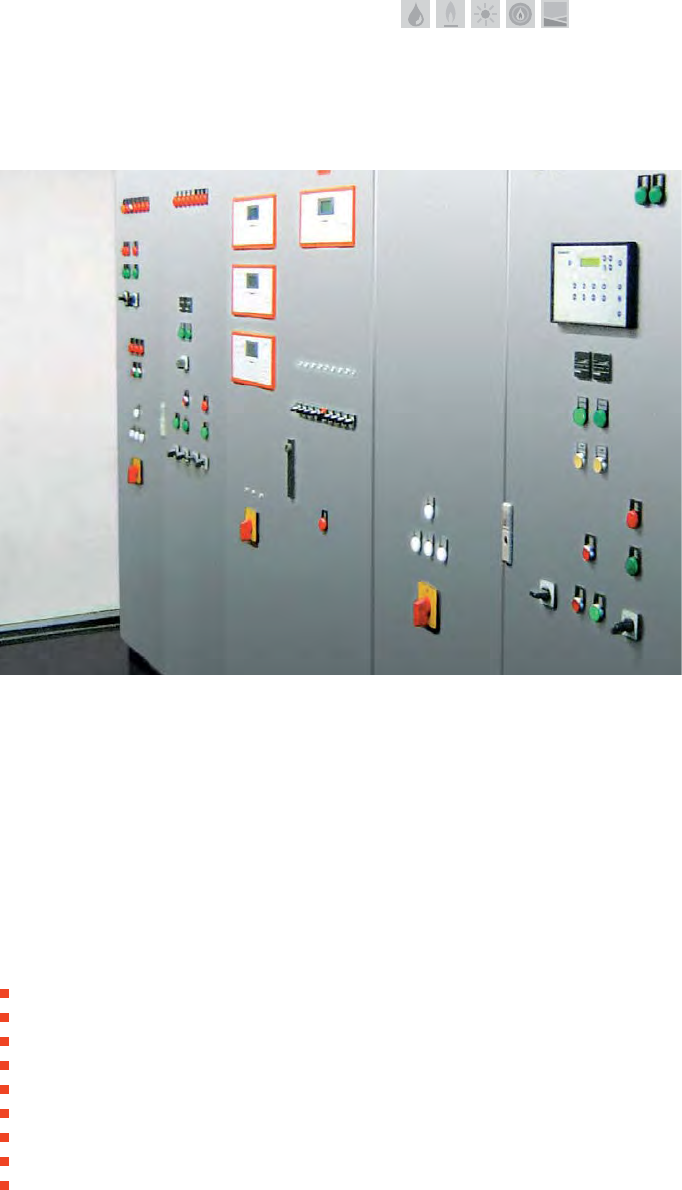

Vitocontrol regulating and control system
The Vitocontrol control system is an essential
part of the boiler system. The system is
programmed and operated via control and
display devices built into the control panel
door. These are ready programmed for
the use in the language of the country of
destination.
The control panel is tested in accordance with
country-specific standards and regulations
and includes the issue of a test report that
covers the extent of our supply.
Take advantage of these benefits
Burner control for gas, oil or multi-fuel combustion
Pump control: fault changeover, alternate control, cascade control
Heating circuit control, control of regulating valves and pumps
Safety functions in accordance with country-specific regulations
Display of operating and fault messages
Boiler protection functions
Boiler control units
Cascade function for multi-boiler systems
Remote monitoring, programming of parameters and operation of control units
via telephone/internet
![](asset-36.png)
Vitoset is our extensive range of accessories. Yet more evidence of the
system expertise oered by Viessmann.
With the Vitoset range, Viessmann oers its
trade partners all the components required to
equip a property with a heating system. Each
Vitoset product meets the highest quality
demands. The entire range works perfectly
with all other Viessmann products. In brief,
this means that with Viessmann, everything
fits together and is safely, quickly and easily
installed.
Vitoset – everything from one source
Our system – your benefit
However, our trade partners not only benefit
from our high quality standards. Vitoset also
lightens the load and saves time and money
when ordering or receiving deliveries and
services. We oer complete sets, e.g. an oil
boiler with matching system components,
such as an oil filter, expansion vessel, or fill &
drain valve under a single part number.
Heating system
accessories
Vitoset
![](asset-37.png)

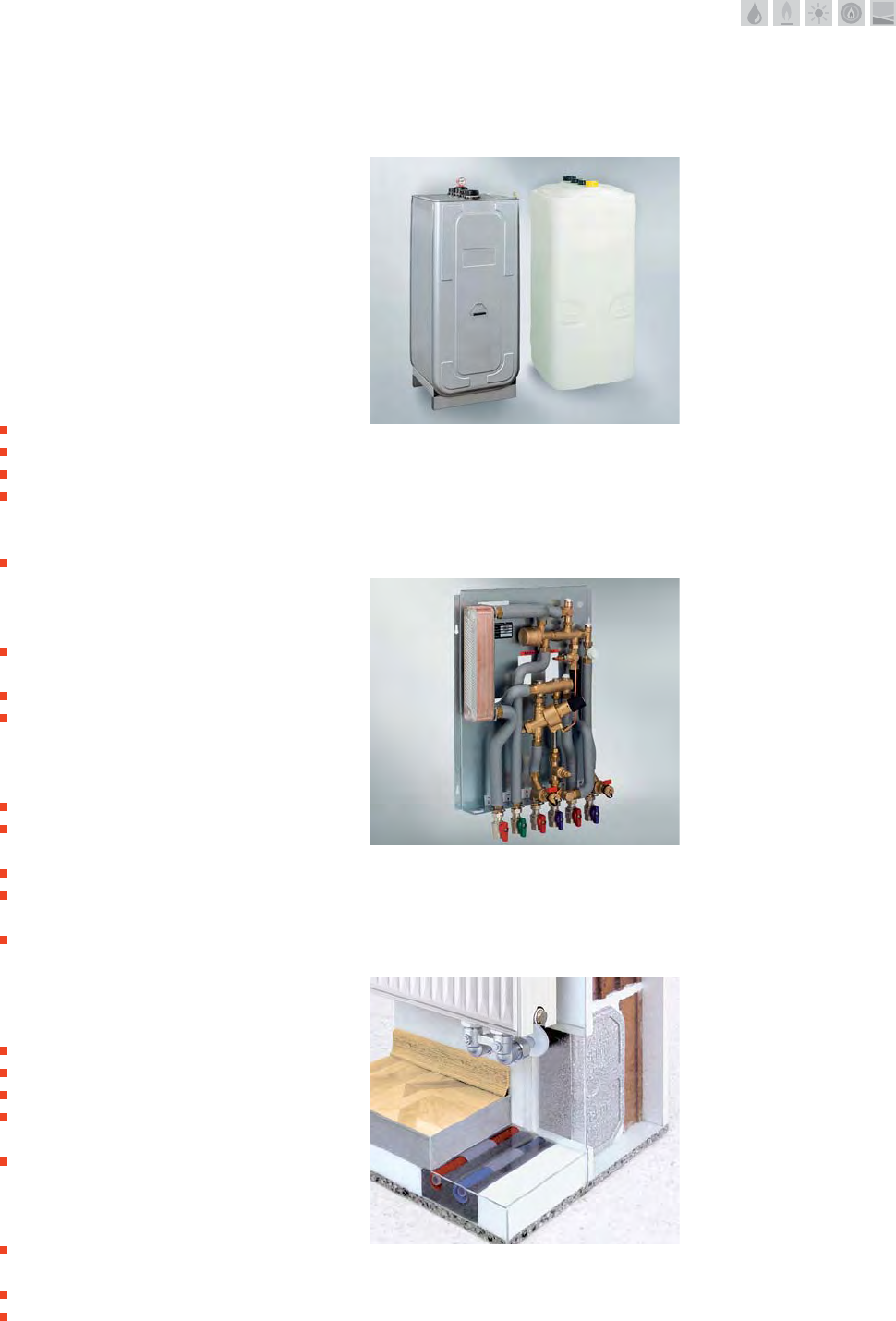

Safe and versatile – Vitoset fuel oil tanks. Tanks with 750 to
1500 litre capacity, available in many dierent versions to
suit your specific requirements.
Fitted connections from the comprehensive Vitoset range
save installation time and costs.
Everything can be ordered quickly by phone,
fax or through the internet, and is always
supplied from a single source. Thanks to our
dense network of sales oces, merchandise
is delivered speedily.
With Vitoset, Viessmann provides a
comprehensive range of heating equipment.
Everything included – by design. Every one of
our trade partners benefits as a result.
Fuel storage
Fuel oil tanks, 620 to 1500 l
Fuel oil tank accessories
Oil filters
Pellet silos
Heat generation
Diaphragm expansion vessel for sealed
unvented heating systems, colour
Vitosilver, from 25 to 140 litres, also
available in pure white (RAL 9010)
Shut-o valves, safety valves, air-vent
valves
Small water softening system
Single and twin wall stainless steel flue
gas system
DHW heating
Drinking water filters
Diaphragm expansion vessels for DHW
installations
DHW circulation pumps
Diaphragm safety valves for sealed DHW
cylinders
Freshwater module for DHW heating in
accordance with the instantaneous water
heater principle
Heat distribution
Shut-o valves, non-return valves
Low loss headers
Heating mixers
Plate heat exchanger for heat pump
systems
Residential and local heating network
transfer stations
Heat transfer
Universal, flat panel and bathroom
radiators
Radiator accessories
Underfloor heating system, PE-RT 5-ply
safety pipe
Apartment and local heating network transfer stations.
54/55
![](asset-38.png)
Services Software service
![](asset-39.png)
56/57
Vitodesk – software competence from one source
Vitodesk is the complete software support package for heating contractors, design
engineers and architects. All programs support automatic data exchange.
Vitodesk 100
Vitodesk 100 is the free data service from
Viessmann. It enables users to select
Viessmann products for design/engineering
and tendering.
Vitodesk 200
Vitodesk 200 is tailored to the planning and
sizing of smaller and medium-sized building
projects. It is divided into three areas, i.e. RES
(renewable energy systems), sanitary/heating
and air conditioning.
The ESOP 4.0 module, which is part of this
software package, is designed for calculations
around solar thermal systems. This program
is based on the computation module of
T-SOL that is recognised by bodies oering
subsidies. The weather data sets of numerous
European countries are supplied as standard
or can be added on at a later date.
Vitodesk 300
Viessmann developed its own OEM version
from the industry standard AutoCAD
program. In addition to the main functions
of the full version, this software oers many
additional assistants that make engineering
and presentation even more convenient and
ecient.

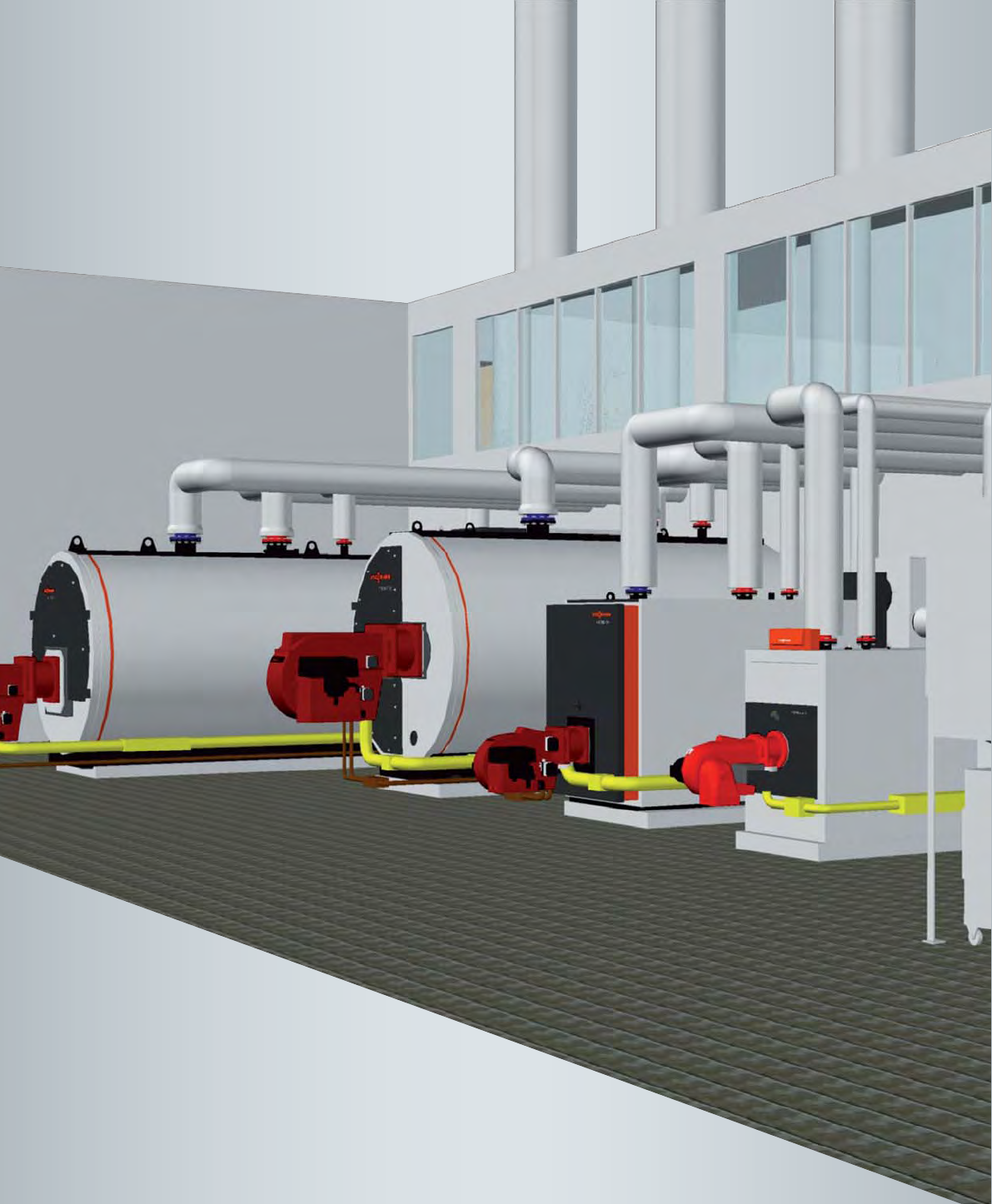

Complex heating centres can be designed
much more eciently and precisely with this
3-D program than with conventional software
tools. The 3-D boiler room engineering
program can check in advance whether the
system can fit into the existing boiler room
with all required components. It means
engineering errors can be eliminated during
the design phase.
The program assistants not only support
the creation of the pipework layout, but
also oer tools for the true-to-scale design
of distributors and containers. All required
sectional depictions and views, plus
designations, can be produced on the design
and are updated automatically when changes
are made.
The product management runs unobtrusively
in the background. This enables a detailed
output of the parts lists, even including
a cutting list. The provision of rendered
diagrams enables systems to be clearly
and professionally presented, giving a clear
advantage prior to orders being placed.
Clever software supports design
engineers and trade experts alike in
realising their projects.
![](asset-3a.png)
Partnership with excellent prospects
The complete range of innovative and
advanced heating equipment that is reliable
and of high quality, forms the basis for
Viessmann's close partnership with the
heating trade and its various bodies, ensuring
lasting success in the market.
Trade and industry must co-operate to best
utilise the opportunities the market oers.
Attractive product services gain ever greater
importance for manufacturer and trade alike.
The services oered by Viessmann in support of trade partners
go back a long way.
The new energy centre and the
Viessmann Academy in Allendorf
Services Attractive services for
our trade partners
Viessmann oers a comprehensive range that
benefits the trade.
However, it is not all about technology.
Many years of after-care and maintenance
and a guaranteed supply of spare parts are
extremely important. These are provided by
the Viessmann customer service department.
Maintenance agreements are also available if
required.
![](asset-3b.png)
58/59
Everything from one source
Viessmann oers everything for solution-
focused cooperation:
Consultation – comprehensive and
competent
Vitoplan engineering software – a
complete software package for the
planning and sizing of heating systems
with 3-D boiler room sketching, including
presentation and visualisation functions
Manufacture – according to country-
specific requirements with short delivery
times
Equipment – safety accessories, burner,
control panels, boiler walkways, flue
gas/water heat exchangers and water
treatment plant
Training and instructions – at the
information centre in Berlin
Delivery and handling with our own vehicle
equipped with a hoist, and an expert team
Commissioning anywhere in the world by
technically competent engineers
Service by qualified technical services
Heat contracting – additional business
through attractive services
Leasing – uncomplicated and flexible –
businesses and local authorities can also
lease their Viessmann heating systems
Responsibility for the environment –
Viessmann is certified according to the
Eco Audit EN ISO 14 001 and EMAS.
This includes the entire process, from
manufacturing to recycling
Delivery to site of a Vitomax boiler
All Viessmann products meet demanding environmental
standards and have been EMAS-certified.
Viessmann information centre, Berlin
![](asset-3c.png)
Viessmann Group Renewable energy systems
![](asset-3d.png)
60/61
Individual solutions with ecient systems
Now that the Viessmann Group includes ESS,
Köb, KWT and Mawera amongst its brands,
the company covers the complete breadth
of powerful heating systems. These include
biomass boilers, heat pumps and combined
heat and power units (CHP). All systems
share the use of renewables that protect finite
resources. The CHP can be operated with
natural gas as well as with biogas.
For many commercial and industrial sectors,
the operation of a biomass power station
with heat generation is an obvious choice,
for example, in the wood processing
industry, in landscape gardening and in
the forestry sector. Here, suitable boilers
can predominantly cover the base load. In
addition, oil or gas boilers can cover peak
loads and thereby safeguard a continuously
ecient provision as and when required.
ESS CHP units for operation with natural gas
or biogas not only generate heat but also
power that can be consumed on site or fed
into the public grid.
Wood heating systems up to 1250 kW from
Köb combust wood of any kind: pellets,
sawdust, wood chips and mixed wood. These
are particularly suitable for commercial and
industrial applications.
Mawera supplies wood combustion systems
up to 13,000 kW. Commercial energy
suppliers increasingly bank on biomass as
fuel. It is obtained from crisis-proof regions
and makes a crucial contribution to preserving
fossil fuels, not least through sustainability
and CO2-neutrality.
Heat pumps from KWT are specifically
adapted to each individual case. Subject to the
challenges facing the operator, water/water,
brine/water or air/water heat pumps can be
supplied.
The comprehensive Viessmann product range for all fuel types and application areas
oers top technology and sets new standards.

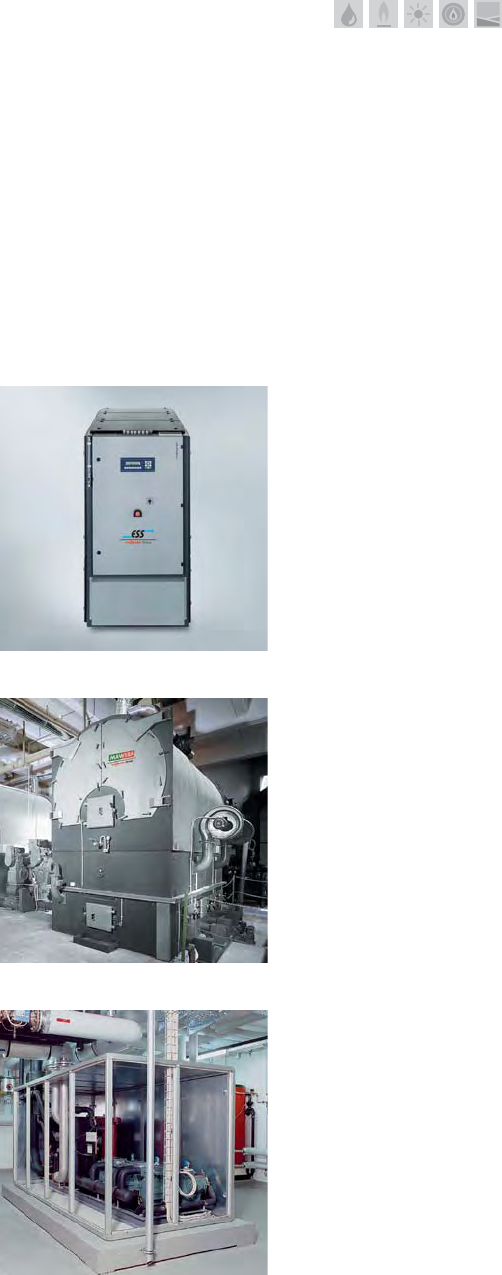

Vitobloc 200 – combined heat and
power units from ESS
Special heat pumps for commercial
applications from KWT

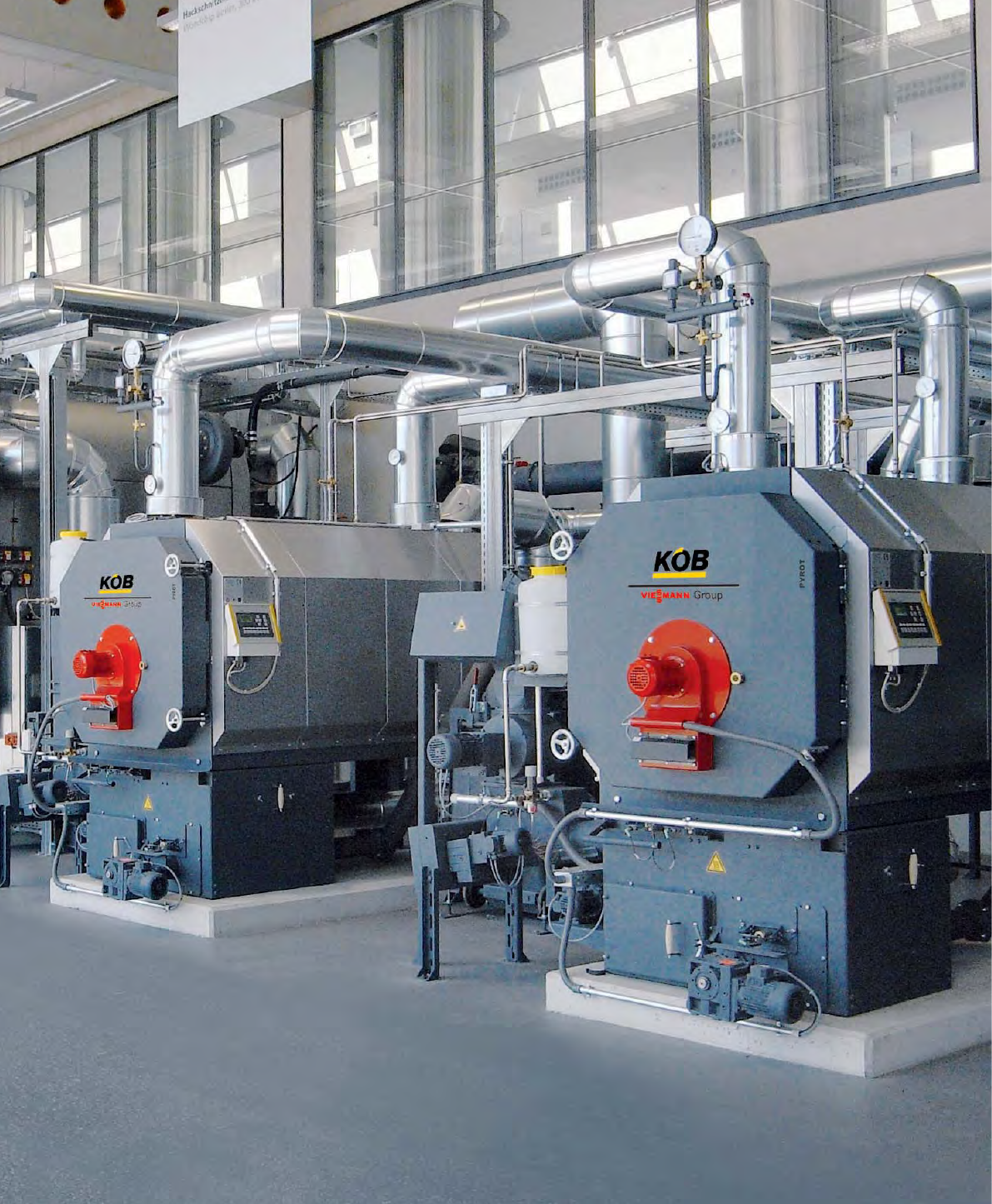

Biomass boiler from Mawera
and Köb
![](asset-3e.png)
The comprehensive range of products and services
from Viessmann
Individual solutions with ecient systems
The comprehensive range of products and
services from Viessmann
The comprehensive range of products and
services from Viessmann oers individual
solutions with ecient systems for all
applications and all energy sources. As
environmental pioneers, the company has,
for decades, been supplying particularly
ecient and clean heating systems for oil
and gas, as well as solar thermal systems
along with heat generators for sustainable
fuels and heat pumps.
The comprehensive range of products
and services from Viessmann oers top
technology and sets new benchmarks.
With its high energy eciency, this range
helps to save heating costs and is always the
right choice where ecology is concerned.
Individual and ecient
Viessmann oers the right heating system for
any demand – wall mounted or floorstanding,
in individual combinations – all are futureproof
and economical. And whether for detached
houses or two-family homes, large residential
buildings, commercial/industrial use or for
local heating networks; for modernising
existing properties or new build – they are
always the right choice.

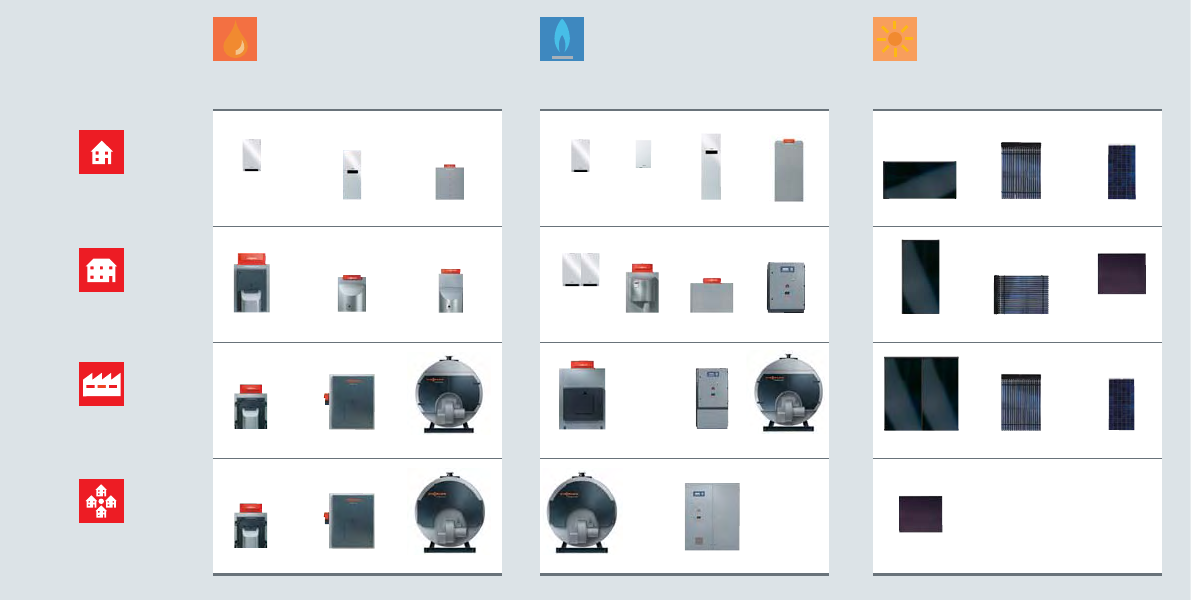

Detached houses
Apartment buildings
Commerce / Industry
Local heating
networks
Solar thermal and
photovoltaics
Oil low temperature and
condensing technology
13 – 20,000 kW
Gas low temperature and
condensing technology
4 – 20,000 kW
![](asset-3f.png)
62/63
The comprehensive range of products and services from
Viessmann: Individual solutions with ecient systems for all
energy sources and applications
Viessmann is extremely highly specialised in
all these market segments, yet at the same
time the company has a crucial advantage over
specialist suppliers: Viessmann understands
heating technology as a systematic whole and
oers unbiased advice on technology and fuel
type. This guarantees the best solution for
every application.
Key performers
The Viessmann Group sets the technological
pace for the heating industry. This is what the
Viessmann name represents, and also what
the names of the subsidiaries in the Group
represent, as they are founded on the same
pioneering spirit and power of innovation.
The company oers the following:
n Condensing technology for oil and gas
n Solar thermal systems
n Heat pumps
n Wood combustion systems
n CHP modules
n Biogas plants
n Services

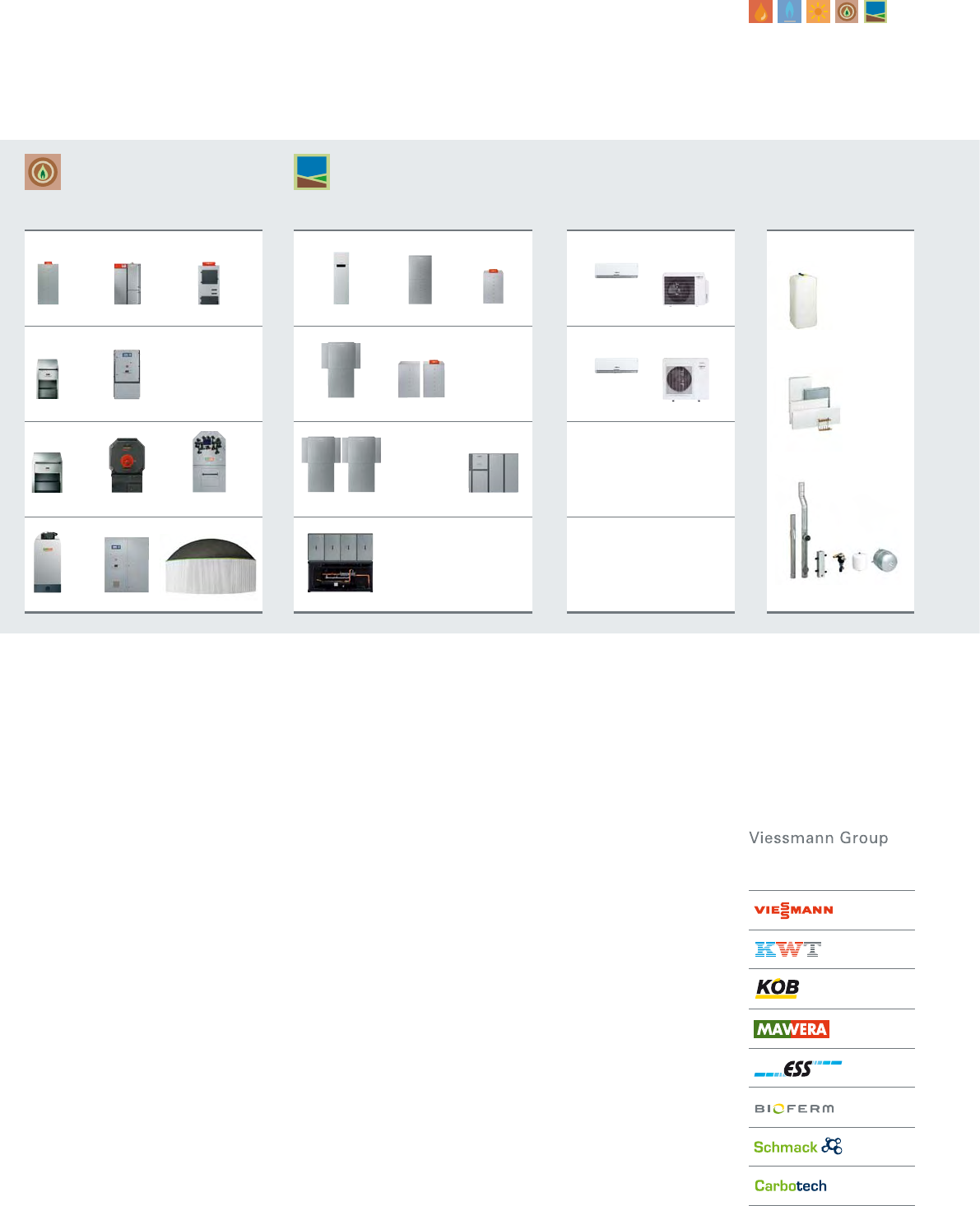

Air conditioning technology System components
Heat pumps for
brine, water and air
1.5 – 2000 kW
Wood combustion technology,
CHP and biogas production
4 – 13,000 kW
![](asset-40.png)
The comprehensive range of products and services
from Viessmann
The comprehensive range of products and services from Viessmann:
Individual solutions with ecient systems for all energy sources and applications
Detached houses Apartment buildings Commerce / Industry Local heating networks
HafenCity Hamburg,
Germany
City of Tomorrow, Malmö,
Sweden
The Palm Jumeirah,
Dubai
Heliotrop Freiburg,
Germany
Solar thermal and
photovoltaics
Residential development Zi Wei
Garden Xi‘an, China
Ameco A380 Hangar Beijing,
China
European Parliament, Strasbourg,
France
Architect‘s own home, Bad Füssing,
Germany
Oil low temperature and
condensing technology
13 – 20,000 kW
„Wohnoase“ residential park in
Regensburg, Germany
Porsche Leipzig,
Germany
European Parliament, Brussels,
Belgium
Detached house, Kevelaer,
Germany
Gas low temperature and
condensing technology
4 – 20,000 kW
Hotel Lagorai Cavalese,
Italy
Congressional Centre, Brunstad,
Norway
Monastery St. Ottilien,
Germany
Detached house, Wiesloch,
Germany
Wood combustion
technology,
CHP and biogas
production
4 – 13,000 kW
Studio flats, Brandenburg,
Germany
University library, Bamberg,
Germany
Residential estate, Pfäkon,
Switzerland
Loftcube Regional Garden Show,
Neu-Ulm, Germany
Heat pumps for
brine, water and air
1.5 – 2,000 kW
![](asset-41.png)
64/65
City of Tomorrow, Malmö, Sweden
Futureproof heating technology for
all requirements
Energy consumption worldwide has doubled
since 1970 and will triple by 2030. The
result: The fossil fuels, oil and gas, are
dwindling, energy prices are on the rise and
excessive CO2 emissions continue to aect
our environment. Energy eciency is a must if
we want our future to be secure.
In almost every industrial nation, supplying
heat to residential and commercial buildings
accounts for the largest share of energy
consumption – consequently it also oers the
greatest savings potential. Advanced ecient
heating systems from Viessmann are in use
around the world, not only in many private
households, but also in numerous major
international projects, where they make a
sizeable contribution to the ecient use of
energy resources.
In these projects, Viessmann again and
again faces up to the most varied challenges
to supply ecient heating technology by
oering innovative solutions – in historical
listed buildings as well as in modern industrial
complexes or in the large-scale residential and
industrial arena.
![](asset-42.png)
The company
![](asset-43.png)
66/67
Viessmann Werke GmbH & Co. KG
Viessmann – climate of innovation
Viessmann won the German
Sustainability Award 2009 for its
commitment to climate protection
and ecient use of resources.
For the particularly ecient
utilisation of energy through the
innovative heat recovery centre
at the company‘s main site in
Allendorf/Eder, Viessmann was
rewarded with the Energy Eciency
Award 2010.
The Viessmann brand promise concisely
expresses all that we hope to achieve. It is
our key brand message and, together with
our brand label, is an identifying feature
throughout the world. “Climate of innovation“
is a promise on three levels: It is a commitment
to a culture of innovation. It is a promise of
high product utilisation and, at the same time,
an obligation to protect the environment.
Comprehensive range of products and
services for all fuel types
Viessmann is one of the leading international
manufacturers of heating systems and, with
its comprehensive range of products and
services, oers individual solutions in the
shape of ecient systems for all applications
and types of fuel. As an environmental
pioneer, the company has been supplying
particularly ecient and clean heating
systems.
Acting in a sustainable manner
For Viessmann, to take responsibility, means
a commitment to act in a sustainable way.
This means bringing ecology, economy and
social responsibility into harmony with each
other, ensuring that current needs are
satisfied without limiting the basis for life
for the generations to come.
Eciency Plus
With the sustainability project “Eciency
Plus“ Viessmann shows at its Allendorf site,
that the political goals set for 2020 with
regard to climate and energy can already be
achieved today with commercially available
technology.
This project demonstrates:
n Environmental protection
n Eciency with resources
n Securing manufacturing sites for the future
As a result, fossil fuels have been cut by
40 percent and CO2 emissions reduced by
a third.
Performance spectrum
n Condensing technology for oil and gas
n Solar thermal systems
n Heat pumps
n Wood combustion systems
n CHP modules
n Biogas plants
n Services
Company details
n Established in: 1917
n Employees: 9000
n Group turnover: €1.7 billion
n Export share: 50 percent
n 16 factories in Germany, France, Canada,
Poland, Hungary, Austria, Switzerland
and China
n Sales organisation in 37 countries
n 120 sales oces worldwide
n 3 service providers
![](asset-44.png)
The Viessmann Group
D-35107 Allendorf (Eder)
Telephone +49 6452 70-0
Fax +49 6452 70-2780
www.viessmann.com
9443 324 - 1 GB 02/2011
Copyright Viessmann.
Duplication and alternative use only with prior written consent.
Subject to technical modifications.
