OpenSatKit User’s

Guide

Version 1.x , Released May 24, 2018

OpenSatKit User’s Guide – Version 1.x


Table of Contents
0  Introduction ...................................................................................................................................... 4
1  Motivation ..................................................................................................................................... 4
2  cFS Overview ................................................................................................................................. 6
2.1  cFS Architecture .................................................................................................................... 9
2.2  cFS Application Context ...................................................................................................... 11
3  COSMOS Overview ...................................................................................................................... 12

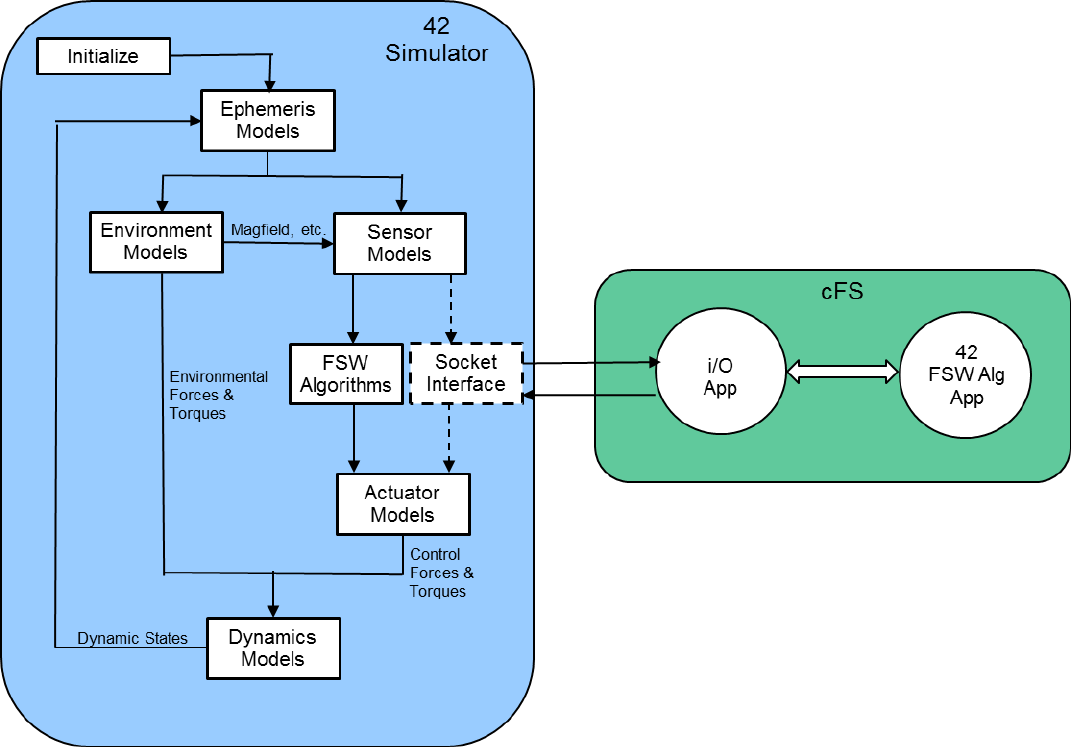

4  42 Simulator Overview ................................................................................................................ 13
5  PiSat Target ................................................................................................................................. 14
0  Using Starter Kit Features ............................................................................................................... 16
1  Launching the Starter Kit ............................................................................................................ 16
2  Kit Feature Overview .................................................................................................................. 19
3  Kit Main Page .............................................................................................................................. 19
4  cFS Functions............................................................................................................................... 20
4.1  Manage Files ....................................................................................................................... 20
4.2  Manage Tables .................................................................................................................... 22
4.3  Manage Memory ................................................................................................................. 22
4.4  Manage Recorder ................................................................................................................ 22
4.5  Manage Autonomy ............................................................................................................. 22
4.6  Manage Applications........................................................................................................... 22
5  Kit Tools ....................................................................................................................................... 22
5.1  Verify cFS Configuration ...................................................................................................... 22
5.2  Run cFS Performance Monitor ............................................................................................ 22
5.3  Run Benchmarks ................................................................................................................. 23
5.4  Run 42 Simulator ................................................................................................................. 23
5.5  Add Application ................................................................................................................... 23
5.6  Manage Hardware Targets.................................................................................................. 23
6  Demos ......................................................................................................................................... 23
7  Pre-installed Applications ........................................................................................................... 23
7.1  Kit Applications ................................................................................................................... 23
7.2  cFS Applications .................................................................................................................. 23
0  Demos and Tutorials ....................................................................................................................... 25
1  Demos ......................................................................................................................................... 25
2  Tutorials ...................................................................................................................................... 27
0  Managing Applications .................................................................................................................... 30

OpenSatKit User’s Guide – Version 1.x


1  cFS Application Build Environment ............................................................................................. 30
1.1  Building and installing the cFS ............................................................................................ 31
2  COSMOS Application Definition Environment ............................................................................ 33
3  OpenSatKit Application Runtime Environment .......................................................................... 34
4  Creating New Applications .......................................................................................................... 36
5  Adding Existing Applications ....................................................................................................... 38
6  Removing Applications................................................................................................................ 40
7  Creating Application Unit Test .................................................................................................... 41
0  Implementing a Mission .................................................................................................................. 42
1  Porting to a new platform ........................................................................................................... 43
2  PiSat ............................................................................................................................................ 43
3  Configuring the cFE ..................................................................................................................... 44
4  Creating your application suite ................................................................................................... 44
5  Development process ................................................................................................................. 44
6  Ground system ............................................................................................................................ 44
7  Systems Topics ............................................................................................................................ 44
0  Test Framework .............................................................................................................................. 45
0  Kit Design and Maintenance ........................................................................................................... 46
1  COSMOS Configuration ............................................................................................................... 46
1.1  Ruby Gems .......................................................................................................................... 46
2  OSK COSMOS Design ................................................................................................................... 46
3  42 Configuration ......................................................................................................................... 47
4  Kit Application Design ................................................................................................................. 47
5  cFS Component Releases ............................................................................................................ 47
5.1  cFE ....................................................................................................................................... 48
Appendix A - Acronyms ............................................................................................................................... 49
Appendix B – Online Resources .................................................................................................................. 51
B.1  First Time Kit Installation ................................................................................................................ 51
B.2  Updating the Kit .............................................................................................................................. 51
B.3  COSMOS Resources ......................................................................................................................... 52
B.4  42 Resources ................................................................................................................................... 52
B.5  PiSat ................................................................................................................................................ 52
Appendix C – User FAQs .............................................................................................................................. 53
C.1  Installation Issues ............................................................................................................................ 53
C.2  Ubuntu Issues .................................................................................................................................. 54

OpenSatKit User’s Guide – Version 1.x
3

C.3  COSMOS-cFS Connections Issues .................................................................................................... 54
C.4  COSMOS .......................................................................................................................................... 55
C.5  cFS ................................................................................................................................................... 55
C.6  42 .................................................................................................................................................... 55
C.7  JSON Files ........................................................................................................................................ 55
Appendix D – Naming Conventions ............................................................................................................ 57
D.1  Command & Telemetry Database ................................................................................................... 57
D.2  Abbreviations .................................................................................................................................. 57

OpenSatKit User’s Guide – Version 1.x

1.0 Introduction

OpenSatKit was developed for the following reasons:

1. Serve as a distribution of the core Flight System (cFS). The cFS is an open architecture that has

separately configuration managed components. NASA controls the framework and Application

Programming Interfaces (APIs) and the cFS community including NASA provides components.

2. Serve as a cFS educational platform. This includes teaching users about the cFS itself and also

providing an environment that could be used as a classroom “lab” for doing exercises.

3. Provide an application prototyping environment. It supports creating, integrating, and

removing apps from the kit. It can also be used for initial configuration of apps for a mission.

4. Support target embedded platform evaluation and initial ports. A benchmarking app allows a

user to run and compare benchmarks for different platforms. A plan is to create a platform

verification app that will verify a target platforms functional behavior.

The kit is not intended to support a mission throughout the entire lifecycle. For example it does not

support hardware in the loop configurations. This does leave a gap if a mission is using COSMOS as its

ground system for spacecraft integration and test and/or mission ops. The current options are for a user

to create COSMOS extensions to the kit to meet their mission needs or to port the portions of the kit

(command & telemetry definitions, pages, scripts, etc.) from the kit to the COSMOS platform that has

been configured/extended for their mission.

This section describes the motivation for creating the starter kit and a high level introduction to each of

the architectural components. If you want to jump in and start using the kit go to Section 2. If you want

to use the kit to customize the Core Flight System (cFS) sections 3 and 4 explain how to manage

applications and transition from the kit virtual machine to your target hardware platform, respectively.

Please keep in mind the starter kit is composed of three complex products and the goal of this

documentation is not to explain the details of each product. This document is written from the

perspective of a flight software (FSW) developer that wants to use the cFS to control an embedded

device.

Section 5 describes how to maintain the kit and delves into the starter kit’s design. A typical product

user’s guide wouldn’t include this information, but just as the kit’s components are ‘open architectures’

the kit itself is open and may be modified by the user to be part of an operational system so this

information will be helpful to those users.

1.1 Motivation

Until around 2010 the development of spacecraft flight software (FSW) was performed by large

organizations that had custom proprietary solutions. FSW ran on processors lagging terrestrial

processor performance by orders of magnitude often forcing software engineers to opt for

performance over generalized solutions. With the exception of communications satellites many

organizations produced ‘one off’ customized satellites to designed for a specific application.

These product development lifecycles were often 5-10 years so even when FSW reuse was

occurring the maturation of the reusable artifacts across products was very slow.

OpenSatKit User’s Guide – Version 1.x

During this period from roughly 2005 until 2015, the National Aeronautics and Space

Administration (NASA) Goddard Space Flight Center (GSFC) developed the Core Flight System

(cFS) and in January 2015 the cFS was released as open source. This was great news for the

aerospace community, however there were many challenges with people actually adopting the

cFS for their missions. The cFS is a reusable FSW architecture that provides a portable and

extendable platform with a product line deployment model. As an open architecture, the cFS

can be technically challenging for new users to configure and deploy. In addition, as a

government organization, it is difficult for NASA to implement an open source product business

model.

This starter kit addresses these issues by providing a fully functioning flight-ground system that

runs on a desktop computer. The starter kit components are shown in Figure 1. Ball

Aerospace’s COSMOS, a user interface for command and control of embedded systems, is used

as the ground system. The cFS running on Linux provides a desktop FSW component. The 42

Simulator provides a simulation of spacecraft attitude and orbit dynamics and control. See

Appendix B for details on obtaining more information on each of these components.

OpenSatKit User’s Guide – Version 1.x

Figure 1-1 – Starter Kit Block Diagram

Starting with an operational flight-ground system makes the FSW developer’s job much easier.

They can focus on porting the cFS to their target platform, tailoring the kit’s cFS components to

their needs, and adding new mission-specific components. A future version of the kit will

include a low cost commercially available target. This version describes the steps necessary for

using the kit to verify that the cFS with the kit apps has successfully been ported to any target.

The starter kit also serves as a cFS training platform. It provides demonstrations to highlight

common cFS features and it contains a tool for automatically creating a “Hello World”

application. Since it is freely available and easy to install, it can be used as a platform for

academic projects.

The cFS can have a significant impact on a mission’s FSW costs. The cFS has provided about a

third of the FSW on recent NASA missions using source lines of code (SLOC) as a metric and

excluding the operating system from the SLOC count. Much of the functionality provided by

the cFS is based on decades of FSW experience. This functionality can be very beneficial to

inexperienced teams because they may not even recognize that they may need some of the

functionality provided by the cFS, especially the inflight diagnostic and maintenance features.

The remainder of the introduction provides a brief description of the cFS, COSMOS, and the

kit’s architecture. If you are familiar with these components you can skip to Section 2 to get

started with using the kit.

1.2 cFS Overview

OpenSatKit User’s Guide – Version 1.x

Before jumping into the cFS architecture it’s worth understanding some of the rationale behind

the design. Prior to the cFS NASA GSFC FSW reuse efforts had limited success in reducing cost

and schedules. Early reuse efforts used a “clone and own” approach where a new project would

copy FSW components from one or more previous missions based on functional requirement

similarities. This informal source-code based approach to reuse proved difficult for managers

to control the scope of the changes and as a result a comprehensive verification and validation

effort had to be performed for the new mission which severely limited the cost savings. In

addition since FSW components were not configuration managed independent of projects,

component quality did not necessarily increase because a single lineage for each component

was not maintained.

To address these challenges the Goddard’s FSW Branch formed a team of senior engineers to

perform a structured heritage analysis across a decade of missions. The initial funding was

from non-mission sources which allowed the engineers to participate uninhibited by near-term

mission schedules. The diversity of the heritage missions (single string vs. redundant string,

varying orbits, different operational communication scenarios, etc.) provided valuable insights

into what drove FSW commonality and variability across different missions. The team took the

entire FSW life-cycle into consideration, including in-orbit FSW sustaining engineering, as they

performed their analysis. Identifying system and application level variation points to address

the range and scope of the flight systems domain. The goal was to enable portability across

embedded computing platforms and to implement different end-user functional needs without

the need to modify the source code. The cFS uses compile-time configuration parameters to

implement the variation points. Figure 1-2 shows the results using a classic software

engineering “V-model”. The shaded components are cFS artifacts and the <p> notation

indicates a parameterized artifact. This lifecycle product line approach dramatically increased

the number of reusable artifacts and changed how future missions would approach their FSW

development efforts.

OpenSatKit User’s Guide – Version 1.x

Figure 1-2 – cFS-based Project FSW Lifecycle

All of the artifacts in Figure 1-2’s cFS Repository boxes are available as part of the open source

release. The starter kit’s features primarily support the developer’s integration activities.

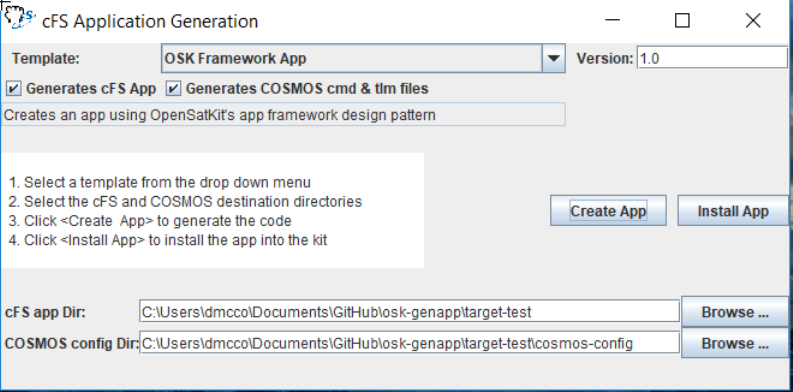

There are tools that create a “hello world” application and a corresponding unit test harness.

The kit is not intended to be an Integrated Development Environment (IDE) so the user is free

to use the development environment of their choosing. Once an application is mature the kit

supports the integration of an application into the kit. Build testing support may be added as a

future enhancement.

The cFS was originally developed for NASA Software Class B projects as defined by the NASA

Procedural Requirement NPR-7150.2B (https://nodis3.gsfc.nasa.gov/main_lib.cfm ). These

process requirements are defined based on best practices that have produced high quality

software. However, the cFS supports a wide range of platforms and therefore a wide range of

applications and some applications may not require the same level of rigor. The following steps

outline how the artifacts are used in a typical Class B lifecycle.

1. Requirements Management

a. The FSW team receives project requirements. These requirements are traced to

existing cFS subsystem requirements. Most if not all of the requirements at this

level are implemented by cFS applications so a FSW systems engineer can tailor

the cFS to a project by selecting the appropriate cFS applications. These options

will continue to grow as the cFS App Store contains more applications.

OpenSatKit User’s Guide – Version 1.x

b. The detailed FSW requirements are instantiated by selecting specific

configuration parameters for parameterized requirements.

2. Code Instantiation

a. The cFS configuration parameters are contained in C header files that are set by

the FSW team. These parameters are refined as the development effort matures.

b. Note in Figure 1-2 that some configuration parameters trace to requirements

and some are only contained in the C header files. The header-only parameters

are design in nature and do not impact functional requirements. For example

default file paths and names are defined as configuration parameters and these

do not trace to a functional requirement. These design parameters are verified

during system integration.

3. Verification and Validation

a. A project does not typically rerun component unit tests unless a component has been

modified. The unit tests have been designed to test all source lines and to provide

maximal code path coverage. The current unit tests have not been designed to adapt to

project-specific configuration parameters.

b. The current cFS artifacts do not include integration tests. Projects must perform this

step to verify the cFS properly functions as a system.

c. The cFS build test verify functional requirements and these have been designed to read

in the C header files and adapt the test accordingly so the project-instantiated

functional requirements can be verified. However the cFS build tests execute on the

Advanced Spacecraft Integration & System Test (ASIST) ground system so if a project is

using a different ground system then the build test can’t be rerun as delivered.

d. Most GSFC projects perform system level test which are designed based on user

scenarios rather than from a functional requirements perspective. The current cFS

artifacts do not cover this level of testing.

1.2.1 cFS Architecture

While a majority of the heritage analysis focused on FSW functional features a significant and

conscious effort was made to address the cFS’s architectural quality attributes such as

portability, performance, scalability, interoperability, verifiability, and complexity. Figure 3

illustrates the cFS architecture and two fundamental architectural features are the Application

Program Interface (API)-based layers and the definition of an application as a distinct well-

defined architectural component. Applications can easily be integrated into the build system

and even dynamically added/removed during runtime.

OpenSatKit User’s Guide – Version 1.x

Figure 1-3 – cFS Layered Architecture

The cFS defines 3 layers with an API between each layers. Layer 1 supports portability by

decoupling the higher levels from hardware and operating system implementation details. All

access to the platform is controlled through two APIs: the Operating System Abstraction Layer

(OSAL) and the Platform Support Package (PSP).

Layer 2 contains the core Flight Executive (cFE) that provides five services that were determined

to be common across most FSW projects. The core services include a Software Bus

(messaging), Time Management, Event Messages (Alerts), Table Management (runtime

parameters), and Executive Services (startup and runtime). The Software Bus provides a

publish-and-subscribe CCSDS standards-based inter application messaging system that supports

single and multi-processor configurations. Time Management provides time services for

applications. The Event Message service allows applications to send time-stamped

parameterized text messages. Four message classes based on severity are defined and filtering

can be applied on a per-class basis. Tables are binary files containing groups of application

defined parameters that can be changed during runtime. The table service provides a ground

interface for loading and dumping an application’s tables. Executive Services provides the

OpenSatKit User’s Guide – Version 1.x

runtime environment that allows applications to be managed as an architectural component.

All of the services contain tunable compile-time parameters allowing developers to scale the

cFE to their needs.

The APIs in Layers 1 and 2 have been instrumental in the cFS’ success across multiple platforms

and the cFE API has remained unchanged since the launch of the Lunar Reconnaissance Orbiter

in 2009. The APIs, their underlying services, and the cFS build tool chain provide the

architectural infrastructure that make applications an explicit architectural component. A cFS

compliant application will run unchanged regardless of the host platform. The application layer

contains thread-based applications as well as libraries (e.g. linear algebra math library) which

can be shared among multiple applications.

As shown in Figure 3 all of the source code has been released as open source. The code is

managed by a multi-NASA Center configuration control board (CCB) that ensures that the

application context will evolved in a controlled manner.

1.2.2 cFS Application Context

The application layer is where the bulk of the cFS scalability and extendibility occurs. Users

create new missions using a combination of existing cFS compliant apps (partial or complete

reuse) and new mission-specific apps. Just as the cFE provides common FSW services there is a

set of apps that provide common higher level functional services. Figure 4 shows the minimal

context for a user app on a single processor system. Three ‘kit’ apps provide the higher level

services. The details of why they’re kit apps is explained in Section TBD.

OpenSatKit User’s Guide – Version 1.x

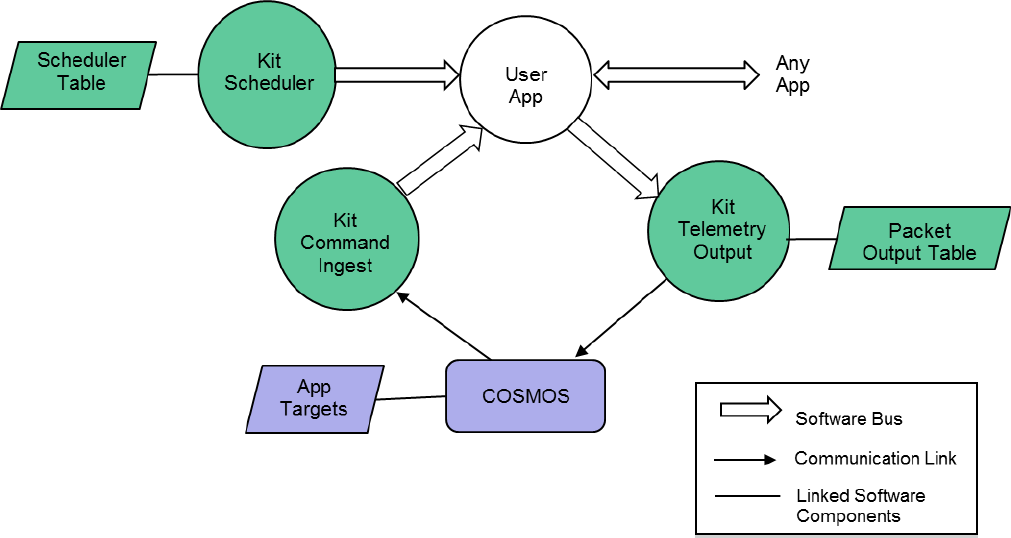

Figure 1-4 – User Application Context

Apps must have the ability to receive commands from and send telemetry to the ground system. The

Command Ingest app receives commands from the ground and sends them on the software bus. The

software bus uses the command message identifier to route the command to the app that has

subscribed to the message id. An app will also generate one or more telemetry packets and send them

on the software bus. The Telemetry Output app uses a table to determine which message ids to

subscribe to and how often to forward them to the ground system.

Users have multiple mechanisms for how to control the execution of an application. The scheduler app

provides a time synchronized mechanism for scheduling application activities. The Scheduler app uses a

table to define time slots for when to send a message that users can use to initiate an activity. Activities

can be scheduled to occur faster or slower than 1 second. Even if an app’s execution is data driven (.i.e.

pends for one or more data packets to start its execution) it is often convenient to use the scheduler as

a means to send time-based housekeeping telemetry.

1.3 COSMOS Overview

Ball Aerospace’s COSMOS is a freely available open source command and control system for

operations and test of an embedded system. A set of 15 applications provide automated

procedures, real-time and offline telemetry display and graphing, logged data analysis and

Comma Separated Variables (CSV) extraction, limits monitoring, command and telemetry

handbook creation, and binary file editing. COSMOS scripting offers the full power of the Ruby

programming language allowing operators to send commands, verify telemetry, read and write

files, access the network, and even send an email upon completion. Advanced debugging

functionality allows for single-stepping through procedures, setting breakpoints, and complete

logging of all script and user interaction with the system. Detailed data visualization allows for

custom screen creation, line and x-y plotting of data, and easy creation of custom 3d

visualizations. Offline data analysis and data extraction capabilities make narrowing down

anomalies easy.

This user’s guide describes the components of COSMOS that are relevant to using the starter

kit. For a complete description of COSMOS refer to the documentation at http://cosmosrb.com.

The OSK uses the following COSMOS applciations:

 CmdTlmServer

o Establishes a connection with the system running the cFS. This interface is defined in

cosmos/config/tools/cmd_tlm/cmd_tlm_server.txt. Each cFS application is defined as a

COSMOS target for the interface.

o The CmdTlmServer provides a GUI that allows the user to send commands and receive

telemetry for each target.

 TlmViewer

OpenSatKit User’s Guide – Version 1.x

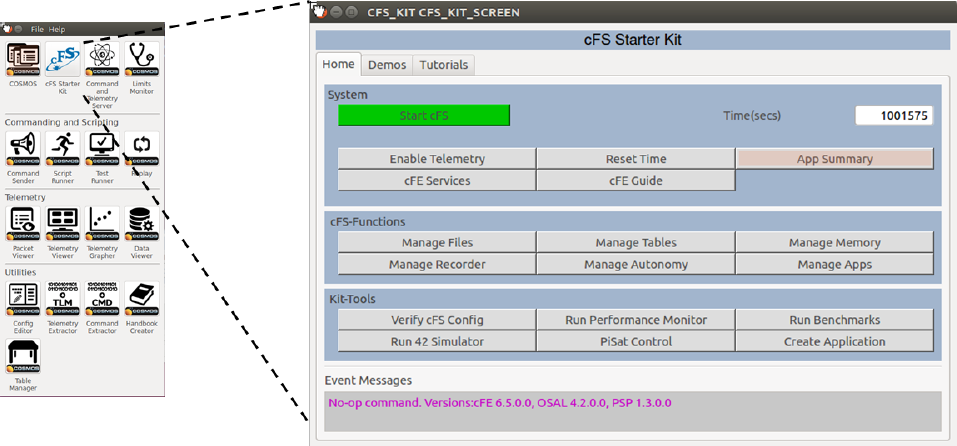

o Organizes and displays custom telemetry pages. The OSK uses this application to display

the main OSK page.

 ScriptRunner

o Provides a ruby script execution environment. The OSK’s integration test uses

ScriptRunner. This will be replaced by the COSMOS TestRunner application in a future

release.

1.4 42 Simulator Overview

42 is an open source software package that simulates spacecraft attitude and orbital dynamics and

control. 42 is design to be both powerful and easy to configure and run. It supports multiple spacecraft

anywhere in the solar system and each spacecraft is a multi-body model that can be a combination of

rigid and flexible bodies. 42 consists of a dynamics engine and a visualization front end. The two

components can run on the same processor, different processors, or just the dynamics can be run

without visualization.

Figure 5 shows the processing flow of the 42 simulation models. The Ephemeris Models determine

object (spacecraft, sun, earth, etc.) positions and velocities in a particular reference frame. This

information is input to the Environmental Models that computes the forces and torques exerted on each

object. The ephemeris and environmental data is read by the Sensor Models. The FSW algorithms read

the sensor data, estimate states, run control laws, and output actuator commands. The Actuator

Models compute control forces and torques. The forces and torques from Environmental Models and

Actuator Models are input the Dynamics Model that integrates the dynamic equations of motion over a

time step. The new states are fed back to the Ephemeris Models and the simulation process is repeated.

OpenSatKit User’s Guide – Version 1.x

Figure 1-5 – 42 Simulator

The dashed Socket Interface box in Figure 5 has been added to the 42 simulator for the OpenSatKit and

replaces the FSW Algorithm box. The FSW Algorithm App running on the cFS implements the 42 FSW

algorithms. The I/O App communicates with the new 42 Socket Interface to transfer sensor and actuator

data between 42 and the cFS platform. 42 is command line driven which allows it to be controlled by

and external program such as COSMOS. This control is not shown in Figure 5.

TODO – Run 42 independently

Zero-length normal in LoadWingsObjFile Aura_MainBody.ojb <--- this printed out many times

TOD - Yes, that's annooying, but harmless. Some 3-D models that I import from outside

sources have defects that I had to learn how to live with. Zero-length normals is chief among

those.

1.5 PiSat Target

TBD – Describe PiSat

OpenSatKit User’s Guide – Version 1.x

2.0 Using Starter Kit Features

This section describes the starter kit features and how to use them. Everything in the kit is open source

so if there’s a feature you like you can use the underlying implementation to customize a solution to

meet your needs. Note the kit is typically run in a desktop VM and it is not intended to be configured to

meet real-time embedded FSW requirements. Therefore it isn’t helpful, for example, to create a

scheduler table that schedules an app at 10 Hz. The kit assists in functionally integrating apps and

Section 5 outlines steps for transitioning from the kit to an embedded system.

2.1 Launching the Starter Kit

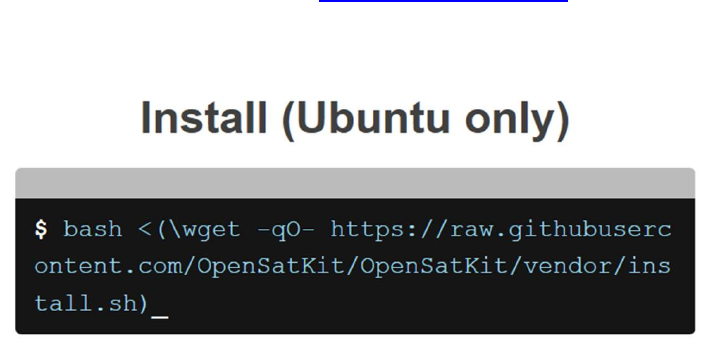

After you have installed the starter kit following the instructions in Appendix B you will have the

following directory structure as shown in Figure 2-1.

Figure 2-1 – Starter Kit Directory Structure

Start the kit by performing the steps below. When you install the kit for the first time COSMOS is

launched as the final installation step so you can start with step 4 in this situation.

1. Create a terminal window by entering

 CTRL-ALT-T

2. By default you will be in in your home directory. Change the directory to the COSMOS base

directory by entering

 cd cfs-kit/cosmos

3. Start COSMOS

 Enter ruby Launcher

 This starts the COSMOS Tool Launcher window as shown on the left side of Figure 2-2.

4. Start the starter kit

 Click on the <cFS Starter Kit> button

 This starts the COSMOS Command and Telemetry Server and Telemetry View tools. The

server is needed to connect to the cFS and Telemetry Viewer is sued to launch the kit’s

the kit’s main window as shown on the right side of Figure 2-2.

5. Start the cFS

OpenSatKit User’s Guide – Version 1.x

 Click on the green <Start cFS> button

 This creates a new terminal window as shown in Figure 2-3 and starts the cFS within in

the window. A series of startup messages are displayed. There may be some warnings

such as system log buffer full, messages sent with no subscribers, etc. These messages

will not affect the functionality of the system and they will be cleaned up in future

releases.

6. Enable telemetry by clicking on the <Enable Telemetry> button. This sends a command to the

kit’s telemetry output (KIT_TO) app to connect COSMOS. If the command is successful the Time

field will turn white and you’ll see time incrementing. If you get a COSMOS connection error

then click the <Enable Telemetry> button as second time.

At this point you have a running system and can start to explore the kit’s feature

Figure 2-2 – Launcher and Kit’s Main Page

OpenSatKit User’s Guide – Version 1.x

Figure 2-3 – cFS Terminal Window

When the <cFS Starter Kit> button is clicked two COSMOS services are automatically started: The

Command and Telemetry Server and the Telemetry Viewer. Their screens are shown in Figures 2-4 and

2-5, respectively. Both screens can be minimized to reduce clutter but they can’t be closed because

that would terminate the services. The Command and Telemetry Server manages the communication

between the cFS and COSMOS. The Telemetry Viewer manages all of the screens.

Figure 2-4 – COSMOS Command and Telemetry Server

OpenSatKit User’s Guide – Version 1.x

Figure 2-5 – COSMOS Telemetry Viewer

2.2 Kit Feature Overview

The main page layout shown in Figure 2-2 reflects the primary goals of the kit: provide a complete cFS

system to simplify the cFS learning curve, simplify the cFS deployment, simplify application development

and integration into a cFS system, and assist in porting the cFS to a new platform. The cFS is a complex

system so not every cFS feature is covered by the kit. A conscious effort was made to limit the kit’s

complexity while supporting enough cFS functionality to allow a new user to successfully use the cFS

with pre-configured applications. The kit’s pages provide access to the most commonly used

commands and telemetry. Note that all cFS commands and telemetry are accessible from the COSMOS

Command and Telemetry Server tool that is shown in Figure 2-4.

2.3 Kit Main Page

The main page has three tabs: Home, Demo, and Tutorials. The Home tab provides buttons to perform

all of the kit’s built-in functions. The Demo tab provides pre-configured demonstrations for each of the

buttons in the Home tab’s cFS-Functions section. The Tutorials tab provides access to script-driven

tutorials that can be customized by the user. See Section 5 for more details on Demos and Tutorials.

The Home tab is divided into four sections: System, cFS-Functions, Kit-Tools, and Flight Event Messages.

The System section is described in Table 2-1. The cFS Functions and Kit- Tools are described in Sections

2.4 and 2.5 respectively. The Flight Event Message window displays the last event message sent by the

FSW.

Button/Field

Description

Start cFS

Start the cFS in a terminal window

OpenSatKit User’s Guide – Version 1.x

Time

cFE Executive Service’s housekeeping telemetry time seconds value.

Should start incrementing after the cFS is started

Enable

Telemetry

Telemetry Output’s telemetry to COSMOS should be enabled when the

cFS is started with the cFS button. If the cFS is running and telemetry

has not been enabled this button provides a convenient way to start

telemetry.

Reset Time

Resetting time command is a quick and convenient way to show

COSMOS and the cFS are communicating properly.

App Summary

Launches two screens. One screen showing all of the cFS apps in the kit

and the other screen shows all of the apps defined specifically for OSK.

Each app’s housekeeping telemetry (see Section 3) sequence counters

and command counters ae displayed. This provides a quick look

capability to show that all of the apps are running.

cFE Services

Launches a screen that provides a section for each of the cFE services:

Executive, Event, Software Bus, Table, and Time. A command button is

provided to easily access a service’s commands and text fields display

the most relevant telemetry. This screen is handy to use in an

instructional setting so students can explore the various service

features.

cFE Guide

This button launches a web browser displaying the cFE HTML

documentation.

Table 1 – Home Page System Buttons and Fields

2.4 cFS Functions

The cFS Functions section of the main page contains buttons that launch function-oriented pages. Each

page contains buttons to execute the essential commands to perform the functions along with

telemetry data to monitor the performance. These functions may be performed by multiple

applications and the intention is not to provide every available command and telemetry point. The goal

of the pages is to allow the user to explore and learn about how the most common functions can be

achieved. The cFS documentation is application oriented so it can be difficult for a user to understand

how multiple apps can be used to achieve a desired system function. These pages along with the demos

(See Section 5) are intended to help overcome this challenge.

Note in a mission test or operational environment scripts are typically used to ensure repeatable and

reliable behavior which reduces the risk of operator error. Each button on these functional pages

invokes a ruby script that can be used as a starting point for basic scripting examples but they are not

structured for a test or operation scripting framework. See Section 6, Kit Verification, for a description

of the kit’s test scripts.

2.4.1 Manage Files

Managing files includes manipulating flight directories and files and transferring files between

the ground and the flight file systems. Figure 2-6 shows the file management screen.

OpenSatKit User’s Guide – Version 1.x

Figure 2-6 – File Management

Directory Management

The default flight working directory is “/cf” which stands for compact flash. In the Linux desktop

environment it maps to ~/OpenSatKit/cfs/exe/cpu1/cf. The default ground working directory is

~/OpenSatKit/cosmos/cfs_kit/file_server. Note the working directory fields on the screen won’t

get populated until a transfer takes place.

To list a directory click the <List to Packet> button. This invokes File Manger (FM) app’s list

directory to packet command. The user is prompted for the directory and the starting offset

within the directory. The offset is a numerical offset starting at 0 that indexes into an

alphabetical directory listing. As you may have guessed the challenge is knowing what offset to

use when you don’t necessarily know what’s in the directory. You can always start with an

offset of zero and walk your way through a directory in chunks. The first 12 files in the directory

listing are shown on the right side of the screen.

Another option is to write the directory to a file and then use the <Get File> button to transfer

the file to the ground.

TBD – Display file tool.

OpenSatKit User’s Guide – Version 1.x

The kit maintains a realistic flight-ground separation and requires file transfers even though

COSMOS and the cFS reside within the same file system. This makes it easier to use the kit with

a remote target.

File Management

2.4.2 Manage Tables

TBD

2.4.3 Manage Memory

TBD

2.4.4 Manage Recorder

TBD

2.4.5 Manage Autonomy

TBD

2.4.6 Manage Applications

TBD

2.5 Kit Tools

2.5.1 Verify cFS Configuration

TBD

2.5.2 Run cFS Performance Monitor

TBD

OpenSatKit User’s Guide – Version 1.x

2.5.3 Run Benchmarks

TBD

2.5.4 Run 42 Simulator

TBD

2.5.5 Add Application

TBD

2.5.6 Manage Hardware Targets

TBD

2.6 Demos

2.7 Pre-installed Applications

2.7.1 Kit Applications

TBD - Describe

Benchmark

Heater Control

Heater Simulation

Kit Command Ingest

Kit Scheduler

Kit Telemetry Output

TFTP

2.7.2 cFS Applications

TBD - Describe

Checksum

Data Storage

File Manager

Health & Safety

OpenSatKit User’s Guide – Version 1.x

Limit Checker

Memory Dwell

Memory Manager

Stored Command

OpenSatKit User’s Guide – Version 1.x

3.0 Demos and Tutorials

Demos and tutorials are included to improve the educational aspects of the kit. The relevant directories

are highlighted in Figure 5-1. The Demos and Tutorials subsections provide details on each feature.

Figure 5-1 – Demo & Tutorial Directories

3.1 Demos

Demos are screen-driven scripts that are intended to be self-guided. They can be launched from the

Demos tab as shown in Figure 5-2. Figure 5-3 shows the initial screen when the File Management Demo

is launched. The demo screens are defined CFS_KIT/screens target directory and the Ruby scripts that

control the demos are defined in the CFS_KIT/lib directory. Demos are pre-canned scripts that are not

intended to be modified by the user but since this is an open source project nothing precludes the user

from modifying or extending them.

cosmos

|- config

| |- targets

| | ...

| | |- CFS_KIT

| | |- lib

| | |- screens

| | ...

|- cfs_kit

| |- tutorials

| |- osk_tutorial.json

| |- tutorial_x

| |- lesson_a.rb

| |- lesson_b.rb

|- lib

| ...

OpenSatKit User’s Guide – Version 1.x

Figure 5-2 – Demo Main Screen

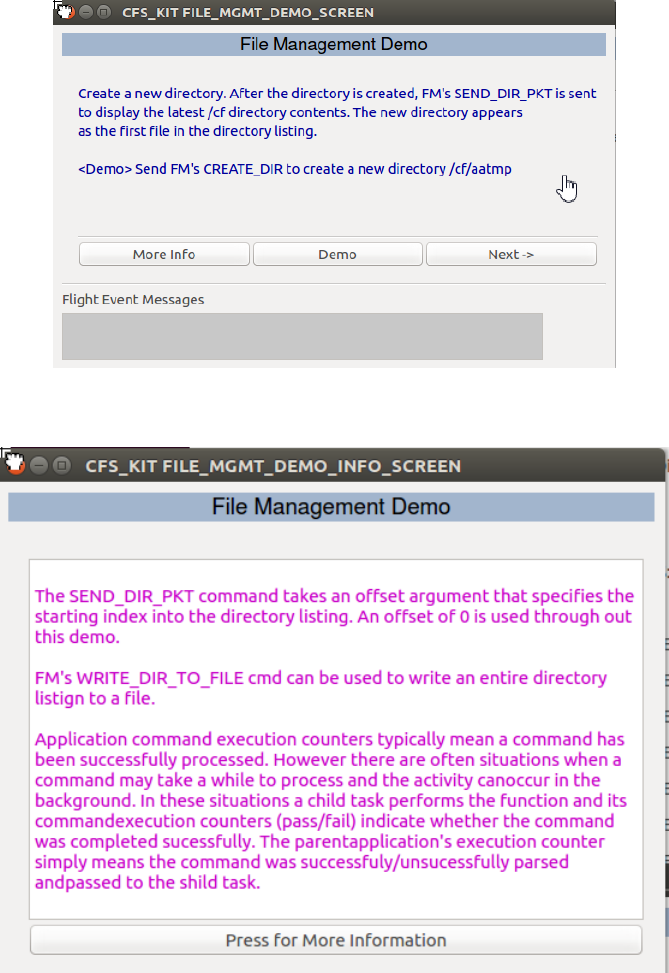

Figure 5-3 – File Management Initial Demo Screen

OpenSatKit User’s Guide – Version 1.x

3.2 Tutorials

Tutorials are scripts that are executed from the COSMOS Script Runner tool. A framework is provided

that makes it very easy to add and remove scripts so the kit can be tailored to serve a particular

educational purpose. Tutorials are defined in the file cfs_kit/tutorials/osk_tutorials.json that is shown in

Figure 5-4. Each entry in the “tutorials” array defines a tutorial. First navigate to the Tutorials Tab

screen shown in Figure 5-5 and select <Tutorials> that will launch the tutorial main screen shown in

Figure 5-6. As you can see the JSON “button” definition is used to label the button and the “description”

definition is used in the text to the right of the button. When a tutorial is selected the tutorial’s

OpenSatKit User’s Guide – Version 1.x

selection message box provides a drop down menu with each of the lessons as shown in Figure 5-7.

When a lesson is selected the Script Runner is launched and starts to run the script located at

cosmos/cfs_kit/tutorials/”directory”/”lesson”.rb. In the cFE example if the user selected executive

services (ES) then the cosmos/cfs_kit/tutorials/cfe/es.rb is launched.

Figure 5-4 –Tutorial Definition File osk_tutorials.json

Figure 5-5 – Tutorial Tab Screen

{

"tutorials": [

{

"name": "cFE",

"directory": "cfe",

"button": "cFE",

"description": "Core Flight Executive",

"user-prompt": "Select tutorial",

"lessons": ["ES","TBL"]

{

"name": "Operational Applications",

"directory": "op_apps",

"button": "Op Apps",

"description": "Apps that provide an operational runtime environment",

"user-prompt": "Select tutorial",

"lessons": ["CI","SCH","TO","HK","SC","SBN"]

}

]

}

OpenSatKit User’s Guide – Version 1.x

Figure 5-6 – Tutorial Main Screen

Figure 5-7 – cFE Tutorial Selection Message Box

Perform the following steps to create a new tutorial:

 Create a new directory in the cfs_kit/tutorials directory

 In your new directory create one ruby script for each lesson

 Create a new tutorial entry in the “tutorials” array in osk_tutorials.json

 Navigate to the Tutorial Tab Screen shown in Figure 5-5 and select <Update>

a. This creates a new turorial_screen.txt file in the CFS_KIT/screens target directory. The

previous turorial_screen.txt file is preserved in

turorial_screen_year_month_day_hourminutesecond.txt file

 If a tutorial is added without any scripts defined, the screen will be created but the user will get

an error if the try to launch a lesson in a tutorial without a script file.

Tutorials can be removed from the tutorial screen by removing its definition from the JOSN file. The

scripts do not have to be removed.

OpenSatKit User’s Guide – Version 1.x

4.0 Managing Applications

This section describes how to create, compile/link, add, and remove applications from within the kit. All

of the steps needed to perform these functions are described, however, it is not intended to be a

comphrensive application developer’s guide. The cFE Application Developers Guide.doc located in

cfs/cfe/docs provides a complete description of developing apps for the cFS.

4.1 cFS Application Build Environment

The cfs directories that you’ll need to work with for managing apps and building the system are show in

Figure 3-1. The cfs/apps directory contains the source code for each app. The cFS build system does not

require the apps to be physically located in the same base directory but the kit is structured this way for

convenience. The apps subdirectories are described in the cFE Application Developers Guide. The

for_build directory is not required, because the kit uses the cmake build environment and the for_build

directory is used by the cFS “classic build” system which will eventually be deprecated. The tables

subdirectories is only required if the app has a table. Note the OpenSatKit apps follow a different design

pattern than the cFS apps. An overview of the kit app design is provided in Section 5 and the OpenSatKit

Application Developer’s Guide contains a complete description.

Figure 3-1 – cFS Application Directories

The cfs/build/cpu1 directory is automatically generated by the cmake preparation step. When

OpenSatKit is installed this preparation step is automatically performed. The cfs/build/exe/cpu1/cf

directory is where the build system locates the cFS binary image, application object files, and table files.

The cf directory stands for compact flash because it is the directory used to boot the cFS. The cmake

build system supports building for multiple targets. The kit is configured to build the default

configuration for a single cpu named cpu1.

cfs

|- apps

| |- aaa

| |- for_build

| |- mission_inc

| |- platform_inc

| |- src

| |- table

| |- unit_test

| |- bbb

| ...

|- build

| |- cpu1/...

| |- exe/cpu1/cf

|- osk_def (was sample_def)

OpenSatKit User’s Guide – Version 1.x

4.1.1 Building and installing the cFS

When you first install OpenSatKit the cFS is automatically built for you. If you modify any existing source

files you can build the cFS by performing the following steps:

1. Change your directory to OpenSatKit/cfs

2. OpenSatKit/cfs$ make

a. This rebuilds the files but does not install them into cfs/build/exe/cpu1/cf

3. OpenSatKit/cfs$ make install

a. This rebuilds the files and installs them into cfs/build/exe/cpu1/cf

b. The installation process copies files in the OpenSatKit/cfs/osk_def directory prefixed

with “cpu1_” into cfs/build/exe/cpu1/cf. This means if you changed cfe_es_startup.scr

or any table files in the /cf directory they will be overwritten.

Table 3-1 identifies key directories and files used in the building and installation of the cFS.

Directory/File

Purpose

/cfs/osk_defs

Directory that contains key files used by cmake to build and install the

cFS

targets.cmake

Defines the cFS targets (with build rules) and apps to be built for the

target. Also lists files to be copied from osk_defs to the target ‘cf’

directory. The kit uses target 1 (TGT1) and the important definitions

are

SET(TGT1_NAME cpu1) – Identifies the targets name

SET(TGT1_APPLIST …) – Apps to be built and installed

SET(TGT1_FILELIST …) – Files prefixed with “cpu1_” to be copied to ‘cf’

cpu1_*.*

Identifies files for the cpu1 target. If they are listed in targets.cmake’s

TGT1_FILELIST they will be copied to the ‘cf’ directory

cpu1_cfe_es_startup.scr

This startup script must be defined. It defines the apps that will be

loaded by the cFE during initialization.

cfs/apps/xxx/

cmakelist.txt

Each app is contained within its own apps directory and at the

cmakelist.txt must be present in the top-level app directory. This file

defines what gets compiled for the app and any dependencies. See the

example in Figure 3-2.

cfs/build/exe/cpu1/cf

“Compact Flash” directory that contains all of the files necessary to

run the cFS.

Table 3-1 – cFS Application Build Directories

Figure 3-2 shows an example cmakelist.txt file that must be included in the top-level directory for each

app. The include_directories statements define the search paths used by cmake to locate

include files. The aux_source_directory statements define directory paths that contain the

source code to build the app and populate the symbol passed to the function. The add_cfe_app

statement adds the specified app to the cmake build. The apps object file name is the same name as the

first function parameter. The add_cfe_tables statement only needs to be present if the app has

cFE style tables and it causes the app’s tables to be built.

OpenSatKit User’s Guide – Version 1.x

Figure 3-2 – Example cFS App cmakelist.txt

Figure 3-3 shows a cmakelist.txt file for an app using the OSK app design pattern. The main differences

are the cFS’s library and OSK’s app framework include paths must be included and the

add_cfe_tables statement is not needed since the app manages its own table files. See OpenSatKit

Application Developer’s Guide for more details.

Figure 3-3 – Example OSK App cmakelist.txt

Note if the application requires the math libraries to be linked in then after the add_cfe_app() line

include the following function call: target_link_libraries(my_app m), where “my_app” is the same app

name used in the add_cfe_app() call.

cmake_minimum_required(VERSION 2.6.4)

project(CFS_HS C)

include_directories(fsw/src)

include_directories(fsw/mission_inc)

include_directories(fsw/platform_inc)

aux_source_directory(fsw/src APP_SRC_FILES)

aux_source_directory(fsw/tables APP_TABLE_FILES)

# Create the app module

add_cfe_app(hs ${APP_SRC_FILES})

add_cfe_tables(hs ${APP_TABLE_FILES})

cmake_minimum_required(VERSION 2.6.4)

project(CFS_OSK_DEMO C)

include_directories(fsw/src)

include_directories(fsw/mission_inc)

include_directories(fsw/platform_inc)

include_directories(${cfs_lib_MISSION_DIR}/fsw/public_inc)

include_directories(${app_fw_lib_MISSION_DIR}/fsw/platform_inc)

include_directories(${app_fw_lib_MISSION_DIR}/fsw/mission_inc)

aux_source_directory(fsw/src APP_SRC_FILES)

aux_source_directory(fsw/tables APP_TABLE_FILES)

# Create the app module

add_cfe_app(osk_demo ${APP_SRC_FILES})

OpenSatKit User’s Guide – Version 1.x

4.2 COSMOS Application Definition Environment

The COSMOS directory structure shown in Figure 3-4 highlights the most relevant OSK COSMOS

directories for installing applications. See Section 5 for a more complete COSMOS description.

Figure 3-4 – COSMOS Directories

Each cFS app is defined as a COSMOS target in the cosmos/config/targets directory. The APP directory

must be uppercase and within the APP directory is a cmd_tlm directory that contains files that define

the app’s command and telemetry packets. . Figures 3-5 and 3-6 show part of the File Manager app’s

command and telemetry definitions, respectively. The OSK uses Embedded RuBy (ERB), delineated by

“<%” and “%>”, to standardize and simplify the packet definitions. cfs_kit_config.rb is contained in the

cosmos/lib directory and serves as the single point for all OSK configuration definitions/settings. Any

dependencies are also contained with the cosmos/lib directory. message_ids.rb defines all message IDs

and the convention is to have “MID” in the symbol name. In the two examples, FM_CMD_MID and

FM_HK_TLM_MID, are defined in message_Ids.rb. The cFS is evolving towards adopting the CCSDS

Electronic Data Sheets (EDS) standard and it is anticipated that the message_ids.rb file will be

automatically generated.

cosmos

|- config

| |- targets

| | ...

| | |- APP

| | |- cmd_tlm

| | |- lib

| | |- screens

| | ...

| |- tools

| |-cmd_tlm_server.txt

|- lib

|- cfs_kit_config.rb

|- message_ids.rb

require 'cfs_kit_config'

@APP_PREFIX_STR = "FM"

@CMD_MID_STR = "FM_CMD_MID"

@DEF_FILENAME = "default"

@DEF_DIR_NAME = "/cf"

COMMAND FM NOOP <%= CfsKitConfig.processor_endian %> "Comment"

<%= CfsKitConfig.cmd_hdr(@APP_PREFIX_STR, @CMD_MID_STR, 0, 0) %>

COMMAND FM RESET_CTRS <%= CfsKitConfig.processor_endian %> "Comment"

<%= CfsKitConfig.cmd_hdr(@APP_PREFIX_STR, @CMD_MID_STR, 1, 0) %>

COMMAND FM COPY_FILE <%= CfsKitConfig.processor_endian %> "Comment"

<%= CfsKitConfig.cmd_hdr(@APP_PREFIX_STR, @CMD_MID_STR, 2, 130) %>

APPEND_PARAMETER OVERWRITE 16 UINT MIN_UINT16 MAX_UINT16 0 "Allow overwrite"

APPEND_PARAMETER SOURCE 512 STRING <%= @DEF_FILENAME %> "Source filename"

APPEND_PARAMETER TARGET 512 STRING <%= @DEF_FILENAME %> "Target filename"

OpenSatKit User’s Guide – Version 1.x

Figure 3-5 – Example Command Definition

Figure 3-6 – Example Telemetry Definition

4.3 OpenSatKit Application Runtime Environment

Figure 3-7 shows the runtime context for a user application. It’s important to understand this context

because it identifies all of a user application’s interfaces that must be resolved in order for it to operate

properly. Note that all of these interfaces are to other applications which means an organization can

standardize on a different set of applications thus altering the context.

require 'cfs_kit_config'

@APP_PREFIX_STR = "FM"

@HK_TLM_MID_STR = "FM_HK_TLM_MID"

@FILE_INFO_TLM_MID_STR = "FM_FILE_INFO_TLM_MID"

@DIR_LIST_TLM_MID_STR = "FM_DIR_LIST_TLM_MID"

@OPEN_FILES_TLM_MID_STR = "FM_OPEN_FILES_TLM_MID"

@FREE_SPACE_TLM_MID_STR = "FM_FREE_SPACE_TLM_MID"

TELEMETRY FM HK_TLM_PKT <%= CfsKitConfig.processor_endian %> "Comment”

<%= CfsKitConfig.tlm_hdr(@APP_PREFIX_STR, @HK_TLM_MID_STR) %>

APPEND_ITEM CMD_VALID_COUNT 8 UINT "Application command counter"

APPEND_ITEM CMD_ERROR_COUNT 8 UINT "Application command error counter"

APPEND_ITEM SPARE 8 UINT "Unused”

APPEND_ITEM NUMOPENFILES 8 UINT "Number of open files in the system"

APPEND_ITEM CHILDCMDCOUNTER 8 UINT "Child task command counter"

APPEND_ITEM CHILDCMDERRCOUNTER 8 UINT "Child task command error counter"

APPEND_ITEM CHILDCMDWARNCOUNTER 8 UINT "Child task command warning counter"

APPEND_ITEM CHILDQUEUECOUNT 8 UINT "Number of pending commands in queue"

APPEND_ITEM CHILDCURRENTCC 8 UINT "Command code currently executing"

APPEND_ITEM CHILDPREVIOUSCC 8 UINT "Command code previously executed"

OpenSatKit User’s Guide – Version 1.x

Figure 3-7 – User Application Context

Apps must have the ability to receive commands from and send telemetry to the ground system. The Kit

Command Ingest app receives commands from the ground and sends them on the software bus. The

software bus uses the command message identifier to route the command to the app that has

subscribed to the message id. An app also generates one or more telemetry packets and sends them on

the software bus. The Kit Telemetry Output app uses a table to determine which message ids to

subscribe to and how often to forward them to the ground system.

Users have multiple mechanisms for how to control the execution of an application. The Kit Scheduler

app provides a time synchronized mechanism for scheduling application activities. The Kit Scheduler

app uses a table to define time slots for when to send a message that users can use to initiate an

activity. Activities can be scheduled to occur faster or slower than 1 second. Even if an app’s execution

is data driven (.i.e. pends for one or more data packets to start its execution) it is often convenient to

use the scheduler as control mechanism for when to send time-based “housekeeping” telemetry.

The kit apps in Figure 3-7 perform the same functions as the “lab” apps released with the cFE. However

the kit apps use text files for tables which simplifies the automation of integrating an app into the kit.

The kit scheduler has not been qualified for flight so a user will have to transition from the kit SCH to the

cFS SCH app. The cFE only provides CI_LAB and TO_LAB which are not flight qualified so the kit apps do

not create additional work since every user must develop their own CI and TO apps.

OpenSatKit User’s Guide – Version 1.x

4.4 Creating New Applications

The easiest way to create and integrate a new app is to use the Create Application tool. This tool is

launched from the kit’s main page’s home tab using the Create Application button in the Kit Tools

section. Figure 3-8 shows the Create Application screen. Follow the instructions in the main screen’s

text box. These instructions assume you named your app “example”.

 Note when naming your app you must avoid cmake keywords such as “test”.

 The “Install App” feature has not ben implemented. Follw the instructions after Figure 3-9 to

install the new application.

Figure 3-8 – Create Application Tool

Figure 3-9 shows the directories and files that are involved with creating and integrating a new app. The

green directories are automatically created and populated by the Create Application tool. The green file

cosmos/config/tools/cmd_tlm_server.txt is autmatically updated with the new target. The tool inserts

the new target name between the <cfs_kit> tags that are under the cFS interface definition line that

starts with “INTERFACE CFS_INT” . The yellow highlighted files must be edited and the blue highlighted

files provide definitions used by the generated code.

OpenSatKit User’s Guide – Version 1.x

Figure 3-9 – Create Application Directories

Perform the following steps to integrate the example application into the kit:

1. Edit cfs/osk_defs/targets.cmake and locate the line starting with SET (TRGT1_APPLIST …) and

add “example” to the list of app names).

2. Edit cfs/osk_defs/cpu1_cfe_es_startup.scr and and add the following line.

a. CFE_APP, /cf/example.so, EXAMPLE_AppMain, EXAMPLE, 90, 16384, 0x0, 0

b. Note the startup file is processed until the first ‘!’ character is encountered so this line

must be before any commented out lines.

3. Note the CreateApp tool generates code that uses existing scheduler table entries and telemetry

output entries so those table do not have to be modified. See Section 3.5 Adding Existing

Applications for a description of how tom modify these tables.

4. Rebuild and install the cFS by issuing the following make commands from the opensatkit/cfs

directory

a. make prep

b. make install

c. Under cFE 6.5 people have experienced a cmake failure and a syntax error is report

(missing separator). Issuing a “make clean” followed by a “make prep” seems to solve

the problem.

5. Install the new app’s COSMOS target.

a. This should be done automatically by the create application tool. Edit

cosmos/config/tools/config/tools/cmd_tlm_server/cmd_tlm_server.txt and verify the

new app name is located between the <cfs_kit> comment tags under the “INTERFACE

CFS_INT udp_cs_interface.rb 127.0.0.1 1234 1235 nil nil 128 nil nil” INTERFACE section.

b. If you do not see “TARGET EXAMPLE” then manually insert a new line containing

“TARGET EXAMPLE” without the quotes. The new line does not have to go between the

tags.

c. You must restart COSMOS for the cmd_tlm_server change to take effect.

cfs

|- apps

| |- example

|- osk_def

|- cpu1_cfe_es_startup.scr

|- targets.cmake

cosmos

|- config

|- targets

| |- EXAMPLE

| |- cmd_tlm

|- tools

|-cmd_tlm_server.txt

|- lib

|- message_ids.rb

OpenSatKit User’s Guide – Version 1.x

6. Follow the instructions in Section 2.1 to start COSMOS and the cFS.

7. Use COSMOS’s command and telemetry server to send commands to and receive telemetry

to/from the example app.

Perform the following steps to integrate the example application into the kit:

TBD – Describe apps with tables.

4.5 Adding Existing Applications

The NASA Goddard wesbite (https://cfs.gsfc.nasa.gov/) lists the open source apps released by Goddard.

All of these apps come with directory the structure shown in Figure 3-1. The following steps are

required to integrate one of these apps. These steps are more involved than the steps peformed when

using the Create Application tool because the tool automaticly performs some steps and the default

message IDs are already defined in the OSK.

1. Copy the application code into the cfs/apps dirctory

2. Create a new app target directory in cosmos/config/targets and create command and telemetry

definition files. See Section 3.2 for details.

3. Note the master copy of the tables defined in the next few steps are located in cfs/osk_defs and

prefixed with “cpu1_”. When a “make install” is performed it copies the master tables to the

“/cf” directory and removes the “cpu1_” prefix. In order to make permanent table changes that

take effect modify the tables in cfs/osk_defs.

4. All of the cFS apps send a housekeeping telemetry in response to a specific messsage ID and

many apps execute their main loop in response to another message ID. These message IDs are

defined in the app’s xxx_msgids.h file. These messages are sent from from the Kit Scheduler

app. This app uses two tables to manage sending messages on the software bus.

a. kit_sch_schtbl.xml defines the frequency at which messages are sent. Each scheduler

table entry has an index into the message table kit_sch_msgtbl.xml. The following File

Manager table entires illustrate how the tables are configured. Message table entry #13

si sent every 3 seconds. The message table entires must be byte swapped for a little

endian target and they are specified in decimal. The comment shows the

hex(dec)=>Byte swapped hex (dec)

b. kit_sch_schtbl.xml

i.

ii. <slot id="1" entry="3" enable="true" frequency="5" offset="0" msg_id="13" />

c. kit_sch_msgtbl.xml

i. <!-- FM_SEND_HK_MID 0x188D(6285) => 0x8D18(36120), 0xC000(48152) =>

0x00C0(192), 0x0001 => 0x0100(256) -->

ii. <entry id="13" stream-id="36120" seq-seg="192" length="256" />

5. The app’s telemetry packets must be defined in kit_to’s table file kit_to_pkttbl.xml in order to

be downlinked. The following entry is for the FM app’s housekeeping telemetry

OpenSatKit User’s Guide – Version 1.x

packet. The stream_id is the message ID and buffer limit defines how many packets can

back up in TO”s queue. 4 is fine.

a.

b. <entry stream-id="2186" priority="0" reliability="0" buf-limit="4"/>

6. To complete the integration follow the steps in Section 3.4 Creating New Applications.

Additonal applications can be found in the application catalog maintain at http://coreflightsystem.org/.

At the moment there is no standard for ensuring compliance with the cFS application conventions so the

integration steps may vary.

OpenSatKit User’s Guide – Version 1.x

4.6 Removing Applications

TBD

OpenSatKit User’s Guide – Version 1.x

4.7 Creating Application Unit Test

TBD –

OpenSatKit User’s Guide – Version 1.x

5.0 Implementing a Mission

TBD - Address systems engineering activities. More in depth than a checklist but keep details to a what

must be done and references source for how to achieve them.

TBD – Use an example mission. Show end goal and hightlight lifecycle challenges. Some notes…

1. First create a mission concept of operations. This will help flesh out scenarios and functionality

required by the FSW to meet the scenarios.

2. Identify existing apps that may meet your needs. The kit doesn’t include all of the open source

apps but I tried to include the most common. For example, Data Storage and downlink:

a. If you have ground contacts every X minutes and you’re continuously collecting data

then the data will needed to be stored. Data Storage will need to be configured to store

packets in files. Systems thinking needs to go into what data into which files and how

big the files should get.

b. How is a contact initiated? Stored Command (SC) tables can be used to send commands

to configure hardware/software for a time-based event. We often use an absolute time

sequence to start relative time sequences that perform a common sequence of

commands. SC does not allow parameters to stored commands.

c. Once the contact is initiated then the files will need to be downlinked which involves CF

app (see hurdle #2 below). Another option is to downlink packets. There’s a data

storage playback app that someone has developed that I could look into. It reads DS files

and puts the packets on the software bus so Telemetry Output would send packets to

the ground.

d. Regardless of the downlink method files (which are really CFDP packets) or packets

telemetry out table’s out table will have to be configured (See hurdle #1 and #3).

3. The cFS does not include hardware interface apps. We typically write one app that collects data

and publishes data required by the attitude determination and control (ADC) app. This

simplifies the ADC app because it can pend on a single packet. If this isn’t doable there are other

techniques that keep the ADC app simple.

Some known hurdles:

1. Command Ingest and Telemetry output will need to be replaced. The kit apps are simple UDP

apps. Johnson Space Center just released new CI and TO apps that are layered so the same

cmd/tlm interface can be used and the data transport library can be swapped at compile time

depending upon platform.

2. File transfer: The kit includes a very simple TFTP app. It is not suitable for flight. The cFS CF app

is being used on current missions. However it has a steep learning curve and it requires a ground

engine. The ASIST and ITOS ground systems (available for government projects) contain a built in

CFDP engine. Efforts are underway to create an open source COSMOS CFDP engine.

3. Tables: We do not have a tool do edit tables and generate the binary tables. The Goddard tools

are tied to the ground systems we use (ASIST and ITOS).

4. Scripts: Testing and op scenarios are controlled by ground scripts. I’ve only tested the COSMOS

scripting world with the “integration script”. A test script framework is planned for Build 1.1.

OpenSatKit User’s Guide – Version 1.x

5.1 Porting to a new platform

TBD

5.2 PiSat

TBD – Convert the following notes:

One thing that is important to know, if you are not aware of it already: The cFS has two different build

systems. We have a “legacy” makefile based system, and a newer CMake based system.

I developed the original makefile system, so I am most familiar with that, but many of the newer

projects are using the CMake system. For some reason, I don’t think the CMake build directory is

present in the github link I mentioned above.

I’m pointing that out, because it is fairly easy to cross compile the cFS for the Raspberry Pi using the

CMake build system. A little over a year ago, I put together a simple distribution for the cFS along with

some instructions for building it on a Raspberry Pi, as well as cross compiling it for the Pi using CMake. I

have attached the readme file that explains how to do the cross build for the Pi.

If you follow the directions in that readme file, you should be able to cross compile the cFS for the Pi.

If your team wants to use the traditional make system, it is not that hard to set it up for cross

compilation either. I could give you pointers for that, if you would like.

There should not have to be any source changes to make the cFS work on the Raspbian OS.

On the subject of using cFS and Linux for a flight project, there are going to be several things to consider:

1. Do you have any real time requirements that cannot be met with your compute module and

Linux? If you do not have any real time control or instrument interface timing issues caused by

Linux, then I think it is fine to use for a cubesat.

2. Your team will have to make some decisions about how to implement the Platform Support

Package on Linux. I’m not going to get into all of the details here, but you need to figure out how

to handle resets, watchdog, memory access, file systems, and a few other items. If your cubesat

is fairly simple, then it does not have to be too complicated. But perhaps we can get into more

details of what is needed as you make progress.

3. There are a couple of linux issues to figure out, such as how the system will start ( just start cFS

from rc.local, that’s what I do on the PiSat ), how to determine if the cFS has crashed and needs

to be restarted ( do you restart the cFS or the entire Raspberry Pi Linux? )

4. How do you deploy the OS? Do you keep a base linux system on the Compute Module flash and

just copy the cross compiled cFS over, or do you try to generate an entire image with the cFS?

a. Build systems like Yocto Linux, buildroot, or even this nard system look interesting

(http://www.arbetsmyra.dyndns.org/nard/). But sticking with the standard Raspbian is

always an option too, depending on the size and experience level of your team. I still am

looking for a good way to deploy a new copy of the cFS to my Pi-Sat. I have been using

the standard Raspbian OS and just building the cFS on the Pi for now.

For the Raspberry Pi flight users, there are a couple of Cubesats that are planning on using a Raspberry

Pi compute module, but they are in the early stages of development. There is at least one organization

OpenSatKit User’s Guide – Version 1.x

that has flown Raspberry Pi compute modules, but I don’t know what operating system they use. I’m

sure it is some variant of linux.

All of my work so far with the Raspberry Pi has used the Raspbian OS. The cFS works well on Raspbian,

and there are a lot of libraries available for the I/O devices.

Build and run directly on the Pi.

You can also compile on the Pi. Just do the same as the PC:

$ make install

( you might need to remove the build directory first )

Before you compile, there are a couple of flags that must be removed from the build files:

In sample_defs/toolchain-cpu1.cmake, comment out this line:

SET(CMAKE_C_FLAGS_INIT "-m32" CACHE STRING "C Flags required by platform")

And in tools/elf2cfetbl/CMakeLists.txt, comment out this line:

set(CMAKE_C_FLAGS "${CMAKE_C_FLAGS} -m32")

( I tried to get CMake autodetect the system type, but that code does not work yet )

5.3 Configuring the cFE

Startip log & messages

Time

5.4 Creating your application suite

Ops concepts

5.5 Development process

TBD

5.6 Ground system

TBD

5.7 Systems Topics

OpenSatKit User’s Guide – Version 1.x

6.0 Test Framework

TBD – Describe test framework from app unit, system integration, and possibly build verification

depending on how the cFS ground-system independent testing goes

OpenSatKit User’s Guide – Version 1.x

7.0 Kit Design and Maintenance

This section describes the kit’s design. It provides enough information for someone to maintain and

expand the kit. If this section gets too large it will be split into a separate document. It is included with

the user’s guide because most users are developers and they may want more information even if they’re

not maintaining the kit.

7.1 COSMOS Configuration

The COSMOS directory structure is shown in Figure TBD.

Ruby search path

Cosmos caching

7.1.1 Ruby Gems

7.2 OSK COSMOS Design

TBD – Add module/class diagram

cosmos

|- cfs-kit

|- docs

|- file_server

|- tables

|- tools

|- create-app

|- perf-monitor

|- config

|- data

|- system

|- targets

...

|- cfs-kit

|- cmd_tlm

|- lib

|- screens

...

|- tools

| |-cmd_tlm_server.txt

|- lib

|- outputs

|- procedures

|- kit_test

|- kit_utils

|- scripts

|- tools

OpenSatKit User’s Guide – Version 1.x

Describe design patterns like file_xfer that allows windows to remain open across switch

between local and pisat and still work.

TBD Conventions

1. Naming conventions. Screens, scripts, etc

2. Script usage

3. Filer server conventions

4. Spawn vs cosmos.run_process

5. Flight directories are always full path. Ground directories are relative to COSMOS

7.3 42 Configuration

42 is customized for OSK, therefore care must be taken when integrating a 42 release. Some of

the modifications follow the 42 extension guidelines in Section 3.5 in FswModels.pdf. The

following files must merged or added back to 42:

 Merged:

a. 42/Include/42defines.h – EXTERNAL_FSW controller definition

b. 42/Source/42init.c - EXTERNAL_FSW controller string decoding

c. 42/Source/42fsw.c – Add f42_comm interface

d. MakeFile – Add f42_comm object

 Added:

a. 42/Includes/f42_comm.h

b. 42/Source/f42_comm.c

I like to use WinMerge (or a similar tool with difference/merging feature) to perform the

following 42 file merge process:

c. Save the above files to a temporary location

d. Delete the entire 42 repository and install the latest 42 release in its place

7.4 Kit Application Design

TBD – Provide basic description and reference kit app design document

7.5 cFS Component Releases

This sections outlines the steps needed to update a particular component of the starter kit.

OpenSatKit User’s Guide – Version 1.x

7.5.1 cFE

Tools

Copy docs

CFE_ES_SYSTEM_LOG_SIZE to 16384

OpenSatKit User’s Guide – Version 1.x

Appendix A - Acronyms

API………………………………………...……………………………………….Application Programming Interface

cFE ................................................................................................................................... Core Flight Executive

C&DH ................................................................................................................. Command and Data Handling

CCSDS………………………………………………………….. Consultative Committee for Space Data Systems

cFS…………………………………………………………….…………………………Core Flight Software System

CM ......................................................................................................................... Configuration Management

CMD .................................................................................................................................................. Command

COTS ....................................................................................................................... Commercial Off-The-Shelf

CPM ......................................................................................................................... CFS Performance Monitor

CPU ............................................................................................................................. Central Processing Unit

DCR ................................................................................................................... Discrepancy/Change Request

EDAC ................................................................................................................ Error Detection and Correction

EDS ................................................................................................................................. Electronic Data Sheet

EEPROM .................................................................. Electrically-erasable Programmable Read-Only Memory

ES ....................................................................................................................................... Executive Services

ETU ................................................................................................................................. Engineering Test Unit

EVS-- ......................................................................................................................................... Event Services

FC .............................................................................................................................................. Function Code

FDC ................................................................................................................ Failure Detection and Correction

FSB ............................................................................................................................... Flight Software Branch

FSW ........................................................................................................................................... Flight Software

HW ..................................................................................................................................................... Hardware

ICD ......................................................................................................................... Interface Control Document

I&T ........................................................................................................................................ Integration & Test

MET ................................................................................................................................ Mission Elapsed Time

OS ......................................................................................................................................... Operating System

OSAL……………………………………………………………………….……Operating System Abstraction Layer

PID ............................................................................................................................................... Pipe Identifier

RTOS .................................................................................................................. Real-Time Operating System

SB .................................................................................................................................. Software Bus Services

STCF .......................................................................................................... Spacecraft Time Correlation Factor

T&C ........................................................................................................................... Telemetry and Command

TAI ............................................................................................................................ International Atomic Time

TBD .......................................................................................................................................To Be Determined

OpenSatKit User’s Guide – Version 1.x

TBL ............................................................................................................................................ Table Services

TIME ........................................................................................................................................... Time Services

TLM .................................................................................................................................................... Telemetry

URL ....................................................................................................................... Universal Resource Locator

UTC ....................................................................................................................... Coordinated Universal Time

UTF…………………………………………………………………………………………….….Unit Test Framework

VDD .................................................................................................................. Version Description Document

VM ............................................................................................................................................. Virtual Machine

OpenSatKit User’s Guide – Version 1.x

Appendix B – Online Resources

B.1 First Time Kit Installation

The current kit installation script is designed to run on Ubuntu. Due to limited resources we wanted to

keep the installation simple, robust, and easy to maintain. A single platform significantly lowers the

resources required to verify the installation.

Perform the following steps to install the kit:

1. Create an Ubuntu host platform. A virtual machine is the typical solution. The osboxes.org

website provides freely available Ubuntu images for Virtual Box and VMWare.

a. TBR – Check if auto login allows cFS to be launched without a prompt so telemetry can

be enabled.

2. From within the Ubuntu platform go to https://opensatkit.github.io and you’ll see the following

information.

3. Open a terminal window on your Ubuntu platform. Copy the bash line from the website into

your terminal window and the run the shell script. This script will take from 30-60 minutes to

complete depending upon your internet connection and host machine performance. There are

some prompts that must be answered.

4. After the script successfully runs COSMOS is automatically launched. Refer to Section 2 for how

to use the kit features.

In order to use the PiSat (see TBD for obtaining a PiSat) port forwarding must be enabled in the VM.

B.2 Updating the Kit

TBD

OpenSatKit User’s Guide – Version 1.x

B.3 COSMOS Resources

http://cosmosrb.com

B.4 42 Resources

TBD

B.5 PiSat

TBD

OpenSatKit User’s Guide – Version 1.x

Appendix C – User FAQs

C.1 Installation Issues

1. When I try to start a virtual machine either after I importing a .ova file or when I try to run any

virtual machine, I get an error such as

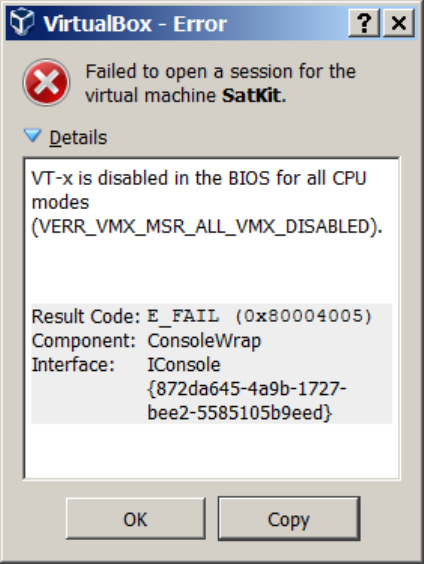

a. This particular error is due to the virtual technology extensions (VT-x) being disabled in

your BIOS. You can enable VT-x by performing the following steps

i. Reboot your PC. As soon as the first logo appears immediately press the

F2 key

ii. Locate the VT-x settings (menu system specific to your bios) and change it

to enabled

2. When I try to update COSMOS by running “bundle update cosmos” from my COSMOS project

folder I get a ‘permission denied’ error in a ‘dot’ folder such as .rbenv or .gem when a gem is

being installed. This typically occurs in a VM. It is best not to install the gem as root so the

easiest solution is to change the file permissions for the particular ‘dot’ directory and all of its

OpenSatKit User’s Guide – Version 1.x

children. The first line below shows the general format and the second line is a specific

example.

a. sudo chown -R username:group ~/.xxx

b. sudo chown -R vagrant:vagrant ~/.rbenv

3. I don’t have all of the tools to build and run the kit. The safest way to install the kit is to use the

shell script on github. Here are some specific error and causes that may be helpful:

a. cmake not found

i. sudo apt-get install cmake

b. cmake prep fails due to test program not being compiled.

i. sudo apt-get install gcc-multilib

c. cmake build fails during OSAL with obscure error messages

i. sudo apt-get install –y curl

d. Java runtime not found when trying to run java-based kit tools

i. sudo apt-get install default-jre

e. When a try to start the cFS I get a xfce error

i. sudo apt install xfce4-terminal

C.2 Ubuntu Issues

1. The COSMOS menu bar selections are missing.

a. They should be displayed in the Ubuntu main window for the COSMOS window. This is

the default Ubuntu 16.04 setting.

b. To change the menu bar display select the Ubuntu settings icon (wheel cog) in the upper

right. Then select Appearance->Beahvior-> “Show the menu for a window” and choose

“In the window title bar”.

C.3 COSMOS-cFS Connections Issues

1. When I start the cFS I get an error box stating failed to establish connection.

a. Press the ‘Enable Telemetry” button on the main screen.

b. If this doesn’t work then try restarting the COSMOS Command & Telemetry Server. The

cFS can remain running when you do this.

2. After I start the cFS it seems to run fine, and I see event messages in the terminal window, but I

don’t see any telemetry

a. Look at cFS startup messages. If there are kit_ci and/or kit_to socket bind error 98 then

a cFS process is still running

b. Open a new terminal window (ctrl-alt-t on an Ubuntu VM)

OpenSatKit User’s Guide – Version 1.x

c. Issue a ‘pgrep core’ command. If more than one process ID shows up then you have an

orphan cFS running.

d. Issue a sudo kill ‘xxxxx’ to end the old process where xxxxx is the process ID

C.4 COSMOS

1. After I change an Embedded Ruby script I don’t see it take effect.

a. The results of the ERB processing are cached. You either have to modify the file, or

delete the cache from the outputs/tmp folder.

C.5 cFS

1. I modified ../cf/cfe_es_startup.scr and my changes disappeared.

a. When you build the cFS with cmake and then do a ‘cmake install’ it copies the

cfe_es_startup.scr from the root cmake directory into the target CPU’s boot directory.

Therefore if you modify the target startup script it will get overwritten when you install

a new build.

2. When I start the cFS a terminal window opens and the cFS looks like it starts but nothing

updates.

a. First confirm it’s not a connection issue. See FAQ C.1.1.

b. Look through the startup messages and if you see messages stating tables were not

loaded then the problem is most likely that the default tables in the /cf directory were

deleted during the cFS build process. These tables include the scheduler tables and the

telemetry output table.

C.6 42

1. The 42 graphics is extremely slow in my VM

a. In the VM display settings turn off 3D acceleration

b. In 42/InOut/Inp_Graphics.txt under the “CAM Show Menu” category set “Shadows” to

FALSE

C.7 JSON Files

1. Here are some common JSON parser formatting mistakes. The exact output of the ground and

flight software JSON parsers are not identical but they should be similar to the following errors.

a. Expecting 'STRING' - You probably have an extra comma at the end of your collection.

Something like { "a": "b", }

b. Expecting 'STRING', 'NUMBER', 'NULL', 'TRUE', 'FALSE', '{', '[' - You probably have an

extra comma at the end of your list. Something like: ["a", "b", ]

c. Enclosing your collection keys in quotes. Proper format for a collection is { "key": "value"

}

OpenSatKit User’s Guide – Version 1.x

d. Make sure you follow JSON's syntax properly. For example, always use double quotes,

always define your keys in quotes, and remove all callback functions.

OpenSatKit User’s Guide – Version 1.x

Appendix D – Naming Conventions

D.1 Command & Telemetry Database

FM HK_TLM_PKT

State processor endian at top of packet and don’t repeat for appended data parameters

I followed the command mnemonics abbreviations in the HTML. However I made CAPS and used

underscores rather than the CamelBack.

I used “write” when writing info to a file and “send” when sending a telemetry packet with info.

Descriptive comments. Start command descriptions with a verb. No period at the end of single sentence

comments.

Whole names with no underscores

BITMASK

FILENAME

D.2 Abbreviations

ACT Active

ADDR Address

ADJ Adjust

APP Application

ATP Absolute Time Processor

ATS Absolute Time Sequence

BIN Binary

BUF Buffer

CLR Clear

CMD Command

CNT Count

CONT Continue

CRC Cyclic Redundancy Check

CTR(S) Counter(s)

DEST Destination

DIAG Diagnostic

DIS Disable

ENA Enable

ERR Error

EXE Executing

EVT Event

FLTR Filter

FMT Format

IDX Index

MET Mission Elapsed Timer

MON Monitor

OpenSatKit User’s Guide – Version 1.x

MSG Message

NUM Number

OVFL Overflow

PARAM(S) Parameter(s)

RECV Receive

REG Register, Registry

REV Revision

RST Reset

RTS Relative Time Sequence

SEQ Sequence

STATS Statistics

STCF Spacecraft Time Correlation Factor

SUB Subtract

SYS System

TBD To Be Determined

TLM Telemetry

VAL Value, Validate

VER Version

WHL Wheel

CFS/COSMOS/VM Getting Started Open Sat Kit User Guide 05 24 18

Navigation menu

Versions of this User Manual:

Views

Navigation
