Oracle Exadata Survival Guide

Oracle Exadata Survival Guide is a hands-on guide for busy Oracle database

administrators who are migrating their skill sets to Oracle’s Exadata database

appliance. The book covers the concepts behind Exadata, and the available con-

figurations for features such as smart scans, storage indexes, Smart Flash Cache,

hybrid columnar compression, and more. You’ll learn about performance metrics

and execution plans, and how to optimize SQL running in Oracle’s powerful new

environment. The authors also cover migration from other servers.

Oracle Exadata is fast becoming the standard for large installations such as

those running data warehouse, business intelligence, and large-scale OLTP sys-

tems. Exadata is like no other platform, and is new ground even for experienced

Oracle database administrators. The Oracle Exadata Survival Guide helps you nav-

igate the ins and outs of this new platform, de-mystifying this amazing appliance

and its exceptional performance. The book takes a highly practical approach, not

diving too deeply into the details, but giving you just the right depth of information

to quickly transfer your skills to Oracle’s important new platform.

• Helps transfer your skills to the platform of the future

• Covers the important ground without going too deep

• Takes a practical and hands-on approach to everyday tasks

What You’ll Learn:

• Master the components and basic architecture of an Exadata machine

• Reduce data transfer overhead by processing queries in the storage layer

• Examine and take action on Exadata-specific performance metrics

• Deploy Hybrid Columnar Compression to reduce storage and I/O needs

• Create worry-free migrations from existing databases into Exadata

• Understand and address issues specific to ERP migrations

ISBN 978-1-4302-6010-3

For your convenience Apress has placed some of the front

matter material after the index. Please use the Bookmarks

and Contents at a Glance links to access them.

v

Contents at a Glance

About the Authors ��xiii

About the Technical Reviewer �� xv

Acknowledgments �� xvii

Introduction �� xix

Chapter 1: Exadata Basics ■ ��1

Chapter 2: Smart Scans and Ofﬂoading ■ ��5

Chapter 3: Storage Indexes ■ ��29

Chapter 4: Smart Flash Cache ■ ��53

Chapter 5: Parallel Query ■ ��71

Chapter 6: Compression ■ ��83

Chapter 7: Exadata Cell Wait Events ■ ��119

Chapter 8: Measuring Performance ■ ��135

Chapter 9: Storage Cell Monitoring ■ ��151

Chapter 10: Monitoring Exadata ■ ��173

Chapter 11: Storage Reconﬁguration ■ ��207

Chapter 12: Migrating Databases to Exadata ■ ��219

Chapter 13: ERP Setup—a Practical Guide ■ ��237

Chapter 14: Final Thoughts ■ ��245

Index ��257

xix

Introduction

is book was borne from our personal experiences with managing, conguring, and migrating databases and

applications to the Exadata platform. Along the way, we took notes, tried this, tried that, and eventually came to an

understanding of what Exadata could do and how it does it. We didn’t go into great detail on the inner workings of the

system (Kerry Osborne, Randy Johnson, and Tanel Pöder have already provided an excellent text at that level), opting

instead to provide a guide for the working DBA who may not have time to read through and digest a “nuts and bolts”

book. us, this book is designed to lead the DBA through what we feel are the most important aspects and concepts

of Exadata, without getting bogged down in details. We recommend having access to an Exadata machine, so you can

try the scripts, queries, and commands provided and see the results rsthand. Having an interactive experience with

Exadata will, we think, make some of the concepts easier to understand.

Our goal in writing this book was to provide experienced Oracle DBAs with the tools and knowledge to take

on Exadata, hopefully without fear. No attempt is made to explain how Oracle works—this is not a “learn Oracle by

doing” text. Our intent is to leverage the existing knowledge of eld-proven and time-tested Oracle professionals, so

that they can successfully adapt what they already know to the Exadata platform.

1

Chapter 1

Exadata Basics

Since its introduction in September 2008, Exadata has fast become both a familiar term and a familiar presence in the

IT/database realm. The system has undergone several changes in its short history, from storage solution to complete

database appliance. Although it is not yet a household name, the number of Exadata installations has increased to

the point where it will soon become commonplace in data centers across the country. So, what is Exadata? It might be

better to begin by stating what Exadata isn’t. Exadata is not

the greatest thing since sliced bread;•

the only database machine that can single-handedly eliminate every occurrence of contention •

in your application;

the long-awaited silver bullet to solve all of your other database performance problems;•

a black box, constructed by the wizards of Middle Earth, understandable only to the •

anointed few.

What Is Exadata?

Now that you know what Exadata isn’t, let’s discuss what it is. Exadata is a system, composed of matched and tuned

components providing enhancements available with no other configuration, that can improve the performance

of the database tier. This system includes database servers, storage servers, an internal InfiniBand network with

switches, and storage devices (disks), all configured by Oracle Advanced Customer Support personnel to meet the

customer’s requirements. (Changes to that configuration, including changing the default storage allocations between

the data and recovery disk groups, can be made with assistance from Oracle Advanced Customer Support.) Figure 1-1

illustrates the general layout of an Exadata system.

Chapter 1 ■ exadata BasiCs

2

Can Exadata improve every situation? No, but it wasn’t designed to. Originally designed as a data warehouse/

business intelligence appliance, the releases from V2 on have added Online Transaction Processing (OLTP)

applications. Yet not every feature of Exadata is applicable to every query, application, or situation that may arise.

Chances are good that if your application is not suffering from contention issues, Exadata may provide reduced

response time and better throughput than systems using off-the-shelf components.

Exadata did not start out being what it is today; originally, it was conceived as an open-source storage solution for

RAC (Real Application Clusters) installations, intended to address the problem of transferring large volumes of data

across the grid infrastructure, known internally within Oracle as SAGE (Storage Appliance for Grid Environments). In

September 2008, Oracle unveiled the HP Oracle Database Machine, spotlighting the Exadata Storage Servers. At that

time, Exadata referred only to the storage server components, although the HP Oracle Database Machine included all

of the components found in later releases of the Exadata product.

The system was marketed as a data warehouse solution. Then, a year later, Exadata V2 was released, this time

marketed as a complete and integrated database appliance, including database servers, storage servers, an internal

InfiniBand network, and software designed so the components worked in concert as a unified whole. Oracle

marketed this appliance as the first database machine for OLTP, so now Exadata was the machine of choice for both

data warehousing and OLTP systems. The following year (2010) saw the release of Exadata X2, which continued the

improvements by adding a second configuration (X2-8) to the mix. This provided customers with two options for a

full-rack implementation. And in September 2012, Exadata X3 hit the market, improving performance yet again and

offering a fifth configuration option, the Eighth Rack.

Available Configurations

The X3 series of Exadata machines, which replaced the X2 series, is available in the following five configurations:

X3-2 Eighth Rack: Two database servers, each with two eight-core Xeon processors with

eight cores enabled and 256GB of RAM, three storage servers, and thirty-six disk drives

X3-2 Quarter Rack: Two database servers, each with two eight-core Xeon processors and

256GB of RAM, three storage servers, and thirty-six disk drives

DB Node

Storage Cell

Infiniband Switches

DB Node

8 of these

Disks under ASM

Storage Cell

Disks under ASM

14 of these

Flash Disks Flash Disks

Figure 1-1. General layout of an Exadata system

Chapter 1 ■ exadata BasiCs

3

X3-2 Half Rack: Four database servers, each with two eight-core Xeon processors and

256GB of RAM, seven storage servers, eighty-four disk drives, and a spine switch for

expansion

X3-2 Full Rack: Eight database servers, each with two eight-core Xeon processors and

256GB of RAM, fourteen storage servers, one hundred sixty-eight disk drives, and a spine

switch for expansion

X3-8 Full Rack: Two database servers, each with eight ten-core Xeon processors and 2TB

of RAM, fourteen storage servers, one hundred sixty-eight disk drives, a spine switch for

expansion, and no keyboard/video/mouse module

In general, the X3 series of Exadata machines is twice as powerful as the discontinued X2 series on a “like for

like” comparison. As mentioned earlier, in the X3-2 series, there is a new Eighth Rack configuration that provides

slightly less computing power (a total of sixteen processor cores, eight of which are enabled) than the X2-2 Quarter

Rack (which offered a total of twelve processor cores, all of which were enabled). This reduces the licensing costs as

compared to the X3-2 Quarter Rack, making the Eighth Rack a very suitable and cost-effective X3-2 entry point into

the Exadata arena.

Storage

How much raw storage you have depends on whether you choose High Capacity or High Performance drives—

High Capacity Serial Attached SCSI (SAS) drives have 3TB each of raw storage running at 7,200RPM and the High

Performance drives have 600GB each running at 15,000RPM. For a Quarter Rack configuration with High Capacity

disks, 108TB of total raw storage is provided, with roughly 40TB available for data after normal Automatic Storage

Management (ASM) redundancy is configured. Using High Performance disks, the total raw storage for a Quarter Rack

machine is 21.1TB, with approximately 8.4TB of usable data storage with normal ASM redundancy. High redundancy

reduces the storage by roughly another third on both configurations; the tradeoff is the additional ASM mirror in case

of disk failure, as high redundancy provides two copies of the data. Normal redundancy provides one copy.

The disks are accessed through the storage servers (or cells), running their own version of Linux with a subset of

the Oracle kernel built in. It is interesting to note that there is no direct access to the storage from the database servers;

the only way they can “see” the disks is through ASM. In the X3-2 Quarter Rack and Eighth Rack configurations, there

are three storage cells, with each storage cell controlling twelve disks. Each storage server provides two six-core Xeon

processors and 24GB of RAM. Between the various configurations of Exadata, the differences become the number

of database servers (often referred to as compute nodes) and the number of storage servers or cells—the greater

the number of storage cells, the more storage the Exadata machine can control internally. As previously noted, the

storage servers also run an integrated Oracle kernel. This allows the database servers to “pass off” (or offload) parts of

qualifying queries, so that the database servers only have to handle the reduced data volume of the result sets, rather

than scanning every data or index block for the objects of interest. This is known as a Smart Scan. How Smart Scans

work and what triggers them are covered in Chapter 2.

Smart Flash Cache

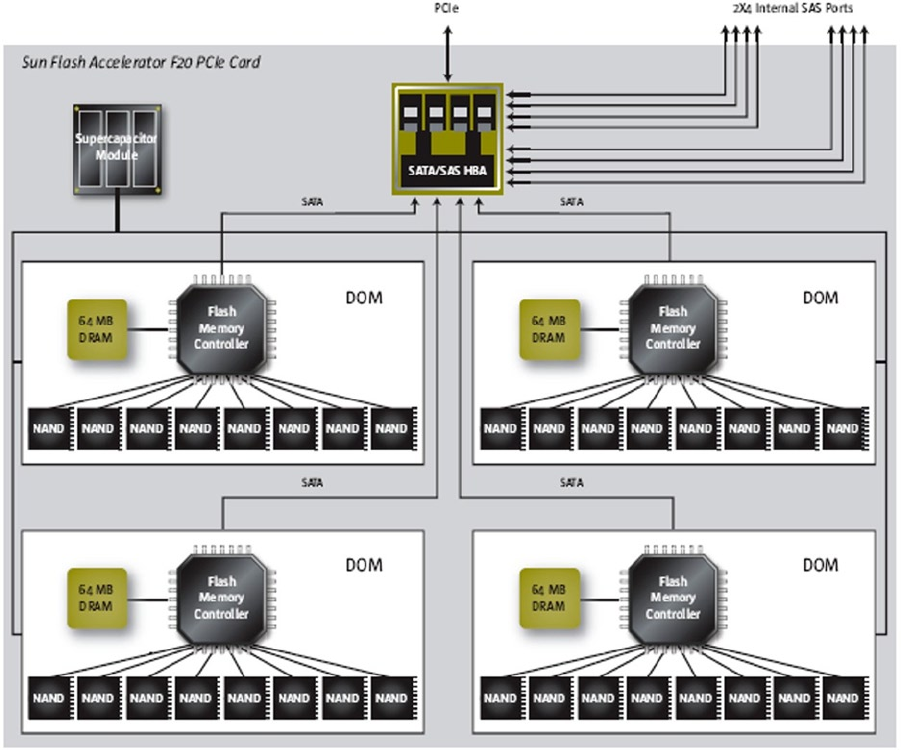

Another part of the Exadata performance package is the Smart Flash Cache, 384GB of solid-state flash storage for each

storage cell, configured across four Sun Flash Accelerator F20 PCIe cards. With a Quarter Rack configuration (three

storage servers/cells), 1.1TB of flash storage is available; a Full Rack provides 5.3TB of flash storage. The flash cache

is usable as a smart cache to service large volumes of random reads, or it can be configured as flash disk devices and

mounted as an ASM disk group. That topic will be covered in greater depth in Chapter 4.

Chapter 1 ■ exadata BasiCs

4

Even More Storage

Expansion racks consist of both storage servers and disk drives. There are three different configurations available:

Quarter Rack, Half Rack, and Full Rack, any of which can connect to any Oracle Exadata machine. For the Quarter

Rack configuration, an additional spine switch will be necessary; the IP address for the spine switch is left unassigned

during configuration, so that if one is installed, the address will be available, with no need to reconfigure the machine.

Besides adding storage, these racks also add computing power for Smart Scan operations, with the smallest

expansion rack containing four storage servers and forty-eight disk drives, adding eight six-core CPUs to the mix. The

largest expansion rack provides 18 storage servers with 216 disk drives. Actual storage will depend on whether the

system is using High Capacity or High Performance disk drives; the drive types cannot be mixed in a single Exadata

machine/expansion rack configuration, so if the Exadata system is using High Capacity drives, the expansion rack

must also contain High Capacity disks, if those disks are being added to existing disk groups.

One reason for this requirement is that ASM stripes the data across the total number of drives in a disk group, thus

the size and geometry of the disk units must be uniform across the storage tier. It is not necessary for the disks of the

expansion rack to be added to an existing disk group; a completely separate disk group can be created from that storage.

You cannot mix storage types within the expansion rack, but the disk type does not need to match that of the host system,

if a separate disk group is to be created from that storage. The beauty of these expansion racks is that they integrate

seamlessly with the existing storage on the host Exadata system. If these disks are added to existing disk groups, ASM

automatically triggers a rebalance to evenly distribute the extents across the total number of available disks.

Things to Know

An Exadata system, available in four configurations, is a complex arrangement of database servers, storage servers,

disk drives, and an internal InfiniBand network with modifications designed to address many performance issues in

a unique way. It’s the first system with a “divide-and-conquer” approach to query processing that can dramatically

improve performance and reduce query response time. It also includes Smart Flash Cache, a write-back cache that

can handle large volumes of reads and is designed for Online Transaction Processing (OLTP) systems. This cache can

also be configured as flash disk devices. Additional storage is available in the form of Exadata Expansion Racks, which

can be added to any Exadata configuration to extend the storage and add storage-cell computing power. The storage

in the expansion rack can be the same type (High Capacity, High Performance) as in the Exadata Machine; however,

in some cases, Oracle recommends High Capacity drives for expansion racks, regardless of the storage found in the

host Exadata system.

Moving on, we’ll discuss the various performance enhancements Exadata provides and how, at least in a limited

way, these enhancements are implemented. This is not meant to be an exhaustive text but a “getting started” guide

to help lead you through the maze. There are other, more technical, texts you can read to gain a deeper knowledge of

the machine, but with this book’s background in hand, it will be easier to understand what Exadata does that other

systems can’t.

5

Chapter 2

Smart Scans and Offloading

One of the enhancements provided by Exadata is the Smart Scan, a mechanism by which parts of a query can be

offloaded, or handed off, to the storage servers for processing. This “divide-and-conquer” approach is one reason

Exadata is able to provide such stellar performance. It’s accomplished by the configuration of Exadata, where

database servers and storage cells offer computing power and the ability to process queries, owing to the unique

storage server software running on the storage cells.

Smart Scans

Not every query qualifies for a Smart Scan, as certain conditions must be met. Those conditions are as follows:

A full table scan or full index scan must be used, in addition to direct-path reads.•

One or more of the following simple comparison operators must be in use:•

=•

<•

>•

>=•

=<•

BETWEEN•

IN•

IS NULL•

IS NOT NULL•

Smart Scans will also be available when queries are run in parallel, because direct-path reads are executed by

default, by parallel query slaves. Of course, the other conditions must also be met: parallel only ensures that direct-

path reads are used. What does a Smart Scan do to improve performance? It reduces the amount of data the database

servers must process to return results. The offloading process divides the workload among the compute nodes and the

storage cells, involves more CPU resources, and returns smaller sets of data to the receiving process.

Instead of reading 10,000 blocks of data to return 1,000 rows, offloading allows the storage cells to perform some

of the work with access and filter predicates and to send back only the rows that meet the provided criteria. Similar in

operation to parallel query slaves, the offloading process divides the work among the available storage cells, and each

cell returns any qualifying rows stored in that particular subset of disks. And, like parallel query, the result “pieces” are

merged into the final result set. Offloading also reduces inter-instance transfer between nodes, which, in turn, reduces

Chapter 2 ■ Smart SCanS and OfflOading

6

latching and global locking. Latching, in particular, consumes CPU cycles. Less latching equates to a further reduction

in CPU cycles, enhancing performance. The net “savings” in CPU work and execution time can be substantial; queries

that take minutes to execute on non-Exadata systems can sometimes be completed in seconds as a result of using

Smart Scans.

Plans and Metrics

Execution plans can report Smart Scan activity, if they are the actual plans generated by the optimizer at runtime.

Qualifying plans will be found in the V$SQL_PLAN and DBA_HIST_SQL_PLAN views and will be generated by

autotrace, when the ON option is used, or can be found by enabling a 10046 trace and processing the resulting trace

file through tkprof. Using autotrace in EXPLAIN mode may not provide the same plan as generated at runtime,

because it can still use rule-based optimizer decisions to generate plans. The same holds true for EXPLAIN PLAN.

(We have seen cases where EXPLAIN PLAN and a 10046 trace differed in the reported execution plan.) The tkprof

utility also offers an explain mode, and it, too, can provide misleading plans. By default, tkprof provides the actual

plan from the execution, so using the command-line explain option is unnecessary.

Smart Scans are noted in the execution plan in one of three ways:

TABLE ACCESS STORAGE FULL•

INDEX STORAGE FULL SCAN•

INDEX STORAGE FAST FULL SCAN•

The presence of one or more of these operations does not mean that a Smart Scan actually occurred; other

metrics should be used to verify Smart Scan execution. The V$SQL view (and, for RAC databases, GV$SQL) has two

columns that provide further information on cell offload execution, io_cell_offload_eligible_bytes and io_cell_offload_

returned_bytes. These are populated with relevant information regarding cell offload activity for a given sql_id,

provided a Smart Scan was actually executed.

The io_cell_offload_eligible_bytes column reports the bytes of data that qualify for offload. This is the volume of

data that can be offloaded to the storage cells during query execution. The io_cell_offload_returned_bytes column

reports the number of bytes returned by the regular I/O path. These are the bytes that were not offloaded to the

cells. The difference between these two values provides the bytes actually offloaded during query execution. If

no Smart Scan were used, the values for both columns would be 0. There will be cases where the column io_cell_

offload_eligible_bytes will be equal to 0, but the column io_cell_offload_returned_bytes will not. Such cases will

usually, but not always, be referencing either fixed views (such as GV$SESSION_WAIT) or other data dictionary views

(V$TEMPSEG_USAGE, for example). Such queries are not considered eligible for offload. (The view isn’t offloadable,

because it may expose memory structures resident on the database compute nodes, but that doesn’t indicate they

don’t qualify for a Smart Scan [one or more of the base tables to that view might qualify].) The presence of projection

data in V$SQL_PLAN/GV$SQL_PLAN is proof enough that a Smart Scan was executed.

Looking at a query where a Smart Scan is executed, using the smart_scan_ex.sql script, we see

SQL> select *

2 from emp

3 where empid = 7934;

EMPID EMPNAME DEPTNO

---------- ---------------------------------------- ----------

7934 Smorthorper7934 15

Elapsed: 00:00:00.21

Chapter 2 ■ Smart SCanS and OfflOading

7

Execution Plan

----------------------------------------------------------

Plan hash value: 3956160932

----------------------------------------------------------------------------------

----------------------------------------------------------------------------------

| 0 | SELECT STATEMENT | | 1 | 28 | 6361 (1)| 00:00:01 |

|* 1 | TABLE ACCESS STORAGE FULL| EMP | 1 | 28 | 6361 (1)| 00:00:01 |

----------------------------------------------------------------------------------

Predicate Information (identified by operation id):

---------------------------------------------------

1 - storage("EMPID"=7934)

filter("EMPID"=7934)

Statistics

----------------------------------------------------------

1 recursive calls

1 db block gets

40185 consistent gets

22594 physical reads

168 redo size

680 bytes sent via SQL*Net to client

524 bytes received via SQL*Net from client

2 SQL*Net roundtrips to/from client

0 sorts (memory)

0 sorts (disk)

1 rows processed

SQL>

Notice that the execution plan reports, via the TABLE ACCESS STORAGE FULL operation, that a Smart Scan is in

use. Verifying that with a quick query to V$SQL we see

SQL>select sql_id,

2 io_cell_offload_eligible_bytes qualifying,

3 io_cell_offload_eligible_bytes - io_cell_offload_returned_bytes actual,

4 round(((io_cell_offload_eligible_bytes - io_cell_offload_returned_bytes)/io_cell_offload_

eligible_bytes)*100, 2) io_saved_pct,

5 sql_text

6 from v$sql

7 where io_cell_offload_returned_bytes> 0

8 and instr(sql_text, 'emp') > 0

9 and parsing_schema_name = 'BING';

SQL_ID QUALIFYING ACTUAL IO_SAVED_PCT SQL_TEXT

------------- ---------- ---------- ------------ -------------------------------------

gfjb8dpxvpuv6 185081856 42510928 22.97 select * from emp where empid = 7934

SQL>

Chapter 2 ■ Smart SCanS and OfflOading

8

The savings in I/O, as a percentage of the total eligible bytes, was 22.97 percent, meaning Oracle processed almost

23 percent less data than it would have had a Smart Scan not been executed. Setting cell_offload_processing=false in

the session, the query is executed again, using the no_smart_scan_ex.sql script, as follows:

SQL> alter session set cell_offload_processing=false;

Session altered.

Elapsed: 00:00:00.00

SQL>

SQL> select *

2 from emp

3 where empid = 7934;

EMPID EMPNAME DEPTNO

---------- ---------------------------------------- ----------

7934 Smorthorper7934 15

Elapsed: 00:00:03.73

Execution Plan

----------------------------------------------------------

Plan hash value: 3956160932

----------------------------------------------------------------------------------

----------------------------------------------------------------------------------

| 0 | SELECT STATEMENT | | 1 | 28 | 6361 (1)| 00:00:01 |

|* 1 | TABLE ACCESS STORAGE FULL| EMP | 1 | 28 | 6361 (1)| 00:00:01 |

----------------------------------------------------------------------------------

Predicate Information (identified by operation id):

---------------------------------------------------

1 - filter("EMPID"=7934)

Statistics

----------------------------------------------------------

1 recursive calls

1 db block gets

45227 consistent gets

22593 physical reads

0 redo size

680 bytes sent via SQL*Net to client

524 bytes received via SQL*Net from client

2 SQL*Net roundtrips to/from client

0 sorts (memory)

0 sorts (disk)

1 rows processed

Chapter 2 ■ Smart SCanS and OfflOading

9

SQL>

SQL> set autotrace off timing off

SQL>

SQL> select sql_id,

2 io_cell_offload_eligible_bytes qualifying,

3 io_cell_offload_eligible_bytes - io_cell_offload_returned_bytes actual,

4 round(((io_cell_offload_eligible_bytes - io_cell_offload_returned_bytes)/io_cell_offload_

eligible_bytes)*100, 2) io_saved_pct,

5 sql_text

6 from v$sql

7 where io_cell_offload_returned_bytes > 0

8 and instr(sql_text, 'emp') > 0

9 and parsing_schema_name = 'BING';

no rows selected

SQL>

In the absence of a Smart Scan, the query executed in 3.73 seconds and processed the entire 185081856 bytes of

data. Because offload processing was disabled, the storage cells provided no assistance with the query processing. It

is interesting to note that the execution plan reports TABLE ACCESS STORAGE FULL, a step usually associated with a

Smart Scan. The absence of predicate information and the “no rows selected” result for the offload bytes query prove

that a Smart Scan was not executed. Disabling cell offload processing created a noticeable difference in execution

time, proving the power of a Smart Scan.

Smart Scan performance can also outshine the performance provided by an index for larger volumes of data by

allowing Oracle to reduce the I/O by gigabytes, or even terabytes, of data when returning rows satisfying the query

criteria. There are also cases where a Smart Scan is not the best performer; an index is added to the table and the

same set of queries is executed a third time, again using the smart_scan_ex.sql script:

SQL> create index empid_idx on emp(empid);

Index created.

SQL>

SQL> set autotrace on timing on

SQL>

SQL> select *

2 from emp

3 where empid = 7934;

EMPID EMPNAME DEPTNO

---------- ---------------------------------------- ----------

7934 Smorthorper7934 15

Elapsed: 00:00:00.01

Execution Plan

----------------------------------------------------------

Plan hash value: 1109982043

Chapter 2 ■ Smart SCanS and OfflOading

10

--------------------------------------------------------------------------------------

--------------------------------------------------------------------------------------

| 0 | SELECT STATEMENT | | 1 | 28 | 4 (0)| 00:00:01|

| 1 | TABLE ACCESS BY INDEX ROWID| EMP | 1 | 28 | 4 (0)| 00:00:01|

|* 2 | INDEX RANGE SCAN | EMPID_IDX | 1 | | 3 (0)| 00:00:01|

--------------------------------------------------------------------------------------

Predicate Information (identified by operation id):

---------------------------------------------------

2 - access("EMPID"=7934)

Statistics

----------------------------------------------------------

1 recursive calls

0 db block gets

5 consistent gets

2 physical reads

148 redo size

684 bytes sent via SQL*Net to client

524 bytes received via SQL*Net from client

2 SQL*Net roundtrips to/from client

0 sorts (memory)

0 sorts (disk)

1 rows processed

SQL>

SQL> set autotrace off timing off

SQL>

SQL>select sql_id,

2 io_cell_offload_eligible_bytes qualifying,

3 io_cell_offload_returned_bytes actual,

4 round(((io_cell_offload_eligible_bytes - io_cell_offload_returned_bytes)/io_cell_offload_

eligible_bytes)*100, 2) io_saved_pct,

5 sql_text

6 from v$sql

7 where io_cell_offload_returned_bytes> 0

8 and instr(sql_text, 'emp') > 0

9 and parsing_schema_name = 'BING';

no rows selected

SQL>

Notice that an index range scan was chosen by the optimizer, rather than offloading the predicates to the storage

cells. The elapsed time for the index-range scan was considerably less than the elapsed time for the Smart Scan, so,

in some cases, a Smart Scan may not be the most efficient path to the data. This also illustrates an issue with existing

indexes, as the optimizer may select an index that makes the execution path worse, which explains why some Exadata

sources recommend dropping indexes to improve performance. Although it may eventually be decided that dropping

an index is best for the overall performance of a query or group of queries, no such recommendation is offered here,

Chapter 2 ■ Smart SCanS and OfflOading

11

as each situation is different and needs to be evaluated on a case-by-case basis; what’s good for one Exadata system

and application may not be good for another. The only way to know, with any level of certainty, whether or not to drop

a particular index is to test and evaluate the results in an environment as close to production as possible.

Smart Scan Optimizations

A Smart Scan uses various optimizations to accomplish its task. There are three major optimizations a Smart Scan

implements: Column Projection, Predicate Filtering, and storage indexes. Because storage indexes will be covered in

detail in the next chapter, this discussion will concentrate on the first two optimizations. Suffice it to say, for now, that

storage indexes are not like conventional indexes, in that they inform Exadata where not to look for data. That may

be confusing at this point, but it will be covered in depth later. The primary focus of the next sections will be Column

Projection and Predicate Filtering.

Column Projection

What is Column Projection? It’s Exadata’s ability to return only the columns requested by the query. In conventional

systems using commodity hardware, Oracle will fetch the data blocks of interest in their entirety from the storage cells,

loading them into the buffer cache. Oracle then extracts the columns from these blocks, filtering them at the end to

return only the columns in the select list. Thus, the entire rows of data are returned to be further processed before

displaying the final results. Column Projection does the filtering before it gets to the database server, returning only

columns in the select list and, if applicable, those columns necessary for join operations. Rather than return the entire

data block or row, Exadata returns only what it needs to complete the query operation. This can considerably reduce

the data processed by the database servers.

Take, as an example, a table with 45 columns and a select list that contains 7 of those columns. Column

Projection will return only those 7 columns, rather than the entire 45, reducing the database server workload

appreciably. Let’s add a two-column join condition to the query and another two columns from another table with

71 columns; Column Projection will return the nine columns from the select list and the four columns in the join

condition (presuming the join columns are not in the select list). Thirteen columns are much less data than 116

columns (the 45 from the first table and the 71 from the second), which is one reason Smart Scans can be so fast.

Column Projection information is available from either the PROJECTION column from V$SQL_PLAN or from the

DBMS_XPLAN package, so you can choose which of the two is easier for you to use; the projection information is

returned only if the “+projection” parameter is passed to the DISPLAY_CURSOR function, as was done in this example

(again from smart_scan_ex.sql), which makes use of both methods of retrieving the Column Projection data:

SQL> select *

2 from emp

3 where empid = 7934;

EMPID EMPNAME DEPTNO

---------- ---------------------------------------- ----------

7934 Smorthorper7934 15

Elapsed: 00:00:00.16

SQL> select sql_id,

2 projection

3 from v$sql_plan

4 where sql_id = 'gfjb8dpxvpuv6';

Chapter 2 ■ Smart SCanS and OfflOading

12

SQL_ID PROJECTION

------------- ----------------------------------------------------------------------------

gfjb8dpxvpuv6 "EMPID"[NUMBER,22], "EMP"."EMPNAME"[VARCHAR2,40], "EMP"."DEPTNO"[NUMBER,22]

SQL>

SQL> select *

2 from table(dbms_xplan.display_cursor('&sql_id','&child_no', '+projection'));

Enter value for sql_id: gfjb8dpxvpuv6

Enter value for child_no:

PLAN_TABLE_OUTPUT

-------------------------------------------------------------------------------------------SQL_ID

gfjb8dpxvpuv6, child number 0

-------------------------------------

select * from emp where empid = 7934

Plan hash value: 3956160932

----------------------------------------------------------------------------------

----------------------------------------------------------------------------------

| 0 | SELECT STATEMENT | | | | 6361 (100)| |

|* 1 | TABLE ACCESS STORAGE FULL| EMP | 1 | 28 | 6361 (1)| 00:00:01 |

----------------------------------------------------------------------------------

Predicate Information (identified by operation id):

---------------------------------------------------

1 - storage("EMPID"=7934)

filter("EMPID"=7934)

Column Projection Information (identified by operation id):

-----------------------------------------------------------

1 - "EMPID"[NUMBER,22], "EMP"."EMPNAME"[VARCHAR2,40],

"EMP"."DEPTNO"[NUMBER,22]

29 rows selected.

SQL>

As only three columns were requested, only those three columns were returned by the storage servers (proven by

the Column Projection Information section of the autotrace report), making the query execution much more efficient.

The database servers had no need to filter the result set rows to return only the desired columns.

Chapter 2 ■ Smart SCanS and OfflOading

13

Predicate Filtering

Where Column Projection returns only the columns of interest from a select list or join condition, Predicate Filtering

is the mechanism used by Exadata to return only the rows of interest. Such filtering occurs at the storage cells, which

reduces the volume of data the database servers must process. The predicate information is passed on to the storage

servers during the course of Smart Scan execution, so performing the filtering operation at the storage server level is a

logical choice. Because the data volume to the database servers is reduced, so is the load on the database server CPUs.

The preceding example used both Column Projection and Predicate Filtering to rapidly return the result set; using

both is a powerful combination not available from systems configured from individual, unmatched components.

Basic Joins

Depending on the query, join processing can also be offloaded to the storage servers, and these are processed using

an interesting construct known as a bloom filter. These are not new, nor are they exclusive to Exadata, as Oracle has

used them in query processing since Oracle Database Version 10g Release 2, primarily to reduce traffic between

parallel query slaves. What is a bloom filter? Named after Burton Howard Bloom, who came up with the concept in

the 1970s, it’s an efficient data structure used to quickly determine if an element has a high probability of being a

member of a given set. It’s based on a bit array that allows for rapid searches and returns one of two results: either the

element is probably in the set (which can produce false positives) or the element is definitely not in the set. The filter

cannot produce false negatives, and the incidence of false positives is relatively rare. Another advantage to bloom

filters is their small size relative to other data structures used for similar purposes (self-balancing binary search trees,

hash tables, or linked lists). The possibility of false positives necessitates the addition of another filter to eliminate

them from the results, yet such a filter doesn’t add appreciably to the process time and, therefore, goes relatively

unnoticed.

When bloom filters are used for a query on an Exadata system, the filter predicate and the storage predicate will

list the SYS_OP_BLOOM_FILTER function as being called. This function includes the additional filter to eliminate

any false positives that could be returned. It’s the storage predicate that provides the real power of the bloom filter on

Exadata. Using a bloom filter to pre-join the tables at the storage server level reduces the volume of data the database

servers need to process and can significantly reduce the execution time of the given query.

An example of bloom filters in action follows; the bloom_fltr_ex.sql script was executed to generate this output.

SQL> --

SQL> -- Create sample tables

SQL> --

SQL> -- Create them parallel, necessary

SQL> -- to get a Smart Scan on these tables

SQL> --

SQL> create table emp(

2 empid number,

3 empnmvarchar2(40),

4 empsal number,

5 empssn varchar2(12),

6 constraint emp_pk primary key (empid)

7 ) parallel 4;

Table created.

SQL>

Chapter 2 ■ Smart SCanS and OfflOading

14

SQL> create table emp_dept(

2 empid number,

3 empdept number,

4 emploc varchar2(60),

5 constraint emp_dept_pk primary key(empid)

6 ) parallel 4;

Table created.

SQL>

SQL> create table dept_info(

2 deptnum number,

3 deptnm varchar2(25),

4 constraint dept_info_pk primary key(deptnum)

5 ) parallel 4;

Table created.

SQL>

SQL> --

SQL> -- Load sample tables with data

SQL> --

SQL> begin

2 for i in 1..2000000 loop

3 insert into emp

4 values(i, 'Fnarm'||i, (mod(i, 7)+1)*1000, mod(i,10)||mod(i,10)||mod(i,10)||'-

'||mod(i,10)||mod(i,10)||'-'||mod(i,10)||mod(i,10)||mod(i,10)||mod(i,10));

5 insert into emp_dept

6 values(i, (mod(i,8)+1)*10, 'Zanzwalla'||(mod(i,8)+1)*10);

7 commit;

8 end loop;

9 insert into dept_info

10 select distinct empdept, case when empdept = 10 then 'SALES'

11 when empdept = 20 then 'PROCUREMENT'

12 when empdept = 30 then 'HR'

13 when empdept = 40 then 'RESEARCH'

14 when empdept = 50 then 'DEVELOPMENT'

15 when empdept = 60 then 'EMPLOYEE RELATIONS'

16 when empdept = 70 then 'FACILITIES'

17 when empdept = 80 then 'FINANCE' end

18 from emp_dept;

19

20 end;

21 /

PL/SQL procedure successfully completed.

SQL>

SQL> --

SQL> -- Run join query using bloom filter

SQL> --

SQL> -- Generate execution plan to prove bloom

SQL> -- filter usage

Chapter 2 ■ Smart SCanS and OfflOading

15

SQL> --

SQL> -- Also report query execution time

SQL> --

SQL> set autotrace on

SQL> set timing on

SQL>

SQL> select /*+ bloom join 2 parallel 2 use_hash(empemp_dept) */ e.empid, e.empnm, d.deptnm,

e.empsal

2 from emp e join emp_depted on (ed.empid = e.empid) join dept_info d on (ed.empdept = d.deptnum)

3 where ed.empdept = 20;

EMPID EMPNM DEPTNM EMPSAL

---------- ---------------------- ------------------------- ----------

904505 Fnarm904505 PROCUREMENT 1000

907769 Fnarm907769 PROCUREMENT 3000

909241 Fnarm909241 PROCUREMENT 5000

909505 Fnarm909505 PROCUREMENT 3000

909641 Fnarm909641 PROCUREMENT 6000

910145 Fnarm910145 PROCUREMENT 6000

...

155833 Fnarm155833 PROCUREMENT 7000

155905 Fnarm155905 PROCUREMENT 2000

151081 Fnarm151081 PROCUREMENT 1000

151145 Fnarm151145 PROCUREMENT 2000

250000 rows selected.

Elapsed: 00:00:14.27

Execution Plan

----------------------------------------------------------

Plan hash value: 2643012915

----------------------------------------------------------------------------------------------------

----------------------------------------------------------------------------------------------------------------

| 0 | SELECT STATEMENT | | 218K| 21M| 1376 (1)| 00:00:01 | | | |

| 1 | PX COORDINATOR | | | | | | | | |

| 2 | PX SEND QC (RANDOM) | :TQ10002 | 218K| 21M| 1376 (1)| 00:00:01 | Q1,02 | P->S | QC (RAND) |

|* 3 | HASH JOIN | | 218K| 21M| 1376 (1)| 00:00:01 | Q1,02 | PCWP | |

| 4 | PX RECEIVE | | 218K| 11M| 535 (1)| 00:00:01 | Q1,02 | PCWP | |

| 5 | PX SEND BROADCAST | :TQ10001 | 218K| 11M| 535 (1)| 00:00:01 | Q1,01 | P->P | BROADCAST |

| 6 | NESTED LOOPS | | 218K| 11M| 535 (1)| 00:00:01 | Q1,01 | PCWP | |

| 7 | BUFFER SORT | | | | | | Q1,01 | PCWC | |

| 8 | PX RECEIVE | | | | | | Q1,01 | PCWP | |

| 9 | PX SEND BROADCAST | :TQ10000 | | | | | | S->P | BROADCAST |

| 10 |TABLE ACCESS BY INDEX ROWID| DEPT_INFO| 1 | 27 | 1 (0)| 00:00:01 | | | |

|* 11 | INDEX UNIQUE SCAN |DEPT_INFO_PK| 1 | | 1 (0)| 00:00:01 | | | |

| 12 | PX BLOCK ITERATOR| | 218K| 5556K| 534 (1)| 00:00:01 | Q1,01 | PCWC | |

|* 13 |TABLE ACCESS STORAGE FULL| EMP_DEPT | 218K| 5556K| 534 (1)| 00:00:01 | Q1,01 | PCWP | |

| 14 | PX BLOCK ITERATOR | | 1690K| 77M| 839 (1)| 00:00:01 | Q1,02 | PCWC | |

|* 15 |TABLE ACCESS STORAGE FULL| EMP | 1690K| 77M| 839 (1)| 00:00:01 | Q1,02 | PCWP | |

----------------------------------------------------------------------------------------------------

Chapter 2 ■ Smart SCanS and OfflOading

16

Predicate Information (identified by operation id):

---------------------------------------------------

3 - access("ED"."EMPID"="E"."EMPID")

11 - access("D"."DEPTNUM"=20)

13 - storage("ED"."EMPDEPT"=20)

filter("ED"."EMPDEPT"=20)

15 - storage(SYS_OP_BLOOM_FILTER(:BF0000,"E"."EMPID"))

filter(SYS_OP_BLOOM_FILTER(:BF0000,"E"."EMPID"))

Note

-----

- dynamic sampling used for this statement (level=2)

Statistics

----------------------------------------------------------

60 recursive calls

174 db block gets

40753 consistent gets

17710 physical reads

2128 redo size

9437983 bytes sent via SQL*Net to client

183850 bytes received via SQL*Net from client

16668 SQL*Net roundtrips to/from client

6 sorts (memory)

0 sorts (disk)

250000 rows processed

SQL>

In less than 15 seconds, 250,000 rows were returned from a three-table join of over 4 million rows. The bloom

filter made a dramatic difference in how this query was processed and provided exceptional performance given the

volume of data queried. If offload processing is turned off, the bloom filter still is used at the database level:

SQL> select /*+ bloom join 2 parallel 2 use_hash(empemp_dept) */ e.empid, e.empnm, d.deptnm,

e.empsal

2 from emp e join emp_depted on (ed.empid = e.empid) join dept_info d on (ed.empdept = d.deptnum)

3 where ed.empdept = 20;

EMPID EMPNM DEPTNM EMPSAL

---------- ---------------------------------------- ------------------------- ----------

380945 Fnarm380945 PROCUREMENT 6000

373361 Fnarm373361 PROCUREMENT 3000

373417 Fnarm373417 PROCUREMENT 3000

373441 Fnarm373441 PROCUREMENT 6000

...

203529 Fnarm203529 PROCUREMENT 5000

202417 Fnarm202417 PROCUREMENT 6000

202425 Fnarm202425 PROCUREMENT 7000

200161 Fnarm200161 PROCUREMENT 4000

250000 rows selected.

Chapter 2 ■ Smart SCanS and OfflOading

17

Elapsed: 00:00:16.60

Execution Plan

----------------------------------------------------------

Plan hash value: 2643012915

----------------------------------------------------------------------------------------------------

----------------------------------------------------------------------------------------------------------------

| 0 | SELECT STATEMENT | | 218K| 21M| 1376 (1)| 00:00:01 | | | |

| 1 | PX COORDINATOR | | | | | | | | |

| 2 | PX SEND QC (RANDOM) | :TQ10002 | 218K| 21M| 1376 (1)| 00:00:01 | Q1,02 | P->S | QC (RAND) |

|* 3 | HASH JOIN | | 218K| 21M| 1376 (1)| 00:00:01 | Q1,02 | PCWP | |

| 4 | PX RECEIVE | | 218K| 11M| 535 (1)| 00:00:01 | Q1,02 | PCWP | |

| 5 | PX SEND BROADCAST | :TQ10001 | 218K| 11M| 535 (1)| 00:00:01 | Q1,01 | P->P | BROADCAST |

| 6 | NESTED LOOPS | | 218K| 11M| 535 (1)| 00:00:01 | Q1,01 | PCWP | |

| 7 | BUFFER SORT | | | | | | Q1,01 | PCWC | |

| 8 | PX RECEIVE | | | | | | Q1,01 | PCWP | |

| 9 | PX SEND BROADCAST | :TQ10000 | | | | | | S->P | BROADCAST |

| 10 |TABLE ACCESS BY INDEX ROWID| DEPT_INFO| 1 | 27 | 1 (0)| 00:00:01 | | | |

|* 11 | INDEX UNIQUE SCAN|DEPT_INFO_PK| 1 | | 1 (0)| 00:00:01 | | | |

| 12 | PX BLOCK ITERATOR| | 218K| 5556K| 534 (1)| 00:00:01 | Q1,01 | PCWC | |

|* 13 |TABLE ACCESS STORAGE FULL| EMP_DEPT | 218K| 5556K| 534 (1)| 00:00:01 | Q1,01 | PCWP | |

| 14 | PX BLOCK ITERATOR | | 1690K| 77M| 839 (1)| 00:00:01 | Q1,02 | PCWC | |

|* 15 |TABLE ACCESS STORAGE FULL| EMP | 1690K| 77M| 839 (1)| 00:00:01 | Q1,02 | PCWP | |

----------------------------------------------------------------------------------------------------

Predicate Information (identified by operation id):

---------------------------------------------------

3 - access("ED"."EMPID"="E"."EMPID")

11 - access("D"."DEPTNUM"=20)

13 - filter("ED"."EMPDEPT"=20)

15 - filter(SYS_OP_BLOOM_FILTER(:BF0000,"E"."EMPID"))

Statistics

----------------------------------------------------------

33 recursive calls

171 db block gets

40049 consistent gets

17657 physical reads

0 redo size

9437503 bytes sent via SQL*Net to client

183850 bytes received via SQL*Net from client

16668 SQL*Net roundtrips to/from client

5 sorts (memory)

0 sorts (disk)

250000 rows processed

SQL>

Chapter 2 ■ Smart SCanS and OfflOading

18

Without the storage level execution of the bloom filter, the query execution time increased by 2.33 seconds, a

16.3 percent increase. For longer execution times, this difference can be significant. It isn’t the bloom filter that gives

Exadata such power with joins, it’s the fact that Exadata can execute it not only at the database level but also at the

storage level, something commodity hardware configurations can’t do.

Offloading Functions

Functions are an interesting topic with Exadata, as far as Smart Scans are concerned. Oracle implements two basic

types of functions: single-row functions, such as TO_CHAR(), TO_NUMBER(), CHR(), LPAD(), which operate on

a single value and return a single result, and multi-row functions, such as AVG(), LAG(), LEAD(), MIN(), MAX(),

and others, which operate on multiple rows and return either a single value or a set of values. Analytic functions are

included in this second function type. The single-row functions are eligible to be offloaded and, thus, can qualify

a query for a Smart Scan, because single-row functions can be divided among the storage servers to process data.

Multi-row functions such as AVG(), MIN(), and MAX()must be able to access the entire set of table data, an action

not possible by a Smart Scan with the storage architecture of an Exadata machine. The minimum number of storage

servers in the smallest of Exadata configurations is three, and the storage is fairly evenly divided among these. This

makes it impossible for one storage server to access the entire set of disks. Thus, the majority of multi-row functions

cannot be offloaded to the storage tier; however, queries that utilize these functions may still execute a Smart Scan,

even though the function cannot be offloaded, as displayed by executing the agg_smart_scan_ex.sql script; only the

relevant output from that script is reproduced here.

SQL> select avg(sal)

2 from emp;

AVG(SAL)

----------

2500000.5

Elapsed: 00:00:00.49

Execution Plan

----------------------------------------------------------

Plan hash value: 2083865914

-----------------------------------------------------------------------------------

-----------------------------------------------------------------------------------

| 0 | SELECT STATEMENT | | 1 | 6 | 7468 (1)| 00:00:01 |

| 1 | SORT AGGREGATE | | 1 | 6 | | |

| 2 | TABLE ACCESS STORAGE FULL| EMP | 5000K| 28M| 7468 (1)| 00:00:01 |

-----------------------------------------------------------------------------------

Statistics

----------------------------------------------------------

1 recursive calls

1 db block gets

45123 consistent gets

26673 physical reads

0 redo size

Chapter 2 ■ Smart SCanS and OfflOading

19

530 bytes sent via SQL*Net to client

524 bytes received via SQL*Net from client

2 SQL*Net roundtrips to/from client

0 sorts (memory)

0 sorts (disk)

1 rows processed

SQL>

SQL> set autotrace off timing off

SQL>

SQL> select sql_id,

2 io_cell_offload_eligible_bytes qualifying,

3 io_cell_offload_eligible_bytes - io_cell_offload_returned_bytes actual,

4 round(((io_cell_offload_eligible_bytes - io_cell_offload_returned_bytes)/io_cell_offload_

eligible_bytes)*100, 2) io_saved_pct,

5 sql_text

6 from v$sql

7 where io_cell_offload_returned_bytes > 0

8 and instr(sql_text, 'emp') > 0

9 and parsing_schema_name = 'BING';

SQL_ID QUALIFYING ACTUAL IO_SAVED_PCT SQL_TEXT

------------- ---------- ---------- ------------ ---------------------------------------------

2cqn6rjvp8qm7 218505216 54685152 22.82 select avg(sal) from emp

>

SQL>

A Smart Scan returned almost 23 percent less data to the database servers, making their work a bit easier.

Because the AVG() function isn’t offloadable and there is no WHERE clause in the query, the savings came from

Column Projection, so Oracle returned only the data it needed (values from the SAL column) to compute the average.

COUNT() is also not an offloadable function, but queries using COUNT() can also execute Smart Scans, as evidenced

by the following example, also from agg_smart_scan_ex.sql. ()

SQL> select count(*)

2 from emp;

COUNT(*)

----------

5000000

Elapsed: 00:00:00.34

Execution Plan

----------------------------------------------------------

Plan hash value: 2083865914

Chapter 2 ■ Smart SCanS and OfflOading

20

---------------------------------------------------------------------------

---------------------------------------------------------------------------

| 0 | SELECT STATEMENT | | 1 | 7460 (1)| 00:00:01 |

| 1 | SORT AGGREGATE | | 1 | | |

| 2 | TABLE ACCESS STORAGE FULL| EMP | 5000K| 7460 (1)| 00:00:01 |

---------------------------------------------------------------------------

Statistics

----------------------------------------------------------

1 recursive calls

1 db block gets

26881 consistent gets

26673 physical reads

0 redo size

526 bytes sent via SQL*Net to client

524 bytes received via SQL*Net from client

2 SQL*Net roundtrips to/from client

0 sorts (memory)

0 sorts (disk)

1 rows processed

SQL>

SQL> set autotrace off timing off

SQL>

SQL> select sql_id,

2 io_cell_offload_eligible_bytes qualifying,

3 io_cell_offload_eligible_bytes - io_cell_offload_returned_bytes actual,

4 round(((io_cell_offload_eligible_bytes - io_cell_offload_returned_bytes)/io_cell_offload_

eligible_bytes)*100, 2) io_saved_pct,

5 sql_text

6 from v$sql

7 where io_cell_offload_returned_bytes > 0

8 and instr(sql_text, 'emp') > 0

9 and parsing_schema_name = 'BING';

SQL_ID QUALIFYING ACTUAL IO_SAVED_PCT SQL_TEXT

------------- ---------- ---------- ------------ ---------------------------------------------

6tds0512tv661 218505216 160899016 73.64 select count(*) from emp

SQL>

SQL> select sql_id,

2 projection

3 from v$sql_plan

4 where sql_id = '&sql_id';

Enter value for sql_id: 6tds0512tv661

old 4: where sql_id = '&sql_id'

new 4: where sql_id = '6tds0512tv661'

Chapter 2 ■ Smart SCanS and OfflOading

21

SQL_ID PROJECTION

------------- ------------------------------------------------------------

6tds0512tv661 (#keys=0) COUNT(*)[22]

SQL>

SQL> select *

2 from table(dbms_xplan.display_cursor('&sql_id','&child_no', '+projection'));

Enter value for sql_id: 6tds0512tv661

Enter value for child_no: 0

old 2: from table(dbms_xplan.display_cursor('&sql_id','&child_no', '+projection'))

new 2: from table(dbms_xplan.display_cursor('6tds0512tv661','0', '+projection'))

PLAN_TABLE_OUTPUT

------------------------------------------------------------------------------------------------

SQL_ID 6tds0512tv661, child number 0

-------------------------------------

select count(*) from emp

Plan hash value: 2083865914

---------------------------------------------------------------------------

---------------------------------------------------------------------------

| 0 | SELECT STATEMENT | | | 7460 (100)| |

| 1 | SORT AGGREGATE | | 1 | | |

| 2 | TABLE ACCESS STORAGE FULL| EMP | 5000K| 7460 (1)| 00:00:01 |

---------------------------------------------------------------------------

Column Projection Information (identified by operation id):

-----------------------------------------------------------

1 - (#keys=0) COUNT(*)[22]

23 rows selected.

SQL>

The savings from the Smart Scan for the COUNT() query are impressive. Oracle only had to process

approximately one-fourth of the data that would have been returned by a conventionally configured system.

Because there are so many functions available in an Oracle database, which of the many can be offloaded?

Oracle provides a data dictionary view, V$SQLFN_METADATA, which answers that very question. Inside this view is

a column named, appropriately enough, OFFLOADABLE, which indicates, for every Oracle-supplied function in the

database, if it can be offloaded. As you could probably guess, it’s best to consult this view for each new release or patch

level of Oracle running on Exadata. For 11.2.0.3, there are 393 functions that are offloadable, quite a long list by any

standard. The following is a tabular output of the full list produced by the offloadable_fn_tbl.sql script.

Chapter 2 ■ Smart SCanS and OfflOading

22

> < >= <=

= != OPTTAD OPTTSU

OPTTMU OPTTDI OPTTNG TO_NUMBER

TO_CHAR NVL CHARTOROWID ROWIDTOCHAR

OPTTLK OPTTNK CONCAT SUBSTR

LENGTH INSTR LOWER UPPER

ASCII CHR SOUNDEX ROUND

TRUNC MOD ABS SIGN

VSIZE OPTTNU OPTTNN OPTDAN

OPTDSN OPTDSU ADD_MONTHS MONTHS_BETWEEN

TO_DATE LAST_DAY NEW_TIME NEXT_DAY

OPTDDS OPTDSI OPTDIS OPTDID

OPTDDI OPTDJN OPTDNJ OPTDDJ

OPTDIJ OPTDJS OPTDIF OPTDOF

OPTNTI OPTCTZ OPTCDY OPTNDY

OPTDPC DUMP OPTDRO TRUNC

FLOOR CEIL DECODE LPAD

RPAD OPTITN POWER SYS_OP_TPR

TO_BINARY_FLOAT TO_NUMBER TO_BINARY_DOUBLE TO_NUMBER

INITCAP TRANSLATE LTRIM RTRIM

GREATEST LEAST SQRT RAWTOHEX

HEXTORAW NVL2 LNNVL OPTTSTCF

OPTTLKC BITAND REVERSE CONVERT

REPLACE NLSSORT OPTRTB OPTBTR

OPTR2C OPTTLK2 OPTTNK2 COS

SIN TAN COSH SINH

TANH EXP LN LOG

> < >= <=

= != OPTTVLCF TO_SINGLE_BYTE

TO_MULTI_BYTE NLS_LOWER NLS_UPPER NLS_INITCAP

INSTRB LENGTHB SUBSTRB OPTRTUR

OPTURTB OPTBTUR OPTCTUR OPTURTC

OPTURGT OPTURLT OPTURGE OPTURLE

OPTUREQ OPTURNE ASIN ACOS

ATAN ATAN2 CSCONVERT NLS_CHARSET_NAME

NLS_CHARSET_ID OPTIDN TRIM TRIM

TRIM SYS_OP_RPB OPTTM2C OPTTMZ2C

OPTST2C OPTSTZ2C OPTIYM2C OPTIDS2C

OPTDIPR OPTXTRCT OPTITME OPTTMEI

OPTITTZ OPTTTZI OPTISTM OPTSTMI

OPTISTZ OPTSTZI OPTIIYM OPTIYMI

OPTIIDS OPTIDSI OPTITMES OPTITTZS

OPTISTMS OPTISTZS OPTIIYMS OPTIIDSS

OPTLDIIF OPTLDIOF TO_TIME TO_TIME_TZ

TO_TIMESTAMP TO_TIMESTAMP_TZ TO_YMINTERVAL TO_DSINTERVAL

NUMTOYMINTERVAL NUMTODSINTERVAL OPTDIADD OPTDISUB

OPTDDSUB OPTIIADD OPTIISUB OPTINMUL

OPTINDIV OPTCHGTZ OPTOVLPS OPTOVLPC

OPTDCAST OPTINTN OPTNTIN CAST

SYS_EXTRACT_UTC GROUPING SYS_OP_MAP_NONNULL OPTT2TTZ1

OPTT2TTZ2 OPTTTZ2T1 OPTTTZ2T2 OPTTS2TSTZ1

OPTTS2TSTZ2 OPTTSTZ2TS1 OPTTSTZ2TS2 OPTDAT2TS1

Chapter 2 ■ Smart SCanS and OfflOading

23

OPTDAT2TS2 OPTTS2DAT1 OPTTS2DAT2 SESSIONTIMEZONE

OPTNTUB8 OPTUB8TN OPTITZS2A OPTITZA2S

OPTITZ2TSTZ OPTTSTZ2ITZ OPTITZ2TS OPTTS2ITZ

OPTITZ2C2 OPTITZ2C1 OPTSRCSE OPTAND

OPTOR FROM_TZ OPTNTUB4 OPTUB4TN

OPTCIDN OPTSMCSE COALESCE SYS_OP_VECXOR

SYS_OP_VECAND BIN_TO_NUM SYS_OP_NUMTORAW SYS_OP_RAWTONUM

SYS_OP_GROUPING TZ_OFFSET ADJ_DATE ROWIDTONCHAR

TO_NCHAR RAWTONHEX NCHR SYS_OP_C2C

COMPOSE DECOMPOSE ASCIISTR UNISTR

LENGTH2 LENGTH4 LENGTHC INSTR2

INSTR4 INSTRC SUBSTR2 SUBSTR4

SUBSTRC OPTLIK2 OPTLIK2N OPTLIK2E

OPTLIK2NE OPTLIK4 OPTLIK4N OPTLIK4E

OPTLIK4NE OPTLIKC OPTLIKCN OPTLIKCE

OPTLIKCNE SYS_OP_VECBIT SYS_OP_CONVERT ORA_HASH

OPTTINLA OPTTINLO SYS_OP_COMP SYS_OP_DECOMP

OPTRXLIKE OPTRXNLIKE REGEXP_SUBSTR REGEXP_INSTR

REGEXP_REPLACE OPTRXCOMPILE OPTCOLLCONS TO_BINARY_DOUBLE

TO_BINARY_FLOAT TO_CHAR TO_CHAR OPTFCFSTCF

OPTFCDSTCF TO_BINARY_FLOAT TO_BINARY_DOUBLE TO_NCHAR

TO_NCHAR OPTFCSTFCF OPTFCSTDCF OPTFFINF

OPTFDINF OPTFFNAN OPTFDNAN OPTFFNINF

OPTFDNINF OPTFFNNAN OPTFDNNAN NANVL

NANVL REMAINDER REMAINDER ABS

ABS ACOS ASIN ATAN

ATAN2 CEIL CEIL COS

COSH EXP FLOOR FLOOR

LN LOG MOD MOD

POWER ROUND ROUND SIGN

SIGN SIN SINH SQRT

SQRT TAN TANH TRUNC

TRUNC OPTFFADD OPTFDADD OPTFFSUB

OPTFDSUB OPTFFMUL OPTFDMUL OPTFFDIV

OPTFDDIV OPTFFNEG OPTFDNEG OPTFCFEI

OPTFCDEI OPTFCFIE OPTFCDIE OPTFCFI

OPTFCDI OPTFCIF OPTFCID OPTIAND

OPTIOR OPTMKNULL OPTRTRI OPTNINF

OPTNNAN OPTNNINF OPTNNNAN NANVL

REMAINDER OPTFCFINT OPTFCDINT OPTFCINTF

OPTFCINTD OPTDMO PREDICTION PREDICTION_PROBABILITY

PREDICTION_COST CLUSTER_ID CLUSTER_PROBABILITY FEATURE_ID

FEATURE_VALUE SYS_OP_ROWIDTOOBJ OPTENCRYPT OPTDECRYPT

SYS_OP_OPNSIZE SYS_OP_COMBINED_HASH REGEXP_COUNT OPTDMGETO

SYS_DM_RXFORM_N SYS_DM_RXFORM_CHR SYS_OP_BLOOM_FILTER OPTXTRCT_XQUERY

OPTORNA OPTORNO SYS_OP_BLOOM_FILTER_LIST OPTDM

OPTDMGE

You will note there appear to be duplications of the function names; each function has a unique func_id,

although the names may not be unique. This is the result of overloading, providing multiple versions of the same

function that take differing numbers and/or types of arguments.

Chapter 2 ■ Smart SCanS and OfflOading

24

Virtual Columns

Virtual columns are a welcome addition to Oracle. They allow tables to contain values calculated from other columns

in the same table. An example would be a TOTAL_COMP column made up of the sum of salary and commission.

These column values are not stored physically in the table, so an update to a base column of the sum, for example,

would change the resulting value the virtual column returns. As with any other column in a table, a virtual column

can be used as a partition key, used in constraints, or used in an index, and statistics can also be gathered on them.

Even though the values contained in a virtual column aren’t stored with the rest of the table data, they (or, rather,

the calculations used to generate them) can be offloaded, so Smart Scans are possible. This is illustrated by running

smart_scan_virt_ex.sql. The following is the somewhat abbreviated output.

SQL> create table emp (empid number not null,

2 empname varchar2(40),

3 deptno number,

4 sal number,

5 comm number,

6 ttl_comp number generated always as (sal + nvl(comm, 0)) virtual );

Table created.

SQL>

SQL> begin

2 for i in 1..5000000 loop

3 insert into emp(empid, empname, deptno, sal, comm)

4 values (i, 'Smorthorper'||i, mod(i, 40)+1, 900*(mod(i,4)+1), 200*mod(i,9));

5 end loop;

6

7 commit;

8 end;

9 /

PL/SQL procedure successfully completed.

SQL>

SQL> set echo on

SQL>

SQL> exec dbms_stats.gather_schema_stats('BING')

PL/SQL procedure successfully completed.

SQL>

SQL> set autotrace on timing on

SQL>

SQL> select *

2 from emp

3 where ttl_comp > 5000;

Chapter 2 ■ Smart SCanS and OfflOading

25

EMPID EMPNAME DEPTNO SAL COMM TTL_COMP

---------- ---------------------------------------- ---------- ---------- ---------- ----------

12131 Smorthorper12131 12 3600 1600 5200

12167 Smorthorper12167 8 3600 1600 5200

12203 Smorthorper12203 4 3600 1600 5200

12239 Smorthorper12239 40 3600 1600 5200

12275 Smorthorper12275 36 3600 1600 5200

...

4063355 Smorthorper4063355 36 3600 1600 5200

4063391 Smorthorper4063391 32 3600 1600 5200

4063427 Smorthorper4063427 28 3600 1600 5200

138888 rows selected.

Elapsed: 00:00:20.09

Execution Plan

----------------------------------------------------------

Plan hash value: 3956160932

----------------------------------------------------------------------------------

----------------------------------------------------------------------------------

| 0 | SELECT STATEMENT | | 232K| 8402K| 7520 (2)| 00:00:01 |

|* 1 | TABLE ACCESS STORAGE FULL| EMP | 232K| 8402K| 7520 (2)| 00:00:01 |

----------------------------------------------------------------------------------

Predicate Information (identified by operation id):

---------------------------------------------------

1 - storage("TTL_COMP">5000)

filter("TTL_COMP">5000)

SQL> select sql_id,

2 io_cell_offload_eligible_bytes qualifying,

3 io_cell_offload_eligible_bytes - io_cell_offload_returned_bytes actual,

4 round(((io_cell_offload_eligible_bytes - io_cell_offload_returned_bytes)/io_cell_

offload_eligible_bytes)*100, 2) io_saved_pct,

5 sql_text

6 from v$sql

7 where io_cell_offload_returned_bytes > 0

8 and instr(sql_text, 'emp') > 0

9 and parsing_schema_name = 'BING';

SQL_ID QUALIFYING ACTUAL IO_SAVED_PCT SQL_TEXT

------------- ---------- ---------- ------------ ---------------------------------------------

6vzxd7wn8858v 218505216 626720 .29 select * from emp where ttl_comp > 5000

Chapter 2 ■ Smart SCanS and OfflOading

26

SQL>

SQL> select sql_id,

2 projection

3 from v$sql_plan

4 where sql_id = '6vzxd7wn8858v';

SQL_ID PROJECTION

------------- ------------------------------------------------------------

6vzxd7wn8858v

6vzxd7wn8858v "EMP"."EMPID"[NUMBER,22], "EMP"."EMPNAME"[VARCHAR2,40], "EMP

"."DEPTNO"[NUMBER,22], "SAL"[NUMBER,22], "COMM"[NUMBER,22]

SQL>

Updating the COMM column, which in turn updates the TTL_COMP virtual column, and modifying the query to

look for a higher value for TTL_COMP skips more of the table data.

SQL> update emp

2 set comm=2000

3 where sal=3600

4 and mod(empid, 3) = 0;

416667 rows updated.

SQL>

SQL> commit;

Commit complete.

SQL> set autotrace on timing on

SQL>

SQL> select *

2 from emp

3 where ttl_comp > 5200;

EMPID EMPNAME DEPTNO SAL COMM TTL_COMP

---------- ---------------------------------------- ---------- ---------- ---------- ----------

12131 Smorthorper12131 12 3600 2000 5600

12159 Smorthorper12159 40 3600 2000 5600

12187 Smorthorper12187 28 3600 2000 5600

12215 Smorthorper12215 16 3600 2000 5600

12243 Smorthorper12243 4 3600 2000 5600

12271 Smorthorper12271 32 3600 2000 5600

...

4063339 Smorthorper4063339 20 3600 2000 5600

4063367 Smorthorper4063367 8 3600 2000 5600

4063395 Smorthorper4063395 36 3600 2000 5600

4063423 Smorthorper4063423 24 3600 2000 5600

416667 rows selected.

Chapter 2 ■ Smart SCanS and OfflOading

27

Elapsed: 00:00:43.85

Execution Plan

----------------------------------------------------------

Plan hash value: 3956160932

----------------------------------------------------------------------------------

----------------------------------------------------------------------------------

| 0 | SELECT STATEMENT | | 138K| 5018K| 7520 (2)| 00:00:01 |

|* 1 | TABLE ACCESS STORAGE FULL| EMP | 138K| 5018K| 7520 (2)| 00:00:01 |

----------------------------------------------------------------------------------

Predicate Information (identified by operation id):

---------------------------------------------------

1 - storage("TTL_COMP">5200)

filter("TTL_COMP">5200)

SQL> set autotrace off timing off

SQL>

SQL> select sql_id,

2 io_cell_offload_eligible_bytes qualifying,

3 io_cell_offload_eligible_bytes - io_cell_offload_returned_bytes actual,

4 round(((io_cell_offload_eligible_bytes - io_cell_offload_returned_bytes)/io_cell_

offload_eligible_bytes)*100, 2) io_saved_pct,

5 sql_text

6 from v$sql

7 where io_cell_offload_returned_bytes > 0

8 and instr(sql_text, 'emp') > 0

9 and parsing_schema_name = 'BING';

SQL_ID QUALIFYING ACTUAL IO_SAVED_PCT SQL_TEXT

------------- ---------- ---------- ------------ ---------------------------------------------

6vzxd7wn8858v 218505216 626720 .29 select * from emp where ttl_comp > 5000

62pvf6c8bng9k 218505216 69916712 32 update emp set comm=2000 where sal=3600 and m

od(empid, 3) = 0

bmyygpg0uq9p0 218505216 152896792 69.97 select * from emp where ttl_comp > 5200

SQL>

SQL> select sql_id,

2 projection

3 from v$sql_plan

4 where sql_id = '&sql_id';

Enter value for sql_id: bmyygpg0uq9p0

old 4: where sql_id = '&sql_id'

new 4: where sql_id = 'bmyygpg0uq9p0'

Chapter 2 ■ Smart SCanS and OfflOading

28

SQL_ID PROJECTION

------------- ------------------------------------------------------------

bmyygpg0uq9p0

bmyygpg0uq9p0 "EMP"."EMPID"[NUMBER,22], "EMP"."EMPNAME"[VARCHAR2,40], "EMP

"."DEPTNO"[NUMBER,22], "SAL"[NUMBER,22], "COMM"[NUMBER,22]

SQL>

Things to Know

Smart Scans are the lifeblood of Exadata. They provide processing speed unmatched by commodity hardware.

Queries are eligible for Smart Scan processing if they execute full table or full index scans, include offloadable

comparison operators, and utilize direct reads.

Smart Scan activity is indicated by three operations in a query plan: TABLE ACCESS STORAGE FULL, INDEX

STORAGE FULL SCAN, and INDEX STORAGE FAST FULL SCAN. Additionally, two metrics from V$SQL/GV$SQL

(io_cell_offload_eligible_bytes, io_cell_offload_returned_bytes) indicate that a Smart Scan has been executed. The

plan steps alone cannot provide proof of Smart Scan activity; the V$SQL/GV$SQL metrics must also be non-zero to

know that a Smart Scan was active.

Exadata provides the exceptional processing power of Smart Scans through the use of Predicate Filtering,

Column Projection, and storage indexes (a topic discussed solely in Chapter 3). Predicate Filtering is the ability of

Exadata to return only the rows of interest to the database servers. Column Projection returns only the columns of

interest, those in the select list, and those in a join predicate. Both of these optimizations reduce the data the database

servers must process to return the final results. Also of interest is offloading, the process whereby Exadata offloads, or

passes off, parts of the query to the storage servers, allowing them to do a large part of the work in query processing.

Because the storage cells have their own CPUs, this also reduces the CPU usage on the database servers, the one point

of contact between Exadata and the users.

Joins “join” in on the Exadata performance enhancements, as Exadata utilizes bloom filters to pre-process

qualifying joins to return the results from large table joins in far less time than either a hash join or nested loop join

could provide.

Some functions are also offloadable to the storage cells, but owing to the nature of the storage cell configuration,

generally, only single-row functions are eligible. A function not being offloadable does not disqualify a query from

executing a Smart Scan, and you will find that queries using some functions, such as AVG() and COUNT(), will report

Smart Scan activity. In Oracle Release 11.2.0.3, there are 393 functions that qualify as offloadable. The V$SQLFN_

METADATA view indicates offloadable functions through the OFFLOADABLE column, populated with YES for

qualifying functions.

Virtual columns—columns where the values are computed from other columns in the same table—are also

offloadable, even though the values in those columns are dynamically generated at query time, so tables that have

them are still eligible for Smart Scans.

29

Chapter 3

Storage Indexes

Storage indexes may be the most misunderstood and confusing part of Exadata. The name conjures images of

conventional index structures, such as the B-tree index, bitmap index, LOB index, and others, but this is a far different

construct, with a very different purpose, from any index you may have seen outside of Exadata. Designed and

implemented in a unique fashion, with a purpose that is very different from any conventional index, a storage index

catalogs data in uniform pieces and records the barest minimum of information an index could contain. Although the

data is minimal, the storage index could be one of the most powerful pieces of Exadata.

An Index That Isn’t

Storage indexes are dynamically created in 1MB segments for a given table, stored in memory, and built based on

offloaded predicates. A maximum of eight columns per segment can be indexed, and each segment records the

column name, the minimum value for that segment, the maximum value for that segment, and whether any NULL

values exist in that 1MB “chunk.”

Columns are indexed on a first-come, first-served basis; Exadata doesn’t take, for example, the first eight columns

in the table and index those but indexes columns as they appear in the query predicates. It’s also possible that every

1MB segment for a given table could have differing columns indexed. It’s more likely, although not guaranteed, that

many of the indexed segments will contain the same column list.

The indexes can also be built from multiple sets of query predicates. If a query has four columns in its WHERE

clause and no storage index yet exists for the queried table, those four columns create it. If another query offloads five

additional columns from that same table to the storage cells, the first four listed columns round out the storage index

for the table segments accessed. The second query may also access more table segments than the previous query; if

no index exists in those additional segments, all five columns are indexed. On and on this can go until all the 1MB

table segments have a storage index associated with them, each consisting of the eight-column maximum. Those

indexes will remain resident in memory until CELLSRV is restarted or the storage cell itself is rebooted. A reboot or

restart erases them, and the whole process starts over again, dynamically building storage indexes as the storage cells

receive offloaded predicate information.

This is one reason why, in systems running a good number of ad hoc queries, the storage indexes created after

a reboot or restart of CELLSRV may not be exactly the same as the ones that were in use before the storage cell was

shut down. Slight changes in performance can result from such storage index rebuilds, which should be the expected

behavior. Exadata systems running prepackaged applications, such as an ERP system, have a better chance of

re-creating the same storage indexes that existed before the storage tier was restarted, since the majority of the queries

offloaded to the storage cells offload the same predicates, in the same order, regardless of when they are executed

(the beauty of “canned” queries). This doesn’t mean that prepackaged applications will create the same storage indexes

after a restart of the storage cells, just that the possibility is far more likely to occur.

A storage index doesn’t look like any index you’ve encountered before, but it doesn’t behave like one either.

A simplified visualization might look like Figure 3-1 (the image is courtesy of Richard Foote, who has a wealth of

knowledge about Oracle indexes).

CHAPTER 3 ■ STORAGE INDEXES

30

Each storage segment for a table is associated with a memory region in each storage cell; each memory region

contains the index data for the table storage segment it is mapped to. As Oracle processes a Smart Scan it also scans

these index regions, looking for possible matches (segments that could contain the desired value or values) while

skipping the segments it can ignore (those having no possibility of containing the desired value). It’s the ability to skip

reading “unnecessary” data segments, segments where the desired data cannot be found, that gives storage indexes

their power.

Given that glorious, although long, description, it isn’t difficult to understand why storage indexes can be

confusing. But they don’t need to be.

Don’t Look Here

Unlike a B-tree index, designed and implemented to tell Oracle where data is, a storage index is designed to allow

Oracle to skip, or bypass, storage segments, basically telling Oracle where data isn’t. To explain further, a B-tree

index contains the exact value or values indexed, plus the rowid for each row in the table. The presence of the rowid

pinpoints where the particular index key is found, allowing Oracle to zero in on the precise location for the desired

key or keys. Thus, a B-tree index reports the exact location for each index key. Storage indexes have no exact locations

stored.

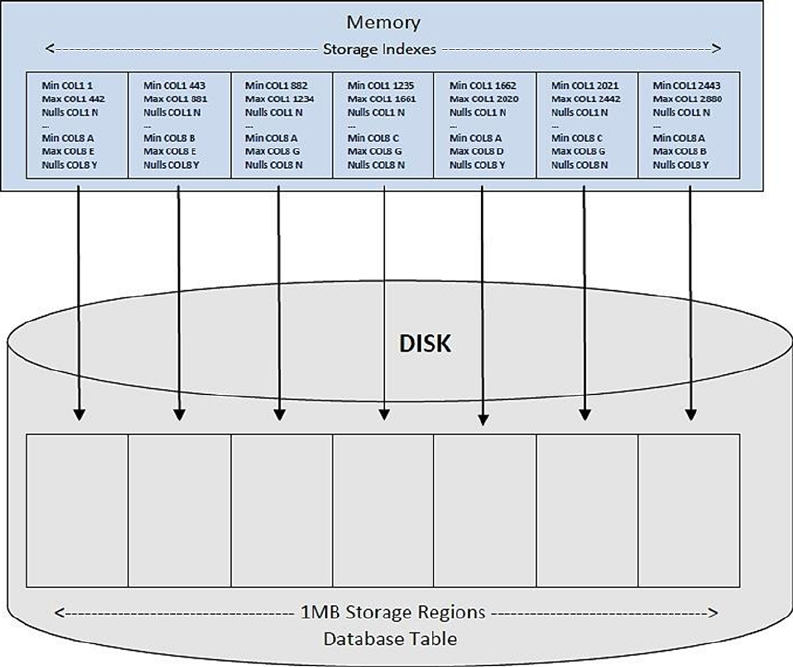

Figure 3-1. Storage index structure

CHAPTER 3 ■ STORAGE INDEXES

31

For each offloaded query, a Smart Scan will use a storage index, provided one is available. Remember: These are

dynamically created when predicates are offloaded to the storage cells, so some tables may not have a storage index

created yet. When one exists, Oracle, through the storage cells, will scan a storage index and see if the column or

columns of interest are present and whether the desired value falls within the minimum/maximum range recorded

for the column or columns in a given segment. If the column is indexed and the desired value falls outside of the

recorded range, that 1MB segment is skipped, creating instant I/O savings.

A storage index will also be used by IS NULL and IS NOT NULL predicates, because there is a bit set to indicate

the presence of NULL values in an index segment. Depending on the data, a query either looking for or avoiding NULL

values could bypass most of the table data, making the result set return much more quickly than on a conventionally

configured system. A query must qualify for a Smart Scan before it will use a storage index; thus, it must meet all of the

criteria for Smart Scan execution. Those conditions are listed in the previous chapter, so they won’t be repeated here.

An interesting aspect of a storage index is its effectiveness, which is based on the location of key data in the table.

For a conventional B-tree index, this is called the Clustering Factor, a function of how far Oracle must “trave” in the

table to arrive at the location of the next key in the index. As one would expect, a fairly low value for the Clustering

Factor is a good thing; unfortunately, that can only be guaranteed if the table data is ordered by the index key.

Ordering the data to improve the Clustering Factor for one index most often makes the Clustering Factors for any

remaining indexes worse. Likewise, a storage index has a pseudo–“Clustering Factor” in that the location of indexed

key values can affect how well a storage index is used and whether or not it provides real I/O savings. Unlike with a

B-tree index, clustering the keys close to each other in the table enhances the performance, and since there is only

one storage index per table, adverse effects are few. Of course, after the initial data loading of a heap table, there is

no guarantee that the ordering will be preserved, as inserts and deletes can shift the data keys outside of the desired

groupings. Still, it would take a tremendous volume of inserts and deletes to entirely undo the key clustering that was

originally established.

Remember that cell maintenance will cause storage index segments to be lost, forcing storage index creation

from offloaded predicates once the cell or cells are back online. If those predicates create storage index segments

different from those that were lost, the originally established key clustering may no longer be beneficial. Situations

wherein the search key is scattered across the entire table can result in a 0 byte savings for the query, as there may be

no segment that does not contain the desired value within the specified range. Table data relatively clustered with

respect to the search key provides varying degrees of I/O reduction, depending on how closely the search keys are

grouped. Low cardinality columns, those containing values such as True, False, Yes, No, or limited-range numeric

values fare better when clustered than columns having a wide range of values or columns enforcing Unique and

Primary Key constraints. Examples in the next two sections use a low cardinality column (SUITABLE_FOR_FRYING)

containing one of two values, “Yes” and “No,” to illustrate both conditions.

I Used It

To know if a storage index has provided any benefit to a query, a statistic, “cell physical IO bytes saved by storage

index,” will record the bytes the storage index allowed Oracle to bypass. This is a cumulative metric, meaning that the

prior value is incremented each time the storage index allowed Oracle to skip reading data segments in the currently

connected session (as reported by V$MYSTAT) or for a given session (in GV$SESSTAT). (Creating a new session or

reestablishing a connection [using “connect <user>/<pass>” at the SQL> prompt] will reset the session-level counter.)

To illustrate this, two queries will be executed, after some initial setup not shown in the examples, that illustrate

that a storage index allowed Oracle to skip reading data and that the byte savings value reported by Oracle is, indeed,

cumulative. The storage_index_ex.sql script was used to generate this output, and running this on your own system

will display the setup as well as the output shown here, plus the parts that were edited owing to their size. The log

file this script generates is extremely large; it does include both sets of examples, however, and requires only a single

execution to provide the entire set of results. The second example, run immediately after the first and starting with

reconnecting as the schema owner, executes the same two queries. The connections will be reestablished between the

two statements, which will show the actual savings for each query.

CHAPTER 3 ■ STORAGE INDEXES

32

Two tables are created and populated, then the queries are run; the following shows the results of that first run:

SQL> select /*+ parallel(4) */

2 count(*)

3 from chicken_hr_tab

4 where suitable_for_frying = 'Yes';

COUNT(*)

----------

2621440

SQL> select *

2 from v$mystat

3 where statistic# = (select statistic# from v$statname where name = 'cell physical

IO bytes saved by storage index');

SID STATISTIC# VALUE

---------- ---------- ----------

1107 247 1201201152

SQL> select /*+ parallel(4) */

2 chicken_id, chicken_name, suitable_for_frying

3 from chicken_hr_tab

4 where suitable_for_frying = 'Yes';

CHICKEN_ID CHICKEN_NAME SUI

---------- -------------------- ---

38719703 Frieda Yes

38719704 Edie Yes

38719705 Eunice Yes

...

37973451 Eunice Yes

37973452 Fran Yes

2621440 rows selected.

SQL> select *

2 from v$mystat

3 where statistic# = (select statistic# from v$statname where name = 'cell physical

IO bytes saved by storage index');

SID STATISTIC# VALUE

---------- ---------- ----------

1107 247 2281971712

SQL>

For the first query, approximately 1GB of data was bypassed to provide the record count; the second query

skipped an additional 1GB of table data. That isn’t obvious from the output shown, as the value displayed is, as

noted before, the cumulative result. You may not need to know the bytes skipped by each query, so the cumulative

count could be exactly what you want. The cumulative count, though, will also display unchanged for queries that

do not execute a Smart Scan, so careful attention must be paid to the output of the V$MYSTAT query. If you do want

CHAPTER 3 ■ STORAGE INDEXES

33

individual savings figures, then you can produce those results as well; in this case, queries that do not meet Smart

Scan criteria will return a 0 byte total. As noted previously, the script reconnects between queries; this produces

results that better illustrate the I/O savings the storage index provides on a per-query basis:

SQL> connect bing/#######

Connected.

SQL> select /*+ parallel(4) */

2 count(*)

3 from chicken_hr_tab

4 where suitable_for_frying = 'Yes';

COUNT(*)

----------

2621440

SQL> select *

2 from v$mystat

3 where statistic# = (select statistic# from v$statname where name = 'cell physical

IO bytes saved by storage index');

SID STATISTIC# VALUE

---------- ---------- ----------

1233 247 1080770560

SQL> connect bing/#######

Connected.

SQL> select /*+ parallel(4) */

2 chicken_id, chicken_name, suitable_for_frying

3 from chicken_hr_tab

4 where suitable_for_frying = 'Yes';

CHICKEN_ID CHICKEN_NAME SUI

---------- -------------------- ---

38719703 Frieda Yes

38719704 Edie Yes

...

37973451 Eunice Yes

37973452 Fran Yes

2621440 rows selected.

SQL>

SQL> select *

2 from v$mystat

3 where statistic# = (select statistic# from v$statname where name = 'cell physical

IO bytes saved by storage index');

SID STATISTIC# VALUE

---------- ---------- ----------

1233 247 1080770560

SQL>

CHAPTER 3 ■ STORAGE INDEXES

34

Now it’s obvious how much data was skipped for each query. For the initial run, there were also 120,430,592 bytes

skipped when loading the data. (After the initial insert statements were executed, a series of “insert into . . . select . . .

from . . .” statements were used to further populate the table.) The second run shows the actual savings the storage

index provided for each query.

Oracle can skip table segments based on information the storage index provides, but because the index data is

very basic, some “false positives” can occur. Oracle may find that a given segment satisfies the search criteria, because

the searched-for value falls between the minimum and maximum values recorded for that segment, but, in reality, the

minimum and maximum values hide the fact that the actual desired value does not exist in that particular segment.

In such cases, Oracle reads through the segment and comes up empty-handed, as no rows meeting the exact

query criteria were found, even though the storage index indicated otherwise. Depending on how well grouped

the keys are in the table, more segments than one would expect could be read, segments that produce no results,

because the indexed values “falsely” indicate that a row or rows may exist. In this next example, a count of records

having a TALENT_CD of 4 is desired. The data is loaded so that TALENT_CD values 3 and 5 are placed in the same

table segments, and the rest of the TALENT_CD values are loaded into the remaining segments. This will provide the

conditions to create a “false positive” result from the storage index:

SQL> insert /*+ append */

2 into chicken_hr_tab (chicken_name, talent_cd, retired, retire_dt, suitable_for_frying, fry_dt)

3 select

4 chicken_name, talent_cd, retired, retire_dt, suitable_for_frying, fry_dt from chicken_hr_tab2

5 where talent_cd in (3,5);

1048576 rows created.

Elapsed: 00:01:05.10

SQL> commit;

Commit complete.

Elapsed: 00:00:00.01

SQL> insert /*+ append */

2 into chicken_hr_tab (chicken_name, talent_cd, retired, retire_dt, suitable_for_frying, fry_dt)

3 select

4 chicken_name, talent_cd, retired, retire_dt, suitable_for_frying, fry_dt from chicken_hr_tab2

5 where talent_cd not in (3,5);

37748736 rows created.

Elapsed: 00:38:09.12

SQL> commit;

Commit complete.

Elapsed: 00:00:00.00

SQL>

SQL> exec dbms_stats.gather_table_stats(user, 'CHICKEN_TALENT_TAB', cascade=>true,

estimate_percent=>null);

PL/SQL procedure successfully completed.

CHAPTER 3 ■ STORAGE INDEXES

35

Elapsed: 00:00:00.46

SQL> exec dbms_stats.gather_table_stats(user, 'CHICKEN_HR_TAB', cascade=>true,

estimate_percent=>null);

PL/SQL procedure successfully completed.

Elapsed: 00:00:31.66

SQL>

SQL> set timing on

SQL>

SQL> connect bing/bong0$tar

Connected.

SQL> alter session set parallel_force_local=true;

Session altered.

Elapsed: 00:00:00.00

SQL> alter session set parallel_min_time_threshold=2;

Session altered.

Elapsed: 00:00:00.00

SQL> alter session set parallel_degree_policy=manual;

Session altered.

Elapsed: 00:00:00.00

SQL>

SQL> set timing on

SQL>

SQL> select /*+ parallel(4) */

2 chicken_id

3 from chicken_hr_tab

4 where talent_cd = 4;

CHICKEN_ID

---------------

60277401

60277404

...

72320593

72320597

72320606

72320626

4718592 rows selected.

Elapsed: 00:03:17.92

SQL>

CHAPTER 3 ■ STORAGE INDEXES

36

SQL> select *

2 from v$mystat

3 where statistic# = (select statistic# from v$statname where name = 'cell physical

IO bytes saved by storage index');

SID STATISTIC# VALUE

--------------- --------------- ---------------

915 247 0

Elapsed: 00:00:00.01

SQL>

Note ■ The manner in which the data was loaded set the minimum and maximum values for TALENT_CD such that the

storage index could not ignore any of the blocks, even though there are segments that do not contain the desired value.

The minimum and maximum values stored for an indexed segment don’t guarantee that the desired value will be found,

just that there is a high probability that the value exists in the associated table segment.

Even though this example was intentionally created to provide such a condition, it is also likely that this could occur in

a production system, as normally occurring data changes (through inserts, updates, and deletes) could create this same

sort of situation.

Or Maybe I Didn’t

Data clustering plays a big part in whether a storage index provides any benefit. In the preceding example, great care

was taken to load the data in a manner that would make a storage index beneficial to the query. Values of interest

(those in the WHERE clause) were loaded, so that one or more of the 1MB table segments storage indexes operate

upon contained values that could be skipped. In the next example, data was loaded in a fairly fast and convenient

manner; the initial table population resulted in rows containing the value of interest (SUITABLE_FOR_FRYING is

'Yes') being scattered across the table and thus being found in every 1MB storage index segment. Subsequent loading

of the data, using a simple “insert into . . . select from . . .” syntax, preserved that scattering and rendered the storage

index basically useless for the given query. (It is a common practice to consider that a storage index was “not used”

when the “cell physical IO bytes saved by storage index” statistic is 0, which isn’t true. The storage index was used;

there is no question about that, but it provided no benefit in the form of reduced I/O, as Oracle could not skip any of

the 1MB data segments in its search for the desired rows.) Looking at the run where the storage index “key” data was

scattered across the entire table, the following results were seen:

SQL> select /*+ parallel(4) */

2 count(*)

3 from chicken_hr_tab

4 where suitable_for_frying = 'Yes';

COUNT(*)

----------

2621440

CHAPTER 3 ■ STORAGE INDEXES

37

SQL>

SQL> select *

2 from v$mystat

3 where statistic# = (select statistic# from v$statname where name = 'cell physical

IO bytes saved by storage index');

SID STATISTIC# VALUE

---------- ---------- ----------

1304 247 0

SQL> select /*+ parallel(4) */

2 chicken_id, chicken_name, suitable_for_frying

3 from chicken_hr_tab

4 where suitable_for_frying = 'Yes';

CHICKEN_ID CHICKEN_NAME SUI

---------- -------------------- ---

38699068 Pickles Yes

38699070 Frieda Yes

...

10116134 Pickles Yes

10116136 Frieda Yes

2621440 rows selected.

SQL>

SQL> select *

2 from v$mystat

3 where statistic# = (select statistic# from v$statname where name = 'cell physical

IO bytes saved by storage index');

SID STATISTIC# VALUE

---------- ---------- ----------

1304 247 0

SQL> select /*+ parallel(4) */

2 h.chicken_name, t.talent, h.suitable_for_frying

3 from chicken_hr_tab h join chicken_talent_tab t on (t.talent_cd = h.talent_cd)

4 where h.talent_cd = 5;

CHICKEN_NAME TALENT SUI

-------------------- ---------------------------------------- ---

Cat Accountant No

...

Cat Accountant No

524288 rows selected.

CHAPTER 3 ■ STORAGE INDEXES

38

SQL>

SQL> select *

2 from v$mystat

3 where statistic# = (select statistic# from v$statname where name = 'cell physical

IO bytes saved by storage index');

SID STATISTIC# VALUE

---------- ---------- ----------

1304 247 0

SQL>

Since there is no 1MB segment that does not contain the searched-for value, the storage index cannot tell Oracle

to skip any of them, which is reflected in the VALUE column from V$MYSTAT for the “cell physical IO bytes saved

by storage index” statistic. (In 11.2.0.3, the statistic number for this event is 247, but it’s best to actually query on the

statistic name, as Oracle can, and has, reassigned statistic numbers for existing statistics, as new ones are added in

newer versions.) Again, this does not mean that this storage index was not used; it does mean that no I/O savings were

realized by using it.

Execution Plan Doesn’t Know

Execution plans won’t report storage index usage, because, frankly, the optimizer doesn’t know whether a Smart

Scan will or will not be used for a given query. The only certain monitoring method, outside of enabling tracing at

the CELLSRV level, is through the “cell physical IO bytes saved by storage index” statistic. Chapter 9 will cover how

to enable CELLSRV tracing; starting CELLSRV tracing requires a restart of the cell, which causes the storage index

segments to be dropped.

Looking at the previous queries, showing (and not showing) storage index savings adding the execution plans to

the generated output verifies that the optimizer won’t report any information on the storage indexes in use:

SQL> set autotrace on

SQL>

SQL> select /*+ parallel(4) */

2 h.chicken_name, t.talent, h.suitable_for_frying

3 from chicken_hr_tab h join chicken_talent_tab t on (t.talent_cd = h.talent_cd)

4 where h.talent_cd = 5;

CHICKEN_NAME TALENT SUI

-------------------- ---------------------------------------- ---

Cat Accountant No

...

Cat Accountant No

524288 rows selected.

CHAPTER 3 ■ STORAGE INDEXES

39

Execution Plan

----------------------------------------------------------

Plan hash value: 793882093

----------------------------------------------------------------------------------------------------

----------------------------------------------------------------------------------------------------

| 0 |SELECT STATEMENT | |7759K| 207M|11742 (1)| 00:00:01| | | |

| 1 | PX COORDINATOR | | | | | | | | |

| 2 | PX SEND QC (RANDOM) |:TQ10001 |7759K| 207M|11742 (1)| 00:00:01|Q1,01|P->S|QC (RAND)|

| 3 | MERGE JOIN | |7759K| 207M|11742 (1)| 00:00:01|Q1,01|PCWP| |

| 4 | SORT JOIN | |7759K| 103M|11739 (1)| 00:00:01|Q1,01|PCWP| |

| 5 | PX BLOCK ITERATOR | |7759K| 103M|11739 (1)| 00:00:01|Q1,01|PCWC| |

| *6 |TABLE ACCESS STORAGE FULL|CHICKEN_HR_TAB |7759K| 103M|11739 (1)| 00:00:01|Q1,01|PCWP| |

| *7 | SORT JOIN | | 1| 14 | 3(34)| 00:00:01|Q1,01|PCWP| |

| 8 | PX RECEIVE | | 1| 14 | 2 (0)| 00:00:01|Q1,01|PCWP| |

| 9 | PX SEND BROADCAST|:TQ10000 | 1| 14 | 2 (0)| 00:00:01|Q1,00|P->P|BROADCAST|

| 10 | PX BLOCK ITERATOR| | 1| 14 | 2 (0)| 00:00:01|Q1,00|PCWC| |

|*11 |TABLE ACCESS STORAGE FULL|CHICKEN_TALENT_TAB| 1| 14 | 2 (0)| 00:00:01|Q1,00|PCWP| |

----------------------------------------------------------------------------------------------------

Predicate Information (identified by operation id):

---------------------------------------------------

6 - storage("H"."TALENT_CD"=5)

filter("H"."TALENT_CD"=5)

7 - access("T"."TALENT_CD"="H"."TALENT_CD")

filter("T"."TALENT_CD"="H"."TALENT_CD")

11 - storage("T"."TALENT_CD"=5)

filter("T"."TALENT_CD"=5)

Note

-----

- Degree of Parallelism is 4 because of hint

Statistics

----------------------------------------------------------

25 recursive calls

0 db block gets

152401 consistent gets

151444 physical reads

0 redo size

9018409 bytes sent via SQL*Net to client

384995 bytes received via SQL*Net from client

34954 SQL*Net roundtrips to/from client

8 sorts (memory)

0 sorts (disk)

524288 rows processed

CHAPTER 3 ■ STORAGE INDEXES

40

SQL>

SQL> set autotrace off

SQL>

SQL> select *

2 from v$mystat

3 where statistic# = (select statistic# from v$statname where name = 'cell physical

IO bytes saved by storage index');

SID STATISTIC# VALUE

---------- ---------- ----------

3 247 92028928

SQL>

The only evidence of storage index usage is the output from the final query in this example. No mention of

storage indexes appears in the execution plan output.

The More, the Merrier

Data distribution plays a large part in storage index performance, but that’s not the only data-related area that can

impact Smart Scan execution and, as a result, storage index usage. Table size can also determine whether a storage

index can be utilized. Serial direct path reads are generally utilized for large objects; small tables rarely trigger Smart

Scans. How big does a table have to be to trigger a Smart Scan, and thus use a storage index? For the scripts shown

here, the smallest table size that would guarantee a Smart Scan generated 40 extents, consuming 335,544,320 bytes.

Smaller table sizes were tried, with no Smart Scans executed; however, with the loading method used, a smaller table

size that would trigger a Smart Scan may not have been generated. Since exhaustive testing was not completed, there

may be smaller tables that will trigger Smart Scan executions.

Size isn’t the only factor in whether a Smart Scan will be triggered. Partitioned tables can create an interesting

situation where the overall table size is sufficient to trigger a Smart Scan, but the sizes of the individual partitions

aren’t. Such a situation is created by the storage_index_part_ex.sql script. Again, the initial setup isn’t shown, in order

to concentrate on the end results. There are five partitions created and populated for this version of the table, with a

deliberate attempt to evenly spread the data across all of the partitions. The names and row counts for each partition

are shown as follows:

SQL> select count(*) from chicken_hr_tab partition(chick1);

COUNT(*)

---------------

1966080

SQL> select count(*) from chicken_hr_tab partition(chick2);

COUNT(*)

---------------

1966080

SQL> select count(*) from chicken_hr_tab partition(chick3);

COUNT(*)

---------------

1966080

CHAPTER 3 ■ STORAGE INDEXES

41

SQL> select count(*) from chicken_hr_tab partition(chick4);

COUNT(*)

---------------

1966080

SQL> select count(*) from chicken_hr_tab partition(chick5);

COUNT(*)

---------------

1835008

SQL>

Overall, the table is large enough to ensure that a Smart Scan will be executed, and if the query involves a large

percentage of the table data, a Smart Scan will, indeed, be run. It’s the relatively small sizes of the individual partitions

that can cause them to not qualify for a Smart Scan. Now that the stage is properly set, the same queries from the

previous example are executed, and the Smart Scan results are reported. The changes between the examples are the

partitioned table and the partition key distribution, which make a marked difference in Smart Scan execution and the

benefit a storage index provides. The results, as Exadata reports them, are as follows:

SQL> select /*+ parallel(4) */

2 count(*)

3 from chicken_hr_tab

4 where suitable_for_frying = 'Yes';

COUNT(*)

---------------

655360

SQL>

SQL> select *

2 from v$mystat

3 where statistic# = (select statistic# from v$statname where name = 'cell physical

IO bytes saved by storage index');

SID STATISTIC# VALUE

--------------- --------------- ---------------

1434 247 187088896

SQL>

SQL> select /*+ parallel(4) */

2 chicken_id, chicken_name, suitable_for_frying

3 from chicken_hr_tab

4 where suitable_for_frying = 'Yes';

CHAPTER 3 ■ STORAGE INDEXES

42

CHICKEN_ID CHICKEN_NAME SUI

--------------- -------------------- ---

2411502 Frieda Yes

...

9507995 Fran Yes

9507996 Eunice Yes

655360 rows selected.

SQL>

SQL> select sql_id,

2 io_cell_offload_eligible_bytes qualifying,

3 io_cell_offload_eligible_bytes - io_cell_offload_returned_bytes actual,

4 round(((io_cell_offload_eligible_bytes - io_cell_offload_returned_bytes)/io_cell_offload_

eligible_bytes)*100, 2) io_saved_pct,

5 sql_text

6 from v$sql

7 where io_cell_offload_returned_bytes > 0

8 and instr(sql_text, 'suitable_for_frying') > 0

9 and parsing_schema_name = 'BING';

SQL_ID QUALIFYING ACTUAL IO_SAVED_PCT

------------- --------------- --------------- ---------------

SQL_TEXT

---------------------------------------------------------------------------------------------------

8hgwndn3tj7xg 315211776 223167616 70.8

select /*+ parallel(4) */ chicken_id, chicken_name, suitable_for_frying from chicken_hr_tab where

suitable_for_frying = 'Yes'

c1486fx9pv44n 315211776 230036536 72.98

select /*+ parallel(4) */ count(*) from chicken_hr_tab where suitable_for_frying = 'Yes'

9u65az96tvhj5 62111744 22646696 36.46

select /*+ parallel(4) */ h.chicken_name, t.talent, h.suitable_for_frying from chicken_hr_tab h join

chicken_talent_tab t on (t.talent_cd = h.talent_cd) where h.talent_cd = 5

SQL>

SQL> select *

2 from v$mystat

3 where statistic# = (select statistic# from v$statname where name = 'cell physical

IO bytes saved by storage index');

SID STATISTIC# VALUE

--------------- --------------- ---------------

1434 247 282230784

SQL>

SQL> select /*+ parallel(4) */

2 h.chicken_name, t.talent, h.suitable_for_frying

3 from chicken_hr_tab h join chicken_talent_tab t on (t.talent_cd = h.talent_cd)

4 where h.talent_cd = 5;

CHAPTER 3 ■ STORAGE INDEXES

43

CHICKEN_NAME TALENT SUI

-------------------- ---------------------------------------- ---

Hazel Accountant No

Red Accountant No

Amanda Accountant No

Dolly Accountant No

...

Terry Accountant No

Beulah Accountant No

Calcutta Accountant No

1835008 rows selected.

SQL>

SQL> select sql_id,

2 io_cell_offload_eligible_bytes qualifying,

3 io_cell_offload_eligible_bytes - io_cell_offload_returned_bytes actual,

4 round(((io_cell_offload_eligible_bytes - io_cell_offload_returned_bytes)/io_cell_offload_

eligible_bytes)*100, 2) io_saved_pct,

5 sql_text

6 from v$sql

7 where io_cell_offload_returned_bytes > 0

8 and instr(sql_text, 'suitable_for_frying') > 0

9 and parsing_schema_name = 'BING';

SQL_ID QUALIFYING ACTUAL IO_SAVED_PCT

------------- --------------- --------------- ---------------

SQL_TEXT

---------------------------------------------------------------------------------------------------

8hgwndn3tj7xg 315211776 223167616 70.8

select /*+ parallel(4) */ chicken_id, chicken_name, suitable_for_frying from chicken_hr_tab where

suitable_for_frying = 'Yes'

c1486fx9pv44n 315211776 230036536 72.98

select /*+ parallel(4) */ count(*) from chicken_hr_tab where suitable_for_frying = 'Yes'

9u65az96tvhj5 62242816 26925984 43.26

select /*+ parallel(4) */ h.chicken_name, t.talent, h.suitable_for_frying from chicken_hr_tab h join

chicken_talent_tab t on (t.talent_cd = h.talent_cd) where h.talent_cd = 5

SQL>

So far, so good, as Smart Scans are being executed as expected. Reconnecting as the schema owner and adding

another query, a different picture emerges. Between each query of the partitioned table, the session statistics are reset

by again reconnecting as the schema owner, as follows:

SQL> connect bing/#########

Connected.

SQL>

CHAPTER 3 ■ STORAGE INDEXES

44

SQL> select /*+ parallel(4) */

2 count(*)

3 from chicken_hr_tab

4 where suitable_for_frying = 'Yes';

COUNT(*)

---------------

655360

SQL>

SQL> select sql_id,

2 io_cell_offload_eligible_bytes qualifying,

3 io_cell_offload_eligible_bytes - io_cell_offload_returned_bytes actual,

4 round(((io_cell_offload_eligible_bytes - io_cell_offload_returned_bytes)/io_cell_

offload_eligible_bytes)*100, 2) io_saved_pct,

5 sql_text

6 from v$sql

7 where io_cell_offload_returned_bytes > 0

8 and instr(sql_text, 'suitable_for_frying') > 0

9 and parsing_schema_name = 'BING';

SQL_ID QUALIFYING ACTUAL IO_SAVED_PCT

------------- --------------- --------------- ---------------

SQL_TEXT

---------------------------------------------------------------------------------------------------

8hgwndn3tj7xg 315211776 223167616 70.8

select /*+ parallel(4) */ chicken_id, chicken_name, suitable_for_frying from chicken_hr_tab where

suitable_for_frying = 'Yes'

c1486fx9pv44n 315211776 230036536 72.98

select /*+ parallel(4) */ count(*) from chicken_hr_tab where suitable_for_frying = 'Yes'

9u65az96tvhj5 62242816 26925984 43.26

select /*+ parallel(4) */ h.chicken_name, t.talent, h.suitable_for_frying from chicken_hr_tab h join

chicken_talent_tab t on (t.talent_cd = h.talent_cd) where h.talent_cd = 5

SQL>

SQL> select *

2 from v$mystat

3 where statistic# = (select statistic# from v$statname where name = 'cell physical

IO bytes saved by storage index');

SID STATISTIC# VALUE

--------------- --------------- ---------------

1434 247 50757632

SQL>

SQL> connect bing/#########

Connected.

CHAPTER 3 ■ STORAGE INDEXES

45

SQL>

SQL> select /*+ parallel(4) */

2 sum(chicken_id)

3 from chicken_hr_tab

4 where suitable_for_frying = 'Yes';

SUM(CHICKEN_ID)

---------------

4166118604642

SQL>

SQL> select sql_id,

2 io_cell_offload_eligible_bytes qualifying,

3 io_cell_offload_eligible_bytes - io_cell_offload_returned_bytes actual,

4 round(((io_cell_offload_eligible_bytes - io_cell_offload_returned_bytes)/io_cell_

offload_eligible_bytes)*100, 2) io_saved_pct,

5 sql_text

6 from v$sql

7 where io_cell_offload_returned_bytes > 0

8 and instr(sql_text, 'suitable_for_frying') > 0

9 and parsing_schema_name = 'BING';

SQL_ID QUALIFYING ACTUAL IO_SAVED_PCT

------------- --------------- --------------- ---------------

SQL_TEXT

---------------------------------------------------------------------------------------------------

8hgwndn3tj7xg 315211776 223167616 70.8

select /*+ parallel(4) */ chicken_id, chicken_name, suitable_for_frying from chicken_hr_tab where

suitable_for_frying = 'Yes'

c1486fx9pv44n 315211776 230036536 72.98

select /*+ parallel(4) */ count(*) from chicken_hr_tab where suitable_for_frying = 'Yes'

9u65az96tvhj5 62242816 26925984 43.26

select /*+ parallel(4) */ h.chicken_name, t.talent, h.suitable_for_frying from chicken_hr_tab h join

chicken_talent_tab t on (t.talent_cd = h.talent_cd) where h.talent_cd = 5

SQL>

SQL> select *

2 from v$mystat

3 where statistic# = (select statistic# from v$statname where name = 'cell physical

IO bytes saved by storage index');

SID STATISTIC# VALUE

--------------- --------------- ---------------

1434 247 0

SQL>

SQL> connect bing/#########

Connected.

SQL>

CHAPTER 3 ■ STORAGE INDEXES

46

SQL> select /*+ parallel(4) */

2 chicken_id, chicken_name, suitable_for_frying

3 from chicken_hr_tab

4 where suitable_for_frying = 'Yes';

CHICKEN_ID CHICKEN_NAME SUI

--------------- -------------------- ---

9539150 Frieda Yes

9539151 Frieda Yes

...

9489101 Eunice Yes

9489102 Eunice Yes

655360 rows selected.

SQL>

SQL> select sql_id,

2 io_cell_offload_eligible_bytes qualifying,

3 io_cell_offload_eligible_bytes - io_cell_offload_returned_bytes actual,

4 round(((io_cell_offload_eligible_bytes - io_cell_offload_returned_bytes)/io_cell_

offload_eligible_bytes)*100, 2) io_saved_pct,

5 sql_text

6 from v$sql

7 where io_cell_offload_returned_bytes > 0

8 and instr(sql_text, 'suitable_for_frying') > 0

9 and parsing_schema_name = 'BING';

SQL_ID QUALIFYING ACTUAL IO_SAVED_PCT

------------- --------------- --------------- ---------------

SQL_TEXT

---------------------------------------------------------------------------------------------------

8hgwndn3tj7xg 315211776 223167616 70.8

select /*+ parallel(4) */ chicken_id, chicken_name, suitable_for_frying from chicken_hr_tab where

suitable_for_frying = 'Yes'

c1486fx9pv44n 315211776 230036536 72.98

select /*+ parallel(4) */ count(*) from chicken_hr_tab where suitable_for_frying = 'Yes'

9u65az96tvhj5 62242816 26925984 43.26

select /*+ parallel(4) */ h.chicken_name, t.talent, h.suitable_for_frying from chicken_hr_tab h join

chicken_talent_tab t on (t.talent_cd = h.talent_cd) where h.talent_cd = 5

SQL>

SQL> select *

2 from v$mystat

3 where statistic# = (select statistic# from v$statname where name = 'cell physical

IO bytes saved by storage index');

CHAPTER 3 ■ STORAGE INDEXES

47

SID STATISTIC# VALUE

--------------- --------------- ---------------

1434 247 0

SQL>

SQL> connect bing/#########

Connected.

SQL>

SQL> select /*+ parallel(4) */

2 h.chicken_name, t.talent, h.suitable_for_frying

3 from chicken_hr_tab h join chicken_talent_tab t on (t.talent_cd = h.talent_cd)

4 where h.talent_cd = 5;

CHICKEN_NAME TALENT SUI

-------------------- ---------------------------------------- ---

Jennifer Accountant No

Constance Accountant No

Rachel Accountant No

Katy Accountant No

...

Calcutta Accountant No

Jennifer Accountant No

1835008 rows selected.

SQL>

SQL> select sql_id,

2 io_cell_offload_eligible_bytes qualifying,

3 io_cell_offload_eligible_bytes - io_cell_offload_returned_bytes actual,

4 round(((io_cell_offload_eligible_bytes - io_cell_offload_returned_bytes)/io_cell_

offload_eligible_bytes)*100, 2) io_saved_pct,

5 sql_text

6 from v$sql

7 where io_cell_offload_returned_bytes > 0

8 and instr(sql_text, 'suitable_for_frying') > 0

9 and parsing_schema_name = 'BING';

SQL_ID QUALIFYING ACTUAL IO_SAVED_PCT

------------- --------------- --------------- ---------------

SQL_TEXT

---------------------------------------------------------------------------------------------------

8hgwndn3tj7xg 315211776 223167616 70.8

select /*+ parallel(4) */ chicken_id, chicken_name, suitable_for_frying from chicken_hr_tab where

suitable_for_frying = 'Yes'

c1486fx9pv44n 315211776 230036536 72.98

select /*+ parallel(4) */ count(*) from chicken_hr_tab where suitable_for_frying = 'Yes'

9u65az96tvhj5 62242816 26925984 43.26

select /*+ parallel(4) */ h.chicken_name, t.talent, h.suitable_for_frying from chicken_hr_tab h join

chicken_talent_tab t on (t.talent_cd = h.talent_cd) where h.talent_cd = 5

CHAPTER 3 ■ STORAGE INDEXES

48

SQL> select *

2 from v$mystat

3 where statistic# = (select statistic# from v$statname where name = 'cell physical

IO bytes saved by storage index');

SID STATISTIC# VALUE

--------------- --------------- ---------------

1434 247 0

SQL>

No benefit was realized from a storage index for the last query, because it didn’t execute a Smart Scan; the

partitions are too small, individually, to trigger Smart Scan execution. Also, the first query computing the sum was not

offloaded. This is proven by the fact that the query text is not listed among the SQL statements that were offloaded at

one time or another, using another incarnation of the table and data.

NULLs

NULL searches are treated in a slightly different yet more efficient manner in Exadata. Unlike non-NULL table data,

which is indexed by the minimum and maximum values for the listed column, the presence of NULLs is flagged by a

bit for each column present in the storage index. Storage regions containing NULLs for the indexed columns have this

bit set, which makes searching for NULLs a very fast operation, as Oracle only need search for segments where this

NULL indicator bit shows that NULLs are present. Avoiding NULLs is also just as efficient, as Oracle only needs to read

table segments where the NULL indicator bit is not set.

Proving this is another example, utilizing the previous data-loading strategy, clustering the desired values

together to get the most “bang for the buck” out of the storage index. NULL values were added to the mix, so that

three values now exist for the SUITABLE_FOR_FRYING column. Timing has been enabled to show the elapsed time

for each query execution, so the total time for each query can be noted, and the session-level statistics were reset

by reconnecting between queries, so it’s easier to see how many bytes the storage index skipped for each search

condition:

SQL>

SQL> connect bing/#########

Connected.

SQL>

SQL> set timing on

SQL>

SQL> select /*+ parallel(4) */

2 count(*)

3 from chicken_hr_tab

4 where suitable_for_frying = 'Yes';

COUNT(*)

---------------

1572864

Elapsed: 00:00:00.80

SQL>

CHAPTER 3 ■ STORAGE INDEXES

49

SQL> select *

2 from v$mystat

3 where statistic# = (select statistic# from v$statname where name = 'cell physical

IO bytes saved by storage index');

SID STATISTIC# VALUE

--------------- --------------- ---------------

1111 247 566501376

Elapsed: 00:00:00.00

SQL>

SQL> connect bing/#########

Connected.

SQL>

SQL> set timing on

SQL>

SQL> select /*+ parallel(4) */

2 count(*)

3 from chicken_hr_tab

4 where suitable_for_frying is null;

COUNT(*)

---------------

1048576

Elapsed: 00:00:00.23

SQL>

SQL> select *

2 from v$mystat

3 where statistic# = (select statistic# from v$statname where name = 'cell physical

IO bytes saved by storage index');

SID STATISTIC# VALUE

--------------- --------------- ---------------

1111 247 1141440512

Elapsed: 00:00:00.00

SQL>

The IS NULL query executed in less than one-third of the time required for the query searching for “employees”

ready to be sent to the fryer and skipped almost twice the number of bytes, because very few of the table segments

contain NULL values. Again, this speed is partly due to not having to check minimum and maximum values for the

specified column. Using this strategy, “false positives” won’t occur, as Oracle doesn’t flag segments that may have

NULLs, only those segments where NULLs are actually present.

Needing to “Rebuild”

Storage indexes are memory-resident structures. As long as there is power to the storage cells, those indexes remain

valid. Of course, using memory instead of more permanent physical media makes these indexes transient and subject

to maintenance windows, power outages, and memory-card failures. There is no method to back up a storage index,

and there really is no need to do so, given that storage indexes take very little time to build. The build process is not,

CHAPTER 3 ■ STORAGE INDEXES

50

as mentioned previously, the resource-intensive operation that building a “permanent” index would be. Using the

term rebuild to replace dropped storage indexes is, to our minds, a misnomer, as there is no script to build them, and

it’s just as likely that the storage indexes built after a restart of the storage cells will not match the storage indexes in

place prior to the outage.

Because storage indexes are built on data stored in 1MB segments, it doesn’t take long to scan that segment of the

table to find the minimum and maximum values an indexed column contains and note whether NULL values can or do

exist. Building storage indexes after an outage is not the same resource-intensive operation that creating more permanent

indexes can be. Building or rebuilding a B-tree index, for example, can take hours and can noticeably consume CPU and

disk resources, whereas building a storage index is hardly noticeable during the course of day-to-day operations, doesn’t

hamper other sessions while it is being built, and completes in a mere fraction of the time. True, the information in a

storage index is nothing like that of a B-tree index, but it doesn’t need to be to serve its intended purpose.

Each storage server, or cell, has its own storage indexes, so losing one cell won’t drop the indexes in the

remaining cells, which means that only the storage indexes found in the problem cell will have to be created again.

One of the good aspects of a storage index is that the index for each 1MB segment does not need to match the indexes

representing the other table segments. Because tables are striped across the disks in a disk group, the table data is

spread across all of the storage cells and, as a result, each table will have storage index segments in each of the storage

cells. Issues with one cell won’t create a situation where no storage indexes exist, so queries can still benefit from the

index segments in the unaffected cells. In addition, the redundancy in ASM places the redundant data on a different

storage cell from the primary source. This allows Exadata to lose a storage cell or apply patches in a rolling manner

and not lose access to data.

Patching and software upgrades are probably the most likely reasons for storage indexes to be built, as CELLSRV

needs to be stopped before some patching operations or software upgrades can begin. The size and scope of patching

or upgrades will determine the fate of the storage indexes: database server patching/upgrades won’t touch the storage

cells, so storage indexes will remain intact, and patching/upgrades involving the storage tier or the entire Exadata

machine will drop storage indexes. Firmware issues affecting physical disks will also cause storage index “rebuilds” as

the storage cells themselves, including the operating system, will have to be restarted. True, storage firmware issues and

Exadata upgrades are not common occurrences, but they can happen, so it’s good to remember that storage indexes

will have to be built once the storage firmware has been patched or the storage servers have been upgraded, either as

storage maintenance or as part of an entire Exadata patch/upgrade, and the storage cells have been rebooted.

Another reason for storage indexes to be re-created involves maintenance on the flash cache hardware, the

Sun flash PCIe cards. Four of these cards are installed into each storage server, providing 384GB of flash storage.

Occasionally, these units need maintenance or replacement, which results in the affected storage cell being powered

down. Although not directly related to the storage, they are part of the storage-cell architecture, and it should be noted

that flash cache problems can require downtime to correct.

Remember that a Smart Scan can occur without a storage index being present. Losing storage indexes to

maintenance windows or power outages isn’t going to appreciably affect performance while they are being created.

The time that they are missing will also be brief, as the first offloadable query after the storage cells are again up and

running will start the build process all over again, and each subsequent offloaded query will contribute to those

indexes until they are complete. It may not even be noticeable to the end users running queries, as time differences

will likely be small in comparison to the previous runtimes when the storage indexes were available.

Things to Know

Storage indexes are memory-resident structures, not permanent database objects. They are built or modified

dynamically when predicates are offloaded to the storage cells. Each index segment can index up to eight columns,

plus the presence of NULLs, and index data segments that are 1MB in size. The index segments are built on a first-come,

first-served basis; offloaded predicates are added to the index until the eight-column limit per segment is attained.

More than one query can add columns to a storage index for a table. The index segments contain the column name,

the minimum value for that segment, the maximum value for that segment, and whether or not that segment contains

NULL values for the included column, indicated by a bit in the segment structure. When storage indexes exist,

CHAPTER 3 ■ STORAGE INDEXES

51

they are always used by Smart Scans; not every query can benefit from a storage index, though, as values may be

scattered across the table segments, causing Oracle to read each segment. A storage index is like a probability matrix,

indicating only the possibility that a value exists in the indexed table segment and, as such, “false positives” can occur.

Such “false positives,” created when the minimum and maximum values for a column in an index segment bracket the

desired value but the desired value is not actually present in that segment, can also cause Oracle to read every table

segment and provide no byte savings.

A storage index isn’t like a conventional B-tree index: it isn’t used to find where data is; it’s used to know where

data isn't. Scanning the minimum and maximum values for a column in a given storage segment can allow Oracle to

eliminate locations to search. Since each storage index segment indexes a 1MB storage “chunk” of a table, creating a

storage index is a fairly fast operation, done “on the fly” during query processing. Also, eliminating 1MB pieces of a

table can quickly provide speed to a query: the less data Oracle needs to sift through, the faster the result set will be

returned. In some ways, a storage index is really an anti-index, since it’s used to eliminate locations to search, rather

than pinpoint exactly where the desired data resides.

NULL values are treated differently, and more efficiently, than non-NULL search criteria, as Oracle only needs to

read the NULL bit in the index. This can speed up queries by eliminating storage segments much faster than assessing

minimum and maximum value pairs. Queries using the IS NULL and IS NOT NULL comparison operators can often

return in a fraction of the time of queries where actual data values are used.

How data is loaded into a table also affects how efficient and fast a storage index can be. Tables where like values

are clustered together can eliminate more storage segments than if the data values of interest are scattered across

the entire table. The fewer storage segments that contain the value or values of interest allow Oracle to eliminate

more storage segments from being read, returning the results much faster than would be possible with random data

loading. Of course it’s not possible to optimize storage indexes for every column they may contain, just as it isn’t

possible to generate the optimal Clustering Factor for every B-tree index created against a table.

Size can play a big part in the creation of storage indexes, and partitioned tables, in particular, can suffer from

realizing no benefit from a storage index, if the partition or partitions being queried are small with respect to the

overall table size. Querying the entire table without using partition pruning would realize savings from the use of the

storage index.

Monitoring storage index benefits from the database server is an easy task. A single statistic named “cell physical

IO bytes saved by storage index” in the V$SESSTAT and V$MYSTAT views records the bytes saved in a cumulative

fashion, for each session in V$SESSTAT and for the current session in V$MYSTAT. Logging out and logging in again, or

using connect to establish a new session, will reset this statistic to 0. This can be a useful technique to report exactly

how many bytes were saved for a particular query by executing a single query after each connect is made. It’s also

useful to determine if any benefit was realized by using the storage index. Some queries won’t benefit, because they

aren’t offloadable or the data was spread across every storage segment for the table or tables of interest.

Replacing storage indexes can be necessary for several reasons. Patching, software and/or hardware

maintenance, and power outages are the major causes for this to occur. A less common cause for this is PCIe flash

storage card maintenance or replacement, as that maintenance requires that the affected storage cell be powered

down. Because they are basic indexes, containing a bare minimum of information, they are easy and fast to create and

place very little load on the system. Only the affected storage cells will lose storage indexes, so if only one cell goes

down, only those indexes will have to be built again.

53

Chapter 4

Smart Flash Cache

The Smart Flash Cache can wear many hats: it’s a cache; it’s a flash component of the log writer process; and it can be

configured as flash disk. Because this component is so versatile, it’s worthwhile to see how it works, what it does, what

it’s made of, and how it can be configured as one or more ASM disk groups.

Flash Me

The Smart Flash Cache provides Exadata with the ability to deliver a high I/O-per-second (IOPS) rate, by caching

frequently accessed data and allowing it to be read directly from flash memory, rather than from disk or RAM.

It does this by caching frequently used table and index blocks for later use, thus absorbing the work repeated reads

can create. Control file reads and writes, along with file header reads and writes, are also cached. Unlike conventional

systems, though, the flash cache is smart and won’t cache duplicate blocks written for ASM redundancy, nor will it

cache I/O related to backup processes and data-pump exports.

The Smart Flash Cache behaves like a disk, but it isn’t one. Comprising 4 Sun Flash PCIe cards per storage

cell, each with 96GB of flash storage, the Smart Flash Cache totals 384GB of available space. For the X3 Eighth Rack

configuration, the total flash storage is 4.8TB, and for the Quarter Rack configuration, the total flash storage available

is 2.4TB. An X3 Half Rack has 11.2TB of flash storage, and the Full Rack provides 22.4TB. By comparison, the X2

Exadata Quarter Rack configuration has 1.1TB of available flash storage, and the Half Rack has 2.6TB, with the Full

Rack providing 5.3TB. A basic block diagram of one of the cards is shown in Figure 4-1.

Chapter 4 ■ Smart FlaSh CaChe

54

At installation, the Exadata system is configured with almost all of the PCIe flash storage used as flash cache,

with a small portion of this storage configured for flash logs. The DBA can, fairly easily, reconfigure the flash cache by

resizing it, rebuilding it, or creating flash “disks” accessible to ASM. Smart Flash Cache is built on flash disks, which

are not the same as the virtual flash disks a DBA can create to provide flash storage usable by ASM. Connecting to a

storage cell and viewing the flash-cache detail using CellCLI shows the composition of the configured flash cache:

CellCLI> list flashcache detail

cellDisk:

FD_07_myexa1cel01,FD_12_myexa1cel01,FD_15_myexa1cel01,FD_13_myexa1cel01,FD_04_myexa1cel01,FD_14_

myexa1cel01,FD_00_myexa1cel01,FD_10_myexa1cel01,FD_03_myexa1cel01,FD_09_myexa1cel01,FD_08_myexa1

cel01,FD_02_myexa1cel01,FD_01_myexa1cel01,FD_11_myexa1cel01,FD_05_myexa1cel01,FD_06_myexa1cel01

creationTime: 2013-03-16T12:16:39-05:00

degradedCelldisks:

Figure 4-1. Sun Flash Accelerator F20 PCIe Card block diagram

Chapter 4 ■ Smart FlaSh CaChe

55

effectiveCacheSize: 364.75G

id: 3dfc24a5-2591-43d3-aa34-72379abdf3b3

size: 364.75G

status: normal

CellCLI>

Sixteen disks are used per storage cell, to build the Smart Flash Cache. Each Sun PCIe card has 4 such disks, each

one 32GB in size, with 24GB of that as addressable, nonvolatile memory. Even though there is a total of 384GB of flash

storage, notice that 19.25GB are reserved for flash log and other uses, which makes 22.875GB of flash storage available

for flash-cache creation. Each card also contains 64MB of DRAM, used to buffer writes to the nonvolatile memory,

and an Energy Storage Module (ESM). This module is actually a capacitor, which can provide enough power to flush

data from the buffer to the nonvolatile memory, in the event of a power outage. Should the ESM fail, the volatile buffer

area will be bypassed, allowing direct writes to the nonvolatile memory. As long as the flash disks are configured as

Smart Flash Cache, losing the ESM poses no write penalties; the storage software treats Smart Flash Cache as a

write-through cache, bypassing it and writing directly to disk. In the event that the flash disks are configured into a

flash disk, group loss of the ESM will incur write penalties, as the dynamic cache is no longer available.

The expected lifetime of these PCIe cards is two years, since the ESM will lose its ability to hold a charge.

Sun documentation states that these cards can be replaced without shutting down the system; Oracle Exadata

documentation recommends the affected storage servers be powered down before such maintenance begins.

Remember that the ASM fail groups are configured so that loss of one storage cell doesn’t affect the running

databases.

Rebuilding the flash cache for a storage cell using the create flashcache all command creates the same

storage distribution found after Exadata installation; the DBA can create a smaller Smart Flash Cache on a storage cell,

by specifying the size parameter, but not a larger one.

How It Works

The Smart Flash Cache is a per-cell caching mechanism, optimized for frequently accessed data. Whether an object

will be considered for Smart Flash Cache use is determined in part by the CELL_FLASH_CACHE storage parameter

set at object creation. Look at the CREATE TABLE statement for the EMP demonstration table:

CREATE TABLE "BING"."EMP"

( "EMPNO" NUMBER(4,0) NOT NULL ENABLE,

"ENAME" VARCHAR2(10),

"JOB" VARCHAR2(9),

"MGR" NUMBER(4,0),

"HIREDATE" DATE,

"SAL" NUMBER(7,2),

"COMM" NUMBER(7,2),

"DEPTNO" NUMBER(2,0)

) SEGMENT CREATION IMMEDIATE

PCTFREE 10 PCTUSED 40 INITRANS 1 MAXTRANS 255

NOCOMPRESS LOGGING

STORAGE(INITIAL 65536 NEXT 1048576 MINEXTENTS 1 MAXEXTENTS 2147483645

PCTINCREASE 0 FREELISTS 1 FREELIST GROUPS 1

BUFFER_POOL DEFAULT FLASH_CACHE DEFAULT CELL_FLASH_CACHE DEFAULT)

TABLESPACE "USERS" ROWDEPENDENCIES

Chapter 4 ■ Smart FlaSh CaChe

56

There are three possible values for this storage parameter, with DEFAULT conveniently being the default.

This setting tells Oracle to utilize the Smart Flash Cache in the normal mode, caching data using the provided caching

criteria and aging out cached data in accordance with the appropriate retention policy. In the case of the DEFAULT

setting, this would be using a prioritized Least-Recently-Used algorithm (the oldest data is aged out first, a common

LRU configuration). There are two other settings to which this storage parameter may be set: KEEP and NONE.

The KEEP setting changes the LRU algorithm by maintaining the data in the cache for as long as possible, but, to

prevent KEEP data from hogging the cache, no more than 80 percent of the configured cache is available for data tagged

as KEEP. Unused KEEP blocks that exceed the additional aging policy are purged. Setting CELL_FLASH_CACHE to

NONE disables the use of the Smart Flash Cache for that object.

Each read or write operation is associated with the following additional information:

The CELL_FLASH_CACHE setting for the associated object•

A cache hint based on the purpose of the request.The available hints are:•

CACHE, which causes the blocks to be cached. I/O for index lookups would be one type •

of request that would be cached.

NOCACHE, which would apply to mirrored blocks from ASM, log writes, or a request •

that is simply too large to put into the cache. This hint is set, regardless of whether

CELL_FLASH_CACHE is set to DEFAULT or KEEP.

EVICT, to remove data from the cache. Activities that would use this hint would be ASM •

rebalance operations (which cause blocks to be moved from one disk to another, thus

invalidating the cached entries, as they would reference the original physical location)

and finding cached data that has exceeded the threshold for the LRU algorithm.

The Smart Flash Cache, in addition to the CELL_FLASH_CACHE setting and the provided hint, also takes

into consideration I/O size, type, and the current cache load, when making decisions on how and what to process.

Extremely large I/O requests will not be cached, nor will any I/O requests that could negatively impact throughput,

because the cache is extremely busy.

Write operations that are cached are not affected by this caching, as write performance is neither improved nor

diminished. CELLSRV performs the disk writes, sending acknowledgment to the database tier, so transactions can

continue without interruption. The Smart Flash Cache then determines if the data is to be cached or not, making the

disk writes independent of the data-caching process.

Reads are the transactions that reap the rewards of the Smart Flash Cache. For a read, CELLSRV determines if the

data is already in the Smart Flash Cache; an in-memory hash table of the cached data is maintained, so Oracle can

quickly determine if the desired blocks can be found there. The hash table lists the blocks not marked for eviction,

so when a match is found, a cache lookup can be executed. Cached blocks may be evicted when the source blocks

have changed since the cached data was written, space is needed for I/O from a current transaction and the blocks

are at the top of the LRU list, the blocks are tagged as KEEP but have remained unused beyond the additional KEEP

threshold, or when their lifetime has exceeded the standard LRU thresholds.

It is also possible to place a table or index into the Smart Flash Cache manually, using the ALTER TABLE

<TABLE_NAME> STORAGE(FLASH_CACHE [NONE|DEFAULT|KEEP]) and ALTER INDEX <INDEX NAME>

STORAGE(FLASH_CACHE [NONE|DEFAULT|KEEP]) commands. Specifying NONE prevents the table or index from using

the Smart Flash Cache. DEFAULT sets the normal Smart Flash Cache behavior and is set by default when creating a

table or an index; KEEP will place the table or index into the Smart Flash Cache, provided there is sufficient space,

and won’t age it out. Using the KEEP option indiscriminately can fill the Smart Flash Cache and leave no room for

objects where the FLASH_CACHE setting is DEFAULT. The KEEP setting should be used for small tables (for example,

smaller look-up tables) or indexes, to allow larger tables/indexes where the FLASH_CACHE storage parameter is set

to DEFAULT to use the Smart Flash Cache.

Chapter 4 ■ Smart FlaSh CaChe

57

Logging We Will Go

The configured flash storage on each cell isn’t used solely for Smart Flash Cache, as Exadata also provides Smart Flash

Log as an additional mechanism for redo log writes. Each configured flash disk has 32MB of its storage configured as

Smart Flash Log; this totals 512MB of Smart Flash Log storage per storage cell. Using Smart Flash Log can speed up

transaction processing, as the first write that reports completion triggers the continuation of transaction processing at

the database tier.

Redo log writes are sent to both disk and the Smart Flash Log. Once the log writer process (LGWR) receives

an acknowledgment that a write is completed, transaction processing continues. It doesn’t matter which write, to

the Smart Flash Log or to disk, completes first; it’s the acknowledgment that triggers the database server to allow

processing to proceed. Rest assured that all writes to Smart Flash Log are also written to disk. Just because Smart Flash

Log finished first, it doesn’t stop LGWR from completing its disk writes. In concept, the Smart Flash Log is very similar

to using multiplexed redo logs, in that all configured logs are written, regardless of which log finished writing first.

It’s a Disk

Smart flash disks are not just for the Smart Flash Cache and Smart Flash Log to use. It’s possible to configure these

devices as flash disks recognized by ASM to create a flash disk group.

A flash disk group can be created using the flash disks on one or more storage cells, but it does require resizing

the existing Smart Flash Cache. Before starting this process, it should be decided how large these flash disks will be,

because creating such disks is not for the faint of heart, as it requires, as the first step, dropping the existing flash

cache:

CellCLI> drop flashcache

Flash cache myexa1cel01_flashcache successfully dropped

Once the flash cache is dropped, it can be created with the new size. To create a 100GB flash cache:

CellCLI> create flashcache all size=100G

Flash cache myexa1cel01_flashcache successfully created

The flash disks available for ASM will be created with the balance of the available flash storage, 264.75GB, so no

size parameter need be used:

CellCLI> create gridddisk all flashdisk prefix=flash

GridDisk flash_FD_00_myexa1cel01 successfully created

GridDisk flash_FD_01_myexa1cel01 successfully created

...

GridDisk flash_FD_15_myexa1cel01 successfully created

CellCLI> list griddisk

...

flash_FD_00_myexa1cel01 active

flash_FD_01_myexa1cel01 active

...

Flash_FD_15_myexa1cel01 active

CellCLI>

Chapter 4 ■ Smart FlaSh CaChe

58

The choice can be made to create one or more sets of flash disks, by reconfiguring the Smart Flash Cache on only

one storage cell, two storage cells, or even all of the available storage servers. Using the same prefix across storage

servers allows all of the flash disks to be assigned to a single disk group in a single statement, regardless of which

storage cell is involved. It’s also possible to create separate flash disk sets, by making the prefix cell-specific, so that

multiple flash-based disk groups could be created simply by specifying the prefix name in the CREATE DISKGROUP

command.

Creating the flash disk group is not difficult; careful attention to detail is necessary, however, if multiple flash disk

prefixes are in use, so that the proper set of flash disks will be assigned to the proper disk group. The command syntax

is straightforward, but, first, the environment on the database server has to be set, in order to access the ASM instance.

The following script, sid, is a good way to set the environment:

#################################################################

# Oracle sid selection script

#

# 13-May-2012 - Mary Mikell Spence

# Infocrossing

#################################################################

ORASID=$ORACLE_SID

if [ -f /etc/oratab ]

then

export ORATAB=/etc/oratab

else

export ORATAB=/var/opt/oracle/oratab

fi

unset ORACLE_BASE

echo;

I=1

for SHOW_DB in `cat $ORATAB | grep -v "#" | grep -v '*' | cut -f 1 -d :`

do

OHOME=`grep -v '#' $ORATAB | grep -v '*' | grep "^$SHOW_DB:" | cut -d: -f 2`

echo "$I - $SHOW_DB - $OHOME"

I=`expr $I + 1`

done

echo;

GOOD_NAME=false

while [ "${GOOD_NAME}" = "false" ]

do

echo "Enter selection by # or name [$ORASID]: "

read CHOICE

if [ "$CHOICE" = "" ]

then

GOOD_NAME=true

CHOICE=$ORASID

else

I=1

for DB_NAME in `cat $ORATAB | grep -v "#" | grep -v '*' | cut -f 1 -d :`

do

Chapter 4 ■ Smart FlaSh CaChe

59

if [ "$DB_NAME" = "$CHOICE" -o "$I" = "$CHOICE" ]

then

GOOD_NAME=true

CHOICE=$DB_NAME

fi

I=`expr $I + 1`

done

fi

done

ORAENV_ASK=NO

ORACLE_SID=$CHOICE

. oraenv > /dev/null

echo; echo;

echo "*************************************************"

echo "ORACLE_BASE...$ORACLE_BASE"

echo "ORACLE_HOME...$ORACLE_HOME"

echo "ORACLE_SID....$ORACLE_SID"

echo "*************************************************"

echo;

unset ORATAB

unset GOOD_NAME

unset I

unset SHOW_DB

unset CHOICE

unset DB_NAME

unset OHOME

unset ORASID

Now that you have a way to set the environment, the stage is set to create a flash-based disk group:

[oracle@myexa1db01 dbm1 ~]$ . sid

1 - +ASM1 - /u01/app/11.2.0.3/grid

2 - dbm1 - /u01/app/oracle/product/11.2.0.3/dbhome_1

3 - client - /u01/app/oracle/product/11.2.0/client_1

Enter selection by # or name [dbm1]:

1

*******************************************************

ORACLE_BASE.../u01/app/oracle

ORACLE_HOME.../u01/app/11.2.0.3/grid

ORACLE_SID....+ASM1

*******************************************************

[oracle@myexa1db01 +ASM1 ~]$ sqlplus / as sysasm

SQL*Plus: Release 11.2.0.3.0 Production on Tue Apr 30 10:11:09 2013

Chapter 4 ■ Smart FlaSh CaChe

60

Connected to:

Oracle Database 11g Enterprise Edition Release 11.2.0.3.0 - 64bit Production

With the Real Application Clusters and Automatic Storage Management options

SYS@+ASM1> col path format a45

SYS@+ASM1> select path, header_status

2 from v$asm_disk

3 where path like 'o/%/flash%'

4 /

PATH HEADER_STATU

--------------------------------------------- ------------

o/192.168.10.5/flash_FD_00_myexa1cel01 CANDIDATE

o/192.168.10.5/flash_FD_01_myexa1cel01 CANDIDATE

o/192.168.10.5/flash_FD_02_myexa1cel01 CANDIDATE

o/192.168.10.5/flash_FD_03_myexa1cel01 CANDIDATE

o/192.168.10.5/flash_FD_04_myexa1cel01 CANDIDATE

o/192.168.10.5/flash_FD_05_myexa1cel01 CANDIDATE

o/192.168.10.5/flash_FD_06_myexa1cel01 CANDIDATE

o/192.168.10.5/flash_FD_07_myexa1cel01 CANDIDATE

o/192.168.10.5/flash_FD_08_myexa1cel01 CANDIDATE

o/192.168.10.5/flash_FD_10_myexa1cel01 CANDIDATE

o/192.168.10.5/flash_FD_11_myexa1cel01 CANDIDATE

o/192.168.10.5/flash_FD_12_myexa1cel01 CANDIDATE

o/192.168.10.5/flash_FD_13_myexa1cel01 CANDIDATE

o/192.168.10.5/flash_FD_14_myexa1cel01 CANDIDATE

o/192.168.10.5/flash_FD_15_myexa1cel01 CANDIDATE

16 rows selected.

SYS@+ASM1> create diskgroup flash_dg redundancy normal

2 disk 'o/%/flash%'

3 attribute 'compatible.rdbms' = '11.2.0.0.0',

4 'compatible.asm' = '11.2.0.0.0',

5 'cell.smart.scan.capable' = 'TRUE',

6 'au_size' = '4M'

7 /

Diskgroup created.

SYS@+ASM1>

A flash-based disk group is now available for use. Depending on the redundancy level in use (NORMAL,

providing one copy of the data, or HIGH, providing two copies of the data), the useable storage for data will be one-

half to one-third of the total space available. This makes flash-based disk groups considerably smaller than their

disk-based counterparts. For this example, remember that the total available flash space was 264.75GB. NORMAL

redundancy was specified, so this flash disk group has about 132GB available. Using HIGH redundancy, the total

available space would be about 88GB.

Chapter 4 ■ Smart FlaSh CaChe

61

Monitoring

Monitoring Smart Flash Cache on the database servers is very similar, and just as limited, as monitoring Smart

Scans from them, as only one metric is available from V$SYSSTAT that records flash cache activity: “cell flash cache

read hits.” On the other hand, monitoring the Smart Flash Cache from the storage servers provides more detail and

diagnostic data, although there is no way to monitor the full storage tier from a single location; thus, the statistics are

for the portion of the total flash cache on the given storage server.

Storage Server Tools

Through the CellCLI utility, a number of statistics are available to monitor flash cache usage. You can view the metrics

and their descriptions using the LIST METRICDEFINITION command. To return the flash cache metrics and their

descriptions, the following command can be used:

CellCLI> list metricdefinition attributes name, description where objectType = 'FLASHCACHE'

The metrics and descriptions are listed in Table 4-1.

Table 4-1. Storage Cell Flash Cache Metrics and Their Descriptions

FC_BYKEEP_OVERWR “"Number of megabytes pushed out of the FlashCache because of space limit for

‘keep’ objects”

FC_BYKEEP_OVERWR_SEC “Number of megabytes per second pushed out of the FlashCache because of

space limit for ‘keep’ objects”

FC_BYKEEP_USED “Number of megabytes used for ‘keep’ objects on FlashCache”

FC_BY_USED “Number of megabytes used on FlashCache”

FC_IO_BYKEEP_R “Number of megabytes read from FlashCache for ‘keep’ objects”

FC_IO_BYKEEP_R_SEC “Number of megabytes read per second from FlashCache for ‘keep’ objects”

FC_IO_BYKEEP_W “Number of megabytes written to FlashCache for ‘keep’ objects”

FC_IO_BYKEEP_W_SEC “Number of megabytes per second written to FlashCache for ‘keep’ objects”

FC_IO_BY_R “Number of megabytes read from FlashCache”

FC_IO_BY_R_MISS “Number of megabytes read from disks because not all requested data was in

FlashCache”

FC_IO_BY_R_MISS_SEC “Number of megabytes read from disks per second because not all requested

data was in FlashCache”

FC_IO_BY_R_SEC “Number of megabytes read per second from FlashCache”

FC_IO_BY_R_SKIP “Number of megabytes read from disks for I/O requests that bypass FlashCache”

FC_IO_BY_R_SKIP_SEC “Number of megabytes read from disks per second for I/O requests that bypass

FlashCache”

FC_IO_BY_W “Number of megabytes written to FlashCache”

FC_IO_BY_W_SEC “Number of megabytes per second written to FlashCache”

(continued)

Chapter 4 ■ Smart FlaSh CaChe

62

FC_IO_ERRS “Number of I/O errors on FlashCache”

FC_IO_RQKEEP_R “Number of read IO requests for ‘keep’ objects satisfied from FlashCache”

FC_IO_RQKEEP_R_MISS “Number of read I/O requests for ‘keep’ objects that did not find all data in

FlashCache”

FC_IO_RQKEEP_R_MISS_SEC “Number of read I/O requests per second for ‘keep’ objects that did not find all

data in FlashCache”

FC_IO_RQKEEP_R_SEC “Number of read I/O requests for ‘keep’ objects per second satisfied from

FlashCache”

FC_IO_RQKEEP_R_SKIP “Number of read I/O requests for ‘keep’ objects that bypass FlashCache”

FC_IO_RQKEEP_R_SKIP_SEC “Number of read I/O requests per second for ‘keep’ objects that bypass

FlashCache”

FC_IO_RQKEEP_W “Number of I/O requests for ‘keep’ objects that resulted in FlashCache being

populated with data”

FC_IO_RQKEEP_W_SEC “Number of I/O requests per second for ‘keep’ objects that resulted in

FlashCache being populated with data”

FC_IO_RQ_R “Number of read I/O requests satisfied from FlashCache”

FC_IO_RQ_R_MISS “Number of read I/O requests that did not find all data in FlashCache”

FC_IO_RQ_R_MISS_SEC “Number of read I/O requests per second that did not find all data in

FlashCache”

FC_IO_RQ_R_SEC “Number of read I/O requests satisfied per second from FlashCache”

FC_IO_RQ_R_SKIP “Number of read I/O requests that bypass FlashCache”

FC_IO_RQ_R_SKIP_SEC “Number of read I/O requests per second that bypass FlashCache”

FC_IO_RQ_W “Number of I/O requests that resulted in FlashCache being populated with data”

FC_IO_RQ_W_SEC “Number of I/O requests per second that resulted in FlashCache being

populated with data”

Table 4-1. (continued)

These metrics are cumulative, from the time CELLSRV was started. To list the current value for one or more of the

metrics, the LIST METRICCURRENT statement is used. The output reports the cumulative statistics for a single storage

cell; the same command will have to be run on all remaining storage cells, to monitor the activity for the entire Smart

Flash Cache.

Use the LIST METRICCURRENT statement to return Smart Flash Cache metrics for the given storage cell:

CellCLI> list metriccurrent where objectType = 'FLASHCACHE'

FC_BYKEEP_OVERWR FLASHCACHE 0.000 MB

FC_BYKEEP_OVERWR_SEC FLASHCACHE 0.000 MB/sec

FC_BYKEEP_USED FLASHCACHE 0.000 MB

FC_BY_USED FLASHCACHE 365,322 MB

FC_IO_BYKEEP_R FLASHCACHE 0.000 MB

FC_IO_BYKEEP_R_SEC FLASHCACHE 0.000 MB/sec

FC_IO_BYKEEP_W FLASHCACHE 0.047 MB

Chapter 4 ■ Smart FlaSh CaChe

63

FC_IO_BYKEEP_W_SEC FLASHCACHE 0.000 MB/sec

FC_IO_BY_R FLASHCACHE 60,257,512 MB

FC_IO_BY_R_MISS FLASHCACHE 12,592,252 MB

FC_IO_BY_R_MISS_SEC FLASHCACHE 0.891 MB/sec

FC_IO_BY_R_SEC FLASHCACHE 21.193 MB/sec

FC_IO_BY_R_SKIP FLASHCACHE 567,179,945 MB

FC_IO_BY_R_SKIP_SEC FLASHCACHE 3.681 MB/sec

FC_IO_BY_W FLASHCACHE 22,170,046 MB

FC_IO_BY_W_SEC FLASHCACHE 4.028 MB/sec

FC_IO_ERRS FLASHCACHE 0

FC_IO_RQKEEP_R FLASHCACHE 0 IO requests

FC_IO_RQKEEP_R_MISS FLASHCACHE 0 IO requests

FC_IO_RQKEEP_R_MISS_SEC FLASHCACHE 0.0 IO/sec

FC_IO_RQKEEP_R_SEC FLASHCACHE 0.0 IO/sec

FC_IO_RQKEEP_R_SKIP FLASHCACHE 0 IO requests

FC_IO_RQKEEP_R_SKIP_SEC FLASHCACHE 0.0 IO/sec

FC_IO_RQKEEP_W FLASHCACHE 3 IO requests

FC_IO_RQKEEP_W_SEC FLASHCACHE 0.0 IO/sec

FC_IO_RQ_R FLASHCACHE 6,638,504,145 IO

requests

FC_IO_RQ_R_MISS FLASHCACHE 373,704,323 IO

requests

FC_IO_RQ_R_MISS_SEC FLASHCACHE 28.5 IO/sec

FC_IO_RQ_R_SEC FLASHCACHE 2,688 IO/sec

FC_IO_RQ_R_SKIP FLASHCACHE 1,010,237,424 IO

requests

FC_IO_RQ_R_SKIP_SEC FLASHCACHE 16.7 IO/sec

FC_IO_RQ_W FLASHCACHE 1,096,872,236 IO

requests

FC_IO_RQ_W_SEC FLASHCACHE 326 IO/sec

Metrics for objects where the storage clause sets CELL_FLASH_CACHE to KEEP can be isolated and reported,

for example:

CellCLI> list metriccurrent where objectType = 'FLASHCACHE' and name like '.*KEEP.*'

FC_BYKEEP_OVERWR FLASHCACHE 0.000 MB

FC_BYKEEP_OVERWR_SEC FLASHCACHE 0.000 MB/sec

FC_BYKEEP_USED FLASHCACHE 0.000 MB

FC_IO_BYKEEP_R FLASHCACHE 0.000 MB

FC_IO_BYKEEP_R_SEC FLASHCACHE 0.000 MB/sec

FC_IO_BYKEEP_W FLASHCACHE 0.047 MB

FC_IO_BYKEEP_W_SEC FLASHCACHE 0.000 MB/sec

FC_IO_RQKEEP_R FLASHCACHE 0 IO requests

FC_IO_RQKEEP_R_MISS FLASHCACHE 0 IO requests

FC_IO_RQKEEP_R_MISS_SEC FLASHCACHE 0.0 IO/sec

FC_IO_RQKEEP_R_SEC FLASHCACHE 0.0 IO/sec

FC_IO_RQKEEP_R_SKIP FLASHCACHE 0 IO requests

FC_IO_RQKEEP_R_SKIP_SEC FLASHCACHE 0.0 IO/sec

FC_IO_RQKEEP_W FLASHCACHE 3 IO requests

FC_IO_RQKEEP_W_SEC FLASHCACHE 0.0 IO/sec

CellCLI>

Chapter 4 ■ Smart FlaSh CaChe

64

It is also possible to exclude those same metrics by changing the statement slightly:

CellCLI> list metriccurrent where objectType = 'FLASHCACHE' and name not like '.*KEEP.*'

FC_BY_USED FLASHCACHE 365,290 MB

FC_IO_BY_R FLASHCACHE 60,267,646 MB

FC_IO_BY_R_MISS FLASHCACHE 12,592,880 MB

FC_IO_BY_R_MISS_SEC FLASHCACHE 1.568 MB/sec

FC_IO_BY_R_SEC FLASHCACHE 23.065 MB/sec

FC_IO_BY_R_SKIP FLASHCACHE 567,186,500 MB

FC_IO_BY_R_SKIP_SEC FLASHCACHE 5.888 MB/sec

FC_IO_BY_W FLASHCACHE 22,171,791 MB

FC_IO_BY_W_SEC FLASHCACHE 2.865 MB/sec

FC_IO_ERRS FLASHCACHE 0

FC_IO_RQ_R FLASHCACHE 6,639,787,345 IO requests

FC_IO_RQ_R_MISS FLASHCACHE 373,724,226 IO requests

FC_IO_RQ_R_MISS_SEC FLASHCACHE 50.2 IO/sec

FC_IO_RQ_R_SEC FLASHCACHE 2,927 IO/sec

FC_IO_RQ_R_SKIP FLASHCACHE 1,010,251,273 IO requests

FC_IO_RQ_R_SKIP_SEC FLASHCACHE 19.4 IO/sec

FC_IO_RQ_W FLASHCACHE 1,096,966,059 IO requests

FC_IO_RQ_W_SEC FLASHCACHE 170 IO/sec

CellCLI>

Performance metrics aren’t the only values collected for the Smart Flash Cache. You can see what is in the cache,

using the LIST FLASHCACHECONTENT command. To see which attributes are available to view or that can be used

to filter the output, the FLASHCACHECONTENT object can be described:

CellCLI> describe flashcachecontent

cachedKeepSize

cachedSize

dbID

dbUniqueName

hitCount

hoursToExpiration

missCount

objectNumber

tableSpaceNumber

A specific database can be targeted using either dbUniqueName or dbID. The objectNumber and

tableSpaceNumber attributes are specific to a given dbUniqueName/dbID, so they should be used in conjunction

with either dbUniqueName or dbID. To view the unique database name, the object number, the KEEP size, the cache

size, the hit count, and miss count for objects from the DBM database, the command would be as follows:

CellCLI> list flashcachecontent where dbUniqueName = 'DBM' and hitcount > 99 attributes

dbUniqueName, objectNumber, cachedKeepSize, cachedSize, hitcount, misscount

DBM 2 0 172032 1889 350

DBM 8 0 81920 168 7

DBM 104 0 622592 170 48

DBM 225 0 2654208 382 247

DBM 227 0 1081344 173 77

DBM 268 0 1859584 770 25

Chapter 4 ■ Smart FlaSh CaChe

65

DBM 271 0 65536 298 5

DBM 272 0 65536 383 4

DBM 421 0 2064384 8120 772

DBM 424 0 589824 2391 63

DBM 425 0 122880 372 17

DBM 466 0 196608 612 37

DBM 469 0 131072 462 4

...

DBM 48306 0 32768 242 120

DBM 48406 0 196608 102 12

DBM 48464 0 237568 116 110

DBM 48466 0 1220608 247 104

DBM 48663 0 802816 142 52

DBM 48705 0 917504 101 20

DBM 48840 0 2334720 170 31

DBM 48972 0 2138112 176 104

DBM 4294967294 0 376832 25674712 181405

CellCLI>

By default, the LIST FLASHCACHECONTENT command reports the dbID, tableSpaceNumber and

objectNumber. To return other attributes, they need to be listed in the command, using the attributes clause, as was

done in this example.

Notice that among all of the attributes available at the storage-cell level, the object name is not one of them. This

can easily be reported from the database servers by querying DBA_OBJECTS, using the objectNumber reported by

CellCLI, which maps to the DATA_OBJECT_ID column:

SQL> select owner, object_type, object_name

2 from dba_objects

3 where data_object_id = 5888;

OWNER OBJECT_TYPE OBJECT_NAME

-------------------- ------------------- --------------------------------

SYS INDEX WRI$_ADV_MSG_GRPS_IDX_01

SQL>

A script can be written to generate the output from the LIST FLASHCACHECONTENT command and place it into

a text file on the database server, for example:

/usr/bin/ssh celladmin@myexa1cel01-priv.7-11.com "cellcli -e list flashcachecontent where

dbUniqueName = '$1' attributes dbUniquename,objectNumber,hitcount,misscount,cachedSize"

/usr/bin/ssh celladmin@myexa1cel02-priv.7-11.com "cellcli -e list flashcachecontent where

dbUniqueName = '$1' attributes dbUniquename,objectNumber,hitcount,misscount,cachedSize"

/usr/bin/ssh celladmin@myexa1cel03-priv.7-11.com "cellcli -e list flashcachecontent where

dbUniqueName = '$1' attributes dbUniquename,objectNumber,hitcount,misscount,cachedSize"

A second script would be used to execute the first script and send the output to a file:

/home/oracle/bin/cellcli_flashcache_mon_nohdrs.sh $1 > /home/oracle/ext_tbls/flash_mon.txt

Chapter 4 ■ Smart FlaSh CaChe

66

The database name of interest is passed to the second script on the command line. The generated file can then be

used to create an external table, which can be joined to the DBA_OBJECTS view to report Smart Flash Cache activity

by object name. As an example:

SQL> create or replace directory admin_dat_dir as '/home/oracle/ext_tbls';

Directory created.

SQL> create or replace directory admin_log_dir as '/home/oracle/logs';

Directory created.

SQL> create or replace directory admin_bad_dir as '/home/oracle/bad';

Directory created.

SQL>

SQL> CREATE TABLE flashmon_ext

2 (db_name varchar2(12),

3 object_id number,

4 hitct number,

5 missct number,

6 cachesz number

7 )

8 ORGANIZATION EXTERNAL

9 (

10 TYPE ORACLE_LOADER

11 DEFAULT DIRECTORY admin_dat_dir

12 ACCESS PARAMETERS

13 (

14 records delimited by newline

15 badfile admin_bad_dir:'flashmon_ext%a_%p.bad'

16 logfile admin_log_dir:'flashmon_ext%a_%p.log'

17 fields terminated by whitespace

18 missing field values are null

19 ( db_name, object_id, hitct, missct, cachesz

20 )

21 )

22 LOCATION ('flash_mon.txt')

23 )

24 PARALLEL

25 REJECT LIMIT UNLIMITED;

Table created.

SQL>

The first directory contains the text file generated from CellCLI and the LIST FLASHCACHECONTENT

command. The next two directories are for the logfile and badfile, which could be generated by SQL*Loader. Finally,

we create the external table. Because the text file shouldn’t change names or locations, generating a new file won’t

cause the external table to become invalid. Thus, the data can be refreshed at any time, and the external table will still

be usable.

Chapter 4 ■ Smart FlaSh CaChe

67

After the external table is created, it’s a simple task of writing the query to map object_name to object_id:

SQL> select f.db_name, o.object_name, f.hitct, f.missct, f.cachesz

2 from flashmon_ext f left outer join dba_objects o on (o.data_object_id = f.object_id);

DB_NAME OBJECT_NAME HITCT MISSCT CACHESZ

------------ ----------------------------------- ---------- ---------- ----------

DBM ICOL$ 407479 9163 40828928

DBM ICOL$ 425912 11731 59179008

DBM ICOL$ 575450 44509 31588352

DBM I_USER1 33 4 32768

DBM CON$ 159 60 32768

DBM CON$ 447 67 98304

DBM UNDO$ 49 2 32768

DBM C_COBJ# 4782 572 2129920

DBM C_COBJ# 9077 984 3178496

DBM C_COBJ# 8120 968 4358144

DBM I_OBJ# 2320 65 557056

DBM I_OBJ# 1323 17 327680

DBM I_OBJ# 1742 30 327680

DBM I_IND1 280 19 458752

DBM I_IND1 1160 44 196608

DBM I_IND1 1405 35 131072

DBM I_CDEF2 6150 516 425984

DBM I_CDEF2 1332 78 720896

DBM I_CDEF2 3483 210 2031616

DBM I_OBJ5 49088 2555 9732096

DBM I_OBJ5 16742 1144 8192000

...

In this example, the flashmon_ext table contains 16,202 rows, because data was collected across all three

available storage cells. This explains the apparent duplication of object names in the output; each storage cell can

cache the same object at the same time. Even though the object names may be duplicated, the cache size, hit count,

and miss count are usually different.

It is not unusual to find object_id values in the four billion range, and these object_ids won’t match to any object

in DBA_OBJECTS. One source of object_ids in that range would be the V$FIXED_TABLE and GV$FIXED_TABLE views;

however, none of the listed object_id values in the flashmon_ext table in that range matches any of those objects. In

the absence of global temporary tables, the objects in question are undo segments.

Database Server Tools

There isn’t much to see at the database layer, unfortunately. A single statistic, “cell flash cache read hits,” is all that is

available. As with the other metrics, this is cumulative, because the instance started as reported in V$SYSSTAT and for

the duration of the current session in V$MYSTAT. The easiest way to measure the Smart Flash Cache activity for a SQL

statement is to query V$MYSTAT before and after the statement is executed. Doing this in SQL*Plus offers the ability

to save the query results in variables for use after the statement has completed, as follows:

SQL> select statistic#, value

2 from v$mystat

3 where statistic# in (select statistic# from v$statname where name = 'cell flash cache read hits');

Chapter 4 ■ Smart FlaSh CaChe

68

STATISTIC# VALUE

---------- ----------

605 1

SQL>

SQL> select count(*)

2 from emp;

COUNT(*)

----------

7340032

SQL>

SQL> column val new_value endval

SQL>

SQL> select statistic#, value val

2 from v$mystat

3 where statistic# in (select statistic# from v$statname where name = 'cell flash cache read hits');

STATISTIC# VAL

---------- ----------

605 857

SQL>

SQL> select &endval - &beginval flash_hits

2 from dual;

FLASH_HITS

----------

856

SQL>

What a Performer

As part of the balanced I/O subsystem, the Smart Flash Cache provides measurable performance improvements

over non-Exadata systems. Cell single-block read times can regularly fall into the 1 millisecond or less range, which

compares favorably with non-Exadata systems using Solid State Disk (SSD). The major difference is Exadata’s ability to

process larger I/O loads and maintain this level of performance. Because Exadata is a balanced system, with matched

and tuned components, performance won’t suffer until the physical limits of CPU and/or memory are reached.

Chapter 4 ■ Smart FlaSh CaChe

69

Things to Know

Smart Flash Cache provides the ability to deliver high I/O-per-second rates by caching frequently accessed table and

index blocks, allowing them to be read directly from flash memory.

The Smart Flash Cache is composed of 4 Sun Flash PCIe cards per storage cell, each with 96GB of flash storage.

For an Exadata system with 3 storage cells, the total flash storage available is 1.125TB. The expected lifetime of these

PCIe cards is two years, because the storage capacitor will lose its ability to hold a charge over time. According to

Sun, the cards can be replaced individually, without shutting down the storage cell. Oracle, however, recommends a

storage cell to be powered down before any maintenance.

The Smart Flash Cache is a per-cell caching mechanism, optimized for frequently accessed data. Whether an

object will be considered for Smart Flash Cache use is determined in part by the CELL_FLASH_CACHE storage

parameter set when that object is created.

Write operations are not affected by this caching. CELLSRV performs the disk writes, sending acknowledgment

to the database tier, so transactions can continue without interruption. The Smart Flash Cache then determines if the

data is to be cached or not, making the disk writes independent of the data-caching process.

An in-memory hash table is maintained of the cached data, so Oracle can quickly determine if the desired blocks

can be found there. The hash table lists the blocks not marked for eviction, so when a match is found, a cache lookup

can be executed.

Cached blocks may be evicted when the source blocks have changed since the cached data was written, space

is needed for I/O from a current transaction, the blocks are tagged as KEEP but have remained unused beyond the

additional KEEP threshold, or when their lifetime has exceeded the standard LRU thresholds.

Each configured flash disk has 32MB of its storage configured as Smart Flash Log; this totals 512MB of Smart

Flash Log storage per storage cell. Redo log writes are sent to both disk and the Smart Flash Log. Once the log writer

process (LGWR) receives an acknowledgment that a write is completed, either to the redo log or the Smart Flash Log

area, transaction processing continues.

A flash disk group can be created using the flash disks on one or more storage cells; doing so requires resizing

the existing Smart Flash Cache. One or more sets of flash disks can be created by reconfiguring the Smart Flash Cache

on only one storage cell, two storage cells, or all of the available storage servers. The redundancy level chosen will

determine the useable storage available; the maximum will be one-half the total space available, with the minimum

being one-third of the total available space.

Monitoring the Smart Flash Cache from the storage cells provides a greater range of metrics than monitoring it

from the database servers. One metric, “cell flash cache read hits,” is the only indicator of flash cache activity on the

database tier. The storage cells provide more than 30 metrics recording Smart Flash Cache activity, but, unfortunately,

each cell has to be monitored individually. It’s possible to script the storage-cell monitoring and populate an external

table in the database, so that object names, in place of object ids, can identify the cached segments.

Some cached segments cannot be mapped to an object name. UNDO segments may be found in the Smart Flash

Cache, with object id values greater than four billion.

71

Chapter 5

Parallel Query

Unlike other areas of Exadata, parallel query execution uses the same Oracle Release 11.2 functionality as non-Exadata

systems. Because Exadata is, at its heart, a data-warehousing system, and efficient handling and processing of

data-warehouse workloads was a primary design goal, parallel query processing is an important feature. Remember

that Smart Scans and offloading rely on direct-path reads, the same read functionality that is used by parallel query

slaves. In Release 11.2, Oracle has provided three improvements to the earlier attempts at controlling parallel

execution. These improvements, along with the processing power of Exadata, make this feature more manageable,

more scalable, and less likely to saturate server resources, such as memory and CPU, than earlier releases of the

database. The first of those improvements that we will discuss is parallel statement queuing.

Getting into the Queue

Parallel query has been available in Oracle releases since version 7, and, when used with care, can significantly

improve statement performance. On the other hand, when overused, it can bring the database server to its knees.

Multiple users, all choosing parallel execution, can saturate CPU resources to the point that the benefits of parallel

query become the curse of parallel query. Until Release 11.2, there was no way to control parallel execution by

multiple users on the same system. That changed with parallel statement queuing. This was implemented because

Exadata is a system designed to handle mixed workloads, allowing both data-warehouse and Online Transaction

Processing applications to run and ensuring that neither suffers at the hands of the other. With parallel statement

queuing, Exadata has a way to both separate the different types of workloads and also “rein in” parallel statements

that otherwise would be too resource-intensive for a multiuser system.

Old School

To give some perspective on how parallel statement queuing has improved parallel query performance, it is necessary

to examine the tool Oracle provided to manage this feature in earlier releases. The parallel_adaptive_multi_user

parameter is quite a powerful tool, but it can create varying performance by deciding, at runtime, whether to

parallelize a statement or not. It also determines how many slaves should be employed for a parallelized query. With

this mechanism, the parallelism can go down dramatically, depending on the system resources in use at the moment

the decision is made, which is the time the execution starts.

Statements can go from having 16 or more parallel slaves for one execution to having absolutely none the next

time the same statement is executed. Remember that once the degree of parallelism (DOP) is set, it cannot be altered;

the statement must run to completion at the assigned DOP, which may be one. The statement also cannot benefit

from resources freed during its execution; if ten parallel query slaves become available during the serial execution of

that statement, they cannot be repurposed to provide a higher DOP and, as a result, a shorter execution time.

As an example, you have a statement that was assigned 24 parallel query slaves the last time it was run, with a

resulting execution time of 1 minute. A short spike in activity occurs at the time this statement starts its next execution,

CHAPTER 5 ■ PARALLEL QUERY

72

downgrading it to a serial operation. Several seconds later, this spike is over; the statement is stuck, executing serially

for possibly 24 minutes or longer. With no apparent rhyme or reason for this seemingly erratic behavior (from

the user’s perspective), such inconsistent performance can make for unhappy users and very confused, unhappy

developers.

The New Method

Parallel adaptive multi user was a good start at controlling parallel execution, based on available resources, but

version 11.2 introduces parallel statement queuing to the mix, allowing parallel execution to be placed on hold, until

sufficient resources become available.

Note ■ It is best to set parallel_adaptive_multi_user to FALSE to prevent these two features from conflicting with

each other. When both are enabled, we have seen parallel queries take much longer to execute.

How it works is simple, really. Enable the feature by setting parallel_degree_policy to AUTO. Next, set

parallel_servers_target to the number of parallel slaves you want. The easy part is that you run your queries;

Oracle takes care of the rest for you. In basic terms, a statement will be queued if it will require more parallel slaves

than there are currently available. Once the required number of slaves are freed, the statement executes.

The V$SQL_MONITOR and GV$SQL_MONITOR views report on the execute status of submitted statements;

basically, these views report that a statement is DONE (in some form), EXECUTING, or, if parallel statement queuing

is enabled, QUEUED. Given that information, it isn’t difficult to see which statements are waiting in the parallel

statement queue. The standard EMP table from the demobld.sql script was used, although it was loaded with a very

large number of records:

SQL> select count(*)

2 from emp;

COUNT(*)

-------------

15032385536

SQL>

We chose to select the average salary from our large version of the EMP table from 12 different sessions. We

then queried V$SQL_MONITOR to see how many of those sessions ended up in the queue. The query produced the

following output:

SQL> select sid, sql_id, sql_exec_id, sql_text

2 from v$sql_monitot monitor

3 where status = 'QUEUED'

4 order by 3;

SID SQL_ID SQL_EXEC_ID SQL_TEXT

---------- ------------- ----------- ------------------------------------

1532 5du23va3p3ad0 16777216 select avg(sal) from emp

1059 5du23va3p3ad0 16777217 select avg(sal) from emp

1628 5du23va3p3ad0 16777218 select avg(sal) from emp

865 5du23va3p3ad0 16777219 select avg(sal) from emp

CHAPTER 5 ■ PARALLEL QUERY

73

205 5du23va3p3ad0 16777220 select avg(sal) from emp

2199 5du23va3p3ad0 16777221 select avg(sal) from emp

1542 5du23va3p3ad0 16777222 select avg(sal) from emp

159 5du23va3p3ad0 16777223 select avg(sal) from emp

1888 5du23va3p3ad0 16777224 select avg(sal) from emp

1234 5du23va3p3ad0 16777225 select avg(sal) from emp

705 5du23va3p3ad0 16777226 select avg(sal) from emp

11 rows selected.

SQL>

The sql_exec_id is, basically, a run number indicating the statement’s position in the queue. It is also possible

for the sql_exec_id to be the same for all queued statements (indicating simultaneous execution), if the sum of the

parallel resources required for execution doesn’t exceed the maximum available for the database.

Control Issues

There may be times when you want to have some control over parallel statement queuing behavior. If you simply turn

it on and let it run, it’s a first-in, first-out (FIFO) queue. It’s possible to bypass the queue using a hint. It’s also possible

to use parallel statement queuing, even if the feature isn’t enabled at the database level.

Two parameters are available that can affect parallel statement queuing, and the foremost of those is parallel_

servers_target. The value for this parameter sets the number of parallel server processes Oracle can run before placing

statements in the queue. There is a formula for computing the default value, as follows:

((4*cpu_count)*parallel_threads_per_cpu)*active number of instances

Given an Exadata X3-2 with the following settings:

cpu_count 24

parallel_threads_per_cpu 4

and two active instances, the default setting would be computed as follows:

((4*24)*4)*2 = 768

This is a value that is much higher than you’d ever want to set; the calculation, as written, will compute a value

intended to utilize all of the available resources for parallel query processes. Also, a setting that high would seriously

impact OLTP transactions, as they could possibly starve, should a long-running, resource-intensive parallel query

commandeer the available CPU and memory.

Like pga_aggregate_target, this parameter sets a target value, not a limit. There can be more parallel server

processes running than the parameter initially configures. This can occur because the number of parallel slaves assigned

to a statement may be up to twice the DOP setting. As an example, a system has parallel_servers_target set to 4 and Auto

DOP set a degree of parallelism of 4. The statement could have up to 8 parallel query processes attached to it, which is

greater than the target setting. Parallel query processes are assigned, in part, based on available resources, so occasionally,

exceeding the parallel_servers_target setting isn’t a problem. The statement may end up in the parallel statement queue,

but it won’t fail to run, because it’s using more parallel query slaves than parallel_servers_target would lead you to

believe are allowed.

The second parameter to affect parallel statement queuing is a hidden parameter, _parallel_statement_queuing.

The values for this parameter are TRUE and FALSE, with TRUE being the default setting when parallel_degree_policy

is set to AUTO. It can be set independently of parallel_degree_policy, to enable and disable this feature.

CHAPTER 5 ■ PARALLEL QUERY

74

Even when parallel statement queuing is active it’s possible to bypass the queue entirely, with a hint. The

NO_STATEMENT_QUEUING hint allows you to immediately execute parallel queries that otherwise would have been

placed into the queue. Checking the queue for them is fruitless, as they do not appear with a status of “QUEUED.”

Querying V$SQL/GV$SQL joined to V$SESSION/GV$SESSION will reveal that they are, indeed, running. Not only do

they jump the queue, they also can spawn parallel query slaves in excess of the setting for parallel_servers_target.

If you don’t have parallel statement queuing enabled, you can still use it with another hint: STATEMENT_

QUEING. This will queue statements, should parallel resoures be scarce at the time the statement starts execution.

Necessary Settings

In addition to parallel statement queuing (which we just covered), Oracle has provided automatic degree of

parallelism (Auto DOP) and in-memory parallel execution. All three are enabled when parallel_degree_policy

is set to AUTO. Auto DOP allows the database to calculate the degree of parallelism on a query-by-query basis; we

will discuss this in more detail in a separate section. This is the one improvement that requires a bit of effort to get

working, as Oracle won’t activate this feature, if the I/O system has not been calibrated.

We will discuss I/O calibration in more detail later on in this chapter. For now, you should know that it’s not a task

to be executed during business hours.

I/O calibration is just one part of parallel query processing configuration; several database initialization

parameters control some aspect of parallel query execution. These parameters, their settings, and which features or

aspects of parallel query execution they affect are listed in Table 5-1.

Table 5-1. Parameters Affecting Parallel Query Execution

Name Default Description

parallel_adaptive_multi_user TRUE Enable adaptive setting of degree for multiple-user streams.

parallel_automatic_tuning FALSE Enable intelligent defaults for parallel execution parameters.

parallel_degree_limit CPU Limit placed on degree of parallelism. Values range from CPU,

I/O, and an integer value of 2 or greater.

parallel_degree_policy MANUAL Policy used to compute the degree of parallelism (MANUAL/

LIMITED/AUTO).

parallel_execution_message_size 16384 Message buffer size for parallel execution.

parallel_force_local FALSE Force single-instance execution.

parallel_instance_group Instance group to use for all parallel operations. Can restrict

parallel operations to a subset of the RAC instances available.

parallel_io_cap_enabled FALSE Enable capping of DOP by I/O bandwidth.

parallel_max_servers 240 Maximum parallel query servers per instance.

parallel_min_percent 0 Minimum percent of threads required for parallel query.

parallel_min_servers Minimum parallel query servers per instance.

parallel_min_time_threshold AUTO Threshold above which a plan is a candidate for parallelization

(in seconds). Can also be set to a numeric value, including 0.

parallel_servers_target 240 Instance target in terms of number of parallel servers.

parallel_threads_per_cpu 2 Number of parallel execution threads per CPU. Used in various

parallel query computations.

CHAPTER 5 ■ PARALLEL QUERY

75

Parallel statement queuing and in-memory_parallel execution rely on the parallel_servers_target and the

parallel_min_time_threshold parameter settings. We have discussed parallel statement queuing at the beginning of

this chapter; in-memory parallel execution will be discussed in its own section.

My Friend Auto

Auto DOP is a change in parallel operations introduced in Oracle Release 11.2. In prior releases of the database, parallel

operations relied on hints at the query level or on the DEGREE and INSTANCES settings for the object in use. It is an

unfortunate reality that a single DOP setting is rarely appropriate for all queries, at all times, for a given object. Arriving

at usable values for the DOP that makes the query execution more efficient than serial execution and doesn’t adversely

impact other queries and statements is a time-consuming trial-and-error process. It requires the development team to

understand the platform in use and the workload that the system will be experiencing when the statement is executed.

Another issue with the DOP: it cannot change during statement execution. Auto DOP was designed to overcome such

problems, and it’s done its job admirably.

Calibrate Me

Auto DOP, when enabled and activated, causes Oracle to evaluate each statement, to determine if it should run in

parallel. The DOP is set once this decision has been made.

Note ■ It is important to note that simply enabling Auto DOP doesn’t get it working; it needs to be activated by running

an I/O calibration in each database where you want Auto DOP available.

The optimizer evaluates serial execution time and, in general, if that estimated time exceeds the setting for

parallel_min_time_threshold, the statement will be executed in parallel. By default, this parameter is set to AUTO,

providing a threshold value of 10 seconds. This parameter can be altered at the system level or at the session level, to

implement a lower or higher parallel triggering threshold.

A supplied package, DBMS_RESOURCE_MANAGER, provides the CALIBRATE_IO procedure that is used to

generate a random read-only workload across all RAC instances on the cluster. The procedure takes five parameters,

two input values (number of disks and maximum estimated disk latency), and three output variables to receive the

computed values for maximum I/Os per second, the maximum megabytes per second, and the calculated latency.

An anonymous PL/SQL block can be used to call the procedure and return the computed metrics, as follows:

Set serveroutput on size 1000000

Declare

Calc_lat number;

Calc_iops number;

Calc_mbps number;

Begin

Dbms_resource_manager.calibrate_io(&dsks,&maxlat, Calc_iops, Calc_mbps, Calc_lat);

Dbms_output.put_line('Max IOPS : '||Calc_iops);

Dbms_output.put_line('Max mbytes-per-sec: '||Calc_mbps);

Dbms_output.put_line('Calc. latency : '||Calc_lat);

End;

/

CHAPTER 5 ■ PARALLEL QUERY

76

As stated earlier in the chapter, before Auto DOP is activated, the I/O system has to be calibrated. This must be

done for each different database running on the Exadata system.

Note ■ It cannot be stressed enough that I/O calibration is a resource-intensive operation and should not be run on a

system experiencing heavy workloads. This is an “after-hours” operation that will take about 15 minutes or more to run.

Your patience will be rewarded when Auto DOP is functional.

A view, V$IO_CALIBRATION_STATUS, reports whether or not this calibration has been run. A database in need of

calibration will show these results when V$IO_CALIBRATION_STATUS is queried:

SQL> select *

2 from v$io_calibration_status;

STATUS CALIBRATION_TIME

------------- -----------------------------------------------------------

NOT AVAILABLE

SQL>

Queries that would be executed in parallel on calibrated systems run serially on databases that have not had I/O

calibration run. The execution plan returns an informative message about the Auto DOP calculations, immediately

visible after query execution when autotrace is enabled:

SQL> select count(*)

2 from dba_objects

3 /

COUNT(*)

----------

369952

Execution Plan

----------------------------------------------------------

Plan hash value: 3660875064

-----------------------------------------------------------------------------------------------

-----------------------------------------------------------------------------------------------

| 0 | SELECT STATEMENT | | 1 | | 1099 (2)| 00:00:14 |

| 1 | SORT AGGREGATE | | 1 | | | |

| 2 | VIEW | DBA_OBJECTS | 320K| | 1099 (2)| 00:00:14 |

| 3 | UNION-ALL | | | | | |

|* 4 | FILTER | | | | | |

|* 5 | HASH JOIN | | 320K| 21M| 1092 (2)| 00:00:14 |

| 6 | INDEX FULL SCAN | I_USER2 | 845 | 3380 | 5 (0)| 00:00:01 |

|* 7 | HASH JOIN | | 320K| 20M| 1085 (2)| 00:00:14 |

| 8 | INDEX FULL SCAN | I_USER2 | 845 | 18590 | 5 (0)| 00:00:01 |

|* 9 | TABLE ACCESS STORAGE FULL| OBJ$ | 320K| 13M| 1078 (2)| 00:00:13 |

| 10 | NESTED LOOPS | | 1 | 30 | 4 (0)| 00:00:01 |

|* 11 | INDEX RANGE SCAN | I_OBJ4 | 1 | 10 | 3 (0)| 00:00:01 |

CHAPTER 5 ■ PARALLEL QUERY

77

|* 12 | INDEX RANGE SCAN | I_USER2 | 1 | 20 | 1 (0)| 00:00:01 |

|* 13 | HASH JOIN | | 29 | 232 | 7 (15)| 00:00:01 |

| 14 | INDEX FULL SCAN | I_LINK1 | 29 | 116 | 1 (0)| 00:00:01 |

| 15 | INDEX FULL SCAN | I_USER2 | 845 | 3380 | 5 (0)| 00:00:01 |

--------------------------------------------------------------------------------------------

---

Predicate Information (identified by operation id):

---------------------------------------------------

4 - filter("O"."TYPE#"<>4 AND "O"."TYPE#"<>5 AND "O"."TYPE#"<>7 AND "O"."TYPE#"<>8

AND "O"."TYPE#"<>9 AND "O"."TYPE#"<>11 AND "O"."TYPE#"<>12 AND "O"."TYPE#"<>13 AND

"O"."TYPE#"<>14 AND "O"."TYPE#"<>22 AND "O"."TYPE#"<>87 AND "O"."TYPE#"<>88 OR

BITAND("U"."SPARE1",16)=0 OR ("O"."TYPE#"=4 OR "O"."TYPE#"=5 OR "O"."TYPE#"=7 OR

"O"."TYPE#"=8 OR "O"."TYPE#"=9 OR "O"."TYPE#"=10 OR "O"."TYPE#"=11 OR "O"."TYPE#"=12

OR "O"."TYPE#"=13 OR "O"."TYPE#"=14 OR "O"."TYPE#"=22 OR "O"."TYPE#"=87) AND

("U"."TYPE#"<>2 AND SYS_CONTEXT('userenv','current_edition_name')='ORA$BASE' OR

"U"."TYPE#"=2 AND "U"."SPARE2"=TO_NUMBER(SYS_CONTEXT('userenv','current_edition_id'))

OR EXISTS (SELECT 0 FROM SYS."USER$" "U2",SYS."OBJ$" "O2" WHERE "O2"."TYPE#"=88 AND

"O2"."DATAOBJ#"=:B1 AND "U2"."TYPE#"=2 AND "O2"."OWNER#"="U2"."USER#" AND

"U2"."SPARE2"=TO_NUMBER(SYS_CONTEXT('userenv','current_edition_id')))))

5 - access("O"."SPARE3"="U"."USER#")

7 - access("O"."OWNER#"="U"."USER#")

9 - storage("O"."LINKNAME" IS NULL AND "O"."TYPE#"<>10 AND

BITAND("O"."FLAGS",128)=0 AND "O"."NAME"<>'_NEXT_OBJECT' AND

"O"."NAME"<>'_default_auditing_options_')

filter("O"."LINKNAME" IS NULL AND "O"."TYPE#"<>10 AND BITAND("O"."FLAGS",128)=0

AND "O"."NAME"<>'_NEXT_OBJECT' AND "O"."NAME"<>'_default_auditing_options_')

11 - access("O2"."DATAOBJ#"=:B1 AND "O2"."TYPE#"=88)

12 - access("O2"."OWNER#"="U2"."USER#" AND "U2"."TYPE#"=2 AND

"U2"."SPARE2"=TO_NUMBER(SYS_CONTEXT('userenv','current_edition_id')))

filter("U2"."SPARE2"=TO_NUMBER(SYS_CONTEXT('userenv','current_edition_id')))

13 - access("L"."OWNER#"="U"."USER#")

Note

-----

- automatic DOP: skipped because of IO calibrate statistics are missing

Statistics

----------------------------------------------------------

17 recursive calls

2 db block gets

4788 consistent gets

4772 physical reads

0 redo size

528 bytes sent via SQL*Net to client

524 bytes received via SQL*Net from client

2 SQL*Net roundtrips to/from client

0 sorts (memory)

0 sorts (disk)

1 rows processed

SQL>

CHAPTER 5 ■ PARALLEL QUERY

78

Running the calibration process is simple and straightforward, and we pass to our script the number of disks and

an expected latency of 10. The procedure returns the actual latency, along with the maximum IOPs and the maximum

megabytes per second the storage system can support:

SQL> @calibrate_io

Enter value for dsks: 36

Enter value for maxlat: 10

old 7: dbms_resource_manager.calibrate_io (&dsks, &maxlat, Calc_iops, Calc_mbps, Calc_lat);

new 7: dbms_resource_manager.calibrate_io (36, 10, Calc_iops, Calc_mbps, Calc_lat);

Max IOPS : 1022

Max mbytes-per-sec: 2885

Calc. latency : 11

PL/SQL procedure successfully completed.

Elapsed: 00:07:10.57

SQL>

Once this calibration has completed, a query of V$IO_CALIBRATE_STATUS reports a different result than it did

previously:

SQL> select *

2 from v$io_calibration_status;

STATUS CALIBRATION_TIME

------------- -----------------------------------------------------------

READY 08-APR-13 11.24.49.977 AM

SQL>

If you query V$IO_CALIBRATION_STATUS during an I/O calibration run, the view will report results similar to the

following output:

SQL> select *

2 from v$io_calibration_status;

STATUS CALIBRATION_TIME

------------- -----------------------------------------------------------

IN PROGRESS 01-APR-12 09.34.13.083 AM

SQL>

The CALIBRATION_TIME value reported will be from the previous run; it’s the IN PROGRESS status that lets you

know that I/O calibration is running.

Querying DBA_RSRC_IO_CALIBRATE reveals all the current calibration statistics recorded after a completed run:

SQL> select num_physical_disks, max_iops, max_mbps, max_pmbps, latency

2 from dba_rsrc_io_calibrate;

NUM_PHYSICAL_DISKS MAX_IOPS MAX_MBPS MAX_PMBPS LATENCY

------------------ ---------- ---------- ---------- ----------

36 1022 2885 289 11

SQL>

CHAPTER 5 ■ PARALLEL QUERY

79

After I/O calibation has been successfully completed, if the query or statement in question meets or exceeds

the serial execution time represented by the parallel_min_time_threshold parameter, then Auto DOP will set the

degree of parallelism, regardless of whether any of the objects are explicitly set for parallel execution. You may find

that once I/O calibration is completed, some tasks may take longer to complete because they are queued. This may

occur because the parallel resources allocated may not be sufficient for all the queries and statements that qualify for

parallel execution. There is a Metalink Note, document id 1393405.1, that explains how to delete the I/O calibration

statistics. In summary, there is a single table, RESOURCE_IO_CALIBRATE$, that the two views are based on. Deleting

the data from this table clears the I/O calibration statistics, so that Auto DOP will no longer function. Statements in the

queue at the time the statistics are deleted will remain in the queue until executed; no additional statements will be

queued after the I/O calibration statistics are deleted. This is not as drastic a measure as it may appear at first, because

DBMS_RESOURCE_MANAGER.CALIBRATE_IO deletes any existing I/O calibration values before it generates the

current statistics, using this same statement, as a portion of the tkprof output shows:

SQL ID: bzhku92rujah0 Plan Hash: 256968859

delete from resource_io_calibrate$

call count cpu elapsed disk query current rows

------- ------ -------- ---------- ---------- ---------- ---------- ----------

Parse 1 0.01 0.00 0 0 0 0

Execute 1 0.00 0.00 0 1 0 0

Fetch 0 0.00 0.00 0 0 0 0

------- ------ -------- ---------- ---------- ---------- ---------- ----------

total 2 0.01 0.00 0 1 0 0

Misses in library cache during parse: 1

Optimizer mode: ALL_ROWS

Parsing user id: SYS (recursive depth: 1)

Number of plan statistics captured: 1

Rows (1st) Rows (avg) Rows (max) Row Source Operation

---------- ---------- ---------- ---------------------------------------------------

0 0 0 DELETE RESOURCE_IO_CALIBRATE$ (cr=1 pr=0 pw=0 time=26 us)

0 0 0 TABLE ACCESS FULL RESOURCE_IO_CALIBRATE$ (cr=1 pr=0 pw=0 time=21

us cost=2 size=0 card=1)

********************************************************************************

Make It So

I/O calibration isn’t the only factor in enabling Auto DOP, as the parameter parallel_degree_policy must be set to

AUTO or LIMITED. By default, it is set to MANUAL, which disables the three parallel features of Oracle Release 11.2: Auto

DOP, parallel statement queuing, and in-memory parallel execution. The three available settings, and their effects on

these features, are listed in Table 5-2.

CHAPTER 5 ■ PARALLEL QUERY

80

Another parameter, this one “hidden,” that affects one of the new features is _parallel_statement_queueing.

When set to TRUE (the default), queuing is enabled, which allows Oracle to decide if a parallel statement can be

executed at runtime or if it needs to wait in the queue until sufficient resources are available. And yet another “hidden”

parameter, _parallel_cluster_cache_policy, controls whether in-memory parallel execution is available or not.

A setting of cached enables this feature. On Exadata, this feature can be less useful; when it is enabled, the Smart Scan

optimizations will not be available when the buffer cache is scanned. It’s a choice of whether to use the full power of

Smart Scans against the buffer cache or use in-memory parallel execution. This primarily applies to data warehouse

workloads, as OLTP processes rarely require parallel processing. You should be aware, though, that Smart Scans

accessing the buffer cache can be affected when in-memory parallel execution is configured.

With parallel_degree_policy set to AUTO, it doesn’t matter if objects are created with a DEGREE greater than one,

as the database decides which statements to run in parallel, how many parallel slaves to execute, and even how many

RAC nodes to involve in the process. This is the beauty and power of Auto DOP.

Do It in Memory

The third parallel feature, in-memory parallel execution, can improve query performance when Smart Scans are not

used. It is designed to use the buffer cache, is cluster aware, and can utilize all available RAC nodes. It is enabled

when parallel_degree_policy is set to AUTO. Other parameters that can affect In-memory parallel execution are

parallel_servers_target, pzrallel_min_time_threshold, parallel_degree_limit, and parallel_degree_policy.

Low values for parallel_servers_target, parallel_degree_limit, and parallel_min_time_threshold make it

more likely for in-memory parallel execution to run. Additionally, the parallel_force_local parameter can be set to

TRUE to reduce the available parallel resources to only those on the local server that can also favor in-memory parallel

execution. Non-parallel parameters that affect this improvement are sga_max_size and sga_target, which control the

buffer cache size, among other areas of the SGA. Larger cache sizes can accommodate larger tables in memory, which

can also make it more likely for this feature to run. Setting these parameters to low values can’t guarantee that this

feature will run, but you may have a better chance of using it, if you scale back these settings.

While it is true that memory is much faster than disk, a Smart Scan is designed to be fast and efficient when

accessing data on disk. Column Projection and Predicate Filtering greatly reduce the volume of data processed by the

database tier, speeding the query along. But if all of the data could be loaded and processed in memory, the execution

time would be a fraction of the time it would take to process the same volume of data read from disk.

There are benefits to in-memory parallel execution.

Physical I/O is essentially eliminated.•

Traffic between the database servers and the storage cells is eliminated.•

There is far lower latency for memory, as compared to either disk or flash storage.•

Table 5-2. How parallel_degree_policy Settings Affect Parallel Execution

Setting Effect

MANUAL Disables all three new parallel query features. Causes parallel processing reverts to the behavior of prior

releases, parallelizing statements only if they are hinted or the object being queried is created with or

altered to have a DEGREE greater than the default of 1.

LIMITED Only Auto DOP is enabled with this setting; the remaining two new parallel features are disabled. With

this setting, only queries against objects associated with a DEGREE of DEFAULT will be considered.

AUTO All three new parallel features are enabled. Queries and statements will be evaluated for parallel

execution, regardless of the DEGREE setting on the object or objects accessed.

CHAPTER 5 ■ PARALLEL QUERY

81

These benefits cannot be taken alone, however, because the available resources of CPU and memory have to be

considered. Functions that would be offloaded to the storage cells (data filtering and data decompression) during

Smart Scan execution fall to the database servers to perform. This can increase the CPU cycles required to process

data, and without the additional CPUs and memory of the storage servers, it can put a strain on database server

performance. There is a chance that you will have these resources to spare, and an equally likely chance that you do

not. Whether or not to use this feature is a decision only you can make, after carefully considering all the facts.

None of the Exadata systems we have worked on use in-memory parallel execution. This is likely a good thing,

if the majority of queries use Smart Scans, because, as mentioned previously, none of the Smart Scan optimizations

are available. Yes, it would eliminate disk I/O, but it also eliminates the extra CPUs the storage servers would provide

for data filtering, decompression, and other operations. Even though it looks good in concept, on an Exadata system,

using in-memory parallel execution could be less efficient than using a Smart Scan, because, in a Smart Scan, the

storage servers share the workload and reduce the volume of data the database tier processes. In addition, queries

that would see the greatest benefit would be those that normally wouldn’t use a Storage Index, placing the entire

table into memory. On Exadata systems where a good number of queries and statements don’t use Smart Scans, and

the tables are sized to fit entirely in the buffer cache, in-memory parallel execution could improve performance by

eliminating disk I/O (in the form of physical reads), in favor of memory access (by using logical reads).

As noted earlier, when parallel_degree_policy is set to AUTO, all three of the parallel features are enabled.

If you want to disable in-memory parallel execution, this can be done in one of two ways: either by setting

parallel_degree_policy to MANUAL (a setting that disables all of the features) or by setting a hidden parameter,

_parallel_cluster_cache_policy, to ADAPTIVE, which preserves availability of the Auto DOP and parallel statement

queuing features. When Auto DOP is active, _parallel_cluster_cache_policy will be set to CACHED.

In-memory parallel execution is not the easiest feature to get to work on Exadata. We have yet to get it to

function on our systems, even when setting unusually low thresholds for parallel_min_time_threshold,

parallel_servers_target, and parallel_degree_limit. It also requires that an entire table fit into the buffer cache,

which is not an easy accomplishment. Add to that the fact that the database servers are performing all the work,

without the assistance of a Smart Scan to eliminate possibly large volumes of data, and it may be that a Smart Scan is

really a better path to take. Again, the decision is one only you can make, after considering all aspects of both Smart

Scan and in-memory parallel execution and the current workload on your system.

Things to Know

Parallel query processing is not exclusive to Exadata; it uses the same functionality available to any installation of

Oracle 11.2. What makes it especially beneficial to Exadata is the fact that Exadata was designed, in the beginning, to

support data warehousing, where parallel processing is utilized frequently.

There are three new features of parallel query processing that change how parallel queries perform. These are

automatic degree of parallelism (Auto DOP), parallel statement queuing, and in-memory parallel processing. Of the

three, the first two provide the greatest benefit to Exadata.

Auto DOP does just what its name suggests: it computes the degree of parallelism automatically based on available

resources and system load. It is not enabled by default. An initialization parameter, parallel_degree_policy, must

be set to AUTO or LIMITED to enable Auto DOP. By default, this parameter is set to MANUAL. When this parameter is set to

AUTO, then all three new parallel query features are enabled.

I/O calibration is a must to get Auto DOP to function, and a provided procedure, DBMS_RESOURCE_MANAGER.

CALIBRATE_IO, is used to generate and record the calibration data. Although it’s fairly simple to execute, it is a

time-consuming and resource-intensive operation and should not be attempted on a heavily used system.

I/O calibration results are visible in the V$IO_CALIBRATION_STATUS and DBA_RSRC_IO_CALIBRATE views.

The results are stored in the RESOURCE_IO_CALIBRATE$ table. When a query to V$IO_CALIBRATION_STATUS returns a

status of NOT AVAILABLE, this indicates that I/O calibration has not been run. A status of COMPLETED, along with the

completion date, proves the existence of valid calibration data.

CHAPTER 5 ■ PARALLEL QUERY

82

There may be performance issues after enabling Auto DOP, such as queries taking a longer overall time to

complete. It is possible to delete the I/O calibration statistics by deleting from the RESOURCE_IO_CALIBRATE$ table.

This is not as drastic an action as it may first appear, as the DBMS_RESOURCE_MANAGER.CALIBRATE_IO procedure first

executes this delete before generating new calibration data.

Parallel statement queuing is enabled through the following initialization parameters:

parallel_degree_policy

parallel_servers_target

Remember that setting parallel_degree_policy to AUTO enables all three new parallel query features, which is

the only way to enable parallel statement queing. The parallel_servers_target should be set to the desired number

of parallel slaves, which should be allowed. It is not, however, a hard limit, as this setting can be exceeded in some

cases, because Auto DOP can set a number of parallel slaves, which is double the assigned DOP. It is not a common

occurrence, so it’s not an issue, should it happen.

The V$SQL_MONITOR and GV$SQL_MONITOR views record which statements are in the parallel statement queue.

A status of QUEUED indicates which statements are waiting in the statement queue. In addition to reporting which

statements are in the queue, these views also record the SQL_EXEC_ID, which indicates the order in which the queued

statements will be executed. Normally, this is sequentially assigned, but if several of the queued statements can be

executed in parallel simultaneously, the SQL_EXEC_ID can show the same value for several entries.

It is possible to control parallel statement queuing. Changing the value for parallel_servers_target affects when

statements will be queued. A low value for parallel_servers_target can cause more statements to be queued, as the

available parallel query resources have been reduced. Increasing this value can allow more statements to process

before the queue is populated. Another way to control queuing is through hints. Parallel statement queuing can be

bypassed for a statement, if the NO_STATEMENT_QUEUING hint is used. The hinted statement will bypass the statement

queue, if the available resources are low enough to have caused it to be placed there and run immediately at the

computed DOP. This is one case when the value for parallel_servers_target can be exceeded.

If parallel statement queuing is not enabled, by setting parallel_degree_policy to LIMITED or MANUAL or by

setting the hidden parameter _parallel_statement_queuing to FALSE, selected statements can still be queued, using

the STATEMENT_QUEUING hint. Using this hint causes Oracle to behave as though parallel statement queuing is enabled,

but only affects statements that utilize this hint. This is useful when you want parallel statement queuing enabled only

for statements you choose to queue if their parallel execution would impede the processing of other statements that

are more important to the business.

In-memory parallel execution is the third new feature, and it’s probably not one that most queries on Exadata

would utilize. There is both good and bad to this feature. The good is the elimination of disk I/O, traffic between

the database servers and the storage cells, and the fact that memory has a far lower latency than either disk or flash

storage. The bad, on Exadata, is that because the disk I/O is eliminated, the Smart Scan optimizations are no longer

available, the database servers must do all of the work of filtering and decompressing data, and the number of

available CPUs diminishes as the storage servers are no longer involved in the query processing.

In-memory parallel execution can be disabled either by setting another hidden parameter, _parallel_cluster_

cache_policy, to ADAPTIVE or by setting parallel_degree_policy to MANUAL, which turns off all of the new parallel

query features.

In-memory parallel execution is rarely found on Exadata systems. It may be possible to have a query that would

benefit more from in-memory parallel execution than by using a Smart Scan, but we haven’t seen that happen on

Exadata systems we support.

83

Chapter 6

Compression

Oracle Release 11.2 offers Advanced Compression, a way to reduce the overall size of your data by compressing

commonly occurring values and strings with tokens, mnemonics that can represent much larger strings and values.

Two types of compression are offered on systems not using Exadata-type storage: Basic and OLTP. Basic compression

is available without the Advanced Compression licensing. A third compression option, Hybrid Columnar

Compression (HCC), is available on Exadata systems and non-Exadata systems using Exadata-type storage. This is

offered in two basic levels: QUERY and ARCHIVE.

These compression options provide space savings, reducing table sizes to almost half the uncompressed size.

Of course, such features do not come without a price, and may not behave as you would expect them to. When used

with caution and care, storage requirements can be reduced, sometimes significantly. It’s knowing when to use

compression and which compression level to implement that makes this a valuable, usable feature.

How Can I Compress Thee

There are three general levels of compression: Basic, OLTP, and Hybrid Columnar Compression (which we will refer

to as HCC), available with Exadata. By far, the most aggressive of these is HCC, but it can throw in some surprises for

the uninitiated. Also, be aware that only one Advanced Compression option can be in use for a nonpartitioned table;

it can be OLTP or HCC but not both. Partitioned tables differ in that each partition can use different compression

methods. For example, the current partition, partitioned by date, can use OLTP compression to make updates and

inserts less time-consuming; partitions for the next six months can use QUERY LOW compression; and archive

partitions (those older than six months) can use ARCHIVE HIGH compression to allow space savings for partitions

that are no longer updated.

Basic

Basic compression is aptly named; it compresses table data simply and fairly quickly, resulting in considerable

space savings:

SQL> select segment_name, bytes

2 from user_segments;

SEGMENT_NAME BYTES

----------------------------------- ----------

DEPT 65536

SALGRADE 65536

DUMMY 65536

EMP 713031680

Chapter 6 ■ Compression

84

SQL> alter table emp move compress;

Table altered.

SQL> select segment_name, bytes

2 from user_segments;

SEGMENT_NAME BYTES

----------------------------------- ----------

DEPT 65536

SALGRADE 65536

DUMMY 65536

EMP 184549376

To affect the current data, as well as future inserts and updates, we have to move the table and compress it. A

simple alter table emp compress; would have set the table for compression, but the current data would have

remained unaffected, providing no immediate space savings. The move allowed Oracle to compress the existing data

in the table.

OLTP

OLTP compression is the first of the Advanced Compression options, which require separate licensing to use.

Unlike Basic compression, OLTP compression does provide for automatic compression after updates; however,

it’s performed in a batch-type operation on a block-by-block basis. It, too, can provide substantial savings on the

storage tier:

SQL> select segment_name, bytes

2 from user_segments;

SEGMENT_NAME BYTES

----------------------------------- ----------

EMP 721420288

DEPT 65536

SALGRADE 65536

DUMMY 65536

SQL> alter table emp move compress for oltp;

Table altered.

SQL> select segment_name, bytes

2 from user_segments;

SEGMENT_NAME BYTES

----------------------------------- ----------

EMP 201326592

DEPT 65536

SALGRADE 65536

DUMMY 65536

SQL>

Chapter 6 ■ Compression

85

The compressed size using OLTP compression is a bit larger than that for Basic compression, but you get the

added benefit of eventual recompression after updated blocks are filled. As updated blocks hit the compression

threshold, they are compressed using the OLTP algorithm, so that it is not necessary to manually re-compress the

table. This does, of course, leave the updated table in a mixed state of compressed and uncompressed blocks, but the

uncompressed blocks will return to the compressed state, once the conditions for compression are reached.

Hybrid Columnar Compression (HCC)

Hybrid Columnar Compression is a compression option available only for tables residing on Exadata storage. (As well

as Exadata, this includes Axiom, the SPARC SuperCluster, and the Sun ZFS Storage Appliance.) If you try this on any

other system, you will receive the following informative message:

SQL> alter table emp move compress for query high;

alter table emp move compress for query high

*

ERROR at line 1:

ORA-64307: hybrid columnar compression is not supported for tablespaces on this storage type

SQL>

The phrase this storage type means any storage other than those listed at the beginning of this section. With that

in mind, we want to mention that HCC can be a showstopper for Data Guard, when the destination database is not

on Exadata or using Exadata storage. Tables in the affected Data Guard instance will need to be uncompressed before

transactions can be applied to them, so all of the space savings will be lost. This is also true for database backups

when HCC is enabled. Restoring a backup where HCC compression is used to a non-Exadata system will necessitate

uncompressing those tables. This can easily cause you to run out of storage before all the tables are uncompressed, if

the storage requirements were determined from the Exadata side.

HCC works differently than the two options mentioned earlier in this chapter, as it reorganizes data into

Compression Units (CU). How it works will be discussed in the next section. For the moment, we will concentrate on

implementing HCC in its four forms and on how those forms differ. There are two basic types under the HCC banner,

QUERY and ARCHIVE, each having the options of HIGH and LOW. The first pair of HCC options we will discuss falls

under the QUERY type. We will then discuss the ARCHIVE type.

QUERY

This type is less aggressive than ARCHIVE, but it still initially compresses data more than OLTP compression. We first

compress our EMP table forQUERY HIGH:

SQL>

SQL> --

SQL> -- Current storage for the EMP table

SQL> -- (this is simply a test table for this example)

SQL> --

SQL> select segment_name, sum(bytes) total_space

2 from user_segments

3 group by segment_name;

Chapter 6 ■ Compression

86

SEGMENT_NAME TOTAL_SPACE

----------------------------------- -----------

DEPT 65536

DUMMY 65536

EMP 713031680

EMP_IDX 478150656

SALGRADE 65536

Elapsed: 00:00:00.82

SQL>

SQL> --

SQL> -- Compress the table for query high (use HCC)

SQL> --

SQL> -- Note elapsed time to compress

SQL> --

SQL> alter table emp move compress for query high;

Table altered.

Elapsed: 00:00:35.65

SQL>

SQL> --

SQL> -- Index is now invalid

SQL> --

SQL> -- Must rebuild to make it usable

SQL> --

SQL> -- Note elapsed time

SQL> --

SQL> alter index emp_idx rebuild;

Index altered.

Elapsed: 00:01:13.70

SQL>

SQL> --

SQL> -- Current compression type, storage for table/index

SQL> -- initially after compression is enabled

SQL> --

SQL> select table_name, compression, compress_for

2 from user_tables;

TABLE_NAME COMPRESS COMPRESS_FOR

------------------------------ -------- ------------

DEPT DISABLED

BONUS DISABLED

SALGRADE DISABLED

DUMMY DISABLED

EMP ENABLED QUERY HIGH

Chapter 6 ■ Compression

87

Elapsed: 00:00:00.20

SQL>

SQL> select segment_name, sum(bytes) total_space

2 from user_segments

3 group by segment_name;

SEGMENT_NAME TOTAL_SPACE

----------------------------------- -----------

DEPT 65536

DUMMY 65536

EMP 8388608

EMP_IDX 260046848

SALGRADE 65536

Elapsed: 00:00:00.03

SQL>

The resulting size is much smaller than either of the Basic or OLTP compression options. Even at the QUERY

LOW compression rate, the size is still less than OLTP compression can provide:

SQL>

SQL> --

SQL> -- Initial storage

SQL> --

SQL> select segment_name, sum(bytes) total_space

2 from user_segments

3 group by segment_name;

SEGMENT_NAME TOTAL_SPACE

----------------------------------- -----------

DEPT 65536

DUMMY 65536

EMP 713031680

EMP_IDX 478150656

SALGRADE 65536

Elapsed: 00:00:00.25

SQL>

SQL> --

SQL> -- Compress for QUERY LOW

SQL> --

SQL> -- Note elapsed time

SQL> --

SQL> alter table emp move compress for query low;

Table altered.

Elapsed: 00:00:16.16

SQL>

SQL> alter index emp_idx rebuild;

Chapter 6 ■ Compression

88

Index altered.

Elapsed: 00:00:43.08

SQL>

SQL> --

SQL> -- These figures are the same as those generated

SQL> -- AFTER the HCC compressed data was updated the first time

SQL> --

SQL> select table_name, compression, compress_for

2 from user_tables;

TABLE_NAME COMPRESS COMPRESS_FOR

------------------------------ -------- ------------

DEPT DISABLED

BONUS DISABLED

SALGRADE DISABLED

DUMMY DISABLED

EMP ENABLED QUERY LOW

Elapsed: 00:00:00.02

SQL>

SQL> select segment_name, sum(bytes) total_space

2 from user_segments

3 group by segment_name;

SEGMENT_NAME TOTAL_SPACE

----------------------------------- -----------

DEPT 65536

DUMMY 65536

EMP 14680064

EMP_IDX 260046848

SALGRADE 65536

Elapsed: 00:00:00.02

SQL>

ARCHIVE

The HCC compression type ARCHIVE is definitely the most aggressive in terms of space savings, but it’s also intended

for data that is designated read-only and is or will be archived for occasional use. It certainly isn’t intended for

actively updated tables; the space savings would be lost due to uncompressing the data, to allow the updates and

recompressing at the lower OLTP level. We’ll compress our standard EMP table for ARCHIVE HIGH and see what

space savings are generated:

SQL> --

SQL> -- Current storage for the EMP table

SQL> -- (this is simply a test table for this example)

SQL> --

SQL> select segment_name, sum(bytes) total_space

2 from user_segments

3 group by segment_name;

Chapter 6 ■ Compression

89

SEGMENT_NAME TOTAL_SPACE

----------------------------------- -----------

DEPT 65536

DUMMY 65536

EMP 713031680

EMP_IDX 478150656

SALGRADE 65536

Elapsed: 00:00:00.02

SQL>

SQL> --

SQL> -- Compress the table for archive high

SQL> --

SQL> -- Note elapsed time to compress

SQL> --

SQL> alter table emp move compress for archive high;

Table altered.

Elapsed: 00:00:38.55

SQL>

SQL> --

SQL> -- Index is now invalid

SQL> --

SQL> -- Must rebuild to make it usable

SQL> --

SQL> -- Note elapsed time

SQL> --

SQL> alter index emp_idx rebuild;

Index altered.

Elapsed: 00:00:39.45

SQL>

SQL> --

SQL> -- Current compression type, storage for table/index

SQL> -- initially after compression is enabled

SQL> --

SQL> select table_name, compression, compress_for

2 from user_tables;

TABLE_NAME COMPRESS COMPRESS_FOR

------------------------------ -------- ------------

DEPT DISABLED

BONUS DISABLED

SALGRADE DISABLED

DUMMY DISABLED

EMP ENABLED ARCHIVE HIGH

Chapter 6 ■ Compression

90

Elapsed: 00:00:00.02

SQL>

SQL> select segment_name, sum(bytes) total_space

2 from user_segments

3 group by segment_name;

SEGMENT_NAME TOTAL_SPACE

----------------------------------- -----------

DEPT 65536

DUMMY 65536

EMP 4194304

EMP_IDX 260046848

SALGRADE 65536

Elapsed: 00:00:00.01

SQL>

The space savings are substantial, taking the table from its original size of 680 megabytes down to 4 megabytes,

a savings of 99.41 percent. Using ARCHIVE LOW instead of ARCHIVE HIGH still produces impressive results:

SQL> --

SQL> -- Initial storage

SQL> --

SQL> select segment_name, sum(bytes) total_space

2 from user_segments

3 group by segment_name;

SEGMENT_NAME TOTAL_SPACE

----------------------------------- -----------

DEPT 65536

DUMMY 65536

EMP 713031680

EMP_IDX 478150656

SALGRADE 65536

Elapsed: 00:00:01.31

SQL>

SQL> --

SQL> -- Compress for ARCHIVE LOW

SQL> --

SQL> -- Note elapsed time

SQL> --

SQL> alter table emp move compress for archive low;

Table altered.

Elapsed: 00:00:34.16

SQL>

SQL> alter index emp_idx rebuild;

Chapter 6 ■ Compression

91

Index altered.

Elapsed: 00:00:48.44

SQL>

SQL> --

SQL> -- These figures are the same as those generated

SQL> -- AFTER the HCC compressed data was updated the first time

SQL> --

SQL> select table_name, compression, compress_for

2 from user_tables;

TABLE_NAME COMPRESS COMPRESS_FOR

------------------------------ -------- ------------

DEPT DISABLED

BONUS DISABLED

SALGRADE DISABLED

DUMMY DISABLED

EMP ENABLED ARCHIVE LOW

Elapsed: 00:00:00.03

SQL>

SQL> select segment_name, sum(bytes) total_space

2 from user_segments

3 group by segment_name;

SEGMENT_NAME TOTAL_SPACE

----------------------------------- -----------

DEPT 65536

DUMMY 65536

EMP 8388608

EMP_IDX 260046848

SALGRADE 65536

Elapsed: 00:00:00.02

SQL>

Using ARCHIVE LOW, the table ends up twice as large as it did using ARCHIVE HIGH, but the table is 98.82

percent smaller than it was originally, before compression. This is the same level of compression afforded by QUERY

HIGH.

Oracle provides a function in the DBMS_COMPRESSION package named GET_COMPRESSION_TYPE. This

function returns a number representing the compression type and level in use for a given table. We have a query to

report the owner, table_name, numeric compression id, and the type name for a given table. We pass in the owner and

table name as inputs.

set verify off

select distinct

'&&owner' owner,

'&&tabname' table_name,

dbms_compression.get_compression_type('&&owner','&&tabname', rowid) comp_typ,

decode(dbms_compression.get_compression_type('&&owner','&&tabname', rowid),

1, 'NONE',

Chapter 6 ■ Compression

92

2, 'OLTP',

4, 'QUERY HIGH',

8, 'QUERY LOW',

16, 'ARCHIVE HIGH',

32, 'ARCHIVE LOW') type_name

from

&&owner..&&tabname

/

Undefine owner

Undefine tabname

The output follows:

SQL> @get_compression_type.sql

Enter value for owner: BING

Enter value for tabname: EMP

OWNE TABL COMP_TYP TYPE_NAME

---- ---- ---------- ------------

BING EMP 8 QUERY LOW

SQL>

The Nuts and Bolts of HCC

Using HCC causes some changes in how Oracle stores table data, altering the storage format from the usual heap-

style block population to a column-centric format, still using data blocks, called Compression Units, or CUs. This is a

logical change, as Compression Units consist of multiple Oracle blocks with a unique layout. First, Oracle collects a

number of similar rows for a Compression Unit and organizes them in a columnar format, similar to Figure 6-1.

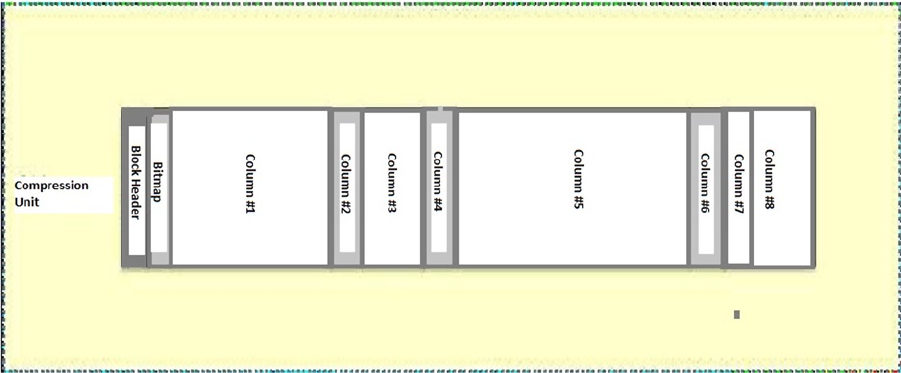

Figure 6-1. Initial data organization for HCC Compression Unit

Chapter 6 ■ Compression

93

Collecting rows of similar data makes it easier to compress the data using HCC, as common elements that can be

replaced with tokens are colocated in the same Compression Unit. Oracle, by design, is a row-centric DBMS, so this

interim structure is converted back to a row format, similar to Figure 6-2.

Five data blocks are used to store the data from this example, with each column being a row in the block. Some

columns won’t fit into a single block, so they are chained across multiple blocks, as illustrated. The block header is

shown in red; the CU header is in the first block of the Compression Unit, as is the Compression Unit bitmap, showing

where the rows are located. The data columns follow the CU Header and CU Bitmap rows in block 1, with Column 1

data starting at the third row of the block.

As mentioned previously, if a column won’t fit entirely in a single block, it is chained across to the next block in

the Compression Unit. This strategy continues until all the columns are stored. Because like data is stored together,

HCC can provide exceptionally high compression ratios, as compared to either Basic or OLTP compression. Also,

creating Compression Units in this fashion prevents rows from being split across CUs, so that an entire row can be

read from a single CU.

Performance

Depending on whether you are inserting, updating, or querying data, the performance of compressed tables may not

be what you would expect. Querying data is usually a fast operation. Inserting for all but OLTP compression requires

parallel or direct load inserts, so that the newly inserted rows are compressed. Updates take longer, as the data has to

be uncompressed before it can be updated. Carefully analyze how a table is used before deciding on compression;

heavily updated tables are better served with OLTP compression than either of the HCC compression types.

Remember that engineering is often described as the art of making tradeoffs. You can’t have your cake and eat it too.

When You Load

Loading data into compressed tables, with the lone exception of OLTP compression, requires parallel or direct-path

inserts. Of course, loading into compressed tables can take longer than the same process for noncompressed tables.

We created empty tables using the various compression methods and loaded them from the EMP table we populated

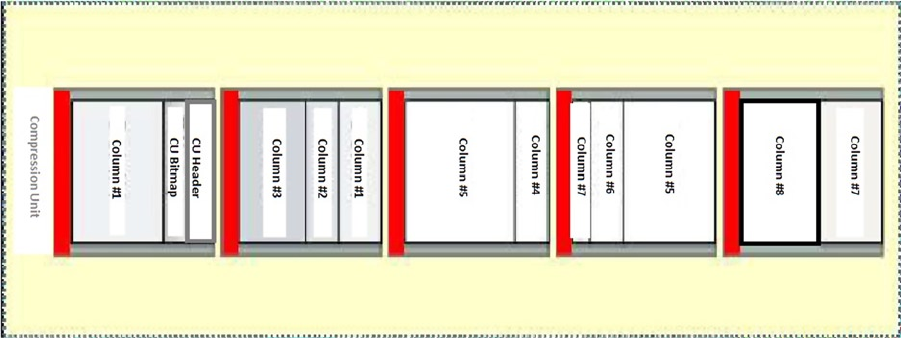

Figure 6-2. HCC Compression Unit layout

Chapter 6 ■ Compression

94

in earlier examples. The results of those loads, and the times required for those loads, are shown in the following

example:

SQL>

SQL> --

SQL> -- Build compressed tables, keep them empty

SQL> --

SQL>

SQL> create table emp_arch_low as select * from emp where 0=1;

Table created.

Elapsed: 00:00:01.42

SQL> create table emp_arch_high as select * from emp where 0=1;

Table created.

Elapsed: 00:00:00.01

SQL> create table emp_query_low as select * from emp where 0=1;

Table created.

Elapsed: 00:00:00.01

SQL> create table emp_query_high as select * from emp where 0=1;

Table created.

Elapsed: 00:00:00.01

SQL> create table emp_oltp as select * from emp where 0=1;

Table created.

Elapsed: 00:00:00.01

SQL> create table emp_basic as select * from emp where 0=1;

Table created.

Elapsed: 00:00:00.01

SQL>

SQL> --

SQL> -- Create a copy of emp, uncompressed

SQL> --

SQL>

SQL> create table emp_nocomp as select * From emp where 0=1;

Table created.

Elapsed: 00:00:00.02

SQL>

SQL> --

SQL> -- We load the tables and see how long each

Chapter 6 ■ Compression

95

SQL> -- compression level takes

SQL> --

SQL>

SQL> insert /*+ append */ into emp_nocomp select * from emp;

14680064 rows created.

Elapsed: 00:00:06.51

SQL> insert /*+ append */ into emp_arch_low select * from emp;

14680064 rows created.

Elapsed: 00:00:08.80

SQL> insert /*+ append */ into emp_arch_high select * from emp;

14680064 rows created.

Elapsed: 00:00:07.07

SQL> insert /*+ append */ into emp_query_low select * from emp;

14680064 rows created.

Elapsed: 00:00:07.30

SQL> insert /*+ append */ into emp_query_high select * from emp;

14680064 rows created.

Elapsed: 00:00:06.24

SQL> insert /*+ append */ into emp_oltp select * from emp;

14680064 rows created.

Elapsed: 00:00:08.10

SQL> insert /*+ append */ into emp_basic select * from emp;

14680064 rows created.

Elapsed: 00:00:07.66

SQL>

We have collected the data and presented it in Table 6-1, so that it’s easier to understand.

Chapter 6 ■ Compression

96

For all but the QUERY HIGH compression, the load times exceed the time to load the uncompressed table. Your

execution times may vary from those we generated, because they depend on the load the system is experiencing when

you perform your test. If Smart Scans are used, some of the processing will be offloaded to the storage cells, allowing

them to reduce the workload on the database servers. This can result in load times that are less than the time to load

uncompressed data.

When You Query

Queries can also take longer to process when the data is compressed. Smart Scans also play a part here, as some of

the work (such as uncompressing the data) falls to the storage cells, rather than the database servers. We have run the

same query against each of the tables representing the various compression types; the results of those tests follow:

SQL>

SQL> --

SQL> -- Let's select from each table and see how long it takes

SQL> --

SQL>

SQL> select /*+ parallel 4 */ *

2 from emp_nocomp

3 where empno > 7930;

EMPNO ENAME JOB MGR HIREDATE SAL COMM DEPTNO

---------- ---------- --------- ---------- --------- ---------- ---------- ----------

7934 MILLER CLERK 7782 23-JAN-82 1300 10

...

7934 MILLER CLERK 7782 23-JAN-82 1300 10

1048576 rows selected.

Table 6-1. Load Times and Data Volumes for Compressed Tables

Table Name Compression Type Rows Time to Load

emp_nocomp None 14680064 6.51 seconds

emp_basic Basic 14680064 7.66 seconds

emp_arch_low Archive Low 14680064 8.80 seconds

emp_arch_high Archive High 14680064 7.07 seconds

emp_query_low Query Low 14680064 7.30 seconds

emp_query_high Query High 14680064 6.24 seconds

emp_oltp OLTP 14680064 8.10 seconds

Chapter 6 ■ Compression

97

Elapsed: 00:01:25.90

SQL>

SQL> select /*+ parallel 4 */ *

2 from emp_arch_low

3 where empno > 7930;

EMPNO ENAME JOB MGR HIREDATE SAL COMM DEPTNO

---------- ---------- --------- ---------- --------- ---------- ---------- ----------

7934 MILLER CLERK 7782 23-JAN-82 1300 10

...

7934 MILLER CLERK 7782 23-JAN-82 1300 10

1048576 rows selected.

Elapsed: 00:01:42.92

SQL>

SQL> select /*+ parallel 4 */ *

2 from emp_arch_high

3 where empno > 7930;

EMPNO ENAME JOB MGR HIREDATE SAL COMM DEPTNO

---------- ---------- --------- ---------- --------- ---------- ---------- ----------

7934 MILLER CLERK 7782 23-JAN-82 1300 10

...

7934 MILLER CLERK 7782 23-JAN-82 1300 10

1048576 rows selected.

Elapsed: 00:01:33.90

SQL>

SQL> select /*+ parallel 4 */ *

2 from emp_query_low

3 where empno > 7930;

EMPNO ENAME JOB MGR HIREDATE SAL COMM DEPTNO

---------- ---------- --------- ---------- --------- ---------- ---------- ----------

7934 MILLER CLERK 7782 23-JAN-82 1300 10

...

Chapter 6 ■ Compression

98

7934 MILLER CLERK 7782 23-JAN-82 1300 10

1048576 rows selected.

Elapsed: 00:01:24.15

SQL>

SQL> select /*+ parallel 4 */ *

2 from emp_query_high

3 where empno > 7930;

EMPNO ENAME JOB MGR HIREDATE SAL COMM DEPTNO

---------- ---------- --------- ---------- --------- ---------- ---------- ----------

7934 MILLER CLERK 7782 23-JAN-82 1300 10

...

7934 MILLER CLERK 7782 23-JAN-82 1300 10

1048576 rows selected.

Elapsed: 00:01:26.82

SQL>

SQL> select /*+ parallel 4 */ *

2 from emp_oltp

3 where empno > 7930;

EMPNO ENAME JOB MGR HIREDATE SAL COMM DEPTNO

---------- ---------- --------- ---------- --------- ---------- ---------- ----------

7934 MILLER CLERK 7782 23-JAN-82 1300 10

...

7934 MILLER CLERK 7782 23-JAN-82 1300 10

1048576 rows selected.

Elapsed: 00:01:25.77

SQL>

SQL> select /*+ parallel 4 */ *

2 from emp_basic

3 where empno > 7930;

Chapter 6 ■ Compression

99

EMPNO ENAME JOB MGR HIREDATE SAL COMM DEPTNO

---------- ---------- --------- ---------- --------- ---------- ---------- ----------

7934 MILLER CLERK 7782 23-JAN-82 1300 10

...

7934 MILLER CLERK 7782 23-JAN-82 1300 10

1048576 rows selected.

Elapsed: 00:01:26.08

SQL>

The summarized data is shown in Table 6-2.

Notice that all but the tables compressed for ARCHIVE HIGH and ARCHIVE LOW were very close in execution

time to the uncompressed table. The execution plan is the same for all queries, as follows:

Execution Plan

----------------------------------------------------------

Plan hash value: 398743904

----------------------------------------------------------------------------------------------------

--------------------

|IN-OUT| PQ Distrib |

----------------------------------------------------------------------------------------------------

--------------------

| 0 | SELECT STATEMENT | | 1088K| 90M| 13117 (1)| 00:00:01 | |

| |

| 1 | PX COORDINATOR | | | | | | |

| |

Table 6-2. Query Execution Times for Compressed Tables

Table Name Rows Returned Compression Level Elapsed Time

emp_nocomp 1048576 None 00:01:25.90

emp_arch_low 1048576 Archive Low 00:01:42.92

emp_arch_high 1048576 Archive High 00:01:33.90

emp_query_low 1048576 Query Low 00:01:24.15

emp_query_high 1048576 Query High 00:01:26.82

emp_oltp 1048576 OLTP 00:01:25.77

emp_basic 1048576 Basic 00:01:26.08

Chapter 6 ■ Compression

100

| 2 | PX SEND QC (RANDOM) | :TQ10000 | 1088K| 90M| 13117 (1)| 00:00:01 | Q1,00 |

P->S | QC (RAND) |

| 3 | PX BLOCK ITERATOR | | 1088K| 90M| 13117 (1)| 00:00:01 | Q1,00 |

PCWC | |

|* 4 | TABLE ACCESS STORAGE FULL| EMP_NOCOMP | 1088K| 90M| 13117 (1)| 00:00:01 | Q1,00 |

PCWP | |

----------------------------------------------------------------------------------------------------

--------------------

Predicate Information (identified by operation id):

---------------------------------------------------

4 - storage("EMPNO">7930)

filter("EMPNO">7930)

Note

-----

- dynamic sampling used for this statement (level=2)

- automatic DOP: Computed Degree of Parallelism is 2

Auto DOP and a Smart Scan made the query times essentially no worse than for the uncompressed data,

a testament to both features of Exadata. The Smart Scan also provided extra CPU cycles from the storage cells,

as the data was uncompressed at the storage cells, rather than at the database servers.

When You Update

Updates pose a problem to Basic-level compression, as the data has to be uncompressed and remains so after the

updates.

SQL> update emp set sal=sal*1.10 where empno = 7566;

1048576 rows updated.

SQL> select segment_name, bytes

2 from user_segments;

SEGMENT_NAME BYTES

----------------------------------- ----------

DEPT 65536

SALGRADE 65536

DUMMY 65536

EMP 243269632

SQL>

Chapter 6 ■ Compression

101

Notice that the overall bytes that EMP consumes increased after the updates were completed. Subsequent

updates will cause the table to increase in size, as blocks are processed. The table will have to be compressed again to

regain the initial savings, as follows:

SQL> alter table emp move compress;

Table altered.

SQL> select segment_name, bytes

2 from user_segments;

SEGMENT_NAME BYTES

----------------------------------- ----------

DEPT 65536

SALGRADE 65536

DUMMY 65536

EMP 184549376

SQL>

There is no provision for automatic compression after updates occur. Even though Basic compression is available

without additional licensing, its use could be limited to tables that aren’t updated or are updated infrequently.

Updates to compressed tables also take longer than they would for uncompressed tables, because the blocks

affected by the update have to be uncompressed before the updates can occur. The elapsed time for a bulk update of a

table compressed using Basic compression is as follows:

SQL> update emp set sal=sal*1.10 where empno = 7566;

1048576 rows updated.

Elapsed: 00:01:05.85

SQL>

This was executed on a system with no load and only one connected user. On more heavily loaded systems, the

elapsed time can be greater and, interestingly, the table size can increase over the original size, if the bulk update

affects a large portion of the table data.

SQL>

SQL> --

SQL> -- Current storage for the EMP table

SQL> -- (this is simply a test table for this example)

SQL> --

SQL> select segment_name, sum(bytes) total_space

2 from user_segments

3 group by segment_name;

SEGMENT_NAME TOTAL_SPACE

----------------------------------- -----------

DEPT 65536

DUMMY 65536

Chapter 6 ■ Compression

102

EMP 713031680

EMP_IDX 469762048

SALGRADE 65536

Elapsed: 00:00:01.46

SQL>

SQL> --

SQL> -- Compress the table basic

SQL> --

SQL> -- Note elapsed time to compress

SQL> --

SQL> alter table emp move compress;

Table altered.

Elapsed: 00:00:15.57

SQL>

SQL> --

SQL> -- Index is now invalid

SQL> --

SQL> -- Must rebuild to make it usable

SQL> --

SQL> -- Note elapsed time

SQL> --

SQL> alter index emp_idx rebuild;

Index altered.

Elapsed: 00:00:53.01

SQL>

SQL> --

SQL> -- Current compression type, storage for table/index

SQL> -- initially after compression is enabled

SQL> --

SQL> select table_name, compression, compress_for

2 from user_tables;

TABLE_NAME COMPRESS COMPRESS_FOR

------------------------------ -------- ------------

DEPT DISABLED

BONUS DISABLED

SALGRADE DISABLED

DUMMY DISABLED

EMP ENABLED BASIC

Elapsed: 00:00:00.03

SQL>

SQL> select segment_name, sum(bytes) total_space

2 from user_segments

3 group by segment_name;

Chapter 6 ■ Compression

103

SEGMENT_NAME TOTAL_SPACE

----------------------------------- -----------

DEPT 65536

DUMMY 65536

EMP 184549376

EMP_IDX 260046848

SALGRADE 65536

Elapsed: 00:00:00.02

SQL>

SQL> --

SQL> -- Perform an update on the compressed data

SQL> --

SQL> -- Note elapsed time to complete

SQL> --

SQL> update emp set sal=sal*1.08 where empno > 7350;

14680064 rows updated.

Elapsed: 00:14:25.18

SQL>

SQL> commit;

Commit complete.

Elapsed: 00:00:00.00

SQL>

SQL> --

SQL> -- Compression type has not changed in the

SQL> -- data dictionary but the consumed space

SQL> -- has increased beyond the original size

SQL> -- of the table

SQL> --

SQL> select table_name, compression, compress_for

2 from user_tables;

TABLE_NAME COMPRESS COMPRESS_FOR

------------------------------ -------- ------------

DEPT DISABLED

BONUS DISABLED

SALGRADE DISABLED

DUMMY DISABLED

EMP ENABLED BASIC

Elapsed: 00:00:00.03

SQL>

SQL> select segment_name, sum(bytes) total_space

2 from user_segments

3 group by segment_name;

Chapter 6 ■ Compression

104

SEGMENT_NAME TOTAL_SPACE

----------------------------------- -----------

DEPT 65536

DUMMY 65536

EMP 956301312

EMP_IDX 260046848

SALGRADE 65536

Elapsed: 00:00:00.01

SQL>

SQL> --

SQL> -- Perform a second update

SQL> --

SQL> -- Note elapsed time

SQL> --

SQL> update emp set sal=sal*1.08 where empno > 7350;

14680064 rows updated.

Elapsed: 00:03:48.95

SQL>

SQL> commit;

Commit complete.

Elapsed: 00:00:00.01

SQL>

SQL> --

SQL> -- Current storage consumed after second update

SQL> --

SQL> select table_name, compression, compress_for

2 from user_tables;

TABLE_NAME COMPRESS COMPRESS_FOR

------------------------------ -------- ------------

DEPT DISABLED

BONUS DISABLED

SALGRADE DISABLED

DUMMY DISABLED

EMP ENABLED BASIC

Elapsed: 00:00:00.03

SQL>

SQL> select segment_name, sum(bytes) total_space

2 from user_segments

3 group by segment_name;

SEGMENT_NAME TOTAL_SPACE

----------------------------------- -----------

DEPT 65536

DUMMY 65536

Chapter 6 ■ Compression

105

EMP 956301312

EMP_IDX 260046848

SALGRADE 65536

Elapsed: 00:00:00.01

SQL>

The table has gained size, due to the updates to compressed data using the Basic compression algorithm. Such

behavior makes Basic compression an invalid option for actively updated tables.

OLTP compression makes it easier to keep a good portion of the space savings generated by the initial

compression, although it may not be immediately realized, because not all of the updated blocks are filled. The

following example illustrates this:

SQL>

SQL> --

SQL> -- Initial storage

SQL> --

SQL> select segment_name, sum(bytes) total_space

2 from user_segments

3 group by segment_name;

SEGMENT_NAME TOTAL_SPACE

----------------------------------- -----------

DEPT 65536

DUMMY 65536

EMP 713031680

EMP_IDX 478150656

SALGRADE 65536

Elapsed: 00:00:00.03

SQL>

SQL> --

SQL> -- Compress for OLTP rather than QUERY HIGH

SQL> --

SQL> -- Note elapsed time

SQL> --

SQL> alter table emp move compress for oltp;

Table altered.

Elapsed: 00:00:19.36

SQL>

SQL> alter index emp_idx rebuild;

Index altered.

Elapsed: 00:00:52.12

SQL>

SQL> --

SQL> -- These figures are the same as those generated

SQL> -- AFTER the HCC compressed data was updated the first time

Chapter 6 ■ Compression

106

SQL> --

SQL> select table_name, compression, compress_for

2 from user_tables;

TABLE_NAME COMPRESS COMPRESS_FOR

------------------------------ -------- ------------

DEPT DISABLED

BONUS DISABLED

SALGRADE DISABLED

DUMMY DISABLED

EMP ENABLED OLTP

Elapsed: 00:00:00.04

SQL>

SQL> select segment_name, sum(bytes) total_space

2 from user_segments

3 group by segment_name;

SEGMENT_NAME TOTAL_SPACE

----------------------------------- -----------

DEPT 65536

DUMMY 65536

EMP 201326592

EMP_IDX 260046848

SALGRADE 65536

Elapsed: 00:00:00.01

SQL>

SQL> --

SQL> -- Perform an update

SQL> --

SQL> -- Note elapsed time (less than the previous compressed update)

SQL> --

SQL> update emp set sal=sal*1.08 where empno > 7350;

14680064 rows updated.

Elapsed: 00:20:40.64

SQL>

SQL> commit;

Commit complete.

Elapsed: 00:00:00.01

SQL>

SQL> --

SQL> -- Current compression level and storage

SQL> --

SQL> -- Looks like the storage after the second

SQL> -- update to the HCC compressed data

Chapter 6 ■ Compression

107

SQL> --

SQL> select table_name, compression, compress_for

2 from user_tables;

TABLE_NAME COMPRESS COMPRESS_FOR

------------------------------ -------- ------------

DEPT DISABLED

BONUS DISABLED

SALGRADE DISABLED

DUMMY DISABLED

EMP ENABLED OLTP

Elapsed: 00:00:00.03

SQL>

SQL> select segment_name, sum(bytes) total_space

2 from user_segments

3 group by segment_name;

SEGMENT_NAME TOTAL_SPACE

----------------------------------- -----------

DEPT 65536

DUMMY 65536

EMP 511705088

EMP_IDX 260046848

SALGRADE 65536

Elapsed: 00:00:00.01

SQL>

The overall table size is still less than it was originally. The partially filled data blocks are still in an uncompressed

state, contributing to the size increase. As these blocks fill up, they will be automatically compressed in a batch-style

operation, reducing the table size further.

Updates to data compressed using HCC reveal behavior you should expect, after reading the examples provided

in this chapter. However, in this scenario, the compression algorithm changes, due to the updates. Originally

compressed for QUERY HIGH after updates, the compression becomes OLTP and remains there until modified by

you. The data dictionary still reports that HCC is in effect, and it is, but because of the updates, Oracle now treats this

data as though it were compressed using the OLTP compression scheme. We will update data using the EMP table,

compressed for QUERY HIGH, then compressed for QUERY LOW, to illustrate this behavior.

SQL> --

SQL> -- Perform an update on the compressed data

SQL> --

SQL> -- Note elapsed time to complete

SQL> --

SQL> update emp set sal=sal*1.08 where empno > 7350;

14680064 rows updated.

Elapsed: 00:42:34.40

SQL>

SQL> commit;

Chapter 6 ■ Compression

108

Commit complete.

Elapsed: 00:00:00.03

SQL>

SQL> --

SQL> -- Compression type has not changed in the

SQL> -- data dictionary but the consumed space

SQL> -- has increased to the level of a table

SQL> -- initially compressed for OLTP

SQL> --

SQL> select table_name, compression, compress_for

2 from user_tables;

TABLE_NAME COMPRESS COMPRESS_FOR

------------------------------ -------- ------------

DEPT DISABLED

BONUS DISABLED

SALGRADE DISABLED

DUMMY DISABLED

EMP ENABLED QUERY HIGH

Elapsed: 00:00:00.03

SQL>

SQL> select segment_name, sum(bytes) total_space

2 from user_segments

3 group by segment_name;

SEGMENT_NAME TOTAL_SPACE

----------------------------------- -----------

DEPT 65536

DUMMY 65536

EMP 226492416

EMP_IDX 721420288

SALGRADE 65536

Elapsed: 00:00:00.33

SQL>

SQL> --

SQL> -- Perform a second update

SQL> --

SQL> -- Note elapsed time

SQL> --

SQL> update emp set sal=sal*1.08 where empno > 7350;

14680064 rows updated.

Elapsed: 00:03:15.00

SQL>

SQL> commit;

Chapter 6 ■ Compression

109

Commit complete.

Elapsed: 00:00:00.02

SQL>

SQL> --

SQL> -- Current storage consumed after second update

SQL> --

SQL> select table_name, compression, compress_for

2 from user_tables;

TABLE_NAME COMPRESS COMPRESS_FOR

------------------------------ -------- ------------

DEPT DISABLED

BONUS DISABLED

SALGRADE DISABLED

DUMMY DISABLED

EMP ENABLED QUERY HIGH

Elapsed: 00:00:00.02

SQL>

SQL> select segment_name, sum(bytes) total_space

2 from user_segments

3 group by segment_name;

SEGMENT_NAME TOTAL_SPACE

----------------------------------- -----------

DEPT 65536

DUMMY 65536

EMP 452984832

EMP_IDX 721420288

SALGRADE 65536

Elapsed: 00:00:00.21

SQL>

Note that the index associated with the table also increases in size after the first update and remains at that size

during subsequent updates to the table. We will now perform the same updates to the EMP table compressed for

QUERY LOW, as follows:

SQL> --

SQL> -- Perform an update

SQL> --

SQL> -- Note elapsed time (less than the previous compressed update)

SQL> --

SQL> update emp set sal=sal*1.08 where empno > 7350;

14680064 rows updated.

Elapsed: 00:47:52.75

SQL>

SQL> commit;

Chapter 6 ■ Compression

110

Commit complete.

Elapsed: 00:00:00.02

SQL>

SQL> --

SQL> -- Current compression level and storage

SQL> --

SQL> -- Looks like the storage after the second

SQL> -- update to the HCC compressed data

SQL> --

SQL> select table_name, compression, compress_for

2 from user_tables;

TABLE_NAME COMPRESS COMPRESS_FOR

------------------------------ -------- ------------

DEPT DISABLED

BONUS DISABLED

SALGRADE DISABLED

DUMMY DISABLED

EMP ENABLED QUERY LOW

Elapsed: 00:00:00.03

SQL>

SQL> select segment_name, sum(bytes) total_space

2 from user_segments

3 group by segment_name;

SEGMENT_NAME TOTAL_SPACE

----------------------------------- -----------

DEPT 65536

DUMMY 65536

EMP 243269632

EMP_IDX 612368384

SALGRADE 65536

Elapsed: 00:00:00.49

SQL>

SQL> --

SQL> -- Perform a second update

SQL> --

SQL> -- Note elapsed time

SQL> --

SQL> update emp set sal=sal*1.08 where empno > 7350;

14680064 rows updated.

Elapsed: 00:02:20.24

SQL>

SQL> commit;

Commit complete.

Chapter 6 ■ Compression

111

Elapsed: 00:00:00.02

SQL>

SQL> --

SQL> -- Current storage consumed after second update

SQL> --

SQL> select table_name, compression, compress_for

2 from user_tables;

TABLE_NAME COMPRESS COMPRESS_FOR

------------------------------ -------- ------------

DEPT DISABLED

BONUS DISABLED

SALGRADE DISABLED

DUMMY DISABLED

EMP ENABLED QUERY LOW

Elapsed: 00:00:00.03

SQL>

SQL> select segment_name, sum(bytes) total_space

2 from user_segments

3 group by segment_name;

SEGMENT_NAME TOTAL_SPACE

----------------------------------- -----------

DEPT 65536

DUMMY 65536

EMP 511705088

EMP_IDX 612368384

SALGRADE 65536

Elapsed: 00:00:02.80

SQL>

Note the slight size difference between the results from the updates to QUERY HIGH and QUERY LOW

compression. The real differences are shown in the overall elapsed times to complete the desired updates. The first

update to the table takes the longest time, as the fully compressed data is being uncompressed to complete the

transaction. The second update takes longer than for an uncompressed table, but it still takes considerably less time

than the initial update. This is one of the issues with using compression on an active table.

Using either of the ARCHIVE compression types, the situation is no different. Because the ARCHIVE levels

provide the best initial compression ratios, it should be expected that updates to tables compressed in either of these

two ways should take greater time to complete, especially the first update after compression has completed. We

perform the same updates to these two compression levels, as we did to the other levels, and report the results. First,

for ARCHIVE HIGH:

SQL> --

SQL> -- Perform an update on the compressed data

SQL> --

SQL> -- Note elapsed time to complete

SQL> --

SQL> update emp set sal=sal*1.08 where empno > 7350;

Chapter 6 ■ Compression

112

14680064 rows updated.

Elapsed: 00:50:36.26

SQL>

SQL> commit;

Commit complete.

Elapsed: 00:00:00.02

SQL>

SQL> --

SQL> -- Compression type has not changed in the

SQL> -- data dictionary but the consumed space

SQL> -- has increased to the level of a table

SQL> -- initially compressed for OLTP

SQL> --

SQL> select table_name, compression, compress_for

2 from user_tables;

TABLE_NAME COMPRESS COMPRESS_FOR

------------------------------ -------- ------------

DEPT DISABLED

BONUS DISABLED

SALGRADE DISABLED

DUMMY DISABLED

EMP ENABLED ARCHIVE HIGH

Elapsed: 00:00:00.03

SQL>

SQL> select segment_name, sum(bytes) total_space

2 from user_segments

3 group by segment_name;

SEGMENT_NAME TOTAL_SPACE

----------------------------------- -----------

DEPT 65536

DUMMY 65536

EMP 234881024

EMP_IDX 679477248

SALGRADE 65536

Elapsed: 00:00:00.11

SQL>

SQL> --

SQL> -- Perform a second update

SQL> --

SQL> -- Note elapsed time

SQL> --

SQL> update emp set sal=sal*1.08 where empno > 7350;

14680064 rows updated.

Chapter 6 ■ Compression

113

Elapsed: 00:02:23.52

SQL>

SQL> commit;

Commit complete.

Elapsed: 00:00:00.02

SQL>

SQL> --

SQL> -- Current storage consumed after second update

SQL> --

SQL> select table_name, compression, compress_for

2 from user_tables;

TABLE_NAME COMPRESS COMPRESS_FOR

------------------------------ -------- ------------

DEPT DISABLED

BONUS DISABLED

SALGRADE DISABLED

DUMMY DISABLED

EMP ENABLED ARCHIVE HIGH

Elapsed: 00:00:00.06

SQL>

SQL> select segment_name, sum(bytes) total_space

2 from user_segments

3 group by segment_name;

SEGMENT_NAME TOTAL_SPACE

----------------------------------- -----------

DEPT 65536

DUMMY 65536

EMP 452984832

EMP_IDX 679477248

SALGRADE 65536

Elapsed: 00:00:03.00

SQL>

All the space savings from using ARCHIVE HIGH were lost, putting the table back into the range of OLTP

compression after the same updates. Notice that the first update consumed about five more minutes of elapsed time,

as compared to the QUERY-compressed tables. To finish out the space changes that can be expected from using HCC

on active tables, we perform the same updates on our EMP table compressed for ARCHIVE LOW, as follows:

SQL>

SQL> --

SQL> -- Perform an update

SQL> --

SQL> -- Note elapsed time (less than the previous compressed update)

SQL> --

SQL> update emp set sal=sal*1.08 where empno > 7350;

Chapter 6 ■ Compression

114

14680064 rows updated.

Elapsed: 00:07:29.25

SQL>

SQL> commit;

Commit complete.

Elapsed: 00:00:00.02

SQL>

SQL> --

SQL> -- Current compression level and storage

SQL> --

SQL> -- Looks like the storage after the second

SQL> -- update to the HCC compressed data

SQL> --

SQL> select table_name, compression, compress_for

2 from user_tables;

TABLE_NAME COMPRESS COMPRESS_FOR

------------------------------ -------- ------------

DEPT DISABLED

BONUS DISABLED

SALGRADE DISABLED

DUMMY DISABLED

EMP ENABLED ARCHIVE LOW

Elapsed: 00:00:00.03

SQL>

SQL> select segment_name, sum(bytes) total_space

2 from user_segments

3 group by segment_name;

SEGMENT_NAME TOTAL_SPACE

----------------------------------- -----------

DEPT 65536

DUMMY 65536

EMP 218103808

EMP_IDX 637534208

SALGRADE 65536

Elapsed: 00:00:00.02

SQL>

SQL> --

SQL> -- Perform a second update

SQL> --

SQL> -- Note elapsed time

SQL> --

SQL> update emp set sal=sal*1.08 where empno > 7350;

14680064 rows updated.

Chapter 6 ■ Compression

115

Elapsed: 00:02:12.42

SQL>

SQL> commit;

Commit complete.

Elapsed: 00:00:00.03

SQL>

SQL> --

SQL> -- Current storage consumed after second update

SQL> --

SQL> select table_name, compression, compress_for

2 from user_tables;

TABLE_NAME COMPRESS COMPRESS_FOR

------------------------------ -------- ------------

DEPT DISABLED

BONUS DISABLED

SALGRADE DISABLED

DUMMY DISABLED

EMP ENABLED ARCHIVE LOW

Elapsed: 00:00:00.06

SQL>

SQL> select segment_name, sum(bytes) total_space

2 from user_segments

3 group by segment_name;

SEGMENT_NAME TOTAL_SPACE

----------------------------------- -----------

DEPT 65536

DUMMY 65536

EMP 452984832

EMP_IDX 637534208

SALGRADE 65536

Elapsed: 00:00:00.02

SQL>

Again, the total space consumed by the EMP table returns to the level of OLTP compression after two updates,

so the space saved after the table was initially compressed has been lost.

Ratios—What to Expect

We have shown that when the data is initially compressed, HCC can provide a substantial reduction in table size.

Reasonably accurate estimates can be obtained from Oracle.

What Oracle Thinks

To return a reasonably accurate compression ratio, the DBMS_COMPRESSION.GET_COMPRESSION_RATIO

procedure can be used.

Chapter 6 ■ Compression

116

SQL>

SQL> --

SQL> -- Compute compression estimates

SQL> --

SQL>

SQL> set serveroutput on size 1000000

SQL>

SQL> declare

2 blockct_comp number;

3 blockct_uncomp number;

4 rows_comp number;

5 rows_uncomp number;

6 comp_rat number;

7 comp_type varchar2(40);

8 begin

9 dbms_compression.get_compression_ratio('&&tblspc','&&ownr','&&tblname',null,

dbms_compression.comp_for_oltp, blockct_comp, blockct_uncomp,rows_comp, rows_uncomp,

comp_rat, comp_type);

10 dbms_output.put_line('Compression type: '||comp_type||' Compression ratio (est):

'||comp_rat);

11 dbms_compression.get_compression_ratio('&&tblspc','&&ownr','&&tblname',null,

dbms_compression.comp_for_query_low, blockct_comp, blockct_uncomp,rows_comp,

rows_uncomp, comp_rat, comp_type);

12 dbms_output.put_line('Compression type: '||comp_type||' Compression ratio (est):

'||comp_rat);

13 dbms_compression.get_compression_ratio('&&tblspc','&&ownr','&&tblname',null,

dbms_compression.comp_for_query_high, blockct_comp, blockct_uncomp,rows_comp,

rows_uncomp, comp_rat, comp_type);

14 dbms_output.put_line('Compression type: '||comp_type||' Compression ratio (est):

'||comp_rat);

15 dbms_compression.get_compression_ratio('&&tblspc','&&ownr','&&tblname',null,

dbms_compression.comp_for_archive_low, blockct_comp, blockct_uncomp,rows_comp,

rows_uncomp, comp_rat, comp_type);

16 dbms_output.put_line('Compression type: '||comp_type||' Compression ratio (est):

'||comp_rat);

17 dbms_compression.get_compression_ratio('&&tblspc','&&ownr','&&tblname',null,

dbms_compression.comp_for_archive_high, blockct_comp, blockct_uncomp,rows_comp,

rows_uncomp, comp_rat, comp_type);

18 dbms_output.put_line('Compression type: '||comp_type||' Compression ratio (est):

'||comp_rat);

19 end;

20 /

Enter value for tblspc: USERS

Enter value for ownr: BING

Enter value for tblname: EMP

old 9: dbms_compression.get_compression_ratio('&&tblspc','&&ownr','&&tblname',null,

dbms_compression.comp_for_oltp, blockct_comp, blockct_uncomp,rows_comp, rows_uncomp,

comp_rat, comp_type);

new 9: dbms_compression.get_compression_ratio('USERS','BING','EMP',null, dbms_compression.

comp_for_oltp, blockct_comp, blockct_uncomp,rows_comp, rows_uncomp, comp_rat, comp_type);

Chapter 6 ■ Compression

117

old 11: dbms_compression.get_compression_ratio('&&tblspc','&&ownr','&&tblname',null,

dbms_compression.comp_for_query_low, blockct_comp, blockct_uncomp,rows_comp, rows_uncomp,

comp_rat, comp_type);

new 11: dbms_compression.get_compression_ratio('USERS','BING','EMP',null, dbms_compression.comp_

for_query_low, blockct_comp, blockct_uncomp,rows_comp, rows_uncomp, comp_rat, comp_type);

old 13: dbms_compression.get_compression_ratio('&&tblspc','&&ownr','&&tblname',null,

dbms_compression.comp_for_query_high, blockct_comp, blockct_uncomp,rows_comp,

rows_uncomp, comp_rat, comp_type);

new 13: dbms_compression.get_compression_ratio('USERS','BING','EMP',null, dbms_compression.comp_

for_query_high, blockct_comp, blockct_uncomp,rows_comp, rows_uncomp, comp_rat, comp_type);

old 15: dbms_compression.get_compression_ratio('&&tblspc','&&ownr','&&tblname',null, dbms_

compression.comp_for_archive_low, blockct_comp, blockct_uncomp,rows_comp, rows_

uncomp, comp_rat, comp_type);

new 15: dbms_compression.get_compression_ratio('USERS','BING','EMP',null, dbms_compression.comp_

for_archive_low, blockct_comp, blockct_uncomp,rows_comp, rows_uncomp, comp_rat, comp_type);

old 17: dbms_compression.get_compression_ratio('&&tblspc','&&ownr','&&tblname',null, dbms_

compression.comp_for_archive_high, blockct_comp, blockct_uncomp,rows_comp, rows_

uncomp, comp_rat, comp_type);

new 17: dbms_compression.get_compression_ratio('USERS','BING','EMP',null, dbms_compression.comp_for_

archive_high, blockct_comp, blockct_uncomp,rows_comp, rows_uncomp, comp_rat, comp_type);

Compression type: "Compress For OLTP" Compression ratio (est): 3.5

Compression Advisor self-check validation successful. select count(*) on both Uncompressed and EHCC

Compressed format = 1000001 rows

Compression type: "Compress For Query Low" Compression ratio (est): 51.1

Compression Advisor self-check validation successful. select count(*) on both Uncompressed and EHCC

Compressed format = 1000001 rows

Compression type: "Compress For Query High" Compression ratio (est): 183.9

Compression Advisor self-check validation successful. select count(*) on both Uncompressed and EHCC

Compressed format = 1000001 rows

Compression type: "Compress For Archive Low" Compression ratio (est): 183.9

Compression Advisor self-check validation successful. select count(*) on both Uncompressed and EHCC

Compressed format = 1000001 rows

Compression type: "Compress For Archive High" Compression ratio (est): 189.8

PL/SQL procedure successfully completed.

Elapsed: 00:04:30.02

SQL>

Table 6-3 summarizes the estimated compression ratios for the various compression types.

Table 6-3. Estimated Compression Ratios

Compression Type Estimated Ratio

OLTP 3.5

Query Low 51.1

Query High 183.9

Archive Low 183.9

Archive High 189.8

Chapter 6 ■ Compression

118

What You Get

The data in our EMP table was very compressible (simply, the same 14 rows loaded again and again, to reach our

target size and row count), so the compression ratios should be impressive. Your data may not be as compressible (it

likely isn’t), so your estimates and actual ratios will probably differ. The actual ratios for our data agreed fairly well

with the estimates; Table 6-4 summarizes those results.

Your results may differ, but for three out of the five listed compression types, Oracle did a very good job of

estimating the compression ratios. Be aware that what Oracle reports may not be exactly what you get in actual use.

Things to Know

There are three general levels of compression, two of which require additional licensing: Basic, OLTP, and Hybrid

Columnar Compression (HCC).

HCC has two types (QUERY and ARCHIVE), and each of those has two subtypes (HIGH and LOW), to provide

four distinct levels of HCC. In general, QUERY-type compression is intended for somewhat active data, whereas

ARCHIVE compression is intended for data that will be queried fairly infrequently and will not be updated.

HCC does its magic by collecting rows with similar data and compressing them into a Compression Unit (CU).

Each unit is composed of multiple data blocks that contain entire rows of data across the CU. This makes it easier and

more efficient for Oracle to return the data, because only one CU has to be accessed to return entire rows.

Compression levels vary with the compression type. Basic provides the least compression, and ARCHIVE HIGH

provides the greatest space savings at the time of compression.

Loading data into compressed tables usually requires parallel processing and/or direct path loads (the latter

supplied by SQL*Loader). The /*+ append */ hint parallelizes the inserts, allowing them to be compressed on insert.

It can take longer to load compressed tables than it can uncompressed tables.

Queries are a mixed bag when it comes to execution times, as Smart Scans can make a query of compressed data

run faster by offloading the uncompression activities to the storage cells. Queries of compressed data that don’t use

Smart Scans can run longer (and most likely will) than the same query run against uncompressed data.

Updates to compressed tables will cause the table to increase in size. Basic compression has no provision

for automatic re-compression, so tables using this method will have to be periodically re-compressed if they are

actively updated. OLTP compression will automatically re-compress data blocks that are full, making room for

more uncompressed data. HCC compression silently reverts to OLTP after data is updated, so the original level of

compression is lost, but the OLTP level of compression remains, including the automatic compression of full data

blocks.

Compression ratios can be estimated by the DBMS_COMPRESSION.GET_COMPRESSION_RATIO procedure,

and in many cases, will agree with the observed compression ratios on user data. Highly compressible data can show

large discrepancies between the estimated and actual compression ratios, so do not be alarmed if you don’t get

exactly what Oracle predicts.

Table 6-4. Actual Observed Compression Ratios

Compression Type Actual Ratio

OLTP 3.5

Query Low 48.6

Query High 85.0

Archive Low 85.0

Archive High 170.0

119

Chapter 7

Exadata Cell Wait Events

The Oracle wait interface was first expanded in Oracle Release 8.1.x, to provide a window into Oracle performance.

In subsequent releases, this interface has been improved and expanded, making Oracle a very well-instrumented

database. Keeping tabs on where Oracle spends its time and how much time it consumes per event, the wait

interface is an invaluable tool with which the database administrator (DBA) can diagnose performance issues. With

Exadata, this wait interface has been expanded even further to include Exadata-specific wait events in support of

the operations unique to this system. These events, and the actual operations they monitor, will be covered in this

chapter. We will also cover existing, non-Exadata wait events that apply to Exadata operations.

What is a wait event? It is an event the database is waiting on, such as a disk read, that is timed and given a

name. In release 11.2.0.3, there are 1150 named wait events listed in the V$EVENT_NAME view, 23 of which reference

Exadata-specific operations. Of those, 17 are specific to the storage cells. These are the events we will cover in

this chapter.

Available Nowhere Else

Because Exadata is using the same Oracle software available on non-Exadata systems, the list of wait events is the

same, whether or not you’re using Exadata. The difference is that some of these events are populated only on Exadata

systems, which is the only reason they are available nowhere else.

Cell Events

Cell events are, obviously, events that will not be populated on non-Exadata systems or systems not using Exadata

storage. There are 17 cell-related events in V$EVENT_NAME. These are listed in Table 7-1.

Chapter 7 ■ exadata Cell Wait events

120

These events will be covered in detail in a later section of this chapter.

Triggering Events

It is interesting to see which operations trigger the various cell wait events. This information is available in the

DBA_HIST_ACTIVE_SESS_HISTORY view, as well as in V$SYSTEM_EVENT. It is likely that not every event listed in Table 7-1

will be reported in DBA_HIST_ACTIVE_SESS_HISTORY; however, one event may be triggered by a number of plan

operations. The query we used to generate a list of events and associated operations follows:

SQL> select event , non_exa_event, operation ,count(*)

2 from

3 (select event,

4 decode(event, 'cell smart table scan','',

5 'cell smart index scan','',

6 'cell statistics gather','',

7 'cell smart incremental backup','',

8 'cell smart file creation','',

9 'cell smart restore from backup','',

10 'cell single block physical read','db file sequential read',

11 'cell multiblock physical read','db file scattered read',

12 'cell list of blocks physical read','db file parallel read',

13 'cell manager opening cell','',

Table 7-1. Cell Wait Events and Classes

Cell worker idle Idle

Cell manager cancel work request Other

Cell smart flash unkeep Other

Cell worker online completion Other

Cell worker retry Other

Cell manager closing cell System I/O

Cell manager discovering disks System I/O

Cell manager opening cell System I/O

Cell smart incremental backup System I/O

Cell smart restore from backup System I/O

Cell list of blocks physical read User I/O

Cell multiblock physical read User I/O

Cell single block physical read User I/O

Cell smart file creation User I/O

Cell smart index scan User I/O

Cell smart table scan User I/O

Cell statistics gather User I/O

Chapter 7 ■ exadata Cell Wait events

121

14 'cell manager closing cell','',

15 'cell manager discovering disks','',

16 'cell worker idle','',

17 'cell smart flash unkeep','',

18 'cell worker online completion','',

19 'cell worker retry','',

20 'cell manager cancel work request','') non_Exa_event,

21 sql_plan_operation||' '||sql_plan_options operation

22 from dba_hist_active_sess_history

23 where event like 'cell%')

24 where operation <> ' '

25 group by event, non_exa_event, operation

26 order by 1

27 /

EVENT NON_EXA_EVENT OPERATION COUNT(*)

----- ------------- --------- --------

cell list of blocks physical read db file parallel read DELETE 1

INDEX RANGE SCAN 176

INDEX STORAGE SAMPLE FAST FULL SCAN 1

INDEX UNIQUE SCAN 65

PX COORDINATOR 6

TABLE ACCESS BY GLOBAL INDEX ROWID 2

TABLE ACCESS BY INDEX ROWID 4412

TABLE ACCESS BY LOCAL INDEX ROWID 4

TABLE ACCESS STORAGE FULL 50

TABLE ACCESS STORAGE SAMPLE BY ROWID RANGE 1

UPDATE 1

cell multiblock physical read db file scattered read INDEX FULL SCAN 1

INDEX RANGE SCAN 160

INDEX SKIP SCAN 4

INDEX STORAGE FAST FULL SCAN 14

INDEX STORAGE SAMPLE FAST FULL SCAN 445

INDEX UNIQUE SCAN 10

LOAD TABLE CONVENTIONAL 2

TABLE ACCESS BY INDEX ROWID 5819

TABLE ACCESS BY LOCAL INDEX ROWID 4

TABLE ACCESS STORAGE FULL 1627

TABLE ACCESS STORAGE FULL FIRST ROWS 324

TABLE ACCESS STORAGE SAMPLE BY ROWID RANGE 58

UPDATE 1

cell single block physical read db file sequential read CREATE TABLE STATEMENT 1

DDL STATEMENT 19

DELETE 139

FIXED TABLE FIXED INDEX 10

FIXED TABLE FULL 338

FOR UPDATE 12

INDEX FULL SCAN 711

INDEX RANGE SCAN 14281

Chapter 7 ■ exadata Cell Wait events

122

INDEX RANGE SCAN (MIN/MAX) 26

INDEX RANGE SCAN DESCENDING 10

INDEX SKIP SCAN 2289

INDEX STORAGE SAMPLE FAST FULL SCAN 64

INDEX UNIQUE SCAN 1100

LOAD TABLE CONVENTIONAL 372

PX COORDINATOR 3

SELECT STATEMENT 41

SORT AGGREGATE 30

TABLE ACCESS BY GLOBAL INDEX ROWID 1

TABLE ACCESS BY INDEX ROWID 103970

TABLE ACCESS BY LOCAL INDEX ROWID 293

TABLE ACCESS CLUSTER 21

TABLE ACCESS STORAGE FULL 34

TABLE ACCESS STORAGE FULL FIRST ROWS 1

TABLE ACCESS STORAGE SAMPLE BY ROWID RANGE 449

UPDATE 171

cell smart index scan INDEX STORAGE FAST FULL SCAN 8

cell smart table scan TABLE ACCESS STORAGE FULL 1180

TABLE ACCESS STORAGE FULL FIRST ROWS 4

52 rows selected.

SQL>

The listing also contains the equivalent non-Exadata event, if one exists. In the following section, these events,

their equivalent non-Exadata events, their description, and various parameters they supply will be discussed.

User I/O Events

Each of these events is associated with a wait class; there are four distinct wait classes for the cell events. The most

populous wait class for cell events is the User I/O class, with seven of the seventeen events in this class. We will look at

each event in that class in this section and see what it reports.

Cell Smart Table Scan

The cell smart table scan event records time against full-table scans that are offloaded to the storage cells.

Because it can be used to determine if a statement utilized a Smart Scan, and thus benefited from offloading, it may be

the most important wait event in the Exadata system. Remember that offloading only occurs during direct-path reads,

so this event will, in general, replace the direct path read event. This is not to say that you won’t see a direct path

read event on an Exadata system, but it is much more likely to see time recorded against the cell smart table scan

event. As this is a direct-path read, it returns the data directly to the program global area (PGA) of the user process

requesting it, which includes parallel slave processes.

The use of an InfiniBand network changes the actual mechanism for direct-path reads, in comparison to

non-Exadata systems. Each direct-path read request to the storage cells also contains a reference to the select list,

join predicates—if they exist—and the query predicates. This allows the storage servers to filter the data and perform

column projection before “handing over” the results to the database servers. Each data block processed by a Smart

Scan has these optimizations applied to it; the database server processes that request. The data also have access to the

Chapter 7 ■ exadata Cell Wait events

123

ASM extent map, so they can request the necessary allocation units, or AUs, from each storage cell. The storage cells

then read these allocation units in the order of request and apply the Smart Scan optimizations to each AU, returning

the projected columns from rows that satisfy the supplied filter criteria. As expected, this event will occur repeatedly

when large scans are executed.

A 10046 trace is a good source for seeing this event recorded. We provide a small section of a large table scan,

operating in parallel, as follows:

WAIT #46969064935512: nam='cell smart table scan' ela= 794053 cellhash#=88802347 p2=0 p3=0 obj#=133235

tim=1371608209311673

WAIT #46969064935512: nam='cell smart table scan' ela= 151 cellhash#=88802347 p2=0 p3=0 obj#=133235

tim=1371608209317400

WAIT #46969064935512: nam='PX Deq: Execution Msg' ela= 80 sleeptime/senderid=268566527 passes=1

p3=7325501352 obj#=133235 tim=1371608209321134

WAIT #46969064935512: nam='cell smart table scan' ela= 116 cellhash#=88802347 p2=0 p3=0 obj#=133235

tim=1371608209321618

WAIT #46969064935512: nam='cell smart table scan' ela= 39049 cellhash#=88802347 p2=0 p3=0 obj#=133235

tim=1371608209360713

WAIT #46969064935512: nam='PX Deq: Execution Msg' ela= 138 sleeptime/senderid=268566527 passes=1

p3=7325501352 obj#=133235 tim=1371608209361123

WAIT #46969064935512: nam='cell smart table scan' ela= 126 cellhash#=398250101 p2=0 p3=0 obj#=133235

tim=1371608209361740

WAIT #46969064935512: nam='cell smart table scan' ela= 39318 cellhash#=398250101 p2=0 p3=0 obj#=133235

tim=1371608209401129

WAIT #46969064935512: nam='PX Deq: Execution Msg' ela= 84 sleeptime/senderid=268566527 passes=1

p3=7325501352 obj#=133235 tim=1371608209401312

WAIT #46969064935512: nam='cell smart table scan' ela= 100 cellhash#=398250101 p2=0 p3=0 obj#=133235

tim=1371608209401875

WAIT #46969064935512: nam='cell smart table scan' ela= 44604 cellhash#=398250101 p2=0 p3=0 obj#=133235

tim=1371608209446549

WAIT #46969064935512: nam='PX Deq: Execution Msg' ela= 76 sleeptime/senderid=268566527 passes=1

p3=7325501352 obj#=133235 tim=1371608209446719

WAIT #46969064935512: nam='cell smart table scan' ela= 120 cellhash#=2520626383 p2=0 p3=0 obj#=133235

tim=1371608209447214

WAIT #46969064935512: nam='cell smart table scan' ela= 223022 cellhash#=2520626383 p2=0 p3=0 obj#=133235

tim=1371608209670288

WAIT #46969064935512: nam='PX Deq: Execution Msg' ela= 82 sleeptime/senderid=268566527 passes=1

p3=7325501352 obj#=133235 tim=1371608209670463

WAIT #46969064935512: nam='cell smart table scan' ela= 103 cellhash#=2520626383 p2=0 p3=0 obj#=133235

tim=1371608209670967

WAIT #46969064935512: nam='cell smart table scan' ela= 5520 cellhash#=2520626383 p2=0 p3=0 obj#=133235

tim=1371608209676590

WAIT #46969064935512: nam='PX Deq: Execution Msg' ela= 90 sleeptime/senderid=268566527 passes=1

p3=7325501352 obj#=133235 tim=1371608209676760

WAIT #46969064935512: nam='cell smart table scan' ela= 161 cellhash#=398250101 p2=0 p3=0 obj#=133235

tim=1371608209677348

WAIT #46969064935512: nam='cell smart table scan' ela= 43339 cellhash#=398250101 p2=0 p3=0 obj#=133235

tim=1371608209720745

WAIT #46969064935512: nam='PX Deq: Execution Msg' ela= 113 sleeptime/senderid=268566527 passes=1

p3=7325501352 obj#=133235 tim=1371608209720974

WAIT #46969064935512: nam='cell smart table scan' ela= 132 cellhash#=2520626383 p2=0 p3=0 obj#=133235

tim=1371608209721594

Chapter 7 ■ exadata Cell Wait events

124

WAIT #46969064935512: nam='cell smart table scan' ela= 9462 cellhash#=2520626383 p2=0 p3=0 obj#=133235

tim=1371608209731125

WAIT #46969064935512: nam='PX Deq: Execution Msg' ela= 102 sleeptime/senderid=268566527 passes=1

p3=7325501352 obj#=133235 tim=1371608209731327

WAIT #46969064935512: nam='cell smart table scan' ela= 84 cellhash#=2520626383 p2=0 p3=0 obj#=133235

tim=1371608209732040

WAIT #46969064935512: nam='cell smart table scan' ela= 19 cellhash#=88802347 p2=0 p3=0 obj#=133235

tim=1371608209732081

Notice this section also includes a number of 'PX Deq: Execution Msg' events, proof of the parallel processing

utilized during the query execution.

Parameters supplied by this event provide only the object id (obj#) and the cell hash number (cellhash#).

Parameters P2 and P3 are unused. In contrast, the direct path-read event provides the object_id, the file number, the

offset into the file (first dba), and the number of contiguous blocks read (block cnt), shown as follows:

WAIT #47901347109608: nam='direct path read' ela= 355651 file number=1 first dba=1474969 block cnt=3

obj#=243 tim=1371659720952304

WAIT #47901347109608: nam='direct path read' ela= 59 file number=1 first dba=1474980 block cnt=4

obj#=243 tim=1371659720952562

WAIT #47901347109608: nam='direct path read' ela= 16812 file number=1 first dba=1474984 block cnt=4

obj#=243 tim=1371659720969412

Note that on Exadata systems implementing direct-path reads (when the query or statement does not qualify

for Smart Scan execution), there is no cell information provided, so it’s not known which cell received and processed

which request.

Cell Smart Index Scan

In the same manner as the cell smart table scan, the cell smart index scan records time against fast full-index

scans that are offloaded to the storage cells, the only real difference being the object type being scanned.

On one of the most active systems, we have a total of 1184 cell smart table scans recorded in DBA_HIST_ACTIVE_

SESS_HISTORY, while during that same time period only 8 cell smart index scans were reported. This may be due

to the propensity of Oracle 11.2 to perform direct-path reads on serial table scans. There is a hidden parameter,

_serial_direct_read, normally set to FALSE, that can be set to TRUE to favor this activity. Setting this event may

create performance issues in heavily used production systems, so it’s best to test this on a nonproduction system,

using an environment as close to production as possible. Note that the parameter only specifies serial direct reads, not

the object those reads operate upon, so indexes can also utilize this serial-read mechanism. Because indexes tend to

be smaller than the tables they index, it’s a good possibility their smaller size precludes use of the cell smart index

scan event. Also, only fast full-index scans are eligible for cell smart index scans; index range scans and index full

scans do not qualify.

In the same manner as the cell smart table scan event, the cell smart index scan event doesn’t provide

much information; only the cell hash number (cellhash#) and the object_id (obj#) are found in a 10046 trace file, with

parameters P2 and P3 again unused.

WAIT #46969064936345: nam='cell smart index scan' ela= 178 cellhash#=2520626383 p2=0 p3=0 obj#=448299

tim=1371608209741332

WAIT #46969064936345: nam='cell smart index scan' ela= 462 cellhash#=2520626383 p2=0 p3=0 obj#=448299

tim=1371608209752118

Chapter 7 ■ exadata Cell Wait events

125

Cell Single-Block Physical Read

This event is the Exadata equivalent of the db file sequential read event on non-Exadata systems. These are

usually indicative of index access operations, including index block reads and table block reads by rowids provided

from the index lookups, but other operations can also use this event when accessing single blocks.

Operations that generate the cell single block physical read event can be many, as shown by the following

output from DBA_HIST_ACTIVE_SESS_HISTORY:

EVENT NON_EXA_EVENT OPERATION COUNT(*)

----- ------------- --------- --------

cell single block physical read db file sequential read CREATE TABLE STATEMENT 1

DDL STATEMENT 19

DELETE 139

FIXED TABLE FIXED INDEX 10

FIXED TABLE FULL 338

FOR UPDATE 12

INDEX FULL SCAN 711

INDEX RANGE SCAN 14281

INDEX RANGE SCAN (MIN/MAX) 26

INDEX RANGE SCAN DESCENDING 10

INDEX SKIP SCAN 2289

INDEX STORAGE SAMPLE FAST FULL SCAN 64

INDEX UNIQUE SCAN 1100

LOAD TABLE CONVENTIONAL 372

PX COORDINATOR 3

SELECT STATEMENT 41

SORT AGGREGATE 30

TABLE ACCESS BY GLOBAL INDEX ROWID 1

TABLE ACCESS BY INDEX ROWID 103970

TABLE ACCESS BY LOCAL INDEX ROWID 293

TABLE ACCESS CLUSTER 21

TABLE ACCESS STORAGE FULL 34

TABLE ACCESS STORAGE FULL FIRST ROWS 1

TABLE ACCESS STORAGE SAMPLE BY ROWID RANGE 449

UPDATE 171

The most common event in the preceding list is index access, accounting for 11 of the listed entries. Add to that

the total occurrences of these events, and it’s even more obvious that the most likely operation to mark time against

this event is index access.

This event provides more information than the other events discussed thus far, reporting the cell hash number

(cellhash#), the disk hash number (diskhash#), the total bytes passed during the operation (bytes), and the object_id

(obj#). With this event, you know not only which object was accessed but from which disk, which cell, and how

many bytes were read. The following is a small part of the output from grep on a 10046 trace file that shows these

reported values:

WAIT #47185678513912: nam='cell single block physical read' ela= 13725 cellhash#=398250101

diskhash#=2110579711 bytes=8192 obj#=134196 tim=1364280947867845

WAIT #47185663242504: nam='cell single block physical read' ela= 562 cellhash#=398250101

diskhash#=736840779 bytes=8192 obj#=21 tim=1364280948818774

WAIT #47185660188840: nam='cell single block physical read' ela= 516 cellhash#=398250101

diskhash#=592573387 bytes=8192 obj#=69 tim=1364280948820595

WAIT #47185681467920: nam='cell single block physical read' ela= 518 cellhash#=398250101

diskhash#=323658058 bytes=8192 obj#=62 tim=1364280948828550

Chapter 7 ■ exadata Cell Wait events

126

WAIT #47185664116080: nam='cell single block physical read' ela= 593 cellhash#=2520626383

diskhash#=1392289187 bytes=8192 obj#=61 tim=1364280948829493

WAIT #47185671820512: nam='cell single block physical read' ela= 520 cellhash#=2520626383

diskhash#=1878859599 bytes=8192 obj#=54 tim=1364280948832544

WAIT #47185672026856: nam='cell single block physical read' ela= 536 cellhash#=88802347

diskhash#=1487722174 bytes=8192 obj#=37 tim=1364280948855726

WAIT #47185676137528: nam='cell single block physical read' ela= 505 cellhash#=398250101

diskhash#=949169843 bytes=8192 obj#=75 tim=1364280948856712

WAIT #47185663821624: nam='cell single block physical read' ela= 504 cellhash#=2520626383

diskhash#=372821781 bytes=8192 obj#=106 tim=1364280948857502

WAIT #47185663821624: nam='cell single block physical read' ela= 510 cellhash#=88802347

diskhash#=2410699693 bytes=8192 obj#=104 tim=1364280948858089

WAIT #47185671360600: nam='cell single block physical read' ela= 484 cellhash#=398250101

diskhash#=4004546112 bytes=8192 obj#=108 tim=1364280948859019

WAIT #47185671360600: nam='cell single block physical read' ela= 508 cellhash#=2520626383

diskhash#=3373534499 bytes=8192 obj#=108 tim=1364280948859781

WAIT #47185663242504: nam='cell single block physical read' ela= 499 cellhash#=398250101

diskhash#=736840779 bytes=8192 obj#=21 tim=1364280948860521

WAIT #47185671976024: nam='cell single block physical read' ela= 519 cellhash#=88802347

diskhash#=2410699693 bytes=8192 obj#=4 tim=1364280948873162

WAIT #47185678747440: nam='cell single block physical read' ela= 505 cellhash#=88802347

diskhash#=3487034449 bytes=8192 obj#=427 tim=1364280948876978

WAIT #47185678747440: nam='cell single block physical read' ela= 504 cellhash#=88802347

diskhash#=351342063 bytes=8192 obj#=425 tim=1364280948877576

Cell Multiblock Physical Read

This event was renamed for Exadata systems, as the non-Exadata event is named db file scattered read, which is

descriptive but not entirely accurate, as the blocks read may not be scattered but contiguous. Oracle 11.2 still reports

multiblock reads using the db file scattered read event on non-Exadata systems, regardless of whether they are

reading contiguous or scattered blocks. For Exadata systems, this event records time for contiguous multiblock reads.

A partial list of the operations that trigger this wait event follows:

EVENT NON_EXA_EVENT OPERATION COUNT(*)

----- ------------- --------- --------

cell multiblock physical read db file scattered read INDEX FULL SCAN 1

INDEX RANGE SCAN 160

INDEX SKIP SCAN 4

INDEX STORAGE FAST FULL SCAN 14

INDEX STORAGE SAMPLE FAST FULL SCAN 445

INDEX UNIQUE SCAN 10

LOAD TABLE CONVENTIONAL 2

TABLE ACCESS BY INDEX ROWID 5819

TABLE ACCESS BY LOCAL INDEX ROWID 4

TABLE ACCESS STORAGE FULL 1627

TABLE ACCESS STORAGE FULL FIRST ROWS 324

TABLE ACCESS STORAGE SAMPLE BY ROWID RANGE 58

UPDATE 1

Chapter 7 ■ exadata Cell Wait events

127

The output of processing another 10046 trace file with grep follows, showing how this event is reported:

WAIT #47901352100880: nam='cell multiblock physical read' ela= 640 cellhash#=398250101

diskhash#=4004546112 bytes=65536 obj#=631 tim=1371659723908619

WAIT #47901352100880: nam='cell multiblock physical read' ela= 844 cellhash#=398250101

diskhash#=4004546112 bytes=65536 obj#=631 tim=1371659723909603

WAIT #47901352100880: nam='cell multiblock physical read' ela= 632 cellhash#=398250101

diskhash#=4004546112 bytes=65536 obj#=631 tim=1371659723910387

WAIT #47901352100880: nam='cell multiblock physical read' ela= 620 cellhash#=398250101

diskhash#=4004546112 bytes=65536 obj#=631 tim=1371659723911140

WAIT #47901352100880: nam='cell multiblock physical read' ela= 639 cellhash#=398250101

diskhash#=4004546112 bytes=65536 obj#=631 tim=1371659723911925

WAIT #47901352100880: nam='cell multiblock physical read' ela= 653 cellhash#=398250101

diskhash#=2110579711 bytes=65536 obj#=631 tim=1371659723912743

WAIT #47901352100880: nam='cell multiblock physical read' ela= 960 cellhash#=398250101

diskhash#=2110579711 bytes=65536 obj#=631 tim=1371659723913842

WAIT #47901352100880: nam='cell multiblock physical read' ela= 841 cellhash#=398250101

diskhash#=2110579711 bytes=65536 obj#=631 tim=1371659723914879

WAIT #47901352100880: nam='cell multiblock physical read' ela= 630 cellhash#=398250101

diskhash#=2110579711 bytes=65536 obj#=631 tim=1371659723915692

WAIT #47901352100880: nam='cell multiblock physical read' ela= 726 cellhash#=398250101

diskhash#=2110579711 bytes=65536 obj#=631 tim=1371659723916608

WAIT #47901352100880: nam='cell multiblock physical read' ela= 820 cellhash#=398250101

diskhash#=2110579711 bytes=65536 obj#=631 tim=1371659723917621

WAIT #47901352100880: nam='cell multiblock physical read' ela= 687 cellhash#=398250101

diskhash#=2110579711 bytes=65536 obj#=631 tim=1371659723918461

WAIT #47901352100880: nam='cell multiblock physical read' ela= 757 cellhash#=398250101

diskhash#=2110579711 bytes=65536 obj#=631 tim=1371659723919396

WAIT #47901352100880: nam='cell multiblock physical read' ela= 13061 cellhash#=398250101

diskhash#=323658058 bytes=1048576 obj#=631 tim=1371659723933281

WAIT #47901352100880: nam='cell multiblock physical read' ela= 11539 cellhash#=2520626383

diskhash#=1346328363 bytes=1048576 obj#=631 tim=1371659723946098

WAIT #47901352100880: nam='cell multiblock physical read' ela= 14240 cellhash#=88802347

diskhash#=493540951 bytes=1048576 obj#=631 tim=1371659723964141

WAIT #47901352100880: nam='cell multiblock physical read' ela= 7785 cellhash#=88802347

diskhash#=4062498200 bytes=163840 obj#=631 tim=1371659723973491

WAIT #47901352100880: nam='cell multiblock physical read' ela= 597 cellhash#=398250101

diskhash#=949169843 bytes=32768 obj#=997 tim=1371659723976483

This event reports the same information as the cell single-block physical read event, that is, the cell hash

(cellhash#), disk hash (diskhash#), total bytes passed (bytes), and the object_id (obj#).

Cell List of Blocks Physically Read

Originally called db file parallel read, on Exadata systems it was renamed to more accurately reflect the operations

that trigger it. However, on non-Exadata systems, the originally named event is the one to which time is recorded.

Interestingly, this event has nothing to do with parallel data manipulation language (DML) operations.

Chapter 7 ■ exadata Cell Wait events

128

This event records time for multi-block reads when the blocks are not contiguous. This makes it easier to

distinguish from contiguous multiblock reads. Again, a number of plan operations can trigger this event, as the

following list shows:

EVENT NON_EXA_EVENT OPERATION COUNT(*)

----- ------------- --------- --------

cell list of blocks physical read db file parallel read DELETE 1

INDEX RANGE SCAN 176

INDEX STORAGE SAMPLE FAST FULL SCAN 1

INDEX UNIQUE SCAN 65

PX COORDINATOR 6

TABLE ACCESS BY GLOBAL INDEX ROWID 2

TABLE ACCESS BY INDEX ROWID 4412

TABLE ACCESS BY LOCAL INDEX ROWID 4

TABLE ACCESS STORAGE FULL 50

TABLE ACCESS STORAGE SAMPLE BY ROWID RANGE 1

UPDATE 1

The four most “popular” plan operations on one of our databases are TABLE ACCESS BY INDEX ROWID, INDEX

RANGE SCAN, INDEX UNIQUE SCAN, and TABLE ACCESS STORAGE FULL, in order of frequency.

Looking again at a 10046 trace file, it can be seen how this event is reported in the following output from grep:

WAIT #47901352100880: nam='cell list of blocks physical read' ela= 537 cellhash#=398250101

diskhash#=2110579711 blocks=3 obj#=997 tim=1371659723985684

WAIT #47901352100880: nam='cell list of blocks physical read' ela= 574 cellhash#=398250101

diskhash#=2110579711 blocks=4 obj#=997 tim=1371659723988550

WAIT #47901352100880: nam='cell list of blocks physical read' ela= 1723 cellhash#=398250101

diskhash#=323658058 blocks=46 obj#=997 tim=1371659723998837

WAIT #47901352100880: nam='cell list of blocks physical read' ela= 1208 cellhash#=2520626383

diskhash#=1346328363 blocks=36 obj#=997 tim=1371659724003584

WAIT #47901352100880: nam='cell list of blocks physical read' ela= 1567 cellhash#=2520626383

diskhash#=4245410826 blocks=47 obj#=997 tim=1371659724010794

WAIT #47901352100880: nam='cell list of blocks physical read' ela= 632 cellhash#=398250101

diskhash#=4080537574 blocks=4 obj#=997 tim=1371659724013129

WAIT #47901344458904: nam='cell list of blocks physical read' ela= 33814 cellhash#=398250101

diskhash#=949169843 blocks=27 obj#=447547 tim=1371659793327488

WAIT #47901354882040: nam='cell list of blocks physical read' ela= 702 cellhash#=398250101

diskhash#=949169843 blocks=7 obj#=4 tim=1371659807119269

WAIT #47901354882040: nam='cell list of blocks physical read' ela= 715 cellhash#=398250101

diskhash#=323658058 blocks=8 obj#=4 tim=1371659807144991

WAIT #47901354882040: nam='cell list of blocks physical read' ela= 40454 cellhash#=398250101

diskhash#=4080537574 blocks=61 obj#=4 tim=1371659807259159

WAIT #47901354882040: nam='cell list of blocks physical read' ela= 1135 cellhash#=398250101

diskhash#=4080537574 blocks=17 obj#=4 tim=1371659807265443

WAIT #47901354882040: nam='cell list of blocks physical read' ela= 805 cellhash#=398250101

diskhash#=4080537574 blocks=12 obj#=4 tim=1371659807266892

WAIT #47901354882040: nam='cell list of blocks physical read' ela= 198850 cellhash#=88802347

diskhash#=2443481431 blocks=57 obj#=4 tim=1371659807516838

WAIT #47901354882040: nam='cell list of blocks physical read' ela= 1987 cellhash#=88802347

diskhash#=987865679 blocks=31 obj#=4 tim=1371659807569906

WAIT #47901354882040: nam='cell list of blocks physical read' ela= 1733 cellhash#=88802347

diskhash#=987865679 blocks=37 obj#=4 tim=1371659807574314

Chapter 7 ■ exadata Cell Wait events

129

WAIT #47901354882040: nam='cell list of blocks physical read' ela= 2216 cellhash#=88802347

diskhash#=4062498200 blocks=69 obj#=4 tim=1371659807579817

WAIT #47901354882040: nam='cell list of blocks physical read' ela= 34220 cellhash#=88802347

diskhash#=4062498200 blocks=54 obj#=4 tim=1371659807615518

WAIT #47901354882040: nam='cell list of blocks physical read' ela= 36753 cellhash#=398250101

diskhash#=949169843 blocks=126 obj#=4 tim=1371659807657273

WAIT #47901354882040: nam='cell list of blocks physical read' ela= 2424 cellhash#=398250101

diskhash#=4004546112 blocks=89 obj#=4 tim=1371659807700181

WAIT #47901354882040: nam='cell list of blocks physical read' ela= 2656 cellhash#=88802347

diskhash#=987865679 blocks=95 obj#=4 tim=1371659807707733

WAIT #47901354882040: nam='cell list of blocks physical read' ela= 1534 cellhash#=2520626383

diskhash#=3381263565 blocks=15 obj#=4 tim=1371659807714012

WAIT #47901354882040: nam='cell list of blocks physical read' ela= 1958 cellhash#=2520626383

diskhash#=3381263565 blocks=51 obj#=4 tim=1371659807719799

As with the other cell block-read events, this, too, reports the cell hash (cellhash#), disk hash (diskhash#), and the

object_id of the scanned object (obj#). It differs by reporting the total number of noncontiguous blocks read (blocks).

Cell Smart File Creation

When data files are created or extended, data blocks must be formatted. On non-Exadata systems, this task falls to the

database server, and the data file init write event collects time when this occurs. Exadata does things differently

by having the storage cells perform this task, and as a result, the cell smart file creation wait event records time

when data blocks are formatted. Note that a file does not have to be added to a tablespace for this wait to occur; the

event actually records time against data block formatting.

It may seem strange to have this wait event in the User I/O category, but many times, data blocks are formatted

due to DML operations, such as autoextending a data file or deleting data. Other operations that can trigger this event

include updates, nonunique index creations, direct-path loads, and inserts using the /*+ append */ hint.

How can updates and deletes trigger the cell smart file creation wait event? As noted previously, the wait

event actually records time for data block-formatting operations, and deletes can cause data blocks to be reformatted

for reuse when those blocks no longer contain data. Updates can also trigger this event, as an update may trigger a

data file extension or use of a new data block, if row chaining or migration occurs.

There is only one parameter returned when this event is triggered and that is the cell hash (cellhash#); all other

parameters that could be passed are unused.

Cell Statistics Gather

This is a wait event that we feel is incorrectly categorized as User I/O, because it doesn’t record time against disk I/O

operations; rather, it records time reading from V$CELL_THREAD_HISTORY, V$CELL_REQUEST_TOTALS, and other X$

tables and V$ views referencing cell activities, as well as recursive queries against the AUD$ table.

Generating a 10046 trace file and using grep to find this event produces the following abbreviated output:

WAIT #47971177959976: nam='cell statistics gather' ela= 235 cellhash#=0 p2=0 p3=0 obj#=384

tim=1372568877816026

WAIT #47971177959976: nam='cell statistics gather' ela= 253 cellhash#=0 p2=0 p3=0 obj#=384

tim=1372568877836094

WAIT #47971177959976: nam='cell statistics gather' ela= 256 cellhash#=0 p2=0 p3=0 obj#=384

tim=1372568877855930

WAIT #47971177959976: nam='cell statistics gather' ela= 280 cellhash#=0 p2=0 p3=0 obj#=384

tim=1372568877882687

Chapter 7 ■ exadata Cell Wait events

130

WAIT #47971177959976: nam='cell statistics gather' ela= 276 cellhash#=0 p2=0 p3=0 obj#=384

tim=1372568877902691

WAIT #47971177959976: nam='cell statistics gather' ela= 256 cellhash#=0 p2=0 p3=0 obj#=384

tim=1372568877921221

WAIT #47971177959976: nam='cell statistics gather' ela= 318 cellhash#=0 p2=0 p3=0 obj#=384

tim=1372568877940424

These waits are against the AUD$ table (object_id and data_object_id 384 in our database). The query executed

in this trace file was not against AUD$ but against V$CELL and V$CELL_THREAD_HISTORY. The formatted output from

tkprof from the trace file generated for the V$CELL_THREAD_HISTORY query follows:

SQL ID: fqv4mmcqsysbp Plan Hash: 3553215696

select *

From

v$cell_thread_history

call count cpu elapsed disk query current rows

------- ------ -------- ---------- ---------- ---------- ---------- ----------

Parse 1 0.00 0.00 0 4 0 0

Execute 1 0.00 0.00 0 0 0 0

Fetch 2775 0.13 0.15 0 0 0 41609

------- ------ -------- ---------- ---------- ---------- ---------- ----------

total 2777 0.13 0.15 0 4 0 41609

Misses in library cache during parse: 1

Optimizer mode: ALL_ROWS

Parsing user id: 401

Number of plan statistics captured: 1

Rows (1st) Rows (avg) Rows (max) Row Source Operation

---------- ---------- ---------- ---------------------------------------------------

41609 41609 41609 FIXED TABLE FULL X$KCFISOSSN (cr=0 pr=0 pw=0 time=116083 us cost=0

size=676 card=1)

Elapsed times include waiting on following events:

Event waited on Times Max. Wait Total Waited

---------------------------------------- Waited ---------- ------------

SQL*Net message to client 2775 0.00 0.00

cell statistics gather 66 0.00 0.02

SQL*Net message from client 2775 2.63 12.53

row cache lock 9 0.00 0.00

library cache lock 2 0.00 0.00

library cache pin 2 0.00 0.00

********************************************************************************

Chapter 7 ■ exadata Cell Wait events

131

System I/O Events

There are five cell-specific events in this wait class, and three of these events rarely accumulate any appreciable time.

The two backup events do accrue time during backup and recovery operations and are interesting not only for what

operations have time recorded against them but also for the operations that you think would accrue time but do not.

We list the non-backup events in Table 7-2.

Cell Smart Incremental Backup

Exadata has optimized RMAN (Recovery Manager) incremental backups by allowing offloading to the storage tier. As

such, this event accrues wait time for Incremental Level 1 backups, where the processing has been offloaded to the

storage tier. With Exadata, changes are tracked at the block level, allowing for faster backups of blocks changed since

the last Incremental Level 0 backup. The storage tier is especially suited for this type of processing, thus the need for

this new wait event.

Not every incremental backup triggers this wait event. Incremental Level 0 backups do not, as they are,

essentially, full backups and don’t rely on block change tracking. They are the starting point for any recovery

operation utilizing incremental backups, which is why the most recent Incremental Level 0 backup supersedes any

prior Incremental Level 0 backup when performing a restore and recovery absent a RECOVER ... UNTIL ... clause or

a SET UNTIL TIME statement.

This event populates the cell hash (cellhash#) and nothing else. Normally, Oracle will reset or clear any

parameters that are not passed by the current wait event, but, occasionally, values populated by prior wait events get

through. The obj# parameter is one that could be populated in a 10046 trace file that records this event. In such cases,

a non-negative obj# is meaningless. Oracle will populate the obj# with a -1, to show it was cleared from a prior event.

Cell Smart Restore from Backup

This event logs wait time spent doing a restore with RMAN. Just like the prior event, Exadata offloads this processing

to the storage cells, which, again, are best suited for such operations, having direct access to the storage.

This event actually relates to the cell smart file creation event; both events record time for formatting of

empty data blocks and initialization operations related to file creation.

The only parameter populated by this event is, again, the cell hash (cellhash#).

Table 7-2. Cell Startup and Shutdown Wait Events

Event Description

Cell manager closing cell This event is a cell shutdown event, collecting time against cell

shutdownoperations. The only parameter passedback is the cell hash (cellhash#).

Cell manager opening cell This is a cell startup event. The only parameter passed back is, again, the cell hash

(cellhash#).

Cell manager discovering disks This is another cell startup event, passing back the cell hash (cellhash#). Like the

other two events, no other parameters are provided.

Chapter 7 ■ exadata Cell Wait events

132

Idle Class/Other Class

The five wait events in these classes are rarely used in a properly operating Exadata system. We haven’t found them on

the systems we manage, and it’s likely you won’t either. There is one exception to this, the cell flash unkeep event,

which will be covered in its own section. The remainder of these events are uninformative with respect to the P1,

P2, and P3 values provided in the V$SESSION_WAIT view. Table 7-3 lists the events you’re not likely to see and a basic

description of the parameters supplied to Oracle.

Table 7-3. Rarely Reported Cell Wait Events

Event Description

Cell manager cancel work request The information provided by this event is Sparse, as none of the parameters

that could be supplied are populated in V$SESSION_WAIT. We have yet to see

this event in a 10046 Trace.

Cell worker online completion This appears to be a cell startup event. The only parameter supplied is cell hash

(cellhash# in a 10046 trace, P1 in the V$SESSION_WAIT view). This is another

wait event that we haven’t seen reported.

Cell worker retry Another wait event that populates only the cell hash (cellhash#) and

nothing else.

Cell worker idle No parameters are supplied by this event, and we have not seen it reported on

any of the systems we manage.

Cell Smart Flash Unkeep

This event logs time waiting while Oracle flushes blocks out of the Smart Flash Cache, but it doesn’t get triggered for

objects using the Smart Flash Cache in the default FIFO manner. This event tracks wait time for objects intended to

be kept in the Smart Flash Cache (using the STORAGE(FLASH_CACHE KEEP) parameter). Operations that trigger this

event would be table drops and truncates. An additional event associated with this wait is enq: RO fast object

reuse, as the operation that triggers this event also triggers the buffer cache cleanout. Truncating or dropping a

table also requires removal of any cached data from that object, and, on Exadata, there are two separate caches

to be maintained.

The only parameter supplied by this event is the cell hash (cellhash#), to identify which cell was accessed for the

truncated or dropped operation. No other parameters in the WAIT event in a 10046 trace, or in the V$SESSION_WAIT

view, are populated.

Things to Know

The wait interface, which has already been expanded over the last few Oracle releases, experiences another expansion

with Exadata: the addition of cell-specific events, which, in some cases, replace existing events found on non-Exadata

systems. New events have also been added to monitor new mechanisms specific to Exadata.

The cell smart table scan event records time against Smart Scans, making this event an important one

with respect to Exadata or systems using Exadata storage. This event usually replaces the direct path read event,

although you can still find direct-path read waits on an Exadata system when queries do not qualify for a Smart Scan.

The cell smart index scan event reports time waited for index fast full scans; no other index access path

triggers this wait.

Chapter 7 ■ exadata Cell Wait events

133

The cell single block physical read event is the Exadata equivalent of the db file sequential read event

on non-Exadata systems. It is most often associated with index access operations and table access by index rowid

operations, but any single-block access operation can trigger this wait. It is, in our opinion, more accurately named

than its non-Exadata equivalent, as the blocks read are single blocks and not necessarily sequential.

The cell multiblock physical read event collects time for sequential multiblock reads and is the replacement

for the db file scattered read event. Again, we feel the Exadata event is better named, as it indicates that

sequential collections of data blocks are read. The db file scattered read event records time against both

sequential and nonsequential reads in non-Exadata systems, so its name is somewhat confusing.

Exadata provides a new event, cell list of blocks read, to record time against nonsequential, or scattered,

block reads. This event can also replace the db file scattered read event, because the old event, as mentioned

previously, records time against all multiblock reads, sequential or not.

Data block preparation is offloaded to the storage cells in Exadata and, because of this, a new event, named

cell smart file creation, has been added. The name is somewhat of a misnomer, as it doesn’t necessarily refer

to file creation (although that is one operation that can trigger this wait), but usually collects time against data block

formatting/reformatting, to prepare for new data. Operations that trigger this event include deletes, updates, database

file creation, and file autoextension.

The cell statistics gather event is one that we feel is miscategorized, as it has nothing to do with disk I/O

operations. Recording time against access of various V$ and X$ tables/views, it may be more accurately considered a

System I/O or other wait-class event.

RMAN also has waits specific to Exadata, as some of the RMAN operations are offloaded to the storage cells. The

cell smart incremental backup event records wait time experienced by Incremental Level 1 backups. Because

an Incremental Level 0 backup is actually a full backup and starting point for the next series of Level 1 incremental

backups, it is not a backup that triggers this event.

The cell smart restore from backup event collects wait times experienced by RMAN when performing a

database restore, as operations specific to this wait are offloaded to the storage cells. Because the storage cells are

the only servers in an Exadata system having direct access to the storage, it makes sense to offload these two RMAN

operations.

Exadata has, as one of the performance enhancements, the Smart Flash Cache. When tables/indexes are created

with the STORAGE(FLASH_CACHE KEEP) directive, the cell smart flash unkeep event can be triggered when these

objects are truncated or dropped. These operations also trigger buffer cache cleanup, so trace files reporting this event

usually report the enq: RO fast object reuse wait as well.

135

Chapter 8

Measuring Performance

Exadata is a huge leap forward, with respect to its architecture. Unlike traditional commodity hardware configurations,

Exadata provides a matched set of hardware and software. However, it is running the same Oracle 11.2.0.3 you can

install on any non-Exadata platform. Thus, the same basic performance rules apply; the difference is the additional

functionality of Smart Scans, the Smart Flash Cache, and offloading, to name a few. Because the purpose of this book is

to make you familiar with, and work knowledgeably on, Exadata, it is the Exadata-specific performance metrics we will

be covering. Additionally, we will cover Exadata-related performance topics and relevant internals.

Exadata provides plenty of performance metrics to use. That’s the good news. Unfortunately, Exadata provides

plenty of performance metrics to use. That’s the bad news. It is good to have a vast array of metrics to examine in the

quest for performance; the downside of that is you can get so lost in the wealth of performance data, you forget what

you are looking for. Knowing what to look for, how to tell when things are good, and, more important, when things are

bad can be difficult. The key to monitoring performance is not looking at every metric available but choosing metrics

wisely. Why you are choosing specific metrics and what values you should be seeing are much more important.

The end user doesn’t care how many I/Os per second Exadata can provide; she measures performance in terms

of response time. Basically speaking, the faster things go, the happier the end user will be. Addressing performance

issues should be a process of monitoring and optimizing the response time. This is where the Oracle Wait interface

becomes a very useful tool. These wait events are discussed in Chapter 7. Exadata also supplies other metrics to

provide additional information that can allow you to further enhance performance. Data such as the number of bytes

saved by a Smart Scan, the I/O avoided by use of a storage index, and Smart Flash Cache statistics provide keys to

improving performance. This chapter will discuss such metrics, how to get the data, and what the numbers mean.

We will also discuss monitoring and troubleshooting Exadata performance problems using this information.

Measure Twice, Cut Once

Before we dive into the Exadata performance metrics, we have to review some key pieces of the Exadata system.

Whether or not a query or statement uses a Smart Scan, the database servers ask the storage cells to actually retrieve

the requested data. When a Smart Scan is in use, the storage cells also assist in processing that data through column

projection and predicate filtering. These processes involve the cells reading the data or index blocks, filtering the

desired rows, and extracting only the columns of interest. Storage indexes also contribute to this process, by allowing

the storage cells to bypass 1MB units of data that do not contain the column values of interest. From the database

server perspective, the storage cells are black boxes from which the desired data is dispensed. These “black boxes”

also pass back to the database servers metrics that record how much work those storage cells have performed.

The storage cells themselves provide a rich palette of performance metrics, many of which are not passed back to the

database servers. However, you will find sufficient information from the storage cells available at the database server

level to troubleshoot many performance issues.

Smart Scans are the lifeblood of Exadata; they are key to achieving performance levels beyond common

commodity hardware configurations. It is important that you understand the performance metrics for Smart Scans,

and with that thought in mind, we will discuss, again, some aspects of them.

CHAPTER 8 ■ MEASURING PERFORMANCE

136

Smart Scans, Again

In Chapter 2 we discussed Smart Scans and offloading at length; we won’t go into that level of detail in this chapter.

We will discuss important aspects you should know, in order to properly analyze the supplied metrics to make an

informed diagnosis of performance issues.

Smart Scans require direct-path reads and full-table scans, index fast full scans or index full scans. The first step

in troubleshooting performance issues regarding Smart Scans is to see if one of the qualifying full scans was used.

The execution plan will give you that information, so it’s the logical place to begin. Going back to a previous example,

we can see the qualifying step in the following plan:

SQL> select *

2 from emp

3 where empid = 7934;

EMPID EMPNAME DEPTNO

---------- ---------------------------------------- ----------

7934 Smorthorper7934 15

Elapsed: 00:00:00.21

Execution Plan

----------------------------------------------------------

Plan hash value: 3956160932

----------------------------------------------------------------------------------

----------------------------------------------------------------------------------

| 0 | SELECT STATEMENT | | 1 | 28 | 6361 (1)| 00:00:01 |

|* 1 | TABLE ACCESS STORAGE FULL| EMP | 1 | 28 | 6361 (1)| 00:00:01 |

----------------------------------------------------------------------------------

Predicate Information (identified by operation id):

---------------------------------------------------

1 - storage("EMPID"=7934)

filter("EMPID"=7934)

Statistics

----------------------------------------------------------

1 recursive calls

1 db block gets

40185 consistent gets

22594 physical reads

168 redo size

680 bytes sent via SQL*Net to client

524 bytes received via SQL*Net from client

2 SQL*Net roundtrips to/from client

0 sorts (memory)

0 sorts (disk)

1 rows processed

SQL>

CHAPTER 8 ■ MEASURING PERFORMANCE

137

As we stated in Chapter 2, simply because STORAGE is in the plan step, that is not a guarantee that a Smart Scan

was executed. You have to dig deeper and see if direct-path reads were used. Other criteria also apply before it can be

determined if a Smart Scan was used, such as the presence of column-projection data in the plan output. Predicate

filtering also can take place with a Smart Scan. Storage indexes can also provide benefit, by allowing Oracle to bypass

1MB data segments that do not contain the column values of interest. Notice in the supplied plan that the full-scan

step includes the keyword STORAGE and that the predicate information includes a storage() entry. Again, these do not

guarantee that a Smart Scan was executed, only that the statement qualifies for Smart Scan execution. The absence of

these items in a query plan does, however, indicate that a Smart Scan cannot occur. You may also see plans where the

STORAGE keyword is present but the storage() predicate information is missing, indicating that no predicate offload

was executed. In such cases, you may find that the query still benefited from column projection.

It is possible to have all of the previously mentioned criteria in an execution plan and still not execute a Smart

Scan. Why? Remember that Smart Scans require direct-path reads; if no direct-path reads are executed, then no

Smart Scan will be executed. Direct-path reads occur any time parallel execution is used but can also occur serially,

especially if the _serial_direct_read parameter is set to TRUE. It is necessary when investigating Smart Scan

performance to check the execution plan and any metrics indicating direct-path reads may have been used. Such

metrics were discussed in Chapter 2, and the associated wait events were discussed in Chapter 6. Both sources of

information will be used to troubleshoot Smart Scan performance.

Performance Counters and Metrics

The V$SQL and GV$SQL views provide two metrics we have used to prove Smart Scan execution,

io_cell_offload_eligible_bytes, and io_cell_offload_returned_bytes. These are used to compute the

percentage of data not read because a Smart Scan was executed. We provided this script in Chapter 2, but it is good to

look at it again and understand what it reports:

SQL> select sql_id,

2 io_cell_offload_eligible_bytes qualifying,

3 io_cell_offload_eligible_bytes - io_cell_offload_returned_bytes actual,

4 round(((io_cell_offload_eligible_bytes -

io_cell_offload_returned_bytes)/io_cell_offload_eligible_bytes)*100, 2) io_saved_pct,

5 sql_text

6 from v$sql

7 where io_cell_offload_returned_bytes> 0

8 and instr(sql_text, 'emp') > 0

9 and parsing_schema_name = 'BING';

SQL_ID QUALIFYING ACTUAL IO_SAVED_PCT SQL_TEXT

------------- ---------- ---------- ------------ -------------------------------------

gfjb8dpxvpuv6 185081856 42510928 22.97 select * from emp where empid = 7934

SQL>

As a review, the io_cell_offload_eligible_bytes column reports the bytes of data that can be offloaded to

the storage cells during query execution. The io_cell_offload_returned_bytes column reports the number of

bytes returned by the regular I/O path. The difference between these two values provides the bytes actually offloaded

during query execution. Using these two metrics can prove that a Smart Scan was executed. Two other columns can

also provide information on Smart Scan and storage index usage. These are cell physical IO bytes saved by

storage index and cell physical IO interconnect bytes returned by smart scan. Covered in Chapter 3,

CHAPTER 8 ■ MEASURING PERFORMANCE

138

cell physical IO bytes saved by storage index reports exactly what it says, the total bytes that weren’t read

during a Smart Scan because the storage index allowed Oracle to bypass those 1MB blocks. An example from Chapter 3

follows as a refresher:

SQL> select *

2 from v$mystat

3 where statistic# = (select statistic# from v$statname where name = 'cell physical IO bytes

saved by storage index');

SID STATISTIC# VALUE

---------- ---------- ----------

1107 247 1201201152

SQL>

This value is reported at the session level from V$MYSTAT, and it’s necessary to remember that this statistic is

cumulative for the duration of the session. Querying V$MYSTAT before and after query execution will provide a delta

showing the bytes saved for that particular query.

The cell physical IO interconnect bytes returned by smart scan reports the actual bytes returned

from a Smart Scan operation. V$SQLSTATS reports this value, along with two other values, physical_read_bytes and

physical_write_bytes, which can be used to provide a Smart Scan “efficiency,” for want of a better term. This topic

is covered in more depth in Chapter 10, but be aware that this “efficiency” can exceed 100 percent when sorts or index

access paths that don’t qualify for Smart Scan execution are used.

Knowing what the statement was waiting on also provides information on Smart Scan execution. Direct-path

reads usually indicate Smart Scan activity, but not always. LOBs, index-organized tables, index scans that are not

full or fast full scans, along with table fetch by rowid, may also use direct-path reads but do not qualify for Smart

Scans. Thus, even though storage access has been noted in the execution plan and direct-path read waits have been

recorded, a Smart Scan may not be the access method used by Oracle to process the query or statement.

Exadata wait events that signal that Smart Scans were not used are cell multiblock physical read and cell

single-block physical read. The cell multiblock physical read wait applies not only to tables but to LOBs where the

chunk size is greater than the database block size and Securefile reads. When the chunk size is less than or equal to

the database block size, cell single block physical reads will be used. As discussed in Chapter 7, the cell single block

physical read can apply to index access paths, but because such waits do not occur during index full scans and index

fast full scans, a Smart Scan was not executed.

Users care about time, with respect to response time, so the first area where performance tuning should begin

is the Exadata wait interface. Seeing where time is being spent by queries and statements can help pinpoint areas

of poor performance. Knowing where the time sinks are gives you initial direction in addressing such performance

problems and can possibly prove that the database is not at fault.

Dynamic Counters

The V$SYSSTAT and V$SESSTAT views provide a wealth of dynamic performance counters to aid you in diagnosing

performance issues. Depending on where the session is spending its time, these views can help pinpoint areas that

may require attention. As an example, if Oracle is using considerable CPU resources, one possible avenue of attack

would be to see how the logical reads count increases for a given session. V$SYSSTAT provides the following list of

read-related counters:

SQL> select name, value

2 from v$sysstat

3 where name like '%read%'

4 /

CHAPTER 8 ■ MEASURING PERFORMANCE

139

NAME VALUE

---------------------------------------------------------------- ---------------

session logical reads 82777757613

session logical reads in local numa group 0

session logical reads in remote numa group 0

physical read total IO requests 21591992

physical read total multi block requests 12063669

physical read requests optimized 3355758

physical read total bytes optimized 41508200448

physical read total bytes 11935356259328

logical read bytes from cache 669321109651456

physical reads 1456537556

physical reads cache 43060982

physical read flash cache hits 0

physical reads direct 1413476574

physical read IO requests 21382598

physical read bytes 11931955658752

recovery blocks read 0

recovery blocks read for lost write detection 0

physical reads direct temporary tablespace 26335818

DBWR thread checkpoint buffers written 11428910

recovery array reads 0

recovery array read time 0

physical reads cache prefetch 36901401

physical reads prefetch warmup 233120

physical reads retry corrupt 0

physical reads direct (lob) 14262

cold recycle reads 0

physical reads for flashback new 0

flashback cache read optimizations for block new 0

flashback direct read optimizations for block new 0

redo blocks read for recovery 0

redo k-bytes read for recovery 0

redo k-bytes read for terminal recovery 0

redo KB read 0

redo KB read (memory) 0

redo KB read for transport 0

redo KB read (memory) for transport 0

gc read wait time 373

gc read waits 5791

gc read wait failures 0

gc read wait timeouts 180

gc reader bypass grants 0

Number of read IOs issued 5714868

read-only violation count 0

Batched IO vector read count 1455

transaction tables consistent reads - undo records applied 262

transaction tables consistent read rollbacks 15

data blocks consistent reads - undo records applied 16126989

no work - consistent read gets 77857741416

cleanouts only - consistent read gets 19160349

CHAPTER 8 ■ MEASURING PERFORMANCE

140

rollbacks only - consistent read gets 187199

cleanouts and rollbacks - consistent read gets 1563685

table scans (direct read) 441631

lob reads 9246167

index fast full scans (direct read) 558680

securefile direct read bytes 0

securefile direct read ops 0

securefile inode read time 0

cell flash cache read hits 3355758

58 rows selected.

SQL>

V$SYSSTAT provides a view into the system-wide statistics, so pinpointing problems with a particular session

will be difficult using this view. V$SESSTAT provides session-level statistics that will be much more useful when a

particular session is a problem. Looking at the non-zero statistics for SID 1141 in one of our databases, we get the

following output:

SQL> select sn.name, ss.value

2 from v$sesstat ss join v$statname sn on sn.statistic# = ss.statistic#

3 and ss.sid in (select sid from v$session where status ='ACTIVE')

4 and ss.value > 0

5 and ss.sid=1141

6 order by 1, 2

7 /

NAME VALUE

----------------------------------------- ---------------

cell flash cache read hits 246424

cell physical IO interconnect bytes 4037787648

cluster wait time 2

enqueue releases 246444

enqueue requests 246444

ges messages sent 758

in call idle wait time 13559183

logons cumulative 1

logons current 1

messages received 4

messages sent 34

non-idle wait count 2902944

non-idle wait time 57613

physical read requests optimized 246424

physical read total IO requests 246441

physical read total bytes 4037689344

physical read total bytes optimized 4037410816

physical write total IO requests 2

physical write total bytes 32768

session pga memory 7841624

session pga memory max 7841624

CHAPTER 8 ■ MEASURING PERFORMANCE

141

session uga memory 180736

session uga memory max 180736

user calls2

24 rows selected.

SQL>

There are many more statistics available for a given session; the query filtered out those with a 0 value.

When to Use Them, and How

Now that you know where to find useful performance metrics and wait statistics, the next step is knowing how and

when to use them to diagnose performance issues. Despite all of the available statistics and metrics you can use to

dig deep into performance issues, the main concern, and driving force, behind performance evaluation and tuning is

time. Users measure performance in how long a task takes to complete once started, and all of the I/O statistics in the

world won’t mean much to most of them. The first stop on the journey to performance is through an AWR report for

the period in question. AWR provides information you’ll need to find problems and begin the diagnosis process.

AWR reports are generated from regularly occurring snapshots of performance metrics and wait-event timings.

This provides a way to generate reports based on the changes recorded between snapshots. With the information

provided in an AWR report, it’s possible to find long-running SQL statements, along with their associated SQL_id,

so plans can be generated and analyzed. Additionally, the V$SESSTAT, V$SYSTEM_EVENT, and V$SYSTAT views can be

used to drill down into the wait events and metrics to possibly uncover the underlying reason for the performance

degradation. It’s good to look at the “SQL Ordered by Elapsed Time” report to see problem statements and queries.

It’s not simply a matter of elapsed time but of elapsed time and number of executions, as long elapsed times, coupled

with a high execution count, make the per-execution time small. For example, if the elapsed time is 7734.27 seconds

and the number of executions is 1281, the average elapsed time per execution is around 6 seconds, a reasonable time

by most standards. If, on the other hand, the elapsed time is 3329.17 and the number of executions is 3, then the

average elapsed time per execution is approximately 1110 seconds. An elapsed time per execution of that magnitude

is worthy of closer examination. This is where the V$SESSTAT, V$SYSTEM_EVENT, and V$SYSTAT views can provide

additional detail.

Another good source of performance information is the 10046 trace; either in its raw form or in a report formatted

by the tkprof utility. We often prefer tkprof-formatted output, as it provides an execution plan and the relevant wait

events and times.

Note ■ Wait information in a tkprof report is only provided when the 10046 trace event is set at level 8 or higher.

Lower levels won’t capture the wait statistics.

Looking at a portion of a tkprof-formatted trace file where waits were provided, the following data is available:

********************************************************************************

SQL ID: 23bfbq45y94fk Plan Hash: 2983102491

DELETE FROM APP_RULE_TMP_STAGE

WHERE

TMP_RULE_NAME = :B1

CHAPTER 8 ■ MEASURING PERFORMANCE

142

call count cpu elapsed disk query current rows

------- ------ -------- ---------- ---------- ---------- ---------- ----------

Parse 1 0.00 0.00 0 0 0 0

Execute 22 9.38 125.83 25833 4732 493424 346425

Fetch 0 0.00 0.00 0 0 0 0

------- ------ -------- ---------- ---------- ---------- ---------- ----------

total 23 9.38 125.83 25833 4732 493424 346425

Misses in library cache during parse: 1

Misses in library cache during execute: 4

Optimizer mode: ALL_ROWS

Parsing user id: 113 (recursive depth: 1)

Number of plan statistics captured: 1

Rows (1st) Rows (avg) Rows (max) Row Source Operation

---------- ---------- ---------- ---------------------------------------------------

0 0 0 DELETE APP_RULE_TMP_STAGE (cr=420 pr=3692 pw=0 time=26339915 us)

44721 44721 44721 INDEX RANGE SCAN APP_RULE_TMP_STG_IDX2 (cr=377 pr=353 pw=0

time=1603541 us cost=36 size=7291405 card=3583)(object id 196496)

Elapsed times include waiting on following events:

Event waited on Times Max. Wait Total Waited

---------------------------------------- Waited ---------- ------------

library cache lock 1 0.00 0.00

row cache lock 18 0.00 0.00

library cache pin 1 0.00 0.00

Disk file operations I/O 6 0.00 0.00

cell single block physical read 25783 1.30 114.29

gc cr grant 2-way 1587 0.00 0.18

gc current grant 2-way 14205 0.00 1.53

gc current grant congested 69 0.00 0.00

gc cr grant congested 14 0.00 0.00

cell list of blocks physical read 20 0.31 0.48

gc current multi block request 12 0.00 0.00

log buffer space 2 0.83 0.86

********************************************************************************

The wait of interest in this statement is cell single block physical read, given its total elapsed time, which is

reported in seconds. The execution plan gives us a clue that this could be a wait to consider with the INDEX RANGE

SCAN step. Remember that using an INDEX RANGE SCAN disqualifies the statement for Smart Scan execution.

Notice also that no parallel execution is used. Given the elapsed time for the statement, it would qualify for Auto

Degree of Parallelism. Using parallel execution would likely have improved performance for this statement, by

spreading out the I/O across multiple parallel query slaves, reducing the elapsed wait time.

Let Me Explain

We have covered query plans in relation to Smart Scans in Chapter 2. A review of that material can always be helpful.

There are three plan steps that can indicate possible Smart Scan activity:

TABLE ACCESS STORAGE FULL

INDEX STORAGE FULL SCAN

INDEX STORAGE FAST FULL SCAN

CHAPTER 8 ■ MEASURING PERFORMANCE

143

Earlier in this chapter, we mentioned that the word STORAGE in a plan step only indicates the possibility of Smart

Scan execution, because without direct-path reads, Smart Scans won’t be triggered. Execution plans, however, can

give you a good starting point for performance tuning. The absence of STORAGE in execution plan steps indicates

that Smart Scans did not occur. If you examine the plan for a given statement and find the keyword STORAGE in one

of the table or index access steps, you can use data found in V$SQL and GV$SQL to verify Smart Scan execution.

As mentioned in Chapter 2, there are at least two columns in these views providing information on how beneficial the

Smart Scan was to the query or statement. The two columns we covered are io_cell_offload_eligible_bytes and

io_cell_offload_returned_bytes. We also supplied a query that can generate the I/O savings percentage realized,

which was illustrated again earlier in this chapter, in the section “Performance Counters and Metrics.”

Performance Counter Reference

There are many counters updated by Exadata, but the complete list will not be discussed here. We have chosen to

describe those counters that we feel are the most “interesting” in terms of performance and troubleshooting. It is very

likely that you won’t have to dig this deep to solve most performance issues, as the wait interface and the SQL monitor,

discussed in the next section, are usually sufficient diagnostic tools. It is good to be aware of these counters, which is

why we provide them. We will list them by name and describe their purpose and the mechanisms behind them,

to give you some insight into how Exadata does what it does.

cell blocks helped by commit cache

The commit cache is part of the consistent-read mechanism Oracle has used for years, except that this is implemented

at the storage-cell level rather than the database-server level. As a review, consistent reads in a standard Oracle

database on non-Exadata hardware involve reconstructing the row as of the time the query began, by using available

undo data, based on the lock byte being set. Two conditions are possible during consistent-read processing, the first

being that the commit SCN is lower than the snapshot SCN (established at the start time of the query). In this case,

Oracle can determine that the data in the block needs no reconstruction and can continue processing other blocks.

The second condition is that the commit SCN is greater than the snapshot SCN, and in this case, Oracle knows

a rollback is necessary to return consistent data and, on non-Exadata systems, does this through the available undo

records. To complicate matters further, commits don’t always clean out every block that they touch; a threshold is

set to limit block cleanout activity immediately after a commit. (This limit is 10 percent of the block buffer cache; any

blocks in excess of that limit must wait for the next transaction that touches them to get cleaned out.)

This leaves data blocks in a state where the status of the transaction has to be established. Normally on non-Exadata

systems, the database layer performs this processing. Imagine having to send these blocks back from the storage cells

to the database layer to perform standard consistent-read processing via the undo records. For a few blocks, this might

work on Exadata, but the possibility exists that an extremely large number of blocks would have to be processed in this

manner. Performance would be slow, robbing Exadata of one of its key features. Because the undo data is not available

to the storage cells (the storage cells have no access to the database buffer cache) and no storage cell communicates

with any of the other storage cells, another mechanism has to be employed.

Exadata employs an optimization where the need for the database layer to process consistent-read requests is

minimized. It is called the commit cache. The commit cache keeps track of which transaction ids have committed

and which have not. By extracting the transaction id from the Interested Transaction List (ITL) in the data block,

the storage cells can access this commit cache and see whether or not the referenced transaction has been committed.

If information for that particular transaction id is not available in the commit cache, the storage cell requests that

status from the database layer. Once received, it adds it to the commit cache, so the remaining storage cells need not

make the request again.

Each time a storage cell finds transaction information it needs in the commit cache, the cell blocks helped by

commit cache counter is increased by 1. Monitoring this counter during periods of high transactional activity can be

very helpful when the wait interface and SQL monitor don’t provide enough data to diagnose a performance problem.

Seeing this counter increase during Smart Scans indicates that delayed block cleanout is being performed by the cells,

CHAPTER 8 ■ MEASURING PERFORMANCE

144

required because the volume of data in an insert, update, or delete is greater than the cleanout threshold. The commit

cache was designed for this very purpose and keeps the storage cells from continuously communicating with the

database layer. It also significantly reduces the logical I/O at the database layer during Smart Scans.

cell blocks helped by minscn optimization

Another Exadata-specific consistent-read optimization is the Minimum Active SCN optimization, which keeps track

of the lowest SCN for still-active transactions. This improves consistent-read performance by allowing Exadata to

compare the transaction SCNs from the ITL with the lowest SCN of the oldest still-active transaction in the database.

The database layer sends this information to the cell at the start of a Smart Scan operation. When the commit SCN

is lower than the Minimum Active SCN passed to the cells, unnecessary communication between the database layer

and the cells is avoided. Any transaction SCN found in the block’s ITL that is lower than the Minimum Active SCN

is known by the storage cell to be committed. Each block that gets helped by this mechanism increments the cell

blocks helped by minscn optimization counter. With reference to performance, this optimization also reduces

checks to the commit cache discussed previously. Because this is Exadata, and most likely the databases run on it are

RAC databases, the Minimum Active SCN is RAC-aware. Actually known as the Global Minimum SCN, the MMON

processes in each instance keep track of this SCN and update each node’s SGA. The X$TUMASCN table contains the

current Global Minimum SCN for the RAC cluster, as follows:

SQL> select min_act_scn

2 from x$ktumascn;

MIN_ACT_SCN

-----------

20695870

SQL>

The cell blocks helped by minscn optimization counter isn’t one you will use on a regular basis, if at all.

However, it is a good place to start looking when Smart Scans are interrupted by frequently reverting to block I/O to

get transaction information from the database layer.

cell commit cache queries

This counter is incremented each time a Smart Scan queries the cell commit cache for a transaction status. This is

done once for each uncommitted transaction found per block when the MinActiveSCN optimization didn’t apply to

the transaction SCN, meaning the transaction SCN was greater than or equal to the Minimum Active SCN.

This counter and the cell blocks helped by minscn counter are closely related.

cell blocks processed by cache layer

This is one of four “layer” statistics collected by Exadata, reporting on the activity of the listed layer of processing. This

particular statistic reports on the number of blocks actually processed by the storage cells for Smart Scan operations.

When the cells pass back blocks to the database servers (block I/O mode), this statistic doesn’t get incremented. It does

get incremented when the cells actually process the blocks during Smart Scans. When a cell opens a block for a

consistent read, the block cache header is checked, to ensure that the correct block is being read and that it is valid

and not corrupted. The cache-layer process (Kernel Cache Buffer management, or KCB) performs these functions and

reports the cell blocks processed by cache layer count back to the database.

CHAPTER 8 ■ MEASURING PERFORMANCE

145

When the database layer processes regular block I/O, one of two statistics, consistent gets from cache and

consistent gets from cache (fastpath), can be updated. The storage cells, through CELLSRV, perform only consistent

gets, not current mode gets. All current mode gets that are recorded in the db block gets from cache or the

db block gets from cache (fastpath) come from the database layer. Any counts recorded in the cell blocks

processed by cache layer counter provide data on how many logical reads the storage cells performed, either

system-wide from V$SYSSTAT or at the session level through V$SESSTAT.

It is not unusual to find both database-layer and cell-layer processing in a query-execution plan. Smaller tables

won’t likely qualify for a Smart Scan and, thus, will be processed by the database server. Multi-table joins using both

small lookup tables and large processing tables can produce such plans.

cell blocks processed by data layer

While the previous counter registered cell cache read activity, this statistic records physical blocks read from tables

or materialized views. The data layer module, Kernel Data Scan (KDS), extracts rows and columns from data blocks,

passing them on for predicate filtering and column projection. When the storage cell can perform all of the necessary

work without database block I/O, this counter is incremented.

When the session-level count from this statistic is added to the session-level cell blocks processed by index

layer count, you can determine if the storage cell did all of the consistent reads. The sum of those counters will equal

the session-level count for the cell blocks processed by cache layer counter, if every block processed was read

at the storage layer. If the sum is a lower number, then the database layer performed regular block I/O processing.

The difference should be the number of blocks processed by the database servers.

cell blocks processed by index layer

The storage cells can process index blocks in a similar manner as table and materialized view blocks. This statistic

records the number of index blocks processed by a Smart Scan of B*Tree and bitmap index segments.

cell blocks processed by txn layer

Because this counter records the number of blocks processed by the transaction layer, it will be beneficial to know

what goes on in that layer. Looking at a basic explanation of how Smart Scans process consistent reads, let’s go

through and see what occurs during this process.

The cache layer, through KCB, opens the block and then checks the header, the SCN of the last modification,

and the cleanout status. The transaction layer gets this block if the SCN of the last modification isn’t greater than the

snapshot SCN, because it hasn’t been modified since the query started. If the SCN of the last modification is greater

than the snapshot SCN, this indicates the block has been modified since the query started, requiring a rollback to the

snapshot SCN. This causes the block to be passed back to the database layer for block I/O processing.

Should the block pass the first test, it is passed to the transaction layer to be processed by the Kernel Transaction

Read Consistency process (KTR), which uses the Minimum Active SCN and the commit cache, reducing the amount

of communication with the database layer. The transaction layer then performs processing of the data block to extract

the requested information, in concert with the data and index layers, which are used to perform the consistent reads

at the storage-cell level.

cell flash cache read hits

This counter was discussed in Chapter 4, so we’ll only briefly mention it here. This is another cumulative metric,

at both the session level and the instance level. The easiest way to monitor this is with a script we have provided

in Chapter 4. We provide it here as well, as monitoring the Smart Flash Cache is a key part of performance

troubleshooting.

CHAPTER 8 ■ MEASURING PERFORMANCE

146

SQL> select statistic#, value

2 from v$mystat

3 where statistic# in (select statistic# from v$statname where name = 'cell flash cache read hits');

STATISTIC# VALUE

---------- ----------

605 1

SQL>

SQL> select count(*)

2 from emp;

COUNT(*)

----------

7340032

SQL>

SQL> column val new_value endval

SQL>

SQL> select statistic#, value val

2 from v$mystat

3 where statistic# in (select statistic# from v$statname where name = 'cell flash cache read hits');

STATISTIC# VAL

---------- ----------

605 857

SQL>

SQL> select &endval - &beginval flash_hits

2 from dual;

FLASH_HITS

----------

856

SQL>

This counter also provides the number of physical I/O requests, because accessing the Smart Flash Cache is

physical, not logical, I/O.

cell index scans

Each time a Smart Scan starts on a B*Tree or bitmap index segment, this counter is incremented. As this requires the

use of the index fast full-scan step in the execution plan and also must use direct-path reads, both of these conditions

must be met for this counter to be incremented.

A Smart Scan is a segment-level operation, so a query running serially, on a non-partitioned index, will increment

once for each of the index segments accessed. For partitioned index segments accessed in parallel, this counter can

increase once for each partitioned segment accessed by each parallel query slave. Because partition segments can

differ in size, it is possible that, for a given partitioned index, the segments can be accessed by different methods.

Larger segments are likely to be accessed by direct-path reads, and, thus, this counter will be incremented. Smaller

partitions may not trigger direct-path reads, and in those cases, Smart Scans won’t be executed and the counter value

won’t increase.

CHAPTER 8 ■ MEASURING PERFORMANCE

147

cell IO uncompressed bytes

If you are not using compression, you won’t see this statistic change, as it’s only incremented when Smart Scan

compression offloading occurs. This statistic reports the actual uncompressed size of the compressed data. If, for

example, you have 10MB of compressed data that would be 20MB when uncompressed, the cell IO uncompressed

bytes counter would increment by 20MB when that data is offloaded. The physical read total bytes counter

would increment by 10MB, because that is the segment size. It isn’t a problem to see the cell IO uncompressed

bytes counter increase at a faster rate than the physical read total bytes counter, because, as noted, the

physical read total bytes counter increments according to the segment size read, and the cell IO uncompressed

bytes counter reports the total uncompressed bytes processed.

cell num fast response sessions

Oracle can elect to defer a full Smart Scan execution by choosing to perform a few block I/O operations at the outset,

in an attempt to satisfy a query. FIRST_ROWS, FIRST_ROWS_n, and where rownum queries trigger this behavior, and when

Oracle decides to not immediately execute a Smart Scan, this counter is incremented. To improve the efficiency and

speed of queries, Oracle can avoid setting up a Smart Scan, in favor of a few block I/O operations, to satisfy a query.

This counter reports how many times Oracle has done that since the instance was started. Just because this counter

was incremented doesn’t mean that a full Smart Scan wasn’t executed, simply that Oracle tried to do as little work as

possible to return the desired results.

cell num fast response sessions continuing to smart scan

After Oracle decides to defer running a Smart Scan to reduce the possible work done, it may be decided that to return

the correct results to the calling session, a Smart Scan must be executed. When that switch is made, this counter

is incremented. Because this occurs after Oracle initially decides to not run a full Smart Scan, the same triggering

conditions apply—FIRST_ROWS, FIRST_ROWS_n, and where rownum queries are being run. Also, when this statistic is

incremented, you may notice some db file sequential read waits. Even though most reads of this nature are reported

as cell single block physical read wait events, the older named event can still be incremented on Exadata.

cell num smart IO sessions using passthru mode due to _______

There are three of these counters, where ______ can be either user, CELLSRV, or time zone. These counters indicate how

many times a Smart Scan was initiated but converted to regular block I/O mode. When this happens, the blocks are

passed through to the database servers and bypass cell processing. Smart Scan is actually reading the blocks but doing

no local cell processing on them, sending them on to the database server for processing. Unless there are memory issues

on the cells, you shouldn’t see these counters increase, as pass-through processing shouldn’t be occurring. If these

counters start incrementing, it is a good sign that there are issues at the storage-cell level that need to be investigated.

cell physical IO bytes sent directly to DB node to balance CPU usage

This counter records how many times the cell CPU usage was so high that Oracle chose to fall back to pass-through

mode, making the database servers perform regular block I/O to reduce the CPU load on the storage cells. Normally,

you shouldn’t see this counter increase. Again, if it does start incrementing, it’s a sign of problems at the storage-cell

level that have to be diagnosed. In older versions of Exadata, this counter was named cell physical IO bytes

pushed back due to excessive CPU on cell.

CHAPTER 8 ■ MEASURING PERFORMANCE

148

chained rows processed by cell

Chained rows can be a problem in any database but especially so in Exadata, where disk groups are striped across

all available disks and accessed by every available storage cell. In a non-Exadata database not using ASM, a chained

or continued row will be in another block but will likely be on the same disk as the head of the chain. With ASM,

and Exadata, the next piece of the row could be on another disk accessed by another storage cell. Remember that

the storage cells do not communicate with each other, so when Oracle encounters a chained row, a Smart Scan will

fall back to regular block I/O at the database layer, so the chained row can be processed. This is more efficient for

chained-row processing, but it does slow down Smart Scans. The more chained rows there are, the slower the Smart

Scan will be. If a Smart Scan can get the data it needs from the head row piece, then the Smart Scan won’t lose any

speed, and processing will appear to flow as it normally does. Should Oracle need to access any other piece of that

chained row, then regular block I/O will be necessary, slowing down the Smart Scan.

This statistic, chained rows processed by cell, reports on the chained rows that were processed within a

storage cell, that is, where the row pieces (or at least the ones Oracle needed to return results) are located within the

storage accessed by a given storage cell. This is known as inter-block chaining, where the row piece is located in the

same data block as the head row. This is a special case of row chaining for rows with more than 255 columns. The next

piece is in the same block as the head and can be fetched with no additional effort.

chained rows rejected by cell

This counter records the chained rows where the next piece is not in the same block or cell, as described in the

previous section. This statistic is incremented in, apparently, special cases, as we have not seen it incremented very

often in the systems we manage. When this is incremented, the Smart Scan falls back to regular block I/O to process

the row.

chained rows skipped by cell

This is the statistic most often incremented when a Smart Scan has to revert to regular block I/O. Again, it’s

incremented when a chained row is found and the remaining pieces reside across the entire storage stripe, spanning

storage cells in the process. It isn’t clear when the previous counter or this counter should be incremented in such

situations. We have found that this counter is most often incremented when Smart Scans revert to regular block I/O to

process chained rows.

SQL Statement Performance

It is important to know where an SQL statement spends its time during execution. V$SQL, V$SQL_MONITOR,

V$SQL_PLAN_MONITOR, and V$ACTIVE_SESSION_HISTORY are good views to use to analyze SQL statement performance.

An example using V$SQL follows, showing how the query benefited from Smart Scan optimizations:

SQL>select sql_id,

2 io_cell_offload_eligible_bytes qualifying,

3 io_cell_offload_eligible_bytes - io_cell_offload_returned_bytes actual,

4 round(((io_cell_offload_eligible_bytes -

io_cell_offload_returned_bytes)/io_cell_offload_eligible_bytes)*100, 2) io_saved_pct,

5 sql_text

6 from v$sql

7 where io_cell_offload_returned_bytes> 0

8 and instr(sql_text, 'emp') > 0

9 and parsing_schema_name = 'BING';

CHAPTER 8 ■ MEASURING PERFORMANCE

149

SQL_ID QUALIFYING ACTUAL IO_SAVED_PCT SQL_TEXT

------------- ---------- ---------- ------------ -------------------------------------

gfjb8dpxvpuv6 185081856 42510928 22.97 select * from emp where empid = 7934

SQL>

Note the following columns used from V$SQL:

io_cell_offload_eligible_bytes

io_cell_offload_returned_bytes

These two columns tell you how many bytes qualified for offload and how many bytes were actually returned as a

result of Smart Scan offloading. The query provided computes the I/O bytes saved as a percentage of the total eligible

bytes, so you can see how efficient the Smart Scan execution was for the query in question.

Things to Know

The intent of this chapter was not an exhaustive performance-tuning reference for Exadata, but, rather, an overview of

what metrics and counters are available, what they mean, and when you should consider using them.

The cell metrics provide insight into statement performance and how Exadata executes statements. Dynamic

counters such as cell blocks processed by data layer and cell blocks processed by index layer show

how efficient the storage cells are in their processing. These counters are incremented every time a storage cell can

complete data-layer and index-layer processing without passing data back to the database layer. Two reasons for the

cells to pass data back to the database servers are consistent-read processing requiring undo blocks (regular block I/O)

and chained-row processing where the chained pieces span storage cells. While the first condition can’t be controlled

entirely (transactions can be so large as to exceed the automatic block-cleaning threshold), the second, chained rows,

can be addressed and possibly corrected.

The cell num fast response sessions and cell num fast response sessions continuing to smart scan

counters reveal the number of times Oracle chose to defer a Smart Scan in favor of regular block I/O as an attempt

to return the requested data with a minimum of work (the first listed counter) and how many times Oracle actually

started a Smart Scan after the fast response session failed to return the requested data. These can give you insight into

the nature of the statements submitted to your Exadata databases, by showing how often Smart Scans were averted

because a small regular block I/O operation returned the requested data.

V$SQL also provides data that can be used to determine statement efficiency in the io_cell_offload_eligible_

bytes and io_cell_offload_returned_bytes columns. These two columns can be used to calculate the percentage

savings effected by a Smart Scan for a given query.

151

Chapter 9

Storage Cell Monitoring

By now, we’ve covered Exadata architecture enough for you to know that the storage cells are independent of the

database servers and provide their own metrics and counters. Since the database servers don’t directly communicate

with the storage, it’s up to the storage cells to provide the database servers with the requested data. To help with

that task, the storage cells have their own CPUs and memory, which provide additional resources to assist in the

processing of data. They also have their own O/S-level user accounts, two of which we will concern ourselves with in

this chapter.

The accounts of interest are celladmin and cellmonitor, and the nature of the task determines which of the two

accounts you will use. As you could probably guess, the cellmonitor account can access the counters and metrics

but cannot perform any administrative tasks. The celladmin account, too, can access the metrics and counters but

also has administrative privileges to start and stop all cell services. Accessing the storage cells is the only way to truly

monitor cell performance and diagnose cell-related performance issues.

Talking to the Storage Cells

Communicating with the storage cells will require logging in to the storage cells, and Exadata provides two

specialized accounts for that purpose. The first account we will discuss is the cellmonitor account, an account

capable of accessing cells’ performance metrics and counters. The cellmonitor account is a restricted account on

the storage servers, having access only to its home directory and limited executable commands. The second account

we will cover is celladmin, an administrative account with far more privilege and access to the storage cells at the

operating-system level. Although the database servers do not directly communicate with the storage devices, it is

possible to use ssh to log in to each available storage cell from any database server in the Exadata system, to check

performance metrics.

Note ■ As the storage servers are running a Linux kernel, the “root” account also exists on each available storage

cell, and user equivalence (the ability to log in without a password) is configured for all servers in the Exadata system

for that account. Unless you are a database machine administrator (DMA), you won’t likely be granted “root” privileges.

For enterprises where “root” access is associated with the system administrator (SA), the DBA will usually have access

to both the celladmin and cellmonitor user accounts and their passwords. We will proceed with this chapter using

the basic SA/DBA separation of duties.

CHAPTER 9 ■ STORAGE CELL MONITORING

152

Where Shall I Go?

The names and IP addresses of the available storage servers can be found in the /etc/hosts file on any of the

database servers in the Exadata system. An example of how these entries would appear in the /etc/hosts file follows.

### CELL Node Private Interface details

123.456.789.3 myexa1cel01-priv.mydomain.com myexa1cel01-priv

123.456.789.4 myexa1cel02-priv.mydomain.com myexa1cel02-priv

123.456.789.5 myexa1cel03-priv.mydomain.com myexa1cel03-priv

123.456.789.6 myexa1cel04-priv.mydomain.com myexa1cel04-priv

123.456.789.7 myexa1cel05-priv.mydomain.com myexa1cel05-priv

123.456.789.8 myexa1cel06-priv.mydomain.com myexa1cel06-priv

123.456.789.9 myexa1cel07-priv.mydomain.com myexa1cel07-priv

A simple ssh command connects you to one of the available storage cells as cellmonitor.

ssh cellmonitor@myexa1cel04-priv.mydomain.com

Unless you have passwordless ssh configured, a password will be required.

cellmonitor@myexa1cel04-priv.mydomain.com's password:

[cellmonitor@myexa1cel04 ~]$

You are now connected to storage cell 4, using the cellmonitor account. Connecting to the remaining storage

cells uses the same procedure, just a different cell name. The available commands are the same on all storage cells,

but we will provide examples from only one cell, to avoid possible confusion.

What Shall I Do?

The goal is to monitor and manage the storage cells, so that areas such as the Smart Flash Cache and Smart Scans

are functioning normally. Examining the metrics available to both accounts is necessary, to ensure that Exadata is

performing at its peak and no hardware/firmware/configuration errors are causing problems for the end users.

What’s in a Name?

The cell metric names reported by cellsrvstat are fairly verbose, so they should not be difficult to understand.

For example, the Smart I/O metrics have, in our estimation, clear and descriptive names.

Number of active smart IO sessions

High water mark of smart IO sessions

Number of completed smart IO sessions

Smart IO offload efficiency (percentage)

Size of IO avoided due to storage index (KB)

Current smart IO to be issued (KB)

Total smart IO to be issued (KB)

Current smart IO in IO (KB)

Total smart IO in IO (KB)

Current smart IO being cached in flash (KB)

Total smart IO being cached in flash (KB)

Current smart IO with IO completed (KB)

CHAPTER 9 ■ STORAGE CELL MONITORING

153

Total smart IO with IO completed (KB)

Current smart IO being filtered (KB)

Total smart IO being filtered (KB)

Current smart IO filtering completed (KB)

Total smart IO filtering completed (KB)

Current smart IO filtered size (KB)

Total smart IO filtered (KB)

Total cpu passthru output IO size (KB)

Total passthru output IO size (KB)

Current smart IO with results in send (KB)

Total smart IO with results in send (KB)

Current smart IO filtered in send (KB)

Total smart IO filtered in send (KB)

Total smart IO read from flash (KB)

Total smart IO initiated flash population (KB)

Total smart IO read from hard disk (KB)

Total smart IO writes (fcre) to hard disk (KB)

Number of smart IO requests < 512KB

Number of smart IO requests >= 512KB and < 1MB

Number of smart IO requests >= 1MB and < 2MB

Number of smart IO requests >= 2MB and < 4MB

Number of smart IO requests >= 4MB and < 8MB

Number of smart IO requests >= 8MB

Number of times smart IO buffer reserve failures

Number of times smart IO request misses

Number of times IO for smart IO not allowed to be issued

Number of times smart IO prefetch limit was reached

Number of times smart scan used unoptimized mode

Number of times smart fcre used unoptimized mode

Number of times smart backup used unoptimized mode

Such metrics make it an easy task to evaluate, for example, Smart I/O performance, as none of the metrics uses

unclear abbreviations or names that may not accurately reflect the nature of the statistics reported.

Output from the cellcli interface can be difficult to read without the DETAIL keyword. This is why we prefer to

use DETAIL, unless we are looking for specific metrics and want an abbreviated list of attributes. Both versions of the

output produced from cellcli are provided in the next section.

Monitoring Basics

As cellmonitor

Available to you when connected as cellmonitor is CellCLI, the command-line interface to monitor the storage cell.

A complete list of commands can be generated by typing help at the CellCLI> prompt.

[cellmonitor@myexa1cel04 ~]$ cellcli

CellCLI: Release 11.2.3.2.1 - Production on Wed Aug 07 13:19:59 CDT 2013

Cell Efficiency Ratio: 234

CHAPTER 9 ■ STORAGE CELL MONITORING

154

CellCLI> help

HELP [topic]

Available Topics:

ALTER

ALTER ALERTHISTORY

ALTER CELL

ALTER CELLDISK

ALTER GRIDDISK

ALTER IBPORT

ALTER IORMPLAN

ALTER LUN

ALTER PHYSICALDISK

ALTER QUARANTINE

ALTER THRESHOLD

ASSIGN KEY

CALIBRATE

CREATE

CREATE CELL

CREATE CELLDISK

CREATE FLASHCACHE

CREATE FLASHLOG

CREATE GRIDDISK

CREATE KEY

CREATE QUARANTINE

CREATE THRESHOLD

DESCRIBE

DROP

DROP ALERTHISTORY

DROP CELL

DROP CELLDISK

DROP FLASHCACHE

DROP FLASHLOG

DROP GRIDDISK

DROP QUARANTINE

DROP THRESHOLD

EXPORT CELLDISK

IMPORT CELLDISK

LIST

LIST ACTIVEREQUEST

LIST ALERTDEFINITION

LIST ALERTHISTORY

LIST CELL

LIST CELLDISK

LIST FLASHCACHE

LIST FLASHCACHECONTENT

LIST FLASHLOG

LIST GRIDDISK

LIST IBPORT

LIST IORMPLAN

LIST KEY

CHAPTER 9 ■ STORAGE CELL MONITORING

155

LIST LUN

LIST METRICCURRENT

LIST METRICDEFINITION

LIST METRICHISTORY

LIST PHYSICALDISK

LIST QUARANTINE

LIST THRESHOLD

SET

SPOOL

START

CellCLI>

Because you are connected as cellmonitor, administrative commands such as ALTER, ASSIGN, CALIBRATE, DROP,

EXPORT, and IMPORT are not available. These are reserved for the celladmin user account. DESCRIBE, LIST, and SET are

available, as well as SPOOL, to send output to a file.

So what can you do as cellmonitor? You can perform monitoring tasks to ensure the cell is functioning properly.

Note the long list of LIST commands. They are there to report on the important areas of storage cell operation,

including the Smart Flash Cache. We’ll start out by looking at the Smart Flash Cache.

CellCLI> list flashcache attributes all

myexa1cel04_FLASHCACHE

FD_08_myexa1cel04,FD_10_myexa1cel04,FD_00_myexa1cel04,FD_12_myexa1cel04,FD_03_myexa1cel04,FD_02_

myexa1cel04,FD_05_myexa1cel04,FD_01_myexa1cel04,FD_13_myexa1cel04,FD_04_myexa1cel04,FD_11_myexa1

cel04,FD_15_myexa1cel04,FD_07_myexa1cel04,FD_14_myexa1cel04,FD_09_myexa1cel04,FD_06_myexa1cel04

2013-07-09T17:33:53-05:00 1488.75G 7af2354f-1e3b-4932-b2be-4c57a1c03f33

1488.75G normal

CellCLI>

The LIST FLASHCACHE ATTRIBUTES ALL command returns values for all of the available attributes but puts the

output in a form that can be difficult to read. You can narrow down the list and only report on selected attributes.

CellCLI> list flashcache attributes name, degradedCelldisks, effectiveCacheSize

myexa1cel04_FLASHCACHE 1488.75G

CellCLI>

Notice that the attribute names are not included in the output for any of the LIST FLASHCACHE ATTRIBUTES

statements. You can use the DESCRIBE command to provide the attribute names, as follows:

CellCLI> describe flashcache

name

cellDisk

creationTime

degradedCelldisks

effectiveCacheSize

id

size

status

CellCLI>

CHAPTER 9 ■ STORAGE CELL MONITORING

156

You can also get a more user-friendly output by using the LIST FLASHCACHE DETAIL command, as follows:

CellCLI> list flashcache detail

cellDisk:

FD_08_myexa1cel04,FD_10_myexa1cel04,FD_00_myexa1cel04,FD_12_myexa1cel04,FD_03_myexa1cel04,FD_02_

myexa1cel04,FD_05_myexa1cel04,FD_01_myexa1cel04,FD_13_myexa1cel04,FD_04_myexa1cel04,FD_11_myexa1

cel04,FD_15_myexa1cel04,FD_07_myexa1cel04,FD_14_myexa1cel04,FD_09_myexa1cel04,FD_06_myexa1cel04

creationTime: 2013-07-09T17:33:53-05:00

degradedCelldisks:

effectiveCacheSize: 1488.75G

id: 7af2354f-1e3b-4932-b2be-4c57a1c03f33

size: 1488.75G

status: normal

CellCLI>

The output is formatted at one line per attribute, with the names provided, so you know which attribute has what

value. Looking at the attributes, the size is reported, and it’s less than the 1600GB the Smart Flash Cache has in total.

This is not a problem, since Flash Log is also configured from the Smart Flash Cache storage and consumes 512MB

of the total cache size. Flash Log enables Oracle to write redo to both the redo logfiles and the flash storage, to speed

up transaction processing. The writes that complete first signal Oracle that the transaction has been successfully

recorded in the redo stream. This allows for faster transaction time and higher throughput, because Oracle isn’t

waiting on the redo log writes. You can report on the Flash Log just as you can the flash cache.

CellCLI> list flashlog detail

cellDisk:

FD_14_myexa1cel04,FD_05_myexa1cel04,FD_00_myexa1cel04,FD_01_myexa1cel04,FD_04_myexa1cel04,FD_07_

myexa1cel04,FD_09_odevx1cel04,FD_02_myexa1cel04,FD_08_myexa1cel04,FD_03_myexa1cel04,FD_15_

myexa1cel04,FD_12_myexa1cel04,FD_11_myexa1cel04,FD_06_myexa1cel04,FD_10_myexa1cel 04,FD_13_

myexa1cel04

creationTime: 2013-07-09T17:33:31-05:00

degradedCelldisks:

effectiveSize: 512M

efficiency: 100.0

id: 7eb480f9-b94a-4493-bfca-3ba00b6618bb

size: 512M

status: normal

CellCLI>

The total size reported between the Smart Flash Cache and the Flash Log for this cell is 1489.25GB, which is still

less than the 1600GB allocated to the cache. Like physical disks, the “disks” used in the Smart Flash Cache also have

to reserve space for operating-system management tasks, such as inode lists and the like. There is no need to worry,

as the allocated space is more than enough to provide excellent performance from the Smart Flash Cache. Should the

size be less than 1488.75GB, this is an indication that one or more of the flash disks have problems. We will cover that

issue in a later section using the celladmin account.

You can also list details about the grid disks, the physical drives configured in the storage tier. LIST GRIDDISK

ATTRIBUTES name, size reports the following output:

CellCLI> list griddisk attributes name, size;

DATA_MYEXA1_CD_00_Myexa1cel04 2208G

CHAPTER 9 ■ STORAGE CELL MONITORING

157

DATA_MYEXA1_CD_01_Myexa1cel04 2208G

DATA_MYEXA1_CD_02_Myexa1cel04 2208G

...

DBFS_DG_CD_02_Myexa1cel04 33.796875G

DBFS_DG_CD_03_Myexa1cel04 33.796875G

DBFS_DG_CD_04_Myexa1cel04 33.796875G

...

RECO_MYEXA1_CD_00_Myexa1cel04 552.109375G

RECO_MYEXA1_CD_01_Myexa1cel04 552.109375G

RECO_MYEXA1_CD_02_Myexa1cel04 552.109375G

...

RECO_MYEXA1_CD_11_Myexa1cel04 552.109375G

CellCLI>

The disk group name is part of the disk name, making it fairly easy to see the space, per disk, for each of the disk

groups. More detailed information is available using LIST GRIDDISK DETAIL; a partial report follows:

CellCLI> list griddisk detail

asmDiskgroupName: DATA_MYEXA1

asmDiskName: DATA_MYEXA1_CD_00_MYEXA1CEL04

asmFailGroupName: MYEXA1CEL04

availableTo:

cachingPolicy: default

cellDisk: CD_00_Myexa1cel04

comment:

creationTime: 2013-07-09T17:36:41-05:00

diskType: HardDisk

errorCount: 0

id: aa946f1e-f7c4-4fee-8660-4c69c830ef59

offset: 32M

size: 2208G

status: active

Myexa1celMYEXA1CELMYEXA1CELMyexa1celMyexa1celMYEXA1CELMYEXA1CELMyexa1celMyexa1celMYEXA1CELMYEXA1

CELMyexa1celMyexa1celMYEXA1CELMYEXA1CELMyexa1celMyexa1celMYEXA1CELMYEXA1CELMyexa1celMyexa1celMYE

XA1CELMYEXA1CELMyexa1cel...

CellCLI>

This is a lot of information to process, and you don’t really need all of it to monitor the grid disks. One benefit to

using the DETAIL option to any of the LIST commands is that the entire attribute list is provided in an attribute: value

output format. Some of the LIST commands produce a long list of output (like the LIST GRIDDISK DETAIL example),

so you might want to wait until the output stops scrolling to take note of the available attributes. With an attribute list

in hand, you can then report on attributes that interest you. For example, looking at the output from LIST GRIDDISK

ATTRIBUTES name, celldisk, offset, size, status, a much more manageable and readable report is generated.

CellCLI> LIST GRIDDISK ATTRIBUTES name, celldisk, offset, size, status

DATA_MYEXA1_CD_00_myexa1celMyexa1cel04 CD_00_myexa1celMyexa1cel04 32M

2208G active

CHAPTER 9 ■ STORAGE CELL MONITORING

158

DATA_MYEXA1_CD_01_myexa1celMyexa1cel04 CD_01_myexa1celMyexa1cel04 32M

2208G active

myexa1celmyexa1celmyexa1celmyexa1celmyexa1celmyexa1celmyexa1celmyexa1celmyexa1celmyexa1celmyexa1

celmyexa1celmyexa1celmyexa1celmyexa1celmyexa1celmyexa1celmyexa1celmyexa1celmyexa1celmyexa1celmye

xa1cel...

DBFS_DG_CD_03_myexa1celMyexa1cel04 CD_03_myexa1celMyexa1cel04 2760.15625G

33.796875G active

DBFS_DG_CD_04_myexa1celMyexa1cel04 CD_04_myexa1celMyexa1cel04 2760.15625G

33.796875G active

DBFS_DG_CD_05_myexa1celMyexa1cel04 CD_05_myexa1celMyexa1cel04 2760.15625G

33.796875G active

myexa1celmyexa1celmyexa1celmyexa1celmyexa1celmyexa1celmyexa1celmyexa1celmyexa1celmyexa1celmyexa1

celmyexa1cel...

RECO_MYEXA1_CD_00_myexa1celMyexa1cel04 CD_00_myexa1celMyexa1cel04 2208.046875G

552.109375G active

RECO_MYEXA1_CD_01_myexa1celMyexa1cel04 CD_01_myexa1celMyexa1cel04 2208.046875G

552.109375G active

RECO_MYEXA1_CD_02_myexa1celMyexa1cel04 CD_02_myexa1celMyexa1cel04 2208.046875G

552.109375G active

myexa1celmyexa1celmyexa1celmyexa1celmyexa1celmyexa1celmyexa1celmyexa1celmyexa1celmyexa1celmyexa1

celmyexa1celmyexa1celmyexa1celmyexa1celmyexa1celmyexa1celmyexa1cel...

CellCLI>

During Exadata configuration, the disks are divided into slices, based on data found in the

/opt/oracle.SupportTools/onecommand/onecommand.params file. By default, the SizeArr variable is set to 2208GB,

which is the size for the slice allocated for the data disk group. Other slice sizes are derived from that initial setting.

(It is possible to change the disk allocations; that process will be discussed in Chapter 11.) Each disk has 32MB

configured for management processes and data, which explains the offset for the first available disk slice ASM can

use. In the posted example, that first slice is allocated for the DATA_MYEXA1 disk group, and it’s 2208GB in size. The

next available slice is for the recovery disk group, and it’s 565360MB in size. The final slice is for the DBFS disk group

and provides 34608MB of storage. Each offset after the initial 32MB is the 32MB plus the size of the configured slice; it

provides the “starting point” for each area of ASM configured storage on the disk.

The cellmonitor account is a good starting point for looking at the storage cells at the server level, but it’s

restricted, in that it’s simply a monitoring account and provides no access to managing the cells. To dig deeper into

the cells and provide additional statistics and metrics, you will have to use the celladmin account.

As celladmin

Connecting to the cells as celladmin is no different from connecting as cellmonitor; however, celladmin provides

much more access to functionality and metrics. In addition to cellcli, the celladmin account can also access

cellsrvstat, which can provide additional statistics and metrics not reported by cellcli.

When connected as celladmin, the cellcli interface provides the full list of functions provided earlier in this

chapter. Since it is an administrative account, you can perform the following actions that cellmonitor cannot:

ALTER ALERTHISTORY

ALTER CELL

ALTER CELLDISK

ALTER GRIDDISK

ALTER IBPORT

ALTER IORMPLAN

CHAPTER 9 ■ STORAGE CELL MONITORING

159

ALTER LUN

ALTER PHYSICALDISK

ALTER QUARANTINE

ALTER THRESHOLD

ASSIGN KEY

CREATE CELL

CREATE CELLDISK

CREATE FLASHCACHE

CREATE FLASHLOG

CREATE GRIDDISK

CREATE KEY

CREATE QUARANTINE

CREATE THRESHOLD

DESCRIBE

DROP ALERTHISTORY

DROP CELL

DROP CELLDISK

DROP FLASHCACHE

DROP FLASHLOG

DROP GRIDDISK

DROP QUARANTINE

DROP THRESHOLD

EXPORT CELLDISK

IMPORT CELLDISK

Of the available metrics on the storage cells, the alert history is a good place to start looking for possible

problems. Looking at the output from LIST ALERTHISTORY DETAIL, we see the following:

CellCLI> list alerthistory detail

alertMessage: "Cell configuration check discovered the following problems:

Check Exadata configuration via ipconf utility Verifying of Exadata configuration file

/opt/oracle.cellos/cell.conf Error. Exadata configuration file not found

/opt/oracle.cellos/cell.conf [INFO] The ipconf check may generate a failure for temporary

inability to reach NTP or DNS server. You may ignore this alert, if the NTP or DNS servers are

valid and available. [INFO] You may ignore this alert, if the NTP or DNS servers are valid and

available. [INFO] As root user run /usr/local/bin/ipconf -verify -semantic to verify consistent

network configurations."

alertSequenceID: 1

alertShortName: Software

alertType: Stateful

beginTime: 2013-05-14T22:31:59-05:00

endTime: 2013-06-20T11:36:18-05:00

examinedBy:

metricObjectName: checkconfig

notificationState: 0

sequenceBeginTime: 2013-05-14T22:31:59-05:00

severity: critical

alertAction: "Correct the configuration problems. Then run cellcli command:

ALTER CELL VALIDATE CONFIGURATION Verify that the new configuration is correct."

CHAPTER 9 ■ STORAGE CELL MONITORING

160

myexa1celmyexa1cel....

alertMessage: "The disk controller battery is executing a learn cycle and may

temporarily enter WriteThrough Caching mode as part of the learn cycle. Disk write throughput

might be temporarily lower during this time. The flash drives are not affected. The battery

learn cycle is a normal maintenance activity that occurs quarterly and runs for approximately 1

to 12 hours. Note that many learn cycles do not require entering WriteThrough caching mode.

When the disk controller cache returns to the normal WriteBack caching mode, an additional

informational alert will be sent. Battery Serial Number : 6360 Battery Type : iBBU08

Battery Temperature : 35 C Full Charge Capacity : 1342 mAh Relative Charge : 97 %

Ambient Temperature : 22 C"

alertSequenceID: 4

alertShortName: Hardware

alertType: Stateful

beginTime: 2013-07-17T04:00:56-05:00

endTime: 2013-07-17T10:09:16-05:00

examinedBy:

metricObjectName: LUN_LEARN_CYCLE_ALERT

notificationState: 0

sequenceBeginTime: 2013-07-17T04:00:56-05:00

severity: info

alertAction: Informational.

alertMessage: "All disk drives are in WriteBack caching mode. Battery Serial

Number : 6360 Battery Type : iBBU08 Battery Temperature : 39 C Full Charge

Capacity : 1345 mAh Relative Charge : 52 % Ambient Temperature : 21 C"

alertSequenceID: 4

alertShortName: Hardware

alertType: Stateful

beginTime: 2013-07-17T10:09:16-05:00

endTime: 2013-07-17T10:09:16-05:00

examinedBy:

metricObjectName: LUN_LEARN_CYCLE_ALERT

notificationState: 0

sequenceBeginTime: 2013-07-17T04:00:56-05:00

severity: clear

alertAction: Informational.

CellCLI>

Here you can see the alert name, the message, the time frame for the alert, the severity, and the action, among

other attributes. Notice, also, the examinedBy attribute. This reports the user id or alias of the DBA or DMA who

examined the alert. Setting this attribute is a good idea, once the alert history has been read, as it allows other

DBAs or DMAs active on the system to know these alerts have been read. This is a fairly easy task to complete, as

it can be done for all alerts in the history or only on those that meet certain criteria, such as alertType=‘Stateful’ or

alertShortName=‘Software’. You can set examinedBy for all alerts in the history, by using the following command:

CellCLI> alter alerthistory all examinedBy=dfitzj01

Alert 1_1 successfully altered

Alert 1_2 successfully altered

CHAPTER 9 ■ STORAGE CELL MONITORING

161

Alert 2 successfully altered

Alert 3_1 successfully altered

Alert 3_2 successfully altered

Alert 4_1 successfully altered

Alert 4_2 successfully altered

CellCL>

If there are acknowledged and unacknowledged alerts, you will have to set examinedBy for the unacknowledged

alerts by name; the WHERE clause is only available for the LIST command. You can find the unacknowledged alerts

using the following command:

CellCLI> list alerthistory attributes name where examinedBy = ''

1_1

1_2

2

3_1

3_2

4_1

4_2

CellCLI>

This gives you the names of all unacknowledged alerts. You can now update these by name, as follows:

CellCLI> alter alerthistory 1_1,1_2,2,3_1,3_2,4_1,4_2 examinedBy=dfitzj01

Alert 1_1 successfully altered

Alert 1_2 successfully altered

Alert 2 successfully altered

Alert 3_1 successfully altered

Alert 3_2 successfully altered

Alert 4_1 successfully altered

Alert 4_2 successfully altered

CellCLI>

In this case, all alerts were unacknowledged, but using ALL will cause you to lose any examinedBy values already

set for acknowledged alerts. You should get into the habit of setting examinedBy for alerts as you read them, because

exachk, the Exadata system validation utility, checks for unexamined alerts.

Some alerts notify you of actions you must take, such as firmware revisions for the storage servers. Others notify

you of support issues Oracle has to address, such as faulty disks and PCIe cards. These alerts are informative and let

you know what needs to be done, so you can decide who is to do the work. Actual hardware issues fall into the realm

of Oracle Customer Support (OCS), and issues such as firmware upgrades can be done on-site by the DBA and/or SA.

Other metrics available to the celladmin user are generated by the cellsrvstat utility. Five categories of

statistics are reported, with both cumulative and current delta values. Simply running the utility from the command

prompt, without any additional parameters or qualifiers, produces the following output:

[celladmin@myexa1celMyexa1cel05 ~]$ cellsrvstat

===Current Time=== Mon Aug 12 22:57:41 2013

== Input/Output related stats ==

Number of hard disk block IO read requests 0 670402182

Number of hard disk block IO write requests 0 682463432

CHAPTER 9 ■ STORAGE CELL MONITORING

162

Hard disk block IO reads (KB) 0 330820733723

Hard disk block IO writes (KB) 0 43747895151

Number of flash disk block IO read requests 0 1195284486

Number of flash disk block IO write requests 0 369512940

Flash disk block IO reads (KB) 0 10211102636

Flash disk block IO writes (KB) 0 6340334020

Number of disk IO errors 0 0

Number of reads from flash cache 0 1191640708

Number of writes to flash cache 0 67271278

Flash cache reads (KB) 0 10209174920

Flash cache writes (KB) 0 0

Number of flash cache IO errors 0 0

Size of eviction from flash cache (KB) 0 0

Number of outstanding large flash IOs 0 0

Number of latency threshold warnings during job 0 87255

Number of latency threshold warnings by checker 0 0

Number of latency threshold warnings for smart IO 0 0

Number of latency threshold warnings for redo log writes 0 1625

Current read block IO to be issued (KB) 0 0

Total read block IO to be issued (KB) 0 31352009247

Current write block IO to be issued (KB) 0 0

Total write block IO to be issued (KB) 0 42382773866

Current read blocks in IO (KB) 0 0

Total read block IO issued (KB) 0 31352009247

Current write blocks in IO (KB) 0 560

Total write block IO issued (KB) 0 42382773866

Current read block IO in network send (KB) 0 0

Total read block IO in network send (KB) 0 31352009247

Current write block IO in network send (KB) 0 0

Total write block IO in network send (KB) 0 42382773306

Current block IO being populated in flash (KB) 0 0

Total block IO KB populated in flash (KB) 0 1012902872

== Memory related stats ==

SGA heap used - kgh statistics (KB) 0 1050259

SGA heap free - cellsrv statistics (KB) 0 209261

OS memory allocated to SGA (KB) 0 1259525

SGA heap used - cellsrv statistics - KB 0 1050264

OS memory allocated to PGA (KB) 0 21784

PGA heap used - cellsrv statistics (KB) 0 8723

OS memory allocated to cellsrv (KB) 0 22726298

Top 5 SGA consumers (KB)

storidx:arrayRIDX 0 267676

storidx::arraySeqRIDX 0 267676

FlashCacheCtx 0 101609

Thread IO Lat Stats 0 98440

SUBHEAP Networ 0 81937

Top 5 SGA subheap consumers (KB)

oracle_fp_init_scan:fplibCtx 0 206406797

oracle_fp_init_scan:fplibmd 0 170654364

CHAPTER 9 ■ STORAGE CELL MONITORING

163

SageCacheInitScan : ctx 0 13481725

SageTxnInitScan : ctx 0 8523711

oracle_fp_reinit_md:fplibfmd 0 2537710

Number of allocation failures in 512 bytes pool 0 0

Number of allocation failures in 2KB pool 0 0

Number of allocation failures in 4KB pool 0 0

Number of allocation failures in 8KB pool 0 0

Number of allocation failures in 16KB pool 0 0

Number of allocation failures in 32KB pool 0 0

Number of allocation failures in 64KB pool 0 0

Number of allocation failures in 1MB pool 0 0

Allocation hwm in 512 bytes pool 0 1955

Allocation hwm in 2KB pool 0 1091

Allocation hwm in 4KB pool 0 2244

Allocation hwm in 8KB pool 0 2048

Allocation hwm in 16KB pool 0 963

Allocation hwm in 32KB pool 0 1068

Allocation hwm in 64KB pool 0 1621

Allocation hwm in 1MB pool 0 1725

Number of low memory threshold failures 0 0

Number of no memory threshold failures 0 0

Dynamic buffer allocation requests 0 0

Dynamic buffer allocation failures 0 0

Dynamic buffer allocation failures due to low mem 0 0

Dynamic buffer allocated size (KB) 0 0

Dynamic buffer allocation hwm (KB) 0 0

== Execution related stats ==

Incarnation number 0 6

Number of module version failures 0 0

Number of threads working 0 1

Number of threads waiting for network 0 19

Number of threads waiting for resource 0 1

Number of threads waiting for a mutex 0 0

Number of Jobs executed for each job type

CacheGet 0 1485087768

CachePut 0 680448625

CloseDisk 0 9210374

OpenDisk 0 11546018

ProcessIoctl 0 4581873

PredicateDiskRead 0 12992231

PredicateDiskWrite 0 27125

PredicateFilter 0 13896087

PredicateCacheGet 0 139408284

PredicateCachePut 0 79265728

FlashCacheMetadataWrite 0 0

RemoteListenerJob 0 0

FlashCacheResilveringTableUpdate 0 0

CellDiskMetadataPrepare 0 0

CHAPTER 9 ■ STORAGE CELL MONITORING

164

SQL ids consuming the most CPU

MYDB 0000000000000 82

MYDB2 0000000000000 1

OKRA 1g3c5u9p6fpwr 15

MYDB bnrjgybpsu009 2

MYDB3 0000000000000 1

END SQL ids consuming the most CPU

== Network related stats ==

Total bytes received from the network 0 969635109657

Total bytes transmitted to the network 0 122811940168

Total bytes retransmitted to the network 0 0

Number of active sendports 0 168

Hwm of active sendports 0 1678

Number of active remote open infos 0 1975

HWM of remote open infos 0 6472

== SmartIO related stats ==

Number of active smart IO sessions 0 3

High water mark of smart IO sessions 0 186

Number of completed smart IO sessions 0 9006624

Smart IO offload efficiency (percentage) 0 8

Size of IO avoided due to storage index (KB) 0 55764980592

Current smart IO to be issued (KB) 0 3072

Total smart IO to be issued (KB) 0 366554357584

Current smart IO in IO (KB) 0 0

Total smart IO in IO (KB) 0 365924276816

Current smart IO being cached in flash (KB) 0 0

Total smart IO being cached in flash (KB) 0 0

Current smart IO with IO completed (KB) 0 7776

Total smart IO with IO completed (KB) 0 375182446096

Current smart IO being filtered (KB) 0 0

Total smart IO being filtered (KB) 0 375150215792

Current smart IO filtering completed (KB) 0 58848

Total smart IO filtering completed (KB) 0 365818995944

Current smart IO filtered size (KB) 0 10187

Total smart IO filtered (KB) 0 29376577170

Total cpu passthru output IO size (KB) 0 0

Total passthru output IO size (KB) 0 0

Current smart IO with results in send (KB) 0 0

Total smart IO with results in send (KB) 0 365498643760

Current smart IO filtered in send (KB) 0 0

Total smart IO filtered in send (KB) 0 29283529373

Total smart IO read from flash (KB) 0 0

Total smart IO initiated flash population (KB) 0 0

Total smart IO read from hard disk (KB) 0 617450473088

Total smart IO writes (fcre) to hard disk (KB) 0 1365452520

Number of smart IO requests < 512KB 0 73658951

Number of smart IO requests >= 512KB and < 1MB 0 15965416

Number of smart IO requests >= 1MB and < 2MB 0 1146863

Number of smart IO requests >= 2MB and < 4MB 0 12189413

CHAPTER 9 ■ STORAGE CELL MONITORING

165

Number of smart IO requests >= 4MB and < 8MB 0 73111527

Number of smart IO requests >= 8MB 0 0

Number of times smart IO buffer reserve failures 0 0

Number of times smart IO request misses 0 473544

Number of times IO for smart IO not allowed to be issued 0 30383972

Number of times smart IO prefetch limit was reached 0 5041176

Number of times smart scan used unoptimized mode 0 0

Number of times smart fcre used unoptimized mode 0 0

Number of times smart backup used unoptimized mode 0 0

[celladmin@myexa1celMyexa1cel05 ~]$

It’s unnecessary to return all of that output if you’re only monitoring the Smart I/O metrics. It’s possible to

monitor a single stat group, if you wish. As an example, we’ll monitor the smartio stat group.

[celladmin@myexa1celMyexa1cel05 ~]$ cellsrvstat -stat_group=smartio

===Current Time=== Sat Mar 16 15:29:33 2013

== SmartIO related stats ==

Number of active smart IO sessions 0 2

High water mark of smart IO sessions 0 3

Number of completed smart IO sessions 0 18

Smart IO offload efficiency (percentage) 0 0

Size of IO avoided due to storage index (KB) 0 123950808

Current smart IO to be issued (KB) 10208 28576

Total smart IO to be issued (KB) 2652520 6416726632

Current smart IO in IO (KB) -4096 10176

Total smart IO in IO (KB) 2642312 6416698056

Current smart IO being cached in flash (KB) 0 0

Total smart IO being cached in flash (KB) 0 0

Current smart IO with IO completed (KB) 0 0

Total smart IO with IO completed (KB) 2646408 6416688024

Current smart IO being filtered (KB) -1024 0

Total smart IO being filtered (KB) 2646408 6416688024

Current smart IO filtering completed (KB) 1024 1024

Total smart IO filtering completed (KB) 2647432 6416687880

Current smart IO filtered size (KB) 1 1

Total smart IO filtered (KB) 394 966771

Total cpu passthru output IO size (KB) 0 0

Total passthru output IO size (KB) 0 0

Current smart IO with results in send (KB) 0 0

Total smart IO with results in send (KB) 2646408 6416675592

Current smart IO filtered in send (KB) 0 0

Total smart IO filtered in send (KB) 393 966769

Total smart IO read from flash (KB) 0 0

Total smart IO initiated flash population (KB) 0 0

Total smart IO read from hard disk (KB) 2642312 6292747248

Total smart IO writes (fcre) to hard disk (KB) 0 0

Number of smart IO requests < 512KB 52 128995

Number of smart IO requests >= 512KB and < 1MB 260 604218

CHAPTER 9 ■ STORAGE CELL MONITORING

166

Number of smart IO requests >= 1MB and < 2MB 0 35

Number of smart IO requests >= 2MB and < 4MB 286 697848

Number of smart IO requests >= 4MB and < 8MB 299 723438

Number of smart IO requests >= 8MB 0 0

Number of times smart IO buffer reserve failures 0 0

Number of times smart IO request misses 18 55773

Number of times IO for smart IO not allowed to be issued 0 10072

Number of times smart IO prefetch limit was reached 0 0

Number of times smart scan used unoptimized mode 0 0

Number of times smart fcre used unoptimized mode 0 0

Number of times smart backup used unoptimized mode 0 0

[celladmin@myexa1celMyexa1cel05 ~]$

The current statistics deltas are the first numbers displayed, and the cumulative statistics, from the cell start to

the current time, are in the last numeric column. Because the first numbers listed are deltas, they can be negative

between runs.

Seeing negative numbers shouldn’t be a concern, but seeing several runs of 0’s in the deltas should be a flag to

check the queries, to see if they qualify for Smart Scans, and the storage cells, for alerts that could affect Smart Scan

performance. We have seen systems where firmware mismatches caused Smart Scan issues when the affected disks

were accessed. Upgrading the firmware solved the Smart Scan problems.

We use the following metrics when monitoring Smart I/O at the storage cell level:

Size of IO avoided due to storage index (KB) 0 123950808

Current smart IO to be issued (KB) 10208 28576

Total smart IO read from hard disk (KB) 2642312 6292747248

Number of smart IO requests < 512KB 52 128995

Number of smart IO requests >= 512KB and < 1MB 260 604218

Number of smart IO requests >= 1MB and < 2MB 0 35

Number of smart IO requests >= 2MB and < 4MB 286 697848

Number of smart IO requests >= 4MB and < 8MB 299 723438

Number of smart IO requests >= 8MB 0 0

The size of IO avoided due to storage index (KB) provides you with another way to check for use of a

storage index during a Smart Scan. You can see the current delta from the last two snapshots and the cumulative

savings reported. current smart IO to be issued (KB) reports on the KB of data that qualify for Smart Scan

processing as of the current snapshot, indicating that Smart Scans are active. The total smart IO read from hard

disk metric reports the amount of data processed by Smart Scans that was read from the disks rather than from the

cache. The number of smart IO requests metrics allow us to know the size ranges of the data requested by those

scans and how many requests are generated for a given range, providing another measure of Smart Scan performance.

Sometimes execution plans get quarantined by Exadata. Usually, this is a result of an ORA-07445 error reported

for O/S level failures. Additionally, the affected disk-storage region can be quarantined, which disables Smart Scans

for that region, as well as for any queries using the quarantined plan or plans. The alert history will report such errors,

and an example of such an alertMessage follows:

alertMessage: "ORA-7445: exception encountered: core dump

[kdzsBufferCUPiece()+35] [11] [0x000000000] [] [] []"

CHAPTER 9 ■ STORAGE CELL MONITORING

167

The following entry in the alert history shows an entry similar to the following:

alertMessage: "A SQL PLAN quarantine has been added. As a result,

Smart Scan is disabled for SQL statements with the quarantined SQL plan.

Quarantine id : 1 Quarantine type : SQL PLAN Quarantine reason :

: 1dx1zzf5bwd07 SQL Plan details : {SQL_PLAN_HASH_VALUE=2181142203,

PLAN_LINE_ID=19} In addition, the following disk region has been

quarantined, and Smart Scan will be disabled for this region: Disk Region :

Such errors need to be addressed, but after they are corrected, the affected plans are still quarantined. To see

which plans are quarantined, use the LIST QUARANTINE statement from cellcli. The command will display the

following attributes for each quarantined plan:

name

cellsrvChecksum

clientPID

comment modifiable

crashReason

creationTime

dbUniqueID

dbUniqueName

incidentID

ioBytes

ioGridDisk

ioOffset

planLineID

quarantineReason

quarantineType

remoteHostName

rpmVersion

sqlID

sqlPlanHashValue

To clear the quarantine, use the drop quarantine command. If all issues that created quarantined plans have not

been addressed, it is also possible to drop only the quarantined plans where the cause has been corrected. This uses

the drop quarantine [name, name, name, name, ...] syntax and drops only the listed named quarantines. Once

the quarantines are dropped, you should see Smart Scan performance restored for the once-affected plans.

It’s best to use both accounts to monitor the storage cells on a regular basis, using cellmonitor for daily tasks

and celladmin for those times when the output provided by the cellmonitor scripts indicate possible problems. It’s a

simple task to submit both cellcli and cellsrvstat commands to the storage servers from scripts on the database

servers. For cellcli:

cellcli -e "command"

As an example:

[celladmin@myexa1celMyexa1cel05 ~]$ cellcli -e "list flashcache detail"

cellDisk:

FD_11_myexa1celMyexa1cel05,FD_03_myexa1celMyexa1cel05,FD_15_myexa1celMyexa1cel05,FD_13_myexa1cel

Myexa1cel05,FD_08_myexa1celMyexa1cel05,FD_10_myexa1celMyexa1cel05,FD_00_myexa1celMyexa1cel05,FD_

CHAPTER 9 ■ STORAGE CELL MONITORING

168

14_myexa1celMyexa1cel05,FD_04_myexa1celMyexa1cel05,FD_06_myexa1celMyexa1cel05,FD_07_myexa1celMy

exa1cel05,FD_05_myexa1celMyexa1cel05,FD_12_myexa1celMyexa1cel05,FD_09_myexa1celMyexa1cel05,FD_02_

myexa1celMyexa1cel05,FD_01_myexa1celMyexa1cel05

creationTime: 2013-07-09T17:33:53-05:00

degradedCelldisks:

effectiveCacheSize: 1488.75G

id: 8a380bf9-06c3-445e-8081-cff72d49bfe6

size: 1488.75G

status: normal

[celladmin@myexa1celMyexa1cel05 ~]$

You need not enter the cellcli interactive interface to return data from cellcli. The cellsrvstat utility

operates in a similar way, as the following example shows:

[celladmin@myexa1celMyexa1cel05 ~]$ cellsrvstat -stat_group=smartio -interval=1 -count=10

...

== SmartIO related stats ==

Number of active smart IO sessions 0 2

High water mark of smart IO sessions 0 3

Number of completed smart IO sessions 0 44

Smart IO offload efficiency (percentage) 0 0

Size of IO avoided due to storage index (KB) 0 139751400

Current smart IO to be issued (KB) 10208 18368

Total smart IO to be issued (KB) 2652520 13375858840

Current smart IO in IO (KB) -992 10240

Total smart IO in IO (KB) 2642312 13375840472

Current smart IO being cached in flash (KB) 0 0

Total smart IO being cached in flash (KB) 0 0

Current smart IO with IO completed (KB) 0 0

Total smart IO with IO completed (KB) 2643304 13375830376

Current smart IO being filtered (KB) 0 0

Total smart IO being filtered (KB) 2643304 13375830376

Current smart IO filtering completed (KB) 1024 1024

Total smart IO filtering completed (KB) 2643304 13375830232

Current smart IO filtered size (KB) 1 1

Total smart IO filtered (KB) 393 1999243

Total cpu passthru output IO size (KB) 0 0

Total passthru output IO size (KB) 0 0

Current smart IO with results in send (KB) 0 0

Total smart IO with results in send (KB) 2642280 13375817944

Current smart IO filtered in send (KB) 0 0

Total smart IO filtered in send (KB) 392 1999241

Total smart IO read from flash (KB) 0 0

Total smart IO initiated flash population (KB) 0 0

Total smart IO read from hard disk (KB) 2642312 13236089072

Total smart IO writes (fcre) to hard disk (KB) 0 0

Number of smart IO requests < 512KB 52 265049

Number of smart IO requests >= 512KB and < 1MB 260 1284245

Number of smart IO requests >= 1MB and < 2MB 0 82

Number of smart IO requests >= 2MB and < 4MB 286 1446473

CHAPTER 9 ■ STORAGE CELL MONITORING

169

Number of smart IO requests >= 4MB and < 8MB 299 1510123

Number of smart IO requests >= 8MB 0 0

...

This example also illustrates that cellsrvstat can in seconds automatically generate data for a specified number

of runs at a specified interval. Automating these commands from the database servers uses ssh to log in to the storage

cell and pass the desired command to the command prompt. An example for cellsrvstat follows:

echo "=========================================================================================="

echo "======================================= Cell 1 ==========================================="

echo "=========================================================================================="

/usr/bin/ssh celladmin@mytexa1cel01-priv.mydomain.com "cellsrvstat -stat_group=smartio -

interval=$1 -count=$2"

echo "=========================================================================================="

echo "======================================= Cell 2" ===========================================

echo "=========================================================================================="

/usr/bin/ssh celladmin@myexa1cel02-priv.mydomain.com "cellsrvstat -stat_group=smartio -

interval=$1 -count=$2"

echo "=========================================================================================="

echo "======================================= Cell 3" ===========================================

echo "=========================================================================================="

/usr/bin/ssh celladmin@myexa1cel03-priv.mydomain.com "cellsrvstat -stat_group=smartio -

interval=$1 -count=$2"

Note ■ This script relies on passwordless login for celladmin to the various storage cells and, because of this, can

run from cron. If passwordless login is not configured, the script can be run manually from the command prompt, and it

will ask for the password before continuing. Since there are numerous resources describing how to set up passwordless

access across servers, we won’t discuss that here.

Once you have such a script written, it’s another easy task to generate a logfile of the output on the database

server. Simply create another script which calls this one, providing the desired parameters, and redirect the output to

a local file, as follows:

/home/oracle/bin/cellsrvstat_smartio.sh 5 100 > /home/oracle/mydb/logs/cellsrvstat_smartio_`date

'+%m%d%Y%H%M%S'`.log

The output will be directed to the specified logfile on the database server, so you can examine the output without

having to visit the storage cells directly.

You can also perform a similar operation using the dcli utility from the database server. Using the –c option

allows you to specify a comma-delimited list of storage cell names dcli is to connect to. The entire command you want

executed, including any supplied parameters, must be enclosed in single quotes. An example of generating a similar

report on storage cells 4 and 5 follows.

CHAPTER 9 ■ STORAGE CELL MONITORING

170

$ dcli -c myexa1cel04,myexa1cel05 'cellsrvstat -stat_group=smartio interval=5 count=3'

myexa1cel04: ===Current Time=== Tue Sep 10 15:55:12 2013

myexa1cel04:

myexa1cel04: == SmartIO related stats ==

myexa1cel04: Number of active smart IO sessions 0 3

myexa1cel04: High water mark of smart IO sessions 0 191

myexa1cel04: Number of completed smart IO sessions 0 44044288

myexa1cel04: Smart IO offload efficiency (percentage) 0 6

myexa1cel04: Size of IO avoided due to storage index (KB) 0 113864506544

myexa1cel04: Current smart IO to be issued (KB) 0 0

myexa1cel04: Total smart IO to be issued (KB) 0 531586293560

myexa1cel04: Current smart IO in IO (KB) 0 0

myexa1cel04: Total smart IO in IO (KB) 0 530250520048

myexa1cel04: Current smart IO being cached in flash (KB) 0 0

myexa1cel04: Total smart IO being cached in flash (KB) 0 0

myexa1cel04: Current smart IO with IO completed (KB) 0 0

myexa1cel04: Total smart IO with IO completed (KB) 0 539827489136

myexa1cel04: Current smart IO being filtered (KB) 0 0

myexa1cel04: Total smart IO being filtered (KB) 0 539642524176

myexa1cel04: Current smart IO filtering completed (KB) 0 0

myexa1cel04: Total smart IO filtering completed (KB) 0 529809708672

myexa1cel04: Current smart IO filtered size (KB) 0 0

myexa1cel04: Total smart IO filtered (KB) 0 33684733602

myexa1cel04: Total cpu passthru output IO size (KB) 0 0

myexa1cel04: Total passthru output IO size (KB) 0 0

myexa1cel04: Current smart IO with results in send (KB) 0 0

myexa1cel04: Total smart IO with results in send (KB) 0 526935373848

myexa1cel04: Current smart IO filtered in send (KB) 0 0

myexa1cel04: Total smart IO filtered in send (KB) 0 33558330216

myexa1cel04: Total smart IO read from flash (KB) 0 0

myexa1cel04: Total smart IO initiated flash population (KB) 0 0

myexa1cel04: Total smart IO read from hard disk (KB) 0 822839718880

myexa1cel04: Total smart IO writes (fcre) to hard disk (KB) 0 4720157008

myexa1cel04: Number of smart IO requests < 512KB 0 129319228

myexa1cel04: Number of smart IO requests >= 512KB and < 1MB 0 33944130

myexa1cel04: Number of smart IO requests >= 1MB and < 2MB 0 1917797

myexa1cel04: Number of smart IO requests >= 2MB and < 4MB 0 26218404

myexa1cel04: Number of smart IO requests >= 4MB and < 8MB 0 94846302

myexa1cel04: Number of smart IO requests >= 8MB 0 0

myexa1cel04: Number of times smart IO buffer reserve failures 0 0

myexa1cel04: Number of times smart IO request misses 0 428373

myexa1cel04: Number of times IO for smart IO not allowed to be issued 0 51619053

myexa1cel04: Number of times smart IO prefetch limit was reached 0 13853892

myexa1cel04: Number of times smart scan used unoptimized mode 0 0

myexa1cel04: Number of times smart fcre used unoptimized mode 0 0

myexa1cel04: Number of times smart backup used unoptimized mode 0 0

myexa1cel04:

...

CHAPTER 9 ■ STORAGE CELL MONITORING

171

myexa1cel05: ===Current Time=== Tue Sep 10 15:55:12 2013

myexa1cel05:

myexa1cel05: == SmartIO related stats ==

myexa1cel05: Number of active smart IO sessions 0 3

myexa1cel05: High water mark of smart IO sessions 0 190

myexa1cel05: Number of completed smart IO sessions 0 13414701

myexa1cel05: Smart IO offload efficiency (percentage) 0 6

myexa1cel05: Size of IO avoided due to storage index (KB) 0 122775633128

myexa1cel05: Current smart IO to be issued (KB) 0 0

myexa1cel05: Total smart IO to be issued (KB) 0 518860088328

myexa1cel05: Current smart IO in IO (KB) 0 0

myexa1cel05: Total smart IO in IO (KB) 0 517153923160

myexa1cel05: Current smart IO being cached in flash (KB) 0 0

myexa1cel05: Total smart IO being cached in flash (KB) 0 0

myexa1cel05: Current smart IO with IO completed (KB) 0 0

myexa1cel05: Total smart IO with IO completed (KB) 0 526712505064

myexa1cel05: Current smart IO being filtered (KB) 0 0

myexa1cel05: Total smart IO being filtered (KB) 0 526326301880

myexa1cel05: Current smart IO filtering completed (KB) 0 0

myexa1cel05: Total smart IO filtering completed (KB) 0 516527335136

myexa1cel05: Current smart IO filtered size (KB) 0 0

myexa1cel05: Total smart IO filtered (KB) 0 31742415677

myexa1cel05: Total cpu passthru output IO size (KB) 0 0

myexa1cel05: Total passthru output IO size (KB) 0 0

myexa1cel05: Current smart IO with results in send (KB) 0 0

myexa1cel05: Total smart IO with results in send (KB) 0 513421039080

myexa1cel05: Current smart IO filtered in send (KB) 0 0

myexa1cel05: Total smart IO filtered in send (KB) 0 31628785815

myexa1cel05: Total smart IO read from flash (KB) 0 0

myexa1cel05: Total smart IO initiated flash population (KB) 0 0

myexa1cel05: Total smart IO read from hard disk (KB) 0 778857687168

myexa1cel05: Total smart IO writes (fcre) to hard disk (KB) 0 4719981512

myexa1cel05: Number of smart IO requests < 512KB 0 87530841

myexa1cel05: Number of smart IO requests >= 512KB and < 1MB 0 22106655

myexa1cel05: Number of smart IO requests >= 1MB and < 2MB 0 1379945

myexa1cel05: Number of smart IO requests >= 2MB and < 4MB 0 23696091

myexa1cel05: Number of smart IO requests >= 4MB and < 8MB 0 97340630

myexa1cel05: Number of smart IO requests >= 8MB 0 0

myexa1cel05: Number of times smart IO buffer reserve failures 0 0

myexa1cel05: Number of times smart IO request misses 0 1327742

myexa1cel05: Number of times IO for smart IO not allowed to be issued 0 56612486

myexa1cel05: Number of times smart IO prefetch limit was reached 0 6893531

myexa1cel05: Number of times smart scan used unoptimized mode 0 0

myexa1cel05: Number of times smart fcre used unoptimized mode 0 0

myexa1cel05: Number of times smart backup used unoptimized mode 0 0

myexa1cel05:

...

myexa1cel05:

$

CHAPTER 9 ■ STORAGE CELL MONITORING

172

The storage cell name is displayed, as well as the cellsrvstat report data for each interval reported. This also

relies on passwordless ssh access to the storage cells; if that isn’t established, it will be necessary to enter a password

to connect to each cell in the list.

It is well worth the time and slight amount of effort to set up such monitoring of the storage cells using cron,

as it will pay off in the long run. Troubleshooting Smart Scan and Smart Flash Cache issues can be made easier by

having a baseline for current performance. Differences and deviations will be easier to spot and address, making

troubleshooting time shorter and problem resolution faster.

Things to Know

There are two accounts you, as a DBA, should be aware of for the storage cells: cellmonitor and celladmin.

The cellmonitor account is strictly a monitoring login and has restricted access to the storage cell directory

structure.The celladmin account has far more access and privilege and is intended to be used for administrative duties.

The storage cells can be accessed by ssh; the addresses for the available storage cells are available in the

/etc/hosts files on all available database servers in the Exadata system.

Two utilities exist for monitoring and managing the storage cells, cellcli and cellsrvstat. The cellcli utility

is available to both cellmonitor and celladmin, with cellmonitor having a restricted set of available instructions.

The cellmonitor account is intended for regular monitoring, using the LIST command set, which outputs statistics

and metrics for various areas of the storage cell. The celladmin account is intended to allow the DBA to address issues

reported by output generated by cellmonitor.

Both cellcli and cellsrvstat commands can be passed on the command line and cellsrvstat commands

can be automated, in a way, by providing an interval, in seconds, and a count of executions to run of the given

command. You can also restrict the output of cellsrvstat by using the -stat_group parameter to specify which group,

or groups, you want to monitor. The available groups are smartio, io, mem, exec, and net.

Storage cell monitoring from the database server can be automated by using passwordless login to the storage

cells and scripts, using ssh to connect to each storage cell and pass either cellcli or cellsrvstat commands to

the cell you are connected to. The output can also be redirected to a logfile on the database server, by writing what is

known as a “wrapper” script to redirect the output. This can establish a performance baseline for comparison, when

the output indicates possible problem areas.

173

Chapter 10

Monitoring Exadata

Exadata is a complex system of interrelated components; monitoring them effectively is both an art and a science.

Throughout this book, we have discussed monitoring options for various areas of Exadata. In this chapter, we will

take this topic further and provide ways to monitor Exadata across both the database nodes and the storage cells. We

will see how V$SQL and V$SQLSTATS can be used to monitor SQL statement performance and provide information on

Smart Scan activity. We’ll also look at the storage cells again, comparing the monitoring capabilities of the

command-line interfaces and those of Oracle Enterprise Manager (OEM). We’re not promising to make you a

combination of Einstein and Rembrandt, but we will help you understand the available tools and techniques, so you

can intelligently monitor your system.

The Database Layer

This is the layer the users will access, so we feel it’s a logical starting point for a discussion on monitoring. We’ve

discussed the wait interface in Chapter 7 and performance in Chapter 8. Now it’s time to put them together and

formulate a monitoring strategy.

Exadata’s big selling point is the Smart Scan, and knowing what queries will and won’t qualify for a Smart Scan

is important. We covered these in Chapter 2, along with some monitoring steps, to see if Smart Scans were being

executed. We will revisit that topic in the next section, using the V$SQL and V$SQLSTATS views.

Are We There Yet?

Exadata provides a wealth of metrics, counters, and statistics designed to report on what the system is doing for a

given task. Simply because these metrics exist doesn’t mean you should report everything Exadata records. You need

a purpose and a direction when monitoring Exadata. Without purpose and direction, it’s entirely possible you can

be led down the wrong path, to solve the wrong “problem.” Remember that monitoring should be designed to set

an initial baseline, so that there is a solid foundation for comparison. Subsequent monitoring data should provide a

window, relative to that baseline, showing how performance fares over time and data changes. You don’t want to be

chasing a moving target, if you can avoid it. Having no clear starting point only makes troubleshooting and problem

resolution more difficult.

To design and implement an effective monitoring strategy, you need to step away from your normal role as DBA

and look at the system from the user’s perspective. Yes, you can drill down into the various metrics and statistics, wait

events, and timers, but the end users don’t care about that, really. Their main concern is how long their process or

query takes to complete. If a process takes longer than the user thinks it should, the system is slow and needs tuning.

Yes, it could very well be their query that needs attention, but to the user, it’s the database causing the problem, and

the database is your area of expertise. Users don’t want to know that it’s the 58th bit in the 32nd row of the ORDERS

table that’s at fault. They only want to see the problem corrected and response time reduced. Knowing that gives your

monitoring process direction and purpose, the two items you need to effectively monitor the system.

CHAPTER 10 ■ MONITORING EXADATA

174

Of course it’s not just the user’s claim of unsatisfactory performance that comes into play; it’s also a matter

of what acceptable and unacceptable performance may be. Simply because a monitoring script or tool reported

“overly high CPU usage” doesn’t mean the performance was unacceptable. You have to take into consideration

how many sessions were active at the time and what those sessions were doing. Many tools set default thresholds

for such alarms/reports, and those thresholds may not be appropriate for your system, so check these and set

them to reasonable values, given your hardware, software, and user load. One size does not fit all, when it comes to

monitoring.

Real-Time SQL Monitoring Reports

By far, the easiest way to monitor SQL performance is through Oracle Enterprise Manager 12c (OEM 12c), with

the Diagnostic and Tuning Pack installed. Oracle will automatically monitor SQL statements run in parallel and

serialized statements consuming five seconds or more of combined I/O and CPU time. It’s also possible to monitor

SQL statements with the /*+ MONITOR */ hint. Looking at a screenshot of the Performance window in OEM 12c in

Figure 10-1, you can see the level of information presented.

Among the details presented are the duration, the SQL ID, the session ID that ran the statement, the degree of

parallelism for parallel execution, and a bar graph of the database time, broken down into the three categories for

which time was recorded, CPU, User I/O, and Other. Green reports CPU time as a percentage of the total, blue the

User I/O as a percentage, and orange the time (again as a percentage of the whole) recorded as Other. It’s possible

to “drill down” into the details for a specific SQL ID from the report by simply clicking on that SQL ID, shown in

Figure 10-2.

In addition to the enhanced execution plan (providing a time line, as well as the usual information), there are

two sections above the plan providing time and wait statistics, along with I/O statistics. These are extremely helpful

when diagnosing and troubleshooting performance issues on a per-statement basis. Not only is the “wall clock”

Figure 10-1. OEM 12c SQL monitoring pane

Figure 10-2. SQL ID Time & Wait window in OEM 12c

CHAPTER 10 ■ MONITORING EXADATA

175

time displayed (as the Duration bar), the time is broken down into its component pieces, so you can see where

time was spent while executing the statement. Notice that Database Time, PL/SQL, and Java time, along with Wait

Activity, are reported in the Time & Wait Statistics window. From the Database Time bar shown, the time is broken

down into four wait categories: User I/O (blue), CPU (green), Cluster (white), and Application (red). Hovering the

cursor over each of these areas reports what category is represented and the percentage of the total database time it

represents. Such a breakdown is very helpful in determining where time is spent and, possibly, where improvements

can be implemented. Likewise, hovering the cursor over the bars found in the I/O Statistics window reports the

corresponding figures. Figure 10-3 illustrates this for the Time & Wait Statistics.

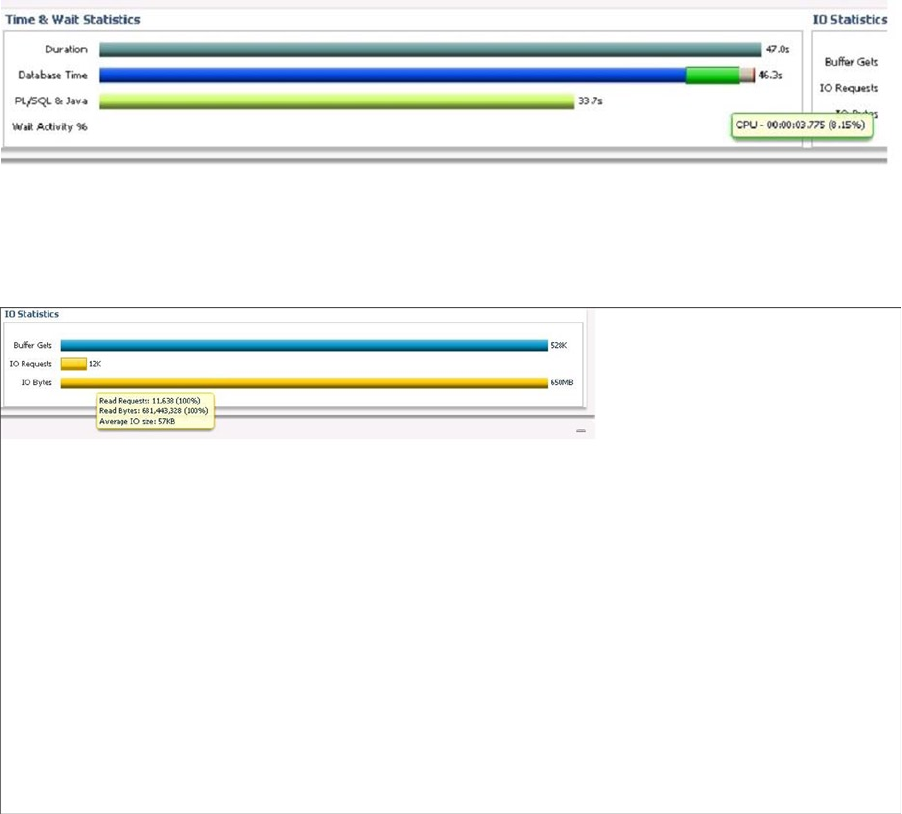

Figure 10-3. Time & Wait Statistics breakdown

Figure 10-4. I/O Statistics breakdown

Figure 10-4 shows this behavior for the I/O window.

Through the tabs above the execution plan, you can see parallel wait statistics (for statements using parallel

execution) as bar graphs and various other metrics as line graphs, the latter shown in Figure 10-5.

CHAPTER 10 ■ MONITORING EXADATA

176

We use the Duration column to direct us to possible problem statements, which can be isolated and investigated

to see if they are, indeed, a problem. If a statement has a duration of 993 seconds in the last hour, but had 1233

executions, the per-execution time is less than 1 second, which is not unacceptable performance. If, on the other

hand, a statement has a duration of 79 seconds during the last hour, and only 1 execution, this SQL ID warrants

further investigation. That the value reported in the Duration column is large bears little weight by itself. You must

investigate further, in order to accurately determine if it is a problem.

Graphics are nice to have and fairly easy to use, but they aren’t absolutely necessary to monitor Exadata. If

you don’t have access to OEM 12c, either because it isn’t installed or it has stopped working, all is not lost. You can

generate real-time SQL monitoring reports from SQL*Plus.

Using GV$SQL and GV$SQLSTATS (But That’s Not All)

Generating real-time monitoring reports through SQL*Plus is not as difficult as it may seem, as Oracle provides

several views, including GV$SQL and GV$SQLSTATS, and a packaged function (DBMS_SQLTUNE.REPORT_SQL_MONITOR), to

provide this information.

Before we get to GV$SQL and GV$SQLSTATS, we will look at GV$SQL_MONITOR, which provides session-level

execution monitoring data for all available instances in the cluster. Given that Exadata is a RAC environment, it’s

possible that multiple connections from an application may connect “round-robin” between the available nodes.

Thus, the same SQL ID may exist on two or more nodes at the same time. It is important when monitoring execution

at the SQL ID level to ensure you are always looking at the same session you started monitoring. This is where the

session SID, the instance id, and the status are helpful. The session SID and the instance id allow you to isolate a

session on a node for further monitoring. If the goal is to examine a currently running statement, ensure that the

STATUS is reported as EXECUTING, so that monitoring over time will provide information you may need to troubleshoot

a problem. Another view worth noting is GV$SQL_PLAN_MONITOR. This view is updated with plan-level monitoring data,

updated in real time.

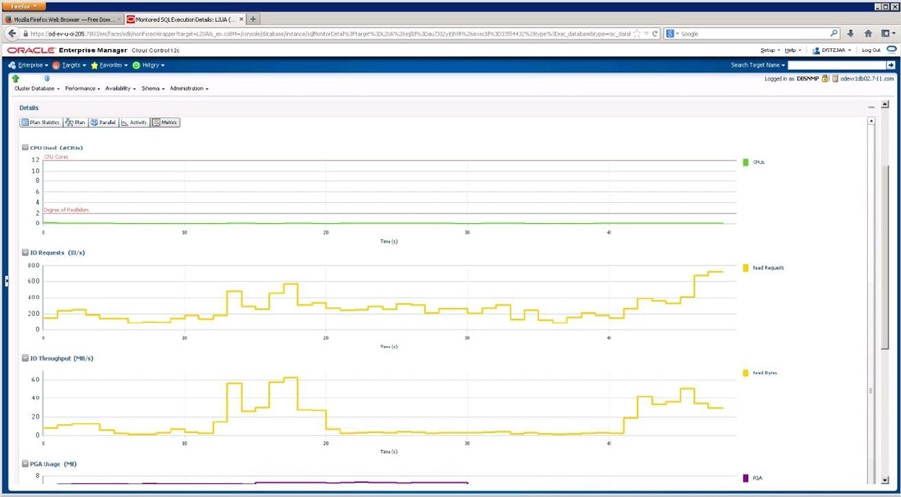

Figure 10-5. SQL ID metric graphs from OEM 12c

CHAPTER 10 ■ MONITORING EXADATA

177

Looking at some examples using GV$SQL_MONITOR, GV$SQL_PLAN_MONITOR, GV$SQL, and GV$SQLSTATS should help

you understand the power of these views and the information they can provide. We begin with GV$SQL_MONITOR and

search for a specific SQL_ID, as follows:

SQL> select inst_id inst, sid, sql_plan_hash_value plan_hash, elapsed_time elapsed, cpu_time cpu_tm,

fetches fetch, io_interconnect_bytes io_icon_byt, physical_read_bytes + physical_write_bytes

tl_byt_proc, ((physical_read_bytes+physical_write_bytes)/io_interconnect_bytes)*100 offld_pct, status

2 from gv$sql_monitor

3 where status <> 'DONE'

4 and sql_id = 'b1x37zg5a1ygr'

5 and io_interconnect_bytes > 0

6 /

INST SID PLAN_HASH ELAPSED CPU_TM FETCH IO_ICON_BYT TL_BYT_PRC OFFLD_PCT STATUS

---- ----- ---------- ------- -------- ----- ----------- ---------- --------- ---------------

1 2 1747818060 329685 76988 0 8183808 8183808 100 DONE (ALL ROWS)

1 2222 1747818060 283095 100984 0 9199616 9199616 100 DONE (ALL ROWS)

1 1062 1747818060 240687 86987 0 9502720 9502720 100 DONE (ALL ROWS)

1 1810 1747818060 246776 85987 0 6201344 6201344 100 DONE (ALL ROWS)

1 201 1747818060 258911 46992 0 5505024 5505024 100 DONE (ALL ROWS)

1 1343 1747818060 232887 68989 0 7061504 7061504 100 DONE (ALL ROWS)

1 777 1747818060 280657 63990 0 6152192 6152192 100 DONE (ALL ROWS)

1 2094 1747818060 332745 54992 0 6520832 6520832 100 DONE (ALL ROWS)

1 966 1747818060 245549 79987 0 8028160 8028160 100 DONE (ALL ROWS)

1 1631 1747818060 273636 74988 0 9216000 9216000 100 DONE (ALL ROWS)

1 1530 1747818060 330327 89986 0 7454720 7454720 100 DONE (ALL ROWS)

1 1245 1747818060 239035 95985 0 8773632 8773632 100 DONE (ALL ROWS)

1 863 1747818060 288678 51992 0 6995968 6995968 100 DONE (ALL ROWS)

1 2004 1747818060 270000 41993 0 5562368 5562368 100 DONE (ALL ROWS)

1 1911 1747818060 258966 51992 0 6823936 6823936 100 DONE (ALL ROWS)

1 393 1747818060 323315 37993 0 4874240 4874240 100 DONE (ALL ROWS)

1 1724 1747818060 249028 72989 0 7421952 7421952 100 DONE (ALL ROWS)

1 1241 1747818060 36000 15998 1 40960 40960 100 DONE (ALL ROWS)

1 290 1747818060 234694 73989 0 6356992 6356992 100 DONE (ALL ROWS)

1 387 1747818060 264108 75988 0 8454144 8454144 100 DONE (ALL ROWS)

1 1431 1747818060 246059 75989 0 8011776 8011776 100 DONE (ALL ROWS)

1 482 1747818060 279164 51991 0 6692864 6692864 100 DONE (ALL ROWS)

1 493 1747818060 272336 69990 0 8347648 8347648 100 DONE (ALL ROWS)

1 1156 1747818060 274823 97985 0 11042816 11042816 100 DONE (ALL ROWS)

1 110 1747818060 261317 61991 0 7708672 7708672 100 DONE (ALL ROWS)

25 rows selected.

SQL>

There are 25 sessions running that same statement, all with different monitoring information. For Exadata, one

of the key pieces of information is the IO_INTERCONNECT_BYTES, which indirectly reports the offload efficiency. If the

sum of PHYSICAL_READ_BYTES and PHYSICAL_WRITE_BYTES equals the value in IO_INTERCONNECT_BYTES, the query or

statement reaped the benefits of offloading with an efficiency of 100 percent. As we’ve pointed out before, ratios and

efficiencies are relative numbers. But this ratio does give you a reasonable idea how much of the data was handled by

offloading, which saves the database layer processing time. Notice that for every row in the results, the offload_pct is

100. You won’t always see 100 percent offload efficiency, as multipart queries may have sections that will offload and

sections that won’t, as the following output illustrates.

CHAPTER 10 ■ MONITORING EXADATA

178

INST SID PLAN_HASH ELAPSED CPU_TM FETCH IO_ICON_BYT TL_BYT_PRC OFFLD_PCT STATUS

---- ----- ---------- ------- -------- ----- ----------- ---------- --------- ---------------

2 476 3140350437 7065006 2202665 142 85155840 83320832 97.845118 DONE (ALL ROWS)

1 869 484955222 6136552 5940097 127 147456 106496 72.222222 DONE (ALL ROWS)

Much of the output for statements from these two sessions was offloaded, but there was some output that

wasn’t, possibly because it needed traditional consistent-read processing at the database level. It’s also possible to get

percentages higher than 100.

INST SID SQL_ID PLAN_HASH ELAPSED CPU_TM FETCH IO_ICON_BYT TL_BYT_PRC OFFLD_PCT STATUS

---- ----- ------------- --------- -------- -------- ----- ----------- ---------- --------- ------

2 1619 192t67rtdqrf8 4217233900 23380518 795879 2 61626560 127926272 207.58302 DONE

(FIRST N ROWS)

2 1333 6m6y2y82sjpjx 627564094 4416403 1176820 1 57162056 77930496 136.33256 DONE

(ALL ROWS)

2 1619 192t67rtdqrf8 4217233900 13716144 853870 2 63322304 129622016 204.70199 DONE

(FIRST N ROWS)

An ORDER BY clause can cause this behavior, as it can up to double the read bytes processed by the query.

INST_ID SID SQL_ID

---------- ------ -------------

SQL_TEXT

--------------------------------------------------------------------------------------------------------------------------------

SQL_PLAN_HASH_VALUE ELAPSED_TIME CPU_TIME FETCHES IO_INTERCONNECT_BYTES PHYSICAL_READ_BYTES PHYSICAL_WRITE_BYTES OFFLOAD_PCT STATUS

------------------- ------------ -------- ------- --------------------- ------------------- -------------------- ----------- -------

2 1619 192t67rtdqrf8

select * from ad_parallel_update_units order by start_date desc

4217233900 23380518 795879 2 61626560 127926272 0 207.583016 DONE

(FIRST

N ROWS)

2 1333 6m6y2y82sjpjx

Select TABLE_NAME, COLUMN_NAME, DEFAULT_LENGTH, DATA_DEFAULT

FROM SYS.USER_TAB_COLUMNS C WHERE 1=1

And default_length is not null

1666543731 7998885 1801727 1 54386688 54386688 0 100 DONE

(ALL

ROWS)

2 1333 6m6y2y82sjpjx

Select TABLE_NAME, COLUMN_NAME, DEFAULT_LENGTH, DATA_DEFAULT

FROM SYS.USER_TAB_COLUMNS C WHERE 1=1

And default_length is not null

627564094 4416403 1176820 1 57162056 77930496 0 136.332563 DONE

(ALL

ROWS)

2 1619 192t67rtdqrf8

select * from ad_parallel_update_units order by start_date desc

4217233900 13716144 853870 2 63322304 129622016 0 204.701989 DONE

(FIRST

N ROWS)

Index access can also increase the value for PHYSICAL_READ_BYTES above the value of IO_INTERCONNECT_BYTES.

This is the case for SQL_ID 6m6y2y82sjpjx, as the plan shows.

CHAPTER 10 ■ MONITORING EXADATA

179

Execution Plan

----------------------------------------------------------

Plan hash value: 969465177

---------------------------------------------------------------------------------------------------------

---------------------------------------------------------------------------------------------------------

| 0 | SELECT STATEMENT | | 28 | 3976 | 443 (1)| 00:00:01 |

| 1 | CONCATENATION | | | | | |

|* 2 | FILTER | | | | | |

| 3 | NESTED LOOPS OUTER | | 1 | 142 | 54 (0)| 00:00:01 |

| 4 | NESTED LOOPS OUTER | | 1 | 133 | 53 (0)| 00:00:01 |

| 5 | NESTED LOOPS | | 1 | 129 | 52 (0)| 00:00:01 |

| 6 | NESTED LOOPS OUTER | | 1 | 107 | 51 (0)| 00:00:01 |

| 7 | NESTED LOOPS OUTER | | 1 | 98 | 49 (0)| 00:00:01 |

| 8 | NESTED LOOPS | | 1 | 72 | 48 (0)| 00:00:01 |

|* 9 | TABLE ACCESS BY INDEX ROWID| OBJ$ | 5 | 215 | 47 (0)| 00:00:01 |

|* 10 | INDEX RANGE SCAN | I_OBJ5 | 5 | | 43 (0)| 00:00:01 |

|* 11 | TABLE ACCESS CLUSTER | TAB$ | 1 | 12 | 2 (0)| 00:00:01 |

|* 12 | INDEX UNIQUE SCAN | I_OBJ# | 1 | | 1 (0)| 00:00:01 |

|* 13 | TABLE ACCESS CLUSTER | COL$ | 1 | 29 | 1 (0)| 00:00:01 |

|* 14 | INDEX UNIQUE SCAN | I_OBJ# | 1 | | 0 (0)| 00:00:01 |

|* 15 | TABLE ACCESS CLUSTER | COLTYPE$ | 1 | 26 | 1 (0)| 00:00:01 |

|* 16 | TABLE ACCESS BY INDEX ROWID | OBJ$ | 1 | 9 | 2 (0)| 00:00:01 |

|* 17 | INDEX RANGE SCAN | I_OBJ3 | 1 | | 1 (0)| 00:00:01 |

|* 18 | INDEX RANGE SCAN | I_USER2 | 1 | 22 | 1 (0)| 00:00:01 |

|* 19 | INDEX RANGE SCAN | I_USER2 | 1 | 4 | 1 (0)| 00:00:01 |

|* 20 | INDEX RANGE SCAN | I_HH_OBJ#_INTCOL# | 1 | 9 | 1 (0)| 00:00:01 |

| 21 | NESTED LOOPS | | 1 | 29 | 2 (0)| 00:00:01 |

|* 22 | INDEX SKIP SCAN | I_USER2 | 1 | 20 | 1 (0)| 00:00:01 |

|* 23 | INDEX RANGE SCAN | I_OBJ4 | 1 | 9 | 1 (0)| 00:00:01 |

|* 24 | FILTER | | | | | |

|* 25 | HASH JOIN OUTER | | 14 | 1988 | 387 (1)| 00:00:01 |

| 26 | NESTED LOOPS OUTER | | 14 | 1932 | 386 (1)| 00:00:01 |

| 27 | NESTED LOOPS OUTER | | 14 | 1806 | 358 (1)| 00:00:01 |

| 28 | NESTED LOOPS OUTER | | 14 | 1680 | 344 (1)| 00:00:01 |

|* 29 | HASH JOIN | | 14 | 1316 | 330 (1)| 00:00:01 |

| 30 | NESTED LOOPS | | | | | |

| 31 | NESTED LOOPS | | 14 | 1008 | 328 (1)| 00:00:01 |

|* 32 | TABLE ACCESS FULL | COL$ | 14 | 406 | 300 (1)| 00:00:01 |

|* 33 | INDEX RANGE SCAN | I_OBJ1 | 1 | | 1 (0)| 00:00:01 |

|* 34 | TABLE ACCESS BY INDEX ROWID| OBJ$ | 1 | 43 | 2 (0)| 00:00:01 |

| 35 | INDEX FULL SCAN | I_USER2 | 63 | 1386 | 1 (0)| 00:00:01 |

|* 36 | TABLE ACCESS CLUSTER | COLTYPE$ | 1 | 26 | 1 (0)| 00:00:01 |

|* 37 | INDEX RANGE SCAN | I_HH_OBJ#_INTCOL# | 1 | 9 | 1 (0)| 00:00:01 |

|* 38 | TABLE ACCESS BY INDEX ROWID | OBJ$ | 1 | 9 | 2 (0)| 00:00:01 |

|* 39 | INDEX RANGE SCAN | I_OBJ3 | 1 | | 1 (0)| 00:00:01 |

| 40 | INDEX FULL SCAN | I_USER2 | 63 | 252 | 1 (0)| 00:00:01 |

|* 41 | TABLE ACCESS CLUSTER | TAB$ | 1 | 12 | 2 (0)| 00:00:01 |

|* 42 | INDEX UNIQUE SCAN | I_OBJ# | 1 | | 1 (0)| 00:00:01 |

| 43 | NESTED LOOPS | | 1 | 29 | 2 (0)| 00:00:01 |

|* 44 | INDEX SKIP SCAN | I_USER2 | 1 | 20 | 1 (0)| 00:00:01 |

|* 45 | INDEX RANGE SCAN | I_OBJ4 | 1 | 9 | 1 (0)| 00:00:01 |

---------------------------------------------------------------------------------------------------------

CHAPTER 10 ■ MONITORING EXADATA

180

Since the index access paths didn’t qualify for a Smart Scan, they increased the PHYSICAL_READ_BYTES without

adding the same amount to IO_INTERCONNECT_BYTES.

Another way to generate monitoring data with Oracle 11.2 is the DBMS_SQLTUNE.REPORT_SQL_MONITOR function.

select dbms_sqltune.report_sql_monitor(session_id=>&sessid, report_level=>'ALL',type=>'HTML') from dual;

The TYPE parameter can be either TEXT or HTML. We usually generate HTML reports, because they are easier to

navigate and read in a web browser, as they preserve contextual (drill-down) information you can access with a

right-click on the data item. Sample output for one of these HTML reports is shown in Figures 10-6a, 10-6b, and 10-6c.

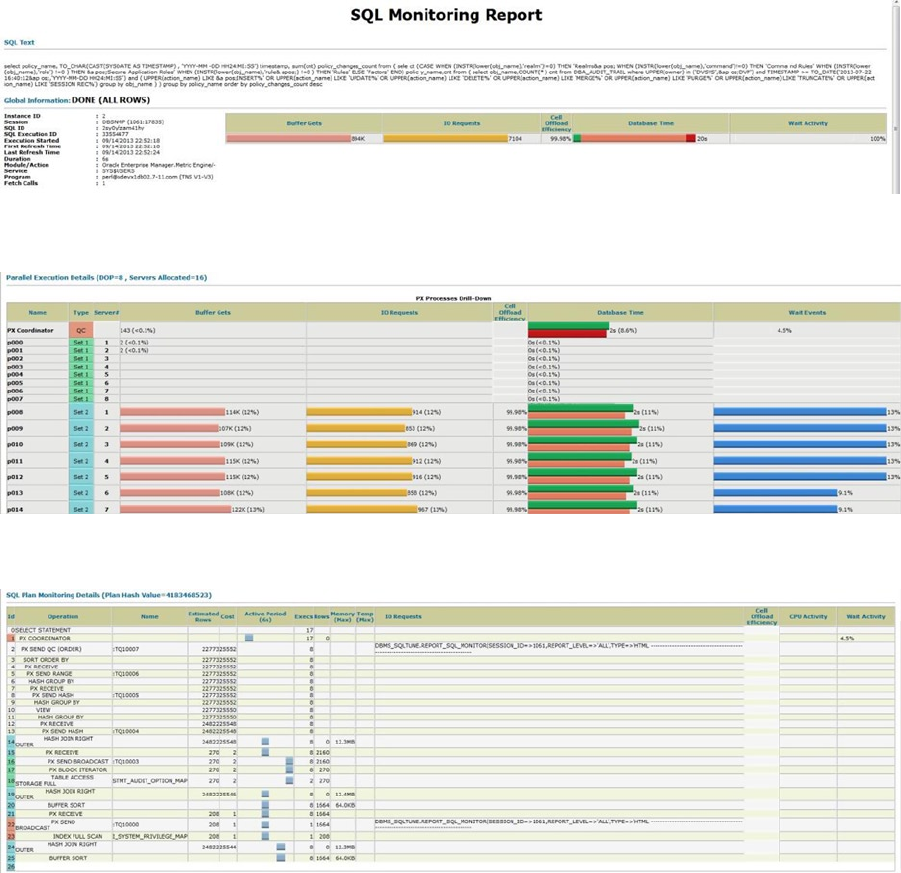

Figure 10-6a. Global information output from DBMS_SQLTUNE.REPORT_SQL_MONITOR

Figure 10-6b. Parallel execution from HTML report

Figure 10-6c. SQL Plan window from HTML report

CHAPTER 10 ■ MONITORING EXADATA

181

A text report for the same SID gives the same information.

--------------------------------------------------------------------------------

SQL Monitoring Report

SQL Text

------------------------------

select policy_name, TO_CHAR(CAST(SYSDATE AS TIMESTAMP) , 'YYYY-MM-DD HH24:MI:SS'

) timestamp, sum(cnt) policy_changes_count from ( select (CASE WHEN (INSTR(lower

(obj_name),'realm')!=0) THEN 'Realms' WHEN (INSTR(lower(obj_name),'command')!=0)

THEN 'Command Rules' WHEN (INSTR(lower(obj_name),'role') !=0 ) THEN 'Secure App

lication Roles' WHEN (INSTR(lower(obj_name),'rule') !=0 ) THEN 'Rules' ELSE 'Fac

tors' END) policy_name,cnt from ( select obj_name,COUNT(*) cnt from DBA_AUDIT_TR

AIL where

UPPER(owner) in ('DVSYS','DVF') and TIMESTAMP >= TO_DATE('2013-07-22 16:40:12','

YYYY-MM-DD HH24:MI:SS') and ( UPPER(action_name) LIKE 'INSERT%' OR UPPER(action_

name) LIKE 'UPDATE%' OR UPPER(action_name) LIKE 'DELETE%' OR UPPER(action_name)

LIKE 'MERGE%' OR UPPER(action_name) LIKE 'PURGE%' OR UPPER(action_name) LIKE 'TR

UNCATE%' OR UPPER(action_name) LIKE 'SESSION REC%') group by obj_name ) ) group

by policy_name order by policy_changes_count desc

Global Information

------------------------------

Status : DONE (ALL ROWS)

Instance ID : 2

Session : DBSNMP (1061:17835)

SQL ID : 2sy0yfzam41hy

SQL Execution ID : 33554477

Execution Started : 09/14/2013 22:52:18

First Refresh Time : 09/14/2013 22:52:18

Last Refresh Time : 09/14/2013 22:52:24

Duration : 6s

Module/Action : Oracle Enterprise Manager.Metric Engine/-

Service : SYS$USERS

Program : perl@odevx1db02.7-11.com (TNS V1-V3)

Fetch Calls : 1

CHAPTER 10 ■ MONITORING EXADATA

182

Global Stats

===============================================================================================

===============================================================================================

| 20 | 0.01 | 1.22 | 17 | 0.02 | 1.63 | 0.00 | 0.03 | 1 | 894K | 7104 | 7GB | 99.98% |

===============================================================================================

Parallel Execution Details (DOP=8, Servers Allocated=16)

==============================================================================================================================

==============================================================================================================================

| PX Coordinator | QC | | 1.69 | 0.01 | 0.02 | 0.00 | 0.02 | 1.63 | 0.00 | 0.01 | 143 | | . | NaN% | os thread startup (1) |

| p000 | Set 1 | 1 | 0.00 | | 0.00 | 0.00 | | | | | 2 | | . | NaN% | |

| p001 | Set 1 | 2 | 0.00 | | 0.00 | 0.00 | | | | | 2 | | . | NaN% | |

| p002 | Set 1 | 3 | 0.00 | | | | | | | 0.00 | | | . | NaN% | |

| p003 | Set 1 | 4 | 0.00 | | 0.00 | | | | | | | | . | NaN% | |

| p004 | Set 1 | 5 | 0.00 | | | | | | | 0.00 | | | . | NaN% | |

| p005 | Set 1 | 6 | 0.00 | | | | | | | 0.00 | | | . | NaN% | |

| p006 | Set 1 | 7 | 0.00 | | | | | | | 0.00 | | | . | NaN% | |

| p007 | Set 1 | 8 | 0.00 | | 0.00 | | | | | | | | . | NaN% | |

| p008 | Set 2 | 1 | 2.20 | | 0.16 | 2.04 | | | 0.00 | | 114K | 914 | 869MB | 99.98% | cell smart table scan (3) |

| p009 | Set 2 | 2 | 2.34 | | 0.16 | 2.18 | | | 0.00 | | 107K | 853 | 808MB | 99.98% | cell smart table scan (3) |

| p010 | Set 2 | 3 | 2.27 | | 0.14 | 2.13 | | | 0.00 | | 109K | 869 | 828MB | 99.98% | cell smart table scan (3) |

| p011 | Set 2 | 4 | 2.19 | | 0.15 | 2.04 | | 0.00 | 0.00 | | 115K | 912 | 872MB | 99.98% | cell smart table scan (3) |

| p012 | Set 2 | 5 | 2.30 | | 0.14 | 2.15 | | 0.00 | 0.00 | | 115K | 916 | 874MB | 99.98% | cell smart table scan (3) |

| p013 | Set 2 | 6 | 2.21 | | 0.15 | 2.06 | | | | | 108K | 858 | 823MB | 99.98% | cell smart table scan (2) |

| p014 | Set 2 | 7 | 2.29 | | 0.13 | 2.14 | | | | 0.01 | 122K | 967 | 930MB | 99.98% | cell smart table scan (2) |

| p015 | Set 2 | 8 | 2.21 | | 0.15 | 2.06 | | | 0.00 | | 103K | 815 | 777MB | 99.98% | cell smart table scan (2) |

==============================================================================================================================

CHAPTER 10 ■ MONITORING EXADATA

183

SQL Plan Monitoring Details (Plan Hash Value=4183468523)

==============================================================================================================================

==============================================================================================================================

| 0 | SELECT STATEMENT | | | | | | 17 | | | | | | | |

| 1 | PX COORDINATOR | | | | 1 | +1 | 17 | 0 | | | | | 4.00 | os thread startup (1) |

| 2 | PX SEND QC (ORDER) | :TQ10007 | 22773 | 25552 | | | 8 | | | | | | | |

| 3 | SORT ORDER BY | | 22773 | 25552 | | | 8 | | | | | | | |

| 4 | PX RECEIVE | | 22773 | 25552 | | | 8 | | | | | | | |

| 5 | PX SEND RANGE | :TQ10006 | 22773 | 25552 | | | 8 | | | | | | | |

| 6 | HASH GROUP BY | | 22773 | 25552 | | | 8 | | | | | | | |

| 7 | PX RECEIVE | | 22773 | 25552 | | | 8 | | | | | | | |

| 8 | PX SEND HASH | :TQ10005 | 22773 | 25552 | | | 8 | | | | | | | |

| 9 | HASH GROUP BY | | 22773 | 25552 | | | 8 | | | | | | | |

| 10 | VIEW | | 22773 | 25550 | | | 8 | | | | | | | |

| 11 | HASH GROUP BY | | 22773 | 25550 | | | 8 | | | | | | | |

| 12 | PX RECEIVE | | 24822 | 25548 | | | 8 | | | | | | | |

| 13 | PX SEND HASH | :TQ10004 | 24822 | 25548 | | | 8 | | | | | | | |

| 14 | HASH JOIN RIGHT OUTER | | 24822 | 25548 | 1 | +3 | 8 | 0 | | | | 13M | | |

| 15 | PX RECEIVE | | 270 | 2 | 1 | +3 | 8 | 2160 | | | | | | |

| 16 | PX SEND BROADCAST | :TQ10003 | 270 | 2 | 1 | +6 | 8 | 2160 | | | | | | |

| 17 | PX BLOCK ITERATOR | | 270 | 2 | 1 | +6 | 8 | 270 | | | | | | |

| 18 | TABLE ACCESS STORAGE FULL | STMT_AUDIT_OPTION_MAP | 270 | 2 | 1 | +6 | 2 | 270 | | | | | | |

| 19 | HASH JOIN RIGHT OUTER | | 24822 | 25546 | 1 | +3 | 8 | 0 | | | | 13M | | |

| 20 | BUFFER SORT | | | | 1 | +3 | 8 | 1664 | | | | 65536 | | |

| 21 | PX RECEIVE | | 208 | 1 | 1 | +3 | 8 | 1664 | | | | | | |

| 22 | PX SEND BROADCAST | :TQ10000 | 208 | 1 | 1 | +3 | 1 | 1664 | | | | | | |

| 23 | INDEX FULL SCAN | I_SYSTEM_PRIVILEGE_MAP | 208 | 1 | 1 | +3 | 1 | 208 | | | | | | |

| 24 | HASH JOIN RIGHT OUTER | | 24822 | 25544 | 1 | +5 | 8 | 0 | | | | 13M | | |

| 25 | BUFFER SORT | | | | 1 | +5 | 8 | 1664 | | | | 65536 | | |

| 26 | PX RECEIVE | | 208 | 1 | 1 | +5 | 8 | 1664 | | | | | | |

| 27 | PX SEND BROADCAST | :TQ10001 | 208 | 1 | 1 | +3 | 1 | 1664 | | | | | | |

| 28 | INDEX FULL SCAN | I_SYSTEM_PRIVILEGE_MAP | 208 | 1 | 1 | +3 | 1 | 208 | | | | | | |

| 29 | FILTER | | | | | | 8 | | | | | | | |

| 30 | HASH JOIN RIGHT OUTER | | 24822 | 25543 | 1 | +5 | 8 | 0 | | | | 11M | | |

| 31 | BUFFER SORT | | | | 1 | +5 | 8 | 1448 | | | | 81920 | | |

| 32 | PX RECEIVE | | 181 | 1 | 1 | +5 | 8 | 1448 | | | | | | |

| 33 | PX SEND BROADCAST | :TQ10002 | 181 | 1 | 1 | +5 | 1 | 1448 | | | | | | |

| 34 | INDEX FULL SCAN | I_AUDIT_ACTIONS | 181 | 1 | 1 | +5 | 1 | 181 | | | | | | |

| 35 | PX BLOCK ITERATOR | | 24822 | 25541 | | | 8 | | | | | | | |

| 36 | TABLE ACCESS STORAGE FULL | AUD$ | 24822 | 25541 | 3 | +4 | 361 | 0 | 7104 | 7GB | 99.98 % | | 96.00 | Cpu (3) |

==============================================================================================================================

CHAPTER 10 ■ MONITORING EXADATA

184

Like the OEM reports we discussed earlier, the HTML version allows you to hover the cursor over a data bar and see

the breakdown of I/O requests, database time, and wait activity, as shown in Figure 10-7.

If your Exadata system has Internet access and you are running Oracle 11.2.0.x, you can use a third option for the

type parameter, 'ACTIVE', which generates an HTML-type report with active content that looks like the screens from

OEM. Figure 10-8 illustrates how this type of report appears.

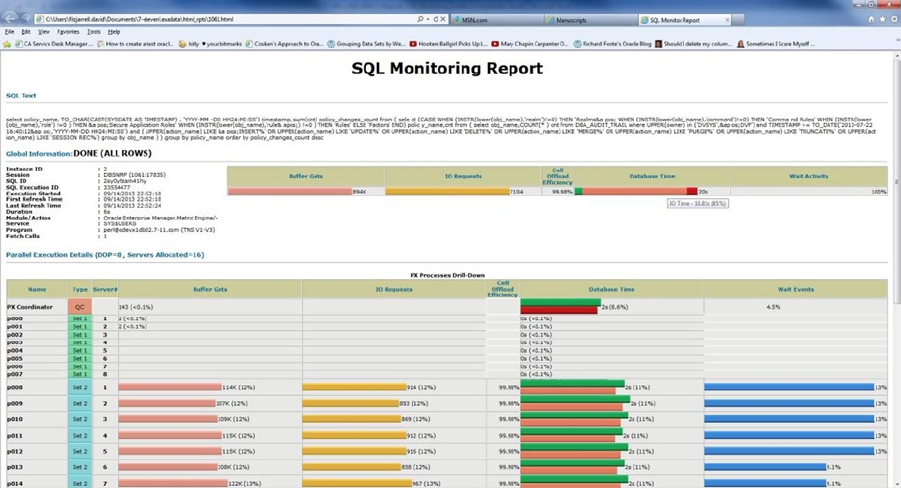

Figure 10-7. Time breakdown from DBMS_SQLTUNE.REPORT_SQL_MONITOR HTML report

CHAPTER 10 ■ MONITORING EXADATA

185

As good as the reports generated with SQL Monitoring, AWR, ASH (Active Session History), and DBMS_SQLTUNE

are, there is a limit to their effectiveness. By design, SQL Monitoring starts recording data after the I/O time, CPU time,

or both combined exceed a five second limit; this usually means that only the longer-running queries and statements

get monitored, even when you use the /*+ MONITOR */ hint. This leads back to the monitoring scripts and actions

for databases, where AWR, Statspack, and ASH are not available. Those scripts and queries can still be useful with

Exadata, especially when short-running queries are being examined, and those queries usually use V$SQL and, in

more recent implementations, V$SQLSTATS.

For years, DBAs have relied on V$SQL to report data such as number of executions, buffer gets, disk reads, or parse

calls. Looking at the definition of V$SQL, we find a wealth of data available.

SQL> desc v$sql

Name Null? Type

--------------------------------------- -------- -----------------------

SQL_TEXT VARCHAR2(1000)

SQL_FULLTEXT CLOB

SQL_ID VARCHAR2(13)

SHARABLE_MEM NUMBER

PERSISTENT_MEM NUMBER

RUNTIME_MEM NUMBER

SORTS NUMBER

LOADED_VERSIONS NUMBER

OPEN_VERSIONS NUMBER

USERS_OPENING NUMBER

FETCHES NUMBER

EXECUTIONS NUMBER

PX_SERVERS_EXECUTIONS NUMBER

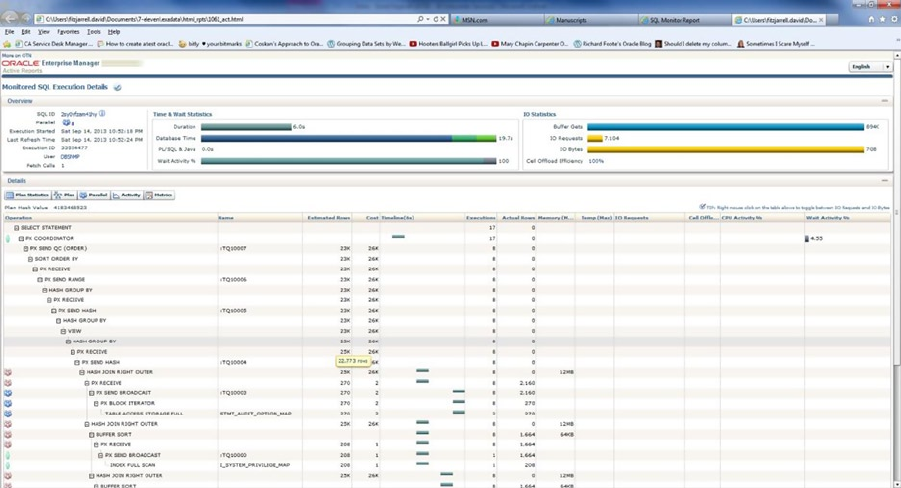

Figure 10-8. Active DBMS_SQLTUNE.REPORT_SQL_MONITOR report

CHAPTER 10 ■ MONITORING EXADATA

186

END_OF_FETCH_COUNT NUMBER

USERS_EXECUTING NUMBER

LOADS NUMBER

FIRST_LOAD_TIME VARCHAR2(76)

INVALIDATIONS NUMBER

PARSE_CALLS NUMBER

DISK_READS NUMBER

DIRECT_WRITES NUMBER

BUFFER_GETS NUMBER

APPLICATION_WAIT_TIME NUMBER

CONCURRENCY_WAIT_TIME NUMBER

CLUSTER_WAIT_TIME NUMBER

USER_IO_WAIT_TIME NUMBER

PLSQL_EXEC_TIME NUMBER

JAVA_EXEC_TIME NUMBER

ROWS_PROCESSED NUMBER

COMMAND_TYPE NUMBER

OPTIMIZER_MODE VARCHAR2(10)

OPTIMIZER_COST NUMBER

OPTIMIZER_ENV RAW(2000)

OPTIMIZER_ENV_HASH_VALUE NUMBER

PARSING_USER_ID NUMBER

PARSING_SCHEMA_ID NUMBER

PARSING_SCHEMA_NAME VARCHAR2(30)

KEPT_VERSIONS NUMBER

ADDRESS RAW(8)

TYPE_CHK_HEAP RAW(8)

HASH_VALUE NUMBER

OLD_HASH_VALUE NUMBER

PLAN_HASH_VALUE NUMBER

CHILD_NUMBER NUMBER

SERVICE VARCHAR2(64)

SERVICE_HASH NUMBER

MODULE VARCHAR2(64)

MODULE_HASH NUMBER

ACTION VARCHAR2(64)

ACTION_HASH NUMBER

SERIALIZABLE_ABORTS NUMBER

OUTLINE_CATEGORY VARCHAR2(64)

CPU_TIME NUMBER

ELAPSED_TIME NUMBER

OUTLINE_SID NUMBER

CHILD_ADDRESS RAW(8)

SQLTYPE NUMBER

REMOTE VARCHAR2(1)

OBJECT_STATUS VARCHAR2(19)

LITERAL_HASH_VALUE NUMBER

LAST_LOAD_TIME VARCHAR2(76)

IS_OBSOLETE VARCHAR2(1)

IS_BIND_SENSITIVE VARCHAR2(1)

IS_BIND_AWARE VARCHAR2(1)

CHAPTER 10 ■ MONITORING EXADATA

187

IS_SHAREABLE VARCHAR2(1)

CHILD_LATCH NUMBER

SQL_PROFILE VARCHAR2(64)

SQL_PATCH VARCHAR2(30)

SQL_PLAN_BASELINE VARCHAR2(30)

PROGRAM_ID NUMBER

PROGRAM_LINE# NUMBER

EXACT_MATCHING_SIGNATURE NUMBER

FORCE_MATCHING_SIGNATURE NUMBER

LAST_ACTIVE_TIME DATE

BIND_DATA RAW(2000)

TYPECHECK_MEM NUMBER

IO_CELL_OFFLOAD_ELIGIBLE_BYTES NUMBER

IO_INTERCONNECT_BYTES NUMBER

PHYSICAL_READ_REQUESTS NUMBER

PHYSICAL_READ_BYTES NUMBER

PHYSICAL_WRITE_REQUESTS NUMBER

PHYSICAL_WRITE_BYTES NUMBER

OPTIMIZED_PHY_READ_REQUESTS NUMBER

LOCKED_TOTAL NUMBER

PINNED_TOTAL NUMBER

IO_CELL_UNCOMPRESSED_BYTES NUMBER

IO_CELL_OFFLOAD_RETURNED_BYTES NUMBER

SQL>

Unfortunately, V$SQL suffers from latch contention when queried without providing a SQL_ID, so if there are

several queries active against this view, performance can be slow. In 10gR2, the V$SQLSTATS view was introduced,

recording much of the same information as V$SQL but in a memory location and format that doesn’t create latch

contention with unqualified queries. Since V$SQLSTATS is, in our opinion, the view to use, we will discuss that here.

Remember that the same basic type of queries used against V$SQLSTATS can also be used against V$SQL.

In Chapter 2, we discussed Smart Scans and how to prove they are working, and we used V$SQL to do that. We’ll

now use V$SQLSTATS to return similar information.

Looking at the definition for V$SQLSTATS, we see much of the same information that is available in V$SQL.

SQL> desc v$sqlstats

Name Null? Type

--------------------------------------- -------- ------------------

SQL_TEXT VARCHAR2(1000)

SQL_FULLTEXT CLOB

SQL_ID VARCHAR2(13)

LAST_ACTIVE_TIME DATE

LAST_ACTIVE_CHILD_ADDRESS RAW(8)

PLAN_HASH_VALUE NUMBER

PARSE_CALLS NUMBER

DISK_READS NUMBER

DIRECT_WRITES NUMBER

BUFFER_GETS NUMBER

ROWS_PROCESSED NUMBER

SERIALIZABLE_ABORTS NUMBER

FETCHES NUMBER

CHAPTER 10 ■ MONITORING EXADATA

188

EXECUTIONS NUMBER

END_OF_FETCH_COUNT NUMBER

LOADS NUMBER

VERSION_COUNT NUMBER

INVALIDATIONS NUMBER

PX_SERVERS_EXECUTIONS NUMBER

CPU_TIME NUMBER

ELAPSED_TIME NUMBER

AVG_HARD_PARSE_TIME NUMBER

APPLICATION_WAIT_TIME NUMBER

CONCURRENCY_WAIT_TIME NUMBER

CLUSTER_WAIT_TIME NUMBER

USER_IO_WAIT_TIME NUMBER

PLSQL_EXEC_TIME NUMBER

JAVA_EXEC_TIME NUMBER

SORTS NUMBER

SHARABLE_MEM NUMBER

TOTAL_SHARABLE_MEM NUMBER

TYPECHECK_MEM NUMBER

IO_CELL_OFFLOAD_ELIGIBLE_BYTES NUMBER

IO_INTERCONNECT_BYTES NUMBER

PHYSICAL_READ_REQUESTS NUMBER

PHYSICAL_READ_BYTES NUMBER

PHYSICAL_WRITE_REQUESTS NUMBER

PHYSICAL_WRITE_BYTES NUMBER

EXACT_MATCHING_SIGNATURE NUMBER

FORCE_MATCHING_SIGNATURE NUMBER

IO_CELL_UNCOMPRESSED_BYTES NUMBER

IO_CELL_OFFLOAD_RETURNED_BYTES NUMBER

SQL>

V$SQLSTATS doesn’t include the parsing user id, so you will need to use another method to isolate information

you want to see. A possible rewrite of the V$SQL query used in Chapter 2 follows.

SQL> select sql_id,

2 io_cell_offload_eligible_bytes qualifying,

3 io_cell_offload_eligible_bytes - io_cell_offload_returned_bytes actual,

4 round(((io_cell_offload_eligible_bytes -

io_cell_offload_returned_bytes)/io_cell_offload_eligible_bytes)*100, 2) io_saved_pct,

5 sql_text

6 from v$sqlstats

7 where io_cell_offload_returned_bytes > 0

8 and io_cell_offload_eligible_bytes > 0

9 and instr(sql_text, 'emp') > 0;

SQL_ID QUALIFYING ACTUAL IO_SAVED_PCT SQL_TEXT

------------- ---------- ---------- ------------ ---------------------------------------------

gfjb8dpxvpuv6 185081856 185053096 99.98 select * from emp where empid = 7934

dayy30naa1z2p 184819712 948048 .51 select /*+ cache */ * from emp

SQL>

CHAPTER 10 ■ MONITORING EXADATA

189

Since there could be a number of queries with “emp” as a substring, some of which don’t qualify for a Smart Scan,

it was necessary to include a condition that the io_cell_offload_eligible_bytes be greater than 0. Without that

condition, the query generates a “divisor is equal to 0” error, which doesn’t occur with the V$SQL version of the query.

There are some pieces of information not available in V$SQLSTATS.

COLUMN_NAME DATA_TYPE DATA_LENGTH

------------------------------ -------------------------------- -----------

PERSISTENT_MEM NUMBER 22

RUNTIME_MEM NUMBER 22

LOADED_VERSIONS NUMBER 22

OPEN_VERSIONS NUMBER 22

USERS_OPENING NUMBER 22

USERS_EXECUTING NUMBER 22

FIRST_LOAD_TIME VARCHAR2 76

COMMAND_TYPE NUMBER 22

OPTIMIZER_MODE VARCHAR2 10

OPTIMIZER_COST NUMBER 22

OPTIMIZER_ENV RAW 2000

OPTIMIZER_ENV_HASH_VALUE NUMBER 22

PARSING_USER_ID NUMBER 22

PARSING_SCHEMA_ID NUMBER 22

PARSING_SCHEMA_NAME VARCHAR2 30

KEPT_VERSIONS NUMBER 22

ADDRESS RAW 8

TYPE_CHK_HEAP RAW 8

HASH_VALUE NUMBER 22

OLD_HASH_VALUE NUMBER 22

CHILD_NUMBER NUMBER 22

SERVICE VARCHAR2 64

SERVICE_HASH NUMBER 22

MODULE VARCHAR2 64

MODULE_HASH NUMBER 22

ACTION VARCHAR2 64

ACTION_HASH NUMBER 22

OUTLINE_CATEGORY VARCHAR2 64

OUTLINE_SID NUMBER 22

CHILD_ADDRESS RAW 8

SQLTYPE NUMBER 22

REMOTE VARCHAR2 1

OBJECT_STATUS VARCHAR2 19

LITERAL_HASH_VALUE NUMBER 22

LAST_LOAD_TIME VARCHAR2 76

IS_OBSOLETE VARCHAR2 1

IS_BIND_SENSITIVE VARCHAR2 1

IS_BIND_AWARE VARCHAR2 1

IS_SHAREABLE VARCHAR2 1

CHILD_LATCH NUMBER 22

SQL_PROFILE VARCHAR2 64

SQL_PATCH VARCHAR2 30

SQL_PLAN_BASELINE VARCHAR2 30

PROGRAM_ID NUMBER 22

PROGRAM_LINE# NUMBER 22

CHAPTER 10 ■ MONITORING EXADATA

190

BIND_DATA RAW 2000

OPTIMIZED_PHY_READ_REQUESTS NUMBER 22

LOCKED_TOTAL NUMBER 22

PINNED_TOTAL NUMBER 22

For general monitoring tasks, those columns aren’t necessary. If you do need to dig deeper into a problem,

then you may need to use V$SQL to access memory, latch, or optimizer data for the query in question. We find that

V$SQLSTATS does a good job for basic, routine monitoring of SQL statements and that it provides a lower overhead

during busy periods of database activity.

The Storage Cells

Storage cell management was covered in Chapter 9, but we’ll review some of that information here.

The Command Line

We feel that it’s a good idea to review the command-line interfaces here. Remember that the storage cells offer both CellCLI

and cellsrvstat to monitor the storage cells, and two accounts, cellmonitor and celladmin, to perform those tasks. For

general monitoring, the cellmonitor account should provide the information you need through the CellCLI interface.

A common monitoring area for Exadata is the Smart Flash Cache. To fully monitor this area, it is necessary to

connect to every available storage cell and generate a report. It’s possible to send this to the storage cells via a script

and have the output logged to the database server, which was illustrated in Chapter 9. An example of such a report, for

storage cell 4, follows.

CellCLI> list flashlog detail

cellDisk:

FD_14_myexa1cel04,FD_05_myexa1cel04,FD_00_myexa1cel04,FD_01_myexa1cel04,FD_04_myexa1cel04,

FD_07_myexa1cel04,FD_09_ode vx1cel04,FD_02_myexa1cel04,FD_08_myexa1cel04,FD_03_myexa1cel04,

FD_15_myexa1cel04,FD_12_myexa1cel04,FD_11_myexa1cel04,FD_06_myexa1cel04,FD_10_myexa1cel 04,

FD_13_myexa1cel04

creationTime: 2013-07-09T17:33:31-05:00

degradedCelldisks:

effectiveSize: 512M

efficiency: 100.0

id: 7eb480f9-b94a-4493-bfca-3ba00b6618bb

size: 512M

status: normal

CellCLI>

A command-line example, run on the storage cell, lists the same output but avoids using the command-line

interface.

[celladmin@myexa1cel05 ~]$ cellcli -e "list flashcache detail"

cellDisk:

FD_11_myexa1cel05,FD_03_myexa1cel05,FD_15_myexa1cel05,FD_13_myexa1cel05,FD_08_myexa1cel05,

FD_10_myexa1cel05,FD_00_myexa1cel05,FD_14_myexa1cel05,FD_04_myexa1cel05,FD_06_myexa1cel05,

FD_07_myexa1cel05,FD_05_myexa1cel05,FD_12_myexa1cel05,FD_09_myexa1cel05,FD_02_myexa1cel05,

FD_01_myexa1cel05

CHAPTER 10 ■ MONITORING EXADATA

191

creationTime: 2013-07-09T17:33:53-05:00

degradedCelldisks:

effectiveCacheSize: 1488.75G

id: 8a380bf9-06c3-445e-8081-cff72d49bfe6

size: 1488.75G

status: normal

[celladmin@myexa1cel05 ~]$

As stated in Chapter 9, if you set up passwordless ssh connectivity between the database servers and the storage

cells, you can run these commands from the database server command prompt and write a local logfile of the results.

One good CellCLI command worth noting is LIST METRICHISTORY. This command does just what you would

think, listing the metric history for all known metrics in the storage cell, along with the time stamp indicating when

the values were collected. The output will likely be a very long list, as you can see in the following abbreviated output:

CellCLI> list metrichistory attributes name, collectionTime, metricType, metricValue,

metricValueAvg where metricObjectName = 'DBFS_DG_CD_02_myexa1cel04'

...

GD_BY_FC_DIRTY 2013-08-24T19:50:42-05:00 Instantaneous 0.000 MB

GD_IO_BY_R_LG 2013-08-24T19:50:42-05:00 Cumulative 2,656 MB

GD_IO_BY_R_LG_SEC 2013-08-24T19:50:42-05:00 Rate 0.000 MB/sec

GD_IO_BY_R_SM 2013-08-24T19:50:42-05:00 Cumulative 207 MB

GD_IO_BY_R_SM_SEC 2013-08-24T19:50:42-05:00 Rate 0.000 MB/sec

GD_IO_BY_W_LG 2013-08-24T19:50:42-05:00 Cumulative 8,378 MB

GD_IO_BY_W_LG_SEC 2013-08-24T19:50:42-05:00 Rate 0.000 MB/sec

GD_IO_BY_W_SM 2013-08-24T19:50:42-05:00 Cumulative 60.191 MB

GD_IO_BY_W_SM_SEC 2013-08-24T19:50:42-05:00 Rate 0.000 MB/sec

GD_IO_ERRS 2013-08-24T19:50:42-05:00 Cumulative 0

GD_IO_ERRS_MIN 2013-08-24T19:50:42-05:00 Rate 0.0 /min

GD_IO_RQ_R_LG 2013-08-24T19:50:42-05:00 Cumulative 2,656 IO requests

GD_IO_RQ_R_LG_SEC 2013-08-24T19:50:42-05:00 Rate 0.0 IO/sec

GD_IO_RQ_R_SM 2013-08-24T19:50:42-05:00 Cumulative 4,086 IO requests

GD_IO_RQ_R_SM_SEC 2013-08-24T19:50:42-05:00 Rate 0.0 IO/sec

GD_IO_RQ_W_LG 2013-08-24T19:50:42-05:00 Cumulative 8,781 IO requests

GD_IO_RQ_W_LG_SEC 2013-08-24T19:50:42-05:00 Rate 0.0 IO/sec

GD_IO_RQ_W_SM 2013-08-24T19:50:42-05:00 Cumulative 1,326 IO requests

GD_IO_RQ_W_SM_SEC 2013-08-24T19:50:42-05:00 Rate 0.0 IO/sec

...

The metrics listed may not be entirely clear from the abbreviations used in the names. A listing of each name and

its meaning follows.

GD_BY_FC_DIRTY Number of dirty MB cached for the griddisk

GD_IO_BY_R_LG Griddisk I/O from large reads, in MB

GD_IO_BY_R_LG_SEC Griddisk I/O from large reads per second, MB

GD_IO_BY_R_SM Griddisk I/O from small reads, in MB

GD_IO_BY_R_SM_SEC Griddisk I/O from small reads per second, MB

GD_IO_BY W_LG Griddisk I/O from large writes, in MB

GD_IO_BY_W_LG_SEC Griddisk I/O from large writes per second, MB

GD_IO_BY_W_SM Griddisk I/O from small writes, in MB

GD_IO_BY_W_SM_SEC Griddisk I/O from small writes per second, MB

GD_IO_ERRS Griddisk I/O errors

CHAPTER 10 ■ MONITORING EXADATA

192

GD_IO_ERRS_MIN Griddisk I/O errors per minute

GD_IO_RQ_R_LG Griddisk large I/O read requests

GD_IO_RQ_R_LG_SEC Griddisk large I/O read requests per second

GD_IO_RQ_R_SM Griddisk small I/O read requests

GD_IO_RQ_R_SM_SEC Griddisk small I/O read requests per second

GD_IO_RQ_W_LG Griddisk large I/O write requests

GD_IO_RQ_W_LG_SEC Griddisk large I/O write requests per second

GD_IO_RQ_W_SM Griddisk small I/O write requests

GD_IO_RQ_W_SM_SEC Griddisk small I/O write requests, per second

The only metric in that list reported as instantaneous is GD_BY_FC_DIRTY, which reports the current value

for the MB of dirty cache blocks for the grid disk. The following metrics report cumulative values since cellsrv was

started:

GD_IO_BY_R_LG

GD_IO_BY_R_SM

GD_IO_BY W_LG

GD_IO_BY_W_SM

GD_IO_ERRS

GD_IO_RQ_R_LG

GD_IO_RQ_R_SM

GD_IO_RQ_W_LG

GD_IO_RQ_W_SM

The first four metrics are reported in MB; the remaining metrics are simply cumulative counts for the listed

metrics. Additionally, there are rate metrics reported, as follows:

GD_IO_BY_R_LG _SEC

GD_IO_BY_R_SM _SEC

GD_IO_BY W_LG_SEC

GD_IO_BY_W_SM_SEC

GD_IO_ERRS_MIN

GD_IO_RQ_R_LG _SEC

GD_IO_RQ_R_SM_SEC

GD_IO_RQ_W_LG_SEC

GD_IO_RQ_W_SM_SEC

With the exception of GD_IO_ERRS_MIN, which reports the rate per minute for I/O error generation, these

metrics report rates per second. These are current rates, updated at the time the metrics are reported. Read and write

requests, as well as the actual I/O generated, will occur on a per-second basis. It should be unusual to generate I/O

errors if the system is functioning properly. Notice the error metrics for this particular cell report 0 errors in total

and 0.0 errors per minute. Impending disk failures or firmware mismatches can create I/O errors, but you should be

informed of such impending failures by monitoring the alert history, which we covered in Chapter 9.

The collection interval is one minute, making the data volume very large after a prolonged period of uptime.

Wildcard syntax does not work on the collectionTime attribute, so you won’t be able to generate a report for a specific

window of time. You can, however, restrict output to a specific minute if you wish, as follows:

CellCLI> list metrichistory attributes name, collectionTime, metricType, metricValue,

metricValueAvg where metricObjectName = 'DBFS_DG_CD_02_myexa1cel04' and collectionTime like

'2013-08-24T19:57:42-05:00'

GD_BY_FC_DIRTY 2013-08-24T19:57:42-05:00 Instantaneous 0.000 MB

GD_IO_BY_R_LG 2013-08-24T19:57:42-05:00 Cumulative 2,656 MB

CHAPTER 10 ■ MONITORING EXADATA

193

GD_IO_BY_R_LG_SEC 2013-08-24T19:57:42-05:00 Rate 0.000 MB/sec

GD_IO_BY_R_SM 2013-08-24T19:57:42-05:00 Cumulative 207 MB

GD_IO_BY_R_SM_SEC 2013-08-24T19:57:42-05:00 Rate 0.000 MB/sec

GD_IO_BY_W_LG 2013-08-24T19:57:42-05:00 Cumulative 8,378 MB

GD_IO_BY_W_LG_SEC 2013-08-24T19:57:42-05:00 Rate 0.000 MB/sec

GD_IO_BY_W_SM 2013-08-24T19:57:42-05:00 Cumulative 60.191 MB

GD_IO_BY_W_SM_SEC 2013-08-24T19:57:42-05:00 Rate 0.000 MB/sec

GD_IO_ERRS 2013-08-24T19:57:42-05:00 Cumulative 0

GD_IO_ERRS_MIN 2013-08-24T19:57:42-05:00 Rate 0.0 /min

GD_IO_RQ_R_LG 2013-08-24T19:57:42-05:00 Cumulative 2,656 IO requests

GD_IO_RQ_R_LG_SEC 2013-08-24T19:57:42-05:00 Rate 0.0 IO/sec

GD_IO_RQ_R_SM 2013-08-24T19:57:42-05:00 Cumulative 4,086 IO requests

GD_IO_RQ_R_SM_SEC 2013-08-24T19:57:42-05:00 Rate 0.0 IO/sec

GD_IO_RQ_W_LG 2013-08-24T19:57:42-05:00 Cumulative 8,781 IO requests

GD_IO_RQ_W_LG_SEC 2013-08-24T19:57:42-05:00 Rate 0.0 IO/sec

GD_IO_RQ_W_SM 2013-08-24T19:57:42-05:00 Cumulative 1,326 IO requests

GD_IO_RQ_W_SM_SEC 2013-08-24T19:57:42-05:00 Rate 0.0 IO/sec

CellCLI>

You can write a script to generate a window of time, one minute at a time, as follows:

[oracle@myexa1db01 dbm1 bin]$ cellcli_metrichistory_window.sh

=========================================================================================="

======================================= Cell 4 ==========================================="

=========================================================================================="

GD_BY_FC_DIRTY 2013-08-24T19:50:42-05:00 Instantaneous 0.000 MB

GD_IO_BY_R_LG 2013-08-24T19:50:42-05:00 Cumulative 2,656 MB

GD_IO_BY_R_LG_SEC 2013-08-24T19:50:42-05:00 Rate 0.000 MB/sec

GD_IO_BY_R_SM 2013-08-24T19:50:42-05:00 Cumulative 207 MB

GD_IO_BY_R_SM_SEC 2013-08-24T19:50:42-05:00 Rate 0.000 MB/sec

GD_IO_BY_W_LG 2013-08-24T19:50:42-05:00 Cumulative 8,378 MB

GD_IO_BY_W_LG_SEC 2013-08-24T19:50:42-05:00 Rate 0.000 MB/sec

GD_IO_BY_W_SM 2013-08-24T19:50:42-05:00 Cumulative 60.191 MB

GD_IO_BY_W_SM_SEC 2013-08-24T19:50:42-05:00 Rate 0.000 MB/sec

GD_IO_ERRS 2013-08-24T19:50:42-05:00 Cumulative 0

GD_IO_ERRS_MIN 2013-08-24T19:50:42-05:00 Rate 0.0 /min

GD_IO_RQ_R_LG 2013-08-24T19:50:42-05:00 Cumulative 2,656 IO requests

GD_IO_RQ_R_LG_SEC 2013-08-24T19:50:42-05:00 Rate 0.0 IO/sec

GD_IO_RQ_R_SM 2013-08-24T19:50:42-05:00 Cumulative 4,086 IO requests

GD_IO_RQ_R_SM_SEC 2013-08-24T19:50:42-05:00 Rate 0.0 IO/sec

GD_IO_RQ_W_LG 2013-08-24T19:50:42-05:00 Cumulative 8,781 IO requests

GD_IO_RQ_W_LG_SEC 2013-08-24T19:50:42-05:00 Rate 0.0 IO/sec

GD_IO_RQ_W_SM 2013-08-24T19:50:42-05:00 Cumulative 1,326 IO requests

GD_IO_RQ_W_SM_SEC 2013-08-24T19:50:42-05:00 Rate 0.0 IO/sec

GD_BY_FC_DIRTY 2013-08-24T19:51:42-05:00 Instantaneous 0.000 MB

GD_IO_BY_R_LG 2013-08-24T19:51:42-05:00 Cumulative 2,656 MB

GD_IO_BY_R_LG_SEC 2013-08-24T19:51:42-05:00 Rate 0.000 MB/sec

GD_IO_BY_R_SM 2013-08-24T19:51:42-05:00 Cumulative 207 MB

GD_IO_BY_R_SM_SEC 2013-08-24T19:51:42-05:00 Rate 0.000 MB/sec

GD_IO_BY_W_LG 2013-08-24T19:51:42-05:00 Cumulative 8,378 MB

CHAPTER 10 ■ MONITORING EXADATA

194

GD_IO_BY_W_LG_SEC 2013-08-24T19:51:42-05:00 Rate 0.000 MB/sec

GD_IO_BY_W_SM 2013-08-24T19:51:42-05:00 Cumulative 60.191 MB

GD_IO_BY_W_SM_SEC 2013-08-24T19:51:42-05:00 Rate 0.000 MB/sec

GD_IO_ERRS 2013-08-24T19:51:42-05:00 Cumulative 0

GD_IO_ERRS_MIN 2013-08-24T19:51:42-05:00 Rate 0.0 /min

GD_IO_RQ_R_LG 2013-08-24T19:51:42-05:00 Cumulative 2,656 IO requests

GD_IO_RQ_R_LG_SEC 2013-08-24T19:51:42-05:00 Rate 0.0 IO/sec

GD_IO_RQ_R_SM 2013-08-24T19:51:42-05:00 Cumulative 4,086 IO requests

GD_IO_RQ_R_SM_SEC 2013-08-24T19:51:42-05:00 Rate 0.0 IO/sec

GD_IO_RQ_W_LG 2013-08-24T19:51:42-05:00 Cumulative 8,781 IO requests

GD_IO_RQ_W_LG_SEC 2013-08-24T19:51:42-05:00 Rate 0.0 IO/sec

GD_IO_RQ_W_SM 2013-08-24T19:51:42-05:00 Cumulative 1,326 IO requests

GD_IO_RQ_W_SM_SEC 2013-08-24T19:51:42-05:00 Rate 0.0 IO/sec

GD_BY_FC_DIRTY 2013-08-24T19:52:42-05:00 Instantaneous 0.000 MB

GD_IO_BY_R_LG 2013-08-24T19:52:42-05:00 Cumulative 2,656 MB

GD_IO_BY_R_LG_SEC 2013-08-24T19:52:42-05:00 Rate 0.000 MB/sec

GD_IO_BY_R_SM 2013-08-24T19:52:42-05:00 Cumulative 207 MB

GD_IO_BY_R_SM_SEC 2013-08-24T19:52:42-05:00 Rate 0.000 MB/sec

GD_IO_BY_W_LG 2013-08-24T19:52:42-05:00 Cumulative 8,378 MB

GD_IO_BY_W_LG_SEC 2013-08-24T19:52:42-05:00 Rate 0.000 MB/sec

GD_IO_BY_W_SM 2013-08-24T19:52:42-05:00 Cumulative 60.191 MB

GD_IO_BY_W_SM_SEC 2013-08-24T19:52:42-05:00 Rate 0.000 MB/sec

GD_IO_ERRS 2013-08-24T19:52:42-05:00 Cumulative 0

GD_IO_ERRS_MIN 2013-08-24T19:52:42-05:00 Rate 0.0 /min

GD_IO_RQ_R_LG 2013-08-24T19:52:42-05:00 Cumulative 2,656 IO requests

GD_IO_RQ_R_LG_SEC 2013-08-24T19:52:42-05:00 Rate 0.0 IO/sec

GD_IO_RQ_R_SM 2013-08-24T19:52:42-05:00 Cumulative 4,086 IO requests

GD_IO_RQ_R_SM_SEC 2013-08-24T19:52:42-05:00 Rate 0.0 IO/sec

GD_IO_RQ_W_LG 2013-08-24T19:52:42-05:00 Cumulative 8,781 IO requests

GD_IO_RQ_W_LG_SEC 2013-08-24T19:52:42-05:00 Rate 0.0 IO/sec

GD_IO_RQ_W_SM 2013-08-24T19:52:42-05:00 Cumulative 1,326 IO requests

GD_IO_RQ_W_SM_SEC 2013-08-24T19:52:42-05:00 Rate 0.0 IO/sec

GD_BY_FC_DIRTY 2013-08-24T19:53:42-05:00 Instantaneous 0.000 MB

GD_IO_BY_R_LG 2013-08-24T19:53:42-05:00 Cumulative 2,656 MB

GD_IO_BY_R_LG_SEC 2013-08-24T19:53:42-05:00 Rate 0.000 MB/sec

GD_IO_BY_R_SM 2013-08-24T19:53:42-05:00 Cumulative 207 MB

GD_IO_BY_R_SM_SEC 2013-08-24T19:53:42-05:00 Rate 0.000 MB/sec

GD_IO_BY_W_LG 2013-08-24T19:53:42-05:00 Cumulative 8,378 MB

GD_IO_BY_W_LG_SEC 2013-08-24T19:53:42-05:00 Rate 0.000 MB/sec

GD_IO_BY_W_SM 2013-08-24T19:53:42-05:00 Cumulative 60.191 MB

GD_IO_BY_W_SM_SEC 2013-08-24T19:53:42-05:00 Rate 0.000 MB/sec

GD_IO_ERRS 2013-08-24T19:53:42-05:00 Cumulative 0

GD_IO_ERRS_MIN 2013-08-24T19:53:42-05:00 Rate 0.0 /min

GD_IO_RQ_R_LG 2013-08-24T19:53:42-05:00 Cumulative 2,656 IO requests

GD_IO_RQ_R_LG_SEC 2013-08-24T19:53:42-05:00 Rate 0.0 IO/sec

GD_IO_RQ_R_SM 2013-08-24T19:53:42-05:00 Cumulative 4,086 IO requests

GD_IO_RQ_R_SM_SEC 2013-08-24T19:53:42-05:00 Rate 0.0 IO/sec

GD_IO_RQ_W_LG 2013-08-24T19:53:42-05:00 Cumulative 8,781 IO requests

GD_IO_RQ_W_LG_SEC 2013-08-24T19:53:42-05:00 Rate 0.0 IO/sec

GD_IO_RQ_W_SM 2013-08-24T19:53:42-05:00 Cumulative 1,326 IO requests

GD_IO_RQ_W_SM_SEC 2013-08-24T19:53:42-05:00 Rate 0.0 IO/sec

CHAPTER 10 ■ MONITORING EXADATA

195

GD_BY_FC_DIRTY 2013-08-24T19:54:42-05:00 Instantaneous 0.000 MB

GD_IO_BY_R_LG 2013-08-24T19:54:42-05:00 Cumulative 2,656 MB

GD_IO_BY_R_LG_SEC 2013-08-24T19:54:42-05:00 Rate 0.000 MB/sec

GD_IO_BY_R_SM 2013-08-24T19:54:42-05:00 Cumulative 207 MB

GD_IO_BY_R_SM_SEC 2013-08-24T19:54:42-05:00 Rate 0.000 MB/sec

GD_IO_BY_W_LG 2013-08-24T19:54:42-05:00 Cumulative 8,378 MB

GD_IO_BY_W_LG_SEC 2013-08-24T19:54:42-05:00 Rate 0.000 MB/sec

GD_IO_BY_W_SM 2013-08-24T19:54:42-05:00 Cumulative 60.191 MB

GD_IO_BY_W_SM_SEC 2013-08-24T19:54:42-05:00 Rate 0.000 MB/sec

GD_IO_ERRS 2013-08-24T19:54:42-05:00 Cumulative 0

GD_IO_ERRS_MIN 2013-08-24T19:54:42-05:00 Rate 0.0 /min

GD_IO_RQ_R_LG 2013-08-24T19:54:42-05:00 Cumulative 2,656 IO requests

GD_IO_RQ_R_LG_SEC 2013-08-24T19:54:42-05:00 Rate 0.0 IO/sec

GD_IO_RQ_R_SM 2013-08-24T19:54:42-05:00 Cumulative 4,086 IO requests

GD_IO_RQ_R_SM_SEC 2013-08-24T19:54:42-05:00 Rate 0.0 IO/sec

GD_IO_RQ_W_LG 2013-08-24T19:54:42-05:00 Cumulative 8,781 IO requests

GD_IO_RQ_W_LG_SEC 2013-08-24T19:54:42-05:00 Rate 0.0 IO/sec

GD_IO_RQ_W_SM 2013-08-24T19:54:42-05:00 Cumulative 1,326 IO requests

GD_IO_RQ_W_SM_SEC 2013-08-24T19:54:42-05:00 Rate 0.0 IO/sec

GD_BY_FC_DIRTY 2013-08-24T19:55:42-05:00 Instantaneous 0.000 MB

GD_IO_BY_R_LG 2013-08-24T19:55:42-05:00 Cumulative 2,656 MB

GD_IO_BY_R_LG_SEC 2013-08-24T19:55:42-05:00 Rate 0.000 MB/sec

GD_IO_BY_R_SM 2013-08-24T19:55:42-05:00 Cumulative 207 MB

GD_IO_BY_R_SM_SEC 2013-08-24T19:55:42-05:00 Rate 0.000 MB/sec

GD_IO_BY_W_LG 2013-08-24T19:55:42-05:00 Cumulative 8,378 MB

GD_IO_BY_W_LG_SEC 2013-08-24T19:55:42-05:00 Rate 0.000 MB/sec

GD_IO_BY_W_SM 2013-08-24T19:55:42-05:00 Cumulative 60.191 MB

GD_IO_BY_W_SM_SEC 2013-08-24T19:55:42-05:00 Rate 0.000 MB/sec

GD_IO_ERRS 2013-08-24T19:55:42-05:00 Cumulative 0

GD_IO_ERRS_MIN 2013-08-24T19:55:42-05:00 Rate 0.0 /min

GD_IO_RQ_R_LG 2013-08-24T19:55:42-05:00 Cumulative 2,656 IO requests

GD_IO_RQ_R_LG_SEC 2013-08-24T19:55:42-05:00 Rate 0.0 IO/sec

GD_IO_RQ_R_SM 2013-08-24T19:55:42-05:00 Cumulative 4,086 IO requests

GD_IO_RQ_R_SM_SEC 2013-08-24T19:55:42-05:00 Rate 0.0 IO/sec

GD_IO_RQ_W_LG 2013-08-24T19:55:42-05:00 Cumulative 8,781 IO requests

GD_IO_RQ_W_LG_SEC 2013-08-24T19:55:42-05:00 Rate 0.0 IO/sec

GD_IO_RQ_W_SM 2013-08-24T19:55:42-05:00 Cumulative 1,326 IO requests

GD_IO_RQ_W_SM_SEC 2013-08-24T19:55:42-05:00 Rate 0.0 IO/sec

GD_BY_FC_DIRTY 2013-08-24T19:56:42-05:00 Instantaneous 0.000 MB

GD_IO_BY_R_LG 2013-08-24T19:56:42-05:00 Cumulative 2,656 MB

GD_IO_BY_R_LG_SEC 2013-08-24T19:56:42-05:00 Rate 0.000 MB/sec

GD_IO_BY_R_SM 2013-08-24T19:56:42-05:00 Cumulative 207 MB

GD_IO_BY_R_SM_SEC 2013-08-24T19:56:42-05:00 Rate 0.000 MB/sec

GD_IO_BY_W_LG 2013-08-24T19:56:42-05:00 Cumulative 8,378 MB

GD_IO_BY_W_LG_SEC 2013-08-24T19:56:42-05:00 Rate 0.000 MB/sec

GD_IO_BY_W_SM 2013-08-24T19:56:42-05:00 Cumulative 60.191 MB

GD_IO_BY_W_SM_SEC 2013-08-24T19:56:42-05:00 Rate 0.000 MB/sec

GD_IO_ERRS 2013-08-24T19:56:42-05:00 Cumulative 0

GD_IO_ERRS_MIN 2013-08-24T19:56:42-05:00 Rate 0.0 /min

GD_IO_RQ_R_LG 2013-08-24T19:56:42-05:00 Cumulative 2,656 IO requests

GD_IO_RQ_R_LG_SEC 2013-08-24T19:56:42-05:00 Rate 0.0 IO/sec

CHAPTER 10 ■ MONITORING EXADATA

196

GD_IO_RQ_R_SM 2013-08-24T19:56:42-05:00 Cumulative 4,086 IO requests

GD_IO_RQ_R_SM_SEC 2013-08-24T19:56:42-05:00 Rate 0.0 IO/sec

GD_IO_RQ_W_LG 2013-08-24T19:56:42-05:00 Cumulative 8,781 IO requests

GD_IO_RQ_W_LG_SEC 2013-08-24T19:56:42-05:00 Rate 0.0 IO/sec

GD_IO_RQ_W_SM 2013-08-24T19:56:42-05:00 Cumulative 1,326 IO requests

GD_IO_RQ_W_SM_SEC 2013-08-24T19:56:42-05:00 Rate 0.0 IO/sec

GD_BY_FC_DIRTY 2013-08-24T19:57:42-05:00 Instantaneous 0.000 MB

GD_IO_BY_R_LG 2013-08-24T19:57:42-05:00 Cumulative 2,656 MB

GD_IO_BY_R_LG_SEC 2013-08-24T19:57:42-05:00 Rate 0.000 MB/sec

GD_IO_BY_R_SM 2013-08-24T19:57:42-05:00 Cumulative 207 MB

GD_IO_BY_R_SM_SEC 2013-08-24T19:57:42-05:00 Rate 0.000 MB/sec

GD_IO_BY_W_LG 2013-08-24T19:57:42-05:00 Cumulative 8,378 MB

GD_IO_BY_W_LG_SEC 2013-08-24T19:57:42-05:00 Rate 0.000 MB/sec

GD_IO_BY_W_SM 2013-08-24T19:57:42-05:00 Cumulative 60.191 MB

GD_IO_BY_W_SM_SEC 2013-08-24T19:57:42-05:00 Rate 0.000 MB/sec

GD_IO_ERRS 2013-08-24T19:57:42-05:00 Cumulative 0

GD_IO_ERRS_MIN 2013-08-24T19:57:42-05:00 Rate 0.0 /min

GD_IO_RQ_R_LG 2013-08-24T19:57:42-05:00 Cumulative 2,656 IO requests

GD_IO_RQ_R_LG_SEC 2013-08-24T19:57:42-05:00 Rate 0.0 IO/sec

GD_IO_RQ_R_SM 2013-08-24T19:57:42-05:00 Cumulative 4,086 IO requests

GD_IO_RQ_R_SM_SEC 2013-08-24T19:57:42-05:00 Rate 0.0 IO/sec

GD_IO_RQ_W_LG 2013-08-24T19:57:42-05:00 Cumulative 8,781 IO requests

GD_IO_RQ_W_LG_SEC 2013-08-24T19:57:42-05:00 Rate 0.0 IO/sec

GD_IO_RQ_W_SM 2013-08-24T19:57:42-05:00 Cumulative 1,326 IO requests

GD_IO_RQ_W_SM_SEC 2013-08-24T19:57:42-05:00 Rate 0.0 IO/sec

GD_BY_FC_DIRTY 2013-08-24T19:58:42-05:00 Instantaneous 0.000 MB

GD_IO_BY_R_LG 2013-08-24T19:58:42-05:00 Cumulative 2,656 MB

GD_IO_BY_R_LG_SEC 2013-08-24T19:58:42-05:00 Rate 0.000 MB/sec

GD_IO_BY_R_SM 2013-08-24T19:58:42-05:00 Cumulative 207 MB

GD_IO_BY_R_SM_SEC 2013-08-24T19:58:42-05:00 Rate 0.000 MB/sec

GD_IO_BY_W_LG 2013-08-24T19:58:42-05:00 Cumulative 8,378 MB

GD_IO_BY_W_LG_SEC 2013-08-24T19:58:42-05:00 Rate 0.000 MB/sec

GD_IO_BY_W_SM 2013-08-24T19:58:42-05:00 Cumulative 60.191 MB

GD_IO_BY_W_SM_SEC 2013-08-24T19:58:42-05:00 Rate 0.000 MB/sec

GD_IO_ERRS 2013-08-24T19:58:42-05:00 Cumulative 0

GD_IO_ERRS_MIN 2013-08-24T19:58:42-05:00 Rate 0.0 /min

GD_IO_RQ_R_LG 2013-08-24T19:58:42-05:00 Cumulative 2,656 IO requests

GD_IO_RQ_R_LG_SEC 2013-08-24T19:58:42-05:00 Rate 0.0 IO/sec

GD_IO_RQ_R_SM 2013-08-24T19:58:42-05:00 Cumulative 4,086 IO requests

GD_IO_RQ_R_SM_SEC 2013-08-24T19:58:42-05:00 Rate 0.0 IO/sec

GD_IO_RQ_W_LG 2013-08-24T19:58:42-05:00 Cumulative 8,781 IO requests

GD_IO_RQ_W_LG_SEC 2013-08-24T19:58:42-05:00 Rate 0.0 IO/sec

GD_IO_RQ_W_SM 2013-08-24T19:58:42-05:00 Cumulative 1,326 IO requests

GD_IO_RQ_W_SM_SEC 2013-08-24T19:58:42-05:00 Rate 0.0 IO/sec

GD_BY_FC_DIRTY 2013-08-24T19:59:42-05:00 Instantaneous 0.000 MB

GD_IO_BY_R_LG 2013-08-24T19:59:42-05:00 Cumulative 2,656 MB

GD_IO_BY_R_LG_SEC 2013-08-24T19:59:42-05:00 Rate 0.000 MB/sec

GD_IO_BY_R_SM 2013-08-24T19:59:42-05:00 Cumulative 207 MB

GD_IO_BY_R_SM_SEC 2013-08-24T19:59:42-05:00 Rate 0.000 MB/sec

GD_IO_BY_W_LG 2013-08-24T19:59:42-05:00 Cumulative 8,378 MB

GD_IO_BY_W_LG_SEC 2013-08-24T19:59:42-05:00 Rate 0.000 MB/sec

CHAPTER 10 ■ MONITORING EXADATA

197

GD_IO_BY_W_SM 2013-08-24T19:59:42-05:00 Cumulative 60.191 MB

GD_IO_BY_W_SM_SEC 2013-08-24T19:59:42-05:00 Rate 0.000 MB/sec

GD_IO_ERRS 2013-08-24T19:59:42-05:00 Cumulative 0

GD_IO_ERRS_MIN 2013-08-24T19:59:42-05:00 Rate 0.0 /min

GD_IO_RQ_R_LG 2013-08-24T19:59:42-05:00 Cumulative 2,656 IO requests

GD_IO_RQ_R_LG_SEC 2013-08-24T19:59:42-05:00 Rate 0.0 IO/sec

GD_IO_RQ_R_SM 2013-08-24T19:59:42-05:00 Cumulative 4,086 IO requests

GD_IO_RQ_R_SM_SEC 2013-08-24T19:59:42-05:00 Rate 0.0 IO/sec

GD_IO_RQ_W_LG 2013-08-24T19:59:42-05:00 Cumulative 8,781 IO requests

GD_IO_RQ_W_LG_SEC 2013-08-24T19:59:42-05:00 Rate 0.0 IO/sec

GD_IO_RQ_W_SM 2013-08-24T19:59:42-05:00 Cumulative 1,326 IO requests

GD_IO_RQ_W_SM_SEC 2013-08-24T19:59:42-05:00 Rate 0.0 IO/sec

[oracle@myexa1db01 dbm1 bin]$

OEM

OEM 12c can also be used to monitor the storage cells, provided you have the System Monitoring plug-in for Exadata

Storage Server installed. Although it may not provide all of the metrics reported by the command-line interface, it can

give graphical representation of how the metric values change over time. Unfortunately, we do not have access to an

OEM installation with this plug-in installed.

Note ■ As we don’t have access to the plug-in, our “choice” is the command-line interface. Others may choose OEM

for the graphical representations it provides. The choice, ultimately, is yours to make. We, being old-school DBAs, prefer

scripting to “flashy” graphic tools.

Adding the O/S Metrics

Oracle does a pretty good job of gathering performance statistics and metrics, but sometimes, especially when you

encounter a bug situation, Oracle can miss the mark. It also has issues collecting and reporting low-level I/O data,

such as that provided at the O/S level. In these situations, we turn to iostat, an O/S level utility that reports both the

wait time and service time for I/O requests, something that Oracle cannot do.

The iostat utility can produce two types of reports, one for CPU utilization and the other for device utilization.

When iostat is called without parameters, these two types are combined into a single output block, and an example

of that follows.

[celladmin@myexa1cel04 ~]$ iostat

Linux 2.6.32-400.11.1.el5uek (myexa1cel04.mydomain.com) 08/29/2013

avg-cpu: %user %nice %system %iowait %steal %idle

1.69 0.00 1.00 0.76 0.00 96.55

Device: tps Blk_read/s Blk_wrtn/s Blk_read Blk_wrtn

sda 43.34 17678.69 2536.11 76052113157 10910095951

sda1 0.00 0.40 0.00 1724104 3566

sda2 0.00 0.00 0.00 6682 0

sda3 37.19 17595.97 2398.88 75696251195 10319754897

sda4 0.00 0.00 0.00 5598 0

sda5 5.17 1.14 128.00 4898908 550629320

CHAPTER 10 ■ MONITORING EXADATA

198

sda6 0.26 34.13 0.00 146813324 3688

sda7 0.32 10.30 8.97 44302234 38601648

sda8 0.08 10.24 0.00 44052706 3568

sda9 0.05 6.83 0.00 29372810 3504

sda10 0.02 2.33 0.00 10020082 3504

sda11 0.17 17.28 0.25 74333114 1092256

sdb 40.52 14599.59 2521.14 62806099223 10845728471

sdb1 0.00 0.40 0.00 1722690 3566

sdb2 0.00 0.00 0.00 6674 0

sdb3 34.50 14517.86 2383.92 62454489703 10255387417

sdb4 0.00 0.00 0.00 5598 0

sdb5 5.05 0.19 128.00 802666 550629320

sdb6 0.26 34.13 0.00 146811502 3688

sdb7 0.32 10.26 8.97 44156132 38601648

sdb8 0.08 10.24 0.00 44051066 3568

sdb9 0.05 6.83 0.00 29371066 3504

sdb10 0.02 2.33 0.00 10018098 3504

sdb11 0.17 17.28 0.25 74331628 1092256

sdc 35.50 15621.93 2358.42 67204113857 10145702504

sdd 43.31 18238.75 2411.67 78461434439 10374796825

sde 37.45 16292.94 2347.21 70090743919 10097464073

sdf 42.67 15401.76 2390.05 66256976848 10281761045

sdg 38.74 14337.09 2400.82 61676859523 10328104921

sdh 41.19 15494.96 2350.70 66657914894 10112485534

sdi 36.14 15339.71 2385.90 65990024896 10263942048

sdj 44.92 14766.18 2368.01 63522769026 10186958174

sdk 48.80 19425.04 2366.34 83564757833 10179786802

sdl 34.74 16006.00 2356.02 68856369043 10135375323

sdm 0.25 12.18 0.05 52388804 196296

sdm1 0.25 12.18 0.05 52385100 196296

md1 0.00 0.00 0.00 12560 0

md11 0.06 0.43 0.22 1854994 946160

md2 0.00 0.00 0.00 12848 0

md8 0.00 0.00 0.00 12616 48

md7 1.06 0.09 8.43 367218 36269392

md6 0.00 0.00 0.00 12774 120

md5 15.14 0.36 120.89 1551674 520072952

md4 0.00 0.01 0.00 57062 14

sdn 29.66 367.66 286.28 1581624255 1231530696

sdq 29.43 355.56 287.35 1529580431 1236147912

sdo 30.37 392.50 287.97 1688497023 1238832936

sdt 29.78 368.98 286.39 1587326255 1232021696

sdp 29.39 355.41 286.29 1528946047 1231606520

sdu 29.96 375.48 286.70 1615302159 1233365976

sds 29.72 368.07 286.62 1583404543 1233007976

sdr 33.92 493.72 286.80 2123954599 1233773728

sdy 29.20 352.04 291.22 1514424727 1252820440

sdx 29.23 359.17 286.09 1545115295 1230741224

sdw 30.19 373.09 291.31 1604988023 1253177480

sdv 29.80 368.34 288.12 1584564047 1239460224

sdac 29.00 347.57 287.43 1495213023 1236481216

CHAPTER 10 ■ MONITORING EXADATA

199

sdab 28.98 349.61 288.36 1503994447 1240495096

sdz 34.75 540.44 286.27 2324924367 1231527200

sdaa 30.65 396.05 286.86 1703787199 1234049360

[celladmin@myexa1cel04 ~]$

The reports can be isolated using the -c option (to produce a CPU-only report) or the -d option (to produce

a device-only report). For the device report the -x option can also be specified to produce a report with extended

statistics. Looking at both forms of the iostat device report, you can see what additional statistics are reported. First

up is the “regular” iostat device report.

[celladmin@myexa1cel04 ~]$ iostat -d

Linux 2.6.32-400.11.1.el5uek (myexa1cel04.mydomain.com) 08/29/2013

Device: tps Blk_read/s Blk_wrtn/s Blk_read Blk_wrtn

sda 43.34 17677.25 2539.27 76057415661 10925374425

sda1 0.00 0.40 0.00 1724104 3566

sda2 0.00 0.00 0.00 6682 0

sda3 37.19 17594.54 2402.04 75701552203 10334934195

sda4 0.00 0.00 0.00 5598 0

sda5 5.17 1.14 128.00 4899732 550719152

sda6 0.26 34.12 0.00 146813324 3688

sda7 0.32 10.30 8.97 44302242 38610304

sda8 0.08 10.24 0.00 44052706 3568

sda9 0.05 6.83 0.00 29372810 3504

sda10 0.02 2.33 0.00 10020082 3504

sda11 0.17 17.28 0.25 74333778 1092944

sdb 40.52 14602.81 2524.33 62829441959 10861093803

sdb1 0.00 0.40 0.00 1722690 3566

sdb2 0.00 0.00 0.00 6674 0

sdb3 34.50 14521.09 2387.10 62477831559 10270653573

sdb4 0.00 0.00 0.00 5598 0

sdb5 5.05 0.19 128.00 802690 550719152

sdb6 0.26 34.12 0.00 146811502 3688

sdb7 0.32 10.26 8.97 44156132 38610304

sdb8 0.08 10.24 0.00 44051066 3568

sdb9 0.05 6.83 0.00 29371066 3504

sdb10 0.02 2.33 0.00 10018098 3504

sdb11 0.17 17.28 0.25 74332484 1092944

sdc 35.50 15623.32 2361.59 67220250345 10160892333

sdd 43.31 18239.34 2414.85 78475828335 10390026084

sde 37.46 16293.08 2350.37 70101955031 10112591593

sdf 42.68 15402.36 2393.21 66269586024 10296925275

sdg 38.74 14336.90 2403.96 61685381083 10343176536

sdh 41.20 15502.49 2353.87 66700399494 10127677980

sdi 36.14 15339.68 2389.08 65999899736 10279157674

sdj 44.92 14769.30 2371.17 63545804314 10202104613

sdk 48.81 19432.90 2369.51 83611198593 10194961456

sdl 34.75 16010.29 2359.19 68885217579 10150542364

sdm 0.25 12.18 0.05 52399172 196296

sdm1 0.25 12.18 0.05 52395468 196296

CHAPTER 10 ■ MONITORING EXADATA

200

md1 0.00 0.00 0.00 12560 0

md11 0.06 0.43 0.22 1856514 946768

md2 0.00 0.00 0.00 12848 0

md8 0.00 0.00 0.00 12616 48

md7 1.06 0.09 8.43 367226 36277680

md6 0.00 0.00 0.00 12774 120

md5 15.14 0.36 120.89 1551714 520157664

md4 0.00 0.01 0.00 57062 14

sdn 29.66 367.70 286.26 1582041391 1231643376

sdq 29.44 355.59 287.33 1529927871 1236264000

sdo 30.38 392.53 287.96 1688884367 1238948184

sdt 29.78 369.01 286.37 1587689215 1232138712

sdp 29.39 355.44 286.28 1529296303 1231728176

sdu 29.97 375.53 286.68 1615731519 1233479056

sds 29.73 368.09 286.60 1583739183 1233122872

sdr 33.92 493.76 286.78 2124413863 1233898648

sdy 29.20 352.06 291.21 1514777647 1252946168

sdx 29.24 359.20 286.08 1545466895 1230858064

sdw 30.19 373.12 291.29 1605375927 1253298360

sdv 29.80 368.37 288.10 1584924095 1239580568

sdac 29.00 347.59 287.41 1495543487 1236597160

sdab 28.98 349.64 288.34 1504346895 1240616544

sdz 34.75 540.47 286.26 2325399199 1231644472

sdaa 30.65 396.09 286.84 1704198463 1234166016

[celladmin@myexa1cel04 ~]$

Next is the extended report.

[celladmin@myexa1cel04 ~]$ iostat -d -x

Linux 2.6.32-400.11.1.el5uek (myexa1cel04.mydomain.com) 08/29/2013

Device: rrqm/s wrqm/s r/s w/s rsec/s wsec/s avgrq-sz avgqu-sz await svctm %util

sda 8.25 11.91 16.60 26.74 17677.00 2539.70 466.49 0.42 9.62 2.38 10.30

sda1 0.00 0.00 0.00 0.00 0.40 0.00 117.64 0.00 3.61 1.05 0.00

sda2 0.00 0.00 0.00 0.00 0.00 0.00 1.86 0.00 2.40 2.40 0.00

sda3 8.23 0.05 15.75 21.44 17594.29 2402.47 537.64 0.39 10.45 2.74 10.21

sda4 0.00 0.00 0.00 0.00 0.00 0.00 1.66 0.00 2.91 2.91 0.00

sda5 0.00 10.96 0.13 5.04 1.14 128.00 24.97 0.02 3.24 2.35 1.22

sda6 0.01 0.00 0.26 0.00 34.12 0.00 131.44 0.00 18.88 0.73 0.02

sda7 0.00 0.88 0.08 0.24 10.30 8.97 60.96 0.00 7.06 3.52 0.11

sda8 0.00 0.00 0.08 0.00 10.24 0.00 130.96 0.00 16.06 0.70 0.01

sda9 0.00 0.00 0.05 0.00 6.83 0.00 130.25 0.00 13.40 0.65 0.00

sda10 0.00 0.00 0.02 0.00 2.33 0.00 128.70 0.00 15.51 0.89 0.00

sda11 0.00 0.01 0.15 0.02 17.28 0.25 104.65 0.00 13.01 2.24 0.04

sdb 6.71 11.90 14.98 25.54 14603.11 2524.75 422.64 0.97 23.94 2.27 9.21

sdb1 0.00 0.00 0.00 0.00 0.40 0.00 111.99 0.00 9.61 0.96 0.00

sdb2 0.00 0.00 0.00 0.00 0.00 0.00 1.86 0.00 1.96 1.96 0.00

sdb3 6.69 0.04 14.25 20.25 14521.39 2387.52 490.09 0.95 27.46 2.64 9.12

sdb4 0.00 0.00 0.00 0.00 0.00 0.00 1.66 0.00 2.05 2.05 0.00

sdb5 0.00 10.96 0.01 5.04 0.19 128.00 25.38 0.01 2.43 1.57 0.79

CHAPTER 10 ■ MONITORING EXADATA

201

sdb6 0.01 0.00 0.26 0.00 34.12 0.00 130.73 0.00 12.43 0.56 0.01

sdb7 0.00 0.88 0.08 0.24 10.26 8.97 60.95 0.00 7.05 2.46 0.08

sdb8 0.00 0.00 0.08 0.00 10.24 0.00 130.87 0.00 15.60 0.68 0.01

sdb9 0.00 0.00 0.05 0.00 6.83 0.00 130.24 0.00 17.31 0.72 0.00

sdb10 0.00 0.00 0.02 0.00 2.33 0.00 127.69 0.00 15.44 0.80 0.00

sdb11 0.00 0.01 0.15 0.02 17.28 0.25 104.70 0.00 14.88 1.63 0.03

sdc 7.24 0.00 14.71 20.79 15623.37 2362.02 506.56 0.14 4.05 2.69 9.53

sdd 7.61 0.00 21.10 22.21 18239.30 2415.28 476.91 0.94 21.79 2.19 9.46

sde 7.46 0.00 17.14 20.32 16293.03 2350.78 497.65 0.09 29.14 2.55 9.57

sdf 7.09 0.00 21.32 21.36 15402.34 2393.63 417.01 0.93 21.69 2.19 9.35

sdg 6.64 0.00 17.40 21.34 14336.81 2404.38 432.11 0.92 23.67 2.37 9.18

sdh 7.09 0.00 20.21 20.99 15503.33 2354.30 433.47 0.95 23.03 2.26 9.30

sdi 7.10 0.01 15.67 20.47 15339.57 2389.50 490.51 0.19 5.38 2.69 9.71

sdj 6.72 0.00 24.12 20.79 14769.54 2371.58 381.62 0.91 20.24 2.06 9.27

sdk 7.70 0.00 28.28 20.53 19433.71 2369.95 446.69 0.98 20.13 2.04 9.98

sdl 7.38 0.00 14.66 20.09 16010.68 2359.62 528.70 0.05 30.15 2.86 9.93

sdm 5.83 0.01 0.25 0.00 12.18 0.05 48.05 0.00 2.42 1.30 0.03

sdm1 5.83 0.01 0.25 0.00 12.18 0.05 48.05 0.00 2.42 1.30 0.03

md1 0.00 0.00 0.00 0.00 0.00 0.00 8.00 0.00 0.00 0.00 0.00

md11 0.00 0.00 0.03 0.03 0.43 0.22 10.95 0.00 0.00 0.00 0.00

md2 0.00 0.00 0.00 0.00 0.00 0.00 8.00 0.00 0.00 0.00 0.00

md8 0.00 0.00 0.00 0.00 0.00 0.00 8.00 0.00 0.00 0.00 0.00

md7 0.00 0.00 0.00 1.05 0.09 8.43 8.07 0.00 0.00 0.00 0.00

md6 0.00 0.00 0.00 0.00 0.00 0.00 7.99 0.00 0.00 0.00 0.00

md5 0.00 0.00 0.03 15.11 0.36 120.89 8.01 0.00 0.00 0.00 0.00

md4 0.00 0.00 0.00 0.00 0.01 0.00 17.27 0.00 0.00 0.00 0.00

sdn 0.00 0.00 21.82 7.84 367.71 286.26 22.05 0.00 0.13 0.12 0.37

sdq 0.00 0.00 21.57 7.87 355.59 287.33 21.84 0.00 0.13 0.12 0.36

sdo 0.00 0.00 22.49 7.89 392.54 287.95 22.40 0.00 0.13 0.12 0.38

sdt 0.00 0.00 21.95 7.83 369.02 286.37 22.00 0.00 0.14 0.13 0.38

sdp 0.00 0.00 21.57 7.82 355.45 286.28 21.83 0.00 0.13 0.12 0.36

sdu 0.00 0.00 22.12 7.85 375.54 286.68 22.10 0.00 0.14 0.13 0.38

sds 0.00 0.00 21.87 7.85 368.10 286.60 22.02 0.00 0.14 0.12 0.37

sdr 0.00 0.00 26.08 7.84 493.76 286.78 23.01 0.00 0.14 0.13 0.43

sdy 0.00 0.00 21.20 8.00 352.07 291.21 22.03 0.00 0.14 0.12 0.36

sdx 0.00 0.00 21.41 7.82 359.20 286.07 22.07 0.00 0.14 0.13 0.37

sdw 0.00 0.00 22.20 7.99 373.13 291.29 22.01 0.00 0.14 0.13 0.38

sdv 0.00 0.00 21.90 7.90 368.37 288.10 22.03 0.00 0.14 0.12 0.37

sdac 0.00 0.00 21.13 7.88 347.60 287.41 21.89 0.00 0.13 0.12 0.36

sdab 0.00 0.00 21.08 7.90 349.65 288.34 22.01 0.00 0.13 0.12 0.36

sdz 0.00 0.00 26.91 7.84 540.48 286.26 23.79 0.00 0.13 0.12 0.43

sdaa 0.00 0.00 22.80 7.85 396.10 286.84 22.28 0.00 0.13 0.12 0.37

[celladmin@myexa1cel04 ~]$

Both reports are beneficial, as they report different sets of monitoring data that can be very useful when digging

into some performance issues or bugs.

The CPU report format, showing the columns and their meanings, is found in Table 10-1.

CHAPTER 10 ■ MONITORING EXADATA

202

The device report format is shown in Table 10-2.

Table 10-1. Iostat Values Reported in CPU Format

%user Shows the percentage of CPU utilization that occurred while executing at the user level (application).

%nice Shows the percentage of CPU utilization that occurred while executing at the user level with nice

priority.

%system Shows the percentage of CPU utilization that occurred while executing at the system level (kernel).

%iowait Shows the percentage of time that the CPU or CPUs were idle during which the system had an

outstanding disk I/O request.

%steal Shows the percentage of time spent in involuntary wait by the virtual CPU or CPUs while the hypervisor

was servicing another virtual processor.

%idle Shows the percentage of time that the CPU or CPUs were idle and the system did not have an

outstanding disk I/O request.

Table 10-2. Iostat Values Reported by Device Format

Device: This column gives the device (or partition) name, which is displayed as hdiskn, with 2.2 kernels, for

the nth device. It is displayed as devm-n, with 2.4 kernels, where m is the major number of the device

and n a distinctive number. With newer kernels, the device name as listed in the /dev directory is

displayed.

tps Indicates the number of transfers per second that were issued to the device. A transfer is an I/O

request to the device. Multiple logical requests can be combined into a single I/O request to the device.

A transfer is of indeterminate size.

Blk_read/s Indicates the amount of data read from the device expressed in a number of blocks per second. Blocks

are equivalent to sectors with 2.4 kernels and newer and, therefore, have a size of 512 bytes. With older

kernels, a block is of indeterminate size.

Blk_wrtn/s Indicates the amount of data written to the device, expressed in a number of blocks per second.

Blk_read The total number of blocks read.

Blk_wrtn The total number of blocks written.

kB_read/s Indicates the amount of data read from the device, expressed in kilobytes per second.

kB_wrtn/s Indicates the amount of data written to the device, expressed in kilobytes per second.

kB_read The total number of kilobytes read.

kB_wrtn The total number of kilobytes written.

MB_read/s Indicates the amount of data read from the device, expressed in megabytes per second.

MB_wrtn/s Indicate the amount of data written to the device expressed in megabytes per second.

MB_read The total number of megabytes read.

MB_wrtn The total number of megabytes written.

rrqm/s The number of read requests merged per second that were queued to the device.

wrqm/s The number of write requests merged per second that were queued to the device.

(continued)

CHAPTER 10 ■ MONITORING EXADATA

203

The basic device report provides the tps, Blk_read/s, Blk_wrtn/s, Blk_read, and the Blk_wrt values. The remainder

of the list in Table 10-2 is displayed in the extended device report. You should not be seeing large await times with

a properly functioning Exadata system. On systems we manage, the largest await times we see are about 20 to 25

milliseconds for the physical disks and less than 1 millisecond for the flash disks. If you’re seeing await times in the

hundreds of milliseconds or longer on a regular basis for a given disk, further investigation is warranted, as the unit

might be suffering from a firmware mismatch or impending device failure.

Because the database servers don’t directly access the storage media, running an iostat device report to

diagnose disk read/write issues won’t provide any useful information regarding the ASM storage. However, don’t

forget that the database servers utilize CPU for all transactions, so an iostat CPU report should be generated when

you generate a CPU report for the storage cells. By doing so, you minimize the chances of missing CPU-related issues

that may occur only on the database server.

The device names reported by iostat are those found in the /dev hierarchy of directories on the server being

monitored. Which cell disk is mapped to which device is reported by the CellCLI command list cell disk, specifying

the name and deviceName attributes, as follows:

CellCLI> list celldisk attributes name, deviceName

CD_00_myexa1cel04 /dev/sda

CD_01_myexa1cel04 /dev/sdb

CD_02_myexa1cel04 /dev/sdc

CD_03_myexa1cel04 /dev/sdd

CD_04_myexa1cel04 /dev/sde

CD_05_myexa1cel04 /dev/sdf

CD_06_myexa1cel04 /dev/sdg

Table 10-2. (continued)

r/s The number of read requests that were issued to the device per second.

w/s The number of write requests that were issued to the device per second.

rsec/s The number of sectors read from the device per second.

wsec/s The number of sectors written to the device per second.

rkB/s The number of kilobytes read from the device per second.

wkB/s The number of kilobytes written to the device per second.

rMB/s The number of megabytes read from the device per second.

wMB/s The number of megabytes written to the device per second.

avgrq-sz The average size (in sectors) of the requests that were issued to the device.

avgqu-sz The average queue length of the requests that were issued to the device.

await The average time (in milliseconds) for I/O requests issued to the device to be served. This includes the

time spent by the requests in queue and the time spent servicing them.

svctm The average service time (in milliseconds) for I/O requests that were issued to the device.

%util Percentage of CPU time during which I/O requests were issued to the device (bandwidth utilization for

the device). Device saturation occurs when this value is close to 100 percent.

ops/s Indicates the number of operations that were issued to the mount point per second.

rops/s Indicates the number of read operations that were issued to the mount point per second.

wops/s Indicates the number of write operations that were issued to the mount point per second.

CHAPTER 10 ■ MONITORING EXADATA

204

CD_07_myexa1cel04 /dev/sdh

CD_08_myexa1cel04 /dev/sdi

CD_09_myexa1cel04 /dev/sdj

CD_10_myexa1cel04 /dev/sdk

CD_11_myexa1cel04 /dev/sdl

FD_00_myexa1cel04 /dev/sdv

FD_01_myexa1cel04 /dev/sdw

FD_02_myexa1cel04 /dev/sdx

FD_03_myexa1cel04 /dev/sdy

FD_04_myexa1cel04 /dev/sdz

FD_05_myexa1cel04 /dev/sdaa

FD_06_myexa1cel04 /dev/sdab

FD_07_myexa1cel04 /dev/sdac

FD_08_myexa1cel04 /dev/sdr

FD_09_myexa1cel04 /dev/sds

FD_10_myexa1cel04 /dev/sdt

FD_11_myexa1cel04 /dev/sdu

FD_12_myexa1cel04 /dev/sdn

FD_13_myexa1cel04 /dev/sdo

FD_14_myexa1cel04 /dev/sdp

FD_15_myexa1cel04 /dev/sdq

CellCLI>

The report shown should only have to be run once per storage cell on your Exadata system, provided you don’t

upgrade it to the next available configuration or if your Exadata system is a Full Rack. System upgrades, from Quarter

Rack to Half Rack or Half Rack to Full Rack, will require you to run the report again, so that the new device mappings

can be seen.

Knowing this information makes it easier to associate the device statistics reported by iostat -d to ASM disks

and flash disks. Low-level I/O problems you might encounter can now be tracked and diagnosed by combining the

output from the two utilities.

Things to Know

Exadata is well-instrumented across both the database and storage tiers, offering a large number of available metrics

reporting on many aspects of the system. Choosing which metrics to report is an important task to prevent you from

getting lost in an avalanche of data.

For monitoring to be effective, a baseline must be established, so that you have a known reference point to

compare subsequent monitoring runs to. Comparing to a baseline provides a solid starting point from which to

measure performance improvements and problems. Without such a baseline, every analysis is against a moving

target, making the task much harder than it needs to be.

Oracle Enterprise Manager can be used to generate reports and graphs that represent performance metrics

as they change over time. You still need a baseline to start from, and that baseline does not have to be for perfect

performance. Remember: You’re measuring performance changes relative to this baseline. You may find that when

performance improves, you use that point of improvement as your new baseline.

OEM can also monitor the storage cells, if the System Monitoring plug-in for Exadata Storage Server is installed.

This plug-in may not provide all of the metrics available from the command-line tools, but it can provide a view of

how the storage statistics and metrics change over time.

CHAPTER 10 ■ MONITORING EXADATA

205

Monitoring can also be performed outside of the Oracle Enterprise Manager by using scripts and command-line

utilities to return the requested data. The storage cells offer both the cellcli and cellsrvadmin utilities, which report

on various areas of the storage cells.

Oracle, no matter how well instrumented, doesn’t report low-level I/O statistics, so it is necessary to go to the O/S

for those. The iostat utility can provide a window into this low-level CPU and device activity. Two separate reports

can be generated, one for CPU and one for devices, or both reports can be combined, by calling iostat without any

command-line parameters.

The cellcli utility can report which cell disk is mapped to which hardware device, with the list celldisk

command. The attributes of interest are name and deviceName. Knowing this mapping allows you to “translate” the

output from the iostat device report, so you can monitor the ASM disks and see which, if any, may be experiencing

problems.

207

Chapter 11

Storage Reconfiguration

An Exadata system, by default, pre-allocates the bulk of the physical storage between the +DATA_MYEXA1 and

+RECO_MYEXA1 disk groups and does so using an 80/20 split. During the preinstallation phase of purchase, Oracle

supplies a worksheet to the DBAs, the network administrators, and the system administrators. Each group supplies

information for the configuration process, with the DBAs and the network admins providing the bulk of that data.

Once the worksheet is completed, discussions are held to clarify any ambiguous settings and to determine how

the storage will be divided. It may not be apparent that the default settings need to be adjusted, so the system is

configured with the standard 80/20 allocations. A third disk group, DBFS_DG, is also provided with approximately

32GB of space, and this disk group does not change in size.

It is possible, after configuration is complete, to change those allocations, but this is a destructive process that

requires careful consideration. We have done this on an Exadata system destined for production, but it was done long

before any production databases were created. It was also done with the assistance of Oracle Advanced Customer

Support, and though we provide the steps to perform this reconfiguration, we strongly recommend you involve Oracle

Advanced Customer Support in the process. The actual steps will be discussed, so that you will understand the entire

process from start to finish. The goal of this chapter is to provide working knowledge of the storage-reconfiguration

process. It may be best, if you are not comfortable performing such actions, to arrange with Oracle Advanced

Customer Support to do this for you, should the need arise. Even if you don’t do this yourself, it will be helpful to know

what tasks will be run and what the end results will be. With that thought in mind, we’ll proceed.

I Wish We Had More…

It may become apparent after the configuration has been completed, but before any databases (aside from DBM,

the default database provided at installation) are created, that you may want or need more recovery storage than

originally allocated, as an example. Or you may not be using the recovery area (an unlikely event) and would like to

make the data disk group a bit larger, as another example. There is a way to do that before anything important gets

created. We state again that reconfiguring the storage allocations is a destructive process that requires planning long

before execution. We will demonstrate a process to distribute storage more evenly between the +DATA_MYEXA1 and

+RECO_MYEXA1 disk groups, again with the caveat that proper planning is absolutely necessary and that Oracle

Advanced Customer Support should be involved.

CHAPTER 11 ■ STORAGE RECONFIGURATION

208

Redistributing the Wealth

Each disk in an Exadata system is logically divided into areas sometimes known as partitions, areas containing a fixed

amount of storage determined at configuration time. Looking at how a single disk is configured on a standard Exadata

installation, the following output shows how the various partitions are allocated:

CellCLI> list griddisk attributes name, size, offset where name like '.*CD_11.*'

DATA_MYEXA1_CD_11_myexa1cel05 2208G 32M

DBFS_DG_CD_11_myexa1cel05 33.796875G 2760.15625G

RECO_MYEXA1_CD_11_myexa1cel05 552.109375G 2208.046875G

CellCLI>

Note ■ For UNIX/Linux systems, the terms slice and partition are used interchangeably in some sources. Both are

used to indicate logical divisions of the physical disk. We will use the term partition in this text, as it is the most accurate

terminology.

Notice that for a given disk, there are three partitions that ASM can see and use. Also note that for a given

partition, the size plus the offset gives the starting “point” for the next partition. Unfortunately, the output from

CellCLI cannot be ordered the way you might like to see it. The default ordering is by name in this example.

From the output provided, the first partition is assigned as the +DATA_MYEXA1 storage partition, starting after

the first 32MB of storage. That 32MB is reserved for disk management by the operating system. The next partition

available to ASM is assigned to the +RECO_MYEXA1 disk group, and the third partition is assigned to the +DBFS_DG

disk group. The size of the disk groups is determined by the type of storage you select and the size of the Exadata

rack that you’ve ordered. The system illustrated in this chapter uses high capacity disks, providing 3TB of storage per

disk. High speed disks provide 600GB of storage per disk. The configuration process configures partitions for the data

and recovery disk groups based on a parameter in the /opt/oracle.SupportTools/onecommand/onecommand.param

file named SizeArr. Two systems were configured with the default storage division between +DATA_MYEXA1 and

+RECO_MYEXA1. This resulted in an 80/20 allocation between these two disk groups. As mentioned previously, the

output provided is for a standard Exadata configuration.

To change how ASM sees the storage, it will be necessary to delete the original configuration as the first step,

so new partitions can be created across the physical disks. The next basic step is to create the new partitions and

after that configure the ASM disk groups. Because the first step is to delete all configured partitions, this is not a

recommended procedure when development, test, or production databases have been created on the Exadata system.

We state again that this process is a destructive process and that no databases will remain after the initial steps of

deleting the original logical disk configuration have completed. The GRID infrastructure is also deleted; it will be

re-created as one of the 26 steps executed to define the new logical storage partitions.

Note ■ We ran this procedure on a newly configured Exadata system, with the assistance of Oracle Advanced

Customer Support. No important databases had been created on this system. This is not a recommended operation

when such databases exist on your system.

CHAPTER 11 ■ STORAGE RECONFIGURATION

209

Looking at the V$ASM_DISKGROUP output you can see the original storage allocations. This is illustrated with the

following output:

SQL> select name, free_mb, usable_file_mb

2 from v$asm_diskgroup

3 where name like '%MYEXA%';

NAME FREE_MB USABLE_FILE_MB

------------------------------ --------- --------------

DATA_MYEXA1 81050256 26959176

RECO_MYEXA1 20324596 6770138

SQL>

You will see that when this process completes, the output from the illustrated query will report different values

that are the result of the new storage settings. You should run this query both before the process starts and after the

process finishes, to document the original storage and the newly configured storage.

With those notes in mind, we proceed with the steps necessary to reconfigure the storage.

Prepare

Not only are the logical storage areas redefined, but the “oracle” O/S user home is also re-created, so any changes

made to that location must be preserved before executing this procedure. This needs to be done on all available

database servers in your Exadata system, even if you have Oracle Advanced Customer Support perform the actual

storage work. Thus, the first step to be executed is to preserve the “oracle” user home, either with tar (which originally

was an acronym for Tape ARchiver, since in the olden days, the only media available was tape) or cpio (an acronym

for CoPy In/Out, a “newer” utility relative to tar, designed to operate not only on tape but on block devices such as

disk drives). These two utilities are provided at the operating-system level. If you choose tar, the following command

will preserve the “oracle” O/S user’s home directory:

$ tar cvf /tmp/oraclehome.tar ./*

In case you are not familiar with the tar command, the options provided perform the following actions:

c -- Create the archive

v -- Use verbose mode. This will display all of the directories and files processed with their

associated paths

f -- The filename to use for the archive

Using the ./* syntax to specify the files to archive makes it easier to restore the files to any base directory you

choose. It isn’t likely that the “oracle” O/S user home will change names. Knowing this syntax can be helpful, if you

want to copy a complete directory tree to another location, and it is our usual way to invoke tar to copy files and

directories.

Using tar is not mandatory; you can also use cpio. If you are more comfortable with the cpio utility, the

following command will archive the “oracle” O/S user home:

$ find . -depth -print | cpio -ov > /tmp/oraclehome.cpio

CHAPTER 11 ■ STORAGE RECONFIGURATION

210

The options provided do the following:

o -- Copy out to the listed archive

v -- Verbose output, listing the files and paths processed

We recommend preserving the “oracle” user home directory before starting any storage reconfiguration, as it will

be overwritten by the reconfiguration process. Preserve the existing “oracle” O/S user home on all available database

servers, as all “oracle” O/S user homes will be rebuilt. Additionally, the “oracle” O/S user password will be reset to its

original value, listed in the Exadata worksheet completed prior to delivery, installation, and initial configuration.

The file used for the Exadata configuration only allows you to specify the size of the data disk group partition.

The recovery disk group partition size is derived from the value provided to size the data disk group. The DBFS_DG

size is not affected by changing this value. This file cannot be modified until the original storage configuration has

been deleted.

Note ■ The commands listed for storage reconfiguration must be run as the “root” user. As this user has unlimited

power at the O/S level, it cannot be stressed enough that caution must be exercised when executing these commands.

If you are not comfortable using the “root” account, it would be best to make arrangements with Oracle Advanced Customer

Support to reconfigure the storage to your desired levels.

You should have a good idea on what you want the storage reconfiguration to provide in terms of +DATA_MYEXA1

disk group and +RECO_MYEXA1 disk group sizes, and you should also have the “oracle” O/S user home preserved,

either with tar or cpio. We now proceed with the actual process of reconfiguring the storage.

Additional tasks at this point include knowing what OEM agents are installed and noting whether or not the

SCAN listener is using the default port. Reinstalling the OEM agents and reconfiguring the SCAN listener for a

non-default port, if necessary, will have to be done as part of the restore steps, after the storage reconfiguration

completes and the “oracle” O/S user home is restored. Steps to reinstall the OEM agents and reconfigure the SCAN

listener will not be covered in this chapter, but it is good to know that they may need to be executed.

Act

You should be sufficiently prepared to begin the actual reconfiguration process. This first step drops the original

storage configuration, including the configuration for the storage cells. Let’s begin.

Act 1

Connect to database server 1 as the “root” user. You should see a # in the shell prompt indicating the login/su process

was successful. You will now have to change directories to /opt/oracle.SupportTools/onecommand. This is where

the scripts and configuration files that you will need to complete this operation reside. It’s a good idea to know the

available commands you can execute for this reconfiguration, and that information can be found by executing the

following script with the listed parameters:

./deploy11203.sh -a -l

CHAPTER 11 ■ STORAGE RECONFIGURATION

211

The following list will be displayed:

Step 0 = CleanworkTmp

Step 1 = DropUsersGroups

Step 2 = CreateUsers

Step 3 = ValidateGridDiskSizes

Step 4 = CreateOCRVoteGD

Step 5 = TestGetErrNode

Step 6 = DeinstallGI

Step 7 = DropCellDisk

Step 8 = DropUsersGroups

Step 9 = CheckCssd

Step 10 = testfn

Step 11 = FixAsmAudit

Step 12 = DropExpCellDisk

Step 13 = testHash

Step 14 = DeconfigGI

Step 15 = GetVIPInterface

Step 16 = DeleteDB

Step 17 = ApplyBP3

Step 18 = CopyCrspatchpm

Step 19 = SetupMultipath

Step 20 = RemovePartitions

Step 21 = SetupPartitions

Step 22 = ResetMultipath

Step 23 = DoT4Copy

Step 24 = DoAlltest

Step 25 = ApplyBPtoGridHome

Step 26 = Apply112CRSBPToRDBMS

Step 27 = RelinkRDSGI

Step 28 = RunConfigAssistV2

Step 29 = NewCreateCellCommands

Step 30 = GetPrivIpArray

Step 31 = SetASMDefaults

Step 32 = GetVIPInterface

Step 33 = Mychknode

Step 34 = UpdateOPatch

Step 35 = GetGroupHash

Step 36 = HugePages

Step 37 = ResetPermissions

Step 38 = CreateGroups

Step 39 = FixCcompiler

Step 40 = CollectLogFiles

Step 41 = OcrVoteRelocate

Step 42 = OcrVoteRelocate

Step 43 = FixOSWonCells

Step 44 = Dbcanew

Step 45 = testgetcl

Step 46 = setupASR

Step 47 = CrossCheckCellConf

CHAPTER 11 ■ STORAGE RECONFIGURATION

212

Step 48 = SetupCoreControl

Step 49 = dropExtraCellDisks

Step 50 = CreateCellCommands

The following are three commands of interest for this step of the reconfiguration:

Step 6 = DeinstallGI

Step 7 = DropCellDisk

Step 8 = DropUsersGroups

These are the commands that will be executed to “wipe clean” the existing storage configuration and prepare it

for the next step. Each command is run individually from the deploy11203.sh script. You must run these steps in the

listed order, to ensure a complete removal of the existing configuration. The actual commands follow:

./deploy11203.sh -a -s 6

./deploy11203.sh -a -s 7

./deploy11203.sh -a -s 8

These steps will take approximately an hour to run on an Eighth Rack or Quarter Rack configuration and will

provide output to the screen describing pending and completed tasks. We recommend that you run each command

and watch the output provided. There should not be any errors generated from these processes; however, we feel it’s

best to be safe by watching the progress.

What do these steps do? Step 6 removes the GRID Infrastructure, basically the heart and soul of ASM (and RAC,

but it’s the link to ASM that we are concerned with in this operation). Once that infrastructure is gone, we are free to

run Step 7 to drop the created grid disks and then the definitions for the partitions that ASM uses to recognize and

access the storage. Last is the removal of the users and groups that access these partitions and grid disks. This is where

the “oracle” user account gets dropped, along with its O/S home. Notice that only 3 steps are necessary to drop the

existing storage configuration but 26 steps are necessary to re-create it.

Act 2

Once these operations have finished, it will be time to modify the storage array parameter to provide the storage

division you want. The configuration file to edit is /opt/oracle.SupportTools/onecommand/onecommand.params.

We use vi for editing such files, but you may wish to use emacs instead. Use whichever editor you are comfortable

with. The parameter value to change is named SizeArr. For a standard default install, this line should look like the

following entry:

SizeArr=2208G

It is good to know what value to use to obtain the desired storage division. Table 11-1 shows several SizeArr

values and the approximate storage divisions created.

Table 11-1. Some SizeArr Values and the Resulting Storage Allocations

SizeArr Setting Data Disk Group pct Recovery Disk Group pct

2208 80 20

1932 70 30

1656 60 40

1487 55 45

1380 50 50

CHAPTER 11 ■ STORAGE RECONFIGURATION

213

Remember that these percentages are approximations based on the default 80/20 storage allocation. We recommend

that you use the standard shell script comment character, #, and comment that line, so you can preserve the original

setting. You can now either copy the commented line or open a new line just below it and provide the following text:

SizeArr=<your chosen value>G

As an example, if you want to configure a 55/45 split on the available storage, the new line, based on the

information in Table 11-1, would be as follows:

SizeArr=1487G

Once your edits are complete, there should be two lines listing SizeArr, as follows:

# SizeArr=2208G

SizeArr=1487G

This is the only change you will need to make to this parameter file, so save your work and exit the editor. You are

now prepared to establish a new storage configuration.

Act 3

As in the previous operation, the deploy11203.sh script will be used, although with a greater number of steps. The

following is the complete list of available steps for this part of the process:

Step 0 = ValidateEnv

Step 1 = CreateWorkDir

Step 2 = UnzipFiles

Step 3 = setupSSHroot

Step 4 = UpdateEtcHosts

Step 5 = CreateCellipinitora

Step 6 = ValidateIB

Step 7 = ValidateCell

Step 8 = PingRdsCheck

Step 9 = RunCalibrate

Step 10 = CreateUsers

Step 11 = SetupSSHusers

Step 12 = CreateGridDisks

Step 13 = GridSwInstall

Step 14 = PatchGridHome

Step 15 = RelinkRDSGI

Step 16 = GridRootScripts

Step 17 = DbSwInstall

Step 18 = PatchDBHomes

Step 19 = CreateASMDiskgroups

Step 20 = DbcaDB

Step 21 = DoUnlock

Step 22 = RelinkRDSDb

Step 23 = LockUpGI

Step 24 = ApplySecurityFixes

Step 25 = setupASR

Step 26 = SetupCellEmailAlerts

Step 27 = ResecureMachine

CHAPTER 11 ■ STORAGE RECONFIGURATION

214

Unlike the first list, there are only 28 steps shown. As this is an existing Exadata installation, step 0, which

validates the environment, and Step 27, which secures the machine, will not be run. This leaves the remaining

26 steps to reconfigure the storage and the storage cells. The following command will be used to complete the

storage reconfiguration portion of this process:

./deploy11203.sh -r 1-26

The -r option executes the provided steps in order, as long as no step generates an error. If a step does generate

an error, it stops at that step; any corrective action should be taken, and the deploy11203.sh script restarted with

a modified list of steps. For example, if the execution stopped at step 21 due to errors, and the cause of the errors is

corrected, the following command would restart the reconfiguration at the point it generated the error, as follows:

./deploy11203.sh -r 21-26

There should be no need to start the entire process from the beginning, should a problem arise midway through

the execution.

For an Eighth Rack or Quarter Rack Exadata configuration, this last execution of the deploy11203.sh script will

run for one and one-half to two hours. For larger Exadata configurations, this will run longer, as there will be a greater

number of disks. Feedback will be provided by the script for each of the steps executed.

On a “clean” system—one that is still at the original configuration and without any new databases—we have

experienced no errors or difficulties when reconfiguring the storage. It is a time-consuming process, but it should

execute without issues.

Note ■ We have executed this on a newly configured Exadata system, and it ran without difficulties. If you are

planning on doing this on a system where other databases have been created, where other ORACLE_HOME locations

exist, be advised that the steps provided here may experience problems related to these changes. The included database,

commonly named DBM, will be re-created from scripts during the reconfiguration process. Be aware that restoring

databases that were created after initial configuration was completed may cause errors due to the reallocated storage,

especially if the +DATA_MYEXA1 disk group has been made smaller. In this situation, it is best to involve Oracle Advanced

Customer Support.

Let’s look at what each step accomplishes, at a basic level. Steps 1 and 2 are basic “housekeeping” actions,

creating a temporary work directory and unzipping the software archives into that temporary work area. Step 3 starts

the important aspects of this operation, which sets user equivalence (meaning passwordless ssh access) to all servers

and switches for the “root” account. This is required, so that the remaining steps proceed without having to ask for a

password. Step 4 updates the /etc/hosts file for the preconfigured storage cell IP addresses and server names for the

Exadata system. This makes it easier to connect to other servers in the system, by using the server name rather than

the IP address.

The next step, Step 5, creates the cellinit.ora file on the available storage cells. A sample of what the

cellinit.ora contains (with actual IP addresses and port numbers obscured) follows.

#CELL Initialization Parameters

version=0.0

HTTP_PORT=####

bbuChargeThreshold=800

SSL_PORT=#####

RMI_PORT=#####

CHAPTER 11 ■ STORAGE RECONFIGURATION

215

ipaddress1=###.###.###.###/##

bbuTempThreshold=60

DEPLOYED=TRUE

JMS_PORT=###

BMC_SNMP_PORT=###

This step also creates the cellip.ora file on the available database servers. Sample contents follow.

cell="XXX.XXX.XXX.3"

cell="XXX.XXX.XXX.4"

cell="XXX.XXX.XXX.5"

cell="XXX.XXX.XXX.6"

cell="XXX.XXX.XXX.7"

This file informs ASM of the available storage cells in the cluster.

Steps 6, 7, and 8 do necessary validation of the InfiniBand connectivity, storage cell configuration, and InfiniBand

inter-process connectivity (IPC) between the database servers and the storage cells. Step 8 performs this validation

by checking how the oracle executables are linked. IPC over InfiniBand is set by linking the oracle kernels with the

ipc_rds option, and if this option is missing, IPC occurs over the non-InfiniBand network layer. Unfortunately,

most database patches that relink the kernel do not include this parameter, because, I suspect, they are intended for

non-Exadata systems. Thus, patching the oracle software can result in a loss of this connectivity, which can create

performance issues by using a much slower network connection for IPC. The situation is easily rectified by relinking

the oracle kernel with the ipc_rds option. One way to ensure that this occurs is to edit the script from the patchset

where the oracle kernel is relinked. Another option is to simply perform another relink with the ipc_rds option

before releasing the database to the users. The exact statement to use, copied from the command line on the

database server, follows:

$ make -f $ORACLE_HOME/rdbms/lib/ins_rdbms.mk ipc_rds

This is also a check that the exachk script executes and output from that report lists the oracle kernels, which are

not linked to provide RDS over InfiniBand connectivity.

Step 9 calibrates the storage, and it is a very important step. Each available storage cell has this run. First,

CELLSRV is shut down, then the calibrate process is run. Output similar to the following will be generated.

CellCLI> calibrate;

Calibration will take a few minutes...

Aggregate random read throughput across all hard disk luns: 137 MBPS

Aggregate random read throughput across all flash disk luns: 2811.35 MBPS

Aggregate random read IOs per second (IOPS) across all hard disk luns: 1152

Aggregate random read IOs per second (IOPS) across all flash disk luns: 143248

Controller read throughput: 5477.08 MBPS

Calibrating hard disks (read only) ...

Calibrating flash disks (read only, note that writes will be significantly slower) ...

...

Once the calibrate step is complete for all storage cells, the cell disks and grid disks can be created, which is

Step 12. Before that, though, the “oracle” O/S user is created, and the associated passwordless ssh access is established

with Steps 10 and 11. After these steps complete, the grid disk partitions are created in Step 12, so they can be

recognized by ASM. This is where your new setting takes effect and the desired ratio between +DATA_MYEXA1

and +RECO_MYEXA1 is established.

CHAPTER 11 ■ STORAGE RECONFIGURATION

216

Next in line is setting up the GRID home by installing the GRID software (Step 13), patching the GRID home

(step 14), relinking the GRID oracle executable to provide IPC over InfiniBand (Step 15), and running the GRID

root.sh scripts (Step 16). These are the same actions you would take (with the exception of Step 15) on any other

GRID installation. After the GRID software is installed and configured, the database software is installed and patched

(Steps 17 and 18). Again, these are steps you would take on any system when you install and patch Oracle database

software.

Since the grid disks are now created, it’s a simple task to get ASM to recognize them and create the +DATA_MYEXA1,

+RECO_MYEXA1, and +DBFS_DG disk groups in Step 19. This paves the way for creation of the DBM cluster database

in Step 20, which is the default database provided with a “bare metal” Exadata installation. It is possible to change this

database name in the configuration worksheet, but we haven’t seen any installations where DBM isn’t an available

database. Once the DBM database is created, selected accounts are unlocked (Step 21), and a final relink of the DBM

oracle executable, to ensure IPC over InfiniBand is functional, is executed (Step 22). The GRID Infrastructure is “locked”

against any configuration changes in Step 23, then, in Step 24, any security fixes/patches are applied to the database home.

Step 25 may or may not be executed, and that depends on whether your enterprise has decided to allow Oracle

direct access to Exadata via the Auto Service Request (ASR) server. This requires that a separate server be configured

to communicate with Exadata to monitor the system and report back to Oracle any issues it finds, automatically

generating a service request to address the issue. Such issues would be actual or impending hardware failures

(disk drives, Sun PCIe cards, memory). The service request generates a parts order and dispatches a service

technician to install the failed or failing parts. If you don’t have a server configured for this, the step runs then

terminates successfully, without performing any actions. If you do want this service and have the required additional

server installed, this step configures the service with the supplied My Oracle Support credentials and tests to ensure

the credentials are valid.

Step 26 sets up any desired cell alerts via e-mail. It requires a valid e-mail address that it uses and verifies.

Having cell alerts e-mailed to you is convenient; you won’t need to connect to the individual cells to list the alert

history, so it saves time. This, too, is an optional step; you do not have to configure cell alerts to be e-mailed to you,

but it is recommended.

At this point, your Exadata system is back to the state it was when it was installed, with the exception of the

storage percentages that you modified. It’s now time to restore the “oracle” O/S user home you had prior to starting

this process.

Restore

Now that the storage has been reconfigured, it’s time to address the re-created “oracle” O/S user homes and the reset

“oracle” O/S password. Remember that the “oracle” O/S user was dropped as the last step of clearing the old storage

configuration. Presumably you are still connected as “root,” so at the shell prompt on each database server, you will

type the following:

# passwd oracle

This will prompt you for the new “oracle” O/S user password, twice for confirmation. Because passwordless ssh

access is configured for the “root” account, you can use ssh to connect to all other database servers from your “home

base” on node 1. For those not familiar with ssh, the following command will connect you to database server 2:

# ssh myexa1db02

Change the destination server name to connect to the remaining database servers.

It is now time to restore the previous “oracle” O/S user home files and configuration. Use su to connect as

“oracle.” This will also put you at the user’s home directory. If you used tar to archive the directory and its contents,

the following command will restore the archived items:

$ tar xvf /tmp/oraclehome.tar . | tee oraclehome_restore.log

CHAPTER 11 ■ STORAGE RECONFIGURATION

217

You may be prompted to overwrite existing files. With the exception of the .ssh directory, you should do so,

as the files you are restoring are those which you configured prior to the storage reallocation. Remember that this

process reestablished passwordless ssh connectivity for “oracle,” and replacing the .ssh directory contents with

those you saved prior to the reconfiguration could disable passwordless ssh, because the signatures in the saved

authorized_keys file don’t match the current values. Check the logfile for any errors you may have missed as the

verbose output scrolled by and correct the listed errors. Use tar again to restore files or directories not created

because of errors that have now been corrected. Should a second pass with tar be required, do not replace existing

files when prompted.

If you used cpio to archive the directory and its contents, the following command will restore the archived items:

$ cpio -ivf ./.ssh < /tmp/oraclehome.cpio | tee oraclehome_restore.log

The cpio utility reads the archive specified; extracts the files and directories, except for the .ssh directory;

and puts them in the current location. As explained in the tar example, you do not want to overwrite the .ssh

directory contents, because the reconfiguration process reestablished passwordless ssh connectivity for “oracle,”

and overwriting those current files will disable that configuration. Once the archive restore is finished, you need to

check the logfile for errors. Presuming there are none, you should be back to the “oracle” O/S user configuration

you established before making changes to the storage allocations. If you do find errors in the restore, correct the

conditions causing those errors and use cpio again to restore the files or directories that failed to create, due to errors.

Open another session and log in as “oracle,” to see that all of the restored settings function as intended. If you have

configured a way to set various ORACLE_HOME environments, that method should be tested, to ensure that nothing

was missed in the archive of the “oracle” O/S user home or in the restore of those archived files and directories.

Act 4

Congratulations, you have completed the storage reconfiguration of your Exadata system. Looking at V$ASM_

DISKGROUP, you should see output similar to the following, if you used the SizeArr setting from the example:

SYS> select name, free_mb, usable_file_mb

2 from v$asm_diskgroup

3 where name like '%MYEXA%';

NAME FREE_MB USABLE_FILE_MB

------------------------------ ---------- --------------

DATA_MYEXA1 52375300 17051522

RECO_MYEXA1 46920568 15638300

SYS>

The values of interest are those in the USABLE_FILE_MB column. From earlier in the chapter, the output of that

query against the original storage allocations follows.

SQL> select name, free_mb, usable_file_mb

2 from v$asm_diskgroup

3 where name like '%MYEXA%';

NAME FREE_MB USABLE_FILE_MB

------------------------------ --------- --------------

DATA_MYEXA1 81050256 26959176

RECO_MYEXA1 20324596 6770138

SQL>

CHAPTER 11 ■ STORAGE RECONFIGURATION

218

There may be other tasks that you need to perform, depending on how you have the Exadata system configured,

which include reinstalling any OEM agents you had running and, if it’s not using the default port, reconfiguring the

SCAN listener. Steps such as these are part of the preparation step prior to reconfiguration and should be noted prior

to starting any storage reallocation.

Things to Know

Reconfiguring the storage allocations is possible on Exadata, but it is a destructive process that requires planning prior

to execution.

It will be necessary to drop the existing storage configuration using the /opt/oracle.SupportTools/onecommand

/deploy11203.sh script. This script will also be used, with different parameters, to create the new storage

configuration.

Dropping the existing storage configuration is performed in three steps: dropping the GRID Infrastructure,

dropping the cell disks, then dropping the associated user accounts and groups. Since the “oracle” O/S user will be

dropped in this process, it is necessary to preserve the existing O/S user home on all available database servers in

the Exadata system. This can be done with tar or cpio to create an archive of the directories and files in those locations.

There is a configuration file under /opt/oracle.SupportTools/onecommand named onecommand.params. It is this

file that has to be edited to provide the new storage array size. The size provided in this file is for the +DATA disk group

(the +DATA and +RECO disk group names usually include the Exadata machine name, for example, +DATA_MYEXA1

and +RECO_MYEXA1 for an Exadata machine named MYEXA1); the recovery disk group size is derived from this

parameter’s value.

The actual reconfiguration takes place using, once again, the /opt/oracle.SupportTools/onecommand

/deploy11203.sh script and encompasses 26 separate steps. These steps reestablish user accounts, connectivity,

software installations, disk partition creations, creation of the grid disks and ASM disk groups, creating the default

DBM database, and applying database and security patches across the various homes. This part of the process

also ensures that inter-process communication (IPC) uses InfiniBand, rather than the standard network, to avoid

performance issues.

The next step you must execute is the restoration of all but the .ssh directory in the “oracle” O/S user’s home

directory. Since passwordless ssh connectivity was established by the reconfiguration procedure, overwriting those

files would disable that functionality.

Finally, you must connect as the “oracle” user, preferably using an additional session, to verify that all

functionality you established prior to the reconfiguration works, as expected.

Additional tasks you may need to perform include reinstalling OEM agents and reconfiguring the SCAN listener,

if you changed it from using the default port.

219

Chapter 12

Migrating Databases to Exadata

An Exadata system, freshly installed and configured, has but one database, normally named DBM. As you might

expect, it’s a RAC database, so it exists on all available database servers. Exadata can run more than one database

(either clustered or non-clustered), which is why you bought the system in the first place. Creating new databases

isn’t difficult, if you’ve built RAC databases before, and if you haven’t, we’ll provide instructions and guidance in this

chapter, to help you along. However, you won’t always be building truly “new” databases, because your goal is to

migrate existing application databases to Exadata. There are a number of ways to accomplish this task. Some, such as

the logical methods, require an empty database to work with, while others (the physical methods) will require only an

init.ora file and the control files to get the process started. The aim of this chapter is to make migrating databases to

Exadata as painless a task as possible.

Getting Physical

In these sections, we will discuss three options for physically migrating databases to Exadata: backups, transportable

tablespaces, and standby databases. Each method has its advantages and disadvantages. Which method you choose is

dependent on what migration strategy you have to use. Not all platforms are the same. Some are “big-endian,” where

the most significant byte of a data “word” is written to the lowest address in memory, and others are “little-endian,”

where the least significant byte of a data “word” is written to the lowest memory address.

If these concepts are unfamiliar, consider how data is stored in memory. The smallest unit of storage is the bit,

which can have the value of either 0 or 1. Bytes, the next largest storage unit, are composed of 8 bits, and each byte of

data can be represented either by the binary values of the bits of which it is composed or by hexadecimal digits that

represent the same value. Thus the character “w” can be represented by the hexadecimal digits 6F or the binary value

01101111. In most of today’s general-purpose computers, words are 4 bytes (32 bits) long, although some hardware

architectures use words of different lengths (such as 64 bits).

Each memory address can store 1 byte, so each 32-bit word is divided into four single-byte values. The

endian-ness of an operating system determines in which order the bytes will be written to memory. There are only

two orders to choose from: big-endian or little-endian. To illustrate this behavior, the word word is composed of the

following hexadecimal digits, listed in the order in which the letters appear:

6F

77

64

72

In a big-endian system, the bytes would be written as follows:

6F 77 64 72

CHAPTER 12 ■ MIGRATING DATABASES TO EXADATA

220

In a little-endian system, the bytes would be reversed, as follows:

72 64 77 6F

If a source system is big-endian, then copying the data files directly to a little-endian system would result in

unreadable data, because the destination operating system would be reading the bytes in the “wrong” order. Exadata

runs Linux, a little-endian operating system. Migrating from big-endian operating systems, such as AIX or Solaris, for

example, is possible but requires RMAN, either as the primary migration tool or as an additional utility, to convert the

data files from big-endian to little-endian format.

Regardless of the endian-ness of the source system, RMAN is an excellent choice as a migration tool, especially

because the database backup processes already in place can be used to generate the necessary backup set for

migration. There are process changes you will have to make to migrate a database from a big-endian system to

Exadata, so that RMAN can convert the data files to a little-endian format. These steps will be provided later in the

chapter. Using RMAN to essentially clone the source database onto Exadata is relatively fast and brings over all of

the internal database objects, regardless of data type. There will likely be objects that RMAN won’t transfer, such as

BFILES and directories, and there is a way to report those objects. Additional steps, which are discussed later in this

chapter, can be performed to ensure those objects also get migrated.

Transportable tablespaces are also an option when only specific schemas have to be migrated. Tablespace

dependencies are determined; the desired and dependent tablespaces are prepared; the metadata is exported; the

tablespace files are transferred; and the tablespace metadata is imported into Exadata. Using this method requires

that an empty database be created on Exadata, and the Database Configuration Assistant can perform that task. These

general steps will be discussed in detail in another section.

A physical standby database can also be used to migrate a source database to Exadata. Basically using the same

process as a standard RMAN database clone, a few additional steps, required for standby configuration and operation,

will have to be performed. This method allows you to migrate the database to Exadata and keep it synchronized with

the source database until the desired cutover date, when the standby is converted to a primary and all user traffic is

redirected to Exadata. This method will also be covered in more detail later in this chapter.

Depending on the number of tablespaces to migrate, using transportable tablespaces might not be the method

to use. RMAN, in our opinion, would be the physical method of choice, and data pump would be the method to use

for a logical transfer of data. To aid in this migration, Oracle provides a view, V$TRANSPORTABLE_PLATFORM, that lists the

operating systems RMAN can convert data files from and to and includes the endian-ness of that operating system. In

the next section, we cover this view and how to use it to migrate a database from a system with different endian-ness

to Exadata, running Linux, using RMAN.

Using Backups

Possibly the easiest method involves using the existing database backups to relocate a database to Exadata, because

the backup strategy is already in place and has been tested to provide reliable results. This is the same procedure used

to clone a database with RMAN, so it’s reliable and repeatable.

Note ■ We have found it necessary to have external storage available for the backup pieces. This is especially true

if you are migrating a database from a big-endian platform to Exadata, a little-endian platform, and using either

transportable tablespaces or RMAN.

Looking at the steps involved to migrate a database to Exadata using RMAN backups, the procedure is

straightforward. If a common storage device can be made available between the source server and the Exadata

destination, it’s even easier, as no transfer of backup pieces is necessary. Because we clone databases for testing

CHAPTER 12 ■ MIGRATING DATABASES TO EXADATA

221

and development purposes, we have access to an external storage array, which we use for backups of the desired

databases. We will proceed with this discussion based on this configuration, and apart from having to copy backup

pieces from the source machine to Exadata, the steps are identical.

Note ■ The steps outlined in this section will migrate a database to a single-instance database on Exadata. There are

additional steps to execute, should you want the migrated database to be a cluster database. Those steps will be covered

at the end of this section and will apply to either of the RMAN methods described.

A recent backup of the source database is required before you begin. This process should also back up the

control files and do so after the database backup is complete. This is necessary so that the backup just taken is found

in the control files that will be restored. It’s these control files you will use to start the database restore and recovery

to Exadata. Additionally, a current copy of the init.ora or sp file from the source database is required, as are any

necessary directory components, such as the diagnostic destination as defined for the source database. For a RAC

database being migrated, the init.ora or spfile from each node will have to be copied to its respective location on the

Exadata system. We recommend that you use tar or cpio to archive the diagnostic destination for the source database

and transfer that archive to Exadata, where it can be restored. There may be situations where the full path for the

diagnostic destination cannot be replicated on the Exadata system. In such cases, change directories to the directory

listed in the init.ora file as the diagnostic_dest and archive from that point. An example for a database named

TEST using tar follows:

$ cd /u01/oracle/11.2.0.3

$ tar cvf /obkups/diag_dest.tar ./diag/rdbms/test

The tar archive created would be transferred to the Exadata system. Change directories to the diagnostic_dest

listed for the DBM database (because this is the ORACLE_HOME you will likely use for your transferred database) and

restore the tar archive, as follows:

$ cd /u01/oracle/11.2.0

$ tar xvf /obkups/diag_dest.tar

This will restore the diag directory structure for the migrated database to the Exadata system. All that remains is

to change the diagnostic_dest, background_dump_dest, core_dump_dest, and user_dump_dest values to the newly

created location in the copied init.ora or spfile. During this process, the local archivelog destination also has to be

created, and any necessary changes to that location string have to be made to the init.ora or spfile. If this is a RAC

database being migrated, these steps will have to be performed on all nodes where this database will have running

instances. To better explain this, presume this TEST database is a two-node RAC database. On database node 1 and

on database node 2, the diag destination will have to be archived. Then the tar archive for node 1 will be copied

to Exadata database node 1, and the tar archive for node 2 will be copied to Exadata database node 2. Each node

will require the restore step to be run, and each copy of the init.ora or spfile will have to be modified to reflect any

location changes.

Restoring the database to Exadata can be accomplished in two ways: by a simple restore-and-recovery session

using only the backup pieces from the most recent backup, or by using the duplicate database command, which

requires connecting to the source database as the auxiliary. We will presume that if you are able to copy the backup

pieces from the source server to Exadata, you also have a valid SQL*Net connection to the source database. We will

begin with a basic restore-and-recover scenario.

CHAPTER 12 ■ MIGRATING DATABASES TO EXADATA

222

As mentioned previously, the first step is to ensure the availability of the backup pieces. It is presumed they are

available on the Exadata system. With the init.ora or spfile in place, it is necessary to restore the control files from

the current backup. Make note of the control file backup piece name, then issue the following command:

RMAN> restore controlfile from '<backup piece name>';

You should see the following output:

Starting restore at 27-JUL-13

using channel ORA_DISK_1

channel ORA_DISK_1: restoring control file

channel ORA_DISK_1: restore complete, elapsed time: 00:00:02

Finished restore at 27-JUL-13

Now you can start and mount the database in preparation for the restore and recovery. If the source database is

a RAC database, it will be necessary to set the cluster_database parameter to false before starting the restore and

recovery. This is because the database must be mounted exclusive for the restore to be successful. From this point,

it is a standard restore-and-recovery scenario, which should complete without error, presuming all of the configuration

parameters in the init.ora or spfile are listing the correct locations on the Exadata system. If you set cluster_database

to false before beginning the migration, you will have to set it back to true once the recovery is complete.

You may choose to clone the database from the source. The init.ora or spfile will have to be copied from the

source database, so that the database can be started nomount on the Exadata system. Again, if this is a RAC database

being migrated, the cluster_database parameter has to be set to false before starting the clone.

The clone process uses the duplicate database command to RMAN. Example commands for this process

to duplicate the mytest database on a remote server to a database named test on Exadata follow (both databases

use ASM):

connect target sys/<password>@mytest

connect auxiliary /

run {

sql 'alter session set optimizer_mode=rule';

allocate auxiliary channel c1 type disk ;

allocate auxiliary channel c2 type disk ;

allocate auxiliary channel c3 type disk ;

allocate auxiliary channel c4 type disk ;

allocate auxiliary channel c5 type disk ;

allocate auxiliary channel c6 type disk ;

duplicate target database to 'test'

db_file_name_convert=('+DATA','+DATA_MYEXA1')

logfile

GROUP 11 ( '+DATA_MYEXA1','+RECO_MYEXA1' ) SIZE 512M,

GROUP 12 ( '+DATA_MYEXA1','+RECO_MYEXA1' ) SIZE 512M,

GROUP 13 ( '+DATA_MYEXA1','+RECO_MYEXA1' ) SIZE 512M,

GROUP 14 ( '+DATA_MYEXA1','+RECO_MYEXA1' ) SIZE 512M ;

}

CHAPTER 12 ■ MIGRATING DATABASES TO EXADATA

223

A shell script can also be written for this, making it easier to run and monitor the progress from a single session.

The shell script would appear as in the following example:

export NLS_DATE_FORMAT='Mon DD YYYY HH24:MI:SS'

DATESTAMP=`date '+%y%m%d%H%M'`

MSGLOG=/home/oracle/clone/logs/dup_mytest_${DATESTAMP}.log

$ORACLE_HOME/bin/rman msglog $MSGLOG append << EOF

connect target sys/<password>@mytest

connect auxiliary /

run {

sql 'alter session set optimizer_mode=rule';

allocate auxiliary channel c1 type disk ;

allocate auxiliary channel c2 type disk ;

allocate auxiliary channel c3 type disk ;

allocate auxiliary channel c4 type disk ;

allocate auxiliary channel c5 type disk ;

allocate auxiliary channel c6 type disk ;

duplicate target database to 'test'

db_file_name_convert=('+DATA','+DATA_MYEXA1')

logfile

GROUP 11 ( '+DATA_MYEXA1','+RECO_MYEXA1' ) SIZE 512M,

GROUP 12 ( '+DATA_MYEXA1','+RECO_MYEXA1' ) SIZE 512M,

GROUP 13 ( '+DATA_MYEXA1','+RECO_MYEXA1' ) SIZE 512M,

GROUP 14 ( '+DATA_MYEXA1','+RECO_MYEXA1' ) SIZE 512M ;

}

EOF

This script would be run after the destination database has been started nomount and would be run in the

background in no-hang-up mode. If this script were named clone_test_from_mytest.sh and located in the

/home/oracle/clone directory, the command to do this would be as follows:

$ nohup $HOME/clone/clone_test_from_mytest.sh &

The duplicate process will now be running, and control will return to the shell prompt, so you can monitor the

progress through the generated log file. This would be done with the following commands:

$ cd $HOME/clone/logs

$ ls -ltr *mytest*

...

dup_mytest_201307271343.log

$ tail -f dup_mytest_201307271343.log

The tail -f command is used to continually read the contents of a file that is actively being written, so you

can see the entries as they occur. The script illustrated can also be used to refresh an existing destination database.

If Oracle Managed Files are being used (they are on Exadata), it will be necessary to delete the existing files for the

destination database before beginning the clone, because the data files won’t be overwritten by the duplication

process. All other steps will be executed as described previously in this section.

One good reason for using RMAN to migrate databases to Exadata is the fact that you can change the

“endian-ness” of the data files if you need to. Exadata is using Linux, a little-endian operating system, but you may

be migrating from AIX, a big-endian system. This will require that the data-file format be changed, and RMAN can

do this task for you. You will need external storage available for the converted data files from the source database,

CHAPTER 12 ■ MIGRATING DATABASES TO EXADATA

224

because there isn’t sufficient file-system storage available on Exadata. The first step in this process is to see which

platforms are supported, and the V$TRANSPORTABLE_PLATFORM view provides this information, as follows:

SQL> select platform_name, endian_format

2 from v$transportable_platform;

PLATFORM_NAME ENDIAN_FORMAT

--------------------------------------------- --------------

Solaris[tm] OE (32-bit) Big

Solaris[tm] OE (64-bit) Big

Microsoft Windows IA (32-bit) Little

Linux IA (32-bit) Little

AIX-Based Systems (64-bit) Big

HP-UX (64-bit) Big

HP Tru64 UNIX Little

HP-UX IA (64-bit) Big

Linux IA (64-bit) Little

HP Open VMS Little

Microsoft Windows IA (64-bit) Little

PLATFORM_NAME ENDIAN_FORMAT

--------------------------------------------- --------------

IBM zSeries Based Linux Big

Linux x86 64-bit Little

Apple Mac OS Big

Microsoft Windows x86 64-bit Little

Solaris Operating System (x86) Little

IBM Power Based Linux Big

HP IA Open VMS Little

Solaris Operating System (x86-64) Little

Apple Mac OS (x86-64) Little

20 rows selected.

SQL>

RMAN can transport data files between any of the listed platforms, and the AIX to Linux migration is possible.

The next step is to check for database objects that won’t be transported by RMAN, such as directories, BFILES, and

external tables. The following PL/SQL block will display these objects:

SQL> set serveroutput on

SQL> declare

2 x boolean;

3 begin

4 x := sys.dbms_tdb.check_external;

5 end;

6 /

The following directories exist in the database:

SYS.ADMIN_BAD_DIR, SYS.ADMIN_LOG_DIR, SYS.ADMIN_DAT_DIR, SYS.XMLDIR, SYS.DATA_PUMP_DIR, SYS.ORACLE_

OCM_CONFIG_DIR

CHAPTER 12 ■ MIGRATING DATABASES TO EXADATA

225

PL/SQL procedure successfully completed.

SQL>

Notice that the PL/SQL reports six directories that will have to be re-created once the database is migrated to

Exadata. It is very likely that these directories will have new locations after the move to Exadata, so not only will the

database locations have to change, but the directories themselves will have to be created on the Exadata system. A

simple query can generate the necessary CREATE DIRECTORY statements, as follows:

SQL> column cr_dir format a132

SQL>

SQL> select 'create or replace directory '||directory_name||' as '''||directory_path||''';' cr_dir

2 from dba_directories;

CR_DIR

--------------------------------------------------------------------------------------------------

create or replace directory ADMIN_LOG_DIR as '/u01/oracle/directories/log';

create or replace directory ADMIN_BAD_DIR as '/u01/oracle/directories/bad';

create or replace directory XMLDIR as '/u01/oracle/directories/rdbms/xml';

create or replace directory ADMIN_DAT_DIR as '/u01/oracle/directories/dat';

create or replace directory DATA_PUMP_DIR as '/u01/oracle/admin/mydb/dpdump/';

create or replace directory ORACLE_OCM_CONFIG_DIR as '/u01/oracle/directories/ccr/state';

6 rows selected.

SQL>

Spool this output to a file and edit the destination text to point to the newly created locations on Exadata. It is

then a simple task of running the generated script in the migrated database to re-create these directories.

You will have to create a destination for the converted database files on the available external storage. In this

example, we will use /obkups/db_convert as the destination for those files. Take a current backup of the source

database, then shut down and start the source database in read-only mode. Connect RMAN to the target database and

execute the CONVERT DATABASE command, as follows:

CONVERT DATABASE NEW DATABASE 'mydb'

TRANSPORT SCRIPT '/obkups/db_convert/migratedb.sql'

TO PLATFORM 'Linux IA (64-bit)'

DB_FILE_NAME_CONVERT = ('/home/oracle/dbs','/obkups/db_convert');

RMAN will convert the database files and place them in the /obkups/db_convert directory, along with a copy of

the pfile and the migration script. These files will have to be transferred to the Exadata system, if the external storage is

not common to both servers. Once all of the generated files are transferred, you will have to edit the migration script,

to enable restricted session. A sample migration script, including the edits, follows:

-- The following commands will create a control file and use it

-- to open the database.

-- Data used by Recovery Manager will be lost.

-- The contents of online logs will be lost and all backups will

-- be invalidated. Use this only if online logs are damaged.

CHAPTER 12 ■ MIGRATING DATABASES TO EXADATA

226

-- After mounting the created controlfile, the following SQL

-- statement will place the database in the appropriate

-- protection mode:

-- ALTER DATABASE SET STANDBY DATABASE TO MAXIMIZE PERFORMANCE

STARTUP NOMOUNT PFILE='init_00bz4glk_1_0.ora'

CREATE CONTROLFILE REUSE SET DATABASE "MYDB" RESETLOGS NOARCHIVELOG

MAXLOGFILES 32

MAXLOGMEMBERS 2

MAXDATAFILES 32

MAXINSTANCES 1

MAXLOGHISTORY 226

LOGFILE

GROUP 1 '/obkups/db_convert/archlog1' SIZE 25M,

GROUP 2 '/obkups/db_convert/archlog2' SIZE 25M

DATAFILE

'/obkups/db_convert/system01.dbf',

'/obkups/db_convert/sysaux01.dbf',

'/obkups/db_convert/mydatatbs01.dbf',

'/obkups/db_convert/mydatatbs02.dbf',

'/obkups/db_convert/mydatatbs03.dbf'

CHARACTER SET AL32UTF8

;

-- ALTER SYSTEM statement added to enable restricted session.

ALTER SYSTEM ENABLE RESTRICTED SESSION;

-- Database can now be opened zeroing the online logs.

ALTER DATABASE OPEN RESETLOGS;

-- No tempfile entries found to add.

--

set echo off

prompt ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

prompt * Your database has been created successfully!

prompt * There are many things to think about for the new database. Here

prompt * is a checklist to help you stay on track:

prompt * 1. You may want to redefine the location of the directory objects.

prompt * 2. You may want to change the internal database identifier (DBID)

prompt * or the global database name for this database. Use the

prompt * NEWDBID Utility (nid).

prompt ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

SHUTDOWN IMMEDIATE

-- UPGRADE option sets restricted session

STARTUP UPGRADE PFILE='init_00bz4glk_1_0.ora'

@@ ?/rdbms/admin/utlirp.sql

SHUTDOWN IMMEDIATE

CHAPTER 12 ■ MIGRATING DATABASES TO EXADATA

227

-- NOTE: The startup below is generated without the RESTRICT clause.

-- Add the RESTRICT clause.

STARTUP RESTRICT PFILE='init_00bz4glk_1_0.ora'

-- The following step will recompile all PL/SQL modules.

-- It may take serveral hours to complete.

@@ ?/rdbms/admin/utlrp.sql

set feedback 6;

The database should now be created using the filesystem, instead of ASM, so now it’s time to move the data files

into the proper ASM disk groups. Make a copy of the pfile generated by the RMAN CONVERT process described earlier.

Using RMAN, you will have to make another backup, this time using a script similar to the example that follows:

RUN

{

ALLOCATE CHANNEL dev1 DEVICE TYPE DISK;

ALLOCATE CHANNEL dev2 DEVICE TYPE DISK;

ALLOCATE CHANNEL dev3 DEVICE TYPE DISK;

ALLOCATE CHANNEL dev4 DEVICE TYPE DISK;

BACKUP AS COPY

INCREMENTAL LEVEL 0

DATABASE

FORMAT '+DATA_MYEXA1'

TAG 'ASM_DB_MIG';

}

This puts the filesystem database files into the +DATA_MYEXA1 disk group. Archive the current log through RMAN,

as follows:

SQL "ALTER SYSTEM ARCHIVE LOG CURRENT";

You are using a pfile, so it will be necessary to create an spfile in the ASM disk group. Use the following example

to create the new spfile:

CREATE SPFILE='+DATA_MYEXA1/spfile<sid>.ora'

FROM PFILE='/obkups/db_convert/'init_00bz4glk_1_0.ora';

You are now ready to shut down the database cleanly. Create a new init<sid>.ora file in the

$ORACLE_HOME/dbs directory with the following entry:

SPFILE='+DATA_MYEXA1/spfile<sid>.ora'

You will have to set the spfile parameters listed in the following example to ASM locations, as follows:

STARTUP FORCE NOMOUNT;

ALTER SYSTEM SET DB_CREATE_FILE_DEST='+DATA_MYEXA1' SID='*';

ALTER SYSTEM SET DB_RECOVERY_FILE_DEST_SIZE=100G SID='*';

ALTER SYSTEM SET DB_RECOVERY_FILE_DEST='+RECO_MYEXA1' SID='*';

ALTER SYSTEM SET CONTROL_FILES='+DATA_MYEXA1','+RECO_MYEXA1' SCOPE=SPFILE SID='*';

You can now switch to RMAN to migrate the control file into ASM, as follows, and mount the database.

CHAPTER 12 ■ MIGRATING DATABASES TO EXADATA

228

RMAN> STARTUP FORCE NOMOUNT;

RMAN> RESTORE CONTROLFILE FROM '<original control file name and path>';

RMAN> ALTER DATABASE MOUNT;

Using RMAN, switch to the migrated data files, as shown, and recover the database.

SWITCH DATABASE TO COPY;

RUN

{

ALLOCATE CHANNEL dev1 DEVICE TYPE DISK;

ALLOCATE CHANNEL dev2 DEVICE TYPE DISK;

ALLOCATE CHANNEL dev3 DEVICE TYPE DISK;

ALLOCATE CHANNEL dev4 DEVICE TYPE DISK;

RECOVER DATABASE;

}

Once the database is recovered, you can exit RMAN, connect with SQL*Plus, and open the database. You should

now have your database migrated to Exadata and ASM. The next step is to drop the old tempfiles and re-create them

in ASM, as follows:

SQL> ALTER DATABASE TEMPFILE '<existing tempfile name>' DROP;

SQL> ALTER TABLESPACE temp_tbs_name ADD TEMPFILE;

You will have to drop each tempfile individually. You may script this, if you like, to generate the ALTER DATABASE

statements, to drop all of the tempfiles. The new tempfiles will be Oracle Managed Files, which makes the

ADD TEMPFILE statement a single command that you will execute as many times as necessary to provide the desired

temp space. Lastly, you will have to migrate the redo log groups to ASM and drop the old redo log groups. After that

is complete, shut down the database cleanly and restart, to ensure there are no issues with the storage or ASM.

Exadata is designed with RAC in mind. At this point, the database you’ve migrated, either through a direct

clone from a backup or from a different platform, is a single-instance database. It can be converted to RAC with

the following steps. To start that process, some changes will have to be made to the spfile. The cluster_database,

cluster_database_instances, and instance_number parameters will have to be set, as follows:

ALTER SYSTEM SET CLUSTER_DATABASE='TRUE' SID='*' SCOPE=SPFILE;

ALTER SYSTEM SET CLUSTER_DATABASE_INSTANCES=<number of instances> SID='*' SCOPE=SPFILE;

The following statement needs to be edited and run for each instance in the cluster:

ALTER SYSTEM SET INSTANCE_NUMBER=<instance number> SID='<instance_name>' SCOPE=SPFILE;

Shut down the local instance cleanly. On all of the nodes where instances for this database will run, you will have

to put a copy of the init.ora file you just created, modifying the name to reflect the local instance SID. The next step

is to register the database with cluster services, using the srvctl utility. The db_unique_name, the Oracle home, the

instance name, and the spfile are required parameters. The following example illustrates adding the database mydb

and instance mydb1 for database node myexa1db01:

srvctl add database -d mydb -i mydb1 -o /u01/oracle/product/11.2.0/dbhome_1 -p

/u01/oracle/product/11.2.0/dbhome_1/dbs/initmydb1.ora

CHAPTER 12 ■ MIGRATING DATABASES TO EXADATA

229

For each node in the cluster that will be running an instance of this database, the step shown will have to be

repeated, changing the instance name and pfile name accordingly. Next, it will be necessary to enable the database,

as follows:

srvctl enable database -d mydb

You should now be able to start the cluster database using srvctl, as follows:

srvctl start database -d mydb

The database should start on all nodes successfully. You have now migrated a database to Exadata and converted

it to RAC. Ensure that the listener and SCAN listener have registered this new database, by using the lsnrctl status

command, which can report the status and services available from the conventional TNS listener and for the local

SCAN address. The following example shows how to return database services registered with SCAN listener address

LISTENER_SCAN2 on a two-node RAC cluster database.

$ lsnrctl status listener_scan2

LSNRCTL for Linux: Version 11.2.0.3.0 - Production on 04-OCT-2013 14:58:55

Connecting to (DESCRIPTION=(ADDRESS=(PROTOCOL=IPC)(KEY=LISTENER_SCAN2)))

STATUS of the LISTENER

------------------------

Alias LISTENER_SCAN2

Version TNSLSNR for Linux: Version 11.2.0.3.0 - Production

Start Date 03-OCT-2013 15:25:02

Uptime 0 days 23 hr. 33 min. 53 sec

Trace Level off

Security ON: Local OS Authentication

SNMP OFF

Listener Parameter File /u01/11.2.0/grid/network/admin/listener.ora

Listener Log File /u01/11.2.0/grid/log/diag/tnslsnr/myexa1db01/listener_scan2/alert/log.xml

Listening Endpoints Summary...

(DESCRIPTION=(ADDRESS=(PROTOCOL=ipc)(KEY=LISTENER_SCAN2)))

(DESCRIPTION=(ADDRESS=(PROTOCOL=tcp)(HOST=XXX.XXX.XXX.XXX)(PORT=1523)))

Services Summary...

Service "dbm" has 2 instance(s).

Instance "dbm1", status READY, has 2 handler(s) for this service...

Instance "dbm2", status READY, has 1 handler(s) for this service...

Service "mydb" has 2 instance(s).

Instance "mydb1", status READY, has 1 handler(s) for this service...

Instance "mydb2", status READY, has 1 handler(s) for this service...

The command completed successfully

$

The mydb cluster database has successfully registered with the SCAN listener and can be accessed remotely.

CHAPTER 12 ■ MIGRATING DATABASES TO EXADATA

230

Transporting Tablespaces

Transportable tablespaces are useful for migrating data for specific schemas or subsets of data, even from different

operating platforms. However, to migrate across platforms, RMAN will also have to be used, to convert the data files to

the correct endian format.

The process for transportable tablespaces is not complicated, but it does involve several checks prior to the move.

The first check determines if the objects in the target tablespace or tablespaces are self-contained, meaning there

are no dependencies in other tablespaces that aren’t considered as the targets. Oracle offers a packaged procedure,

DBMS_TTS.TRANSPORT_SET_CHECK, to report this information. As an example, the RETAIL_1 and RETAIL_2 tablespaces

have to be migrated to Exadata. To determine if any other dependencies exist for this tablespace set, you would

execute the following statement:

EXECUTE DBMS_TTS.TRANSPORT_SET_CHECK('retail_1,retail_2', TRUE);

Querying the TRANSPORT_SET_VIOLATIONS view will report any issues with this set of tablespaces.

SQL> SELECT * FROM TRANSPORT_SET_VIOLATIONS;

VIOLATIONS

----------------------------------------------------------------------------------

Constraint SALES_FK between table STORES.SALES in tablespace RETAIL_1 and table

STORES.UNIT in tablespace UNITLOC

Partitioned table STORES.MON_SALES is partialy contained in the transportable set

The output reports that the UNITLOC tablespace also has to be included in the tablespace set, and a bit of

investigation is required to find all of the tablespaces containing partitions for the STORES.MON_SALES table. A second

attempt, including the UNITLOC and the SALESPART_1, SALESPART_2, and SALESPART_3 tablespaces in the transport set,

succeeds, as shown in the following example:

EXEC DBMS_TTS.TRANSPORT_SET_CHECK('retail_1,retail_2,unitloc,salespart_1,salespart_2,salespart_3', TRUE);

PL/SQL procedure successfully completed.

SQL> SELECT * FROM TRANSPORT_SET_VIOLATIONS;

no rows selected

You now have a complete transportable tablespace set, ensuring all of the data and constraints will be transferred

to the destination database. The next step is to ensure that no transactions can be executed against the source data, by

setting the desired tablespaces to read-only, using the following statements:

alter tablespace retail_1 read only;

alter tablespace retail_2 read only;

alter tablespace unitloc read only;

alter tablespace salespart_1 read only;

alter tablespace salespart_2 read only;

alter tablespace salespart_3 read only;

CHAPTER 12 ■ MIGRATING DATABASES TO EXADATA

231

You are now ready to export the tablespace metadata for import into the destination database. Use expdp on the

source system to generate this metadata export, using the TRANSPORT_TABLESPACES option, as follows:

expdp system/password DUMPFILE=retail_data.dmp DIRECTORY=tstrans_dir

transport_tablespaces = retail_1,retail_2,unitloc,salespart_1,salespart_2,salespart_3

transport_full_check=y

Using the TRANSPORT_FULL_CHECK=Y option verifies the tablespace check you made previously. If the

transportable tablespace check fails for any reason, the export terminates unsuccessfully. Although this shouldn’t

occur if you have no output from the DBMS_TTS.TRANSPORT_SET_CHECK procedure, it is a good second check to execute

when transporting tablespaces, to ensure there will be no issues once the tablespaces are migrated to Exadata.

The TSTRANS_DIR location is, for this example, pointing to /obkups/tablespaces, which will be used as the source

directory for the file transfers to Exadata.

If the source and destination systems have the same endian-ness, it’s time to copy the tablespace files and the

metadata export to Exadata. If the source tablespaces are using ASM, they will have to be copied out of ASM to the

filesystem for transfer. This is the reverse of the step we provided to migrate data into ASM. The following example is

provided:

RUN

{

ALLOCATE CHANNEL dev1 DEVICE TYPE DISK;

ALLOCATE CHANNEL dev2 DEVICE TYPE DISK;

ALLOCATE CHANNEL dev3 DEVICE TYPE DISK;

ALLOCATE CHANNEL dev4 DEVICE TYPE DISK;

BACKUP AS COPY

INCREMENTAL LEVEL 0

DATAFILE file1,file2,...

FORMAT '/obkups/tablespaces/'

TAG 'FS_TBLSPC_MIG';

}

You will have to generate a list of the required data files, so you can modify the provided example to copy the

desired data files. Execute the modified statement to copy the ASM data files into the desired directory. In this

example, that is /obkups/tablespaces, for transport. You should now have all of the files necessary to transport the

tablespaces to Exadata. Use scp to copy the contents of /obkups/tablespaces to an external location connected to the

Exadata system. Copy the transferred data files into ASM using the same basic command you used to get the data files

out of ASM, changing the destination to the desired Exadata ASM disk group. You will need a current list of the data

files you just copied into ASM, so the metadata import will complete successfully. When you have that list, modify the

following example and import the metadata using impdp:

impdp system/password DUMPFILE=retail_data.dmp DIRECTORY=tstrans_dir

TRANSPORT_DATAFILES=

+DATA_MYEXA1/file1,

+DATA_MYEXA1/file2,

...

CHAPTER 12 ■ MIGRATING DATABASES TO EXADATA

232

The expectation is that you have created the necessary user accounts from the source database in the destination

database, including all necessary privileges. The impdp utility will not create these accounts, so they must exist prior

to executing the import. When the import has successfully completed, you will have to put the tablespaces back into

read/write mode, as follows:

alter tablespace retail_1 read write;

alter tablespace retail_2 read write;

alter tablespace unitloc read write;

alter tablespace salespart_1 read write;

alter tablespace salespart_2 read write;

alter tablespace salespart_3 read write;

Please Stand By

A physical standby database is a good choice as a migration strategy, if the database has to be migrated to the new

system at an earlier date than the application. Using a standby database keeps the data synchronized between the

old production system and the new production system and allows for connectivity testing prior to the final move. The

process to create a standby database is basically the same as the process provided earlier in this chapter that uses

RMAN. Additional steps to configure a secondary archivelog destination, standby redo logs, and redo transport will be

necessary. Those steps will not be discussed here, as they are available in the Oracle online documentation.

Using Oracle 11.2.0.3 it’s possible to test the new database without affecting the standby configuration, by

executing a switchover. This temporarily allows the standby to assume the primary role, providing an opportunity to

test configurations and make necessary adjustments to the environment before the final move occurs. This also allows

you to switch back to the primary without the necessity of a database rebuild.

On the date of cutover, it will be necessary to failover to the standby location, converting the standby to being

the primary database. This will be a “one-way” move, as the source database will no longer be used and will not have

to be rebuilt.

Post-migration Stuff

Packages, procedures, and views can be invalidated, owing to the migration, so it will be necessary to recompile

those objects and correct any issues that may arise. It is a good idea to generate a list of invalid objects in the source

database prior to the move. This will make it easier to know when you have succeeded in restoring all of the valid

migrated objects from the source database. The following script will produce that list:

select owner, object_name, object_type, status

from dba_objects

where status <> 'VALID';

Spool the output to a file for later reference and transfer that file to Exadata. Run that same query again on the

migrated database and execute $ORACLE_HOME/rdbms/admin/utlrp.sql to recompile the database objects, correcting

any issues until the final list of INVALID objects matches the list generated from the source database.

If you were using a physical standby to migrate a database to Exadata, you would have to remove the spfile

parameters that were necessary to establish the standby and possibly adjust the control file locations to reference

multiple copies. (Usually, a standby uses a single standby control file.) Copy the existing control file to these

additional locations.

Deprecated init.ora parameters could also be an issue, as the source database may be a release prior to

11.2.0.3 (the current release on Exadata). The alert log is a good place to find such parameters, so that they can be

dealt with accordingly.

CHAPTER 12 ■ MIGRATING DATABASES TO EXADATA

233

Although the BFILE columns will be replicated, the source files they point to will not. These files will have to be

copied over to the Exadata system, and, once they are accessible to the database, the BFILE locators will have to be

reassigned, based on the new locations.

You may find that other management tasks may be necessary, such as resizing extents, partitioning large tables,

or compressing tables (such as archived tables or archived partitions). These tasks are also part of the post-migration

list. Resizing extents and creating partitions can take a considerable amount of time, especially for large databases.

Take such tasks into consideration when planning database migrations to Exadata, so that the end users will be aware

that after the actual physical migration, tasks may still exist before the database can be made available for use.

That’s Logical

Logical migration is also an option to Exadata. Such a migration would involve export and import, replication, or

database links. Each of these options will be covered in the following sections.

Export and Import

The export and import utilities that are available depend on the release of Oracle you are migrating from.

For releases earlier than 10.1, the original export and import utilities exist (exp and imp). These utilities are provided

in all current releases of Oracle for backwards compatibility. For 10.1 and later releases, the newer Data Pump utilities

(expdp and impdp) should be used.

Using an export-import strategy requires that an empty database be created on the Exadata system. This can be

achieved by using the Database Configuration Assistant (DBCA), and this utility can create both single-instance and

cluster databases. We recommend creating a new cluster database, because Exadata is built for RAC. We won’t go into

detail on how to create a database with DBCA, as the process is straightforward, and the GUI is intuitive.

When migrating older databases using the exp and imp utilities, it will be necessary to create the user account in

the new Exadata database before importing any tables and data. If you’re able to use the expdp and impdp utilities, this

won’t be necessary, as exporting a user exports the commands to create that user, commands that will be executed

during the import process.

The compatibility matrix for the older export-import utilities is shown in Table 12-1.

Table 12-1. Compatibility Matrix for the exp and imp Utilities

Destination Release Source Release

| 7 | 8i | 9i | 10g | 11g

7 |yes | no | no | no | no

8i |yes |yes | no | no | no

9i |yes |yes |yes | no | no

10g |yes |yes |yes | yes | no

11g |yes |yes |yes | yes | yes

As expected, the older releases are not forward-compatible, so an export from an 8i database cannot be imported

into a database using release 7. You can always use the exp and imp utilities from the oldest release, however, and later

releases will be able to read and process the resulting dump file.

Table 12-2 lists the compatibility matrix for the expdp and impdp utilities.

CHAPTER 12 ■ MIGRATING DATABASES TO EXADATA

234

Use these matrices when planning your logical migration, using the export and import utilities, to avoid issues

during the export and import process.

If you’re using the export-import strategy, it’s likely that you are transferring only a subset of the database data

and tables. It is a good idea to export by schema or user, rather than by table name, because exporting a given user

will capture all of the internal objects owned by that account. As we discussed previously in this chapter, it may be

necessary to re-create directories and transfer BFILES to the Exadata system, as these objects won’t be created on

import. In the case of directories, the DDL to create the directory is captured. It’s the location referenced in that DDL

that won’t exist on Exadata, and those locations will have to be created after the import is complete. If you cannot

create the same location on Exadata as there was on the source server, you will have to create new locations and then

re-create those directories to point to the new directories.

Cross-schema dependencies may exist for a given user account, and if that is the case, then some objects, such

as views and integrity constraints, will fail to compile and will be invalid. The DBA_DEPENDENCIES view is useful for

finding such dependencies, so you can export the necessary users to keep objects valid in the migrated schemas. A list

of the user accounts having objects referenced by a given user can be generated with the following query:

select distinct referenced_owner

from dba_dependencies

where owner = '<user account>'

and referenced_owner <> '<user account>';

If you would rather have a list of the objects to reduce the size of the export, the following query can be used:

select referenced_owner, referenced_name, referenced_type

from dba_dependencies

where owner = '<user account>'

and referenced_owner <> '<user account>';

This will generate a list of the object name, object type, and owner, so only those objects will be in the export

file. Remember that if you are only exporting a selected list of objects, you will have to perform an additional export

after the original user export created, to transfer application tables and data to Exadata. The following example, for an

11.2.0.3 database, illustrates this concept:

#

# Export application user

#

expdp directory=dbmig_dir schemas=$1 dumpfile="$1"_mig.dmp logfile="$1"_mig.log

Table 12-2. Compatibility Matrix for the expdp and impdp Utilities

Data Pump

Dumpfile Version

Database

Compatibility Setting

Can Be Imported into Target:

10gR1 10gR2 11gR1 11gR2

10.1.0.x 10.2.0.x 11.1.0.x 11.2.0.x

0.1 10.1.x supported supported supported supported

1.1 10.2.x no supported supported supported

2.1 11.1.x no no supported supported

3.1 11.2.x no no no supported

CHAPTER 12 ■ MIGRATING DATABASES TO EXADATA

235

#

# Export dependent objects not owned by

# application user

#

expdp directory=dbmig.dir dumpfile="$1"_"$2".dmp logfile="$1"_"$2".log tables="$3"

This example takes three parameters, two user names, and a comma-delimited list of tables and presumes the

list of tables is fairly short. If, for example, only a short list of tables is to be excluded, the command can be written as

follows:

expdp directory=dbmig.dir schemas=$2 dumpfile="$1"_"$2".dmp logfile="$1"_"$2".log exclude="$3"

Now the table list is one of exclusion, and all tables for the user specified in parameter 2 will be exported, except

those in the supplied list. The dumpfiles should be imported in reverse order, that is, for the user of the dependent

tables, then for the application user. This will allow the import process to create and validate constraints and views for

the application user without error.

Replication

Replication is another way to logically migrate a database to Exadata, and Streams or Golden Gate are the tools we

would recommend for such a migration. Because Golden Gate has all of the Streams functionality built in, it is the

more robust tool to use. We won’t go into detail on a Golden Gate migration scenario, but we will mention a few areas

you should be aware of with this type of migration.

Both Golden Gate and Streams impose limitations on the data types that will replicate to the destination server.

The types that won’t replicate follow:

BFILE

ROWID

User-defined types (including object types, REFs, varrays, and nested tables)

XMLType stored object relationally or as binary XML

The following Oracle-supplied types: Any types, URI types, spatial types, and media types

If your data contains such types, it might be better to use a physical method of migration, so that all data types,

regardless, will be replicated. As mentioned previously, the files referenced by BFILE locators won’t be copied, and it

will be necessary to modify those locators once the source files have been copied.

Directories will also have to be re-created on the Exadata system, and, if the locations the directories reference

change, the directory entries will have to be replaced. This was mentioned previously with the physical migration

methods, but we feel it’s important enough to repeat here.

Using Database Links

Database links can transfer data between two databases and, if the network bandwidth is sufficient, do so in a fairly

efficient manner. You won’t get the speed of a physical migration (a database restore can run relatively quickly),

but you won’t require external storage to house the files being transferred.

CHAPTER 12 ■ MIGRATING DATABASES TO EXADATA

236

We suggest using one of the following two methods to transfer data over a database link:

INSERT

COPY

Because DDL is not allowed on remote databases through the CREATE TABLE ... AS SELECT ... statement, the

destination tables will have to exist in the Exadata database prior to data migration. Also, LOB data is not accessible

through a database link. Tables containing LOB columns are not eligible for migration through the COPY command

and are probably best migrated through a physical method.

After migration, it will be necessary to go through the “Post-migration Stuff” section to resolve any issues caused

by missing data, such as BFILES and directories.

Things to Know

Physical and logical methods can be employed to migrate databases to Exadata. Which method you use depends on

availability of external storage and on the data types that have to be migrated.

Databases that include LOB data or BFILEs are best migrated using a physical methodology, as logical methods

such as Golden Gate and Streams have restrictions on the data types they can replicate. Also, physical methods offer

the possibility of migrating from a big-endian platform (such as AIX or Solaris) to Linux, a little-endian platform.

Big-endian platforms write the most significant byte first in the string, and little-endian platforms write the least

significant byte first in the string. For example, the hexadecimal characters for the word word would be written with the

w as the first byte. Little-endian platforms would store the word in reverse order, with the d in the first-byte position.

Three physical methods have been described: RMAN backups, transportable tablespaces, and physical standby

databases. Each has its advantages, and the decision to select a particular method should be made based on the

migration time line and the volume of data that has to be migrated.

RMAN backups will migrate the entire database to Exadata. RMAN can also be used to facilitate migration from

different platforms, by converting the source data files to an endian format compatible with Linux.

Transportable tablespaces can be used to migrate subsets of data from the source database. An empty database

will have to exist on the Exadata system. If the tablespaces are coming from a big-endian system, it will also be

necessary to use RMAN to convert the data files to a little-endian format.

Physical standby databases make it possible for the database to be migrated well before the application is

migrated. Using a standby keeps the destination database synchronized with the source while the application migration

is in progress. A failover will have to be executed to convert the standby to a primary database for the final cutover.

Logical methods are also available, using export and import, replication via Streams or Golden Gate, and

database links. All of the logical methods have restrictions on data types that will not migrate, and it is recommended

that one of the physical methods be employed, if the database being migrated uses data types that won’t replicate.

Export and import rely on the version of the source database. The export utility from the lowest Oracle release

must be used to perform a successful logical migration.

Replication using Golden Gate or Streams won’t copy BFILEs, user-defined types, or rowid columns, to name

a few. You should be aware of the data types in use in the database being migrated, before choosing a method.

Database links can be used. The COPY command is the utility of choice for such migrations, but LOBs are not

transferrable over a database link. Carefully consider the source data before choosing a final migration strategy.

Regardless of the method selected, objects such as BFILEs and directories will have to be addressed after the

initial migration has completed. The files referenced by the source BFILE locators will have to be copied to Exadata,

and the BFILE locators re-created using the new file locations. Directories will have to be created at the operating-

system level, and the directory objects in Oracle will have to be replaced using the new directory locations.

Objects can be invalidated by a migration, so it is good practice to generate a list of invalid objects in the source

database as a reference, when checking the destination database for objects invalidated by the migration. The

$ORACLE_HOME/rdbms/admin/utlrp.sql script should be run post-migration to compile invalidated objects.

237

Chapter 13

ERP Setup—a Practical Guide

The purpose of this chapter is to provide readers with guidelines for setting up Oracle ERP (11i or R12) environments.

Most of what you will find here is not necessarily specific to Exadata but to any Linux RAC environment. Exadata,

however, has been described as “RAC-in-a-box,” and as a result, the challenges will always be there with Exadata.

Therefore, this seems like a good place to address these.

Oracle’s standard for ERP is for each database to run from its own Oracle Home and for the listener for that

database to have a dedicated, unique, SQLNet port. So, our first challenge comes with creating a new Oracle Home

for each of the ERP databases. Exadata always comes with one Oracle Home and database ready to go. The simplest

course of action is to simply clone that Oracle Home on each of the nodes. However, if you are installing a completely

new version of the database compared to what was delivered with your Exadata machine, you can skip this section

for the time being. But do not be surprised if you find that you have to clone that Home sometime in the future. In any

event, cloning of Oracle Homes is a common practice for the ERP DBA.

Cloning the Oracle Home

In addition to the Grid Infrastructure Oracle Home (i.e., your ASM home), your Exadata cluster will be delivered with

a standard database Oracle Home (on each node) and one database created using that Home. As a practical matter,

you should leave this Home and database as is—for a reference point, if nothing else. Particularly on a dev/test cluster,

you will likely need multiple Oracle Homes created for various purposes: dev, test, uat, etc. Use this “seeded” Oracle

Home as the source for your first ERP Oracle Home and then patch it with the additional database patches that ERP

is certainly going to need. You can then proceed to clone this Home for any additional ERP environments that you

may require.

Unless you have specified otherwise to Oracle support, the “seed” database will likely be called DBM. In our

example, its Oracle Home is /u01/app/oracle/product/11.2.0.3/dbhome_1. Our new database will be called ERPDEV.

As root, do the following on all nodes in the cluster:

$ mkdir /u01/app/oracle/product/11.2.0.3/erpdevdb

$ cd /u01/app/oracle/product/11.2.0.3/dbhome_1

$ cp -r * /u01/app/oracle/product/11.2.0.3/erpdevdb/.

$ chown -R oracle:oinstall /u01/app/oracle/product/11.2.0.3/erpdevdb

Log in as the Oracle software owner and do the following—also on both nodes. When repeating the process on

each node, be sure to set the LOCAL_NODE appropriately, as follows:

$ cd /u01/app/oracle/product/11.2.0.3/erpdevdb/clone/bin

CHAPTER 13 ■ ERP SETUP—A PRACTICAL GUIDE

238

$ perl clone.pl ORACLE_BASE=$ORACLE_BASE \

ORACLE_HOME=/u01/app/oracle/product/11.2.0.3/erpdevdb \

ORACLE_HOME_NAME=OraDb11g_ERPDEV \

'-O"CLUSTER_NODES={exadb01,exadb02}"' \

'-O"LOCAL_NODE=exadb01"'

The preceding command will ensure that the Oracle Home is registered in the central inventory. It is important to

do the cloning properly, as it will have a huge impact on things down the road when it comes time to put in database

patches, particularly the quarterly bundle patches. If the Oracle Home is not registered, you will not be able to patch it.

It is likely that additional database patches will have to be installed on top of this base version. Once additional

patches are applied to this Oracle Home, then this can be the source for subsequent clones.

The SCAN Listener

While both ERP 11i and R12 can take advantage of the Single Client Access Name (SCAN) listener, its use is optional.

At the time of this writing, all of the EBS clients are pre-11.2; therefore, EBS cannot make full use of the SCAN listener.

If you are running 11i, then you may be discouraged from using the SCAN listener for your ERP database, because

Autoconfig does not support it—although there are manual steps for setting it up. Also, if you are setting up a dev/test

environment with several different databases, you will be setting up multiple listeners—one for each environment.

Perhaps you are migrating an 11i database from another platform where the 1521 port (port pool zero, in Oracle

ERP parlance) has been in use for many years and, therefore, may be difficult to change. In any event, you may find

yourself in a situation where you do not want the SCAN listener running on the default 1521 port. In that case, you will

have to reconfigure the SCAN listener to run on a different port. It does not really matter much which port you choose,

but to keep things fairly simple, we will go with 1523.

There is a “My Oracle Support” note that outlines the steps as well (How to Modify SCAN Setting or SCAN

Listener Port after Installation [ID 972500.1]). Using that note as a guide, we do the following:

First, modify the remote_listener and local_listener parameters for any existing non-ERP databases. On each

of these databases, as SYS, execute the following:

SQL> alter system set remote_listener='exacluster-scan:1523' scope=spfile sid='*' ;

SQL> alter system set local_listener=

'(DESCRIPTION=(ADDRESS_LIST=(ADDRESS=(PROTOCOL=TCP)(HOST=exa01-vip)(PORT=1523))))'

scope=spfile sid='dbm1' ;

SQL> alter system set local_listener=

'(DESCRIPTION=(ADDRESS_LIST=(ADDRESS=(PROTOCOL=TCP)(HOST=exa02-vip)(PORT=1523))))'

scope=spfile sid='dbm2' ;

Set the environment for the Grid Oracle Home and do the same for ASM. Note that ASM does not have a

remote_listener:

alter system set local_listener= '(DESCRIPTION=(ADDRESS_LIST=(ADDRESS=(PROTOCOL=TCP)

(HOST=exa01-vip)(PORT=1523))))'

scope=spfile sid='+ASM1' ;

alter system set local_listener= '(DESCRIPTION=(ADDRESS_LIST=(ADDRESS=(PROTOCOL=TCP)

(HOST=exa01-vip)(PORT=1523))))'

scope=spfile sid='+ASM2' ;

Shut down all databases.

$ srvctl stop database -d dbm

CHAPTER 13 ■ ERP SETUP—A PRACTICAL GUIDE

239

Now, we will set the environment for the Grid Oracle Home and change the listener port, as follows:

$ srvctl modify listener -l LISTENER -p "TCP:1523"

$ srvctl modify scan_listener -p 1523

$ srvctl stop scan_listener

$ srvctl start scan_listener

Restart the database(s), and that’s all there should be to it.

$ srvctl start database –d dbm

Creating a Database

Whether performing a fresh installation or migrating from another server, you will have to create an empty database

for your future full-blown ERP environment. In truth, this does not really differ from creating a database in any

RAC environment where Oracle Managed Files are in use. The interesting part will come in the next section, when

we discuss setting up the listener. For the sake of completeness, however, we must mention that, yes, a database

gets created.

The simplest method is just to use dbca. Set the ORACLE_HOME and modify the PATH appropriately, as follows:

$ export ORACLE_HOME=/u01/app/oracle/product/11.2.0.3/erpdevdb

$ export PATH=$PATH:$ORACLE_HOME/bin

$ dbca

The steps for running dbca are well-documented, so we will not go into detail about that here. Make the usual

choices regarding what disk group to use for your Oracle Managed Files, the character set to use, and various memory

configuration choices. When complete, you may still want to adjust the redo log sizes and the storage parameters for

the tablespaces (SYSTEM, UNDOTBS1 and 2, TEMP, USERS, etc.).

Once the database creation is complete, add the instance (the database will already have been added) to the

oratab in each node in the cluster and use Oracle’s oraenv utility to set your environment. Your oratab on node 1

should look something like the following:

+ASM1:/u01/app/11.2.0.3/grid:N

agent11g:/u01/app/oracle/GCAgents/oracle/MW/agent11g:N

dbm1:/u01/app/oracle/product/11.2.0.3/dbhome_1:N

erpdev1:/u01/app/oracle/product/11.2.0.3/erpdevdb:N

dbm:/u01/app/oracle/product/11.2.0.3/dbhome_1:N # line added by Agent

erpdev:/u01/app/oracle/product/11.2.0.3/erpdevdb:N # line added by Agent

The oratab for node 2 will be similar, the difference being that the instances local to that node (dbm2, erpdev2, etc.)

will be listed.

Setting Up the Listener

Earlier, we moved the SCAN listener to 1523. Because port 1521 is now free, if we wish, we can create a new listener

that uses that port. This listener will be specific to our ERPDEV database. Regardless of what port you do use, you will

have to go through these steps to create a listener dedicated to your new database. The main point is that you cannot

use the port that the SCAN listener is using.

CHAPTER 13 ■ ERP SETUP—A PRACTICAL GUIDE

240

Shut down the newly created ERPDEV database:

$ srvctl stop database -d erpdev

Under the $ORACLE_HOME/network/admin directory, create a new tnsnames.ora file with the following entries:

erpdev=

(DESCRIPTION=

(ADDRESS=(PROTOCOL=tcp)(HOST=exa01-vip)(PORT=1521))

(ADDRESS=(PROTOCOL=tcp)(HOST=exa02-vip)(PORT=1521))

(LOAD_BALANCE = yes)

(CONNECT_DATA=

(SERVER=DEDICATED)

(SERVICE_NAME=erpdev)

)

erpdev1_LOCAL=

(DESCRIPTION=

(ADDRESS=(PROTOCOL=tcp)(HOST=exa01-vip)(PORT=1521))

)

erpdev2_LOCAL=

(DESCRIPTION=

(ADDRESS=(PROTOCOL=tcp)(HOST=exa02-vip)(PORT=1521))

)

erpdev_REMOTE=

(DESCRIPTION=

(ADDRESS_LIST=

(ADDRESS=(PROTOCOL=tcp)(HOST=exa01-vip)(PORT=1521))

(ADDRESS=(PROTOCOL=tcp)(HOST=exa02-vip)(PORT=1521))

(ADDRESS=(PROTOCOL=tcp)(HOST=exa01-vip)(PORT=1523))

(ADDRESS=(PROTOCOL=tcp)(HOST=exa02-vip)(PORT=1523))

)

Note the port 1523 references in the erpdev_REMOTE entry. These address entries will cause the database service

to register with the default listener as well. Having the database registered with the default listener is required, if it

becomes necessary to run dbca at any point in the future for this database. There are a variety of reasons why you may

need to run dbca: to configure Database Vault or Oracle Internet Directory, for example.

Next, create the listener and tie it to this Oracle Home.

$ srvctl add listener -l erpdev -o $ORACLE_HOME -p 1521

$ srvctl setenv listener -l erpdev -T TNS_ADMIN=$ORACLE_HOME/network/admin

$ srvctl setenv database -d erpdev -T TNS_ADMIN=$ORACLE_HOME/network/admin

CHAPTER 13 ■ ERP SETUP—A PRACTICAL GUIDE

241

Start up the database and change its listener parameters.

$ srvctl start database -d erpdev

SQL> alter system set local_listener=

'(DESCRIPTION=(ADDRESS=(PROTOCOL=tcp)(HOST=exa01-vip)(PORT=1521)))'

sid='erpdev1' ;

SQL> alter system set local_listener=

'(DESCRIPTION=(ADDRESS=(PROTOCOL=tcp)(HOST=exa02-vip)(PORT=1521)))'

sid='erpdev2' ;

SQL> alter system set remote_listener='erpdev_REMOTE' ;

If you wish to also register the database with the SCAN listener, the remote_listener parameter may be set as

follows:

SQL> alter system set remote_listener='erpdev_REMOTE','exacluster-scan:1523' ;

Data Migration

At this point, we have an empty database and a listener for that database. Unless this is a fresh install of Oracle ERP,

the next (and most time-consuming) step is the migration of the existing database to our new, bright, shiny, Exadata

database. The steps for migration are varied, based on the source platform, ERP version, and a host of other factors.

Suffice to say, you will want to familiarize yourself with the copious “My Oracle Support” notes to get your database

from point A to point Exadata. We cannot begin to attempt to cover that territory here. So, we will pick up at the point

where the import is complete and Autoconfig has been run. Please see the list of MOS notes at the end of this chapter,

which should provide a good basis for getting you through.

Environment Configuration

In a traditional, single-node ERP database environment, the SQLNet configuration files are stored under

$ORACLE_HOME/network/admin/<context> where <context> is instance_server. It is Autoconfig that creates those

files. Also, the env file that it creates sets TNS_ADMIN to that same $ORACLE_HOME/network/admin/<context> location.

However, in a RAC environment, we want to use srvctl to manage the environment (i.e., start and stop the databases

and the listeners). That being the case, we cannot have TNS_ADMIN set in such a way, as it would obviously have to be

different on each node as the instance name changes.

Traditional single-node set-up:

TNS_ADMIN=$ORACLE_HOME/network/admin/erpdev_dbsrvr

$ORACLE_HOME/network/admin/erpdev_dbsrvr/tnsnames.ora

$ORACLE_HOME/network/admin/erpdev_dbsrvr/listener.ora

In addition, there will be an ifile parameter pointing to another file that can be used for custom settings. On

Exadata (RAC), we are going to flip that around. Note in particular that we will not use the Autoconfig-generated

listener.ora at all, as its entries are not applicable to RAC.

Be aware that the tnsnames.ora file that Autoconfig creates is generally full of errors in terms of what is needed

for RAC. That file should be reviewed and adjustments made. The tnsnames.ora file that we created earlier can be

used as a model for this. We then want to avoid these changes being overwritten as a result of subsequent runs of

Autoconfig.

CHAPTER 13 ■ ERP SETUP—A PRACTICAL GUIDE

242

There are a few options for managing this.

1. Copy the file over the $ORACLE_HOME/network/admin/tnsnames.ora, i.e.,

$ cd $ORACLE_HOME/network/admin/erpdev1_exadb01

$ cp tnsnames.ora ../.

2. Rename the original file and add an ifile entry to $ORACLE_HOME/network/admin/

tnsnames.ora that will point to it.

$ cd $ORACLE_HOME/network/admin/erpdev1_exadb01

$ cp tnsnames.ora tnsnames.ora.erpdev

$ vi $ORACLE_HOME/network/admin/tnsnames.ora

add ➔ ifile=<ORACLE_HOME>/network/admin/erpdev1_exadb01/tnsnames.ora.erpdev

Because Autoconfig naturally restricts its activities to $ORACLE_HOME/network/admin/<context> directory, this

option works nicely. Files under $ORACLE_HOME/network/admin will not be affected. Whatever you choose to do, this

has to be communicated fully to anyone who may be either running Autoconfig on these servers in the future or

adding entries to remote databases to the tnsnames.ora.

Note ■ The ifile entry has to have the full path. $ORACLE_HOME will not work there. Ensure use of the full path on

both nodes.

Setting the Environment

Experienced ERP DBAs know that Autoconfig creates an env file under $ORACLE_HOME called <context>.env. Using

the names we have been using throughout, we would have erpdev1_ exadb01.env on node 1, erpdev2_ exadb02.env

on node 2, etc. However, the env file will have TNS_ADMIN set to $ORACLE_HOME/network/admin/<context>—which we

are not using for the reasons previously discussed. You have to make accommodations for that by either commenting

that out of the Autoconfig-generated env file or by creating another env file that calls that one and that has an unset

TNS_ADMIN statement in it. I would recommend not modifying the generated env file, as it will get overwritten any time

Autoconfig gets run, so you would have to remember to do the adjustment every time.

Create a file called <db>.env and put it in some directory in the path, such as /usr/local/bin. Our database

name is erpdev, so we would have

$ cat erpdev.env

. /u01/app/oracle/product/11.2.0.3/erpdevdb/erpdev1_exadb01.env

unset TNS_ADMIN

echo;

echo "********************************************************"

echo "ORACLE_HOME...$ORACLE_HOME"

echo "ORACLE_SID....$ORACLE_SID"

echo "********************************************************"

echo;

Then, to simplify things further, add an alias definition in the .bash_profile:

alias erpdev='. /usr/local/bin/erpdev.env'

CHAPTER 13 ■ ERP SETUP—A PRACTICAL GUIDE

243

Then, setting the environment for one database or another is a snap.

$ erpdev

********************************************************

ORACLE_HOME... /u01/app/oracle/product/11.2.0.3/erpdevdb

ORACLE_SID....erpdev1

********************************************************

“My Oracle Support” Notes

Anyone who has worked with Oracle products should be familiar with “My Oracle Support,” Oracle’s site containing

its knowledge base, patch downloads, and service-request system. You may also hear it referred to as Metalink, as

that was its name for many years. Now, one often sees it referred to as “MOS.” Whatever you call it, it is an invaluable

resource.

The following is a list of pertinent notes that can be found there. Simply search on the reference ID, and the note

should be first in the search results.

Using Oracle 11g Release 2 Real Application Clusters with Oracle E-Business Suite Release

11i [ID 823586.1]

Export/import notes on Applications 11i Database 11g [ID 557738.1]

Interoperability Notes Oracle EBS 11i with Oracle Database 11gR2 (11.2.0) [ID 881505.1]

How to Modify SCAN Setting or SCAN Listener Port after Installation [ID 972500.1]

Things to Know

Every ERP database must run from its own Oracle Home. Sharing of Oracle Homes between ERP databases is not

allowed. This is a long-standing Oracle standard. In addition, each of the databases must have a dedicated listener.

The issue of the listener can be the most challenging. First, you must decide if the SCAN listener can simply stay

on port 1521 or if it has to move. While you can use the SCAN listener, it is not practical to do so on a dev/test cluster,

where you most likely will have multiple ERP databases running. Each of the databases will require its own listener

port and, hence, its own listener. For the sake of consistency, we have found it best to have none of the databases use

the SCAN listener as primary.

All that said, you still must have the database registered with the local listener, so that dbca will work. If it is not

registered with the local listener, you will receive an error when you do try to run dbca. In fact, each database should

be registered with both a named listener and port unique to that database and with the default listener. Remember

that dbca is used for a variety of things, including adding instances to the database, registering the database with a

Grid Control OMS, and configuring Database Vault—just to name a few.

Be sure to configure your $ORACLE_HOME/network/admin in such a way that subsequent runs of Autoconfig on the

database tier do not compromise your TNS configuration. Fully communicate the configuration to anyone who may

be running Autoconfig.

When setting your environment, be sure not to use the Autoconfig-generated TNS_ADMIN setting. The env file that

Autoconfig generates is fine, but then the TNS_ADMIN variable must be unset.

Properly clone each ORACLE_HOME, so that it is registered with the central inventory. If the clone process is not

followed, then the Home will not be registered, and you will not be able to apply quarterly patch bundles to it.

245

Chapter 14

Final Thoughts

You’re here, at the final chapter of the book, and you’ve read and learned much by now. A lot of material has been

covered, and you have a better idea of what Exadata is and what it can do. You also have a good working knowledge of

the system and how to manage it. It was probably a daunting task at first, but, through reading this book and running

the examples, you’ve gained an understanding of Exadata that will serve you well as you continue your career as an

Exadata DBA or DMA.

You’ve Come Far, Pilgrim

When you started reading, you had probably just been told that Exadata was on its way and that you would be working

with it. It’s also likely that you had no real idea of how Exadata is configured or how it provided the exceptional

performance everyone was talking about. Storage indexes and Smart Scans were foreign concepts, and the

architecture of the system was like nothing you had seen before. You have come a long way since then.

Let us take a walk through the areas we have covered and highlight some of the material we have presented.

Note ■ This will not be a comprehensive list of all of the topics and material we have presented in previous chapters.

Information on some areas may be more detailed than others, but know this chapter is not a comprehensive summary of

the text.

We started, appropriately enough, at the beginning, and discussed the various configurations of an Exadata

system. We did this to get you introduced to the hardware available on each of the currently available systems and to

familiarize you with the resources available on each configuration. We also presented a short history of Exadata and

how it has evolved to address different types of workloads, including OLTP.

The next stop on this journey took you to Smart Scans and offloading, two very important aspects of Exadata.

It has been said that Smart Scans are the lifeblood of Exadata, and we would agree. Smart Scans, as you learned,

provide a “divide and conquer” approach to query and statement processing, by allowing the storage cells to perform

tasks that, in conventional hardware configurations, the database server would have to perform. You also learned

that offloading provides even more powerful tools to make data processing more efficient. Column Projection and

Predicate Filtering allow the storage cells to return only the data requested by the query, by moving the data block

processing to the storage layer. Column Projection, as you recall, allows Exadata to return only the columns requested

in the select list and any columns specified in join conditions. This reduces the workload considerably, by eliminating

the need for the database servers to perform conventional data block processing and filtering. This also reduces the

volume of data transferred to the database servers, which is one way Exadata is more efficient than conventionally

configured systems.

CHAPTER 14 ■ FINAL THOUGHTS

246

Predicate Filtering improves this performance even further, by returning data from only the rows of interest, based

on the predicates provided. Other conditions necessary for Smart Scan execution were covered, including direct-path

reads and full-table or index scans. Execution plans were explained, so that you would know what information to look

for to indicate that Smart Scans were, indeed, being used, and other metrics were provided to further prove Smart Scan

use. These additional metrics include the storage keyword in the Predicate information and two columns from the

V$SQL/GV$SQL pair of views, io_cell_offload_eligible_bytes and io_cell_offload_returned_bytes. The following

example, first offered in Chapter 2, shows how these column values provide Smart Scan execution information.

SQL>select sql_id,

2 io_cell_offload_eligible_bytes qualifying,

3 io_cell_offload_eligible_bytes - io_cell_offload_returned_bytes actual,

4 round(((io_cell_offload_eligible_bytes -

io_cell_offload_returned_bytes)/io_cell_offload_eligible_bytes)*100, 2) io_saved_pct,

5 sql_text

6 from v$sql

7 where io_cell_offload_returned_bytes> 0

8 and instr(sql_text, 'emp') > 0

9 and parsing_schema_name = 'BING';

SQL_ID QUALIFYING ACTUAL IO_SAVED_PCT SQL_TEXT

------------- ---------- ---------- ------------ -------------------------------------

gfjb8dpxvpuv6 185081856 42510928 22.97 select * from emp where empid = 7934

SQL>

We also covered Bloom filters and how Exadata uses them to improve join processing. Bloom filters are part of the

offloading process for qualifying joins, and their use makes joins more efficient. You can see that Bloom filters are in use

through the execution plan for a qualifying query, as the following example, again first provided in Chapter 2, illustrates.

Execution Plan

----------------------------------------------------------

Plan hash value: 2313925751

------------------------------------------------------------------------------------------------------------------------------------

------------------------------------------------------------------------------------------------------------------------------------

| 0 | SELECT STATEMENT | | 218K| 21M| 1378 (1)| 00:00:01 | | | |

| 1 | PX COORDINATOR | | | | | | | | |

| 2 | PX SEND QC (RANDOM) | :TQ10003 | 218K| 21M| 1378 (1)| 00:00:01 | Q1,03 | P->S | QC (RAND) |

| 3 | HASH GROUP BY | | 218K| 21M| 1378 (1)| 00:00:01 | Q1,03 | PCWP | |

| 4 | PX RECEIVE | | 218K| 21M| 1378 (1)| 00:00:01 | Q1,03 | PCWP | |

| 5 | PX SEND HASH | :TQ10002 | 218K| 21M| 1378 (1)| 00:00:01 | Q1,02 | P->P | HASH |

| 6 | HASH GROUP BY | | 218K| 21M| 1378 (1)| 00:00:01 | Q1,02 | PCWP | |

|* 7 | HASH JOIN | | 218K| 21M| 1376 (1)| 00:00:01 | Q1,02 | PCWP | |

| 8 | PX RECEIVE | | 218K| 11M| 535 (1)| 00:00:01 | Q1,02 | PCWP | |

| 9 | PX SEND BROADCAST | :TQ10001 | 218K| 11M| 535 (1)| 00:00:01 | Q1,01 | P->P | BROADCAST |

| 10 | NESTED LOOPS | | 218K| 11M| 535 (1)| 00:00:01 | Q1,01 | PCWP | |

| 11 | BUFFER SORT | | | | | | Q1,01 | PCWC | |

| 12 | PX RECEIVE | | | | | | Q1,01 | PCWP | |

| 13 | PX SEND BROADCAST | :TQ10000 | | | | | | S->P | BROADCAST |

| 14 | TABLE ACCESS BY INDEX ROWID| DEPT_INFO | 1 | 27 | 1 (0)| 00:00:01 | | | |

|* 15 | INDEX UNIQUE SCAN | DEPT_INFO_PK | 1 | | 1 (0)| 00:00:01 | | | |

| 16 | PX BLOCK ITERATOR | | 218K| 5556K| 534 (1)| 00:00:01 | Q1,01 | PCWC | |

|* 17 | TABLE ACCESS STORAGE FULL | EMP_DEPT | 218K| 5556K| 534 (1)| 00:00:01 | Q1,01 | PCWP | |

| 18 | PX BLOCK ITERATOR | | 1657K| 75M| 839 (1)| 00:00:01 | Q1,02 | PCWC | |

|* 19 | TABLE ACCESS STORAGE FULL | EMP | 1657K| 75M| 839 (1)| 00:00:01 | Q1,02 | PCWP | |

------------------------------------------------------------------------------------------------------------------------------------

CHAPTER 14 ■ FINAL THOUGHTS

247

Predicate Information (identified by operation id):

---------------------------------------------------

7 - access("ED"."EMPID"="E"."EMPID")

15 - access("D"."DEPTNUM"=20)

17 - storage("ED"."EMPDEPT"=20)

filter("ED"."EMPDEPT"=20)

19 - storage(SYS_OP_BLOOM_FILTER(:BF0000,"E"."EMPID"))

filter(SYS_OP_BLOOM_FILTER(:BF0000,"E"."EMPID"))

Note

-----

- dynamic sampling used for this statement (level=2)

Statistics

----------------------------------------------------------

60 recursive calls

174 db block gets

40753 consistent gets

17710 physical reads

2128 redo size

9437983 bytes sent via SQL*Net to client

183850 bytes received via SQL*Net from client

16668 SQL*Net roundtrips to/from client

6 sorts (memory)

0 sorts (disk)

250000 rows processed

SQL>

The presence of the SYS_OP_BLOOM_FILTER function in the plan output indicates the join was offloaded.

Functions can also be offloaded if they are found in the V$SQLFN_METADATA view; functions not found in this list

will disqualify a query or statement from Smart Scan execution. Virtual columns can also be offloaded, which qualifies

tables defined with virtual columns for Smart Scan execution.

Storage indexes were discussed in Chapter 3, and they are probably the most confusing aspect of Exadata,

because this type of index is used to tell Oracle where not to look for data. Designed to assist in offload processing,

storage indexes can significantly reduce the volume of data Oracle reads, by eliminating 1MB sections of table data.

You learned that a storage index contains the barest minimum of data. You also learned that even though a storage

index is small, it is undeniably mighty. Used to skip over 1MB sections where the desired data is not found, the

resulting savings can be great. Of course, the good also comes with the bad, as a storage index can provide false positives,

so that Oracle reads 1MB sections it doesn’t need to, because the desired value falls within the minimum/maximum

range recorded in the storage index, even though the actual value doesn’t exist in that 1MB section of the table. To

refresh your memory, the following example illustrates this.

SQL> insert /*+ append */

2 into chicken_hr_tab (chicken_name, talent_cd, retired, retire_dt, suitable_for_frying, fry_dt)

3 select

4 chicken_name, talent_cd, retired, retire_dt, suitable_for_frying, fry_dt from chicken_hr_tab2

5 where talent_cd in (3,5);

1048576 rows created.

CHAPTER 14 ■ FINAL THOUGHTS

248

Elapsed: 00:01:05.10

SQL> commit;

Commit complete.

Elapsed: 00:00:00.01

SQL> insert /*+ append */

2 into chicken_hr_tab (chicken_name, talent_cd, retired, retire_dt, suitable_for_frying, fry_dt)

3 select

4 chicken_name, talent_cd, retired, retire_dt, suitable_for_frying, fry_dt from chicken_hr_tab2

5 where talent_cd not in (3,5);

37748736 rows created.

Elapsed: 00:38:09.12

SQL> commit;

Commit complete.

Elapsed: 00:00:00.00

SQL>

SQL> exec dbms_stats.gather_table_stats(user, 'CHICKEN_TALENT_TAB', cascade=>true,

estimate_percent=>null);

PL/SQL procedure successfully completed.

Elapsed: 00:00:00.46

SQL> exec dbms_stats.gather_table_stats(user, 'CHICKEN_HR_TAB', cascade=>true,

estimate_percent=>null);

PL/SQL procedure successfully completed.

Elapsed: 00:00:31.66

SQL>

SQL> set timing on

SQL>

SQL> connect bing/#########

Connected.

SQL> alter session set parallel_force_local=true;

Session altered.

Elapsed: 00:00:00.00

SQL> alter session set parallel_min_time_threshold=2;

Session altered.

Elapsed: 00:00:00.00

SQL> alter session set parallel_degree_policy=manual;

Session altered.

CHAPTER 14 ■ FINAL THOUGHTS

249

Elapsed: 00:00:00.00

SQL>

SQL> set timing on

SQL>

SQL> select /*+ parallel(4) */

2 chicken_id

3 from chicken_hr_tab

4 where talent_cd = 4;

CHICKEN_ID

---------------

60277401

60277404

...

72320593

72320597

72320606

72320626

4718592 rows selected.

Elapsed: 00:03:17.92

SQL>

SQL> select *

2 from v$mystat

3 where statistic# = (select statistic# from v$statname where name = 'cell physical IO bytes

saved by storage index');

SID STATISTIC# VALUE

--------------- --------------- ---------------

915 247 0

Elapsed: 00:00:00.01

SQL>

We feel this is a small price to pay for such efficiency.

Chapter 4 brought us to the Smart Flash Cache, a very versatile feature of Exadata, as it can be used as a read-through

cache, a write-back cache, and even configured as flash disk usable by ASM. In addition to this functionality range,

the Smart Flash Cache also has a portion configured as Smart Flash Log to make redo log processing more efficient.

Log writes are processed both to disk, via the log groups, and to the Smart Flash Log, and the writes that finish first

signal to Oracle that log processing has successfully completed. This allows Oracle to continue transaction processing

at a potentially faster rate than using redo logs alone.

Chapter 5 brought us to parallel processing, an area that in conventionally configured systems can be both a help

and a hindrance. Oracle 11.2.0.x provides improvements in the implementation and execution of parallel statements,

which are available on any Exadata or non-Exadata configuration running this release of Oracle. It is the fact that

Exadata was originally designed for data warehouse workloads, workloads that rely on parallel processing to speed the

workflow, that makes it the ideal choice for parallel processing.

CHAPTER 14 ■ FINAL THOUGHTS

250

Certain configuration settings are necessary to enable the automatic parallel processing functionality, and a very

important task, I/O calibration, is necessary for Exadata to actually act on these configuration settings. I/O calibration

is a resource-intensive process and should not be run on systems during periods of heavy workloads. A packaged

procedure, dbms_resource_manager.calibrate_io is provided to perform this task. Once the I/O calibration is

complete, you will have to verify the parameters and settings found in Table 5-1 and Table 5-2.

Once you have everything set, you let Oracle take the reins; the users then reap the benefits of this improved

parallel processing functionality. One of those benefits is parallel statement queuing, where Oracle will defer execution

of a parallelized statement until sufficient resources are available. Querying the V$SQL_MONITOR view (or GV$SQL_MONITOR,

to examine statements from all nodes in the cluster), where the status is QUEUED, will provide a list of statements

waiting for sufficient resources to be released by parallel statements that finish execution. Provided you have set the

resource limits correctly, this prevents the system from being overloaded, a vast improvement over the earlier parallel

adaptive multiuser mechanism.

Another benefit is that Oracle will dynamically set the degree of parallelism (DOP) based on the available

resources. One important item to note is that once the DOP is set by Oracle, it cannot be changed during execution,

even if additional resources become available. The DOP is computed based on the estimated serial execution time

for the given statement. A parameter, parallel_min_time_threshold, sets the threshold for serial execution time

that will be the deciding factor for parallel execution. Remember that you can control whether queuing is enabled by

setting the hidden parameter _parallel_statement_queuing to FALSE.

Another aspect of parallel execution is in-memory parallel execution. On the one hand, this can be desirable

behavior, as disk I/O and traffic between the database servers and storage cells is eliminated, and the latency of

memory is far lower than that for disk access. On the other hand, when this is active, Smart Scan optimizations are no

longer available, because disk I/O is eliminated. Because the Smart Scan optimizations are eliminated, the database

servers must perform all of the read processing that the storage cells would do, which increases the CPU usage.

We also noted that we have not experienced in-memory parallel execution on any Exadata systems we’ve managed.

On to compression in Chapter 6. Exadata offers compression options not available on any non-Exadata platform,

notably the Hybrid Columnar Compression (HCC) options. Those options are QUERY HIGH, QUERY LOW, ARCHIVE

HIGH, and ARCHIVE LOW. These can significantly reduce the size of the selected tables; however, the compressed

tables should be either inactive or subject to batch processing, including recompression, outside of the normal work

hours. If HCC is used on actively updated tables, the compression level is silently changed to OLTP, and the original

space savings are lost. Another aspect of using HCC is with respect to disaster recovery. If the recovery method is to

simply restore the last good backup to a non-Exadata server or a server not using Exadata storage, the database could

be unusable after the restore completes, because HCC isn’t supported on non-Exadata storage. This is a situation

correctable by uncompressing the tables, but by correcting it, you may run into space issues, if the destination server

tablespaces were created based on the compressed size of the Exadata database.

Table 6-3 and Table 6-4 in Chapter 6 list the estimated and actual compression ratios for the various compression

methods, including OLTP. Those tables will not be reproduced here, but it is a good idea to look at them again, if you

are contemplating using a compression method to save space.

Wait events specific to Exadata were covered in Chapter 7. These wait events report on cell-related wait information.

Seven of these wait events collect wait data under the I/O wait category, and the cell statistics gather event seems to

be incorrectly included in this category. The cell single block physical read and cell multiblock physical read

events essentially replace the older db file sequential read and db file scattered read events, respectively.

RMAN has Exadata-specific waits as well: cell smart incremental backup and cell smart restore from

backup. The first wait collects time against incremental Level 1 backups and the second accrues wait time experienced

by an RMAN restore. Because a Level 0 incremental is, essentially, a full backup, wait times experienced for those

backups is not recorded.

Performance counters and metrics specific to Exadata were covered in Chapter 8. The intent of that chapter was

to provide an overview of what metrics and counters are available, what they mean, and when you should consider

using them.

The cell metrics provide insight into statement performance and how Exadata executes statements. Dynamic

counters such as cell blocks processed by data layer and cell blocks processed by index layer show how efficient the

storage cells are in their processing. These counters are incremented every time a storage cell can complete data-layer

and index-layer processing without passing data back to the database layer. Two reasons for the cells to pass data back

CHAPTER 14 ■ FINAL THOUGHTS

251

to the database servers are consistent-read processing requiring undo blocks (regular block I/O) and chained-row

processing where the chained pieces span storage cells. While the first condition can’t be controlled entirely

(transactions can be so large as to exceed the automatic block-cleaning threshold), the second, chained rows, can

be addressed and possibly corrected.

The cell num fast response sessions and cell num fast response sessions continuing to smart scan

counters reveal the number of times Oracle chose to defer a Smart Scan in favor of regular block I/O, as an attempt

to return the requested data with a minimum of work (the first listed counter), and how many times Oracle actually

started a Smart Scan after the fast response session failed to return the requested data. These can give you insight into

the nature of the statements submitted to your Exadata databases, by showing how often Smart Scans were averted

because a small regular block I/O operation returned the requested data.

V$SQL also provides data that can be used to determine statement efficiency in the IO_CELL_OPFLOAD_ELIGIBLE_BYTES

and IO_CELL_OFFLOAD_RETURNED_BYTES columns. These two columns can be used to calculate a percentage savings

effected by a Smart Scan for a given query.

Chapter 9 went into storage cell monitoring, a very important aspect of Exadata, because some of the metrics are

not passed back to the database servers. There are two accounts available outside of “root,” and those are cellmonitor

and celladmin. Which one you use really depends on what tasks have to be accomplished.

The cellmonitor account has access to the cell metrics and counters and can generate monitoring reports. It has

limited access at the O/S level and cannot execute any of the administrative commands or functions from cellcli,

the cell command-line interface. Basically speaking, the LIST commands are available to cellmonitor, and those are

sufficient for monitoring the cells and verifying that they are functioning properly.

The celladmin account, as you would expect, has more power. In addition to generating reports like cellmonitor,

it has the ability to execute the series of ALTER, ASSIGN, DROP, EXPORT, and IMPORT commands.

Besides cellcli, the storage cells can be monitored with cellsrvstat and, from any node in the cluster, dcli.

The cellcli utility can also be run directly from the command line, by passing to it the command you wish to execute,

as the following example illustrates.

[celladmin@myexa1cel03 ~]$ cellcli -e "list flashcache detail"

cellDisk: FD_00_myexa1cel03,FD_11_myexa1cel03,FD_02_myexa1cel03,FD_09_

myexa1cel03,FD_06_myexa1cel03,FD_14_myexa1cel03,FD_15_myexa1cel03,FD_03_myexa1cel03,FD_05_

myexa1cel03,FD_10_myexa1cel03,FD_07_myexa1cel03,FD_01_myexa1cel03,FD_13_myexa1cel03,FD_04_

myexa1cel03,FD_08_myexa1cel03,FD_12_myexa1cel03

creationTime: 2012-08-28T14:15:50-05:00

degradedCelldisks:

effectiveCacheSize: 364.75G

id: 95f4e303-516f-441c-8d12-1795f5024c70

size: 364.75G

status: normal

[celladmin@myexa1cel03 ~]$

Using dcli from any of the database nodes, you can query all of the storage cells or a subset of them. Two

options control how may cells will be polled: the -g option, where you pass a group file to dcli that contains all of the

storage cell names, and the -c option, where you can specify, on the command line, a list of storage cells you want

information from. When Exadata is configured, a group file named cell_group, among others, is created and can be

used to poll all available storage cells, as follows:

[oracle@myexa1db01] $ dcli -g cell_group cellcli -e "list flashcache detail"

myexa1cel01: name: myexa1cel01_FLASHCACHE

myexa1cel01: cellDisk: FD_07_myexa1cel01,FD_12_myexa1cel01,FD_15_

myexa1cel01,FD_13_myexa1cel01,FD_04_myexa1cel01,FD_14_myexa1cel01,FD_00_myexa1cel01,FD_10_

myexa1cel01,FD_03_myexa1cel01,FD_09_myexa1cel01,FD_02_myexa1cel01,FD_08_myexa1cel01,FD_01_

myexa1cel01,FD_05_myexa1cel01,FD_11_myexa1cel01,FD_06_myexa1cel01

CHAPTER 14 ■ FINAL THOUGHTS

252

myexa1cel01: creationTime: 2013-03-16T12:16:39-05:00

myexa1cel01: degradedCelldisks:

myexa1cel01: effectiveCacheSize: 364.75G

myexa1cel01: id: 3dfc24a5-2591-43d3-aa34-72379abdf3b3

myexa1cel01: size: 364.75G

myexa1cel01: status: normal

myexa1cel02: name: myexa1cel02_FLASHCACHE

myexa1cel02: cellDisk: FD_04_myexa1cel02,FD_15_myexa1cel02,FD_02_

myexa1cel02,FD_11_myexa1cel02,FD_05_myexa1cel02,FD_01_myexa1cel02,FD_08_myexa1cel02,FD_14_

myexa1cel02,FD_13_myexa1cel02,FD_07_myexa1cel02,FD_03_myexa1cel02,FD_09_myexa1cel02,FD_12_

myexa1cel02,FD_00_myexa1cel02,FD_06_myexa1cel02,FD_10_myexa1cel02

myexa1cel02: creationTime: 2013-03-16T12:49:04-05:00

myexa1cel02: degradedCelldisks:

myexa1cel02: effectiveCacheSize: 364.75G

myexa1cel02: id: a450958c-5f6d-4b27-a70c-a3877430b82c

myexa1cel02: size: 364.75G

myexa1cel02: status: normal

myexa1cel03: name: myexa1cel03_FLASHCACHE

myexa1cel03: cellDisk: FD_00_myexa1cel03,FD_11_myexa1cel03,FD_02_

myexa1cel03,FD_09_myexa1cel03,FD_06_myexa1cel03,FD_14_myexa1cel03,FD_15_myexa1cel03,FD_03_

myexa1cel03,FD_05_myexa1cel03,FD_10_myexa1cel03,FD_07_myexa1cel03,FD_01_myexa1cel03,FD_13_

myexa1cel03,FD_04_myexa1cel03,FD_08_myexa1cel03,FD_12_myexa1cel03

myexa1cel03: creationTime: 2012-08-28T14:15:50-05:00

myexa1cel03: degradedCelldisks:

myexa1cel03: effectiveCacheSize: 364.75G

myexa1cel03: id: 95f4e303-516f-441c-8d12-1795f5024c70

myexa1cel03: size: 364.75G

myexa1cel03: status: normal

myexa1cel04: name: myexa1cel04_FLASHCACHE

myexa1cel04: cellDisk: FD_08_myexa1cel04,FD_10_myexa1cel04,FD_00_

myexa1cel04,FD_12_myexa1cel04,FD_03_myexa1cel04,FD_02_myexa1cel04,FD_05_myexa1cel04,FD_01_

myexa1cel04,FD_13_myexa1cel04,FD_04_myexa1cel04,FD_11_myexa1cel04,FD_15_myexa1cel04,FD_07_

myexa1cel04,FD_14_myexa1cel04,FD_09_myexa1cel04,FD_06_myexa1cel04

myexa1cel04: creationTime: 2013-07-09T17:33:53-05:00

myexa1cel04: degradedCelldisks:

myexa1cel04: effectiveCacheSize: 1488.75G

myexa1cel04: id: 7af2354f-1e3b-4932-b2be-4c57a1c03f33

myexa1cel04: size: 1488.75G

myexa1cel04: status: normal

myexa1cel05: name: myexa1cel05_FLASHCACHE

myexa1cel05: cellDisk: FD_11_myexa1cel05,FD_03_myexa1cel05,FD_15_

myexa1cel05,FD_13_myexa1cel05,FD_08_myexa1cel05,FD_10_myexa1cel05,FD_00_myexa1cel05,FD_14_

myexa1cel05,FD_04_myexa1cel05,FD_06_myexa1cel05,FD_07_myexa1cel05,FD_05_myexa1cel05,FD_12_

myexa1cel05,FD_09_myexa1cel05,FD_02_myexa1cel05,FD_01_myexa1cel05

myexa1cel05: creationTime: 2013-07-09T17:33:53-05:00

myexa1cel05: degradedCelldisks:

myexa1cel05: effectiveCacheSize: 1488.75G

myexa1cel05: id: 8a380bf9-06c3-445e-8081-cff72d49bfe6

myexa1cel05: size: 1488.75G

myexa1cel05: status: normal

[oracle@myexa1db01]$

CHAPTER 14 ■ FINAL THOUGHTS

253

You can specify certain cells to poll, if you suspect that only those cells are causing a problem, as shown in the

following example.

[oracle@myexa1db01]$ dcli -c myexa1cel02,myexa1cel05 cellcli -e "list flashcache detail"

myexa1cel02: name: myexa1cel02_FLASHCACHE

myexa1cel02: cellDisk: FD_04_myexa1cel02,FD_15_myexa1cel02,FD_02_

myexa1cel02,FD_11_myexa1cel02,FD_05_myexa1cel02,FD_01_myexa1cel02,FD_08_myexa1cel02,FD_14_

myexa1cel02,FD_13_myexa1cel02,FD_07_myexa1cel02,FD_03_myexa1cel02,FD_09_myexa1cel02,FD_12_

myexa1cel02,FD_00_myexa1cel02,FD_06_myexa1cel02,FD_10_myexa1cel02

myexa1cel02: creationTime: 2013-03-16T12:49:04-05:00

myexa1cel02: degradedCelldisks:

myexa1cel02: effectiveCacheSize: 364.75G

myexa1cel02: id: a450958c-5f6d-4b27-a70c-a3877430b82c

myexa1cel02: size: 364.75G

myexa1cel02: status: normal

myexa1cel05: name: myexa1cel05_FLASHCACHE

myexa1cel05: cellDisk: FD_11_myexa1cel05,FD_03_myexa1cel05,FD_15_

myexa1cel05,FD_13_myexa1cel05,FD_08_myexa1cel05,FD_10_myexa1cel05,FD_00_myexa1cel05,FD_14_

myexa1cel05,FD_04_myexa1cel05,FD_06_myexa1cel05,FD_07_myexa1cel05,FD_05_myexa1cel05,FD_12_

myexa1cel05,FD_09_myexa1cel05,FD_02_myexa1cel05,FD_01_myexa1cel05

myexa1cel05: creationTime: 2013-07-09T17:33:53-05:00

myexa1cel05: degradedCelldisks:

myexa1cel05: effectiveCacheSize: 1488.75G

myexa1cel05: id: 8a380bf9-06c3-445e-8081-cff72d49bfe6

myexa1cel05: size: 1488.75G

myexa1cel05: status: normal

[oracle@myexa1db01]$

Using dcli, you can redirect the output to a file. Setting up a script to perform this monitoring on a regular basis,

writing the output to a dated log file, would be a good way to schedule this monitoring through cron.

Continuing with the monitoring theme, Chapter 10 discusses various ways to monitor Exadata at both the database

level and the storage cell level and includes a discussion on real-time SQL monitoring. Both GUI and scripting methods

are covered.

Establishing a baseline is a must, to ensure that any monitoring process you implement provides useful and

usable information. Without a baseline, you are, at best, trying to hit a moving target. The baseline does not need to be

established when performance is “good”; it simply has to be created to provide a point of reference for all subsequent

monitoring data.

The GUI of choice for Exadata, in our view, is Oracle Enterprise Manager 12c (OEM12c), with the Diagnostic and

Tuning Pack installed. With OEM12c configured in this manner, real-time SQL monitoring reports can be generated.

Oracle will automatically monitor SQL statements run in parallel and also monitor serialized statements consuming

five seconds or more of combined I/O and CPU time.

Oracle provides the GV$SQL, GV$SQLSTATS, and GV$SQL_MONITOR views (among others), which allow you to

generate real-time SQL monitoring reports from within SQL*Plus. Also provided is the DBMS_SQLTUNE.REPORT_SQL_MONITOR

procedure, which can generate HTML reports for a given sql_id. An example of how to call this procedure follows.

select dbms_sqltune.report_sql_monitor(session_id=>&sessid, report_level=>'ALL',type=>'HTML') from dual;

The TYPE parameter can have one of three values: TEXT, HTML, or, if you have an active Internet connection on

the server, ACTIVE. The third value generates an HTML report that is very similar to the screens in OEM12c.

CHAPTER 14 ■ FINAL THOUGHTS

254

You can install the System Monitoring plug-in for Exadata Storage Server that configures OEM12c to access the

storage cells, returning metric data, so they can be monitored from the same place as the database servers. If you do

not have access to OEM12c, or if the Exadata storage plug-in is not installed, you can still monitor the storage cells

from the command line. Both Chapter 9 and Chapter 10 provide ways to monitor the storage cells using command-line

utilities. Reference those chapters for more detail and examples.

Chapter 11 introduced storage reconfiguration, a topic we felt needed to be discussed, regardless of whether you

are or are not in need of reallocating your storage between the two major disk groups. As discussed, only three steps

are necessary to drop the existing storage configuration. It’s the rebuilding of that configuration that requires a 26-step

process that includes disk partitioning, user account creation, grid disk creation, and re-creation of the storage cell

initialization files on both the storage cells and the database servers.

Preparation is key to successfully changing the storage distribution between the +DATA_<system name> and

+RECO_<system name> disk groups. As part of the process, the “oracle” O/S account is dropped and re-created on all

available database servers in the cluster. As part of dropping the “oracle” O/S account, the O/S home directories for

“oracle” on all available database servers are removed and re-created. Preserving those home directories is necessary

before any of the actual storage reconfiguration steps are executed.

Once the storage reconfiguration steps have completed successfully, restoring the “oracle” O/S user homes is

done, as well as reinstalling and reconfiguring any OEM agents that may have been lost during the reconfiguration

process. The SCAN listener may also have to be reconfigured, if you have changed the port it is using from the default.

It is understood that you will need to migrate databases to the Exadata platform, and Chapter 12 addressed that

task by providing both physical and logical methods of migration. Remember that not all systems are the same in

terms of how memory values are written. Some are considered big-endian and others are little-endian. An operating

system is one or the other; there is no other choice.

Physical methods include RMAN, physical standby databases, and transportable tablespaces. RMAN can allow

you to migrate databases from a different platform, by converting the data files to the proper endian format. RMAN is

also used with the transportable tablespace method when the operating systems are of different endian design.

Logical methods include export and import, database links, and replication, either with Streams or by using

Golden Gate. Remember that replication imposes some restrictions on data types that will migrate. Physical methods

of migration may be best.

Objects can be invalidated during migration. It is a good practice to generate, as a reference, a list of invalid

objects in the source database, when checking the destination database for invalid objects. The

$ORACLE_HOME/rdbms/admin/utlrp.sql script should be run post-migration, to compile invalidated objects.

Migrating Oracle ERP databases to Exadata can pose unique problems. Chapter 13 discusses these migrations.

Every ERP database must run from its own Oracle Home. Sharing of Oracle Homes between ERP databases is not

allowed. This is a long-standing Oracle standard. In addition, each of the databases must have a dedicated listener.

The issue of the listener can be the most challenging. First, you must decide if the SCAN listener can simply stay

on port 1521 or if it has to move. While you can use the SCAN listener, it is not practical to do so on a dev/test cluster,

where you most likely will have multiple ERP databases running. Each of the databases will require its own listener

port and, hence, its own listener. For the sake of consistency, we have found it best to have none of the databases use

the SCAN listener as primary.

You will need to have the database registered with the SCAN listener, so that dbca will work. Each ERP database

will be registered with both a listener and port unique to that database and with the SCAN listener itself. Remember

that dbca is used for a variety of things, including adding instances to the database, registering the database with a

Grid Control OMS, and configuring Database Vault—just to name a few.

Be sure to configure your $ORACLE_HOME/network/admin in such a way as to ensure that subsequent runs of

Autoconfig on the database tier do not compromise your TNS configuration. Fully communicate the configuration to

anyone who may be running Autoconfig.

Properly clone each ORACLE_HOME so that it is registered with the central inventory. If the clone process is not

followed, then the Home will not be registered, and you will not be able to apply quarterly patch bundles to it.

CHAPTER 14 ■ FINAL THOUGHTS

255

To DMA or Not to DMA

Exadata is a different system for a DBA to administer. Some tasks in this environment, such as running the exachk

script, require root O/S privileges. This script can be run by the system administrator, and this will be the case if you

are managing Exadata as a DBA. However, a new role has emerged relative to Exadata, that of the Database Machine

Administrator, or DMA. Let’s look at what being a DMA really means.

In addition to the usual DBA skillset, the DMA must also be familiar with, and be able to understand, the

following management and monitoring commands on the specified systems.

On the compute nodes (database nodes):

Linux: top, mpstat, vmstat, iostat, fdisk, ustat, sar, sysinfo

Exadata: dcli

ASM: asmcmd, asmca

Clusterware: crsctl, srvctl

On the storage servers/cells:

Linux: top, mpstat, vmstat, iostat, fdisk, ustat, sar, sysinfo

Cell management: cellcli, cellsrvstat

Being a DMA also includes other areas of responsibility not associated with being a DBA. Table 14-1 summarizes

the areas of responsibility for a DMA.

Table 14-1. DMA Responsibilities

Skill Percent

System Administrator 15

Storage Administrator 0

Network Administrator 5

Database Administrator 60

Cell Administrator 20

The “Percent” column indicates the percentage of the overall Exadata system requiring this knowledge, and as

you can see if you’ve been an 11g RAC administrator, you have 60 percent of the skillset required to be a DMA. The

remaining skills necessary to be a DMA are not difficult to learn and master. We have covered the Cell Administrator

commands you will need (cellcli, dcli), which furnish you with 80 percent of the skillset. Networking commands

that you may need are ifconfig, iwconfig, netstat, ping, traceroute, and tracepath. You may, at some time, also

need ifup and ifdown, to bring up or bring down network interfaces, although using these commands will not be a

regular occurrence. The following example shows how to bring up the eth0 interface.

# ifup eth0

It seems like a daunting task, to become a DMA, but it really isn’t that difficult. It does require a slightly different

mindset, as you are now looking at, and managing, the entire system, rather than just the database. There will still be

a need for a dedicated System Administrator and Network Administrator for your Exadata system, because, as a DMA,

you won’t be responsible for configuration of these resources, nor will you be responsible for patching and firmware

upgrades. The DMA is, essentially, assisting these dedicated administrators by assuming the day-to-day tasks these

resources would provide.

CHAPTER 14 ■ FINAL THOUGHTS

256

What You Don’t Know, You Can Look Up

The IT world changes very rapidly, so you can’t be expected to know it all. You can, however, know where to find

information you need. The following resources are available to assist you in your journey through Exadata as a DBA

or DMA.

http://tahiti.oracle.com—The online Oracle documentation site

www.oracle.com/us/products/database/exadata/overview/index.html—Oracle

technology web site Exadata resources

www.tldp.org/LDP/GNU-Linux-Tools-Summary/html/c8319.htm—Linux networking

commands reference

www.yolinux.com/TUTORIALS/LinuxTutorialSysAdmin.html—Linux system administration

tutorial

https://support.oracle.com—The My Oracle Support web site

http://blog.tanelpoder.com/category/exadata/—Tanel Poder’s Exadata blog, from an

expert in performance tuning on Exadata

http://kevinclosson.wordpress.com/kevin-closson-index/exadata-posts/—Kevin

Closson’s Exadata posts, an excellent resource for the storage tier

http://arup.blogspot.com/—Arup Nanda’s blog, where you can search for

Exadata-related posts

www.enkitec.com/—The Enkitec blog, from a company specializing in Exadata and

sponsoring yearly Exadata-centric conferences

http://jonathanlewis.wordpress.com/?s=exadata—Jonathan Lewis’s excellent Exadata posts

These are the resources we regularly consult when questions arise. You may find others you prefer, but these are

excellent sites to start from.

Things to Know

This chapter is not designed to be a crash course in Exadata; rather, it’s intended to be a look back on areas we’ve

covered, to bring a bit of perspective to your journey. When you began this odyssey, Exadata may have been just a

name, shrouded in mystery and mentioned in reverent tones. As you progressed through this book, each step you took

brought Exadata out of the fog and, hopefully, into focus, by replacing hype and rumor with fact and examples, so that

you are now better prepared to assume the mantle of Exadata DBA or DMA.

A

alter table emp compress, 84

Auto DOP

calibration

CALIBRATION_TIME value, 78

DBA_RSRC_IO_CALIBRATE, 78

DBMS_RESOURCE_MANAGER, 75

execution plan, 76

IN PROGRESS status, 78

latency, 78

parallel_min_time_threshold, 75

PL/SQL block, 75

RESOURCE_IO_CALIBRATE$, 79

serial execution time, 75, 79

tkprof output, 79

V$IO_CALIBRATE_STATUS result, 78

V$IO_CALIBRATION_STATUS, 76

DEGREE setting, 75

INSTANCES setting, 75

_parallel_cluster_cache_policy parameter, 80

parallel_degree_policy settings, 79–80

_parallel_statement_queueing, 80

Automatic Storage Management (ASM), 3

Auto Service Request (ASR), 216

B

Basic compression, 83

Bloom lters, 246

C

Celladmin

acknowledged and unacknowledged alerts, 161

alert history, 159–160

cell conguration check, 159

cellsrvstat, 158

disk controller battery, 160

rmware revisions, 161

functionality and metrics, 158

learn cycle, 160

statistics categories, 161

user account, 155, 251

Cell manager cancel work request, 132

Cell manager closing cell, 131

Cell manager discovering disks, 131

Cell manager opening cell, 131

CELLSRV, 29, 38

Cell wait events

cell-related events, 119

idle class/other class

cell smart ash unkeep, 132

rarely reported cell wait events, 132

system I/O events

cell smart incremental backup, 131

cell smart restore from backup, 131

cell startup and shutdown

wait events, 131

triggering events, 120

user I/O events

cell list of blocks physically read, 127

cell multiblock physical read, 126

cell single-block physical read, 125

cell smart le creation, 129

cell smart index scan event, 124

cell smart table scan event, 122

cell statistics gather, 129

Cell worker idle, 132

Cell worker online completion, 132

Cell worker retry, 132

Clustering Factor, 31

Compression

basic compression, 83

HCC (see Hybrid Columnar Compression (HCC))

loading data

load times and data volumes, 96

results, 94

Index

257

OLTP, 83–84

query process

execution plan, 99

execution times, 99

results, 96

ratios

actual observed, 118

DBMS_COMPRESSION.GET_COMPRESSION_

RATIO procedure, 115

estimated, 117

updates

basic-level compression, 100

elapsed time, 101

increasing table size, 101

Compression Units (CUs), 85, 92

bitmap, 93

header, 93

initial data organization, 92

layout, 93

D

Database Machine Administrator (DMA)

resources, 256

responsibilities, 255

Database server tools, 67

data le init write event, 129

DBA_HIST_ACTIVE_SESS_HISTORY view, 120

db le scattered read, 126

db le sequential read event, 125

dbID, 64

DBMS_COMPRESSION.GET_COMPRESSION_RATIO

procedure, 115

dbUniqueName, 64

Degree of parallelism (DOP), 71, 250

direct path read event, 122

DISPLAY_CURSOR function, 11

E

Energy Storage Module (ESM), 55

ERP system, 29

database creation, 239

data migration, 241

env le, 242

environment conguration, 241

Grid Infrastructure Oracle Home, 237

MOS, 243

SCAN listener, 238–239

Exadata

bloom lter

advantage, 13

bloom_tr_ex.sql script, 13–16

denition, 13

ooad processing, 16–17

query execution, 18

SYS_OP_BLOOM_FILTER function, 13

Column Projection, 11

conguration, 2

database layer, 173

data warehouse, 2

denition, 1

eective monitoring strategy, 173

expansion racks, 4

GV$SQL and GV$SQLSTATS

database layer processing time, 177

global information output, 180

HTML reports, 180

index access, 178

ooad eciency, 177

parallel execution, 180

plan-level monitoring data, 176

session-level execution monitoring

data, 176

SQL Plan window, 180

traditional consistent-read

processing, 178

initial baseline, 173

ooading function

agg_smart_scan_ex.sql script, 18–19

COUNT() query, 19–21

multi-row function, 18

ooadable_fn_tbl.sql script, 21–23

single-row function, 18

OLTP, 2

Predicate Filtering, 13

raw storage, 3

real-time SQL monitoring reports

duration, 174

Duration column, 176

I/O window, 175

OEM 12c, 174

plan providing time, 174

session ID, 174

SQL ID, 174

wait statistics, 174

Smart Flash Cache, 3

Smart Scan

autotrace, 6

CPU cycles, 6

execution, 6–7

full table scan, 5

index range scan, 9–10

io_cell_ooad_eligible_bytes, 6

no_smart_scan_ex.sql script, 8

operators, 5

optimization, 11

■ index

258

Compression (cont.)

TABLE ACCESS STORAGE FULL operation, 7

V$SQL view, 6

storage cells (see Storage cells)

virtual columns

smart_scan_virt_ex.sql, 24–25

TOTAL_COMP column, 24

TTL_COMP skip, 26–27

F

First-in, rst-out (FIFO) queue, 73

G

Grid Infrastructure Oracle Home, 237

H

Hybrid Columnar Compression (HCC), 83
