Specifications
ID
P107
POWER
0.75 Kw (1 HP)
FORCE
2000 Kg (4450 lb)
STROKE
40 mm (1.57’’)
CRIMPING HEIGHT
(Bottom Dead Center)
135.8 mm (5.34’’)
WEIGHT
85 Kg (189 lb)
DIMENSION (mm)
W 310 x H 770 x D 310
DIMENSION (‘’)
12.2 x 30.3 x 12.2
CONFIGURATION
bench top / automatic
POWER SUPPLY
different arrangements
available
SURFACE FINISHING
nickel plating

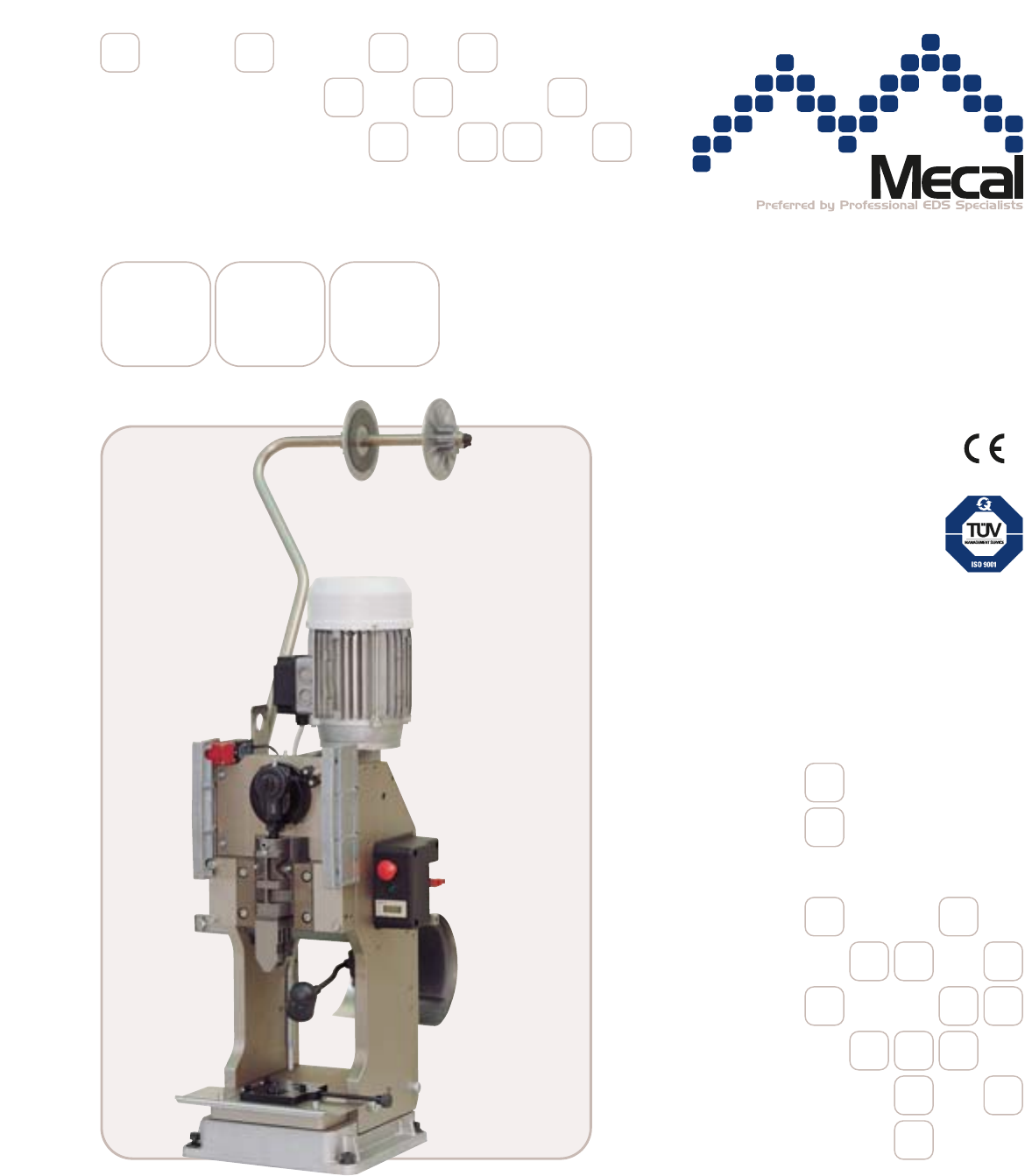

The P107 Crimping Press is available either in semi-automatic (for bench-top use) configuration or in full automatic (integrated into a cut and
strip machine) configuration. The P107 has a standard stroke of 40mm, and upon request a variable stroke version is available : in this confi-
guration the stroke can be set between 20 and 40mm, in 5mm increments. Other different strokes are available upon request. The standard
crimping height (measured from the applicator base plate to the press T-coupling when at Bottom Dead Center) is 135.8mm ± 0.02mm, but
different kits to adapt it to different-size applicators are available upon request. The JOG option allows the operator to manually step-by-step
cycles the press. Mecal’s own CFA Crimp Force Analyser can be fitted as an option. The semi-automatic configuration (for bench top use) always
includes safety cover, reel arm, foot switch according to the international safety standard and CE regulation.
Produced under a quality Management System certified to ISO 9001 (TÜV).
Crimping Press
P107
P107
Crimping Press
Crimping Press
PE4
Specifications subject to change. Consult Mecal S.r.l. for latest specifications.
Azienda con Sistema Qualità
certificato N° 501001810
Mecal S.r.l.
Strada per Felizzano 18
I - 15043 Fubine (AL)
ph. +39 0131 792792
fax +39 0131 792733/4
www.mecal.net
Specifications
ID
PE4
POWER
1.87 Kw (2.5 HP)
FORCE
4000 Kg (8900 lb)
STROKE
40 mm (1.57’’)
CRIMPING HEIGHT
(Bottom Dead Center)
135.8 / 212 mm (5.34 / 8.346’’)
WEIGHT
125 Kg (277 lb)
DIMENSION (mm)
W 310 x H 900 x D 300
DIMENSION (‘’)
12.2 x 35.4 x 11.8
CONFIGURATION
bench top / automatic
POWER SUPPLY
different arrangements
available
SURFACE FINISHING
nickel plating

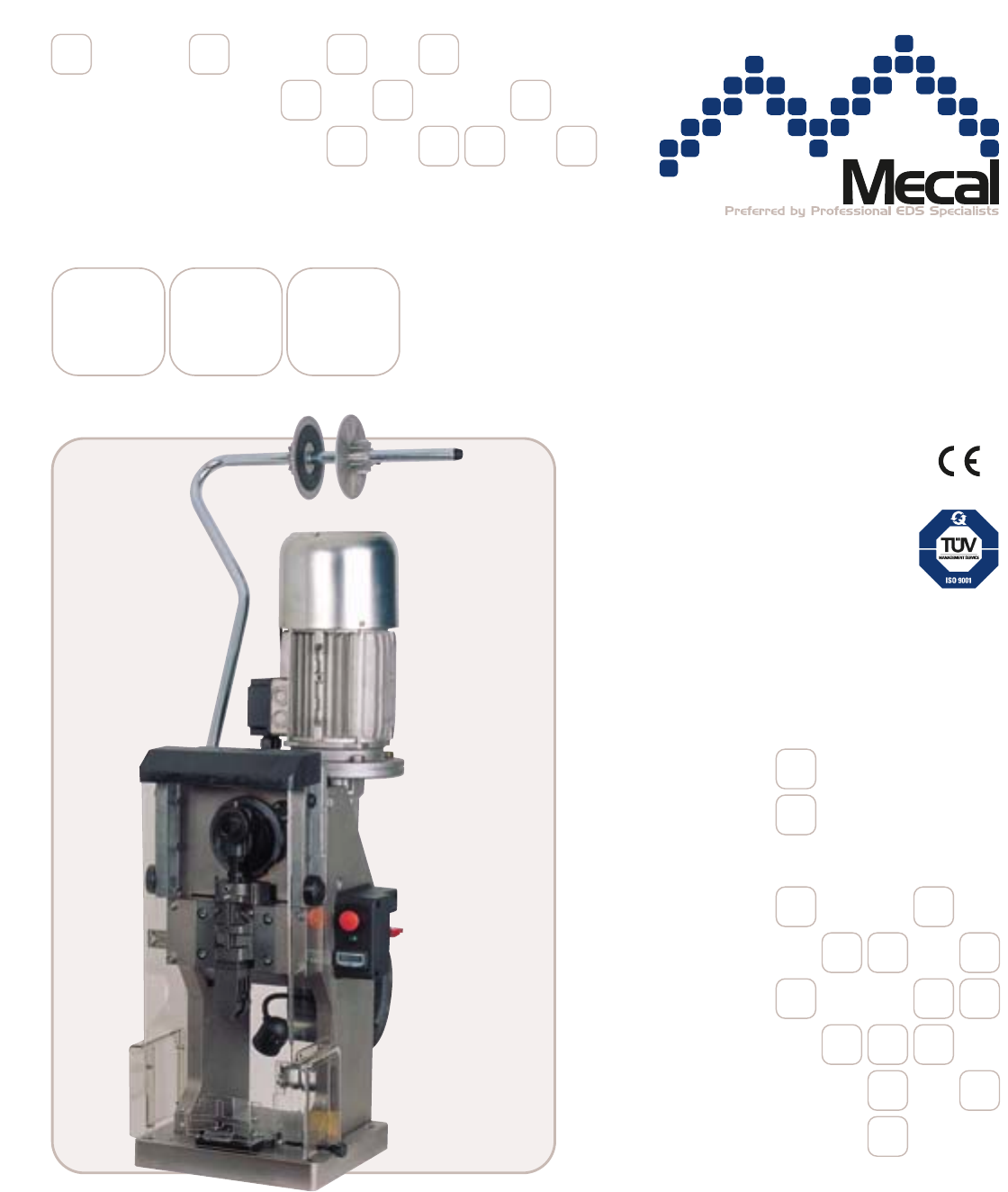

The PE4 Crimping Press is available either in semi-automatic (for bench-top use) configuration or in full automatic (integrated into a cut and
