ILLUSTRATED PARTS BREAKDOWN
PARTNER
21" ROTARY LAWN MOWER
MODEL NO. P531PD (P531PDF)
954 12 00-17
176473 12.21.00 TR
REPAIR PARTS ROTARY LAWN MOWER - - MODEL NO. P531PD (P531PDF) 954 12 00-17
KEY PART
NO. NO. DESCRIPTION
1 532167163 Handle, Upper Dlx Comf.
2 532164556 Handle, Lower
3 532131036 Bail, Cont. Wire Dlx Comf. Blk
4 532132001 Guide, Rope, Side
5 532063601 Nut, Hex Lockwasher 1/4-20
6 532066426 Wire, Tie
7 532131959 Bolt, Handle 5/16-18 x 1.75
8 532087692 Knob, Handle
9 532164265 Grip, Hdl Foam Smooth
10 532161551 Bolt, Sq. Neck
11 873990500 Nut, Hex Lockwasher Ins. 5/16-18 UNC
12 532051793 Cotter, Hairpin
13 532133107 Cable
14 532125162 Bracket, Upstop
15 532083816 Screw, Hex Washer Head Tapping 10-2
16 532162085 Kit, Door Rear
17 532161548 Seal, Door
18 532165261 Plug, Mulcher
19 532164388 Kit, Housing
20 532164548 Handle, Bracket
21 532169306 Handle, Bracket Asm. Right
22 532150078 Screw, Hex Wshd
23 532163183 Bolt, Hex Head 5/16-18 x 5/8
24 532063124 Nut, Hex Lock Wshr 5/16-18
25 532161333 Baffle, Side
26 532163409 Screw 12 x 5/8
29 532134612 Shield, Debris Modified
30 532851514 Adapter, Blade w/key Longer
31 532159267 Blade, 21”
32 532851074 Washer, Hardened
33 532850263 Lockwasher, Helical Spring 3/8
34 532851084 Screw, Hex Head 3/8-24 x 1.38
35 532084596 Pulley, Engine
36 532087677 Key, Hi Pro
37 532150406 Bolt, Engine
38 - - - - - - - Engine Briggs & Stratton 12H802
Order parts from engine manufacturer
39 532165846 Grass Catcher Bag
40 532161358 Grass Catcher Frame
41 532145494 Danger Decal
42 532144929 Screw
43 532164137 Throttle Control
44 532111190 Clamp
45 532083816 Screw
46 532054583 Screw
- - 532161057 Warning Decal (Not Shown)
- - 532173291 Operator’s Manual(Euro)
- - 532173292 Operator's Manual(Scand)
KEY PART
NO. NO. DESCRIPTION
REPAIR PARTS ROTARY LAWN MOWER - - MODEL NO. P531PD (P531PDF) 954 12 00-17
REPAIR PARTS ROTARY LAWN MOWER - - MODEL NO. P531PD (P531PDF) 954 12 00-17
REPAIR PARTS ROTARY LAWN MOWER - - MODEL NO. P531PD (P531PDF) 954 12 00-17

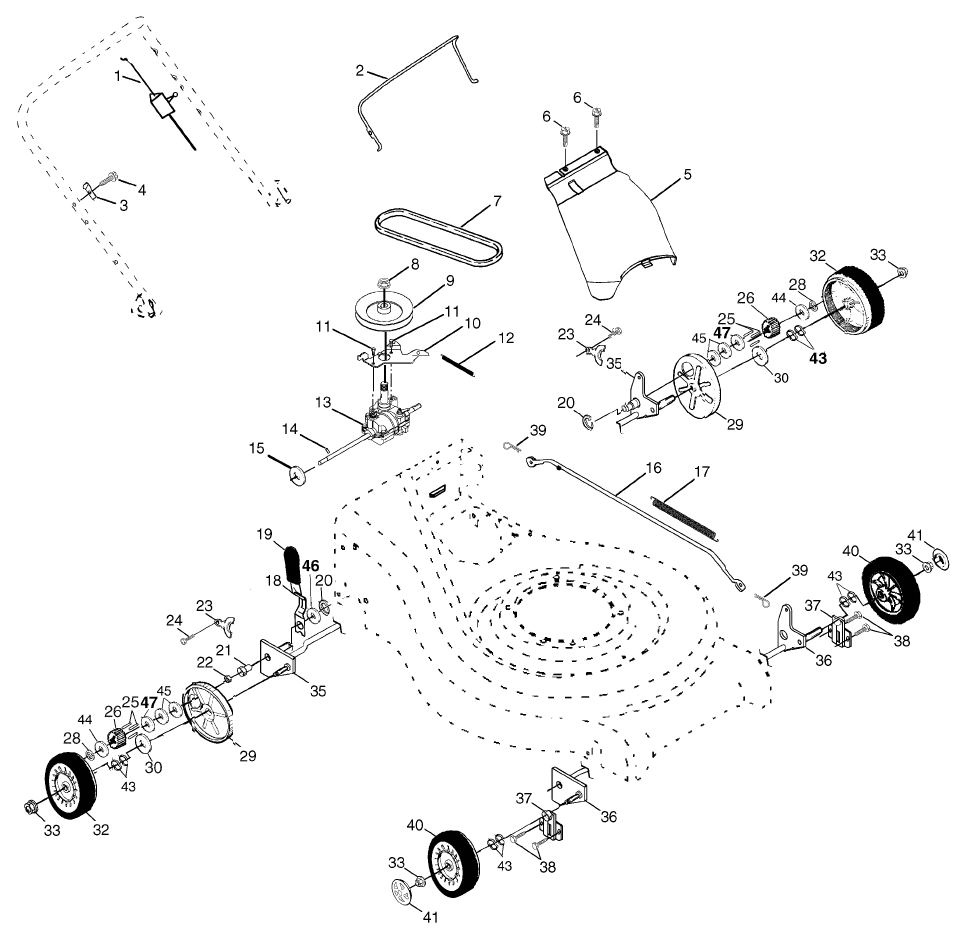

KEY PART
NO. NO. DESCRIPTION KEY PART
NO. NO. DESCRIPTION
1 532161587 Cable Drive
2 532161473 Bail Control Drive
3 532164557 Bracket, Downstop
4 532083816 Screw Hex Wash Head Tapping 10-2
5 532161537 Cover Drive
6 532750634 Screw Thdrol 10-25 x .50
7 532160816 V-Belt
8 532132010 Nut Lock Flanged 3/8-16 Zinc
9 532163939 Pulley Driven
10 532164553 Belt Keeper
11 817541011 Screw Hex Wash Head 10-24 X .668
12 532 75192 Spring
13 532169611 Transmission Asm.
14 532145354 Pin Spring Thrust
15 532057079 Washer Hardened
16 532161584 Rod Connecting
17 532161602 Spring Extension
18 532164554 Spring Selector
19 532161961 Knob Selector Spring
20 812000022 E-Ring 7/8
21 532163365 Bearing Support
22 532169911 Bearing Ball
23 532164555 Retainer Drive Asm. Stmp.
24 532057808 Screw Hex Head Tapping 1/4-20 x .75
25 532170011 Drive Pawl
26 532166450 Pinion, Drive
28 812000058 E-Ring 7/16
29 532088080 Cover, Dust Wheel
30 532067725 Washer 1/2 x 1-1/2 x .134
32 532162063 Wheel 9 x 2
33 532083923 Nut Hex Flange Lock
35 532164552 Shaft Asm. Rear
36 532164550 Shaft Asm. Front
37 532161463 Retainer Front Shaft
38 532163409 Screw 12 x 5/8
39 532700279 Clip Retainer
40 532143593 Wheel 8 x 2
41 532150182 Hubcap
43 532057143 Wave Washer
44 532052160 Washer
45 532062335 Washer
46 819572216 Washer
47 532088118 Felt Washer
