IPL, Partner, P351 XT Chrome, 952802331, 952802346, 2008 11, Chain Saw P351XT PARI2008 AAaa 545192153

User Manual: P351XT

Open the PDF directly: View PDF .
Page Count: 2

1

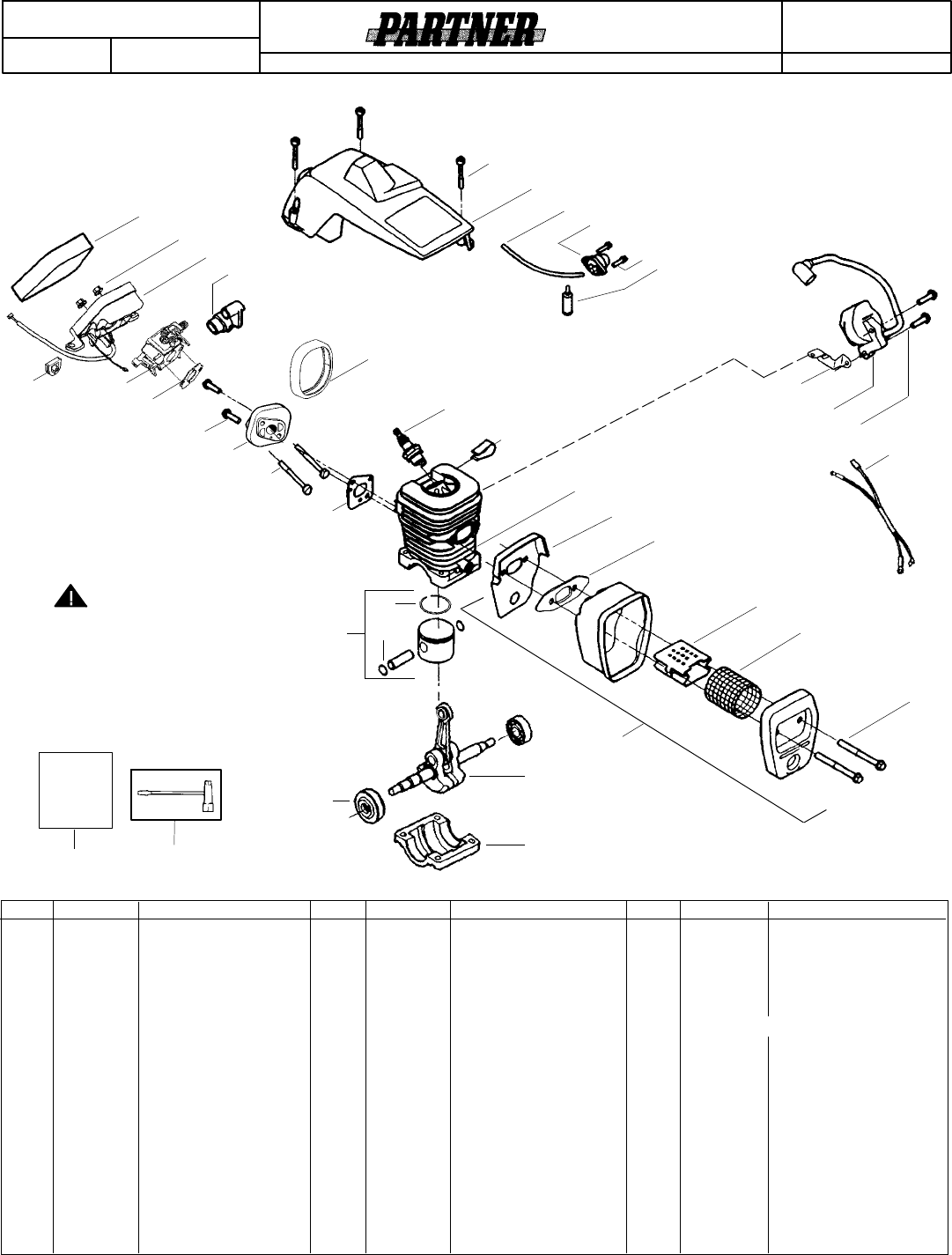

Note: Illustration may differ from actual model due to design changes

PARTS LIST NO.

PAGE NO.

CHAIN SAW MODEL(s)

545192153 P351XT Chrome

DATE

7/19/11

Replaces

rPARTS LIST

545192153 -- 10/28/08

Ref. Part No. Description Ref. Part No. Description Ref. Part No. Description

40

41

37

45

42 47

48

38

39

49

34

64

54

53

52

51

15 16

50

32

18

30

4

19

14 7

2

3

98

43 44

17

55

60

58

63

56

10

11

62

61

57

33

1

59

6

5

20

Kit--Oil Vent

22

21

29

23

28

25

27

26

24

31

35

46

36

1. 530059667 Assy.--Isolator

2. 530047608 Limiter Strap

3. 530059668 Spring--Isolator

4. 530015158 Washer

5. 530016018 Screw

6. 530015843 Screw

7. 545048001 Front Handle

8. 530015940 Screw

9. 530015814 Screw

10. 530044692 Bar -- 16”

11. 952051211 Chain -- 16”

12. 530014381 Kit--Spike (Incl. 13)

13. 530016439 Screw

14. 530016132 Screw

15. 530038238 Plate--Bar Mount.

16. 530015814 Screw

17. 530029850 Chain Catcher

18. 530016133 Bolt--Bar

19. 530057236 Assy--Oil Cap

20. 530071666 Kit--Oil Vent

21. 530016134 Nut--Flywheel

22. 530016080 Screw

23. 530037817 Starter Pulley

24. 530015892 Screw

25. 530049335 Housing--Fan

26. 530069232 Kit -- Rope

27. 530056402 Handle--Starter

28. 530027531 Spring--Recoil

29. 530015920 Screw

30. 530015127 Washer--Flywheel

31. 530047534 Assy--Flywheel

32. 530047192 Assy--Fuel Cap

33. 530023877 Fitting--fuel line

34. 530069216 Kit--Fuel line (large)

35. 530016149 Spring--Switch

36. 530015775 Screw

37. 530047581 Cover--Rear Handle

38. 530015886 Screw

39. 530015906 Screw

40. 530036098 Throttle Lockout

41. 530036097 Trigger--Throttle

42. 545025001 Handle -- Rear

43. 530071958 Kit--Isolator (Upper)

44. 530015875 Screw

45. 530059668 Spring--Isolator

46. 530057473 Lever--Switch

47. 530057474 Lever--Choke

48. 530049005 Grommet--Knob

49. 530015922 Nut--”U”--Type

50. 530058730 Assy--Chassis

(fuel lines and caps )

51. 530015907 Washer--Thrust

52. 530047061 Assy.--Clutch Drum

w/bearing

53. 530015611 Washer--Clutch

54. 530014949 Assy. Clutch

55. 530071259 Kit -- Oil Pump

(incl. 56,57,59)

56. 530037820 Gear--Worm Spring

57. 530049477 Elbow--Oil Pickup

58. 530016064 Screw

59. 530019206 Seal Block

60. 530047663 Assy--Oil Pick--up

(Incl. 61,62)

61. 530038373 Pick--up Oiler

62. 530056533 Filter--Oil

63. 545139901 Assy.--Chain Brake

64. 530015917 Nut--Bar Mounting

65. 530015826 Pin--Bar Adjust

66. 530038593 Retainer

67. 530069611 Kit--Bar Adjusting

(incl. # 65,66)

65

67

66

=NEW PART NUMBER FOR THIS IPLn=REFER TO THE SERVICE REFERENCE INDICATED FOR MORE INFORMATION. (LOCATED AT END OF IPL)

K

13

12

All repairs, adjustments and maintenance not

described in the Operator’s Manual must be

performed by qualified service personnel.

WARNING

n

2

Note: Illustration may differ from actual model due to design changes

PARTS LIST NO.

PAGE NO.

CHAIN SAW MODEL(s)

545192153 P351XT Chrome

DATE

7/19/11

Replaces

rPARTS LIST

545192153 -- 10/28/08

1. 530016153 Screw

2. 530055638 Assy---Cylinder Shield

3. 530069247 Kit--- Fuel Line (Small)

4. 530071835 Kit--- Air Purge (incl. #5)

5. 530015780 Screw

6. 530095646 Assy---Fuel Pick--- up

7. 530047442 Strap--- Ground

8. 530039167 Ignition Module

9. 530015814 Screw

10. 530057475 Assy---Wire Harness

11. 530037793 Foam--- Air Filter

12. 530016101 Nut

13. 530057702 Assy---Air Box

14. 530049244 Grommet--- Carb Adjust

15. 530054144 Seal--- Carb Adapter

16. 952030150 Spark Plug (RCJ--- 7Y)

17. 530016136 Clip--- High Tension Lead

18. 530012552 Cylinder

19. 530049870 Backplate--- Muffler

20. 530069608 Gasket---Muffler(kit)

21. 530037813 Diffuser--- Muffler

22. 530036103 Screen---Spark

23. 530016132 Bolt---Muffler

24. 530047631 Grommet---Throttle Cable

25. 545081885 Kit---Carburetor (WT ---891)

(Incl. Grommet)

26. 530069608 Gasket---Carb. (kit)

27. 530016386 Screw

28. 530049700 Carb. Adapter

29. 530016187 Screw

30. 530069608 Gasket--- Adaptor(kit)

31. 530038729 Ring--- Piston

32. 530015697 Retainer--- Piston Pin

33. 530069719 Kit---Piston (Incl. 31 & 32)

34. 530069608 Kit---Engine Gasket

(Incl. 20, 26 & 30)

35. 530031135 Scrench

36. 530056363 Assy---Seal & Bearing

37. 530037935 Cap ---Crankcase

Ref. Part No. Description Ref. Part No. Description Ref. Part No. Description

38. 545113101 Assy---Crankshaft

39. 530047207 Assy---Muffler

(Incl . 19,20,21,22,23)

--- --- --- M a n u a l

545212834 ( Russian )

578767501 Decal--- Warning

11

1

14

4

3

10

17

30

33

31

37

36

16

5

Engine

Gasket

Kit

32

7

18

8

9

15

=NEW PART NUMBER FOR THIS IPLn=REFER TO THE SERVICE REFERENCE INDICATED FOR MORE INFORMATION. (LOCATED AT END OF IPL)K

29

28

27

26

25

13

12

34

2

6

21

22

39

20

38

23

Not Shown

24

19

35

All repairs, adjustments and maintenance not

described in the Operator’s Manual must be

performed by qualified service personnel.

WARNING

n
