PAX EMV Kernel API Programming Guide

PAX Computer Technology（Shenzhen）Co., Ltd.

PAX EMV Kernel API

Programming Guide

V 6.0.2

I

transmitted in any form without the written permission of PAX Computer Technology

(Shenzhen) Co., Ltd.

The information contained in this document is subject to change without notice. Although

PAX Computer Technology (Shenzhen) Co., Ltd. has attempted to ensure the accuracy of the

contents of this document, this document may include errors or omissions. The examples and

sample programs are for illustration only and may not be suited for your purpose. You should

verify the applicability of any example or sample program before placing the software into

productive use.

II

Revision History

Date Version Note Author

2011-07-06 V4.1.2

1. Resolve a problem that Scripts are

processed error when there are data 71 or

72 contained in script.

2. A

dd processing of NULL point for all

functions with point parameters.

3. The version is updated to v412.

2011-07-25 V4.1.2_T1

Add support for Contactless PBOC,

including:

1. Add CLSS function.

2. Add macro definitions CLSS_SLOT and

CONTACT_SLOT.

3. Add CLSS transaction parameter

structure Clss_TransParam.

4. Add call-

back function

cEMVPiccIsoCommand.

5. Add API interface EMVSwitchClss.

6. The version is updated to v412_T1.

2011-12-02 V4.1.3

1. Add API EMVGetMCKParam.

2. Add API EMVInitTLVData

for Clss

PBOC.

3. The version is updated to v413

2012-02-14 V4.1.3_T1

Change the internal value setting for Terminal

Capability and Transaction.

2012-06-14 V4.1.4 Modify the range of random number.

2012-06-08 V5.0.0

Based on v414,

1. Update the kernel according to the latest

EMV 4.3a Specification.

2. Update the generation algorithm of UN

3. Add API EMVSetAmount to allow large

amount setting (larger than 0xFFFFFFFF).

2012-06-15 V5.0.0_T1 1. Revise the large amount setting issues.

2012-08-30 V5.0.1

1. Update the structure definition for

ELEMENT_ATTR. Please take attention

to the parameter setting of function

EMVAddIccTag().

2. Add support for the PAX Prolin software

platform, including:

Add call-back functions:

cEMVIccIsoCommand.

cEMVPedVerifyPlainPin.

cEMVPedVerifyCipherPin.

The following functions are not provided:

EMVSetDebug

III

EMVProcTrans

cEMVOnlineProc

EMVCoreVersion

EMVGetICCStatus

EMVSetPCIModeParam

EMVClearTransLog

3. AID list, CA public key, EMV parameters

are no longer stored by the kernel. The

application

must store all these

parameters.

Please note the significant change for the

usage of the function

cEMVUnknowTLVData.

4. When the platform is prolin, i

t is

necessary to add

the head file

“emvlib_prolin.h”.

2013-5-7 V5.0.3

1. Add SM and Loading log for PBOC 3.0

requirement.

These parts add APIs below:

EMVReadSingleLoadLog

EMVGetSingleLoadLogItem

EMVReadAllLoadLogs

cEMVSM2Verify.

cEMVSM3

2. EMVSetScriptProcMethod function

is

added to distinguish the Union pay special

script process from EMV.

This is for

requirement of Union Pay

network

authentication.

3. Expand the number of terminal

AIDs

supported.

2013-06-21 V5.0.3_T1

1. Add return value definition

EMV_FILE_ERR

2. Increase the operation if the old

terminal

application file exists then converted it

to

the new format. Fix the bug of V503;

V503

due to the format of kernel’s terminal

supported application file has

been

updated, it will lead to if not rebuild

the file

system, the terminal supported

application

file format error occurs and cannot be

loaded correctly.

2013-06-27 V5.0.3_T2

1. Modify the description of EMVStartTrans

and EMVCompleteTrans

2013-07-18 V5.0.4

1. Modify the description of

EMVCompleteTrans.

2. Add the description of the macro-

definition

of AC type.

3. M

odify the description of

FloorLimitCheck, RandTransSel

and

IV

VelocityCheck of EMV_APPLIST.

2013-08-16 V5.0.4_T1

1. Add API function EMVGetLogData to get

log data.

2.

Add API function

EMVGetVerifyICCStatus

to get the

response status word

SWA and SWB of

PIN Verify command.

3.

Delete the process of Terminal Action

Analysis whether the transaction should be

rejected immediately in EMVCardAuth.

2013-09-05 V5.0.4_T2

1. Add API EMVDelAllApp to remove all

applications from terminal application list.

2.

Change the process of EMVDelApp to

make sure that the order of the terminal

application list is the same as the old

version before v503 of EMV kernel.

2013-12-13 V5.0.5

1. An online-only terminal need not support

SDA or DDA or CDA. Individual payment

systems will define rules for this case, the

kernel will execute offline data authentication

according to Terminal Capabilities.

2014-06-26 V6.0.0

1. Add API EMVGetDebugInfo to get debug

information for offline data authentication.

2. Modify the descriptions of

EMV_REVOCLIST and EMVSetAmount.

3. Modify return codes or parameter of

callback functions for appendix A.

Modify the value for REFER_APPROVE

、

REFER_DENIAL、ONLINE_APPROVE

、

ONLINE_FAILED、ONLINE_REFER、

ONLINE_DENIAL and

ONLINE_ABORT.

2015-03-20 V6.0.2

1. Add EMVGetParamFlag to get the flag for

signature and advice.

2. Modify the descriptions for function

EMVSetConfigFlg’s parameter.

The default kernel supports advice.

3. Modify the descriptions for EMV_CAPK.

V

VI

Contents

Revision History ...................................................................................................................... II

Contents .................................................................................................................................. VI

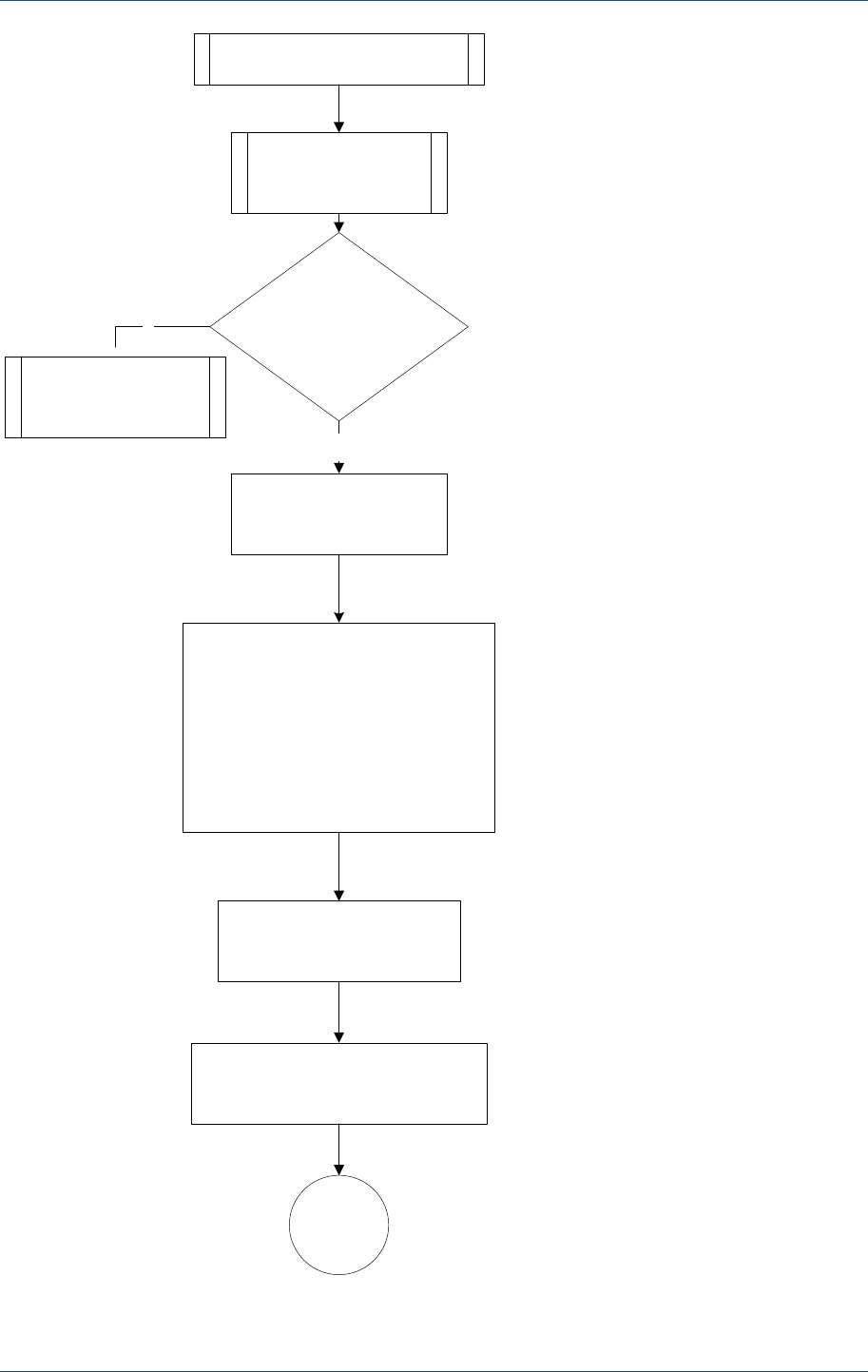

1 Example of Application Programming for EMV .............................................................................. 1

2 Parameter and Data Management ........................................................................................ 1

2.1 EMVCoreInit ......................................................................................................... 1

2.2 EMVCoreVersion .................................................................................................. 2

2.3 EMVGetParameter ................................................................................................ 2

2.4 EMVSetParameter ................................................................................................. 2

2.5 EMVGetTLVData ................................................................................................. 2

2.6 EMVSetTLVData .................................................................................................. 3

2.7 EMVGetScriptResult ............................................................................................ 3

2.8 EMVSetPCIModeParam ....................................................................................... 4

2.9 EMVReadVerInfo ................................................................................................. 4

2.10 EMVClearTransLog .............................................................................................. 5

2.11 EMVAddIccTag .................................................................................................... 5

2.12 EMVSetScriptProcMethod .................................................................................... 5

2.13 EMVGetMCKParam ............................................................................................. 6

2.14 EMVSetMCKParam .............................................................................................. 6

2.15 EMVSetTmECParam ............................................................................................ 7

2.16 EMVSetConfigFlag ............................................................................................... 7

2.17 EMVGetParamFlag ............................................................................................... 8

3 Certification Authority (CA) Public Key Management ...................................................... 9

3.1 EMVAddCAPK .................................................................................................... 9

3.2 EMVDelCAPK ...................................................................................................... 9

3.3 EMVGetCAPK .................................................................................................... 10

3.4 EMVCheckCAPK ............................................................................................... 10

4 Terminal Application List Management ........................................................................................ 11

4.1 EMVAddApp ...................................................................................................... 11

VII

4.2 EMVGetApp ....................................................................................................... 11

4.3 EMVDelApp ....................................................................................................... 12

4.4 EMVGetFinalAppPara ........................................................................................ 12

4.5 EMVModFinalAppPara ...................................................................................... 12

4.6 EMVGetLabelList ............................................................................................... 13

4.7 EMVDelAllApp .................................................................................................. 13

5 Terminal Revoked Issuer Public Key Certification List Management .............................. 14

5.1 EMVAddRevocList ............................................................................................. 14

5.2 EMVDelRevocList .............................................................................................. 14

5.3 EMVDelAllRecovList ......................................................................................... 15

6 Transaction Processing ...................................................................................................... 16

6.1 EMVInitTLVData ............................................................................................... 16

6.2 EMVAppSelect ................................................................................................... 16

6.3 EMVReadAppData ............................................................................................. 17

6.4 EMVCardAuth .................................................................................................... 18

6.5 EMVProcTrans .................................................................................................... 18

6.6 EMVAppSelectForLog ....................................................................................... 19

6.7 ReadLogRecord ................................................................................................... 19

6.8 GetLogItem ......................................................................................................... 20

6.9 EMVGetCardECBalance .................................................................................... 21

6.10 EMVStartTrans ................................................................................................... 21

6.11 EMVCompleteTrans ........................................................................................... 22

6.12 EMVSwitchClss .................................................................................................. 23

6.13 EMVSetAmount .................................................................................................. 24

6.14 EMVReadSingleLoadLog ................................................................................... 24

6.15 EMVGetSingleLoadLogItem .............................................................................. 25

6.16 EMVReadAllLoadLogs ...................................................................................... 26

6.17 EMVGetLogData ................................................................................................ 26

7 Callback Functions ............................................................................................................ 27

7.1 cEMVWaitAppSel .............................................................................................. 27

VIII

7.2 cEMVInputAmount ............................................................................................. 28

7.3 cEMVGetHolderPwd .......................................................................................... 28

7.4 cEMVReferProc .................................................................................................. 30

7.5 cEMVOnlineProc ................................................................................................ 30

7.6 cEMVAdviceProc ............................................................................................... 31

7.7 cEMVVerifyPINOK ............................................................................................ 31

7.8 cEMVUnknowTLVData ..................................................................................... 32

7.9 cCertVerify .......................................................................................................... 32

7.10 cEmvSetParam .................................................................................................... 33

7.11 cEMVPiccIsoCommand ...................................................................................... 33

7.12 cEMVIccIsoCommand ........................................................................................ 34

7.13 cEMVPedVerifyPlainPin .................................................................................... 35

7.14 cEMVPedVerifyCipherPin .................................................................................. 36

PED_RET_ERR_NO_PIN_INPUT ......................................................................................... 36

7.15 cEMVSM2Verify ................................................................................................ 37

7.16 cEMVSM3 .......................................................................................................... 37

8 Debug Interface ................................................................................................................. 39

8.1 EMVSetDebug .................................................................................................... 39

8.2 EMVGetICCStatus .............................................................................................. 39

8.3 EMVGetVerifyICCStatus ................................................................................... 40

8.4 EMVGetDebugInfo ............................................................................................. 40

9 Appendix ........................................................................................................................... 45

A Return codes of the kernel and other macro definitions ............................................... 45

B EMV_PARAM ............................................................................................................. 47

C EMV_CAPK ................................................................................................................. 49

D EMV_APPLIST ........................................................................................................... 50

E EMV_REVOCLIST ...................................................................................................... 52

F ELEMENT_ATTR ........................................................................................................ 52

G APPLABEL_LIST ....................................................................................................... 53

H EMV_EXTMPARAM .................................................................................................. 54

IX

I EMV_MCKPARAM ..................................................................................................... 55

J EMV_TMECPARAM ................................................................................................... 55

K APPLABEL_LIST ....................................................................................................... 56

L Clss_TransParam .......................................................................................................... 56

M RSA_PINKEY ............................................................................................................. 57

N APDU_SEND ............................................................................................................... 58

O APDU_RESP ................................................................................................................ 58

PAX EMV Kernel API Programming Guide

PAX Computer Technology (Shenzhen) Co., Ltd. 1

1 Example of Application Programming f

or EMV

PAX EMV Kernel API Programming Guide

PAX Computer Technology (Shenzhen) Co., Ltd. 2

Kernel

initialization

EMVCoreInit

Read Application Data

EMVReadAppData

Card data authentication

EMVCardAuth

Errors

Delete issuer

certificate public key

recovery list

EMVDelAllRevocList

Errors

Add recovery list

EMVAddRevocList Add failed

A

Application Selection,

Create Candidate list,

Cardholder selection,

Final Selection and GPO

EMVAppSelect

B

C

Detect card？

Y

Error

processing

Prompt cardholder to insert

card

Y

Time out?

N

Errors

Set Terminal Parameters

EMVSetParameter，

Set data of CAPK

EMVAddCAPK，

Add data of Application

EMVAddApp

Figure1: EMV processing flow

PAX EMV Kernel API Programming Guide

PAX Computer Technology (Shenzhen) Co., Ltd. 3

Processing restrictions,

Cardholder verification,

Terminal risk management

And First GAC

EMVStartTrans

Online？

External

authentication,

Script processing

and second GAC

EMVCompleteTrans

Transaction

completion

Process transation

according AC Type

（AAC,TC）

Y

N

A

B

Errors

Online processing

Figure2: EMV processing flow2（for monitor and prolin platform）

PAX EMV Kernel API Programming Guide

PAX Computer Technology (Shenzhen) Co., Ltd. 4

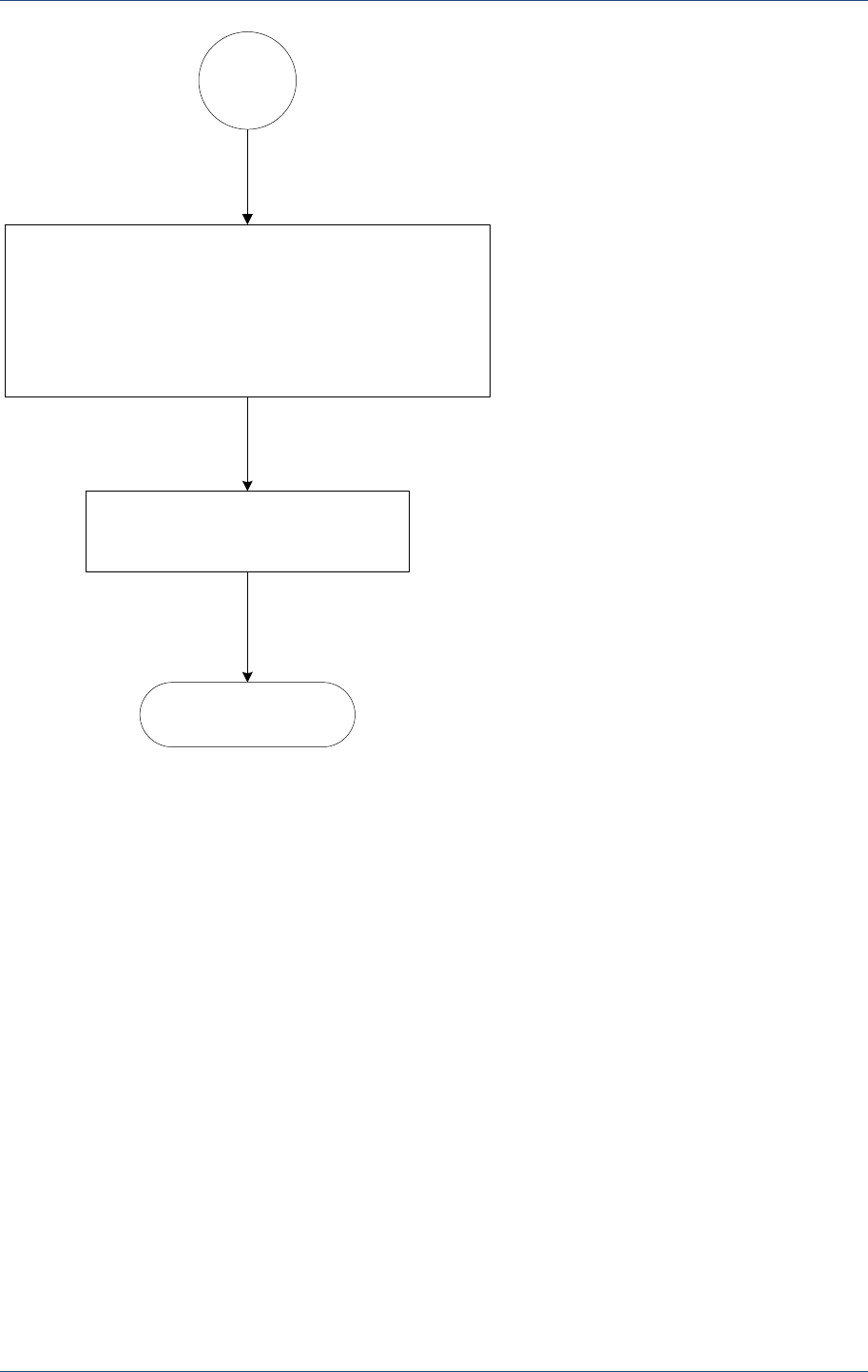

Processing restrictions, Cardholder

verification, Terminal risk management,

Online processing and Script processing

EMVProcTrans

Transaction

completion

A

Process transation

according AC Type

（AAC,TC）

Figure3: EMV processing flow2（only for monitor platform）

PAX EMV Kernel API Programming Guide

PAX Computer Technology (Shenzhen) Co., Ltd. 5

Initialize kernel

data elements

EMVInitTLVData

Switch to Contactless

EMVSwitchClss

C

Kernel

initialization

EMVCoreInit

EntryPoint related

processing

qPBOC related

processing

TransPath is

Contactless?

qPBOC other

processing

Y

N

Set Terminal Parameters

EMVSetParameter，

Set data of CAPK

EMVAddCAPK，

Add data of Application

EMVAddApp

Figure4: Contactless processing flow

PAX EMV Kernel API Programming Guide

PAX Computer Technology (Shenzhen) Co., Ltd. 1

2 Parameter and Data Management

Functions of parameter and data management of EMV kernel are described in this part.

2.1 EMVCoreInit

Prototype int EMVCoreInit(void);

Function EMV kernel initialization.

Parameters None

Return

EMV_OK

Initialization succeeds.

EMV_KEY_EXP

There’s expired key in the EMV kernel.

EMV_FILE_ERR

File error

Instruction

1. It initializes all the EMV data elements.

2.

This function must be called once each time when the terminal

powers on.

3. If there is expired key, the application can check it through

function EMVCheckCAPK

and use the key management

functions to delete the expired key and/or add the new key.

4. If the return value is EMV_FILE_ERR, it means that there is

problem when transfer the terminal supported application file

from old format to new one. In this case terminal may need

rebuild file system, and reset all parameters including CAPK,

Applications and so on into terminal.

PAX EMV Kernel API Programming Guide

PAX Computer Technology (Shenzhen) Co., Ltd. 2

2.2 EMVCoreVersion

Prototype int EMVCoreVersion(void);

Function Query the version of EMV kernel.

Parameters None

Return

Version number. For example, 25 means version 2.5.

Instruction The function is Not Used for the Prolin software platform.

2.3 EMVGetParameter

Prototype void EMVGetParameter(EMV_PARAM *Param);

Function Get terminal parameter.

Parameters Param[output]

The pointer pointing to terminal parameter.

Refer

to appendix for structure EMV_PARAM.

Return

None

Instruction

2.4 EMVSetParameter

Prototype void EMVSetParameter(EMV_PARAM *Param);

Function Set terminal parameter.

Parameters Param[input]

The pointer pointing to terminal parameter.

Refer

to appendix for structure EMV_PARAM.

Return

None

Instruction

2.5 EMVGetTLVData

Prototype int EMVGetTLVData(unsigned short Tag, unsigned char

*DataOut, int *DataLen);

Function Get the value of the data element by specifying the tag.

Parameters

Tag[input]

Tag of EMV standard or extended data

element.

DataOut[output]

The value of the data element specified by the

tag.

DataLen[output] The length of the data element.

PAX EMV Kernel API Programming Guide

PAX Computer Technology (Shenzhen) Co., Ltd. 3

Return

EMV_OK

Succeed.

EMV_NO_DATA Tag data not founded

EMV_PARAM_E

RR

Parameter error.

Instruction

EMV library can store all of the EMV standard data elements; it can

also store up to 64 data elements which are defined by issuer. After

executing the function of read application data, the application can

call this function to get the value of the data element by specifying

the tag.

Refer to appendix A for the macro definition of the return values,

same as below.

2.6 EMVSetTLVData

Prototype int EMVSetTLVData(unsigned short Tag, unsigned char

*DataIn, int DataLen);

Function Set the value of the data element by specifying the tag.

Parameters

Tag[input]

Tag of EMV standard or extended data

element.

DataIn[input]

The value of the data element specified by the

tag.

DataLen[input] The length of the data element.

Return

EMV_OK

Succeed.

EMV_DATA_ERR

Parameter error.

Instruction

The value of the standard or priority data element can be modified or

set by the application. In this way, the application can satisfy the

requirement in some special environment. For example, EMV library

do not support blacklist check, but if the application needs to support

it, there must be a function to set the value of TVR in EMV library.

Normally, it’s not necessary to call this function.

2.7 EMVGetScriptResult

Prototype int EMVGetScriptResult(unsigned char *Result, int *RetLen);

Function Gets issuer script processing result.

Parameters

Result[output]

The issuer script processing result.

RetLen[output]

The length of the issuer script processing

result.

Return

EMV_OK

Succeed.

EMV_NO_DATA

There is no issuer script processing result.

EMV_PARAM_ERR

Parameter error.

PAX EMV Kernel API Programming Guide

PAX Computer Technology (Shenzhen) Co., Ltd. 4

Instruction As the issuer script processing result has no relevant TLV tag, there

must be a special function to get the value.

2.8 EMVSetPCIModeParam

Prototype int EMVSetPCIModeParam(unsigned char ucPciMode, unsigned

char *pucExpectPinLen, unsigned long ulTimeoutMs);

Function Set whether the kernel uses PCI verify offline PIN interface or not.

Parameters

ucPciMode[input] 1 – Use PCI verify offline PIN interface.

0 – not use.

pucExpectPinLen[inp

ut]

When the kernel uses PCI verify offline PIN

interface, this parameter is to set the allowed

length of PIN. It is a string of the

enumeration of 0-12 and separated by ‘,’.

For example, ‘0,4,6’ means it is allowed to

input 4 or 6 digits for PIN, and to directly

press Enter without input PIN.

ulTimeoutMs[input]

Timeout of input PIN, unit: ms, maximum

300,000 ms.

Return

EMV_OK

Succeed.

EMV_DATA_ERR Parameter error.

Instruction

1. The default setting is that the kernel does not use PCI verify

offline PIN interface.

2. If

setting the kernel to use PCI verify offline PIN interface,

please notice the value of the 3rd parameter *pin in the call back

function cEMVGetHolderPwd

. Refer to the notes of that

function for detail.

3. The function is Not Used for the Prolin software platform.

2.9 EMVReadVerInfo

Prototype int EMVReadVerInfo(char *paucVer);

Function Get the version of EMV kernel and the release date.

Parameters paucVer[output]

Version and release date of kernel with the

maximum length of 20 bytes. For example,

“v26 2008.10.09”.

Return

EMV_OK

Succeed.

EMV_PARAM_ERR

Parameter error.

Instruction

PAX EMV Kernel API Programming Guide

PAX Computer Technology (Shenzhen) Co., Ltd. 5

2.10 EMVClearTransLog

Prototype int EMVClearTransLog(void);

Function Clear the transaction log of kernel.

Parameters

None

Return

EMV_OK

Succeed.

Instruction

1. Kernel will record the amount of the last 8 transact

ions after

calling EMVCoreInit

. When performing terminal risk

management, kernel will add the amount of current transaction

with the amount of the last transaction found in the log giving that

the PAN is same and the result will be used for floor limit check.

This function is provided for application to erase this log after

settlement or other cases when necessary.

2. The function is Not Used for the Prolin software platform.

2.11 EMVAddIccTag

Prototype int EMVAddIccTag(ELEMENT_ATTR tEleAttr, int nAddNum);

Function Add Issuer Proprietary Data Element.

Parameters

tEleAttr[input]

List of issuer proprietary data elements. The

structure adds two new variables. Refer to

appendix for structure ELEMENT

_ATTR.

nAddNum[input]

Number of issuer proprietary data elements

to add.

Return

EMV_OK

Succeed.

EMV_PARAM_ERR

Parameter error, the number of data

elements to add can’t exceed 30.

Instruction

1. Kernel only supports EMV defined standard data element. This

function is used to add the list of any proprietary data elements to

kernel so it will save the corresponding ones. Thus the

application can access the data through EMVGetTLVData.

2. The number in t

he list must equal nAddNum. MaxLen and Tag

must not be zero. Otherwise, parameter error will be returned.

3.

Each time calling this function, kernel will replace the original

list.

4. If data duplicate happens when reading ICC, the latest data will

be used.

2.12 EMVSetScriptProcMethod

Prototype void EMVSetScriptProcMethod (uchar ucScriptMethodIn);

PAX EMV Kernel API Programming Guide

PAX Computer Technology (Shenzhen) Co., Ltd. 6

Function Set the special script process flag.

Parameters ucScriptMethodIn

[input]

EMV_SCRIPT_PROC_UNIONPAY

: Union pay

script process method.

EMV_SCRIPT_PROC_NORMAL

: Normal

EMV script process.(Default value)

Return NULL

Instruction

1. The Union Pay Network Authentication requires when there is no

response with script command, the script result should be set as script

not performed, while the EMVCo requires the script result should be

set as script processing failed in this case.

2. This function is only used when there is special requirement from

Union Pay Network Authentication.

2.13 EMVGetMCKParam

Prototype int EMVGetMCKParam(EMV_MCKPARAM *pMCKParam)

Function Get the kernel MCK parameter.

Parameters pMCKParam[output]

Output the MCK parameter.

Refer to

appendix

for structure

EMV_MCKPARAM.

Return EMV_OK Setting successful.

EMV_DATA_ERR Parameter error.

Instruction

Before calling function EMVSetMCKParam to modify MCK

parameter, call this function to get the MCK parameter first in order

to avoid that the parameter is set to 0 by mistake.

2.14 EMVSetMCKParam

Prototype int EMVSetMCKParam(EMV_MCKPARAM *pMCKParam);

Function Set MCK parameter.

Parameters pMCKParam[input]

MCK parameter.Refer to appendix for

structure EMV_MCKPARAM.

Return

EMV_OK

Succeed

EMV_DATA_ERR

Parameter is error

Instruction

Before calling this function to modify MCK parameters, please call

EMVGetMCKParam to get the parameter. This method can avoid

other parameters in this structure being changed to zero mistakely.

Example

：

EMV_EXTMPARAM ExTmParam;

EMV_MCKPARAM MCKParam;

PAX EMV Kernel API Programming Guide

PAX Computer Technology (Shenzhen) Co., Ltd. 7

memset(&ExTmParam,0,sizeof(EMV_EXTMPARAM));

memset(&MCKParam,0,sizeof(EMV_MCKPARAM));

ExTmParam.ucUseTermAIPFlg=1;

ExTmParam.aucTermAIP[0]=0x08;//Terminal is forced to

perform TRM.

MCKParam.pvoid = &ExTmParam;

EMVSetMCKParam(&MCKParam);

2.15 EMVSetTmECParam

Prototype int EMVSetTmECParam(EMV_TMECPARAM *pParam);

Function Set the terminal electronic cash related parameters.

Parameters pParam[input]

The electronic cash parameters which need

to be set. Refer to appendix for

structure EMV_TMECPARAM.

Return EMV_OK Setting successful.

EMV_DATA_ERR Parameter error.

Instruction

EMV_TMECPARAM structure specification：

1. Setting specification：

Only when the ucECTSIFlg = 1，the value of TSI and TTL can

be set.

2.

This function is used for PBOC only.

2.16 EMVSetConfigFlag

Prototype void EMVSetConfigFlag(int_nConfigflag);

Function Set configuration.

Parameters nConfigflag[input]

Only bit 1(the lowest one) & bit 2 are

valid at moment.

bit 1: 1 = support advice (default)

0 = not support

bit 2: 1= always

asking user to

confirm amount

even no PIN

input is required

0 = does not ask user to confirm

when no PIN input is required

(default)

bit 3: 1 = support transaction log

0 = not support transaction log

Return

None

PAX EMV Kernel API Programming Guide

PAX Computer Technology (Shenzhen) Co., Ltd. 8

Instruction

2.17 EMVGetParamFlag

Prototype int EMVGetParamFlag(unsigned char ucParam, int *pnFlg)

Function Get the flag for signature and advice.

Parameters

ucParam [input]

Indicate the flag to be gotten.

0x01 – Signature

0x02 – advice

pnFlg[Output]

The flag got from kernel.

0 – NO

1- YES

Return

EMV_OK Succeed.

EMV_PARAM_ERR Parameter error.

Instruction

1. After EMVStartTrans and EMVCompleteTrans are executed,

the application shall call this function to get the flag of advice,

and send an advice if the flag indicates YES.

2. After EMVCompleteTrans is executed, the application shall call

this function to get the flag of Signature, and require signature if

the flag indicates YES.

PAX EMV Kernel API Programming Guide

PAX Computer Technology (Shenzhen) Co., Ltd. 9

3 Certification Authority (CA) Public

Key Management

3.1 EMVAddCAPK

Prototype int EMVAddCAPK(EMV_CAPK *capk );

Function Add a new CA public key.

Parameters capk[input]

The pointer pointing to the public key.

Refer to appendix

for structure

EMV_CAPK.

Return

EMV_OK

Succeed.

EMV_SUM_ERR

Checksum error.

EMV_OVERFLOW

Memory overflows (EMV Kernel supports

MAX_KEY_NUM

CA public keys in

maximum).

EMV_PARAM_ERR

Parameter error.

Instruction

1. If the public key already exists, the new key will replace the old

one.

2. CA public key is provided by acquirer. Sometimes, the key is not

assigned with the structure of EMV_CAPK. In that case, the

application may need to convert the public key before it can be

added to the EMV library.

3.2 EMVDelCAPK

Prototype int EMVDelCAPK(unsigned char KeyID, unsigned char *RID);

Function Delete a CA public key.

PAX EMV Kernel API Programming Guide

PAX Computer Technology (Shenzhen) Co., Ltd. 10

Parameters

KeyID[input]

The index of the key.

RID[input]

Registered Application Provider Identifier.

Return

EMV_OK

Succeed.

EMV_NOT_FOUND

The key does not exist.

EMV_PARAM_ERR

Parameter error.

Instruction

3.3 EMVGetCAPK

Prototype int EMVGetCAPK(int Index, EMV_CAPK *capk );

Function Get a CA public key.

Parameters

Index[input]

The key storage index, range(0 -

MAX_KEY_NUM).

capk[output]

The pointer pointing to the key. Refer to appendix

for structure EMV_CAPK.

Return

EMV_OK

Succeed.

EMV_NOT_FOUND

The key does not exist.

EMV_PARAM_ERR

Parameter error.

Instruction

The application can get all the keys and then delete them. An example

is like below:

for(i=0;i< MAX_KEY_NUM; i ++)

{

if(EMVGetCAPK(i, &capk )== EMV_OK)

{

EMVDelCAPK(capk.KeyID, capk.RID);

}

3.4 EMVCheckCAPK

Prototype int EMVCheckCAPK(unsigned char *KeyID, unsigned char

*RID);

Function Check the validity of the public keys.

Parameters

*KeyID[output]

The index of the expired key.

*RID[output]

The RID of the expired key.

Return

EMV_OK

All the keys are valid.

EMV_KEY_EXP

One key is expired.

EMV_PARAM_ERR

Parameter error

Instruction

Only one expired key will be returned when calling this function.

When the function returns EMV_KEY_EXP, the application should

handle it and then continually call this function until it returns

EMV_OK.

PAX EMV Kernel API Programming Guide

PAX Computer Technology (Shenzhen) Co., Ltd. 11

4 Terminal Application List Management

4.1 EMVAddApp

Prototype int EMVAddApp(EMV_APPLIST *App);

Function Add an EMV application to terminal application list.

Parameters App[input]

The pointer pointing to an application.

Refer

to appendix for structure EMV_APPLIST.

Return

EMV_OK

Succeed.

EMV_OVERFLOW

Memory overflows.

EMV_PARAM_ERR

Parameter error.

EMV_FILE_ERR

File error

Instruction

If the application already exists, the new application will replace the

old one.

4.2 EMVGetApp

Prototype int EMVGetApp(int Index, EMV_APPLIST *App);

Function Get an application from the terminal application list.

Refer to

appendix for structure EMV_APPLIST.

Parameters Index[input]

The application storage index, range(0 - MAX_

APP _NUM)

App[output]

The pointer pointing to an application.

Return

EMV_OK

Succeed.

EMV_NOT_FOUND

The application does not exist.

EMV_PARAM_ERR

Parameter error.

EMV_FILE_ERR

File error

PAX EMV Kernel API Programming Guide

PAX Computer Technology (Shenzhen) Co., Ltd. 12

Instruction

The application can get all the applications from the list and then

delete them. An example is like below:

for(i=0;i< MAX_APP_NUM; i ++)

{

if(EMVGetApp(i, &App)== EMV_OK)

{

EMVDelApp(App.AID, App.AidLen);

}

4.3 EMVDelApp

Prototype int EMVDelApp(unsigned char *AID, int AidLen);

Function Delete an application from the application list.

Parameters AID[input]

Application ID, compressed BCD, not more

than 16 bytes.

AidLen[input]

The length of AID, it must be bigger than 0.

Return

EMV_OK

Succeed.

EMV_NOT_FOUND

The application does not exist.

EMV_PARAM_ERR

Parameter error.

EMV_FILE_ERR

File error

Instruction

4.4 EMVGetFinalAppPara

Prototype int EMVGetFinalAppPara(EMV_APPLIST *ptEMV_APP);

Function Get the parameter of current finally selected application.

Parameters ptEMV_APP[output]

The pointer pointing to the parameter of

current finally selected application. Refer to

appendix for structure EMV_APPLIST.

Return

EMV_OK

Succeed.

EMV_NO_APP

No selected application.

EMV_PARAM_ERR

Parameter error.

Instruction

4.5 EMVModFinalAppPara

Prototype int EMVModFinalAppPara(EMV_APPLIST *ptEMV_APP);

Function Modify the parameter of current finally selected application.

Parameters ptEMV_APP[input]

The pointer pointing to the parameter of the

application. Refer to appendix for

PAX EMV Kernel API Programming Guide

PAX Computer Technology (Shenzhen) Co., Ltd. 13

structure EMV_APPLIST.

Return

EMV_OK

Succeed.

EMV_NO_APP

No selected application.

EMV_NOT_FOUND

Specified application not found.

EMV_PARAM_ERR

Parameter error.

Instruction

4.6 EMVGetLabelList

Prototype int EMVGetLabelList(APPLABEL_LIST *ptAppLabel, int *

pnAppNum);

Function Get the label list of the application candidate list.

Parameters ptAppLabel[output]

The label list.

Refer to appendix for structure

APPLABEL_LIST.

pnAppNum[output]

The number of application in the candidate.

Return

EMV_OK

Succeed.

EMV_NO_DATA

No data available.

EMV_PARAM_ERR

Parameter error.

Instruction

The terminal application can call this function in cEMVWaitAppSel

to get the label list corresponding to current application candidate.

4.7 EMVDelAllApp

Prototype int EMVDelAllApp(void);

Function Remove all application from terminal application list.

Parameters

Null

Return

EMV_OK

Succeed.

Instruction

PAX EMV Kernel API Programming Guide

PAX Computer Technology (Shenzhen) Co., Ltd. 14

5 Terminal Revoked Issuer Public

Key Certification List Management

5.1 EMVAddRevocList

Prototype int EMVAddRevocList(EMV_REVOCLIST *pRevocList );

Function Add a revoked issuer public key certification to revoked certification

list.

Parameters pRevocList[input]

The pointer pointing to the revoked issuer

public key certification.

Refer to appendix

for structure EMV_REVOCLIST.

Return

EMV_OK

Succeed.

EMV_DATA_ERR

Input data error (the pointer is null).

EMV_OVERFLOW

Memory overflows (Kernel supports 30

revoked issuer public key certifications in

maximum).

Instruction

1. If the revoked issuer public key certification already exists, this

function directly returns succeeding.

2. The structure of the revoked issuer public key certification.

5.2 EMVDelRevocList

Prototype int EMVDelRevocList(unsigned char ucIndex, unsigned char

*pucRID);

Function Delete a revoked issuer public key certification.

Parameters

ucIndex[input]

The corresponding CA public key index of

PAX EMV Kernel API Programming Guide

PAX Computer Technology (Shenzhen) Co., Ltd. 15

the revoked issuer public key certification.

pucRID[input]

The corresponding RID of the revoked

issuer public key certification.

Return

EMV_OK

Succeed.

EMV_DATA_ERR

Input data error(the pointer is null)

EMV_NOT_FOUND

The specified certification not found.

Instruction

5.3 EMVDelAllRecovList

Prototype void EMVDelAllRecovList(void);

Function Delete all revoked issuer public key certifications.

Parameters

None

Return

None

Instruction

PAX EMV Kernel API Programming Guide

PAX Computer Technology (Shenzhen) Co., Ltd. 16

6 Transaction Processing

EMV transaction processing functions are described in this part.

6.1 EMVInitTLVData

Prototype void EMVInitTLVData(void);

Function Initialize the EMV kernel data element storage structure.

Parameters None

Return None

Instruction

The function need to be called before the start of every transaction,

for instance, before the application selection, to initialize the EMV

kernel data element storage structure.

This function is used for contactless PBOC only.

6.2 EMVAppSelect

Prototype int EMVAppSelect(int Slot, unsigned long TransNo);

Function EMV application selection.

Parameters

Slot[input]

Card slot number.

TransNo[input]

The sequence number of the transaction.

Return

EMV_OK

Succeed.

ICC_RESET_ERR

IC card reset failed.

ICC_CMD_ERR

IC card command failed.

ICC_BLOCK

IC card has been blocked.

EMV_NO_APP

There is no IC card application supported by

PAX EMV Kernel API Programming Guide

PAX Computer Technology (Shenzhen) Co., Ltd. 17

terminal.

EMV_APP_BLOCK

The EMV application has been blocked.

EMV_DATA_ERR

IC card data format error.

EMV_TIME_OUT

Application selection timeout.

EMV_USER_CANC

Application selection is canceled by user.

ICC_RSP_6985

IC card responses with 6985 when GPO.

EMV_FILE_ERR

File error

Instruction

1. Before calling this function, the EMV IC card must be in the

specified card slot which can be detected.

2. According to the EMV specification, if it returns EMV_NO_APP

or EMV_DATA_ERR ，

application must prompt for ‘Swipe

card’.(The application can decide how to do according to the

actual requirement)

3.

EMV_USER_CANCEL and EMV_TIME_OUT are returned by

callback function cEMVWaitAppSel. I

f the function

cEMVWaitAppSel doesn’t return these two values, the function

EMVAppSelect doe

s not return them either.(Refer to

cEMVWaitAppSel)

4.

ICC_RSP_6985 is returned when GPO responses 6985 and

there’s no application left in the application candidate list, the

terminal application should then decide whether to terminate the

transaction or to fallback.

6.3 EMVReadAppData

Prototype int EMVReadAppData(void);

Function Read the selected application’s data, transaction amount, etc.

Parameters

None

Return

EMV_OK

Succeed.

ICC_CMD_ERR

IC card command failed.

EMV_RSP_ERR

IC card response code error.

EMV_DATA_ERR

IC card data format error.

EMV_TIME_OUT

Input amount timeout.

EMV_USER_CANC

Input amount is canceled by user.

Instruction

1. EMV_USER_CANCEL and EMV_TIME_OUT are returned by

callback function cEMVInputAmount

. If the function

cEMVInputAmount

doesn’t return these two values, this

function does not return them either.(Refer to

cEMVInputAmount)

2. If this function does not return EMV_OK, the transaction should

be terminated.

PAX EMV Kernel API Programming Guide

PAX Computer Technology (Shenzhen) Co., Ltd. 18

6.4 EMVCardAuth

Prototype int EMVCardAuth(void);

Function IC card data authentication.

Parameters

None

Return

EMV_OK

Complete.

ICC_CMD_ERR

IC card command failed.

EMV_RSP_ERR

IC card response code error.

Instruction

1. This function returning EMV_OK does not stand for data

authentication succeeded. The application can get the result of

the authentication through function EMVGetTLVData and

query the value of TVR. If the authentication method is CDA,

this function just recovers the IC card private key. The

authentication will not be done until performing Generate AC

command.

2. If this function does not return EMV_OK, the transaction should

be terminated.

6.5 EMVProcTrans

Prototype int EMVProcTrans(void);

Function Process EMV transaction.

Parameters

None

Return

EMV_OK

Succeed.

ICC_CMD_ERR

IC card command failed.

EMV_RSP_ERR

IC card response code error.

EMV_DATA_ERR

IC card data format error.

EMV_NOT_ACCEPT

Transaction cannot be accepted.

EMV_DENIAL

Transaction denied.

EMV_TIME_OUT

Input PIN timeout.

EMV_USER_CANCEL

Transaction is canceled by user.

ICC_RSP_6985

ICC response 6985 in GAC.

Instruction

1. EMV_USER_CANCEL and EMV_TIME_OUT are returned by

callback function cEMVGetHolderPwd

. If the function

cEMVGetHolderPwd

doesn’t return these two values, this

function does not return them either.(Refer to EMVAppSelect)

2.

Both EMV_NOT_ACCEPT and EMV_DENIAL stand for

transaction failed. According to the EMV specification,

EMV_NOT_ACCEPT will

be returned on condition that the

service does not accepted, and EMV_DENIAL will be returned

on other conditions.

3. If this function does not return EMV_OK or ICC_RSP_6985, the

transaction should be terminated.

4. ICC_RSP_6985 is returned when GAC responses 6985, the

PAX EMV Kernel API Programming Guide

PAX Computer Technology (Shenzhen) Co., Ltd. 19

terminal application should then decide whether to terminate the

transaction or to fallback.

5. The function is Not Used for the Prolin software platform.

6.6 EMVAppSelectForLog

Prototype int EMVAppSelectForLog(int Slot, unsigned char ucFlg);

Function Read the card’s transaction log。

Parameters

Slot[input] Card slot number.

ucFlg[input]

Decide whether the block application will be

added to candidate list or not.

0-Add, 1-Not add (The default is 0)

Return

EMV_OK Succeed.

ICC_RESET_ERR IC card reset failed.

ICC_CMD_ERR IC card command failed.

ICC_BLOCK IC card has been blocked.

EMV_NO_APP

No EMV application that terminal

supported.

EMV_DATA_ERR Card data format error.

EMV_TIME_OUT Application selection timeout.

EMV_USER_CANC

EL Application selection is canceled by user.

Instruction

This function is similar with the function EMVAppSelect. The

difference between them is that this function can add the block

application to candidate list base on

the different parameter setting

when the application selection is done.

6.7 ReadLogRecord

Prototype int ReadLogRecord(int RecordNo);

Function Read transaction log

Parameters RecordNo[input] Record number.

Return

EMV_OK Transaction processing successful.

EMV_DATA_ERR Card data error.

RECORD_NOTEXI

ST The specified log record doesn’t exist.

Instruction After the application finished the application selection with function

PAX EMV Kernel API Programming Guide

PAX Computer Technology (Shenzhen) Co., Ltd. 20

EMVAppSelectForLog, this function can be called to read the

transaction log of the selected application.

RecordNo, Record number begins at 1, the application can read all

the transaction log by following code:

Reco

＝

1

；

while(1){

ret=ReadLogRecord(Reco);

if(ret==RECORD_NOTEXIST){

if(Reco==1) return NO_TRANS_LOG;

else break;

}

/*Read the specific log by the function GetLogItem. */

Reco++;

}

This function can only read the transaction log to the EMV kernel

buffer. Application can read the specific log by the function

GetLogItem, such as transaction amount, transaction time and so on.

6.8 GetLogItem

Prototype int GetLogItem(unsigned short Tag, unsigned char *TagData, int

*TagLen);

Function Read the data items of transaction log(PBOC compatible EMV2)。

Parameters

Tag[input]

The tag of data items that need to read.

TagData[output] The return value of the data items.

TagLen[output] The return length of the value of the data

items.

Return

EMV_OK Transaction processing successful.

EMV_DATA_ERR Card data error.

LOGITEM_NOTEXI

ST The specified log record doesn’t exist.

Instruction

For each transaction log record that was read by function

ReadLogRecord, application can read the specific l

og information

by this function. For instance, if want to read transaction amount, you

can call the function as follows:

GetLogItem(0x9F02, AmtStr, AmtStrLen);

/*0x9F02 is the tag of amount（Please refer to the EMV Tag list）*/

PAX EMV Kernel API Programming Guide

PAX Computer Technology (Shenzhen) Co., Ltd. 21

6.9 EMVGetCardECBalance

Prototype int EMVGetCardECBalance(unsigned long *plBalance);

Function Read the electronic cash balance from card.

Parameters plBalance[output] The electronic cash balance read from card.

Return

EMV_OK Get data succeed.

EMV_DATA_ERR Get data failed.

EMV_PARAM_ERR Parameter error.

Instruction This function is used for PBOC only.

6.10 EMVStartTrans

Prototype int EMVStartTrans (ulong ulAuthAmt, ulong ulCashBackAmt,

uchar *pACType);

Function

Performing process restrict, cardholder verification, terminal risk

management & 1st GAC.

Parameters

ulAuthAmt[input]

This authorization amount will overwrite

the value input in cEMVInputAmount.

It must be input.

ulCashBackAmt[input]

This cashback amount will overwrite the

value input in cEMVInputAmount. It

must be input.

pACType[output]

Output. AC type which could be:

AC_TC / AC_AAC / AC_ARQC

Return

EMV_OK

Succeed.

EMV_DENIAL

Transaction denied.

EMV_DATA_ERR

IC card data format error.

EMV_NOT_ACCEPT

Transaction is not accepted.

ICC_CMD_ERR

IC card command failed.

ICC_RSP_6985

ICC response 6985 in 1st GAC.

EMV_RSP_ERR

IC card response code error.

EMV_PARAM_ERR

Parameter error.

Instruction

1. If the return code is EMV_DENIAL or EMV_NOT_ACCEPT,

the application should get the CID (9F27) from kernel, and check

if the advice message is needed.

2. If the return code is EMV_OK, pACType shall be checked. If

pACType is AC_TC, the transaction shall be approved. If

pACType is AC_ARQC, the transaction shall go online and then

EMVCompleteTrans must to be called.

PAX EMV Kernel API Programming Guide

PAX Computer Technology (Shenzhen) Co., Ltd. 22

6.11 EMVCompleteTrans

Prototype int EMVCompleteTrans(int nCommuStatus, unsigned char

*paucScript, int *pnScriptLen, uchar *pACType);

Function

Performing online data processing (issuer authentication, script

processing, etc) & 2nd GAC.

Parameters

nCommuStatus[input]

Input. Online status which could be:

ONLINE_APPROVE - Online approved

or online referral approved.

ONLINE_FAILED - Online failed.

ONLINE_DENIAL – Online rejected or

online referral rejected.

If the online status is out of these ranges,

the application should reject the

transaction.

*paucScript[input]

Input. Issuer script data in TLV format.

*pnScriptLen[input]

Input. The length of issuer script data.

pACType[output]

Output: AC type which could be:

AC_TC Transaction approved

AC_AAC Terminal requests TC, but

rejected by ICC.

AC_AAC_HOST Transaction rejected by

issuer.

Return

EMV_OK

Succeed.

EMV_DENIAL

Transaction denied.

EMV_DATA_ERR

IC card data format error.

EMV_NOT_ACCEPT

Transaction is not accepted.

ICC_CMD_ERR

IC card command failed.

ICC_RSP_6985

ICC response 6985 in 2nd GAC.

EMV_RSP_ERR

IC card response code error.

EMV_PARAM_ERR

Parameter error.

Instruction

1. The following data element, if exists, must be sent to kernel

through EMVSetTLVData before calling this function:

ARC – 8A

AC – 89

IAD – 91

2. If the return code is EMV_DENIAL or EMV_NOT_ACCEPT,

Application should get the CID (9F27) from kernel, and check if

the advice message is needed.

3. If the return code is EMV_DENIAL, and the transaction is online

data captured, and the online result is ONLINE_APPROVE, then

application shall send a reversal message to host.

4. If the return code is not EMV_OK, EMVGetScriptResult must

be called, and if EMVGetScriptResult returns EMV_OK，

Application should send a advice message if advice is supported.

PAX EMV Kernel API Programming Guide

PAX Computer Technology (Shenzhen) Co., Ltd. 23

6.12 EMVSwitchClss

Prototype int EMVSwitchClss(Clss_TransParam *ptTransParam,uchar

*pucSelData, int nSelLen, uchar *pucGPOData, int nGPOLen);

Function Set response data of final selection and GPO command into EMV

kernel.

Parameters

ptTransParam[input]

Transaction related parameters. Please refer

to the contactless common data instruction

documentation for the parameter structure.

Refer to appendix for structure

Clss_TransParam.

pucSelData[input]

Response data of final selection

command.,which need to be got by

Clss_GetFinalSelectData_Entry in Entry

library.

nSelLen[input]

The data length return by final selection

command, which need to be got by

Clss_GetFinalSelectData_Entry in Entry

library.

pucGPOData[input]

The data of GPO command and response,

which need to be got by

Clss_GetGPOData_Pboc in qPBOC

library.

nGPOLen[input]

The data length of GPO command and

response, which need to be got by

Clss_GetGPOData_Pboc in qPBOC

library.

Return

EMV_OK Succeed.

EMV_PARAM_ERR Parameter error.

EMV_NO_APP There is no application at candidate list.

EMV_DATA_ERR Data error.

Instruction This function is only used for contactless PBOC application.

PAX EMV Kernel API Programming Guide

PAX Computer Technology (Shenzhen) Co., Ltd. 24

6.13 EMVSetAmount

Prototype int EMVSetAmount(unsigned char * szAuthAmount, unsigned char *

szCashBackAmount)

；

Function Set transaction amount and cashback amount bigger than 0xffffffff,.

Parameters

szAuthAmount[input] Authorised Amount (Tag 9F02, n12)

szCashBackAmount[i

nput]

Other Amount(Tag 9F03, n12)

If Other Amount does not exist, the value

should be NULL.

Return

EMV_OK Succeed.

EMV_DATA_ERR Data error.

Instruction

If the amount exceeds 0xffffffff, please use this function to set the

amount to kernel.

Please call this function before EmvProcTrans or EmvStartTrans.

If use this function to set amount, please make cEMVInputAmount

return two zero amount.

For example:

cEMVInputAmount（unsigned long *AuthAmt, unsigned long *CashBackAmt

）

{

// if transaction type = CashBack

*AuthAmt = 0;

*CashBackAmt = 0;

return 0;

}

Note: If the amount is smaller than 0xffffffff, this amount will be overwrited

by the amount input in EMVStartTrans.

6.14 EMVReadSingleLoadLog

Prototype int EMVReadSingleLoadLog (int nRecordNoIn);

Function Read single loading log (PBOC3.0).

Parameters nRecordNoIn[input

] Record number.

Return EMV_OK Transaction processing successful.

EMV_DATA_ERR Card data error.

PAX EMV Kernel API Programming Guide

PAX Computer Technology (Shenzhen) Co., Ltd. 25

RECORD_NOTEXI

ST The specified log record doesn’t exist.

Instruction

This function can be called to read the loading log of the selected

application. And it should be called after the function

EMVAppSelectForLog.

RecordNo, Record number begins at 1, the application can read all

the loading logs by following code:

Reco

＝

1

；

while(1){

ret=EMVReadSingleLoadLog (Reco);

if(ret==RECORD_NOTEXIST){

if(Reco==1) return NO_TRANS_LOG;

else break;

}

/*

Read the specific log by the function

EMVGetSingleLoadLogItem. */

Reco++;

}

This function only save the loading

log to the EMV kernel buffer.

Application could read the specific log item

by the function

EMVGetSingleLoadLogItem

, such as transaction amount,

transaction time and so on.

6.15 EMVGetSingleLoadLogItem

Prototype int EMVGetSingleLoadLogItem(unsigned short usTagIn, unsigned char

*paucDataOut, int *pnLenOut);

Function Read the data item of loading log (PBOC3.0).

Parameters

usTagIn[input]

The tag of data item to be read.

paucDataOut[output] Pointer to the value of the data item.

pnLenOut[output] Pointer to the length of data item.

Return

EMV_OK Transaction processing successful.

EMV_DATA_ERR Card data error.

LOGITEM_NOTEXI

ST The specified log record doesn’t exist.

NO_TRANS_LOG The entry of loading log doesn’t exist.

Instruction

For each loading log record that was read by function

EMVReadSingleLoadLog

, application can read the specific log

information by this function. For example

, if want to read save

transaction amount, you can call the function as follows:

EMVGetSingleLoadLogItem(0x9F02, AmtStr, AmtStrLen);

PAX EMV Kernel API Programming Guide

PAX Computer Technology (Shenzhen) Co., Ltd. 26

/*0x9F02 is the tag of amount

（

Please refer to the EMV Tag list

）

*/

6.16 EMVReadAllLoadLogs

Prototype int EMVReadAllLoadLogs(unsigned char *paucLogDataOut, int

*pnLenOut);

Function Read all loading logs (PBOC3.0).

Parameters

paucLogDataOut[o

utput] Pointer to the loading log data.

pnLenOut[output] Pointer to the length of the loading log data.

Return

EMV_OK Transaction processing successful.

EMV_DATA_ERR Card data error.

RECORD_NOTEXI

ST The specified log record doesn’t exist.

Instruction

This function can read out all the loading transaction logs in one time,

and saves them into the EMV kernel buffer. Please refer to table 12

and 13 in PBOC 3.0 book 13 for the format of the loading log.

6.17 EMVGetLogData

Prototype int EMVGetLogData (unsigned char *paucLogDataOut, int *pnLenOut);

Function Get the log data which is read from card.

Parameters

paucLogDataOut[o

utput] Pointer to the log data.

pnLenOut[output] Pointer to the length of the log data.

Return

EMV_OK Transaction processing successful.

EMV_PARAM_ER

R The parameter is error.

NO_TRANS_LOG There is no log data.

Instruction

1. If the application read loading log before calling this function, the

log data which is got by this function is loading log data. Please

refer to PBOC 3.0 Book 13 for the format of the loading log data.

2. If the application read transaction log before calling this function,

the log data which is got by this function is transaction log data.

Please refer to PBOC 3.0 Book 13 for the format of the

transaction log data.

PAX EMV Kernel API Programming Guide

PAX Computer Technology (Shenzhen) Co., Ltd. 27

7 Callback Functions

The interface of the callback functions which kernel needs to call are described in this

part. The terminal application needs to implement these functions.

7.1 cEMVWaitAppSel

Prototype int cEMVWaitAppSel(int TryCnt, EMV_APPLIST List[], int

AppNum);

Function

Wait for user to select an application from the application candidate

list. If there is only one application in the application list and it

doesn’t require cardholder confirmation, this

function will not be

called.

Parameters

TryCnt[input]

TryCnt=0 means it is called for the first

time, otherwise, it has been called more

than one time. (According to the EMV

specification, if this function has been

called more than one time, terminal

should prompt for ‘APP NOT ACCEPTS,

TRY AGAIN’ or some other word like

that.).

List[][input]

Application candidate list. Refer to

appendix f

or the structure of

EMV_APPLIST.

AppNum[input]

The number of the application in the list.

Return >=0

The sequence number selected by the

user (

For example: 0 stands for List[0]

was selected).

EMV_USER_CANCEL

Application selection is canceled by user.

PAX EMV Kernel API Programming Guide

PAX Computer Technology (Shenzhen) Co., Ltd. 28

EMV_TIME_OUT

Application selection timeout.

Instruction

The application is listed in the sequence according to the EMV

specification. As the List is also used for output parameter, so if there

is any modification to the list, directly operate to the pointer.

Refer to EMVAppSelect for the purpose of EMV_USER_CANCEL

and EMV_TIME_OUT.

7.2 cEMVInputAmount

Prototype int cEMVInputAmount(unsigned long *AuthAmt, unsigned long

*CashBackAmt);

Function Input transaction amount.

Parameters

AuthAmt[output]

Transaction amount.

CashBackAmt[output]

Cashback amount. If CashBackAmt is NULL,

there is no need to input

the amount. If

CashBackAmt is not NULL, input the amount

or set it as 0.

Return

EMV_OK

Input succeeds.

EMV_USER_CANCEL Amount input is canceled by user.

EMV_TIME_OUT Amount input timeout.

Instruction

Refer to EMVAppSelect for the purpose of EMV_USER_CANCEL

and EMV_TIME_OUT.

7.3 cEMVGetHolderPwd

Prototype int cEMVGetHolderPwd(int TryFlag, int RemainCnt, char *pin);

Function Wait for cardholder to input PIN.

Parameters TryFlag[input]

0: It’s the first time calling this function

to get the cardholder’s PIN in this

transaction.

1: It’s not the first time calling this

function to get the cardholder’s PIN in

this transaction. (It appears only when

verifying the offline PIN and failing)

2: PIN is not required, calling this

fu

nction to allow the cardholder to

confirm the amount only. RemainCnt is

set as 0 and pin is set as NULL.

PAX EMV Kernel API Programming Guide

PAX Computer Technology (Shenzhen) Co., Ltd. 29

RemainCnt[input]

1. The chance remained to verify the

PIN. If RemainCnt equals 1, it means

only one chance remained to verify

the PIN, and if the follow

ing PIN

verification is still failed, the PIN

will be blocked.

2.

If the parameter pin is NULL, it

means to input online PIN. In this

case, TryFlag and RemainCnt don’t

make sense;

the PIN will be

encrypted and stored by the terminal

application and send to host when

online, and then verified by the host.

Pin[input/output]

1. If PCI verify offline PIN interface is

not used, this parameter is output.

The application should return

plaintext PIN in it with string ended

with ’\x00’.

2.

If PCI verify offline PIN interface is

used, this parameter is input. The

application doesn’t need to return

anything in it. The possible value of

pin[0] in this condition could be:



EMV_PED_WAIT: PIN input

interval not enough.



EMV_PED_TIMEOUT: PIN

input timeout.



EMV_PED_FAIL: PED locked

or other failure.

Return

EMV_OK

Succeed.

EMV_NO_PINPAD

There is no pinpad or pinpad does not

work.

EMV_NO_PASSWORD

No PIN or cardholder doesn’t want to

input PIN.

EMV_USER_CANCEL

PIN input is canceled by user.

EMV_TIME_OUT

PIN input timeout.

Instruction

1. The application can flexibly arrange PIN input interface which

fulfill user’s requirement. The mode of PIN input can be freely

controlled by the application, at

the same time it must be

compatible with the EMV security specification.

2. Refer to EMVProcTrans

for the purpose of

EMV_USER_CANCEL and EMV_TIME_OUT.

3. From version V25_T4, if this function is used for PCI compliant

products such as S80/S90/SP30, interface

EMVSetPCIModeParam should be used to set the kernel using

PCI verify offline PIN interface or not.

4. In monitor platform, if setting kernel to use PCI verifies offline

PIN interface. In prolin platform, the operation of offline PIN is

completed by callback function cEMVPedVerifyCipherPin.

This function does not need to implement the operation of PIN

PAX EMV Kernel API Programming Guide

PAX Computer Technology (Shenzhen) Co., Ltd. 30

input, but still need to display the prompt information to

cardholder such as transaction amount and “Please input PIN”.

5. If setting the kernel to use PCI verify offline PIN interface, when

input PIN fail, the 1st byte of the 3rd parameter *pin is used to

carry the failure information. The possible values of pin[0]

include EMV_PED_WAIT, EMV_PED_TIMEOUT and

EMV_PED_FAIL.

7.4 cEMVReferProc

Prototype int cEMVReferProc(void);

Function Process referral activated by the issuer.

Parameters

None

Return

REFER_APPROVE

Referral approved.

REFER_DENIAL

Referral denied.

Instruction

1. For the referral activated by the issuer, the function only returns

REFER_DENIAL or REFER_APPROVE.

2. If the acquirer doesn’t support referral processing, the application

can directly return REFER_DENIAL according to the acquirer’s

requirement.

3. The function is Not Used for the Prolin software platform.

7.5 cEMVOnlineProc

Prototype

int cEMVOnlineProc(unsigned char *RspCode, unsigned char

*AuthCode, int *AuthCodeLen, unsigned char *IAuthData, int

*IAuthDataLen, unsigned char *script, int *ScriptLen);

Function Online transaction.

Parameters

RspCode[output]

Authorization response code, 2 bytes. Set

RspCode[0] as 0 in case of online failed.

AuthCode[output] Authorization code，6 bytes.

AuthCodeLen[output]

The length of the AuthCode. Set it as 0

when there is no AuthCode.

IAuthData[output]

Issuer authentication data returned from

host.

IAuthDataLen[output]

The length of the IAuthData. Set it as 0

when there is no IAuthData.

Script[output]

Issuer script. If the scripts are not sent in

one 8583 field, then put all the scripts

together and return by this parameter.

ScriptLen[output]

The length of the script. Set it as 0 when

there is no script.

Return ONLINE_APPROVE

Online transaction approved (host

approve the transaction).

PAX EMV Kernel API Programming Guide

PAX Computer Technology (Shenzhen) Co., Ltd. 31

ONLINE_DENIAL

Online transaction denied (host denied

the transaction).

ONLINE_REFER

Online transaction referral (Issuer

referral).

ONLINE_FAILED

Online transaction failed.

ONLINE_ABORT

Online transaction aborted (PBOC

requirement).

Instruction

1. This function processes as below:

Firstly, it gets the IC card transaction data required

by online

processing and assembles data package;

Secondly, it connects the host to perform data communication.

At last, it returns the data received from host to the EMV library

through the parameter.

If online failed, for example, connection failed or re

ceiving data

failed, it must return ONLINE_FAILED.

The application need to handle automatic reversal by itself.

2. The function is Not Used for the Prolin software platform.

7.6 cEMVAdviceProc

Prototype void cEMVAdviceProc(void);

Function Online or offline advice processing.

Parameters

None

Return

None

Instruction

1. Whether supporting advice processing or not is determined by

the acquirer (or issuer). Directly return if it does not support.

2.

Whether to send the data package to the host immediately or

store it for later sending online is determined by the acquirer (or

issuer).

3. The application can get the data in the advice data package which

may be useful through the function EMVGetTLVData.

7.7 cEMVVerifyPINOK

Prototype void cEMVVerifyPINOK(void);

Function Prompt for “PIN OK”.

Parameters

None

Return

None

Instruction

1. When EMV library verify PIN failed, it will call the function

cEMVGetHolderPwd to prompt for error massage.

2.

When EMV library verifies PIN and passes, it will call this

function. The

terminal application may prompt for ‘PIN OK’ in this

function. If this is not necessary, the function can directly return.

PAX EMV Kernel API Programming Guide

PAX Computer Technology (Shenzhen) Co., Ltd. 32

7.8 cEMVUnknowTLVData

Prototype int cEMVUnknowTLVData(unsigned short Tag, unsigned char

*dat, int len);

Function Get the data of the unknown tag.

Parameters

Tag[input]

Tag. It may be not defined by EMV or

defined by EMV but can’t be found in the

IC card.

Dat[output]

The value of the tag, filled by the

application.

Len[output] The length of the tag according to the

DOL requirement.

Return

-1

The application offers nothing for the tag.

0

The application offers the value of the

tag.

Instruction

1.For the Prolin software platform, the kernel will obtain the

following Tags’ value by this function:

Unpredictable Number (9F37)

Transaction Date (9A).

Transaction Time (9F21)

(IFD) Serial Number (9F1E)

Last transaction amount of current PAN & PANSN (FF01)

2. If EMV library doesn’t recognize a tag when processing DOL, it

will call this callback function and require application to return the

value of the tag. If the application cannot provide, it can directly

return -1.This function is also

provided to satisfy the special

application which is out of scope of EMV requirement. It returns -1

normally.

7.9 cCertVerify

Prototype int cCertVerify(void);

Function Cardholder credential verify(PBOC)

Parameters None

Return -1 Verify failed.

PAX EMV Kernel API Programming Guide

PAX Computer Technology (Shenzhen) Co., Ltd. 33

0 Verify succeeded.

Instruction

PBOC adds the CVM, which is for cardholder credential verify.

During the transaction, when the EMV kernel finds that the current

used PBOC card need to do the cardholder verify, it will call this

function. The application should call the function EMVGetTLVData

to read the credential number and credential type, and provide the

relevant information to the operator.

This function is only used for PBOC.

7.10 cEmvSetParam

Prototype int cEmvSetParam(void);

Function Set parameter after application selection.

Parameters

None

Return

EMV_OK

Succeed.

Others

Abort/Terminate current transaction.

Instruction

1. This function is used to set some AID specific parameter after

performing application selection and before GPO. Application

can call EMVSetTLVData

in this function to set these

parameters.

2. When the return value of this function is not EMV_OK, kernel

will abort the current transaction.

3. If the terminal support SM, application shall set DF69 with value

1, length 1 in this function.

7.11 cEMVPiccIsoCommand

Prototype unsigned char cEMVPiccIsoCommand (unsigned char cid,APDU_SEND

*ApduSend,APDU_RESP *ApduRecv);

Function Data exchange between the contactless reader and the contactless

card.

Parameters

cid[input]

Specify the logical channel of card. The

logical channel is output by the CID

parameter of PiccDetect(). The channel

number range from 0 to 14, and the current

values are 0.

ApduSend [input]

The command data structure send to

PICC.(Refer to appendix for the data

structure of APDU_SEND )

PAX EMV Kernel API Programming Guide

PAX Computer Technology (Shenzhen) Co., Ltd. 34

ApduRecv [output]

The data structure received by PICC.( Refer

to appendix for the data structure of

APDU_RESP)

Return

Please refer to Products Application Developer Guide of PAX for

the PICC operation. The kernel only cares about the PICC operation

succeed or not. If succeed, return 0x00, others return 0x01.

Instruction

1. This function is only used for contactless PBOC. If the kernel is

only used for the contact application, you can set this callback

function to an empty function.

2. Parameters cid and pucSelData are controlled by application. The

kernel only uses the output parameter and return value.

7.12 cEMVIccIsoCommand

Prototype

uchar cEMVIccIsoCommand(uchar slot,

APDU_SEND *ApduSend,

APDU_RESP *ApduRecv);

Function IC card operating function.

Parameters

Slot [Input]

Specify the logical channel of card. The

logical channel is output by IccDetect and

its current values are 0.

ApduSend [Input]

The command data structure send to

ICC.(Refer to appendix for the data

structure of APDU_SEND )

ApduRecv [Output]

The data structure received by ICC.( Refer

to appendix for the data structure of

APDU_RESP)

Return

Please refer to products Application Developer Guide of PAX for the

ICC operation. The kernel only cares about the ICC operation

succeed or not. If succeed, return 0x00, others return 0x01.

Instruction

1. Interactive with IC card to get the relevant information of

command.

2. The function is only used for the Prolin software platform.

3. Parameters slot and ApduSend are controlled by application. The

kernel only uses the output parameter and return value.

PAX EMV Kernel API Programming Guide

PAX Computer Technology (Shenzhen) Co., Ltd. 35

7.13 cEMVPedVerifyPlainPin

Prototype

int cEMVPedVerifyPlainPin (uchar IccSlot,

uchar *ExpPinLenIn,

uchar *IccRespOut,

uchar Mode,

ulong TimeoutMs);

Function Get offline plaintext PIN and verify offline plaintext PIN.

Parameters

IccSlot [Input] IC card slot.

ExpPinLenIn [Input] The input string which has the valid length.

IccRespOut [Output] The status code of IC card response.

Mode [Input] IC card command mode.

TimeoutMs [Input] The timeout for enter PIN.

Return

Application need to transform the return value to the following six

return values, which can refer to products Application Developer

Guide of PAX:

PED_RET_ERR_NO_PIN_INPUT

PED_RET_ERR_INPUT_CANCEL

PED_RET_ERR_ICC_NO_INIT

PED_RET_ERR_NO_ICC

PED_RET_ERR_WAIT_INTERVAL

PED_RET_OK

Other return values can return without any transform.

Instruction

1. The function is only used for the Prolin software platform.

2. Parameters ExpPinLenIn and TimeoutMs are controlled by the

application, other parameters are input by EMV kernel.

3. If there is an external PINPAD, the application should construct

the PIN block and do PIN verify in this callback function.

Please refer to section 6.5.12 of EMV book 3

for PIN block

construction and verification.

PAX EMV Kernel API Programming Guide

PAX Computer Technology (Shenzhen) Co., Ltd. 36

7.14 cEMVPedVerifyCipherPin

Prototype

int cEMVPedVerifyCipherPin (uchar IccSlot,

uchar *ExpPinLenIn,

RSA_PINKEY *RsaPinKeyIn,

uchar *IccRespOut,

uchar Mode,

ulong TimeoutMs);

Function Get offline enciphered PIN and verify offline enciphered PIN.

Parameters

IccSlot [Input] IC card slot.

ExpPinLenIn [Input] The input string which has the valid length.

RsaPinKeyIn [Input]

The data structure required by

encryption.(Refer to the appendix for the

data structure RSA_PINKEY)

Mode [Input] IC card command mode.

IccRespOut [Output] The status code of IC card response.

TimeoutMs [Input] The timeout for enter PIN.

Return

Application need to transform the return value to following six return

values, which can refer to products Application Developer Guide of

PAX:

PED_RET_ERR_NO_PIN_INPUT

PED_RET_ERR_INPUT_CANCEL

PED_RET_ERR_ICC_NO_INIT

PED_RET_ERR_NO_ICC

PED_RET_ERR_WAIT_INTERVAL

PED_RET_OK

Other return values can return without any transform.

Instruction

1. The function is only used for the Prolin software platform.

2. Parameters ExpPinLenIn and TimeoutMs

are controlled by the

application, other parameters are input by EMV kernel.

3. If there is an external PINPAD, the application should cons

truct

the PIN block, PIN encrypts and verification

in this callback

functions.

Please refer to

section 6.5.12 of EMV book 3 for PIN block

construction and verification.

PAX EMV Kernel API Programming Guide

PAX Computer Technology (Shenzhen) Co., Ltd. 37

Please refer to section 7.2 of EMV book 2 for PIN encrypt.

7.15 cEMVSM2Verify

Prototype

unsigned char cEMVSM2Verify(unsigned char *paucPubkeyIn,unsigned

char *paucMsgIn,int nMsglenIn, unsigned char *paucSignIn, int

nSignlenIn);

Function SM2 verification.

Parameters

paucPubkeyIn [input] Pointer to the public key.

paucMsgIn [input] Pointer to the message buffer.

nMsglenIn [input] Length of the message.

paucSignIn [input] Pointer to the signature of the message.

nSignlenIn [input] Length of the signature of the message.

Return

EMV_OK Success

Other Fail

Instruction

Example:

#define ENTLA "\x00\x80"

#define IDA

"\x31\x32\x33\x34\x35\x36\x37\x38\x31\x32\x33\x34\x35\x36\x

37\x38"

unsigned char cEMVSM2Verify(unsigned char

*paucPubkeyIn,unsigned char *paucMsgIn,int nMsglenIn, unsigned

char *paucSignIn, int nSignlenIn)

{

Gen_Za(ENTLA, 2, IDA, 16, aucPubKey);

return SM2_Verify(aucPubKey, aucInputData, nInputLen,

aucSigData, nSigLen);

}

7.16 cEMVSM3

Prototype unsigned char cEMVSM3(unsigned char * paucMsgIn, int

nMsglenIn,unsigned char * paucResultOut);

Function SM3 hash calculation.

Parameters paucMsgIn [Input] Pointer to message buffer.

PAX EMV Kernel API Programming Guide

PAX Computer Technology (Shenzhen) Co., Ltd. 38

paucMsgIn [Input] Pointer to length of message.

paucResultOut

[Output]

Pointer to output hash result buffer.

Return EMV_OK Success

Instruction

Example:

unsigned char cEMVSM3(unsigned char * paucMsgIn, int

nMsglenIn,unsigned char * paucResultOut)

{

sm3(input,ilen,output);

return EMV_OK;

}

PAX EMV Kernel API Programming Guide

PAX Computer Technology (Shenzhen) Co., Ltd. 39

8 Debug Interface

8.1 EMVSetDebug

Prototype void EMVSetDebug(int EnableFlag);

Function Enable/Disable debug state.

Parameters EnableFlag[input] 1 － Enable debug state.

0 － Disable debug state.

Return

None

Instruction

1. After enabling debug state, kernel will send all the commands and

data which it sent to and received from the IC card through COM1

with the baud rate of 115200, 8, n, 1. Then developer can receive

them and analyze by hyper terminal or other tools.

The default debug state of kernel is 0 (Disabled).

2. The function is Not Used for the Prolin software platform.

8.2 EMVGetICCStatus

Prototype void EMVGetICCStatus(unsigned char *SWA, unsigned char

*SWB);

Function Read the response status word of the last ICC command of a failed

transaction.

Parameters

SWA[output]

SWA.

SWB[output]

SWB.

Return

None

Instruction

The function is Not Used for the Prolin software platform.

PAX EMV Kernel API Programming Guide

PAX Computer Technology (Shenzhen) Co., Ltd. 40

8.3 EMVGetVerifyICCStatus

Prototype int EMVGetVerifyICCStatus(unsigned char *pucSWA, unsigned

char *pucSWB);

Function Read the response status word of the PIN Verify command.

Parameters

pucSWA[output]

Pointer to SWA.

pucSWB[output]

Pointer to SWB.

Return

EMV_OK Successful.

EMV_NO_DATA

There is no PIN verify command in this

transaction.

EMV_PARAM_ERR The parameter is error.

Instruction

None

8.4 EMVGetDebugInfo

Prototype int EMVGetDebugInfo(int nExpAssistInfoLen, uchar

*paucAssistInfo, int *pnErrorCode)

Function Get the debug information.

Parameters

nExpAssistInfoLen

[input]

RFU

paucAssistInfo[output]

RFU

pnErrorCode[output]

The error code.

Return

EMV_OK

Successful.

EMV_PARAM_ERR

The parameters are error.

Instruction

1. This function is only used to get the debug information when a

transaction is failed.

2. So far, it only can be used to get the error code of offline data

authorization.

Val ue Retrieval of Issuer Public Key Error Suggestion

1 Authority Public Key Index is not present. Check the card data

2 Issuer Public Key Certificate is not present. Check the card data

3 Issuer Public key Exponent is not present. Check the card data

4 The CAPK indicated by Authority Public Key

Index is not present in kernel.

Check if the CAPK indicated

by Authority Public Key Index

has been added in kernel by

PAX EMV Kernel API Programming Guide

PAX Computer Technology (Shenzhen) Co., Ltd. 41

EMVAddCAPK.

5

Issuer Public Key Certificate has a length

different from the length of the Certification

Authority Public Key Modulus

Check CAPK data and the card

data

6

Recovered Data Header is not equal to '6A',

Check the card data

7

Certificate Format is not equal to '02'

Check the card data

8

Recovered Data Trailer is not equal to 'BC'

Check the card data

9 The Length of Issuer Public Key recovered is not

equal to actual length

Check the card data

10 The hash result calculated is not equal to the hash

result recovered.

Check CAPK data and the card

data

11

Issuer Identifier does not match the leftmost 3-8

PAN digits

Check the card data

12

The issuer public key certificate has expired

Check the card data

13 Hash Algorithm Indicator or Issuer Public Key

Algorithm Indicator is not recognized

Check the card data

14

The CAPK is in the revocation list

Check the revocation list

Retrieval of ICC Public Key Error

21 ICC Public Key Certificate is not present. Check the card data

22 ICC Public Key Exponent is not present. Check the card data

23 ICC Public Key Certificate has a length different

from the length of the Issuer Public Key Modulus

obtained in the previous section.

Check the card data

24 Recovered Data Header is not equal to '6A', Check the card data

25 Certificate Format is not equal to '04' Check the card data

26 Recovered Data Trailer is not equal to 'BC' Check the card data

27 The Length of ICC Public Key recovered is not

equal to actual length

Check the card data

PAX EMV Kernel API Programming Guide

PAX Computer Technology (Shenzhen) Co., Ltd. 42

28 Static Data Authentication Tag List is present and

contains tags other than '82'

Check the card data

29 The hash result calculated is not equal to the hash

result recovered.

Check the card data

30 Recovered PAN is not the same as the Application

PAN read from the ICC.

Check the card data

31 The ICC public key certificate has expired Check the card data

32 ICC Public Key Algorithm Indicator is not

recognized

Check the card data

SDA Verification Error

41 Signed Static Application Data is not present. Check the card data

42 Signed Static Application Data has a length

different from the length of the Issuer Public Key

Modulus

Check the card data

43 Recovered Data Header is not equal to '6A'. Check the card data

44 Signed Data Format is not equal to '03' Check the card data

45 Recovered Data Trailer is not equal to 'BC' Check the card data

46

The Static Data Authentication Tag List is present

and contains tags other than '82'. Check the card data

47 The hash result calculated is not equal to the hash

result recovered. EMV Book 2, 5.4 steps 7.

Check the card data

CDA Verification Error

61 Signed Dynamic Application Data is not present. Check the card data

62 Signed Dynamic Application Data has a length

different from the length of the ICC Public Key

Modulus

Check the card data

63 Recovered Data Header is not equal to '6A'. Check the card data

PAX EMV Kernel API Programming Guide

PAX Computer Technology (Shenzhen) Co., Ltd. 43

64 Signed Data Format is not equal to '05' Check the card data

65 Recovered Data Trailer is not equal to 'BC' Check the card data

66 Cryptogram Information Data retrieved from the

ICC Dynamic Data is not the same as the

Cryptogram Information Data obtained from the

response to the GENERATE AC command.

Check the card data

67 The hash result calculated is not equal to the hash

result recovered. EMV Book 2, 6.6.2 step 9.

Check the card data

68 The hash result calculated is not equal to the hash

result recovered. EMV Book 2, 6.6.2 step 12.

Check the card data

DDA Verification Error

81 The DDOL in the ICC does not include the

Unpredictable Number.

Check the card data

82

The ICC does not contain a DDOL and the

terminal does not contain a default DDOL. The application shall set a

default DDOL into kernel.

83

The ICC does not contain a DDOL and the default

DDOL in the terminal does not include the

Unpredictable Number.

Check the default DDOL of

terminal.

84

DDOL related data filling error.

Check the data required in

DDOL

85

INTERNAL AUTHENTICATE command send or

receive error Check the return code of

callback function to send the

command.

86 The TLV format of response data of INTERNAL

AUTHENTICATE is error.

Check the response data of the

command.

87 The response data of INTERNAL

AUTHENTICATE is not ‘80’ or ‘77’

Check the card data

88 There is no data in template ‘80’. Check the card data

89 The length of ‘80’ is error. Check the card data

PAX EMV Kernel API Programming Guide

PAX Computer Technology (Shenzhen) Co., Ltd. 44

90 There is no Signed Dynamic Application Data in

the response data of INTERNAL

AUTHENTICATE

Check the card data

91

The Signed Dynamic Application Data has a

length different from the length of the ICC Public

Key Modulus

Check the card data

92 Recovered Data Header is not equal to '6A'. Check the card data

93 Signed Data Format is not equal to '05' Check the card data

94 Recovered Data Trailer is not equal to 'BC' Check the card data

95 The hash result calculated is not equal to the hash

result recovered. EMV Book 2, 6.5.2 step 7.

Check the card data

96

ICC Dynamic Data Length recovered is bigger

than 8 Check the card data

PAX EMV Kernel API Programming Guide

PAX Computer Technology (Shenzhen) Co., Ltd. 45

9 Appendix

A Return codes of the kernel and other macro definitions

（1） Return codes of the kernel

Return code Value Remark

EMV_OK

0

Operation succeeds.

ICC_RESET_ERR

-1

IC card reset failed.

ICC_CMD_ERR

-2

IC card command failed.

ICC_BLOCK

-3

IC card has been blocked.

EMV_RSP_ERR

-4

IC card response code error.

EMV_APP_BLOCK

-5

The EMV application has been

blocked.

EMV_NO_APP

-6

There is no EMV application

supported by terminal.

EMV_USER_CANCEL

-7

Transaction is canceled by user.

EMV_TIME_OUT

-8

User operation timeout.

EMV_DATA_ERR

-9

IC card data format error.

EMV_NOT_ACCEPT

-10

Transaction does not accept.

EMV_DENIAL

-11

Transaction denied.

EMV_KEY_EXP

-12

Key expired.

EMV_NO_PINPAD

-13

There is no pinpad or pinpad

does not work.

EMV_NO_PASSWORD

-14

No PIN or user doesn’t want to

input PIN.

EMV_SUM_ERR

-15

Check sum error of key.

EMV_NOT_FOUND

-16

The data element does not exist.

EMV_NO_DATA

-17

No value for the data element.

PAX EMV Kernel API Programming Guide

PAX Computer Technology (Shenzhen) Co., Ltd. 46

EMV_OVERFLOW

-18

Memory overflow.

NO_TRANS_LOG

-19

No transaction log.

RECORD_NOTEXIST

-20

Specified log record does not

exist.

LOGITEM_NOTEXIST

-21

Specified item does not exist in

the log.

ICC_RSP_6985

-22

ICC response with 6985 when

GAC or GPO.

EMV_FILE_ERR

-24

File error

EMV_PARAM_ERR

-30

Parameter error.

（2） Return codes or parameter of callback functions

Return code Value Remark

REFER_APPROVE

0x01

Referral transaction approval.

REFER_DENIAL

0x02

Referral transaction denial.

ONLINE_APPROV

E

0x00

Online transaction approval.

ONLINE_FAILED

0x01

Online transaction failed.

ONLINE_REFER

0x02

Online transaction referral.

ONLINE_DENIAL

0x03

Online transaction denial.

ONLINE_ABORT

0x04

Online transaction abort.

（3） Other macro definitions

Return code Value Remark

MAX_APP_NUM

100

Maximum number of application list.

MAX_KEY_NUM

64

Maximum number of public key

stored in CA public key list of kernel

for None Prolin platform.

7

Maximum number of public key

stored in CA public key list of kernel

for Prolin platform.

MAX_REVOCLIST_NUM

30

Maximum number of revoked Issuer

public key certification stored in

kernel.

PART_MATCH

0x00

Application selection matching flag

(partial matching).

FULL_MATCH

0x01

Application selection matching flag

(full matching).

EMV_CASH

0x01

Transaction type (cash).

EMV_GOODS

0x02

Transaction type (goods).

EMV_SERVICE

0x04

Transaction type (service).

EMV_CASHBACK

0x08

Transaction type (cashback)

EMV_PED_TIMEOUT

0x01

PCI verify offline PIN, PIN input

PAX EMV Kernel API Programming Guide

PAX Computer Technology (Shenzhen) Co., Ltd. 47

timeout.

Corresponding PED return code:

PED_RET_ERR_INPUT_TIMEOUT

EMV_PED_WAIT

0x02

PCI verify offline PIN, PIN input

interval not enough.

Corresponding PED return code:

PED_RET_ERR_WAIT_INTERVAL

EMV_PED_FAIL

0x03

PCI verify offline PIN, other failure

Corresponding PED return code:

Other error codes

ATTR_N

0x04

n: numeric

ATTR_B

0x08

b: binary

ATTR_CN

0x10

cn: compressed numeric

ATTR_AN

0x20

an: alphabet and numeric

ATTR_ANS

0x40

ans: alphabet, numeric and special

character

AC_AAC

0x00

The AC type is AAC

AC_TC

0x01

The AC type is TC

AC_ARQC

0x02

The AC type is ARQC

AC_AAC_HOST

0x03

The AC type is AAC since the online

result is ONLINE_DENIAL, (only for

VISA online)

All the function prototype and macros are defined in emvlib.h. So,

if the application includes the emvlib.h, it can call all the functions

and macros in the kernel.

B EMV_PARAM

EMV_PARAM

typedef struct{

unsigned char MerchName[256];

unsigned char MerchCateCode[2];

unsigned char MerchId[15];

unsigned char TermId[8];

unsigned char TerminalType;

unsigned char Capability[3];

unsigned char ExCapability[5];

unsigned char TransCurrExp;

unsigned char ReferCurrExp;

unsigned char ReferCurrCode[2];

unsigned char CountryCode[2];

PAX EMV Kernel API Programming Guide

PAX Computer Technology (Shenzhen) Co., Ltd. 48

unsigned char TransCurrCode[2];

unsigned long ReferCurrCon;

unsigned char TransType;

unsigned char ForceOnline;

unsigned char GetDataPIN;

unsigned char SurportPSESel;

}EMV_PARAM

；

Name Description

MerchName[256] merchant name

(usually no need to set)

MerchCateCode[2] merchant catalog code

(usually no need to set)

MerchInd[15] merchant identification

(should be set)

TermInd[8] terminal identification

(should to be set)

TerminalType terminal type

Capability[3] terminal capability

ExCapability[5] terminal extended capability

CountryCode[2] terminal country code (default : “\x08\x40”)

USA : “\x08\x40” China : “\x01\x56”

Korea : “\x04\x10” Singapore : “\x07\x02”

TransCurrCode[2] transaction currency code (default : “\x08\x40”)

USA: “\x08\x40” China: “\x01\x56”

Korea: “\x04\x10” Singapore: “\x07\x02”

TransCurrExp transaction currency exponent (default : 0x02)

For example : RMB, USD, HKD: 0x02

Korean WON: 0x00

ReferCurrCode[2] reference currency code (default: “\x08\x40”)

ReferCurrExp reference currency exponent (default: “0x02”)

ReferCurrCon the conversion quotients between transaction currency and

reference currency (default : 1000)

(the exchange rate of transaction currency to reference currency

*1000)

TransType set current transaction type

EMV_CASH or EMV_GOODS or EMV_SERVICE or

EMV_GOODS& EMV_CASHBACK or EMV_SERVICE&

EMV_CASHBACK

(refer to appendix A for macro definitions)

ForceOnline merchant force online (1 means always online transaction)

PAX EMV Kernel API Programming Guide

PAX Computer Technology (Shenzhen) Co., Ltd. 49

GetDataPIN read the IC card PIN retry counter before verify the PIN or not (1 :

read, 0 : not read, default : 1)

SurportPSESel support PSE selection mode or not

(1 : support, 0 : not support, default : 1)

After kernel initialized, the parameters above had been set by

default value. The

application can call the function

EMVGetParameter(EMV

_PARAM *tParam) to get the default

value of the kernel, and modify some of them which need to or

must be modified, and then store them in the kernel by calling

EMVSetParameter(EMV_PARAM *tParam). The kernel will store

the modified parameters in the file system, so they are still valid

when the terminal power-on next time.

C EMV_CAPK

EMV_CAPK

typedef struct{

unsigned char RID[5];

unsigned char KeyID;

unsigned char HashInd;

unsigned char ArithInd;

unsigned char ModulLen;

unsigned char Modul[248];

unsigned char ExpLen;

unsigned char Exp[3];

unsigned char ExpDate[3];

unsigned char CheckSum[20];

}EMV_CAPK

；

Name Description

RID[5] Registered Application Provider Identifier

KeyID key index

HashInd HASH arithmetic index

ArithInd RSA arithmetic index

ModulLen module length

Modul[248] module

PAX EMV Kernel API Programming Guide

PAX Computer Technology (Shenzhen) Co., Ltd. 50

ExpLen exponent length (1 or 3)

Exp[3] exponent ("\x03" or "\x01\x00\x01")

ExpDate[3] the expire date of the key (format : YYMMDD)

CheckSum[20] key check sum

D EMV_APPLIST

EMV_APPLIST

typedef struct{

unsigned char AppName[33];

unsigned char AID[17];

unsigned char AidLen;

unsigned char SelFlag;

unsigned char Priority;

unsigned char TargetPer;

unsigned char MaxTargetPer;

unsigned char FloorLimitCheck;

unsigned char RandTransSel;

unsigned char VelocityCheck;

unsigned long FloorLimit;

unsigned long Threshold;

unsigned char TACDenial[6];

unsigned char TACOnline[6];

unsigned char TACDefault[6];

unsigned char AcquierId[6];

unsigned char dDOL[256];

unsigned char tDOL[256];

unsigned char Version[3];

unsigned char RiskManData[10];

}EMV_APPLIST

；

Name Description

AppName[33] Local application name. The string ends with '\x00' and is 32

bytes in maximum.

Terminal can prompt for the application label or application

preferred name of the IC card EMV application to let the

cardholder to choose. But the language of the application

label or application preferred name may be English and not

convenient for the operator. In order to display the application

name in local language, the kernel offers the setting of

AppName.

PAX EMV Kernel API Programming Guide

PAX Computer Technology (Shenzhen) Co., Ltd. 51

If AppName[0]=0, terminal will prompt for the application label

or application prferred name.

If AppName is set with a application name, for example, “

银联

EMV

卡

”

，

the application name on the terminal will be

prompted as “

银联

EMV

卡

”.

AID[17]

Application ID, 16 bytes in maximum. (AID is corresponding to

the AppName. The kernel searchs application according to

the AID.)

AidLen the length of AID

SelFlag Application selection flag (partial matching PART_MATCH or

full matching FULL_MATCH)

(Refer to the macro definition in appendix A.)

Priority priority indicator

(It’s returned by ICC, so nothing needs to be done by

application.)

TargetPer Target percent (0 – 99) (provided by acquirer)

(Refer to the risk management in EMV specification.)

MaxTargetPer Max target percent(0 – 99) (provided by acquirer)

(Refer to the risk management in EMV specification.)

FloorLimitCheck For the online only terminal , check the floor limit or not (1:

check, 0 : not check

，

default:1)

RandTransSel For the online only or offline only terminal , perform random

transaction selection or not (1: perform, 0 : not perform,

default : 1)

VelocityCheck For the online only terminal , perform velocity check or not (1 :

perform, 0 not perform, default : 1)

FloorLimit Floor limit (provided by acquirer)

(Refer to the risk management in EMV specification.)

Threshold Threshold (provided by acquirer)

(Refer to the risk management in EMV specification)

Notes: If TargetPer=99 and Threshold=0xffffffff, all the

transaction will be done online.

ActDenial[6] Terminal action code - denial

(default : "\x00\x10\x00\x00\x00" (Visa140))

(It must be set if acquirer provides it.)

ActOnline[6] Terminal action code – online

(default : "\xD8\x40\x04\xF8\x00" (Visa140))

(It must be set if acquirer provides it.)

ActDefault[6] Terminal action code – default

(default : "\xD8\x40\x00\xA8\x00" (Visa140))

(It must be set if acquirer provides it.)

AcquierId[6] Acquirer identifier ( length between 6 to 11, compressed BCD

format, pending ‘F’ on the right)

(It must be set if acquirer provides it, otherwise set 0x0.)

dDOL[256] terminal default DDOL

PAX EMV Kernel API Programming Guide

PAX Computer Technology (Shenzhen) Co., Ltd. 52

dDOL[0] is the length of DDOL, the others are the value of

DDOL.

(default : "\x03\x9F\x37\x04" (Visa140))

(It must be set if acquirer provides it.)

tDOL[256] terminal default TDOL

tDOL[0] is the length of TDOL, the others are the value of

TDOL.

(default : "\x0F\x9F\x02\x06\x5F\x2A\x02\x9A\x03\x9C

\x01\x95\x05\x9F\x37\x04" (Visa140))

(It must be set if acquirer provides it.)

Version[3] application version

(It’s returned by ICC, so nothing needs to be done by

application)

RiskManData[10] Risk management data

RiskManData[0] is the length of Risk management data, the

others are the value of Risk management data.

(RiskManData[0] default : 0)

(It needn’t be set unless issuer requires.)

E EMV_REVOCLIST

EMV_REVOCLIST

typedef struct

{

unsigned char ucRid[5];

unsigned char ucIndex;

unsigned char ucCertSn[3];

}EMV_REVOCLIST;

NAME DESCRIPTION

ucRid[5] Registered Application.

ucIndex Certification Authenticate Public Key Index.

ucCertSn Issuer Certificate Serial Number.

F ELEMENT_ATTR

ELEMENT_ATTR

PAX EMV Kernel API Programming Guide

PAX Computer Technology (Shenzhen) Co., Ltd. 53

typedef struct{

int MaxLen;

unsigned short Tag;

unsigned short Attr;

unsigned short usTemplate[2];

unsigned char ucSource;

}ELEMENT_ATTR

；

Name Description

MaxLen The maximum length for this tag.

Tag Tag

Attr The format of this data

#define ATTR_N 0x04 :numeric

#define ATTR_B 0x08 :binary

#define ATTR_CN 0x10 :compressed numeric

#define ATTR_AN 0x20 :alphabet and numric

#define ATTR_ANS 0x40 :alphabet, numeric and

special character

usTemplate The template which this tag belongs, 0 if none

ucSource The source of data element.

#define EMV_SRC_TM 1 /* Terminal */

#define EMV_SRC_ICC 0 /* ICC */

#define EMV_SRC_ISS 2 /* Issuer */

G APPLABEL_LIST

APPLABEL_LIST

PAX EMV Kernel API Programming Guide

PAX Computer Technology (Shenzhen) Co., Ltd. 54

typedef struct{

unsigned char aucAppPreName[17];

unsigned char aucAppLabel[17];

unsigned char aucIssDiscrData[244];

unsigned char aucAID[17];

unsigned char ucAidLen;

}APPLABEL_LIST

；

Name Description

aucAppPreName[17] Application preferred name, ending with "\0"

aucAppLabel[17] Application label, end with "\0"

aucIssDiscrData[244] Data in template "BFOC" or "73", in the format of length+value,

where 1 byte for length and other bytes for value

aucAID[17] AID of ICC

ucAidLen Length of AID of ICC

H EMV_EXTMPARAM

EMV_EXTMPARAM

typedef struct{

unsigned char ucUseTermAIPFlg;

unsigned char aucTermAIP[2];

unsigned char ucBypassAllFlg;

} EMV_EXTMPARAM;

Name Description

ucUseTermAIPFlg 0-TRM is based on AIP of card, 1-TRM is based on

AIP of Terminal, the default value is 0.

aucTermAIP[2] The bit4 of byte1 decide whether force to perform TRM, “08

00 “- Yes; “00 00 “- No. Default value is “00 00”.

ucBypassAllFlg Whether bypass all other pin when one pin has been

bypassed 1-Yes, 0-No

PAX EMV Kernel API Programming Guide

PAX Computer Technology (Shenzhen) Co., Ltd. 55

I EMV_MCKPARAM

EMV_MCKPARAM

typedef struct{

unsigned char ucBypassPin;

unsigned char ucBatchCapture;

void *pvoid;

}EMV_MCKPARAM;

Name Description

ucBypassPin 0- Not supported，1-Supported. Default value is 1

ucBatchCapture 0- ODC, 1-BDC. Default value is BDC

(ODC: Online Data Capture; BDC: Batch Data Capture)

pvoid

J EMV_TMECPARAM

APPLABEL_LIST

typedef struct{

unsigned char ucECTSIFlg;

unsigned char ucECTSIVal;

unsigned char ucECTTLFlg;

unsigned long ulECTTLVal;

}EMV_TMECPARAM;

Name Description

ucECTSIFlg TSI flag is exit or not.

TSI-Electronic cash terminal support indicator.

ucECTSIVal TSI value.

ucECTTLFlg TTL flag is exit or not.

PAX EMV Kernel API Programming Guide

PAX Computer Technology (Shenzhen) Co., Ltd. 56

TTL-Electronic cash terminal transaction limit.

ulECTTLVal TTLvalue

K APPLABEL_LIST

APPLABEL_LIST

typedef struct{

unsigned char aucAppPreName[17];

unsigned char aucAppLabel[17];

unsigned char aucIssDiscrData[244];

unsigned char aucAID[17];

unsigned char ucAidLen;

}APPLABEL_LIST

；

Name Description

aucAppPreName[17] Application preferred name, ending with "\0"

aucAppLabel[17] Application label, end with "\0"

aucIssDiscrData[244] Data in template "BFOC" or "73", in the format of length+value,

where 1 byte for length and other bytes for value

aucAID[17] AID of ICC

ucAidLen Length of AID of ICC

L Clss_TransParam

Clss_TransParam

typedef struct{

unsigned long ulAmntAuth;

unsigned long ulAmntOther;

unsigned long ulTransNo;

unsigned char ucTransType;

unsigned char aucTransDate[4];

unsigned char aucTransTime[4];

PAX EMV Kernel API Programming Guide

PAX Computer Technology (Shenzhen) Co., Ltd. 57

}Clss_TransParam

；

NAME DESCRIPTION

ulAmntAuth Authorize amount(unsigned long), for cash back, the amount

required to include the amount of ulAmntOther.

ulAmntOther Other amount(unsigned long)

ulTransNo Transaction Sequence Counter(4 BYTE)

ucTransType Transaction type'9C', 0-Consumer/Services 1-Cash/Cash back

aucTransDate[4] Transaction Date YYMMDD

aucTransTime[4] Transaction time HHMMSS

M RSA_PINKEY

RSA_PINKEY

typedef struct

{

unsigned int modlen;

unsigned char mod[256];

unsigned char exp[4];

unsigned char iccrandomlen;

unsigned char iccrandom[8];

}RSA_PINKEY;

NAME DESCRIPTION

modlen PIN encryption key modulus.

mod[256] PIN encryption key modulus, high byte first, low byte after,

insufficient bit complement 0.

exp[4] PIN encryption public key index, high byte first, low byte after,

insufficient bit complement 0.

iccrandomlen The random number length obtained from card.

iccrandom[8] The random number obtained from card.

PAX EMV Kernel API Programming Guide

PAX Computer Technology (Shenzhen) Co., Ltd. 58

N APDU_SEND

APDU_SEND

typedef struct

{

uchar Command[4];

ushort Lc;

uchar DataIn[512];

ushort Le;

}APDU_SEND;

NAME DESCRIPTION

Command[4] Command[] = {CLA, INS, P1, P2}.

Lc The length of DataIn.

DataIn[512] The data pointer which is sent to IC card.

Le The expect length receive from IC card. The actual length is related

to the specific command, which can get from the parameter LenOut

in response structure APDU_RESP.

O APDU_RESP

APDU_RESP

typedef struct

{

ushort LenOut;

uchar DataOut[512];

uchar SWA;

uchar SWB;

}APDU_RESP;

NAME DESCRIPTION

LenOut The actual length receives from IC card.

DataOut[512] The pointer receives from IC card.

SWA Status word A.

SWB Status word B.

PAX EMV Kernel API Programming

Guide

PAX EMV Kernel API Programming Guide
